KDF-E42/50A10 2-597-544-12(1)
LCD Projection TV
HD-TV
Operating Instructions
http://www.sony.net/
Printed in U.S.A.
2-597-544-12(1)
KDF-E42A10
KDF-E50A10
© 2005 Sony Corporation
™
™
2597544121cover_r1.indd 12597544121cover_r1.indd 1 5/23/2005 11:02:58 AM5/23/2005 11:02:58 AM
2
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US02Cov2.fm masterpage:3 columns Right
Owner’s Record
The model and serial numbers are located at the rear of the TV. Record
these numbers in the spaces provided below. Refer to them whenever
you call upon your Sony dealer regarding this product.
Model No.
Serial No.
Contacting Sony
If, after reading the following instructions, you have additional
questions related to the use of your Sony® TV, please call one of the
following numbers.
Customers in the continental United States contact the Direct
Response Center at:
1-800-222-SONY (7669)
or visit http://www.sonystyle.com/tv/
Customers in Canada contact the Customer Relations Center at:
1-877-899-SONY (7669)
or visit http://www.sonystyle.ca/tv/
3
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US02WAR.fm masterpage:3 columns Right
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture.
This symbol is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the presence
of important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
The apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
To prevent electric shock, do not use this polarized AC plug with an
extension cord, receptacle or other outlet unless the blades can be fully
inserted to prevent blade exposure.
CAUTION
When using TV games, computers, and similar products with your
projection TV, keep the brightness and contrast functions at low settings. If
a fixed (non-moving) pattern is left on the screen for long periods of time
at a high brightness or contrast setting, the image can be permanently
imprinted onto the screen. Continuously watching the same program can
cause the imprint of station logos onto the TV screen. These types of
imprints are not covered by your warranty because they are the result of
misuse.
Note on Caption Vision
This TV provides display of TV closed captioning in accordance with
§15.119 of the FCC rules.
NOTIFICATION
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
sReorient or relocate the receiving antenna.
sIncrease the separation between the equipment and receiver.
sConnect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
sConsult the dealer or an experienced radio/TV technician for help.
For Customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
Safety
sOperate the TV only on 120 V AC.
sUse the AC power cord specified by Sony and suitable for the
voltage where you use it.
sThe plug is designed, for safety purposes, to fit into the wall outlet
only one way. If you are unable to insert the plug fully into the outlet,
contact your dealer.
sIf any liquid or solid object should fall inside the cabinet, unplug the
TV immediately and have it checked by qualified service personnel
before operating it further.
sIf you will not be using the TV for several days, disconnect the power
by pulling the plug itself. Never pull on the cord.
sFor details concerning safety precautions, see “Important Safety
Instructions” on page 5.
Installing
sThe TV should be installed near an easily accessible power outlet.
sTo prevent internal heat buildup, do not block the ventilation
openings.
sDo not install the TV in a hot or humid place, or in a place subject to
excessive dust or mechanical vibration.
sAvoid operating the TV at temperatures below 41°F (5°C).
sIf the TV is transported directly from a cold to a warm location, or if
the room temperature changes suddenly, the picture may be blurred
or show poor color due to moisture condensation. In this case, please
wait a few hours to let the moisture evaporate before turning on the
TV.
For Customers in the United States
If you have any questions about this product, you may call; Sony
Customer Information Services Center 1-800-222-7669 or
http://www.sony.com/
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
Declaration of Conformity
Trade Name: SONY
Model: KDF-E42A10/KDF-E50A10
Responsible Party: Sony Electronics Inc.
Address: 16450 W. Bernardo Dr.,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
(Continued)
4
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US02WAR.fm masterpage:3 columns Right
sTo obtain the best picture, do not expose the screen to direct
illumination or direct sunlight. It is recommended to use spot
lighting directed down from the ceiling or to cover the windows that
face the screen with opaque drapery. It is desirable to install the TV
in a room where the floor and walls are not of a reflective material.
sSee pages 13 and 14 for more information on the installation.
CAUTION
Use the following Sony appliance(s) only with the following TV STAND.
Use with other TV STAND may cause instability and possibly result in
injury.
SONY APPLIANCE MODEL NO.
KDF-E42A10
KDF-E50A10
SONY TV STAND MODEL NO.
SU-RG11S (KDF-E42A10)
SU-RG11M (KDF-E50A10)
To Customers
Sufficient expertise is required for installing the specified product. Be sure
to subcontract the installation to Sony dealers or licensed contractors and
pay adequate attention to safety during the installation.
For Customers in the United States
This product contains mercury. Disposal of this product may be regulated
if sold in the United States. For disposal or recycling information, please
contact your local authorities or the Electronics Industries Alliance
(http://www.eiae.org).
Note
This digital television is capable of receiving analog basic, digital basic
and digital premium cable television programming by direct connection to
a cable system providing such programming. A security card provided by
your cable operator is required to view encrypted digital programming.
Certain advanced and interactive digital cable services such as
video-on-demand, a cable operator’s enhanced program guide and
data-enhanced television services may require the use of a set-top box. For
more information call your local cable operator.
This television also includes a QAM demodulator which should allow you
to receive unscrambled digital cable television programming via
subscription service to a cable service provider. Availability of digital
cable television programming in your area depends on the type of
programming and signal provided by your cable service provider.
Trademark Information
CableCARD™ is a trademark of Cable Television Laboratories, Inc.
TruSurround XT, SRS and the symbol are trademarks of SRS Labs,
Inc. TruSurround XT technology is incorporated under license from SRS
Labs, Inc.
Licensed by BBE Sound, Inc. under USP4638258, 4482866. “BBE” and
BBE symbol are trademarks of BBE Sound, Inc.
Macintosh is a trademark licensed to Apple Computer, Inc., registered in
the U.S.A and other countries.
WEGA, Grand WEGA, WEGA GATE, Steady Sound, Digital Reality
Creation and CineMotion are registered trademarks of Sony Corporation.
“PlayStation” is a trademark of Sony Computer Entertainment, Inc.
This TV is manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
This TV incorporates High-Definition
Multimedia Interface (HDMI™) technology.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
5
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US02WAR.fm masterpage:3 columns Right

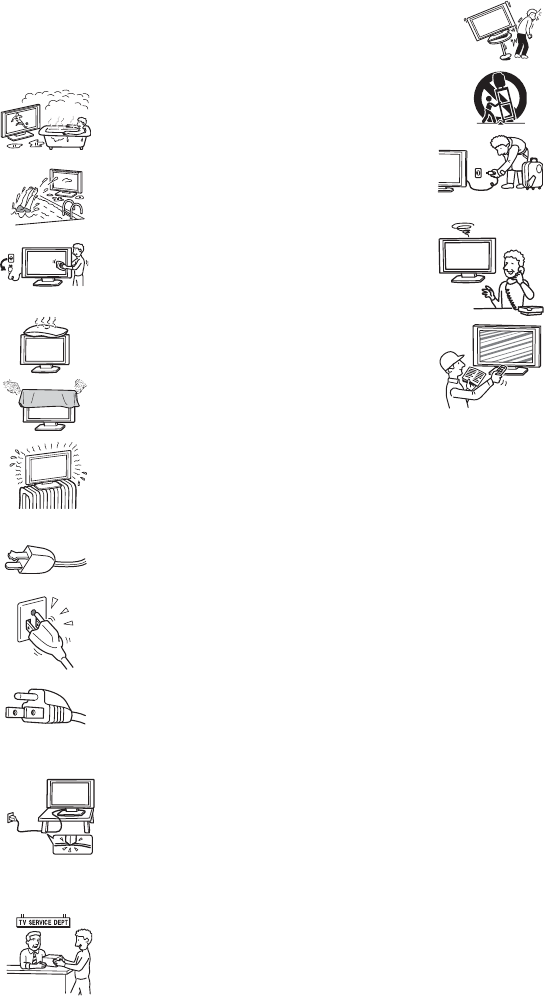

Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s
instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by
the manufacturer.

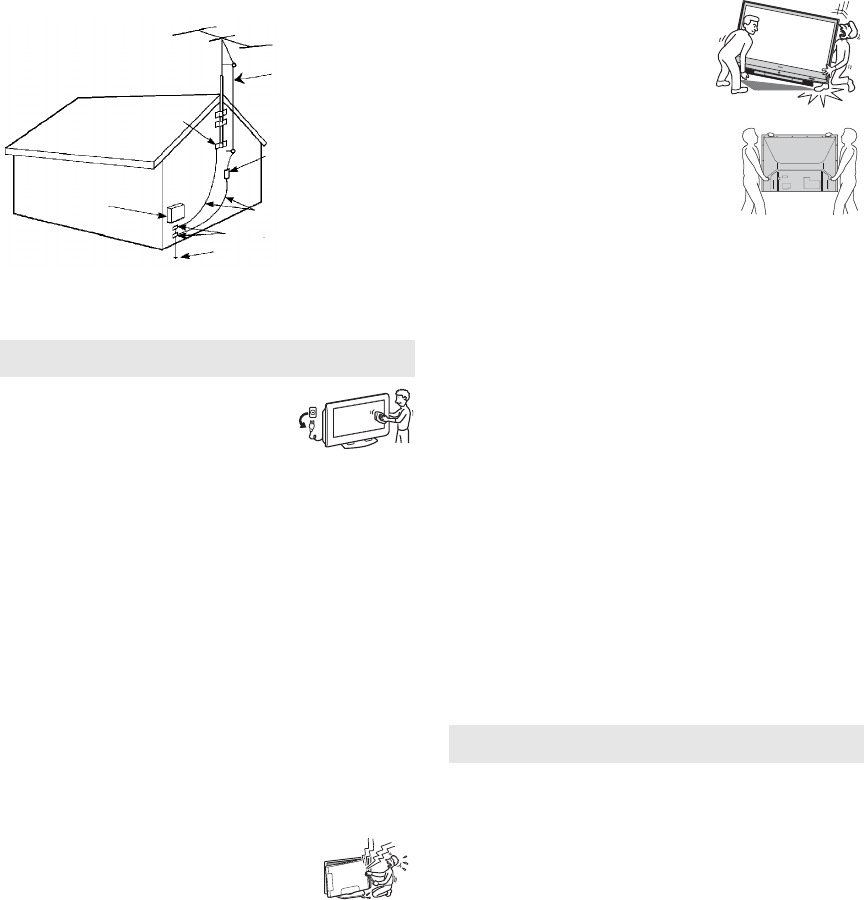

12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms
or when unused for long periods of time.
14) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
sBe sure to observe the TV’s “For Safety”
section on page 6.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can come
in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT
WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and Section 54
of the Canadian Electrical Code in Canada provides information with
respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
(Continued)
6
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US02WAR.fm masterpage:3 columns Right
Antenna Grounding According to the NEC
Refer to section 54-300 of Canadian Electrical Code for Antenna
Grounding.
Cleaning
sClean the cabinet of the TV with a dry soft
cloth. To remove dust from the screen, wipe it
gently with a soft cloth. Stubborn stains may be
removed with a cloth slightly dampened with
solution of mild soap and warm water. Never
use strong solvents such as thinner or benzine for cleaning. If the
picture becomes dark after using the TV for a long period of time, it
may be necessary to clean the inside of the TV. Consult qualified
service personnel.
sUnplug the AC power cord when cleaning this unit. Cleaning this
unit with a plugged AC power cord may result in electric shock.
On Contamination on the Screen Surface
The screen surface has a special coating to reduce reflections. To prevent
screen damage, clean the screen as follows:
sClean the screen with a soft cloth.
sTo remove hard contamination, use a cloth moistened with a
solution of mild detergent and water. Do not spray cleaning solution
directly onto the TV. It should only be sprayed to moisten the
cleaning cloth.
sDo not use any type of abrasive pad, alkaline cleaner, acid cleaner,
scouring powder, chemical cloth, or solvent such as alcohol,
benzene or thinner, as these may scratch the screen's coating.
Service
Damage Requiring Service
Do not attempt to service the set by yourself since opening
the cabinet may expose you to dangerous voltage or other
hazards.
Unplug the set from the wall outlet and refer servicing to
qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the service technician
certifies in writing that he has used replacement parts specified by the
manufacturer that have the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric shock or other
hazards.

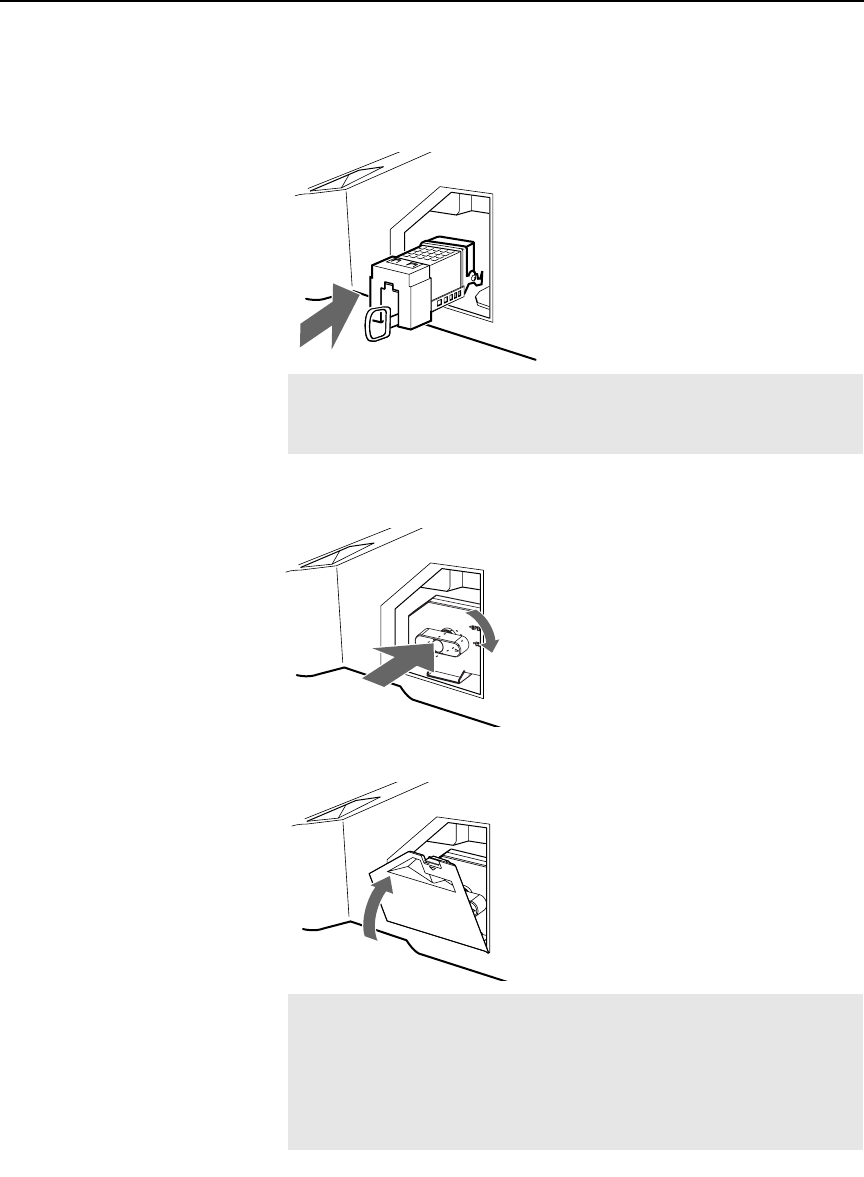

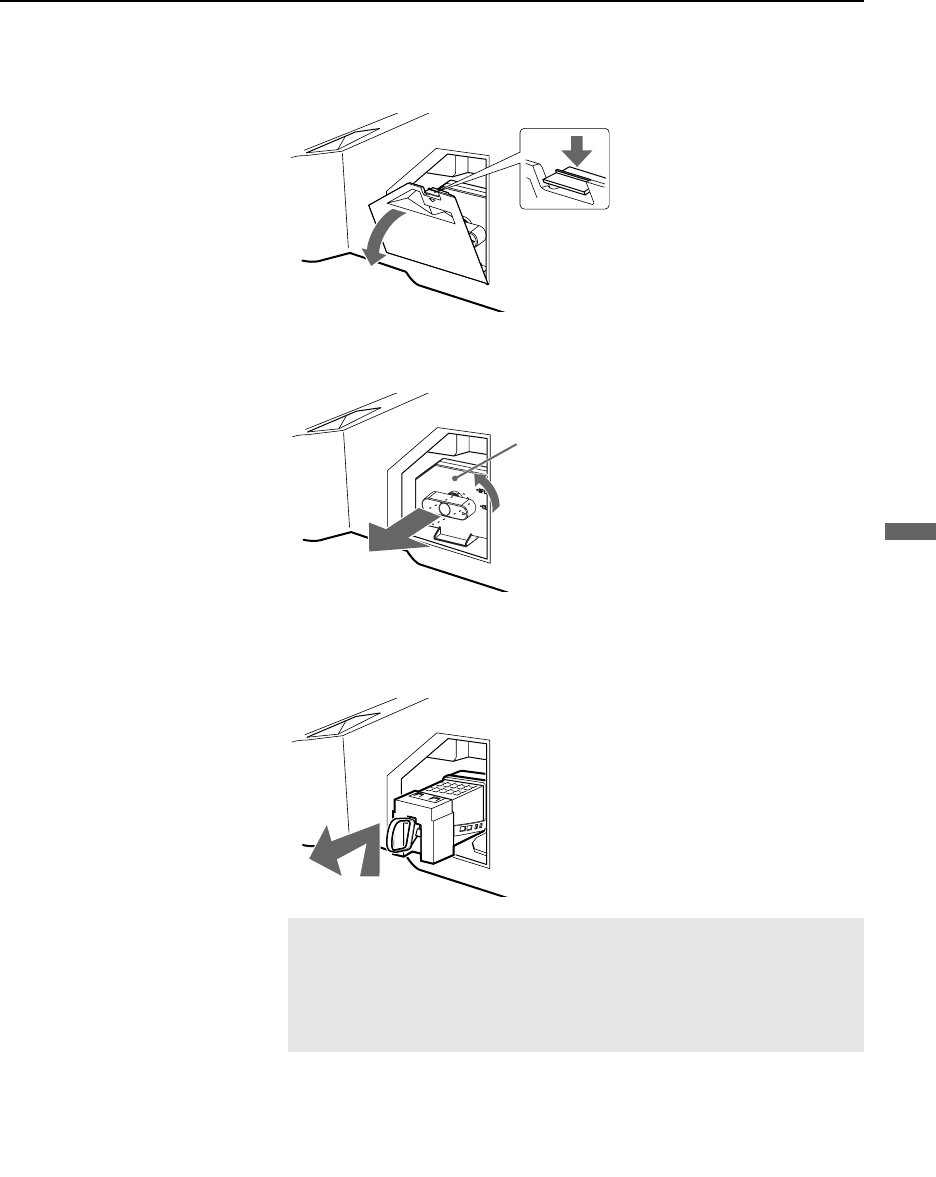

See “Replacing the Lamp” on page 86.
For Safety
Be Careful When Moving the
TV
When you place the TV in position, be careful
not to drop it on your foot or fingers.
Watch your footing while installing the TV.

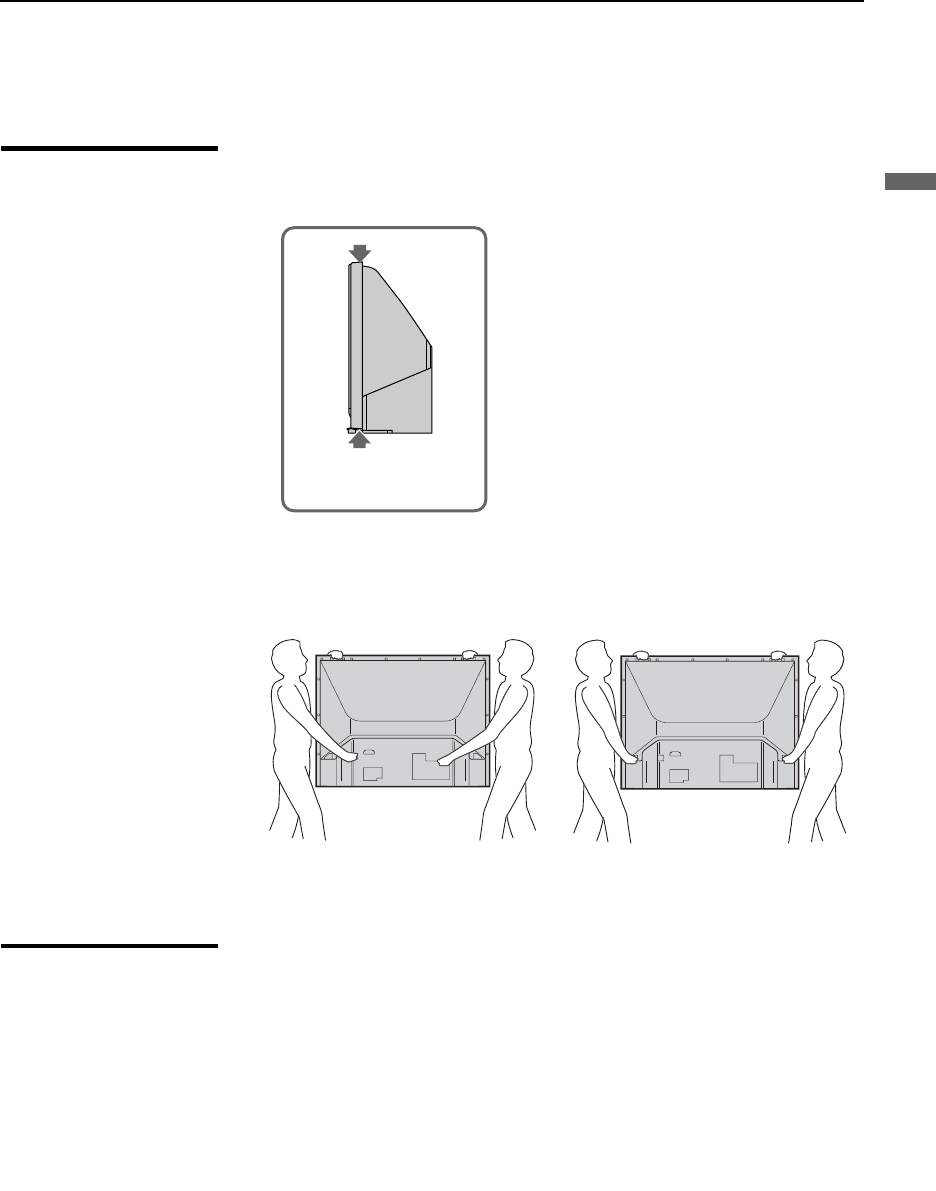

Carry the TV in the Specified
Manner
If you carry the TV in a manner other than the
specified manner and without the specified number
of persons, it may drop and a serious injury may be
caused. Be sure to follow the instructions
mentioned below.
sCarry the TV with the specified number of persons (see page 13).
sHold the TV tightly when carrying it.
sBefore carrying the TV, disconnect any accessories or cables.
About the TV
Although the TV is made with high-precision technology, black dots may
appear or bright points of light (red, blue, or green) may appear constantly
on the screen. This is a structural property of the panel and is not a defect.
Installation
sIf direct sunlight or other strong illumination shines on the screen,
part of the screen may appear white due to reflections from behind
the screen. This is a structural property of the TV.
Do not expose the screen to direct illumination or direct sunlight.
sThe picture quality may be affected by your viewing position. For
the best picture quality, install your TV according to
“Recommended Viewing Area” on page 14.
sWhen installing your TV against a wall, keep it at least 4 inches (10
cm) away from the wall.
Projection Lamp
sYour TV uses a projection lamp as its light source. It is time to
replace the lamp with a new one (not supplied) when:
• the lamp replacement indicator on the front panel blinks in red,
• screen images become dark,
• no image appears on the display after prolonged use.
sIn rare instances, the bulb may pop inside the lamp unit, but the lamp
unit is designed to contain all of broken glass pieces inside the lamp
unit. (See “Replacing the Lamp” on page 86.)
Disposal of Used Batteries
To preserve our environment, dispose of used batteries according to your
local laws or regulations.
Cooling Fan
This TV uses a cooling fan. You may hear the noise of fan running,
depending on the placement of your TV. The noise may be more noticeable
during the night or when the background noise level is low.
sClean the rear cover area of the TV regularly. Dust in the rear cover
area may cause a problem with the cooling system of the TV set.
Antenna lead-in wire
Ground clamps
Antenna lead-in wire
(NEC Section 810-20)
Grounding conductors
(NEC section 810-21)
Power service grounding
electrode system (NEC Art
250 Part H)
Ground clamp
Electrical
service
equipment
NEC: National
Electrical Code
sWhen the lamp eventually burns out, you may hear a noticeable pop
sound. This is normal and is inherent in this type of lamp.
POWER
STD/DUO
7
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US02TOC.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Contents
Introducing the TV
Welcome................................................................ 9
Package Contents............................................ 9
Features........................................................... 9
Enjoying Your TV................................................ 11
Notes on the TV............................................. 11
Screen............................................................ 11
Indicators ....................................................... 12
Projection Lamp ............................................. 12
Installing the TV.................................................. 13
Carrying Your TV ........................................... 13
Take Precaution during Installation................ 13
Preventing the TV from Toppling Over .......... 14
When Installing Your TV against a Wall......... 14
Recommended Viewing Area ........................ 14
TV Controls and Connectors ............................. 15

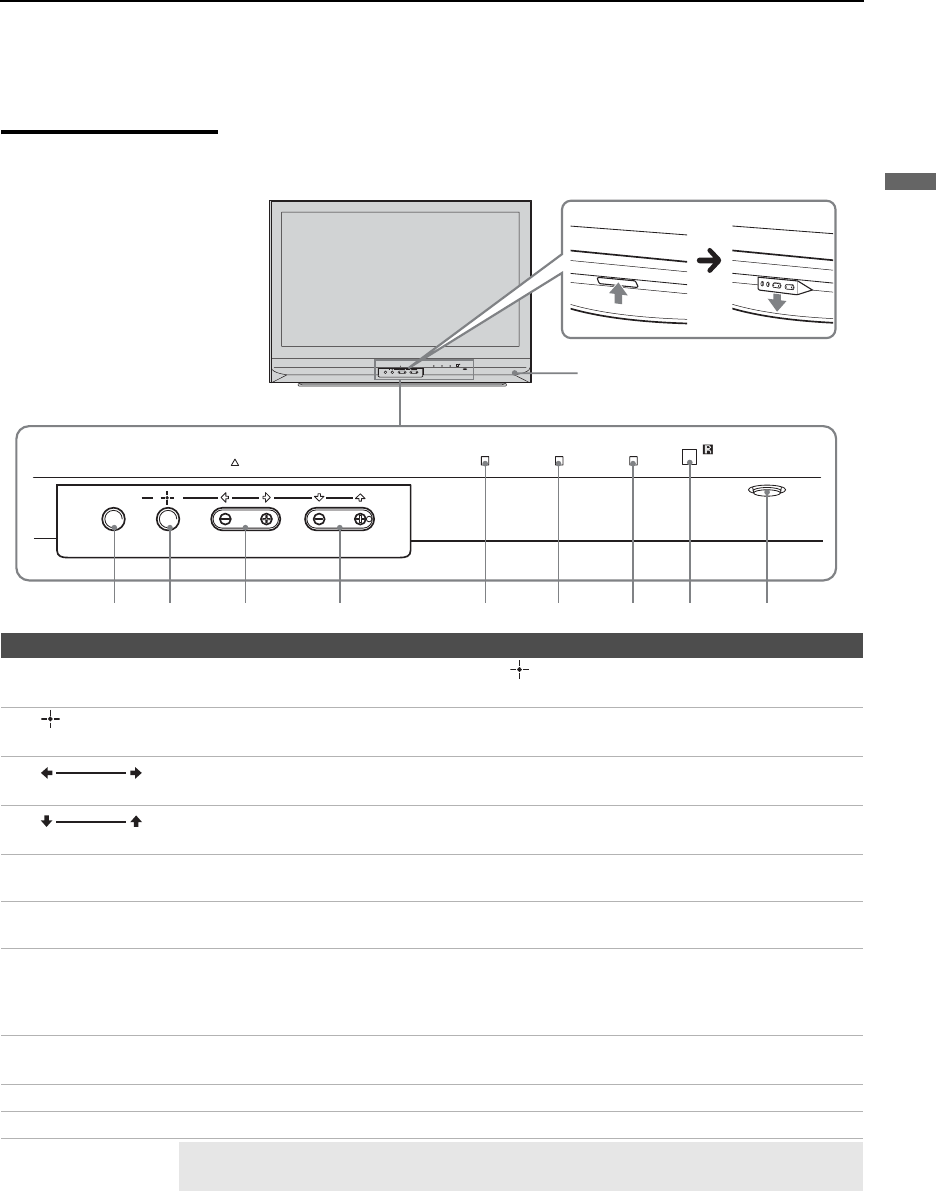

Front Panel .................................................... 15
Side Panel...................................................... 16

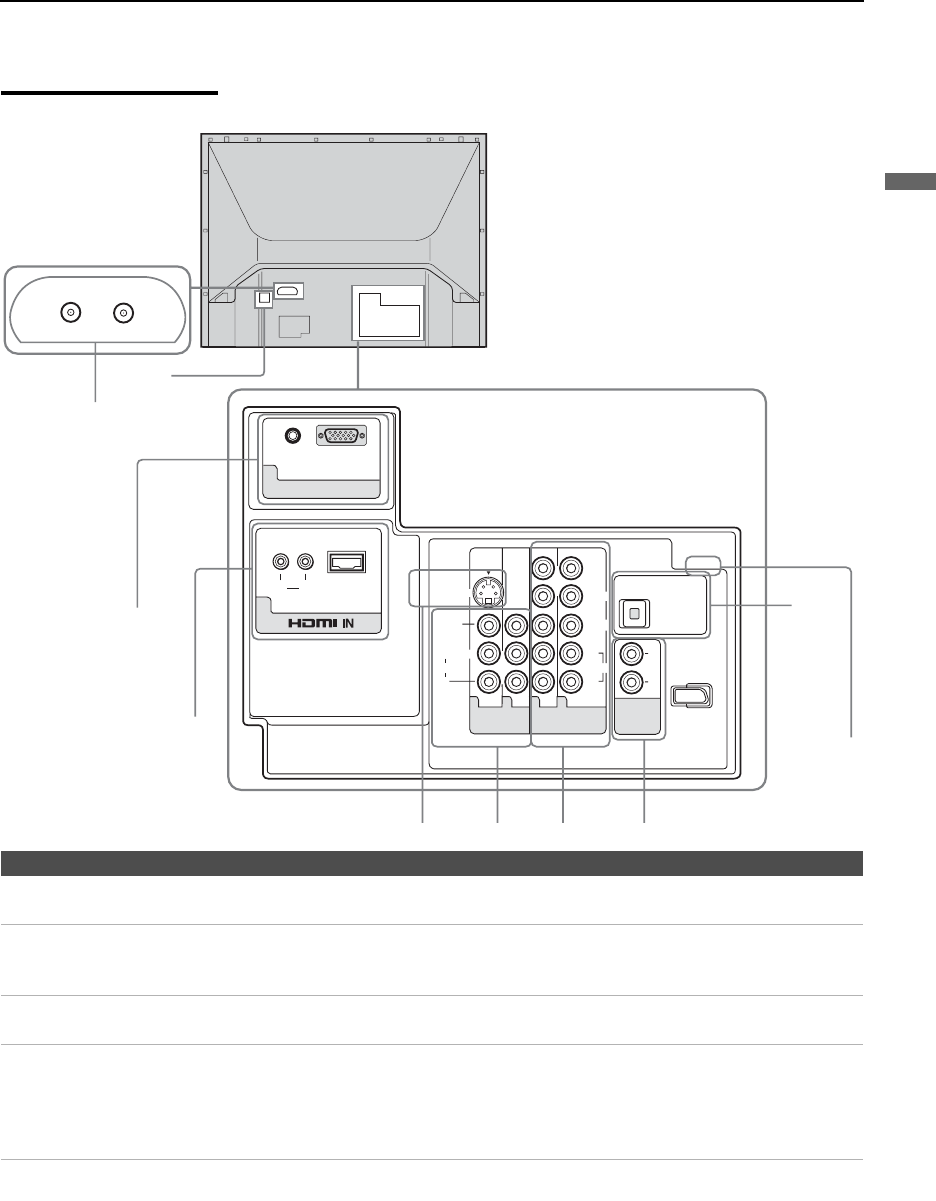

Rear Panel..................................................... 17
Connecting the TV
Overview.............................................................. 19
Making Video and Audio Connections ........... 19
About Using S VIDEO.................................... 20
About Using HDMI to DVI Adapter................. 20
Basic Connections ............................................. 21

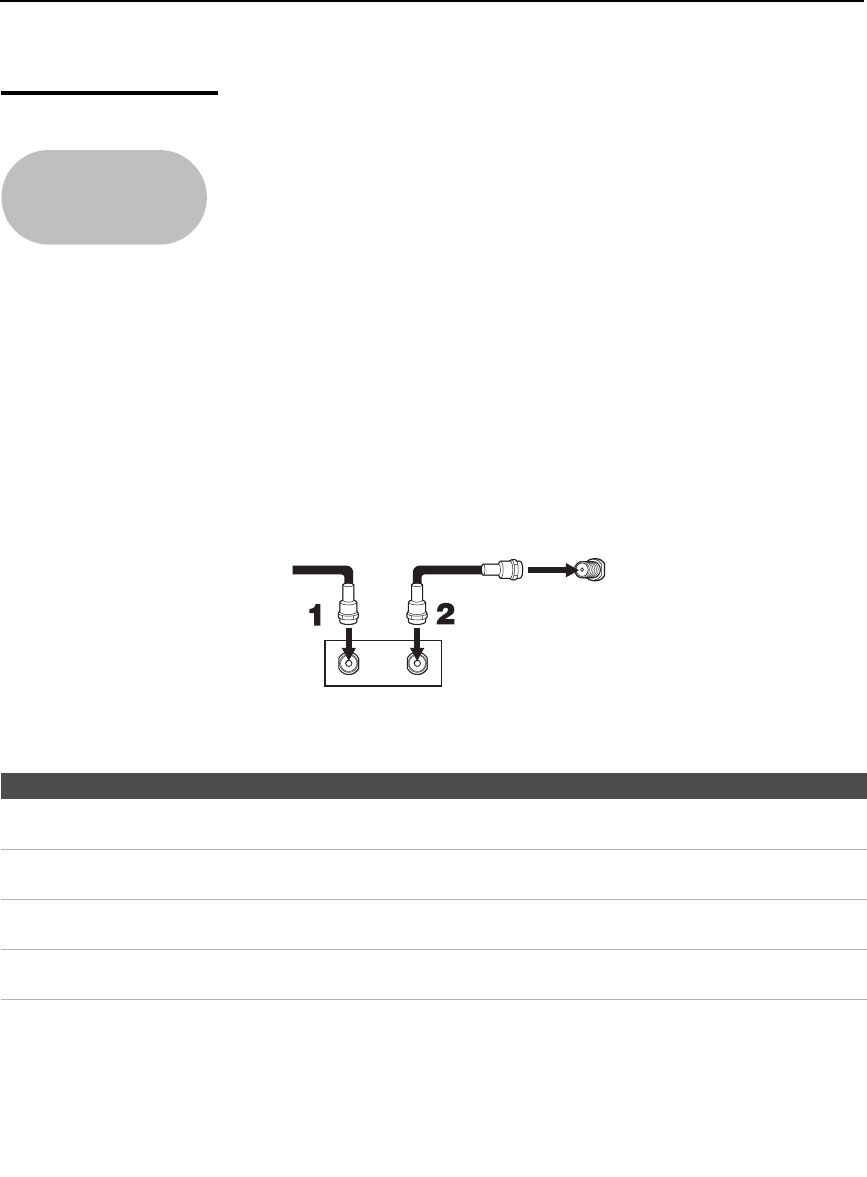

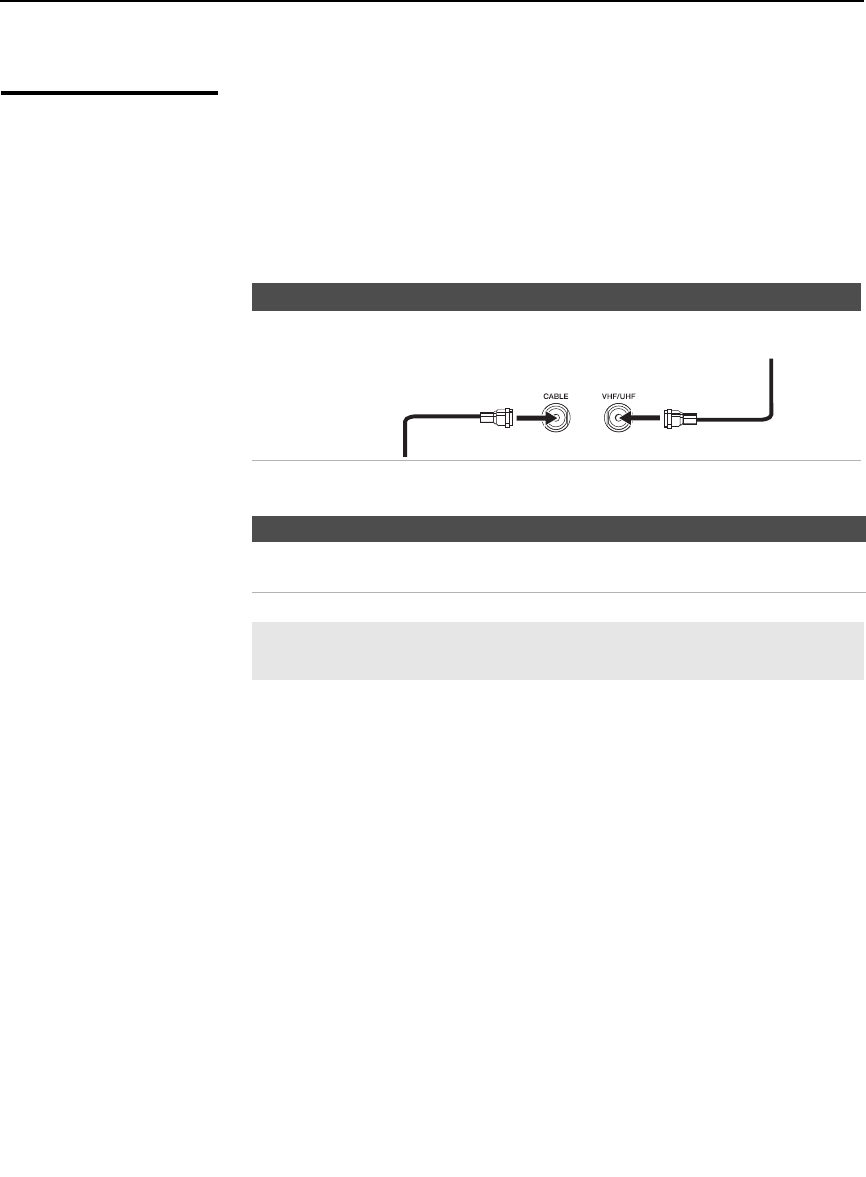

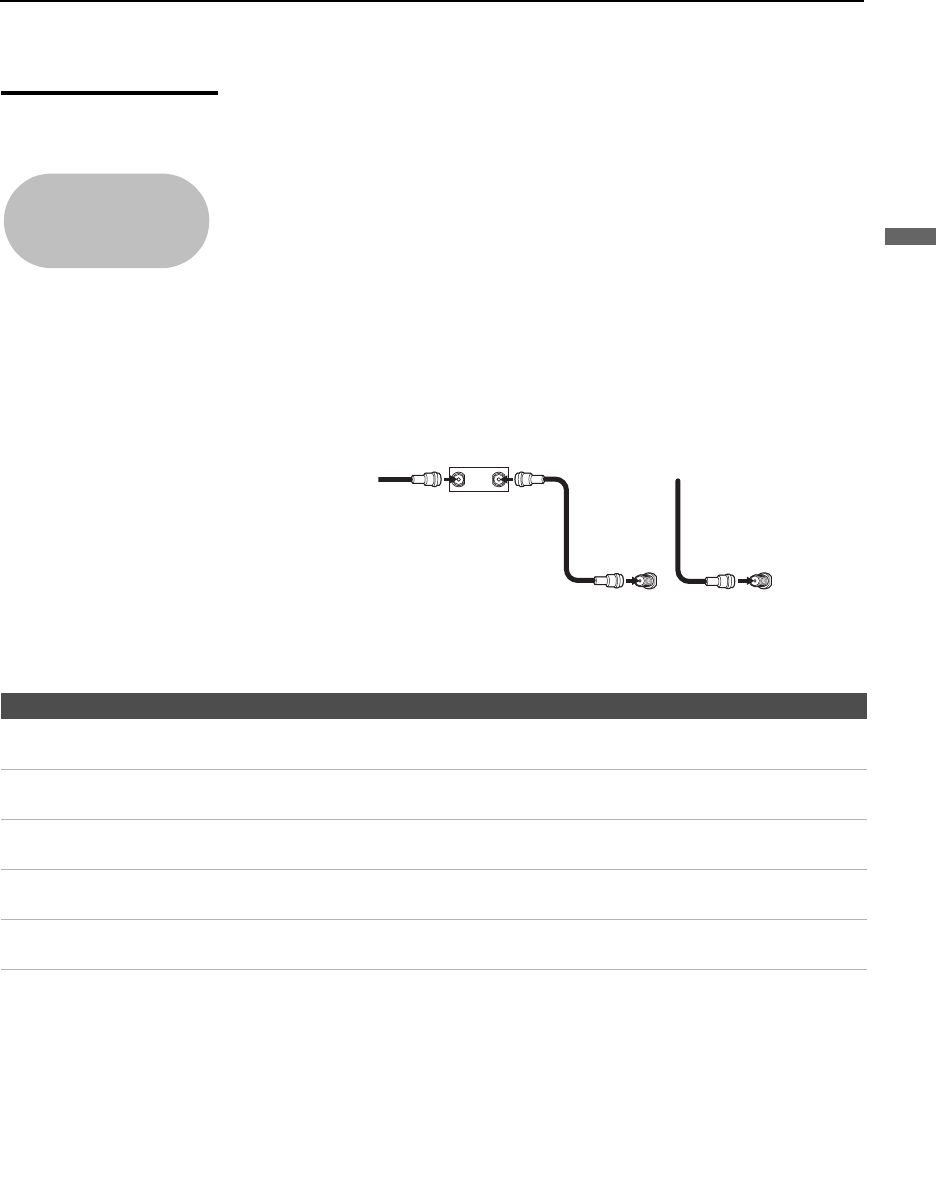

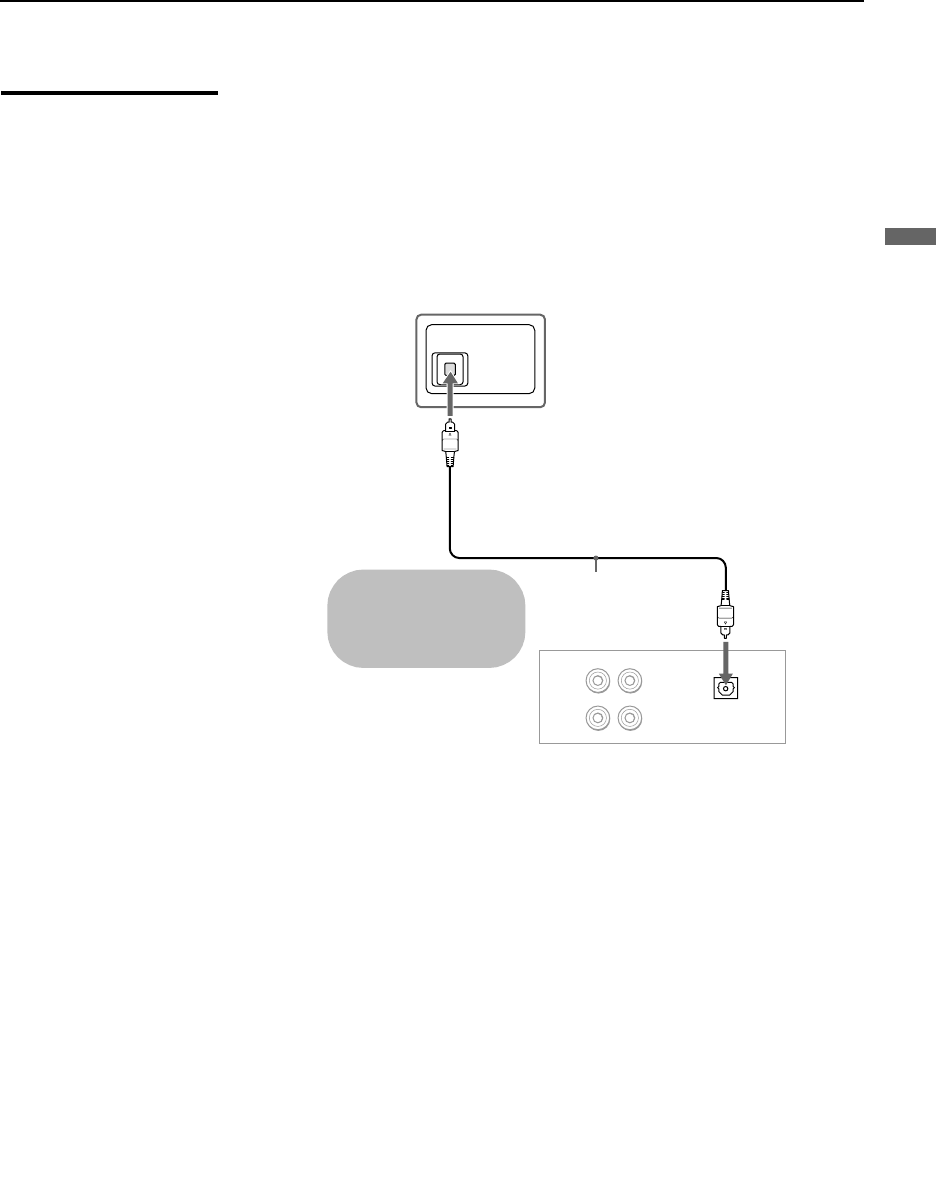

Cable System or VHF/UHF............................ 22
Cable Box and Antenna ................................. 23
Cable Box ...................................................... 24

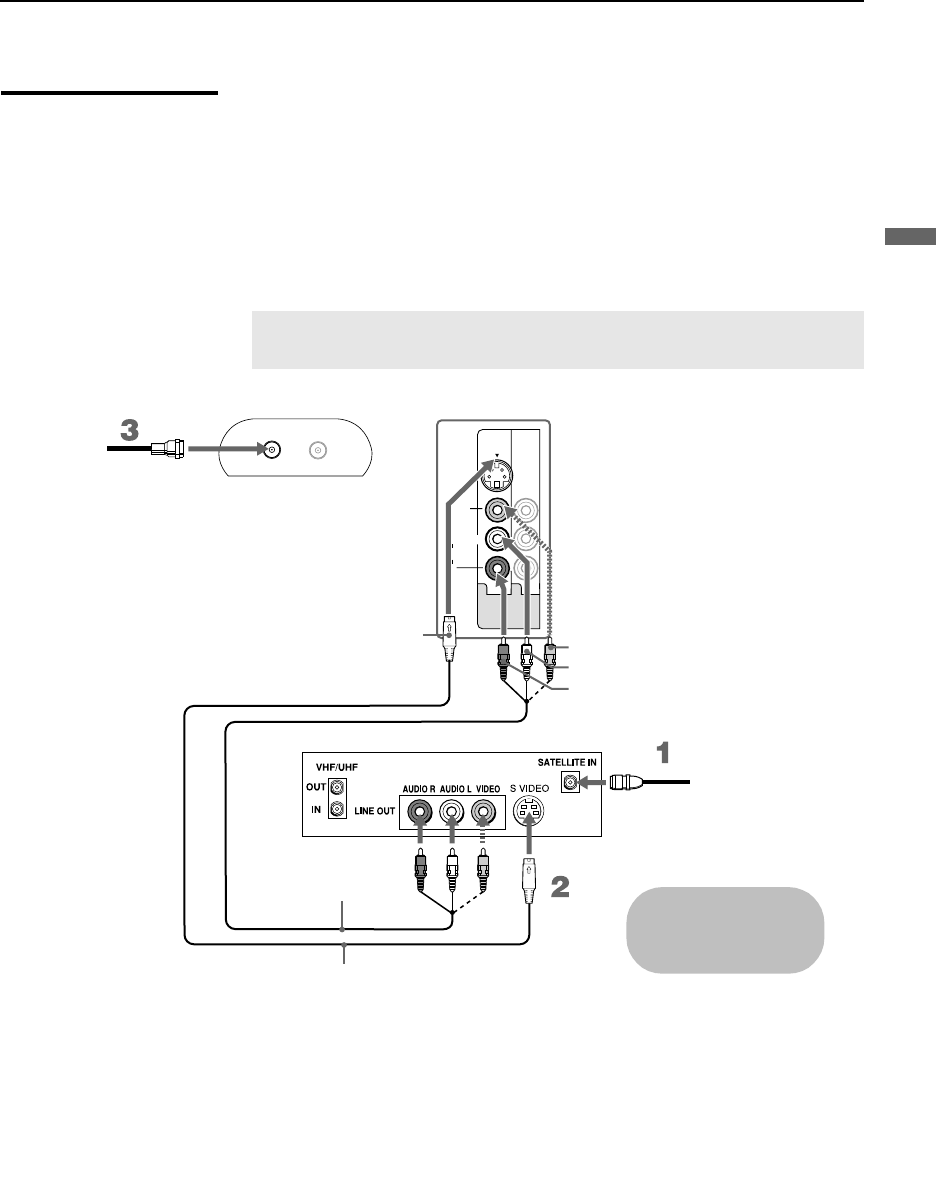

Satellite Receiver ........................................... 25
Digital Cable Box or Digital Satellite
Receiver......................................................... 26

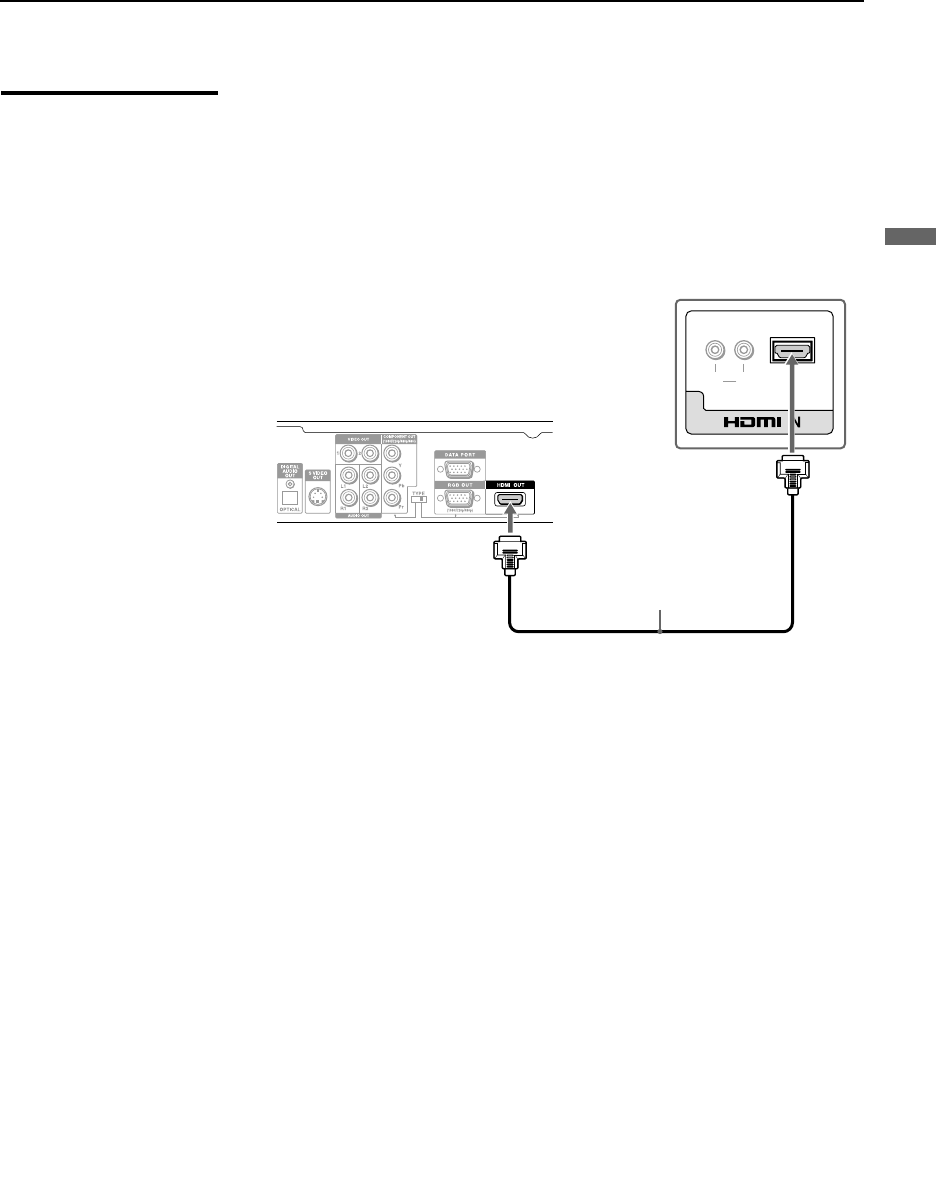

Equipment with HDMI Connection................. 27

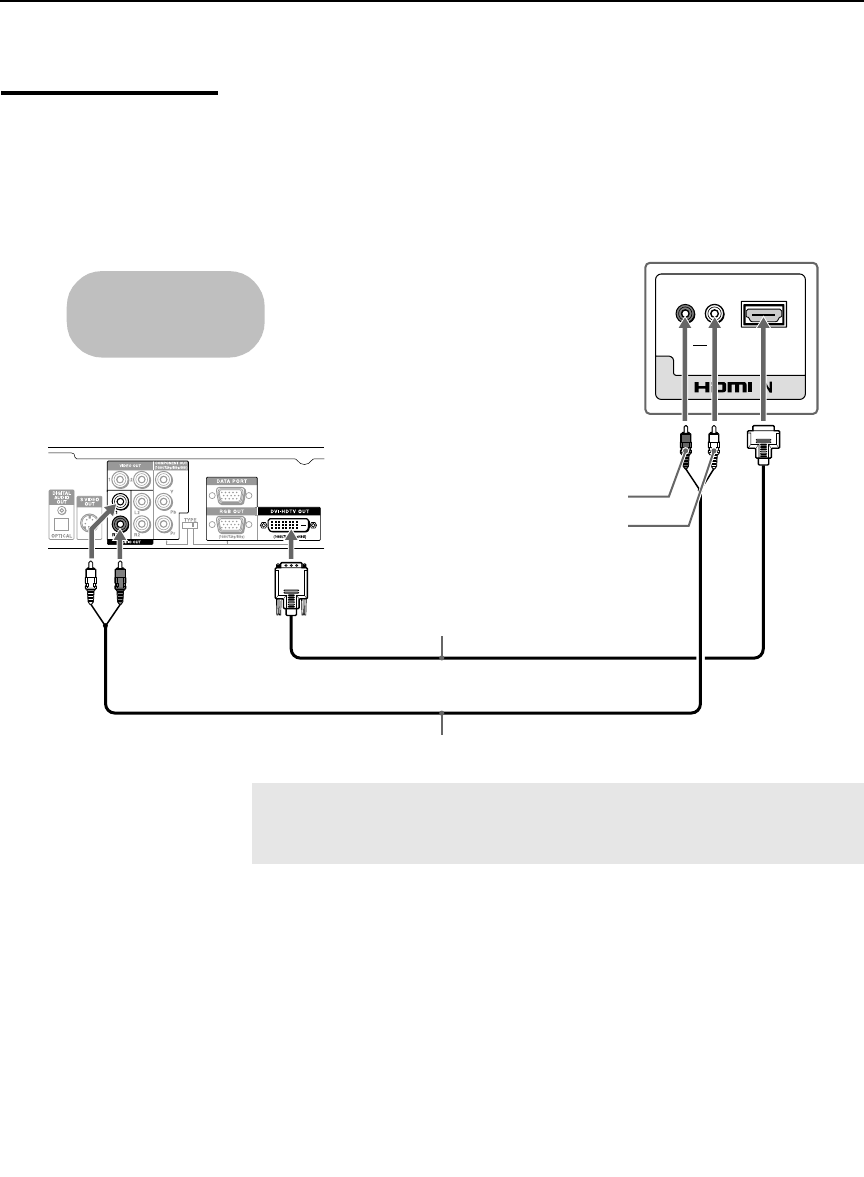

Equipment with DVI Connection .................... 28
Equipment with Digital Audio (Optical)........... 29

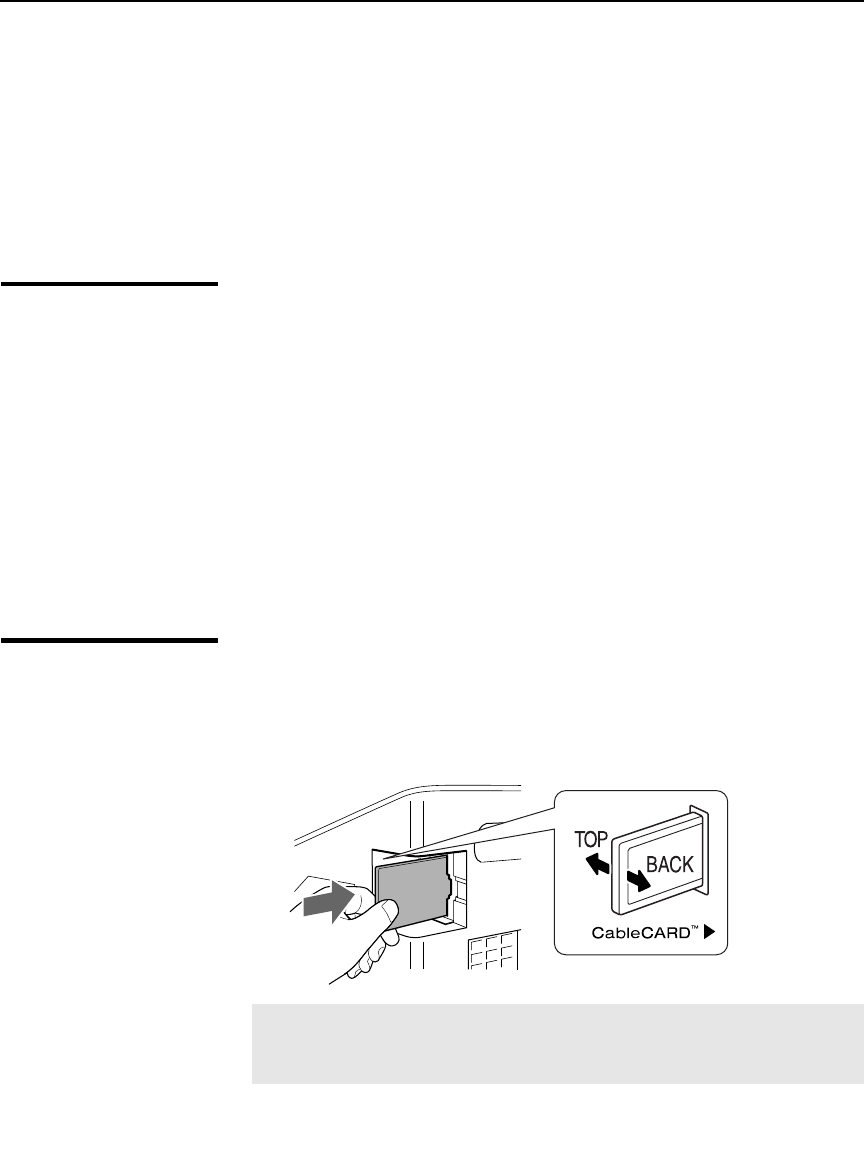

Using CableCARD Device .................................. 30
About Using CableCARD Device................... 30
Activating CableCARD Service...................... 30
Removing the CableCARD Device ................ 31
Setting Up the Channel List............................... 32
Using Initial Setup.......................................... 32
Connecting Optional Equipment .......................33

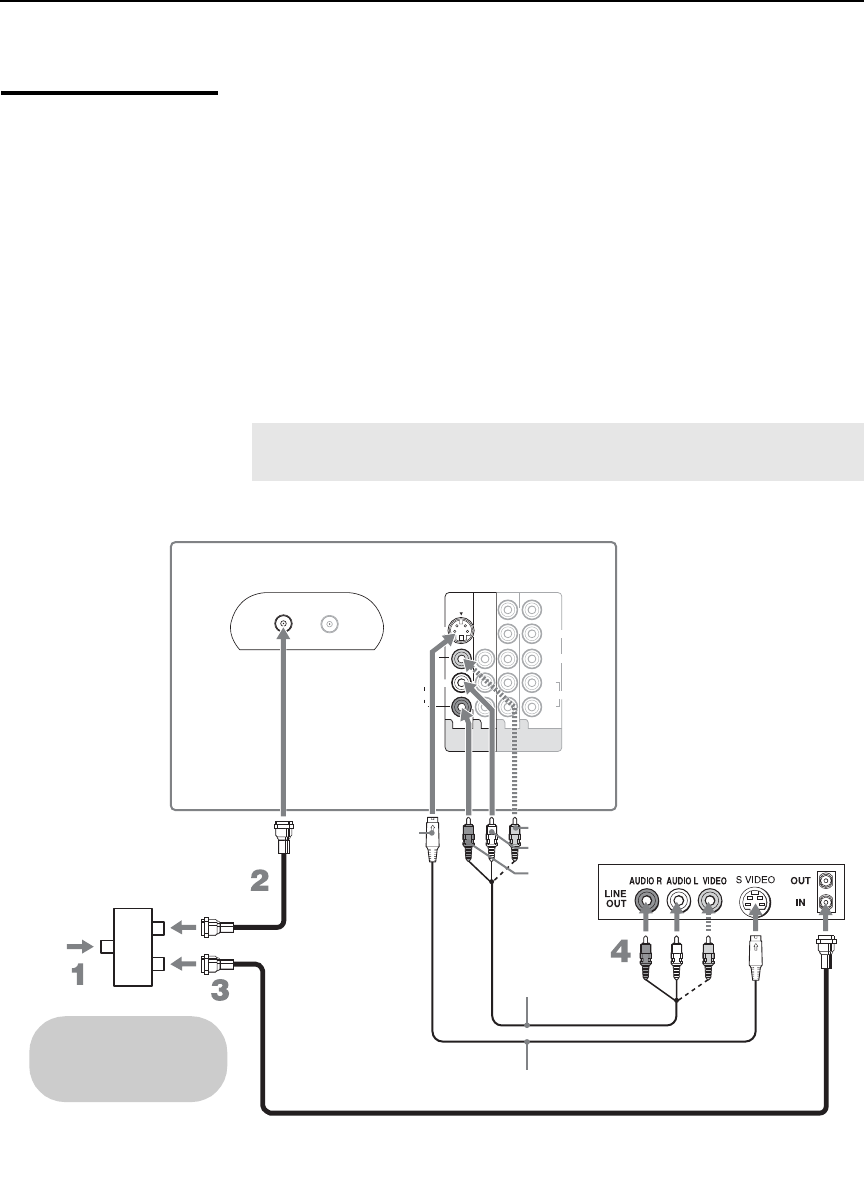

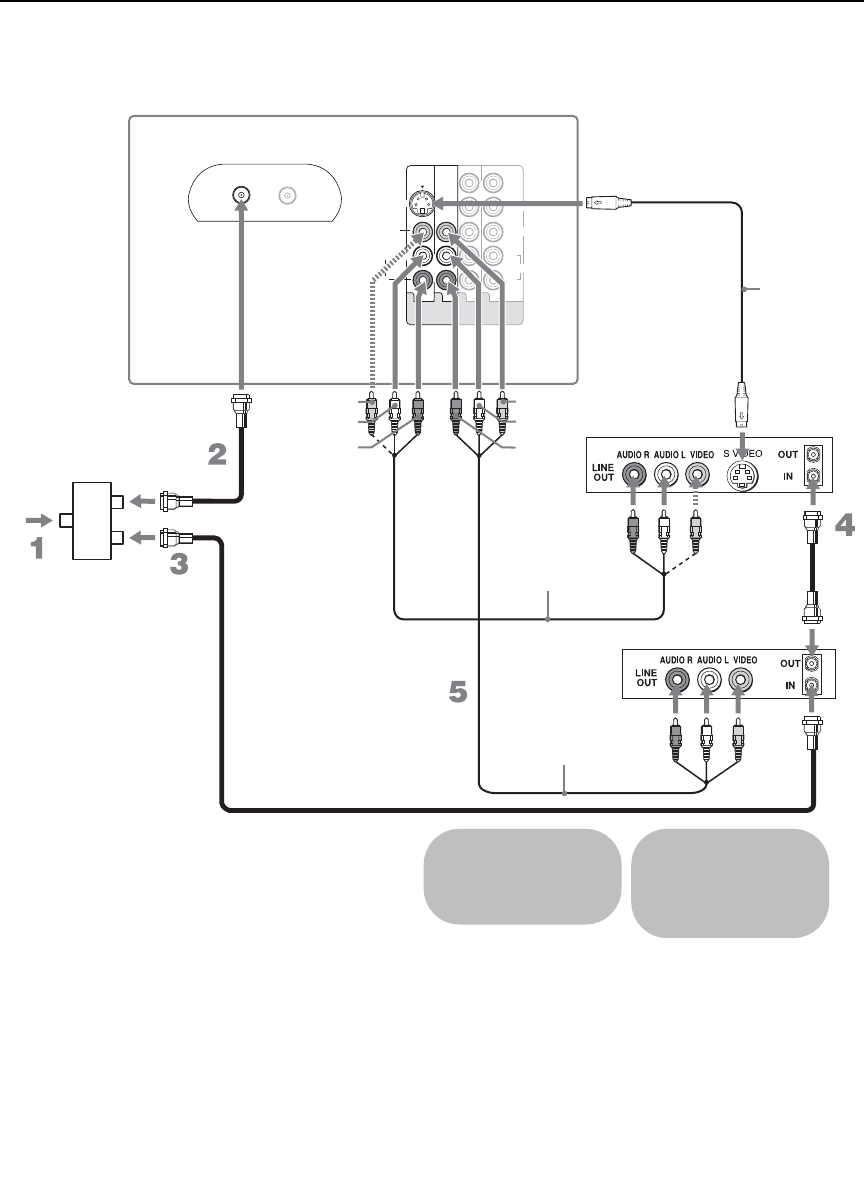

VCR and Cable ..............................................34
VCR and Cable Box .......................................35
Two VCRs for Tape Editing............................37
DVD Player with Component
Video Connectors...........................................38

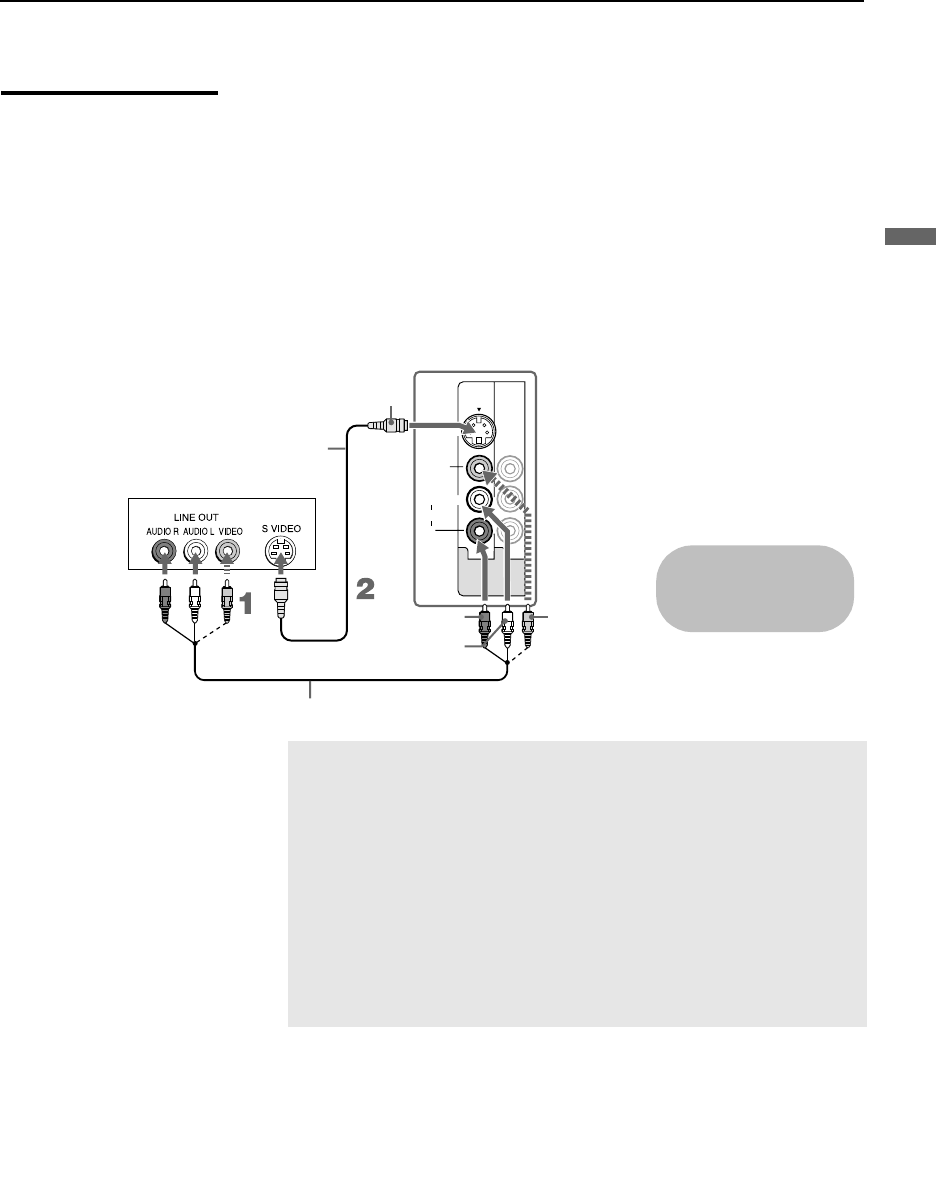

DVD Player with
S VIDEO and Audio Connectors ....................39

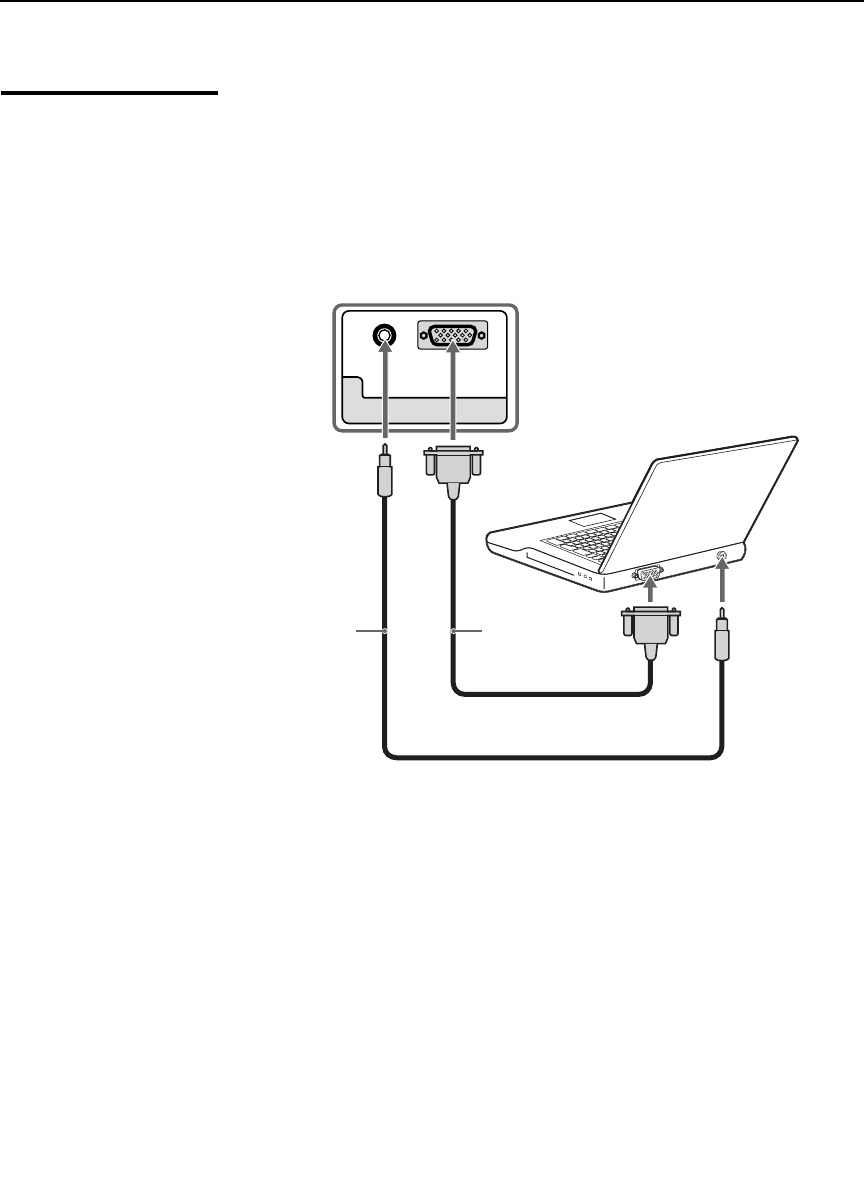

Personal Computer ........................................40
Camcorder or “PlayStation”............................41

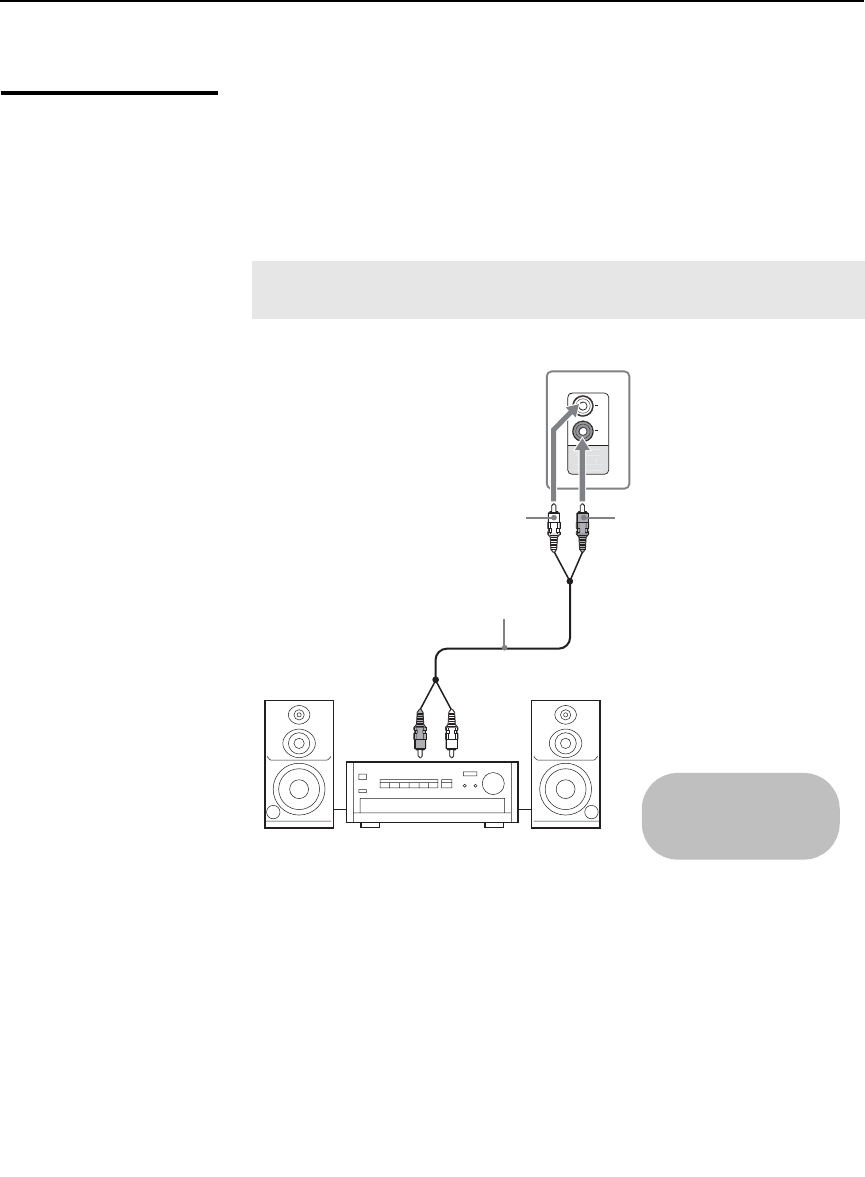

Audio Receiver...............................................42
Watching the TV
Overview ..............................................................43

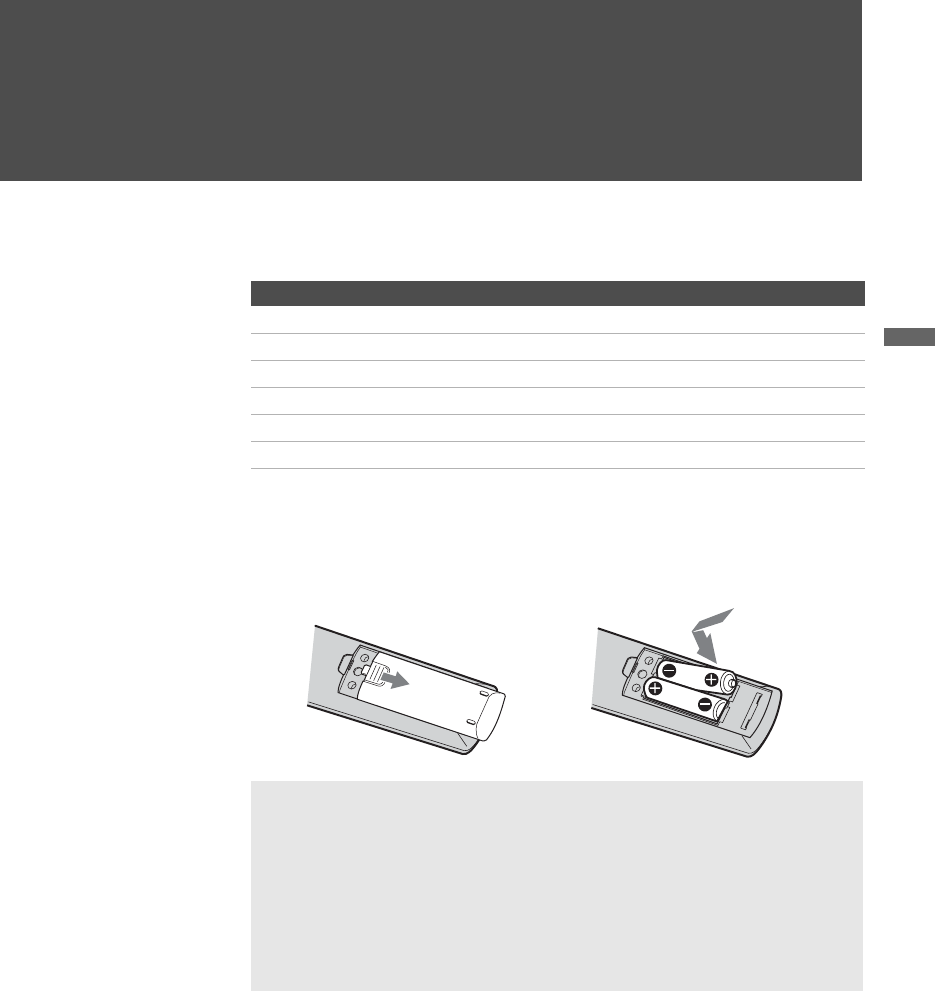

Inserting Batteries into the Remote Control.....43

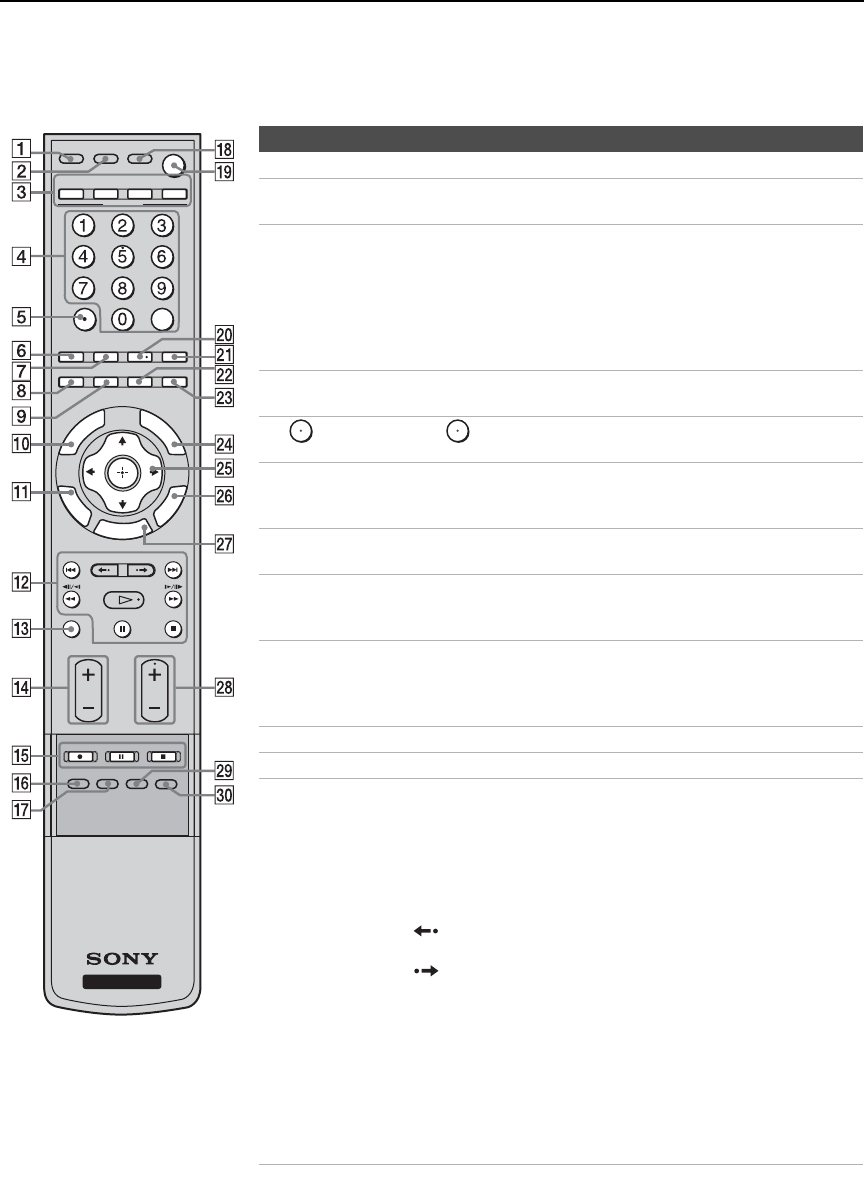

Button Descriptions............................................44
Programming the Remote Control ....................47
Using Other Equipment with Your Remote
Control...........................................................49
Special Buttons on the Remote Control ...........51
Using the GUIDE Button ................................51

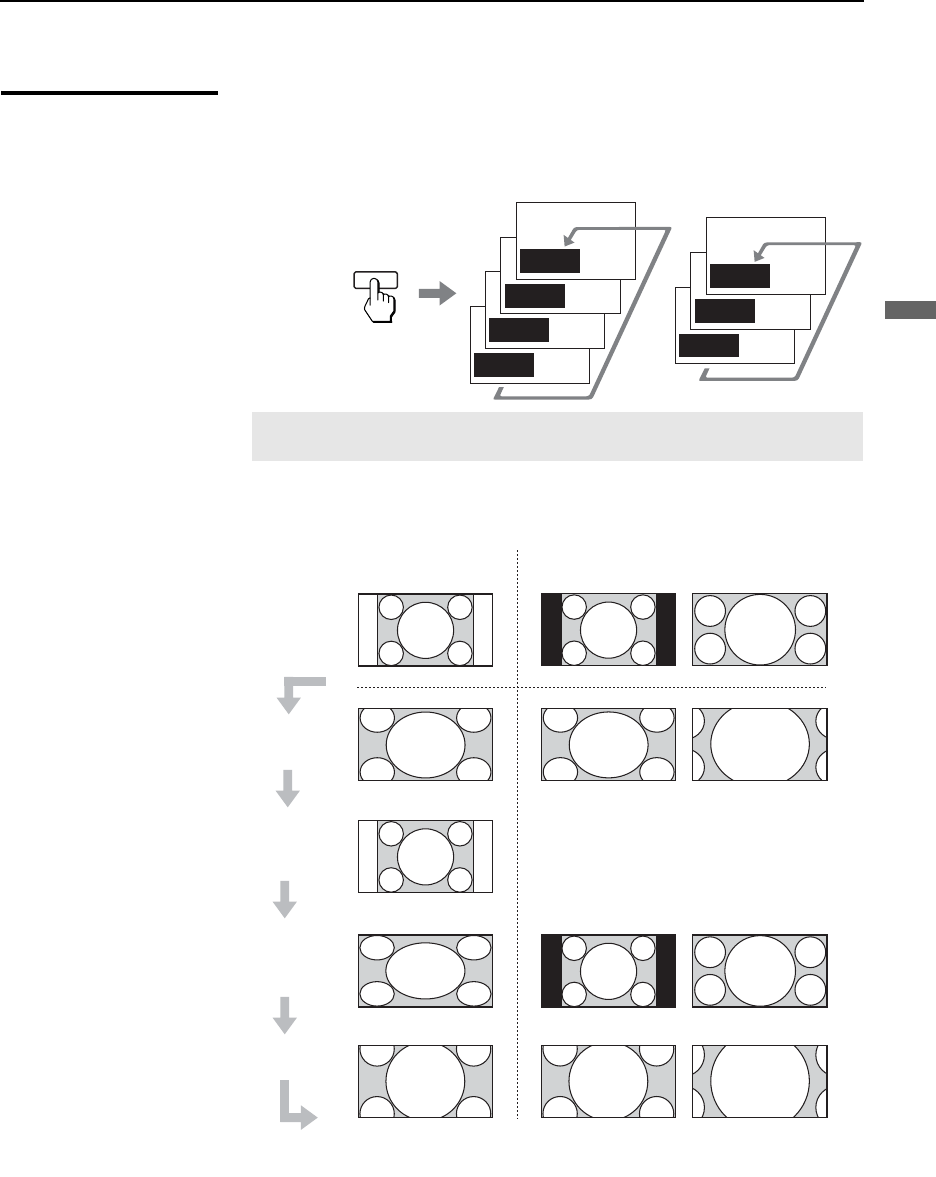

Using the WIDE Button ..................................53
Using the JUMP Button..................................54
Using the FREEZE Button..............................54

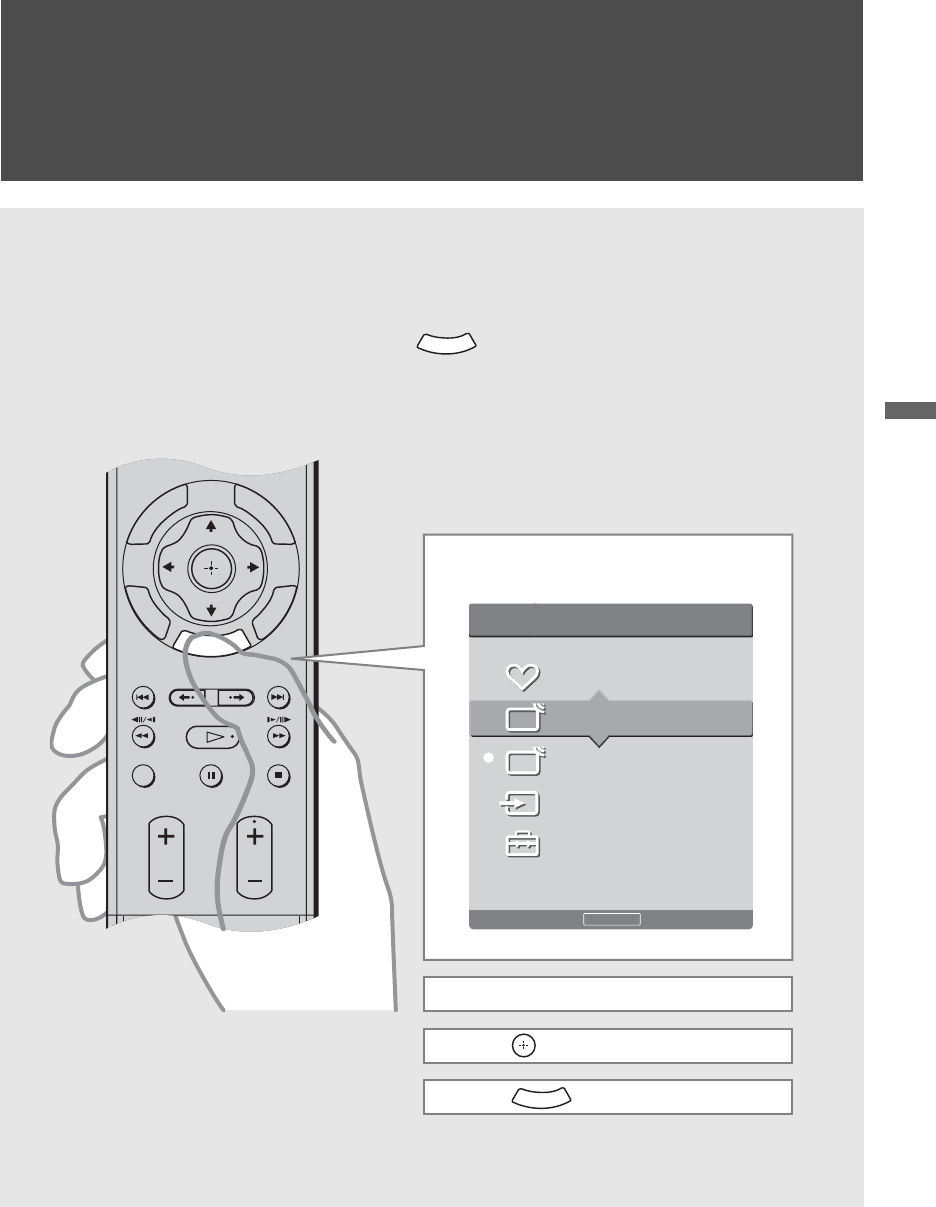

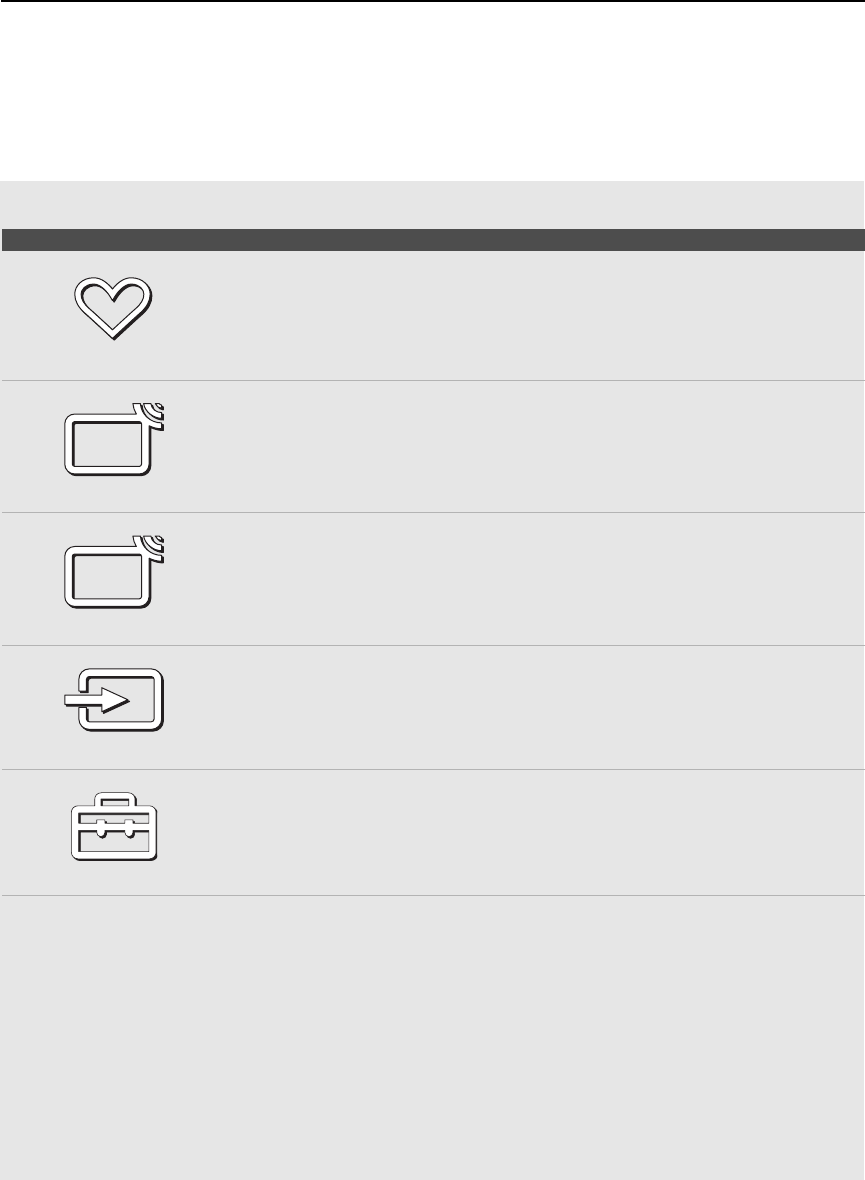

Introducing WEGA GATE
Overview of WEGA GATE...................................55
Navigating and Selecting Items.........................57
Using Favorites in WEGA GATE........................57
Using Cable in WEGA GATE..............................58
Using Antenna in WEGA GATE .........................58
Using External Inputs in WEGA GATE..............59
Using Settings in WEGA GATE..........................59

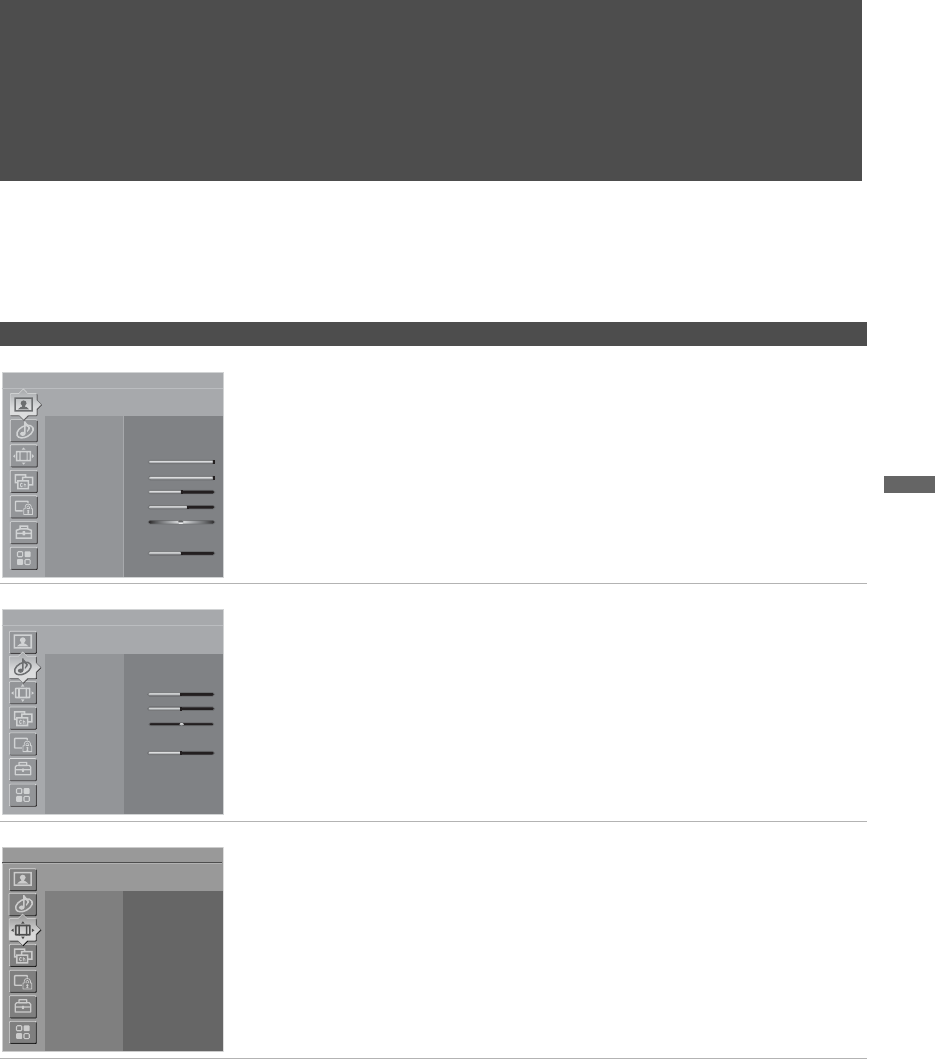

Using the Settings
Overview ..............................................................61

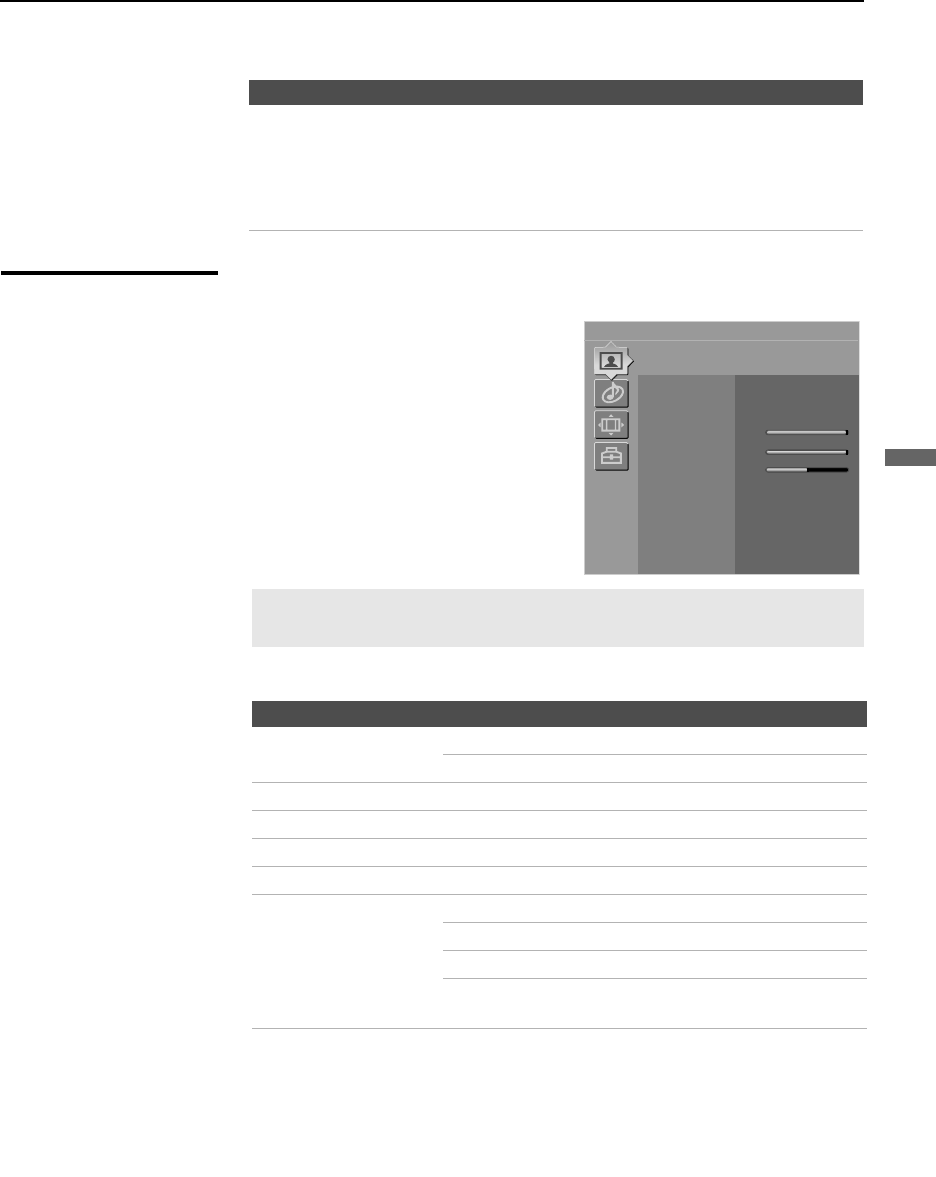

Accessing the Video Settings............................63
Selecting Video Options.................................63
Selecting PC Video Options...........................65

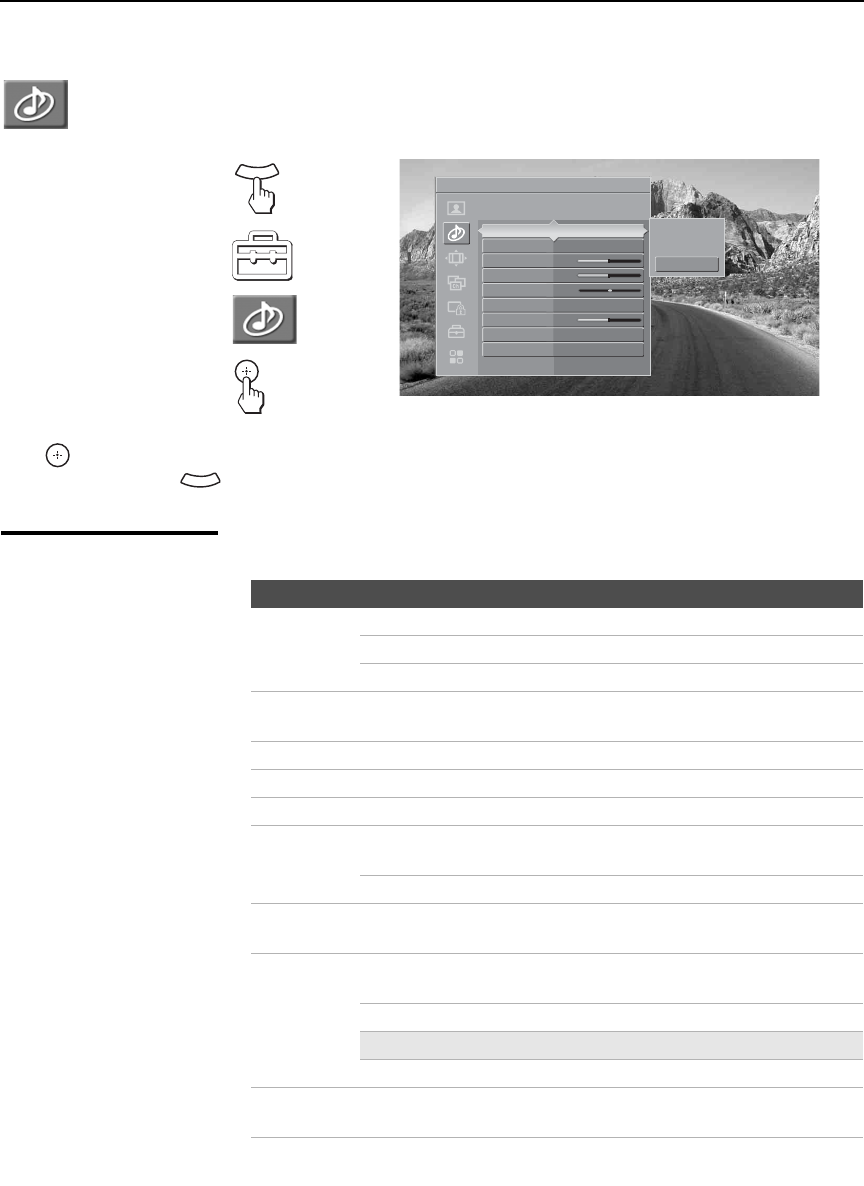

Accessing the Audio Settings ...........................66
Selecting Audio Options.................................66
Selecting PC Audio Options...........................68
8
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US02TOC.fm masterpage:3 columns Right
Accessing the Screen Settings ......................... 69
Selecting Screen Options .............................. 69
Selecting PC Screen Options ........................ 71
Accessing the Channel Settings....................... 72
Selecting Channel Options ............................ 72
Accessing the Parental Lock Settings.............. 74
Selecting Parental Lock Options.................... 74
Viewing Blocked Programs ............................ 75
Selecting Custom Rating Options .................. 76

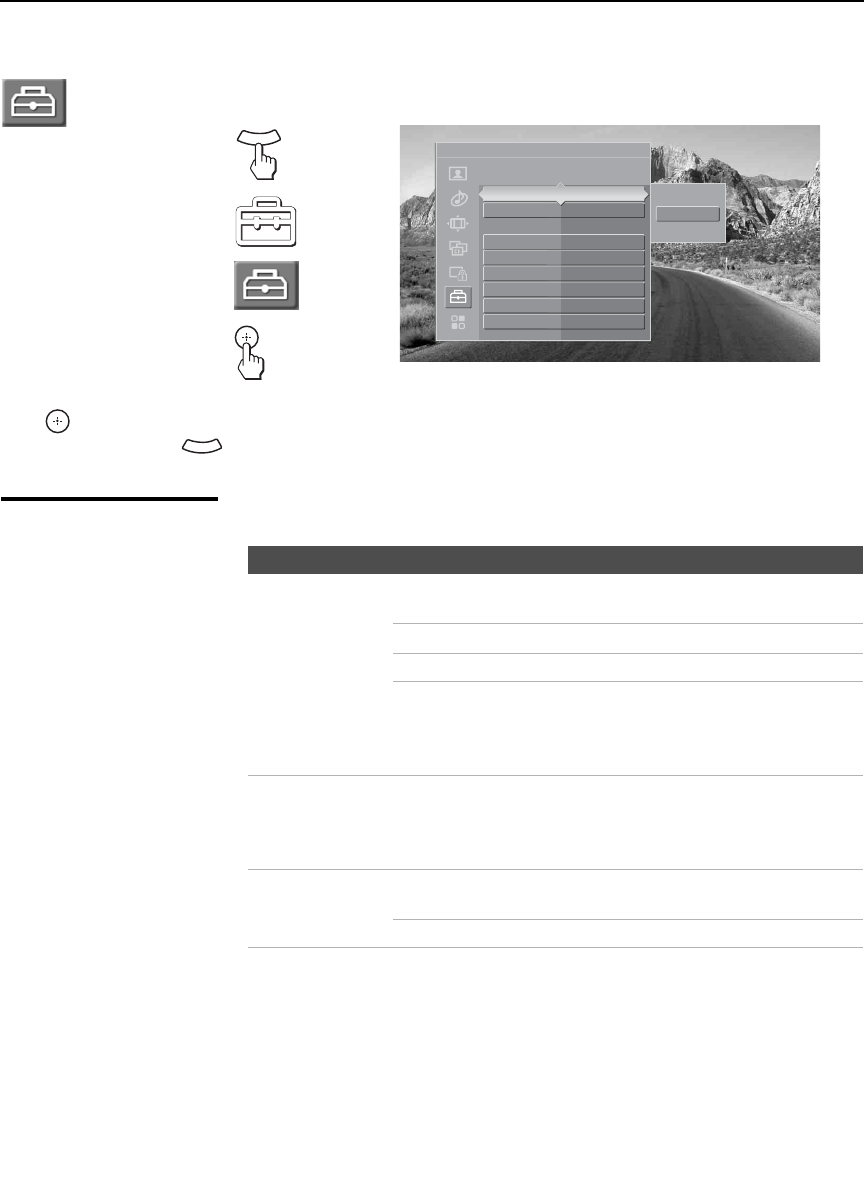

Accessing the Setup Settings ........................... 78
Selecting Setup Options ................................ 78
Programming Caption Vision ......................... 80
Selecting PC Setup Options .......................... 81
Accessing the Applications Settings................ 83
Selecting Applications Options ...................... 83
Other Information
Overview.............................................................. 85
Contacting Sony ................................................. 85
Replacing the Lamp............................................ 86
How to Replace the Lamp.............................. 86
Troubleshooting ................................................. 90
Remote Control.............................................. 90
CableCARD Device ....................................... 90
Video.............................................................. 91
Audio.............................................................. 92
Channels........................................................ 92
General .......................................................... 93
Specifications .................................................... 94
Index
Index ................................................................... 96
9
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right
Introducing the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Introducing the TV
Welcome
Thank you for purchasing this Sony’s HD LCD projection TV. This manual
is for models KDF-E42A10 and KDF-E50A10.
Package Contents Along with your new TV, the packing box contains a remote control and two
AA (R6) batteries. See page 95 for the complete list of packaging contents.
Features Some of the features that you will enjoy with your new TV include:
❑WEGA GATE™: WEGA GATE is a new feature that allows you to
easily navigate to the most convenient TV functions: favorite channels,
cable channels, antenna channels, external input list or settings.
❑WEGA Engine: Delivers superb picture quality from any video source
by minimizing the signal deterioration caused by digital-to-analog
conversion and stabilizing the signal processing. This engine features
unique Sony technology, including:
•DRC® (Digital Reality Creation)-MF V1: Unlike conventional
line doublers, the DRC Multifunction feature replaces the signal's
NTSC waveform with the near-HD equivalent by digital mapping
processing. The DRC Palette option lets you customize the level of
detail (Reality) and smoothness (Clarity) to create up to three
custom palettes.
❑Integrated HDTV: You can watch digital television programs and
enjoy the improved audio/video quality offered by these programs.
❑Wide Screen Mode: Allows you to watch 4:3 normal broadcasts in
wide screen mode (16:9 aspect ratio).
❑Advanced Iris: This advanced iris shutter works automatically open
and close according to the incoming signal level to create brighter
whites and better contrast in dark scenes.
❑CineMotion®: Using the reverse 3-2 pull down technology, the
CineMotion feature provides smoother picture movement when playing
back movies or other video sources on film.
❑Parental Control: V-Chip technology allows parents to block
unsuitable programming from younger viewers.
❑CableCARD™ slot: Provides cable subscribers with access to digitally
encrypted cable channels — without the need for a set-top box — that
will enable you to receive not only standard definition but also high
definition television. The CableCARD device, which is provided by
your cable TV company, is inserted into the TV’s rear panel
(Continued)
Introducing the TV
10
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right
CableCARD slot. After the service is activated with your cable TV
company, the card replaces the need for a separate set-top box. (Check
with your cable TV company about CableCARD service details,
limitations, pricing, and availability. For more information about the
CableCARD device in this manual, see page 30.)
❑Component Video Inputs: Offers the best video quality for DVD
(480p, 480i) and digital set-top box (1080i, 720p, 480p, 480i)
connections.
❑S VIDEO Inputs: Provides a high-quality image from connected
equipment.
❑Favorite Channels: With the WEGA GATE function, it allows you to
navigate a list of up to 16 favorite channels without leaving the current
channel.
❑Steady Sound®: Equalizes volume levels so there is consistent output
between programs and commercials.
❑HDMI (High-Definition Multimedia Interface): Provides an
uncompressed, all-digital audio/video interface between this TV and
any HDMI-equipped audio/video component, such as a set-top box,
DVD player, and A/V receiver. HDMI supports enhanced, or high-
definition video, plus two-channel digital audio.
Introducing the TV
11
Introducing the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right
Enjoying Your TV
To enjoy your TV for years to come and maintain its original picture quality,
you should perform periodic maintenance.
Notes on the TV To enjoy clear picture
❑Prevent sunlight or other light sources from shining directly on to the
screen.
❑The screen surface is easily scratched. Do not rub, touch, or tap it with
sharp or abrasive objects (see “On Contamination on the Screen
Surface” on page 6).
When not using the TV for a long period of time
❑Unplug the AC power cord from the outlet if you anticipate not using
the TV for more than a week.
When turning off the power
❑The cooling fan will continue to operate for about two minutes. Allow
several minutes before unplugging from the outlet or switching the
breaker off.
On moisture condensation
❑If your TV is moved directly from a cold to a warm location or is placed
in a humid room, or if the room temperature changes suddenly, the
picture may blur or show poor color. This is caused by moisture
condensation on the lenses inside. Wait a few hours to let the moisture
evaporate before turning on the TV. When the condensation has
evaporated, the picture will return to normal.
Screen To minimize reflection, the screen surface has a special coating.
Inappropriate cleaning methods could damage the screen surface. Special
care is required.
Cleaning the Screen Surface
Dust and dirt on the screen can affect the picture quality. To dust off the
screen use a soft cloth. Be sure to follow the cleaning instruction on page 6
for stubborn stains and dirt.
Introducing the TV
12
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right

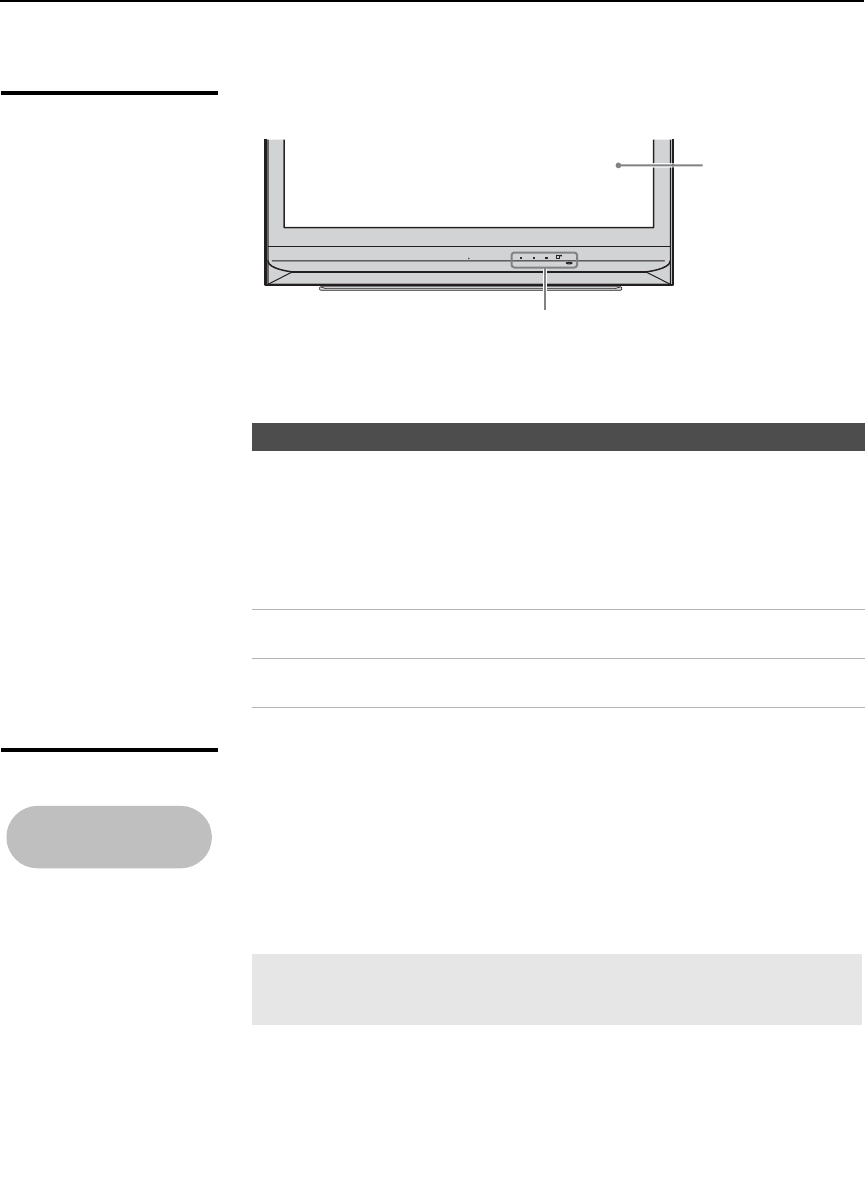

Indicators
The indicators show the current status of your TV. If there is a change in the
condition or a problem with the TV, the indicators will flash or light up in
the manner described below to let you know that it requires your attention.
Projection Lamp Your TV uses a projection lamp as its light source. As with any lamp, it has
lifespan and needs to be replaced when the Lamp indicator flashes or the
screen becomes darker. Note the following:
❑After turning on your TV, it may take a while (1 minute or less) before
the picture appears.
❑When the projection lamp wears out, the screen goes dark. Replace the
lamp with a new Sony XL-2400 replacement lamp (not supplied).
Indicator Flashing because...
POWER/
STANDBY flashing
green : The lamp for the light source is preparing to turn
on. When it is ready, it turns on.
red : The lamp door or the lamp is not securely attached.
The red indicator will continue to flash in intervals of three
blinks at a time until the lamp door or the lamp is placed
correctly. When the lamp door or the lamp is securely
attached, the TV will turn on with green indicator.
LAMP indicator
flashes
The projection lamp has burned out. Replace it with new
one (see page 86).
TIMER indicator is
lit
When one of the timers is set, the indicator will remain lit
(will not flash) even when the TV is turned off.
PUSH OPEN
POWER/STANDBY
POWER
TIMER LAMP
Indicators
Screen
How to replace the lamp,
see page 86.
✍The light emitted from the lamp is quite bright when your TV is in
use. To avoid eye discomfort or injury, do not look into the light
housing when the power is on.
Introducing the TV
13
Introducing the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right
Installing the TV
Carrying Your TV Carrying the TV requires at least two people. Do not hold by the pedestal or
the front panel of the TV. Doing so may cause these parts to break off.
When moving the TV, place one hand in the hole on the lower portion of the
TV while grasping the top with the other hand, as shown in the illustration
below.
If you have connected cables and cords, be sure to unplug them before
moving the TV.
Take Precaution
during Installation
To ensure the safety of children and the TV, keep children away from the TV
during installation. Climbing on or pushing the TV or its stand may cause it
to fall and damage the TV.
Do not grasp the pedestal
or the front panel of the
TV.
KDF-E50A10KDF-E42A10
Introducing the TV
14
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right

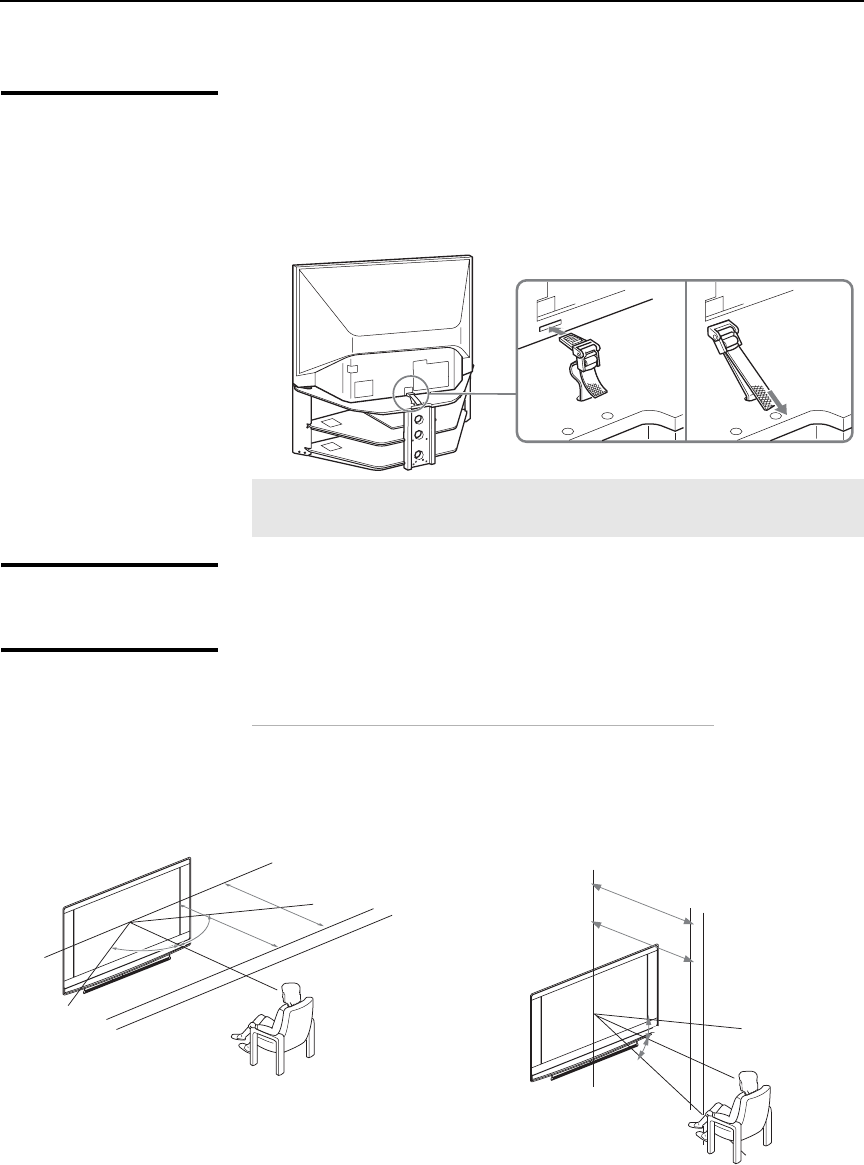

Preventing the TV
from Toppling Over
As a protective measure, secure the TV as follows.
Using the TV stand with support belts
❑Sony strongly recommends using the TV stand SU-RG11S (for KDF-
E42A10)/SU-RG11M (for KDF-E50A10) with a support belt designed
for your TV.
When Installing Your
TV against a Wall
Keep your TV at least 4 inches (10 cm) away from the wall to provide proper
ventilation.
Recommended
Viewing Area
Your viewing position may affect the picture quality.
For the best picture quality, install your TV within the areas shown below.
✍When using the SU-RG11S (for KDF-E42A10)/SU-RG11M (for KDF-
E50A10) stand for your TV, you must use the support belt.
Model Viewing distance
KDF-E42A10 min. 5.9 ft. (approx. 1.8 m)
KDF-E50A10 min. 6.6 ft. (approx. 2.0 m)
30˚
30˚
50"
42"
min. 6.6 ft. (approx. 2.0 m)
min.
min.
6.8 ft.
6.8 ft.
(approx.
(approx.
2.1 m
2.1 m
)
min.
5.9 ft.
(approx.
1.8 m
)
65.
65.
65
65
˚
65˚
65˚
min. 6.6 ft. (approx. 2.0 m)
min. 6.6 ft. (approx. 2.0 m)
50"
50"
min. 6.6 ft. (approx. 2.0 m)
50"
min. 5.9 ft. (approx. 1.8 m)
min. 5.9 ft. (approx. 1.8 m)
42"
42"
min. 5.9 ft. (approx. 1.8 m)
42"
Horizontal Viewing Area Vertical Viewing Area
Introducing the TV
15
Introducing the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right
TV Controls and Connectors
Front Panel
PUSH OPEN
WEGA GATE
TV/VIDEO
CANNELVOLUME
POWER
TIMER LAMP
POWER/STANDBY
PUSH OPEN
POWER/STANDBY
POWER
WEGA GATE
TV/VIDEO
CHANNELVOLUME
TIMER LAMP
0
To open the panel
To open the front panel of your
TV, push up the panel door just
under the "PUSH OPEN" mark.
Item Description
1WEGA GATE
Press to display
WEGA GATE
and activate the ,
B
,
b
,
v
, and
V
buttons. Press again to exit
WEGA GATE
and activate the
TV/VIDEO
,
– VOLUME +
and
– CHANNEL+
buttons.
2
TV/VIDEO
Press to confirm the selection or setting.
Press repeatedly to cycle through the video equipment connected to the TV’s video inputs.
3
– VOLUME +
Press to adjust the volume.
4
– CHANNEL +
Press to scan through channels. To scan quickly through channels, press and hold either
–
or
+
.
5TIMER LED
When lit, indicates one of the timers or
Sleep
is set. When it is set, this LED will remain lit even if
the TV is turned off. For details, see page 83.
6LAMP LED
Lights up in red when the lamp for the light source has burned out. For details, see “Replacing the
Lamp” on page 86.
7POWER/
STANDBY LED
Lights up in green when the TV is turned on. If the LED blinks in red continuously, this may
indicate the display unit needs servicing (see “Contacting Sony” on page 2). When the red LED
blinks only three times, the lamp door of the lamp unit or the lamp itself is not securely attached
(see page 88).
8(IR) Infrared
Receiver
Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
9POWER
Press to turn on and off the TV.
q; Speaker
Outputs audio signal.

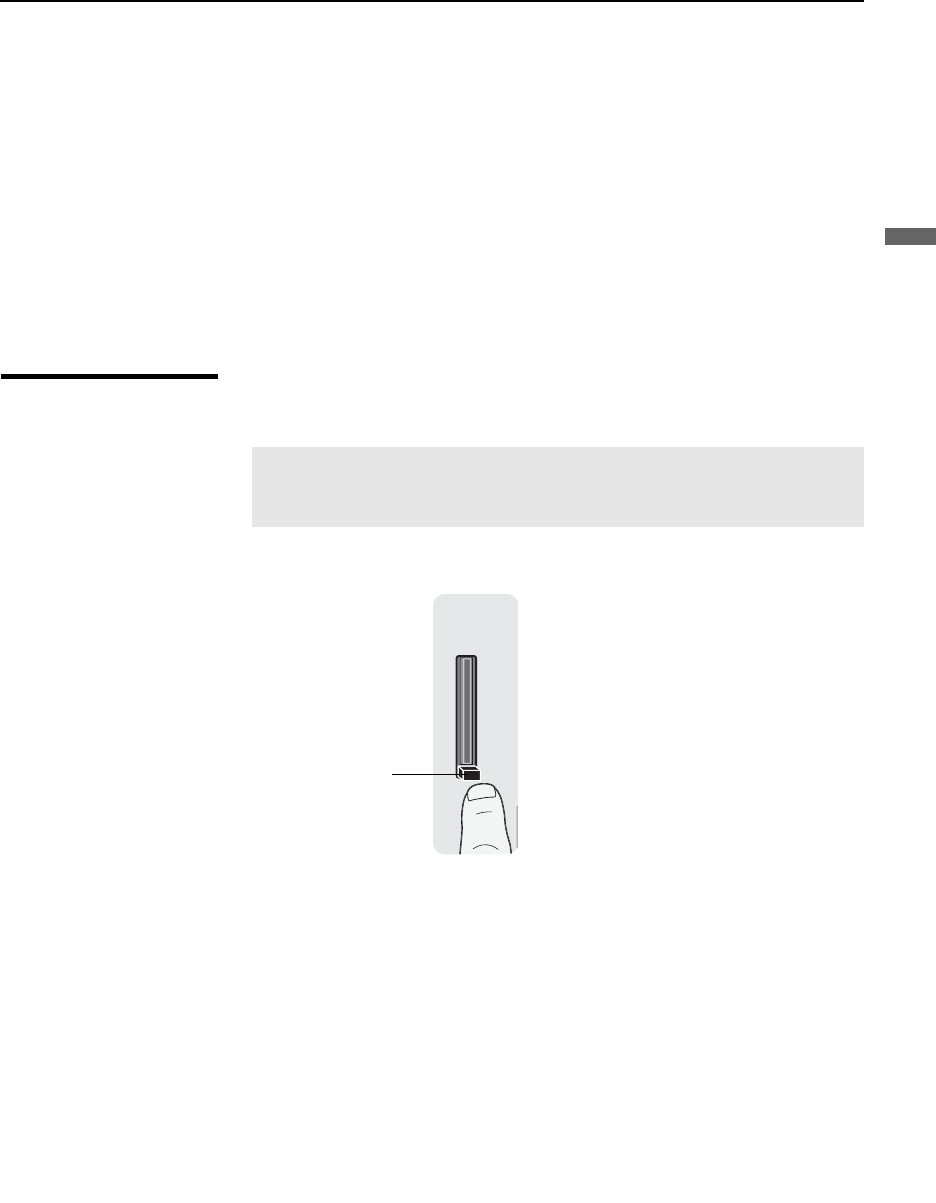

✍The CHANNEL + button has a tactile dot. Use the tactile dot as a reference
when operating the TV.
Introducing the TV
16
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right

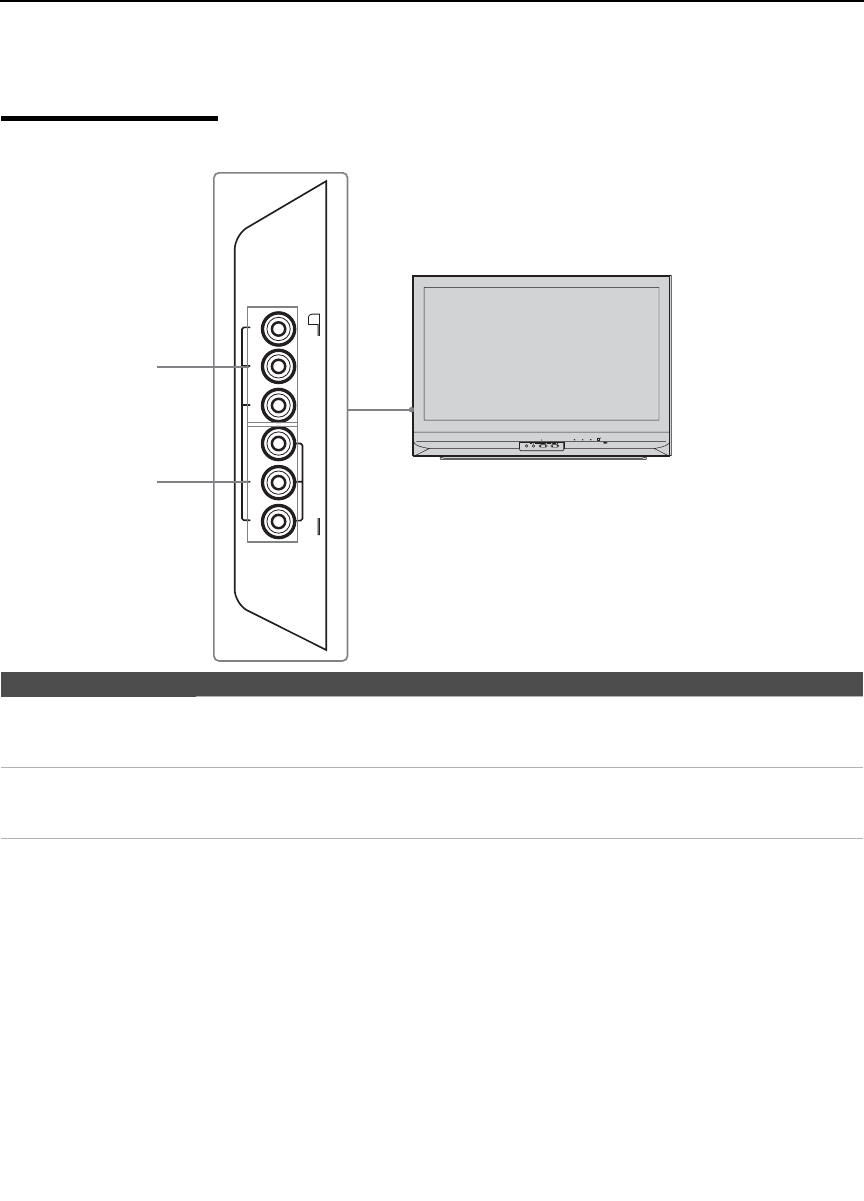

Side Panel
Jack Description
1HD/DVD IN 2
(1080i/720p/
480p/480i)
Connect to your DVD player’s or digital set-top box’s component video (YPBPR) and audio
(L/R) jacks. Component video provides better picture quality than the S VIDEO (5 of rear
panel) or the composite video (6 of rear panel) connections (see page 18).
2VIDEO IN 2
VIDEO/ AUDIO L
(MONO)/ AUDIO R
Connect to the composite video and audio output jacks on your camcorder or other video
equipment. When Auto is selected for the Video 2 (Component) option in the Setup
settings, the component video function will be preferentially activated (see page 79).
PUSH OPEN
WEGA GATE
TV/VIDEO
CANNELVOLUME
POWER
TIMER LAMP
POWER/STANDBY
VIDEO/HD/DVD IN
(1080i/720p/480p/480i)
R-AUDIO-L(MONO)
VIDEO
P
R
/C
RPB
/C
BY
2
1
2
Introducing the TV
17
Introducing the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right
Rear Panel
L
R
Y
P
B
/C
B
P
R
/C
R
L
R
L
R
(MONO)
AUDIO
AUDIO
RL
VIDEO IN
AUDIO
HD / DVD IN
(1080i/720p/480p/480i)
AUDIO
VIDEO
PC IN
AUDIO
RGB
OUT
(VAR/FIX)
DIGITAL AUDIO
(OPTICAL) OUT
PCM/
DOLBY DIGITAL
S VIDEO
6
7
1345
VHF/UHF
CABLE
1
3
78
q;
9
6
5
2
4
Jack Description
1CABLE
VHF/UHF
RF input that connects to your cable and VHF/UHF antenna signal.
2CableCARD slot CableCARD device provides cable subscribers with access to secure, digitally encrypted cable
channels — without the need for a set-top box — that will enable you to receive not only
standard definition but also high definition television. For more information, see page 30.
3 PC IN 7 Connect to the video output connector and audio output jack on your personal computer. For
details, see page 40.
4HDMI IN 6
HDMI/
L-AUDIO-R
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital
audio/video interface between this TV and any HDMI-equipped audio/video component, such
as a set-top box, DVD player, and A/V receiver. HDMI supports enhanced, or high-definition
video, plus two-channel digital audio. You can also connect a DVI-equipped device to your
TV by using an HDMI-to-DVI cable.
(Continued)
Introducing the TV
18
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US03WEL.fm masterpage:3 columns Right
5VIDEO IN 1
S VIDEO
Connects to the S VIDEO output jack of your VCR or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than the composite video (6).
6VIDEO IN 1/3
VIDEO/
L-AUDIO-R
Connect to the composite video and audio output jacks on your VCR or other video
component. A third composite video and audio (VIDEO 2) is located on the left side panel of
the TV.
7HD/DVD IN 4/5
(1080i/720p/
480p/480i)/
L-AUDIO-R
Connect to your DVD player’s or digital set-top box’s component video (YPBPR) and audio
(L/R) jacks. Component video provides better picture quality than the S VIDEO (5) or the
composite video (6) connections.
8AUDIO OUT
(VAR/FIX) L/R
Connect to the left and right audio input jacks of your audio or video equipment. You can use
these outputs to listen to your TV’s audio through your stereo system.
9DIGITAL AUDIO
(OPTICAL) OUT
(PCM/DOLBY*
DIGITAL)
Connects to the optical audio input of a digital audio component that is PCM/Dolby Digital
compatible.
q; AC IN Connects the supplied AC power cord.
* Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
Jack Description
19
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Connecting the TV
Overview
Your new LCD projection TV can receive both analog and digital
broadcasting signals from antenna, satellite and cable TV.
To display clear crisp pictures, you must connect your TV correctly and
choose the correct display format (see “Using the WIDE Button” on page
53). It is strongly recommended to connect the antenna using a 75-ohm
coaxial cable to receive optimum picture quality signal. A 300-ohm twin
lead cable can be easily affected by radio noise and the like, resulting in
signal deterioration. If you use a 300-ohm twin lead cable, keep it as far
away as possible from the TV.

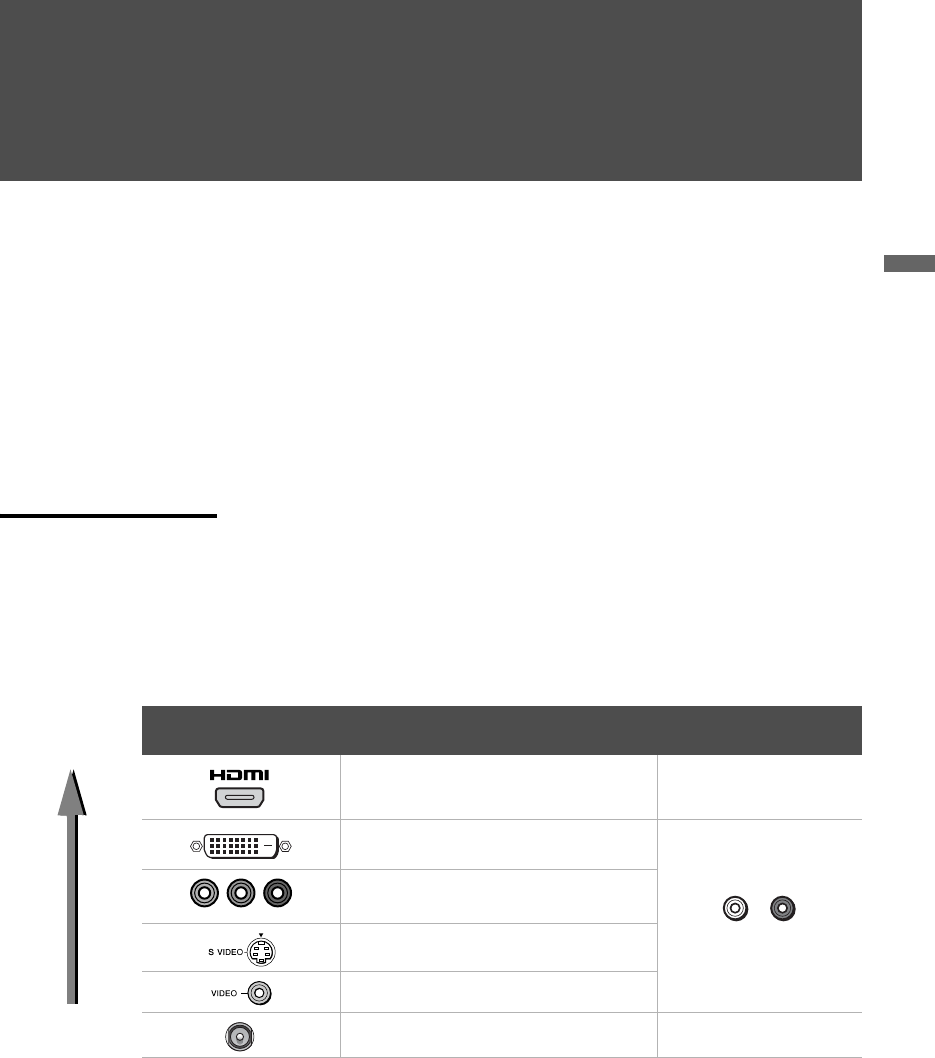

Making Video and
Audio Connections
The signals that enter your TV and connected devices will need to output in
the correct format using the suitable connections. Below are different types
of video connectors available these days. Your TV comes with all types of
connectors with the exception of the DVI connector but your cable box or
satellite receiver may be equipped with this type. When connecting your TV,
use the inputs that are available on your devices that provide the best video
performance, as described below.
Best Video
Performance Connector type
Separate audio
connection required
HDMI
(High-Definition Multimedia Interface) No
DVI (Digital Video Interface) *
Ye s
Component video
(480i/480p/720p/1080i)
S VIDEO
Composite video
RF/Coaxial No
* An adapter is necessary when you are connecting a DVI-equipped device to this TV
(see page 20).
L-
AUDIO
-R
YPB/CBPR/CR
Connecting the TV
20
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
About Using
S VIDEO
If the optional equipment you are connecting has an S VIDEO jack
(shown at left), you can use an S VIDEO cable for improved picture
quality (compared to an A/V cable). Because S VIDEO carries only
the video signal, you also need to connect audio cables for sound, as
shown below.
Example of an S VIDEO Connection
About Using HDMI
to DVI Adapter
If you are connecting equipment with DVI connector with this TV, you will
need to use an adapter. You can use an HDMI-to-DVI cable or an HDMI
adapter (not supplied). Both are available from your local electronics store.
When you use the adapter, you will also need to use separate audio cables
for sound as DVI connector is for video signals only.
L
R
(MONO)
AUDIO
VIDEO IN
VIDEO
S VIDEO
13
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
Rear of TV
S VIDEO cable
Equipment with S VIDEO
Audio cable
HDMI-to-DVI cable
Audio cable
HDMI adapter
Connecting the TV
21
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Basic Connections
The way in which you connect your TV will vary, depending on how your
home receives a signal (antenna and satellite; cable and cable box) and
whether or not you plan to connect a VCR.
If you are connecting a VCR
❑See the connections described on pages 34 and 35.
If You Are Connecting See Page
Cable System or VHF/UHF
❑No cable box or VCR
22
Cable Box and Antenna
❑Cable box unscrambles only some
channels (usually premium channels)
❏No VCR
23
Cable Box
❑Cable box unscrambles all channels
❑No VCR
24
Satellite Receiver
Digital Cable Box or Digital Satellite Receiver
Equipment with HDMI Connection
Equipment with DVI Connection
Equipment with Digital Audio (OPTICAL)
25
26
27
28
29
Connecting the TV
22
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Cable System or
VHF/UHF
For best results, use this connection if you:
❑Have a cable and/or an antenna.
(This is convenient if you are using a separate rooftop antenna to receive
additional channels that are not provided by your cable TV company.)
❑Do not have a cable box or VCR. (If you have a cable box, see pages 23
and 24. If you have a VCR, see pages 34 and 35.)
Notes on Using This Connection
Antenna System
Cable Type Connect As Shown
Cable TV (CATV)
and Antenna
To Do This... Do This ...
Switch the TV’s input between
the cable and antenna
Press ANT to switch back and forth between the
TV’s VHF/UHF and CABLE inputs.
✍Do not use an indoor antenna, which is especially susceptible to
radio noise.
Antenna cable
CATV cable
Connecting the TV
23
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Cable Box and
Antenna
For best results, use this connection if:
❑Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not scramble
all channels.
❑You do not have a VCR. (If you have a VCR, see pages 34 and 35.)
With this connection you can:
❑Use the TV’s remote control to change channels coming through the
cable box to the TV’s CABLE input. (You must first program the
remote control for your specific cable box; see “Programming the
Remote Control” on page 47.)
❑Use the TV’s remote control to change channels coming directly into
the TV’s VHF/UHF input jack.
Notes on Using This Connection
Before connecting a cable
box, see “Using
CableCARD Device” on
page 30.
IN OUT
VHF/UH
F
CABLE
CATV cable
Rear of TV
Cable box
Coaxial
cable
Antenna
cable
To Do This ... Do This ...
Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3
or 4) and then use the cable box to switch channels.
Set up the TV remote control to operate the cable
box
Program the remote control. See “Programming the Remote
Control” on page 47.
Activate the remote control to operate the cable
box
Press SAT/CABLE (FUNCTION) once, and the SAT/CABLE
indicator lights up.
Prevent the accidental switching of TV channels When using the cable box, ensure that the TV remains tuned to the
channel that the cable box is set to (usually channel 3 or 4).
Switch the TV’s input between the cable box and
antenna
Press ANT to switch back and forth between the TV’s VHF/UHF
(scrambled channels) and CABLE (unscrambled) inputs.
Connecting the TV
24
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Cable Box For best results, use this connection if:
❑Your cable company scrambles all channels, which requires you to use a
cable box.
❑You do not have a VCR. (If you have a VCR, see pages 34 and 35.)
With this connection you can:
❑Use the TV’s remote control to change channels coming through the
cable box to the TV’s VHF/UHF input jack. (You must first program the
remote control for your specific cable box.)
To connect the cable box
1Connect the CATV cable to the cable box’s input jack.
2Use a coaxial cable to connect the cable box’s output jack to the TV’s
VHF/UHF input jack.
3Run Auto Program, as described in “Setting Up the Channel List” on
pages 32.
Notes on Using This Connection
Before connecting a cable
box, see “Using
CableCARD Device” on
page 30.
VHF/UH
F
CATV cable Coaxial cable
Rear of TV
Cable box
OUT
IN
To do this... Do This ...
Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3
or 4) and then use the cable box to switch channels.
Set up the TV remote control to operate the cable
box
Program the remote control. See “Programming the Remote
Control” on page 47.
Activate the remote control to operate the cable
box
Press SAT/CABLE (FUNCTION) once, and the SAT/CABLE
indicator lights up.
Prevent the accidental switching of TV channels When using the cable box, ensure that the TV remains tuned to the
channel that the cable box is set to (usually channel 3 or 4).
Connecting the TV
25
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Satellite Receiver Disconnect all power sources before making any connections.
1Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2Use A/V and S VIDEO cables to connect the satellite receiver’s AUDIO
and S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.
3Use a coaxial cable to connect your cable to the TV’s CABLE jack, or
your antenna to the TV’s VHF/UHF jack.
✍If your satellite receiver is not equipped with S VIDEO, use a VIDEO
cable (yellow) instead of the S VIDEO cable.
L
R
(MONO)
AUDIO
VIDEO IN
VIDEO
S VIDEO
13
VHF/UHF
CABLE
Satellite receiver
A/V cable
Rear of TV
VIDEO
Satellite
antenna
cable
S VIDEO
S VIDEO cable
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
AUDIO-L
AUDIO-R
Coaxial cable
Connecting the TV
26
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Digital Cable Box or
Digital Satellite
Receiver
Disconnect all power sources before making any connections.
1Connect the RF coaxial cable from the CATV or satellite dish to the
input of the digital cable box or digital satellite receiver.
2Use a component video cable to connect the digital cable box or satellite
receiver’s YPBPR jacks to the TV’s Y PB/CB PR/CR jacks. Use the
HD/DVD IN 4 or 5 input.
3Use an audio cable to connect the digital cable box or satellite receiver’s
AUDIO OUT jacks to the TV’s AUDIO IN jacks.
✍Component video (Y PB/CB PR/CR) connection is necessary to view
480p, 720p, and 1080i formats. Note that this TV displays all format
types of picture in a resolution of 1280 dots x 720 lines.
✍The Y PB/CB PR/CR jacks do not provide audio, so audio cables
must be connected to provide sound.
L
R
(MONO)
AUDIO
VIDEO IN
VIDEO
S VIDEO
1345
Y
P
B
/C
B
P
R
/C
R
L
R
AUDIO
HD / DVD IN
(1080i/720p/480p/480i)
Rear of TV
Y
PB/CB
PR/CR
AUDIO-L
AUDIO-R
Audio cable
Component video cable
Digital cable box or satellite receiver
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
RF coaxial cable
Connecting the TV
27
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Equipment with
HDMI Connection
Use this hookup if:
❑Your equipment has a High-Definition Multimedia Interface (HDMI).
Disconnect all power sources before making any connections.
Using an HDMI cable, connect the equipment’s HDMI OUT jack to the
TV’s HDMI IN jack.
zThe HDMI jack
provides both video
and audio signals, so it
is not necessary to
connect an audio cable.
AUDIO
RL
6
Rear of TV
HDMI cable
Equipment with HDMI output
Connecting the TV
28
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Equipment with DVI
Connection
Disconnect all power sources before making any connections.
If you are connecting with DVI-HDTV output, you can connect to the TV’s
HDMI IN jack by using an HDMI-to-DVI cable or an adapter (both not
supplied).
AUDIO
RL
6
Rear of TV
HDMI-to-DVI cable or adapter
Audio cable
Equipment with DVI output
AUDIO-R
AUDIO-L
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
✍When using a HDMI-to-DVI cable or an adapter, be sure to connect
the DVI output connector first; then connect to the HDMI input on
your TV.
Connecting the TV
29
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Equipment with
Digital Audio
(Optical)
Disconnect all power sources before making any connections.
You can use the TV's DIGITAL AUDIO (OPTICAL) OUT jack to connect a
digital audio device that is PCM/Dolby Digital compatible, such as an audio
amplifier.
Using an optical audio cable, connect the device's OPTICAL IN jack to the
TV's DIGITAL AUDIO (OPTICAL) OUT jack.
DIGITAL AUDIO
(OPTICAL) OUT
PCM/
DOLBY DIGITAL
OPTICAL
IN
LINE
OUT
L AUDIO R
LINE
IN
Optical audio cable
Rear of TV
Audio amplifier
The DIGITAL AUDIO
(OPTICAL) OUT jack is
available when the TV
receives a digital TV
channel.
Connecting the TV
30
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Using CableCARD Device
The CableCARD device provides cable subscribers with access to digitally
encrypted cable channels — without the need for a set-top box — that will
enable you to receive not only standard definition but also high definition
television. The CableCARD device, which is provided by your cable TV
company, is inserted into the TV’s rear panel CableCARD slot. After the
service is activated with your cable TV company, the card replaces the need
for a separate set-top box.
About Using
CableCARD Device
If you are planning to use a separate cable box for digital cable TV services,
you may be able to receive programming using this TV with the
CableCARD device instead — except in the following circumstances:
❑Your cable TV company does not provide CableCARD service in your
viewing area.
❑You want to access your cable TV company’s interactive or advanced
features (such as video-on-demand or, in some cases, pay-per-view). At
this time, these services require a bidirectional link, which are only
available through the use of a separate set-top box. CableCARD device
is currently a unidirectional device only, and cannot provide these
advanced services.
Check with your cable TV company for CableCARD service details,
limitations, pricing, and availability, all of which are determined by your
cable TV company — not Sony.
Activating
CableCARD Service
Before you can use CableCARD service, you need to insert the CableCARD
device (supplied by your cable TV company) and activate the service, as
described below:
1Insert the CableCARD device into the CableCARD slot.
2Gently push the card into the slot until it locks into place.
✍CAUTION: When inserting the CableCARD device, the rear side of
the card should face forward. Inserting the CableCARD incorrectly
may result in permanent damage to the card and the TV.
Connecting the TV
31
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
3After 1-2 minutes, the CableCARD device setup screen is automatically
displayed. This screen includes information your cable TV company
will request before they can activate your service.
4Follow the displayed instructions: Phone your cable TV company. A
representative will guide you through the activation process.
5After your CableCARD device is activated, your cable TV company
will download the service information, including the channel list, to the
CableCARD device. After the CableCARD device has acquired
channels from your cable TV company, the TV tunes to the lowest
available channel.
Removing the
CableCARD Device
In the event you want to cancel your service, contact your cable TV
company.
1Push the eject button on the CableCARD slot to release the card.
2Pull the CableCARD device straight out of the slot to remove it.
To install a different CableCARD device, follow the instructions in
“Activating CableCARD Service” on page 30.
zYou can also access
information about your
CableCARD device in
the Applications settings
(see page 84).
✍Once the CableCARD device is removed, your TV will no longer
decrypt digital cable TV programming services that require
CableCARD.
Eject button
Connecting the TV
32
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Setting Up the Channel List
After you finish connecting the TV, you can run the Initial Setup to create a
list of available analog and digital channels. The Initial Setup screen appears
when you turn on the TV for the first time after hooking it up. If you choose
to set up the channels at a later time, select the Auto Program option in the
Channel setting to scan available channels (see below).

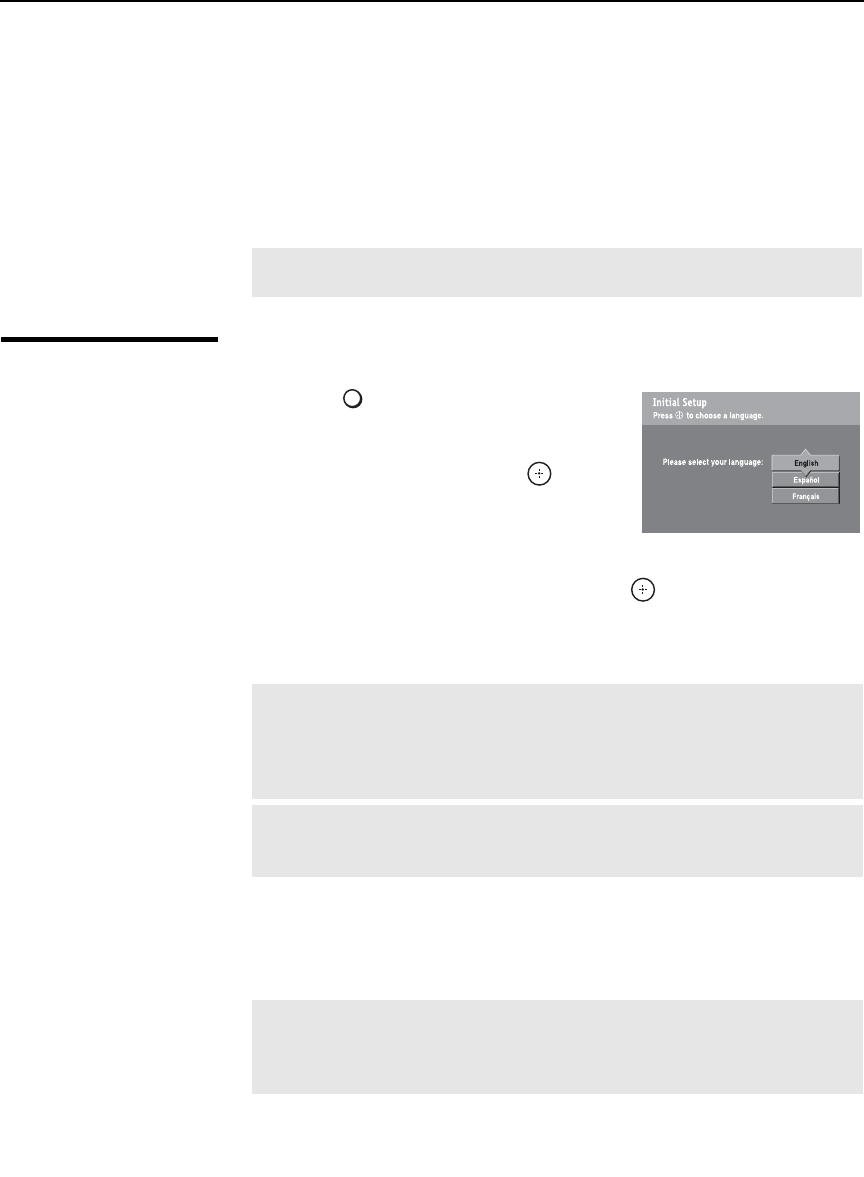

Using Initial Setup To run Initial Setup the first time you turn on your TV
1Press to turn on the TV.
The Initial Setup screen appears.
2Press V or v to highlight the on-screen
display language. Then press . The
messages “First please connect cable
and/or antenna” appears. This may require
50+ minutes for completion and “Start
auto program now?” appears.
3Press V or v to highlight “Yes” then press .
Auto Program performed through Initial Setup will automatically create a
list of receivable channels from both VHF/UHF antenna and cable TV
channels if both sources are connected.
To run Auto Program at a later time
1Select Settings in WEGA GATE, and then go to Channel settings.
2Select Auto Program then select Start.
✍The Initial Setup feature does not apply for installations that use a
cable box for all channel selection.
✍Auto Program may take a while (20 to 50 minutes) to complete. A
progress bar is displayed while available channels are being
scanned. If you cancel the Auto Program before all receivable
channels are scanned, you may want to perform the task later (see
“To run Auto Program at a later time” below).
✍If you selected “No” during the Initial Setup, the Initial Setup
message will appear each time you turn on the TV until you
complete the Auto Program as a reminder.
✍Auto Program will create a list of receivable channels for the
current input (VHF/UHF antenna or CABLE). You will be required to
run Auto Program for each RF input to create a list of available
channels from both inputs.
TV POWER
Connecting the TV
33
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Connecting Optional Equipment
You can connect a variety of optional equipment to your TV. This section
provides some of the individual connections you can make. For multiple
connections, please refer to the Quick Setup Guide.
If You Are Connecting See Page
VCR and Cable 34
VCR and Cable Box 35
Two VCRs for Tape Editing 37
DVD Player with Component Video Connectors 38
DVD Player with S VIDEO and Audio Connectors 39
Personal Computer 40
Camcorder or “PlayStation” 41
Audio Receiver 42
Connecting the TV
34
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
VCR and Cable Use this hookup if:
❑You have cable TV that does not require a cable box.
Disconnect all power sources before making any connections.
1Connect the CATV cable to the single (input) jack of the splitter.
2Use a coaxial cable to connect one of the output jack of the splitter to
the TV’s CABLE jack.
3Use a coaxial cable to connect the splitter's other output jack to the
VCR’s input jack.
4Use A/V and S VIDEO cables to connect the VCR’s AUDIO and
S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.
✍If your VCR is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
CABLE
VHF/UHF
L
R
Y
PB/CB
PR/CR
L
R
(MONO)
AUDIO
VIDEO IN HD / DVD IN
(1080i/720p/480p/480i)
AUDIO
VIDEO
S VIDEO
1345
Coaxial cable
Rear of TV
VIDEO
VCR
A/V cable
S VIDEO
S VIDEO cable
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
Coaxial
cable
CATV
cable
Splitter
AUDIO-R
AUDIO-L
Connecting the TV
35
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
VCR and Cable Box Use this hookup if:
❑Your cable TV company scrambles some channels, but not all of them
(pay channels vs. regular cable channels) and you need to use a cable
box.
With this connection you can:
❑Use the TV’s remote control to change channels on your cable box
when the signal is scrambled. To program your Sony remote control to
operate your cable box, see “Programming the Remote Control” on
page 47.
❑Use the TV’s remote control to change channels on your TV when the
signal is not scrambled. Your TV’s tuner provides a better picture
quality than the output of your cable box.
Disconnect all power sources before making any connections.
1Connect the CATV cable to the single (input) jack of the splitter.
2Use a coaxial cable to connect one of the output jack of the splitter to
the TV’s CABLE jack.
3Use a coaxial cable to connect the splitter’s other output jack to the
cable box’s input jack.
4Use a coaxial cable to connect the cable box’s output jack to the VCR’s
RF input jack.
5Use an A/V cable to connect the cable box’s A/V output jacks to the
TV’s A/V input jacks.
6Use an A/V and S VIDEO cables to connect the VCR’s AUDIO and S
VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.
7Run Initial Setup, as described in “Setting Up the Channel List” on page
32.
Before connecting a cable
box, see “Using
CableCARD Device” on
page 30.
✍If your VCR is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
✍To view scrambled channels, tune the TV to the channel the cable
box is set to (usually channel 3 or 4) and then use the cable box to
switch channels.
(Continued)
Connecting the TV
36
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
VHF/UHF
CABLE
L
R
Y
PB/CB
PR/CR
L
R
(MONO)
AUDIO
VIDEO IN HD / DVD IN
(1080i/720p/480p/480i)
AUDIO
VIDEO
S VIDEO
1345
6
Cable box
Rear of TV
A/V cable
Cables are often
color-coded to
connectors. Connect red
to red,
white to white, etc.
If you are connecting a
digital cable box, you will
need a special bi-
directional splitter
designed to work with your
cable box.
A/V cable
S VIDEO
cable
CATV
cable
VIDEO
AUDIO-L
AUDIO-R
VCR
Splitter
Coaxial
cable
VIDEO
AUDIO-L
AUDIO-R
Coaxial
cable
Coaxial cable
Connecting the TV
37
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Two VCRs for Tape
Editing If you connect two VCRs, you can record from one VCR to the other while
using your TV to monitor what is being recorded.
Disconnect all power sources before making any connections.
1Use an A/V cable to connect the playback VCR’s A/V output jacks to
the recording VCR’s A/V input jacks.
2Use an A/V cable to connect the recording VCR’s A/V output jacks to
the TV’s A/V input jacks.
Using
S VIDEO jacks?
See page 20.
L
R
(MONO)
AUDIO
VIDEO IN
VIDEO
S VIDEO
13
Rear of TV
VCR (playback) VCR (recording)
A/V cable
AUDIO-R
AUDIO-L
VIDEO
A/V cable
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
✍To perform tape editing, set the TV to the video input intended for
playback by pressing TV/VIDEO on the remote control.
✍You may need to change the video input on your VCR. See your
VCR’s operating manual for instructions.
✍If your VCRs have S VIDEO jacks: For best picture quality, use an
S VIDEO connection instead of the VIDEO cable (yellow) on your
combined A/V cable.
Using an S VIDEO cable, connect the playback VCR’s S VIDEO OUT
jack to the recording VCR’s S VIDEO IN jack. S VIDEO does not
provide audio, so audio cables must be connected to provide
sound.
✍You cannot record signals from equipment connected to the Y
PB/CB PR/CR input.
Connecting the TV
38
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right

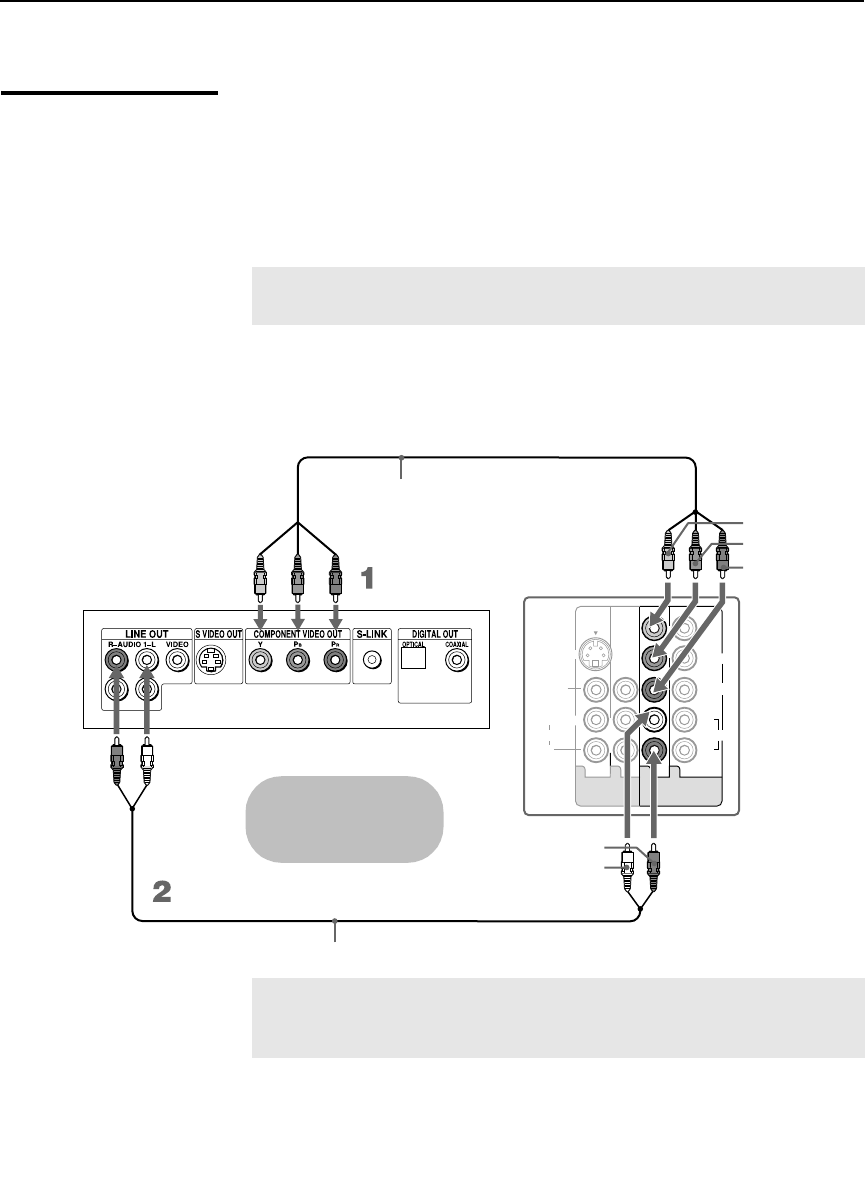

DVD Player with
Component
Video Connectors
Use this hookup if:
❑Your DVD player has component (YPBPR) jacks.
Disconnect all power sources before making any connections.
1Use a component video cable to connect the DVD player’s YPBPR jacks
to the TV’s Y PB/CB PR/CR jacks. Use the HD/DVD IN 4 or 5 input.
2Use an audio cable to connect the DVD player’s AUDIO OUT jacks to
the TV’s AUDIO IN jacks. Be sure to use the same row of inputs that
you used for the video connection (HD/DVD IN 4 or 5).
✍The YPBPR jacks on your DVD player are sometimes labeled YCBCR,
or Y, B-Y and R-Y. If so, connect the cables to like colors.
L
R
Y
PB/CB
PR/CR
L
R
(MONO)
AUDIO
VIDEO IN HD / DVD IN
(1080i/720p/480p/480i)
AUDIO
VIDEO
S VIDEO
1345
Component video cable
Rear of TV
Audio cable
DVD player
AUDIO-R
AUDIO-L
Y
PB/CB
PR/CR
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
✍To take advantage of the Wide Mode feature, set the DVD player’s
aspect ratio to 16:9. For details, refer to the operating instructions
supplied with your DVD player.
Connecting the TV
39
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
DVD Player with
S VIDEO and Audio
Connectors
Use this hookup if:
❑Your DVD player does not have component (YPBPR) jacks.
Disconnect all power sources before making any connections.
1Use an A/V cable to connect the DVD player’s AUDIO OUT jacks to
the TV’s AUDIO IN jacks.
2Use an S VIDEO cable to connect the DVD player’s S VIDEO jack to
the TV’s S VIDEO jack.
L
R
(MONO)
AUDIO
VIDEO IN
VIDEO
S VIDEO
13 Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
DVD player
Rear of TV
A/V cable
S VIDEO
cable
S VIDEO
AUDIO-R
AUDIO-L
VIDEO
✍If your DVD player is not equipped with S VIDEO, use a VIDEO
cable (yellow) instead of the S VIDEO cable.
✍To watch a DVD, press TV/VIDEO repeatedly to select the DVD
input (VIDEO 1 in the illustration). If you have a non-Sony DVD
player and want to set up the TV remote control to operate it,
you must program the remote control. See “Programming the
Remote Control” on page 47.
✍To control DVD functions with the TV remote control, see
“Operating a DVD Player or DVD Changer” on page 49.
✍To easily identify equipment connected to the TV, see the
instructions for setting up Label Video Inputs on page 79.
Connecting the TV
40
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Personal Computer To connect a PC (personal computer)
If you connect your PC to the TV, you can watch your personal computer’s
display on the TV.
When your PC is connected to the TV with the HD15-HD15 cable and
optional audio cable, you can view and listen to the PC’s video and audio
output on the TV.
zWhen connecting to an
Apple Macintosh
computer, use the
HD15-HD15 cable to
connect PC IN of the
TV to video output
connector of the
computer. For some
Apple Macintosh
computers, it may be
necessary to use an
adapter (not supplied).
If this is the case,
connect the adapter to
the computer before
connecting the HD15-
HD15 cable.
zIf the picture is noisy or
flickering, adjust the
Phase and Pitch in the
Screen settings on
page 71.
PC IN
AUDIO
RGB
7
Rear of TV
HD15-HD15
cable (analog
RGB)
Audio
cable
(stereo mini
plugs)
To monitor port (15-pin D-Sub)
To audio output jack
Connecting the TV
41
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Camcorder or
“PlayStation”
You can connect a camcorder or “PlayStation” to your TV. For easy
connection, use VIDEO IN 2 on the left side of the TV. To use the S VIDEO
jack instead of the VIDEO jack (yellow), use VIDEO IN 1 on the rear panel
of the TV.
To connect a camcorder or “PlayStation” to VIDEO IN 1
Use A/V and S VIDEO cables to connect the AUDIO and S VIDEO OUT
jacks on the camcorder or “PlayStation” to the AUDIO and S VIDEO IN
jacks on the rear panel of the TV, as shown below.
To connect a camcorder or “PlayStation” to VIDEO IN 2
Select Off in the Video 2 (Component) option in the Setup settings (see
page 79). Use an A/V cable to connect the A/V output jacks on the
camcorder or “PlayStation” to the A/V input jacks on the left side of the TV.
✍If your camcorder is not equipped with S VIDEO, use a VIDEO
cable (yellow) instead of the S VIDEO cable.
✍If you have a mono camcorder, connect its audio output jack to the
TV’s L MONO audio input jack.
L
R
(MONO)
AUDIO
VIDEO IN
VIDEO
S VIDEO
13
To A/V output jacks
Rear of TV
Camcorder
SVIDEO
VIDEO
AUDIO-L
AUDIO-R
To
SVIDEO
jack
“PlayStation”
or
S VIDEO cable
A/V cable
Connecting the TV
42
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm masterpage:3 columns Right
Audio Receiver For improved sound quality, you may want to play the TV’s audio through
your stereo system (see page 67).
Disconnect all power sources before making any connections.
Using an audio cable, connect the TV’s AUDIO OUT (VAR/FIX) jacks to
the audio receiver’s audio LINE IN jacks.
✍AUDIO OUT jacks are operable only when the TV’s Speaker is set to
Off.
L
R
AUDIO
UT
(VAR/FIX)
Rear of TV
AUDIO-L AUDIO-R
Audio cable
Line
input
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
Audio receiver
43
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
Watching the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Watching the TV
Overview
The table on the next page describes the buttons on the remote control.
Inserting Batteries into the Remote Control
Insert two size AA (R6) batteries (supplied) by matching the e and E on
the batteries to the diagram inside the battery compartment.
Topic Page
Inserting Batteries into the Remote Control 43
Button Descriptions 44
Programming the Remote Control 47
Manufacturer’s Codes 48
Using Other Equipment with Your Remote Control 49
Special Buttons on the Remote Control 51
✍To avoid possible damage from battery leakage, remove the
batteries if you anticipate the remote control will not be used for an
extended period.
✍Handle the remote control with care. Avoid dropping it, getting it
wet, or placing it in direct sunlight, near a heater, or in high
humidity.
✍Your remote control can be programmed to operate most video
equipment. (See “Programming the Remote Control” on page 47.)
12
Watching the TV
44
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Button Descriptions
Button Description
1MUTING
Press to mute the sound. Press again or press
VOL +
to unmute.
2TV/VIDEO
Press to cycle through the video equipment connected to your
TV’s video inputs.
3FUNCTION
Buttons
The
FUNCTION
button indicator lights up momentarily when
pressed to show which external equipment the remote control is
operating. When the remote control is set to operate the external
equipment, these buttons will operate the equipment you choose.
You must first press one of these
FUNCTION
buttons to operate
the corresponding equipment. See page 47 for Programming the
Remote Control.
40-9, ENT
Press
0-9
to select a channel: the channel changes after 2
seconds. Press
ENT
to change channels immediately.
5
Use with
0-9
and
ENT
buttons to select digital channels
(for example, 2.1).
6JUMP
Press to jump back and forth between two channels. The TV
alternates between the current channel and the last channel that
was selected.
7ANT
Press to change between the VHF/UHF input and the CABLE
input.
8SOUND
Press to cycle through different sound settings:
Dynamic
for
enhance treble and bass,
Standard
for spoken dialog and
Custom
for flat setting.
9PICTURE
Press repeatedly to cycle through the available video picture
modes:
Vivid, Standard,
Custom
. The video picture modes can
be also accessed in the Video menu. For details, see “Selecting
Video Options” on page 63.
0GUIDE
Press to display the TV’s program guide.
qa RETURN
Press to return to normal viewing.
qs DVD/VCR
Operating
Buttons
When
FUNCTION
is switched on
DVR
or
DVD/VCR
, these
buttons operate the video equipment you have programmed into
the remote control. For details, see “Using Other Equipment with
Your Remote Control” on page 49.
&
m
PREV
: Press to replay the current program from the
previous Chapter Mark (if any) or from the beginning of the live
TV cache.
REPLAY
: Press to replay the current program for a set period
of time.
ADVANCE
: Press to advance forward a set period of time
when playing back a recorded program.
M
&
NEXT
: Press to advance forward to the next Chapter Mark
(if any) or to live TV when playing back a recorded program.
m
(fast reverse)
: Press to play a program in fast rewind mode.
H
z
PLAY
: Press to play a program at a normal speed.
M
(fast forward)
: Press to play a program in fast forward
mode.
X
PAU S E
: Press to pause playback.
x
STOP
: Press to stop the playback of a recorded program.
ENT
RETURN
TOOLS
TV/VIDEO
MUTING
DVD /
VCR
SAT/
CABLE
FUNCTION
TV
DVR
POWER TV POWER
JUMP ANT MTS/SAP FREEZE
SOUND PICTURE TV/SAT
SUR
WIDE
WEGA
VISUAL SEARCH
PAUSE
PLAY
STOP
REC REC PAUSE REC STOP
TOP MENU MENU F1 F2
GUIDE
DISPLAY
REPLAY ADVANCE NEXTPREV
GATE
TV
CH
VOL
zThe 5 button, CH + button,
MTS/SAP and Play button
have a tactile dot. Use the
tactile dot as a reference
when operating the TV.
Watching the TV
45
Watching the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
qd VISUAL
SEARCH
To be used only with your connected external equipment with
visual search function. (Non-operable button for TV)
qf VOL +/–
Press to adjust the volume.
qg DVD/VCR
Record
Buttons
z
REC
: Press to record. By pressing this button alone will start
the recording.
X
REC PAUSE
: Press to pause the recording.
x
REC STOP
: Press to stop the recording.
qh TOP MENU
Press to display the disc menu from your connected DVD player.
qj MENU
Press to display the disc menu from your connected DVD player.
qk POWER
Press to turn on/off the external equipment selected from the
FUNCTION
buttons
3
.
ql TV POWER
Press to turn on/off the TV.
w; MTS/SAP
Press repeatedly to cycle through the Multi-channel TV Sound
(MTS) options:
Stereo
,
Auto SAP
(Second Audio Program),
and
Mono
. The MTS setting can be also accessed in the Audio
setting. For more details, see “Selecting Audio Options” on
page 66.
wa FREEZE
Press to freeze the current picture. Press again to restore the
picture. For details, see “Using the FREEZE Button” on page 54.
ws TV/SAT/SUR
TV/SAT
: While in
SAT/CABLE FUNCTION
, press to switch
between the satellite receiver and antenna.
SUR
: Press
SUR
(Surround Sound) repeatedly to step through
the available audio effect models:
TruSurround XT
,
Simulated
,
Off
.
wd WIDE
Press repeatedly to step through the Wide Screen Mode setting:
Wide Zoom, Normal, Full
and
Zoom
. The Wide Screen Mode
setting can be also accessed in the Screen setting. For details, see
“Using the WIDE Button” on page 53.
wf DISPLAY
Press once to display channel number, label, current time and
other information. Press again to turn Display off. See page 83
for details on setting the time.
wg V/v/B/b
Press
V
/
v
/
B
/
b
to move the on-screen cursor. To select an item,
press .
wh TOOLS
To be used only with your connected external equipment that
supports this
TOOLS
function.
(Non-operable button for TV)
wj WEGA GATE
Press to access the following through the WEGA GATE:
• Watch TV (see page 58)
• Select channels from the Favorites Channels you stored
(see page 57)
• View signals from external equipment such as DVD, VCR and
others (see page 59).
• Adjust or customize TV settings (see Using the Settings on
page 59).
wk CH +/–
Press to scan through channels. To scan quickly through
channels, press and hold down either
+/–
button.
Button Description
(Continued)
Watching the TV
46
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
wl F1
Press to select the function of connected components. For details,
see “Using Other Equipment with Your Remote Control” on page
49.
e; F2
Press to select the function of connected components. For details,
see “Using Other Equipment with Your Remote Control” on page
49.
Button Description
Watching the TV
47
Watching the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
Follow the steps below to program your TV’s remote control to operate the
non-Sony video equipment.
Find the three-digit code for your equipment from the “Manufacturer’s
Codes” listed on page 48. If more than one code number is listed, try
entering from the code listed first.
1Press and hold the , or FUNCTION button you want to
program on the remote control and press the button simultaneously.
The selected FUNCTION button (DVR, DVD/VCR or SAT/CABLE)
will flash.
2Enter the three-digit manufacturer’s code number using the --9
buttons while the button is lit. If code is not entered within 10 seconds,
you must perform step 1 again.
3Press button.
When the programming is correct, the selected FUNCTION button will
flash twice, and when not, flashes five times.
To check if the code works
Aim your TV’s remote control at the equipment, and press the green
button. If the equipment turns on and off, the programming is completed. If
not, try the next code listed.
Sony Equipment Programmable Code Number
DVR 772
DVD/VCR 601 (Sony Dream System)
SAT/CABLE 801 (Sony Satellite Receiver)
✍If no code is input within the above specified time, or an invalid or
incorrect code number is input, the remote control automatically
goes back to the previous setting.
✍In some cases, you may not be able to program your remote
control to operate other equipment. In such cases, use the
equipment’s own remote control.
✍Using dead batteries or removing the batteries may cause the
programmable codes to be lost and revert back to factory settings.
Reprogramming the codes may be necessary.
ENT
RETURN
TOOLS
TV/VIDEO
MUTING
DVD /
VCR
SAT/
CABLE
FUNCTION
TV
DVR
POWER TV POWER
JUMP ANT MTS/SAP FREEZE
SOUND PICTURE TV/SAT
SUR
WIDE
WEGA
VISUAL SEARCH
PAUSE
PLAY
STOP
CH
VOL
REC REC PAUSE REC STOP
TOP MENU MENU F1 F2
GUIDE
DISPLAY
REPLAY ADVANCE NEXTPREV
GATE
TV
1
1
3
2
DVR
DVD /
VCR
SAT/
CABLE
POWERPOWER
Watching the TV
48
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
Manufacturer’s Codes
DVD Players
DVD Changers
DVD/VCR Combo Units
HDD/DVD Combo Units
5.1ch DVD AV System
AV Receivers
VCRs
Manufacturer Code
Sony 751
General Electric 755
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Panasonic 753
Philips 757
Pioneer 752, 778
RCA/PROSCAN 755
Samsung 758
Toshiba 7 54
Zenith 760
Manufacturer Code
Sony 765
Panasonic 766
Manufacturer Code
Sony 767
Broksonic 776
JVC 775
Panasonic 777
Samsung 774
Toshiba 7 73
Zenith 768
Manufacturer Code
Sony 772, 771, 770
Manufacturer Code
Sony (DAV) 601, 602, 603, 604
Manufacturer Code
Sony 764
Manufacturer Code
Sony 301, 302, 303
Admiral (M. Ward) 327
Aiwa* 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316, 317,
318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305, 338
Instant Replay 309, 308
JC Penney 309, 305, 304, 330,
314, 336, 337
JVC 314, 336, 337, 345,
346, 347
Kenwood 314, 336, 332, 337
LG 332
LXI (SEARS) 332, 305, 330, 335,
338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/MGA 323, 324, 325, 326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Orion 317
Panasonic 308, 309, 306, 307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/PROSCAN 304, 305, 308, 309,
311, 312, 313, 310,
329
Realistic 309, 330, 328, 335,
324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321, 335,
323, 324, 325, 326
Manufacturer Code
Cable Boxes
Satellite Receivers
*If an Aiwa VCR does not work even
though you enter the code for Aiwa, enter
the code for Sony instead.
Sharp 327, 328
Signature 2000 (M.
Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338, 310
Symphonic 338
Tashi ro 332
Tatung 314, 336, 337
Teac 314, 336, 338, 337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335, 331,
332
Yamaha 314, 330, 336, 337
Zenith 331
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224, 225,
226
Jerrold/
General Inst./
Motorola
201, 202, 203, 204,
205, 206, 207, 208,
218, 222
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 211, 214, 215
Scientific Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
Dish Network 810
Echostar 810
General Electric 802
Hitachi 805
Hughes 804
Mitsubishi 809
Panasonic 803
Philips 811
RCA/PROSCAN
802, 808
Toshiba 806, 807
Samsung 812
Manufacturer Code
Watching the TV
49
Watching the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
Using Other Equipment with Your Remote Control
To operate other equipment connected to your TV, first turn to page 48 and
program the necessary code. For operating video equipment, press
TV/VIDEO repeatedly until you see the video input on the screen for your
connected equipment. Remote control tips are provided below.
Operating a Cable Box
Operating a Satellite Receiver
Operating a VCR
Operating a DVD Player or DVD Changer
✍Some functions cannot be operated depending on the equipment.
In that case, operate by the remote control supplied with the
equipment.
To Do This ... Press ... To Do This ... Press ...
Activate the remote control to operate
the cable box SAT/CABLE (FUNCTION) Select a channel 0-9, ENT
Change channels CH +/–
Turn on/off POWER Back to previous channel JUMP
To Do This ... Press ... To Do This ... Press ...
Activate the remote control to operate
the satellite receiver SAT/CABLE (FUNCTION) Display SAT Guide GUIDE
Turn on/off POWER Display SAT Menu MENU
Select a channel 0-9, ENT Move highlight (cursor) V v B b
Change channels CH +/– Select item
Back to previous channel JUMP Switch between the TV and satellite
broadcasts TV/SAT
Display channel number DISPLAY
To Do This ... Press ... To Do This ... Press ...
Activate the remote control to operate
the VCR DVD/VCR (FUNCTION)Fast forward M
Rewind the tape m
Turn on/off POWER Pause X (press again to resume
normal playback)
Change channels CH +/–
Record zSearch the picture forward or backward M or m during playback
(release to resume normal
playback)
Play H
Stop x
To Do This ... Press ... To Do This ... Press ...
Activate the remote control to operate
the DVD DVD/VCR (FUNCTION)
Step through different
tracks of the disc
m to fast reverse or M to
fast forward the disc when
pressed during playback
Turn on/off POWER Step through different chapters of the
disc
> to step forward or . to
step backward
If you have a DVD changer,
to skip disc
F1 Select a track directly 0-9, ENT
Play HDisplay the disc menu MENU
Stop xDisplay the top menu TOP MENU
Pause X (press again to resume
normal playback)
Operate the DVD menu V v B b,
(Continued)
Watching the TV
50
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Operating a 5.1ch DVD AV System (Sony DAV)
Operating a DVD/VCR Combo Unit
Operating a HDD/DVD Combo Unit
Operating an AV Receiver
To Do This ... Press ... To Do This ... Press ...
Activate the remote control to operate
the DVD DVD/VCR (FUNCTION) Play H
Stop x
Turn on/off POWER Pause X
Select other equipment connected to
the DAV
F1 Search the picture forward or backward M or m during playback
Disk skip F2 Specify the previous chapter/track
Specify the next chapter/track
.
>
Display the top menu TOP MENU Move highlight (cursor) V v B b
Display the disc menu MENU Select item
Master volume VOL +/–, MUTING
To Do This ... Press ... To Do This ... Press ...
Activate the remote control to operate
the DVD/VCR DVD/VCR (FUNCTION) Search the picture forward or backward M or m during playback
Turn on/off POWER Replay
Select the DVD
Select the VCR
F 1
F 2
Advance
Display the top menu TOP MENU Move highlight (cursor)
and select (DVD)
V v B b
Display the disc menu MENU Record (VCR) z
Play HChange channels (VCR) CH +/– or 0-9, ENT
(using tuner)
Stop xAdjust tracking (VCR) CH +/– (during tape
playback)
Pause X
To Do This ... Press ... To Do This ... Press ...
Activate the remote control to operate
the DVD/HDD DVR (FUNCTION) Move highlight (cursor)
and select
V v B b
Turn on/off POWER Record z
Select the HDD
Select the DVD
F 1
F 2
Specify the previous chapter/track
Specify the next chapter/track
.
>
Play HReplay
Stop xAdvance
Pause XDisplay the disc menu MENU
Search the picture forward or backward M or m during playback Display the top menu TOP MENU
To Do This ... Press ...
Turn on/off POWER
Master volume VOL +/–, MUTING
Select other input connected to AV
receiver F1
Watching the TV
51
Watching the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
Special Buttons on the Remote Control
This TV comes with convenient features that can be accessed directly by
pressing their buttons on your remote control.

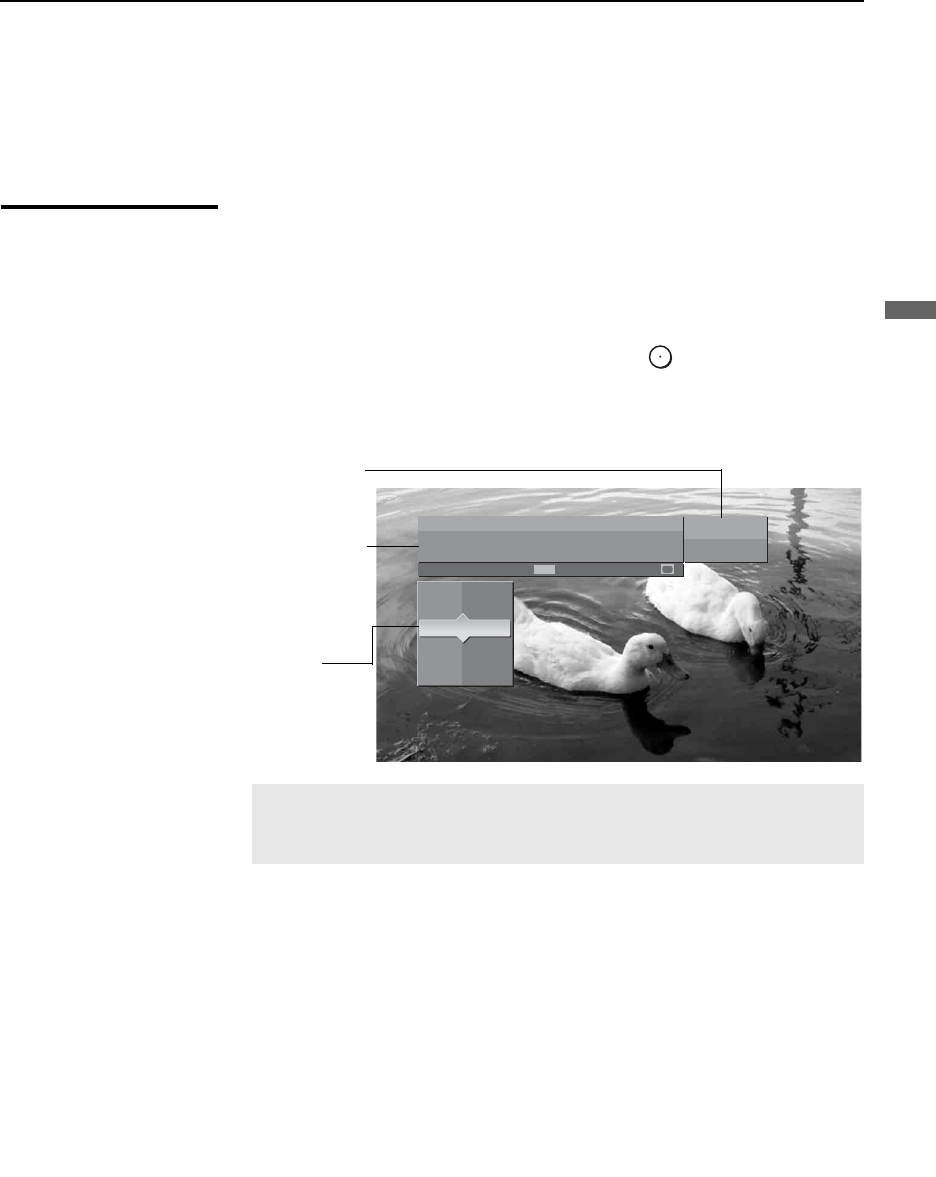

Using the GUIDE
Button
This TV is equipped to show program information if it is available from the
station. The Program Guide lets you review program information, and select
both analog and digital channels.
To display the Program Guide:
1Tune your TV to a channel by using the 0-9, , and ENT buttons.
2Press GUIDE on the TV’s remote control. The Program Guide will
appear with the currently selected program showing in the background.
✍Program information in the guide is provided by the broadcasters.
As a result, it may sometimes include only the channel number,
without a program title or description.
Make Way for Ducks!
Series follows the aquatic misadventures of Henry and Riley, two
wayward ducks on a unique mission.
Time remaining: 1:26
FAM
TV-G
CC
1 ABC
10 DISC
23.1
FAM
36 TLC
65 HIST
68 SHOW
C23.1
Channel number,
call letters, etc.
Program title and
description,
program duration,
time remaining,
rating information,
closed-caption
availability, etc.
Selectable
channel list.
(Continued)
Watching the TV
52
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)

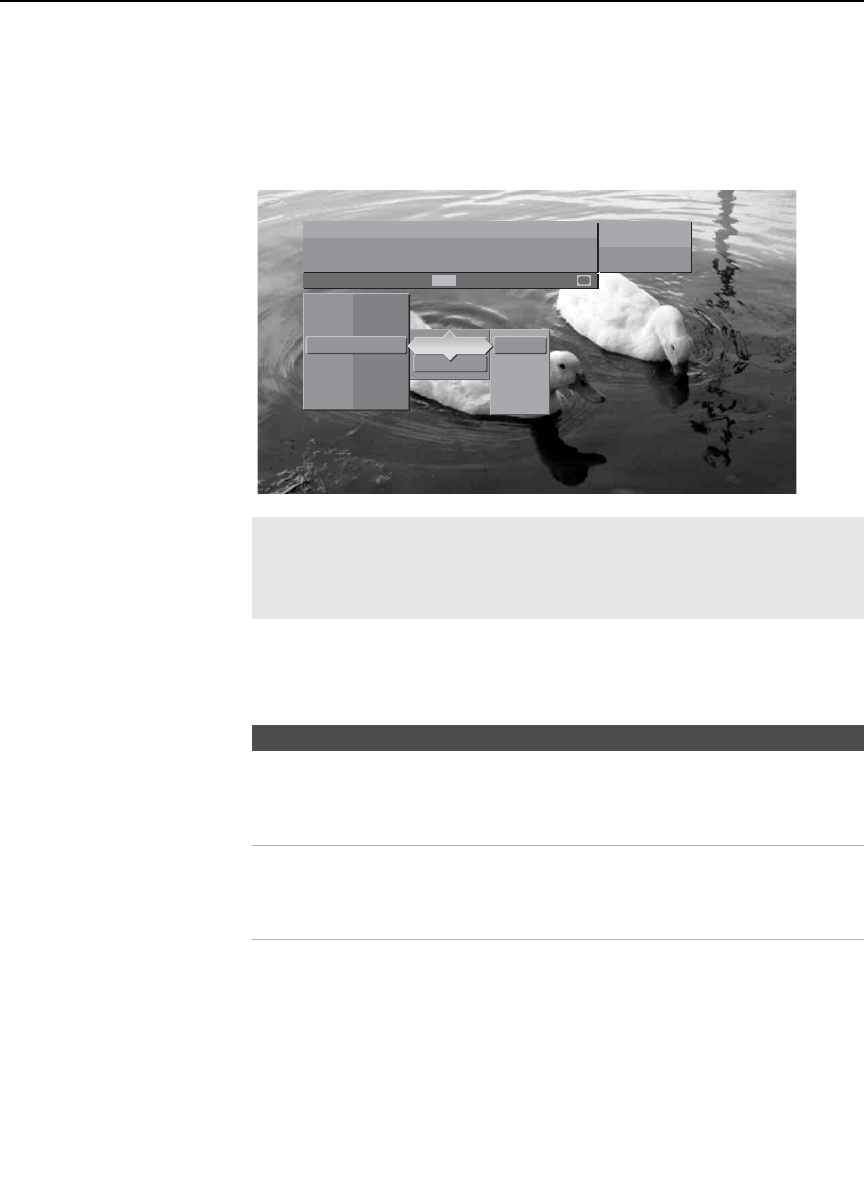

Using the Program Guide
The Program Guide allows you to select the channels from a drop down list.
The Guide also provides information about the current program being shown
on each channel.
Using the Program Options Setting
The Program Options setting allows you to customize the program settings
on the currently tuned channel.
✍Subchannels are additional channels of programming broadcast
simultaneously. For example, channel 4 might include three
subchannels (4.1, 4.2, 4.3) that are showing programs at the same
time.
Option Description
Alternate
Video
(When
available)
Each program has a main video stream (the video that you see when
the channel is first tuned), and may have alternate video streams. This
option allows you to switch among these alternate video streams.
Alternate
Audio
(When
available)
Each program has a main audio stream (the audio you hear when the
channel is first tuned), and may have alternate audio streams. This
option allows you to switch among these alternate audio streams (e.g.,
for different languages).
Main
Video 1
Video 2
Video 3
Make Way for Ducks!
Series follows the aquatic misadventures of Henry and Riley, two
wayward ducks on a unique mission.
Time remaining: 1:26
TV-G
CC
Alternate Video
Alternate Audio
FAM
C23.1
1 ABC
10 DISC
23.1
FAM
36 TLC
65 HIST
68 SHOW
Watching the TV
53
Watching the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
Using the WIDE
Button
Wide screen mode lets you watch 4:3 normal broadcasts in several wide
screen modes (16:9 aspect ratio).
Wide Mode :
Wide Zoom
Wide Mode :
Normal
Wide Mode :
Full
Wide Mode :
Zoom
Wide Mode :
Wide Zoom
Wide Mode :
Full
Wide Mode :
Zoom
WIDE
16:9 Original source
(High definition source)
4:3 Original source
(Standard definition source)
✍When the TV receives a 720p or 1080i signal, Normal cannot be
selected.
zWhen the TV receives a
720p or 1080i signal
that is 4:3 aspect ratio
picture with a black bar
at each side, Full
returns the picture to its
original size.
zYou can also access the
Wide Mode settings in
the Screen settings. For
details, see page 69.
Changing the wide screen mode
4:3 Original source
This mode is not available
16:9 Original source
W
ide Zoom
Full
Zoom
Normal
Standard definition High definition
Watching the TV
54
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US05REM.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Using the JUMP
Button
The JUMP button allows you to jump back and forth between the current
channel and the last channel that was selected.
Using the FREEZE
Button
The FREEZE button allows you to temporarily capture a program’s picture.
You can use this feature to write down information such as phone numbers,
recipes, etc.
To cancel FREEZE and return to normal viewing, press the FREEZE button
again.
JUMP
Previous channel
FREEZE
Frozen
Freeze
Current
program in
prgress
55
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US06USI.fm masterpage:3 columns Right
Introducing WEGA GATE
Introducing WEGA GATE
Overview of WEGA GATE
WEGA GATE provides one button access for controlling your TV. It
enables you to perform a variety of tasks intuitively with a control panel
on the screen rather than a variety of remote control button presses.
When you press the button, you can select from basic TV
function: selecting from Favorite Channels, watching TV, viewing
external equipment signals or adjusting TV settings.
WEGA
GATE
RETURN
TOOLS
WEGA
VISUAL SEARCH
PAUS E
PLAY
STOP
CH
VOL
GUIDE
DISPLAY
REPLAY ADVANCE NEXTPREV
GATE
1Press WEGA GATE on the remote.
WEGA GATE control panel appears.
2Press V/v to highlight the item.
3Press to select.
4Press to exit.
WEGA
GATE
Press to exit
WEGA GATE
Favorites
Cable
Antenna
External Inputs
Settings
WEGA GATE
C
C
Introducing WEGA GATE
56
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US06USI.fm masterpage:3 columns Right
The WEGA GATE screen gives you access to the following items:
Icon Description
Favorites
The Favorites feature lets you select programs from a list of up to 16 favorite
channels that you specify. For details, see page 57.
Cable
The Cable feature takes you to the most recently viewed channel on the cable
input. When tuned to the channel, the Program Banner and Channel number
will be displayed.
When this feature is active, a is displayed to the left of the icon.
Antenna
The Antenna feature takes you to the most recently viewed channel on the
antenna input. When tuned to the channel, the Program Banner and Channel
number will be displayed.
When this feature is active, a is displayed to the left of the icon.
External Inputs
The External Inputs feature lets you select equipment that is connected to
your TV, such as a DVD player. You can assign a label to your equipment or
skip unused inputs conveniently. For details, see page 59.
When this feature is active, a is displayed to the left of the icon.
Settings
The Settings feature lets you adjust the Video, Audio, Screen, Channel,
Parental Lock, Setup or Applications settings. For details, see page 59.
C
C
Introducing WEGA GATE
57
Introducing WEGA GATE
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US06USI.fm masterpage:3 columns Right

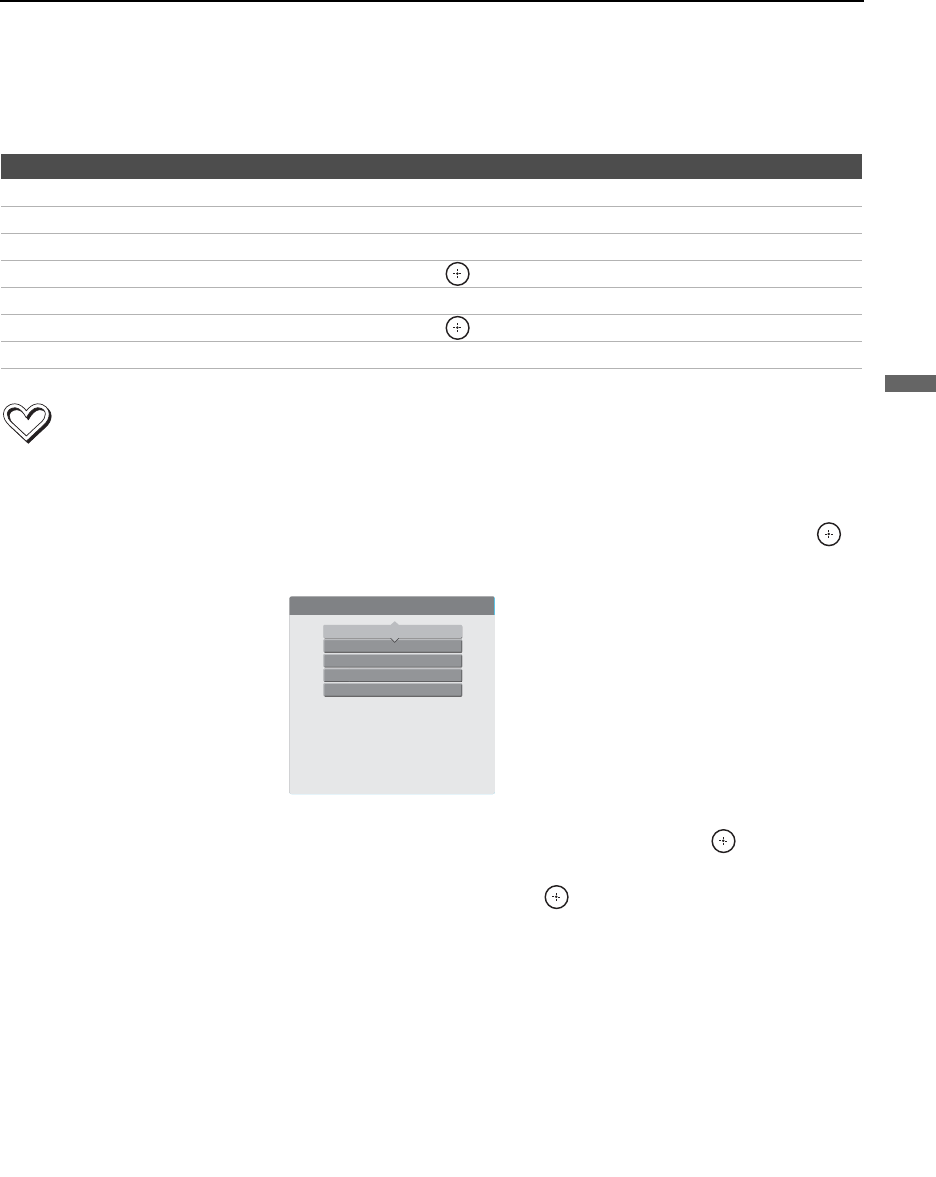

Navigating and Selecting Items
Use your remote control to navigate through WEGA GATE and the settings.
Using Favorites in WEGA GATE
The Favorites feature lets you select programs from a list of up to 16
favorite channels that you specify. You can create a list using the Add to
Favorites option.
1Select Favorites from the WEGA GATE control panel and press .
The Favorite Channels list appears. Make your selection.
2Press M/m to highlight the desired channel and press .
• To add the current channel to the list of Favorite Channels, highlight
Add to Favorites and press .
• When the Favorite Channels list is full, select Edit Favorites to
remove a channel from the list or go to the Channel settings and
select Favorite Channels then edit the channel.
To Do This ... Press ...
Display WEGA GATE control panel Press WEGA GATE.
Display Settings Press WEGA GATE and select Settings.
Move through Settings Press V v B b.
Select an option to change Press .
Move back to upper layer Press RETURN.
Select (confirm) changed setting Press .
Exit WEGA GATE control panel or Settings Press WEGA GATE.
Favorite Channels
Add to Favorites
15
15.2 KPBS-DT
Edit Favorites
Exit
Introducing WEGA GATE
58
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US06USI.fm masterpage:3 columns Right
Using Cable in WEGA GATE
The Cable feature takes you to the most recently viewed channel on the
cable input. When tuned to the channel, the Program Banner and Channel
number will be displayed.
Select Cable from the WEGA GATE control panel and press .
Using Antenna in WEGA GATE
The Antenna feature takes you to the most recently viewed channel on the
antenna input. When tuned to the channel, the Program Banner and Channel
number will be displayed.
Select Antenna from the WEGA GATE control panel and press .
C
C
✍If you have not completed the initial channel setup (see page 32)
both Cable and Antenna will tune to the lowest channel number. To
run Initial Setup see page 72.
Regularly Scheduled Programming
No program information is available.
0:24 Remaining 480i 4:3
KNSD-WX
Unrated
C39.2
✍If you have not completed the initial channel setup (see page 32)
both Cable and Antenna will tune to the lowest channel number. To
run Initial Setup see page 72.
Full Focus
Sd Film Festivals Growth
0:29 Remaining 720p 16:9
KPBS-HD
Unrated
15.1
Introducing WEGA GATE
59
Introducing WEGA GATE
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US06USI.fm masterpage:3 columns Right
Using External Inputs in WEGA GATE
The External Inputs feature lets you view from a selected external input
connected to your TV. You can assign a label or skip over unused inputs by
selecting Edit Video Labels. Input label assignment can also be done by
going to Setup settings and select Label Video Inputs (see page 79).
1Select External Inputs from the WEGA GATE control panel and press
.
The External Inputs list appears. Make your selection.
2Press M/m to highlight the desired external input and press .
Using Settings in WEGA GATE
The Settings feature lets you enter to the settings screen where most of
advanced settings and adjustments are performed. See “Overview ” on page
61.
External Inputs
Exit
Video 1 VHS
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7
Edit Video Labels
61
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Using the Settings
Overview
The Settings give you access to the following features:
(Depending on the signal tuned, you may see a different Setting options on
your screen. Settings displayed here are with the 720p signal.)
Settings Allows you to set/change
Video Picture Mode (page 63)
Reset (page 63)
Iris (page 63)
Picture (page 63)
Brightness (page 63)
Color (page 63)
Hue (page 63)
Color Temp. (page 64)
Sharpness (page 64)
Noise Reduction (page 64)
DRC Mode (page 64)
DRC Palette (page 64)
Advanced Video (page 65)
Audio Sound Mode (page 66)
Reset (page 66)
Tre bl e (page 66)
Bass (page 66)
Balance (page 66)
Steady Sound (page 66)
Volume Offset (page 66)
Effect (page 66)
BBE (page 66)
MTS (page 67)
Speaker (page 67)
Audio Out (page 67)
A/V Sync (page 67)
Screen Wide Mode (page 69)
Game Picture (page 69)
4:3 Default (page 70)
Display Area (page 70)
Vertical Center (page 70)
Ver tical Size (page 70)
Antenna
Video
Press WEGA GATE to exit
Picture Mode Vivid
Reset
Iris Max
Picture Max
Brightness 50
Color 65
Hue 0
Color Temp. Cool
Sharpness 50
Antenna
Audio
Press WEGA GATE to exit
Sound Mode Custom
Reset
Treble 0
Bass 0
Balance 0
Steady Sound Off
Volume Offset 0
Effect Off
BBE Off
Antenna
Screen
Press WEGA GATE to exit
Wide Mode Wide Zoom
Game Picture 0
4:3 Default Off
Display Area Normal
Vertical Center 0
Vertical Size 0
(Continued)
Using the Settings
62
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right

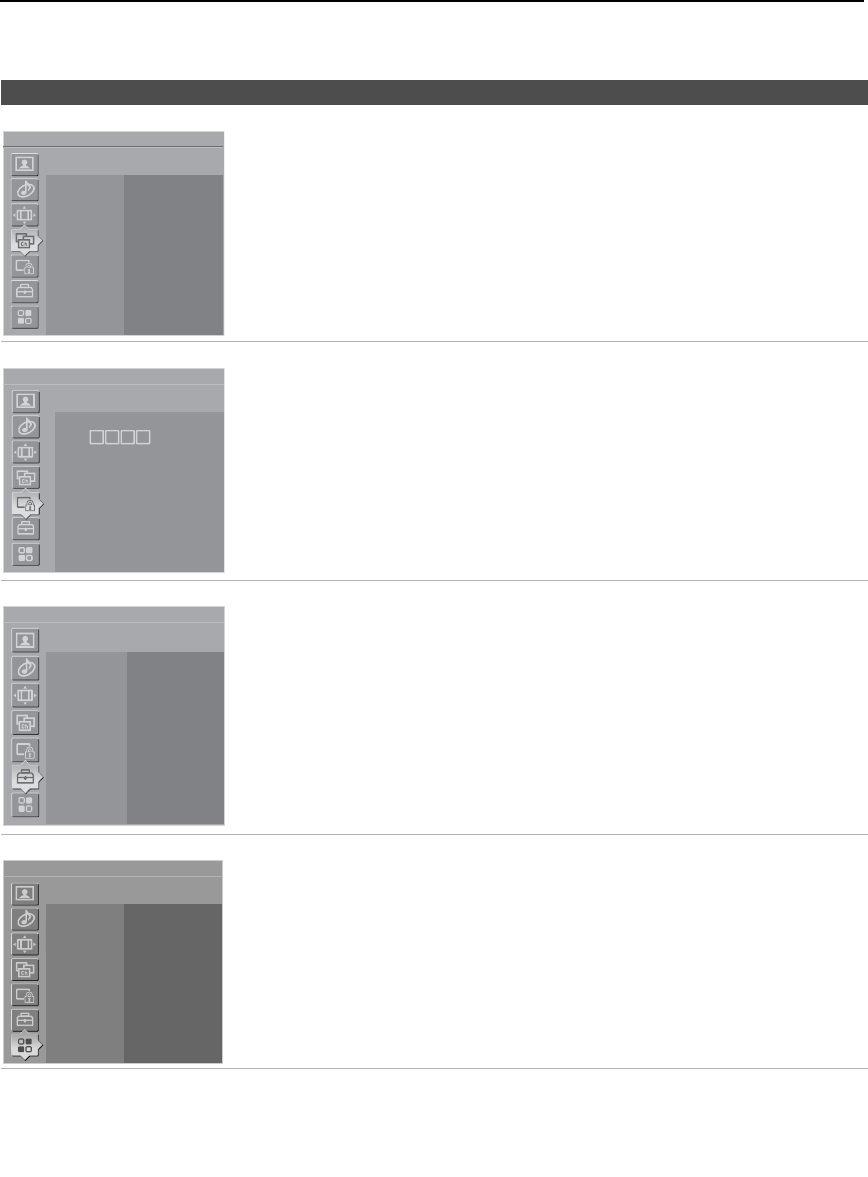

Channel Favorite Channels (page 72)
Digital Channels (page 72)
Auto Program (page 72)
Show/Hide Channels (page 72)
Label Channels (page 73)
Parental Lock Parental Lock (page 74)
Change Password (page 75)
Select Country (page 75)
Setup Caption Vision (page 78)
Info Banner (page 78)
Game Mode (page 78)
Label Video Inputs (page 79)
Language (page 79)
Video 2 (Component) (page 79)
Menu Color (page 79)
Image Shift (page 79)
High Altitude (page 80)
CineMotion (page 80)
Applications Clock/Timers (page 83)
Diagnostics (page 84)
CableCARD (page 84)
Settings Allows you to set/change
Antenna
Channel
Press WEGA GATE to exit
Digital Channels
Auto Program
Show/Hide Channels
Label Channels
Favorite Channels
Antenna
Parental Lock
Press WEGA GATE to exit
Password
Antenna
Setup
Press WEGA GATE to exit
Caption Vision Off
Info Banner On
Game Mode Off
Label Video Inputs
Language English
Video 2(Component) Off
Menu Color Gray
Image Shift Auto
High Altitude Off
Antenna
Applications
Press WEGA GATE to exit
Clock/Timers
Diagnostics
CableCARD
Using the Settings
63
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right

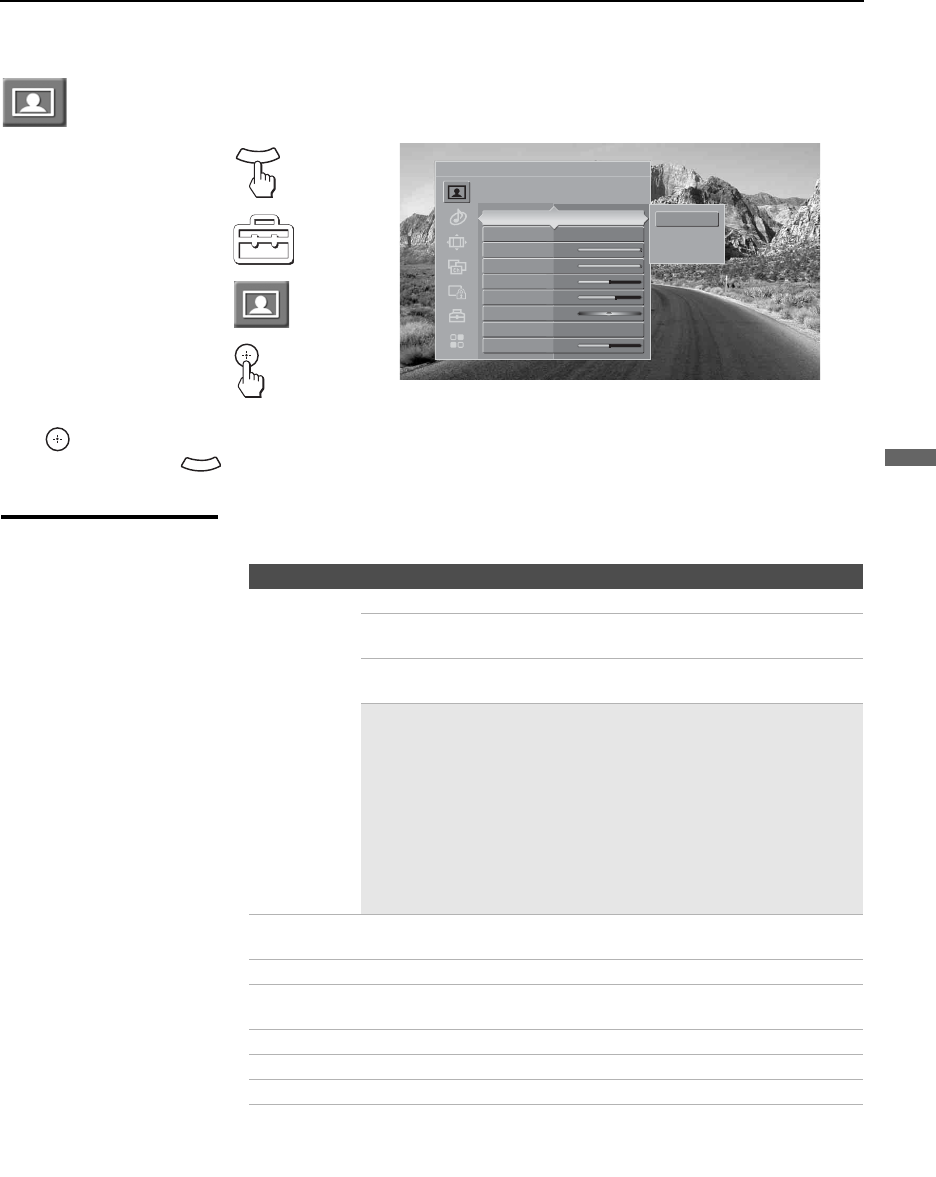

Accessing the Video Settings
Selecting Video
Options
The Video settings include the following options:
1. Press WEGA GATE.......
2. Select Settings..............
3. Highlight......................
4. Press to select...............
To highlight an option and to change settings, press V v B b.
Press to confirm the selection.
To exit the Video, press .
WEGA
GATE
Antenna
Video
Custom settings
Vivid
Standard
Custom
Picture Mode Vivid
Reset
Iris Max
Picture Max
Brightness 50
Color 65
Hue 0
Color Temp. Cool
Sharpness 50
WEGA
GATE
Option Description
Mode
Customized
viewing
Vivid Select for enhanced picture contrast and sharpness.
Standard Select for standard picture settings. Recommended
for home entertainment.
Custom Select to display a picture with minimum
enhancements.
✍You can alter the Video settings (Picture, Brightness,
Color, etc.) for each Picture Mode and each video
input.
✍You may set up a Picture Mode (Vivid, Standard,
Custom) independently for each Video input (Video 1-
Video 6, including the Antenna input). Your Picture
Mode settings are automatically saved after each
selection. This allows you to customize the Picture
Mode setting for each type of signal source.
Reset Select OK to reset all settings and adjustments to the default setting
(except for Advanced Video).
Iris Adjust the contrast levels.
Picture Adjust to increase picture contrast and deepen the color or decrease
picture contrast and soften the color.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
zTo quickly and easily
change from one
Picture Mode to
another, use PICTURE
on the remote control.
(Continued)
Using the Settings
64
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right

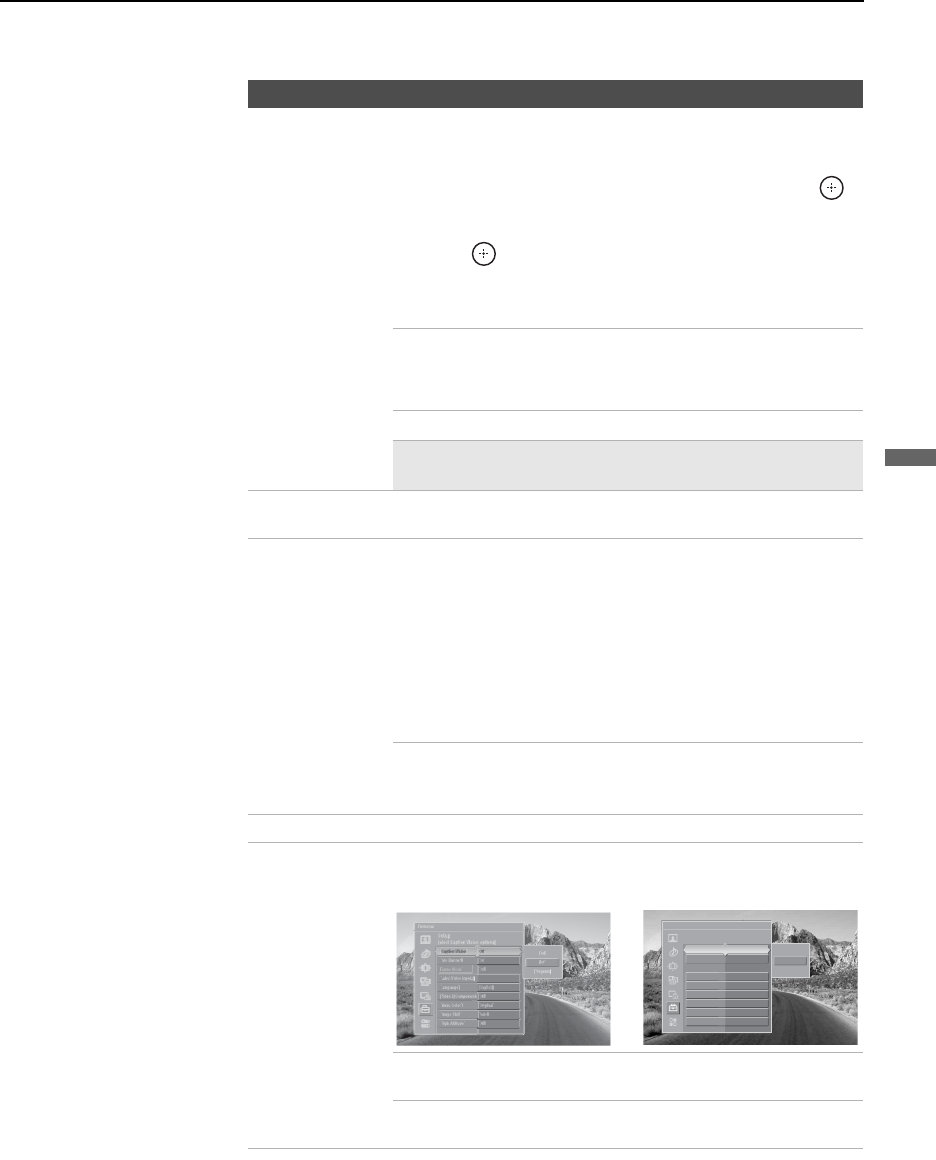

Color Temp.
White
intensity
adjustment
Choose from four color temperatures:
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm 1, 2 When selected Custom in Picture Mode, select to
give the white colors a red tint.
Sharpness Adjust to sharpen or soften the picture.
Noise
Reduction
Select to reduce the noise level of connected equipment. This also
reduces the noise level to the signal from the VHF/UHF jack. Select
from Auto, High, Medium, Low and Off.
✍When ATSC or Component is in use, Auto is not
available.
DRC Mode High
Density
Creates a high-resolution picture with 4 x density, for
high quality sources (i.e., DVD player, satellite
receiver).
Progressive
Recommended for moving pictures.
Off
✍DRC Mode is not available when Game Mode is On or
using the Freeze feature; also not available when
watching 480p, 720p or 1080i sources.

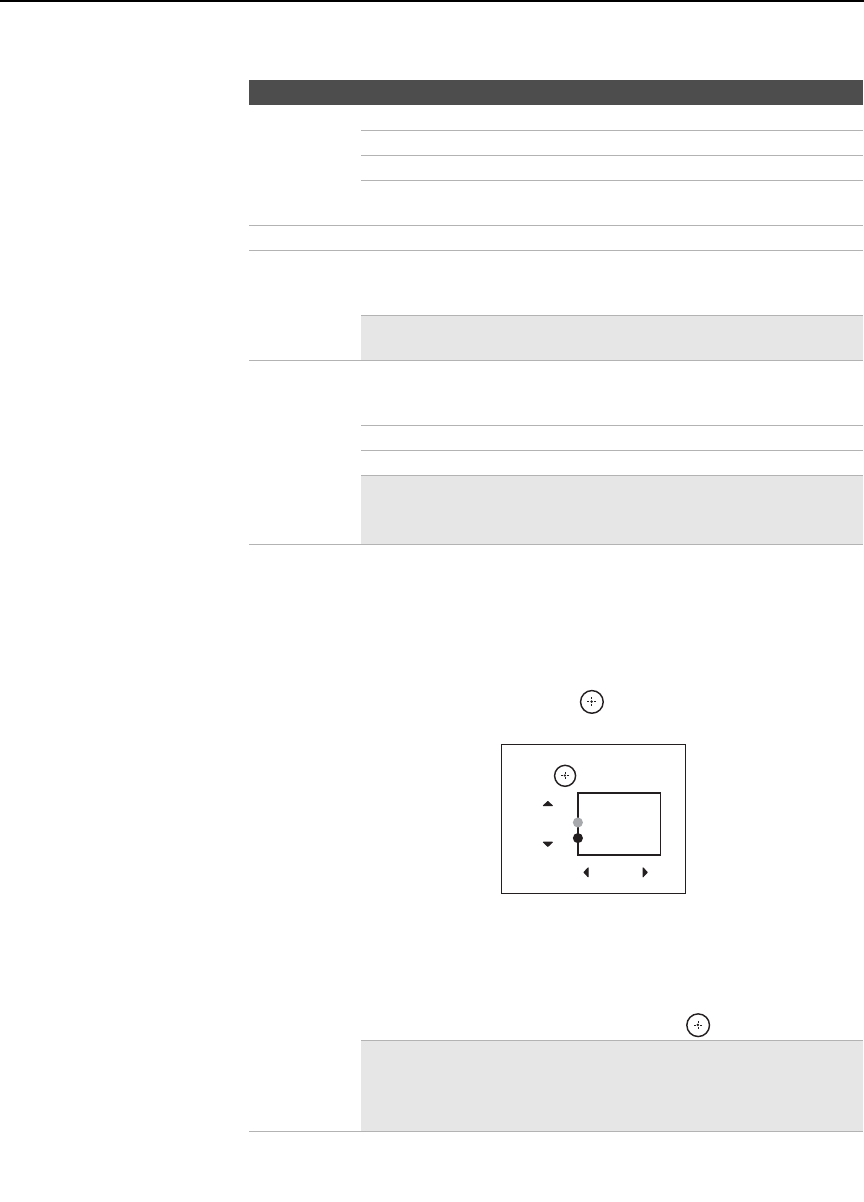

DRC Palette Custom Allows you to customize the level of detail (Reality)
and smoothness (Clarity) for up to three input
sources. For example, you can create one Custom
setting to optimize your cable input’s picture, and
create another to optimize your DVD player's picture.
You can switch among the three Custom settings.
1Press the arrow buttons to highlight Custom
then press .
The DRC palette appears.
2Press the arrow buttons to adjust the position of
the marker (z). As you move the z higher
along the Reality axis, the picture becomes more
detailed. As you move the z to the right along
the Clarity axis, the picture becomes smoother.
3To save the setting, press .
✍DRC Palette is not available when Game Mode is On,
Noise Reduction is set to Auto, DRC Mode is Off or
using the Freeze feature; also not available when
watching 480p, 720p or 1080i sources.
Option Description
Custom
Press
Reality
(25)
Clarity
(1)
to exit
Using the Settings
65
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right

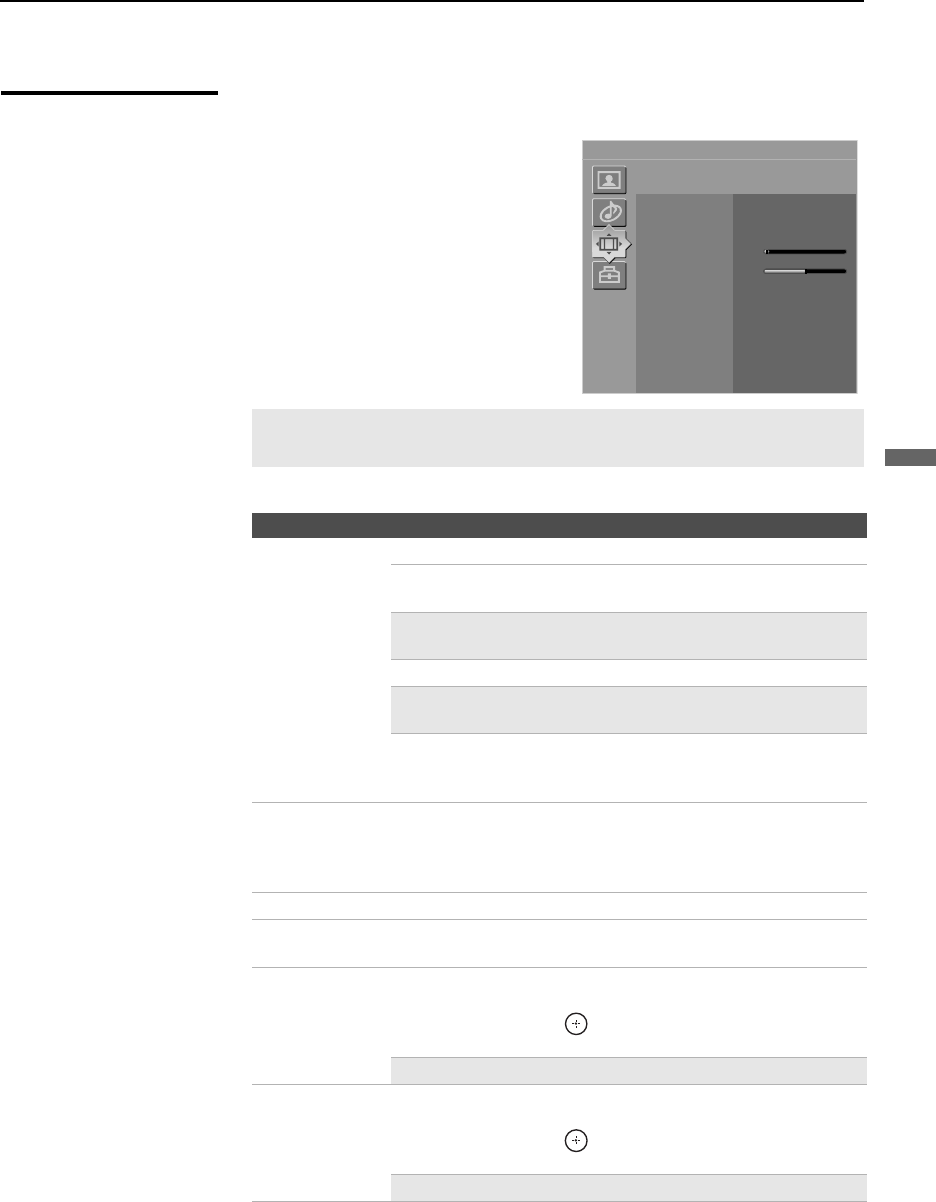

Selecting PC Video
Options
To display the PC screen:
Press TV/VIDEO repeatedly on the
remote control until VIDEO 7 (PC)
appears.
The PC Input Video setting includes the following options:
Advanced
Video
Available in
“Custom
Mode”
Program
Select
Program
to choose among the options:
Black Corrector
(High/Medium/Low/Off)
,
Advanced Iris (
High/Medium/Low/Off
), Gamma
(
Max/High/Medium/Low/Off
), Clear White
(
High/Low/Off
), Live Color
(
High/Medium/Low/Off
).
Option Description
✍You can change the settings for the PC input while the TV is
displaying the PC screen.
Option Description
Display Mode Video Select to view video images.
Tex t Select to view text, charts or tables.
Reset Select to restore the factory default settings.
Iris Select to adjust the contrast levels.
Picture Adjust to increase or decrease picture contrast.
Brightness Adjust to brighten or darken the picture.
Color Temp. Choose from four color temperatures:
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm 1,
2
Select to give the white colors a red tint.
Video
Press WEGA GATE to exit
Display Mode Video
Reset
Iris Max
Picture Max
Brightness 50
Color Temp. Neutral
Video 7 PC
Using the Settings
66
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right

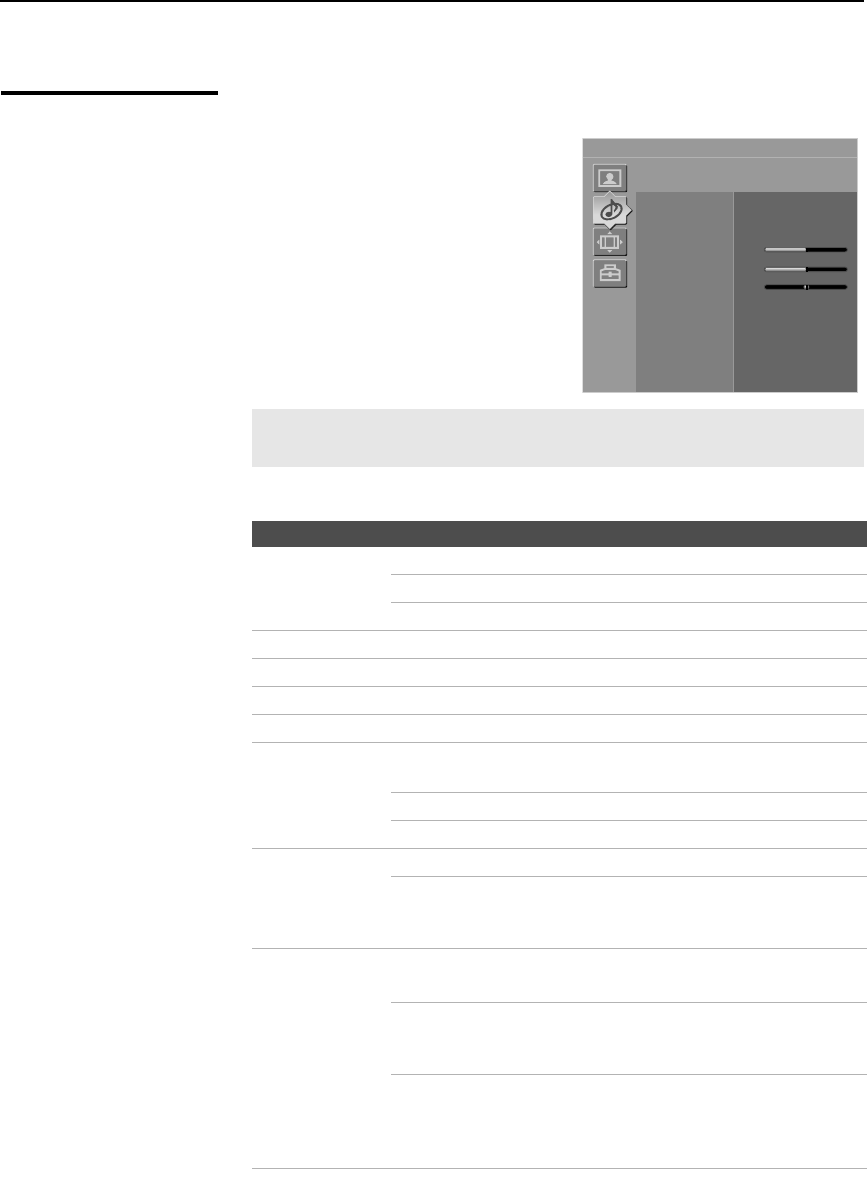

Accessing the Audio Settings
Selecting Audio
Options
The Audio settings include the following options:
1. Press WEGA GATE........
2. Select Settings...............
3. Highlight........................
4.Press to select................
To highlight an option and to change settings, press V v B b.
Press to confirm the selection.
To exit the Audio, press .
WEGA
GATE
Antenna
Audio
Custom settings
Dynamic
Standard
Custom
Sound Mode Custom
Reset
Treble 0
Bass 0
Balance 0
Steady Sound Off
Volume Offset 0
Effect Off
BBE Off
WEGA
GATE
Option Description
Sound
Mode
Dynamic Select to enhance treble and bass.
Standard Suitable for spoken dialog.
Custom Flat setting.
Reset Reset the following options to the default setting: Treble, Bass,
Balance, Steady Sound, Volume Offset, Effect and BBE.
Tr e b l e Adjust to increase or decrease higher-pitched sounds.
Bass Adjust to increase or decrease lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Steady
Sound
On Select to stabilize the volume across all programs
and commercials.
Off Select to turn off Steady Sound.
Volume
Offset
Adjust to increase or decrease the sound level of the current input
(TV or video input) relative to other inputs.
Effect TruSurround
XT
Select for surround sound (for stereo programs
only).
Simulated Adds a surround-like effect to mono programs.
✍Simulated uses SRS 3D MONO.
Off Normal stereo or mono reception.
Select to give sound more impact by compensating for phase effects
in speakers. Select from High, Low, and Off.
BBE
zSound Mode settings
are independent of
settings in the
Treble/Bass options.
zTruSurround XT
attempts to create the
same surround effect
produced by a
multichannel system
using the left and right
speakers.
Using the Settings
67
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
MTS
Enjoy stereo,
bilingual and
mono
programs
Stereo Select for stereo reception when viewing a program
broadcast in stereo.
Auto SAP Select to automatically switch to second audio
programs when a signal is received. (If no SAP
signal is present, the TV remains in Stereo mode.)
Mono Select for mono reception. (Use to reduce noise
during weak stereo broadcasts.)
✍MTS is available only for analog programs.
Speaker On Select to turn on the TV speakers.
Off Select to turn off the TV speakers and listen to the
TV’s sound only through your external audio
system speakers.
✍The MUTING button on your remote control is
available when Audio Out is set to Variable, and
becomes nonfunctional when set to Fixed.
Audio Out This option can be set only when the Speaker option is set to Off.
Easy control
of volume
adjustments
Variable The TV’s speakers are turned off and the audio
output from your audio system can still be
controlled by the TV’s remote control.
Fixed The TV’s speakers are turned off, and the audio
output of the TV is fixed. Use your audio receiver’s
volume control to adjust the volume (and other
settings) through your audio system.
A/V Sync Off/1/2/3 Use this option to make adjustments to audio and
video synchronization when you have external
equipment connected to DIGITAL AUDIO
(OPTICAL) OUT of the TV. Select Off (factory
default setting) to make no adjustments. Select 1, 2
or 3 to adjust so that the video and audio from your
connected external equipment are in synchronized.
Option Description
Using the Settings
68
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Selecting PC Audio
Options
To display the PC screen:
Press TV/VIDEO repeatedly on the
remote control until VIDEO 7 (PC)
appears.
The PC Input Audio setting includes the following options:
✍You can change the settings for the PC input while the TV is
displaying the PC screen.
Option Description
Sound Mode Dynamic Select to enhance treble and bass.
Standard Suitable for spoken dialog.
Custom Flat setting.
Reset Select to restore the factory default settings.
Tr e b l e Adjust to increase or decrease higher-pitched sounds.
Bass Adjust to increase or decrease lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Effect TruSurround
XT
Select for surround sound (for stereo programs
only).
Simulated Adds a surround-like effect to mono programs.
Off Normal stereo or mono reception.
Speaker On Select to turn on the TV speakers.
Off Select to turn off the TV speakers and listen to
the TV’s sound only through your external
audio system speakers.
Audio Out This option can be set only when the Speaker option is set to
Off.
Easy control of
volume
adjustments
Variable The TV's speakers are turned off, but the audio
output from your audio system can still be
controlled by the TV's remote control.
Fixed The TV’s speakers are turned off and the audio
output of the TV is fixed. Use your audio
receiver’s volume control to adjust the volume
(and other settings) through your audio system.
Video 7 PC
Audio
Press WEGA GATE to exit
Sound Mode Custom
Reset
Treble 0
Bass 0
Balance 0
Effect Off
Speaker On
Audio Out Variable
Using the Settings
69
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right

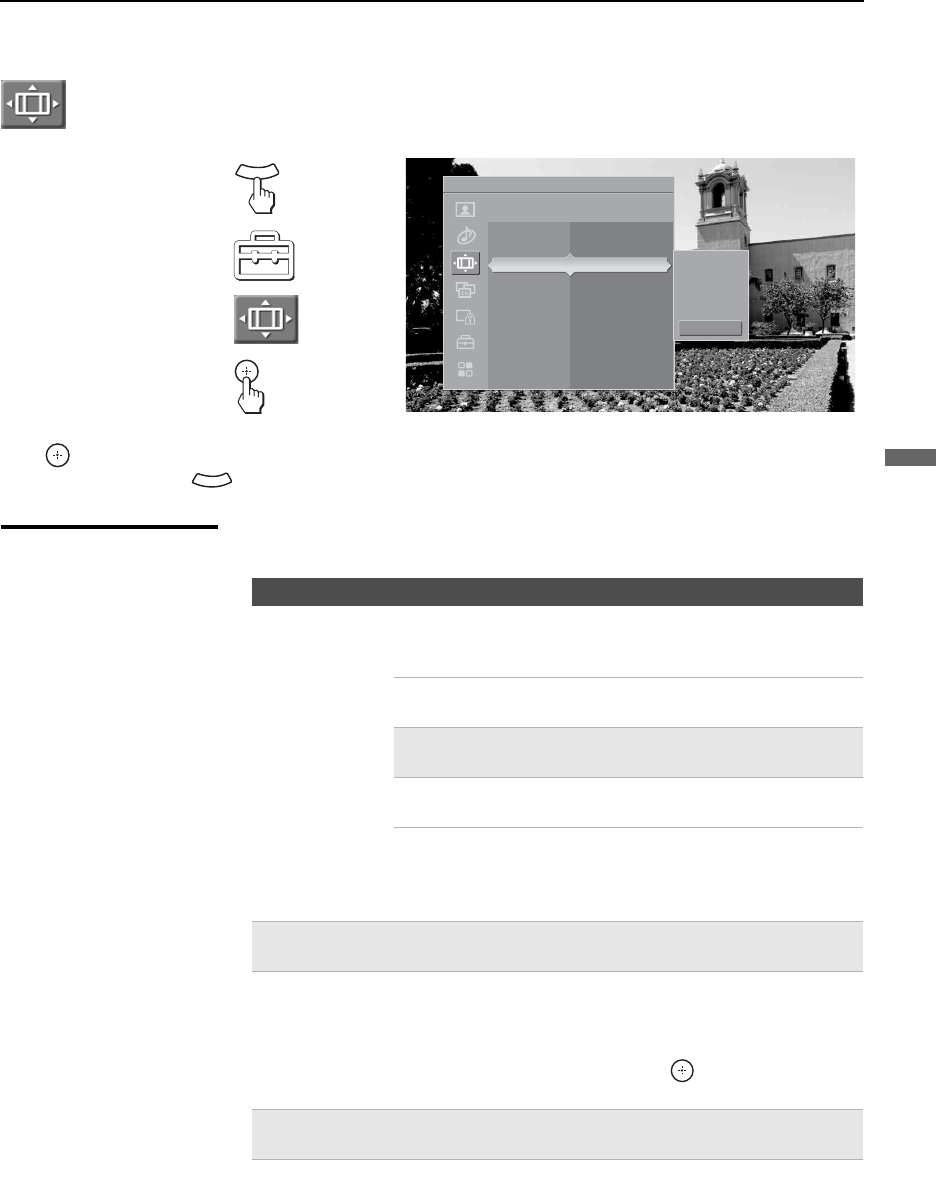

Accessing the Screen Settings
Selecting Screen
Options
The Screen settings include the following options:
1. Press WEGA GATE........
2. Select Settings...............
3. Highlight.......................
4.Press to select................
To highlight an option and to change settings, press V v B b.
Press to confirm the selection.
To exit the Screen, press .
WEGA
GATE
Antenna
Screen
Automatic sizing for 4:3 pictures
Wide Mode Wide Zoom
Game Picture 0
4:3 Default Off
Display Area Normal
Vertical Center 0
Vertical Size 0
Wide Zoom
Normal
Full
Zoom
Off
WEGA
GATE
Option Description
Wide Mode
Select a screen
mode to use for
4:3 sources.
Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9
screen, keeping the original image as much as
possible.
Normal Select to return the 4:3 picture to its original
size and aspect ratio.
✍Normal is not available when you are watching
720p or 1080i sources.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the display area.
Zoom Select to proportionally enlarge 1080i and
720p sources, For 480p and 480i sources,
Zoom will vertically stretch the image to fill
the screen.
✍To change from one Wide Mode setting to another, use the WIDE
button on the remote control (see page 53).
Game Picture Allows you to move the position of the picture left and right in
the window. (This feature also allows you to adjust the picture
from any connected equipment.) Select while watching the
picture to be adjusted. The TV stores the position in memory
for each input. Press B or b and press to choose a
correction between +5 and –5.
✍Not available in Full and Normal mode when sources are in 720p
or 1080i.
zWide Mode is
unavailable while in
Freeze (page 54).
(Continued)
Using the Settings
70
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
4:3 Default
Select the default
screen mode to
use for 4:3
sources.
Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9
screen, keeping the original image as much as
possible.
Normal Select to return the 4:3 picture to normal
mode.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the display area.
Zoom Select to enlarge the picture horizontally and
vertically to an equal aspect ratio that fills the
wide screen.
Off Select to continue using the current screen
mode setting when the channel or input is
changed.
Display Area Select Normal to return to the default display area. Select -1 or
-2 to keep the edge of the picture out of screen.
Vertical Center Allows you to move the position of the picture up and down in
the window. (Available only in Zoom mode.)
Press V or v and press to choose a correction between +5
and –5.
Ver tical Size Allows you to adjust the vertical size of the picture. (Available
only in Zoom mode.)
Press V or v and press to choose a correction between +5
and –5.
Option Description
zIf 4:3 Default is set to
anything but Off, the
Wide Mode setting
changes only for the
current channel. When
you change channels
(or inputs), Wide Mode
is automatically
replaced with the 4:3
Default setting. To retain
the current Wide Mode
setting as channels and
inputs are changed, set
4:3 Default to Off.
Using the Settings
71
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Selecting PC Screen
Options
To display the PC screen:
Press TV/VIDEO repeatedly on the
remote control until VIDEO 7 (PC)
appears.
The PC Input Screen setting includes the following options:
✍You can change the settings for the PC input while the TV is
displaying the PC screen.
Option Description
Wide Mode Normal Select to display the picture in its original size.
Full 1
Select to enlarge the picture to fill the display area,
keeping its original horizontal-to-vertical ratio.
✍A black frame will appear on the surrounding of
the picture.
Full 2
Select to enlarge the picture to fill the display area.
✍A black frame will appear on the surrounding of
the picture.
Zoom Select to enlarge the picture horizontally and
vertically to an equal aspect ratio that fills the
wide screen.
Auto
Adjustment
Select to automatically adjust the display position of the picture
when the TV receives an input signal from the connected PC.
Note that Auto Adjustment may not work well with certain
input signals. In such cases, manually adjust the options below.
Phase Select to adjust the phase when the screen flickers.
Pitch Select to adjust the pitch when the picture has unwanted
vertical stripes.
Horizontal
Center
Select to adjust the horizontal position of the picture.
Allows you to move the picture left and right in the window.
Press B or b and press to choose a correction between +50
and -50.
✍The variable range depends on the signal.
Vertical Center Select to adjust the vertical position of the picture.
Allows you to move the picture up and down in the window.
Press B or b and press to choose a correction between +50
and -50.
✍The variable range depends on the signal.
Video 7 PC
Screen
Press WEGA GATE to exit
Wide Mode Full 1
Auto Adjustment
Phase Min
Pitch 0
Horizontal Center 0
Vertical Center 0
zWhen there is no signal
input, all settings are
not available.
zSelect Zoom in the
Wide Mode option to
display movies and
other content on DVD,
using the entire
viewable area of the
screen.
Using the Settings
72
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Accessing the Channel Settings
Selecting Channel
Options
The Channel settings include the following options:
1. Press WEGA GATE........
2. Select Settings...............
3. Highlight.......................
4.Press to select................
To highlight an option and to change settings, press V v B b.
Press to confirm the selection.
To exit the Channel, press .
WEGA
GATE
Antenna
Channel
Program favorite channels
Program
Favorite Channels
Digital Channels
Auto Program
Show/Hide Channels
Label Channels
WEGA
GATE
Option Description
Favorite
Channels
Lets you set up a list of your favorite channels. For details, see
“Using Favorites in WEGA GATE” on page 57.
Digital Channels Add Select to add digital channels.
Auto Program Automatically sets up the channel list on the TV for all
receivable channels for the current input (VHF/UHF or
CABLE). Select to start the Auto Program.
✍Auto Program may take up to 20 to 50 minutes to
complete. A progress bar will display the
approximate progress of the Auto Program and
Digital Channels/Add sequences.
Show/Hide
Channels
Allows you to show or hide channels that appear in the Program
Guide and when you use the CH+/- buttons to channel surf.
Channels that are set to Hidden do not appear in the Program
Guide or when you use the CH+/- buttons.
1Press V or v to highlight the channel that you want to show
or hide.
To move between the Major and Digital subchannel lists,
press B or b.
2To change a channel’s setting to Shown or Hidden, press
.
3To show or hide more channels, repeat steps 1 and 2.
zChannels that you set to
Hidden can only be
accessed with the 0-9
buttons.
Using the Settings
73
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
✍If you select to hide or show a major digital channel, all the sub-
channels are automatically hidden or shown. To show or hide an
individual sub-channel within a digital channel, you must
individually select that sub-channel to show or hide.
✍If you hide all sub-channels of a major digital channel, that digital
channel is automatically set to Hidden.
Label Channels Allows you to assign labels (such as station call letters) to
channel numbers.
1Press V or v to scroll through the channel numbers. Then
press to select the channel number that you want to
assign a label.
2Press V or v to scroll through the label characters (A-Z, 0-
9, etc.). Then press to select the highlighted character.
Repeat to add characters to the label.
3Press B to return to the Channel setting, or press WEGA
GATE to exit the settings.
Option Description
Using the Settings
74
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right

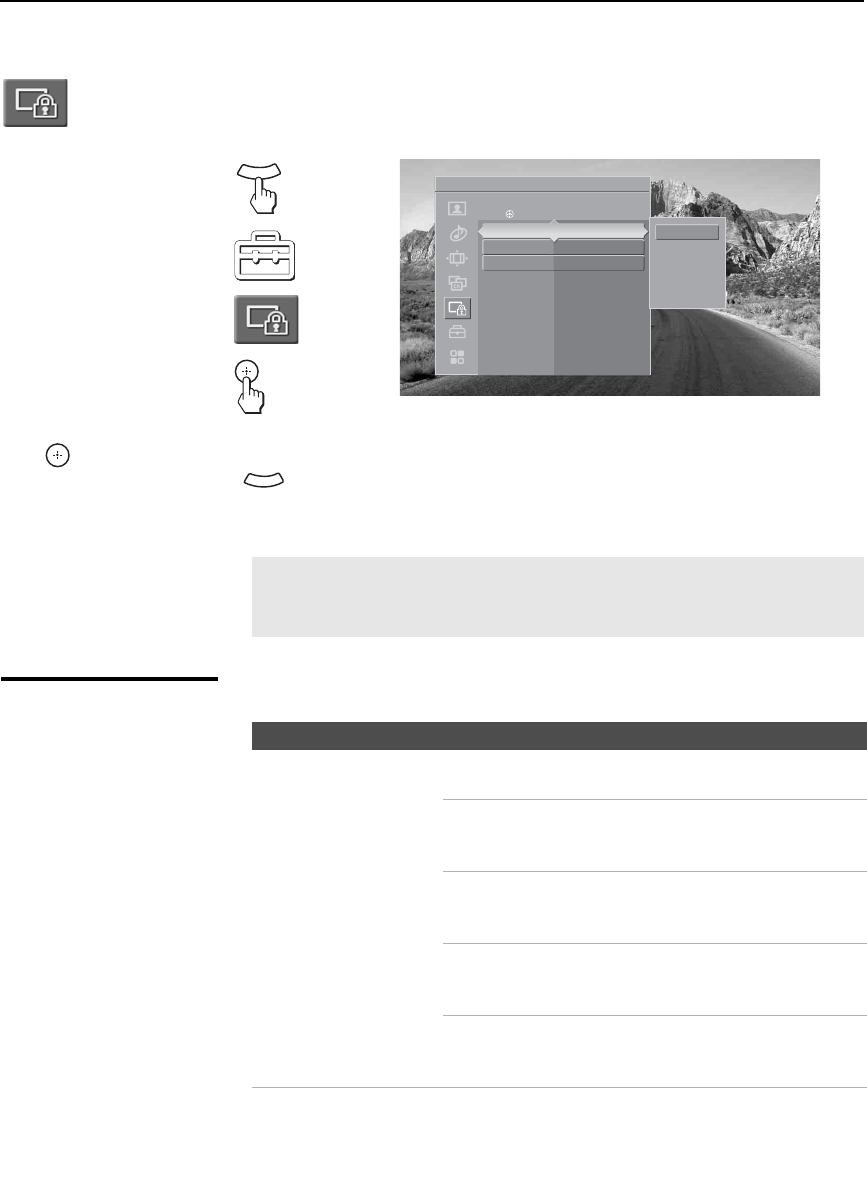

Accessing the Parental Lock Settings
Selecting Parental
Lock Options
The Parental Lock settings include the following options:
1. Press WEGA GATE........
2. Select Settings..............
3. Highlight.......................
4.Press to select................
To highlight an option and to change settings, press V v B b.
Press to confirm the selection.
To exit the Parental Lock, press .
The Parental setting allows you to set up the TV to block programs according to their content and rating levels.
WEGA
GATE
Antenna
Parental Lock
Press to change settings
Off
Child
Yout h
Y. Adu l t
Custom
Parental Lock Off
Change Password
Select Country U. S. A.
WEGA
GATE
✍You need your password for any future access to the Parental Lock
settings. If you have lost your password, see “Lost password” on
page 93.
Option Description
Parental Lock
Turn ratings on/off and
select a rating system
Off Turn Parental Lock off. No programs are
blocked from viewing.
Child Maximum ratings permitted are:
U.S.: TV-Y, TV-G, G
Canada: C, G, TV-Y
Youth Maximum ratings permitted are:
U.S.: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Y. A d u l t Maximum ratings permitted are:
U.S.: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
U.S.: See page 76 for details.
Canada: See page 77 for details.
Using the Settings
75
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
To deactivate the parental control feature
❑Set Parental Lock to Off when in the Parental Lock setting.
To change the password
1In the Parental Lock setting, use the arrow buttons to highlight Change
Password, and press to select it.
2Enter a new four-digit password using the 0-9 buttons.
3Confirm the new password by entering it again.
4Press WEGA GATE to exit the setting screen.
Viewing Blocked
Programs
You can view a blocked program by entering the password.
1Press ENT when tuned to a blocked program.
2Enter your password using the 0-9 buttons.
Parental Lock will be canceled temporarily until you turn your TV off.
Change Password Select to change your password.
Select Country U.S.A. Select to use U.S.A. ratings (see page 76).
Canada Select to use Canadian ratings (see page 77).
Option Description
zIf you are not familiar
with the Parental
Guideline rating system,
you should select Child,
Youth, or Y.Adult to help
simplify the rating
selection. To set more
restrictive ratings, select
Custom.
zFor descriptions of
Child, Youth, and
Y.Adult ratings, see
page 74.
Using the Settings
76
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Selecting Custom
Rating Options
US custom rating options
If you selected U.S.A. as the country of residence on page 75, the Custom
Rating setting includes the following options. (If you selected Canada, see
page 77.)
Option Description
Movie Rating G All children and general audiences.
PG Parental guidance suggested.
PG-13 Parental guidance for children under 13.
RRestricted viewing, parental guidance is suggested
for children under 17.
NC-17
and X
No one 17 and under.
TV Rating
Block programs
by their rating,
content or both
Age-Based Options
TV-Y All children.
TV-Y7 Directed to children age 7 and older.
TV-G General audience.
TV-PG Parental guidance suggested.
TV-14 Parents strongly cautioned.
TV-MA Mature audience only.
Content-Based Options
FV Fantasy violence.
DSuggestive dialog.
LStrong language.
SSexual situations.
VViolence.
Unrated
Block programs
or movies that are
broadcast without
a rating
Allow Allows programs and movies that are broadcast
without a rating.
Block Blocks all programs and movies that are broadcast
without a rating.
✍The content ratings will increase depending on the level of the age-
based rating. For example, a program with a TV-PG V (Violence)
rating may contain moderate violence, while a TV-14 V (Violence)
rating may contain more intense violence.
zTo ensure maximum
blocking capability, the
age-based ratings
should be blocked.
zIf you select Block, be
aware that the following
programs may be
blocked: news, sports,
weather, emergency
broadcasts, political
programs, public
service
announcements, and
religious programs.
Using the Settings
77
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Canadian custom rating options
If you selected Canada as the country of residence on page 75, the Custom
Rating setting includes the following options. (If you selected U.S.A., see
page 76.)
Option Description
English Rating C All children.
C8+ Children 8 years and older.
GGeneral programming.
PG Parental guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for ages under 8.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See “TV Rating” on page 76 for details.
Using the Settings
78
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right

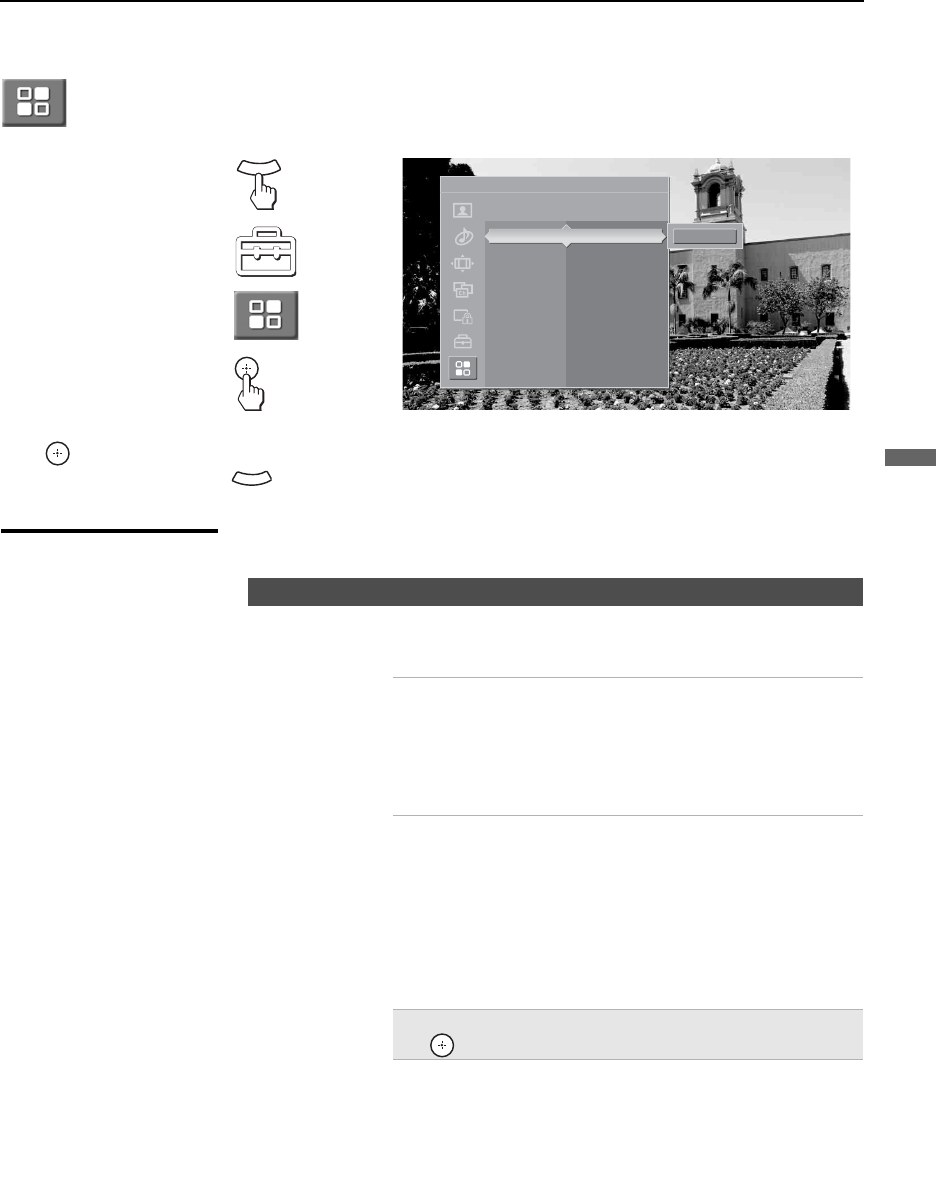

Accessing the Setup Settings
Selecting
Setup Options
The Setup settings include the following options:
1. Press WEGA GATE........
2. Select Settings..............
3. Highlight.......................
4.Press to select................
To highlight an option and to change settings, press V v B b.
Press to confirm the selection.
To exit the Setup, press .
WEGA
GATE
Antenna
Setup
Select Caption Vision options
On
Off
Program
Caption Vision Off
Info Banner On
Game Mode Off
Label Video Inputs
Language English
Video 2(Component) Off
Menu Color Original
Image Shift Auto
High Altitude Off
WEGA
GATE
Option Description
Caption Vision Allows you to select from four closed caption modes (for
programs that are broadcast with closed captioning).
On Caption Vision is turned on.
Off Caption Vision is turned off.
Program Allows you to set basic and advanced
Caption Vision options. See
“Programming Caption Vision” on
page 80.
Info Banner Set to On or Off. Select On to display the program name, time
remaining and other information (if the broadcaster offers this
service). Also displays when the channel is changed or the
DISPLAY button is pressed.
Game Mode On Select to optimize the lipsync when
playing games.
Off Select to turn off the Game Mode.
Using the Settings
79
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Label Video
Inputs
Allows you to label the audio/video equipment you have
connected to the TV so you can identify them when using
TV/VIDEO. When in this setting:
1Press V or v to highlight an input to label, then press
to select it.
2Use the arrow buttons to scroll through the labels.
3Press to select the equipment you connected to each of
the input jacks on the back of your TV.
Select Skip if you do not have any equipment connected to
a particular input.
Video 1-6 Video 1-6, VHS, DVD, Receiver,
Satellite, Cable Box, 8mm, DTV,
Game, LD, Beta, HD, DVR,
Camcorder, Skip
Video 7 Video 7, PC, DVD, HD, Game, Skip
✍If you select Skip, your TV skips the selected
connection when you press TV/VIDEO.
Language Select to display all on-screen settings in your language of
choice: English, Español, Français.
Video 2
(Component)
Auto Select to switch automatically
between the component video jacks
(Y PB/CB PR/CR, AUDIO L
(MONO)/AUDIO R) and the
composite video jacks (VIDEO,
AUDIO L (MONO)/AUDIO R) on the
left side of the TV (VIDEO/HD/DVD
2 IN) depending on the cable
connection.
Off Select to activate the composite video
jacks (VIDEO/AUDIO L(MONO)/
AUDIO R) on the left side of the TV.
Menu Color Enables you to select a specific color for the on-screen settings.
Image Shift Corrects the image on your TV.
Before adjusting After adjusting
Auto (Factory setting) Automatically
corrects double images.
Level 1-4 Select a level from 1-4 to align the
images and improve the picture.
Option Description
zIf you use the
composite connection
when Video 2
(Component) is set to
Auto, do not connect the
component cable at the
same time. Otherwise
select Off.
Antenna
Setup
Select Caption Vision options
Off
)
Game Mode
On
Program
Off
Off
High Altitude
Auto
Image Shift
Original
Menu Color
)
Off
Video 2(Component)
)
English
Language
Label Video Inputs
On
Info Banner
Antenna
A
nt
e
nn
a
Antenna
Setup
S
etu
p
Setup
Select Caption Vision options
Select Caption Vision options
Select Caption Vision options
On
On
On
Off
O
f
Off
Program
P
ro
g
ra
m
Program
Info Banner
In
fo
B
a
nn
er
Info Banner
On
On
On
Game Mode
G
ame Mod
e
Game Mode
Off
O
f
Of
Label Video Inputs
Label V
i
deo In
p
ut
s
Label Video Inputs
Language
L
an
g
ua
ge
Language
English
En
g
l
i
s
h
English
Video 2(Component)
Video 2
(C
om
p
onent
Video 2(Component
Off
O
f
Of
Menu Color
Menu
C
olo
r
Menu Colo
Original
O
ri
g
in
a
Origina
Image Shift
Ima
g
e
S
hif
t
Image Shif
Auto
Au
t
o
Auto
High Altitude
H
ig
h Alt
i
tud
e
High Altitude
Off
O
f
Of
Antenna
Setup
Select Caption Vision options
On
Off
Program
Caption Vision Off
Info Banner On
Game Mode Off
Label Video Inputs
Language English
Video 2(Component) Off
Menu Color Original
Image Shift Auto
High Altitude Off
(Continued)
Using the Settings
80
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Programming
Caption Vision
If you selected the Program option under Caption Vision (see page 78), you
can change the following settings:
High Altitude Select On to use the TV at an altitude of 5,000 feet (1,500 m) or
higher. Select Off to use the TV at normal altitude.
CineMotion Select Auto to optimize the screen display automatically
detecting film content and applying a reverse 3-2 pulldown
process. Moving picture will appear clearer and more natural
looking. Select Off to disable the detection.
Option Description
Option Description
Basic Allows you to select basic analog (EIA-608) closed caption options.
CC1, CC2,
CC3, CC4
Displays a printed version of the dialog or sound effects
of a program. (Should be set to
CC1
for most programs.)
Tex t 1 , Tex t 2,
Tex t 3 , Text 4
Displays network/station information presented using
either half or the whole screen (if available).
Digital CC Allows you to set digital closed captioning to Basic (digital EIA-608)
or Advanced (digital EIA-708).
Advanced Allows you to select advanced digital (EIA-708) closed caption
options. Select from the available options.
Advanced
Settings
Allows you to make additional settings for digital (EIA-708) closed
caption options. Select from As Broadcast, Small Text, Large Text
and Custom.
Custom Allows you to customize the following settings:
Character Size Small, Standard,
Large
Character Style Style 1-7
Character Color Color 1-8
Character Opacity Solid, Translucent
Edge Color Color 1-8
Edge Type None, Raised,
Depressed,
Outline,
Left Shadow,
Right Shadow
Background Color None, Color 1-8
Background Opacity Solid, Translucent
Window Color None, Color 1-8
Window Opacity Solid, Translucent
Using the Settings
81
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Selecting PC Setup
Options
To display the PC screen:
Press TV/VIDEO repeatedly on the
remote control until VIDEO 7 (PC)
appears.
The PC Input Setup setting includes the following options:
✍You can change the settings for the PC input while the TV is
displaying the PC screen.
Option Description
Power
Management
On Select to automatically switch to the Power
Saving mode when there is no signal input for
10 minutes.
Off Select to turn off Power Management.
Language Select to display all on-screen settings in your language of
choice: English, Español, Français.
Menu Color Enables you to select a specific color for the on-screen settings
from Original, Gray, Red, Green and Purple.
Image Shift Auto (Factory setting) Automatically corrects double
images.
Level 1-4 Select a level from 1-4 to align the images and
improve the picture.
High Altitude Select On to use the TV at an altitude of 5,000 feet (1,500 m) or
higher. Select Off to use the TV at normal altitude.
Video 7 PC
Setup
Press WEGA GATE to exit
Power Management Off
Language English
Menu Color Gray
Image Shift Auto
High Altitude Off
Using the Settings
82
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
PC Input Signal Compatibility Chart
*: Corresponding to the VGA signal
**: These signals do not support Normal display mode.
Resolution Horizontal
frequency (kHz)
Vertical
frequency (Hz)
VESA standard
Signals Horizontal
(Dot)
xVertical
(Line)
VGA 640 x480 31.5 60 –*
640 x480 37.5 75 ✔
640 x480 43.3 85 ✔
720 x400 31.5 70 –*
SVGA 800 x600 35.2 56 ✔
800 x600 37.9 60 ✔
800 x600 46.9 75 ✔
800 x600 48.1 72 ✔
XGA** 1024 x768 48.4 60 ✔
1024 x768 56.5 70 ✔
1024 x768 60 75 ✔
WXGA** 1280 x768 47.4 60 ✔
1280 x768 47.8 60 ✔
✍This TV does not support Sync on Green or Composite Sync.
✍If a signal other than in the above chart is input, it may not be displayed properly or may not be
displayed as you set.
✍Using the Vertical frequency (Hz) of the personal computer at 60 is recommended.
✍Noise may be detected under certain conditions. If unsupported signals are used, you will see
the message, “Unsupported Signal”.
Using the Settings
83
Using the Settings
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
Accessing the Applications Settings
Selecting
Applications
Options
The Applications settings include the following options:
1. Press WEGA GATE........
2. Select Settings..............
3. Highlight.......................
4.Press to select................
To highlight an option and to change settings, press V v B b.
Press to confirm the selection.
To exit the Applications, press .
WEGA
GATE
Antenna
Applications
Change current time and timer settings
Program
Clock/Timers
Diagnostics
CableCARD
WEGA
GATE
Option Description
Clock/Timers Select to set the clock and to program your TV to turn on and
off at two scheduled viewing times. Once the options are set,
TIMER LED lights up in red.
Sleep Allows you to select the amount of
time (Off, 15 minutes, 30 minutes,
45 minutes, 60 minutes or 90
minutes) that you want the TV to
remain on before shutting off
automatically.
Timer 1
Timer 2
You can use the Timers to program the
TV to turn on and off and tune to a
specific channel at two scheduled
viewing times.
Timer 1 and Timer 2 cannot be set until you set the Current
Time.
1Press V or v to highlight Timer 1 or Timer 2. To set the
timer, press b.
✍To go directly to programming Timer 1 or 2, press
instead of pressing b.
(Continued)
Using the Settings
84
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US07MEN.fm masterpage:3 columns Right
2Press V or v to highlight one of the following options, then
press .
Program Select to set the Timer by day, time,
duration, and channel.
Off Select to turn off the Timer. (Your
previous settings are saved.)
3If you selected Program in step 2, press V and v to set the
day(s), hour, minute, AM/PM, duration, and channel
number. Press or press b to confirm each setting and
move to the next setting.
Press B to go back to the previous setting.
4Press WEGA GATE to exit the setting screen. An LED on
the front panel will light, indicating the Timer has been set.
Current Time You can set the current time.
1Press to select Current Time.
2Press V and v to set the current time (day, hour, minute,
and AM/PM). Press (or press b) to confirm each
setting and move to the next setting. Press B to go back the
previous setting.
3Press WEGA GATE to exit the setting screen.
Diagnostics Display diagnostics information about the TV. This can be
useful in providing information to an authorized technician or
repair person.
CableCARD This list of selectable CableCARD options will vary, depending
on your cable service provider.
Option Description
85
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
Other Information
Other Information
Overview
This chapter includes the following topics:
Contacting Sony
If, after reading these operating instructions, you have additional questions
related to the use of your Sony television, please call our Customer
Information Services Center.
For US residents: 1-800-222-SONY (7669)
or visit: http://www.sonystyle.com/tv/
For Canadian residents: 1-877-899-SONY (7669)
or visit: http://www.sonystyle.ca/tv/
Before calling Sony customer support, please write down the model and
serial numbers of your TV. You’ll find this information on the front cover of
this manual.
Topic Page
Contacting Sony 85
Replacing the Lamp 86
Troubleshooting 90
Specifications 94
Optional accessories 95
Index 96
Other Information
86
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Replacing the Lamp
The projection lamp, which illuminates the picture, has a limited life.
If the screen becomes dark, the color looks unusual, or the LAMP indicator
on the front of the TV flashes, it is time to replace the lamp with a new one
(not supplied).
❑Use a Sony XL-2400 replacement lamp (not supplied) for replacement.
Use of any other lamp may damage the TV.
❑Do not remove the lamp for any purpose other than replacement. Doing
so may cause injury or fire.
❑Do not put flammable materials and metal objects inside the lamp
receptacle of the TV after removing the lamp. Doing so may cause fire
or electrical shock. Do not touch the lamp receptable once the lamp has
been removed.
❑When the lamp eventually burns out, you may hear a noticeable pop
sound. This is normal and it is inherent to this type of lamp.
❑In rare instances, the bulb may pop inside the lamp unit, but the lamp
unit is designed to contain all of the broken glass pieces inside the lamp
unit.
❑The lamps contain mercury. For proper disposal of the used lamps,
follow and observe the local ordinances. See page 89.
How to Replace the
Lamp
1Turn off the power on the main unit. Wait several minutes, then unplug
the power cord.
(The cooling fan will continue to operate for about two minutes after
turning the power off.)
2Wait at least 30 minutes after unplugging the power cord to allow the
lamp to cool down before replacing it. To avoid being burned, do not
touch the lamp receptable once the lamp has been removed.
3Take the new lamp out of the box.
Do not touch the glass portion of the new lamp.
WARNING
Electric appliances can cause fire or high temperature, resulting in
injury or death. Be sure to follow the instructions below.
✍Do not shake the lamp. Vibration can damage the lamp or
shorten its life.
✍Avoid touching the front glass of a new lamp or the glass of
the lamp receptacle. This may reduce picture quality or lamp
life.
Other Information
87
Other Information
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
4Remove the outside lamp cover.
5Remove the lamp door.
Turn the knob counterclockwise to OPEN and pull out the cover.
6Pull out the lamp.
Hook a finger through the loop of the lamp handle and pull the handle
upwards. Then pull the lamp straight out.
✍The lamp is very hot immediately after use. Never touch the
glass portion of the lamp or the surrounding parts.
✍After the used lamp has cooled, place it into the empty box of
the replacement lamp. Never put the used lamp into a plastic
bag.
Lamp door
(Continued)
Other Information
88
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
7Put the new lamp into its place.
Mount the new lamp securely. Failure to do so may cause a fire or the
screen to go dark.
8Reattach the lamp door.
Turn the knob back to CLOSE and secure the cover.
9Put the outside lamp cover back in its place.
✍If the lamp is not securely reattached, the self-diagnostic
function may be triggered and the POWER/STANDBY indicator
flashes three times (see page 12).
✍Consult your Sony dealer for a Sony XL-2400 replacement
lamp.
✍Take great care when replacing the lamp or plugging
in/unplugging the connecting cords. Rough handling may
cause the TV to fall, damaging the TV, the TV stand and the
floor.
Other Information
89
Other Information
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
The used lamp
This product contains mercury. Disposal of this product may be regulated if
sold in the United States. For disposal or recycling information, please
contact your local authorities or the Electronics Industries Alliance
(http://www.eiae.org).
❑Do not leave the used lamp near flammable materials or within the
reach of children.
❑Do not pour water onto the used lamp or put any object inside the lamp.
Doing so may cause the lamp to burst.
For replacement lamp information visit:
U. S. residents: http://www.sonystyle.com/tv/
Canadian residents: http://www.sonystyle.ca/tv/
Other Information
90
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Troubleshooting
Remote Control
CableCARD Device
Problem Possible Remedies
Remote control does not
operate
❏The batteries could be weak. Replace the batteries.
❏Check the orientation of the batteries.
❏Press TV (FUNCTION) once, and the TV indicator lights up. You may have
inadvertently pressed SAT/CABLE (FUNCTION), which changes the remote
control to SAT or CABLE mode.
❏Make sure this unit’s power cord is connected securely to the wall outlet.
❏Install the unit at least 3-4 feet away from fluorescent lights.
❏If the "High Temperature Warning!" message appears, turn off the TV and wait
until the TV's projection lamp cools down (approximately 5 minutes). If the
remote control still does not work, make sure to dust the ventilation slots on the
rear of the TV and the cooling fan to provide adequate ventilation around the TV.
Cannot change channels with
the remote control
❏If you are using the TV to change channels, first press TV (FUNCTION) once,
and the TV indicator lights up.
❏If you are using another device to change channels, be sure you have not
inadvertently switched your TV from the channel 3 or 4 setting.
❏If you are using another device to change channels, be sure to press FUNCTION
for that device. For example, if you are using your cable box to change channels,
be sure to press SAT/CABLE (FUNCTION) once, and the SAT/CABLE indicator
lights up.
Remote control does not
operate non-Sony video
equipment
❏If you replaced the batteries to the remote recently, the code numbers for the video
equipment may need to be reset.
❏There may be more than one code for the equipment that you are attempting to
operate.
❏There is a possibility that some non-Sony equipment cannot be operated by your
Sony TV remote. You may need to use the equipment’s original remote control.
Problem Possible Remedies
Problems using CableCARD
device or CableCARD services
❏Check that the CableCARD is inserted properly (see pages 30-31).
❏The CableCARD device must be activated by your local cable TV provider before
you can receive digital cable TV services. See the activation instructions on pages
pages 30-31.
❏Check the Diagnostics and CableCARD setting options (see page 84). (This can
be useful in providing information to an authorized technician or repair person.)
❏Contact your cable TV provider.
Other Information
91
Other Information
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Video
Problem Possible Remedies
No picture (screen not lit), no
sound
❏If your TV does not turn on and a red light keeps flashing, your TV may need
service. Call your local Sony Service Center.
❏Make sure the power cord is plugged in.
❏Press POWER on the front of the TV.
❏Press TV/VIDEO to cycle through the connected video sources.
❏Try another channel; it could be station trouble.
Dark, poor or no picture
(screen lit), good sound
❏Adjust the Picture Mode option in the Video setting (see page 63).
❏Adjust the Brightness option in the Video setting (see page 63).
❏Check the antenna/cable connections.
No color/dark picture/color is
not correct
❏Adjust the Color option in the Video setting (see page 63).
Only snow and noise appear on
the screen
❏Check the antenna/cable connections.
❏Try another channel; it could be station trouble.
❏Press ANT to change the input mode (see page 44).
Dotted lines or stripes ❏Adjust the antenna.
❏Move the TV away from noise sources such as cars, neon signs, or hair dryers.
Double images ❏Using a highly directional outdoor antenna or a cable may solve the problem.
❏Set Image Shift to an appropriate value. The default setting is Auto. If doubled
images appear with Auto, select the best value from 1 to 4 (see page 79).
“Black box” on screen ❏You have selected a text option in the Setup setting and no text is available. (See
page 78 to reset Setup selections.) To turn off this feature, set the Caption Vision
option to Off. If you were trying to select closed captioning, select CC1 instead of
Tex t 1 -4 .
Black bands appear at the top
and bottom of the screen
❏Some wide-screen programs are filmed in aspect ratios that are greater than 16:9
(this is especially common with theatrical releases). Your TV will show these
programs with black bands at the top and bottom of the screen. For more details,
check the documentation that came with your DVD (or contact your program
provider).
Certain programs on DVD or
other digital sources display a
loss of detail, especially during
fast-motion or dark scenes
❏The compression used by certain digital broadcasts and DVDs may cause your
TV’s screen to display less detail than usual, or cause artifacts (small blocks or
dots, pixelations) to appear on your screen. This is due to your TV’s large screen
and ability to show very fine detail, and is normal for certain digitally recorded
programs. Adjust the reality/clarity in the DRC Palette setting (see page 64) to
optimize the picture while viewing these sources.
"Iris Unit error" appears while
Advanced Iris is active
❏The Iris Control may have a problem. Call your local Sony Service Center.
Other Information
92
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Audio
Channels
Problem Possible Remedies
Good picture, no sound ❏Press MUTING so that Muting disappears from the screen (see page 44).
❏Make sure the Speaker option is set to On in the Audio setting (see page 67).
❏Make sure the MTS option is set to Stereo or Mono (see page 67).
❏When the HDMI IN input is in use, surround sound, such as AC-3 and DTS,
cannot be input. Change the sound setting for the external input device to Linear
PCM.
Audio noise ❏Communication problems may occur if infrared communication equipment (e.g.,
infrared cordless headphones) is used near the TV. Use headphones other than
infrared cordless headphones. Also, if you use infrared communication equipment
other than infrared cordless headphones, move the infrared transceiver away from
the TV until the noise is eliminated, or move the transmitter and receiver of the
infrared communication equipment closer together.
Cannot gain enough volume
when using a cable box
❏Increase the volume of the cable box using the cable box’s remote control. Then
press TV(FUNCTION) once (the TV indicator lights up) and adjust the TV’s
volume.
Sound seems weak or
insufficient
❏The TV’s audio might be set to Auto SAP or Mono, when it might be better set to
Stereo. In the Audio setting (see page 67), set the MTS setting to Stereo. If
already set to Stereo, switch to Mono (which may reduce background noise
during weak stereo broadcasts).
Cannot raise the volume on
external speakers
❏If the Speaker option is set to Off and the Audio Out option is set to Fixed (in
order to output the sound to your audio system), use your audio receiver to adjust
the sound (see page 67). Or, to use the TV remote control, set the Audio Out
option to Variable.
❏To turn on the TV speakers, set the Speaker option to On (see page 67).
Problem Possible Remedies
Cannot receive upper channels
(UHF) when using an antenna
❏Press ANT to select the VHF/UHF input (see page 44).
❏Use Auto Program in the Channel setting to add receivable channels that are not
presently in the TV’s memory (see page 72).
Cannot receive any channels
when using cable TV
❏Use Auto Program in the Channel setting to add receivable channels that are not
presently in the TV’s memory (see page 72).
❏Press ANT to select the CABLE input (see page 44).
Cannot receive or select
channels
❏Use Auto Program in the Channel setting to add receivable channels that are not
presently in TV memory (see page 72).
Some digital cable channels are
not being displayed
❏Certain cable companies have limitations on the broadcast of digital cable
channels. Check with your cable company for more information.
❏The digital cable channel may be set to Hidden in the Channel setting (see page
72).
Other Information
93
Other Information
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
General
Problem Possible Remedies
How to reset TV to factory
settings
❏Turn on the TV. While holding down the M button on the remote control, press the
POWER button on the TV. (The TV will turn itself off, then back on again.)
Release the M button.
WARNING: The Factory Reset will clear all of your customized settings
including Parental Lock setting.
How to restore Video settings
to factory settings
❏Select Reset setting option while in the Video setting (see page 66).
How to restore Audio settings
to factory settings
❏Select Reset setting option while in the Audio setting (see page 66).
Cannot cycle through the other
video equipment connected to
the TV
❏Be sure the Label Video Inputs option is not set to Skip (see page 79).
Cannot operate the setting ❏If a setting option appears in gray, this indicates that the setting option is not
available.
Lost password ❏On the password screen (see page 74), enter the following master password:
4357. The master password clears your previous password; it cannot be used to
temporarily unblock channels.
TIMER LED on front panel is
lit
❏When lit, indicates that the timer is set (see page 83). When the timer is set, this
LED will remain lit even when the TV is turned off.
LAMP LED blinks in red ❏Replace the lamp (see page 86).
Digital cable box does not work ❏If you are connecting a VCR and digital cable box using a splitter, as described on
page 35, you must use a special bi-directional splitter that is designed to work
with your digital cable box. Contact your cable provider for details.
Cannot record digital channels
to VCR
❏Only analog channels can be recorded to your VCR.
TV cabinet creaks ❏When the TV is in use, there is a natural rise in temperature, causing the cabinet to
expand or contract and may be accompanied by a slight creaking noise. This is not
a malfunction.
A slight creaking noise occurs
from the bottom part of the TV
❏Advanced Iris applies a mechanical iris system. When Advanced Iris is set, a
natural creaking noise occurs due to the basic structure of the optical unit. The
creaking sound is an inherent nature of this system and is not a defect.
The cooling fan is loud ❏If the TV is used at high altitudes and High Altitude is set to On, the cooling fan
runs faster and its sound becomes louder. If the TV is not used at high altitudes,
set High Altitude to Off (see page 81).
"High Temperature Warning!"
message appears
❏Make sure to remove dust from the ventilation slots on the rear and both sides of
the TV. In addition, make sure that there are no obstacles in front of the ventilation
slots. If the message still appears after the dust or obstacles are removed, the TV
may need servicing. Call your local Sony Service Center.
The TV does not turn on ❏The TV cools down its projection lamp when the power is turned off. It takes up to
two minutes for the picture to come back after the TV is turned on again. Wait for
a while until the picture comes back.
Other Information
94
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Specifications
Projection System 3 LCD Panels, 1 lens projection system
LCD Panel 0.73 inch TFT LCD panel (1,280 × 720 pixels)
Projection Lens High Performance, large diameter hybrid lens F2.4
Antenna 75-ohm external terminal for VHF/UHF
Lamp 100W, XL-2400
Television System NTSC American TV Standard
ATSC (8VSB terrestrial) ATSC compliant 8VSB
QAM on cable ANSI/SCTE 07 2000
Visible Screen Size (Picture measured
diagonally)
KDF-E42A10: 42 inches
KDF-E50A10: 50 inches
Channel Coverage Terrestrial (analog) 2-69
Cable TV (analog) 1-125
Terrestrial (digital) 2-69
Cable TV (digital) 1-135
Number of Inputs/Outputs
HDMI IN Video 1080i, 720p, 480p, 480i
Audio Two channel linear PCM 32, 44.1 and 48 kHz,
16, 20 and 24 bit
Video (IN) 3 total (1 on side panel) 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 1 Y: 1 Vp-p, 75 ohms unbalanced, sync
negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 5 total (1 on side panel) 500 mVrms (100% modulation)
Impedance: 47 kilohms
Component Video Input 2 (Y PB/CB PR/CR) Y: 1 Vp-p, 75 ohms unbalanced, sync
negative
PB/CB: 0.7 Vp-p, 75 ohms
PR/CR: 0.7 Vp-p, 75 ohms
AUDIO (VAR/FIX) OUT 1 500 mVrms at the maximum volume setting
(Variable)
500 mVrms (Fixed)
Impedance (output): 2 kilohms
✍
AUDIO OUT jacks are operable only
when the TV’s Speaker is set to Off.
RF Inputs 2
PC Input 1
Digital Audio Optical Output
(PCM/Dolby Digital)
1 Optical Rectangular (1)
CableCARD Slot PCMCIA Type I/II
Speaker output 12 W + 12 W
Power requirement 120 V, 60 Hz
Power consumption In use: 210 W
In standby: Less than 17 W
Other Information
95
Other Information
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US08OTH.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Optional accessories:
❑HDMI cable
❑HDMI-to-DVI cable
❑Component video cable
❑S VIDEO cable
❑A/V cable
❑Audio cable
❑Optical cable
❑TV Stand : (SU-RG11S for KDF-E42A10, SU-RG11M for KDF-E50A10)
❑Theatre Stand System: RHT-G2000
❑Lamp : XL-2400
Design and specifications are subject to change without notice.
Non-metric weights and measures are approximate.
Dimensions (W/H/D) KDF-E42A10: 999 × 722 × 357 mm (39 3/8 × 28 1/2 × 14 1/8 inches)
KDF-E50A10: 1184 × 827 × 408 mm (46 5/8 × 32 5/8 × 16 1/8 inches)
Mass KDF-E42A10: 28 kg (61 lb. 12 oz.)
KDF-E50A10: 33 kg (72 lb. 13 oz.)
Supplied Accessories
Remote Control RM-YD003
AA (R6) Batteries 2 supplied for remote control
Operating Instructions 1
Quick Setup Guide 1
Warranty Card 1
Product Registration Card 1
✍The availability of optional accessories
depends on stock.
96
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US09IX.fm masterpage:3 columns Right
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
Index
0-9 buttons 44
4:3 Default 70
5.1 Channel DVD using with
remote control 50
A
A/V Sync 67
About Using CableCARD Device
30
AC IN 18
Adding channels to the channel
list 72
Adjusting audio, Steady Sound
66
Advanced Iris 63
Advanced Video 65
Alternate Audio 52
Alternate Video 52
ANT button 44
Applications Settings 62, 83
Audio Out 67, 68
AUDIO OUT jack, described 18
Audio receiver, connecting 42
Audio settings 61, 66
Auto Adjustment 71
Auto Program 72
B
Balance, adjusting 66, 68
Bass, adjusting 66, 68
Batteries, inserting in remote 43
BBE 66
Brightness, adjusting 63, 65
C
Cable
connecting with VCR 34
using with remote control 49
Cable Box
connecting with VCR 35
CableCARD device 30, 84
CableCARD slot 17
Camcorder connection 41
Caption Vision 78
programming 80
Change Password 75
CHANNEL +/– button 15
Channel settings 62, 72
Channel Show/Hide 72
Channels
Auto Program 72
creating labels 73
CineMotion 9, 80
Clear White 65
Clock/Timers 83
Closed caption modes 78
Color Temp., adjusting 64, 65
Color, adjusting 63
Connecting
Audio receiver 42
Cable box 23–24
Camcorder 41
DVD player 38–39
Personal Computer 40
Satellite receiver 25
VCR 34–37
D
Diagnostics 84
DIGITAL AUDIO (OPTICAL)
OUT 18
Digital Channels 72
Digital subchannels 52
Display Area 70
DISPLAY button 45
Display Mode 65
Display, turning off 45
DRC Mode 64
DRC Palette 64
DVD player
using with remote control 49
with A/V connectors,
connecting 39
with component video
connectors, connecting 38
E
Effect 66, 68
English Rating 77
ENT button 44
External Inputs, WEGA GATE
56, 59
F
Favorite Channels
setting up 72
Favorites, WEGA GATE 56, 57
FREEZE button 45, 54
French Rating 77
FUNCTION button 44
G
Game Picture 69
Gamma 65
GUIDE button 51
Guide menu 52
H
HD/DVD IN jack (1080i/720p/
480p/ 480i), described 16, 18
HDMI IN jack, described 17
High Altitude 80, 81
High-Definition Multimedia
Interface (HDMI) 10
Horizontal Center 71
Hue, adjusting 63
I
Image Shift 79
Infrared Receiver (IR) 15
Inputs, labeling 79
Iris 63, 65
J, K
JUMP 54
JUMP button 44
97
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US09IX.fm masterpage:3 columns Right
L
Label
Channels 73
Label Video Inputs 79
LAMP LED 15
Lamp, replacing 86–89
Language 79, 81
Live Color 65
M
MENU button 45, 49
Menu Color 79, 81
Movie Rating 76
MTS 67
MUTING button 44
N
Noise Reduction 64
O
Off, turning off the TV 15
On, turning on the TV 15
P, Q
Parental Control, described 9
Parental Lock settings 62, 74
Password, changing 75
PC IN jack 17
PC Input 65, 68, 71, 81
Personal Computer
connecting 40
Phase 71
Picture 63, 65
PICTURE button 44
Picture Mode
Custom 63
Standard 63
Vivid 63
Pitch 71
POWER button 15
Power Management 81
POWER/STANDBY LED 15
Problems, Troubleshooting 90–
93
Program Guide 52
Program Options menu 52
R
Ratings
setting 76
viewing blocked programs 75
Remote control
inserting batteries 43
programming 47–48
Removing channels from the
channel list 72
Removing the CableCARD 31
Reset 63, 65, 66, 68
S
S VIDEO jack, described 18
Satellite receiver
connecting 25
Satellite receiver, using with
remote control 49
Screen settings 61, 69
Select Country 75
Settings
Applications 62, 83
Audio 61, 66
Channel 62, 72
Parental Lock 62, 74
Screen 61, 69
Setup 62, 78
Video 61, 63
Settings, WEGA GATE 56, 59
Setup settings 62, 78
Sharpness, adjusting 64
Show/Hide Channels 72
Sound Mode 66, 68
Speaker 15, 67, 68
Specifications 94–95
Steady Sound
adjusting 66
described 10
Support Belt 14
Surround sound 66, 68
T, U
Timer
set current 84
TIMER indicator 12
TIMER LED 15
Timer setting 83
Treble, adjusting 66, 68
Troubleshooting 90–93
Turning on/off the TV 15
TV FUNCTION button 44
TV POWER button 45
TV Rating 76
TV/VIDEO button 15, 44
U.S.A. Rating 77
Unrated 76
V
VCR
using with remote control 49
with cable box, connecting 35
with cable, connecting 34
Vertical Center 70, 71
Vertical Size 70
VHF/UHF jack, described 17
Video 2 (Component) 79
Video inputs, labeling 79
Video settings 61, 63
VIDEO/AUDIO (L/R) jacks,
described 16, 18
VISUAL SEARCH 45
VOL +/– button 45
VOLUME +/– button 15
Volume Offset 66
W, X, Y
WEGA GATE 9, 55
WEGA GATE button 15
Wide Mode 69, 71
Wide Screen Mode, described 9
KDF-E42/50A10 2-597-544-12(1)
LCD Projection TV
HD-TV
Operating Instructions
http://www.sony.net/
Printed in U.S.A.
2-597-544-12(1)
KDF-E42A10
KDF-E50A10
© 2005 Sony Corporation
™
™
2597544121cover_r1.indd 12597544121cover_r1.indd 1 5/23/2005 11:02:58 AM5/23/2005 11:02:58 AM
