Sony KDL 22BX300 User Manual LCD TELEVISION Manuals And Guides L1003016

SONY LCD Television Manual L1003016 SONY LCD Television Owner's Manual, SONY LCD Television installation guides

User Manual: Sony KDL-22BX300 KDL-22BX300 SONY LCD TELEVISION - Manuals and Guides View the owners manual for your SONY LCD TELEVISION #KDL22BX300. Home:Electronics Parts:Sony Parts:Sony LCD TELEVISION Manual

Open the PDF directly: View PDF PDF.
Page Count: 114 [warning: Documents this large are best viewed by clicking the View PDF Link!]

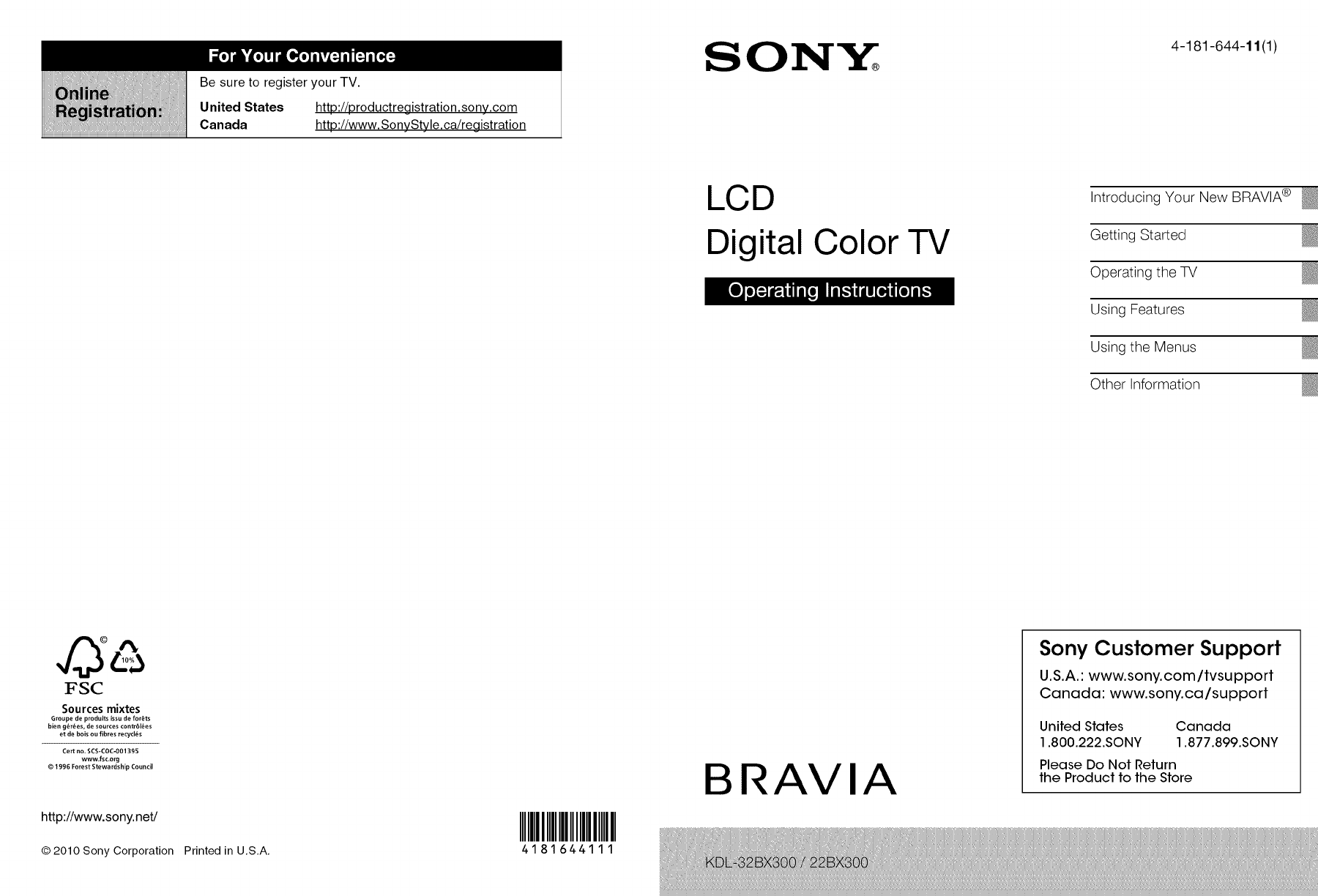

Be sure to register your TV.
United States http://productregistration.sony.com
Canada http://www.SonyStyle.ca/registration
SON 4-181-644-11(1)
LCD
Digital Color TV
Introducing Your New BRAVIA®
Getting Started
Operating the TV
Using Features
Using the Menus
Other Information
FSC
Sourcesmixtes
Groupe de prodults issu de for6ts
bien g6r6es, de sources contr616es
et de bois ou fibres recyd6s
Cert no, SCS*COC-O01395
www.fsc.org
© 1996 Forest Stewardship Council
http://www.sony.net/
© 2Ol o Sony Corporation Printed in U.S.A. IIIIIIIIIIII
4181644111
BRAVlA
Sony Customer Support
U.S.A.: www.sony.com/tvsupport
Canada: www.sony.ca/support
United States Canada
] .800.222.SONY ] .877.899.SONY
Please Do Not Return
the Product to the Store

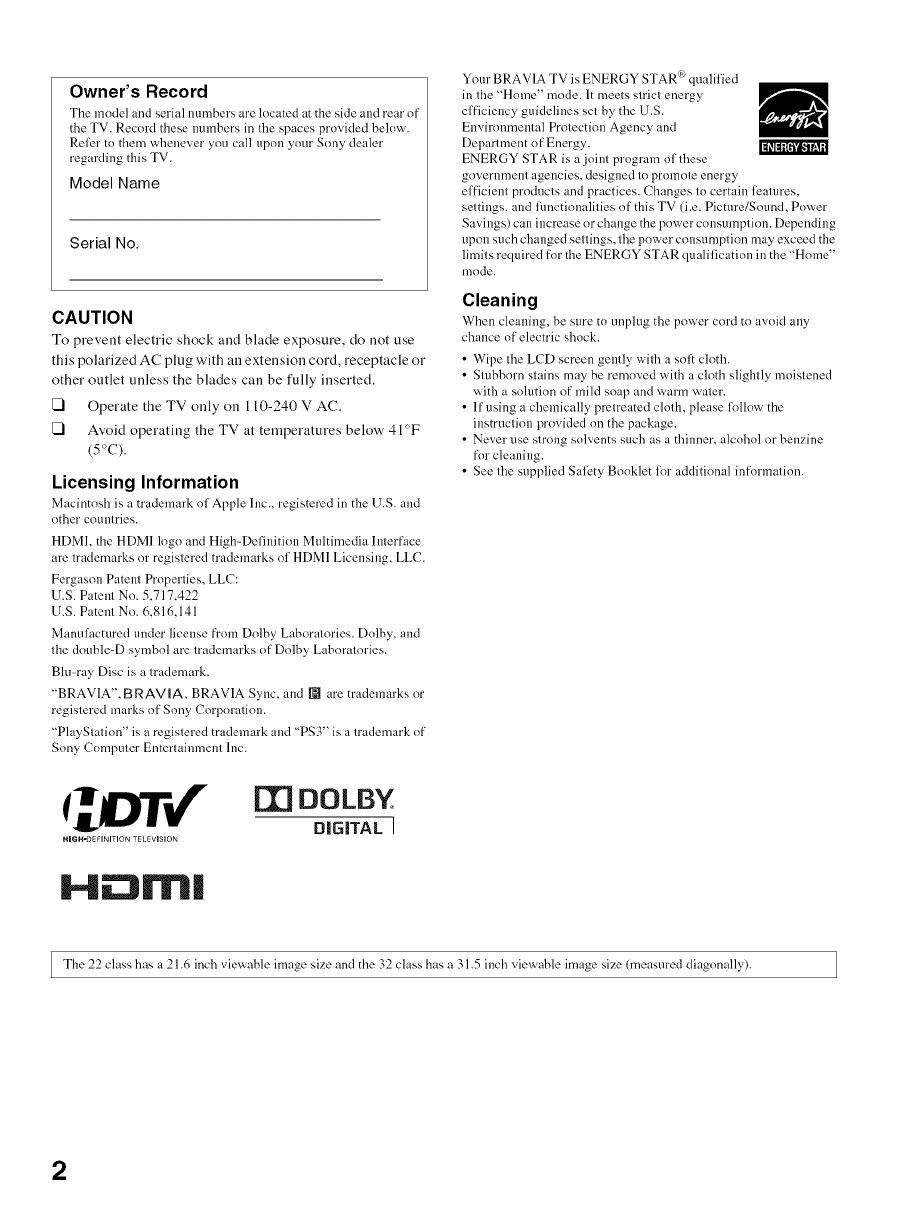

Owner's Record
The model and serial numbers are located at the side and rear of
the TV. Record these nmnbers in the spaces provided below.
Reler to thenl whenever you call upon your Sony dealer
regarding this TV.
Model Name
Serial No,
CAUTION
To prevent electric shock and blade exposure, do )lot use
this polarized AC plug with an exteusion cord, receptacle or
other outlet unless the blades can be fully inserted,
[] Operate the TV only on 110-240 V AC,
[] Avoid operating the TV at temperatures below 41°F
(5 °C),
Licensing Information
Macintosh is a trademark nf Apple Inc., registered in the U.S. and
other countries.
HDMI. the HDMI logo and High-Definition Multimedia Interface
are trademarks nr registered trademarks nf HDMI Licensing, LLC.
Fergason Patent Properties, LLC:
U.S. Patent Nn. 5.717.422
U.S. Patent No. 6.816.141
Manufactm'ed under license from Dnlby Laboratories. Dolby, and
the double-D symbnl are trademarks of Dnlby Labnratnries.
Blu-ray Disc is a trademark.
"BRAV1A", BRAVIA, BRAVIA Sync, and [] are trademarks or
registered marks nf Snny Corporation.
"PlayStati(in" is a registered trademark and "PS3" is a trademark of
Snny Computer Entertaimnent Inc.
m DOLBY
D|G|TAL I
H B|
Your BRAV1A TV is ENERGY STAR _ qualiHed
in the "Home" mode. It meets strict energy
efficiency guidelines set by the U.S.
Environmental Protection Agency and
Department of Energy.
ENERGY STAR is a joint program of these
govermnent agencies, designed to promote energy
efficient prnducts and practices. Changes to certain leatures,
settings, and functionalities of this TV (i.e. Picture/Sound, Power
Savings) can increase or change the power consumption. Depending
upon such changed settings, the power consunlption may exceed the
limits required fnr the ENERGY STAR qualification in the "Home"
mode.
Cleaning
When cleaning, be sure to unplug the power cord to avoid any
chance of electric shock.
Wipe lhe LCD screen genlly wilh a soft cloth.
Stubborn stains may be removed with a cloth slighlly moistened
with a solution of mild soap and warm water.
If using a chemically prelreated cloth, please follow the
instruclion provided nn the package.
Never use slrong solvents such as a thinner, alcohol or benzine
for cleaning.
See lhe supplied Safety Booklet for additional informalion.
The 22 class has a 21.6 inch viewable image size and the 32 class has a 31.5 inch viewable image size (measured diagonally).
2

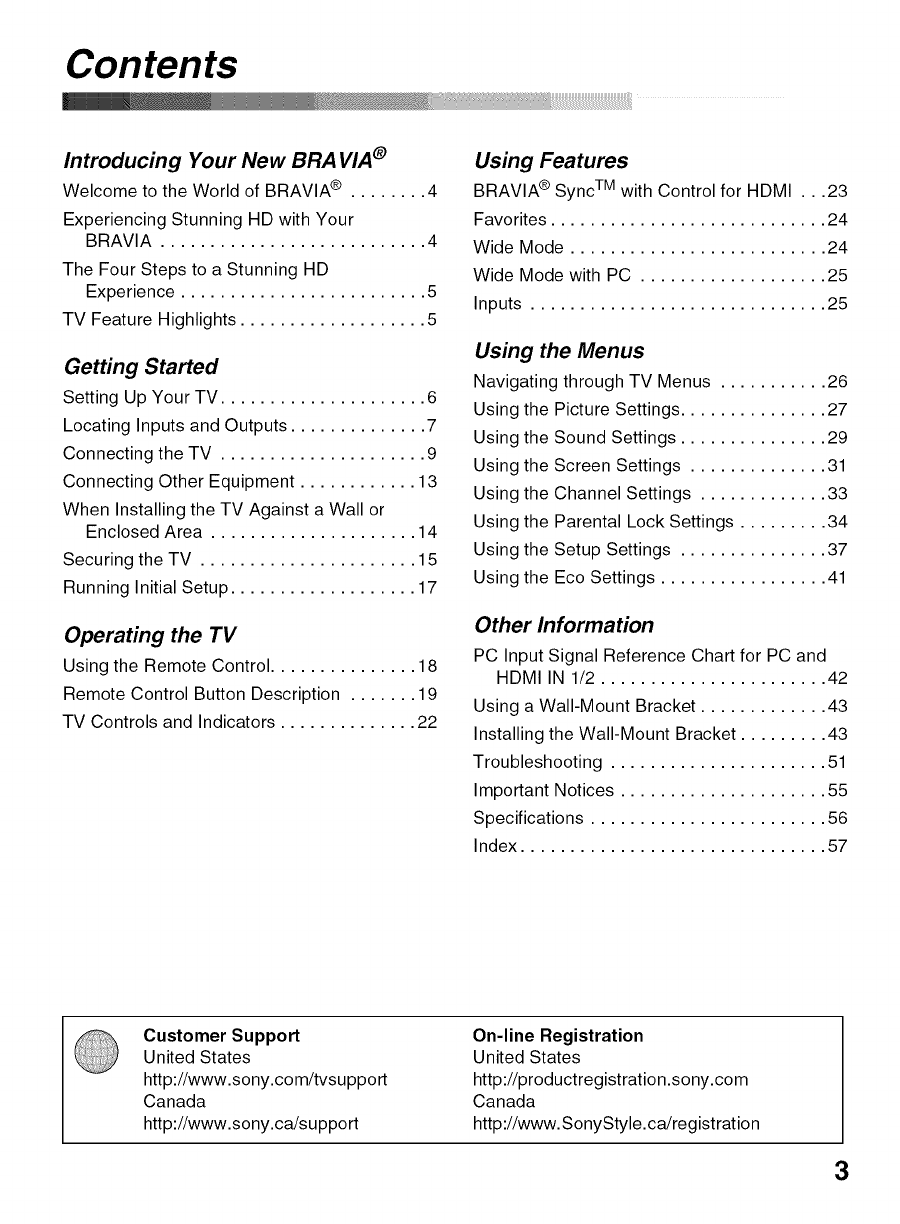

Contents
Introducing Your New BRA VIA ®
Welcome to the World of BRAVIA ® ........ 4
Experiencing Stunning HD with Your
BRAVIA ........................... 4
The Four Steps to a Stunning HD
Experience ......................... 5
TV Feature Highlights ................... 5
Getting Started
Setting Up Your TV ..................... 6
Locating Inputs and Outputs .............. 7
Connecting the TV ..................... 9

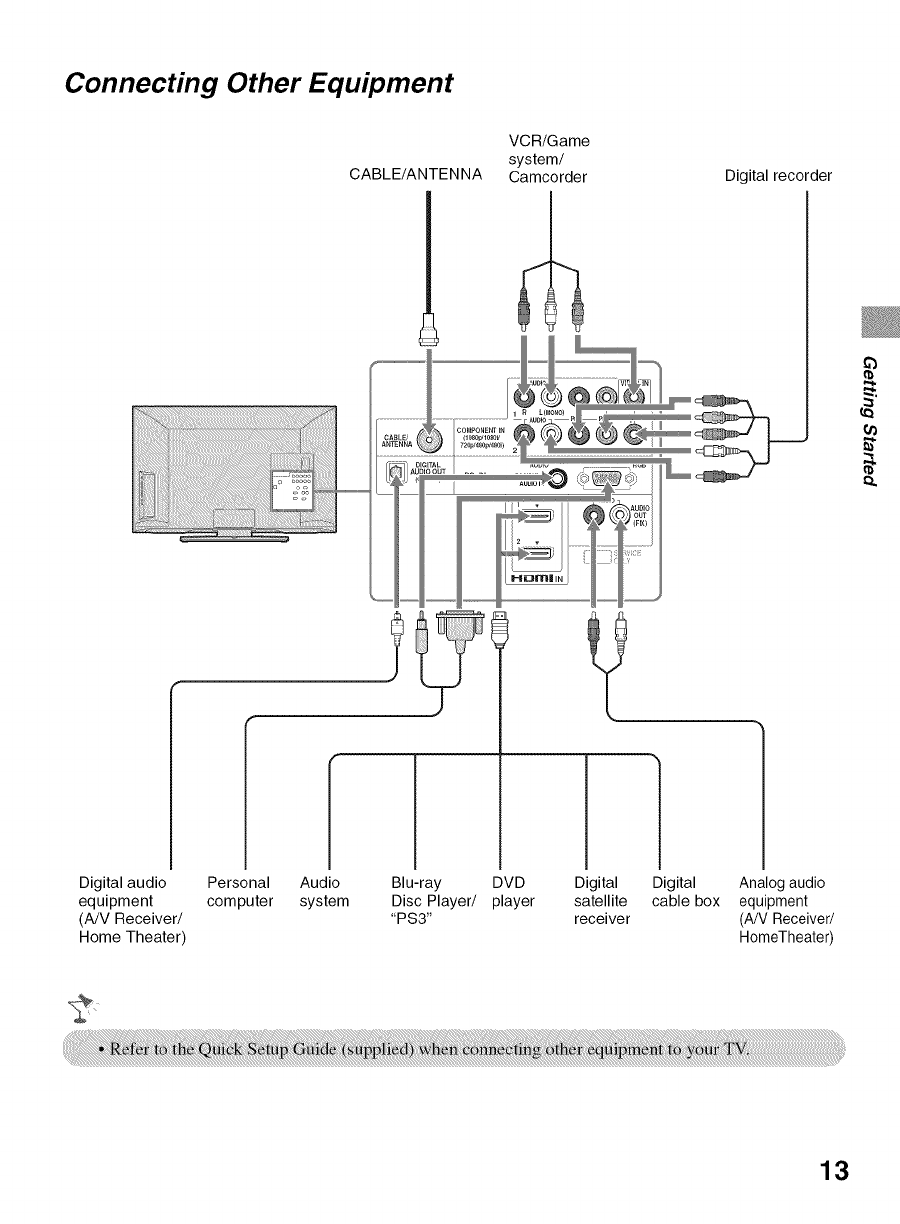

Connecting Other Equipment ............ 13

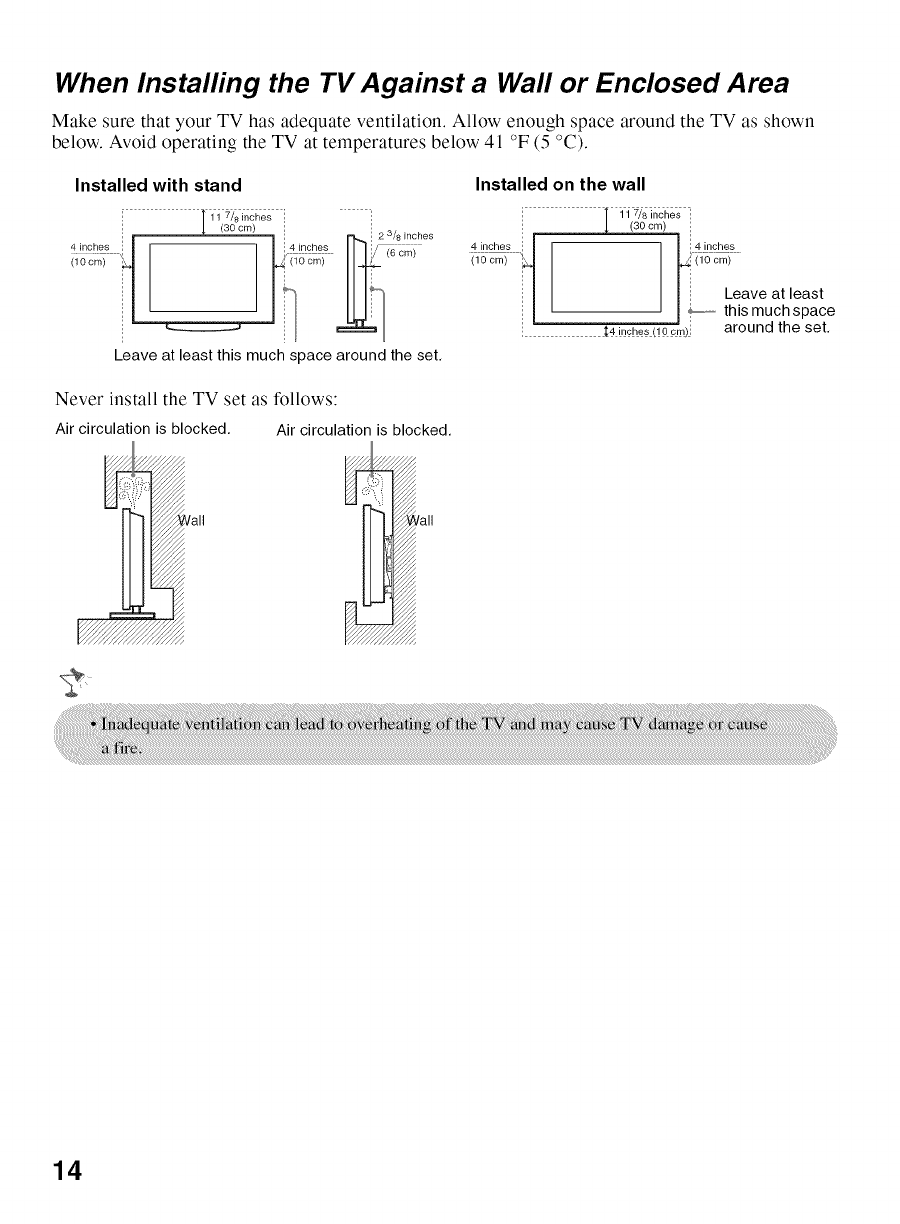

When Installing the TV Against a Wall or
Enclosed Area ..................... 14

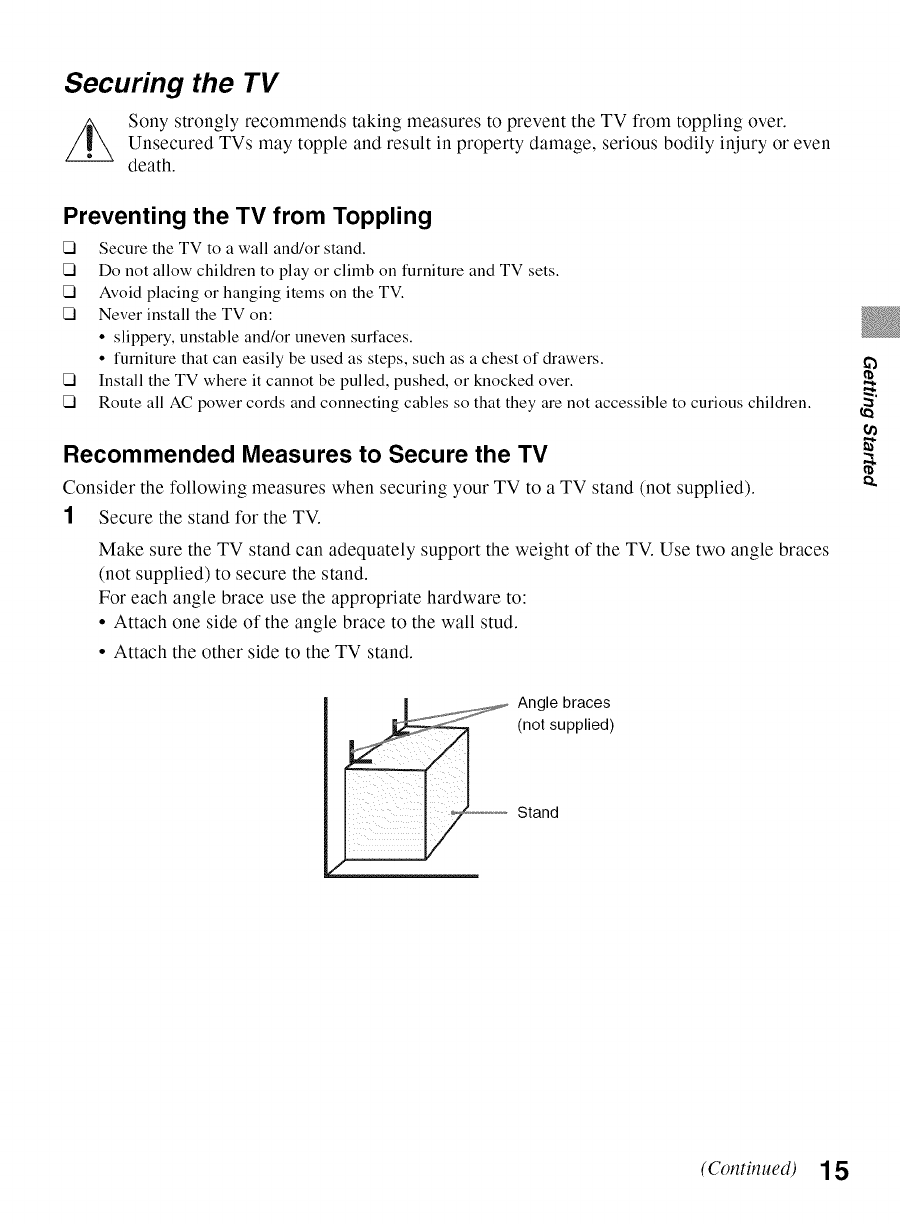

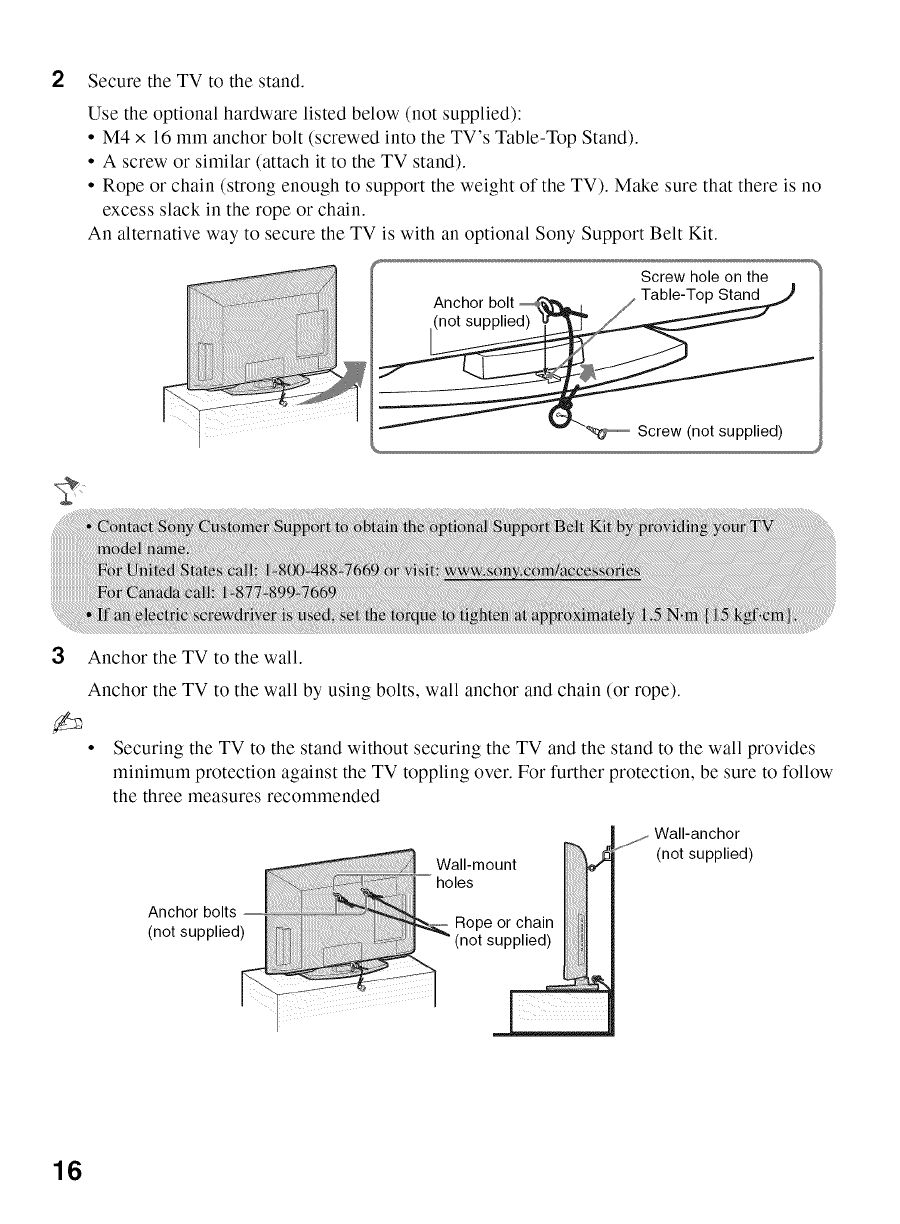

Securing the TV ...................... 15

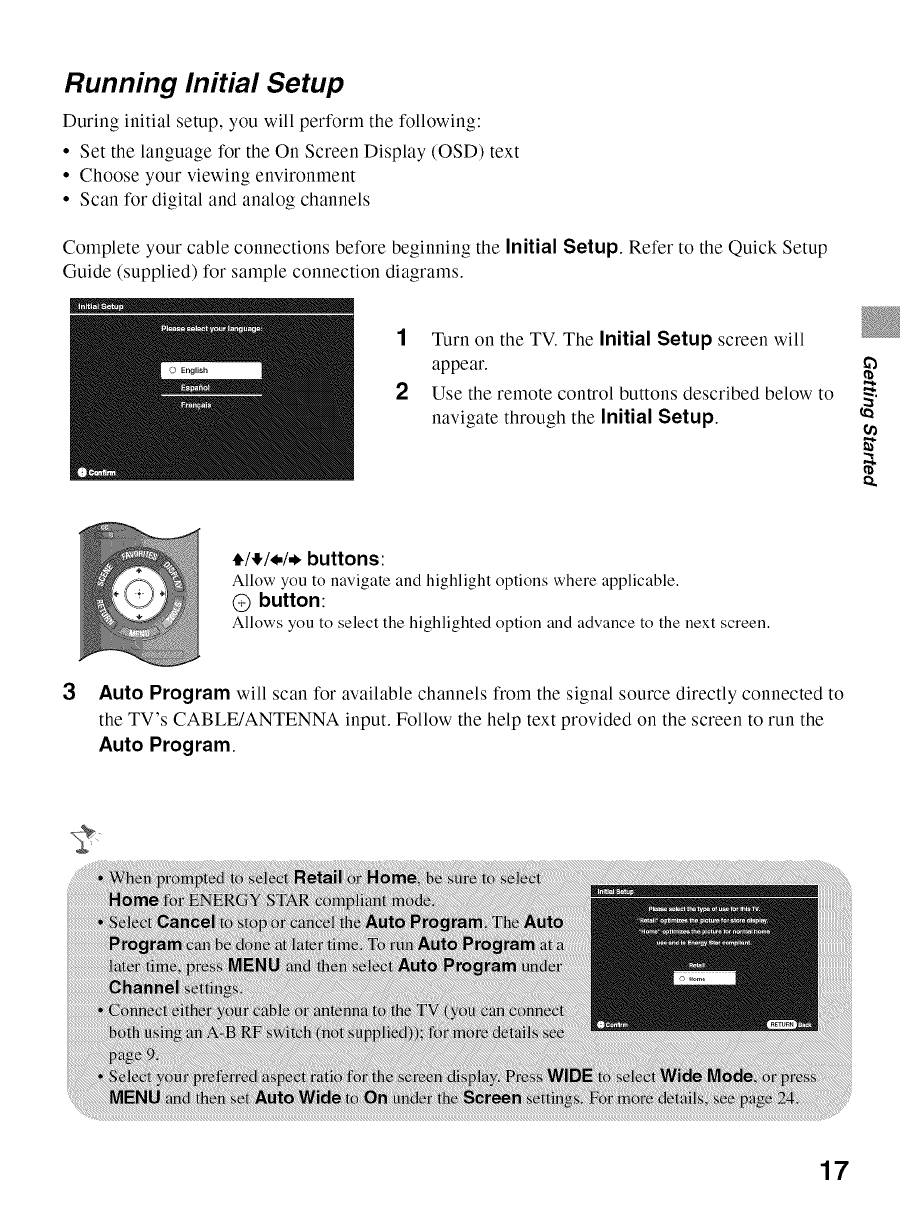

Running Initial Setup ................... 17
Operating the TV

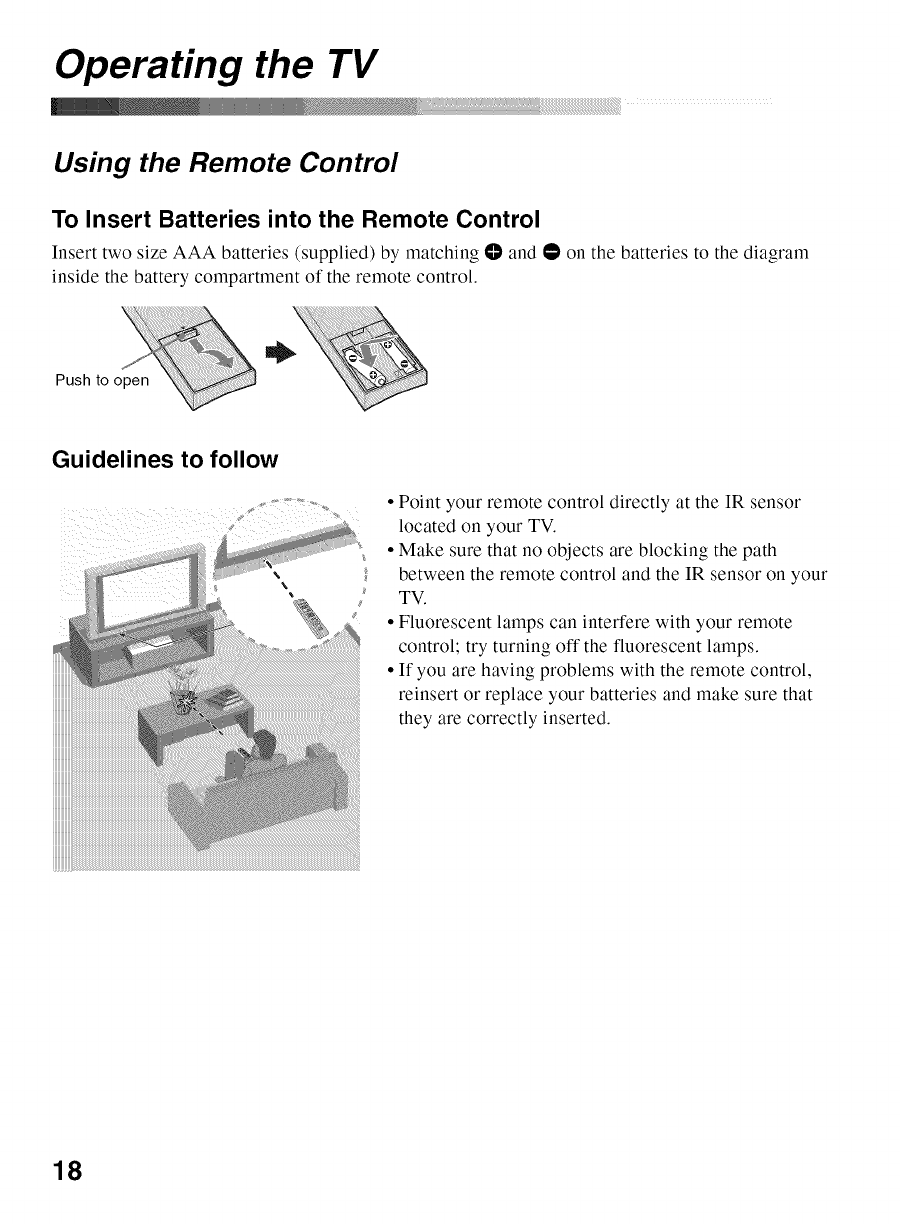

Using the Remote Control ............... 18

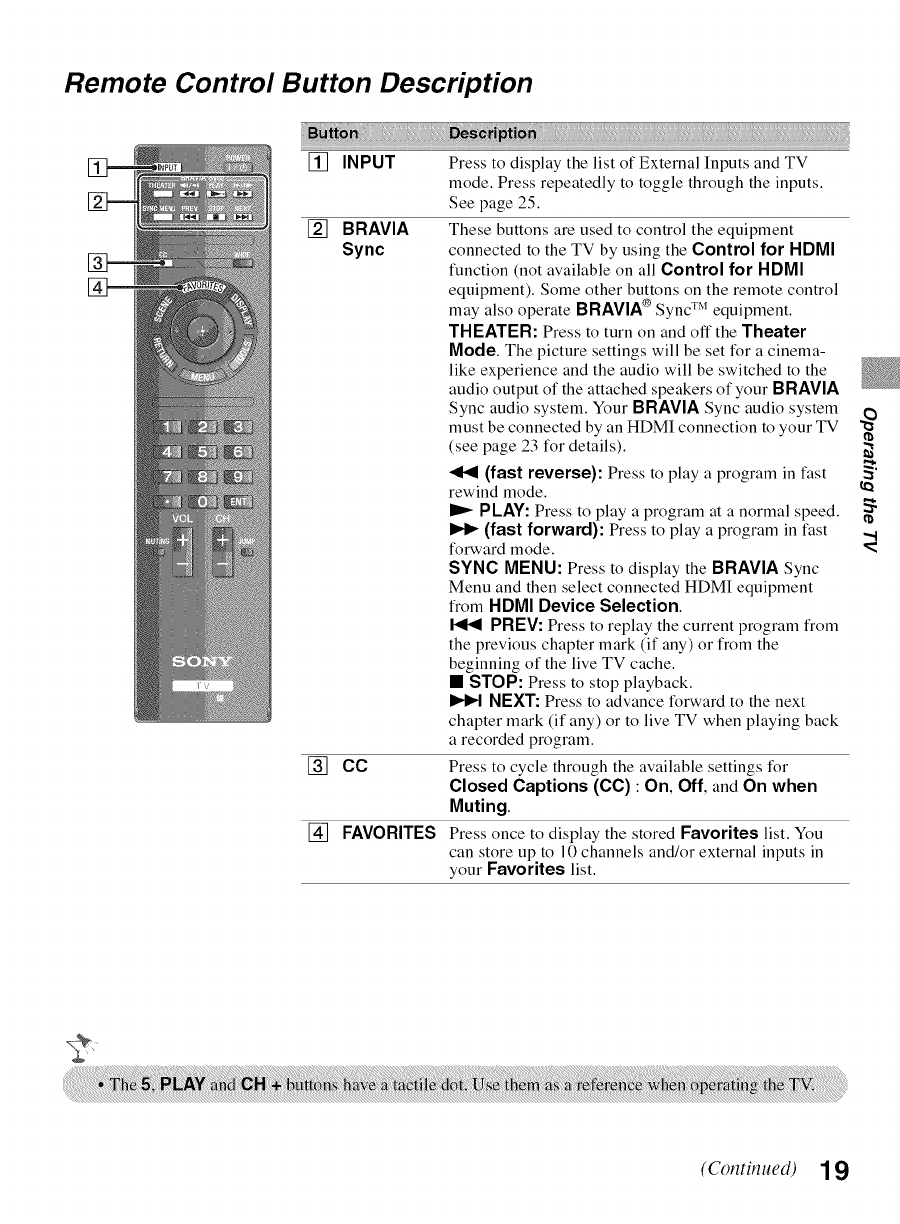

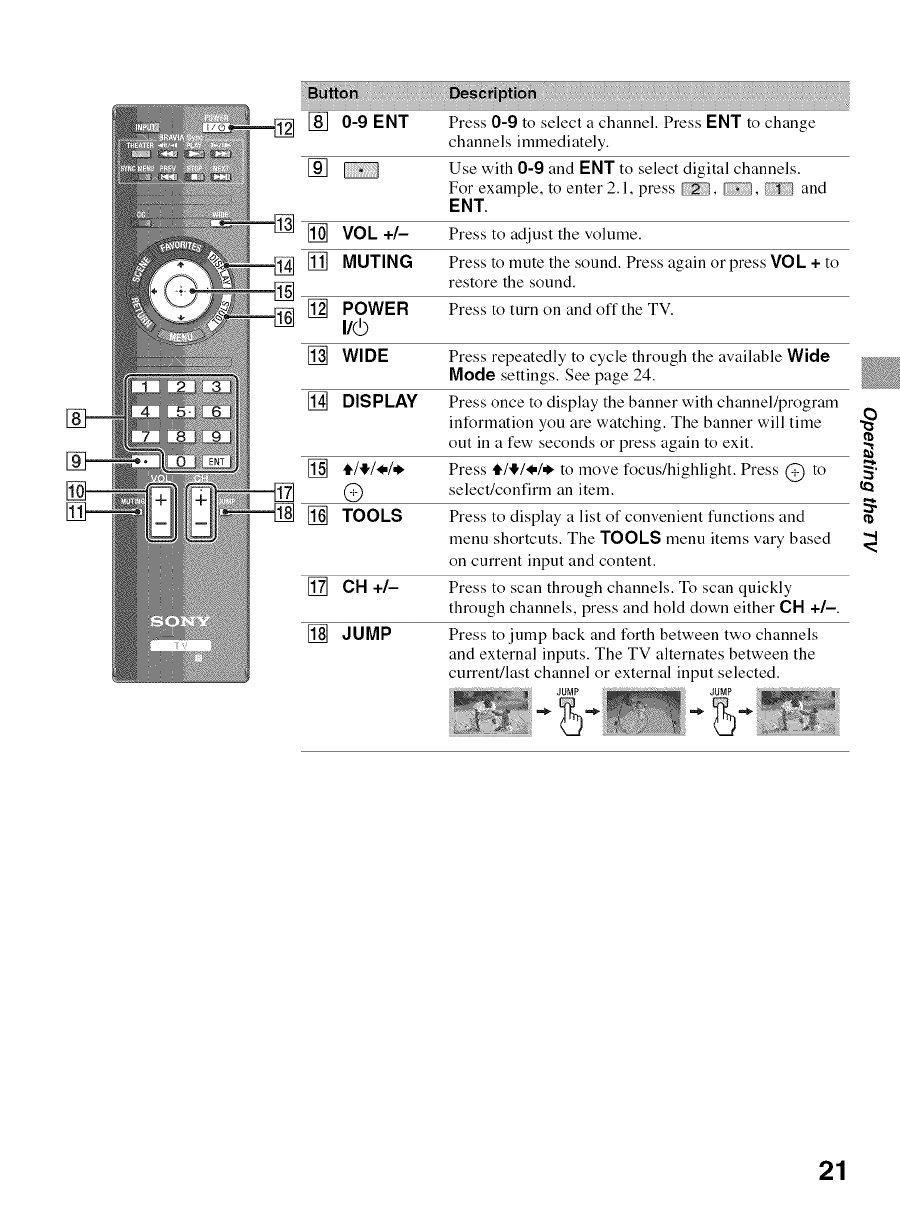

Remote Control Button Description ....... 19

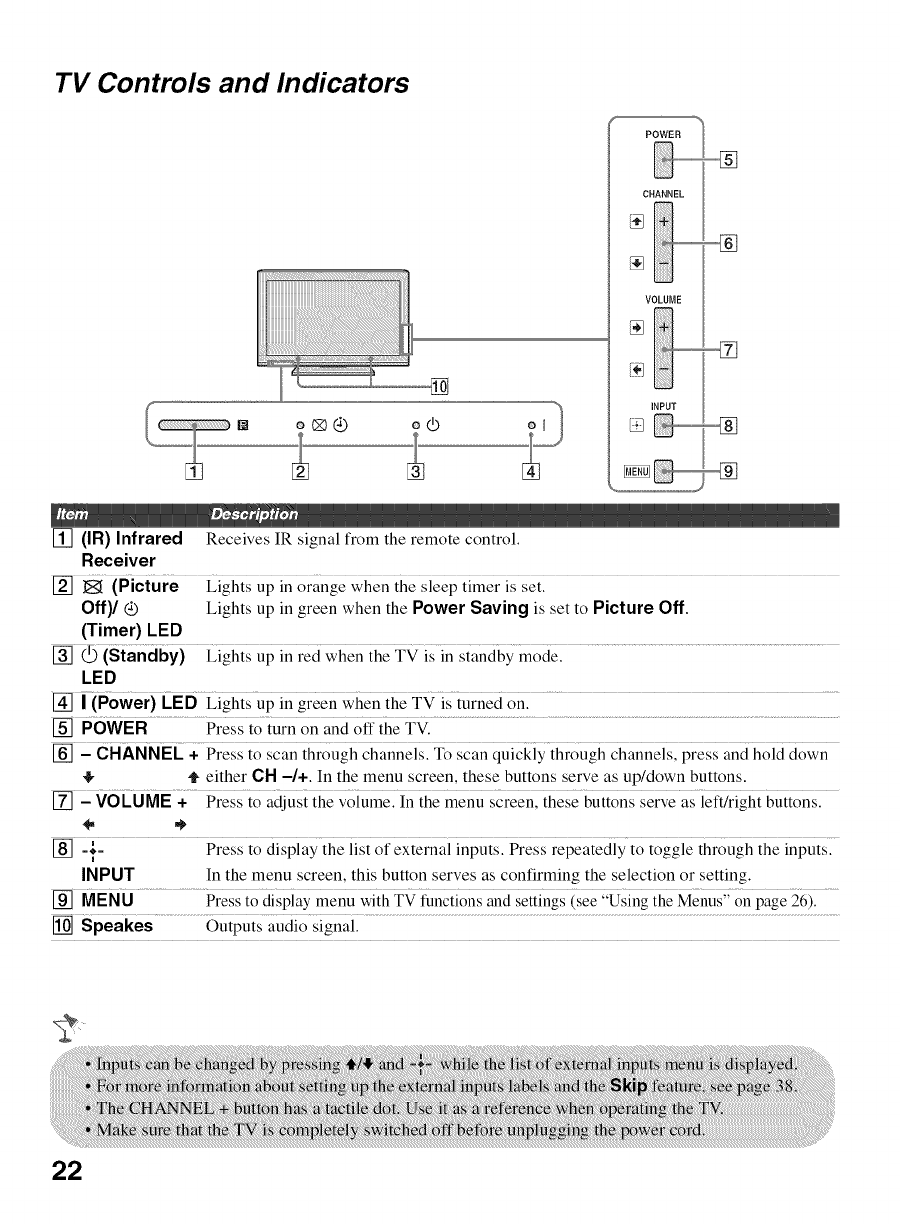

TV Controls and Indicators .............. 22
Using Features

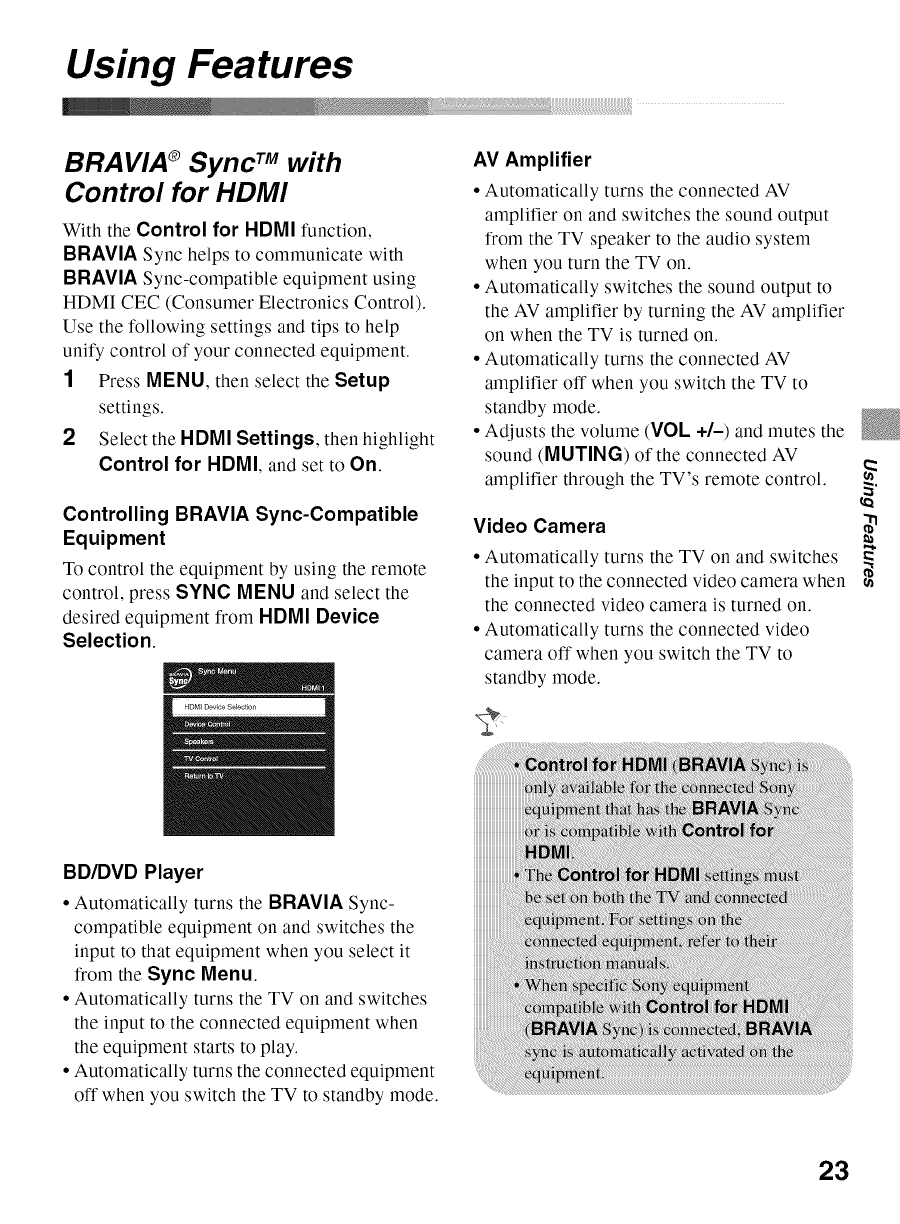

BRAVIA ® Sync TM with Control for HDMI ...23

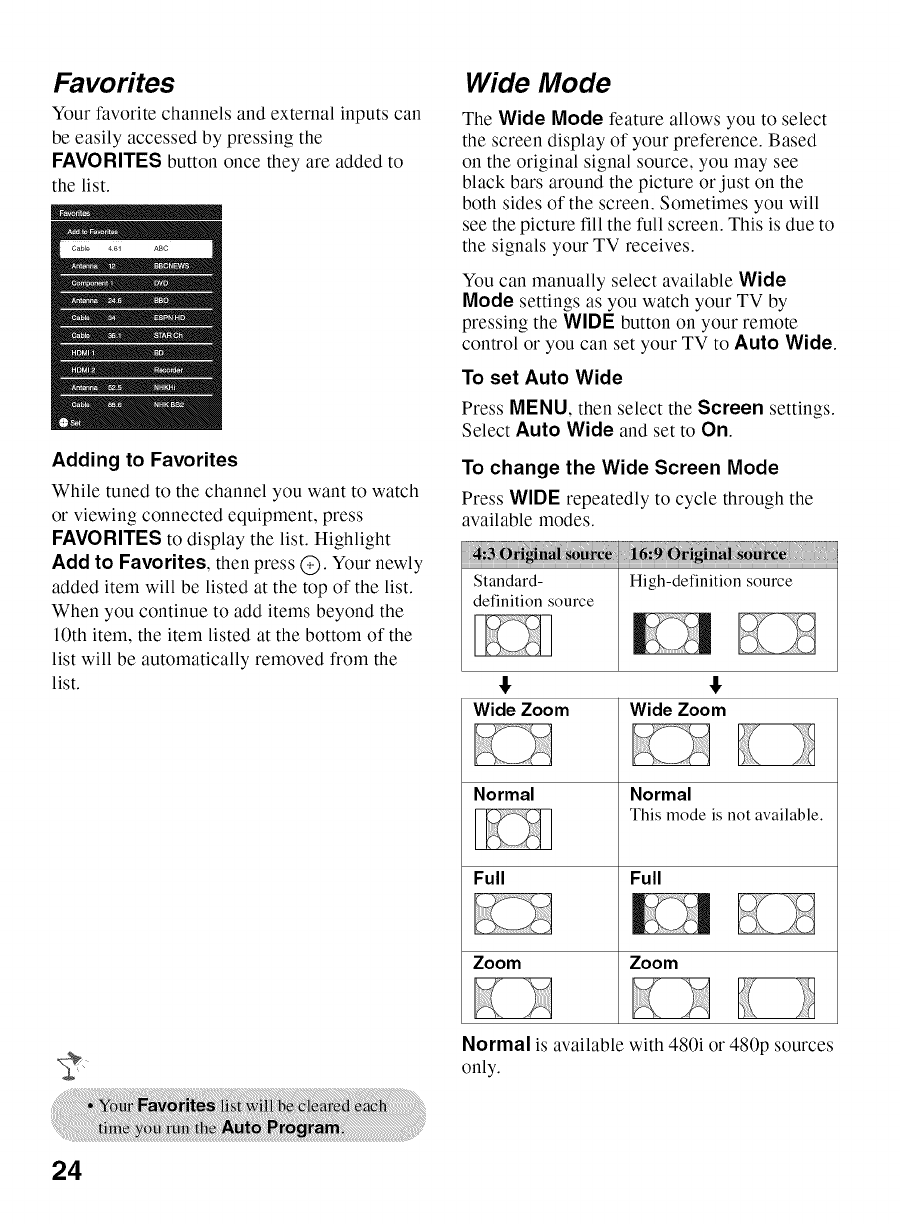

Favorites ............................ 24
Wide Mode .......................... 24

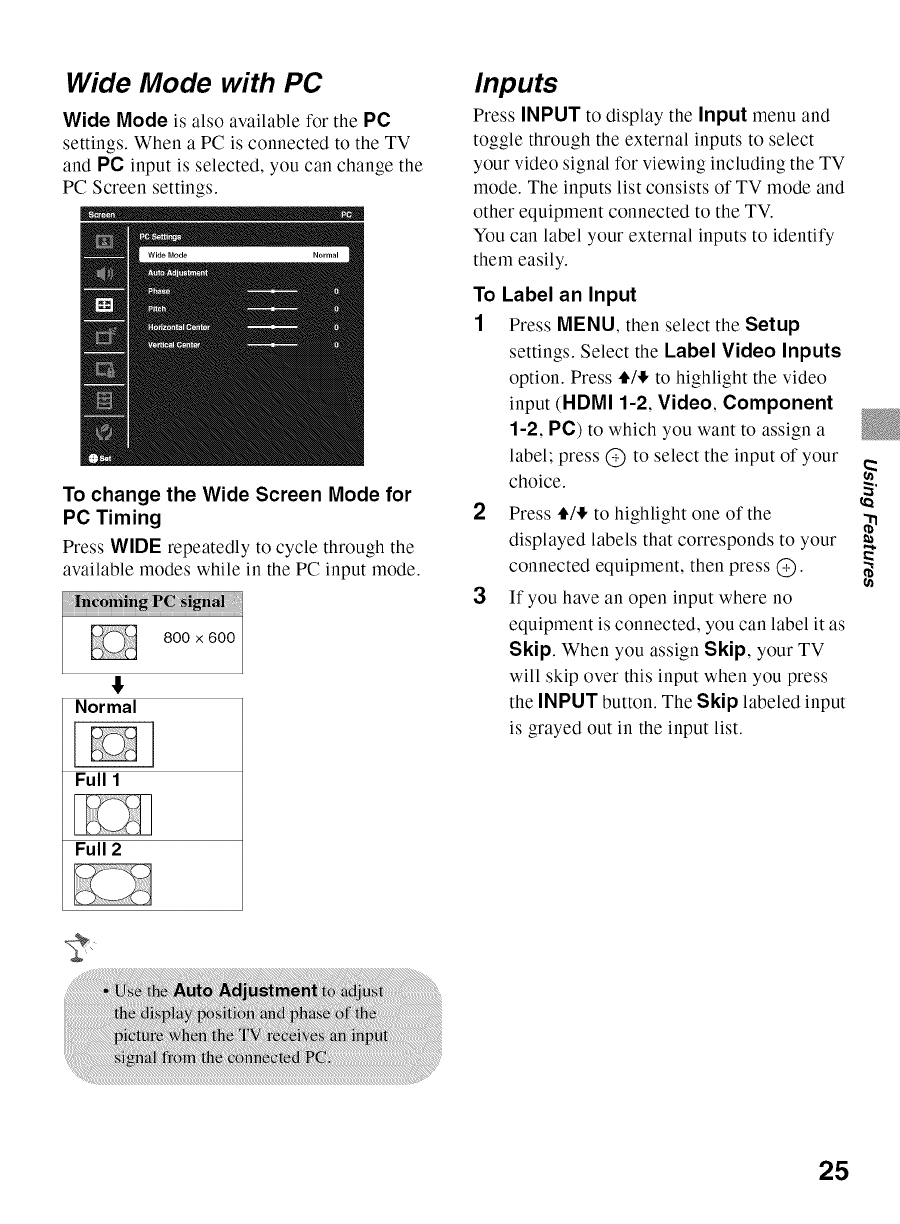

Wide Mode with PC ................... 25
Inputs .............................. 25
Using the Menus

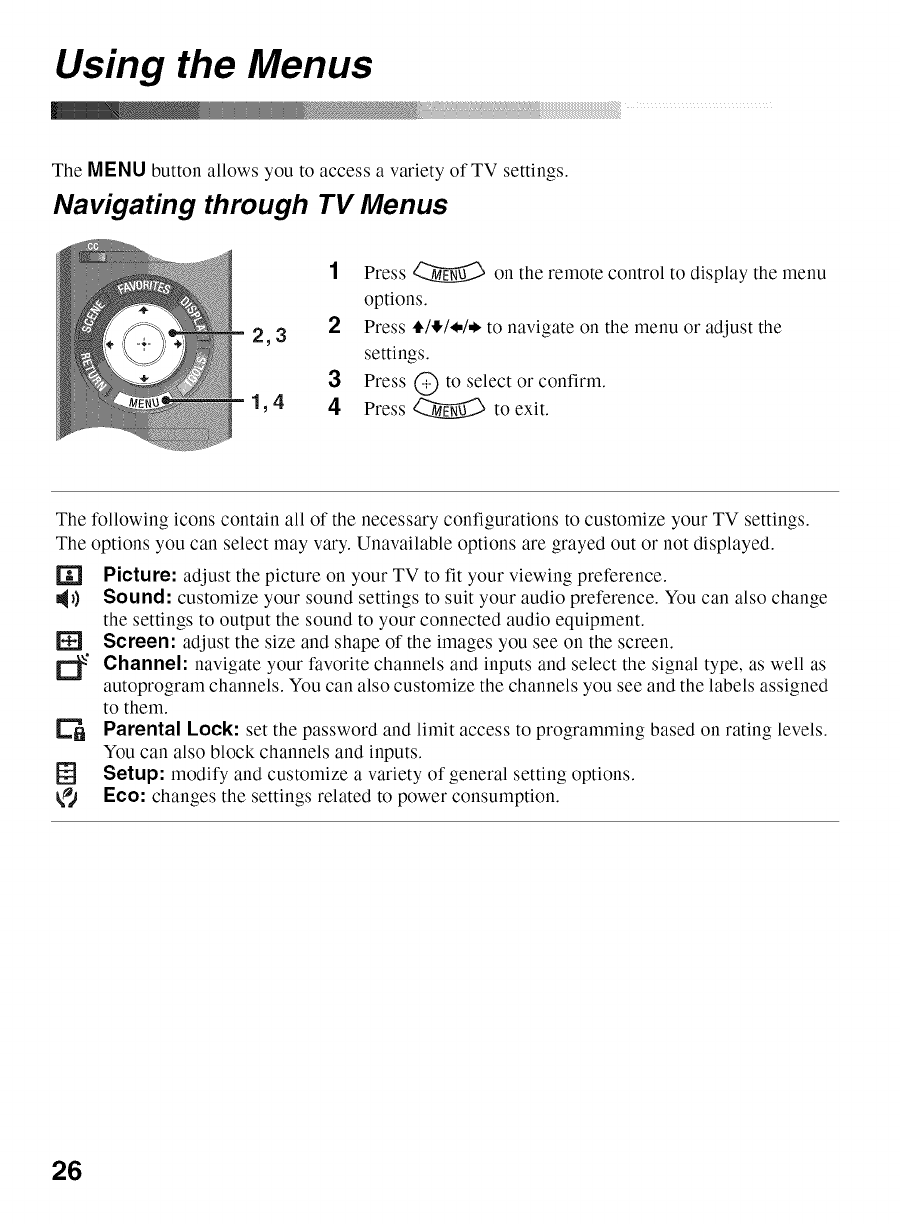

Navigating through TV Menus ........... 26

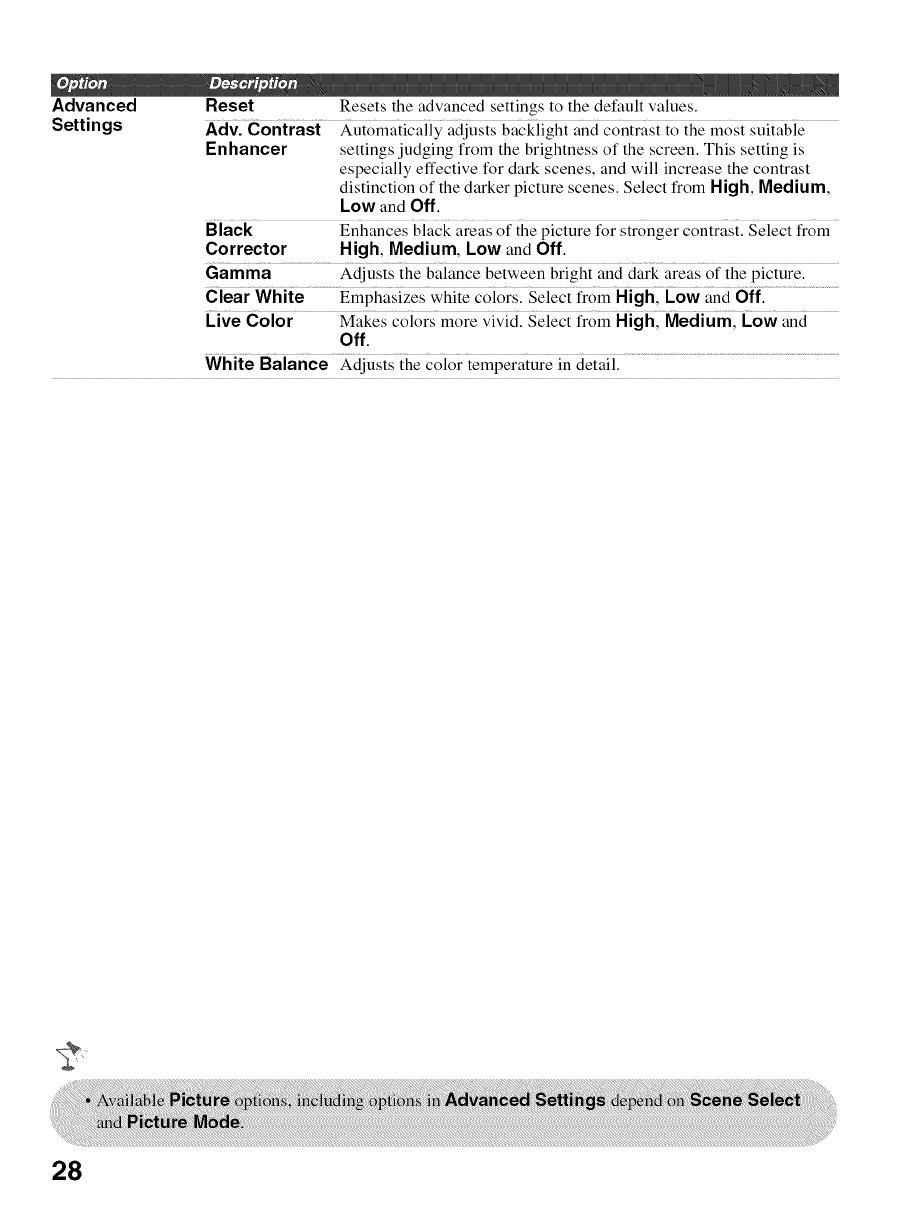

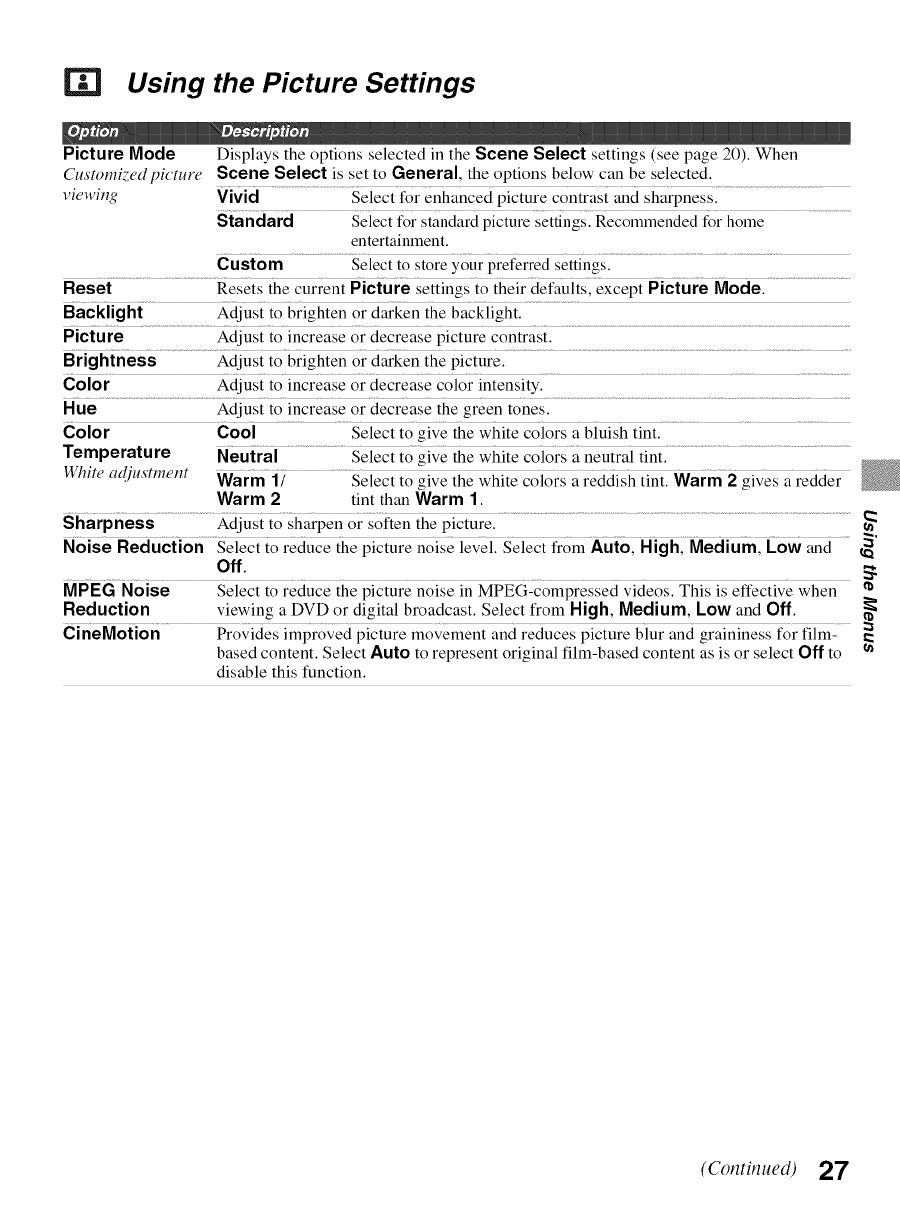

Using the Picture Settings ............... 27

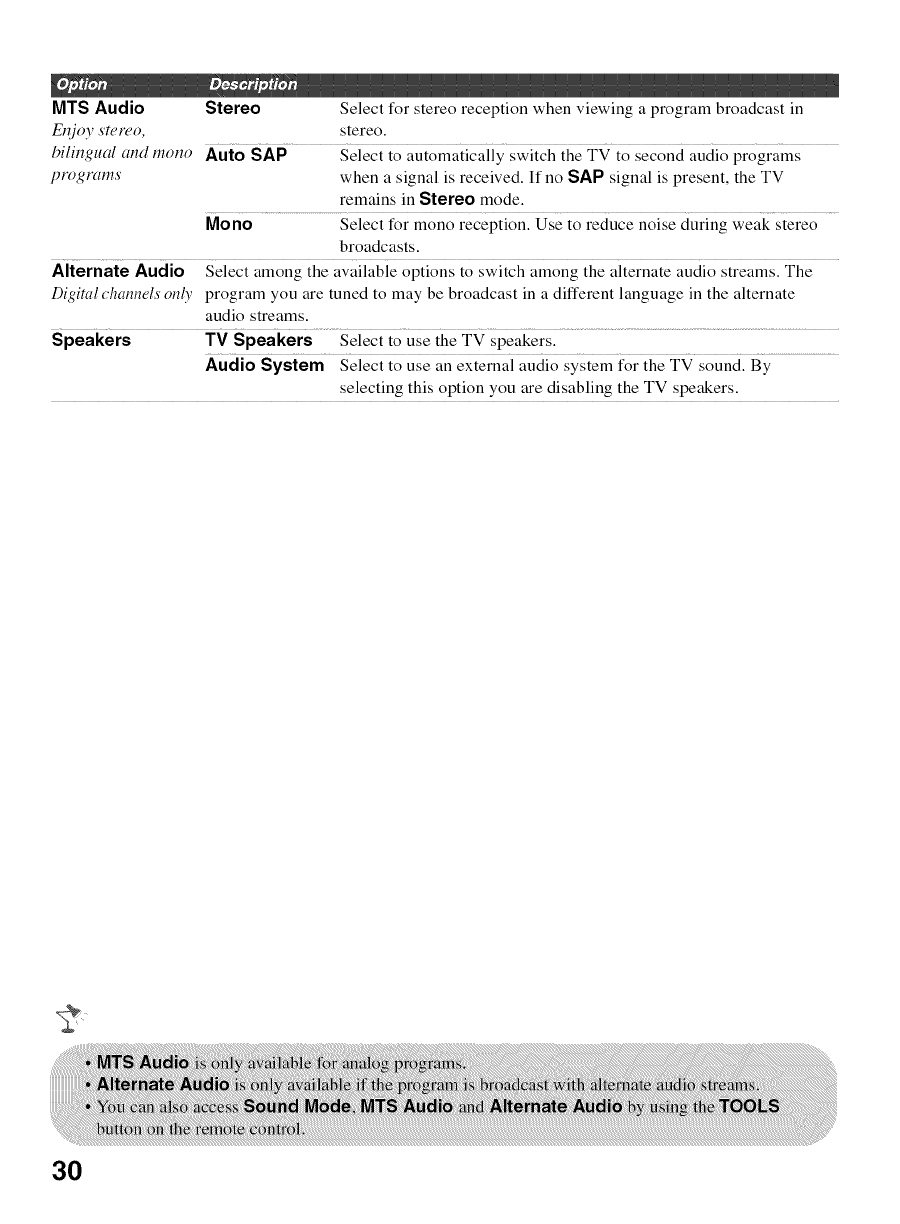

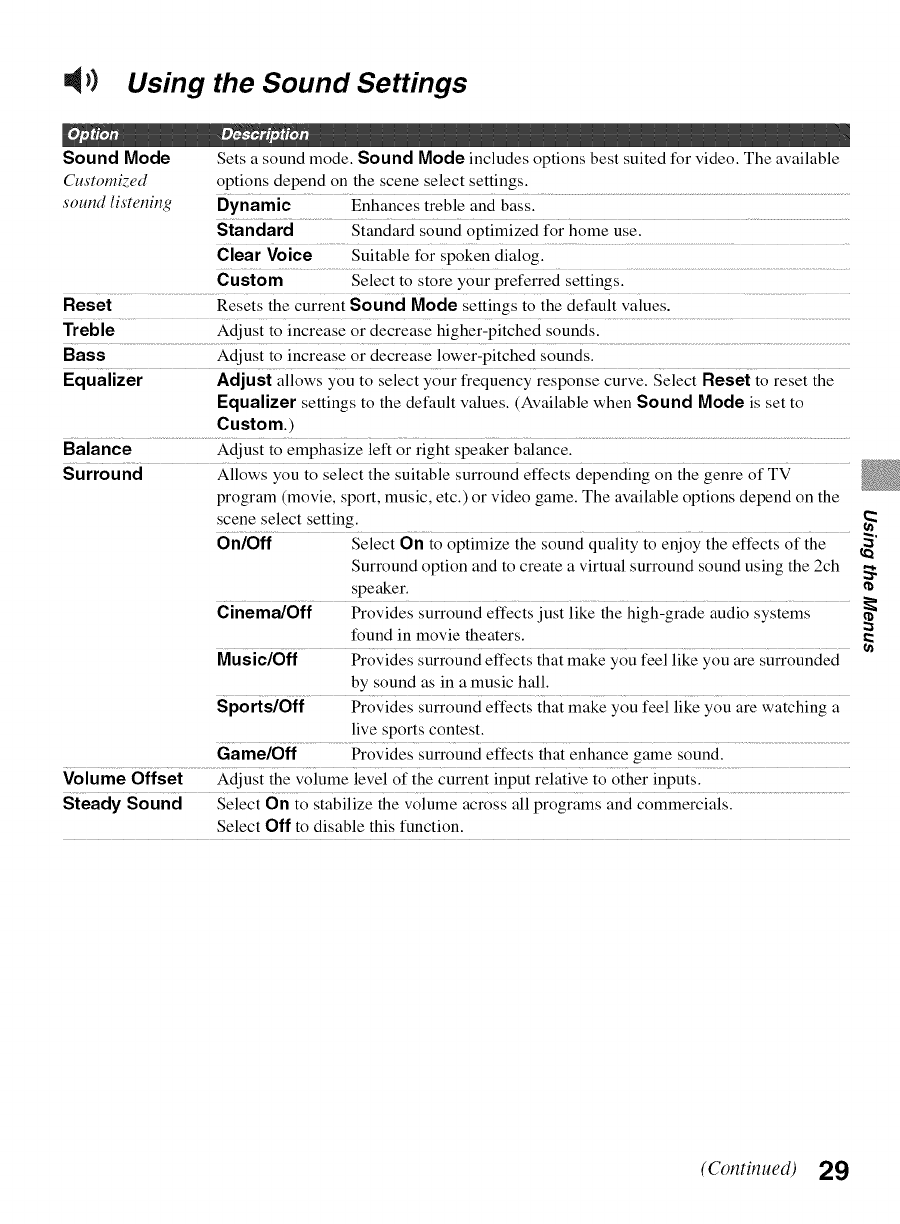

Using the Sound Settings ............... 29

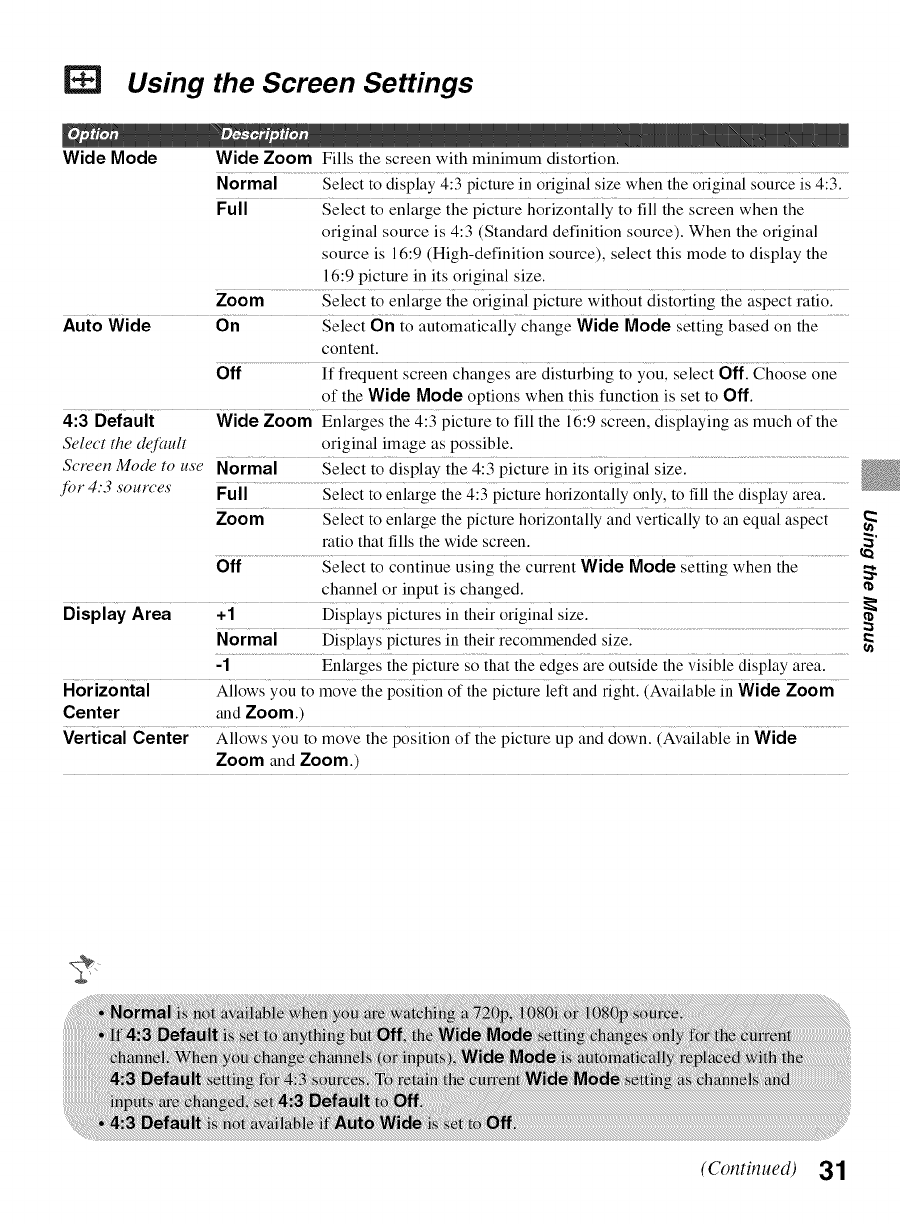

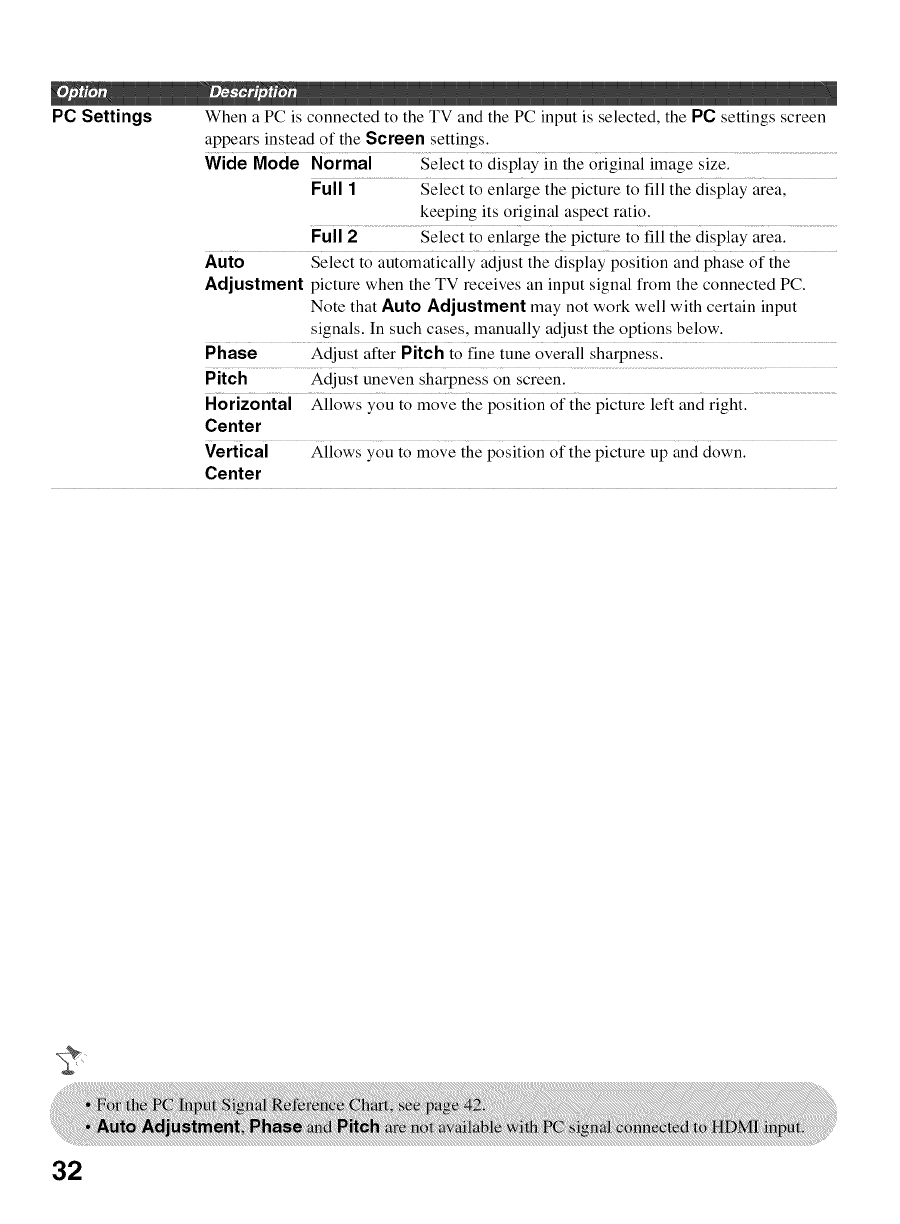

Using the Screen Settings .............. 31

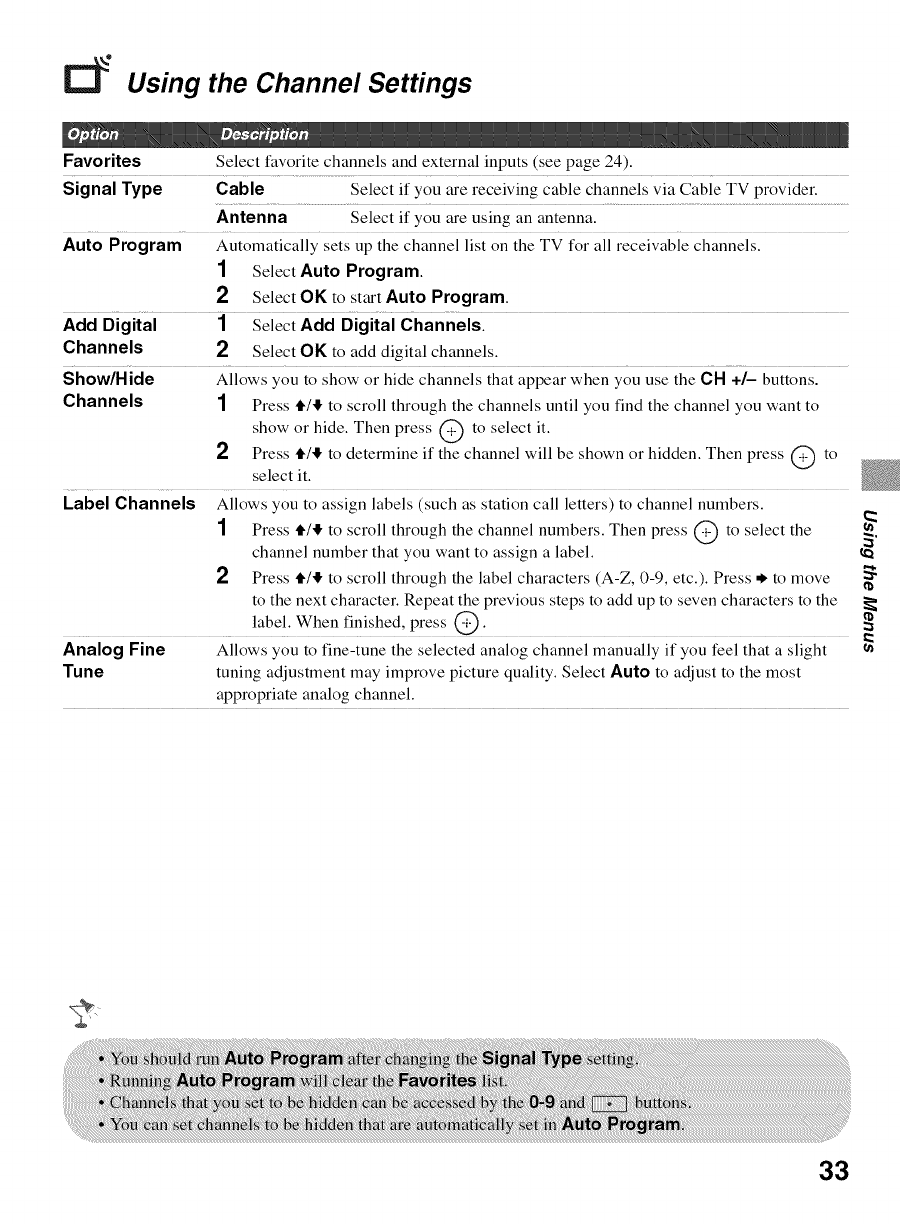

Using the Channel Settings ............. 33

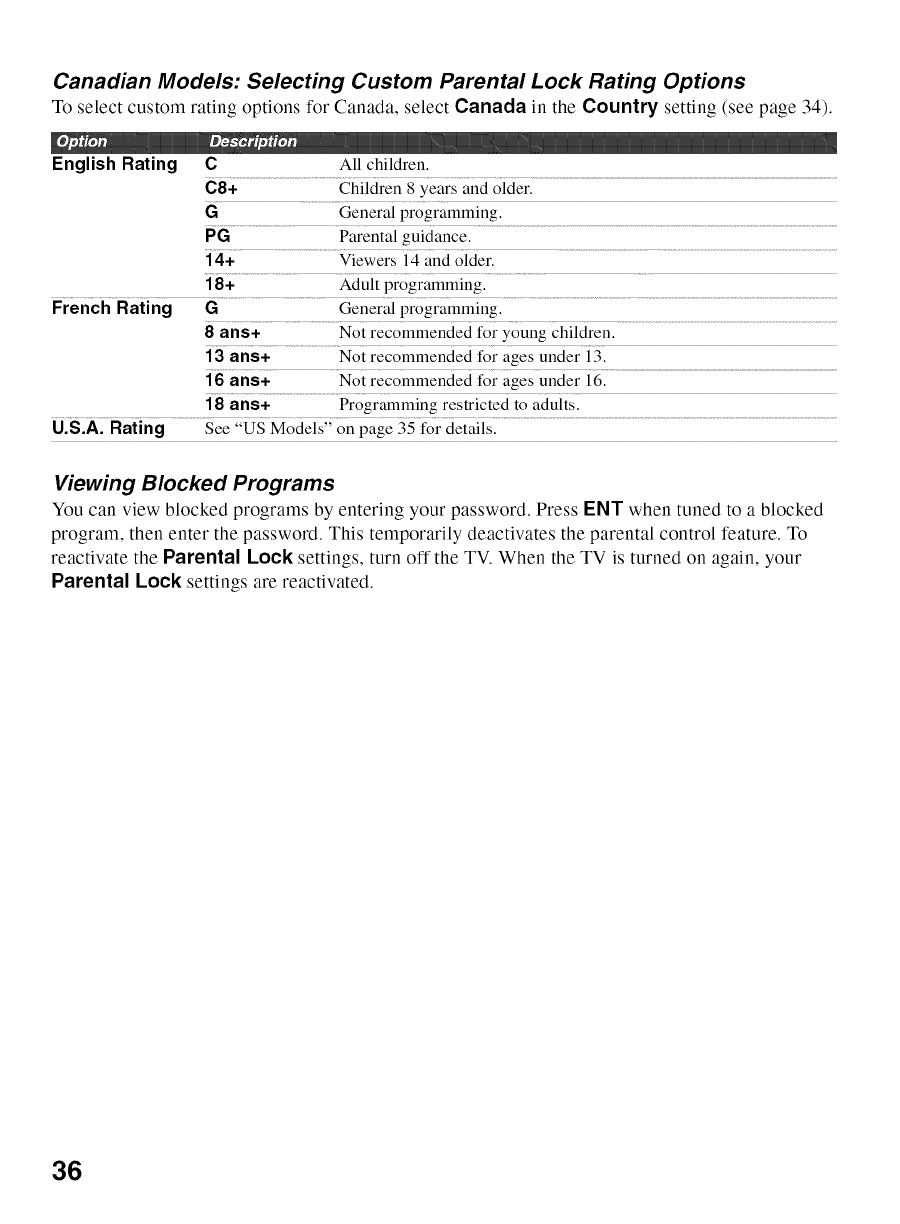

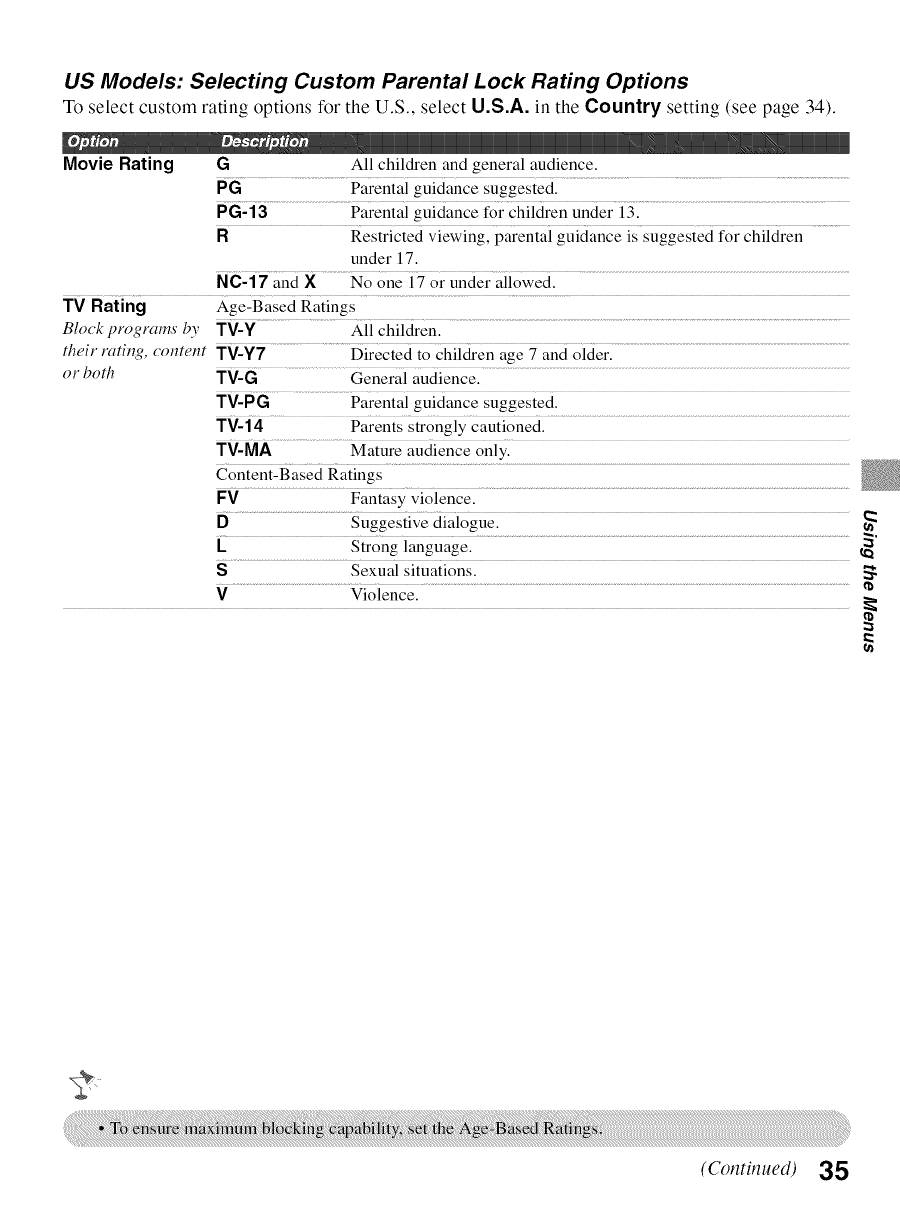

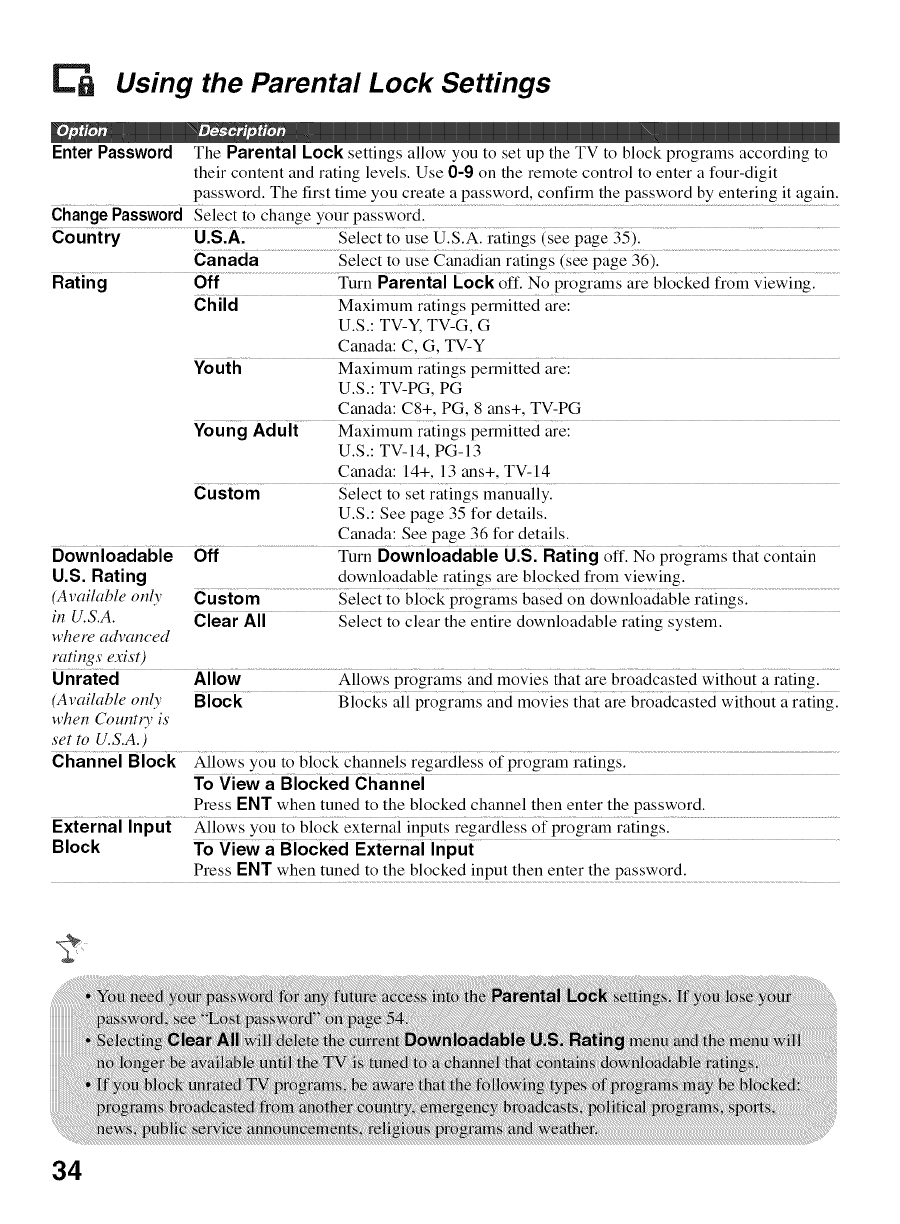

Using the Parental Lock Settings ......... 34

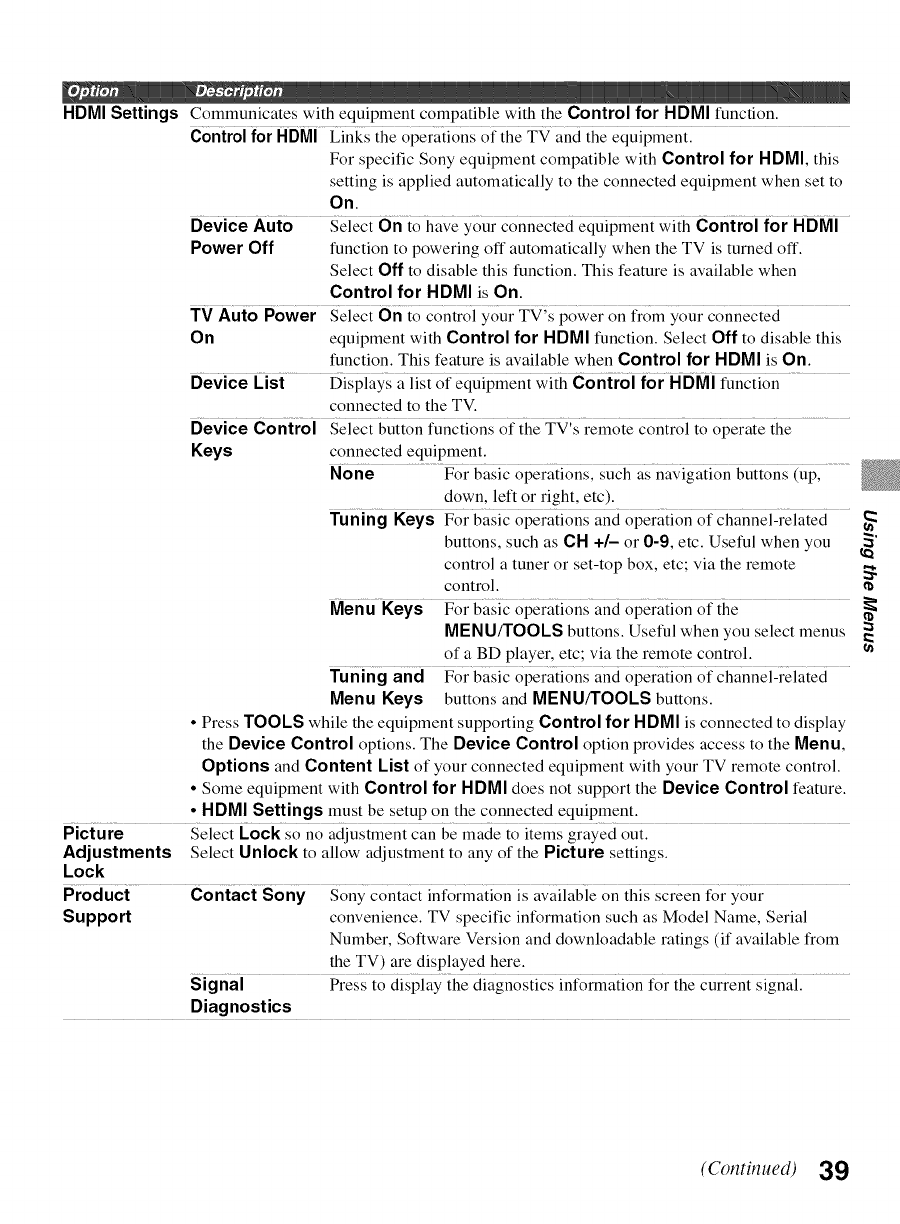

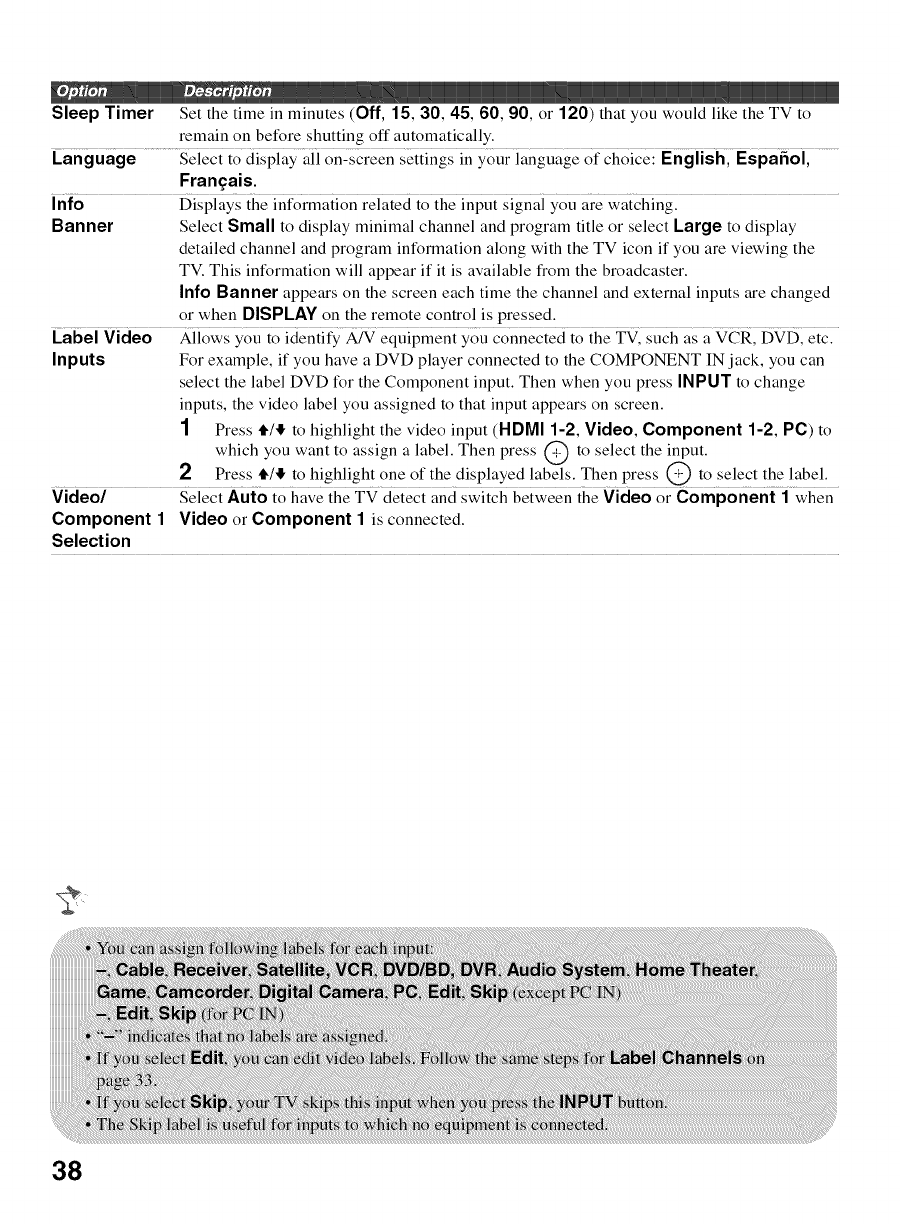

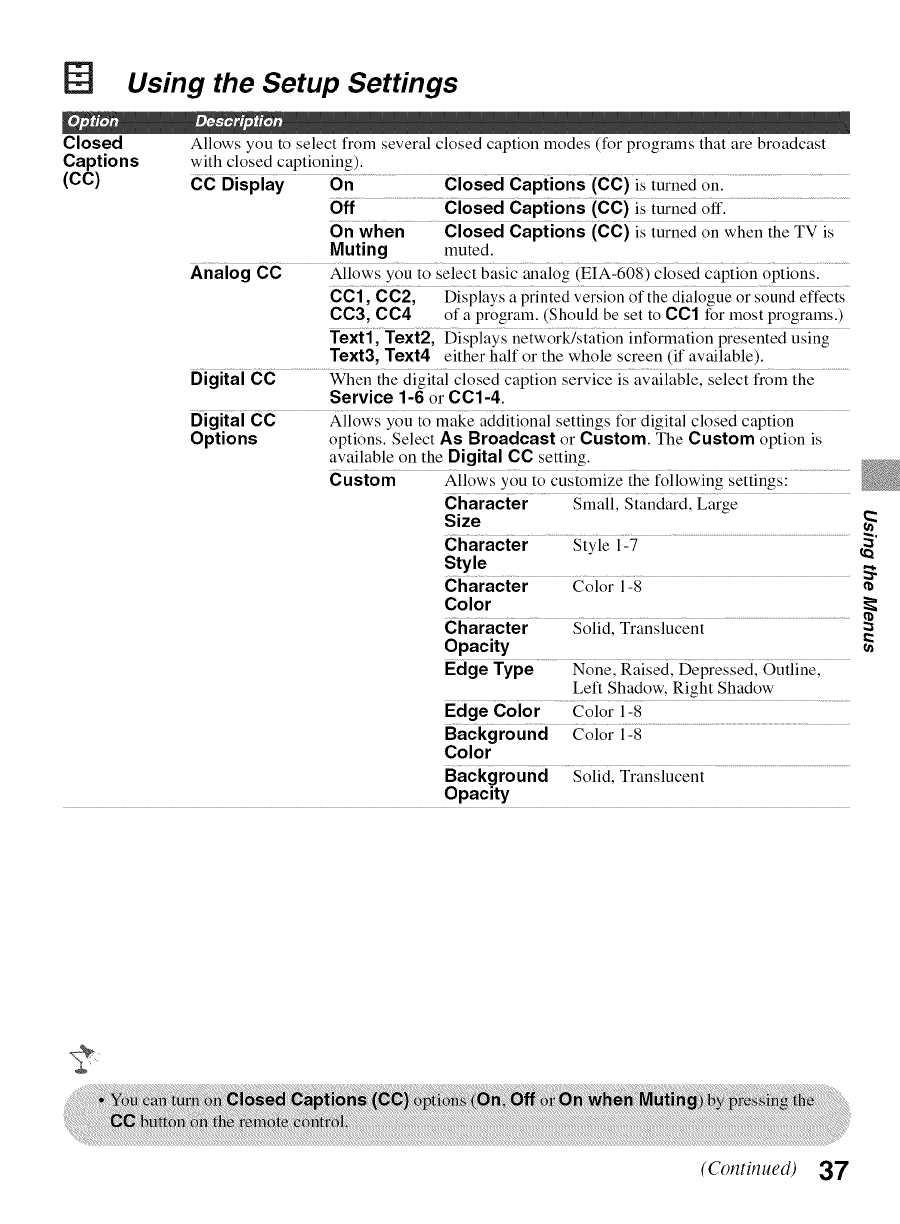

Using the Setup Settings ............... 37

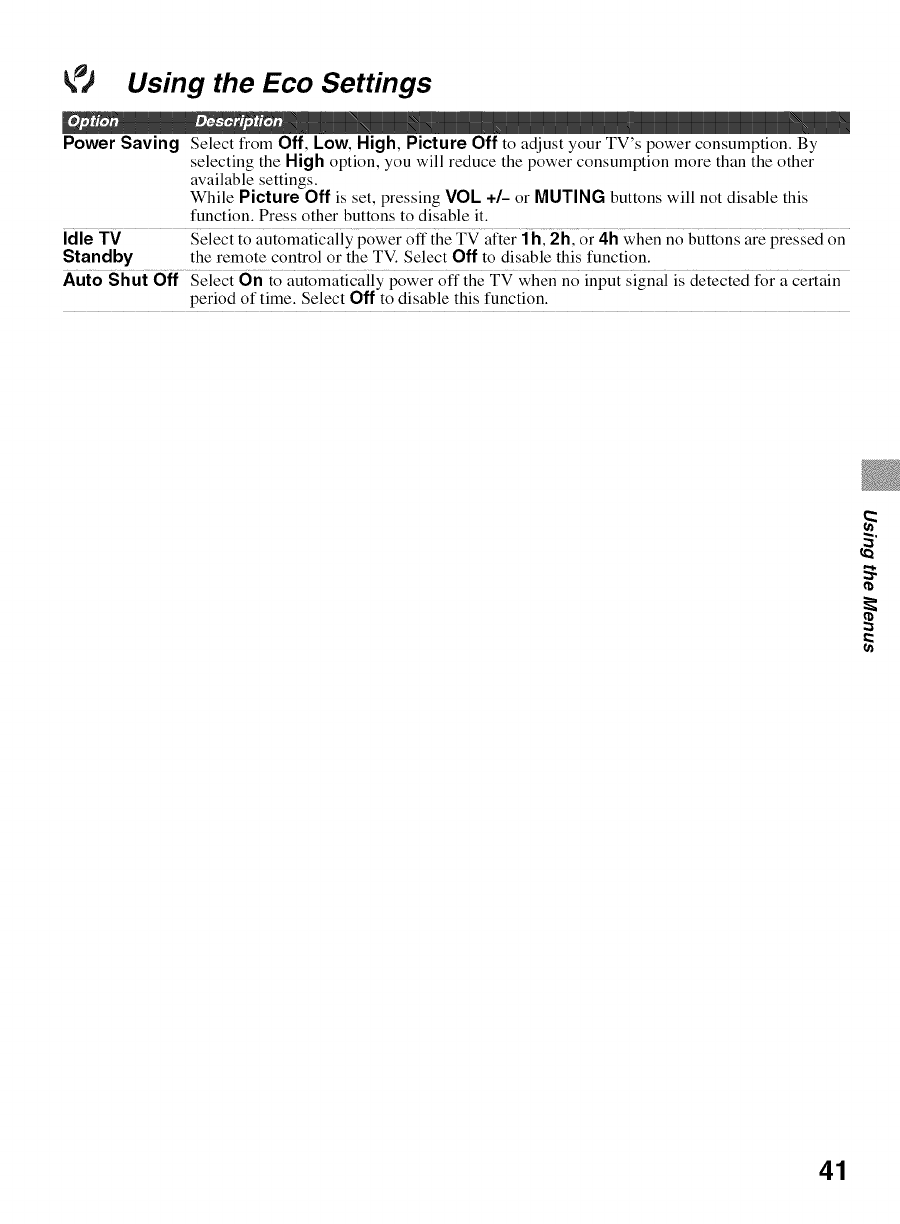

Using the Eco Settings ................. 41
Other Information

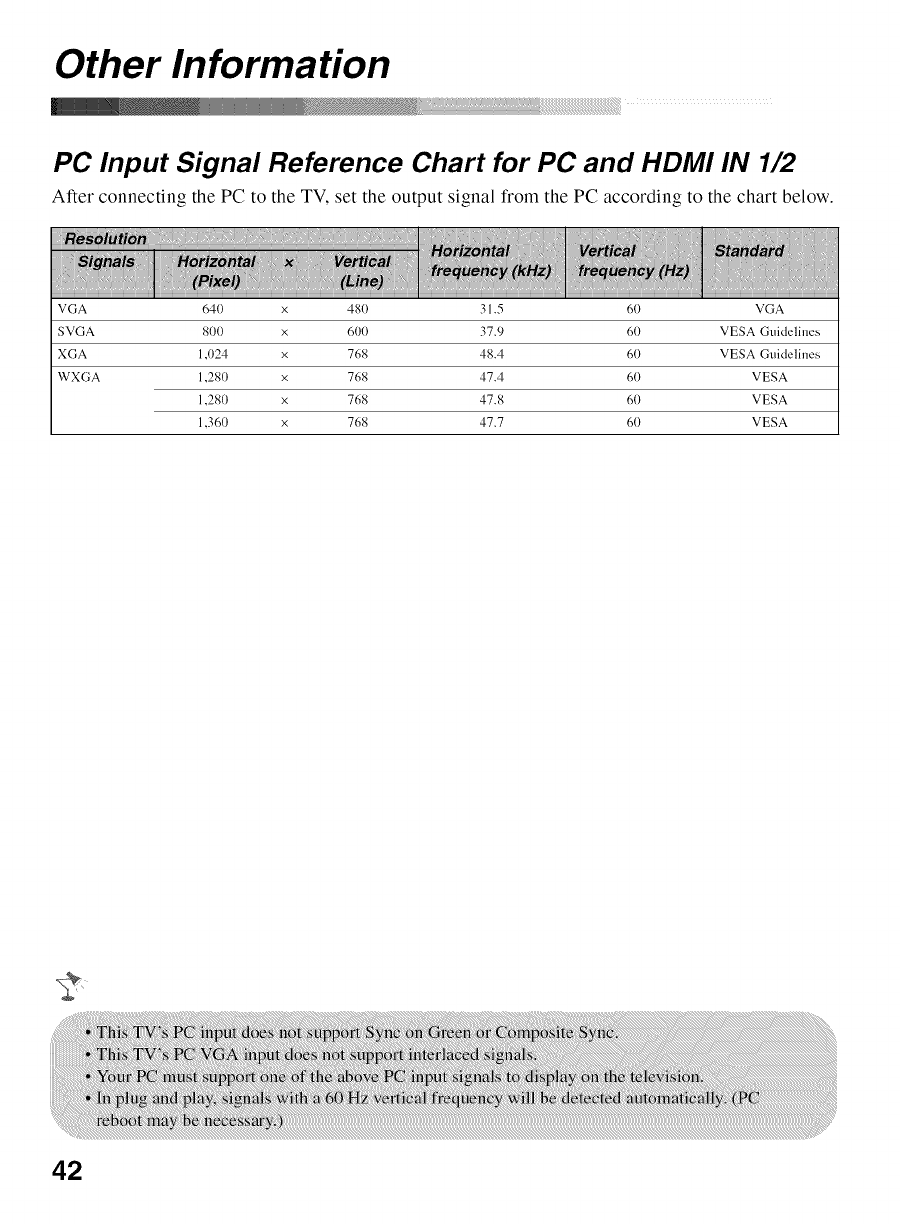

PC Input Signal Reference Chart for PC and
HDMI IN 1/2 ....................... 42

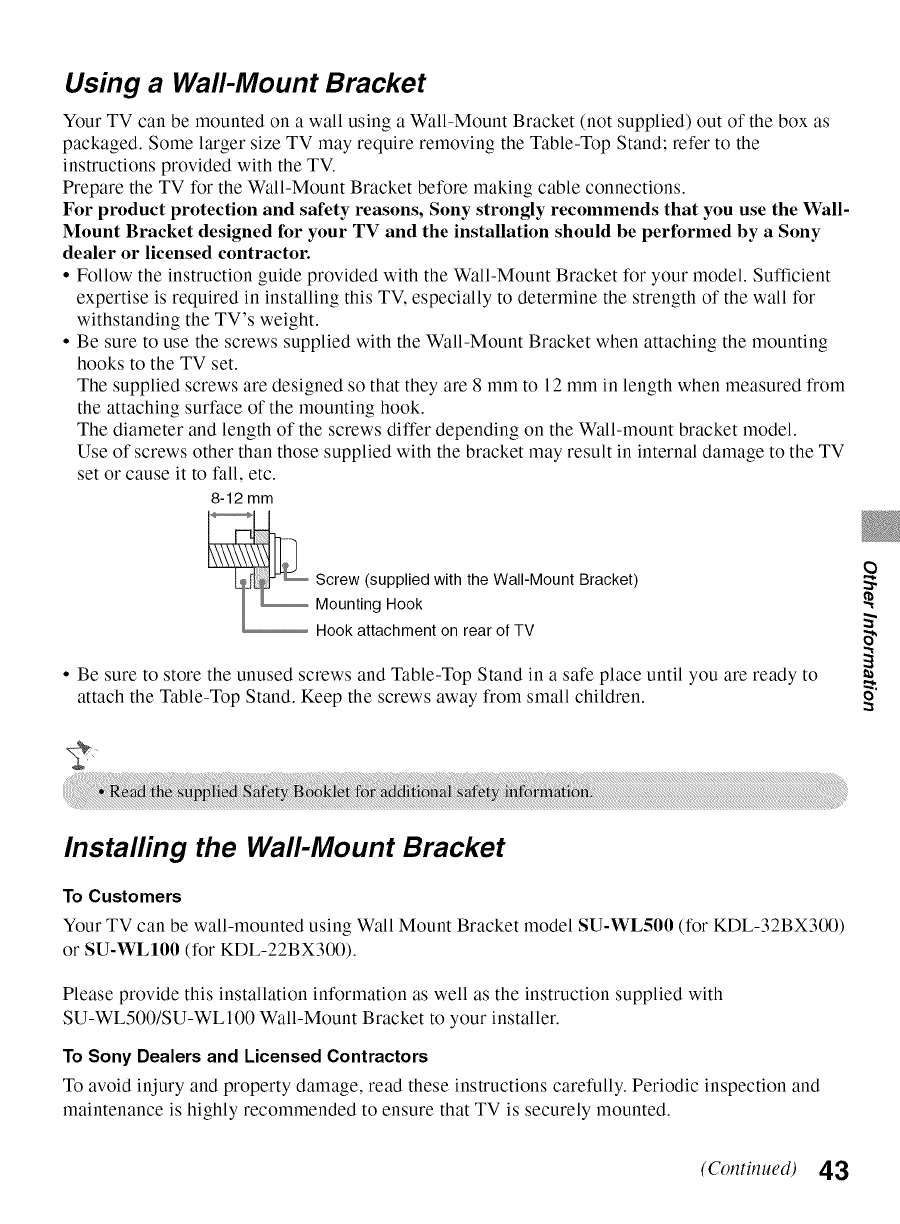

Using a Wall-Mount Bracket ............. 43

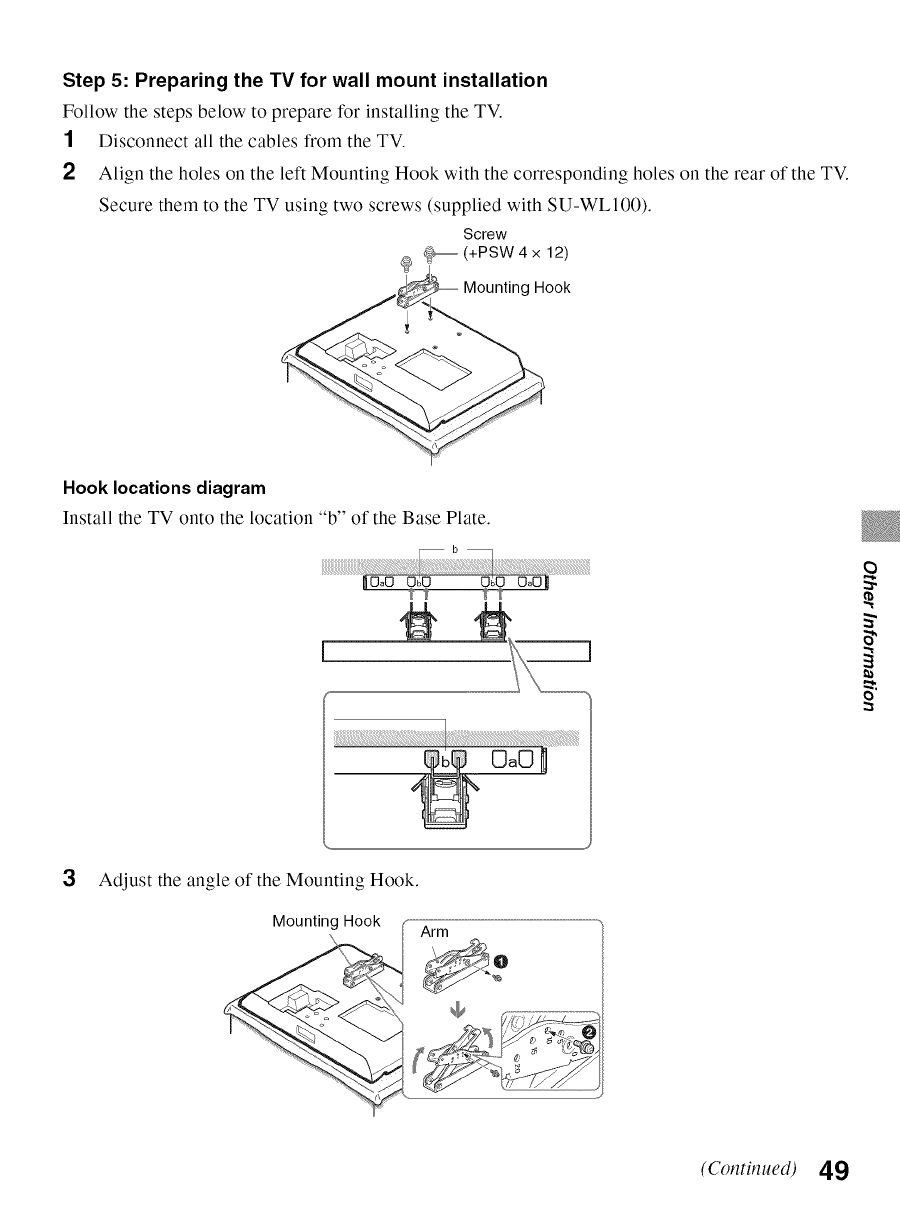

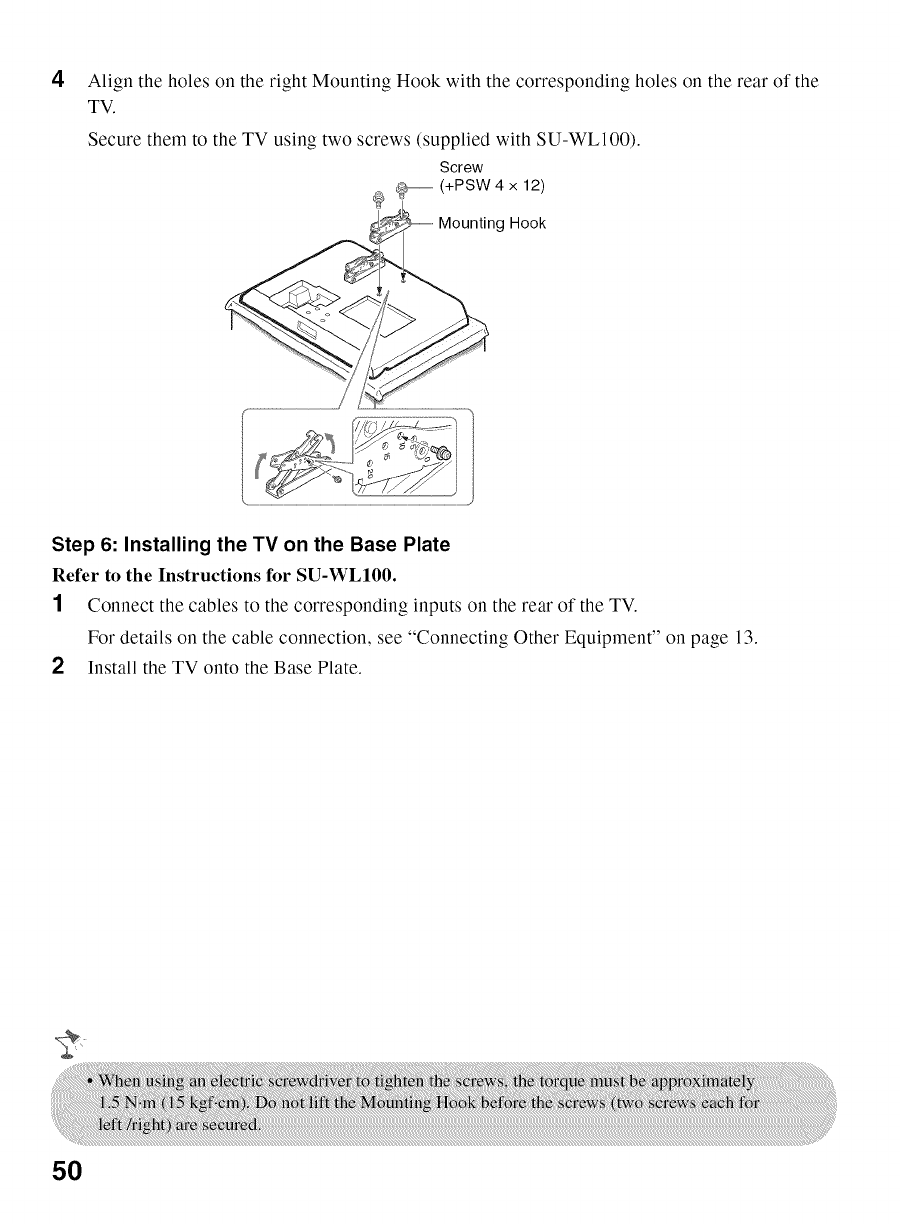

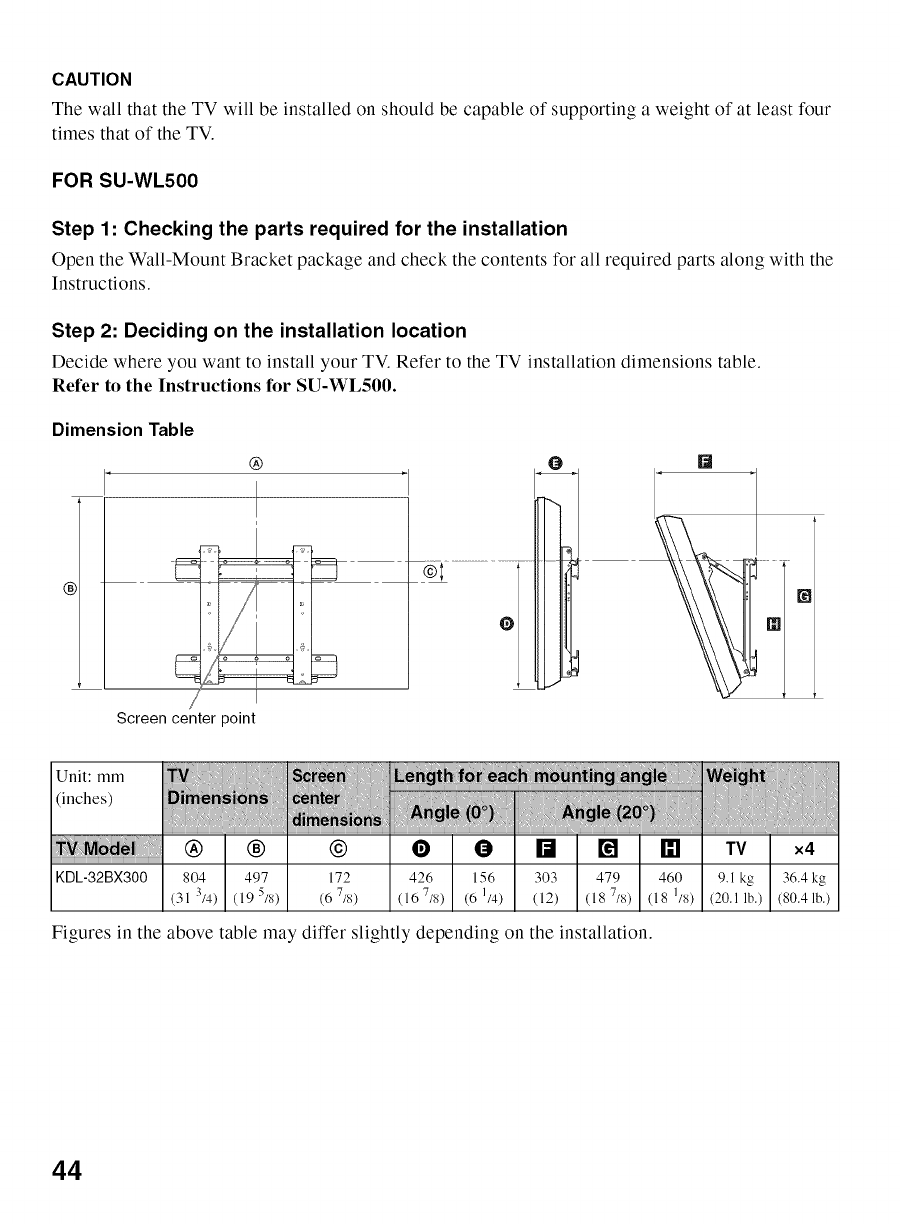

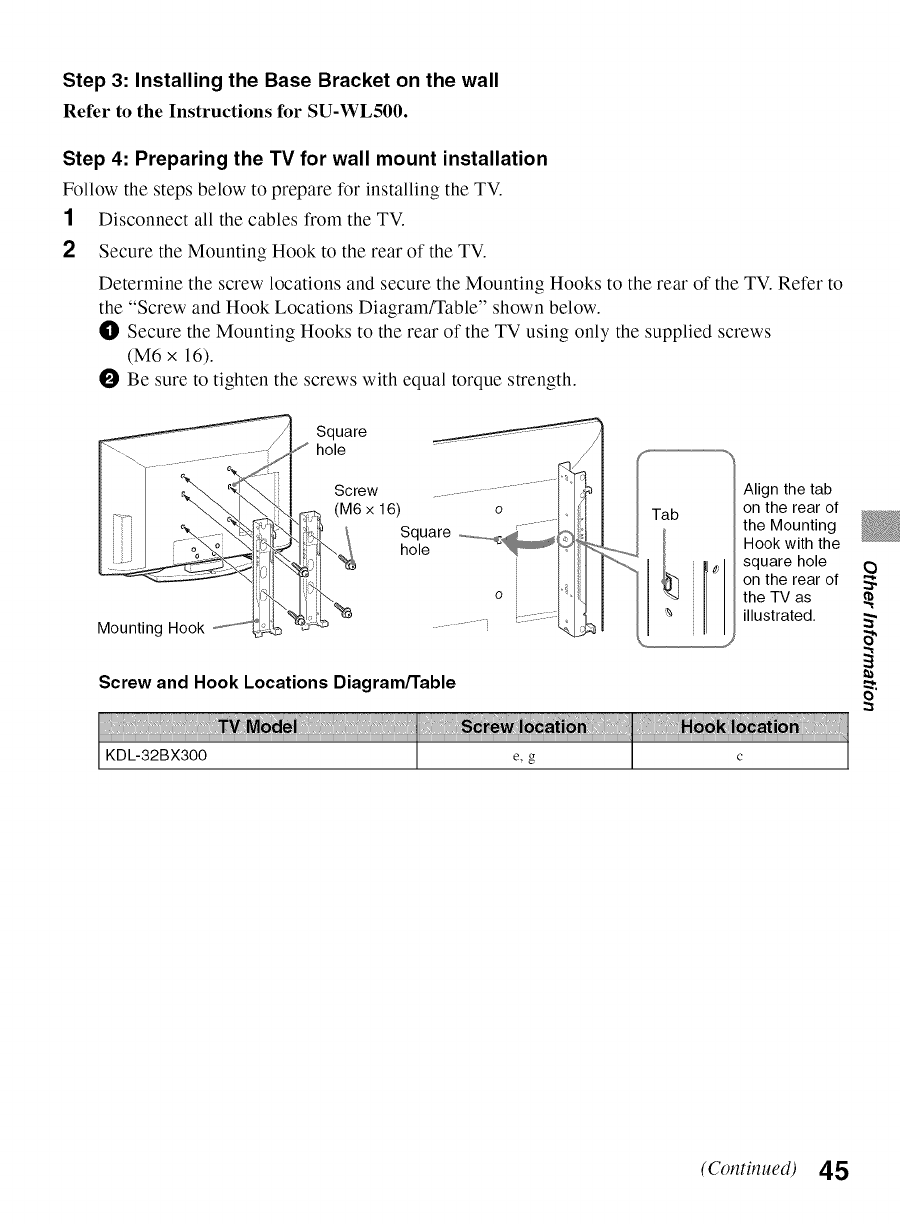

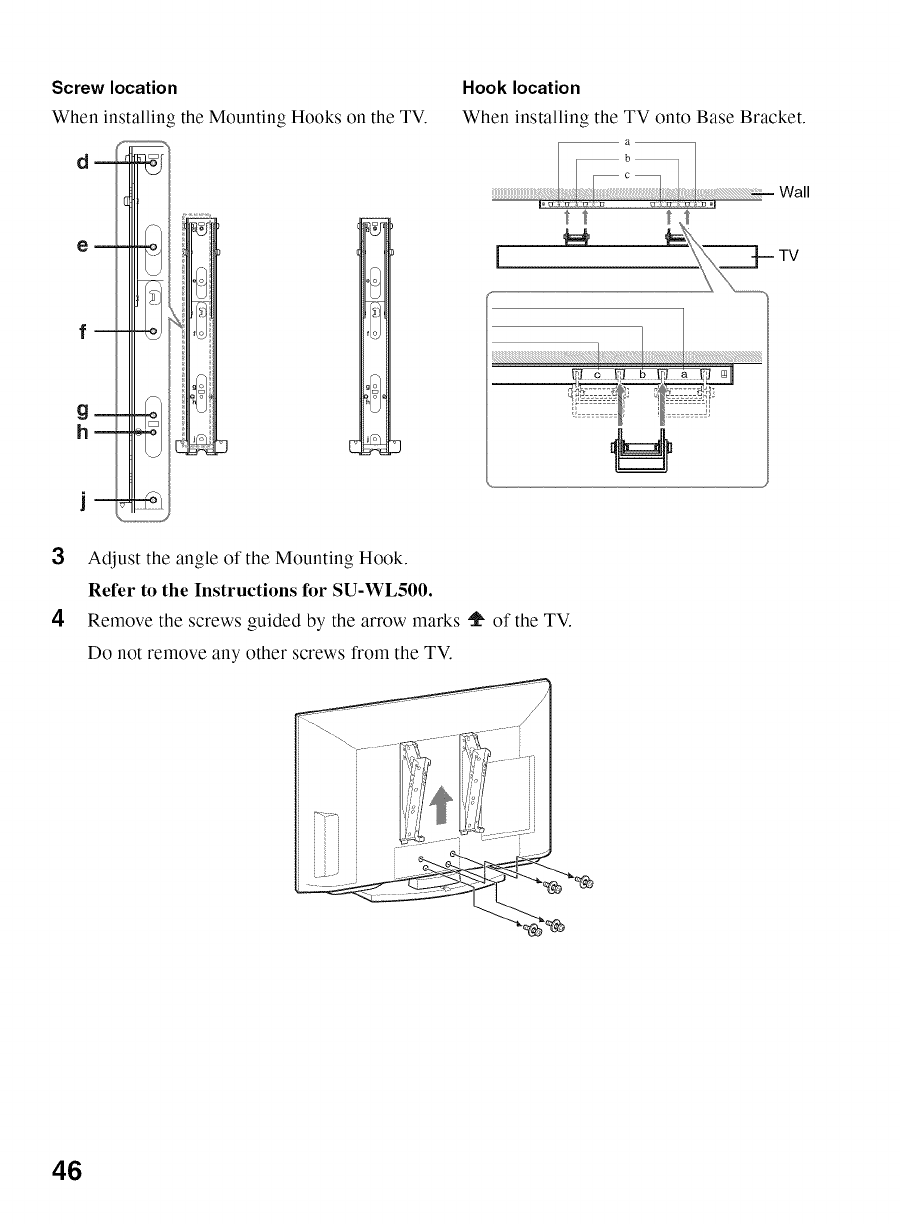

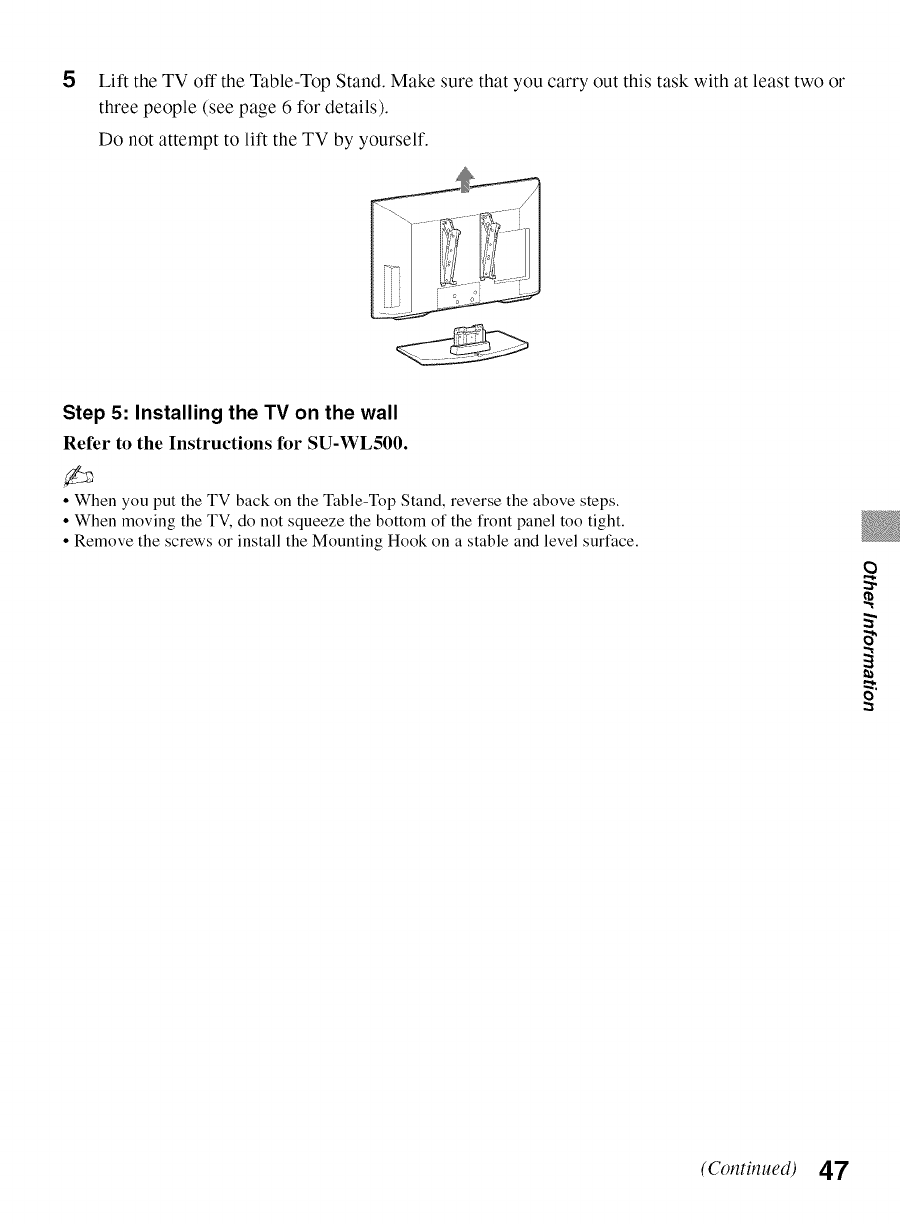

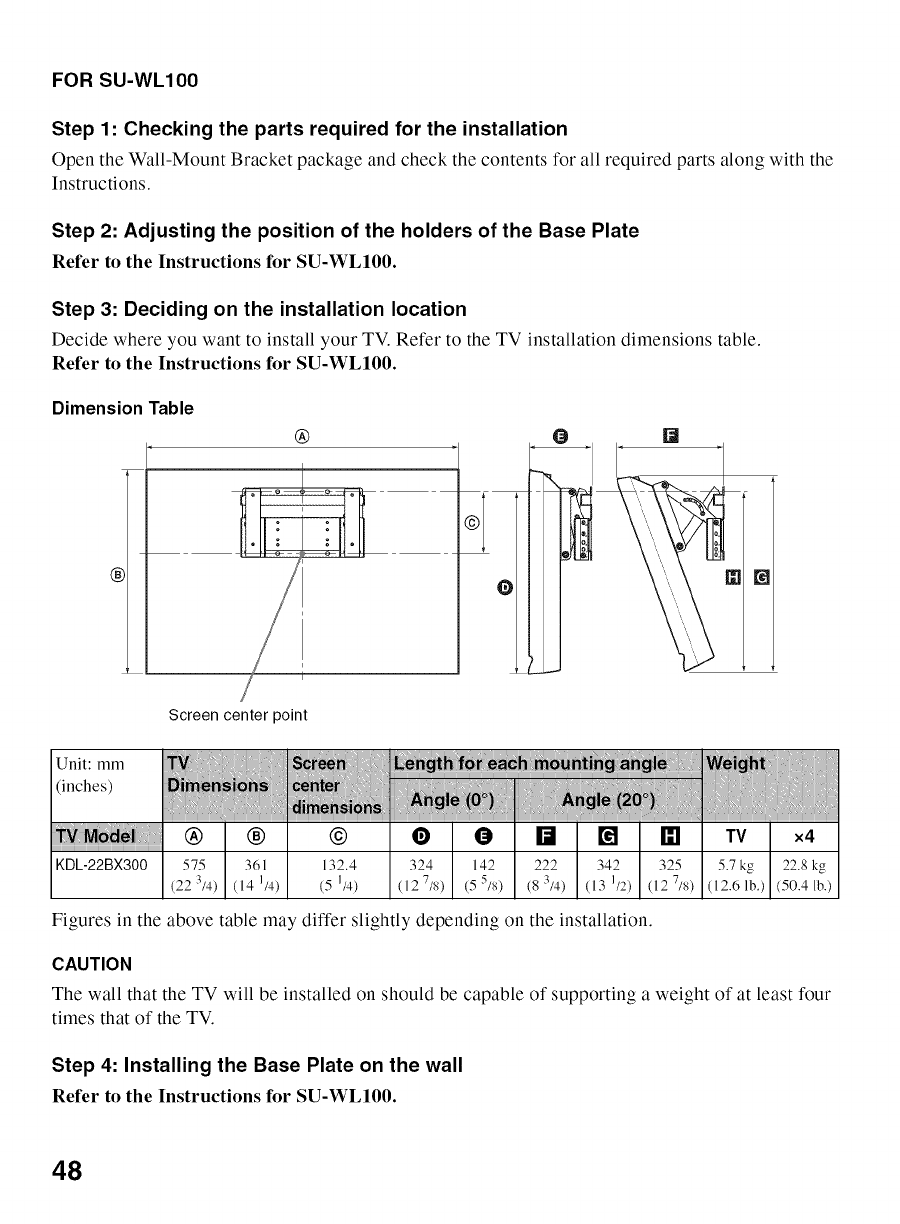

Installing the Wall-Mount Bracket ......... 43

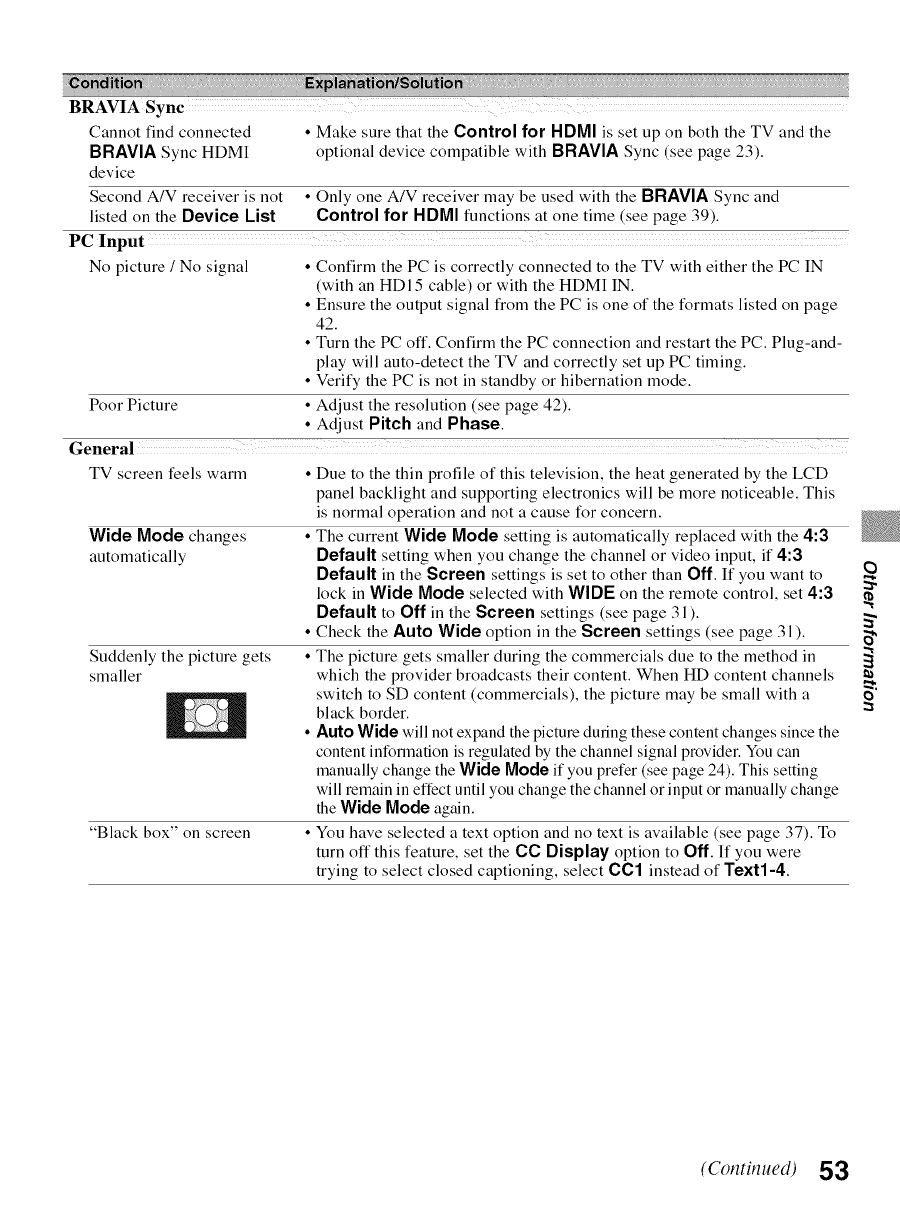

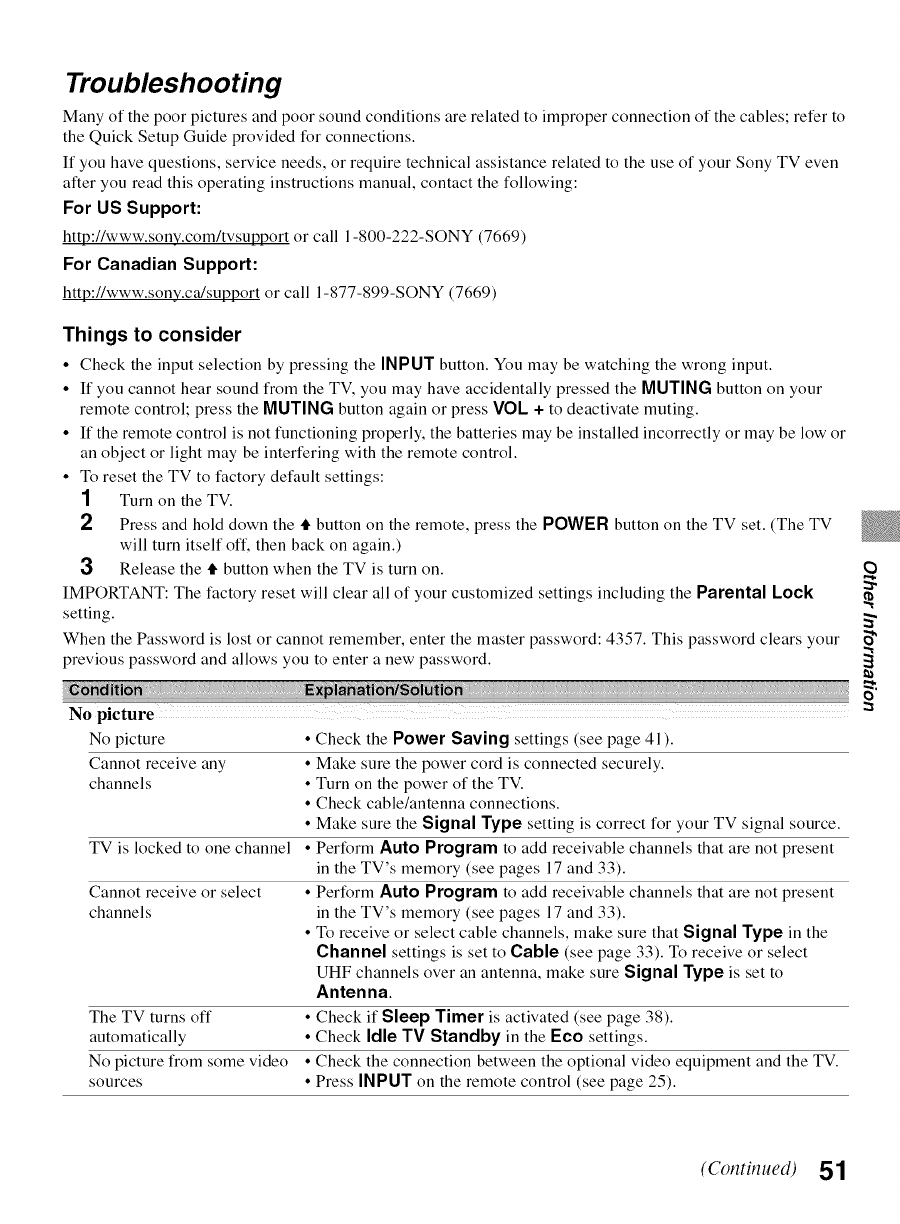

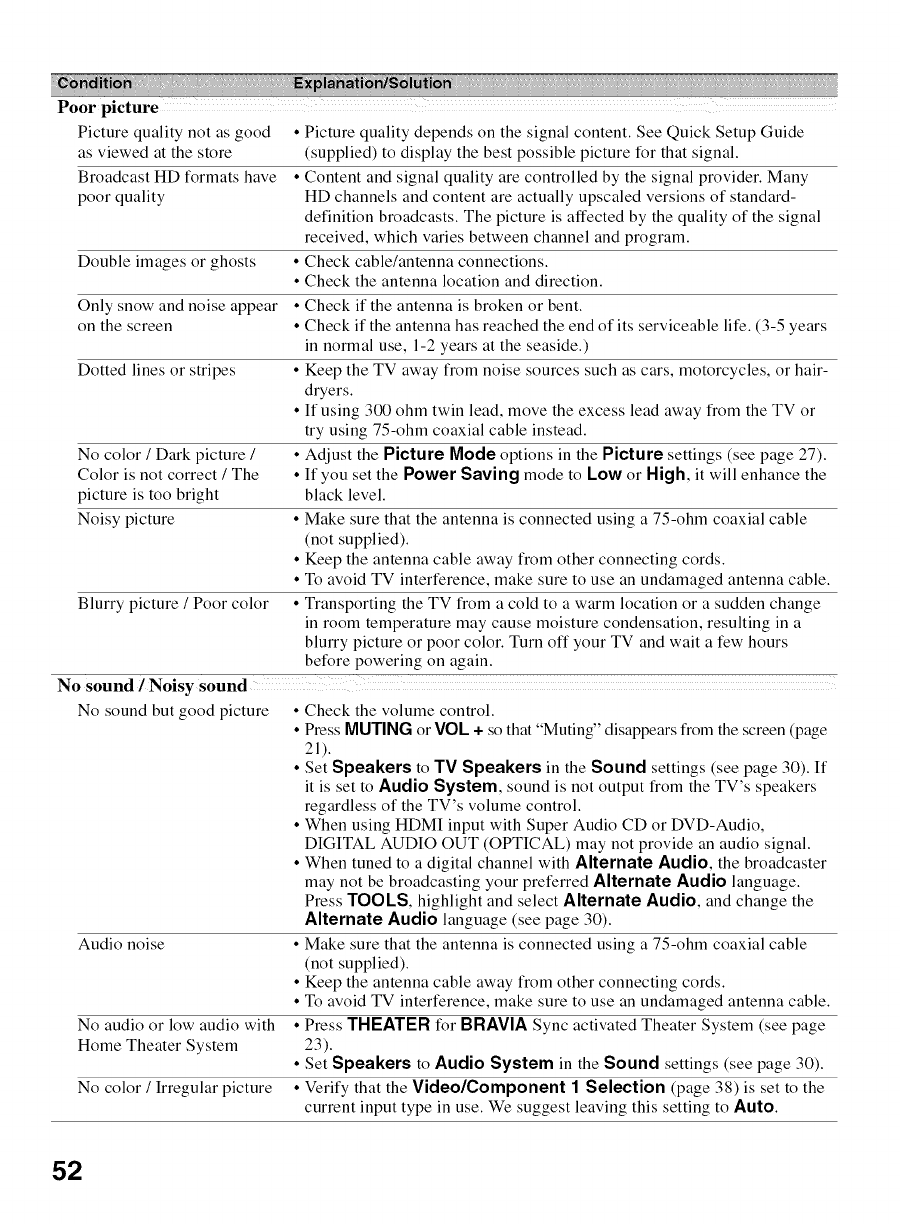

Troubleshooting ...................... 51

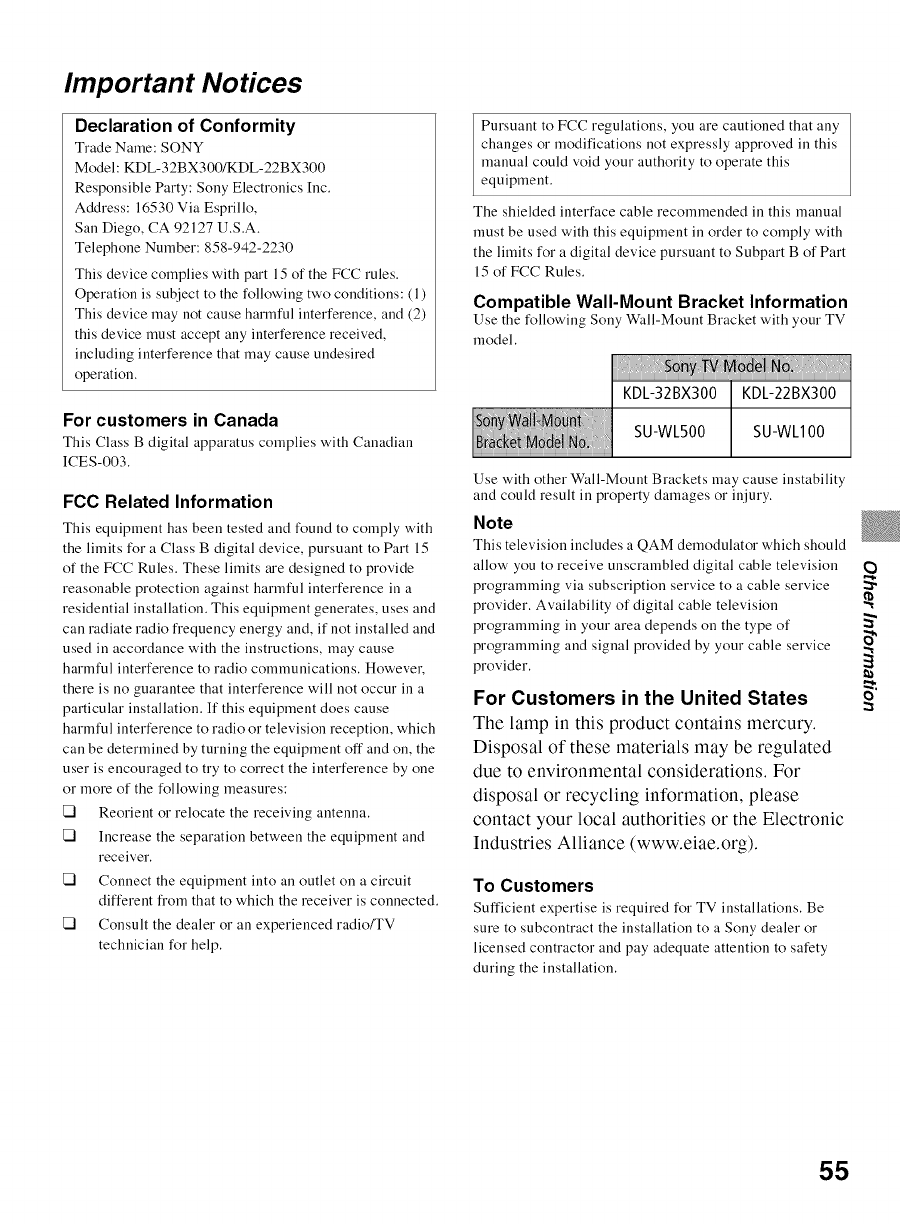

Important Notices ..................... 55

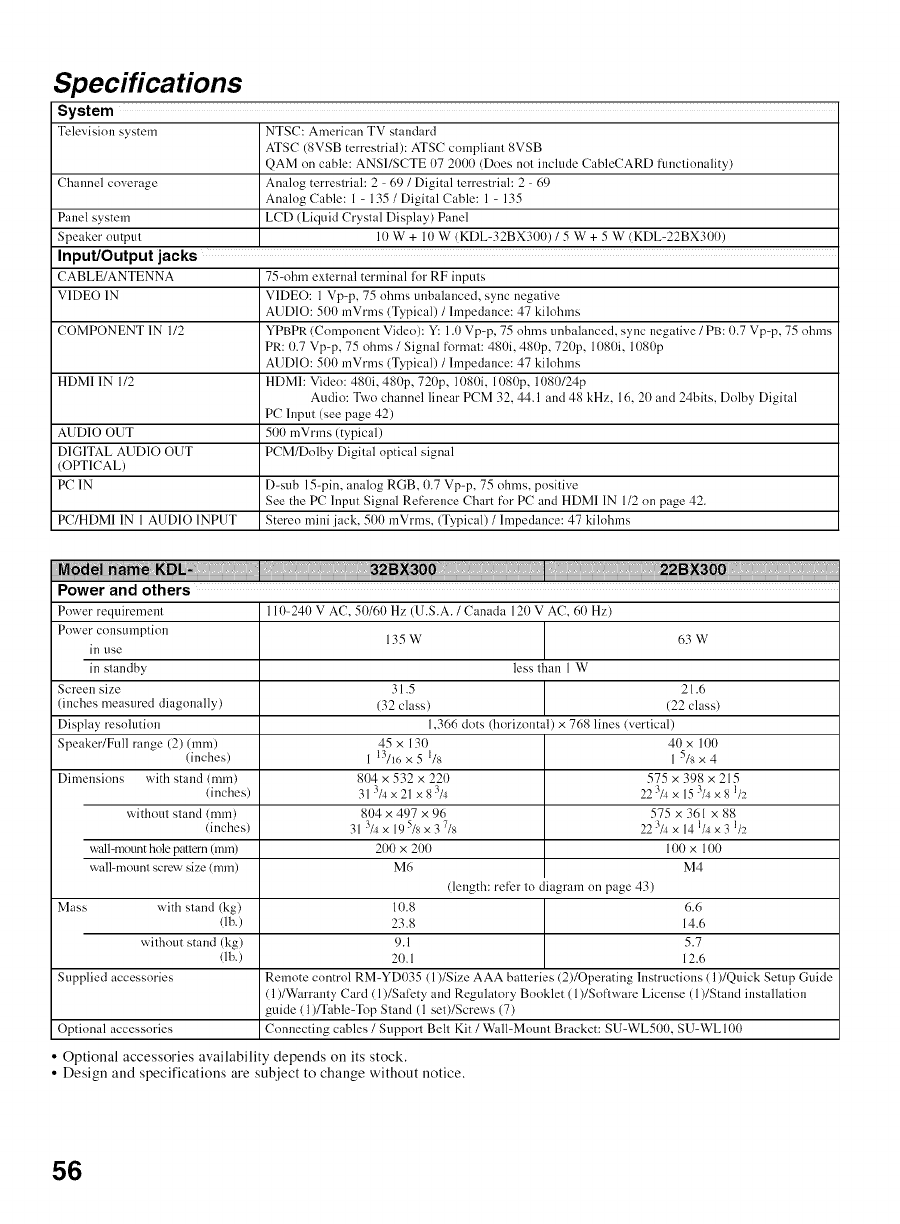

Specifications ........................ 56

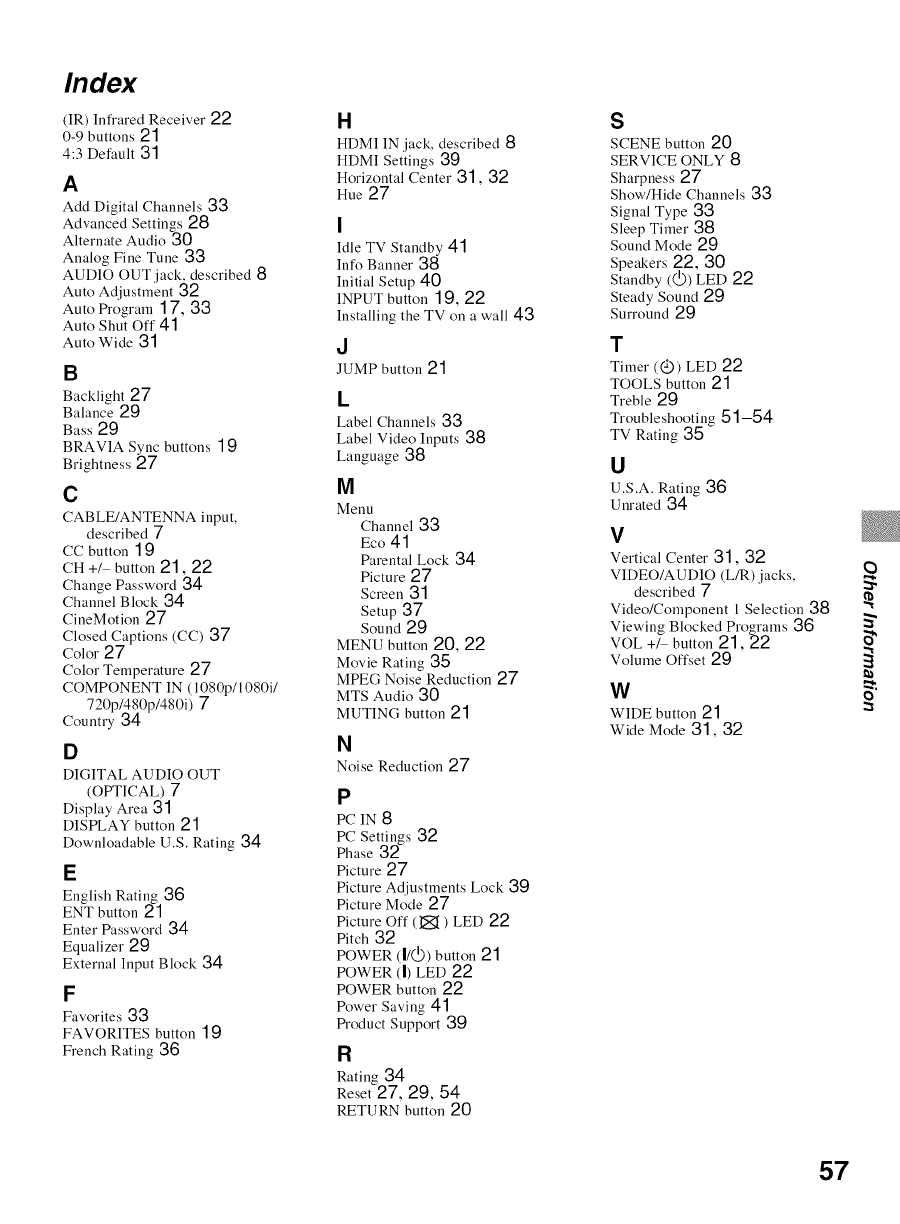

Index ............................... 57
Customer Support
United States
http://www.sony.com/tvsupport
Canada
http://www.sony.ca/support
On-line Registration
United States
http://productregistration.sony.com
Canada
http://www.SonyStyle.ca/registration
3

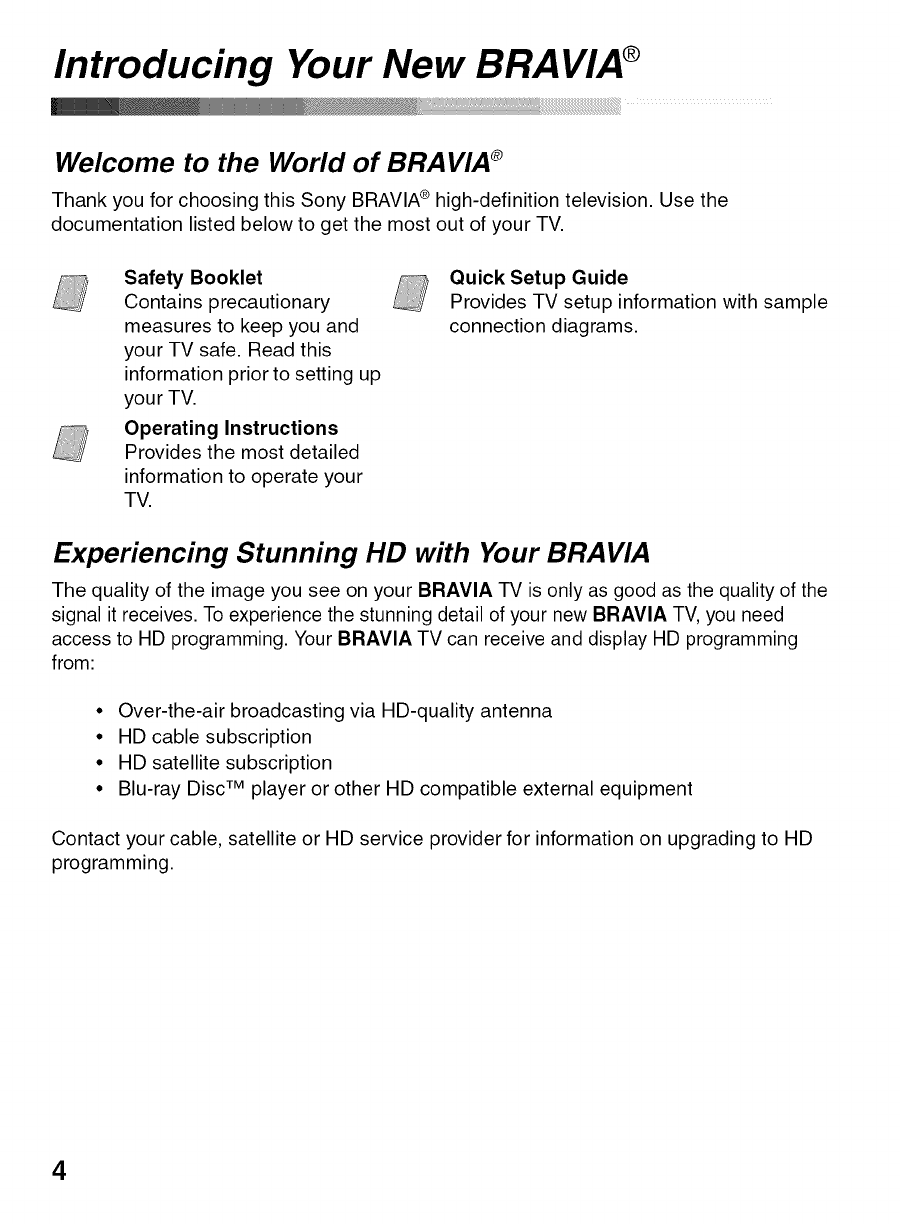

Introducing Your New BRAVIA ®
Welcome to the World of BRA VIA ®
Thank you for choosing this Sony BRAVIA® high-definition television. Use the
documentation listed below to get the most out of your TV.
Safety Booklet
Contains precautionary
measures to keep you and
your TV safe. Read this
information prior to setting up
your TV.
Operating Instructions
Provides the most detailed
information to operate your
TV.
Quick Setup Guide
Provides TV setup information with sample
connection diagrams.
Experiencing Stunning HD with Your BRAVIA
The quality of the image you see on your BRAVIA TV is only as good as the quality of the
signal it receives. To experience the stunning detail of your new BRAVlA TV, you need
access to HD programming. Your BRAVlA TV can receive and display HD programming
from:
Over-the-air broadcasting via HD-quality antenna
HD cable subscription
HD satellite subscription
Blu-ray Disc TM player or other HD compatible external equipment
Contact your cable, satellite or HD service provider for information on upgrading to HD
programming.
4

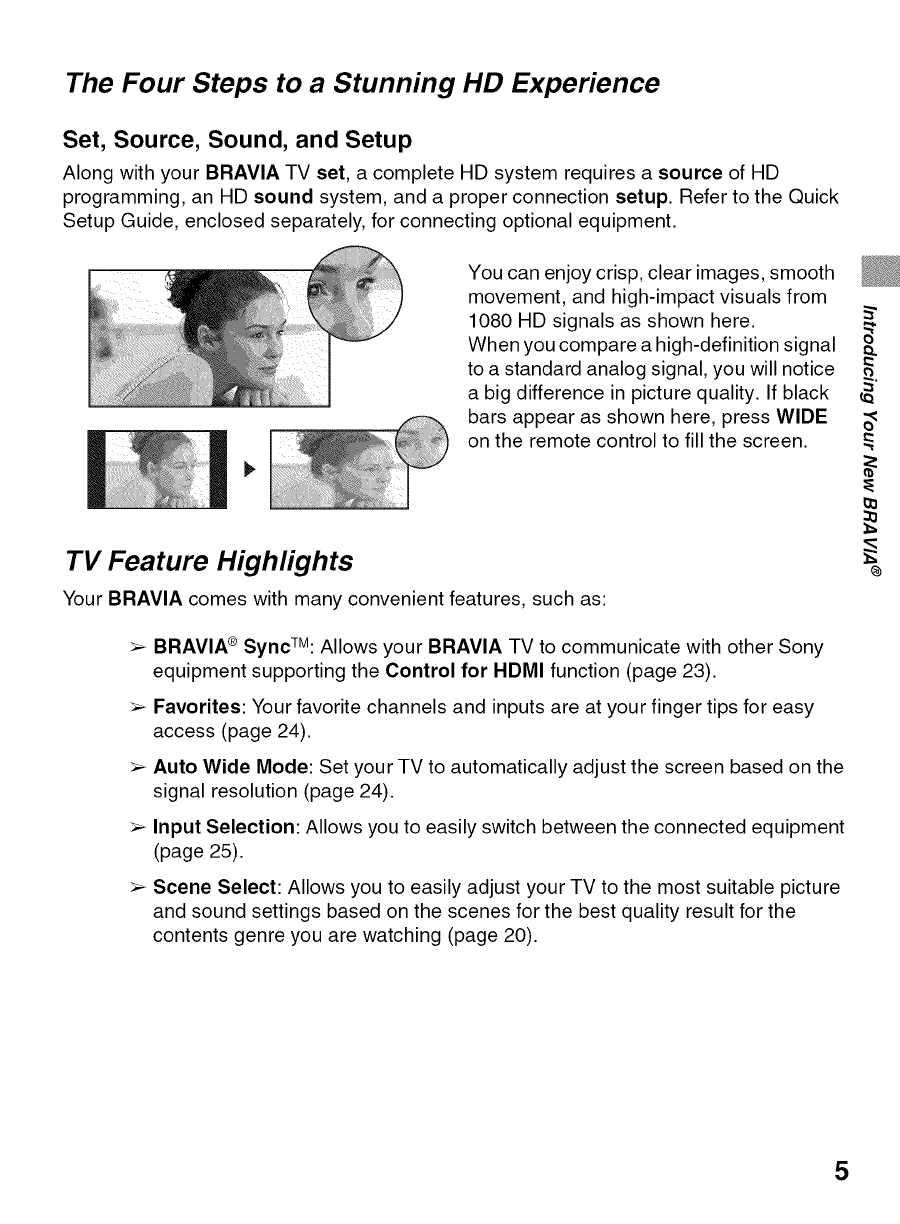

The Four Steps to a Stunning HD Experience
Set, Source, Sound, and Setup
Along with your BRAVIA TV set, a complete HD system requires a source of HD
programming, an HD sound system, and a proper connection setup. Refer to the Quick
Setup Guide, enclosed separately, for connecting optional equipment.
You can enjoy crisp, clear images, smooth
movement, and high-impact visuals from
1080 HD signals as shown here.
When you compare a high-definition signal
to a standard analog signal, you will notice
a big difference in picture quality. If black
bars appear as shown here, press WIDE
on the remote control to fill the screen.
TV Feature Highlights
Your BRAVIA comes with many convenient features, such as:
BRAVIA ®SynoTM: Allows your BRAVlA TV to communicate with other Sony
equipment supporting the Control for HDMI function (page 23).
Favorites: Your favorite channels and inputs are at your finger tips for easy
access (page 24).
Auto Wide Mode: Set your TV to automatically adjust the screen based on the
signal resolution (page 24).
Input Selection: Allows you to easily switch between the connected equipment
(page 25).

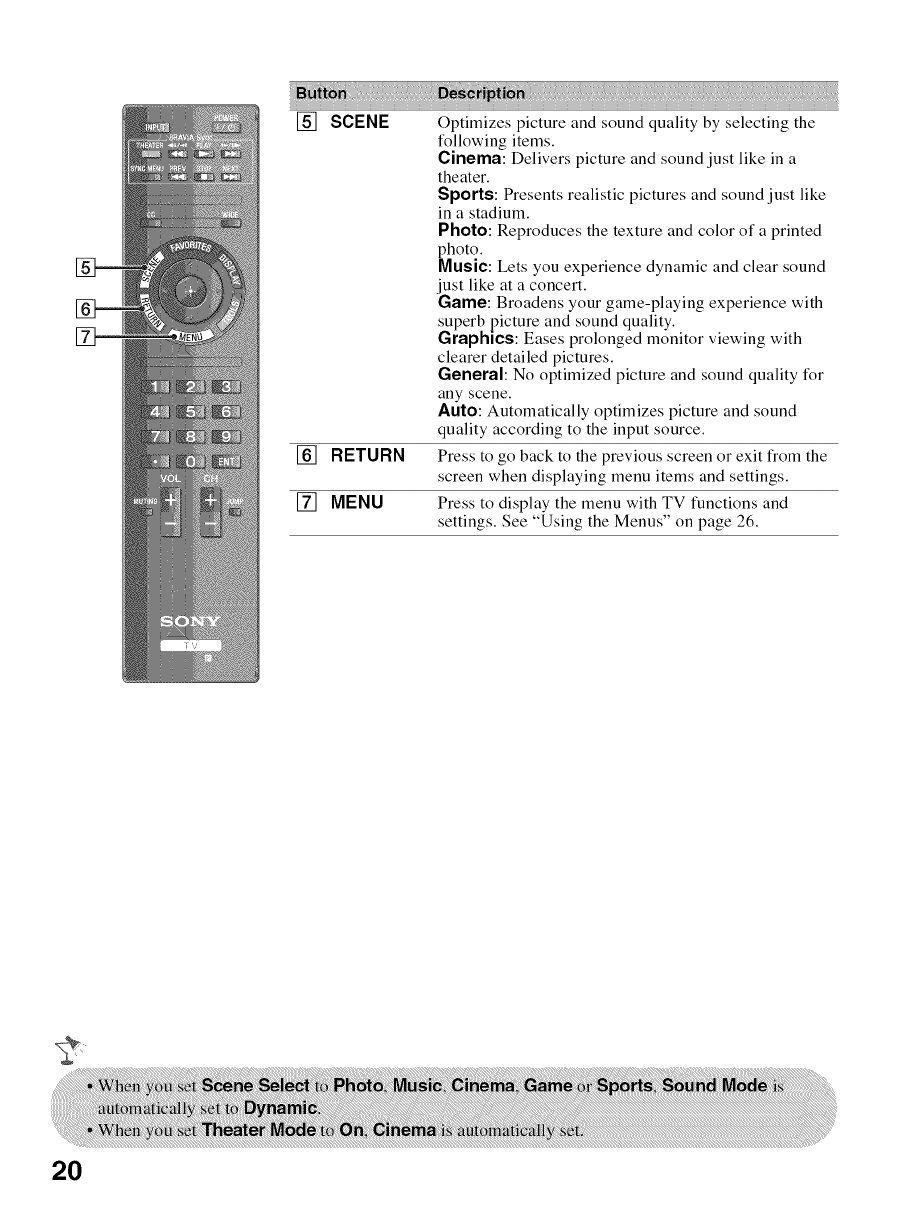

Scene Select: Allows you to easily adjust your TV to the most suitable picture
and sound settings based on the scenes for the best quality result for the
contents genre you are watching (page 20).
¢}
5

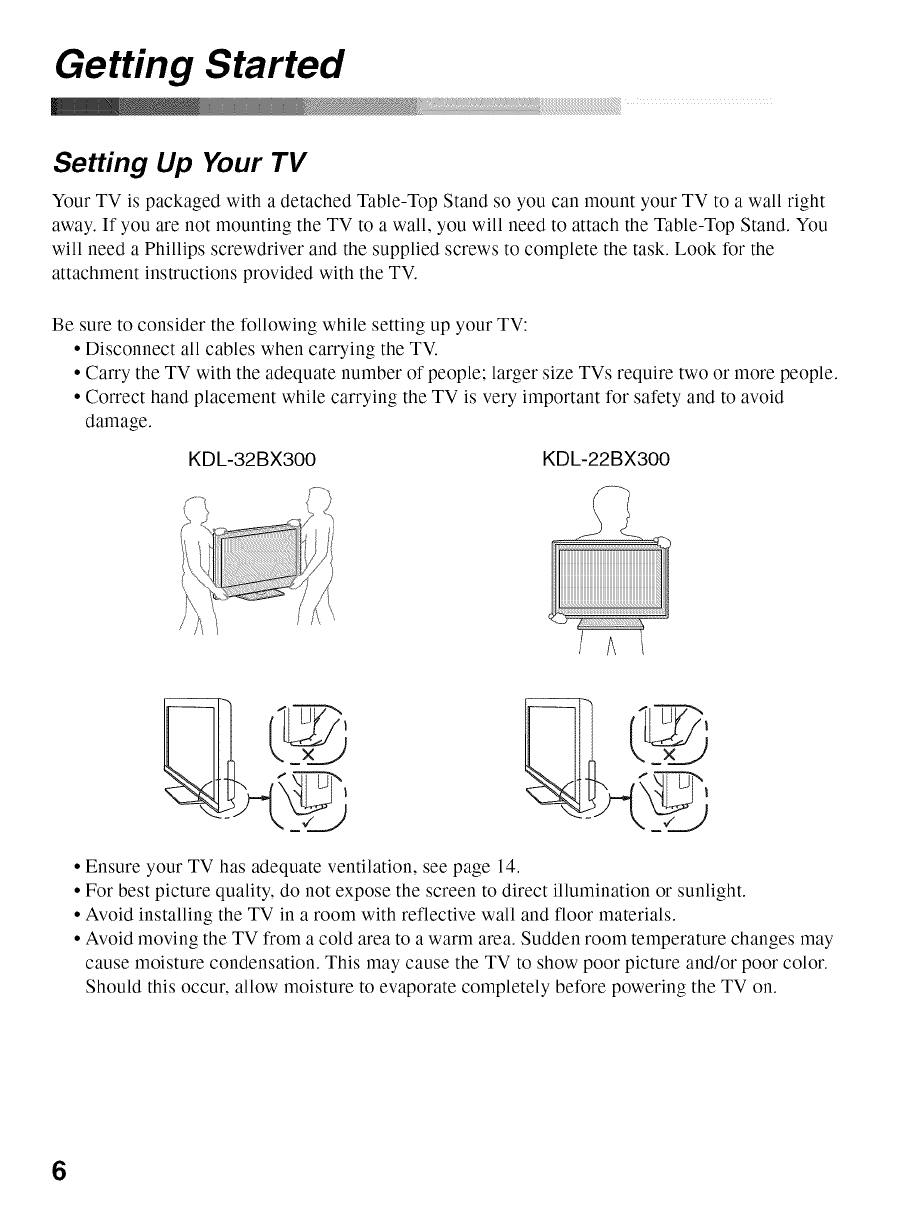

Getting Started
Setting Up Your TV
Your TV is packaged with a detached Table-Top Stand so you can mount your TV to a wall right
away. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You
will need a Phillips screwdriver and the supplied screws to complete the task. Look for the
attachment instructions provided with the TV.
Be sure to consider the following while setting up your TV:
• Disconnect all cables when carrying the TV.
Carry the TV with the adequate number of people; larger size TVs require two or more people.
• Correct hand placement while carrying the TV is very important for safety and to avoid
damage.
KDL-32BX300 KDL-22BX300
Ensure your TV has adequate ventilation, see page 14.
For best picture quality, do not expose the screen to direct illumination or sunlight.
Avoid installing the TV in a room with reflective wall and floor materials.
• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may
cause moisture condensation. This may cause the TV to show poor picture and/or poor color.
Should this occur, allow moisture to evaporate completely before powering the TV on.
6

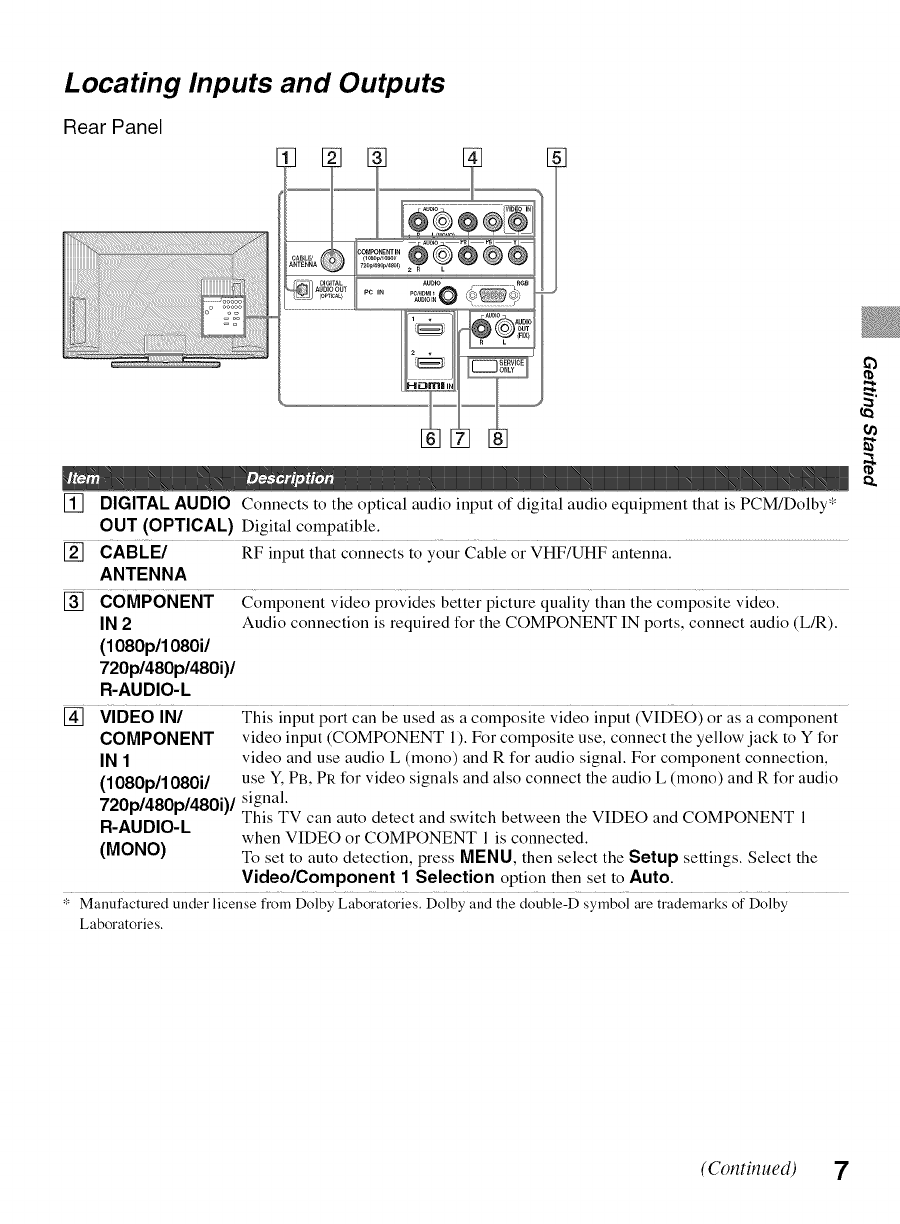

Locating Inputs and Outputs
Rear Panel
if}
[] DIGITAL AUDIO Connects to the optical audio input of digital audio equipment that is PCM/Dolby*
OUT (OPTICAL) Digital compatible.
[] cABLE) RF inpui {hai connec{s {oyour CaNe or VHF/UHF an{ennal ........................................................
ANTENNA
[] COMPONENT Component video provides better picture quality than the composite video.
IN 2 Audio connection is required for the COMPONENT IN ports, connect audio (L/R).
(1080p/1080i/
720p1480p1480i)l
R-AUDIO-L
[] viDE0 iN/ Tbis inpui pori can be used asa composiie video inpui iViDE()i or asa componeni
COMPONENT video input (COMPONENT 1). For composite use, connect the yellow jack to Y for
IN 1 video and use audio L (mono) and R for audio signal. For component connection,
(1080p/1080i/ use Y, PB, PR for video signals and also connect the audio L (mono) and R for audio
720p/480p/480i)/signal.
This TV can auto detect and switch between the VIDEO and COMPONENT 1
R-AUDIO-L when VIDE() or COMPONENT 1 is connected.
(MONO) To set to auto detection, press MENU, then select the Setup settings. Select the
Video/Component 1 Selection option then set to Auto.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
(Cotzfitzued) 7

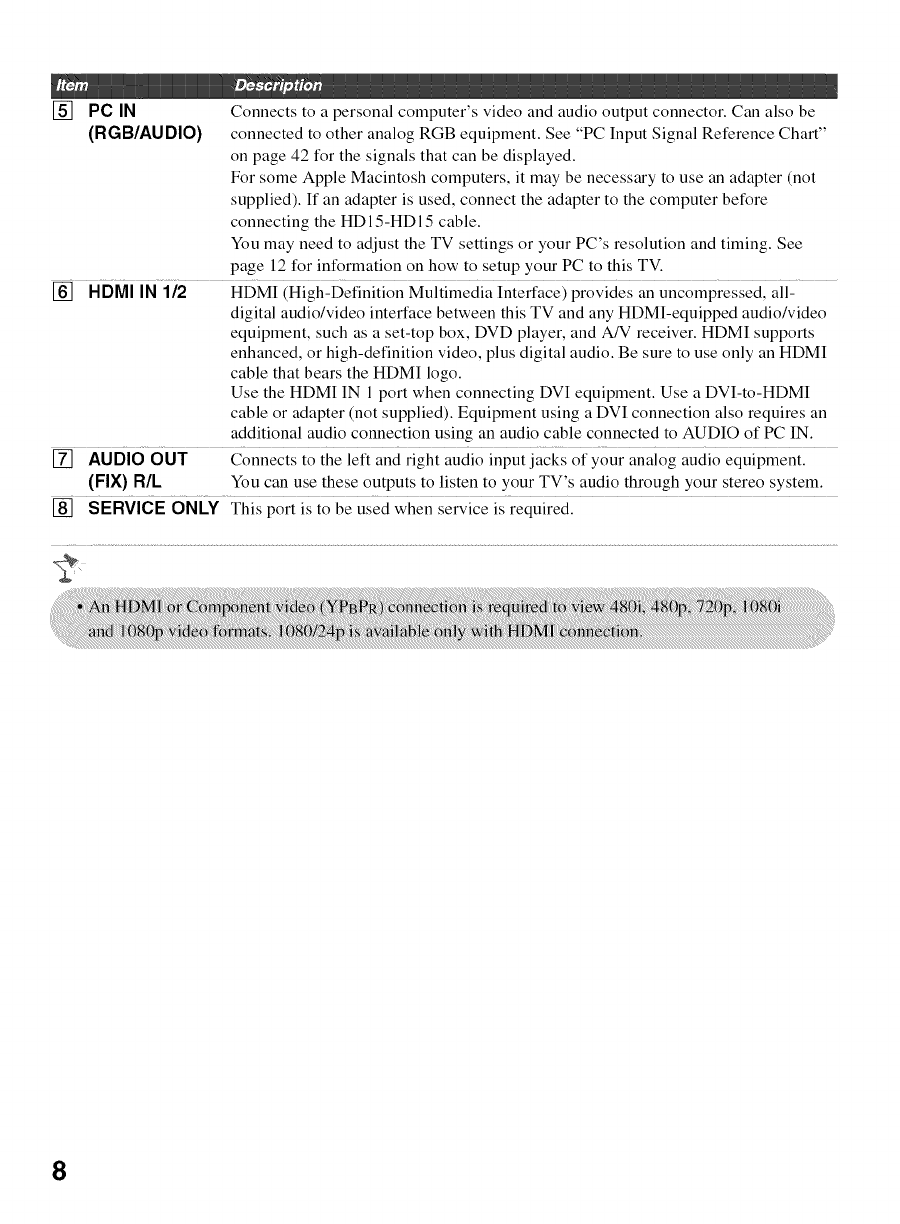

[] PC IN Connects to a personal computer's video and audio output connector. Can also be
(RGB/AUDIO) connected to other analog RGB equipment. See "PC Input Signal Reference Chart"
on page 42 for the signals that can be displayed.
For some Apple Macintosh computers, it may be necessary to use an adapter (not
supplied). If an adapter is used, connect the adapter to the computer before
connecting the HD 15-HD 15 cable.

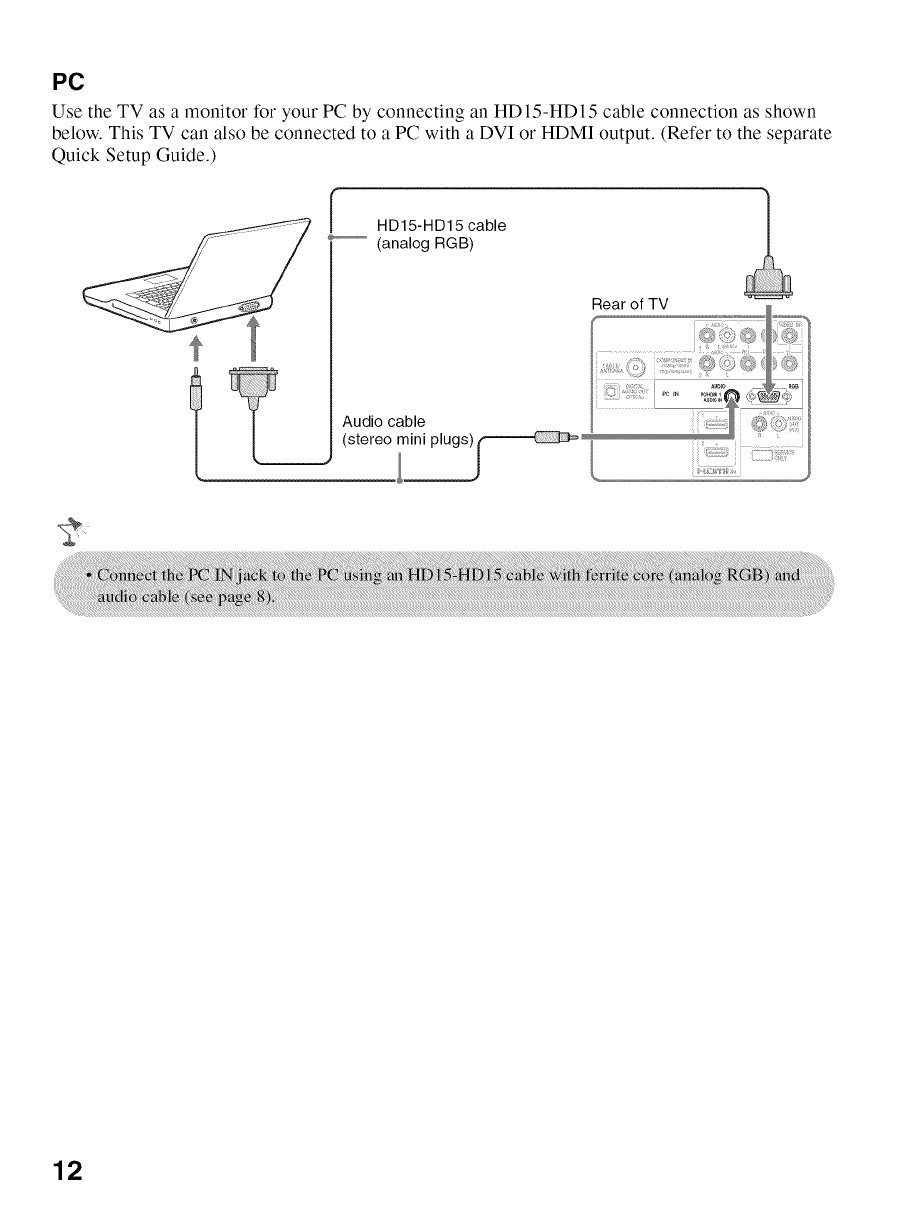

You may need to adjust the TV settings or your PC's resolution and timing. See
page 12 for information on how to setup your PC to this TV.
[] HDMi iN{/2 HDMi iHighEDefiniiionMuiiimedia iniertacei provides an uncompressedl aii2....
digital audio/video interface between this TV and any HDMI-equipped audio/video
equipment, such as a set-top box, DVD player, and A/V receiver. HDMI supports
enhanced, or high-definition video, plus digital audio. Be sure to use only an HDMI
cable that bears the HDMI logo.
Use the HDMI IN 1 port when connecting DVI equipment. Use a DVI-to-HDMI
cable or adapter (not supplied). Equipment using a DVI connection also requires an
additional audio connection using an audio cable connected to AUDIO of PC IN.
[] AUDIO OUT Connects to the left and right audio input jacks of your analog audio equipment.
(FIX) R/L You can use these outputs to listen to your TV's audio through your stereo system.
[] SERVICE ONLY This port is to be used when service is required.
8

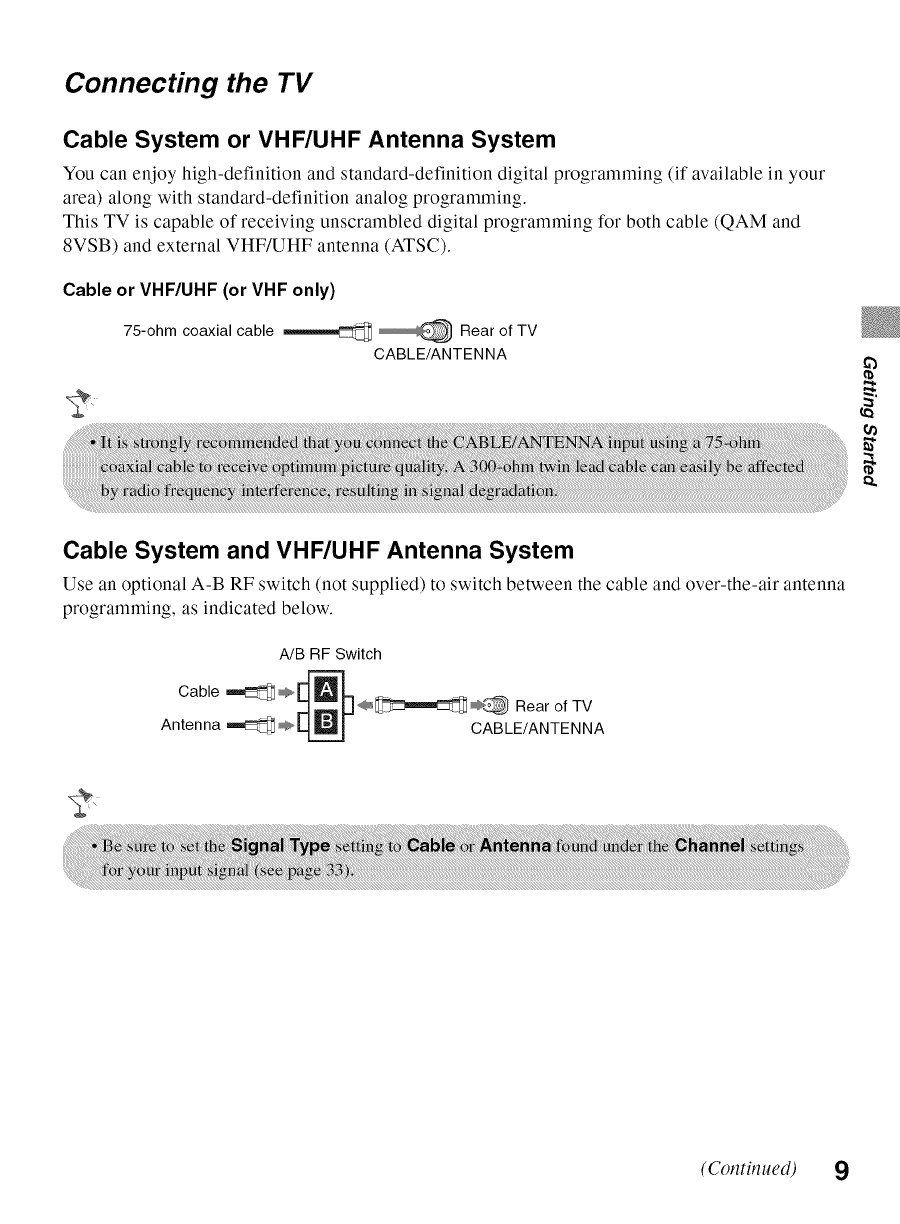

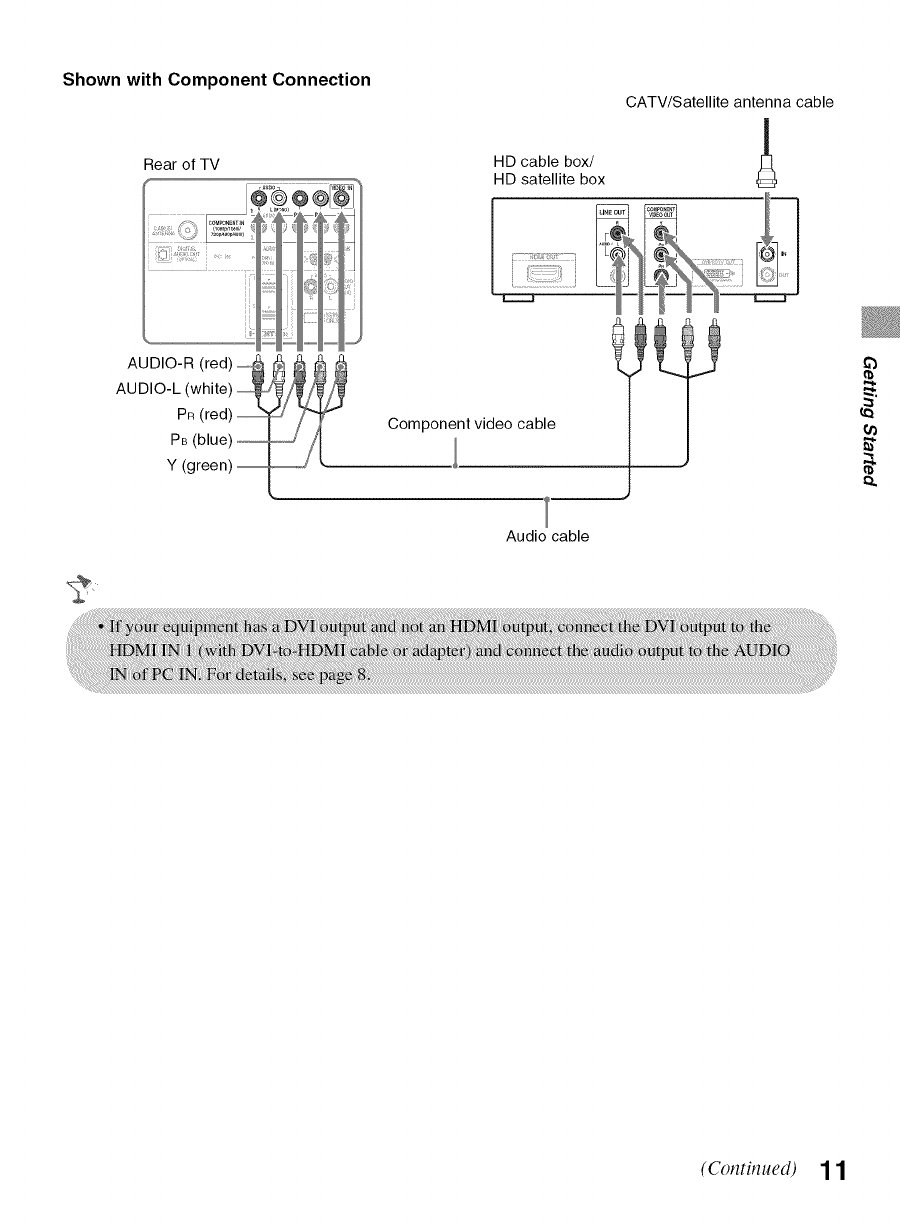

Connecting the TV
Cable System or VHF/UHF Antenna System
You can enjoy high-definition and standard-definition digital programming (if available in your
area) along with standard-definition analog programming.
This TV is capable of receiving unscrambled digital programming for both cable (QAM and
8VSB) and external VHF/UHF antenna (ATSC).
Cable or VHF/UHF (or VHF only)
75-ohm coaxial cable _ _ Rear of TV
CABLE/ANTENNA £b
o.
Cable System and VHF/UHF Antenna System
Use an optional A-B RF switch (not supplied) to switch between the cable and over-the-air antenna
programming, as indicated below.
A/B RF Switch
Cable __ _.
_ _J,__ _@ Rear of TV
Antenna _ _ LL_ CABLE/ANTEN NA
(Continued) 9

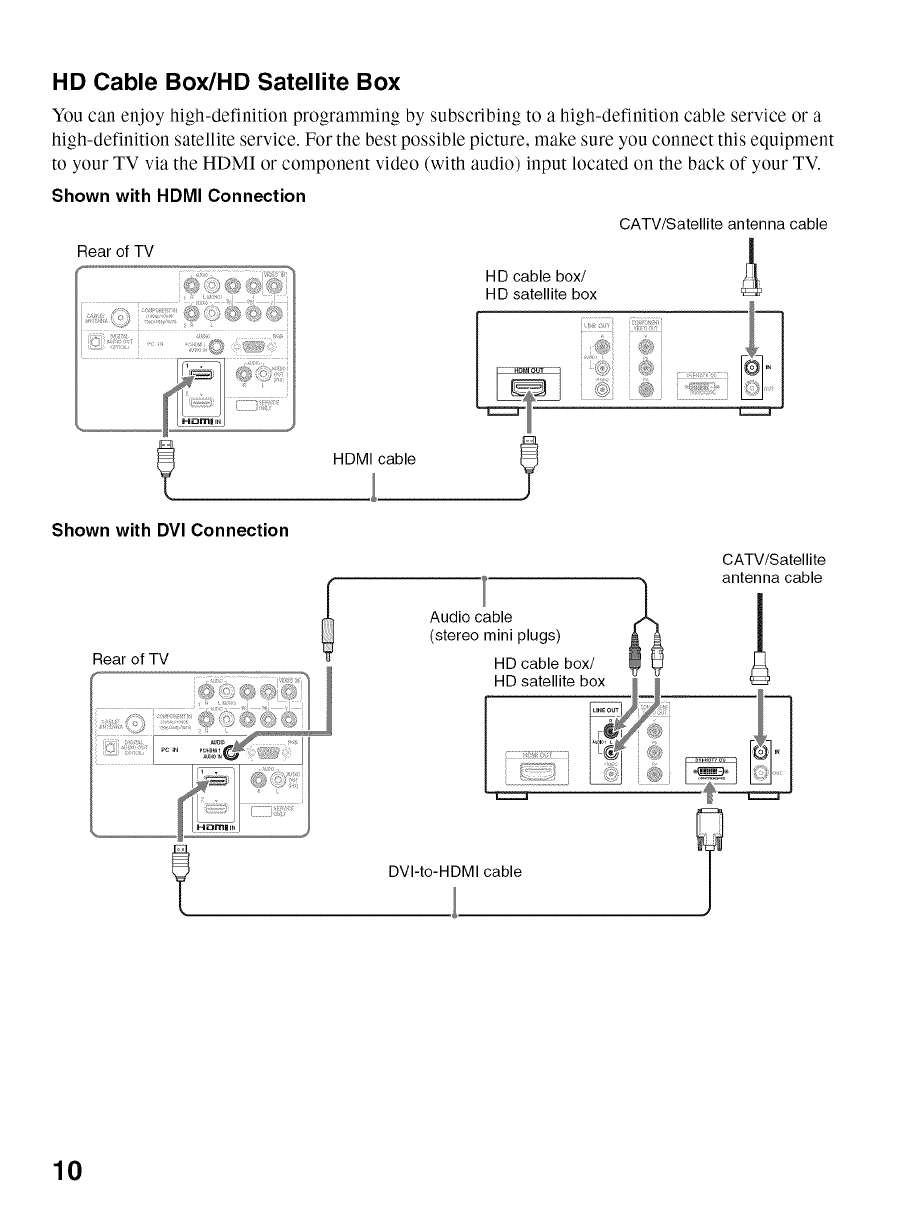

HD Cable Box/HD Satellite Box
You can enjoy high-definition programming by subscribing to a high-definition cable service or a
high-definition satellite service. For the best possible picture, make sure you connect this equipment
to your TV via the HDMI or component video (with audio) input located on the back of your TV.
Shown with HDMI Connection
Rear of TV
HDMI cable
CATV/Satellite antenna cable
R
HD cable box/
HD satellite box
;;;_ @
@
Shown with DVI Connection
Rear of TV
Audio cable %
(stereo mini plugs) t
HD cable box/
HD satellite box { I
DVI-to-HDMI cable
CATV/Satellite
antenna cable
]
10
Shown with Component Connection
Rear of TV HD cable box/
HD satellite box
CATV/Satellite antenna cable
AUDIO-R (red) =_ _
AUDIO-L (white)__
PR (red)_ /7
PB (blue)_ /I
Y (green)--|--,& _,
[
Component video cable
Audio cable
£b
{n
o.
(Cot_tit_uecl) 11
pC
Use the TV as a monitor for your PC by connecting an HD15-HD 15 cable connection as shown
below. This TV can also be connected to a PC with a DVI or HDMI output. (Refer to the separate
Quick Setup Guide.)
HD15-HD15 cable
(analog RGB)
Rear of TV
12
Connecting Other Equipment
CABLE/ANTENNA
VCR/Game
system/
Camcorder Digital recorder
£b
Digital audio Personal Audio Blu-ray
equipment computer system Disc Player/
(A/V Receiver/ "PS3"
Home Theater)
DVD
player
Digital
satellite
receiver
Digital
cable box Analog audio
equipment
(A/V Receiver/
HomeTheater)
13
When Installing the TV Against a Wall or Enclosed Area
Make sure that your TV has adequate ventilation. Allow enough space around the TV as shown
below. Avoid operating the TV at temperatures below 41 °F (5 °C).
Installed with stand
11 7/8 inches
(30 cm)
; _ 2 3/8 inches
_i oC_i?!...................,i :4 inches :/.......
Leave at least this much space around the set,
Installed on the wall
1_ _i r/ainchgs
.1 (socm)
I i4 inches
loom l .....
Leave at least
I_ _,_,_,this much space
i_4 (nghes(!o cm}i around the set.
Never install the TV set as follows:
Air circulation isblocked. Air circulation is blocked.
14
Securing the TV
//_ Sony strongly recommends taking measures to prevent the TV from toppling over.Unsecured TVs may topple and result in property damage, serious bodily injury or even
death.
Preventing the TV from Toppling
[] Secure the TV to a wall and/or stand.
[] Do not allow children to play or climb on furniture and TV sets.
[] Avoid placing or hanging items on the TV.
[] Never install the TV on:
slippery, unstable and/or uneven sudaces.
furniture that can easily be used as steps, such as a chest of drawers.
[] Install the TV where it cannot be pulled, pushed, or knocked over.
[] Route all AC power cords and connecting cables so that they are not accessible to curious children.
Recommended Measures to Secure the TV
Consider tile following measures when securing your TV to a TV stand (not supplied).
1Secure the stand for the TV.
Make sure the TV stand can adequately support the weight of the TV. Use two angle braces
(not supplied) to secure the stand.
For each angle brace use the appropriate hardware to:
Attach one side of the angle brace to the wall stud.
Attach the other side to the TV stand.
Angle braces
(not supplied)
Stand
(Continued) 15
2 Secure the TV to the stand.
Use the optional hardware listed below (not supplied):
M4 x 16 mm anchor bolt (screwed into the TV's Table-Top Stand).
A screw or similar (attach it to the TV stand).
• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no
excess slack in the rope or chain.
An alternative way to secure the TV is with an optional Sony Support Belt Kit.
r
3 Anchor the TV to the wall.
Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).
Securing the TV to the stand without securing the TV and the stand to the wall provides
minimum protection against the TV toppling over. For further protection, be sure to follow
the three measures recommended
J .... Wall-anchor
(not supplied)
16
Running Initial Setup
During initial setup, you will perform the following:
Set the language for the On Screen Display (OSD) text
Choose your viewing environment
Scan for digital and analog channels
Complete your cable connections before beginning the Initial Setup. Refer to the Quick Setup
Guide (supplied) for sample connection diagrams.
1Turn on the TV. The Initial Setup screen will
appear.
2Use the remote control buttons described below to
navigate through the Initial Setup.
if}
I11
o.
t/_/_,/, buttons:
Allow you to navigate and highlight options where applicable.
@button:
Allows you to select the highlighted option and advance to the next screen.
3Auto Program will scan for available channels from the signal source directly connected to
the TV's CABLE/ANTENNA input. Follow the help text provided on the screen to run the
Auto Program.
17
Operating the TV
Using the Remote Control
To Insert Batteries into the Remote Control
Insert two size AAA batteries (supplied) by matching 111and • on the batteries to the diagram
inside the battery compartment of the remote control.
Push to open
Guidelines to follow
\
• Point your remote control directly at the IR sensor
located on your TV.
• Make sure that no objects are blocking the path
between the remote control and the IR sensor on your
TV.
• Fluorescent lamps can interfere with your remote
control; try turning off the fluorescent lamps.
• If you are having problems with the remote control,
reinsert or replace your batteries and make sure that
they are correctly inserted.
18
Remote Control Button Description
[] INPUT Press to display the list of External Inputs and TV
mode. Press repeatedly to toggle through the inputs.
See page 25.
[] BRAVIA
Sync
These buttons are used to control the equipment
connected to the TV by using the Control for HDMI
function (not available on all Control for HDMI
equipment). Some other buttons on the remote control
may also operate BRAVIA ® Sync -rMequipment.
THEATER: Press to turn on and off the Theater
Mode. The picture settings will be set for a cinema-
like experience and the audio will be switched to the
audio output of the attached speakers of your BRAVIA
Sync audio system. Your BRAVIA Sync audio system
must be connected by an HDMI connection to your TV
(see page 23 for details).
<<I (fast reverse): Press to play a program in fast
rewind mode.
I_ PLAY: Press to play a program at a normal speed.
It_ (fast forward): Press to play a program in fast
forward mode.
SYNC MENU: Press to display the BRAVIA Sync
Menu and then select connected HDMI equipment
from HDMI Device Selection.
PREV: Press to rephty the current program from
the previous chapter mark (if any) or from the
beginning of the live TV cache.
STOP: Press to stop playback.
I_H NEXT: Press to advance forward to the next
chapter mark (if any) or to live TV when playing back
a recorded program.
[] CC Press to cycle through the available settings for
Closed Captions (CC) :On, Off, and On when
Muting.
[] FAVORITES Press once to display the stored Favorites list. You
can store up to 10 channels and/or external inputs in
your Favorites list.
_Q
".t
(Continued) 19
[] SCENE Optimizes picture and sound quality by selecting the
following items.
Cinema: Delivers picture and sound just like in a
theater.
Sports: Presents realistic pictures and sound just like
in a stadium.
Photo: Reproduces the texture and color of a printed
photo.
Music: Lets you experience dynamic and clear sound
just like at a concert.
Game: Broadens your game-playing experience with
superb picture and sound quality.
Graphics: Eases prolonged monitor viewing with
clearer detailed pictures.
General: No optimized picture and sound quality for
any scene.
Auto: Automatically optimizes picture and sound
quality according to the input source.
[] RETURN Press to go back to the previous screen or exit from the
screen when displaying menu items and settings.
[] MENU Press to display the menu with TV functions and
settings. See "Using the Menus" on page 26.
2O
[] 0-9 ENT Press 0-9 to select a channel. Press ENT to change
channels immediately.
[] Use with 0-9 and ENT to select digital channels.
For example, to enter 2.1, press _, , and
ENT.
[] VOL +/- Press to adjust the volume.
[] MUTING Press to mute the sound. Press again or press VOL +to
restore the sound.
[] POWER Press to turn on and off the TV.
i/c3
[] WIDE Press repeatedly to cycle through the available Wide
Mode settings. See page 24.
[] DISPLAY Press once to display the banner with channel/program
information you are watching. The banner will time
out in a few seconds or press again to exit.
[] t./,!,/<./,I_ Press t./!_/_,/,I_ to move focus/highlight. Press @ to
@ select/confirm an item.
[] TOOLS Press to display a list of convenient functions and
menu shortcuts. The TOOLS menu items vary based
on current input and content.
[] CH +/- Press to scan through channels. To scan quickly
through channels, press and hold down either CH +/-.
[] JUMP Press to jump back and forth between two channels
and external inputs. The TV alternates between the
current/last channel or external input selected.
_Q
21
TV Controls and Indicators
VOLUME
[] (IR) Infrared Receives IR signal from the remote control.
Receiver
[] _ (Picture Lights up in orange when the sleep timer is setl
Off)/Q Lights up in green when the Power Saving is set to Picture Off.
(Timer) LED
[] _ (Standby) Lights up in red when the TV isin standby mode .............................................................................................................................................................
LED
[] I(Power) LED Lights up in green when the TV is turned on ......................
[] POWER ...............................Press to turn on and off the TV.
[] - cHANNEL +Press to scan th;ugh channels2 To scan quickiy through channels, press and hold down
_- _ either CH -l+. In the menu screen, these buttons serve as up/down buttons.
[] -Press io adjust the voiulne_ In the menu screenl these buttons serve as ieft/right buttonsl
[] =_- Press to display the iist of externai inputsl Press repeatediy to toggle through the inputs
INPUT In the menu screen, this button serves as confirming the selection or setting.
[] MENU ...................................Press to display menu with TV flmctions and settings isee ::Using the Menns' on page 26) .........
[] Speakes ....................................Outputs audio signai ..........................................................................................................................................................................................................................................................................................................................................
22
Using Features
BRAVIA ®Sync TM with
Control for HDMI
With the Control for HDMI function,
BRAVIA Sync helps to communicate with
BRAVIA Sync-compatible equipment using
HDMI CEC (Consumer Electronics Control).
Use the following settings and tips to help
unify control of your connected equipment.
1Press MENU, then select the Setup
settings.
2Select the HDMI Settings, then highlight
Control for HDMI, and set to On.
Controlling BRAVIA Sync-Compatible
Equipment
To control the equipment by using the remote
control, press SYNC MENU and select the
desired equipment from [-IDMI Device
Selection.
BD/DVD Player
• Automatically turns the BRAVIA Sync-
compatible equipment on and switches the
input to that equipment when you select it
from the Sync Menu.
• Automatically turns the TV on and switches
the input to the connected equipment when
the equipment starts to play.
• Automatically turns the connected equipment
off when you switch the TV to standby mode.
AV Amplifier
• Automatically turns the connected AV
amplifier on and switches the sound output
from the TV speaker to the audio system
when you turn the TV on.
• Automatically switches the sound output to
the AV amplifier by turning the AV amplifier
on when the TV is turned on.
• Automatically turns the connected AV
amplifier off" when you switch the TV to
standby mode.
• Adjusts the volume (VOL +/-) and mutes the
sound (MUTING) of the connected AV
amplifier through the TV's remote control.
Video Camera
• Automatically turns the TV on and switches
the input to the connected video camera when
the connected video camera is turned on.
• Automatically turns the connected video
camera off when you switch the TV to
standby mode.
3"
t_
23
Favorites
Your favorite channels and external inputs can
be easily accessed by pressing the
FAVORITES button once they are added to
the list.
Cable 4 61 ABC
.... D D
D =B
D-,,.,
Adding to Favorites
While tuned to the channel you want to watch
or viewing connected equipment, press
FAVORITES to display the list. Highlight
Add to Favorites, then press @. Your newly
added item will be listed at the top of the list.
When you continue to add items beyond the
10th item, the item listed at the bottom of the
list will be automatically removed from the
list.
24
Wide Mode
The Wide Mode feature allows you to select
the screen display of your preference. Based
on the original signal source, you may see
black bars around the picture or just on the
both sides of the screen. Sometimes you will
see the picture fill the full screen. This is due to
the signals your TV receives.
You can manually select available Wide
Mode settings as you watch your TV by
pressing the WIDE button on your remote
control or you can set your TV to Auto Wide.
To set Auto Wide
Press MENU, then select the Screen settings.
Select Auto Wide and set to On.
To change the Wide Screen Mode
Press WIDE repeatedly to cycle through the
available modes.
Standard- High-definition source
Zoom Zoom N
Normal is available with 480i or 480p sources
only.
definition source
!, !,
Wide Zoom Wide Zoom K
Normal Normal
This mode is not available.
Full Full
Wide Mode with PC
Wide Mode is also available for the PC
settings. When a PC is connected to the TV
and PC input is selected, you can change the
PC Screen settings.
To change the Wide Screen Mode for
PC Timing
Press WIDE repeatedly to cycle through the
available modes while in the PC input mode.
800 x 600
!1,
Normal
Full 1
Full 2
Inputs
Press INPUT to display the Input menu and
toggle through the external inputs to select
your video signal for viewing including the TV
mode. The inputs list consists of TV mode and
other equipment connected to the TV.
You can label your external inputs to identify
them easily.
To Label an Input
1Press MENU, then select the Setup
settings. Select the Label Video Inputs
option. Press 4,/!!, to highlight the video
input (HDMI 1-2, Video, Component
1-2, PC) to which you want to assign a
label; press @ to select the input of your
choice.
2Press tiq!!,to highlight one of the
displayed labels that corresponds to your
connected equipment, then press @.
3If you have an open input where no
equipment is connected, you can label it as
Skip. When you assign Skip, your TV
will skip over this input when you press
the INPUT button. The Skip labeled input
is grayed out in the input list.
3"
25
Using the Menus
The MENU button allows you to access a variety of TV settings.
Navigating through TV Menus
1Press _'_ on the remote control to display the menu
options.
2Press ti_/!!,/_,/* to navigate on the menu or adjust the
settings.
3Press @ to select or confirm.
4Press _--M_ to exit.
The following icons contain all of the necessary configurations to customize your TV settings.
The options you can select may vary. Unavailable options are grayed out or not displayed.
[] Picture: adjust the picture on your TV to fit your viewing preference.
=I_) Sound: customize your sound settings to suit your audio preference. You can also change
the settings to output the sound to your connected audio equipment.
[] Screen: adjust the size and shape of the images you see on the screen.
1_" Channel: navigate your favorite channels and inputs and select the signal type, as well as
autoprogram channels. You can also customize the channels you see and the labels assigned
to them.
Parental Lock: set the password and limit access to programming based on rating levels.
You can also block channels and inputs.
1_ Setup: modify and customize a variety of general setting options.
_,/ Eco: changes the settings related to power consumption.
26
Using the Picture Settings
Picture Mode Displays the options selected in the Scene Select settings (see page 20). When
Customized picture Scene Select is set to General, the options below can be selected.
viewil*g Vivid Select for enhanced picture contrast and sharpness.
Standard Select for standard picture settings. Recolmnended for home
entertainment.
Custom Select to store your preferred settings.
Reset Resets the current Picture settings to their defaults, except Picture Mode.
Backlight Adjust to brighten or darken the backlight.
Picture Adjust to increase or decrease picture contrast.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Color Cool Select to give the white colors a bluish tint.
Temperature Neutral ...............................Select to give the white c0]0rs a neutral tint. ............................................................................................................
White (ldjtIS[ITICll[ Warm 1/............. Select to give the whhe cok, rs a reddish tintl Warm2 gives a redder
Warm 2 tint than Warm 1.
Sharpness .................................Adjust to Sharpen or soften the picture. .............................................................................................................................................................................................................
Noise Reduction Select to reduce the picture noise leVel. Select from Auto, High;Medium, Low and ......_"
off. ._
MPEG Noise Select to reduce the picture noise in MPEG-compressed videos. This is effective when
Reduction viewing a DVD or digital broadcast. Select from High, Medium, Low and Off.
cineMotion ...... Provides improved picture movement and reduces picture biur and graininess for fiim_.... :_
based content. Select Auto to represent original film-based content as is or select Off to
disable this function.
(Continued) 27
Advanced Reset Resets the advanced settings to the default values.
Settings Adv. Contrast Automatically adjusts baCkiight and contrast to the most suitabie
Enhancer settings judging from the brightness of the screen. This setting is
especially effective for dark scenes, and will increase the contrast
distinction of the darker picture scenes. Select from High, Medium,
Low and Off.
Black Enhances black areas of the picture for stronger contrast. Select from
Corrector High, Medium, Low and Off.
Gamma Adjusts the balance between bright and dark areas of the picture.
Clear White Emphasizes white colors. Select from High, Low and Off.
Live Color Makes colors more vivid. Select from High, Medium, Low and
Off.
White Balance Adjusts the color temperature in detail.
28
Using the Sound Settings
Sound Mode Sets a sound mode. Sound Mode includes options best suited for video. The available
Customiz, ed options depend on the scene select settings.
soumt listening Dynamic Enhances treble and bass.
Standard Standard sound optimized for home use.
Clear Voice Suitable for spoken dialog.
Custom Select to store your preferred settings.
Reset Resets the current Sound Mode settings to the default values.
Treble Adjust to increase or decrease higher-pitched sounds.
Bass Adjust to increase or decrease lower-pitched sounds.
Equalizer Adjust allows you to select your frequency response curve. Select Reset to reset the
Equalizer settings to the default values. (Available when Sound Mode is set to
Custom.)
Balance .............................................Adjusi io emphasize ieft or righi spewer baiancel ........................................................................................................................................................
Surround Allows you to select the suitable surround effects depending on the genre of TV
program (movie, sport, music, etc.) or video game. The available options depend on the
scene select setting.
On/Off Select Onio optimize the sound quality to enjoy the effects of the _"
Surround option and to create a virtual surround sound using the 2ch _.
speaker.
Cinema/Off ProvidEs surround effects just iike the high-grade audio systems
......................... found in movie theaters. ..................................
Music/Off Provides surround effects that make you feel like you are surrounded
by sound as in a music hall.
Sporis/6ff Provides surroundeffecis ihai make youfeel like you are watching a
live sports contest.
Game/Off Provides surround effects that enhance game sound.
Volume Offset Adjust the volume level of the current input relative to other inputs.
Steady Sound Select On to stabilize the volume across all programs and commercials.
Select Off to disable this function.
(Continued) 29
MTS Audio Stereo Select for stereo reception when viewing a program broadcast in
Erz)o 3, stereo, stereo.
bilingual and mono Auto SAP Select to automatically switch the TV to second audio programs
programs when a signal is received. If no SAP signal is present, the TV
remains in Stereo mode.
Mono Select for mono reception. Use to reduce noise during weak stereo
broadcasts.
Alternate Audio Select among the available options to switch among the alternate audio streams. The
Digital channels only program you are tuned to may be broadcast in a different language in the alternate
audio streams.
Speakers TV Speakers Select to use the TV speakers.
Audio System Select to use an external audio system for the TV sound. By
selecting this option you are disabling the TV speakers.
30
Using the Screen Settings
Wide Mode Wide Zoom Fills the screen with minimum distortion.
Normal Select to display 4:3 picture in original size when the original source is 4:3.
Full Select to enlarge the picture horizontally to till the screen when the
original source is 4:3 (Standard definition source). When the original
source is 16:9 (High-definition source), select this mode to display the
16:9 picture in its original size.
Zoom Select to enlarge the original picture without distorting the aspect ratio.
Auto Wide On Select On to automatically change Wide Mode setting based on the
content.
Off If frequent screen changes are disturbing to you, select Off. Choose one
of the Wide Mode options when this function is set to Off.
4:3 Default Wide Zoom Enlarges the 4:3 picture to fill the 16:9 screen, displaying as much of the
Select the dq!_tult original image as possible.
Screen Moda to use Normal Select to display the 4:3 picture in its original size.
,/br 4.'3 sources Full ............................................Select to eMarge the 4:3 picture horizontaiiy oniyl to fill the dispiay area. .........
Zoom seiectto;;iiarg;thgpi_iur;hor{zoiitaiiyaiidverticaiiyto a;iequal aspect
.....................................................ratio that fills the wide screen. ............................................. _"
Off Select to continue using the current Wide Mode setting when the _.
channel or input is changed.
Display Area +1 Displays pictures in their original size.
Normal Displays pictures in their recommended size.
-1 Enlarges the picture so that the edges are outside the visible display area.
Horizontal Allows you to move the position of the picture left and right. (Available in Wide Zoom
Center and Zoom.)
Vertical Center Allows you to move the position of the picture up and down. (Awulahle in Wide
Zoom and Zoom.)
(Comi,_ued) 31
PC Settings When a PC is connected to the TV and the PC input is selected, the PC settings screen
appears instead of the Screen settings.
Wide Mode Normal Select to display in the original image size.
Full 1 Select to enlarge the picture to fill the display area,
keeping its original aspect ratio.
Full 2 Select to enlarge the picture to fill the display area.
Auto Select to automatically adjust the display position and phase of the
Adjustment picture when the TV receives an input signal from the connected PC.
Note that Auto Adjustment may not work well with certain input
signals. In such cases, manually adjust the options below.
Phase Adjust alter Pitch to fine tune overall sharpness.
Pitch Adjust uneven sharpness on screen.
Horizontal Allows you to move the position of the picture left and right.
Center
Vertical Allows you to move the position of the picture up and down.
Center
32
Using the Channel Settings
Favorites Select favorite channels and external inputs (see page 24).
Signal Type Cable Select if you are receiving cable channels via Cable TV provider.
Antenna Select if you are using an antenna.
Auto Program Automatically sets up the channel list on the TV for all receivable channels.
1Select Auto Program.
2Select OK to start Auto Program.
Add Digital 1Select Add Digital Channels.
Channels 2Select OK to add digital channels.
Show/Hide Allows you to show or hide channels that appear when you use the CH +/- buttons.
Channels 1Press t'/,!, to scroll through the channels until you find the channel you want to
show or hide. Then press @ to select it.
2Press 4"/€ to determine if the channel will be shown or hidden. Then press @ to
................................ select it.
Label Channels Allows you to assign labels (such as station call letters) to channel numbers.
1Press _'1,!, to scroll through the channel numbers. Then press @ to select the 2
channel number that you want to assign a label.
2Press 4"/€ to scroll through the label characters (A-Z, 0-9, etc.). Press * to move
to the next character. Repeat the previous steps to add up to seven characters to the
label. When finished, press @.
Analog Fine Allows you to fine-tune the selected analog channel manually if you feel that a slight
Tune tuning adjustment may improve picture quality. Select Auto to adjust to the most
appropriate analog channel.
33
Using the Parental Lock Settings
Enter Password The Parental Lock settings allow you to set up the TV to block programs according to
their content and rating levels. Use 0-9 on the remote control to enter a four-digit
password. The first time you create a password, confirm the password by entering it again.
Change Password Select to change your password.
Country U.S.A. Select to use U.S.A. ratings (see page 35).
Canada Select to use Canadian ratings (see page 36).
Rating Off Turn Parental Lock off. No programs are blocked from viewing.
Child Maximum ratings permitted are:
U.S.: TV-Y, TV-G, G
Canada: C, G, TV-Y
Youth Maximum ratings permitted are:
U.S.: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Young Adult Maximum ratings permitted are:
U.S.: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
U.S.: See page 35 for details.
Canada: See page 36 for details.
Downloadable Off Turn Downloadable U.S. Rating off. No programs that contain
U.S. Rating downloadable ratings are blocked from viewing.
(Available only Custom Select to block programs based on downloadable ratings.
i, U.S.A. Clear All Select to clear the entire downloadable rating system.
W[leF( J(ldV(lll('ed
ratings' eMst)
Unrated Allow Allows programs and movies that are broadcasted without a rating.
(Available only Block Blocks all programs and movies that are broadcasted without a rating.
when Count O, is
set to U.S.A.)
Channel Block Allows you to block channels regardless of program ratings.
To View a Blocked Channel
Press ENT when tuned to the blocked channel then enter the password.
External Input Allows you to block external inputs regardless of program ratings.
Block To View a Blocked External input .......
Press ENT when tuned to the blocked input then enter the password.
34
US Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for the U.S., select U.S.A. in the Country setting (see page 34).
Movie Rating G All children and general audience.
PG Parental guidance suggested.
PG-13 Parental guidance for children under 13.
RRestricted viewing, parental guidance is suggested for children
under 17.
NC-17 and XNo one 17 or under allowed.
TV Rating Age-Based Ratings
Block programs' by TV-Y All children.
their rating, content TV-Y7 .......................................Directed to chii_en age 7 and oiderl...................................................................................................................................................................
or both TV-G.........................General audience. ............................................................................................................................................................................................................................................
TV-PG Parental guidance suggested.
TV-14 Parents strongly cautioned.
TV-MA Mature audience only.
c°ntent_Based Ratings ........................................................................................................................................................................
FV Fantasy violence.
D.....................................................Suggestive dialogue.
LStrong language. .............................................................................................................................................................._"
SSexual situations. _.
V..................................................................................................................................................................................................................................................................................................................................................................................................Violence.
I11
(Continued) 35
Canadian Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for Canada, select Canada in the Country setting (see page 34).
English Rating C All children.
C8+ Children 8 years and older.
GGeneral programming.
PG Parental guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See "US Models" on page 35 for details.
Viewing Blocked Programs
You can view blocked programs by entering your password. Press ENT when tuned to a blocked
program, then enter the password. This temporarily deactivates the parental control feature. To
reactivate the Parental Lock settings, turn oft"the TV. When the TV is turned on again, your
Parental Lock settings are reactivated.
36
Using the Setup Settings
Closed Allows you to select from several closed caption modes (for programs that are broadcast
Captions with closed captioning).
(CC) cC Display on ............................Closed Captions (Cc) is turned on. ..............................
Off Closed Captions (CC) is turned off.
On when Closed Captions (CC) is turned on when the TV is
Muting muted.
Analog CC Allows you to select basic analog (EIA-608) closed caption options.
CCl, CC2, Displays a printed version of the dialogue or sound effects
CC3, CC4 of a program. (Should be set to CC1 tbr most programs.)
Text1, Text2, Displays network/station information presented using
Text3, Text4 either half or the whole screen (if available).
Digital CC When the digital closed caption service is available, select from the
Service 1-6 or CC1-4.
Digital CC Allows you to make additional settings for digital closed caption
Options options. Select As Broadcast or Custom. The Custom option is
awtilable on the Digital CC setting.
Custom Allows you to customize the following settings:
Character Small, Standard, Large
Size
character ..................Style i27 ................................................................................................_"
Style .................................. ._.
Character Color 1-8
Color
Character Solid, Translucent :_
Opacity
Edge Type None, Raised, Depressed, Outline,
Left Shadow, Right Shadow
Edge Color Color 1-8
Background Color 1-8
Color
Background Solid, Translucent
Opacity
(Continued) 37
Sleep Timer Set the time in minutes (Off, 15, 30, 45, 60, 90, or 120) that you would like the TV to
remain on before shutting off automatically,
Language Select to display all on-screen settings in your language of choice: English, Espafiol,
Fran_ais.
Info Displays the information related to the input signal you are watching.
Banner Select Smallto display minimal channel and program title or select Large to display
detailed channel and program information along with the TV icon if you are viewing the
TV. This information will appear if it is available from the broadcaster.
Info Banner appears on the screen each time the channel and external inputs are changed
or when DISPLAY on the remote control is pressed.
Label Video Allows you to identity A/V equipment you connected to the TV, such as a VCR, DVD, etc.
Inputs For example, if you have a DVD player connected to the COMPONENT IN jack, you can
select the label DVD for the Component input. Then when you press INPUT to change
inputs, the video label you assigned to that input appears on screen.
1Press ll'/,!, to highlight the video input (HDMI 1-2, Video, Component 1-2, PC) to
which you want to assign a label, Then press @ to select the input,
..... 2Press ilq!l" to highlight one of the displayed labels. Then press @ to select the label.
Video/ Select Auto to have the TV detect and switch between the Video or Component 1 when
Component 1 Video or Component I is connected.
Selection
38
HDMI Settings Communicates with equipment compatible with the Control for HDMI function.
Control for HDMI Links the operations of the TV and the equipment.
For specific Sony equipment compatible with Control for HDMI, this
setting is applied automatically to the connected equipment when set to
On.
Device Auto Select On to have your connected equipment with Control for HDMI
Power Off function to powering off automatically when the TV is turned off.
Select Off to disable this function. This feature is available when
Control for HDMI is On.
TV Auto Power Select On to control your TV's power on from your connected
On equipment with Control for HDMI function. Select Off to disable this
function. This feature is available when Control for HDMI is On.
Device List Displays a list of equipment with Controlfor HDMI function
connected to the TV.
Device Control Select button functions of the TV's remote control to operate the
Keys connected equipment.
None For basic operations, such as navigation buttons (up,
down, left or right, etc).
Tuning Keys For basic operations and operation of channel-related
buttons, such as CH +/- or 0-9, etc. Useful when you t_"
control a tuner or set-top box, etc; via the remote _.
control.
Menu Keys For basic operations and operation of the
MENU/TOOLS buttons. Useful when you select menus :=
of a BD player, etc; via the remote control.
Tuning and For basic operations and operation of channel-related
Menu Keys buttons and MENU/TOOLS buttons.
• Press TOOLS while the equipment supporting Control for HDMI is connected to display
the Device Control options. The Device Control option provides access to the Menu,
Options and Content List of your connected equipment with your TV remote control.
• Some equipment with Control for HDMI does not support the Device Control feature.
HDMI Settings must be setup on the connected equipment.
Piciure Seiect Lock so no adjustment can be made to items grayed outl
Adjustments Select Unlock to allow adjustment to any of the Picture settings.
Lock
Product Contact Sony Sony contact information is available on this screen for your
Support convenience. TV specific information such as Model Name, Serial
Number, Software Version and downloadable ratings (if available from
the TV) are displayed here.
Signal Press to display the diagnostics information for the current signal.
Diagnostics
(Comi,_ued) 39

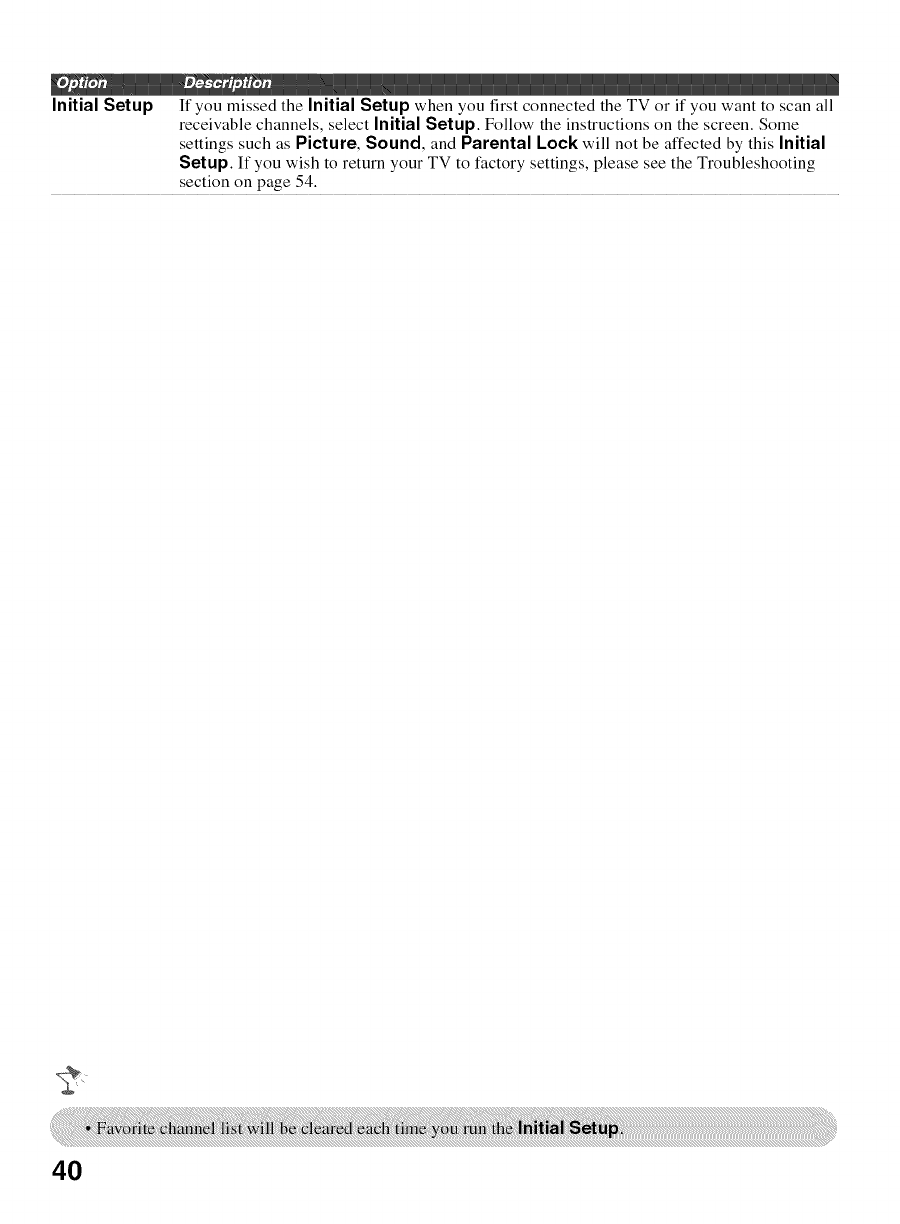

Initial Setup If you missed the Initial Setup when you first connected the TV or if you want to scan all
receivable channels, select Initial Setup. Follow the instructions on the screen. Some
settings such as Picture, Sound, and Parental Lock will not be affected by this Initial
Setup. If you wish to return your TV to factory settings, please see the Troubleshooting
section on page 54.
40
k_,_ Using the Eco Settings
Power Saving Select from Off, Low, High, Picture Off to adjust your TV's power consumption. By
selecting the High option, you will reduce the power consumption more than the other
available settings.
While Picture Off is set, pressing VOL +/- or MUTING buttons will not disable this
function. Press other buttons to disable it.
Idle TV Select to automatically power off the TV after I h, 2h, or 4h when no buttons are pressed on
Standby the remote control or the TV. Select Off to disable this function.
Auio automaticaiiypowerofftheW_whenno inputsignaiisdetectedfora certain
period of time. Select Off to disable this function.
2
g)
41
Other Information
PC Input Signal Reference Chart for PC and HDMI IN 1/2
After connecting the PC to the TV, set the output signal from the PC according to the chart below.
VGA 641) x 480 31.5 61) VGA
SVGA 81)I) x 600 37.9 61) VESA Guidelines
XGA 1,024 x 768 48.4 60 VESA Guidelines
WXGA 1,281) x 768 47.4 61) VESA
1,281) x 768 47.8 60 VESA
1,360 x 768 47.7 60 VESA
42
Using a Wall-Mount Bracket
Your TV can be mounted on a wail using a Wall-Mount Bracket (not supplied) out of the box as
packaged. Some larger size TV may require removing the Table-Top Stand; refer to the
instructions provided with the TV.
Prepare the TV for the Wall-Mount Bracket before making cable connections.
For product protection and safety reasons, Sony strongly recommends that you use the Wall-
Mount Bracket designed for your TV and the installation should be performed by a Sony
dealer or licensed contractor.
Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient
expertise is required in installing this TV, especially to determine the strength of the wall for
withstanding the TV's weight.
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the mounting
hooks to the TV set.
The supplied screws are designed so that they are 8 mm to 12 mm in length when measured from
the attaching surface of the mounting hook.
The diameter and length of the screws differ depending on the Wall-mount bracket model.
Use of screws other than those supplied with the bracket may result in internal damage to the TV
set or cause it to fall. etc.
8-1 mm
Screw (supplied with the Wall-Mount Bracket)
Mounting Hook
Hook attachment on rear of TV
Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to
attach the Table-Top Stand. Keep the screws away from small children.
B"
Installing the Wall-Mount Bracket
To Customers
Your TV can be wall-mounted using Wall Mount Bracket model SU-WL500 (for KDL-32BX300)
or SU-WL100 (for KDL-22BX300).
Please provide this installation information as well as the instruction supplied with
SU-WL500/SU-WL100 Wall-Mount Bracket to your installer.
To Sony Dealers and Licensed Contractors
To avoid injury and property damage, read these instructions carefully. Periodic inspection and
maintenance is highly recommended to ensure that TV is securely mounted.
(Comi,_ued) 43
CAUTION
Tile wall that tile TV will be installed on should be capable of supporting a weight of at least four
times that of the TV.
FOR SU-WL500
Step 1 : Checking the parts required for the installation
Open the Wall-Mount Bracket package and check the contents for all required parts along with the
Instructions.
Step 2: Deciding on the installation location
Decide where you want to install your TV. Refer to the TV installation dimensions table.
Refer to the Instructions for SU-WL500.
Dimension Table
®
®
Screen center point
[]
Unit: mm
inches)
KDL-32BX300
Figures in the
®
804
(31 3/4
above
l:onsi
®
49"7
(19 >/s
©
172
(6 7/s)
table may differ slightly depending on the installation.
t,/el:ah
TV
9.1 kg
120.1 lb.
x4
36.4}
(80.4 1
44
Step 3: Installing the Base Bracket on the wall
Refer to the Instructions for SU-WL500.
Step 4: Preparing the TV for wall mount installation
Follow the steps below to prepare for installing the TV.
Disconnect all the cables from the TV.
1
2Secure the Mounting Hook to the rear of the TV.
Determine the screw locations and secure the Mounting Hooks to the rear of the TV. Refer to
the "Screw and Hook Locations Diagram/Table" shown below.
10) Secure the Mounting Hooks to the rear of the TV using only the supplied screws
(M6 x 16).
O Be sure to tighten the screws with equal torque strength.
Square
hole
Screw
(M6 x 16)
Mounting Hook
Screw and Hook Locations Diagram/Table
Tab
Align the tab
on the rear of
the Mounting
Hook with the
[o square hole
on the rear of
the TV as
illustrated.
(Cot_tit_ued) 45
Screw location
When installing the Mounting Hooks on the TV.
d
e
J
fL_J
Hook location
When installing the TV onto Base Bracket.
3Adjust the angle of the Mounting Hook.
Refer to the Instructions for SU-WL500.
4 Remove the screws guided by the arrow marks _ of the TV.
Do not remove any other screws from the TV.
46
5Lift the TV off the Table-Top Stand. Make sure that you carry out this task with at least two or
three people (see page 6 for details).
Do not attempt to lift the TV by yourself.
Step 5: Installing the TV on the wall
Refer to the Instructions for SU-WL500.
When you put the TV back on the Table-Top Stand, reverse the above steps.
• When moving the TV, do not squeeze the bottom of the front panel too tight.
Remove the screws or install the Mounting Hook on a stable and level surface.
(Cotninued) 47
FOR SU-WL100
Step 1: Checking the parts required for the installation
Open the Wall-Mount Bracket package and check the contents for all required parts along with the
Instructions.
Step 2: Adjusting the position of the holders of the Base Plate
Refer to the Instructions for SU-WL100.
Step 3: Deciding on the installation location
Decide where you want to install your TV. Refer to the TV installation dimensions table.
Refer to the Instructions for SU-WL100.
Dimension Table
®
©1
O[]
Screen center point
Unit: mm TV;'
inches) Dt_N;
........ ®
KDL-22BX300 575
(22 3/4
Figures in the
|:onsi
®
361
(14 I/4
®
132.4
(5 I/4)
above table may differ slightly depending on the installation.
Nei:_h
TV
5.7 kg
12.6 lb
x4
22.8
(50.4 1
CAUTION
The wall that the TV will be installed on should be capable of supporting a weight of at least four
times that of the TV.
Step 4: Installing the Base Plate on the wall
Refer to the Instructions for SU-WL100.
48
Step 5: Preparing the TV for wall mount installation
Follow the steps below to prepare for installing the TV.
1Disconnect all the cables from the TV.
2Align the holes on the left Mounting Hook with the corresponding holes on the rear of the TV.
Secure them to the TV using two screws (supplied with SU-WL100).
Screw
_ (+PSW 4 x 12)
J Hook
Hook locations diagram
Install the TV onto the location "b" of the Base Plate.
C3
3Adjust the angle of the Mounting Hook.
Mounting Hook
49
4Align the holes on the right Mounting Hook with the corresponding holes on the rear of the
TV.
Secure them to the TV using two screws (supplied with SU-WL100).
Screw
(+PSW 4 x 12)
Mounting Hook
°°_ <
Step 6: Installing the TV on the Base Plate
Refer to the Instructions for SU-WL100.
1 Connect the cables to the corresponding inputs on the rear of the TV.
For details on the cable connection, see "Connecting Other Equipment" on page 13.
2 Install the TV onto the Base Plate.
5O
Troubleshooting
Many of the poor pictures and poor sound conditkms are related to improper connectkm of the cables; refer to
the Quick Setup Guide provided for connections.
If you have questions, service needs, or require technical assistance related to the use of your Sony TV even
after you read this operating instructions manual, contact the following:
For US Support:
http://www.sony.com/tvsupport or call 1-800-222-SONY (7669)
For Canadian Support:
http://www.sony.ca/support or call 1-877-899-SONY (7669)
Things to consider
Check the input selection by pressing the INPUT button. You may be watching the wrong input.
If you cannot hear sound from the TV, you may have accidentally pressed the MUTING button on your
remote control; press the MUTING button again or press VOL + to deactivate muting.
If the remote control is not functioning properly, the batteries may be installed incorrectly or may be low or
an object or light may be interfering with the remote control.
To reset the TV to factory default settings:
1Turn on the TV.
2Press and hold down the 4"button on the remote, press the POWER button on the TV set. (The TV
will turn itself off+ then back on again.)
3Release the 4" button when the TV is turn on.
IMPORTANT: The factory reset will clear all of your customized settings including the Parental Lock
setting.
When the Password is lost or cannot remember, enter the master password: 4357. This password clears your
previous password and allows you to enter a new password.
No picture
No picture • Check the Power Saving settings (see page 41 ).
Cannot receive any • Make sure the power cord is connected securely.
channels Turn on the power of the TV.
• Check cable/antenna connections.
• Make sure the Signal Type setting is correct for your TV signal source.
TV is locked to one channel • Perform Auto Program to add receivable channels that are not present
in the TV's memory (see pages 17 and 33).
Cannot receive or select • Perform Auto Program to add receivable channels that are not present
channels in the TV's memory (see pages 17 and 33).
• To receive or select cable channels, make sure that Signal Type in the
Channel settings is set to Cable (see page 33). To receive or select
UHF channels over an antenna, make sure Signal Type is set to
Antenna.
The TV turns off • Check it Sleep Timer is activated (see page 38).
automatically • Check Idle TV Standby in the Eco settings.
No picture from some video Check the connection between the optional video equipment and the TV.
sources • Press INPUT on the remote control (see page 25).
C3
(Co_Tti_Tued) 51
Poor picture
Picture quality not as good Picture quality depends on the signal content. See Quick Setup Guide
as viewed at the store (supplied) to display the best possible picture for that signal.
Broadcast HD formats have Content and signal quality are controlled by the signal provider. Many
poor quality HD channels and content are actually upscaled versions of standard-
definition broadcasts. The picture is affected by the quality of the signal
received, which varies between channel and program.
Double images or ghosts Check cable/antenna connections.
Check the antenna location and direction.
Only snow and noise appear Check if the antenna is broken or bent.
on the screen Check if the antenna has reached the end of its serviceable life. (3-5 years
in normal use, 1-2 years at the seaside.)
Dotted lines or stripes • Keep the TV away from noise sources such as cars, motorcycles, or hair-
dryers.
• If using 300 ohm twin lead, move the excess lead away from the TV or
try using 75-ohm coaxial cable instead.
No color /Dark picture /• Adjust the Picture Mode options in the Picture settings (see page 27).
Color is not correct /The If you set the Power Saving mode to Low or High, it will enhance the
picture is too bright black level.
Noisy picture Make sure that the antenna is connected using a 75-ohm coaxial cable
(not supplied).
Keep the antenna cable away from other connecting cords.
To avoid TV interference, make sure to use an undamaged antenna cable.
Blurry picture /Poor color Transporting the TV from a cold to a warm location or a sudden change
in room temperature may cause moisture condensation, resulting in a
blurry picture or poor color. Turn off your TV and wait a few hours
before powering on again.
No sound /Noisy sound
No sound but good picture Check the volume control.
• Press MUTING or VOL + so that "Muting" disappears from the screen (page
21).
• Set Speakers to TV Speakers in the Sound settings (see page 30). If
it is set to Audio System, sound is not output from the TV's speakers
regardless of the TV's volume control.
• When using HDMI input with Super Audio CD or DVD-Audio,
DIGITAL AUDIO OUT (OPTICAL) may not provide an audio signal.
When tuned to a digital channel with Alternate Audio, the broadcaster
may not be broadcasting your preferred Alternate Audio language.
Press TOOLS, highlight and select Alternate Audio, and change the
Alternate Audio language (see page 30).
Audio noise Make sure that the antenna is connected using a 75-ohm coaxial cable
(not supplied).
Keep the antenna cable away from other connecting cords.
To avoid TV interference, make sure to use an undamaged antenna cable.
No audio or low audio with Press THEATER for BRAVIA Sync activated Theater System (see page
Home Theater System 23).
• Set Speakers to Audio System in the Sound settings (see page 30).
No color /Irregular picture • Verify that the Video/Component 1 Selection (page 38) is set to the
current input type in use. We suggest leaving this setting to Auto.
52
BRAVIA Sync
Cannot find connected • Make sure that the Control for HDMI is set up on both the TV and the
BRAVIA Sync HDMI optional device compatible with BRAVIA Sync (see page 23).
device
Second A/V receiver is not Only one A/V receiver may be used with the BRAVIA Sync and
listed on the Device List Control for HDMI functions at one time (see page 39).
PC Input
No picture /No signal Confirm the PC is correctly connected to the TV with either the PC IN
(with an HDI5 cable) or with the HDMI IN.
Ensure the output signal from the PC is one of the formats listed on page
42.
• Turn the PC off. Confirm the PC connection and restart the PC. Plug-and-
play will auto-detect the TV and correctly set up PC timing.
• Verify the PC is not in standby or hibernation mode.
Poor Picture • Adjust the resolution (see page 42).
• Adjust Pitch and Phase.
General
TV screen feels warm • Due to the thin profile of this television, the heat generated by the LCD
panel backlight and supporting electronics will be more noticeable. This
is normal operation and not a cause for concern.
Wide Mode changes • The current Wide Mode setting is automatically replaced with the 4:3
automatically Default setting when you change the channel or video input, if 4:3
Default in the Screen settings is set to other than Off. If you want to
lock in Wide Mode selected with WIDE on the remote control, set 4:3
Default to Off in the Screen settings (see page 31).
Check the Auto Wide option in the Screen settings (see page 31).
Suddenly the picture gets The picture gets smaller during the commercials due to the method in
smaller which the provider broadcasts their content. When HD content channels
switch to SD content (commercials), the picture may be small with a
black border.
Auto Wide will not expand the picture during these content changes siuce the
content infonnation is regulated by the channel signal provider. You can
manually change the Wide Mode if you prefer (see page 24). This setting
will remain in effect until you chauge the chauuel or iuput or mauually chauge
the Wide Mode agaiu.
"Black box" on screen You have selected a text option and no text is available (see page 37). To
turn off this feature, set the CC Display option to Off. If you were
trying to select closed captioning, select CC1 instead of Text1-4.
C3
o_o
_Comit_uec5 53
Black bands appear at the • Some wide screen programs are filmed in aspect ratios that are greater
edges of the screen than 16:9 (this is especially common with theatrical releases). Your TV
will show these programs with black bands at the top and bottom of the
screen. For more details, check the documentation that came with your
DVD/Blu-ray (or contact your program provider).
• Programs in 4:3 aspect ratio will have bands on left and right sides of the
screen.
Programs broadcast in HD formats (720p and 1080i) with 4:3 content
will commonly have black bands on the left and right sides of the screen
which are added by the broadcaster (see image on left).
Auto Wide will not expand the picture when the black bands on the
sides of the screen are added by the broadcaster. You can manually
change the Wide Mode to Wide Zoom, or Zoom to fill the screen,
which will remain in affect until you change the channel or input or
manually change the Wide Mode again.
Certain programs on DVD • This is due to the digital compression of the source content used by
or other digital sources certain digital broadcasts and DVDs which may cause your TV's screen
display a loss of detail, to display less detail than usual, or cause artifacts (small blocks or dots,
especially during fast- pixelations) to appear on your screen. These signal compressions are
motion or dark scenes more visible and are dependent on the clarity and resolution of the TV.
Remote control does not To determine if the problem is with the remote control or not, press a
operate button on the TV.
• Check the polarity of the batteries or replace the batteries.
• Point the remote control at the remote control sensor located at the front of
the TV.
• Keep the remote control sensor area clear from obstacles.
Fluorescent lamps can interfere with your remote control operation; try
turning off the fluorescent lamps.
Some digital cable channels Certain cable companies have limitations on the broadcast of digital
are not being displayed cable channels. Check with your cable company for more information.
The digital cable channel may be set to Hidden in the Show/Hide
Channels setting (see page 33).
Lost password • Select the Password settings on the Parental Lock settings, then enter
the following master password: 4357. This password clears your previous
password and allows you to enter a new password (see page 34).
How to reset the TV to • Turn on the TV. While holding down 4"on the remote control, press
factory settings POWER on the TV. (The TV will turn itself off, then back on again.)
Release 4".
IMPORTANT: The reset will clear all of your customized settings
including the Parental Lock setting.
54
Important Notices
Declaration of Conformity
Trade Name: SONY
Model: KDL-32BX300/KDL-22BX300
Responsible Party: Sony Electronics [nc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Nuruber: 858-942-2230
This device coruplies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device ruay not cause han'uful interference, and (2)
this device must accept ally interference received,
including interference that ruay cause undesired
operation.
For customers in Canada
This Class B digital apparatus complies with Canadian
ICES-003.
FCC Related Information
This equipmeut has beeu tested aud fouud to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user ix encouraged to try to correct the interference by one
or more of the following measures:
[] Reorient or relocate the receiving antenna.
[] Increase the separation between the equipment and
receiver.
[] Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
[] Consult the dealer or an experienced radio/TV
technician for help.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment.
The shielded interface cable recommended in this manual
must be used with this equipment in order to comply with
the limits for a digital device pursuant to Subpart B of Part
15 of FCC Rules.
Compatible Wall-Mount Bracket Information
Use the following Sony Wall-Mount Bracket with your TV
model.
KDL-32BX300 KDL-22BX300
su-wt.soo su-wuoo
Use with other Wall-Mount Brackets may cause instability
and could result in property damages or injury.
Note
This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television ¢3
programming via subscription service to a cable service
provider. Availability of digital cable television
programming in your area depends on the type of _"
programming and signal provided by your cable service _'
provider. 2"
For Customers in the United States
The lamp in this product contains mercury.
Disposal of these materials may be regulated
due to environmental considerations. For
disposal or recycling information, please
contact your local authorities or the Electronic
Industries Alliance (www.eiae.org).
To Customers
Sufficieut expertise is required for TV installations. Be
sure to subcontract the installation to a Sony dealer or
licensed contractor and pay adequate attention to safety
during the installation.
55
Specifications
System
Television system NTSC: American TV standard
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does nol include CableCARD funclionality)
Channel coverage Analog terrestrial: 2 - 69 /Digital terrestrial: 2 - 69
Analog Cable: 1 - 135 /Digital Cable: 1 - 135
Panel system LCD (Liqnkl Crystal Display) Panel
Speaker nutput 10 W + 10 W (KDL-32BX301t) /5 W + 5 W (KDL-22BX301t)
Input/Output jacks
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO 1N VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative
AUDIO: 51)1)mVrms (Typical) /hnpedauce: 47 kilohms
COMPONENT 1N 1/2 YPBPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative /PB: 0.7 Vp-p, 75 ohms
PR: 0.7 Vp-p, 75 ohms /Signal formal: 480i, 480p, 720p, l(t8Iti, l{)8(tp
AUDIO: 5(t(t mVrms (Typical) /hnpedauce: 47 kilohms
HDMI 1N 1/2 HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p
Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits, Dolby Digital
PC Input (see page 42)
500 mVrms (typical)
PCM/Dnlby Digital optical signal
AUDIO OUT
DIGITAL AUDIO OUT
(OPTICAL)
PC 1N [)-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
See the PC Input Signal Reference Chart for PC and HDMI 1N 1/2 on page 42.
PC/HDMI 1N 1 AUDIO INPUT Stereo mini jack, 5(10 mVrms, (T>pical) /Impedance: 47 kilohms
}N KD{ ;I} @0 I
Power and others
110-240 V AC, 50/60 Hz (U.S.A. /Canada 1211V AC, 60 Hz)
Power requirement
Power consumption 135 W 63 W
in use
in standby less than 1 W
Screen size 31.5 21.6
(inches measured diagonally) (32 class) (22 class)
Display resolution 1,366 dots (horizontal) x 768 lines (vertical)
Speaker/Full range (2) (ram) 45 x 130 40 x 100
(incites) 1 13/I0 x 5 l/s 1 5Is x 4
Dimensions with stand (ram) 804 x 532 x 220 575 x 398 x 215
(incites) 313/4 x 21 x 83/t 223/t x 15 3/4x 81/2
without stand (ram) 804 x 497 x 96 575 x 361 x 88
(incites) 31 3/t x 195/s x 37/s 223/t x 141/4 x 31/2
wall-mount hole pattern (ram) 200 x 200 1O0 x 100
wall-mount sc_vw size (ram) M6 M4
(length: refer to diagram on page 43)
Mass with stand (kg) 1(}.8 6.6
(lb.) 23.8 14.6
without stand (kg) 9.1 5.7
(lb.) 20.1 12.6
Supplied accessories Remote control RM-YD{)35 (1)/Size AAA batteries (2)/Operating Instructions (1)/Quick Setup Guide
(1)/Warranty Card (l)/Sallzty and Regulatory Booklet (1)/Soflware License (1)/Stand installation
guide (1)/Table-Top Stand (1 set)/Screws (7)
Optional accessories Connecting cables /Support Belt Kit /Wall-Mount Bracket: SU-WL500, SU-WLI00
Optional accessories availability depends on its stock.
Design and specifications are subject to change without notice.
56
Index
(IR) Infrared Receiver 22
0-9 buttons 21
4:3 Default 31
A
Add Digital Channels 33
Advanced Settings 28
Alternate Audio 30
Analog Fine Tulle 33
AUDIO OUT jack, described 8
Auto Adjustment 32
Auto Program 1 7, 33
Auto Shut Off 41
Auto Wide 31
B
Backlight 27
Balance 29
Bass 29
BRAVIA Sync buttons 1 9
Brightness 27
C
CABLE/ANTENNA input,
described 7
CC button 19
CH +/ button 21,22
Change Password 34
Channel Block 34
CineMotion 27
Closed Captions (CC) 37
Color 27
Color Temperature 27
COMPONENT IN (1080p/1080i/
720p/480p/480i) 7
Country 34
D
DIGITAL AUDIO OUT
(OPTICAL) 7
Display Area 31
DISPLAY button 21
Downloadable U.S. Rating 34
E
English Rating 36
ENT button 21
Enter Password 34
Equalizer 29
External Input Block 34
F
Favorites 33
FAVORITES button 1 9
French Rating 36
H
HDMI IN jack, described 8
HDMI Settings 39
Horizontal Center 31, 32
Hue27
I
Idle TV Standby 41
Info Banner 38
Initial Setup 40
INPUT button 1 9, 22
Installing the TV on a wall 43
d
JUMP button 21
l
Label Channels 33
Label Video Inputs 38
Language 38
M
Meuu
Channel 33
Eco 41
Parental Lock 34
Screen 31
Setup 37
Sound 29
MENU button 20, 22
Movie Rating 35
MPEG Noise Reduction 27
MTS Audio 30
MUTING button 21
N
Noise Reduction 27
P
PC IN 8
PC Settiugs 32
Phase 32
Picture 27
Picture Adjustmeuts Lock 39
Picture Mode 97
Picture Off (]_) LED 92
Pitch 39
POWER (I1(_)) button 21
POWER (I) LED 22
POWER button 22
Power Saving 41
_'oduct Support 39
R
Rating 34
Reset 27, 29, 54
RETURN button 20
S
SCENE button 20
SERVICE ONLY 8
Sharpness27
Show/Hide Channels 33
Signal Type 33
Sleep Timer 38
Sound Mode 29
Speakers 22, 30
Standby ((_) LED 22
Steady Sound 29
Surround29
T
Timer (0._)) LED 22
TOOLS button 21
Treble 29
Troubleshooting51-54
TV Rating 35
U
U.S.A. Rating 36
Uurated 34
V
Vertical Center 31, 32
VIDEO/AUDIO (L/R) jacks,
described 7
Video/Component l Selection 38
Viewiug Blocked Programs 36
VOL +/ button 21,22
Volume Offset 29
W
WIDE button 21
Wide Mode 31,32
57
Be sure to register your TV.
United States http://productregistration.sony.com
Canada http://www.SonyStyle.ca/registration
SON 4-181-644-11(1)
LCD
Digital Color TV
Introducing Your New BRAVIA®
Getting Started
Operating the TV
Using Features
Using the Menus
Other Information
FSC
Sourcesmixtes
Groupe de prodults issu de for6ts
bien g6r6es, de sources contr616es
et de bois ou fibres recyd6s
Cert no, SCS*COC-O01395
www.fsc.org
© 1996 Forest Stewardship Council
http://www.sony.net/
© 2Ol o Sony Corporation Printed in U.S.A. IIIIIIIIIIII
4181644111
BRAVlA
Sony Customer Support
U.S.A.: www.sony.com/tvsupport
Canada: www.sony.ca/support
United States Canada
] .800.222.SONY ] .877.899.SONY
Please Do Not Return
the Product to the Store
Owner's Record
The model and serial numbers are located at the side and rear of
the TV. Record these nmnbers in the spaces provided below.
Reler to thenl whenever you call upon your Sony dealer
regarding this TV.
Model Name
Serial No,
CAUTION
To prevent electric shock and blade exposure, do )lot use
this polarized AC plug with an exteusion cord, receptacle or
other outlet unless the blades can be fully inserted,
[] Operate the TV only on 110-240 V AC,
[] Avoid operating the TV at temperatures below 41°F
(5 °C),
Licensing Information
Macintosh is a trademark nf Apple Inc., registered in the U.S. and
other countries.
HDMI. the HDMI logo and High-Definition Multimedia Interface
are trademarks nr registered trademarks nf HDMI Licensing, LLC.
Fergason Patent Properties, LLC:
U.S. Patent Nn. 5.717.422
U.S. Patent No. 6.816.141
Manufactm'ed under license from Dnlby Laboratories. Dolby, and
the double-D symbnl are trademarks of Dnlby Labnratnries.
Blu-ray Disc is a trademark.
"BRAV1A", BRAVIA, BRAVIA Sync, and [] are trademarks or
registered marks nf Snny Corporation.
"PlayStati(in" is a registered trademark and "PS3" is a trademark of
Snny Computer Entertaimnent Inc.
m DOLBY
D|G|TAL I
H B|
Your BRAV1A TV is ENERGY STAR _ qualiHed
in the "Home" mode. It meets strict energy
efficiency guidelines set by the U.S.
Environmental Protection Agency and
Department of Energy.
ENERGY STAR is a joint program of these
govermnent agencies, designed to promote energy
efficient prnducts and practices. Changes to certain leatures,
settings, and functionalities of this TV (i.e. Picture/Sound, Power
Savings) can increase or change the power consumption. Depending
upon such changed settings, the power consunlption may exceed the
limits required fnr the ENERGY STAR qualification in the "Home"
mode.
Cleaning
When cleaning, be sure to unplug the power cord to avoid any
chance of electric shock.
Wipe lhe LCD screen genlly wilh a soft cloth.
Stubborn stains may be removed with a cloth slighlly moistened
with a solution of mild soap and warm water.
If using a chemically prelreated cloth, please follow the
instruclion provided nn the package.
Never use slrong solvents such as a thinner, alcohol or benzine
for cleaning.
See lhe supplied Safety Booklet for additional informalion.
The 22 class has a 21.6 inch viewable image size and the 32 class has a 31.5 inch viewable image size (measured diagonally).
2
Contents
Introducing Your New BRA VIA ®
Welcome to the World of BRAVIA ® ........ 4
Experiencing Stunning HD with Your
BRAVIA ........................... 4
The Four Steps to a Stunning HD
Experience ......................... 5
TV Feature Highlights ................... 5
Getting Started
Setting Up Your TV ..................... 6
Locating Inputs and Outputs .............. 7
Connecting the TV ..................... 9
Connecting Other Equipment ............ 13
When Installing the TV Against a Wall or
Enclosed Area ..................... 14
Securing the TV ...................... 15
Running Initial Setup ................... 17
Operating the TV
Using the Remote Control ............... 18
Remote Control Button Description ....... 19
TV Controls and Indicators .............. 22
Using Features
BRAVIA ® Sync TM with Control for HDMI ...23
Favorites ............................ 24
Wide Mode .......................... 24
Wide Mode with PC ................... 25
Inputs .............................. 25
Using the Menus
Navigating through TV Menus ........... 26
Using the Picture Settings ............... 27
Using the Sound Settings ............... 29
Using the Screen Settings .............. 31
Using the Channel Settings ............. 33
Using the Parental Lock Settings ......... 34
Using the Setup Settings ............... 37
Using the Eco Settings ................. 41
Other Information
PC Input Signal Reference Chart for PC and
HDMI IN 1/2 ....................... 42
Using a Wall-Mount Bracket ............. 43
Installing the Wall-Mount Bracket ......... 43
Troubleshooting ...................... 51
Important Notices ..................... 55
Specifications ........................ 56
Index ............................... 57
Customer Support
United States
http://www.sony.com/tvsupport
Canada
http://www.sony.ca/support
On-line Registration
United States
http://productregistration.sony.com
Canada
http://www.SonyStyle.ca/registration
3
Introducing Your New BRAVIA ®
Welcome to the World of BRA VIA ®
Thank you for choosing this Sony BRAVIA® high-definition television. Use the
documentation listed below to get the most out of your TV.
Safety Booklet
Contains precautionary
measures to keep you and
your TV safe. Read this
information prior to setting up
your TV.
Operating Instructions
Provides the most detailed
information to operate your
TV.
Quick Setup Guide
Provides TV setup information with sample
connection diagrams.
Experiencing Stunning HD with Your BRAVIA
The quality of the image you see on your BRAVIA TV is only as good as the quality of the
signal it receives. To experience the stunning detail of your new BRAVlA TV, you need
access to HD programming. Your BRAVlA TV can receive and display HD programming
from:
Over-the-air broadcasting via HD-quality antenna
HD cable subscription
HD satellite subscription
Blu-ray Disc TM player or other HD compatible external equipment
Contact your cable, satellite or HD service provider for information on upgrading to HD
programming.
4
The Four Steps to a Stunning HD Experience
Set, Source, Sound, and Setup
Along with your BRAVIA TV set, a complete HD system requires a source of HD
programming, an HD sound system, and a proper connection setup. Refer to the Quick
Setup Guide, enclosed separately, for connecting optional equipment.
You can enjoy crisp, clear images, smooth
movement, and high-impact visuals from
1080 HD signals as shown here.
When you compare a high-definition signal
to a standard analog signal, you will notice
a big difference in picture quality. If black
bars appear as shown here, press WIDE
on the remote control to fill the screen.
TV Feature Highlights
Your BRAVIA comes with many convenient features, such as:
BRAVIA ®SynoTM: Allows your BRAVlA TV to communicate with other Sony
equipment supporting the Control for HDMI function (page 23).
Favorites: Your favorite channels and inputs are at your finger tips for easy
access (page 24).
Auto Wide Mode: Set your TV to automatically adjust the screen based on the
signal resolution (page 24).
Input Selection: Allows you to easily switch between the connected equipment
(page 25).
Scene Select: Allows you to easily adjust your TV to the most suitable picture
and sound settings based on the scenes for the best quality result for the
contents genre you are watching (page 20).
¢}
5
Getting Started
Setting Up Your TV
Your TV is packaged with a detached Table-Top Stand so you can mount your TV to a wall right
away. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You
will need a Phillips screwdriver and the supplied screws to complete the task. Look for the
attachment instructions provided with the TV.
Be sure to consider the following while setting up your TV:
• Disconnect all cables when carrying the TV.
Carry the TV with the adequate number of people; larger size TVs require two or more people.
• Correct hand placement while carrying the TV is very important for safety and to avoid
damage.
KDL-32BX300 KDL-22BX300
Ensure your TV has adequate ventilation, see page 14.
For best picture quality, do not expose the screen to direct illumination or sunlight.
Avoid installing the TV in a room with reflective wall and floor materials.
• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may
cause moisture condensation. This may cause the TV to show poor picture and/or poor color.
Should this occur, allow moisture to evaporate completely before powering the TV on.
6
Locating Inputs and Outputs
Rear Panel
if}
[] DIGITAL AUDIO Connects to the optical audio input of digital audio equipment that is PCM/Dolby*
OUT (OPTICAL) Digital compatible.
[] cABLE) RF inpui {hai connec{s {oyour CaNe or VHF/UHF an{ennal ........................................................
ANTENNA
[] COMPONENT Component video provides better picture quality than the composite video.
IN 2 Audio connection is required for the COMPONENT IN ports, connect audio (L/R).
(1080p/1080i/
720p1480p1480i)l
R-AUDIO-L
[] viDE0 iN/ Tbis inpui pori can be used asa composiie video inpui iViDE()i or asa componeni
COMPONENT video input (COMPONENT 1). For composite use, connect the yellow jack to Y for
IN 1 video and use audio L (mono) and R for audio signal. For component connection,
(1080p/1080i/ use Y, PB, PR for video signals and also connect the audio L (mono) and R for audio
720p/480p/480i)/signal.
This TV can auto detect and switch between the VIDEO and COMPONENT 1
R-AUDIO-L when VIDE() or COMPONENT 1 is connected.
(MONO) To set to auto detection, press MENU, then select the Setup settings. Select the
Video/Component 1 Selection option then set to Auto.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
(Cotzfitzued) 7
[] PC IN Connects to a personal computer's video and audio output connector. Can also be
(RGB/AUDIO) connected to other analog RGB equipment. See "PC Input Signal Reference Chart"
on page 42 for the signals that can be displayed.
For some Apple Macintosh computers, it may be necessary to use an adapter (not
supplied). If an adapter is used, connect the adapter to the computer before
connecting the HD 15-HD 15 cable.
You may need to adjust the TV settings or your PC's resolution and timing. See
page 12 for information on how to setup your PC to this TV.
[] HDMi iN{/2 HDMi iHighEDefiniiionMuiiimedia iniertacei provides an uncompressedl aii2....
digital audio/video interface between this TV and any HDMI-equipped audio/video
equipment, such as a set-top box, DVD player, and A/V receiver. HDMI supports
enhanced, or high-definition video, plus digital audio. Be sure to use only an HDMI
cable that bears the HDMI logo.
Use the HDMI IN 1 port when connecting DVI equipment. Use a DVI-to-HDMI
cable or adapter (not supplied). Equipment using a DVI connection also requires an
additional audio connection using an audio cable connected to AUDIO of PC IN.
[] AUDIO OUT Connects to the left and right audio input jacks of your analog audio equipment.
(FIX) R/L You can use these outputs to listen to your TV's audio through your stereo system.
[] SERVICE ONLY This port is to be used when service is required.
8
Connecting the TV
Cable System or VHF/UHF Antenna System
You can enjoy high-definition and standard-definition digital programming (if available in your
area) along with standard-definition analog programming.
This TV is capable of receiving unscrambled digital programming for both cable (QAM and
8VSB) and external VHF/UHF antenna (ATSC).
Cable or VHF/UHF (or VHF only)
75-ohm coaxial cable _ _ Rear of TV
CABLE/ANTENNA £b
o.
Cable System and VHF/UHF Antenna System
Use an optional A-B RF switch (not supplied) to switch between the cable and over-the-air antenna
programming, as indicated below.
A/B RF Switch
Cable __ _.
_ _J,__ _@ Rear of TV
Antenna _ _ LL_ CABLE/ANTEN NA
(Continued) 9
HD Cable Box/HD Satellite Box
You can enjoy high-definition programming by subscribing to a high-definition cable service or a
high-definition satellite service. For the best possible picture, make sure you connect this equipment
to your TV via the HDMI or component video (with audio) input located on the back of your TV.
Shown with HDMI Connection
Rear of TV
HDMI cable
CATV/Satellite antenna cable
R
HD cable box/
HD satellite box
;;;_ @
@
Shown with DVI Connection
Rear of TV
Audio cable %
(stereo mini plugs) t
HD cable box/
HD satellite box { I
DVI-to-HDMI cable
CATV/Satellite
antenna cable
]
10
Shown with Component Connection
Rear of TV HD cable box/
HD satellite box
CATV/Satellite antenna cable
AUDIO-R (red) =_ _
AUDIO-L (white)__
PR (red)_ /7
PB (blue)_ /I
Y (green)--|--,& _,
[
Component video cable
Audio cable
£b
{n
o.
(Cot_tit_uecl) 11
pC
Use the TV as a monitor for your PC by connecting an HD15-HD 15 cable connection as shown
below. This TV can also be connected to a PC with a DVI or HDMI output. (Refer to the separate
Quick Setup Guide.)
HD15-HD15 cable
(analog RGB)
Rear of TV
12
Connecting Other Equipment
CABLE/ANTENNA
VCR/Game
system/
Camcorder Digital recorder
£b
Digital audio Personal Audio Blu-ray
equipment computer system Disc Player/
(A/V Receiver/ "PS3"
Home Theater)
DVD
player
Digital
satellite
receiver
Digital
cable box Analog audio
equipment
(A/V Receiver/
HomeTheater)
13
When Installing the TV Against a Wall or Enclosed Area
Make sure that your TV has adequate ventilation. Allow enough space around the TV as shown
below. Avoid operating the TV at temperatures below 41 °F (5 °C).
Installed with stand
11 7/8 inches
(30 cm)
; _ 2 3/8 inches
_i oC_i?!...................,i :4 inches :/.......
Leave at least this much space around the set,
Installed on the wall
1_ _i r/ainchgs
.1 (socm)
I i4 inches
loom l .....
Leave at least
I_ _,_,_,this much space
i_4 (nghes(!o cm}i around the set.
Never install the TV set as follows:
Air circulation isblocked. Air circulation is blocked.
14
Securing the TV
//_ Sony strongly recommends taking measures to prevent the TV from toppling over.Unsecured TVs may topple and result in property damage, serious bodily injury or even
death.
Preventing the TV from Toppling
[] Secure the TV to a wall and/or stand.
[] Do not allow children to play or climb on furniture and TV sets.
[] Avoid placing or hanging items on the TV.
[] Never install the TV on:
slippery, unstable and/or uneven sudaces.
furniture that can easily be used as steps, such as a chest of drawers.
[] Install the TV where it cannot be pulled, pushed, or knocked over.
[] Route all AC power cords and connecting cables so that they are not accessible to curious children.
Recommended Measures to Secure the TV
Consider tile following measures when securing your TV to a TV stand (not supplied).
1Secure the stand for the TV.
Make sure the TV stand can adequately support the weight of the TV. Use two angle braces
(not supplied) to secure the stand.
For each angle brace use the appropriate hardware to:
Attach one side of the angle brace to the wall stud.
Attach the other side to the TV stand.
Angle braces
(not supplied)
Stand
(Continued) 15
2 Secure the TV to the stand.
Use the optional hardware listed below (not supplied):
M4 x 16 mm anchor bolt (screwed into the TV's Table-Top Stand).
A screw or similar (attach it to the TV stand).
• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no
excess slack in the rope or chain.
An alternative way to secure the TV is with an optional Sony Support Belt Kit.
r
3 Anchor the TV to the wall.
Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).
Securing the TV to the stand without securing the TV and the stand to the wall provides
minimum protection against the TV toppling over. For further protection, be sure to follow
the three measures recommended
J .... Wall-anchor
(not supplied)
16
Running Initial Setup
During initial setup, you will perform the following:
Set the language for the On Screen Display (OSD) text
Choose your viewing environment
Scan for digital and analog channels
Complete your cable connections before beginning the Initial Setup. Refer to the Quick Setup
Guide (supplied) for sample connection diagrams.
1Turn on the TV. The Initial Setup screen will
appear.
2Use the remote control buttons described below to
navigate through the Initial Setup.
if}
I11
o.
t/_/_,/, buttons:
Allow you to navigate and highlight options where applicable.
@button:
Allows you to select the highlighted option and advance to the next screen.
3Auto Program will scan for available channels from the signal source directly connected to
the TV's CABLE/ANTENNA input. Follow the help text provided on the screen to run the
Auto Program.
17
Operating the TV
Using the Remote Control
To Insert Batteries into the Remote Control
Insert two size AAA batteries (supplied) by matching 111and • on the batteries to the diagram
inside the battery compartment of the remote control.
Push to open
Guidelines to follow
\
• Point your remote control directly at the IR sensor
located on your TV.
• Make sure that no objects are blocking the path
between the remote control and the IR sensor on your
TV.
• Fluorescent lamps can interfere with your remote
control; try turning off the fluorescent lamps.
• If you are having problems with the remote control,
reinsert or replace your batteries and make sure that
they are correctly inserted.
18
Remote Control Button Description
[] INPUT Press to display the list of External Inputs and TV
mode. Press repeatedly to toggle through the inputs.
See page 25.
[] BRAVIA
Sync
These buttons are used to control the equipment
connected to the TV by using the Control for HDMI
function (not available on all Control for HDMI
equipment). Some other buttons on the remote control
may also operate BRAVIA ® Sync -rMequipment.
THEATER: Press to turn on and off the Theater
Mode. The picture settings will be set for a cinema-
like experience and the audio will be switched to the
audio output of the attached speakers of your BRAVIA
Sync audio system. Your BRAVIA Sync audio system
must be connected by an HDMI connection to your TV
(see page 23 for details).
<<I (fast reverse): Press to play a program in fast
rewind mode.
I_ PLAY: Press to play a program at a normal speed.
It_ (fast forward): Press to play a program in fast
forward mode.
SYNC MENU: Press to display the BRAVIA Sync
Menu and then select connected HDMI equipment
from HDMI Device Selection.
PREV: Press to rephty the current program from
the previous chapter mark (if any) or from the
beginning of the live TV cache.
STOP: Press to stop playback.
I_H NEXT: Press to advance forward to the next
chapter mark (if any) or to live TV when playing back
a recorded program.
[] CC Press to cycle through the available settings for
Closed Captions (CC) :On, Off, and On when
Muting.
[] FAVORITES Press once to display the stored Favorites list. You
can store up to 10 channels and/or external inputs in
your Favorites list.
_Q
".t
(Continued) 19
[] SCENE Optimizes picture and sound quality by selecting the
following items.
Cinema: Delivers picture and sound just like in a
theater.
Sports: Presents realistic pictures and sound just like
in a stadium.
Photo: Reproduces the texture and color of a printed
photo.
Music: Lets you experience dynamic and clear sound
just like at a concert.
Game: Broadens your game-playing experience with
superb picture and sound quality.
Graphics: Eases prolonged monitor viewing with
clearer detailed pictures.
General: No optimized picture and sound quality for
any scene.
Auto: Automatically optimizes picture and sound
quality according to the input source.
[] RETURN Press to go back to the previous screen or exit from the
screen when displaying menu items and settings.
[] MENU Press to display the menu with TV functions and
settings. See "Using the Menus" on page 26.
2O
[] 0-9 ENT Press 0-9 to select a channel. Press ENT to change
channels immediately.
[] Use with 0-9 and ENT to select digital channels.
For example, to enter 2.1, press _, , and
ENT.
[] VOL +/- Press to adjust the volume.
[] MUTING Press to mute the sound. Press again or press VOL +to
restore the sound.
[] POWER Press to turn on and off the TV.
i/c3
[] WIDE Press repeatedly to cycle through the available Wide
Mode settings. See page 24.
[] DISPLAY Press once to display the banner with channel/program
information you are watching. The banner will time
out in a few seconds or press again to exit.
[] t./,!,/<./,I_ Press t./!_/_,/,I_ to move focus/highlight. Press @ to
@ select/confirm an item.
[] TOOLS Press to display a list of convenient functions and
menu shortcuts. The TOOLS menu items vary based
on current input and content.
[] CH +/- Press to scan through channels. To scan quickly
through channels, press and hold down either CH +/-.
[] JUMP Press to jump back and forth between two channels
and external inputs. The TV alternates between the
current/last channel or external input selected.
_Q
21
TV Controls and Indicators
VOLUME
[] (IR) Infrared Receives IR signal from the remote control.
Receiver
[] _ (Picture Lights up in orange when the sleep timer is setl
Off)/Q Lights up in green when the Power Saving is set to Picture Off.
(Timer) LED
[] _ (Standby) Lights up in red when the TV isin standby mode .............................................................................................................................................................
LED
[] I(Power) LED Lights up in green when the TV is turned on ......................
[] POWER ...............................Press to turn on and off the TV.
[] - cHANNEL +Press to scan th;ugh channels2 To scan quickiy through channels, press and hold down
_- _ either CH -l+. In the menu screen, these buttons serve as up/down buttons.
[] -Press io adjust the voiulne_ In the menu screenl these buttons serve as ieft/right buttonsl
[] =_- Press to display the iist of externai inputsl Press repeatediy to toggle through the inputs
INPUT In the menu screen, this button serves as confirming the selection or setting.
[] MENU ...................................Press to display menu with TV flmctions and settings isee ::Using the Menns' on page 26) .........
[] Speakes ....................................Outputs audio signai ..........................................................................................................................................................................................................................................................................................................................................
22
Using Features
BRAVIA ®Sync TM with
Control for HDMI
With the Control for HDMI function,
BRAVIA Sync helps to communicate with
BRAVIA Sync-compatible equipment using
HDMI CEC (Consumer Electronics Control).
Use the following settings and tips to help
unify control of your connected equipment.
1Press MENU, then select the Setup
settings.
2Select the HDMI Settings, then highlight
Control for HDMI, and set to On.
Controlling BRAVIA Sync-Compatible
Equipment
To control the equipment by using the remote
control, press SYNC MENU and select the
desired equipment from [-IDMI Device
Selection.
BD/DVD Player
• Automatically turns the BRAVIA Sync-
compatible equipment on and switches the
input to that equipment when you select it
from the Sync Menu.
• Automatically turns the TV on and switches
the input to the connected equipment when
the equipment starts to play.
• Automatically turns the connected equipment
off when you switch the TV to standby mode.
AV Amplifier
• Automatically turns the connected AV
amplifier on and switches the sound output
from the TV speaker to the audio system
when you turn the TV on.
• Automatically switches the sound output to
the AV amplifier by turning the AV amplifier
on when the TV is turned on.
• Automatically turns the connected AV
amplifier off" when you switch the TV to
standby mode.
• Adjusts the volume (VOL +/-) and mutes the
sound (MUTING) of the connected AV
amplifier through the TV's remote control.
Video Camera
• Automatically turns the TV on and switches
the input to the connected video camera when
the connected video camera is turned on.
• Automatically turns the connected video
camera off when you switch the TV to
standby mode.
3"
t_
23
Favorites
Your favorite channels and external inputs can
be easily accessed by pressing the
FAVORITES button once they are added to
the list.
Cable 4 61 ABC
.... D D
D =B
D-,,.,
Adding to Favorites
While tuned to the channel you want to watch
or viewing connected equipment, press
FAVORITES to display the list. Highlight
Add to Favorites, then press @. Your newly
added item will be listed at the top of the list.
When you continue to add items beyond the
10th item, the item listed at the bottom of the
list will be automatically removed from the
list.
24
Wide Mode
The Wide Mode feature allows you to select
the screen display of your preference. Based
on the original signal source, you may see
black bars around the picture or just on the
both sides of the screen. Sometimes you will
see the picture fill the full screen. This is due to
the signals your TV receives.
You can manually select available Wide
Mode settings as you watch your TV by
pressing the WIDE button on your remote
control or you can set your TV to Auto Wide.
To set Auto Wide
Press MENU, then select the Screen settings.
Select Auto Wide and set to On.
To change the Wide Screen Mode
Press WIDE repeatedly to cycle through the
available modes.
Standard- High-definition source
Zoom Zoom N
Normal is available with 480i or 480p sources
only.
definition source
!, !,
Wide Zoom Wide Zoom K
Normal Normal
This mode is not available.
Full Full
Wide Mode with PC
Wide Mode is also available for the PC
settings. When a PC is connected to the TV
and PC input is selected, you can change the
PC Screen settings.
To change the Wide Screen Mode for
PC Timing
Press WIDE repeatedly to cycle through the
available modes while in the PC input mode.
800 x 600
!1,
Normal
Full 1
Full 2
Inputs
Press INPUT to display the Input menu and
toggle through the external inputs to select
your video signal for viewing including the TV
mode. The inputs list consists of TV mode and
other equipment connected to the TV.
You can label your external inputs to identify
them easily.
To Label an Input
1Press MENU, then select the Setup
settings. Select the Label Video Inputs
option. Press 4,/!!, to highlight the video
input (HDMI 1-2, Video, Component
1-2, PC) to which you want to assign a
label; press @ to select the input of your
choice.
2Press tiq!!,to highlight one of the
displayed labels that corresponds to your
connected equipment, then press @.
3If you have an open input where no
equipment is connected, you can label it as
Skip. When you assign Skip, your TV
will skip over this input when you press
the INPUT button. The Skip labeled input
is grayed out in the input list.
3"
25
Using the Menus
The MENU button allows you to access a variety of TV settings.
Navigating through TV Menus
1Press _'_ on the remote control to display the menu
options.
2Press ti_/!!,/_,/* to navigate on the menu or adjust the
settings.
3Press @ to select or confirm.
4Press _--M_ to exit.
The following icons contain all of the necessary configurations to customize your TV settings.
The options you can select may vary. Unavailable options are grayed out or not displayed.
[] Picture: adjust the picture on your TV to fit your viewing preference.
=I_) Sound: customize your sound settings to suit your audio preference. You can also change
the settings to output the sound to your connected audio equipment.
[] Screen: adjust the size and shape of the images you see on the screen.
1_" Channel: navigate your favorite channels and inputs and select the signal type, as well as
autoprogram channels. You can also customize the channels you see and the labels assigned
to them.
Parental Lock: set the password and limit access to programming based on rating levels.
You can also block channels and inputs.
1_ Setup: modify and customize a variety of general setting options.
_,/ Eco: changes the settings related to power consumption.
26
Using the Picture Settings
Picture Mode Displays the options selected in the Scene Select settings (see page 20). When
Customized picture Scene Select is set to General, the options below can be selected.
viewil*g Vivid Select for enhanced picture contrast and sharpness.
Standard Select for standard picture settings. Recolmnended for home
entertainment.
Custom Select to store your preferred settings.
Reset Resets the current Picture settings to their defaults, except Picture Mode.
Backlight Adjust to brighten or darken the backlight.
Picture Adjust to increase or decrease picture contrast.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Color Cool Select to give the white colors a bluish tint.
Temperature Neutral ...............................Select to give the white c0]0rs a neutral tint. ............................................................................................................
White (ldjtIS[ITICll[ Warm 1/............. Select to give the whhe cok, rs a reddish tintl Warm2 gives a redder
Warm 2 tint than Warm 1.
Sharpness .................................Adjust to Sharpen or soften the picture. .............................................................................................................................................................................................................
Noise Reduction Select to reduce the picture noise leVel. Select from Auto, High;Medium, Low and ......_"
off. ._
MPEG Noise Select to reduce the picture noise in MPEG-compressed videos. This is effective when
Reduction viewing a DVD or digital broadcast. Select from High, Medium, Low and Off.
cineMotion ...... Provides improved picture movement and reduces picture biur and graininess for fiim_.... :_
based content. Select Auto to represent original film-based content as is or select Off to
disable this function.
(Continued) 27
Advanced Reset Resets the advanced settings to the default values.
Settings Adv. Contrast Automatically adjusts baCkiight and contrast to the most suitabie
Enhancer settings judging from the brightness of the screen. This setting is
especially effective for dark scenes, and will increase the contrast
distinction of the darker picture scenes. Select from High, Medium,
Low and Off.
Black Enhances black areas of the picture for stronger contrast. Select from
Corrector High, Medium, Low and Off.
Gamma Adjusts the balance between bright and dark areas of the picture.
Clear White Emphasizes white colors. Select from High, Low and Off.
Live Color Makes colors more vivid. Select from High, Medium, Low and
Off.
White Balance Adjusts the color temperature in detail.
28
Using the Sound Settings
Sound Mode Sets a sound mode. Sound Mode includes options best suited for video. The available
Customiz, ed options depend on the scene select settings.
soumt listening Dynamic Enhances treble and bass.
Standard Standard sound optimized for home use.
Clear Voice Suitable for spoken dialog.
Custom Select to store your preferred settings.
Reset Resets the current Sound Mode settings to the default values.
Treble Adjust to increase or decrease higher-pitched sounds.
Bass Adjust to increase or decrease lower-pitched sounds.
Equalizer Adjust allows you to select your frequency response curve. Select Reset to reset the
Equalizer settings to the default values. (Available when Sound Mode is set to
Custom.)
Balance .............................................Adjusi io emphasize ieft or righi spewer baiancel ........................................................................................................................................................
Surround Allows you to select the suitable surround effects depending on the genre of TV
program (movie, sport, music, etc.) or video game. The available options depend on the
scene select setting.
On/Off Select Onio optimize the sound quality to enjoy the effects of the _"
Surround option and to create a virtual surround sound using the 2ch _.
speaker.
Cinema/Off ProvidEs surround effects just iike the high-grade audio systems
......................... found in movie theaters. ..................................
Music/Off Provides surround effects that make you feel like you are surrounded
by sound as in a music hall.
Sporis/6ff Provides surroundeffecis ihai make youfeel like you are watching a
live sports contest.
Game/Off Provides surround effects that enhance game sound.
Volume Offset Adjust the volume level of the current input relative to other inputs.
Steady Sound Select On to stabilize the volume across all programs and commercials.
Select Off to disable this function.
(Continued) 29
MTS Audio Stereo Select for stereo reception when viewing a program broadcast in
Erz)o 3, stereo, stereo.
bilingual and mono Auto SAP Select to automatically switch the TV to second audio programs
programs when a signal is received. If no SAP signal is present, the TV
remains in Stereo mode.
Mono Select for mono reception. Use to reduce noise during weak stereo
broadcasts.
Alternate Audio Select among the available options to switch among the alternate audio streams. The
Digital channels only program you are tuned to may be broadcast in a different language in the alternate
audio streams.
Speakers TV Speakers Select to use the TV speakers.
Audio System Select to use an external audio system for the TV sound. By
selecting this option you are disabling the TV speakers.
30
Using the Screen Settings
Wide Mode Wide Zoom Fills the screen with minimum distortion.
Normal Select to display 4:3 picture in original size when the original source is 4:3.
Full Select to enlarge the picture horizontally to till the screen when the
original source is 4:3 (Standard definition source). When the original
source is 16:9 (High-definition source), select this mode to display the
16:9 picture in its original size.
Zoom Select to enlarge the original picture without distorting the aspect ratio.
Auto Wide On Select On to automatically change Wide Mode setting based on the
content.
Off If frequent screen changes are disturbing to you, select Off. Choose one
of the Wide Mode options when this function is set to Off.
4:3 Default Wide Zoom Enlarges the 4:3 picture to fill the 16:9 screen, displaying as much of the
Select the dq!_tult original image as possible.
Screen Moda to use Normal Select to display the 4:3 picture in its original size.
,/br 4.'3 sources Full ............................................Select to eMarge the 4:3 picture horizontaiiy oniyl to fill the dispiay area. .........
Zoom seiectto;;iiarg;thgpi_iur;hor{zoiitaiiyaiidverticaiiyto a;iequal aspect
.....................................................ratio that fills the wide screen. ............................................. _"
Off Select to continue using the current Wide Mode setting when the _.
channel or input is changed.
Display Area +1 Displays pictures in their original size.
Normal Displays pictures in their recommended size.
-1 Enlarges the picture so that the edges are outside the visible display area.
Horizontal Allows you to move the position of the picture left and right. (Available in Wide Zoom
Center and Zoom.)
Vertical Center Allows you to move the position of the picture up and down. (Awulahle in Wide
Zoom and Zoom.)
(Comi,_ued) 31
PC Settings When a PC is connected to the TV and the PC input is selected, the PC settings screen
appears instead of the Screen settings.
Wide Mode Normal Select to display in the original image size.
Full 1 Select to enlarge the picture to fill the display area,
keeping its original aspect ratio.
Full 2 Select to enlarge the picture to fill the display area.
Auto Select to automatically adjust the display position and phase of the
Adjustment picture when the TV receives an input signal from the connected PC.
Note that Auto Adjustment may not work well with certain input
signals. In such cases, manually adjust the options below.
Phase Adjust alter Pitch to fine tune overall sharpness.
Pitch Adjust uneven sharpness on screen.
Horizontal Allows you to move the position of the picture left and right.
Center
Vertical Allows you to move the position of the picture up and down.
Center
32
Using the Channel Settings
Favorites Select favorite channels and external inputs (see page 24).
Signal Type Cable Select if you are receiving cable channels via Cable TV provider.
Antenna Select if you are using an antenna.
Auto Program Automatically sets up the channel list on the TV for all receivable channels.
1Select Auto Program.
2Select OK to start Auto Program.
Add Digital 1Select Add Digital Channels.
Channels 2Select OK to add digital channels.
Show/Hide Allows you to show or hide channels that appear when you use the CH +/- buttons.
Channels 1Press t'/,!, to scroll through the channels until you find the channel you want to
show or hide. Then press @ to select it.
2Press 4"/€ to determine if the channel will be shown or hidden. Then press @ to
................................ select it.
Label Channels Allows you to assign labels (such as station call letters) to channel numbers.
1Press _'1,!, to scroll through the channel numbers. Then press @ to select the 2
channel number that you want to assign a label.
2Press 4"/€ to scroll through the label characters (A-Z, 0-9, etc.). Press * to move
to the next character. Repeat the previous steps to add up to seven characters to the
label. When finished, press @.
Analog Fine Allows you to fine-tune the selected analog channel manually if you feel that a slight
Tune tuning adjustment may improve picture quality. Select Auto to adjust to the most
appropriate analog channel.
33
Using the Parental Lock Settings
Enter Password The Parental Lock settings allow you to set up the TV to block programs according to
their content and rating levels. Use 0-9 on the remote control to enter a four-digit
password. The first time you create a password, confirm the password by entering it again.
Change Password Select to change your password.
Country U.S.A. Select to use U.S.A. ratings (see page 35).
Canada Select to use Canadian ratings (see page 36).
Rating Off Turn Parental Lock off. No programs are blocked from viewing.
Child Maximum ratings permitted are:
U.S.: TV-Y, TV-G, G
Canada: C, G, TV-Y
Youth Maximum ratings permitted are:
U.S.: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Young Adult Maximum ratings permitted are:
U.S.: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
U.S.: See page 35 for details.
Canada: See page 36 for details.
Downloadable Off Turn Downloadable U.S. Rating off. No programs that contain
U.S. Rating downloadable ratings are blocked from viewing.
(Available only Custom Select to block programs based on downloadable ratings.
i, U.S.A. Clear All Select to clear the entire downloadable rating system.
W[leF( J(ldV(lll('ed
ratings' eMst)
Unrated Allow Allows programs and movies that are broadcasted without a rating.
(Available only Block Blocks all programs and movies that are broadcasted without a rating.
when Count O, is
set to U.S.A.)
Channel Block Allows you to block channels regardless of program ratings.
To View a Blocked Channel
Press ENT when tuned to the blocked channel then enter the password.
External Input Allows you to block external inputs regardless of program ratings.
Block To View a Blocked External input .......
Press ENT when tuned to the blocked input then enter the password.
34
US Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for the U.S., select U.S.A. in the Country setting (see page 34).
Movie Rating G All children and general audience.
PG Parental guidance suggested.
PG-13 Parental guidance for children under 13.
RRestricted viewing, parental guidance is suggested for children
under 17.
NC-17 and XNo one 17 or under allowed.
TV Rating Age-Based Ratings
Block programs' by TV-Y All children.
their rating, content TV-Y7 .......................................Directed to chii_en age 7 and oiderl...................................................................................................................................................................
or both TV-G.........................General audience. ............................................................................................................................................................................................................................................
TV-PG Parental guidance suggested.
TV-14 Parents strongly cautioned.
TV-MA Mature audience only.
c°ntent_Based Ratings ........................................................................................................................................................................
FV Fantasy violence.
D.....................................................Suggestive dialogue.
LStrong language. .............................................................................................................................................................._"
SSexual situations. _.
V..................................................................................................................................................................................................................................................................................................................................................................................................Violence.
I11
(Continued) 35
Canadian Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for Canada, select Canada in the Country setting (see page 34).
English Rating C All children.
C8+ Children 8 years and older.
GGeneral programming.
PG Parental guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See "US Models" on page 35 for details.
Viewing Blocked Programs
You can view blocked programs by entering your password. Press ENT when tuned to a blocked
program, then enter the password. This temporarily deactivates the parental control feature. To
reactivate the Parental Lock settings, turn oft"the TV. When the TV is turned on again, your
Parental Lock settings are reactivated.
36
Using the Setup Settings
Closed Allows you to select from several closed caption modes (for programs that are broadcast
Captions with closed captioning).
(CC) cC Display on ............................Closed Captions (Cc) is turned on. ..............................
Off Closed Captions (CC) is turned off.
On when Closed Captions (CC) is turned on when the TV is
Muting muted.
Analog CC Allows you to select basic analog (EIA-608) closed caption options.
CCl, CC2, Displays a printed version of the dialogue or sound effects
CC3, CC4 of a program. (Should be set to CC1 tbr most programs.)
Text1, Text2, Displays network/station information presented using
Text3, Text4 either half or the whole screen (if available).
Digital CC When the digital closed caption service is available, select from the
Service 1-6 or CC1-4.
Digital CC Allows you to make additional settings for digital closed caption
Options options. Select As Broadcast or Custom. The Custom option is
awtilable on the Digital CC setting.
Custom Allows you to customize the following settings:
Character Small, Standard, Large
Size
character ..................Style i27 ................................................................................................_"
Style .................................. ._.
Character Color 1-8
Color
Character Solid, Translucent :_
Opacity
Edge Type None, Raised, Depressed, Outline,
Left Shadow, Right Shadow
Edge Color Color 1-8
Background Color 1-8
Color
Background Solid, Translucent
Opacity
(Continued) 37
Sleep Timer Set the time in minutes (Off, 15, 30, 45, 60, 90, or 120) that you would like the TV to
remain on before shutting off automatically,
Language Select to display all on-screen settings in your language of choice: English, Espafiol,
Fran_ais.
Info Displays the information related to the input signal you are watching.
Banner Select Smallto display minimal channel and program title or select Large to display
detailed channel and program information along with the TV icon if you are viewing the
TV. This information will appear if it is available from the broadcaster.
Info Banner appears on the screen each time the channel and external inputs are changed
or when DISPLAY on the remote control is pressed.
Label Video Allows you to identity A/V equipment you connected to the TV, such as a VCR, DVD, etc.
Inputs For example, if you have a DVD player connected to the COMPONENT IN jack, you can
select the label DVD for the Component input. Then when you press INPUT to change
inputs, the video label you assigned to that input appears on screen.
1Press ll'/,!, to highlight the video input (HDMI 1-2, Video, Component 1-2, PC) to
which you want to assign a label, Then press @ to select the input,
..... 2Press ilq!l" to highlight one of the displayed labels. Then press @ to select the label.
Video/ Select Auto to have the TV detect and switch between the Video or Component 1 when
Component 1 Video or Component I is connected.
Selection
38
HDMI Settings Communicates with equipment compatible with the Control for HDMI function.
Control for HDMI Links the operations of the TV and the equipment.
For specific Sony equipment compatible with Control for HDMI, this
setting is applied automatically to the connected equipment when set to
On.
Device Auto Select On to have your connected equipment with Control for HDMI
Power Off function to powering off automatically when the TV is turned off.
Select Off to disable this function. This feature is available when
Control for HDMI is On.
TV Auto Power Select On to control your TV's power on from your connected
On equipment with Control for HDMI function. Select Off to disable this
function. This feature is available when Control for HDMI is On.
Device List Displays a list of equipment with Controlfor HDMI function
connected to the TV.
Device Control Select button functions of the TV's remote control to operate the
Keys connected equipment.
None For basic operations, such as navigation buttons (up,
down, left or right, etc).
Tuning Keys For basic operations and operation of channel-related
buttons, such as CH +/- or 0-9, etc. Useful when you t_"
control a tuner or set-top box, etc; via the remote _.
control.
Menu Keys For basic operations and operation of the
MENU/TOOLS buttons. Useful when you select menus :=
of a BD player, etc; via the remote control.
Tuning and For basic operations and operation of channel-related
Menu Keys buttons and MENU/TOOLS buttons.
• Press TOOLS while the equipment supporting Control for HDMI is connected to display
the Device Control options. The Device Control option provides access to the Menu,
Options and Content List of your connected equipment with your TV remote control.
• Some equipment with Control for HDMI does not support the Device Control feature.
HDMI Settings must be setup on the connected equipment.
Piciure Seiect Lock so no adjustment can be made to items grayed outl
Adjustments Select Unlock to allow adjustment to any of the Picture settings.
Lock
Product Contact Sony Sony contact information is available on this screen for your
Support convenience. TV specific information such as Model Name, Serial
Number, Software Version and downloadable ratings (if available from
the TV) are displayed here.
Signal Press to display the diagnostics information for the current signal.
Diagnostics
(Comi,_ued) 39
Initial Setup If you missed the Initial Setup when you first connected the TV or if you want to scan all
receivable channels, select Initial Setup. Follow the instructions on the screen. Some
settings such as Picture, Sound, and Parental Lock will not be affected by this Initial
Setup. If you wish to return your TV to factory settings, please see the Troubleshooting
section on page 54.
40
k_,_ Using the Eco Settings
Power Saving Select from Off, Low, High, Picture Off to adjust your TV's power consumption. By
selecting the High option, you will reduce the power consumption more than the other
available settings.
While Picture Off is set, pressing VOL +/- or MUTING buttons will not disable this
function. Press other buttons to disable it.
Idle TV Select to automatically power off the TV after I h, 2h, or 4h when no buttons are pressed on
Standby the remote control or the TV. Select Off to disable this function.
Auio automaticaiiypowerofftheW_whenno inputsignaiisdetectedfora certain
period of time. Select Off to disable this function.
2
g)
41
Other Information
PC Input Signal Reference Chart for PC and HDMI IN 1/2
After connecting the PC to the TV, set the output signal from the PC according to the chart below.
VGA 641) x 480 31.5 61) VGA
SVGA 81)I) x 600 37.9 61) VESA Guidelines
XGA 1,024 x 768 48.4 60 VESA Guidelines
WXGA 1,281) x 768 47.4 61) VESA
1,281) x 768 47.8 60 VESA
1,360 x 768 47.7 60 VESA
42
Using a Wall-Mount Bracket
Your TV can be mounted on a wail using a Wall-Mount Bracket (not supplied) out of the box as
packaged. Some larger size TV may require removing the Table-Top Stand; refer to the
instructions provided with the TV.
Prepare the TV for the Wall-Mount Bracket before making cable connections.
For product protection and safety reasons, Sony strongly recommends that you use the Wall-
Mount Bracket designed for your TV and the installation should be performed by a Sony
dealer or licensed contractor.
Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient
expertise is required in installing this TV, especially to determine the strength of the wall for
withstanding the TV's weight.
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the mounting
hooks to the TV set.
The supplied screws are designed so that they are 8 mm to 12 mm in length when measured from
the attaching surface of the mounting hook.
The diameter and length of the screws differ depending on the Wall-mount bracket model.
Use of screws other than those supplied with the bracket may result in internal damage to the TV
set or cause it to fall. etc.
8-1 mm
Screw (supplied with the Wall-Mount Bracket)
Mounting Hook
Hook attachment on rear of TV
Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to
attach the Table-Top Stand. Keep the screws away from small children.
B"
Installing the Wall-Mount Bracket
To Customers
Your TV can be wall-mounted using Wall Mount Bracket model SU-WL500 (for KDL-32BX300)
or SU-WL100 (for KDL-22BX300).
Please provide this installation information as well as the instruction supplied with
SU-WL500/SU-WL100 Wall-Mount Bracket to your installer.
To Sony Dealers and Licensed Contractors
To avoid injury and property damage, read these instructions carefully. Periodic inspection and
maintenance is highly recommended to ensure that TV is securely mounted.
(Comi,_ued) 43
CAUTION
Tile wall that tile TV will be installed on should be capable of supporting a weight of at least four
times that of the TV.
FOR SU-WL500
Step 1 : Checking the parts required for the installation
Open the Wall-Mount Bracket package and check the contents for all required parts along with the
Instructions.
Step 2: Deciding on the installation location
Decide where you want to install your TV. Refer to the TV installation dimensions table.
Refer to the Instructions for SU-WL500.
Dimension Table
®
®
Screen center point
[]
Unit: mm
inches)
KDL-32BX300
Figures in the
®
804
(31 3/4
above
l:onsi
®
49"7
(19 >/s
©
172
(6 7/s)
table may differ slightly depending on the installation.
t,/el:ah
TV
9.1 kg
120.1 lb.
x4
36.4}
(80.4 1
44
Step 3: Installing the Base Bracket on the wall
Refer to the Instructions for SU-WL500.
Step 4: Preparing the TV for wall mount installation
Follow the steps below to prepare for installing the TV.
Disconnect all the cables from the TV.
1
2Secure the Mounting Hook to the rear of the TV.
Determine the screw locations and secure the Mounting Hooks to the rear of the TV. Refer to
the "Screw and Hook Locations Diagram/Table" shown below.
10) Secure the Mounting Hooks to the rear of the TV using only the supplied screws
(M6 x 16).
O Be sure to tighten the screws with equal torque strength.
Square
hole
Screw
(M6 x 16)
Mounting Hook
Screw and Hook Locations Diagram/Table
Tab
Align the tab
on the rear of
the Mounting
Hook with the
[o square hole
on the rear of
the TV as
illustrated.
(Cot_tit_ued) 45
Screw location
When installing the Mounting Hooks on the TV.
d
e
J
fL_J
Hook location
When installing the TV onto Base Bracket.
3Adjust the angle of the Mounting Hook.
Refer to the Instructions for SU-WL500.
4 Remove the screws guided by the arrow marks _ of the TV.
Do not remove any other screws from the TV.
46
5Lift the TV off the Table-Top Stand. Make sure that you carry out this task with at least two or
three people (see page 6 for details).
Do not attempt to lift the TV by yourself.
Step 5: Installing the TV on the wall
Refer to the Instructions for SU-WL500.
When you put the TV back on the Table-Top Stand, reverse the above steps.
• When moving the TV, do not squeeze the bottom of the front panel too tight.
Remove the screws or install the Mounting Hook on a stable and level surface.
(Cotninued) 47
FOR SU-WL100
Step 1: Checking the parts required for the installation
Open the Wall-Mount Bracket package and check the contents for all required parts along with the
Instructions.
Step 2: Adjusting the position of the holders of the Base Plate
Refer to the Instructions for SU-WL100.
Step 3: Deciding on the installation location
Decide where you want to install your TV. Refer to the TV installation dimensions table.
Refer to the Instructions for SU-WL100.
Dimension Table
®
©1
O[]
Screen center point
Unit: mm TV;'
inches) Dt_N;
........ ®
KDL-22BX300 575
(22 3/4
Figures in the
|:onsi
®
361
(14 I/4
®
132.4
(5 I/4)
above table may differ slightly depending on the installation.
Nei:_h
TV
5.7 kg
12.6 lb
x4
22.8
(50.4 1
CAUTION
The wall that the TV will be installed on should be capable of supporting a weight of at least four
times that of the TV.
Step 4: Installing the Base Plate on the wall
Refer to the Instructions for SU-WL100.
48
Step 5: Preparing the TV for wall mount installation
Follow the steps below to prepare for installing the TV.
1Disconnect all the cables from the TV.
2Align the holes on the left Mounting Hook with the corresponding holes on the rear of the TV.
Secure them to the TV using two screws (supplied with SU-WL100).
Screw
_ (+PSW 4 x 12)
J Hook
Hook locations diagram
Install the TV onto the location "b" of the Base Plate.
C3
3Adjust the angle of the Mounting Hook.
Mounting Hook
49
4Align the holes on the right Mounting Hook with the corresponding holes on the rear of the
TV.
Secure them to the TV using two screws (supplied with SU-WL100).
Screw
(+PSW 4 x 12)
Mounting Hook
°°_ <
Step 6: Installing the TV on the Base Plate
Refer to the Instructions for SU-WL100.
1 Connect the cables to the corresponding inputs on the rear of the TV.
For details on the cable connection, see "Connecting Other Equipment" on page 13.
2 Install the TV onto the Base Plate.
5O
Troubleshooting
Many of the poor pictures and poor sound conditkms are related to improper connectkm of the cables; refer to
the Quick Setup Guide provided for connections.
If you have questions, service needs, or require technical assistance related to the use of your Sony TV even
after you read this operating instructions manual, contact the following:
For US Support:
http://www.sony.com/tvsupport or call 1-800-222-SONY (7669)
For Canadian Support:
http://www.sony.ca/support or call 1-877-899-SONY (7669)
Things to consider
Check the input selection by pressing the INPUT button. You may be watching the wrong input.
If you cannot hear sound from the TV, you may have accidentally pressed the MUTING button on your
remote control; press the MUTING button again or press VOL + to deactivate muting.
If the remote control is not functioning properly, the batteries may be installed incorrectly or may be low or
an object or light may be interfering with the remote control.
To reset the TV to factory default settings:
1Turn on the TV.
2Press and hold down the 4"button on the remote, press the POWER button on the TV set. (The TV
will turn itself off+ then back on again.)
3Release the 4" button when the TV is turn on.
IMPORTANT: The factory reset will clear all of your customized settings including the Parental Lock
setting.
When the Password is lost or cannot remember, enter the master password: 4357. This password clears your
previous password and allows you to enter a new password.
No picture
No picture • Check the Power Saving settings (see page 41 ).
Cannot receive any • Make sure the power cord is connected securely.
channels Turn on the power of the TV.
• Check cable/antenna connections.
• Make sure the Signal Type setting is correct for your TV signal source.
TV is locked to one channel • Perform Auto Program to add receivable channels that are not present
in the TV's memory (see pages 17 and 33).
Cannot receive or select • Perform Auto Program to add receivable channels that are not present
channels in the TV's memory (see pages 17 and 33).
• To receive or select cable channels, make sure that Signal Type in the
Channel settings is set to Cable (see page 33). To receive or select
UHF channels over an antenna, make sure Signal Type is set to
Antenna.
The TV turns off • Check it Sleep Timer is activated (see page 38).
automatically • Check Idle TV Standby in the Eco settings.
No picture from some video Check the connection between the optional video equipment and the TV.
sources • Press INPUT on the remote control (see page 25).
C3
(Co_Tti_Tued) 51
Poor picture
Picture quality not as good Picture quality depends on the signal content. See Quick Setup Guide
as viewed at the store (supplied) to display the best possible picture for that signal.
Broadcast HD formats have Content and signal quality are controlled by the signal provider. Many
poor quality HD channels and content are actually upscaled versions of standard-
definition broadcasts. The picture is affected by the quality of the signal
received, which varies between channel and program.
Double images or ghosts Check cable/antenna connections.
Check the antenna location and direction.
Only snow and noise appear Check if the antenna is broken or bent.
on the screen Check if the antenna has reached the end of its serviceable life. (3-5 years
in normal use, 1-2 years at the seaside.)
Dotted lines or stripes • Keep the TV away from noise sources such as cars, motorcycles, or hair-
dryers.
• If using 300 ohm twin lead, move the excess lead away from the TV or
try using 75-ohm coaxial cable instead.
No color /Dark picture /• Adjust the Picture Mode options in the Picture settings (see page 27).
Color is not correct /The If you set the Power Saving mode to Low or High, it will enhance the
picture is too bright black level.
Noisy picture Make sure that the antenna is connected using a 75-ohm coaxial cable
(not supplied).
Keep the antenna cable away from other connecting cords.
To avoid TV interference, make sure to use an undamaged antenna cable.
Blurry picture /Poor color Transporting the TV from a cold to a warm location or a sudden change
in room temperature may cause moisture condensation, resulting in a
blurry picture or poor color. Turn off your TV and wait a few hours
before powering on again.
No sound /Noisy sound
No sound but good picture Check the volume control.
• Press MUTING or VOL + so that "Muting" disappears from the screen (page
21).
• Set Speakers to TV Speakers in the Sound settings (see page 30). If
it is set to Audio System, sound is not output from the TV's speakers
regardless of the TV's volume control.
• When using HDMI input with Super Audio CD or DVD-Audio,
DIGITAL AUDIO OUT (OPTICAL) may not provide an audio signal.
When tuned to a digital channel with Alternate Audio, the broadcaster
may not be broadcasting your preferred Alternate Audio language.
Press TOOLS, highlight and select Alternate Audio, and change the
Alternate Audio language (see page 30).
Audio noise Make sure that the antenna is connected using a 75-ohm coaxial cable
(not supplied).
Keep the antenna cable away from other connecting cords.
To avoid TV interference, make sure to use an undamaged antenna cable.
No audio or low audio with Press THEATER for BRAVIA Sync activated Theater System (see page
Home Theater System 23).
• Set Speakers to Audio System in the Sound settings (see page 30).
No color /Irregular picture • Verify that the Video/Component 1 Selection (page 38) is set to the
current input type in use. We suggest leaving this setting to Auto.
52
BRAVIA Sync
Cannot find connected • Make sure that the Control for HDMI is set up on both the TV and the
BRAVIA Sync HDMI optional device compatible with BRAVIA Sync (see page 23).
device
Second A/V receiver is not Only one A/V receiver may be used with the BRAVIA Sync and
listed on the Device List Control for HDMI functions at one time (see page 39).
PC Input
No picture /No signal Confirm the PC is correctly connected to the TV with either the PC IN
(with an HDI5 cable) or with the HDMI IN.
Ensure the output signal from the PC is one of the formats listed on page
42.
• Turn the PC off. Confirm the PC connection and restart the PC. Plug-and-
play will auto-detect the TV and correctly set up PC timing.
• Verify the PC is not in standby or hibernation mode.
Poor Picture • Adjust the resolution (see page 42).
• Adjust Pitch and Phase.
General
TV screen feels warm • Due to the thin profile of this television, the heat generated by the LCD
panel backlight and supporting electronics will be more noticeable. This
is normal operation and not a cause for concern.
Wide Mode changes • The current Wide Mode setting is automatically replaced with the 4:3
automatically Default setting when you change the channel or video input, if 4:3
Default in the Screen settings is set to other than Off. If you want to
lock in Wide Mode selected with WIDE on the remote control, set 4:3
Default to Off in the Screen settings (see page 31).
Check the Auto Wide option in the Screen settings (see page 31).
Suddenly the picture gets The picture gets smaller during the commercials due to the method in
smaller which the provider broadcasts their content. When HD content channels
switch to SD content (commercials), the picture may be small with a
black border.
Auto Wide will not expand the picture during these content changes siuce the
content infonnation is regulated by the channel signal provider. You can
manually change the Wide Mode if you prefer (see page 24). This setting
will remain in effect until you chauge the chauuel or iuput or mauually chauge
the Wide Mode agaiu.
"Black box" on screen You have selected a text option and no text is available (see page 37). To
turn off this feature, set the CC Display option to Off. If you were
trying to select closed captioning, select CC1 instead of Text1-4.
C3
o_o
_Comit_uec5 53
Black bands appear at the • Some wide screen programs are filmed in aspect ratios that are greater
edges of the screen than 16:9 (this is especially common with theatrical releases). Your TV
will show these programs with black bands at the top and bottom of the
screen. For more details, check the documentation that came with your
DVD/Blu-ray (or contact your program provider).
• Programs in 4:3 aspect ratio will have bands on left and right sides of the
screen.
Programs broadcast in HD formats (720p and 1080i) with 4:3 content
will commonly have black bands on the left and right sides of the screen
which are added by the broadcaster (see image on left).
Auto Wide will not expand the picture when the black bands on the
sides of the screen are added by the broadcaster. You can manually
change the Wide Mode to Wide Zoom, or Zoom to fill the screen,
which will remain in affect until you change the channel or input or
manually change the Wide Mode again.
Certain programs on DVD • This is due to the digital compression of the source content used by
or other digital sources certain digital broadcasts and DVDs which may cause your TV's screen
display a loss of detail, to display less detail than usual, or cause artifacts (small blocks or dots,
especially during fast- pixelations) to appear on your screen. These signal compressions are
motion or dark scenes more visible and are dependent on the clarity and resolution of the TV.
Remote control does not To determine if the problem is with the remote control or not, press a
operate button on the TV.
• Check the polarity of the batteries or replace the batteries.
• Point the remote control at the remote control sensor located at the front of
the TV.
• Keep the remote control sensor area clear from obstacles.
Fluorescent lamps can interfere with your remote control operation; try
turning off the fluorescent lamps.
Some digital cable channels Certain cable companies have limitations on the broadcast of digital
are not being displayed cable channels. Check with your cable company for more information.
The digital cable channel may be set to Hidden in the Show/Hide
Channels setting (see page 33).
Lost password • Select the Password settings on the Parental Lock settings, then enter
the following master password: 4357. This password clears your previous
password and allows you to enter a new password (see page 34).
How to reset the TV to • Turn on the TV. While holding down 4"on the remote control, press
factory settings POWER on the TV. (The TV will turn itself off, then back on again.)
Release 4".
IMPORTANT: The reset will clear all of your customized settings
including the Parental Lock setting.
54
Important Notices
Declaration of Conformity
Trade Name: SONY
Model: KDL-32BX300/KDL-22BX300
Responsible Party: Sony Electronics [nc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Nuruber: 858-942-2230
This device coruplies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device ruay not cause han'uful interference, and (2)
this device must accept ally interference received,
including interference that ruay cause undesired
operation.
For customers in Canada
This Class B digital apparatus complies with Canadian
ICES-003.
FCC Related Information
This equipmeut has beeu tested aud fouud to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user ix encouraged to try to correct the interference by one
or more of the following measures:
[] Reorient or relocate the receiving antenna.
[] Increase the separation between the equipment and
receiver.
[] Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
[] Consult the dealer or an experienced radio/TV
technician for help.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment.
The shielded interface cable recommended in this manual
must be used with this equipment in order to comply with
the limits for a digital device pursuant to Subpart B of Part
15 of FCC Rules.
Compatible Wall-Mount Bracket Information
Use the following Sony Wall-Mount Bracket with your TV
model.
KDL-32BX300 KDL-22BX300
su-wt.soo su-wuoo
Use with other Wall-Mount Brackets may cause instability
and could result in property damages or injury.
Note
This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television ¢3
programming via subscription service to a cable service
provider. Availability of digital cable television
programming in your area depends on the type of _"
programming and signal provided by your cable service _'
provider. 2"
For Customers in the United States
The lamp in this product contains mercury.
Disposal of these materials may be regulated
due to environmental considerations. For
disposal or recycling information, please
contact your local authorities or the Electronic
Industries Alliance (www.eiae.org).
To Customers
Sufficieut expertise is required for TV installations. Be
sure to subcontract the installation to a Sony dealer or
licensed contractor and pay adequate attention to safety
during the installation.
55
Specifications
System
Television system NTSC: American TV standard
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does nol include CableCARD funclionality)
Channel coverage Analog terrestrial: 2 - 69 /Digital terrestrial: 2 - 69
Analog Cable: 1 - 135 /Digital Cable: 1 - 135
Panel system LCD (Liqnkl Crystal Display) Panel
Speaker nutput 10 W + 10 W (KDL-32BX301t) /5 W + 5 W (KDL-22BX301t)
Input/Output jacks
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO 1N VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative
AUDIO: 51)1)mVrms (Typical) /hnpedauce: 47 kilohms
COMPONENT 1N 1/2 YPBPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative /PB: 0.7 Vp-p, 75 ohms
PR: 0.7 Vp-p, 75 ohms /Signal formal: 480i, 480p, 720p, l(t8Iti, l{)8(tp
AUDIO: 5(t(t mVrms (Typical) /hnpedauce: 47 kilohms
HDMI 1N 1/2 HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p
Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits, Dolby Digital
PC Input (see page 42)
500 mVrms (typical)
PCM/Dnlby Digital optical signal
AUDIO OUT
DIGITAL AUDIO OUT
(OPTICAL)
PC 1N [)-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
See the PC Input Signal Reference Chart for PC and HDMI 1N 1/2 on page 42.
PC/HDMI 1N 1 AUDIO INPUT Stereo mini jack, 5(10 mVrms, (T>pical) /Impedance: 47 kilohms
}N KD{ ;I} @0 I
Power and others
110-240 V AC, 50/60 Hz (U.S.A. /Canada 1211V AC, 60 Hz)
Power requirement
Power consumption 135 W 63 W
in use
in standby less than 1 W
Screen size 31.5 21.6
(inches measured diagonally) (32 class) (22 class)
Display resolution 1,366 dots (horizontal) x 768 lines (vertical)
Speaker/Full range (2) (ram) 45 x 130 40 x 100
(incites) 1 13/I0 x 5 l/s 1 5Is x 4
Dimensions with stand (ram) 804 x 532 x 220 575 x 398 x 215
(incites) 313/4 x 21 x 83/t 223/t x 15 3/4x 81/2
without stand (ram) 804 x 497 x 96 575 x 361 x 88
(incites) 31 3/t x 195/s x 37/s 223/t x 141/4 x 31/2
wall-mount hole pattern (ram) 200 x 200 1O0 x 100
wall-mount sc_vw size (ram) M6 M4
(length: refer to diagram on page 43)
Mass with stand (kg) 1(}.8 6.6
(lb.) 23.8 14.6
without stand (kg) 9.1 5.7
(lb.) 20.1 12.6
Supplied accessories Remote control RM-YD{)35 (1)/Size AAA batteries (2)/Operating Instructions (1)/Quick Setup Guide
(1)/Warranty Card (l)/Sallzty and Regulatory Booklet (1)/Soflware License (1)/Stand installation
guide (1)/Table-Top Stand (1 set)/Screws (7)
Optional accessories Connecting cables /Support Belt Kit /Wall-Mount Bracket: SU-WL500, SU-WLI00
Optional accessories availability depends on its stock.
Design and specifications are subject to change without notice.
56
Index
(IR) Infrared Receiver 22
0-9 buttons 21
4:3 Default 31
A
Add Digital Channels 33
Advanced Settings 28
Alternate Audio 30
Analog Fine Tulle 33
AUDIO OUT jack, described 8
Auto Adjustment 32
Auto Program 1 7, 33
Auto Shut Off 41
Auto Wide 31
B
Backlight 27
Balance 29
Bass 29
BRAVIA Sync buttons 1 9
Brightness 27
C
CABLE/ANTENNA input,
described 7
CC button 19
CH +/ button 21,22
Change Password 34
Channel Block 34
CineMotion 27
Closed Captions (CC) 37
Color 27
Color Temperature 27
COMPONENT IN (1080p/1080i/
720p/480p/480i) 7
Country 34
D
DIGITAL AUDIO OUT
(OPTICAL) 7
Display Area 31
DISPLAY button 21
Downloadable U.S. Rating 34
E
English Rating 36
ENT button 21
Enter Password 34
Equalizer 29
External Input Block 34
F
Favorites 33
FAVORITES button 1 9
French Rating 36
H
HDMI IN jack, described 8
HDMI Settings 39
Horizontal Center 31, 32
Hue27
I
Idle TV Standby 41
Info Banner 38
Initial Setup 40
INPUT button 1 9, 22
Installing the TV on a wall 43
d
JUMP button 21
l
Label Channels 33
Label Video Inputs 38
Language 38
M
Meuu
Channel 33
Eco 41
Parental Lock 34
Screen 31
Setup 37
Sound 29
MENU button 20, 22
Movie Rating 35
MPEG Noise Reduction 27
MTS Audio 30
MUTING button 21
N
Noise Reduction 27
P
PC IN 8
PC Settiugs 32
Phase 32
Picture 27
Picture Adjustmeuts Lock 39
Picture Mode 97
Picture Off (]_) LED 92
Pitch 39
POWER (I1(_)) button 21
POWER (I) LED 22
POWER button 22
Power Saving 41
_'oduct Support 39
R
Rating 34
Reset 27, 29, 54
RETURN button 20
S
SCENE button 20
SERVICE ONLY 8
Sharpness27
Show/Hide Channels 33
Signal Type 33
Sleep Timer 38
Sound Mode 29
Speakers 22, 30
Standby ((_) LED 22
Steady Sound 29
Surround29
T
Timer (0._)) LED 22
TOOLS button 21
Treble 29
Troubleshooting51-54
TV Rating 35
U
U.S.A. Rating 36
Uurated 34
V
Vertical Center 31, 32
VIDEO/AUDIO (L/R) jacks,
described 7
Video/Component l Selection 38
Viewiug Blocked Programs 36
VOL +/ button 21,22
Volume Offset 29
W
WIDE button 21
Wide Mode 31,32
57

Navigation menu
