Operating Instructions

KDL-32L4000

KDL-37L4000

BRA

VIA

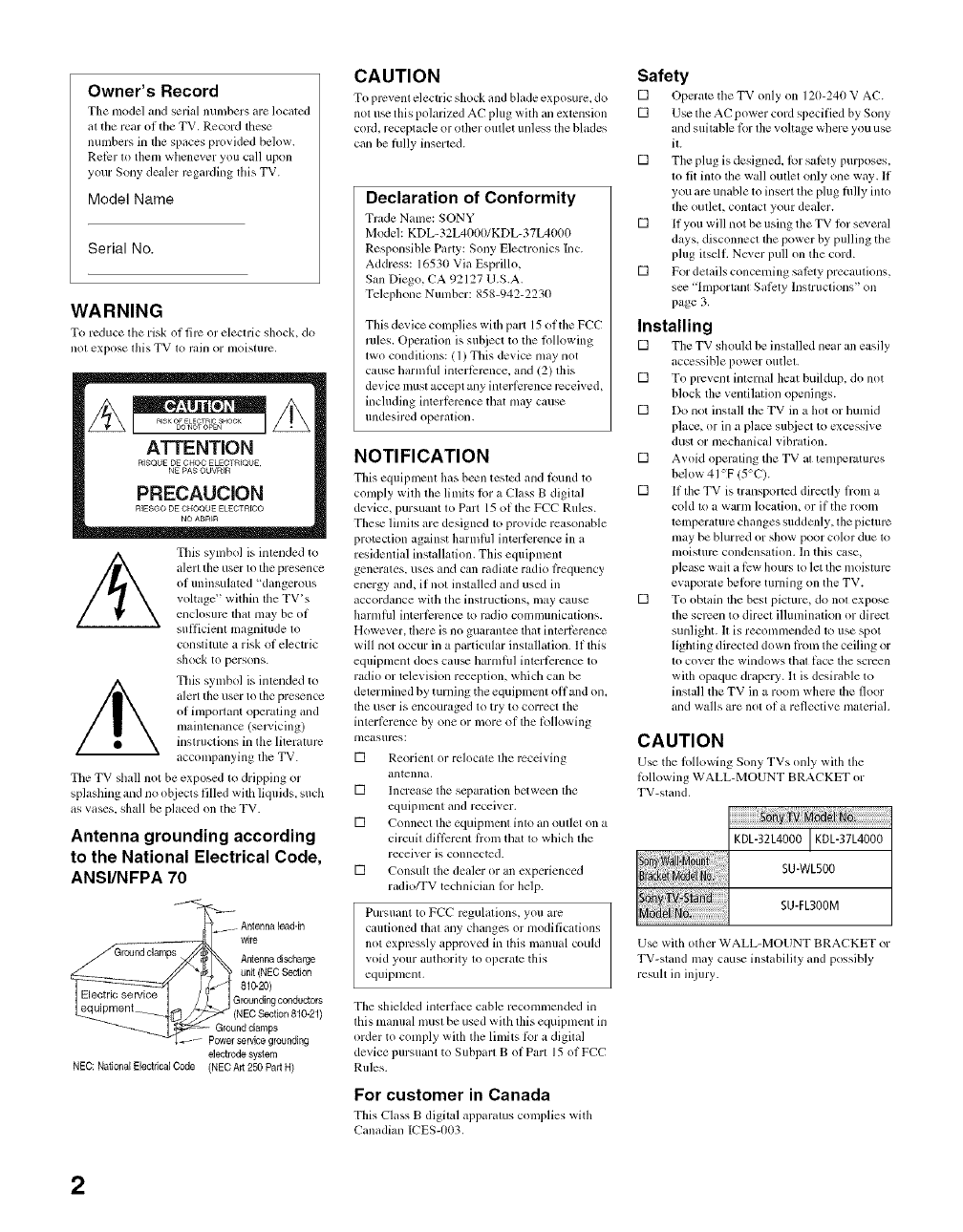

Owner's Record

Tile model and serM numbers are located

al tile rear of tile TV. Record these

numbers in the spaces provided below.

Rel;_r lit them whenever you call upon

your Sony dealer regarding riffs TV.

Model Name

Serial No.

WARNING

To reduce tile risk of tire or electric shock, do

no[ expose [his WV [_) rilill or nlois[urc,

This symbol is intended to

alerl tile user lit tile presence

of uninsulated 'dangerous

voltage" within the TV's

enclosure that may be of

sufficient magnitude lit

conslitute a risk of electric

shock to persons.

This symbol is inlended to

alert the user tit the presence

of imporlant operaling and

mainlenancc (selwicing)

inslrucflons in the literamrc

acconlpanying the TV.

The TV shall not be exposed lo dripping or

splasldng and no objects filled witll liquids, such

as vases, shall be placed on the TV.

Antenna grounding according

to the National Electrical Code,

ANSI/NFPA 70

...... Antennaleaddn

ps_ wire

///,,/Ground Ar_ennadisct_arge

clam

/_ _" *#4 _ unit(NECSection

GroondinrJconductors

_- Groundclamps

_=poGr°_ servicegrounding

electrodesystem

NEC:NationalElectdcNCode (NECArt250PadH)

CAUTION

TIt prevent electric shock and blade exposure, do

not u_ this polarized AC plug with an extension

cord. receptacle or olher oullet unless lhe blades

can be lhlly inserled.

Declaration of Conformity

Trade Nanle: SONY

Model: KDL- 32L4000/KDL- 37 L4000

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of tile FCC

rules. Operation is subject to tile lollowing

lwo condilions: (1) This device may not

cause harmhd interl;_rcncc, and 12) lhis

device must accept any interlcrcncc rcceived,

including interlcrcnce that may cause

undesired operation.

NOTIFICATION

This equipmcnl has been testcd mid lound to

comply wifll tile limits lor aClass B digital

device, pursuant to Part 15 of tile FCC Rules.

The_ limils are designed to provide reasonable

protccflon against harmfifi interlcrence in a

residential installation. This equipment

generates, uses and can radiate radio l?equency

energy and, if not installed and used ill

accordance with tile inslructions, may cause

harmfifl intcrlcrcnce to radio comumnicalions.

However, there is no guarant_ that inlerl_:rence

will not occur in a particular installation. If this

equipment does cau_ harmfld inlerl_:rcnce 1o

radio or television reception, which can be

delermined by turning the equipmcnl oH and on,

lhe user is encouraged lo try to correcl lhe

interl_:rence by one or more of lhe lbllowing

nleasurcs:

[] Reorient or relocale tile rcceiving

antenna,

[] Increase tile separation between lhe

equipment and recciver.

[] Connect tile equipment into an outlet on a

circuit dilli:rent l?om that to which the

receiver is connectcd.

[] Consult the dealer or an experienced

radio/TV technician Ior help.

Pursuant to FCC rcgulalions, you arc

cautioned lhal any changes or modifications

not expressly approved in this manual could

void your authorily lo operate this

equipment.

Tile shielded inlerli,ce cable recommended in

this manual must be used with this equipment in

order tit comply with the limits lbr a digital

device pursuant to Subparl B of Part 15 of FCC

Rules.

For customer in Canada

This Class B digilal apparalus conlplies with

Canadian ICES-003.

Safety

[] Operate tile TV only on 120-240 V AC.

[] Use tile AC pow'er cord specified by Sony

and suilable R)r lhe voltage where you use

[] The plug is designed. R)r salcly purposes.

to fit inlo the wall oullet only one way. If

you arc unable to insert tile plug fldly into

the outlet, contact your dealer.

[] If you will not be using tile TV ior scveral

days, disconnect tile power by pulling the

plug itself. Never pull on the cord.

[] For delails concerning salcly precautions,

s_ "Important Sali:ty Instructions" on

page 3.

Installing

[] Tile TV should be inslalled near an easily

accessible power outlel.

[] To prevent inlernal heat buildup, do not

block the ventilation openings.

[] Do not install tile TV in a hot or humid

place, or in a place sutliect to excessive

dust or mechanical vibration.

[] Avoid operaling tile TV al temperatures

bdow 41 °F (5°C).

[] If tile TV is transported directly hom a

cold to a W'glrnl location, or if tile rooln

lemperaturc changes suddenly, the piclurc

may be blurrcd or show poor color due 1o

nloisturc condensation. In this case,

please wait a lk:w hours to let the moislurc

evaporate belore turning on the TV.

[] To obtain lhe best picture, do nol expose

lhe scrcen to direcl illumination or direcl

sunlight. II is recommended to use spot

lighting directed down lion_ the ceiling or

lo cover lhe windows thal li*ce tile scl_-en

with opaque drapery. It is desirable to

inslall the TV in a roon_ where tile floor

and walls are nol of a reflective material.

CAUTION

Use tile lollow'ing Sony TVs only with tile

lbllowing WALL-MOUNT BRACKET or

TV-stand.

KDL-32L4000 KDL-37L4000

SU-WL500

SU-FLB00M

Use with other WALL-MOUNT BRACKET or

TV-stand may cau_ instability and possibly

result in injury.

To Customers

Sufl_cienlexpertise is required lbr installing thespecified TV. Be sure to

subconlractthe inslallafion titSony dealer or licen_d contractors andpay

adequale altention lit salcty during tile installation.

Note

This telcvision includes a QAMdelnodulator which shouhl allow you to

receiveunscrambled digital cable televisionprogramming viasubscription

sel_'iceto a cable service provider. Availability of digital cable television

programmingin your area depends on the type of programming and signal

provided by your cable selwiceprovider.

Trademark Information

Macintosllis a tradelnark ol Apple [nc., registered in tile U.S. and other

COIIntl'ieS.

HDMI. tile HDM[ logo and High-Definition Mtlllimedia lnlerl_tce are

trademarks or registered trademarks ol HDM[ Licensing LLC.

Manul_tctured under license holn Dolby Laboratories. "Dolby" and the

double-D symbol are trademarks of Dolby Laboratories.

Bhl-ray Disc is a tradenmrk.

"BRAVIA'. B R AVIA and [] are trademarks or registered tradenmrks ol

Sony Corporation.

_=l_l=RIfi'Ig'lf.']:l

1-4 IRFI|

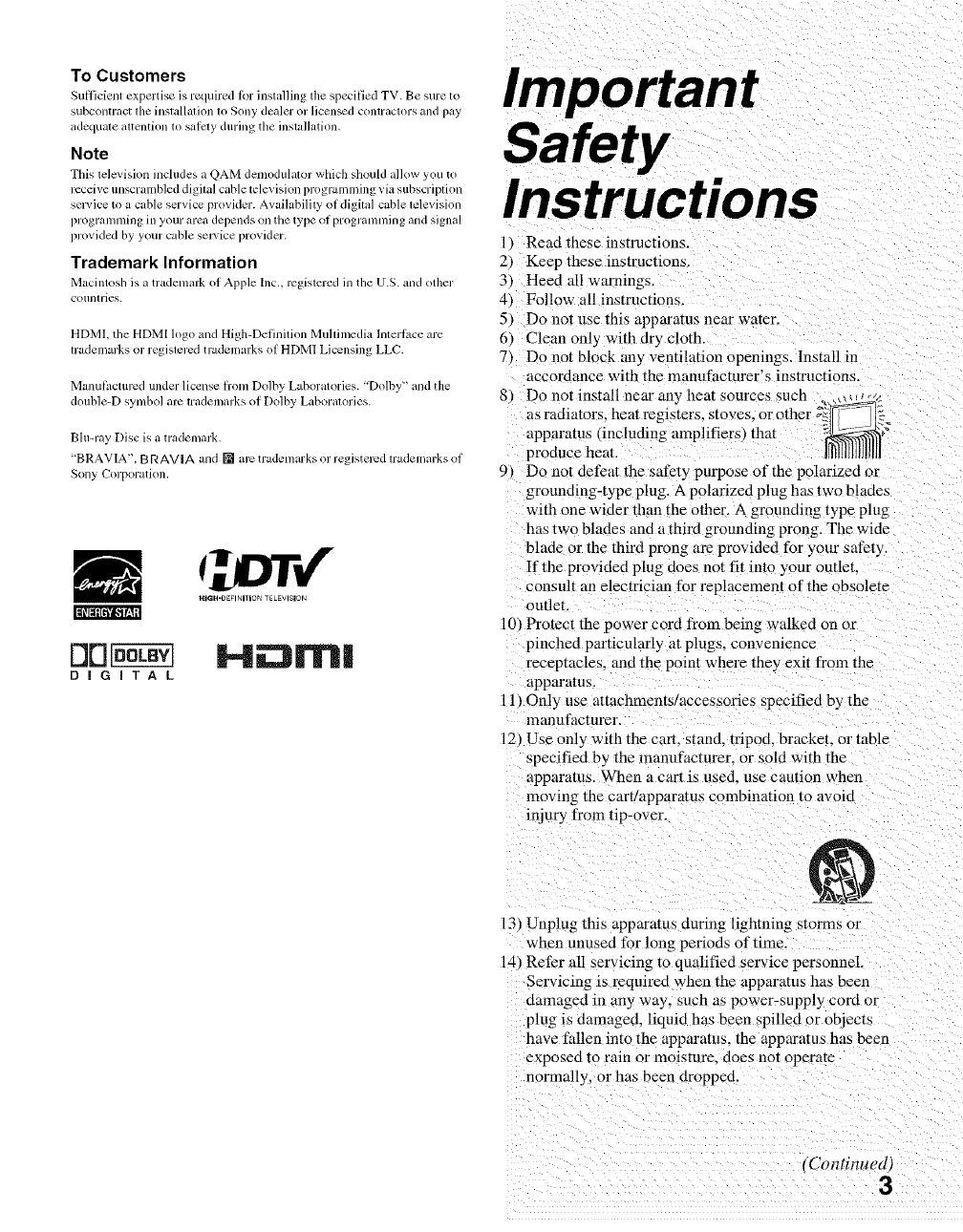

Important

Safety'

Instructions

1)Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4 t Follow" all instructions.

5} Do not use this apparatus near water.

6) Clean only with dry cloth.

% Do not block _my ventilation openings. Install in

accordance with the manufacturer's instructions.

81 Do not install near any heat sources such

as radiators, heat registers, stoves, or o

apparatus (including amplifiers) that

produce heat

9_ Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety.

If the provided plug does not fit into your outlet.

consult an electrician for replacement of the obsolete

OUllet.

101 Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11_ Only use attacNnents/accessones specified b 3 the

mmmfacturer.

12 ) Use onl_r with the cart. stand, tripod, bracket, or _able

specified by the manufacturer, or sold with the

apparatus. When a cart is used. use caution when

moving the cart!apparatus combination to avoid

injury from fip-over.

131 Unplug this apparatus during lightning storlns or

when unused for long periods of time.

14 _Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cora or

plug is damaged, liquid has been _pilled or objects

have fallen into the apparatus, the apparatus has been

exposed to ram or moisture, does not operate

normally, or has been dropped.

tContinued)3

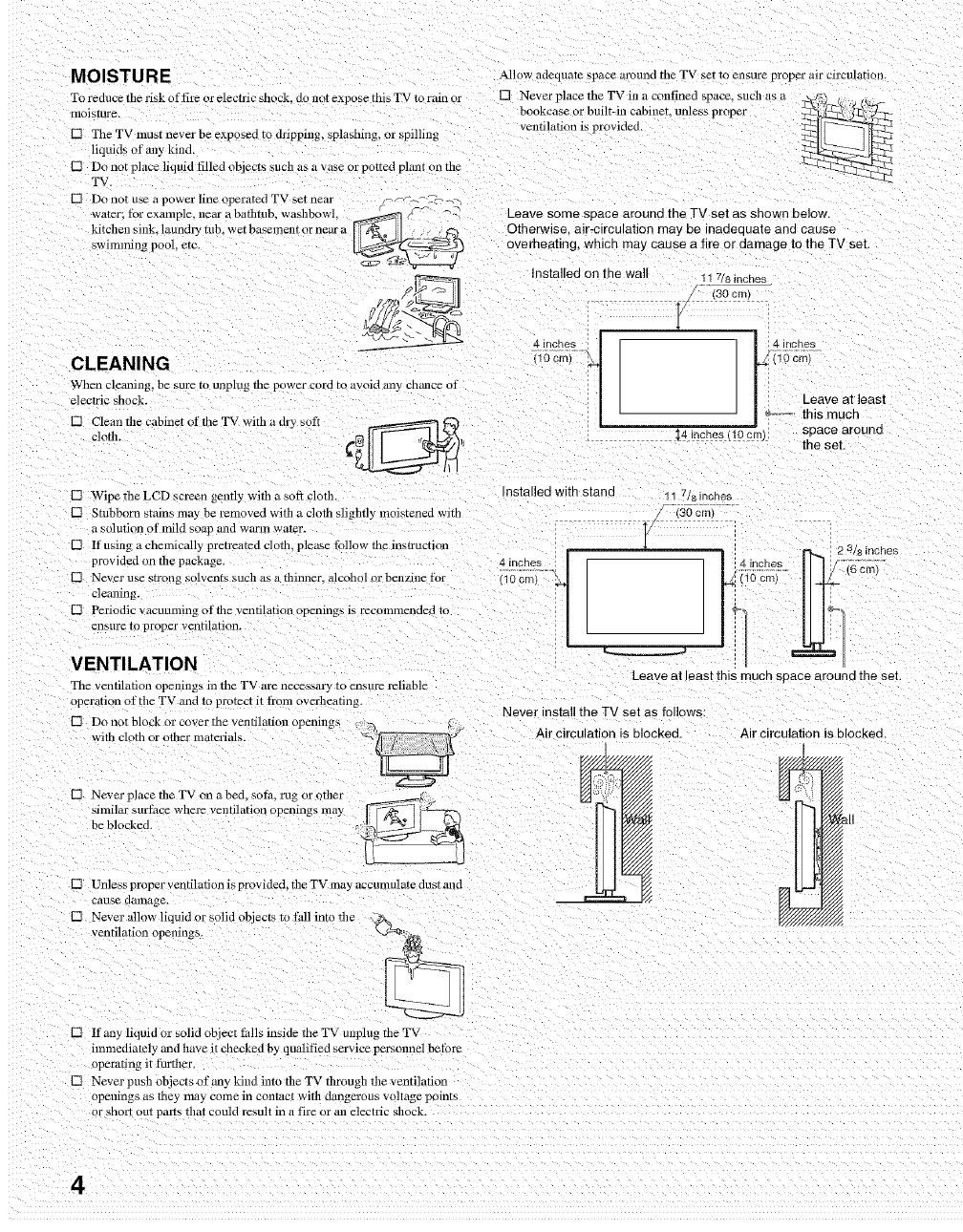

MOISTURE

To reduce rhe risk of fire or electric sl _ck.do not expose this TV to ram or

nloistare

[] The TV must aever be exposed to dripping, splashing, or spilling

liquids of an_ kind.

[] Do not place liquid filled ol_iects such as a vase or potted plant on the

[] Do not use a power line operated TV set near -_ _;.--'-;.-.

water; Ior example, near a bathtub, washbowl_ _ _ '- Leave some space around the TV set as sho_ nbelow.

kitchen sink, laund_Trub, wetb .......... t ......... IF%JI __'Q'iz. Otherwise air-circulation maybe,nadequateane cause

swimming pc _1.etc. _q_/3 ovemeating, which may cause a fire or damage to the TV set.

,a_-,v_..__ _ qstalled on the wall --7/8inches

CLEANING

When cleaning, be _ure to unplug rile power cord to a_oicl any chance of

electric shock.

[] Clean file cabinet of the TV with a dry s_fi

cloth.

[] Wipe tile LCD s.:r_en gently with a soft cloth

[] Stubborn stains may be removed with a cloth slightly moistened with

a solution of mild soat and warlIl water.

[] If using a chemically pretreated cloth, please tbllow the instruction

provided on the package. 4 mctles

[] Never use strong solvents such as a thinner, alcohol or benzine lbt

clemfing

[] Periodic vacuuming of rhe ventilation openings is recommended m

ensure lo proper ventilation.

VENTILATION

Tile ventilation (penings in tile TV are necessar 3 to ensure reliable

operation of the TV and to protect it fi'om overheating.

[] Do not block or cover tile ventilation openings

with cloth or other materials.

Allow adequate space around tile TV set to ensure proper air circulation.

[] Never place rile TV in a contined space, such as a

bookcase or built-in cabinet, unless proper

ventilation is provided.

(30 cm

¢mones

| Leave atleam

j=,. this much

space aroune

_4 inches (1Ohm) the set.

estalledwith stand _. 8 _cnes

(6 crrl)

10 cmt 10cm)

Leave at least this much space around the set.

Never install the TV set as follows:

Air circulation is blocked. Air circulation is blocked.

[] Nevm place tim TV on a bed. soth. rug or oflmr

similar surtbce where ventilation openings may

be blocked.

[] Unless proper ventilation is provide& the TV may accmnulate dust mid

cause damage.

[] Never allow liquid or solid objects to tall into the

ventilation openings. _

[] If any liquid or solid object falls inside the TV unplug the TV

immediately and have it checked W qualified service personnel betore

operating it further

[] Never push objects ofan_ kind into the TV through the ventilation

openings as they may come in contact with dangerous voltage points

or shorT out parts dmt could Jvsult in a fire or an electric shock.

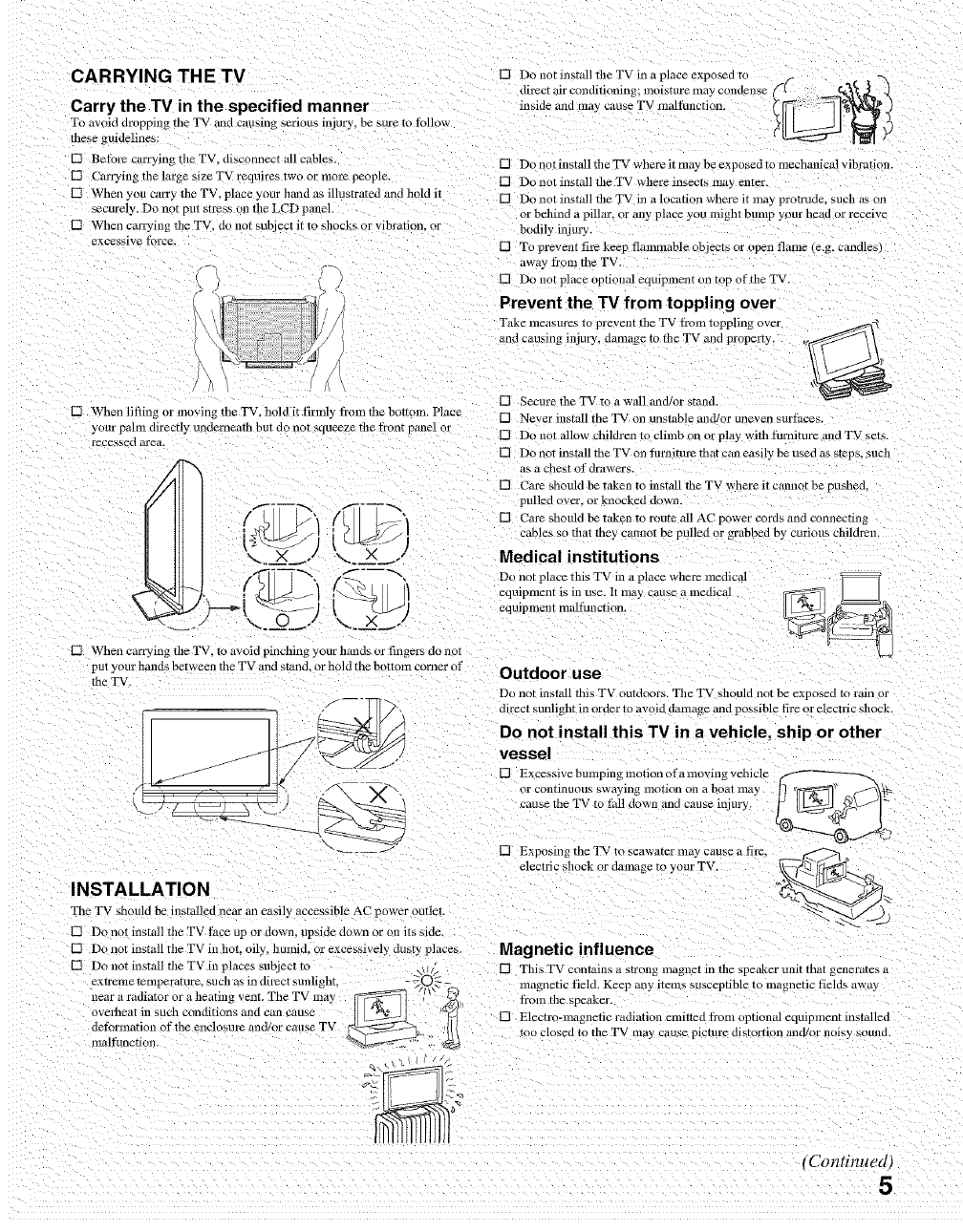

CARRYING THE TV

Carry the TV in the specified manner

To aw_id dropping the TV and causing serious injury= be sure to tallow

these guidelines:

[] Befor_ c_rryingtheTV, disconnect allcables.

[] Carrying the large size TV requires two or more people

[] When you carry the TV+ place your hand as illustrated and hold il

secLtrely. Do not pitt stress on the LCD panel.

[] When carrying the TV, do nor subject it to shocks or vibration, oi

excessive iorce.

\ '/

[] When litling or moving the TV. hold it firmly t?om the bottom. Place

your palm directly underneath but do nOT squeeze the trollt pallel or

recessed area.

II IIII

II NI I _----_" "-- _"

[] Wlmn carrying the TV. to avoid pinching your l]ands or hngers ao not

put your hands between the TV and stand, c)r hold file bottotn corner of

the TV,

INSTALLATION

Tile TV should be [nst_dled near an easil} accessible AC power outlet.

[] Do not install the TV face up or down, upside down or on its s[dc.

[] Do nm instan the TV in hot. oily, humid, or excessively dusty places.

[] Do not install file TV in places subject TO

exTrerne Temperature. such as in direct sunlight,

near a radiator or a heating vent. The TV may

overheat in such conditions alia can cause

detk_rmation of the

malfunction.

[] Do not install the TV in a place expomd to /_(,- _£

inside talc may cause TV malfunction. > :- ,_

[] Do not install tim TV where it may be exposed to mechanical vibration.

[] Do not install the TV where insects may enwr

[] Do not install file TV in a location where it may protrude, such as on

or behind a pillar, or any place you might bump your head or receive

bodily injury.

[] To prevent fir_ keep flammable objects or open flame (e.g. candles

away from the TV.

[] D( not place optional equipment on toF of tim TV.

Prevent the TV from toppling over

Take measures ic prevenr die TV t]_om toppling over

_lnd causing injury, damage to fhe TV and property.

[] Secure the TV m a wall and!or stand.

[] Never install the TV on unstable and/or uneven surthces.

[] Do not allow children to climb on or play with tklrniture and TV sets.

[] Do not install the TV on furnitme that can easily be used as steps, st _'h

as a chest of drawers.

[] Cm'e should be taken to install tim TV where it cmlnot be pushed,

pulled over. or knocked down.

[] Care should be taken m route all AC power cords and connecting

cables so thai they cannot be pulled or grabbed b) curious children.

Medical institutions

Do not place this TV in aplace wl ........ dical _] _

equipment is in use. It may cause a medical n_-_,-

equipment malfunction _ ___

Outdoor use

Do not install this TV outdoors. The TV should not be exposed roram or

direct sunlight in order to avoid damage and possible tire or electric shock.

Do not install this TV in a vehicle, ship or other

vessel

[] Excessivebmnpingmotionofamovingvehicle _'72

or continuous swaying lnotion on a boat ll/ay

cause the TV to fall down and cause injury.

[] Exposing the TV to seawater may cause a tire

electric shock or damage ro your TV. _-- ¢

Magnetic influence

[] This TV conkdns a stro]ig lnagnet in the speaker unit that gellerares a

magnetic field. Keep any kems susceptible to magnetic fields aw0y

tTom the speaker.

[] Electro-magnetic radiation emitted fl'om optionM equipment instMled

mo closed to the TV maly cause picture distortion and or nols? sound.

(Continued)

Wall-mount use [] Never .... dmnagedACp ...... M.A ._,

Wall-mount installation requires the use of V_- damaged AC F _wer cord cm_ cause a (AW#

D a Wall_Mount Bracket, When installing or __,_. _ _ short-circuit, whicll may result in ofi ..... __

remo, ing me TV and me Wail-Mount }_3_2_ -{1_ _ electric shock. _" p_

Bracket, be sure to use qualified ]_ '/_--_ _ _ 1_(

contractors, lfllOt properly ...... dduring_ <t a Donotu....I ,m.gedorpoorly, tting,,Cp....

installation or renloval fi*Ollltile outlet as your TV's powel source. -X=--'/ ,L----__

Wall-Mount Bracket. the TV may fi|ll and

cause serious inj ur._

[] Be sure to tbllow tim installation guide supplied with the Wall-Me unr

Bracket when installing the TV.

[] Be sure to attach the brackets witll the specified parts supplied with file

Wall-Mount Bracket.

[] Do not hang tile TV from the ceiling. It may fall mid cause serious

ml ury.

[] Do not hang anything on tim TV.

[] Do not allow children to climb on tile TV.

AC POWER CORD

[] Do not touch tile AC power cord and its plug

witll wet limed, it may cause electric shock.

[] lnsert tile plug fully into die outlet. If il is loose, it _""_ _

may cause arcing and result in a fire.

_[] Do not overload tile same AC power outlet. ,

Unplugging tile AC power cord fi'om the wM1 outlet will completely

remove power t?mn tim TV.

_,o [] During lightning storms or when

*/_ _ij tile TV is left unattended and

LL_f- _'_Y ........ I for extencled periods of z

t.l e,tlle Cp......rd sllould

)) _ ) be unplugged f)'Olll tile wall

_(_ / [ t _ .... tier. This will avoid possible

{__ damage to your TV. Also unplug

tile antenna to prevent damage ro

the TV

[] For energy conserw_tion and safety leasons, practice unplugging tile

AC power cord f?onl the AC power outlet

Clean the AC power plug

Unplug tile AC power plug and clean H

occasionally _o a

[] When disconnecting tile AC power cord, grasp

tile plug and disconnect from tile wall outlet

first. Do not pull b._ the cord.

[] Keep tile power cord away Ironl heat sources

A TV set witll a three-wire grounding type AC power cord plu_ must be

connected to an AC power outlet witll a protective eartldng o:mnection.

[] Do not convell or damage the AC power cord,

[] Consult your electrician to have tile outlet changed to suit your TV. damaged AC power cord should never be used.

ACCESSORIES

Subjecting the AC power cord ro wear andlor abuse can danlage the AC

power cord and your TV. Keep small accessories _ut of children's reach.

Use only tile specified accessories with tltis TV

[] Do not place the TV where tile power cord can be easily pinched, benl

twisted, or catch your lcel Volume Adjustment

7. rr" __- [] Wllen using headpllones, adjust the volume to

avoid excessive audio levels t}onl causm_

possible bearing loss.

[] Do not all ..... ytlting to rest ....... 11.... tl.... d BATTERIES

[] Before c_mnecting cables= be sure to unplug file AC power cord fix Your remote control batteries are consumables.

your safety. [] To preserve our envlronmenL dispose of used batteries according m

[] Do not move the TV witll tim AC power cot d (or otller cables such ns your local laws or lvgulations.

audio and video i cc nnected. [] Do not dispose of batteries in a fire.

[] Use only an original Sony AC power cord witll your TV; no brand [] Do not short-circuit, disassemble or overheat the batteries.

substitution i, allowed. [] Rcplaceonly witlltllesameor equivalenttypeofbattcries. Using

[] Do t)ot use AC _ower cord supplied with the TV witll any other incorrect replacement batteries can lead to an explosion

equlplneni,

LCD SCREEN Safety check

[] Although the LCD screen is made with high-precision technology and [] Upon completion of any TV servicing or

has elrEcEive pixels of 99.99_ or more. black dots or bright points of repair, ask the service technician to perf)rm

tight (red, blue, or green) may appear constmatly on the LCD screen, routine safety checks as specified by Sony

This is a structural property of the LCD panel mid is not a malthnction, and to certify that the TV is saf_ to operate. _x._ _._._-J_ _ I

..... qualified service technician dispose __

[] The LCD screen is made with high-precision technology mid to H...... ¢

achieve a high level of performance m_d pictur_ quality, dds TV's at the TV it it is not safe to operg,te. (_-"

backlight setdng is set to maximize the brightness of the TV. However. V"T-"

uneven brightness may be observed when the LCD TV is viewed in a

dark mnbient without ml input source or blank screen. This conditioll For customers in the United States

is normal and not a mMthnction of the TV. Chzmgmg the Picture mode.

Backlight setting, enabling the Light Sensor. ar turning on the Power Lamp in this product contains mercury. Disposal of

Mm_agement will improve this condition, these materials may be regulated due to

[] Toax :dddmnagingtheLCDpanel, donot expose the LCD screen *o environmental considerations. For disposal or

direct sunlight

[] Do not push or scratch the LCD screen, or place objects on top of me recycling information, please contact your local

PV. The images may be uneven or the LCD panel m_/y be dmnaged, authorities or the Electronics Industries Alliance

[] If the TV is used in a cold place, smear may occur in die picture or dm www.eiae.org).

picture may become dark. This does not indicate a fhilure. These

phenotnena improve as the teiilperalur_ rises,

[] Ghosting ma) occur when still pictures are displayed continuously. It

should disappear after a mw momenrs.

[] ghe LCD screen m_d enclosure get warm when the TV is in u_. This

iS ll*.)t a lnalfilnctioll.

[] Avoid spraying insect r_pellent with volatile materiM on the LCD

screen.

[] Avoid prolonged contact with rubber or plastic material to the LCD

screen.

Broken screen panel

Do not throw anything at the TV as the impacl can

cause tile LCD screen glass to crack, break or

_cal[er.

[] If damage occurs ro me LCD panel, small traces of liquid cryst_d

sandwiched between the glass ma 3 be found on scattered br{ ken gloat.

[] Do not touch the broken glass with bare hands. As with rely broken

glass pieces, avoid skin contract and exposure ro your eyes or lnou[n.

Avoid direct contact with liquid or damp sur fi_cesof tile glass as mese

nmy have an adverse effect on some people. Tile contacted area should

be rinsed thoroughl 3 with water. If conditions persisr, see your doctor.

[] If the surf_,ce of the TV cracks do not touch tile TV until you have

unplugged the AC power c{rd. Otherwise electric shock may result.

SERVICING

Do no1 use the TV if yOUsuspect tile TV i-

dnmaged or if the TV is damaged.

[] Do not attclnpt to service the TV yourself

sinceopenmg the cabinet may expose you

to dangerous voltage levels or other

hazards. Ret)r all ser_ icing Toqualified

service personnel.

[] If replacement parrs are required, acquire a

written certification fl'om the service

technician which stales that adequare _ _

replacement parts with the stone or similal

characteristics us tile original parts have been

used. Unauthorizvd substitutions may result in

a fire. ml electric shock or other hazards.

Welcome to the World of BRAVIA® ........................................................................... 10

Assembling the Table-Top Stand ................................................................................. 10

Connecting the TV ......................................................................................................... 12

Cable System or VHF/UH F Antenna System ............................................................ 12

Cable Box/Digital Cable Box ..................................................................................... 12

Cable System and VHF/UHF Antenna System ......................................................... 13

Satellite Receiver and Cable/Antenna ....................................................................... 13

VCR, Cable and Antenna .......................................................................................... 14

When Connecting to Optional Equipment ................................................................... 15

Securing the TV .............................................................................................................. 17

Preventing the TV from Toppling ............................................................................... 17

Use a Sony TV Stand ................................................................................................ 17

Recommended Measures to Secure the TV ............................................................. 17

Bundling the Connecting Cables ............................................................................... 19

Setting Up the Channel List -Initial Setup ................................................................... 20

Remote Control .............................................................................................................. 21

TV Controls ..................................................................................................................... 24

Overview of MENU ......................................................................................................... 25

Using the Picture Settings ............................................................................................ 25

Using the Sound Settings ............................................................................................. 26

Using the Screen Settings ............................................................................................. 27

Using the PC Settings ............................................................................................... 28

Using the Channel Settings .......................................................................................... 29

Using the Parental Lock Settings ................................................................................. 30

Using the Setup Settings ............................................................................................... 33

Troubleshooting ............................................................................................................. 35

Preparation for Wall Mounting ...................................................................................... 37

PC Input Signal Reference Chart .................................................................................. 38

Specifications ................................................................................................................. 39

Index ................................................................................................................................ 40

Welcome to the World of B RAM IA®

Thank you for purchasing this Sony LCD Digital Color Television. This

manual is for model KDL-32L40001KDL-37L4000. Be sure to check the

supplied accessories against the list on page 39.

Assembling the Table-Top Stand

Follow the assembling steps required to place on a TV stand.

1 Take out the Table-Top Stand and screws from the carton. The screws

are found in the accessory bag.

Accessory bag Screws

Table-Top Stand TV unit

2Place the Table-Top Stand onto a level and stable surface.

GettingStarted

3 Gently slide tile TV unit onto the neck of tile Table-Top Stand and align

the screws holes.

Rear ofTV

4 Use the supplied screws to attach the TV unit to the Table-Top Stand.

Screw

GettingStarted

Connecting the TV

To display clear crisp pictures, you must connect your TV correctly and select

the correct Wide Mode to display the picture in the correct aspect ratio (see

"Changing the Wide Screen Mode" on page 22). It is strongly recommended to

connect the antenna/cable input using the 75-ohm coaxial cable (not supplied)

to receive optimum picture quality signal. A 300-ohm twin lead cable can be

easily affected by radio noise and the like, resulting in signal deterioration. If

you use a 300-ohm twin lead cable, keep it as far away fiom the TV as

possible.

You can also connect a variety of optional equipment to your TV (see page 15).

For multiple equipment connections, please refer to the Quick Setup Guide.

Cable System or

VHF/UHF Antenna

System

Cable or VHF/UHF (or VHF only) Antenna

75-ohm coaxial cable

(not supplied) __ Rear of TV

CABLE/ANTENNA input

From Cable settings in Channel settings, select Cable On or Cable Off for

your type of input signal.

Cable Box/Digital

Cable Box

"_° To change channels using

the cable box, set your TV

to channel 3 or 4

depending on the cable

box channel output.

Auto Program will fix the

channel automatically.

Use this hookup if

[] You subscribe to a cable TV system that uses scrambled or encoded

signals requiring a cable box to view all channels, and

[] You do not intend to hook up any other audio or video equipment to

your TV.

75-ohm coaxial cable

Cable (not supplied)

IN _ OUT

jack l,ack

Also,setCabletoOn intheCablesettingsinChannelsettings(seepage

29).

Cable System and

VHF/UHF Antenna

System

A/B

RF Switch

Cable _

Antenna

Getting Started

If you want to watch both antenna (over-the-air) and cable broadcast signals,

you'll need to use an optional A-B RF switch (not supplied), as shown

below.

Rear of TV Use the A-B selector to switch between the

CABLE/ANTENNA over-the-air signals and the cable signals. Then

input set the Cable setting in the Channel settings to On

or Off, as described on page 29.

Satellite Receiver

and Cable/A ntenna

Rear of TV

SVIDEO .............._\ :_

V,DEO=:o !i

S VIDEO cable (yellow) ,@

._ --_/V ! AUDIO-L

ab,e white):i

AUDIO-R

(red)

_ _ _ _ CATV/Antennacable

(not supplied)

Satellite antenna cable

.............. i"

Satellite Receiver

GettingStarted

VCR, Cable and

Antenna

VCR_ _ o

AUDIOR AUDIOL VIDEO SVIDEO

LINE IN

S VIDEO cable

_able

L/ 'A

_Eo .....

............................ d

CATV cable

When Connecting to Optional Equipment

Left side Rear

_oo,,,,,For

service

use only

©Io AUDIO

i_o_o_nZ_p_4_op_48_l

Getting Started

[]

[] VIDEOIN 2

VIDEO/

L(MONO)-AUDIO-

[] HDMI IN 1

HDMI/

L-AUDIO-R

[] HDMI IN 2

Conuect to the composite video and audio output jacks on your camcorder or other video

equipment such as video game equipment.

HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital

audio/video interface between this TV and any HDMI-equipped audio/video equipment, such

as a set-top box, DVD player, and A/V receiver. HDMI supports enhanced, or high-definition

video, plus digital audio.

If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN

1 (with HDMI-to-DVI cable or adapter)jack, and connect the audio jack to the L-AUDIO-R

jacks of HDMI IN 1. (DVI connector is for video signals only.)

HDMI-to-DVI cable

HDMI adapter

Audio cable

(Continued)

GettingStarted

[] PC IN Connect to a personal computer's video output connector using HD 15-HD 15 cable (analog

(RGB/AUDIO) RGB, not supplied). Can also be connected to other analog RGB devices.

See "PC Input Signal Reference Chart" on page 38 for the signals that can be displayed.

[] VIDEO IN 1

S VIDEO

[] VIDEO IN 1

VIDEO/

L(MONO)-

AUDIO-R

Connects to the S VIDEO output jack on your camcorder or other video equipment that has

S VIDEO. Provides better picture quality than composite video ([_/[_]).

Connect to the composite video and audio output jacks on your A/V equipment such as a VCR

or other video equipment. A second composite video and audio (VIDEO 2) is located on the

left side panel of the TV.

[] COMPONENT Connect to your DVD player's or digital set-top box's component video (YPBPR) and audio

IN 1/2 (1080J/ (L/R).jacks. Component video provides better picture quality than the S VIDEO ([]) and the

720p/480p/4801)/colnposite video ([_/[_) connections.

L-AUDIO-R

[] DIGITAL Connects to the optical audio input of a digital audio equipment that is PCM/Dolby digital

AUDIO OUT compatible.

(OPTICAL)

[] AUDIO OUT Connect to the left and right audio input.jacks of your audio or video equipment. You can use

L-AUDIO-R (FIX) these outputs to listen to your TV's audio through your stereo system.

[] AC IN Connects the supplied AC power cord.

[] CABLE/ RF input that connects to your Cable or VHF/UHF antenna.

ANTENNA

* Mamffactured under license from Dolby Laboratories. "Dolby" and lhe double-D symbol are trademarks of Dolby Laboralories.

Securing the TV

Preventing the TV

from Toppfing

Getting Started

Sony strongly recommends taking measures to prevent tile TV fiom toppling

over; as unsecured TVs may topple and result in property damage, serious

bodily injury or even death.

17 Secure the TV to a wall and/or stand.

17 Do not allow children to play or climb on furniture and TV sets.

17 Avoid placing or hanging items on the TV.

17 Never install the TV on:

• slippery, unstable and/or uneven surfaces.

• furniture that can easily be used as steps, such as a chest of drawers.

17 Install the TV where it cannot be pulled, pushed, or knocked over.

17 Route all AC power cords and connecting cables so that they are not accessible

to curions children.

Use a Sony TV

Stand

Use a Sony specified TV stand (see page 2) and follow the instruction

manual provided with the Sony TV stand.

Ifa Sony specified TV stand is not used, consider the following

recommended measures.

Recommended

Measures to Secure

the TV

1Secure the Stand for the TV.

Make sure the TV stand can adequately support the weight of the TV.

Use two angle braces (not supplied) to secure the stand.

For each angle brace use the appropriate hardware to:

•attach one side of the angle brace to the wall stud.

•attach the other side to the TV stand.

_ ngle brace

Stand

(Continued)

GettingStarted

2Secure the TV to the Stand.

Use the optional hardware listed below (not supplied):

• M6 ×12-18ram anchor bolt (screwed into the TV's Table-Top Stand).

• A screw or similar (attach it to the TV stand),

• Rope or chain (strong enough to support the weight of the TV). Make

sure that there is no excess slack in the rope or chain.

An alternative way to secure the TV is with an optional Sony Support Belt Kit.

Anchor

bolt

3Anchor tile TV to tile Wall.

Use the hardware listed below (not supplied).

• Two M6 × 12-18ram anchor bolts (screw into the top-most wall-

mount holes located on the rear of the TV).

• Rope or chain (attach to one M6 anchor bolt).

• Wall-anchor (attach to the wall stud) strong enough to support the

weight of the TV (pass the rope through the wall-anchor, then attach

to the other M6 anchor bolt).

Anchor bolts --

Wall-mount "_

holes

Rope or

chain

...........Wall-anchor

Bundfing the

Connecting Cables

Getting Started

You can bundle tile connecting cables with tile supplied cable band as

illustrated below.

Getting Started

Setting Up the Channel List -Initial Setup

Ariel" you finish connecting your TV. you need to run Initial Setup, which

automatically sets up awfilable channels. The Initial Setup screen appears

when you turn on your TV for the first time. If you do not want to set up the

channels at this time, you can do it later by selecting the Auto Program

option in the Channel settings (see page 29).

POWER

Press 0to turn on the TV.

The Initial Setup screen appears.

Press 11411,to highlight the desired

language.

The message "First please connect

cable or antenna. Allow 50+ minutes

for completion." and "Start auto

program now'?" appear, make sure you

already connected cable or antenna,

then select OK to start Auto Program.

It" you want to start Auto Program

later, select Cancel.

The scanning of channels will start. If

you want to stop and run Auto

Program later, press Cancel.

When Auto Program is complete,

press @ to continue.

If the Initial Setup programming

found cable channels, you will be able

to scan antenna channels as well.

Connect the antenna using an A-B RF

switch (not supplied) and change the

switch to antenna then start Auto

Program to search antenna channels.

If the Initial Setup programming found antenna channels, the Auto

Program process will finish. If you want to scan cable channels, you

can do it later using the Channel settings.

To run Auto Program again at a later time

r7 Use the Auto Program feature as described on page 29.

To display the Picture in your Preferred Aspect Ratio

El Select the proper Wide Mode as described on pages 22 and 27.

Remote Control ==

[] DISPLAY Press once to display the current channel number, channel 2

label, program remaining time and Wide Mode. The oil-

screen display (OSD) will turn off after a few seconds.

[] SLEEP Press repeatedly until the TV displays the time in minutes

(Off, 15, 30, 45, 60, 90 or 120) that you want the TV to remain

oil before shutting off. To cancel Sleep Timer, press SLEEP

repeatedly until Off appears.

[] FAVORiYES Press;,ice io aispiayii_esioredFavoriiesiisi: Youcansiore{ip

to 8 channels and/or external inputs in your Favorites list.

How to Add to Favorites

While tuned to the channel you want to add to the list, press

FAVORITES and highlight "Add to Favorites", then press

"_° The 5 button and CH +

have a tactile dot. Use

them as a reference when

operating the TV.

[] PICTURE Press repeatedly to cycle through the available picture modes:

Vivid, Standard, Custom. The picture modes can also be

accessed in the Picture settings. For details, see "Using the

Picture Settings" on pt_ge 25.

[] RETURN Press to goback tothe previous screen when ciispiaying ....

MENU items and settings.

[] MENU Press to dispiay the MENU v,.i{h TV functions and settings

See "Overview of MENU" on page 25.

[] CO Press to turn on mad off Ciosed Capiions (CO) To change or

customize CC Display, see page 34.

[] O Use ;;iih 029an_iENT buiiol_sio seieci c@i;ii channeisl For

example, to enter 2.1, press @, O, C) and ENT.

_VOL +/- ........................P;ss io adjust the voiume ................................................................................................................

[] MUTING .....................Press to mute ihe sound Press again ;;press VOL + toresto;

the sound.

(Continued)

Basic Operations

[] POWER Press to turn on and offthe TV.

[] wi Press repeaiediyio siep ti_i:oughihe Wide Mode seiiiiigs;Wide

Zoom, Normal, and Full. The Wide Mode settings can also be

accessed in the Screen settings. (See page 27.)

Changing the Wide Screen Mode

(For PC timing, see below)

4:3 Original source 16:9 Original source

Standard definition source High definition source

!, I,

Wide Zoom Wide Zoom

Normal Normal

This mode is not available

Full Full

Changing the Wide Screen Mode for PC Timing

Incoming PC signal Incoming PC signal

800 x 600 _ 1280 x 768

......... No,-.,,.i......

Normal

Full 1 Full 1

Full 2 Full 2

Basic Operations

[] INPUT Press to display the list of external inputs. Press repeatedly to

toggle through the inputs.

Press i./4/I./,_ to move the on-screen cursor. Press (2_) to

select/confirm an item.

_/4/*/,*, @

[] T66ES ......................Pressio displayihe To;is Menli ihai is associ;{iedwiih ;;our

current input: analog TV. digital TV or external inputs. (See

pages 25, 26, and 34)

[] J0U0 P;_; ioi;ii,_pback;n_iforihbeiweeni;:o_hani_i_iTh_TV

alternates between the current channel and the last channel that

was selected.

[] 0 - 9 ENT Press 0 - 9 to select a channel; the channel changes after two

seconds. Press ENT to change channels immediately.

[] CH +)L Press io scan ii_ro[ighciianneis[Tosc;_nq[iicki_;thro[igh

channels, press and hold down either +/-.

::3

Basic Operations

TV Controls

-- VOLUME "b - CHANNEL + POWER

TIMER

[]

STANDBY _ POWER []

[] MENU Press to display MENU with TV fimctions and settings (see "Overview of MENU" on page

25).

i i i _ i .....................

[] -*- Press to &splay the hst of external mputs. Press repeatedly to toggle through the inputs,

INPUT

- VOLUME +

[] !_ 4, Press to scan through channels. To scan quickly through channels, press and hold down either

- CHANNEL + -/+. In the MENU screen, these buttons serve as up/down buttons.

[] POWER Press to turn on and oft'the TV.

[] TIMER LED Lights up in orange when the sleep timer is set.

[] STANDBY LED Lights up in red when ":,,ourTV is in PC power saving mode.

[] POWER LED Lights up in green when the TV is turned on.

[] (IR) Infrared Receives IR signals from the remote control.

Receiver

[] Speaker Outputs audio signal.

Press to adjust the volume. In the MENU screen, these buttons serve as lei't/right buttons.

Overview of MENU

MENU provides one button access for controlling your TV. It enables yon to perform a variety of tasks intuitively with a

control panel on the screen rather than a variety of remote control button presses.

Using the Picture Settings 2

Picture Mode

Customized picture

viewitlg

Vivid Select t)r enhanced picture contrast and sharpness.

Standard Select for standard picture settings. Recommended for home

entertainment.

Custom Allow:s you to store your preferred settings.

Resets the current Picture Mode settings to the defanlt values.

Reset

Backlight Adjust to brighten or darken the backlight.

Picture Adjust to increase or decrease picture contrast.

Brightness Adjust to brighten or darken the picture.

Color Adjust to increase or decrease color intensity.

Hue Adjust to increase or decrease the green tones.

Color Temp Cool Select to give the white colors a bluish tint.

White adjustment Neutral Select to give the white colors a neutral tint.

Warm Select to give the white colors a reddish tint.

Sharpness Adjust to sharpen or soften the picture.

Noise Reduction Select to reduce the noise level. Select from High, Medium, Low and Off.

Using the Menus

Using the Sound Settings

Sound Mode Dynamic Enhances treble and bass.

Cu,stomized Standard Standard sound optimized for home use.

so.ml li,,r,,ni,,g Clear Voice ............................Stdtabie t)r spoken diaiogl ...........................................................................................

Reset Resets the current Sound Mode settings to the default values.

Treble Adjust to increase or decrease higher-pitched sounds.

Bass Adjust to increase or decrease lower-pitched sounds.

Balance Adjust to emphasize left or right speaker balance.

MTS Stereo Select for stereo reception when viewing a program broadcast in stereo.

E@w ,stereo, biling_ud Auto SAP Select to automatically switch the TV to second audio programs when a

and mono program,s signal is received. If no SAP signal is present, the TV remains in

Stereo mode.

Mono Select for mono reception. Use to reduce noise during weak stereo

broadcasts.

Alternate Audio

Digital chcmnels' only

Select among the available options to switch among the alternate audio streams. The

program you are tuned to may be broadcasted in a different language in the alternate audio

streams.

Speaker On Select to turn on the TV speakers.

Off Select to turn off the TV speakers and listen to the TV's sound only

through your external audio receiver and speakers.

i!!!!!!!!!!!!!!!!!!!!! iiili

[] Using the Screen Settings

Using the Menus

Wide Mode Wide Zoom ......................Fills the screen with minimunl distortion. .._

Normal Select to display,4:3 picture in original size when the original source is 4:3.

Full Select to enlarge the picture horizontally to fill the screen when the _'

original source is 4:3 (Standard definition source). When the original

source is 16:9 (High definition source), select this mode to display 16:9

picture in original size.

Auto Wide

4:3 Default

Select tit(' &{fimlt Screen

Mode to use

.fi)r 4:3 sources

Oil Select to have the screen antomatically change to the screen mode that

is best for the current program. If frequent screen changes are disturbing

to yon, select Off.

Off Select to turn off the Auto Wide option. Choose a screen mode from the

Wide Mode option.

Wide Zoom Enlarges the 4:3 picture to fill the 16:9 screen, displaying as nmch of the

original image as possible.

Normal Select to display the 4:3 picture in its original size.

Full Select to enlarge the 4:3 picture horizontally only, to fill the display, area.

Off Select to continue using the current Wide Mode setting when the

channel or input is changed.

(Continued)

Using the Menus

Horizontal Center Allows you to move the position of the picture left and right (Awulableonly in Wide

Zoom).

Vertical Center Allows you to move the position of the picture up and down (Available only in Wide

Zoom).

Using the PC

Settings

When a PC is connected to the TV

and the PC input is selected, the PC

Settings screen appears instead of

the Screen settings.

Wide Mode Normal Select to display in the original image size.

Full1 Select to enlarge the picture to fill the display area, keeping its original

aspect ratio.

Full2 Select to enlarge the picture to fill the display area.

Auto Adjustment Select to automatically adjust the display position and phase of the picture when the TV

receives an input signal from the connected PC. Note that Auto Adjustment may not work

well with certain input signals. In such cases, manually adjust the options below.

Phase Adjust after Pitch to fine tune overall sharpness.

Pitch Adjust uneven sharpness on screen.

Horizontal Center Allows you to move the position of the picture left and right.

Vertical Center Allows yon to move the position of the picture up and down.

Power Management On Select to automatically switch to the power saving mode when there is

no signal input i'or 30 seconds.

Off Select to turn off Power Management.

._ Powe _

Using the Menus

Using the Channel Settings

Favorites Select favorite channels and external inputs(see page 21). ,_

Cable On Select if you are receiving cable channels via Cable TV provider.

off ...............................................................Select if you are using an antenna. ..........................................................................................................................................

Digital Channels Select to add digital channels.

Auto Program Automatically sets up the channel list on the TV for all receivable channels.

1 Select Auto Program.

2 Select OK to start Auto Program.

Allows you to show or hide channels that appear when you use the CH +/- buttons.

1 Press tl./'I" to scroll through the channels until you find the channel you want to show or

hide. Then press @ to select it.

2 Press 4"/11'to determine if the channel will be shown or hidden. Then press @ to select

it.

Show/Hide Channels

Label Channels

1Press tl4'I" to scroll through the channel numbers. Then press @ to select tile channel

number that you want to assign a label.

2 Press tl4,!, to scroll through the label characters (A-Z, 0-9, etc.). Press * to move to the

next character. Repeat to add lip to 7 characters to the label. Press ,_, to highlight OK

and press @ tO set. .....

Diagnostics Display diagnostics inforlnation about the TV. This can be useful in providing inforlnation to

an authorized technician or repair person.

Allows you to assign labels (such as station call letters) to channel numbers.

Using the Menus

Using the Parental Lock Settings

The Parental Lock settings allows you to set up the TV to block

programs according to their content and rating levels. Use 0-9 on the

remote control to enter a four-digit password. The first time you

create a password, confirm the password by entering it again.

Rating Off Turn Parental Lock off. No programs are

blocked from viewing.

Child Maximum ratings permitted are:

U.S.: TV-Y. TV-G, G

Canada: C, G, TV-Y

Youth Maximum ratings permitted are:

U.S.: TV-PG, PG

Canada: C8+, PG, 8 ans+, TV-PG

Young Adult Maximum ratings permitted are:

U.S.: TV-14, PG-13

Canada: 14+, 13 ans+, TV-14

Custom Select to set ratings lnanually.

U.S.: See page 31 t_r details.

Canada: See page 32 for details.

Digital Rating Off Tnrn Parental Lock off. No programs that contain downloadable ratings

are blocked from viewing.

Custom Select to block programs based on downloadable ratings.

Clear All Select to clear the entire downloadable rating system.

Unrated

(A vaih_ble only

n'hen Count(v is

,setto U.S.A.)

Allow Allows programs and movies that are broadcasted without a rating.

Block Blocks all programs and movies that are broadcasted without a rating.

Channel Block Allows yon to block channels regardless of program ratings.

To View a Blocked Channel

Press ENT when tuned to the blocked channel then enter the password.

External Input Allows you to block external inputs regardless of program ratings.

Block To View a Blocked External Input

Press ENT v,,'hen tuned to the blocked input then enter the passv,,'ord.

Using the Menus

Change Password Select to change your password.

Select Country U.S.A. Select to use U.S.A. ratings (see below).

Canada Select to use Canadian ratings (see page 32).

US Models: Selecting Custom Parental Lock Rating Options

To select custom rating options for tile U.S., select U.S.A. in tile Select Country setting (see above).

Movie Rating G All children and general audience.

PG Parental guidance suggested.

PC-13 Parental guidance for children under 13.

RRestricted viewing, parental guidance is suggested for children under

17.

NC-17 and X No one 17 or under allowed.

TV Rating Age-Based Ratings

BIock programs by their TV-Y All children.

rating, content or both Tv-Y7 Directed to chiMren age 7 and older.

TV-G General audience.

TV-PG Parental guidance suggested.

TV-14 Parents strongly, cautioned.

TV-MA Mature audience only.

Content-Based Ratings

FV Fantasy violence.

D Suggestive dialogue.

LStrong language.

SSexual situations.

V Violence.

"2-

(Continued)

Using the Menus

Canadian Models: Selecting Custom Parental Lock Rating Options

To select custom rating options for Canada, select Canada in tile Select Country setting (see page 31).

English Rating C All children.

C8+ Children 8 years and older.

GGeneral programming.

PG Parental guidance.

14+ Viewers 14 and older.

18+ Adult programming.

French Rating G General progrmnnfing.

8 ans+ Not recommended t\)ryoung children.

13 ans+ Not recommended for ages under 13.

16 arts+ Not recommended for ages under 16.

18 arts+ Programming restricted to adults.

U.S.A. Rating See "US Models" on page 31 for details.

Viewing Blocked Programs

You can view blocked programs by entering the password. Press ENT when tuned to a blocked program,

then enter the password. This temporarily turns the parental control feature off. To reactivate the Parental

Lock settings, turn offthe TV. When the TV is turned on again, your Parental Lock settings are reactivated.

Using the Menus

[] Using the Setup Settings

Closed Captions Allows you to select from several closed caption modes (for programs that are broadcast with ,_

(CC) closed captioning).

On ......................CloSedCapiions (C/C)is turneli on. ..............................................................

Off Closed Captions (CC) is turned off.

Program Allows you to set basic and advanced Closed Captions (CO) options. See

"Programming Closed Captions (CC)" on page 34.

Info Banner Set to On or Off. When on, displays the program description and the remaining time (if the

broadcaster offers this service). Displays for a few seconds when the channel is changed or the

DISPLAY button is pressed.

Label Video Inputs Allows you to identify A/V equipment you connected to the TV. such as a VCR, DVD, etc. For

example, if you have a DVD player connected to the COMPONENT IN jack, you can select the

label DVD for the Component input. Then when yon press INPUT to change inputs, the video

label you assigned to that input appears on screen.

1 Press 14,!, to highlight the vkteo input (Video 1-2, Component 1-2, HDMI 1-2, PC) to

which you want to assign a label. Then press @ to select the input.

Press 1./!1, to highlight one of the displayed labels. Then press @ to select the label.

You can select from the lbllowing labels for each input:

eomponeni1:5

PC -, Skip

Select to display all on-screen settings in your language of choice: English, Espafiol, Frangais.Language

Sleep Timer Set the time in minutes (Off, 15, 30, 45, 60, 90, or 120) that you want the TV to remain on

bel\_re shutting off automatically.

(Continued)

Using the Menus

Power Saving Select to reduce the power consumption by adjusting the backlight brightness. This also

enhances the black level. Select from Off, Low and High.

Product Information Select to display the eqnipment information of your TV.

cineMotion Seieci Auio io auio;_aiic;iiiy ]eieci fii;_ coi]ie]]t ;ind ;ippiy a reverse 322 puikiowu process

Moving pictures vail appear cleaner and more natural looking. Select Off to disable the

detection.

Programming Closed Captions (CC)

If you selected the Program option under Closed Captions (CC), you can change the following settings:

Basic Allows you to select basic analog (EIA-608) closed caption options.

CC1, CC2, Displays a printed version of the dialogue or sound effects of a

CC3, CC4 program. (Shoukt be set to CC1 for most programs.)

Text1, Text2, Displays network/station information presented using either half or

Text3, Text4 the whole screen (if available).

Digital CC......... Xiio;;s yo;; io;&idi_ii;i i;_ii_iiaiEi_Z(_695o_ASvancedi_ii_iiai

EIA-708).

Advanced Allows you to select advanced digital (EIA-708) closed caption options. Select t¥om the

available options.

Advanced Settings Allows you to make additional settings for digital (EIA-708) closed caption options. Select

from the following settings.

Character Style As Broadcast, Style 1-6

Character Color As Broadcast, Color 1-8

Character Size As Broadcast, Small, Standard, Large

Character Opacity As Broadcast, Solid, Translucent, Transparent, Flashing

Edge Color As Broadcast, Color 1-8

Edge Type As Broadcast, None, Raised, Depressed, Uniform,

Left Shadow, Right Shadow

Background Color As Broadcast, Color 1-8

Background As Broadcast, Solid, Translucent, Transparent, Flashing

Opacity

Window Color As Broadcast, Color 1-8

Window Opacity As Broadcast, Solid, Translucent, Transparent, Flashing

Troubleshooting

If you have additional questions, service needs, or required technical assistance related to the use of your

Sony TV. please visit our website or call one of the following numbers:

<http://www.sony.com/TVsupport>

1-800-222-SONY(7669) for US Residents

1-877-899-SONY(7669) for Canadian Residents

No picture.

Cannot receive any channels. 121 Make sure the power cord is connected securely.

Turn on the power of the TV.

Check antenna/cable connections.

TV is locked to one channel. 17 Perform Auto Program to add receivable channels that are not presently in the

TV's memory (page 29).

Cannot receive or select channels. 121 Perform Auto Program to add receivable channels that are not presently in the

TV's memory (page 29).

To receive or select cable channels, make sure that Cable in tire Channel

settings is set to On (page 29). To receive or select UHF channels over an

antenna, make sure Cable is set to Off.

The TV turns off automatically. FI Check Power Management in the PC Settings.(page 28)

No picture from some vide() 17 Check the connection between the optional vide() equipment and the TV.

sources. 17 Press INPUT on the remote control (page 23).

Press MENU on the remote control. Select your desired input from the external

inputs list.

Poor picture.

Double images or ghosts. 17 Check antenna/cahle connections.

Check the antenna location and direction.

Only snow and noise appear on the 121 Check if the antenna is broken or bent.

screen. 121 Check it' tire antenna has reached the end of its serviceable lili:. (3-5 years in

normal use, I-2 years at the seaside.)

Dotted lines or stripes. 17 Keep the TV away from noise sources sucb as cars, motorcycles, or hair-dryers.

If using 300 ohm twin lead, move the excess lead away from the TV or try using

75 ohm coaxial cable instead.

No color/Dark picture/Color is not 121 Press PICTURE to select the desired picture mode (page 21).

correct/The picture is too bright. 17 Adjust the Picture Mode options in tire Picture settings (page 25).

If you set tire Power Saving mode to LOWor High, it will enhance tire black

level.

Noisy picture. 121 Make sure that the arrteuna is connected using the 75-ohm coaxial cable (not

supplied).

Keep the arrtenua cable away from other connecting cords.

To avoid TV irrterference, make sure to use an undamaged arrteuna cable.

"2-

Other Information

No sound/Noisy sound

Good picture, no sound.

Audio noise.

Wide Mode changes automatically.

"Black box" on screen.

Black bands appear at the top and 17

bottom of the screen.

Certain programs on DVD or other 17

digital sources display a loss of

detail, especially during fast-motion

or dark scenes.

Remote control does not operate. FI

Some digital cable channels are not [7

being displayed. rq

Lost password. 17

How to reset the TV to factory [7

settings.

Check the vnlume control.

Press MUTING or VOL + so that "Muting" disappears from the screen

(page 21).

Set Speaker to On in the Sound settings (page 26). lfit is set to Off, sound is

not output from the TV's speakers regardless of the TV's volume control.

Make sure that the arrtenna is connected using the 75-ohm coaxial cable (not

supplied).

Keep the arrtenua cable away frnm other connecting cords.

To avoid TV irrterference, make sure to use an undamaged arrteuna cable.

The current Wide Mode setting is automatically replaced with the 4:3 Default

setting when you change the channel or vide() input, it"4:3 Default in the Screen

settings is set to anything but Off. If you want to lock in the Wide Mode selected

with the WIDE button, set 4:3 Default to Off in the Screen settings (page 27).

Check the Auto Wide option in the Screen settings (page 27).

You have selected atext option in tire Setup setting and no text is available. (See

pages 33 and 34 to reset Setup selections.) To turn off this feature, set the

Closed Captions (CC) nption to Off. If you were trying to select closed

captioning, select CO1 instead of Text1-4.

Some wide screen programs are filmed in aspect ratios that are greater than 16:9

(this is especially common with theatrical releases). Your TV will show these

programs with black bands at the top and bottom of tire screen. For more details,

check the documentation that came with your DVD (or contact your program

provider).

The compression used by certain digital broadcasts and DVDs may cause your

TV's screen to display less detail than usual, or cause artifacts (small blocks or

dots, pixeladons) to appear on ynur screen. This is due to your TV's large screen

and ability to show very line detail, and is normal lot certain digitally recorded

programs.

Check the polarity of the batteries or replace the batteries.

Point the remote control at the remote control sensor of the TV.

Fluorescent lamps can interlere with your remote control operation; try turning

off the fluorescent lamps.

Keep the remote control sensor area clear from obstacles.

Certain cable companies have limitations on the broadcast of digital cable

channels. Check with your cable cnmpany l\)r more ird\)rmation.

The digital cable channel may be set to Hidden in the Show/Hide Channels

setting (see page 29).

Select the Parental Lock settings on the settings screen, then enter the following

master password: 4357. The master password clears your previous password and

allows you to enter anew password (page 31).

Turn on the TV. While holding down the 'It button on the remote control, press

the POWER button on the TV. (The TV will turn itself of L then back on again.)

Release the tl. button.

WARNING: The Reset will clear all of your customized settings irrcluding

Parental Lock setting.

Other Information

Preparation for Wall Mounting

This TV can be installed on a wall by using a Wall-Mount Bracket (sold

separately). Before mounting the TV on a wall, the Table-Top Stand must be

removed fi:om the TV.

Sony Wall-Mount

Bracket Model

SU-WL500

Follow tile simple steps below to remove tile Table-Top Stand:

Disconnect all the cables from tile TV.

2 Secure the Mounting Hook to the rear of the TV.

3 Adjust the angle of the Mounting Hook.

4 Start removing the screws behind the TV (See illustration below). Do

not remove any other screws fiom the TV.

5 When screws are removed, lilt the TV off the stand. Make sure that you

carry out this task with at least two people. Do not attempt to lift the TV

by yoursell:

For bracket installation, refer to the instruction guide provided by the Wall-

Mount Bracket model for your TV. Sufficient expertise is required in

installing this TV. especially to determine the strength of the wall for

withstanding the TV's weight. For product protection and safety reasons,

Sony strongly recommends that you use the Wall-Mount Bracket model

designed for your TV and the wall-mounting of your TV should be

performed by Sony dealers or licensed contractors.

Other Information

PC Input Signal Reference Chart

Resolution

Signals [ Horizontal(Pixel)

VGA 640

640

720

SVGA 800

800

XGA 1024

1024

WXGA 1280

1280

136t)

Vertical | Horizontal h'equency Vertical fiequency

1(kHz) [ Hz

(Lille) &

480 31.5 6(1

480 37.5 75

4(X) 31.5 70

6(1(I 37.9 6(I

60_1 46.9 75

768 48.4 60

768 56.5 70

768 60.0 75

768 47.4 6(I

768 47.8 60

768 47.7 6(I

l Standard

VGA

VESA

VGA-T

VESA Guidelines

VESA

VESA Guidelines

VESA

Other Information

Specifications

Televisiun system:

NTSC American TV standard

ATSC (8VSB terrestrial) ATSC compliant 8VSB

QAM un cable ANSI/SCTE (17 2111R)

(Does not include CabIeCARD

functionality)

Channel coverage: Analog Digital

Tcrrcstrial 2-69 2-69

Cable 1- 135 1-135

Antenna: 75-ohm external terminal for VHF/UHF

Panel System:

LCD (Liquid Crystal Displ_y) Pand

Display resulution (horizuntal × vertical):

1,366 dots × 768 lines

VIDEO IN 1/2:

S VIDEO (4-pin ndni DIN) (VIDEO 1 only):

Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative

C: 0.286 Vp-p (Burst signal), 75 ohms

VIDEO: 1 Vp-p, 75 ohms unbalanced, ,_yncnegative

AUDIO: 500 mVrms (100% modulation)

Impedance: 47 kiloluns

COMPONENT IN 1/2:

YPBPR (Component Video):

Y: 1.0 Vp-p. 75 ohms unbalanced,

sync negative

PB: 0.7 Vp-p, 75 ohms

PR: 0.7 Vp-p, 75 ohms

Signal Ionnat: 480i. 480p. 720p. 1080i

AUDIO: 500 nlVrms (100% modulation)

hnpedance: 47 kilohms

HDMI IN 1/2:

HDMI: Video: 480i, 480p, 720p, 1080i, 1080p

Audio: Two clmnnel linear PCM 32, 44.1 and 48 kHz,

16, 20 and 24 bits

AUDIO (HDMI lN 1 only):

500 nlVrms (100% modulation)

Inlpedance: 47 kiloluns

AUDIO OUT:

500 nlVrms (100% modulation)

DIGITAL AUDIO OUT (OPTICAL):

Optical Digital Audio Output (PCM/Dolby Digital)

PC IN:

Analog RGB (D-sub 15-pin):

0.7 Vp-p, 75 ohms. positive

Se_ the PC Input Signzd Relcrcnce Chart on page 38

AUDIO (Stereo mini jack):

500 mVrms (100% modulation)

hnpedancc: 47 kiloluns

Power Requirement:

120 V-240 v AC. 50/60 Hz

Screen size (in inches):

32, 37

Speaker/Full range (2):

(in nun) 50 x 115

(in inches) 2 x 4 3/4

Speaker uutput:

10w+ 10w

Power cunsunlptiun:

KDL-32L4000:

in use 165 W

m standby less tllan 1.0W

KDL-37L4000:

in use 190 W

m standby less tllan 1.0 W

Dimensiuns:

KDL-32L4000:

with stand:

(in ram) 807 x 585 x 242

(in inches) 31 7/8 x 23 1/8 x 9 5/8

wilhoul stand:

(in into) 807 x 548 x 101

(in inclles/ 31 7/8 x 21 5/8 x 4

KDL-37L4000:

witl_ stand:

(in ram) 933 x 653 x 276

(in inclles/ 36 3/4 x 25 3/4 x 10 7/8

wilhoul stand:

(in ram) 933 x 616 × 112

(in inches) 36 3/4 × 24 3/8 × 4 1/2

Mass:

KDL-32L4000:

with stand:

(in kg) 16.0

(in lb.) 35 lb 5 oz

willloul stand:

(in kg) 13.8

(in lb.) 3(I lb 7 oz

KDL-37L4000:

with stand:

(in kg) 21.2

(in lb.) 46 lb 12 oz

wilhoul stand:

(in kg) 18.2

(in lb.) 40 lb 2 oz

Supplied accessories:

Remote control RM-YD025 (l)

Size AA batteries (2)

AC power cord (1)

Table-Top Stand (1)

Screws (3)

Cable band (1)

Operating Instructkms (1)

Quick Setup Guide ( 1)

Warranty Card (1)

Online Registration Card (1)

Open-source software flyer ( 1)

Optional accessories:

Connecting cables

Support belt kit

Wall-Mount Bracket: SU-WL500

TV-Stand:

KDL-32L4000: SU-FL300M

KDL-37L4000: SU-FL300M

: i ;:ii ii!! ii

Design and specifications are sttbject to change withottt notice.

0 - 9 buttons 23

4:3 Default 27

AC IN 16

Advanced 34

Advanced Settings 34

Allernale Audio 26

AUDIO OUT jack. described 16

Auto Ac[iustment 28

Auto Program 20, 29

Auto Wide 27

Backlight25

Balance 26

Bask' 34

Bass 26

Brightness 25

Cable 29

CABLE/ANTENNA input, described 16

CC button 21

CH+_ button 23, 24

Change Password 31

Channel Block 30

Channels

Creating labels 3{3

Setting up 20

CineMotion34

Closed caption modes 33, 34

Closed Captious (CC) 33

Color 25

Color Temp 25

COMPONENT IN

/1080i/720p/48I)p/480i) 16

Diagnostics29

Digital CC 34

Digital Channels 29

DIGITAL OUT OPTICAL ] (3

Digital Rating 30

DISPLAY button 21

English Raling 32

EiqT bulton 23

External Input Block 31

Favorites 29

FAVORITES button 21

French Rating 32

HDMI IN.jack, described 15

Horizontal Center 28

Hue25

hffo Banner 33

Infrared Receiver (IR) 24

INPUT button 23, 24

Installing the TV on a wall 37

JUMP button 23

Label Channels 29

Label Video Inputs 33

Language 33

MENU button 21,24

Movie Rating 31

MTS 26

MUTING button 21

Noise Reduction 25

PCIN 16

Phase28

Picture 25

PICTURE button 21

Picture Mode 25

Pitch 28

POWER button 22, 24

POWER LED 24

Power Management 28

Power Saving 34

Product hfformation 34

Rating 30

Reset 25, 26, 36

RETURN button 21

S VIDEO jack, described 16

Select Country 31

Settings

Channel 29

Parental Lock 30

PC Settings 28

Picture 25

Screen 27

Setup 33

Sound 26

Sharpness 25

Show/Hide Channels 29

SLEEP button 21

Sleep Timer 33

Sound Mode 26

Speaker 26

STANDBY LED 24

TIMER LED 24

TOOLS button 23

Treble 26

Troubleshooting35, 36

TV Rating 31

U.S.A. Rating 32

Unrated30

Vertical Center 28

VIDEO/AUDIO (L/R) jacks, described

15, 16

Viewin_ Blocked Prod*rams 32

VOL+/Z buUon 21, _4

WIDE button 22

Wide Mode 27, 28

Please contact Sony directly if you:

• Have questions on the use of your television after reading your Operating Instruction manual

and Quick Setup Guide

• Experience difficulty operating your television

Contact Sony Customer Support at:

htt p://www.sony.com/tvsu pport

or to speak with a support representative:

United States

1-800-222-SONY (7669)

Canada

1-877-899-SONY (7669)

Sony will work to resolve your questions more quickly than your retailer or place of purchase.

Please Do Not Return the Product to the Store

http://www.sony.net/

Printed in China

Sony KDL 32L4000 User Manual TV LCD Manuals And Guides L0804301

SONY LCD Television Manual L0804301 SONY LCD Television Owner's Manual, SONY LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
