User Manual: Sony KDL-32W650A Operating Instructions (Setup Guide)

Open the PDF directly: View PDF .
Page Count: 48

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US01COV.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

LCD TV

(Setup Guide)

Operating Instructions

KDL-42W650A / 32W650A

Sony Customer Support

U.S.A.:

http://www.sony.com/tvsupport

Canada:

http://www.sony.ca/support

United States Canada

1.800.222.SONY 1.877.899.SONY

Please Do Not Return

the Product to the Store

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US02REG.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

CAUTION

To prevent electric shock and blade

exposure, do not use this polarized

AC plug with an extension cord,

receptacle or other outlet unless the

blades can be fully inserted.

•Operate the TV only on DC 19.5 V

(with AC adapter)

Licensing Information

The terms HDMI and HDMI High-

Definition Multimedia Interface, and

the HDMI Logo are trademarks or

registered trademarks of HDMI

Licensing LLC in the United States

and other countries.

Fergason Patent Properties, LLC:

U.S. Patent No. 5,717,422

U.S. Patent No. 6,816,141

Manufactured under license from

Dolby Laboratories.

“Blu-ray Disc”, “Blu-ray” and “Blu-ray

Disc” logo are trademarks of Blu-ray

Disc Association.

“BRAVIA” and , S-Force,

Motionflow, BRAVIA Sync, and are

trademarks or registered marks of

Sony Corporation.

DLNA®, the DLNA Logo and DLNA

CERTIFIED® are trademarks, service

marks, or certification marks of the

Digital Living Network Alliance.

TrackID is a trademark or registered

trademark of Sony Mobile

Communications AB.

Music and video recognition

technology and related data are

provided by Gracenote®. Gracenote

is the industry standard in music

recognition technology and related

content delivery. For more

information, please visit

www.gracenote.com.

CD, DVD, Blu-ray Disc, and music

and video-related data from

2000-present Gracenote. Gracenote

Gracenote. One or more patents

owned by Gracenote apply to this

product and service. See the

Gracenote website for a non-

exhaustive list of applicable

Gracenote patents.

Gracenote, MusicID, VideoID, Video

Explore, the Gracenote logo and

logotype, and the “Powered by

Gracenote” logo are either registered

trademarks or trademarks of

Gracenote in the United States and/

or other countries.

Opera® Devices SDK from Opera

Opera Software ASA. All rights

reserved.

Wi-Fi, Wi-Fi Direct and Miracast are

marks or registered marks of the

Wi-Fi Alliance.

“Sony Entertainment Network logo”

and “Sony Entertainment Network”

are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link and

the MHL Logo are trademarks or

registered trademarks of MHL

Licensing, LLC.

Manufactured under license from

DTS Licensing Limited. For U.S. and

worldwide patent and trademark

information, see

www.dts.com/patents/legacy.aspx.

Inc. 2012.

Owner’s Record

The model and serial numbers

are located at the side and rear of

the TV. Record these numbers in

the spaces provided below. Refer

to them whenever you call upon

your Sony dealer regarding this

TV.

Model Name

Serial No.

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US02REG.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Your BRAVIA TV is

ENERGY STAR®

qualified in the

“Home” mode.

It meets strict energy

efficiency guidelines

set by the U.S. Environmental

Protection Agency and Department

of Energy. ENERGY STAR is a joint

program of these government

agencies, designed to promote

energy efficient products and

practices.

Changes to certain features, settings,

and functionalities of this TV (i.e.

Picture/Sound, Light Sensor, Power

Savings, Picture Scene) can increase

or change the power consumption.

The “Auto” and “General” picture

scenes are default settings optimized

for the input signal selected. Your

BRAVIA TV is tested in these settings

for ENERGY STAR qualification.

Depending upon such changed

settings, the power consumption may

exceed the limits required for the

ENERGY STAR qualification in the

“Home” mode.

Location of the

identification label

Labels for AC adapter Model No. and

Serial No. are located at the bottom

of AC adapter.

•Instructions about “Installing

Wall-Mount Bracket” are included

within this TV’s instructions manual.

•The illustrations of the remote

control used in this manual are of

the RM-YD089 unless otherwise

stated.

•The illustrations used in this manual

may differ depending on your TV

model.

•Retain this manual for future

reference.

The 32 class has a 31.5 inch

viewable image size (measured

diagonally).

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US02REG.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

The following chart shows the high-definition (HD) and standard-definition (SD) video formats

supported by your BRAVIA TV inputs.

*1For details of supported formats, refer to the “Specifications” in this manual.

*2For supported PC formats refer to the i-Manual.

The BRAVIA® Full HDTV

Experience

Thank you for choosing Sony! Your new

BRAVIA® TV opens the door to the “Full

HDTV Experience.” This document will help

you get the most out of your TV.

Please take a moment to register your TV

at:

U.S.A.: http://productregistration.sony.com

Canada: http://www.sony.ca/registration

Four Steps to a Full HD Experience

Set, Source, Sound, and Setup.

1Set

Now that you have made the best selection

in LED backlit LCD TV technology, be sure

to remove all accessory contents from the

packaging before setting up your TV.

2Source

To experience the stunning detail of your

BRAVIA TV, you need access to HD

programming.

•Upgrade your signal or content source to

high-definition (HD) by contacting your

HD service provider.

•Receive over-the-air HD broadcasts with

an HD-quality antenna connected

directly to the back of your TV.

Visit http://www.antennaweb.org for

more information on antenna selection

and setup.

•Discover the wealth of entertainment now

available on super-high resolution

Blu-ray Disc™ player and other Sony HD

equipment.

3Sound

Complete the high-definition experience

with a BRAVIA Sync™ surround sound

system or A/V receiver from Sony.

4Setup

Install your TV and connect your sources.

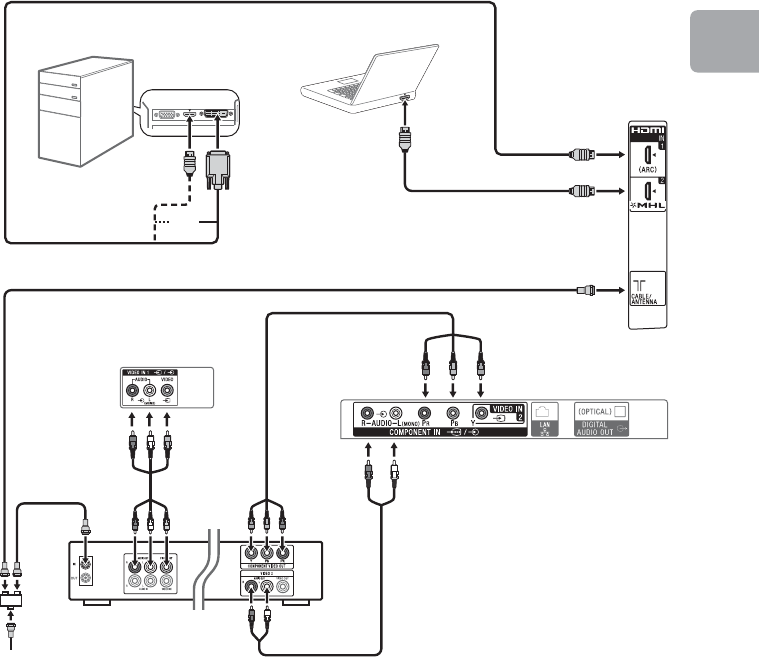

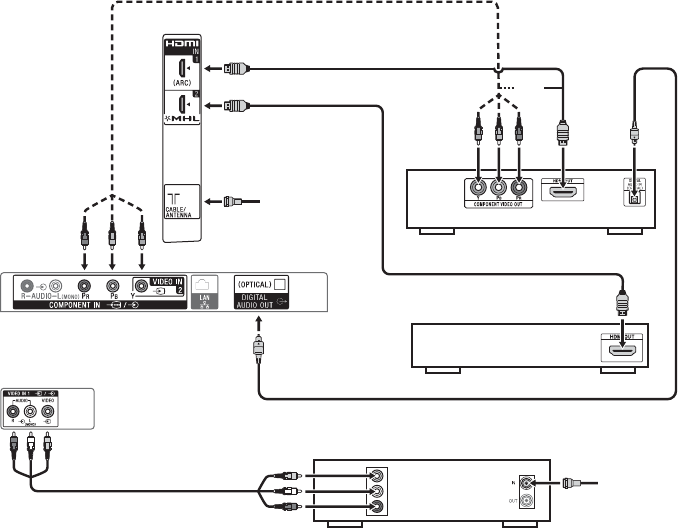

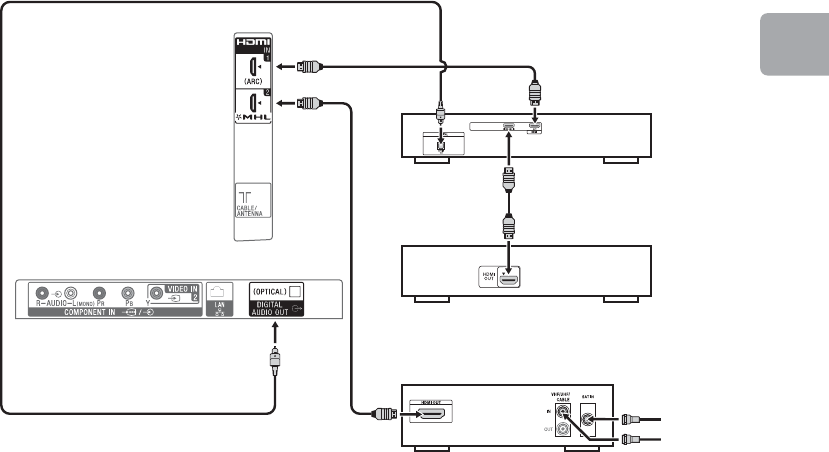

See page 12 for sample connection

diagrams. To help assure the highest

quality for your HD experience, use Sony

HDMI (High-Definition Multimedia

Interface) cables.

To learn more about HDTV, visit:

U.S.A.: http://www.sony.com/HDTV

Canada: http://www.sony.ca/hdtv

This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

INPUT VIDEO AUDIO SUPPORTED FORMATS

1080/24p/30p

1080p*

1080i

720/24p/30p

720p*1480p 480i PC*2

HDMI

COMPONENT

Audio L/R

SD VIDEO

Composite video

connection Audio L/R

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US02REG.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US01TOC.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

About this manual (Operating Instructions)

This manual explains how to setup your TV. For more

information on how to use BRAVIA TV, refer to the “Electronic

manual”.

Operating Instructions

Electronic manual

(i-Manual)

Explains how to setup your TV such as connections,

initial setup, and basic operations.

For more information, press the i-MANUAL button

Explains how to use all the features. See page 36 on

how to use the i-Manual.

Images and illustrations used in this manual may differ from

the actual screen.

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US01TOC.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Table of Contents

Getting Started

Checking the accessories........................................................................8

Inserting batteries into the remote control................................................8

Before setting up your TV.........................................................................9

1: Attaching the Table-Top Stand ..........................................................10

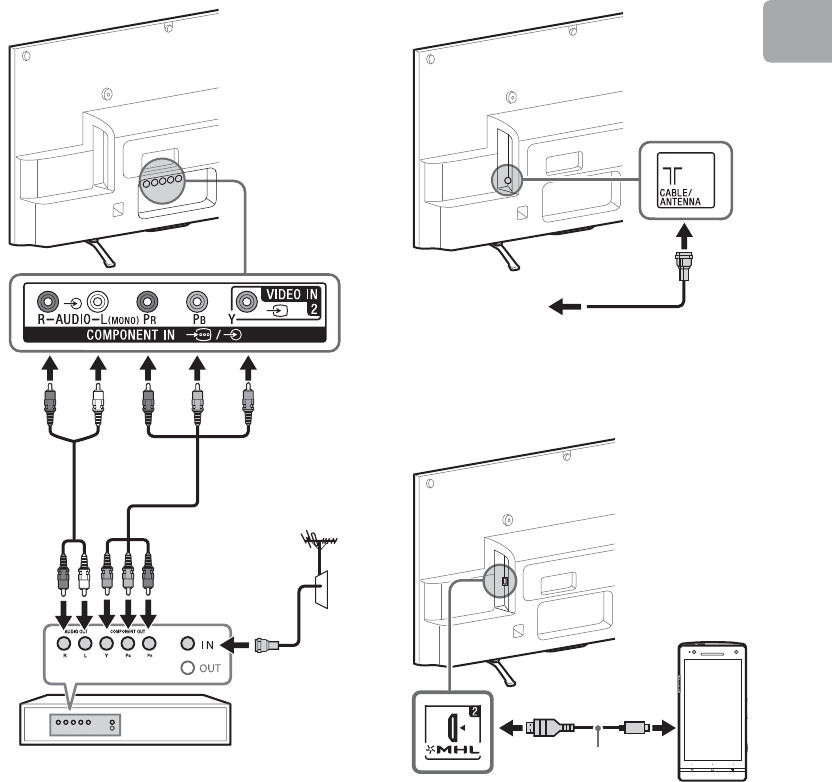

2: Connecting the TV..............................................................................12

3: Securing the TV..................................................................................18

4: Bundling the cables ...........................................................................20

5: Connecting the TV to the Internet.......................................................20

6: Running initial setup...........................................................................21

Using a Wall-Mount Bracket...................................................................22

Installing the TV against a wall or enclosed area...................................30

Using Your BRAVIA TV

Watching TV

..............................ea

Selecting various functions and settings (Home Menu).........................33

Watching Internet Video.........................................................................35

Looking for Instructions

Looking for instructions in the

electronic manual (i-Manual)

...eh

Additional Information

Troubleshooting......................................................................................39

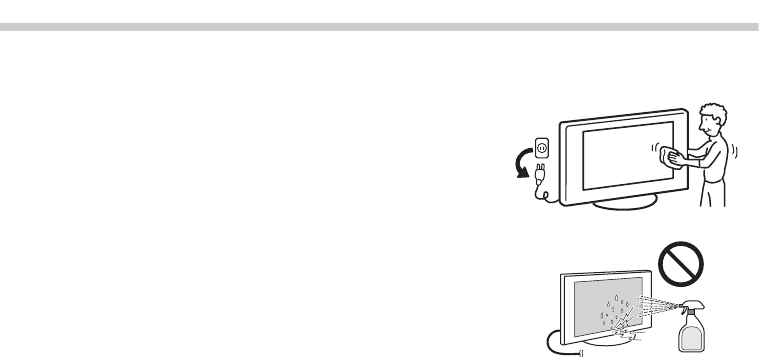

How to care for your BRAVIA TV ............................................................40

Specifications.........................................................................................41

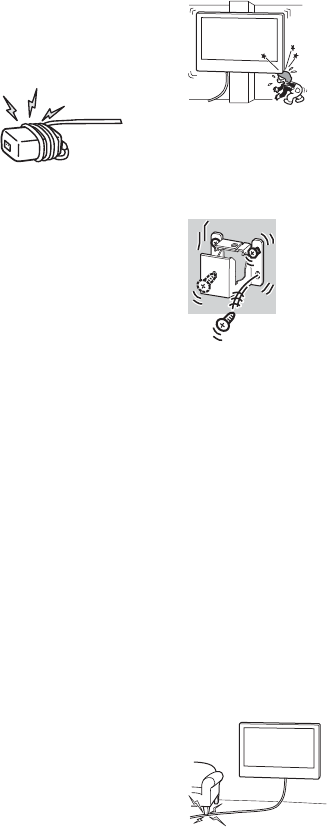

Safety Information...................................................................................43

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

Checking the

accessories

Remote control (1)*1

Size AAA batteries (2)

AC power cord (1)

AC adapter (1)

Cable holder (1)

Table-Top Stand (1)*2

Fixing screws for Table-Top Stand

(M5 × 16) (2)

Assembling screws for Table-Top Stand

(M5 x 16) (2)

Operating Instructions (this manual), other

documents and Wall-Mount Bracket

accessories

*1Please refer to the model name printed on the

remote control.

*2Assembling the Table-Top Stand is required.

Refer to the supplied Table-Top Stand leaflet to

assemble the Table-Top Stand.

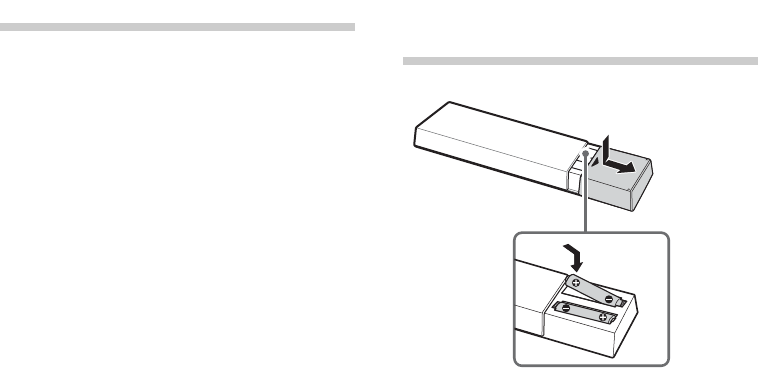

Inserting batteries

into the remote

control

1Remove the protection sheet.

2Push and slide the cover to open.

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

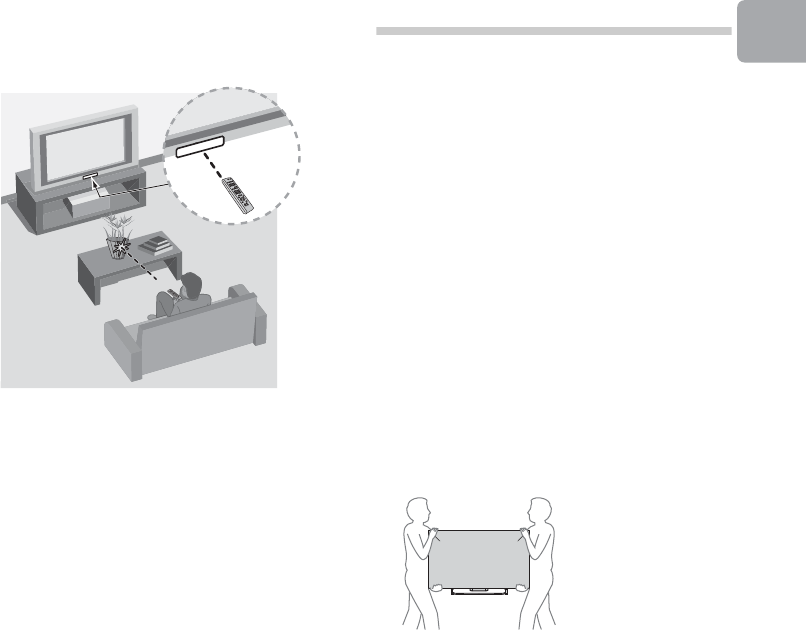

xGuidelines for Remote Control

• Point your remote control directly at the

IR sensor located on your TV.

• Make sure that no objects are blocking

the path between the remote control and

the IR sensor on your TV.

• Fluorescent lamps can interfere with your

remote control; try turning off the

fluorescent lamps.

• If you are having problems with the

remote control, reinsert or replace your

batteries and make sure that they are

correctly inserted.

Before setting up

your TV

Some TV models are packaged with a

detached Table-Top Stand so you can

mount your TV to a wall right away. See

page 22 (Using a Wall-Mount Bracket) if you

want to mount the TV to a wall. If you are not

mounting the TV to a wall, you will need to

attach the Table-Top Stand. You will need a

Phillips screwdriver (not supplied) and the

supplied screws to complete the task. Look

for the supplied Table-Top Stand instruction

leaflet.

Be sure to consider the following while

setting up your TV:

• Disconnect all cables when carrying the

TV.

• Carry the TV with the adequate number

of people; larger size TVs require two or

more people.

• Correct hand placement while carrying

the TV is very important for safety and to

avoid damage.

• Ensure your TV has adequate ventilation,

see page 30.

• For best picture quality, do not expose

the screen to direct illumination or

sunlight.

• Avoid installing the TV in a room with

reflective wall and floor materials.

• Avoid moving the TV from a cold area to

a warm area. Sudden room temperature

changes may cause moisture

condensation. This may cause the TV to

show poor picture and/or poor color.

Should this occur, allow moisture to

evaporate completely before powering

the TV on.

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

• Ensure that there are no objects in front

of the TV. 1: Attaching the

Table-Top Stand

Refer to the supplied Table-Top Stand

leaflet for proper attachment.

•Do not put stress on the LCD panel or the

frame around the screen.

•Be careful to not pinch your hands or the AC

power cord when you install the TV set to the

Table-Top Stand.

1Place the TV set on the Table-Top Stand.

2Fix the TV to the Table-Top Stand using

the supplied screws. The arrow marks

indicate the location of the screw

holes used for securing the Table-Top

Stand.

•If using an electric screwdriver, set the

torque at approximately 1.5 N·m

{15 kgf·cm}.

IR Sensor

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

To detach the Table-Top Stand from the TV,

remove the screws fixed in step 2.

•Do not remove the Table-Top Stand for any

reason other than to install corresponding

accessories on the TV.

•When removing the Table-Top Stand from

the TV, lay the display face down on a stable

work surface that is larger than the TV.

•To prevent damaging the surface of the LCD

display, make sure to place a soft cloth on

the work surface.

•Once the Stand Necks are detached from

the Stand, be sure to keep the Stand Necks

and screws in a safe place.

•Be sure the TV is vertical before turning on.

To avoid uneven picture uniformity do not

power on the TV with the LCD panel facing

down.

•When installing the TV on a wall, remove the

screws from the rear of the TV. Be sure to

store the removed screws in a safe place,

keeping them away from children.

•When attaching the Table-Top Stand again,

be sure to fasten the screws (previously

removed) to the original holes on the rear of

the TV.

Detaching the Table-Top

Stand from the TV

Soft cloth

Stand Necks

Stand

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

2: Connecting the TV

•Use an antenna cable connector no greater

than 14 mm thick.

•Use an HDMI cable connector within 12 mm

(thickness) × 21 mm (width).

•For more information on connections, refer to

the i-Manual.

xShown with a Set Top Box with

HDMI connection

Recommendation of the F type plug

Projection of the inner wire from the

connection part must be less than 1.5 mm.

Set Top Box

(Reference drawing of the F type plug)

1.5 mm max.

7 mm max.

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

xShown with a Set Top Box with

COMPONENT connection

xCable System or VHF/UHF Antenna

System

xShown with MHL device with MHL

connection

The MHL (Mobile High-Definition Link)

enables the TV to communicate with a

connected MHL-compatible device. The TV

can charge the connected MHL-compatible

device while playing photo/music/video

from it. You can use the TV remote control to

control the connected MHL-compatible

device.

Set Top Box

Cable or

Antenna

Use authorized

MHL 2 CABLE

with MHL logo MHL

device

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

•If Auto Input Change (MHL) is set to On, the

TV automatically switches to HDMI IN 2/MHL

from other input when MHL-compatible

device is connected to HDMI IN 2/MHL jack.

The availability of Auto Input Change (MHL)

depends on whether the MHL-compatible

device can support this feature.

•You can continue normal usage of the

connected MHL-compatible device (such as

receiving calls) depending on its capability.

•Some remote control functions may not be

available depending on features of the

connected MHL-compatible device. Please

refer to the device manual for details.

•If Charge MHL during Power Off is set to

On, you can continue charging the MHL-

compatible device even when the TV is in

standby mode.

•This product is officially MHL-certified for

operation with other MHL-certified devices. If

you encounter any problems when using the

MHL function, please consult the device

manufacturer for support.

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

xShown with HD BRAVIA® Sync™ Basic Connection

*1Side Panel

*1Blu-ray Disc

HD Cable Box or

HD Satellite Receiver

*1A/V Receiver

SAT (Dish)

Cable/

Antenna

*2Optical Connection

*1Rear of TV

*1Signifies a BRAVIA Sync capable device.

*2The optical connection is only needed for A/V receivers that do not support ARC (Audio Return Channel).

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

xShown with HD Basic Connection with Home Theater System

VIDEO

Side Panel

Cable/

Antenna

Blu-ray Disc/DVD

SD Cable Box or

SD Satellite Receiver

Cable/SAT

(Dish)

Home Theater System

*Optical

Connection

Rear of TV

* The optical connection is only needed for home theater system that do not support ARC (Audio Return

Channel) when connecting with HDMI.

Rear of TV

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

xShown with PC Connection with SD VCR/DVD

Rear of TV

DVDVCR

Splitter

Cable/Antenna

VCR/DVD Combo

Rear of TV

* DVI does not support audio signals. Connect the audio output of the PC to the PC speakers or an A/V receiver

to listen to sound from the PC.

Notebook PC

Side

Panel

*DVI

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

3: Securing the TV

Sony strongly recommends

taking measures to prevent

the TV from toppling over.

Unsecured TVs may topple

and result in property

damage, serious bodily

injury or even death.

• Secure the TV to a wall and/or stand.

• Do not allow children to play or climb on

furniture and TV sets.

• Avoid placing or hanging items on the

TV.

• Never install the TV on:

– slippery, unstable and/or uneven

surfaces.

– furniture that can easily be used as

steps, such as a chest of drawers.

• Install the TV where it cannot be pulled,

pushed, or knocked over.

• Route all AC power cords and

connecting cables so that they are not

accessible to curious children.

Consider the following measures when

securing your TV to a Stand (not supplied).

1Secure the Stand for the TV.

Make sure the Stand can adequately

support the weight of the TV. Use two

angle braces (not supplied) to secure

the stand. For each angle brace use the

appropriate hardware to:

•Attach one side of the angle brace to

the wall stud.

•Attach the other side to the Stand.

2Secure the TV to the Stand.

Use the optional hardware listed as

follows (not supplied):

•M4 machine screw (screwed into the

TV’s Table-Top Stand)

•A screw or similar (attach it to the

Stand)

•Rope or chain (strong enough to

support the weight of the TV). Make

sure that there is no excess slack in

the rope or chain.

An alternative way to secure the TV is

with an optional Sony Support Belt Kit.

The Sony Support Belt Kit is available as

an optional accessory, depending on

your TV model.

Preventing the TV from

Toppling

Recommended Measures

to Secure the TV

Stand

Angle brace

(not supplied)

Soft cloth

Screw hole

on the

Table-Top

Stand

Rope or

chain

(not

supplied)

M4 machine screw

(not supplied)

Rope or chain

(not supplied)

Screw (not supplied)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

The length of the M4 machine screw

differs depending on the rope or chain

diameter. Please see below illustration.

Contact Sony Customer Support to obtain

the optional Support Belt Kit by providing

your TV model name.

•For United States call: 1-800-488-7669

•For Canada call: 1-877-899-7669

3Anchor the TV to the Wall.

Anchor the TV to the wall by using bolts,

wall anchor and chain (or rope).

•Your TV is shipped with screws attached

to the rear of the TV depending on the TV

model. (They are fastened in the screw

holes for wall mounting.) Be sure to

remove the upper two screws prior to

anchoring the TV to a wall.

•Securing the TV to the stand without

securing the TV and the stand to the wall

provides minimum protection against the

TV toppling over. For further protection,

be sure to follow the three measures

recommended.

Screw M4

Rope or

chain

TV’s

Table-Top

Stand

6-8 mm

Anchor bolts (M6) (not supplied)

Wall-

mount

holes

Rope or

chain (not

supplied)

Wall-anchor

(not

supplied)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

4: Bundling the

cables

•Do not bundle the AC power cord together

with other cables.

5: Connecting the TV

to the Internet

When you connect this TV to the Internet,

you can enjoy multiple functions. For details

on the functions, refer to the i-Manual.

•You will need to contract with an Internet

service provider to connect to the Internet.

•For LAN connections, use a Category 7

cable (not supplied).

Preparing a wired network

Internet

Modem

with router

functions

Router

Modem

Internet

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

The built-in wireless LAN device allows you

to access the Internet and your home

network. With this feature, you can connect

to a wireless LAN and enjoy the benefits of

networking in a cable-free environment.

Before setting up the wireless LAN function

of the TV, be sure to set up a wireless LAN

router.

6: Running initial

setup

1Complete your cable connections before

proceeding with the Initial Setup.

Connect the AC power cord to the AC

adapter and plug the DC cable into the

DC IN terminal. Then, connect the TV to

your nearest power outlet.

2Press "/1 on the TV. The illumination

LED will light up in white.

When you switch on the TV for the first

time, the Language menu appears on

the screen.

•When you turn on the TV for the first time,

the TV requires some internal processing

for optimization before you can perform

the initial setup. There will be no picture

and sound, and the illumination LED on

the front of the TV blinks white for about

40 seconds. Do not turn off the TV during

this process.

This process has been completed at the

factory for some TVs.

•The illumination LED lights up in different

colors according to the status of the TV.

If you do not wish to light up the

illumination LED, you can turn it off later.

Press HOME, then select Settings t

Preferences t Front Panel

Illumination t Illumination LED t

Off. You can also press OPTIONS, then

select Illumination LED t Off.

Preparing a wireless LAN

Wireless

router

Modem

Internet

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

3Press V/v/B/b to select an item, then

press .

Follow the instructions on the screen.

•Home mode sets the TV to settings

optimized for home viewing (this setting

is ENERGY STAR compliant).

4Scan for available channels. If you

receive channels from a cable box or

satellite receiver and do not wish to use

the TV’s built-in tuner, select Skip.

5Set up the Internet settings. If you do not

access the Internet, or to set up later,

select Skip. After you select Continue or

Start (depending on model) at the

Internet setup confirmation screen,

select Auto to connect to the network

automatically. Select Custom to connect

manually.

•If you use WEP security, select Custom

t Wireless Setup t Scan. Then,

select the network name (SSID) you want

to connect. If you cannot find the

required network name, select [Manual

Entry] and press to enter network

name.

•To set Network Setup later, press

HOME, then select Settings t Network

t Network Setup.

•Use the optional USB Wireless LAN

Adapter to connect with your wireless

router (or access point) at 5GHz. Insert

USB Wireless LAN Adapter and set Wi-Fi

Direct to Off. Press HOME, then select

Settings t Network t Wi-Fi Direct t

Off.

Using a Wall-Mount

Bracket

Your TV can be mounted on a wall using a

Wall-Mount Bracket out of the box as

packaged. If the Table-Top Stand is

attached to the TV, the TV may require

detaching the Table-Top Stand; see

page 11 (Detaching the Table-Top Stand

from the TV).

Prepare the TV for the Wall-Mount Bracket

before making cable connections.

For product protection and safety

reasons, Sony strongly recommends that

you use the Wall-Mount Bracket designed

for your TV and the installation should be

performed by a Sony dealer or licensed

contractor.

• Follow the instructions provided in this

manual for installing the Wall-Mount

Bracket. Sufficient expertise is required

in installing this TV, especially to

determine the strength of the wall for

withstanding the TV’s weight.

• Be sure to use the screws supplied with

the Wall-Mount Bracket when attaching

the mounting hooks to the TV set.

The supplied screws are designed as

indicated by illustration when measured

from the attaching surface of the

mounting hook.

The diameter and length of the screws

differ depending on the Wall-Mount

Bracket model. Use of screws other than

those supplied may result in internal

damage to the TV set or cause it to fall,

etc.

7 mm

Screw

(supplied with the

Wall-Mount Bracket)

Mounting Hook

Hook attachment on rear of

TV set

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

• Be sure to store the unused screws and

Stand Necks in a safe place until you are

ready to attach the Table-Top Stand.

Keep the screws away from small

children.

•Read the supplied Safety Booklet for

additional safety information.

Your TV’s Table-Top Stand will be used as a

part of the Wall-Mount Bracket.

•See page 43 (Safety Information) and

page 45 (Precautions) on WALL-MOUNT

BRACKET before carrying out Wall-Mount

Bracket installation.

•Detach the Table-Top Stand from the TV. For

details, see page 11 (Detaching the Table-

Top Stand from the TV)

•When your TV is installed on the wall, the

VIDEO IN 1 / terminal on the rear of

the TV cannot be used.

Wall-Mount Base (1)

AC Adapter Holder (1)

Paper Template (1)

Stand Protector (1)

Bracket Cap Plate (1)

Assembling screws for Wall-Mount Bracket

(+PSW 6 x 12) (2)

Spacers (2)

Fixing screw for Bracket Cap Plate

(+PSW 4 x 10) (1)

•The screws needed to secure the Wall-

Mount Base and AC Adapter Holder to the

wall are not supplied.

1Decide on the center position of your TV.

Make a mark on the Paper Template that

indicates the screen center of your TV,

referring to page 28 (TV installation

dimensions table) for the screen center

dimension.

To Customers

Sufficient expertise is required for

installing this product. Be sure to

subcontract the installation to Sony

dealers or licensed contractors and pay

special attention to safety during the

installation. Sony is not liable for any

damages or injury caused by

mishandling or improper installation, or

installing any other than the specified

product. Your Statutory Rights (if any) are

not affected.

To Sony Dealers and Contractors

Sufficient expertise is required for

installing this product. Be sure to read

this instruction manual thoroughly to do

the installation work safely. Sony is not

liable for any damages or injury caused

by mishandling or improper installation.

Precautions

Checking the accessories

Installing the Brackets on

the wall

- 30

- 20

- 10

100

150

200

250

300

350

Paper

Template

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

2Decide on the installation location of

your TV. Tape the Paper Template to the

wall.

3Make six holes according to the

numbering (1, 2, 3, 4, 5 and 6) on the

Paper Template using an electric drill.

4Peel the Paper Template from the wall.

5Install screws (8 mm in diameter, not

supplied) to the Wall-Mount Base and

AC Adapter Holder on the wall.

- 30

- 20

- 10

100

150

200

250

300

350

Paper

Template

Wall

- 30

- 20

- 10

100

150

200

250

300

350

1, 2, 3, 4

5, 6

- 30

- 20

- 10

100

150

200

250

300

350

Wall-

Mount

Base

AC Adapter Holder

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

1Remove the screws from the rear of the

TV. Be sure to store the removed screws

in a safe place, keeping them away from

children.

•When removing the Table-Top Stand from

the TV, lay the display face down on a stable

work surface that is larger than the TV.

•To prevent damaging the surface of the LCD

display, make sure to place a soft cloth on

the work surface.

•Once the Stand Necks are detached from

the Stand, be sure to keep the Stand Necks

and screws in a safe place.

•When attaching the Table-Top Stand again,

be sure to fasten the screws (previously

removed) to the original holes on the rear of

the TV.

2Make sure the pin (on the Stand

Protector) is inserted into the hole on the

Stand. Fold up the Stand Protector once

the pin is inserted into the Stand.

3Attach the Mounting Hooks (on the

Stand) using the supplied screws.

Attach the Spacers to the holes

indicated by the triangle marks .

Preparing for the

installation of the TV

Soft cloth

Stand Protector

Stand

Screw

(+PSW 6 x 12)

Spacer

Soft cloth

Mounting

Hook

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

1Install the TV on the wall. Then, confirm

the Stand Protector is firmly latched into

the Wall-Mount Base.

•Make sure to connect and bundle the cables

before installing the TV on the wall.

2Attach the Bracket Cap Plate using the

supplied screw.

3Insert the AC adapter into the AC

Adapter Holder. Make sure that the label

is facing outwards.

Arrow direction shows front of the TV.

Installing the TV on the

wall

Wall-Mount

Base

AC Adapter

Holder

Wall

Wall-Mount

Base AC Adapter

Holder

Screw

(+PSW 4 x 10)

Bracket

Cap Plate

AC adapter

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

•Tilt the TV to the front to easily insert the AC

adapter, and connect or disconnect the cord

and cables with the TV hung to the wall.

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Unit: inches (mm)*

* The measurement unit for the Paper Template supplied with the Wall-Mount Bracket is in millimeters.

Figures in the table may differ slightly depending on the installation.

The wall that the TV will be installed should be capable of supporting a weight of at least four times

that of the TV. See page 41-42 (Specifications) for its weight.

TV installation dimensions table

Model Name

KDL-

Display dimensions Screen center

dimension Length for mounting

42W650A 37 5/8

(954)

22 3/8

(568)

(124)

16 1/2

(419)

3 1/2

(87)

32W650A 28 5/8

(725)

17 1/4

(438)

7 1/2

(190)

16 1/2

(419)

3 1/2

(87)

Screen center point

WARNING

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Getting Started

Dimensions for hole position on the wall.

Pass the information below to licensed contractors if necessary.

Use 6 screws (8 mm in diameter, not supplied) to install the Wall-Mount Base and AC Adapter

Holder on the wall.

Be sure to use the supplied Paper Template that shows the actual position of Wall-Mount Base

and AC Adapter Holder for easy installation.

AC Adapter Holder

30 mm 28 mm

76 mm

Wall-Mount Base

158 mm

295 mm

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US03STU.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Installing the TV

against a wall or

enclosed area

Make sure that your TV has adequate

ventilation. Allow enough space around the

TV as shown in the illustration.

•Inadequate ventilation can lead to

overheating of the TV and may cause

damage to your TV or cause a fire.

Leave at least this much space around the set.

Installed with stand

4 inches

(10 cm)

11 7/8 inches

(30 cm)

4 inches

(10 cm)

2 3/8 inches

(6 cm)

Installed on the wall

Leave at

least this

much space

around the

set.

4 inches

(10 cm)

4 inches (10 cm)

4 inches

(10 cm)

11 7/8 inches

(30 cm)

Never install the TV set as follows:

Air circulation is blocked. Air circulation is blocked.

Wall Wall

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US04SAF.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Using Your BRAVIA TV

Watching TV

1Turn on the TV.

Press "/1 on the TV or POWER on the remote

control to turn on the TV.

2Select a TV channel or select an

input.

xTo select digital channels

Use 0-9 and . For example, to enter channel

2.1:

Press , and , then press .

•See below illustration for location of the "/1, CH+/-,

2+/-, V/v/B/b, , and HOME buttons on the

TV.

or or

Rear of TV

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US04SAF.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Frequently used buttons

1PIC OFF

Turns picture off, and sound remains on.

2Color buttons

When the color buttons are available, an

operation guide appears on the screen.

3JUMP

You can jump back and forth between two

channels or inputs. The TV alternates

between the current channel or input and the

last channel or input that was selected.

4DISPLAY

Displays channel number, details of

programs, and the clock.

5SUBTITLE/CC

You can turn closed captions/subtitles on/off.

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US04SAF.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Using Your BRAVIA TV

Selecting various functions and

settings (Home Menu)

You can select the features of your TV from the Home menu.

Here is an example on how to select an item and

modify the TV settings.

1Press HOME.

2Press V/v to select Settings

category.

The contents of Settings are displayed

horizontally.

See page 34 (Category list) for all categories.

3Press B/b to select a desired

setting item, then press .

4Modify the settings.

xTo exit the Home menu

Press HOME.

xTo select using the OPTIONS button

Press OPTIONS.

A list of convenient functions and menu shortcuts

are displayed. The menu items vary based on the

current input and/or content.

2, 3

OPTIONS

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US04SAF.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

The categories are available depending on your TV model, region and country.

Category list

Featured Provides information on available applications and content.

If there is no network connection, or the Featured Display setting is

set to Off, the Featured category will not be displayed.

History Displays recently viewed items.

TV Allows you to select a list of TV channels, or a program guide.

Program guide is available depending on your TV model or region.

A list of channels registered as favorites in the TV category are

displayed.

Applications Launches applications that require an Internet connection, including

Media Player which does not require an Internet connection.

A list of applications registered as favorites in the Applications

category are displayed.

Connected Devices Enables selection of devices connected to the TV.

Settings Provides settings (e.g. picture settings, sound settings, key tone

setting) that allow you to customize your TV.

Category

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US04SAF.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Using Your BRAVIA TV

Watching Internet Video

This feature serves as a gateway to Internet content, delivering a variety of on-demand

entertainment straight to your TV. You can enjoy video content, including movies and cartoons.

You will need to make a broadband Internet connection. For details, see page 20

(5: Connecting the TV to the Internet).

•If you experience difficulties with this feature, check that the Internet connection is set up properly.

•The interface to Internet content depends on the Internet content providers.

•Services block video content based on the Parental Lock setting of the TV. Some service

providers do not support this function.

•To update Internet Video content services, press HOME, then select Settings t Network t

Refresh Internet Content.

1Press HOME.

2Press V/v to select Applications

category.

3Press B/b to select All

Applications, then press .

4Press V/v/B/b to select the

desired service, then press .

2, 3, 4

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US05OVR.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Looking for Instructions

Looking for instructions in the

electronic manual (i-Manual)

Operating instructions are built into your BRAVIA TV and can be displayed on the screen.

To learn more about your TV features, access your i-Manual with the touch of a button.

1Press i-MANUAL.

2Select an item.

1Press B/b to select an item.

2Press V/v/B/b to select an item, then press

* If an arrow mark appears, press v repeatedly to

display more items.

RETURN

Arrow mark*

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US05OVR.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Looking for Instructions

You can save frequently viewed pages for

easy access anytime.

xTo save a page

In the page to bookmark, press the red

button on the remote control.

xTo access the bookmarked page

When displaying the i-Manual, press the

blue button on the remote control to display

the bookmark list. Press V/v to select the

desired item, then press .

•To return to the previous screen, press

RETURN.

xTo remove a bookmark

When the bookmarked page is displayed,

press the red button on the remote control.

The page of the selected item appears.

•If your TV is connected to the Internet, you

can check for latest FAQ (Frequently Asked

Questions). Refer to “Troubleshooting” in the

i-Manual, select “Frequently Asked

Questions” and then follow the instructions

on the screen. (Available in English and for

United States only)

•You can step through pages using B/b.

Press RETURN to return to the previous

page.

Saving frequently viewed

pages (Bookmark)

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US05OVR.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

You can switch between the i-Manual

screen and the TV screen. This feature

allows you to refer to the instructions in the

i-Manual while using your BRAVIA TV. Press

i-MANUAL to switch between the i-Manual

screen previously displayed and the TV

screen.

•To jump to the top page of i-Manual, press

the yellow button on the remote control. You

can also press HOME, then select Settings

t i-Manual to jump to the top page of

i-Manual.

•Once you turn off the TV or the TV goes to

standby mode, the i-Manual will be

displayed from the top page when you select

i-Manual.

Displaying the page again

while operating the TV

i-Manual screen previously displayed

BRAVIA TV screen

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US06OPT.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Additional

Information

Additional Information

Troubleshooting

When the illumination LED is flashing in red, count how many times it flashes

(interval time is three seconds).

Press "/1 on the TV to turn it off, disconnect the AC power cord, and contact Sony Customer

Support (information provided on the front cover) with how many times the indicator flashes.

When the illumination LED is not flashing, check the items in the table below.

Also refer to “Troubleshooting” in the i-Manual. If the problem persists, contact Sony Customer

Support (information provided on the front cover).

Condition Explanation/Solution

There is no picture (screen

is dark) and no sound.

•Check the antenna/cable connection.

•Connect the TV to the AC power, and press "/1 on the

TV or POWER on the remote control.

Some programs cannot be

tuned.

•Check the antenna.

The remote control does not

function.

•Replace the batteries.

•Your TV may be in SYNC mode.

Press SYNC MENU, select TV Control and then

select Home (Menu) or Options to control the TV.

The Parental Lock

password has been

forgotten.

•Enter 4357 for the PIN code. (PIN code 4357 is always

accepted.)

The TV and its surrounding

become warm.

•When the TV is used for an extended period of time,

the TV and its surroundings may become warm to

touch. This is not a malfunction of the TV.

How to reset the TV to

factory settings

•Turn on the TV. While holding down V on the remote

control, press "/1 on the TV. (The TV will turn itself off,

then back on again.) Release V.

WARNING: The reset will clear all of your customized

settings including the Parental Lock setting.

Frozen audio or video, a

blank screen, or the TV

does not respond to TV or

remote control buttons.

• Perform a simple reset of the TV by unplugging the

AC power cord for two minutes, then plug it in again.

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US06OPT.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

How to care for your BRAVIA TV

Safety is very important. Please read and follow the safety documentation (Safety Booklet)

separately provided.

Unplug the TV and other connected equipment from the wall

outlet before you begin cleaning your TV.

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly

moistened with a solution of mild soap and warm water.

• If using a chemically pretreated cloth, please follow the

instruction provided on the package.

• Never spray water or detergent directly on the TV set. It

may drip to the bottom of the screen or exterior parts and

enter the TV set, and may cause damage to the TV set.

• Never use strong solvents such as a thinner, alcohol or

benzine for cleaning.

• Do not plug in the TV into the wall outlet until the moisture

from cleaning has evaporated.

The TV should also be placed on a stable surface to prevent it from toppling over (see

page 18). If you have young children or pets at home, check regularly to ensure the TV is

securely fastened.

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US06OPT.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Additional

Information

Specifications

System

Television system NTSC: American TV standard

ATSC (8VSB terrestrial): ATSC compliant 8VSB

QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)

Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69

Analog Cable: 1 - 135 / Digital Cable: 1 - 135

Panel system LCD (Liquid Crystal Display) Panel

Speaker output 8 W + 8 W (42W650A)

5 W + 5 W (32W650A)

Input/Output jacks

CABLE/ANTENNA 75-ohm external terminal for RF inputs

VIDEO IN 1 Video / Audio input (phono jacks)

COMPONENT IN

VIDEO IN 2

YPBPR (Component Video): 1080p (60 Hz), 1080i (60 Hz), 720p (60 Hz), 480p, 480i

Audio input (phono jacks)

Video input (common phono pin with Y input)

HDMI IN 1/2 Video: 1080p (30, 60 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p,

480i, PC Formats

Audio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

ARC (Audio Return Channel) (HDMI IN 1 only)

MHL

(common with HDMI IN 2)

Video: 1080p (30 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p,

480i

Audio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

AUDIO OUT/Headphones Stereo mini jack

DIGITAL AUDIO OUT

(OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital)

LAN 10BASE-T/100BASE-TX connector (Connection speed may differ depending on the

network environment. 10BASE-T/100BASE-TX communication rate and

communication quality are not guaranteed for this TV.)

USB/DLNA Refer to the i-Manual for supported formats.

AC adapter input (DC 19.5 V)

Others

Supplied accessories See page 8 (Checking the accessories).

Optional accessories Connecting cables

Support Belt Kit

Camera and Microphone Unit: CMU-BR200/CMU-BR100

USB Wireless LAN Adapter: UWA-BR100

Operating temperature 32 ºF – 104 ºF (0 ºC – 40 ºC)

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US06OPT.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

* Screen size, dimensions and mass are approximate values.

•Optional accessories availability depends on countries/region/TV model/stock.

•Design and specifications are subject to change without notice.

Model name KDL- 42W650A 32W650A

Power and others

Power requirement 19.5 V DC with AC adapter

Rating: Input 110-240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz)

Power

consumption

in use 84 W 67 W

in standby Less than 0.4 W with 120 V AC and less than 0.5 W with 240 V AC

Screen size*

(inches measured diagonally)

42 inches 31.5 inches

(32 class)

Display resolution 1,920 dots (horizontal) × 1,080 lines (vertical)

Dimensions*

with stand (mm)

(inches)

954 × 595 × 197

37 5/8 × 23 1/2 × 7 7/8

725 × 465 × 197

28 5/8 × 18 3/8 × 7 7/8

without stand

(mm)

(inches)

954 × 568 × 69

37 5/8 × 22 3/8 × 2 3/4

725 × 438 × 69

28 5/8 × 17 1/4 × 2 3/4

wall-mount hole

pattern (mm)

283

wall-mount screw

size (mm)

M6 (length: see diagram on page 22.)

Mass*with stand

(kg)/(lb.)

11 / 24.3 7.8 / 17.2

without stand

(kg)/(lb.)

9.9 / 21.9 6.8 / 15.0

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US07PRE.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Additional

Information

Additional Information

Safety Information

KDL-42W650A only:

This device complies with Industry Canada

licence-exempt RSS standard(s). Operation is

subject to the following two conditions: (1) This

device may not cause harmful interference, and

(2) this device must accept any interference

received, including interference that may cause

undesired operation.

KDL-32W650A only:

For customers in Canada

This Class B digital apparatus complies with

Canadian ICES-003.

KDL-32W650A seulement :

Pour les clients résidant au Canada

Cet appareil numérique de la classe B est

conforme à la norme NMB-003 du Canada.

KDL-32W650A only:

FCC Related Information

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses and

can radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference to

radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is encouraged

to try to correct the interference by one or more of

the following measures:

❑Reorient or relocate the receiving antenna.

❑Increase the separation between the

equipment and receiver.

❑Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

❑Consult the dealer or an experienced radio/TV

technician for help.

Safety and Regulatory

This device and its antenna(s) must not be co-

located or operating with any other antenna or

transmitter except Grant condition.

KDL-32W650A only:

This equipment complies with FCC/IC radiation

exposure limits set forth for uncontrolled

equipment and meets the FCC radio frequency

(RF) Exposure Guidelines in Supplement C to

OET65 and RSS-102 of the IC radio frequency

(RF) Exposure rules. This equipment has very low

levels of RF energy that it deemed to comply

without maximum permissive exposure evaluation

(MPE). But it is desirable that it should be installed

and operated with at least 20 cm and more

between the radiator and person’s body

(excluding extremities: hands, wrists, feet and

ankles).

KDL-42W650A only:

This equipment complies with IC radiation

exposure limits set forth for uncontrolled

equipment and meets the RSS-102 of the IC radio

frequency (RF) Exposure rules. This equipment

has very low levels of RF energy that it deemed to

comply without maximum permissive exposure

evaluation (MPE). But it is desirable that it should

be installed and operated with at least 20 cm and

more between the radiator and person’s body

(excluding extremities: hands, wrists, feet and

ankles).

Note

This television includes a QAM demodulator

which should allow you to receive unscrambled

digital cable television programming via

subscription service to a cable service provider.

Availability of digital cable television

programming in your area depends on the type of

programming and signal provided by your cable

service provider.

Declaration of Conformity

Trade Name: SONY

Model: KDL-32W650A

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC

rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful

interference, and (2) this device must accept

any interference received, including

interference that may cause undesired

operation.

Pursuant to FCC regulations, you are cautioned

that any changes or modifications not

expressly approved in this manual could void

your authority to operate this equipment.

(Continued)

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US07PRE.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

NOTE ON AC ADAPTER

Warning

To reduce the risk of fire or electric shock, do not expose

this apparatus to rain or moisture.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Do not install this equipment in a confined space, such

as a bookshelf or similar unit.

•Please ensure that the AC power outlet is installed near

the equipment and shall be easily accessible.

•Be sure to use the supplied AC adapter and AC power

cord. Otherwise it may cause a malfunction.

•Connect the AC adapter to an easily accessible AC

power outlet.

•Do not coil the AC power cord

around the AC adapter. The

core wire may be cut and/or it

may cause a malfunction of the

TV.

•Do not touch the AC adapter

with wet hands.

•If you notice an abnormality in the AC adapter,

disconnect it from the AC power outlet immediately.

•The set is not disconnected from the AC source as long

as it is connected to the AC power outlet, even if the set

itself has been turned off.

•As the AC adapter will become warm when it is used

for a long time, you may feel hot when touching it by

hand.

WALL-MOUNT BRACKET

Below information shows the correct handling of the Wall-

Mount Bracket. Be sure to read this information

thoroughly and use the Wall-Mount Bracket correctly.

To Customers:

Be sure to observe the following precautions for safety to

prevent a serious injury through fire, electric shock, the

product toppling over, or the product dropping.

•Be sure to subcontract the installation to licensed

contractors and keep small children away during

installation.

•Be sure to subcontract moving or dismounting of the

TV to licensed contractors.

•Do not remove screws, etc., after mounting the TV.

•Do not make alterations to the parts of the Wall-Mount

Bracket.

•Do not mount any equipment other than the specified

product.

•Do not apply any load other than the TV on the Wall-

Mount Bracket.

•Do not lean on or hang from the TV.

•Do not handle the TV with excessive force during

cleaning or maintenance.

To Sony Dealers and Contractors:

The following instructions are for Sony dealers and

contractors only. Be sure to read safety precautions

described below and pay special attention to safety

during the installation, maintenance and checking of this

product.

•Do not install the Wall-Mount Bracket on wall surfaces

where the corners or the sides of the TV are protruding

away from the wall surface.

•Do not install the TV over or under an air-conditioner.

•Be sure to install the Wall-Mount Bracket securely to

the wall following the instructions in this instruction

manual. If any of the screws are loose or fall out, the

Wall-Mount Bracket may fall and cause injury or

property damage.

•Be sure to use the supplied screws and attachment

parts properly following the instructions given in this

instruction manual. If you use substitute items, the TV

may fall and cause bodily injury to someone or damage

to the TV.

•Be sure to assemble the bracket properly following the

instructed procedure explained in this instruction

manual.

•Be sure to tighten the screws securely in the

designated position.

•Be careful not to subject the TV to shock during

installation.

•Be sure to install the TV on a wall that is both

perpendicular and flat.

•After proper installation of the TV, secure the cables

properly.

•Do not allow the AC power cord or the connecting

cables to be pinched as the internal conductors may

become exposed and cause a short circuit or an

electrical break.

D:\SONY TV\SY130205_H14 (Rev-1)\4462084121_US\US07PRE.fm

KDL-42W650A / 32W650A

4-462-084-12(1)

Additional

Information

WALL-MOUNT BRACKET

•If you use the TV installed on the Wall-Mount Bracket

for a long time, the wall behind or above the TV may

become discoloured or the wallpaper may come

unstuck, depending on the material of the wall.

•If the Wall-Mount Bracket is removed after installing it

on the wall, the screw holes are left.

•Do not use the Wall-Mount Bracket in a place where it

is subjected to mechanical vibrations.

Precautions

KDL-42W650A / 32W650A

4-462-084-12(1)

For Your Convenience

Online

Registration:

Be sure to register your TV.

United States

Canada

http://productregistration.sony.com

http://www.sony.ca/registration

Software

Updates:

Your TV is capable of receiving software updates. For the

latest information about software updates for your TV, visit:

United States

Canada

http://www.sony.com/tvsupport

http://www.sony.ca/support

NOTE: If your TV is connected to the Internet, you can check

for software updates by selecting Settings, Product

Support and then Software Update.

Sony KDL 32W650A 42W650A / User Manual Operating Instructions (Setup Guide) KDL32W650A

Navigation menu

Versions of this User Manual:

Views

Navigation
