Sony KDL 40W590B User Manual LED TV Manuals And Guides 1405292L

User Manual: Sony KDL-40W590B KDL-40W590B SONY LED TV - Manuals and Guides View the owners manual for your SONY LED TV #KDL40W590B. Home:Electronics Parts:Sony Parts:Sony LED TV Manual

Open the PDF directly: View PDF .
Page Count: 42

ONY

Television

Tel6viseur O er tino,nstructionsUSi!

(Setup Guide)

Moded'emploi FRi !

(Guide d'installation)

BR IA

Sony Customer Support

U.S.A.:

http://www.sony.com/tvsu pport

Canada:

http://www.sony.ca/su pport

United States Canada

1.800.222.SONY 1.877.899.SONY

Please Do Not Return

the Product to the Store

Service & la clientele Sony

Canada:

http://su pport.sony.ca/fr

Etats-Unis :

http://www.sony.com/tvsu pport

Canada Etats-Unis

1.877.899.SONY 1.800.222.SONY

Ne retournez pas le produit au magasin

Owner's Record

The model and serial numbers

are located at the side and rear of

the TV. Record these numbers in

the spaces provided below. Refer

to them whenever you call upon

your Sony dealer regarding this

TV.

Model Name

Serial No.

CAUTION

To prevent electric shock and blade

exposure, do not use this AC plug

with an extension cord, receptacle or

other outlet unless the blades can be

fully inserted.

•Operate the TV only on DC 19.5 V

(with AC adapter)

Licensing Information

The terms HDMI and HDMI High-

Definition Multimedia Interface, and

the HDMI Logo are trademarks or

registered trademarks of HDMI

Licensing LLC in the United States

and other countries.

Fergason Patent Properties, LLC:

U.S. Patent No. 5,717,422

U.S. Patent No. 6,816,141

Manufactured under license from

Dolby Laboratories. Dolby and the

double-D symbol are trademarks of

Dolby Laboratories.

"Blu-ray Disc", "Bid-ray" and "Blu-ray

Disc" logo are trademarks of Bid-ray

Disc Association.

"BRAVlA" and BRAVlA, S-Force,

Motionfiow, BRAVIA Sync, and [] are

trademarks or registered marks of

Sony Corporation.

DLNA ®, the DLNA Logo and DLNA

CERTIFIED ® are trademarks, service

marks, or certification marks of the

Digital Living Network Alliance.

TracklD is a trademark or registered

trademark of Sony Mobile

Communications AB.

Music and video recognition

technology and related data are

provided by GracenoteO. Gracenote

is the industry standard in music

recognition technology and related

content delivery. For more

information, please visit

www.gracenote.com.

CD, DVD, Bid-ray Disc, and music

and video-related data from

2000-present Gracenote. Gracenote

Software, copyright @ 2000-present

Gracenote. One or more patents

owned by Gracenote apply to this

product and service. See the

Gracenote website for a non-

exhaustive list of applicable

Gracenote patents.

Gracenote, Gracenote eyeQ,

Gracenote VideolD, Gracenote Video

Explore, Gracenote MusiclD, the

Gracenote logo and logotype, and

the "Powered by Gracenote" logo are

either registered trademarks or

trademarks of Gracenote in the

United States and/or other countries.

Opera ® Devices SDK from Opera

Opera Software ASA. All rights

reserved.

Wi-Fi, Wi-Fi Direct and Miracast are

trademarks or registered trademarks

of Wi-Fi Alliance.

"Sony Entertainment Network logo"

and "Sony Entertainment Network"

are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link and

the MHL Logo are trademarks or

registered trademarks of MHL

Licensing, LLC.

For DTS patents, see

http://patents.dts.com. Manufactured

under license from DTS Licensing

Limited. DTS, the Symbol, & DTS and

the Symbol together are registered

trademarks, and DTS Digital

Surround is a trademark of DTS, Inc.

Designed with UEI Technology TM

Under License from Universal

Electronics Inc. Portions © UE12000 -

2013

HiI::3FTII| TM

HIGH-DEFINITION MULTIMEOIA INTERFACE

graoenoBe

0 OPERA

software

,,MHL

Mobile Hiqh-De_inition Link

DigitalSurround

2us

Your BRAVIA TV is

ENERGY STAR e

qualified in the

default mode.

It meets strict energy

efficiency guidelines

set by the U.S. Environmental

Protection Agency and Department

of Energy. ENERGY STAR is a joint

program of these government

agencies, designed to promote

energy efficient products and

practices.

Changes to certain features, settings,

and functionalities (when available) of

this TV (i.e. Picture/Sound, Light

Sensor, Power Savings, Picture

Scene/Mode, Auto Display, Shop

Front Display Settings) can increase

or change the power consumption.

The "Auto" and "General" picture

scenes are default settings optimized

for the input signal selected. Your

BRAVlA TV is tested in these settings

for ENERGY STAR qualification.

Depending upon such changed

settings, the power consumption may

exceed the limits required for the

ENERGY STAR qualification in the

default mode.

The 48 class has a 47.6 inch |

viewable image size (measured J

d agona y).

Location of the

identification label

Labels for the TV Model No., Power

Supply rating (in accordance with

applicable safety regulation) and

Manufacturing date are located on

the rear of the TV. Labels for the AC

adapter Model No. and Serial No. are

located on the bottom of the AC

adapter.

• Instructions for "Installing the TV to

the Wall" are included in this

manual.

• The illustrations of the remote

control used in this manual are of

the RM-YD103 unless otherwise

stated.

• The illustrations used in this manual

may differ depending on your TV

model.

• Retain this manual for future

reference.

3us

The BRAVIA ®Full HDTV

Experience

Thank you for choosing Sony! Your new

BRAVIA ® TV opens the door to the "Full

HDTV Experience." This document will help

you get the most out of your TV.

Please take a moment to register your TV

at:

U.S.A.: http://productregistration.sony.com

Canada: http://www.sony.ca/registration

Four Steps to a Full HD Experience

Set, Source, Sound, and Setup.

1 Set

Now that you have made the best selection

in LED backlit LCD TV technology, be sure

to remove all accessory contents from the

packaging before setting up your TV.

2Source

To experience the stunning detail of your

BRAVIA TV, you need access to HD

programming.

• Upgrade your signal or content source to

high-definition (HD) by contacting your

HD service provider.

• Receive over-the-air HD broadcasts with

an HD-quality antenna connected

directly to the back of your TV.

Visit http://www.antennaweb.org for

more information on antenna selection

and setup.

• Discover the wealth of entertainment now

available on super-high resolution

Blu-ray Disc TM player and other Sony HD

equipment.

3Sound

Complete the high-definition experience

with a BRAVIA Sync TM surround sound

system or A/V receiver from Sony.

4Setup

Install your TV and connect your sources.

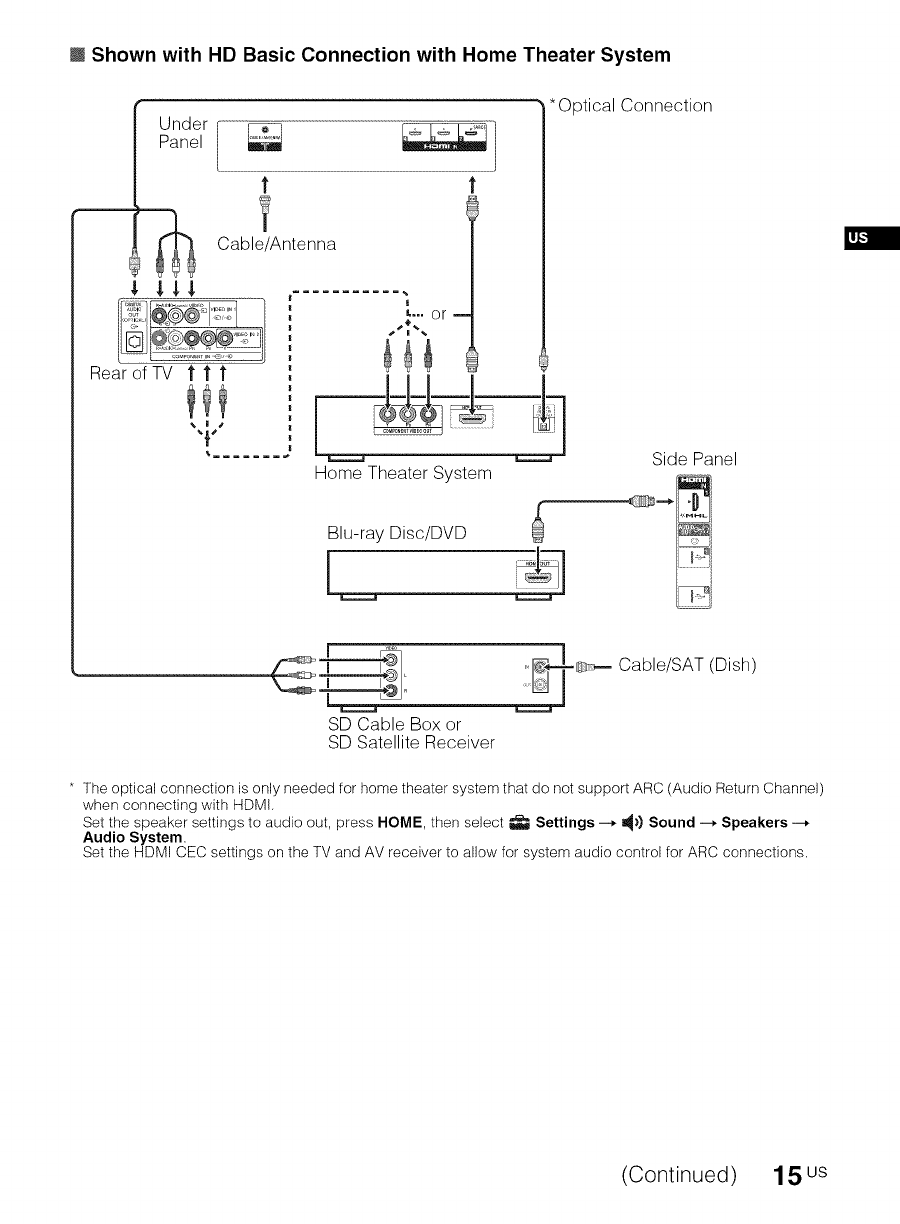

See page 11 for sample connection

diagrams. To help assure the highest

quality for your HD experience, use Sony

HDMI (High-Definition Multimedia

Interface) cables.

To learn more about HDTV, visit:

U.S.A.: http://www.sony.com/H DTV

Canada: http://www.sony.ca/hdtv

This TV displays all video input signals in a resolution of 1,920 dots x 1,080 lines.

The following chart shows the high-definition (HD) and standard-definition (SD) video formats

supported by your BRAVIA TV inputs.

I!0

ISUPPORTED FORMATS

INPUT VIDEO AUDIO 1080,'24pi30p1080p .1 108Oi 720i24pi30p720p .1 480p

NDMI

COMPONENT

Y PB PR Audio L/R

.1 For details of supported formats, refer to the "Specifications" in this manual.

.2 For supported PC formats refer to the i-Manual.

480i PC.2

4us

5 us

About this manual (Operating Instructions)

This manual explains how to setup your TV. For more

information on how to use your BRAVlA TV, refer to the

"Electronic manual".

Explains how to setup your TV such as connections,

initial setup, and basic operations.

For more information, press the i-MANUAL button

Explains how to use all the features. See page 26 on

how to use the i-Manual.

d:t

[_yT ¸ !_

;ili!;j¸iiiiiiiiiiiiii!!;;ij¸iii¸i!ii!ii_iiiiiiiiiiiiiiiiiiiiiii_!!ii;_!!i;i!i_ji_!._:!_;i!;;;;;;;;;;;;;;;;;_iji_i_j_!_!_!_;_ji!i!i!iiii¸iiiiil;!!!iiii!!iii!i!iiii!i!!!!!!!!!!!!!i¸!(I¸i!ii!iii!il;iiiiiill¸i!!iiiiiii!ii;!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!;_i;i¸i;iii!ii;i!i!!;ii¸i¸iiii;iiii_i!i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;iiiil¸:i¸I¸I¸I;III!I_I!I¸i!_i¸!!_ii!;_:i!i!i!!iiiii!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!i¸!(I¸i!jili!i!i!il;ii;i_iiiiiiiiiii:}iiii!!iii!i¸IIIIIIIIIIIIIIIIIIIIIII

Images and illustrations used in this manual may differ from

the actual screen.

6us

Table of Contents

Checking the accessories ........................................................................ 8

Inserting batteries into the remote control ................................................ 8

Before setting up your TV ......................................................................... 9

1: Attaching the Table-Top Stand .......................................................... 10

2: Connecting the TV .............................................................................. 11

3: Securing the TV .................................................................................. 17

4: Bundling the cables ........................................................................... 18

5: Connecting the TV to the Internet ....................................................... 19

6: Running initial setup ........................................................................... 20

Watching TV ........................................................................................... 21

Using the remote control ........................................................................ 21

Discovering the contents you like (Discover) ......................................... 23

Enjoying social networking while watching TV (Social Viewing) ............ 23

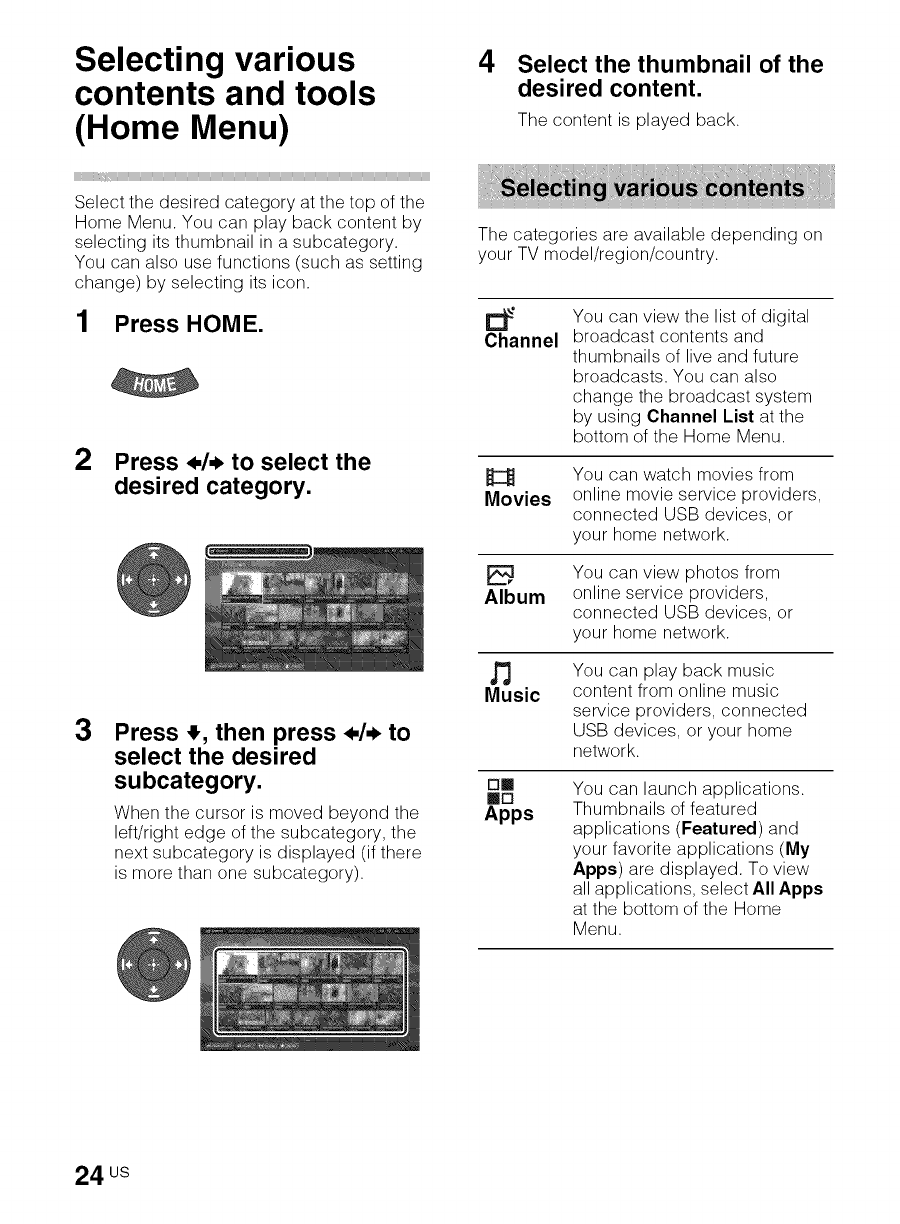

Selecting various contents and tools (Home Menu) .............................. 24

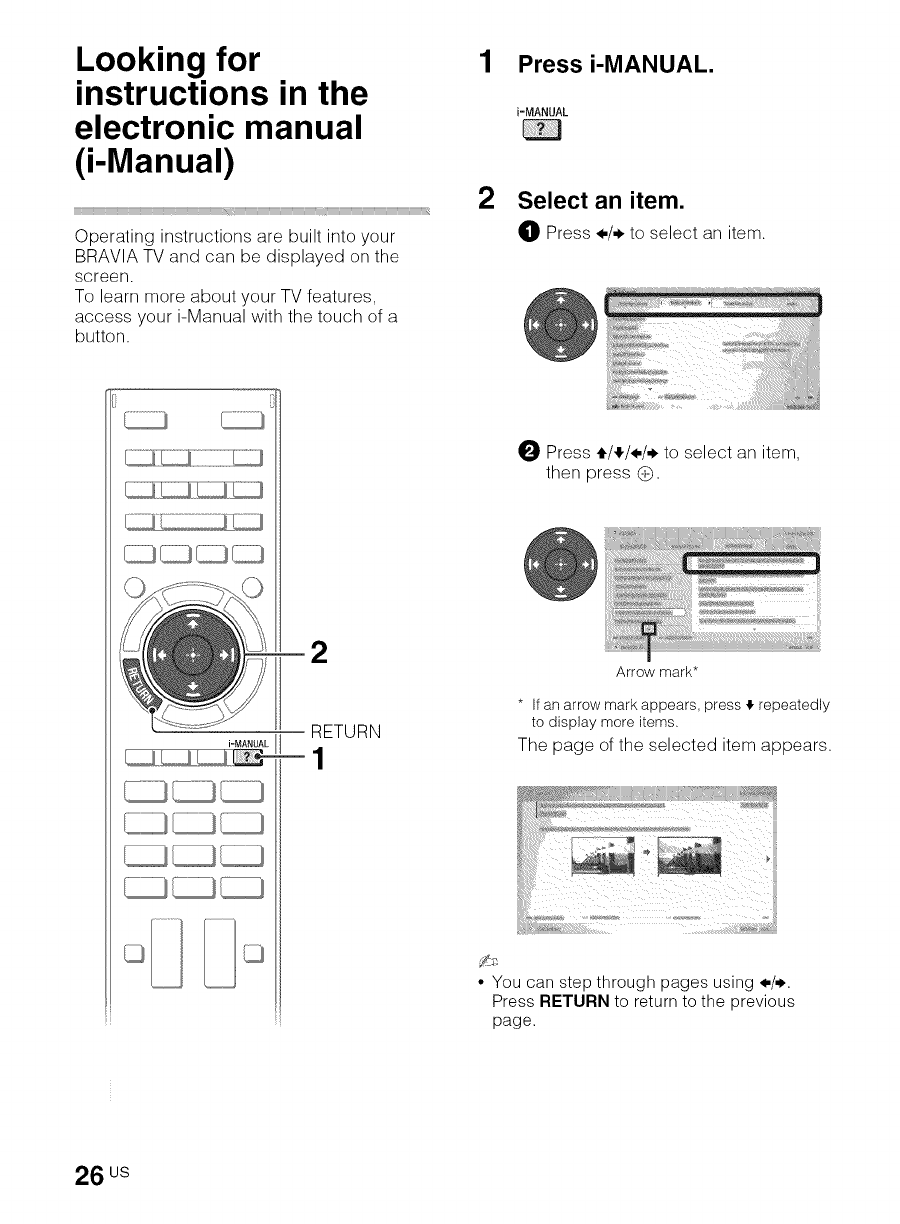

Looking for instructions in the

electronic manual (i-Manual) _...(_)

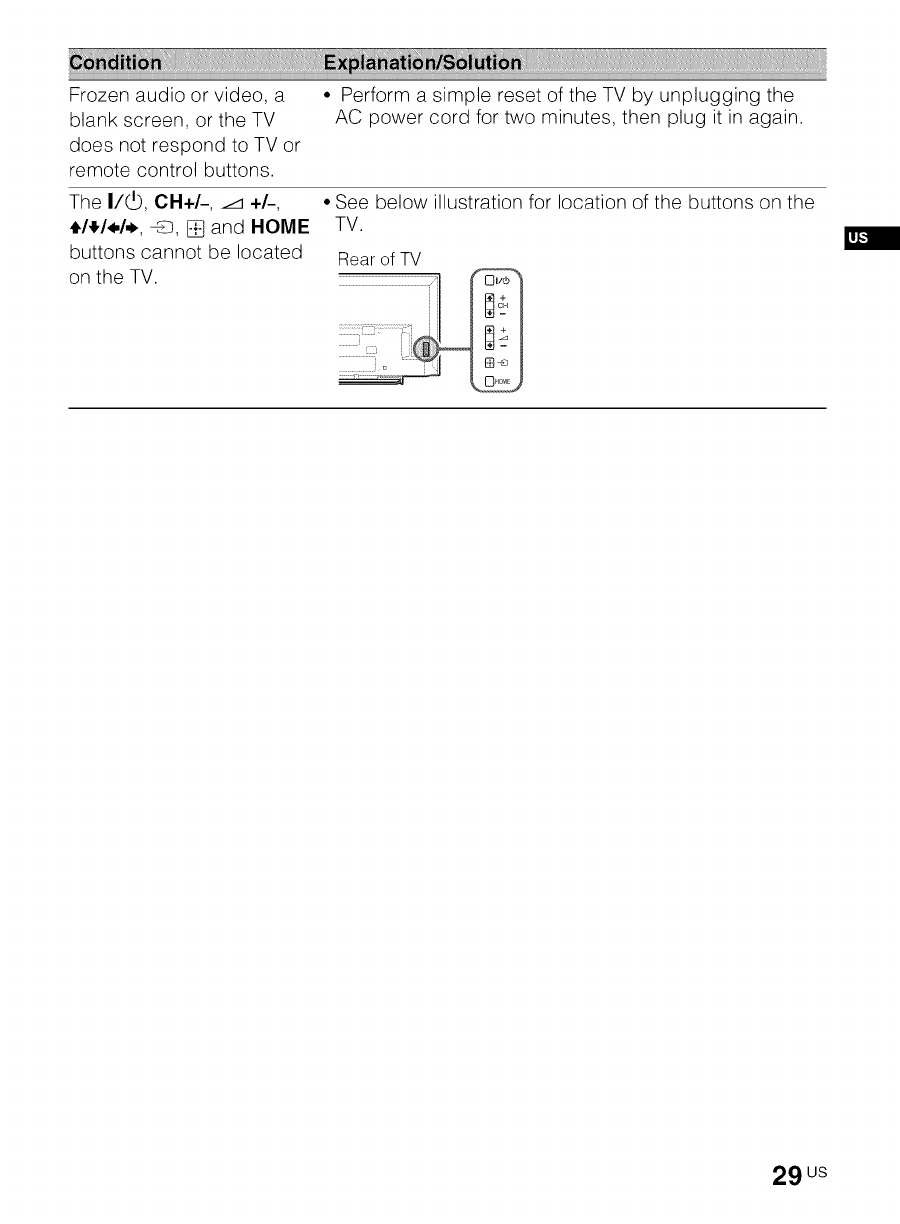

Troubleshooting ...................................................................................... 28

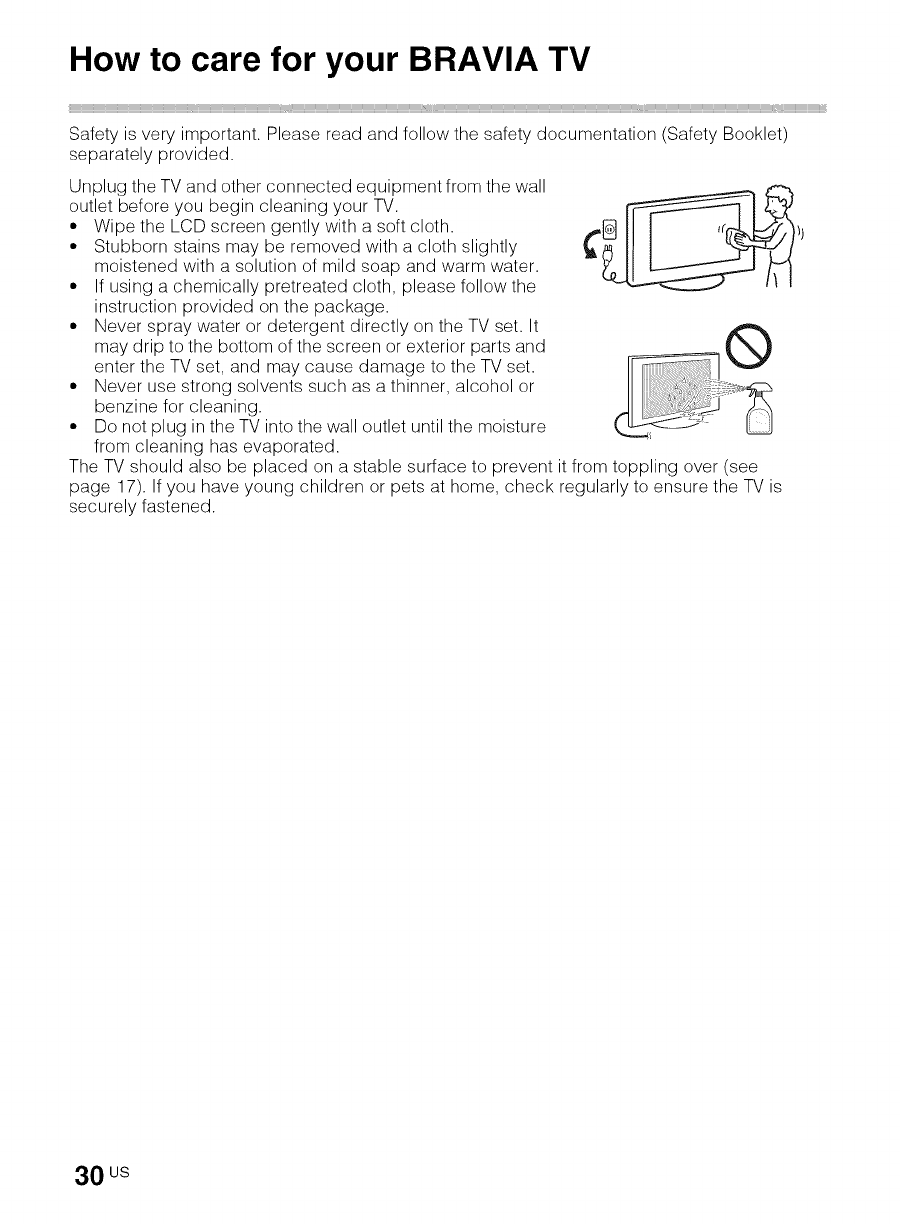

How to care for your BRAVlA TV ............................................................ 30

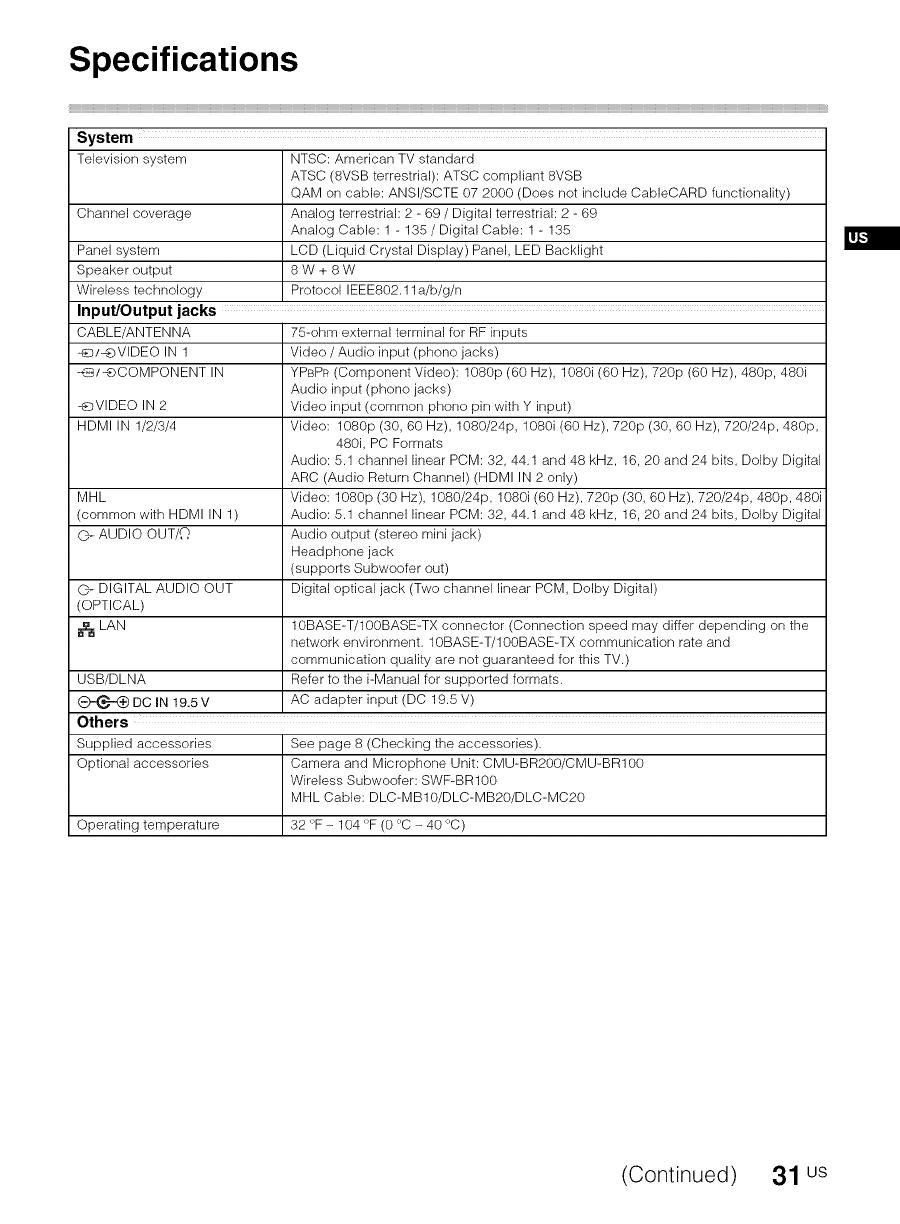

Specifications ......................................................................................... 31

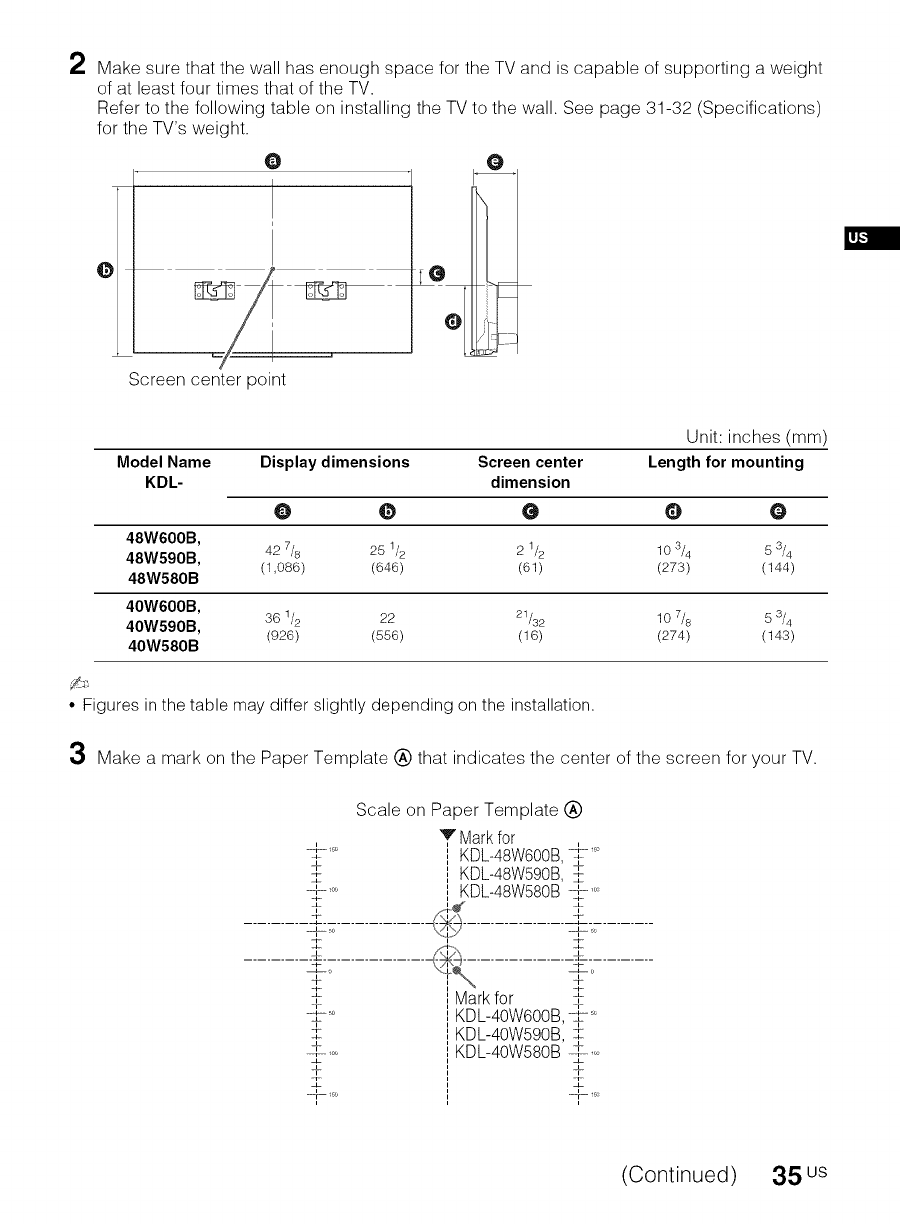

Installing the TV to the Wall .................................................................... 33

Installing the TV against a wall or enclosed area ................................... 39

Safety Information ................................................................................... 40

7us

Checking the

accessories

Remote control (1)*

Size AAA batteries (2)

AC power cord (1)

AC adapter (1)

Cable holder (3)

Table-Top Stand (1)*

Fixing screws for Table-Top Stand

(M5 x 20) (2)

Operating Instructions (this manual) and

other documents

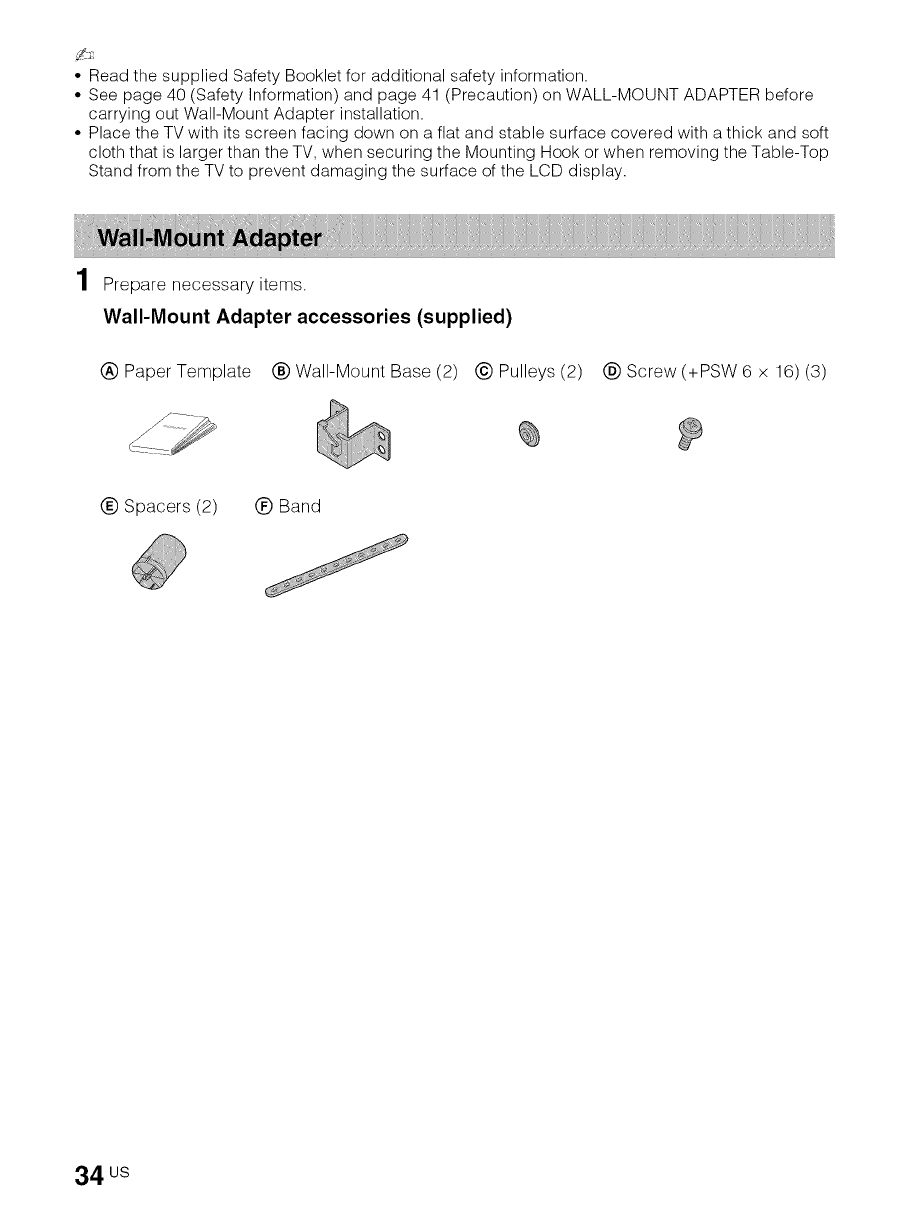

Wall-Mount Adapter accessories

* Refer to the model name printed on the remote

control.

Inserting batteries

into the remote

control

1Remove the protection sheet.

2Push and slide the cover to open.

8us

MGuidelines for Remote Control

• Point your remote control directly at the

IR sensor located on your TV.

• Make sure that no objects are blocking

the path between the remote control and

the IR sensor on your TV.

Fluorescent lamps can interfere with your

remote control; try turning off the

fluorescent lamps.

If you are having problems with the

remote control, reinsert or replace your

batteries and make sure that they are

correctly inserted.

Before setting up

your TV

Some TV models are packaged with a

detached Table-Top Stand so you can

mount your TV to a wall right away. See

page 33 (Installing the TV to the Wall) if you

want to mount the TV to a wall. If you are not

mounting the TV to a wall, you will need to

attach the Table-Top Stand. You will need a

Phillips screwdriver (not supplied) and the

supplied screws to complete the task. Look

for the supplied Table-Top Stand instruction

leaflet.

Be sure to consider the following while

setting up your TV:

• Disconnect all cables when carrying the

TV.

• Carry the TV with the adequate number

of people; larger size TVs require two or

more people.

• Correct hand placement while carrying

the TV is very important for safety and to

avoid damage.

Ensure your TV has adequate ventilation,

see page 39.

For best picture quality, do not expose

the screen to direct illumination or

sunlight.

Avoid installing the TV in a room with

reflective wall and floor materials.

Avoid moving the TV from a cold area to

a warm area. Sudden room temperature

changes may cause moisture

condensation. This may cause the TV to

show poor picture and/or poor color.

Should this occur, allow moisture to

evaporate completely before powering

the TV on.

(Continued) 9us

Ensure that there are no objects in front

of the TV.

IR Sensor

1: Attaching the

Table-Top Stand

......................................................................................................................................................iiijiiiiiiiiii{_i;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Refer to the supplied Table-Top Stand

leaflet for proper attachment.

• Do not put stress on the LCD panel or the

frame around the screen.

• Be careful to not pinch your hands or the AC

power cord when you install the TV set to the

Table-Top Stand.

1 Attach the Table-Top Stand to the TV.

2Fix the TV to the Table-Top Stand using

the supplied screws.

10us

• if using an electric screwdriver, set the

torque at approximately 1.5 N.m

{15 kgf.cm}.

To detach the Table-Top Stand from the TV,

remove the screws fixed in step 2.

• Do not remove the Table-Top Stand for any

reason other than to install corresponding

accessories on the TV.

• When removing the Table-Top Stand from

the TV, lay the display face down on a stable

work surface that is larger than the TV.

• To prevent damaging the surface of the LCD

display, make sure to place a soft cloth on

the work surface.

• Be sure the TV is vertical before turning on.

To avoid uneven picture uniformity do not

power on the TV with the LCD panel facing

down.

• When attaching the Table-Top Stand again,

be sure to fasten the screws (previously

removed) to the original holes on the rear of

the TV.

• You can bundle the AC adapter as an

optional step. Do not bundle it for any reason

other than to wall-mount the TV.

• Make sure that the label is facing outwards

when bundling AC adapter.

2: Connecting the TV

• Use an antenna cable connector no greater

than 14 mm thick.

• When connecting the cable to the Cable/

Antenna, input finger tighten only, over

tightening the connection can damage the

TV.

• Before moving the TV, disconnect all of the

cables connected to the TV to prevent

damaging the TV when it is moved.

• Use an HDMI cable connector within 12 mm

(thickness) x 21 mm (width).

• For more information on connections, refer to

the i-Manual.

IShown with a Set Top Box with

HDMI connection

............... ii

Set Top Box

(Continued) 1 1 us

Recommendation for an F type plug

Projection of the inner wire from the

connection part must be less than 1.5 mm.

lCable System or VHF/UHF Antenna

System

I 7 mm max.

1.5 mm max.

(Reference drawing for an F type plug)

lShown with a Set Top Box with

COMPONENT connection

_L,,_ ,=,_ Cable or Antenna

Set Top Box

12us

lShown with MHL device with MHL

connection

Use authorized

MHL 2 CABLE

with MHL logo MHL

device

The TV simultaneously charges the MHL-

compatible connected device while playing

photo/music/video files. You can use the TV

remote control to control the connected

MHL-compatible device.

•If Auto Input Change (MHL) is set to On, the

TV automatically switches to HDMI iN 1/MHL

from other input when MHL-compatible

device is connected to HDMI IN 1/MHL jack.

The availability of Auto Input Change (MHL)

depends on whether the MHL-compatible

device can support this feature.

• if Charge MHL during Power Off is set to

On, you can continue charging the MHL-

compatible device even when the TV is in

standby mode.

(Continued) 13 us

lShown with HD BRAVIA ®Sync TM Basic Connection

*lUnderPanel

t *2Optical Connection !

*1Rear of TV [

*IA/V Receiver

.1Blu_ray Disc

*1Side Panel

HD Cable Box or

HD Satellite Receiver

__ '°_ _-_, _s_==SAT (Dish)

,====, __ Cable/Antenna

.1 Signifies a BRAVIA Sync capable device.

.2 The optical connection is only needed for A/V receivers that do not support ARC (Audio Return Channel).

Set the speaker settings to audio out, press HOME, then select _ Settings _ _) Sound _ Speakers

Audio System,

Set the HDMI CEC settings on the TV and AV receiver to allow for system audio control for ARC connections

14 us

lShown with HD Basic Connection with Home Theater System

Under /

Panel []

Cable/Antenna

Rear of TV ttt

_-,. or=

ss a_-_

Home Theater System

*Optical Connection

Side Panel

Blu-ray Disc/DVD

SD Cable Box or

SD Satellite Receiver

,,___ Cable/SAT (Dish)

* The optical connection is only needed for home theater system that do not support ARC (Audio Return Channel)

when connecting with HDMI.

Set the speaker settings to audio out, press HOME, then select _ Settings --_ i_l] Sound --_ Speakers --_

Audio System.

Set the HDMI CEC settings on the TV and AV receiver to allow for system audio control for ARC connections=

(Continued) 15 us

lShown with PC Connection with SD VCR/DVD

* DVl Side Panel

Under Panel ,_

Rear of TV

_ VCR V DVD

Splitter VCR/DVD Combo L

Cable/Antenna

tttt

* DVl does not support audio signals. Connect the audio output of the PC to the PC speakers or an A/V receiver to

listen to sound from the PC.

16us

3: Securing the TV

Sony strongly recommends

taking measures to prevent

the TV from toppling over.

Unsecured TVs may topple

and result in property

damage, serious bodily

injury or even death.

• Secure the TV to a wall and/or stand.

• Do not allow children to play or climb on

furniture and TV sets.

• Avoid placing or hanging items on the

TV.

• Never install the TV on:

- slippery, unstable and/or uneven

surfaces.

- furniture that can easily be used as

steps, such as a chest of drawers.

• Install the TV where it cannot be pulled,

pushed, or knocked over.

• Route all AC power cords and

connecting cables so that they are not

accessible to curious children.

2Secure the TV to the Stand.

Use the optional hardware listed as

follows (not supplied):

• M4 machine screw (screwed into the

TV's rear cover)

• A screw or similar (attach it to the

Stand)

• Rope or chain (strong enough to

support the weight of the TV). Make

sure that there is no excess slack in

the rope or chain.

Screw hole on

the rear cover

Rope or chain

(not supplied)

Consider the following measures when

securing your TV to a Stand (not supplied).

1 Secure the Stand for the TV.

Make sure the Stand can adequately

support the weight of the TV. Use two

angle braces (not supplied) to secure

the stand. For each angle brace use the

appropriate hardware to:

• Attach one side of the angle brace to

the wall stud.

• Attach the other side to the Stand.

(not supplied)

(Continued) 1 7 us

The length of the M6 machine screw

differs depending on the rope or chain

diameter. Please see below illustration.

8-12 mm

TV's rear cover

_e or chain

3Anchor the TV to the wall by using bolts,

wall anchor and chain (or rope).

Anchor bolts (M6) (not supplied)

Wall-

Rope or

chain (not

supplied)

holes

Wall-anchor

(not

supplied)

• Your TV is shipped with screws attached

to the rear of the TV depending on the TV

model. (They are fastened in the screw

holes for wall mounting.) Be sure to

remove the upper two screws prior to

anchoring the TV to a wall.

• Securing the TV to the stand without

securing the TV and the stand to the wall

provides minimum protection against the

TV toppling over. For further protection,

be sure to follow the three measures

recommended.

4: Bundling the

cables

• Do not bundle the AC power cord together

with other cables.

18us

5: Connecting the TV

to the Internet

When you connect this TV to the Internet,

you can enjoy multiple functions. For details

on the functions, refer to the i-Manual.

• You will need to contract with an Internet

service provider to connect to the Internet.

Internet

Modem

with router

functions

Router

Modem

Internet

The built-in Wi-Fi device allows you to

access the Internet and your home network.

With this feature, you can connect to a

wireless network and enjoy the benefits of

networking in a cable-free environment.

Before setting up the Wi-Fi function of the

TV, be sure to set up a wireless router

(access point).

1((((( Wireless

router

(access

point)

Modem

Internet

• For LAN connections, use a Category 7

cable (not supplied).

19us

6: Running initial

setup

Complete your cable connections before

proceeding with the Initial Setup.

Connect the AC power cord to the AC

adapter and plug the DC cable into the

DC IN 19.5 V terminal. Then, connect the

AC adapter to your nearest power outlet.

Press I/_ on the TV. The LED indicator

will light up in green.

When you switch on the TV for the first

time, the Language menu appears on

the screen.

Press _,/,!,/_./,_to select an item, then

press @.

Follow the instructions on the screen.

Set up the Internet connection by

selecting Wi-Fi or Wired LAN. If you will

not be using the network features of the

TV, or to set up later, select Skip.

• The TV will automatically detect and

setup the network when a wired

connection is made before the initial

setup.

• For customers who need to setup their

network connection with a Static IP

address and/or a Proxy server, select

Skip. After completing the initial setup,

press HOME, then select _ Settings

--* _) Network --* Network Setup --*

Set up network connection --* Expert.

• if you use WEP security, select Wi-Fi --*

Connect by scan list. Then, select the

network name (SSID) you want to

connect to. if you cannot find the

required network name, select [Manual

Entry] and press G to enter network

name.

• To perform Network Setup later, press

HOME, then select _ Settings --*

_) Network --* Network Setup,

• The TV will automatically search for a

software update after the network is

setup and will try to automatically detect

your region.

Scan for available channels using the

TV's built-in tuner by selecting Built-in

Tuner ---* Auto. If you will be using a

cable box or satellite receiver and do not

wish to use the TV's built-in tuner select

Set Top Box. If you do not wish to use

the TV's built-in tuner or a set top box,

select Skip.

20 us

Watching TV

1Turn on the TV.

Press I/_ on the TV or POWER on the

remote control to turn on the TV.

The illumination LED will light up in

white.

I,'0

Select a TV channel or

select an input.

CH ___

or or

lTo select digital channels

Use 0-9 and _. For example, to enter

channel 2.1:

Press _, _ and _, then press

Using the remote

control

m- mww_

[]

SUBTITLE

(Continued) 21 us

IFrequently used buttons

[]

Color buttons

When the color buttons are available,

an operation guide appears on the

screen.

DISPLAY

Displays channel number, program

details, and the clock.

GUIDE

Displays the digital program guide.

(For an Antenna signal only and

availability depends on your TV model/

region/country)

SUBTITLE/CC

You can turn closed captions/subtitles

on/off.

22 us

Discovering the

contents you like

(Discover)

................................................................................................................................._iiiii...................................................................................................................................................................................................................................._

You can use Discover to search for content

(such as TV programs, Internet contents,

etc.). Contents that appear in Discover vary

depending on your TV model/region/

country.

1 Press DISCOVER.

2Press t/t to select the

desired category.

Enjoying social

networking while

watching TV

(Social Viewing)

Social Viewing brings the benefits of social

networking to your TV viewing experience.

Press SOCIAL VIEW to enjoy chatting with

friends while watching TV. The available

features in Social Viewing may vary

depending on your TV model/region/

country. You will need a broadband Internet

connection. For details, see page 19

(5: Connecting the TV to the Internet).

Then, go to Network Setup and follow the

on-screen instructions to connect your TV to

the Internet.

SOCIALVIEW

3Press _./._ to select the

desired item, then press _.

The selected content is displayed.

• You may need to update the TV's software to

use this function. Press HOMI=, select

? Help --* _Customer Support --*

Software Update.

23 us

Selecting various

contents and tools

(Home Menu)

Select the desired category at the top of the

Home Menu. You can play back content by

selecting its thumbnail in a subcategory.

You can also use functions (such as setting

change) by selecting its icon.

1 Press HOME.

2Press _./._to select the

desired category.

3Press t, then press _./._ to

select the desired

subcategory.

When the cursor is moved beyond the

left/right edge of the subcategory, the

next subcategory is displayed (if there

is more than one subcategory).

4Select the thumbnail of the

desired content.

The content is played back.

The categories are available depending on

your TV model/region/country.

Channel You can view the list of digital

broadcast contents and

thumbnails of live and future

broadcasts. You can also

change the broadcast system

by using Channel List at the

bottom of the Home Menu.

Movies

You can watch movies from

online movie service providers,

connected USB devices, or

your home network.

Album You can view photos from

online service providers,

connected USB devices, or

your home network.

Music You can play back music

content from online music

service providers, connected

USB devices, or your home

network.

rim

Apps

You can launch applications.

Thumbnails of featured

applications (Featured) and

your favorite applications (My

Apps) are displayed. To view

all applications, select All Apps

at the bottom of the Home

Menu.

24 us

The tools are available depending on your

TV model/region/country.

o,,

Search You can input a keyword to

search for content. You can

also select keywords searched

in the past.

-!£1

Inputs

You can select an input device

connected to the TV.

Media

Server

You can select a media server

(e.g. USB flash drive, home

network) to browse its content

using the Media Browser.

,_, You can change TV settings

Settings (e.g. Picture & Display, Sound,

Channel).

Help

You can view information

about self diagnostics and

customer support. You can

also access the i-Manual.

_/_/Tdll You can view the network

Network connection status.

Status

25 us

Looking for

instructions in the

electronic manual

(i-Manual)

i}iiiii__ i_

Operating instructions are built into your

BRAVIA TV and can be displayed on the

screen.

To learn more about your TV features,

access your i-Manual with the touch of a

button.

1 Press i-MANUAL.

i-MANUAL

2Select an item.

0 Press _,/,_,to select an item.

0 Press _./_/_,/,_,to select an item,

then press @.

i-MANUAL

RETURN

-1

Arrow mark*

* If an arrow mark appears, press 4 repeatedly

to display more items.

The page of the selected item appears.

• You can step through pages using _-/,_.

Press RETURN to return to the previous

page.

26 us

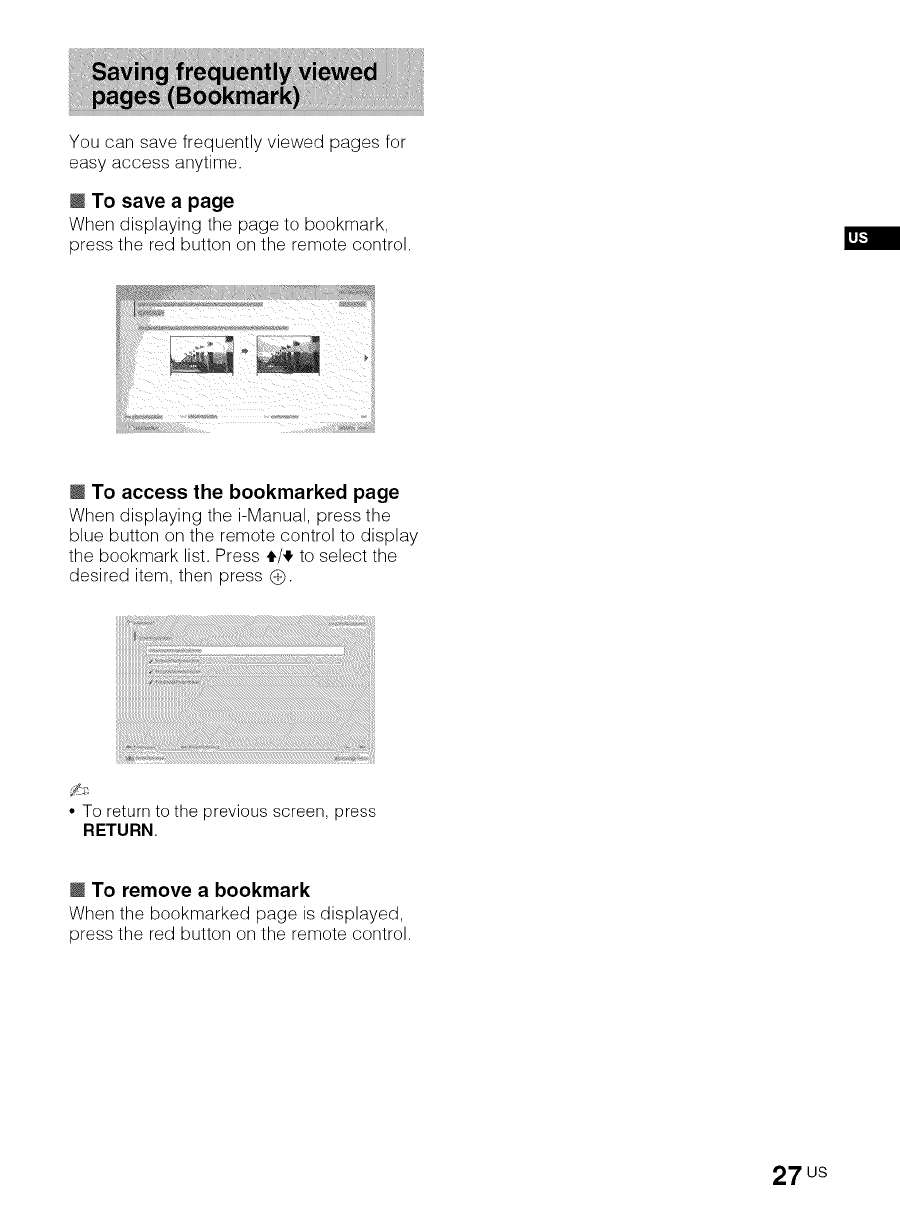

You can save frequently viewed pages for

easy access anytime.

ETo save a page

When displaying the page to bookmark,

press the red button on the remote control.

ETo access the bookmarked page

When displaying the i-Manual, press the

blue button on the remote control to display

the bookmark list. Press _./_ to select the

desired item, then press (_.

• To return to the previous screen, press

RETURN.

ETo remove a bookmark

When the bookmarked page is displayed,

press the red button on the remote control.

27 us

Troubleshooting

Eiii_

When the LED indicator is flashing red, count how many times it flashes

(interval time is three seconds).

If the LED indicator flashes red, reset the TV by disconnecting the AC power cord from the TV

for two minutes, then turn on the TV.

If the problem persists, contact Sony Customer Support (information provided on the front

cover) with the number of times the LED indicator flashes red (interval time is three seconds).

Press I/_ on the TV to turn it off, disconnect the AC power cord, and contact Sony Customer

Support.

When the LED indicator is not flashing, check the items as follows.

You can also refer to "Troubleshooting" in the i-Manual or perform self-diagnosis by selecting

? Help -_ _ Customer Support -_ Self Diagnostics. If the problem persists, contact Sony

Customer Support (information provided on the front cover).

There is no picture (screen • Check the cable/antenna connection.

is dark) and no sound. • Connect the TV to AC power, and press I/_ on the TV

or POWER on the remote control.

Some programs cannot be • Check the antenna.

tuned.

The remote control does not • Replace the batteries.

function. • Your TV may be in SYNC mode.

Press SYNC MENU, select TV Control and then

select Home (Menu) or Options to control the TV.

The Parental Lock • Enter 4357 for the PiN code. (PiN code 4357 is always

password has been accepted.)

forgotten.

The TV and its surroundings • When the TV is used for an extended period of time,

become warm. the TV and its surroundings may become warm to the

touch. This is not a malfunction of the TV.

How to reset the TV to

factory settings

• Turn on the TV. While holding down 4, on the remote

control, press I/_ on the TV. (The TV will turn itself off,

then back on again.) Release 4,.

WARNING: The reset will clear all of your customized

settings including the Parental Lock setting.

• For security purposes, be sure to remove all personal

and account information before discarding, selling or

passing your TV to someone else by: unlinking/

unregistering, signing out of and deactivating all

network services as well as factory reset the TV.

28 us

Frozen audio or video, a

blank screen, or the TV

does not respond to TV or

remote control buttons.

The I/V, CH+/-, /I +/-,

t./,!,/_,/,_, 40, [] and HOME

buttons cannot be located

on the TV.

• Perform a simple reset of the TV by unplugging the

AC power cord for two minutes, then plug it in again.

• See below illustration for location of the buttons on the

TV.

Rear of TV

29 us

How to care for your BRAVIA TV

_iii _iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

Safety is very important. Please read and follow the safety documentation (Safety Booklet)

separately provided.

Unplug the TV and other connected equipment from the wall

outlet before you begin cleaning your TV.

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly

moistened with a solution of mild soap and warm water.

• If using a chemically pretreated cloth, please follow the

instruction provided on the package.

• Never spray water or detergent directly on the TV set. It

may drip to the bottom of the screen or exterior parts and

enter the TV set, and may cause damage to the TV set.

• Never use strong solvents such as a thinner, alcohol or

benzine for cleaning.

• Do not plug in the TV into the wall outlet until the moisture

from cleaning has evaporated.

The TV should also be placed on a stable surface to prevent it from toppling over (see

page 17). If you have young children or pets at home, check regularly to ensure the TV is

securely fastened.

30 us

Specifications

System

Television system NTSC: American TV standard

ATSC (8VSB terrestrial): ATSC compliant 8VSB

QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)

Channel coverage Analog terrestrial: 2 -69 /Digital terrestrial: 2 - 69

Analog Cable: 1 -135 /Digital Cable: 1 -135

Panel system LCD (Liquid Crystal Display) Panel, LED Backlight

Speaker output 8 W + 8 W

Wireless technology Protocol IEEE802.1 la/b/g/n

Input/Output jacks

CABLE/ANTENNA 75-ohm external terminal for RF inputs

_/-_VIDEO IN 1 Video /Audio input (phone jacks)

_/_oCOMPONENT IN YPBPR (Component Video): 1080p (60 Hz), 1080i (60 Hz), 720p (60 Hz), 480p, 480i

Audio input (phone jacks)

-gVIDEO IN 2 Video input (common phone pin with Y input)

HDMI IN 1/2/3/4 Video: 1080p (30, 60 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p,

480i, PC Formats

Audio: 5.1 channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

ARC (Audio Return Channel) (HDMI IN 2 only)

MHL Video: 1080p (30 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p, 480i

(common with HDMI IN 1) Audio: 5.1 channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

Headphone jack

(supports Subwoofer out)

(OPTICAL)

ii_ LAN 10BASE-T/100BASE-TX connector (Connection speed may differ depending on the

network environment. 10BASE-T/100BASE-TX communication rate and

communication quality are not guaranteed for this TV.)

USB/DLNA Refer to the i-Manual for supported formats.

(_C"-<_ DO IN 19.5 V AC adapter input (DC 19.5 V)

Others

Supplied accessories See page 8 (Checking the accessories).

Optional accessories Camera and Microphone Unit: CMU-BR200/CMU-BR100

Wireless Subwoofer: SWF-BR100

MHL Cable: DLC-MB10/DLC-MB20/DLC-MC20

Operating temperature 32 "F- 104 °F (0 °C -40 °C)

(Continued) 31 us

Powerand others

Power requirement 19.5 V DC with AC adapter

Rating: Input 110-240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz)

Power in use 75 W

consumption in standby Less than 0.4 W with 120 V AC and less than 0.5 W with 240 V AC

Screen size* 47.6 inches 40 inches

(inches measured diagonally) (48 class)

Display resolution 1,920 dots (horizontal) x 1,080 lines (vertical)

Dimensions* with stand (mm) 1,086 x 675 x 181 926 x 584 x 162

(inches) 42 7/8x265/8x71/4 36 1/2x23x61/2

without stand (mm) 1,086 x 646 x 90 926 x 556 x 89

(inches) 42 7/8x251/2x35/8 36 1/2x22x35/8

wall-mount hole 300 x 200 300 x 300

pattern (mm)

wall-mount screw M6 (length: see diagram on page 33.)

size (mm)

Mass* with stand 10.3 /22.7 7.9 /17.5

(kg)/(Ib.)

without stand 9.9 /21.9 7.4 /16.3

(kg)/(Ib.)

Screen size, dimensions and mass are approximate values.

• Optional accessories availability depends on countries/regionfrV model/stock.

• Design and specifications are subject to change without notice.

• This TV set incorporates MHL 2.

32 us

Installing the TV to the Wall

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the

installation to Sony dealers or licensed contractors and pay special attention to safety during

the installation. Sony is not liable for any damages or injury caused by mishandling or

improper installation, or installing any other than the specified product. Your Statutory Rights

(if any) are not affected.

To Sony Dealers and Contractors

Sufficient expertise is required for installing this product. Be sure to read this instruction

manual thoroughly to do the installation work safely. Sony is not liable for any damages or

injury caused by mishandling or improper installation.

Your TV can be mounted on a wall using a Wall-Mount Adapter (supplied with the TV) out of the

box as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching

the Table-Top Stand; see page 11 (Detaching the Table-Top Stand from the TV).

Prepare the TV for the Wall-Mount Adapter before making cable connections.

For product protection and safety reasons, Sony strongly recommends that you use the

Wall-Mount Adapter (supplied with the TV) designed for your TV and the installation

should be performed by a Sony dealer or licensed contractor.

•Follow the instructions provided in this manual for installing the Wall-Mount Adapter.

Sufficient expertise is required in installing this TV, especially to determine the strength of

the wall for withstanding the TV's weight.

• Be sure to use the screws supplied with the Wall-Mount Adapter when attaching the

Mounting Hook to the TV set.

The supplied screws are designed as indicated by illustration when measured from the

attaching surface of the Mounting Hook.

The diameter and length of the screws differ depending on the Wall-Mount Adapter model.

Use of screws other than those supplied may result in internal damage to the TV set or

cause it to fall, etc.

8 mm - 10 mm

_ Screw (supplied with the Wall-Mount Adapter)

Mounting Hook

Hook attachment on rear of TV set

• Be sure to store the unused screws and Table-top Stand in a safe place until you are ready

to attach the Table-Top Stand. Keep the screws away from small children.

(Continued) 33 us

• Read the supplied Safety Booklet for additional safety information.

• See page 40 (Safety Information) and page 41 (Precaution) on WALL-MOUNT ADAPTER before

carrying out Wall-Mount Adapter installation.

• Place the TV with its screen facing down on a flat and stable surface covered with a thick and soft

cloth that is larger than the TV, when securing the Mounting Hook or when removing the Table-Top

Stand from the TV to prevent damaging the surface of the LCD display.

Prepare necessary items.

Wall-Mount Adapter accessories (supplied)

(_) Paper Template ® Wall-Mount Base (2) (_) Pulleys (2) (_) Screw (+PSW 6 x 16) (3)

Spacers (2) O Band

34 us

2Make sure that the wall has enough space for the TV and is capable of supporting a weight

of at least four times that of the TV.

Refer to the following table on installing the TV to the wall. See page 31-32 (Specifications)

for the TV's weight.

ol e

Screen center point

Unit: inches (mm)

Model Name Display dimensions Screen center Length for mounting

KDL- dimension

O _ 0 0 0

48W600B,

48W590B, 42 7/8 25 1/2 2 1/2 10 3/4 5 3/4

(1,086) (646) (61 ) (273) (144)

48W580B

40W600B, 36 1/2 22 21/32 10 7/8 5 3/4

40W590B, (926) (556) (16) (274) (143)

40W580B

• Figures in the table may differ slightly depending on the installation.

3Make a mark on the Paper Template (_) that indicates the center of the screen for your TV.

Scale on Paper Template (_)

v Markfor

'°° iKDL-48W600B,T

+iKDL-48W590B,

-+-'°° ', KDL-48W580B+_-

......... _..............._ ..............._ ..........

......... _T............... _; ................ _...........

T ° _\ T °

!,0 Markfor -

€ KDL-4OW6OOB,T _°

T_ KDL-40W590B, z,

_,o0 KDL-40W580B _

(Continued) 35 us

4 Tape the Paper Template (_) to the wall and drill holes according to the numbering on the

Paper Template (_) using an electric drill.

5Remove the Paper Template (_) from the wall.

6Attach the Wall-Mount Base ® to the wall correctly using screws (8 mm in diameter, not

supplied).

7 Attach the Pulleys ® to the TV using the supplied screws ®. Attach the Spacers (_) to the

holes indicated by the triangle marks A. Then, attach the Band O using the supplied screw

®.

Soft cloth

36 us

8Make sure to connect and bundle the cables before installing the TV on the wall.

9 Bundle the AC Adapter using the cable holders (supplied with the TV). Make sure that the

label is facing outwards when bundling AC adapter.

10Install the TV on the wall. Confirm the Pulleys ® are firmly latched into the Wall-Mount

Base ®. Then, attach the Band O to the wall using a screw (5 mm in diameter, not

supplied).

o®

(Continued) 37 us

Dimensions of the hole positions on the wall

Pass the following information to the licensed contractors if necessary.

Use screws (8 mm in diameter, not supplied) to install the Wall-Mount Base ® on the wall.

Be sure to use the supplied Paper Template (_) that shows the actual position of Wall-Mount

Base ® for easy installation.

80 m m,

38 us

Installing the TV against a wall or

enclosed area

Installed with stand

............... J-Y_-_-i-_;o_7-i ...... :

| (_Ocm) :

, , ', _ i 2 3/8 inches

(lOcm) ]_t _10o,_,_II¢

Leave at least this much space around the set.

Installed on the wall

..................[--ii-7-_]-;,_i,Y_---]

_, (30 cm) ',

(10 cm) 1 -_ 4 inches(10 cm)

I _ Leave at least this much around the set.

space

................... 5.4 inches (10 cm) i

Never install the TV set as follows:

Air circulation is blocked. Air circulation is blocked.

• Inadequate ventilation can lead to overheating of the TV and may cause damage to your TV or

cause a fire.

39 us

Safety Information

Declaration of Conformity

Trade Name: SONY

Model: KDL-48W600B/KDL-48W590B/

KDL-48W580B/KDL-40W600B/KDL-40W590B/

KDL-40W580B

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC

rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful

interference, and (2) this device must accept

any interference received, including

interference that may cause undesired

operation.

FCC Related Information

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses and

can radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference to

radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is encouraged

to try to correct the interference by one or more of

the following measures:

[] Reorient or relocate the receiving antenna.

[] Increase the separation between the

equipment and receiver.

[] Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

[] Consult the dealer or an experienced radio/TV

technician for help.

Pursuant to FCC regulations, you are cautioned

that any changes or modifications not

expressly approved in this manual could void

your authority to operate this equipment.

40 us

Safety and Regulatory

To prevent radio interference to the licensed

service, this device is intended to be operated

indoors and away from windows to provide

maximum shielding. Equipment (or its transmit

antenna) that is installed outdoors is subject to

licensing.

Only use Wireless LAN indoors when using it with

IEEE 802.11a (5 GHz).

This equipment complies with FCC/IC radiation

exposure limits set forth for uncontrolled

equipment and meets the FCC radio frequency

(RF) Exposure Guidelines in Supplement C to

OET65 and RSS-102 of the IC radio frequency

(RF) Exposure rules. This equipment has very low

levels of RF energy that it deemed to comply

without maximum permissive exposure evaluation

(MPE). But it is desirable that it should be installed

and operated with at least 20 cm and more

between the radiator and person's body

(excluding extremities: hands, wrists, feet and

ankles).

This device and its antenna(s) must not be co-

located or operating with any other antenna or

transmitter except Grant condition.

Note

This television includes a QAM demodulator

which should allow you to receive unscrambled

digital cable television programming via

subscription service to a cable service provider.

Availability of digital cable television

programming in your area depends on the type of

programming and signal provided by your cable

service provider.

NOTE ON AC ADAPTER

Warning

To reduce the risk of fire or electric shock, do not expose

this apparatus to rain or moisture.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Do not install this equipment in a confined space, such

as a bookshelf or similar unit.

• Pleaseensure that the AC power outlet is installed near

the equipment and shall be easily accessible.

• Be sure to use the supplied AC adapter and AC power

cord. Otherwise it may cause a malfunction.

• Connect the AC adapter to an easily accessible AC

power outlet.

• Do not coil the AC power cord

around the AC adapter. The

core wire may be cut and/or it

may cause a malfunction of the

TV.

• Do not touch the AC adapter

with wet hands.

• If you notice an abnormality in the AC adapter,

disconnect it from the AC power outlet immediately.

•ThesetisnotdisconnectedfromtheACsourceaslong

asitisconnectedtotheACpoweroutlet,eveniftheset

itselfhasbeenturnedoff.

•AstheACadapterwillbecomewarmwhenitisused

foralongtime,youmayfeelhotwhentouchingitby

hand.

Wall-Mount Adapter

Below information shows tile correct handling of tile Wall-

Mount Adapter. Be sure to read this information

thoroughly and use the Wall-Mount Adapter correctly.

To Customers:

Be sure to observe the following precautions for safety to

prevent a serious injury through fire, electric shock, the

product toppling over, or the product dropping.

• Be sure to subcontract the installation to licensed

contractors and keep small children away during

installation.

• Be sure to subcontract moving or dismounting of the

TV to licensed contractors.

• Do not remove screws, etc., after mounting the TV.

• Do not make alterations to the parts of the Wall-Mount

Adapter.

• Do not mount any equipment other than the specified

product.

• Do not apply any load other than the TV on the Wall-

Mount Adapter.

• Do not lean on or hang from the TV.

• Do not handle the TV with excessive force during

cleaning or maintenance.

To Sony Dealers and Contractors:

Tile following instructions are for Sony dealers and

contractors only. Be sure to read safety precautions

described below and pay special attention to safety

during the installation, maintenance and checking of this

product.

• Do not install the Wall-Mount Adapter on wall surfaces

where the corners or the sides of the TV are protruding

away from the wall surface.

• Be sure to use the supplied screws and attachment

parts properly following the instructions given in this

instruction manual. If you use substitute items, the TV

may fall and cause bodily injury to someone or damage

to the TV.

• Be sure to assemble the bracket properly following the

instructed procedure explained in this instruction

manual.

• Be sure to tighten the screws securely in the

designated position.

• Be careful not to subject the TV to shock during

installation.

• Be sure to install the TV on a wall that is both

perpendicular and flat.

• After proper installation of the TV, secure the cables

properly.

• Do not allow the AC power cord or the connecting

cables to be pinched as the internal conductors may

become exposed and cause a short circuit or an

electrical break.

WALL-MOUNT ADAPTER

• If you use the TV installed on tile Wall-Mount Adapter

for a long time, the wall behind or above the TV may

become discoloured or the wallpaper may come

unglued, depending on the material of the wall.

• If the Wall-Mount Adapter is removed after installing it

on the wall, the screw holes remain.

• Do not use the Wall-Mount Adapter in a place where it

is subjected to mechanical vibration.

• Do not install the TV over or under an air-conditioner.

• Be sure to install the Wall-Mount Adapter securely to

the wall following the instructions in this instruction

manual. If any of the screws are loose or fall out, the

Wall-Mount Adapter may fall and cause injury or

property damage.

41 us

Online

Registration:

Software

Updates:

Be sure to register your TV.

United States http://productregistration.sony.com

Canada http://www.sony.ca/registration

Your TV is capable of receiving software updates. For the

latest information about software updates for your TV, visit:

United States http://www.sony.com/tvsupport

Canada http://www.sony.ca/support

NOTE: If your TV is connected to the Internet, you can check

for software updates by selecting ? Help, _ Customer

Support and then Software Update.

http.//www.sony, net/

,9 2014 Sony Corporation Printed in U S A

Sony KDL 40W590B User Manual LED TV Manuals And Guides 1405292L

Navigation menu

Versions of this User Manual:

Views

Navigation
