4-094-065-21
KV-32HS510
KV-36HS510
©2003 Sony Corporation
* Important: Read this manual before using this product
Operating Instructions
®
Sony Corporation   Printed in U.S.A.
1
WARNING
To reduce the risk of fire or shock hazard, do not expose the TV
to rain or moisture.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION
When using TV games, computers, and similar products with your
TV, keep the brightness and contrast functions at low settings. If a
fixed (non-moving) pattern is left on the screen for long periods of
time at a high brightness or contrast setting, the image can be
permanently imprinted onto the screen. Continuously watching
the same program can cause the imprint of station logos onto the
TV screen. These types of imprints are not covered by your
warranty because they are the result of misuse.
Note on Caption Vision
This television receiver provides display of television closed
captioning in accordance with §15.119 of the FCC rules.
Note on Cleaning the TV
Clean the TV with a soft, dry cloth. Never use strong solvents such
as thinner or benzine, which might damage the finish of the
cabinet.
Note to CATV System Installer
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the National Electrical Code (NEC)
that provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.
Use of this television receiver for other than private viewing of
programs broadcast on UHF or VHF or transmitted by cable
companies for the use of the general public may require
authorization from the broadcaster/cable company and/or
program owner.
NOTIFICATION
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
❑Reorient or relocate the receiving antennas.
❑Increase the separation between the equipment and receiver.
❑Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
❑Consult the dealer or an experienced radio/TV technician for
help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
Installing
❑To prevent internal heat buildup, do not block the ventilation
openings.
❑Do not install the TV in a hot or humid place, or in a place
subject to excessive dust or mechanical vibration.
❑The AC power cord is attached to the rear of the TV with
hooks. Do not attempt to remove the cord from these hooks.
Doing so could cause damage to the TV.
Owner’s Record
The model and serial numbers are provided on the front of this
instruction manual and at the rear of the TV. Refer to them
whenever you call upon your Sony dealer regarding this product.
Trademark Information
TruSurround and the symbol are trademarks of SRS Labs,
Inc. TruSurround technology is incorporated under license from
SRS Labs, Inc.
BBE and BBE Symbol are trademarks of BBE Sound, Inc. and are
licensed by BBE Sound, Inc. under U.S. Patent No. 4,638,258 and
4,482,866.
Wega, FD Trinitron, Steady Sound, Digital Reality Creation,
Caption Vision, CineMotion, Memory Stick, and Twin View are
registered trademarks of Sony Corporation. ClearEdge VM and
HD Detailer are trademarks of Sony Corporation.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
ATTENTION
CAUTION
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
As an ENERGY STAR Partner,
Sony has determined that this
product or product models meets
the ENERGY STAR guidelines
for energy efficiency.
®
®
ENERGY STAR is a U.S. registered mark.
®
32_36HS.book Page 1 Friday, February 7, 2003 11:15 AM
2
IMPORTANT SAFEGUARDS
For your protection, please read these instructions completely, and
keep this manual for future reference.
Carefully observe and comply with all warnings, cautions and
instructions placed on the set, or described in the operating
instructions or service manual.
WARNING
To guard against injury, the following basic safety precautions
should be observed in the installation, use, and servicing of the set.
Use
Power Sources
This set should be operated only from the type
of power source indicated on the serial/model
plate. If you are not sure of the type of electrical
power supplied to your home, consult your
dealer or local power company. For those sets
designed to operate from battery power, refer
to the operating instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug (a plug
having one blade wider than the other), or with a three-wire
grounding type plug (a plug having a third pin for grounding).
Follow the instructions below:
For the set with a polarized AC power cord plug
This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to
have a suitable outlet installed. Do not defeat the safety purpose of
the polarized plug by forcing it in.
Alternate Warning
For the set with a three-wire grounding type AC plug
This plug will only fit into a grounding-type
power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact
your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the grounding plug.
Overloading
Do not overload wall outlets, extension cords or
convenience receptacles beyond their capacity,
since this can result in fire or electric shock.
Always turn the set off when it is not to be
used. When the set is left unattended and
unused for long periods of time, unplug it
from the wall outlet as a precaution against
the possibility of an internal malfunction that
could create a fire hazard.
Do not disconnect the antenna or the power cord during a heavy
storm. Lightning may strike while you are holding the cable or
cord, causing serious injury. Turn off your TV and wait for the
weather to improve.
Memory Stick
To protect small children from injury from Memory Stick Media,
remove all Memory Stick media from the TV’s Memory Stick slot
and store it in a safe location when it is not in use.
Object and Liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the set.
Attachments
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
Do not place any objects, especially heavy objects,
on top of the set. The object may fall from the set,
causing injury.
Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth lightly
dampened with water for cleaning the exterior
of the set.
If a snapping or popping sound from a TV set is
continuous or frequent while the TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
Installation
Always use two or more people to lift or move the set. The set is
heavy and the bottom surface is flat. Serious injury can result from
trying to move the set by yourself alone, or from unsteady
handling. Install the set on a stable, level surface.
Water and Moisture
Do not use power-line operated sets near
water — for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Accessories
Do not place the set on an unstable cart, stand,
tripod, bracket, table or shelf. The set may fall,
causing serious injury to a child or an adult, and
serious damage to the set. Use only a cart or stand
recommended by the manufacturer for the
specific model of TV. Any mounting of the
product should follow the manufacturer’s
instructions, and should use a mounting
accessory recommended by the manufacturer. An
appliance and cart combination should be moved
with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.
Disconnect all cables and cords from the set before attempting to
move the set.
Do not allow children or pets to climb up onto, or push against, the
set. The set may fall, causing serious injury.
32_36HS.book Page 2 Friday, February 7, 2003 11:15 AM
3
Ventilation
The slots and openings in the cabinet and in the back or bottom are
provided for necessary ventilation. To ensure reliable operation of
the set, and to protect it from overheating, these slots and openings
must never be blocked or covered.
❑Never cover the slots and openings with a
cloth or other materials.
❑Never block the slots and openings by
placing the set on a bed, sofa, rug or other
similar surface.
❑Never place the set in a confined space, such
as a bookcase, or built-in cabinet, unless
proper ventilation is provided.
❑Do not place the set near or over a radiator
or heat register, or where it is exposed to
direct sunlight.
Power Cord Protection
Do not allow anything to rest on or roll over the
power cord, and do not place the set where the
power cord is subject to wear or abuse.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or
where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and
Section 54 of the Canadian Electrical Code in Canada provide
information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna Grounding According to the National
Electrical Code, ANSI/NFPA 70
Lightning
For added protection for this television receiver during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna.
This will prevent damage to the receiver due to lightning and
power line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
❑When the power cord or plug
is damaged or frayed.
❑If liquid has been spilled into
the set or objects have fallen into the
product.
❑If the set has been exposed to rain or
water.
❑If the set has been subject to excessive
shock by being dropped, or the cabinet
has been damaged.
❑If the set does not operate normally when
following the operating instructions.
Adjust only those controls that are
specified in the operating instructions.
Improper adjustment of other controls
may result in damage and will often
require extensive work by a qualified
technician to restore the set to normal
operation.
❑When the set exhibits a distinct change in performance, it
indicates a need for service.
Servicing
Do not attempt to service the set yourself since
opening the cabinet may expose you to dangerous
voltage or other hazards. Refer all servicing to
qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the
service technician certifies in writing that he has
used replacement parts specified by the
manufacturer that have the same characteristics as
the original parts.
Unauthorized substitutions may result in fire, electric shock or
other hazards.
Safety Check
Upon completion of any service or repairs to the
set, ask the service technician to perform routine
safety checks (as specified by the manufacturer) to
determine that the set is in safe operating
condition, and to so certify. When the set reaches
the end of its useful life, improper disposal could
result in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
Ground clamp
Antenna lead-in wire
Antenna discharge unit
Grounding conductors
Ground clamps
Power service grounding electrode
NEC: National Electrical Code
Electric service
(NEC Section 810-20)
system (NEC Art 250 Part H)
equipment (NEC Section 810-21)
32_36HS.book Page 3 Friday, February 7, 2003 11:15 AM
32_36HS.book Page 4 Friday, February 7, 2003 11:15 AM
5
Contents
Introducing the FD Trinitron Wega
Overview .......................................................................................................7
Presenting the FD Trinitron Wega ...............................................................7
Package Contents..............................................................................7
Features ............................................................................................7
Setting Up the TV
Overview .......................................................................................................9
About the AC Power Cord.................................................................9
TV Controls and Connectors.......................................................................10
Front Panel .....................................................................................10
Rear Panel .......................................................................................12
Basic Connections: Connecting a Cable or Antenna.................................14
Cable or Antenna Only ....................................................................15
Cable and Antenna Only .................................................................16
Cable Box and Cable Only ...............................................................18
Cable Box Only ................................................................................20
Connecting Optional Equipment ...............................................................21
About Using S VIDEO ......................................................................21
VCR and Cable ................................................................................22
VCR and Cable Box .........................................................................24
Two VCRs for Tape Editing ..............................................................26
Satellite Receiver..............................................................................28
Satellite Receiver and VCR ...............................................................30
DVD Player with Component Video Connectors...............................32
DVD Player with S VIDEO and Audio Connectors .............................34
Camcorder ......................................................................................35
Audio Receiver ................................................................................36
Using the CONTROL S Feature ...................................................................37
Setting Up the Channel List .......................................................................38
Using Auto Setup ............................................................................38
Using the Remote Control
Overview .....................................................................................................39
Inserting Batteries.......................................................................................39
Button Descriptions ....................................................................................40
Outside Panel ..................................................................................40
Inside Panel .....................................................................................42
Programming the Remote Control ............................................................43
32_36HS.book Page 5 Friday, February 7, 2003 11:15 AM
6
Other Info SETUP WelcomeSETUP SETUPSETUP
Using the Features
Overview .....................................................................................................45
Watching TV ................................................................................................45
Using the Scrolling Index ...........................................................................46
Factors Affecting Scrolling Index ......................................................46
Using Twin View .........................................................................................47
Displaying Twin Pictures ..................................................................47
Factors Affecting Twin View ............................................................47
Activating the Picture ......................................................................48
Changing the Picture Size ................................................................49
Using Favorite Channels .............................................................................50
Creating a List of Favorite Channels .................................................50
Displaying a List of Favorite Channels ..............................................50
Using the Freeze Function ..........................................................................51
Using the Memory Stick Picture Viewer....................................................52
About Memory Stick........................................................................52
Supported Image Types ...................................................................52
Unsupported Image Types ...............................................................54
Inserting and Removing a Memory Stick ..........................................55
Displaying the Memory Stick Menu..................................................56
Using the Memory Stick Index .........................................................57
Using the Memory Stick Slideshow ..................................................58
Changing the Memory Stick Setup Options .....................................58
Using the Rotate Picture Screen .......................................................59
Using Other Equipment with Your TV Remote Control...........................60
All Equipment..................................................................................60
Operating a VCR .............................................................................60
Operating a Satellite Receiver ..........................................................60
Operating a Cable Box.....................................................................61
Operating a DVD Player ...................................................................61
Operating an MDP (Laserdisc Player) ................................................61
Using the Menus
Overview .....................................................................................................63
Navigating Through Menus .......................................................................63
Using the Video Menu ................................................................................64
Using the Audio Menu ...............................................................................66
Using the Channel Menu ............................................................................68
Using the Parent Menu...............................................................................70
Using the Timer Menu ................................................................................73
Using the Setup Menu ................................................................................74
Other Information
Overview .....................................................................................................77
Glossary .......................................................................................................78
Notes on Using Memory Stick Media ........................................................79
Contacting Sony ..........................................................................................80
Troubleshooting..........................................................................................80
Specifications ..............................................................................................85
Optional Accessories...................................................................................86
Index ............................................................................................................87
32_36HS.book Page 6 Friday, February 7, 2003 11:15 AM
7
Introducing the FD Trinitron Wega
Overview
This chapter describes the contents of the package in which the TV is
shipped and provides an overview of the features of your Wega TV.
Presenting the FD Trinitron Wega
The FD Trinitron Wega (pronounced VAY-GAH) is characterized by
outstanding contrast, uncompromising accuracy, and corner-to-
corner detail.
You will recognize the superiority of Wega technology almost
immediately. The first thing you will probably notice is minimal glare
from the flat picture tube. This flat-screen technology improves
picture detail without distortion, unlike conventional curved screens.
The FD Trinitron delivers outstanding image detail not only at the
screen center, but also at the corners — so you can enjoy a bright,
clear picture from any location in a room.
Package Contents Along with your new Trinitron TV, the packing box contains a
remote control and two AA (R6) batteries. These items are all you
need to set up and use the TV.
Features Some of the features that you will enjoy with your new TV include:
❑DRC® (Digital Reality Creation) Multifunction: Unlike
conventional line doublers, the DRC Multifunction feature
replaces the signal’s NTSC waveform with the HD equivalent,
while doubling the number of vertical and horizontal lines. This
results in four times the density for quality sources, such as DVD,
satellite, and digital camcorders. The Video Menu allows you to
select interlaced, progressive, or CineMotion™ output.
❑Scrolling Index: Lets you select programs from a series of
preview windows that scroll along the right side of the screen.
32_36HS.book Page 7 Friday, February 7, 2003 11:15 AM
8
SETUP SETUP WelcomeSETUP SETUPSETUP
❑Twin View ™: Using the Multi-Image Driver (MIDX), Twin View
allows you to watch two programs side by side, with the ability
to zoom in one picture. You can watch pictures from two
different sources (1080i, 720p, 480p, and 480i) simultaneously.
(Only the left Twin View window can display 1080i, 720p, and
480p sources.)
❑Favorite Channels: Allows you to preview and select from eight
of your favorite channels.
❑ClearEdge VM™ Velocity Modulation: Sharpens picture
definition by enhancing vertical lines.
❑Steady Sound®: Equalizes volume levels so there is consistent
output between programs and commercials.
❑Memory Stick® Picture Viewer: Allows you to view on your TV
screen digital images that are stored on Memory Stick media.
❑Component Video Inputs: Offers the best video quality for DVD
(480p, 480i), and digital set-top box (HD1080i, 720p) connections.
❑CineMotion™: Reverse 3-2 pulldown processing provides
optimal picture quality for film-based sources (media originally
shot in 24 frames-per-second format).
❑HD Detailer™: Wideband video amplifier has a high bandwidth
frequency rating, which allows it to send more video information
to the screen, resulting in finer picture quality, especially for HD
sources.
❑16:9 Enhancement: Vertical Compression technology that
maximizes picture resolution when playing “anamorphic” or
“enhanced for widescreen” sources, including many DVDs.
❑Parental Control: V-Chip technology allows parents to block
unsuitable programming from younger viewers.
❑Digital Visual Interface (DVI): Can accommodate a copy-
protected digital connection (HDCP*) to other devices (such as
digital set-top boxes) that have compatible interfaces. The DVI-
HDTV input terminal is compliant with the EIA-861 standard
and is not intended for use with personal computers.
*High-bandwidth Digital Content Protection
16:9 is also referred to as
widescreen format.
z
Introducing
32_36HS.book Page 8 Friday, February 7, 2003 11:15 AM
9
Setting Up the TV
Overview
This chapter includes illustrated instructions for setting up your TV.
About the AC
Power Cord
The AC power cord is attached to the rear of the TV with a hook. Use
caution when removing the AC plug from its holder. Gently slide the
plug upward to remove it from the hook. Once removed, the AC
power plug should automatically disengage from its stored location.
Topic Page(s)
TV Controls and Connectors 10-13
Basic Connections: Connecting a Cable or Antenna 14-20
Connecting Optional Equipment
VCR and Cable
VCR and Cable Box
Two VCRs for Tape Editing
Satellite Receiver
Satellite Receiver and VCR
DVD Player with Component Video Connectors
DVD Player with S VIDEO and Audio Connectors
Camcorder
Audio Receiver
22
24
26
28
30
32
34
35
36
Using the CONTROL S Feature 37
Setting Up the Channel List 38
✍Do not plug in the AC power cord until you have made all other
connections.
You can detach
the cord from
this hook
AC power cord
32_36HS.book Page 9 Friday, February 7, 2003 11:15 AM
10
SETUP SETUP SETUPSETUP SetupSETUP
TV Controls and Connectors
Front Panel
POWER
STAND BY
TIMER
CHANNEL
VOLUME
TV/VIDEO
SELECT
MENU
L(MONO) – AUDIO – R
VIDEO
S VIDEO
VIDEO 2 INPUT
134567890qa qs qd qf
2
install.fm5 Page 10 Friday, February 21, 2003 2:25 PM
11
SETUP Setup SETUPSETUP SETUPSETUP
Item Description
1MEMORY STICK Memory Stick insertion slot. For details, see “Using the Memory Stick Picture
Viewer” on page 52.
2MEMORY STICK LED When lit, indicates that the Memory Stick is being read. (Do not remove the
Memory Stick when the indicator is lit.)
3S VIDEO
VIDEO 2 INPUT
Connects to the S VIDEO OUT jack on your camcorder or other video
equipment that has S VIDEO. Provides better picture quality than composite
video (4).
4VIDEO/L(MONO)-AUDIO-R
VIDEO 2 INPUT
Connects to the composite A/V output jacks on your camcorder or other
video equipment.
5MENU Press to display the Menu. Press again to exit from the Menu. For details, see
“Using the Menus” on page 63.
6V v B b Press V v B b to move the on-screen cursor.
7SELECT Press to select the on-screen highlighted item.
8TV/VIDEO Press repeatedly to cycle through the video equipment connected to the TV’s
video inputs.
9-VOLUME + Press to adjust the volume.
0-CHANNEL+ Press to scan through channels. To scan quickly through channels, press and
hold down either CHANNEL button.
qa TIMER LED When lit, indicates one of the timers is set. When the timer is set, this LED
will remain lit even if the TV is turned off. For details, see page 73.
qs STAND BY LED Blinks when the TV is turned on, then shuts off when the picture is displayed.
If the LED blinks continuously, this may indicate the TV needs service (see
“Contacting Sony” on page 80).
qd Infrared Receiver (IR) Receives IR signals from the TV’s remote control.
qf POWER Press to turn on and off the TV.
32_36HS.book Page 11 Friday, February 7, 2003 11:15 AM
12
SETUP SETUP SETUPSETUP SetupSETUP
Rear Panel
q;
2
3
45
9
8
7
6
1
32_36HS.book Page 12 Friday, February 7, 2003 11:15 AM
13
SETUP Setup SETUPSETUP SETUPSETUP
Jack Description
1DVI-HDTV
VIDEO
AUDIO R/L
(VIDEO 7 IN)
Can accommodate a copy-protected digital connection (HDCP*) to other devices
(such as digital set-top boxes) that have compatible interfaces. The DVI-HDTV
input terminal is compliant with the EIA-861 standard and is not intended for use
with personal computers. See the instruction manual that came with your
equipment for details about connecting and using it with the TV.
2S VIDEO IN 1/3 Connects to the S VIDEO OUT jack of your VCR or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than either composite video (3)
or VHF/UHF (9) connections.
3VIDEO IN 1/3/4
VIDEO/L(MONO)
-AUDIO-R
Connect to the composite A/V output jacks on your VCR or other video
component. A fourth component A/V input jack (VIDEO 2) is located on the front
panel of the TV. This video connection provides better picture quality than the
VHF/UHF (9) connection.
4MONITOR OUT Lets you record the program you are watching to a VCR. When two VCRs are
connected, you can use the TV as a monitor for tape-to-tape editing (not available
with 480p, 720p, or 1080i when the input is set to VIDEO 5-7).
5AUDIO OUT (VAR/FIX)
L (MONO)/R
Connects to the left and right audio input jacks of your audio or video equipment.
You can use these outputs to listen to your TV’s audio through your stereo system.
6HD/DVD IN 5/6
(1080i/720p/480p/480i)
Connect to your DVD player’s or digital set-top box’s component video (Y, PB, PR)
and audio (L/R) jacks. Component video provides the best picture quality (better
than 2, 3, or 9).
7AUX Auxiliary RF input that connects to your antenna, CATV cable, or cable box output
jack. This is convenient if you are using two VHF/UHF sources (antenna, CATV
cable, or cable box). For details, see pages 16 to 19.
8TO CONVERTER Connects to your cable box input jack. This VHF/UHF output jack lets you set up
your TV to switch between scrambled channels (coming through a cable box) and
unscrambled cable channels. Use this jack instead of a splitter to get better picture
quality when you need to switch between scrambled and unscrambled cable
channels. For details, see pages 18 to 19.
9VHF/UHF Primary RF input that connects to your VHF/UHF antenna or cable.
0CONTROL S
IN/OUT
Allows the TV to receive (IN) and send (OUT) remote control signals to other Sony
infrared-controlled audio or video equipment that has the CONTROL S function.
* High-bandwidth Digital Content Protection
32_36HS.book Page 13 Friday, February 7, 2003 11:15 AM
14
SETUP SETUP SETUPSETUP SetupSETUP
Basic Connections: Connecting a Cable or Antenna
The way in which you will connect your TV varies, depending on
how your home receives a signal (cable, cable box, antenna) and
whether or not you plan to connect a VCR.
If you are connecting a VCR
❑See the connections described on pages 22 and 24.
If You Are Connecting See Page
Cable or Antenna Only
❏No cable box or VCR
15
Cable and Antenna Only
❏No cable box or VCR
16
Cable Box and Cable Only
❏Cable box unscrambles only some
channels (usually premium channels)
❏No VCR
18
Cable Box Only
❏Cable box unscrambles all channels
❏No VCR
20
32_36HS.book Page 14 Friday, February 7, 2003 11:15 AM
15
SETUP Setup SETUPSETUP SETUPSETUP
Cable or Antenna
Only
For best results, use one of the following connections if you are connecting a
cable or an antenna and you:
❑Do not need a cable box to unscramble channels. (If you have a
cable box, see pages 18-20.)
❑Do not intend to connect a VCR. (If you have a VCR, see pages 22
and 24.)
The connection you choose depends on the cable type you have in
your home, as described below.
75-ohm coaxial cable (usually found in newer homes)
Cable Type Connect As Shown
VHF Only or
combined
VHF/UHF or
Cable
300-ohm twin lead cable (usually found in older homes)
Cable Type Connect As Shown
VHF Only or
UHF Only or
combined
VHF/UHF
75-ohm coaxial and 300-ohm twin lead cable (found in some homes)
Cable Type Connect As Shown
VHF and UHF
TV
75-ohm
VHF/UHF
coaxial
cable
TV
300-ohm twin
lead cable
Antenna connector
VHF/UHF
(not supplied)
75-o
h
m
VHF/UHF
coaxial cable
300-ohm twin
lead cable
U/V mixer
(not supplied)
TV
32_36HS.book Page 15 Friday, February 7, 2003 11:15 AM
16
SETUP SETUP SETUPSETUP SetupSETUP
Cable and Antenna
Only
For best results, use this connection if you:
❑Have a cable and an antenna.
(This is convenient if you are using a separate rooftop antenna to
receive additional channels that are not provided by your cable
company.)
❑Do not have a cable box or VCR. (If you have a cable box, see
pages 18 to 20. If you have a VCR, see pages 22 and 24.)
Cable Type Connect As Shown
Cable TV (CATV)
and Antenna
About Using Twin View with This Connection
With this connection, you cannot view CATV channels in the right Twin View window.
For details about Twin View, see page 46.
AUX
VHF/UHF
Antenna cable
(No connection to
CATV cable
TO CONVERTER)
CONVERTER
TO
TV
32_36HS.book Page 16 Friday, February 7, 2003 11:15 AM
17
SETUP Setup SETUPSETUP SETUPSETUP
Notes on Using This Connection
To Do This ... Do This ...
Switch the TV’s input
between the cable and
antenna
Press ANT to switch back and forth between the TV’s VHF/UHF and AUX
inputs.
Receive channels using an
antenna, instead of the cable
1Press ANT to switch to the AUX input.
2Set the Cable option to Off. For details, see “Selecting Channel Options”
on page 68.
3Run the Auto Setup program, as described in “Using Auto Setup” on
page 38.
32_36HS.book Page 17 Friday, February 7, 2003 11:15 AM
18
SETUP SETUP SETUPSETUP SetupSETUP
Cable Box and
Cable Only
For best results, use this connection if:
❑Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not
scramble all channels.
❑You do not have a VCR. (If you have a VCR, see pages 22 and 24.)
With this connection you can:
❑Use the TV remote control to change channels coming through
the cable box to the TV’s AUX input jack. (You must first program
the remote control for your specific cable box; see “Programming
the Remote Control” on page 43.)
❑Use the TV remote control to change channels coming directly
into the TV’s VHF/UHF input. (The TV’s tuner provides a better
signal than the cable box.)
✍DIGITAL CABLE BOX USERS: Do not use this connection. The TO CONVERTER
jack is not compatible with digital cable boxes.
About Using Twin View with This Connection
With this connection, you can use all the Twin View features for unscrambled channels
coming directly into the TV’s VHF/UHF input jack.
However, you can use only some of the Twin View features for channels coming through
the cable box to the TV’s AUX input jack. For example, when you switch the TV’s input to
AUX — to select the cable box input — the picture displays only in the left window. If
you turn on Twin View, you can watch cable channels coming into the VHF/UHF jack in
the right window, but you cannot SWAP the pictures between the left and right
windows.
For details about Twin View, see page 46.
32_36HS.book Page 18 Friday, February 7, 2003 11:15 AM
19
SETUP Setup SETUPSETUP SETUPSETUP
To connect the cable box and cable
1Connect the cable from your cable company to the TV’s
VHF/UHF jack.
2Use a coaxial cable to connect the TV’s TO CONVERTER jack to
the cable box’s input jack. (The TV’s internal converter lets you
switch between unscrambled signals coming straight into the TV
and scrambled signals coming in through the cable box,
eliminating the need for an external splitter.)
3Use a coaxial cable to connect the cable box’s output jack to the
TV’s AUX jack.
4Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
Notes on Using This Connection
To Do This ... Do This ...
Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3 or 4)
and then use the cable box to switch channels.
Set up the TV remote control
to operate the cable box
Program the remote control. See “Programming the Remote Control” on
pages 43-44.
Activate the remote control to
operate the cable box
Press SAT/CABLE FUNCTION.
Prevent the accidental
switching of TV channels
When using the cable box, you need the TV to stay on the channel the cable
box is set to (usually channel 3 or 4). You can use the TV’s Channel Fix
feature to lock in a specific channel. For details, see “Using the Channel
Menu” on page 68.
Switch the TV’s input
between the cable box and
cable
Press ANT to switch back and forth between the TV’s VHF/UHF
(unscrambled channels) and AUX (scrambled) inputs.
1
2
3
OUT
Coaxial cable
IN
AUX
TO
VHF/UHF
Cable (unscrambled channels)
Coaxial cable
CONVERTER
TV
Cable box
If you have a digital cable
box, you cannot use this
connection because the
TO CONVERTER jack is not
compatible with digital
cable boxes.
32_36HS.book Page 19 Friday, February 7, 2003 11:15 AM
20
SETUP SETUP SETUPSETUP SetupSETUP
Cable Box Only For best results, use this connection if:
❑Your cable company scrambles all channels, which requires you
to use a cable box.
❑You do not have a VCR. (If you have a VCR, see pages 22 and 24.)
With this connection you can:
❑Use the TV remote control to change channels coming through
the cable box to the TV’s VHF/UHF jack. (You must first
program the remote control for your specific cable box.)
To connect the cable box
1Connect the CATV cable to the cable box’s input jack.
2Use a coaxial cable to connect the cable box’s output jack to the
TV’s VHF/UHF jack.
3Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
Notes on Using This Connection
About Using Twin View with This Connection
With this connection, all channels come into the TV through your cable box and only one
unscrambled signal is sent to the TV, so you cannot use the Twin View feature. If some of
your channels are scrambled, but others are not, consider using the “Cable Box and
Cable” connection on page 18 instead. For details about Twin View, see page 46.
12
OUT
IN
VHF/UHF
cable
CATV Coaxial cable TV
Cable box
To Do This ... Do This ...
Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3 or 4)
and then use the cable box to switch channels.
Set up the TV remote control
to operate the cable box
Program the remote control. See “Programming the Remote Control” on
pages 43-44.
Activate the remote control to
operate the cable box
Press SAT/CABLE FUNCTION.
Prevent the accidental
switching of TV channels
When using the cable box, you need the TV to stay on the channel the cable
box is set to (usually channel 3 or 4). You can use the TV’s Channel Fix
feature to lock in a specific channel. For details, see “Using the Channel
Menu” on page 68.
32_36HS.book Page 20 Friday, February 7, 2003 11:15 AM
21
SETUP Setup SETUPSETUP SETUPSETUP
Connecting Optional Equipment
Use the directions in this section to connect the following optional
equipment:
About Using
SVIDEO
If the optional equipment you are connecting has an S VIDEO
jack (shown at left), you can use an S VIDEO cable for
improved picture quality (compared to an A/V cable).
Because S VIDEO carries only the video signal, you also need
to connect audio cables for sound, as shown below.
Example of an S VIDEO Connection
If You Are Connecting See Page
VCR and Cable 22
VCR and Cable Box 24
Two VCRs for Tape Editing 26
Satellite Receiver 28
Satellite Receiver and VCR 30
DVD Player with Component Video
Connectors
32
DVD Player with S VIDEO and Audio
Connectors
34
Camcorder 35
Audio Receiver 36
Audio cable
S VIDEO
cable
TV
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
Equipment with S VIDEO
32_36HS.book Page 21 Friday, February 7, 2003 11:15 AM
22
SETUP SETUP SETUPSETUP SetupSETUP
VCR and Cable For best results, use this connection if:
❑Your cable company does not require you to use a cable box.
To connect the VCR and cable
1Connect the CATV cable to the VCR’s VHF/UHF input jack.
2Use a coaxial cable to connect the VCR’s VHF/UHF output jack
to the TV’s VHF/UHF jack.
3Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
4Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
About Using Twin View with This Connection
With this connection, you can use all the features of Twin View. For details about Twin
View, see page 46.
Using
S VIDEO jacks?
See page 21.
CATV cable
Coaxial cable
A/V cable
TV
VCR
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
32_36HS.book Page 22 Friday, February 7, 2003 11:15 AM
23
SETUP Setup SETUPSETUP SETUPSETUP
Notes on Using This Connection
To Do This ... Do This ...
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration).
Watch cable channels Press TV/VIDEO repeatedly to select the cable input (VHF/UHF in the
illustration).
Set up the TV remote control
to operate the VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on pages 43-44.
Activate the TV remote
control to operate the VCR
Set the A/V slide switch to the position you programmed for the VCR. Then
press VCR/DVD FUNCTION.
Control VCR functions with
the TV remote control
See “Operating a VCR” on page 60.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on pages 74-75.
32_36HS.book Page 23 Friday, February 7, 2003 11:15 AM
24
SETUP SETUP SETUPSETUP SetupSETUP
VCR and Cable Box For best results, use this connection if:
❑Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not
scramble all channels.
With this connection you can:
❑Use the TV remote control to change channels coming through
the cable box. (You must first program the remote control for
your specific cable box; see “Programming the Remote Control”
on page 43.)
❑Use the TV remote control to change channels coming directly
into the TV’s VHF/UHF jack. (The TV’s tuner provides a better
signal than the cable box.)
❑Record channels coming through the cable box and channels
coming directly into the TV.
To connect a VCR and cable box, you need:
❑A splitter, which is a small, inexpensive device that you can
purchase at your local electronics store.
❑Three coaxial cables.
❑One A/V cable or one S VIDEO cable with audio cables.

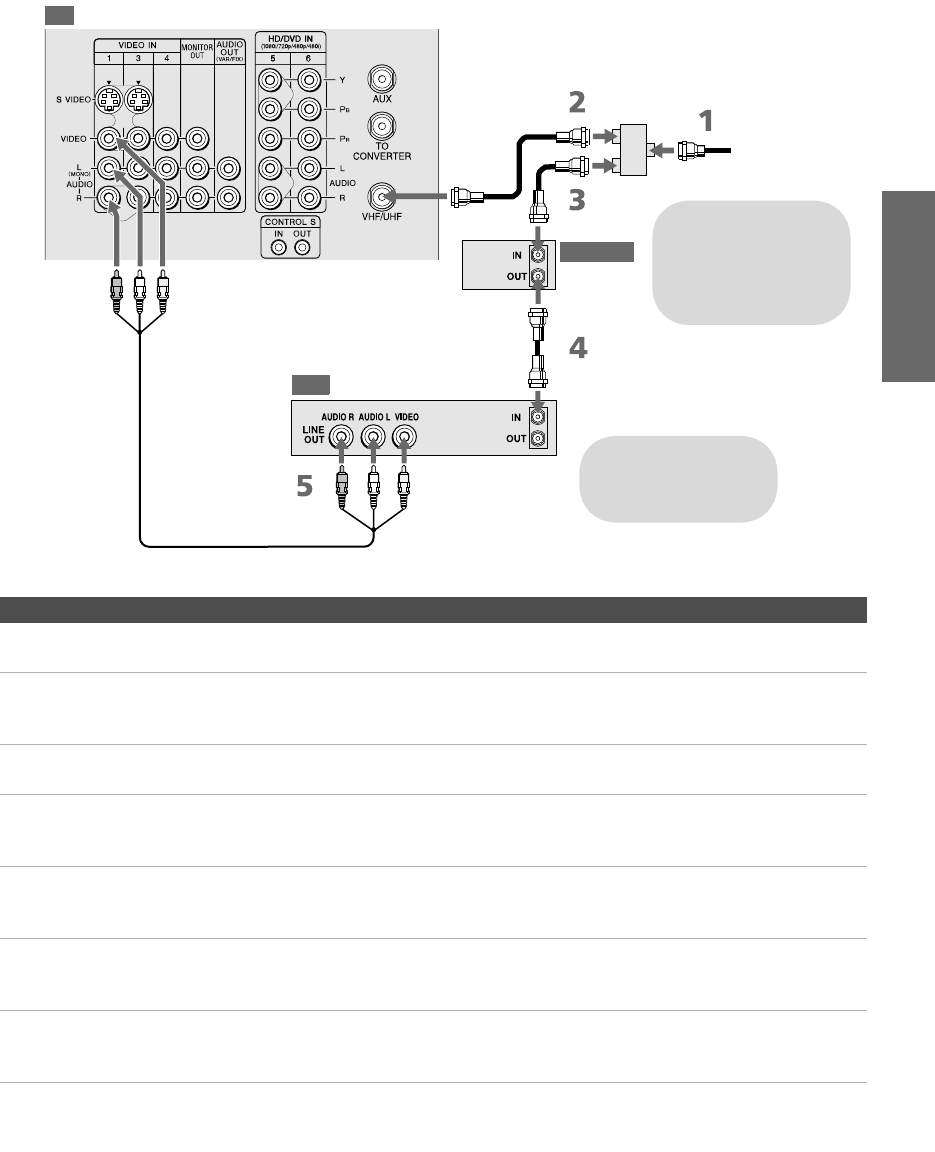

To connect the VCR and cable box
1Connect the CATV cable to the single (input) jack of the splitter.
2Use a coaxial cable to connect one of the splitter’s two output
jacks to the TV’s VHF/UHF jack.
3Use a coaxial cable to connect the splitter’s other output jack to
the cable box’s input jack.
4Use a coaxial cable to connect the cable box’s output jack to the
VCR’s RF input jack.
5Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
6Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
About Using Twin View with This Connection
With this connection, you can use all the features of Twin View. For details about Twin
View, see page 46.
✍DIGITAL CABLE BOX USERS: If you are connecting a digital cable
box, you will need a special bi-directional splitter that is designed
to work with your digital cable box. Contact your cable provider for
details.
Using
S VIDEO jacks?
See page 21.
32_36HS.book Page 24 Friday, February 7, 2003 11:15 AM
25
SETUP Setup SETUPSETUP SETUPSETUP
Notes on Using This Connection
To Do This ... Do This ...
Watch cable (unscrambled)
channels
Press TV/VIDEO repeatedly to select the cable input (UHF/VHF in the
illustration).
Watch cable box (scrambled)
channels
Turn on the VCR and tune it to the channel the cable box is set to (usually
channel 3 or 4). Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1
in the illustration). Use the cable box to change channels.
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration).
Set up the TV remote control
to operate the cable box or
VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on pages 43-44.
Activate the remote control to
operate the cable box or VCR
For the cable box, press SAT/CABLE FUNCTION. For the VCR, set the A/V slide
switch to the position you programmed for the VCR. Then press VCR/DVD
FUNCTION.
Control specific cable box and
VCR functions with the TV
remote control
See “Operating a Cable Box” on page 61 and “Operating a VCR” on page 60.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on pages 74-75.
CATV
Coaxial
cable
A/V cable
cable
Splitter
(not supplied)
Coaxial
cable
TV
Cable box
VCR
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
If you are connecting a
digital cable box, you will
need a special
bi-directional splitter
designed to work with
your cable box.
32_36HS.book Page 25 Friday, February 7, 2003 11:15 AM
26
SETUP SETUP SETUPSETUP SetupSETUP
Two VCRs for Tape
Editing
Connecting two VCRs lets you record from one VCR to the other. By
connecting them as shown below, you can view (monitor) what is
being recorded.
To connect two VCRs for tape editing
1Use an A/V cable to connect the playback VCR’s A/V output
jacks to the TV’s A/V input jacks.
2Use an A/V cable to connect the recording VCR’s A/V input
jacks to the TV’s MONITOR OUT jacks.
Using
S VIDEO jacks?
See page 21.
A/V cable A/V cable
TV
Playback VCR
Recording VCR
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
32_36HS.book Page 26 Friday, February 7, 2003 11:15 AM
27
SETUP Setup SETUPSETUP SETUPSETUP
Notes on Using This Connection
To Do This ... Do This ...
View (monitor) what is being
recorded
Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration above).
Set up the TV remote control
to operate the VCR(s)
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on pages 43-44.
Activate the TV remote
control to operate the VCR(s)
Set the A/V slide switch to the position you programmed for the VCR. Then
press VCR/DVD FUNCTION.
Control VCR functions with
the TV remote control
See “Operating a VCR” on page 60.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on pages 74-75.
32_36HS.book Page 27 Friday, February 7, 2003 11:15 AM
28
SETUP SETUP SETUPSETUP SetupSETUP
Satellite Receiver To connect a satellite receiver
1Connect the satellite antenna cable to the satellite receiver’s
satellite input jack.
2Use an A/V cable to connect the satellite receiver’s A/V output
jacks to the TV’s A/V input jacks.
3Connect a CATV cable from your cable or antenna to the TV’s
VHF/UHF jack.
4Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
Using
S VIDEO jacks?
See page 21.
Satellite antenna
cable
A/V cable
CATV cable
TV
Satellite receiver
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
32_36HS.book Page 28 Friday, February 7, 2003 11:15 AM
29
SETUP Setup SETUPSETUP SETUPSETUP
Notes on Using This Connection
To Do This ... Do This ...
Watch the satellite receiver Press TV/VIDEO repeatedly to select the satellite receiver input
(VIDEO 1 in the illustration).
Set up the TV remote control to operate the
satellite receiver
If you have a non-Sony satellite receiver, you must program
the remote control. See “Programming the Remote Control”
on pages 43-44.
Activate the TV remote control to operate
the satellite receiver
Press SAT/CABLE FUNCTION.
Control satellite receiver functions with the
TV remote control
See “Operating a Satellite Receiver” on page 60.
Label video inputs to easily identify
equipment connected to the TV
See the instructions for setting up Video Labels on pages 74-
75.
32_36HS.book Page 29 Friday, February 7, 2003 11:15 AM
30
SETUP SETUP SETUPSETUP SetupSETUP
Satellite Receiver
and VCR
To connect a satellite receiver and VCR
1Connect the satellite antenna cable to the satellite receiver’s
satellite input jack.
2Connect the CATV cable to the VCR’s VHF/UHF input jack.
3Use a coaxial cable to connect the VCR’s VHF/UHF output jack
to the TV’s VHF/UHF jack.
4Use an A/V cable to connect the satellite receiver’s A/V output
jacks to the VCR’s A/V input jacks.
5Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
6Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
Using
S VIDEO jacks?
See page 21.
A/V cable
Coaxial
cable
cable
Satellite antenna
cable
CATV
A/V cable
TV
VCR
Satellite receiver
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
32_36HS.book Page 30 Friday, February 7, 2003 11:15 AM
31
SETUP Setup SETUPSETUP SETUPSETUP
Notes on Using This Connection
To Do This ... Do This ...
Watch the satellite receiver Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration).
The VCR may need to be turned on and set to the satellite receiver input.
Watch the VCR Press TV/VIDEO repeatedly to select the input to which the VCR is connected
(VIDEO 1 in the illustration).
Set up the TV remote control
to operate the satellite
receiver or VCR
If you have a non-Sony VCR or satellite receiver, you must program the
remote control. See “Programming the Remote Control” on pages 43-44.
Activate the TV remote
control to operate the satellite
receiver or VCR
For the satellite receiver, press SAT/CABLE FUNCTION. For the VCR, set the A/V
slide switch to the position you programmed for the VCR. Then press
VCR/DVD FUNCTION.
Control satellite receiver and
VCR functions with the TV
remote control
See “Operating a Satellite Receiver” on page 60 and “Operating a VCR” on
page 60.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on pages 74-75.
32_36HS.book Page 31 Friday, February 7, 2003 11:15 AM
32
SETUP SETUP SETUPSETUP SetupSETUP
DVD Player with
Component
Video Connectors
For best results, use this connection if your DVD player has
component video (Y, PB, PR) jacks.
To connect a DVD player with component video connectors
1Use three separate component video cables to connect the
DVD player’s Y, PB and PR jacks to the Y, PB and PR jacks
(VIDEO 5) on the TV.
2
Use an audio cable to connect the DVD player’s audio output
jacks to the TV’s VIDEO 5 audio input jacks.
✍The Y, PB and PR jacks on your DVD player are sometimes labeled Y,
CB and CR, or Y, B-Y and R-Y. If so, connect the cables to like colors.
Component video cables
Audio cable
TV
DVD player
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
32_36HS.book Page 32 Friday, February 7, 2003 11:15 AM
33
SETUP Setup SETUPSETUP SETUPSETUP
Notes on Using This Connection
To Do This ... Do This ...
Watch the DVD player Press TV/VIDEO repeatedly to select the DVD input (VIDEO 5 in the
illustration).
Set up the TV remote control
to operate the DVD player
If you have a non-Sony DVD player, you must program the remote control.
See “Programming the Remote Control” on pages 43-44.
Activate the TV remote
control to operate the DVD
player
Set the A/V slide switch to the position you programmed for the DVD
player. Then press VCR/DVD FUNCTION.
Control DVD functions with
the TV remote control
See “Operating a DVD Player” on page 61.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on pages 74-75.
✍You cannot record the signal from any equipment connected into the Y, PB,
PR jacks.
32_36HS.book Page 33 Friday, February 7, 2003 11:15 AM
34
SETUP SETUP SETUPSETUP SetupSETUP
DVD Player with
S VIDEO and Audio
Connectors
Use this connection if your DVD player does not have component
video (Y, PB, PR) jacks.
To connect a DVD player with A/V connectors
1Use an audio cable to connect the DVD player’s audio output
jacks to the TV’s audio input jacks.
2Use an S VIDEO cable to connect the DVD player’s S VIDEO jack
to the TV’s S VIDEO jack.
Notes on Using This Connection
To Do This ... Do This ...
Watch the DVD player Press TV/VIDEO repeatedly to select the DVD input (VIDEO 1 in the
illustration).
Set up the TV remote control
to operate the DVD player
If you have a non-Sony DVD player, you must program the remote control.
See “Programming the Remote Control” on pages 43-44.
Activate the TV remote
control to operate the DVD
player
Set the A/V slide switch to the position you programmed for the DVD
player. Then press VCR/DVD FUNCTION.
Control DVD functions with
the TV remote control
See “Operating a DVD Player” on page 61.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on pages 74-75.
Audio cable
S VIDEO
cable
TV
DVD player
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
32_36HS.book Page 34 Friday, February 7, 2003 11:15 AM
35
SETUP Setup SETUPSETUP SETUPSETUP
Camcorder For easy connection of a camcorder, the TV has front A/V input jacks.
If you prefer, however, you can connect the camcorder to the TV’s
rear A/V input jacks.
To connect a camcorder
1Use A/V cables to connect the camcorder’s A/V output jacks to
the TV’s A/V input jacks.
If you have a mono camcorder, connect its audio output jack to the
TV’s L MONO audio jack.
Note on Using This Connection
Using
S VIDEO jacks?
See page 21.
L(MONO) – AUDIO – R
VIDEO
S VIDEO
VIDEO 2 INPUT
To A /V output
TV
Camcorder
A/V cable
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
To Do This ... Do This ...
Watch the camcorder Press TV/VIDEO repeatedly to select the camcorder input (VIDEO 2 in the
illustration).
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on pages 74-75.
32_36HS.book Page 35 Friday, February 7, 2003 11:15 AM
36
SETUP SETUP SETUPSETUP SetupSETUP
Audio Receiver For improved sound quality, you may want to play the TV’s audio
through your stereo system.
To connect an audio system
1Use an audio cable to connect the TV’s audio output jacks to the
audio receiver’s line input jacks.
2Using the TV’s Audio Menu, set the Speaker option to Off. Then set
the Audio Out option to Fixed or Variable, depending on how you want
to control the volume. For details, see “Using the Audio Menu”
on page 66.
3Turn on the audio receiver, and then set the receiver’s line input
to the jack into which you connected the TV.
To line input
Audio cable
TV
Receiver Cables are often
color-coded to connectors.
Connect red to red,
white to white.
32_36HS.book Page 36 Friday, February 7, 2003 11:15 AM
37
SETUP Setup SETUPSETUP SETUPSETUP
Using the CONTROL S Feature
CONTROL S allows you to control your system and other Sony
equipment with one remote control. In addition to allowing you to
control multiple devices with one remote control, the CONTROL S
feature allows you to always point your remote control at your TV,
instead of having to point it at the other equipment, which might be
hidden or out of direct line of sight.
Use CONTROL S IN to send signals to the TV.
Use CONTROL S OUT to send signals to connected equipment.
32_36HS.book Page 37 Friday, February 7, 2003 11:15 AM
38
SETUP SETUP SETUPSETUP SetupSETUP
Setting Up the Channel List
After you finish connecting your TV, you need to run Auto Setup to
set up your channels. The Auto Setup screen appears when you turn
on your TV for the first time after hooking it up. If you do not want to
set up the channels at this time, you can do it later by selecting the
Auto Program option in the Channel Menu (see page 68).
Using Auto Setup 1Press POWER to turn on the TV.
2Press TV FUNCTION on the remote control.
3To continue running Auto Setup, press CH+. To exit Auto Setup,
press CH-.
Auto Setup automatically creates a list of receivable channels. When
finished, the lowest numbered channel is displayed.
To reset the TV to factory settings
1Press POWER to turn on the TV.
2Hold down RESET on the remote control.
3Press TV POWER on the TV. (The TV will turn itself off, then back
on.)
4Release RESET.
✍The Auto Setup feature does not apply for installations that use a cable box
for all channel selection.
32_36HS.book Page 38 Friday, February 7, 2003 11:15 AM
39
Using the Remote Control
Overview
This chapter describes how to set up, program, and use the TV’s
remote control.
Inserting Batteries
1Remove the battery cover from the remote control.
2Insert two size AA (R6) batteries (supplied) by matching the e
and E terminals on the batteries to the diagram inside the battery
compartment.
3Replace the battery cover.
Topic Page
Inserting Batteries 39
Button Descriptions
Outside Panel
Inside Panel
40
42
Programming the Remote Control 43
✍Remove the batteries to avoid damage from possible battery leakage
whenever you anticipate that the remote control will not be used for an
extended period. Handle the remote control with care. Avoid dropping it,
getting it wet, placing it in direct sunlight, near a heater, or where the
humidity is high.
12
32_36HS.book Page 39 Friday, February 7, 2003 11:15 AM
40
SETUP SETUP SETUPSETUP SETUPRemote Control
Button Descriptions
Outside Panel
DRC MODE FREEZE
M
E
M
O
R
Y
S
T
I
C
K
DISPLAY
RESET
MTS/SAP GUIDE
CODE SET
MENU
CH
VOL
FAVORITES
INDEX
ENTER
JUMP
ANT
TV/VIDEO PIC MODE
TV
SAT/CABLE
FUNCTION
MUTING SAT/CABLE POWER
RM-Y190
TWIN VIEW
TV
1
4
q;
qa
qh
qj
qk
wa
ws
6
8
qs
7
9
ql
w;
qg
qd
qf
wd
wf
3
2
5
Button Description
1MUTING Press to mute the sound. Press again or press VOL+ to
restore the sound.
2SLEEP Press repeatedly until the TV displays the time in
minutes (15, 30, 45, 60, or 90) that you want the TV to
remain on before shutting off automatically. To cancel
press until Sleep Off appears. While the Sleep feature is
set, press once to display the remaining time.
3FUNCTION
Buttons
The indicator lights up momentarily when pressed to
show which equipment the remote control is
operating:
SAT/CABLE: Press to have the remote control operate the
satellite receiver or cable box.
TV: Press to have the remote control operate the TV.
4TV/VIDEO Press repeatedly to cycle through the video equipment
connected to the TV’s video inputs.
5ANT Press to switch between the sources connected to the
TV’s VHF/UHF and AUX inputs.
6JUMP Press to jump back and forth between two channels.
The TV alternates between the current channel and the
last channel that was selected.
7INDEX Press to display the Scrolling Index. For details, see
page 46.
8FAVORITES Press to display the Favorite Channels list. For details,
see page 50.
9MENU Press to display the Menu. Press again to exit from the
Menu. For details, see “Using the Menus” on page 63.
0VOL +/- Press to adjust the volume.
qa Move the joystick Vv B b to move the on-screen
cursor. To select an item, press the center of the
joystick ( ).
qs DRC MODE Press repeatedly to cycle through the available high-
resolution picture modes: Interlaced, Progressive,
CineMotion. Also available in the Video Menu. For
details, see “Selecting Video Options” on pages 64-65.
qd RESET Press to reset the settings to the factory defaults. See
pages 64, 66, and 73. Also used to clear Favorite
Channels (see page 50).
qf MTS/SAP Press repeatedly to cycle through the Multi-channel
TV Sound (MTS) options: Stereo, Auto SAP (Second
Audio Program), and Mono. Also available in the
Audio Menu. For details, see “Using the Audio Menu”
on page 66.
32_36HS.book Page 40 Friday, February 7, 2003 11:15 AM
41
SETUP SETUP SETUPRemote Control SETUPSETUP
qg CODE SET Press to program the remote control to operate non-
Sony video equipment. For details, see “Programming
the Remote Control” on page 43.
qh POWER
Buttons
SAT/CABLE: Press to turn on and off the satellite receiver
or cable box.
TV: Press to turn on and off the TV.
qj PIC MODE Press repeatedly to cycle through the available video
picture modes: Vivid, Standard, Movie, Pro. Also available
in the Video Menu. For details, see “Selecting Video
Options” on pages 64-65.
qk 0 - 9
ENTER
Press 0 - 9 to select a channel; the channel changes after
3 seconds. Press ENTER to change channels
immediately.
ql TWIN VIEW Press to turn on and off Twin View. For details, see
pages 47-49.
w; CH +/- Press to scan through channels. To scan quickly
through channels, press and hold down either CH
button.
wa MEMORY STICK Press to display the Memory Stick Menu. For details,
see “Using the Memory Stick Picture Viewer” on
page 52.
ws FREEZE Press to freeze the picture. Press again to restore the
picture. For details, see page 51.
wd DISPLAY Press once to display the current channel number,
current time, and channel label (if set). Press again to
turn Display off.
wf GUIDE Press to display the program guide of your satellite
program provider.
Button Description
32_36HS.book Page 41 Friday, February 7, 2003 11:15 AM
42
SETUP SETUP SETUPSETUP SETUPRemote Control
Inside Panel To access the inside panel, open the outside cover as shown.
Button Description
wg SYSTEM OFF Press to turn off all Sony brand audio/video equipment
at once. (May not function with older Sony equipment.)
wh Transport
Buttons
m Rewind
N Play
z Record (press together with N)
x Stop
M Fast forward
X Pause
wj MTS/SAP Press repeatedly to cycle through the Multi-channel TV
Sound (MTS) options: Stereo, Auto SAP (Second Audio
Program), and Mono. Also available in the Audio Menu.
For details, see “Using the Audio Menu” on page 66.
wk Vv B b Press Vv B b to move the VCR or DVD player’s on-
screen cursor.
wl DISC MENU Press to display the DVD Menu.
e; TV/VCR Press to change to the VHF/UHF output of the VCR.
ea VCR/DVD Press to turn on and off the VCR or DVD player.
es AV1/2/3/DVD
Slide Switch
Use the A/V slide switch to control connected video
equipment. You can program one video source for each
switch position. For details, see “Programming the
Remote Control” on page 43.
ed Press repeatedly to step through the Audio Effect
options. Also available in the Audio Menu. For details,
see page 66.
ef SELECT Press to select an item in the VCR or DVD player’s
menu.
eg MENU Press to display the DVD player setup menu.
wh
wj
wk
wl
ed
eg
ef
ea
e;
es
wg
SYSTEM
OFF
MUTING SLEEP SAT/CABLE POWER
TV/VCR VCR/DVD
MTS/SAP
SELECT
DISC MENU MENU
FAVORITES
INDEX
TWIN VIEW
DRC MODE FREEZE
M
E
M
O
R
Y
S
T
I
C
K
DISPLAY
RESET
GUIDE
CODE SET
MENU
CH
VOL
FAVORITES
INDEX
ENTER
JUMP
ANT
TV/VIDEO PIC MODE
TV
SAT/CABLE
FUNCTION
MUTING SLEEP SAT/CABLE POWER
RM-Y191
TWIN VIEW
TV
MTS/SAP
MTS/SAP
DISC MENU MENU
SELECT
POWER
SAT/CABLE
UTING SLEEP
SYSTEM
OFF
32_36HS.book Page 42 Friday, February 7, 2003 11:15 AM
43
SETUP SETUP SETUPRemote Control SETUPSETUP
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
If you have video equipment other than Sony brand that you want to
control with the TV’s remote control, use the following procedure to
program the remote control.
1Turn to the list of “Manufacturer’s Codes” on page 44, and find
the three-digit code number for the manufacturer of your
equipment. (If more than one code number is listed, use the
number listed first.)
2Set the A/V slide switch to 1, 2, 3, or DVD.
3Press CODE SET.
4Enter the three-digit manufacturer’s code number.
5Press ENTER.
6To check if the code number works, aim the TV’s remote control
at the equipment and press the POWER button that corresponds
with that equipment. If it responds, you are done. If not, try using
another code listed for that manufacturer.
Sony Equipment Switch Position on
Remote Control
Programmable Code
Number
Beta, ED Beta VCRs AV1 303
8 mm VCR AV2 302
VHS VCR AV3 301
DVD player DVD 751
✍The equipment must have infrared (IR) remote capability in order to be used
with the remote control.
✍You must do step 5 within 10 seconds of step 4, or you must redo
steps 3 through 5.
❑If more than one code
number is listed, try
entering them one by one
until you come to the
correct code for your
equipment.
❑If you enter a new code
number, the code number
you previously entered at
that setting is erased.
❑In some cases, you may not
be able to operate your
equipment with the
supplied remote control. In
such cases, use the
equipment’s own remote
control unit.
❑Whenever you remove the
batteries to replace them,
the code numbers may
revert to the factory setting
and must be reset.
z
32_36HS.book Page 43 Friday, February 7, 2003 11:15 AM
44
SETUP SETUP SETUPSETUP SETUPRemote Control
Manufacturer’s Codes
VCRs
Manufacturer Code
Sony 301, 302, 303
Admiral
(M. Ward)
327
Aiwa 338, 344
Audio
Dynamic
314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316,
317, 318, 341
Fisher 330, 335
Funai 338
General
Electric
329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305,
338
Instant Replay 309, 308
JC Penney 309, 305, 304,
330, 314, 336,
337
JVC 314, 336, 337,
345, 346, 347
Kenwood 314, 336, 332,
337
LXI (Sears) 332, 305, 330,
335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA
323, 324, 325,
326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Laserdisc Players
Orion 317
Panasonic 308, 309, 306,
307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/
PROSCAN
304, 305, 308,
309, 311, 312,
313, 310, 329
Realistic 309, 330, 328,
335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321,
335, 323, 324,
325, 326
Sharp 327, 328
Signature
2000 (M.
Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338,
310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314, 336, 338,
337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335,
331, 332
Yamaha 314, 330, 336,
337
Zenith 331
Manufacturer Code
Sony 701
Panasonic 704, 710
Pioneer 702
Manufacturer Code
DVD Players
Cable Boxes
Satellite Receivers
Manufacturer Code
Sony 751
General
Electric
755
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Oritron 759
Panasonic 753
Philips 757
Pioneer 752
RCA/Proscan 755
Samsung 758
Toshib a 75 4
Zenith 760
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224,
225, 226
Jerrold/G.I./
Motorola
201, 202, 203,
204, 205, 206,
207, 208, 218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific
Atlanta
209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
Dish Network 810
Echostar 810
General
Electric
802
Hitachi 805
Hughes 804
Mitsubishi 809
Panasonic 803
RCA/
PROSCAN
802, 808
Toshiba 806, 807
32_36HS.book Page 44 Friday, February 7, 2003 11:15 AM
45
Using the Features
Overview
This chapter describes how to use the features of your TV.
Watching TV
Topic Page
Watching TV 45
Using the Scrolling Index 46
Using Twin View 47
Using Favorite Channels 50
Using the Freeze Function 51
Using the Memory Stick Picture Viewer 52
Using Other Equipment with Your TV Remote Control 60
To Do This ... Do This ...
Activate the remote control to
operate the TV
Press TV FUNCTION
Turn on/off the TV Press TV POWER
Tune directly to a channel Press 0-9 and then ENTER (or wait 3
seconds) or
Press CH+/-
Adjust the volume Press VOL +/-
Mute the sound Press MUTING (press again to unmute)
Alternate back and forth
between two channels
Press JUMP
The TV alternates between the current
channel and the last channel tuned.
Display the current channel
number (and other information)
Press DISPLAY once to display the channel
number and current time and channel
label (if set). Press DISPLAY again to turn
Display off.
Switch the TV’s input to the
VCR, DVD player, or other
connected equipment
Press TV/VIDEO repeatedly to cycle through
the video equipment connected to the
TV’s video inputs.
Change video and audio
options, customize the TV’s
setup, set parental controls, and
more
Press MENU to display the Menu. For
details, see “Using the Menus” on
page 63.
Switch the TV’s input between
sources connected to the TV’s
VHF/UHF and AUX inputs
Press ANT to alternate between sources
connected to the TV’s VHF/UHF and
AUX inputs.
For a complete list of all
the functions of the remote
control, see pages 39-44.
z
32_36HS.book Page 45 Friday, February 7, 2003 11:15 AM
46
SETUP SETUP SETUPFeatures SETUPSETUP
Using the Scrolling Index
The Scrolling Index lets you select programs from a series of preview
windows that scroll along the right side of the screen.
1Press INDEX.
The Scrolling Index appears, with the currently selected program
in the main (left) window, and four scrolling video pictures in the
right.
As each picture on the right scrolls to the live preview window, it
changes briefly from a frozen video picture to a live video. The
right side continues to scroll through the entire channel list.
2To change the direction of the scrolling, move the joystick V or v.
3To change the speed of the scrolling, move and hold the joystick
V or v.
4To change a frozen video picture to a live video, move the
joystick V or v to highlight the picture, then press .
5To move the live video (from step 4 ) from the right to the main
(left) window of the Scrolling Index, press again.
To exit the Scrolling Index
❑Press INDEX.
window
Live preview
Factors Affecting Scrolling Index
❑Scrolling Index does not function if you use a cable box to view all channels.
❑Sources connected to the AUX, VIDEO 5, VIDEO 6, and VIDEO 7 inputs display in the left
window, but not the right windows.
❑Scrolling Index does not function if parental controls are set (see page 70).
32_36HS.book Page 46 Friday, February 7, 2003 11:15 AM
47
SETUP SETUP SETUPSETUP SETUPFeatures
Using Twin View
Twin View lets you see two pictures from two sources — from an
antenna, VCR, DVD, etc., — on the screen at the same time. You hear
the sound from only one of the sources at a time, but you can choose
which source’s sound is selected. You can also change the relative size
of each of the pictures.
Displaying Twin
Pictures
1Tune the TV to a working channel.
2Press .
A second picture appears. The active picture is highlighted in
blue.
To cancel Twin View and watch the active picture
❑Press or .
,
,
Factors Affecting Twin View
❑If you use a cable box to view all channels, the same channel appears in both windows of
Twin View because the cable box unscrambles only one channel at a time.
❑If you use a cable box, you can view the cable box output in one Twin View window and
view a different source (such as a VCR or DVD player) in the second window by using the
TV/VIDEO button. For details, see “Connecting Optional Equipment” on page 21.
❑Sources connected to the AUX, VIDEO 5, VIDEO 6, and VIDEO 7 inputs display in the left
Twin View window, but not the right.
❑If you are viewing a 4:3 source and a 16:9 enhanced source (such as a DVD) side by side in
Twin View, the 4:3 source appears larger.
32_36HS.book Page 47 Friday, February 7, 2003 11:15 AM
48
SETUP SETUP SETUPFeatures SETUPSETUP
Activating the
Functions Available in the Active (Highlighted) Window
To activate the picture in the right
window
❑Move the joystick b.
To activate the picture in the left
window
❑Move the joystick B.
To Do This ... Do This ...
Tune to a channel Press 0-9 and then ENTER (or wait 3
seconds) or
Press CH+/-
Adjust the volume Press VOL +/-
Mute the sound Press MUTING (press again to unmute)
Switch the TV’s input between
sources connected to the TV’s
VHF/UHF and AUX inputs
Press ANT (left window only)
Switch the TV’s input between
sources connected to the TV’s
A/V inputs
Press TV/VIDEO
Change the picture size Move the joystick V or v. (For details, see
“Changing the Picture Size” on page 49).
,
,
32_36HS.book Page 48 Friday, February 7, 2003 11:15 AM
49
SETUP SETUP SETUPSETUP SETUPFeatures
Changing the
Picture Size
The zoom feature lets you vary the relative size of the left and right
pictures.
When you adjust the picture sizes, the TV memorizes the change. The
next time you use the Twin View function, the memorized sizes
appear.
1Move the joystick B or b to
activate the picture that you
want to resize.
2Move the joystick V to enlarge
the picture.
3Move the joystick v to make the
picture smaller.
32_36HS.book Page 49 Friday, February 7, 2003 11:15 AM
50
SETUP SETUP SETUPFeatures SETUPSETUP
Using Favorite Channels
The Favorite Channels feature lets you select programs from a list of
up to eight favorite channels that you specify.
Creating a List of
Favorite Channels
1Press MENU to display the Menu.
2Move the joystick B or b to highlight the Channel icon and press
.
3Move the joystick v to highlight Favorite Channels and press .
4Move the joystick V or v to highlight a Favorite Channel number
(1-8) and press .
5Move the joystick V or v to highlight a channel you want to
assign to the Favorite Channel number. A preview of the
highlighted channel appears in the upper right of the screen.
Press to select that channel as a Favorite Channel.
6To add more channels to your favorites list, repeat steps 4-5.
To clear a Favorite Channel, move the joystick V or v to highlight
the channel you want to clear. Press and then press RESET.
7Press MENU to exit the Menu.
Displaying a List
of Favorite
Channels
1Press FAVORITES. The Favorite Channels list appears.
2Move the joystick V or v to highlight the channel you want to
watch.
A preview of the highlighted Favorite Channel appears.
3Press to select the channel you want to watch.
For details on using the
Channel Menu, see page 68.
z
Favorites
10 ABC
20 HBO
36 MTV
6FOX
8CBS
37 COMED
40
9
Exit
Preview of
highlighted Favorite
Channel
Favorite
Channels
To assign Channel Labels
(eg., ABC, HBO, MTV, etc.) to
channel numbers, as shown at
right, use the Channel Label
feature in the Channel Menu
(see page 69).
z
32_36HS.book Page 50 Friday, February 7, 2003 11:15 AM
51
SETUP SETUP SETUPSETUP SETUPFeatures
Using the Freeze Function
The FREEZE button allows you to temporarily capture a program’s
picture. You can use this feature to write down information such as
phone numbers, recipes, etc.
1When the program information you want to capture is displayed,
press FREEZE.
2The TV switches to Twin View mode and displays the “frozen”
picture on the right, while the current program continues on the
left.
3To cancel and return to normal viewing, press FREEZE (or just tune
to another channel).
✍The Freeze feature is not available while using Twin View.
Current
program
in progress
Frozen
Call 555-1234
32_36HS.book Page 51 Friday, February 7, 2003 11:15 AM
52
SETUP SETUP SETUPFeatures SETUPSETUP
Using the Memory Stick Picture Viewer
About Memory
Stick
Memory Stick (sold separately) is a new, compact, portable, and
versatile Integrated Circuit recording medium with a data capacity
that exceeds that of a floppy disk. Memory Stick is specially designed
for exchanging and sharing digital data among Memory Stick
compatible products such as digital cameras and digital video
cameras. Because it is removable, Memory Stick can also be used for
external data storage.
Memory Stick technology allows you to view on your TV screen
digital (JPEG) images that are stored on Memory Stick media. You
can choose from an index of the images stored on the Memory Stick,
or you can run a slideshow of those images. You can also customize
the features of the slideshow by selecting the length of time that each
image is displayed, toggling the display of file information, and
rotating each image.
For more information about the using Memory Stick media, see
“Notes on Using Memory Stick Media” on page 79.
Supported Image
Ty p e s
This TV’s Memory Stick viewer can display only still images that
have been recorded on Memory Stick media by Sony brand digital
still and video cameras.
Recorded images must also meet the following specifications:
❑Compression format: JPEG
❑File name format: DCF compliant
✍You cannot write to Memory Stick media using the TV.
✍JPEG stands for “Joint Photographic Experts Group,” which is the
organization that implemented this format. DCF stands for “Design Rules
for Camera File Systems,” which are specifications established by the Japan
Electronic Industry Development Association (JEIDA).
✍The TV’s Memory Stick viewer is compatible with Memory Sticks up to and
including 128MB. It is not compatible with Memory Sticks that exceed
128MB.
32_36HS.book Page 52 Friday, February 7, 2003 11:15 AM
53
SETUP SETUP SETUPSETUP SETUPFeatures
About DCF File Names
Most Sony brand digital still and video cameras automatically record
still images using DCF compliant directory and file names, as shown
in the following example:
Cyber-shot Cameras or Sony Brand Digital Camcorders
If you are using a Sony Cyber-shot camera (except models DSC-D700
and DSC-D770) or a Sony digital camcorder with Digital Still
capability (except models DCR-TRV-900 and DSR-PD100A), the
pictures on your Memory Stick are ready to be viewed on your TV.
Mavica Cameras
If you are using a Sony Mavica camera, you can view those pictures
by first using a PC to transfer the image files to a Memory Stick, and
then setting up the files in a DCF compliant file structure as shown
above. (Thumbnails, however, will not be available because Mavica
does not create them. This also means that the Index and Rotate
Picture functions will not work.)
✍Important: If the source of images is not a Sony digital camera, or the
directory/filenames are modified with a computer using non-DCF compliant
software, the images may not be viewable on your TV. If you wish to view a
DCF compliant image imported to your Memory Stick, be sure to use the
same file structure used by Sony cameras (shown above).
JPEG File Names
DCF Compliant File Structure Example
Directory Name
JPEG File Names
Directory Name
Main Folder
To ensure that the
existing/imported JPEG files are
viewable on your TV, be sure to
store and maintain them in the
DCF compliant file structure
shown at right, with the JPEG
files inside the 100MSDCF
directory, and this directory
inside the DCIM main folder.
z
32_36HS.book Page 53 Friday, February 7, 2003 11:15 AM
54
SETUP SETUP SETUPFeatures SETUPSETUP
Unsupported
Image Types
This TV’s Memory Stick viewer cannot display any of the following:
❑Images recorded on digital still cameras and digital video
cameras that are not Sony brand
❑Images recorded using products that are not DCF compliant,
including the following Sony products:
❑Images stored in TIFF or any other non-JPEG compression format
❑Images in directories that were renamed on computer
❑Images with a size of less than 16 x 16 or greater than 4096 x 4096
❑Images stored on a Memory Stick that has a capacity that exceeds
128MB
Digital still cameras DSC-D700, DSC-D770
Digital video cameras DCR-TRV900/DSR-PD100A
32_36HS.book Page 54 Friday, February 7, 2003 11:15 AM
55
SETUP SETUP SETUPSETUP SETUPFeatures
Inserting and
Removing a
Memory Stick
To insert a Memory Stick
1Locate the Memory Stick slot (see page 10) and insert the
Memory Stick into the Memory Stick slot as illustrated below.
When inserted properly, it should slide in with little resistance
and click into place.
To remove a Memory Stick
1Check that the Memory Stick indicator is off. (When the light is
on, this indicates that the TV is reading data from the Memory
Stick.)
2Push the Memory Stick gently into the slot, and then release it.
The Memory Stick media is ejected.
3Pull the Memory Stick completely out of the slot.
✍Be sure to insert the Memory Stick in the correct direction. If the Memory
Stick is forced in the wrong way, it may become damaged.
Do not insert anything other than a Memory Stick into the slot.
✍Removing the Memory Stick while a file is being accessed (when the
Memory Stick LED on the TV’s front panel is lit) may damage the Memory
Stick or its contents.
✍Do not pull out the Memory Stick without first pushing it in; otherwise, the
TV’s locking mechanism may become damaged.
✍To protect small children from injury from Memory Stick media, remove all
Memory Stick media from the TV’s Memory Stick slot and store it in a safe
location when it is not in use.
using.fm5 Page 55 Friday, February 21, 2003 2:28 PM
56
SETUP SETUP SETUPFeatures SETUPSETUP
Displaying the
Memory Stick
Menu
1Insert a Memory Stick that contains the images you want to view.
For details, see page 55.
2Press the MEMORY STICK button on the remote control. The Memory
Stick Menu appears.
3To select an option, move the joystick to highlight the option and
press .
4To exit the Memory Stick Menu, press CH +/-, TV/VIDEO, ANT, or use
the 0-9 buttons and ENTER (or wait 3 seconds) to select a channel.
Option Description
Index Displays an index of thumbnail images that are on
the Memory Stick. For details, see “Using the
Memory Stick Index” on page 57.
Slideshow Displays a slideshow of images that are on the
Memory Stick. For details, see “Using the Memory
Stick Slideshow” on page 58.
Setup Allows you to change slideshow options and rotate
images. For details, see “Changing the Memory
Stick Setup Options” on page 58.
✍Memory Stick functions are not available while using Twin View, Freeze or
Favorite Channel functions.
Memory Stick
Index
Slideshow
Setup
Select: +Move: V v
32_36HS.book Page 56 Friday, February 7, 2003 11:15 AM
57
SETUP SETUP SETUPSETUP SETUPFeatures
Using the Memory
Stick Index
The Memory Stick Index lets you view images that are on the
Memory Stick in an index of thumbnail images.
1Insert a Memory Stick that contains the images you want to view.
For details, see page 55.
2Press the MEMORY STICK button on the remote control. The Memory
Stick Menu appears.
3Move the joystick to highlight Index and press . The Memory
Stick Index appears.
4Move the joystick V v B b to highlight an image and press to
select the image. Selecting an image displays that image at full
size. While an image is displayed full size, you can do any of the
following:
5To return to the Memory Stick Menu, move the joystick to
Menu and press .
✍There is no audio signal available while viewing images on Memory Stick.
To Do This ... Do This ...
Display the previous image Move the joystick B.
Display the next image Move the joystick b. If you move the
joystick b while viewing the last image,
the first image is displayed. If you
move the joystick B while viewing the
first image, the last image is displayed.
Display the Memory
Stick Index
Press .
✍If a blank square appears instead of a thumbnail image, this indicates that
the image does not support a thumbnail view. Selecting the icon, however,
displays the full-size image on the screen. It could also indicate that both
the thumbnail and full-size images are corrupted or not supported.
The Page and folder ( )
buttons are available only if the
Memory Stick contains more
images or folders than can be
displayed on one screen.
zMemory Stick Index
Menu
Filename:DSC00004 Image: 12/254
Date & Time: 4/12/2001 6:43PM
Picture Size: 640x480
Information about the
selected image
Select: +Move: V v B b
Directory Name: 900MSDCF Page 1/42
J
Page -
Page
-
+
+
The selected image is
highlighted in yellow
J
32_36HS.book Page 57 Friday, February 7, 2003 11:15 AM
58
SETUP SETUP SETUPFeatures SETUPSETUP
Using the Memory
Stick Slideshow
The Memory Stick Slideshow lets you watch a slideshow of the
images that are on the Memory Stick.
1Insert a Memory Stick that contains the images you want to view.
For details, see page 55.
2Press MEMORY STICK. The Memory Stick Menu appears.
3Move the joystick to highlight Slideshow and press . The
slideshow starts.
4To end the slideshow, press . The Memory Stick Menu is
displayed.
Changing the
Memory Stick
Setup Options
1Press the MEMORY STICK button on the remote control. The Memory
Stick Menu appears.
2Move the joystick to highlight Setup and press . The Memory
Stick Setup Menu appears.
3Move the joystick to highlight an option and press .
4Move the joystick b (or press ) to change settings. Move the
joystick B (or press ) to select the changed setting.
5To exit the Memory Stick Setup Menu, move the joystick to
Menu and press .
Option Description
Menu Returns to the Memory Stick Menu.
Slideshow –
Interval
Decrease or increase the length of time that each
image is displayed: 5 seconds, 10 seconds, 1 minute,
5 minutes, or 15 minutes.
Slideshow – Repeat Select On to set the slideshow to repeat after
displaying all the images recorded on the Memory
Stick. Select Off to not repeat the slideshow.
File Information Select On to show file information of each image
while that image is being displayed.
Rotate Picture Displays the Rotate Picture screen. For details, see
“Using the Rotate Picture Screen” on page 59.
Memory Stick Setup
Menu
Slideshow - Interval: 5 sec
Slideshow - Repeat: On
File Information: On
Rotate Picture
J
Select: +Move: V v
J
32_36HS.book Page 58 Friday, February 7, 2003 11:15 AM
59
SETUP SETUP SETUPSETUP SETUPFeatures
Using the Rotate
Picture Screen
The Rotate Picture Screen lets you rotate an image from an index of
thumbnails.
1In the Memory Stick Setup Menu, move the joystick to highlight
Rotate Picture and press . The Rotate Picture screen appears.
2Move the joystick V v B b to highlight an image that you want to
rotate.
3Press to rotate an image 90 degrees in a clockwise direction.
4To return to the Memory Stick Setup Menu, move the joystick to
highlight Menu and press .
✍You cannot rotate images if the LOCK switch on the Memory Stick is on. To
rotate the images, first set the LOCK switch to off.
✍If a blank square appears instead of the thumbnail image, this indicates
that the image does not support a thumbnail view and cannot be rotated.
Rotate Picture
Filename: DSC00004 Image: 12/254
Date & Time: 4/27/2001 6:43PM
Picture Size: 640x480
Select: +Move: V v B b
Directory Name: 900MSDCF Page 1/42
Menu
J
Page -
Page
-
+
+
The Page and folder ( )
buttons are available only if the
Memory Stick contains more
images or folders than can be
displayed on one screen.
z
32_36HS.book Page 59 Friday, February 7, 2003 11:15 AM
60
SETUP SETUP SETUPFeatures SETUPSETUP
Using Other Equipment with Your TV Remote Control
All Equipment
Operating a VCR
Operating a
Satellite Receiver
To Do This ... Do This ...
Switch the TV’s input to the
VCR, DVD player, or other
connected equipment
Press TV/VIDEO repeatedly to cycle
through the video equipment connected
to the TV’s video inputs.
Set up the TV remote control to
operate non-Sony equipment
You must program the remote control the
first time you use it. See “Programming
the Remote Control” on pages 43 to 44.
To Do This ... Press
Activate the remote control
to operate the VCR
Open the outside cover, as shown on page 42.
Then set the A/V slide switch to the position
you programmed for the VCR.
Tur n on/off VCR/DVD POWER
Change channels CH +/-
Record N and z simultaneously
Play N
Stop x
Fast forward M
Rewind the tape m
Pause X
Search the picture forward
or backward
M or m during playback
(release to resume normal playback)
Change input mode TV/VCR
To Do This ... Press
Activate the remote control
to operate the satellite
receiver
SAT/CABLE FUNCTION
Tur n on/off SAT/CABLE POWER
Select a channel 0-9, ENTER
Change channels CH +/-
Back to previous channel JUMP
Display channel number DISPLAY
Display SAT Guide GUIDE
Display SAT Menu MENU
Move highlight (cursor) V v B b
Select item
32_36HS.book Page 60 Friday, February 7, 2003 11:15 AM
61
SETUP SETUP SETUPSETUP SETUPFeatures
Operating a Cable
Box
Operating a DVD
Player
Operating an MDP
(Laserdisc Player)
To Do This ... Press
Activate the remote control
to operate the cable box
SAT/CABLE FUNCTION
Tur n on/off SAT/CABLE POWER
Select a channel 0-9, ENTER
Change channels CH +/-
Back to previous channel JUMP
To Do This ... Press
Activate the remote control
to operate the DVD
Open the outside cover, as shown on page 42.
Then set the A/V slide switch to the position
you programmed for the DVD player.
Tur n on/off VCR/DVD POWER
Play N
Stop x
Pause X
Step through different
tracks of the disc
M to step forward or m to step backward
Step through different
chapters of a video disc
CH+ to step forward or CH- to step backward
Select tracks directly 0-9, ENTER
Display the DVD player
Menu (Setup)
MENU (inside panel)
Display the DVD Menu DISC MENU
Move highlight (cursor) V v B b
Select item SELECT
To Do This ... Press
Activate the remote control
to operate the MDP
Open the outside cover, as shown on page 42.
Then set the A/V slide switch to the position
you programmed for the MDP player.
Tur n on/off VCR/DVD POWER
Play N
Stop x
Pause X
Search the picture forward
or backward
M or m during playback
(release to resume normal playback)
Search a chapter forward or
backward
CH +/-
32_36HS.book Page 61 Friday, February 7, 2003 11:15 AM
32_36HS.book Page 62 Friday, February 7, 2003 11:15 AM
63
Using the Menus
Overview
The Menu gives you access to the following features:
Navigating Through Menus
Menu Icon Description Page
Allows you to make adjustments to your picture
settings. It also allows you to customize the Picture
Mode based on the type of program you are viewing,
select DCR Mode options, and more.
64
Offers enhanced audio options such as listening to
second audio programming (SAP) or customizing
the Effect of the sound on your TV.
66
Allows you to set up a Favorite Channel list, run the
Auto Program function, and more.
68
Lets you control the viewing of programs based on
their ratings.
70
Lets you set the clock on your TV and allows you to
program your TV for scheduled viewing using the
Timers.
73
Provides several options for setting up your
channels, labeling your video inputs, and
selecting the language of the on-screen Menus.
74
Press MENU to enter and
exit Menus.
z
To Do This ... Press
Display the Menu MENU
Move through the Menus B b
Move through the Menu options V v
Select an option to change
Change an option’s settings V v B b
Select (confirm) changed setting or B
Exit the Menu MENU
Menus include navigation
help text that appears at the
bottom of each Menu.
z
32_36HS.book Page 63 Friday, February 7, 2003 11:15 AM
64
SETUP Menus SETUPSETUP SETUPSETUP
Using the Video Menu
To select the Video Menu
1Press MENU.
2Move the joystick B or b to
highlight the Video icon and
press .
3Move the joystick to highlight
an option. Press to select an
option.
4Move the joystick V v B b to
change settings. Press to select the changed setting.
5Press MENU to exit the Menu.
To restore the factory default settings for Picture, Brightness, Color, Hue,
Sharpness, Color Temp and VM.
❑Press RESET on the remote control when in the Video Menu.
Selecting Video
Options
The Video Menu includes the following options:
Mode: Vivid
Brightness
Color
Hue
Sharpness
Color Temp.: Cool
ClearEdge VM: High
DRC Mode: CineMotion
Select:+End: MENU
Move: V v B b
To change from one Mode
to another, use the PIC MODE
button on the remote control.
You can alter the Video
Menu settings (Picture,
Brightness, Color, etc.) for each
Mode.
z
z
Option Description
Mode
Customized
viewing
Vivid Select for enhanced picture contrast and
sharpness.
Standard Select for standard picture settings.
Movie Select to display a softer picture.
Pro Select to display a picture with minimum
enhancements.
Picture Adjust to increase picture contrast and deepen the color, or
decrease picture contrast and soften the color.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Sharpness Adjust to sharpen or soften the picture.
Color Temp.
White
intensity
adjustment
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm Select to give the white colors a red tint
(NTSC-Standard).
32_36HS.book Page 64 Friday, February 7, 2003 11:15 AM
65
SETUP SETUP SETUPSETUP MenusSETUP
ClearEdge VM
Velo city
Modulation
Sharpens picture definition to give every object a sharp, clean
edge. Select from High, Medium, Low, Off.
DRC Mode
Digital
Reality
Creation
Creates a high-resolution picture with 4x density, for high
quality sources (i.e., DVD player, satellite receiver).
Interlaced Recommended for moving pictures.
Progressive Recommended for still images and text.
CineMotion Provides an optimized display by
automatically detecting film content and
applying a reverse 3/2 pulldown process.
Moving pictures will appear clearer and more
natural-looking.
Option Description
To change quickly from one
DRC Mode to another, use the
DRC MODE button on the remot
e
control.
z
32_36HS.book Page 65 Friday, February 7, 2003 11:15 AM
66
SETUP Menus SETUPSETUP SETUPSETUP
Using the Audio Menu
To select the Audio Menu
1Press MENU.
2Move the joystick B or b to
highlight the Audio icon and
press .
3Move the joystick to highlight
an option. Press to select
an option.
4Move the joystick V v B b to
change settings. Press to select the changed setting.
5Press MENU to exit the Menu.
To restore the factory default settings for Treble, Bass, and Balance
❑Press RESET on the remote control when in the Audio Menu.
Selecting Audio
Options
The Audio Menu includes the following options:
Tr e b l e
Bass
Balance
Steady Sound: Off
Effect: Simulated
MTS: Stereo
Speaker: On
Audio Out: Fixed
Select:+End: MENU
Move: V v B b
Option Description
Treble Adjust to decrease or increase higher-pitched sounds.
Bass Adjust to decrease or increase lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Steady Sound Auto Select to stabilize the volume.
Off Select to turn off Steady Sound.
Effect TruSurround Select for surround sound (for stereo programs
only).
Simulated Adds a surround-like effect to mono programs.
Off Normal stereo or mono reception.
MTS
Enjoy stereo,
bilingual and
mono programs
Stereo Select for stereo reception when viewing a
program broadcast in stereo.
Auto SAP Select to automatically switch the TV to second
audio programs when a signal is received. (If
no SAP signal is present, the TV remains in
Stereo mode.)
Mono Select for mono reception. (Use to reduce noise
during weak stereo broadcasts.)
To change quickly from one
Effect to another, use the
button on the remote control.
z
To change quickly from one
MTS mode to another, use the
MTS/SAP button on the remote
control.
z
32_36HS.book Page 66 Friday, February 7, 2003 11:15 AM
67
SETUP SETUP SETUPSETUP MenusSETUP
Speaker On Select to turn on the TV speakers.
Off Select to turn off the TV speakers and listen to
the TV's sound only through your external
audio system speakers.
Audio Out
Easy control of
volume
adjustments
This option can be set only when the Speaker option is set
to Off.
Variable The TV’s speakers are turned off, but the
volume output from your audio system can
still be controlled by the TV’s remote control.
Fixed The TV’s speakers are turned off and the
volume output of the TV is fixed. Use your
audio receiver ’s remote control to adjust the
volume through your audio system.
Option Description
32_36HS.book Page 67 Friday, February 7, 2003 11:15 AM
68
SETUP Menus SETUPSETUP SETUPSETUP
Using the Channel Menu
To select the Channel Menu
1Press MENU.
2Move the joystick B or b to
highlight the Channel icon
and press .
3Move the joystick to highlight
an option. Press to select
an option.
4Move the joystick V v B b to
change settings. Press to select the changed setting.
5Press MENU to exit the Menu.
Selecting Channel
Options
The Channel Menu includes the following options:
Favorite Channels
Cable: On
Channel Fix: Off
Auto Program
Channel Skip/Add
Channel Label
Select:+End: MENU
Move: V v B b
Option Description
Favorite Channels Lets you set up a list of your favorite channels. For
details, see “Using Favorite Channels” on page 50.
Cable On Select if you are receiving cable channels
with a CATV cable.
Off Select if you are using an antenna.
✍You should run Auto Program after changing this
option.
Channel Fix
Useful when you
have a cable box
or satellite
receiver
connected
Off Turns off Channel Fix.
2–6“Fix” your TV’s channel setting to 2–6 and
use the cable box or satellite receiver to
change channels. Select one of these
settings if you connected the equipment to
the VHF/UHF jack.
AUX 2-6 Same as 2–6, except you select one of these
settings if you connected the equipment to
the AUX jack (see page 13).
Video 1 Use this setting if you have connected the
equipment to the A/V input jacks.
Auto Program Automatically sets up the channel list on the TV for all
receivable channels.
32_36HS.book Page 68 Friday, February 7, 2003 11:15 AM
69
SETUP SETUP SETUPSETUP MenusSETUP
Channel
Skip/Add
Allows you to customize the channel list that appears
when you use the CH+/- buttons.
1Move the joystick V or v to scroll through the
channels until you find the channel you want to skip
or add. Then press to select it.
2Move the joystick V or v to toggle between Add or
Skip. Then press to select.
3To add or skip more channels, repeat steps 1 and 2.
4Move the joystick B to return to the Channel Setup
Menu, or press MENU to exit the Menus.
Channel Label Allows you to assign labels (such as station call letters) to
channel numbers. You can label up to 20 channels.
1Move the joystick to highlight Channel and press .
2Move the joystick V v to scroll through the channel
numbers (1-125). Then press to select the channel
number that you want to assign a label.
3Move the joystick to highlight Label and press .
4Move the joystick V v to scroll through the label
characters (A-Z, 0-9, etc). Then press to select the
highlighted character.
Repeat to add up to 5 characters to the label.
5To assign labels to more channels, repeat steps 1-4.
6Move the joystick B to return to the Channel Setup
Menu, or press MENU to exit the Menus.
Option Description
Channels that you set to
be skipped can be accessed
only with the 0-9 buttons.
z
32_36HS.book Page 69 Friday, February 7, 2003 11:15 AM
70
SETUP Menus SETUPSETUP SETUPSETUP
Using the Parent Menu
The Parent Menu allows you to
set up the TV to block programs
according to their content and
rating levels.
To select the Parent Menu
1Press MENU.
2Move the joystick B or b to
highlight the Parent icon and
press .
3Use the 0-9 buttons on the remote control to enter a four-digit
password.
4If this is the first time you are creating this password, confirm the
password by entering it again. (The Parent Menu options
appear.)
5Move the joystick V v B b to change settings. Press to select
the changed setting.
6Press MENU to exit the Menu.
Using the Parent
Menu
The Parent Menu includes the following options:
✍You need your password for any future access into the Parent Menu. If
you lose your password, see “Lost password” on page 84.
Password:
_ _ _ _
Press + to enter
password
Select:+End: MENU
Move: V v B b
If you are not familiar with
the Parental Guideline rating
system, you should select Child,
Youth, or Young Adult to help
simplify the rating selection. To
set more specific ratings, select
Custom.
z
Option Description
Parental Lock
Turn ratings
on/off and select a
rating system
Off Parental lock is off. No programs are
blocked from viewing.
Child Maximum ratings permitted are:
❏US: TV-Y, TV-G, G
❏Canada: C, G, TV-Y
Youth Maximum ratings permitted are:
❏US: TV-PG, PG
❏Canada: C8+, PG, 8 ans+, TV-PG
Y. A d u l t Maximum ratings permitted are:
❏US: TV-14, PG-13
❏Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
❏US: See page 71 for details.
❏Canada: See page 72 for details.
Change Password For changing your password.
Select Country U.S.A. Select to use USA ratings (see page 71).
Canada Select to use Canadian ratings (see
page 72).
For descriptions of Child,
Youth, and Young Adult
ratings, see page 71.
z
32_36HS.book Page 70 Friday, February 7, 2003 11:15 AM
71
SETUP SETUP SETUPSETUP MenusSETUP
US Models:
Selecting Custom
Rating Options
For US models, the Custom Rating Menu includes the following
options. (For Canadian models, see page 72.)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press the
ENTER button when tuned to a blocked program, then enter the
password. This temporarily switches off the Parental Lock. To
reactivate the Parental Lock settings, turn off the TV. When the TV is
turned on again, your Parental Lock settings are reactivated.
Option Description
Movie Rating G All children and General Audience.
PG Parental Guidance suggested.
PG-13 Parental Guidance for children under 13.
RRestricted viewing, parental guidance is
suggested for children under 17.
NC-17
and X
No one 17 or under allowed.
TV Rating
Block programs
by their rating,
content or both
Age-Based Ratings
TV-Y All children.
TV-Y7 Directed to children age 7 and older.
TV-G General Audience.
TV-PG Parental Guidance suggested.
TV-14 Parents Strongly cautioned.
TV-MA Mature Audience only.
Content-Based Ratings
FV Fantasy Violence.
DSuggestive Dialogue.
LStrong Language.
SSexual situations.
VViolence.
Unrated
Block programs
or movies that
are broadcast
without a rating
Block Blocks all programs and movies that are
broadcast without a rating.
Allow Allows programs and movies that are
broadcast without a rating.
The Content-Based Ratings
are linked to the level of the
Age-Based Rating. For example,
a program with an Age-Based
Rating of TV-PG V (Violence)
rating may contain moderate
violence, while a TV-14 V
(Violence) rating may contain
more intense violence.
To ensure maximum
blocking capability, set the Age-
Based Ratings.
If you block unrated TV
programs, be aware that the
following types of programs
may be blocked: emergency
broadcasts, political programs,
sports, news, public service
announcements, religious
programs and weather.
z
z
z
32_36HS.book Page 71 Friday, February 7, 2003 11:15 AM
72
SETUP Menus SETUPSETUP SETUPSETUP
Canadian Models:
Selecting Custom
Rating Options
For Canadian models, the Custom Rating Menu includes the
following options. (For US models, see page 71.)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press the
ENTER button when tuned to a blocked program, then enter the
password. This temporarily switches off the Parental Lock. To
reactivate the Parental Lock settings, turn off the TV. When the TV is
turned on again, your Parental Lock settings are reactivated.
Option Description
English Rating C All children.
C8+ Children 8 years and older.
GGeneral programming.
PG Parental Guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See “US Models” on page 71 for details.
32_36HS.book Page 72 Friday, February 7, 2003 11:15 AM
73
SETUP SETUP SETUPSETUP MenusSETUP
Using the Timer Menu
To select the Timer Menu
1Press MENU.
2Move the joystick B or b to
highlight the Timer icon and
press .
To reset the Clock or Timers
❑Press RESET on the remote
control, when in the Timer
Menu, to reset to the factory defaults.
Selecting Timer
Options
The Timer Menu includes the following options:
Timer 1: Off
Timer 2: Off
Current Time
Select:+End: MENU
Move: V v B b
Option Description
Timer 1
Timer 2
You can use the Timer to program the TV to turn on and
off and tune to a specific channel at two scheduled
viewing times.
Timer 1 and Timer 2 are not available to be set until you set
the Current Time.
1Move the joystick V or v to highlight Timer 1 or
Timer 2. To set the time, move the joystick b.
2Move the joystick V or v to highlight one of the
following options, then press .
Program Select to set the Timer by day, time,
duration, and channel.
Off Select to turn off the Timer. (Your previous
settings are saved.)
3Move the joystick V and v to set the day(s), hour,
minute, duration, and channel number. Press or
b to confirm each setting and move to the next
setting. Move the joystick B to go back to the
previous setting.
4Press MENU to exit the Menu. An LED on the front
panel will light, indicating the timer has been set.
Current Time 1Move the joystick V and v to set the current time
(day, hour, and minute). Press (or move the
joystick b) to confirm each setting and move to the
next setting. Move the joystick B to go back to the
previous setting.
2Press MENU to exit the Menu.
To go directly to
programming Timer 1 or 2 in
step 1, press instead of
moving the joystick b.
z
To return to the Timer
Menu after programming one
of the Timers, press when
the highlight is in the channel
number field.
z
32_36HS.book Page 73 Friday, February 7, 2003 11:15 AM
74
SETUP Menus SETUPSETUP SETUPSETUP
Using the Setup Menu
To select the Setup Menu
1Press MENU.
2Move the joystick B or b to
highlight the Setup icon and
press .
3Move the joystick to highlight
an option. Press to select
an option.
4Move the joystick V v B b to change settings. Press to select
the changed setting.
5Press MENU to exit the Menu.
Selecting
Setup Options
The Setup Menu includes the following options:
Caption Vision: Off
Video Label
Tilt Correction: 0
Language: English
16:9 Enhanced
Demo
Select:+End: MENU
Move: V v B b
Option Description
Caption Vision Allows you to select from three closed caption modes (for
programs that are broadcast with closed caption).
CC1, CC2,
CC3, CC4
Displays a printed version of the
dialog or sound effects of a
program. (Should be set to CC1 for
most programs.)
Text1,Text2,
Text3,Text4
Displays network/station
information presented using either
half or the whole screen (if
available). For closed captioning,
set to CC1.
Info Displays the program name and
the time remaining in the program
(if the broadcaster offers this
service). Displays when the
channel is changed or the DISPLAY
button is pressed.
Off Turns off Caption Vision.
32_36HS.book Page 74 Friday, February 7, 2003 11:15 AM
75
SETUP SETUP SETUPSETUP MenusSETUP
Video Label Allows you to identify A/V equipment you connected to
the TV, such as a VCR, DVD, etc. For example, if you have
a DVD player connected to the VIDEO 5 jack, you can
select the label DVD for the VIDEO 5 input. Then when
you press the TV/VIDEO button to change inputs, the Video
Label you assigned to that input appears on screen.
1Move the joystick V or v to highlight the video input
(VIDEO 1-7) to which you want to assign a label.
Then press to select the input.
2Move the joystick V or v to highlight one of the
displayed labels. Then press to select the label.
You can select from the following labels for each input:
Video 1/2/3/4 VHS, DVD, Receiver, Satellite, Cable Box,
8mm, DTV, Game, LD, Web, Beta, Skip
Video 5/6/7 DVD, Satellite, Cable Box, DTV, HD, Skip
✍If you select Skip, your TV skips this input when you
press the TV/VIDEO button.
Tilt Correction Allows you to correct any tilt of the picture.
Move the joystick B or b to choose a correction between
+7 and -7 and press .
Normally, tilt correction only needs to be adjusted the
first time you turn on the unit and after the unit is moved
to a new location.
Language Select to display all on-screen Menus in your language of
choice.
16:9 Enhanced Provides enhanced picture resolution for widescreen
(anamorphic) sources, such as selected DVD titles. This
option is available only when the TV is set to VIDEO 1-7,
which you can do by pressing the TV/VIDEO button.
On To activate manually. Returns to
Auto when you switch to another
video input or change channels.
Auto To activate automatically when a
16:9 signal is received.
✍If the AUTO setting does not automatically detect the
16:9 signal from your DVD player, select On to manually
turn on the 16:9 Enhanced feature.
Demo Runs a demonstration of on-screen Menus.
Option Description
The Skip label is useful for
inputs that do not have
equipment connected to
them.
z
To use 16:9 Enhanced
with widescreen DVDs, set
your DVD player to 16:9
aspect ratio. (Aspect ratio is
the ratio of width to height of
the screen. 16:9 is also
referred to as widescreen
format.)
z
32_36HS.book Page 75 Friday, February 7, 2003 11:15 AM
32_36HS.book Page 76 Friday, February 7, 2003 11:15 AM
77
Other Information
Overview
This chapter includes the following topics:
Topic Page
Glossary 78
Notes on Using Memory Stick Media 79
Contacting Sony 80
Troubleshooting 80
Specifications 85
Optional Accessories 86
Index 87
32_36HS.book Page 77 Friday, February 7, 2003 11:15 AM
78
Other Info SETUP WelcomeSETUP SETUPSETUP
Glossary
analog signal A signaling method that uses continuous changes in the amplitude or frequency of an
electronic transmission to convey information.
aspect ratio Refers to the ratio between the width and height of the screen. This TV has a 4:3 aspect ratio,
as opposed to a 16:9 (widescreen) aspect ratio.
component video Component video is sent through three cables: two color shade (chrominance) signals and one
brightness (luminance) signal. Component video achieves greater color accuracy than
composite video or S VIDEO by splitting chrominance into two separate portions.
composite video Composite video is sent through a single cable. Composite video combines the color shade
(chrominance) and brightness (luminance) information into one video signal.
degauss A process that demagnetizes the metal components in the TV monitor, which eliminates image
distortion that can result from magnetic charges acquired by the TV’s components. Your TV
degausses automatically when it is turned on.
digital television (DTV) A new technology for transmitting and receiving broadcast television signals. DTV provides
clearer resolution and improved sound quality over analog television.
National Television System
Committee (NTSC)
A unit of the Federal Communications Commission, Washington, DC, that establishes
television standards in the United States, such as NTSC Color, the standard used in this TV.
RF Radio Frequency. That part of the frequency spectrum that is used to transmit TV and radio
signals.
S VIDEO S VIDEO requires a single cable, which carries the brightness (luminance) and color
(chrominance) signals of the picture separately. S VIDEO provides better resolution than
composite video, which carries the signals together.
VHF/UHF VHF (Very High Frequency) is the part of the frequency spectrum from 30 to 300 megahertz.
UHF (Ultra High Frequency) is the part of the frequency spectrum from 300 to 3,000
megahertz.
480i Provides 480 lines of resolution. Displays images using interlaced scanning, which first
transmits all the odd lines on the TV screen and then the even lines.
480p Provides 480 lines of resolution. Displays images using progressive scanning, which transmits
each line from top to bottom.
720p Provides 720 lines of resolution. Displays images using progressive scanning, which transmits
each line from top to bottom.
1080i Provides 1080 lines of resolution. Displays images using interlaced scanning, which first
transmits all the odd lines on the TV screen and then the even lines. 1080i is one of the
formats used by HDTV (High Definition TV).
16:9 aspect ratio
4:3 aspect ratio
32_36HS.book Page 78 Friday, February 7, 2003 11:15 AM
79
Welcome SETUP Other InfoSETUP SETUPSETUP
Notes on Using Memory Stick Media
Memory Stick
Precautions
When using Memory Stick media, follow these precautions:
❑To avoid permanent damage to still image data, do not turn off
the TV or remove Memory Stick media from the insertion slot
while data is being read (as indicated by the Memory Stick
indicator light being on).
❑Avoid touching the terminal of Memory Stick media or bringing
it into contact with a metal object.
❑Do not drop, bend, or submit Memory Stick media to external
shock.
❑Do not disassemble or modify Memory Stick media.
❑Avoid getting liquid on Memory Stick media.
❑Apply labels only within the designated label area.
❑To avoid permanent damage to still image data, do not use or
store Memory Stick media in a location subject to:
❑High temperature (such as near a heater or inside a hot car)
❑High humidity
❑Direct sunlight
❑Corrosive substances
❑Magnetic fields
❑Excessive dust
❑Static electricity or electric noise
❑Electric surges
❑Store and carry Memory Stick media in its original case to ensure
protection of stored data.
❑Save a backup of stored data.
Label Area
32_36HS.book Page 79 Friday, February 7, 2003 11:15 AM
80
Other Info SETUP WelcomeSETUP SETUPSETUP
Contacting Sony
If, after reading these operating instructions, you have additional
questions related to the use of your Sony television, please call our
Customer Information Services Center at 1-800-222-SONY (7669) (US
residents only) or (416) 499-SONY (7669) (Canadian residents only).
Before calling Sony customer support, please write down the model
and serial numbers of your TV. You’ll find this information on the
front cover of this manual.
Troubleshooting
Twin View
Problem Possible Remedies
I cannot get Twin View to
work
❏If you are using a cable box to unscramble all channels (as shown on
page 20), you cannot use the Twin View feature. This is because the cable
box can unscramble only one channel at a time. But if you need the cable
box to unscramble only some (usually premium) channels, you can use
Twin View for unscrambled channels if you connect both a cable and cable
box, as shown on page 18.
❏You can use Twin View to view a signal from a different source that is
connected to the TV's A/V jacks (such as a VCR or DVD player) in the
second window by pressing the TV/VIDEO button while in Twin View.
❏Sources connected to the AUX, VIDEO 5, VIDEO 6, and VIDEO 7 inputs
display in the left Twin View window, but not the right.
There is no Twin View
window, or it is just static
❏Be sure the Twin View window is set to a video input or channel that has a
signal airing.
❏You might be tuned to a video input with nothing connected to it. Try
cycling through the video inputs by pressing the TV/VIDEO button.
❏If you connected equipment to the TV’s AUX jack, it will display in the left
Twin View window, but not the right.
Twin View cannot display
anything but TV channels
❏Try cycling through the video inputs by pressing the TV/VIDEO button.
Check that the Video Label option is not set to Skip. (See the Setup Menu on
page 75.)
Twin View displays the same
program in both windows
❏Both Twin View windows might be set to the same channel. Try changing
channels in either window.
32_36HS.book Page 80 Friday, February 7, 2003 11:15 AM
81
Welcome SETUP Other InfoSETUP SETUPSETUP
Remote Control
Channels
Problem Possible Remedies
Remote control
does not operate
❏The batteries could be weak. Replace the batteries.
❏Check the orientation of the batteries.
❏Press the TV FUNCTION button. You may have inadvertently pressed the
SAT/CABLE FUNCTION button, which changes the remote control to SAT or
CABLE mode.
❏Make sure the TV’s power cord is connected securely to the wall outlet.
❏Locate the TV at least 3-4 feet away from fluorescent lights.
Cannot change channels
with the remote control
❏If you are using the TV to change channels, first press the TV FUNCTION
button.
❏If you are using another device to change channels, be sure you have not
inadvertently switched your TV from the channel 3 or 4 setting. Use the
Channel Fix option to “fix” the channel based on the hookup you used (see
page 68).
❏
If you are using another device to change channels, be sure to press the
FUNCTION
button for that device. For example, if you are using your cable box
to change channels, be sure to press the
SAT/CABLE FUNCTION
button.
Remote control
does not operate non-Sony
video equipment
❏If you replaced the batteries to the remote recently, the code numbers for
the video equipment may need to be reset.
❏There may be more than one code for the equipment that you are
attempting to operate.
❏There is a possibility that some non-Sony equipment cannot be operated by
your Sony TV remote.You may need to use the equipment’s original
remote control.
Problem Possible Remedies
Cannot receive upper
channels (UHF) when
using an antenna
❏Change the Cable option to Off (see page 68).
❏Use Auto Program in the Channel Menu to add receivable channels that are
not presently in the TV’s memory (see page 68).
TV is fixed to one channel ❏Use Auto Program in the Channel Menu to add receivable channels that are
not presently in the TV’s memory (see page 68).
❏Check your Channel Fix settings (see page 68).
Cannot receive any
channels when using
cable TV
❏Use Auto Program in the Channel Menu to add receivable channels that are
not presently in the TV’s memory (see page 68).
❏Make sure the Cable option is set to On in the Channel Menu (see page 68).
Cannot receive or select
channels
❏Use Auto Program in the Channel Menu to add receivable TV channels that
are not presently in TV memory (see page 68).
32_36HS.book Page 81 Friday, February 7, 2003 11:15 AM
82
Other Info SETUP WelcomeSETUP SETUPSETUP
Memory Stick
Problem Possible Remedies
Image does not display ❏Make sure the image is supported by the TV (see pages 52-54).
❏Make sure the Memory Stick is inserted properly (see page 55).
❏Memory Stick functions are not available while using Twin View, Freeze or
Favorite Channel functions.
Blank square appears
instead of a thumbnail image
❏This indicates that the image does not support a thumbnail view. Selecting
the icon, however, displays the full-size image on the screen. It could also
indicate that both the thumbnail and full-size images are corrupted or not
supported.
Cannot rotate image, no
thumbnail appears
❏Be sure the LOCK switch on the Memory Stick is set to off.
❏If a blank square appears instead of the thumbnail image, this indicates that
the image does not support a thumbnail view and cannot be rotated.
Cannot hear audio while
using Memory Stick
❏There is no audio available while using Memory Stick.
Image file name does not
appear; instead, dashes (---)
appear
❏Dashes appear instead of the file name if the image was recorded using
equipment that is not DCF-compliant.
Error message
is displayed
❏No Memory Stick There is no Memory Stick in the slot.
❏Memory Stick
Locked
The lock mechanism on the Memory Stick is
engaged; files cannot be rotated until the Memory
Stick is unlocked.
❏Memory Stick Error The Memory Stick in the slot might be damaged; try
a different Memory Stick.
❏File Error File is not compatible with the viewer, see the
manual for file compatibility requirements.
32_36HS.book Page 82 Friday, February 7, 2003 11:15 AM
83
Welcome SETUP Other InfoSETUP SETUPSETUP
Video
Audio
Problem Possible Remedies
No picture
(screen not lit), no sound
❏If your TV does not turn on, and a red light keeps flashing, your TV may
need service. Call your local Sony Service Center.
❏Make sure the power cord is plugged in.
❏Press the POWER button on the front of the TV.
❏Press the TV/VIDEO button to cycle through the connected video sources.
❏Try another channel; it could be station trouble.
Dark, poor or no
picture (screen lit),
good sound
❏Adjust the Picture option in the Video Menu (see page 64).
❏Adjust the Brightness option in the Video Menu (see page 64).
❏Check the antenna/cable connections.
No color ❏Adjust the Color option in the Video Menu (see page 64).
Only snow and noise
appear on the screen
❏Check the antenna/cable connections.
❏Try another channel; it could be station trouble.
❏Press ANT to change the input mode (see page 40).
Dotted lines
or stripes
❏Adjust the antenna.
❏Move the TV away from noise sources such as cars, neon signs, or hair-
dryers.
Double images or ghosts ❏Using a highly directional outdoor antenna or a cable may solve the
problem.
“Black box” on screen ❏You have selected a text option in the Setup Menu and no text is available.
(See page 74 to reset Setup selections.) To turn off this feature, set the
Caption Vision option to Off. If you were trying to select closed captioning,
select CC1 instead of TEXT 1-4.
16:9 Enhanced feature ❏If the Auto setting does not automatically detect the 16:9 signal from your
DVD player, select On to manually turn on the 16:9 Enhanced feature. For
details, see page 75.
Problem Possible Remedies
Good picture,
no sound
❏Press MUTING so that the word Muting disappears from the screen (see page
40).
❏Make sure the Speaker option is set to On in the Audio Menu (see page 67).
Cannot gain enough volume
when using a cable box
❏Increase the volume of the cable box using the cable box’s remote control.
Then press TV FUNCTION and adjust the TV’s volume.
Sound seems weak or
insufficient
❏The TV’s audio might be set to Auto SAP or Mono, when it might be better set
to Stereo. In the Audio Menu (see page 66), set the MTS setting to Stereo. If
already set to Stereo, switch to Mono (which may reduce background noise
during weak stereo broadcasts).
Cannot raise the volume on
external audio speakers
❏If the Speaker option is set to Off and the Audio Out option is set to Fixed (in
order to output the sound to your audio system) use your audio receiver to
adjust the sound (see page 66). Or, to use the TV remote control, set the
Audio Out option to Variable.
❏To turn on the TV speakers, set the Speaker option to On (see page 66).
32_36HS.book Page 83 Friday, February 7, 2003 11:15 AM
84
Other Info SETUP WelcomeSETUP SETUPSETUP
General
Problem Possible Remedies
How to reset TV to
factory settings
❏Turn on the TV. While holding down the RESET button on the remote
control, press the POWER button on the TV. (The TV will turn itself off, then
back on again.) Release the RESET button.
How to restore Video settings
to factory settings
❏Press the RESET button on the remote control while in the Video Menu (see
page 64).
How to restore Audio
settings to factory settings
❏Press the RESET button on the remote control while in the Audio Menu (see
page 66).
Cannot cycle through the
other video equipment
connected to the TV
❏Be sure the Video Label option is not set to Skip (see page 75).
Cannot operate Menu ❏If a menu option appears in gray, this indicates that the TV is in a state in
which the menu option is not available.
Lost password ❏In the password screen (see page 70), enter the following master password:
4357. The master password clears your previous password; it cannot be
used to temporarily unblock channels.
TV makes “popping” sound
when turned on
❏This is a normal sound that results from the TV automatically degaussing
each time it is turned on.
LED on front panel is lit ❏The STAND BY LED (see page 11) blinks when the TV is turned on, then
shuts off when the picture is displayed. If the LED blinks continuously, this
may indicate the TV needs service.
❏The TIMER LED (see page 11) indicates that the timer is set (page 73).
When the timer is set, this LED will remain lit even when the TV is turned
off.
Digital cable box does not
work
❏Be sure that you have not connected the digital cable box to the TV’s TO
CONVERTER jack. This jack is not compatible with digital cable boxes.
❏If you are connecting a VCR and digital cable box using a splitter, as
described on pages 24-25, you must use a special bi-directional splitter that
is designed to work with your digital cable box. Contact your cable
provider for details.
32_36HS.book Page 84 Friday, February 7, 2003 11:15 AM
85
Welcome SETUP Other InfoSETUP SETUPSETUP
Specifications
Design and specifications are subject to change without notice.
Picture Tube FD Trinitron® tube
Antenna 75 ohm external terminal for VHF/UHF
Television System NTSC, American TV Standard
Channel Coverage VHF 2-13
UHF 14-69
CATV 1-125
Power Requirements 120V, 60 Hz
Inputs/Outputs
DVI-HDTV 1 terminal, 3.3V T.M.D.S., 50 ohms
The DVI-HDTV input terminal is compliant with the EIA-861 standard and is
not intended for use with personal computers.
Video (IN) 4 total (1 on front panel) 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 3 total (1 on front panel) Y: 1 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 7 total (1 on front panel) 500 mVrms (100% modulation)
Impedance: 47 kilohm
Component Video Input 2 (Y, PB, PR) Y: 1.0 Vp-p, 75 ohms unbalanced, sync
negative; PB: 0.7 Vp-p, 75 ohms
PR: 0.7 Vp-p, 75 ohms
CONTROL S (IN/OUT) 1
Variable/Fixed Audio (OUT) 1 More than 408 mVrms at the maximum
volume setting (Variable)
More than 408 mVrms (Fixed)
Impedance (output): 2 kilohms
Supplied Accessories Remote Control RM-Y190
AA (R6) Batteries 2 supplied for remote control
Visible Screen Size KV-32HS510 32 in (812.8 mm) picture measured diagonally
KV-36HS510 36 in (914.4 mm) picture measured diagonally
Actual CRT Size KV-32HS510 34 in (863.6 mm) picture measured diagonally
KV-36HS510 38 in (965.2 mm) picture measured diagonally
Speaker Output 7.5 W x 2 + 15 W subwoofer
Dimensions (W x H x D) KV-32HS510 898 x 689 x 608 mm (35 3/8 x 27 1/8 x 24 in)
KV-36HS510 1017 x 760 x 643 mm (40 x 30 x 25 3/8 in)
Mass KV-32HS510 80 kg (176.5 lbs)
KV-36HS510 104.3 kg (230 lbs)
Power Consumption In Use 280 W
In Standby 1 W
32_36HS.book Page 85 Friday, February 7, 2003 11:15 AM
86
Other Info SETUP WelcomeSETUP SETUPSETUP
Optional Accessories
❑A/V Cable (VMC-810/820/830 HG)
❑Audio Cable (RKC-515HG)
❑Component Video Cable (VMC-10/30 HG)
❑TV Stand, for KV-32HS510: SU-32HS1
TV Stand, for KV-36HS510: SU-36HS1
❑Memory Stick media: 8 MB (MSA-8A); 16 MB (MSA-16A); 32 MB
(MSA-32A); 64 MB (MSA-64A); 128 MB (MSA-128A)
32_36HS.book Page 86 Friday, February 7, 2003 11:15 AM
87
Index
0-9 buttons 41, 45
16:9 (widescreen) 8, 75
A
ANT button 40, 45
antenna, connecting 15
aspect ratio 75
Audio Menu 63, 66
Audio Out 67
audio receiver, connecting 36
Auto Program (channel setup)
38, 68
Auto SAP, MTS setting 66
AUX jack, described 13
AV1-3/DVD slide switch 42
B
balance, adjusting 66
bass, adjusting 66
batteries, inserting in remote 39
bilingual audio 66
blocking programs. See ratings.
brightness, adjusting 64
C
cable
connecting 15
setting On/Off 68
with VCR, connecting 22
cable box
connecting with VCR 24
Twin View issues 47
using with TV remote
control 61
camcorder, connecting 35
Caption Vision 74
CATV. See cable
CH buttons 11, 41, 45
changing picture size, in Twin
View 49
Channel Menu 63, 68
Channel Skip/Add 69
channels
creating labels 69
setting up 38
CineMotion 8, 40, 65
ClearEdge VM 8, 65
clearing, Favorite Channels 50
closed caption modes 74
CODE SET button 41
color, adjusting 64
CONTROL S 37
CONTROL S IN/OUT jacks,
described 13
Cool, Color Temperature 64
cursor movement buttons 11
D
degauss 84
Demo, Menus 75
Digital Reality Creation 7, 65
Digital Visual Interface (DVI) 8
DISC MENU button 42, 61
DISPLAY button 41, 45
DRC MODE button 40
DVD player
using with TV remote
control 61
with A/V connectors,
connecting 34
DVI. See Digital Visual Interface.
DVI-HDTV 85
E
Effect button 42
ENTER button 41, 45
error messages, Memory Stick 82
F
Fast-forward button 42
Favorite Channels
clearing 50
in Channel Menu 68
using 50
FAVORITES button 40
features 7
Fixed audio setting 67
FREEZE button 41, 51
Freeze, using 51
G
GUIDE button 41
H
HD Detailer 8
HD/DVD IN
(1080i/720p/480p/480i)
jacks, described 13
hue, adjusting 64
I
INDEX button 40, 46
interlaced 7, 40, 65, 78
J
joystick 40
JUMP button 40, 45
L
label
channels 69
Language, setting 75
LOCK switch, Memory Stick 59
M
MDP, using with TV remote
control 61
Memory Stick
error messages 82
Index 57
indicator (LED) 11
inserting 55
insertion slot 11
Menu 56
precautions 79
Rotate Picture 59
Setup options 58
Slideshow 58
supported and unsupported
images 52
troubleshooting 82
using 52–59
Memory Stick button 41
MENU button 11, 40, 42, 45, 63
32_36HS.book Page 87 Friday, February 7, 2003 11:15 AM
88
Other Info Menus SETUPSETUP SETUPSETUP
Menus
Audio 63, 66
Channel 63, 68
Parent 63, 70
Setup 63, 74
Timer 63, 73
Video 63, 64
Mono, MTS setting 66
Movie mode 64
MTS 66
MTS/SAP button 40, 42
MUTING button 40, 45
N
Neutral, Color Temperature 64
O
off, turning off the TV 11
on, turning on the TV 11
P
Parent Menu 63, 70
parental control, described 8
password, changing 70
Pause button 42
PIC MODE button 41
picture contrast, adjusting 64
Picture in Picture. See Twin View.
Play button 42
POWER button 11
power cord, removing from
holder 9
powering on/off, the TV 11
presetting channels 68
Pro (Video) mode 64
problems, troubleshooting 80–
84
progressive 7, 40, 65, 78
R
ratings, setting 70–72
ratings, viewing blocked
programs 71, 72
Record buttons 42
remote control
inserting batteries 39
programming 43–44
removing, Favorite Channels 50
RESET button 40
resetting
Audio options 66
Timer options 73
Video options 64
Rewind button 42
rotate picture, Memory Stick 59
S
S VIDEO jack, described 11, 13,
21
SAT/CABLE FUNCTION button
40
SAT/CABLE POWER button 41
satellite receiver, using with TV
remote control 60
Scrolling Index 7
Scrolling Index, using 46
SELECT button 11, 42
setting up channels 38
Setup Menu 63, 74
sharpness, adjusting 64
Simulated, Effect 66
sizing, picture in Twin View 49
SLEEP button 40
slideshow 58
speakers
turning on/off 67
using external speakers 67
specifications 85
STAND BY indicator 11, 84
Standard mode 64
Steady Sound, described 8
Steady Sound, setting 66
Stereo, MTS setting 66
Stop button 42
surround sound 66
SYSTEM OFF button 42
T
tilt, correcting 75
Timer 73
TIMER indicator 11, 84
Timer Menu 63, 73
timers, setting 73
transport buttons 42
treble, adjusting 66
troubleshooting 80–84
TruSurround 66
TruSurround, Effect 66
turning on/off the TV 11
TV FUNCTION button 40, 45
TV POWER button 41, 45
TV/VCR button 42
TV/VIDEO button 40, 45
Twin View
described 7
factors affecting 47
using 47–49
Twin View button 41
V
Variable audio setting 67
VCR
using with TV remote
control 60
with cable box, connecting
24
with cable, connecting 22
with satellite receiver,
connecting 30
VCR/DVD button 42
VHF/UHF jack, described 13
VIDEO (L/R)/AUDIO jacks,
described 13
Video Menu 63, 64
Video modes, selecting 64
Vivid mode 64
VOL buttons 11, 40, 45
W
Warm, Color Temperature 64
Wega, described 7
widescreen 8, 75
widescreen, described 8
Z
zoom feature, with Twin View 49
32_36HS.book Page 88 Friday, February 7, 2003 11:15 AM
LIMITED WARRANTY
This warranty is applicable to U.S. residents only. If you are a Canadian resident, see the separately enclosed warranty for
your product.
Sony Electronics Inc. (“Sony”) warrants this Product (including any accessories) against defects in material or
workmanship, subject to any conditions set forth as follows:
1. LABOR: For a period of 90 days from the date of purchase, if this Product is determined to be defective, Sony will
repair or replace the Product, at its option, at no charge, or pay the labor charges to any Sony authorized service
facility. After the Warranty Period, you must pay for all labor charges.
2. PARTS: In addition, Sony will supply, at no charge, new or rebuilt replacements in exchange for defective parts for
a period of one (1) year (color picture tube- two (2) years). After 90 days from the date of purchase, labor for
removal and installation is available from Sony authorized service facilities or a Sony Service Center at your
expense.
3. ACCESSORIES: Parts and labor for all accessories are for one (1) year.
In-home diagnostic warranty service is provided during the initial 90 day period for 19” (measured diagonally), or larger
screen size through a Sony authorized service facility.
To obtain warranty service, you must take the Product, or deliver the Product freight prepaid, in either its original packaging
or packaging affording an equal degree or protection, to any authorized Sony service facility.
This warranty does not cover customer instruction, installation, set up adjustments or signal reception problems.
This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence,
commercial use, or modification of, or to any part of the Product, including the antenna. This warranty does not cover
damage due to improper operation or maintenance, connection to improper voltage supply, or attempted repair by anyone
other than facility authorized by Sony to service the Product. This warranty does not cover Products sold AS IS or WITH
ALL FAULTS, or consumables (such as fuses or batteries). This warranty is valid only in the United States.
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the Warranty
period must be presented to obtain warranty service.
This warranty is invalid if the factory applied serial number has been altered or removed from the Product.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER. SONY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allows limitations on how
long an implied warranty lasts, so the above limitations or exclusions may not apply to you. In addition, if you enter into a
service contract with the Sony Partnership within 90 days of the date of sale, the limitation on how long an implied warranty
lasts does not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
For your convenience, Sony Electronics Inc. has established telephone numbers for frequently asked questions:
To locate the servicer or dealer nearest you, or for service assistance or resolution of a service problem, or for product
information or operation, call:
Sony Customer Information Service Center
1-(800)-222-7669
Or visit the Sony Web Site:
www.sony.com
For an accessory or part not available from your authorized dealer, call:
1-(800)-488-SONY(7669)
