© 2007 Sony Corporation 3-272-527-11(1)
Network Sharing Camera
Handbook
NSC-GC1/GC3
Table of contents
Getting started
Basic Operations
Using functions for
shooting
Using functions for
viewing
Customizing the settings
Viewing images on a TV
Troubleshooting
Others
Index
VCLICK!
GB
2
Notes on using your camera

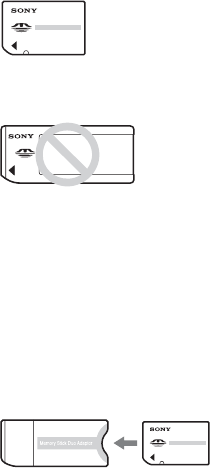

Types of “Memory Stick” that can be
used (not supplied)
The IC recording medium used by this
camera is a “Memory Stick Duo”.
“Memory Stick Duo”: you can use a
“Memory Stick Duo” with your camera.
“Memory Stick”: you cannot use a
“Memory Stick” with your camera.
• Do not attach a label or the like on a “Memory
Stick Duo” or a Memory Stick Duo Adaptor.
Other memory cards cannot be used.
• For details on “Memory Stick Duo”, see
page 77.
When using a “Memory Stick Duo” with
“Memory Stick” compatible equipment
You can use the “Memory Stick Duo” by
inserting it into the Memory Stick Duo
Adaptor (not supplied).
Memory Stick Duo Adaptor
Notes on the battery
• Charge the built-in battery before using the
camera for the first time.
• The battery can be charged even if it is not
completely discharged. Also, even if the battery
is not fully charged, you can use the partially
charged capacity of the battery as is.
• If you do not intend to use the camera for a long
time, use up the existing charge and store the
camera in a cool, dry place. This is to maintain
the battery functions.
• For details on the battery, see page 79.
No compensation for contents of the
recording
• The contents of the recording cannot be
compensated for if recording or playback is not
possible due to a malfunction of your camera or
recording media, etc.
Internal memory and “Memory Stick
Duo” back up
• Do not turn off the camera or remove “Memory
Stick Duo” while the access lamp is lighted, as
the internal memory data or “Memory Stick
Duo” data may be destroyed. Always protect
your data by making a back up copy.
About changing the language setting
• The on-screen displays in each local language
are used for illustrating the operating
procedures. Change the screen language before
using your camera if necessary (page 19).
Notes on recording/playback
• This camera is neither dust-proof, nor splash-
proof, nor water-proof.
• Before you record one-time events, make a trial
recording to make sure that the camera is
working correctly.
• Be careful not to get the camera wet. Water
entering the inside of the camera may cause
malfunctions which in some cases may not be
repairable.
• Do not aim the camera at the sun or other bright
light. This may cause irrecoverable damage to
your eyes. Or it may cause the malfunction of
your camera.
• Do not use the camera near a location that
generates strong radio waves or emits radiation.
The camera may not be able to record or play
back properly.
• Using the camera in sandy or dusty locations
may cause malfunctions.
• If moisture condensation occurs, remove it
before using the camera.
• Do not shake or strike the camera. In addition to
malfunctions and an inability to record images,
this may render the recording medium unusable,
or cause image data breakdown, damage or loss.
3
Notes on using your camera
• Clean the flash surface before use. The heat of
flash emission may cause dirt on the flash
surface to become discolored or to stick to the
flash surface, resulting in insufficient light
emission.
• When connecting your camera to another device
with a cable, be sure to insert the connector plug
in the correct way. Pushing the plug forcibly
into the terminal will damage the terminal and
may result in a malfunction of your camera.
• Movies other than those shot, edited or
composed on this camera cannot be played
back.
Notes on the LCD screen and the lens
• The LCD screen is manufactured using
extremely high-precision technology so over
99.99% of the pixels are operational for
effective use. However, there may be some tiny
black points and/or bright points (white, red,
blue or green in color) that constantly appear on
the LCD screen or the LCD finder. These points
are normal in the manufacturing process and do
not affect the recording in any way.
• Exposing the LCD screen or the lens to direct
sunlight for long periods may cause
malfunctions. Be careful when placing the
camera near a window or outdoors.
• Do not press against the LCD screen. The screen
may be discolored and that may cause a
malfunction.
• Images may trail across on the LCD screen in a
cold location. This is not a malfunction.
Note on disposal/transfer
• When using software embedded in the camera,
personal information such as IDs and mail
addresses may be saved on the internal memory
of the camera. When transferring the camera to
others or on disposal, do so after deleting the
information input.
On image data compatibility
• This camera conforms with DCF (Design rule
for Camera File system) universal standard
established by JEITA (Japan Electronics and
Information Technology Industries
Association).
• Playback of images recorded with your camera
on other equipment and playback of images
recorded or edited with other equipment on your
camera are not guaranteed.
Warning on copyright
• Television programs, films, videotapes, and
other materials may be copyrighted.
Unauthorized recording of such materials may
be contrary to the provisions of the copyright
laws.
About this Handbook
• The photographs used as examples of pictures in
this Handbook are reproduced images, and are
not actual images shot using this camera.
• Design and specifications of recording media
and other accessories are subject to change
without notice.
Black, white, red,
blue or green
points
4

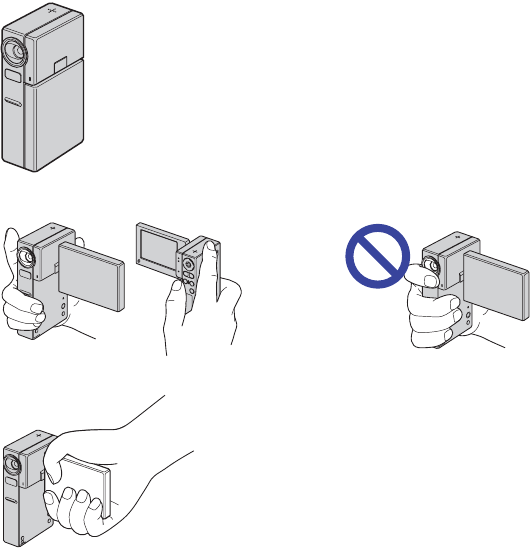

How to handle the camera
•When carrying the camera, close the LCD panel as illustrated.
•Be careful not to block the lens or the flash with your finger when shooting.
•Do not hold the camera by only holding the LCD panel.
5
Table of contents
Notes on using your camera .....................................................................2
How to handle the camera ........................................................................4
Identifying parts.........................................................................................8
Indicators on the screen..........................................................................10

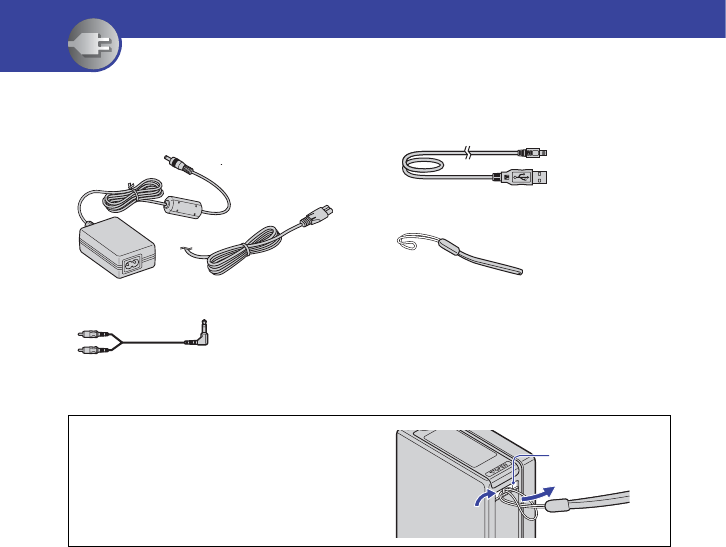

Checking the accessories supplied .........................................................14
1 Charging the built-in battery .................................................................15
2 Inserting a “Memory Stick Duo” (not supplied).....................................17
3 Turning the camera on/setting the clock...............................................18
Changing the language settings ..................................................................... 19
Selecting the image size according to use ..............................................20
Shooting images......................................................................................24
Viewing images .......................................................................................28

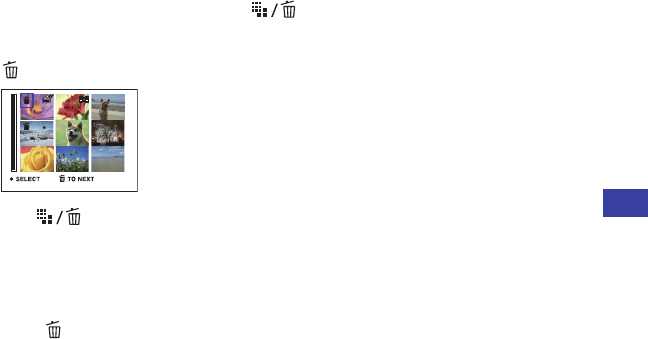

Deleting images.......................................................................................30
Select images to upload on a website (Sharemark)................................32
Using the menu items..............................................................................34
Menu items..............................................................................................35
Shooting menu ........................................................................................36
Camera: Selecting a camera mode
Color Mode: Changing the vividness of the image or adding special effects
EV: Adjusting the light intensity
White Bal: Adjusting the color tones

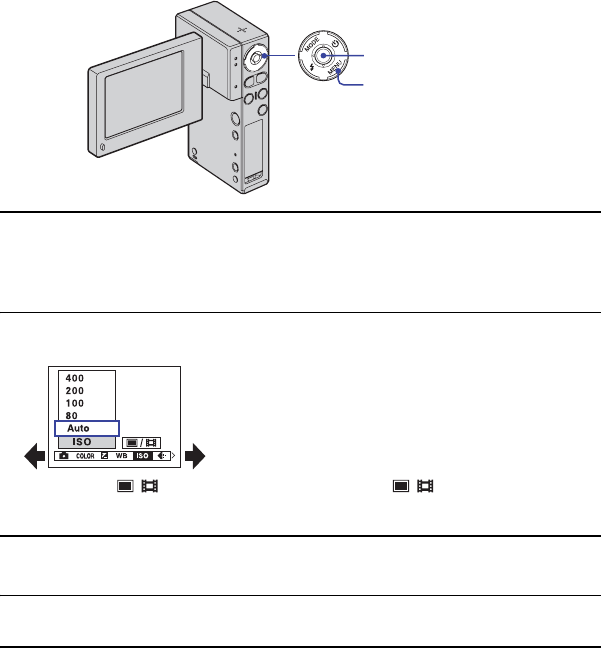

ISO: Selecting a luminous sensitivity
P.Quality: Compression rate of still images
REC Mode: Selecting the continuous shooting method
Flash Level: Adjusting the amount of flash light
Saturation: Adjusting the saturation
Sharpness: Adjusting the sharpness
Setup: Selecting the shooting settings
Getting started
Basic Operations
Using functions for shooting
6
Table of contents
Viewing menu ..................................................................................... 44
(Folder): Selecting the folder for viewing images
(Protect): Preventing accidental erasure
DPOF: Adding a Print order mark
(Print): Printing images using a printer
(Slide): Playing back a series of images
(Resize): Changing the image size of a recorded image
(Rotate): Rotating a still image

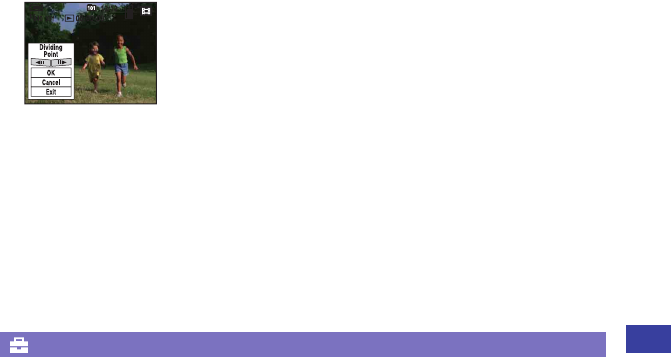

(Divide): Cutting movies
(Setup): Changing Setup items
Using Setup items
............................................................................... 54
Camera............................................................................................. 55
Memory Stick Tool............................................................................ 56
Internal Memory Tool........................................................................ 58
Format
Setup 1 ............................................................................................. 59
Setup 2 ............................................................................................. 60
Viewing images on a TV ......................................................................... 64
Using functions for viewing
Customizing the settings
Viewing images on a TV
Function Guide
Red Eye Reduction
Auto Review
Format
Create REC. Folder
Change REC. Folder
Copy
1
LCD Backlight
Beep
Language
Initialize
2
File Number
USB Connect
Video Out
Clock Set
7
Table of contents
Troubleshooting .......................................................................................66
Warning indicators and messages ..........................................................74
To use your camera abroad — Power sources........................................76
On the “Memory Stick” ............................................................................77
On the built-in battery..............................................................................79
Index........................................................................................................80
Troubleshooting
Others
Index
8
Identifying parts
See the pages in parentheses for details of
operation.
ASpeaker
BLens
CFlash (26)
DMicrophone
ELCD screen (25)
F/CHG: Flash charging lamp (26)/
Battery charging lamp (15)
G (Play mode) lamp (green)
H (Rec mode) lamp (green)
IFocus range switch (26)
JControl button
MODE button (24, 28, 32)
MENU button (34)
(Flash) button (26)
(Self-timer) button (27)
KMulti-selector (v/V/b/B) (18)
LFor shooting: Zoom (W/T) button (26)
For viewing: / (Playback zoom)
button/ (Index) button (28, 29)
MMOVIE button (24)
NPHOTO button (24)
OSharemark button (32)
PJack cover
5
wh
678
9
0
qa
qs
qd
qf
qg
qh
qj
qk
ql
w;
waws wdwf
wg wj wk
9
Identifying parts
Q (USB) jack (47)
• Used when connecting to a computer with a
USB cable or to a printer by PictBridge.
• NSC-GC3: You cannot input signals to your
camera through this jack.
RA/V OUT jack (64)
• Used when connecting to a TV, etc. with an
A/V connecting cable.
SDC IN jack (15)
• Used when connecting with the AC adaptor
to charge the battery or to operate the
camera by AC power.
THook for hand strap (14)
UPOWER button (18)

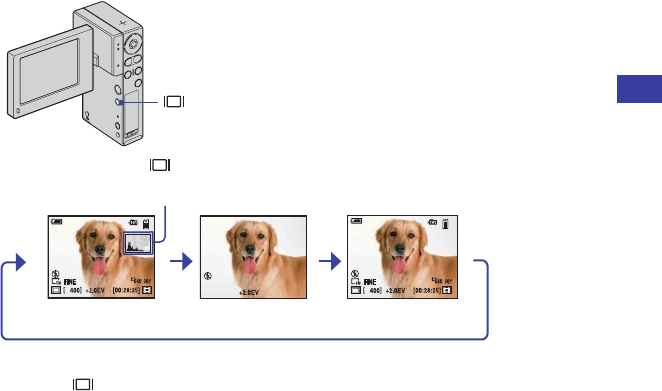

V (Screen display switch) button (25)
WRESET button
• Resets power. Date and settings will not be
reset to default settings.
X (Image Size/Delete) button (20,
30)
YTripod receptacle (bottom)
• Use a tripod with a screw length of less than
5.5 mm (7/32 inch). You will be unable to
firmly secure the camera to tripods having
screws longer than 5.5 mm (7/32 inch), and
may damage the camera.
Z“Memory Stick Duo” cover (17)
wj “Memory Stick Duo” slot
wk Access lamp (17)
10
Indicators on the screen
Each time you press (Screen display
switch) button, the display changes
(page 25).
See the pages in parentheses for details of
operation.
In shooting standby
When recording movies
A
B
1
2
3
4
+2.0EV
640 30 f
00:00:05
5
Display Indication
Battery remaining (16)
Zoom scaling (26)
Camera mode (Scene
Selection) (37)
PCamera mode (Program)
(37)
White balance (40)
Close-up mode (26)
Sharpness (43)
Saturation (43)
ISO400 ISO number (41)
B&W SEPIA
VIVID
Color mode (38)
ELow battery warning (74)
Display Indication
Red-eye reduction (55)
Flash mode (26)
Flash charging
Image size (20)
FINE STD Image quality (41)
Still image shooting mode
(24)
[400] Remaining number of
recordable images (22)
Menu/Guide menu (34)
• Pressing MENU switches
the menu/guide menu on/
off.
WB
11
Indicators on the screen
C
D
E
Display Indication
Recording folder (56)
• This does not appear when
using internal memory.
Recording Media
Histogram (25, 39)
Display Indication
Self-timer (27)
Image size (22)
+2.0EV Exposure Value (39)
[00:28:25] Remaining recordable
time (22)
Movie recording mode (24)
Display Indication
+2.0EV Exposure Value (39)
Movie recording
00:00:05 Recording time (22)
12
Indicators on the screen
When playing back movies
When playing back still images
A
B
3
1
2
+2.0EV
1
2
3
4
Display Indication
Battery remaining (16)
Image size (22)
//
/
Playback/Stop/Slide Show
fast forward (24, 49)
Fast forward/ Rewind
00:00:00 Counter
VOL. Vo l u m e
(28)
PictBridge connecting (47)
Zoom scaling (28)
ELow battery warning (74)
PictBridge connecting (47)
• Do not disconnect the USB
cable while the icon is
displayed.
Display Indication
Playback bar
101_0012 Folder-file number (56)
2007 1 1
9:30 AM
Recorded date/time of the
playback image
BACK/
NEXT
Select images
VOLUME Adjust volume
Menu/Guide menu (34)
DPOF
13
Indicators on the screen
C
D
Display Indication
Change folder (44)
• This does not appear when
using internal memory.
Playback folder (44)
• This does not appear when
using internal memory.
12/12 Image number/Number of
images recorded in selected
folder
Playback Media
Recording mode
Recording folders (56)
Sharemark (32)
Print order (DPOF) mark
(46)
Protect (44)
Histogram (25, 39)
• appears when histogram
display is disabled.
Display Indication
Flash
White balance (40)
2000 Shutter speed
F3.5 Aperture value
ISO400 ISO number (41)
+2.0EV Exposure Value (39)
WB
14
Getting started
Checking the accessories supplied
• AC Adaptor UPA-AC05 (1)/
Power cord (mains lead) (1)
• A/V connecting cable (1)
• USB cable (1)
• Hand strap (1)
• CD-ROM “Net-sharing CAM Application
Software” (1)
– Picture Motion Browser (Software)
– Picture Motion Browser Guide
– Network Sharing Camera Handbook (PDF)
• Instruction Manual (1)
Attach the strap and place your hand
through the loop to prevent the camera
from damage by being dropped, etc. Hook
15
Getting started
1 Charging the built-in battery
•The battery is built in within the camera.
1Remove the insulation sheet.
2Connect the AC Adaptor to the DC IN jack of the camera, making sure the
power is off.
3Plug the power (mains lead) cord to a wall outlet (wall socket).
• The /CHG lamp lights on, and charging starts.
When the /CHG lamp turns off, charging is finished (Practical charge).
If you continue charging the battery for about one more hour (until it is fully charged), the charge will
last slightly longer.
/CHG lamp
DC IN jack
AC Adaptor
Insulation sheet
1
Power cord (mains lead)
2
3
16
1 Charging the built-in battery
Charging time
• Time required to charge a fully depleted battery at a temperature of 25°C (77°F). Charging may take
longer under certain circumstances or conditions.
• See page 22 for the number of images that can be recorded.
• Connect the AC Adaptor to an easily accessible wall outlet (wall socket) close by.
• Even if the /CHG lamp is not lit, the AC Adaptor is not disconnected from the AC power source (mains)
as long as it is connected to the wall outlet (wall socket). If some trouble occurs while using the AC
Adaptor, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket).
• When charging is finished, disconnect the power cord (mains lead) from the wall outlet (wall socket).
To check the remaining battery time
Press POWER button to turn on and check the remaining battery on the LCD screen.
• It takes about one minute until the correct battery remaining indicator appears.
• The displayed battery remaining indicator may not be correct under certain circumstances.
• The Clock Set screen appears when the camera is turned on for the first time (page 18).
Full charge time
Approx. 120 min.
Battery
remaining
indicator
Battery
remaining
guidelines
Sufficient
power
remaining
Battery
almost fully
charged
Battery half
full
Battery low,
recording/
playback
will stop
soon.
Charge the battery.
(The warning
indicator flashes.)
17
Getting started
2 Inserting a “Memory Stick Duo” (not supplied)
1Open the “Memory Stick Duo” cover.
2Insert the “Memory Stick Duo” (not supplied) all the way in until it clicks.
3Close the “Memory Stick Duo” cover.
When there is no “Memory Stick Duo” inserted
The camera records/plays back images using the internal memory (approx. 4 MB).
To remove “Memory Stick Duo”
Open the “Memory Stick Duo” cover.
• Never remove “Memory Stick Duo” when the access lamp is lit. This may cause damage to data in the
“Memory Stick Duo”.
Insert the “Memory Stick Duo” all the way in
as shown in the illustration until it clicks.
“Memory Stick Duo” cover
12
Make sure that the access lamp
is not lit, then push the “Memory
Stick Duo” in once.
18
3 Turning the camera on/setting the clock
1Open the LCD panel to turn the power on.
• Open and lift the LCD panel up to a 90 degrees angle from the camera (1), then rotate it to the
desired angle (2).
• You can also turn the power on by pressing POWER button.

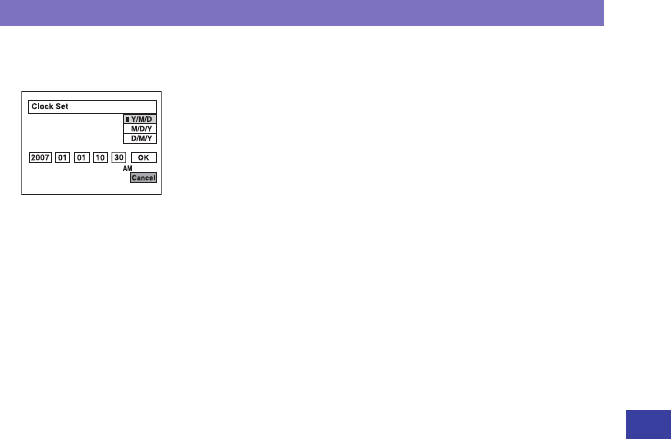

2Set the clock with the Multi-selector.
1Select the date display format with v/V.
2Select each item with b/B and set the numeric value with v/V.
3Select [OK].
To turn the power off
Press POWER button.
To change the date and time
Press MENU, and select [Clock Set] in (Setup 2) (page 63).
Tilt the Multi-selector side to side and up and down to
select, and press the center to set the setting.
1 LCD screen
1 POWER button 2 Multi-selector
MENU button
/:/
2 180 degrees (max.)
2 90 degrees (max.)
1 90 degrees (max.)
2
19
Getting started
3 Turning the camera on/setting the clock
When you turn on the power
If the camera is running on battery power and you do not operate the camera for about three
minutes, the camera turns off automatically to prevent wearing down the battery (Auto power-
off function).
Changing the language settings
You can change the on-screen displays to show messages in a specified language. To select the
screen language, press MENU, and select [ Language] in (Setup 1) (page 59).
1
20
Basic Operations
Selecting the image size according to use
1Press MODE to set the camera to recording mode.
• (Rec mode) lamp lights up.
2Press (Image Size) button.
3Select (Photo Size) or (Movie Size) with b/B on the Multi-selector,
then select the desired image size with v/V.
• Recommended use and number of remaining shots are displayed on the upper part of the LCD screen.
4Press (Image Size) to complete the setting.
Photo size Movie size
MODE button
Multi-selector
(Rec mode) lamp
(Image Size) button
21
Basic Operations
Selecting the image size according to use
The default settings are marked with .
* The darker the subject, the lower the frame per second.
• The larger the image size, the higher the image quality.
• The more frames per second you played back, the smoother playback can be.
• “fps” indicates the number of frames per second (Frame Per Second). The actual number of image
recordable may differ depending on the shooting situations and the subject.
* Images are recorded in 3:2 aspect ratio, same as photograph printing paper or postcards, etc.
Selecting the image quality (compression ratio) in combination (page 41)
You can select the compression ratio when digital images are saved. When you select a high compression
ratio, the image lacks the fineness of detail, but has a smaller file size.
Movie image size Frame/Second Usage guidelines
640(30fps) (640×480) Approx. 30* Shoot high quality movies in sizes suited for
display on TV
320(30fps) (320×240) Approx. 30* Shoot high quality movies in sizes suited for
display on websites
320(15fps) (320×240) Approx. 15* Shoot at a small size for e-mail attachment
Image size Guidelines
5M (2592×1944) For prints up to A4 (8×10")
3:2* (2592×1728) Shoot in 3:2 aspect ratio
3M (2048×1536) For prints up to 10×15 cm (4×6") or 13×18 cm (5×7")
2M (1632×1224) For prints up to 10×15 cm (4×6")
VGA (640×480) Shoot at a small image size for e-mail attachment
22
Selecting the image size according to use
The length of time for movies and the number of still images may vary depending on the
shooting conditions.
The approximate recording time of movies
(Units: hour : minute : second)
• The shooting mode will automatically stop in either of the following situations.
– When the file size of the movie being recorded exceeds 2 GB.
– After the maximum shooting duration time* for each file has passed.
* NSC-GC1: 2 hours, NSC-GC3: 29 minutes
The approximate number of still images
(Units: Images)
• The number of images listed is for when [REC Mode] is set to [Normal].
• When the number of remaining shootable images is greater than 9,999, the “>9999” indicator appears.
• When images recorded using earlier Sony models are played back on this camera, the display may differ
from the actual image size.
• The image quality is [Fine] on the upper row and [Standard] on the lower row (page 41).
Recording time of movies and number of still images
Capacity
Size
Internal
memory “Memory Stick Duo” formatted with this camera
Approx.
4MB 128 MB 256 MB 512 MB 1GB 2GB 4GB 8GB
640(30fps) 0:00:10 0:05:50 0:10:00 0:22:00 0:44:00 1:30:00 3:00:00 6:05:00
320(30fps) 0:00:35 0:19:00 0:34:00 1:10:00 2:20:00 4:55:00 9:40:00 19:30:00
320(15fps) 0:01:50 1:05:00 2:00:00 4:05:00 8:20:00 17:00:00 34:00:00 68:00:00
Capacity
Size/Quality
Internal
memory “Memory Stick Duo” formatted with this camera
Approx.
4MB 128 MB 256 MB 512 MB 1GB 2GB 4GB 8GB
5M Fine 1 50 95 190 390 790 1550 3100
Standard 3 95 180 360 730 1500 2900 7000
3:2 Fine 1 50 95 190 390 790 1550 3100
Standard 3 95 180 360 730 1500 2900 7000
3M Fine 3 80 155 305 620 1250 2500 5000
Standard 5 145 280 560 1100 2300 4400 11500
2M Fine 5 130 235 480 980 2000 4000 8000
Standard 8 245 445 900 1850 3750 7500 18000
VGA Fine 25 780 1500 2950 6000 12000 23500 48000
Standard 40 1850 3600 7100 14500 29500 59000 115000
23
Basic Operations
Selecting the image size according to use
• All numbers measured when using a “Memory Stick Duo” made by Sony Corporation. The number of still
images and the length of time for movies may vary depending on the shooting conditions and the
recording mediums.
• When measuring media capacity, 1 GB equals 1 billion bytes, a portion of which is used for data
management.
24
Shooting images
1Open the LCD panel to turn the power on.
• You can also turn the power on by pressing POWER.
2Make sure the (Rec mode) lamp lights up.
3Confirm the composition.
4Start shooting.
• When shooting movies, the angle of view will change from when shooting still images.
When shooting movies:
Press MOVIE.
To stop recording, press MOVIE again.
When shooting still images:
Press PHOTO.
Movies Still images
(Screen display switch) button
MENU button
Zoom button Multi-selector
Focus range
switch
Self-timer button
Flash button
(Rec mode)
lamp
POWER button
MODE button
MOVIE button
PHOTO button
Position the subject in the center
of the screen.
+2.0EV
[ 400]
5M
101
25
Basic Operations
Shooting images
• The shooting mode will automatically stop in either of the following situations.
– When the file size of the movie being recorded exceeds 2 GB.
– After the maximum shooting duration time* for each file has passed.
* NSC-GC1: 2 hours, NSC-GC3: 29 minutes
• When shooting movies, the anti-blur function will be set on.
Changing the screen display
Each time you press the (Screen display switch) button, the display changes as follows.
• By pressing (Screen display switch) button longer, you can increase the LCD backlight.
• If you view images in bright outside light, adjust the brightness of the LCD backlight up.
However, the battery power may decrease faster under such condition.
• The LCD screen will not display while the camera is connected to a TV.
• The histogram does not appear in the following situations:
While shooting
– When the menu is displayed.
– When recording movies
During playback
– When the menu is displayed.
– In index mode
– When you are using playback zoom.
– When you are rotating still images.
– During playback of movies
• A large difference in the histogram displayed when shooting and during playback may occur when:
– The flash strobes.
– The shutter speed is slow or fast.
• The histogram may not appear for images recorded using other cameras.
(Screen display switch) button
Indicators on
Histogram display (page 39)
Histogram on*
* During playback, the image information is displayed.
Indicators off
26
Shooting images
W/T Using the zoom
Press T to zoom, press W to undo the zoom.
• This camera is only capable of digital zoom.
Shooting a still image while shooting movies
When you press PHOTO while shooting movies, the same picture as the movie being shot will
be recorded as a still image. The size of the still image recorded will be the same as the size of
the movie.
Close-up mode
Slide the Focus range switch to (Close-up) when shooting a subject close-up.
: Normal shooting (Approx. 1.0 m or farther (3 feet 3 3/8 inches or farther))
: Close-up shooting (Approx. 60 cm to 1.0 m (1 feet 11 5/8 inches to 3 feet 3 3/8 inches))
• The in-focus range becomes narrow, and the complete subject may not entirely be in focus.
Flash (Selecting a flash mode for still images)
Press button repeatedly until the desired icon is displayed on the LCD screen.
(No indicator): Flash Auto
Strobes when there is insufficient light or backlight (default setting).
: Flash forced on
: Slow synchro (Flash forced on)
The shutter speed is slow in a dark place to clearly shoot the background that is out of flash light.
: Flash forced off
• The flash strobes twice. The first time is to adjust the light quantity.
• While charging the flash, /CHG lamp lights on and is displayed.
Useful functions for shooting
27
Basic Operations
Shooting images
Using the self-timer
Press (Self-timer) button.
(No indicator): Not using the self-timer
: Using the self-timer
If you press PHOTO, countdown timer is displayed, and after rapid beep sounds are heard, the
camera will shoot.
To cancel, press again.
28
Viewing images
1Open the LCD panel to turn the power on.
• You can also turn the power on by pressing POWER.
2Press MODE to set the camera to playback mode.
• (Play mode) lamp lights up.
3Plays back movies or still images.
Movie:
Press the Multi-selector to playback a movie. (Press it again to stop playback.)
Press B to fast forward, b to rewind. (Press the Multi-selector to return to normal playback.)
Press V to display the volume control screen, then adjust the volume with v/V.
• Movies with the image size [320(30fps)] or [320(15fps)] are displayed a size smaller.
Still image:
• Select an image with b/B on the Multi-selector.
/ To view an enlarged image (playback zoom)
Press while displaying a still image.
To undo the zoom, press .
Adjust the position: v/V/b/B
Cancel playback zoom: Press the Multi-selector.
POWER button
(Playback
zoom)/ (Index)
button
MENU button
Multi-selector
(Play mode)
lamp
MODE button
29
Basic Operations
Viewing images

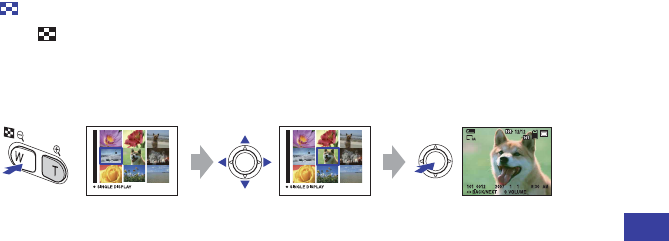

Viewing an index screen
Press (Index) to display the index screen while a still image is displayed.
Select an image with v/V/b/B on the Multi-selector.
To return to the single image screen, press the Multi-selector.
To display the next (previous) index screen, move the yellow frame up/down/left/right with v/
V/b/B.
V
30
Deleting images
1Press MODE to set the camera to playback mode.
2Press (Delete) while display in single-image mode or in index mode.
3Select [Delete] with v on the Multi-selector.
To cancel the deletion
Select [Exit] with v/V.
MODE button
MENU button
(Index) button
Multi-selector
(Delete) button
(Play mode)
lamp
31
Basic Operations
Deleting images
To delete images in index mode
1While an index screen is displayed, press (Delete) and select [Select] with b/B on the
Multi-selector.
2Select the images you want to delete with v/V/b/B, then press the Multi-selector to display the
(Delete) indicator on the selected image.
3Press (Delete).
4Select [OK] with B.
• To delete all the images in the folder, select [All In This Folder] with b/B in step 1 instead of [Select].
To cancel a selection
Select an image you have previously selected for deletion, then press the Multi-selector to
delete the indicator from the image.
32
Select images to upload on a website
(Sharemark)
1Press MODE to set the camera to playback mode.
• (Play mode) lamp lights up.
2Select images to upload on a website and press (Sharemark) button.
Selecting images in Single Image mode:
Select [ mark] with v/V on the Multi-selector.
• To cancel, select [Exit].
• Move on to the previous image or the next image with b/B.
Selecting images in Index Display mode:
Select how to mark [ mark] either from [All In This Folder] or [Select].
When selecting [All In This Folder]:
will be marked on all of the images within the selected file.
When selecting [Select]:
Select images to mark Sharemark. will be marked on the images selected.
MODE button
Multi-selector
(Play mode)
lamp
(Sharemark)
button
33
Basic Operations
Select images to upload on a website (Sharemark)
Removing Sharemarks
To remove the Sharemark from an image, select the image to remove the Sharemark and take
the same steps as when marking a Sharemark on an image.
• By using the software “PMB Portable” embedded in the camera, you can easily upload images marked
with Sharemarks. For details, see Help in the “PMB Portable”.
• When connecting to the network service, the page will be redirected by the server of Sony to the URL
entered in the network service setting.
• When uploading images via Internet, including this product, note that depending on the Internet service
provider, the cache may remain within the computer used.
34
Using the menu items
1Press MENU to display the menu.
• The menu will be displayed only during shooting and playback mode.
• Different items will become visible depending on the selected mode.
2Select the desired menu item with b/B on the Multi-selector.
• In REC mode, / is indicated. You cannot set an item with / indicator in gray.
• In PLAY mode, press the Multi-selector after setting an item.
3Select a setting with v/V.
4Press MENU to turn off the menu.
MENU button
Multi-selector
Auto
35
Basic Operations
Menu items
The available menu items vary depending on the camera mode.
The shooting menu is available only in the shooting mode, and the viewing menu is available
only in the playback mode.
Only the available items are displayed on the screen.
*The operation is limited according to the selected Scene Selection mode (page 38).
( : available)
Menu for shooting (page 36) PHOTO PHOTO/MOVIE MOVIE
Auto Program Scene
Camera
Color Mode — —
EV —
White Bal —
ISO — —
P.Quality — —
REC Mode —
Flash Level — *—
Saturation — — —
Sharpness — — —
Setup
Menu for viewing (page 44)
(Folder) (Protect)
(Print)
(Slide) (Resize)
(Rotate) (Divide)
(Setup)
36
Using functions for shooting
Shooting menu
The function is shooting mode using MENU button are described below. For details on how to
operate the menu, see page 34.
The default settings are marked with .
When the mode has been set to PLAY, switch it to REC with MODE.
MOVIE
Unavailable
Available
You cannot select the mode displayed in gray.
37
Using functions for shooting
Shooting menu For details on the operation 1 page 34
The following modes are predetermined to match the scene conditions.
*The shutter speed becomes slower, so using a tripod is recommended.
Camera: Selecting a camera mode
Scene Selection
Twilight*
Allows you to shoot night
scenes at far distance without
losing the darkness atmosphere
of the surroundings.
Twilight portrait*
Suitable for shooting
portraits in dark places.
Allows you to shoot sharp
images of people in dark
places without losing the
dark atmosphere of the
surroundings.
Soft snap
Allows you to shoot images
with a softer atmosphere for
portraits of people, flower, etc.
Landscape
Focuses only on a distant
subject to shoot landscapes,
etc.
High-speed shutter
Shoots moving subjects
outdoors or in other bright
places.
Beach
When shooting seaside or
lakeside scenes, the blue of
the water is clearly recorded.
Snow
When shooting snowy scenes
or other places where the
whole screen appears white,
use this mode to prevent
sunken colors and record clear
images.
Fireworks*
Allows you to record
fireworks in all their
splendor.
Candle
Shoot candlelit scenes, without
spoiling the atmosphere.
Program Adjustments necessary for shooting are made automatically, but you can also
make adjustments of EV, etc., as desired. In addition, you can also set the
desired shooting functions using menus.
Auto You can shoot images in Auto adjustment mode.
MOVIE
38
Shooting menu For details on the operation 1 page 34
Functions you can use in Scene Selection
For shooting an image appropriately according to the scene condition, a combination of
functions is determined by the camera. Some functions are not available, depending on the
Scene Selection mode.
( : you can select the desired setting)
* When shooting a movie, you cannot use the functions.
You can change the brightness of the image, accompanied by effects.
Flash* EV White Balance Burst/Bracket Flash Level
——
—
/
/
/
/
——
——
Color Mode: Changing the vividness of the image or adding special
effects
B&W (B & W) Sets the image to monochromatic color.
SEPIA (Sepia) Sets the image to sepia color.
MOVIE
39
Using functions for shooting
Shooting menu For details on the operation 1 page 34
• When shooting a movie, [Vivid] will be ineffective even if set.
Manually adjusts the exposure.
Toward – Toward +
• The compensation value can be set in 1/3EV increments.
• If a subject is being shot in extremely bright or dark conditions, or the flash is used, the exposure
adjustment may not be effective.
zAdjusting EV (Exposure Value) by displaying a histogram
A histogram is a graph showing the brightness of
an image. Press (Screen display switch)
repeatedly to display the histogram inside the
screen. The graph display indicates a bright
image when skewed to the right side, and a dark
image when skewed to the left side. When
shooting still images, adjust EV while checking
the exposure with the histogram.
A Number of pixels
B Brightness
• The histogram also appears in the following cases, but you cannot adjust the exposure.
– When [Camera] is set to [Auto]
– When playing back a single image
VIVID (Vivid) Sets the image to bright and deep color.
Off No effect.
EV: Adjusting the light intensity
+2.0EV Toward +: Brightens an image.
0EV The exposure is determined automatically by the camera.
–2.0EV Toward –: Darkens an image.
MOVIE
BrightDark
A
B
40
Shooting menu For details on the operation 1 page 34
Adjusts the color tones according to the lighting condition in a situation, for example, when
the colors of an image look strange.
White Bal: Adjusting the color tones
(Flash) Adjusts for the flash conditions.
• You cannot select this item when shooting movies.
n (Incandescent) Adjusts for places under incandescent lamp, or under bright
lighting, such as in a photo studio.
(Fluorescent) Adjust for fluorescent lighting.
(Cloudy) Adjusts for a cloudy sky or a shady location.
(Daylight) Adjusts for conditions outside under a clear sky, at sundown,
night scenes, the presence of neon signs or fireworks.
MOVIE
WB
41
Using functions for shooting
Shooting menu For details on the operation 1 page 34
• Under fluorescent lights that flicker, the white balance function may not work correctly even though you
select [Fluorescent].
• Except in [Flash] modes, [White Bal] is set to [Auto] when the flash strobes.
• Some options are not available depending on the Scene Selection mode (page 38).
Selects a luminous sensitivity with units of ISO. The larger the number, the higher the
sensitivity.
• Note that the image tends to become noisier as the ISO sensitivity number increases.
• [ISO] is set to [Auto] in the Scene Selection mode.
• When shooting under brighter conditions, the camera automatically increases its tone reproduction and
helps prevent images to become whitish (excluding when [ISO] is set to [100]).
Selects the still image quality.
Auto Adjusts the White Balance automatically.
ISO: Selecting a luminous sensitivity
400 Select a large number when shooting in dark locations or
shooting a subject moving at high speed, or select a small
number to obtain high image quality.
200
100
80
Auto
P.Quality: Compression rate of still images
FINE (Fine) Records with high quality (low compression).
STD (Standard) Records with standard quality (high compression).
MOVIE
MOVIE
42
Shooting menu For details on the operation 1 page 34
Selects whether the camera performs continuous shooting or not when you press PHOTO.
On the Exposure Bracket
• The focus and white balance are adjusted for the first image, and these settings are also used for the other
images.
• When the exposure is manually adjusted (page 39), the exposure is shifted based on the adjusted
brightness.
• The recording interval is approximately 1.2 second.
• If the subject is too bright or too dark, you may be unable to shoot properly with the selected bracket step
value.
• You may not be able to shoot images in the Exposure Bracket mode depending on the Scene Selection
mode (page 38).
On the Burst
• When recording with the self timer, a series of a maximum of 3 images is recorded.
• The recording interval is approximately 1.2 second. The recording interval becomes longer, depending on
the setting for the image size.
• When the battery level is low, or when the internal memory or “Memory Stick Duo” is full, the Burst
stops.
• You may not be able to shoot images in the Burst mode depending on the Scene Selection mode (page 38).
REC Mode: Selecting the continuous shooting method
(ExpBrktg) Records a series of three images with the exposure values
automatically shifted (Exposure Bracket).
• You can select the image with the appropriate exposure after
recording when you are unable to shoot good pictures depending
on the brightness of the subject.
• When [Camera] is set to [Auto], the Exposure Bracket mode is
not available.
• The flash is set to (Flash forced off).
(Burst) Records maximum 3 images in succession when you press
and hold down PHOTO.
• When “Recording” disappears, you can shoot the next image.
• The flash is set to (Flash forced off).
Normal Does not shoot continuously.
MOVIE
43
Using functions for shooting
Shooting menu For details on the operation 1 page 34
Adjusts the amount of flash light.
• The flash level can be set in 1/3 EV increments.
• The value is not displayed on the screen. It is indicated as + or –.
• To change flash mode, see page 26.
• If the subject is too bright or dark, this adjustment may have no effect.
• [Flash Level] cannot be set when flash mode is set to (Flash forced off).
Adjusts the saturation of the image.
Adjust the sharpness of the image.
Select the settings for the shooting function. See page 54.
Flash Level: Adjusting the amount of flash light
+ (+) Toward +: Makes the flash level higher.
(Normal)
– (–) Toward –: Makes the flash level lower.
Saturation: Adjusting the saturation
(+) Toward +: Brightens the color.
Normal
(–) Toward –: Darkens the color.
Sharpness: Adjusting the sharpness
(+) Toward +: Sharpens the image.
Normal
(–) Toward –: Softens the image.
Setup: Selecting the shooting settings
MOVIE
MOVIE
MOVIE
44
Using functions for viewing
Viewing menu
The default settings are marked with .
When the mode has been set to REC, switch it to PLAY with MODE.
Selects the folder containing the image you want to playback when using the camera with
“Memory Stick Duo”.
1Select the desired folder with b/B on the Multi-selector.
2Select [OK] with v.
To cancel selecting the folder selection
Select [Cancel] in step 2.
zOn the folder
The camera stores images in a specified folder of a “Memory Stick Duo”. You can change the folder or
create a new one.
• To create a new folder t [Create REC. Folder] (page 56)
• To change the folder for recording images t [Change REC. Folder] (page 57)
• When multiple folders are created in the “Memory Stick Duo” and the first or last image in the folder is
displayed, the following indicators appear.
: Moves to the previous folder
: Moves to the next folder
: Moves to either the previous or next folders
Protects images against accidental erasure.
To protect images in single-image mode
1Display the image you want to protect.
2Press MENU to display the menu.
3Select (Protect) with b/B on the Multi-selector.
(Folder): Selecting the folder for viewing images
(Protect): Preventing accidental erasure
(Protect) See the following procedure.
Exit Exits the Protection function.
45
Using functions for viewing
Viewing menu For details on the operation 1 page 34
The image is protected and the indicator appears on the image.
4To protect other images, select the desired image with b/B.
To protect images in index mode
1Press (Index) to display the index screen.
2Press MENU to display the menu.
3Select (Protect) with b/B on the Multi-selector.
4Select [Select] with b/B.
5Select the image you want to protect with v/V/b/B.
A green indicator appears on the selected image.
6Repeat step 5 to protect other images.
7Press MENU.
8Select [OK] with B.
The indicator turns white. The selected images are protected.
• To protect all images in the folder, select [All In This Folder] in step 4, and press the Multi-selector.
Select [On] with B.
To cancel the protection
In single-image mode
Press the Multi-selector in step 3 or 4 of “To protect images in single-image mode”.
In index mode
1Select the image for which you want to remove protection in step 5 of “To protect images in
index mode”.
2Press the Multi-selector to turn the indicator gray.
3Repeat the operation above for all images to be unprotected.
4Press MENU, select [OK] with B.
(green)
46
Viewing menu For details on the operation 1 page 34
To cancel protection of all images in the folder
Select [All In This Folder] in step 4 of “To protect images in index mode”, and press the
Multi-selector. Select [Off] with B.
• Note that formatting the “Memory Stick Duo” erases all data stored on the recording media, even if
images are protected, and these images cannot be recovered.
• It may take some time to protect an image.
Adds (Print order) mark to images you want to print. By using the “Memory Stick Duo”,
images with DPOF marks can be printed at photo shops or with printers which supports the
DPOF standard.
• You cannot mark movies.
Marking in single-image mode
1Press MODE to set the playback mode.
2Select the image you want to print.
3Press MENU to display the menu.
4Select [DPOF] with v/V on the Multi-selector.
(Print order) mark is attached to the image.
5To mark other images, display the desired image with b/B, then press the Multi-selector.
Marking in index mode
1Display the index screen.
2Press MENU to display the menu.
3Select [DPOF] with v/V.
4Select [Select] with v/V.
5Select the image you want to mark with v/V/b/B, then press the Multi-selector.
A green mark appears on the selected image.
6Repeat step 5 to mark other images.
7Press MENU.
DPOF: Adding a Print order mark
Green mark
47
Using functions for viewing
Viewing menu For details on the operation 1 page 34
8Select [OK] with B, then press the Multi-selector.
The mark turns white.
To cancel, select [Cancel] in step 4 or select [Exit] in step 8, then press the Multi-selector.
To remove the mark
To remove the mark from an image, select the image to remove the mark and take the
same steps as when marking a mark on an image.
indicator disappears.
To remove all the marks in the folder
Select [All In This Folder] in step 4, then press the Multi-selector. Select [Off], then press the
Multi-selector.
Even if you do not have a computer, you can print images shot using your camera by
connecting the camera directly to a PictBridge compliant printer.
• You cannot print movies.
Stage 1: Preparing the camera
1Press MENU.
2Select [USB Connect] in [Setup 2] with v/V/b/B on the Multi-selector.
3Select [PictBridge] with v/V.
The USB mode is set.
Stage 2: Connecting the camera to the printer
1Connecting the camera to the printer.
(Print): Printing images using a printer
1 To the USB jack
2 To the USB jack
USB cable
48
Viewing menu For details on the operation 1 page 34
2Turn on your camera and the printer.
Stage 3: Printing
1Select the desired printing method with v/V on the Multi-selector.
[All In This Folder]
Prints all the images in the folder.
[DPOF image]
Prints all the images with a (Print order) mark (page 46) regardless of the displayed
image.
[Select]
Selects images and prints all the selected images.
Select the image you want to print with b/B, and then select [Print] with V.
[This image]
Prints a displayed image.
2Select print settings with v/V/b/B.
[Index]
Select [On] to print as an index image.
[Size]
Select the size of the printing sheet.
[Date]
Select [Day&Time] or [Date] to insert the date and time on images.
[Quantity]
When [Index] is set to [Off]:
Select the number of sheets of an image that you want to print. The image will be printed
as a single image.
When [Index] is set to [On]:
Select the number of sets of images that you want to print as an index image. If you
selected [This image] in step 1, select the number of the same image you want to print
side by side on a sheet as an index image.
3Select [OK] with V/B, then press the Multi-selector.
The image is printed.
After the connection is made, the indicator appears.
49
Using functions for viewing
Viewing menu For details on the operation 1 page 34
• Do not disconnect the USB cable while the (Do not disconnect the USB cable) indicator
appears on the screen.
Stage 4: Completing the printing
Make sure the screen has returned to Stage 2, and disconnect the USB cable from the camera.
To print images on the index screen
1When the index screen is displayed, press MENU to display the menu items and select
(print).
2Select how to print.
1Select (Slide Show) with b/B on the Multi-selector.
2Select [Start] with b/B, then press the Multi-selector to start playback.
To pause the slide show
Press the Multi-selector.
To restart, select [Continue] with b/B.
To display the previous/next image
Press b/B on the Multi-selector while the slide show is paused.
To end the slide show
Select [Exit] with v/V on the Multi-selector while the slide show is paused.
To change the setup
The default settings are marked with .
(Slide): Playing back a series of images
Do not disconnect the USB cable while the (PictBridge
Connecting) indicator appears on the screen.
indicator
50
Viewing menu For details on the operation 1 page 34
You can change the image size of a recorded image (Resize), and save it as a new file. The
original image is retained even after resizing.
1Display the image you want to resize.
2Press MENU to display the menu.
Interval
3 sec Sets the slide show interval.
5 sec
10 sec
30 sec
1 min
Repeat
On Plays back images in a continuous loop.
Off After all the images have been played back, the slide show
ends.
When you use a “Memory Stick Duo” (not supplied)
Folder Plays back all the images in the selected folder.
All Plays back all the images in a “Memory Stick Duo” in order.
(Resize): Changing the image size of a recorded image
5M The setting size is just a guideline.
3M
2M
VGA
Cancel Cancels resizing.
Small sizeLarge size
51
Using functions for viewing
Viewing menu For details on the operation 1 page 34
3Set [Resize] with b/B on the Multi-selector.
4Select the desired size with v/V.
The resized image is recorded in the recording folder as the newest file.
• You cannot resize movies.
• When you change from a small size to a large size, the image quality deteriorates.
• You cannot resize to an image size of 3:2.
• When you resize a 3:2 image, the upper and lower black portions will be displayed on the image.
Rotates a still image.
1Display the image to be rotated.
2Press MENU to display the menu.
3Select [Rotate] with v/V on the Multi-selector.
4Select [ ], then rotate the image with b/B.
5Select [OK] with v/V.
• You cannot rotate protected images or movies.
• You may not be able to rotate images shot with other cameras.
• When viewing images on a computer, the image rotation information may not be reflected depending on
the software.
Cuts movies, or deletes unnecessary scenes of movies. This is a recommended function to use
when the internal memory or “Memory Stick Duo” capacity is insufficient, or when you attach
movies to your e-mail messages.
• Note that the original movie is deleted and that number is skipped. Also note that you cannot restore files
once you cut them.
(Rotate): Rotating a still image
(Divide): Cutting movies
OK See the following procedure.
Cancel Cancels division.
Divide
Flow of the movie ,
Divide
52
Viewing menu For details on the operation 1 page 34
Example: Cutting a movie numbered 101_0002
This section describes an example of dividing a movie numbered 101_0002 and deleting it in
the following file configuration.
1Cutting scene A.
Divide
101_0002 is divided into 101_0004 and 101_0005.
2Cutting scene B.
Divide
101_0005 is divided into 101_0006 and 101_0007.
3Deleting scenes A and B if they are unnecessary.
Delete Delete
4Only the desired scenes remain.
Procedure
1Display the movie to be divided.
2Press MENU to display the menu.
3Select [Divide] with b/B on the Multi-selector.
4Select [OK] with v.
The playback of the movie starts.
12
101_0002
101_0003
3
101_0001
123AB
101_0002
101_0004
123 B
A
101_0005
13
101_0004 101_0007
101_0006
AB2
13
2
101_0006
53
Using functions for viewing
Viewing menu For details on the operation 1 page 34
5Press the Multi-selector.
• When you want to adjust the cutting point, select c/C with b/B (frame rewind/forward).
• If you want to change the cutting point, press the Multi-selector. The playback of the movie starts
again.
6Select [OK] with v.
The movie is cut.
• The cut movies are assigned new numbers, and then recorded as the newest files in the selected recording
folder.
• You cannot cut the following kinds of images.
– Still images
– Movies not long enough to cut (shorter than about two seconds)
– Protected movies (page 44)
See page 54.
(Setup): Changing Setup items
54
Customizing the settings
Using Setup items
You can change the default settings using the Setup screen.
1Turn on the power and set the mode with MODE.
2Press MENU to display the menu.
3Press B on the Multi-selector to select (Setup).
4Press v/V/b/B to select the item you want to set.
The frame of the selected item turns yellow.
5Press the Multi-selector to enter the setting.
To turn off the Setup screen, press MENU.
To return to the menu from the Setup screen, press b on the Multi-selector repeatedly.
To cancel the setting change
Select [Cancel] if it appears. If it does not appear, select the previous setting again.
• This setting is maintained even when the power is turned off.
Multi-selector
MENU button
55
For details on the operation 1 page 54
Customizing the settings
Camera
The default settings are marked with .
When you operate the camera, the description of functions is displayed.
The flash strobes two or more times before
shooting to reduce the red-eye phenomenon when
using the flash.
• Because it takes about a second until the shutter clicks, hold the camera firmly to prevent the effects of
vibration. Also, do not let the subject move.
• Red-eye reduction may not produce the desired effects depending on individual differences, the distance
to the subject, if the subject does not see the pre-strobe, or other conditions.
Displays the recorded image on the screen for approximately two seconds immediately after
shooting a still image.
Function Guide
On Displays the function guide.
Off Does not display the function guide.
Red Eye Reduction
On ( ) The flash always strobes to reduce the red-eye phenomenon.
Off Does not use Red Eye Reduction.
Auto Review
On Use the Auto Review.
Off Does not use Auto Review.
56
For details on the operation 1 page 54
Memory Stick Tool
This item appears only when a “Memory Stick Duo” is inserted in the camera.
Formats the “Memory Stick Duo”. A commercially available “Memory Stick Duo” is already
formatted, and can be used immediately.
• Note that formatting irrevocably erases all data on a “Memory Stick Duo”, including even protected
images.
1Select [Format] with v/V/b/B on the Multi-selector.
The message “All data in Memory Stick will be erased” appears.
2Select [OK] with v.
The format is completed.
To cancel the formatting
Select [Cancel] in step 2.
Creates a folder in a “Memory Stick Duo” for recording images.
1Select [Create REC. Folder] with v/V/b/B on the Multi-selector.
The folder creation screen appears.
2Select [OK] with v.
A new folder is created with a number incremented one higher than the largest number, and the
folder becomes the current recording folder.
To cancel the folder creation
Select [Cancel] in step 2.
• When not creating a new folder, the “101MNV01” folder is selected as the movie folder, and
“101MSDCF” folder is selected as the still image folder.
• You can create folders designated up to “999MSDCF”.
• Images are recorded in the newly created folder until a different folder is created or selected.
• You cannot delete a folder with the camera. To delete a folder, use your computer, etc.
• Up to 4,000 images can be stored in one folder. When the folder capacity is exceeded, a new folder is
automatically created.
Format
Create REC. Folder
Create REC. Folder
Ready?
OK
Cancel
Creating REC. folder
102
57
Customizing the settings
Memory Stick Tool For details on the operation 1 page 54
Changes the folder currently used for recording images.
1Select [Change REC. Folder] with v/V/b/B on the Multi-selector.
The folder selection screen appears.
2Select the desired folder with b/B, and [OK] with v.
To cancel changing the recording folder
Select [Cancel] in step 2.
• You cannot select the “100MSDCF” folder as a recording folder.
• You cannot move recorded images to a different folder.
Copies all images in the internal memory to a “Memory Stick Duo”.
1Insert a “Memory Stick Duo”.
2Select [Copy] with v/V/b/B on the Multi-selector.
The message “All data in internal memory will be copied” appears.
3Select [OK] with v.
Copying starts.
To cancel the copying
Select [Cancel] in step 3.
• Charge the battery sufficiently. Copying image files when the remaining battery amount is low can cause
data transfer failure or damage the data due to battery exhaustion.
• You cannot copy individual images.
• The original images in the internal memory are retained even after copying. To delete the contents of the
internal memory, remove the “Memory Stick Duo” after copying, then execute the [Format] command in
[Internal Memory Tool] (page 58).
• When you copy the data in the internal memory to the “Memory Stick Duo”, a new folder is created. You
cannot choose a specific folder on the “Memory Stick Duo” as the destination for the data to be copied.
• Even if you copy data, a (Sharemark) or a (Print order) mark is not copied.
Change REC. Folder
Copy
58
For details on the operation 1 page 54
Internal Memory Tool
This item does not appear when a “Memory Stick Duo” is inserted in the camera.
Formats data stored in the internal memory.
• Note that formatting irrevocably erases all data in the internal memory, including even protected images.
1Select [Format] with v/V/b/B on the Multi-selector.
The message “All data in internal memory will be erased” appears.
2Select [OK] with v.
The format is completed.
To cancel the formatting
Select [Cancel] in step 2.
Format
59
For details on the operation 1 page 54
Customizing the settings
Setup 1
1
The default settings are marked with .
Selects the brightness of the LCD backlight when using the camera with battery.
• You can change the setting by pressing (Screen display switch) button longer.
• Selecting [Bright] uses up the battery charge faster.
Selects the sound produced when you operate the camera.
Selects the language to be used to display the menu items, warnings, and messages.
Initializes the setting to the default setting. Even if you execute this function, the images
stored in the internal memory are retained.
1Select [Initialize] with v/V/b/B on the Multi-selector.
The message “Initialize all settings” appears.
2Select [OK] with v.
The settings are reset to the default setting.
To cancel the resetting
Select [Cancel] in step 2.
• Make sure that the power is not disconnected during resetting.
LCD Backlight
Bright Brightens.
Normal
Beep
Shutter Turns on the shutter sound when you press PHOTO.
On Turns on the beep/shutter sound when you press the Multi-
selector, PHOTO or MOVIE button.
Off Turns off the beep/shutter sound.
Language
Initialize
60
For details on the operation 1 page 54
Setup 2
2
The default settings are marked with .
Selects the method used to assign file numbers to images.
Selects the USB mode to be used when connecting the camera to a computer or a PictBridge
compliant printer using the USB cable.
Connecting the camera and your computer with Mass Storage
“Mass Storage” mode lets a computer recognize the camera with “Memory Stick Duo” inserted as an
external memory device and enables you to operate the camera through the computer connected with a USB
cable.
File Number
Series Assigns numbers to files in sequence even if the recording
folder or the “Memory Stick Duo” is changed. (When the
replaced “Memory Stick Duo” contains a file with a number
higher than the last assigned number, a number one higher
than the largest number is assigned.)
Reset Starts from 0001 each time the folder is changed. (When the
recording folder contains a file, a number one higher than the
largest number is assigned.)
USB Connect
PictBridge Connects the camera to a PictBridge compliant printer
(page 47). When you connect the camera to a computer, the
copy wizard starts automatically, and the images in the
recording folder on the camera are copied to the computer
(with Windows XP/Vista, Mac OS X).
Web camera Connect the camera and a computer with a USB cable and use
the camera as a webcam (USB streaming).
• Movies output will be 320×240 (30fps) Motion JPEG format.
• Movies streamed will not be displayed on the LCD screen of the
camera.
Mass Storage Establishes a Mass Storage connection between the camera
and a computer or other USB device.
61
Customizing the settings
Setup 2 For details on the operation 1 page 54
Connecting the camera and your computer
Connect the camera as illustrated below.
NSC-GC3: You cannot input signals to your camera through the (USB) jack.
To delete the USB connection
Perform the procedures listed below beforehand when:
• Disconnecting the USB cable
• Removing a “Memory Stick Duo”
• Inserting a “Memory Stick Duo” into the camera after copying images from the internal memory
• Turning off the camera
1Double-click on the tasktray.
2Click (USB Mass Storage Device) t [Stop].
3Confirm the device on the confirmation window, then click [OK].
4Click [OK].
The device is disconnected.
•Step 4 is unnecessary for Windows XP.
USB cable
1To a USB jack
2To the (USB) jack
Double-click here
62
Setup 2 For details on the operation 1 page 54
Image file storage destinations and file names
Example: viewing folders on Windows XP
AFolder containing image data recorded using this camera
When not creating any folders, there is only the “101MSDCF” folder
BFolder containing movie data that were recorded using your camera
When not creating any folder, there is only the “101MNV01” folder
• You cannot record/play back any images to the “MISC” folder.
• Image files are named as follows. ssss stands for any number within the range from 0001 to 9999.
– Still image files: DSC0ssss.JPG
– Movie files: M4V0ssss.MP4
• For more information about folders, see page 56.
Sets the video signal output according to the TV color system of the connected video
equipment. Different countries and regions use different TV color systems. If you want to
view images on a TV screen, check page 65 for the TV color system of the country or region
where the camera is used.
Video Out
NTSC Sets the video output signal to NTSC mode (e.g., for the
USA, Japan).
PAL Sets the video output signal to PAL mode (e.g., for Europe).
63
Customizing the settings
Setup 2 For details on the operation 1 page 54
Sets the date and time.
1Select [Clock Set] with v/V/b/B on the Multi-selector.
2Select the date display format with v/V.
3Select each item with b/B and set the numeric value with v/V.
4Select [OK] with B.
To cancel the clock setting
Select [Cancel] in step 4.
Clock Set
/:/
64
Viewing images on a TV
Viewing images on a TV
You can view images on a TV screen by connecting the camera to a TV.
The connection varies according to the type of TV the camera is connected to.
Turn off both your camera and the TV before connecting the camera and the TV.
1Connect the camera to the TV with the A/V connecting cable.
• If your TV has stereo input jacks, connect the audio plug (white) of the A/V connecting cable to the left
audio jack.
2Turn on the TV and set the TV/video input switch to “video”.
• For details, see the operating instructions supplied with the TV.
3Press MODE to set the playback mode.
Images shot with the camera appear on the TV screen.
Press b/B on the Multi-selector to select the desired image.
• When using your camera abroad, it may be necessary to switch the video signal output to match that
of your TV system (page 62).
• Image will not be displayed on the LCD panel when an image signal is output to TV.
1To audio/video input
jacks
A/V connecting cable
(supplied)
2To the A/V OUT jack
VIDEO
Yellow White
AUDIO
MODE button
65
Viewing images on a TV
Viewing images on a TV
On TV color systems
If you want to view images on a TV screen, you need a TV with a video input jack and the
A/V connecting cable. The color system of the TV must match that of your camera. Check the
following lists for the TV color system of the country or region where the camera is used.
NTSC system
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica,
Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela, etc.
PAL system
Australia, Austria, Belgium, China, Czech Republic, Denmark, Finland, Germany, Holland,
Hong Kong, Hungary, Italy, Kuwait, Malaysia, New Zealand, Norway, Poland, Portugal,
Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand, United Kingdom, etc.
PAL-M system
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
66
Troubleshooting
Troubleshooting
If you experience trouble with your camera, try the following solutions.
When repairing the camera, we may check a minimum amount of data stored on the internal
memory in order to improve the condition. However, Sony dealer will neither copy nor save
your data.
1Check the items on pages 67 to 73.
2Turn the power off, and turn it on again after about one minute.
3Press the RESET button (page 9) using a fine-tipped object, and turn on the
power.
If you do the operation above, the date and time setting is cleared.
4Consult your Sony dealer or local authorized Sony service facility.
Battery and power 67
Shooting movies/still images 67
Viewing images 69
Deleting/Editing images 70
“Memory Stick Duo” 70
Internal memory 71
Printing 71
PictBridge compliant printer 71
Others 73
Click one of the following items to jump to the page explaining the symptom and cause or the
appropriate corrective action.
67
Troubleshooting
Troubleshooting
Cannot turn on the camera.
•Remove the insulation sheet.
•The battery is discharged. Charge the battery (page 15).
•The plug of the AC Adaptor has been disconnected from the wall outlet (wall socket).
Connect it to the wall outlet (wall socket) (page 15).
The power turns off suddenly.
•If you do not operate the camera for about three minutes while the power is on, the camera
turns off automatically to prevent wearing down the battery. Turn on the camera again.
The battery remaining indicator is incorrect.
•This phenomenon occurs when you use the camera in an extremely hot or cold location.
•The displayed battery remaining differs from the current one. Fully discharge and then charge
the battery to correct the display.
•The battery is discharged. Charge the battery.
Your camera cannot record images.
•Check the free capacity of the internal memory or “Memory Stick Duo”. If it is full, do one of
the following:
–Delete unnecessary images (page 30).
–Change the “Memory Stick Duo”.
•The shooting mode will automatically stop in either of the following situations.
–When the file size of the movie being recorded exceeds 2 GB.
–After the maximum shooting duration time* for each file has passed.
* NSC-GC1: 2 hours, NSC-GC3: 29 minutes
•You are using the “Memory Stick Duo” with a write-protect switch, and the switch is set to
the LOCK position. Set the switch to the recording position (page 77).
•You cannot record images while charging the flash.
•Press MODE and set the camera to recording mode to shoot a movie or a still image.
The LCD screen does not display the movies or still images you are shooting.
•Your camera is set to the playback mode. Press MODE to change to the recording mode
(page 24).
Anti-blur function does not work.
•The anti-blur function does not work when shooting still images.
•The anti-blur function may not work properly when shooting night scenes.
Battery and power
Shooting movies/still images
68
Troubleshooting
Recording takes a long time.
•The NR slow shutter function is activated. This is not a malfunction.
The image is out of focus.
•The subject is too close. Shoot in (Close-up) recording mode. Make sure to position the
lens farther away from the subject than the shortest shooting distance, approximately 60 cm
(1 feet 11 5/8 inches), when shooting (page 26).
The flash does not work.
•The flash is set to (Flash forced off) (page 26).
•You cannot use the flash when:
–[REC Mode] is set to [Burst] or [ExpBrktg] (page 42).
– (Twilight mode) or (Fireworks mode) is selected in the Scene Selection mode
(page 38).
–When shooting movies, or when shooting a still image while shooting movies
•Set the flash to (Flash forced on) when (Landscape mode), (Beach mode), or
(Snow mode) is selected in the Scene Selection mode (page 38).
Fuzzy white circular spots appear in images shot using the flash.
•Particles (dust, pollen, etc) in the air reflected the flash light and appeared in the image. This
is not a malfunction.
The date and time are not displayed on LCD screen.
•While shooting, the date and time are not displayed. They are displayed only during playback.
The recording date is not superimposed on an image.
•This camera does not have a feature for superimposing dates on images.
The screen is too dark or too bright.
•Adjust the brightness of the LCD backlight (page 59).
The image is too dark.
•You are shooting a subject with a light source behind the subject. Adjust the exposure
(page 39).
The image is too bright.
•Adjust the exposure (page 39).
The image colors are not correct.
•Set [Color Mode] to [Off] (page 38).
69
Troubleshooting
Troubleshooting
Vertical streaks appear when you are shooting a very bright subject.
•The smear phenomenon is occurring and white, black, red, purple, or other streaks appear on
the image. This phenomenon is not a malfunction.
Noise appears in the image when you view the screen in a dark place.
•The camera is attempting to increase the visibility of the screen by temporarily brightening
the image under conditions of low illumination. There is no effect on the recorded image.
The eyes of the subject come out red.
•Set [Red Eye Reduction] to [On] (page 55).
•Shoot the subject at a distance closer than the flash range using the flash.
•Light the room and shoot the subject.
Dots appear and remain on the screen.
•This is not a malfunction. These dots are not recorded (page 3).
Cannot shoot images in succession.
•The internal memory or “Memory Stick Duo” is full. Delete unnecessary images (page 30).
•The battery level is low.
Your camera cannot playback images.
•Press MODE to change to the playback mode (page 28).
•The folder/file name has been changed on your computer.
•When an image file has been processed by a computer or when the image file was recorded
using a model other than that of your camera, playback on your camera is not guaranteed.
•The camera is in USB mode. Delete the USB connection.
The date and time are not displayed.
• (Screen display switch) button is turned off (page 25).
The image appears rough right after playback starts.
•The image may appear rough right after playback starts due to image processing. This is not a
malfunction.
The image does not appear on the TV screen.
•Check [Video Out] to see if the video output signal of your camera is set to the color system of
your TV (page 62).
•Check whether the connection is correct (page 64).
•If the USB cable is connected to the USB terminal, disconnect it.
Viewing images
70
Troubleshooting
Your camera cannot delete an image.
•Cancel the protection (page 44).
•You are using the “Memory Stick Duo” with the write-protect switch, and the switch is set to
the LOCK position. Set the switch to the recording position (page 77).
You have deleted an image by mistake.
•Once you have deleted an image, you cannot restore it. We recommend that you protect
images (page 44), or use the “Memory Stick Duo” with the write-protect switch and set the
switch to the LOCK position (page 77) to prevent accidental erasure.
Cannot insert a “Memory Stick Duo”.
•Insert it in the correct direction.
Cannot format a “Memory Stick Duo”.
•You are using the “Memory Stick Duo” with the write-protect switch, and the switch is set to
the LOCK position. Set the switch to the recording position (page 77).
You have formatted a “Memory Stick Duo” by mistake.
•All the data on the “Memory Stick Duo” is deleted by formatting. You cannot restore it. We
recommend that you set the write-protect switch on the “Memory Stick Duo” to the LOCK
position to prevent accidental erasure (page 77).
The internal memory cannot be recognized as a removable disk when
connected by USB.
•Depending on the connected USB equipment, the internal memory of the camera cannot be
recognized as a removable disk. In [Copy] of [Memory Stick Tool], connect the camera after
copying the images of the internal memory to the “Memory Stick Duo” (page 57).
Deleting/Editing images
“Memory Stick Duo”
71
Troubleshooting
Troubleshooting
Cannot playback or record images using the internal memory.
•There is a “Memory Stick Duo” inserted in the camera. Remove it.
Cannot copy the data stored in the internal memory to a “Memory Stick Duo”.
•The “Memory Stick Duo” is full. Check the capacity.
Cannot copy the data on the “Memory Stick Duo” or the computer to the
internal memory.
•Data on a “Memory Stick Duo” or a computer cannot be copied to the internal memory.
Also see “PictBridge compliant printer” (as follows) in conjunction with the following items.
Images are printed with both edges cut off.
•Depending on your printer, the left, right, top, and bottom edges of the image may be cut off.
•When printing images using your own printer, cancel the trimming or borderless settings.
Consult the printer manufacturer as to whether the printer provides these functions or not.
•When having images printed at a digital print shop, ask the shop whether they can print the
images without cutting off both edges.
Cannot print images with the date.
•This camera does not have a feature for superimposing dates on images. However, because the
images shot with the camera include information on the recording date, you can print images
with the date superimposed if the printer or the software can recognize Exif information. For
compatibility with Exif information, consult the manufacturer of the printer or the software.
•When you print images at a shop, images can be printed with the date if you ask them to do so.
A connection cannot be established.
•The camera cannot be connected directly to a printer that is not compliant with the PictBridge
standard. Consult the printer manufacturer as to whether the printer is compliant with
PictBridge or not.
•Check that the printer is turned on and can be connected to the camera.
•Set [USB Connect] to [PictBridge] (page 60).
•Disconnect and connect the USB cable again. If an error message is indicated on the printer,
refer to the operating instructions supplied with the printer.
Internal memory
Printing
PictBridge compliant printer
72
Troubleshooting
Cannot print images.
•Check that the camera and the printer are properly connected using the USB cable.
•Turn on the printer. For further information, refer to the operating instructions supplied with
the printer.
•If you select [Exit] during printing, images may not be printed. Disconnect and connect the
USB cable again. If you still cannot print your images, disconnect the USB cable, turn the
printer off and then on, then connect the USB cable again.
•Movies cannot be printed.
•Images shot using cameras other than this camera or images modified with a computer may
not be printed.
Printing is canceled.
•Confirm that you have disconnected the USB cable before the (PictBridge Connecting)
mark disappears.
Cannot insert the date or print images in the index mode.
•The printer does not provide these functions. Consult the printer manufacturer as to whether
the printer provides these functions or not.
•The date may not be inserted in the index mode depending on the printer. Consult the printer
manufacturer.
“---- -- --” is printed on the date-inserted part of the image.
•Images that do not have the recording data cannot be printed with the date inserted. Set [Date]
to [Off] and print the image again (page 47).
Cannot select the print size.
•Consult the printer manufacturer as to whether the printer can provide the desired size.
Cannot print the image at the size selected.
•Disconnect the USB cable and reconnect it whenever you change the paper size after the
printer has been connected to the camera.
•The print setting of the camera differs from that of the printer. Change the setting of either the
camera (page 47) or the printer.
Cannot operate the camera after canceling printing.
•Wait for a while as the printer is carrying out the cancellation. It may take some time
depending on the printer.
73
Troubleshooting
Troubleshooting
The lens gets fogged.
•Moisture condensation has occurred. Turn off the camera and leave it for about an hour before
using it.
The camera becomes warm when you use it for a long time.
•This is not a malfunction.
The Clock Set screen appears when you turn on the camera.
•Set the date and time again (page 63).
You want to change the date or time.
•Set the date and time again (page 63).
Others
74
Warning indicators and messages
If the following messages appear, follow
the instructions.
E
•The battery level is low. Charge the
battery immediately. The indicator may
flash even if there are still 5 to 10
minutes of remaining battery time left.
No Memory Stick
•Insert a “Memory Stick Duo” (page 17).
System error
•Turn the power off and then on again.
Internal memory error
•Turn the power off and then on again.
Reinsert the Memory Stick
•Insert the “Memory Stick Duo”
correctly (page 17).
•The inserted “Memory Stick Duo”
cannot be used in your camera
(page 77).
•The “Memory Stick Duo” is damaged.
•The terminal section of the “Memory
Stick Duo” is dirty.
Memory Stick type error
•The inserted “Memory Stick Duo”
cannot be used in your camera
(page 77).
Format error
•Format the media again (page 56).
Memory Stick locked
•You are using the “Memory Stick Duo”
with the write-protect switch, and the
switch is set to the LOCK position. Set
the switch to the recording position
(page 77).
No memory space
•Delete unnecessary images or files
(page 30).
Read only memory
•Your camera cannot record or delete
images on this “Memory Stick Duo”.
No file in this folder
•No images have been recorded in this
folder.
•You did not operate correctly when
copying images from your computer.
Folder error
•A folder with the same first three digit
number already exists on the “Memory
Stick Duo” (for example: 123MSDCF
and 123ABCDE). Select other folders,
or create a new folder (pages 56, 57).
Cannot create more folders
•The folder with a name beginning with
“999” exists on the “Memory Stick
Duo”. You cannot create any folders if
this is the case.
Cannot record
•The camera cannot record images in the
selected folder. Select a different folder
(page 56).
File error
•An error occurred while the image was
playing back.
Messages
75
Troubleshooting
Warning indicators and messages
File protect
•Release the protection (page 44).
Image size over
•You are playing back an image with size
that cannot be played back on your
camera.
Invalid operation
•You are trying to playback a file that is
not compatible with the camera.
•You have selected a function that is not
available for movies.
Turn the power off and on again
•A problem with the lens caused an error.
Enable printer to connect
•[USB Connect] is set to [PictBridge],
however the camera is connected to a
non-PictBridge compliant device.
Check the device.
•The connection is not established.
Disconnect and connect the USB cable
again. If an error message is indicated
on the printer, refer to the operating
instructions supplied with the printer.
Connect to PictBridge device
•You tried to print images before the
printer connection was established.
Connect to a PictBridge compliant
printer.
No printable image
•You tried to execute [DPOF image]
without placing a DPOF (Print order)
mark on the image(s).
•You tried to execute [All In This Folder]
while a folder that holds only movies
was selected. You cannot print movies.
Printer busy
Paper error
No Paper
Ink error
Low Ink
No Ink
•Check the printer.
Printer error
•Check the printer.
•Check if the image you want to print is
corrupted.
•The data transmission to the printer may
not be completed yet. Do not disconnect
the USB cable.
Processing
•The printer is canceling the current print
job. You cannot print until it is finished.
This may take time, depending on the
printer.
Unsupported data
•The data is unsupported by the camera
and cannot be played back.
76
Others
To use your camera abroad — Power
sources
You can use your camera and the UPA-AC05 AC Adaptor (supplied) in any country or region
where the power supply is within 100 V to 240 V AC, 50/60 Hz.
•Do not use an electronic transformer (travel converter), as this may cause a
malfunction.
77
Others
On the “Memory Stick”
A “Memory Stick” is a compact, portable
IC recording medium with a large data
capacity.
You can use the following types of
“Memory Stick” listed below on this
camera. However, we do not guarantee the
operation of all types of “Memory Stick” on
your camera. (See the list below for more
details.)
*1The types of “Memory Stick Duo” that support
high speed data transfer. The speed of data
transfer varies depending on the device to be
used.
*2 Your camera does not support an 8-bit parallel
data transfer. A 4-bit parallel data transfer, as
same as “Memory Stick PRO Duo”, is
supported.
• Your camera cannot record or play data that uses
“MagicGate” technology. “MagicGate” is a
copyright protection technology that records and
transfers the contents in an encrypted format.
• Your camera is compatible with “Memory Stick
Micro” (“M2”). “M2” is the abbreviation for the
“Memory Stick Micro”.
• Still image format: Your camera compresses and
records image data in the JPEG (Joint
Photographic Experts Group) format. The file
extension is “.JPG”.
• A “Memory Stick Duo” formatted by a
computer (Windows OS/Mac OS) does not have
guaranteed compatibility with your camera.
• Data read/write speed may vary depending on
the combination of the “Memory Stick Duo”
and “Memory Stick Duo” compliant product
you use.
• You can prevent accidental erasure of images
when you slide the write-protect tab on the
“Memory Stick Duo” with a small tapered
object, to the write-protect position.
• Damaged or lost image data will not be
compensated for, and may occur in the
following cases:
– If you eject the “Memory Stick Duo” or turn
the power off on your camera while your
camera is reading or writing image files on the
“Memory Stick Duo” (while the access lamp
is lit or flashing).
– If you use the “Memory Stick Duo” near
magnets or magnetic fields.
• It is recommended you make a back-up of
important data on the hard disk of a computer.
• Be careful not to apply excessive force when
writing on a memo area on a “Memory Stick
Duo”.
• Do not attach a label or the like on a “Memory
Stick Duo” or a Memory Stick Duo adaptor.
• When you carry or store a “Memory Stick Duo”,
put it in its case.
• Do not touch, or allow metallic objects to come
into contact with the terminals.
• Do not bend, drop or apply strong force to the
“Memory Stick Duo”.
• Do not disassemble or modify the “Memory
Stick Duo”.
• Do not let the “Memory Stick Duo” get wet.
• Be careful to keep “Memory Stick Duo” media
out of the reach of small children. There is
danger that a child might swallow it.
• Do not insert anything other than a “Memory
Stick Duo” into the Memory Stick Duo slot.
Doing so may cause a malfunction.
• Do not use or keep the “Memory Stick Duo” in
the following locations:
– Places subject to extremely high temperature,
such as a car parked outside in the summer.
– Places under direct sunlight.
– Places with extremely high humidity or
subject to corrosive gases.
Types of “Memory Stick” Recording/
Playback
“Memory Stick Duo”
(without MagicGate) a
“Memory Stick Duo”
(with MagicGate) a*1
“MagicGate Memory Stick Duo” a
“Memory Stick PRO Duo” a*1
“Memory Stick PRO-HG Duo” a*1*2
78
On the “Memory Stick”
On the Memory Stick Duo adaptor
• When using a “Memory Stick Duo” with a
“Memory Stick” compliant device, be sure to
insert the “Memory Stick Duo” into a Memory
Stick Duo adaptor.
• When inserting a “Memory Stick Duo” into a
Memory Stick Duo adaptor, make sure the
“Memory Stick Duo” is inserted facing in the
correct direction, then insert it all the way in.
Note that improper use may cause a
malfunction. Also, if you force the “Memory
Stick Duo” into the Memory Stick Duo adaptor
in the wrong direction, it may be damaged.
• Do not insert a Memory Stick Duo adaptor
without a “Memory Stick Duo” attached. Doing
so may result in malfunctions of the unit.
On a “Memory Stick PRO Duo”
• The maximum memory capacity of a “Memory
Stick PRO Duo” that can be used on your
camera is 8 GB.
Notes on using “Memory Stick Micro”
• To use a “Memory Stick Micro” with this
camera, you need a Duo-sized M2 Adaptor.
Insert the “Memory Stick Micro” into the Duo-
sized M2 Adaptor, and then insert the adaptor
into the Memory Stick Duo slot. If you insert a
“Memory Stick Micro” into this camera without
using a Duo-sized M2 Adaptor, you might not
be able to remove it from the camera.
• Do not leave the “Memory Stick Micro” within
the reach of small children. They might
accidentally swallow it.
On image data compatibility
• Image data files recorded on a “Memory Stick
Duo” by your camera conform to the “Design
rule for Camera File system” universal standard
established by the JEITA (Japan Electronics and
Information Technology Industries
Association).
• On your camera, you cannot play back still
images recorded on other devices that do not
conform to the universal standard. (These
models are not sold in some regions.)
• If you cannot use a “Memory Stick Duo” that
has been used with another device, format it
with your camera (page 56). Note that
formatting erases all information on the
“Memory Stick Duo”.
• You may not be able to play back images with
your camera:
– When playing back image data modified on
your computer.
– When playing back image data recorded with
other devices.
79
Others
On the built-in battery
On charging the battery
We recommend charging the battery in an ambient
temperature of between 10°C to 30°C (50°F to
86°F). You may not be able to efficiently charge
the battery outside of this temperature range.
Effective use of the battery
• Battery performance decreases in low
temperature surroundings. So, the time that the
battery can be used is shorter in cold places. We
recommend the following to ensure longer
battery use:
– Put the camera in a pocket, etc. to warm it up
before using.
• The battery will run out quickly if you use the
flash or zoom frequently.
How to store the camera
• If the camera is not to be used for a long time, to
maintain its function, fully charge the internal
battery and use it up at least once a year, and
then store the camera in a dry, cool place.
• To use the battery up, leave your camera in slide
show (page 49) playback mode until the power
goes off.
On battery life
• The battery life is limited. Battery capacity
decreases little by little as you use it more and
more, and as time passes. If the battery
operating time seems shortened considerably, a
probable cause is that the battery has reached
the end of its life. Contact your Sony dealer or
local authorised Sony service facility.
• The battery life varies according to how it is
stored and the operating conditions and
environment.
80
Index
Index
A
A/V connecting cable ...........64
A/V OUT jack ......................64
Auto Review .........................55
B
B & W ..................................38
Beach mode ..........................37
Beep......................................59
Built-in battery .....................79
Burst .....................................42
C
Camera mode........................37
Candle mode.........................37
Change REC. Folder.............57
Clock Settings.......................63
Close-up mode......................26
Cloudy ..................................40
Color Mode...........................38
Connecting
TV .................................64
Copy .....................................57
Create REC. Folder ..............56
D
Date ......................................63
Daylight ................................40
Delete
Format .....................56, 58
Deleting images....................30
Divide ................................... 51
DPOF....................................46
E
EV......................................... 39
Exposure Bracket..................42
F
File Number..........................60
Fine ...................................... 41
Fireworks mode ................... 37
Flash (Shooting)................... 26
Flash (White Bal)................. 40
Flash forced off.................... 26
Flash forced on..................... 26
Flash Level........................... 43
Flash mode........................... 26
Fluorescent........................... 40
Folder ................................... 44
Changing....................... 57
Creating ........................ 56
Selecting ....................... 44
Format ............................ 56, 58
Function Guide .................... 55
H
High-speed shutter mode ..... 37
Histogram....................... 25, 39
Holding the camera.............. 24
How to handle the camera...... 4
I
Identifying parts..................... 8
Image size ............................ 20
Incandescent......................... 40
Index screen ......................... 29
Indicator............................... 10
Initialize ............................... 59
Internal Memory Tool.......... 58
ISO ....................................... 41
L
Landscape mode .................. 37
Language.............................. 59
LCD Backlight..................... 59
M
Mass Storage........................ 60
“Memory Stick Duo”........... 77
Memory Stick Tool...............56
Menu
Items..............................35
Shooting ........................36
Viewing .........................44
N
NTSC....................................62
P
PAL.......................................62
PictBridge.............................60
Playback zoom ..................... 28
Print ......................................47
Print order mark ...................46
Protect...................................44
R
REC Mode............................42
Red Eye Reduction...............55
Resize ...................................50
Rotate ...................................51
S
Saturation .............................43
Screen
Indicator ........................10
LCD backlight.........25, 59
Self-timer..............................27
Sepia ..................................... 38
Setup 1..................................59
Setup 2..................................60
Sharemark.............................32
Sharpness..............................43
Shooting ...............................36
Movies...........................24
Still image ..................... 24
Slide......................................49
Slow synchro ........................26
Snow mode ...........................37
81
Index
Index
Soft snap mode .....................37
Standard ................................41
T
Troubleshooting ....................66
TV.........................................64
Twilight mode.......................37
Twilight portrait mode ..........37
U
USB Connect ........................60
USB streaming......................60
Using your camera abroad....76
V
VGA......................................21
Video Out..............................62
Viewing.................................44
Viewing images.....................28
Vivid......................................39
Volume..................................28
W
Warning indicators and
messages........................74
Web camera ..........................60
White Bal..............................40
Z
Zoom.....................................26
82
Notes on the License
THIS PRODUCT IS LICENSED UNDER THE
MPEG-4 VISUAL PATENT PORTFOLIO
LICENSE FOR THE PERSONAL AND NON-
COMMERCIAL USE OF A CONSUMER FOR
(i) ENCODING VIDEO IN COMPLIANCE
WITH THE MPEG-4 VISUAL STANDARD
(“MPEG-4 VIDEO”)
AND/OR
(ii) DECODING MPEG-4 VIDEO THAT WAS
ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-
COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER
LICENSED BY MPEG LA TO PROVIDE
MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE
IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION INCLUDING
THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND
LICENSING MAY BE OBTAINED FROM
MPEG LA, LLC.
SEE HTTP://WWW.MPEGLA.COM
Additional information on this product and answers
to frequently asked questions can be found at our
Customer Support Website.

Navigation menu
