N
Sony notebook
user guide
PCG-FX301
Sony Notebook User Guide
Read this first
2
nN
Read this first
Notice
© 2001 Sony Corporation. All rights reserved.
This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-
readable form without prior written approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and hereby
expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this manual, the
software or such other information. In no event shall Sony Corporation be liable for any incidental, consequential, or special damages,
whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the software, or other information
contained herein or the use thereof.
Macrovision: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and
other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without
notice. The software described herein is governed by the terms of a separate user license agreement.
Sony, DVgate, i.LINK™ and the i.LINK™ logo, PictureGear, Memory Stick and the Memory Stick logo, VAIO and the VAIO logo are
trademarks of Sony Corporation.
i.LINK™ is is a trademark of Sony used only to designate that a product contains an IEEE1394 connection.
Microsoft, Windows and the Windows logo, Windows Media and Outlook are trademarks or registered trademarks of U.S. Microsoft
Corporation in the U.S. and other countries.
Adobe® and Adobe® Acrobat® Reader are trademarks of Adobe Systems Incorporated.
QuickTime and the QuickTime logo are trademarks used under license. QuickTime is registered in the U.S. and other countries.
RealPlayer is a trademark or registered trademark of RealNetworks, Inc. in the U.S. and other countries.
Sony Notebook User Guide
Read this first
3
nN
VirusScan is a trademark of Network Associates Corporation.
All other names of systems, products and services are trademarks of their respective owners. In the manual, the ™ or ® marks are not
specified.
Specifications are subject to change without notice.
Energy Star
As an ENERGY STAR Partner, Sony has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
The International ENERGY STAR Office Equipment Program is an international program that promotes energy saving through the use of
computers and their office equipment. The program backs the development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted
products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform
among participating nations.
ENERGY STAR is a U.S. registered mark.
Sony Notebook User Guide
Read this first
4
nN
Safety information
Owner's record
The model number and serial number are located on the bottom of your Sony notebook. Record the serial number in the space provided
here. Refer to the model and serial number if you call VAIO-Link.
Serial number: ________________________
Model: PCG-962C
Warnings
General
Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
To prevent fire or shock hazard, do not expose your notebook to rain or moisture.
Avoid using the modem during a thunder storm.
Do not use the modem or a telephone to report a gas leak in the vicinity of the leak.
To change the backup battery, please contact your nearest Sony Service Center.
Sony Notebook User Guide
Read this first
5
nN
Audio/video
Audio and picture distortion may occur if this equipment is positioned in close proximity to any
equipment emitting electromagnetic radiation.
Connectivity
Never install modem or telephone wiring during a severe storm.
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
Be cautious when installing or modifying telephone lines.
Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from
mains voltage, unplug the AC adapter.
Please make sure that the socket outlet is easily accessible.
Never touch uninsulated telephone wire or terminals unless the telephone line has been disconnected
at the network interface.
CD/DVD-ROM
Misuse of the optical instrument supplied with your notebook can cause eye hazard. As the laser beam
used in this product is harmful to eyes, do not attempt any disassembling process. For servicing, refer to
qualified personnel only.
There are visible and invisible radiations when the DVD-ROM drive is open: avoid direct exposure to the
laser beam.
Sony Notebook User Guide
Read this first
6
nN
Regulatory information
This product conforms to the following European Directives:
73/23/EEC (Low Voltage Directive)
89/336/EEC, 92/31/EEC (EMC Directives)
93/68/EEC (CE Marking Directive)
1999/5/EC (radio equipment and telecommunications terminal equipment Directive)
This product complies with EN 55022 Class B and EN 55024 for use in following areas: residential, commercial and light-industrial.
This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than
3 metres (9.8 feet).
The DVD-ROM-drive is classified as a CLASS 1 LASER PRODUCT and complies with the Laser Product Safety Standard EN 60825-1. Repair
and maintenance only by authorized Sony technicians. Improper repairs and use can create safety hazards.
CLASS 1
LASER PRODUCT
TO EN 60825-1
Sony Notebook User Guide
Read this first
7
nN
Disposing of lithium ion batteries
Do not handle damaged or leaking lithium ion batteries. Dispose of promptly and properly at end-of-life.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not
disassemble, heat above 60°C (140°F) or incinerate.
Keep away from children.
Your notebook is equipped with an internal backup memory battery. For changing this battery, please
contact VAIO-Link: http://www.vaio-link.com
In some areas the disposal of lithium ion batteries in household or business waste may be prohibited.
Use the public collection system.
Sony Notebook User Guide
Welcome
8
nN
Welcome
Congratulations on purchasing a Sony VAIO notebook. Sony has combined leading-edge technology in
audio, video, computing and communications to provide you with state-of-the-art personal computing.
Here are just some of the features your VAIO notebook has to offer:
Exceptional performance - Your PC includes a fast processor, a fast DVD-ROM drive and an internal
modem.
Portability - The rechargeable battery pack provides hours of use without AC power.
Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s
advanced multimedia applications, games, and entertainment software.
Multimedia features – Enjoy audio, video CDs and DVDs.
Interconnectivity – Your computer has Ethernet and i.LINK™ functionalities. i.LINK™ is a bi-directional
digital interface for exchanging data.
Windows® - Your system includes the Windows® Millennium operating system from Microsoft.
Communications - Access popular online services, send and receive e-mails, browse the Internet...
Excellent customer support - If you are experiencing any problems with your computer, please check
the VAIO-Link web site for a possible solution:
http://www.vaio-link.com
Before contacting VAIO-Link, you may try to solve the problem by reading the User Guide or the manuals
and help files for the peripherals or software.
Sony Notebook User Guide
Welcome
9
nN
Documentation pack
Your Documentation Pack contains paper and online user guides on a Documentation CD-ROM.
Printed documentation
A Getting Started brochure, where you find a brief description of the items in your box and some
specifications of your notebook;
A Customer Guide, where you find all the basic information to start using your notebook;
A Safety Regulations Flyer;
A Modem Regulations Flyer applying to the modem;
Yo ur Sony Guarantee conditions.
Online documentation
1The Sony Notebook User Guide:
Using Your Sony Notebook shows you how to use the standard components of your system. In this
part of the manual, you will also find out what you can do with a Memory Stick™.
Connecting Peripheral Devices explains how you can add functionality by connecting various
peripherals.
Getting Help explains the support options available to you, and offers basic troubleshooting tips.
Precautions provides facts and advice about using your notebook.
Specifications provides details on your computer, drivers and accessories.
Glossary refers to terms used in this manual.
2Refer to your Software Guide for information on the bundled software and the Sony applications.
About the Software is a short description of the features of the software pre-installed on your
system.
Customizing your notebook explains how to set your system and power management.
Using the Product Recovery CD-ROMs explains how to perform a system and application recovery.
Sony Notebook User Guide
Welcome
10
nN
3Consult the Online Help files of the software you are using for detailed information on features and
troubleshooting.
4Refer to the Microsoft Quick Start manual for more information on Windows.
5Go to http://www.club-vaio.sony-europe.com to find online tutorials about your favorite VAIO software.
Sony Notebook User Guide
Welcome
11
nN
Your notebook and its accessories
Following hardware items are in the box:
1 main unit 7 weight saver
2 product recovery CD-ROMs 8 video cable
3 documentation pack 9 phone plug (country specific)
4 AC adapter 10 phone cable
5 rechargeable battery pack 11 power cord
6 removable floppy disk drive
(installed at factory)
12 CD/DVD-ROM drive
Sony Notebook User Guide
Welcome
12
nN
Ergonomic considerations
You will be using your notebook as a portable device in a variety of environments. Whenever possible, you
should attempt to take account of the following ergonomic considerations to both stationary and portable
environments:
Position of your computer – Place the computer directly in front of you (1). Keep your forearms
horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard,
touchpad, or external mouse. Let your upper arms hang naturally at your sides. Have breaks during
sessions with your computer. Excessive use of the computer may strain muscles or tendons.
Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet
are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and
avoid slouching forward or leaning far backwards.
Sony Notebook User Guide
Welcome
13
nN
Viewing angle of the computer’s display – Use the display’s tilting feature to find the best position.
You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position.
Adjust the brightness setting of the display as well.
Lighting – Choose a location where windows and lights do not create glare and reflection on the
display. Use indirect lighting to avoid bright spots on the display. You can also purchase accessories for
your display that help reduce glare. Proper lighting adds to your comfort and work effectiveness.
Placement of an external display – When using an external display, set the display at a comfortable
viewing distance. Make sure the display screen is at eye level or slightly lower when you are sitting in
front of the monitor.
Tilt stands – You use the tilt stands to place the computer at an angle that allows comfortable typing.
Sony Notebook User Guide
Using your notebook
14
nN
Using your notebook
This section describes how to start using your computer and how to use your computer’s internal and
external devices.
Locating controls and connectors
Right
1 power button (page 28)
2 DVD-ROM drive (page 37)
3 multi-purpose bay for weight saver or
second battery with weight saver or
removable floppy disk drive)
(page 40)
(page 42)
Sony Notebook User Guide
Using your notebook
15
nN
Left
AC adapter mains connector and power cord: hazardous voltage, according to EN 60950.
All other connectors for this notebook are SELV (Safety Extra Low Voltage), according to EN 60950.
1 TV Out connector (page 65) 4 i.LINK™ connector (page 73)
2 microphone connector (page 69) 5 PC Card slots (page 45)
3 headphone connector (page 68) 6 battery bay (page 20)
Sony Notebook User Guide
Using your notebook
16
nN
Front
1 LCD screen (page 35) 7 battery 1 and 2 indicators (page 34)
2 speakers (page 35) 8 hard disk drive indicator (page 34)
3 keyboard (page 31) 9 Num Lock indicator (page 34)
4 touchpad (page 36) 10 Caps Lock indicator (page 34)
5 left/right buttons (page 36) 11 Scroll Lock indicator (page 34)
6 power indicator (page 34)
Sony Notebook User Guide
Using your notebook
17
nN
Back
There is a ventilation slot located near the USB connector. Do not cover the ventilation slot when the computer is on.
1 phone line jack (page 58) 5 monitor connector (page 62)
2USB connector (page 70) 6 Ethernet connector (page 76)
3 serial connector (page 72) 7 USB connector (page 70)
4printer (page 72) 8DC In (page 19)
Sony Notebook User Guide
Using your notebook
18
nN

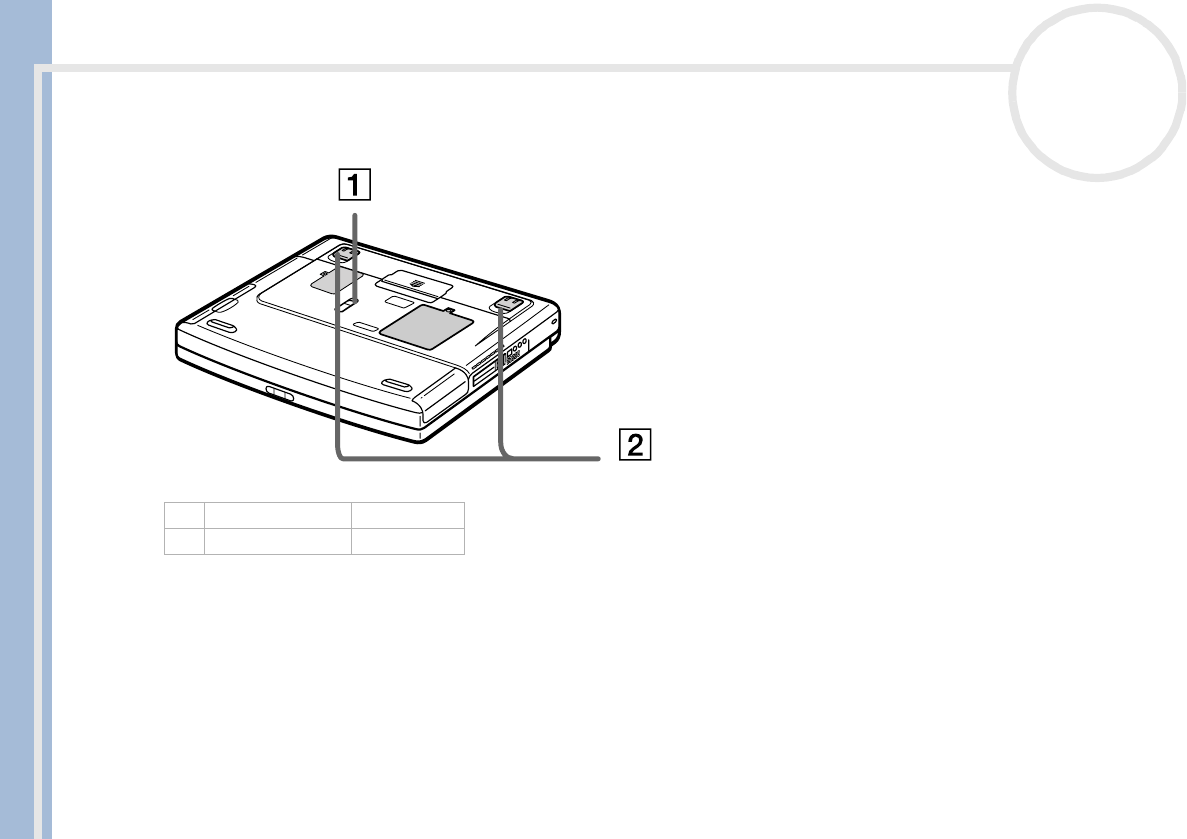

Bottom
1 release lever (page 12)
2 tilt stands (page 12)
Sony Notebook User Guide
Using your notebook
19
nN
Connecting a power source
You can use either an AC adapter or a rechargeable battery pack as a power source.
Using the AC adapter
To use the AC adapter, proceed as follows:
1Plug the cable attached to the AC adapter (1) into the DC In connector (2) on the computer.
2Plug one end of the power cord (3) into the AC adapter.
3Plug the other end of the power cord into an AC outlet.
Use your notebook only with the supplied AC adapter.
To disconnect your notebook completely from mains voltage, unplug the AC adapter.
Make sure that the socket outlet is easily accessible.
Sony Notebook User Guide
Using your notebook
20
nN
Using the battery pack
You can use one or two batteries as a source of power. You can insert the second battery pack into the multi-
purpose bay on the right side of the computer. Additional battery packs are available as a separate option.
The battery pack supplied with your computer is not fully charged at the time of purchase.
Inserting the battery pack
To insert the battery pack, proceed as follows:
1Open the cover of the battery bay.
2Insert the battery pack with the label facing down into the battery bay on the left side of the computer.
3Close the cover of the battery bay until it clicks.
When the computer is directly connected to AC power and has a battery pack inserted in the battery bay, it uses power from the AC outlet.
Sony Notebook User Guide
Using your notebook
21
nN
Charging the battery pack
To charge the battery pack, proceed as follows:
1Connect the AC adapter to the computer.
2Insert the battery pack.
The computer automatically charges the battery (1) (the battery indicator (2) light flashes in a double
blink pattern as the battery charges). When the battery is 85% full, the battery indicator light turns off.
This process takes approximately one hour for the PCG-FX301. To charge the battery completely,
continue charging for an additional hour.
There are two battery indicator lights on the computer:
1 Indicates the status of the battery pack in the battery bay on the left side of the computer.
2 Indicates the status of the battery pack in the multi-purpose bay on the right side of the computer.
battery indicator light status meaning
on The computer is using battery power.
single blink The battery is running out of power.
Sony Notebook User Guide
Using your notebook
22
nN
When the battery is running out of power, both the battery and power indicators blink.
Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.
If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery or shut down your computer and insert a fully
charged battery.
The battery pack supplied with your computer is a lithium ion battery and can be recharged any time. Charging a partially discharged battery does
not affect battery life.
The battery indicator light is on while you use the battery pack as a power source. When the battery life is nearly depleted, the battery indicator starts
flashing.
For some software applications and some peripheral devices, your computer may not enter Hibernate mode when battery life is low. To avoid loss
of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Standby or
Hibernate.
When the computer is directly connected to AC power and has a battery pack inserted in the battery bay, it uses power from the AC outlet.
double blink The battery is charging.
off The computer is using AC power.
battery indicator light status meaning
Sony Notebook User Guide
Using your notebook
23
nN
Removing the battery pack
To remove the battery pack, proceed as follows:
1Turn off the computer.
2Open the cover of the battery bay.
3Pull out the battery pack.
4Close the cover of the battery bay.
You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while
the computer is in Standby mode.
Sony Notebook User Guide
Using your notebook
24
nN
Using the second battery pack
You can purchase a second rechargeable battery pack. With two battery packs, you can extend the time you
use your computer with battery power. When using two battery packs, the battery pack you insert first,
charges first. The battery pack you insert second, charges when the first battery pack is 85 percent full. You
can monitor which battery pack is charging by observing the battery indicator lights.
Inserting the second battery pack
To insert a second battery pack, proceed as follows:
1If the floppy disk drive is in the multi-purpose bay (1), remove it.
2Insert the battery pack (2) into the multi-purpose bay.
The battery 2 indicator light turns on.
3Attach the weight saver (3) to the computer to stabilize the battery pack.
Sony Notebook User Guide
Using your notebook
25
nN
4Slide the eject lever on the bottom of the weight saver toward the front of the computer to lock it.
If you attach two battery packs, you can remove one of them without shutting down the computer. When removing one battery pack, make sure that
the other battery pack indicator is on. If the indicator of the battery pack your are going to remove is on, right click the battery icon in the system tray
and click the Switch Discharge Battery option.
Sony Notebook User Guide
Using your notebook
26
nN
Charging the second battery pack
To charge the second battery pack, proceed as follows:
1Keep the battery pack (1-3) in the computer while it is connected to AC power.
The battery indicator (2) flashes while the battery is charging.
2When the battery indicator stops flashing, the battery is fully charged.
Sony Notebook User Guide
Using your notebook
27
nN
Removing the second battery pack
To remove the second battery pack, proceed as follows:
1Slide the eject lever on the bottom of the weight saver, in the direction of arrow 1.
2Slide the release lever on the bottom of the computer in the direction of arrow 2.
3Remove the weight saver.
4Pull out the battery pack
5Reinsert the weight saver.
Sony Notebook User Guide
Using your notebook
28
nN
Starting your notebook
To start your computer, proceed as follows:
1Slide the LCD lock lever (1) in the direction of the arrow, and lift the cover.
2Press the power button (2) of the computer until the green power indicator (3) light turns on.
3If necessary, press <Fn>+<F5> to adjust the brightness controls for the LCD display. To increase the
brightness, use the up or right arrow keys. To decrease, use the down or left arrow keys.
<Fn> + <F5> is only possible if Windows is running.
If you press the power button for more than four seconds, the computer will turn off.
Sony Notebook User Guide
Using your notebook
29
nN
Shutting down your notebook
It is important that you shut down your computer properly so you do not lose unsaved data.
To shut down your computer, proceed as follows:
1Click the Start button on the Windows® taskbar.
2Click Shut Down.
The Shut Down Windows dialog box appears.
3Select Shut down.
4Click OK.
5Wait for your computer to turn off automatically.
The power indicator turns off.
6Turn off any peripheral connected to your computer.
Respond to any prompts warning you to save documents.
If you are unable to shut down your computer:
- Close all software in use.
- Remove the PC Cards, if inserted. To do so, double-click the Unplug or Eject Hardware icon in the taskbar. Select the hardware you want to
unplug and click Stop.
- Disconnect any USB devices.
- Then press the <Ctrl>+<Alt>+<Delete> keys at the same time to enter the Windows Security feature to close any application that can not
close normally, and restart your system.
If this does not work, you can press the power button for more than four seconds. This will shut down the computer. This operation may result in data
loss.
If you want to shut down the computer for a short period only, you can save power by using the Standby mode.
Sony Notebook User Guide
Using your notebook
30
nN
Registering your notebook
You can take advantage of Sony’s commitment to quality customer support and receive the following
benefits by registering your computer:
VAIO-Link – If you are experiencing any problems with your computer, you can check the VAIO-Link web
site for a possible solution:
http://www.vaio-link.com
Guarantee – Protect your investment. See the Guarantee sheet for the terms and conditions and refer
to your Customer Service Guide for more information.
To register your Sony notebook, proceed as follows:
1Click the Registration icon on your desktop.
2Click Next.
3Click Internet.
4Fill in your Registration card fields.
5Scroll down to the bottom of the form and click Send.
6Click OK.
You must connect your phone line before using any online services, including the online registration service.
To access the online Registration web page, you must have a connection to the Internet.
Sony Notebook User Guide
Using your notebook
31
nN
Using the keyboard
Your keyboard is very similar to a desktop computer’s, but has additional keys that perform specific
notebook-related tasks.
Keys Descriptions
Escape key (1) The <Esc> (Escape) key is used to cancel commands.
Function keys (2) The twelve function keys along the top of the keyboard are used to perform designated
tasks. For example, in many applications, <F1> is the Help key. The task associated with each
function key may vary from one application to the other.
11
12
Sony Notebook User Guide
Using your notebook
32
nN
Print Screen key (3) The <Print Screen> key takes an electronic snapshot of the screen and moves it to the
Windows Clipboard. You can then paste the screenshot into a document and print it.
Correction keys (4) The <Insert>, <Back Space> and <Delete> keys enable you to make corrections.
Navigation keys (5) These keys enable you to move the cursor on the screen.
Application key (6)
The Application key displays a shortcut menu; pressing this key is equivalent to clicking the
right mouse button.
Numeric keypad area (7) Contains the keys found on a typical calculator. Use the numeric keypad area to type numbers
or to perform mathematical calculations such as addition and subtraction. Note that you
must press the <Num Lock> key to activate the numeric keypad. When you do so, the Num
Lock light illuminates.
Operator keys (8-11-12) Several keys are always used with at least one other key: <Ctrl>, <Alt>, and <Shift>. When
held down with another key, the <Ctrl> (Control) and <Alt> (Alternate) keys offer another
way to execute commands. For example, in many applications, instead of choosing the Save
command from a menu, you can hold down <Ctrl> and press <S> (referred to as
<Ctrl>+<S>). The <Shift> key is used to produce capital letters or special symbols such as @
and $.
Windows® key (9)
The key with the Windows®logo displays the Windows®Start menu; it is equivalent to
clicking the Start button on the taskbar.
Fn key (10) The <Fn> key is used in combination with other keys to execute commands.
Keys Descriptions
Sony Notebook User Guide
Using your notebook
33
nN
Combinations and functions with the Windows key
Combinations Functions
+ F1
Displays Windows Help.
+ Tab
Switches the selected button on the taskbar.
+ E
Displays Windows Explorer.
+ F
Displays the Search Results window to find a file or folder. This is equivalent to
selecting Search and then For files or Folders from the Start menu.
+ Ctrl + F
Displays the Search Results - Computers window where you can locate other
computers.
+ M
Minimizes all displayed windows.
Shift + + M
Returns all minimized windows to their previous size.
+ R
Displays the Run window. This is equivalent to selecting Run from the Start menu.
Fn + + Insert
Displays the System Properties window. This is equivalent to double-clicking the
System icon in the Control Panel.
Sony Notebook User Guide
Using your notebook
34
nN
Indicators
Indicator Functions
Power
Power on: lights green.
Standby mode: flashes umber.
Battery 1
Indicates the status of the battery inserted in the
battery bay on the left side of the computer.
Battery 2
Indicates the status of the battery inserted in the
battery bay on the right side of the computer.
Light On Off
hard disk
Data is read from or written to the hard drive. Do
not enter Standby mode or turn off the computer
when this indicator light is on.
The hard drive is not being accessed.
Num Lock
Turns on when the number keys in the numeric
keypad are active.
Turns off when the alphanumeric character keys in
the keypad area are active.
Caps Lock
Turns on when the letters appear in uppercase as
you type. The <Shift> key lowers the case of typed
letters when <Caps Lock> is on.
Turns off when the letters appear in lowercase as
you type (unless you hold down the <Shift> key).
Scroll Lock
Turns on when the screen scrolls differently
(depends on the application, no effect in many
applications).
Turns off when the information moves across the
display normally.
Sony Notebook User Guide
Using your notebook
35
nN
Combinations and functions with the Fn key
* First you need to connect your external display, then you turn on your notebook. When you connect your external display when the computer is
already on, you cannot use the key combination <Fn>+<F7> or <Fn>+<F8>.
Some functions are not available until Windows is launched.
Combinations/ Feature Functions
Fn + (ESC): Standby
Puts the system into Standby mode, a power management state. To return
the system to the active state, press any key.
Fn + (F3): speaker switch
Toggles the built-in speaker on and off.
Fn + (F4): speaker volume
Adjusts the built-in speaker volume.
To increase volume, press <Fn>+<F4> and then or
To decrease volume, press <Fn>+<F4> and then or
Fn + (F5): brightness control
Adjusts the brightness of the LCD.
To increase light intensity, press <Fn>+<F5> and then or
To decrease light intensity, press <Fn>+<F5> and then or
Fn + / (F7)*: switch to the external display
Toggles between the LCD, external display (connected to the monitor
connector) and both LCD and external display.
Fn + / (F8)*
Toggles between the LCD and both LCD and TV.
Fn+ (F12): Hibernate
Provides for the lowest level of power consumption. When you execute this
command, the states of the system and of the peripheral devices are
written to the hard disk and the system power is turned off. To return the
system to its original state, use the power switch to turn on the power.
Sony Notebook User Guide
Using your notebook
36
nN
Using the touchpad
The keyboard contains a cursor-pointing device, your touchpad (1). You can point to, select, drag, and scroll
objects on the screen using the built-in touchpad.
Action Description
point Slide one finger on the touchpad to place the pointer (2) on an item or object.
click Press the left button (3) once.
double-click Press the left button twice.
right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.
drag Slide one finger while pressing the left button.
scroll Move your finger along the right edge of the touchpad to scroll vertically. Move your finger along the
bottom to scroll horizontally. (The scroll function is available only with applications that support a touchpad
scroll feature.)
Sony Notebook User Guide
Using your notebook
37
nN
Using the DVD-ROM drive
Your computer is equipped with a DVD-ROM drive.
To insert a disc, proceed as follows:
1Turn on the computer.
2Press the eject button (1) to open the DVD-ROM drive.
The tray slides out.
3Place a CD/DVD-ROM disc in the middle of the tray with the label side facing up until the disc clicks into
place.
Sony Notebook User Guide
Using your notebook
38
nN
4Close the tray by pushing it gently.
When the computer is in Standby or Hibernate mode, you cannot insert or remove a disc.
Be sure to seat the disc firmly over the disc drive hub fingers. If you do not seat the disc firmly, you could damage your disc drive and you may not be
able to open the tray.
When you finish using a disc, wait until the LED indicator turns off and then press the eject button to remove the disc.

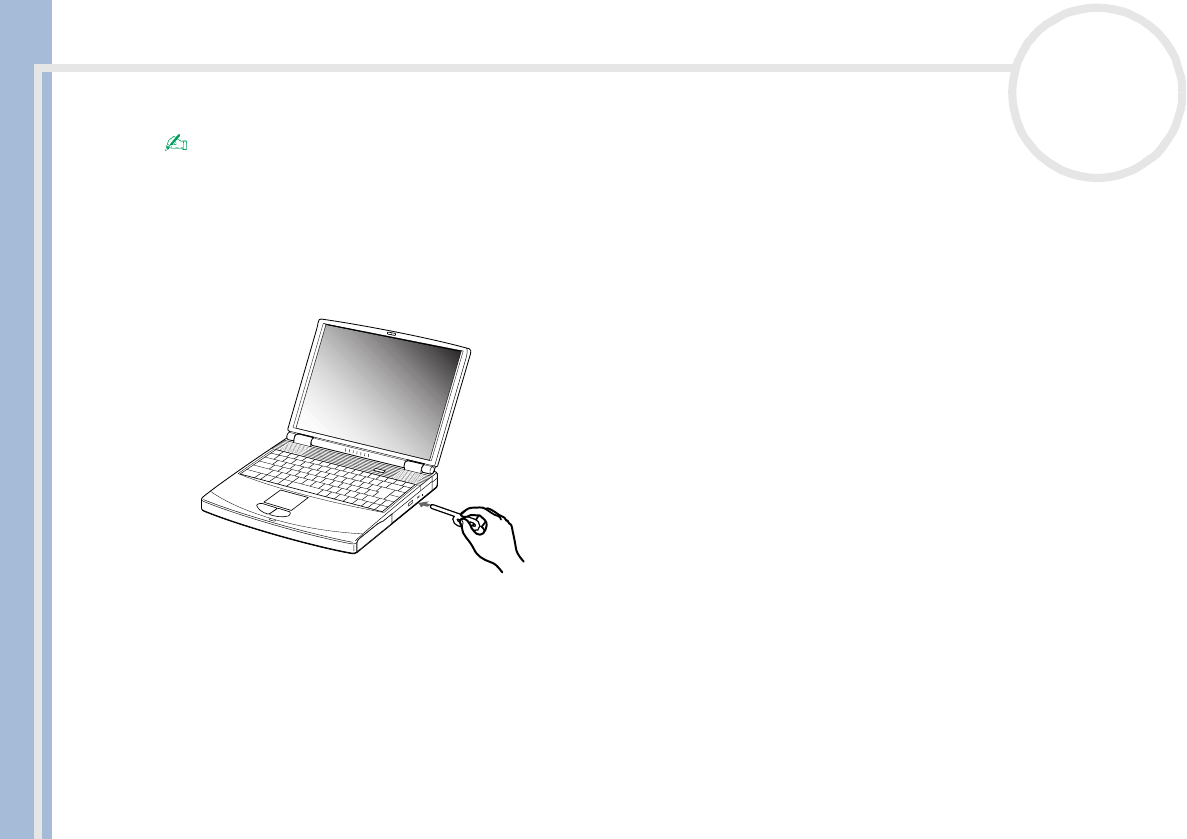

If the disc does not come out when you press the eject button, go to Windows Explorer. Select the drive, click the right button of your mouse and
select Eject. If it still does not work, turn off the computer and insert a thin, pointed object into the manual eject hole.
Sony Notebook User Guide
Using your notebook
39
nN
To achieve optimum performance when playing DVD-ROM discs, do the following:
You can play DVDs using a DVD-ROM drive and the WinDVD software. See the help file on the WinDVD
software for details.
Your computer should not be connected to the port replicator while playing DVD movies or using DVD
applications.
Close any open application before playing a DVD-ROM movie.
When playing DVD movies on battery power, set the power management profile to DVD. With other
profiles, the movies can be choppy.
Do not switch the power saving modes while playing DVD videos.
If the virus checker is active, you need to disable it.
Do not use resident disc utilities to speed up access of discs, because they may cause unstable operation.
Make sure that the screensaver is deactivated.
Depending on the display setup properties you selected, you may use the <Fn>+<F> command to expand
the screen to full screen size.
Region codes indicators are labeled on the DVD discs to indicate in which region and what type of player
can play the disc. Unless a '2' or 'all' is labeled on your DVD or on the packaging, you cannot play the
disc on this player.
Do not try to change the region code settings of the DVD-ROM drive. Any troubles caused by changing
the region code settings of the DVD-ROM drive, are out of warranty.
When a DVD video disc is inserted in the DVD-ROM drive, you cannot toggle between LCD and TV by
pressing <Fn>+<F8>.
When a TV is connected, a part of the video screen will not appear with the factory settings. Adjust the
display resolution to 640x480.
Sony Notebook User Guide
Using your notebook
40
nN
Using the weight saver
The weight saver protects the second battery as well as the multi-purpose bay when it is empty.
To attach the weight saver, proceed as follows:
1If another device is in the multi-purpose bay, remove the device.
2Pull out the guide (1) of the weight saver and slide the weight saver in the direction of the arrow (2) until
it clicks.
Sony Notebook User Guide
Using your notebook
41
nN
To remove the weight saver, proceed as follows:
1Slide the eject lever of the weight saver in the direction of arrow 1.
2Slide the release lever on the bottom of the computer in the direction of arrow 2.
Sony Notebook User Guide
Using your notebook
42
nN
Using the floppy disk drive
The computer is equipped with a removable floppy disk drive.
Inserting a diskette
To insert a diskette, proceed as follows:
1Hold the diskette (1) with the label side facing up.
2Gently push the diskette into the floppy disk drive (2) until it clicks into place.
Removing a diskette
To remove a diskette, proceed as follows:
1Wait untill the LED indicator (1) turns off.
2Press the eject button (2) to remove the diskette.
Do not press the eject button when the LED indicator is turned on. Otherwise, data may be lost.
Sony Notebook User Guide
Using your notebook
43
nN
Removing the floppy disk drive
To remove the floppy disk drive, proceed as follows:
1Turn off the computer.
2Slide the release lever (1) on the bottom of the computer in the direction of the arrow.
3Slide the drive (2) out of the multi-purpose bay.
4Insert the weight saver.
Sony Notebook User Guide
Using your notebook
44
nN
Re-inserting the floppy disk drive
To insert the floppy disk drive, proceed as follows:
1Turn off the computer.
2If another device is in the multi-purpose bay (1), remove the device.
3Insert the floppy disk drive (2) into the multi-purpose bay with the metallic part up.
4Continue pushing the drive into the bay until the release lever locks into place.
Sony Notebook User Guide
Using your notebook
45
nN
Using PC Cards
This computer has a Card Bus PC Card slot that supports Type I, Type II or Type III PC Cards. PC Cards allow
you to connect portable external devices.
You do not need to shut down your computer when inserting a PC Card.
Inserting a PC Card
To insert a PC Card, proceed as follows:
1Push the release button.
The release button pops out.
2Push the release button.
The PC Card slot comes out.
Sony Notebook User Guide
Using your notebook
46
nN
3Insert the PC Card into the PC Card slot front label facing up.
4Gently push the PC Card slot into the connector.
The PC Card is automatically detected by your system.
The Unplug or Eject Hardware icon appears in the system tray.
Some devices may not function properly if you repeat Returning to Normal mode from Standby mode or Hibernate mode.
The computer will return to its original state if you restart it.
The PC Card slots can accommodate (at the same time) two Type I, two Type II or one Type III PC Card. These slots are compatible with Card Bus port.
Use the lower slot for PC Type III cards.
Be sure to use the most recent software driver provided by the PC Card manufacturer.
If an “!” mark appears on the Device Manager tab in the System Properties dialog box, remove the software driver and then reinstall it.
You do not need to shut down the computer before inserting or removing a PC Card.
Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the
PC Card in the correct direction. See the manual supplied with your PC Card for more information on use.
For some PC Cards, if you alternate between Normal power operation and Standby or Hibernate power management modes while the card is
inserted, you may find that a device connected to your system is not recognized. Reboot your system to correct the problem.
Sony Notebook User Guide
Using your notebook
47
nN
Removing a PC Card
Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your
system may not work properly. If you want to remove a PC Card when your computer is off, skip steps 1 to 7.
To remove a PC Card, proceed as follows:
1Double-click the Unplug or Eject Hardware icon in the taskbar.
The Unplug or Eject Hardware dialog box appears.
2Select the hardware you want to unplug.
3Click Stop.
4In the Stop a Hardware Device dialog box, confirm that the device can be safely removed from the
system.
5Click OK.
A message appears explaining that it is safe to remove the device.
6Click OK.
7Click Close.
8Press the PC Card release button so that it pops out.
9Push the PC Card release button to eject the card.
10 Gently grasp the card and pull it out.
11 If the PC Card release button is still out, push the PC Card release button in the notebook.
If you unplug the PC Card from the computer when this is still turned on, your system might crash and you might lose data that you did not save before.
Before you remove the PC Card, click the PC Card icon in the taskbar and close the card. Close any applications that use the PC Card before removing
the card. Otherwise, data may be lost.
While the card is inserted, your computer may not enter the Hibernate power management mode. It may enter Standby mode. It is recommended
to remove the card when your computer enters Hibernate mode by pressing <Fn>+<F12> , and when it is set to enter Hibernate automatically
while using a battery as the source of power.
Some PC Cards or their functions may not be compatible with this computer.
Sony Notebook User Guide
Using your notebook
48
nN
The Memory Stick™
Introduction
Your VAIO computer is designed to support the Memory Stick™. The Memory Stick™ is a compact, portable,
and versatile device especially designed for exchanging and sharing digital data with compatible products.
Because it is removable, it can be used for external data storage.
Use the flash memory technology to download anything that can be converted into digital data, such as
pictures, music, words, sounds, movies and photographs.
Foreseen as the universal data storage device of the future, the Memory Stick™ can already be used with an
ever-increasing range of compatible products, including:
Audio systems
Visual devices
VAIO products
CLIE handhelds
Mobile phones.
There are currently two different types of Memory Stick™:
The generic Memory Stick™, coloured blue or purple.
The MagicGate Memory Stick™, coloured white.
You can purchase Memory Sticks™ from the Sony Style website (http://www.sonystyle-europe.com), or from your local Sony dealer.
Sony Notebook User Guide
Using your notebook
49
nN
Why Memory Stick™?
Sony's vision is to expand the world of communication, promoting the portability of digital data. The
Memory Stick™ is the resulting medium, through which digital devices can be instantly connected. With it,
you can download data from any compatible device, then transfer it to another in a single and instant
transfer.
The main advantages of the Memory Stick™ are its:
Compactness: with dimensions of just 21.5 mm (W) x 2.8 mm (H) x 50 mm (D), compatible products can
also be small, lightweight and attractive in their design.
Capacity: Its data capacity far exceeds that of a floppy disk.
Security: its lock option means you can protect your data from accidental erasure.
Versatility: memory capacity ranges from 4MB up to 128MB (the equivalent capacity of 88 floppy disks).
Reliability: by way of protecting the hardware and its contents, the number of terminals is reduced to
only 10 pins. This, and the overall robust structure of the stick, gives it a longer lifespan than other
storage devices.
Durability: the same Memory Stick™ can be used tens of thousands of times.
Forward compatibility: the Memory Stick's™ current format is designed to be compatible with future
products and higher capacity Memory Sticks™.
Sony Notebook User Guide
Using your notebook
50
nN
The future of Memory Stick™
Memory Stick's™ potential is virtually unlimited, with the number of compatible products increasing
rapidly in both personal and professional spheres.
The introduction of the 256 MB and 512 MB Memory Stick™ is anticipated in 2002, and a 1 gigabyte capacity
Memory Stick™ is expected in 2003. Additionally, the native transfer speed of the Memory Stick™ will be
increased to accommodate the increasing capacity. By the end of 2002, Memory Stick's™ transfer speed
will be increased by eight times to a maximum of 20MB/sec.
Sony Notebook User Guide
Using your notebook
51
nN
Generic Memory Stick™
The original Memory Stick™, blue or purple in colour, can be used to record image data taken with digital
still cameras, etc. or data from the PC. With it, you can record, play back and transfer various kinds of data
at any given time.
Because it is easy to remove and transport safely, you can use Memory Stick™ anywhere by inserting it into
any compatible device to transfer and share the information you have saved.
For you, this means you can expand the capabilities of your VAIO computer in the following scenarios:
With your still digital camera, share your holiday pictures instantly by e-mail.
From your handycam to your VAIO, make the most of your captured moments with the VAIO's movie
editing tools.
Carry pictures on you by copying image files from the Internet to your VAIO to your CLIE handheld.
With your voice recorder, add your voice to e-mails so your tone is never misunderstood.
The blue Memory Stick™ is currently available with a 4MB, 8MB, 16MB, 32MB, 64MB or a 128MB memory
(the equivalent capacity of 88 floppy disks).
Generic Memory Sticks™ cannot be used with the Memory Stick™ Walkman, or with data that is protected by copyright.
Sony Notebook User Guide
Using your notebook
52
nN
MagicGate Memory Stick™
The MagicGate Memory Stick™, white in colour, records PC and image data just like its blue counterpart; the
difference is it uses the MagicGate copyright protection technology.
With this type of Memory Stick™, also called the MG Memory Stick™, you can enjoy the following features:
32MB, 64MB and 128MB capacity versions.
Storage of up to 120 minutes of audio data.
Download and save:
digital music
pictures
movies, and more.
Combine data files to add music to your home movies, for example.
Transfer and share data between several digital products.
MagicGate Copyright Protection Technology.
SDMI (Secure Digital Music Initiative) Compliance.
OpenMG Jukebox software.
So that you further distinguish a MagicGate Memory Stick™ from a generic one, look for:
the logo printed on it
a protruding dot located on the back.
MagicGate is a copyright protection technology that complies with the standards set by SDMI (Secure Digital Music Initiative, an organization working
to draw up industry standard specifications in order to protect copyrights of digital music).
The logo indicates the copyright protection system devised by Sony. It is not meant to guarantee compatibility with other media.
Sony Notebook User Guide
Using your notebook
53
nN
MagicGate
MagicGate refers to the copyright protection technology used by the MagicGate Memory Stick™ and other
MagicGate Memory Stick™ compatible devices.
The Memory Stick™ Walkman and MagicGate Memory Stick™ work together to check the data and ensure
it complies with copyright protection.
If no problems are detected, the data is exchanged in encrypted form; if authentication is not passed, data
cannot be exchanged or played back.
OpenMG
This is a copyright protection technology that is used to manage the digital music content downloaded to
the PC from CDs, the Internet and/or other sources.
Software installed on the PC records music content in encrypted form onto the hard disk. As well as allowing
you to enjoy music on the PC, this technology protects against unauthorized distribution on the Internet.
Since it is compatible with MagicGate, you can use OpenMG to transfer music that you have downloaded
onto your PC to your MG Memory Stick™, and playback on other Magic Gate-equipped devices and media.
Copyright protection
People who create artistic works such as music are entitled to a "copyright", meaning that they have
exclusive rights to dictate how their work is used. When they are created, artistic works are automatically
protected by a copyright without having to submit notification or registration, and may not be used without
the permission of the person who created the work.
In the music world, however, illegal acts of distributing music without the permission of the artist,
particularly on the Internet, have recently been on the increase. That is why the Recording Industry
Association of America (RIAA) took the initiative to organize a forum called Secure Music Digital Initiative
(SDMI) to study technology for protecting copyrights during the electronic distribution of music.
Sony offers the MagicGate Memory Stick™ and Memory Stick™ Walkman with a copyright protection
function that complies with SDMI standards, thereby providing an environment where individuals can
record and enjoy third-party music data without worrying about copyright infringement.
Literary works that are recorded by individuals are permitted for private usage only.
Sony Notebook User Guide
Using your notebook
54
nN
Compatible devices
There are nearly 80 Memory Stick™-enabled products on the market or announced for introduction world-
wide, ranging from camcorders and portable music players to voice recorders and many other electronic
devices.
You can currently use Memory Sticks™ with the following Sony products:
Visual:
Cybershot digital camera
Mavica digital camera
PC, TRV and VX series digital video cameras
LC data projector
Audio:
MS Walkman
MS Hi-fi system
Network Walkmans
Voice recorders
Other:
VAIO notebooks
VAIO desktops
CLIE Handheld Entertainment Organiser
Sony mobile phones
Digital printers
AIBO the Sony Entertainment Robot
To find out more about the products available in your country, go to:
http://www.sonystyle-europe.com
Sony Notebook User Guide
Using your notebook
55
nN
Using the Memory Stick™
The Memory Stick™ is specially designed for exchanging and sharing digital data with compatible products.
Because it is removable, it can be used for external data storage.
You need an optional PC Card adapter to use this function and one PC Card slot.
Only insert one Memory Stick™ at a time!
When the Memory Stick™ erasure prevention switch is set to LOCK, data cannot be recorded or erased.
You can enjoy still images that you have recorded with a Memory Stick compatible video camera recorder or a digital still camera.
Before using Memory Sticks™, you should back up important data.
To avoid damaging data:
- Do not remove a Memory Stick™ or turn off the power while the access light is on.
- Do not use Memory Sticks™ in locations that are subject to static electricity or electrical noise.
- Do not touch the Memory Stick™ connector with your finger or metallic objects.
- Do not attach labels other than the supplied label of a Memory Stick™.
- Do not bend, drop, or apply strong shock to Memory Sticks™.
- Do not disassemble or modify Memory Sticks™.
- Do not allow Memory Sticks™ to get wet.
- Do not use or store Memory Sticks™ in a location that is subject to:
- Extremely high temperatures, such as in a car parked in the sun
- Direct sunlight
To prolong the life of Memory Sticks™, use the supplied storage case.
Sony Notebook User Guide
Using your notebook
56
nN
Inserting a Memory Stick™
To insert a Memory Stick™, proceed as follows:
1Once you have stored your data from your digital device, insert the Memory Stick™ (1) into the optional
PC Card adapter (2).
2Push the release button.
The release button pops out.
3Push the release button.
The PC Card slot comes out.
4Pull the PC Card slot out of the connector.
5Insert the PC Card adapter into the connector (3) on your computer (label facing up) and push it gently.
6The Memory Stick™ is automatically detected by your system and appears in your My Computer
window as a local drive, under the appropriate letter (depending on the configuration of your
computer).
When your Memory Stick™ is detected, the Unplug or Eject Hardware icon appears in the taskbar.
!Hold the Memory Stick™ with the arrow pointing in the correct direction when you insert it into the slot. To avoid damaging the computer or the
Memory Stick™, do not force the Memory Stick™ into the slot if it does not insert smoothly.
Sony Notebook User Guide
Using your notebook
57
nN
Removing a Memory Stick™
To remove a Memory Stick™, proceed as follows:
1Double-click the Unplug or Eject Hardware icon in the taskbar.
The Unplug or Eject hardware dialog box appears.
2Select the hardware you want to unplug.
3Click Stop.
4In the Stop a Hardware device dialog box, confirm that the device can be safely removed from the
system.
5Click OK.
A message appears explaining that it is safe to remove the device.
6Click OK.
7Click Close.
8Press the PC Card release button so that it pops out.
9Push the PC Card release button to eject the card.
10 Gently grasp the card and pull it out.
Always remove the Memory Stick™ gently, or it may pop out unexpectedly.
It is recommended to remove the Memory Stick™ before shutting down the computer.
Sony Notebook User Guide
Using your notebook
58
nN
Using the modem
Your notebook is equipped with an internal modem. You need to connect to a phone line to take advantage
of online services and the Internet, but also to register your computer and software online, and to contact
VAIO-Link.
To connect a phone line, proceed as follows:
1Plug one end of the phone cable (1) into the phone line jack on the computer.
2Plug the other end into the wall jack (2).
A country-specific phone plug is supplied with your VAIO notebook, allowing you to plug the phone line into the wall jack. We recommend you to
use the supplied plug, because the usage of any other phone plug can decrease the connection quality.
Your computer cannot be connected to a coin-operated telephone, and may not work with multiple phone lines or a private branch exchange (PBX).
If you connect the modem to a parallel connected phone line, the modem or the other connected device may not function properly. Some of these
connections may result in excess electrical current and could cause a malfunction in the internal modem.
Phone cable and connectors are TNV (Telecommunications Network Voltage) compliant, according to EN60950.
Only DTMF (Dual Tone Multi Frequency) signalling (tone dialling) is supported.
Sony Notebook User Guide
Using your notebook
59
nN
Using power saving modes
When you use a battery as the source of power for your computer, you can take advantage of power
management settings to conserve battery life. In addition to the normal operating mode, which allows you
to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate.
When using battery power, you should be aware that the computer automatically enters Hibernate mode
when the remaining battery charge drops below 7 percent, regardless of the power management setting
you select.
If the battery level falls below 10 percent, you should either attach the AC adapter to recharge the battery or shut down your computer and insert a
fully charged battery.
Using Normal mode
This is the normal state of your computer when it is in use. The green power indicator light is on in this mode.
To save power, you can turn off a specific device such as the LCD or the hard disk.
Using Standby mode
The computer saves the current state of the system in RAM and switches off power to the CPU. The umber
power light flashes in this mode.
To activate Standby mode, proceed as follows:
Press <Fn>+<Esc>
Or,
Press the power button and release it immediately.
To return to Normal mode, proceed as follows:
Press any key.
Sony Notebook User Guide
Using your notebook
60
nN
If you press the power button for more than four seconds, the computer will switch off automatically.
When the computer is in Standby mode, you cannot insert a disc.
Standby requires less time than Hibernate.
Standby uses more power than Hibernate.
If you do not work with your computer on AC power for 30 minutes, it will enter System Standby mode.
As a result, if you are using the CD-ROM drive or DVD-ROM drive, the operation will be interrupted.
Using Hibernate mode
The state of the system is saved on the hard disk and power is turned off. The power indicator light is off in
this mode.
To activate Hibernate mode, proceed as follows:
Press <Fn>+<F12>.
To return to Normal mode, proceed as follows:
Turn on the computer by pressing the power button.
The computer returns to its previous state.
When the computer is in Hibernate mode, you cannot insert a disc.
Hibernate mode requires more time than Standby mode.
It takes more time to return to normal mode from Hibernate mode than from Standby mode.
Hibernate mode uses less power than Standby mode.
Sony Notebook User Guide
Connecting peripheral devices
61
nN
Connecting peripheral devices
You can add functionality to your computer by connecting or using any of these peripherals.Before you
connect peripherals, turn off the computer and all peripherals. Connect the power cord only after
connecting all cables. Turn on the computer only after turning on all peripherals.
Connecting an external display (page 62)

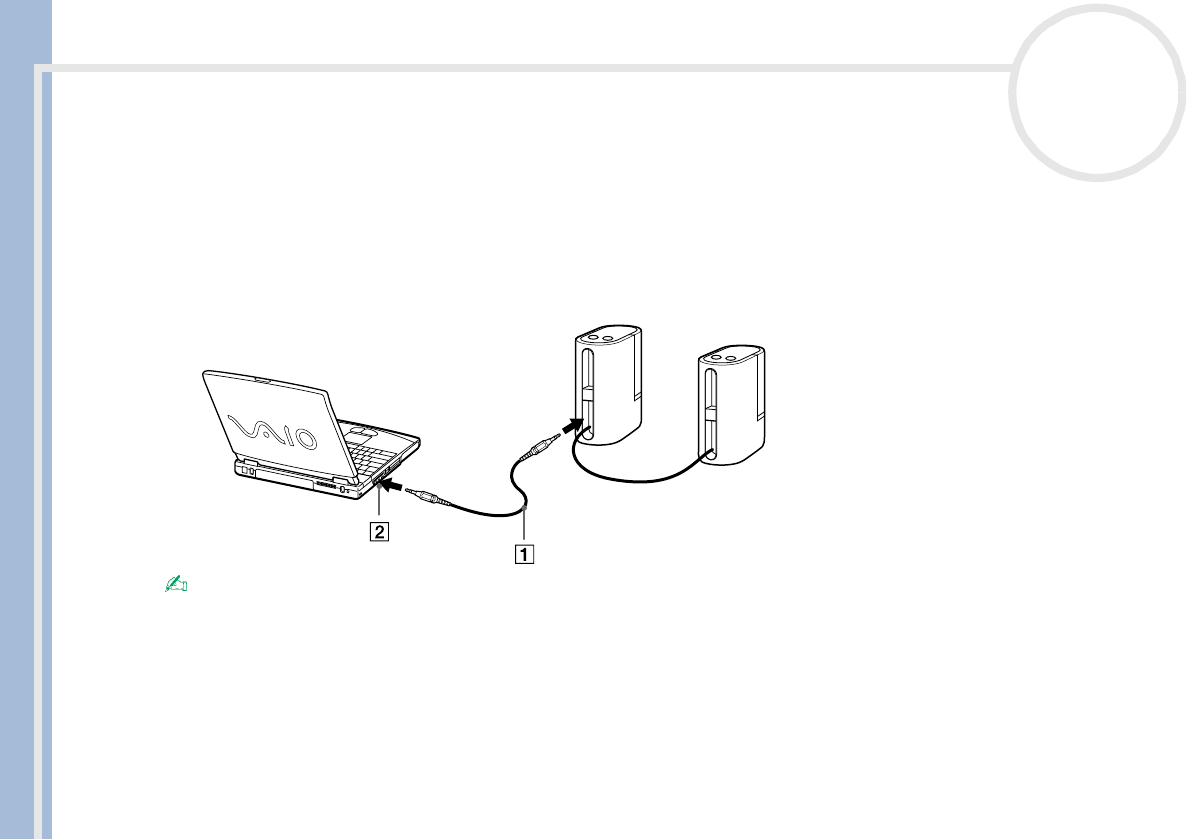

Connecting external speakers (page 68)
Connecting an external microphone (page 69)
Connecting a Universal Serial Bus (USB) mouse (page 70)
Connecting a printer (page 71)
Connecting an i.LINK™ device (page 73)
Connecting to a network (LAN) (page 76)
Sony Notebook User Guide
Connecting peripheral devices
62
nN
Connecting an external display
You can connect an external display to your notebook. For example, you can use your computer with the
following devices:
Computer display (monitor);
Multimedia computer display;
TV;
Projector.
Turn off your computer and the peripherals, unplug the AC adapter and the power cord before connecting the external display.
Connect the power cord after connecting all other cables.
Turn on the peripherals, then turn on your computer.
Connected external displays are used as second screens.
On Windows® systems only, you can also use an external display to set up a virtual desktop.
Sony Notebook User Guide
Connecting peripheral devices
63
nN
Connecting a computer display
To connect a computer display, proceed as follows:
1Plug the display cable (1) in the monitor connector (2) on the computer.
2If necessary, plug one end of the display’s power cord (3) into the display, and the other end into an AC
outlet.
Sony Notebook User Guide
Connecting peripheral devices
64
nN
Connecting a multimedia computer display
You can connect the notebook to a multimedia computer display that includes built-in speakers and a
microphone.
To connect a multimedia computer display, proceed as follows:
1Plug the display cable (1) in the monitor connector (2) on the computer.
2Plug the speaker cable (3) in the headphone connector (4) on the computer.
3Plug the microphone cable (5) in the microphone connector (6) on the computer.
Sony Notebook User Guide
Connecting peripheral devices
65
nN
Connecting a TV
To connect a TV, proceed as follows:
1Shut down the notebook.
2Plug one end of the audio/video cable (1) into the TV Out connector (2) (yellow) and the other end into
the TV.
3Plug one end of the sound cable (3) into the headphone connector (4) and the other end into the TV.
4Plug the power cord of the TV (5) into an AC outlet.
5Switch the input channel of the TV to external input.
6Set up the TV configuration system.
Sony Notebook User Guide
Connecting peripheral devices
66
nN
See the manual supplied with your peripheral for more information on installation and use.
If you insert a DVD in your DVD-ROM drive to watch a video on your TV, the <Fn>+<F8> key combination might not activate the function to toggle
between your LCD and TV.
Solution:
1. Eject your DVD from your computer.
2. Once the DVD is ejected, toggle between your LCD and your TV with the combination <Fn>+<F8>.
Your image displays now on both LCD and TV. Re-insert your DVD to launch your DVD software.
If the display resolution of your computer is more than 800 x 600 pixels, a part of the image cannot be displayed on your TV. The hidden area on your
TV can be seen by moving the cursor on your computer. If you want to display the full image, change the display resolution of your computer to
640 x 480 pixels.
Sony Notebook User Guide
Connecting peripheral devices
67
nN
Connecting a projector
You can use a projector as an external display, such as the Sony LCD Projector.
To connect a projector, proceed as follows:
1Plug the RGB signal cable (1) into the monitor connector (2) identified by the symbol.
2Plug the audio cable (3) (not supplied) into the earphone connector (4) identified by the symbol.
3Plug the RGB signal cable and the audio cable into the connectors of the projector (5).
4Connect the power cord (6) of the projector into an AC outlet.
You may not be able to display the computer's LCD and the external display together, depending on the types of computer display and projector used.
You can toggle the output between the notebook LCD-screen and the external monitor by pressing <Fn>+<F7>.
Sony Notebook User Guide
Connecting peripheral devices
68
nN
Connecting external speakers
You can enhance the sound quality of your computer by connecting external speakers.
To connect external speakers, proceed as follows:
1Plug the speaker cable (1) into the earphone connector (2).
2Plug the other end of the speaker cable into the external speaker.
3Turn down the volume of the speakers before you turn them on.
Make sure your speakers are designed for computer use.
Do not place diskettes on the speakers; their magnetic field may damage the data on the diskettes.
Sony Notebook User Guide
Connecting peripheral devices
69
nN
Connecting an external microphone
Your VAIO notebook does not contain an internal microphone. If you need to use a sound input device, for
example to chat on the Internet, you need to plug in an external microphone.
To connect an external microphone, proceed as follows:
Plug the microphone cable (1) into the microphone connector identified by the symbol.
Make sure your microphone is designed for computer use.
Sony Notebook User Guide
Connecting peripheral devices
70
nN
Connecting a Universal Serial Bus (USB) mouse
You can connect a USB device (e.g., mouse, keyboard…) to your computer.
To connect a USB mouse, proceed as follows:
1You can find 2 USB connectors (1) at the back of your notebook.
2Plug the USB mouse cable (2) into the USB connector.
You can use your USB mouse (3).
You do not need to shut down the computer before connecting or disconnecting a USB peripheral.
The USB mouse software driver is preinstalled on your notebook, therefore, you only need to plug the USB mouse into the USB connector and you
can start working.
You may need to install software (device drivers) supplied with your USB device before using the USB device.
Sony Notebook User Guide
Connecting peripheral devices
71
nN
Connecting a printer
You can connect a Windows-compatible printer to your computer to print documents.
Connecting a printer using the USB connector
You can connect a USB printer compatible with your version of Windows to your computer.
To connect a printer using the USB connector, proceed as follows:
1Plug an optional USB printer cable (1) into the USB connector (2) identified by the symbol on your
computer and printer.
2Plug the printer (3) power cord into an AC outlet.
Turn off your computer and the printer, unplug the AC adapter and the power cord before connecting the printer.
Sony Notebook User Guide
Connecting peripheral devices
72
nN
Connecting a printer using the printer connector
To connect a printer using the printer connector, proceed as follows:
1Plug the printer cable (1) supplied with the printer into the printer connector (2) identified by the
symbol.
2Plug the printer power cord (3) into an AC outlet.
Sony Notebook User Guide
Connecting peripheral devices
73
nN
Connecting an i.LINK™ device
Your computer includes an i.LINK™ (IEEE1394) connector, which you can use to connect to an i.LINK™ device
such as a digital video camera recorder or to connect two VAIO notebooks in order to copy, delete or edit
files.
The i.LINK™ connector of your notebook does not supply power to external devices generally powered by
i.LINK™ connectors.
The i.LINK™ connector supports transfer rates up to 400 Mbps; however, the actual transfer rate depends
on the transfer rate of the external device.
The i.LINK™ features available may vary depending on the software applications you use. Refer to the
documentation that came with your software for more information.
i.LINK™ cables compatible with your VAIO notebook include cables with the following part numbers:
VMC-IL4415 (a 1.5 meter cable with a 4-pin connector at each end), VMC-IL4408Series (a 0.8 meter cable with
a 4-pin connector at each end).
Sony Notebook User Guide
Connecting peripheral devices
74
nN
Connecting a digital video camera recorder
To connect a digital video camera recorder, proceed as follows:
1Plug one end of the i.LINK™ cable (1) into the i.LINK™ connector (2) of the computer and the other end
into the DV Out connector (3) on the digital video camera recorder.
2Launch the DVgate application.
On Sony digital video cameras, connectors labeled DV Out, DV In/Out or i.LINK™ are i.LINK™-compatible.
The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently.
If your digital video camera recorder includes a Memory Stick™ slot, you can copy images from it to your computer via a Memory Stick™.
To do so, simply copy images on the Memory Stick™, then insert it into the Memory Stick™ slot of your computer.
Sony Notebook User Guide
Connecting peripheral devices
75
nN
Connecting two VAIO notebooks
You can connect your notebook to another VAIO notebook using an i.LINK™ cable (1) (not supplied). With
Smart Connect* on your notebook, you can copy, edit or delete files on another VAIO notebook that has
also Windows® Millennium® Edition installed or that has Smart Connect 3.0.
You can also print a document on a printer connected to another VAIO computer.
* You can find Smart Connect on your Application Recovery CD-ROM.
When you use Smart Connect to connect two VAIO computers, you must assign each computer a unique name by which it can be identified when the
two computers are networked.
Sony Notebook User Guide
Connecting peripheral devices
76
nN
Connecting to a network (LAN)
You can connect your computer to 10BASE-T/100BASE-TX-type networks via an Ethernet network cable. For
the detailed settings and devices needed to connect to the network, consult your Network Administrator.
For more information about connecting your notebook to the network, please consult the Hardware troubleshooting section of the Vaio-Link website:
How to troubleshoot network problems
!Do not plug a phone cable into your computer network jack.
Sony Notebook User Guide
Getting help
77
nN
Getting help
This section describes how to get help and support from Sony, and provides troubleshooting tips for your
computer.
Sony support options
Sony provides several support options for your computer.
Printed documentation supplied with your notebook
A Getting Started brochure, where you find a brief description of the items in your box, some
specifications of your notebook, and how to setup your notebook;
A Customer Guide, where you find all the basic information you need to start using your notebook, as
well as troubleshooting and VAIO-Link information;
Yo ur Sony Guarantee conditions;
A Safety Regulations flyer;
A Modem Regulations flyer.
Online user guides on your Documentation CD-ROM
The Sony notebook user guide (hardware guide) explains how to use your computer, connect
peripheral devices. It contains a list of specifications of your computer and accessories.
The About the software on your Sony notebook guide (software guide) lists the pre-installed
software titles and explains how to use the utility programs and perform basic computer tasks.
Go to http://www.club-vaio.sony-europe.com to find online tutorials about your favorite VAIO software.
The Customer Service Guide gives you complete information on the VAIO-Link Services.
Sony Notebook User Guide
Getting help
78
nN
Other sources of information
The online help files that accompany your pre-installed software contain instructions on using the
software.
VAIO-Link website: if you have any problem with your computer, you can access the VAIO-Link web
site. Go to:
http://www.vaio-link.com
VAIO-Link Response Centre: Before contacting VAIO-Link Response Centre, try to solve the problem
by reading the User Guides and help files for the peripherals or software.
You need to plug in the phone line and configure your modem for use before using the communication features described in this manual.
Troubleshooting
This section describes how to solve common problems you might encounter when using your notebook.
Many problems have simple solutions. Please, try these suggestions before contacting VAIO-Link.
About the computer and software
My computer does not start
Check that the computer is plugged into a power source and that it is turned on.
Check that the power indicator on the front panel of the computer indicates that the power is on.
Check that the battery packs are inserted properly and that they are charged.
Make sure there is no diskette in the floppy disk drive.
Check that the power cord and all cables are connected firmly.
If you have plugged the computer into a UPS, make sure the UPS is turned on and works.
Sony Notebook User Guide
Getting help
79
nN
If you are using an external display, check that it is plugged into a power source and turned on. Check
that you have switched to the external display and that the brightness and contrast controls are adjusted
correctly.
Moisture condensation may have occurred. Do not use the computer for at least one hour and then turn
it on.
If the message Press <F1> to resume, <F2> to setup appears at the bottom of the display, you need
to initialize the BIOS.
Take the battery pack off the notebook, unplug the power cord and plug it again, then turn on the
power.
The message ’Press <F1> to resume, <F2> to setup’ appears at startup
If the floppy disk drive is empty, proceed as follows to initialize the BIOS:
1Turn off the computer.
2Remove any peripheral devices connected to the computer.
3Turn on the computer and press <F2> when the Sony logo appears.
The BIOS setup menu screen appears.
4Set the date (month/day/year).
5Press Enter.
6Press the arrow keys to select System Time.
7Set the time (hour:minute:second).
8Press Enter.
9Press the arrow keys to select the Exit menu.
10 Press the arrow keys to select Get Default Values and then press <Enter>. The Load default
configuration now? message appears.
11 Make sure that Yes is selected and then press <Enter>.
Sony Notebook User Guide
Getting help
80
nN
12 Press the arrow keys to select Exit (save changes) and then press <Enter>.
The message Save configuration changes and exit now? appears.
13 Make sure that Yes is selected and then press <Enter>.
My computer does not shut down
It is recommended to shut down your computer using the Shut Down command on the Windows® Start
menu. Using other methods, including those listed here, may result in loss of unsaved data. If the Shut
Down command does not work properly, proceed as follows:
Restart the computer by pressing <Ctrl>+<Alt>+<Delete> to enter the Windows Security feature to
close any application that can not close normally, and restart your system. The Windows Security dialog
box appears. Click Shut Down…. The Shut Down Windows dialog box appears. Select Shut down
and click OK.
If this does not work, press the power button and hold it for at least four seconds.
This turns off the power.
Unplug the computer from the AC adapter and remove the battery pack from your computer.
My computer locks up
If you suspect one application is locking your system, you can try to stop it. To do this, press
<Ctrl>+<Alt>+<Delete> once, select the application that is locking your system, and then click End
Tas k.
If the above method does not work or you do not know which application is locking your system, restart
the computer. On the Windows® taskbar, click the Start button, click Shut Down, and then select Shut
Down in the list and click OK.
If the above method does not work, press the power button and hold it for at least four seconds. This
turns off the power.
If your computer locks up while playing a CD/DVD-ROM, stop the CD/DVD-ROM, and shutdown the
computer by pressing <Ctrl>+<Alt>+<Delete>, and then click Shut Down.
Sony Notebook User Guide
Getting help
81
nN
My software program locks up or crashes
Contact the software publisher or designated provider for technical support.
My touchpad interprets a single tap as a double-click
Open the Mouse icon in the Control Panel and change the button assignments in the Mouse Properties
dialog box. One of the buttons is assigned to the double-click action.
My mouse does not work
If you are using a USB mouse, check that the appropriate driver and software are properly installed.
Check that the USB mouse is plugged into the USB connector.
About the display
My LCD does not display anything
Check that the computer is plugged into a power source and that it is turned on.
Check that the power indicator on the front panel of the computer is on.
Check that the battery packs are inserted properly and that they are charged.
Adjust the brightness of the LCD.
The computer may be in LCD (video) standby mode. Press any key to activate the display.
The display mode may be set to external display mode. Press and hold the <Fn> key while pressing <F7>
several times.
The screen image on my external display is not centered or sized properly
Use the controls on your external display to adjust the image.
The window I have just closed continues to appear on my LCD
Press the <Windows®> key and <D> key twice to refresh the screen.
Sony Notebook User Guide
Getting help
82
nN
About CD/DVD-ROMs and diskettes
My DVD-ROM drive tray does not open
Make sure the computer is turned on.
Press the eject button on the DVD-ROM drive.
If the eject button does not work, you can open the tray by inserting a sharp, pointed object into the
hole to the right of the eject button.
I cannot play a CD/DVD
Make sure the label of the disc is facing up.
If the disc requires software, make sure the software is installed according to the instructions of the
program.
Check the volume of your speakers.
Clean the disc.
Moisture condensation may have occurred. Do not use the computer for at least 1 hour while it is turned
on.
My floppy disk drive cannot write to a diskette
The diskette is write-protected. Disable the write-protect feature or use a diskette that is not write-
protected.
Check that the diskette is properly inserted into the floppy disk drive.
Sony Notebook User Guide
Getting help
83
nN
When I double-click an application icon a message such as ’You must insert the application CD into your DVD-
ROM drive’ appears and the software does not start.
Some titles require specific files that are located on the application CD-ROM. Insert the disc and try
starting the program again.
Make sure you place the disc in the tray with the label side facing up.
The disc tray does not eject even when the eject button is pressed
Check that the notebook is turned on.
The disc tray ejects even when it has been locked into place
Ensure that the disc is placed with the label side facing up.
Clean the disc and the DVD-ROM drive lens.
The disc may be scratched. Place another disc to see if that is the reason.
There may be condensation in the drive. Remove the disc and leave the drive open for approximately
one hour.
About sound
My speakers are not producing sound
The built-in speakers may be turned off. Press <Fn>+<F3> to turn on the speakers.
The speaker volume may be turned to the minimum. Press <Fn>+<F4>, and then press or to
increase the volume.
If your computer is powered by battery, check that the battery is inserted properly and that it is charged.
If you are using an application that has its own volume control, check that the volume is turned up.
Check the volume controls in Windows®.
Sony Notebook User Guide
Getting help
84
nN
If you use external speakers, check that the speakers are properly connected and the volume is turned
up. If the speakers have a mute button, make sure it is off. If batteries power the speakers, check that
the batteries are inserted properly and that they are charged.
If you have connected an audio cable to the headphone connector, disconnect the cable.
My microphone does not work
If you are using an external microphone, check that the microphone is plugged into the microphone
connector.
About the modem
My internal modem does not work
Check that the phone line is plugged into your computer.
Check that the phone line is working. You can check the line by plugging in an ordinary phone and
listening for a dial tone.
Check that the phone number the program is dialing is correct.
In the Modems Properties dialog box (Control Panel / Modems), check that your modem is listed in
the General tab, and that the location information is correct on the Dialing Properties tab.
If you do not see the Modems icon, proceed as follows:
1In Control Panel click Tools menu and select Folder Options…
2Select the View tab.
3In the Advanced settings text box, select the Display all Control Panel options and all folder
contents option.
4Click OK.
Sony Notebook User Guide
Getting help
85
nN
My modem cannot establish a connection
The modem dialing mode may be incompatible with your telephone line.
My modem connection is slow
Many factors influence modem connection speed, including telephone line noise or compatibility with
telephone equipment (such as fax machines or other modems). If you think your modem is not connecting
properly to other PC-based modems, fax machines, or your Internet Service Provider, check the following:
Have your phone company check that your phone line is free from any line noise.
If your problem is fax-related, check that there are no problems with the fax machine you are calling and
that it is compatible with fax modems.
If you are having a problem connecting with your Internet Service Provider, check that the ISP is not
experiencing technical problems.
If you have a second phone line available, try connecting the modem to that line.
About peripherals
I cannot use DV devices. The message ’DV equipment seems to be disconnected or turned off’ appears
Check that the DV device is turned on and that the cables are properly connected.
If you are using multiple i.LINK™ devices, the combination of the connected devices may cause unstable
operation. In this case, turn off the power of all connected devices and disconnect unused devices. Check
the connection and then turn on the power again.
My PC Card is not working
Make sure the PC Card is compatible with your version of Windows®.
Sony Notebook User Guide
Getting help
86
nN
I cannot print
Check that all the cables of the printer are correctly connected.
Check that your printer is correctly configured and that you have up-to-date drivers. If needed, contact
your dealer.
The default setting for the printer port mode is correct for most printers. If you cannot print, try
changing the printer port mode.
To change the printer port mode, proceed as follows:
Restart your computer.
When you see the Sony-logo, press <F2>.
You are in the BIOS.
Go to the Advanced tab.
Use the minus-sign on the numeric keyboard to change the printer port mode.
If the printer port mode is set to ECP, change it to Bidirectional (for HP printers). If the printer port is
set to Bidirectional, change it to ECP.
Press <F10> and save the new configuration.
Your PC restarts.
About digital video captures and DVgate
While I am recording images to a digital video device using DVgate, my system displays the message
’Recording to DV device failed. Check the power and cable connections to the DV device and try the
operation again...’
Close all open applications and restart your computer. Frequent recording of images to a digital video device
while using DVgate sometimes causes this error.
Sony Notebook User Guide
Getting help
87
nN
About power management
The Power Management setting is not responding
Your notebook’s operating system may become unstable if a lower power state, such as Hibernate is
initiated, and then changed before the notebook completely enters the lower power state.
To restore the notebook to its normal operating stability, proceed as follows:
1Close all open applications.
2Push and hold the power button for four seconds or longer to shut down the notebook.
Sony Notebook User Guide
Precautions
88
nN
Precautions
This section describes safety guidelines and precautions to help you protect your computer from potential
damage.
Your notebook and memory modules use high precision components and electronic connectors technology.
To avoid the invalidation of your guarantee by mishandling, it is recommended that:
You contact your dealer to install a new memory module.
You do not install it yourself, if you are not familiar with upgrading memory on a notebook.
You do not touch the connectors or open the memory panel.
Please contact VAIO-Link if you need assistance.
Sony Notebook User Guide
Precautions
89
nN
Adding memory
In the future you may want to install memory modules to expand the functionality of your computer. You
can increase the memory by installing optional memory modules.
Be careful when adding memory. Mistakes on installation or removal of the memory module may cause a
malfunction.
For memory upgrades, use only PC100 (CL2) SDRAM SO-DIMM (gold lead contacts).
Electrostatic discharge can damage electronic components. Before touching a memory expansion board,
ensure the following:
Handle the memory module gently.
The procedures described in this document assume familiarity with the general terminology associated
with personal computers and with the safety practices and regulatory compliance required for using and
modifying electronic equipment.
Disconnect the system from its power source and from any telecommunication links, networks, or
modems before you open the system. Failure to do so may result in personal injury or equipment
damage.
Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory
Module only at an ESD workstation. If such a station is not available, do not work in a carpeted area, and
do not handle materials that produce or hold static electricity (cellophane wrappers, for example).
Ground yourself by maintaining contact with an unpainted metal portion of the chassis while
performing the procedure.
Do not open the memory module package until you are ready to install the module. The package
protects the module from ESD.
!Use the special bag delivered with the memory module or wrap the module in aluminium foil to protect it from electrostatic discharge.
!Do not place the memory module in places subject to:
- Heat sources such as radiators or air ducts,
- Direct sunlight,
Sony Notebook User Guide
Precautions
90
nN
- Excessive dust,
- Mechanical vibration or shock,
- Strong magnets or speakers that are not magnetically shielded,
- Ambient temperature of more than +35°C or less than +5°C,
- High humidity.
Sony Notebook User Guide
Precautions
91
nN
Removing a memory module
To remove a memory module, proceed as follows:
1Shut down your computer.
2Disconnect all peripheral devices.
3Unplug the computer and remove the battery pack.
4Wait until the computer cools down.
5Turn your computer upside down.

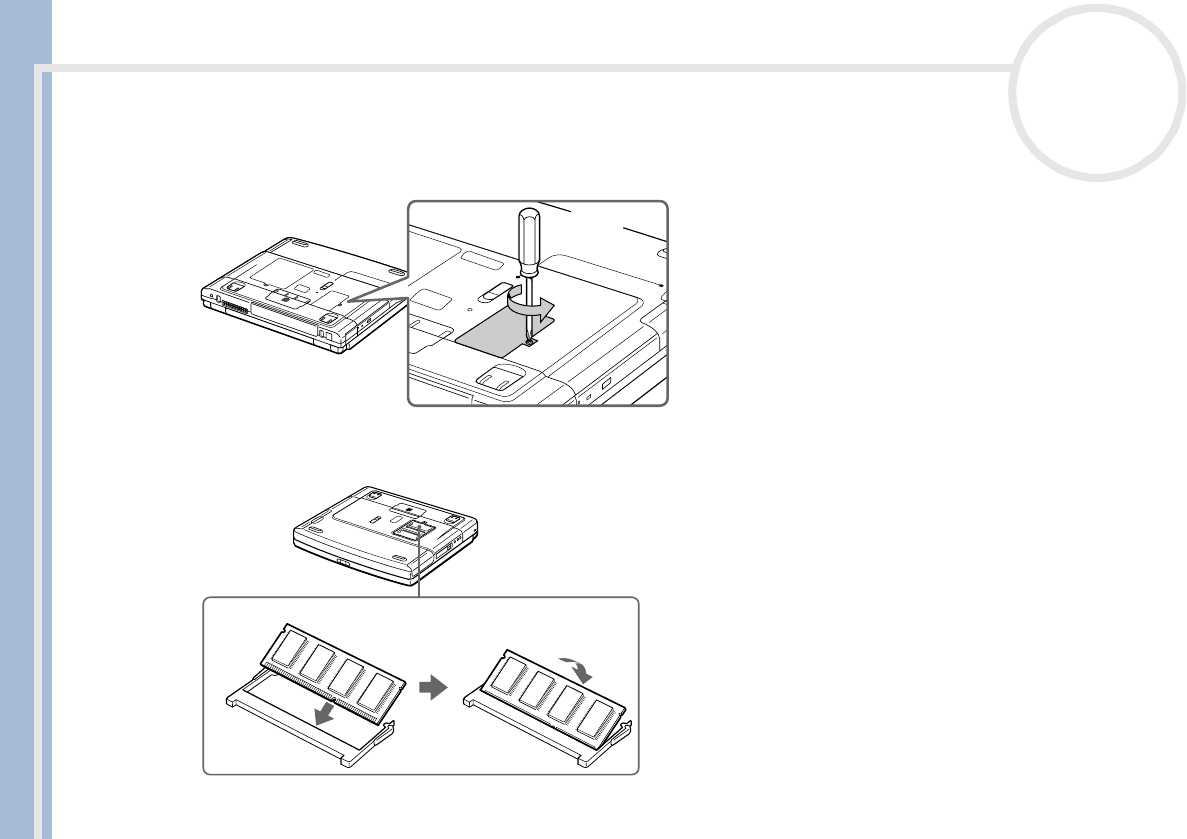

6Open the cover on the bottom by unscrewing the screws (turn counter clockwise).
7To remove the memory module, pull the tabs in the direction of the arrows 1.
The memory module is released.
8Pull the memory module in the direction of arrow 2.
9Close the cover.
10 Gently tighten the screws.
Installing a memory module
To install a memory module, proceed as follows:
1Shut down your computer and disconnect all peripheral devices.
2Unplug the computer and remove the battery packs.
Sony Notebook User Guide
Precautions
92
nN
3Wait until the computer cools down.
4Turn your computer upside down.
5Open the cover on the bottom by unscrewing the screw (turn counter clockwise).
6Remove the memory module from its packaging.
7Install the memory module.
Sony Notebook User Guide
Precautions
93
nN
8Close the computer cover.
9Tighten the screws on the bottom of the computer.
10 Turn on the computer.
Sony Notebook User Guide
Precautions
94
nN
Other precautions
On handling the hard disk
The hard disk has a high storage density and reads or writes data in a short time. On the other hand, it may
be easily damaged by mechanical vibration, shock or dust.
Although the hard disk has the safety device in itself to prevent losing data due to mechanical vibration,
shock or dust, you should be careful when handling your computer.
To avoid damaging your hard disk:
Do not give a shock to your computer.
Keep away from magnets.
Do not place your computer in an unstable location or a location subject to mechanical vibration.
Do not move your computer while the power is on.
Do not turn off the power or restart the computer while reading or writing data.
Do not use your computer in a place subject to extreme change of temperature.
If the hard disk is damaged, the data cannot be restored.
On handling the LCD screen
Do not leave the LCD facing the sun as it can damage the LCD. Be careful when using the computer near
a window.
Do not scratch the LCD or exert pressure on it. This could cause malfunction.
Using the computer in low temperature conditions may produce a residual image on the screen. This is
not a malfunction. When the computer returns to normal temperature, the screen returns to normal.
A residual image may appear on the screen if the same image is displayed for a lengthy period of time.
The residual image disappears in a while. You can use a screensaver to prevent residual images.
Sony Notebook User Guide
Precautions
95
nN
The screen becomes warm during operation. This is normal and does not indicate a malfunction.
The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/
or bright points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the
manufacturing process and does not indicate a malfunction.
Avoid rubbing the LCD screen, as this can damage the screen. Use a soft, dry cloth to wipe the LCD screen.
On using power source
Your computer operates on 100V-240V AC 50/60 Hz.
Do not share the AC outlet with other power-consuming equipment, such as a photocopier or shredder.
You can purchase a power strip with a surge protector. This device prevents damage to your computer
caused by sudden power surges such as those that may occur during an electrical storm.
Do not place heavy objects on the power cord.
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
Unplug your computer from the wall outlet, if you will not be using the computer for a long time.
When the AC adapter is not used, unplug it from the AC outlet.
Use only the supplied AC adapter. Do not use any other AC adapter.
On handling your notebook
Clean with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use
any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage
the finish of your computer.
Should any solid object or liquid fall into the computer, shut down your computer and then unplug it.
You may want to have the computer checked by qualified personnel before operating it any further.
Do not drop the computer or place heavy objects on top of the computer.
Do not place your computer in a location subject to:
Sony Notebook User Guide
Precautions
96
nN
Heat sources, such as radiators or air ducts,
Direct sunlight,
Excessive dust,
Moisture or rain,
Mechanical vibration or shock,
Strong magnets or speakers that are not magnetically shielded,
Ambient temperature of more than 35ºC or less than 10ºC,
High humidity.
Do not place electronic equipment near your computer. The electromagnetic field of your computer may
cause a malfunction.
Provide adequate air circulation to prevent that internal heat builds up. Do not place your computer on
porous surfaces such as rugs or blankets, or near material such as curtains or draperies that may block its
ventilation slots.
The computer uses high-frequency radio signals and may cause interference to radio or TV reception.
Should this occur, relocate the computer a suitable distance away from the set.
Use only specified peripheral equipment and interface cables; otherwise, problems may result.
Do not use cut or damaged connection cables.
Your computer cannot be connected to a coin-operated telephone, and may not work with a private
branch exchange (PBX).
If the computer is brought directly from a cold location to a warm one, moisture may condense inside
your computer. In this case, allow at least one hour before turning on your computer. If any problem
occurs, unplug your computer and contact VAIO-Link.
Make sure to disconnect the power cord before cleaning the computer.
As you may lose important data once your computer is damaged, you should back up your data regularly.
Restore the original application programs from the Product Recovery CD-ROM.
Sony Notebook User Guide
Precautions
97
nN
On handling diskettes
Do not open the shutter manually and touch the surface of the diskette.
Keep diskettes away from magnets.
Keep diskettes away from direct sunlight and other heat sources.
On handling CD/DVD-ROM discs
Do not touch the surface of the disc.
Do not drop or bend the disc.
Fingerprints and dust on the surface of a disc may cause read errors. Proper care of the disc is essential
to maintain its reliability. Do not use solvents such as benzine, thinner, commercially available cleaners
or anti-static spray, as they may cause damage to the disc.
For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the surface from the center
out.
If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface
of the disc from the center out. Wipe off any remaining moisture with a dry soft cloth.
On using the battery pack
Never leave the battery pack in temperatures above 60°C, such as in a car parked in the sun or under
direct sunlight.
Battery life is shorter in a cold environment. This is due to decreased battery efficiency at low
temperatures.
Charge the batteries at temperatures between 10°C to 30°C. Lower temperatures require a longer
charging time.
While the battery is in use or being discharged, the battery pack heats up. This is normal and is not cause
for concern.
Sony Notebook User Guide
Precautions
98
nN
Keep the battery pack away from all sources of heat.
Keep the battery pack dry.
Do not open or try to disassemble the battery pack.
Do not expose the battery pack to any mechanical shock.
If you are not using the computer for an extended period of time, remove the battery pack from the
computer to prevent damage to the battery.
If, after fully charging the battery pack, the battery power is still low, the battery pack may be reaching
the end of its life and should be replaced.
You do not need to discharge the battery before recharging.
If you have not used the battery pack for a considerable amount of time, recharge the battery.
On using earphones
Road safety – Do not use earphones while driving, cycling, or operating any motorized vehicle. It may
create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music
while walking, especially at pedestrian crossings.
Preventing hearing damage – Avoid using earphones at high volume. Hearing experts advise against
continuous, loud and extended play. If you experience a ringing in your ears, reduce the volume or
discontinue use.
On handling the Memory Stick™ (optional)
Do not touch the connector with your finger or metallic objects.
Use only the label supplied with the Memory Stick™ as a label.
Do not bend, drop, or apply strong shock to the Memory Stick™.
Do not disassemble or modify Memory Sticks™.
Do not let cards get wet.
Sony Notebook User Guide
Precautions
99
nN
Do not use or store Memory Sticks™ in a location subject to:
Extremely high temperatures, such as in a car parked in the sun,
Direct sunlight,
High humidity or near corrosive substances.
Use the storage case supplied with the Memory Stick™.
Sony Notebook User Guide
Specifications PCG-FX301
100
nN
Specifications PCG-FX301
Model Number PCG-FX301
Operating system Microsoft® Windows® Millennium Edition
Processor 800 MHz Mobile AMD Duron™ processor
Hard disk drive 10 GB
Standard RAM 128 MB SDRAM (in slot)
Maximum RAM 256 MB
LCD screen 14.1" XGA (1024x768) TFT
L2 cache memory 64 KB (on die)
MPEG MPEG 1 Digital Video Supports full-screen playback
Graphics ATI™ 3D RAGE Mobility-M1 with 8 MB Video SDRAM and 3D accelerator
Display Dual Display
Sound capabilities 16-bit CD-quality stereo sound
Floppy disk drive 3.5" 1.44 MB (removable)
CD-ROM drive
DVD-ROM drive
DVD-ROM drive:
up to 24x max. CD-ROM reading speed
up to 8x max. DVD-ROM reading speed
laser diode properties:
wave length: 770 and 640 nm
laser output: 30.2 mW
Sony Notebook User Guide
Specifications PCG-FX301
101
nN
Internal modem built-in modem V.90/K56flex (56kbps) data/fax modem
Telecommunication capabilities Ethernet network, PSTN data connectivity
Expansion capabilities two PCMCIA type I and type II or one type III Cards and Cardbus support
Built-in capabilities stereo speakers, touchpad
Connection capabilities on notebook monitor (VGA output), external speakers or headphone,
external microphone, 2 USB, serial, parallel, TV Out, modem,
i.LINK™ (IEEE1394) S400, Ethernet
Supplied accessories rechargeable battery, AC adapter, AC power cord,
phone cable, phone plug, video cable, weight saver.
Service ‡ 1 year free VAIO-Link Service
Guarantee ‡ 1 year guarantee (parts and labour)
Power source 19.5V DC
AC100-240V
Power management ACPI (Advanced Configuration & Power Interface)
Battery Lithium ion
Dimensions
Width
Height
Depth
324 mm
35.8 mm to 46.9 mm
265.5 mm
Weight
- with 1 battery and weight saver 2.9 kg
Model Number PCG-FX301
Sony Notebook User Guide
Specifications PCG-FX301
102
nN
‡ See our special Guarantee extension conditions.
Specifications are subject to change without notice.
Operating temperature +5°C to +35°C (temperature gradient less than 10°C/hour)
Storage temperature -20°C to +60°C (temperature gradient less than 10°C/hour)
Operating humidity 20% to 80% (not condensed), provided that humidity is less than 65%
at +35°C (hygrometer reading of less than 29°C)
Storage humidity 10% to 90% (not condensed), provided that humidity is less than 20%
at +60°C (hygrometer reading of less than 35°C)
Model Number PCG-FX301
Sony Notebook User Guide
Glossary
103
nN
Glossary
This section refers to terms used in this manual. These terms and definitions have been compiled to provide
you with a better understanding of your VAIO computer.
Term Definition
<F1> key The <F1> key gives you access to the online help of most software.
10BASE-T/100BASE-TX Ethernet system providing data transfer rates of 10 Mbps (megabits per second) and
100 Mbps. The 100BASE-TX is a very direct derivative of 10BASE-T. Its 100 Mbps speed is
achieved by simply sending the signal 10 times faster.
ACPI Short for Advanced Configuration and Power Interface, a power management specification.
ACPI enables the operating system to turn peripherals on and off and to control the amount
of power given to each device attached to the computer. With ACPI, a CD-ROM player can
be turned off by the operating system if it is not in use.
Application recovery A recovery process that enables you to recover any of the applications initially available on
the computer. Performing an application recovery is useful when an individual application
does not run properly or to reinstall a driver when a device does not work properly.
Application recovery CD-ROM CD-ROM that enables a VAIO computer user to recover all the applications that were
available when the computer was purchased. The CD-ROM is supplied with the computer.
BIOS An acronym for Basic Input/Output System. The BIOS is a program that enables the computer
to start when you turn it on. It monitors the data stream between the operating system and
the computer’s hardware devices.
CardBus CardBus is the commercial name for an advanced PC Card. The CardBus technology allows
computer users to enjoy higher performances as far as data transfer and operating speed are
concerned. See PCMCIA.
Sony Notebook User Guide
Glossary
104
nN
CD-ROM Abbreviation for Compact Disc Read-Only Memory. A high-capacity optical disc, usually
650 MB in size, capable of being read from but not written to.
CD-RW Short for Compact Disc-ReWriteable. Compact Disc that can be used to write or rewrite data
to it. A CD-RW can be written to several times, a CD-R can only be written to once.
CPU The CPU (Central Processing Unit) is the brains of the computer; it processes the instructions
of your system’s programs. The CPU is also known as the processor or microprocessor and can
be found on the motherboard of your computer.
DC In The Direct Current interface to which you connect your computer’s AC adapter.
Docking station An additional device that you can connect to your notebook. The docking station contains
slots for expansion boards , bays for storage devices and ports for additional peripherals
(such as printers or monitors).
Driver A driver is software enabling you to use hardware devices. For example, in order for you to
be able to use a printer, you must first install its driver. Many drivers, such as the mouse
driver, come with the operating system.
DVD-ROM Short for Digital Video Disc. A type of read-only CD with a minimum capacity of 4.7 GB
(maximum capacity can reach 17 GB). This high storage power makes it the ideal medium for
storing films.
ECP The ECP (Extended Capability Port) mode is designed for printers and supports bi-directional
communication between the computer and a printer.
Ethernet Ethernet is the most widely implemented local area network (LAN) technology. The Ethernet
system called 10BASE-T provides data transfer rates of 10 Mbps (megabits per second). A
more recent version of Ethernet, called 100BASE-T, provides data transfer rates of 100 Mbps.
Gigabit Ethernet supports data rates of 1 gigabit (1000 megabits) per second.
Term Definition
Sony Notebook User Guide
Glossary
105
nN
EULA EULA (End-User License Agreement) is the name given to a license governing the software
on your computer. The EULA can be found in the Read this first section at the beginning of
the software guide or directly on the VAIO desktop.
i.LINK™i.LINK™ is Sony’s version of the IEEE 1394 standard for high-speed digital serial interface.
The standard is regarded in the audio/video and IT industries as the most suitable interface
for connecting computers and digital audio/video devices (such as digital cameras etc.).
ISP An ISP (Internet Service Provider) is a company which provides you with a user name,
password and telephone number in order to connect to the Internet.
L2 cache memory Cache memory is RAM-like memory that enables quick access to data that has already been
read by the computer. L1 and L2 are levels of cache memory in a computer.
LAN A LAN (Local Area Network) is a group of computers connected together within a limited
geographical area. It enables users to share devices (such as printers) and information using
one processor or server.
LCD Short for Liquid Crystal Display. Flat notebook display technology using liquid crystals (and
light polarisation) to provide sharp, flicker-free images on a screen comprised of millions of
tiny cells. Color can be produced by two basic techniques: Passive matrix is the less expensive
of the two techniques. The active matrix technology (or TFT) produces better quality but is
also more expensive.
LED Short for Light-Emitting Diode. A semiconductor device that lights up when electricity passes
through it.
Lithium-ion battery A lithium-ion battery uses lithium cobalt oxide and carbon as electrodes and ions move from
one electrode to the other during charge and discharge. Lithium-ion batteries are the first
choice for notebooks because of their light weight, high energy density and because they
have no memory effect. In addition they do not use heavy metals like lead, mercury or
cadmium.
Term Definition
Sony Notebook User Guide
Glossary
106
nN
MAPI Short for Messaging Application Program Interface. A Microsoft Windows interface
enabling you to send e-mail messages. It allows e-mail access and distribution among
applications. MAPI-compatible applications include a Send Mail or Send in the File menu of
the application.
maximum RAM The maximum amount of RAM that your computer can contain. Once this amount is
reached, you can no longer add additional RAM to your computer.
Motherboard The motherboard is the main circuit board inside your computer. It holds the CPU, the BIOS,
the memory and so on.
MPEG MPEG or Moving Pictures Experts Group is a standard for audio-visual compression of video
sequences. MPEG achieves high compression rates by storing only the changes from one
frame to another. The decrease in data is generally imperceptible to the human eye.
MPEG-1 was developed for digital storage of video and audio data on CD-ROM. MPEG-2
achieves better image and audio quality and is more targeted to TV broadcasting and DVD.
Operating system The operating system is software that manages all the other programs in a computer. It
defines how the computer reads and writes information to its disks (and other hardware).
Windows 2000, Windows Millennium Edition, Windows XP Professional and Windows XP
Home Edition are examples of operating systems found on VAIOs.
Partition A partition is a logical division of a computer’s hard disk. A two-partition hard drive would
typically contain C: and D: drives. Partitioning is particularly useful if you run more than one
operating system or to clearly separate your data files from your installed software.
PBX A PBX (Private Branch Exchange) is a private telephone network within an enterprise. Under
this system, the calls between the enterprise members are local and the phone numbers are
made up of 3 or 4 digits. Companies generally choose this phone system for internal
communication because it is less expensive than the regular network. The users can still
share a number of outside lines for making calls external to the PBX.
PC Card A PCMCIA card. The term PC Card is more widely used than PCMCIA.
Term Definition
Sony Notebook User Guide
Glossary
107
nN
PCMCIA PCMCIA (Personal Computer Memory Card International Association) is the name of the
group that produced the specification for the credit card-sized plug-in boards for laptop
computers. The cards used to be called PCMCIA cards, but as this was rather
unpronounceable, these cards are now termed PC cards. An example of a PC card is a credit
card-sized modem. See PCMCIA.
Pixel A pixel (Picture Element) is a part of your screen. Your screen is made up of thousands of
pixels, enabling you to see colours and pictures on it. The more pixels, the higher the
resolution and the better the image quality.
Port replicator An additional device that you can connect to your notebook. The port replicator contains
ports that enable you to connect additional peripherals (such as a printer or a monitor) to
your VAIO. A port replicator is similar to a docking station, but does not include additional
slots for adding expansion boards or storage devices.
Processor The processor is the brains of the computer; it processes the instructions of your system’s
programs. The processor is also known as the CPU or microprocessor and can be found on
the motherboard (see this word) of your computer.
Product recovery CD-ROM The product recovery CD-ROMs include the application recovery CD-ROM and the system
recovery CD-ROM(s)
PS/2 A type of mouse or keyboard port. The plug that connects to the port always contains 6 pins.
PSTN PSTN (Public Switched Telephone Network) refers to the plain old telephone service, the
national telecommunication networks implementing voice transmission by using analog
signals.
RAM Short for Random Access Memory, the memory used to run programs and store data in
current use. RAM is the fastest kind of memory to read from and write to. Information stored
in RAM is lost when you turn off the computer. The higher the RAM capacity, the faster your
current data can be processed.
Term Definition
Sony Notebook User Guide
Glossary
108
nN
Resolution The degree of sharpness and clarity of an image. Resolution is expressed in pixels. Frequent
computer screen resolutions are 640 x 480 pixels (VGA resolution; appropriate for a 14-inch
screen), 800 x 600 (appropriate for a 15-inch screen), 1024 by 768 (appropriate for a 17-inch
screen), and 1280 by 1024. LCD displays usually use a higher resolution than a CRT of the
same size.
RGB signal cable RGB stands for Red, Green, Blue. A cable that requires separate transmission types for the
three colours on the display.
SDRAM Synchronous DRAM is a kind of dynamic random access memory running at a much higher
clock speed than regular memory.
SELV Short for Safety Extra Low Voltage. A secondary circuit which is so designed and protected
that its voltages do not exceed a safe value under normal operating conditions,.
Standard RAM The amount of RAM that is available on your computer when you purchase it.
System recovery A recovery process that enables you to recover the hard disk image initially available on the
computer. Performing a system recovery is useful in the event of a serious system crash or if
you want to modify the size of your partitions.
System recovery CD-ROM CD-ROM that is supplied with your computer and that enables a VAIO computer user to
recover the hard disk image that was available when the computer was purchased.
TFT Short for Thin Film Transistor. Top-of-the-range notebook display for excellent picture
quality. The TFT technology offers the sharpest resolution for flat displays; each pixel is
supported by one to four transistors.
TNV Short for Telecommunications Network Voltage. A secondary circuit that, under normal
operating conditions, carries telecommunication signals. A typical TNV-circuit is a PSTN
modem.
Term Definition
Sony Notebook User Guide
Glossary
109
nN
UPS A UPS (Uninterruptible Power Supply) is a device including a battery that protects your
computer from data loss in the event of a power failure. The battery takes over as soon as
a power interruption is detected. If you are using the computer when the power failure
occurs, you have time to save all unsaved data and to shut down your computer.
USB USB (Universal Serial Bus) is a hardware interface for attaching devices (such as a keyboard,
mouse, joystick, scanner or printer). You can connect up to 127 devices to a USB port. The
USB standard is Hot Plug and Play.
VAIO Short for Video Audio Integrated Operation. Brand name covering Sony's PC products,
peripherals, accessories and software. VAIO-branded items are all designed to make the best
use of Sony's Audio-Video (AV) and Information Technology (IT) skills.
WAN WAN (Wide Area Network) is a computer network connected together and covering a
relatively large geographical area. This is in contrast to LAN, where the network is usually
set up within one building or small geographical area. The largest existing WAN is the
Internet.
XGA Short for Extended Graphic Array, a graphics standard. An XGA board can provide up to
1024 x 768 pixels and supports up to 65 thousand colours.
Term Definition

Navigation menu
