User Manual 1

401SO
Basic Manual
Getting Ready

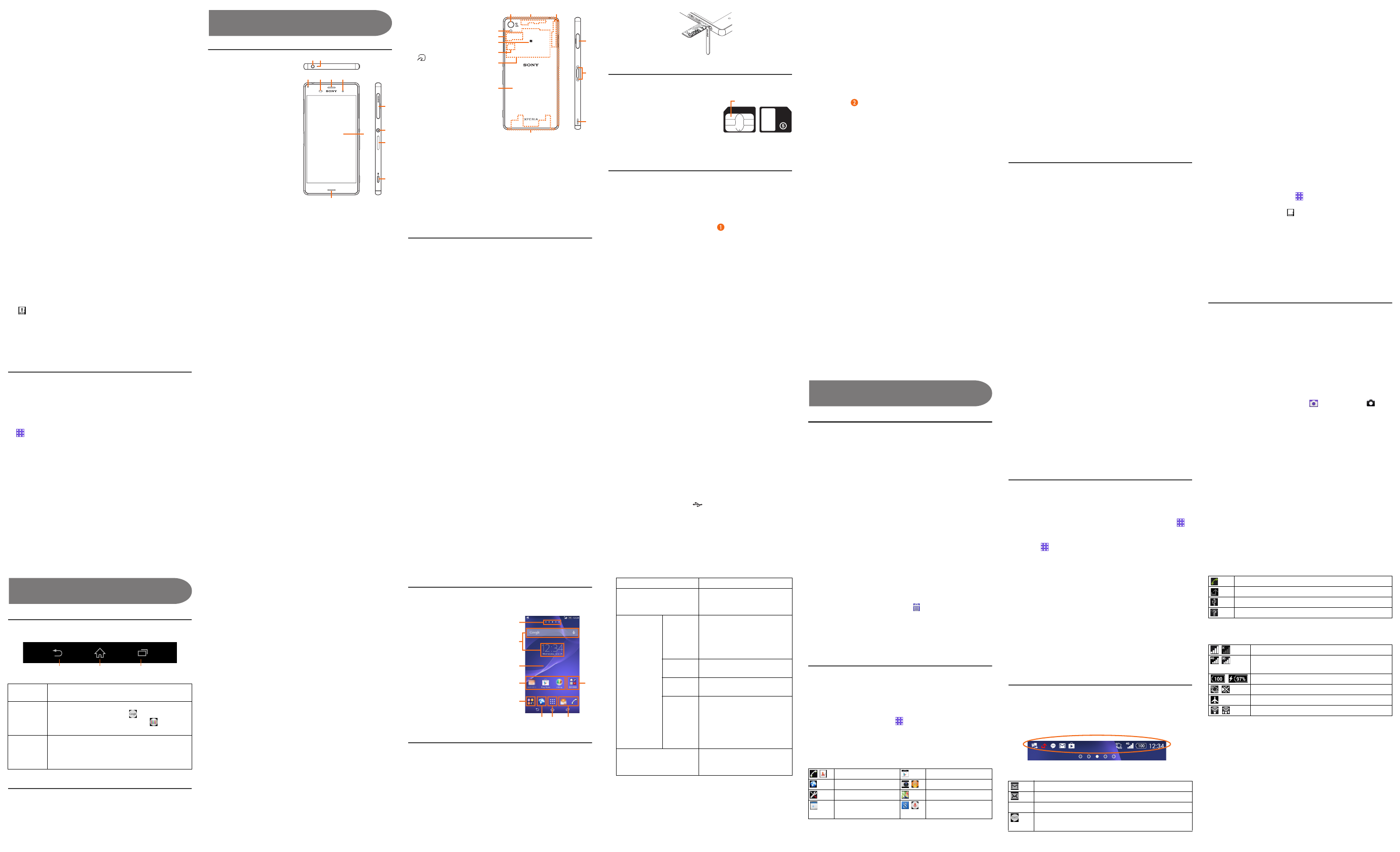

Names and functions of parts
aHeadset connection
terminal
bSecond microphone*1:
Reduces noise to make
easy to listen.
cNotification LED
dProximity sensor:
Switches touch panel on
and off to prevent from
erroneous operation
during a call/Auto-control
for display brightness.
eEarpiece
fFront camera
gDisplay (Touch panel)
hMicrophone/speaker*1
imicroSD memory card/
Micro IC Card slot
jPower key/Screen lock
key:P
kVolume key/Zoom key
lCamera key: k
g
k
l
i
j
b
a
c d e f
h
mCamera lens
nGPS/Built-in antenna*2
oBluetooth®/Wi-Fi®/
antenna part*2
pFlash/Photo light
qNameplate*4
rmark
sMicro IC Card
tNFC (FeliCa
compatible) antenna*2
uBack cover*3
vBuilt-in antenna*2
wmicroUSB connection
terminal
xDesktop Holder
contact terminal
yStrap hole
*1 Do not jab with a sharp object such as a needle. Doing so may
cause a fault.
*2 The antenna is built in. Covering around the antenna by the
hand may affect the quality of call/communication.
*3 Back cover is not removable. Removing so forcibly might cause
damage or a fault. Also, battery is built into the main unit and
not removable by customers.
*4 Do not remove the nameplate with stickers of CE mark, FCC ID
and IMEI information printed.
CE mark and FCC ID
1Open the Micro IC Card slot cover, and insert a
fingernail into the hook at the edge of the label tray,
then pull it out straight.
Micro IC Card
Your phone number etc. is recorded in the Micro IC Card.
The product is compatible only
with Micro IC Card. You cannot
use the product with an IC-card or
micro IC card switched from an
cell phone or smartphone.
Do not insert an Nano IC Card with
a conversion adapter. Doing so
may cause a fault.
Attaching/removing the Micro IC Card
Before attaching/removing the Micro IC Card, make sure to
turn off the product.
■Attaching the Micro IC Card
1Open the microSD memory card/Micro IC Card slot cover
while hooking the groove with your fingernail
2Hook the projection of the tray ( ) with your fingernail
to slide the tray straight out, then remove the tray from
the product
3Set Micro IC Card into the tray with IC (metal) part
facing up ( ), insert the tray with the card into the
main unit and press it all the way
Pay attention to the orientation of the notch and pressing tray.
4Close the microSD memory card/Micro IC Card slot
cover, press it firmly to ensure that there are no gaps
between the cover and the main unit
■Removing Micro IC Card
1Open the cover while hooking the groove of microSD
memory card/Micro IC Card slot cover with your
fingernail
2
Hook the projection of the tray with your fingernail to
slide the tray straight out, then remove the tray from the
main unit
3Remove Micro IC Card out of the tray, insert the tray
into the main unit and then press it all the way
Pay attention to the direction of pushing the tray.
4Close the microSD memory card/Micro IC Card slot
cover, press it firmly to ensure that there are no gaps
between the cover and the main unit
❖Information
･Note the following points, otherwise handling the Micro IC
Card may cause malfunction or damage.
･Do not touch the IC (metal) part of the Micro IC Card.
･Insert in the correct direction.
･Do not use force to attach or remove.
･Do not lose the Micro IC Card after it has been removed.
Attaching/Removing microSD memory card
■Attaching microSD memory card
1Open the microSD memory card/Micro IC Card slot cover
while hooking the groove with your fingernail.
2Check the orientation for inserting, and insert it until it
clicks
Insert the microSD memory card with the contact side down.
3Close the microSD memory card/Micro IC Card slot
cover, press it firmly to ensure that there are no gaps
between the cover and the main unit
❖Information
･Insert a microSD memory card in the appropriate direction.
Inserting a microSD memory card forcefully into the slot
could result in failure to remove the microSD memory card
or damage.
･Do not touch the terminal of the microSD memory card.
■Removing microSD memory card
Be sure to unmount microSD memory card before removing.
1From the Home screen, [ ]→[Settings]→[Storage]→
[Unmount SD card]→[OK]
When it is unmounted, " SD card safe to remove"
appears on the status bar to notify you that reading and
writing from/to the microSD memory card are disabled.
2Open the microSD memory card/Micro IC Card slot
cover while hooking the groove with your finger
m n o
w
x
y
p
q
s
r
u
t
v
IC (metal) part
Front Back
Micro IC Card
3Press the microSD memory card all the way until it
clicks, then pull out the microSD memory card slowly
" Removed SD card" appears on status bar to inform that
the microSD memory card is removed.
4Close the microSD memory card/Micro IC Card slot
cover, press it firmly to ensure that there are no gaps
between the cover and the main unit
Charging
When you purchase your product, the internal battery is not
fully charged. Charge the battery before use.
❖Information
･When the charging starts, notification LED lights according to
the battery level. To check the battery level, see the status bar in
the top of the Home screen. Alternatively, from the Home screen,
[]X[Settings]X[About phone]X[Status] and see "Battery
level".
･When you start charging with the product powered off, the
power turns on even though operation is not available. Do not
charge the battery in a place where the use is prohibited such
as in airplane or hospital.
･It may take longer to complete for charging with a PC or
while using the camera function.
･You cannot charge the battery by connecting the Desktop
Holder to a PC.
･Be sure to attach the supplied attachment to the Desktop
holder when charging. If the product is installed without the
attachment attached, charging fails.
Replace the attachment as required. Depending on cover
you use, charging may fail.
■Charging with the Desktop Holder
Charging with the supplied Desktop Holder and Common AC
Adapter (sold separately) is explained.
1
Insert the microUSB plug of Common AC Adapter (sold
separately), with the engraved side (
▲
) facing up, straight
into the microUSB connection terminal of the Desktop Holder
2Insert the power plug of Common AC Adapter (sold
separately) into an outlet
3Install the product to the Desktop Holder and move it
left or right until it clicks
When the product and the magnetic connector of the
Desktop Holder are connected correctly, the notification
LED of the product turns on.
4When charging is complete, lift the product to remove
while pressing the Desktop Holder
5Remove the Common AC Adapter (sold separately)
from the outlet
■Charging with the AC Adapter
Charging with Common AC Adapter (sold separately) is
explained.
1
Open the microUSB connection terminal cover of the
product while hooking the groove with your fingernail, and
insert the microUSB plug of Common AC Adapter (sold
separately), with the engraved side (
▲
) facing up, straight
into the microUSB connection terminal of the product
2Insert the power plug of Common AC Adapter (sold
separately) into an outlet
Notification LED lights on the product.
3When charging is complete, remove the microUSB plug of
Common AC Adapter (sold separately) from the product
and close the microUSB connection terminal cover firmly
4Remove Common AC Adapter (sold separately) from
the outlet
■Charging with the DC Adapter
You can charge from cigarette lighter socket in a car by using
Common DC Adapter (sold separately). For details, refer to
instruction manual of Common DC Adapter (sold separately).
■Charging with a PC
The followings describe charging procedure by connecting
the product to chargeable USB port on a PC using the
microUSB cable of Sony Mobile AC adapter (sold separately).
1Open the microUSB connection terminal cover of the
product while hooking the groove with your fingernail,
and insert the microUSB plug of the microUSB cable,
with the engraved side ( ) facing up, straight into the
microUSB connection terminal of the product
2Insert the USB plug of the microUSB cable into the USB
port of a PC
Notification LED lights on the product.
When a screen for installation of software or a screen for
new hardware detection appears, skip or cancel it.
3When charging is complete, remove the microUSB plug
of the microUSB cable from the product and close the
microUSB connection terminal cover firmly
4Remove the USB plug of the microUSB cable from the
USB port of the PC
Turning on (Initial settings)
Turning the power on
1P (over 1 sec)
The product vibrates and after a while the lock screen
appears.
When you turn on the product for the first time, follow the
onscreen instructions to set the initial settings.
2Swipe (flick) the screen up or down
■Turning the power off
1P (over 1 sec)
2[Power off]X[OK]
❖Information
･Press P for over 1 second and long-touch "Power off" X
[OK] to restart product in safe mode.
■Force-quitting
1
Open the microSD memory card/Micro IC Card slot cover
while hooking the groove with your fingernail, press the
OFF button (RED) with a fine-tipped object for
approximately three seconds, and release your finger after
it vibrates three times
❖Information
･
Pressing the OFF button (RED) by a sharp object such as
needle may cause malfunction.
･
Alternatively, press and hold
P
and upper part of the
volume key at the same time for approximately three
seconds, and release your finger after it vibrates three times.
Initial settings
When you turn on the product for the first time, follow the
onscreen instructions to set language, functions, service, etc.
For details, refer to "Setting Guide".
❖Information
･To change the language later, from the Home screen, [ ]
X[設定 (Settings)]X[言語と入力 (Language & input)]X[地域
／言語 (Language)]. To make settings, from the Home
screen, [ ]X[Settings]X[Setup guide].
Screen Lock
When the screen lock is set, the backlight turns off to avoid
the keys and touch panel from false operations.
When the specified time elapses, the product's screen
backlight turns off automatically and screen lock is activated.
1While the screen is displayed, P
■Unlocking screen
The lock screen appears when turning the power on or the
backlight on by pressing P.
1Swipe (flick) the screen up or down on the lock screen
❖Information
･On the lock screen, long-touch " " and drag it to " " to
activate the camera.
Basic Operation
Key icons
The followings are the main functions of x, y, r
keys located at the bottom of the screen.
Using the touch panel
The display of the product is a touch panel operated by
touching it with your finger.
■Tap/Double-tap
Tap: Gently touch a screen and then immediately release your
finger. Double tap: Touch the same position twice.
■Long-touch
Keep touching an item with your finger.
■Slide
While your finger is gently touching the screen, trace it to the
desired direction to move over.
■Flick (swipe)
Operate the screen by quickly moving (flicking) your finger
up, down, right, or left.
■Pinch
Touch the screen with two fingers and widen (pinch-out) or
narrow (pinch-in) the fingers' distance.
■Drag
Keep touching an item or icon, trace it to the desired direction
to move.
Home screen
Home screen consists of multiple screens. Slide or flick left or
right to move to the adjacent screen. Tap y to return to the
Home screen any time.
aHome screen position
Indicates which screen of the
several Home screens you are
in.
bWidgets
cWallpapers
dShortcuts (Applications)
eMedia folders
f基本機能フォルダ (Basic
functions folder)
gApplication key
Adding to Home screen/Editing Home screen
You can change wallpaper or theme of the Home screen and
add/delete/move shortcuts of applications, widgets, folders,
etc. on the Home screen.
1Long-touch an area of the Home screen where no icons
are displayed
Alternatively, pinch-in on the Home screen. ■Adding a folder
1From the Home screen, long-touch an icon
2Drag the icon onto another icon
■Deleting shortcuts/widgets/folders
1From the Home screen, long-touch an icon or a folder
you want to delete
2Drag the icon or the folder to " "
To delete a folder, then tap "Delete". It also deletes
shortcuts etc. in the folder.
❖Information
･Long-touch a shortcut, widget, or folder icon to move.
Using the Applications screen
You can call up functions from the Applications screen.
Application icons installed to the product are also displayed.
･
You may incur communication charges depending on the
function.
■Starting an application
1From the Home screen, [ ]
Slide or flick left or right to switch the Applications screen.
2Tap an application to use
Some applications are stored in a folder.
■Main applications
■Downloading applications
You can download and install applications or games, etc. by using
Google Play.
･To use Google Play, you need to set a Google account. For
details, refer to "Setting Guide".
■Deleting (uninstalling) applications
Before deleting installed applications, back up contents
related to the application that you want to save including data
saved in the application.
･Some applications may not be deleted.
Knowing the status of the product
■Status bar
The status bar is located at the top of the product screen. On the
left of the status bar, notification icons appear to inform missed
calls, new mails, operations in progress, etc., and on the right,
status icons appear to indicate the status of the product.
■Examples of notification icon
*1 Appears when switched to another screen such as the Home screen.
■Main status icons
*1 Two types of network, "LTE" can be used. "4G" appears on the
screen for either network.
The company determines which network is less busy
depending on the condition of the line to connect.
■Notification panel
If any notification icons are displayed, slide down the status
bar to open the Notification panel. You can check details of
notification icons or start corresponding applications.
❖Information
･To delete a notification, tap "Clear" or flick the notification left
or right.
･
Some notifications may not be deleted depending on the content.
x
Back
Return to the previous screen. Close a dialog
box, menu, or the Notifications panel.
y
Home
Display the Home screen.
Long-touch and drag it to " " to activate
"Google" application or drag it to " " to
activate "What's New" application.
r
Recently
used
applications
Display recently used applications on a list and
activate or delete them from the list. Also, you
can use and set small apps.
xx y r
a
b
c
d
e
f
g
d d
2 Widgets Add a widget.
Apps Add a shortcut of an
application, a setting screen,
etc.
Wallpapers Album Select an image from albums
to set as a wallpaper.
･To set image range, adjust
cropping area by dragging,
etc.
Live
Wallpapers
Select a content from albums
to set as a wallpaper.
Photos Select an image from photos
to set as a wallpaper.
(XperiaTM's
Wallpaper)
Select an image to set as a
wallpaper.
･Images displayed to the
right of "Photos"/"Live
Wallpapers" are "XperiaTM's
Wallpaper".
Themes Set the wallpapers etc. for the
Home screen or the lock
screen. , Phone, Contacts Play Store
Browser , Camera, Album
Settings Maps
Calendar , Google, Voice
Search
New Gmail message
New PC mail message
●New E-mail message
New SMS/Receiving notification service message,
New Receiving notification
Talking*1/ Calling*1/ Receiving
Missed call
USB connecting
Wi-Fi®open network available
, Signal level (Level 4, Out of service area)
, Data communication status (4G (LTE)
available*1, 3G available)
, Battery level (100%, Charging)
, Silent mode (Vibration, Mute)
Airplane mode is activated
,Wi-Fi
®connected, Wi-Fi®communicating
bcdef
ijklmgh
pqrstno
a
･When you set screen lock to "Swipe", slide the status bar
downward to check the Notification panel without unlocking
the screen.
■Notification LED
Notification LED informs charging prompt, battery level while
charging, missed calls, new mails, etc. by turning on or
flashing.
*1 Notification LED flashes while backlight is turned off or lock
screen is displayed.
❖Information
･When the remaining battery is not sufficient for turning the
product ON, pressing P makes LED flash red three times.
･When you start charging with the product powered off, the
notification LED turns in red. When the status of battery
appears on the display, however, the notification LED lights
in color that indicates the battery level.
■Checking own phone number
1From the Home screen, [ ]X[Settings]
2[About phone]X[Status]
The phone number of the product is shown under "My phone number".
❖Information
･Alternatively, from the Home screen, [ ] X[Contacts]X
[Myself] to check your phone number.
■Setting the Silent Mode
Set the ringtone volume to 0. Setting to Silent mode does not
mute sounds for shutter, playback of video or music, alarm,
etc. And adjusting the volume of ringtone & notifications or
pressing upper part of volume key cancels Silent mode.
1P (over 1 sec)
2[]/[]
Tap " " to set mute (ringtone volume 0) and tap " " to set vibrator.
❖Information
･Alternatively, slide the status bar downward u [Quick
settings] u [Sound] to switch the Silent mode settings.
■Setting Airplane mode
When airplane mode is set, all wireless functions (phone,
packet communication, Wi-Fi® function, Bluetooth® function,
NFC Reader/Writer, P2P function) are turned off.
1P (over 1 sec) u[Airplane mode]
❖Information
･Slide the status bar downward X Tap [Quick settings] X
"Airplane" to switch the airplane mode on or off.
Entering characters
Use software keyboard to enter characters.
To display the software keyboard, tap a character input box
on the character entry screen for adding contacts, creating a
message, etc.
■Switching keyboards
With "XperiaTM Japanese keyboard" for Japanese input, you
can switch input types between "Keypad" and "QWERTY".
1Tap a character input box
2[ ] on quick toolbar
When quick toolbar is not displayed, tap " " (when the
character mode is "Alphabet"/"Numeric", tap " "/" " to
switch to "Hiragana/Kanji" then appears).
3[Switch to QWERTY]/[Switch to keypad]
❖Information
･Tap " " at the bottom left of the screen to hide the
software keyboard.
･Word suggestions or direct conversion candidates for the
entered characters appear. Tap a word to enter.
･Tap " " to delete the character before the cursor.
･Tap " " to enter symbols, facemarks etc. from the
displayed list.
･For details on "XperiaTM Japanese keyboard" for Japanese
input, character input box→[]→[使い方ガイド
(Operation guide)], see POBox Plus operation guide.
Troubleshooting
Before you assume that the product is malfunctioning, check
the following:
Updating Software
You can update the product to the most recent software for
optimal performance and to get the latest enhancements.
･You are charged for data communication when connecting to
the Internet from the product by using packet communication.
･You are recommended to back up your data before
updating software.
･For details, visit http://www.sonymobile.co.jp/support/ or
refer to the "Instruction Manual" (Japanese) application or
"取扱説明書 (Full instruction manual)" (Japanese) available.
■Downloading and updating software
Update files can be downloaded from the Internet web site
into the product directly.
･Note that when Wi-Fi® communication becomes unstable,
packet communication takes the place automatically, which
may apply communication fees.
1From the Home screen, [ ]X[ツール (Tool)]X[Update
Center]
2Tap "System" tabX[]
Main specifications
Status Description
Red The battery is charging when the remaining
battery level is 14% or lower.
Orange The battery is charging when the remaining
battery level is 15% - 89%.
Green The battery is charging when the remaining
battery level is 90% or higher.
Flashing
red
The remaining battery level is 14% or lower.
Flashing
white
Indicates missed call, new Gmail message, new
SMS message.*1
Symptom What you should check
Power is not turned
on even though P
is pressed
Is the internal battery charged?
Is P pressed for over 1 second?
The power goes off Is the internal battery charged?
The power turns off
while activation
screen is displayed
Is the internal battery charged?
The screen freezes
and the power
cannot be turned off
Open the microSD memory card/
Micro IC Card slot cover while hooking
the groove with your fingernail, press
the OFF button (RED) with a fine-
tipped object for approximately three
secondsu release your finger after it
vibrates three times. Alternatively,
press and hold P and upper part of
volume key at the same time for
approximately three seconds, and
release your finger after it vibrates
three times.
(Out of service
area) appears
Is the product out of the service area
or in an area where the signal is weak?
Is the built-in antenna covered with
hand?
Cannot charge the
battery (Notification
LED does not light,
the battery icon
does not change
into charging one)
Is the specified charging equipment
(sold separately) attached properly?
Cannot operate key/
touch panel
Is the power turned on?
Is "Screen lock" set?
Turn off the power and then turn it on
again.
Cannot operate
touch panel as
intended
Are you operating with gloved hands?
Are you operating with a fingernail or
foreign object on the operating
screen?
Charging is not
complete
Is the temperature of the product
raised or very low?
A message such as
"charge the battery"
appears
The battery is almost dead.
Symptom What you should check
Battery usage time
is short
Is the battery fully charged? Charge
until the notification LED turns green.
Is the internal battery end-of-life?
Is the product used for a long period
at places where (out of range)
appears?
The screen
backlight turns off
in a short while
Is set "Sleep" period too short?
The display is dark. Is "Brightness" set to dark?
Is the proximity sensor blocked or
covered by sticker?
Screen response is
slow when you tap
on the screen/press
the keys
When a large amount of data is saved
in the product or transferring large-
size data between the product and
microSD memory card, the screen
response may be delayed.
Cannot recognize a
microSD memory
card
Is the microSD memory card inserted
properly?
Is the microSD memory card unmounted?
Symptom What you should check
Display Approx. 5 inches
TRILUMINOS® Display for mobile
Approx. 16.77 million colors
1,080 x 1,920 dots
Weight Approx. 167 g (with internal
battery)
Dimension (W x H x T) Approx. 72 mm x 137 mm x
10.8 mm
Continuous
call time
In Japan Approx. 1340 min.
Overseas
(GSM)
Approx. 800 min.
❖Information
･The continuous call time, continuous stand-by time, 
continuous Full Seg watching time, continuous 1Seg
viewing time and continuous tethering time may drop to less
than half depending on the battery charging status, usage
environment such as temperature, reception condition at the
location where the product is used, and the function
settings.
Continuous
stand-by
time
In Japan Approx. 640 hours (4G (LTE))
Approx. 670 hours (3G)
Overseas
(GSM)
Approx. 710 hours
Charging time Using Common AC Adapter (sold
separately):
Approx. 150 min. (alone)
Approx. 160 min. (with Desktop
Holder)
Continuous Full Seg
watching time
Approx. 4 hours 50 min.
Continuous 1Seg
viewing time
Approx. 6 hours 40 min.
Continuous tethering
time
Approx. 580 min. (4G (LTE) on
WAN)
Approx. 790 min. (3G on WAN)
Wi-Fi® tethering
maximum connection
number
10
wxyzA
B
uv

Navigation menu
