User guide
Bluetooth® Speaker with
Magnetic Charging Pad
BSC10
Contents
Introduction..................................................................................3
Overview............................................................................................3
Notification light status......................................................................3
Using the attachment..................................................................5
Charging your device...................................................................6
Using Bluetooth® Speaker with Magnetic Charging Pad........7
Disconnecting/Reconnecting your device.................................8
Legal information.........................................................................9
Declaration of Conformity for BSC10................................................9
2
This is an Internet version of this publication. © Print only for private use.
Introduction
The Bluetooth® Speaker with Magnetic Charging Pad has functions for both
Bluetooth® speaker and magnet charging. With Bluetooth® Speaker with Magnetic
Charging Pad, you can enjoy musics or movies with good sound quality, answer the
incoming phone calls, and charge your device without having to open the USB cover.
The Bluetooth® Speaker with Magnetic Charging Pad positions your device at a
comfortable viewing angle so that you can easily browse content while it’s charging.
Overview

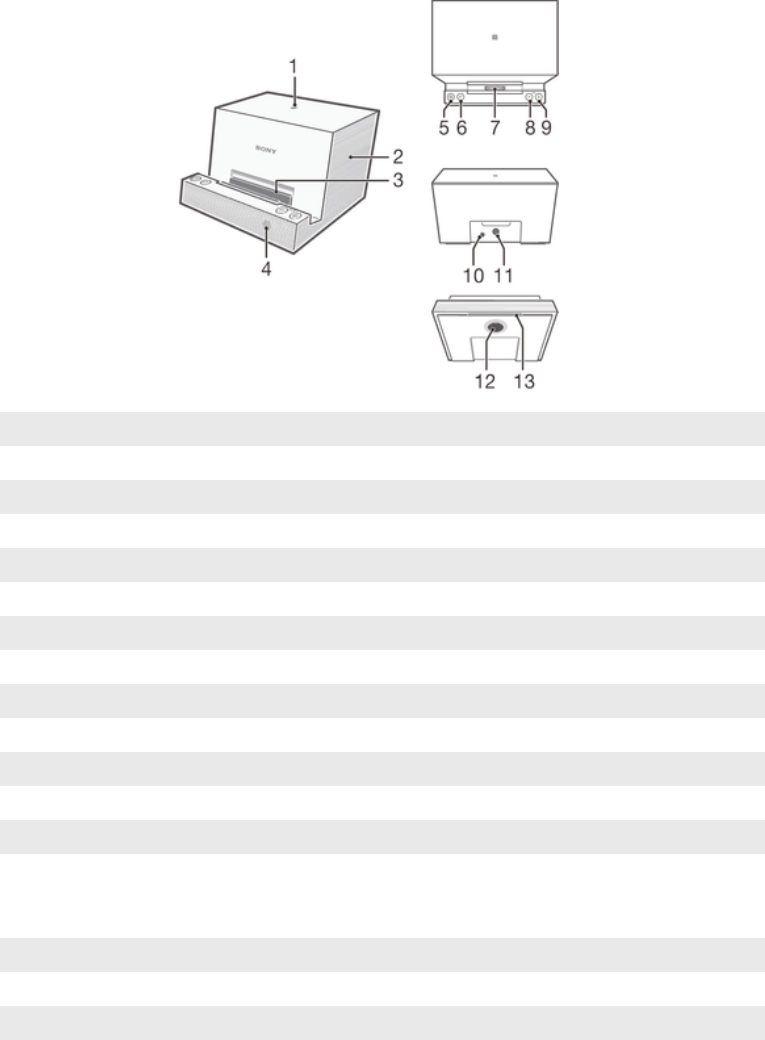

1 NFC detection area
2 Speaker
3 Attachment
4 Microphone
5 Power/Bluetooth pairing button
6 Hands free button
7 Magnet charging position
8 Volume down button
9 Volume up button
10 Audio in
11 DC in
12 Attachment exchange button
13 Power/Bluetooth notification light
Notification light status
Flashing slowly The Bluetooth® speaker is searching for previously connected devices to pair with.
Flashing rapidly Pairing mode – The Bluetooth® speaker is for pairing with other devices.
Illuminating in blue The Bluetooth® speaker is paired with a device.
3
This is an Internet version of this publication. © Print only for private use.
Illuminating in white The Bluetooth® speaker is plugged with an Audio-in cable.
When several devices are available for pairing, the Bluetooth® speaker tries to pair with the
most recently connected device.
4
This is an Internet version of this publication. © Print only for private use.
Using the attachment
The Bluetooth® Speaker with Magnetic Charging Pad comes with three attachments
of different width. Each attachment can fit into the dock and hold your device in place
after you insert it. Attachment for your Xperia™ Z2 Tablet or Xperia™ Z Ultra is set on
the device. Attachment with “BSC10B” is for your other phone. If your phone has a
protective case, use Attachment with “BSC10C”.
Attachment “BSC10C” may not be compatible with all protective cases.

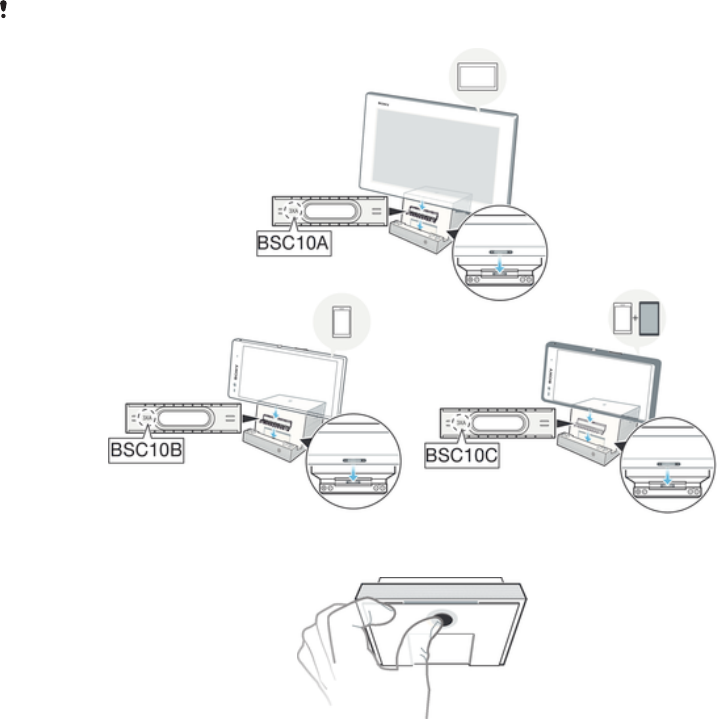

To change the attachment
1Press the button at the bottom to eject the attachment.
2Put another attachment on the Bluetooth® Speaker with Magnetic Charging
Pad device until you hear a locking sound.
5
This is an Internet version of this publication. © Print only for private use.
Charging your device

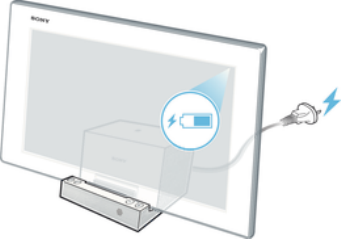

To charge your device using Bluetooth® Speaker with Magnetic Charging Pad
1Insert the required attachment into the Bluetooth® Speaker with Magnetic
Charging Pad.
2Place your device in the Bluetooth® Speaker with Magnetic Charging Pad and
slide it until you hear a locking sound.
3Plug the cable of the AC adapter into the Bluetooth® Speaker with Magnetic
Charging Pad.
4Plug the AC power cord into the power outlet.
6
This is an Internet version of this publication. © Print only for private use.
Using Bluetooth® Speaker with
Magnetic Charging Pad
Before you can use the Bluetooth® Speaker with Magnetic Charging Pad to play
music or handle incoming calls, you need to first pair it with your device. You can pair
the Bluetooth® Speaker with Magnetic Charging Pad using Bluetooth® function, or
you can use NFC. Once paired, the Bluetooth® Speaker with Magnetic Charging Pad
automatically establishes a connection to your device.
To pair the Bluetooth® Speaker with Magnetic Charging Pad with your device
using NFC
1Make sure that the NFC function is turned on and that the screen is active and
unlocked on your device.
2Turn on the Bluetooth® Speaker with Magnetic Charging Pad device.
3Place your device over the NFC detection area of the Bluetooth® Speaker with
Magnetic Charging Pad device so that the NFC detection area of each device
touches each other.
To pair the Bluetooth® Speaker with Magnetic Charging Pad with your device
using Bluetooth®
1Make sure your device has the Bluetooth® function turned on.
2Press and hold the Power/Bluetooth pairing button on the Bluetooth® Speaker
with Magnetic Charging Paddevice until you heard a short sound and the
notification light flashes rapidly in blue.
3Search and connect to the BSC10 on your device.
When the Bluetooth® Speaker with Magnetic Charging Pad is paired with your device
successfully, the notification light illuminates in blue.
To answer an incoming call using Bluetooth® Speaker with Magnetic Charging
Pad
•Press . You can now answer the call from the device.
7
This is an Internet version of this publication. © Print only for private use.
Disconnecting/Reconnecting your
device
There are three ways to disconnect your device from or reconnect it with the
Bluetooth® Speaker with Magnetic Charging Pad:
•Deselect or select BSC10 in the list of paired Bluetooth® devices in your device.
•Place your device over the Bluetooth® Speaker with Magnetic Charging Pad so that
the NFC detection area of each device touches the other.
•Press the Power/Bluetooth pairing button.
8
This is an Internet version of this publication. © Print only for private use.
Legal information
SONY BSC10
Prior to use, please read the
Important information
leaflet separately provided.
This User guide is published by Sony Mobile Communications AB or its local affiliated company, without any
warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of
current information, or improvements to programs and/or equipment, may be made by Sony Mobile
Communications AB at any time and without notice. Such changes will, however, be incorporated into new
editions of this User guide.
All rights reserved.
©Sony Mobile Communications AB, 2014
Publication number: 1277-5616.1
Sony is the trademark or registered trademark of Sony Corporation.
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property of
their respective owners.
Visit
www.sonymobile.com
for more information.
All illustrations are for illustration only and may not accurately depict the actual accessory.
Declaration of Conformity for BSC10
We, Sony Mobile Communications AB of
Nya Vattentornet
SE-221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony type RD-0110
and in combination with our accessories, to which this declaration relates is in
conformity with the appropriate standards EN 301 489-7:V1.3.1 and EN 60
950-1:2006 +A11:2009+A1:2010+A12:2011 following the provisions of, EMC directive
2004/108/EC, Low voltage directive 2006/95/EC.
Lund, February 2014
Pär Thuresson,
Quality Officer, SVP, Quality & Customer Services
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Any change or modification not expressly approved by Sony may void the user's authority to operate the
equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
