User Guide
Draft
User guide
Mono Bluetooth® Headset
MBH20
Contents
Introduction....................................................................................3
Function overview..............................................................................3
Accessory overview...........................................................................3
Basics.............................................................................................4
Charging the handset........................................................................4
Turning the headset on and off..........................................................4
Pairing the headset with compatible devices....................................4
Wearing instruction............................................................................5
Using your headset........................................................................6
Call handling......................................................................................6
Multipoint technology........................................................................6
Resetting the headset....................................................................7
Troubleshooting.............................................................................8
I cannot answer a second call...........................................................8
I cannot pair a second Bluetooth® device........................................8
The headset turns off automatically...................................................8
Unexpected behaviour.......................................................................8
No connection between headset and other device...........................8
Legal information............................................................................9
Declaration of Conformity for MBH20...............................................9
2
This is an Internet version of this publication. © Print only for private use.
Introduction
Function overview
With the Mono Bluetooth® Headset, you can control incoming and outgoing phone
calls while you listen to music from your device. You can connect your Bluetooth®
headset to two Bluetooth® devices at the same time so that you can receive calls
from two devices without having to disconnect and reconnect.
Accessory overview
1. Ear speaker cover
2. Ear speaker
3. Micro USB port
4. Microphone
5. Power key/Call key
6. Notification light
Compatibility information for your accessory is available at
www.sonymobile.com/support
.
3
This is an Internet version of this publication. © Print only for private use.
Basics
Charging the handset
Before using the Mono Bluetooth® Headset for the first time, you need to charge it
for approximately 2.5 hours. Sony chargers are recommended.

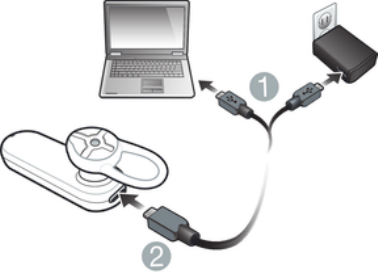

To charge the battery
1Plug one end of the USB cable into the charger (or into the USB port of a
computer).
2Plug the other end of the cable into the Micro USB port on your Mono
Bluetooth® Headset.
Turning the headset on and off
To turn on the headset
•Press and hold down the Power key until the notification light turns green.
To turn off the headset
•Press and hold down the Power key until the red notification light flashes once.
Pairing the headset with compatible devices
Before you can use the headset, you need to pair it with a Bluetooth® compatible
device, for example, a phone. After successful pairing, the headset connects to the
Bluetooth® compatible device as soon as the headset is turned on and within range.
After that, you can also pair the headset with a second Bluetooth® compatible device
in the same way.
To manually pair the headset with a Bluetooth® device
1Make sure the Bluetooth® device has the Bluetooth® function turned on.
2Turn off the headset.
3Headset: Press and hold down the Power key until a green notification light
starts flashing rapidly.
4Bluetooth® device: Scan for Bluetooth® devices, then select MBH20 in the list
of available devices.
5Bluetooth® device: Follow the pairing instructions that appear.
4
This is an Internet version of this publication. © Print only for private use.
Wearing instruction
You can wear the headset on either the left or right ear.
5
This is an Internet version of this publication. © Print only for private use.
Using your headset
Call handling
To answer a call with the headset
•When you hear an incoming call signal, press the Call key.
To end a call
•During an ongoing call, press the Call key.
To reject a call
•When you hear an incoming call signal, press and hold down the Call key.
To answer a second call
•When you hear an incoming call signal during an ongoing call, press the Call
key. The ongoing call is put on hold.
To reject a second call
•When you hear an incoming call signal during an ongoing call, press and hold
down the Call key.
To switch between two calls
•Double press the Call key shortly.
Multipoint technology
Use Multipoint technology to connect your headset to two Bluetooth® devices at the
same time. For example, if you connect your headset with two phones, you can
receive calls from both phones without having to disconnect and reconnect.
If you prefer that your headset connects to just one Bluetooth® device at any given
time, you can use Singlepoint mode instead. Singlepoint mode is enabled by default.
Before pairing your headset with a new device in Singlepoint mode, make sure that
you disconnect it from other devices.
Multipoint mode consumes more battery power than Singlepoint mode.
To connect your headset to two devices at the same time
1Make sure that the headset is paired successfully with one Bluetooth® device
and the other Bluetooth® device has the Bluetooth® function turned on.
2Turned off the headset.
3Press and hold down the Power key until a green notification light starts
flashing rapidly.
4Double press the Power key shortly. After Multipoint mode is activated, a
yellow notification light will flash twice.
5Pair and connect your headset to the second Bluetooth® device.
6The first Bluetooth® device:To reconnect the headset, select MBH20 in the list
of paired devices on the screen of the Bluetooth® setting.
To switch between Multipoint mode and Singlepoint mode
1Make sure that the headset is turned off.
2Press and hold down the Power key until a green notification light starts
flashing rapidly.
3Double press the Power key shortly. After Singlepoint mode is activated, a
yellow notification light will flash once.
4To switch to Multipoint mode, double press the Power key shortly again. A
yellow notification light will flash twice.
6
This is an Internet version of this publication. © Print only for private use.
Resetting the headset
To reset the headset
1Make sure the headset is turned off.
2Press and hold down the Power key for more than 8 seconds till the
notification light turns green for the second time and starts flashing rapidly.
7
This is an Internet version of this publication. © Print only for private use.
Troubleshooting
I cannot answer a second call
•Make sure that your calling device supports the Bluetooth® headset profile.
•Make sure that the correct calling device is selected.
I cannot pair a second Bluetooth® device
•Make sure that Multipoint mode is activated.
The headset turns off automatically
•If the headset beeps several times shortly or a red notification light starts flashing
rapidly before turning off, the battery level is low. Charge the battery.
Unexpected behaviour
•Restart the headset.
No connection between headset and other device
•Make sure that the headset is charged and within range of the device that you want
to connect to. A maximum distance of 10 metres (33 feet), with no solid objects in
between, is recommended.
•Disable the Bluetooth® function in the other device so that all connections are
closed, then re-enable the Bluetooth® function and pair the headset with the device
again.
8
This is an Internet version of this publication. © Print only for private use.
Legal information
SonyMBH20
Prior to use, please read the
Important information
leaflet separately provided.
This User guide is published by Sony Mobile Communications AB or its local affiliated company, without any
warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of
current information, or improvements to programs and/or equipment, may be made by Sony Mobile
Communications AB at any time and without notice. Such changes will, however, be incorporated into new
editions of this User guide.
All rights reserved.
©2014 Sony Mobile Communications AB.
Interoperability and compatibility among Bluetooth® devices varies. Device generally supports products
utilizing Bluetooth spec. 1.2 or higher, and Headset or Handsfree profile.
Sony is the trademark or registered trademark of Sony Corporation. Bluetooth is the trademark of the
Bluetooth (SIG) Inc. and is used under license. All other marks are the property of their respective owners. All
rights reserved.
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property of
their respective owners.
Visit
www.sonymobile.com
for more information.
All illustrations are for illustration only and may not accurately depict the actual accessory.
Declaration of Conformity for MBH20
We, Sony Mobile Communications AB of
Nya Vattentornet
SE-221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony type RD-0150
and in combination with our accessories, to which this declaration relates is in
conformity with the appropriate standards EN 300 328:V1.8.1, EN 301 489-7:V1.3.1,
EN 301 489-17:V2.2.1, and EN 60 950-1: 2006+A11:2009+A1:2010+A12:2011
following the provisions of, Radio Equipment and Telecommunication Terminal
Equipment directive 1999/5/EC.
Lund, June 2014
Pär Thuresson,
Quality Officer, SVP, Quality & Customer Services
We fulfil the requirements of the R&TTE Directive (1999/5/EC).
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Any change or modification not expressly approved by Sony may void the user's authority to operate the
equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
9
This is an Internet version of this publication. © Print only for private use.
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
AVISO IMPORTANTE PARA MÉXICO
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o
dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier
interferencia, incluyendo la que pueda causar su operación no deseada.
Para consultar la información relacionada al número del certificado, refiérase a la etiqueta del empaque y/o del
producto.
Alimentación: 5,0 Vcc
Industry Canada Statement
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Avis d’industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et,
and (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
10
This is an Internet version of this publication. © Print only for private use.
