User guide
Stereo Bluetooth® Headset
SBH60
Contents
Introduction....................................................................................3
Function overview..............................................................................3
Hardware overview............................................................................3
Basics.............................................................................................5
Charging the battery..........................................................................5
Turning the headset on and off..........................................................5
Adjusting the volume.........................................................................5
Resetting and restarting.....................................................................5
Getting started...............................................................................7
Preparing to use your headset with a Bluetooth® device.................7
Using your headset in wired mode....................................................7
Using your headset........................................................................8
Using your headset to handle phone calls.........................................8
Using your headset to listen to music...............................................8
Using your headset with two devices simultaneously.......................8
Troubleshooting...........................................................................10
I cannot answer a second call.........................................................10
Music from another device does not play in the headset................10
The headset turns off automatically.................................................10
No connection between headset and other device.........................10
Unexpected behaviour.....................................................................10
Legal information..........................................................................11
Declaration of Conformity ...............................................................12
2
This is an Internet version of this publication. © Print only for private use.
Introduction
Function overview
Your Stereo Bluetooth® Headset SBH60 is designed to make life more convenient
when you're on the go. You can use it together with an Android™ powered device
such as a phone or tablet, or with a Bluetooth® compatible device such as a non-
Android phone, a computer or a music player. When paired with a compatible device,
you can use your headset to control incoming and outgoing phone calls or to listen to
music.
Hardware overview

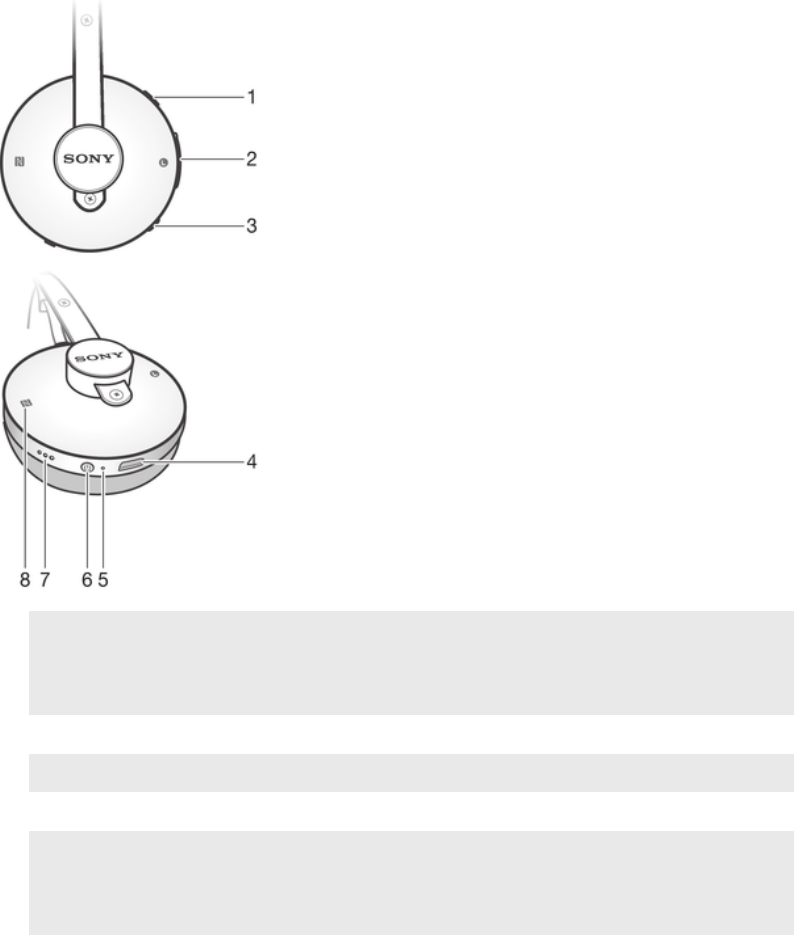

1Music key/Call key Press to play or pause the current media file.
Press to answer incoming calls.
Press and hold down to reject incoming calls.
2Volume key Press to adjust the volume.
33.5 mm audio jack Insert the audio cable to use as a wired headset.
4Micro USB port Insert the USB cable to charge the battery.
5Notification light Flashing red light: battery level is too low.
Flashing blue light: the headset is in pairing mode.
Flashing white light: a call is coming in.
3
This is an Internet version of this publication. © Print only for private use.
6Power key Press and hold down to turn the headset on or off.
When the headset is on, briefly press to show a notification
light indicating battery level.
Red light: 5% - 15%
Yellow light: 15% - 30%
Green light: 30% - 100%
7Microphone To get the best performance from the microphone, place it
on the left side when wearing your headset.
8NFC detection
area Touch other devices to this area during NFC pairing.
4
This is an Internet version of this publication. © Print only for private use.
Basics
Charging the battery
Before using the Stereo Bluetooth® Headset SBH60 for the first time, you need to
charge the headset for approximately 30 minutes. Sony chargers are recommended.
To charge your headset

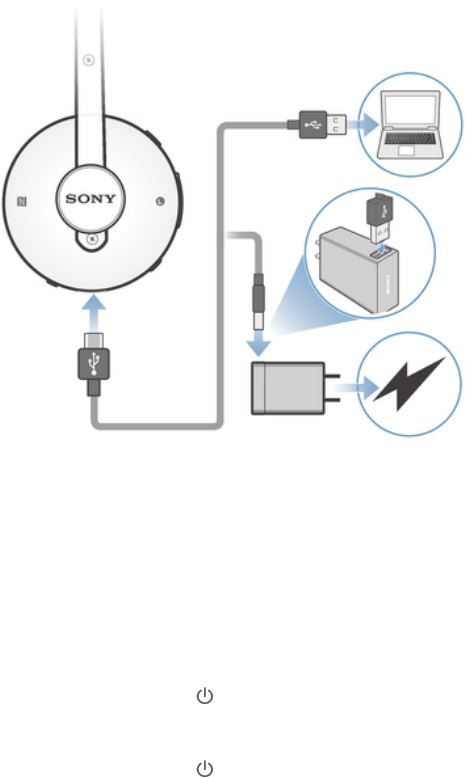

1Plug one end of the USB cable into the charger or into the USB port of a
computer.
2Plug the other end of the cable into the Micro USB port of your Stereo
Bluetooth® Headset SBH60.
3After your headset is fully charged, the notification light turns to green.
Turning the headset on and off
To turn on the headset
•Press and hold down until a white notification light flashes once.
To turn off the head set
•Press and hold down until a white notification light flashes rapidly for three
times.
Adjusting the volume
To change the call or music volume
•During a call, or when listening to music, press the Volume key up or down.
Resetting and restarting
You can reset your Stereo Bluetooth® Headset SBH60 to its factory default settings.
This action deletes all pairing data on your headset. It is sometimes necessary if your
headset stops functioning properly.
You can also force your Stereo Bluetooth® Headset SBH60 to restart in situations
where it hangs or does not restart normally. When you force your headset to restart,
no pairing data is deleted.
5
This is an Internet version of this publication. © Print only for private use.
To perform a factory reset
1Turn off the headset, then connect the charger so that the headset starts to
charge.
2Press and hold down the Call key until a white notification light starts flashing.
To force your headset to restart
•Press and hold down for at least 10 seconds until your headset restarts.
6
This is an Internet version of this publication. © Print only for private use.
Getting started
Preparing to use your headset with a Bluetooth® device
Before you can start using your headset with a Bluetooth® device, you need to pair
the headset with the Bluetooth® device manually using Bluetooth® or automatically
using NFC.
To manually pair your headset with a Bluetooth® device
1Bluetooth® device: Make sure the Bluetooth® function is turned on.
2Turn off your headset.
3Headset: Press and hold down until a blue notification light starts flashing
rapidly.
4Bluetooth® device: Scan for Bluetooth® devices, then select SBH60 in the list
of available devices.
5Bluetooth® device: Follow the pairing instructions that appear on the screen.
To automatically pair your headset with a Bluetooth® device
1Bluetooth® device: Make sure that the NFC function is turned on and that the
screen is active and unlocked.

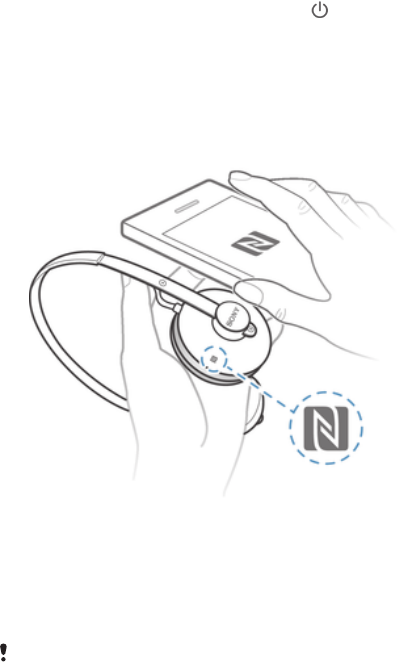

2Place the Bluetooth® device over your headset so that the NFC detection area
of each device touches the other.
3Bluetooth® device: Follow the pairing instructions that appear.
The device used in this illustration is for illustration purposes only and may not accurately
depict the actual device used.
Using your headset in wired mode
You can also use your Stereo Bluetooth® Headset SBH60 as a wired headset. When
you insert the audio cable into the 3.5 mm audio jack, the headset is automatically
turned off and disconnected with any paired Bluetooth® devices. Your headset does
not need to be turned on during wired mode.
7
This is an Internet version of this publication. © Print only for private use.
Using your headset
Using your headset to handle phone calls
Use the headset to handle incoming calls, for example, to answer or reject a call.
To answer a call with the headset
•When you hear an incoming call signal, press the Call key.
To end a call
•During an ongoing call, press the Call key.
To reject a call
•When you hear an incoming call signal, press and hold down the Call key.
To answer a second call
•When you hear an incoming call signal during an ongoing call, press the Call
key. The ongoing call is put on hold.
To reject a second call
•When you hear an incoming call signal during an ongoing call, press and hold
down the Call key.
To switch between ongoing calls
•Double press the Call key briefly.
Using your headset to listen to music
You can listen to music from your phone or another Bluetooth® compatible device
using your headset.
To listen to music
1Open the music player application in your device and select a track that you
want to listen to.
2Press the Music key to play the track. To pause the track, press the Music key
again.
To move between tracks
•Double press the Music key briefly.
Using your headset with two devices simultaneously
Your headset has two different connection modes: Multipoint mode and Singlepoint
mode. Multipoint mode helps you manage two connections at the same time. For
example, if you connect your headset with two phones, you can receive calls from
both phones without having to disconnect and reconnect.
Singlepoint mode is enabled by default. If you want to use your headset with two
devices at the same time, you should switch to Multipoint mode manually.
You can only connect to a maximum of two devices in Multipoint mode. If you pair the headset
with a third device, the first paired device gets disconnected.
To switch between Multipoint mode and Singlepoint mode
1Make sure that the headset is turned on.
2To enter Multipoint mode, press and hold down both the Power key and the
Volume up key until a purple notification light flashes twice.
3To enter Singlepoint mode, press and hold down both the Power key and the
Volume down key until a purple notification light flashes once.
8
This is an Internet version of this publication. © Print only for private use.
To manually pair your headset with a second Bluetooth® device
1Make sure that the headset is paired successfully with one Bluetooth® device
and the other Bluetooth® device has the Bluetooth® function turned on.
2Turn off the headset.
3Headset: Press and hold down until a blue notification light starts flashing
rapidly.
4The second Bluetooth® device: Scan for Bluetooth® devices, then select
SBH60 in the list of available devices. Follow the pairing instructions that
appear on the screen.
5The first Bluetooth® device: To reconnect to the headset, select SBH60 in the
list of paired devices on the Bluetooth® settings screen.
To automatically pair your headset with a second Bluetooth® device
1Make sure that the headset is paired successfully with one Bluetooth® device.
2The second Bluetooth® device: Make sure that the NFC function is turned on
and that the screen is active and unlocked.
3The second Bluetooth® device: Place over your headset so that the NFC
detection area of each device touches the other. Follow the pairing instructions
that appear on the screen.
4The first Bluetooth® device: To reconnect to the headset, select SBH60 in the
list of paired devices on the Bluetooth® settings screen.
9
This is an Internet version of this publication. © Print only for private use.
Troubleshooting
I cannot answer a second call
•Make sure that your calling device supports the Bluetooth® headset profile.
•Make sure that the correct calling device is selected.
Music from another device does not play in the headset
•Make sure that the music-playing device is paired with the headset.
•Restart the music player application on the music-playing device.
•Make sure that the correct music source is selected.
The headset turns off automatically
•If the headset beeps several times shortly or a red notification light starts flashing
rapidly before turning off, the battery level is low. Charge the battery.
No connection between headset and other device
•Make sure that the headset is charged and within range of the device that you want
to connect to. A maximum distance of 10 metres (33 feet), with no solid objects in
between, is recommended.
•Disable the Bluetooth® function in the other device so that all connections are
closed, then re-enable the Bluetooth® function and pair the headset with the device
again.
Unexpected behaviour
•Reset the headset.
10
This is an Internet version of this publication. © Print only for private use.
Legal information
SonySBH60
Prior to use, please read the
Important information
leaflet separately provided.
This User guide is published by Sony Mobile Communications AB or its local affiliated company, without any
warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of
current information, or improvements to programs and/or equipment, may be made by Sony Mobile
Communications AB at any time and without notice. Such changes will, however, be incorporated into new
editions of this User guide.
All rights reserved.
©2014 Sony Mobile Communications AB.
Interoperability and compatibility among Bluetooth® devices varies. Device generally supports products
utilizing Bluetooth spec. 1.2 or higher, and Headset or Handsfree profile.
Sony is the trademark or registered trademark of Sony Corporation. Bluetooth is the trademark of the
Bluetooth (SIG) Inc. and is used under license. All other marks are the property of their respective owners. All
rights reserved.
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property of
their respective owners.
Visit
www.sonymobile.com
for more information.
All illustrations are for illustration only and may not accurately depict the actual accessory.
To view CE mark and FCC ID

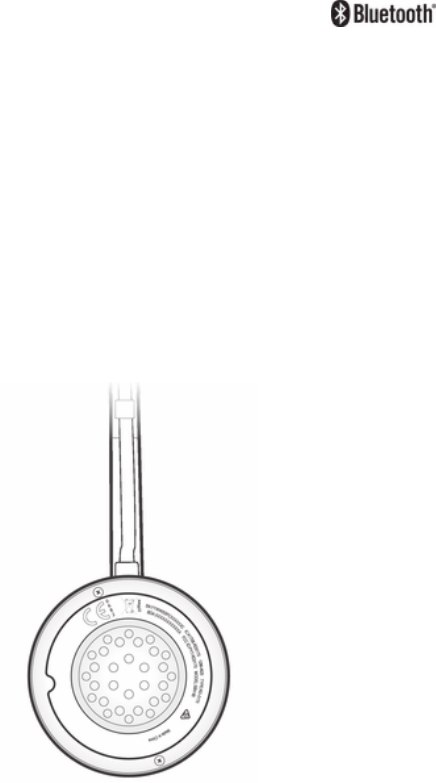

•Detach the right ear cushion from your headset.
11
This is an Internet version of this publication. © Print only for private use.
Declaration of Conformity
We, Sony Mobile Communications AB of
Nya Vattentornet
SE-221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony type RD-0170
and in combination with our accessories, to which this declaration relates is in
conformity with the appropriate standards EN 300 328:V1.8.1, EN 301 489-3:V1.6.1,
EN 301 489-7:V1.3.1, EN 301 489-17:V2.2.1 and EN 60 950–
1:2006+A11:2009+A1:2010+A12:2011 following the provisions of, Radio Equipment
and Telecommunication Terminal Equipment directive 1999/5/EC.
Lund, July 2014
Pär Thuresson,
Quality Officer, SVP, Quality & Customer Services
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Any change or modification not expressly approved by Sony may void the user's authority to operate the
equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Statement
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Avis d’industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et,
and (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
12
This is an Internet version of this publication. © Print only for private use.
