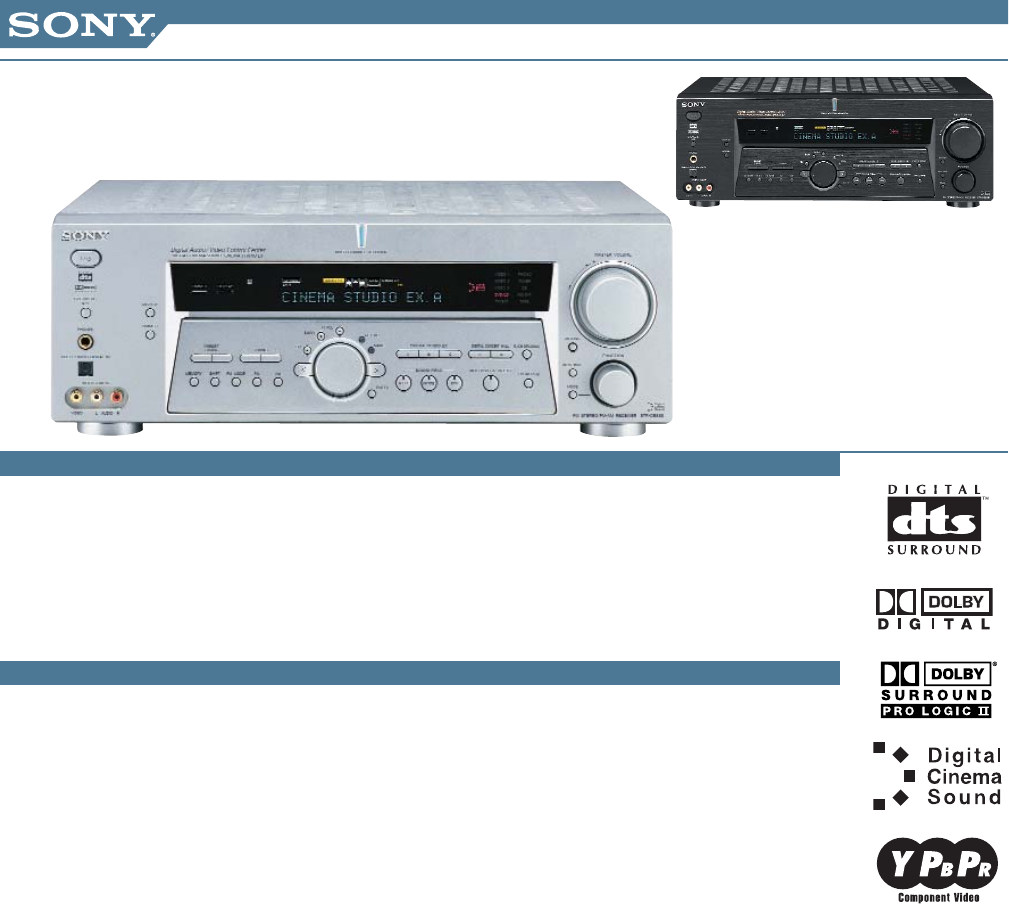

STR-DE885
A/V Receiver
• 100 Watts Per Channel x 5 (8 ohms, 1 kHz, THD 0.7%)
• Dolby® Digital, dts® and Dolby Pro Logic® II Decoding
• Component Video Switching (Progressive Capable)
• Virtual Matrix 6.1
• Front A/V Input with Optical Input
Digital Section
• 32-Bit Dolby® Digital, dts®
and Dolby Pro Logic® II
Decoder
• 6.1 Channel Virtual Matrix
Decoding
• 32-Bit Digital Signal
Processor
• Digital Cinema Sound™
System with Cinema Studio
EX Modes
• dts®
• Dolby® Pro Logic® II
• Sound Field Programs:
Cinema - 7
Music - 10
Auto Format Decoding - 1
• Cinema Studio EX A/B/C
Mode
• Matrix 6.1 Mode
Amplifer Section
• 5 Channel Power Rating:
100W x 5 (8 ohms, 1 kHz,
THD 0.7%)
• Stereo Power Rating:
100W x 2 (8 ohms, 20Hz -
20kHz, THD 0.09%)
• 8 ohm Rated Amplifer
• Circuit Device: Discrete
• A or B Speaker Switching
for Front Speakers (8 - 16
ohms speakers only)
Inputs and Outputs
• 5.1 Multi-Channel Analog
Inputs
• 2 Progressive Capable
Component Video Inputs/1
Output
• Phono Input (MM Type)
• 4 Analog Audio Line
Inputs/2 Analog Line
Outputs
• 4 Optical, 1 Coaxial Input/1
Optical Line Output
• 1 Subwoofer Output
• 1 Surround Back Output
• 5 Composite Video Inputs/2
Composite Video Outputs
• 3 S-Video Inputs/1 S-Video
Output
• 1 Front Audio Video Input
with Composite and Optical
Digital
• 1 Composite Monitor
Output/1 S-Video Monitor
Output
• 1/4" Headphone Jack Output
Construction Features
• Screw Type Speaker
Terminals for Front A,
Center, Rear
• Discrete Output Transistors
Convenience Features
• Sound Field Link
• Full Digital Cinema Sound
System
• 30 Total Station Presets (20
FM/10 AM)
• Preprogrammed Remote
Control with Macros Control
• Button Zoned Remote
Control (For Ease of Use)
• 2 Switched AC Outlets,
120W/1A Max
KEY FEATURES
ADDITIONAL FEATURES
Product Information
Specifications
Amplifier Section
• 5 Channel Power Rating:
100W x 5 (8 ohms,
1kHz, THD 0.7%)
• Stereo Power Rating:
100W x 2 (8 ohms, 20Hz
- 20kHz, THD 0.09%)
• Input Sensitivity/Impedance:
Phone: 4mV/50 kOhm
Line/Multi-Channel
Inputs 1&2: 250mV/50
kOhm
• Frequency Response:
10 Hz - 70kHz +0.5/-2dB
(w/Soundfield and EQ
bypassed)
• Rec Out Level/Impedance:
250 mV/10 kOhm
• Pre Out Level/Impedance:
Subwoofer:
2V/1 kOhm
Surround Back:
2V/1 kOhm
Video Section
• Input Sensitivity/Impedance:
Composite In:1Vp-p/75
ohm
S-Video In(Y):1Vp-p/75
ohm
S-Video In(C):0.286Vp-
p/75 ohm
Component Video In (Y):
1Vp-p/75 ohm
Component Video In (Pb
B-Y): 0.7Vp-p, 75 ohm
Component Video In (Pr
R-Y): 0.7Vp-p, 75 ohm
• OutputSensitivity/Impedance:
Composite Out:1Vp-p/75
ohm
S-VideoOut(Y):1Vp-p/75
ohm
S-Video Out(C): 0.286Vp-
p/75 ohm
Component Video Out
(Y): 1Vp-p/75 ohm
Component Video Out
(Pb B-Y): 0.7Vp-p, 75
ohm
Component Video Out
(Pr R-Y): 0.7Vp-p, 75
ohm
General
• Power Requirements:
AC120V, 60Hz
• Power Consumption (in
Operation): 210W
• Power Consumption
(Standby): 0.5W (when
Power Save is set)
Accessories
Supplied Accessories
• Instruction Manual
• FM Wire Antenna
• AM Loop Antenna
• RM-PP411 Remote
Commander® Remote
Control
• Size AA Batteries (2)
Weights & Measures*
• Dimensions (W x H x D):
167/8" x 62/8" x 144/8"
• Weight: 21 lbs.
ADDITIONAL FEATURES

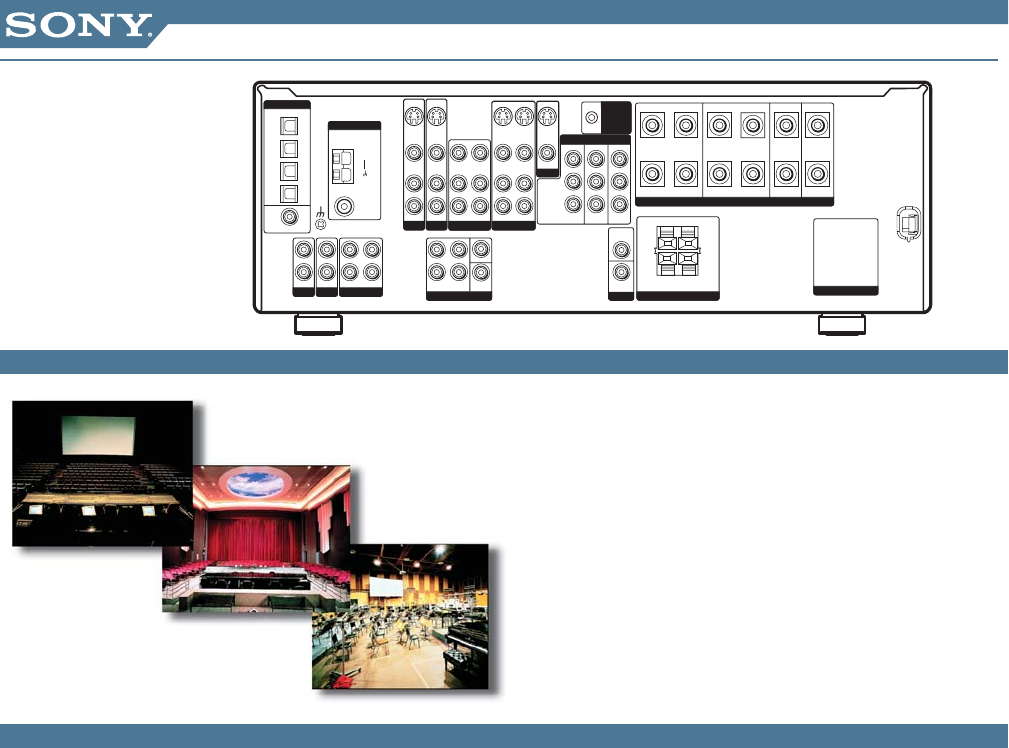

KEY TECHNOLOGY
