STR-DH190
4-726-907-11(1)
For the customers in the USA
Owner’s Record
The model and serial numbers are located on
the rear of the receiver. Record the serial
number in the space provided below. Refer to
these numbers whenever you call upon your
Sony dealer regarding this product.
Model No. STR-DH 190
Serial No.
To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture.
To reduce the risk of fire, do not cover the
ventilation opening of the appliance with
newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked flame
sources (for example, lighted candles).
To reduce the risk of fire or electric shock, do
not expose this appliance to dripping or
splashing, and do not place objects filled with
liquids, such as vases, on the appliance.
Do not install the appliance in a confined
space, such as a bookcase or built-in cabinet.
As the main plug is used to disconnect the
unit from the mains, connect the unit to an
easily accessible AC outlet. Should you notice
an abnormality in the unit, disconnect the
main plug from the AC outlet immediately.
The unit is not disconnected from the mains
as long as it is connected to the AC outlet,
even if the unit itself has been turned off.
CAUTION
Risk of explosion if the battery is replaced by
an incorrect type.
Do not expose batteries or appliances with
battery-installed to excessive heat, such as
sunshine and fire.
CAUTION
HOT SURFACE
To reduce the risk of thermal
burn hazard, do not touch the
hot surface where this symbol is
displayed.
FOR UNITED STATES CUSTOMERS. NOT
APPLICABLE IN CANADA, INCLUDING
IN THE PROVINCE OF QUEBEC.
POUR LES CONSOMMATEURS AUX
ÉTATS-UNIS. NON APPLICABLE AU
CANADA, Y COMPRIS LA PROVINCE DE
QUÉBEC.
For the customers in the USA
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of
the obsolete outlet.
10) Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
WARNING
3GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\020REG.fm masterpage: Right
STR-DH190
4-726-907-11(1)
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Properly shielded and grounded cables and
connectors must be used for connection to
host computers and/or peripherals in order to
meet FCC emission limits.

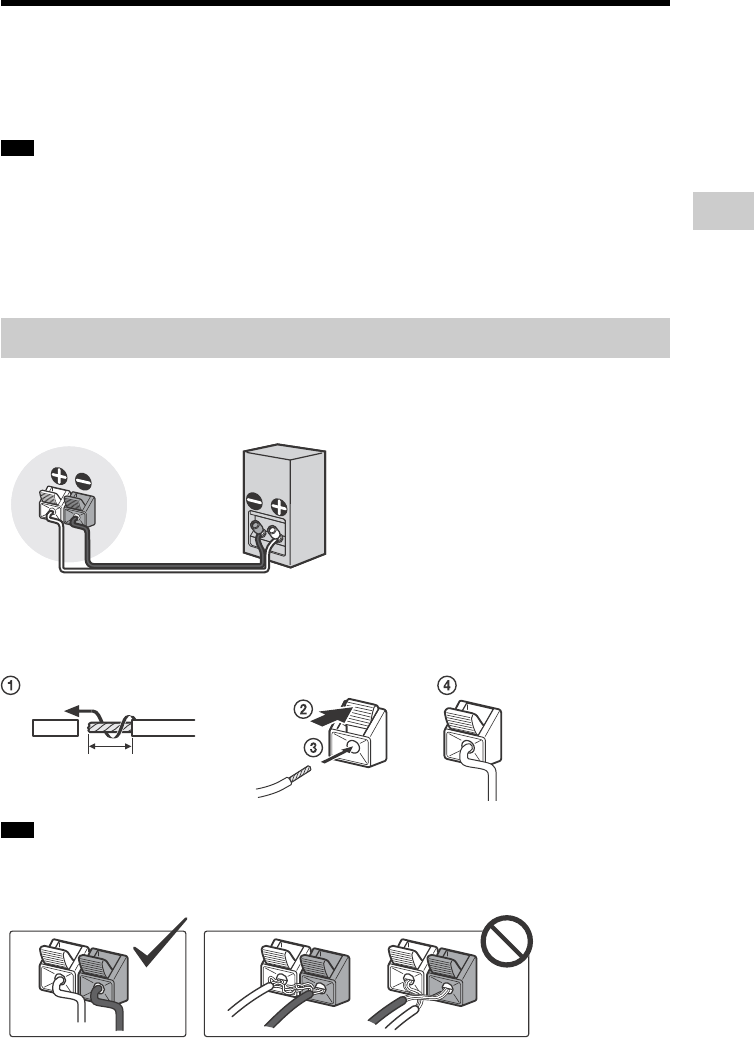

To reduce the risk of electric shock, the
speaker cable should be connected to the
apparatus and the speakers in accordance
with the following instructions.
1) Disconnect the AC power cord from the
MAINS.
2) Strip 10 to 15 mm of the wire insulation of
the speaker cable.
3) Connect the speaker cable to the
apparatus and the speakers carefully so as
not to touch the core of speaker cable by
hand. Also disconnect the AC power cord
from the MAINS before disconnecting the
speaker cable from the apparatus and the
speakers.
This equipment must not be co-located or
operated in conjunction with any other
antenna or transmitter.
For the customers in Canada
Properly shielded and grounded cables and
connectors must be used for connection to
host computers and/or peripherals.
This device complies with Industry Canada’s
licence-exempt RSSs. Operation is subject to
the following two conditions:
(1) This device may not cause interference;
and
(2) This device must accept any interference,
including interference that may cause
undesired operation of the device.
For the customers in the USA and
Canada
This equipment complies with FCC/IC
radiation exposure limits set forth for an
uncontrolled environment and meets the FCC
radio frequency (RF) Exposure Guidelines and
RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment should be
installed and operated keeping the radiator at
least 20 cm or more away from person’s body.
4GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\020REG.fm4-726-
907-11(1)
masterpage: Left
STR-DH190
4-726-907-11(1)
For the customers in Australia
Disposal of old electrical &
electronic equipment
(applicable in the European
Union and other countries
with separate collection
systems)
For the customers in Europe
Disposal of waste batteries
and electrical and electronic
equipment (applicable in the
European Union and other
countries with separate
collection systems)
This symbol on the product, the battery or on
the packaging indicates that the product and
the battery shall not be treated as household
waste. On certain batteries this symbol might
be used in combination with a chemical
symbol. The chemical symbol for lead (Pb) is
added if the battery contains more than
0.004% lead. By ensuring that these products
and batteries are disposed of correctly, you
will help to prevent potentially negative
consequences for the environment and
human health which could be caused by
inappropriate waste handling. The recycling
of the materials will help to conserve natural
resources. In case of products that for safety,
performance or data integrity reasons require
a permanent connection with an incorporated
battery, this battery should be replaced by
qualified service staff only. To ensure that the
battery and the electrical and electronic
equipment will be treated properly, hand over
these products at end-of-life to the
appropriate collection point for the recycling
of electrical and electronic equipment. For all
other batteries, please view the section on
how to remove the battery from the product
safely. Hand the battery over to the
appropriate collection point for the recycling
of waste batteries. For more detailed
information about recycling of this product or
battery, please contact your local Civic Office,
your household waste disposal service or the
shop where you purchased the product or
battery.
Notice for customers: the following
information is only applicable to
equipment sold in countries applying EU
directives
This product has been manufactured by or on
behalf of Sony Corporation.
EU Importer: Sony Europe Limited.
Inquiries to the EU Importer or related to
product compliance in Europe should be sent
to the manufacturer’s authorized
representative, Sony Belgium, bijkantoor van
Sony Europe Limited, Da Vincilaan 7-D1, 1935
Zaventem, Belgium.
Hereby, Sony Corporation declares that this
equipment is in compliance with Directive
2014/53/EU.
The full text of the EU declaration of
conformity is available at the following
internet address:
http://www.compliance.sony.de/
This radio equipment is intended to be used
with the approved version(s) of software that
are indicated in the EU Declaration of
Conformity. The software loaded on this radio
equipment is verified to comply with the
essential requirements of the Directive
2014/53/EU.
You can check the software version by
pressing AMP MENU, then select “VERSION”
using / and .
This Stereo Receiver is intended for sound
playback from connected devices, music
streaming from a BLUETOOTH® device, and
FM tuner.
This equipment has been tested and found to
comply with the limits set out in the EMC
regulation using a connection cable shorter
than 3 meters.
Excessive sound pressure from earphones
and headphones can cause hearing loss.
5GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\010COVTOC.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Table of Contents

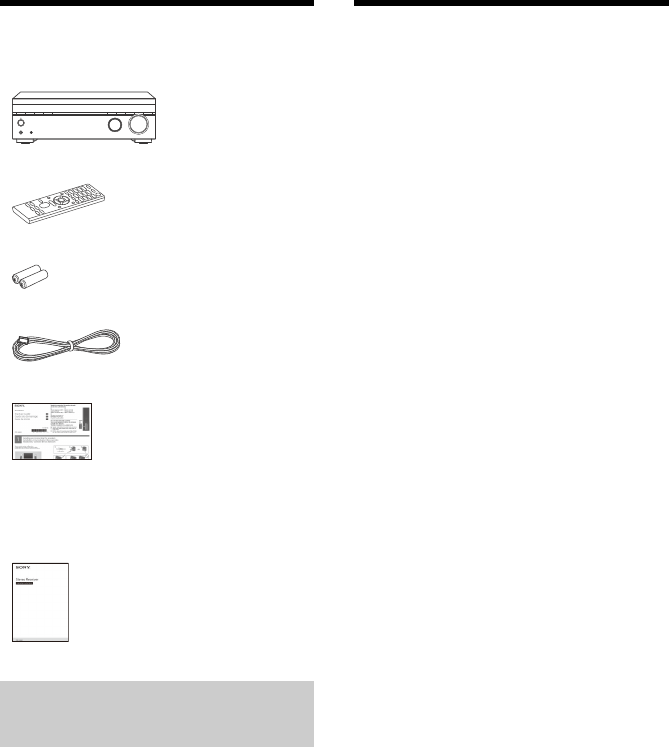

Supplied Items .......................................... 6
Main Features of the Receiver .................. 6

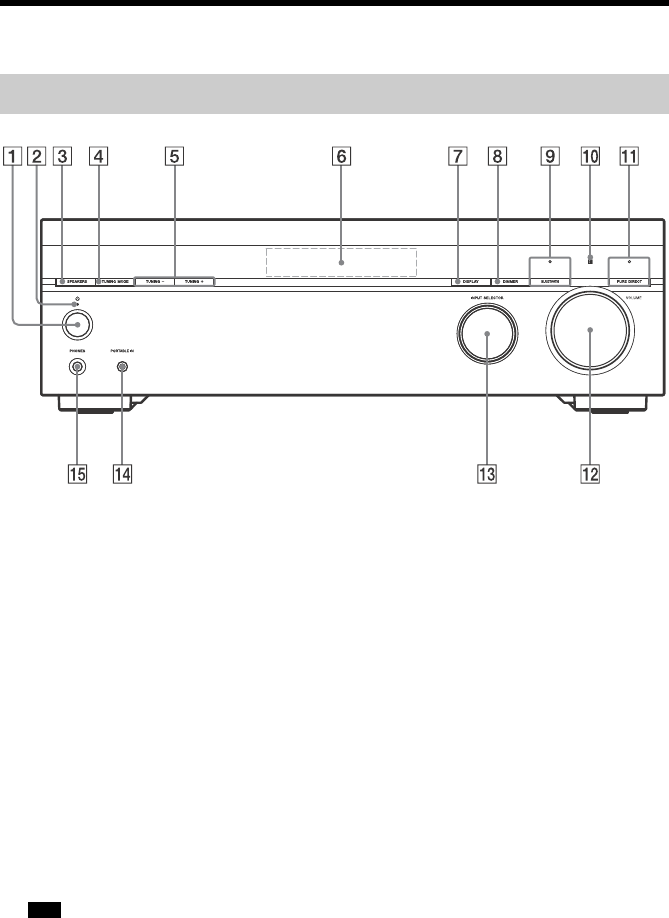

Parts and Controls .................................... 7
Connection and
Preparation

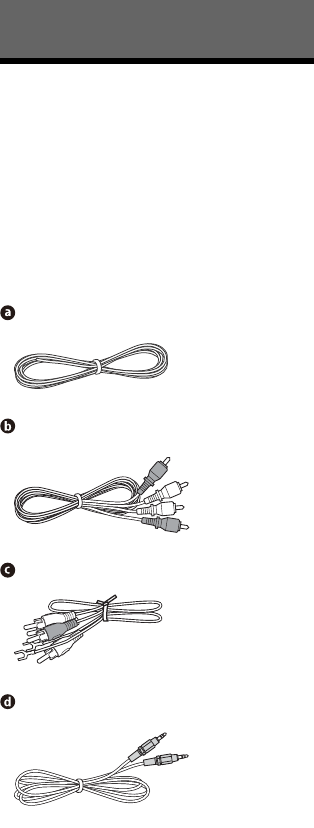

1: Preparing Necessary Items ..................12
2: Setting/Connecting Speakers .............13
3: Connecting Audio-Visual Devices .......15
4: Connecting the FM Antenna
(aerial) .................................................18
5: Turning on the Receiver ......................18
6: Setting the Speakers ...........................19
Playback
Playing Back Sound on Audio-Visual
Devices ................................................21
Playing Back Sound on a BLUETOOTH
Device .................................................21
Tuner
Tuning to a FM Station Automatically
(Automatic Tuning) ............................ 24
Presetting FM Radio Stations
(Preset Memory) ................................ 25
Receiving RDS Broadcasts
(European and Asia-Pacific models
only) ................................................... 26
Menu/Other Functions
Using the Menu .......................................27
Enjoying High-fidelity Sound
(Pure Direct) ........................................29
Changing the Name for Each Input and
Preset Station (NAME IN) ....................29
Viewing Information on the Display
Panel .................................................. 30
Recording Using the Receiver ................. 31

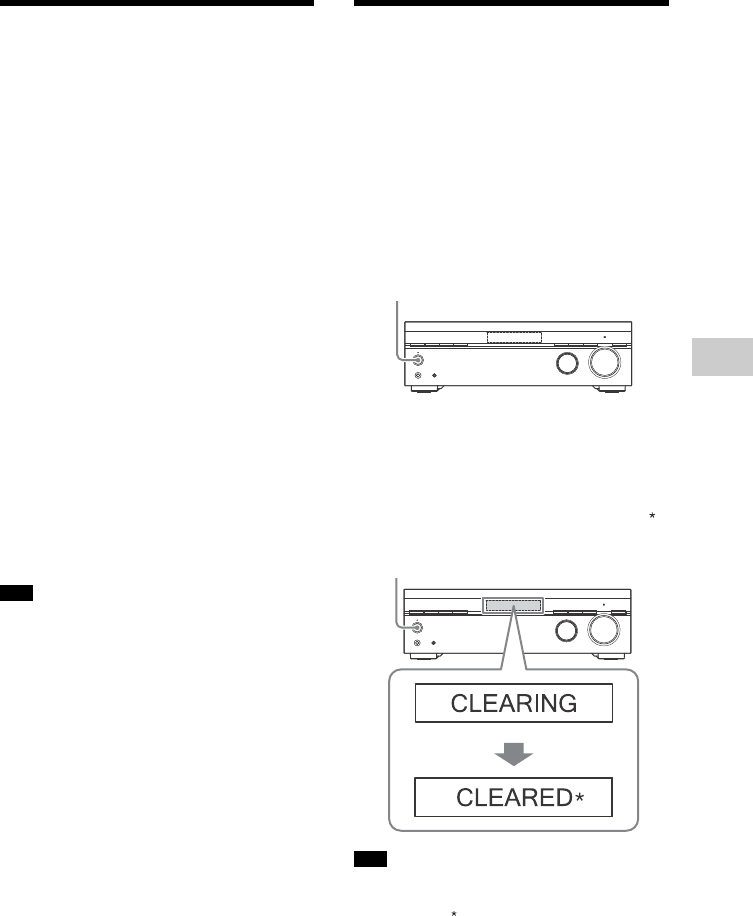

Reverting to the Factory Default
Settings ............................................... 31
Saving Power ...........................................32
Troubleshooting/
Specifications
Troubleshooting ......................................33
Precautions ..............................................36
Specifications .......................................... 37
On BLUETOOTH Communication ............38
On Copyrights ..........................................39
Index ....................................................... 40
6GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\010COVTOC.fm masterpage: Left
STR-DH190
4-726-907-11(1)
Supplied Items
•Receiver (1)
• Remote control (1)
• R03 (size AAA) batteries (2)
• FM wire antenna (aerial) (1)
•Startup Guide (1)
Explains how to connect the stereo speaker
system, connect devices and listen to
connected devices.
• Operating Instructions (this booklet) (1)
•Some illustrations are presented as
conceptual drawings, and may be different
from the actual products.
•The manuals provided for this product
mainly describe the procedures for using the
remote control. You can also use the
controls on the receiver if they have the
same or similar names as those on the
remote control.
Main Features of the
Receiver
Compatible with BLUETOOTH®
wireless technology
• Connect a WALKMAN®, smartphone, or
tablet to the receiver via the BLUETOOTH
function to play music content on those
devices wirelessly (page 21).
• You can turn on this receiver from a
paired BLUETOOTH device even when the
receiver is in standby mode (page 27).
Equipped with PHONO IN jacks
You can enjoy high quality sound of a
turntable by connecting it to the receiver
(page 15).
About manuals provided for
this product
7GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\030PAR.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Parts and Controls
(power)
Turns the receiver on or sets it to the
standby mode.
Power indicator
•Green: The receiver is turned on.
•Red: The receiver is in standby mode,
and you have set “BT STBY” to “STBY
ON”.*
•The indicator goes off: The receiver is
in standby mode, and you have set
“BT STBY” to “STBY OFF”.
* The indicator lights up in red only if a device
has been paired with the receiver and “BT
POWER” is set to “BT ON”. If no devices are
paired with the receiver or “BT POWER” is
set to “BT OFF”, the indicator turns off.
SPEAKERS (page 19)
Switches the speaker system.
No sound is output from the speakers when
you select “OFF SPEAKERS”. Be sure to select
setting other than “OFF SPEAKERS”.
TUNING MODE (page 24, 25)
TUNING +/– (page 24, 25)
Display panel (page 8)
DISPLAY (page 30)
DIMMER
Adjusts the brightness of the display
panel.
BLUETOOTH
Switches the input of the receiver to
“BLUETOOTH” and automatically
connects to the last connected device.
Sets the receiver to pairing mode when
there is no pairing information on the
receiver.
Disconnects the BLUETOOTH device
when the receiver is connected to a
BLUETOOTH device.
BLUETOOTH indicator (page 21)
Remote control sensor
Receives signals from remote control.
PURE DIRECT (page 29)
The indicator above the button lights
up when the Pure Direct function is
activated.
Receiver front panel
Note
8GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\030PAR.fm masterpage: Left
STR-DH190
4-726-907-11(1)
VOLUME (page 21)
INPUT SELECTOR
Selects the input channel connected to
the device you want to use.

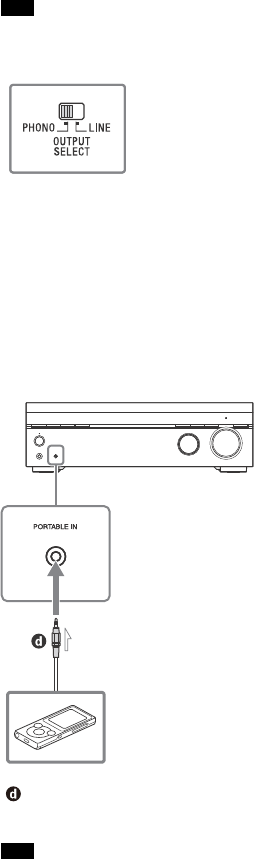

PORTABLE IN jack (page 16)
PHONES jack
Connect headphones here.
Speaker system indicator
(page 19)
These indicators do not light up if the
speaker output is turned off or if
headphones are connected.
SLEEP
Lights up when the sleep timer is
activated.
Tuning indicator
Lights up when the receiver tunes to a
radio station.
MEMORY
A memory function, such as Preset
Memory (page 25), etc., is activated.
RDS (European and Asia-Pacific
models only)
Tuned to a station with RDS services.
MONO
Monaural broadcast
ST
FM stereo broadcast
Preset station number (The number
will change according to the preset
station you select.)

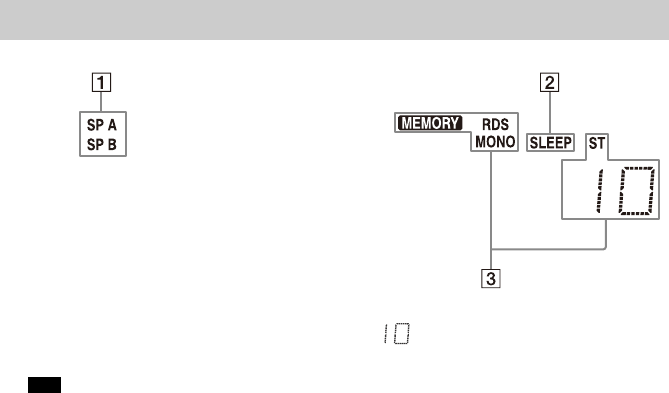

Indicators on the display panel
Note
9GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\030PAR.fm masterpage: Right
STR-DH190
4-726-907-11(1)
FM ANTENNA terminal (page 18)
SPEAKERS terminals (page 13, 14)
AUDIO IN/OUT jacks (page 15, 17)
Audio input and output jacks.
PHONO IN jacks (page 15)
For connecting a turntable.
* For service purpose only.
Receiver rear panel
10GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\030PAR.fm masterpage: Left
STR-DH190
4-726-907-11(1)
(power) (page 18)
Turns the receiver on or sets it to the
standby mode.
SLEEP
Sets the receiver to turn off
automatically at a specified time.
Each time you press this button, the
display changes cyclically as follows.
0-30-00 1-00-00 1-30-00
2-00-00 OFF
When Sleep Timer is being used,
“SLEEP” indicator lights up on the
display panel.
• To check the remaining time before the
receiver turns off, press SLEEP. The
remaining time appears on the display
panel.
• The Sleep Timer will be canceled when you
perform the following.
– Press SLEEP again.
–Press (power).
SPEAKERS A/B (page 19)
Switches the speaker system.
Each time you press this button, the
display changes cyclically as follows.
SPK A SPK B SPK A+B
OFF SPEAKERS*
* “OFF” and “SPEAKERS” appears alternately
on the display panel.
No sound is output from the speakers when
you select “OFF SPEAKERS”. Be sure to select
setting other than “OFF SPEAKERS”.
Input buttons
BLUETOOTH, INPUT 1, INPUT 2,
INPUT 3, INPUT 4, PORTABLE IN,
PHONO, FM
Selects the input channel connected to
the device you want to use. When you
press any of the input buttons, the
receiver turns on.
When you press BLUETOOTH, the receiver
turns on only if “BT POWER” is set to “BT ON”
(page 28).

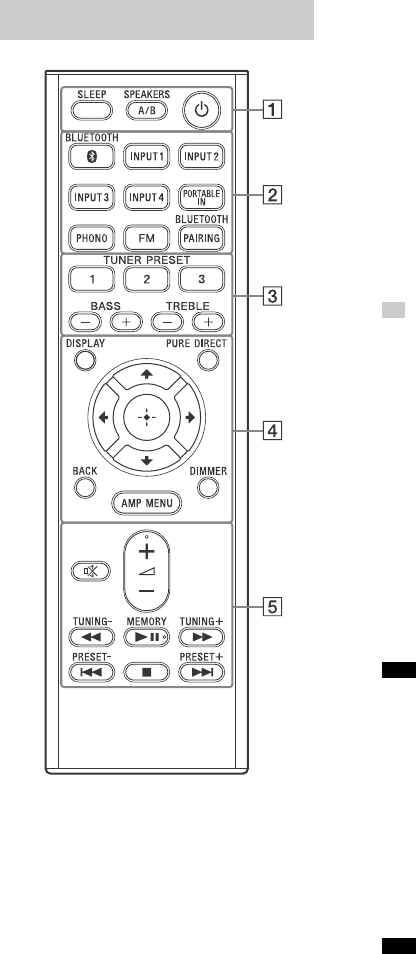

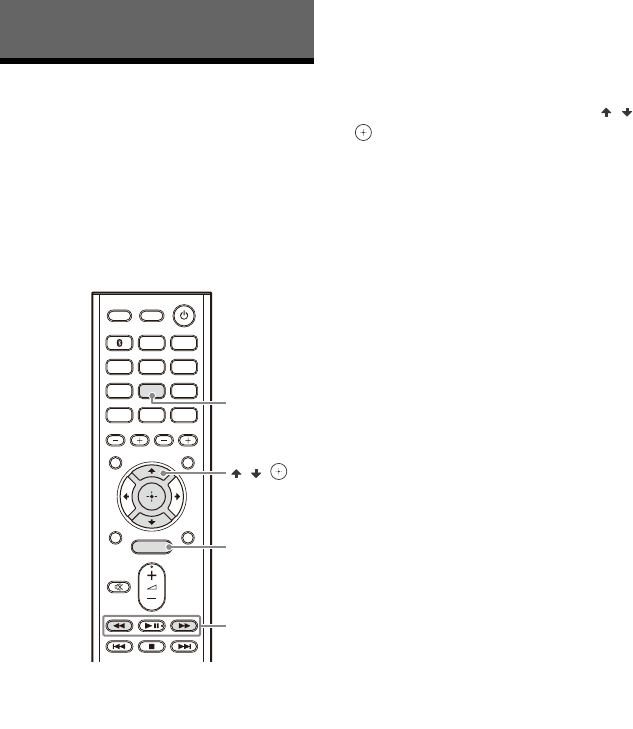

Remote control
Tip
Note
Note
11GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\030PAR.fm masterpage: Right
STR-DH190
4-726-907-11(1)
BLUETOOTH PAIRING (page 22)
Switches the input of the receiver to
“BLUETOOTH” and sets the receiver to
the pairing mode.
TUNER PRESET 1, 2, 3 (page 25)
Selects preset station 1, 2, or 3. When
you press any of these buttons, the
receiver turns on and tunes to the
selected preset station.
BASS +/– (page 20)
TREBLE +/– (page 20)
DISPLAY (page 30)
PURE DIRECT (page 29)
Activates the Pure Direct function
which allows you to enjoy higher-
fidelity sound from all inputs.
(enter), / / /
Press , , , to select the menu
items. Then, press to enter the
selection.
BACK
Returns to the previous menu.
DIMMER
Adjusts the brightness of the display
panel.

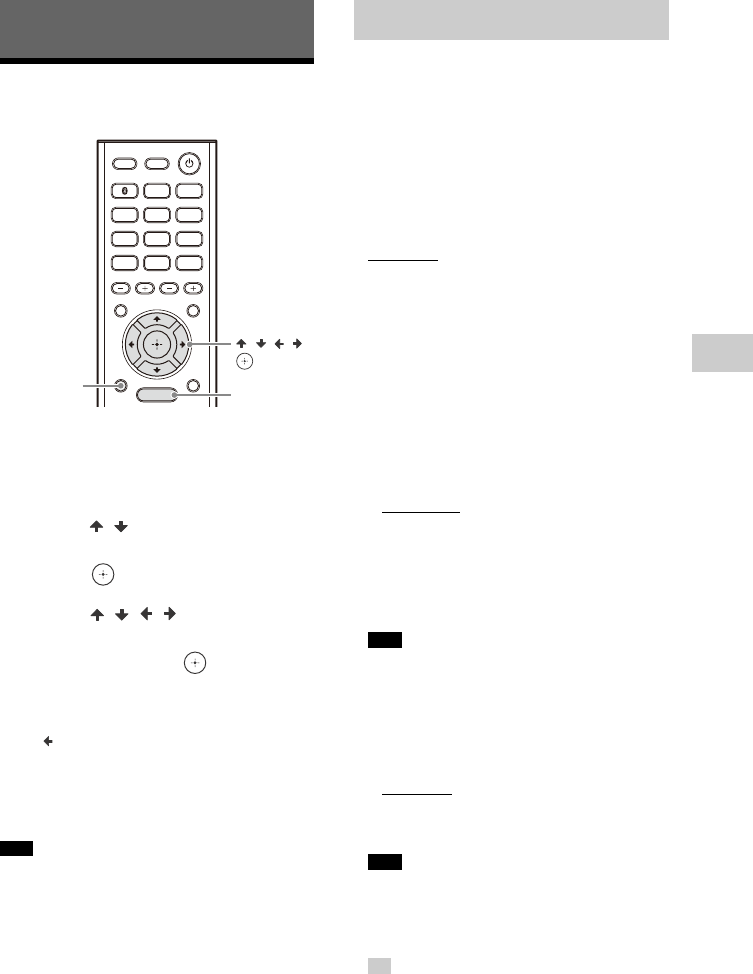

AMP MENU
Displays the menu on the display panel
to operate the receiver.
(muting)
Turns off the sound temporarily. Press
the button again to restore the sound.
(volume) +*/–
Adjusts the volume level of all speakers
at the same time.
/ (fast rewind/fast
forward), (play/pause)*,
/ (previous/next),
(stop)
Search, play, pause, skip, stop
operation.
TUNING +/–
Scans a FM station.
PRESET +/–
Selects preset stations or channels.
MEMORY*
Stores a station that you are receiving
as a preset station.
*The +, , and MEMORY buttons have
tactile dots. Use the tactile dots as reference
when operating the receiver.
• The above explanation is intended to serve as
examples.
• Depending on the model of your connected
device, some functions explained in this section
may not work with the supplied remote control.

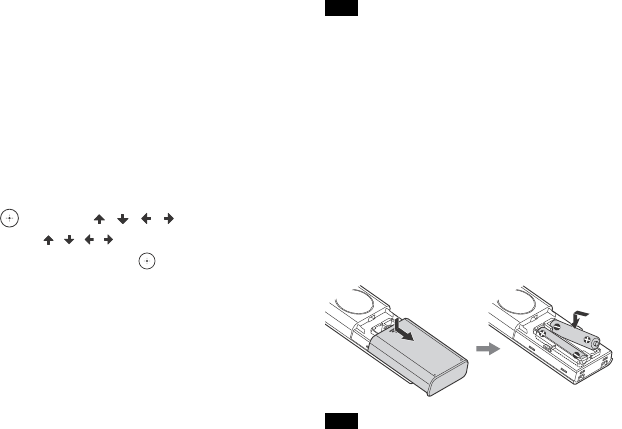

To insert batteries into the remote
control
Insert two R03 (size AAA) batteries
(supplied) in the remote control. Make sure
that the + and – ends are in the correct
position when installing batteries.
• Do not leave the remote control in an extremely
hot or humid place.
• Do not use a new battery with an old one.
• Do not mix manganese batteries and other
kinds of batteries.
• We recommend that you use AAA manganese
batteries.
• Do not expose the remote control sensor on the
front panel of the receiver to direct sunlight or
lights. Doing so may cause a malfunction.
• If you do not intend to use the remote control for
an extended period of time, remove the
batteries to avoid possible damage from battery
leakage and corrosion.
• When the receiver no longer responds to the
remote control, replace both of the batteries
with new ones.
Note
Note
12GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\040CON.fm masterpage: Left
STR-DH190
4-726-907-11(1)
1: Preparing Necessary
Items
Supplied items
Make sure that you have all the items listed
in “Supplied Items” (page 6).
Cables required for connection
(not supplied)
Speaker cables
Stereo audio cables*
PHONO cables with grounding wires*
3.5 mm Stereo audio cable*
* Not required depending on the connection
configuration.
Connection and Preparation
13GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\040CON.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Connection and Preparation
2: Setting/Connecting Speakers
Set up and connect the speakers according to the number of speakers that you are using.
This manual describes the installation, connections, and setting procedures using the stereo
speaker system with A/B speakers as an example.
• Connect speakers with a nominal impedance of 6 ohms to 16 ohms.
• When you connect all the speakers with a nominal impedance of 8 ohms or higher, set “SP IMP.” to
“8 OHM”. In other connections, set it to “6 OHM”. For details, see “6: Setting the Speakers” (page 19).
• Before connecting cables, be sure to disconnect the AC power cord (mains lead).
• Before connecting the AC power cord (mains lead), make sure that metallic wires of the speaker cables
are not touching each other between the SPEAKERS terminals or on the receiver rear panel. If the wires
are touching, it may result in damage to the amplifier circuit.
Connect speaker cables with the polarities + (red)/– (black) matched between the receiver
and the speakers as illustrated below.
Strip the jacket to 10 mm (13/32 in) at each end of the speaker cables, and then tightly twist
the speaker wire strands. Insert the stripped ends of the cables into the terminals as
illustrated below.
• Be sure not remove too much of the speaker cable sleeves, so as to prevent the wires of the speaker
cables from touching each other.
• Improper connection may result in fatal damage to the receiver.
Note
How to connect speaker cables
Note
10 mm
(13/32 in)
14GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\040CON.fm masterpage: Left
STR-DH190
4-726-907-11(1)
You can also enjoy the audio in another location by connecting additional B speakers.
If you connect additional B speakers, you can select the speakers you want to use with the SPEAKERS
A/B button (page 19). No sound is output from the speakers when you select “OFF SPEAKERS”. Be sure to
select setting other than “OFF SPEAKERS”.
Stereo speaker system with A/B speakers
Note
Room with the receiver installed Another location
: Left speaker
: Right speaker
Speaker cable (not supplied)
B speakers
(in another location)
A speakers
15GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\040CON.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Connection and Preparation
3: Connecting Audio-Visual Devices
Be sure to make cable connections before connecting the AC power cord (mains lead).
• You can connect devices other than those indicated below to the AUDIO IN/OUT jacks.
• You can rename each input so that the name can be displayed on the display panel of the receiver
(page 29).
* If your turntable has a grounding terminal, connect the grounding wire.
Note
Tip
Connecting audio devices
MD deck,
tape deck
Turntable Super Audio CD
player, CD player
Stereo audio cable (not supplied)
PHONO cables with grounding wires (not supplied)
16GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\040CON.fm masterpage: Left
STR-DH190
4-726-907-11(1)
• When you connect a turntable with a PHONO/
LINE switch, be sure to set the PHONO/LINE
switch to PHONO.
• This receiver equipped with Phono Equalizer
amplifier to meet MM type PHONO cartridges.
MM type cartridge used on turntable have a
variation of audio output level. In case MM type
cartridge output is small, you can use phono
volume setting to increase the level (page 28).
• To record the sound from the receiver, you must
connect your device to the AUDIO INPUT 4 OUT
jacks.
Connecting a portable audio device
• When listening to a device connected to the
PORTABLE IN jack, sound may be distorted or
interrupted. This is not a malfunction and will
depend on the connected device.
• If the sound from the device connected to the
PORTABLE IN jack is very soft, you may increase
the volume level. However, before you switch to
other input, be sure to reduce the volume level
to avoid damaging your speaker.
Note
Note
Portable audio such as
WALKMAN®, smartphone
3.5 mm Stereo audio cable (not
supplied)
17GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\040CON.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Connection and Preparation
Connecting visual devices
Stereo audio cable (not supplied)
Blu-ray Disc™ player, DVD
player, cable box or satellite box,
DVD recorder, VCR, game
Audio signalsVideo signals
To the TV’s VIDEO
input jack
18GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\040CON.fm masterpage: Left
STR-DH190
4-726-907-11(1)
4: Connecting the FM
Antenna (aerial)
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial),
keep it as horizontal as possible.
5: Turning on the
Receiver
1Connect the AC power cord
(mains lead) to a wall outlet.
2Press (power) to turn on
the receiver.
You can also turn on the receiver using (power)
on the remote control. To turn off the receiver,
press (power) again.
Note
FM wire antenna (aerial)
(supplied)
Tip
To the wall outlet
(power)
19GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\040CON.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Connection and Preparation
6: Setting the Speakers
Set the appropriate speaker impedance for
the speakers you are using.
1Press AMP MENU.
The menu is displayed on the display
panel.
2Press / to select “SP IMP.”,
and then press .
3Press / to select the
appropriate speaker
impedance, and then press
.
“8 OHM”: The default setting. Select
this when you connect all speakers
with a nominal impedance of 8 ohms
or higher.
“6 OHM”: Select this when you
connect all speakers with a nominal
impedance of lower than 8 ohms.
• If you are not sure of the impedances of the
speakers, refer to the operating instructions
supplied with your speakers. (This information is
often on the back of the speaker.)
• When you connect speakers to both the
SPEAKERS A and B terminals, connect the
speakers with a nominal impedance of 12 ohms
or higher.
• When you connect speakers to either SPEAKERS
A or B terminals, connect the speakers with a
nominal impedance of 8 ohms or 6 ohms.
When two speaker systems are connected
to the receiver, you can select the speaker
system you want to operate.
Press SPEAKERS A/B repeatedly
to select the speaker system you
want to operate.
Each time you press this button, the display
changes cyclically.
“SPK A”: Speakers connected to the
SPEAKERS A terminals.
“SPK B”: Speakers connected to the
SPEAKERS B terminals.
“SPK A+B”: Speakers connected to both
the SPEAKERS A and B terminals (parallel
connection).
“OFF SPEAKERS”: “OFF” and “SPEAKERS”
appears alternately on the display panel.
No audio signals are output from any
speaker terminals.
This setting is not available when headphones
are connected.
• The “SP A” or/and “SP B” indicators on the
display panel lights up to show which set of
terminals are selected. “SP A” and “SP B” light
off when the speaker system is turned off.
• You can also use SPEAKERS button on the
receiver to select the speaker system.
Setting the speaker impedance
Note
AMP MENU
/,
Switching the speaker system
Note
Tip
SPEAKERS A/B
20GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\040CON.fm masterpage: Left
STR-DH190
4-726-907-11(1)
You can adjust the tonal balance of the
speakers.
Press TREBLE + or TREBLE –
repeatedly to adjust the treble
level.
Press BASS + or BASS –
repeatedly to adjust the bass
level.
You can adjust from –10 dB to +10 dB in 1 dB
step.
The initial setting is 0 dB.
Adjusting the tone
TREBLE +/–BASS +/–
21GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\050PLA.fm masterpage: Right
STR-DH190
4-726-907-11(1)

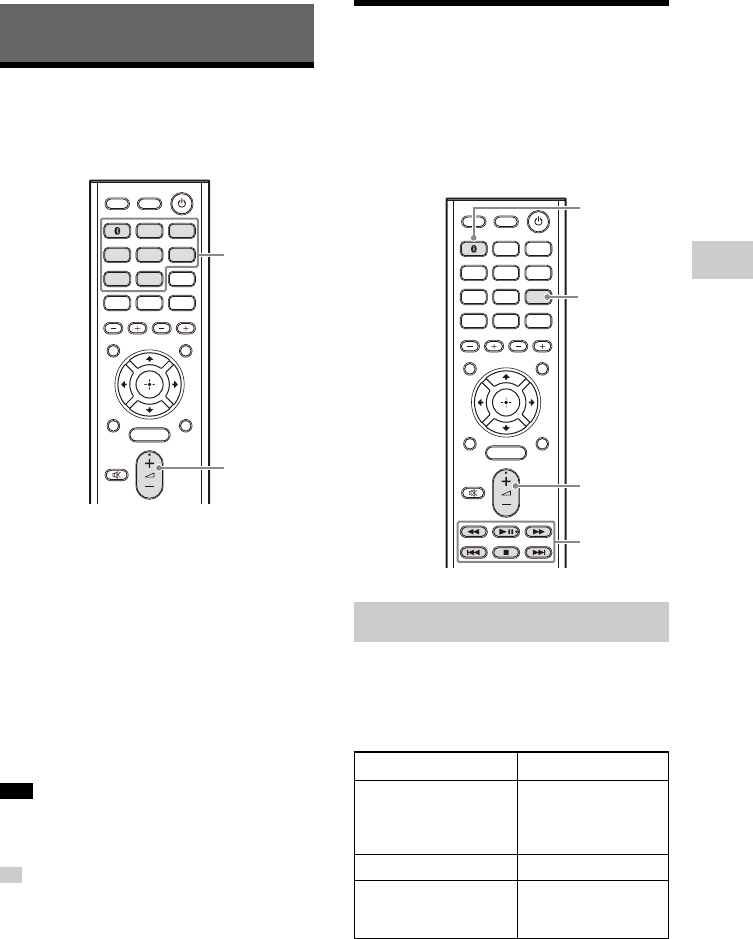

Playback
Playing Back Sound on
Audio-Visual Devices
1Press the input button which
corresponds to the device
you want to play.
The selected input appears on the
display panel.
2Start playback on the
connected device.
3Press +/– to adjust the
volume.
Before you turn off the receiver, be sure to turn
down the volume level to avoid damaging your
speakers the next time you turn on the receiver.
• To turn the volume up or down quickly
– Turn the VOLUME knob quickly.
– Press and hold one of the +/– buttons.
• To make fine adjustments
–Turn the VOLUME knob slowly.
– Press one of the +/– buttons and release
it immediately.
Playing Back Sound on a
BLUETOOTH Device
You can receive audio content from a
WALKMAN®, smartphone or tablet that has
a BLUETOOTH function and listen to it via
this receiver.
The BLUETOOTH indicator above the
BLUETOOTH button on the receiver lights
up or flashes in blue to show the
BLUETOOTH status.
Playback
Note
Tip
+/–
Input
buttons
About the BLUETOOTH indicator
Receiver status Indicator status
The receiver is
searching for a
BLUETOOTH device to
connect
Flashes slowly
BLUETOOTH pairing Flashes quickly
BLUETOOTH
connection is
established
Lights up
BLUETOOTH
PAIRING
+/–
/,
/,
,
BLUETOOTH
22GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\050PLA.fm masterpage: Left
STR-DH190
4-726-907-11(1)
Pairing is an operation in which
BLUETOOTH devices are registered to each
other before connection. Follow the steps
below to pair the BLUETOOTH device and
the receiver. Once the BLUETOOTH devices
are paired, there is no need to pair them
again. When the pairing is complete,
proceed to “Listening to sound on a paired
BLUETOOTH device” (page 22).
1Place the BLUETOOTH device
within 1 meter (3.3 feet) of
the receiver.
2Press BLUETOOTH PAIRING.
“PAIRING” flashes on the display
panel. Perform step 3 within five
minutes, otherwise pairing will be
canceled. If pairing is canceled, repeat
this step.
3Perform pairing on the
BLUETOOTH device to detect
the receiver.
For details, refer to the operating
instructions of your BLUETOOTH
device.
A list of detected devices may appear
on the BLUETOOTH device display
depending on the type of BLUETOOTH
device. The receiver is displayed as
“STR-DH190”.
4Select “STR-DH190” on the
BLUETOOTH device display.
If “STR-DH190” is not displayed, repeat
this process from step 1.
When the BLUETOOTH connection is
established, the paired device name
appears on the display panel.
5Start playback on the
BLUETOOTH device.
6Adjust the volume.
Adjust the volume of the BLUETOOTH
device first. If the volume level is still
too low, press +/– to adjust the
volume level of the receiver.
To cancel pairing operation
Pairing operation will be canceled when
you switch the input.
• Some applications of BLUETOOTH device cannot
be controlled from the receiver.
• If a passkey is required on the display of the
BLUETOOTH device in step 4, enter “0000”. The
passkey may be called “Passcode”, “PIN code”,
“PIN number” or “Password”.
• You can pair up to ten BLUETOOTH devices. If an
11th BLUETOOTH device is paired, the least
recently connected device will be replaced by
the new one.
• You can operate a BLUETOOTH device using
/(fast rewind/fast forward), /
(previous/next), (play/pause), (stop).
•If you press in “BLUETOOTH” input when no
BLUETOOTH device is connected, the receiver
automatically connects to the last connected
BLUETOOTH device.
1Turn on the BLUETOOTH
function on the BLUETOOTH
device.
2Press BLUETOOTH.
The receiver connects to the last
connected BLUETOOTH device and the
device name appears on the display
panel.
3Start playback on the
BLUETOOTH device.
Registering BLUETOOTH
devices to the receiver (Pairing
operation)
Note
Tip
Listening to sound on a paired
BLUETOOTH device
23GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\050PLA.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Playback
4Adjust the volume.
Adjust the volume of the BLUETOOTH
device first. If the volume level is still
too low, press +/– to adjust the
volume level of the receiver.
To disconnect a BLUETOOTH
connection
The BLUETOOTH connection will be
disconnected when you perform either of
the following operations:
• Switch the input.
• Turn off the BLUETOOTH function on the
BLUETOOTH device.
• Press BLUETOOTH PAIRING.
• Turn off the receiver or the BLUETOOTH
device.
• Press BLUETOOTH on the receiver again.
• The functions may differ depending on the
specifications of the BLUETOOTH device.
• The audio playback on this receiver may be
delayed from that on the BLUETOOTH device
because of the characteristics of the
BLUETOOTH wireless technology.
• You can enable or disable AAC codec reception
from BLUETOOTH device (page 27).
• You can connect to the receiver from a paired
BLUETOOTH device when “BT POWER” is set to
“BT ON” (page 28).
Note
Tip
24GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\060TUN.fm masterpage: Left
STR-DH190
4-726-907-11(1)
Tuning to a FM Station
Automatically
(Automatic Tuning)
You can listen to FM broadcasts through
the built-in tuner. Before operation, make
sure you have connected the FM antenna
(aerial) to the receiver (page 18).
1Press FM.
2Press TUNING + or TUNING –.
TUNING + scans from lower to higher
frequency stations and TUNING – for
scanning higher to lower.
The receiver stops scanning whenever
a station is received.
Using the control buttons on the
receiver
1Turn INPUT SELECTOR to select “FM
TUNER”.
2Press TUNING MODE repeatedly to
select “AUTO”.
3Press TUNING + or TUNING –.
In case of poor FM stereo reception
If the FM stereo reception is poor and “ST”
flashes on the display panel, select
monaural audio to lessen the sound
distortion.
Press AMP MENU, and then press / and
to select “FM MODE” – “MONO”.
To return to the stereo mode, select
“STEREO”.
Tuner
FM
AMP MENU
TUNING +/–
/,
25GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\060TUN.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Tuner
Presetting FM Radio
Stations (Preset
Memory)
You can store up to 30 FM stations as your
favorite stations as preset stations.
1Press FM.
2Tune to the station that you
want to preset using
Automatic Tuning (page 24).
3Press MEMORY.
4Press PRESET + or PRESET – to
select a preset number.
5Press .
The station is stored as the selected
preset number.
6Repeat steps 1 to 5 to store
another station.
1Press FM.
2Press PRESET + or PRESET –
repeatedly to select the
station.
You can also use TUNER PRESET 1, 2 or 3 to select
a preset station.
Using the control buttons on the
receiver
1Turn INPUT SELECTOR to select “FM
TUNER”.
2Press TUNING MODE repeatedly to
select “PRESET”.
3Press TUNING + or TUNING – to select
the preset station you want.
FM
PRESET +/–
TUNER
PRESET 1, 2, 3
MEMORY
Tuning to preset stations
Tip
26GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\060TUN.fm masterpage: Left
STR-DH190
4-726-907-11(1)
Receiving RDS
Broadcasts
(European and Asia-Pacific models
only)
This receiver allows you to use Radio Data
System (RDS), which enables FM radio
stations* to send additional information
along with the regular programming
signal. This receiver offers convenient RDS
features, such as Program Service name
display.
* Not all FM stations provide RDS service, nor do
they provide the same type of services. If you
are not familiar with the RDS services in your
area, check with your local radio stations for
details.
Simply select a station on the FM
band using Automatic Tuning
(page 24) or Tuning with Preset
Station (page 25).
When you tune to a station that provides
RDS services, “RDS” lights up and the
Program Service name appears on the
display panel.
RDS may not work properly if the station you
tuned to does not transmit the RDS signal or if the
signal strength is weak.
While a Program Service name is displayed, you
can check the frequency by pressing DISPLAY
repeatedly (page 30).
Note
Tip
27GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\070ADD.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Menu/Other Functions
Using the Menu
1Press AMP MENU.
The menu is displayed on the display
panel.
2Press / to select the menu
item you want and then
press .
3Press / / / to select the
parameter/setting you want,
and then press .
To return to the previous display
Press or BACK.
To exit the menu
Press AMP MENU.
Some parameters and settings may appear
dimmed on the display panel. This means that
they are either unavailable or fixed and
unchangeable.
The default settings are underlined.
“SP IMP.” (Speaker
impedance)
For details, see “Setting the speaker
impedance” (page 19).
“FM MODE” (FM station
receiving mode)
•“STEREO”
This receiver will decode the signal as
stereo signal when the radio station is
broadcast in stereo.
•“MONO”
This receiver will decode the signal as
mono signal regardless of the broadcast
signal.
“BT MENU” (BLUETOOTH
settings menu)
• “BT STBY” (BLUETOOTH standby mode)
– “STBY ON”: You can turn on this
receiver from a paired BLUETOOTH
device.
– “STBY OFF”: This receiver cannot be
turned on from a paired BLUETOOTH
device.
• If you set “BT STBY” to “STBY ON”, this receiver
turns on when you establish a BLUETOOTH
connection from a BLUETOOTH device.
• You cannot change this setting when “BT
POWER” is set to “BT OFF”.
• “BT AAC” (BLUETOOTH codec – AAC)
–“AAC ON”
: AAC audio is available if the
BLUETOOTH device supports AAC.
– “AAC OFF”: AAC audio is not available.
• You cannot change this setting when “BT
POWER” is set to “BT OFF”.
• While a BLUETOOTH device is connected, the
settings of this function cannot be changed.
You can enjoy high-quality sound if AAC is
enabled.
Menu/Other Functions
Note
///,
AMP MENU
BACK
Menu list
Note
Note
Tip
28GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\070ADD.fm masterpage: Left
STR-DH190
4-726-907-11(1)
• “BT POWER” (BLUETOOTH signal)
–“BT ON”
: You can connect to the
receiver from a paired BLUETOOTH
device.
–“BT OFF”: The receiver cannot be
connected from a paired BLUETOOTH
device.
You cannot change this setting when
“BLUETOOTH” input is selected.
“PH.OFFSET” (Phono volume
setting)
Lets you adjust the volume level of the
device connected to PHONO IN jacks.
MM type cartridge used on turntable have
a variation of audio output level.
In case MM type cartridge output is small,
you can use phono volume setting to
increase the level.
You can adjust from 0 dB to +6 dB in
1 dB/step.
The initial setting is “PHONO 0”.
“BALANCE” (Speaker balance)
Lets you adjust the balance between left
and right speakers.
You can adjust from “BAL. L+10” to
“BAL. R+10” in 1 dB/step.
The initial setting is “BAL. 0”.
“NAME IN” (Naming inputs)
Lets you set the name of inputs and preset
stations. For details, see “Changing the
Name for Each Input and Preset Station
(NAME IN)” (page 29).
“AUTO.STBY” (Auto standby)
Lets you set the receiver switch to standby
mode automatically when you do not
operate the receiver or when there is no
signals input to the receiver.
• “STBY ON”
Switches to standby mode after
approximately 20 minutes.
• “STBY OFF”
Does not switch to standby mode.
• This function does not work when “FM TUNER”
input is selected.
• If you use the Auto Standby mode and the Sleep
Timer at the same time, the Sleep Timer has
priority.
“UPDATE” (Software update)
For service purpose only.
“VERSION” (Software version)
Lets you check the system’s software
version information.
Note
Note
29GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\070ADD.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Menu/Other Functions
Enjoying High-fidelity
Sound (Pure Direct)
You can enjoy higher-fidelity sound from all
inputs using the Pure Direct function.
When the Pure Direct function is on, the
display panel lights off to suppress noise
that affects sound quality.
Press PURE DIRECT.
The indicator above the button lights up
when the Pure Direct function is activated.
To cancel the Pure Direct function, press
PURE DIRECT again.
• Bass and treble do not work when the Pure
Direct function is selected.
• The Pure Direct function will be canceled when
you press BASS +/– or TREBLE +/–.

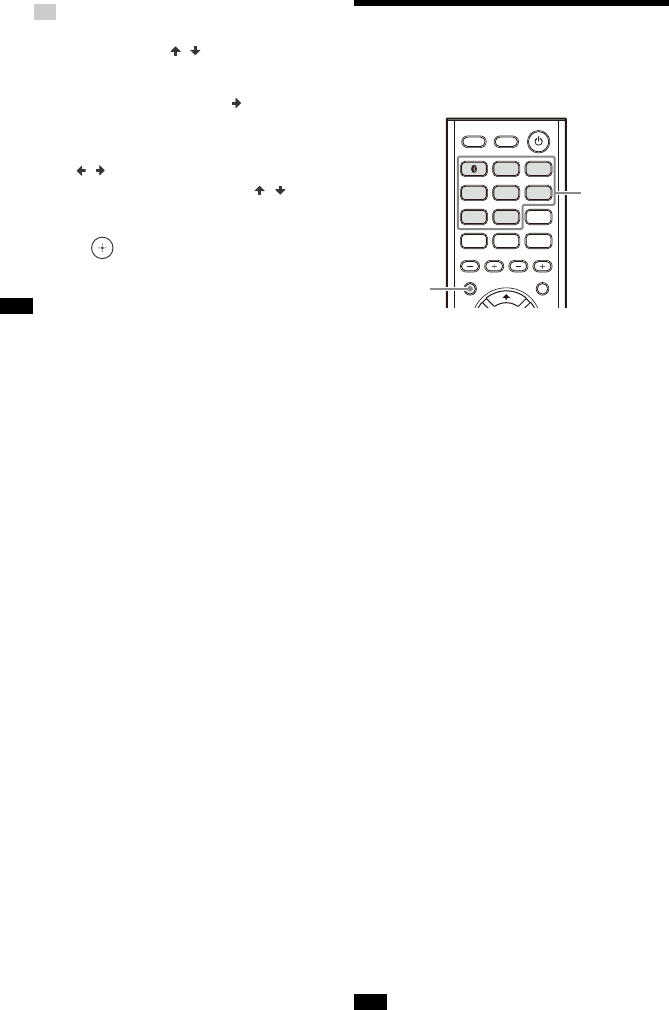

Changing the Name for
Each Input and Preset
Station (NAME IN)
You can enter a name of up to 8 characters
for inputs (except “FM TUNER” and
“BLUETOOTH”) and preset stations to
appear on the display panel.
It is more recognizable having the device
named on the display than the jacks.
1For “FM TUNER” input
Press FM, then tune to the preset
station you want to create an index
name for (page 25).
For other inputs (except
“BLUETOOTH”)
Press the corresponding input button
which you want to create an index
name.
2Press AMP MENU.
3Press / repeatedly to
select “NAME IN”, then press
or .
The cursor flashes and you can enter a
character.
4Press / to select a
character, then press / to
move the input position
backward and forward.
Note
PURE DIRECT
AMP MENU
///,
Input
buttons
30GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\070ADD.fm masterpage: Left
STR-DH190
4-726-907-11(1)
• You can select the character type as
follows by pressing / .
Alphabet (upper case) Numbers
Symbols
• To enter a blank space, press without
selecting a character.
If you made a mistake
Press / until the character you want
to change flashes, then press / to
select the correct character.
5Press .
The name you entered is registered.
(European and Asia-Pacific models only)
When you name an RDS (Radio Data System)
station and tune to that station, the Program
Service name appears instead of the name you
entered.
Viewing Information on
the Display Panel
1Press the corresponding
input button which you want
to check the information.
2Press DISPLAY repeatedly.
Each time you press the button, the
display changes cyclically as follows.
Index name of the input* Selected
input Volume level
When listening to FM radio
Preset station name* Frequency,
band and preset number Volume
level
When receiving RDS broadcasts
(European and Asia-Pacific
models only)
Program Service name or preset
station name* Frequency, band and
preset number Volume level
When connecting to a
BLUETOOTH device
BLUETOOTH device name
BLUETOOTH MAC address Volume
level “BLUETOOTH”
* Index name appears only when you have
assigned one to the input or preset station
(page 29). Index name does not appear
when only blank spaces have been
entered, or it is the same as the input
name.
Character or marks may not be displayed for
some languages.
Tip
Note
Note
Input
buttons
DISPLAY
31GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\070ADD.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Menu/Other Functions
Recording Using the
Receiver
You can record sound from an audio device
using the receiver. Refer to the operating
instructions supplied with your recording
device.
1Press the input button which
corresponds to the playback
device.
2Prepare the playback device
for playing.
For example, insert the CD you want to
copy into the CD player.
3Prepare the recording device.
Insert a blank MD or tape into the
recording device (connected to AUDIO
INPUT 4 OUT jacks).
4Start recording on the
recording device, then start
the playback device.
• The recorded music is limited to private use
only. Use of the music beyond this limit requires
permission of the copyright holders.
• Sound adjustments do not affect the signal
output from the AUDIO INPUT 4 OUT jacks.
• While the source is being recorded, the auto
standby function of the receiver may start up
and interrupt the recording. In this case, set the
“AUTO.STBY” to “STBY OFF” (page 28).
• You can record the sound from the visual device
connected to this receiver. However, you cannot
record the image via this receiver.
Reverting to the Factory
Default Settings
You can clear all memorized settings and
restore the receiver to the factory default
settings by the following procedure.
Be sure to use the buttons on the receiver
to perform this operation.
1Press (power) to turn off
the receiver.
2Press and hold (power) for
5 seconds.
“CLEARING” appears on the display
panel during initialization. When
initialization is complete, “CLEARED ”
appears on the display panel.
It takes a few seconds for the memory to be
cleared completely. Do not turn the receiver off
until “CLEARED ” appears on the display panel.
Note
Note
(power)
(power)
32GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\070ADD.fm masterpage: Left
STR-DH190
4-726-907-11(1)
Saving Power
You can save power by setting “BT STBY” to
“STBY OFF” in the “BT MENU” menu.
33GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\080TRU.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Troubleshooting/Specifications
Troubleshooting
If a problem occurs while operating the
receiver, check the following to resolve the
problem before consulting your nearest
Sony dealer.
• Check to see if the problem is listed in
this “Troubleshooting” section.
• Clear all saved settings and restore the
receiver to the factory default settings
(page 31).
If the problem persists after doing all of the
above, consult your nearest Sony dealer.
The receiver is turned off
automatically.
• If “AUTO.STBY” is set to “STBY ON”, set it
to “STBY OFF” (page 28).
• The sleep timer function was activated.
• “PROTECT” (page 35) was activated.
The indicator on the display panel
turns off.
• If the PURE DIRECT indicator on the front
panel lights up, press PURE DIRECT to
turn off this function.
• Press DIMMER to select “BRIGHT” or
“DARK”.
No sound or only a very low level of
sound is heard, no matter which
device is selected.
• Check that all connecting cables are
inserted to their input/output jacks on
the receiver, speakers and the devices.
• Check that the receiver and all devices
are turned on.
• Check that VOLUME on the receiver is not
set to “VOL MIN”.
• Press SPEAKERS A/B to select a setting
other than “OFF SPEAKERS” (page 19).
• Check that headphones are not
connected to the receiver.
•Press (muting) to cancel the muting
function.
• Try pressing the input button on the
remote control or turning INPUT
SELECTOR on the receiver to select the
input to which you want to listen.
• The protective device on the receiver has
been activated. Turn off the receiver,
eliminate the short-circuit problem, and
turn on the power again.
There is severe humming or noise.
• Check that the speakers and device are
connected securely.
• Make sure that the connecting cables are
not near a transformer or motor.
• Move your audio device away from the
TV.
• If the plugs and jacks are dirty, wipe them
with a cloth slightly moistened with
alcohol.
No sound or only a very low level of
sound is heard from specific
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only one
channel is output from the headphones,
the device may not be connected to the
receiver correctly. Check that all of the
cables are fully inserted into the jacks on
both the receiver and the device.
If both channels are output from the
headphones, the speaker may not be
connected to the receiver correctly.
Check the connection of the speaker that
is not outputting any sound.
• Make sure you have connected to both
the L and R jacks of an analog device, as
analog devices require both L and R jack
connections. Use a stereo audio cable
(not supplied).
Troubleshooting/
Specifications
General
Audio
34GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\080TRU.fm masterpage: Left
STR-DH190
4-726-907-11(1)
There is no sound from a specific
device.
• Check that the device is correctly
connected to the corresponding audio
input jacks.
• Check that the cable(s) used for the
connection is (are) fully inserted into the
jacks on both the receiver and the device.
The left and right sound is
unbalanced or reversed.
• Check that the speakers and device are
connected correctly and securely.
• Check the speaker balance (page 28).
There is severe hum, interrupted
noise or distortion from the device
connected to the PORTABLE IN jack.
• Check that the device is connected
securely.
• This is not a malfunction and will depend
on the connected device.
Recording cannot be carried out.
• Check that the device is connected
correctly.
• Select the source device using the input
buttons (page 31).
Only a very low level of sound is
heard.
• Check that MM type cartridge is used on
the turntable.
There is severe humming.
• If your turntable has a grounding
terminal, connect grounding wire
(page 15).
There is distorted sound.
• If you connect a turntable with a PHONO/
LINE switch, make sure that the PHONO/
LINE switch on the turntable is set to
PHONO (page 16).
The FM reception is poor.
• Extend and adjust the position of the FM
wire antenna (aerial) to a place where the
reception conditions are good.
• Place the FM wire antenna (aerial) near a
window.
• Position the FM wire antenna (aerial) as
horizontally as possible.
You cannot tune to radio stations.
• Check that the antennas (aerials) are
connected securely. Adjust the antennas
(aerials) if necessary.
• No stations have been preset or the
preset stations have been cleared (when
tuning by scanning preset stations is
used). Preset the stations.
• Press DISPLAY repeatedly so that the
frequency appears on the display panel.
RDS does not work.*
• Make sure that you are tuned to an FM
RDS station.
• Select a stronger FM station.
• The station you tuned to is not
transmitting the RDS signal or the signal
strength is weak.
The RDS information that you want
does not appear.*
• The service may be temporarily out of
order. Contact the radio station and find
out whether they actually provide the
service in question.
* European and Asia-Pacific models only.
Pairing cannot be done.
• Move the BLUETOOTH device closer to
the receiver.
• Pairing may not be possible if there are
other BLUETOOTH devices near the
receiver. In this case, turn off the other
BLUETOOTH devices.
Turntable
FM radio
BLUETOOTH device
35GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\080TRU.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Troubleshooting/Specifications
• Correctly enter the same passkey that
was entered on the BLUETOOTH device.
Cannot make a BLUETOOTH
connection.
• The BLUETOOTH device you attempted to
connect does not support the A2DP
profile, and cannot be connected with
the receiver.
• Press BLUETOOTH to connect to the last
connected BLUETOOTH device.
• Turn on the BLUETOOTH function of the
BLUETOOTH device.
• Establish a connection from the
BLUETOOTH device.
• The pairing registration information has
been erased. Perform the pairing
operation again.
• While connected to a BLUETOOTH device,
this receiver cannot be detected.
• Erase the pairing registration information
of the BLUETOOTH device on the
BLUETOOTH device and perform the
pairing operation again.
The sound skips or fluctuates, or the
connection is lost.
• The receiver and the BLUETOOTH device
are too far apart.
• If there are obstructions between the
receiver and your BLUETOOTH device,
remove these or move the receiver
and/or device avoid them.
• If there is a device that generates
electromagnetic radiation, such as a
wireless LAN, other BLUETOOTH device,
or a microwave oven nearby, move it
away.
The sound of your BLUETOOTH
device cannot be heard on the
receiver.
• Turn up the volume on your BLUETOOTH
device first, and then adjust the volume
using + on the remote control (or
VOLUME on the receiver).
Severe humming or noise.
• If there are obstructions between the
receiver and your BLUETOOTH device,
remove them or move the receiver
and/or device avoid them.
• If there is a device that generates
electromagnetic radiation, such as a
wireless LAN, other BLUETOOTH device,
or a microwave oven nearby, move it
away.
• Turn down the volume of the connected
BLUETOOTH device.
The remote control does not
function.
• Point the remote control at the remote
control sensor on the receiver.
• Remove any obstructions between the
remote control and the receiver.
• Replace both of the batteries in the
remote control with new ones if they are
weak.
“PROTECT” appears on the display
panel.
The receiver will automatically turn off after
a few seconds. Check the followings:
Unplug the AC power cord (mains lead) and
let the receiver cool down for 30 minutes
while performing the following
troubleshooting:
– Disconnect all of the speakers.
– Check that the speaker wires are tightly
twisted on both ends.
– Check that the receiver is not covered
and ventilation holes are not blocked.
– Check that the nominal impedance of the
connected speakers fall within the
impedance range indicated on the rear
panel of the receiver.
After checking the above items and fixing
any problems, plug in the AC power cord
(mains lead) and turn on the receiver. If the
problem persists, consult your nearest
Sony dealer.
Remote control
Error messages
36GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\080TRU.fm masterpage: Left
STR-DH190
4-726-907-11(1)
Precautions
On safety
Should any solid object or liquid fall into
the cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.
On power sources
• Before operating the receiver, check that
the operating voltage is identical with
your local power supply.
The operating voltage is indicated on the
nameplate on the rear of the receiver.
• If you are not going to use the receiver for
a long time, be sure to disconnect the
receiver from the wall outlet. To
disconnect the AC power cord (mains
lead), grasp the plug itself; never pull the
cord.
• The AC power cord (mains lead) must be
changed only at a qualified service shop.
On heat buildup
Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the
top, side and bottom rises considerably. To
avoid burning yourself, do not touch the
cabinet.
On placement
• Place the receiver in a location with
adequate ventilation to prevent heat
buildup and prolong the life of the
receiver.
• Do not place the receiver near heat
sources, or in a place subject to direct
sunlight, excessive dust, or mechanical
shock.
• Do not place anything on top of the
cabinet that might block the ventilation
holes and cause malfunctions.
• Do not place the receiver near device
such as a TV, VCR, or tape deck. (If the
receiver is being used in combination
with a TV, VCR, or tape deck, and is
placed too close to that device, noise
may result, and picture quality may
suffer. This is especially likely when using
an indoor antenna (aerial).)
• Use caution when placing the receiver on
surfaces that have been specially treated
(with wax, oil, polish, etc.) as staining or
discoloration of the surface may result.
On operation
Before connecting other device, be sure to
turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel, and controls with
a soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
On replacement of parts
In the events that this receiver is repaired,
repaired parts may be retained for reuse or
recycling purposes.
37GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\080TRU.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Troubleshooting/Specifications
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
(USA models only)
With 8 ohm loads, both channels driven,
from 20 Hz – 20,000 Hz; rated 90 watts per
channel minimum RMS power at stereo
mode, with no more than 0.09% total
harmonic distortion from 250 milliwatts to
rated output.
Amplifier section1)
Speaker impedance use
6 ohms – 16 ohms
Impedance of A/B speakers and its
corresponding speaker impedance setting
Minimum RMS Output Power
(8 ohms, 20 Hz – 20 kHz, THD 0.09%)
90 W + 90 W
Stereo Mode Output Power
(8 ohms, 1 kHz, THD 1%)
100 W + 100 W
1) Measured under the following conditions:
Frequency response
Analog
10 Hz – 100 kHz, +0.5/–2 dB (with
BASS = 0 dB, TREBLE = 0 dB)
Input (Analog)
PHONO IN
For MM type cartridge
Equalizer RIAA; +/–1 dB
S/N2): 80 dB
PORTABLE IN
Sensitivity: 500 mV/50 kilohms
S/N2): 90 dB
AUDIO IN
Sensitivity: 500 mV/50 kilohms
S/N2): 96 dB
Output (Analog)
AUDIO OUT
Voltage: 500 mV/10 kilohms
Tone
Gain levels
±10 dB, 1 dB step
2) A weighted network/input short with
BASS = 0 dB, TREBLE = 0 dB.
FM tuner section
Tuning range
USA and Canadian models:
87.5 MHz – 108.0 MHz (100 kHz step)
Other models:
87.5 MHz – 108.0 MHz (50 kHz step)
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
Service section
Output voltage
DC 5 V
Maximum current
200 mA
BLUETOOTH section
Communication system
BLUETOOTH Specification version 4.2
Output
BLUETOOTH Specification Power Class 1
Maximum communication range
Line of sight approx. 30 m (98.4 feet)1)
Frequency band
2.4 GHz band
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles2)
A2DP 1.2 (Advanced Audio Distribution
Profile)
AVRCP 1.6 (Audio Video Remote Control
Profile)
Supported Codecs3)
SBC4), AAC
Transmission range (A2DP)
20 Hz – 20,000 Hz (Sampling frequency
44.1 kHz)
Speaker
system
Speaker impedance
setting (page 19)
“6 OHM” “8 OHM”
A or B 6 ohms –
16 ohms
8 ohms –
16 ohms
A and B 12 ohms –
16 ohms > 16 ohms
Area Power requirements
USA, Canada,
Taiwan 120 V AC, 60 Hz
Oceania, Europe 230 V AC, 50 Hz
38GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\080TRU.fm masterpage: Left
STR-DH190
4-726-907-11(1)
Frequency band and maximum output power
(European models only)
BLUETOOTH
1) The actual range will vary depending on factors
such as obstacles between devices, magnetic
fields around a microwave oven, static
electricity, cordless phone, reception
sensitivity, antenna’s performance, operating
system, software application, etc.
2) BLUETOOTH standard profiles indicate the
purpose of BLUETOOTH communication
between devices.
3) Codec: Audio signal compression and
conversion format
4) Subband Codec
General
Power requirements
Power consumption
200 W
Standby mode: 0.3 W
(When “BT STBY” is set to “STBY OFF”.)
BLUETOOTH Standby mode (all wireless
network ports are activated): 1.0 W
(When “BT STBY” is set to “STBY ON”.)
Dimensions (width/height/depth) (Approx.)
430 mm × 133 mm × 284 mm (17 in ×
5 1/4 in × 11 1/4 in) including projecting
parts and controls
Mass (Approx.)
6.7 kg (14 lb 13 oz)
Design and specifications are subject to
change without notice.
On BLUETOOTH
Communication
Supported BLUETOOTH version and
profiles
Profile refers to a standard set of functions
for various BLUETOOTH product features.
See “BLUETOOTH section” in
“Specifications” (page 37) for the
BLUETOOTH version and profiles supported
by this receiver.
Effective communication range
BLUETOOTH devices should be used within
approximately 10 meters (33 feet)
(unobstructed distance) of each other. The
effective communication range may
become shorter under the following
conditions.
• When a person, metal object, wall or
other obstruction is between the devices
with a BLUETOOTH connection
• Locations where a wireless LAN is
installed
• Around microwave ovens that are in use
• Locations where other electromagnetic
waves are generated
Effects of other devices
BLUETOOTH devices and wireless LAN
(IEEE 802.11b/g/n) device use the same
frequency band (2.4 GHz). When using your
BLUETOOTH device near a device with
wireless LAN capability, electromagnetic
interference may occur. This could result in
lower data transfer rates, noise, or inability
to connect. If this happens, try the
following remedies:
• Use this receiver at least 10 meters
(33 feet) away from the wireless LAN
device.
• Turn off the power to the wireless LAN
device when using your BLUETOOTH
device within 10 meters (33 feet).
Frequency
band
Maximum output
power
2,400 MHz –
2,483.5 MHz ≤ 5.0 dBm
Area Power requirements
USA, Canada,
Taiwan 120 V AC, 60 Hz
Oceania 230 V AC, 50 Hz
Europe 230V AC, 50/60Hz
39GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\080TRU.fm masterpage: Right
STR-DH190
4-726-907-11(1)
Troubleshooting/Specifications
• Install this receiver and BLUETOOTH
device as closer to each other as
possible.
Effects on other devices
The radio waves broadcast by this receiver
may interfere with the operation of some
medical devices. Since this interference
may result in malfunction, always turn off
the power on this receiver and BLUETOOTH
device in the following locations:
• In hospitals, on trains, in airplanes, at gas
stations, and any place where flammable
gasses may be present
• Near automatic doors or fire alarms
• This receiver supports security functions that
comply with the BLUETOOTH specification to
ensure secure connection during
communication using BLUETOOTH technology.
However, this security may be insufficient
depending on the setting contents and other
factors, so always be careful when performing
communication using BLUETOOTH technology.
• Sony shall not be held liable in any way for
damages or other loss resulting from
information leaks during communication using
BLUETOOTH technology.
• BLUETOOTH communication is not necessarily
guaranteed with all BLUETOOTH devices that
have the same profile as this receiver.
• BLUETOOTH devices connected with this
receiver must comply with the BLUETOOTH
specification prescribed by the Bluetooth SIG,
Inc., and must be certified to comply. However,
even when a device complies with the
BLUETOOTH specification, there may be cases
where the characteristics or specifications of the
BLUETOOTH device make it impossible to
connect, or may result in different control
methods, display or operation.
• Noise may occur or the audio may cut off
depending on the BLUETOOTH device
connected with this receiver, the
communications environment, or surrounding
conditions.
If you have any questions or problems
concerning your receiver, please consult
your nearest Sony dealer.
On Copyrights
The BLUETOOTH® word mark and logos are
registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks
by Sony Corporation is under license. Other
trademarks and trade names are those of
their respective owners.
WALKMAN® and WALKMAN® logo are
registered trademarks of Sony Corporation.
All other trademarks and registered
trademarks are of their respective holders. In
this manual, ™ and marks are not specified.
Note
40GB
D:\NORM'S JOB\SONY HA\SO17_STR-DH190\STR-DH190\4726907111_GB\010COVIX.fm masterpage: Left
STR-DH190
4-726-907-11(1)
Index
A
AUTO.STBY 28
B
B speakers 14
BALANCE 28
BASS 20
Batteries 11
BLUETOOTH
Pairing 22
Playback 21
Profile 37
Version 37
BLUETOOTH settings menu 27
BT AAC 27
BT POWER 28
BT STBY 27
C
Cable 13
Connecting
Audio-visual devices 15
FM Antenna 18
Speaker 13
D
Default settings
Receiver 31
E
Error messages 35
F
FM MODE 27
I
Initialization
Receiver 31
M
Menu 27
Messages 35
N
NAME IN 28
P
Pairing 22
PH.OFFSET 28
Power
Power consumption 38
Saving power 32
PURE DIRECT 29
R
RDS 26
Receiver
Display panel 8
Front panel 7
Rear panel 9
Remote control 10
Reset
Receiver 31
S
Sleep Timer 10
SP IMP. 27
Speaker cable 13
Supplied items 6
T
TREBLE 20
U
UPDATE 28
V
VERSION 28
