model name1[HT-DDW670]

[2-342-216-14(1)]

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB01COV_HT-DDW670-U.fm]

masterpage:Right

2-342-216-14(1)

Home Theatre

System

Operating Instructions

Owner’s Record

The model and serial numbers are located on the rear of the unit. Record the serial

number in the space provided below. Refer to them whenever you call upon your

Sony dealer regarding this product.

Model No. Serial No.

HT-DDW670

GB01COV_HT-DDW670-U.book Page 1 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB02REG_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

2GB

To reduce the risk of fire or electric

shock, do not expose this apparatus to

rain or moisture.

To prevent fire, do not cover the ventilation of the

apparatus with newspapers, table-cloths, curtains, etc.

And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Don’t throw away batteries with

general house waste; dispose of

them correctly as chemical waste.

Disposal of Old Electrical &

Electronic Equipment

(Applicable in the European

Union and other European

countries with separate

collection systems)

This symbol on the product or on its

packaging indicates that this product

shall not be treated as household

waste. Instead it shall be handed over

to the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent

potential negative consequences for the environment and

human health, which could otherwise be caused by

inappropriate waste handling of this product. The

recycling of materials will help to conserve natural

resources. For more detailed information about recycling

of this product, please contact your local city office, your

household waste disposal service or the shop where you

purchased the product.

For customers in the United States

This symbol is intended to alert

the user to the presence of

uninsulated “dangerous voltage”

within the product’s enclosure

that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

This symbol is intended to alert

the user to the presence of

important operating and

maintenance (servicing)

instructions in the literature

accompanying the appliance.

WARNING

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modification not

expressly approved in this manual could void your

authority to operate this equipment.

Note to CATV system installer:

This reminder is provided to call CATV system

installer’s attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

For customers in Canada

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

For customers in the United States,

Canada and Australia

ENERGY STAR® is a U.S. registered

mark. As an ENERGY STAR® partner,

Sony Corporation has determined that

this product meets the ENERGY STAR®

guidelines for energy efficiency.

WARNING

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

GB01COV_HT-DDW670-U.book Page 2 Wednesday, July 13, 2005 1:45 PM

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB02REG_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

3GB

About This Manual

• The instructions in this manual are for model

HT-DDW670. Check your receiver’s model number

by looking at the lower right corner of the front

panel.

• The instructions in this manual describe the controls

on the receiver. You can also use the controls on the

supplied remote if they have the same or similar

names as those on the receiver. For details on the use

of your remote, see pages 33–36.

The HT-DDW670 consists of:

Models of area code CEL, CEK only

• Receiver STR-K670P

• Speaker system

– Front speaker (left) SS-MSP67LE

– Front speaker (right) SS-MSP67RE

– Center speaker SS-CNP87

– Surround speaker (left) SS-MSP67SLE

– Surround speaker (right)

SS-MSP67SRE

– Sub woofer SS-WMSP67E

Models of others area code

• Receiver STR-K670P

• Speaker system

– Front speaker (left) SS-MSP67L

– Front speaker (right) SS-MSP67R

– Center speaker SS-CNP67

– Surround speaker (left) SS-MSP67SL

– Surround speaker (right) SS-MSP67SR

– Sub woofer SS-WMSP67

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTS** Digital Surround

System.

* Manufactured under license from Dolby

Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are

trademarks of Dolby Laboratories.

** “DTS” and “DTS Digital Surround” are registered

trademarks of Digital Theater Systems, Inc.

About area codes

The area code of the receiver you purchased is

shown on the lower portion of the rear panel (see

the illustration below).

Any differences in operation, according to the area

code, are clearly indicated in the text, for example,

“Models of area code AA only”.

2-XXX-XXX-XX AA

CENTER FRONT

+ +

Area code

GB01COV_HT-DDW670-U.book Page 3 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB01COV_HT-DDW670-U TOC.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

4GB

Getting Started

1: Check how to hookup your

components.......................................5

1a: Connecting components with

digital audio output jacks ...........7

1b: Connecting components with only

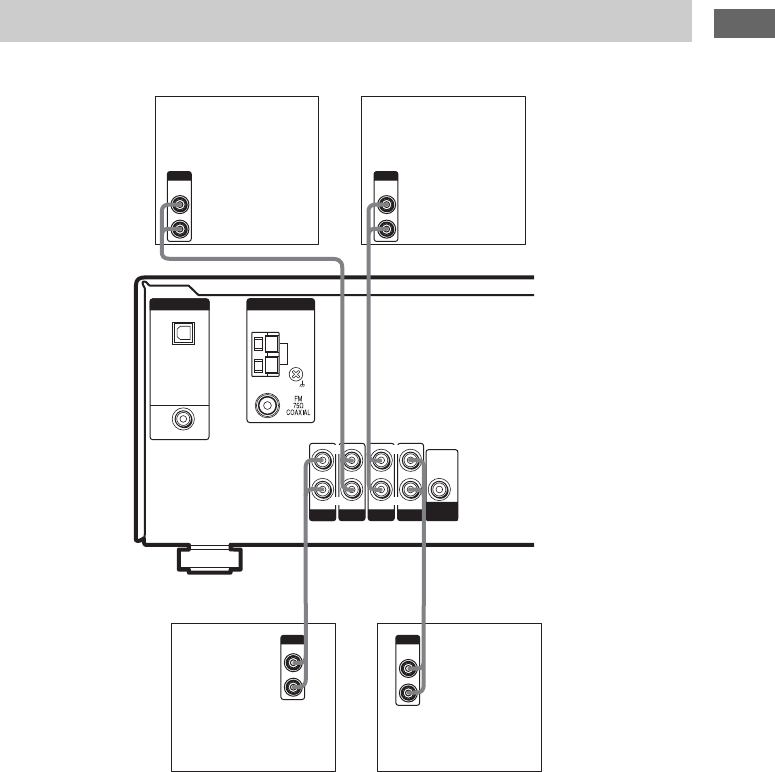

analog audio jacks ...................... 9

2: Connecting the antennas ...................10

3: Connecting speakers ......................... 11

4: Connecting the AC power cord ........ 14

5: Setting up the speakers ..................... 15

6: Adjusting the speaker levels and

balance ............................................ 17

— TEST TONE

Amplifier Operation

Selecting the component.......................18

Listening to FM/AM radio.................... 19

Storing FM stations automatically........20

— AUTOBETICAL

(Models of area code CEL, CEK

only)

Presetting radio stations ........................20

Using the Radio Data System (RDS).... 21

(Models of area code CEL, CEK

only)

Changing the display.............................23

About the indications in the display......24

Enjoying Surround Sound

Using only the front speakers and sub

woofer............................................. 25

— 2CH STEREO

Enjoying higher fidelity sound.............. 25

— AUTO FORMAT DIRECT

Selecting a sound field.......................... 26

Advanced Adjustments and

Settings

Switching the audio input mode for digital

components..................................... 28

— INPUT MODE

Customizing sound fields ..................... 28

Adjusting the tone................................. 30

Advanced settings................................. 30

Other Operations

Naming preset stations and inputs........ 32

Using the Sleep Timer .......................... 32

Operations Using the Remote

RM-AAU002

Before you use your remote.................. 33

Remote button description.................... 33

Changing the factory setting of an input

button.............................................. 36

Additional Information

Precautions ........................................... 37

Troubleshooting.................................... 38

Specifications ....................................... 40

List of button locations and reference

pages............................................... 43

Index ...................................... Back Cover

Table of Contents

GB01COV_HT-DDW670-U.book Page 4 Wednesday, July 13, 2005 1:45 PM

Getting Started

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

5GB

Steps 1a through 1b beginning on page 7 describe how to hook up your components to this receiver.

Before you begin, refer to “Connectable components” below for the pages which describe how to

connect each component.

After hooking up all your components, proceed to “2: Connecting the antennas” (page 10).

Connectable components

a) Model with a DIGITAL OPTICAL OUTPUT or DIGITAL COAXIAL OUTPUT jack, etc.

b) Model equipped only with AUDIO OUT L/R jacks, etc.

Getting Started

1: Check how to hookup your components

Component to be connected Page

DVD player

With digital audio outputa) 7

With analog audio output onlyb) 9

Satellite tuner

With analog audio output onlyb) 9

Super Audio CD/CD player

With digital audio outputa) 8

With analog audio output onlyb) 9

VCR 9

continued

GB01COV_HT-DDW670-U.book Page 5 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

6GB

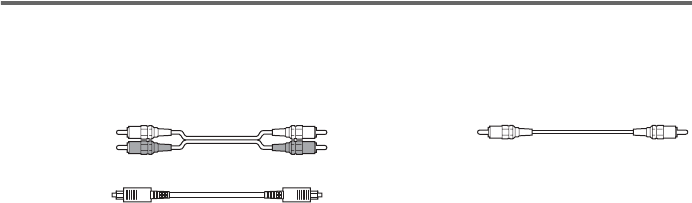

Required cords

The hookup diagrams on the subsequent pages assume the use of the following optional connection

cords (A to C) (not supplied unless indicated).

AAudio cord

White (L)

Red (R)

BOptical digital cord

CCoaxial digital cord (supplied)

Orange

Notes

• Turn off the power to all components before making any connections.

• Be sure to make connections firmly to avoid hum and noise.

• When connecting an audio cord, be sure to match the color-coded pins to the appropriate jacks on the components:

white (left, audio) to white; and red (right, audio) to red.

• When connecting optical digital cords, insert the cord plugs straight in until they click into place.

• Do not bend or tie optical digital cords.

GB01COV_HT-DDW670-U.book Page 6 Wednesday, July 13, 2005 1:45 PM

Getting Started

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

7GB

Hooking up a DVD player

For details on the required cords (A–C), see page 6.

1a: Connecting components with digital audio output jacks

AUDIO

OUT

DVD IN

SA-CD/CD

AUDIO IN

DVD

AUDIO IN

VIDEO 2

AUDIO IN

VIDEO 1

AUDIO IN

R R

DIGITAL

OPTICAL

COAXIAL

SA-CD/

ANTENNA

SUB

WOOFER

AUDIO

OUT

OUTPUT

DIGITAL

COAXIAL

OUTPUT

DVD player

continued

GB01COV_HT-DDW670-U.book Page 7 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

8GB

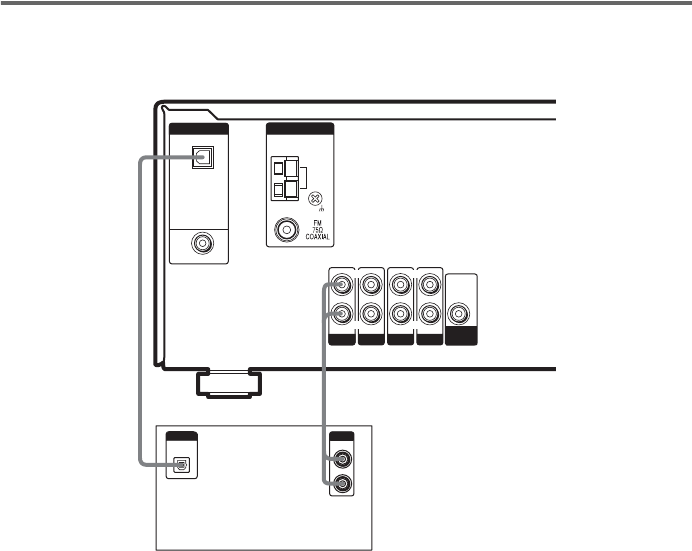

Hooking up a Super Audio CD/CD player

For details on the required cords (A–C), see page 6.

Tip

All the digital audio jacks are compatible with 32 kHz, 44.1 kHz, 48 kHz and 96 kHz sampling frequencies.

Note

The sound is not output when you play a Super Audio CD on the Super Audio CD player connected to the

SA-CD/CD OPTICAL IN jack on this receiver. Connect to the analog input jacks (SA-CD/CD IN jacks). Refer to

the operating instructions supplied with the Super Audio CD player.

AUDIO

OUT

DVD IN

SA-CD/CD

AUDIO IN

DVD

AUDIO IN

VIDEO 2

AUDIO IN

VIDEO 1

AUDIO IN

DIGITAL

OPTICAL

COAXIAL

ANTENNA

SUB

WOOFER

R R

L L

DIGITAL

OPTICAL

OUT

LINE

OUTPUT

SA-CD/

Super Audio CD/CD

player

GB01COV_HT-DDW670-U.book Page 8 Wednesday, July 13, 2005 1:45 PM

Getting Started

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

9GB

For details on the required cords (A–C), see page 6.

1b: Connecting components with only analog audio jacks

AUDIO

OUT

DVD IN

SA-CD/CD

AUDIO IN

DVD

AUDIO IN

VIDEO 2

AUDIO IN AUDIO IN

DIGITAL

OPTICAL

COAXIAL

SA-CD/

ANTENNA

SUB

WOOFER

VIDEO 1

R R

L L

LINE

OUTPUT

AUDIO

OUT

OUTPUT

AUDIO

OUT

OUTPUT

AUDIO

OUT

OUTPUT

DVD player

Super Audio CD/CD

player

VCR

Satellite Tuner

or VCR

GB01COV_HT-DDW670-U.book Page 9 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

10GB

Connect the supplied AM loop antenna and FM wire antenna.

*The shape of the connector varies depending on the area code.

Notes

• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as horizontal as possible.

2: Connecting the antennas

AUDIO

OUT

DVD IN

SA-CD/CD

AUDIO IN

DVD

AUDIO IN

VIDEO 2

AUDIO IN

VIDEO 1

AUDIO IN

DIGITAL

OPTICAL

COAXIAL

SA-CD/

ANTENNA

SUB

WOOFER

AM loop antenna

(supplied)

FM wire antenna

(supplied)

GB01COV_HT-DDW670-U.book Page 10 Wednesday, July 13, 2005 1:45 PM

Getting Started

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

11GB

Connect your speakers to the receiver. This receiver allows you to use a 5.1 channel speaker system.

To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a

center speaker, and two surround speakers) and a sub woofer (5.1 channel).

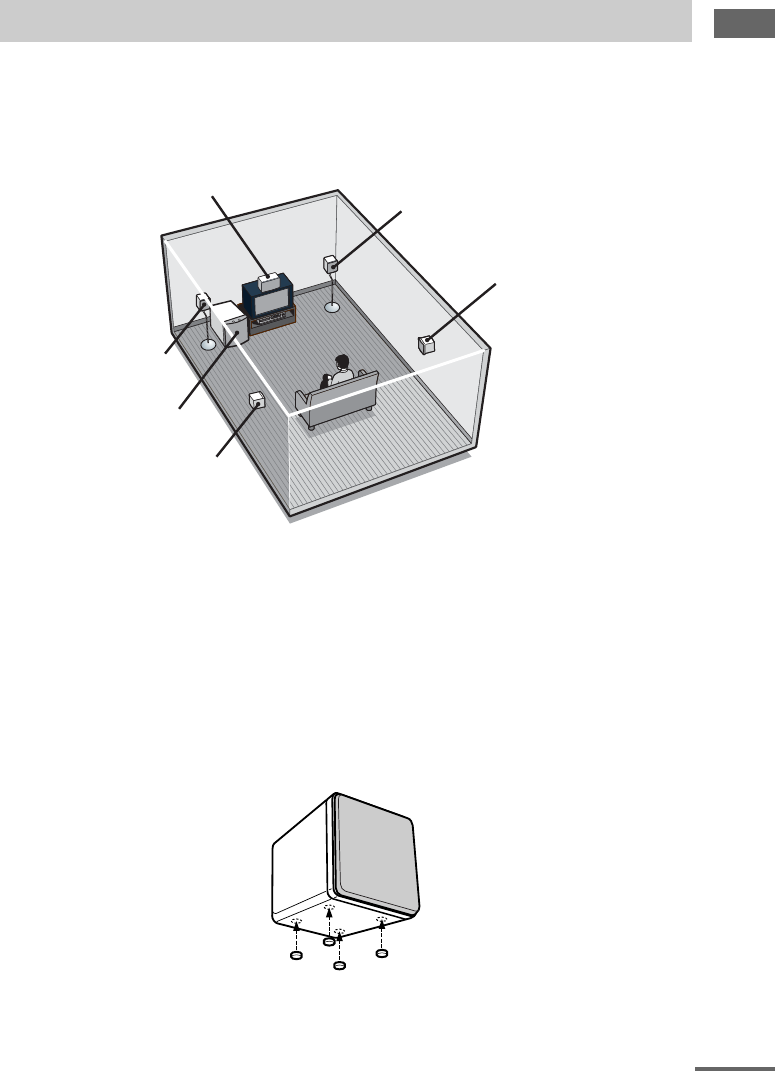

Example of 5.1 channel speaker system configuration

Tips

• Since the sub woofer does not emit highly directional signals, you can place it wherever you want.

• For greater flexibility in the positioning of the speakers, use the optional WS-FV11 or WS-FV10D floor stand

(available only in certain countries).

• You can also install the front and surround speakers on the wall (page 13).

Note

Connect the long speaker connecting cords to the surround speaker terminals and the short speaker connecting cords

to the front and center speaker terminals.

Attaching foot pads

To prevent speaker vibration or movement, attach the supplied foot pads to the speaker as shown in the

illustration below.

Note

Be sure to attach the supplied foot pads to the sub woofer as well.

3: Connecting speakers

Front speaker (Right)

Surround speaker (Right)

Center speaker

Front speaker (Left)

Sub woofer

Surround speaker (Left)

continued

GB01COV_HT-DDW670-U.book Page 11 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

12GB

Required cords

ASpeaker cords (supplied)

(+)

(–)

BMonaural audio cord (not supplied)

Black

* If you have an additional active subwoofer, connect it to SUB WOOFER AUDIO OUT jack.

AUDIO

OUT

SUB

WOOFER SURROUND

SPEAKERS

+ +

SUB

WOOFER

CENTER FRONT

+ +

Sub woofer

Center speaker Front speaker

(Left)

Front speaker

(Right)

Surround speaker

(Right)

Surround speaker

(Left)

GB01COV_HT-DDW670-U.book Page 12 Wednesday, July 13, 2005 1:45 PM

Getting Started

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

13GB

Installing the speakers on the

wall

You can install your front and surround speakers

on the wall.

1Prepare screws (not supplied) that are

suitable for the hole on the back of

each speaker. See the illustrations

below.

2Fasten the screws to the wall. The

screws should protrude 5 to 7 mm (7/32

to 9/32 inch).

3Hang the speakers on the screws.

Notes

• Use screws that are suitable for the wall material and

strength. As a plaster board wall is especially fragile,

attach the screws securely to a beam and fasten them

to the wall. Install the speakers on a vertical and flat

wall where reinforcement is applied.

• Contact a screw shop or installer regarding the wall

material or screws to be used.

• Sony is not responsible for accident or damage

caused by improper installation, insufficient wall

strength or improper screw installation, natural

calamity, etc.

more than 4 mm

(5/32 inch)

more than 25 mm (1 inch)

Hole on the back of the speaker

4.6 mm

(3/16 inch)

10 mm

(13/32 inch)

5 to 7 mm

(7/32 to 9/32 inch)

4.6 mm

(3/16 inch)

10 mm

(13/32 inch)

Hole on the back of the speaker

GB01COV_HT-DDW670-U.book Page 13 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

14GB

Setting the voltage selector

If your receiver has a voltage selector on the rear

panel, check that the voltage selector is set to the

local power supply voltage. If not, use a

screwdriver to set the selector to the correct

position before connecting the AC power cord to

a wall outlet.

Connecting the AC power

cord

Connect the AC power cord to a wall outlet.

Performing initial setup

operations

Before using the receiver for the first time,

initialize the receiver by performing the

following procedure.

This procedure can also be used to return

settings you have made to their factory defaults.

Use the buttons on the receiver for the operation.

1Press ?/1 to turn off the receiver.

2Hold down ?/1 for 5 seconds.

“PUSH” and “ENTER” appears in the

display alternatingly.

3Press ENTER.

“CLEARING” appears in the display for a

while, then “CLEARED” appears.

The following are reset to their factory

settings.

• All settings in the SET UP, LEVEL,

TONE and CUSTOMIZE menus.

• The sound field memorized for each

input and preset station.

• All sound field parameters.

• All preset stations.

• All index names for inputs and preset

stations.

• MASTER VOLUME –/+ is set to “VOL

MIN”.

4: Connecting the AC

power cord

120V 220V 240V

VOLTAGE SELECTORVOLTAGE SELECTOR

To a wall

outlet

AC power cord

GB01COV_HT-DDW670-U.book Page 14 Wednesday, July 13, 2005 1:45 PM

Getting Started

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

15GB

You can use the SET UP menu to set the

distance and location of the speakers connected

to this receiver.

1Press ?/1 to turn on the receiver.

2Press MAIN MENU repeatedly to select

“ SET UP ”.

3Press or repeatedly to select the

parameter you want to adjust.

For details, see “Speaker setup parameters”

below.

Note

Some speaker setup items may appear dimmed in

the display. This means that they have been

adjusted automatically due to other speaker

settings or may not be adjustable.

4Press + or – repeatedly to select the

setting you want.

The setting is entered automatically.

5Repeat steps 3 and 4 until you have set

all of the items that follow.

Speaker setup parameters

The initial setting is underlined.

x DIST. X.X m (XX ft.)*

(Front speaker distance)

Initial setting: 3.0 m (10 ft)

Lets you set the distance from your listening position

to the front speakers (A). You can adjust from 1.0

meter to 7.0 meters (3 to 23 feet) in 0.1 meter (1 foot)

steps.

If both front speakers are not placed an equal distance

from your listening position, set the distance to the

closest speaker.

x DIST. X.X m (XX ft.)*

(Center speaker distance)

Initial setting: 3.0 m (10 ft)

Lets you set the distance from your listening position

to the center speaker. Center speaker distance should

be set from a distance equal to the front speaker

distance (A) to a distance 1.5 meters (5 feet) closer to

your listening position (B).

x DIST. X.X m (XX ft.)*

(Surround speaker distance)

Initial setting: 3.0 m (10 ft)

Lets you set the distance from your listening position

to the surround speakers. Surround speaker distance

should be set from a distance equal to the front speaker

distance (A) to a distance 4.5 meters (15 feet) closer to

your listening position (C).

If both surround speakers are not placed an equal

distance from your listening position, set the distance

to the closest speaker.

* For models of area code U, CA, “XX ft.” is

displayed.

5: Setting up the speakers

30˚30˚

100˚-120˚100˚-120˚

SL SR

continued

GB01COV_HT-DDW670-U.book Page 15 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

16GB

Tip

The receiver lets you to input the speaker position in

terms of distance. However, it is not possible to set the

center speaker further than the front speakers. Also, the

center speaker cannot be set more than 1.5 meters

(5 feet) closer than the front speakers.

Likewise, the surround speakers cannot be set further

away from the listening position than the front

speakers. And they can be no more than 4.5 meters

(15 feet) closer.

This is because incorrect speaker placement is not

conducive to the enjoyment of surround sound.

Please note that, setting the speaker distance closer than

the actual location of the speakers will cause a delay in

the output of the sound from that speaker. In other

words, the speaker will sound like it is further away.

For example, setting the center speaker distance 1–2

meters (3-6 feet) closer than the actual speaker position

will create a fairly realistic sensation of being “inside”

the screen. If you cannot obtain a satisfactory surround

effect because the surround speakers are too close,

setting the surround speaker distance closer (shorter)

than the actual distance will create a larger sound stage.

Adjusting these parameter while listening to the sound

often results in much better surround sound. Give it a

try!

x XXXX/XX

(Surround speaker position)

Lets you specify the location of your surround speakers

for proper implementation of the surround effects in

the Cinema Studio EX modes (page 26).

• SIDE/LO

Select if the location of your surround speakers

corresponds to section A and C.

•SIDE/HI

Select if the location of your surround speakers

corresponds to section A and D.

• BEHD/LO

Select if the location of your surround speakers

corresponds to section B and C.

• BEHD/HI

Select if the location of your surround speakers

corresponds to section B and D.

Tip

Surround speaker position is designed specifically for

implementation of the Cinema Studio EX modes.

For other sound fields, speaker position is not so

critical. Those sound fields were designed under the

premise that the surround speakers would be located

behind the listening position, but presentation remains

fairly consistent even with the surround speakers

positioned at a rather wide angle. However, if the

speakers are pointing toward the listener from the

immediate left and right of the listening position, the

surround effects becomes unclear unless set to

“SIDE/LO” or “SIDE/HI”.

Nevertheless, each listening environment has many

variables, such as wall reflections, and you may obtain

better results using “BEHD/HI” if your speakers are

located high above the listening position, even if they

are to the immediate left and right.

Therefore, although it may result in a setting contrary

to the above explanation, we recommend that you

playback multi channel surround encoded software and

select the setting that provides a good sense of

spaciousness and that best succeeds in forming a

cohesive space between the surround sound from the

surround speakers and the sound of the front speakers.

If you are not sure which sounds best, select

“BEHD/LO” or “BEHD/HI” and then use the speaker

distance parameter and speaker level adjustments to

obtain proper balance.

SL SR

100˚ 120˚

GB01COV_HT-DDW670-U.book Page 16 Wednesday, July 13, 2005 1:45 PM

Getting Started

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB03CON_HT-DDW670-U.fm]

model name1[HT-DDW670]

[2-342-216-14(1)]

17GB

Adjust the speaker levels and balance while

listening to the test tone from your listening

position. Use the remote for the operation.

Tip

The receiver employs a test tone with a frequency

centered at 800 Hz.

1Press ?/1 to turn on the receiver.

2Press TEST TONE.

“T. TONE” appears in the display and the

test tone is output from each speaker in

sequence.

Front (left) t Center t Front (right) t

Surround (right) t Surround (left) t Sub

woofer

3Adjust the speaker levels and balance

using the LEVEL menu so that the level

of the test tone sounds the same from

each speaker.

For details on the LEVEL menu settings,

see page 28.

Tips

• To adjust the level of all speakers at the same

time, press MASTER VOL +/– on the remote or

turn MASTER VOLUME –/+ on the receiver.

• The adjusted value are shown in the display

during adjustment.

4Press TEST TONE again after

adjustment.

The test tone turns off.

Note

Although these adjustments can also be made via the

front panel using the LEVEL menu (when the test tone

is output, the receiver switches to the LEVEL menu

automatically), we recommend you follow the

procedure described above and adjust the speaker

levels from your listening position using the remote.

6: Adjusting the speaker

levels and balance

— TEST TONE

GB01COV_HT-DDW670-U.book Page 17 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB04BSC_HT-DDW670-U.fm]

18GB

model name1[HT-DDW670]

[2-342-216-14(1)]

1Press input buttons to select the input.

The selected input appears in the display.

2Turn on the component and start

playback.

Note

If you select any video components, set the TV’s

video input to match the component you selected.

3Turn MASTER VOLUME –/+ to adjust

the volume.

Note

To avoid damaging your speakers, make sure that

you turn down the volume before you turn off the

receiver.

To mute the sound

Press MUTING on the remote.

The muting function will be canceled when you

do the following.

• Press MUTING on the remote again.

• Turn the power off.

• Increase the volume.

To use the headphones

Connect the headphones to the PHONES jack.

• When the headphones are connected, speaker

output is automatically canceled and “SP”

does not light up in the display.

• When the headphones are connected, you can

select only the following sound fields

(page 27).

– HP 2CH (HEADPHONE 2CH)

– HP THEA (HEADPHONE THEATER)

Amplifier Operation

Selecting the component

To select the Press

VCR VIDEO 1 or

VIDEO 2

Satellite tuner VIDEO 2

DVD player DVD

Super Audio CD or

CD player

SA-CD/CD

Built-in tuner (FM/AM) FM or AM

GB01COV_HT-DDW670-U.book Page 18 Wednesday, July 13, 2005 1:45 PM

Amplifier Operation

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB04BSC_HT-DDW670-U.fm]

19GB

model name1[HT-DDW670]

[2-342-216-14(1)]

You can listen to FM and AM broadcasts

through the built-in tuner. Before operation,

make sure you have connected the FM and AM

antennas to the receiver (see page 10).

Tip

The tuning scale differs depending on the area code as

shown in the following table. For details on area codes,

see page 3.

* The AM tuning scale can be changed (see page 41).

Automatic tuning

If you do not know the frequency of the station

you want, you can let the receiver scan all

available stations in your area.

1Press FM or AM to select the FM or AM

band.

The last received station is tuned in.

2Press TUNING + or TUNING –.

Press TUNING + to scan from low to high;

press TUNING – to scan from high to low.

The receiver stops scanning whenever a

station is received.

Tip

If “STEREO” flashes in the display and the FM stereo

reception is poor, press FM MODE to change to

monaural (MONO). You will not be able to enjoy the

stereo effect, but the sound will be less distorted. To

return to stereo mode, press FM MODE again.

Direct tuning

You can enter the frequency of the station you

want directly. Use the remote for the operation.

1Press TUNER repeatedly to select the

FM or AM band.

The last received station is tuned in.

Tip

You can also use FM or AM on the receiver.

2Press D.TUNING.

3Press the numeric buttons to enter the

frequency.

Example 1: FM 102.50 MHz

Press 1 b 0 b 2 b 5 b 0

Example 2: AM 1,350 kHz

Press 1 b 3 b 5 b 0

(You do not have to enter the last “0” when

the tuning scale is set to 10 kHz.)

If you have tuned in an AM station, adjust

the direction of the AM loop antenna for

optimum reception.

If you cannot tune in a station

and the entered numbers flash

Make sure you have entered the right frequency.

If not, repeat steps 2 and 3. If the entered

numbers still flash, the frequency is not used in

your area.

Listening to FM/AM radio

Area code FM AM

U, CA 100 kHz 10 kHz*

CEL, CEK, SP, AU 50 kHz 9 kHz

MX 50 kHz 10 kHz

E51 50 kHz 10 kHz*

GB01COV_HT-DDW670-U.book Page 19 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB04BSC_HT-DDW670-U.fm]

20GB

model name1[HT-DDW670]

[2-342-216-14(1)]

(Models of area code CEL, CEK only)

This function lets you store up to 30 FM and FM

RDS stations in alphabetical order without

redundancy. Additionally, it only stores the

stations with the clearest signals.

If you want to store FM or AM stations one by

one, see “Presetting radio stations” (page 20).

Use the buttons on the receiver for the operation.

1Press ?/1 to turn off the receiver.

2Hold down MEMORY and press ?/1 to

turn the receiver back on.

“AUTO-BETICAL SELECT” appears in

the display and the receiver scans and stores

all the FM and FM RDS stations in the

broadcast area.

For RDS stations, the tuner first checks for

stations broadcasting the same program,

then stores only the one with the clearest

signal. The selected RDS stations are sorted

alphabetically by their Program Service

name, then assigned a 2-character preset

code. For more details on RDS, see

page 21.

Regular FM stations are assigned 2-

character preset codes and stored after the

RDS station.

When done, “FINISH” appears in the

display momentarily and the receiver

returns to the normal operation.

Notes

• Do not press any button on the receiver or supplied

remote during autobetical operation, except ?/1.

• If you move to another area, repeat this procedure to

store stations in your new area.

• For details on tuning the stored stations, see “Tuning

to preset stations” (page 21).

• If you move the antenna after storing stations with

this procedure, the stored settings may no longer be

valid. If this happens, repeat this procedure to store

the stations again.

You can preset up to 30 FM or AM stations.

Then you can easily tune in the stations you

often listen to.

Presetting radio stations

1Press FM or AM to select the FM or AM

band.

The last received station is tuned in.

2Tune in the station that you want to

preset using Automatic Tuning

(page 19) or Direct Tuning (page 19).

3Press MEMORY.

“MEMORY” appears in the display for a

few seconds. Do steps 4 to 5 before the

display goes out.

4Press PRESET TUNING + or PRESET

TUNING – repeatedly to select a preset

station number.

Each time you press the button, you can

select the preset station number as follows:

If “MEMORY” goes out before you select

the preset station number, start again from

step 3.

Tip

You can also use the remote to select a preset

station number. Press SHIFT repeatedly to select

a memory page (A, B or C) and then press the

numeric buttons to select a preset number.

5Press MEMORY again.

The station is stored to the selected preset

number.

If “MEMORY” goes out before you press

MEMORY, start again from step 3.

6Repeat steps 2 to 5 to preset another

station.

Storing FM stations

automatically

— AUTOBETICAL

Presetting radio stations

tA1yA2y...yA0yB1yB2y...yB0T

tC0y...yC2yC1T

GB01COV_HT-DDW670-U.book Page 20 Wednesday, July 13, 2005 1:45 PM

Amplifier Operation

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB04BSC_HT-DDW670-U.fm]

21GB

model name1[HT-DDW670]

[2-342-216-14(1)]

Tuning to preset stations

1Press FM or AM to select the FM or AM

band.

The last received station is tuned in.

2Press PRESET TUNING + or PRESET

TUNING – repeatedly to select the

preset station you want.

Each time you press the button, you can

select the preset station as follows:

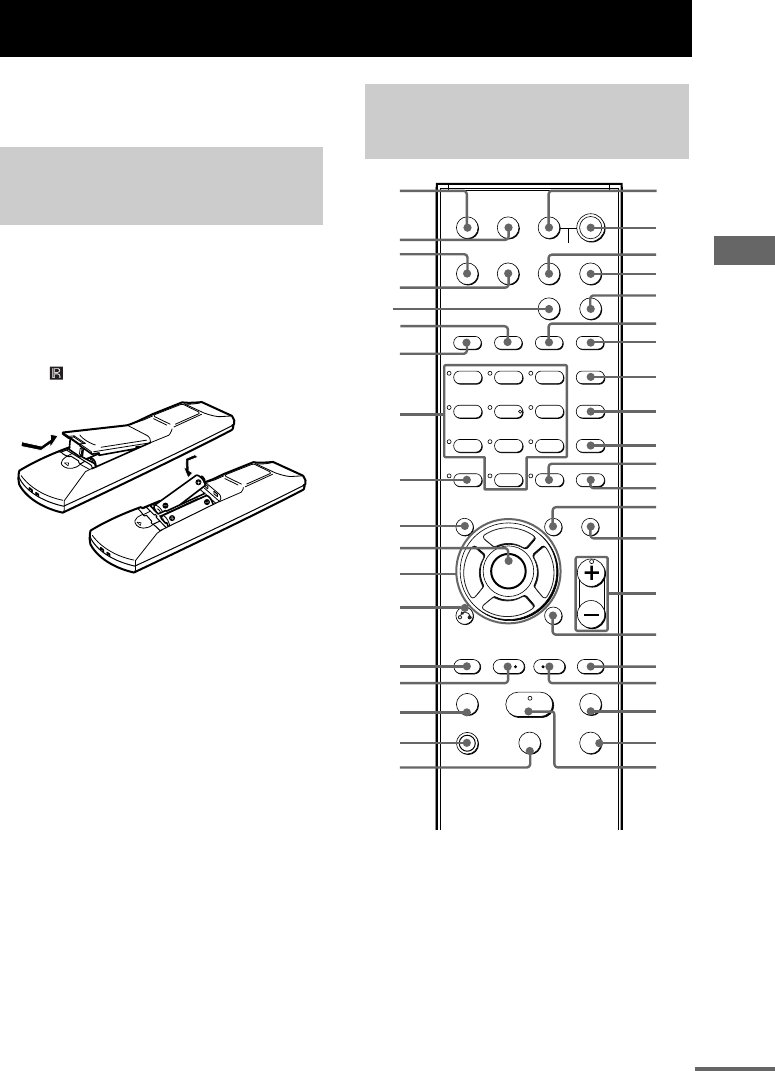

Using the remote

1Press TUNER repeatedly to select the FM or

AM band.

2Press PRESET +/– repeatedly to select the

preset station you want.

To select the preset station

directly

Press the numeric buttons on the remote.

The preset station of the selected number in the

current memory page is tuned in. Press SHIFT

repeatedly on the remote to change the memory

page.

(Models of area code CEL, CEK only)

This receiver also allows you to use RDS (Radio

Data System), which enables radio stations to

send additional information along with the

regular program signal. You can also display

RDS information.

Notes

• RDS is operable only for FM stations.

• Not all FM stations provide RDS service, nor do they

provide the same types of services. If you are not

familiar with the RDS services in your area, check

with your local radio stations for details.

Receiving RDS broadcasts

Simply select a station on the FM band

using automatic tuning (page 19), direct

tuning (page 19), or preset tuning

(page 21).

When you tune in a station that provides RDS

services, the RDS indicator lights up and the

program service name appears in the display.

Note

RDS may not work properly if the station you tuned to

is not transmitting the RDS signal properly or if the

signal strength is weak.

Displaying RDS information

While receiving an RDS station, press

DISPLAY repeatedly.

Each time you press the button, RDS

information on the display changes cyclically as

follows:

Program Service name t Frequency t

Program Type indicationa) t Radio Text

indicationb) t Current Time indication (in 24-

hour system) t Sound field currently applied

a) Type of program being broadcast (see page 22).

b) Text messages sent by the RDS station.

tA1yA2y...yA0yB1yB2y...yB0T

tC0y...yC2yC1T

Using the Radio Data

System (RDS)

continued

GB01COV_HT-DDW670-U.book Page 21 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB04BSC_HT-DDW670-U.fm]

22GB

model name1[HT-DDW670]

[2-342-216-14(1)]

Notes

• If there is an emergency announcement by

government authorities, “ALARM” flashes in the

display.

• When the message consists of 9 characters or more,

the message scrolls across the display.

• If a station does not provide a particular RDS service,

“NO XXXX” (such as “NO TEXT”) appears in the

display.

Description of program types

Program type

indication

Description

NEWS News programs

AFFAIRS Topical programs that expand on

current news

INFO Programs offering information on

a wide spectrum of subjects,

including consumer affairs and

medical advice

SPORT Sports programs

EDUCATE Educational programs, such as

“how-to” and advice programs

DRAMA Radio plays and serials

CULTURE Programs about national or

regional culture, such as language

and social concerns

SCIENCE Programs about the natural

sciences and technology

VARIED Other types of programs such as

celebrity interviews, panel games,

and comedy

POP M Popular music programs

ROCK M Rock music programs

EASY M Easy Listening

LIGHT M Instrumental, vocal, and choral

music

CLASSICS Performances of major orchestras,

chamber music, opera, etc.

OTHER M Music that does not fit into any

categories above, such as Rhythm

& Blues and Reggae

WEATHER Weather information

FINANCE Stock market reports and trading,

etc.

CHILDREN Programs for children

SOCIAL Programs about people and the

things that affect them

RELIGION Programs of religious content

PHONE IN Programs where members of the

public express their views by

phone or in a public forum

TRAVEL Programs about travel. Not for

announcements that are located by

TP/TA

LEISURE Programs on recreational

activities such as gardening,

fishing, cooking, etc.

JAZZ Jazz programs

COUNTRY Country music programs

NATION M Programs featuring the popular

music of the country or region

OLDIES Programs featuring oldies music

FOLK M Folk music programs

DOCUMENT Investigative features

NONE Any programs not defined above

Program type

indication

Description

GB01COV_HT-DDW670-U.book Page 22 Wednesday, July 13, 2005 1:45 PM

Amplifier Operation

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB04BSC_HT-DDW670-U.fm]

23GB

model name1[HT-DDW670]

[2-342-216-14(1)]

Changing the information in

the display

You can check the sound field etc. by changing

the information in the display.

Press DISPLAY repeatedly.

Each time you press DISPLAY, the display will

change cyclically as follows.

Index name of the input* t Selected input t

Sound field currently applied

When the tuner is selected

Program Service name** or preset station name*

t Frequency t Program Type indication**

t Radio Text indication** t Current Time

indication (in 24-hour system)** t Sound field

currently applied

* Index name appears only when you have assigned

one to the input or preset station (page 32). Index

name does not appear when only blank spaces have

been entered, or it is the same as the input name.

** During RDS reception only. (Models of area code

CEL, CEK only. See page 21.)

Adjusting the brightness of

the display

Press DIMMER repeatedly.

The brightness of the display will change in 3

steps.

Changing the display

GB01COV_HT-DDW670-U.book Page 23 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB04BSC_HT-DDW670-U.fm]

24GB

model name1[HT-DDW670]

[2-342-216-14(1)]

ASW: Lights up when audio signal is output

from the SUB WOOFER jack.

BLFE: Lights up when the disc being played

back contains the LFE (Low Frequency

Effect) channel and the LFE channel signal is

actually being reproduced.

CSP: Lights up when you turn on the receiver.

Turns off when you connect headphones to the

PHONES jack.

D; DIGITAL: Lights up when the receiver is

decoding signals recorded in the Dolby Digital

format.

E; PRO LOGIC II: “; PRO LOGIC” lights

up when the receiver applies Pro Logic

processing to 2 channel signals in order to

output the center and surround channel

signals. “; PRO LOGIC II” lights up when

the Pro Logic II Movie/Music decoder is

activated.

FDTS: Lights up when DTS signals are input.

Note

When playing a DTS format disc, be sure that you

have made digital connections and that INPUT

MODE is not set to “ANALOG” (page 28).

GTuner indicators: Lights up when using the

receiver to tune in radio stations, etc. See

pages 19–22 for tuner operations.

Note

“RDS” appears for models of area code CEL,

CEK only.

HD.RANGE: Lights up when dynamic range

compression is activated (page 29).

ICOAX: Lights up when the source signal is a

digital signal being input through the

COAXIAL terminal.

JOPT: Lights up when the source signal is a

digital signal being input through the

OPTICAL terminal.

KSLEEP: Lights up when sleep timer is

activated.

LPlayback channel indicators: The letters

(L, C, R, etc.) indicate the channels being

played back. The boxes around the letters vary

to show how the receiver downmixes the

source sound.

L (Front Left), R (Front Right), C (Center

(monaural)), SL (Surround Left), SR

(Surround Right), S (Surround (monaural or

the surround components obtained by Pro

Logic processing))

Example:

Recording format (Front /Surround): 3/2

Sound Field: A.F.D. AUTO

About the indications in the display

L C R

SL SSR

LFE

SP DIGITAL PRO LOGIC II DTS RDS

D.RANGE STEREO MONO

SLEEP OPT COAX

;;

MEMORY

9q;

214356 7

L C R

SL SR

GB01COV_HT-DDW670-U.book Page 24 Wednesday, July 13, 2005 1:45 PM

Enjoying Surround Sound

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB05SND_HT-DDW670-U.fm]

25GB

model name1[HT-DDW670]

[2-342-216-14(1)]

In this mode, the receiver outputs the sound

from the front left/right speakers and sub

woofer.

When multi channel surround formats are input,

the signals are downmixed to 2 channel with

bass frequencies being output from the sub

woofer.

When standard 2 channel stereo sources are

input, the receiver’s bass redirection circuitry

will be activated. The front channel bass

frequencies will be output from the sub woofer.

Press 2CH.

“2CH ST.” appears in the display and the

receiver switches to the 2CH STEREO mode.

The Auto Format Direct (A.F.D.) mode allows

you to select the decoding mode you want for

your audio sound.

Decoding the input audio

signal automatically

In this mode, the receiver automatically detects

the type of audio signal being input (Dolby

Digital, DTS, standard 2 channel stereo, etc.)

and performs the proper decoding if necessary.

This mode presents the sound as it was recorded/

encoded, without adding any surround effects.

However, if there are no low frequency signals

(Dolby Digital LFE, etc.) it will generate a low

frequency signal for output to the sub woofer.

Press A.F.D. repeatedly to select “A.F.D.

AUTO”.

The receiver automatically detects the type of

audio signal being input and performs the proper

decoding if necessary.

Enjoying Surround Sound

Using only the front

speakers and sub woofer

— 2CH STEREO

Enjoying higher fidelity

sound

— AUTO FORMAT DIRECT

A.F.D. mode

(Display)

Decoding mode

A.F.D. AUTO

(A.F.D. AUTO)

As encoded

PRO LOGIC

(DOLBY PL)

Dolby Pro Logic

PRO LOGIC II MOVIE

(PLII MV)

Dolby Pro Logic II

PRO LOGIC II MUSIC

(PLII MS)

MULTI STEREO

(MULTI ST.)

continued

GB01COV_HT-DDW670-U.book Page 25 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB05SND_HT-DDW670-U.fm]

26GB

model name1[HT-DDW670]

[2-342-216-14(1)]

Enjoying stereo sound in multi

channel (2 channel decoding

mode)

This mode lets you specify the type of decoding

for 2 channel audio sources. This receiver can

reproduce 2 channel sound in 5 channels

through Dolby Pro Logic II; or 4 channels

through Dolby Pro Logic.

Press A.F.D. repeatedly to select the 2

channel decoding mode.

The selected type of decoding appears in the

display.

xDOLBY PL (PRO LOGIC)

Performs Dolby Pro Logic decoding. The source

recorded in 2 channel is decoded into 4.1 channels.

xPLII MV (PRO LOGIC II MOVIE)

Performs Dolby Pro Logic II Movie mode decoding.

This setting is ideal for movies encoded in Dolby

Surround. In addition, this mode can reproduce sound

in 5.1 channel when watching videos of overdubbed or

old movies.

xPLII MS (PRO LOGIC II MUSIC)

Performs Dolby Pro Logic II Music mode decoding.

This setting is ideal for normal stereo sources such as

CDs.

xMULTI ST. (MULTI STEREO)

Output the 2 channel L/R signals from all speakers.

You can take advantage of surround sound

simply by selecting one of the receiver’s pre-

programmed sound fields. They bring the

exciting and powerful sound of movie theaters

and concert halls into your home.

Selecting a sound field for

movies

Press MOVIE repeatedly to select the

sound field you want.

The selected sound field appears in the display.

About DCS (Digital Cinema

Sound)

Sound fields with DCS marks use DCS

technology.

DCS is the concept name of the surround

technology for home theater developed by Sony.

DCS uses the DSP (Digital Signal Processor)

technology to reproduce the sound

characteristics of an actual cinema cutting studio

in Hollywood.

When played at home, DCS will create a

powerful theater effect that mimics the artistic

combination of sound and action as envisioned

by the movie director.

xC.ST.EX A (CINEMA STUDIO EX A) DCS

Reproduces the sound characteristics of the Sony

Pictures Entertainment “Cary Grant Theater” cinema

production studio. This is a standard mode, great for

watching most any type of movies.

xC.ST.EX B (CINEMA STUDIO EX B) DCS

Reproduces the sound characteristics of the Sony

Pictures Entertainment “Kim Novak Theater” cinema

production studio. This mode is ideal for watching

science-fiction or action movies with lots of sound

effects.

Selecting a sound field

Sound field Display

CINEMA STUDIO EX A DCS C.ST.EX A

CINEMA STUDIO EX B DCS C.ST.EX B

CINEMA STUDIO EX C DCS C.ST.EX C

GB01COV_HT-DDW670-U.book Page 26 Wednesday, July 13, 2005 1:45 PM

Enjoying Surround Sound

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB05SND_HT-DDW670-U.fm]

27GB

model name1[HT-DDW670]

[2-342-216-14(1)]

xC.ST.EX C (CINEMA STUDIO EX C) DCS

Reproduces the sound characteristics of the Sony

Pictures Entertainment scoring stage. This mode is

ideal for watching musicals or films where orchestra

music is featured in the soundtrack.

About CINEMA STUDIO EX modes

CINEMA STUDIO EX modes are suitable for

watching motion picture DVDs (etc.), with

multi channel surround effects. You can

reproduce the sound characteristics of Sony

Pictures Entertainment’s dubbing studio in your

home.

The CINEMA STUDIO EX modes consist of

the following three elements.

• Virtual Multi Dimension

Creates 5 sets of virtual speakers from a single

pair of actual surround speakers.

• Screen Depth Matching

Creates the sensation that the sound is coming

from inside the screen like in theaters.

• Cinema Studio Reverberation

Reproduces the type of reverberation found in

theaters.

The CINEMA STUDIO EX modes integrate

these three elements simultaneously.

Notes

• The effects provided by the virtual speakers may

cause increased noise in the playback signal.

• When listening with sound fields that employ the

virtual speakers, you will not be able to hear any

sound coming directly from the surround speakers.

Selecting a sound field for

music

Press MUSIC repeatedly to select the

sound field you want.

The selected sound field appears in the display.

xHALL

Reproduces the acoustics of a classical concert hall.

xJAZZ (JAZZ CLUB)

Reproduces the acoustics of a jazz club.

xCONCERT (LIVE CONCERT)

Reproduces the acoustics of a 300-seat live house.

When the headphones are

connected

You can select only from the following sound

fields.

xHP 2CH (HEADPHONE 2CH)

Outputs the sound in 2 channel (stereo). Standard 2

channel stereo sources completely bypass the sound

field processing and multi channel surround formats

are downmixed to 2 channels.

xHP THEA (HEADPHONE THEATER)

DCS

Allows you to experience a theater-like environment

while listening through a pair of headphones.

Note

If you connect a pair of headphones while a sound field

is operating, the system will automatically switch to

HEADPHONE 2CH if using a sound field selected

with the 2CH or A.F.D. button, or to HEADPHONE

THEATER if using a sound field selected with the

MOVIE or MUSIC button.

To turn off the surround effect

Press 2CH to select “2CH ST.” or press A.F.D.

repeatedly to select “A.F.D. AUTO”.

Tips

• The receiver lets you apply the last selected sound

field to an input whenever it is selected (Sound Field

Link). For example, if you select HALL for the

SA-CD/CD input, then change to a different input

and then return to SA-CD/CD, HALL will

automatically be applied again.

• You can identify the encoding format of DVD

software, etc. by looking at the logo on the package.

– : Dolby Digital discs

– : Dolby Surround encoded

programs

– : DTS Digital Surround encoded programs

Note

Sound fields do not function for the signals with a

sampling frequency of more than 48 kHz.

Sound field Display

HALL HALL

JAZZ CLUB JAZZ

LIVE CONCERT CONCERT

GB01COV_HT-DDW670-U.book Page 27 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB06ADV_HT-DDW670-U.fm]

28GB

model name1[HT-DDW670]

[2-342-216-14(1)]

You can switch the audio input mode for

components which have digital audio input

jacks.

1Press input buttons to select the input.

2Press INPUT MODE repeatedly to

select the audio input mode.

The selected audio input mode appears in

the display.

Audio input modes

• AUTO IN

Gives priority to digital signals when there are

both digital and analog connections. If there

are no digital signals, analog is selected.

• COAX IN

Specifies the digital audio signals input to the

DIGITAL COAXIAL input jack.

•OPT IN

Specifies the digital audio signals input to the

DIGITAL OPTICAL input jacks.

• ANALOG

Specifies the analog audio signals input to the

AUDIO IN (L/R) jacks.

Notes

• When signals with a sampling frequency of more

than 48 kHz is input, the tone and sound field cannot

be used.

• Some audio input modes may be dimmed depending

on the input. This means that the selected input is

unavailable.

By adjusting the LEVEL menu, you can

customize the sound fields to suit your particular

listening situation.

Note on the displayed items

The setup items you can adjust in each menu vary

depending on the sound field. Certain setup parameters

may be dimmed in the display. This means that the

selected parameter is either unavailable or fixed and

unchangeable.

Adjusting the LEVEL menu

You can adjust the balance and level of each

speaker. These settings are applied to all sound

fields except for effect level parameter. The

effect level parameter settings are stored

individually for each sound field.

1Start playing a source encoded with

multi channel surround effects (DVD,

etc.).

2Press MAIN MENU repeatedly to select

“ LEVEL ”.

3Press or repeatedly to select the

parameter you want to adjust.

For details, see “LEVEL menu parameters”

below.

4While monitoring the sound, press + or

– repeatedly to select the setting you

want.

The setting is entered automatically.

5Repeat steps 3 and 4 to adjust the other

parameters.

LEVEL menu parameters

The initial setting is underlined.

x BAL. L/R XX

(Front speaker balance)

Initial setting: BALANCE (0)

Lets you adjust the balance between front left and right

speakers. You can adjust in the range of BAL. L (+1 to

+8), BALANCE (0), BAL. R (+1 to +8) in 17 steps.

Advanced Adjustments and Settings

Switching the audio input

mode for digital

components

— INPUT MODE

Customizing sound fields

GB01COV_HT-DDW670-U.book Page 28 Wednesday, July 13, 2005 1:45 PM

Advanced Adjustments and Settings

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB06ADV_HT-DDW670-U.fm]

29GB

model name1[HT-DDW670]

[2-342-216-14(1)]

xCTR XXX dB

(Center speaker level)

xSUR.L. XXX dB

(Surround speaker (left) level)

xSUR.R. XXX dB

(Surround speaker (right) level)

xS.W. XXX dB

(Sub woofer level)

Initial setting: 0 dB

You can adjust from –10 dB to +10 dB in 1 dB steps.

x COMP. XXX

(Dynamic range compressor)

Lets you compress the dynamic range of the sound

track. This may be useful when you want to watch

movies at low volumes late at night.

•OFF

The dynamic range is not compressed.

•STD

The dynamic range is compressed as intended by the

recording engineer.

•MAX

The dynamic range is compressed dramatically.

Tip

Dynamic range compressor lets you compress the

dynamic range of the soundtrack based on the dynamic

range information included in the Dolby Digital signal.

“STD” is the standard setting, but it only enacts light

compression. Therefore, we recommend using the

“MAX” setting. This greatly compresses the dynamic

range and lets you view movies late at night at low

volumes. Unlike analog limiters, the levels are

predetermined and provide a very natural compression.

Note

Dynamic range compression is possible with Dolby

Digital sources only.

xEFCT. XXX (Effect level)

Initial setting: STD

Lets you adjust the “presence” of the surround effect in

3 levels - MIN (minimum effect), STD (standard

effect) and MAX (maximum effect).

Note

This parameter is valid only when you use a sound

field selected with the MOVIE or MUSIC button.

Resetting sound fields to the

initial settings

Use the buttons on the receiver for the operation.

1Press ?/1 to turn off the power.

2While holding down 2CH, press

?/1.

“SF. CLR.” appears in the display and all

sound fields are reset to the initial setting.

D.RANGE

GB01COV_HT-DDW670-U.book Page 29 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB06ADV_HT-DDW670-U.fm]

30GB

model name1[HT-DDW670]

[2-342-216-14(1)]

You can adjust the tonal quality (bass, treble

level) of the front speakers using the TONE

menu.

1Start playing a source encoded with

multi channel surround effects (DVD,

etc.).

2Press MAIN MENU repeatedly to select

“TONE”.

3Press or repeatedly to select the

parameter you want to adjust.

For details, see “TONE menu parameters”

below.

4While monitoring the sound, press + or

– repeatedly to select the setting you

want.

The setting is entered automatically.

5Repeat steps 3 and 4 to adjust the other

items.

Note

You cannot adjust the tone when the receiver is

decoding signals with a sampling frequency of more

than 48 kHz.

TONE menu parameters

xBASS XX dB

(Front speaker bass level)

xTREB. XX dB

(Front speaker treble level)

Initial setting: 0 dB

You can adjust from –6 dB to +6 dB in 1 dB steps.

Using the CUSTOMIZE menu

to adjust the receiver

You can adjust various receiver settings using

the CUSTOMIZE menu.

1Press MAIN MENU repeatedly to select

“ CUSTOM ”.

2Press or repeatedly to select the

parameter you want to adjust.

For details, see “CUSTOMIZE menu

parameters” below.

3Press + or – repeatedly to select the

setting you want.

The setting is entered automatically.

4Repeat steps 2 and 3 to adjust the other

items.

CUSTOMIZE menu parameters

The initial settings are underlined.

xA.V.SYNC. X

(Time alignment)

• Y (Yes) (delay time : 68 ms)

The audio output is delayed so that the time gap

between the audio output and visual display is

minimized.

•N (No)

(delay time : 0 ms)

The audio output is not delayed.

Notes

• This parameter is useful when you use a large LCD

or Plasma monitor or projection TV.

• This parameter is only valid when you use a sound

field selected with the 2CH or A.F.D. buttons.

• This parameter is not valid when PCM 96 kHz or

DTS 2048 signals are input.

Adjusting the tone Advanced settings

GB01COV_HT-DDW670-U.book Page 30 Wednesday, July 13, 2005 1:45 PM

Advanced Adjustments and Settings

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB06ADV_HT-DDW670-U.fm]

31GB

model name1[HT-DDW670]

[2-342-216-14(1)]

xDEC. XXXX

(Digital audio input decoding priority)

Lets you specify the input mode for the digital signal

input to the DIGITAL IN jacks.

• AUTO

Automatically switches the input mode between

DTS, Dolby Digital, or PCM.

•PCM

PCM signals are given priority (to prevent the

interruption when playback starts). Even when other

signals are input, the sound is output. However, this

receiver cannot decode DTS-CD when set to “DEC.

PCM”.

Note

When set to “DEC. AUTO” and the sound from the

digital audio jacks (for CD, etc.) is interrupted when

playback starts, set to “DEC. PCM”.

xDUAL XXX

(Digital broadcast language selection)

Lets you select the language you want to listen to

during digital broadcast. This feature only functions

for Dolby Digital sources.

• M/S (Main/Sub)

Sound of the main language will be output through

the front left speaker and sound of the sub language

will be output through the front right speaker

simultaneously.

•M (Main)

Sound of the main language will be output.

• S (Sub)

Sound of the sub language will be output.

• M+S (Main + Sub)

Mixed sound of both the main and sub languages will

be output.

xNAME IN

(Naming preset stations and inputs)

Lets you set the name of preset stations and inputs

selected with input buttons. For details, see “Naming

preset stations and inputs” on page 32.

GB01COV_HT-DDW670-U.book Page 31 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB070TH_HT-DDW670-U.fm]

32GB

model name1[HT-DDW670]

[2-342-216-14(1)]

You can enter a name of up to 8 characters for

preset stations and inputs selected with input

buttons, and display it in the receiver’s display.

1To index a preset station

Press FM or AM to select the FM or AM

band, then tune in the preset station

you want to create an index name for

(page 21).

To index an input

Press the input button to select the input

you want to create an index name for.

2Press MAIN MENU repeatedly to select

“ CUSTOM ”.

3Press or repeatedly to select

“NAME IN”.

4Press ENTER.

The cursor flashes and you can select a

character.

5Use or and + or – to create an

index name.

Press + or – repeatedly to select a character,

then press > to move the cursor to the next

position.

Tips

• You can select the character type as follows by

pressing + or – repeatedly.

Alphabet (upper case) t Numbers t Symbols

• To enter a blank space, press + or – repeatedly

until a blank space appears in the display.

• If you made a mistake, press < or > repeatedly

until the character you want to change flashes,

then press + or – repeatedly to select the correct

character.

6Press ENTER to store the index name.

Note (Models of area code CEL, CEK only)

When you name an RDS station and tune in the station,

the Program Service name appears instead of the name

you entered. (You cannot change the name of a

Program Service name. The name you entered will be

overwritten by the Program Service name.)

You can set the receiver to turn off automatically

at a specified time. Use the remote for the

operation.

Press SLEEP while the power is on.

Each time you press SLEEP, the display changes

cyclically as follows:

2-00-00 t 1-30-00 t 1-00-00 t

0-30-00 t OFF

While using Sleep Timer, “SLEEP” lights up in

the display.

Tip

To check the remaining time before the receiver turns

off, press SLEEP. The remaining time appears in the

display. If you press SLEEP again, the sleep timer will

be canceled.

Other Operations

Naming preset stations

and inputs

Using the Sleep Timer

GB01COV_HT-DDW670-U.book Page 32 Wednesday, July 13, 2005 1:45 PM

Other Operations/Operations Using the Remote RM-AAU002

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB08REM_HT-DDW670-U.fm]

33GB

model name1[HT-DDW670]

[2-342-216-14(1)]

You can use the remote RM-AAU002 to operate

the components in your system.

Inserting batteries into the

remote

Insert R6 (size-AA) batteries with the + and –

properly oriented in the battery compartment.

When using the remote, point it at the remote

sensor on the receiver.

Tip

Under normal conditions, the batteries should last for

about 6 months. When the remote no longer operates

the receiver, replace all batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or humid

place.

• Do not use a new battery with an old one.

• Do not expose the remote sensor to direct sunlight or

lighting apparatuses. Doing so may cause a

malfunction.

• If you don’t use the remote for an extended period of

time, remove the batteries to avoid possible damage

from battery leakage and corrosion. * The MASTER VOL +, numeric button 5 and H

buttons have a tactile dot. Use the tactile dot as a

reference when operating the receiver and other

audio/video components.

Operations Using the Remote RM-AAU002

Before you use your

remote

Remote button

description

123

0/10

ENTER

SYSTEM STANDBY

TV/VIDEO

SLEEP

TEST

TONE

?/1

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT

TV CH –

PRESET –

TV CH +

PRESET +

TUNING –

TUNING +

REPLAY ADVANCE

c STEP C

DISPLAY

MOVIE MUSIC

MEMORY SHIFT

D.SKIPCLEAR ANGLE

TOP MENU/

GUIDE MUTING

TV VOL

MASTER VOL

FM MODE

MPX

AUDIO

D.TUNING

ANT

JUMP

SUBTITLE

DUAL MONO

TUNER

MAIN MENU

?/1

>10

ENTER

HmM

wa*

*es

qg*

continued

GB01COV_HT-DDW670-U.book Page 33 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB08REM_HT-DDW670-U.fm]

34GB

model name1[HT-DDW670]

[2-342-216-14(1)]

The tables below show the settings of each

button.

Remote

Button

Operations Function

A.F.D. ef Receiver Selects the decoding

mode for audio sound.

ANGLE

DVD player Selects viewing angle or

changes the angles.

ANT 0VCR/

Satellite tuner

Selects output signal

from the antenna

terminal: TV signal or

VCR program.

AUDIO

DVD player/

Satellite tuner

Changes the sound to

Multiplex or Bilingual

or Multi channel TV

sound.

MENU qd

VCR/

DVD player/

Satellite tuner

Displays menu.

AV ?/1

VCR/

CD player/

DVD player/

Satellite tuner/

MD deck

Turns the audio and

video components on or

off.

CLEAR

DVD player/

Satellite tuner

Clears a mistake when

you press the incorrect

numeric buttons or

returns to continuous

playback etc.

DISPLAY

Receiver/

CD player/

VCR/

DVD player/

Satellite tuner/

MD deck

Selects information

displayed on the TV

screen.

D.SKIP

CD player/

DVD player

Skips discs (multi-disc

changer only).

D.TUNING

Receiver Enters direct tuning

mode.

DUAL

MONO 8

Receiver Selects the language you

want during digital

broadcast.

DVD 3Receiver To watch DVD.

ENTER

TV/VCR/

Satellite tuner

After selecting a

channel, disc or track

using the numeric

buttons, press to enter

the value.

Remote

Button

Operations Function

ENTER wl Receiver/

VCR/

DVD player/

Satellite tuner/

CD player/

MD deck

Enters the selection.

FM MODE

Receiver Selects FM monaural

or stereo reception.

JUMP qs Satellite tuner Toggles between the

previous and the

current channels.

MAIN

MENU 5

Receiver Selects the menu of

the receiver.

MASTER

VOL +/–

Receiver/TV Adjusts the master

volume of the

receiver.

MEMORY

Receiver Stores the radio

stations.

MOVIE 6Receiver Selects the pre-

programmed sound

fields for movie.

MPX 9VCR Select main or sub

language.

MUSIC 7Receiver Selects the pre-

programmed sound

fields for music.

MUTING qf Receiver Mutes the sound from

the receiver.

PRESET +/–

qjwh

Receiver Selects preset stations.

TV/VCR/

Satellite tuner

Select preset channel.

RETURN/

EXIT wj

DVD player Returns to the

previous menu or

exits the menu.

Satellite tuner Exits the menu.

SA-CD/CD

Receiver To listen to Super

Audio CD or compact

disc.

SHIFT qs Receiver Selects a memory

page for presetting

radio stations or

tuning to preset

stations.

GB01COV_HT-DDW670-U.book Page 34 Wednesday, July 13, 2005 1:45 PM

Operations Using the Remote RM-AAU002

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB08REM_HT-DDW670-U.fm]

35GB

model name1[HT-DDW670]

[2-342-216-14(1)]

Remote

Button

Operations Function

SLEEP el Receiver Activates the sleep

function and the

duration which the

receiver turns off

automatically.

SUBTITLE

DVD player Changes the subtitles.

SYSTEM

STANDBY

(Press AV

?/1 1 and

?/1 2 at

the same

time)

Receiver/

TV/VCR/

CD player/

DVD player/

Satellite tuner/

MD deck

Turns off the receiver

and other Sony audio/

video components.

TEST

TONE ek

Receiver Outputs test tone.

TOP MENU/

GUIDE e;

DVD player Displays DVD title.

Satellite tuner Display guide menu.

TUNER eg Receiver To listen to radio

programs.

TUNING +/–

ql wf

Receiver Scans radio station.

TV wd TV To watch TV

programs.

TV CH +/–

qj wh

TV Selects preset TV

channels.

TV/VIDEO

TV Selects input signal:

TV input or video

input.

TV VOL

+/– qg

TV Adjusts the volume of

the TV.

TV ?/1 2TV Turns the TV on or

off.

VIDEO 1 ej Receiver To watch VCR.

(VTR mode 3)

VIDEO 2 eh Receiver To watch VCR.

(VTR mode 1)

Remote

Button

Operations Function

1-9 and

0/10 es

Receiver Use with SHIFT to

preset radio station or

tuning to preset

stations and with

D.TUNING for direct

tuning.

CD player/

DVD player/

MD deck

Selects track numbers.

0/10 selects track 10.

TV/

VCR/

Satellite tuner

Selects channel

numbers.

2CH ed Receiver Selects 2CH STEREO

mode.

>10 ea VCR/

CD player/

DVD player/

Satellite tuner/

MD deck

Selects track numbers

over 10.

-/-- ea TV Selects the channel

entry mode, either one

or two digit.

?/1 2Receiver Turns the receiver on

or off.

STEP

REPLAY /

ADVANCE

wg qk

VCR/

DVD player

Replay the previous

scene or fast forward

the current scene.

./>

wh qj

VCR/

CD player/

DVD player

Skips tracks.

m/M

wf ql

DVD player Searches tracks in the

forward or backward

direction.

VCR/

CD player/

MD deck/

Tape deck

Fastforwards or

rewinds.

H wa VCR/

CD player/

DVD player/

MD deck/

Tape deck

Starts playback.

continued

GB01COV_HT-DDW670-U.book Page 35 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB08REM_HT-DDW670-U.fm]

36GB

model name1[HT-DDW670]

[2-342-216-14(1)]

Notes

• Some functions explained in this section may not

work depending on the model.

• The above explanation is intended to serve as an

example only. Therefore, depending on the

component the above operation may not be possible

or may operate differently than described.

• When you press input buttons (VIDEO 1, VIDEO 2

or DVD), the input mode of the TV might not switch

to the corresponding input mode that you want. In

this case, press TV/VIDEO button to switch the input

mode of the TV.

• To activate the buttons with orange printing, press

TV and the button you want simultaneously.

If the factory settings of the input buttons do not

match your system components, you can change

them. For example, if you have a CD player and

you do not have a DVD player, you can assign

the DVD button to your CD player.

1Hold down the input button whose

input you want to change (for example,

DVD).

2Press the corresponding button of the

component you want to assign to the

input button (for example, 5 – CD

player).

The following buttons are assigned to select

the input:

*Sony VCRs are operated with a VTR 2 or 3

setting. These correspond to 8 mm and VHS

respectively.

Now you can use the DVD button to control

the CD player.

To reset a button to its factory

setting

Repeat the above procedure.

To reset all the input buttons to

their factory setting

Press ?/1, TEST TONE and MASTER VOL –

at the same time.

Remote

Button

Operations Function

X ws VCR/

CD player/

DVD player/

MD deck/

Tape deck

Pauses playback or

recording. (Also starts

recording with

components in

recording standby.)

x w; VCR/

CD player/

DVD player/

MD deck/

Tape deck

Stops playback.

O wj DVD player Returns to the

previous menu or

exits the menu.

V/v wk Receiver Selects a menu item.

B/b wk Receiver Adjusts or changes

the setting.

V/v/B/b wk VCR/

Satellite tuner/

DVD player

Selects a menu item.

Changing the factory

setting of an input button

To operate Press

VCR (command mode VTR 3*) 1

VCR (command mode VTR 2*) 2

DVD player or

DVD recorder

(command mode DVD 1)

DVD recorder

(command mode DVD 3)

CD player 5

MD deck 6

Tape deck B 7

Tuner (this receiver) 8

DSS (Digital Satellite Receiver) 9

DCS (Digital CS Tuner) 0/10

BSD (Digital BS Tuner) -/--

GB01COV_HT-DDW670-U.book Page 36 Wednesday, July 13, 2005 1:45 PM

Additional Information

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB09ADD_HT-DDW670-U.fm]

37GB

model name1[HT-DDW670]

[2-342-216-14(1)]

On safety

Should any solid object or liquid fall into the cabinet,

unplug the receiver and have it checked by qualified

personnel before operating it any further.

On power sources

• Before operating the receiver, check that the

operating voltage is identical with your local power

supply. The operating voltage is indicated on the

nameplate at the rear of the receiver.

• The receiver is not disconnected from the AC power

source (mains) as long as it is connected to the wall

outlet, even if the receiver itself has been turned off.

• If you are not going to use the receiver for a long

time, be sure to disconnect the receiver from the wall

outlet. To disconnect the AC power cord, grasp the

plug itself; never pull the cord.

• (Models of area code U, CA only)

One blade of the plug is wider than the other for the

purpose of safety and will fit into the wall outlet only

one way. If you are unable to insert the plug fully into

the outlet, contact your dealer.

• AC power cord must be changed only at the qualified

service shop.

On heat buildup

Although the receiver heats up during operation, this is

not a malfunction. If you continuously use this receiver

at a large volume, the cabinet temperature of the top,

side and bottom rises considerably. To avoid burning

yourself, do not touch the cabinet.

On placement

• Place the receiver in a location with adequate

ventilation to prevent heat buildup and prolong the

life of the receiver.

• Do not place the receiver near heat sources, or in a

place subject to direct sunlight, excessive dust or

mechanical shock.

• Do not place anything on top of the cabinet that

might block the ventilation holes and cause

malfunctions.

• Use caution when placing the receiver or speakers on

surfaces that have been specially treated (with wax,

oil, polish, etc.) as staining or discoloration of the

surface may result.

On operation

Before connecting other components, be sure to turn

off and unplug the receiver.

If you encounter color irregularity on a

nearby TV screen

The front and center speakers and the sub woofer are

magnetically shielded to allow it to be installed near

a TV set. However, color irregularities may still be

observed on certain types of TV sets. As the surround

speakers are not magnetically shielded, we

recommend that you place the surround speakers

slightly further away from TV set (page 11).

If color irregularity is observed...

Turn off the TV set once, then turn it on again after

15 to 30 minutes.

If color irregularity is observed again...

Place the speaker further away from the TV set.

If howling occurs

Reposition the speakers or turn down the volume on

the receiver.

On cleaning

Clean the cabinet, panel and controls with a soft cloth

slightly moistened with a mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any question or problem concerning your

receiver, please consult your nearest Sony dealer.

Additional Information

Precautions

GB01COV_HT-DDW670-U.book Page 37 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB09ADD_HT-DDW670-U.fm]

38GB

model name1[HT-DDW670]

[2-342-216-14(1)]

If you experience any of the following

difficulties while using the receiver, use this

troubleshooting guide to help you remedy the

problem.

There is no sound or only a very low-level

sound no matter which component is

selected.

• Check that the speakers and components are

connected securely and correctly.

• Check that both the receiver and all components

are turned on.

• Check that you have selected the correct

component on the receiver.

• Check that MASTER VOLUME –/+ is not set at

“VOL MIN”.

• Check that the headphones are not connected.

• Press MUTING on the remote to cancel the

muting function.

There is no sound from a specific component.

• Check that the component is connected correctly

to the audio input jacks for that component.

• Check that the cord(s) used for the connection is

(are) fully inserted into the jacks on both the

receiver and the component.

• Check that you have selected the correct

component on the receiver.

There is no sound from one of the front

speakers.

• Connect a pair of headphones to the PHONES

jack to verify that sound is output from the

headphones. If only one channel is output from the

headphones, the component may not be connected

to the receiver correctly. Check that all the cords

are fully inserted into the jacks on both the

receiver and the component. If both channels are

output from the headphones, the front speaker

may not be connected to the receiver correctly.

Check the connection of the front speaker which is

not outputting any sound.

There is no sound from analog 2 channel

sources.

• Check that the INPUT MODE is not set to

“COAX IN” or “OPT IN” (page 28).

There is no sound from digital sources (from

COAXIAL or OPTICAL input jack).

• Check that the INPUT MODE is not set to

“ANALOG” (page 28). Check that the INPUT

MODE is not set to “COAX IN” for the sources

from OPTICAL input jack, or set to “OPT IN” for

the sources from COAXIAL input jack.

The left and right sounds are unbalanced or

reversed.

• Check that the speakers and components are

connected correctly and securely.

• Adjust balance parameters in the LEVEL menu.

There is severe hum or noise.

• Check that the speakers and components are

connected securely.

• Check that the connecting cords are away from a

transformer or motor, and at least 3 meters away

from a TV set or fluorescent light.

• Move your TV away from the audio components.

• The plugs and jacks are dirty. Wipe them with a

cloth slightly moistened with alcohol.

There is no sound or only a very low-level

sound is heard from the center or/and

surround speakers.

• Select a CINEMA STUDIO EX mode (page 26).

• Adjust the speaker level (page 17).

There is no sound from the sub woofer.

• Check that the sub woofer is connected correctly

and securely.

The surround effect cannot be obtained.

• Make sure the sound field function is on (press

MOVIE or MUSIC).

• Sound fields do not function for the signals with a

sampling frequency of more than 48 kHz.

Troubleshooting

GB01COV_HT-DDW670-U.book Page 38 Wednesday, July 13, 2005 1:45 PM

Additional Information

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB09ADD_HT-DDW670-U.fm]

39GB

model name1[HT-DDW670]

[2-342-216-14(1)]

The FM reception is poor.

• Use a 75-ohm coaxial cable (not supplied) to

connect the receiver to an outdoor FM antenna as

shown below. If you connect the receiver to an

outdoor antenna, ground it against lightning. To

prevent a gas explosion, do not connect the ground

wire to a gas pipe.

Radio stations cannot be tuned in.

• Check that the antennas are connected securely.

Adjust the antennas and connect an external

antenna if necessary.

• The signal strength of the stations is too weak

(when tuning in with automatic tuning). Use direct

tuning.

• Make sure you set the tuning interval correctly

(when tuning in AM stations with direct tuning).

• No stations have been preset or the preset stations

have been cleared (when tuning by scanning

preset stations). Preset the stations (page 20).

• Press DISPLAY repeatedly so that the frequency

appears in the display.

RDS does not work.*

• Make sure that you are tuned to an FM RDS

station.

• Select a stronger FM station.

The RDS information that you want does not

appear.*

• Contact the radio station and find out whether they

actually provide the service in question. If so, the

service may be temporarily out of order.

* Models of area code CEL, CEK only.

Remote control

The remote does not function.

• Point the remote at the remote sensor on the

receiver.

• Remove any obstacles in the path between the

remote and the receiver.

• Replace all the batteries in the remote with new

ones, if they are weak.

• Make sure you select the correct input on the

remote.

• To activate the buttons with orange printing, press

TV and the button you want simultaneously.

• Before you use the V/v/B/b button for receiver

operation, press MAIN MENU. To operate other

components, press TOP MENU/GUIDE or AV

MENU after pressing the input button.

Error messages

If there is a malfunction, the display shows a

message. You can check the condition of the

receiver by the message. Refer to the following

table to solve the problem.

DEC. EROR

Appears when the signal which the receiver cannot

decode (ex. DTS-CD) is input when “DEC. XXXX”

is set to “DEC. PCM”. Set to “DEC. AUTO”.

PROTECT

Irregular current is output from the speakers. The

receiver will automatically turn off after a few

seconds. Check the speaker connection and turn on

the power again. If this problem persists, consult

your nearest Sony dealer.

ANTENNA

Receiver

To ground

Ground wire

(not supplied)

Outdoor FM antenna

continued

GB01COV_HT-DDW670-U.book Page 39 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB09ADD_HT-DDW670-U.fm]

40GB

model name1[HT-DDW670]

[2-342-216-14(1)]

If you are unable to remedy the

problem using the

troubleshooting guide

Clearing the receiver’s memory may remedy the

problem (page 14). However, note that all

memorized settings will be reset to their factory

settings and you will have to readjust all settings

on the receiver.

If the problem persist

Consult your nearest Sony dealer.

Reference sections for clearing

the receiver’s memory

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC

DISTORTION:

(Models of area code U only)

With 6 ohm loads, both channels driven, from

120 – 20,000 Hz; rated 60 watts per channel

minimum RMS power, with no more than 0.7%

total harmonic distortion from 250 milliwatts to

rated output.

Amplifier section

Power Output1)

Models of area code U

(6 ohms 1 kHz, THD 10%)

FRONT2): 100 W/ch

CENTER2): 100 W

SURR2): 100 W/ch

(6 ohms 100 Hz, THD 10%)

SUB WOOFER2): 100 W

Models of area code CA

(6 ohms 1 kHz, THD 0.7%)

FRONT2): 60 W/ch

CENTER2): 60 W

SURR2): 60 W/ch

(6 ohms 100 Hz, THD 0.7%)

SUB WOOFER2): 60 W

(6 ohms 1 kHz, THD 10%)

FRONT2): 100 W/ch

CENTER2): 100 W

SURR2): 100 W/ch

(6 ohms 100 Hz, THD 10%)

SUB WOOFER2): 100 W

Models of area code MX, SP, E51, CEL, CEK

(6 ohms 1 kHz, THD 0.7%)

FRONT2): 50 W/ch

CENTER2): 50 W

SURR2): 50 W/ch

(6 ohms 100 Hz, THD 0.7%)

SUB WOOFER2): 50 W

(6 ohms 1 kHz, THD 10%)

FRONT2): 85 W/ch

CENTER2): 85 W

SURR2): 85 W/ch

(6 ohms 100 Hz, THD 10%)

SUB WOOFER2): 85 W

To clear See

All memorized settings page 14

Customized sound fields page 29

Specifications

GB01COV_HT-DDW670-U.book Page 40 Wednesday, July 13, 2005 1:45 PM

Additional Information

masterpage:Right

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB09ADD_HT-DDW670-U.fm]

41GB

model name1[HT-DDW670]

[2-342-216-14(1)]

Models of area code AU

(6 ohms 120 Hz – 20 kHz, THD 0.09%)

FRONT2): 40 W/ch

CENTER2): 40 W

SURR2): 40 W/ch

(6 ohms 100 Hz, THD 0.09%)

SUB WOOFER2): 40 W

(6 ohms 1 kHz, THD 0.7%)

FRONT2): 50 W/ch

CENTER2): 50 W

SURR2): 50 W/ch

(6 ohms 100 Hz, THD 0.7%)

SUB WOOFER2): 50 W

(6 ohms 1 kHz, THD 10%)

FRONT2): 85 W/ch

CENTER2): 85 W

SURR2): 85 W/ch

(6 ohms 100 Hz, THD 10%)

SUB WOOFER2): 85 W

1) Measured under the following conditions:

2) Depending on the sound field settings and the

source, there may be no sound output.

Inputs (Analog)

Inputs (Digital)

Output (Analog)

Reproduction frequency range:

28 – 20,000 Hz

Tone

FM tuner section

Tuning range 87.5 - 108.0 MHz

Antenna FM wire antenna

Antenna terminals 75 ohms, unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

Models of area code U, CA

With 10-kHz tuning scale: 530 – 1,710 kHz3)

With 9-kHz tuning scale: 531 – 1,710 kHz3)

Models of area code CEL, CEK, AU, SP

With 9-kHz tuning scale: 531 – 1,602 kHz

Model of area code E51

With 10-kHz tuning scale: 530 – 1,610 kHz3)

With 9-kHz tuning scale: 531 – 1,602 kHz3)

Models of area code MX

With 10-kHz tuning scale: 530 – 1,610 kHz

Antenna Loop antenna

Intermediate frequency 450 kHz

3) You can change the AM tuning scale to 9 kHz or

10 kHz. After tuning in any AM station, turn off the

receiver. While holding down PRESET TUNING +

or TUNING +, press ?/1. All preset stations will be

erased when you change the tuning scale. To reset

the scale to 10 kHz (or 9 kHz), repeat the procedure.

General

Power requirements

Power consumption

Area code Power requirements

U, CA 120 V AC, 60 Hz

CEL, CEK, SP 230 V AC, 50 Hz

AU, E51 240 V AC, 50 Hz

MX 127 V AC, 60 Hz

SA-CD/CD, DVD,

VIDEO 1, 2

Sensitivity: 800 mV

Impedance: 50 k ohms

DVD (Coaxial) Sensitivity: –

Impedance: 75 ohms

SA-CD/CD (Optical) Sensitivity: –

Impedance: –

SUB WOOFER Voltage: 2 V

Impedance: 1 k ohm

Gain levels ±6 dB, 1 dB step

Area code Power requirements

U, CA 120 V AC, 60 Hz

CEL, CEK 230 V AC, 50/60 Hz

AU 240 V AC, 50 Hz

E51 120/220/240 V AC,

50/60 Hz

SP 220-230 V AC, 50/60 Hz

MX 127 V AC, 60 Hz

Area code Power consumption

U, SP, E51, AU, CEL,

CEK, MX

160 W

CA 220 VA

continued

GB01COV_HT-DDW670-U.book Page 41 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB09ADD_HT-DDW670-U.fm]

42GB

model name1[HT-DDW670]

[2-342-216-14(1)]

Power consumption (during standby mode)

0.2 W

Dimensions (w/h/d) (Approx.)

430 × 145 × 301.5 mm

(17 × 5 6/8 × 11 7/8 inches)

including projecting parts

and controls

Mass (Approx.) 6.5 kg (14 lb 6 oz)

Speaker section

Models of area code CEL, CEK

Front speakers (SS-MSP67LE/

SS-MSP67RE)

Center speaker (SS-CNP87)

Surround speakers (SS-MSP67SLE/

SS-MSP67SRE)

Front/center speakers Full range, magnetically

shielded

Surround speakers Full range

Speaker units 80 mm cone type

Enclosure type Bass reflex

Rated Impedance 6 ohms

Dimension (w/h/d) (Approx.)

Front/surround speakers 120 × 122 × 100 mm

(4 6/8 × 4 7/8 × 4 inches)

Center speaker 225 × 102 × 126 mm

(8 7/8 × 4 × 5 inches)

Mass (Approx.)

Front speakers 0.8 kg (1 lb 13 oz)

Center speaker 1.0 kg (2 lb 4 oz)

Surround speaker 0.6 kg (1 lb 6 oz)

Models of other area code

Front speakers (SS-MSP67L/

SS-MSP67R)

Center speaker (SS-CNP67)

Surround speakers (SS-MSP67SL/

SS-MSP67SR)

Front/center speakers Full range, magnetically

shielded

Surround speakers Full range

Speaker units 70 mm cone type

Enclosure type Closed type

Rated Impedance 6 ohms

Dimension (w/h/d) (Approx.)

Front/surround speakers 91 × 96 × 102 mm

(3 1/2 × 3 3/4 × 4 inches)

Center speaker 155 × 96.2 × 102 mm

(6 1/8 × 3 3/4 × 4 inches)

Mass (Approx.)

Front speaker 0.65 kg (1 lb 7 oz)

Center speaker 0.75 kg (1 lb 11 oz)

Surround speaker 0.6 kg (1 lb 6 oz)

Sub woofer

SS-WMSP67E (Models of area code CEL,

CEK)

Speaker system Magnetically shielded

Speaker unit 160 mm cone type

Enclosure type Bass reflex

Dimensions (w/h/d) (Approx.)

200 × 380 × 334.3 mm

(7 7/8 × 15 × 13 1/4 inches)

including front panel

Mass (Approx.) 6.0 kg (13 lb 4 oz)

SS-WMSP67 (Models of other area code)

Speaker system Magnetically shielded

Speaker unit 200 mm cone type

Enclosure type Bass reflex

Dimensions (w/h/d) (Approx.)

270 × 325 × 333 mm

(10 6/8 × 12 7/8 × 13 1/8

inches)

including front panel

Mass (Approx.) 6.0 kg (13 lb 4 oz)

Supplied accessories

FM wire antenna (1)

AM loop antenna (1)

Speaker connecting cord, long (2)

Speaker connecting cord, short (3)

Coaxial digital cord (1)

Foot pads (speakers) (20)

Foot pads (subwoofer) (4)

Remote commander (1)

R6 (size-AA) batteries (2)

Speakers

• Front speakers (2)

• Center speaker (1)

• Surround speakers (2)

• Sub woofer (1)

Design and specifications are subject to change

without notice.

For details on the area code of the component you

are using, see page 3.

GB01COV_HT-DDW670-U.book Page 42 Wednesday, July 13, 2005 1:45 PM

masterpage:Right-3

(3 column)

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB09ADD_HT-DDW670-U.fm]

43GB

model name1[HT-DDW670]

[2-342-216-14(1)]

Additional Information

Main unit

A.F.D. 9 (25, 26, 27)

AM qh (18, 19, 32, 41)

DIMMER 3 (23)

DISPLAY 2 (21, 23, 39)

Display 5 (21, 23)

DVD ql (18)

ENTER 7 (14, 32)

FM qj (18, 19, 32, 41)

FM MODE wg (19)

INPUT MODE qd (28)

IR (receptor) 4 (33, 39)

MAIN MENU 6 (15, 28, 30, 32)

MASTER VOLUME –/+ qs (14,

17, 18, 38)

MEMORY wf (20)

MOVIE 0 (26, 27, 38)

MUSIC qa (27, 38)

PHONES (jack) wh (18, 38)

PRESET TUNING –/+ ws (20)

SA-CD/CD qk (18)

TUNING –/+ wd (19)

VIDEO 1 wa (18)

VIDEO 2 w; (18)

2CH 8 (25, 27, 29)

?/1 (power) 1 (14, 20, 29)

</> qf (15, 28, 30, 32)

+/– qg (15, 28, 30, 32)

List of button locations and reference pages

How to use this page

Use this page to find the location of buttons that are

mentioned in the text.

Ill

on num

DISPLAY 2 (21, 23, 39)

Name of button/part Reference page

ALPHABETICAL ORDER

A - H

I - O P - Z

NUMBERS AND SYMBOLS

423

;

89 qaq;

GB01COV_HT-DDW670-U.book Page 43 Wednesday, July 13, 2005 1:45 PM

masterpage:Left

lename[E:\SEM_Janet\Revision

ata\J9050000_2342216141DDW670_GB\2342216141\GB01COV_HT-DDW670-UIX.fm]

Sony Corporation Printed in Malaysia

model name1[HT-DDW760]

[2-342-216-14(1)]

Adjusting

CUSTOMIZE parameters 30

LEVEL parameters 28

SET UP parameters 15

speaker levels and balance 17

TONE parameters 30

Automatic tuning 19

Changing

display 23

Clearing receiver’s memory 14

CUSTOMIZE menu 30

Digital Cinema Sound 26

Direct tuning 19

Dual Mono 31

Indexing. See Naming

Installing the speakers 13

Labeling. See Naming

LEVEL menu 28

Naming 32

Preset stations

how to 20

how to tune 21

RDS 21

Selecting

component 18

sound field 26–27

SET UP menu 15

Sleep Timer 32

Sound field

customizing 28

pre-programmed 26–27

resetting 29

selecting 26–27

Speakers

adjusting speaker levels and balance 17

connection 11

installing 13

placement 11

Supplied accessories 42

Test tone 17

TONE menu 30

Tuning

automatically 19

directly 19

to preset stations 20

Index

GB01COV_HT-DDW670-U.book Page 44 Wednesday, July 13, 2005 1:45 PM

Sony STR K670P HT DDW670 User Manual Operating Instructions (HT DDW670) HTDDW670 OM

HT-DDW670 Operating Instructions (HT-DDW670) HTDDW670_OM

User manual HTDDW670_OM Sony HT-DDW670 Home Theater System User Manuals and Instruction Guides

Navigation menu

Versions of this User Manual:

Views

Navigation
