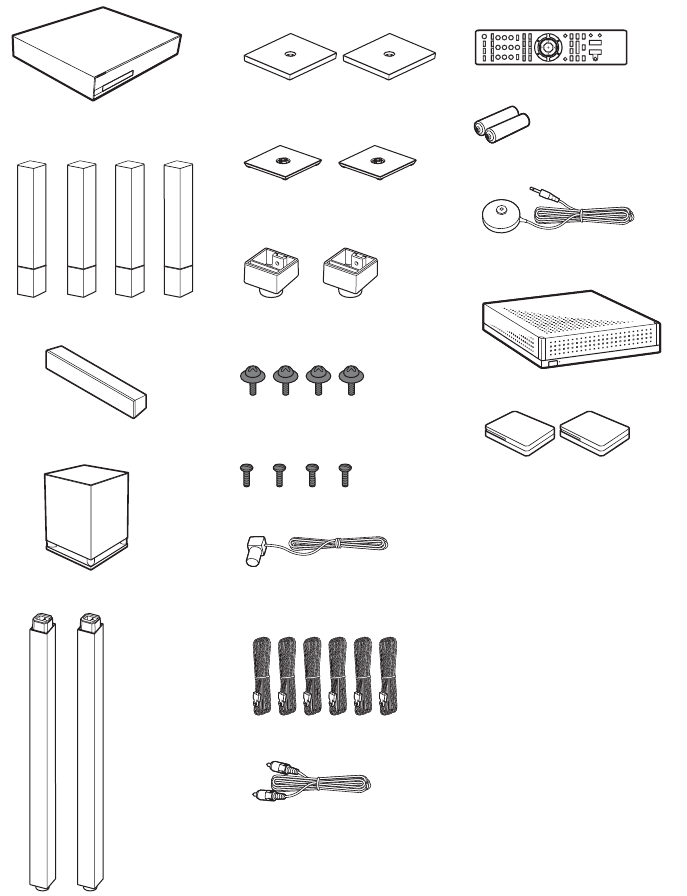

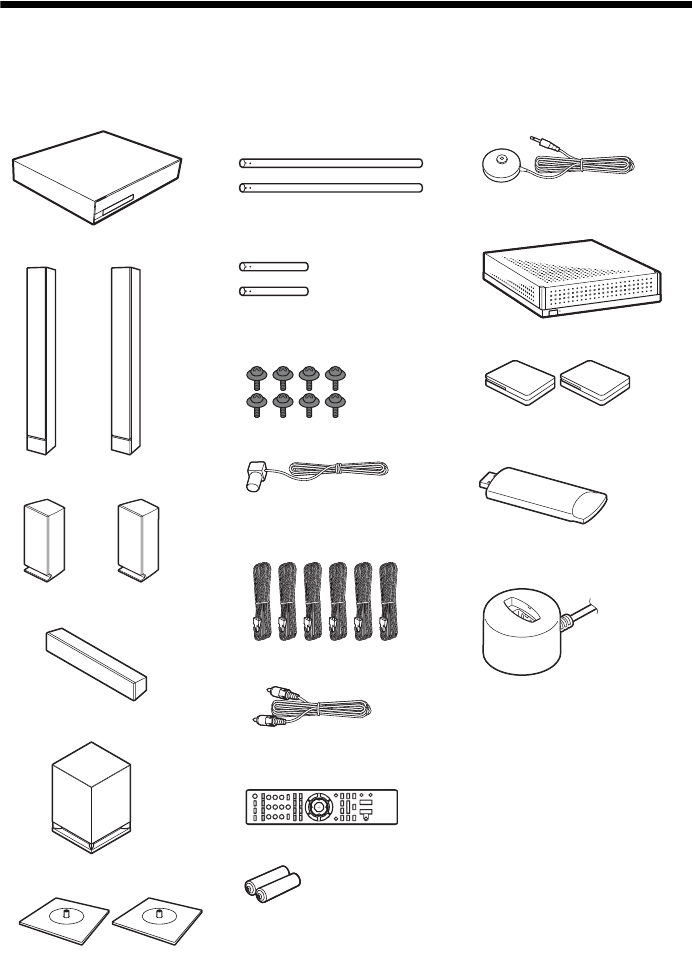

Unpacking

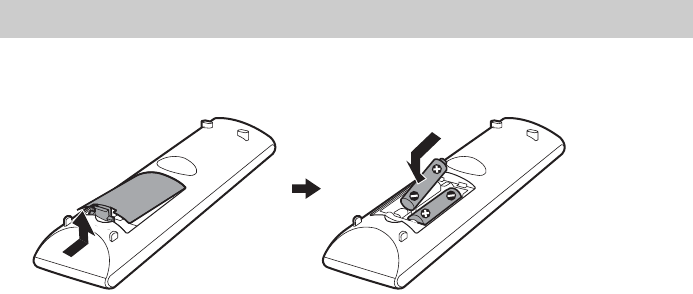

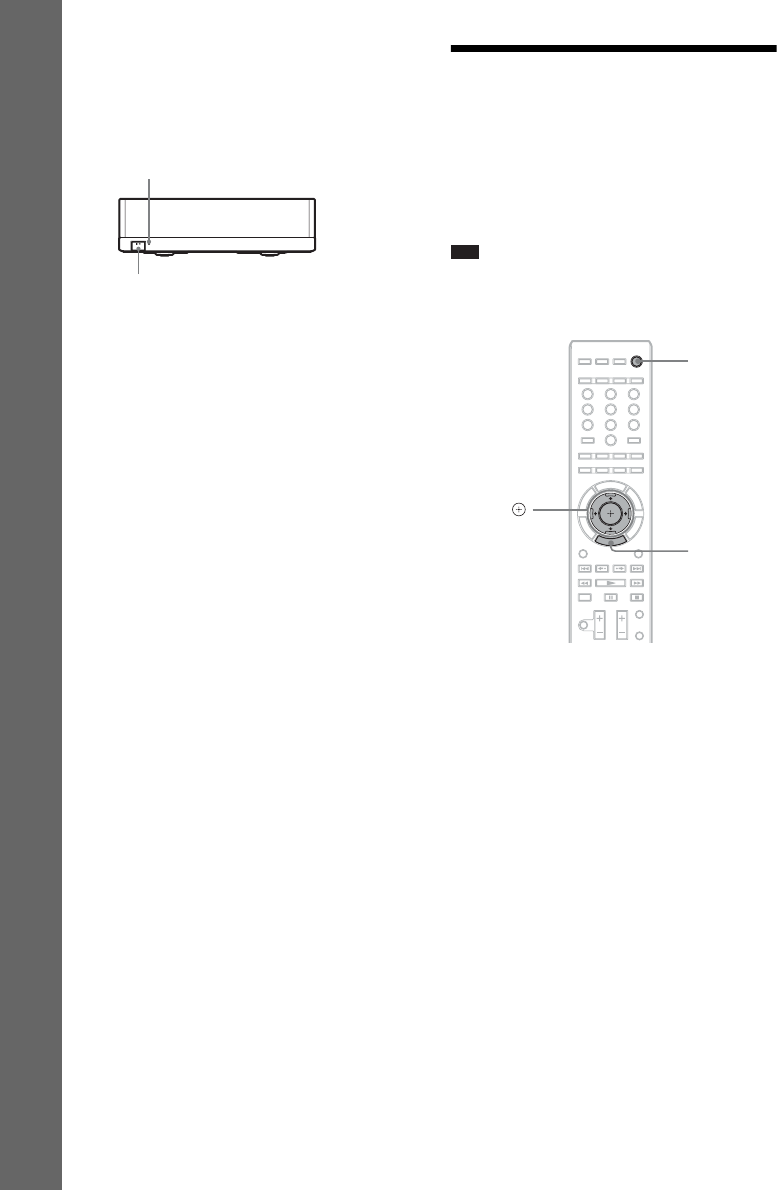

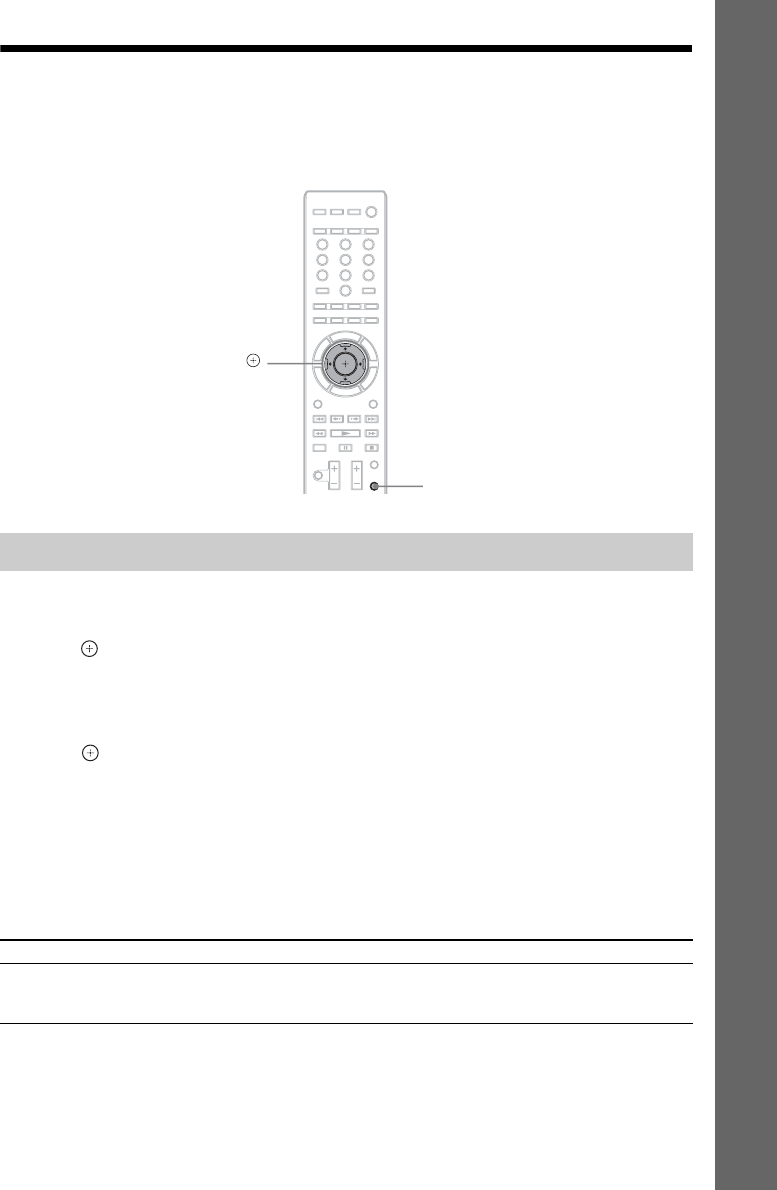

- Preparing the remote

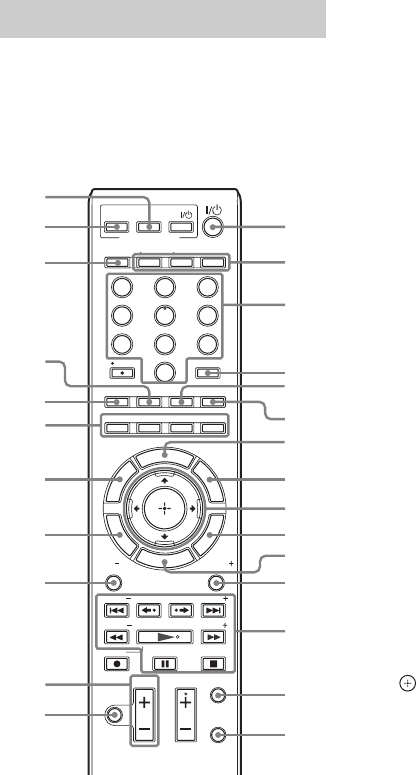

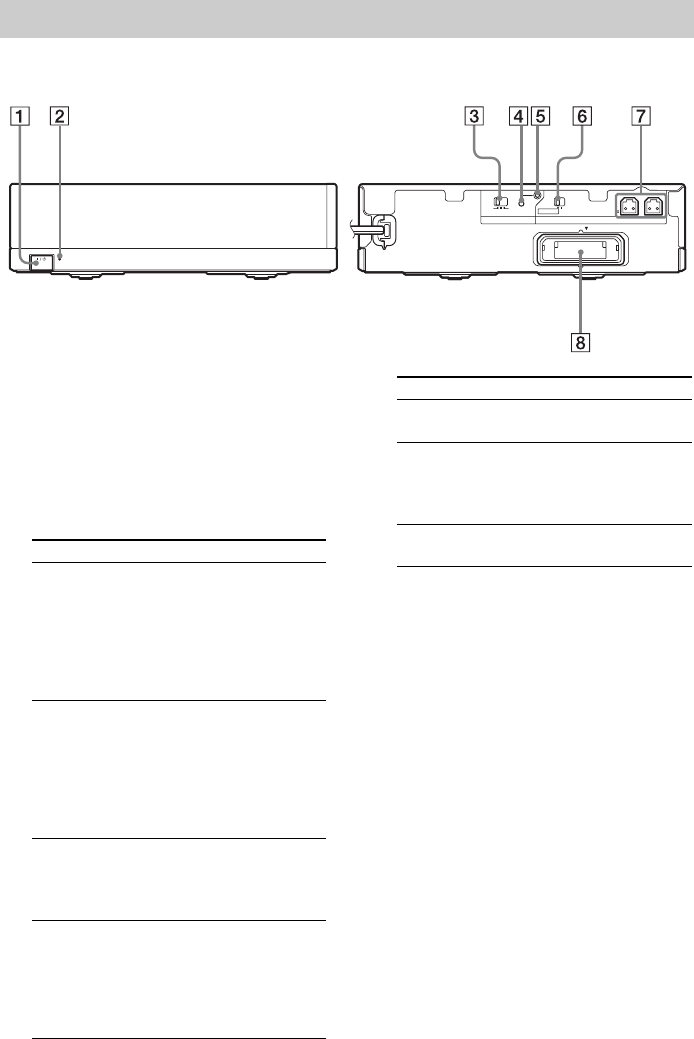

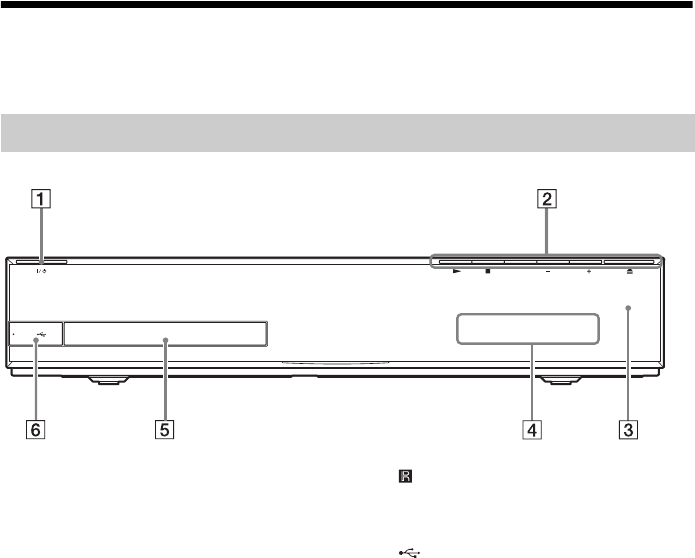

Index to Parts and Control
Getting Started
Playback
Sound Adjustment
Tuner
- Listening to the Radio
External Audio Device

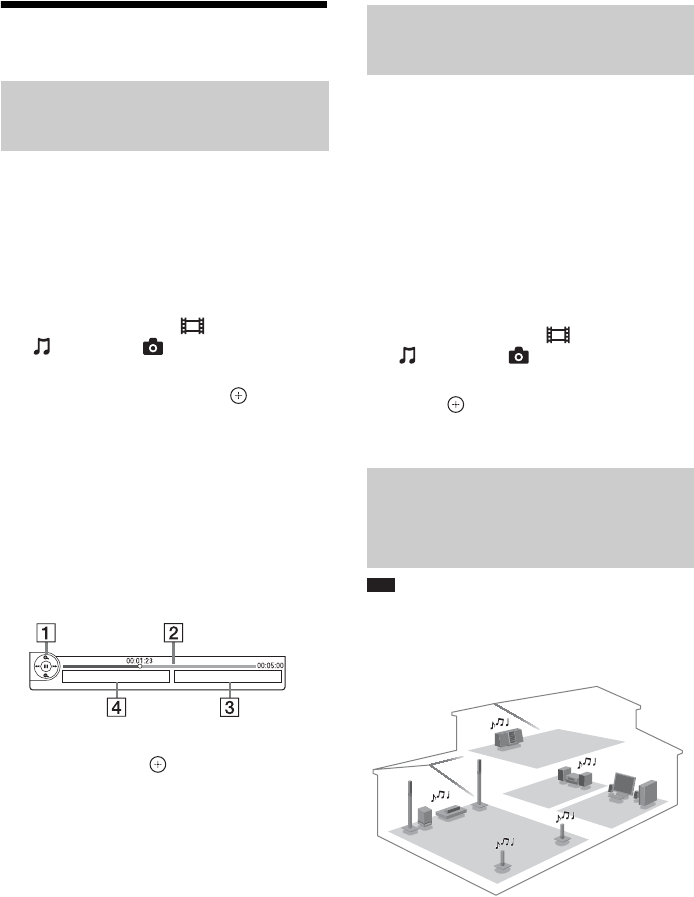

- Using an S-AIR Product
Other Operations
Settings and Adjustments
Additional Information

4-187-302-12(1)

Operating Instructions

BDV-HZ970W / IZ1000W

Blu-ray Disc/DVD

Home Theatre System

2US

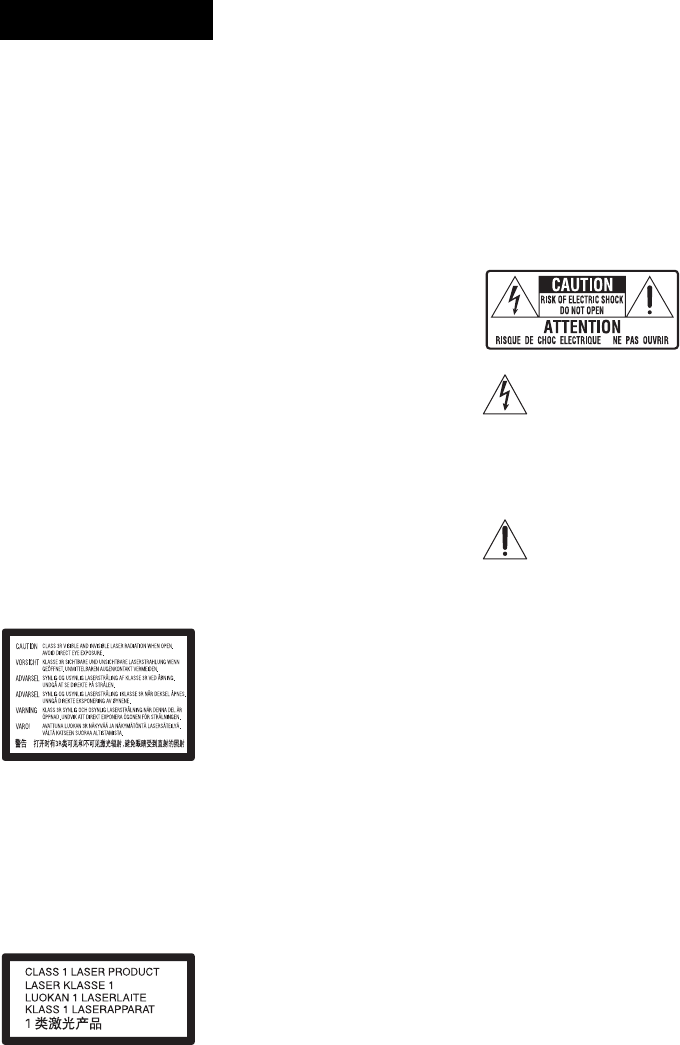

Do not install the appliance in a

confined space, such as a bookcase

or built-in cabinet.

To reduce the risk of fire, do not

cover the ventilation opening of the

apparatus with newspapers,

tablecloths, curtains, etc. Do not

place the naked flame sources such

as lighted candles on the apparatus.

Do not expose batteries or

apparatus with battery-installed to

excessive heat such as sunshine,

fire or the like.

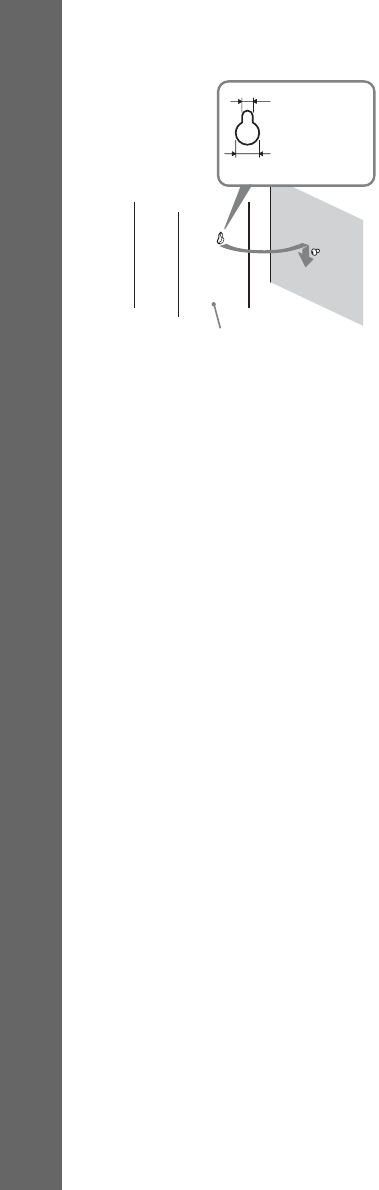

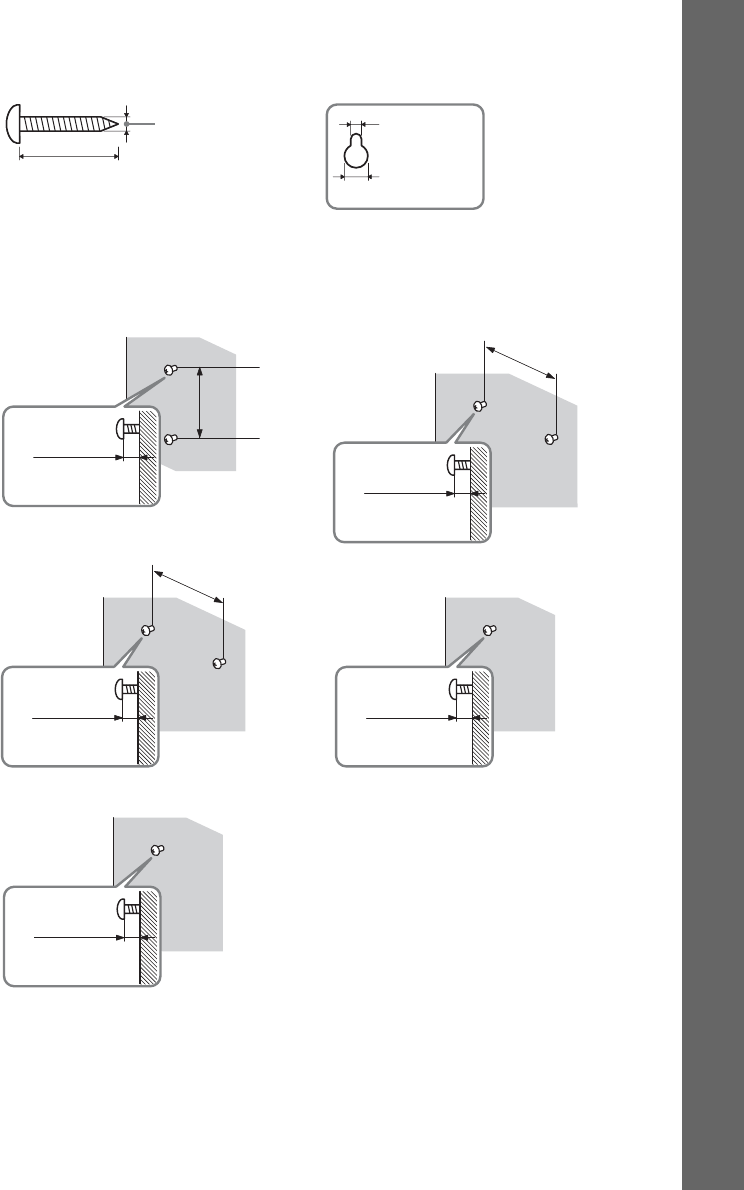

To prevent injury, this apparatus

must be securely attached to the

floor/wall in accordance with the

installation instructions.

Indoor use only.

CAUTION

The use of optical instruments with

this product will increase eye

hazard. As the laser beam used in

this Blu-ray Disc / DVD Home

Theatre System is harmful to eyes,

do not attempt to disassemble the

cabinet.

Refer servicing to qualified

personnel only.

This appliance is classified as a

CLASS 3R LASER product.

Visible and invisible laser radiation

is emitted when the laser protective

housing is opened, so be sure to

avoid direct eye exposure.

This marking is located on the laser

protective housing inside the

enclosure.

This appliance is classified as a

CLASS 1 LASER product. The

CLASS 1 LASER PRODUCT

MARKING is located on the laser

protective housing inside the

enclosure.

Precautions

On power sources

• The unit is not disconnected from

the mains as long as it is

connected to the AC outlet, even

if the unit itself has been turned

off.

• As the main plug is used to

disconnect the unit from the

mains, connect the unit to an

easily accessible AC outlet.

Should you notice an abnormality

in the unit, disconnect the main

plug from the AC outlet

immediately.

On watching 3D video

images

Some people may experience

discomfort (such as eye strain,

fatigue, or nausea) while watching

3D video images. Sony

recommends that all viewers take

regular breaks while watching 3D

video images. The length and

frequency of necessary breaks will

vary from person to person. You

must decide what works best. If you

experience any discomfort, you

should stop watching the 3D video

images until the discomfort ends;

consult a doctor if you believe

necessary. You should also review

(i) the instruction manual and/or the

caution message of any other

device used with, or Blu-ray Disc

contents played with this product

and (ii) our website (http://

esupport.sony.com/) for the latest

information. The vision of young

children (especially those under six

years old) is still under

development. Consult your doctor

(such as a pediatrician or eye

doctor) before allowing young

children to watch 3D video images.

Adults should supervise young

children to ensure they follow the

recommendations listed above.

For the customers in

the U.S.A.

To reduce the risk of fire

or electric shock, do not

expose this apparatus to

rain or moisture.

These following indications are

located on the rear exterior.

This symbol is intended to

alert the user to the

presence of uninsulated

“dangerous voltage” within the

product’s enclosure that may be of

sufficient magnitude to constitute a

risk of electric shock to persons.

This symbol is intended to

alert the user to the

presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the

appliance.

Owner’s Record

The model and serial numbers are

located at the rear exterior of the

control unit. Record the serial

number in the space provided

below. Refer to them whenever you

call upon your Sony dealer

regarding this product.

Model No. BDV-HZ970W

Serial No.______________

The following FCC statement

applies only to the version of this

model manufactured for sale in the

U.S.A. Other versions may not

comply with FCC technical

regulations.

WARNING

3US

NOTE:

This equipment has been tested and

found to comply with the limits for

a Class B digital device, pursuant to

Part 15 of the FCC Rules. These

limits are designed to provide

reasonable protection against

harmful interference in a residential

installation. This equipment

generates, uses, and can radiate

radio frequency energy and, if not

installed and used in accordance

with the instructions, may cause

harmful interference to radio

communications. However, there is

no guarantee that interference will

not occur in a particular

installation. If this equipment does

cause harmful interference to radio

or television reception, which can

be determined by turning the

equipment off and on, the user is

encouraged to try to correct the

interference by one or more of the

following measures:

– Reorient or relocate the receiving

antenna (aerial).

– Increase the separation between

the equipment and receiver.

– Connect the equipment into an

outlet on a circuit different from

that to which the receiver is

connected.

– Consult the dealer or an

experienced radio/TV technician

for help.

CAUTION

You are cautioned that any changes

or modifications not expressly

approved in this manual could void

your authority to operate this

equipment.

The shielded interface cable

recommended in this manual must

be used with this equipment in

order to comply with The limits for

a digital device pursuant to Subpart

B of Part 15 of FCC Rules.

Important Safety

Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near

water.

6) Clean only with dry cloth.

7) Do not block any ventilation

openings. Install in accordance

with the manufacturer’s

instructions.

8) Do not install near any heat

sources such as radiators, heat

registers, stoves, or other

apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety

purpose of the polarized or

grounding-type plug. A

polarized plug has two blades

with one wider than the other. A

grounding type plug has two

blades and a third grounding

prong. The wide blade or the

third prong are provided for

your safety. If the provided

plug does not fit into your

outlet, consult an electrician for

replacement of the obsolete

outlet.

10) Protect the power cord from

being walked on or pinched

particularly at plugs,

convenience receptacles, and

the point where they exit from

the apparatus.

11) Only use attachments/

accessories specified by the

manufacturer.

12) Use only with the cart, stand,

tripod, bracket, or table

specified by the manufacturer,

or sold with the apparatus.

When a cart is used, use caution

when moving the cart/

apparatus combination to avoid

injury from tip-over.

13) Unplug this apparatus during

lightning storms or when

unused for long periods of time.

14) Refer all servicing to qualified

service personnel. Servicing is

required when the apparatus

has been damaged in any way,

such as power-supply cord or

plug is damaged, liquid has

been spilled or objects have

fallen into the apparatus, the

apparatus has been exposed to

rain or moisture, does not

operate normally, or has been

dropped.

For the customers in

Canada

To reduce the risk of fire or electric

shock, do not expose this apparatus

to dripping or splashing, and do not

place objects filled with liquids,

such as vases, on the apparatus.

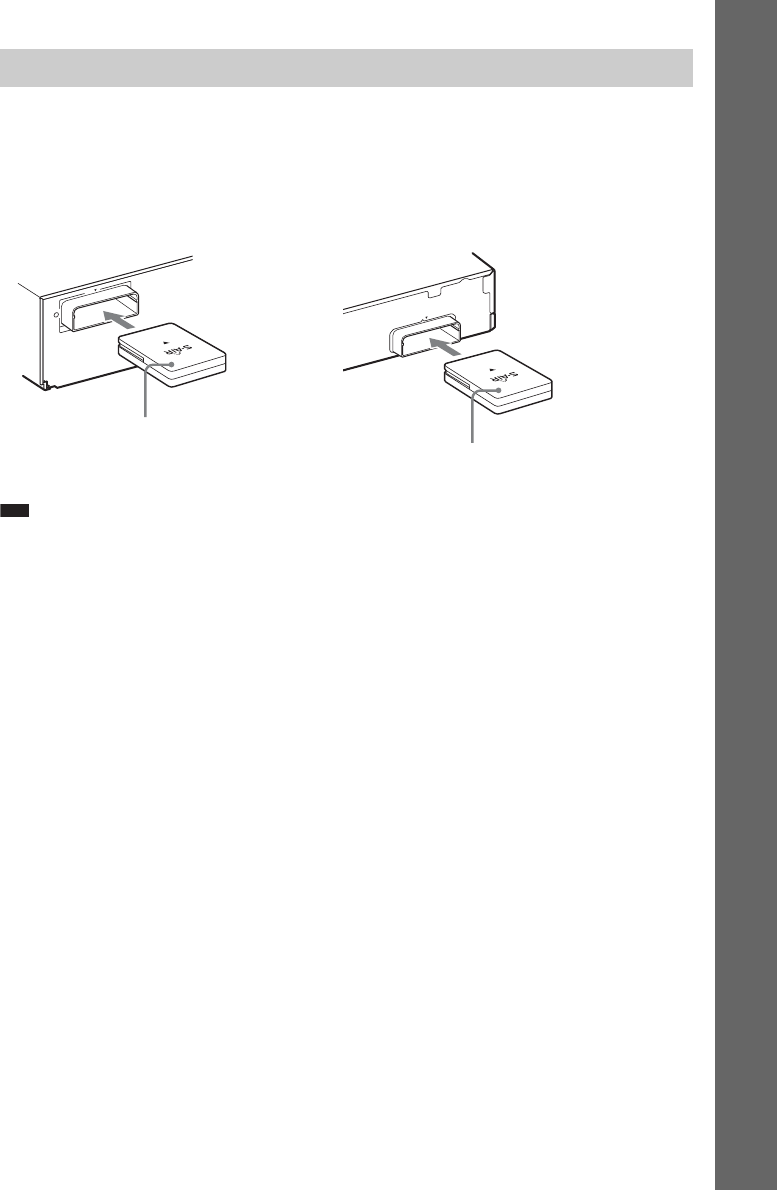

For the wireless

transceiver (EZW-

RT10/EZW-RT10A)

(For the customers in

the U.S.A.)

This equipment must not be co-

located or operated in conjunction

with any other antenna or

transmitter.

This equipment complies with FCC

radiation exposure limits set forth

for uncontrolled equipment and

meets the FCC radio frequency

(RF) Exposure Guidelines in

Supplement C to OET65.

This equipment should be installed

and operated with at least 20cm and

more between the radiator and

person’s body (excluding

extremities: hands, wrists, feet and

ankles).

4US

For the wireless

transceiver (EZW-

RT10/EZW-RT10A)

(For the customers in

Canada)

This Class B digital apparatus

complies with Canadian ICES-003.

This device complies with RSS-

Gen of IC Rules.

Operation is subject to the

following two conditions:

(1) this device may not cause

interference, and (2) this device

must accept any interference,

including interference that may

cause undesired operation of this

device.

This equipment complies with IC

radiation exposure limits set forth

for uncontrolled equipment and

meets RSS-102 of the IC radio

frequency (RF) Exposure rules.

This equipment should be installed

and operated with at least 20cm and

more between the radiator and

persons body (excluding

extremities: hands, wrists, feet and

ankles).

For the USB Wireless

LAN Adapter (UWA-

BR100)

Pursuant to FCC regulations, you

are cautioned that any changes or

modifications not expressly

approved in this manual could void

your authority to operate this

equipment.

To prevent radio interference to the

licensed service, this device is

intended to be operated indoors and

away from windows to provide

maximum shielding. Equipment (or

its transmit antenna) that is

installed outdoors is subject to

licensing.

Only use Wireless LAN indoors

when using it with IEEE 802.11a

(5 GHz).

High power radars are allocated as

primary users (meaning they have

priority) of 5250-5350 MHz and

5650-5850 MHz and these radars

could cause interference and/or

damage to this device.

This device uses 5 GHz band for

wireless LAN communication and

the maximum gain of the antenna in

this device is 5 dBi.

This equipment complies with

FCC/IC radiation exposure limits

set forth for an uncontrolled

environment. This equipment

should be installed and operated

with minimum distance 20 cm

between the radiator and your body

(excluding extremities: hands,

wrists and feet).

This device and its antenna(s) must

not be co-located or operating with

any other antenna or transmitter

except Grant condition.

If you have any questions about this

product, contact Sony Customer

Information Service Center at 1-

800-222-7669 or visit http://

www.sony.com/ on the Internet.

The telephone number below is for

FCC-related matters only.

Regulatory Information

Copyrights and

Trademarks

• This system incorporates with

Dolby* Digital and Dolby Pro

Logic (II) adaptive matrix

surround decoder and the DTS**

Digital Surround System.

* Manufactured under license

from Dolby Laboratories.

Dolby, Pro Logic, and the

double-D symbol are

trademarks of Dolby

Laboratories.

** Manufactured under license

under U.S. Patent #’s:

5,451,942; 5,956,674;

5,974,380; 5,978,762;

6,226,616; 6,487,535;

7,212,872; 7,333,929;

7,392,195; 7,272,567 &

other U.S. and worldwide

patents issued & pending.

DTS and the Symbol are

registered trademarks, &

DTS-HD, DTS-HD Master

Audio, and the DTS logos

are trademarks of DTS, Inc.

Product includes software.

Reserved.

• This system incorporates High-

Definition Multimedia Interface

(HDMITM) technology.

HDMI, the HDMI logo and High-

Definition Multimedia Interface

are trademarks or registered

trademarks of HDMI Licensing

LLC.

• Java and all Java-based

trademarks and logos are

trademarks or registered

trademarks of Sun Microsystems,

Inc.

• “BD-LIVE” and

“BONUSVIEW” are trademarks

of Blu-ray Disc Association.

• “Blu-ray Disc” is a trademark.

• “Blu-ray Disc,” “DVD+RW,”

“DVD-RW,” “DVD+R,” “DVD-

R,” “DVD VIDEO,” and “CD”

logos are trademarks.

• “Blu-ray 3D” and “Blu-ray 3D”

logo are trademarks of Blu-ray

Disc Association.

Declaration of Conformity

Trade Name: SONY

Model: UWA-BR100

Responsible Party: Sony

Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-

2230

This device complies with part

15 of the FCC rules. Operation is

subject to the following two

conditions: (1) This device may

not cause harmful interference,

and (2) this device must accept

any interference received,

including interference that may

cause undesired operation.

5US

• “BRAVIA” is a trademark of

Sony Corporation.

• “AVCHD” and the “AVCHD”

logo are trademarks of Matsushita

Electric Industrial Co., Ltd. and

Sony Corporation.

• “S-AIR” and its logo are

trademarks of Sony Corporation.

• , “XMB,” and “xross media

bar” are trademarks of Sony

Corporation and Sony Computer

Entertainment Inc.

• “PLAYSTATION” is a trademark

of Sony Computer Entertainment

Inc.

•DivX

®, DivX Certified® and

associated logos are registered

trademarks of DivX, Inc. and are

used under license. (Except for

U.S. models.)

• Music and video recognition

technology and related data are

provided by Gracenote®.

Gracenote is the industry standard

in music recognition technology

and related content delivery. For

more information, please visit

www.gracenote.com.

CD, DVD, Blu-ray Disc, and

music and video-related data from

2000-present Gracenote.

2000-present Gracenote. One or

more patents owned by Gracenote

apply to this product and service.

See the Gracenote website for a

nonexhaustive list of applicable

Gracenote patents. Gracenote,

CDDB, MusicID, MediaVOCS,

the Gracenote logo and logotype,

and the “Powered by Gracenote”

logo are either registered

trademarks or trademarks of

Gracenote in the United States

and/or other countries.

• “PhotoTV HD” and the “PhotoTV

HD” logo are trademarks of Sony

Corporation.

• MPEG Layer-3 audio coding

technology and patents licensed

from Fraunhofer IIS and

Thomson.

• iPod is a trademark of Apple Inc.,

registered in the U.S. and other

countries.

• “Made for iPod” means that an

electronic accessory has been

designed to connect specifically

to iPod and has been certified by

the developer to meet Apple

performance standards.

• Apple is not responsible for the

operation of this device or its

compliance with safety and

regulatory standards.

• Windows Media is either a

registered trademark or trademark

of Microsoft Corporation in the

United States and/or other

countries.

•DLNA

®, the DLNA Logo and

DLNA CERTIFIED™ are

trademarks, service marks, or

certification marks of the Digital

Living Network Alliance.

• Other system and product names

are generally trademarks or

registered trademarks of the

manufacturers. ™ and ® marks

are not indicated in this document.

About These

Operating

Instructions

• The instructions in these

Operating Instructions

describe the controls on the

remote. You can also use the

controls on the unit if they

have the same or similar

names as those on the remote.

• In this manual, “disc” is used

as a general reference for

BDs, DVDs, Super Audio

CDs, or CDs unless otherwise

specified by the text or

illustrations.

• The instructions in this

manual are for BDV-

HZ970W and BDV-

IZ1000W. BDV-HZ970W is

the model used for

illustration purposes. Any

difference in operation is

clearly indicated in the text,

for example, “BDV-

HZ970W.”

• The items displayed on the

TV screen may vary

depending on the area.

• The default setting is

underlined.

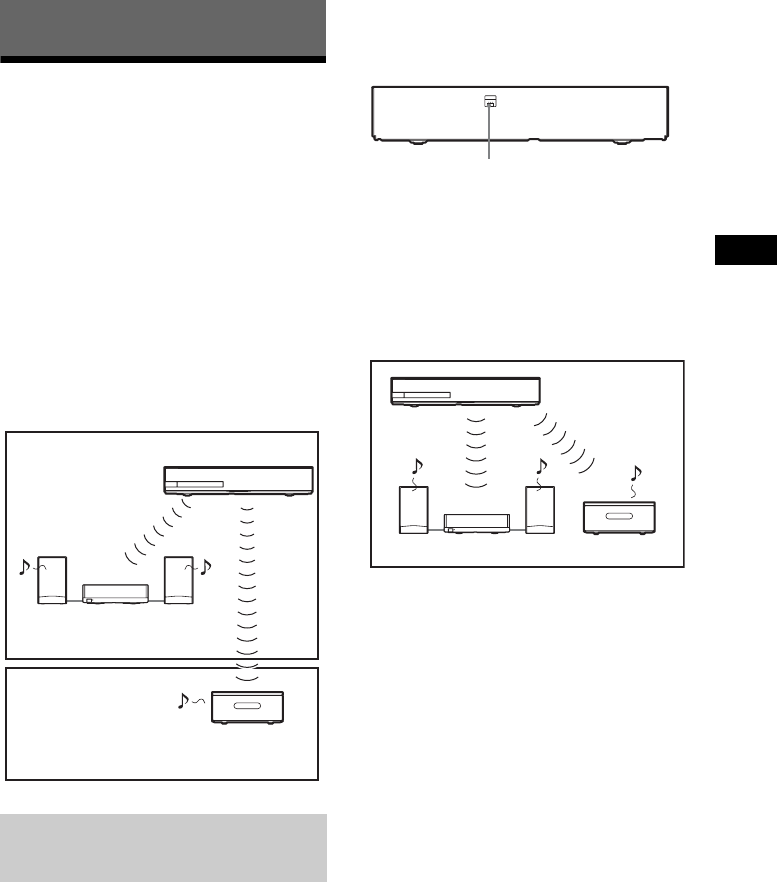

• The system is compatible

with the S-AIR function,

which allows transmission of

sound between S-AIR

products wirelessly. For

details on the S-AIR function,

see “Using an S-AIR

Product” (page 47).

• Notes or instructions for the

surround amplifier, surround

back amplifier, or S-AIR

receiver in these Operating

Instructions refer only to

when the surround amplifier,

surround back amplifier, or

S-AIR receiver is used.

6US

Table of Contents

About These Operating Instructions .......5

Unpacking...............................................7

Index to Parts and Control .................... 10

Getting Started

Step 1: Installing the System.......16

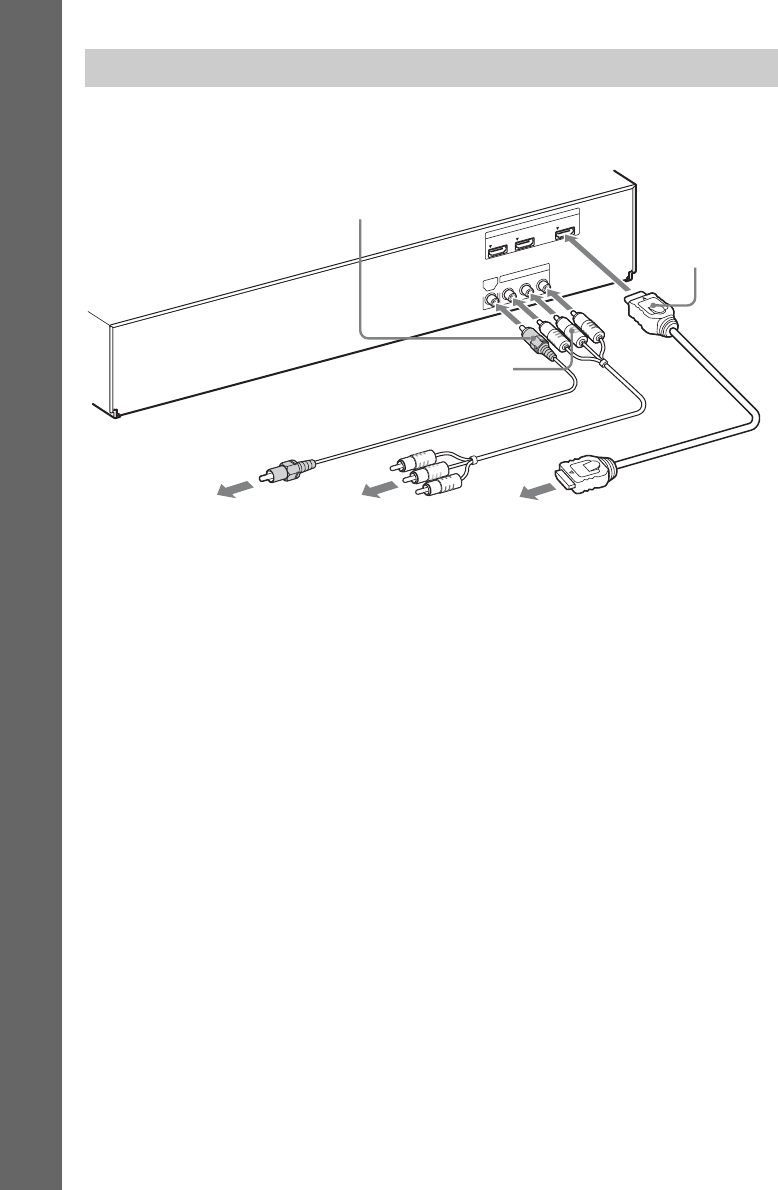

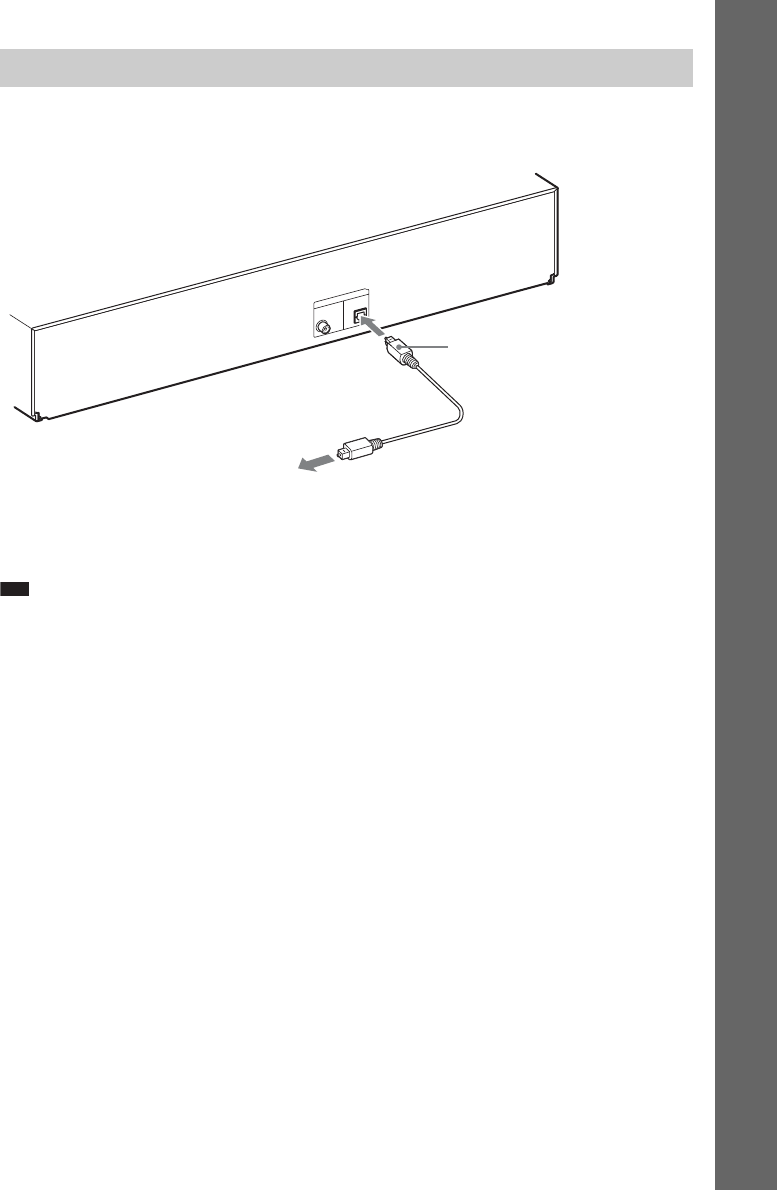

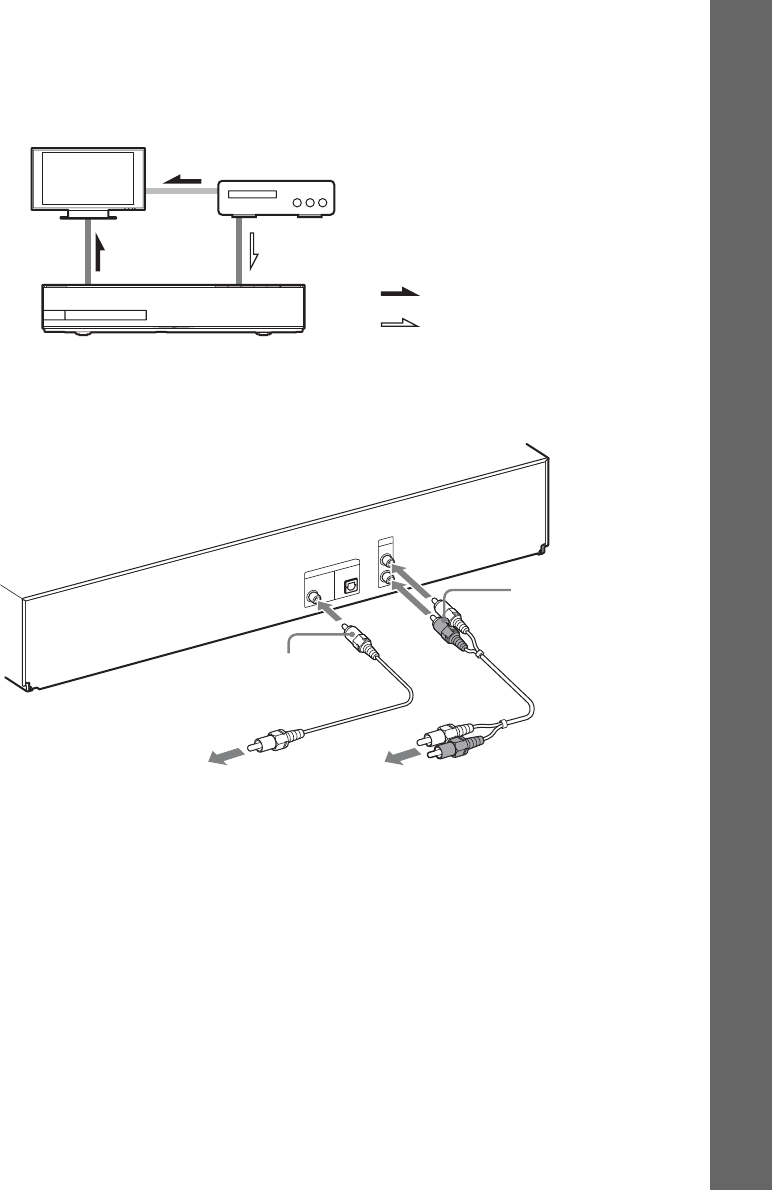

Step 2: Connecting the System ...21

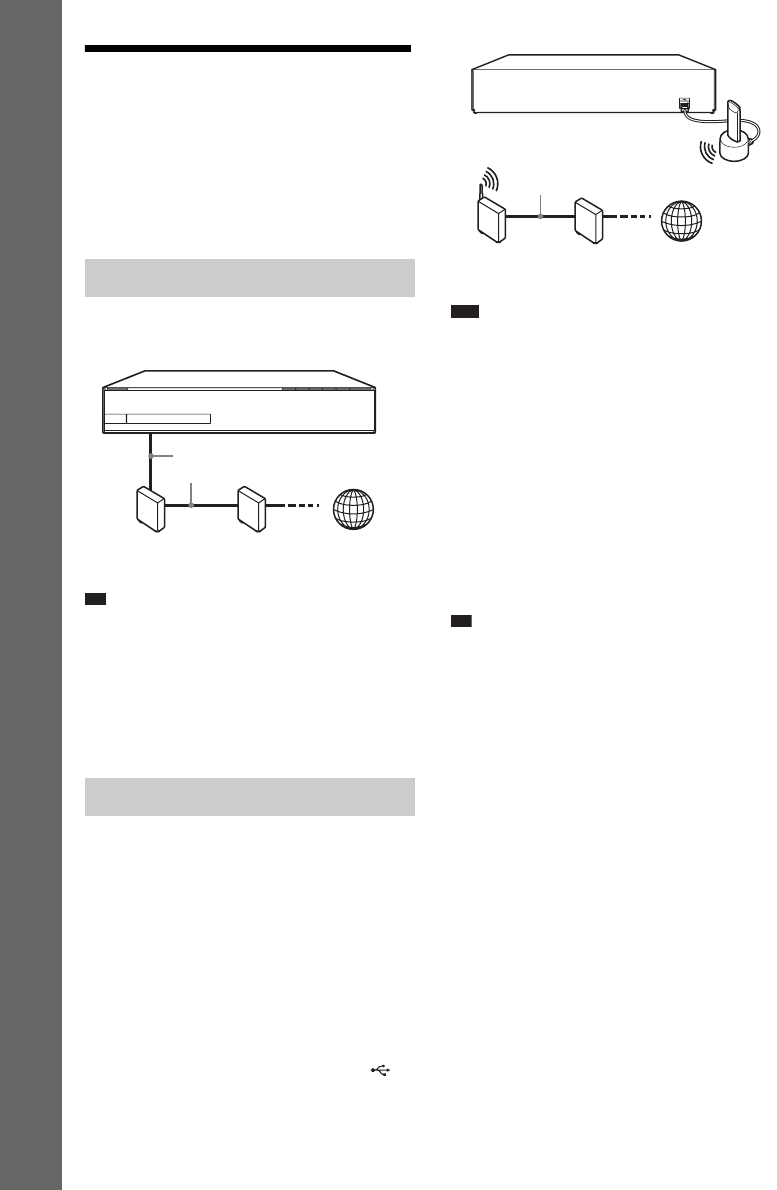

Step 3: Connecting to the

Network ....................................28

Step 4: Setting up the

S-AIR Wireless System...........29

Step 5: Performing the Easy

Setup ........................................30

Step 6: Selecting the Source .......32

Step 7: Enjoying Surround

Sound .......................................33

Playback

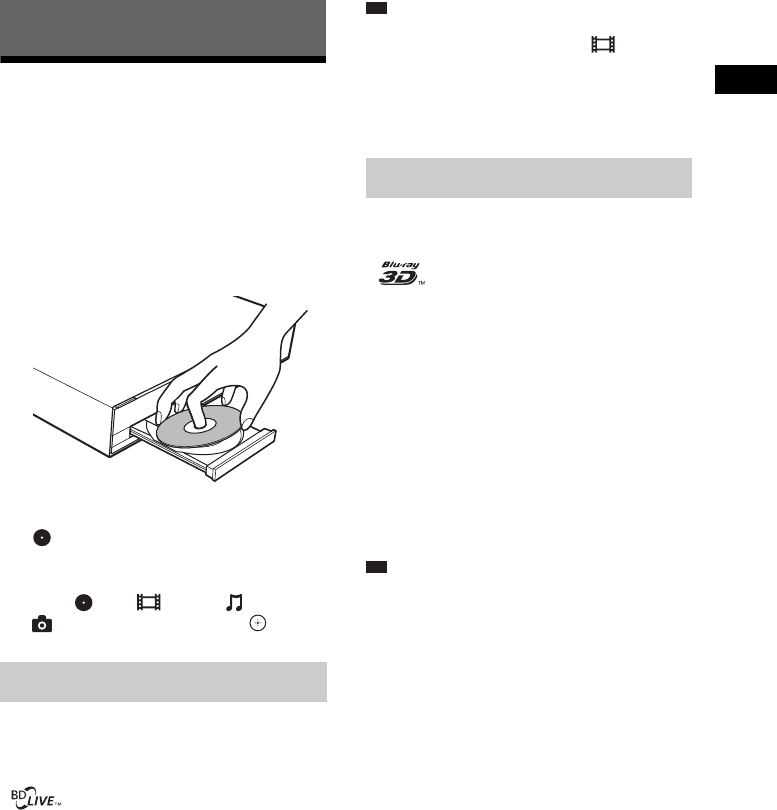

Playing a Disc .......................................35

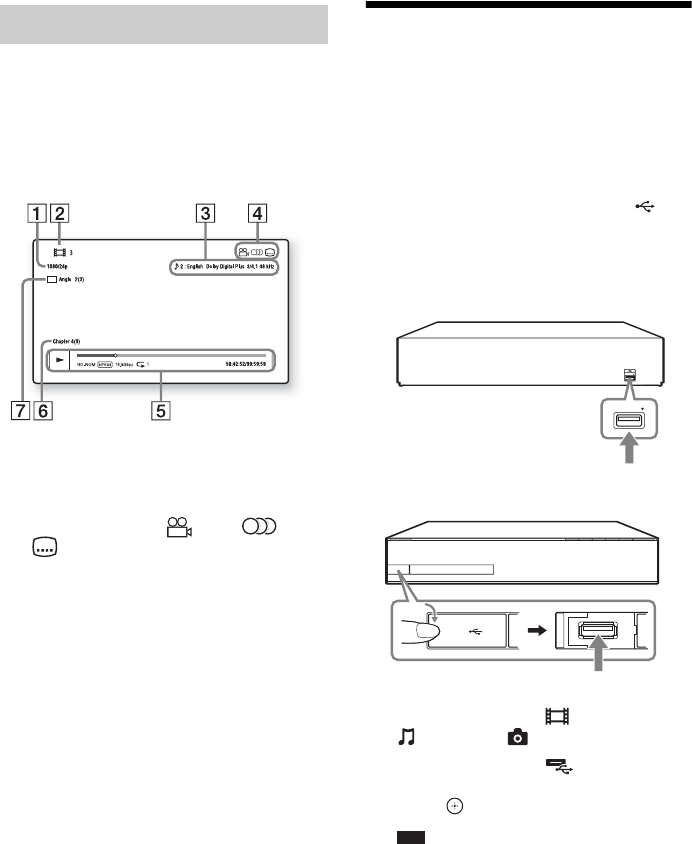

Playing from a USB Device.................. 36

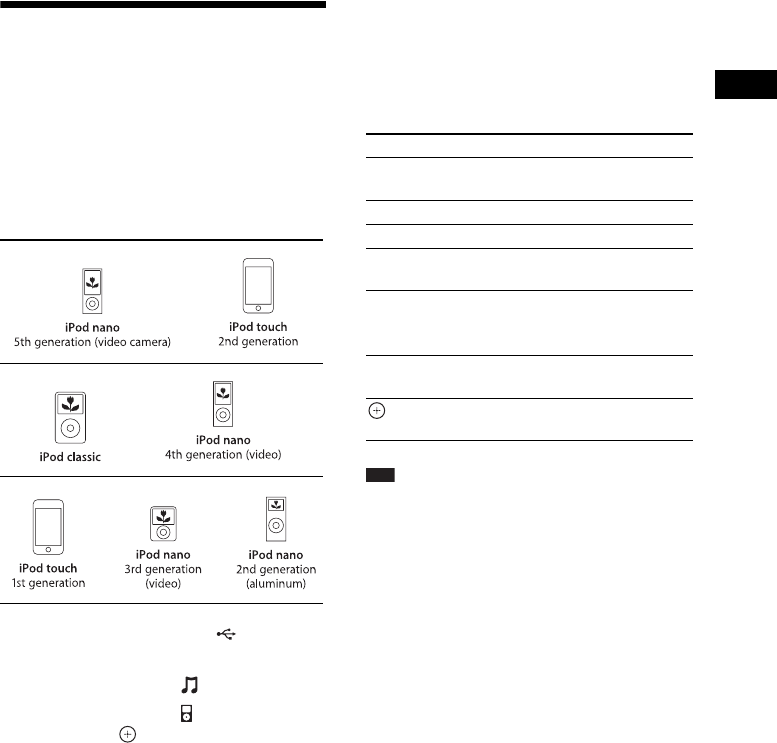

Enjoying an iPod...................................37

Playing via a Network........................... 38

Available Options .................................40

Sound Adjustment

Selecting the Effect to Suit

the Source ....................................... 42

Selecting the Audio Format, Multilingual

Tracks, or Channel..........................42

Enjoying Multiplex Broadcast

Sound ..............................................43

Using the Sound Effect .........................44

Tuner

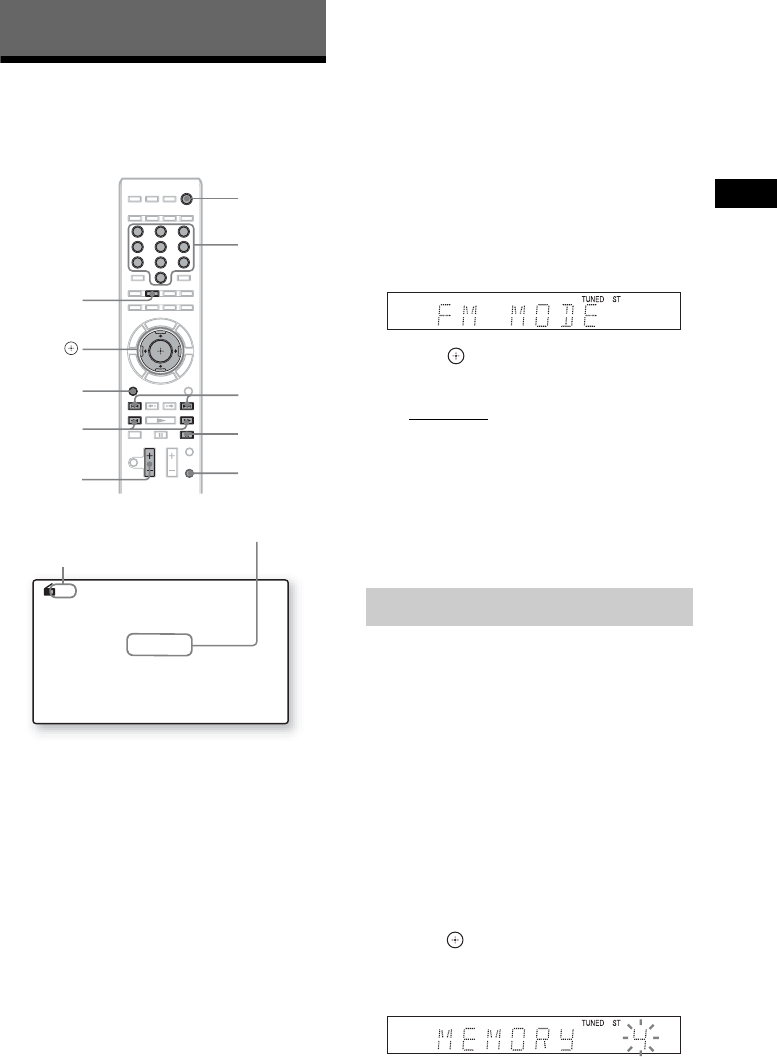

Listening to the Radio...........................45

External Audio Device

Using an S-AIR Product ....................... 47

Other Operations

Using the Control for HDMI Function for

“BRAVIA” Sync ............................51

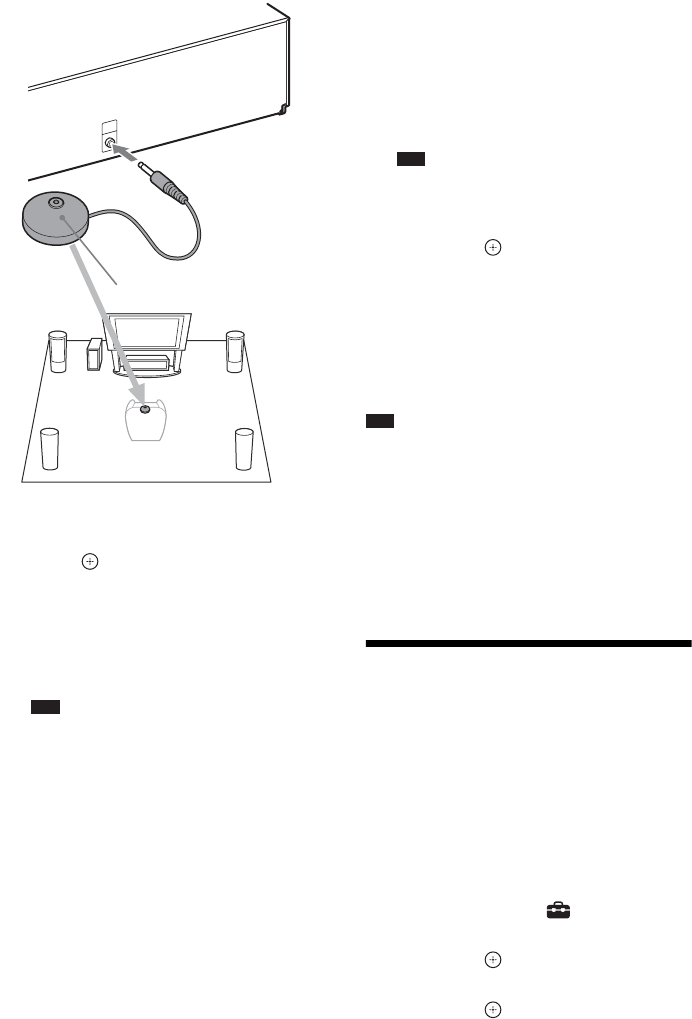

Calibrating the Appropriate Settings

Automatically ................................. 53

Setting the Speakers..............................54

Using the Sleep Timer ..........................56

Deactivating the Buttons on

the Unit.......................................... 56

Controlling Your TV or Other

Components with the Supplied

Remote ........................................... 57

Saving Power in Standby Mode ........... 59

Settings and Adjustments

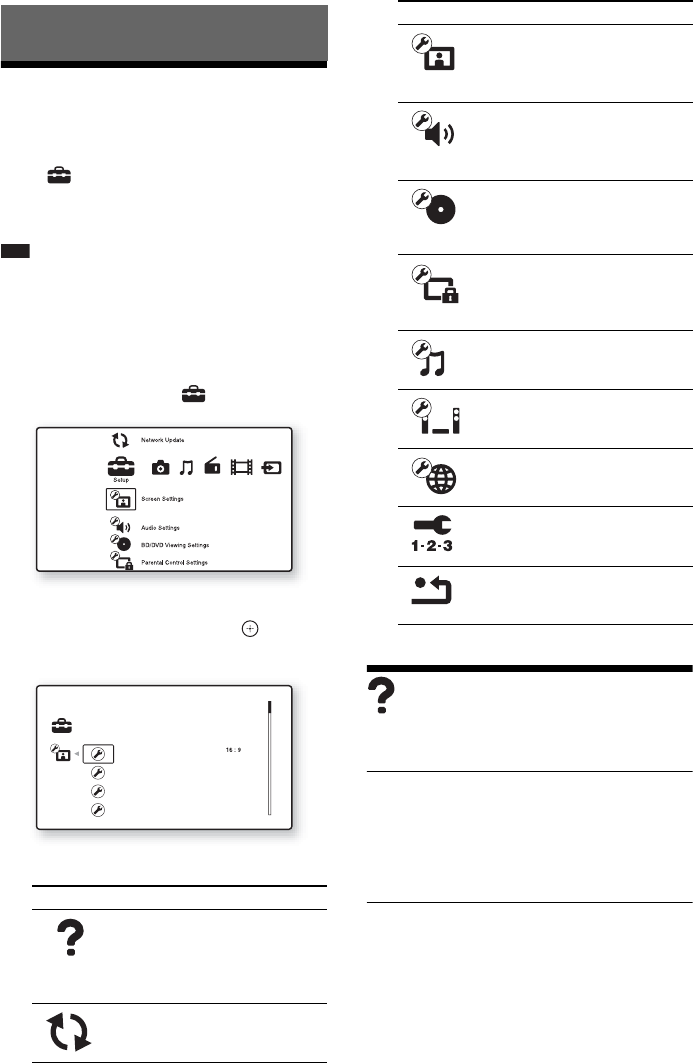

Using the Setup Display ....................... 60

[Remote Controller Setting Guide] ...... 60

[Network Update]................................. 61

[Screen Settings]................................... 61

[Audio Settings].................................... 62

[BD/DVD Viewing Settings] ............... 63

[Parental Control Settings] ................... 63

[Music Settings].................................... 64

[System Settings].................................. 64

[Network Settings]................................ 65

[Easy Setup].......................................... 66

[Resetting] ............................................ 66

Additional Information

Precautions ........................................... 67

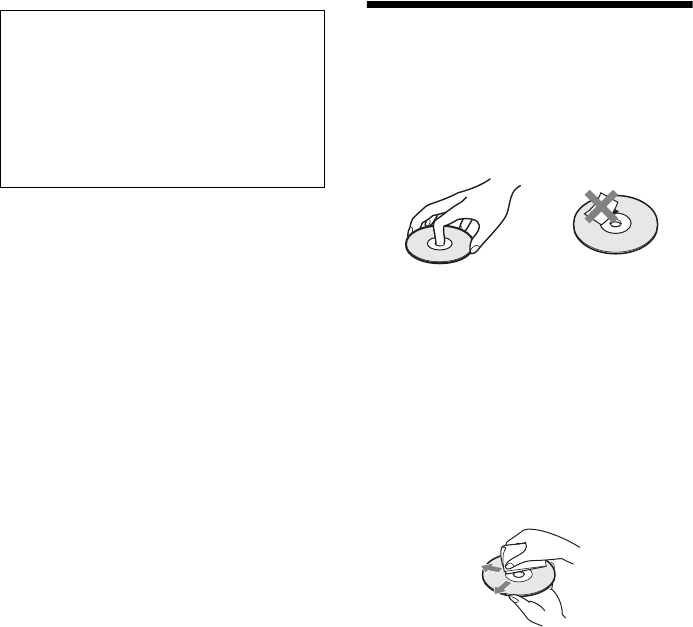

Notes about the Discs ........................... 68

Troubleshooting.................................... 69

Playable Discs ...................................... 76

Playable Types of Files ........................ 77

Supported Audio Formats..................... 78

Video Output Resolution...................... 78

Specifications ....................................... 79

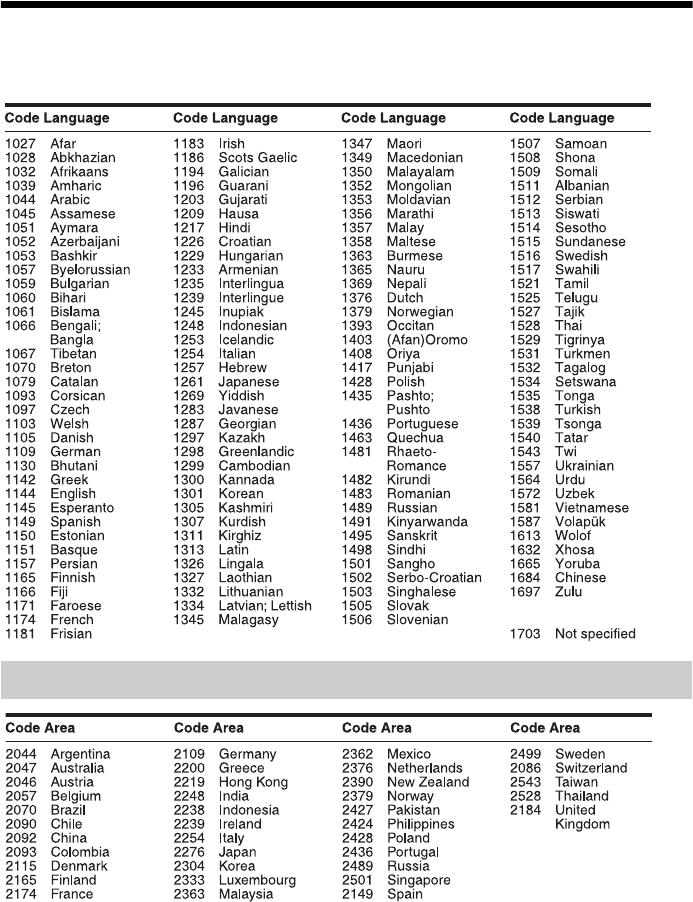

Language Code List.............................. 82

Glossary................................................ 83

Index ..................................................... 86

7US

Unpacking

BDV-HZ970W

• Main unit (1)

• Front speakers (2)

• Surround speakers (2)

• Center speaker (1)

• Subwoofer (1)

• Bases for the front speakers (2)

• Posts for the front speakers

(long) (2)

• Posts for the front speakers

(short) (2)

• Screws for the front speakers

(8)

• FM wire antenna (aerial) (1)

• Speaker cords (6, white/red/

blue/gray/green/purple)

• Video cord (1)

• Remote commander

(remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Surround amplifier (1)

• Wireless transceivers (2)

• USB Wireless LAN Adapter

(UWA-BR100)

• UWA-BR100 External

cable

• Operating Instructions

• Speaker Installation Guide

• Quick Setup Guide

• End user license agreement

• Easy Setup Disc (DVD)

8US

BDV-IZ1000W

• Main unit (1)

• Front and surround speakers

(4)

• Center speaker (1)

• Subwoofer (1)

• Front speaker stands (2)

• Bases for the front speaker

stands (2)

• Bases for the surround

speakers (2)

• Base adapters for the surround

speakers (2)

• Screws (with washer) for the

front speakers (4)

• Screws for the front speakers/

surround speakers (4)

• FM wire antenna (aerial) (1)

• Speaker cords (6, white/red/

blue/gray/green/purple)

•Video cord (1)

• Remote commander

(remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Surround amplifier (1)

• Wireless transceivers (2)

• Operating Instructions

• Speaker Installation Guide

• Quick Setup Guide

• End user license agreement

• Easy Setup Disc (DVD)

9US

Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the

markings inside the compartment.

Preparing the remote

10US

Index to Parts and Control

For more information, refer to the pages indicated in parentheses.

A"/1 (on/standby)

Turns on the unit, or sets it to standby mode.

BPlay operation buttons

N (play)

Starts or re-starts playback (resume play).

Plays a slideshow when a disc containing

JPEG image files is inserted.

x (stop)

Stops playback and remembers the stop

point (resume point).

The resume point for a title/track is the last

point you played or the last photo for a

photo folder.

FUNCTION

Selects the playback source.

VOLUME +/–

Adjusts the system’s volume.

Z (open/close) (page 35)

Opens or closes the disc tray.

C (remote sensor)

DFront panel display

EDisc tray (page 35)

F (USB) port (page 36)

Used for connecting a USB device.

Front panel

PUSH OPEN

VOLUMEFUNCTION

11US

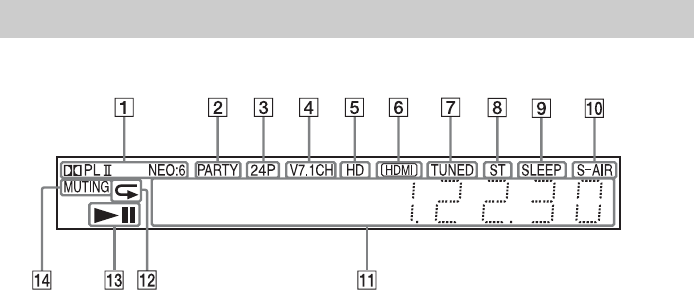

About the indications in the front panel display

ADisplays the current sound format.

BLights up when the system is playing

via the PARTY STREAMING function.

CLights up when outputting 1920 ×

1080p/24 Hz video signals.

DLights up while virtual 7.1ch decoding

is activated.

ELights up when outputting 720p/1080i/

1080p video signals from the HDMI

(OUT) jack or 720p/1080i video signals

from the COMPONENT VIDEO OUT

jacks.

FLights up when the HDMI (OUT) jack is

correctly connected to an HDCP (High-

bandwidth Digital Content Protection)-

compliant device with HDMI or DVI

(Digital Visual Interface) input.

GLights up when a radio station is

received. (Radio only) (page 45)

HLights up when stereo sound is

received. (Radio only) (page 45)

IFlashes when the sleep timer is set.

(page 56)

JS-AIR indicator (only when the wireless

transceiver is inserted into the unit)

Lights up during wireless

transmission. When [Standby] is set to

[On], flashes when the main unit is in

standby mode and wireless

transmission between the main unit

and S-AIR receiver is not activated.

(page 47)

KDisplays system’s status such as

chapter, title, or track number, time

information, radio frequency, playing

status, surround setting, etc.

LLights up when repeat play is

activated.

MDisplays system’s playing status.

NLights up when muting is on.

Front panel display

12US

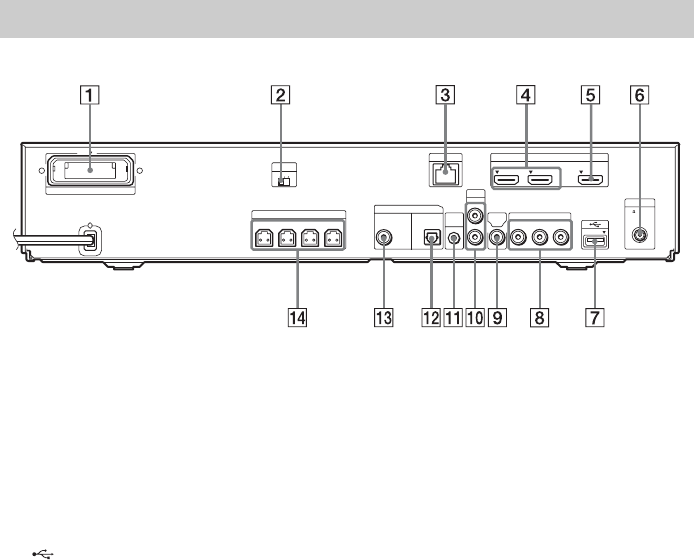

AWireless transceiver (EZW-RT10) slot

(page 27)

BS-AIR ID switch (pages 29, 47)

CLAN (100) terminal (page 28)

DHDMI (IN 1/IN 2) jack (page 24)

EHDMI (OUT) jack (page 22)

FANTENNA (75Ω COAXIAL FM) jack

(page 26)

G (USB) port (pages 28, 36)

HCOMPONENT VIDEO OUT jacks (page

22)

IVIDEO OUT jack (page 22)

JAUDIO (AUDIO IN L/R) jacks (page 24)

KA.CAL MIC jack (pages 30, 53)

LDIGITAL IN (TV OPT) jack (page 23)

MDIGITAL IN (SAT/CABLE COAX) jack

(page 24)

NSPEAKERS jacks (page 21)

Rear panel

EZW-RT10

SPEAKERS

S-AIR ID

DIGITAL IN

AUDIO

COMPONENT VIDEO OUT

ANTENNA

A.CAL

MIC

VIDEO

OUT

FRONT R FRONT L WOOFER CENTER

SAT/CABLE

COAX OPT

ECM-AC2

AUDIO IN

TV FM

75 COAXIAL

LAN(100)

ABC

HDMI

ARC

IN 1 IN 2 OUT

13US

A"/1 (Power)

Turns the surround amplifier on/off.

BS-AIR/STANDBY indicator

You can check the status of wireless

transmission of surround speaker audio

signals between the main unit and surround

amplifier.

CS-AIR ID switch

Selects the S-AIR ID.

DPAIRING button

Starts pairing.

EPAIRING indicator

Indicates the pairing status.

FSURROUND SELECTOR switch

Selects the mode for the surround amplifier.

GSPEAKERS jacks

HWireless transceiver (EZW-RT10) slot

Surround amplifier

L R

SURROUND SELECTOR

SURROUND

PAIRING

ABC

SURROUND BACK

EZW-RT10

S-AIR ID

SPEAKERS

S-AIR/STANDBY

3-16

IMPEDANCE USE

Front panel Rear panel

Indicator Status

Turns green. Wireless transmission between

the main unit and the surround

amplifier is established

correctly and the main unit is

transmitting audio signals to

the surround speakers via the

surround amplifier.

Flashes green

quickly.

Wireless transmission between

the main unit and the surround

amplifier is established

correctly, but audio signals to

the surround speakers are not

being transmitted by the main

unit.

Flashes green

slowly.

Wireless transmission between

the main unit and the surround

amplifier is not set up

correctly.

Turns red. Wireless transmission between

the main unit and the surround

amplifier is not set up, or either

the surround amplifier or the

whole system is in standby

mode.

Turns off. The surround amplifier is

turned off.

Flashes orange. The wireless transceiver is not

inserted/not fully inserted/

inserted upside-down into the

wireless transceiver slot.

Flashes red. The surround amplifier’s

protection is active.

Indicator Status

14US

The buttons for system operation only are

described below. See “Controlling Your TV or

Other Components with the Supplied Remote”

(page 57) for the buttons for operation of the

connected components.

• Number 5, AUDIO, CH +, and N buttons

have a tactile dot. Use the tactile dot as a

reference when operating the remote.

• Names of buttons that work after pressing the

TV or STB operation mode buttons are

indicated with yellow label.

A"/1 (on/standby) (pages 30, 45)

Turns on the system or sets it to standby

mode.

BOperation mode buttons (page 57)

Changes the component to be operated on

the remote.

STB: You can operate a cable box, digital

satellite receiver, digital video receiver, etc.

TV: You can operate a TV.

BD: You can operate this Blu-ray Disc/

DVD Home Theatre System.

CNumber buttons (pages 46, 57)

Enters the title/chapter numbers, radio

frequencies, etc.

DENTER (page 57)

Enters the selected item.

ETONE (page 44)

Adjusts the sound.

FSLEEP (page 56)

Sets the sleep timer.

GFAVORITES

Displays the contents of Internet entries

added to the Favorites List. You can save 18

favorite Internet contents.

HPOP UP/MENU

Opens or closes the BD-ROM’s Pop-up

Menu, or the DVD’s menu.

IC/X/x/c

Moves the highlight to a displayed item.

(ENTER)

Enters the selected item.

JOPTIONS (page 40)

Displays the options menu on the TV

screen.

KHOME (pages 30, 45, 47, 53, 54, 60)

Enters or exits the system’s home menu.

LSOUND MODE (page 42)

Selects the sound mode.

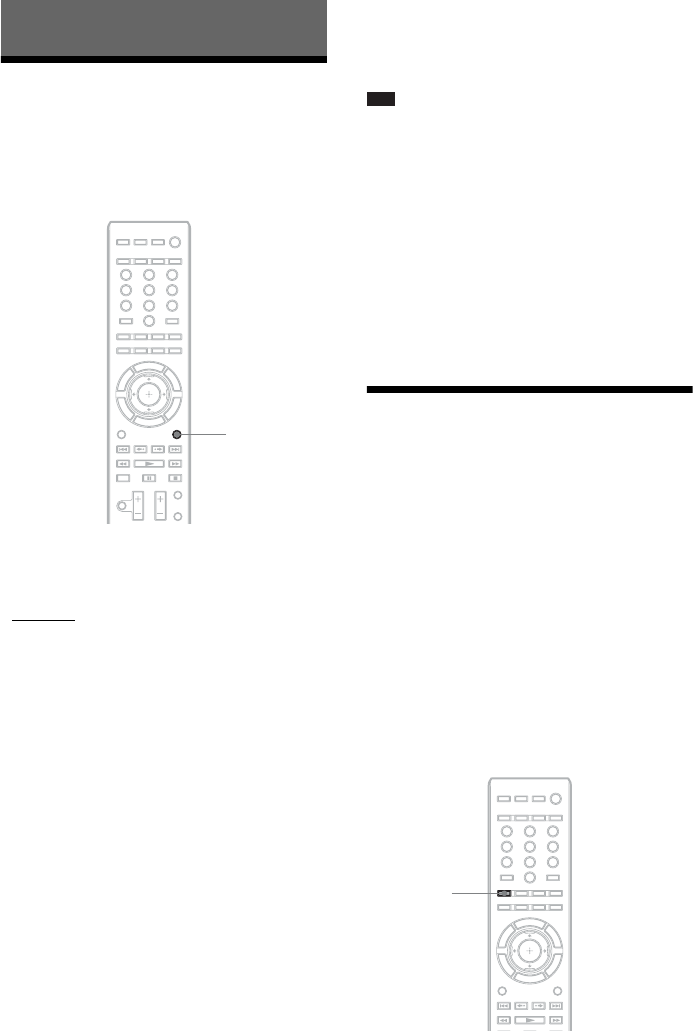

Remote control

321

654

987

THEATER

TVSTB BD

AUDIO

SUBTITLE

D.TUNING

FUNCTION

SOUND MODE

YELLOW

BLUE RED

GREEN

WIDE

INPUT

ENTER

TONE SLEEP

ONE-TOUCH

PLAY

BRAVIA Sync

REPLAY ADVANCE

PRESET PRESET

PA G E PA G E

TUNING

PLAY

PA U S E S T O P

REC

DISPLAY

JUMP

SYSTEM

MUTING

VOL

TUNING

15US

MPlayback operation buttons

See “Playback” (page 35).

./> (previous/next)

Skip to the previous/next chapter, track, or

file.

REPLAY/ADVANCE

Briefly replay the current scenes for 10

seconds./Briefly fast forwards the current

scenes for 15 seconds.

m/M (fast reverse/fast forward)

Fast reverse/fast forward the disc during

playback. Each time you press the button,

search speed changes.

Activates slow-motion play when pressed

for more than one second in pause mode.

Plays one frame at a time when pressed in

pause mode.

N PLAY

Starts or re-starts playback (resume play).

Plays a slideshow when a disc containing

JPEG image files is inserted.

X PAUSE

Pauses or re-starts playback.

x STOP

Stops playback and remembers the stop

point (resume point). The resume point for

a title/track is the last point you played or

the last photo for a photo folder.

Radio operation buttons

See “Tuner” (page 45).

PRESET +/–

TUNING +/–

NDISPLAY (pages 35, 38)

Displays the playback information on the

TV screen.

Displays stream information in the front

panel display when: 1 The function is set

to “TV”/“SAT/CABLE”/“HDMI1”/

“HDMI2,” and 2 Digital signals are input

via the DIGITAL IN/HDMI (IN 1)/HDMI

(IN 2) jack.

OSYSTEM MENU (pages 33, 41, 44, 45)

Enters the system menu.

PMUTING

Turns off the sound temporarily.

QVOL +/– (page 45)

Adjusts the volume.

RFUNCTION (pages 32, 45)

Selects the playback source.

SRETURN

Returns to the previous display.

TTOP MENU

Opens or closes the BD’s or DVD’s Top

Menu.

UColor buttons (YELLOW/BLUE/RED/

GREEN)

Shortcut keys for selecting items on some

Blu-ray menus (can also be used for Java

interactive operations on BDs).

VAUDIO (pages 42, 43)

Selects the audio format/track.

WSUBTITLE (page 63)

Selects the subtitle language when

multilingual subtitles are recorded on a BD-

ROM/DVD VIDEO.

D.TUNING (Direct Tuning) (page 45)

Tunes in to the desired radio frequency.

XZ (open/close) (page 35)

Opens or closes the disc tray.

YTHEATER (page 52)

Switches to the optimum video mode for

watching movies automatically.

ZONE-TOUCH PLAY (page 52)

Activates One-Touch Play.

16US

Getting Started

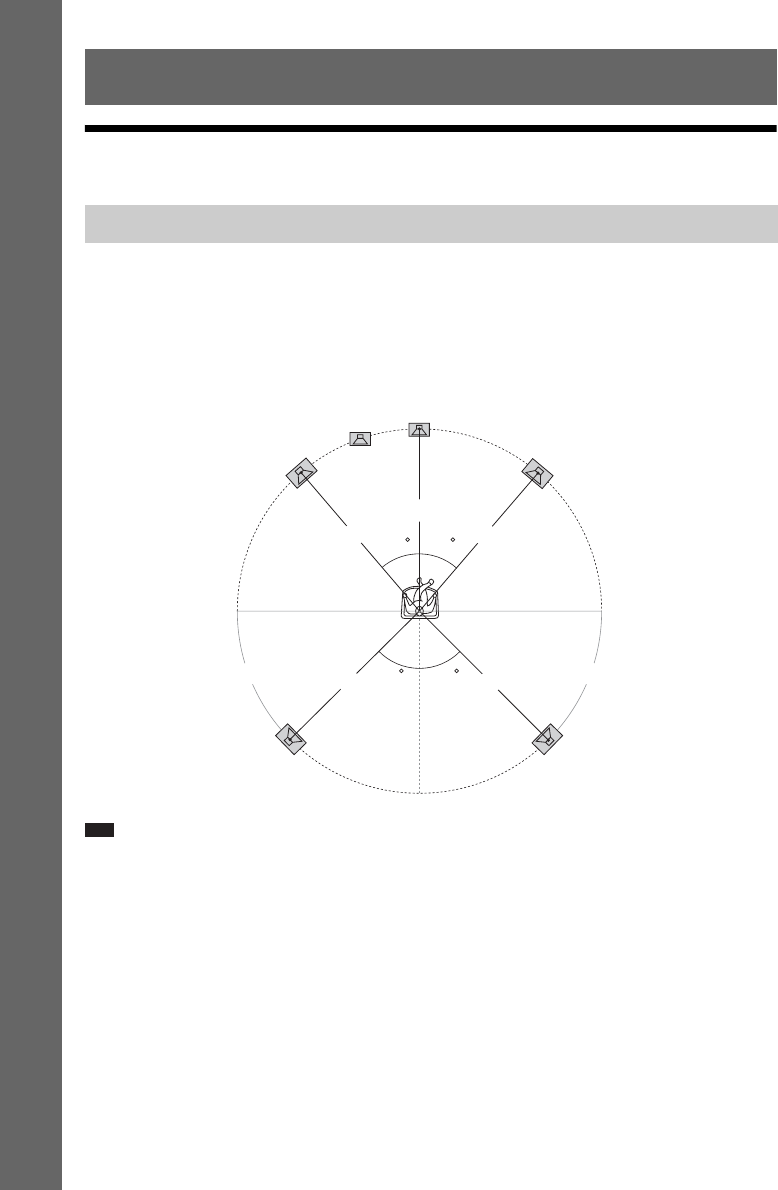

Step 1: Installing the System

For the best possible surround sound, place all speakers at the same distance from the listening position

(A). The distance can be between 0 to 23 feet (0.0 to 7.0 meters).

If you cannot place the center speaker and surround speakers at the same distance as (A), place them

within 23 feet (7.0 meters) of the listening position.

Place the surround speakers to the rear of the listening position (B).

The subwoofer can be placed anywhere in the room.

Note

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,

oiled, polished, etc.) floor, as staining or discoloration may result.

• Do not lean or hang on a speaker, as it may fall down.

Getting Started

Positioning the speakers

B B

30 30

Front left speaker (L) Front right speaker (R)

Center speaker

Subwoofer

Surround right speaker (R)

Surround left speaker (L)

17US

Getting Started

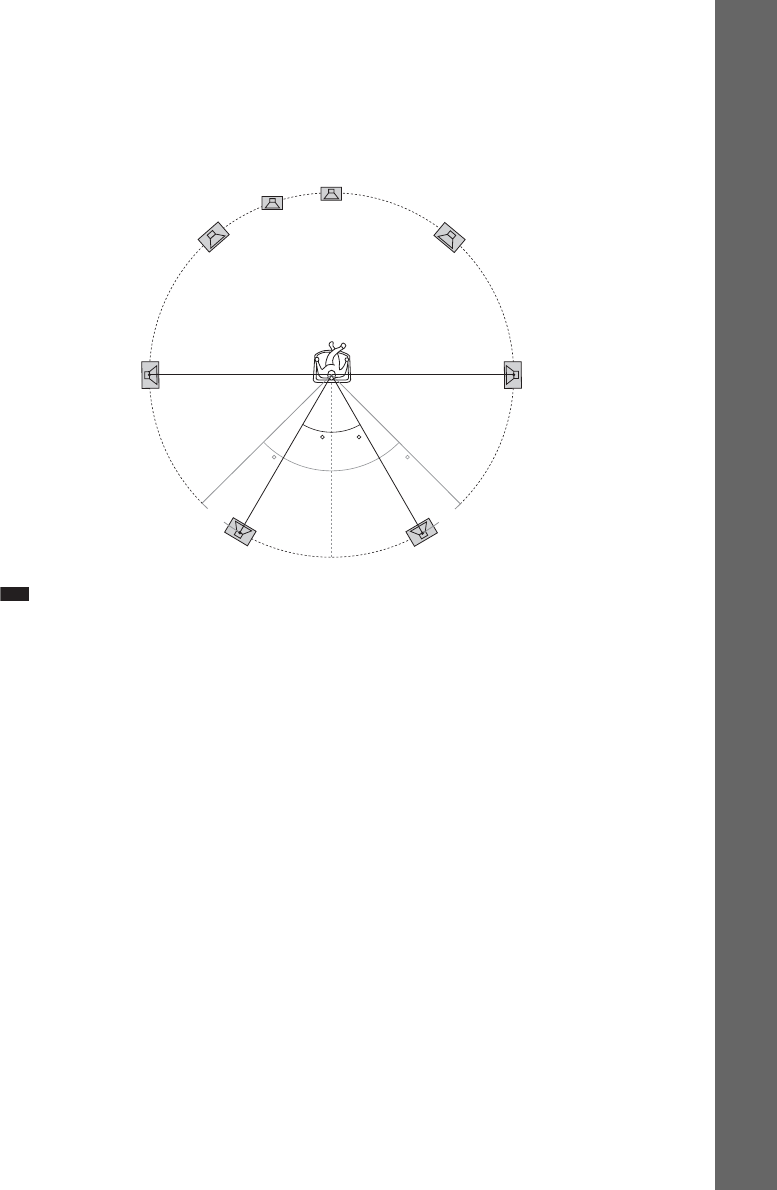

To add the optional surround back speakers

You can enjoy 7.1 surround sound by purchasing the Wireless Surround Speaker Kit (WAHT-SBP2,

optional). The optional product lineup differs depending on the area.

For the position of the surround back speakers, refer the illustration below (C).

Note

• To use the surround back speakers, set [Surround Back] (page 55) in [Speaker Settings] to [Yes] while performing

the Easy Setup (page 30).

45 45

30 30

Front left speaker (L) Front right speaker (R)

Center speaker

Subwoofer

Surround back right speaker (R)

(optional)

Surround back left speaker (L)

(optional)

Surround left

speaker (L)

Surround right

speaker (R)

18US

Getting Started

For assembling the speakers, refer to “Speaker Installation Guide” (supplement).

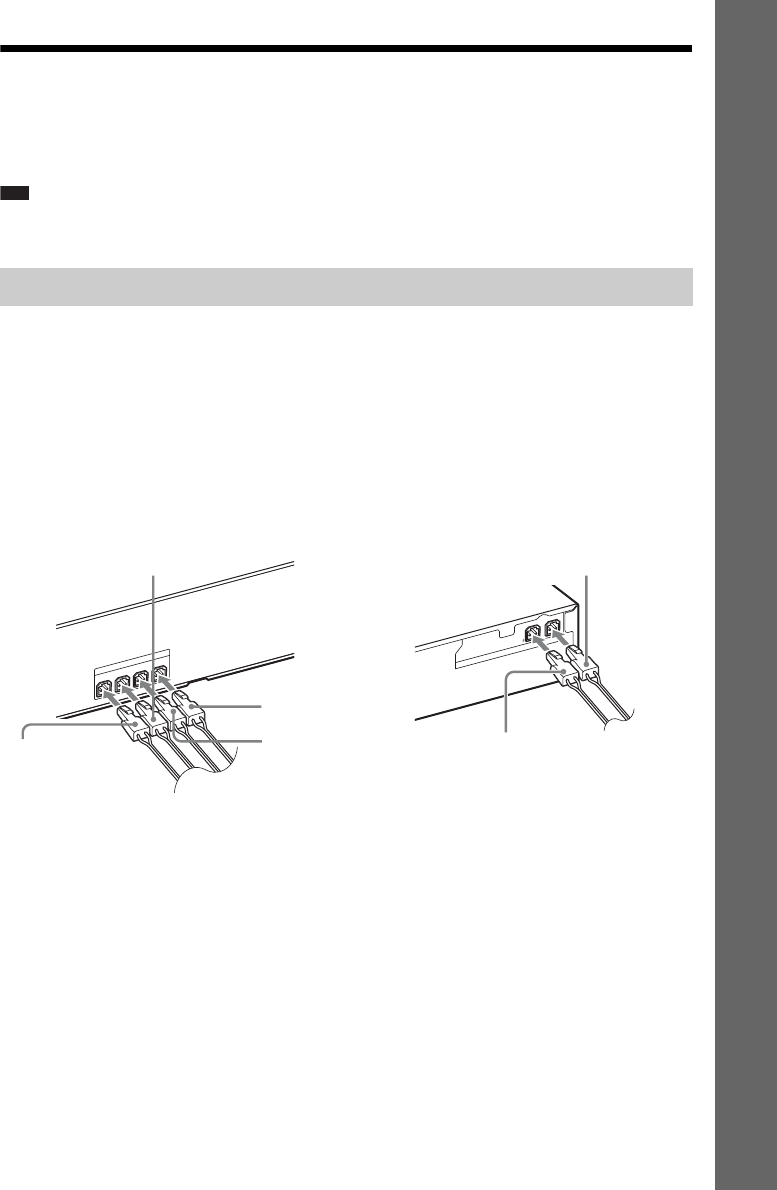

To connect speaker cords to the center speaker and subwoofer (BDV-

IZ1000W only)

Speaker terminals are located on the rear of the speakers.

Caution

• Contact a screw shop or installer regarding the wall material or screws to be used.

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach

the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where

reinforcement is applied.

• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or

improper screw installation, natural calamity, etc.

To install the speakers on a wall

Before installing the speakers on a wall, connect the speaker cord to the speaker.

Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with

the colored tube to 3, and the speaker cord without the colored tube to #.

Assembling the speakers

When installing the speakers on a wall

Colored tube

(–)

(+)

Connector

Rear of the subwoofer

Rear of the center speaker

Purple colored tube

Green colored tube

Colored tube

Front left speaker (L): White

Front right speaker (R): Red

Center speaker: Green

Surround left speaker (L): Blue

Surround right speaker (R): Gray

19US

Getting Started

1Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

2Fasten the screws to the wall.

30 mm (1 3/16 inches)

4 mm (3/16 inch)

Hole on the back of

the speaker

5 mm

(7/32 inch)

10 mm

(13/32 inch)

8 to 10 mm

(

inch

)

219 mm

(

inches)

For the center speaker

For the other speakers

8 to 10 mm

(

inch

)

BDV-IZ1000W

8 to 10 mm

(

inch

)

219 mm

(

inches)

For the center speaker

For the surround speakers

8 to 10 mm

(

inch

)

BDV-HZ970W

330 mm

(

inches)

For the front speakers

8 to 10 mm

(

inch

)

20US

Getting Started

3Hang the speakers on the screws.

5 mm

(7/32 inch)

10 mm

(13/32 inch)

Hole on the back of

the speaker

Rear of the speaker

21US

Getting Started

Step 2: Connecting the System

For connecting the system, read the information on the following pages.

Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other

connections are made.

Note

• When you connect another component with a volume control, turn down the volume of the other components to a

level where sound is not distorted.

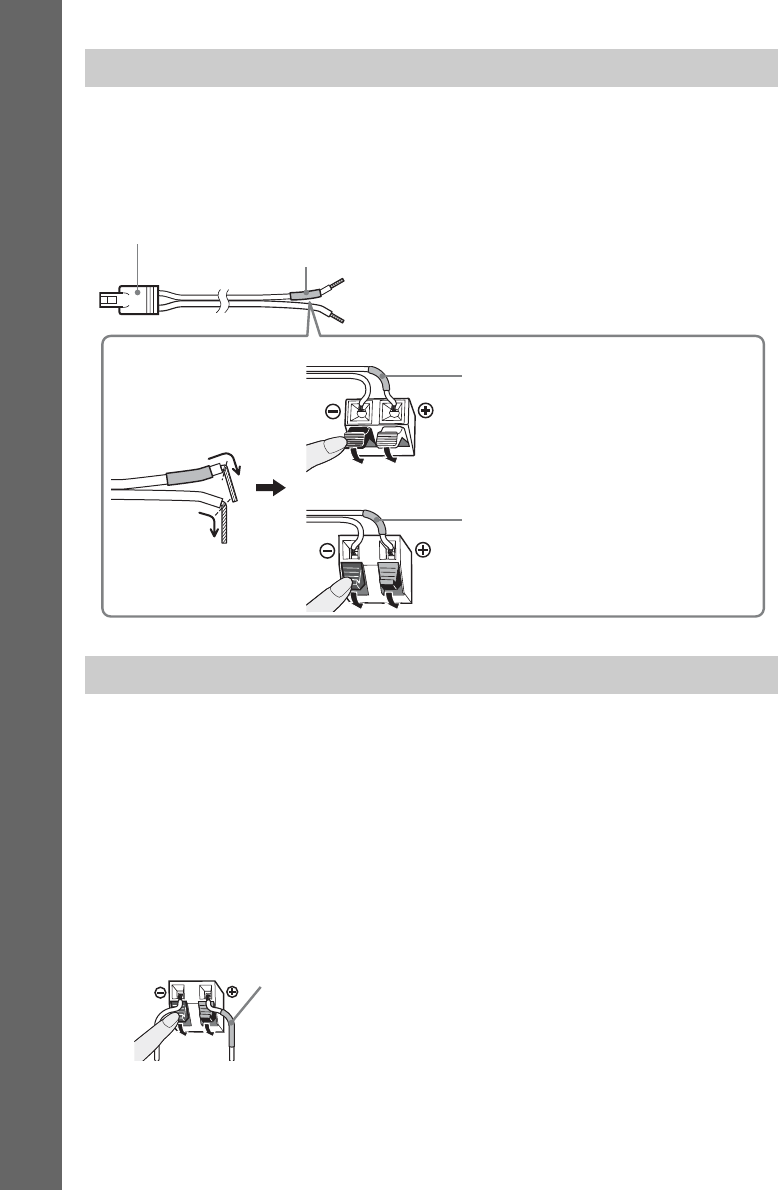

The connector of the speaker cords and the color tube are color-coded depending on the type of speaker.

Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.

Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with

the color tube to 3, and the speaker cord without the color tube to #. Do not catch the speaker cord

insulation (rubber covering) in the speaker terminals.

To connect speaker cords to the unit and surround amplifier

When connecting to the unit and surround amplifier, insert the connector until it clicks.

Connecting the speakers

SPEAKERS

FRONT R FRONT L WOOFER CENTER

SPEAKERS

3-16

IMPEDANCE USE

Green

(Center speaker)

Purple

(Subwoofer)

White

(Front left speaker (L))

Red

(Front right

speaker (R))

Gray

(Surround right speaker (R))

Blue

(Surround left speaker (L))

Rear panel of the unit Rear panel of the surround amplifier

22US

Getting Started

This connection sends a video signal to the TV.

Depending on the jacks on your TV, select the connection method.

Method 1: HDMI cable (A) connection

If your TV has an HDMI jack, connect to the TV with an HDMI cable. Picture quality will be improved

compared to using the component video cable connection or the video cord connection.

When connecting with the HDMI cable, you need to select the type of output signal (page 61).

Method 2: Component video cable (B) connection

If your TV does not have an HDMI jack, but has component video input jacks, connect to the TV with

a component video cable. Picture quality will be improved compared to using the video cord

connection.

When connecting with the component video cable, you need to select the type of output signal (page

61).

Method 3: Video cord (C) connection

If you do not have an HDMI cable or a component video cable, make this connection.

Connecting the TV (Video connection)

VIDEO

OUT

COMPONENT VIDEO OUT

ARC

IN 1 IN 2 OUT

HDMI

To the HDMI IN jack

of the TV.

To the component

video input jacks of

the TV.

C Video cord (supplied)

A HDMI cable

(not supplied)

To the video input

jack of the TV.

B Component video

cable (not supplied)

Rear panel of the unit

23US

Getting Started

This connection sends an audio signal to the unit from the TV. To listen to TV sound via the system,

perform this connection.

With a digital audio connection, the system receives a Dolby Digital multiplex broadcast signal and

you can enjoy multiplex broadcast sound.

Note

• When you connect the TV and the unit with an audio cord, see “Connecting the other components” (page 24).

About Audio Return Channel (ARC)

If your TV is compatible with the Audio Return Channel function, an HDMI cable connection also

sends a digital audio signal from the TV. You do not need to make a separate audio connection for

listening to TV sound. For details of the Audio Return Channel function, see [Audio Return Channel]

(page 64).

Connecting the TV (Audio connection)

DIGIT

AL IN

T/CABLE

COAXOPT

To the digital optical out jack of

the TV.

Digital optical cord

(not supplied)

Rear panel of the unit

24US

Getting Started

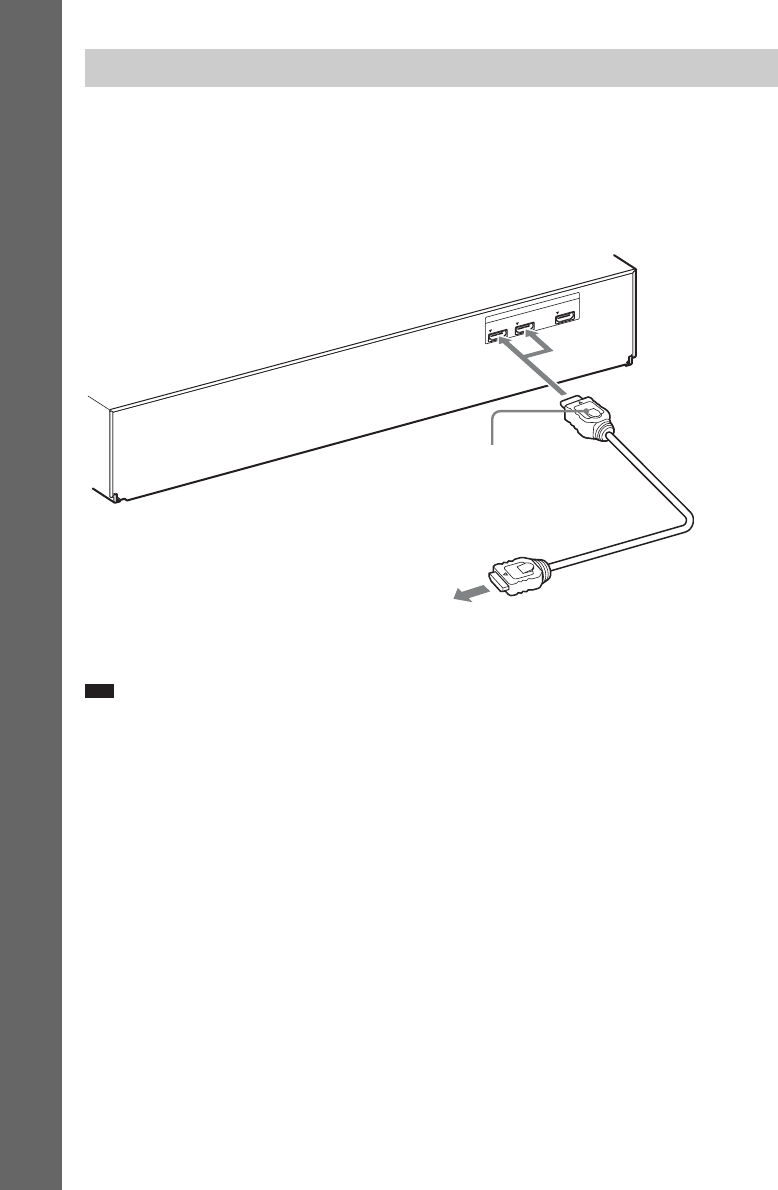

When another component you wish to connect to the system has an

HDMI OUT jack

You can connect a component that has an HDMI OUT jack such as a set-top box/digital satellite

receiver or PLAYSTATION®3, etc., with an HDMI cable. An HDMI cable connection can send both

video and audio signals. By connecting the system and the component using an HDMI cable, you can

enjoy high-quality digital pictures and sound via the HDMI (IN 1) or HDMI (IN 2) jack.

Note

• Video signals to the HDMI (IN 1/IN 2) jacks are output from the HDMI (OUT) jack only when the “HDMI1” or

“HDMI2” function is selected.

• To output an audio signal from the HDMI (OUT) jack, you need to change the audio output setting. For details, see

[Audio Output] in [Audio Settings] (page 62).

Connecting the other components

ARC

IN 1 IN 2 OUT

HDMI

To the HDMI OUT jack of the set-top box/

digital satellite receiver or

PLAYSTATION®3, etc.

HDMI cable (not

supplied)

Rear panel of the unit

25US

Getting Started

When the component does not have an HDMI OUT jack

Video signals from the system and the components are sent to the TV, and audio signals from the

components are sent to the system as follows.

You can enjoy connected components via the system’s speakers.

• VCR or digital satellite receiver, etc. (not supplied), which has a digital coaxial output jack: D

• VCR, digital satellite receiver, PlayStation, or portable audio source, etc. (not supplied): E

System Signal flow

: Audio signal

: Video signal

DIGIT

AL IN

T/CABLE

COAXOPT

AUDIO

AUDIO IN

To the digital coaxial out jack

of the VCR or digital satellite

receiver, etc.

To the audio out jacks of the VCR,

digital satellite receiver, PlayStation,

or portable audio source, etc.

E Audio cord

(not supplied)

D Digital coaxial cord

(not supplied)

Rear panel of the unit

26US

Getting Started

Note

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.

• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM

antenna (aerial) as shown below.

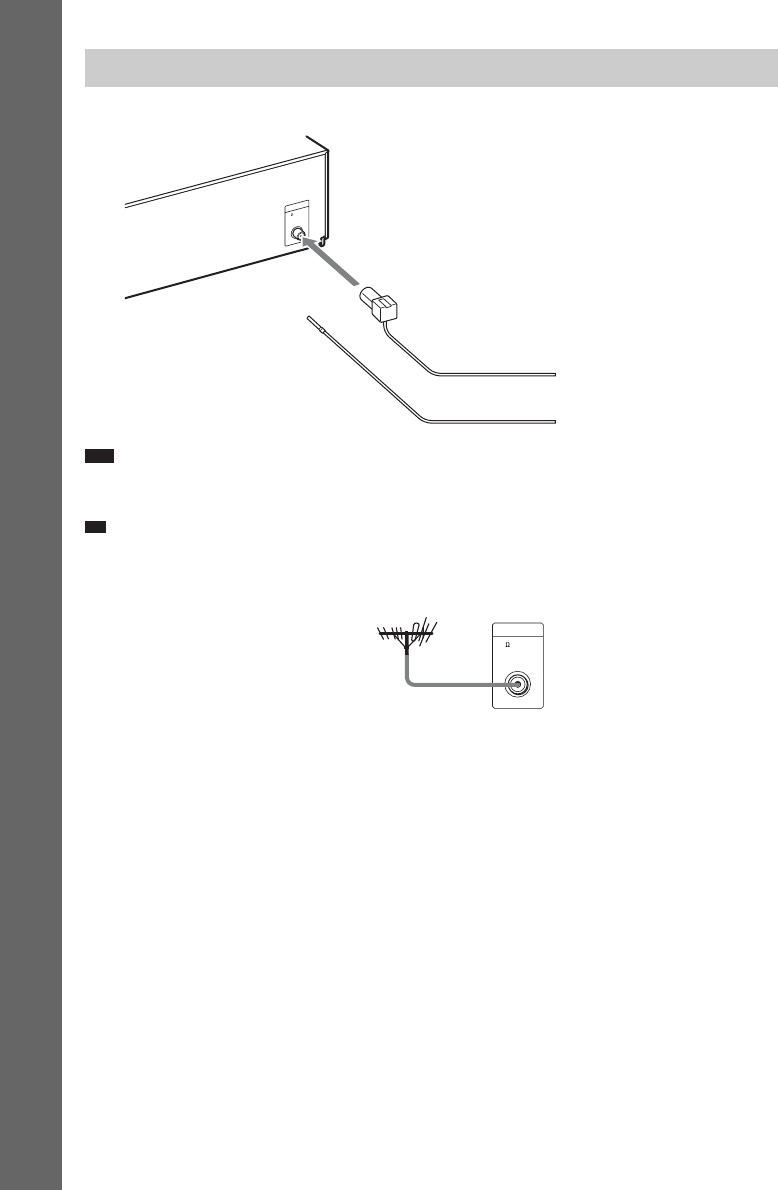

Connecting the antenna (aerial)

ANTENNA

75 COAXIAL

FM wire antenna (aerial)

(supplied)

Rear panel of the unit

ANTENNA

75 COAXIAL

Outdoor FM antenna (aerial)

Unit

27US

Getting Started

You can transmit the audio signal from the main unit to an S-AIR product, such as the surround

amplifier or S-AIR receiver.

To transmit sound from the unit, insert one wireless transceiver into the main unit and the other one

into the S-AIR product, e.g. the surround amplifier.

For details of S-AIR products, see “Using an S-AIR Product” (page 47).

Note

• Please make sure to fully insert the wireless transceiver into the wireless transceiver slot. You should hear a click

when the wireless transceiver is inserted correctly.

• To avoid inserting the wireless transceiver upside-down, orient it with the Sony logo facing up.

Inserting the wireless transceiver

EZW-RT10

Rear panel of the unit Rear panel of the surround amplifier

Wireless

transceiver Wireless

transceiver

28US

Getting Started

Step 3: Connecting to

the Network

Connecting the system to the Internet allows you

to watch Internet video, listen to Internet audio,

use BD-LIVE, and update the Home Theatre

System software.

Use a LAN cable to connect to the LAN (100)

terminal on the unit.

• Using a shielded LAN cable, straight or crossing, is

recommended.

To set the network settings

Select [Network Settings], [Internet Settings],

then [Wired Setup] (page 65), and follow the on-

screen instructions to complete the setup.

Use a wireless LAN via the USB Wireless LAN

Adapter (Sony UWA-BR100* only) (supplied

with BDV-HZ970W).

The USB Wireless LAN Adapter may not be

available in some regions/countries.

* As of January 2010.

Turn the unit off before connecting the

extension cable or inserting the USB Wireless

LAN Adapter. After inserting the USB Wireless

LAN Adapter to the base of the extension cable

and connecting the extension cable to the

(USB) port (front or rear), turn the unit on again.

Note

• The placement distance between the USB Wireless

LAN Adapter and your wireless LAN router differs

depending on the usage environment. If the system

cannot connect to the network or the network

connection is unstable, move the USB Wireless LAN

Adapter to a different position or place the USB

Wireless LAN Adapter and the wireless LAN router

closer to each other.

To set the network settings

Select [Network Settings], [Internet Settings],

then [USB Wireless Setup] (page 65), and

follow the on-screen instructions to complete

the setup.

• For details on wireless network setup, please visit:

http://www.sony.com/blurayhtsupport

About wireless LAN security

Since communication via the wireless LAN

function is established by radio waves, the

wireless signal may be susceptible to

interception. To protect wireless

communication, this system supports various

security functions. Be sure to correctly

configure the security settings in accordance

with your network environment.

No Security

Although you can easily make settings, anyone

can intercept wireless communication or intrude

into your wireless network, even without any

sophisticated tools. Keep in mind that there is a

risk of unauthorized access or interception of

data.

Wired Setup

USB Wireless Setup

ADSL modem/

cable modem

Broadband

router

LAN cable

(not supplied)

Internet

USB

Wireless

LAN

Adapter

LAN cable

(not supplied)

Wireless LAN

router

ADSL modem/

cable modem

Internet

29US

Getting Started

WEP

WEP applies security to communications to

prevent outsiders from intercepting

communications or intruding into your wireless

network. WEP is a legacy security technology

that enables older devices, which do not support

TKIP/AES, to be connected.

WPA-PSK (TKIP), WPA2-PSK (TKIP)

TKIP is a security technology developed to

correct for the deficiencies of WEP. TKIP

assures a higher security level than WEP.

WPA-PSK (AES), WPA2-PSK (AES)

AES is a security technology that uses an

advanced security method that is distinct from

WEP and TKIP.

AES assures a higher security level than WEP or

TKIP.

Step 4: Setting up the

S-AIR Wireless System

Before performing Step 4

Make sure all connections are secure, and then

connect the AC power cords (mains leads).

To use the S-AIR wireless system, you need to

set up the surround amplifier.

The unit transmits sound to the surround

amplifier that is connected to the surround

speakers. To activate wireless transmission,

perform the following Steps.

1Press "/1 to turn the system on.

Make sure that “S-AIR” light up in the front

panel display. When “S-AIR” does not light

up, make sure that the wireless transceiver

is inserted into the unit correctly.

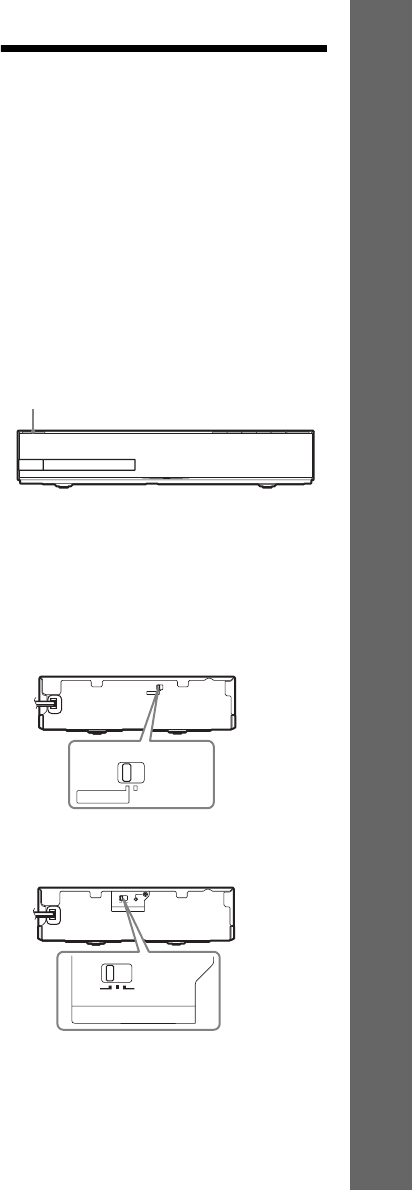

2Set the SURROUND SELECTOR switch

of the surround amplifier to

SURROUND.

3Set the S-AIR ID switch of the surround

amplifier to A.

"/1

SURROUND SELECTOR

SURROUND

SURROUND BACK

SURROUND SELECTOR

SURROUND

SURROUND BACK

PAI R I N G

ABC

S-AIR ID

ABC

S-AIR ID

30US

Getting Started

4Press "/1 to turn the surround amplifier

on.

When wireless transmission is activated,

the S-AIR/STANDBY indicator turns

green.

If the S-AIR/STANDBY indicator does not

turn green, see “Surround amplifier”

(page 13).

For details of the S-AIR function, see

“Using an S-AIR Product” (page 47).

About the standby mode

The surround amplifier enters standby mode

automatically (the S-AIR/STANDBY indicator

turns red) when the main unit is in standby mode

or wireless transmission is deactivated.

The surround amplifier turns on automatically

(the S-AIR/STANDBY indicator turns green)

when the system is turned on and wireless

transmission is activated.

Step 5: Performing the

Easy Setup

Follow the Steps below to make the basic

adjustments for using the system.

Displayed items vary depending on the country

model.

Note

• To use the optional surround back speakers, set

[Surround Back] in [Speaker Settings] to [Yes]

(page 55).

1Turn on the TV.

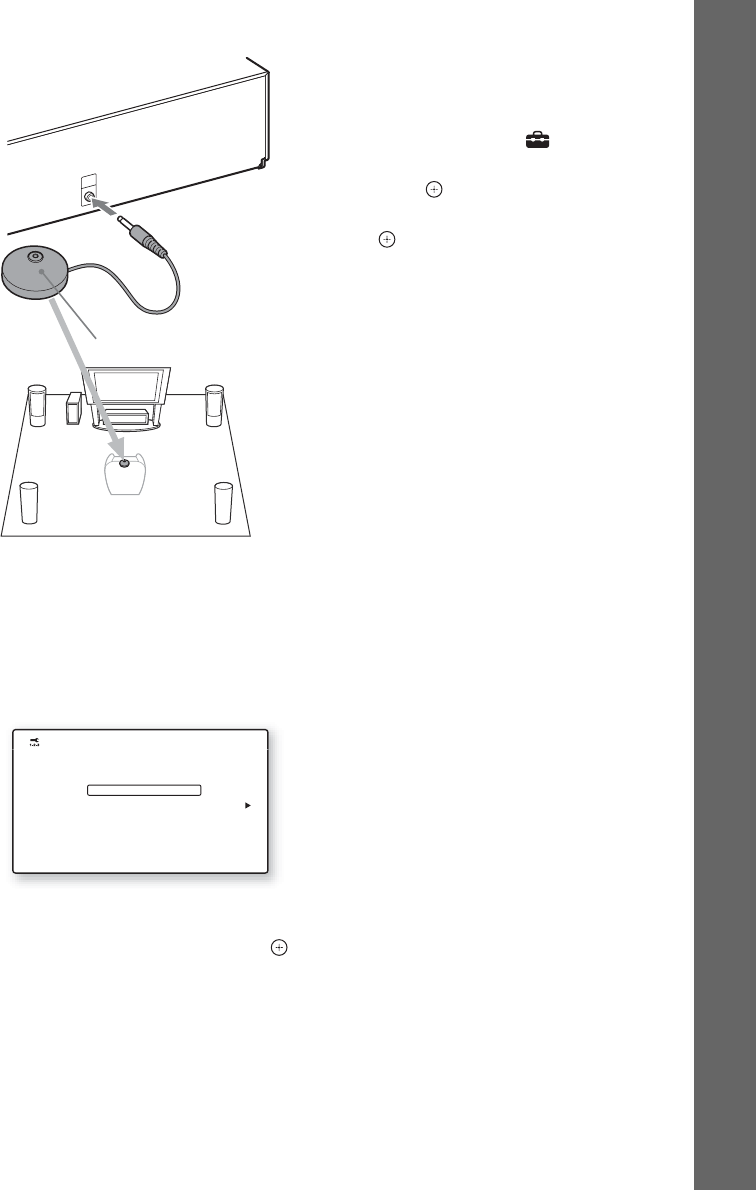

2Connect the calibration mic to the

A.CAL MIC jack on the rear panel.

Set up the calibration mic at ear level using

a tripod, etc. (not supplied). The front of

each speaker should face the calibration

mic, and there should be no obstruction

between the speakers and the calibration

mic.

S-AIR/STANDBY

S-AIR/STANDBY indicator

"/1

321

654

987

C/X/x/c,

HOME

"/1

31US

Getting Started

3Press [/1 on the unit, and [/1 on the

surround amplifier.

4Switch the input selector on your TV so

that the signal from the system

appears on the TV screen.

The Easy Setup Display for OSD language

selection appears.

5Perform the [Easy Setup]. Follow the

on-screen instructions to make the

basic settings using C/X/x/c, and .

For details about [Auto Calibration]

settings in [Easy Setup], see “Calibrating

the Appropriate Settings Automatically”

(page 53).

To recall the Easy Setup Display

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select [Easy Setup], then

press .

4Press C/c to select [Start], then press

The Easy Setup Display appears.

A.CAL

MIC

ECM-AC2

Calibration mic

English

Français

Español

Português

Easy Setup - OSD

Select the language to be displayed by this unit.

32US

Getting Started

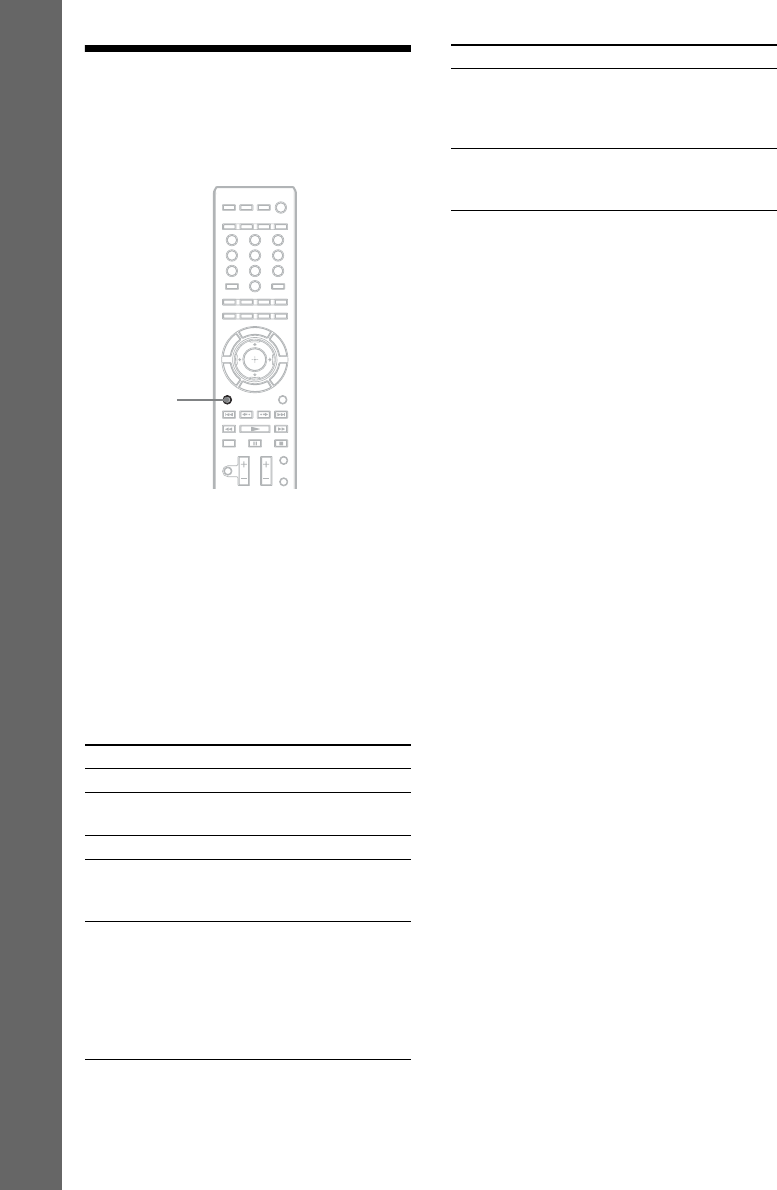

Step 6: Selecting the

Source

You can select the playback source.

Press FUNCTION repeatedly until the

desired function appears in the front panel

display.

Each time you press FUNCTION, the function

changes as follows.

“BD/DVD” t “D. MEDIA” t “TUNER FM”

t “HDMI1” t “HDMI2” t “TV” t

“SAT/CABLE” t “AUDIO” t “BD/DVD”

t …

Function Source

“BD/DVD” Disc that is played by the system

“D. MEDIA” USB device, iPod, BRAVIA

Internet Video, or DLNA server

“TUNER FM” FM radio (page 45)

“HDMI1”/

“HDMI2”

Component that is connected to

the HDMI (IN 1) or HDMI (IN 2)

jack on the rear panel (page 24)

“TV” Component (TV, etc.) that is

connected to the DIGITAL IN

(TV OPT) jack on the rear panel,

or a TV compatible with the Audio

Return Channel function that is

connected to the HDMI (OUT)

jack on the rear panel (page 23).

321

654

987

FUNCTION

“SAT/CABLE” Component that is connected to

the DIGITAL IN (SAT/CABLE

COAX) jack on the rear panel

(page 24)

“AUDIO” Component that is connected to

the AUDIO (AUDIO IN L/R)

jacks on the rear panel (page 24)

Function Source

33US

Getting Started

Step 7: Enjoying Surround Sound

After performing the previous Steps and starting playback, you can easily enjoy surround sound. You

can also select pre-programmed surround settings that are tailored to different kinds of sound sources.

They bring the exciting and powerful sound of movie theaters into your home.

1Press SYSTEM MENU.

2Press X/x repeatedly until “SUR.SETTING” appears in the front panel display, then

press or c.

3Press X/x repeatedly until the surround setting you want appears in the front panel

display.

See the table below for surround sound setting descriptions.

4Press .

The setting is made.

5Press SYSTEM MENU.

The system menu turns off.

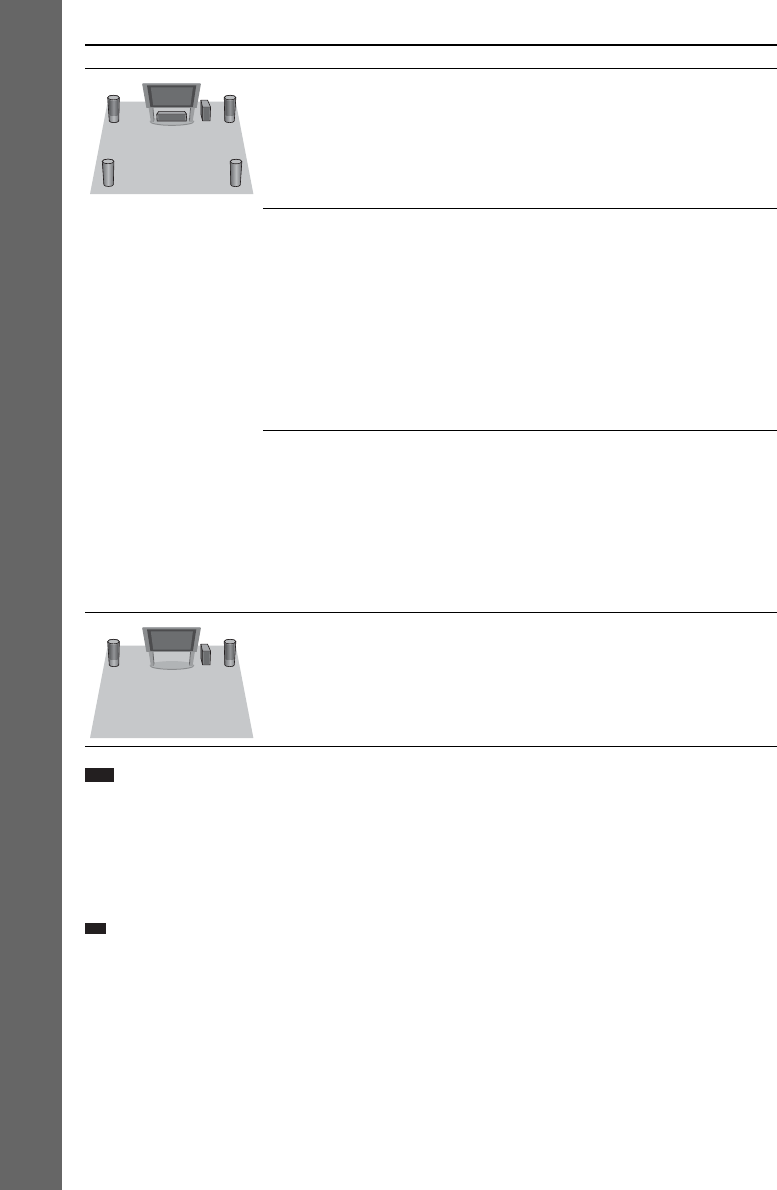

About speaker output of each surround setting

The table below describes the options when you connect all the speakers to the unit.

The default setting is “A.F.D. 7.1CH.”

Selecting surround settings based on your listening preference

Sound from Surround setting Effect

Depending on the source. “A.F.D. STD”

(AUTO FORMAT

DIRECT STANDARD)

The system discriminates the sound format of the source and

presents sound as it was recorded/encoded.

321

654

987

SYSTEM MENU

X/x/c,

34US

Getting Started

Note

• When you select “A.F.D. 7.1CH,” depending on the disc or source, the beginning of the sound may be cut off while

the optimum mode is automatically selected. To avoid cutting the sound, select “A.F.D. STD.”

• When bilingual broadcast sound is input, “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are not effective.

• Depending on the input stream, the surround settings may not be effective.

• When changing the surround setting while using the S-AIR receiver, sound from the S-AIR receiver may skip.

• When you play a Super Audio CD, surround settings are not activated.

• The system memorizes the last surround setting selected for each function.

Whenever you select a function such as “BD/DVD” or “TUNER FM,” the surround setting that was last applied to

the function is automatically applied again. For example, if you select “BD/DVD” with “PRO LOGIC” as the

surround setting, then change to another function, and then return to “BD/DVD,” “PRO LOGIC” will be applied

again.

“A.F.D. 7.1CH”

(AUTO FORMAT

DIRECT 7.1CH)

• 2 channel source: The system simulates surround sound

from 2 channel sources and outputs sound from the 5.1

channel speakers by duplicating 2 channel source sound

across each speaker.

• Multi-channel source: The system creates the surround back

sound virtually depending on the number of channels of the

source and outputs the sound as 7.1 channel surround sound.

“PRO LOGIC”

“PLII MOVIE”

“PLII MUSIC”

• 2 channel source: The system simulates surround sound

from 2 channel sources and outputs sound from the 5.1

channel speakers.

– “PRO LOGIC” performs Dolby Pro Logic decoding.

– “PLII MOVIE” performs Dolby Pro Logic II movie

mode decoding.

– “PLII MUSIC” performs Dolby Pro Logic II music mode

decoding.

• Multi-channel source: The system outputs sound from the

speakers depending on the number of channels of the

source.

“NEO6 CIN”

“NEO6 MUS”

• 2 channel source: The system simulates surround sound

from 2 channel sources and produces 6.1 channel sound.

– “NEO6 CIN” performs DTS Neo:6 Cinema mode

decoding.

– “NEO6 MUS” performs DTS Neo:6 Music mode

decoding.

• Multi-channel source: The system outputs sound from the

speakers depending on the number of channels of the

source.

“2CH STEREO” The system outputs the sound from the front speakers and

subwoofer regardless of sound format or number of channels.

Multi-channel surround formats are downmixed to 2

channels.

Sound from Surround setting Effect

Playback

35US

Playing a Disc

For playable discs, see “Playable Discs”

(page 76).

1Switch the input selector on your TV so

that the signal from the system

appears on your TV screen.

2Press Z, and place a disc on the disc

tray.

3Press Z to close the disc tray.

appears on the home menu and playback

starts.

If playback does not start automatically,

select in the [Video], [Music], or

[Photo] category, and press .

Some BD-ROMs with “BD-LIVE” Logo* have

bonus content and other data that can be

downloaded for enjoyment.

1Prepare for BONUSVIEW/BD-LIVE.

• Connect the unit to a network (page 28).

• Set [BD Internet Connection] to [Allow]

(page 63).

2Insert a BD-ROM with BONUSVIEW/

BD-LIVE.

The operation method differs depending on

the disc. Refer to the operating instructions

of the disc.

• Delete unnecessary data in internal memory or USB

memory. Select [Erase BD Data] in [Video] to

delete unnecessary data. If you use USB memory as

local storage, all saved data in the [BUDA/BUDB]

folder is deleted. Make sure to backup any video/

music/photo data in the [BUDA/BUDB] folder.

You can enjoy Blu-ray 3D Discs with the 3D

logo*.

1Prepare for Blu-ray 3D Disc playback.

• Connect the system to your 3D-

compatible TV using a High-Speed

HDMI cable (not supplied).

• Set [3D Output Setting] and [TV Screen

Size Setting for 3D] in [Screen Settings]

(page 61).

2Insert a Blu-ray 3D Disc.

The operation method differs depending on

the disc. Refer to the operating instructions

supplied with the disc.

• Refer also to the operating instructions of your 3D-

compatible TV.

Playback

Enjoying BONUSVIEW/BD-LIVE

Enjoying Blu-ray 3D

36US

You can check the playback information, etc.,

by pressing DISPLAY.

The displayed information differs depending on

the disc type and player status.

Example: when playing a BD-ROM

AOutput resolution/Video frequency

BTitle number or name

CThe currently selected audio setting

DAvailable functions ( angle, audio,

subtitle)

EPlayback information

Displays disc type, play mode, repeat type,

video codec, bit rate, playing status bar,

playing time, total time

FChapter number

GThe currently selected angle

Playing from a USB

Device

You can play video/music/photo files on the

connected USB device.

For playable types of files, see “Playable Types

of Files” (page 77).

1Connect the USB device to the

(USB) port on the unit.

Refer to the operating instructions of the

USB device before connecting.

2Press C/c to select [Video],

[Music], or [Photo].

3Press X/x to select [USB device

(front)] or [USB device (rear)], then

press .

Note

• Do not remove the USB device during

operation. To avoid data corruption or damage

to the USB device, turn the system off when

connecting or removing the USB device.

Displaying the play information

USB device

Rear panel

PUSH OPEN

USB device

Front panel

Playback

37US

Enjoying an iPod

You can enjoy the sound and charge the battery

of an iPod via the system.

Compatible iPod models

The compatible iPod models are as follows.

Update your iPod with the latest software before

using with the system.

1Connect the iPod to the (USB) port

on the unit with the iPod’s USB cable.

2Press C/c to select [Music].

3Press X/x to select [iPod (front)],

then press .

The sound from the iPod is played on the

system.

You can operate the iPod using the buttons

on the remote.

For operation details, refer to the operating

instructions of the iPod.

To operate the iPod using the

remote

You can operate the iPod using the buttons on

the remote. The following table shows an

example of buttons that can be used.

Note

• The iPod is charged when connected to the system

while the system is turned on.

• You cannot transfer songs onto the iPod.

• Sony cannot accept responsibility in the event that

data recorded to iPod is lost or damaged when using

an iPod connected to this unit.

• This product has been designed specifically to work

with iPod and has been certified to meet Apple

performance standards.

• Do not remove the iPod during operation. To avoid

data corruption or damage to the iPod, turn the system

off when connecting or removing the iPod.

Press Operation

N, XSame operation as the N/X button

of the iPod.

xPause.

m or MFast reverse or forward.

. or >Same operation as the . or >

buttons of the iPod.

DISPLAY,

RETURN,

Same operation as the MENU button

of the iPod.

X/xSame operation as the Click Wheel

of the iPod.

, cSame operation as the Center button

of the iPod.

38US

Playing via a Network

BRAVIA Internet Video serves as a gateway

delivering the selected Internet content and a

variety of on-demand entertainment straight to

your unit.

1Prepare for BRAVIA Internet Video.

Connect the unit to a network (page 28).

2Press C/c to select [Video],

[Music], or [Photo].

3Press X/x to select an Internet content

provider icon, then press .

When the Internet content list has not been

retrieved, it will be represented by an

unacquired icon or a new icon.

To use the control panel

The control panel appears when the video file

starts playing. The displayed items may differ

depending on Internet content providers.

To display again, press DISPLAY.

AControl display

Press C/X/x/c or for playback operations.

BPlaying status bar

Status bar, cursor indicating the current

position, playing time, duration of the video

file

CThe next video file name

DThe currently selected video file name and

rating

You can play video/music/photo files on your

home server, such as a DLNA-certified network

audio system or a PC with software that enables

a DLNA-certified server function, by

connecting the system to your home network.

1Prepare for playing files on a DLNA

server.

• Connect the unit to a network (page 28).

• Set [Connection Server Settings]

(page 66).

2Press C/c to select [Video],

[Music], or [Photo].

3Press X/x to select a DLNA server, then

press .

The file list or folder list appears.

Note

• If [Party Auto Start] (page 66) is not displayed on the

TV screen, this function may be available via a future

update. However, the function may not be available

in some regions/countries.

You can play the same audio at the same time

across all Sony components which are

compatible with the PARTY STREAMING

function.

The component that plays audio for the party

through the use of [Start Party] is called the

“party host.” A component that is invited to the

Streaming BRAVIA Internet

Video

Playing files stored on a DLNA

server (DLNA Player)

Playing the same audio in

different rooms (PARTY

STREAMING)

Playback

39US

party from the party host and plays the same

audio as the party host is called a “party guest.”

To start a party

(for the party host only)

You can use other components to play the

content that is playing on the system.

1Turn on the system and other Sony

components compatible with the

PARTY STREAMING function.

Make sure that each component is

connected to the network.

2Press C/X/x/c to select the audio

content in [Music] or a radio station.

For selecting a radio station, see “Listening

to the Radio” (page 45).

3Press OPTIONS.

4Press X/x to select [Start Party], then

press .

All party guests’ components start playing

the same audio content as the party host.

To join in a party

(for a party guest only)

You can use the system to play the content that

is playing on other components.

1Turn on the system and other Sony

components compatible with the

PARTY STREAMING function.

Make sure that each component is

connected to the network.

2Start a party on another networked

component.

3Press C/c to select [Music].

4Press X/x to select [Party], then

press .

5Press X/x to select the party host that

you set up in Step 2, then press .

To close a party

For the party host

Press x, then press HOME.

For a party guest

Press OPTIONS, press X/x to select [Close

Party], then press in Step 3 above.

To leave from a party

(for a party guest only)

Press OPTIONS, press X/x to select [Leave

Party], then press .

Note

• The sale and product lineup of products that are

compatible with the PARTY STREAMING function

differ depending on the area.

Note

• If [Renderer Options] (page 66) is not displayed on

the TV screen, this function may be available via a

future update. However, the function may not be

available in some regions/countries.

The system is compatible with the DLNA

renderer (network controlled player) function.

You can operate the system with a DLNA

controller.

For details of operation, see the operating

instructions of the DLNA controller.

Note

• Do not operate the system with the supplied remote

when operating the system by the DLNA controller.

• The system is compatible with the “Play To” function

of Windows Media® Player 12 that comes standard

with Windows 7.

Operating the system with a

DLNA controller (DLNA

renderer)

40US

Available Options

Various settings and playback operations are

available by pressing OPTIONS. The available

items differ depending on the situation.

Common options

[Video] only

[Music] only

Items Details

[Playback History

List]

Displays titles/tracks in the

playback history of a

BD-ROM/DVD-ROM/

CD-DA (music CD) using

Gracenote technology.

[Search History] Searches for related

information based on

keywords from Gracenote via

the Information Display.

[Search Contents] Searches for BRAVIA

Internet Video content based

on keywords from Gracenote

via the Information Display.

[Repeat Setting] Sets the repeat play.

[Favorites List] Displays the Favorites List.

[Play/Stop] Starts or stops playback.

[Play from beginning] Plays the item from the

beginning.

[Information Display] Displays information on the

BD-ROM/DVD-ROM/

CD-DA (music CD) by using

Gracenote technology.

[Add to Favorites] Adds an Internet content to

the Favorites List.

[Remove from

Favorites]

Erases an Internet content

from the Favorites List.

Items Details

[3D Output Setting] Sets whether or not to output

3D video automatically.

Note

• 3D video from the HDMI

(IN 1) or HDMI (IN 2) jack

is output regardless of this

setting.

[Video Settings] • [Picture Quality Mode]:

Selects the picture settings

for different lighting

environments.

• [FNR]: Reduces the random

noise appearing in the

picture.

• [BNR]: Reduces the

mosaic-like block noise in

the picture.

• [MNR]: Reduces minor

noise around the picture

outlines (mosquito noise).

[Play/Pause] Starts or pauses playback.

[Top Menu] Displays the BD’s or DVD’s

Top Menu.

[Menu/Popup Menu] Displays the BD-ROM’s

Pop-up Menu or DVD’s

menu.

[Title Search] Searches for a title on BD-

ROMs/DVD VIDEOs and

starts playback from the

beginning.

[Chapter Search] Searches for a chapter and

starts playback from the

beginning.

[Angle] Switches to other viewing

angles when multi-angles are

recorded on BD-ROMs/DVD

VIDEOs.

[IP Content Noise

Reduction]

Adjusts the video quality for

Internet content.

Items Details

[Add Slideshow

BGM]

Registers music files in the

USB memory as slideshow

background music.

Playback

41US

[Photo] only

When the sound does not match the pictures on

the TV screen, you can adjust the delay between

the picture and sound.

1Press SYSTEM MENU.

2Press X/x repeatedly until “A/V SYNC”

appears in the front panel display, then

press or c.

3Press X/x to adjust the delay between

the picture and sound.

You can adjust from 0 ms to 300 ms in 25

ms increments.

4Press .

The setting is made.

5Press SYSTEM MENU.

The system menu turns off.

Note

• Depending on the input stream, A/V SYNC may not

be effective.

Items Details

[Slideshow] Starts a slideshow.

[Slideshow Speed] Changes the slideshow speed.

[Slideshow Effect] Sets the effect when playing a

slideshow.

[Slideshow BGM] • [Off]: Turns off the

function.

• [My Music from USB]: Sets

the music files registered in

[Add Slideshow BGM]. If

no music file is registered,

[(Not registered)] is

displayed.

• [Play from disc]: Sets the

tracks on CD-DAs (music

CDs).

[Rotate Left] Rotates the photo

counterclockwise by

90 degrees.

[Rotate Right] Rotates the photo clockwise

by 90 degrees.

[View Image] Displays the selected picture.

Adjusting the delay between

the picture and sound

(A/V SYNC)

42US

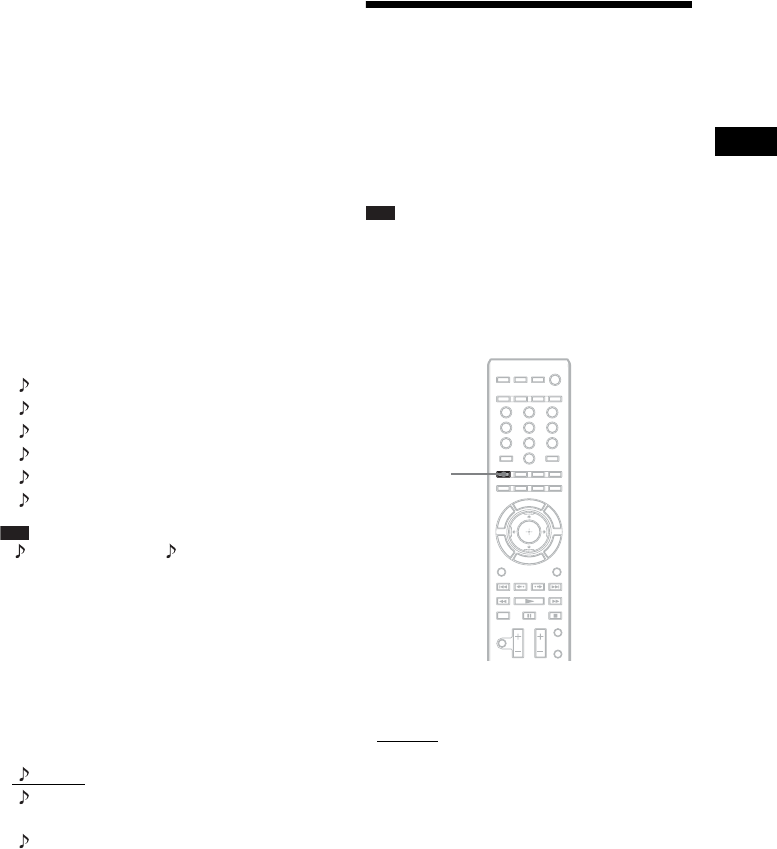

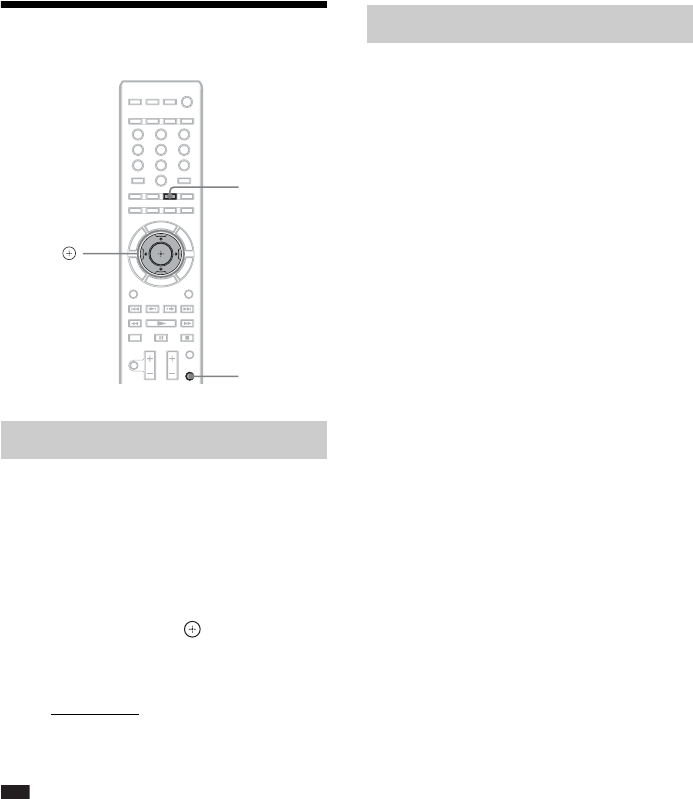

Selecting the Effect to

Suit the Source

You can select a suitable sound mode for movies

or music.

Press SOUND MODE repeatedly during

playback until the desired mode appears in

the front panel display.

• “AUTO”: The system selects “MOVIE” or

“MUSIC” automatically to produce the sound

effect depending on the disc or sound stream.

• “MOVIE”: The system provides the sound for

movies.

• “HD-D.C.S.”: For movies on Blu-ray and

DVD, etc., “HD-D.C.S.” realizes precise

sound effects the way the Movie Sound

Designers intended for them to be.

• “3D SUR.”: “3D SUR.” is a unique Sony

algorithm used for playing 3D (three-

dimensional) content that provides a 3D sound

experience with depth and presence by

creating a virtual sound field close to your

ears.

• “MUSIC”: The system provides the sound for

music.

• “SPORTS”: The system adds reverberation for

sports programs.

• “NEWS”: The system provides the sound for

voice programs, such as news.

• “GAME ROCK”: The system provides the

sound for music/rhythm games.

• “OMNI-DIR”: The same sound is audible

anywhere in the room.

Note

• Depending on the disc or source, when you select

“AUTO,” the beginning of the sound may be cut off

as the system selects the optimum mode

automatically. To avoid cutting the sound, select

other than “AUTO.”

• Depending on the input stream, the sound mode may

not be effective.

• When changing the sound mode while using the

S-AIR receiver, sound from the S-AIR receiver may

skip.

• When you play a Super Audio CD, this function does

not work.

Selecting the Audio

Format, Multilingual

Tracks, or Channel

When the system is playing a BD/DVD VIDEO

or DATA CD/DATA DVD (DivX video files*)

recorded in multiple audio formats (PCM,

Dolby Digital, MPEG audio, or DTS) or

multilingual tracks, you can change the audio

format or language.

With a CD, you can select the sound from the

right or left channel and listen to the sound of the

selected channel through both the right and left

speakers.

* Except for U.S. models.

Sound Adjustment

321

654

987

SOUND

MODE

321

654

987

AUDIO

Sound Adjustment

43US

Press AUDIO repeatedly during playback to

select the desired audio signal.

The audio information appears on the TV

screen.

xBD/DVD VIDEO

Depending on the BD/DVD VIDEO, the choice

of language varies.

When 4 digits are displayed, they indicate a

language code. See “Language Code List”

(page 82) to confirm which language the code

represents. When the same language is

displayed two or more times, the BD/DVD

VIDEO is recorded in multiple audio formats.

xDVD-VR

The types of sound tracks recorded on a disc are

displayed.

Example:

• [ Stereo]

• [ Stereo (Audio1)]

• [ Stereo (Audio2)]

•[ Main]

•[ Sub]

• [ Main/Sub]

Note

• [ Stereo (Audio1)] and [ Stereo (Audio2)] do not

appear when only one audio stream is recorded on the

disc.

xDATA CD (DivX video file)/DATA DVD

(DivX video file) (Except for U.S. models)

The choice of DATA CD or DATA DVD audio

signal formats differs, depending on the DivX

video file contained on the disc. The format

appears on the TV screen.

xCD

•[ Stereo]: The standard stereo sound.

• [ 1/L]: The sound of the left channel

(monaural).

• [ 2/R]: The sound of the right channel

(monaural).

Enjoying Multiplex

Broadcast Sound

(DUAL MONO)

You can enjoy multiplex broadcast sound when

the system receives or plays a Dolby Digital

multiplex broadcast signal.

Note

• To receive the Dolby Digital signal, you need to

connect a TV or other component to the unit with a

digital coaxial or optical cord (pages 23, 24). If your

TV is compatible with the Audio Return Channel

function (page 53), you can receive a Dolby Digital

signal via an HDMI cable.

Press AUDIO repeatedly until the desired

signal appears in the front panel display.

•“MAIN”: Sound of the main language will be

output.

• “SUB”: Sound of the sub language will be

output.

• “MAIN/SUB”: Mixed sound of both the main

and sub languages will be output.

321

654

987

AUDIO

44US

Using the Sound Effect

You can enjoy sound effects or dialog, as you

would in a movie theater, even at low volume. It

is useful for watching movies at night.

1Press SYSTEM MENU.

2Press X/x repeatedly until “NIGHT

MODE” appears in the front panel

display, then press or c.

3Press X/x to select a setting.

• “NIGHT ON”: On.

• “NIGHT OFF”: Off.

4Press SYSTEM MENU.

The system menu turns off.

Note

• When sound is output from the center speaker, this

effect is more pronounced, as speech (movie dialog,

etc.) is easy to hear. When sound is not output from

the center speaker, the system optimally adjusts the

volume.

You can adjust the sound by changing the tonal

balance of the sound.

1Press TONE repeatedly until the

desired setting appears in the front

panel display.

• “BASS”: You can adjust the bass

frequencies.

• “TREBLE”: You can adjust the treble

frequencies.

2Press X/x to adjust the sound.

The adjusted value appears in the front

panel display. You can set the value from

–6.0 to +6.0.

Enjoying sound at low volume

321

654

987

C/X/x/c,

SYSTEM

TONE

Changing the tonal balance

Tuner

45US

Listening to the Radio

You can enjoy radio sound with the system’s

speakers.

1Press FUNCTION repeatedly until

“TUNER FM” appears in the front panel

display.

2Select the radio station.

Automatic tuning

Press and hold TUNING +/– until the auto

scanning starts.

[Auto Tuning] appears on the TV screen.

Scanning stops when the system tunes in a

station.

To stop the automatic tuning manually,

press TUNING +/–.

Manual tuning

Press TUNING +/– repeatedly.

3Adjust the volume by pressing

VOL +/–.

If an FM program is noisy

If an FM program is noisy, you can select

monaural reception. There will be no stereo

effect, but reception will improve.

1Press SYSTEM MENU.

2Press X/x repeatedly until “FM MODE”

appears in the front panel display.

3Press or c.

4Press X/x to select “MONO.”

• “STEREO”: Stereo reception.

• “MONO”: Monaural reception.

5Press SYSTEM MENU.

The system menu turns off.

To turn off the radio

Press "/1.

You can preset up to 20 stations. Before tuning,

make sure to turn down the volume to minimum.

1Press FUNCTION repeatedly until

“TUNER FM” appears in the front panel

display.

2Press and hold TUNING +/– until the

auto scanning starts.

Scanning stops when the system tunes in a

station.

3Press SYSTEM MENU.

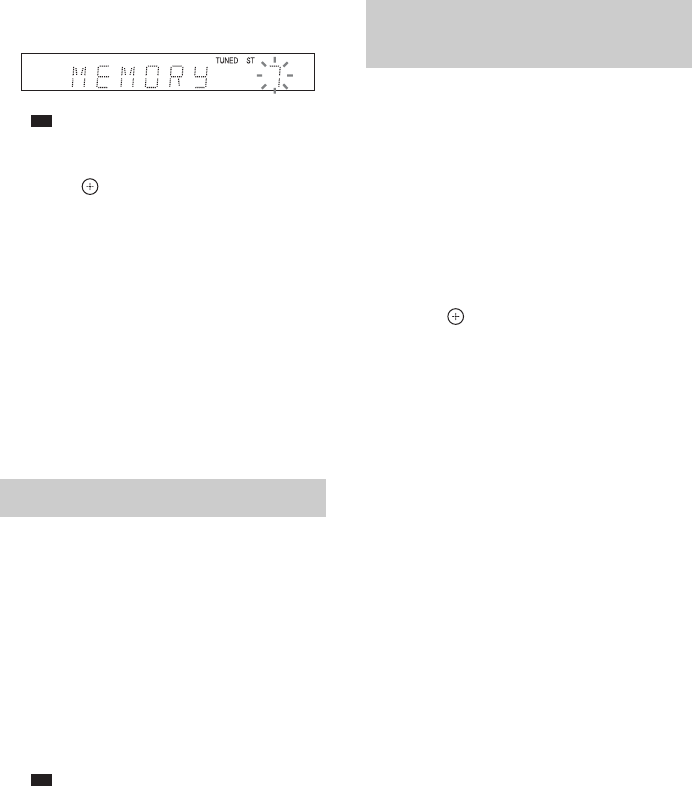

4Press X/x repeatedly until “MEMORY”

appears in the front panel display, then

press or c.

A preset number appears in the front panel

display.

Tuner

321

654

987

FUNCTION

PRESET +/–

VOL +/–

TUNING +/–

C/X/x/c,

"/1

Number

buttons

SYSTEM

D.TUNING

FM 7

88.00

MHz

Current band and preset number

Current station

Presetting radio stations

46US

5Press X/x to select the preset number

you want.

• You can select the preset number directly by

pressing the number buttons.

6Press .

“COMPLETE” appears in the front panel

display, and the station is stored.

7Repeat Steps 2 to 6 to store other

stations.

8Press SYSTEM MENU.

The system menu turns off.

To change the preset number

Select the desired preset number by pressing

PRESET +/–, then perform the procedure from

Step 3.

1Press FUNCTION repeatedly until

“TUNER FM” appears in the front panel

display.

The last received station is tuned in.

2Press PRESET +/– repeatedly to select

the preset station.

The preset number and frequency appear on

the TV screen and front panel display.

Each time you press the button, the system

tunes in one preset station.

• You can select the preset station number directly

by pressing the number buttons.

When you know the frequencies, you can select

radio stations by inputting the frequencies

directly.

1Press FUNCTION repeatedly until

“TUNER FM” appears in the front panel

display.

2Press D.TUNING.

3Press the number buttons to select the

frequencies.

4Press .

Selecting the preset station

Selecting a radio station by

inputting a frequency directly

External Audio Device

47US

Using an S-AIR Product

About S-AIR products

There are two types of S-AIR product.

• S-AIR main unit (this unit): This is for

transmitting sound. You can use up to three

S-AIR main units. (The number of usable

S-AIR main units depends on the use

environment.)

• S-AIR sub unit: This is for receiving sound.

–Surround amplifier (supplied): You

can enjoy surround speaker sound

wirelessly.

–S-AIR receiver (optional): You can

enjoy system sound in another room.

Simply by matching the ID of the unit and the

S-AIR sub unit, you can activate wireless

transmission.

To set the ID of the unit

1Set the S-AIR ID switch of the unit to

the desired ID.

You can select any ID (A, B, or C).

2Press "/1.

The system turns on.

3Set the S-AIR sub unit to the same ID.

Wireless transmission is activated as

follows (example):

To set the ID of the surround

amplifier

1Make sure that the SURROUND

SELECTOR switch of the surround

amplifier is set to SURROUND.

2Set the S-AIR ID switch of the surround

amplifier to match the ID (A, B, or C) of

the unit.

3Press "/1 on the surround amplifier.

When wireless transmission is activated,

the S-AIR/STANDBY indicator of the

surround amplifier turns green.

For details of the S-AIR/STANDBY

indicator, see “Surround amplifier”

(page 13).

To set the ID of the S-AIR

receiver

Refer to the operating instructions of the S-AIR

receiver.

External Audio Device

Setting the S-AIR ID to activate

wireless transmission

For the surround amplifier

For the S-AIR receiver

S-AIR sub unit

(surround amplifier)

S-AIR main unit

S-AIR sub unit

(S-AIR receiver)

(not supplied)

Room A

Room B

S-AIR ID

ABC

S-AIR ID switch

ID A

ID A ID A

48US

To enjoy a 7.1 channel system

You can enjoy the more realistic surround sound

effect of 7.1 channels when you use the Wireless

Surround Speaker Kit (WAHT-SBP2, optional).

For details, refer to the operating instructions of

the Wireless Surround Speaker Kit.

In this case, set [Surround Back] in [Speaker

Settings] to [Yes] (page 55).

You can enjoy the system’s sound in another

room by using the S-AIR receiver.

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select [System Settings],

then press .

4Press X/x to select [S-AIR Settings],

then press .

The [S-AIR Settings] display appears.

5Press X/x to select [Mode], then press

6Press X/x to select the desired setting.

•[Party]: The S-AIR receiver outputs

sound according to functions set on the

unit.

• [Separate]: You can set the desired

function for the S-AIR receiver while unit

functions do not change.

7Press .

The setting is made.

8When you select [Separate] in Step 6,

press S-AIR CH on the S-AIR receiver

to select the function.

The S-AIR receiver’s function changes as

follows.

“MAIN UNIT” t “TUNER FM” t

“AUDIO” t …

To enjoy the same function as the unit,

select “MAIN UNIT.”

9Adjust the volume on the S-AIR

receiver.

You can enjoy the S-AIR receiver while the unit

is in standby mode by setting [Standby] to [On].

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select [System Settings],

then press .

4Press X/x to select [S-AIR Settings],

then press .

The [S-AIR Settings] display appears.

5Press X/x to select [Standby], then

press .

6Press X/x to select the desired setting.

• [On]: You can enjoy the S-AIR receiver

while the unit is in standby mode or turned

on. The power consumption during

standby mode increases.

•[Off]

: You cannot enjoy the S-AIR

receiver while the unit is in standby mode.

7Press .

The setting is made.

Note

• When you turn the system off while [Standby] is set

to [On], “S-AIR” flashes (when wireless transmission

between the unit and S-AIR receiver is not activated),

or lights up (when wireless transmission between the

unit and S-AIR receiver is activated) in the front

panel display.

Enjoying the system’s sound in

another room

For the S-AIR receiver

Enjoying the S-AIR receiver

while the unit is in standby

mode

For the S-AIR receiver

External Audio Device

49US

When using S-AIR products, neighbors may

also receive your system’s sound if IDs are the

same, or you may receive sound from neighbors.

To prevent this, you can identify the unit with a

specific S-AIR sub unit by performing the

pairing operation.

When you perform pairing, wireless

transmission is activated between the paired

main unit and S-AIR sub unit only.

1Place the S-AIR sub unit that you want

to pair near the unit.

2Match the IDs of the unit and the S-AIR

sub unit.

• To set the ID of the unit, see “To set the ID

of the unit” (page 47).

• To set the ID of the surround amplifier,

see “To set the ID of the surround

amplifier” (page 47).

• To set the ID of the S-AIR receiver, refer

to the operating instructions of the S-AIR

receiver.

3Press HOME.

The home menu appears on the TV screen.

4Press C/c to select [Setup].

5Press X/x to select [System Settings],

then press .

6Press X/x to select [S-AIR Settings],

then press .

The [S-AIR Settings] display appears.

7Press X/x to select [Pairing], then

press .

8Start pairing of the S-AIR sub unit.

xFor the surround amplifier

Press "/1 on the surround amplifier to turn

on the surround amplifier and press

PAIRING on the rear panel of the surround

amplifier. (To press PAIRING, a slim

instrument, such as a paper clip, can be

used.)

xFor the S-AIR receiver

Refer to the operating instructions of the

S-AIR receiver.

9Press C/c to select [Start], then press

The unit starts pairing.

The PAIRING indicator of the surround

amplifier flashes when pairing starts.

When wireless transmission is activated,

the PAIRING indicator of the surround

amplifier turns on.

To cancel pairing, select [Cancel].

Note

• Perform pairing within several minutes of Step

9. If you do not, [Pairing failed. Retry?] appears

on the TV screen. To continue pairing, select

[OK] and press , then start again from Step 8.

To cancel pairing, select [Cancel].

To cancel pairing

Change the ID of the main and sub unit

(page 47).

You can check the S-AIR status such as the

S-AIR ID or pairing information.

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select [System Settings],

then press .

4Press X/x to select [S-AIR Settings],

then press .

The [S-AIR Settings] display appears.

The S-AIR ID of the unit appears on the

[Info] line. When the unit is paired,

[Pairing] appears after the ID.

5Press RETURN.

The system returns to the previous display.

Identifying the unit with a

specific S-AIR sub unit

(Pairing operation)

For the surround amplifier

For the S-AIR receiver

Checking the S-AIR status of

the unit

50US

If you use multiple wireless systems, such as

wireless LAN or Bluetooth, the transmission of

S-AIR signals or other wireless signals may be

unstable. In this case, the transmission may be

improved by changing the following [RF

Change] setting.

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select [System Settings],

then press .

4Press X/x to select [S-AIR Settings],

then press .

The [S-AIR Settings] display appears.

5Press X/x to select [RF Change], then

press .

6Press X/x to select the desired setting,

then press .

•[Auto]: Normally select this. The system

changes [RF Change] to [On] or [Off]

automatically.

• [On]: The system transmits sound by

searching for the better channel for

transmitting.

• [Off]: The system transmits sound by

fixing the channel for transmitting.

7Press .

The setting is made.

8When you set [RF Change] to [Off],

select the ID so that wireless

transmission is most stable (page 47).

Note

• In most cases, you will not need to change this

setting.

– If [RF Change] is set to [Off], transmission

between the unit and S-AIR sub unit can be

performed using one of the following channels.

– S-AIR ID A: equivalent channel for IEEE

802.11b/g channel 1

– S-AIR ID B: equivalent channel for IEEE

802.11b/g channel 6

– S-AIR ID C: equivalent channel for IEEE

802.11b/g channel 11

• The transmission may be improved by changing the

transmission channel (frequency) of the other

wireless system(s). For details, refer to the operating

instructions of the other wireless system(s).

If wireless transmission is

unstable

For the surround amplifier

For the S-AIR receiver

Other Operations

51US

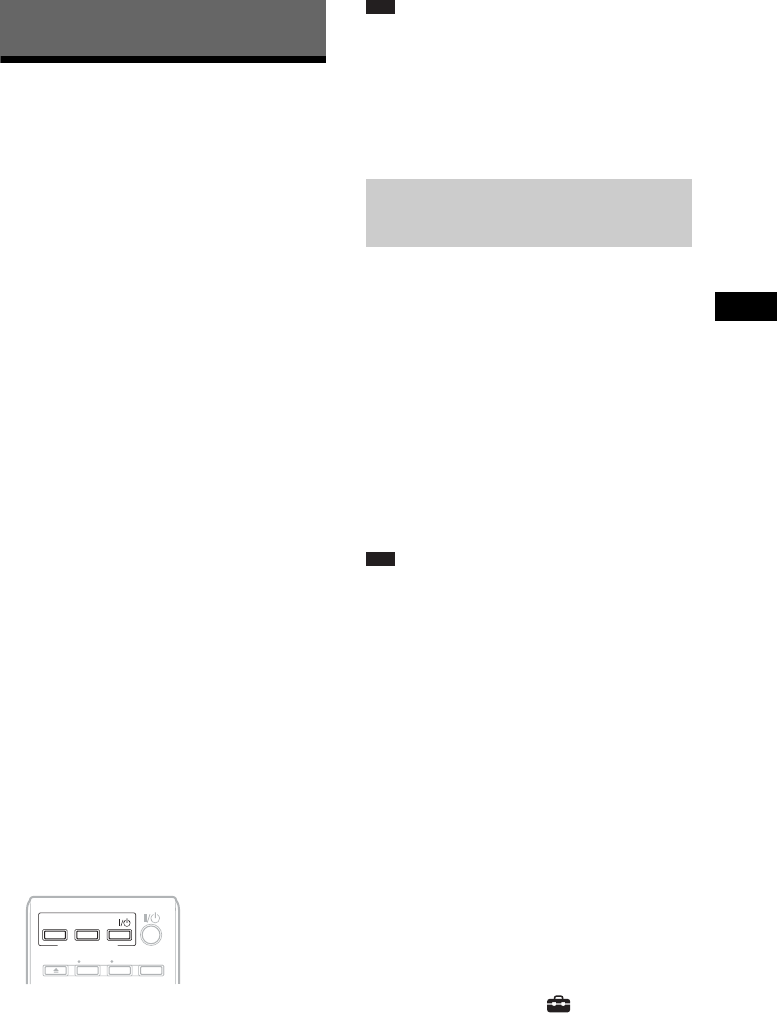

Using the Control for

HDMI Function for

“BRAVIA” Sync

This function is available on TVs with the

“BRAVIA” Sync function.

By connecting Sony components that are

compatible with the Control for HDMI function

with an HDMI cable, operation is simplified as

below:

– System Power Off (page 52)

– One-Touch Play (page 52)

– Routing Control (page 52)

– Theater Mode (page 52)

– System Audio Control (page 52)

– Volume Limit (page 53)

– Audio Return Channel (page 53)

– Remote Easy Control (page 53)

– Language Follow (page 53)

Control for HDMI is a mutual control function

standard used by CEC (Consumer Electronics

Control) for HDMI (High-Definition

Multimedia Interface).

The Control for HDMI function will not work

when you connect this system to a component

which is not compatible with the Control for

HDMI function.

There are convenient buttons on the system’s

remote for operating the TV, such as

THEATER, ONE-TOUCH PLAY, and AV ?/1.

For details, see “Remote control” (page 14) and

refer to the operating instructions of the TV.

Note

• Depending on the connected component, the Control

for HDMI function may not work. Refer to the

operating instructions supplied with the component.

• The Control for HDMI function may not work if you

connect other than a Sony component, even if the

component is compatible with the Control for HDMI

function.

(Control for HDMI - Easy Setting)

If your TV or other component is compatible

with the Control for HDMI - Easy Setting

function, you can set the system’s or other

components’ [Control for HDMI] function

automatically by setting the TV. For details,

refer to the operating instructions of the TV or

other components.

If the TV is not compatible with the Control for

HDMI - Easy Setting function, set the Control

for HDMI function of the system, TV, and other

components manually.

Note

• For details on setting the TV, refer to the operating

instructions of the TV.

1Make sure that the system and the TV

are connected with an HDMI cable.

2Turn on the TV and other components

connected via the HDMI connection,

and press [/1 to turn on the system.

3Set the Control for HDMI function of the

TV.

The Control for HDMI functions for the

system, TV, and other components are

simultaneously set to on.

To set the [Control for HDMI]

function of the system to on/off

manually

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

Other Operations

THEATER

TVSTB BD

ONE-TOUCH

PLAY

BRAVIA Sync

Preparing for the Control for

HDMI function

52US

3Press X/x to select [System Settings],

then press .

4Press X/x to select [HDMI Settings],

then press .

The [HDMI Settings] display appears.

5Press X/x to select [Control for HDMI],

then press .

6Press X/x to select the setting, then

press .

•[On]: On.

• [Off]: Off.

(System Power Off)

When you turn the TV off by using the POWER

button on the TV’s remote or AV ?/1 on the

system’s remote, the system turns off

automatically.

Note

• This function depends on the settings of your TV. For

details, refer to the operating instructions of the TV.

(One-Touch Play)

Press ONE-TOUCH PLAY.

The system and your TV turn on, your TV’s

input is set to the HDMI input to which the

system is connected, and the system starts

playing a disc automatically.

The System Audio Control function is also

activated automatically.

Also, when you insert a disc, One-Touch Play is

enabled. If One-Touch Play does not start (in the

case of inserting a disc that is not compatible

with the auto playback function), press

FUNCTION repeatedly to select “BD/DVD”

and press N or ONE-TOUCH PLAY.

(Routing Control)

When you perform One-Touch Play via the

connected component, the system turns on and

sets the system’s function to “HDMI1” or

“HDMI2” (depending on the HDMI jack in use),

and your TV’s input is set to the HDMI input to

which the system is connected automatically.

Note

• Make sure that the component is connected to the

HDMI (IN 1) or HDMI (IN 2) jack on the system via

an HDMI cable, and the Control for HDMI function

of the connected component is set to on.

(Theater Mode)

Press THEATER.

If your TV is compatible with the Theater Mode,

you can enjoy optimal image and sound quality

suited for movies, and the System Audio Control

function is activated automatically.

(System Audio Control)

You can simplify operation to enjoy sound of the

TV or other components.

To use this function, connect the system and the

TV with an audio cord and an HDMI cable, or

the system and the other components with

HDMI cables (pages 22, 24).

You can use the System Audio Control function

as follows:

• When the system is turned on, the sound of the

TV or other components can be output from

the speakers of the system.

• When sound of the TV or other components is

output from the speakers of the system, you

Turning the system off in sync

with the TV

Watching BD/DVD by a single

button press

Enjoying a component that is

connected to the system via an

HDMI cable

Using the Theater Mode

Enjoying the sound of the

content on the TV screen via

the system’s speakers

Other Operations

53US

can change the output method to the speakers

of the TV via the TV menu.

• When sound of the TV or other components is

output from the speakers of the system, you

can adjust the volume and turn off the sound of

the system using the TV remote.

Note

• While the TV is in PAP (picture and picture) mode,

the System Audio Control function will not work.

• Depending on the TV, when you adjust the unit's

volume, the volume level appears on the TV screen.

In this case, the volume level that appears on the TV

screen and the unit's front panel display may differ.

(Volume Limit)

When the System Audio Control function is

activated, loud sound may be output depending

on the volume level of the system. You can

prevent this by limiting the maximum level of

the volume. For details, see [Volume Limit]

(page 64).

(Audio Return Channel)

The system can receive the digital audio signal

of the TV via an HDMI cable when your TV is

compatible with the Audio Return Channel

function. You can enjoy TV sound via the

system by using just one HDMI cable. For

details, see [Audio Return Channel] (page 64).

(Remote Easy Control)

You can control the basic functions of the

system via the TV remote when the system’s

video output is displayed on the TV screen. For

details, refer to the operating instructions of the

TV.

(Language Follow)

When you change the language for the on-screen

display of the TV, the system’s on-screen

display language is also changed after turning

the system off and on.

Calibrating the

Appropriate Settings

Automatically

[Auto Calibration]

D. C. A. C. (Digital Cinema Auto Calibration)

can set the appropriate surround sound

automatically.

Note

• The system outputs a loud test sound when [Auto

Calibration] starts. You cannot turn the volume

down. Give consideration to children and neighbors.

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select [Audio Settings],

then press .

4Press X/x to select [Auto Calibration],

then press .

The confirmation display for [Auto

Calibration] appears.

5Connect the calibration mic to the

A.CAL MIC jack on the rear panel.

Set up the calibration mic at ear level using

a tripod, etc. (not supplied). The front of

each speaker should face the calibration

mic, and there should be no obstruction

between the speakers and the calibration

mic.

Setting the Maximum Volume

Level of the System

Receiving the digital audio

signal of the TV

Operating the system via the

TV remote

Changing the language for the

on-screen display of the TV

54US

6Press X/x to select [OK].

To cancel, select [Cancel].

7Press .

[Auto Calibration] starts.

The system adjusts the speaker settings

automatically.

For proper calibration results, please

remain quiet during the measurement.

Note

• Before [Auto Calibration], make sure that the

surround amplifier turns on and you install the

surround amplifier in the appropriate location. If

you install the surround amplifier in an improper

location, such as another room, proper

measurement will not be obtained.

• When you use the Wireless Surround Speaker

Kit (WAHT-SBP2, optional) for the surround

back speakers (page 17), install the speakers in

appropriate location and turn the surround

amplifier on. To use the surround back speakers,

set [Surround Back] in [Speaker Settings] to

[Yes] (page 55)

8Confirm the result of [Auto

Calibration].

The conclusions appear on the TV screen.

Press C/c to change the page. The first page

shows the distance of the speakers. The

second page shows the level of the

speakers.

Note

• If measurement fails, follow the message then

retry [Auto Calibration].

9Press X/x to select [OK] or [Cancel],

then press .

xThe measurement is OK.

Disconnect the calibration mic, then select

[OK]. The result is implemented.

xThe measurement is not OK.

Follow the message, then select [OK] to

retry.

Note

• While the Auto Calibration function works:

– do not turn off the power.

– do not press any button.

– do not change the volume.

– do not change the function.

– do not change the disc.

– do not insert a disc.

– do not disconnect the calibration mic.

Setting the Speakers

[Speaker Settings]

To obtain the best possible surround sound, set

connection of the speakers and their distance

from your listening position. Then use the test

tone to adjust the level and the balance of the

speakers to the same level.

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select [Audio Settings],

then press .

4Press X/x to select [Speaker Settings],

then press .

The [Speaker Settings] display appears.

A.CAL

MIC

ECM-AC2

Calibration mic

Other Operations

55US

5Press X/x to select the item, then press

Check the following settings.

x[Connection]

If you do not connect center or surround

speakers, set the parameters for [Center] and

[Surround]. Since the front speaker and

subwoofer settings are fixed, you cannot change

them.

When you use the Wireless Surround Speaker

Kit (WAHT-SBP2, optional) for the surround

back speakers (page 17), set [Surround Back]

also.

[Front]

[Yes]

[Center]

[Yes]: Normally select this.

[None]: Select this if no center speaker is used.

[Surround]

[Yes]: Normally select this.

[None]: Select this if no surround speaker is

used.

[Surround Back]

[Yes]: Select this if surround back speakers are

used.

[None]: Select this if no surround back speakers

is used.

[Subwoofer]

[Yes]

x[Distance]

When you move the speakers, be sure to set the

parameters of the distance (A) from the

listening position to the speakers.

You can set the parameters from 0 to 23 feet (0.0

to 7.0 meters).

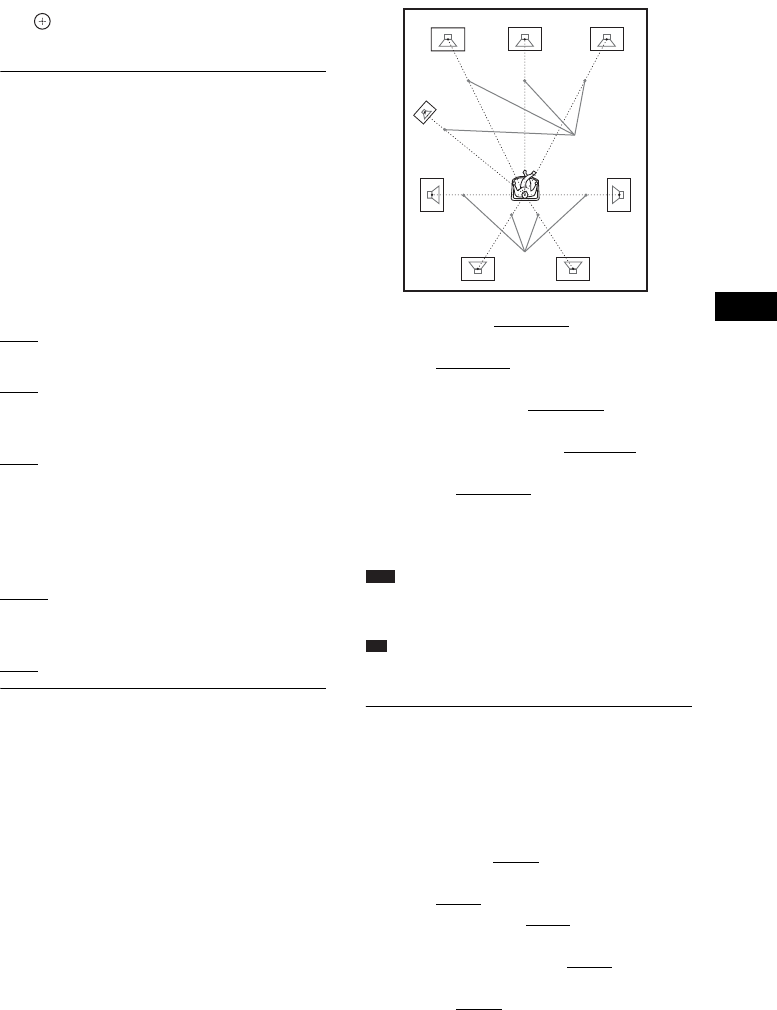

The numbers in the illustration indicate the

following:

1Center speaker

2Front left speaker (L)

3Front right speaker (R)

4Subwoofer

5Surround left speaker (L)

6Surround right speaker (R)

7Surround back left speaker (L) (optional)

8Surround back right speaker (R) (optional)

[Front Left/Right] 10 ft/3.0 m: Set the front

speaker distance.

[Center]* 10 ft/3.0 m: Set the center speaker

distance.

[Surround Left/Right]* 10 ft/3.0 m: Set the

surround speaker distance.

[Surround Back Left/Right]* 10 ft/3.0 m: Set the

surround back speaker distance.

[Subwoofer] 10 ft/3.0 m: Set the subwoofer

distance.

* This item appears when you set it to [Yes] in the

[Connection] setting.

Note

• Depending on the input stream, [Distance] may not

be effective.

• You can change measurement units (feet or meters)

by pressing the color button (RED).

x[Level]

You can adjust the sound level of the speakers.

You can set the parameters from –6.0 dB to +6.0

dB. Be sure to set [Test Tone] to [On] for easy

adjustment.

[Front Left/Right] 0.0 dB: Set the front speaker

level.

[Center]* 0.0 dB: Set the center speaker level.

[Surround Left/Right]* 0.0 dB: Set the surround

speaker level.

[Surround Back Left/Right]* 0.0 dB: Set the

surround back speaker level.

[Subwoofer] 0.0 dB: Set the subwoofer level.

* This item appears when you set it to [Yes] in the

[Connection] setting.

56US

x[Test Tone]

The speakers will emit a test tone to adjust

[Level].

[Off]: The test tone is not emitted from the

speakers.

[On]: The test tone is emitted from each speaker

in sequence while adjusting level. When you

select one of the [Speaker Settings] items, the

test tone is emitted from each speaker in

sequence.

Adjust the sound level as follows.

1Set [Test Tone] to [On].

2Press X/x to select [Level], then press

3Press X/x to select the desired speaker

type, then press .

4Press C/c to select the left or right

speaker, then press X/x to adjust the

level.

5Press .

6Repeat Steps 3 to 5.

7Press RETURN.

The system returns to the previous display.

8Press X/x to select [Test Tone], then

press .

9Press X/x to select [Off], then press

Note

• The test tone signals are not output from the HDMI

OUT jack.

• To adjust the volume of all the speakers at one time,

press VOL +/–.

Using the Sleep Timer

You can set the system to turn off at a preset

time, so you can fall asleep listening to music.

The time can be preset in intervals of 10

minutes.

Press SLEEP.

Each time you press SLEEP, the minutes display

(the remaining time) changes by 10 minutes.

When you set the sleep timer, “SLEEP” flashes

in the front panel display.

To check the remaining time

Press SLEEP once.

To change the remaining time

Press SLEEP repeatedly to select the desired

time.

Deactivating the Buttons

on the Unit

(Child Lock)

You can deactivate the buttons on the unit

(except for "/1) for preventing misoperation,

such as child mischief (child lock function).

Press x on the unit for 5 seconds.

“CHILD LOCK” and “ON” appear in the front

panel display.

The child lock function is activated and the

buttons on the unit are locked. (You can operate

the system by using the remote.)

To cancel, press x for 5 seconds so that

“CHILD LOCK” and “OFF” appear in the front

panel display.

Note

• When you operate the buttons on the unit while the

child lock function is on, “CHILD LOCK” appears in

the front panel display.

Other Operations

57US

Controlling Your TV or

Other Components with

the Supplied Remote

You can control your TV and other components

such as a cable box or digital satellite receiver

with the supplied remote. The remote is initially

set to control Sony components.

You can control non-Sony components by

changing the preset code of the remote. For

operation, see “Changing the preset code of the

remote (Preset mode)” (page 58).

You can also set a new code which is not stored

on the remote. For operation, see “Programming

the remote code from another remote (Learning

mode)” (page 58).

Note

• When you replace the batteries of the remote, the

remote setting may be reset to the default (SONY)

setting.

1Press the TV or STB operation mode

button that matches the component

you want to control.

2Press the appropriated buttons listed

in the following table.

•z: The button can be used with the

default setting of the remote.

•a: The button can be used when you

change the preset code of the remote.

Controlling your components

with the supplied remote

Button Remote’s mode

TV STB

AV "/1zz

Number buttons zz

ENTER zz

AUDIO zz

SUBTITLE (CC) za

TONE (WIDE) za

SLEEP (INPUT) zz

Color buttons

(YELLOW/

BLUE/RED/

GREEN)

TOP MENU

(GUIDE)

FAVORITES zz

POP UP/MENU

(LIST)

C/X/x/c, zz

RETURN zz

HOME (MENU) zz

OPTIONS

(TOOLS)

FUNCTION

(PAGE –)

SOUND MODE

(PAGE +)

./>za

m/Mzz

Hzz

Xzz

xzz

MUTING z

VOL +/– z

CH +/– zz

DISPLAY zz

SYSTEM

MENU (JUMP)

H while

pressing z (starts

recording)

X while pressing

z (pauses

recording)

x while pressing

z (stops

recording)

Button Remote’s mode

TV STB

58US

Note

• In TV or STB mode, if you press any of the buttons

above, the TV or STB operation mode button lights

up. (However, depending on the code setting, some

buttons may not work, and the TV or STB operation

mode button may not light up.)

• If you press other than the buttons above when the

remote is in TV or STB mode, the TV or STB

operation mode button does not light up.

• Depending on the TV or component, you may not be

able to use some of the buttons.

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select [Remote Controller

Setting Guide], then press .

4Press X/x to select [Preset Mode], then

press .

5Press X/x to select the component type

that you want to operate with the

supplied remote, then press .

6Press X/x to select the device’s

manufacturer, then press .

7Press POP UP/MENU while pressing

the operation mode button TV (for a TV)

or STB (for a cable box, digital satellite

receiver, digital video recorder, etc.).

The remote enters Preset mode. The TV or

STB operation mode button (whichever

button you pressed) starts flashing.

8When the TV or STB operation mode

button starts flashing, enter the code

on the TV screen using the number

buttons, then press ENTER.

If you successfully set the code, the TV or

STB operation mode button will flash twice

slowly. If the setting is unsuccessful, the

TV or STB operation mode button will

flash five times quickly.

Note

• You can quit Preset mode by pressing the TV or STB

operation mode button (whichever button is

flashing).

• If you do not operate the remote for more than 10

seconds during presetting mode, the remote exits

from presetting mode.

You can program a remote code that is not

stored in the supplied remote from a different

component’s remote, such as a TV remote.

Buttons other than THEATER,

ONE-TOUCH PLAY, [/1, BD, TV, and STB

are assignable.

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select [Remote Controller

Setting Guide], then press .

4Press X/x to select [Learning Mode],

then press .

5Press .

6Prepare the other remote with the

button which you want to program to

the supplied remote.

7Press TOP MENU while pressing the

operation mode button TV (for a TV) or

STB (for a cable box, digital satellite

receiver, digital video recorder, etc.)

for one second.

The remote enters Learning mode. The BD

operation mode button lights up and the TV

or STB operation mode button (whichever

button you pressed) starts flashing.

8Press the button on the supplied

remote to which you want to assign the

new remote code.

The TV or STB operation mode button

lights up.

Note

• If the pressed button has already been assigned

a remote code, the TV or STB operation mode

button flashes five times quickly. In this case,

clear the learned remote code of the button

(page 59), then assign the new desired remote

code.

Changing the preset code of

the remote (Preset mode)

Programming the remote code

from another remote (Learning

mode)

Other Operations

59US

• You cannot use z individually. z is used with

H, X, or x. When learning, press H, X, or

x while pressing z.

9Point the remotes at each other.

10 Press the button on the other remote

that you want to program to the

supplied remote.

Note

• If you do not press a button for more than 10

seconds after Step 8, the supplied remote status

returns to its status after Step 7. Re-perform

from Step 8.

11 Repeat Steps 8 to 10 to continue

programming more buttons.

If you successfully program the remote

code, the BD operation mode button will

flash twice slowly. If the setting is

unsuccessful, the TV or STB operation

mode button will flash five times quickly.

Note

• You can exit from Learning mode by pressing the TV

or STB operation mode button (whichever button is

flashing).

• If you do not press a button to be programmed during

Learning mode for more than 1 minute, the remote

exits from Learning mode.

To clear a programmed remote

code

1Follow Steps 1 to 7 of “Programming

the remote code from another remote

(Learning mode).”

2Press [/1 for more than 1 second.

The TV or STB operation mode button

flashes twice.

3Press the button on the supplied

remote for which you want to clear the

remote code.

If you successfully clear the remote code,

the BD operation mode button will flash

twice slowly. If the clearing is

unsuccessful, the BD operation mode

button will flash five times quickly.

4Repeat Step 3 to continue clearing

more buttons.

Note

• When you clear the programmed remote code, the

button’s operation returns to the default setting.

1Press and hold AV ?/1 first, then press

VOL –, then press CH –.

The BD, TV, and STB operation buttons

light up.

2Release all buttons.

The BD, TV, and STB operation mode

buttons turn off and all the added remote

codes are cleared. The remote returns to its

default settings.

Saving Power in Standby

Mode

Check that the following settings are made:

– [Control for HDMI] in [HDMI Settings] is set

to [Off] (page 51).

– [Standby] in [S-AIR Settings] is set to [Off]

(page 48).

– [Quick Start Mode] is set to [Off] (page 65).

Clearing all the preset and

programmed remote codes

from the remote’s memory

60US

Using the Setup Display

You can make various adjustments of items such

as picture and sound.

Select (Setup) on the home menu when you

need to change the settings of the system.

The default settings are underlined.

Note

• Playback settings stored in the disc take priority over

the Setup Display settings and not all the functions

described may work.

1Press HOME.

The home menu appears on the TV screen.

2Press C/c to select [Setup].

3Press X/x to select the setup category

icon to change, then press .

Example: [Screen Settings]

You can setup the following options.

[Remote Controller

Setting Guide]

x[Preset Mode]

You can change the preset code of the remote for

controlling non-Sony components. For details,

see “Changing the preset code of the remote

(Preset mode)” (page 58).

x[Learning Mode]

You can assign a remote code for an operation

different from the preset operations of the

remote’s buttons. For details, see “Programming

the remote code from another remote (Learning

mode)” (page 58).

Settings and Adjustments

Icon Explanation

[Remote Controller Setting

Guide] (page 60)

Makes the remote settings for

operating the TV or other

components.

[Network Update] (page 61)

Updates the software of the

system.

Setup

TV Type

Set the screen aspect ratio of your TV.

Screen Format Original

DVD Aspect Ratio Letter Box

Auto

Cinema Conversion Mode

[Screen Settings] (page 61)

Makes the screen settings

according to the type of

connecting jacks.

[Audio Settings] (page 62)

Makes the audio settings

according to the type of

connecting jacks.

[BD/DVD Viewing Settings]

(page 63)

Makes detailed settings for BD/

DVD playback.

[Parental Control Settings]

(page 63)

Makes detailed settings for the

Parental Control function.

[Music Settings] (page 64)

Makes detailed settings for

Super Audio CD playback.

[System Settings] (page 64)

Makes the system-related

settings.

[Network Settings] (page 65)

Makes detailed settings for

Internet and network.

[Easy Setup] (page 66)

Re-runs the Easy Setup to make

the basic settings.

[Resetting] (page 66)

Resets the system to the factory

settings.

Icon Explanation

Settings and Adjustments

61US

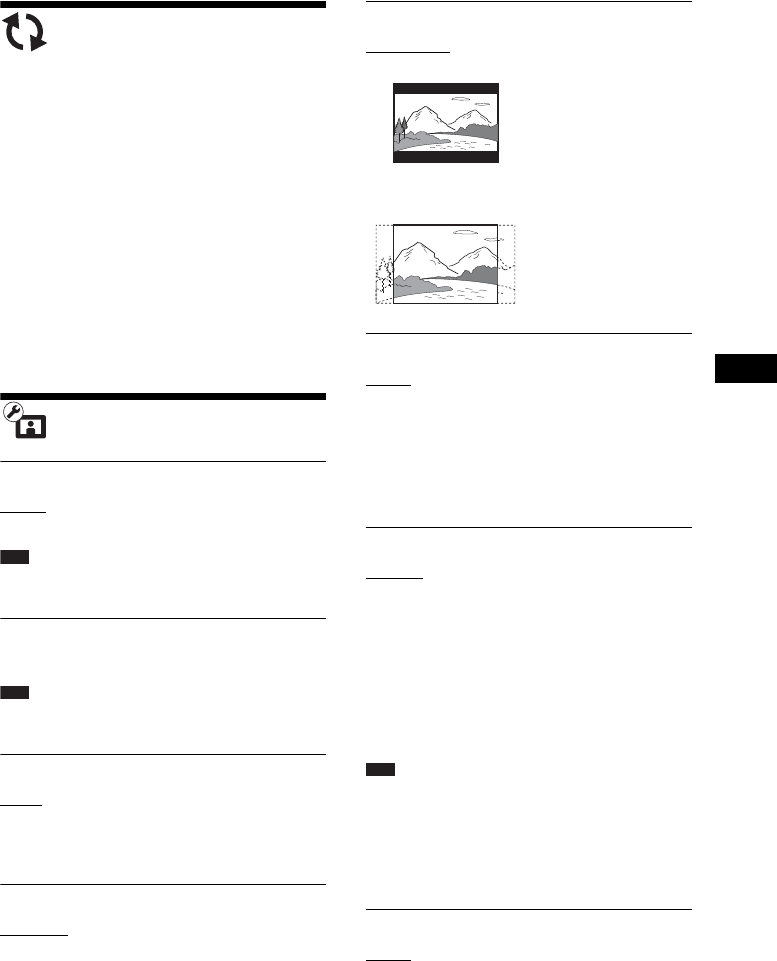

[Network Update]

You can update and improve the functions of the

system.

For information about update functions, refer to

the following website:

http://www.sony.com/blurayhtsupport

During a software update, “UPDATING”

appears in the front panel display and video

signals via HDMI may not be displayed. After

the update completes, the main unit

automatically turns off. Please wait for the

software update to complete; do not turn the

main unit on or off, or operate the main unit or

TV.

[Screen Settings]

x[3D Output Setting]

[Auto]: Normally select this.

[Off]: Select this to display all contents in 2D.

Note

• 3D video from the HDMI (IN 1) or HDMI (IN 2) jack

is output regardless of this setting.

x[TV Screen Size Setting for 3D]

Sets the screen size of your 3D compatible TV.

Note

• This setting does not apply to 3D video from the

HDMI (IN 1) or HDMI (IN 2) jack.

x[TV Type]

[16:9]: Select this when connecting to a wide-

screen TV or a TV with a wide-mode function.

[4:3]: Select this when connecting to a 4:3

screen TV without a wide-mode function.

x[Screen Format]

[Original]: Select this when connecting to a TV

with a wide-mode function. Displays a 4:3

screen picture in 16:9 aspect ratio even on a

wide-screen TV.

[Fixed Aspect Ratio]: Changes the picture size

to fit the screen size with the original picture

aspect ratio.

x[DVD Aspect Ratio]

[Letter Box]: Displays a wide picture with black

bands on the top and bottom.

[Pan & Scan]: Displays a full-height picture on

the entire screen, with trimmed sides.

x[Cinema Conversion Mode]

[Auto]: Normally select this. The unit

automatically detects whether the material is

video-based or film-based, and switches to the

appropriate conversion method.

[Video]: The conversion method suited for

video-based material will always be selected

regardless of the material.

x[Output Video Format]

[HDMI]: Normally select [Auto]. Select

[Original Resolution] to output the resolution

recorded on the disc. (When the resolution is

lower than SD resolution, it is scaled up to SD

resolution.)

[Component Video]: Select the resolution that

suits your TV.

[Video]: Automatically sets the lowest

resolution.

Note

• When connecting the HDMI OUT jack and other

video output jacks at the same time, select

[Component Video].

• If no picture appears when setting [HDMI] or

[Component Video] resolution, try another resolution

setting.

x[BD/DVD-ROM 1080/24p Output]

[Auto]: Outputs 1920 × 1080p/24 Hz video

signals only when connecting a 1080/24p-

compatible TV using the HDMI OUT jack.

[Off]: Select this when your TV is not

compatible with 1080/24p video signals.

62US

x[YCbCr/RGB (HDMI)]

[Auto]: Automatically detects the type of

external device, and switches to the matching

color setting.

[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video

signals.

[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video

signals.

[RGB]: Select this when connecting to a device

with an HDCP-compliant DVI jack.

x[HDMI Deep Color Output]

[Auto]: Normally select this.

[12bit], [10bit]: Outputs 12bit/10bit video

signals when the connected TV is compatible

with Deep Color.

[Off]: Select this when the picture is unstable or

colors appear unnatural.

x[Pause Mode] (BD/DVD VIDEO/DVD-R/

DVD-RW only)

[Auto]: The picture, including subjects that

move dynamically, is output with no jitter.

Normally select this position.

[Frame]: The picture, including subjects that do

not move dynamically, is output in high

resolution.

[Audio Settings]

x[BD Audio MIX Setting]

[On]: Outputs the audio obtained by mixing the

interactive audio and secondary audio to the

primary audio.

[Off]: Outputs the primary audio only. Select

this when outputting HD audio signals to an AV

receiver.

x[Audio DRC]

You can compress the dynamic range of the

sound track.

[Auto]: Performs playback at the dynamic range

specified by the disc (BD-ROM only).

[Off]: No compression of dynamic range.

[On]: The system reproduces the sound track

with the kind of dynamic range that the

recording engineer intended.

x[Attenuate - AUDIO]

Distortion may occur when you listen to a

component connected to the AUDIO (AUDIO

IN L/R) jacks. You can prevent distortion by

reducing the input level on the unit.

[On]: Attenuates the input level. The output

level is changed.

[Off]: Normal input level.

x[Audio Output]

The system cannot output multi-channel sound

from both the HDMI (OUT) jack and system’s

speakers simultaneously.

[Speaker]: Outputs multi-channel sound from

the system’s speakers only.

[Speaker + HDMI]: Outputs multi-channel

sound from the system’s speakers and 2-channel

linear PCM signals from the HDMI (OUT) jack.

[HDMI]: Outputs multi-channel sound from the

HDMI (OUT) jack only. Sound format depends

on the connected component.

Note

• Even if [HDMI] or [Speaker + HDMI] is selected, the

sound of functions other than “BD/DVD,” “D.

MEDIA,” “HDMI1,” or “HDMI2” is output from the

system’s speakers, not from the HDMI (OUT) jack.

• When you set [Audio Output] to [HDMI], the

SOUND MODE, “TONE,” “NIGHT MODE,” and

“SUR.SETTING” functions are disabled.

• When the System Audio Control function (page 52)

is activated, this setting may change automatically.

x[Sound Effect]

You can set the system’s sound effects (SOUND

MODE, “TONE,” “NIGHT MODE,” and

“SUR.SETTING”) to on/off.

[On]: Enables all of the system’s sound effects.

The upper limit of sampling frequency is set to

48 kHz.

[Off]: The sound effects are disabled. Select this

when you do not want to set the upper limit of

sampling frequency.

Settings and Adjustments

63US

x[Speaker Settings]

To obtain the best possible surround sound, set

the speakers. For details, see “Setting the

Speakers” (page 54).

x[Auto Calibration]

You can calibrate the appropriate settings

automatically. For details, see “Calibrating the

Appropriate Settings Automatically” (page 53).

[BD/DVD Viewing

Settings]

You can make detailed settings for BD/DVD

playback.

x[BD/DVD Menu]

You can select the default menu language for

BD-ROMs or DVD VIDEOs.

When you select [Select Language Code], the

display for entering the language code appears.

Enter the code for your language by referring to

“Language Code List” (page 82).

x[Audio]

You can select the default track language for

BD-ROMs or DVD VIDEOs.

When you select [Original], the language given

priority in the disc is selected.

When you select [Select Language Code], the

display for entering the language code appears.

Enter the code for your language by referring to

“Language Code List” (page 82).

x[Subtitle]

You can select the default subtitle language for

BD-ROMs or DVD VIDEOs.

When you select [Select Language Code], the

display for entering the language code appears.

Enter the code for your language by referring to

“Language Code List” (page 82).

x[BD Hybrid Disc Playback Layer]

[BD]: Plays BD layer.

[DVD/CD]: Plays DVD or CD layer.

x[BD Internet Connection]

[Allow]: Normally select this.

[Do not allow]: Prohibits Internet connection.

x[BD Data Jack Selection]

[Internal memory]: Selects the internal memory

to store BD data.

[USB device (front)]: Selects the (USB) port

on the front panel to store BD data.

[USB device (rear)]: Selects the (USB) port

on the rear panel to store BD data.

[Parental Control

Settings]

x[Password]

Set or change the password for the Parental

Control function. A password allows you to set

a restriction on BD-ROM, DVD VIDEO, or

Internet video playback. If necessary, you can

differentiate the restriction levels for

BD-ROMs, DVD VIDEOs, and Internet videos.

x[Parental Control Area Code]

Playback of some BD-ROMs or DVD VIDEOs

can be limited according to the geographic area.

Scenes may be blocked or replaced with

different scenes. Follow the on-screen

instructions and enter your four-digit password.

x[BD Parental Control]

Playback of some BD-ROMs can be limited

according to the age of the users. Scenes may be

blocked or replaced with different scenes.

Follow the on-screen instructions and enter your

four-digit password.

x[DVD Parental Control]

Playback of some DVD VIDEOs can be limited

according to a predetermined level such as the

age of the users. Scenes may be blocked or

replaced with different scenes. Follow the on-

screen instructions and enter your four-digit

password.

64US

x[Internet Video Parental Control]

Playback of some Internet videos can be limited

according to the age of the users. Scenes may be

blocked or replaced with different scenes.

Follow the on-screen instructions and enter your

four-digit password.

x[Internet Video Unrated]

[Allow]: Allows the playback of unrated

Internet videos.

[Block]: Blocks the playback of unrated Internet

videos.

[Music Settings]

You can make detailed settings for Super Audio

CD playback.

x[Super Audio CD Playback Layer]

[Super Audio CD]: Plays the Super Audio CD

layer.

[CD]: Plays the CD layer.

x[Super Audio CD Playback Channel]

[DSD 2ch]: Plays the 2ch area.

[DSD Multi]: Plays the multi-channel area.

[System Settings]

You can make the system-related settings.

x[OSD]

You can select your language for the system on-

screen displays.

x[S-AIR Settings]

You can set up the S-AIR settings. For details,

see “Using an S-AIR Product” (page 47).

[Info]: The selected S-AIR ID is displayed.

[Pairing]: You can pair the system and S-AIR

sub unit, such as a surround amplifier or S-AIR

receiver.

[RF Change]: If wireless transmission is

unstable, set this function.

[Mode]: You can enjoy the system’s sound in

another room.

[Standby]: You can enjoy the S-AIR receiver

while the unit is in standby mode.

x[Dimmer]

[Bright]: Bright lighting.

[Dark]: Low lighting.

x[HDMI Settings]

By connecting Sony components that are

compatible with the Control for HDMI function

with an HDMI cable, operation is simplified.

For details, see “Using the Control for HDMI

Function for “BRAVIA” Sync” (page 51).

[Control for HDMI]

You can set the [Control for HDMI] function to

on/off.

[On]: On. You can operate mutually between

components that are connected with an HDMI

cable.

[Off]: Off.

[Audio Return Channel]

This function is available when you connect the

system and TV that is compatible with the Audio

Return Channel function.

[Auto]: The system can receive the digital audio

signal of the TV automatically via an HDMI

cable.

[Off]: Off.

Note

• This function is available only when [Control for

HDMI] is set to [On].

[Volume Limit]

When the System Audio Control (page 52) is

activated, loud sound may be output depending

on the volume level of the system. You can

prevent this by limiting the maximum level of

the volume when the System Audio Control

function activates.

[Level3]: Maximum volume level is set to 15.

[Level2]: Maximum volume level is set to 20.

[Level1]: Maximum volume level is set to 30.

[Off]: Off.

Note

• This function is available only when [Control for

HDMI] is set to [On].

Settings and Adjustments

65US

x[Quick Start Mode]

[On]: Shortens the startup time from standby

mode. You can operate the system quickly after

turning it on.

[Off]: The default setting.

x[Auto Standby]

[On]: Turns on the [Auto Standby] function.

When you do not operate the system for about

30 minutes, the system enters standby mode

automatically.

[Off]: Turns off the function.

Note

• This function does not work while the sleep timer is

set.

x[Auto Display]

[On]: Automatically displays information on the

screen when changing the viewing titles, picture

modes, audio signals, etc.

[Off]: Displays information only when you

press DISPLAY.

x[Screen Saver]

[On]: Turns on the screen saver function.

[Off]: Off.

x[Software Update Notification]

[On]: Sets the system to inform you of newer

software version information (page 60).

[Off]: Off.

x[Gracenote Settings]

[Auto]: Automatically downloads disc

information when you stop playback of the disc.

To download, the system must be connected to

the network.

[Manual]: Downloads disc information when

you select [Playback History List] or

[Information Display] in the options menu.

x[DivX® VOD]

(Except for U.S. models)

You can display the registration or

deregistration code for this system, or deregister

this system after registration.

When the registration is disabled

[Registration Code]: The registration code is

displayed.

[Deregistration Code]: The deregistration code

is displayed. (This item can be selected only

after the registration code is displayed.)

When the registration is enabled

Press C/c to select [OK] or [Cancel], then

press .

[OK]: The device is deregistered and the

deregistration code is displayed.

[Cancel]: The system returns to the previous

display.

For more information, go to

http://www.divx.com on the Internet.

x[System Information]

You can display the system’s software version

information and the MAC address.

[Network Settings]

You can make detailed settings for Internet and

network.

x[Internet Settings]

Connect the system to the network beforehand.

For details, see “Step 3: Connecting to the

Network” (page 28).

[View Network Status]: Displays the current

network status.

[Wired Setup]: Select this when you connect to

a broadband router directly.

[USB Wireless Setup]: Select this when you use

a USB Wireless LAN Adapter.

For more information, go to

http://www.sony.com/blurayhtsupport

x[Network Connection Diagnostics]

You can run the network diagnostics to check if

the network connection has been made properly.

66US

x[Connection Server Settings]

Sets whether or not to display the connected

DLNA server.

x[Renderer Options]

[Automatic Access Permission]: Sets whether or

not to allow automatic access from newly

detected DLNA controller.

[Smart Select]: Allows a Sony DLNA controller

to find the system as the target component to

operate by using the infrared ray. You can set

this function to on or off.

[Renderer Name]: Displays the system’s name

as it is listed on other DLNA devices on the

network.

x[Party Auto Start]

[On]: Starts a party or joins an existing party at

the request of a networked device compatible

with the PARTY STREAMING function.

[Off]: Off.

x[BD Remote Device Registration]

Registers your “BD remote” device.

x[Registered BD Remote Devices]

Displays a list of your registered “BD remote”

devices.

[Easy Setup]

Re-runs the Easy Setup to make the basic

settings. Follow the on-screen instructions.

[Resetting]

x[Reset to Factory Default Settings]

You can reset the system settings to the factory

default by selecting the group of settings. All the

settings within the group will be reset.

x[Initialize Personal Information]

You can erase your personal information stored

in the system.

Additional Information

67US

Precautions

On safety

• To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the system, or

place the system near water, such as near a bathtub or

shower room. Should any solid object or liquid fall

into the cabinet, unplug the system and have it

checked by qualified personnel before operating it

any further.

• Do not touch the AC power cord (mains lead) with

wet hands. Doing so may cause an electric shock.

On power sources

• Unplug the unit from the wall outlet (mains) if you do

not intend to use it for an extended period of time. To

disconnect the cord, pull it out by the plug, never by

the cord.

On placement

• Place the system in a location with adequate

ventilation to prevent heat build-up in the system.

• At high volume, over long periods of time, the cabinet

becomes hot to the touch. This is not a malfunction.

However, touching the cabinet should be avoided. Do

not place the system in a confined space where

ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything

on the system. The system is equipped with a high

power amplifier. If the ventilation slots are blocked,

the system can overheat and malfunction.

• Do not place the system on surfaces (rugs, blankets,

etc.) or near materials (curtains, draperies) that may

block the ventilation slots.

• Do not install the system in a confined space, such as

a bookshelf or similar unit.

• Do not install the system near heat sources such as

radiators, air ducts, or in a place subject to direct

sunlight, excessive dust, mechanical vibration, or

shock.

• Do not install the system in an inclined position. It is

designed to be operated in a horizontal position only.

• Keep the system and discs away from components

with strong magnets, such as microwave ovens, or

large loudspeakers.

• Do not place heavy objects on the system.

• Do not place metal objects in front of the front panel.

They may limit reception of radio waves (BDV-

HZ970W only).

• Do not place the system in a place where medical

equipment is in use. It may cause a malfunction of

medical equipment (BDV-HZ970W only).

• If you use a pacemaker or other medical device,

consult your physician or the manufacturer of your

medical device before using the wireless LAN

function (BDV-HZ970W only).

On operation

• If the system is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture

may condense on the lenses inside the unit. Should

this occur, the system may not operate properly. In

this case, remove the disc and leave the system turned

on for about half an hour until the moisture

evaporates.

• When you move the system, take out any disc. If you

do not, the disc may be damaged.

• If anything falls into the cabinet, unplug the unit and

have it checked by qualified personnel before

operating it any further.

On adjusting volume

• Do not turn up the volume while listening to a section

with very low level inputs or no audio signals. If you

do, the speakers may be damaged when a peak level

section is suddenly played.

On cleaning

• Clean the cabinet, panel, and controls with a soft cloth

slightly moistened with a mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any questions or problems concerning

your system, please consult your nearest Sony dealer.

On cleaning discs, disc/lens

cleaners

• Do not use cleaning discs or disc/lens cleaners

(including wet or spray types). These may cause

the apparatus to malfunction.

On replacement of parts

• In the events that this system is repaired, repaired

parts may be collected for reuse or recycling

purposes.

On your TV’s color

• If the speakers should cause the TV screen to have

color irregularity, turn off the TV then turn it on after

15 to 30 minutes. If color irregularity should persist,

place the speakers further away from the TV set.

Additional Information

68US

On moving the system

• Before moving the system, make sure that there is no

disc inserted, and remove the AC power cord (mains

lead) from the wall outlet (mains).

About S-AIR function

• As the S-AIR products transmit sound by radio

waves, sound may skip when radio waves are

obstructed. This is a characteristic of radio waves and

is not malfunction.

• As the S-AIR products transmit sound by radio

waves, equipment that generates electromagnetic

energy, such as a microwave oven, may prevent

wireless transmission.

• As the S-AIR products use the radio waves that share

the same frequency as other wireless systems, such as

wireless LAN or Bluetooth devices, interference or

poor transmission may occur. In this case, take the

following steps to enhance the transmission of

signals:

– Avoid placing the S-AIR products near other

wireless systems.

– Avoid using the S-AIR products and the other

wireless systems simultaneously.

– The transmission may be improved by changing

the transmission channel (frequency) of the other

wireless system(s). For details, refer to the

operating instructions of the other wireless

system(s).

• The transmission distance differs depending on the

usage environment. Find locations where

transmission between the S-AIR main unit and sub

unit is most effective, and install the S-AIR main unit

and sub unit there.

• Place the S-AIR products on a stable surface.

• Poor transmission may occur and the transmission

distance may be too short if the following conditions

exist:

– There is a wall/floor made of reinforced concrete

or stone between the S-AIR products.

– There is an iron divider/door or furniture/electric

product made of fireproof glass, metal, etc.,

between the S-AIR products.

Notes about the Discs

On handling discs

• To keep the disc clean, handle the disc by its

edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or

heat sources such as hot air ducts, or leave it in

a car parked in direct sunlight as the

temperature may rise considerably inside the

car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning

cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner,

commercially available cleaners, or anti-static

spray intended for vinyl LPs.

This system can only play a standard circular

disc. Using neither standard nor circular discs

(e.g., card, heart, or star shape) may cause a

malfunction.

Do not use a disc that has a commercially

available accessory attached, such as a label or

ring.

IMPORTANT NOTICE

Caution: This system is capable of holding a still

video image or on-screen display image on your

television screen indefinitely. If you leave the still

video image or on-screen display image displayed

on your TV for an extended period of time you risk

permanent damage to your television screen.

Projection televisions are especially susceptible to

this.

Additional Information

69US

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting

guide to help remedy the problem before requesting repairs. Should any problem persist, consult your

nearest Sony dealer.

Note that if service personnel changes some parts during repair, these parts may be retained.

In the event of a problem with the S-AIR function, have a Sony dealer check the entire system together

(S-AIR main unit and sub unit).

Power

General


Symptom Problems and solutions

The power is not turned on. • Check that the AC power cord (mains lead) is connected securely.

“PROTECTOR” and “PUSH

POWER” appear alternately in

the front panel display.

Press "/1 to turn off the system, and check the following items after

“STANDBY” disappears.

• Are the + and – speaker cords short-circuited?

• Are you using only the specified speakers?

• Is anything blocking the ventilation holes of the system?

• After checking the above items and fixing any problems, turn on the system. If

the cause of the problem cannot be found even after checking all the above

items, consult your nearest Sony dealer.

Symptom Problems and solutions

The remote does not function. • The distance between the remote and the unit is too far.

• The batteries in the remote are weak.

• When you cannot perform menu operations via the front panel display, press

HOME on the remote.

The system does not work

normally.

• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then

reconnect after several minutes.

Symptom Problems and solutions

There is no picture. • Check the video connection (page 22).

• The unit is not connected to the correct TV input jack (page 22).

• The video input on the TV is not set so that you can view pictures from the

system.

• Check the output method on your system (page 22).

• The unit is connected to an input device that is not HDCP (High-bandwidth

Digital Content Protection) compliant (“HDMI” on the front panel does not

light up) (page 22).

• When playing a double-layer DVD, the video and audio may be momentarily

interrupted at the point where the layers switch.

3D images from the HDMI (IN

1) or HDMI (IN 2) jack do not

appear on the TV screen.

• Depending on the TV or video component, 3D images may not appear.

70US

Sound

No picture appears when the

video output resolution selected

in [Output Video Format] is

incorrect.

• Press and hold N and VOLUME – on the unit for more than 5 seconds to reset

the video output resolution to the lowest resolution.

Video signals are only output

from the HDMI (OUT) jack

when connecting the HDMI

(OUT) jack and other video

output jacks at the same time.

• Set [Output Video Format] in [Screen Settings] to [Component Video]

(page 61).

The dark area of the picture is too

dark/the bright area is too bright

or unnatural.

• Set [Picture Quality Mode] to [Standard] (default) (page 40).

The picture is not output

correctly.

• Check the [Output Video Format] settings in [Screen Settings] (page 61).

• If the analog and digital signals are output at the same time, set [BD/DVD-

ROM 1080/24p Output] in [Screen Settings] to [Off] (page 61).

• For BD-ROMs, check the [BD/DVD-ROM 1080/24p Output] settings in

[Screen Settings] (page 61).

Picture noise appears. • The disc is dirty or flawed.

• If the picture output from your system goes through your VCR to get to your

TV, the copy-protection signal applied to some BD/DVD programs could affect

picture quality. If you still experience problems even when you connect your

unit directly to your TV, try connecting your unit to the other input jacks.

Even though you set the aspect

ratio in [TV Type] of [Screen

Settings], the picture does not fill

the TV screen.

• The aspect ratio on the disc is fixed.

Color irregularity occurs on the

TV screen.

• If the speakers are used with a CRT-based TV or projector, install the speakers

at least 1.0 ft (0.3 meters) from the TV set.

• If the color irregularity persists, turn off the TV set once, then turn it on after 15

to 30 minutes.

• Make sure that no magnetic object (magnetic latch on a TV stand, health care

device, toy, etc.) is placed near the speakers.

Symptom Problems and solutions

There is no sound. • The speaker cord is not connected securely.

• Check the speaker settings (page 54).

• Fast forward or fast reverse is performed. Press N to return to normal play

mode.

• Slow forward or freeze frame is performed. Press N to return to normal play

mode.

• Set [Audio Output] to [Speaker] (page 62).

No sound is output from the

HDMI OUT jack.

• Set [Audio Output] to [HDMI] (page 62).

The Super Audio CD sound of a

component that is connected to

the HDMI (IN 1) or HDMI (IN

2) jack is not output.

• HDMI (IN 1) and HDMI (IN 2) does not accept an audio format that contains

copy protection. Connect the analog audio output of the component to the

AUDIO (AUDIO IN L/R) jacks of the unit.

The left and right sounds are

unbalanced or reversed.

• Check that the speakers and components are connected correctly and securely.

Symptom Problems and solutions

Additional Information

71US

There is no sound from the

subwoofer.

• Check the speaker connections and settings (pages 21, 54).

There is no digital sound from

the HDMI (OUT) jack when

using the Audio Return Channel

function.

• Set [Control for HDMI] in [HDMI Settings] of [System Settings] to [On]

(page 64). Also, set [Audio Return Channel] in [HDMI Settings] of [System

Settings] to [Auto] (page 64).

• Make sure that your TV is compatible with the Audio Return Channel function.

• Make sure that an HDMI cable is connected to a jack on your TV that is

compatible with the Audio Return Channel function.

• The sampling frequency of the input stream is more than 48 kHz.

The system does not output

sound correctly when connected

to a set-top box.

• Set [Audio Return Channel] in [HDMI Settings] of [System Settings] to [Off]

(page 53).

Severe hum or noise is heard. • Check that the connecting cords are away from a transformer or motor, and at

least 10 feet (3 meters) away from your TV set or a fluorescent light.

• Move your TV away from the audio components.

• Clean the disc.

The sound loses stereo effect

when you play a CD.

• Select stereo sound by pressing AUDIO (page 42).

The surround effect is difficult to

hear when you are playing a

sound track of Dolby Digital,

DTS, or MPEG audio.

• Check the surround setting (page 33).

• Check the speaker connections and settings (pages 21, 54).

• Depending on the BD/DVD, the output signal may not be the entire 5.1 channel.

It may be monaural or stereo even if the sound track is recorded in Dolby

Digital or MPEG audio format.

The sound comes from the center

speaker only.

• Depending on the disc, the sound may come from the center speaker only.

No sound is heard from the

center speaker.

• Check the speaker connections and settings (pages 21, 54).

• Check the surround setting (page 33).

• Depending on the source, the effect of the center speaker may be less

noticeable.

• A 2 channel source is being played.

No sound or only a very low-

level sound is heard from the

surround speakers.

• Check the speaker connections and settings (pages 21, 54).

• Check the surround setting (page 33).

• Depending on the source, the effect of the surround speakers may be less

noticeable.

• Check the wireless setting (page 29).

• A 2 channel source is being played.

The beginning of the sound is cut

off.

• Set the sound mode to “MOVIE” or “MUSIC” (page 42).

• Select “A.F.D. STD” for “SUR.SETTING” (page 33).

The sound effects are disabled. • The effects of SOUND MODE, “TONE,” “NIGHT MODE,” and

“SUR.SETTING” may be disabled depending on the input stream (page 62).

Distortion occurs in the sound of

a connected component.

• Reduce the input level for the connected component by setting [Attenuate -

AUDIO] (page 62).

Symptom Problems and solutions

72US

Operation

There is no sound from the

surround speakers or surround

back speakers.

Check the status of the S-AIR/STANDBY indicator on the surround amplifier.

• Turns off.

– Check that the AC power cord (mains lead) of the surround amplifier is

connected securely.

– Turn the surround amplifier on by pressing "/1 on the surround amplifier.

• Flashes orange.

– Check that the wireless transceiver is inserted into the surround amplifier

correctly (page 27).

• Flashes green quickly.

– Set the SURROUND SELECTOR switch of the surround amplifier to

SURROUND (page 29).

– If there is no sound from the surround back speakers, set [Surround Back] in

[Speaker Settings] to [Yes] (page 55).

•Flashes red.

– Press "/1 to turn off the surround amplifier, and check the following items.

1Are the + and – speaker cords short-circuited?

2Is anything blocking the ventilation holes of the surround amplifier?

After checking the above items and fixing any problems, turn on the

surround amplifier. If the cause of the problem cannot be found even after

checking all the above items, consult your nearest Sony dealer.

• Flashes green slowly or turns red.

– Confirm the S-AIR IDs of the unit and S-AIR sub unit (page 47).

– Confirm the pairing setting (page 49).

– See “If wireless transmission is unstable” (page 50).

– Sound transmission is poor. Move the surround amplifier so that the S-AIR/

STANDBY indicator turns green.

– Move the system away from other wireless devices.

– Avoid using any other wireless devices.

• Turns green.

– The speaker cord is not connected securely.

– Check the speaker connections and settings.

– Depending on the source or the settings of the S-AIR main unit, the effect of

the speakers may be less noticeable.

Symptom Problems and solutions

Radio stations cannot be tuned

in.

• Check that the antenna (aerial) is connected securely. Adjust the antenna

(aerial) or connect an external antenna (aerial) if necessary.

• The signal strength of the stations is too weak (when tuning in with automatic

tuning). Use direct tuning.

The disc does not play. • You are attempting to play a disc with a format that cannot be played back by

this system (page 76).

• The region code on the BD/DVD does not match the system.

• Moisture has condensed inside the unit and may cause damage to the lenses.

Remove the disc and leave the unit turned on for about half an hour.

• The system cannot play a recorded disc that is not correctly finalized (page 76).

Symptom Problems and solutions

Additional Information

73US

File names are not displayed

correctly.

• The system can only display ISO 8859-1-compliant character formats. Other

character formats may be displayed differently.

• Depending on the writing software used, the input characters may be displayed

differently.

A disc does not start playing

from the beginning.

• Resume play has been selected. Press OPTIONS and select [Play from

beginning], then press .

• The title or BD/DVD menu automatically appears on the TV screen.

Playback does not start from the

resume point where you last

stopped playing.

• The resume point may be cleared from memory depending on the disc when

– you open the disc tray.

– you disconnect the USB device.

– you play other content.

– you turn off the unit.

The system starts playing the

disc automatically.

• The BD/DVD features an auto playback function.

Playback stops automatically. • Some discs may contain an auto pause signal. While playing such a disc, the

system stops playback at the auto pause signal.

You cannot perform some

functions such as stop or search.

• Depending on the disc, you may not be able to perform some of the operations.

Refer to the operating instructions supplied with the disc.

Messages do not appear on the

TV screen in the language you

want.

• In the Setup Display, select the desired language for the on-screen display in

[OSD] in [System Settings] (page 64).

The language for the soundtrack/

subtitle or angles cannot be

changed.

• Try using the BD’s or DVD’s menu.

• Multi-lingual tracks/subtitles or multi-angles are not recorded on the BD or

DVD being played.

• The BD or DVD prohibits the changing of the language for the sound track/

subtitle or angles.

The disc tray does not open and

you cannot remove the disc even

after you press Z.

• Try the following: 1 Press and hold N and Z on the unit for more than 5

seconds to open the disc tray. 2 Remove the disc. 3 Disconnect the AC power

cord (mains lead) from the wall outlet (mains), then reconnect after several

minutes.

A disc cannot be ejected and

“LOCKED” appears in the front

panel display.

• Contact your Sony dealer or local authorized Sony service facility.

The Control for HDMI function

does not work.

• Set [Control for HDMI] in [HDMI Settings] of [System Settings] to [On]

(page 64).

• Make sure that the connected component is compatible with the [Control for

HDMI] function.

• Check the connected component’s setting for the Control for HDMI function.

Refer to the operating instructions supplied with the component.

• If you change the HDMI connection, connect and disconnect the AC power

cord (mains lead), or have a power failure, set [Control for HDMI] in [HDMI

Settings] of [System Settings] to [Off], then set [Control for HDMI] to [On]

(page 64).

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”

(page 51).

No sound is output from the

system and TV while using the

System Audio Control function.

• Make sure that the connected TV is compatible with the System Audio Control

function.

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”

(page 51).

Symptom Problems and solutions

74US

USB device

S-AIR

BRAVIA Internet Video

Bonus contents or other data that

are contained in a BD-ROM

cannot be played.

• Try the following: 1 Remove the disc. 2 Turn the system off. 3 Remove and

reconnect the USB device (page 36). 4 Turn the system on. 5 Insert the BD-

ROM with BONUSVIEW/BD-LIVE.

The unit does not work and

“CHILD LOCK” appears in the

front panel display when you

press any button on the unit.

• Set the child lock function to off (page 56).

The system menu does not work. • Press HOME on the remote.

Symptom Problems and solutions

The USB device is not

recognized.

• Try the following: 1 Turn the system off. 2 Remove and reconnect the USB

device. 3 Turn the system on.

• Make sure that the USB device is securely connected to the (USB) port.

• Check if the USB device or a cable is damaged.

• Check if the USB device is on.

• If the USB device is connected via a USB hub, disconnect it and connect the

USB device directly to the unit.

Symptom Problems and solutions

Wireless transmission is not

activated. (The indicator of the

S-AIR sub unit flashes green

slowly or turns red.)

• Check that the wireless transceiver is inserted correctly into the unit and S-AIR

sub unit (page 27).

• Confirm the S-AIR IDs of the unit and S-AIR sub unit (page 47).

• Confirm the pairing setting (page 49).

• See “If wireless transmission is unstable” (page 50).

• Sound transmission is poor. Move the S-AIR sub unit so that the indicator turns

green.

• Move the system away from other wireless devices.

• Avoid using any other wireless devices.

There is no sound from the

S-AIR sub unit, noise is heard

from the S-AIR sub unit, or

sound from the S-AIR sub unit

skips.

• If you use another S-AIR main unit, place it more than 25 feet (8 meters) away

from the unit.

• Place the S-AIR main unit and S-AIR sub unit closer together.

• Avoid use of equipment that generates electromagnetic energy, such as a

microwave oven.

• Place the S-AIR main unit and S-AIR sub unit away from other wireless

products.

• See “If wireless transmission is unstable” (page 50).

• Change the S-AIR ID settings of the S-AIR main unit and S-AIR sub unit.

• Turn off the system and S-AIR sub unit, then turn them on.

Symptom Problems and solutions

The picture/sound is poor/certain

programs display with a loss of

detail, especially during fast-

motion or dark scenes.

• Picture/sound quality may be poor depending on Internet content providers.

• Picture/sound quality may be improved by changing the connection speed.

Sony recommends a connection speed of at least 2.5 Mbps for standard-

definition video and 10 Mbps for high-definition video.

• Not all videos contain sound.

Symptom Problems and solutions

Additional Information

75US

Network connection

USB Wireless LAN Adapter

(BDV-HZ970W only)

Other

The picture is small. • Press X to zoom in.

Symptom Problems and solutions

The system cannot connect to the

network.

• Check the network connection (page 28) and the network settings (page 65).

You cannot connect your PC to

the Internet after [Wi-Fi

Protected Setup (WPS)] is

performed.

• The wireless settings of the router may change automatically if you use the Wi-

Fi Protected Setup function before adjusting the settings of the router. In this

case, change the wireless settings of your PC accordingly.

You cannot connect the system

to your wireless LAN router.

• Check if the wireless LAN router is on.

• Depending on the usage environment, including the wall material, radio wave

reception conditions, or obstacles between the system and the wireless LAN

router, the possible communication distance may be shortened. Move the

system and the wireless LAN router closer to each other.

• Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or

digital cordless device, may interrupt the communication. Move the unit away

from such devices, or turn off such devices.

The desired wireless router is not

detected even if [Scan] is

performed.

• Press RETURN to return to the previous screen, and try [Scan] again. If the

desired wireless router is still not detected, press RETURN to select [Manual

registration].

The message [A new software

version has been found on the

network. Perform update under

“Network Update.”] appears on

the screen when turning the

system on.

• See [Network Update] (page 60) to update the system to a newer software

version.

Symptom Problems and solutions

The system cannot connect to the

network or the network

connection is unstable.

• The distance between the unit and the wireless LAN router is too far (page 28).

• Change the USB Wireless LAN Adapter position.

• Set [RF Change] in [S-AIR Settings] of [System Settings] to [Off], and change

the S-AIR ID of the unit and S-AIR sub unit (page 50).

Symptom Problems and solutions

“Exxxx” appears in the front

panel display.

• Contact your nearest Sony dealer or local authorized Sony service facility and

give the error code.

Symptom Problems and solutions

76US

Playable Discs

1)Since the Blu-ray Disc specifications are new and

evolving, some discs may not be playable depending

on the disc type and the version. Also, the audio

output differs depending on the source, connected

output jack, and selected audio settings.

2)BD-RE: Ver.2.1

BD-R: Ver.1.1, 1.2, 1.3 including organic pigment

type BD-R (LTH type)

BD-Rs recorded on a PC cannot be played if

postscripts are recordable.

3)A CD or DVD disc will not play if it has not been

correctly finalized. For more information, refer to the

operating instructions supplied with the recording

device.

Discs that cannot be played

• BDs with cartridge

•DVD-RAMs

• HD DVDs

• DVD Audio discs

• PHOTO CDs

• Data part of CD-Extras

•VCDs/Super VCDs

• Audio material side on DualDiscs

• A disc recorded in a color system other than

NTSC, such as PAL (this system conforms to

the NTSC color system).

Notes on discs

This product is designed to playback discs that

conform to the Compact Disc (CD) standard.

DualDiscs and some music discs encoded with

conform to the Compact Disc (CD) standard.

Therefore, these discs may not be compatible

with this product.

Note on playback operations of a

BD/DVD

Some playback operations of a BD/DVD may be

intentionally set by software producers. Since

this system plays a BD/DVD according to the

disc contents the software producers designed,

some playback features may not be available.

Note about double-layer BDs/

DVDs

The playback picture and sound may be

momentarily interrupted when the layers switch.

Region code (BD-ROM/DVD

VIDEO only)

Your system has a region code printed on the

rear of the unit and will only play a BD-ROM/

DVD VIDEO (playback only) labeled with

identical region codes or .

Blu-ray Disc1) BD-ROM

BD-R2)/BD-RE2)

DVD3) DVD-ROM

DVD-R/DVD-RW

DVD+R/DVD+RW

CD3) CD-DA (Music CD)

CD-ROM

CD-R/CD-RW

Super Audio CD

ALL

Additional Information

77US

Playable Types of Files

Video7)

Music

Photo7)

1)The system does not play files encoded with DRM.

2) Canadian models only

ABOUT DIVX VIDEO: DivX® is a digital video

format created by DivX, Inc. This is an official DivX

Certified device that plays DivX video. Visit

www.divx.com for more information and software

tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX

Certified® device must be registered in order to play

DivX Video-on-Demand (VOD) content. To

generate the registration code, locate the DivX VOD

section in the device setup menu. Go to

vod.divx.com with this code to complete the

registration process and learn more about DivX

VOD.

3)The system plays AVCHD-format files that are

recorded via a digital video camera, etc. To watch

AVCHD-format files, the disc with AVCHD-format

files on it must be finalized.

4)The system does not play files encoded with

Lossless, etc.

5)The system does not play these files via the DLNA

function.

6)The system plays SD resolution only via the DLNA

function.

7)The system does not play these files via the DLNA

renderer function.

Note

• Some files may not play depending on the file format,

the file encoding, the recording condition, or DLNA

server condition.

• Some files edited on a PC may not play.

• The system can recognize the following files or

folders in BDs, DVDs, CDs and USB devices:

– up to folders in the 5th tree

– up to 500 files in a single tree

• The system can recognize the following files or

folders stored in the DLNA server:

– up to folders in the 20th tree

– up to 999 files in a single tree

• Some USB devices may not work with this system.

• The system can recognize Mass Storage Class (MSC)

devices (such as flash memory or an HDD) that are

FAT-compatible and non-partitioned, Still Image

Capture Devices (SICDs), and 101-key keyboards

(front (USB) port only).

• To avoid data corruption or damage to USB memory

or other devices, turn the system off before

connecting or removing USB memory or other

devices.

• The system may not play high bit rate video files from

a DATA CD smoothly. It is recommended to play

high bit rate video files using a DATA DVD.

File format Extensions

MPEG-1 Video/PS1)5)

MPEG-2 Video/PS,

TS1)6)

“.mpg,” “.mpeg,” “.m2ts,”

“.mts”

DivX2) “.avi,” “.divx”

MPEG4/AVC1)5) “.mkv,” “.mp4,” “.m4v,”

“.m2ts,” “.mts”

WMV91)5) “.wmv,” “.asf”

AVCHD5) 3)

File format Extensions

MP3 (MPEG-1 Audio

Layer III)

“.mp3”

AAC1)4)6) “.m4a”

WMA9 Standard1)4) “.wma”

LPCM “.wav”

File format Extensions

JPEG “.jpg,” “.jpeg,” “.jpe”

78US

Supported Audio Formats

Audio formats supported by this system are as follows.

a: Supported format.

–: Unsupported format.

Note

• HDMI (IN 1) and HDMI (IN 2) do not input sound in the case of an audio format that contains copy protections

such as Super Audio CD or DVD-Audio.

Video Output Resolution

Output resolution differs depending on the [Output Video Format] setting in [Screen Settings]

(page 61).

* Protected contents on DVDs are output at 480p resolution.

When [Output Video Format] is set to [Video]

480i video signals are output from the VIDEO OUT or COMPONENT VIDEO OUT jack, and 480p

video signals are output from the HDMI OUT jack.

Function

Format

LPCM 2ch LPCM 5.1ch,

LPCM 7.1ch

Dolby Digital Dolby

TrueHD,

Dolby Digital

Plus

DTS DTS-ES

Discrete 6.1,

DTS-ES

Matrix 6.1,

DTS96/24

DTS-HD

High

Resolution

Audio

DTS-HD

Master

Audio

“BD/DVD”

aaaaaaaa

“HDMI (IN 1)”

“HDMI (IN 2)”

aaa –a–––

“SAT/CABLE”

“TV”

(DIGITAL IN)

a–a–a–––

Resolution

setting

When [Output Video Format] is set to

[HDMI]

When [Output Video Format] is set to

[Component Video]

VIDEO OUT

jack

COMPONENT

VIDEO OUT

jacks

HDMI OUT

jack

VIDEO OUT

jack

COMPONENT

VIDEO OUT

jacks

HDMI OUT

jack

480i 480i 480i 480i 480i 480i 480i

480p 480i 480p 480p 480i 480p 480p

720p 480i 720p* 720p 480i 720p* 720p

1080i 480i 1080i* 1080i 480i 1080i* 1080i

1080p 480i 1080i* 1080p unselectable unselectable unselectable

Additional Information

79US

Specifications

Amplifier Section

U.S. models:

POWER OUTPUT AND TOTAL HARMONIC

DISTORTION:

(FTC)

Front L + Front R: With 3 ohms loads, both

channels driven, from

180 Hz - 20,000 Hz; rated

60 W per channel

minimum RMS power,

with no more than 1% total

harmonic distortion from

250 milli watts to rated

output.

Other models:

POWER OUTPUT (rated)

Front L + Front R: 105 W + 105 W (at 3 ohms,

1 kHz, 1% THD)

POWER OUTPUT (reference)

Front L/Front R/Center: 167 W (per channel at 3

ohms, 1 kHz)

Subwoofer: 165 W (at 3 ohms, 80 Hz)

Inputs (Analog)

AUDIO (AUDIO IN) Sensitivity: 450/250 mV

Inputs (Digital)

DIGITAL IN (SAT/CABLE COAX), DIGITAL IN

(TV OPT)

Supported formats: LPCM

2CH (up to 48 kHz), Dolby

Digital, DTS

Video Section

Outputs VIDEO: 1 Vp-p 75 ohms

COMPONENT:

Y: 1 Vp-p 75 ohms

PB/CB, PR/CR: 0.7 Vp-p

75 ohms

HDMI Section

Connector Type A (19pin)

Video inputs HDMI (IN 1), HDMI (IN

2):

640 × 480p@60 Hz

720 × 480i@59.94/60 Hz

720 × 480p@59.94/60 Hz

1280 × 720p@59.94/60 Hz

1920 × 1080i@59.94/

60 Hz

1920 × 1080p@59.94/

60 Hz

720 × 576i@50 Hz

720 × 576p@50 Hz

1280 × 720p@50 Hz

1920 × 1080i@50 Hz

1920 × 1080p@50 Hz

1920 × 1080p@24 Hz

BD/DVD/Super Audio CD/CD System

Signal format system NTSC

USB Section

(USB) port: Type A (For connecting

USB memory, memory

card reader, digital still

camera, and digital video

camera)

Maximum current: 500 mA

LAN Section

LAN (100) terminal 100BASE-TX Terminal

Tuner Section

System PLL quartz-locked digital

synthesizer

FM tuner section

Tuning range 87.5 MHz - 108.0 MHz

(100 kHz step)

Antenna (aerial) FM wire antenna (aerial)

Antenna (aerial) terminals 75 ohms, unbalanced

Intermediate frequency 10.7 MHz

Speakers

Front (SS-TSB102) for BDV-HZ970W

Speaker system Full range Bass reflex

Speaker unit 55 mm × 80 mm (2 1/4 in ×

3 1/4 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 75 mm × 610 mm × 70 mm

(3 in × 24 1/16 in × 2 7/8 in)

(w/h/d) (wall-mounted

part)

Floor: 250 mm × 1,000

mm × 250 mm (9 7/8 in ×

39 3/8 in × 9 7/8 in) (w/h/d)

(whole speaker)

Desktop: 250 mm × 727

mm × 250 mm (9 7/8 in ×

28 5/8 in × 9 7/8 in) (w/h/d)

(whole speaker)

Mass (approx.) 0.9 kg (2 lb) (wall-

mounted part)

Floor: 2.0 kg (4 lb 7 oz)

(whole speaker)

Desktop: 1.9 kg (4 lb 3 oz)

(whole speaker)

80US

Surround (SS-TSB101) for BDV-HZ970W

Speaker system Full range Bass reflex

Speaker unit 55 mm × 80 mm (2 1/4 in ×

3 1/4 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 75 mm × 225 mm × 71 mm

(3 in × 8 7/8 in × 2 7/8 in)

(w/h/d)

Mass (approx.) 0.45 kg (1 lb)

Front/Surround (SS-TSIZ1) for BDV-

IZ1000W

Speaker system 2-Way 2-Driver speaker

system, Bass reflex

Speaker unit

Tweeter: 20 mm (3/4 in) cone type

Woofer: 40 mm × 70 mm (1 9/16 in ×

2 3/4 in) cone type

Rated impedance 3 ohms

Dimensions (approx.)

Front speaker (after assembly):

200 mm × 1,100 mm ×

230 mm (7 7/8 in × 43 1/3 in

× 9 1/16 in) (w/h/d) (vertical

angle)

200 mm × 1,100 mm ×

255 mm (7 7/8 in × 43 1/3 in

× 10 in) (w/h/d) (upward

angle)

Surround speaker (after assembly):

103 mm × 335 mm ×

103 mm (4 1/16 in × 13 3/16

in × 4 1/16 in) (w/h/d)

(vertical angle)

103 mm × 356 mm ×

103 mm (4 1/16 in × 14 in ×

4 1/16 in) (w/h/d) (upward

angle)

Mass (approx.)

Front speaker (after assembly):

2.9 kg (6 lb 6 oz)

Surround speaker (after assembly):

0.6 kg (1 lb 5 oz)

Center (SS-CTB101)

Speaker system Full range Acoustic

suspension, Magnetically

Shielded

Speaker unit 30 mm × 60 mm (1 3/16 in ×

2 3/8 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 290 mm × 49 mm × 49 mm

(11 1/2 in × 1 15/16 in ×

1 15/16 in) (w/h/d)

Mass (approx.) 0.28 kg (10 oz)

Subwoofer (SS-WSB102) for BDV-HZ970W

Speaker system Subwoofer Bass reflex

Speaker unit 180 mm (7 1/8 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 275 mm × 405 mm × 275

mm (10 7/8 in × 16 in ×

10 7/8 in) (w/h/d)

Mass (approx.) 7.5 kg (16 lb 12 oz)

Subwoofer (SS-WSIZ1) for BDV-IZ1000W

Speaker system Subwoofer Bass reflex

Speaker unit 180 mm (7 1/8 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 275 mm × 405 mm × 275

mm (10 7/8 in × 16 in ×

10 7/8 in) (w/h/d)

Mass (approx.) 7.5 kg (16 lb 12 oz)

General

Power requirements 120 V AC, 60 Hz

Power consumption On: 110 W

Standby: 0.3 W (at the

Power Saving mode)

Dimensions (approx.) 430 mm × 83 mm × 355

mm (17 in × 3 3/8 in ×

14 1/8 in) (w/h/d) incl.

projecting parts such as the

wireless transceiver slot;

430 mm × 83 mm × 384

mm (17 in × 3 3/8 in ×

15 1/4 in) (w/h/d) incl. the

wireless transceiver

(EZW-RT10)

Mass (approx.) 5.3 kg (11 lb 11 oz)

Surround amplifier (TA-SA200WR)

Amplifier Section

POWER OUTPUT AND TOTAL HARMONIC

DISTORTION:

(FTC) With 3 ohms loads, both

channels driven, from 120

- 20,000 Hz; rated 45 watts

per channel minimum

RMS power, with no more

than 1% total harmonic

distortion from 250 milli

watts to rated output.

POWER OUTPUT (reference)

167 W (per channel at 3

ohms, 1 kHz)

Rated impedance 3 - 16 Ω

General

Power requirements 120 V AC, 60 Hz

Power consumption On: 50 W

Additional Information

81US

Standby power consumption

0.9 W (standby mode)

0.13 W (turned off)

Dimensions (approx.) 206 mm × 60 mm × 256

mm (8 1/8 in × 2 3/8 in ×

10 1/8 in) (w/h/d) with the

wireless transceiver

inserted

Mass (approx.) 1.3 kg (2 lb 14 oz)

Wireless transceiver (EZW-RT10/EZW-

RT10A)

Communication system S-AIR Specification

version 1.0

Frequency band 2.4000 GHz - 2.4835 GHz

Modulation method DSSS

Power requirements DC 3.3 V, 350 mA

Dimensions (approx.) 50 mm × 13 mm × 60 mm

(2 in × 17/32 in × 2 3/8 in) (w/

h/d)

Mass (approx.) 24 g (1 oz)

USB Wireless LAN Adapter (UWA-BR100)

Standards Compliance: IEEE 802.11a/b/g/n

Host Interface: USB 2.0

Security: 64/128 bit: WEP, WPA/

WPA2, WPS

Frequency and Channel*: 2.4 GHz - 2.4835 GHz

[CH1 - 11]

5.15 GHz - 5.25 GHz

[CH36 - 48]

5.25 GHz - 5.35 GHz

[CH52 - 64]

5.47 GHz - 5.725 GHz

[CH100 - 140]

5.725 GHz - 5.85 GHz

[CH149 - 165]

Data Rate**: 802.11a/g: 54, 48, 36, 24,

18, 12, 9 and 6 Mbps

802.11b: 11, 5.5, 2 and 1

Mbps

802.11n: up to 300 Mbps

(40 MHz/spatial streams:

Power consumption: Tx: up to 500 mA

Mass (Approx.): USB Wireless LAN

Adapter: 27 g (1 oz)

Dimensions (Approx.) (w × h × d):

USB Wireless LAN

Adapter: 96 mm × 14 mm

× 27 mm (3 7/8 in × 9/16 in ×

1 1/8 in)

* The frequency and channel differ depending on the

area.

** The transmission speed differs depending on the

distance and number of obstructions between the

transmission products, the configuration of

products, the radio wave conditions, the line traffic,

and the products that you use. The transmission may

also be cut off depending on the radio wave

conditions. The standard values of the transmission

speed are the theoretical maximum values for the

wireless standards. They are not the actual speeds of

data transmission.

Design and specifications are subject to change

without notice.

• Standby power consumption 0.3W (main unit),

0.13W (surround amplifier).

• Halogenated flame retardants are not used in the

certain printed wiring boards.

• Over 85% power efficiency of amplifier block is

achieved with the full digital amplifier, S-Master.

82US

Language Code List

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Parental Control/Area Code List

Additional Information

83US

Glossary

AVCHD

The AVCHD format is a high-definition digital

video camera format used to record SD

(standard definition) or HD (high definition)

signals of either the 1080i specification* or the

720p specification** on DVDs, using efficient

data compression coding technology. The

MPEG-4 AVC/H.264 format is adopted to

compress video data, and the Dolby Digital or

Linear PCM system is used to compress audio

data. The MPEG-4 AVC/H.264 format is

capable of compressing images at higher

efficiency than that of the conventional image

compression format. The MPEG-4 AVC/H.264

format enables a high definition (HD) video

signal shot on a digital video camera recorder to

be recorded on DVD discs in the same way as it

would be for a standard definition (SD)

television signal.

* A high definition specification that utilizes 1080

effective scanning lines and the interlace format.

** A high definition specification that utilizes 720

effective scanning lines and the progressive format.

BD-J application

The BD-ROM format supports Java for

interactive functions.

“BD-J” offers content providers almost

unlimited functionality when creating

interactive BD-ROM titles.

BD-R

BD-R (Blu-ray Disc Recordable) is a

recordable, write-once Blu-ray Disc, available

in the same capacities as the BD below. Since

contents can be recorded and cannot be

overwritten, a BD-R can be used to archive

valuable data or store and distribute video

material.

BD-RE

BD-RE (Blu-ray Disc Rewritable) is a

recordable and rewritable Blu-ray Disc,

available in the same capacities as the BD

below. The re-recordable feature makes

extensive editing and time-shifting applications

possible.

BD-ROM

BD-ROMs (Blu-ray Disc Read-Only Memory)

are commercially produced discs and are

available in the same capacities as the BD

below. Other than conventional movie and video

contents, these discs have enhanced features

such as interactive content, menu operations

using pop-up menus, selection of subtitle

display, and slideshow. Although a BD-ROM

may contain any form of data, most BD-ROM

discs will contain movies in High Definition

format, for playback on Blu-ray Disc/DVD

players.

Blu-ray Disc (BD)

A disc format developed for recording/playing

high-definition (HD) video (for HDTV, etc.),

and for storing large amounts of data. A single

layer Blu-ray Disc holds up to 25 GB, and a

dual-layer Blu-ray Disc holds up to 50 GB of

data.

Digital Cinema Auto Calibration

(D.C.A.C)

Digital Cinema Auto Calibration was developed

by Sony to automatically measure and adjust the

speaker settings to your listening environment in

a short period of time.

Dolby Digital

This movie theater sound format is more

advanced than Dolby Surround Pro Logic. In

this format, the surround speakers output stereo

sound with an expanded frequency range, and a

subwoofer channel for deep bass is

independently provided. This format is also

called “5.1” with the subwoofer channel

designed as the 0.1 channel (since it functions

only when a deep bass effect is needed). All six

channels in this format are recorded separately

for superior channel separation. Furthermore,

since all the signals are processed digitally, less

signal degradation occurs.

Dolby Digital Plus

Developed as an extension to Dolby Digital, the

audio coding technology supports 7.1 multi-

channel surround sound.

84US

Dolby Pro Logic II

Dolby Pro Logic II creates five full-bandwidth

output channels from 2 channel sources. This is

done using an advanced, high-purity matrix

surround decoder that extracts the spatial

properties of the original recording without

adding any new sounds or tonal colorations.

xMovie mode

The Movie mode is for use with stereo television

shows and all programs encoded in Dolby

Surround. The result is enhanced sound field

directionality that approaches the quality of

discrete 5.1-channel sound.

Dolby Surround Pro Logic

As one method of decoding Dolby Surround,

Dolby Surround Pro Logic produces four

channels from 2 channel sound. Compared with

the former Dolby Surround system, Dolby

Surround Pro Logic reproduces left-to-right

panning more naturally and localizes sounds

more precisely. To take full advantage of Dolby

Surround Pro Logic, you should have one pair of

surround speakers and a center speaker. The

surround speakers output monaural sound.

Dolby TrueHD

Dolby TrueHD is a lossless coding technology

that supports up to 8 channels of multi-channel

surround sound for the next generation of optical

discs. The reproduced sound is true to the

original source bit-for-bit.

DTS

Digital audio compression technology

developed by DTS, Inc. This technology

conforms to 5.1-channel surround. This format

includes a stereo rear channel and a discrete

subwoofer channel. DTS provides the same 5.1

discrete channels of high quality digital audio.

The good channel separation is realized due to

the all channel data being recorded discretely

and processed in digitally.

DTS Neo:6

This technology converts 2 channels stereo

recorded audio for 7 channels playback. There

are two modes to select according to the

playback source or your preference, CINEMA

for movies, and MUSIC for stereo sources such

as music.

DTS-HD High Resolution Audio

Developed as an extension to DTS Digital

Surround format. It supports a maximum

sampling frequency of 96 kHz, and 7.1 multi-

channel surround.

DTS-HD High Resolution Audio has a

maximum transmission rate of 6 Mbps, with

lossy compression.

DTS-HD Master Audio

DTS-HD Master Audio has a maximum

transmission rate of 24.5 Mbps, and uses

lossless compression, and DTS-HD Master

Audio corresponds to a maximum sampling

frequency of 192 kHz, and maximum of 7.1ch.

HD Digital Cinema Sound (HD-D.C.S.)

HD Digital Cinema Sound (HD-D.C.S.) is

Sony’s new innovative home theater technology

using the latest acoustic and digital signal

processing technologies. It is based on precise

response measurement data of a mastering

studio.

With HD-D.C.S., you are able to enjoy Blu-ray

and DVD movies at home with not only the high

quality of sound, but also the best sound

ambience, just as the movie’s sound engineer

intended in the mastering process.

HDMI (High-Definition Multimedia

Interface)

HDMI is an interface that supports both video

and audio on a single digital connection,

allowing you to enjoy high quality digital

picture and sound. The HDMI specification

supports HDCP (High-bandwidth Digital

Content Protection), a copy protection

technology that incorporates coding technology

for digital video signals.

Interlace format

(Interlaced scanning)

The Interlace format is the NTSC standard

method for displaying TV images at 30 frames

per second. Each frame is scanned twice -

alternately between the even numbered scanning

lines and then odd numbered scanning lines, at

60 times per second.

LTH (Low to High)

LTH is a recording system that supports organic

pigment type BD-R.

Additional Information

85US

Parental Control

A function of the BD/DVD to limit playback of

the disc by the age of the users according to the

limitation level in each country. The limitation

varies from disc to disc; when it is activated,

playback is completely prohibited, violent

scenes are skipped or replaced with other scenes

and so on.

PhotoTV HD

“PhotoTV HD” allows for highly-detailed

pictures, and photo-like expression of subtle

textures and colors. By connecting Sony

“PhotoTV HD” compatible devices using an

HDMI cable, a whole new world of photos can

be enjoyed in breathtaking Full HD quality. For

instance, the delicate texture of the human skin,

flowers, sand and waves can now be displayed

on a large screen in beautiful photo-like quality.

Pop-up menu

An enhanced menu operation available on BD-

ROMs. The pop-up menu appears when POP

UP/MENU is pressed during playback, and can

be operated while playback is in progress.

Progressive format

(sequential scanning)

In contrast to the Interlace format, the

progressive format can reproduce 50 - 60 frames

per second by reproducing all scanning lines

(525 lines for the NTSC system). The overall

picture quality increases and still images, text

and horizontal lines appear sharper. This format

is compatible with the 525 or 625 progressive

format.

S-AIR

(Sony Audio Interactive Radio

frequency)

Recent times have seen the rapid spread of BD/

DVD media, digital broadcasting, and other

high-quality media.

To ensure that the subtle nuances of these high-

quality media are transmitted with no

deterioration, Sony has developed a technology

called “S-AIR” for the radio transmission of

digital audio signals with no compression, and

has incorporated this technology into the EZW-

RT10/EZW-RT10A/EZW-T100.

This technology transfers digital audio signals

with no compression using the 2.4 GHz band

range of ISM band (Industrial, Scientific, and

Medical band), such as wireless LANs and

Bluetooth applications.

24p True Cinema

Movies shot with a film camera consist of 24

frames per second.

Since conventional televisions (both CRT and

flat panels) display frames either at 1/60 or 1/50

second intervals, the 24 frames do not appear at

an even pace.

When connected to a TV with 24p capabilities,

the player displays each frame at 1/24 second

intervals — the same interval originally shot

with the film camera, thus faithfully reproducing

the original cinema image.

86US

Index

Numerics

24p True Cinema 85

3D 35

3D Output Setting 61

A/V SYNC 41

ARC 23

Attenuate - AUDIO 62

Audio 63

Audio DRC 62

Audio Output 62

Audio Return Channel 23, 64

Audio Settings 62

Auto Calibration 53, 63

Auto Display 65

Auto Standby 65

AVCHD 83

BD Audio MIX Setting 62

BD Data Jack Selection 63

BD Hybrid Disc Playback

Layer 63

BD Internet Connection 63

BD Parental Control 63

BD Remote Device

Registration 66

BD/DVD Menu 63

BD/DVD Viewing Settings 63

BD/DVD-ROM 1080/24p

Output 61

BD-LIVE 35

BD-R 83

BD-RE 83

Blu-ray Disc 83

BONUSVIEW 35

BRAVIA Internet Video 38

CD 76

Child Lock 56

Cinema Conversion Mode 61

Connection Server Settings 66

Control for HDMI 51, 64

D. C. A. C. (Digital Cinema

Auto Calibration) 53, 83

Dimmer 64

DivX® VOD 65

DLNA 38, 66

Dolby Digital 42, 83

Dolby Digital Plus 83

Dolby Pro Logic II 84

Dolby Surround Pro Logic 84

Dolby TrueHD 84

DTS 42, 84

DTS Neo:6 84

DTS-HD 84

DVD 76

DVD Aspect Ratio 61

DVD Parental Control 63

Easy Setup 30, 66

FM MODE 45

Front panel 10

Front panel display 11

Gracenote Settings 65

HDMI

YCbCr/RGB (HDMI) 62

HDMI (High-Definition

Multimedia Interface) 84

HDMI Deep Color Output 62

Initialize Personal Information

Interlace format 84

Internet content 38

Internet Settings 65

Internet Video Parental Control

Internet Video Unrated 64

IP Content Noise Reduction 40

Language Code List 82

Learning Mode 60

LTH 84

Multiplex broadcast sound 43

Music Settings 64

Network Connection

Diagnostics 65

Network Settings 65

Network Update 61

NIGHT MODE 44

OSD 64

Output Video Format 61

Parental Control 85

Parental Control Area Code 63

Parental Control Settings 63

Party 38

Party Auto Start 66

Password 63

Pause Mode 62

PhotoTV HD 85

Play information 36

Playable discs 76

Preset Mode 60

Progressive format 85

Quick Start Mode 65

Rear panel 12

Region code 76

Registered BD Remote Devices

Remote control 14

Remote Controller Setting

Guide 60

Renderer Options 66

Reset to Factory Default

Settings 66

Resetting 66

S-AIR 47, 85

Mode 48

Pairing 49

RF Change 50

S-AIR receiver 47

Standby 48

S-AIR Settings 64

Screen Format 61

Screen Saver 65

87US

Screen Settings 61

SLEEP 56

Slideshow 41

Sound Effect 62

Speaker Settings 54, 63

Connection 55

Distance 55

Level 55

Subtitle 63

Super Audio CD Playback

Channel 64

Super Audio CD Playback

Layer 64

Surround amplifier 13, 47

System Information 65

SYSTEM MENU 33, 41, 44

Test Tone 56

TV Screen Size Setting for 3D

TV Type 61

Update 60, 61

USB 36

WEP 29

WPA2-PSK (AES) 29

WPA2-PSK (TKIP) 29

WPA-PSK (AES) 29

WPA-PSK (TKIP) 29

The software of this system may be updated in the future. To find out details on any

available updates, please visit: http://www.sony.com/blurayhtsupport
