KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Operating Instructions
2
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\020WAR
.
f
mmas
t
erpage:
L
e
ft
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130

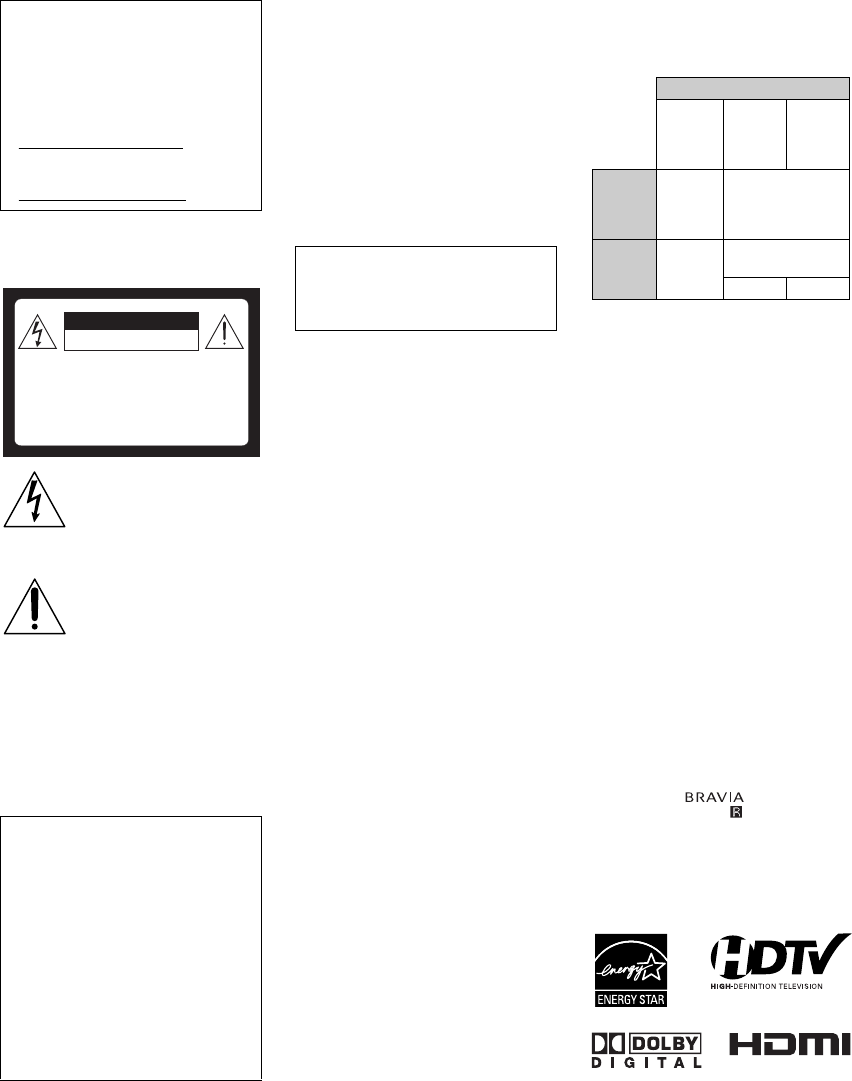

WARNING
To reduce the risk of fire or electric shock, do
not expose this TV to rain or moisture.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the TV’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock
to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the TV.
The TV shall not be exposed to dripping or
splashing and no objects filled with liquids,
such as vases, shall be placed on the TV.
CAUTION
To prevent electric shock, do not use this
polarized AC plug with an extension cord,
receptacle or other outlet unless the blades can
be fully inserted to prevent blade exposure.
NOTIFICATION
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
sReorient or relocate the receiving antenna.
sIncrease the separation between the
equipment and receiver.
sConnect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
sConsult the dealer or an experienced radio/
TV technician for help.
Safety
sOperate the TV only on 120 - 240 V AC.
sUse the AC power cord specified by Sony
and suitable for the voltage where you use
it.
sThe plug is designed, for safety purposes,
to fit into the wall outlet only one way. If
you are unable to insert the plug fully into
the outlet, contact your dealer.
sIf any liquid or solid object should fall
inside the cabinet, unplug the TV
immediately and have it checked by
qualified service personnel before
operating it further.
sIf you will not be using the TV for several
days, disconnect the power by pulling the
plug itself. Never pull on the cord.
sWhen disconnecting AC power cord, the
power cord should be easily accessible for
disconnection.
sFor details concerning safety precautions,
see “Important Safety Instructions” on
page 4.
Installing
sThe TV should be installed near an easily
accessible power outlet.
sTo prevent internal heat buildup, do not
block the ventilation openings.
sDo not install the TV in a hot or humid
place, or in a place subject to excessive
dust or mechanical vibration.
sAvoid operating the TV at temperatures
below 41°F (5°C).
sIf the TV is transported directly from a cold
to a warm location, or if the room
temperature changes suddenly, the picture
may be blurred or show poor color due to
moisture condensation. In this case, please
wait a few hours to let the moisture
evaporate before turning on the TV.
sTo obtain the best picture, do not expose
the screen to direct illumination or direct
sunlight. It is recommended to use spot
lighting directed down from the ceiling or
to cover the windows that face the screen
with opaque drapery. It is desirable to
install the TV in a room where the floor and
walls are not of a reflective material.
CAUTION
Use the following Sony TVs only with the
following WALL-MOUNT BRACKET or
TV-stand.
Use with other WALL-MOUNT BRACKET
or TV-stand may cause instability and possibly
result in injury.
To Customers
Sufficient expertise is required for installing
the specified TV. Be sure to subcontract the
installation to a Sony dealer or licensed
contractor and pay adequate attention to safety
during the installation.
Note
This television includes a QAM demodulator
which should allow you to receive
unscrambled digital cable television
programming via subscription service to a
cable service provider. Availability of digital
cable television programming in your area
depends on the type of programming and signal
provided by your cable service provider.
Trademark Information
Macintosh is a trademark of Apple Inc.,
registered in the U.S. and other countries.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing
LLC.
Manufactured under license from Dolby
Laboratories. “Dolby” and double-D symbol
are trademarks of Dolby Laboratories.
Blu-ray Disc is a trademark.
“BRAVIA” and , S-Force,
BRAVIA Theatre Sync, and DMex are
trademarks or registered marks of Sony
Corporation.
“XMB”, “XrossMediaBar” and “PS3” are
trademarks of Sony Corporation and/or Sony
Computer Entertainment Inc.
Owner’s Record
The model and serial numbers are located
at the rear of the TV. Record these
numbers in the spaces provided below.
Refer to them whenever you call upon
your Sony dealer regarding this TV.
Model Name
Serial No.
Declaration of Conformity
Trade Name: SONY
Model: KDL-26S3000/KDL-32S3000/
KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
Pursuant to FCC regulations, you are
cautioned that any changes or modifications
not expressly approved in this manual could
void your authority to operate this
equipment.
Sony TV Model No.
KDL-26S3000
KDL-32S3000
KDL-40S3000
KDL-32SL130
KDL-40SL130
KDL-46S3000
Sony
Wall-Mount
Bracket
Model No.
SU-WL100 SU-WL500
Sony
TV-Stand
Model No.
-
RHT-G800
SU-FL300M
- SU-FL300L
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\010COVTOC
.
f
mmas
t
erpage:
Fi
rs
t
Ri
g
ht
2C
Quick Setup Guide (separate volume)
Provides a variety of optional equipment
connection diagrams.
Customer Support
http://www.sony.com/tvsupport
On-line Registration
United States
http://productregistration.sony.com
Canada
http://www.SonyStyle.ca/registration
3
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Contents

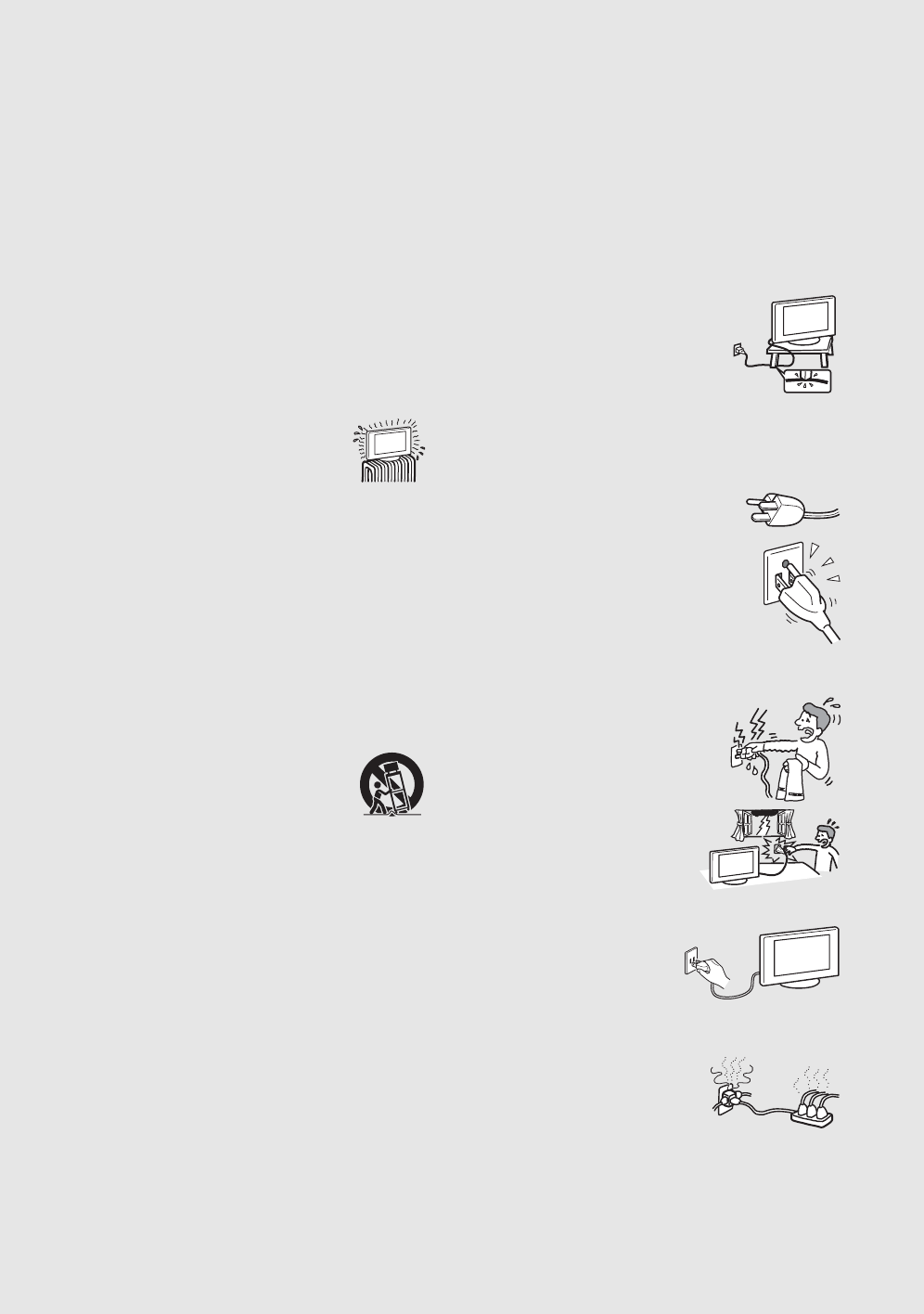

Important Safety Instructions ............................4
Welcome to the World of BRAVIA™
The Four Steps to Stunning HD Experience:
Set, Sound, Source, and Setup ....................8
Picture Quality and Aspect Ratio.......................8

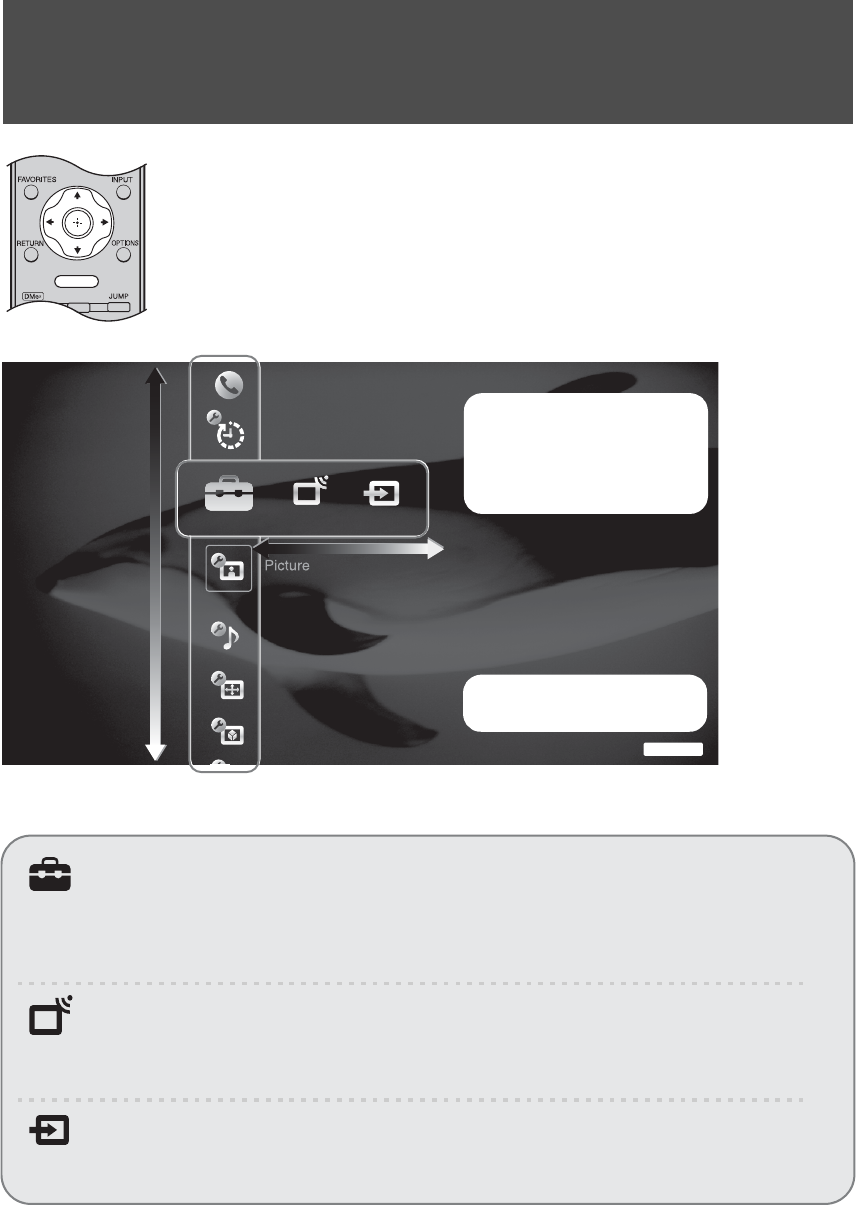

TV Home Menu: XMB™ (XrossMediaBar)..........9
Getting Started
1. Installing the TV.............................................11

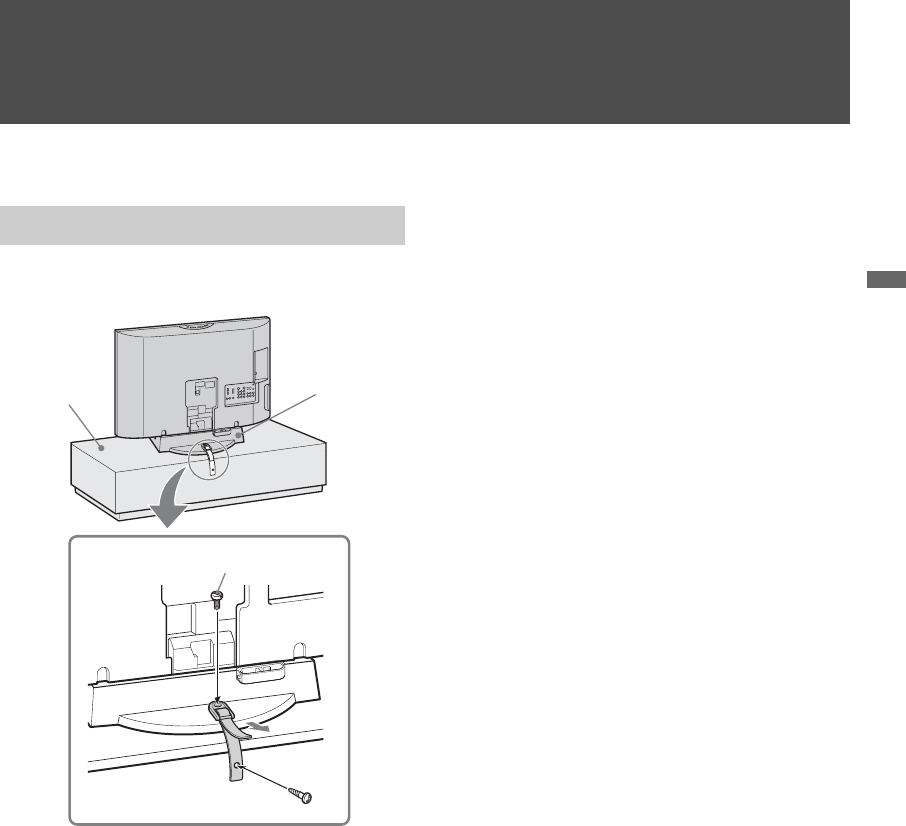

Preventing the TV from Toppling Over.........11
Preparation for Wall-Mounting......................12
2. Locating Inputs and Outputs .......................13
Left side........................................................13
Rear..............................................................14
3. Connecting the TV.........................................16
Cable System or VHF/UHF
Antenna System........................................16
Cable System and VHF/UHF
Antenna System........................................16
HD Cable Box/HD Satellite Box....................16
PC.................................................................18
Other Equipment ..........................................19
Using HDMI Control for
BRAVIA Theatre Sync™...........................20
Bundling the Connecting Cables ..................20
4. Setting Up the Channel List
– Initial Setup ...............................................21
Remote Control and TV
Controls/Indicators......................................22
Inserting Batteries into the Remote
control .......................................................22
Remote Control ............................................22
Indicators......................................................26

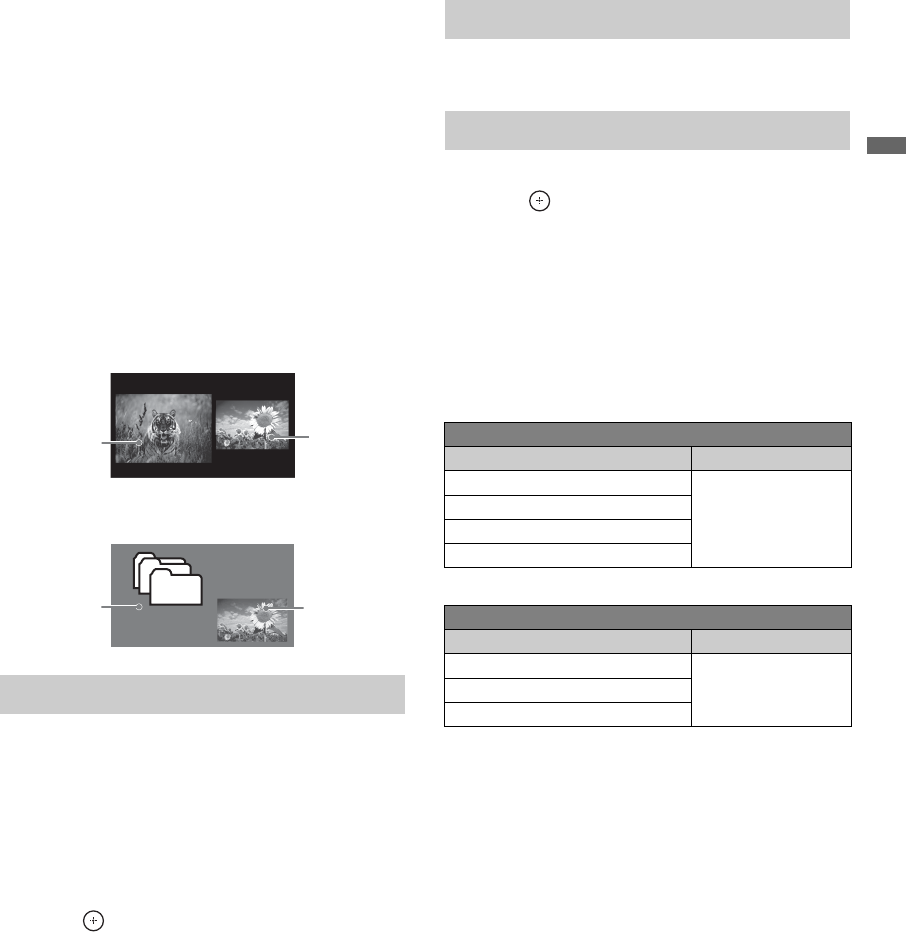

How to Use P&P and PIP Features ..................27
To display a picture in the Sub Window .......27
To change channels in the Sub Window ......27
To exit from P&P and PIP ............................27
Using TV Features
Adjust TV Settings ......................................28
Watching TV.................................................28
Access the equipment connected to
your TV .........................................................28
Navigating through TV Home Menu on
XMB™............................................................29
TV Settings Descriptions..................................30
Product Support......................................30
Clock/Timers Settings.............................30
Picture Settings ......................................30
Sound Settings .......................................32
Screen Settings ......................................32
Video Options Settings ...........................34
Audio Options Settings ...........................34
Channel Settings ....................................35
Closed Captions (CC) Settings...............36
Parental Lock Settings............................36
External Inputs Settings..........................39
HDMI Settings ........................................39
General Settings.....................................40
Initial Setup.............................................40
Other Information
Troubleshooting................................................41
Specifications....................................................44
Index...................................................................45
CC
:
or
er
.
mmas
t
erpage:
L
e
ft
4
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Important
Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
USE
AC power cord
Observe the followings to prevent the AC power cord from being
damaged. If the AC power cord is damaged, it may result in a fire or an
electric shock. Stop using it and ask your dealer or Sony service center to
exchange it.
sDo not place the TV where the power cord is subject to wear or abuse.
sDo not pinch, bend, or twist the cord excessively. The core lines may
be bared and cut, causing a short-circuit, and resulting in a fire or an
electric shock.
sDo not convert or damage the power cord.
sDo not allow anything to rest on or roll over the
power cord.
sDo not move the TV with the power cord
plugged in.
sKeep the power cord away from heat sources.
sWhen you disconnect the AC power cord,
disconnect it from the wall outlet first.
sBe sure to grasp the plug when disconnecting the power cord. Do not
pull the power cord.
sDo not use the supplied AC power cord on any other equipment.
sUse only an original Sony AC power cord, not other brands.
Wall outlet
The TV set with a three-wire grounding type AC
power cord plug must be connected to an AC power
socket outlet with a protective earthing connection.
Do not use a poor fitting outlet.
Insert the plug fully into the outlet. If it is loose, it may
cause arcing and result in a fire.
Contact your electrician to have the outlet changed.
Wiring
When connecting cables, be sure to unplug the AC power cord for your
safety.
Take care not to catch your feet on the cables. It may damage the TV set.
Electric shock
Do not touch the AC power cord or the TV with a
wet hand. If you plug/unplug the AC power cord
from the TV with a wet hand, it may cause electric
shock.
Lightning storms
For added protection for this TV during a
lightning storm, or when it is left unattended
and unused for long periods of time, unplug
it from the wall outlet and disconnect the
antenna. This will prevent damage to the TV
due to lightning and power line surges.
When not in use
If you will not be using the TV set for
several days, the TV set should be
disconnected from the AC power outlet
for environmental and safety reasons. The
TV set is not disconnected from the AC power source when the TV set is
switched off. To disconnect the TV set completely, pull the plug from the
AC power outlet.
Overloading
This TV set is designed to operate on a
120 - 240 V AC supply only. Take care not to
connect too many appliances to the same AC
power outlet as this could result in a fire or an
electric shock.
Optional equipment
Do not install optional equipment too close to the TV set. Keep optional
equipment at least 11 7/8 inches (30 cm) away from the TV set. If a VCR
is installed in front of the TV set or beside the TV set, the picture may
become distorted. Picture distortion and/or noisy sound may occur if the
TV set is positioned in close proximity to any equipment emitting
electromagnetic radiation.
4
:
or
er
.
mmas
t
erpage:
Ri
g
ht
5
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Small accessories
Keep small accessories out of children’s reach.
ANTENNAS
Outdoor antenna grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can come
in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT
WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and Section
54 of the Canadian Electrical Code in Canada provides information with
respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
BATTERIES
sDo not dispose of batteries in a fire.
sDo not short circuit, disassemble or overheat the batteries.
sDanger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
Disposal of used batteries
To preserve our environment, dispose of used batteries according to your
local laws or regulations.
CLEANING
Cleaning the AC power plug
Unplug the AC power plug and clean it regularly.
If the plug is covered with dust and it picks up
moisture, its insulation may deteriorate and result
in a fire.
Cleaning the screen surface/
cabinet of the TV set
Unplug the AC power cord when cleaning this
TV. If not, it may result in electric shock. Clean
the cabinet of the TV with a dry soft cloth. To
remove dust from the screen, wipe it gently with a soft cloth. Stubborn
stains may be removed with a cloth slightly dampened with a solution of
mild soap and warm water. Never use strong solvents such as thinner or
benzine for cleaning. If using a chemically pretreated cloth, please follow
the instruction provided on the package. The ventilation holes can
accumulate dust over time. To ensure proper ventilation, we recommend
removing the dust periodically (once a month) using a vacuum cleaner.
MAGNETIC INFLUENCE
This TV contains a strong magnet in the speaker unit that generates a
magnetic field. Keep any items susceptible to magnetic fields away from
the speaker.
SOUND
If a snapping or popping sound from the TV is
continuous or frequent while the TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TV’s to make
occasional snapping or popping sounds, particu-
larly when being turned on or off.
CARRYING THE TV
Carry the TV in the specified manner
To avoid dropping the TV and causing serious injury, be sure to follow
these guidelines:
sBefore carrying the TV, disconnect all cables.
sCarrying the large size TV requires two or more people.
sWhen you carry the TV, place your hand as illustrated and hold it
securely. Do not put stress on the LCD panel.
sWhen lifting or moving the TV, hold it firmly from the bottom. Place
your palm directly under the panel.
sWhen carrying, do not subject the TV to shocks or vibration, or
excessive force.
VENTILATION
The slots and openings in the TV are provided for necessary ventilation.
To ensure reliable operation of the TV and to protect it from overheating,
these slots and openings must never be blocked or covered.
Unless proper ventilation is provided, the TV may
gather dust and get dirty. For proper ventilation,
observe the following:
sDo not install the TV face up, down or sideways.
sDo not install the TV turned over or upside
down.
Antenna lead-in wire
Antenna discharge unit
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
Ground clamps
Electric service
equipment
NEC: National Electrical Code
KDL-32S3000/KDL-40S3000/
KDL-46S3000/KDL-32SL130/
KDL-40SL130
KDL-26S3000
5
(Continued)
:
or
er
.
mmas
t
erpage:
L
e
ft
6
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
sNever cover the slots and openings with a cloth
or other materials.
sNever block the slots and openings by
placing the TV on a bed, sofa, rug or other
similar surface.
sNever place the TV in a confined space, such as
a bookcase or built-in cabinet, unless proper
ventilation is provided.
Objects and ventilation holes
Never push objects of any kind into the TV through the
cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or an
electric shock. Do not place any objects on the TV.
MOISTURE
Moisture and flammable objects
sThe TV must not be exposed to dripping or splashing. Do not place
objects filled with liquids, such as vases, on the TV.
sDo not use power-line operated TV sets near
water — for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
It may result in a fire or an electric shock.
sDo not let this TV get wet. Never spill liquid
of any kind on the TV. If any liquid or solid
object does fall through, do not operate the
TV. It may result in electric shock or damage
to the TV. Have it checked immediately by
qualified personnel.
sTo prevent fire, keep flammable objects or open
flame (e.g. candles) away from the TV.
INSTALLATION
Wall mount installation requires the use of a
Wall-Mount Bracket. When installing or
removing the TV, using a Wall-Mount
Bracket, be sure to use qualified contractors.
If not properly secured during installation or
removal from the Wall-Mount Bracket, the
TV may fall and cause serious injury.
Optional wall mount
Observe the following when installing the TV using a wall-mount
bracket.
sBe sure to follow the operating instructions supplied with the
wall-mount bracket when installing the TV.
sBe sure to attach the brackets supplied with the wall-mount bracket.
sDo not hang the TV from the ceiling. It may fall and cause serious
injury.
Placement
The TV should be installed near an easily accessible AC power outlet.
Observe the following in placing the TV. Otherwise
the TV may fall from the stand or wall mount, causing
damage or serious injury.
sPlace the TV on a stable, level surface.
sDo not hang anything on the TV. Do not allow
children to climb on the TV.
Do not install the TV in places subject to extreme temperatures, such as
in direct sunlight, near a radiator, or near a heating vent. If the TV is
exposed to extreme temperature, the TV may overheat and cause
deformation of the enclosure or cause the TV to malfunction. Do not
install the TV in a place exposed to direct air conditioning. If the TV is
installed in such a location, moisture may condense inside and may cause
a malfunction.
sNever place the TV in hot, oily, humid or
excessively dusty places.
sDo not install the TV where insects may
enter.
sDo not install the TV where it may be
exposed to mechanical vibration.
sDo not install the TV in a location where it may protrude, such as on
or behind a pillar, or where you might bump your head on it.
Otherwise, it may result in injury.
(30 cm)
11
7
/
8
inches
(6 cm)
inches
4 inches
(10 cm)
4 inches
(10 cm)
2
3
/
8
Leave at least this space around the set.
Installed with stand
inches
11
7
/
8
4 inches
(10 cm)
4 inches
(10 cm)
4 inches (10 cm)
(30 cm)
L
eave some space aroun
d
t
h
e
TV
set as s
h
own
b
e
l
ow.
Otherwise, air-circulation may be inadequate and cause
overheating, which may cause a fire or damage to the TV set.
Installed on the wall
Leave at least this much
space around the set.
Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
Wall Wall
6
:
or
er
.
mmas
t
erpage:
Ri
g
ht
7
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Preventing the TV from toppling over
Take measures to prevent the TV from toppling over and causing injury.
To prevent the TV from toppling over, secure the TV to a wall or stand.
Placement for viewing
It is recommended to watch the TV at a distance of 3 - 7 times that of the
screen height, and in moderate brightness. Watching the TV for too long
or in a dark room may cause eye fatigue. To obtain a clear picture, do not
expose the screen to direct illumination or direct sunlight. If possible, use
spot lighting directed down from the ceiling.
Outdoor use
Do not install this TV outdoors. If the TV is exposed to
rain, it may result in a fire or an electric shock. Do not
expose the TV to direct sunlight, it may heat up and
become damaged.
Vehicle, ships and other vessels
Do not install this TV in a vehicle.
Bumping of the vehicle may cause the TV to fall down
and cause injury.
Do not install this TV in a ship or vessel. If the TV is
exposed to seawater, it may cause a fire or damage the
TV.
Medical institutions
Do not place this TV in a place where medical
equipment is in use.
It may cause a malfunction of medical equipment.
Attachments
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
VOLUME ADJUSTMENT
sAdjust the volume so as not to trouble your neighbors. Sound carries
very easily at night. Therefore, closing the windows or using
headphones is suggested.
sWhen using headphones, adjust the volume so as to avoid excessive
levels, as hearing damage may result.
LCD SCREEN
sAlthough the LCD screen is made with high-precision technology
and has effective pixels of 99.99% or more, black dots or bright
points of light (red, blue, or green) may appear constantly on the LCD
screen. This is a structural property of the LCD panel and is not a
malfunction.
sThe LCD screen is made with high-precision technology and to
achieve a high level of performance and picture quality, this TV’s
backlight setting is set to maximize the brightness of the TV.
However, uneven brightness may be observed when the LCD TV is
viewed in a dark ambient without an input source or a blank screen.
This condition is normal and not a malfunction of the TV. Changing
the Picture mode, Backlight setting, enabling the Light Sensor, or
turning on the Power management will improve this condition.
sDo not expose the LCD screen surface to direct sunlight. Doing so
may damage the LCD panel.
sDo not push or scratch the LCD screen, or place objects on top of the
TV. The image may be uneven or the LCD panel may be damaged.
sIf the TV is used in a cold place, a smear may occur in the picture or
the picture may become dark. This does not indicate a failure. These
phenomena improve as the temperature rises.
sGhosting may occur when still pictures are displayed continuously. It
should disappear after a few moments.
sThe screen and cabinet get warm when the TV is in use. This is not a
malfunction.
sAvoid spraying insect repellent with volatile material on the screen.
sAvoid prolonged contact with rubber or plastic material.
Broken pieces
Do not throw anything at the TV.
The screen glass may break by the impact and
cause serious injury.
If the surface of the TV cracks, do not touch it until
you have unplugged the AC power cord.
Otherwise electric shock may result.
Handling of broken glass and liquid crystal
leakage
If the LCD panel gets damaged, crystalline liquid leakage may occur, or
scattered broken glass may result. Do not touch broken glass or
crystalline liquid which is toxic, with bare hands as cuts, poisoning or
skin irritation may occur. Also, do not let glass fragments or leaked
crystalline liquid get into your eyes or mouth. Should either contact your
eyes or mouth, rinse the contacted area thoroughly with water and consult
your doctor.
SERVICING
Do not attempt to service the TV yourself since opening
the cabinet may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
Replacement parts
When replacement parts are required, be sure the
service technician certifies in writing that he/she has
used replacement parts specified by the manufacturer
that have the same characteristics as the original parts.
Unauthorized substitutions may result in a fire, an
electric shock or other hazards.
Safety check
Upon completion of any service or repairs to the TV,
ask the service technician to perform routine safety
checks (as specified by the manufacturer) to determine
that the TV is in safe operating condition, and to so
certify. Ask a qualified service technician to dispose of the TV.
For Customers in the United States
Lamp in this product contains mercury. Disposal of
these materials may be regulated due to
environmental considerations. For disposal or
recycling information, please contact your local
authorities or the Electronic Industries Alliance
(www.eiae.org).
7
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\040XXX
.
f
mmas
t
erpage:
N
one
L
e
ft
8
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Welcome to the World of BRAVIA™
The Four Steps to Stunning HD Experience: Set, Sound, Source, and
Setup
Thank you for purchasing this Sony BRAVIA™ high-definition television. The quality of the image
you see on your BRAVIA TV is only as good as the quality of the signal it receives. To experience
the stunning detail of your new BRAVIA TV, you need access to HD programming. Your BRAVIA TV
can receive and display HD programming from:
• Over-the-air broadcasting via HD-quality antenna
• HD cable subscription
• HD satellite subscription
• Blu-ray Disc™ player or other external equipment
Contact your cable or satellite provider for information on upgrading to HD programming.
To learn more about HDTV, visit: http://www.sony.com/HDTV
Along with your BRAVIA TV set, a complete HD system requires an HD sound system, a
source of HD programming and proper setup connections. This manual explains basic setup
connections (see page 16). The Quick Setup Guide, enclosed separately, illustrates how to
connect other optional equipment.
Picture Quality and Aspect Ratio
You can enjoy crisp, clear images, smooth movement and high-impact visuals from 1080 HD
signals. When you compare a high-definition signal to a standard analog signal, you will notice
a big difference. The 1080 HD signals provide more than twice the vertical resolution of the
standard TV signal.
High-definition and standard-definition signals are transmitted with different aspect ratios (the
width-to-height ratio of the image). HDTV uses a wider screen than conventional standard-
definition TV.
~
• You can use the Wide Mode function of the TV to adjust the 4:3 image to fit the entire screen (see pages 24, 32
and 34).
16:9 (high-definition) source
Most HDTV signals use a wide screen aspect rati
o
of 16:9. The 16:9 fills your BRAVIA screen,
maintaining a crisp, clear, vivid picture.
4:3 (standard-definition) source
Most standard-definition signals use a boxy 4:3
aspect ratio. When a 4:3 image is displayed on an
HDTV, you will see black bars on the sides. The
picture quality may not be as sharp as with HD
sources.
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\040XXX
.
f
mmas
t
erpage:
N
one
Ri
g
ht
9
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
TV Home Menu: XMB™ (XrossMediaBar)
The XMB™ is a menu of BRAVIA features and input sources displayed on the TV screen. The
XMB™ is an easy way to select programming and adjust settings on your BRAVIA TV. Press the
HOME button on your remote control to access the XMB™.
From the horizontal Media Category Bar you can control:
•Settings: timer, picture, sound, screen and other options (see page 30 for customization
options).
•TV Channels: available channels are displayed on the vertical Category Object Bar.
•External Inputs: cable, satellite, VCR, DVD players or other inputs can also be selected
from the Category Object Bar for the External Inputs.
~
• This manual is for the 26, 32 class, 40 and 46 inch BRAVIA KDL-S Series models with screen size measured
diagonally. The 32 class has a 31.5 inch viewable image size (measured diagonally).
HOME
Product Support
Clock/Timers
Sound
Screen
Video Options
TV
Settings
Category Object Bar
Media
Category
Bar
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\040XXX
.
f
mmas
t
erpage:
Fi
rs
t
L
e
ft
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
Fi
rs
t
Ri
g
ht
Getting Started
11
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Getting Started
1. Installing the TV
1Screw the support belt (supplied) to the TV
stand with a wood screw (supplied).
2Attach the support belt to the Table-Top Stand
with the securing screw (supplied) using a
coin, etc.
3Adjust the length by pulling the support belt
toward you while holding the Table-Top
Stand.
~
• Be sure to take measures to prevent the TV from
toppling over and causing injury.
• The supplied wood screw may not be used depending
on the type of TV stand. In this case, or when the
securing strength is not enough, use commercial
screws 1/8 to 3/16 inch (3 to 4 mm) diameter to fit to the
TV stand. Consult your dealer about the types of
screw(s).
Preventing the TV from Toppling Over
2
3
1
TV
stand
Table-Top
Stand
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
L
e
ft
12
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
This TV can be installed on a wall by using a Wall-
Mount Bracket (sold separately). Before mounting
the TV on a wall, the Table-Top Stand must be
removed from the TV.
~
• Do not remove the Table-Top Stand for any reason
other than to wall-mount the TV.
Follow the simple steps below to remove the
Table-Top Stand:
1Disconnect all the cables from the TV.
2Gently lay the TV, face down, onto a level and
stable surface covered with a thick and soft
cloth. Make sure the Table-Top Stand is
hanging over the edge.
3Remove the screws as shown in the
illustration for your model and pull the Table-
Top Stand out.
4Do not remove any other screws from the TV.
~
• Be sure to store the removed screws and Table-Top
Stand in a safe place until you are ready to reattach the
Table-Top Stand. Keep the screws away from small
children.
• For bracket installation, refer to the instruction guide
provided by the Wall-Mount Bracket model for your
TV. Sufficient expertise is required in installing this
TV, especially to determine the strength of the wall for
withstanding the TV’s weight.
• For product protection and safety reasons, Sony
strongly recommends that you use the Wall-Mount
Bracket model designed for your TV and the wall-
mounting of your TV should be performed by a
Sony dealer or licensed contractor.
Preparation for Wall-Mounting
Level surface
covered with a
soft cloth
Models: KDL-26S3000/KDL-32S3000/
KDL-32SL130
Remove 3 designated screws only.
Models: KDL-40S3000/KDL-46S3000/
KDL-40SL130
Remove 4 designated screws only.
Level surface
covered with a
soft cloth
Table-Top
Stand Table-Top
Stand
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
Ri
g
ht
13
Getting Started
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
2. Locating Inputs and Outputs
Left side
Item Description
1Headphone jack Connects to your headphones. If your headphones do not match the jack, use a suitable
plug adapter (not supplied).
~
• While headphones are connected, the TV speakers are muted.
2VIDEO IN 2
S VIDEO
Connects to the S VIDEO output jack on your camcorder or other video equipment that
has S VIDEO. The S VIDEO provides better picture quality than composite video (3).
(See Auto S Video on page 39.)
3VIDEO IN 2
R-AUDIO-L
(MONO)/VIDEO
Connects to the composite video and audio output jacks on your camcorder or other
video equipment such as a VCR or video game equipment.
~
• If you have mono equipment, connect its audio output jack to the TV’s L (MONO)
audio input jack.
S VIDEOVIDEOR-AUDIO-
L (MONO)
VIDEO IN
1
2
3
2
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
L
e
ft
14
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Rear
IN VIDEO IN
AUDIO
OUT
(VAR/FIX)
VIDEO
L
(MONO)
AUDIO
R
R
AUDIO
L
S VIDEO
DIGITAL
OUT
(OPTICAL)
COMPONENT IN
(1080p/1080i/720p/480p/480i)
PC IN
L
AUDIO
R
Y
PB
PR
1
2
13
12
VHF/UHF/
CABLE
DMex/
SERVICE
AUDIO
RGB
AC IN
1
2
8
7
q;
34 5 6
9
qa
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
Ri
g
ht
15
Getting Started
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Item Description
1HDMI IN 1
HDMI
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital
audio/video interface between this TV and any HDMI-equipped audio/video equipment,
such as a set-top box, DVD player, Blu-ray Disc player, A/V receiver as well as PC.
HDMI supports enhanced, or high-definition video, plus digital audio.
2HDMI IN 2
HDMI/
R-AUDIO-L
If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the
HDMI IN 2 (with DVI-to-HDMI cable or adapter) jack, and connect the audio jack to the
AUDIO IN (L/R) jacks of HDMI IN 2.
~
• HDMI connection is necessary to view 480i, 480p, 720p, 1080i and 1080p formats. Note
that this TV displays all video input signals in a resolution of 1,366 dots × 768 lines.
• Be sure to use only an HDMI cable that bears the HDMI logo.
3PC IN
(RGB/AUDIO)
Connects to a personal computer’s video output connector using HD15-HD15 cable
(analog RGB). Can also be connected to other analog RGB equipment.
See “PC Input Signal Reference Chart” on page 18 for the signals that can be displayed.
~
• For some Apple Macintosh computers, it may be necessary to use an adapter (not
supplied). If this is the case, connect the adapter to the computer before connecting the
HD15-HD15 cable.
• If the picture is noisy, flickering or not clear, adjust Phase and Pitch of Screen
settings on page 33.
4
5
VIDEO IN 1
S VIDEO
VIDEO IN 1/3
VIDEO/
L(MONO)-
AUDIO-R
Connects to the S VIDEO output jack of your VCR or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than composite video (5). (See
Auto S Video on page 39.)
Connects to the composite video and audio output jacks on your A/V equipment such as
a VCR or other video equipment. A third composite video and audio (VIDEO 2 IN) is
located on the left side of the TV.
6COMPONENT IN
1/2 (1080p/1080i/
720p/480p/480i)/
L-AUDIO-R
Connects to your TV’s component video (YPBPR) and audio (L/R) jacks. Component
video provides better picture quality than the S VIDEO (4) or the composite video (5)
connections.
~
• Component video (YPBPR) connection is necessary to view 480i, 480p, 720p, 1080i and
1080p formats. Note that this TV displays all video input signals in a resolution of
1,366 dots × 768 lines.
7AUDIO OUT
(VAR/FIX)
Connects to the left and right audio input jacks of your analog audio equipment. You can
use these outputs to listen to your TV’s audio through your stereo system.
8DIGITAL OUT
(OPTICAL)
Connects to the optical audio input of your digital audio equipment that is PCM/Dolby
Digital compatible.
9AC IN Connects the supplied AC power cord.
0DMex/ SERVICE This USB port is for service only unless you are connecting the optional BRAVIA
external module (DMex).
qa VHF/UHF/CABLE RF input that connects to your Cable or VHF/UHF antenna.
DVI-to-HDMI cable
DVI-to-HDMI adapter
Audio cable
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
L
e
ft
16
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
3. Connecting the TV
You can enjoy high-definition and standard-
definition digital programming (if available in
your area) along with standard-definition analog
programming.
~
• This TV is capable of receiving unscrambled digital
programming for both cable (QAM and 8VSB) and
external VHF/UHF antenna (ATSC).
• It is strongly recommended that you connect the
antenna/cable input using a 75-ohm coaxial cable to
receive optimum picture quality. A 300-ohm twin lead
cable can be easily affected by radio frequency
interference, resulting in signal degradation.
Cable or VHF/UHF (or VHF only)
Use an optional A-B RF switch (not supplied) to
switch between the cable and over-the-air antenna
programming, as indicated below.
~
• Be sure to set the Cable setting to On or Off in the
Channel settings for the type of input signal you
choose (see page 35).
You can also enjoy high-definition programming
by subscribing to a high-definition cable service or
a high-definition satellite service. For the best
possible picture, make sure you connect this
equipment to your TV via the HDMI or
component video (with audio) input on the back of
your TV.
Cable System or VHF/UHF Antenna
System
Cable System and VHF/UHF Antenna
System
75-ohm coaxial
cable Rear of TV
VHF/UHF/CABLE input
B
A
Cable
Antenna
A-B RF switch
Rear of TV
VHF/UHF/CABLE input
HD Cable Box/HD Satellite Box
IN
VIDEO IN
AUDIO
OUT
(VAR/FIX)
VIDEO
R
AUDIO
L
S VIDEO
DIGITAL
OUT
(OPTICAL)
COMPONENT IN
(1080p/1080i/720p/480p/480i)
PC IN
L
AUDIO
R
L
(MONO)
AUDIO
R
Y
PB
PR
1
2
13
12
AUDIO
RGB
HD cable box/
HD satellite box
Rear of TV
HDMI cable
Shown with HDMI Connection
CATV/Satellite
antenna cable
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
Ri
g
ht
17
Getting Started
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Shown with DVI Connection
~
• If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN 2 (with DVI-to-HDMI
cable or adapter) jack and connect the audio jack to the AUDIO IN (L/R) jacks of HDMI IN 2. For details, see
page 15.
IN VIDEO IN
AUDIO
OUT
(VAR/FIX)
VIDEO
L
(MONO)
AUDIO
R
R
AUDIO
L
S VIDEO
COMPONENT IN
(1080p/1080i/720p/480p/480i)
PC IN
1
2
13
12
AUDIO
RGB
L
AUDIO
R
Y
PB
PR
DIGITAL
OUT
(OPTICAL)
Rear of TV
AUDIO-R
(red)
AUDIO-L
(white)
Audio cable
DVI-to-HDMI
cable HD cable box/
HD satellite box
CATV/Satellite
antenna cable
IN VIDEO IN
AUDIO
OUT
(VAR/FIX)
VIDEO
L
(MONO)
AUDIO
R
R
AUDIO
L
S VIDEO
COMPONENT IN
(1080p/1080i/720p/480p/480i)
PC IN
1
2
13
12
AUDIO
RGB
L
AUDIO
R
Y
PB
PR
DIGITAL
OUT
(OPTICAL)
Component video cable
Rear of TV
CATV/Satellite
antenna cable
PB (blue)
AUDIO-L (white)
AUDIO-R (red)
HD cable box/
HD satellite box
Y (green)
PR (red)
Audio cable
Shown with Component Connection
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
L
e
ft
18
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Use the TV as a monitor for your PC.
Shown below with the HD15 to HD15 connection. This TV can also be connected to a PC with DVI or
HDMI output. (Refer to the separate Quick Setup Guide.)
~
• Connect the PC IN jack to the PC using the HD15-
HD15 cable with ferrite core (analog RGB) and audio
cable (page 15).
• If the PC is connected to the TV and no signal has been
input from the PC for more than 30 seconds, the TV
enters the standby mode automatically (page 40).
PC Input Signal Reference Chart
After connecting the PC to the TV, set the output signal from the PC according to the chart below.
~
• This TV’s PC input does not support Sync on Green or
Composite Sync.
• This TV’s PC VGA input does not support interlaced
signals.
• For the best picture quality, it is recommended to use
the signals (boldfaced) in the above chart with a 60 Hz
vertical frequency from a personal computer. In plug
and play, signals with a 60 Hz vertical frequency will
be detected automatically. (PC reboot may be
necessary.)
PC
IN VIDEO IN
AUDIO
OUT
(VAR/FIX)
VIDEO
L
(MONO)
AUDIO
R
R
AUDIO
L
S VIDEO
DIGITAL
OUT
(OPTICAL)
COMPONENT IN
(1080p/1080i/720p/480p/480i)
L
AUDIO
R
Y
PB
PR
1
2
13
12
AUDIO
RGB
PC IN
HD15-HD15
cable (analog
RGB)
Audio cable (stereo mini plugs)
Rear of TV
Resolution Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Standard
Signals Horizontal
(Pixel)
×Vertical
(Line)
VGA 640
×
480 31.5 60 VGA
640
×
480 37.5 75 VESA
720
×
400 31.5 70 VGA-T
SVGA 800
×
600 37.9 60 VESA Guidelines
800
×
600 46.9 75 VESA
XGA 1024
×
768 48.4 60 VESA Guidelines
1024
×
768 56.5 70 VESA
1024
×
768 60.0 75 VESA
WXGA 1280
×
768 47.4 60 VESA
1280
×
768 47.8 60 VESA
1360
×
768 47.7 60 VESA
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
Ri
g
ht
19
Getting Started
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
~
• Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.
Other Equipment
VHF/UHF/
CABLE
DMe
x
/
SERVICE
IN VIDEO IN
AUDIO
OUT
(VAR/FIX)
VIDEO
R
AUDIO
L
S VIDEO
DIGITAL
OUT
(OPTICAL)
COMPONENT IN
(1080p/1080i/720p/480p/480i)
PC IN
L
AUDIO
R
L
(MONO)
AUDIO
R
Y
PB
PR
1
2
13
12
AUDIO
RGB
S VIDEOVIDEOR-AUDIO-
L (MONO)
VIDEO 2
DVD
player
Personal
computer
Digital
satellite
receiver
VHF/UHF/CABLE
Digital audio
equipment
Analog
audio
equipment
(A/V Receiver/Home Theater)
Digital
recorder
VCR Headphones Camcorder
Blu-ray
Disc Player/
“PS3”
Game system
Digital
cable box
Rear of TV
Audio
system
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
L
e
ft
20
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
This TV is equipped with BRAVIA Theatre Sync.
The HDMI Control function enables BRAVIA
Theatre Sync to allow communication between
Sony TV's and Sony equipment. Only Sony
equipment with HDMI Control capability is
supported.
To connect HDMI Control equipment
Use an HDMI cable that bears the HDMI logo for
connection. See pages 16 to 19 or see the HDMI
connection shown in the Quick Setup Guide
provided with the TV documentation.
Setting the HDMI Control
In order for the HDMI Control function to
operate, the TV and other Sony HDMI Control
equipment must be setup. See page 39 on how to
turn the HDMI Control On. For other equipment,
refer to the operating instruction for that
equipment.
HDMI Control available with your TV
Once the supported equipment is connected, the
following operations are available:
• Turn off the equipment automatically
when you turn off the TV.
• When the connected equipment is turned
on by One-Touch-Play, the TV will
automatically turn on and select the
respective HDMI input.
• Automatically turn on equipment listed
under the External Inputs on the XMB™
(XrossMediaBar) when selected, see pages
9 and 28.
When a Sony A/V receiver with BRAVIA Theatre
Sync is connected, the following additional
operations are possible:
• Turning on the A/V receiver when the TV
is turned on.
• Automatically switching to the audio
output of the A/V receiver's attached
speakers.
•
Adjusting the volume and muting of the A/V
receiver with the TV's remote control.
~
• The A/V receiver cannot be selected from the XMB™.
You can bundle the connecting cables as illustrated
below.
~
• Do not bundle the AC power cord with other
connecting cables.
• The cable holder can be attached in either direction.
Using HDMI Control for BRAVIA
Theatre Sync™
Bundling the Connecting Cables
1
2
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
Ri
g
ht
21
Getting Started
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
4. Setting Up the Channel List
– Initial Setup
The Initial Setup screen appears when you turn
on the TV for the first time.
After you finish connecting the TV, you can run
Initial Setup to create a list of available analog
and digital channels if you have connected an
antenna or cable directly to the TV’s VHF/UHF/
CABLE input.
You will be prompted to select the language of
your choice to be used for all the on-screen
settings.
Use the remote control to navigate through the
Initial Setup:
Follow the help text provided on the screen to run
Auto Program with the connected signal source
or select Skip to skip the Auto Program if you
are receiving channels from a cable box or satellite
receiver and the VHF/UHF/CABLE input is not
connected. The Auto Program will scan for
available channels. When the Auto Program is
completed, the TV will display how many analog
and digital channels are found.
~
• If you accidentally turn off the TV during the Initial
Setup process, the Initial Setup will restart from the
beginning when the TV is turned back on.
•The Auto Program may be canceled while the
channels are being scanned. Press RETURN first then
press either B/b on the remote control, highlight “Yes”
to cancel or “No” to resume Auto Program.
s To Run Initial Setup Again or Auto
Program at a Later Time
Select the Initial Setup feature from the XMB™
(XrossMediaBar) or refer to the Initial Setup
described on page 40. To run Auto Program, see
page 35.
s To Add Digital Channels
Use the Add Digital Channels feature as described
on page 35. (Useful for antenna installations.)
s To Display the Picture in Your Preferred
Aspect Ratio
Select the proper Wide Mode as described on pages
24 and 32.
You may want to set up convenient features such
as Favorites (see page 23), Show/Hide
Channels (page 35), Edit Channel Labels
(page 35) when Auto Program is completed.
V/v button:
Allows you to highlight options
where applicable.
button:
Allows you to select the
highlighted option and advance
to the next screen.
B button:
Allows you to move back to the
previous screen.
b button:
Allows you to move to the next
screen.
Step 1 of 5
Initial Setup
Please select a language. Language settings will apply to
on screen display as well as default audio for digital
channels. Highlight a choice and press to continue.
English
Español
Français
HOME
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
L
e
ft
22
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Remote Control and TV Controls/Indicators
Insert two size AA batteries (supplied) by matching
e and E on the batteries to the diagram inside the
battery compartment of the remote control.
Inserting Batteries into the Remote control
Remote Control
Button Description
1DISPLAY Press once to display the information pertaining to the
channel and/or program when available. The OSD (On Screen
Display) will time out in a few seconds or press again to
immediately turn off the display. You can also set the display
to show minimal information. See Info Banner on page 40.
2SLEEP Press repeatedly until the TV displays the time in minutes
(Off, 15min, 30min, 45min, 60min, 90min or 120min)
that you want the TV to remain on before shutting off. To
cancel Sleep Timer, press SLEEP repeatedly until Off
appears.
Push to open
HOME
~
•The 5 button and CH + have a tactile dot. Use them as a reference when
operating the TV.
• This remote control cannot be programmed to use with other equipment.
Buttons located at the top of the TV will operate the same as these buttons on the
remote control.
1
2
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
Ri
g
ht
23
Getting Started
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
3FREEZE Press once to display a frozen image with the current program
in a window. Press again to fill the screen with the frozen
image. Press 3rd time to return to the current program.
Press the V/v/B/b to move the small window showing current
program to a different location on the screen.
~
• With the
Freeze
feature active, some features are unavailable.
•While the
Freeze
feature is active, pressing HOME will
deactivate the
Freeze
and display the
XMB
™.
•If Parental Lock settings are in use, only the frozen
picture view is available and the audio is disabled.
4PICTURE Press repeatedly to cycle through the available picture modes:
Vivid, Standard, Cinema, Video, Text. (Available options
depend on the current mode.) The picture modes can also be
accessed in the Picture settings. For details, see Picture
settings on page 30.
5
FAVORITES
Press once to display the stored favorite channel list.
You can store up to 30 channels in your Favorites list.
How to Add to Favorites
While tuned to the channel you want to add to the list, press
OPTIONS and highlight “Add to Favorites”, then press .
A confirmation message of “Channel added to Favorites” will
appear for a few seconds.
How to Remove from Favorites
While tuned to a channel that exists in the Favorites list,
press OPTIONS and highlight “Remove from Favorites”,
then press . A confirmation message of “Channel removed
from Favorites” will appear for a few seconds.
~
Yo ur Favorites list will be cleared each time you run Auto
Program (see pages 21 and 35 for Auto Program).
6RETURN Press to go back to the previous screen or exit from the screen
when displaying menu items and settings.
7HOME
Press to display the
TV Home Menu/XMB™
(XrossMediaBar)
to access the
TV Home Menu
items such as the TV
Settings
,
TV
channels and
External Inputs
list (see pages 9 and 28).
8DMexPress to access features in the optional BRAVIA external
module (e.g. DMX-NV1). See your dealer or
www.sony.com/bravia for more information. The module may
not be available in your region.
90-9 ENT Press 0-9 to select a channel; the channel changes after two
seconds. Press ENT to change channels immediately.
0Use with 0-9 and ENT to select digital channels.
For example, to enter 2.1, press , , and ENT.
Button Description
4
3
5
0
9
6
7
8
Freeze
Current
program
Frozen
Product Support
Clock/Timers
Sound
Screen
Video Options
TV
21
(Continued)
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
L
e
ft
24
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
qa VOL +/– Press to adjust the volume.
qs MUTING Press to mute the sound. Press again or press VOL + to restore
the sound.
qd POWER Press to turn on and off the TV.
qf WIDE Press repeatedly to step through the Wide Mode settings:
Wide Zoom, Normal, Full, Zoom. The Wide Mode
settings can be also accessed in the Screen settings (see
page 32).
Changing the Wide Screen Mode
(For PC timing, see below)
~
• When the TV receives a 720p, 1080i or 1080p signal,
Normal cannot be selected.
Changing the Wide Screen Mode for PC timing
Button Description
qs
qd
qf
qa
4:3 Original source
Standard-definition source
16:9 Original source
High-definition source
mm
Wide Zoom Wide Zoom
Normal Normal
This mode is not available
Full Full
Zoom Zoom
Incoming PC signal Incoming PC signal
mm
Normal Normal
Full 1 Full 1
Full 2 Full 2
800 × 600 1280 × 768
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
Ri
g
ht
25
Getting Started
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
qg INPUT Press to display the list of External Inputs and TV mode.
Press repeatedly to toggle through the inputs.
~
• See page 39 on setting up the External Inputs labels,
including the Skip feature.
qh V/v/B/b Press V/v/B/b to move the on-screen cursor. Press to
select/confirm an item.
qj
OPTIONS
Press to display a list of convenient functions and menu
shortcuts. The OPTIONS menu items vary based on input
and content.
qk CC Press to turn on and off the Closed Captions (CC). To change
or customize the CC Display, see page 36.
ql JUMP Press to jump back and forth between two channels. The TV
alternates between the current channel and the last channel
that was selected.
w; CH +/– Press to scan through channels. To scan quickly through
channels, press and hold down either +/–.
Button Description
w;
qg
qh
ql
qj
qk
Menu Item Reference Page
Picture See page 30
Sound See page 32
P&P or PIP See page 27
Audio Swap See page 27
Exit P&P or Exit PIP See page 27
Speakers See page 34
Add to Favorites/
Remove from Favorites
See page 23
MTS See page 34
Alternate Audio See page 34
Digital Rating See page 37
Screen See page 32
JUMP JUMP
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
L
e
ft
26
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Indicators
Item Description
1Speaker Outputs the audio signal.
2Light
Sensor
Senses room light level and adjusts the screen brightness
accordingly (see page 40 for details). Do not put anything
near the sensor, as its function may be affected.
3PIC OFF/
TIMER
LED
Lights up in green when the Picture Off feature is activated.
Lights up in orange when the timer is set. When the timer is
set, this LED will remain lit even if the TV is turned off. For
details, see page 30.
4STANDBY
LED
Lights up in red when your TV is in PC standby mode. If the
LED blinks in red continuously, this may indicate the TV
needs servicing (see contacting Sony information on the back
cover).
5POWER
LED
Lights up in green when the TV is turned on.
6(IR)
Infrared
Receiver
Receives IR signals from the remote control.
PIC OFF/TIMER STANDBY POWER
6
34 52
1
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\050GET
.
f
mmas
t
erpage:
Ri
g
ht
27
Getting Started
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
How to Use P&P and PIP Features
This TV comes with the P&P and PIP features
which allow you to view two pictures
simultaneously. P&P (picture and picture)
provides two windows side by side. PIP (picture in
picture) provides PC input signal and TV
channels.
~
• The VHF/UHF/CABLE input must be connected to
use the P&P/PIP feature.
• These features are not available when the Parental
Lock settings are set to block programs by ratings. If
channel blocking is set, these features can still be used.
•Closed Captions (CC) is not available in these
features.
P&P
PIP
1While watching one of the following inputs:
Component, HDMI or PC; press OPTIONS
to display the OPTIONS menu.
~
• The input you are watching will become the Main
Window.
2Press V/v to highlight the P&P or PIP and
press to display the TV channels in the
Sub Window.
~
• To swap audio in P&P mode, use the B/b button to
swap the highlight between the Main Window and Sub
Window.
• To swap audio in PIP mode, press OPTIONS, then
press V/v to highlight Audio Swap.
Press CH +/– to change the channels or enter the
channel number using the 0-9 numeric buttons.
1Press the OPTIONS.
2Press while Exit P&P or Exit PIP
(depends on the mode your are in) is
highlighted.
~
• You may also press RETURN while in this feature to
exit.
• Additional compatible device with television tuner
required to watch two simultaneous live television
programs.
~
• Compatible PC Timings can be found on page 18.
To display a picture in the Sub Window
Main Window Sub Window
Main Window
(PC)
Sub Window
(Location of
the Sub
Window can
be moved by
pressing
V/v/B/b.)
To change channels in the Sub Window
To exit from P&P and PIP
P&P Availability
In Main Window In Sub Window
Component 1
TV Channel
(VHF/UHF/
CABLE IN)
Component 2
HDMI IN 1 (except PC timing)
HDMI IN 2 (except PC timing)
PIP Availability
In Main Window In Sub Window
PC TV Channel
(VHF/UHF/
CABLE IN)
HDMI IN 1 (PC timing)
HDMI IN 2 (PC timing)
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
Fit
s
t
L
e
ft
28
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Using TV Features
The HOME button allows you to access the TV Home Menu on the XMB™
(XrossMediaBar) as well as a variety of TV features.
HOME
cc
Product Support
Clock/Timers
Sound
Screen
Video Options
TV
Settings
Media Category Icons
TV
External
Inputs
Settings
Adjust TV Settings
Customize the TV settings with various options.
Explanations of different Settings start from page 30.
• The available options vary depending on the situations and conditions applied. Unavailable options
are grayed out or not displayed.
Watching TV
Select a channel.
• You can also select a TV channel using the number 0-9 or CH+/– buttons (see remote control section
pages 23 and 25).
Access the equipment connected to your TV
Watch a movie, play a game, record a program or work on your PC.
Assign a label using the Label Inputs feature for your convenience, see page 39.
The XMB™ is shown here with
Settings highlighted.
The XMB™ displays the Media
Category icons (horizontally)
and available features
(vertically) within the
highlighted icon.
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
Ri
g
ht
29
Using TV Features
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Navigating through TV Home Menu on XMB™
1Press HOME to display the XMB™.
2Press B/b to select a Media Category icon.
3Press V/v to move within the Category Object Bar.
(The Category Object Bar shown below is for the Settings.)
4Press when desired item is highlighted.
5Press or, V/v to select the highlighted item.
6 Press RETURN or HOME to exit.
HOME
Settings
Available
channels are
listed under
the TV icon.
Select inputs from
Video1-3
Component 1-2
HDMI 1-2
PC
under the External Inputs icon.
Available TV
settings and
features are
listed under
the Settings
icon.
CC
Product Support (page 30)
Clock/Timers (page 30)
Picture (page 30)
Sound (page 32)
Screen (page 32)
Video Options (page 34)
Audio Options (page 34)
Channel (page 35)
Closed Captions (CC) (page 36)
Parental Lock (page 36)
External Inputs (page 39)
HDMI Settings (page 39)
General (page 40)
Initial Setup (page 40)
RETURN
HOME
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
L
e
ft
30
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
TV Settings Descriptions
Product Support
Contact Sony Sony contact information is available from this screen for your convenience. Your TV’s
specific information such as Model Name, Serial Number, Software Version and
downloadable ratings if available from the TV are displayed here.
Signal Diagnostics Press to display the diagnostics information for the current signal.
Clock/Timers Settings
Current Time Set the current time (day, hour, minutes, and AM/PM). The Timer feature will not be
available until you set the Current Time.
1Use the V/v/B/b button to highlight the Clock/Timers icon and press .
2Use the V/v/B/b button to set the current time.
3Press RETURN to display the confirmation screen.
4Select Yes or No to save changes you made. Selecting Yes will save your settings
and exit the Current Time setting screen.
Timer After the Current Time is set, you can set the Timer to automatically turn the TV on and
off and tune to a specific channel at a scheduled time.
1Use the V/v/B/b button to highlight the Timer icon and press .
2Press to select On to set the timer.
3Use the V/v/B/b button to set the following: Day of the Week, Time, Duration,
Channel, and Volu me.
4Press RETURN to display the confirmation screen.
5Select Yes or No to save changes you made. Selecting Yes will save your settings
and will light up the TIMER LED. Exit the Timer setting screen.
Sleep Timer Sets the time in minutes (Off, 15min, 30min, 45min, 60min, 90min, or 120min) that
you want the TV to remain on before shutting off automatically. This can also be set using
the SLEEP button on the remote control (see page 22).
Picture Settings
Picture Mode
(Except for PC timing)
Vivid For enhanced picture contrast and sharpness.
Standard For standard picture settings. Recommended for home entertainment.
Cinema For viewing film-based content. Most suitable for viewing in a
theater-like environment.
Picture Mode
(For HDMI or PC timing)
Video This option is available for PC timing (HDMI or PC input) signal for
viewing video.
Text This option is available for PC timing (HDMI or PC input) signal to
enhance the text shown on the screen.
~
•Picture Mode for all inputs can also be accessed by pressing PICTURE on the remote control to directly toggle
the modes.
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
Ri
g
ht
31
Using TV Features
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Reset Resets the current Picture Mode setting to the default values.
Backlight Brightens or darkens the backlight.
Picture Increases or decreases picture contrast.
Brightness Brightens or darkens the picture.
Color Increases or decreases color intensity.
Hue Increases or decreases the green tones.
Color Temperature
White adjustment
Cool Gives the white colors a bluish tint.
Neutral Gives the white colors a neutral tint.
Warm 1, 2Gives the white colors a reddish tint.
~
•Picture Mode settings determines the available Color Temperature options:
Sharpness Sharpens or softens the picture.
Noise Reduction Reduces the noise level of connected equipment, and the VHF/UHF/CABLE input.
MPEG Noise
Reduction
Reduces the mosaic effect in MPEG-compressed video. Useful for DVDs and Digital TV
channels.
Advanced Settings Advanced Settings are available for the following conditions:
Reset Resets all the advanced settings to the default values.
Black Corrector Enhances black areas of the picture for stronger contrast.
Advanced C.E.
(Advanced
Contrast
Enhancer)
Automatically optimizes the backlight and contrast. This setting is
especially effective for dark picture scenes. It will increase the
contrast distinction of the dark picture scenes.
Gamma Adjusts the balance between the light and dark areas of the picture.
Clear White Emphasizes white and light colors.
Color Space Selects the range of color reproduction from Wide or Normal.
~
•Color Space option not available with KDL-26S3000 model.
Live Color When Color Space is set to Wide, this option makes colors more
vivid and reproduces clear skin tones.
~
•Picture settings for all inputs can also be accessed by pressing OPTIONS on the remote control, then selecting
Picture from the OPTIONS menu.
Color Temperature
options
Picture Mode
for all modes excluding PC
timing
PC timing only
(HDMI or PC
input)
Vivid Standard Cinema Video Text
Cool yes yes yes yes yes
Neutral yes yes yes yes yes
Warm1, 2 n/a yes yes yes yes
Vivid Standard Cinema PC timing
(HDMI or PC
input)
Advanced Settings n/a yes yes n/a
Picture settings for PC timings (HDMI or PC input) are available with the following options (see above for details).
Picture Mode Reset Backlight Picture Brightness Color Temperature
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
L
e
ft
32
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Available Sound settings depend on the Speakers setting under Audio Options settings (page 34) or
headphone connection.
Sound Settings
Sound Mode Dynamic Enhances treble and bass.
Standard Suitable for spoken dialog.
Custom Customizes the sound settings including the Sound Booster setting.
~
•Sound Mode can also be accessed by pressing OPTIONS on the remote control.
Reset Resets the current Sound Mode setting to the default values.
Treble Increases or decreases higher-pitched sounds.
Bass Increases or decreases lower-pitched sounds.
Balance Emphasizes left or right speaker balance.
Surround S-FORCE
Front Surround
Provides a virtual surround sound experience made possible using just
two front speakers.
Off Select for normal stereo or mono reception.
Sound Booster The Sound Booster provides a fuller sound with a greater sense of depth and width, by
emphasizing the High and Low frequency sounds. Select High or Low for the amount of
boost you desire while in the Custom Sound Mode. Selecting Off will bypass the
emphasis.
~
•The Sound Booster is automatically in the High position for Dynamic Sound
Mode and Low position for Standard Sound Mode.
Steady Sound On Stabilizes the volume across all programs and commercials.
Off Turns off Steady Sound.
Volume Offset Adjusts the volume level of the current input (TV or video input) relative to other inputs.
Screen Settings
Wide Mode Wide Zoom Fills the screen with minimum distortion.
Normal Displays the 4:3 picture in its original aspect ratio when the original
source is 4:3.
~
•Normal is not available when you are watching 720p, 1080i or 1080p sources.
Full Enlarges the picture horizontally to fill the screen when the original
source is 4:3 (Standard-definition source). When the original source is
16:9 (High-definition source), select this mode to display the 16:9
picture in its original size.
Zoom Select to enlarge the picture horizontally and vertically to fill the
screen while maintaining the aspect ratio.
~
•Wide Mode can also be accessed by pressing the WIDE button.
• See WIDE button description on page 24 for accessing the Wide Mode.
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
Ri
g
ht
33
Using TV Features
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Auto Wide On Automatically changes Wide Mode setting based upon content. If
frequent screen changes are disturbing to you, select Off.
Off Turns off the Auto Wide option. Choose a Wide Mode from the
Wide Mode option.
4:3 Default
Select the default screen
mode to use for 4:3
sources
Wide Zoom Enlarges the 4:3 picture to fill the 16:9 screen, displaying as much of
the original image as possible.
Normal Displays the 4:3 picture in its original aspect ratio.
Full Select to enlarge the 4:3 picture horizontally only, to fill the screen.
Zoom Select to enlarge the picture horizontally and vertically to fill the
screen while maintaining the aspect ratio.
Off Select to continue using the current Wide Mode setting when the
channel or input is changed.
~
• This option is not available if Auto Wide is set to Off.
• If 4:3 Default is set to anything but Off, the Wide Mode setting applies only to the
current channel. When you change channels (or inputs), Wide Mode is automatically
replaced with the 4:3 Default setting for 4:3 sources. To retain the current Wide Mode
setting as channels and inputs are changed, set 4:3 Default to Off.
Display Area Normal Displays the picture in its original size.
-1/-2 Enlarges the picture to hide the edge of the picture.
Screen Position Adjust the Vertical positioning by pressing the V/v buttons. Press the B/b buttons to
adjust the Horizontal positioning.
~
•Screen Position option is available for standard-definition signals only. Vertical
adjustment is available only when Wide Mode is set to Zoom.
•Screen Position feature is useful if the TV is connected to game equipment.
Vertical Size Adjusts the vertical size of the picture. (Available only in Wide Zoom and Zoom.)
Press B/b and press to adjust.
Auto Adjust Select Yes to start the auto adjust to display the PC input.
Reset Resets the current screen setting to the default values.
Phase Adjust after Pitch to fine tune overall sharpness.
Pitch Adjust uneven sharpness on screen.
~
• For the PC input Signal Reference Chart, see page 18.
H Center Allows you to move the position of the picture horizontally (left and right).
To Adjust the H Center
Press V/v to highlight H Center and press .
Press B/b to correct the centering then press .
V Center Allows you to move the position of the picture vertically (up and down).
To Adjust the V Center
Press V/v to highlight V Center and press .
Press B/b to correct the centering then press .
Screen settings for PC timings (HDMI or PC input) differ from all other input modes and are shown below.
(Continued)
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
L
e
ft
34
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Wide Mode Normal Select to display the picture in its original resolution and aspect ratio.
Full 1 Select to enlarge the picture to fill the screen, while maintaining its
original aspect ratio.
Full 2 Select to enlarge the picture to fill the screen.
~
•Wide Mode can also be accessed by pressing the WIDE button.
Video Options Settings
CineMotion Select Auto to automatically detect film content and apply a reverse 3-2 pulldown
process. Moving pictures will appear cleaner and more natural looking. The CineMotion
feature can be set separately for each external input. Select Off to disable the detection.
Audio Options Settings
MTS
Enjoy stereo, bilingual
and mono programs
Stereo For stereo reception when viewing a TV program broadcast in stereo.
Auto SAP Automatically switches the TV to second audio programs when a SAP
signal is received. If no SAP signal is present, the TV remains in
Stereo mode.
Mono For mono reception. Use to reduce noise during weak stereo
broadcasts.
~
•MTS is available only for analog programs.
Speakers TV Speakers Select to use the TV speakers for audio.
Audio System Select this option if you wish to use an external audio system for the
TV sound. By selecting this option you are disabling the TV speakers.
Audio Out
Easy control of volume
adjustment
Fixed Select to fix the audio output and allow you to adjust the volume with
your audio system’s remote control. (The TV’s remote control’s
VOLUME and MUTING buttons have no effect on the Audio Out.)
Variable Select to control the Audio Out’s volume and muting with your TV’s
remote control.
~
•Alternate Audio feature is available only for digital programs. If the program you are watching is also available in
other languages from the audio tracks, and if that language is what you have selected in the Language setting, your
TV will automatically switch to the matching language with the Alternate Audio feature. The Alternate Audio
option may be accessed by pressing the OPTIONS button on the remote control when alternate audio stream is
available from the broadcaster.
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
Ri
g
ht
35
Using TV Features
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Channel Settings
Cable On For receiving cable channels via cable TV provider.
Off For using an antenna.
~
• You should run Auto Program after changing the Cable setting.
Auto Program Automatically sets up the channel list on the TV for all receivable channels. Channel
scanning will be based on the Cable On/Off setting.
1Select Auto Program.
2Select OK to start Auto Program. When Auto Program is completed, the screen
will display the number of channels found.
3Press RETURN to exit the Auto Program.
~
• Running Auto Program will clear Favorites list.
• If you run Auto Program again, previously scanned channels will be overwritten with
the newly scanned channels.
Add Digital Channels Select to add digital channels. Be sure to have the Cable option selected appropriately for
the signal source. (Useful for antenna installations.)
Show/Hide Channels Allows you to show or hide channels when you surf with the CH +/– button or in the TV
channel list on the XMB™.
1Press V/v to scroll through the channels until you highlight the channel to show or
hide.
2Press to select Shown or Hidden.
To show or hide more channels, repeat steps 1-2.
~
•Hidden channels can be accessed by entering the channel number with 0-9 buttons on
the remote control.
Edit Channel Labels Assigns labels (such as station call letters) to channel numbers.
1Press V/v to scroll through the channel numbers. Then press to select the channel
number to assign a label.
2Press V/v to scroll through the label characters (A-Z, 0-9, etc.). Press b to move to
the next character. Repeat to add up to 7 characters to the label. Press to set it.
To assign labels to more channels, repeat steps 1-2.
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
L
e
ft
36
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
The Parental Lock feature allows you to block programs according to their content and rating levels and
block channels (regardless of the programs). Password is necessary in setting up blocking.
To View Blocked Programs
Press ENT when tuned to a blocked program, then enter the password. To reactivate the Parental Lock settings, turn
off and on the TV.
Closed Captions (CC) Settings
CC Display This option allows you to turn On or Off the Closed Captions (CC) feature.
Analog CC Select this option for the basic analog (EIA-608) closed caption options.
CC1, CC2,
CC3, CC4
Displays a printed version of the dialogue or sound effects of a
program. (Should be set to CC1 for most programs.)
Text1, Text2,
Text3, Text4
Displays network/station information presented using either half or
the whole screen (if available).
Digital CC Select this option for both analog (EIA-608) and digital (EIA-708) closed caption options.
Select from CC1-4 and Service 1-6 (advanced digital closed caption options).
Display Options Customize the Closed Captions (CC) displays with Text, Character Size,
Character Style, Character Color, Character Opacity, Edge Type, Edge Color,
Background Color and Background Opacity.
~
•Closed Captions (CC) can be turned on and off directly by pressing the CC button on the remote control.
Parental Lock Settings
Password Use 0-9 button on the remote control to enter a four-digit password. The first time the
password is created, you must re-enter it again to confirm the password. “Password Set”
message will appear on the screen upon confirmation.
Change Password
You can change your password by entering the Parental Lock setting with the
previously set password, highlight and select the Change Password then enter the new
password.
~
• You need your password for any future access into the Parental Lock settings. If you
lose your password, see “Lost password” on page 43.
Country Select the country name of U.S.A. or Canada for the appropriate ratings. The rating
system varies between these two countries. See Custom Rating System Chart on page 38.
CC
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
Ri
g
ht
37
Using TV Features
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Rating Off Turns off Parental Lock. No programs are blocked from viewing
based on their ratings.
Child Maximum ratings permitted are:
U.S.: TV-Y, TV-G, G
Canada: C, G, TV-Y
Youth Maximum ratings permitted are:
U.S.: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Young Adult Maximum ratings permitted are:
U.S.: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Sets ratings manually.
U.S.: See page 38 for details.
Canada: See page 38 for details.
~
• If you are not familiar with the parental guideline rating system, you should select Child, Youth, or Young Adult
to help simplify the rating selection. To set more specific ratings, select Custom.
Digital Rating
(Available only in U.S.A.
where advanced ratings
exist)
Off Turn Digital Rating off. No programs containing digital ratings are
blocked from viewing.
Custom
Select to customize the
Parental Lock
with downloadable digital ratings.
Clear All Select to clear the downloaded ratings.
Unrated
(Available only when
Country is set to U.S.A.)
Block programs or movies
that are broadcast without
a rating
Allow Allows programs and movies that are broadcast without a rating.
Block Blocks all programs and movies that are broadcast without a rating.
~
• If you block unrated TV programs, be aware that the following types of programs may
be blocked: programs broadcast from another country, emergency broadcasts, political
programs, sports, news, public service announcements, religious programs and weather.
Channel Block This option allows you to block channels regardless of program ratings. The password
needs to be set up prior to blocking channels. The blocked channel can only be viewed by
entering the correct password.
To View a Blocked Channel
Press ENT button when tuned to the blocked channel then enter the password.
(Continued)
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
L
e
ft
38
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Custom Rating System Chart
For Country selection of U.S.A.:
For Country selection of Canada:
Movie Rating G All children and general audience
PG Parental guidance suggested
PG-13 Parental guidance for children under 13
RRestricted viewing, parental guidance is suggested for ages under 17
NC-17 and XNo one 17 or under allowed
TV Rating
Block programs by their
rating, content or both
Age-Based Ratings
TV-Y All children
TV-Y7 Directed to children age 7 and older
TV-G General audience
TV-PG Parental guidance suggested
TV-14 Parents strongly cautioned
TV-MA Mature audience only
Content-Based Ratings
FV Fantasy violence
DSuggestive dialogue
LStrong language
SSexual situations
VViolence
~
• To ensure maximum blocking capability, set the Age-Based Ratings.
English Rating C All children
C8+ Children 8 years and older
GGeneral programming
PG Parental guidance
14+ Viewers 14 and older
18+ Adult programming
French Rating G General programming
8 ans+ Not recommended for young children
13 ans+ Not recommended for ages under 13
16 ans+ Not recommended for ages under 16
18 ans+ Programming restricted to adults
U.S.A. Rating See TV Rating under U.S.A. for details.
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
Ri
g
ht
39
Using TV Features
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
HDMI inputs of this TV will recognize and communicate with other Sony equipment equipped with HDMI
Control.
External Inputs Settings
Label Inputs You can label your inputs with the name of equipment you have connected.
To assign your own label or Skip the input:
1Press V/v to highlight the video input (Video 1-3, Component 1-2 and HDMI 1-
2, PC), then press to select the desired input.
2Press V/v to highlight the display label you want to assign, then press .
~
• You can select from the following labels for each input.
Video 1-3, Component 1-2 and HDMI 1-2: –, DVD, Cable Box, Satellite, BD,
VCR, Receiver, DVR, Game, Camcorder, PC, Skip.
PC: –, Skip.
•“–” indicates that no labels are assigned and displayed with the default labeling.
Auto S Video Both Video 1 and Video 2 are equipped with S VIDEO. Select Auto to connect the S
VIDEO cable instead of the composite video cable for auto video detection. If you are
using the composite video cable, set the setting to Off. The Off setting will disable the
auto detect and allows composite connection.
HDMI Settings
HDMI Control On/Off feature allows your TV to communicate with other equipment that supports
HDMI Control.
Device Auto Power Off Select On to have your connected HDMI Control equipment to power off automatically
when the TV is turned off. Select Off to disable this function.
TV Auto Power On Select On to control your TV’s power on from your connected HDMI Control
equipment. Select Off to disable this function.
Device List Displays a list of HDMI Control equipment connected to the TV.
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\060USE
.
f
mmas
t
erpage:
L
e
ft
40
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
If you have missed the Initial Setup when you first connected the TV or if you want to scan all receivable
channels, you can run the Initial Setup. Follow the instructions on the screen. Settings such as picture and
sound adjustments will not be affected by this Initial Setup.
General Settings
Language Select the language of your choice from English, Español and Français to be used for
displaying all the on-screen settings.
Info Banner Displays the program name and the program information such as program title and
program rating (if available from the broadcaster) when option is set to On. Select Off for
minimal display information. Selecting Off will not completely disable the banner
display. Info Banner also appears on the screen each time the channel is changed or
DISPLAY button on the remote control is pressed.
~
• To see the rating information on the banner, Info Banner setting must be set to On.
Power Saving Reduces the power consumption by adjusting the backlight brightness. This also enhances
the black level. Select from Off, Low, High and Picture Off.
Light Sensor Enables the automatic picture (screen) brightness control. The Light Sensor measures
the room brightness which allows the TV to automatically adjust the backlight brightness
based on the picture settings and the ambient room light conditions.
~
• Be sure not to put anything around the sensor, as its function may be affected (see page
26).
• In low light the range of the backlight control is reduced when the Light Sensor is set
to On.
PC Power
Management
On Automatically enters to standby mode when there is no signal input
for more than 30 seconds. The STANDBY LED on the front panel
will illuminate when PC Power Management switches the TV to
standby mode.
Off Turns off PC Power Management.
~
• To bring the TV out of standby mode and recover TV features, press POWER on the
remote control.
•PC Power Management is not VESA-compliant.
Initial Setup
~
•Favorites list will be cleared each time you run the Initial Setup.
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\070OTH
.
f
mmas
t
erpage:
Fi
rs
t
Ri
g
ht
41
Other Information
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-
3
2
S
L1
30/
KDL-4
0S
L1
30
Other Information
Troubleshooting
If you have questions, service needs, or require
technical assistance related to the use of your
Sony TV, please visit our website or call one of
the following numbers:
http://www.sony.com/tvsupport
1-800-222-SONY(7669) for US Support
1-877-899-SONY(7669) for Canadian Support
Condition Explanation/Solution
No picture
No picture • Check the Power Saving settings (see page 40).
Cannot receive any channels • Make sure the power cord is connected securely.
• Turn on the power of the TV.
• Check antenna/cable connections.
• Make sure the Cable setting is correct for your TV signal source.
TV is locked to one channel • Perform Auto Program to add receivable channels that are not present in the
TV’s memory (see pages 21 and 35).
Cannot receive or select
channels
• Perform Auto Program to add receivable channels that are not present in the
TV’s memory (see pages 21 and 35).
• To receive or select cable channels, make sure that Cable in the Channel
settings is set to On (see page 35). To receive or select UHF channels over an
antenna, make sure Cable is set to Off.
The TV turns off
automatically
•Check if Sleep Timer is activated, or confirm the Duration setting of Timer
(see page 30).
•Check PC Power Management in General Settings (see page 40).
No picture from some video
sources
• Check the connection between the optional video equipment and the TV.
• Press INPUT on the remote control (see page 25).
• Press HOME on the remote control. Select your desired input from the
External Inputs list.
Poor picture
The quality of the images is
not as good as what I saw at
the store
• Picture quality depends on the signal content. See Quick Setup Guide
(supplied) to display the best possible picture for that signal.
Double images or ghosts • Check antenna/cable connections.
• Check the antenna location and direction.
Only snow and noise appear
on the screen
• Check if the antenna is broken or bent.
• Check if the antenna has reached the end of its serviceable life. (3-5 years in
normal use, 1-2 years at the seaside.)
Dotted lines or stripes • Keep the TV away from noise sources such as cars, motorcycles, or hair-dryers.
• If using 300 ohm twin lead, move the excess lead away from the TV or try using
75 ohm coaxial cable instead.
No color/Dark picture/Color is
not correct/The picture is too
bright
• Press PICTURE to select the desired Picture Mode (see page 23).
• Adjust the Picture Mode options in the Picture settings (see page 30).
• If you set the Power Saving mode to Low or High, it will enhance the black
level (see page 40).
Noisy picture • Make sure that the antenna is connected using a 75-ohm coaxial cable.
• Keep the antenna cable away from other connecting cords.
• To avoid TV interference, make sure to use an undamaged antenna cable.
(Continued)
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\070OTH
.
f
mmas
t
erpage:
L
e
ft
42
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
No sound/Noisy sound
Good picture, no sound • Check the volume control.
• Press
MUTING
or
VOL +
so that “Muting” disappears from the screen (page 24).
• Disconnect your headphones.
•Set Speakers to TV Speakers in the Audio Options settings (see page 34).
If it is set to Audio System, sound is not output from the TV’s speakers
regardless of the TV’s volume control.
• When using HDMI input with Super Audio CD or DVD-Audio, DIGITAL OUT
(Optical) may not provide an audio signal.
• For HDMI equipment, confirm that the audio output setting of the connected
equipment is set to PCM. This TV's HDMI inputs support PCM 32, 44.1 and
48 kHz, 16, 20 and 24bits.
Audio noise • Make sure that the antenna is connected using a 75-ohm coaxial cable.
• Keep the antenna cable away from other connecting cords.
• To avoid TV interference, make sure to use an undamaged antenna cable.
PC Input
No Picture / No Signal • Confirm the PC is correctly connected to the TV with either the PC IN (with an
HD15 cable) or with the HDMI IN.
• Ensure the output signal from the PC is one of the formats listed on page 18.
• Turn the PC off. Confirm the PC connection and restart the PC. Plug and play
will auto-detect the TV and correctly set up PC timing.
•Verify PC Power Management is activated (see page 40).
Poor Picture • Adjust the resolution (see page 18).
•Adjust Pitch and Phase.
General
Wide Mode changes
automatically
• The current Wide Mode setting is automatically replaced with the 4:3
Default setting when you change the channel or video input, if 4:3 Default in
the Screen settings is set to other than Off. If you want to lock in Wide Mode
selected with WIDE on the remote control, set 4:3 Default to Off in the
Screen settings (see page 32).
• Check the Auto Wide option in the Screen settings (see page 33).
Suddenly the picture gets
smaller
• The picture gets smaller during the commercials, this is due to the method the
provider broadcasts their contents. When HD content channels switch to SD
definition content (commercials), the picture may be small with a black border.
“Black box” on screen • You have selected a text option and no text is available (see page 36). To turn off
this feature, set the CC Display option to Off. If you were trying to select
closed captioning, select CC1 instead of Text1-4.
Black bands appear at the
edges of the screen
• Some wide screen programs are filmed in aspect ratios that are greater than 16:9
(this is especially common with theatrical releases). Your TV will show these
programs with black bands at the top and bottom of the screen. For more
details, check the documentation that came with your DVD (or contact your
program provider).
• Programs in 4:3 aspect ratio will have bands on left and right sides of the
screen.
Certain programs on DVD or
other digital sources display a
loss of detail, especially during
fast-motion or dark scenes
• This is due to the digital compression of the source content used by certain
digital broadcasts and DVDs which may cause your TV’s screen to display less
detail than usual, or cause artifacts (small blocks or dots, pixelations) to appear
on your screen. These signal compressions are more visible and are dependent
on the clarity and resolution of the television.
Remote control does not
operate
• Check the polarity of the batteries or replace the batteries.
• Point the remote control at the remote control sensor located at the front of the TV.
• Fluorescent lamps can interfere with your remote control operation; try turning
off the fluorescent lamps.
• Keep the remote control sensor area clear from obstacles.
Condition Explanation/Solution
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\070OTH
.
f
mmas
t
erpage:
Ri
g
ht
43
Other Information
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Some digital cable channels
are not being displayed
• Certain cable companies have limitations on the broadcast of digital cable
channels. Check with your cable company for more information.
• The digital cable channel may be set to Hidden in the Show/Hide Channels
setting (see page 35).
Lost password • Select the Password settings on the Parental Lock settings, then enter the
following master password: 4357. The master password clears your previous
password and allows you to enter a new password (see page 36).
How to reset the TV to factory
settings
• Turn on the TV. While holding down V on the remote control, press POWER
on the TV. (The TV will turn itself off, then back on again.) Release V.
WARNING: The Reset will clear all of your customized settings including the
Parental Lock setting.
Condition Explanation/Solution
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\070OTH
.
f
mmas
t
erpage:
L
e
ft
44
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Specifications
~
• Optional accessories availability depends on its stock.
• Design and specifications are subject to change without notice.
Model KDL-26S3000 KDL-32S3000/
KDL-32SL130
KDL-40S3000/
KDL-40SL130
KDL-46S3000
System
Television system NTSC: American TV standard
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage Analog terrestrial: 2-69 / Digital terrestrial: 2-69
Analog Cable: 1-125 / Digital Cable: 1-135
Panel system LCD (Liquid Crystal Display) Panel
Speaker output 10 W + 10 W
Input/Output jacks
Antenna 75-ohm external terminal for VHF/UHF
VIDEO IN 1/2/3 S VIDEO (4-pin mini DIN)(VIDEO 1/2 only): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative /
C: 0.286 Vp-p (Burst signal), 75 ohms
VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative
AUDIO: 500 mVrms (100% modulation)/ Impedance: 47 kilohms
COMPONENT IN 1/2 YPBPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / PB: 0.7 Vp-p, 75 ohms /
PR: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480p, 720p, 1080i, 1080p
AUDIO: 500 mVrms (100% modulation)/ Impedance: 47 kilohms
HDMI IN 1/2
HDMI: Video: 480i, 480p, 720p, 1080i, 1080p / Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits
AUDIO (HDMI IN 2 only): 500 mVrms (100% modulation)/ Impedance: 47 kilohms
AUDIO OUT 500 mVrms (100% modulation)/ More than 1 Vrms at the maximum volume setting (Variable)/
More than 500 mVrms (Fixed)
PC IN D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
See the PC Input Signal Reference Chart on page 18.
PC AUDIO INPUT Stereo mini jack, 500 mVrms, (100% modulation)/ Impedance: 47 kilohms
Headphones Stereo mini jack / Impedance: 16 ohms
Power and others
Power requirement 120 V-240 V AC, 50/60 Hz
Power consumption
in use 105 W 158 W 180 W 215 W
in standby All models less than 0.1 W
Screen size
(inches measured diagonally)
26 31.5 (32 class) 40 46
Display resolution
(horizontal × vertical)
1,366 dots × 768 lines
Speaker/Full range (2) 42 × 150 mm
1
11
/
16
× 6 inches
42 × 150 mm
1
11
/
16
× 6 inches
55 × 150 mm
2
1
/
4
× 6 inches
70 × 130 mm
2
3
/
4
×
5
7
/
16
inches
Dimensions
with stand (mm)
(inches)
656 × 500 × 214
25
7
/
8
× 19
3
/
4
× 8
1
/
2
790 × 577 × 214
31
1
/
8
× 22
3
/
4
× 8
1
/
2
981 × 692 × 265
38
5
/
8
× 27
1
/
4
× 10
1
/
2
1114 × 778 × 306
43
7
/
8
× 30
3
/
4
× 12
1
/
8
without stand (mm)
(inches)
656 × 452 × 96
25
7
/
8
× 17
7
/
8
× 3
7
/
8
790 × 530 × 100
31
1
/
8
× 20
7
/
8
× 4
981 × 643 × 110
38
5
/
8
× 25
3
/
8
× 4
3
/
8
1114 × 730 × 115
43
7
/
8
× 28
3
/
4
× 4
5
/
8
wall-mount hole pattern
(mm)
200 × 100 200 × 200 300 × 200 300 × 200
Mass
with stand 13.5 kg
30 lb.
17.0 kg
38 lb.
25.0 kg
56 lb.
32.0 kg
71 lb.
without stand 11.0 kg
25 lb.
14.5 kg
32 lb.
21.0 kg
47 lb.
27.5 kg
61 lb.
Supplied accessories Remote control RM-YD018 (1) / Size AA batteries (2) / AC power cord (1) / Support belt (1) / Securing screw (1) /
Wood screw (1) / Cable holder (1 attached to the TV) /
Operating Instructions (1) / Quick Setup Guide (1) /
Warranty Card (1) / Online Registration Card (U.S.A. and Canada only) (1)
Optional accessories Headphones plug adapter / Connecting cables / Wall-Mount Bracket: SU-WL100 (KDL-26S3000), SU-WL500 (KDL-
32S3000/KDL-40S3000/KDL-46S3000/KDL-32SL130/KDL-40SL130) / TV stand: RHT-G800 (for all models
excluding KDL-26S3000), SU-FL300L (KDL-46S3000 only), SU-FL300M (for all models excluding KDL-26S3000)
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\010COVIX
.
f
mmas
t
erpage:
Ri
g
ht
45
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
Index
0-9 buttons 23
4:3 Default 33
A
AC IN 15
Add Digital Channels 35
Advanced Settings 31
Analog CC 36
Audio Out 34
AUDIO OUT jack, described 15
Auto Adjust 33
Auto Program 21, 35
Auto S Video 39
Auto SAP, MTS setting 34
Auto Wide 33
B
Backlight 31
Balance 32
Bass 32
Bilingual audio 34
Brightness 31
C
Cable 35
Cable holder 20
CC button 25
CC Display 36
CH +/– button 25
Channel Block 37
CineMotion 34
Color 31
Color Temperature 31
COMPONENT IN jack (1080p/1080i/
720p/480p/480i), described 15
Contact Sony 30
Country 36
Current Time 30
D
Device Auto Power Off 39
Device List 39
Digital CC 36
DIGITAL OUT (OPTICAL) jack,
described 15
Digital Rating 37
Display Area 33
DISPLAY button 22
Display Options 36
DMex button 23
DMex, described 15
E
Edit Channel Labels 35
English Rating 38
ENT button 23
F
FAVORITES button 23
FREEZE button 23
French Rating 38
H
H Center 33
HDMI Control 39
HDMI IN jack, described 15
Headphones jack, described 13
HOME button 23
Hue 31
I
Info Banner 40
Infrared Receiver (IR) 26
INPUT button 25
Installing the TV on a wall 12
J
JUMP button 25
L
Label Inputs 39
Language 40
Light Sensor
Described 26
Setting 40
M
Movie Rating 38
MPEG Noise Reduction 31
MTS 34
MUTING button 24
N
Noise Reduction 31
O
OPTIONS button 25
P
P&P 27
Password 36
PC IN jack, described 15
PC Power Management 40
Phase 33
PIC OFF/TIMER LED 26
Picture 31
PICTURE button 23
Picture Mode 30
PIP 27
Pitch 33
POWER button 24
POWER LED 26
Power Saving 40
R
Rating 37
Reset 31, 32, 33, 43
RETURN button 23
S
S VIDEO jack, described 13, 15
Screen Position 33
Setting up channels 21
Settings
Audio Options 34
Channel 35
Clock/Timers 30
Closed Captions (CC) 36
External Inputs 39
General 40
HDMI Settings 39
Initial Setup 40
Parental Lock 36
Picture 30
Product Support 30
Screen 32
Sound 32
Video Options 34
Sharpness 31
Show/Hide Channels 35
Signal Diagnostics 30
SLEEP button 22
Sleep Timer 30
Sound Booster 32
Sound Mode 32
Speaker 26
Speakers 34
STANDBY LED 26
Steady Sound 32
Surround 32
T
Timer 30
Timer Settings 30
Treble 32
Troubleshooting 41–43
TV Auto Power On 39
TV Rating 38
U
U.S.A. Rating 38
Unrated 37
V
V Center 33
Vertical Size 33
VHF/UHF/CABLE input, described 15
VIDEO IN jack, described 13, 15
VIDEO/AUDIO (L/R) jacks, described
13, 15
VOL +/– button 24
Volume Offset 32
W
WIDE button 24
Wide Mode 32, 34
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\010COVIX
.
f
mmas
t
erpage:
Bl
an
k
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\010COVIX
.
f
mmas
t
erpage:
Bl
an
k
KDL-26S3000/KDL-32S3000/KDL-40S3000/KDL-46S3000/
KDL-32SL130/KDL-40SL130
F
:
\W
or
k
er
\SONY
WAX3
EN
17(1)\3196472171(071107)\080BCO
.
f
mmas
t
erpage:
L
e
ft
For Your Convenience
Please contact Sony directly if you:
z Have questions on the use of your television after reading your Operating Instruction manual
and Quick Setup Guide
z Experience difficulty operating your television
Contact Sony Customer Support at:
http://www.sony.com/tvsupport
or to speak with a support representative:
United States
1-800-222-SONY (7669)
Canada
1-877-899-SONY (7669)
Sony will work to resolve your questions more quickly than your retailer or place of purchase.
Please Do Not Return the Product to the Store
Printed in U.S.A.
