LCD Digital Colour TV

2-698-671-13(1)

Operating Instructions

Before operating the TV, please read the “Safety

information” section of this manual.

Retain this manual for future reference.

For useful information about Sony products

KDL-52X2000

KDL-46X2000

KDL-40X2000

2 GB

NOTICE FOR

CUSTOMERS IN THE

UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this

equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced with

the same rating of fuse approved by ASTA or BSI to BS 1362

(i.e., marked with or ) must be used.

When an alternative type of plug is used it should be fitted

with the same rating of fuse, otherwise the circuit should be

protected by a 13 AMP FUSE at the distribution board.

If the plug supplied with this equipment has a detachable fuse

cover, be sure to attach the fuse cover after you change the

fuse. Never use the plug without the fuse cover. If you should

lose the fuse cover, please contact your nearest Sony service

station.

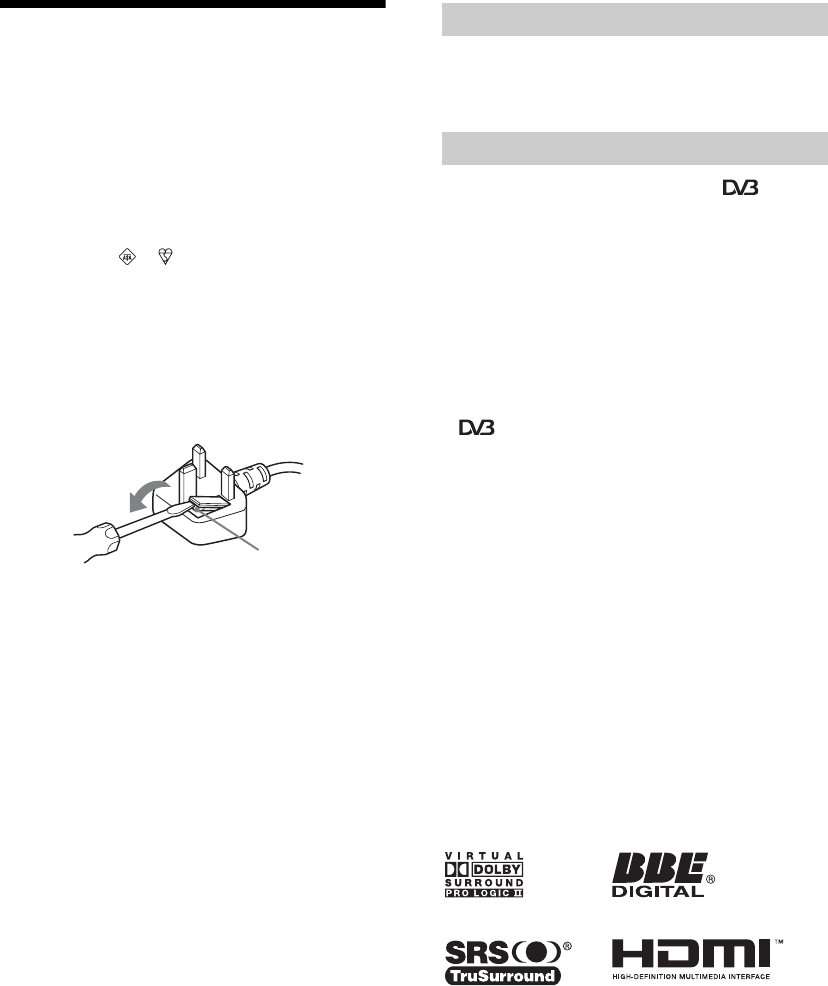

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and

replace the fuse.

Thank you for choosing this Sony product.

Before operating the TV, please read this manual

thoroughly and retain it for future reference.

• Any functions related to Digital TV (with logo) will

only work in countries or areas where DVB-T (MPEG2)

digital terrestrial signals are broadcasted. Please confirm

with your local dealer if you can receive a DVB-T signal

where you live.

• Although this TV set follows DVB-T specifications,

compatibility with future DVB-T digital terrestrial

broadcasts cannot be guaranteed.

• Some Digital TV functions may not be available in some

countries.

Trademark information

• is a registered trademark of the DVB Project

• Manufactured under license from BBE Sound, Inc.

Licensed by BBE Sound, Inc. under one or more of the

following US patents: 5510752, 5736897. BBE and BBE

symbol are registered trademarks of BBE Sound, Inc.

• “Dolby”, “Pro Logic”, and the double-D symbol are

trademarks of Dolby Laboratories.

• Manufactured under license from Dolby Laboratories.

• TruSurround technology is used as a virtualizer for Virtual

Dolby Surround.

• TruSurround, SRS and (z) symbol are trademarks of SRS

Labs, Inc.

TruSurround technology is incorporated under license

from SRS Labs, Inc.

• HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

• The illustrations used in this manual are of the KDL-

46X2000 unless otherwise stated.

FUSE

Introduction

Notice for Digital TV function

3 GB

Table of Contents

Safety information .....................................................................................................................9

Precautions .............................................................................................................................12

Overview of the remote ........................................................................................................13

Overview of the TV buttons and indicators ........................................................................15

Watching TV............................................................................................................................16

Checking the Digital Electronic Programme Guide (EPG) .............................................19

Using the Digital Favourite list .......................................................................................21

Viewing pictures from connected equipment ..........................................................................22

Navigating through menus ......................................................................................................23

Picture menu ...........................................................................................................................24

Sound menu............................................................................................................................27

Screen menu...........................................................................................................................29

Set-up menu............................................................................................................................31

AV Set-up menu......................................................................................................................33

Analogue Set-up menu ...........................................................................................................35

Digital Set-up menu .......................................................................................................38

PC Settings menu ...................................................................................................................40

Connecting optional equipment...............................................................................................42

Programming the remote ........................................................................................................44

Specifications ..........................................................................................................................46

Troubleshooting ......................................................................................................................48

Index .......................................................................................................................................50

Start-up Guide 4

Watching TV

Using MENU Functions

Using Optional Equipment

Additional Information

: for digital channels only

4 GB

Start-up Guide

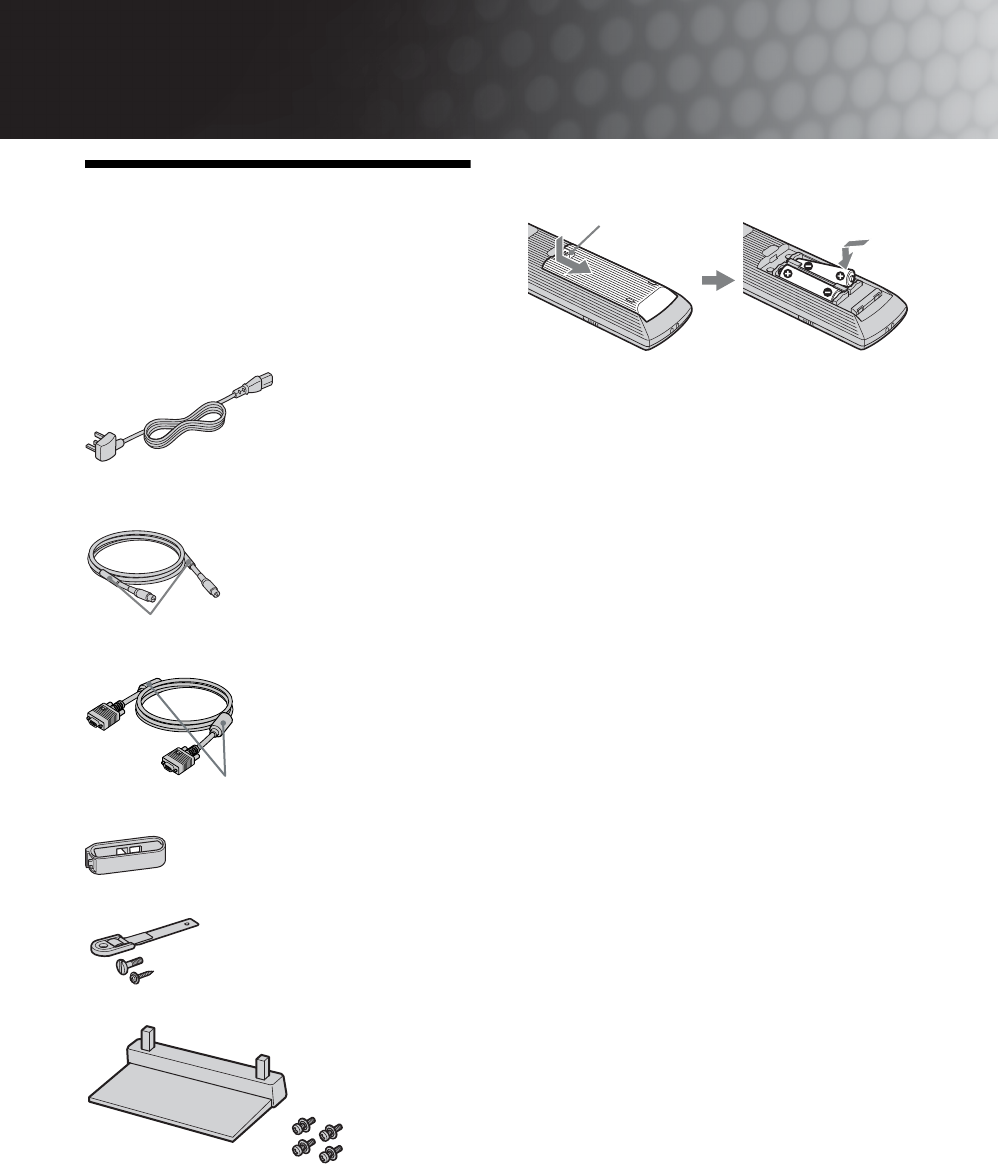

1: Checking the

accessories

Remote RM-ED006 (1)

Size AA batteries (R6 type) (2)

Mains lead (Type BF) (1)

• For models with ferrite cores, do not remove these cores.

Coaxial cable (1)

PC cable (1)

Cable holder (1)

Support belt (1) and screws (2)

Stand (1) and screws (4) (only for KDL-40X2000)

To insert batteries into the remote

Notes

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old

and new batteries.

• Dispose of batteries in an environmentally friendly way.

Certain regions may regulate disposal of the battery.

Please consult your local authority.

• Handle the remote control with care. Do not drop or step

on it, or spill liquid of any kind onto it.

• Do not place the remote control in a location near a heat

source, or in a place subject to direct sunlight, or in a damp

room.

To replace the bezel unit

The bezel unit can be replaced with others that are sold

separately. However, do not remove the unit except to

replace it. For details, see the instructions supplied

with bezel units.

Do not remove these ferrite cores.

Do not remove these ferrite cores.

Push and slide to open.

5 GB

Start-up Guide

2: Attaching the stand

(only for KDL-40X2000)

1Place the TV onto the stand by aligning the

screw hole alignment lines over the stand

as shown.

2Fix the TV to the stand using the supplied

screws.

Notes

• This TV is very heavy, so two or more people should place

the TV on the stand.

• If using an electric drill, set the tightening torque at

approximately 1.5 N·m (15 Kgf·cm).

3: Connecting an aerial/

VCR

1

2

2

Connecting an aerial only

Connecting an aerial and VCR

Coaxial cable

(supplied)

Mains lead (supplied)

Scart lead (not supplied)

VCR

Mains lead

(supplied)

Coaxial cable

(not supplied)

Coaxial cable

(supplied)

6 GB

4: Preventing the TV

from toppling over

5: Bundling the cables

6: Selecting the

language and country/

region

1Connect the TV to your mains socket

(220-240 V AC, 50 Hz).

2Press 1 on the TV (right side).

When you switch on the TV for the first time, the

Language menu appears on the screen.

2

3

1

1

2

3,4

3,4

2

7 GB

Start-up Guide

When the TV is in standby mode (the 1 (standby)

indicator on the TV (front) is red), press TV "/1

on the remote to switch on the TV.

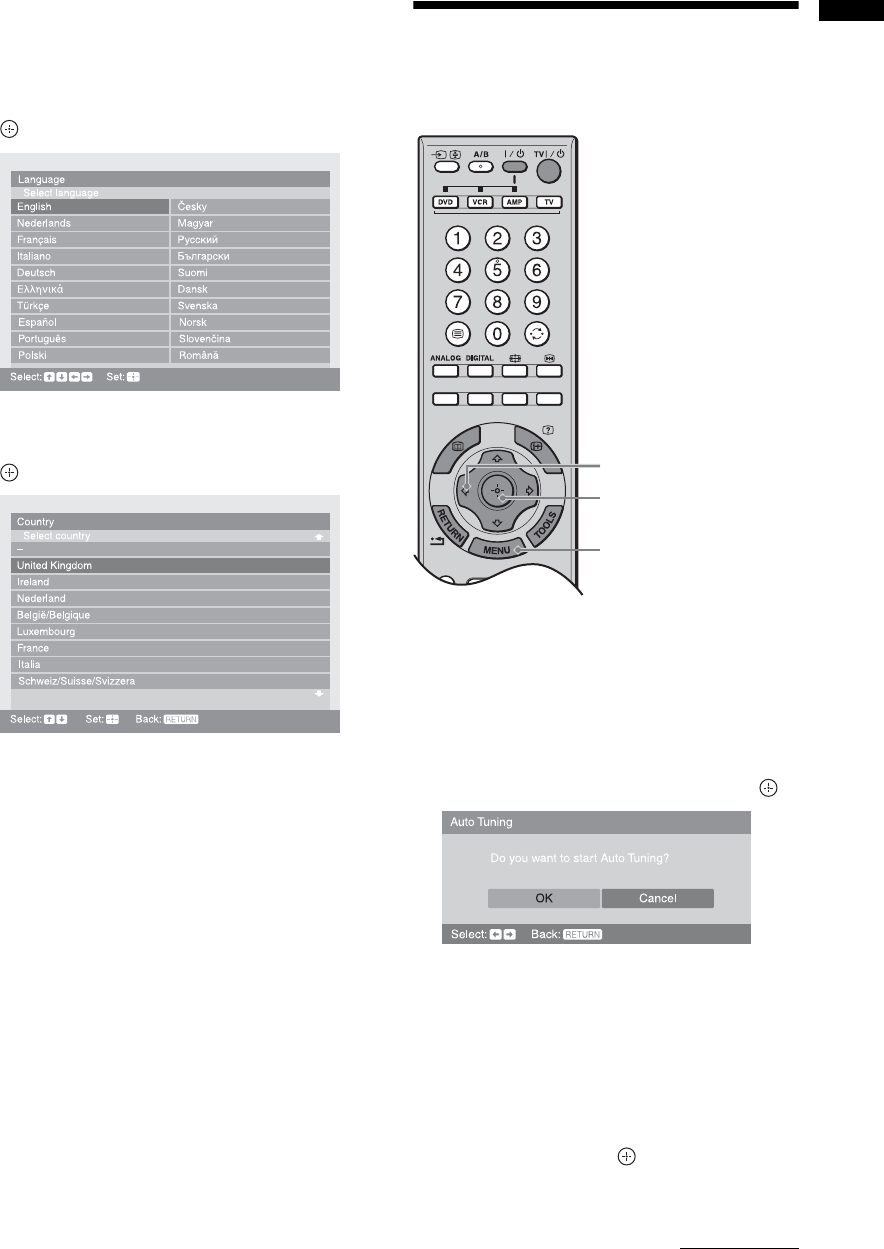

3Press F/f/G/g to select the language

displayed on the menu screens, then press

.

4Press F/f to select the country/region in

which you will operate the TV, then press

.

If the country/region in which you want to use the

TV does not appear in the list, select “-” instead of

a country/region.

The message confirming the TV start auto-tuning

appears on the screen, then go to “7: Auto-tuning

the TV”.

7: Auto-tuning the TV

The TV will search for and store all available TV

channels.

1Before you start auto-tuning the TV, insert

a pre-recorded tape into the VCR

connected to the TV (page 5) and start play

back.

The video channel will be located and stored on

the TV during auto-tuning.

If no VCR is connected to the TV, skip this step.

2Press G/g to select “OK”, then press .

The TV starts searching for all available digital

channels, followed by all available analogue

channels. This may take some time, please be

patient and do not press any buttons on the TV or

remote.

If a message appears for you to confirm the aerial

connection

No digital or analogue channels were found.

Check the aerial connection and press G/g to

select “Yes”, then press to start auto-tuning

again.

4

2

2

Continued

8 GB

3When the Programme Sorting menu

appears on the screen, follow the steps of

“Programme Sorting” (page 35).

If you do not change the order in which the analogue

channels are stored on the TV, go to step 4.

4Press MENU to exit.

The TV has now tuned in all the available channels.

Note

When a digital broadcast channel cannot be received, or

when selecting a region in which there are no digital

broadcasts in step 4 (page 7) under “6: Selecting the

language and country/region”, the time must be set after

performing step 3.

9 GB

Safety information

Mains lead

• Observe the followings to prevent the mains lead being

damaged. If the mains lead is damaged, it may result in a

fire or an electric shock.

– Unplug the mains

lead when moving

the TV set.

– When you

disconnect the

mains lead,

disconnect it from

the mains socket first.

– Be sure to grasp the plug when

disconnecting the mains lead. Do

not pull on the mains lead itself.

– Do not pinch, bend, or twist the

mains lead excessively. The core

conductors may be exposed or

broken.

– Do not modify the mains lead.

– Do not put anything heavy on the

mains lead.

– Keep the mains lead away from heat

sources.

• If you damage the mains lead, stop

using it and ask your dealer or Sony service centre to

exchange it.

• Do not use the supplied mains lead on any other

equipment.

• Use only an original Sony mains lead, not other brands.

Mains socket

• The TV set with a three-wire grounding

type mains plug must be connected to a

mains socket with a protective earthing

connection.

• Do not use a poor fitting mains socket.

Insert the plug fully into the mains socket.

A poor fit may cause arcing and result in a

fire. Contact your electrician to have the

mains socket changed.

Cleaning the mains plug

Unplug the mains plug and clean it

regularly. If the plug is covered with dust

and it picks up moisture, its insulation may

deteriorate and result in a fire.

Overloading

This TV set is designed to operate on

a 220–240 V AC supply only. Take

care not to connect too many

appliances to the same mains socket

as this could result in a fire or an electric shock.

When not in use

• If you will not be using the TV

set for several days, the TV set

should be disconnected from

the mains for environmental

and safety reasons.

• The TV set is not disconnected from the mains when the

TV set is switched off. To disconnect the TV set

completely, pull the plug from the mains. However, some

TV sets may have features which need the TV set to be left

in standby to work correctly.

Carrying

• Before carrying the TV set,

disconnect all the cables from the

TV set.

• Carrying the large size TV set

requires two or more people.

• When you carry the TV set by

hand, hold the TV set as

illustrated on the right. When

lifting the TV set or moving the

panel of the TV set, hold it firmly

from the bottom. If you do not do

so, the TV set may fall and be

damaged or cause serious injury.

• When transporting it, do not

subject the TV set to jolts or

excessive vibration. The TV set

may fall and be damaged or cause

serious injury.

• If the TV set has been dropped or

damaged, have it checked

immediately by qualified service

personnel.

• When you carry the TV set in for repair or when you move

it, pack it using the original carton and packing material.

Placement

• The TV set should be installed near an easily accessible

mains socket.

• Place the TV set on a stable, level surface.

Do not hang anything on the TV set. If

you do, the TV set may fall from the

stand, causing damage or serious injury.

• Do not install the TV set in places subject

to extreme temperature, for example in

direct sunlight, or near a radiator, or heating vent. If the

TV set is exposed to extreme temperature, the TV set may

overheat and cause deformation of the casing or cause the

TV set to malfunction.

• Do not install the TV set in a place exposed to direct air

conditioning. If the TV set is installed in such a location,

moisture may condense inside and may cause a

malfunction.

• Never place the TV set in hot, oily,

humid or excessively dusty places.

• Do not install the TV set where

insects may enter.

• Do not install the TV set where it

may be exposed to mechanical vibration.

• Do not install the TV set in a location where it may

protrude, such as on or behind a pillar, or where you might

bump your head on it. Otherwise, it may result in injury.

• Do not allow children to climb on the TV

set.

• If you use the TV set near the seashore,

salt may corrode metal parts of the TV set

and cause internal damage or fire.

KDL-46X2000/40X2000

KDL-52X2000

Continued

10 GB

Ventilation

• Never cover the ventilation

holes or insert anything in the

cabinet. It may cause

overheating and result in a fire.

• Unless proper ventilation is provided, the TV set may

gather dust and get dirty. For proper ventilation, observe

the following:

– Do not install the TV set turned backwards or sideways.

– Do not install the TV set turned over or upside down.

– Do not install the TV set on a shelf or in a closet.

– Do not place the TV set on a rug or bed.

– Do not cover the TV set with cloth, such as curtains, or

items such as newspapers, etc.

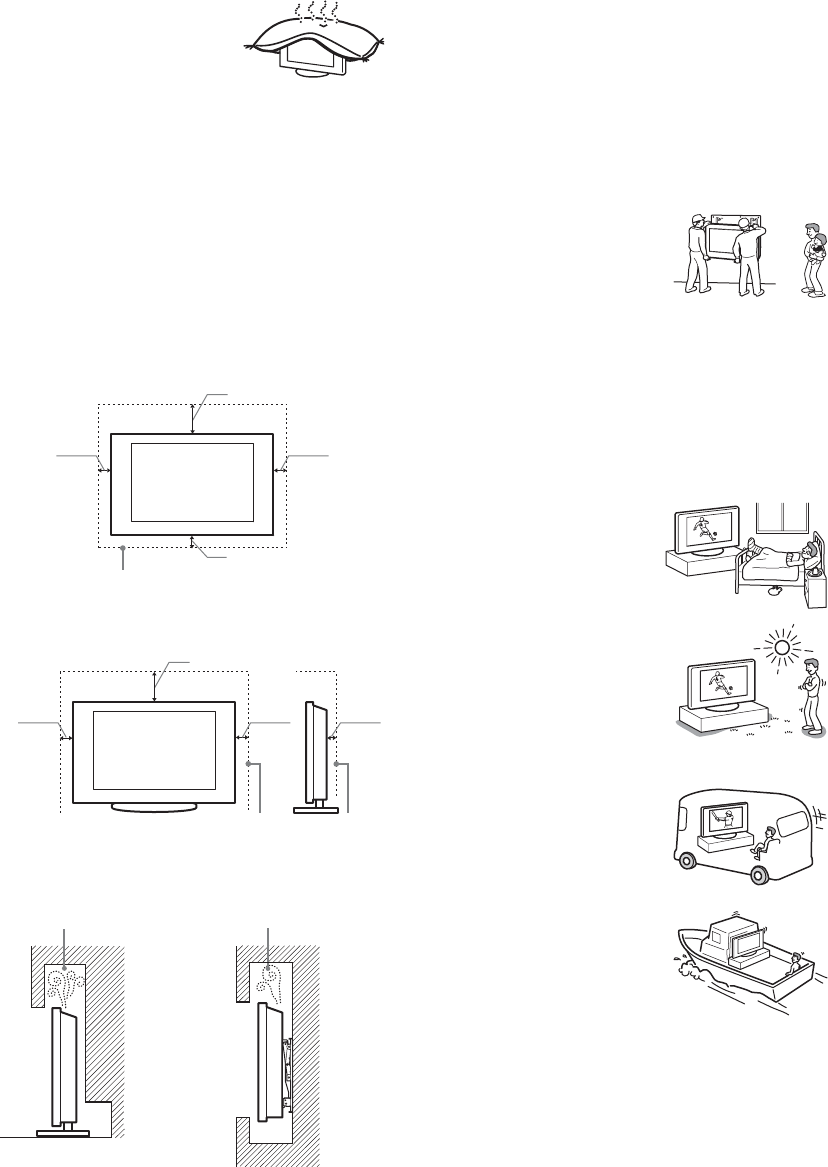

• Leave some space around the TV set as shown below.

Otherwise, air-circulation may be inadequate and cause

overheating, which may cause a fire or damage to the TV

set.

Installed on the wall

Installed with stand

• Never install the TV set as follows:

Optional accessories

Observe the following when installing the TV set using a

stand or wall-mount bracket. If you do not do so, the TV set

may fall and cause serious injury.

• It is strongly recommended that you use Sony accessories

for safety reasons:

– Wall-mount bracket SU-WL51

–TV stand SU-FL61

• It is strongly recommended that you use the official Sony

wall-mount bracket to allow adequate air circulation and

to avoid accumulated dust on the TV.

• If the TV set is to be installed on

a wall, have the installation

carried out by qualified service

personnel. Improper installation

may render the TV set unsafe.

• Secure the TV set properly,

following the instructions supplied with your stand when

installing the TV set.

• Be sure to attach the brackets supplied with your stand.

Wiring

• When wiring cables, be sure to unplug the mains lead for

your safety.

• Take care not to catch your feet on the cables. It may

damage the TV set.

Medical institutions

Do not place this TV set in a place

where medical equipment is in

use. It may cause a malfunction of

medical instruments.

Outdoor use

• Do not install this TV set

outdoors. If the TV set is

exposed to rain, it may result in a

fire or an electric shock.

• If this TV set is exposed to direct

sunlight, the TV set may heat up

and it may damage the TV set.

Vehicle, Ships and other

vessels

• Do not install this TV set in a

vehicle. The motion of the

vehicle may cause the TV set to

fall down and cause injury.

• Do not install this TV set on a

ship or other vessel. If the TV set

is exposed to seawater, it may

cause a fire or damage the TV

set.

30 cm

10 cm 10 cm

10 cm

Leave at least this space around the set.

30 cm

10 cm 10 cm 6 cm

Leave at least this space around the set.

Air circulation

is blocked.

Air circulation

is blocked.

Wall Wall

11 GB

Water and moisture

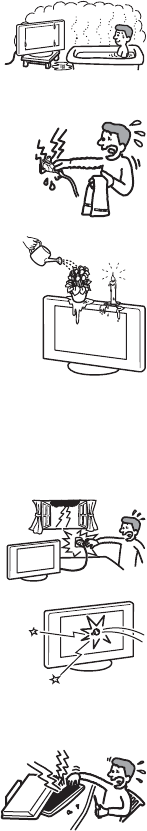

• Do not use this TV set near water

– for example, near a bathtub or

shower room. Also do not expose

to rain, moisture or smoke. This

may result in a fire or an electric shock.

• Do not touch the mains lead and the TV

set with wet hands. Doing so may cause

an electric shock or damage to the TV

set.

Moisture and flammable objects

• Do not place any objects on the TV

set. The TV set shall not be exposed to

dripping or splashing and that no

objects filled with liquid, such as

vases, shall be placed on the TV set.

• To prevent fire, keep flammable

objects or naked lights (e.g. candles)

away from the TV set.

• If any liquid or solid object does fall through openings in

the cabinet, do not operate the TV set. It may result in an

electric shock or damage to the TV set. Have it checked

immediately by qualified service personnel.

Lightning storms

For your own safety, do not touch any

part of the TV set, mains lead, or

aerial lead during lightning storms.

Broken pieces

• Do not throw anything at the TV set.

The screen glass may break by the

impact and cause serious injury.

• If the surface of the TV set cracks, do

not touch it until you have unplugged the mains lead.

Otherwise electric shock may result.

Servicing

Dangerously high voltages are

present inside the TV set.

Do not open the cabinet. Entrust the

TV set to qualified service personnel

only.

Small accessories removal and fittable

Keep small accessories out of children’s reach.

12 GB

Precautions

Viewing the TV

• To view the TV comfortably, the recommended viewing

position is from four to seven times the screen’s vertical

length away from the TV set.

• To obtain a clear picture, do not expose the screen to direct

illumination or direct sunlight. If possible, use spot

lighting directed down from the ceiling.

• View the TV in moderate light, as viewing the TV in poor

light or during long period of time, strains your eyes.

Volume adjustment

• Adjust the volume so as not to trouble your neighbours.

Sound carries very easily at night time. Therefore, closing

the windows or using headphones is suggested.

• When using headphones, adjust the volume so as to avoid

excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision

technology and 99.99% or more of the pixels are effective,

black dots may appear or bright points of light (red, blue,

or green) may appear constantly on the LCD screen. This

is a structural property of the LCD screen and is not a

malfunction.

• Do not push or scratch the front filter, or place objects on

top of this TV set. The image may be uneven or the LCD

screen may be damaged.

• If this TV set is used in a cold place, a smear may occur in

the picture or the picture may become dark. This does not

indicate a failure. These phenomena disappear as the

temperature rises.

• Ghosting may occur when still pictures are displayed

continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in

use. This is not a malfunction.

• The LCD screen contains a small amount of liquid crystal

and mercury. The fluorescent tube used in this TV set also

contains mercury. Follow your local ordinances and

regulations for disposal.

Handling and cleaning the screen surface/cabinet of

the TV set

Be sure to unplug the mains lead connected to the TV set

from mains socket before cleaning.

To avoid material degradation or screen coating degradation,

observe the following precautions.

• Do not push on the screen, scratch it with a hard object, or

throw anything at it. The screen may be damaged.

• Do not touch the display panel after operating the TV set

continuously for a long period as the display panel

becomes hot.

• We recommend that the screen surface be touched as little

as possible.

• To remove dust from the screen surface/cabinet, wipe

gently with a soft cloth. If dust is persistent, wipe with a

soft cloth slightly moistened with a diluted mild detergent

solution.

• Never use any type of abrasive pad, alkaline/acid cleaner,

scouring powder, or volatile solvent, such as alcohol,

benzene, thinner or insecticide. Using such materials or

maintaining prolonged contact with rubber or vinyl

materials may result in damage to the screen surface and

cabinet material.

• The ventilation holes can accumulate dust over time. To

ensure proper ventilation, we recommend removing the

dust periodically (once a month) using a vacuum cleaner.

• If the angle of the TV set is to be adjusted, steady the base

of the stand with your hand to prevent the TV set from

becoming separated from the stand. Be careful not to get

your fingers caught between the TV set and the stand.

Optional Equipments

• Do not install optional components too close to the TV set.

Keep optional components at least 30 cm away from the

TV set. If a VCR is installed in front of the TV set or

beside the TV set, the picture may become distorted.

• Picture distortion and/or noisy sound may occur if the TV

set is positioned in close proximity to any equipment

emitting electromagnetic radiation.

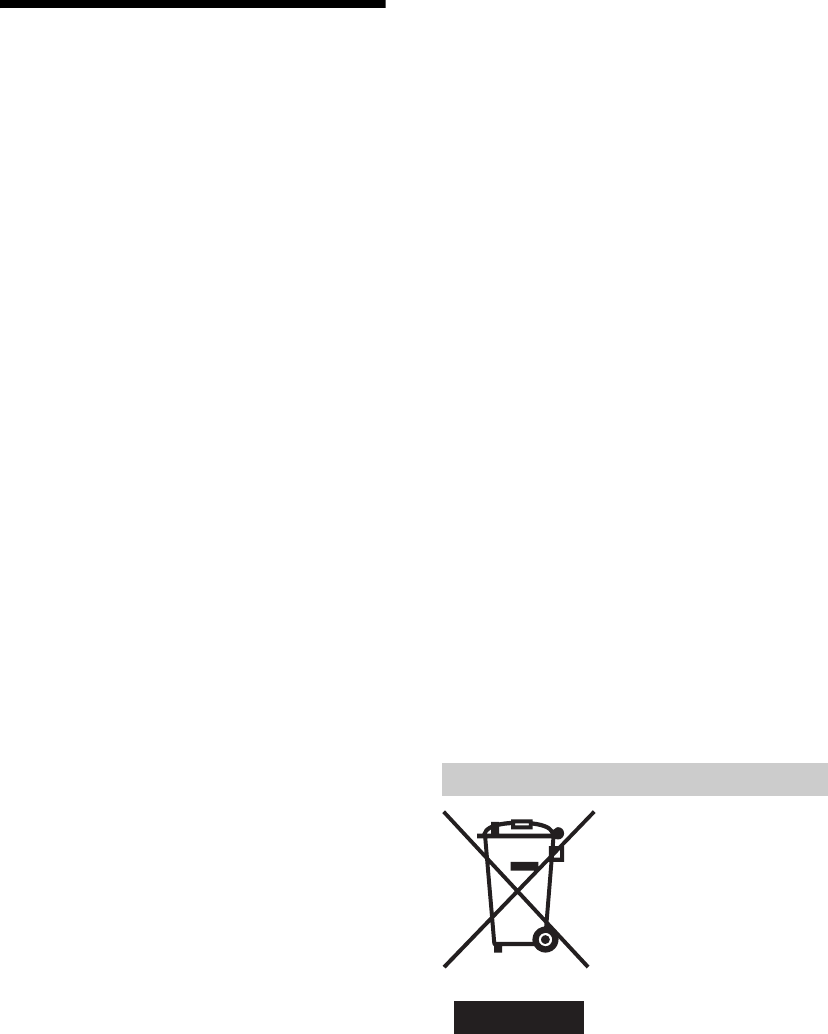

Disposal of Old Electrical &

Electronic Equipment

(Applicable in the European

Union and other European

countries with separate

collection systems)

This symbol on the product or on

its packaging indicates that this

product shall not be treated as

household waste. Instead it shall

be handed over to the applicable

collection point for the recycling

of electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent

potential negative consequences for the environment and

human health, which could otherwise be caused by

inappropriate waste handling of this product. The recycling

of materials will help to conserve natural resources. For more

detailed information about recycling of this product, please

contact your local Civic Office, your household waste

disposal service or the shop where you purchased the

product.

Disposal of the TV set

13 GB

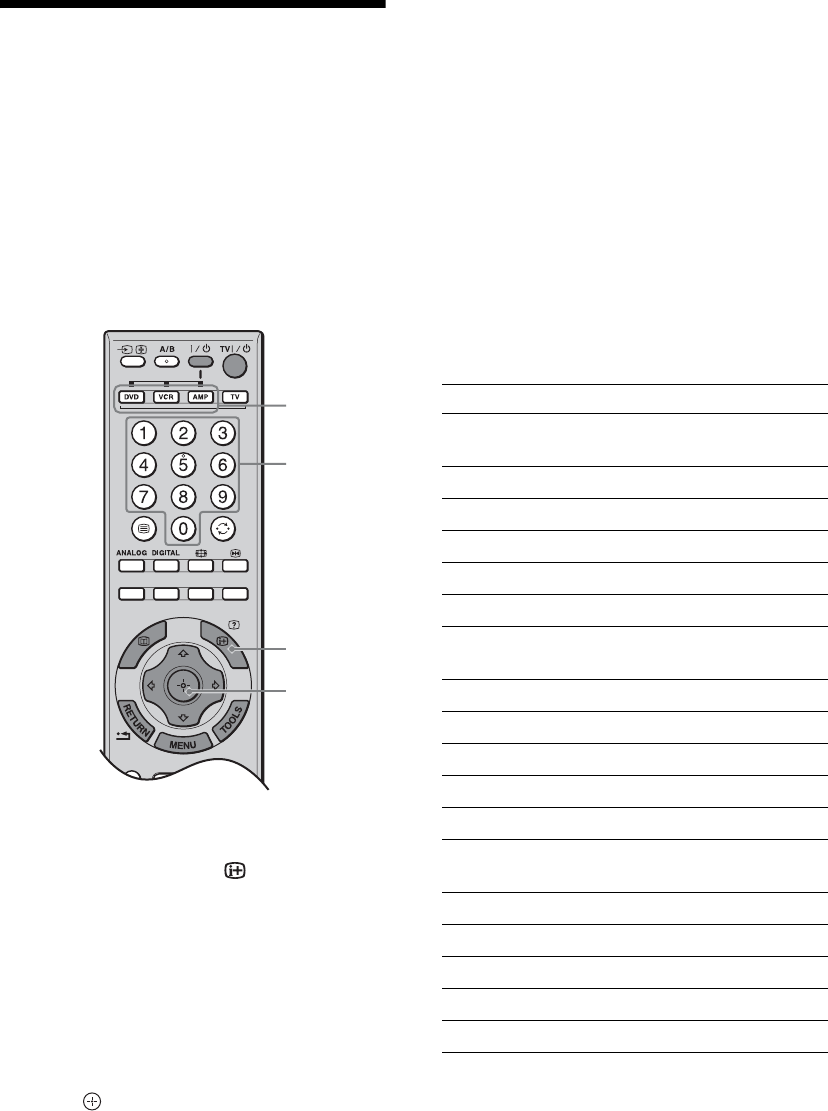

Overview of the remote

1TV "/1 – TV standby

Switches the TV on and off from standby mode.

2Number buttons

• In TV mode: Selects channels. For channel numbers 10 and above, enter

the second and third digit quickly.

• In Analogue Text mode: Enters the three digit page number to select the

page.

3 – Previous channel

Returns to the previous channel watched (for more than five seconds).

4 – Screen mode (page 17)

5 – Picture freeze (page 17)

Freezes the TV picture.

6/ – Info / Text reveal

• In digital mode: Displays brief details of the programme currently being

watched.

• In analogue mode: Displays information such as current channel number

and screen format.

• In Analogue Text mode (page 17): Reveals hidden information (e.g.

answers to a quiz).

7F/f/G/g/ (page 16, 23)

8TOOLS (page 18, 22)

Enables you to access various viewing options and change/make adjustments

according to the source and screen format.

9MENU (page 23)

0PROG +/-/ / (page 16, 17)

• In TV mode: Selects the next (+) or previous (-) channel.

• In Analogue Text mode: Selects the next ( ) or previous ( ) page.

qa % – Mute (page 16)

qs 2 +/- – Volume

qd RETURN /

Returns to the previous screen of any displayed menu.

qf – EPG (Digital Electronic Programme Guide) (page 19)

qg Coloured buttons (page 17, 19, 21)

qh ANALOG – Analogue mode (page 16)

qj DIGITAL – Digital mode (page 16)

qk / – Text (page 17)

ql / – Input select / Text hold

• In TV mode (page 22): Selects the input source from equipment connected

to the TV sockets.

• In Analogue Text mode (page 17): Holds the current page.

w; A/B – Dual Sound (page 28)

Continued

14 GB

wa "/1

Switches on or off the optional equipment selected from the function buttons.

ws Function buttons

Enables you to operate the corresponding equipment. For details, see

“Programming the remote” on page 44.

wd DVD/VCR operating buttons

•. : Replays the current programme from the previous chapter mark (if

any).

•> : Advances forward to the next chapter mark (if any).

• : Replays the current programme for a set period of time.

• : Advances forward a set period of time.

•m : Plays a programme in fast reverse mode.

•M : Plays a programme in fast forward mode.

•H : Plays a programme at a normal speed.

•X : Pauses playback.

•x : Stops the playback.

• VISUAL SEARCH : Only for Sony DVD recorders with the visual search

function. For details, see the operating instructions supplied with the DVD

recorder.

wf DVD/VCR record buttons

•z REC: Starts recording.

•X REC PAUSE: Pauses the recording.

•x REC STOP: Stops the recording.

X REC PAUSE and x REC STOP are available only on DVD recorders.

wg F1/F2

• Selects a disc when using a DVD changer.

• Selects a function when using a combination unit (e.g. a DVD/VCR).

For details, see the operating instructions supplied with the DVD changer or

combination unit.

wh DVD MENU

Displays the DVD disc menu.

wj DVD TOP MENU

Displays the top menu of the DVD disc.

Tip

The number 5, H, PROG + and A/B buttons have tactile dots. Use the tactile dots as

references when operating the TV.

15 GB

Overview of the TV buttons and indicators

Note

Make sure that the TV is completely switched off before unplugging the mains lead. Unplugging the mains lead while the TV is

turned on may cause the indicator to remain lit or may cause the TV to malfunction.

11 – Power

Switches the TV on or off.

2PROG +/-/ /

• In TV mode: Selects the next (+) or previous

(-) channel.

• In TV menu: Moves through the options up

( ) or down ( ).

32 +/-/ /

• In TV mode: Increases (+) or decreases (-) the

volume.

• In TV menu: Moves through the options right

( ) or left ( ).

4/ – Input select/OK

• In TV mode (page 22): Selects the input

source from equipment connected to the TV

sockets.

• In TV menu: Selects the menu or option, and

confirms the setting.

5 (page 23)

6 – Timer REC programme/Picture Off/

Timer indicator

• Lights up in orange when the Timer recording

is set (page 19, 20). Lights up in red when the

recording starts.

• Lights up in green when the picture is

switched off (page 31).

• Lights up in orange when the timer is set

(page 31).

71 – Standby indicator

Lights up in red when the TV is in standby mode.

8" – Power indicator

Lights up in green when the TV is switched on.

9Remote control sensor/Light sensor

(page 32)

• Receives IR signals from the remote.

• Do not put anything over the sensor, as its

function may be affected.

PROG

MENU

16 GB

Watching TV

1Press 1 on the TV (right side) to switch on

the TV.

When the TV is in standby mode (the 1 (standby)

indicator on the TV (front) is red), press TV "/1

on the remote to switch on the TV.

2Press DIGITAL to switch to digital mode or

ANALOG to switch to analogue mode.

The channels available vary depending on the

mode.

3Press the number buttons or PROG +/- to

select a TV channel.

To select channel numbers 10 and above using the

number buttons, enter the second and third digits

quickly.

To select a digital channel using the Digital

Electronic Programme Guide (EPG), see page 19.

In digital mode

An information banner appears briefly. The

following icons may be indicated on the banner.

Additional operations

Watching TV

3

1

2

3

: Interactive service is available (Digital Text)

: Radio service

: Scrambled/Subscription service

: Multiple audio languages available

: Subtitles available

: Subtitles available for the hearing impaired

: Recommended minimum age for current

programme (from 4 to 18 years)

: Parental Lock

: Current programme is being recorded

To Do this

Switch off the TV

temporarily

(standby mode)

Press TV "/1.

Switch off the TV Press 1 on the TV (right side).

Note

To disconnect the TV completely,

pull the plug from the mains.

Switch on the TV

without sound from

standby mode

Press %. Press 2 +/- to adjust

the volume.

Adjust the volume Press 2 + (increase)/

- (decrease).

Mute the sound Press %. Press again to restore.

Access the

Programme index

table (in analogue

mode only)

Press . To select an analogue

channel, press F/f, then press

.

To access the Input signal index

table, see page 22.

17 GB

Watching TV

To access Digital Text

Many broadcasters provide a Digital Text service.

Digital Text offers graphically rich contents,

compared to Analogue Text.

Select a digital channel which provides Digital Text,

then press /.

When a broadcaster provides a dedicated Digital Text

channel, select this channel to access Digital Text.

To navigate through Digital Text, follow the

instructions on the screen.

To exit Digital Text, press RETURN.

To move around, press F/f/G/g.

To select items, press and the number buttons.

To access shortcuts, press the coloured buttons.

To access Analogue Text

In analogue mode, press /. Each time you press /,

the display changes cyclically as follows:

Text and TV picture t Text t No Text (exit the

Text service)

To select a page, press the number buttons or /.

To hold a page, press / .

To reveal hidden information, press / .

To jump a page, press and F/f, then press (for

three digit pages).

Tips

• Ensure that the TV is receiving a good signal, or some text

errors may occur.

• Most TV channels broadcast a Text service. For

information on the use of the service, select the index

page.

• When four coloured items appear at the bottom of the Text

page, Fastext is available. Fastext allows you to access

pages quickly and easily. Press the corresponding

coloured button to access the page.

To freeze the picture – Picture freeze

You can freeze the current picture to make a note of a

telephone number or recipe.

1Press .

The frozen picture is displayed on the right of the

screen. You can watch a moving picture on the

left.

2Press again to return to normal TV

mode.

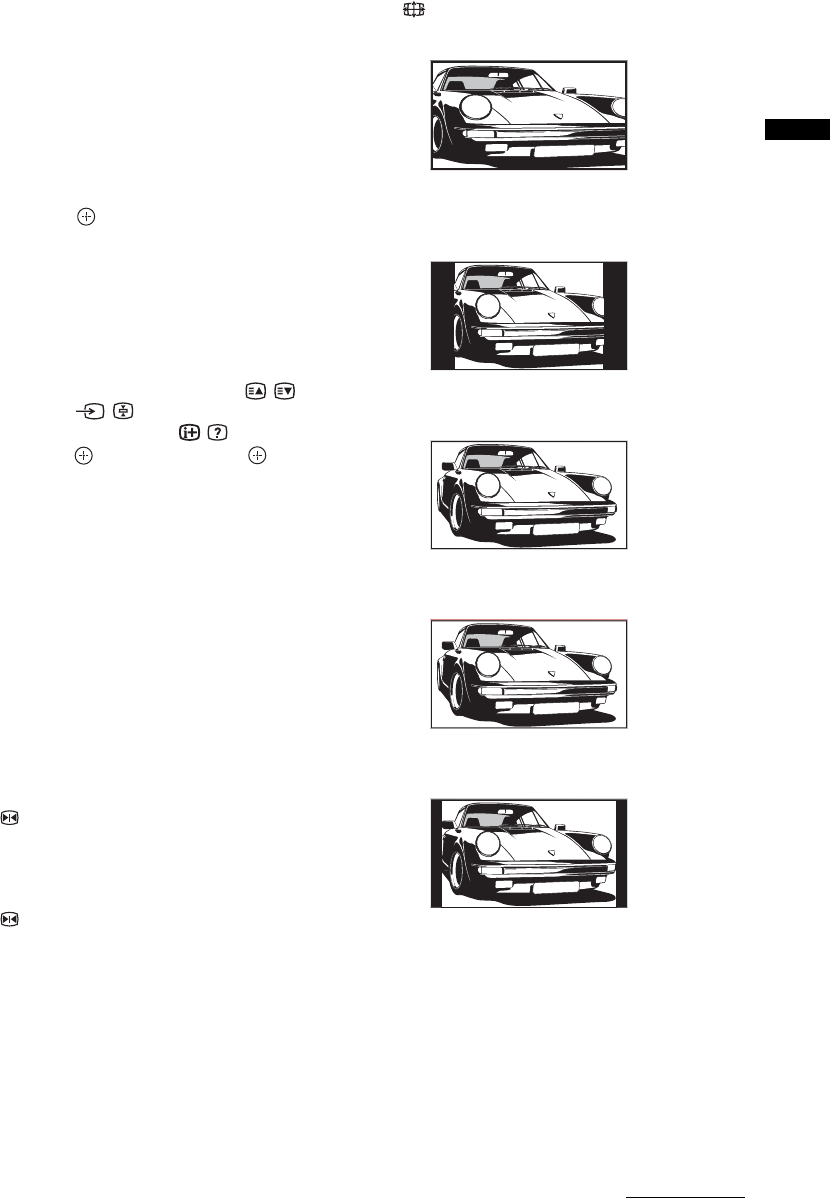

To change the screen format manually to

suit the broadcast

Press repeatedly to select Smart, 4:3, Wide,

Zoom, or 14:9.

Displays conventional 4:3 broadcasts with an

imitation wide screen effect. The 4:3 picture is

stretched to fill the screen.

Displays conventional 4:3 broadcasts (e.g. non-wide

screen TV) in the correct proportions.

Displays wide screen (16:9) broadcasts in the correct

proportions.

Displays cinemascopic (letter box format) broadcasts

in the correct proportions.

Displays 14:9 broadcasts in the correct proportions.

As a result, black border areas are visible on the

screen.

* Parts of the top and bottom of the picture may be cut off.

Tips

• Alternatively, you can set “Auto Format” to “On”. The TV

will automatically select the best mode to suit the

broadcast (page 29).

• You can adjust the position of the picture when selecting

Smart, 14:9 or Zoom. Press F/f to move up or down

(e.g. to read subtitles).

Smart*

4:3

Wide

Zoom*

14:9*

Continued

18 GB

To use the Tools menu

Press TOOLS to display the following options when

viewing a TV programme.

* This option appears only if “i Speaker Link” is set to

“Off” (page 32).

To view two pictures simultaneously – PAP

(Picture and Picture)

You can view two pictures (external input and TV

programme) on the screen simultaneously.

Connect the optional equipment (page 42), and make

sure that images from the equipment appear on the

screen (page 22).

Notes

• This function is not available for a PC input source.

• You cannot change the size of the pictures.

1Press TOOLS to display the Tools menu.

2Press F/f to select “PAP”, then press .

The picture from connected equipment is

displayed on the left and the TV programme is

displayed on the right.

3Press number buttons or PROG +/- to

select the TV channel.

To return to normal TV mode

Press or RETURN.

Tips

• You can also return to normal TV mode by selecting

“Single Picture” from the Tools menu.

• The picture framed in green is audible. You can switch the

audible picture by pressing G/g.

Options Description

Close Closes the Tools menu.

PAP (or Single Picture) See page 18.

Picture Mode See page 24.

Sound Mode See page 27.

Subtitle Setting (in

digital mode only)

See page 38.

Digital Favourites (in

digital mode only)

See page 21.

Power Saving See page 31.

Sleep Timer See page 31.

i Volume* See page 32.

Auto Clock Set (in

analogue mode only)

Allows you to switch to digital

mode and obtain the time.

19 GB

Watching TV

Checking the Digital Electronic Programme Guide

(EPG) *

1In digital mode, press to display the

Digital Electronic Programme Guide

(EPG).

2Perform the desired operation, as shown in

the following table.

Note

Programme information will only be displayed if the TV

station is transmitting it.

* This function may not be available in some countries.

Digital Electronic Programme Guide (EPG)

To Do this

Turn off the EPG Press .

Move through the EPG Press F/f/G/g.

Watch a current programme Press while the current programme is selected.

Sort the programme information by

category – Category list

1Press the blue button.

2Press F/f/G/g to select a category. The category name is

displayed on the side.

The categories available include:

“All Categories”: Contains all available channels.

Category name (e.g. “News”): Contains all channels corresponding to the

selected category.

3Press .

The Digital Electronic Programme Guide (EPG) now only displays the

current programmes from the category selected.

Set a programme to be recorded – Timer

REC

1Press F/f/G/g to select the future programme you want to

record.

2Press .

3Press F/f to select “Timer REC”.

4Press to set the TV and your VCR timers.

A symbol appears by that programme’s information. The

indicator on the TV (front) lights up in orange.

Notes

• You can set VCR timer recording on the TV only for Smartlink compatible

VCRs. If your VCR is not Smartlink compatible, a message will be displayed to

remind you to set your VCR timer.

• Once a recording has begun, you can switch the TV to standby mode, but do not

switch off the TV completely or the recording may be cancelled.

• If an age restriction for programmes has been selected, a message asking for a

PIN code will appear on the screen. For more details refer to “Parental Lock”

on page 38.

Continued

20 GB

Tip

You can also display the Digital Electronic Programme Guide (EPG) by selecting “Digital EPG” in the “MENU” (page 23).

Set a programme to be displayed

automatically on the screen when it starts

– Reminder

1Press F/f/G/g to select the future programme you want to

display.

2Press .

3Press F/f to select “Reminder”.

4Press to automatically display the selected programme

when the programme starts.

A c symbol appears by that programme’s information.

Note

If you switch the TV to standby mode, it will automatically turn itself on

when the programme is about to start.

Set the time and date of a programme you

want to record – Manual timer REC

1Press .

2Press F/f to select “Manual timer REC”, then press .

3Press F/f to select the date, then press g.

4Set the start and stop time in the same way as in step 3.

5Press F/f to select the programme, then press .

6Press to set the TV and your VCR timers.

A symbol appears by that programme’s information. The

indicator on the TV (front) lights up in orange.

Notes

• You can set VCR timer recording on the TV only for Smartlink compatible

VCRs. If your VCR is not Smartlink compatible, a message will be displayed to

remind you to set your VCR timer.

• Once a recording has begun, you can switch the TV to standby mode, but do not

switch off the TV completely or the recording may be cancelled.

• If an age restriction for programmes has been selected, a message asking for a

PIN code will appear on the screen. For more details refer to “Parental Lock”

on page 38.

Cancel a recording/reminder – Timer list 1Press .

2Press F/f to select “Timer list”.

3Press F/f to select the programme you want to cancel, then

press .

4Press F/f to select “Cancel Timer”, then press .

A display appears to confirm that you want to cancel the programme.

5Press G/g to select “Yes”, then press to confirm.

To Do this

21 GB

Watching TV

Using the Digital Favourite list *

The Favourite feature allows you to select

programmes from a list of up to 20 channels you

specify. To display the Favourite list, see “Navigating

through menus” (page 23).

* This function may not be available in some countries.

Digital Favourite list

To Do this

Create your Favourite list for the first time A message appears asking if you want to add channels to the Favourite list

when you select “Digital Favourites” in the “MENU” for the first time.

1Press to select “Yes”.

2Press F/f to select the channel you want to add.

If you know the channel number, you can use the number buttons to

directly select a channel.

3Press .

Channels that are stored in the Favourite list are indicated by a

symbol.

Turn off the Favourite list Press RETURN.

Watch a channel Press while selecting a channel.

Add or remove channels in the Favourite

list

1Press the blue button.

Channels that are stored in the Favourite list are indicated by a

symbol.

2Press F/f to select the channel you want to add or remove.

If you know the channel number, you can use the number buttons to

directly select a channel.

3Press .

4Press the blue button to return to the Favourite list.

Remove all channels from the Favourite list 1Press the blue button.

2Press the yellow button.

A display appears to confirm that you want to delete all channels from the

Favourite list.

3Press G/g to select “Yes”, then press to confirm.

22 GB

Viewing pictures from

connected equipment

Switch on the connected equipment, then

perform one of the following operation.

For equipment connected to the scart sockets using a

fully-wired 21-pin scart lead (page 43)

Start playback on the connected equipment.

The picture from the connected equipment appears on

the screen.

For an auto-tuned VCR (page 7)

In analogue mode, press PROG +/-, or the number

buttons, to select the video channel.

For other connected equipment (page 42)

Press / repeatedly until the correct input

symbol (see below) appears on the screen.

Additional operations

To use the Tools menu

Press TOOLS to display the following options when

viewing pictures from connected equipment other

than a PC.

* This option appears only if “i Speaker Link” is set to

“Off” (page 32).

On screen

display

Labels of input jacks

AV1/2/3 or

AV1/2/3

1/2/3 or

1/2/3

AV4 4 (Y, PB/CB, PR/CR) and

4 (L, R)

AV5 HDMI IN 5

AV6 HDMI IN 6

HDMI IN 6 and HDMI IN 6

(L, R)

AV 7 ,

AV 7 o r

AV 7

7,

7 (Y, PB/CB, PR/CR) or

7, and

7 (L (MONO), R)

PC PC and PC

To Do this

Return to normal

TV mode

Press DIGITAL or ANALOG.

Access the Input

signal index table

(except for PC video

input signal)

Press to access the Input signal

index table. (Then, only in

analogue mode, press g.) To

select an input source, press F/f,

then press .

Options Description

Close

Closes the Tools menu.

PAP (or Single Picture)

See page 18.

Picture Mode See page 24.

Sound Mode See page 27.

Power Saving See page 31.

Sleep Timer See page 31.

i Volume* See page 32.

Auto Clock Set Allows you to switch to digital

mode and obtain the time.

23 GB

Using MENU Functions

Navigating through

menus

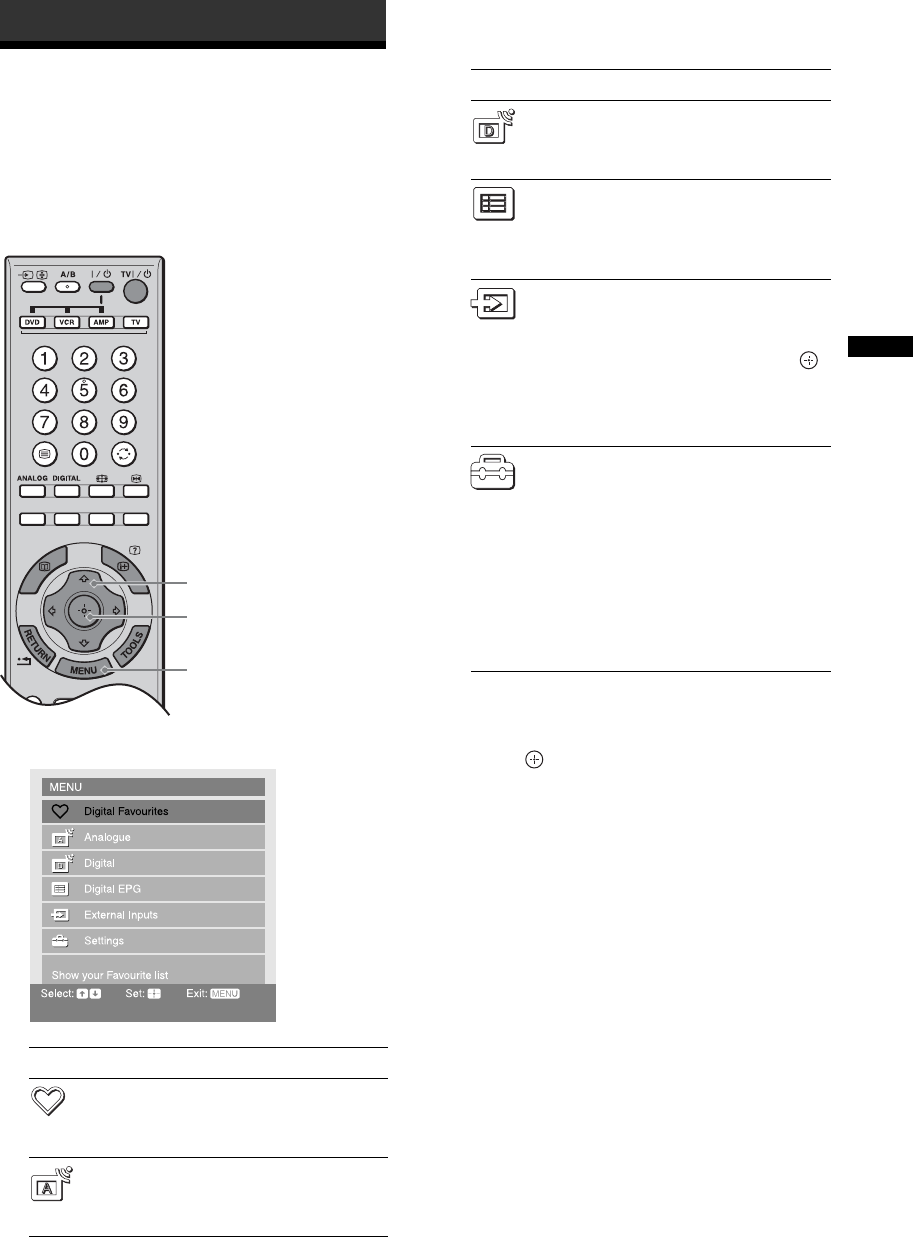

“MENU” allows you to enjoy various convenient

features of this TV. You can easily select channels or

inputs sources and change the settings for your TV.

1Press MENU to display the menu.

* This function may not be available in some countries.

2Press F/f to select an option.

3Press to confirm a selected option.

To exit the menu, press MENU.

Using MENU Functions

Icon Description

Digital Favourites*

Displays the Favourite list. For details

about settings, see page 21.

Analogue

Returns to the last viewed analogue

channel.

2

1

3

Digital*

Returns to the last viewed digital

channel.

Digital EPG*

Displays the Digital Electronic

Programme Guide (EPG).

For details about settings, see page 19.

External Inputs

Selects equipment connected to your TV.

• To watch the desired external input,

select the input source, then press .

• To assign a label to an external input,

select “Edit AV Labels”, then see

page 33.

Settings

Displays the Settings menu where most

of the advanced settings and adjustments

are performed.

For details about settings, see page 24 to

39.

Note

The options you can adjust vary depending

on the situation. Unavailable options are

greyed out or not displayed.

Icon Description

24 GB

Picture menu

You can select the options listed below on the Picture

menu.

1Press F/f to select “Settings” on MENU,

then press .

2Press F/f to select a menu icon, then

press .

3Press F/f/G/g to select an option.

Target Inputs For the input currently being viewed, select whether to use the common setting or to

set each item separately.

“Common”: Applies common settings whose adjustments are shared with other

inputs in which “Target Inputs” is set to “Common”.

Current input name (e.g. AV1): Allows you to set each option separately for the

current input.

Tip

Set each input to “Common” if you require the same settings to apply to each input.

Picture Mode Selects the picture mode.

“Vivid”: For enhanced picture contrast and sharpness.

“Standard”: For standard picture. Recommended for home entertainment.

“Custom”: Allows you to store your preferred settings.

Reset Resets all the “Picture” settings except “Target Inputs” and “Picture Mode” to the

factory settings.

Tip

“Advanced Settings” (page 26) is also not reset. Select “Reset” in “Advanced Settings” to reset

items in “Advanced Settings”.

Backlight Adjusts the brightness of the backlight.

Contrast Increases or decreases picture contrast.

Brightness Brightens or darkens the picture.

Colour Increases or decreases colour intensity.

Hue Increases or decreases the green tones and red tones.

Tip

“Hue” can only be adjusted for an NTSC colour signal (e.g. U.S.A. video tapes).

25 GB

Using MENU Functions

Colour Temperature Adjusts the whiteness of the picture.

“Cool”: Gives the white colours a blue tint.

“Neutral”: Gives the white colours a neutral tint.

“Warm 1”/“Warm 2”: Gives the white colours a red tint. “Warm 2” gives a redder

tint than “Warm 1”.

Tip

“Warm 1” and “Warm 2” can only be selected when you set “Picture Mode” to “Custom”.

Sharpness Sharpens or softens the picture.

Noise Reduction Reduces the picture noise (snowy picture).

“Auto”: Automatically reduces the picture noise.

“High”/“Medium”/“Low”: Modifies the effect of the noise reduction.

“Off”: Turns off the Noise Reduction feature.

“BNR”: Reduces the block picture noise. This is effective for digital channels, or a

connected DVD player/digital receiver with MPEG playback.

Tips

• “Auto” is not available when watching component, HDMI or digital RF inputs.

• “Noise Reduction” is not available when using Freeze or PAP features.

DRC Mode Selects a high-resolution picture with 4x density, for high quality sources (e.g. DVD

players, digital receivers).

“Mode 1”: Recommended for moving pictures.

“Mode 2”: Recommended for still images and text.

“Off”: Turns off the DRC Mode.

Tip

“DRC Mode” is not available when “Game Mode” is set to “On” or when using Freeze or PAP

features; also not available when watching 480p, 576p, 720p, 1080i or 1080p sources.

DRC Palette Customizes the level of detail (“Reality”) and smoothness (“Clarity”) for each input

signal. For example, you can create a custom setting for your cable input’s picture,

and create another for your DVD player’s pictures.

The DRC palette appears.

Press F/f/G/g to adjust the position of the marker (z).

As you move the z higher along the “Reality” axis, the picture becomes more

detailed. As you move the z to the right along the “Clarity” axis, the picture

becomes smoother.

Tip

“DRC Palette” is not available when “Game Mode” is set to “On”, “DRC Mode” is set to “Off”

or when using Freeze or PAP features; also not available when watching 480p, 576p, 720p,

1080i or 1080p sources.

Continued

26 GB

Advanced Settings Customizes the Picture function in more detail. When you set “Picture Mode” to

“Custom”, you can set/change these settings.

“Reset”: Resets all the advanced settings to the factory settings.

“Black Corrector”: Enhances black areas of the picture for stronger contrast.

“Adv. Contrast Enhancer”: Automatically adjusts “Backlight” and “Contrast” to the

most suitable settings judging from the brightness of the screen. This setting is

especially effective for dark images scenes. It will increase the contrast distinction

of the darker picture scenes.

“Gamma”: Adjusts the balance between bright and dark areas of the picture.

“Clear White”: Emphasizes white colours.

“Live Colour”: Makes colours more vivid.

“Colour Space”: Changes the colour reproduction gamut. “Wide” reproduces the

vivid colour and “Normal” reproduces the standard colour.

“White Balance”: Adjusts the colour temperature colour by colour.

“Detail Enhancer”: Enhances the details of the picture.

“Edge Enhancer”: Enhances the outline of the picture.

Tips

• “Adv. Contrast Enhancer” and “Detail Enhancer” are not available when using Freeze or

PAP features.

• “Live Colour” is not available when “Colour Space” is set to “Normal”.

27 GB

Using MENU Functions

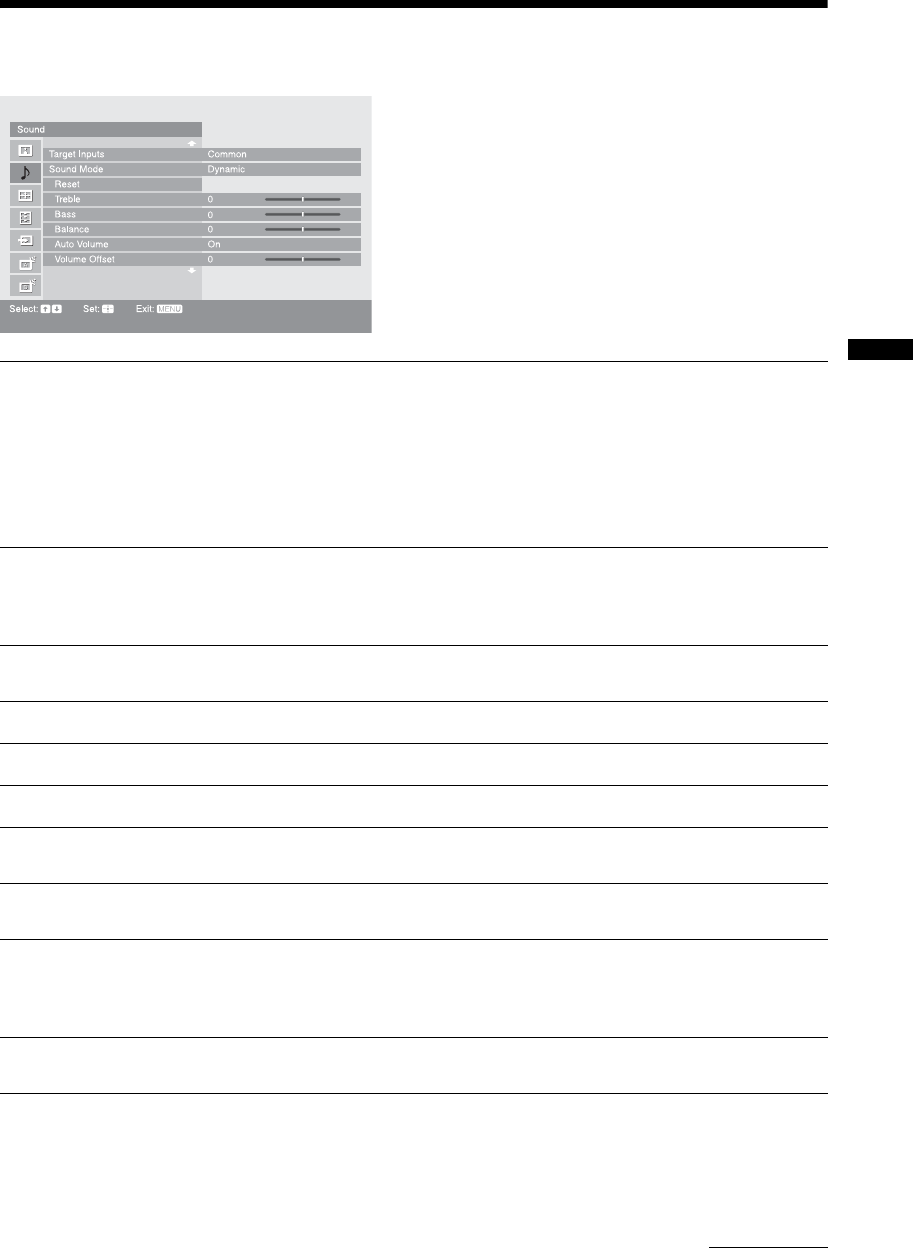

Sound menu

You can select the options listed below on the Sound

menu. To select options in “Settings”, refer to “Picture

menu” (page 24).

Target Inputs For the input currently being viewed, select whether to use the common setting or to

set each item separately.

“Common”: Applies common settings whose adjustments are shared with other

inputs in which “Target Inputs” is set to “Common”.

Current input name (e.g. AV1): Allows you to set each option separately for the

current input.

Tip

Set each input to “Common” if you require the same settings to apply to each input.

Sound Mode Selects the sound mode.

“Dynamic”: Enhances treble and bass.

“Standard”: For standard sound. Recommended for home entertainment.

“Custom”: Flat response. Also allows you to store your preferred settings.

Reset Resets all the “Sound” settings except “Target Inputs”, “Sound Mode” and “Dual

Sound” to the factory settings.

Treble Adjusts higher-pitched sounds.

Bass Adjusts lower-pitched sounds.

Balance Emphasizes left or right speaker balance.

Auto Volume Keeps a constant volume level even when volume level gaps occur (e.g. adverts tend

to be louder than programmes).

Volume Offset Adjusts the volume level of the current input relative to other inputs, when “Target

Inputs” is set to the current input name (e.g. AV1).

Surround Selects the surround mode.

“Dolby Virtual”: Uses the TV speakers to simulate the surround effect produced by

a multi channel system.

“Off”: For normal stereo or mono reception.

BBE Gives sound more impact by compensating for phase effects in speakers using the

“BBE High Definition Sound System”, when “Sound Mode” is set to “Custom”.

Continued

28 GB

Tip

Sound menu options other than “Dual Sound” cannot be used for headphones and audio output sockets.

Dual Sound Selects the sound from the speaker for a stereo or bilingual broadcast.

“Stereo”, “Mono”: For a stereo broadcast.

“A”/“B”/“Mono”: For a bilingual broadcast, select “A” for sound channel 1, “B” for

sound channel 2, or “Mono” for a mono channel, if available.

Tip

If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A” or “B”.

29 GB

Using MENU Functions

Screen menu

You can select the options listed below on the Screen

menu. To select options in “Settings”, refer to “Picture

menu” (page 24).

Target Inputs For the input currently being viewed, select whether to use the common setting or to

set each item separately.

“Common”: Applies common settings whose adjustments are shared with other

inputs in which “Target Inputs” is set to “Common”.

Current input name (e.g. AV1): Allows you to set each option separately for the

current input.

Tip

Set each input to “Common” if you require the same settings to apply to each input.

Screen Format For details about the screen format, see “To change the screen format manually to

suit the broadcast” (page 17).

Auto Format Automatically changes the screen format according to the broadcast signal. To keep

your setting, select “Off”.

Tip

Even if “Auto Format” is set to “On” or “Off”, you can always modify the format of the screen

by pressing repeatedly.

4:3 Default Selects the default screen format for use with 4:3 broadcasts.

“Smart”: Displays conventional 4:3 broadcasts with an imitation wide screen effect.

“4:3”: Displays conventional 4:3 broadcasts in the correct proportions.

“Off”: Keeps the current “Screen Format” setting when the channel or input is

changed.

Tip

This option is available only if “Auto Format” is set to “On”.

Display Area Adjusts the screen area displaying the picture.

“Full Pixel”: Displays the picture for 1080i or 1080p sources in the original size

when parts of the picture are cut off.

“Normal”: Displays the picture in the original size.

“-1”/“-2”: Enlarges the picture to hide the edge of the picture.

Horizontal Shift Adjusts the horizontal position of the picture.

Tip

This option is not available when “Display Area” is set to “Full Pixel”.

Continued

30 GB

Vertical Shift Adjusts the vertical position of the picture when the screen format is set to “Smart”,

“Zoom” or “14:9”.

Vertical Size Adjusts the vertical size of the picture when the screen format is set to “Smart”.

31 GB

Using MENU Functions

Set-up menu

You can select the options listed below on the Set-up

menu. To select options in “Settings”, refer to “Picture

menu” (page 24).

Timer Settings Sets the timer to switch on/off the TV.

Sleep Timer

Sets a period of time after which the TV automatically switches itself into standby

mode.

When the Sleep Timer is activated, the (Timer) indicator on the TV (front) lights

up in orange.

Tips

• If you switch off the TV and switch it on again, “Sleep Timer” is reset to “Off”.

• “TV will soon turn off by Sleep Timer” appears on the screen one minute before the TV

switches to standby mode.

On Timer

Sets the timer to switch on the TV from standby mode.

“Day”: Selects the day on which you want to activate the On Timer.

“Time”: Sets the time to switch on the TV.

“Duration”: Selects the time period after which the TV automatically switches to

standby mode again.

“Volume Set-up”: Sets the volume for when the timer switches on the TV.

Clock Set

Allows you to adjust the clock manually. When the TV is receiving digital channels,

the clock cannot be adjusted manually since it is set to the time code of the

broadcasted signal.

Auto Start-up Starts the “first time operation menu” to select the language and country/region, tune

in all available digital and analogue channels, and set the time (only when no digital

channels are received). Usually, you do not need to do this operation because the

language and country/region will have been selected and channels already tuned

when the TV was first installed (page 6, 7). However, this option allows you to

repeat the process (e.g. to retune the TV after moving house, or to search for new

channels that have been launched by broadcasters).

Power Saving Selects the power saving mode to reduce the power consumption of the TV.

When “Picture Off” is selected, the picture is switched off and the (Picture Off)

indicator on the TV (front) lights up in green. The sound remains unchanged.

Continued

32 GB

Film Mode Provides smoother picture movement when playing DVD or VCR images taken on

film, reducing picture blur and graininess.

“Auto 1”: For a stable picture with minimal noise. Set to “Auto 2” if the screen is

partially degraded.

“Auto 2”: Use this setting for standard use.

“Off”: Turns off the Film mode.

Notes

• Even if “Auto 1” or “Auto 2” is selected, “Film Mode” will be automatically turned off and

a moving image will not be played smoothly if the image contains irregular signals or too

much noise.

• Film Mode is not available when using Freeze or PAP features, or when watching 480p,

576p, 720p or 1080p sources.

i Volume

(headphone volume)

Adjusts the volume of the headphones when “i Speaker Link” is set to “Off”.

i Speaker Link

(headphone speaker

link)

Switches the TV’s internal speakers on/off when headphones are connected.

“On”: Sound is output only from headphones.

“Off”: Sound is output from both the TV and headphones.

Speaker Switches on/off the TV’s internal speakers.

“On”: The TV speakers are turned on in order to listen to the TV’s sound through the

TV speakers.

“Off”: The TV speakers are turned off in order to listen to the TV’s sound only

through your external audio equipment connected to the audio output sockets.

Audio Out “Variable”: The audio output from your audio system can be controlled by the TV’s

remote.

“Fixed”: The audio output of the TV is fixed. Use your audio receiver’s volume

control to adjust the volume (and other audio settings) through your audio system.

Light Sensor “On”: Automatically optimizes the picture settings according to the ambient light in

the room.

“Off”: Turns off the “Light Sensor” feature.

Note

Be sure not to put anything over the sensor, as its function may be affected. See page 15 for

further information on the sensor.

Logo Illumination Lights up and turns off the Sony logo on the front of the TV.

Language Selects the language in which the menus are displayed.

Information Displays your TV’s product information.

All Reset Resets all settings to the factory settings and then displays the Auto Start-up screen.

Note

All settings, including Digital Favourite list, country, language, auto tuned channels, etc. will

be reset.

33 GB

Using MENU Functions

AV Set-up menu

You can select the options listed below on the AV Set-

up menu. To select options in “Settings”, refer to

“Picture menu” (page 24).

AV Preset Assigns a name to any equipment connected to the side and rear sockets. The name

will be displayed briefly on the screen when the equipment is selected. You can skip

input signals from connected equipment that you do not want displayed on the

screen.

1Press F/f to select the desired input source, then press .

2Press F/f to select the desired option below, then press .

Equipment labels: Uses one of the preset labels to assign a name to connected

equipment.

“Edit”: Creates your own label. Follow steps 2 to 4 of “Programme Labels” (page 35).

“Skip”: Skips an unnecessary input source.

AV7 Input “Auto”: Switches automatically between the component video sockets, S Video

socket, and the composite video sockets on the left side of the TV depending on the

cable connection.

“Component”: Activates the component video sockets on the left side of the TV.

“S Video”: Activates the S Video socket on the left side of the TV.

“Composite”: Activates the composite video sockets on the left side of the TV.

Tip

When multiple cables are connected and “Auto” is selected, “Component”, “S

Video”, “Composite” will be activated in that order.

AV2 Output Sets a signal to be output through the socket labelled / 2 on the rear of the

TV. If you connect a VCR or other recording equipment to the / 2 socket,

you can then record from the equipment connected to other sockets of the TV.

“TV”: Outputs a broadcast.

“AV1”: Outputs signals from equipment connected to the / 1 socket.

“AV3”: Outputs signals from equipment connected to the / 3 socket.

“AV7”: Outputs signals from equipment connected to the / 7 socket.

“Auto”: Outputs whatever is being viewed on the screen (except signals from the

/4, HDMI IN 5, HDMI IN 6 and PC sockets).

Colour System Selects the colour system (“Auto”, “PAL”, “SECAM”, “NTSC3.58” or

“NTSC4.43”) according to the input signal from the input source.

Game Mode Depending on the game software, reaction times may slow during fast-moving

scenes, etc. Select “On” to improve the reaction times.

Continued

34 GB

Colour Matrix Usually used in the factory setting (AV1/2/3/7 (Composite and S video input signal)

is set to “ITU601”, and AV4/5/6/7 (Component input signal) is set to “Auto”). If the

tone of the picture from the input source is unnatural, select either “ITU601” or

“ITU709”, which normalizes the tone.

35 GB

Using MENU Functions

Analogue Set-up menu

You can select the options listed below on the

Analogue Set-up menu. To select options in

“Settings”, refer to “Picture menu” (page 24).

1 Digit Direct When “1 Digit Direct” is set to “On”, you can select an analogue channel using one

preset number button (0 - 9) on the remote.

Note

When “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above entering

two digits using the remote.

Auto Tuning Tunes in all the available analogue channels.

Usually you do not need to do this operation because the channels are already tuned

when the TV was first installed (page 7). However, this option allows you to repeat

the process (e.g. to retune the TV after moving house, or to search for new channels

that have been launched by broadcasters).

Programme Sorting Changes the order in which the analogue channels are stored on the TV.

1Press F/f to select the channel you want to move to a new position,

then press .

2Press F/f to select the new position for your channel, then press .

Programme Labels Assigns a channel name of your choice up to five letters or numbers. The name will

be displayed briefly on the screen when the channel is selected. (Names for channels

are usually taken automatically from Analogue Text (if available).)

1Press F/f to select the channel you want to name, then press .

2Press F/f to select the desired letter or number (“_” for a blank space),

then press g.

If you input a wrong character

Press G/g to select the wrong character. Then, press F/f to select the correct

character.

To delete all the characters

Select “Reset”, then press .

3Repeat the procedure in step 2 until the name is complete.

4Select “OK”, then press .

Continued

36 GB

Manual Programme

Preset

Before selecting “Label”/“AFT”/“Audio Filter”/“Skip”/“Decoder”, press PROG +/-

to select the programme number with the channel. You cannot select a programme

number that is set to skip (page 37).

Programme/System/Channel

Presets programme channels manually.

1Press F/f to select “Programme”, then press .

2Press F/f to select the programme number you want to manually tune

(if tuning a VCR, select channel 00), then press RETURN.

3Press F/f to select “System”, then press .

4Press F/f to select one of the following TV broadcast systems, then

press RETURN.

B/G: For western European countries/regions

I: For the United Kingdom

D/K: For eastern European countries/regions

L: For France

5Press F/f to select “Channel”, then press .

6Press F/f to select “S” (for cable channels) or “C” (for terrestrial

channels), then press g.

Note

“S” is not available when “United Kingdom” is selected for “Country” (page 7).

7Tune the channels as follows:

If you do not know the channel number (frequency)

Press F/f to search for the next available channel. When a channel has been found,

the search will stop. To continue searching, press F/f.

If you know the channel number (frequency)

Press the number buttons to enter the channel number of the broadcast you want or

your VCR channel number.

8Press to jump to “Confirm”, then press .

9Press f to select “OK”, then press .

Repeat the procedure above to preset other channels manually.

Label

Assigns a name of your choice, up to five letters or numbers, to the selected channel.

This name will be displayed briefly on the screen when the channel is selected.

To input characters, follow steps 2 to 4 of “Programme Labels” (page 35).

AFT

Allows you to fine-tune the selected programme number manually if you feel that a

slight tuning adjustment will improve the picture quality.

You can adjust the fine tuning over a range of -15 to +15. When “On” is selected, the

fine tuning is performed automatically.

Audio Filter

Improves the sound for individual channels in the case of distortion in mono

broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or

intermittent sound muting when watching mono programmes.

If you do not experience any sound distortion, we recommend that you leave this

option set to the factory setting “Off”.

Notes

• You cannot receive stereo or dual sound when “Low” or “High” is selected.

• “Audio Filter” is not available when “System” is set to “L”.

37 GB

Using MENU Functions

Skip

Skips unused analogue channels when you press PROG +/- to select channels. (You

can still select a skipped channel using the number buttons.)

Decoder

Views and records the scrambled channel selected when using a decoder connected

directly to scart connector / 1, or to scart connector / 2 via a VCR.

Note

This option is not available when “United Kingdom” is selected for “Country” (page 7).

Confirm

Saves changes made to the “Manual Programme Preset” settings.

38 GB

Digital Set-up menu

You can select the options listed below on the Digital

Set-up menu. To select options in “Settings”, refer to

“Picture menu” (page 24).

Note

Some functions may not be available in some countries.

Digital Settings Displays the “Digital Settings” menu.

Subtitle Setting

Displays digital subtitles on the screen.

When “For Hard Of Hearing” is selected, some visual aids may also be displayed

with the subtitles (if TV channels broadcast such information).

Subtitle Language

Selects which language subtitles are displayed in.

Audio Language

Selects the language used for a programme. Some digital channels may broadcast

several audio languages for a programme.

Audio Type

Increases the sound level when “For Hard Of Hearing” is selected.

Parental Lock

Sets an age restriction for programmes. Any programme that exceeds the age

restriction can only be watched after a PIN Code is entered correctly.

1Press the number buttons to enter your existing PIN code.

If you have not previously set a PIN, a PIN code entry screen appears. Follow the

instructions of “PIN Code” below.

2Press F/f to select the age restriction or “None” (for unrestricted

watching), then press .

3Press RETURN.

PIN Code

Sets a PIN code for the first time, or allows you to change your PIN code.

1Enter a PIN as follows:

If you have previously set a PIN

Press the number buttons to enter your existing PIN.

If you have not set a PIN

Press the number buttons to enter the factory setting PIN of 9999.

2Press the number buttons to enter the new PIN code.

A message appears to inform you that the new PIN has been accepted.

3Press RETURN.

Tip

PIN code 9999 is always accepted.

39 GB

Using MENU Functions

Technical Set-up

Displays the Technical Set-up menu.

“Auto Service Update”: Enables the TV to detect and store new digital services as

they become available.

“Software Download”: Enables the TV to automatically receive software updates

free through your existing aerial (when issued). It is recommended that this option

be set to “On” at all times. If you do not want your software to be updated, set this

option to “Off”.

“System Information”: Displays the current software version and the signal level.

“Time Zone”: Allows you to manually select the time zone you are in, if it is not the

same as the default time zone setting for your country.

CA Module Set-up

Allows you to access a Pay Per View service once you obtain a Conditional Access

Module (CAM) and a view card. See page 42 for the location of the (PCMCIA)

socket.

Notes

• CAM is not supported in all countries. Check with your authorized dealer.

• “CA Module Set-up” is available only when a CAM is inserted.

Digital Tuning Displays the “Digital Tuning” menu.

Digital Auto Tuning

Tunes in all the available digital channels.

Usually you do not need to do this operation because the channels were already tuned

when the TV was first installed (page 7). However, this option allows you to repeat

the process (e.g. to retune the TV after moving house, or to search for new channels

that have been launched by broadcasters).

Programme List Edit

Removes any unwanted digital channels stored on the TV, and changes the order of

the digital channels stored on the TV.

1Press F/f to select the channel you want to remove or move to a new

position.

If you know the programme number

Press the number buttons to enter the three-digit programme number of the broadcast

you want.

2Remove or change the order of the digital channels as follows:

To remove the digital channel

Press . A message that confirms whether the selected digital channel is to be

deleted appears. Press G to select “Yes”, then press .

To change the order of the digital channels

Press g, then press F/f to select the new position for the channel and press G.

Repeat the procedure in steps 1 and 2 to move other channels if required.

3Press RETURN.

Digital Manual Tuning

Tunes the digital channels manually.

1Press the number button to select the channel number you want to

manually tune, then press F/f to tune the channel.

2When the available channels are found, press F/f to select the channel

you want to store, then press .

3Press F/f to select the programme number where you want to store the

new channel, then press .

Repeat the above procedure to manually tune other channels.

40 GB

PC Settings menu

You can select the options listed below on the PC

Settings menu when the TV is connected to a PC.

1Press / repeatedly until PC

appears on the screen.

2Press MENU to display the PC settings

menu.

Note

When you connect a PC to your TV for the first time, you

may need to adjust the screen display. In such cases, perform

“Auto Adjustment” or adjust the “Phase”, “Pitch”,

“Horizontal Shift”, or “Vertical Shift” in “Others” (page 41).


Display Mode Selects the display mode.

“Video”: Select to view video images.

“Text”: Select to view text, charts or tables.

Reset Resets all the “Picture” settings except “Display Mode” to the factory settings.

Backlight Adjusts the brightness of the backlight.

Contrast Increases or decreases picture contrast.

Brightness Brightens or darkens the picture.

Colour Temperature Adjusts the whiteness of the picture.

“Cool”: Gives the white colours a blue tint.

“Neutral”: Gives the white colours a neutral tint.

“Warm 1”/“Warm 2”: Gives the white colours a red tint. “Warm 2” gives a redder

tint than “Warm 1”.

Sound

Sound Mode Selects the sound mode.

“Dynamic”: Enhances treble and bass.

“Standard”: For standard sound. Recommended for home entertainment.

“Custom”: Provides a flat response. Sound quality as customized on the connected

PC is maintained in the TV sound.

41 GB

Using MENU Functions

Others

Auto Adjustment Automatically adjusts the display position, phase and pitch of the picture when the

TV receives an input signal from a connected PC.

Tip

Auto Adjustment may not work well with some input signals. In such cases, manually adjust

“Phase”, “Pitch”, “Horizontal Shift” and “Vertical Shift”.

Reset Resets all the “Others” settings to the factory settings.

Phase Adjusts the phase when the screen flickers.

Pitch Adjusts the pitch when the picture has unwanted vertical stripes.

Horizontal Shift Adjusts the horizontal position of the picture.

Vertical Shift Adjusts the vertical position of the picture.

Screen Format Selects the screen format for signals with a 60 Hz vertical frequency.

“Normal”: Displays the picture in its original size.

“Full1”: Enlarges the picture to fill the display area, keeping its original horizontal-

to-vertical aspect ratio.

“Full2”: Enlarges the picture to fill the display area.

Power Management Switches the TV to standby mode if no signal is received for 30 seconds.

42 GB

Connecting optional equipment

Tip

You can select the side socket input signals by setting “AV7

Input” in the “AV Set-up” menu (page 33).

Using Optional Equipment

You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied.

Connecting to the TV (side)

S VHS/Hi8/DVC

camcorder

Headphones

HDV camcorder

with component

output

For service use only

To connect Do this

HDV camcorder

with component

output A

Connect to the component video Y,

PB/CB, PR/CR sockets 7 and

audio L (MONO), R sockets 7.

S VHS/Hi8/DVC

camcorder B

Connect to the S video socket

7 or the composite video

socket 7, and the audio

sockets 7. To avoid picture

noise, do not connect the

camcorder to the video socket

7 and the S video socket

7 at the same time. If you

connect mono equipment, connect

to the L socket 7.

Headphones CConnect to the i socket to listen to

sound from the TV on headphones.

Conditional Access

Module (CAM) D

To use Pay Per View services. For

details, refer to the instruction

manual supplied with your CAM.

To use the CAM, press the eject

button and remove the “dummy”

card. Switch off the TV when

inserting your CAM into the CAM

slot. When you do not use the

CAM, we recommend that the

“dummy” card be inserted and

kept in the CAM slot.

Note

CAM is not supported in all

countries. Check with your

authorized dealer.

43 GB

Using Optional Equipment

Connecting to the TV (rear)

6

5

L

R

IN

IN

L

R

PC

OPTICAL OUT

DVD player

Decoder DVD recorder

VCR

Video game

equipment

DVD player

Digital receiver

Decoder

PC

Hi-Fi audio

equipment

DVD player with

component output

VCR

Digital audio

(PCM) component

DVD player

To connect Do this

Digital receiver or

DVD player E

Connect to the HDMI IN 5 or 6

socket if the equipment has a

HDMI socket. The digital video

and audio signals are input from

the equipment. If the equipment

has a DVI socket, connect the DVI

socket to the HDMI IN 6 socket

through a DVI - HDMI adaptor

interface (not supplied), and

connect the equipment’s audio out

sockets to the audio in the HDMI

IN 6 sockets.

Notes

• The HDMI sockets only support

the following video inputs: 480i,

480p, 576i, 576p, 720p, 1080i and

1080p. To connect a PC, use the

PC socket.

• Be sure to use only an HDMI

cable that bears the HDMI logo.

PC FConnect to the PC sockets. It

is recommended to use a PC cable

with ferrites.

Digital audio

(PCM) component

G

Connect to the OPTICAL OUT

socket using the Optical audio

cable.

Note

The OPTICAL OUT socket only

supports digital terrestrial signals.

Hi-Fi audio

equipment H

Connect to the audio output

sockets to listen to the sound

from the TV on Hi-Fi audio

equipment.

DVD player with

component output

I

Connect to the component sockets

and the audio sockets / 4.

Video game

equipment, DVD

player or decoder

J

Connect to the scart socket /

1. When you connect the

decoder, the scrambled signal from

the TV tuner is output to the

decoder, then the unscrambled

signal is output from the decoder.

DVD recorder or

VCR that supports

SmartLink K

Connect to the scart socket /

2. SmartLink is a direct link

between the TV and a VCR/DVD

recorder.

VCR or DVD

player L

For details, see page 5.

44 GB

Programming the

remote

This remote is preset to operate Sony TVs, most Sony

DVDs, VCRs and AMPs (Home Theatre, etc.).

To control VCRs and DVDs of other manufacturers

(and some other Sony VCR, DVD and AMP models),

do the following procedure to programme the remote.

Note

Before you start, look up the three-digit code for your brand

of DVD, VCR or AMP from the “Manufacturer’s codes” on

page 44.

1Press and hold the DVD, VCR or AMP

function button you want to programme on

the remote, then press , keeping the

function button pressed down.

The selected function button (DVD, VCR or

AMP) will flash.

2Press the number buttons to enter the

three-digit manufacturer’s code number

while the button is lit. If code is not entered

within 10 seconds, you must perform the

step 1 again.

3Press .

When the programming is correct, the selected

function button will flash twice, and when not, it

will flash five times.

4Switch on your equipment and check that

the following main functions work.

H (playback), x (stop), m (rewind), M (fast

forward), channel selection for both VCR and

DVDs, TOP MENU/MENU and F/f/G/g only

for DVDs.

If your equipment is not working, or some of the

functions do not work

Enter the correct code or try the next code listed

for the brand. However, not all models of every

brand may be covered.

To return to normal TV operation

Press the TV function button.

Manufacturer’s codes

VCR brand list

2

3

1

1

Brand Code

SONY 301, 302, 303, 304, 305, 306, 307, 308,

309, 310, 362

AIWA 325, 331, 351

AKAI 326, 329, 330

DAEWOO 342, 343

GRUNDIG 358, 355, 360, 361, 320, 351, 366

HITACHI 327, 333, 334

JVC 314, 315, 322, 344, 352, 353, 354, 348,

349

LG 332, 338

LOEWE 358, 355, 360, 361, 320, 351

MATSUI 356, 357

ORION 328

PANASONIC 321, 323

PHILIPS 311, 312, 313, 316, 317, 318, 358, 359,

363, 364

SAMSUNG 339, 340, 341, 345

SANYO 335, 336

SHARP 324

THOMSON 319, 350, 365

TOSHIBA 337

45 GB

Using Optional Equipment

DVD brand list

DVD Player

DVD/VCR Player

DVD recorder

AUX Sony systems brand list

DAV Home Theatre System

AV receiver

Digital terrestrial receiver

Brand Code

SONY 001, 029, 030, 036, 037, 038, 039, 040,

041, 042, 043, 044, 053, 054, 055

AIWA 021

AKAI 032

DENON 018, 027, 020, 002

GRUNDIG 009, 028, 023, 024, 016, 003

HITACHI 025, 026, 015, 004, 035

JVC 006, 017

KENWOOD 008

LG 015, 014, 034

LOEWE 009, 028, 023, 024, 016, 003

MATSUI 013, 016

ONKYO 022, 033

PANASONIC 018, 027, 020, 002, 045, 046, 047

PHILIPS 009, 028, 023, 024, 016, 003, 031

PIONEER 004, 050, 051, 052

SAMSUNG 011, 014

SANYO 007

SHARP 019, 027

THOMSON 012

TOSHIBA 003, 048, 049

YAMAHA 018, 027, 020, 002

Brand Code

SONY 101

Brand Code

SONY 201, 202, 203

Brand Code

SONY (DAV) 401, 402, 403, 404

Brand Code

SONY 451, 452, 453, 454

Brand Code

SONY 501, 502, 503

46 GB

Specifications

Display Unit

Power Requirements:

220–240 V AC, 50 Hz

Screen Size:

KDL-52X2000:

52 inches (Approx. 132.2 cm measured diagonally)

KDL-46X2000:

46 inches (Approx. 116.8 cm measured diagonally)

KDL-40X2000:

40 inches (Approx. 101.6 cm measured diagonally)

Display Resolution:

1,920 dots (horizontal) × 1,080 lines (vertical)

Power Consumption:

KDL-52X2000: 290 W

KDL-46X2000: 249 W

KDL-40X2000: 205 W

Standby Power Consumption*:

0.3 W

* Specified standby power is reached after the TV

finishes necessary internal processes.

Dimensions (w × h × d):

KDL-52X2000:

Approx. 1,415 × 890 × 384 mm (with stand)

Approx. 1,415 × 827 × 123 mm (without stand)

KDL-46X2000:

Approx. 1,262 × 795 × 322 mm (with stand)

Approx. 1,262 × 734 × 121 mm (without stand)

KDL-40X2000:

Approx. 1,111 × 717 × 322 mm (with stand)

Approx. 1,111 × 657 × 121 mm (without stand)

Mass:

KDL-52X2000:

Approx. 54.5 kg (with stand)

Approx. 47.0 kg (without stand)

KDL-46X2000:

Approx. 41.0 kg (with stand)

Approx. 36.0 kg (without stand)

KDL-40X2000:

Approx. 35.0 kg (with stand)

Approx. 30.0 kg (without stand)

Panel System

LCD (Liquid Crystal Display) Panel

TV System

Analogue: Depending on your country/region selection:

B/G/H, D/K, L, I

Digital: DVB-T

Colour/Video System

Analogue: PAL, SECAM

NTSC 3.58, 4.43 (only Video In)

Digital: MPEG-2 MP@ML

Aerial

75 ohm external terminal for VHF/UHF

Channel Coverage

Analogue: VHF: E2–E12

UHF: E21–E69

CATV: S1–S20

HYPER: S21–S41

D/K: R1–R12, R21–R69

L: F2–F10, B–Q, F21–F69

I: UHF B21–B69

Digital: VHF/UHF

Terminals

/1

21-pin scart connector (CENELEC standard) including

audio/video input, RGB input, and TV audio/video

output.

/2 (SmartLink)

21-pin scart connector (CENELEC standard) including

audio/video input, RGB input, selectable audio/video

output, and SmartLink interface.

/3

21-pin scart connector (CENELEC standard) including

audio/video input, RGB input, and audio/video output

which currently appears on the screen.

4

Supported formats: 1080i, 720p, 576p, 576i, 480p, 480i

Y: 1 Vp-p, 75 ohms, 0.3V negative sync

PB/CB: 0.7 Vp-p, 75 ohms

PR/CR: 0.7 Vp-p, 75 ohms

4

Audio input (phono jacks)

500 mVrms

Impedance: 47 kilohms

HDMI IN 5, 6

Video: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

Audio: Two channel linear PCM

32, 44.1 and 48 kHz, 16, 20 and 24 bits

Analogue audio (phono jacks):

500 mVrms, Impedance 47 kilohms

(HDMI IN 6 only)

7

Supported formats: 1080i, 720p, 576p, 576i, 480p, 480i

Y: 1 Vp-p, 75 ohms, 0.3V negative sync

PB/CB: 0.7 Vp-p, 75 ohms

PR/CR: 0.7 Vp-p, 75 ohms

7 S video input (4-pin mini DIN)

7 Video input (phono jack)

7 Audio input (phono jacks)

OPTICAL OUT (OPTICAL OUT jack)

Audio output (phono jacks)

PC PC Input (D-sub 15-pin) (see page 47)

G: 0.7 Vp-p, 75 ohms, non Sync on Green

B: 0.7 Vp-p, 75 ohms

R: 0.7 Vp-p, 75 ohms

HD: 1-5 Vp-p

VD: 1-5 Vp-p

PC audio input (minijack)

iHeadphones jack

CAM (Conditional Access Module) slot

Additional Information

47 GB

Additional Information

Sound Output

11 W + 11 W

Supplied Accessories

Refer to “1: Checking the accessories” on page 4.

Optional Accessories

• Wall-Mount Bracket SU-WL51

•TV stand SU-FL61

• Colour Variation Unit

CRU-52X1 (for KDL-52X2000)

CRU-46X1 (for KDL-46X2000)

CRU-40X1 (for KDL-40X2000)

Design and specifications are subject to change

without notice.

PC Input Signal Reference Chart

• This TV’s PC input does not support Sync on Green or Composite Sync.

• This TV’s PC input does not support interlaced signals.

• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60 Hz vertical frequency

from a personal computer. In plug and play, signals with a 60 Hz vertical frequency will be selected automatically.

Signals Horizontal (Pixel) Vertical (Line)

Horizontal

frequency

(kHz)

Vertical

frequency (Hz) Standard

VGA 640 480 31.5 60 VGA

640 480 37.5 75 VESA

720 400 31.5 70 VGA-T

SVGA 800 600 37.9 60 VESA Guidelines

800 600 46.9 75 VESA

XGA 1024 768 48.4 60 VESA Guidelines

1024 768 56.5 70 VESA

1024 768 60 75 VESA

WXGA 1280 768 47.4 60 VESA

1280 768 47.8 60 VESA

1360 768 47.7 60 VESA

48 GB

Troubleshooting

Check whether the 1 (standby) indicator is flashing in red.

When it is flashing

The self-diagnosis function is activated.

1Count how many 1 (standby) indicator flashes between each two second break.

For example, the indicator flashes three times, then there is a two second break, followed by another three flashes, etc.

2Press 1 on the TV (right side) to switch it off, disconnect the mains lead, and inform your dealer or

Sony service centre of how the indicator flashes (number of flashes).

When it is not flashing

1Check the items in the tables below.

2If the problem still persists, have your TV serviced by qualified service personnel.


Problem Cause/Remedy

No picture (screen is dark) and

no sound

• Check the aerial connection.

• Connect the TV to the mains, and press 1 on the TV (right side).

• If the 1 (standby) indicator lights up in red, press TV "/1.

No picture or no menu

information from equipment

connected to the scart

connector

• Check that the optional equipment is on and press / repeatedly until

the correct input symbol is displayed on the screen.

• Check the connection between the optional equipment and the TV.

Double images or ghosting • Check aerial/cable connections.

• Check the aerial location and direction.

Only snow and noise appear

on the screen

• Check if the aerial is broken or bent.

• Check if the aerial has reached the end of its serviceable life (three to five

years in normal use, one to two years at the seaside).

Distorted picture (dotted lines

or stripes)

• Keep the TV away from electrical noise sources such as cars, motorcycles,

hair-dryers or optical equipment.

• When installing optional equipment, leave some space between the optional

equipment and the TV.

• Make sure that the aerial is connected using the supplied coaxial cable.

• Keep the aerial cable away from other connecting cables.

Picture noise when viewing a

TV channel

• Select “Manual Programme Preset” in the “Analogue Set-up” menu and

adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception

(page 36).

Some tiny black points and/or

bright points appear on the

screen

• The picture of a display unit is composed of pixels. Tiny black points and/or

bright points (pixels) on the screen do not indicate a malfunction.

No colour on programmes • Select “Reset” in the “Picture” menu to return to the factory settings

(page 24).

No colour or irregular colour

when viewing a signal from the

Y, PB/CB, PR/CR sockets 4

or 7

• Check the connection of the Y, PB/CB, PR/CR sockets 4 or 7.

• Make sure that the Y, PB/CB, PR/CR sockets 4 or 7 are firmly seated in

their respective sockets.

49 GB

Additional Information

Sound

Problem Cause/Remedy

No sound, but good picture • Press 2 +/– or % (Mute).

• Check that “Speaker” is set to “On” in the “Set-up” menu (page 32).

Noisy sound • See “Picture noise” causes/remedies on page 48.

Channels

Problem Cause/Remedy

The desired channel cannot be

selected

• Switch between digital and analogue mode and select the desired digital/

analogue channel.

Some channels are blank • Scrambled/Subscription only channel. Subscribe to the Pay Per View

service.

• Channel is used only for data (no picture or sound).

• Contact the broadcaster for transmission details.

Digital channels are not

displayed

• Contact a local installer to find out if digital transmissions are provided in

your area.

• Upgrade to a higher gain aerial.

General

Problem Cause/Remedy

The TV turns off automatically

(the TV enters standby mode)

• Check if the “Sleep Timer” is activated, or confirm the “Duration” setting of

“On Timer” (page 31).

• If no signal is received and no operation is performed in the TV mode for

10 minutes, the TV automatically switches to standby mode.

The TV turns on automatically • Check if the “On Timer” is activated (page 31).

Some input sources cannot be

selected

• Select “AV Preset” in the “AV Set-up” menu and cancel “Skip” of the input

source (page 33).

The remote does not function • Check that the remote is set correctly for the equipment you are using.

• Check whether the equipment you want to use corresponds to the function

button being pressed (page 14).

• If the remote does not operate the equipment even when the remote has been

set correctly to the equipment, enter the necessary code as explained in

“Programming the remote” (page 44).

• Replace the batteries.

50 GB

Index

Numerics

1 Digit Direct 35

14:9 17

4:3 Default 29

4:3 17

A

Advanced Settings 26

Aerial, connecting 5

AFT 36

All Reset 32

Analogue Set-up menu 35

Analogue Text 17

Audio Filter 36

Audio Language 38

Audio Out 32

Audio Type 38

Auto Adjustment 41

Auto Clock Set 18, 22

Auto Format 29

Auto Start-up 31

Auto Tuning

analogue and digital channels 7

analogue channels only 35

digital channels only 39

Auto Volume 27

AV Preset 33

AV Set-up menu 33

AV2 Output 33

AV7 Input 33

B

Backlight 24, 40

Balance 27

Bass 27

Batteries, inserting into the remote 4

BBE 27

Black Corrector 26

Brightness 24, 40

C

CA Module Set-up 39

Category list 19

Channels

auto-tuning 7

selecting 16

Skip 37

Clear White 26

Clock Set 31

Colour 24

Colour Matrix 34

Colour System 33

Colour Temperature 25, 40

Confirm 37

Connecting

an aerial/VCR 5

optional equipment 42

Contrast Enhancer 26

Contrast 24, 40

Country 6

D

Digital Auto Tuning 39

Digital Manual Tuning 39

Digital Settings 38

Digital Set-up menu 38

Digital Text 17

Digital Tuning 39

Display Area 29

Display Mode 40

DRC Mode 25

DRC Palette 25

Dual Sound 28

E

EPG (Digital Electronic Programme

Guide) 19

Equipment labels 33

F

Fastext 17

Favourite list 21

Film mode 32

G

Game Mode 33

Gamma 26

H

Headphones

connecting 42

Speaker Link 32

Volume 32

Horizontal Shift 29, 41

Hue 24

I

Information 32

Input signal index table 22

Interactive service 16

L

Label 36

Language 6, 32

Light Sensor 32

Live Colour 26

Logo Illumination 32

M

Manual Programme Preset 36

Manual timer REC 20

MENU 23

N

Noise Reduction 25

O

On Timer 31

P

PAP 18

Parental Lock 38

PC Settings menu 40

Phase 41

Picture Freeze 17

Picture menu 24

Picture Mode 24

Picture Off ( ) indicator 15

PIN Code 38

Pitch 41

Power (") indicator 15

Power (1) switch 15

Power Management 41

Power Saving 31

Programme index table 16

Programme Labels 35

Programme List Edit 39

Programme Sorting 35

R

Reminder 20

Remote control

inserting batteries 4

overview 13

programming 44

sensor 15

Reset

PC settings 41

picture 24, 40

sound 27

S

Screen format 17

Screen Format 29, 41

Screen menu 29

Set-up menu 31

Sharpness 25

Skip 33, 37

Sleep Timer 31

Smart 17

Sound menu 27

Sound Mode 27, 40

Speaker 32

Specifications 46

Standby (1) indicator 15

Subtitle Language 38

Subtitle Setting 38

Surround 27

51 GB

Additional Information

T

Target Inputs

picture 24

screen 29

sound 27

Technical Set-up 39

Timer ( ) indicator 15

Timer list 20

Timer REC 19

Timer Settings 31

Tools 18, 22

Treble 27

V

VCR

connecting 5

recording 19

Vertical Shift 30, 41

Vertical Size 30

Volume Offset 27

W

Wide 17

Z

Zoom 17

Printed in Spain

269867113

2-698-671-13(1)

KDL-52X2000

KDL-46X2000

KDL-40X2000
