Network Video Surveillance

CCIR/PAL

Issued July 1999

Introduction

The Total Survillance System Solution from Sony 2

Case studies from around the world 4

Sony Camera, Monitor and Time - Lapse VCR Technologies - The Sony Advantage

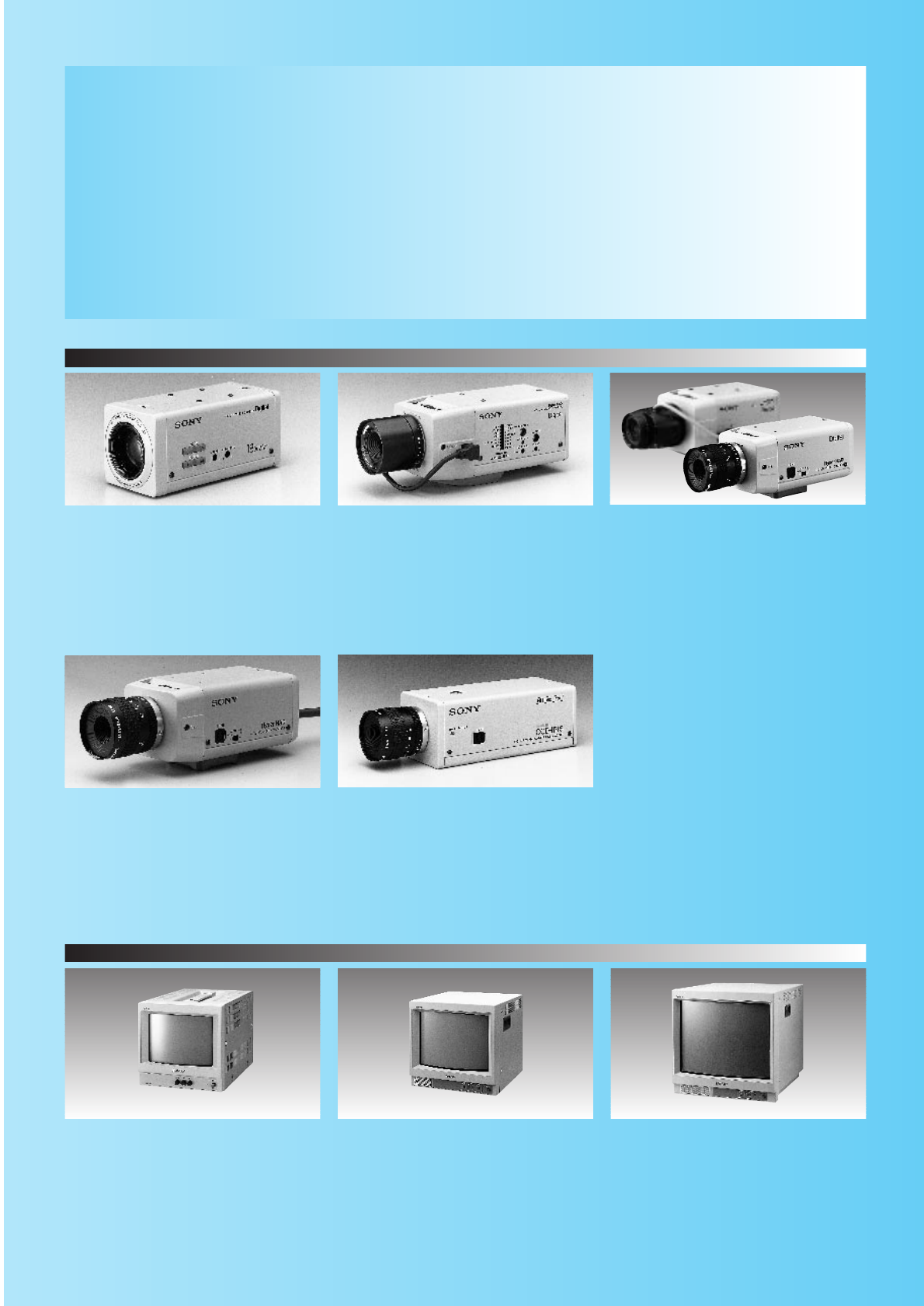

Colour Cameras and Monitors - Quick Reference 9

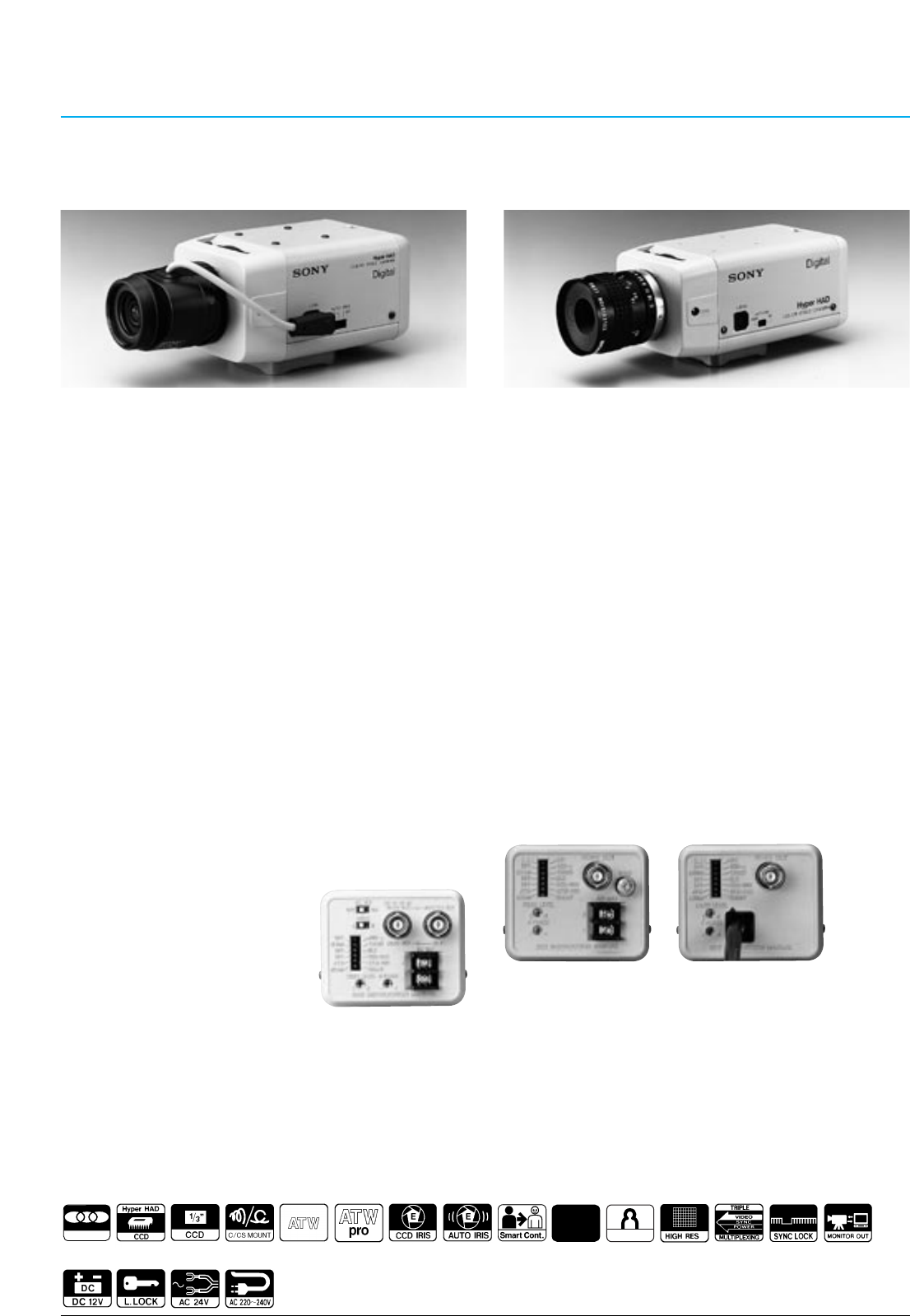

Colour Video Cameras

SSC-CX34P 10

SSC-DC50AP/DC54AP/DC58AP 12

SSC-DC10P 14

SSC-DC14P/DC18P 14

SSC-C108P/C104P 15

SSC-C370P 16

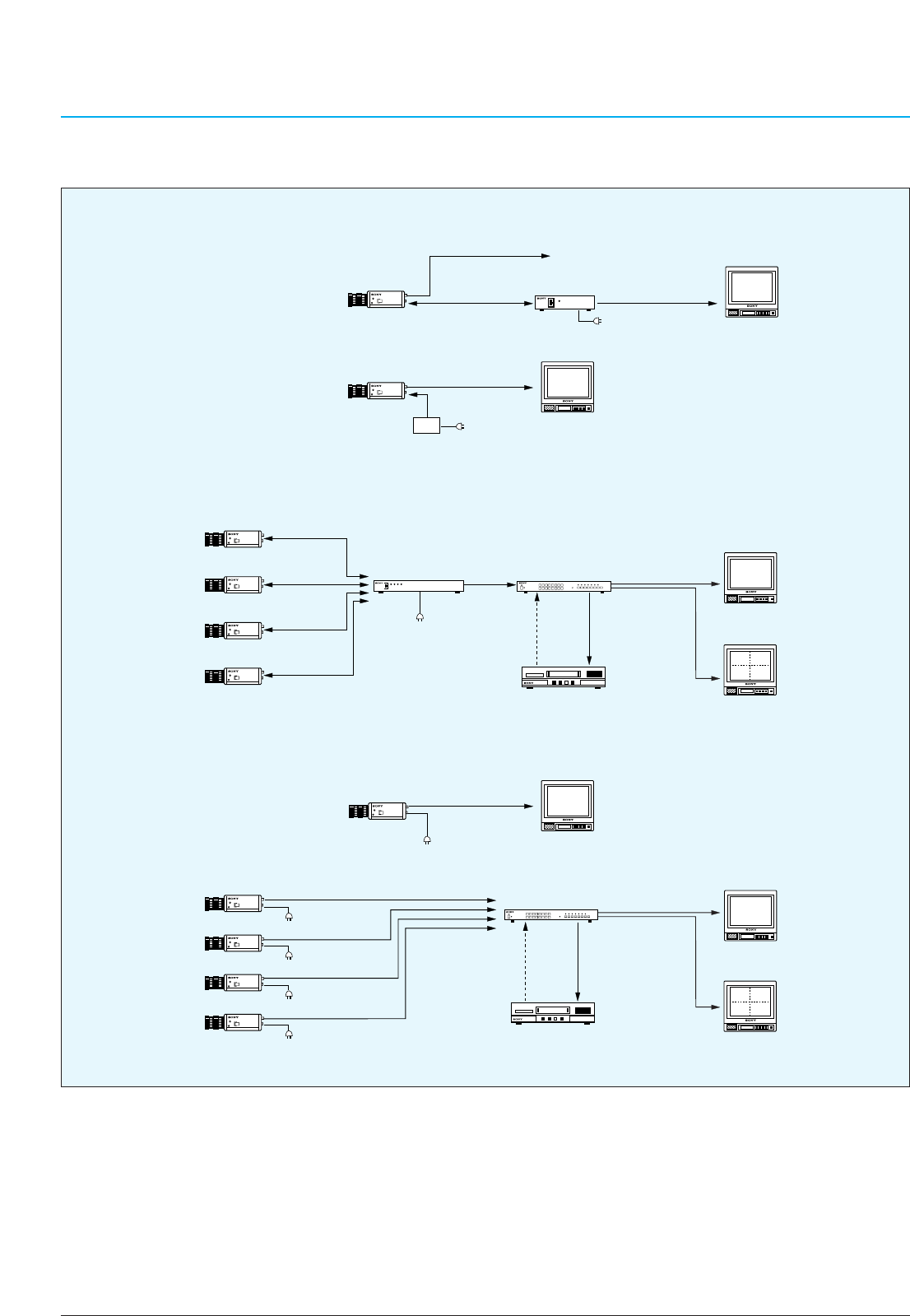

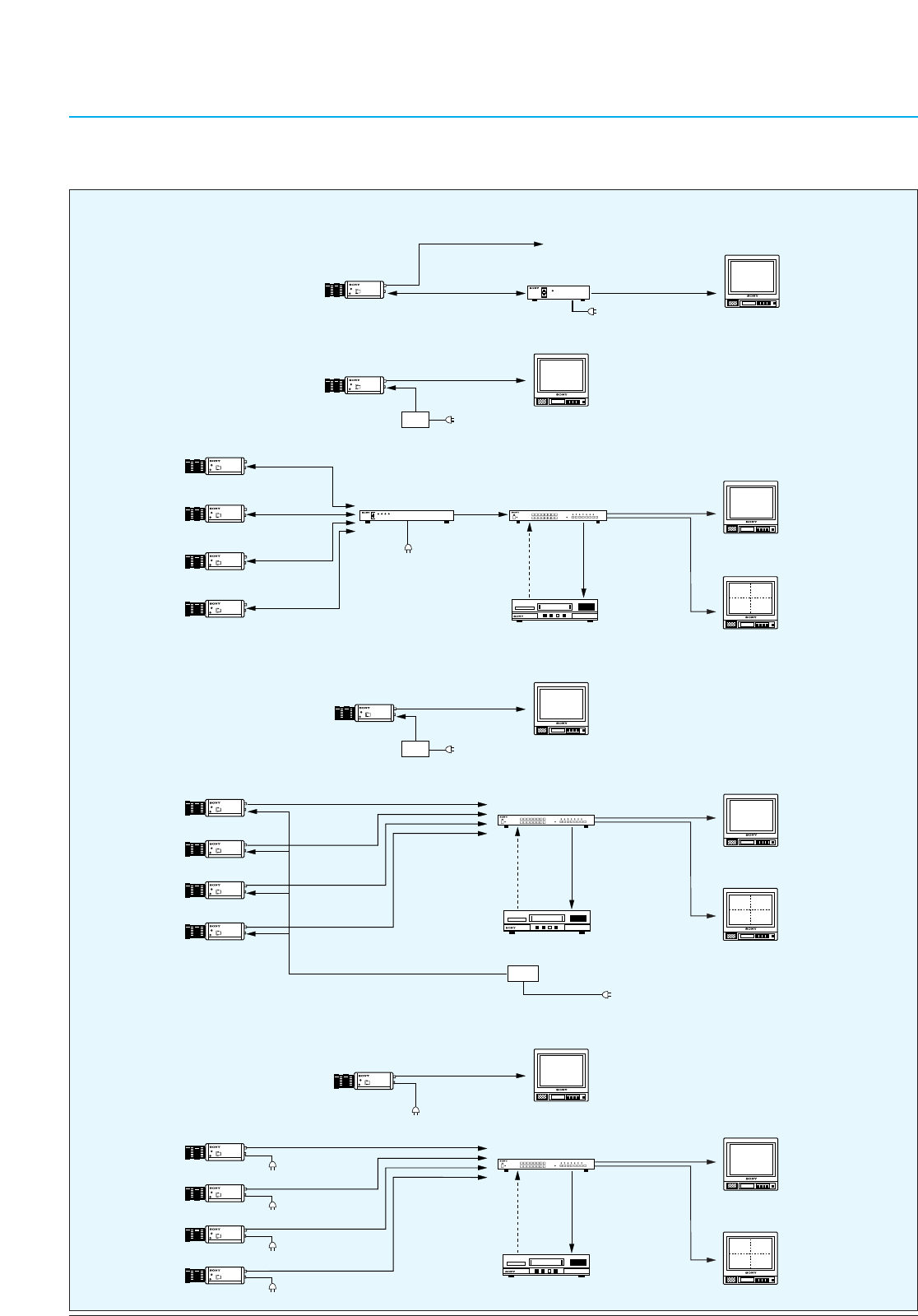

Colour Cameras Typical System 17

Colour Camera Specifications 18

Colour Video Monitors

SSM-9040P 20

SSM-14N5E/14N5A 20

SSM-20N5E/20N5A 21

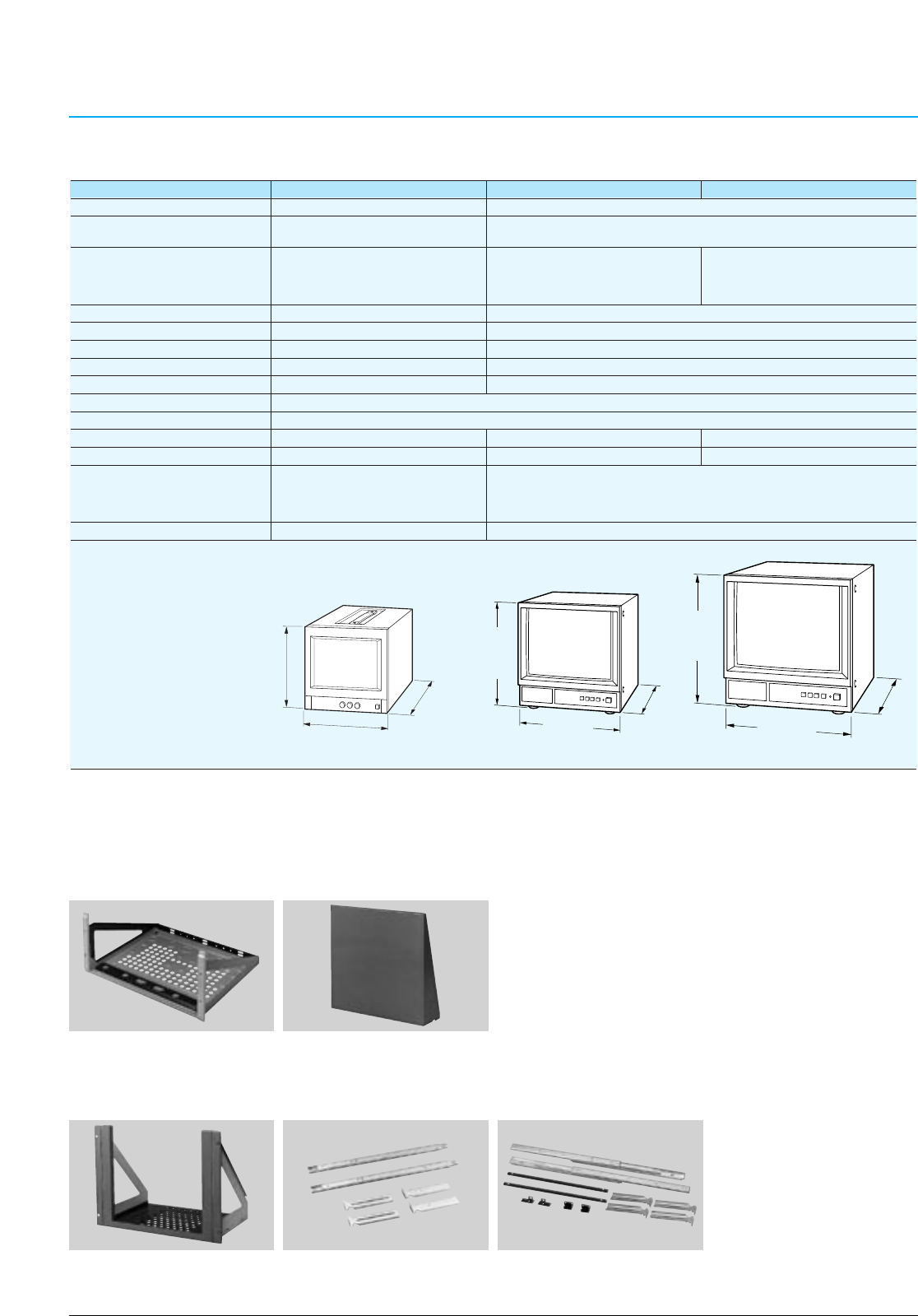

Colour Monitor Specifications 22

Black & White Cameras and Monitors - Quick Reference 23

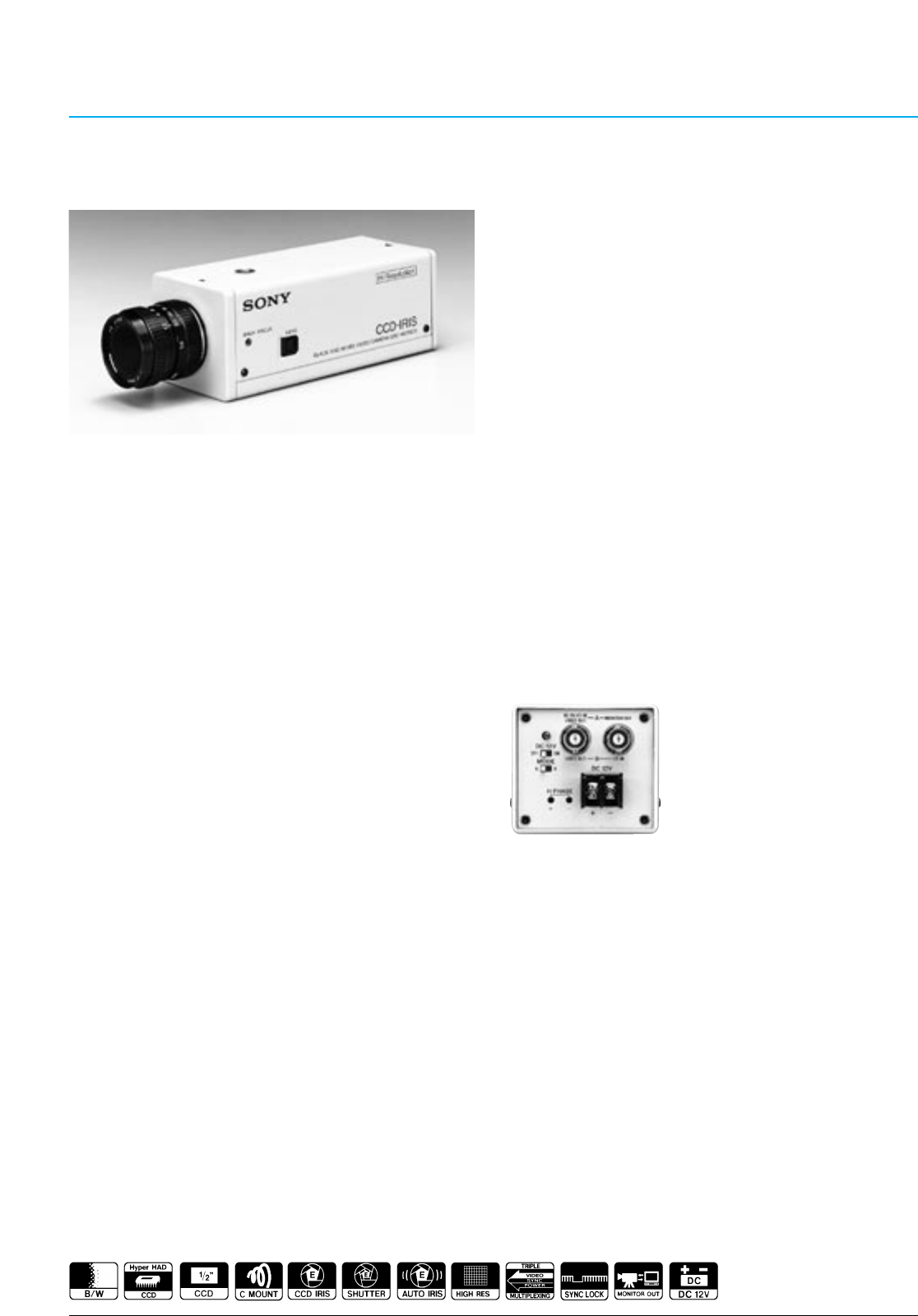

Black & White Video Cameras

SPT-M308CE/M304CE 24

SPT-M122CE/M124CE/M128CE 24

SSC-M370CE 25

B/W Cameras Typical System 26

B/W Camera Specifications 28

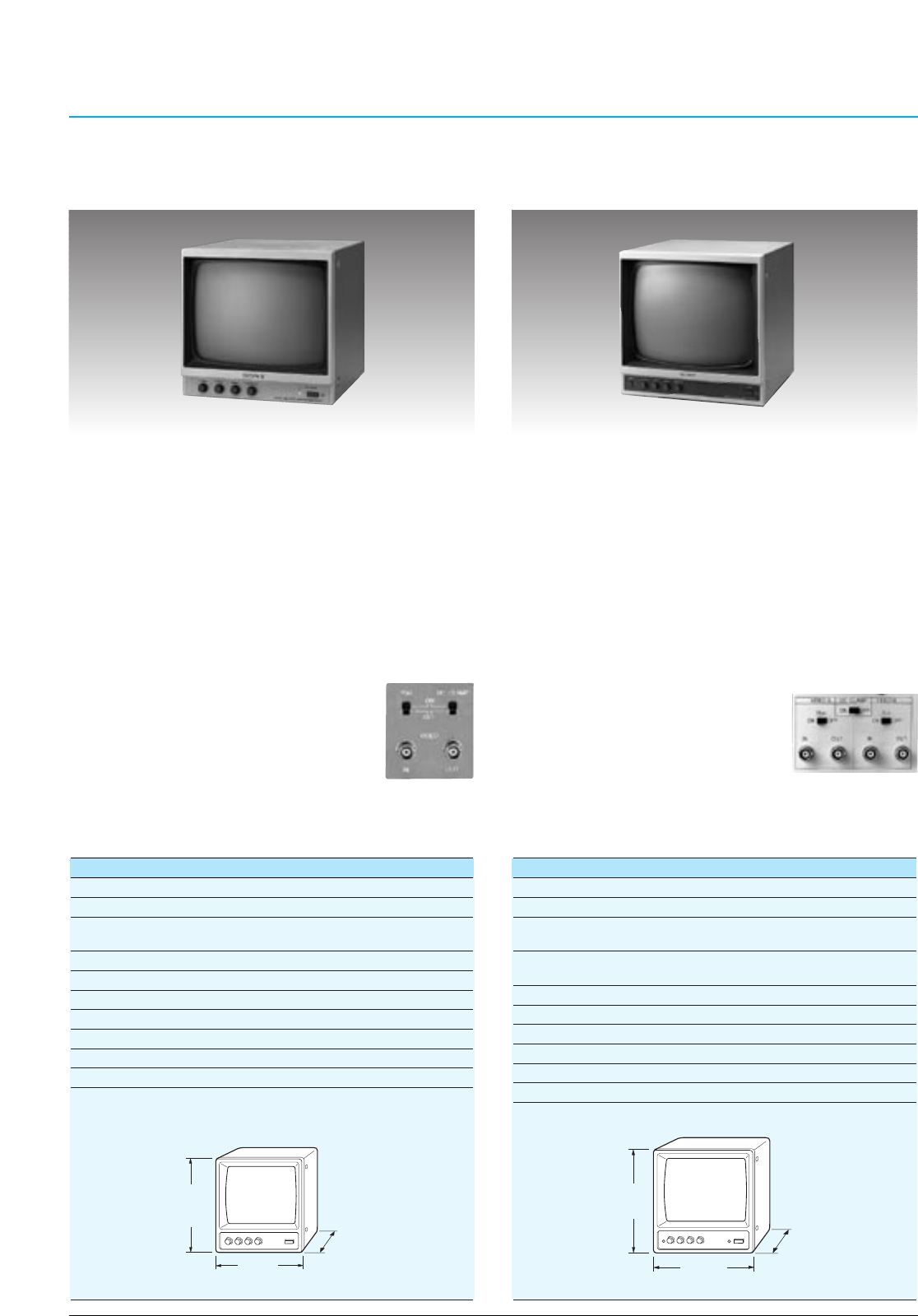

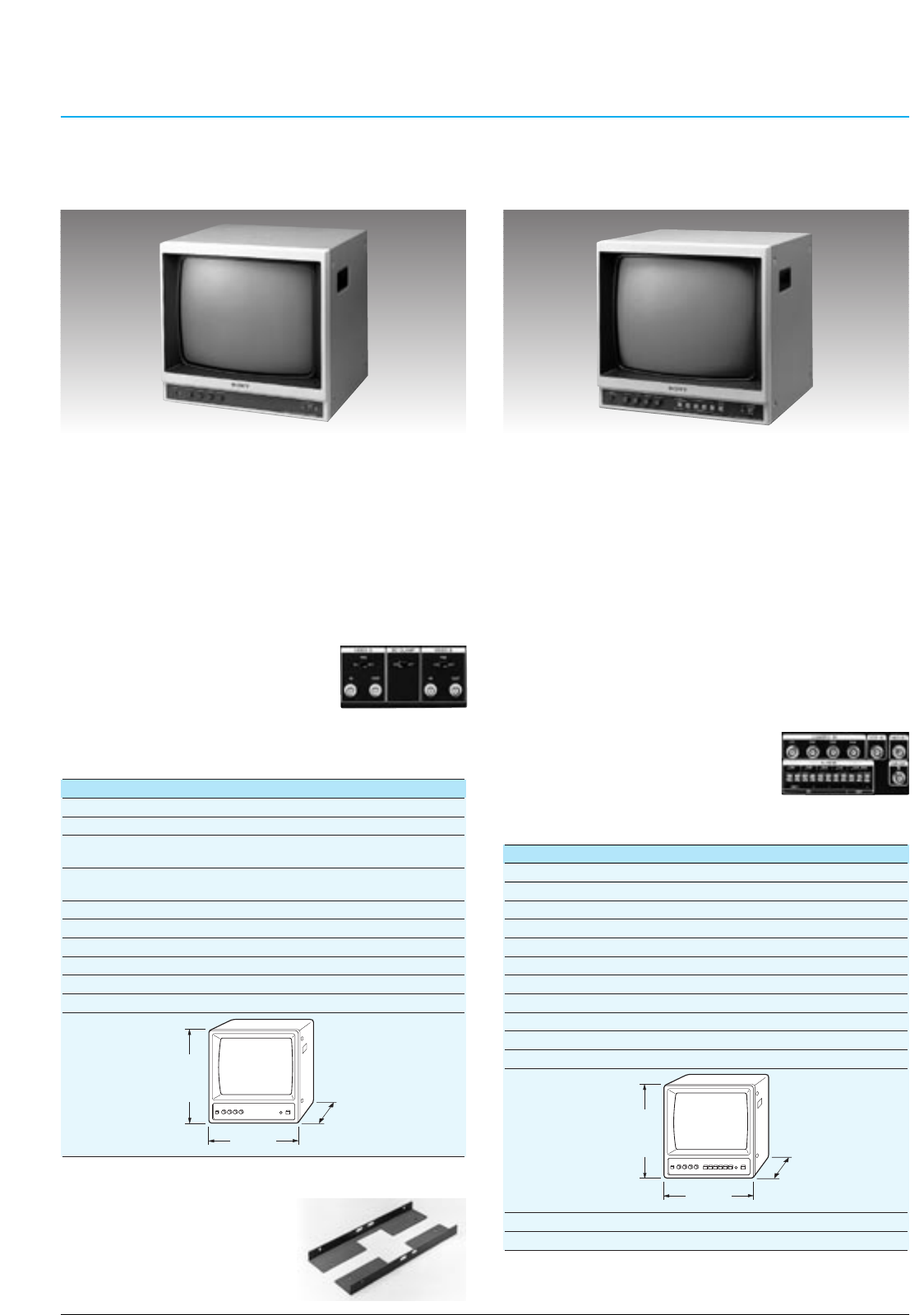

Black & White Video Monitors

SSM-930CE 29

SSM-125CE 29

SSM-175CE 30

SSM-Q177CE 30

Camera Optional Accessories - Quick Reference 31

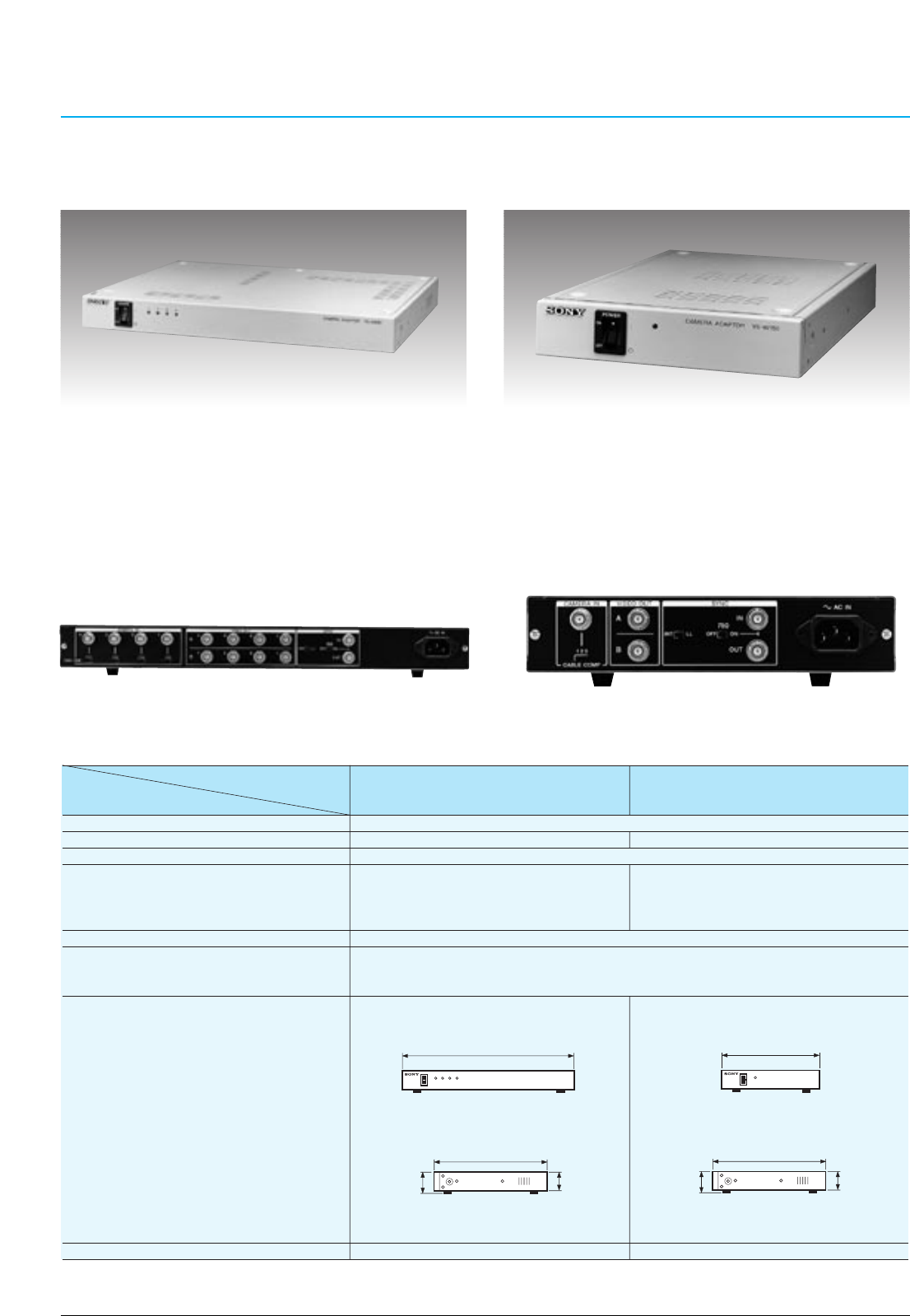

Camera Adaptors 32

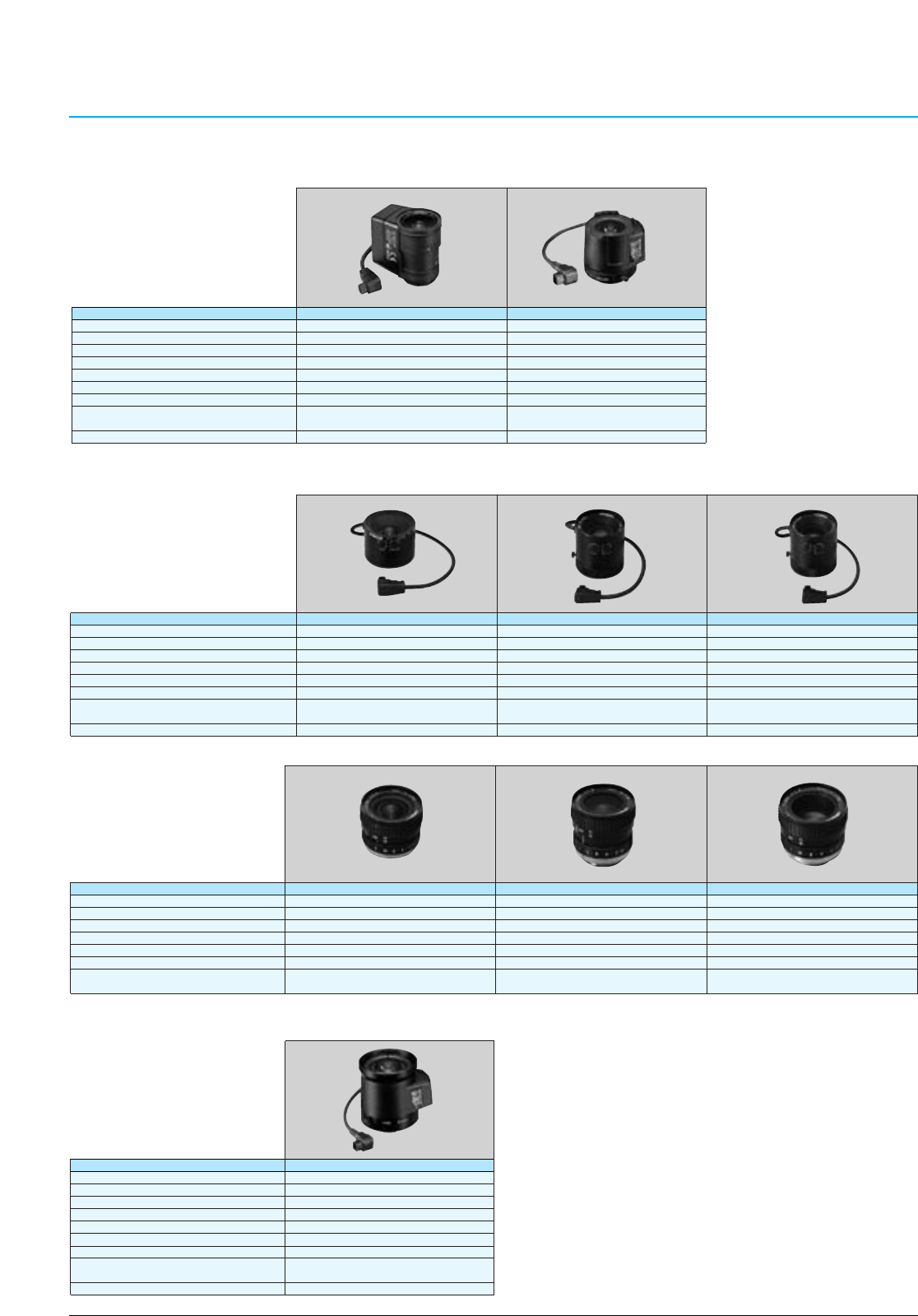

Lenses 33

Cables 34

Mounting Brackets 34

•Sony is a registered trademark of Sony Corporation.

•“Exwave HAD”, “Super HAD”, “0 Lux Shot”, “CCD IRIS”, “Hyper HAD”,

“HAD sensor”, “Smart Control” and “Turbo AGC” are trademarks of Sony Corporation.

•Features and specifications subject to change without notice.

Contents

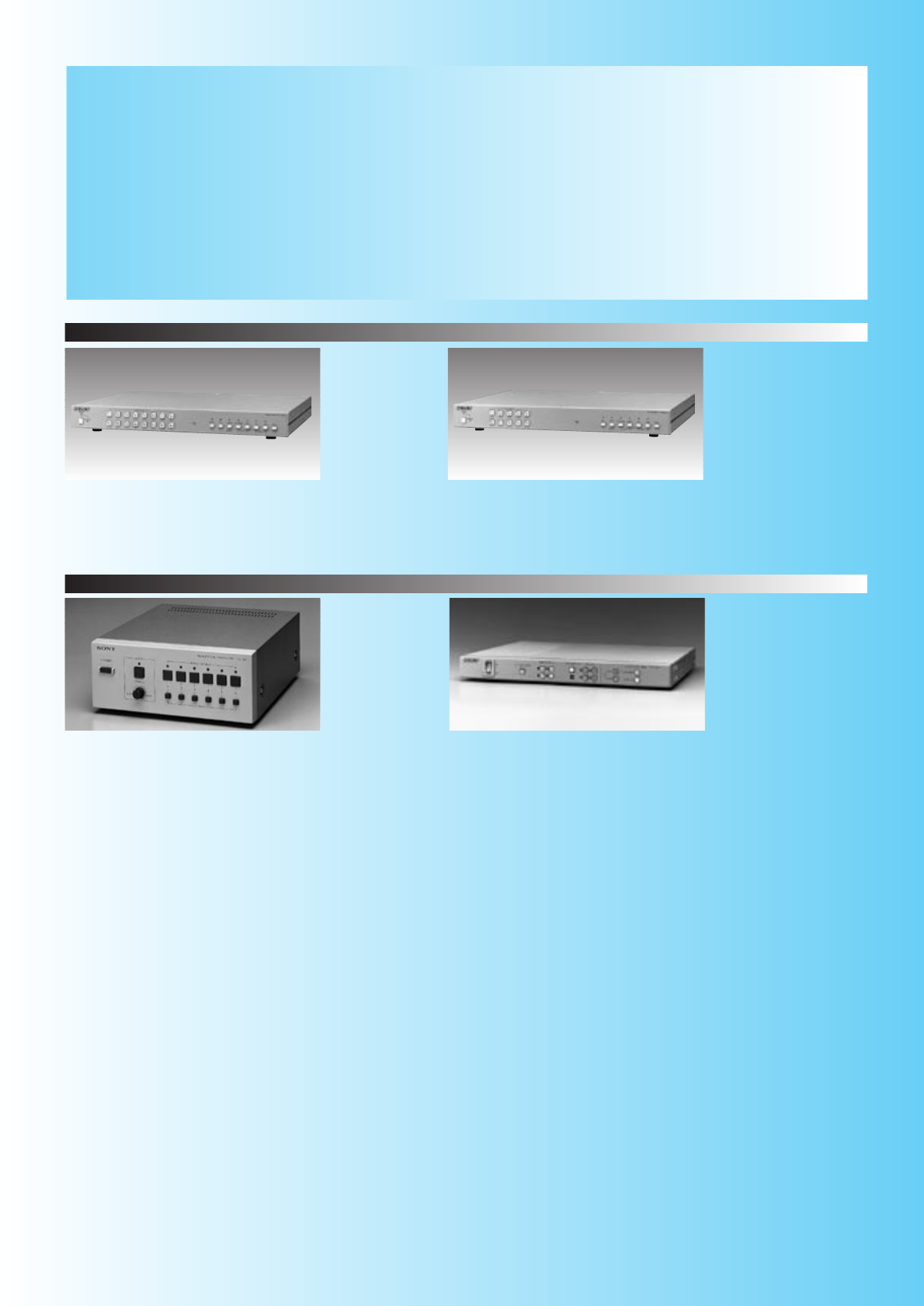

Multiplexers and Switchers - Quick Reference 35

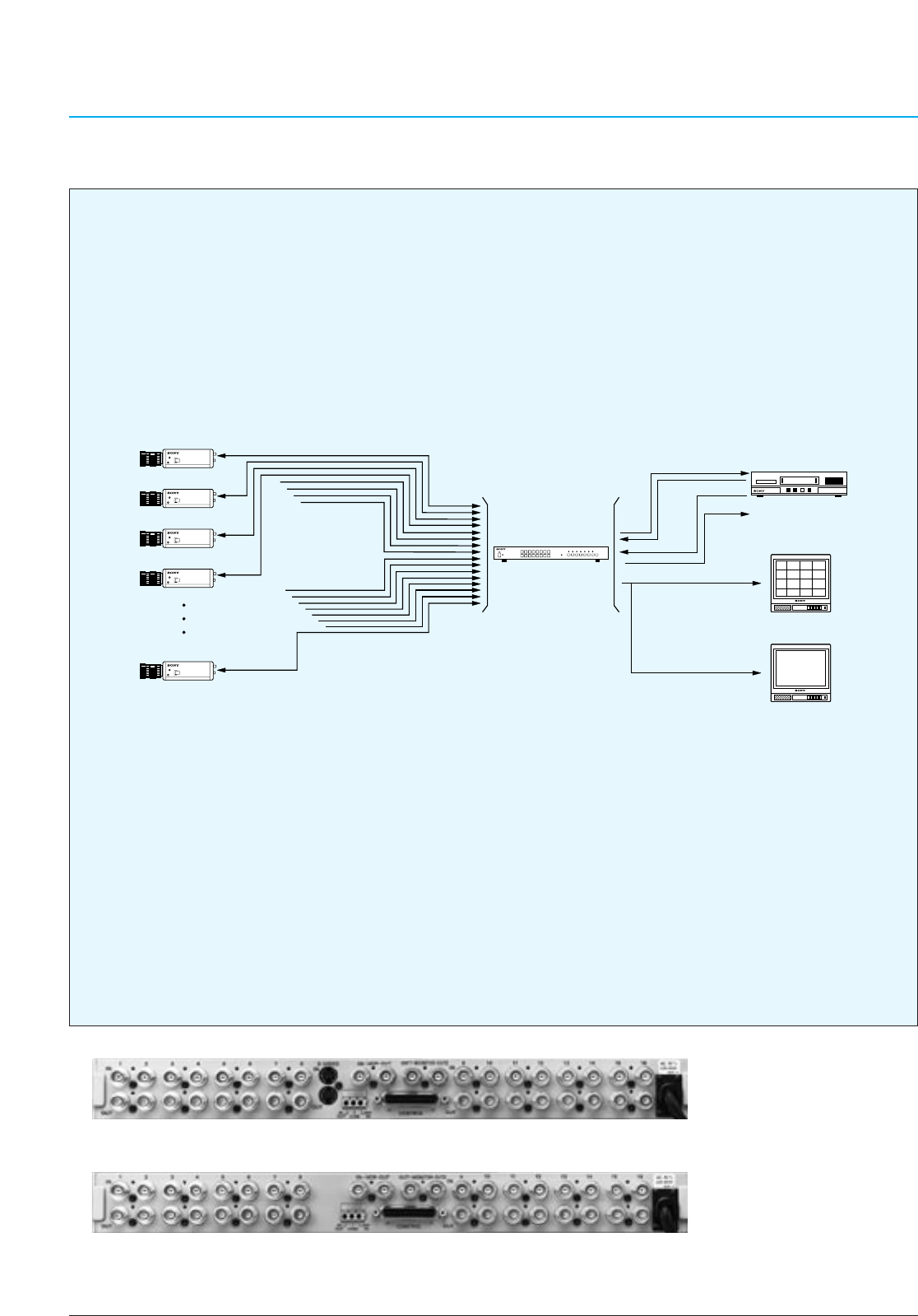

YS-DX316P/YS-DX216CE 36

YS-SX310P/YS-SX210CE 38

YS-S6 40

YS-Q440P 41

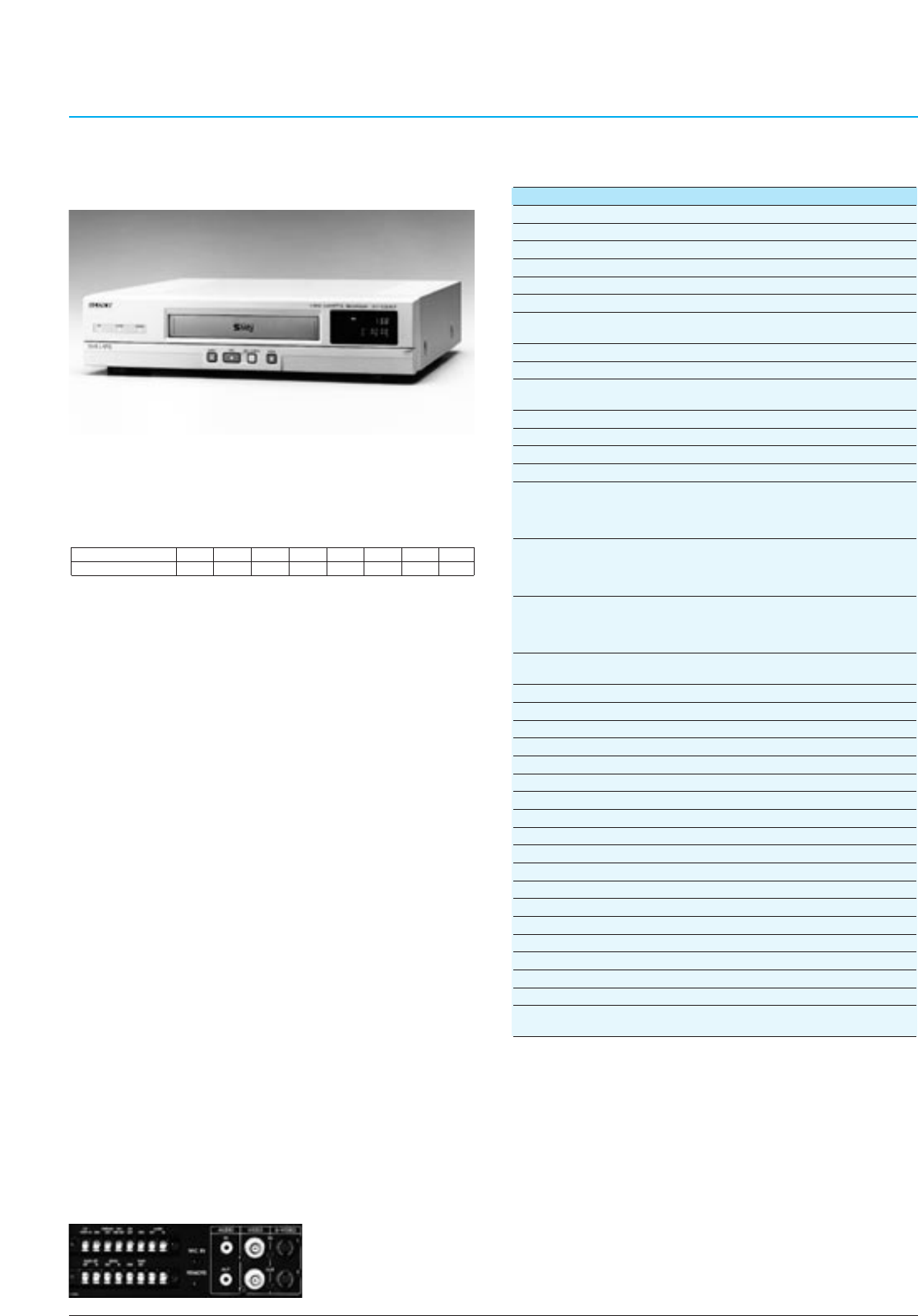

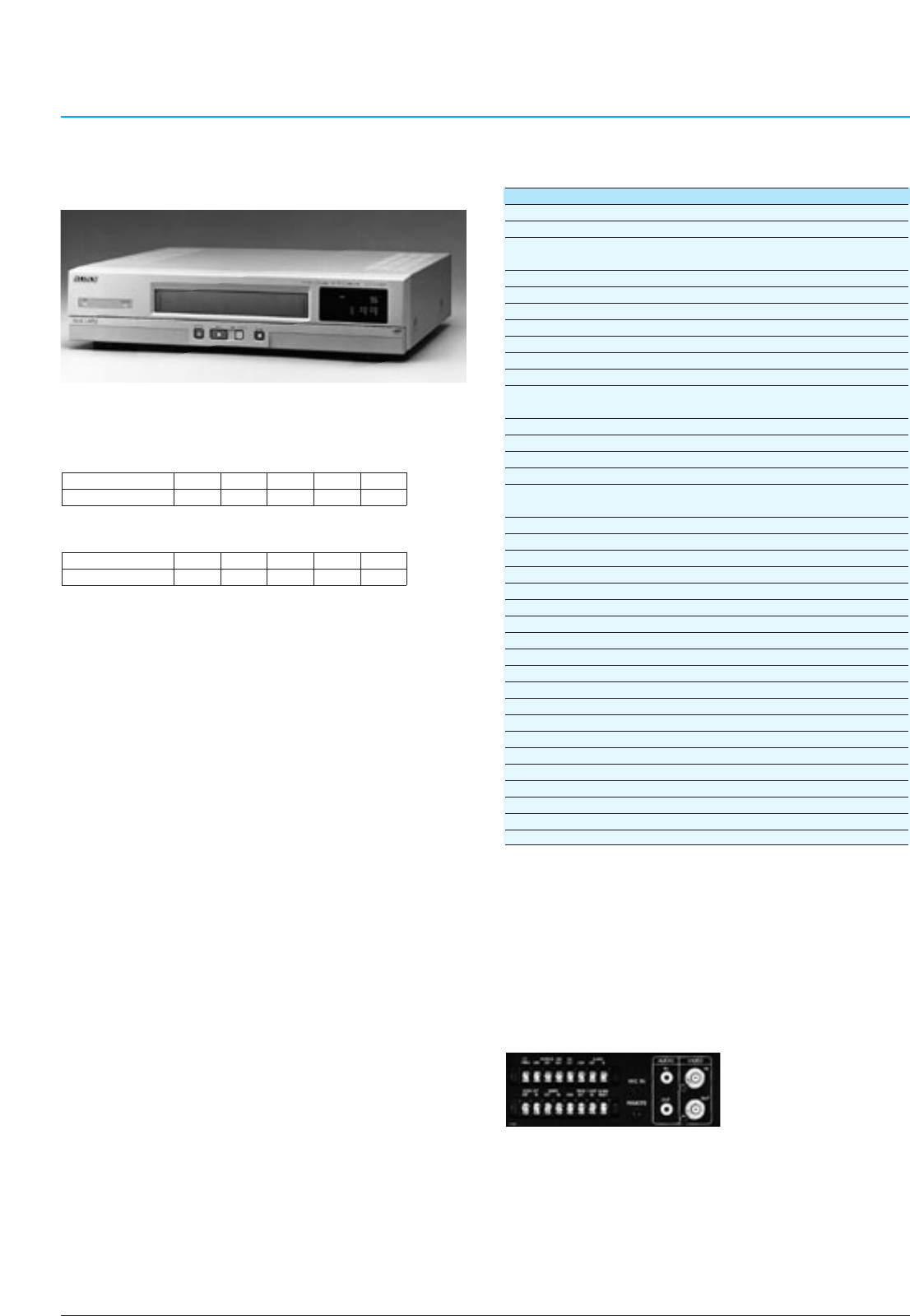

Time Lapse Video Recorders - Quick Reference 43

SVT-L230P 44

SVT-124P 45

SVT-1000P 46

SVT-S3050P 47

SVT-5050P 48

Analog Time Lapse VCR Feature Comparison Chart 49

HSR-1P 50

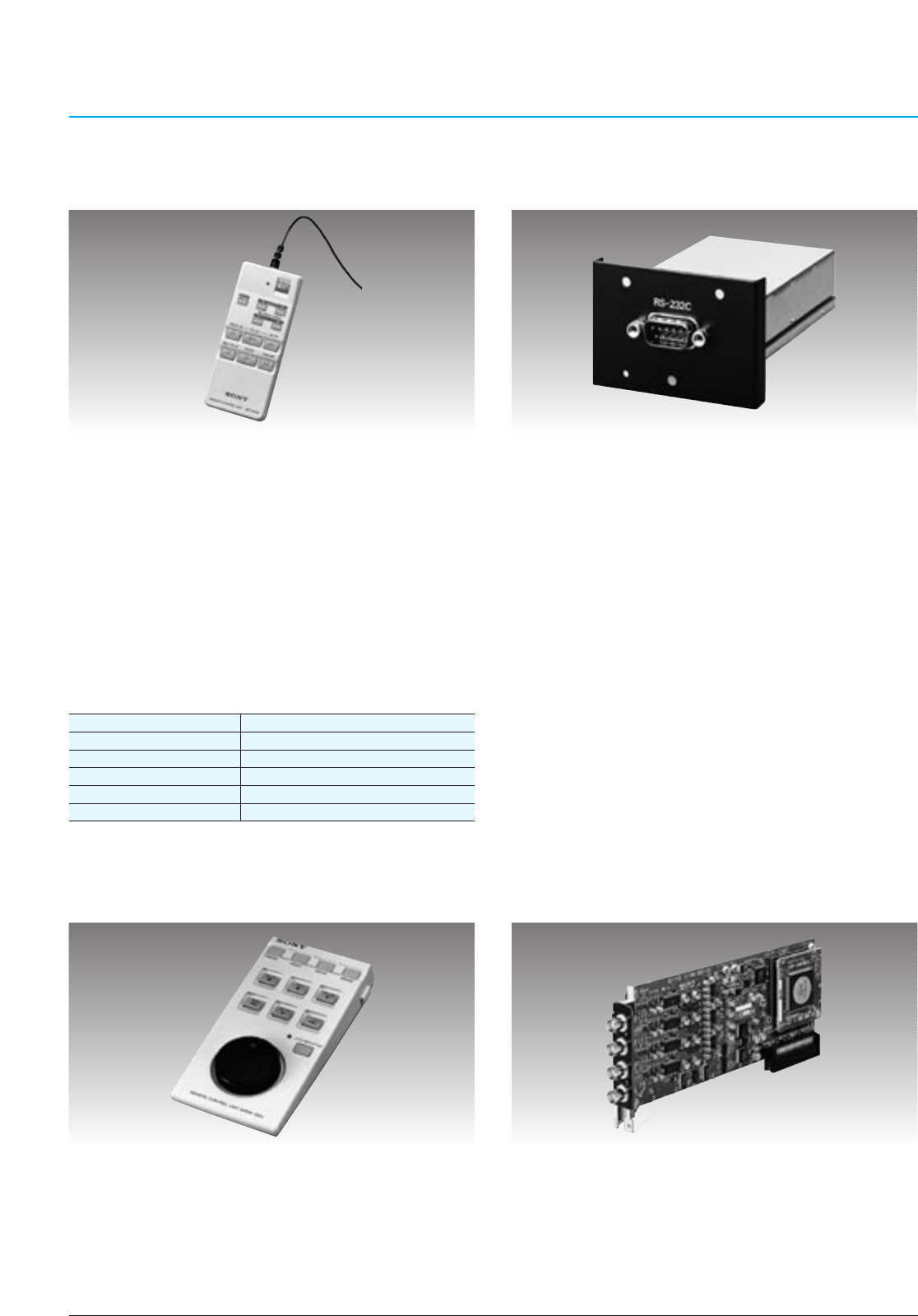

Optional Accessories 51

Monitoring Codecs and System Controller

- Quick Reference 53

PMS-500P/400P 54

CSP-5000E 56

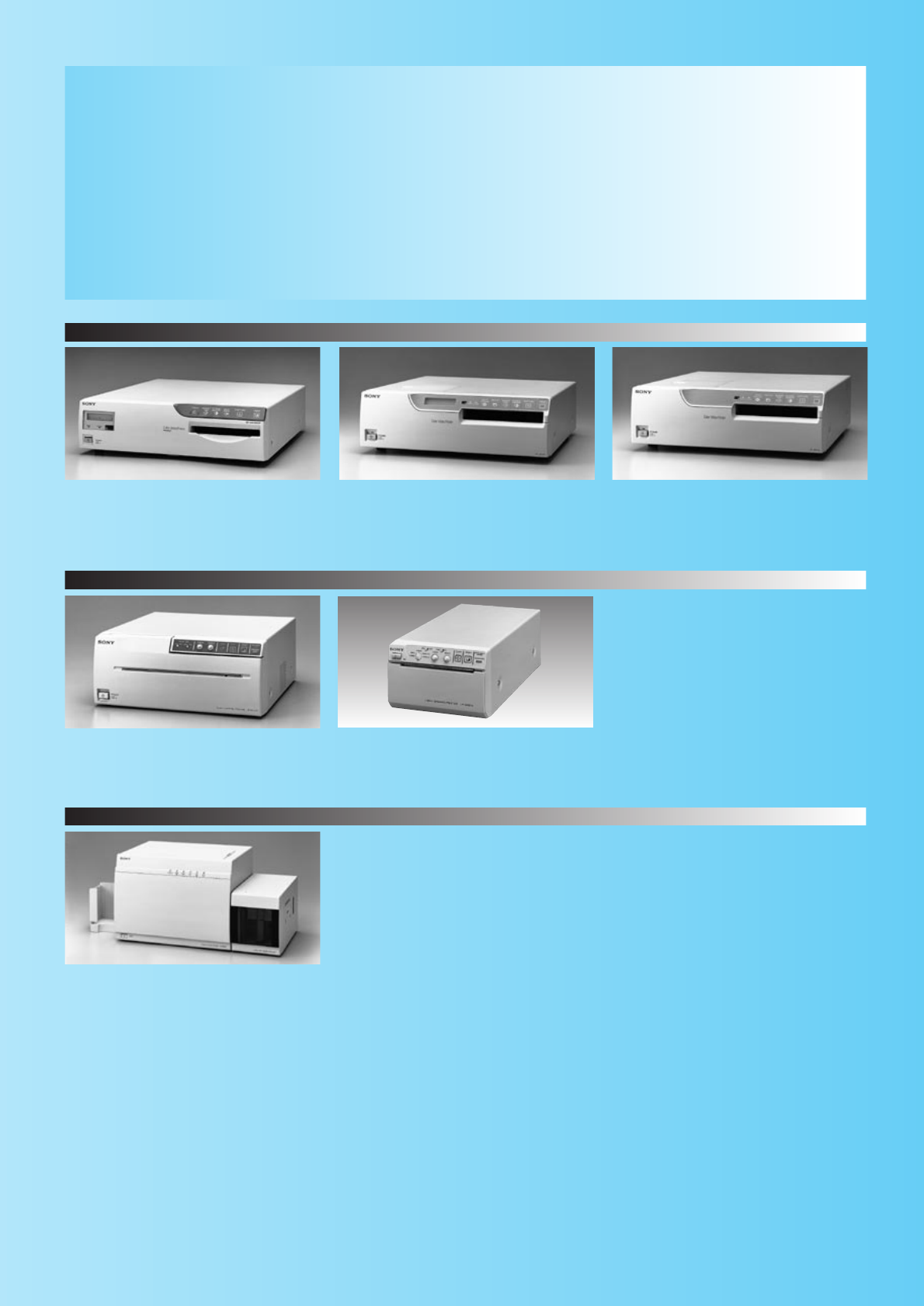

Printers - Quick Reference 59

Colour Video Printers

Feature Comparison Charts 60

UP-5600MDP 61

UP-2850P/2800P 62

UP-2300P/2100P 63

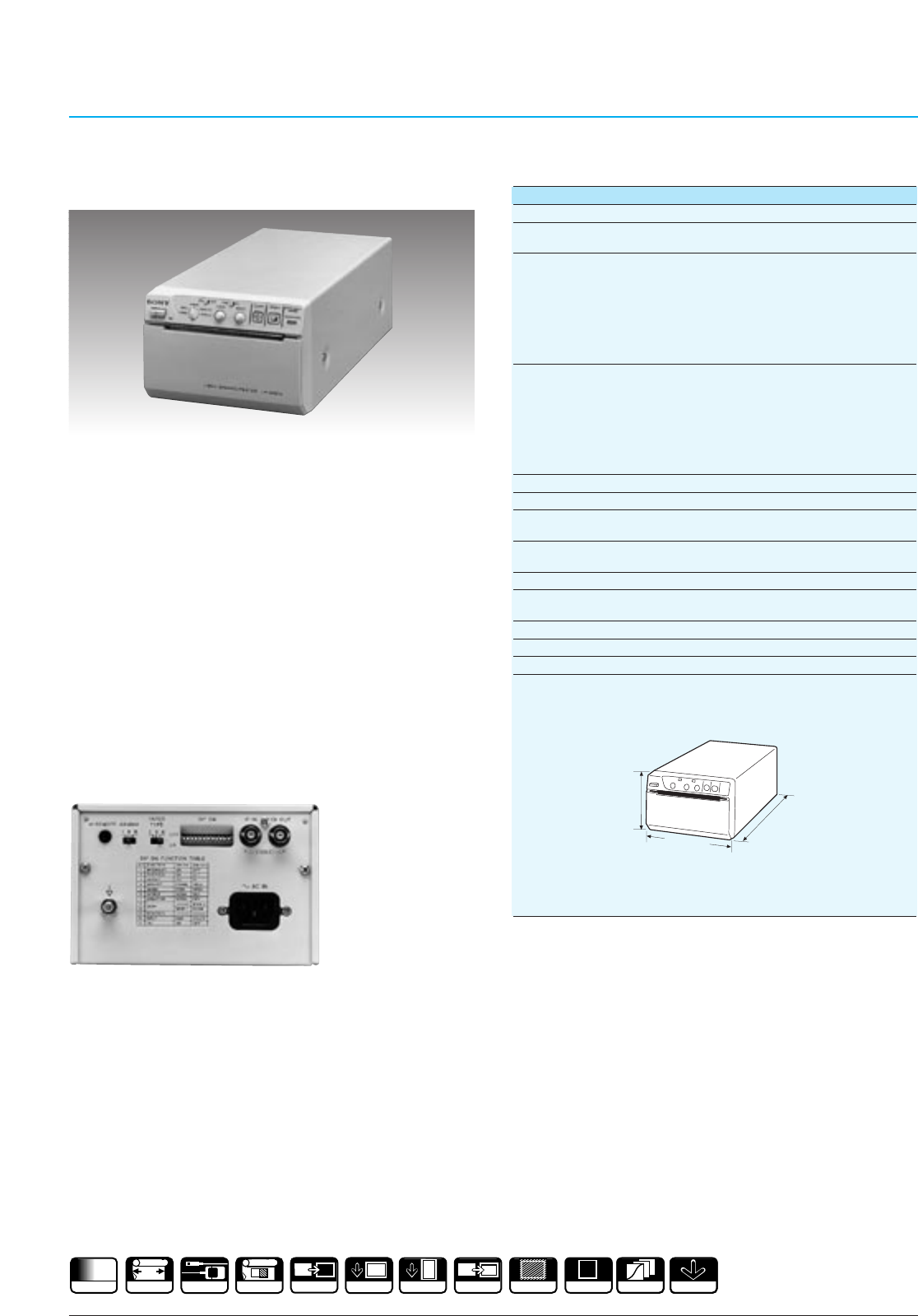

Black & White Video Graphic Printers

UP-960CE 64

UP-890CE 65

Video Printer Optional Accessories 66

Digital Colour Printer

UP-D6500/D6400/D6300 67

Automotive Camera and Monitors - Quick Reference 69

Black & White Video Camera

SSC-534AM 70

Black & White Video Monitors

SSM-504AM/724AMR 71

Glossary 72

Product Index 74

Major Security Product Shows '99

Show Date Place

Asia

ASIA Security 99 Aug. 10-12 Melbourne

Security China Oct. 26-29 Shenzhen

Securex China Dec. 1-4 Shanghai

Central and South America

Expo Securidad Mexico City June 14-16 Mexico City

Securitech Argentina July 6-8 Buenos Aires

Expo Security Brazil Nov 17-19 Sao Paulo

Show Date Place

Europe

IFSEC May 10-13 Birmingham

Alarmes Protection Securite 99 Oct 6-8 Paris

SiTech 99 Oct 27-30 Berlin

North America

ISC-EAST Aug 31-Sept 2 New York

ASIS Sept 27-30 Las Vegas

CANASA CENTRAL Oct 20-21 Toronto

TheTotal Surveillance System Solution from

Sony continues to expand its line up of products and new technologies in order to give you the most

effective surveillance and monitoring system possible. Versatile, high quality video equipment,

backed up by a world wide sales and service network make Sony the obvious choice for your video

surveillance needs. When it comes to surveillance, look no further than Sony.

Monitor

Multiplexer

Monitoring Codec

Analog VCR

Printer

Switcher

Digital VCR

Monitor

Camera

Sony

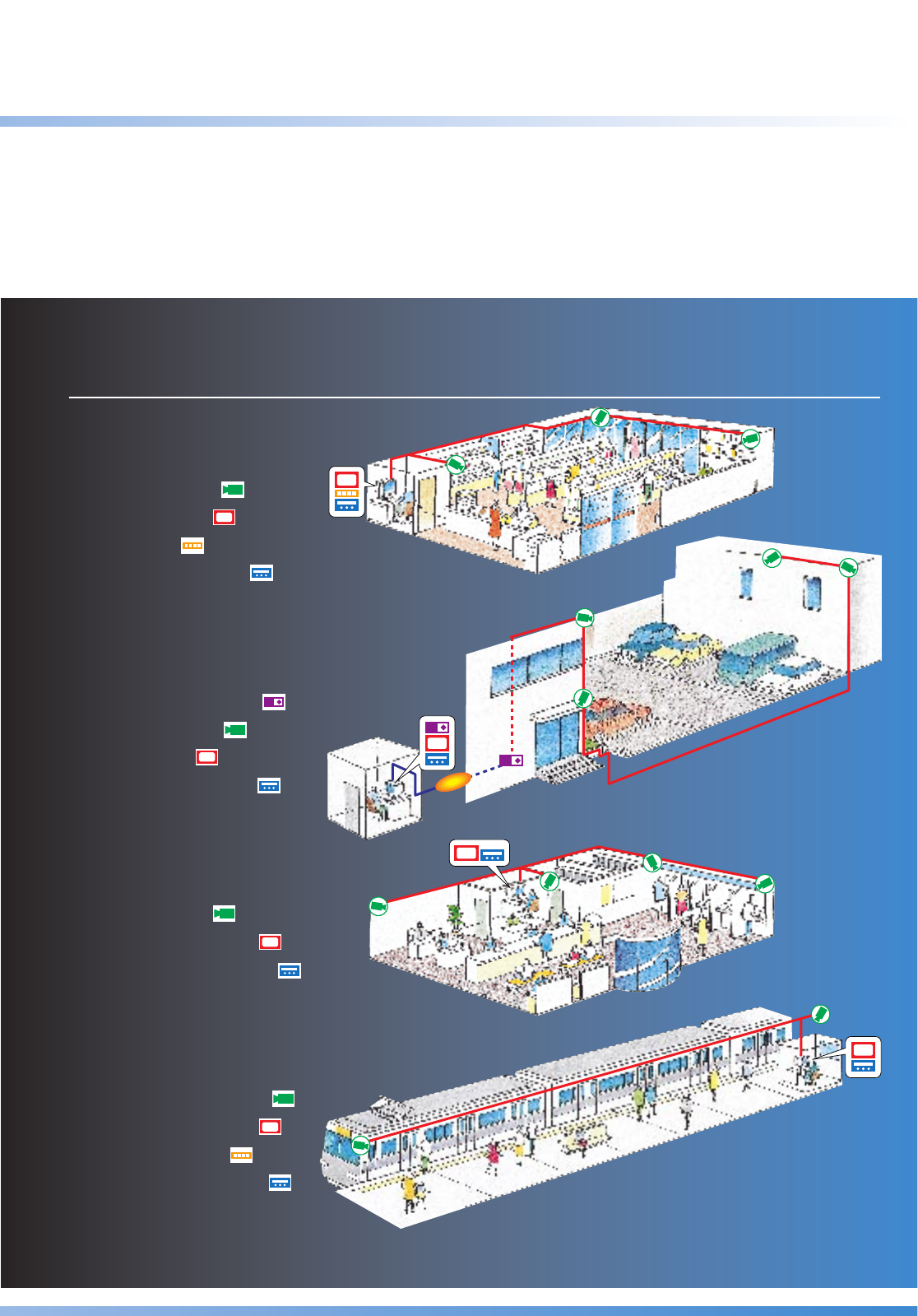

Surveillance system applications

Convenience store/Retail surveillance

System configuration example

SPT-M128CE camera -

SSM-930CE monitor -

YS-S6 switcher -

SVT-124P time-lapse VCR -

Remote facility monitoring

System configuration example

PMS-500P monitoring codec -

SSC-DC58AP camera -

Computer monitor -

SVT-1000P time-lapse VCR -

Bank surveillance

System configuration example

SSC-DC18P camera -

SSM-20N5E/20N5A monitor -

HSR-1P digital time-lapse VCR -

Transportation/Train station surveillance

System configuration example

SSC-DC58AP/DC18P camera -

SSM-14N5E/14N5A monitor -

YS-DX316P multiplexer -

SVT-S3050P time-lapse VCR -

ISDN

Case studies from around the world

Portugal Expo'98

Expo'98 in Lisbon, Portugal hosted 150 countries and in four

months a total of 10 million people visited the two million square

metre site. The highest attendance was 380,000 visitors passing

through the site on the Expo's last day. In this environment

surveillance and security are critical issues, and Sony took over

the role of prime contractor with sole responsibility for project

execution, equipment supply, system installation and

maintenance during Expo'98's four month open period.

Sony installed a

network of

43 high-performance

surveillance cameras,

all with pan & tilt

capabilities suited to

outdoor operation.

The monitoring centre

had at its heart a

control and switching

system based on the

new Sony CSP-5000

matrix switcher and a

total of 24 Sony CCTV

colour monitors. A basic requirement of the system was for

continuous 24-hour recording of all incoming images.

To achieve this, Sony used five S-VHS SVT-S3050P time-lapse

VTRs and five top of the range colour multiplexers (YS-DX316P).

The network of cameras was connected to the control room

using more than 60km of copper wire and 10km of optical fibre.

All the images entering the control room were fed in to three

Sony CSPK-5000 matrix keyboards, and these pictures were

relayed to another control room where the security department's

controller could watch all the public areas on six Sony monitors.

Despite daily temperatures of up to 43 degrees Celsius, the

system never failed during the four month period of Expo'98.

City of Mississauga,

Ontario Canada

At the City of Mississauga, keeping residents secure is a top

priority. Canada's sixth largest city, located west of Toronto, is in

the midst of installing a comprehensive video surveillance

system. By the time the project is complete, more than 100

closed-circuit television (CCTV) cameras will have been installed

at strategic locations throughout the city - at transportation

works yards, transit yards, community centres, libraries, parking

lots, swimming pools and bus depots.

Cameras chosen for the job were Sony SSC-DC14 and

SSC-DC54A digital colour cameras. The high resolution and

sensitivity of the cameras yield high-quality images even in

adverse lighting conditions.

The Sony SSC-DC54A capitalizes on its advanced 1/2-inch

Exwave HAD CCD chip to deliver exceptional colour accuracy

with 470 lines of horizontal resolution. Small enough to be used

in the most demanding circumstances, the chip maximizes

sensitivity, reduces smear and significantly increases S/N levels.

For Control Centre monitoring, the City of Mississauga has

installed six Sony SSM-20N1U Trinitron colour monitors.

The 20-inch versatile, rack-mountable units offer more than 500

lines of horizontal resolution for sharp pictures and auto beam

current feedback for colour stability. Built-in speakers permit

audio monitoring, and on-screen prompting provides easy,

user-friendly operation.

Gelredome, The Netherlands

The Arnhem Gelredome was fitted with a security system

in which Sony equipment plays the central role. There are

35 SSC-DC18P cameras located both inside the stadium

and outside - in the promenade areas, above the stands,

above the parking areas - all linked to 14" and 20"

monitors, allowing instant playback of recorded images.

The 20" monitors are used with colour quad units in the

control room, manned by the police and Gelredome staff.

This allows images from 16 cameras to be monitored

simultaneously and permits any selected picture to be

displayed onto a spot monitor for further study at any

time. Three Sony time-lapse recorders ensure continuous

recording and the Sony video printers provide printouts

direct from the video. This makes surveillance, detection

and follow-up easy and efficient.

Mycal Akashi, Akashi Japan

Mycal Akashi is a 150,000 square meter complex

consisting of a number of department stores, restaurants,

sports facilities and movie theaters. The buildings and

parking lots of this complex are kept safe and secure

thanks to 50 cameras which are centrally controlled by

the Sony CSP-5000 System Controller. The cameras are

strategically located through out the buildings and out -

door parking lots. Moreover, four cameras on the roof can

monitor traffic 4 to 5 km beyond the complex.

Since implementing this surveillance system, security

staff have been able to respond more quickly to

problems such as a group of trouble-makers indoors, as

well as monitor traffic and parking more effectively

outdoors. This monitoring system also has made labor

saving possible during night shift hours.

Norddeustsche Landesbank,

Germany

Security is essential to all organisations but none more

than banks. With cash dispensers throughout the world

needing surveillance around the clock, security

requirements are pushed to the limits. That’s why a

German bank giant, The Norddeutsche Landesbank,

installed Monitoring Codecs in several of its branches.

It’s a system developed by Sony that gives multi-site

two-way surveillance from a single central location. And

by using the latest ISDN technology it’s possible to

prevent crimes as and when they happen.

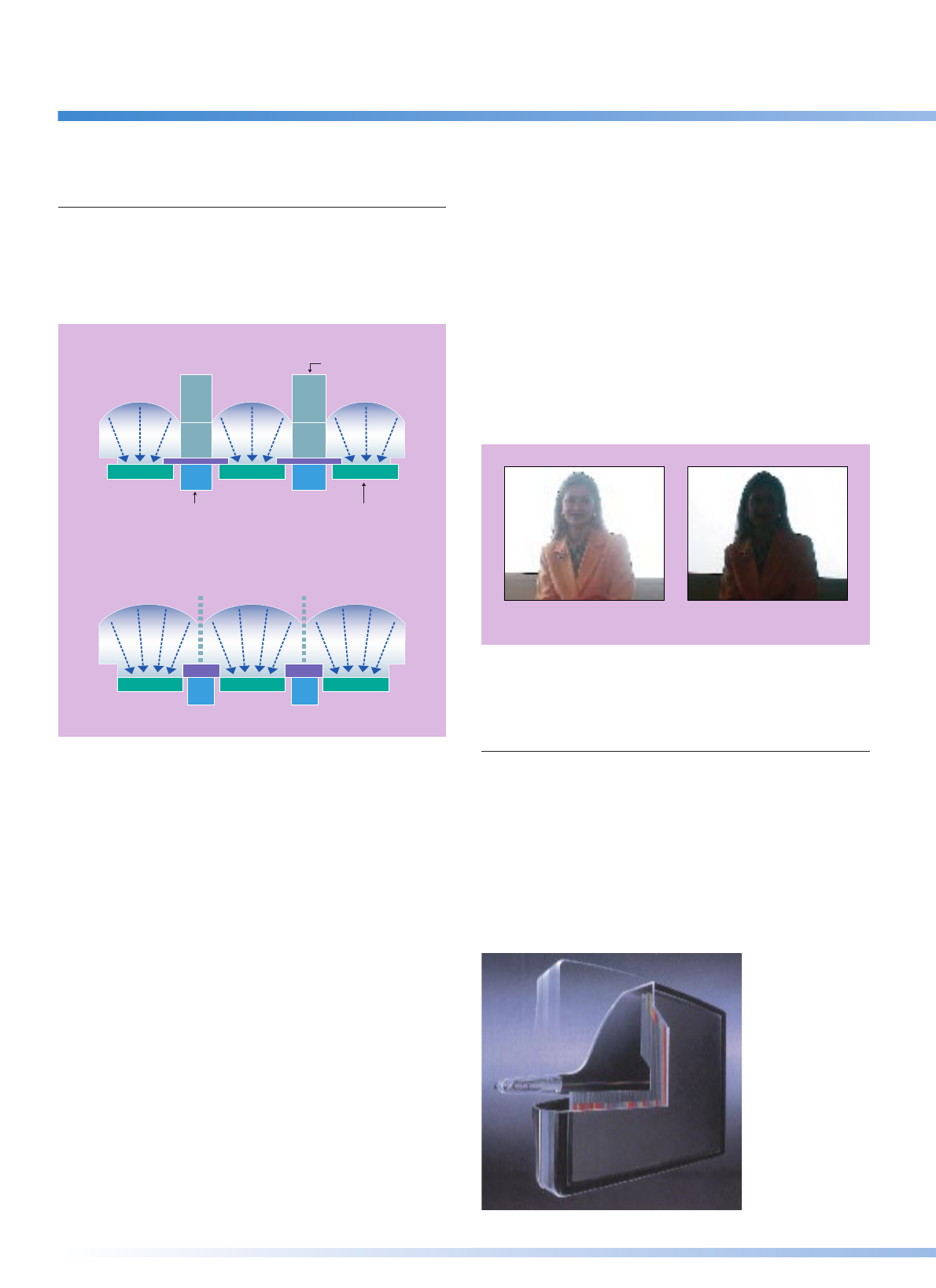

Smart Control

(SSC-DC10P/14P/18P/50AP/54AP/58AP/CX34P)

Strong backlighting can often cause the subject of the

picture to be cast into shadow. To overcome this

problem, Smart Control achieves the optimum balance

between Iris and Gain settings in a unified digital signal

processing circuit. As a result, clear colour images can

be obtained even under severe or varying lighting

conditions. Smart control also works intelligently as it

employs average light metering to detect the position of

the major subject, and Fuzzy Logic to calculate the

proper exposure.

Monitor technology

Trinitron CRT

Sony incorporates Trinitron CRTs in all of its surveillance

colour monitors.With its completely original design, the

Trinitron technology allows for high resolution and the best

possible picture reproduction. The completely flat, straight

vertical surface of the Trinitron CRT provides the lowest

purity imperfection available with the CRT technologies of

today. Moreover, Sony manufactures its own CRTs to assure

quality performance in all of its monitors.

Camera technologies

Exwave HADTM (SSC-DC50AP/54AP/58AP)

In monitoring and surveillance applications, camera

sensitivity is one of the most important factors in

obtaining an adequate picture in low light conditions.

The sensitivity of Sony cameras using the Exwave

HAD CCD is well over twice that of the cameras using

the Sony Hyper HAD CCD. The Hyper HAD sensor

structure has an OCL (on chip lens) located over each

pixel. The result is that light is concentrated on the

photosensor areas and the sensitivity of the camera is

improved. The Exwave HAD takes the Hyper HAD sensor

technology a giant step further. The OCL of the Exwave

HAD CCD is a nearly gap-less structure, eliminating the

ineffective areas between the microlenses. This enables

the hole accumulated layer to receive the maximum

amount of light.

Moreover, the smear level of the Exwave HAD CCD is

reduced to 1/50th that of the Hyper HAD CCD.

This leakage is dramatically reduced because the

improvement of the unit cell structure minimizes the

unnecessary reflection of the light onto the CCD surface.

Ineffective area

Transfer register Hole accumulated layer

Backlight Compensation

Digital Signal Processing Analogue Signal Processing

Hyper HAD CCD

Exwave HAD CCD

Sony Camera, Monitor and Time-lapseVCR

Time-lapse VCR technologies

Hybrid Recording (HSR-1P)

The Sony HSR-1P digital time-lapse recorder uses both a

hard disk drive (HDD) and a DV (digital video) tape drive

for storage. The image data is first recorded onto the

HDD and is then transferred to DV tape. This "hybrid"

approach to recording has two major advantages.

The first advantage is reduced maintenance. Because

the DV tape drive works only while recording the image

data being transferred from the HDD, the tape transport

and heads are stationary most of the time.

This significantly reduces the need for head

maintenance. The second advantage is multiple

protection. In the unlikely event that the DV tape drive

fails, recording continues onto the HDD. Conversely, if

the HDD fails, recording continues on the DV tape.

APC (Adaptive Picture Control)

As the recording heads of VCRs become worn after

extended use the picture quality will deteriorate unless

the recording current is adjusted accordingly. All Sony

SVT time-lapse VCRs have an APC (Adaptive Picture

Control) function which automatically detects the

condition of the recording head and the video cassette

tape, then sets the optimum record head current. With

conventional recorders the recording current is preset at

a constant level, which results in an excessive recording

signal as the VCR heads become worn. This is called

over-modulation. APC maintains the recording current at

the ideal level, preventing over-modulation and therefore

recording clear pictures even after long periods of use.

RealAction Recording (SVT-L230P)

The SVT-L230P time lapse VCR features RealAction high

density recording. For example, conventional time lapse

VCRs record only 5.5 fields per second in 24 hour

recording mode. However, Sony RealAction technology

allows recording of 16.6 fields per second - three times

as much information. This recording density ensures

smooth, natural recording of even fast moving objects.

Time

Recording Current

(A)

Conventional VCR

Time

*1 *3

Recording Current

VCR with APC

*1 Ideal recording current *1 Ideal recording current

*2 Preset recording current *3 APC recording current

(A) Excessive recording current

(over-modulation)

RealAction recording 16.6 fields/sec.

Normal time-lapse recording 5.5 fields/sec.

DV Tape Drive

Hard Disk Drive

DV Signal Transfer

<HSR-1 Recording Process>

Technologies - The Sony Advantage

SSC-DC50AP/54AP/58AP

1/2-inch Exwave HAD CCD

High resolution

Smart Control

DC 12 V or multiplexing with YS-W150P/W250P

(SSC-DC50AP)

AC 24 V, 50 Hz (SSC-DC54AP)

AC 220 to 240 V, 50 Hz (SSC-DC58AP)

SSC-CX34P

1/3-inch Hyper HAD CCD

Built-in 12x zoom lens

Remote lens control capability

High resolution

Smart Control

Quick Reference

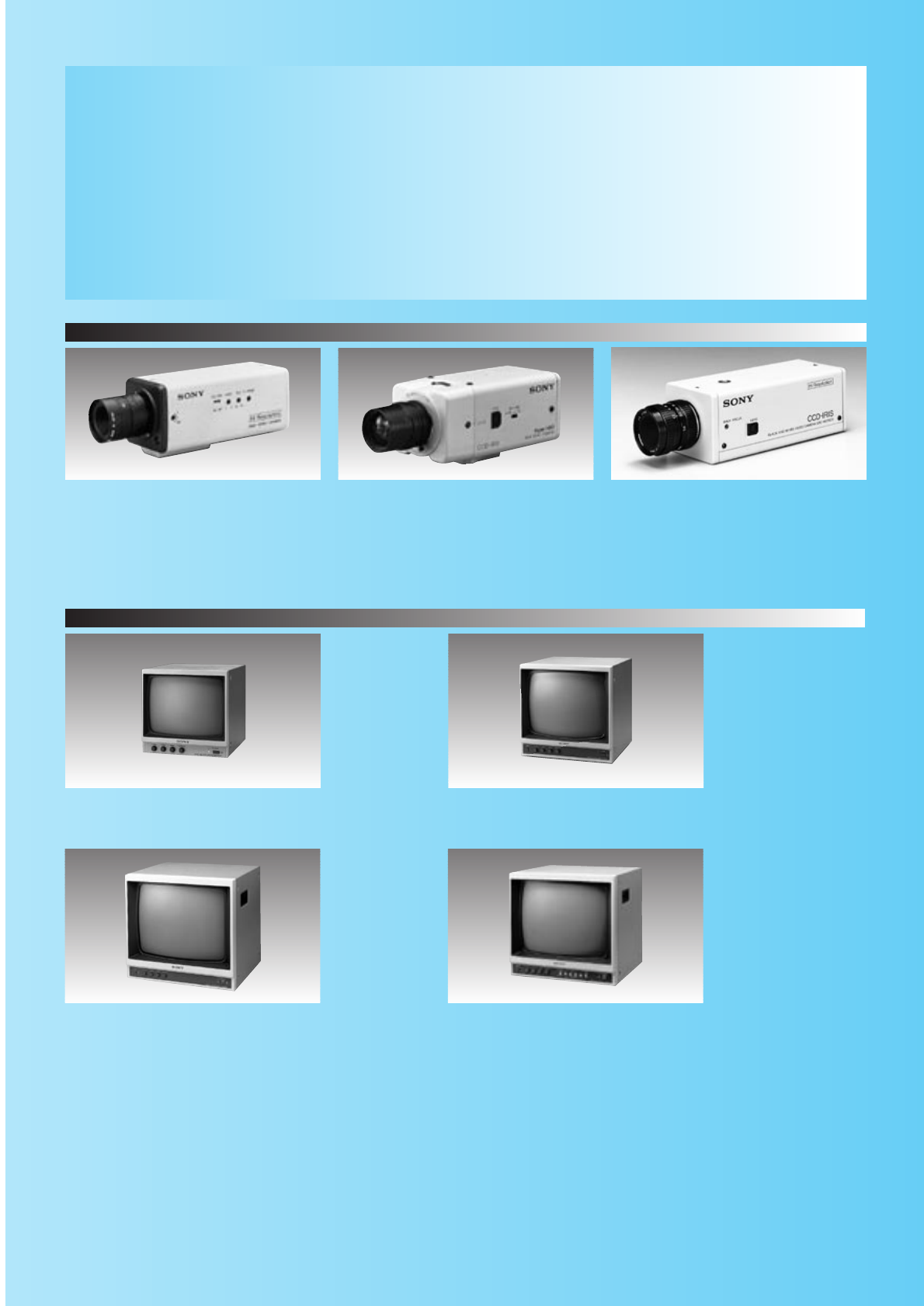

COLOUR CAMERAS AND MONITORS

The selection of high quality surveillance cameras and monitors from Sony is better than

ever. Sony cameras now incorporate more features and superior technology such as the

highly sensitive Exwave HAD CCD used in the SSC-DC50AP series cameras.

Sony monitors use the Emmy award winning Trinitron technology, providing clearly

defined, high quality images that are vital for effective surveillance.

SSC-DC10P/DC14P/DC18P

1/3-inch Hyper HAD CCD

High resolution

Smart control

DC 12 V or multiplexing with YS-W150P/W250P

(SSC-DC10P)

AC 24 V, 50 Hz (SSC-DC14P)

AC 220 to 240 V, 50 Hz (SSC-DC18P)

SSC-C108P/C104P

1/3-inch Hyper HAD CCD

High S/N ratio

AC 220 to 240 V, 50 Hz (SSC-DC108P)

AC 24 V, 50 Hz (SSC-DC104P)

SSM-9040P

Trinitron 9-inch monitor

Colour Cameras

Colour Monitors

SSC-C370P

1/2-inch Hyper HAD CCD

High resolution

DC12 V or multiplexing with YS-W150P/W250P

SSM-14N5E/14N5A

Trinitron 14-inch monitor

High resolution

SSM-20N5E/20N5A

Trinitron 20-inch monitor

High resolution

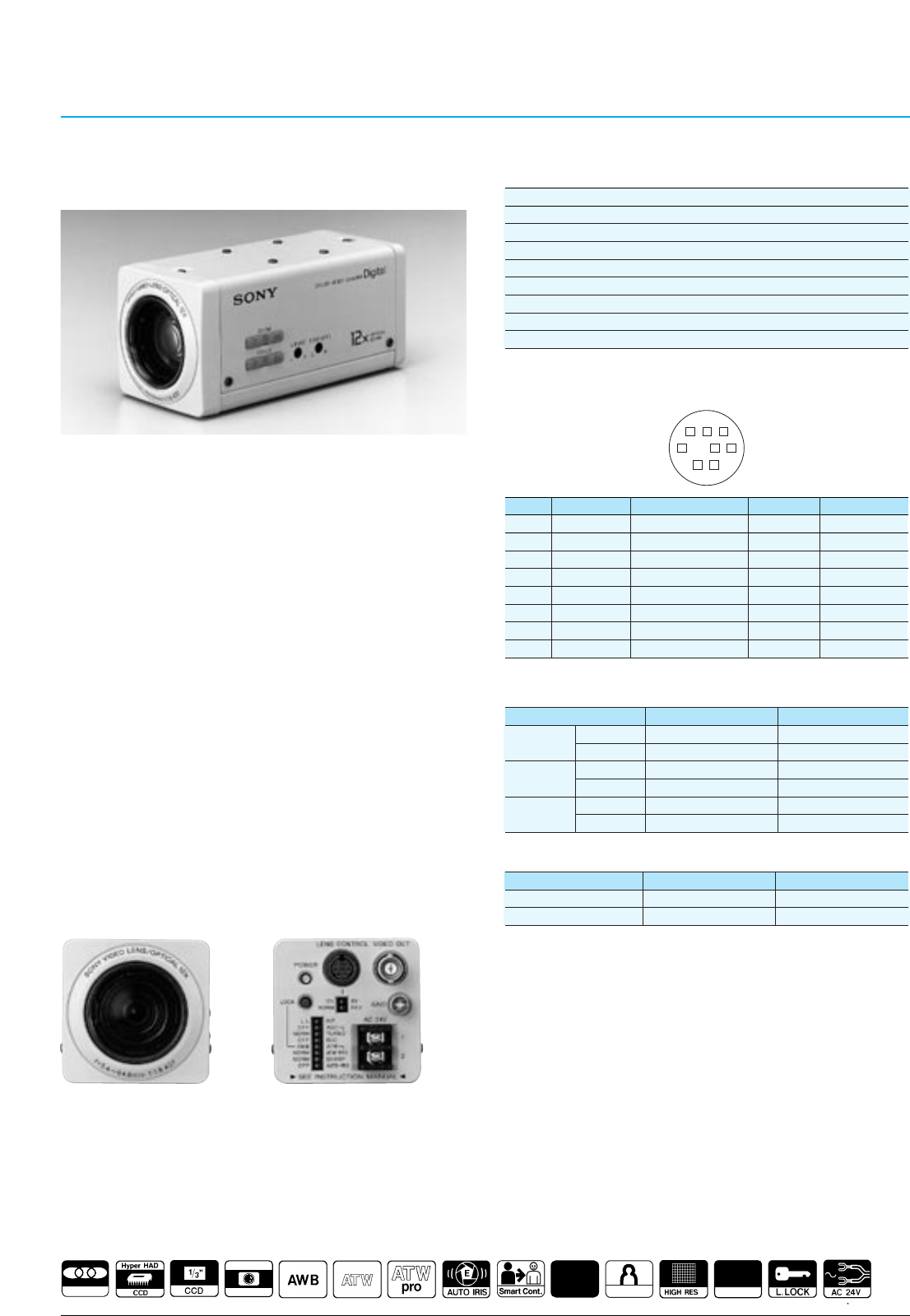

COLOUR VIDEO CAMERAS

Built-in Zoom Lens Colour Video Camera

SSC-CX34P

•Especially designed for surveillance applications

•Built-in 12x switchable motorized/auto iris zoom lens

with zoom/focus preset capabilities

•The lens zoom, focus and iris functions can be remotely

controlled from an external controller/receiver

(Lens control voltage, ±6 V or ±12 V is selectable)

•

Digitally-controlled Smart Control function provides

intelligent and flexible automatic backlight compensation

•High density 1/3-inch IT Hyper HAD CCD offers a high

resolution of 470 TV lines and high sensitivity with a

minimum illumination of 4.5 lx at F1.8 (50 IRE)

•Excellent signal-to-noise ratio of 50 dB

•Extra gain with Turbo AGC function, providing 6 dB

more gain than conventional AGC

•Aperture/Sharp Mode makes object outlines sharper in

the reproduced picture

•Three alternative automatic white balance control

modes: AWB (Auto White Balance) by one push /ATW

(Auto Tracing White Balance)/ATWpro

•New ATWpro mode ensures reliable white balance

control based on the absolute colour temperature of the

object (The effective operational colour range is 2500 K

to 6000 K)

Supplied Accessories

Tripod adaptor (1)

Lens control cable (1)

Operation manual (1)

Lens Connector Information

3. Position Output Motion

Position voltage increase Position voltage decrease

Zoom Position output 3-pin

Tele side Wide side

Focus Position output 5-pin

Far side Near side

2. Lens Motion by NORM/REV switch

Switch NORM position Switch REV position

Focus In + Voltage Far Near

6-pin - Voltage Near Far

Zoom In + Voltage Wide Tele

7-pin - Voltage Tele Wide

Iris In + Voltage Close Open

8-pin - Voltage Open Close

Front Panel Rear Panel

876

543

1. Pin Assignments

Lens: 12 x zoom (f = 5.4 mm ~ 64.8 mm) (F1.8 to 2.7)

Angle of view (horizontal): 48.8°(Wide) ~ 4.3°(Tele)

Angle of view (vertical): 37.6°(Wide) ~ 3.3°(Tele)

Maximum object distance: 10 mm (Wide), 800 mm (Tele)

Focus: Manual

Lens control voltage: 6 V or 12 V selectable

Voltage polarity: NORMAL or REVERSE switchable

Focus/Iens control:

Preset function from external remote control system

Auto iris: ON/OFF switchable

Built-in Zoom Lens Specifications

Pin number

Name Meaning

Voltage spec

Supplied Cable Colour

Preset +

V1 = + Power for preset

12 Vp-p maximum

Red

Preset -

V2 = - Power for preset

12 Vp-p maximum

White

Zoom Position Out Zoom position voltage output

V2 to V1

Black

GND

––

Yellow

Focus Position Out Focus position voltage output

V2 to V1

Blue

Focus In

Focus control voltage input -12 V to +12 V

Green

Zoom In

Zoom control voltage input -12 V to +12 V

Brown

Iris In*

Iris control voltage input -12 V to +12 V

Grey

*Note: If Iris is in auto mode, this voltage control is not accepted.

COLOUR

BUILT-IN LENS

X12

Turbo

AGC

APERTURE

±6V/±12V DC

w/potentiometer

EXT. LENS CONT.

COLOUR VIDEO CAMERAS

SSC-CX34P Typical System

Time Lapse VCR

SSC-CX34P

Colour Video Monitor

Pan/Tilt & Lens Controller

Pan/Tilt

Lens control

(Voltage)

VIDEO OUT

(Coaxial cable)

AC outlet

Pan/Tilt control

SSC-CX34P

Colour Video Monitor

Pan/Tilt

SSC-CX34P

Pan/Tilt

SSC-CX34P

Pan/Tilt

SSC-CX34P

Pan/Tilt

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

AC 24V

Digital

OPTICAL

ZOOM 12X

Digital

OPTICAL

ZOOM 12X

Digital

OPTICAL

ZOOM 12X

Digital

OPTICAL

ZOOM 12X

Digital

OPTICAL

ZOOM 12X

System Controller

(Twisted Pair)

Control

RS-485

AC 24V

Receiver

(Preset type)

AC 24V

Receiver

AC 24V

Receiver

AC 24V

Receiver

Lens control

(Voltage)

VIDEO OUT (Coaxial cable)

AC outlet

Pan/Tilt control

Lens control

(Voltage)

VIDEO OUT (Coaxial cable)

Pan/Tilt control

Lens control

(Voltage)

VIDEO OUT (Coaxial cable)

Pan/Tilt control

Lens control

(Voltage)

VIDEO OUT (Coaxial cable)

Pan/Tilt control

AC outlet

RS-485

1.Analogue Pan/Tilt and Lens Controller System

2.Twisted Pair System

COLOUR

5600K

8 AREA

AE SPOT

Turbo

AGC

APERTURE

Exwave

COLOUR VIDEO CAMERAS

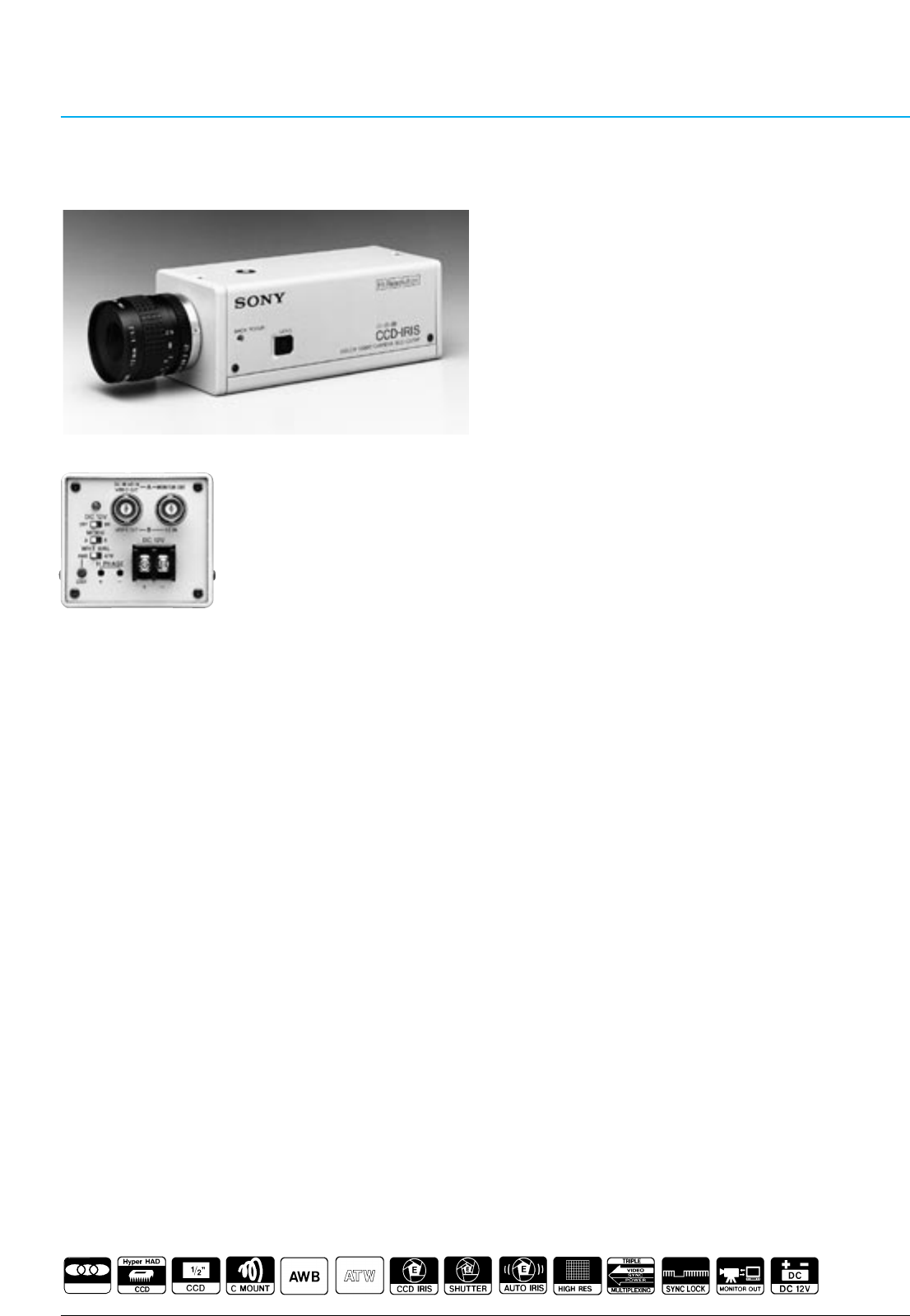

CCD Colour Video Camera

SSC-DC50AP/DC54AP/DC58AP

SSC-DC50AP SSC-DC50AP SSC-DC50AP

SSC-DC54AP/58AP

•Especially designed for surveillance applications

•High density 1/2-inch IT Exwave HAD CCD offers

excellent sensitivity with a minimum illumination of 0.8 lx

at F1.2 (50 IRE), very low smear, and high resolution of

470 TV lines.

•

Digitally

controlled Smart Control function provides

intelligent and flexible automatic backlight compensation

•For faster backlight compensation, the detection area

can be preset

•Excellent signal-to-noise ratio of 50 dB

•Y/C output capability

•Extra gain with Turbo AGC function, providing 6 dB

more gain than conventional AGC

•Aperture/Sharp Mode makes object outlines sharper in

the reproduced picture

•Four alternative white balance control modes: AWB

(Auto White Balance) by one push/ATW (Auto Tracing

White Balance)/ATW pro/5600 K

•New ATW pro mode ensures reliable white balance

control based on the absolute colour temperature of the

object (The effective operational colour range is 2500 K

to 6000 K)

•Variable speed electronic shutter

•Accepts 2 types of auto iris lenses

(DC servo type/Video servo type)

•Accepts C/CS-mount lenses

Exclusive features for SSC-DC50AP

•External synchronization with VBS or VS

•Single cable operation (video/sync/power triple

multiplex transmission) for easy installation with the

optional YS-W150P/W250P Camera Adaptor (Mode A)

•Monitor out function for on-the-spot camera positioning

(Mode A)

•12 V DC power supply can also be used (Mode B)

Exclusive features for SSC-DC54AP/DC58AP

•External synchronization with VBS, VS or AC line lock

•AC power operation: AC24 V (DC54AP), AC220-240 V

(DC58AP)

Supplied Accessories

Lens connector (1)

Lens mount cap (1)

Operation manual (1)

Optional Accessories

Camera Adaptor (for SSC-DC50AP only) YS-W150P, YS-W250P

Manual Iris Lens VCL-S03XM (3.6 mm, F1.6)

VCL-S06XM (6.0 mm, F1.2)

VCL-S12XM (12 mm, F1.2)

Auto Iris Lens VCL-S03XEA (3.6 mm, F1.6)

VCL-S06XEA (6.0 mm, F1.2)

VCL-S12XEA (12 mm, F1.2)

Aspherical Auto Iris Lens

VCL-3ADXEA (3.8 mm, F0.8)

SSC-DC50AP SSC-DC54AP

Rear Panel

No.2

No.1No.0

No.3

No.4 No.5

No.6 No.7

SSC-DC54AP SSC-DC58AP

•Selectable eight detection area

Lens shown is an option

SSC-DC58AP

VIDEO OUT

Time Lapse VCR

(ex.SVT-S3050P)

AC 24 V

power supply

AC outlet

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

1. Triple multiplexing operation (SSC-DC50AP)

2. AC line lock operation (SSC-DC54AP/SSC-DC58AP)

3. VBS lock operation (SSC-DC50AP: DC 12 V/SSC-DC54AP: AC 24 V/SSC-DC58AP: AC 220-240 V)

4. Y/C output operation (SSC-DC50AP: DC 12 V/SSC-DC54AP: AC 24 V/SSC-DC58AP: AC 220-240 V)

SSC-DC50AP

(Coaxial cable)

AC outlet

Camera Adaptor

(YS-W250P)

Multiplexer

(ex.YS-DX316P)

VIDEO OUT VIDEO IN

VIDEO OUT

(Coaxial cable)

Time Lapse VCR

(ex.SVT-L230P)

DC POWER,

SYNC,VIDEO

DC POWER,

SYNC,VIDEO

DC POWER,

SYNC,VIDEO

DC POWER,

SYNC,VIDEO

(ex.SSM-20N5E)

Colour Video Monitor

VIDEO OUT

Distributor

VIDEO OUT

Splitter

SYN

VBS IN VIDEO OUT

VIDEO OUT

Y/C OUT Y/C OUT Y/C OUT

Colour Video Printer

(ex. UP-2300P)

SSC-DC50AP/DC54AP/DC58AP

SSC-DC58AP

SSC-DC54AP

(ex.SSM-20N5E)

Colour Video Monitor

(ex.SSM-20N5E)

Colour Video Monitor

(ex.SSM-20N5E)

Colour Video Monitor

Multiplexer

(ex.YS-DX316P) MONITOR OUT

(Coaxial cable)

MONITOR OUT

(Coaxial cable)

VIDEO OUT VIDEO IN

Time Lapse VCR

(ex.SVT-L230P)

(ex.SSM-20N5E)

Colour Video Monitor

(ex.SSM-20N5E)

Colour Video Monitor

Digital

AC outlet

AC outlet*

COLOUR VIDEO CAMERAS

SSC-DC50AP/DC54AP/DC58AP Typical Systems

Please see page 19, also.

*The SSC-DC50AP operates from a DC 12 V power supply,

the SSC-DC54AP from a AC 24 V power supply,

and the SSC-DC58AP from AC 220 to 240 V.

COLOUR VIDEO CAMERAS

COLOUR

Turbo

AGC

APERTURE

CCD Colour Video Camera

SSC-DC10P

SSC-DC10P SSC-DC10P

SSC-DC10P

Supplied Accessories

Lens connector (1)

Lens mount cap (1)

Operation manual (1)

Optional Accessories

Camera adaptor YS-W150P, YS-W250P

Auto iris lens VCL-4V8WEA (3.5 to 8.0 mm, F1.4)

VCL-S02WEAP (2.8 mm, F1.3)

Aspherical auto iris lens

VCL-3ADXEA (3.8 mm, F0.8)

SSC-DC14P/DC18P Supplied Accessories

Lens connector (1)

Lens mount cap (1)

Operation manual (1)

SSC-DC14P/DC18P Optional Accessories

Auto iris lens VCL-4V8WEA (3.5 to 8.0 mm, F1.4)

VCL-S02WEAP (2.8 mm, F1.3)

Aspherical auto iris lens

VCL-3ADXEA (3.8 mm, F0.8)

SSC-DC14P SSC-DC18P

CCD Colour Video Camera

SSC-DC14P/DC18P

SSC-DC18PSSC-DC14P

Rear Panel

•Especially designed for surveillance applications

•

Digitally-controlled Smart Control function provides

intelligent and flexible automatic backlight compensation

•High density 1/3-inch IT Hyper HAD CCD offers a high

resolution of 470 TV lines and high sensitivity with a

minimum illumination of 1.7 lx at F1.2 (50 IRE)

•Excellent signal-to-noise ratio of 50 dB

•Extra gain with Turbo AGC function, providing 6 dB

more gain than conventional AGC

•Aperture/Sharp Mode makes object outlines sharper in

the reproduced picture

•Two alternative automatic white balance control modes:

ATW (Auto Tracing White Balance)/ATW pro

•New ATWpro mode ensures reliable white balance

control based on the absolute colour temperature of the

object (The effective operational colour range is 2500 K

to 6000 K)

•Accepts 2 types of auto iris lenses

(DC servo type/Video servo type)

•Accepts C/CS-mount lenses

•External synchronization with VS

•Single cable operation (video/sync/power triple

multiplex transmission) for easy installation with the

optional YS-W150P/W250P Camera Adaptor (Mode A)

•Monitor out function for on-the-spot camera positioning

(Mode A)

•12 V DC power supply can

also be used (Mode B)

Rear Panel

•Especially designed for surveillance applications

•

Digitally-controlled Smart Control function provides

intelligent and flexible automatic backlight compensation

•High density 1/3-inch IT Hyper HAD CCD offers a high

resolution of 470 TV lines and high sensitivity with a

minimum illumination of 1.9 lx at F1.2 (50 IRE)

•Excellent signal-to-noise ratio of 50 dB

•Extra gain with Turbo AGC function, providing 6 dB

more gain than conventional AGC

•Aperture/Sharp Mode makes object outlines sharper in

the reproduced picture

•Two alternative automatic white balance control modes:

ATW (Auto Tracing White Balance)/ATW pro

•

New ATWpro mode ensures reliable white balance control

based on the absolute colour temperature of the object

(The effective operational colour range is 2500 K to 6000 K)

•Accepts 2 types of auto iris lenses

(DC servo type/Video servo type)

•Accepts C/CS-mount lenses

•External synchronization with AC Line Lock

•

Selection of power source:

AC 24 V for SSC-DC14P

AC 220 to 240 V for SSC-DC18P

Lens shown is an option Lens shown is an option

SSC-DC14P/

DC18P

COLOUR VIDEO CAMERAS

CCD Colour Video Camera

SSC-C108P/C104P •Especially designed for surveillance applications

•1/3-inch IT Hyper HAD CCD offers extremely high

sensitivity with a minimum illumination of 0.9 lx at F1.2

(50 IRE)

•Excellent signal-to-noise ratio of 52 dB

•Automatic backlight compensation

•Turbo AGC function gives extra gain for low light

conditions

•CCD IRIS function allows use of inexpensive manual iris

lenses

•ATW (Auto Tracing White Balance) control for white

balance adjustment

•Accepts 2 types of auto iris lenses (DC servo

type/Video servo type)

•Accepts both C/CS-mount lenses

•External synchronization with AC Line Lock

•AC power operation: AC220 to 240 V, 50 Hz

(SSC-C108P)/AC 24 V (SSC-C104)

Supplied Accessories

Lens connector (1)

Lens mount cap (1)

Operation manual (1)

Optional Accessories

Auto iris lens VCL-4V8WEA (3.5 to 8.0 mm, F1.4)

VCL-S02WEAP (2.8 mm, F1.3)

Aspherical auto iris lens

VCL-3ADXEA (3.8 mm, F0.8)

SSC-C104PSSC-C108P

SSC-C108P SSC-C104P Rear Panel

Lens shown is an option

COLOUR

Turbo

AGC

BLC

COLOUR VIDEO CAMERAS

CCD Colour Video Camera

SSC-C370P •Especially designed for surveillance applications

•High density 1/2-inch IT Hyper HAD CCD offers a high

resolution of 470 TV lines and high sensitivity with a

minimum illumination of 2.5 lx at F1.2 (50 IRE)

•Excellent signal-to-noise ratio of 48 dB

•CCD IRIS function allows use of inexpensive manual iris

lenses

•Two alternative automatic white balance control modes:

AWB (Auto White Balance)/ATW (Auto Tracing White

Balance)

•Variable speed electronic shutter

Shutter speeds – 1/50, 1/120, 1/250, 1/500, 1/1000,

1/2000, 1/4000, 1/10000 (seconds)

•Accepts C-mount lenses

•External synchronization with VS

•Single cable operation (video/sync/power triple

multiplex transmission) for easy installation with the

optional YS-W150P/W250P Camera Adaptor (Mode A)

•Monitor out function for on-the-spot camera positioning

(Mode A)

•12 V DC power supply can also be used (Mode B)

Rear Panel Supplied Accessories

Lens connector (1)

Lens mount cap (1)

Operation manual (1)

Optional Accessories

Camera adaptor YS-W150P, YS-W250P

Manual iris lens VCL-S03XM (3.6 mm, F1.6)

VCL-S06XM (6.0 mm, F1.2)

VCL-S12XM (12 mm, F1.2)

Auto iris lens VCL-S03XEA (3.6 mm, F1.6)

VCL-S06XEA (6.0 mm, F1.2)

VCL-S12XEA (12 mm, F1.2)

Lens shown is an option

COLOUR

AC outlet

YS-W150P

Colour Video Monitor

AC outlet

Colour Video Monitor

AC outlet

Colour Video Monitor

MONITOR OUT

(Coaxial cable)

DC POWER

SYNC,VIDEO

(Coaxial cable)

Portable Monitor

DC12 V

power supply

DC12 V

DC POWER

SYNC,VIDEO

(Coaxial cable)

YS-W250P VIDEO

OUT

(Coaxial

cable)

Multiplexer

EXT

TIMING

(Coaxial

cable)

SWITCH

OUT VIDEO

Time Lapse VCR

AC 24 V

power supply

AC 24 V

Colour Video Monitor

EXT

TIMING IN

(Coaxial cable)

SWITCH

OUT VIDEO

Time Lapse VCR

Colour Video Monitor

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

DC POWER

SYNC,VIDEO

(Coaxial cable)

DC POWER

SYNC,VIDEO

(Coaxial cable)

DC POWER

SYNC,VIDEO

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

AC 24 V

power supply

AC outlet

Colour Video Monitor

AC outlet

VIDEO OUT

(Coaxial cable)

EXT

TIMING IN

(Coaxial cable)

SWITCH

OUT VIDEO

Time Lapse VCR

Colour Video Monitor

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

AC outlet

Multiplexer

MONITOR OUT

(Coaxial cable)

MONITOR OUT

(Coaxial cable)

MONITOR OUT

(Coaxial cable)

COLOUR VIDEO CAMERAS

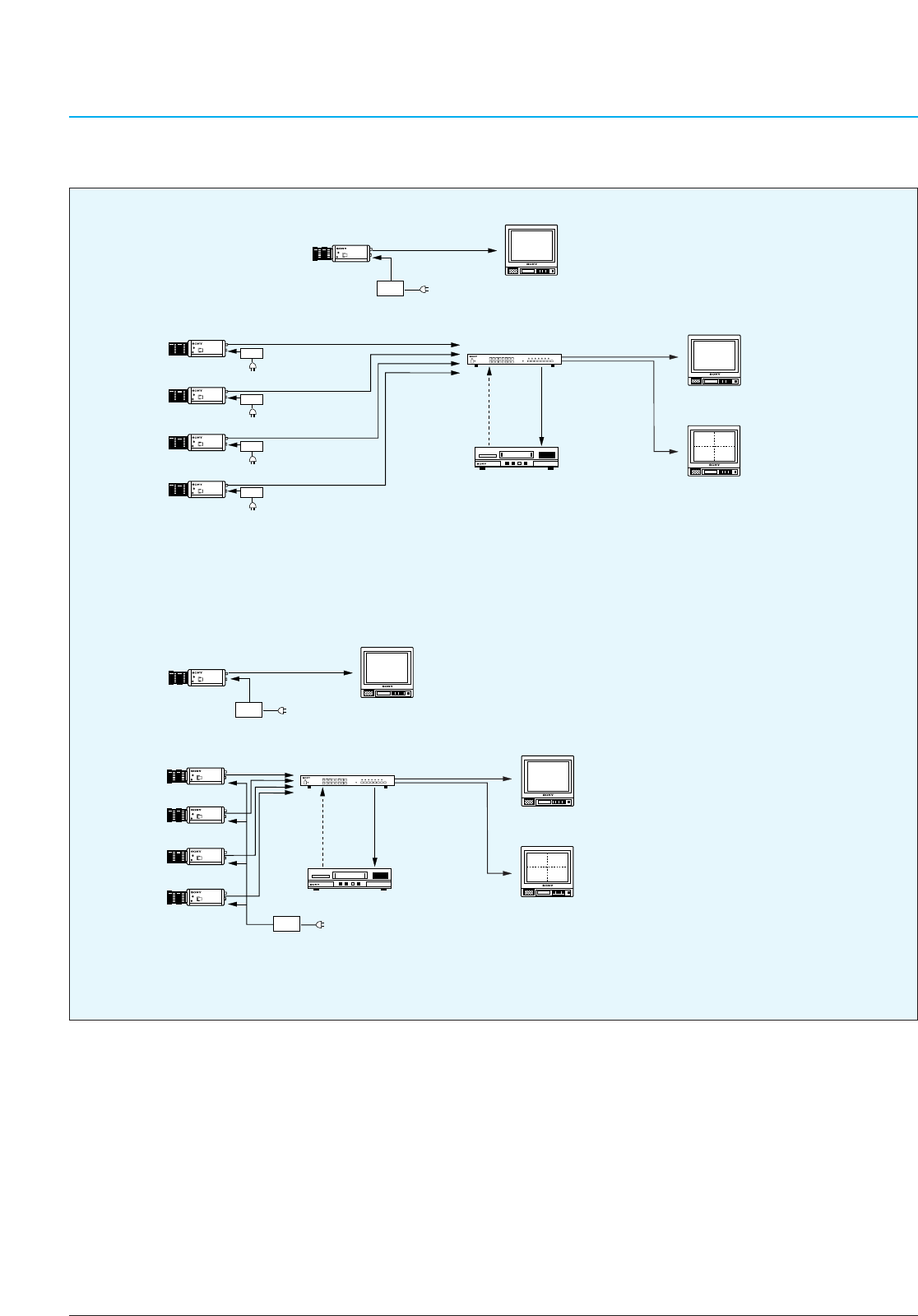

Colour Cameras Typical System (SSC series)

1.Single camera operation

2.Multiple camera operation

(a) Mode A: Triple multiplexing operation

(b) Mode A: DC 12 V operation

SSC-DC50AP/DC10P/C370P

1.Single camera operation

SSC-DC58AP/DC18P/C108P

1.Single camera operation

SSC-DC54AP/DC14P/C104P

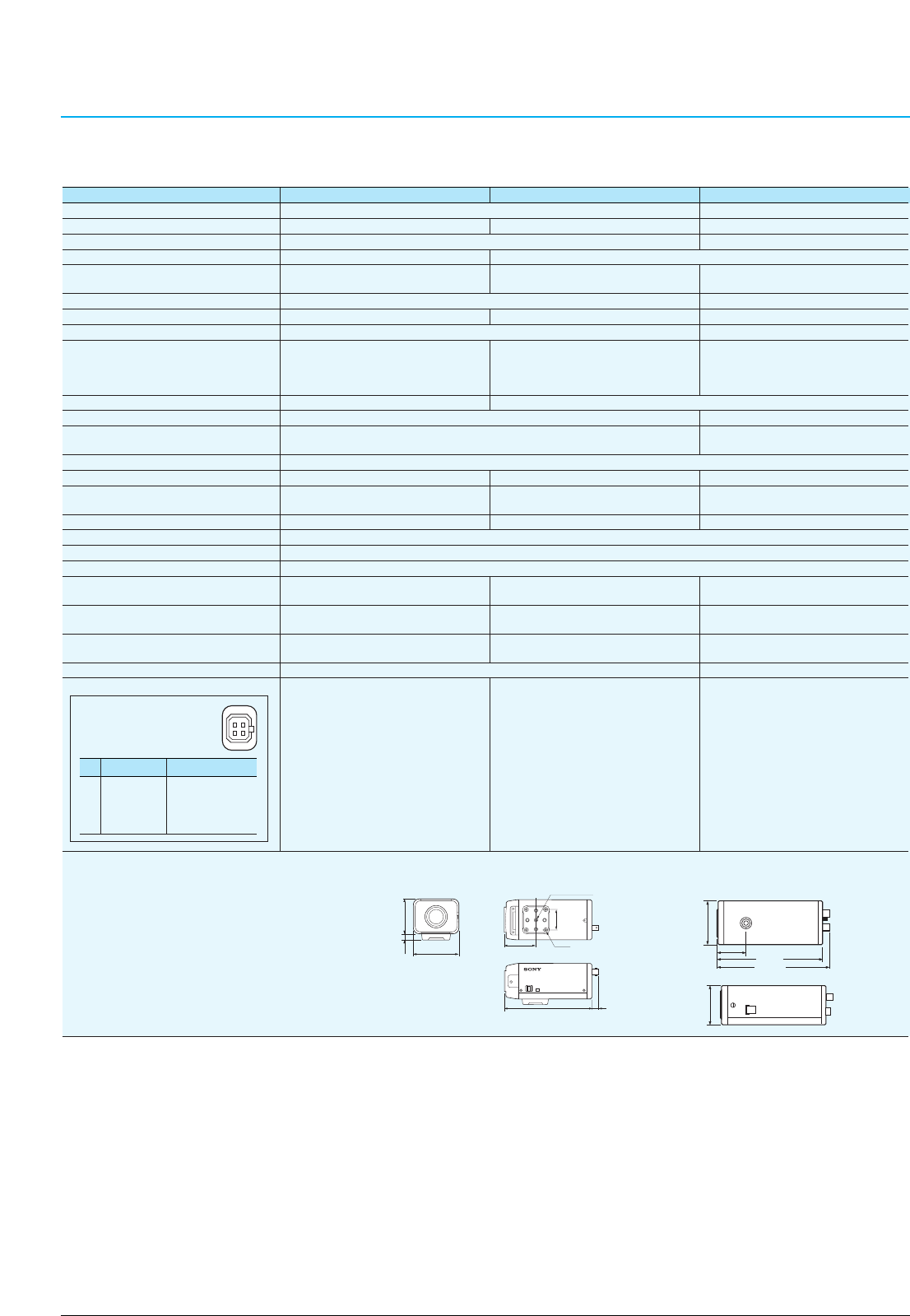

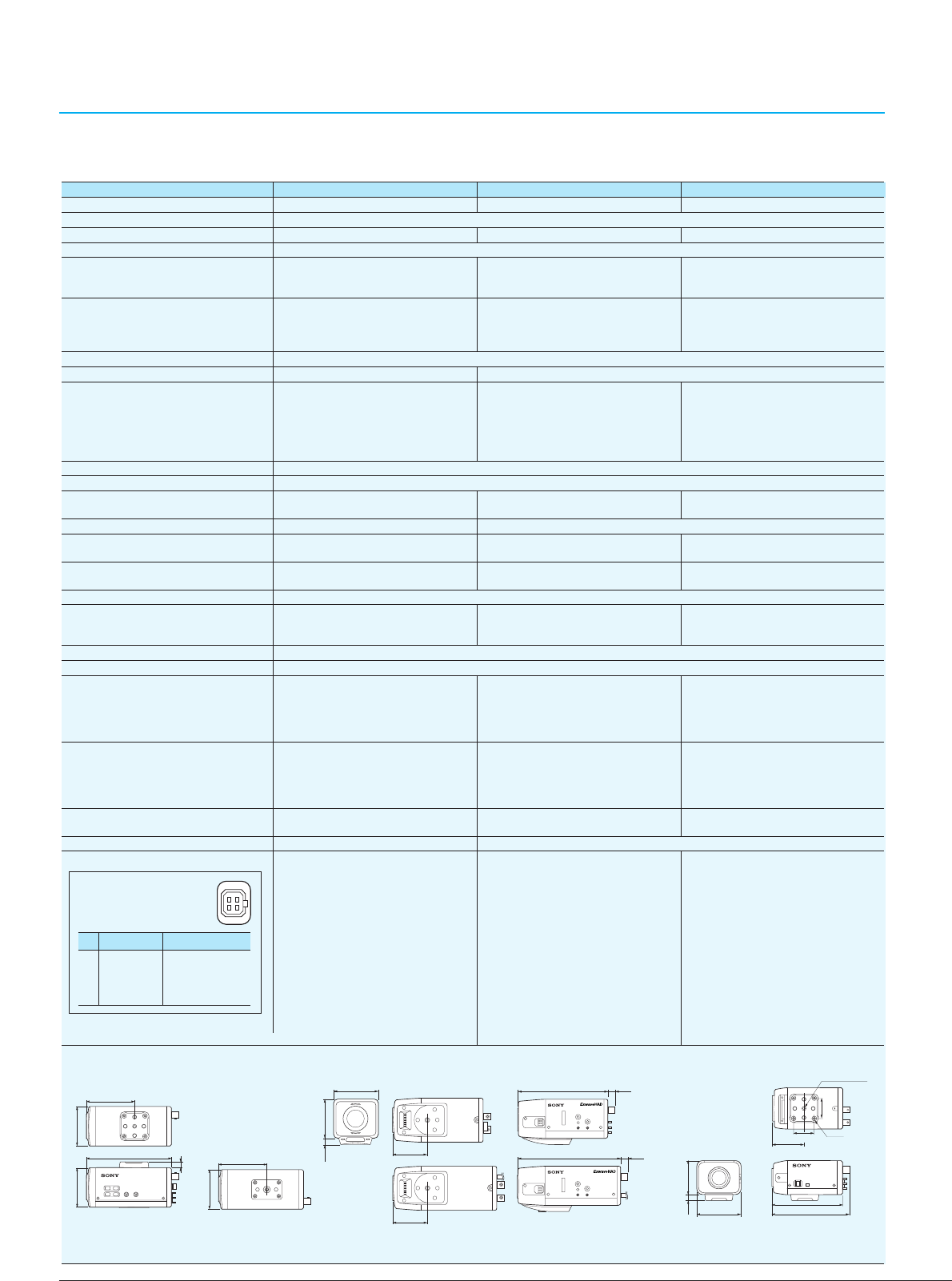

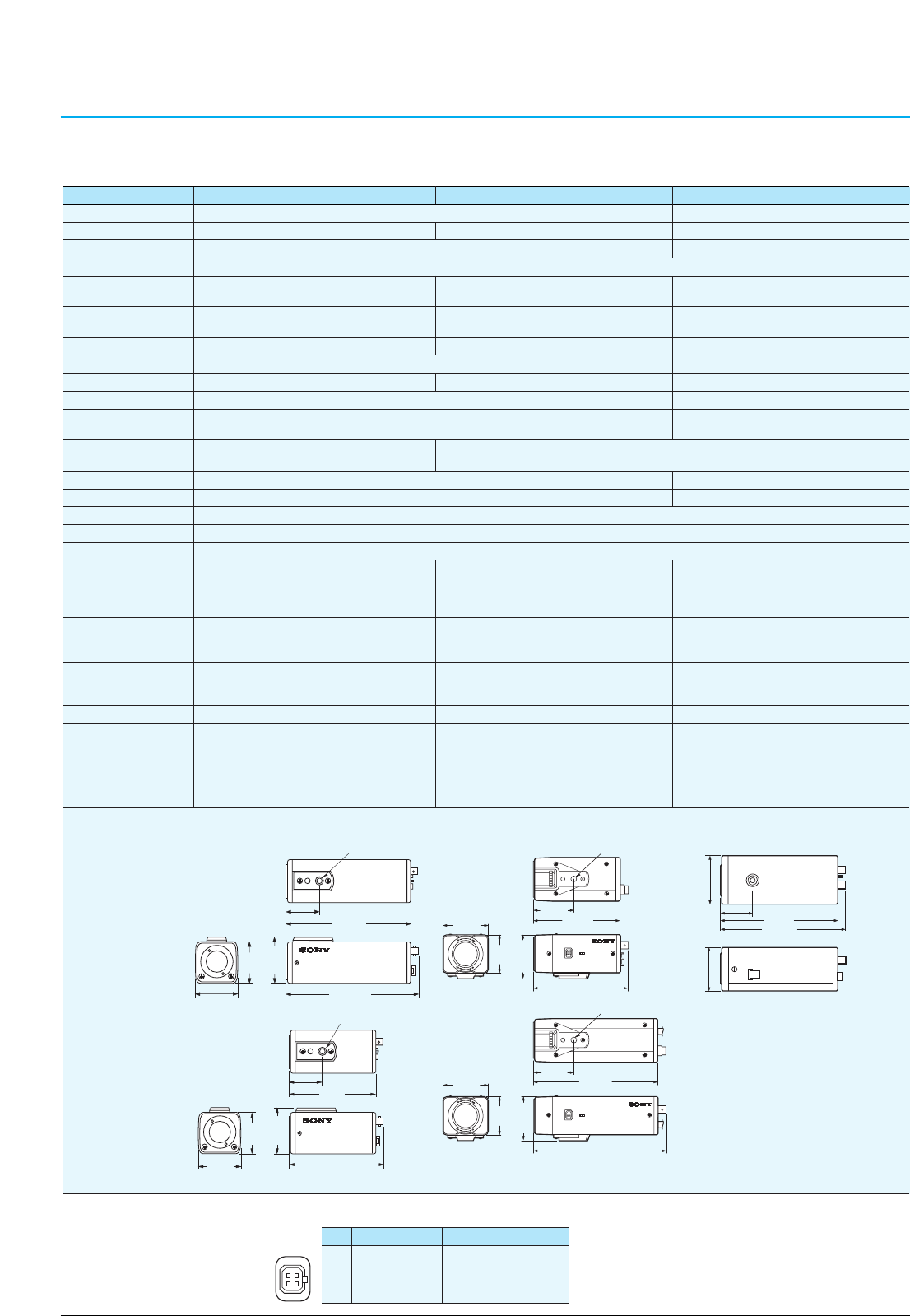

SSC-CX34P SSC-DC50AP/54AP/58AP SSC-DC10P

Image device:

1/3-inch Interline Transfer Hyper HAD CCD

1/2-inch Interline Transfer Exwave HAD CCD

1/3-inch Interline Transfer Hyper HAD CCD

Picture elements: 752 (H) x 582 (V)

Sensing area: 4.4 x 3.3 mm 6.3 x 4.7 mm 4.4 x 3.3 mm

Signal system: PAL standard

Sync system: Internal or external with AC line lock

DC50AP: Internal or external with VBS/VS or MPX-VS

Internal or external with VS/VBS* or MPX-VS

DC54AP/58AP:

Internal or external with VBS/VS or AC line lock

Phase control: V phase adjustment (±90°) H/SC phase adjustment H phase adjustment (±0.25 H)

(H phase: ±0.12 H, SC phase: 360° with 0/180° switch)

V phase adjustment (±90°) for AC line lock

(SSC-DC54AP/58AP only)

Horizontal resolution: 470 TV lines

Lens mount: Built-in 12x zoom lens C/CS-mount adjustable

Minimum illumination: AGC ON (TURBO mode) AGC ON (TURBO mode) AGC ON (TURBO mode)

2.4 lx at F1.8 (30 IRE) 0.4 lx at F1.2 (30 IRE) 1.1 lx at F1.2 (30 IRE)

4.5 lx at F1.8 (50 IRE) 0.8 lx at F1.2 (50 IRE) 1.7 lx at F1.2 (50 IRE)

15 lx at F1.8 (100 IRE) 3.0 lx at F1.2 (100 IRE) 10 lx at F1.2 (100 IRE)

*Equivalent with 1.1 lx at F1.2 fixed lens (30 IRE),

2.0 lx at F1.2 (50 IRE), 6.7 lx at F1.2 (100 IRE)

Aperture sharp mode: SHARP/NORMAL switchable

Automatic gain control (AGC): TURBO/NORMAL/OFF switchable

Electronic shutter: Not applicable

1/50, 1/120, 1/250, 1/500, 1/1000,

Not applicable

1/2000, 1/4000, 1/10000 (seconds)

CCD IRIS control: — ON/OFF switchable, 1/50 to 1/100000 (second)

White balance:

ATWpro/ATW/AWB (one-push) switchable

ATWpro/ATW/AWB (one-push)/ ATWpro/ATW switchable

5600 K switchable

Backlight compensation: Smart Control

Smart Control (Digital BLC ON/OFF

Smart Control

(Digital BLC ON/OFF switchable)

switchable, eight AE spot is selectable)

(Digital BLC ON/OFF switchable)

Signal-to-noise ratio: 50 dB (Weight ON, AGC OFF)

Video out: BNC, 1.0 Vp-p, 75 Ω, sync negative BNC: 1.0 Vp-p, 75 Ω, sync negative BNC, 1.0 Vp-p, 75 Ω, sync negative

Y/C: Y: 1.0 Vp-p, 75 Ω, sync negative

C: 0.3 Vp-p, at burst level, 75 Ω

Operating temperature: -10 to 50°C (14 to 122°F)

Storage temperature: -40 to 60°C (-40 to 140°F)

Power requirements: AC 24 V, 50 Hz DC50AP: 1) Multiplexing with YS-W150P/W250P

1) Multiplexing with YS-W150P/W250P

2) DC 12 V from DC 12 V power supply

DC54AP: AC 24 V, 50 Hz

DC58AP: AC 220 to 240 V, 50 Hz

Power consumption: 4.8 W DC50AP:

1) 4.0 W supplied from YS-W150P/W250P

1) 5.5 W supplied from YS-W150P/W250P

2) 3.0 W at DC 12 V

2) 4.5 W at DC 12 V

DC54AP: 6.0 W

DC58AP: 5.5 W

Mass: 520 g (1 lb 2 oz) DC50AP/54AP: 600 g (1 lb 5 oz) 430 g (15 oz)

DC58AP: 900 g (2 lb)

Auto iris type: — DC/VIDEO servo type

Connectors: AC 24 V terminals,

DC50P: DC 12 V terminals, LENS (4-pin)

DC 12 V terminals, LENS (4-pin)

LENS CONTROL (MIni DIN 8-pin), Mode A (Triple multiplexing operation): Mode A (Triple multiplexing operation):

VIDEO OUT (BNC), GND DC IN/VS IN/VIDEO OUT (BNC), DC IN/VS IN/VIDEO OUT (BNC),

MONITOR OUT (BNC), MONITOR OUT (BNC)

S-VIDEO OUT (Mini DIN 4-pin) Mode B (DC 12 V operation):

Mode B (DC 12 V operation): VIDEO OUT (BNC), VS IN (BNC)

VIDEO OUT (BNC), VBS/VS IN (BNC),

S-VIDEO OUT (Mini DIN 4-pin)

DC54P: AC 24 V terminals,

LENS (4-pin), VBS/VS IN (BNC),

VIDEO OUT (BNC),

S-VIDEO OUT (Mini DIN 4-pin), GND

DC58AP: LENS (4-PIN) VBS/VS IN (BNC),

VIDEO OUT (BNC),

S-VIDEO OUT (Mini DIN 4-PIN)

Dimensions:

Unit: mm (inches)

* The Burst signal is not locked

Colour Camera Specifications (SSC series)

Pin DC servo VIDEO servo

1 Control (-)

Power (DC 9 V, 50 mA)

2 Control (+) Not connected

3 Drive (+) Video

4 Drive (-) (GND) (GND)

Lens (4-pin)

72.5 (2 7/8)

60 (2 3/8)

128 (5 1/8)

9 (3/8)

Digital

60 (2 3/8)

OPTICAL

ZOOM 12X

72.5 (2 7/8)

60 (2 3/8)

Digital

64 (2 5/8)

57 (2 1/4)9 (3/8)

137 (5 1/2)10.2 (13/32)

49 (1 15/16)

Digital

162 (6 1/2)10.2 (13/32)

49 (1 15/16)

Digital

49 (1 15/16)

32 (1

)

M2x4

1/4"UNC (20pitch)

121.2 (4 3/8)

110 (4 3/8)

9 (

)57 (2

)

32 (1 5/18)

70 (2 7/8)

SSC-CX34 SSC-DC50AP/54AP/58AP SSC-DC50AP/54AP

SSC-DC58AP

SSC-DC10P

COLOUR VIDEO CAMERAS

SSC-DC14P/DC18P SSC-C108P/C104P SSC-C370P

Image device:

1/3-inch Interline Transfer Hyper HAD CCD

1/2-inch Interline Transfer Hyper HAD CCD

Picture elements: 752 (H) x 582 (V) 500 (H) x 582 (V) 752 (H) x 582 (V)

Sensing area: 4.4 x 3.3 mm 6.3 x 4.7 mm

Signal system: PAL standard

Sync system: Internal or external with AC line lock External with AC line lock Internal or external with VS/VBS* or

MPX-VS

Phase control: V phase adjustment (±90°) H phase adjustment

Horizontal resolution: 470 TV lines 330 TV lines 470 TV lines

Lens mount: C/CS-mount adjustable C-mount

Minimum illumination: AGC ON (TURBO mode) AGC ON (TURBO mode) AGC ON

1.2 lx at F1.2 (30 IRE) 0.9 lx at F1.2 (40 IRE) 2.5 lx at F1.2 (50 IRE)

1.9 lx at F1.2 (50 IRE) 1.2 lx at F1.2 (50 IRE)

13 lx at F1.2 (100 IRE)

Aperture sharp mode: SHARP/NORMAL switchable Not applicable

Automatic gain control (AGC): TURBO/NORMAL/OFF switchable ON/OFF switchable

Electronic shutter: Not applicable

1/50, 1/120, 1/250, 1/500, 1/1000,

1/2000, 1/4000, 1/10000 (seconds)

CCD IRIS control: ON/OFF switchable, 1/50 to 1/100000 (second)

White balance: ATWpro/ATW switchable ATW ATW/AWB switchable

Backlight compensation: Smart Control

Analog

BLC ON/OFF switchable —

(Digital BLC ON/OFF switchable)

Signal-to-noise ratio: 50 dB (Weight ON, AGC OFF) 52 dB (Weight ON, AGC OFF) 48 dB (AGC OFF)

Video out: BNC, 1.0 Vp-p, 75 Ω, sync negative

Operating temperature: -10 to 50°C (14 to 122°F)

Storage temperature: -40 to 60°C (-40 to 140°F)

Power requirements: DC14P: AC 24 V, 50 Hz

SSC-C108P: AC 220 to 240 V, 50 Hz

1) Multiplexing with YS-W150P/W250P

DC18P: AC 220 to 240 V, 50 Hz SSC-C104P: AC 24 V, 50 Hz

2) DC 12 V from DC 12 V power supply

Power consumption: DC14P: 4.5 W SSC-C108P: 4.0 W

4.0 W supplied from YS-W150P/W250P

DC18P: 5.5 W SSC-C104P: 3.5 W 2) 2.8 W at DC 12 V

Mass: DC14P: 550 g (1 lb 3 oz) SSC-C108P: 760 g (1 lb 11 oz) 660 g (1 lb 7 oz)

DC18P: 770 g (1 lb 11 oz) SSC-C104P: 550 g (1 lb 3 oz)

Auto iris type: DC/VIDEO servo type VIDEO servo type

Connectors: DC14P: AC 24 V terminals, VIDEO OUT (BNC), LENS (4-pin) DC 12 V terminals, LENS (4-pin)

LENS (4-pin), VIDEO OUT (BNC), GND

Mode A (Triple multiplexing operation):

DC18P: VIDEO OUT (BNC), DC IN/VS IN/VIDEO OUT (BNC),

LENS (4-pin) MONITOR OUT (BNC)

Mode B (DC 12 V operation):

VIDEO OUT (BNC), VS IN (BNC)

Dimensions:

Unit: mm (inches)

* The Burst signal is not locked

Colour Camera Specifications (SSC series)

Pin DC servo VIDEO servo

1 Control (-)

Power (DC 9 V, 50 mA)

2 Control (+) Not connected

3 Drive (+) Video

4 Drive (-) (GND) (GND)

Lens (4-pin)

40.5 (1 5/8)

64 (2 5/8)

)

155 (6 1/8)

164.9 (6 1/2)

57 (2 1/4

SSC-C370P

53 (2 1/8)

32 (1 5/16)

M2x4

1/4"UNC (20pitch)

130 (5 1/8)10.2 (13/32)

9 (

)57 (2

)

70 (2 7/8)

SSC-DC14P/DC18P/C104P/C108P

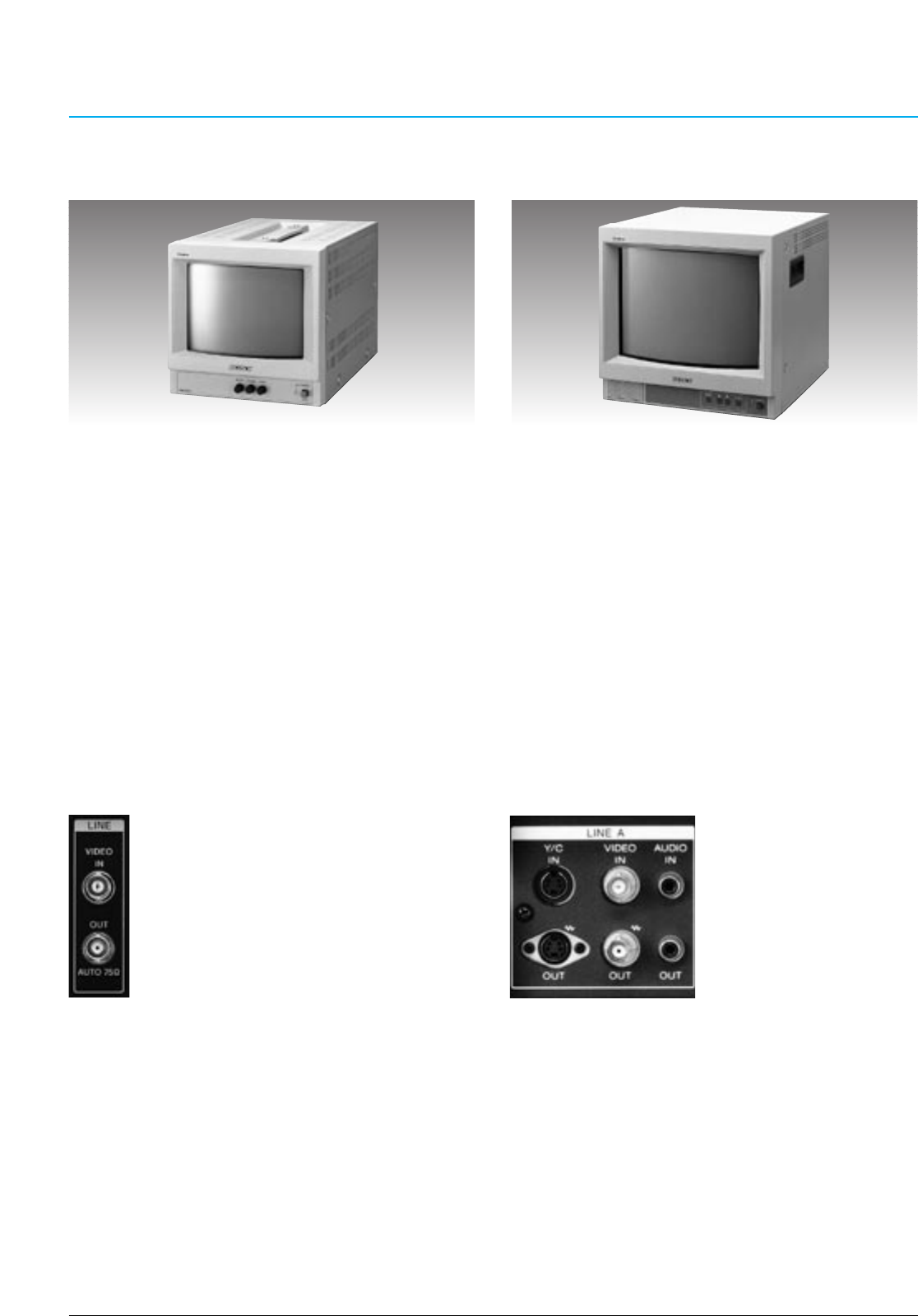

COLOUR VIDEO MONITORS

Colour Monitor

SSM-9040P

•Trinitron colour monitor especially designed for

surveillance applications

•9-inch CRT size

•Beam current feedback for stable colour temperature

•Automatic 75 Ωtermination facility

•EIA standard rack mountable using optional MB-507

rack mounting bracket

•Metal cabinet for high immunity to external electrical

and magnetic interference

Colour Monitor

SSM-14N5E/14N5A

•Trinitron colour monitor especially designed for

surveillance applications

•14-inch CRT size

•High resolution of 500 TV lines

•Beam current feedback for stable colour temperature

•Loop-through Y/C and composite video input terminals

available

•Automatic 75 Ωtermination facility

•EIA standard rack mountable using optional MB-502B

rack mounting bracket

•Metal cabinet for high immunity to external electrical

and magnetic interference

•Built-in speaker

Rear Panel Rear Panel

COLOUR VIDEO MONITORS

Colour Monitor

SSM-20N5E/20N5A

•Trinitron colour monitor specially designed for

surveillance applications

•20-inch CRT size

•High resolution of 500 TV lines

•Beam current feedback for stable colour temperature

•Loop-through Y/C and composite video input terminals

available

•Automatic 75 Ωtermination facility

•On-screen menu with a choice of five languages

•EIA standard rack mountable using optional SLR-103A

slide rail kit

•Metal cabinet for high immunity to external electrical

and magnetic interference

•Built-in speaker

Rear Panel

COLOUR VIDEO MONITORS

Specifications

SSM-9040P SSM-14N5E/14N5A SSM-20N5E/20N5A

Video signal system: CCIR 625 lines, 50 fields CCIR 625 lines, 50 fields/EIA 525 lines, 60 fields

Colour system: PAL PAL/NTSC/SECAM/NTSC4.43

(automatically selected)

Picture tube: 22 cm (9-inch) Trinitron tube, 37.1 cm (14-inch) Trinitron tube, 52.2 cm (20-inch) Trinitron tube,

visible picture size 19.7 cm (8-inch) visible picture size 33.2 cm (13-inch) visible picture size 48.1 cm (19-inch)

measured diagonally, 70 degree measured diagonally, 90 degree measured diagonally, 90 degree

deflection, AG pitch 0.5 mm deflection, AG pitch 0.25 mm deflection, AG pitch 0.4 mm

Horizontal resolution: 250 TV lines at centre 500 TV lines at centre

Frequency response: 6.0 MHz ( ) 6.0 MHz (±3.0 dB)

Normal scan: 6% overscan 7% overscan

H linearity: Less than 5% Less than 8%

V linearity: Less than 5% Less than 7%

Colour temperature: D65

Power requirements: AC 100 V to 240 V, 50/60 Hz

Power consumption: 39 W 80 W 100 W

Mass: 7.8 kg (17 lb 3 oz) 15 kg (33 lb 1 oz) 28 kg (61 lb 11 oz)

VIDEO: LINE*1Loop-through BNC 1.0 Vp-p, Loop-through BNC 1.0 Vp-p, sync negative, automatic 75 Ωtermination*2

sync negative, automatic 75 ΩLoop-through 4-pin mini DIN

termination*2Y: 1.0 Vp-p, sync negative, automatic 75 Ωtermination*2

C: 0.3 Vp-p (PAL) or 0.286 Vp-p (NTSC), automatic 75 Ωtermination*2

AUDIO: LINE — Loop-through Phono -5 dBu, high impedance

Dimensions:

Unit: mm (inches)

+1.5 dB

-3.0 dB

0 dBu=0.775 Vrms

*1The Y/C input has priority over the Composite video input.

*275 Ωtermination is automatically set to OFF when connection is made to the OUT connector.

SSM-9040P Optional Accessories

SSM-14N5E/14N5A Optional Accessories SSM-20N5E/20N5A Optional Accessory

Rack mounting bracket

MB-507 Blank panel

MB-509

Rack mounting bracket

MB-502B Slide rail kit

SLR-102 Slide rail kit

SLR-103A

217 (8

)

217 (8

)

352.5 (14)

)

346 (13

)

340 (133/8)

414 (16

)

449 (17

)

441 (173/8)

502 (19

)

SSM-14N5E/14N5ASSM-9040P SSM-20N5E/20N5A

SPT-M308CE/M304CE

1/3-inch Hyper HAD CCD

High resolution

Analog backlight compensation (BLC)

AC220 to 240 V, 50Hz (SPT-M308CE)

AC 24 V, 50 Hz (SPT-M304CE)

SPT-M122CE/M124CE/M128CE

1/3-inch Hyper HAD CCD

Analog backlight compensation (BLC)

DC12 V (SPT-M122CE)

AC 24 V, 50 Hz (SPT-M124CE)

AC220 to 240 V, 50 Hz (SPT-M128CE)

SSC-M370CE

1/2-inch Hyper HAD CCD

High resolution

DC12 V or multiplexing from YS-W150P/W250P

Black & White Cameras

Quick Reference

BLACK & WHITE CAMERAS AND

MONITORS

Sony offers a comprehensive line-up of black and white cameras and monitors,

including the new 17-inch quad monitor with a sequential switcher function.

SSM-930CE

9-inch monitor

Black & White Monitors

SSM-125CE

12-inch monitor

SSM-175CE

17-inch monitor SSM-Q177CE

17-inch quad monitor

Sequential switcher function

Alarm IN/OUT

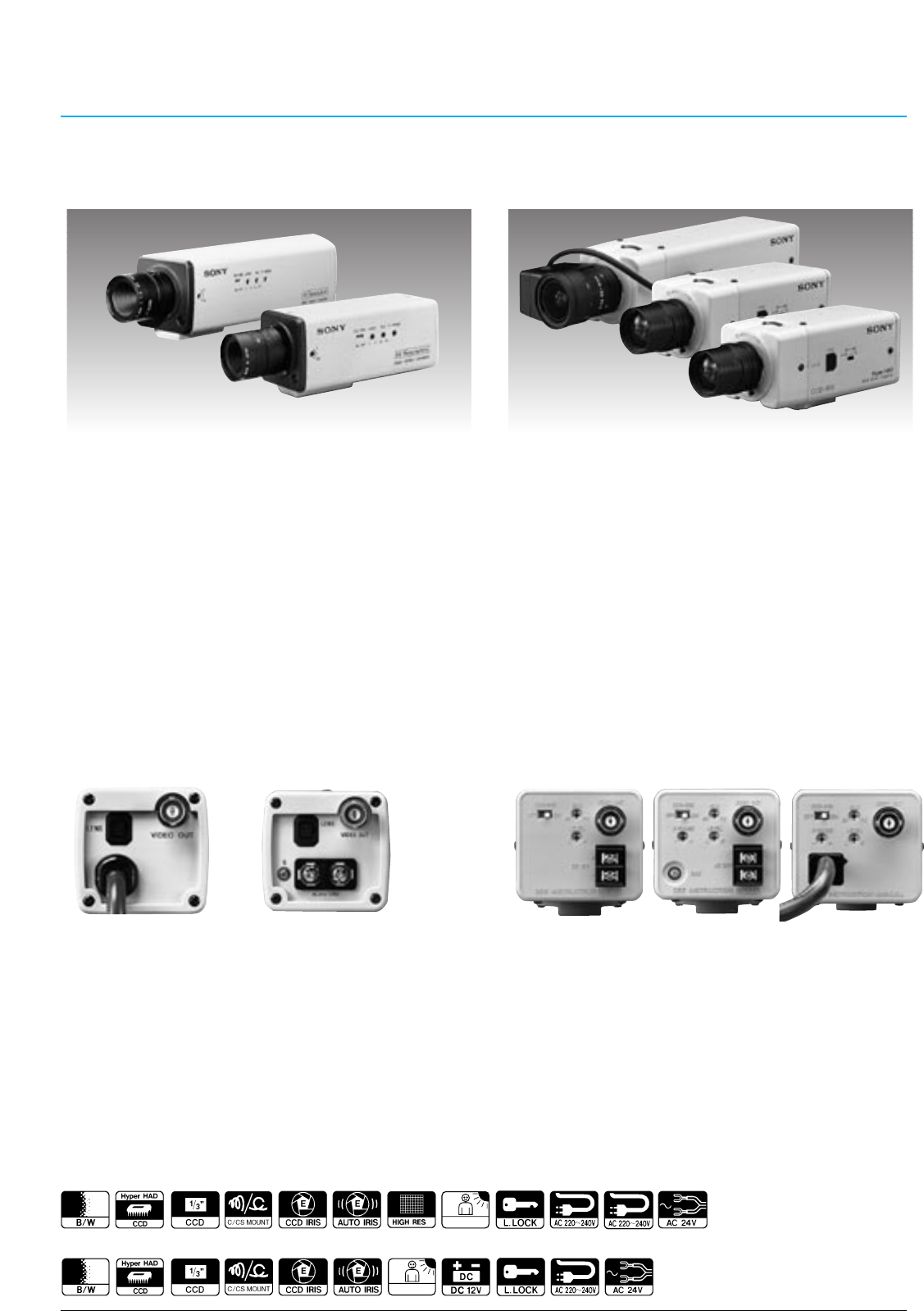

BLACK & WHITE VIDEO CAMERAS

CCD B/W Video Camera

SPT-M308CE/M304CE

•Especially designed for surveillance applications

•

1/3-inch IT Hyper HAD CCD offers extremely high sensitivity

with a minimum illumination of 0.25 lx at F1.2 (50 IRE)

•Outstanding horizontal resolution of 570 TV lines

•CCD IRIS function allows use of inexpensive manual iris

lenses

•AGC (Automatic Gain Control)

•Backlight compensation is possible with the LEVEL and

BLC (Back Light Control) volume controls (When using

auto iris lenses or the CCD IRIS function)

•Accepts both C/CS-mount lenses

•4-pin auto iris connector (DC driven auto-iris lens only)

•External synchronization with AC line lock

•AC power operation: AC220 to 240 V, 50 Hz

(SPT-M308CE)/AC 24 V (SPT-M304CE)

Supplied Accessories

Lens connector (1)

Lens mount cap (1)

Operation manual (1)

Supplied Accessories

Lens connector (1)

Lens mount cap (1)

Operation manual (1)

CCD B/W Video Camera

SPT-M122CE/M124CE/M128CE

•Especially designed for surveillance applications

•

1/3-inch IT Hyper HAD CCD offers extremely high sensitivity

with a minimum illumination of 0.1 lx at F1.2 (50 IRE)

•High signal-to-noise ratio of 45 dB

•CCD IRIS function allows use of inexpensive manual iris

lenses

•Backlight compensation is possible with the LEVEL and

BLC volume controls (only when using auto iris lenses

or the CCD IRIS function)

•

Accept both DC servo and VIDEO servo auto iris lenses

•Accepts both CS and C-mount lenses

•Alternative power source operation (DC 12 V for the

SPT-M122CE, AC 24 V for the SPT-M124CE, AC 220 to

240 V for the SPT-M128CE)

•External synchronization with AC line lock (for the

SPT-M124/M128CE)

•Low power consumption

SPT-M122CE SPT-M124CE

Rear Panel

Optional Accessories

VCL-4V8WEA (3.5 to 8.0 mm, F1.4)

VCL-S02WEAP (2.8 mm, F1.3)

SPT-M308CE/M304CE

Optional Accessories

VCL-4V8WEA (3.5 to 8.0 mm, F1.4)

VCL-S02WEAP (2.8 mm, F1.3)

VCL-3ADXEA (3.8 mm, F0.8)

SPT-M122CE/M124CE/M128CE

SPT-M128CESPT-M308CE SPT-M304CE

Rear Panel

SPT-M124CE

SPT-M128CE

SPT-M122CE

SPT-M308CE

SPT-M304CE

SPT-M304CESPT-M308CE

Lens shown is an option Lens shown is an option

BLC

SPT-M122CE SPT-M128CE

SPT-M124CE/

SPT-M128CE SPT-M124CE

BLACK & WHITE VIDEO CAMERAS

Supplied Accessories

Lens connector (1)

Lens mount cap (1)

Operation manual (1)

Optional Accessories

Camera adaptor YS-W150P, YS-W250P

Manual iris lens VCL-S03XM (3.6 mm, F1.6)

VCL-S06XM (6.0 mm, F1.2)

VCL-S12XM (12 mm, F1.2)

Auto iris lens VCL-S03XEA (3.6 mm, F1.6)

VCL-S06XEA (6.0 mm, F1.2)

VCL-S12XEA (12 mm, F1.2)

CCD B/W Video Camera

SSC-M370CE

•Especially designed for surveillance applications

•

High density 1/2-inch IT Hyper HAD CCD offers extremely

high resolution of 570 TV lines and high sensitivity with

a minimum illumination of 0.3 lx at F1.2 (50 IRE)

•Excellent signal-to-noise ratio of 50 dB

•CCD IRIS function allows use of inexpensive manual iris

lenses

•Variable speed electronic shutter

Shutter speeds — 1/50, 1/120, 1/250, 1/500, 1/1000,

1/2000, 1/4000, 1/10000 (seconds)

•Accepts C-mount lenses

•External synchronization with VS

•Single cable operation (video/sync/power triple

multiplex transmission) for easy installation with the

optional YS-W150P/W250P Camera Adaptor (Mode A)

•Monitor out function for on-the-spot camera positioning

(Mode A)

•12 V DC power supply can also be used (Mode B)

Rear Panel

Lens shown is an option

BLACK & WHITE VIDEO CAMERAS

B/W Cameras Typical System

AC outlet

VIDEO OUT

(Coaxial cable)

B/W Video Monitor

EXT

TIMING IN

(Coaxial cable)

SWITCH

OUT VIDEO

Time Lapse VCR

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

AC outlet

B/W Video Monitor

AC outlet

DC POWER

SYNC,VIDEO

(Coaxial cable)

YS-W250P VIDEO

OUT

(Coaxial

cable)

Muitiplexer

EXT

TIMING

(Coaxial

cable)

SWITCH

OUT VIDEO

Time Lapse VCR

B/W Video Monitor

DC POWER

SYNC,VIDEO

(Coaxial cable)

DC POWER

SYNC,VIDEO

(Coaxial cable)

DC POWER

SYNC,VIDEO

(Coaxial cable)

B/W Video Monitor

AC outlet

YS-W150P

AC outlet

MONITOR OUT

(Coaxial cable)

DC POWER

SYNC,VIDEO

(Coaxial cable)

Portable Monitor

DC12 V

power supply

DC12 V

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

B/W Video Monitor

MONITOR OUT

(Coaxial cable)

MONITOR OUT

(Coaxial cable)

1.Single camera operation

2.Multiple camera operation

(a) Mode A: Triple multiplexing operation

(b) Mode B: DC 12 V operation

SSC-M370CE

1.Single camera operation

SPT-M308CE/M128CE

BLACK & WHITE VIDEO CAMERAS

Multiplexer

EXT

TIMING IN

(Coaxial cable)

SWITCH

OUT VIDEO

Time Lapse VCR

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

VIDEO OUT

(Coaxial cable)

AC outlet

B/W Video Monitor

AC outlet

DC12 V

power supply

DC12 V

VIDEO OUT

(Coaxial cable)

B/W Video Monitor

DC12 V

power supply

DC12 V

power supply

DC12 V

power supply

DC12 V

power supply

AC outlet

VIDEO OUT

B/W Video Monitor

AC outlet

AC24 V

power supply

EXT

TIMING IN

(Coaxial cable)

SWITCH

OUT VIDEO

Time Lapse VCR

B/W Video Monitor

AC outlet

AC24 V

power supply

MONITOR OUT

(Coaxial cable)

MONITOR OUT

(Coaxial cable)

SPT-M304CE/M124CE

2.Multiple camera operation

1.Single camera operation

SPT-M122CE

BLACK & WHITE VIDEO CAMERAS

SPT-M308CE/M304CE SPT-M122CE/M124CE/M128CE SSC-M370CE

Image device: 1/3-inch Interline Transfer Hyper HAD CCD 1/2-inch Interline Transfer Hyper HAD CCD

Picture elements: 752 (H) x 582 (V) 500 (H) x 582 (V) 752 (H) x 582 (V)

Sensing area: 4.4 x 3.3 mm 6.3 x 4.7 mm

Signal system: CCIR standard

Sync system: External with AC line lock M122CE: Internal Internal or external with VS/VBS*

M124CE/M128CE: AC line lock or MPX-VS

Phase control: V phase adjustment (±90°) M122CE: - H phase adjustment (6 positions)

M124CE/M128CE: V phase adjustment (+/-90°)

Horizontal resolution: 570 TV lines 380 TV lines 570 TV lines

Lens mount: C/CS mount adjustable C mount

Minimum illumination: AGC ON, 0.25 lx at F1.2 (50 IRE) AGC ON, 0.1 lx at F1.2 (50 IRE) AGC ON, 0.3 lx at F1.2 (50 IRE)

Automatic gain control (AGC):

Always ON ON/OFF switchable

Electronic shutter: Not applicable 1/50, 1/120, 1/250, 1/500, 1/1000,

1/2000, 1/4000, 1/10000 (seconds)

CCD IRIS control: ON/OFF switchable, ON/OFF switchable

1/50 to 1/50000 (seconds)

Backlight compensation:

Variable - user adjustable —

Signal-to-noise ratio: 45 dB (AGC ON) 50 dB (AGC OFF)

Video out: BNC, 1.0 Vp-p, 75 Ω, sync negative

Operating temperature: -10 to 50°C (14 to 122°F)

Storage temperature: -40 to 60°C (-40 to 140°F)

Power requirements: SPT-M308CE: M122CE: DC 12 V, 50 Hz 1) Multiplexing with YS-W150P/W250P

AC 220 to 240 V, 50 Hz M124CE: AC 24 V, 50 Hz 2) DC 12 V from DC 12 V power supply

SPT-M304CE: M128CE: AC 220 to 240 V

AC 24 V, 50 Hz

Power consumption: SPT-M308CE: 6.0 W M122CE: 2.4 W (0.2A) 1) 4.0 W supplied from YS-W150P/W250P

SPT-M304CE: 4.5 W M124CE: 2.5 W 2) 2.8 W at DC 12 V

M128CE: 3.5 W

Mass: SPT-M308CE: 700 g (1 lb 8 oz) M122CE: 320 g (11 oz) 660 g (1 lb 7 oz)

SPT-M304CE: 350 g (12 oz) M124CE: 320 g (11 oz)

M128CE: 750 g (1 lb 10 oz)

Auto iris type: DC servo type DC/Video servo type Video servo type

Connectors: SPT-M308CE:

VIDEO OUT (BNC), LENS (4-pin)

M122CE: DC 12 V terminals, DC 12 V terminals, LENS (4-pin)

SPT-M304CE: VIDEO OUT (BNC), VIDEO OUT (BNC), LENS (4-pin) Mode A (Triple multiplexing operation):

AC 24 V terminals, M124CE: AC 24 V terminals, GND DC IN/VS IN/VIDEO OUT (BNC),

GND,LENS (4-pin) VIDEO OUT (BNC), LENS (4-pin) MONITOR OUT (BNC)

M128CE: VIDEO OUT (BNC), LENS (4-pin) Mode B (DC 12 V operation):

VIDEO OUT (BNC), VS IN (BNC)

Dimensions:

Unit: mm (inches)

* The Burst signal is not locked

B/W Camera Specifications

Pin DC servo VIDEO servo

1 Control (-) Power (DC 9 V, 50 mA)

2 Control (+) Not connected

3 Drive (+) Video

4 Drive (-) (GND) (GND)

Lens (4-pin) Specifications

50 (2)

53 (2 1/8)

56 (2 1/4)

179.5 (7 1/8)

170 (6 3/4)

39.4 (1 9/16)

1/4-inch–20

UNC

125.2 (5)

1/4-inch–20 UNC

125.2 (5)

1/4-inch–20 UNC

57 (2 1/4)

57.5 (2 3/8)

50 (2)

57 (2 1/4)

54 (2 1/4)

175.2 (7)

50 (2)

57.5(23/8)

165 (6 1/2)

115 (4 5/8)

40.5 (1 5/8)

64 (2 5/8)

57 (2 1/4

)

155 (6 1/8)

164.9 (6 1/2)

SPT-M 308CE SPT-M122CE /M124CE SSC-M370CE

50 (2)

53 (2 1/8)

56 (2 1/4)

134.5 (5 3/8)

125 (5)

39.4 (1 9/16)

1/4-inch–20 UNC

SPT-M304CE SPT-M128CE

SSM-930CE

Video signal system: CCIR 625 lines, 50 fields

Picture tube: 9-inch B/W measured diagonally, 90˚ deflection

Video input: Impedance 75 Ω/high switchable

Level 0.5 to 2.0 Vp-p/75 Ω, sync negative, BNC-type

Video output:

Impedance more than 10 kΩ, loop-through, BNC-type

Horizontal resolution: More than 750 TV lines at centre

Power requirements: AC 230 V, 50/60 Hz

Power consumption: 30 W

Operating temperature: 0˚C to 35˚C (32˚F to 95˚F)

Storage temperature: -10˚C to 40˚C (14˚F to 104˚F)

Mass: 5.8 kg (13 lb)

Dimensions:

Unit: mm (inches)

SSM-125CE

Video signal system: CCIR 625 lines, 50 fields

Picture tube: 12-inch B/W measured diagonally, 90˚ deflection

Video input: Impedance 75 Ω/high switchable

Level 0.5 to 2.0 Vp-p/75 Ω, sync negative, BNC-type (x 2)

Video output: Impedance more than 10 kΩ, loop-through,

BNC-type (x 2)

Horizontal resolution: More than 750 TV lines at centre

Power requirements: AC 230 V, 50/60 Hz

Power consumption: 30 W

Operating temperature: 0˚C to 35˚C (32˚F to 95˚F)

Storage temperature: -10˚C to 40˚C (14˚F to 104˚F)

Mass: 9.2 kg (20 lb 5 oz)

Dimensions:

Unit: mm (inches)

BLACK & WHITE VIDEO MONITORS

B/W Monitor

SSM-930CE B/W Monitor

SSM-125CE

•CCIR standard

•9-inch CRT size

•Excellent picture quality with more than 750 TV lines

horizontal resolution

•Loop-through video input, with switchable 75 Ω

termination

•DC clamp switch provides a stable reference for the

black level

•19-inch EIA standard rack mountable for dual monitor

configuration

•Front controls: Power, H-hold, V-hold, contrast and

brightness

•High immunity to external electrical

and magnetic interference

•Suitable for many monitoring applications

•CCIR standard

•12-inch CRT size

•Excellent picture quality with more than 750 TV lines

horizontal resolution

•

Dual loop-through video inputs, with switchable 75

Ω

termination

•DC clamp switch provides a stable reference for the

black level

•Front controls: Power, INPUT select, H-hold, V-hold,

contrast and brightness

•High immunity to external electrical and magnetic

interference

•Suitable for many monitoring

applications

Specifications Specifications

220 (8 3/4)

219 (8 5/8)

254 (10)

296 (11 3/4)

303 (12)

301 (11

)

Rear Panel

BLACK & WHITE VIDEO MONITORS

B/W Monitor

SSM-175CE

•CCIR standard

•17-inch CRT size

•Excellent picture quality with more than 850 TV lines

horizontal resolution

•Dual loop-through video inputs, with switchable 75 Ω

termination

•DC clamp switch which provides a stable black level

reference

•Front controls: Power, INPUT select, H-hold, V-hold,

contrast and brightness

•19-inch EIA standard rack mountable

•High immunity to external electrical

and magnetic interference

•Suitable for many monitoring

applications

SSM-175CE

Video signal system: CCIR 625 lines, 50 fields

Picture tube: 17-inch B/W measured diagonally, 90˚ deflection

Video input: Impedance 75 Ω/high switchable

Level 0.5 to 2.0 Vp-p/75 Ω, sync negative, BNC-type (x 2)

Video output: Impedance more than 10 kΩ, loop-through,

BNC-type (x 2)

Horizontal resolution: More than 850 TV lines at centre

Power requirements: AC 220 V to 240 V, 50/60 Hz

Power consumption: 37 W

Operating temperature: 0˚C to 35˚C (32˚F to 95˚F)

Storage temperature: -10˚C to 40˚C (14˚F to 104˚F)

Mass: 17.5 kg (38 lb 9 oz)

Dimensions:

Unit: mm (inches)

Specifications

SSM-Q177CE

Video signal system: CCIR standard

Picture tube:

17-inch CRT, measured diagonally, 90° deflection

Resolution: More than 850 lines (full screen)

Camera input/VCR input: Composite: 1.0 Vp-p, sync negative, 75 Ω

Video output/VCR output: Composite: 1.0 Vp-p, sync negative, 75 Ω

Power requirements: AC 230 V, 50/60 Hz

Power consumption: Approx. 45 W

Operating temperature: 0 to 35°C (32 to 95°F)

Storage temperature: -10 to 40°C (14 to 104°F)

Operating humidity: 0 to 90% (no condensation)

Storage humidity: 0 to 90% (no condensation)

Dimensions:

Unit: mm (inches)

Mass: 18.8 kg (41 lb 6 oz)

Regulation compliance: EN 60 065 (TÜV), CE (EMC, LVD), C-Tick Mark

Specifications

Rear Panel

SSM-175CE/Q177CE Optional Accessory

Rack Mounting Bracket

RMM-171

424 (16 3/4)

380 (15)

409 (16 1/8)

424 (16 3/4)

380 (15)

409 (16 1/8)

B/W Quad Monitor

SSM-Q177CE

•CCIR standard

•Quad Screen Display permits up to four compressed,

split pictures to be displayed simultaneously and

recorded on a single VCR

•High quality compressed images with 8-bit signal

processing for clearer pictures

•Sequential Switcher Function provides automatic

switching between up to four cameras, with a

selectable dwell time; SKIP channel also selectable

•Newly developed flyback transformer provides the high

voltage stability required to minimise picture zooming

•Freeze Picture Function can freeze each picture in

quad mode, as well as freeze a VCR playback picture

•Alarm IN/OUT with audible alarm and flashing LED

•Video Loss Detection with on-screen notification

•On-screen menus display Date,

Time and Camera ID

•19-inch EIA standard rack

mountable

Rear Panel

YS-W250P

Transmit DC power/video/sync to

SSC-DC50AP/DC10AP/C370P/M370CE

Up to four cameras can be connected

YS-W150P

Transmits DC power/Video/Sync to

SSC-DC50AP/DC10AP/C370P/M370CE

Camera Adaptors

Quick Reference

CAMERA OPTIONAL ACCESSORIES

RG-59B/U, RG-6A/U, RG11A/U

Auto Iris type for 1/3 inch

CS-mount camera

VCL-4V8WEA

VCL-S02WEAP

Auto Iris type for 1/2 inch

CS-mount camera

VCL-S03XEA

VCL-S06XEA

VCL-S12XEA

Manual Iris type for 1/2 inch

CS-mount camera

VCL-S03XM

VCL-S06XM

VCL-S12XM

Lenses

Coaxial Cables

YT-B21, T-301/305/307

Mounting brackets

Aspherical auto iris type for 1/2-inch

CS-mount cameras

VCL-3ADXEA

CAMERA ADAPTORS

Camera Adaptor

YS-W250P Camera Adaptor

YS-W150P

Rear PanelRear Panel

for SSC-DC50AP/DC10P/

C370P/M370CE for SSC-DC50AP/DC10P/C370P/

M370CE

•Transmits DC power and video/sync signal between the

adaptor and the camera over a single coaxial cable

•Internal or external synchronization with VS or AC line

lock

•Maximum cable length: 600 m with RG-11A/U (7C-2V)

coaxial cable

•Transmits DC power and video/sync signal between the

adaptor and the camera over a single coaxial cable

•Up to four cameras can be connected

•Internal or external synchronization with VS or AC line

lock

•Maximum cable length:

SSC series cameras – 600 m with RG-11A/U (7C-2V)

coaxial cable

Specifications

Models

YS-W250P YS-W150P

Specifications

Power requirements AC 220 to 240 V, 50 Hz

Power consumption 48 W 15 W

Operating temperature -10˚C to 50˚C (14˚F to 122˚F)

Connectors CAMERA IN 1 to 4 (BNC x 4) CAMERA IN (BNC)

VIDEO OUT A: 1 to 4 (BNC x 4) VIDEO OUT (BNC x 2)

VIDEO OUT B: 1 to 4 (BNC x 4) SYNC IN/OUT (BNC,

SYNC IN/OUT (BNC, loop-through,75 ΩON/OFF) loop-through,75 ΩON/OFF)

DC out —

Maximum cable length 300 m using RG-59B/U (3C-2V)

500 m using RG-6A/U (5C-2V)

600 m using RG-11A/U (7C-2V)

Dimensions

Mass 3.6 kg (7 lb 15 oz) 1.9 kg (4 lb 3 oz) Unit: mm (inches)

424 (16 3/4)

330 (13)

44 (1 3/4)

52 (2 1/8)

330 (13)

212 (8 3/8)

44 (1 3/4)

52 (2 1/8)

LENSES

Models VCL-4V8WEA VCL-S02WEAP

Mount CS CS

Focal length 3.5 to 8.0 mm 2.8 mm

Iris control Auto Auto

Maximum aperture ratio 1 : 1.4 1 : 1.3

Minimum object distance 0.3 m 0.2 m

Filter size ––– M30.5 x 0.5 mm

Mass 72 g (3 oz) 41 g (1.4 oz)

Dimensions ø35.0 x 54.0 x 46.0 mm ø32.0 x 39.8 x 33.0 mm

(dia. x H x L) (1 7/16 x 2 1/4x 1 13/16 inches) (1 5/16 x 1 5/8x 1 5/16 inches)

Cable length 100 mm (4 inches) 310 mm (12 1/4inch)

1) Auto Iris Type

(DC/VIDEO servo type/Non-EE

amplifier type/Non-ALC type)

Lenses for 1/3-inch CS-mount cameras

Lenses for 1/2-inch C-mount cameras

1) Auto Iris Type

(Video servo type/EE amplifier

type/ALC type)

Models VCL-S03XEA VCL-S06XEA VCL-S12XEA

Mount C C C

Focal length 3.6 mm 6.0 mm 12 mm

Iris control Auto Auto Auto

Maximum aperture ratio 1 : 1.6 1 : 1.2 1 : 1.2

Filter size ––– M43 x 0.75 mm M43 x 0.75 mm

Mass 88 g (3.1 oz) 128 g (4.5 oz) 126 g (4.4 oz)

Dimensions ø45 (dia.) x 32.9 (L) mm ø45.5 (dia.) x 48.5 (L) mm ø45.5 (dia.) x 48.5 (L) mm

(1 13/16 x 1 5/16 inches) (1 13/16 x 1 15/16 inches) (1 13/16 x 1 15/16 inches)

Supply voltage DC 8 - 16 V DC 8 - 16 V DC 8 - 16 V

2) Manual Iris Type

Models VCL-S03XM VCL-S06XM VCL-S12XM

Mount C C C

Focal length 3.6 mm 6.0 mm 12 mm

Iris control Manual Manual Manual

Maximum aperture ratio 1 : 1.6 1 : 1.2 1 : 1.2

Filter size M35.5 x 0.5 mm M35.5 x 0.5 mm M35.5 x 0.5 mm

Mass 66 g (2.3 oz) 74 g (2.6 oz) 60 g (2.1 oz)

Dimensions ø38 (dia.) x 28.6 (L) mm ø38 (dia.) x 36.4 (L) mm ø38 (dia.) x 30.8 (L) mm

(1 1/2x 1 3/16 inches) (1 1/2x 1 7/16 inches) (1 1/2x 1 1/4inches)

Model VCL-3ADXEA

Mount CS

Focal length 3.8 mm

Iris control Auto

Maximum aperture ratio 1 : 0.8

Minimum object distance 0.15 m

Filter size M43 ´ 0.75 mm

Mass 150 g (5.3 oz)

Dimensions ø45.0 x 56.8 x 52.5 mm

(dia. x H x L) (1 13/16 x 2 1/4x 2 1/8inches)

Cable length 90 mm (3 5/8inch)

Aspherical auto iris lens for 1/2-inch CS-mount cameras

(DC servo type/Non-EE amplifier

type/Non-ALC type)

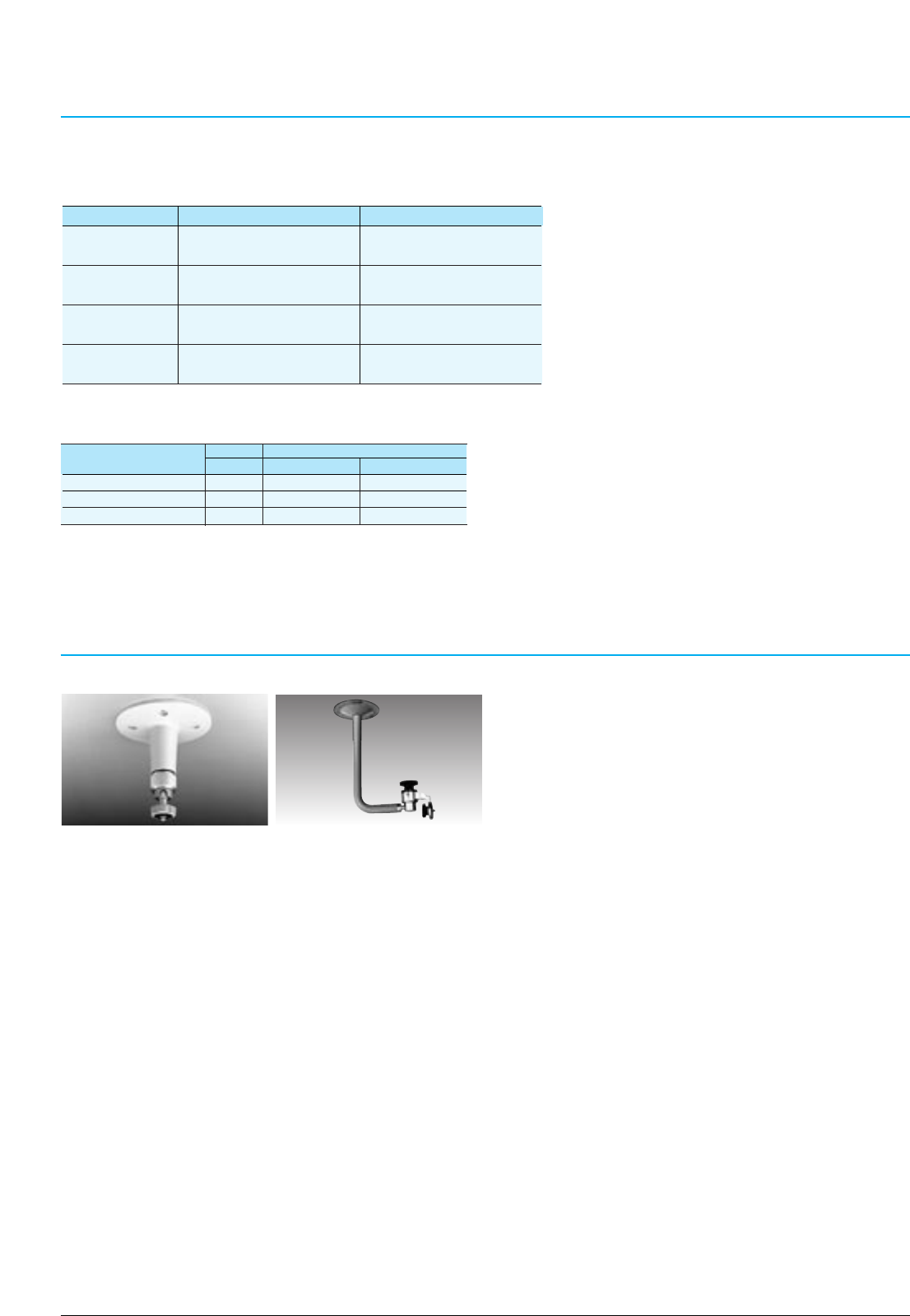

Cable Mass Cable loss (dB)

(100 m)

(dB/100 m, at 4 MHz) (dB/100 m, at 200 MHz)

RG-59B/U (3C-2V) 5 kg 2.6 19.6

RG-6A/U (5C-2V) 8 kg 1.8 12.5

RG-11A/U (7C-2V) 14 kg 1.3 10.5

Coaxial Cables (by Fujikura)

CABLES

MOUNTING BRACKETS

Mounting Bracket

YT-B21

•For indoor use

Maximum load: 2 Kg

Length: 136.6 mm

Mass: 200 g

Mounting Bracket

T-301/305/307

•T-301- suitable for mounting housed or unhoused cameras

•T-305/307- only accept unhoused cameras for installation

Maximum load: 10Kg

Length: T-301: 260 mm+150 mm

T-305: Min.275 mm/Max.405 mm

T-307: 160 mm

Mass: T-301/305: 0.7 Kg

T-307: 0.6 Kg

T-301

CAMERA/CAMERA ADAPTOR/CONNECTING CABLE COMBINATION CHART

YS-W250P YS-W150P

SSC-DC50AP YES YES

(Coaxial cable) (Coaxial cable)

SSC-DC10P YES YES

(Coaxial cable) (Coaxial cable)

SSC-C370P YES YES

(Coaxial cable) (Coaxial cable)

SSC-M370CE YES YES

(Coaxial cable) (Coaxial cable)

YS-DX316P/DX216CE

16 channel colour duplex multiplexer (YS-DX316P)

16 channel B&W duplex multiplexer (YS-DX216CE)

YS-SX310P/SX210CE

10 channel colour simplex multiplexer (YS-SX310P)

10 channel B&W simplex multiplexer (YS-SX210CE)

Multiplexers

Quick Reference

MULTIPLEXERS AND SWITCHERS

Sony multiplexers and switchers facilitate efficient control in multiple camera monitoring

systems. Four different multiplexers, two duplex and two simplex, allow up to 16 and 10

channels respectively to be displayed on a single monitor. These multiplexers also

provide sequential switching, picture zoom and freeze, and powerful alarm functions.

The line-up of switchers includes a versatile quad switcher and a 6-channel sequential

switcher.

YS-Q440P

Quad switcher

Switchers

YS-S6

6-channel sequential switcher

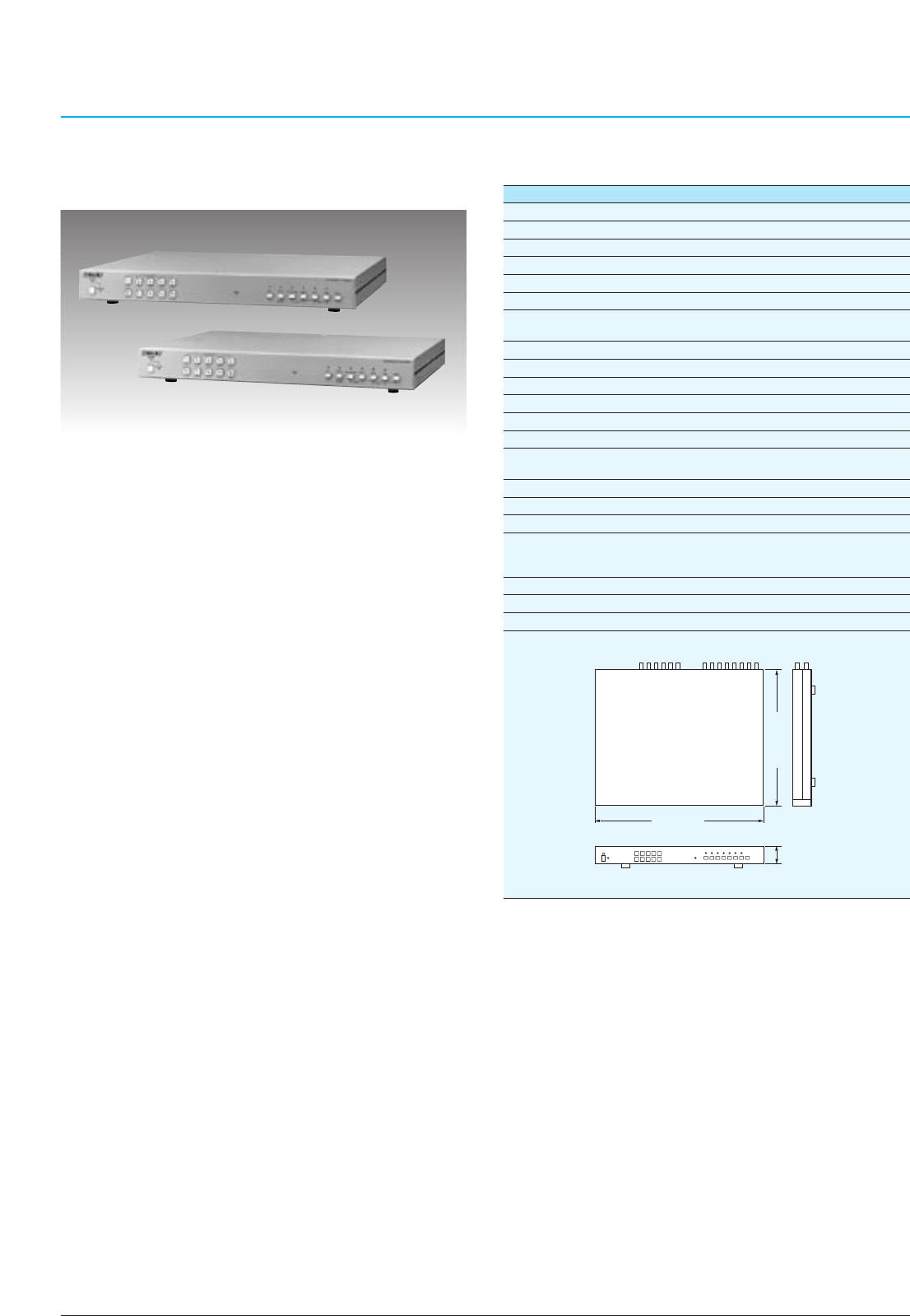

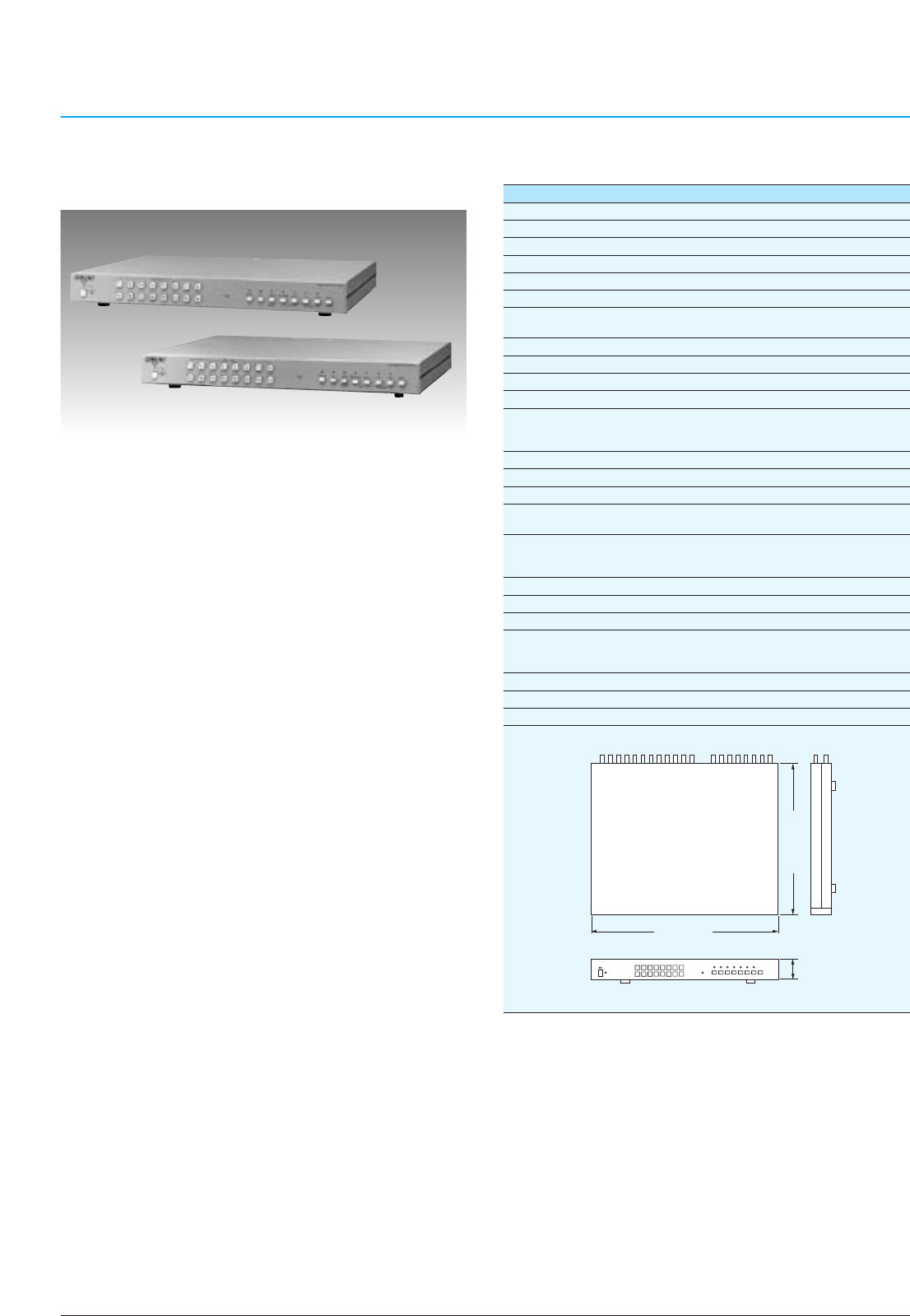

MULTIPLEXERS

•Full duplex video multiplexer with up to 16 camera inputs

•Either asynchronous or synchronous cameras can be

connected

•Multiplex recording to one VCR while switching between

each camera by a field (1/50 sec.) for precise surveillance

of multiple points

•Long time recording with Time Lapse VCR

•Video loop through for up to 16 cameras

• Live pictures can be displayed in full screen, sequence,

quad, multi-screen (7/10/13/16) while simultaneously

recording

•Auto sequential switching in quad mode in addition to full

screen sequence switching

•Recorded images can be played back in the bottom right

screen of the 13 or 16-picture display simultaneously with

live images

•Playback can be reviewed in full screen, sequence, quad,

and multi-screen (7/10/13/16)

•Live images can be displayed in the bottom right screen of

the 13 or 16-picture display simultaneously with

recorded images

•MONITOR 2 can be used for spot monitoring

•Freeze picture function in both live and playback mode

•Electronic zoom (x2) function in both live and play back

mode

•An S-VHS VCR can be connected via the S-video

output/input connector (YS-DX316P only)

•Built in time/date and camera title generator

•Easy on screen setup

•16 alarm inputs, each corresponding to a camera input

•Programmable freeze, zoom and buzzer functions in

16-picture split mode for alarm inputs

•Alarm monitor function automatically provides independent

monitoring of channels in which alarms occur on

MONITOR 2

•Programmable alarm recording time mode

•Alarm memory function can store up to 100 alarm events

(camera number, date and time)

•Video loss detection function

•Remote control capability via a D-sub 25-pin

•Compact 1U height unit and rack mount capability

YS-DX316P YS-DX216CE

General

Video signal system: PAL standard CCIR standard

Power requirements: AC 220 to 240 V, 50 Hz

Power consumption: 22 W 16 W

Operating temperature: 0 to 45˚C (32 to 113˚F)

Storage temperature: -20 to 60˚C (-4 to 140˚F)

Dimensions: 420 (W) x 54 (H) x 320 (D) mm

(16 5/8x 2 1/4x 12 5/8inches)

Mass: Approx. 4.2 kg (9 lb 4 oz)

Video inputs

Camera input 1 to 16: BNC type, VS or VBS, 1.0 Vp-p, 75 Ω

VCR input: BNC type, VS or VBS, 1.0 Vp-p, 75 Ω

S-VHS Y/C inputs: Din Connector -

Y: 1.0 Vp-p, 75 Ω

C: 0.286 Vp-p, 75 Ω

Video outputs

Monitor 1 output: BNC type x 1, VS or VBS BNC type x 1, VS

Monitor 2 output: BNC type x 1, VS or VBS BNC type x 1, VS

VCR output: BNC type, VS or VBS, BNC type, VS,

1.0 Vp-p, 75 Ω1.0 Vp-p, 75 Ω

S-VHS Y/C output: Din Connector -

Y: 1.0 Vp-p, 75 Ω

C: 0.286 Vp-p, 75 Ω

Alarm output: DC 5 V 5.7 kΩ

Alarm duration: 10, 20, 30, 40, 50, 60, CC* sec.

Switch input from VCR: Low active (100 kΩpull-up)

Control terminal: D-sub: 25-pin

Alarm input: contact close (x 16)

Remote control input

Sequence time: 0.5 to 30 sec. (0.5 sec. increments)

On-screen display: 8 character title, date/time

Buzzer: ON/OFF

Dimensions:

Unit: mm (inches)

Specifications

Supplied Accessories

Rack mount kit (for EIA standard rack) (1 set)

D-sub 25-pin plug components (1 set)

Operation manual (1)

* Stays in alarm mode for as long as alarm input remains active

320 (12 5/8)

(2 1/4)

420 (16 5/8)

Multiplexer

YS-DX316P/YS-DX216CE

MULTIPLEXERS

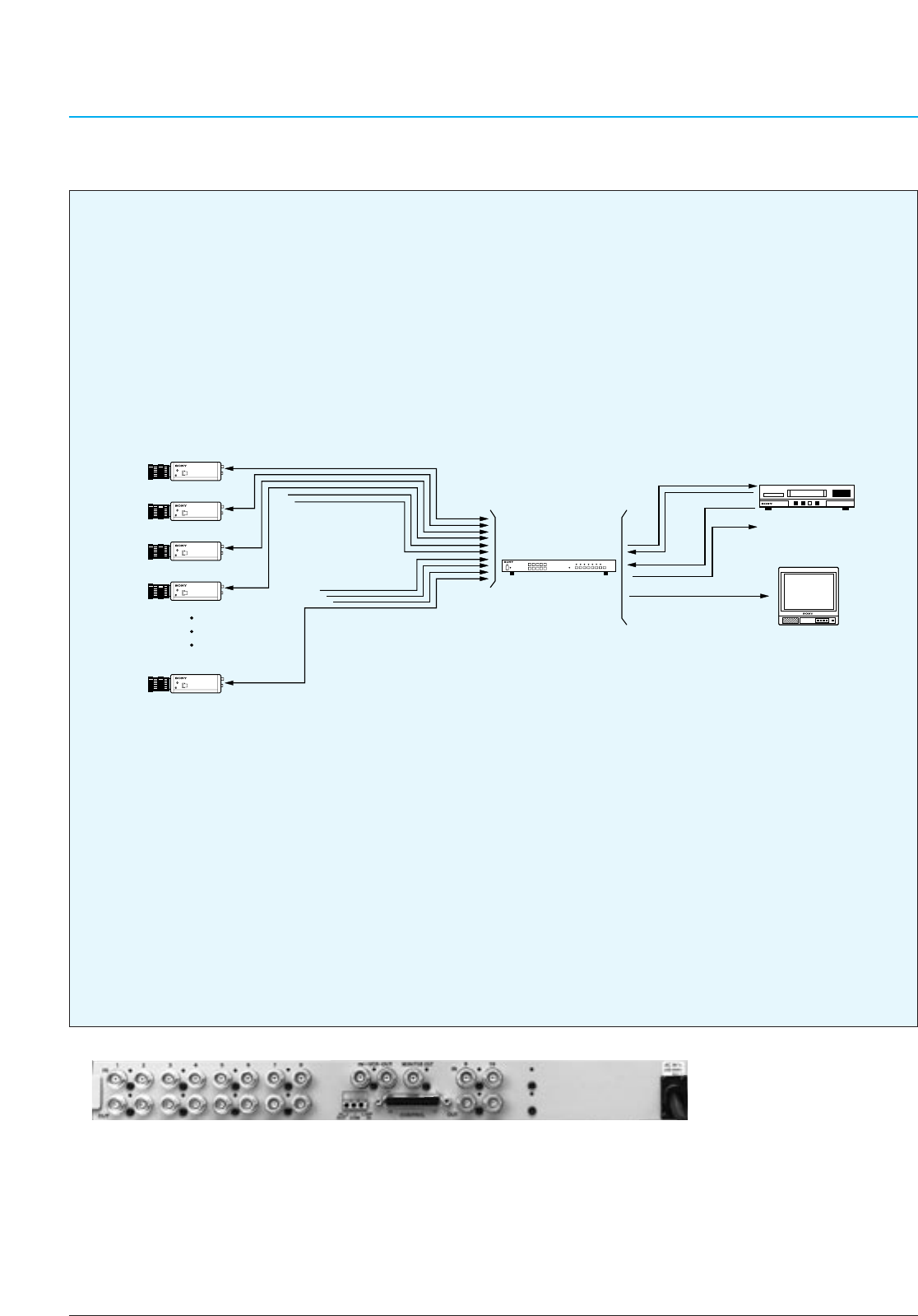

YS-DX316P/DX216CE Typical System

Video Camera 1 Time Lapse VCR

(ex. SVT-L230P)

Video Camera 16

Colour Video Monitor

(ex. SSM-20N5E)

SW OUT

ALARM

VIDEO IN

VIDEO OUT

MON OUT 1

ALARM OUT

PB IN

REC

OUT

VIDEO OUT

(coaxial cable)

YS-DX316P/DX216CE

VIDEO INPUT

1to16

VIDEO OUT

(coaxial cable)

Colour Video Monitor

(ex. SSM-20N5E)

MON OUT 2

YS-DX316P

YS-DX216CE

Rear Panel

MULTIPLEXERS

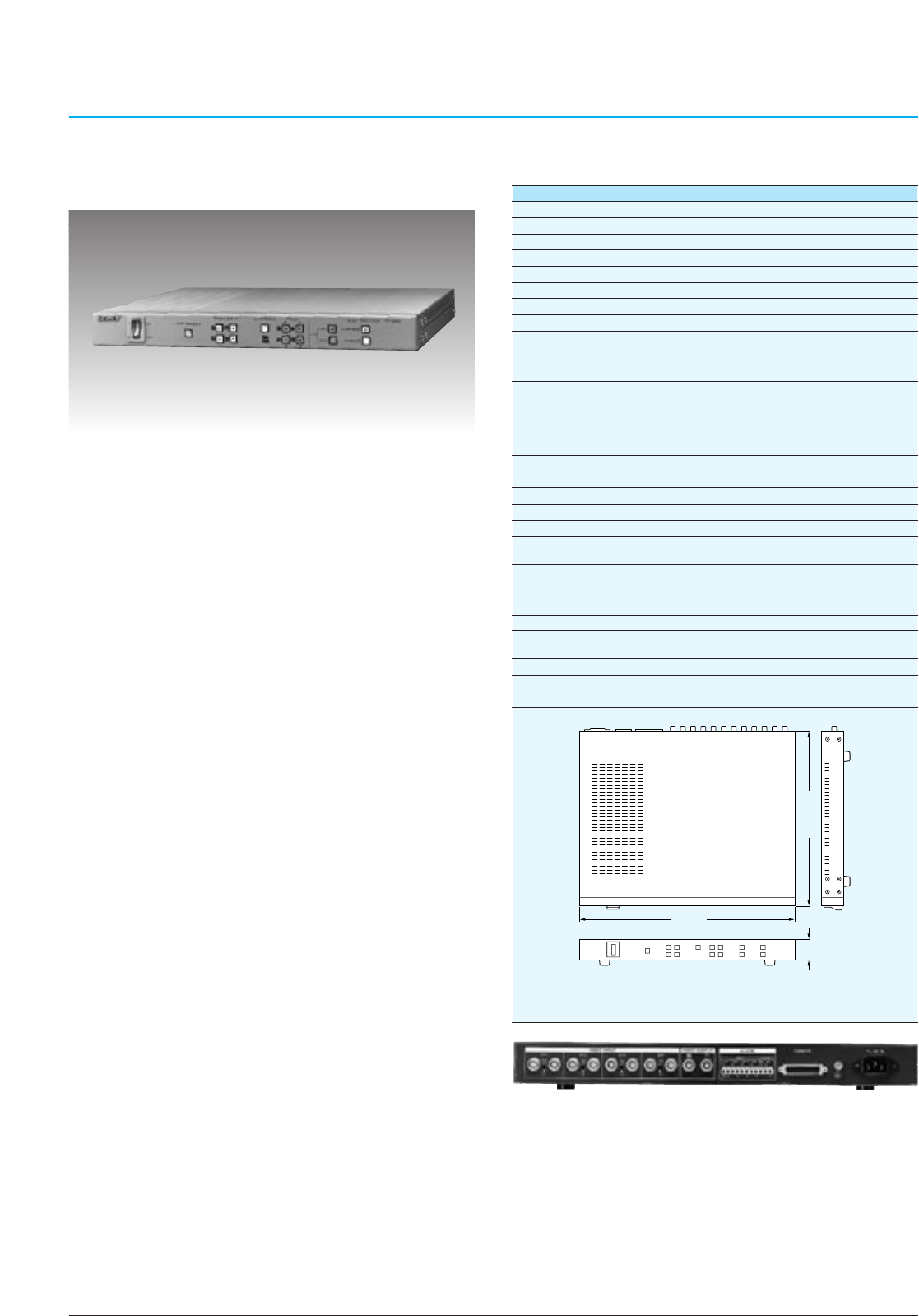

Multiplexer

YS-SX310P/YS-SX210CE

•Simplex video multiplexer with up to 10 camera inputs

•Either asynchronous or synchronous cameras can be

connected

•Multiplex recording to one VCR while switching

between each camera by a field (1/50 sec.) for precise

surveillance of multiple points

•Long time recording with Time Lapse VCR

•Video loop through for up to 10 cameras

•Live pictures can be displayed in full screen or

sequence while simultaneously recording

•Quad or multi-screen (7/10) can be displayed*

•Playback can be reviewed in full screen, sequence,

quad, and multi-screen (7/10)

•Freeze picture function in play back mode

•Electronic zoom (x2) function in play back mode

•Built in time/date and camera title generator

•Easy on screen setup

•10 alarm inputs, each corresponding to a camera input

•Alarm monitor function automatically provides

independent monitoring of channels on which alarms

occur

•Programmable alarm recording time mode

•Alarm memory function can store up to 100 alarm

events (camera number, date and time)

•Video loss detection function

•Remote control capability via a D-sub 25-pin

•Compact 1U height unit and rack mount capability

* This feature is not applicable when unit recording with a VTR

YS-SX310P YS-SX210CE

General

Video signal system: PAL standard CCIR standard

Power requirements: AC 220 to 240 V, 50 Hz

Power consumption: 14 W 12 W

Operating temperature: 0 to 45˚C (32 to 113˚F)

Storage temperature: -20 to 60˚C (-4 to 140˚F)

Dimensions: 420 (W) x 54 (H) x 320 (D) mm

(16 5/8x 2 1/4x 12 5/8inches)

Mass: Approx. 4.2 kg (9 lb 4 oz)

Video inputs

Camera input 1 to 10: BNC type, VS or VBS, 1.0 Vp-p, 75 Ω

VCR input: BNC type, VS or VBS, 1.0 Vp-p, 75 Ω

Video outputs

Monitor output: BNC type x 1, VS or VBS BNC type x 1, VS

VCR output: BNC type, VS or VBS, BNC type,

1.0 Vp-p, 75 ΩVS, 1.0 Vp-p, 75 Ω

Alarm output: DC 5 V 5.7 kΩ

Alarm duration: 10, 20, 30, 40, 50, 60, CC* sec.

Switch input from VCR: Low active (100 kΩpull-up)

Control terminal: D-sub: 25-pin

Alarm input: contact close (x 10)

Remote control input

Sequence time: 0.5 to 30 sec. (0.5 sec. increments)

On-screen display: 8 character title, date/time

Buzzer: ON/OFF

Dimensions:

Unit: mm (inches)

Specifications

Supplied Accessories

Rack mount kit (for EIA standard rack) (1 set)

D-sub 25-pin plug components (1 set)

Operation manual (1)

* Stays in alarm mode for as long as alarm input remains active

320 (12 5/8)

(2 1/4)

420 (16 5/8)

MULTIPLEXERS

YS-SX310P/SX210CE Typical System

Video Camera 1 Time Lapse VCR

(ex. SVT-L230P)

Video Camera 10

Colour Video Monitor

(ex. SSM-20N5E)

SW OUT

ALARM

VIDEO IN

VIDEO OUT

MON OUT

ALARM OUT

PB IN

REC

OUT

VIDEO OUT

(coaxial cable)

YS-SX310P/SX210CE

VIDEO INPUT

1to10

VIDEO OUT

(coaxial cable)

YS-SX310P/SX210CE

Rear Panel

SWITCHERS

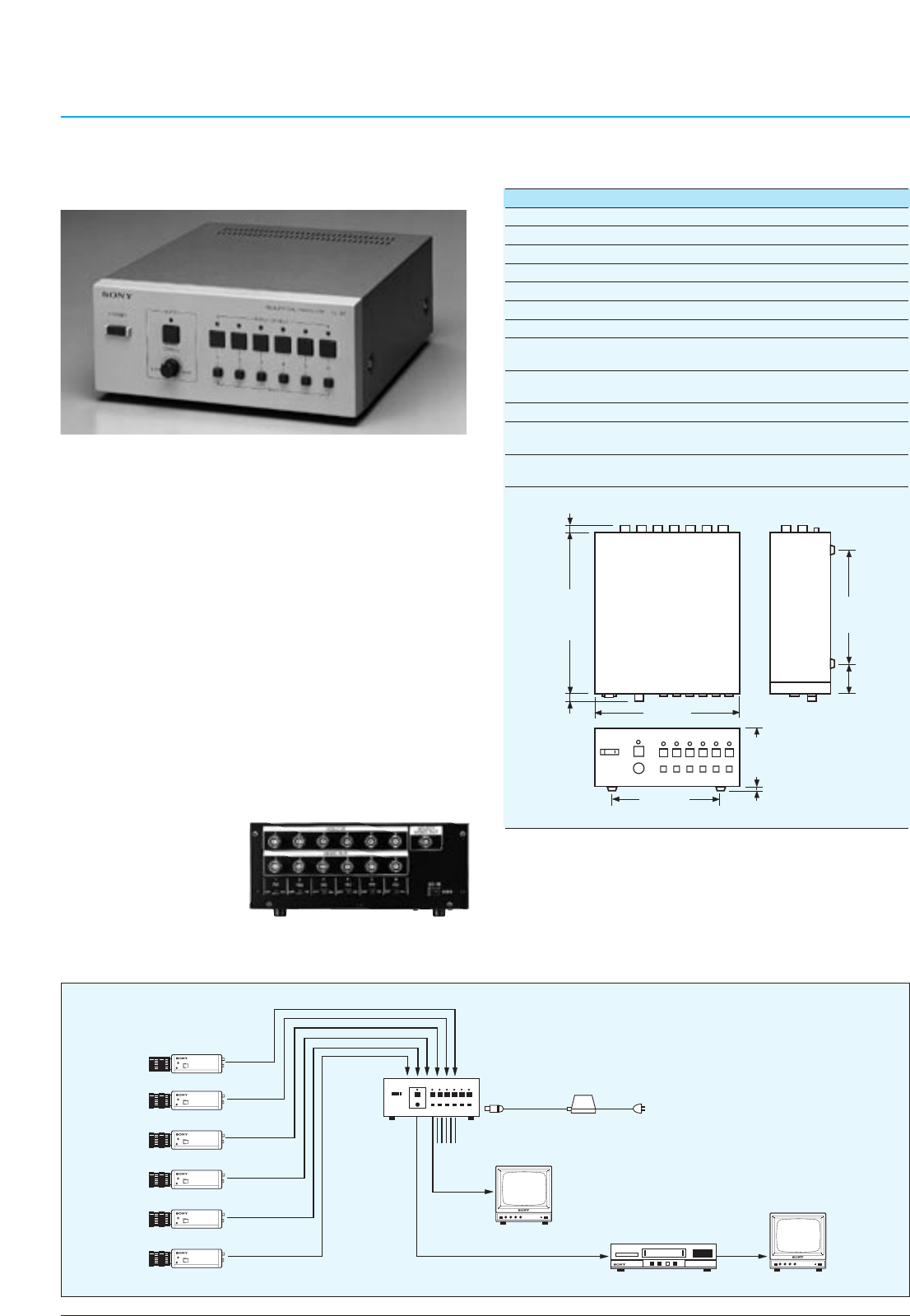

YS-S6

General

Power requirements: DC 9 V

Power consumption: Approx. 2.3 W

Operating temperature: 0˚C to 40˚C (32˚F to 104˚F)

Storage temperature: -20˚C to 60˚C (-4˚F to 140˚F)

Mass: Approx. 2.1 kg (4 lb 10 oz)

Input signals

VIDEO INPUT 1 to 6: BNC type, 1.0 Vp-p, 75 Ω, unbalanced,

sync negative

DC IN: DC jack type

DC 9 V (DC 7 V to 15 V is allowed)

Output signals

VIDEO OUTPUT 1 to 6: BNC type, loop-through output of VIDEO

INPUT, 75 Ωtermination ON/OFF switchable

SELECT VIDEO OUT: BNC type, 1.0 Vp-p, 75 Ω, unbalanced,

sync negative

Dimensions:

Unit: mm (inches)

NOTE: AC Adaptor is an option.

Specifications

6-channel Sequential Switcher

YS-S6

•Compact-size sequential switcher for small surveillance

systems

•Six VIDEO INPUTs with loop-through capability

•

The pictures from up to six video cameras can be monitored

sequentially on a monitor via the SELECT VIDEO OUT

•The use of DWELL dial enables various dwell time

(displayed time) settings per each monitor from 1

second to 30 seconds

•Both Auto/Manual switching modes are available

Auto: Pressing the AUTO button provides automatic

sequential monitoring of all camera inputs

Manual:The INPUT SELECT buttons allow users

manually select a specific camera input and

view it continuously

•Pictures from connected camera which don’t have to

be monitored can be skipped by the use of SKIP

buttons 1 through 6

•Accepts also NTSC/EIA signal

Supplied Accessory

Operation manual (1)

Rear Panel

YS-S6 Typical System

Video Camera 1

Time Lapse VCR

Video Camera 2

Video Camera 3

Video Camera 4

Video Camera 5

Video Camera 6 Video Monitor

Video IN

1 to 6

VIDEO OUT 1 to 6

YS-S6

Video Monitor

SELECT

VIDEO OUT

AC Adaptor

DC INPUT

10 (13/32)

246 (9 3/4)

9.5 (3/8)

)

220 (8 3/4)

162 (6 1/2)

8 (11/32 88 (3 1/2)

49 (1 15/16)175 (7)

SWITCHERS

Quad Switcher

YS-Q440P

•High performance Quad Image Splitter with an auto

sequential switcher

•Up to four compressed, split pictures can be

simultaneously displayed on a single monitor and

recorded on a single VCR

•Automatic switching between up to four cameras can

also be performed on a monitor and the switching

interval can be selected in one-second increments from

1 to 30 seconds

•Either asynchronous or synchronous, colour or black &

white cameras can be connected

•8-bit signal processing and four field memories provide

high picture quality compressed images

•Up to eight characters can be superimposed onto each

of the four compressed pictures

•The built-in date and time generator allows time and

date information to be displayed

•Freeze picture function (Quad mode only)

•Alarm function

•Video loss detection

•RS-232 remote control port

Supplied Accessories

Rack mounting bracket (for EIA standard rack) (1)

AC power cord (1)

Operating instruction manual (1)

YS-Q440P

General

Video signal system: CCIR/PAL standard

Power requirements: AC 220 to 240 V

Power consumption: Less than 10 W

Operating temperature: 0 to 40°C (32 to 104°F)

Storage temperature: -20 to 60°C (-4 to 140°F)

Mass: Approx. 3.8 kg (8 lb 4 oz)

Video input/output

Video input: VIDEO INPUT CH1 to CH4, 1.0 Vp-p,

75 Ωautomatic termination

Input (BNC type) x 4

Loop through output (BNC type) x 4

Video output: VIDEO OUT (BNC type) x 1

Quad-picture image signal

1.0 Vp-p, 75 Ω

VIDEO OUT (BNC type) x 1

Quad, Sequential, Full screen signal (selectable)

1.0 Vp-p, 75 Ω

Sync

External SYNC IN 1.0 Vp-p, 75 ΩVBS or VS signal

External SYNC OUT 1.0 Vp-p, 75 ΩVBS or VS signal

Control

Remote connector: REMOTE (D-sub 9 pin RS-232C port)

Alarm input: ALARM IN terminal x 4

CMOS "L" level or MAKE

Alarm output: ALARM OUT terminal x 1

Relay Out, switching DC 30 V at up to 2 A

RESET OUT terminal x 1

Open Collector Output up to 12 V 20 mA

Other

Alarm hold duration: 1 to 30 s (one second increments)

30 to 180 s (ten second increments)

Manual

Auto sequential duration: 1 to 30 s (one second increments)

Picture tone: 8-bit video (256 gradations)

Dimensions:

Unit: mm (inches)

Specifications

Rear Panel

430 (17)

44 (1 3/4)350 (12 7/8)

SWITCHERS

YS-Q440P Typical System

Video Camera 1

Video Camera 2

Video Camera 3

Video Camera 4

Video Monitor

Video 1

Video 3

Video 2

Video 4

Time Lapse VCR

VIDEO IN 1 to 4

YS-Q440/P

VIDEO OUT 1

VIDEO OUT 2

Video Camera 1

Video Camera 2

Video Camera 3

Video Camera 4

Video Monitor

Video 1

Video 3

Video 2

Video 4

Time Lapse VCR

Sequential

Switcher

YS-Q440/P

YS-Q440/P Sync OUT

Sync IN

Quad OUT

Video Camera 5

Video Camera 6

Video Camera 7

Video Camera 8

VIDEO IN 1 to 4

1. Single YS-Q440P operation

2. YS-Q440P operation with sequential switcher

SVT-L230P

VHS

RealAction recording

Max. 96 hour recording with E-240 tape

SVT-124P

VHS

compact

Max. 24 hour recording with E-180 tape

SVT-1000P

VHS

Max. 72 hour recording with E-180 tape

Analog time-laspe VCRs

Quick Reference

TIME-LAPSE VIDEO RECORDERS

Keeping a permanent record of events and alarms requires specialized VCRs,

and the expanding range of Sony surveillance products now includes six models.

The family of VCRs divides into two categories: analog time-lapse and digital time-lapse.

The five analog models each have a unique set of features to suit different surveillance

applications. The digital time-lapse recorder, the HSR-1P, uses the advantages of digital

recording to provide outstanding functionality and enhanced picture quality.

SVT-S3050P

S-VHS

Max. 168 hour recording with E-180 tape

SVT-5050P

VHS

Max. 960 hour recording with E-180 tape

HSR-1P

Hybrid recording using hard disk drive and DV tape

Built-in multiplexer

Pre-alarm recording

Digital time-lapse VCR

TIME LAPSE VIDEO RECORDERS

SVT-L230P

General

Mass: 5.8 kg (12 lb 9 oz)

Dimensions: 420 (W) x 100 (H) x 349 (D) mm

(16 5/8x 4 x 13 1/2inches)

Power requirements: AC 220 to 240 V, 50 Hz

Power consumption: 17 W

Operating humidity: Less than 80%

System

Video signal: CCIR standard (monochrome)/PAL (colour)

Recording/playback system:

Rotary four-head helical scanning system

Tape speed: 11.70 mm/second (6 or 8-hour mode)

Recording/Playback mode:

8, 24, 40, 64, 96 hours (with a E-240 tape)

6, 18, 30, 48, 72 hours (with a E-180 tape)

Fast forward/Rewind time:

Approx. 2.5 minutes (with an E-180 tape)

Video

Input: 1.0 Vp-p, 75 Ω, unbalanced (BNC type)

Output: 1.0 Vp-p, 75 Ω, unbalanced (BNC type)

Horizontal resolution: Colour mode: More than 240 TV lines

Black & White mode: More than 320 TV lines

Signal-to-noise ratio: 42 dB

Audio

Audio recording system: Monaural

Input: -7.8 dBu, 47 kΩ(phono jack)

Output: -7.8 dBu, 600 Ω(phono jack)

Microphone input: -60 dBu, 600 Ω(ø3.5 mm mini jack)

Distortion: Less than 4%

Audio signal-to-noise ratio: 40 dB

Others

Alarm input: Low level, Terminal trip x 1

Alarm output: +5 V, 5.7 kΩ(Low active), Terminal trip x 1

Switch output: +5 V, 5.7 kΩ, Terminal trip x 1

Tape end output: +5 V, 5.7 kΩ(Low active), Terminal trip x 1

Warning output: +5 V, 5.7 kΩ(Low active), Terminal trip x 1

Timer output: +5 V, 5.7 kΩ(High active), Terminal trip x 1

External timer input: Low level, Terminal trip x 1

Clock set output: +5 V, 5.7 kΩ(Low active), Terminal trip x 1

Clock set input: Low level

Series output: +5 V, 5.7 kΩ(Low active), Terminal trip x 1

Remote control input: ø3.5 mm mini jack (x 1)

•Sony’s RealAction technology allows high density

recording of 16.6 fields per second

•Maximum 96-hour time lapse recording mode is

available with a 240-minute tape

•Audio recording and playback are possible in 8, 24,

40-hour modes (E-240) and in 6, 18, 30-hour modes

(E-180)

•Built-in time and date generator allows time and date

information to be displayed along with the Alarm count

and Recording/Playback speed

•Various recording modes such as Auto Repeat

Recording, Timer Recording, Alarm Recording and

Series Recording for versatile situations

•Dalight Saving Time setting function

•Holiday setting function

•Camera switcher interface

•Quick recording check function

•By using alarm recall, scan and search functions,

pictures recorded during alarm mode can be easily

checked

•Field-by-field picture playback capability

•External timer input capability

•Automatic clock adjusting is possible when several

VTRs are used

•On-screen display permits easy-to-follow operation

•Auto head cleaning function

•Tape before-end/Tape-end signal output capabilities

•Warning signal output capability

•Buzzer function

•Power-failure protection for up to 30 days

•Security lock function for avoiding accidental operation

errors

•Loop-through capability enables video and audio to be

output through to the monitor automatically

•Clog detection function

•Remote control capability of basic operational functions

through ø3.5mm mini jack

•External control capability via an optional RS-232C

interface

Time Lapse Videocassette Recorder

SVT-L230P

TIME MODE (h) 8 24 40 64 96

INTERVAL (s) 1/50 0.06 0.1 0.18 0.26

Specifications

Supplied Accessories

AC power cable (1)

Operation manual (1)

Optional Accessories

SVT-RM10 Remote Control Unit

RSE-232C interface board SVT-RS1A

TLV parts kit TPK-888P

•Maximum 72-hour time lapse recording mode is

available with a 180-minute tape

TIME MODE (h) 6 18 30 48 72

INTERVAL (s) 1/50 0.06 0.1 0.18 0.26

•Adaptive Picture Control (APC) delivers optimum

picture quality to the recording image

Rear Panel

TIME LAPSE VIDEO RECORDERS

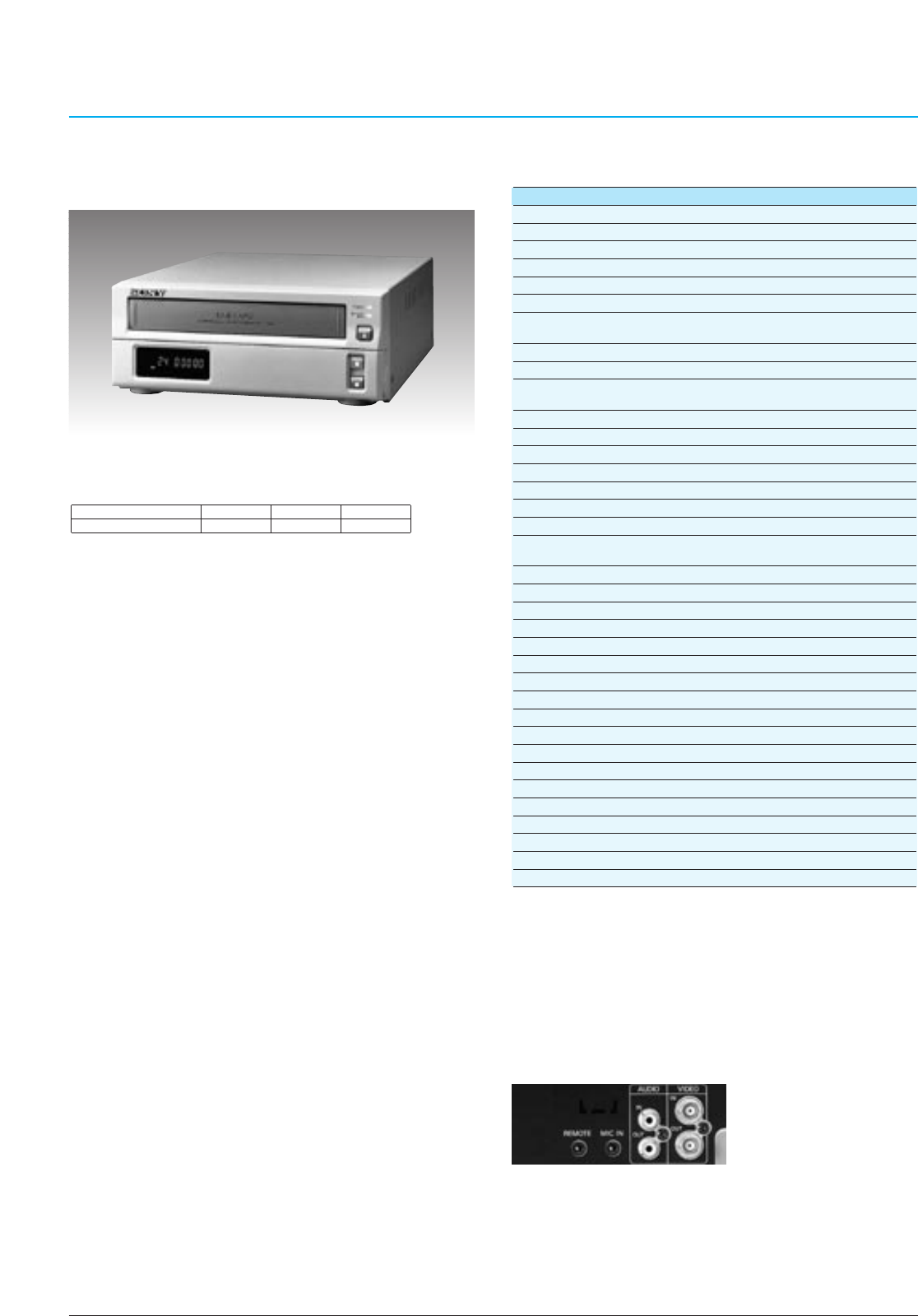

SVT-124P

General

Tape format: VHS

Power requirements: AC 220 to 240 V, 50/60 Hz

Power consumption: 18 W

Operating temperature: 5 to 40°C (41°F to 104°F)

Operating humidity: Less than 80%

Dimensions: 240 (W) x 96.5 (H) x 333 (D) mm

(9 1/2x 3 7/8x 13 1/8inches)

Mass: Approx. 3.8 kg (8 lb 6 oz)

Tape speed: 23.39 mm/sec (3-hour mode)

Recording/Playback time:

3, 12, 24 hours

(with an SE/E-180 tape)

Alarm recording speed: 3-hour mode

Alarm recording duration: 20 s, 40 s, 1 m, 2 m, 3 m, 5 m, CC*,TRIG

Fast forward/rewind time: Approx. 2.5 minutes (with an SE/E-180 tape)

Video

Recording system: Rotary two-head helical scanning system

Input: BNC: 1.0 Vp-p, 75 Ω, unbalanced

Output: BNC: 1.0 Vp-p, 75 Ω, unbalanced

Horizontal resolution: Colour mode: More than 240 TV lines

Black & White mode: More than 320 TV lines

Signal-to-noise: 43 dB

Audio

Audio recording system: Monaural

Audio recording mode: 3, 12 and 24-hour mode

Input: -7.8 dBu, 47 kΩ(phono jack)

Output: -7.8 dBu, 600 Ω(phono jack)

Microphone input: -60 dBu, 600 Ω(ø3.5 mm minijack)

Distortion: Less than 4%

Audio signal-to-noise: 42 dB

Others

Alarm input: Low level

Alarm output: +5 V, 5.7 kΩ(Low active)

Switch output: +5 V, 5.7 kΩ(Low active)

Tape end output: +5 V, 5.7 kΩ(Low active)

Warning output: +5 V, 5.7 kΩ(Low active)

External timer input: Low level

Remote/Tally: Stereo mini pin

AC input: 3-pin inlet

Notes: *Stays an alarm for as long as the alarm input remains active.

0 dBu = 0.775 Vrms

Time Lapse Videocassette Recorder

SVT-124P Specifications

•Two different time lapse recording/playback modes are

available in addition to the standard mode (3 hours

time mode) with a normal 180-minute tape

•Compact body with a 240 mm width

•Adaptive Picture Control (APC) delivers optimum

picture quality to the recording image

•Audio recording and playback are possible in 3, 12 and

24-hour modes

•Built-in time and date generator allows time and date

information to be displayed along with the Alarm count

and Recording/Playback speed

•Various recording modes such as Auto Repeat

Recording, Timer Recording and Alarm Recording for

versatile situations

•Holiday setting function

•Daylight Saving Time setting function

•Camera switcher interface

•Quick recording check function

•By using alarm recall and scan functions, pictures

recorded during alarm mode can be easily checked

•Field-by-field picture playback capability

•External timer input capability

•Automatic clock adjusting is possible when several

VCRs are connected

•On-screen display permits easy-to-follow operation

•Auto head cleaning function

•

Tape before-end signal output/Tape-end output capability

•Warning signal output capability

•Buzzer setting function

•Power-failure protection for up to 30 days

•Security lock function for avoiding accidental operation

errors

•Clog detection function

•Remote control capability of basic operational functions

through ø3.5mm mini jack

(optional Remote Control Unit SVT-RM10)

TIME MODE (h) 3 12 24

INTERVAL (s) 1/50 0.1 0.18

Supplied accessories

AC power cord (1)

Operation manual (1)

Optional accessory

SVT-RM10 Remote Control Unit

TLV parts kit TPK-953P

Rear Panel

TIME LAPSE VIDEO RECORDERS

Supplied accessories

AC power cord (1)

Operation manual (1)

Optional accessory

SVT-RM10 Remote Control Unit

RS-232C interface board SVT-RS1A

TLV parts kit TPK-887P

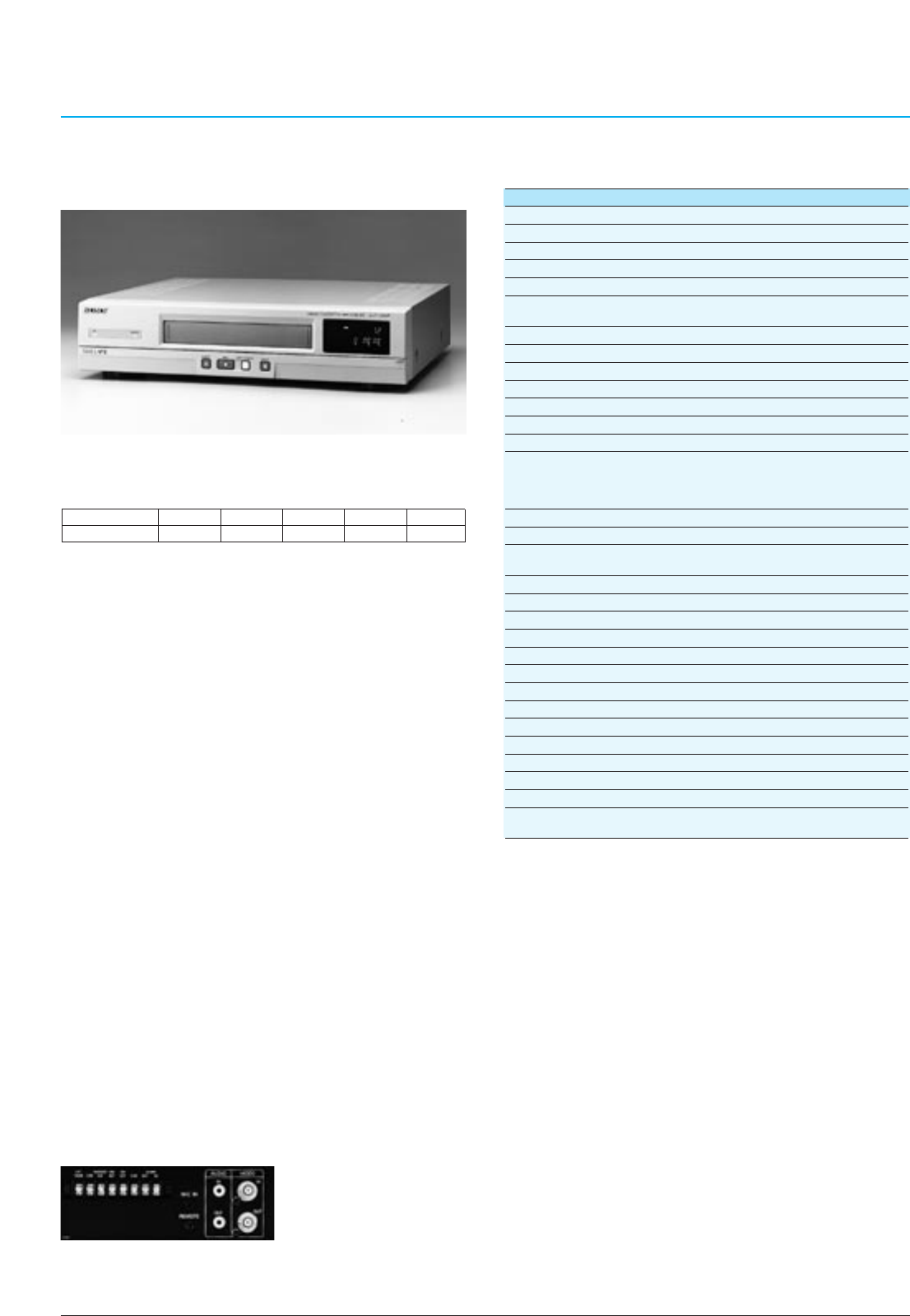

SVT-1000P

General

Power requirements: AC 220 to 240 V, 50/60 Hz

Power consumption: 18 W

Operating temperature: 5 to 40°C (41 to 104°F)

Operating humidity: Less than 80%

Dimensions: 420 (W) x 100 (H) x 349 (D) mm

(16 5/8x 4 x 13 3/4inches)

Mass: Approx. 5.5 kg (12 lb 2 oz)

Tape speed: 23.39 mm/sec (3-hour mode)

Recording/playback time: 3, 12, 24, 48 and 72 hours (with an E-180 tape)

Alarm recording speed: 3, 12-hour mode, NC*1

Alarm recording duration: 20 s, 1 m, CC*2

Fast forward/rewind time: Approx. 4 minutes (with an E-180 tape)

Video

Recording Playback system:

Rotary four-head helical scanning system

Luminance signal: FM recording

Colour signal: Low-pass band-pass

transformation direct recording

Input:

1.0 Vp-p, 75 Ω, unbalanced, sync negative (BNC type)

Output:

1.0 Vp-p, 75 Ω, unbalanced, sync negative (BNC type)

Horizontal resolution: Colour mode: More than 240 TV lines

Black & White mode: More than 320 TV lines

Signal-to-noise ratio: 43 dB

Audio

Audio recording mode: 3, 12 and 24-hour mode

Input: -7.8 dBu, 47 kΩ, unbalanced (phono jack)

Output: -7.8 dBu, 600 Ω, unbalanced (phono jack)

Microphone input: -60 dBu, 600 Ω(ø3.5 mm minijack)

Others

Alarm input: Low level

Alarm output: +5 V, 5.7 kΩ(Low active)

Switch output: +5 V, 5.7 kΩ(Low active)

Tape end output: +5 V, 5.7 kΩ(Low active)

Warning output: +5 V, 5.7 kΩ(Low active)

External timer input: Low level

Control terminals: ø3.5 mm mini jack

Optional RS-232C interface (D-sub 9-pin)

Notes: *1No change of recording speed

*2Stays an alarm for as long as the alarm input remains active.

0 dBu=0.775 Vrms

•Adaptive Picture Control (APC) delivers optimum

picture quality to the recording image

•A tape recorded in the 3-hour mode can be played

back by any VHS VCR

•Audio recording and playback are possible in 3, 12 and

24-hour modes

•Built-in time and date generator allows time and date

information to be displayed along with the Alarm count

and Recording/Playback speed

•

Various recording modes such as Auto Repeat Recording,

Timer Recording and Alarm Recording for versatile situations

•By using alarm recall and scan functions, pictures

recorded during alarm mode can be easily checked

•Holiday setting function

•Daylight Saving Time setting function

•Quick recording check function

•Field-by-field picture playback capability

•External timer input capability

•On-screen display permits easy-to-follow operation

•Auto head cleaning function

•Tape before-end signal output capability

•Warning signal output capability

•Buzzer setting function

•Power-failure protection for up to 30 days

•

Security lock function for avoiding accidental operation errors

•

External control capability via an optional RS-232C interface

•Remote control capability of basic operational functions

through ø3.5 mm mini jack

•4 different time lapse recording/playback modes are

available in addition to the standard mode (3 hours

time mode) with a normal 180-minute tape

Note: In time lapse modes, it is possible to additionally record three hours longer than the original modes.

Time Lapse Videocassette Recorder

SVT-1000P Specifications

TIME MODE (h)

312244872

INTERVAL (s)

1/50 0.1 0.18 0.34 0.5

Rear Panel

TIME LAPSE VIDEO RECORDERS

•Adaptive Picture Control (APC) delivers optimum

picture quality to the recording image

•A tape recorded in the 3-hour mode can be played

back by any S-VHS or VHS VCR

•Audio recording and playback are possible in 3, 12 and

24-hour modes

•Built-in time and date generator allows time and date

information to be displayed along with the Alarm count

and Recording/Playback speed

•Various recording modes such as Auto Repeat

Recording, Timer Recording and Alarm Recording for

versatile situations

•Holiday setting function

•Daylight Saving Time setting function

•Quick recording check function

•

By using alarm recall and scan functions, pictures

recorded during alarm mode can be easily checked

•Field-by-field picture playback capability

•External timer input capability

•Automatic clock adjusting is possible when several

VCRs are connected

•On-screen display permits easy-to-follow operation

•Auto head cleaning function

•Tape before-end signal output capability

•Warning signal output capability

•Buzzer setting function

•Power-failure protection for up to 30 days

•

Security lock function for avoiding accidental operation errors

•

External control capability via an optional RS-232C interface

•Remote control capability of basic operational functions

through ø3.5mm mini jack

SVT-S3050P

General

Tape format: S-VHS or VHS

Power requirements: AC 220 to 240 V, 50/60 Hz

Power consumption: 18 W

Operating temperature: 5 to 40°C (41 to 104°F)

Operating humidity: Less than 80%

Dimensions: 420 (W) x 100 (H) x 349 (D) mm

(16 5/8x 4 x 13 1/2inches)

Mass: Approx. 5.8 kg (12 lb 9 oz)

Tape speed: 23.39 mm/sec (3-hour mode)

Recording/playback time:

3, 12, 24, 48, 72, 96, 120 and 168 hours

(with an SE/E-180 tape)

Alarm recording speed: 3, 12-hour mode, NC*1

Alarm recording duration: 20 s, 1 m, CC*2

Fast forward/rewind time: Approx. 4 minutes (with an SE/E-180 tape)

Video

Recording Playback system:

Rotary four-head helical scanning system

Luminance signal: FM recording

Colour signal: Low-pass band-pass

transformation direct recording

Input: BNC: 1.0Vp-p, 75 Ω, unbalanced

S -VIDEO: Mini DIN 4-pin

Y: 1.0Vp-p, 75 Ω, sync negative

C: 0.3 Vp-p, at burst level, 75 Ω

Output: BNC: 1.0 Vp-p, 75 Ω, unbalanced

S -VIDEO: Mini DIN 4-pin

Y: 1.0 Vp-p, 75 Ω, sync negative

C: 0.3 Vp-p, at burst level, 75 Ω

Horizontal resolution:

Colour mode: More than 400 TV lines (S-VHS)

Black & White mode: More than 400 TV lines (S-VHS)

Signal-to-noise ratio: 45 dB (S-VHS)

Audio

Audio recording mode: 3, 12 and 24-hour mode

Input: -7.8 dBu, 47 kΩ(phono jack)

Output: -7.8 dBu, 600 Ω(phono jack)

Microphone input: -60 dBu, 600 Ω(ø3.5 mm minijack)

Others

Alarm input: Low level

Alarm output: +5 V, 5.7 kΩ(Low active)

Switch output: +5 V, 5.7 kΩ(Low active)

Tape end output: +5 V, 5.7 kΩ(Low active)

Warning output: +5 V, 5.7 kΩ(Low active)

Timer output: +12 V, 5.7 kΩ(high active)

External timer input: Low level

Clock set output: +5 V, 5.7 kΩ(Low active)

Clock set input: Low level

Series output: +5 V, 5.7 kΩ(Low active)

Series input: Low level

Control terminals: ø3.5 mm mini jack

Optional RS-232C interface (D-sub 9-pin)

Notes: *1 No change of recording speed

*2 Stays an alarm for as long as the alarm input remains active.

0 dBu = 0.775 Vrms

S-VHS Time Lapse Videocassette Recorder

SVT-S3050P Specifications

•

High horizontal resolution of 400TV lines using S-VHS format

•Excellent signal-to-noise ratio of 45 dB

•7 different time lapse recording/playback modes are

available in addition to the standard mode (3 hours

time mode) with a normal 180-minute tape

Note: In time lapse modes, it is possible to additionally record three hours longer than the original modes.

TIME MODE (h) 3 12 24 48 72 96 120 168

INTERVAL (s) 1/50 0.1 0.18 0.34 0.5 0.66 0.82 1.14

Supplied accessories

AC power cord (1)

Operation manual (1)

Optional accessory

SVT-RM10 Remote Control Unit

RS-232C interface board SVT-RS1A

TLV parts kit TPK-885P

Rear Panel

TIME LAPSE VIDEO RECORDERS

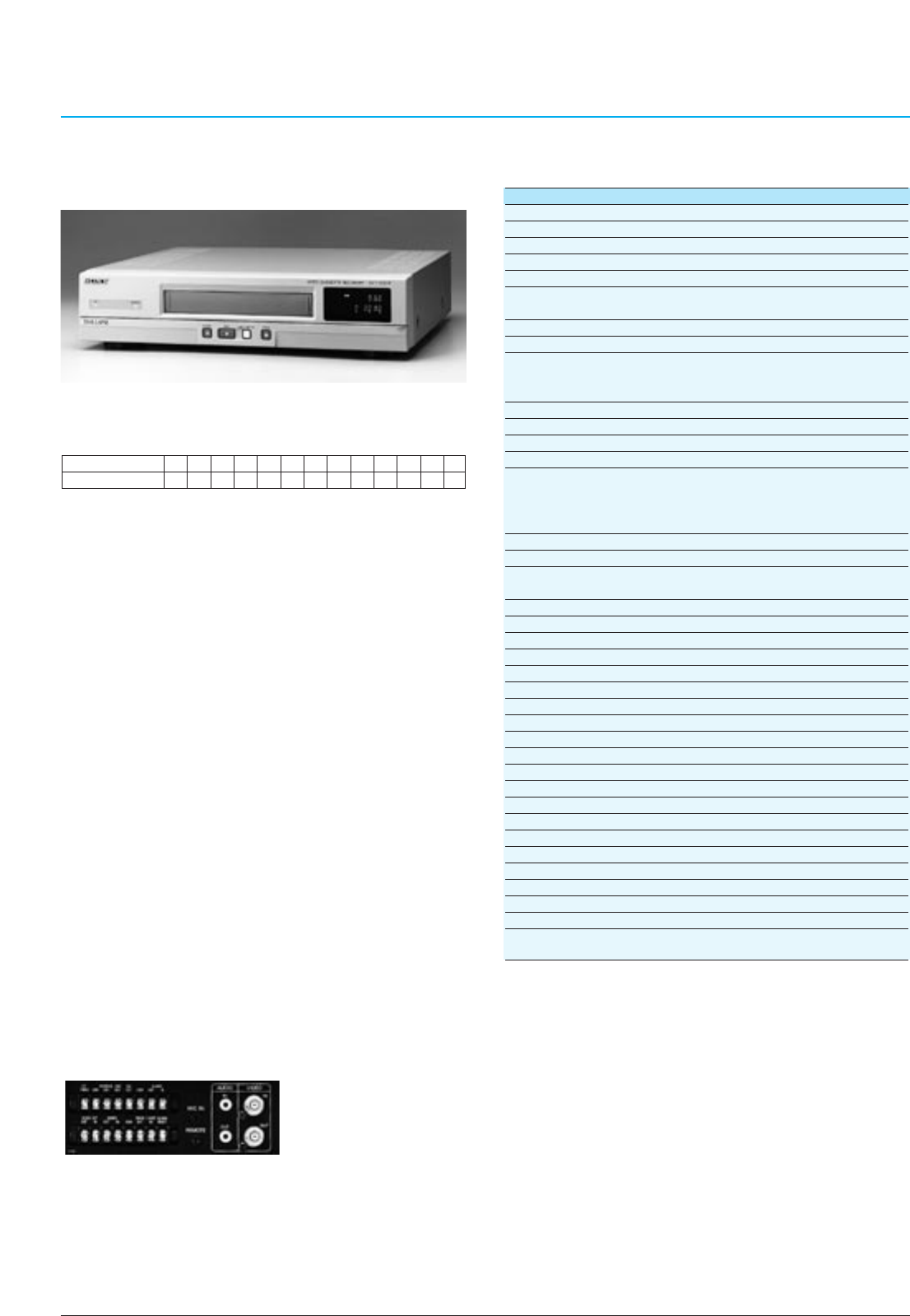

SVT-5050P

General

Power requirements: AC 220 to 240 V, 50/60 Hz

Power consumption: 18 W

Operating temperature: 5 to 40°C (41 to 104°F)

Operating humidity: Less than 80%

Dimensions: 420 (W) x 100 (H) x 349 (D) mm

(16 5/8x 4 x 13 3/4inches)

Mass: Approx. 5.5 kg (12 lb 2 oz)

Tape speed: 23.39 mm/sec (3-hour mode)

Recording/playback time: 3, 12, 24, 48, 72, 96, 120, 168, 240, 360, 480,

720 and 960 hours (with an E-180 tape)

(One shot mode is also available)

Alarm recording speed: 3, 12-hour mode, NC*1

Alarm recording duration: 20 s, 40 s, 1 m, 2 m, 3 m, 4 m, 5 m, CC*2

Fast forward/rewind time: Approx. 4 minutes (with an E-180 tape)

Video

Recording Playback system:

Rotary four-head helical scanning system

Luminance signal: FM recording

Colour signal: Low-pass band-pass

transformation direct recording

Input: 1.0 Vp-p, 75 Ω, unbalanced (BNC type)

Output: 1.0 Vp-p, 75 Ω, unbalanced (BNC type)

Horizontal resolution: Colour mode: More than 240 TV lines

Black & White mode: More than 350 TV lines

Signal-to-noise ratio: 43 dB

Audio

Audio recording mode: 3, 12 and 24-hour mode

Input: -7.8 dBu, 47 kΩ(phono jack)

Output: -7.8 dBu, 600 Ω(phono jack)

Microphone input: -60 dBu, 600 Ω(ø3.5mm mini jack)

Others

Alarm input: Low level

Alarm output: +5 V, 5.7 kΩ(Low active)

Switch output: +5 V, 5.7 kΩ(Low active)

Tape end output: +5 V, 5.7 kΩ(Low active)

Warning output: +5 V, 5.7 kΩ(Low active)

Timer output: +12 V, 5.7 kΩ(high active)

External timer input: Low level

Clock set output: +5 V, 5.7 kΩ(Low active)

Clock set input: Low level

Series output: +5V, 5.7 kΩ(Low active)

Series input: Low level

One-shot input: Low level

Alarm reset: Low level

Control terminals: ø3.5 mm mini jack

Optional RS-232C interface (D-sub 9-pin)

Notes *1No change of recording speed

*2Stays an alarm for as long as the alarm input remains active.

0 dBu=0.775 Vrms

•12 different time lapse recording/playback modes are

available in addition to the standard mode (3 hours

time mode) with a normal 180-minute tape

•Adaptive Picture Control (APC) delivers optimum

picture quality to the recording image

•A tape recorded in the 3-hour mode can be played

back by any VHS VCR

•Audio recording and playback are possible in 3,12 and

24-hour modes

•Built-in time and date generator allows a required

scene to be easily searched by presetting the desired

time and date

•

Multiple recording modes such as Auto Repeat

Recording, Timer Recording, Alarm Recording, One-shot

Recording and Series Recording for versatile situations

•Holiday setting function

•Daylight Saving Time setting function

•Quick recording check function

•By using alarm recall/scan/search functions, pictures

recorded during alarm mode can be easily checked

•Field-by-field picture playback capability

•External timer input capability

•Automatic clock adjusting is possible when several

VCRs are connected

•On-screen display permits easy-to-follow operation

•Auto head cleaning function

•Tape before-end signal output capability

•Warning signal output capability

•Buzzer setting function

•Power-failure protection for up to 30 days

•

Security lock function for avoiding accidental operation errors

•

External control capability via an optional RS-232C interface

•Remote control capability of basic operational functions

through ø3.5 mm mini jack

Time Lapse Videocassette Recorder

SVT-5050P

TIME MODE (h)

3 12 24 48 72 96 120 168 240 360 480 720 960

INTERVAL (s)

1/50 0.1 0.18 0.34 0.5 0.66 0.82 1.14 1.62 2.42 3.22 4.82 6.42

Specifications

Supplied Accessories

AC power cord (1)

Operation manual (1)

Optional Accessory

SVT-RM10 Remote Control Unit

RS-232C interface board SVT-RS1A

TLV parts kit TPK-887P

Note: In time lapse modes, it is possible to additionally record three hours longer than the original modes.

Rear Panel

TIME LAPSE VIDEO RECORDERS

ANALOG TIME LAPSE VCR FEATURE COMPARISON CHART

SVT-L230P SVT-124P SVT-1000P SVT-S3050P SVT-5050P

Format VHS VHS VHS S-VHS/VHS VHS

Recording Speed

up to 72 (E-180)/up to 96 (E-240)

up to 24 (E-180) up to 72 (E-180) up to 168 (E-180) up to 960 (E-180)

Adaptive Picture Control

YES YES YES YES YES

Audio Playback 6, 18, 30 3, 12, 24 3, 12, 24 3, 12, 24 3, 12, 24

Horizontal Resolution B/W: 320 CLR: 240 B/W: 320 CLR: 240 B/W: 320 CLR: 240 B/W: 400 CLR: 400 B/W: 350 CLR: 240

RS-232C IF (option) YES NO YES YES YES

Video S/N 42 dB 44 dB 43 dB 45 dB 43 dB

FF/REW Time Approx. 2.5 min (E-180) Approx. 2.5 min (E-180) Approx. 4 min (E-180) Approx. 2.5 min (E-180) Less than 4 min (E-180)

Dimensions (mm) 420 x 100 x 349 240 x 96.5 x 333 420 x 100 x 349 420 x 100 x 349 420 x 100 x 349

Mass (kg) 5.8 3.8 5.8 5.8 5.8

Timer REC Daily, Weekly Daily, Weekly Daily, Weekly Daily, Weekly Daily, Weekly

Auto Repeat REC YES YES YES YES YES

Series REC YES NO NO YES YES

One Shot REC NO NO NO NO YES

Field Advance YES (±) YES (+) YES (±) YES (+) YES (±)

Reverse Playback Standard Only NO Standard Only Standard Only Standard Only

Alarm Search YES NO NO NO YES

Alarm Scan/Recall YES YES YES YES YES

Time Date Search YES NO NO NO YES

Memory Back-up 30 days (Lithium batt.) 30 days (Lithium batt.) 30 days (Lithium batt.) 30 days (Lithium batt.) 30 days (Lithium batt.)

REC Check YES YES YES NO NO

Clog derection YES YES NO NO NO

Daylight YES (Auto) YES (Auto) YES (Manual) YES (Manual) YES (Manual)

Holiday Set YES YES YES YES YES

Series In/Out YES NO NO YES YES

Timer OUT YES NO YES YES YES

Warning OUT YES YES YES YES YES

Tape Before End/End YES YES YES YES YES

Clock Adjusting YES NO NO YES YES

TIME LAPSE VIDEO RECORDERS

Supplied accessories

AC power cord (1)

Operation manual (1)

Optional accessory

HSRA-11 (Input Board)

SVRM-100A (Remote Control Unit)

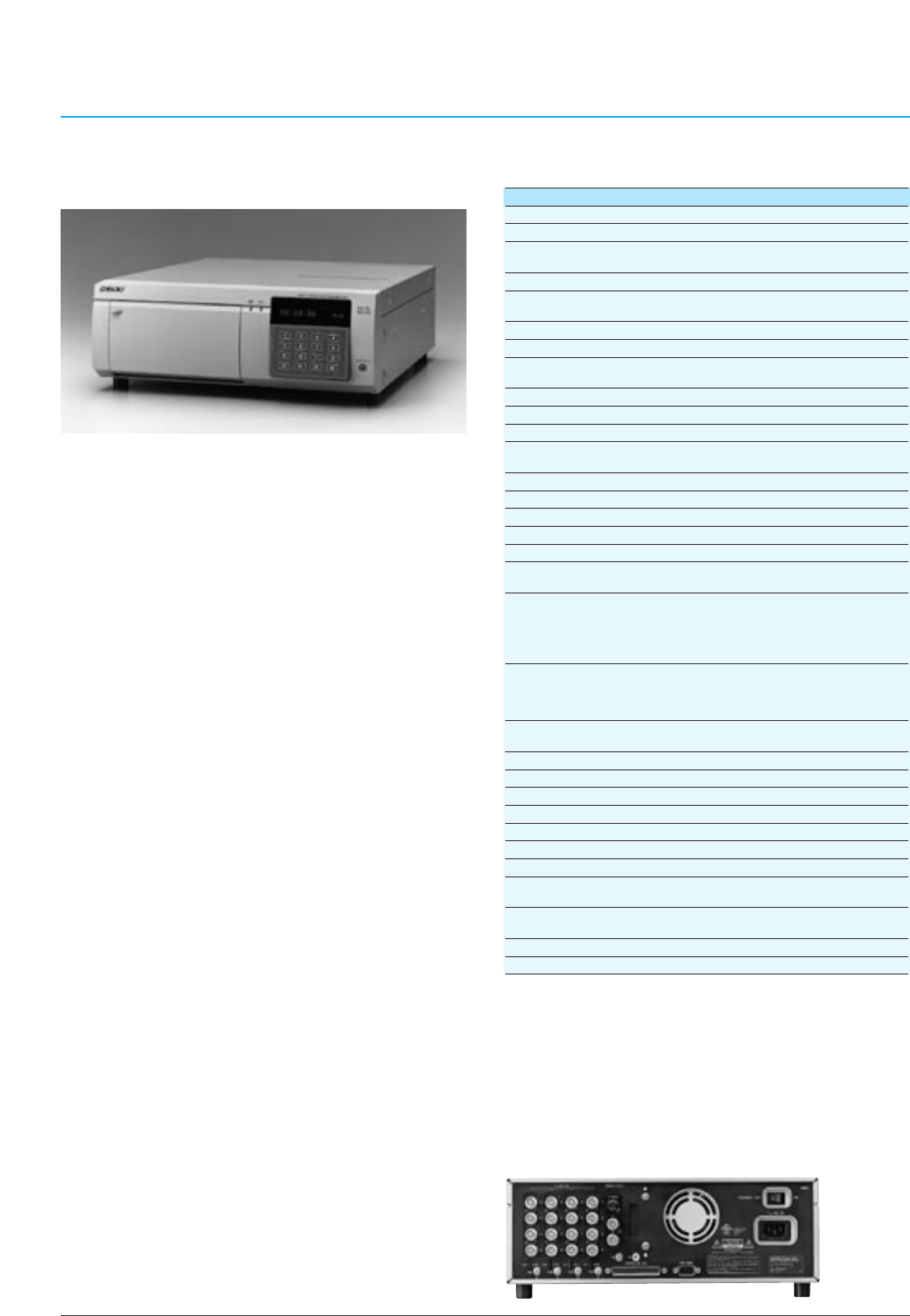

HSR-1P

General

Mass 10 kg (22 lb 1 oz)

Dimensions 355 (W) x 125 (H) x 410 (D) mm

(14 x 5 x 16 1/4inches)

Power requirements AC 220 V~240 V, 50/60 Hz

Power consumption 80 W (without options)

115 W (with full options)

Operating temperature 5°C ~ 40°C (41°F ~ 104°F)

Operating humidity Less than 80%

Usable tape DV*1 or DVCAM*2 cassette tape

(standard size, mini size)

HDD capacity More than 4.3 GB

System

Video signal CCIR standard, PAL colour

Recording system Rotary two-head helical scanning system

Digital components

Quantization 8-bit

Sampling frequency 13.5 MHz (4:2:0 components)

Recording/Playback time Maximum 9999 hours (Approx. 400 days)

Fast forward/Rewind time Less than 3 min. (with a DV270 tape)

Video

Input VBS, VS (BNC type):

1.0 Vp-p, 75 Ω, unbalanced

Output VBS (BNC type):

1.0 Vp-p, 75 Ω, unbalanced

S-VIDEO (DIN 4-pin):

Y: 1.0 Vp-p, 75 Ω, sync negative

C: 0.3 Vp-p, 75 Ω, at burst level

Quality mode SUPER, HIGH, MIDDLE and LOW mode

(selectable) (Field-by-field recording)

HYPER mode

(Frame-by-frame recording with a trigger signal)

Horizontal resolution More than 500 TV lines

(HYPER and SUPER mode)

Signal-to-noise ratio More than 48 dB

Built-in Multiplexer

Input 4 inputs (up to 16 inputs with optional boards)

Output 2 outputs

Split screen display 9 patterns

Connectors

Parallel input/output D-SUB 37-pin (1)

Input: 24 terminals to be freely assigned

(Alarm, Clock set, Series rec, Alarm cancel, etc.)

Output: 8 terminals to be freely assigned

(Auto off, Tape end, Series rec, Rec tally, ect.)

Power output: +12 V (max 100 mA)

Control S Stereo mini (1)

Notes: *1 The recorded tape by the HSR-1P cannot be played back on DV equipment.

*2 A DVCAM 184-minute tape can be used with the HSR-1P. It has the same storage capacity as

that of a DV 270-minute tape.

•Hybrid configuration of HDD and DV tape drive

•Four alternative quality modes: Super, High ,Middle and

Low modes

•Excellent picture quality provided by super mode with a

horizontal resolution of more than 500 TV lines (Super

mode)

•Large storage capacity(more than 60 GB) and long

recording time by using DV cassette tape(270-minute

tape) as a storage medium

•High refresh rate for recording of each camera

•

High reliability on tape transport mechanism and heads offered

by the hybrid configuration of HDD and DV tape drive.

•Compact body which matches that of a 14-inch monitor

•Compact storage medium which requires less space

•Up 16 camera inputs provided by installing optional

HSRA-11

•Built-in duplex multiplexing capability which allows

recording and monitoring of up to 16 camera inputs

independently.

•A variety of monitoring patterns

•Two monitoring outputs for simultaneous playback on the

first monitor and monitoring on the second monitor

•Five preset recording modes to be flexibly combined

with picture quality mode, tape length, recording time,

number of camera inputs and the recording cycle of

each camera.

•Flexible camera assignment

•RS-232C interface for PC control

•Freely configurable 37-pin parallel port

•Flexibility in alarm mode

•Continuous recording function without breaks even while

changing or rewinding the tape

•Sophisticated security functions

•Water mark

•

Intelligent search functions: time/date search, alarm search,

specific user data search and noiseless picture search

•Pre Alarm recording capability for event recording

•Power On recording capability

•Frame recording in hyper mode

Digital Surveillance Recorder

HSR-1P Specifications

Rear Panel

TIME LAPSE VCR OPTIONAL ACCESSORIES

•Works with all Sony time lapse VCRs

•Provides wired remote control operation for

REC/PLAY/STOP/REW/ FF/REV/PLAY/PAUSE

•MENU button and REC/PLAY speed button are also

available

•Cable length: 2.4 m

Remote Control Unit

SVT-RM10

•When installed in the SVT-5050P, SVT-3050P,

SVT-1000P, and SVT-L230P, this board allows these

recorders to be remotely controlled from computers

•Connectable with common RS-232C cable (male type)

•REC CHECK function is available

RS-232C Interface Board

SVT-RS1A

SVT- Series VCR TLV Parts Kit

SVT-L230P TPK-888P

SVT-124P TPK-953P

SVT-1000P TPK-887P

SVT-5050P TPK-887P

SVT-S3050P TPK-S885P

TLV Parts kit

•Parts kit for all SVT time lapse VCRs

•Includes all the parts required for a 10,000 hour

maintenance service, including VCR cylinder and brake

assembly

•Provides wired remote control operation for HSR-1P

•STOP/REC/PAUSE/REW/PLAY/FFWD/JOG/SHUTTLE

operation

Remote Control Unit

SVRM-100A

•Up to 16 camera inputs available when three optional

input board, each having four inputs, are installed (The

HSR-1P has one input board pre-installed)

Input Board

HSRA-11

PMS-500P/400P

Tranceiver (PMS-500P)

Transmitter (PMS-400P)

Quick Reference

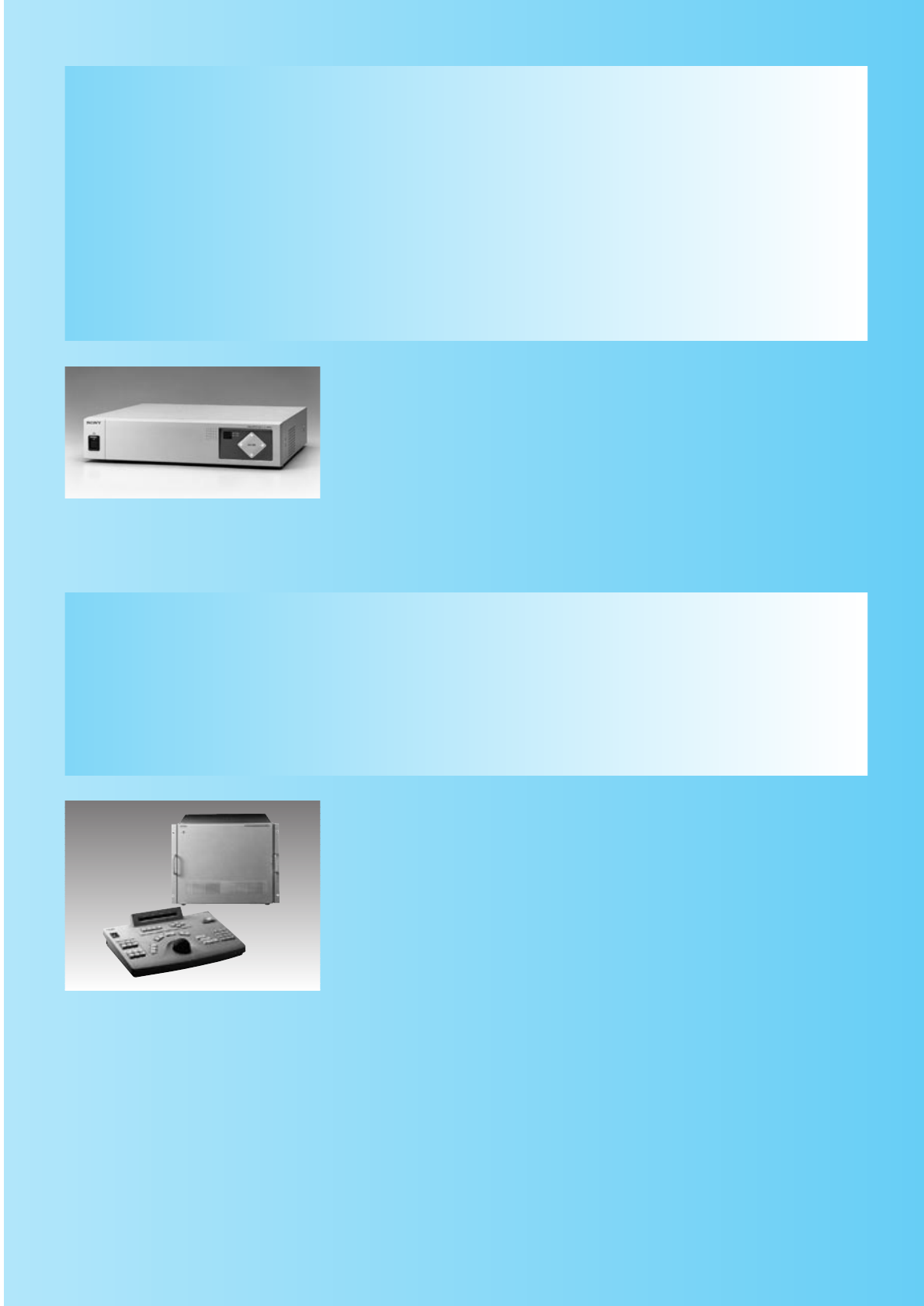

MONITORING CODECS AND

SYSTEM CONTROLLER

Monitoring Codecs

The PMS (Picture Monitoring System) monitoring codecs have been designed especially for

remote site surveillance applications. The PMS-500P tranceiver and PMS-400P transmitter

take advantage of the latest advances in ISDN telecommunications and image processing

technology. Instead of still pictures, these codecs deliver smooth, clear, full colour video at a

maximum of 15 frames per second together with audio and control data.

CSP-5000E

with CSPK-5000E Keyboard

System Controller

The CSP-5000E is a highly programmable, easy-to-use CCTV matrix controller. It is designed

for middle to large-scale surveillance systems and supports up to 128 camera inputs and 32

monitor outputs. Versatile camera switching and support of coaxial and twisted pair

telemetry makes it the ideal choice for shopping centres, banks, office building and traffic

control applications.

MONITORING CODECS

Monitoring Codec

PMS-500P/400P*

PMS-500P (Receiver/Transmitter)

PMS-400P (Transmitter)

*These models are available only in Europe. For details, please contact your nearest Sony office.

Video Voice Control data

Send Receive Send Receive Send Receive

PMS-500P Yes Yes Yes Yes Yes Yes

PMS-400P Yes No Yes Yes Yes Yes

•PMS-500P and PMS-400P Comparison

PMS-500P

PMS-400P

Rear Panel

Supplied Accessories

Operating instructions (1)

AC power cord (1)

Optional Accessory

RM-R500 remote contorol unit (for PMS-500P only)

(Both PMS-500P/400P)

• Transmission of smooth and clear, video at a maximum

of 15 frames per second via ISDN line

• Selectable video mode (Fast/Normal/Fine) in

monitoring

• Accepts 8 camera inputs which are selectable from a

control centre or local terminals

• I/O port to control camera pan/tilt and zoom lens

•

Relay output port to control external devices (ie; door, light)

• Transmission and receiving capability of audio which

allows conversation between two sites

• When an alarm signal is input to a terminal, it

automatically activates the control centre to switch the

monitor to watch that terminal

• Easy connection, just by connecting to an ISDN

modular jack

• Compatible with a wide range of cameras, monitors,

and TLV equipment

• Remote control with the RM-R500 Remote Control Unit

• Password protection

• An RS-232C serial interface for PC control

• Remote diagnostics

RM-R500 Remote Control Unit

MONITORING CODECS

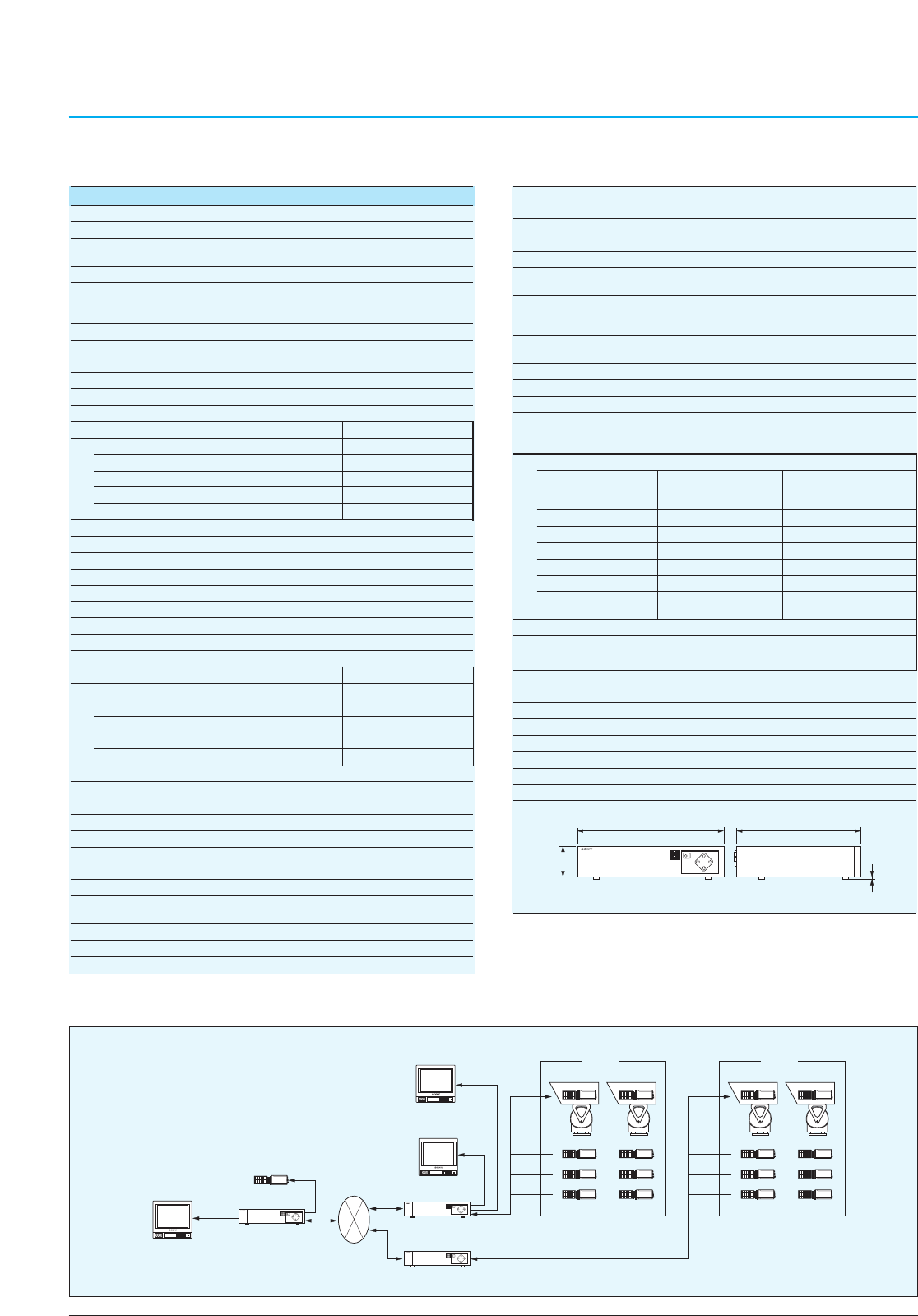

Specifications

PMS-500P/400P

Video

Coding H.261 (ITU-T recommendation)

Operating bandwidth 56 kbps/64 kbps/112 kbps/128 kbps…

384 kbps

Frame rate Max. 15 frames per second

Picture elements CIF:Luminance (Y) 352 pixels ´288 lines

Colour difference (B-Y, R-Y) 176 pixels

´ 144 lines

Colour system PAL (mutually connectable with NTSC)

PinP PMS-500P only

Input

Video In/Ext. Video In 1 Vp-p, 75 Ω, sync negative (BNC type)

Video Out/Through Out 1 Vp-p, 75 Ω, sync negative (BNC type)

Monitor Out 1 Vp-p, 75 Ω, sync negative (BNC type)

Input connectors

PMS-500P PMS-400P

Video In 88

Ext. Video In 11

Video Out 1-

Monitor Out 11

Audio

Coding G.728 (ITU-T recommendation)

Transfer rate 16 kbps

Bandwidth 3.4 kHz

Input

Mic In

-60 dBu/600 Ω, balanced (4-pin round connector)

Headphone Mic In -60 dBu/4.7 kΩ, unbalanced (minijack)

Line Out Variable, 4.7 kΩ(phono)

Headphone SP Out Variable, 72 Ω(minijack)

Input connectors

PMS-500P PMS-400P

Mic In 11

Headphone Mic In 11

Line Out 11

Headphone SP Out 11

Control procedure coding standards

H.242 System for Establishing Communication

H.320 Overall System

H.230 Control and Indication Signal

H.221 Framing and Signalling Structure

Communications interface

Network

Multiplexing Video, audio, data

Transmission rate ISDN interface, 1B/2B

V35 with RS-366 (56 k - 384 k)

Network connectors

ISDN BRI RJ45

V35 with RS-366 36-pin half-pitch connector (´2)

Computer Control Port

Interface RS-232C

Baud rate 1200/2400/4800/9600/19200/38400 bps

User data I/O

I/O parallel

Alarm input D-sub 9-pin

TTL input, pull-up resistance 10 kΩ

Relay control D-sub 9-pin

Output mode: Open collector (40 V, 40 mA)

Input mode: TTL input, pull-up resistance 10 kΩ

Camera control Output mode: Open collector (40 V, 40 mA)

Input mode: TTL input, pull-up resistance 10 kΩ

Remote control input Minijack, SIRCS format

I/OSerial D-sub 9-pin

Baud rate 1200/2400/4800/9600/19200/38400 bps

Interface RS-232C or RS-422 ´1

RS-232C or RS-485 ´1

RS-232C ´1

PMS-500P PMS-400P

RS-232C 33

(switchable with (switchable with

RS422/485) RS-422/485)

Alarm input 88

Relay output 88

Camera P I/O 12 12

SIRCS input 11

RS-485 (1) (1)

Operation keys Main unit keys Main unit keys

Remote control (option)

Menu display memory

Screen size Max. 24 characters ´12 lines (288 characters)

Character font 24 ´32 pixels

General

Power requirements AC 220 to 240 V, 50/60 Hz

Power consumption 0.35 A

Operating temperature 0°C to 40°C

Operating humidity 20% to 80% (no condensation)

Storage temperature -20°C to 55°C

Storage humidity 20% to 75% (no condensation)

Mass 7.0 kg

Dimensions:

Unit: mm (inches)

356 (14 1/8)

7.6

(5/16)

424 (16 3/4)

88 (3 1/2)

PMS-500P/400P Typical System

Site A

Video camera

Video monitor

Monitor out

(For monitoring Site A)

PMS-500P

PMS-400P

PMS-500P

ISDN

Video monitor

Video out

(For monitoring Site A and B)

Video monitor

Video out

(For monitoring Site B)

Power HAD Power HAD

Site B

Video camera

Power HAD Power HAD

Power HAD

Power HAD Power HAD Power HAD Power

HAD

SYSTEM CONTROLLER

System Controller

CSP-5000E*CSP-5000E (System Controller)

Video

Video inputs:

8 to 128 (max. 16 input boards) (BNC type x 128)

Video outputs: 8 to 32 (max. 4 output boards) (BNC type x 32)

Control ports

Receiver interface: RS-485 (8-pin modular twisted pair x 1)

Keyboard interface: RS-422 (8-pin modular x 7)

Alarm

Inputs: 256 inputs (50-pin, female x 8)

4 inputs x 128 Telemetry receiver (RS-485)

Outputs: 32 (50-pin, female x 1)

Programming

Sequence steps: 128 steps per monitor

Switching dwell time: 1 to 30 seconds, external trigger

Tour sequences: 8

Time events: 8 steps per day

Event programs: 8 types (day of week, calendar date)

Alarm duration: 1 to 120 seconds

Alarm events: Up to 512

Camera IDs: Up to 12 alphanumeric characters

General

Power requirements: AC 220 to 240 V, 50 Hz

Power consumption: Less than 300 W (fully configured)

Operating temperature: 0°C to 40°C

Mass: 32.5 kg (fully configured)

Dimensions:

Specifications

Optional Accessories

CSPB-510VC Input Board

Input: 8 per input board

Video level: 1.0 Vp-p composite, 75 Ω

Cable compensation:Built-in, up to 1,200 m on

RG-6A/U (5C-2V)

CSPB-520VC Output Board

Outputs: 8 per output board

Video level: 1.0 Vp-p composite, 75 Ω

CSPK-5000E (System Keyboard)

Video

Input: 1.0 Vp-p composite, 75 Ω(BNC type x 1)

Output: 1.0 Vp-p composite, 75 Ω(BNC type x 1)

Control ports

Keyboard interface: RS-422 (8-pin modular x 1)

Functions and keys

Camera switching: Numeric keypad, camera key, monitor key

P/T control: Pan (right/left), Tilt (up/down) using joyball

Lens control:

Zoom (tel/wide), Focus (near/far), Iris (open/close)

Camera and enclosure: Camera power on/off, wiper, AUX key x 3

Display LCD displaying selected camera number,

monitor, tour number

General

Power requirements: AC 220 to 240 V, 50 Hz

Power consumption: Less than 3 W

Operating temperature: 0°C to 40°C

Mass: 3.5 kg

Dimensions:

*This model is available only in Europe. For details, please contact your nearest Sony office.

•Up to 128 inputs and 32 outputs matrix switcher

•

Flexible modular configuration for easy system expansion

•Versatile switching patterns of cameras are

programmable

- Up to 128 steps of switching for each monitor

- Up to 8 tours (= sequence mode) are programmable

- Each tour automatically changes according to

time/date schedule

•Easy control of camera pan/tilt and zoom lens thanks to

ergonomic keyboard and joyball

•

Preset capability of camera pan/tilt and zoom lens position

•

RS-422 ports for up to 7 keyboards, for multiple operators

•System partitioning capability for efficient management

•Password protection

•256 alarm inputs and flexible alarm activation

•Twisted pair connection to each telemetry receiver

98 (3 7/8)

310 (12 1/4)

288 (11 3/8)

424 (16 3/4)

354 (14)

(8U)

424 (16 3/4) 495 (19 5/8)

SYSTEM CONTROLLER

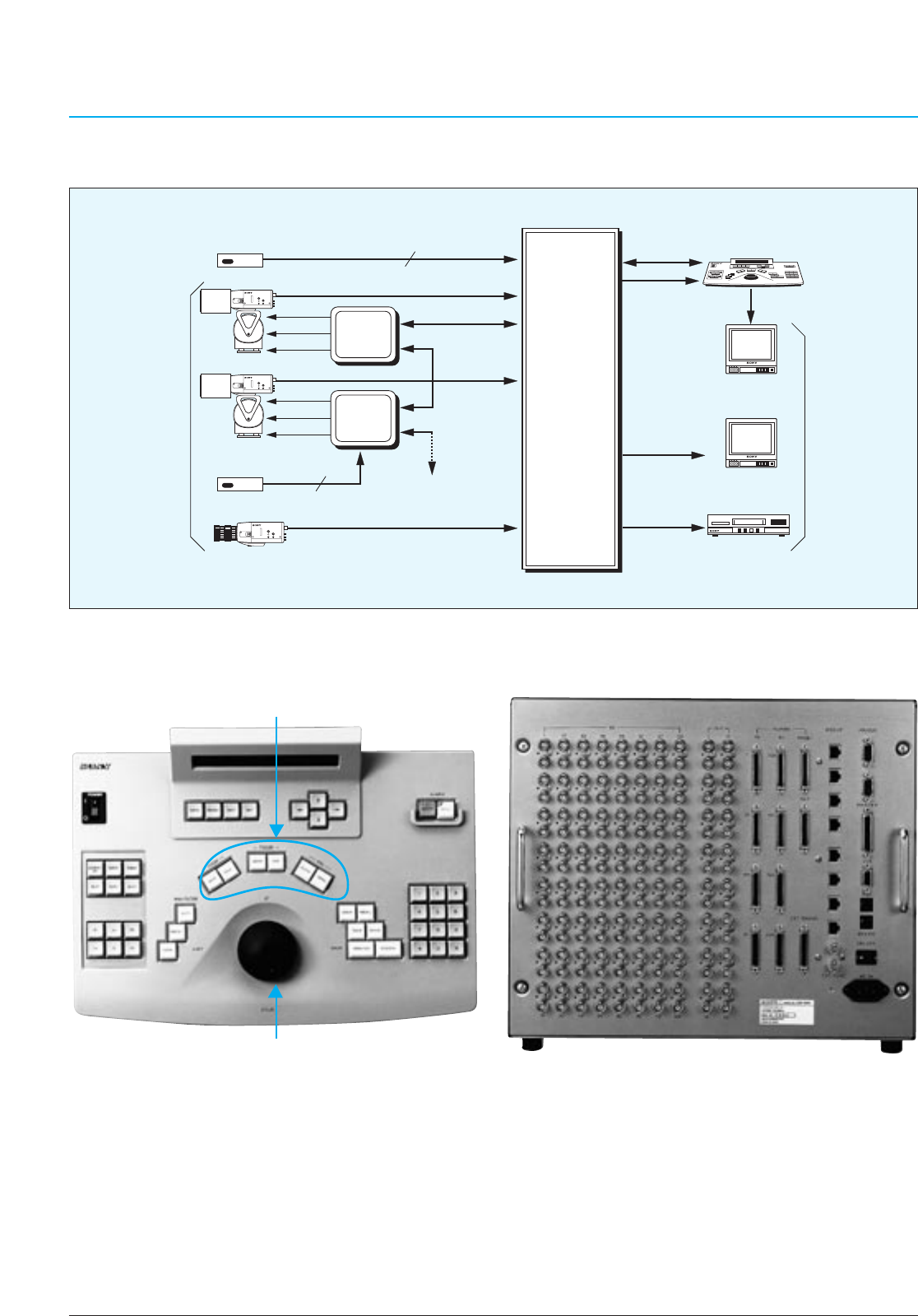

CPS-5000E Typical System

Digital

System

Controller

CSP-5000E

Digital

Telemetry

Receiver

Telemetry

Receiver

Alarm sensor Alarm input

Camera input

Telemetry T/P

RS-485

P/T

Lens

Others

P/T

Lens

Others

Alarm sensor

Next Receiver

Camera input

Video

Input

Max.128

256

Video out

RS-422

Video out

Keyboard

CSPK-5000E

Keyboard Monitor

Monitor

Video

output

Max.32

Time lapse VCR

Digital

CSPK-5000E Front Panel CSP-5000E Rear Panel

Lens Control Key

Joyball for Pan/Tilt Control

UP-5600MDP

A5 size

300 dpi resolution

UP-2850P/2800P

A6 size

310 dpi resolution

UP-2300P/2100P

A6 size

310 dpi (UP-2300P)

182 dpi (UP-2100P)

Quick Reference

PRINTERS

Sony UP series video printers allow the quick printing of video images in hard copy, making

them especially useful in surveillance applications for identification and archiving.

The range of printers offers copies in color or B/W, in different sizes and with high resolution

and quality. A range of ID card printers are also available. The UP-D6500 provides smart card

recording and both the UP-D6400 and UP-D6500 provide magnetic stripe recording.

UP-960CE

190 x 142 mm or 181 x 243 mm picture size UP-890CE

90 x 68 mm picture size

UP-D6500/D6400/D6300

Digital ID card printer

300 dpi resolution

Magnetic stripe encoding (UP-D6500/D6400)

Smart card encoding (UP-D6500)

Colour Video Printers

Digital Colour Printer

Black & White Video Graphic Printers

Models UP-5600MDP

Specifications (PAL/NTSC) UP-2850P UP-2800P UP-2300P UP-2100P

Printing method Dye transfer sublimation thermal printing

Picture size (mm)

Max. 165.1 x 124.8

Max. 176.1 x 132.1 (Digital printing

Max. 110 x 88

with optional UPK-5500 and

UPC-5502SC)

Picture elements (dots)

Max. 1920 x 1176

Max. 2048 x 1536 (Digital printing

Max. 976 x 860 Max. 720 x 564

with optional UPK-5500 and

UPC-5502SC)

Gradations 256 levels process (Yellow, Magenta, Cyan)

Over 16 million colours per dot

Frame memory

4 frame memories

8 frame memories (with optional

4 frame memories 1 frame memory

UPK-5500)

Printing time (seconds) 34 35 60

Input signals RGB (BNC), Y/C (D-sub 4-pin),

Y/C (D-sub 4-pin), Composite video (BNC)

Composite video (BNC)

Output signals RGB (BNC), Y/C (D-sub 4-pin),

Y/C (D-sub 4-pin), Composite video (BNC)

Composite video (BNC)

Video signal

CCIR/PAL or EIA/NTSC standard

CCIR/PAL standard

Multiple Print Mode

2/4/8/16 split, 2/4/8/16 duplicate, 2/2H/4/16 split, 4/16 duplicate, 2H/4/16 split, 4/16 duplicate, 2H/4/16 split, 4/16 duplicate,

2/4/8/16 strobe, Caption setting Sticker prints, Caption setting Sticker prints, Caption setting Caption setting

Aspect ratio 4 : 3

Monochrome Video Graphic Printers

Models UP-960CE UP-890CE

Specifications (CCIR/EIA) (CCIR/EIA)

Printing method Direct thermal printing

Picture size (mm) Max. 190 x 142 Max. 100 x 74

(aspect ratio 4:3, CCIR)

Picture elements (dots) ––– Max. 1024 x 608

(CCIR)

Gradations 256 grey levels 256 grey levels (quasi)

Frame memory 1 frame memory

Printing time (seconds) 12 4

Input signals Composite video (BNC)

Output signals Composite video (BNC)

Video signal CCIR/EIA standard

Print modes

Negative, Reverse, Side, Negative, Reverse, Side, Zoom,

Wide scan, mirror Wide scan, mirror

Aspect ratio 1 : 1 / 4 : 3

Colour Video Printers

FEATURE COMPARISON CHARTS

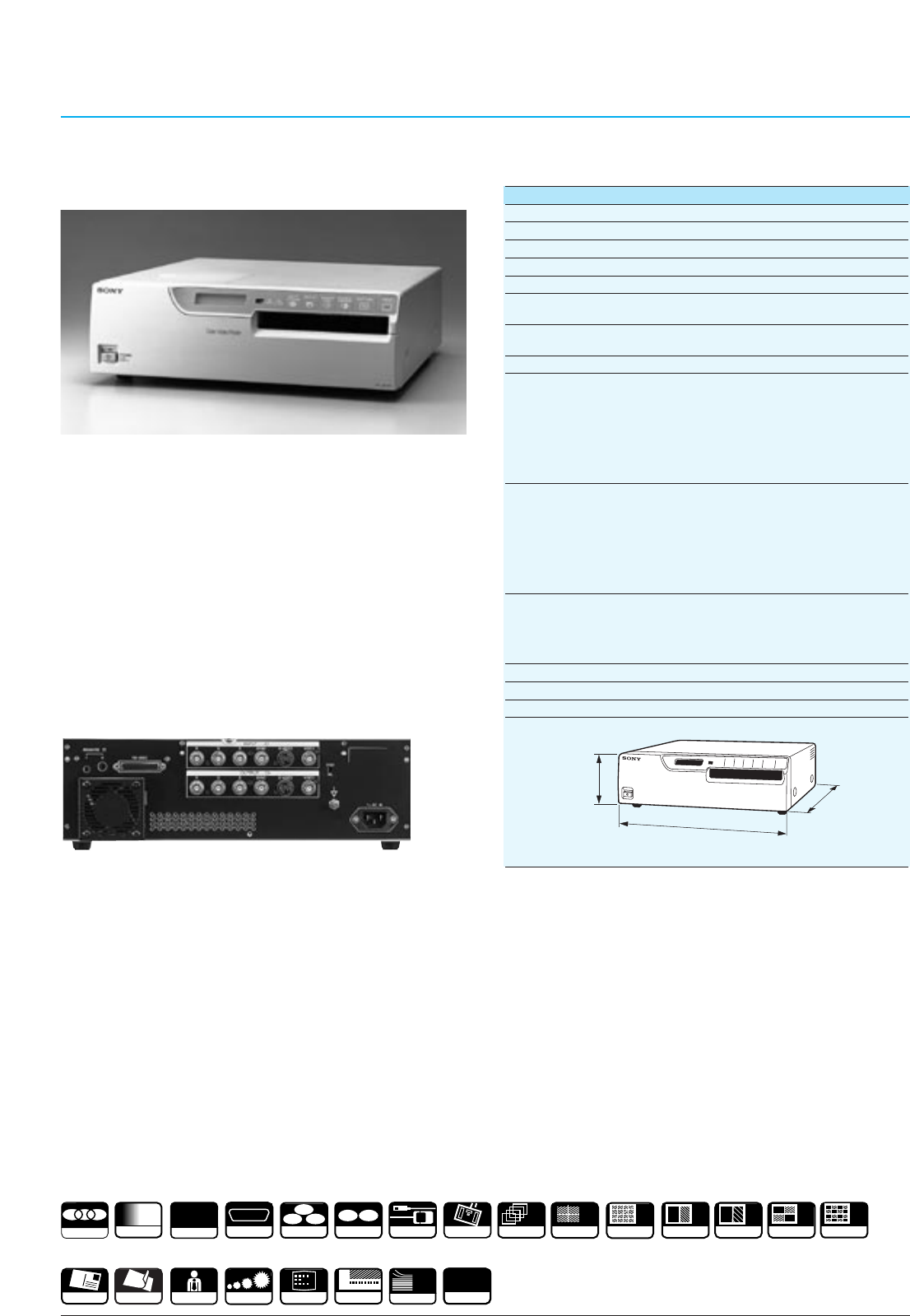

Colour Video Printer

UP-5600MDP

•Four frame memories capability or eight frame

memories capability with the optional UPK-5500

•High quality pictures: high resolution of 300 dpi,

1920 (H) x 1176 (V) dots in PAL full print mode

•8 bit/256 gradations in yellow, magenta and cyan

•A5 size (210 x 148 mm / 8 3/8x 5 7/8inches) print in

approx. 34 seconds

•Easy-to-use operation menu displayed in the unit’s LCD

panel or a monitor

•Wireless or wired remote control operations with the

optional RM-5500

•RS-232C port for external remote control from PCs

•Accepts both CCIR/PAL and EIA/NTSC signals

•Digital printing is possible with the optional UPK-5500

and SCSI interface board UPK-5502SC which includes

the A/D and D/A conversion

•Multiple video inputs of RGB, Y/C and composite video

signals

•Versatile print modes

•Picture-in-picture function

•Alarm display for easy maintenance

Rear Panel with UPK-5502SC

Supplied Accessories

Ink ribbon holder (1)

Colour printing pack (for 20 prints) (1)

Paper tray (1)

Paper cover (1)

AC power cable (1)

Operation manual (1)

Specifications

UP-5600MDP

Printing method: Dye transfer sublimation thermal printing

Thermal head: 2048 elements (300 dpi)

Printing paper size: A5 size, 210 x 148 mm (8 3/8x 5 7/8inches)

Picture size:

165.1 x 124.8 mm (6 1/2x 5 inches) - PAL, Full Print Mode

165.1 x 125.8 mm (6 1/2x 5 inches) - NTSC, Full Print Mode

176.1 x 132.1 mm (7 x 5 1/4inches) - Digital Printing (with

optional UPK-5500 and UPK-5502SC)

Picture elements:

1920 (H) x 1176 (V) dots - PAL, Full Print Mode

1920 (H) x 976 (V) dots - NTSC, Full Print Mode

2048 (H) x 1536 (V) dots - Digital Printing (with optional

UPK-5500 and UPK-5502SC)

Gradations: 256 levels process (Yellow, Magenta, Cyan)

over 16 million colours per dot

Picture memory: 4 frame memories, 2048 x 1024 x 8 bits x 3

8 frame memories with optional UPK-5500,

2048 x 2048 x 8 bits x 3

Printing time:

Approx. 34s - PAL, Full size Print Mode

Approx. 30s - NTSC, Full size Print Mode

Approx. 38s - Digital Printing (with optional UPK-5500 and

UPK-5502SC)

Input terminals:

625 or 525 RGB analogue* (BNC x 4, R/G/B/Sync)

RGB: 0.7 Vp-p, 75 Ω, unbalanced

Sync: 0.3 to 4.0 Vp-p, sync negative, 75 Ω, unbalanced

S-Video (Y/C Separate, 4-pin S terminal)

CCIR/PAL or EIA/NTSC**

Y: 1.0 Vp-p, sync negative, 75 Ω, unbalanced

C: 0.3 Vp-p, 75 Ω, unbalanced

Composite video (BNC)

CCIR/PAL or EIA/NTSC** 1.0 Vp-p, sync negative, 75 Ω

unbalanced

Output terminals:

625 or 525 RGB analogue* (BNC x 4, R/G/B/Sync)

RGB: 0.7 Vp-p, 75 Ω, unbalanced

Sync: 1.0 Vp-p, sync negative, 75 Ω, unbalanced

S-Video (Y/C Separate, 4-pin S terminal)

CCIR/PAL or EIA/NTSC**

Y: 1.0 Vp-p, sync negative, 75 Ω, unbalanced

C: 0.3 Vp-p, 75 Ω, unbalanced

Composite video (BNC)

CCIR/PAL or EIA/NTSC** 1.0 Vp-p, sync negative, 75 Ω,

unbalanced

Interface: With optional UPK-5502SC, SCSI 1 channel,

50-pin amphenol (2)

Control terminals:

Remote control jack (Special mini) for optional RM-5500

Foot switch-1 (stereo mini) for optional FS-20/RM-91

Foot switch-2 (D-sub 9-pin) for optional FS-30

RS-232C interface port (D-sub 25-pin)

Power requirements: AC 220 to 240 V, 50/60 Hz

Power consumption: Max. 1.2 A

Mass: 14 kg (30 lb 14 oz)

Dimensions:

Unit: mm (inches)

* The UP-5600MDP can accept sync-on-G or external sync automatically.

** CCIR/PAL or EIA/NTSC signals are selected using the input selector on the unit’s rear panel.

Optional Accessories

Four Frame Memory Board UPK-5500

Digital Interface Board UPK-5502SC

Wired/Wireless Remote Commander RM-5500

Remote Control Unit RM-91

Foot Switch FS-30, Foot Switch FS-20

Colour Printing Pack UPC-5510*/5UPC-5510*/UPC-5510C

Cassette for UPC-5510/5UPC-5510 UPA-5500

*The UPC-5510/5UPC-5510 are not supplied with a cassette.

124

(5)

424 (16

)

475 (18

)

with UPK-5500

COLOUR

RS-232C

CONTROL

256

GRADATIONS

210 x 14 8

A 5R.G.B.

G B

S-VIDEO

Y C

RM -91 & FS -20

FS-30

4 MEMORIES

8 MEMORIES

2 DUPLICATE

4 DUPLICATE

8 DUPLICATE

16 DUPLICATE

SPLIT

16 SPLIT

STROBE

CAPTION

MEMORY

COLOUR

ADJUST

SCSI


COLOUR VIDEO PRINTERS

Colour Video Printer

UP-2850P/2800P

•UP-2850P: four frame memories,

UP-2800P: one frame memory

•

High quality pictures: high resolution of 310 dpi,

860 (H) x 976 (V) dots in normal mode

•8 bit/256 gradations in yellow, magenta and cyan

•Near A6 size print (130 x 88 mm/5 1/8x 3 1/2inches) in

approx. 35 seconds

•Easy-to-use operation menu displayed on the built-in

LCD or the connected monitor

•Wireless or wired remote control operations

•Multiple video inputs of RGB, Y/C and composite

CCIR/PAL video signals

•Versatile print modes

Supplied Accessories

Colour printing pack (for 10 prints) (1)

Paper tray (1)

Paper cover (1)

AC power cable (1)

Operation manual (1)

Specifications

UP-2850P/2800P

Printing method: Dye transfer sublimation thermal printing

Thermal head: 1024 elements (12.2 dots/mm)

Printing paper size: 130 x 88 mm (5 1/8x 3 1/2inches)

Picture size: Max. 110 x 80 mm (4 3/8x 3 1/4inches)

Picture elements: Max. 860 (H) x 976 (V) dots

Gradations: 256 levels process (Yellow, Magenta, Cyan)

over 16 million colours per dot

Picture memory: UP-2850P: Four frame memories

UP-2800P: One frame memory

Printing time: Approx. 35 seconds

Input terminals:

RGB analogue (BNC x 4, R,G,B, Sync)

RGB: 0.7 Vp-p, 75 Ω, unbalanced

Sync: 0.2 to 4.0 Vp-p, negative, 75 Ω, unbalanced

Y/C separate (4-pin S terminal)

Y: 1.0 Vp-p, sync negative, 75 Ω, unbalanced

C: 0.3 Vp-p, 75 Ω, unbalanced

Composite video (BNC)

CCIR/PAL:1.0 Vp-p, sync negative, 75 Ω, unbalanced

Output terminals: RGB analogue (BNC x 4, R, G, B, Sync)

RGB: 0.7 Vp-p, 75 Ω, unbalanced

Sync: 1.0 Vp-p, negative, 75 Ω, unbalanced

Y/C separate (4-pin S terminal)

Y: 1.0 Vp-p, sync negative, 75 Ω, unbalanced

C: 0.3 Vp-p, 75 Ω, unbalanced

Composite video (BNC)

CCIR/PAL:1.0 Vp-p, sync negative, 75 Ω, unbalanced

Control terminals:

Control (for the optional foot switch FS-36/20 and

remote control unit RM-91): stereo mini jack

Control (for the supplied remote control unit):

special mini jack

RS-232C interface port (D-sub 25-pin)

Power requirements: AC 220 to 240 V, 50/60 Hz

Power consumption: Max. 1.0 A

Mass: Approx. 10.5 kg (23 lb 2 oz)

Dimensions:

Unit: mm (inches)

Optional Accessories

Wired/Wireless Remote Commander RM-5500

Remote Control Unit RM-91

Foot Switch FS-36

Foot Switch FS-20

Colour Printing Pack UPC-2010 (for 200 prints)

Black and White Printing Pack UPC-2020 (for 200 prints)

Colour Postcard Printing Pack UPC-2070E (for 150 prints)

Self-adhesive Colour Printing Pack UPC-20S01 (for 200 prints)

16-split Self-adhesive Pre-cut Color Printing Pack

UPC-20S16 (for 200 prints)

4-split Self-adhesive Pre-cut Color Printing Pack

UPC-20S04 (for 200 prints)

Paper Ejector UPA-2001

Paper Tray for UPC-2070E: UPA-2002

370 (14

)

417 (16

)

125 (5)

COLOUR

RS-232C

CONTROL

256

GRADATIONS

R.G.B.

G B

S-VIDEO

Y C

RM -91 & FS -20

4 MEMORIES

4 DUPLICATE

STROBE

CAPTION

MEMORY

COLOUR

ADJUST

130x88

FS-36

16 DUPLICATE

SPLIT

16 SPLIT

POSTCARD

STICKER

IPP

200

200 FEED

SPLIT

Rear Panel

COLOUR VIDEO PRINTERS

Colour Video Printer

UP-2300P/2100P

•One frame memory capability

•

UP-2300P: 310 dpi resolution

UP-2100P: 182 dpi resolution

•8 bit/256 gradations in yellow, magenta and cyan

•Near A6 size print (130 x 88/5 1/8x 3 1/2inches) in

approx. 35 seconds (UP-2300P) or 60 seconds

(UP-2100P)

•Easy-to-use operation menu displayed on the monitor

•Wireless or wired remote control operations

•Multiple video inputs of Y/C and composite CCIR/PAL

video signals

•Versatile print modes

UP-2300P Rear Panel

Supplied Accessories

Colour printing pack (for 10 prints) (1)

Paper tray (1)

Paper cover (1)

AC power cable (1)

Operation manual (1)

Specifications

UP-2300P/2100P

Printing method: Dye transfer sublimation thermal printing

Thermal head: UP-2300P: 1024 elements (12.2 dots/mm)

UP-2100P: 608 elements (7.2 dots/mm)

Printing paper size: 130 x 88 mm (5 1/8x 3 1/2inches)

Picture size: 110 x 80 mm (4 3/8x 3 1/4inches)

Picture elements: UP-2300P: 860 (H) X 976 (V) dots

UP-2100P: 720 (H) X 564 (V) dots

Gradations: 256 levels process (Yellow, Magenta, Cyan)

over 16 million colours per dot

Picture memory: One frame memory

Printing time: UP-2300P: 35 seconds

UP-2100P: 60 seconds

Input terminals:

Y/C separate (4-pin S terminal)

Y: 1.0 Vp-p, sync negative, 75 Ω, unbalanced

C: 0.3 Vp-p, 75 Ω, unbalanced

Composite video (BNC), Phono

CCIR/PAL:1.0 Vp-p, sync negative, 75 Ω, unbalanced

Output terminals:

Y/C separate (4-pin S terminal)

Y: 1.0 Vp-p, sync negative, 75 Ω, unbalanced

C: 0.3 Vp-p, 75 Ω, unbalanced

Composite video (BNC)

CCIR/PAL:1.0 Vp-p, sync negative, 75 Ω, unbalanced

Control terminals: Control (for the optional foot switch FS-36/20):

stereo mini jack

Control (for the supplied remote control unit):

special mini jack

RS-232C interface port (D-sub 25-pin)*

Power requirements: AC 220 to 240 V, 50/60 Hz

Power consumption: Max. 1.0 A

Mass: UP-2300P: 10 kg (22 lb 1 oz)

UP-2100P: 9 kg (19 lb 13 oz)

Dimensions:

Unit: mm (inches)

Optional Accessories

Wired/Wireless Remote Commander RM-5500

Remote Control Unit RM-91

Foot Switch FS-36

Foot Switch FS-20

Colour Printing Pack UPC-2010 (for 200 prints)

Black and White Printing Pack UPC-2020* (for 200 prints)

Colour Postcard Printing Pack UPC-2070E* (for 150 prints)

Self-adhesive Colour Printing Pack UPC-20S01 (for 200 prints)

16-split Self-adhesive Pre-cut Color Printing Pack

UPC-20S16* (for 200 prints)

4-split Self-adhesive Pre-cut Color Printing Pack

UPC-20S04* (for 200 prints)

Paper Ejector UPA-2001*

Paper Tray for UPC-2070E: UPA-2002*

* UP-2300P ONLY

UP-2100P Rear Panel

370 (14

)

417 (16

)

125 (5)

UP-2300P

UP-2300P UP-2300PUP-2300PUP-2300P

COLOUR

RS-232C

CONTROL

256

GRADATIONS

S-VIDEO

Y C

RM -91 & FS -20

4 DUPLICATE

130x88

FS-36

16 DUPLICATE

SPLIT

16 SPLIT

STROBE

POSTCARD

STICKER

IPP

CAPTION

MEMORY

COLOUR

ADJUST

200

200 FEED

B/W Video Graphic Printer

UP-960CE

•Thermal video graphic printer with 256 steps of

gradation grey level

•

Large print size of 190 x 142 mm in standard mode

•High speed printing (approx. 12 seconds)

•Frame/Field memory selectable

•Printing direction selectable: Standard/Side/Reverse

•Positive/Negative printing

•Normal/Wide scan selectable

•4:3/1:1 aspect ratio selectable

•CCIR/EIA automatic selection

•Multiple copy function by pressing the “COPY” button

Rear Panel

Supplied Accessories

AC power cord (1)

Printing Paper Roll (UPP-210HD) (1)

Head cleaning sheet (1)

BNC cable (1.5m) (1)

Operation manual (1)

Optional Accessories

Foot Switch FS-20

High Density Printing Paper Roll UPP-210HD

Normal Density Printing Paper Roll UPP-210SE

Remote Control Unit RM-91

Specifications

UP-960CE

Printing method: Direct thermal printing

Thermal head: 1280 elements

Picture size:

(CCIR)

Standard mode: 190 x 142 mm (7 1/2x 5 5/8inches)

Side mode: 181 x 243 mm (7 1/4x 9 5/8inches)

(EIA)

Standard mode: 190 x 144 mm (7 1/2x 5 3/4inches)

Side mode: 184 x 243 mm (7 1/4x 9 5/8inches)

Gradations: 256 grey levels

Picture memory: 2048 x 1024 x 8 bit

Printing time: Approx. 12 seconds/screen

(at aspect ratio 4:3)

Input terminal:

VIDEO IN (BNC), CCIR/EIA Composite video signal

1.0 Vp-p, 75 Ω/high impedance (switchable)

Output terminal: VIDEO OUT (BNC) Loop through

Control terminal:

REMOTE (for the optional FS-20 foot switch or RM-91

remote control unit): Stereo mini jack

Power requirements: AC 220 to 240 V, 120 V, 50/60 Hz

Power consumption: 220 to 240 V: 1.3 A, 120 V: 2.4 A

Mass: Approx. 8 kg (17 lb 10 oz)

Dimensions:

Unit: mm (inches)

316 (12

)

132 (5

)

305 (12

)

256

GRADATIONS

RM -91 & FS -20

210 mm

210

SMALL

NEGATIVE

REVERSE

MIRROR

WIDE

1:1

EASY LOAD

S I DE

MONOCHROME VIDEO GRAPHIC PRINTERS

B/W Video Graphic Printer

UP-890CE Specifications

•Thermal video graphic printer with quasi 256 steps of

gradation grey level

•Small size and light weight body

•A fast printing speed of approx. four seconds

•High resolution printing of 1024 x 608 dots

(in Wide 2 scan mode)

•

Wide scanning function (Normal/Wide 1/Wide 2 selectable)

•Multiple copy function

•Economy print mode offers maximum 270 prints from

one paper roll (230 prints in normal print mode)

•Frame/Field memory selectable

•4:3/1:1 aspect ratio selectable

•Positive/negative printing

•Standard/side print mode selectable

•Normal/reverse direction printing

•CCIR/EIA automatic selection

Rear Panel

Supplied Accessories

AC power cord (1)

Printing Paper Roll (UPP-110HA) (1)

Head cleaning sheet (1)

BNC-BNC connecting cable (1.5m) (1)

Operation manual (1)

UP-890CE

Printing method: Direct thermal printing

Thermal head: Thin-film thermal head (with built-in drive IC)

1024-dot drive

Picture size : (CCIR)

(Standard print mode, Normal size: 90 x 68 mm (3 5/8x 2 3/4inches)

at aspect ratio 4:3) Wide 1 size: 95 x 71 mm (3 3/4x 2 7/8inches)

Wide 2 size: 100 x 74 mm (4 x 3 inches)

(EIA)

Normal size: 90 x 69 mm (3 5/8x 2 3/4inches)

Wide 1 size: 95 x 72 mm (3 3/4x 2 7/8inches)

Wide 2 size: 100 x 74 mm (4 x 3 inches)

Picture elements: (CCIR)

Normal size: 922 (H) x 560 (V) dots

Wide 1 size: 970 (H) x 582 (V) dots

Wide 2 size: 1024 (H) x 608 (V) dots

(EIA)

Normal size: 922 (H) x 472 (V) dots

Wide 1 size: 970 (H) x 490 (V) dots

Wide 2 size: 1024 (H) x 508 (V) dots

Gradations: 256 grey levels (quasi)

Picture memory: 6 bits frame memory (1024 x 768 x 6 bits)

Printing time: 4 seconds/screen - Standard print mode

(at aspect ratio 4:3) 7 seconds/screen - Side print mode

Input terminal:

VIDEO IN (BNC), CCIR/EIA Composite video signal

1.0 Vp-p, 75 Ω/high impedance (switchable)

Output terminal:

VIDEO OUT (BNC) Loop through or E.E switchable

Control terminal: REMOTE (for the optional FS-20 foot switch or

RM-91 remote control unit): Stereo mini jack

Power requirements: AC 220 to 240 V, 50/60 Hz

Power consumption: Max. 0.8 A

Mass: Approx. 3.5 kg (7 lb 11 oz)

Dimensions:

Unit: mm (inches)

Optional Accessories

High Quality Printing Paper (Type I) UPP-110S

High Density Printing Paper (Type II) UPP-110HD

Superior Density Printing Paper (Type III) UPP-110HA

Foot Switch FS-20

Remote Control Unit RM-91

106 (4 1/4

)

154 (6

)

303 (12)

256

GRADATIONS

RM -91 & FS -20

110 mm

110

SMALL

NEGATIVE

REVERSE

MIRROR

WIDE

1:1

EASY LOAD

S I DE

GAMMA

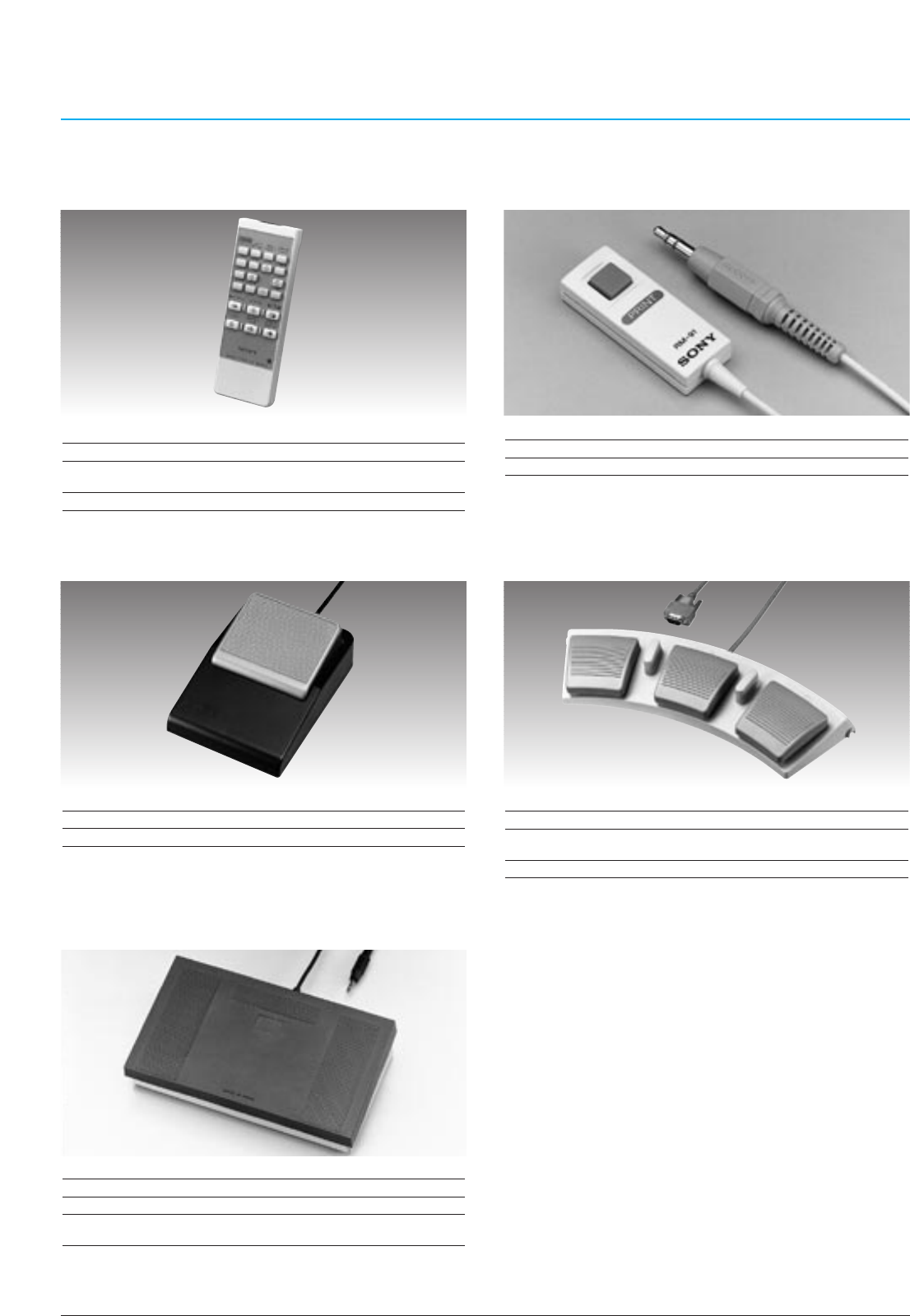

Wired/Wireless Remote Commander

RM-5500

Specifications

Power requirement: DC 3 V

Dimensions: 62 (W) x 20 (H) x 175 (L) mm

(2 1/2x27/32 x 7 inches)

Mass: 95 g (3 oz)

Remote Control Unit

RM-91 (for UP-5600MDP/2850P/2800P/2300P/

2100P/960CE/890CE)

(for UP-5600MDP/2850P/2800P/

2300P/ 2100P)

Specifications

Connector: Stereo mini

Cable length: 5 m

Specifications

Terminal: D-sub 9-pin

Dimensions: 337.3 (W) x 46.1 (H) x 128.0 (D) mm

(13 3/8x 1 7/8x 5 1/8inches)

Mass: 900 g (1 lb 15 oz)

Specifications

Connector: Stereo mini

Cable length: 5 m

Foot Switch

FS-30 (for UP-5600MDP)

Specifications

Terminal: Stereo mini

Cable length: 5 m

Dimensions: 175 (W) x 53 (H) x 105 (D) mm

(7 x 2 1/8x 4 1/4inches)

Foot Switch

FS-36 (for UP-2850P/2800P/2300P/2100P)

Foot Switch

FS-20 (for UP-5600MDP/2850P/2800P/2300P/

2100P/960CE/890CE)

VIDEO PRINTER OPTIONAL ACCESSORIES

Supplied Accessories

Floppy Disk (1)

AC Power Cable (1)

Card Tray (1)

Operational Manual (1)

Ink Ribbon Holder (1)

Cleaning Roller Holder Set (1)

Optional Accessories

Colour Ink Ribbon (YMCL) 5UPR-6040 (250 prints x 5 rolls)

Colour Ink Ribbon (YMCKL) 5UPR-6080 (200 prints x 5 rolls)

Black and White Ribbon (K) UPR-6025 (1000 prints x 1 roll)

Auto Card Stacker UPA-6002

Auto Card Feeder UPA-6003

Thermal Head UPU-D65H

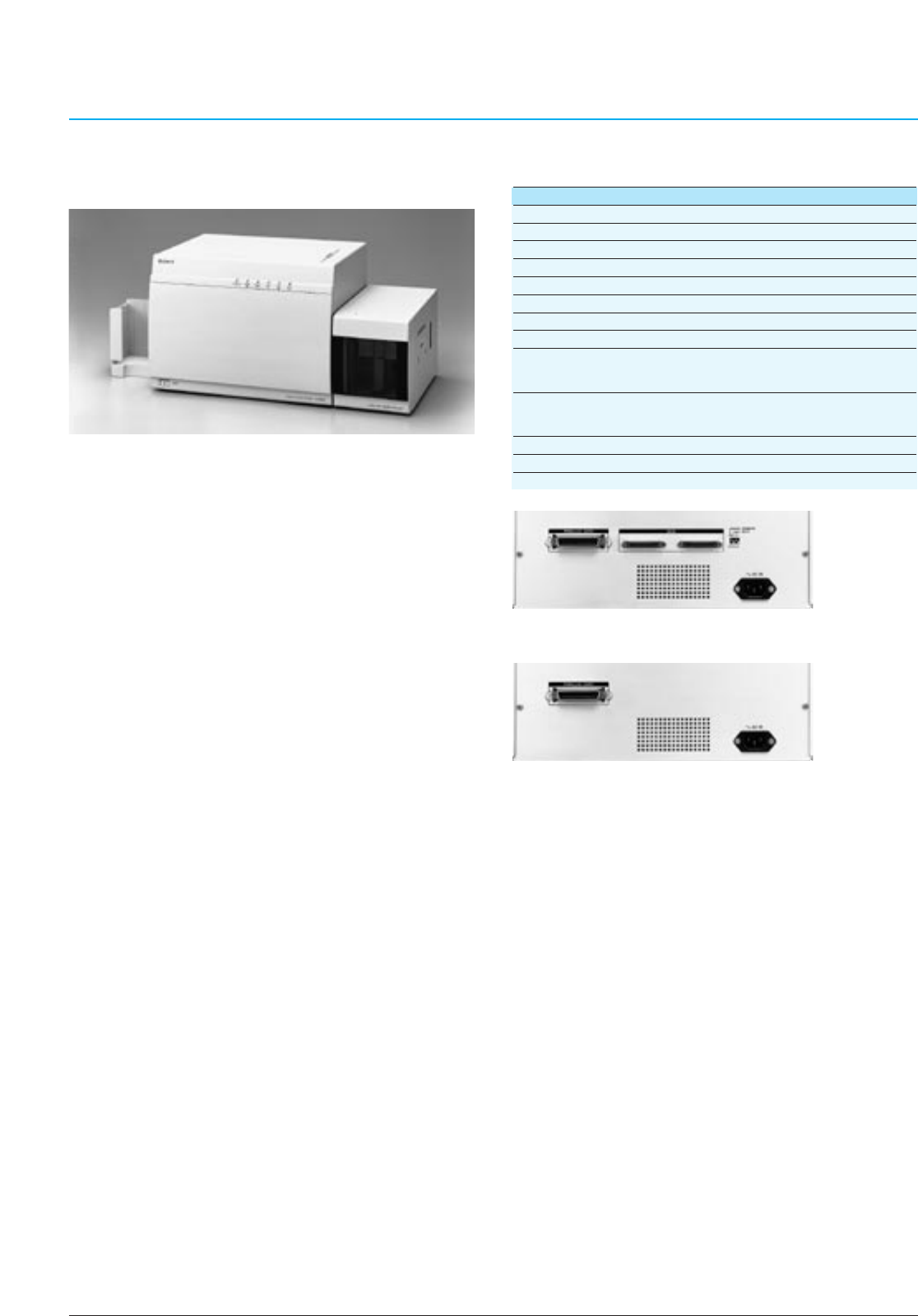

Digital Colour Printer

UP-D6500/D6400/D6300

•High resolution of 300 dpi and over 16 million colours

reproduction

•High speed YMC print and thermal lamination

process - 45 seconds in 256 gradations (YCML, SCSI)

•Dual-side printing (ISO 7810 Standard Card)

•Acceptable card thickness is from 0.3 mm to 1.5 mm

•Magnetic stripe encoding (UP-D6500/D6400)

•Smart card encoding (UP-D6500)*

•SCSI-2 interface for high volume applications

(UP-D6500)

•IEEE 1284 interface for easy setup

•Holds up to 125 cards (UP-D6500: Max. 250 cards)

•Template memory function for quick data download

(UP-D6500/D6400)*

•Anti-forgery security lamination*

•Compatibility with Windows®95/98 and Windows NT®

*Separate software necessary

UP-D6500 with the optional UPA-6003 Auto Card Feeder

UP-D6500/D6400/D6300

Printing Method: Dye transfer sublimation thermal printing

Resolution: 300 dpi

Acceptable Card Length: 85.47 to 93.00 mm (3 3/8X 3 21/32 inches)

Acceptable Card Height: 53.92 to 60.00 mm (2 1/8X 2 11/32 inches)

Acceptable Card Thickness:

0.3 to 1.5 mm (12 X 59 mils)

Card Holder Capacity: 125 cards (UP-D6500: Max. 250 cards)

Printing Time: Approx. 45 seconds (YCML, SCSI)

Interface: SCSI-2 (UP-D6500 only), IEEE standard 1284

Card Supply: 125 cards with the optional UPA-6003 Auto Card

Feeder (UP-D6500: 250 cards when using two of

the optional UPA-6003 Auto Card Feeder)

Card Stack: 125 cards with the supplied card tray

(UP-D6500: Max. 250 cards with the optional

UPA-6002 Auto Card Stacker)

Power Requirements: AC 220 to 240 V

Mass: 11.5 kg (25 lb 6 oz)

Dimensions:

350 x 260 x 257 mm (13 7/8x 10 1/4x 10 1/8inches)

Specifications

UP-D6500 Rear Panel

UP-D6400/D6300 Rear Panel

DIGITAL COLOUR PRINTER

SSC-534AM

Exterior camera for vehicles

Quick Reference

AUTOMOTIVE CAMERA AND

MONITORS

The combination of the SSC-534AM and SSM-504AM/724AMR is an extremely useful and

comprehensive camera/monitor system for diverse mobile applications. This system is ideal

for any vehicle for applications such as monitoring the rear when reversing.

SSM-504AM/724AMR

5-inch monitor (SSM-504AM)

7-inch monitor (SSM-724AM)

B&W Camera

B&W Monitors

AUTOMOTIVE CAMERA AND MONITOR SYSTEM OPTIONAL ACCESSORIES

AUTOMOTIVE CAMERA AND MONITORS

Supplied Accessories

Camera bracket (1)

Rubber cap (1)

Adhesive (1)

Self-fusing tapes (2)

3 mm Allen key (1)

4 mm washers (4)

Angle adjusting screws (4)

5 mm hexagon head bolts (5)

5 mm washers (5)

Rubber nuts (5)

Operation manual (1)

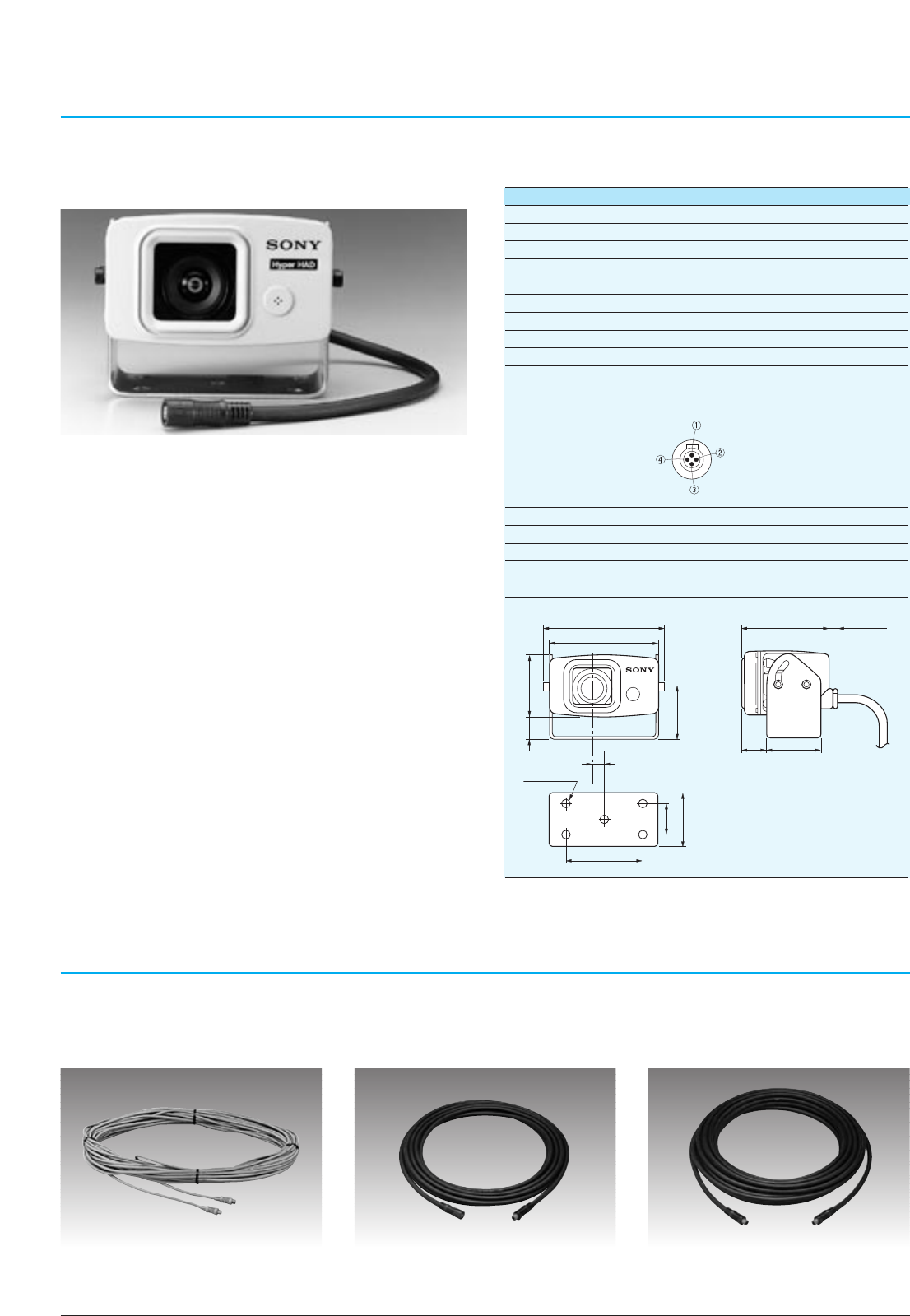

CCD B/W Video Camera

SSC-534AM

•Compact, lightweight and rugged construction

•1/2-inch IT Hyper HAD CCD provides extremely high

sensitivity with a minimum illumination of 0.3 lx

•Wide angle view - a full 100 degrees horizontally,

80 degrees vertically

•Built-in electret condenser microphone

•Only single 4-pin Multiple Cable required between the

SSC-534AM and the SSM-504AM/724AMR to transmit

video and audio signals, together with DC power

SSC-534AM

Image device: 1/2-inch Interline Transfer Hyper HAD CCD

Picture elements: 500 (H) x 582 (V)

Sensing area: 6.3 mm x 4.7 mm

Lens: f = 3.0 mm, F1.6 with auto-iris

Signal system: CCIR standard

Scanning system: 625 lines, 2:1 interlace

Synchronization: Internal

Horizontal resolution: 380 TV lines

Minimum illumination: 0.3 lx

Signal-to-noise ratio: 50 dB (AGC OFF)

Video/audio output:

4-pin Multi-connector (for connection to the SSM-504AM/

724AMR)

1DC input

2Video output: 1.0 Vp-p, 75 Ω,

sync negative

3Ground

4Audio output: -5 dBu

(436 mVrms), less than 10 kΩ,

unbalanced

Power requirements: DC 12 V

Power consumption: 1.2 W (at DC 12 V)

Operating temperature: -20˚C to 70˚C (-4˚F to 158˚F)

Storage temperature: -30˚C to 85˚C (-22˚F to 185˚F)

Mass: 550 g (1 lb 3 oz)

Dimensions:

Unit: mm (inches)

0 dBu = 0.775 Vrms

Specifications

105.6 (4 1/4)

94 (3 3/4)

55 (2 1/4)

20.5

(13/16)

48 (1 15/16)

10 (13/32)

Hole 6.5 (9/32)

48 (1 15/16)

27 (1 1/8)

66 (2 5/8)

76.5 (3 1/8)Approx 5 (7/32)

46 (1 13/16)

21.5

(7/8)

Camera Cable (4-pin)

VK-110A/120A

(10 m/20 m)

• 4-pin Multi (male)

¬®

4-pin Multi (male)

Water-resistant Extension Cable (4-pin)

VK-305

(5 m)

• 4-pin Multi (male)

¬®

4-pin (female)

Water-resistant Camera Cable (4-pin)

VK-310A/318A/320A

(10 m/18 m/20 m)

• 4-pin Multi (male)

¬®

4-pin Multi (male)

AUTOMOTIVE CAMERA AND MONITORS

100˚

16m

80˚

16m

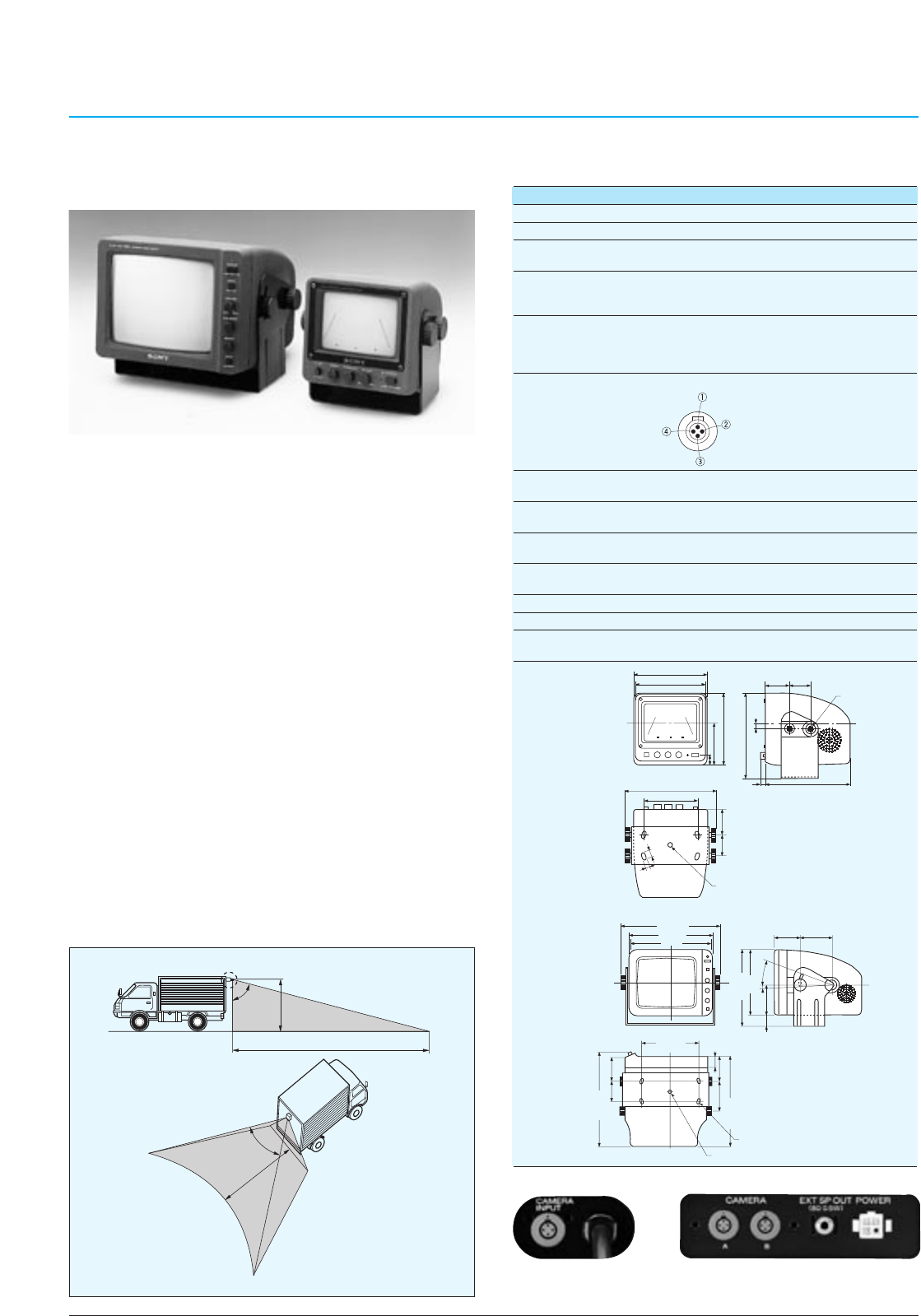

5-inch/7-inch B/W Monitor

SSM-504AM/724AMR

SSM-724AMR SSM-504AM

•Offers bright, clear and high-contrast pictures

•Semi-flat square/non-glare CRT (SSM-724AMR only)

•Compact, lightweight and rugged construction

•Built-in speaker

•Audio output connection for an optional external

speaker (SSM-724AMR only)

•Day/Night switch adjusts picture brightness for normal

or low-light conditions

•Automatic operation when reversing

•Dual camera inputs (SSM-724AMR only)

•

Alternative power supply mode (DC 12/24V, SSM-724AMR

only)

•Only a single 4-pin Multiple Cable required between the

SSC-534AM and the SSM-504AM/724AMR to transmit

video and audio signals, together with DC power

Supplied Accessories

Mounting bracket (1) Screws (4)

Bolts (4) Washers (12)

Spring washers (8) Nuts (4)

Power supply cable (1 set) Bracket holder (1 set)

Operation manual (1)

Monitor scale (1) (SSM-724AMR only)

Field of View

Specifications

SSM-504AM/724AMR

Video signal system: CCIR standard

Picture tube:

5-inch/7-inch B/W measured diagonally, 90° deflection

Resolution: SSM-504AM: 550 TV lines

SSM-724AMR: 650 TV lines

Power connector: White: Positive 12 V/24 V input

Black: Ground

Green: Reverse gear 12 V/24 V input

Speaker: ø50 mm (2 inches)

Impedance 8 Ω

SSM-504AM: 0.3 W output (max.)

SSM-724AMR: 0.5 W output (max.)

Video/audio input:

4-pin Multi-connector (for connection to the SSC-534AM)

1DC 12 V output

2Video input: 1.0 Vp-p, 75 Ω,

sync negative

3Ground

Audio input: -5 dBu (436 mVrms),

more than 30 kΩ, unbalanced

Output:

External speaker jack (mini jack) (SSM-724AMR only)

Impedance 8 Ω

Front controls:

Power, Audio volume, Brightness, Contrast, DAY/NIGHT

select, Camera input select (SSM-724AMR only)

Power requirements: SSM-504AM: DC 12 V

SSM-724AMR: DC 12 V or 24 V

Power consumption: SSM-504AM: 8 W

SSM-724AMR: 23 W

Operating temperature: -15˚C to 60˚C (5˚F to 140˚F)

Storage temperature: -25˚C to 85˚C (-13˚F to 185˚F)

Mass: SSM-504AM: Approx. 1.5 kg (5 lb 8 oz)

SSM-724AMR: Approx. 3.2 kg (7 lb)

Dimensions:

Unit: mm (inches)

0 dBu = 0.775 Vrms

SSM-504AM

SSM-724AMR

Rear Panel

152 (6)

50 (2)

8 (11/32)

10 (13/32)165 (6 1/2)

2-MS

138 (5 1/2)

136 (5 3/8)

78 (3 1/8)

130 (5 1/8)

19 (3/4)

167.8 (6 5/6)

50 (2)

40 (1

5/8)

Hole ¿ 7 (

9/32)

Hole

6.5 x 12

(

)

120 (4 3/4)

235 (9 3/8)53 (2 1/8)50 (2)

25 (1)

56 (2 1/4)

220 (8 3/4)

73.5 (3)

Hole

6.5 x 14

(9/32 x 9/16)

Hole ¿ 7 (9/32)

234 (9 1/4)

205 (8 1/8)

203 (8)

73.5 (3)

56 (2 1/4)

174 (6 7/8)

151 (6)

23 (9/32)75.5 (3)

25°

5°

100 (4)

40 (1 )

5/8

)

AGC Automatic gain control. Amplifies existing video to help camera reproduce a

video signal at very low light levels.

Analog backlight compensation (BLC)

Picture brightness adjusted automatically depending on lighting conditions.

Overcomes the problem of strong backlight which often causes the subject of

the picture to be cast into shadow.

APC Adaptive picture control. Automatically detects the condition of the recording

head and video cassette tape, then sets the optimum recording head current.

Available on all SVT time lapse VCRs.

Aperture/sharp mode

Makes object outlines in the picture appear sharper. Ideal for situations where

object merges into the scene with a similar shade.

Aspherical type lens Lens that allows for a wider viewing area with very little distortion.

ATW Auto tracing white balance. Adjusts the white balance automatically in response

to varying light conditions.

ATWPro Ideal for frequently changing light conditions and applications where the

operator needs to see objects as they appear to the eye. Effective operational

colour range is 2500 to 6000K.

Auto iris Automatically adjusts the iris element as the light level changes.

AWB Auto white balance. Automatically memorizes adjusted white balance values

Backlight compensation See Smart Control (Digital)

See Analog backlight compensation (Analog)

C mount Type of camera mount which measures 17.5 mm from the lens rear mounting

surface to the camera's CCD.

CS mount Type of camera mount which measures 12.5 mm from the lens rear mounting

surface to the camera's CCD. CS mount lenses can be used with C mount

cameras by adding a 5 mm spacer.

DC servo auto iris lens Lens that relies on DC power from the camera to control the iris.

DSP (Digital signal processing) Converts the analog signal from a CCD image sensor into a digital signal

through an internal A/D converter. The signal is then broken down into

luminance and chrominance components for processing, adjustment and feature

enhancement enabling many digital features such as backlight compensation.

Duplex Type of multiplexer allowing simultaneous live monitoring or playback as images

are being recorded.

Exwave HAD CCD HAD sensor with a nearly gap-less OCL (On-chip-lens) located over each pixel

on the CCD resulting in more than twice the sensitivity and 1/50 the smear

compared to the Hyper HAD CCD. Used in SSC-DC50AP/54AP/58AP cameras.

Hybrid recording

Original Sony recording method of the HSR-1P, which uses both a Hard Disk Drive

and DV tape. Images are first recorded to HDD, then transferred to DV tape.

Hyper HAD CCD

HAD sensor with an OCL (On-chip-lens) located over each pixel on the CCD which

helps increase sensitivity and reduce smear. Used in most Sony security cameras.

GLOSSARY

RealAction recording LP recording mode which allows three times as many frames/s to be recorded in

24 H mode. (SVT-L230P only)

Sensitivity The amount of light falling on a scene measured in lux.

Simplex Type of multiplexer which allows the user to choose between live monitoring,

recording or playback.

Smart Control Digital circuit within the camera providing automatic backlight compensation by

automatically adjusting iris and gain. See DSP also.

Smear Vertical streaks above and below a brightly lit object or light source when

observed on the monitor. Vertical lines on the screen are caused by the leakage

of unwanted light onto the vertical shift register of the CCD.

Synchronization Used in multi-camera installations where automatic switching is employed and

allows roll-free switching from camera to camera.

Trinitron CRT Sony CRT which allows for high resolution and the best possible picture

reproduction. The completely flat, straight vertical surface of the Trinitron CRT

provides very low purity imperfection.

Triple multiplexing Video, sync and power transmitted over a single coaxial cable.

Turbo AGC Powerful automatic gain control function. Increases range of video gain

compared to conventional AGC resulting in greater sensitivity.

Video servo auto iris lens Lens that relies on video input to control the iris opening. When the video level is

high, the lens iris closes. When the video level is low, it opens.

5600K mode White balance mode recommended for outdoor daytime shooting

GLOSSARY

CCSP-5000E 56

CSPK-5000E 56

FFS-20 66

FS-30 66

FS-36 66

HHSR-1P 50

HSRA-11 51

MMB-507 22

MB-509 22

MB-502B 22

PPMS-500P/400P 54

RRMM-171 30

RM-R500 54

RM-5500 66

RM-91 66

SSLR-102 22

SLR-103A 22

SPT-M122CE/M124CE/M128CE 24

SPT-M308CE/M304CE 24

SSC-534AM 70

SSC-C108P/C104P 15

SSC-C370P 16

SSC-CX34P 10

SSC-DC10P 14

SSC-DC18P/DC14P 14

SSC-DC50AP/54AP/58AP 12

SSC-M370CE 25

SSM-125CE 29

SSM-14N5E 20

SSM-175CE 30

SSM-20N5E 21

SSM-504AM/724AMR 71

SSM-9040P 20

SSM-930CE 29

SSM-Q177CE 30

SVRM-100A 51

SVT-1000P 46

SVT-124P 45

SVT-5050P 48

SVT-L230P 44

SVT-RM10 51

SVT-RS1A 51

SVT-S3050P 47

TT-301/305/307 34

TLV parts kit 51

UUP-2100P 63

UP-2300P 63

UP-2800P 62

UP-2850P 62

UP-5600MDP 61

UP-890CE 65

UP-960CE 64

UP-D6500/D6400/D6300 67

VVCL-3ADXEA 33

VCL-4V8WEA 33

VCL-S02WEAP 33

VCL-S03XEA 33

VCL-S03XM 33

VCL-S06XEA 33

VCL-S06XM 33

VCL-S12XEA 33

VCL-S12XM 33

VK-110A/120A 70

VK-305 70

VK-310A/318A/320A 70

YYS-DX316P/DX216CE 36

YS-Q440P 41

YS-S6 40

YS-SX310P/SX210CE 38

YS-W150P 32

YS-W250P 32

YT-B21 34

PRODUCT INDEX

Distributed by

MK7327V4TC99JUL

Printed in Japan

Sony Cctv Systems Users Manual CCIR/PAL

CCTV Systems to the manual 1cf887e5-8572-4e56-9e87-b213baa99200

Navigation menu

Versions of this User Manual:

Views

Navigation
