3-864-534-51(1)

CD Radio

Cassette-Corder

Operating Instructions

CFD-S47

Introduction2

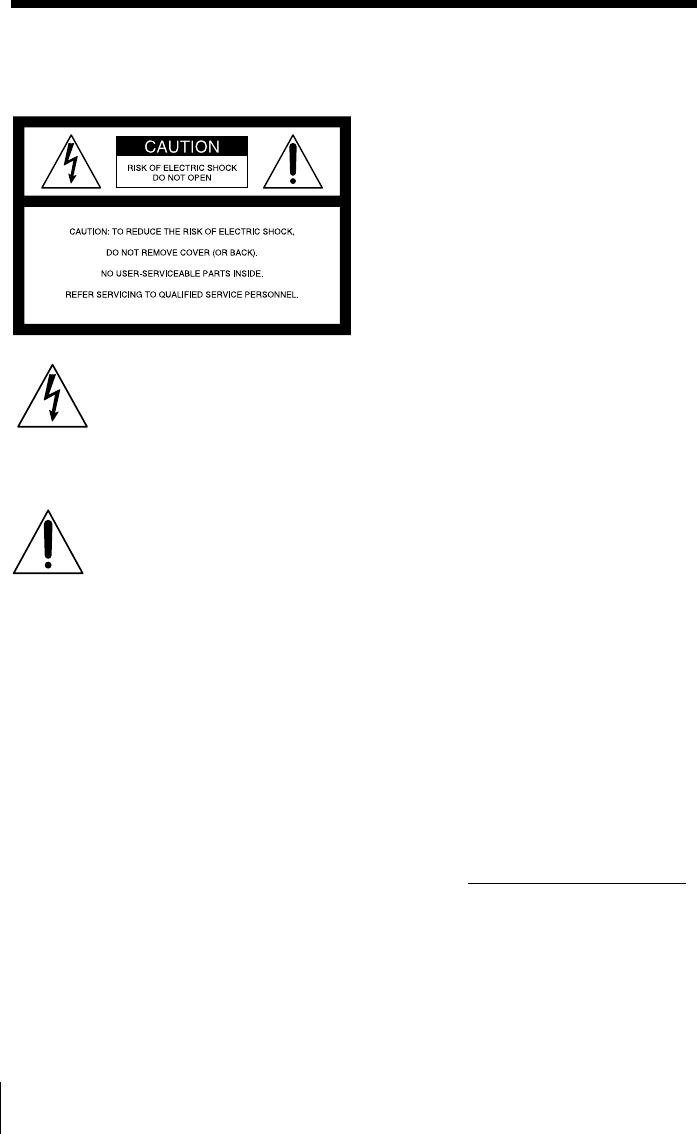

Warning

To prevent fire or shock hazard, do

not expose the player to rain or

moisture.

This symbol is intended to alert

the user to the presence of

uninsulated “dangerous voltage”

within the product's enclosure

that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

This symbol is intended to alert

the user to the presence of

important operating and

maintenance (servicing)

instructions in the literature

accompanying the appliance.

CAUTION

The use of optical instruments with this

product will increase eye hazard.

WARNING

Do not install the appliance in a confined

space, such as a bookcase or built-in cabinet.

For customers in Canada

To prevent electric shock, match wide blade

of plug to wide slot, fully insert.

Information

For customers in the United States

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference

by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the

equipment and receiver.

—Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

—Consult the dealer or an experienced

radio/TV technician for help.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

Owner's Record

The model number is located at the bottom

and the serial number is located in the battery

compartment.

Record the serial number in the space

provided below. Refer to these numbers

whenever you call upon your Sony dealer

regarding this product.

Model No. CFD-S47

Serial No.

3Introduction

Basic Operations

Table of contents

Basic Operations

4Playing a CD

6Listening to the radio

8Playing a tape

10 Recording on a tape

The CD Player

12 Using the display

13 Locating a specific point in a

track

14 Playing tracks repeatedly

(Repeat Play)

15 Playing tracks in random order

(Shuffle Play)

16 Creating your own program

(Program Play)

18 Enjoying sound effects

(LOOP/FLASH)

The Radio

19 Presetting radio stations

20 Playing preset radio stations

The Timer

21 Setting the clock

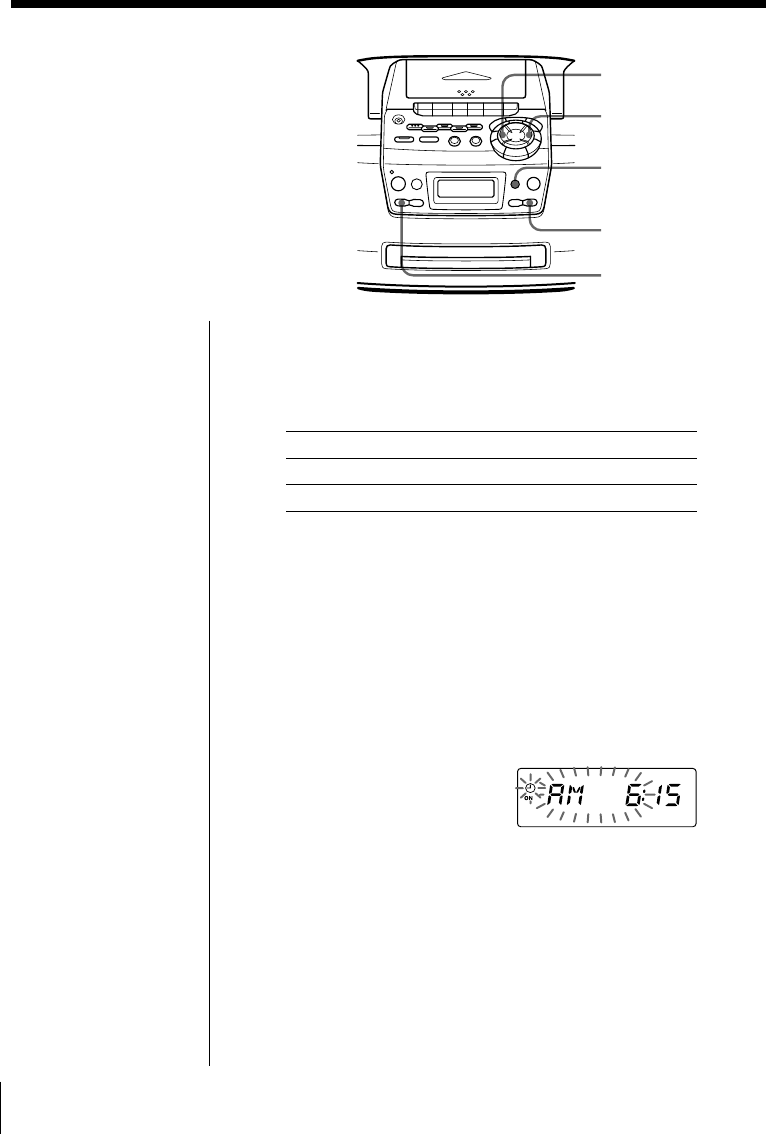

22 Waking up to music

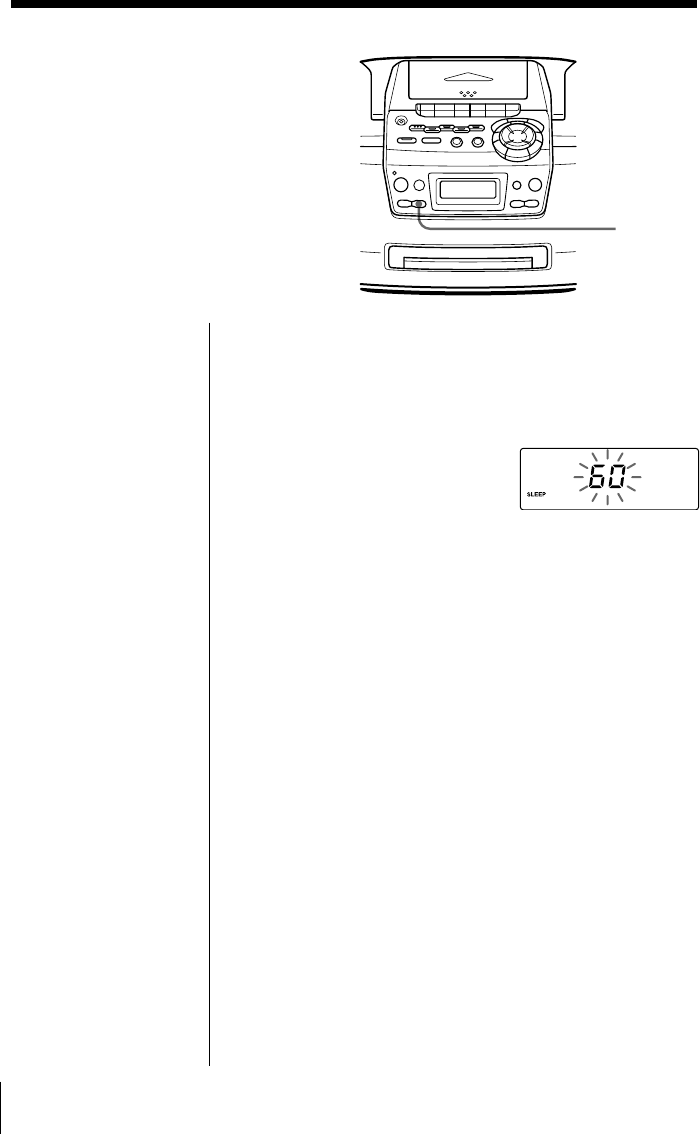

24 Falling asleep to music

Setting Up

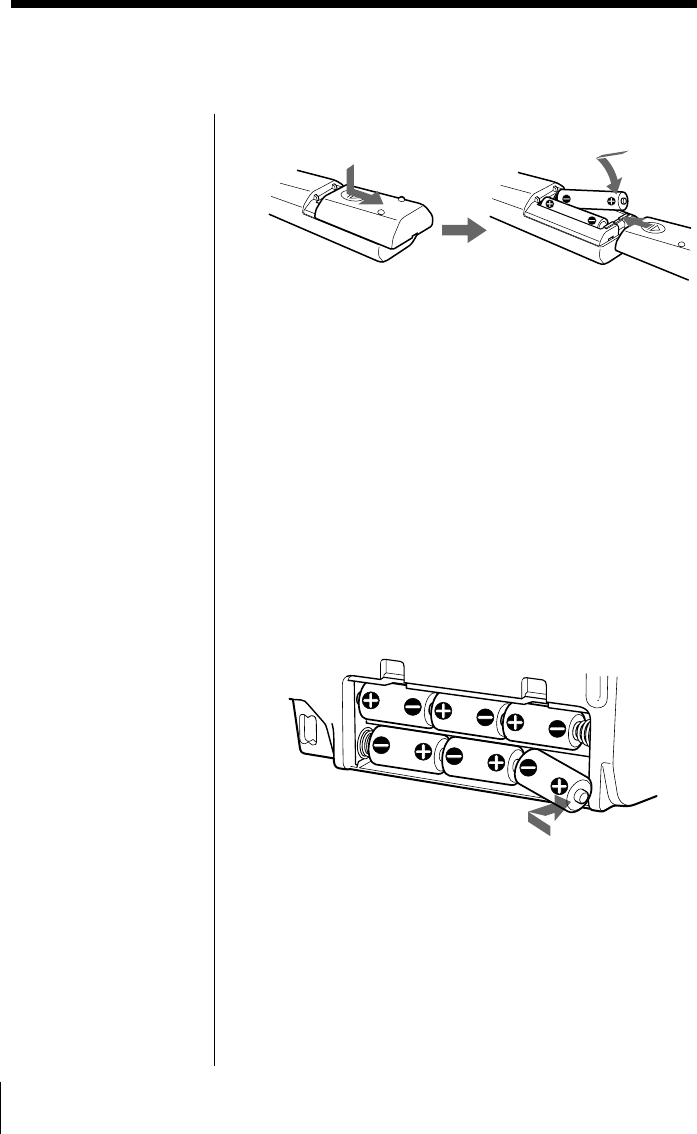

25 Choosing the power sources

27 Selecting the audio emphasis

(Sound Mode/MEGA BASS)

Additional Information

28 Precautions

30 Troubleshooting

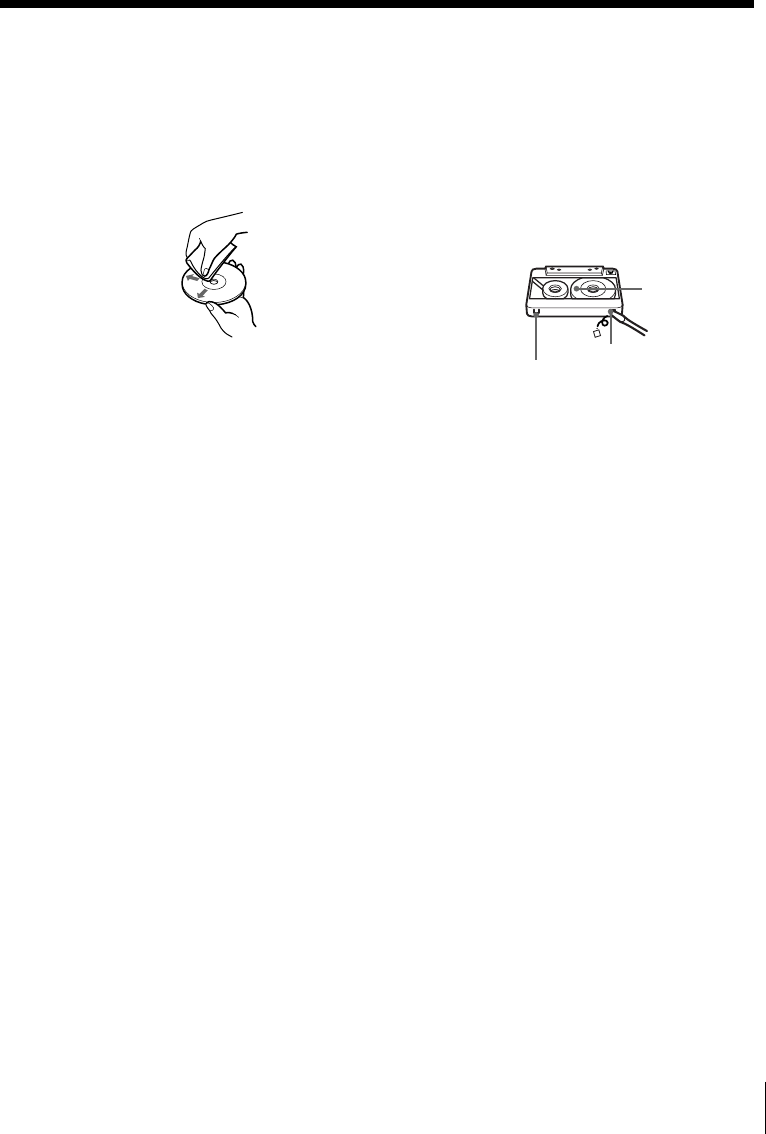

32 Maintenance

33 Specifications

34 Index

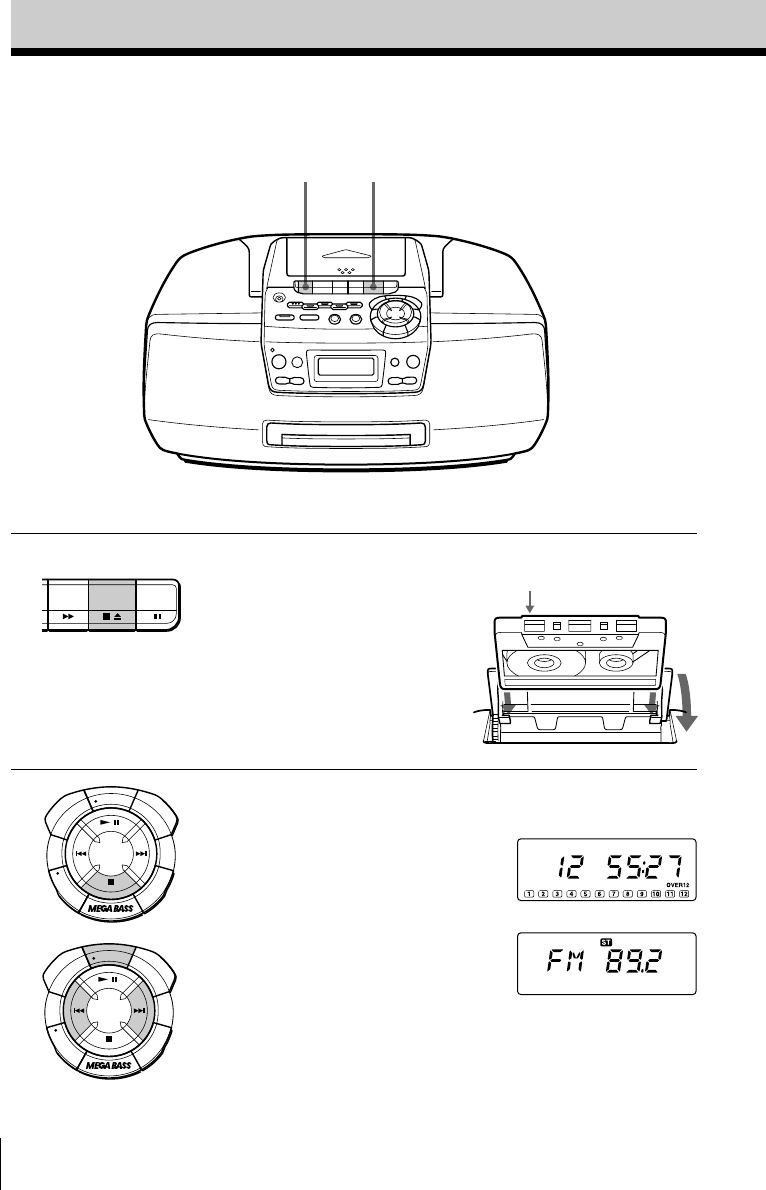

Basic Operations4

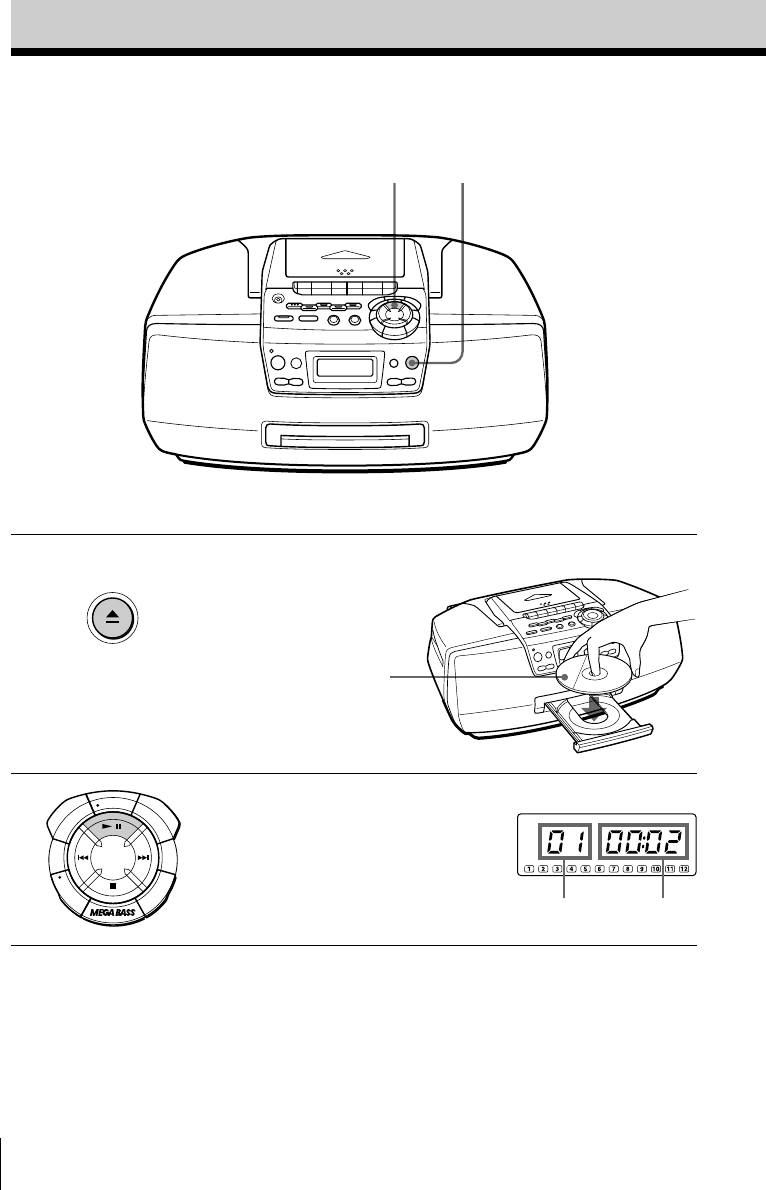

Playing a CD

Basic Operations

Connect the supplied AC power cord (see page 25).

1Press 6 CD OPEN/CLOSE

(direct power-on) and place the

CD on the CD tray.

2Press ^.

The CD tray closes and the player

plays all the tracks once.

Display

Playing timeTrack number

With the label side up

CD OPEN/

–

TUNE

–

TUNE

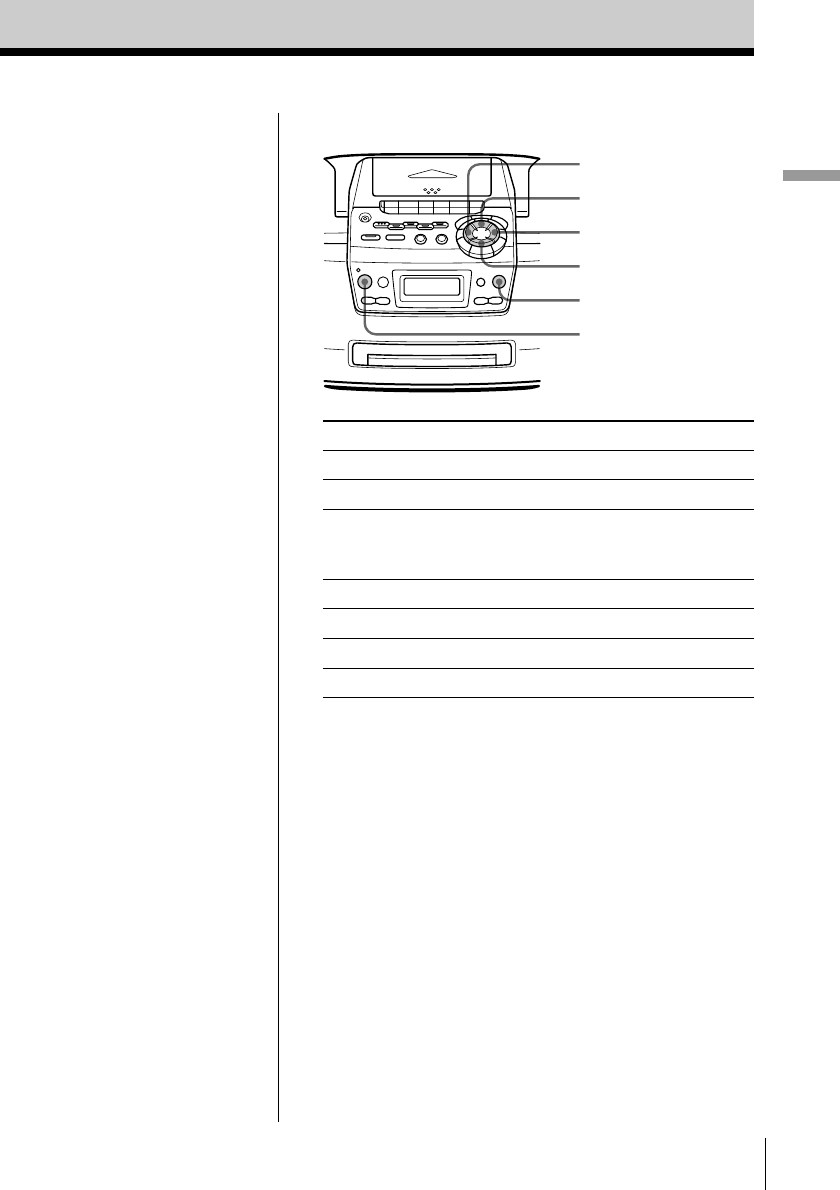

Basic Operations

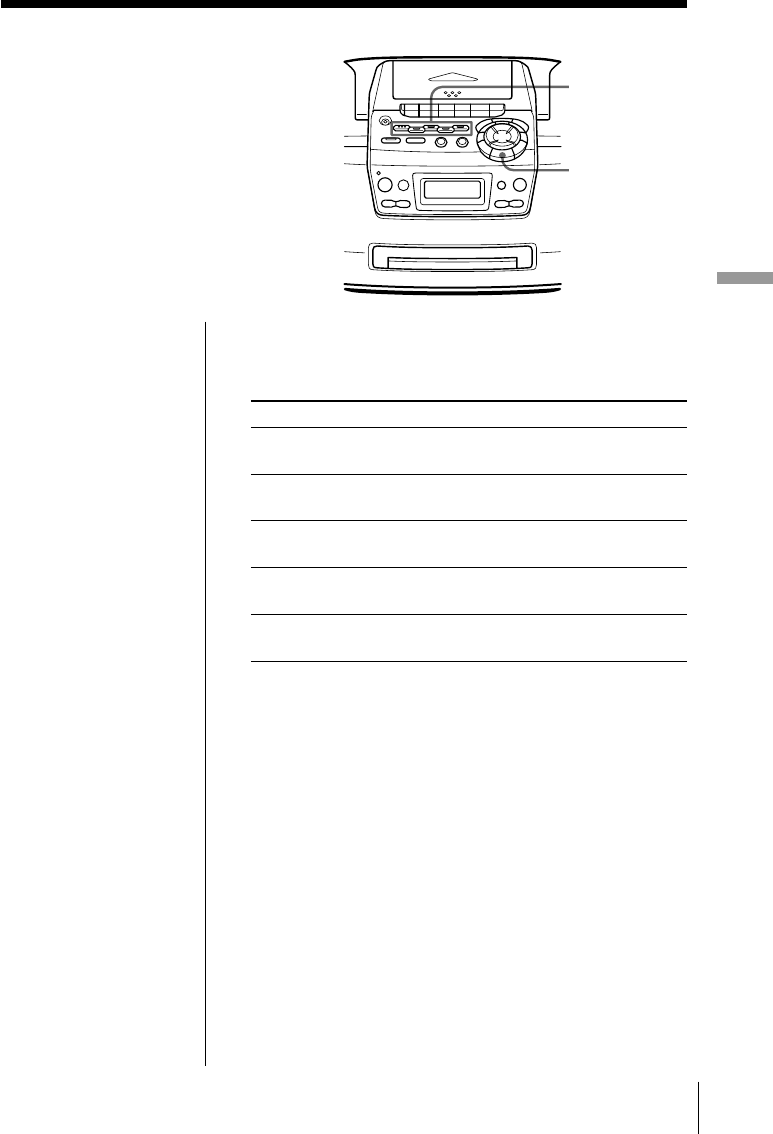

Use these buttons for additional operations

To Press

adjust the volume VOL +, –

stop playback p

pause playback ^ (P on the remote)

Press the button again to

resume play after pause.

go to the next track +

go back to the previous track =

remove the CD 6 CD OPEN/CLOSE

turn on/off the player POWER

Tip

Next time you want to

listen to a CD, just press

^. The player turns on

automatically and starts

playing the CD.

POWER

6 CD OPEN/CLOSE

Basic Operations6

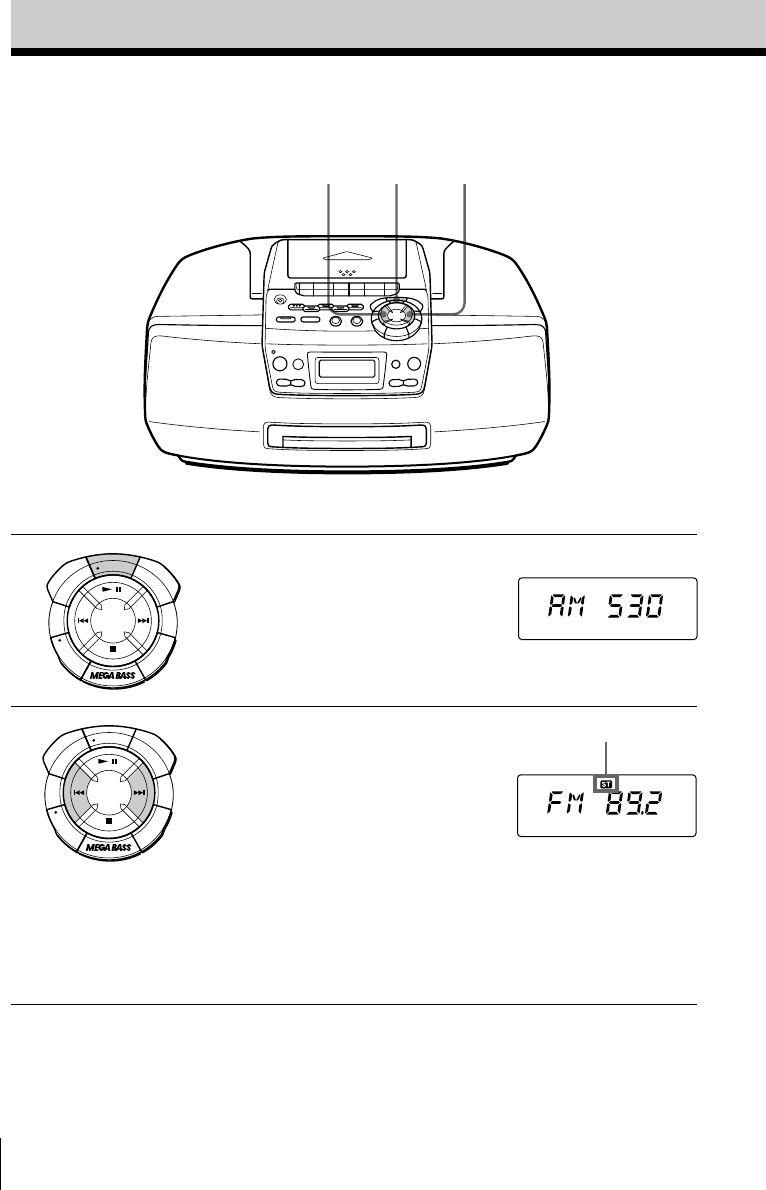

Listening to the radio

Connect the supplied AC power cord (see page 25).

1Press BAND until the band you

want appears in the display

(direct power-on).

2Hold down TUNE +/+ or

TUNE –/= (TUNE + or – on

the remote) until the frequency

digits begin to change in the

display.

The player automatically scans

the radio frequencies and stops

when it finds a clear station.

If you can't tune in a station,

press the button repeatedly to

change the frequency step by

step.

Display

Indicates an FM stereo

broadcast

122

–

TUNE

–

TUNE

–

TUNE

–

TUNE

Basic Operations

Use these buttons for additional operations

To Press

adjust the volume VOL +, –

turn on/off the radio POWER

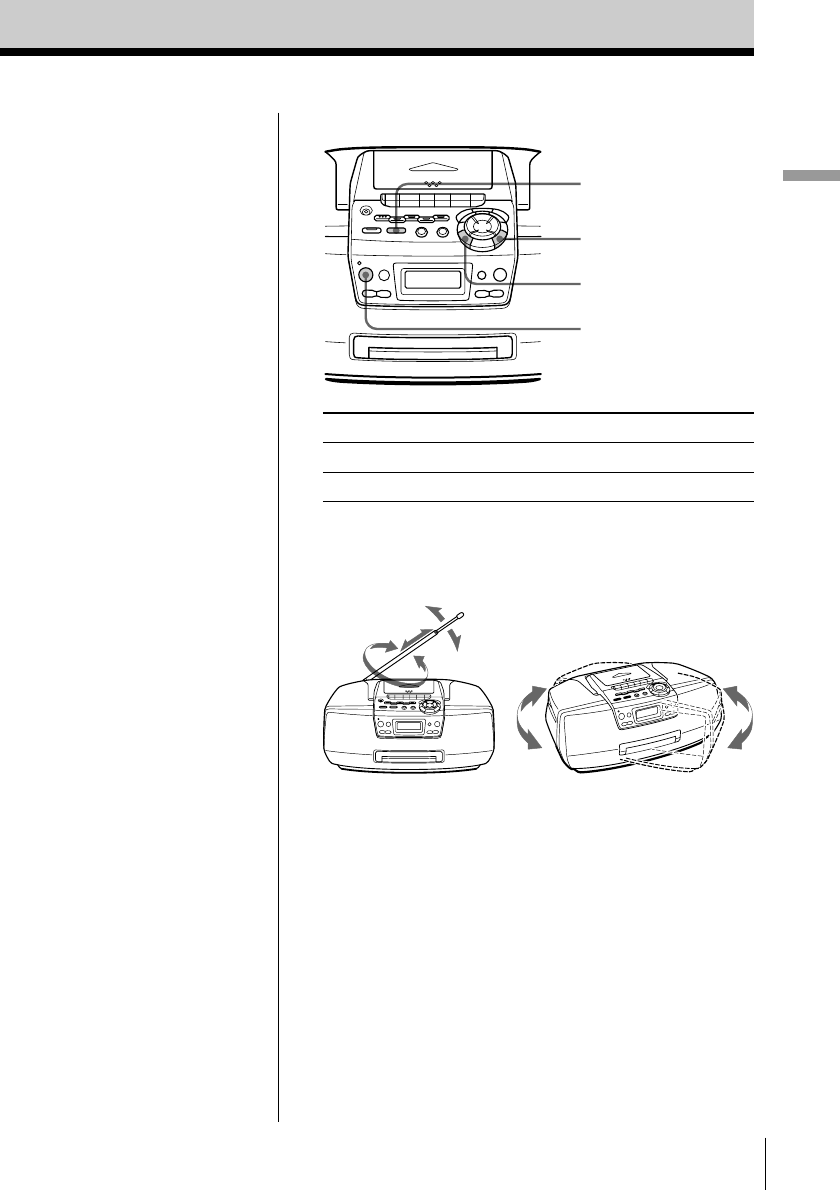

To improve broadcast reception

Reorient the antenna for FM. Reorient the player itself

for AM.

for FM for AM

Tips

• If the FM broadcast is

noisy, press MONO/ST

ISS•PLAY MODE until

“Mono” appears in the

display and the radio

will play in monaural.

• Next time you want to

listen to the radio, just

press BAND. The player

turns on automatically

and starts playing the

previous station.

POWER

VOL +

MONO/ST ISS

PLAY MODE

VOL –

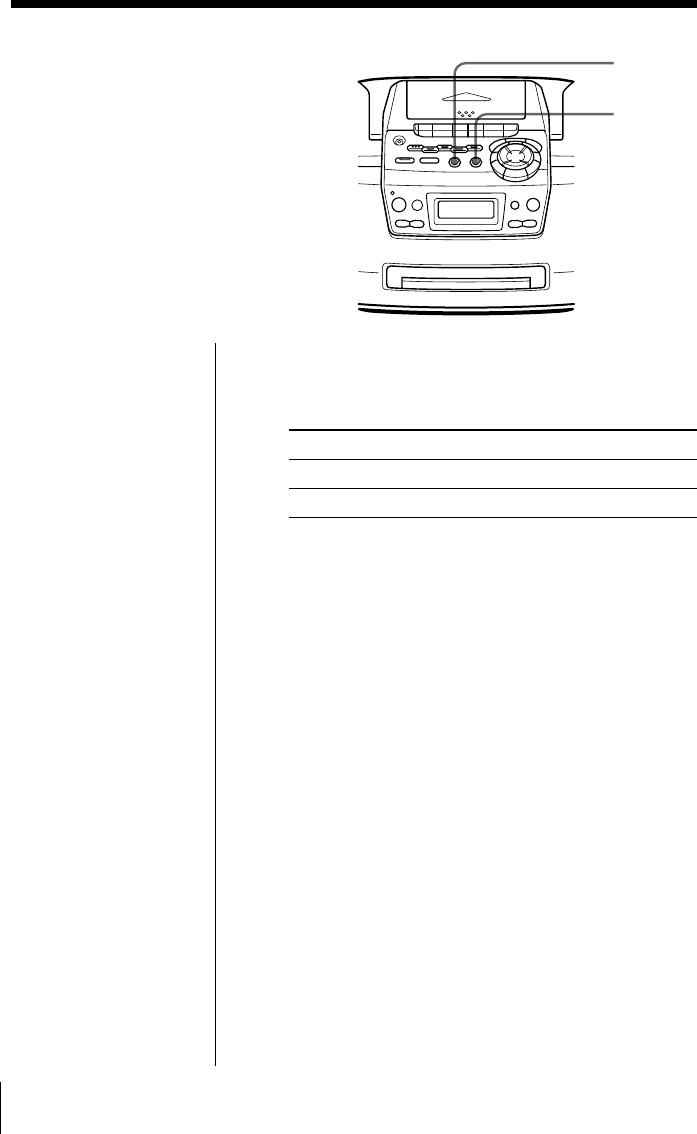

Basic Operations8

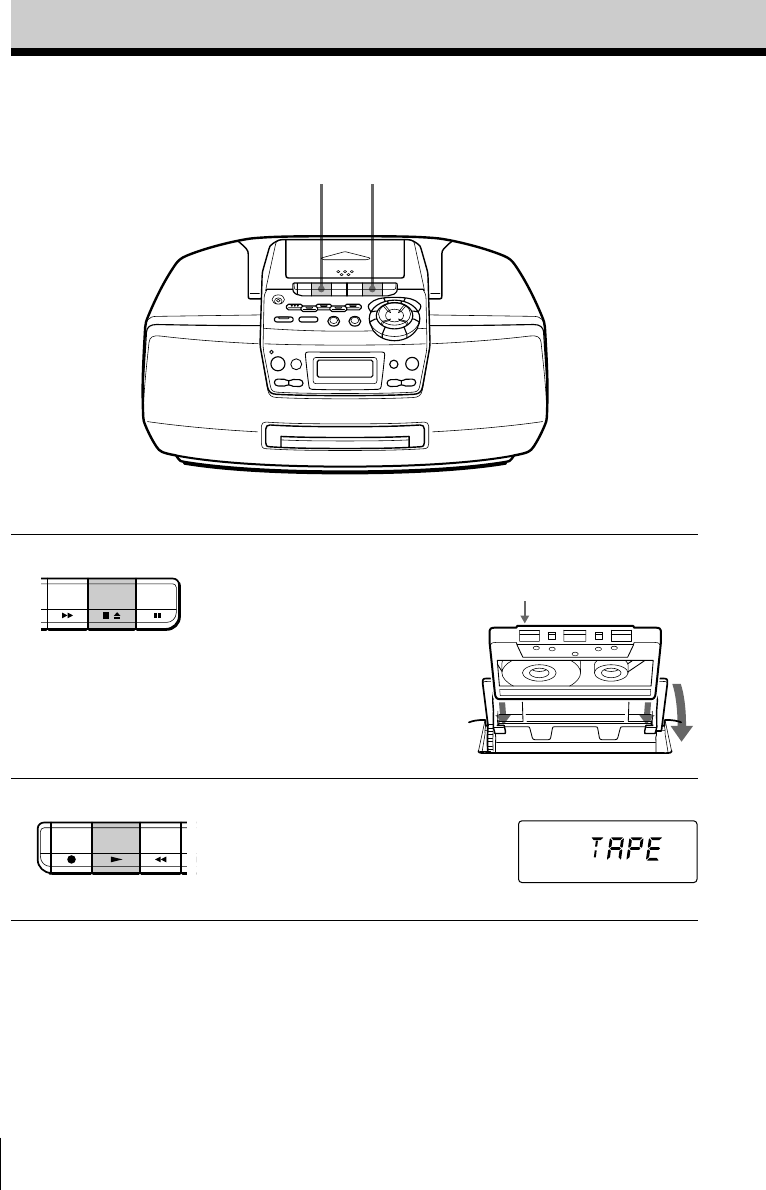

Playing a tape

Connect the supplied AC power cord (see page 25).

1Press p6 to open the tape

compartment and insert a

recorded tape. Use TYPE I

(normal) tape only. Close the

compartment.

2Press (.

The player turns on (direct

power-on) and starts playing.

With the side you want

to play facing upward

Display

STOP/EJECT

PLAY

Basic Operations

Use these buttons for additional operations

To Press

adjust the volume VOL +, –

stop playback p6

fast-forward or rewind the tape ) or 0

pause playback P

Press the button again to

resume play after pause.

eject the cassette p6

turn on/off the player POWER

Tip

Next time you want to

listen to a tape, just

press (. The player

turns on automatically

and starts playing the

tape.

VOL –

POWER

VOL +

)

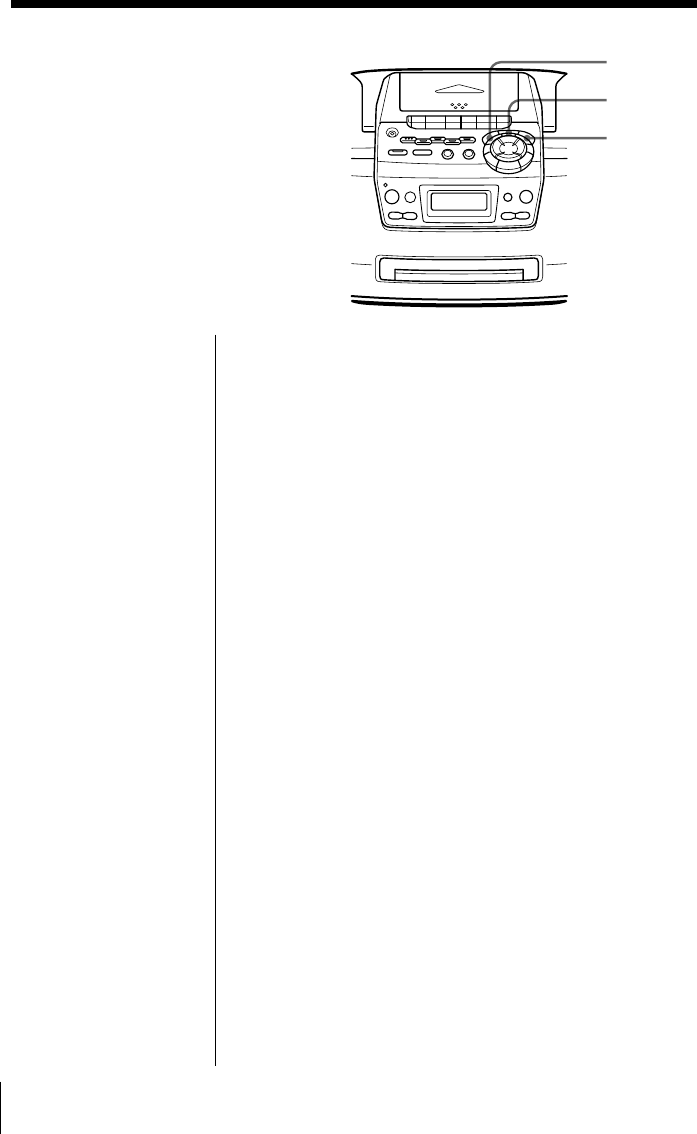

Basic Operations10

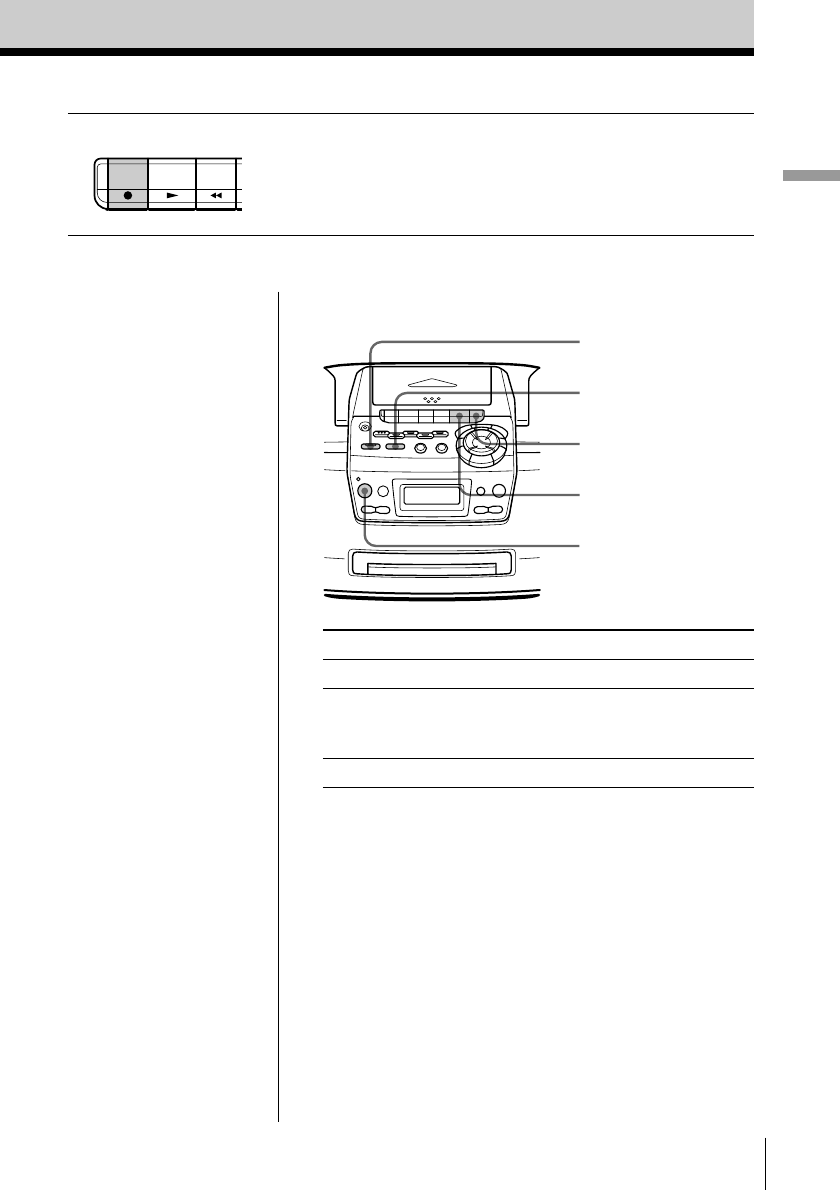

Recording on a tape

Connect the supplied AC power cord (see page 25).

1Press p6 to open the tape

compartment and insert a blank

tape. Use TYPE I (normal) tape

only.

2Select the program source you

want to record.

To record from the CD player,

insert a CD (see page 4) and press

p on the CD section.

To record from the radio, tune in

the station you want (see page 6).

With the side you want to

record on facing upward

Display

STOP/EJECT

–

TUNE

–

TUNE

–

TUNE

–

TUNE

Basic Operations

3Press r to start recording

(( is depressed automatically).

Use these buttons for additional operations

Tips

• Adjusting the volume or

the audio emphasis (see

page 27) will not affect

the recording level.

• If the AM program

makes a whistling

sound after you've

pressed r in step 3,

press MONO/ST

ISS•PLAY MODE

(Interference Suppress

switch) repeatedly until

the noise is at a

minimum.

• For the best results, use

the AC power as a

power source.

• To erase a recording,

proceed as follows:

1 Insert the tape whose

recording you want to

erase.

2 Press FUNCTION to

select “TAPE”.

3 Press r.

To Press

stop recording p6

pause recording P

Press the button again to

resume recording.

turn on/off the player POWER

POWER

MONO/ST ISS

PLAY MODE

REC

FUNCTION

The CD Player12

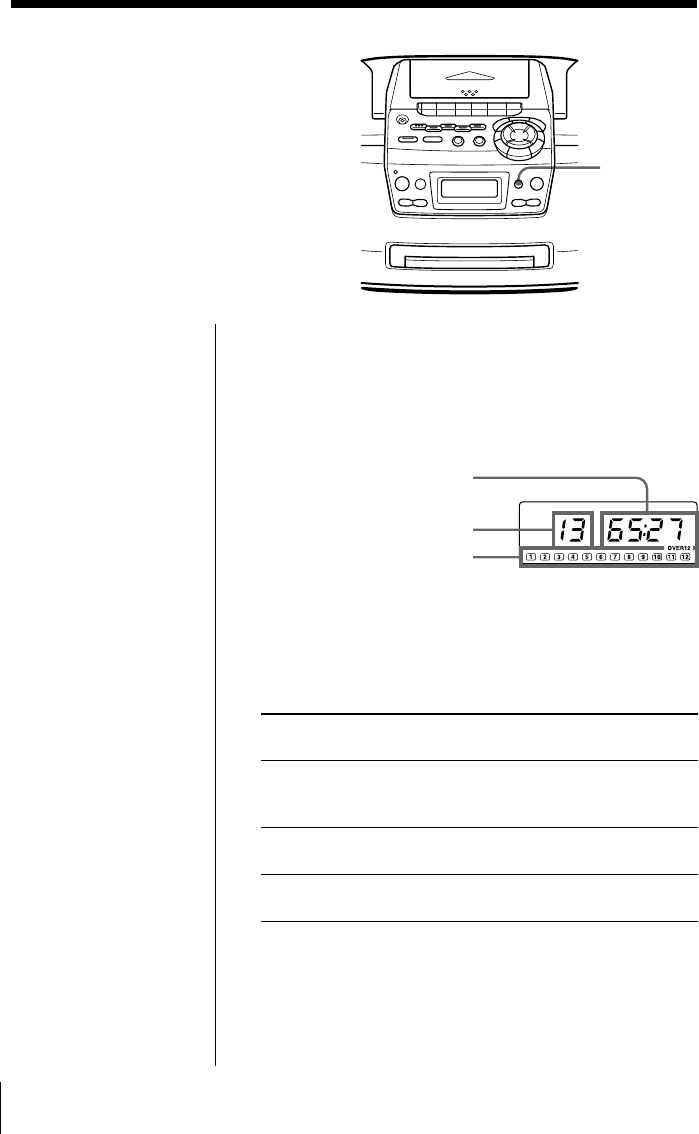

Using the display

You can check information about the CD

using the display.

The CD Player

Checking the total track number and playing

time

Check the display in stop mode.

If the CD has more than 12 tracks, “OVER 12” appears

in the display.

Checking the remaining time

Press DISPLAY•ENTER MEM while playing a CD.

The track numbers in the music calendar disappear

after they are played.

To display

Press DISPLAY•ENTER

MEM

the current track number once

and the remaining time

on the current track*

the number of tracks left twice

and remaining time on the CD

the current track number three times

and playing time

* For a track whose number is more than 20, the remaining

time appears as “– –:– –”.

Music calendar

Total playing time

Total track number

DISPLAY

ENTER MEM

The CD Player

The CD Player 13

Locating a specific

point in a track

You can quickly find a specific point in a

track while playing a CD.

You can also locate any track using the

number buttons on the remote.

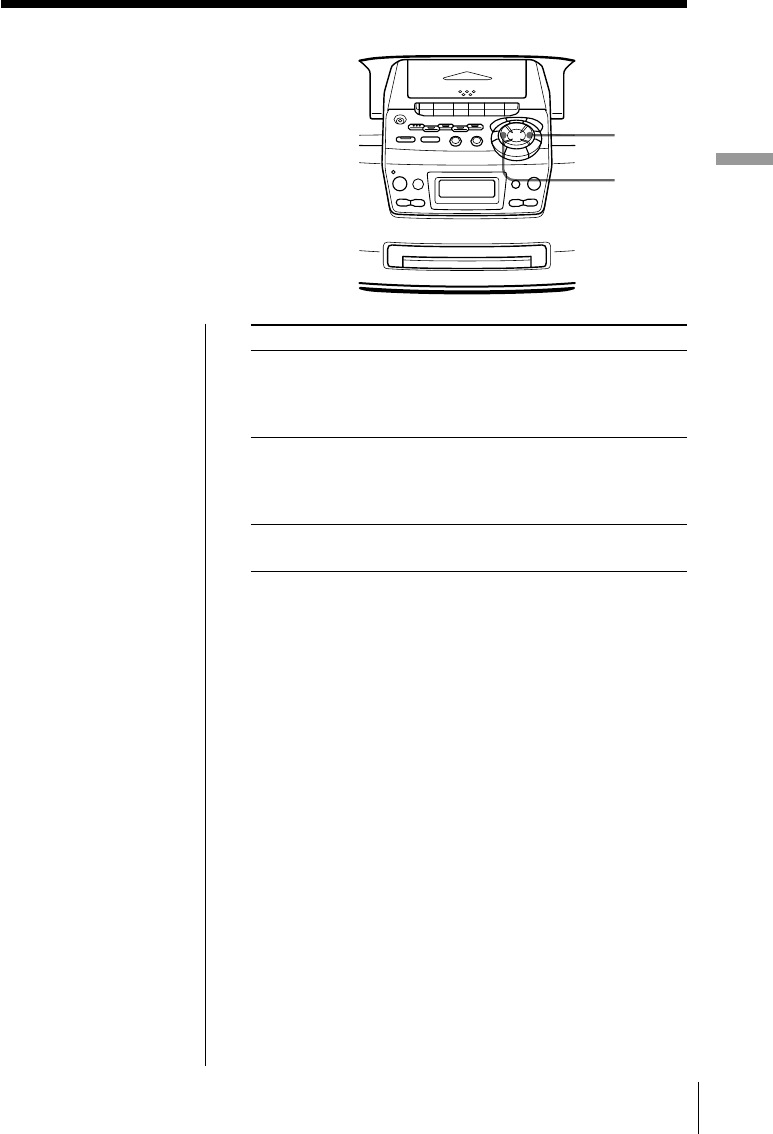

To locate Press

a point while listening to + (forward) or =

the sound (backward) while playing

and hold down until you

find the point

a point while observing + (forward) or =

the display (backward) in pause and

hold down until you find

the point

a specific track directly the number button of the

track on the remote

Note

You cannot locate a

specific track if

“SHUF” or “PGM” is lit

in the display. Turn off

the indication by

pressing p.

Tip

When you locate a

track numbered over

10, press >10 first, then

the corresponding

number buttons.

Example:

To play track number

23, press >10 first, then

2 and 3.

The CD Player14

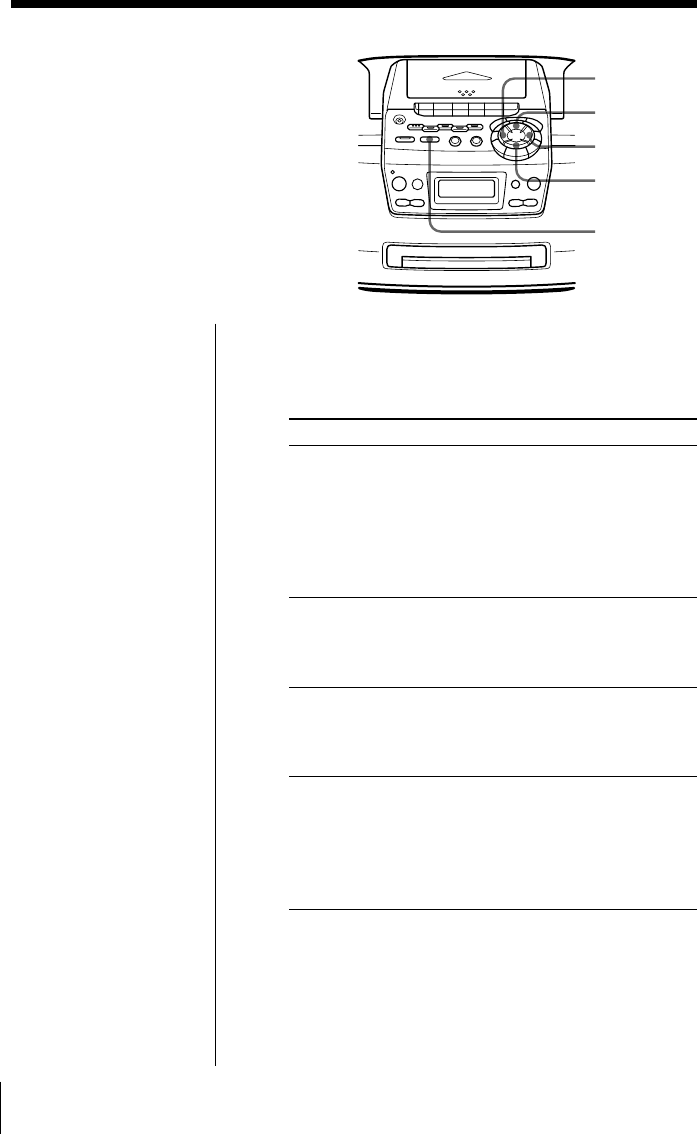

Playing tracks

repeatedly

(Repeat Play)

You can play tracks repeatedly in

normal, shuffle or program play modes

(see page 16).

1Press p.

“Cd” appears in the display.

2Proceed as follows.

To repeat Do this

a single track 1Press MONO/ST ISS•

PLAY MODE until “REP

1” appears.

2Press = or + to select

the track that you want to

repeat.

3Press ^.

all the tracks 1Press MONO/ST ISS•

PLAY MODE until “REP

ALL” appears.

2Press ^.

tracks in random order 1Press MONO/ST ISS•

PLAY MODE until “SHUF

REP” appears.

2Press ^.

programmed tracks 1Press MONO/ST ISS•

PLAY MODE until “PGM

REP” appears.

2Program tracks (see step 3

on page 16).

3Press ^.

To cancel Repeat Play

Press MONO/ST ISS•PLAY MODE until “REP”

disappears from the display.

MONO/ST ISS

PLAY MODE

On the remote

1 Press p.

2 Press MODE until

the repeat mode you

want appears in the

display.

3 Do either of the

following to start

repeat play:

•When you’ve

selected “REP 1”,

select the track by

pressing the

number button.

•When you’ve

selected “REP

ALL” or “SHUF

REP”, press (.

•When you’ve

selected “PGM

REP”, program

tracks (see step 3

on page 16), then

press (.

The CD Player

The CD Player 15

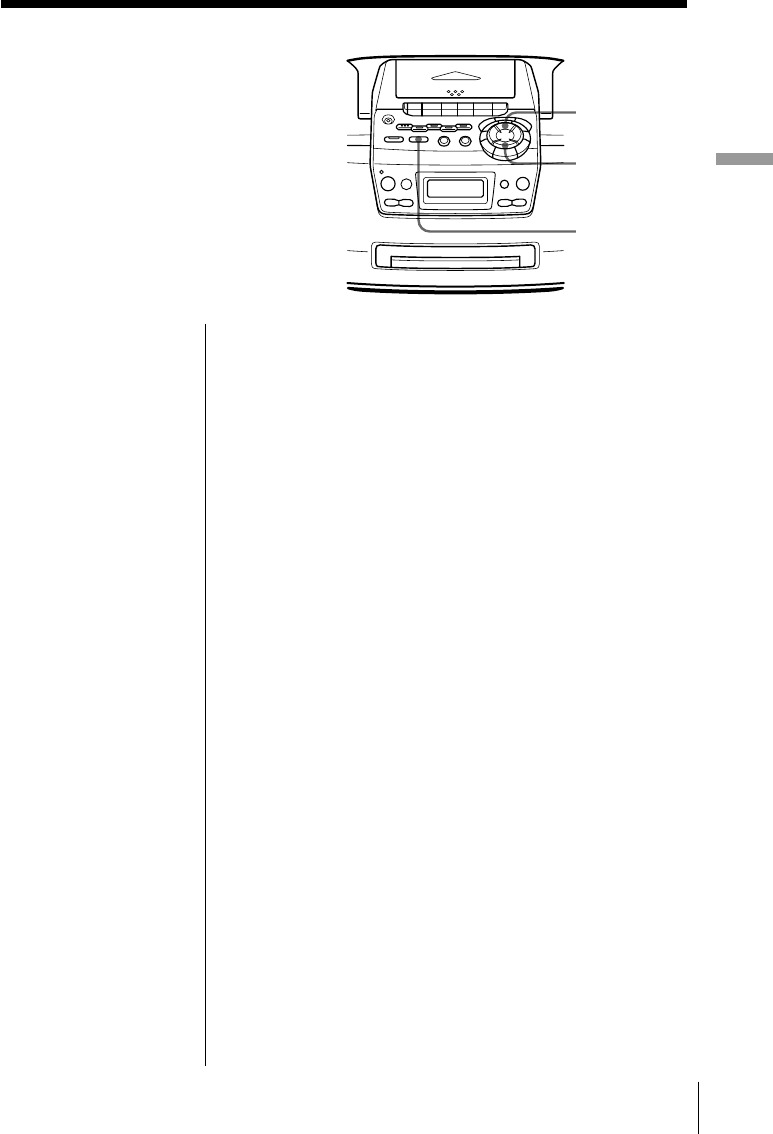

Playing tracks in

random order

(Shuffle Play)

You can play tracks in random order.

1Press p.

“Cd” appears in the display.

2Press MONO/ST ISS•PLAY MODE until “SHUF”

appears in the display.

3Press ^ to start shuffle play.

To cancel Shuffle Play

Press MONO/ST ISS•PLAY MODE until “SHUF”

disappears from the display.

On the remote

1 Press p.

2 Press MODE

repeatedly until

“SHUF” appears in

the display.

3 Press (.

MONO/ST ISS

PLAY MODE

The CD Player16

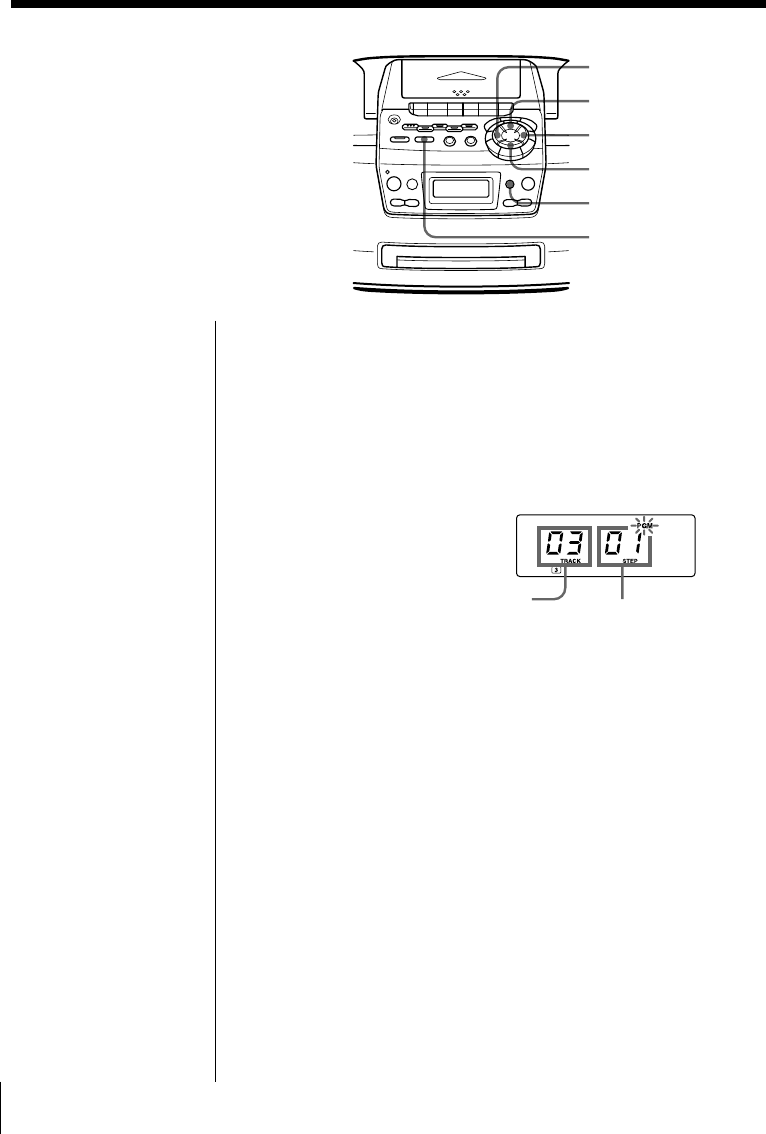

Creating your

own program

(Program Play)

You can arrange the playing order of up

to 20 tracks on a CD.

Programed track Playing order

1Press p.

“Cd” appears in the display.

2Press MONO/ST ISS•PLAY MODE until “PGM”

appears in the display.

3Press the = or + then press DISPLAY•

ENTER MEM for the tracks you want to program

in the order you want.

The programed tracks appear in the music

calender.

4Press ^ to start program play.

On the remote

1 Press p.

2 Press MODE until

“PGM” appears in

the display.

3 Press the number

buttons for the tracks

you want to program

in the order you

want.

4 Press (.

MONO/ST ISS

PLAY MODE

DISPLAY

ENTER MEM

The CD Player

The CD Player 17

Tips

• You can play the same

program again, since

the program is saved

until you open the CD

tray.

• You can record your

own program. After

you’ve created the

program, insert a blank

tape and press r to

start recording.

To cancel Program Play

Press MONO/ST ISS•PLAY MODE until “PGM”

disappears from the display.

To check the order of tracks before play

Press DISPLAY•ENTER MEM.

Every time you press the button, the track number

appears in the programed order.

To change the current program

Press p once if the CD is stopped and twice if the CD

is playing. The current program will be erased. Then

create a new program following the programing

procedure.

The CD Player18

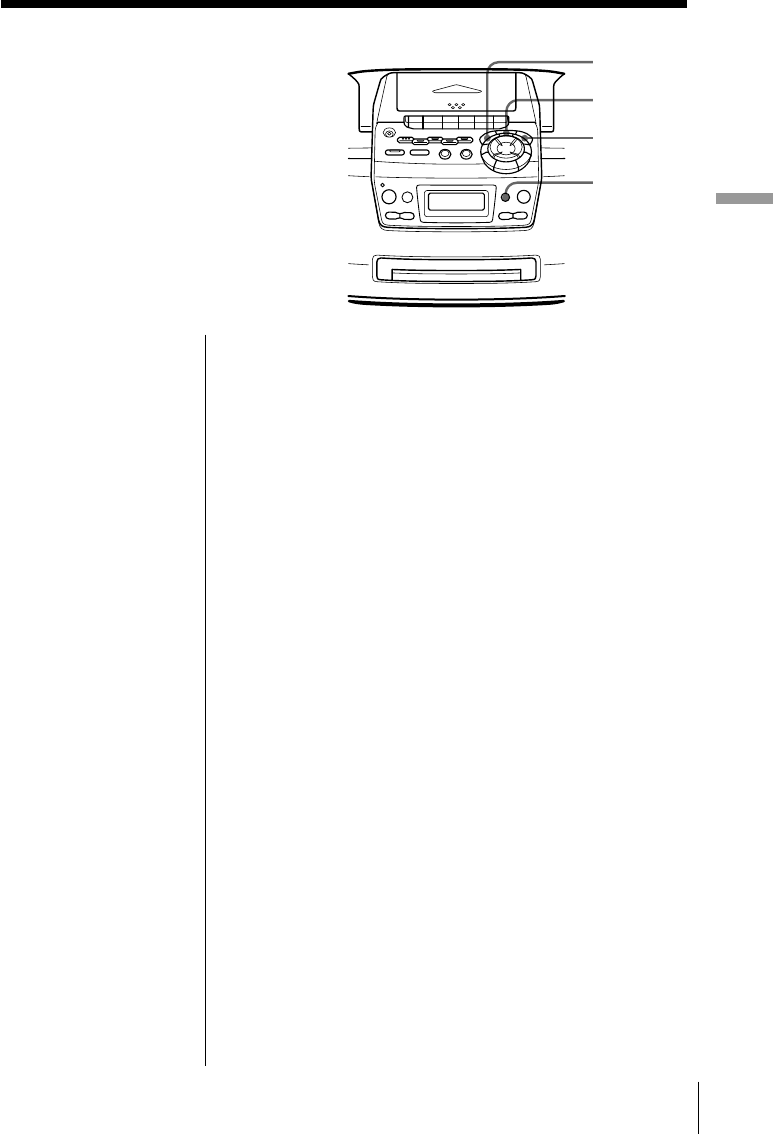

Enjoying sound

effects (LOOP/FLASH)

You can repeat part of a CD (LOOP) and

can “flash” the CD sound (FLASH)

during playback.

1Play a CD.

2Press and hold LOOP or FLASH at the point you

want to start the function.

To Press and hold

repeat a selected part of a CD LOOP

“flash” the CD sound FLASH

To cancel the LOOP or FLASH function

Release the button.

The player returns to normal play.

LOOP

FLASH

The Radio

Presetting radio

stations

You can store radio stations into the

player’s memory. You can preset up to

20 radio stations, 10 for each band in any

order.

1Press BAND until the band you want appears in

the display.

2Set the frequency to the station you want.

3Hold down DISPLAY•ENTER MEM for 2 seconds.

4Press PRESET + or – until the preset number (1 to

10) you want for the station flashes in the music

calender.

5Press DISPLAY• ENTER MEM again.

The new station replaces the old one.

On the remote

1 Press BAND to select

the band.

2 Set the frequency to

the station you want.

3 Hold down the

number buttons that

you want to preset

the new station on for

2 seconds.

The frequency digits

flash in the display

and the station is

stored into the

player’s memory.

BAND

DISPLAY

ENTER MEM

PRESET –

PRESET +

The Radio20

Playing preset

radio stations

Once you've preset the stations, use the

number buttons on the remote or

PRESET +/– on the player to tune in to

your favorite stations.

1Press BAND to select the band.

2Press PRESET + or – to tune in the stored station.

On the remote

1 Press BAND to select

the band.

2 Press the number

buttons to tune in the

stored station.

BAND

PRESET –

PRESET +

The Timer 21

The Timer

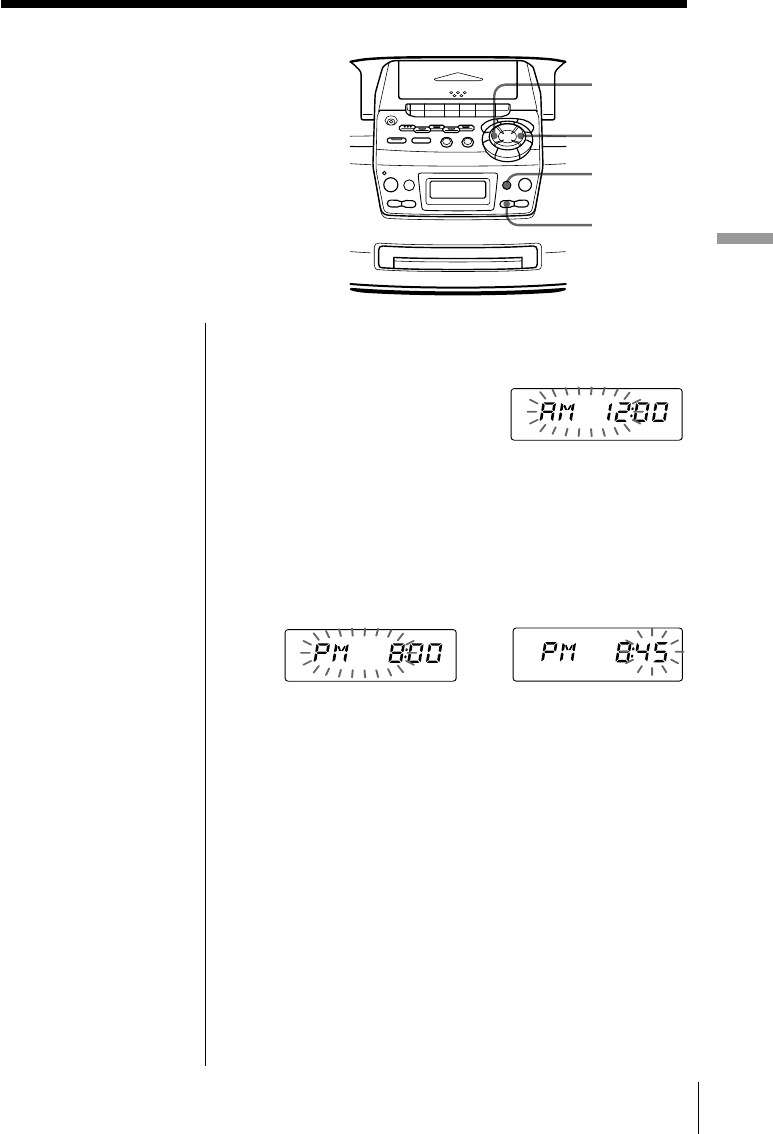

Setting the clock

“--:--” indication appears in the display

until you set the clock.

The Timer

Tip

The time display

system:

12-hour system

1Press CLOCK for 2 seconds until the hour digit

flashes.

2Press TUNE +/+ or TUNE –/= until you set

the current hour. Then press DISPLAY•ENTER

MEM.

The minute digits flash. Set the minutes by

pressing TUNE +/+ or TUNE –/= until the

correct minute is displayed.

3Press DISPLAY•ENTER MEM.

The clock starts from 00 seconds.

CLOCK

DISPLAY

ENTER MEM

TUNE –/=

TUNE +/+

The Timer22

Waking up to

music

You can wake up to music or a radio

program at a preset time. Make sure

you have set the clock (“Setting the

clock” on page 21).

Before you begin, make sure the t (clock) indication is

not lit in the display. If it is lit, press STANDBY.

1Prepare the music source you want to play.

To play Do this

the radio Tune in a station

a CD Insert a CD

2Press TIMER.

The t (clock) and the music source (“Cd” or

“RAdIO”) flash.

3Select the music source (“Cd” or “RAdIO”) by

pressing TUNE +/+ or TUNE –/=, then

DISPLAY•ENTER MEM.

4 Set the timer to the hour you want the music to

start by pressing TUNE +/+ or TUNE –/=,

then DISPLAY•ENTER MEM.

Set the minutes, then press DISPLAY•ENTER

MEM.

5 Set the timer to the hour and the minutes you want

the music to go off. (Do as step 4.)

STANDBY

TIMER

DISPLAY

ENTER MEM

TUNE –/=

TUNE +/+

The Timer 23

The Timer

Tips

• The display window

does not light while the

waking up timer is on.

• You can have the

player go on the next

day at the same time.

Just press STANDBY

until the t indication

appears in the display.

The preset settings

remain until you reset

them.

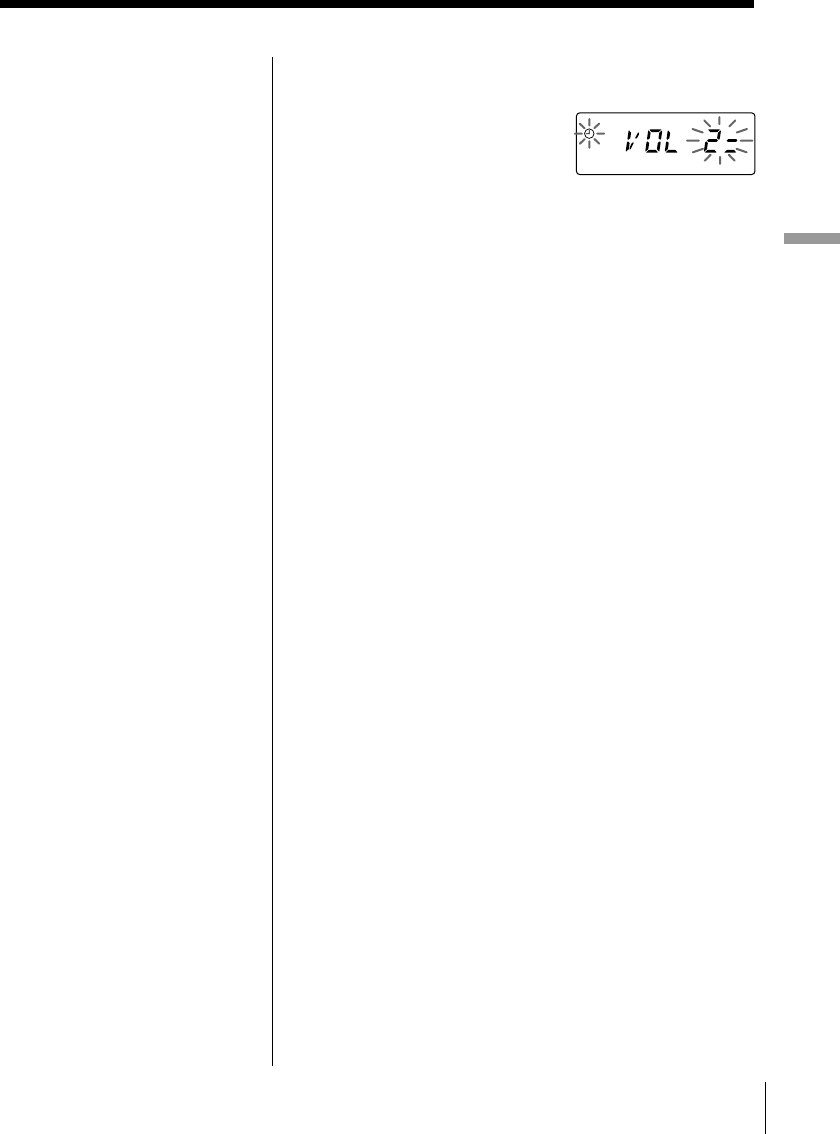

6Press TUNE +/+ or TUNE –/= to set the

volume, then DISPLAY•ENTER MEM.

7Press STANDBY.

The t indication lights up and the power goes off.

At the preset time, the power will go on, and the

music will play. Then the power will go off at the

preset time, and the player will enter into the

standby mode.

To check/change when the playback will start

Press TIMER, then DISPLAY•ENTER MEM. Each

time you press DISPLAY•ENTER MEM, a stored

setting is displayed in the set order. To change the

setting, display the setting you want to change and re-

enter it.

To use the player before a timer playback starts

Just turn on the player, and then you can use it.

If you turn off the player before the preset time, timer

playback will start at the preset time.

In case of the radio, however, if you listen to the

station which is different from the one you tuned in

in step 1 on page 22, you will hear that station at the

preset time. Make sure to tune in the station you want

to listen to before you turn off the player.

To stop play

Press POWER to turn off the power.

The Timer24

Falling asleep to

music

You can set the player to turn off

automatically after 10, 20, 30, 60, 90,

and 120 minutes, allowing you to fall

asleep while listening to music.

Tips

• The display window

does not light while the

sleeping timer is on.

• You can fall asleep and

wake up to different

music. Set the waking

up timer first (see page

22), turn on the power,

and then set the

sleeping timer.

However, you cannot

store different radio

stations.

Note

When you are playing

a tape using this

function:

If the tape length of

one side is longer than

the set time, the player

will not go off until the

tape reaches the end.

1Play the music source you want.

2Press SLEEP to display “SLEEP.”

3Press SLEEP to select the minutes until the player

goes off automatically.

Each time you press the

button, the indication

changes as follows: “60”

n “90” n “120” n no

indication n “10” n

“20” n “30.”

To cancel the sleep function

Press POWER to turn off the power.

SLEEP

Setting Up 25

Setting Up

Choosing the

power sources

You can use the AC power or batteries

as a power source.

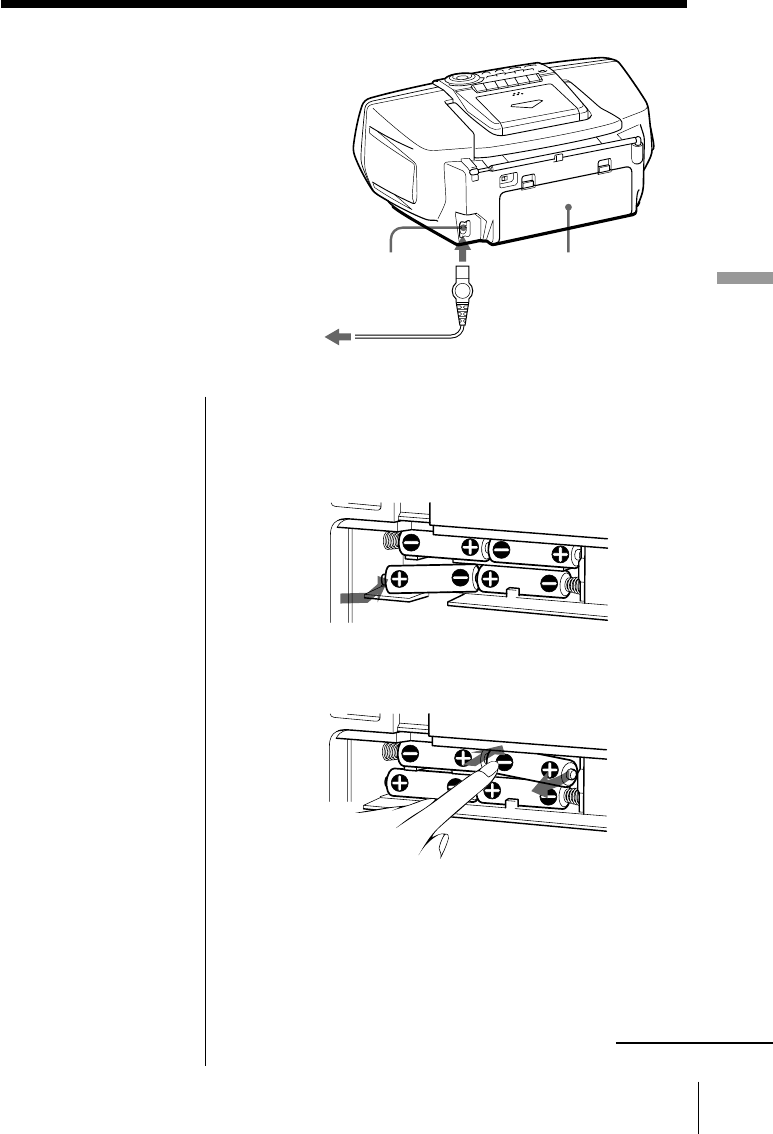

1 Inserting the back-up batteries

Insert four size AA (R6) batteries (not supplied) into

the battery compartment. These batteries work to save

the memory data.

Replacing batteries

Take out the batteries as illustrated.

2 Connecting the AC power cord

Insert one end of the supplied AC power cord to the

AC IN socket located at the rear of the player, and the

other end to the wall outlet.

14 Battery compartment

2 to a wall outlet

AC IN

continued

Setting Up26

3 Inserting batteries into the remote

Insert two size AA (R6) batteries (not supplied)

Replacing batteries

With normal use, the batteries should last for about six

months. When the remote no longer operates the

player, replace all the batteries with new ones.

4 Using the player on batteries

Insert six size D (R20) batteries (not supplied) into the

battery compartment.

To use the player on batteries, disconnect the AC

power cord from the player.

Note

When you operate the

player on batteries,

– the backlight in the

display does not

light.

– you cannot turn on

the player using the

remote.

Tip

Replace the batteries

when the OPR/BATT

indicator dims or when

the player stops

operating. Replace all

the batteries with new

ones. Before you

replace the batteries, be

sure to take out the CD

from the player.

Choosing the power sources (continued)

Setting Up 27

Setting Up

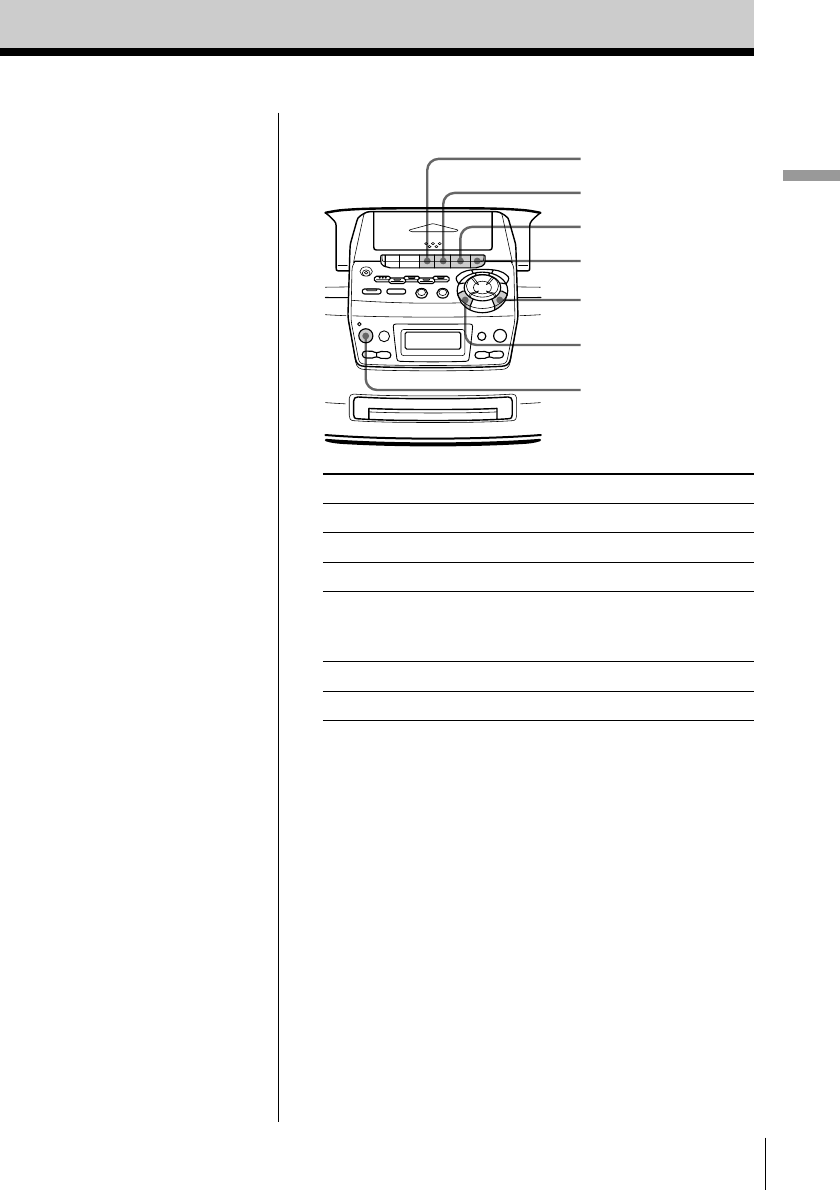

Selecting the sound characteristic

Press one of the PRESET SOUND MODE buttons to

select the audio emphasis you want.

Choose To get

OFF the whole dynamic range for music

such as classical music

ROCK powerful, clean sounds, emphasizing

low and high range audio

POP light, bright sounds emphasizing

high and middle range audio

LIVE percussive sounds, emphasizing bass

audio

VOCAL the presence of vocals, stressing

middle range audio

Reinforcing the bass sound

Press MEGA BASS.

”MEGA BASS” appears in the display.

To return to normal sound, press the button again.

On the remote

Press SOUND

repeatedly to select the

audio emphasis you

want.

MEGA BASS

PRESET SOUND

MODE

Selecting the

audio emphasis

(Sound Mode/MEGA BASS)

You can adjust the audio emphasis of

the sound you are listening to.

Additional Information28

Precautions

Additional Information

On placement

• Do not leave the player in a location

near heat sources, or in a place subject

to direct sunlight, excessive dust or

mechanical shock.

• Do not place the player on an inclined

or unstable place.

• Do not place anything within 10 mm

of the side of the cabinet. The

ventilation holes must be

unobstructed for the player to operate

properly and prolong the life of its

components.

• If the player is left in a car parked in

the sun, be sure to choose a location in

the car where the player will not be

subjected to the direct rays of the sun.

• Since a strong magnet is used for the

speakers, keep personal credit cards

using magnetic coding or spring-

wound watches away from the player

to prevent possible damage from the

magnet.

On operation

• If the player is brought directly from a

cold to a warm location, or is placed in

a very damp room, moisture may

condense on the lens inside the CD

player section. Should this occur, the

player will not operate properly. In

this case, remove the CD and wait

about an hour for the moisture to

evaporate.

• If the player has not been used for a

long time, set it in the playback mode

to warm it up for a few minutes before

inserting a cassette.

If you have any questions or problems

concerning your player, please consult

your nearest Sony dealer.

On safety

• As the laser beam used in the CD

player section is harmful to the eyes,

do not attempt to disassemble the

casing. Refer servicing to qualified

personnel only.

• Should any solid object or liquid fall

into the player, unplug the player, and

have it checked by qualified personnel

before operating it any further.

On power sources

• For AC operation, use the supplied

AC power cord; do not use any other

type.

• The player is not disconnected from

the AC power source (mains) as long

as it is connected to the wall outlet,

even if the player itself has been

turned off.

• Unplug the player from the wall outlet

when it is not to be used for an

extended period of time.

• For battery operation, use six size D

(R20) batteries.

• When the batteries are not to be used,

remove them to avoid damage that

can be caused by battery leakage or

corrosion.

• The nameplate indicating operating

voltage, power consumption, etc. is

located at the bottom.

Additional Information 29

Notes on CDs

• Before playing, clean the CD with a

cleaning cloth. Wipe the CD from the

center out.

• Do not use solvents such as benzine,

thinner, commercially available

cleaners or anti-static spray intended

for vinyl LPs.

• Do not expose the CD to direct

sunlight or heat sources such as hot

air ducts, nor leave it in a car parked

in direct sunlight as there can be a

considerable rise in temperature

inside the car.

• Do not stick paper or sticker on the

CD, nor scratch the surface of the CD.

• After playing, store the CD in its case.

If there is a scratch, dirt or fingerprints

on the CD, it may cause tracking error.

Notes on cassettes

• Break off the cassette tab from side A

or B to prevent accidental recording. If

you want to reuse the tape for

recording, cover the broken tab with

adhesive tape.

• The use of a cassette with more than

90 minutes of play time is not

recommended except for long,

continuous recording or playback.

Side A

Tab for side A

Tab for side B

Additional Information30

Troubleshooting

Symptom

The power is not on.

There is no audio.

“no disc“ lights in the display even

when a CD is in place.

The CD does not play.

The sound drops out.

The audio is weak or has poor

quality.

The picture of your TV becomes

unstable.

Remedy

• Connect the AC power cord to a wall outlet

securely.

• Make sure the batteries are inserted correctly.

• You cannot turn on the player with the remote

when you operate the player on batteries.

• Make sure the function you want to use appears

in the display window.

• Adjust the volume.

• Unplug the headphones when listening through

speakers.

• Insert the CD with the label surface up.

• Make sure that the CD tray is closed.

• Place the CD with the label surface up.

• Clean the CD.

• Take out the CD and leave the CD tray open for

about an hour to dry moisture condensation.

• Make sure “Cd” appears in the display.

• Reduce the volume.

• Clean the CD, or replace it if the CD is badly

damaged

• Place the player in a location free from

vibration.

• Replace all the batteries with new ones if they

are weak.

• Move the player away from the TV.

• If you are using the remote while listening to

AM radio, noise may be heard. This is

unavoidable.

• If you are listening to an FM program near the

TV with an indoor antenna, move the player

away from the TV.

General

CD Player

Radio

Additional Information 31

Symptom

The tape does not move when you

press an operation button.

The REC r button does not

function/The tape does not play.

The tape does not erase completely.

The tape does not record.

The audio is weak/The audio

quality is poor.

The sound is distorted.

The timer does not operate.

The remote does not function.

Remedy

• Close the tape compartment securely.

• Make sure the safety tab on the cassette is in

place.

• Make sure “TAPE” appears in the display.

• Clean the erasing head (see page 32)

• Replace all the batteries with new ones if they

are weak.

• The source which was recorded on TYPE II

(high position) or TYPE IV (metal) tape using

this unit is being played. Record on TYPE I

(normal) tape and play.

• Make sure the tape is inserted properly.

• Make sure the safety tab of the cassette is in

place.

• Clean the heads, pinch roller and capstan (see

page 32).

• Demagnetize the heads using a demagnetizer

(see page 32).

• The TYPE II (high position) or TYPE IV (metal)

tape is being used. Use TYPE I (normal) tape

only.

• Make sure the time on the clock is correct.

• Check to see if the AC power had been cut off.

• Make sure the t (clock) indication is displayed.

• Replace all the batteries in the remote with new

ones if they are weak.

• Make sure that you are pointing the remote at

the remote sensor on the player.

• Remove any obstacles in the path of the remote

and the player.

• Make sure the remote sensor is not exposed to

strong light such as direct sunlight or

fluorescent lamp light.

• Move closer to the player when using the

remote.

Tape Player

TimerRemote

After trying the above remedies, if you still have problems, unplug the AC power cord and

remove all the batteries. After all the indications in the display disappear, plug the power cord

and insert the batteries again. If the problem persists, please consult your nearest Sony dealer.

Additional Information32

Maintenance

Demagnetizing the tape heads

After 20 to 30 hours of use, enough

residual magnetism will have built up

on the tape heads to begin to cause loss

of high frequency sound and hiss. At

this time, you should demagnetize the

heads and all metal parts in the tape

path with a commercially available tape

head demagnetizer.

Cleaning the cabinet

Clean the cabinet, panel and controls

with a soft cloth slightly moistened with

a mild detergent solution. Do not use

any type of abrasive pad, scouring

powder, or solvent, such as alcohol or

benzine.

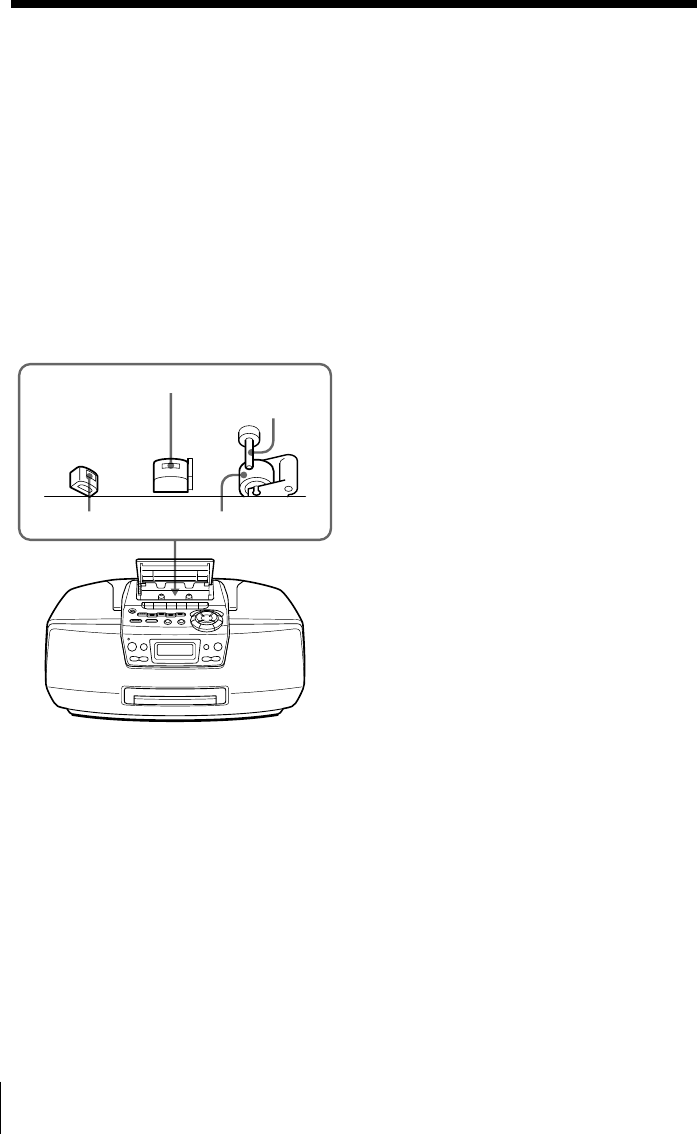

Cleaning the tape heads and tape

path

Wipe the heads, the pinch roller and the

capstan with a cleaning swab slightly

moistened with cleaning fluid or alcohol

after every 10 hours of operation for

optimum playback and recording

quality. To make the best possible

recording, however, we recommend that

you clean all surfaces over which tape

travels before each recording.

After cleaning, insert a tape when the

areas cleaned are completely dry.

Erase head

Capstan

Pinch roller

Record/playback head

Additional Information 33

Specifications

General

Speaker

Full range: 8 cm (3 1⁄4 in.) dia.,

6 ohms, cone type (2)

Outputs

Headphones jack (stereo minijack)

For 16 - 68 ohms impedance headphones

Power output (except US model)

3.5W + 3.5W (at 6 ohms, 10% harmonic distortion)

Power requirements

For CD radio cassette-corder:

120 V AC, 60 Hz

9 V DC, 6 size D (R20) batteries

For memory back-up:

6 V DC, 4 size AA (R6) batteries

For remote control:

3 V DC, 2 size AA (R6) batteries

Power consumption

AC 25 W

Battery life

For CD radio cassette-corder:

FM recording

Sony R20P: approx. 3.5 h

Sony alkaline LR20: approx. 10 h

Tape playback

Sony R20P: approx. 1.5 h

Sony alkaline LR20: approx. 5 h

CD playback

Sony R20P: approx. 1 h

Sony alkaline LR20: approx. 4 h

Dimensions

Approx. 420 × 177 × 281 mm (w/h/d)

(16 5⁄8 × 7 × 11 1⁄8 inches) (incl. projecting parts)

MassApprox. 5.1 kg (11 lb. 4 oz) (incl. batteries)

Supplied accessories

AC power cord (1)

Remote control (1)

Design and specifications are subject to change without

notice.

Optional accessories

Sony MDR headphones series

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL

HARMONIC DISTORTION

With 6-ohm loads, both channels driven from

100 - 10,000 Hz; rated 3.5 W per channel-

minimum RMS power, with no more than 10

% total harmonic distortion in AC operation.

Other Specifications

CD player section

System

Compact disc digital audio system

Laser diode properties

Material: GaAlAs

Wave length: 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 µW

(This output is the value measured at a distance of

about 200 mm from the objective lens surface on

the optical pick-up block with 7 mm aperture.)

Spindle speed

200 r/min (rpm) to 500 r/min (rpm) (CLV)

Number of channels

Frequency response

20 - 20,000 Hz +1/–2 dB

Wow and flutter

Below measurable limit

Radio section

Frequency range

FM: 87.6 - 108 MHz

AM: 530 - 1,710 kHz

Aerials

FM: Telescopic aerial

AM: Built-in ferrite bar aerial

Cassette-corder section

Recording system

4-track 2 channel stereo

Fast winding time

Approx. 150 sec. with Sony cassette C-60

Frequency response

TYPE I (normal): 80 - 10,000 Hz

Additional Information34

Index

Audio emphasis 27

Batteries

for player 26

memory back-up 25

for remote 26

CD player 12

Choosing power sources 25

Cleaning

cabinet 32

tape heads and tape

path 32

Connecting AC power cord

Creating your own program

D, E

Demagnetizing the tape

heads 32

Display 12

F, G, H

FLASH 18

I, J, K

Improving broadcast

reception 7

Listening to the radio 6

Locating a specific point 13

LOOP 18

M, N, O

MEGA BASS 27

P, Q

Playing

a CD 4

a tape 8

preset radio stations 20

tracks repeatedly 14

Power sources 25

Presetting radio stations 19

Program Play 16

Radio stations

playing 20

presetting 19

Recording on a tape 10

Repeat Play 14

Selecting

audio emphasis 27

tracks 5

Setting the clock 21

Setting up 25

SOUND 27

Timer

Falling asleep to music

Waking up to music 22

Troubleshooting 30

U, V, W, X, Y, Z

Using the display 12

Additional Information 35

Sony Corporation Printed in China

Sony Cfd S47 Users Manual

CFD-S47 Operating Instructions (primary manual) CFDS47

User manual CFDS47 Sony CFD-S47 Boombox user guide User Manuals and Instruction Guides

Navigation menu

Versions of this User Manual:

Views

Navigation
