4-469-577-11(1)

DSC-RX1/RX1R

Digital Still Camera

Instruction Manual

GB

2

Owner’s Record

The model and serial numbers are located

on the bottom. Record the serial number in

the space provided below. Refer to these

numbers whenever you call your Sony

dealer regarding this product.

Model No. DSC-RX1/DSC-RX1R

Serial No.

Model No. AC-UD10/AC-UD11

Serial No.

To reduce fire or shock hazard, do

not expose the unit to rain or

moisture.

IMPORTANT SAFETY

INSTRUCTIONS

-SAVE THESE

INSTRUCTIONS

DANGER

TO REDUCE THE

RISK OF FIRE OR

ELECTRIC SHOCK,

CAREFULLY FOLLOW

THESE

INSTRUCTIONS

If the shape of the plug does not fit the

power outlet, use an attachment plug

adaptor of the proper configuration for the

power outlet.

Battery pack

If the battery pack is mishandled, the

battery pack can burst, cause a fire or even

chemical burns. Observe the following

cautions.

• Do not disassemble.

• Do not crush and do not expose the

battery pack to any shock or force such as

hammering, dropping or stepping on it.

• Do not short circuit and do not allow

metal objects to come into contact with

the battery terminals.

• Do not expose to high temperature above

60°C (140°F) such as in direct sunlight or

in a car parked in the sun.

• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking

lithium ion batteries.

• Be sure to charge the battery pack using a

genuine Sony battery charger or a device

that can charge the battery pack.

• Keep the battery pack out of the reach of

small children.

• Keep the battery pack dry.

• Replace only with the same or equivalent

type recommended by Sony.

• Dispose of used battery packs promptly

as described in the instructions.

AC Adaptor

Use the nearby wall outlet (wall socket)

when using the AC Adaptor. Disconnect

the AC Adaptor from the wall outlet (wall

socket) immediately if any malfunction

occurs while using the apparatus.

English

WARNING

CAUTION

GB

3

RECYCLING LITHIUM-ION

BATTERIES

Lithium-Ion batteries

are recyclable.

You can help preserve

our environment by

returning your used

rechargeable batteries

to the collection and

recycling location

nearest you.

For more information regarding recycling

of rechargeable batteries, call toll free

1-800-822-8837, or visit

http://www.rbrc.org/

Caution: Do not handle damaged or

leaking Lithium-Ion batteries.

Battery pack

This device complies with Part 15 of the

FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful

interference, and (2) this device must

accept any interference received, including

interference that may cause undesired

operation.

CAN ICES-3 B/NMB-3 B

UL is an internationally recognized safety

organization.

The UL Mark on the product means it has

been UL Listed.

If you have any questions about this

product, you may call:

Sony Customer Information Center

1-800-222-SONY (7669).

The number below is for the FCC related

matters only.

Regulatory Information

CAUTION

You are cautioned that any changes or

modifications not expressly approved in

this manual could void your authority to

operate this equipment.

For Customers in the U.S.A.

and Canada

For Customers in the U.S.A.

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-RX1, DSC-RX1R

Responsible Party: Sony Electronics

Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127

U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the

FCC Rules. Operation is subject to the

following two conditions: (1) This

device may not cause harmful

interference, and (2) this device must

accept any interference received,

including interference that may cause

undesired operation.

GB

4

Note:

This equipment has been tested and found

to comply with the limits for a Class B

digital device, pursuant to Part 15 of the

FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does cause

harmful interference to radio or television

reception, which can be determined by

turning the equipment off and on, the user

is encouraged to try to correct the

interference by one or more of the

following measures:

– Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

The supplied interface cable must be used

with the equipment in order to comply with

the limits for a digital device pursuant to

Subpart B of Part 15 of FCC Rules.

Notice for the customers in the

countries applying EU Directives

This product has been manufactured by or

on behalf of Sony Corporation, 1-7-1

Konan Minato-ku Tokyo, 108-0075 Japan.

Inquiries related to product compliance

based on European Union legislation shall

be addressed to the authorized

representative, Sony Deutschland GmbH,

Hedelfinger Strasse 61, 70327 Stuttgart,

Germany. For any service or guarantee

matters, please refer to the addresses

provided in the separate service or

guarantee documents.

This product has been tested and found

compliant with the limits set out in the

EMC regulation for using connection

cables shorter than 3 meters (9.8 feet).

Attention

The electromagnetic fields at the specific

frequencies may influence the picture and

sound of this unit.

Notice

If static electricity or electromagnetism

causes data transfer to discontinue midway

(fail), restart the application or disconnect

and connect the communication cable

(USB, etc.) again.

For Customers in Europe

GB

5

Disposal of Old Electrical &

Electronic Equipment (Applicable in

the European Union and other

European countries with separate

collection systems)

This symbol on the

product or on its packaging

indicates that this product

shall not be treated as

household waste. Instead it

shall be handed over to the

applicable collection point

for the recycling of

electrical and electronic equipment. By

ensuring this product is disposed of

correctly, you will help prevent potential

negative consequences for the environment

and human health, which could otherwise

be caused by inappropriate waste handling

of this product. The recycling of materials

will help to conserve natural resources. For

more detailed information about recycling

of this product, please contact your local

Civic Office, your household waste

disposal service or the shop where you

purchased the product.

Disposal of waste batteries

(applicable in the European Union

and other European countries with

separate collection systems)

This symbol on the battery

or on the packaging

indicates that the battery

provided with this product

shall not be treated as

household waste.

On certain batteries this symbol might be

used in combination with a chemical

symbol. The chemical symbols for mercury

(Hg) or lead (Pb) are added if the battery

contains more than 0.0005% mercury or

0.004% lead.

By ensuring these batteries are disposed of

correctly, you will help prevent potentially

negative consequences for the environment

and human health which could otherwise be

caused by inappropriate waste handling of

the battery. The recycling of the materials

will help to conserve natural resources.

In case of products that for safety,

performance or data integrity reasons

require a permanent connection with an

incorporated battery, this battery should be

replaced by qualified service staff only.

To ensure that the battery will be treated

properly, hand over the product at end-of-

life to the applicable collection point for the

recycling of electrical and electronic

equipment.

For all other batteries, please view the

section on how to remove the battery from

the product safely. Hand the battery over to

the applicable collection point for the

recycling of waste batteries.

For more detailed information about

recycling of this product or battery, please

contact your local Civic Office, your

household waste disposal service or the

shop where you purchased the product.

GB

6

A moulded plug complying with BS 1363

is fitted to this equipment for your safety

and convenience.

Should the fuse in the plug supplied need to

be replaced, a fuse of the same rating as the

supplied one and approved by ASTA or

BSI to BS 1362, (i.e., marked with an

or mark) must be used.

If the plug supplied with this equipment has

a detachable fuse cover, be sure to attach

the fuse cover after you change the fuse.

Never use the plug without the fuse cover.

If you should lose the fuse cover, please

contact your nearest Sony service station.

Notice for customers in the

United Kingdom

GB

7

Table of contents

Introduction of functions ................................................... 9

Before use

Notes on using your camera ............................................ 11

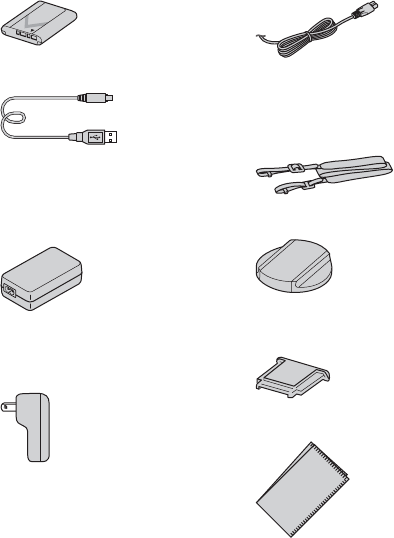

Checking the supplied items ............................................ 14

Identifying parts .............................................................. 15

Front side .................................................................... 15

Rear side/Sides ........................................................... 16

Top side ...................................................................... 17

Bottom ........................................................................ 18

Using the control wheel ............................................. 19

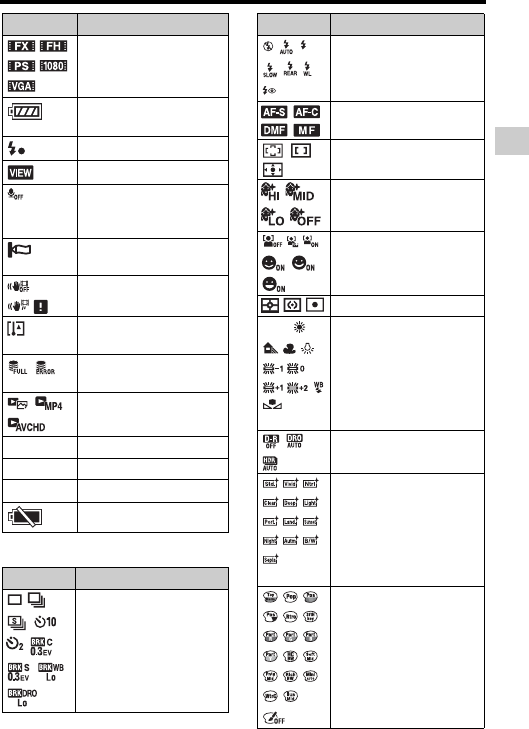

List of icons on the screen ............................................... 20

Functions list

Functions that can be operated using the buttons/dials .... 23

Selecting a function using the Fn (Function) button ....... 24

Functions that can be selected using the Fn (Function)

button ......................................................................... 25

Functions that can be selected using the MENU button ... 27

Using the In-Camera Guide ............................................. 35

Preparing the camera

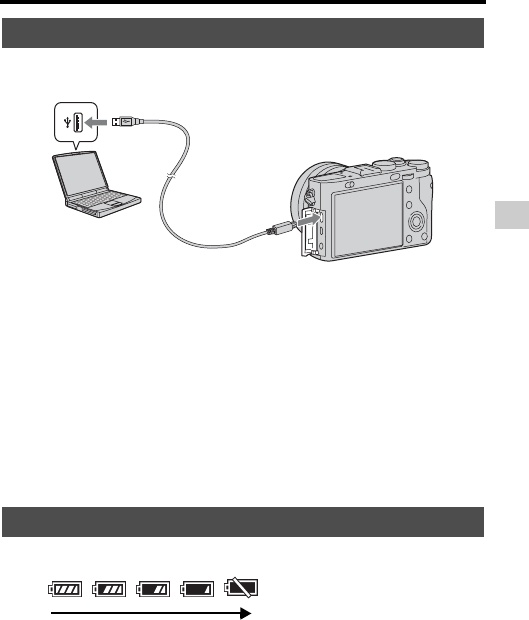

Charging the battery pack ................................................ 36

Charging time (Full charge) ....................................... 38

Charging by connecting to a computer ...................... 39

Checking the remaining battery charge ...................... 39

Supplying power ........................................................ 40

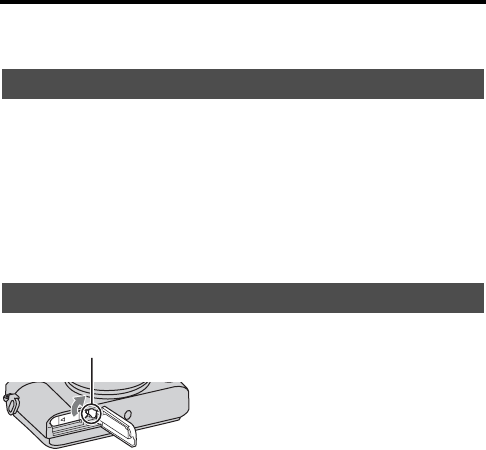

To remove the battery pack ........................................ 40

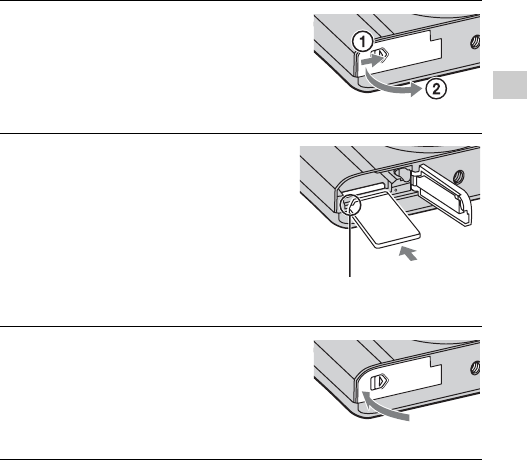

Inserting a memory card (sold separately) ...................... 41

To remove the memory card ...................................... 42

Memory cards that can be used .................................. 42

Setting the date and time ................................................. 43

Setting the date/time and area again ........................... 44

Shooting a clear movie without camera shake ................ 45

GB

8

Shooting and viewing images

Shooting still images ....................................................... 46

Recording movies ............................................................ 48

Changing the file format ............................................ 48

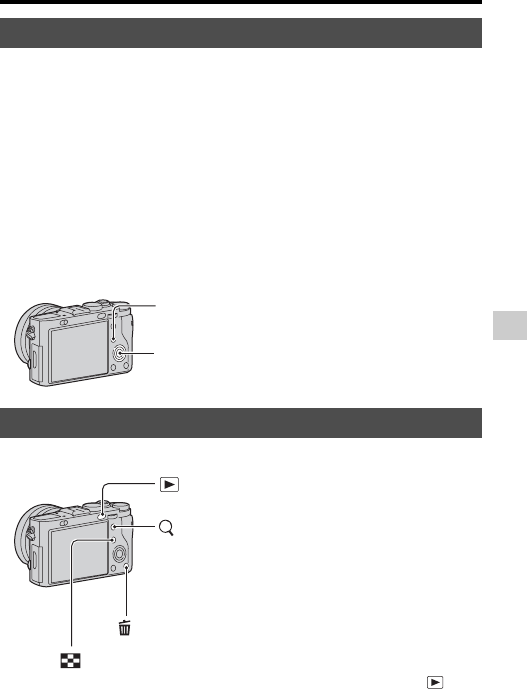

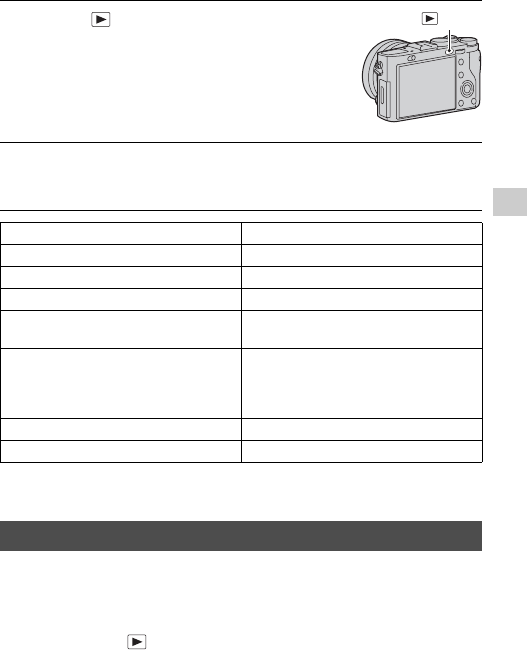

Playing back images ........................................................ 49

Switching between still images and movies ............... 49

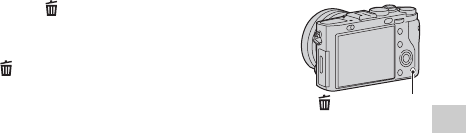

Deleting images ............................................................... 50

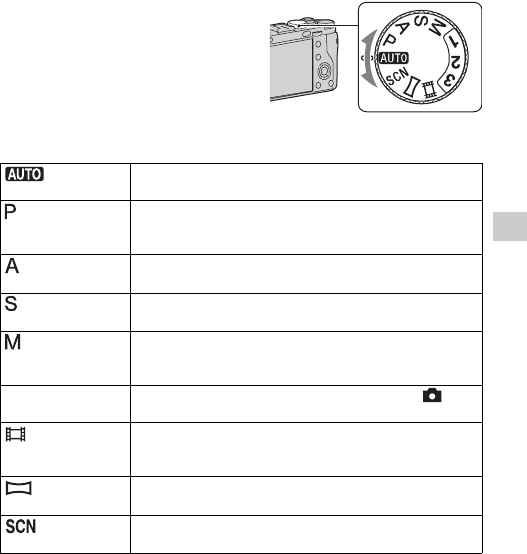

Selecting a shooting mode

Selecting a shooting mode ............................................... 51

Functions available for each shooting mode ................... 52

Various functions

Using the various functions ............................................. 53

ISO/Multi Frame Noise Reduct. ................................ 53

Creative Style ............................................................. 54

Hand-held Twilight .................................................... 54

DRO/Auto HDR ......................................................... 55

Playback functions ..................................................... 55

How to use the Quick Navi screen ............................. 56

Viewing images on a computer

Using the software ........................................................... 58

Using “Image Data Converter” .................................. 58

Using “PlayMemories Home” .................................... 59

Recommended computer environment (Windows) ... 60

Recommended computer environment (Mac) ............ 60

Installing “PlayMemories Home” .............................. 62

Installing “Image Data Converter” ............................. 63

Others

Learning more about the camera (“Cyber-shot

User Guide”) .............................................................. 64

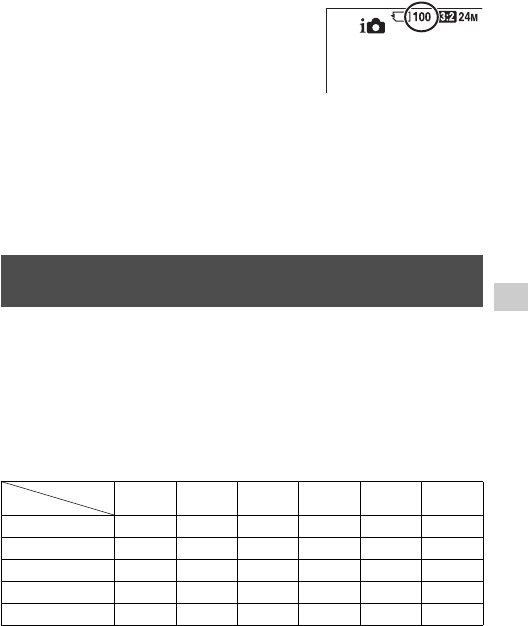

Checking the number of images and recordable time of

movies ........................................................................ 65

Specifications .................................................................. 69

Index .............................................................73

GB

9

Introduction of functions

This section introduces some frequently used shooting functions and other

unique functions.

See the pages in parentheses for details.

Exposure Comp. (23)

You can adjust the exposure to change the brightness of the entire image.

Even when the shooting mode is set to M, you can adjust the exposure if the

ISO sensitivity is set to [AUTO].

ISO (53)/Multi Frame Noise Reduct. (53)

You can adjust the luminous sensitivity.

The ISO sensitivity can be adjusted between ISO 50 and ISO 25600.

When you select (Multi Frame Noise Reduct.), you can select larger

ISO numbers than the maximum ISO sensitivity.

White Balance (25)

You can adjust the color tones.

You can select an option to suit a light source, or perform fine adjustments

using color temperature and color filter.

Drive Mode (25)

You can select an appropriate drive mode to suit your purposes, such as

single shooting, continuous shooting, or bracket shooting.

Macro mode (47)

You can shoot close-ups of subjects such as flowers or food.

Shooting functions used frequently

Features of this camera

Introduction of functions

GB

10

DRO/Auto HDR (55)

[D-Range Opt.]: By dividing the image into small areas, the camera

analyses the contrast of light and shadow between the subject and the

background, and produces an image with the optimal brightness and

gradation.

[Auto HDR]: Shoots 3 images with different exposures, and then overlays

these images to create an image with rich gradation.

Creative Style (54)

You can select the desired style from among 13 styles.

You can also adjust certain image factors, such as exposure, using the

selected style as the base.

Hand-held Twilight (54)

You can shoot night scenes with less noise and blur without using a tripod.

Movie recording with manual adjustments (26)

You can adjust the exposure in P, A, S, or M mode even when shooting

movies.

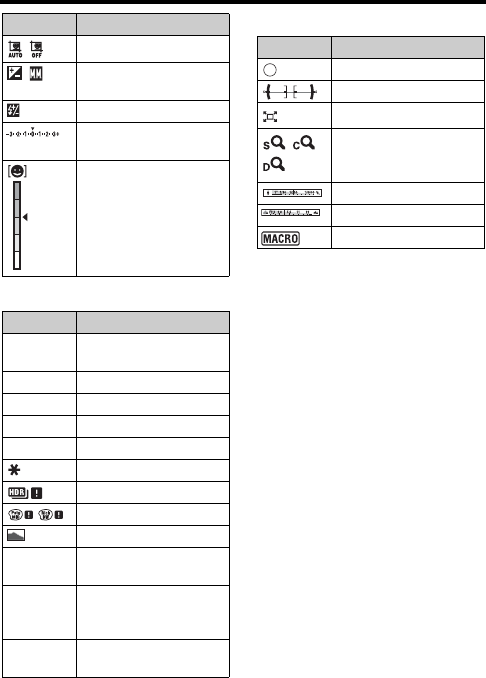

Display information (29)

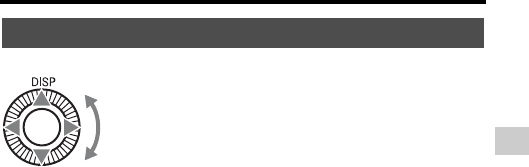

You can change the screen display mode by pressing DISP on the control

wheel.

Customization (30)

The camera is equipped with the C (Custom) button, which can be assigned

a desired function.You can also assign functions to other buttons, such as

the AEL button.

How to operate or customize the camera

Before use

GB

11

Before use

Notes on using your camera

Functions built into this camera

• This manual describes 1080 60i-

compatible devices and 1080 50i-

compatible devices.

To check whether your camera is a 1080

60i-compatible device or 1080 50i-

compatible device, check for the

following marks on the bottom of the

camera.

1080 60i-compatible device: 60i

1080 50i-compatible device: 50i

• This camera is compatible with 1080 60p

or 50p-format movies. Unlike standard

recording modes up to now, which record

in an interlacing method, this camera

records using a progressive method. This

increases the resolution, and provides a

smoother, more realistic image.

On database files

When you insert a memory card without a

database file into the camera and turn on

the power, part of the memory card

capacity is used to automatically create a

database file. It may take some time until

you can perform the next operation.

If a database file error occurs, import all

images to a computer using “PlayMemories

Home” and format the memory card using

the camera.

Notes on recording/playback

• To ensure stable operations of the

memory card, we recommend that you

use this camera to format any memory

card being used with this camera for the

first time.

Note that formatting will erase all data

recorded on the memory card. This data

cannot be restored. Be sure to backup any

important data to a PC or other storage

location.

• If you repeatedly record/delete images,

fragmentation of data may occur on the

memory card. Movies may not be able to

be saved or recorded. In such a case, save

your images to a PC or other storage

location, then [Format] (page 32).

• Before you start recording, make a trial

recording to make sure that the camera is

working correctly.

• The camera is neither dust-proof, nor

splash-proof, nor water-proof.

• Avoid exposing the camera to water. If

water enters inside the camera, a

malfunction may occur. In some cases,

the camera cannot be repaired.

• Do not aim the camera at the sun or other

bright light. It may cause the malfunction

of the camera.

• Do not use the camera near a location

that generates strong radio waves or

emits radiation. Otherwise, the camera

may not properly record or play back

images.

• Using the camera in sandy or dusty

locations may cause malfunctions.

• If moisture condensation occurs, remove

it before using the camera.

• Do not shake or strike the camera. It may

cause a malfunction and you may not be

able to record images. Furthermore, the

recording media may become unusable

or image data may be damaged.

Screen language

You can select the language displayed

on the screen using the menu (page 34).

Notes on using your camera

GB

12

• Clean the flash surface before use. The

heat of flash emission may cause dirt on

the flash surface to start smoking or

burning. Wipe the flash surface with a

soft cloth to remove dirt or dust, etc.

Carl Zeiss lens

The camera is equipped with a Carl Zeiss

lens which is capable of reproducing sharp

images with excellent contrast. The lens for

the camera has been produced under a

quality assurance system certified by Carl

Zeiss in accordance with the quality

standards of Carl Zeiss in Germany.

Notes on the flash

• Do not carry the camera by the flash unit,

or use excessive strength on it.

• If water, dust or sand get into the open

flash unit, it may cause a malfunction.

No compensation for damaged

content or recording failure

Sony cannot compensate for failure to

record or loss or damage of recorded

content due to a malfunction of the camera

or recording media, etc.

Back up recommendation

To avoid the data loss, always copy (back

up) data to other media.

Notes on the LCD screen, lens, and

image sensor

• The screen is manufactured using

extremely high-precision technology so

over 99.99% of the pixels are operational

for effective use. However, some tiny

black and/or bright dots (white, red, blue

or green) may appear on the screen.

These dots are a normal result of the

manufacturing process, and do not affect

the recording.

• Do not expose the camera to sunlight or

shoot sunward for a long time. The

internal mechanism may be damaged. If

sunlight is focused on a nearby object, it

may cause a fire.

• Images may trail across on the screen in a

cold location. This is not a malfunction.

When turning on the camera in a cold

location, the screen may become

temporarily dark. When the camera

warms up, the screen will function

normally.

• The recorded image may be different

from the image you monitored before

recording.

Notes on recording for long periods

of time

• When you continue to shoot for a long

time, the temperature of the camera rises.

If the temperature rises above a certain

level, the icon appears on the screen

and the camera turns itself off

automatically. If the power is turned off,

leave the camera for 10 minutes or longer

to allow the temperature inside the

camera to decrease to a safe level.

• Under high ambient temperatures, the

temperature of the camera rises quickly.

• When the temperature of the camera

rises, the image quality may deteriorate.

It is recommended that you wait until the

temperature of the camera drops before

continuing to shoot.

• Your camera and battery may get hot due

to continuous use, but it is not a

malfunction.

On image data compatibility

• This camera conforms with DCF (Design

rule for Camera File system) universal

standard established by JEITA (Japan

Electronics and Information Technology

Industries Association).

Notes on using your camera

Before use

GB

13

• Playback of images recorded with your

camera on other equipment and playback

of images recorded or edited with other

equipment on your camera are not

guaranteed.

Notes on importing AVCHD movies to

a computer

When importing AVCHD movies to a

computer, for Windows, use the built-in

software “PlayMemories Home”; for Mac,

use the software “iMovie” bundled with

Mac.

Notes when playing movies on other

devices

• This camera uses MPEG-4 AVC/H.264

High Profile for AVCHD format

recording. Movies recorded in AVCHD

format with this camera cannot be played

with the following devices.

– Other devices compatible with

AVCHD format that do not support

High Profile

– Devices incompatible with the

AVCHD format

This camera also uses MPEG-4 AVC/

H.264 Main Profile for MP4 format

recording. For this reason, movies

recorded in MP4 format with this camera

cannot be played on devices other than

those that support MPEG-4 AVC/H.264.

• Discs recorded with HD (high definition)

image quality can be played back only on

AVCHD format-compatible devices.

DVD-based players or recorders cannot

play back HD image quality discs, as

they are incompatible with the AVCHD

format. Also, DVD-based players or

recorders may fail to eject HD image

quality discs.

• Movies recorded in 1080 60p/1080 50p

format can be played back only on 1080

60p/1080 50p-supported devices.

Warning on copyright

Television programs, films, videotapes, and

other materials may be copyrighted.

Unauthorized recording of such materials

may be contrary to the provisions of the

copyright laws.

The pictures used in this manual

The photographs used as examples of

pictures in this manual are reproduced

images, and are not actual images shot

using this camera.

On the data specifications described

in this manual

The data on performance and specifications

are defined under the following conditions,

except as described in this manual: at an

ordinary ambient temperature of 25ºC

(77°F), and using a battery pack that has

been fully charged for about 1 hour after

the charge lamp has turned off.

On use and care

Avoid rough handling, disassembling,

modifying, physical shock, or impact such

as hammering, dropping, or stepping on the

product. Be particularly careful of the lens.

Notes when disposing of or

transferring the camera

Before you dispose of or transfer the

camera, we recommend that you delete

registered faces to protect personal

information (page 31).

GB

14

Before use

Checking the supplied items

The number in parentheses indicates the number of pieces.

• Camera (1)

• Rechargeable battery pack NP-

BX1 (1)

• Micro USB cable (1)

• AC Adaptor AC-UD10 (1)

(For customers in countries/

regions other than the USA and

Canada)

AC Adaptor AC-UD11 (1)

(For customers in the USA and

Canada)

• Power cord (mains lead) (1)* (not

supplied in the U.S.A. and

Canada)

* Multiple power cords may be supplied

with your camera. Use the appropriate

one that matches your country/region.

• Shoulder strap (1)

•Lens cap (1)

• Shoe cap (1) (Attached on the

camera)

• Cleaning Cloth (1)

• Instruction Manual (1) (this

manual)

Before use

GB

15

Identifying parts

See the pages in parentheses for details on operation for the parts.

AHooks for shoulder strap

• Attach both ends of the strap to

the camera.

BAF illuminator (28)/Self-timer

lamp

CLens hood index

DLens

EAperture ring (23)

FAperture index/Macro

switching index

GMacro switching ring (47)

HFocus mode dial (23)

IFocusing ring (23)

Front side

Identifying parts

GB

16

A (Flash pop-up) switch (23)

BLight sensor

CCharge lamp (37)

DMicro USB connector (62)

EHDMI micro jack

Fm (Microphone) jack

• When an external microphone

is connected, the camera

switches from the internal

microphone to the external

microphone. If the external

microphone is a plug-in-power

type, the power of the

microphone is supplied by the

camera.

GLCD screen (20)

H (Playback) button (49)

IControl dial (24, 51)

JMOVIE (Movie) button (30,

48)

KFor shooting: AEL (AE lock)

button (30)

For viewing: (Enlarge)

button (55)

LFor shooting: Fn (Function)

button (24, 25)

For viewing: (Image index)

button (55)

MControl wheel (19)

N (Delete) button (50)

OMENU button (27)

Rear side/Sides

Identifying parts

Before use

GB

17

AShutter button (46)

BExposure compensation dial

(23)

CC (Custom) button (30)

DPower switch (43)

EMode dial (51)

FMulti interface shoe*

• Some of the accessories may

not be inserted fully and

protrude backward from the

multi interface shoe. However,

if the accessory reaches the

front end of the shoe, the

connection is completed.

G Image sensor position

mark

HFlash**

IMicrophone***

* For details on compatible

accessories for the multi interface

shoe, visit the Sony web site, or

consult your Sony dealer or local

authorized Sony service facility.

You can also use accessories that

are compatible with the accessory

shoe. Operations with other

manufacturers’ accessories are not

guaranteed.

The camera functions for viewfinder

are available only when using the

FDA-EV1MK viewfinder accessory

(sold separately).

** To raise the flash, first check that

you are not blocking the flash with

your fingers or other objects, and

then slide the (flash pop-up)

switch. When you are not using the

flash, push it back into place with a

finger. Take care not to pinch your

finger when closing the flash.

*** Do not cover this part while

recording movies. Doing so may

cause noise or lower the volume.

Top side

Identifying parts

GB

18

ABattery insertion slot (36)

BMemory card slot (41)

CAccess lamp (42)

DLock lever

ESpeaker

FTripod socket hole

• Use a tripod with a screw less

than 5.5 mm (7/32 inches) long.

Otherwise, you cannot firmly

secure the camera, and damage

to the camera may occur.

GBattery/Memory card cover

(36, 41)

Bottom

Identifying parts

Before use

GB

19

• The DISP (Display Contents) function is assigned to the up button on the

control wheel (page 29). You can assign the desired functions to the left,

right, and down buttons (page 30).

• You can move the selection frame by turning the control wheel or

pressing the up/down/left/right side of the wheel. In this manual, pressing

the up/down/left/right side of the wheel is shown by v/V/b/B.

Using the control wheel

GB

20

List of icons on the screen

* Viewfinder mode is available and is suitable for shooting with an external

viewfinder (sold separately).

A

For LCD screen mode*For playback (Basic information

display)

Display Indication

P P* A

S M

Shooting mode (51)

Register number (51)

Scene Recognition icon

(25)

Overlay icon

AF Illuminator

Memory card (41)/

Upload (33)

100 Number of recordable

images

Aspect ratio of still

images (27)

24M 10M

4.6M 20M

8.7M 3.9M

Image size of still images

(26)

Image quality of still

images (26)

Frame rate of movies

(28)

Display Indication

List of icons on the screen

Before use

GB

21

B

Recording mode of

movies (28)

Battery charge remaining

(39)

Flash charge in progress

Setting Effect OFF (30)

Does not record sound

during movie recording

(29)

Wind Noise Reduction

(29)

SteadyShot/SteadyShot

warning (45)

Overheating warning

(12)

Database file full/

Database file error

View Mode (31)

100-0003 Folder - file number

-Protect (32)

DPOF Print order (DPOF) (32)

Low battery warning (39)

Display Indication

Drive mode (25)

Display Indication

Flash mode (25)/Red-eye

reduction (29)

Focus mode (23)

Autofocus area (25)

Soft Skin Effect

Face Detection/Smile

Shutter (25)

Metering mode (25)

AWB

7500K

A5 G5

White balance (Auto,

Preset, Custom, Color

temperature, Color filter)

(25)

D-Range Optimizer/Auto

HDR (55)

+3 +3 +3

Creative Style (54)/

Contrast, Saturation,

Sharpness

Picture Effect (26)

Display Indication

List of icons on the screen

GB

22

C

D

Auto Port. Framing (26)

Exposure compensation/

Metered manual

Flash compensation (25)

EV scale (for viewfinder

mode only)

Smile Detection

Sensitivity indicator

Display Indication

REC 0:12 Recording time of the

movie (m:s)

zFocus status (46)

1/250 Shutter speed

F3.5 Aperture value

ISO400 ISO number (53)

AE lock (23)

Auto HDR image error

Picture Effect error

Histogram

2013-1-1

10:37PM

Recorded date/time of the

playback image

3/7 Image number/Number

of images recorded in

selected View Mode

z Tracking

focus

Tracking focus

Display Indication

Display Indication

Spot metering circle

Level

Smart teleconverter

Smart Zoom/Clear Image

Zoom (27)/Digital Zoom

(27)

Shutter speed indicator

Aperture indicator

Macro mode

Functions list

GB

23

Functions list

Functions that can be operated using

the buttons/dials

You can set up or operate various functions using these buttons/dials.

For the location of the buttons/dials, see “Identifying parts” (page 15).

Mode dial Switches the shooting mode.

MENU button Displays the menu screen for setting menu items.

MOVIE button Records movies.

AEL button/ button Fixes the exposure of the entire screen./Scales an image

up when viewing images.

Fn button/ button Displays the setup screen for functions set using the Fn

button. In viewfinder mode, switches to the Quick Navi

screen./Displays multiple images on the screen

simultaneously.

DISP on the control wheel Switches the recording information displayed on the

LCD screen.

button Plays back images.

button Displays the In-Camera Guide./Deletes images.

C (Custom) button Assigns a frequently-used function to the button.

Focus mode dial Selects the focus method to suit the movement of the

subject.

Exposure compensation

dial

Sets the range for exposure adjustment.

Aperture ring Manually sets the aperture value (F-number).

Macro switching ring Switches to close-up shooting mode.

Focusing ring Adjusts the focus manually.

(flash pop-up) switch Raises the flash.

GB

24

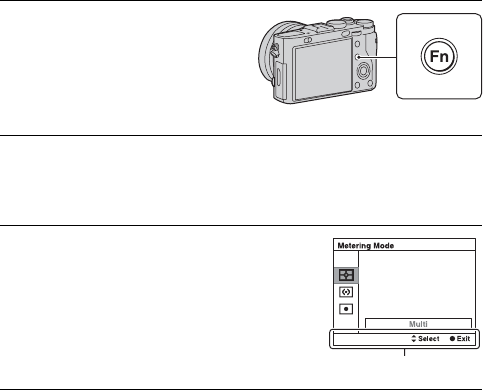

Selecting a function using the Fn

(Function) button

The Fn button executes settings or functions that are used frequently when

shooting.

To set the functions directly on the shooting information screen

Turn the control wheel without pressing z in step 2 to set the functions

directly on the shooting information screen. Some functions can be fine-

tuned using the control dial.

1Press the Fn button.

2Select the desired item using v/V/b/B on the control wheel,

then press z to execute.

The setting screen appears.

3Following the operation guide,

select and execute the desired

function.

Operation guide

Functions list

GB

25

Functions that can be selected using

the Fn (Function) button

The functions that can be selected using the Fn button are as follows:

Drive Mode Sets the drive mode, such as for continuous shooting.

(Single Shooting/Cont. Shooting/Spd Priority Cont./Self-

timer/Bracket: Cont./Single Bracket/WB bracket/DRO

Bracket)

Flash Mode Sets the flash settings.

(Flash Off/Autoflash/Fill-flash/Slow Sync./Rear Sync./

Wireless*1)

ISO Adjusts the luminous sensitivity. The larger the number, the

faster the shutter speed.

(Multi Frame Noise Reduct./ISO AUTO to 102400)

Metering Mode Selects the method for measuring brightness.

(Multi/Center/Spot)

Autofocus Area Selects the area of focus.

(Multi/Center/Flexible Spot)

White Balance Adjusts color tones of an image.

(Auto WB/Daylight/Shade/Cloudy/Incandescent/Fluor.:

Warm White/Fluor.: Cool White/Fluor.: Day White/Fluor.:

Daylight/Flash/C.Temp./Filter/Custom 1–3/Custom Setup)

DRO/Auto HDR Compensates automatically for brightness and contrast.

(Off/D-Range Opt./Auto HDR)

Creative Style Selects the desired image processing.

(Standard/Vivid/Neutral/Clear/Deep/Light/Portrait/

Landscape/Sunset/Night Scene/Autumn leaves/Black &

White/Sepia/Style Box1–6)

Flash Comp. Adjusts the intensity of flash output.

(+3.0EV to –3.0EV)

Smile/Face Detect. Selects to detect faces and adjust various settings

automatically. Sets to automatically release the shutter when

a smile is detected.

(Face Detection Off/Face Detection On (Regist. Faces)/Face

Detection On/Smile Shutter)

Scene Selection Selects pre-set settings to match various scene conditions.

(Portrait/Sports Action/Landscape/Sunset/Night Scene/Hand-

held Twilight/Night Portrait)

Functions that can be selected using the Fn (Function) button

GB

26

*1Wireless flash shooting is not available with the built-in flash.

*2Available only when using the Quick Navi.

Movie Selects the exposure mode for movie recording to suit your

subject or effect.

(P/A/S/M)

Picture Effect Shoots still images with a texture unique to the selected

effect.

(Off/Toy Camera/Pop Color/Posterization/Retro Photo/Soft

High-key/Partial Color/High Contrast Mono./Soft Focus/

HDR Painting/Rich-tone Mono./Miniature/Watercolor/

Illustration)

Auto Port. Framing Analyzes the scene when capturing a face and saves another

image with a more impressive composition.

(Off/Auto)

Auto Mode Selects the automatic shooting mode.

(Intelligent Auto/Superior Auto)

Soft Skin Effect Sets the Soft Skin Effect and the effect level.

(Off/Low/Mid/High)

Quality*2Sets the image quality for still images.

(RAW/RAW & JPEG/Extra fine/Fine/Standard)

Aspect Ratio*2Selects the aspect ratio for still images.

(3:2/16:9)

Image Size*2Selects the size of still images.

(L/M/S)

Functions list

GB

27

Functions that can be selected using

the MENU button

You can set up the basic settings for the camera as a whole, or execute

functions such as shooting, playback, or other operations.

Press the MENU button, then select the desired item using v/V/b/B on the

control wheel, then press the center of the control wheel.

Still shooting menu

Select a page of the menu Select an item on the menu

Image Size Selects the size of still images.

(L: 24M/M: 10M/S: 4.6M (3:2)

L: 20M/M: 8.7M/S: 3.9M (16:9))

Aspect Ratio Selects the aspect ratio for still images.

(3:2/16:9)

Quality Sets the image quality for still images.

(RAW/RAW & JPEG/Extra fine/Fine/Standard)

Panorama: Size Selects the size of panoramic images.

(Standard/Wide)

Panorama: Direction Sets the shooting direction for panoramic images.

(Right/Left/Up/Down)

Clear Image Zoom*Provides a higher-quality zoomed image than with Digital

Zoom.

(On/Off)

Digital Zoom*Provides zoomed images at higher magnification than with

Clear Image Zoom.

(On/Off)

Functions that can be selected using the MENU button

GB

28

* Available only when [Smart Telecon./Zoom] (page 30) is set to [Zoom].

Movie shooting menu

Long Exposure NR Sets noise reduction processing for shots with a shutter speed

of 1 second or longer.

(On/Off)

High ISO NR Sets noise reduction processing for high-sensitivity shooting.

(Normal/Low/Off)

AF Illuminator Sets the AF illuminator, which provides light for a dark scene

to aid focusing.

(Auto/Off)

Color Space Changes the range of color reproduction.

(sRGB/AdobeRGB)

AEL w/ shutter Sets whether to adjust the exposure by pressing the shutter

button halfway down. This is convenient when you want to

adjust the focus and exposure separately.

(On/Off)

Memory Registers combinations of frequently used modes and settings

and allows easy recall of those combinations using the mode

dial.

(1/2/3)

File Format Selects the movie file format.

(AVCHD/MP4)

Record Setting Selects the quality and size of the recorded movie frame.

(60i 24M(FX)/50i 24M(FX)/60i 17M(FH)/50i 17M(FH)/60p

28M(PS)/50p 28M(PS)/24p 24M(FX)/25p 24M(FX)/24p

17M(FH)/25p 17M(FH)/1440×1080 12M/VGA 3M)

SteadyShot Sets SteadyShot.

(On/Off)

Auto Slow Shutter Sets whether to adjust the shutter speed automatically during

movie recording in case if the subject is dark.

(On/Off)

Functions that can be selected using the MENU button

Functions list

GB

29

Custom menu

Audio Recording Sets whether to record audio when shooting a movie.

(On/Off)

Wind Noise Reduct. Reduces wind noise during movie recording.

(On/Off)

FINDER/LCD Setting When using a viewfinder (sold separately), sets the method

for switching between the viewfinder and LCD screen.

(Auto/Manual)

Red Eye Reduction Reduces the red-eye phenomenon when using flash.

(On/Off)

Grid Line Sets a grid line display to enable alignment to a structural

outline.

(Rule of 3rds Grid/Square Grid/Diag. + Square Grid/Off)

Auto Review Displays the captured image after shooting. You can set the

duration of time for which the image is to be displayed.

(10 Sec/5 Sec/2 Sec/Off)

DISP Button(Monitor) Sets the LCD screen display modes that can be selected by

pressing DISP on the control wheel.

(Graphic Display/Display All Info./No Disp. Info./Level/

Histogram/For viewfinder)

DISP Button(Finder) Sets the viewfinder screen display modes that can be selected

by pressing DISP on the control wheel when using a

viewfinder (sold separately).

(Graphic Display/Display All Info./No Disp. Info./Level/

Histogram)

Peaking Level*Enhances the outline of in-focus ranges with a specific color.

(High/Mid/Low/Off)

Peaking Color Sets the color used for the peaking function.

(Red/Yellow/White)

MF Assist Displays an enlarged image when focusing manually.

(On/Off)

Functions that can be selected using the MENU button

GB

30

* Available only when using display magnification. Use this function while assigning

[Focus Magnifier] to custom buttons or turning on [MF Assist] function.

* “AEL hold,” “ AEL hold,” and “AF/MF Control Hold” cannot be assigned.

Focus Magnif. Time Sets the length of time the image will be shown in an

enlarged form.

(2 Sec/5 Sec/No Limit)

Live View Display Sets whether to display the effect of a function on the screen,

such as the effect of the exposure compensation value.

(Setting Effect ON/Setting Effect OFF)

Func. of C Button Assigns the desired functions to the C (Custom) button.

(Drive Mode/Flash Mode/Autofocus Area/Soft Skin Effect/

Smile/Face Detect. /Auto Port. Framing/ISO/Metering Mode/

Flash Comp./White Balance/ DRO/Auto HDR /Creative

Style/Picture Effect/Image Size/Aspect Ratio/Quality/AEL

hold/AEL toggle/ AEL hold/ AEL toggle/ AF/MF

Control Hold / AF/MF Control Toggle / Smart Telecon./

Zoom /Focus Magnifier/Memory/Deactivate the LCD/Not

set)

Func. of AEL button Assigns the desired functions to the AEL button. The

available functions are the same as those for [Func. of C

Button].

Func. of Left Button*Assigns the desired functions to the left button on the control

wheel. The available functions are the same as those for

[Func. of C Button].

Func. of Right

Button*

Assigns the desired functions to the right button on the

control wheel. The available functions are the same as those

for [Func. of C Button].

Func. of Down

Button*

Assigns the desired functions to the down button on the

control wheel. The available functions are the same as those

for [Func. of C Button].

Smart Telecon./

Zoom

Selects which function to use when [Smart Telecon./Zoom] is

assigned to a button.

(Smart Telecon./Zoom)

MOVIE Button Sets whether to always activate the MOVIE button.

(Always/Movie Mode Only)

Functions that can be selected using the MENU button

Functions list

GB

31

Playback menu

Exp.comp.set Sets whether to adjust the exposure within the flash light

range.

(Ambient&flash/Ambient only)

Bracket order Selects the order in exposure bracket and white balance

bracket shooting.

(0 t – t +/– t 0 t +)

Lens Comp.: Shading Compensates for the shaded corners of the screen caused by

the lens.

(Auto/Off)

Lens Comp.: Chro.

Aber.

Reduces the color deviation at the corners of the screen

caused by the lens.

(Auto/Off)

Lens Comp.:

Distortion

Compensates for distortion on the screen caused by the lens.

(Auto/Off)

Face Priority

Tracking

Sets whether to track faces as a priority when tracking.

(On/Off)

Face Registration Registers or changes the person to be given priority in the

focus.

(New Registration/Order Exchanging/Delete/Delete All)

Still/Movie Select Selects the display format for images.

(Folder View(Still)/Folder View(MP4)/AVCHD View)

Delete Deletes an image.

(Multiple Img./All in Folder/All AVCHD view files)

Slide Show Shows a slide show.

(Repeat/Interval/Image Type)

Image Index Displays multiple images at the same time.

(4 Images/9 Images)

Rotate Rotates a still image counter-clockwise.

(0°/90°/180°/270°)

Functions that can be selected using the MENU button

GB

32

Memory Card Tool menu

Clock setup menu

Protect Protects the images.

(Multiple Img./Cancel All Images/Cancel All Movies(MP4)/

Cancel All AVCHD view files)

Specify Printing Adds a print order mark to a still image.

(DPOF Setup/Date Imprint)

Picture Effect Adds various textures to images.

(Watercolor/Illustration)

Volume Settings Adjusts the volume.

Playback Display Sets how to play back an image recorded in portrait.

(Auto Rotate/Manual Rotate)

Format Formats the memory card.

File Number Sets the method used to assign file numbers to still images

and movies.

(Series/Reset)

Folder Name Selects the folder name format in which the still image is

stored.

(Standard Form/Date Form)

Select REC Folder Changes the selected folder for storing images.

New Folder Creates a new folder for storing still images and movies

(MP4).

Recover Image DB Recovers the image database file and enables recording and

playback.

Display Card Space Displays the remaining recording time of movies and the

recordable number of still images on the memory card.

Date/Time Setup Sets date and time, and daylight savings.

Area Setting Sets the location of use.

Functions that can be selected using the MENU button

Functions list

GB

33

Setup menu

Menu start Sets the default position of the cursor on the menu to the top

item or the last-selected item.

(Top/Previous)

Delete confirm. Sets [Delete] or [Cancel] as the default setting for the delete

confirmation screen.

(“Delete” first/“Cancel” first)

Mode Dial Guide Turns the mode dial guide (the explanation of each shooting

mode) on or off.

(On/Off)

LCD Brightness Sets the brightness of the LCD screen.

(Auto/Manual/Sunny Weather)

Viewfinder Bright. When using a viewfinder (sold separately), sets the

brightness of the viewfinder.

(Auto/Manual)

LCD Quality Sets the screen display quality.

(High/Standard)

Power Saving Start

Time

Sets the time to turn the camera to the power save mode.

(30 Min/5 Min/1 Min/20 Sec/10 Sec)

HDMI Resolution Sets the resolution when the camera is connected to an HDMI

TV.

(Auto/1080p/1080i)

CTRL FOR HDMI Operates the camera from a TV that supports “BRAVIA”

Sync.

(On/Off)

Upload Settings*Sets the upload function of the camera when using an Eye-Fi

card.

(On/Off)

USB Connection Sets the USB connection method based on the connected

devices.

(Auto/Mass Storage/MTP)

Functions that can be selected using the MENU button

GB

34

* Appears when an Eye-Fi card (sold separately) is inserted into the camera.

USB LUN Setting Sets the mode when the camera is connected to a computer

using a USB connection.

(Multi/Single)

USB Power Supply Sets whether to supply power using a USB connection.

(On/Off)

PAL/NTSC Selector

(only for 1080 50i-

compatible models)

Plays back movies recorded with the camera on an NTSC

system TV.

(PAL/NTSC)

Audio signals Sets the operating sound of the camera.

(On/Off)

Version Displays the camera software version.

Language Selects the language.

Demo Mode Sets the demonstration playback of a movie to on or off.

(On/Off)

Initialize Restores settings to their defaults.

(Reset Default/Rec mode reset/Custom reset)

Functions list

GB

35

Using the In-Camera Guide

You can use the (Delete) button not

only for deleting images but also for

displaying a built-in instruction guide.

Press the (Delete) button on the Fn

screen or menu screen to display

explanations for the currently selected

function or setting.

(Delete) button

GB

36

Preparing the camera

Charging the battery pack

When using the camera for the first time, be sure to charge the battery pack.

The charged battery pack is discharged little by little, even when you do not

use it. To avoid missing an opportunity to shoot, charge the battery pack

again before you shoot.

1Slide the lever to open the cover.

2Insert the battery pack

completely, using the tip of the

battery to press the lock lever.

3Close the cover.

Lock lever

Charging the battery pack

Preparing the camera

GB

37

4Connect the camera to the AC Adaptor (supplied) using the

micro USB cable (supplied), and connect the AC Adaptor to the

wall outlet (wall socket).

The charge lamp lights orange, and

charging starts.

• Turn off the camera while charging the

battery.

• You can charge the battery pack even

when it is partially charged.

• When the charge lamp flashes and

charging is not finished, remove and re-

insert the battery pack. Charge lamp

Lit: Charging

Off: Charging finished

Flashing:

Charging error or charging paused

temporarily because the camera is

not within the proper temperature

range

For customers in the USA and Canada

For customers in countries/regions

other than the USA and Canada

Power cord (Mains lead)

Charging the battery pack

GB

38

Notes

• If the charge lamp on the camera flashes when the AC Adaptor is connected to the

wall outlet (wall socket), this indicates that charging is temporarily stopped because

the temperature is outside the recommended range. When the temperature gets back

within the appropriate range, the charging resumes. We recommend charging the

battery pack in an ambient temperature of between 10°C to 30°C (50ºF to 86ºF).

• The battery pack may not be effectively charged if the terminal section of the battery

is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton swab to

clean the terminal section of the battery.

• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If

malfunctions occur while using the AC Adaptor, disconnect the plug from the wall

outlet (wall socket) immediately to disconnect from the power source.

• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall

socket).

• Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied)

and AC Adaptor (supplied).

The charging time is approximately 155 min. using the AC Adaptor

(supplied).

Notes

• The above charging time applies when charging a fully depleted battery pack at a

temperature of 25°C (77°F). Charging may take longer depending on conditions of

use and circumstances.

Charging time (Full charge)

Charging the battery pack

Preparing the camera

GB

39

The battery pack can be charged by connecting the camera to a computer

using a micro USB cable.

Notes

• Note the following points when charging via a computer:

– If the camera is connected to a laptop computer that is not connected to a power

source, the laptop battery level decreases. Do not charge for an extended period of

time.

– Do not turn on/off or restart the computer, or wake the computer to resume from

sleep mode when a USB connection has been established between the computer

and the camera. The camera may cause a malfunction. Before turning on/off, or

restarting the computer or waking the computer from sleep mode, disconnect the

camera and the computer.

– No guarantees are made for charging using a custom-built computer or a modified

computer.

A remaining charge indicator appears on the screen.

Notes

• It takes about one minute until the correct remaining charge indicator appears.

• The remaining charge indicator may not be correct under certain circumstances.

• If you do not operate the camera for a certain period of time while the power is on,

the camera turns off automatically (Auto power-off function).

Charging by connecting to a computer

Checking the remaining battery charge

High Low

Charging the battery pack

GB

40

Battery pack

For details on battery life, see page 66.

The camera can be supplied with power from the wall outlet (wall socket)

by connecting to the AC Adaptor (supplied), using the micro USB cable

(supplied). When shooting for extended periods, battery consumption can

be reduced.

You can shoot or play back images without a battery pack in the camera.

However, insert a charged battery pack under shooting conditions that

require a lot of power, such as when using a viewfinder (sold separately) or

when shooting movies. Otherwise, some functions will be restricted.

Notes

• To keep the battery pack terminal clean and prevent short-circuits, place the battery

pack in a plastic bag, etc. when carrying and storing to isolate it from other metal

objects, etc.

Supplying power

To remove the battery pack

Slide the lock lever. Be sure not to drop

the battery pack.

Lock lever

Preparing the camera

GB

41

Inserting a memory card (sold

separately)

“Memory Stick Duo” media and SD cards can be used with this camera.

For details, see page 42.

1Slide the lever to open the cover.

2Insert the memory card (sold

separately).

• With the notched corner facing as

illustrated, insert the memory card until

it clicks into place.

Ensure the notched corner faces

correctly.

3Close the cover.

Inserting a memory card (sold separately)

GB

42

Notes

• Never remove the memory card/the battery pack when the access lamp is lit. This

may cause damage to data or the memory card.

You can use the following types of memory cards with this camera.

However, proper operation cannot be guaranteed for all types of memory

cards.

• In this manual, the products in the table are collectively referred to as follows:

A: “Memory Stick Duo” media

B: “Memory Stick Micro” media

C: SD card

D: microSD memory card

Notes

• When using “Memory Stick Micro” media or microSD memory cards with this

camera, make sure to use with the appropriate adaptor.

To remove the memory card

Make sure that the access lamp is not

lit, then push the memory card in once.

Memory cards that can be used

Memory card For still images For movies

A

Memory Stick XC-HG Duo

Memory Stick PRO Duo (Mark2 only)

Memory Stick PRO-HG Duo

Memory Stick Duo —

BMemory Stick Micro (M2) (Mark2 only)

C

SD memory card (Class 4 or faster)

SDHC memory card (Class 4 or faster)

SDXC memory card (Class 4 or faster)

D

microSD memory card (Class 4 or faster)

microSDHC memory card (Class 4 or faster)

microSDXC memory card (Class 4 or faster)

Access lamp

Preparing the camera

GB

43

Setting the date and time

When you turn on the camera for the first time or after you initialize the

functions, the screen to set the date and time appears.

1Set the power switch to ON to turn

on the camera.

The screen to set the date and time

appears.

• To turn the camera off, set the power

switch to OFF.

2Check that [Enter] is selected on

the screen, then press z on the

control wheel.

3Select a desired geographic location, then press z.

4Select each item using b/B and

set the numeric value using v/V.

[Daylight Svg.]: Turns on or off the

daylight saving time setting.

[Date Format]: Selects the format to

display date.

• Midnight is indicated as 12:00 AM, and

noon as 12:00 PM.

Setting the date and time

GB

44

To cancel the date and time setting operation

Press the MENU button.

The date and time setup screen appears automatically only when the power

is turned on for the first time. To reset the date and time, use the menu.

Maintaining the date and time setting

This camera has an internal rechargeable battery for maintaining the date

and time and other settings regardless of whether the power is on or off, or

the battery is installed or not.

5Repeat step 4 to set other items, then press z on the control

wheel.

6Check that [Enter] is selected, then press z on the control

wheel.

Setting the date/time and area again

MENU button t 1 t [Date/

Time Setup] or [Area Setting]

(page 32)

MENU button

Preparing the camera

GB

45

Shooting a clear movie without camera

shake

“Camera shake” refers to unwanted movement of the camera that occurs

during shooting, resulting in a blurred image.

The SteadyShot function is available with this camera to reduce camera

shake during movie recording.

MENU button t 1 t [SteadyShot] t Select the desired

setting.

Notes

• The SteadyShot function is available only for movie shooting. You cannot use the

SteadyShot function for shooting still images.

GB

46

Shooting and viewing images

Shooting still images

In auto mode, the camera analyzes the subject and allows you to shoot with

the appropriate settings.

1Set the mode dial to (Auto

Mode).

2Hold the camera steady as

illustrated.

3Press the shutter button halfway down to focus.

When the image is in focus, the indicator (z) lights.

• The shortest shooting distance is approximately 0.3 m (1 ft.) (from the

image sensor (page 17)).

4Press the shutter button fully down to shoot an image.

• When the camera detects and shoots a face with [Auto Port. Framing] set to

[Auto], the captured image is automatically trimmed into a suitable

composition. Both the original and the trimmed images are saved.

Shooting still images

Shooting and viewing images

GB

47

Shooting techniques

• When you turn the macro switching ring to

“0,2m-0,35m,” the camera is set to macro

mode. The shortest shooting distance is

approximately 0.2 m (0.65 ft.). Macro mode

is suitable for shooting close-ups of subjects

such as flowers or food.

Macro switching ring

GB

48

Recording movies

Notes

• The sound of the camera in operation may be recorded while recording a movie. You

can disable the sound recording by setting [Audio Recording] to [Off] (page 29).

• The continuous recording time of a movie depends on the ambient temperature or

the condition of the camera. See “Notes on continuous movie recording” (page 68).

• When the icon appears, the temperature of the camera is too high. Turn the

camera off and wait until the temperature of the camera decreases.

MENU button t 1 t [File Format] (page 28).

1Press the MOVIE button to start

recording.

• Movie recording can be started from

any shooting mode.

• When in autofocus mode, the camera

continually adjusts the focus.

MOVIE button

2Press the MOVIE button again to stop recording.

Changing the file format

Shooting and viewing images

GB

49

Playing back images

Notes

• Movies recorded using other devices may not play back on this camera.

To play back still images, set [Still/Movie Select] to [Folder View(Still)],

and to play back movies, set [Still/Movie Select] to [Folder View(MP4)] or

[AVCHD View].

MENU button t 1 t [Still/Movie Select] t Select the

desired mode.

1Press the button. button

2Select an image by turning the control dial.

• To play back movies, press z on the control wheel.

Action during movie playback Control wheel

Pause/Play z

Fast forward B

Fast rewind b

Forward slow playback Turn the control wheel clockwise during

pause.

Rewind slow playback Turn the control wheel counterclockwise

during pause.

• Movies are played back in frame

advance.

Volume V t v/V

Information display v

Switching between still images and movies

GB

50

Deleting images

Once you have deleted an image, you cannot restore it. Be sure that you

want to delete the image before proceeding.

Notes

• Protected images cannot be deleted.

1While displaying the image you

want to delete, press the

(Delete) button.

(Delete) button

2Select [Delete] with v on the control wheel, then press z.

Selecting a shooting mode

GB

51

Selecting a shooting mode

Selecting a shooting mode

The following shooting modes are available.

Turn the mode dial and set to the

desired shooting mode.

(Auto Mode) Allows you to shoot still images with the settings adjusted

automatically.

(Program Auto) Allows you to shoot with the exposure (the shutter speed and

the aperture value) adjusted automatically. The other settings

can be adjusted manually.

(Aperture

Priority)

Allows you to adjust the aperture value manually using the

aperture ring.

(Shutter Priority) Allows you to adjust the shutter speed manually using the

control dial.

(Manual

Exposure)

Allows you to shoot after manually adjusting the exposure

(the shutter speed and the aperture value) using the control

dial and the aperture ring.

1/2/3 Calls up settings pre-registered in [Memory] in the Still

shooting menu (page 28).

(Movie) Allows you to shoot movies. You can manually adjust the

exposure (the shutter speed and the aperture value) in M

mode.

(Sweep

Panorama)

Allows you to shoot panoramic images by combining

multiple images.

(Scene

Selection)

Allows you to shoot with preset settings according to the

scene.

GB

52

Functions available for each shooting

mode

The functions you can use depend on the selected shooting mode.

In the table below, indicates the function is available, and a – indicates

the function is not available.

The functions you cannot use are displayed in gray on the screen.

* When the shooting mode is set to M, the exposure can be adjusted only

when [ISO] is set to [AUTO].

Shoot Mode

(51)

Exposure

Comp. Self-timer Cont.

Shooting

Face

Detection

Smile

Shutter

Auto Port.

Framing

/ –

––

––

––

––

––

––– ––

––

–––––

–*

*––

Various functions

GB

53

Various functions

Using the various functions

This manual mainly provides an introduction on the use of the camera and a

list of functions. To learn more about the camera, refer to “Cyber-shot User

Guide,” which offers in-depth instructions on the many functions.

The ISO sensitivity can be set to [AUTO], or can be adjusted between ISO

50 and ISO 25600.

• When you select [AUTO] and press B on the control wheel, you can

change the range of the [AUTO] setting in [ISO AUTO Maximum] or

[ISO AUTO Minimum].

• When you select (Multi Frame Noise Reduct.), you can select larger

ISO numbers than the maximum ISO sensitivity.

The camera shoots continuous multiple images automatically, combines

the images, reduces the noise, and records 1 image.

ISO/Multi Frame Noise Reduct.

1Press the Fn button and select [ISO].

2Select the desired setting using v/V on the

control wheel.

Using the various functions

GB

54

You can select the desired kind of image processing from among 13 styles,

and you can also adjust the contrast, saturation, and sharpness for each

[Creative Style] item.

You can shoot night scenes with less noise and blur without using a tripod.

A burst of shots is taken, and image processing is applied to reduce subject

blur, camera shake, and noise.

Creative Style

1Press the Fn button and select [Creative Style].

2Select the desired style using v/V on the control

wheel.

Hand-held Twilight

[Creative Style] item [Style Box]

You can fine-tune the setting

and save the adjusted setting.

1Set the mode dial to .

2Press the Fn button and select [Hand-held

Twilight].

Using the various functions

Various functions

GB

55

Using the [DRO/Auto HDR] function, you can capture various gradations

of the contrast of images.

[D-Range Opt.]: By dividing the image into small areas, the camera

analyses the contrast of light and shadow between the subject and the

background, and produces an image with the optimal brightness and

gradation.

[Auto HDR]: Shoots 3 images with different exposures, and then overlays

the correctly exposed image, the bright areas of an under exposed image

and the dark areas of an over exposed image to create an image with rich

gradation.

Convenient functions for playback are as follows:

DRO/Auto HDR

Playback functions

1Press the Fn button and select [DRO/Auto

HDR].

2Select the desired setting using v/V on the

control wheel.

Magnifies or reduces images.

Turn the control wheel to magnify or reduce an image.

Turn the control dial to switch to the next/previous

image.

Image index screen

You can select the number of images to be displayed; MENU t 1

t [Image Index]

Deletes unnecessary images.

Changes to the playback screen.

Using the various functions

GB

56

You can change the settings directly using the Quick Navi screen, which is

suitable when using a viewfinder (sold separately).

For details on how to attach the viewfinder, refer to the operating

instructions supplied with the viewfinder.

How to use the Quick Navi screen

1Press DISP on the control wheel to set the screen mode to [For

viewfinder].

2Press the Fn button to switch to the Quick Navi screen.

In [Auto Mode] or [Scene Selection] mode

In P/A/S/M/[Sweep Panorama] mode

3Select the desired item using v/V/b/B on the control wheel.

4Set the item using the control wheel or the control dial.

• Select an option using the control wheel and adjust it using the control dial.

• Press the center of the control wheel to open the setting screen for the

selected item.

• Press the Fn button again to finish the Quick Navi.

Using the various functions

Various functions

GB

57

Functions available on the Quick Navi screen

Auto Mode/Scene Selection/Image Size/Quality/Drive Mode/Flash Mode/

Smile/Face Detect. /Metering Mode/White Balance/ DRO/Auto HDR /

Creative Style/Picture Effect/Auto Port. Framing/Flash Comp./ISO/Aspect

Ratio/Soft Skin Effect/Autofocus Area

Notes

• You cannot change the settings of items that are grayed out.

• When using [Creative Style] (page 54), some of the setup tasks can be accomplished

only on the setting screen.

GB

58

Viewing images on a computer

Using the software

Use the following applications to optimize use of the images shot with your

Cyber-shot camera.

• “Image Data Converter”

• “PlayMemories Home”

For details on installation, see pages 62 to 63.

With “Image Data Converter”, you can do the following:

• You can play back and edit images recorded in RAW format with various

corrections, such as tone curve and sharpness.

• You can adjust images with white balance, exposure, and [Creative

Style], etc.

• You can save the images displayed and edited on a computer.

You can either save the image as RAW format or save it in the general

file format.

• You can display and compare the RAW images and JPEG images

recorded by this camera.

• You can rank images in 5 grades.

• You can apply color labels.

To use “Image Data Converter,” refer to Help.

Click [Start] t [All Programs] t [Image Data Converter] t [Help] t

[Image Data Converter Ver.4].

“Image Data Converter” support page (English only)

http://www.sony.co.jp/ids-se/

Using “Image Data Converter”

Using the software

Viewing images on a computer

GB

59

With “PlayMemories Home”, you can do the following:

• You can import images shot with the camera to your computer and

display them on the computer.

• You can organize images on the computer on a calendar by shooting date

to view them.

• You can retouch (Red Eye Correction, etc.), print, send still images as e-

mail attachments and change the shooting date.

• You can trim and resize images.

• You can print or save still images with the date.

• You can create a Blu-ray Disc or DVD disc from AVCHD movies

imported to a computer. (An internet connection environment is required

when a Blu-ray Disc/DVD disc is created for the first time.)

Notes

• “PlayMemories Home” is not compatible with Mac computers. When you play back

images on Mac computers, use the appropriate application software supplied with

the Mac computer.

• Movies recorded using the [60p 28M(PS)]/[50p 28M(PS)], [60i 24M(FX)]/[50i

24M(FX)] or [24p 24M(FX)]/[25p 24M(FX)] setting in [Record Setting] are

converted by “PlayMemories Home” to create an AVCHD recording disc. This

conversion can take a long time. Also, you cannot create a disc with the original

image quality. If you want to keep the original image quality, store your movies on a

Blu-ray Disc.

To use “PlayMemories Home,” refer to “PlayMemories Home Help

Guide.”

Double-click the shortcut of (PlayMemories Home Help Guide) on the

desktop, or click [Start] t [All Programs] t [PlayMemories Home] t

[PlayMemories Home Help Guide].

• For Windows 8, select the [PlayMemories Home] icon from the Start

screen to start [PlayMemories Home], then select [PlayMemories Home

Help Guide] from [Help] menu.

“PlayMemories Home” support page (English only)

http://www.sony.co.jp/pmh-se/

Using “PlayMemories Home”

Using the software

GB

60

The following computer environments are recommended when using the

software and importing images via a USB connection.

* 64-bit editions and Starter (Edition) are not supported. Windows Image

Mastering API (IMAPI) Ver.2.0 or later is required to use the function

for creating discs.

** Starter (Edition) is not supported.

The following computer environments are recommended when using the

software and importing images via a USB connection.

Recommended computer environment (Windows)

OS (pre-installed) Microsoft Windows XP* SP3/Windows Vista** SP2/

Windows 7 SP1/Windows 8

“PlayMemories

Home”

CPU: Intel Pentium III 800 MHz or faster

(For playing/editing the High Definition movies: Intel Core

Duo 1.66 GHz or faster/Intel Core 2 Duo 1.66 GHz or faster,

Intel Core 2 Duo 2.26 GHz or faster (AVC HD (FX/FH)),

Intel Core 2 Duo 2.40 GHz or faster (AVC HD (PS)))

Memory: Windows XP 512 MB or more (1 GB or more is

recommended), Windows Vista/Windows 7/Windows 8

1GB or more

Hard Disk: Disk space required for installation—

approximately 500 MB

Display: Screen resolution—1024 × 768 dots or more

“Image Data

Converter Ver.4”

CPU/Memory: Pentium 4 or faster/1 GB or more

Display: 1024 × 768 dots or more

Recommended computer environment (Mac)

OS (pre-installed) USB Connection: Mac OS X v10.3 – v10.8

“Image Data Converter Ver.4”: Mac OS X v10.5, v10.6,

v10.7, v10.8

“Image Data

Converter Ver.4”

CPU: Intel Core Solo/Core Duo/Core 2 Duo or faster

Memory: 1 GB or more is recommended.

Display: 1024 × 768 dots or more

Using the software

Viewing images on a computer

GB

61

Notes

• Operation is not assured in an environment based on an upgrade of the operating

systems described above or in a multi-boot environment.

• If you connect 2 or more USB devices to a single computer at the same time, some

devices, including the camera, may not operate, depending on the types of USB

devices you are using.

• Connecting the camera using a USB interface that is compatible with Hi-Speed USB

(USB 2.0 compliant) allows advanced transfer (high speed transfer), as the camera is

compatible with Hi-Speed USB (USB 2.0 compliant).

• When your computer resumes activity from suspend or sleep mode, communication

between the camera and your computer may not recover at the same time.

Using the software

GB

62

Without an Internet connection, you can use “PlayMemories Home (Lite

Version)” which enables you to use some minimal operations, such as

importing images and viewing images.

To install “PlayMemories Home (Lite Version),” connect the camera and

your computer using the micro USB cable (supplied), then double-click

[Computer] (For Windows XP, [My Computer]) t camera icon t media

icon t [PMHOME.EXE].

Installing “PlayMemories Home”

1Using the Internet browser on your computer, go to the

following URL, then click [Install] t [Run].

www.sony.net/pm

2Follow the instructions on the

screen to complete the

installation.

• When the message to connect the

camera to a computer is displayed,

connect the camera and computer

using the micro USB cable

(supplied). To a USB jack

To the micro USB

connector

Using the software

Viewing images on a computer

GB

63

Windows:

Mac:

Notes

• Log on as Administrator.

Installing “Image Data Converter”

1Check your computer environment.

OS (pre-installed): Microsoft Windows XP* SP3/Windows Vista** SP2/

Windows 7 SP1/Windows 8

CPU: Pentium 4 or faster

* 64-bit editions and Starter (Edition) are not supported.

** Starter (Edition) is not supported.

2Download the software from the following URL and install it on

your computer.

http://www.sony.co.jp/imsoft/Win/

1Check your computer environment.

OS (pre-installed): Mac OS X v10.5, v10.6, v10.7, v10.8

CPU: Intel Core Solo/Core Duo/Core 2 Duo or faster

2Download the software from the following URL and install it on

your computer.

http://www.sony.co.jp/imsoft/Mac/

GB

64

Others

Learning more about the camera (“Cyber-

shot User Guide”)

“Cyber-shot User Guide” is an on-line manual. Refer to it

for in-depth instructions on the many functions of the

camera.

1Access the Sony support page.

http://www.sony.net/SonyInfo/Support/

2Select your country or region.

3Search for the model name of your camera within the support

page.

• Check the model name on the bottom of your camera.

Others

GB

65

Checking the number of images and

recordable time of movies

Notes

• When “0” (the number of recordable images) flashes in yellow, the memory card is

full. Replace the memory card with another one, or delete images from the current

memory card (pages 31, 50).

• When “NO CARD” (the number of recordable images) flashes in yellow, it means

no memory card has been inserted. Insert a memory card.

The table below shows the approximate number of images that can be

recorded on a memory card formatted with this camera. The values are

defined using Sony standard memory cards for testing. The values may

vary depending on the shooting conditions and the type of memory card

used.

Image Size: L: 24M

Aspect Ratio: 3:2*

Memory card formatted with this camera (Units: Images)

When you insert a memory card into the

camera and set the power switch to ON,

the number of images that can be

recorded (should you continue to shoot

using the current settings) is displayed on

the screen.

The number of images that can be recorded on a memory

card

Capacity

Size 2GB 4GB 8GB 16GB 32GB 64GB

Standard 280 560 1100 2250 4600 9200

Fine 195 395 800 1600 3200 6400

Extra fine 105 215 435 870 1750 3500

RAW & JPEG 54 105 215 435 870 1750

RAW 74 145 295 600 1200 2400

Checking the number of images and recordable time of movies

GB

66

* When [Aspect Ratio] is set to other than [3:2], you can record more images than the

numbers shown in the table above (except when [RAW] is selected).

Note that the actual numbers may differ depending on the conditions of use.

Notes

• The above number of images applies when the battery pack is fully charged. The

number of images may decrease depending on the conditions of use.

• The number of images that can be recorded is for shooting under the following

conditions:

– Using Sony “Memory Stick PRO Duo” (Mark2) media (sold separately)

– The battery pack is used at an ambient temperature of 25°C (77°F).

• The number for “Shooting (still images)” is based on the CIPA standard, and is for

shooting under the following conditions:

(CIPA: Camera & Imaging Products Association)

– [Quality] is set to [Fine].

– The focus mode dial is set to AF (Autofocus).

– DISP is set to [Display All Info.].

– Shooting once every 30 seconds.

– The flash strobes once every two times.

– The power turns on and off once every ten times.

The number of images that can be recorded using a

battery pack

Battery life Number of images

Shooting (still images)

(when [LCD Quality] is set to

[High])

Approx. 110 min. Approx. 220 images

Shooting (still images)

(when [LCD Quality] is set to

[Standard])

Approx. 135 min. Approx. 270 images

Viewing (still images) Approx. 230 min. Approx. 4600 images

Actual shooting (movies) Approx. 30 min. —

Continuous shooting (movies) Approx. 60 min. —

Checking the number of images and recordable time of movies

Others

GB

67

• The battery life for movies is based on the CIPA standard, and is for shooting under

the following conditions:

– [Record Setting] is set to [60i 17M(FH)]/[50i 17M(FH)].

– “Actual shooting (movies)”: Indicates the approximate shooting time as a

guideline when you repeatedly perform shooting, zooming, standby for shooting,

and turning on and off the camera.

– “Continuous shooting (movies)”: When continuous shooting ends because of set

limits (29 minutes), press the MOVIE (Movie) button again to continue shooting.

Shooting functions such as zoom will not operate.

The table below shows the approximate total recording times using a

memory card formatted with this camera.

Memory card formatted with this camera (h (hour), m (minute))

• Continuous shooting is possible for approximately 29 minutes (limited by

product specifications). For [1440×1080 12M] size movies, continuous

shooting is possible for approximately 15 minutes (limited by 2 GB file

size).

Available recording time for a movie

Capacity

Record

Setting

2GB 4GB 8GB 16GB 32GB 64GB

60i 24M(FX)/50i

24M(FX) 10 m 20 m 40 m 1 h 30 m 3 h 6 h

60i 17M(FH)/50i

17M(FH) 10 m 30 m 1 h 2 h 4 h 5 m 8 h 15 m

60p 28M(PS)/50p

28M(PS) 9 m 15 m 35 m 1 h 15 m 2 h 30 m 5 h 5 m

24p 24M(FX)/25p

24M(FX) 10 m 20 m 40 m 1 h 30 m 3 h 6 h

24p 17M(FH)/25p

17M(FH) 10 m 30 m 1 h 2 h 4 h 5 m 8 h 15 m

1440×1080 12M 15 m 40 m 1 h 20 m 2 h 45 m 5 h 30 m 11 h 5 m

VGA 3M 1 h 10 m 2 h 25 m 4 h 55 m 9 h 55 m 20 h 40 h

10 m

Checking the number of images and recordable time of movies

GB

68

Notes

• The recordable time of movies varies because the camera is equipped with VBR

(Variable Bit Rate), which automatically adjusts image quality depending on the

shooting scene. When you record a fast-moving subject, the image is clearer but the

recordable time is shorter because more memory is required for recording.

The recordable time also varies depending on the shooting conditions, the subject or

the image quality/size settings.

• The values shown are not for continuous recording time.

• The recording time may differ depending on shooting conditions and the memory

card used.

• When is indicated, stop recording the movie. The temperature inside the camera

has increased to an unacceptable level.

• For details on movie playback, see page 49.

• It requires a lot of power to perform high quality movie recording or continuous

shooting using the image sensor. Therefore, if you continue to shoot, the temperature

inside the camera will rise, especially that of the image sensor. In such cases, the

camera turns off automatically since higher temperatures affect the quality of the

images or affect the internal mechanism of the camera.

• The duration of time available for movie recording varies with the temperature or

condition of the camera before you start recording. If you frequently recompose or

shoot images after the power is turned on, the temperature inside the camera will rise

and the recording time available will be shorter.

• If the camera stops recording due to the temperature, leave it for several minutes

with the power turned off. Start recording after the temperature inside the camera

drops fully.

• If you observe the following points, the recording time will be longer.

– Keep the camera out of direct sunlight.

– Turn the camera off when it is not being used.

• The maximum size of a movie file is about 2 GB. When the file size is about 2 GB,

recording stops automatically when [File Format] is set to [MP4], and a new movie

file is created automatically when [File Format] is set to [AVCHD].

• The maximum continuous recording time is 29 minutes.

Notes on continuous movie recording

Others

GB

69

Specifications

Camera

[System]

Image device: 35mm full size

(35.8 mm × 23.9 mm), Exmor

CMOS image sensor

Total pixel number of camera:

Approx. 24.7 Megapixels

Effective pixel number of camera:

Approx. 24.3 Megapixels

Lens: Carl Zeiss Sonnar T*

35mm single focus lens

f = 35 mm, F2.0

While shooting movies (16:9):

When [SteadyShot] is set to

[Off]: 37 mm

When [SteadyShot] is set to [On]:

44 mm

While shooting movies (4:3):

When [SteadyShot] is set to

[Off]: 45 mm

When [SteadyShot] is set to [On]:

48 mm

Minimum focus*1:

When the macro switching ring is

set to “0,3m- ”: 0.3 m (1 ft.)

When the macro switching ring is

set to “0,2m-0,35m”: 0.2 m

(0.65 ft.)

*1 Minimum focus is the shortest

distance from the image sensor to

the subject.

Maximum magnification:

When the macro switching ring is

set to “0,3m- ”: 0.15×

When the macro switching ring is

set to “0,2m-0,35m”: 0.26×

Minimum f-stop: F22

Filter diameter: 49 mm

SteadyShot: Electronic (only for

movies)

Exposure control: Automatic

exposure, Aperture priority,

Shutter priority, Manual

exposure, Scene Selection

(7 modes)

White balance: Automatic, Daylight,

Shade, Cloudy, Incandescent,

Fluorescent (Warm White/

Cool White/Day White/Daylight),

Flash, Color temperature/Color

filter, Custom

Signal format:

For 1080 50i:

PAL color, CCIR standards

HDTV 1080/50i, 1080/50p

specification

For 1080 60i:

NTSC color, EIA standards

HDTV 1080/60i, 1080/60p

specification

Specifications

GB

70

File format:

Still images: JPEG (DCF, Exif,

MPF Baseline) compliant, RAW

(Sony ARW 2.3 Format), DPOF

compatible

Movies (AVCHD format):

AVCHD format Ver. 2.0

compatible

Video: MPEG-4 AVC/H.264

Audio: Dolby Digital 2ch,

equipped with Dolby Digital

Stereo Creator

• Manufactured under license

from Dolby Laboratories.

Movies (MP4 format):

Video: MPEG-4 AVC/H.264

Audio: MPEG-4 AAC-LC 2ch

Recording media: “Memory Stick

Duo” media, “Memory Stick

Micro” media, SD cards,

microSD memory cards

Flash: Flash range (ISO sensitivity

(Recommended Exposure Index)

set to Auto):

Approx. 0.75 m to 21.7 m

(2.5 ft. to 71.2 ft.)

[Input and Output connectors]

HDMI connector: HDMI micro jack

Micro USB connector:

USB communication

Microphone jack: 3.5 mm Stereo

mini jack

USB communication: Hi-Speed USB

(USB 2.0)

[Screen]

LCD screen:

7.5 cm (3.0 type) TFT drive

Total number of dots:

1 228 800 dots

[Power, general]

Power: Rechargeable battery pack

NP-BX1, 3.6 V

AC Adaptor AC-UD10/UD11,

5V

Power consumption (during

shooting): 2.0 W

Operating temperature: 0 °C to 40 °C

(32 °F to 104 °F)

Storage temperature: –20 °C to

+60°C (–4°F to +140°F)

Dimensions (CIPA compliant):

113.3 mm × 65.4 mm × 69.6 mm

(4 1/2 inches × 2 5/8 inches ×

2 3/4 inches) (W/H/D)

Mass (CIPA compliant) (including

NP-BX1 battery pack, “Memory

Stick Duo” media):

Approx. 482 g (17 oz)

Microphone: Stereo

Speaker: Monaural

Exif Print: Compatible

PRINT Image Matching III:

Compatible

Specifications

Others

GB

71

AC Adaptor AC-UD10/UD11

Power requirements: AC 100 V to

240 V, 50 Hz/60 Hz, 0.2 A

Output voltage: DC 5 V, 1 500 mA

Operating temperature: 0 °C to 40 °C

(32 °F to 104 °F)

Storage temperature: –20 °C to

+60°C (–4°F to +140°F)

Dimensions:

AC-UD10: Approx. 78 mm ×

22 mm × 36 mm (3 1/8 inches ×

7/8 inches × 1 7/16 inches)

(W/H/D)

AC-UD11: Approx. 70 mm ×

33 mm × 36 mm (2 7/8 inches ×

15/16inches × 17/16inches)

(W/H/D)

Mass:

AC-UD10: Approx. 45 g (1.6 oz)

AC-UD11: Approx. 50 g (1.8 oz)

Rechargeable battery pack

NP-BX1

Used battery: Lithium-ion battery

Maximum voltage: DC 4.2 V

Nominal voltage: DC 3.6 V

Maximum charge voltage: DC 4.2 V

Maximum charge current: 1.89 A

Capacity: 4.5 Wh (1 240 mAh)

Design and specifications are

subject to change without notice.

Trademarks

• The following marks are trademarks of

Sony Corporation.

, “Cyber-shot,”

“Memory Stick,” , “Memory

Stick PRO,” ,

“Memory Stick Duo,”

, “Memory Stick

PRO Duo,” ,

“Memory Stick PRO-HG Duo,”

, “Memory

Stick XC-HG Duo,”

, “Memory

Stick Micro”

• “AVCHD Progressive” and “AVCHD

Progressive” logotype are trademarks

of Panasonic Corporation and Sony

Corporation.

• The terms HDMI and HDMI High-

Definition Multimedia Interface, and

the HDMI Logo are trademarks or

registered trademarks of HDMI

Licensing LLC in the United States

and other countries.

• Windows is registered trademark of

Microsoft Corporation in the United

States and/or other countries.

• Mac, Mac OS and iMovie are

trademarks or registered trademarks of

Apple Inc.

• Intel, Intel Core, and Pentium are

trademarks or registered trademarks of

Intel Corporation.

• SDXC logo is a trademark of SD-3C,

LLC.

• “ ” and “PlayStation” are registered

trademarks of Sony Computer

Entertainment Inc.

• Eye-Fi is a trademark of Eye-Fi Inc.

Specifications

GB

72

• In addition, system and product names

used in this manual are, in general,

trademarks or registered trademarks of

their respective developers or

manufacturers. However, the ™ or ®

marks are not used in all cases in this

manual.

• Add further enjoyment with your

PlayStation 3 by downloading the

application for PlayStation 3 from

PlayStation Store (where available.)

• The application for PlayStation 3

requires PlayStation Network account

and application download. Accessible

in areas where the PlayStation Store is

available.

Additional information on this

product and answers to frequently

asked questions can be found at

our Customer Support Website.

Index

GB

73

Index

Index

A

Area Setting ............................... 43

AUTO ........................................ 46

Auto Mode ................................. 46

B

Battery pack ............................... 36

C

C (Custom) button ..................... 30

Charge lamp............................... 37

Charging battery pack................ 36

Computer ................................... 58

Control dial ................................ 24

Control wheel............................. 19

Creative Style............................. 54

D

Date/Time Setup ........................ 43

Delete ......................................... 50

DISP........................................... 29

Drive Mode................................ 25

DRO/Auto HDR ........................ 55

E

Exposure compensation dial ...... 23

F

File Format................................. 48

Fn ......................................... 24, 25

Func. of C Button....................... 30

Function button .................... 24, 25

H

Hand-held Twilight.................... 54

I

Image Data Converter .......... 58, 63

In-Camera Guide........................35

ISO ............................................. 53

L

Language..............................11, 34

LCD screen ................................ 20

M

Macro switching ring .................47

Memory card........................ 41, 42

MENU........................................ 27

Menu .......................................... 27

Microphone jack ........................ 16

MOVIE....................................... 48

Movie ......................................... 48

MOVIE Button..................... 30, 48

Multi Frame Noise Reduct......... 53

Multi interface shoe ................... 17

N

Number of recordable images .... 65

Index

GB

74

P

PlayMemories Home ............59, 62

Q

Quick Navi..................................56

R

Recordable time of movies.........67

Recording movies.......................48

Reducing camera shake ..............45

S

Scene Selection...........................25

Set the clock ...............................43

Shooting......................................46

Shooting mode............................51

Shooting still images ..................46

Shoulder strap.............................15

Software......................................58

Specifications .............................69

SteadyShot ..................................45

Still/Movie Select .......................49

Strap............................................15

U

USB Connection.........................33

User Guide..................................64

V

Viewing image............................49

W

White Balance............................ 25

Index

Index

GB

75
