WARNING
About This Operating Instructions
Playable Discs
Getting Started
Sound Adjustment
Disc
Tuner

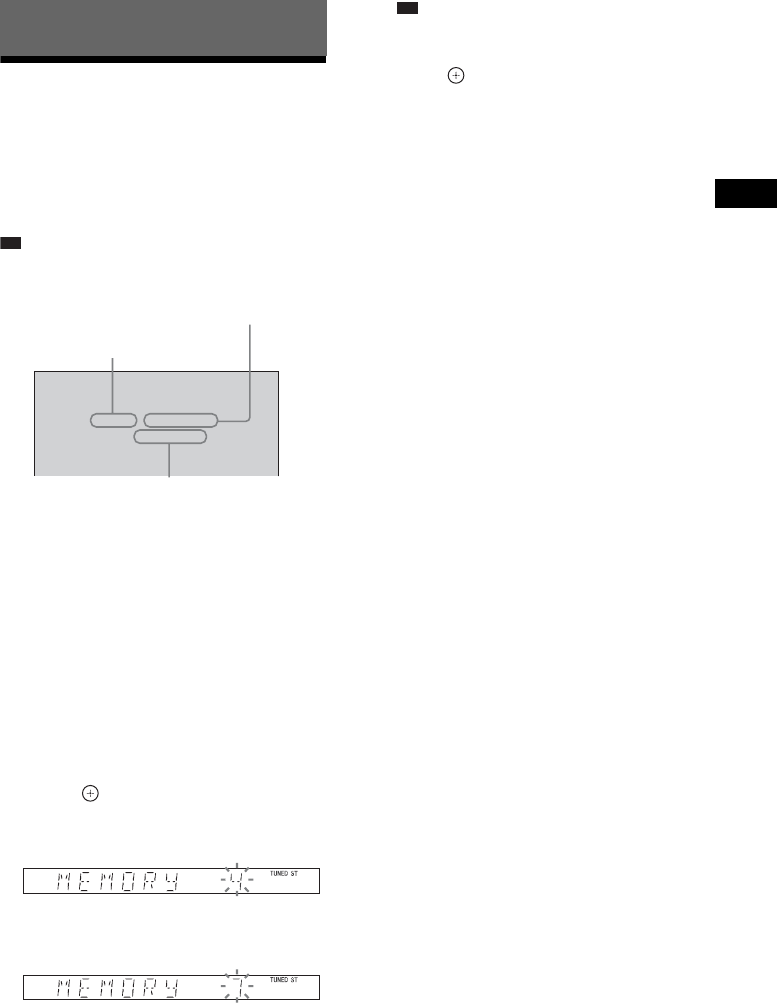

- Presetting Radio Stations
- Listening to the Radio

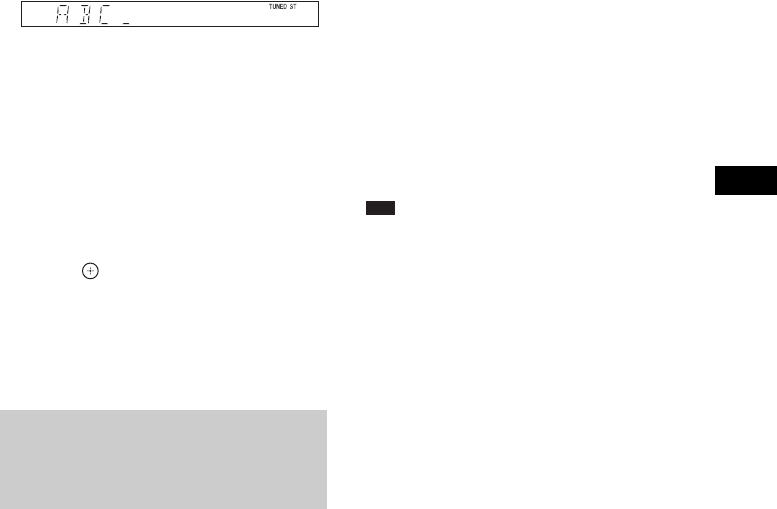

  - Naming preset stations
  - Viewing the station name or frequency in the front panel display
Control for HDMI/External Audio Device
Other Operations
Additional Information

3-283-038-11(1)

DVD Home Theatre

System

Operating Instructions

DAV-DZ270 / HDZ278

2GB

To reduce the risk of fire or electric

shock, do not expose this apparatus to

rain or moisture.

Caution – The use of optical instruments

with this product will increase eye

hazard.

Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

To prevent fire, do not cover the ventilation of the

apparatus with news papers, table-cloths, curtains, etc.

And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Batteries or batteries installed apparatus shall not be

exposed to excessive heat such as sunshine, fire or the

like.

In door use only.

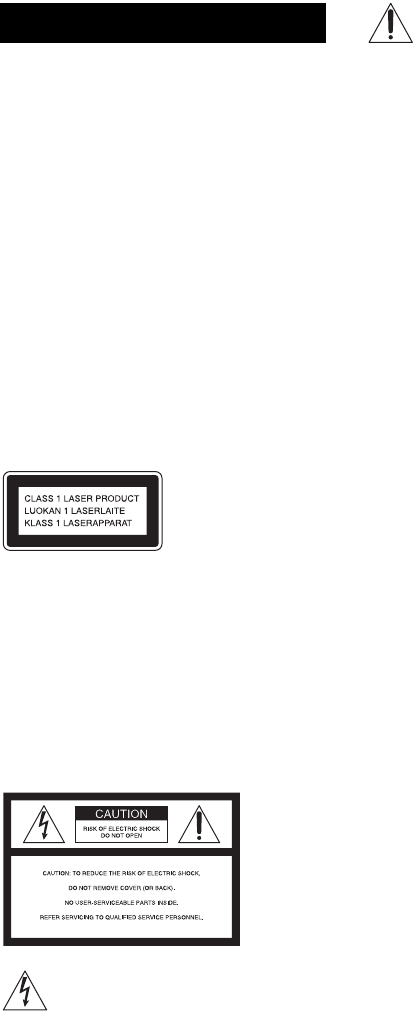

This appliance is

classified as a CLASS 1

LASER product. This

marking is located on the

rear exterior. (Except for

DAV-HDZ278.)

RISK OF ELECTRIC SHOCK DO NOT

OPEN

No operator serviceable parts inside. Refer servicing to

qualified personnel.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

For the customers in the U.S.A

This symbol is intended to alert the user to

the presence of uninsulated “dangerous

voltage” within the product’s enclosure that

may be of sufficient magnitude to constitute

a risk of electric shock to persons.

This symbol is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

Owner’s Record

The model and serial numbers are located at the rear

exterior of the control unit. Record the serial number in

the space provided below. Refer to them whenever you

call upon your Sony dealer regarding this product.

Model No. DAV-HDZ278

Serial No.______________

The following FCC statement applies only to the

version of this model manufactured for sale in the

USA. Other versions may not comply with FCC

technical regulations.

WARNING

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– Reorient or relocate the receiving antenna (aerial).

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modifications

not expressly approved in this manual could void your

authority to operate this equipment.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

WARNING

3GB

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

Note to CATV system installer:

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

Precautions

On power sources

• AC power cord (mains lead) must be changed only at

the qualified service shop.

• The unit is not disconnected from the AC power

source (mains) as long as it is connected to the wall

outlet (mains), even if the unit itself has been turned

off.

• Install this system so that the AC power cord (mains

lead) can be unplugged from the wall socket

immediately in the event of trouble.

Note on power cord plug shapes

(Saudi Arabian model only)

For AC 220 V wall sockets

Make sure that the 13 A 3-pin plug (Type BF)

is securely attached to the power cord. (The 13

A 3-pin plug is attached when shipped from the

factory.)

For AC 127 V wall sockets

1Remove the 13 A 3-pin plug using a

screwdriver.

2Attach the supplied parallel blade plug (Type

A).

4GB

About This Operating

Instructions

• The instructions in this Operating Instructions

describe the controls on the remote. You can

also use the controls on the unit if they have the

same or similar names as those on the remote.

• The instructions in this manual are for DAV-

DZ270 and DAV-HDZ278. DAV-DZ270 is

the model used for illustration purposes. Any

difference in operation is clearly indicated in

the text, for example, “DAV-DZ270 only.”

• The Control Menu items may vary depending

on the area.

• “DVD” may be used as a general term for a

DVD VIDEO, DVD+RW/DVD+R, and DVD-

RW/DVD-R.

• Measurements are expressed in feet (ft) for

North American models.

• The default setting is underlined.

5GB

Table of Contents

About This Operating Instructions..........4

Playable Discs.........................................6

Getting Started

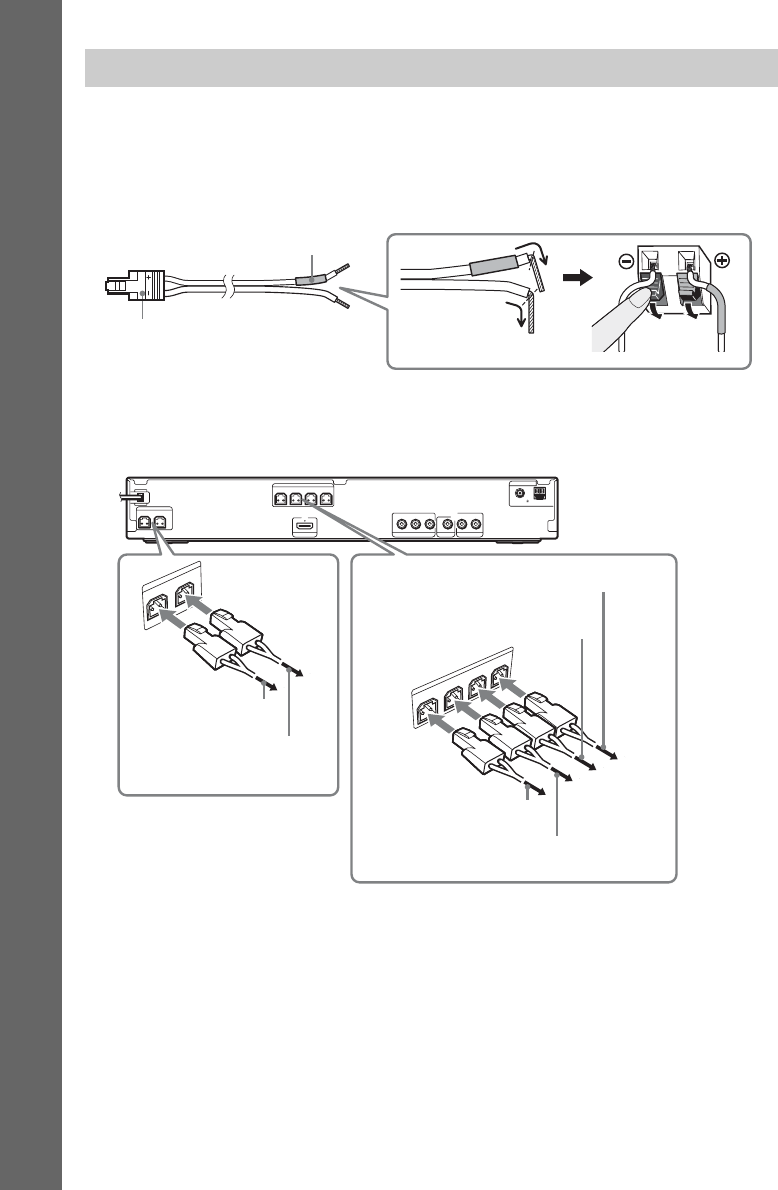

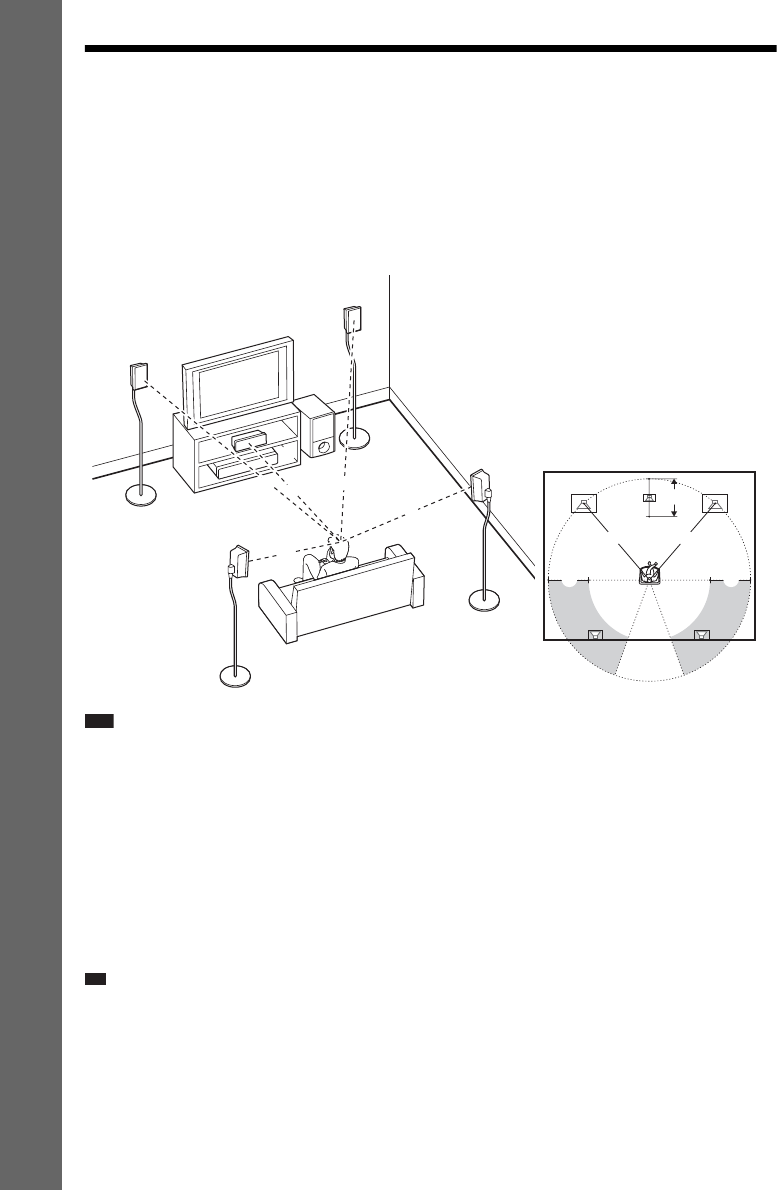

Step 1: Positioning the System... 12

Step 2: Connecting the System... 15

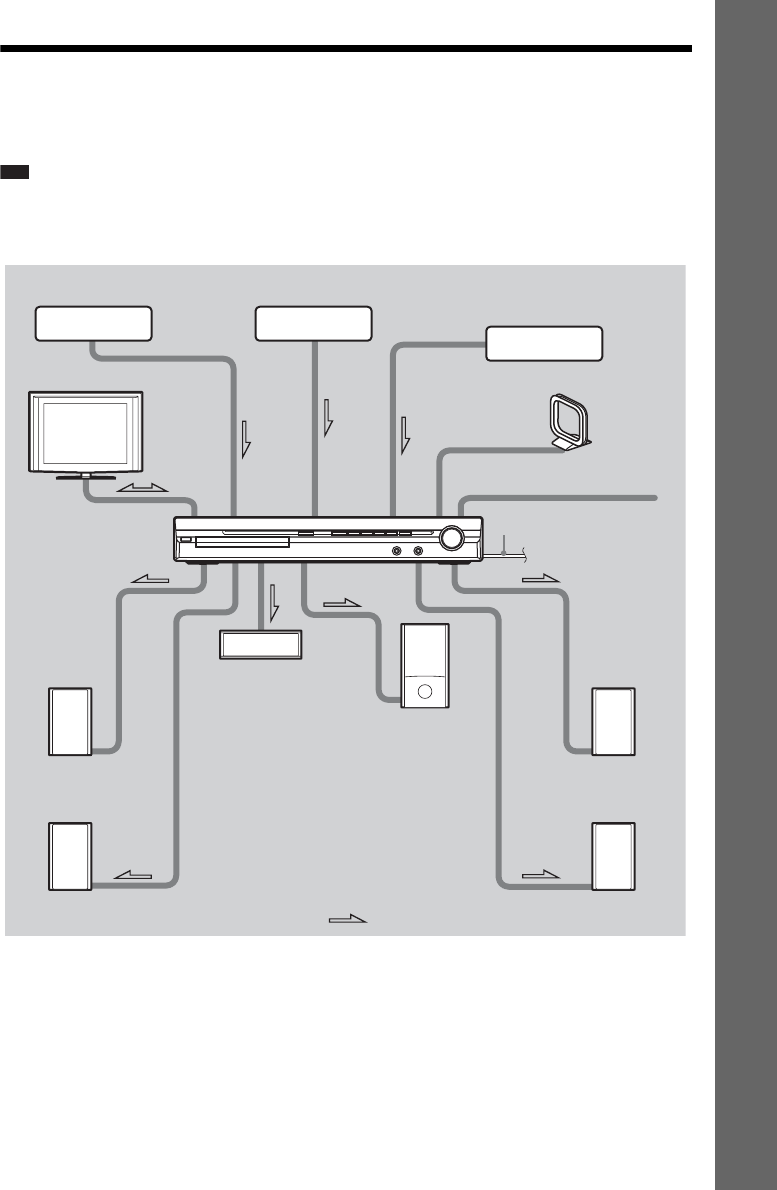

Step 3: Performing the Quick

Setup........................................ 27

Step 4: Enjoying Sound from all the

Speakers.................................. 30

Sound Adjustment

Enjoying Surround Sound by Using

Decoding Mode ..............................32

Selecting the Sound Mode ....................34

Enjoying Multiplex Broadcast Sound... 34

Disc

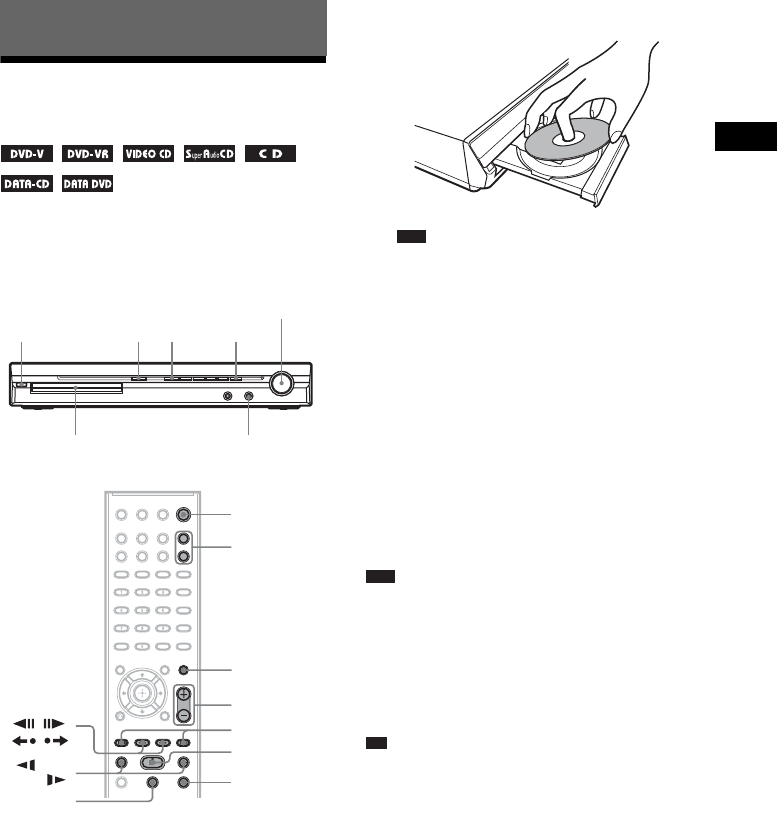

Playing a Disc .......................................35

Using Play Mode...................................40

Searching/Selecting a Disc ...................43

Playing MP3 Files/JPEG Image Files... 45

Enjoying DivX® Videos.......................48

Adjusting the Delay Between the Picture

and Sound .......................................50

Restricting Playback of the Disc...........50

Using the Setup Display........................52

Tuner

Presetting Radio Stations ......................61

Listening to the Radio...........................62

Control for HDMI/External

Audio Device

Using the Control for HDMI Function for

“BRAVIA” Sync ............................64

Playing Back Audio Files/JPEG Image

Files of a USB Device ....................67

Storing Songs in a USB Device ............73

Playable USB Devices ..........................76

Using the DIGITAL MEDIA PORT

Adapter ...........................................76

Other Operations

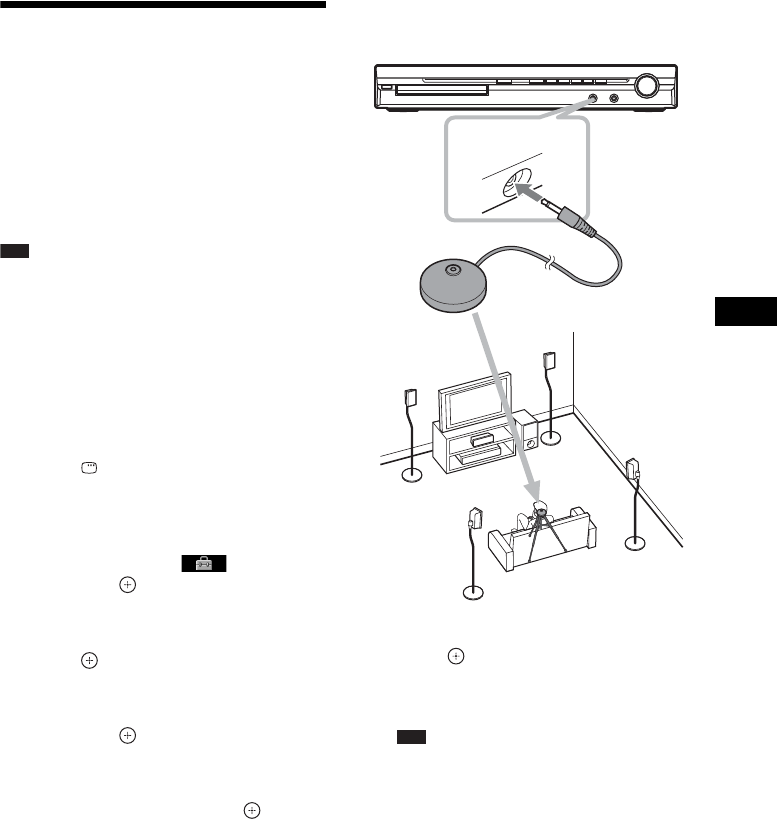

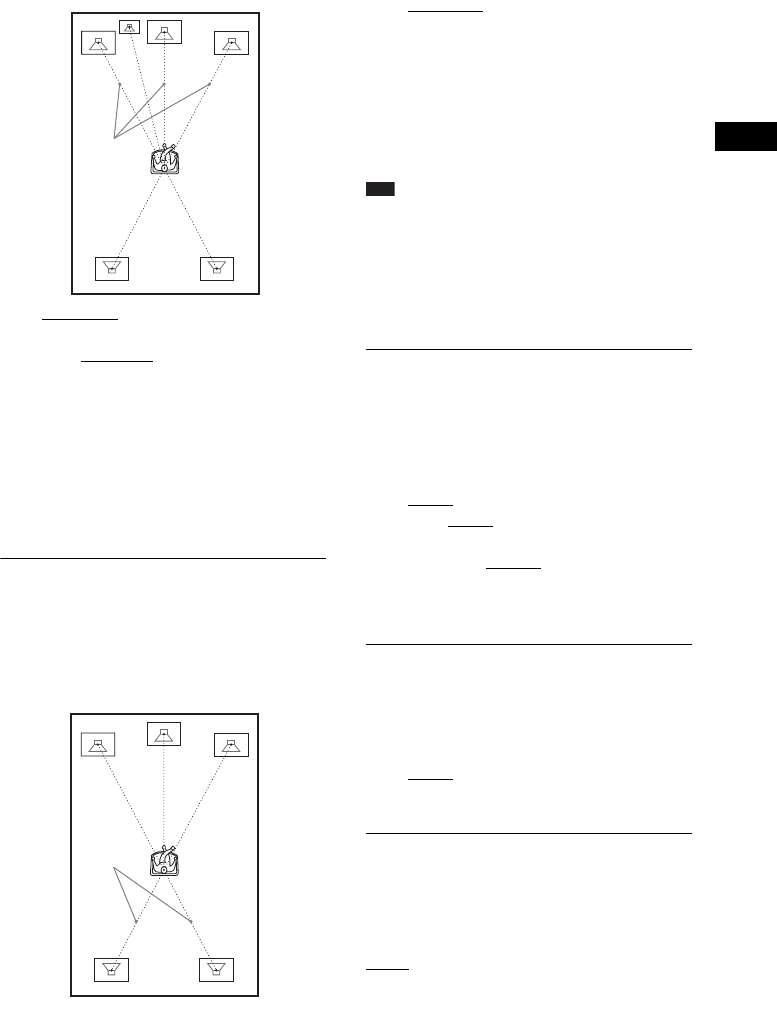

Getting Optimal Surround Sound for a

Room .............................................. 78

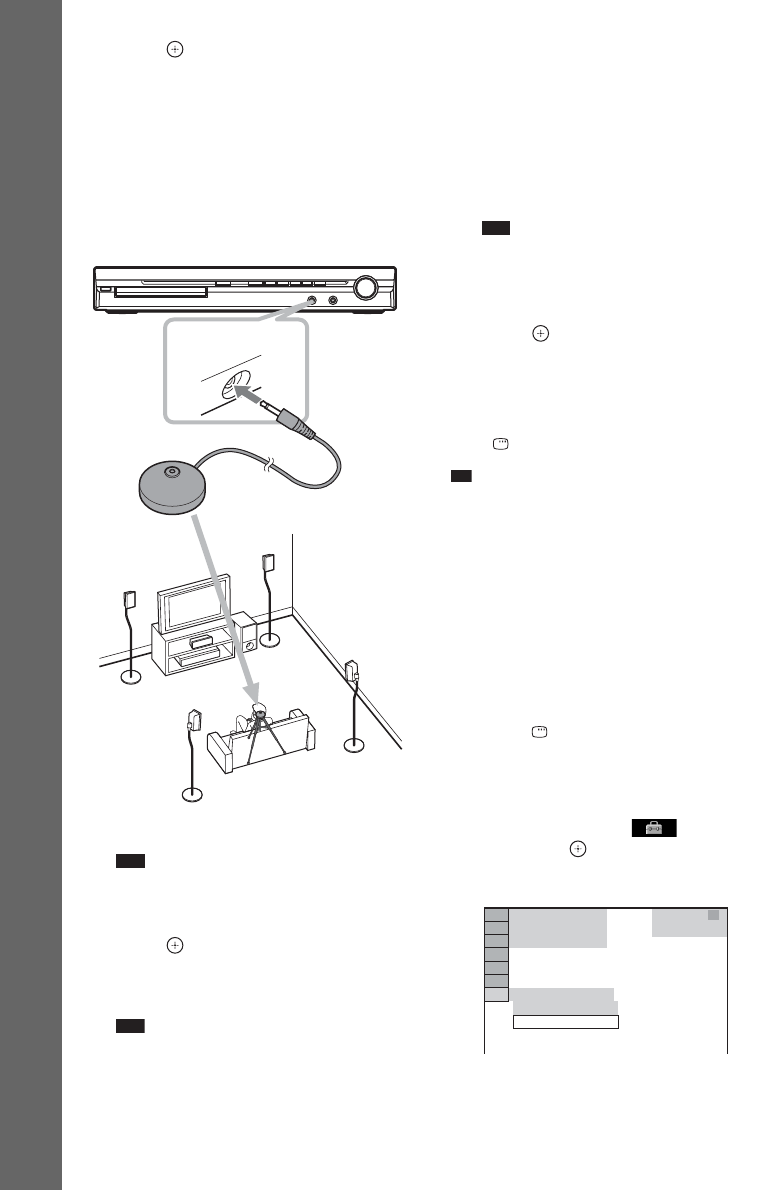

Calibrating the Appropriate Settings

Automatically ................................. 79

Controlling the TV with the Supplied

Remote ........................................... 80

Using the Sound Effect......................... 81

Using the Sleep Timer .......................... 81

Changing the Brightness of the Front

Panel Display.................................. 82

Viewing Information About the Disc ... 82

Returning to the Default Settings ......... 85

Additional Information

Precautions............................................ 86

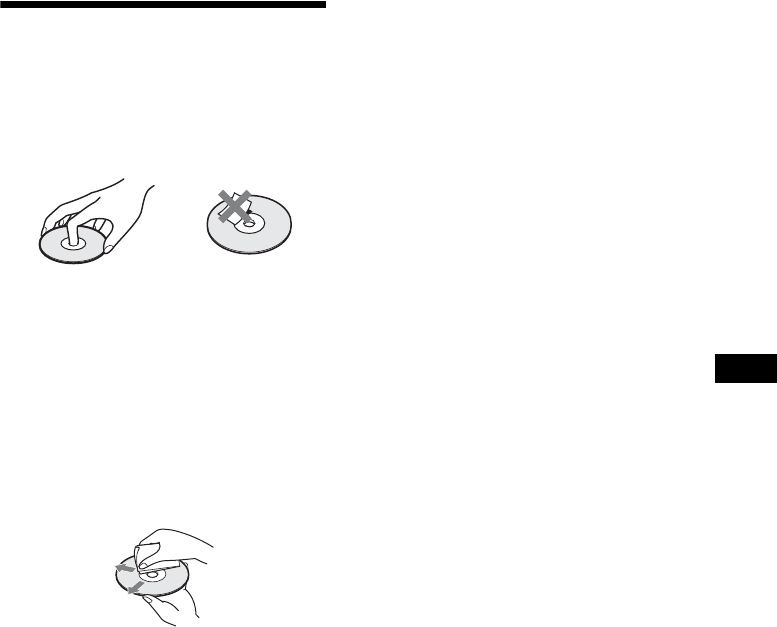

Notes about the Discs ........................... 87

Troubleshooting.................................... 88

Self-diagnosis Function ........................ 97

Specifications........................................ 98

Glossary .............................................. 100

Language Code List............................ 102

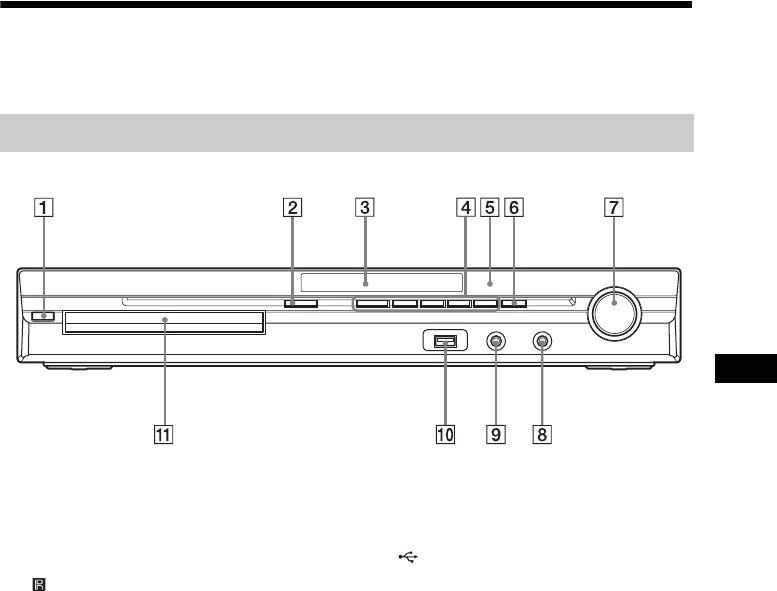

Index to Parts and Control.................. 103

Guide to the Control Menu Display ... 107

Index ................................................... 111

6GB

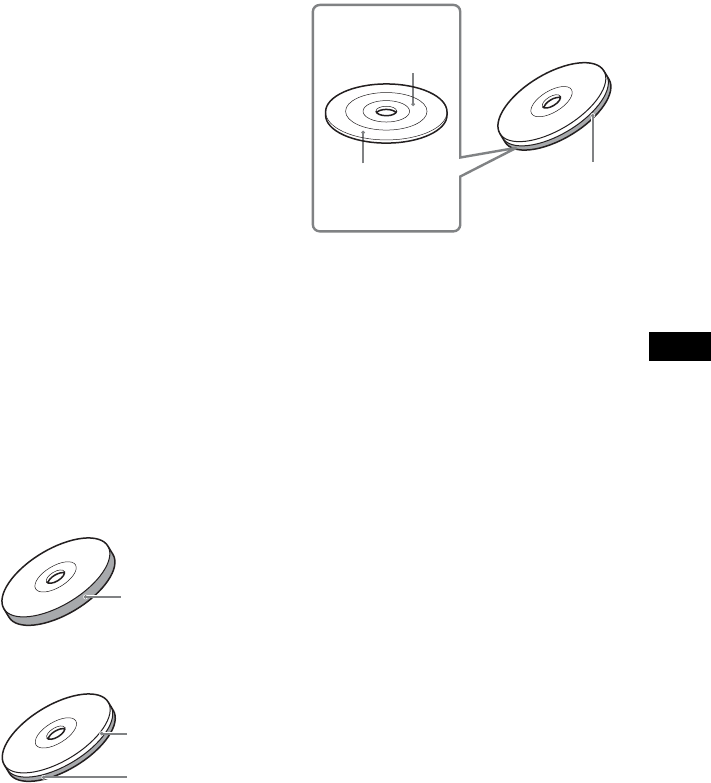

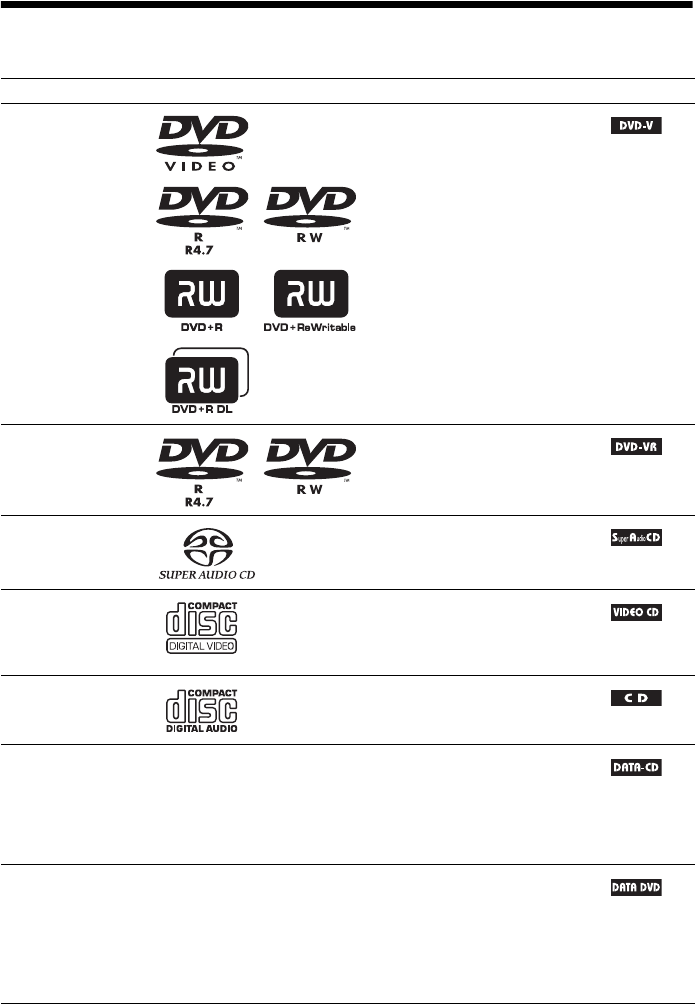

Playable Discs

1)MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data. MP3 files

must be in MPEG1 Audio Layer 3 format.

Type Disc logo Characteristics Icon

DVD VIDEO • DVD VIDEO

• DVD-R/DVD-RW in DVD

VIDEO format or video mode

• DVD+R/DVD+RW in DVD

VIDEO format

VR (Video

Recording) mode

• DVD-R/DVD-RW in VR (Video

Recording) mode (except for

DVD-R DL)

Super Audio CD • Super Audio CD

VIDEO CD • VIDEO CD (Ver. 1.1 and 2.0 discs)

• Super VCD

• CD-R/CD-RW/CD-ROM in video

CD format or Super VCD format

CD • Audio CD

• CD-R/CD-RW in audio CD format

DATA CD – • CD-R/CD-RW/CD-ROM in

DATA CD format, containing MP3

files1), JPEG image files2), and

DivX video files3)4)5), and

conforming to ISO 96606) Level 1/

Level 2, or Joliet (extended format)

DATA DVD – • DVD-ROM/DVD-R/DVD-RW/

DVD+R/DVD+RW in DATA

DVD format, containing MP3

files1), JPEG image files2), and

DivX video files3)4)5), and

conforming to UDF (Universal

Disk Format)

7GB

2)JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image

standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association

(JEITA).)

3)Except for United Kingdom and North American models.

4) DivX® is a video file compression technology, developed by DivX, Inc.

5) DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

6)A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for

Standardization).

“DVD-RW,” “DVD+RW,” “DVD+R,”“DVD VIDEO,” and the “CD” logos are trademarks.

The system cannot play the following discs:

• CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 6

• CD-ROM recorded in PHOTO CD format

• Data part of CD-Extra

• CD Graphics disc

• DVD Audio

• DATA DVD that does not contain MP3 files, JPEG image files, or DivX video files*

* Except for United Kingdom and North American models.

• DVD-RAM

Also, the system cannot play the following discs:

• A DVD VIDEO with a different region code (page 8)

• A disc that has a non-standard shape (e.g., card, heart)

• A disc with paper or stickers on it

• A disc that has the adhesive of cellophane tape or a sticker still left on it

In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot be played on this system

due to the recording quality or physical condition of the disc, or the characteristics of the recording

device and authoring software.

The disc will not play if it has not been correctly finalized. For more information, refer to the operating

instructions for the recording device.

Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have

been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA

DVDs created in Packet Write format cannot be played.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard.

Recently, various music discs encoded with copyright protection technologies are marketed by some

record companies. Please be aware that among those discs, there are some that do not conform to the

CD standard and may not be playable by this product.

Example of discs that the system cannot play

Note about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW

8GB

Note on DualDiscs

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital

audio material on the other side. However, since the audio material side does not conform to the

Compact Disc (CD) standard, playback on this product is not guaranteed.

• This system can play a Multi Session CD when an MP3 file is contained in the first session. Any

subsequent MP3 files recorded in later sessions can also be played back.

• This system can play a Multi Session CD when a JPEG image file is contained in the first session.

Any subsequent JPEG image files recorded in later sessions can also be played back.

• If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first

session, only the first session will be played back.

Your system has a region code printed on the rear of the unit and will only play a DVD labeled with

the same region code.

A DVD VIDEO labeled will also play on this system.

If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will

appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even

though playing the DVD VIDEO is prohibited by area restrictions.

Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers.

Since this system will play a DVD or VIDEO CD according to the disc contents the software producers

designed, some playback features may not be available. Be sure to read the operating instructions

supplied with the DVD or VIDEO CD.

This product incorporates copyright protection technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright protection technology must be authorized by

Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized

by Macrovision. Reverse engineering or disassembly is prohibited.

This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround

decoder and the DTS** Digital Surround System.

* Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license from DTS, Inc.

“DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.

About Multi Session CD

Region code

Note about playback operations of a DVD or VIDEO CD

Copyrights

ALL

9GB

This system incorporates High-Definition Multimedia Interface (HDMITM) technology.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC.

“BRAVIA” and are trademarks of Sony Corporation.

10GB

Getting Started

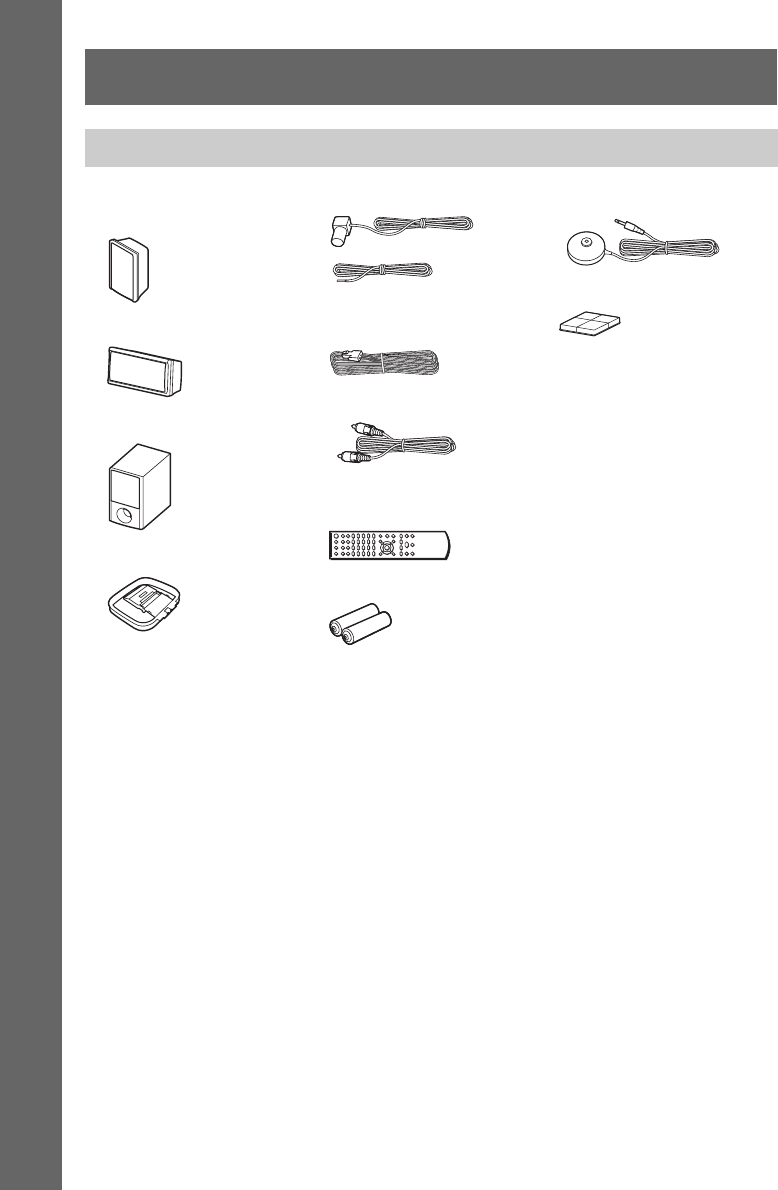

Unpacking

• Front speakers (2) and

surround speakers (2)

• Center speaker (1)

• Subwoofer (1)

• AM loop antenna (aerial) (1)

• FM wire antenna (aerial) (1)

• Speaker cords (6, red/white/

green/gray/blue/purple)

•Video cord (1)

• Remote commander

(remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Foot pads (1 set)

• Operating Instructions

• Speaker and TV connections

(card)

11GB

Getting Started

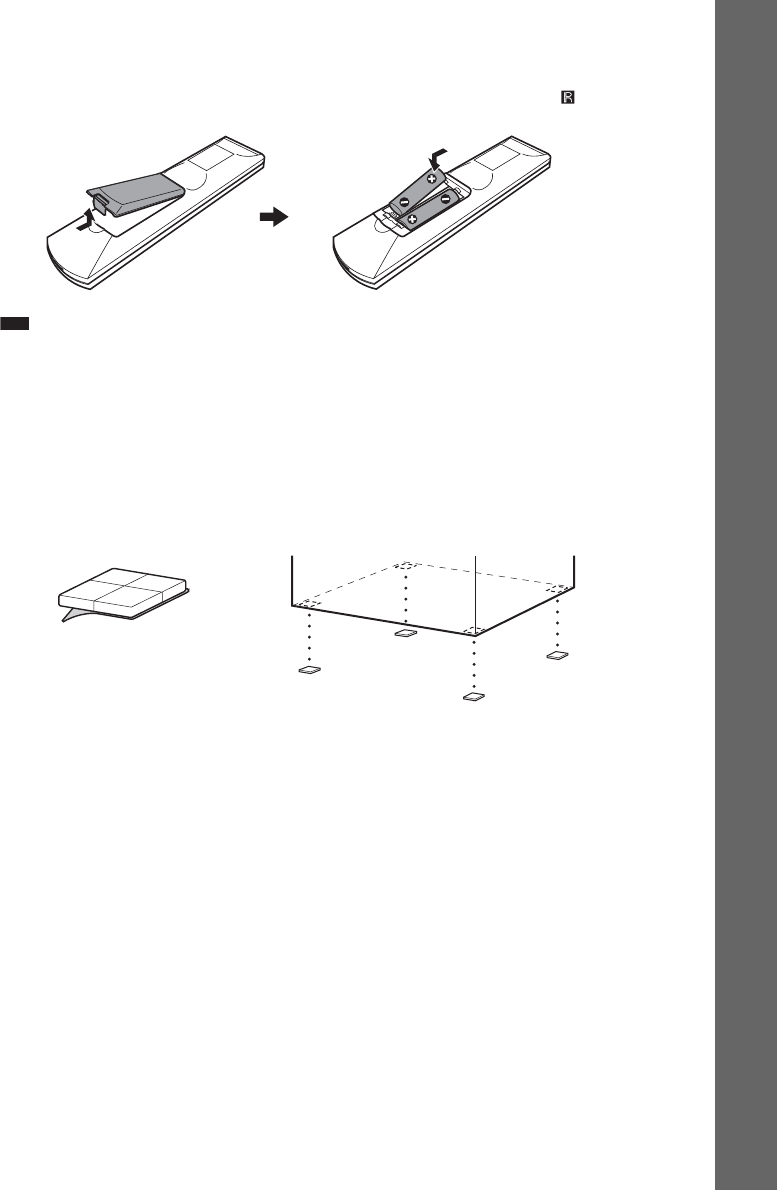

Inserting batteries into the remote

Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the

markings inside the compartment. To use the remote, point it at the remote sensor on the unit.

Note

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting apparatus. Doing so may cause a malfunction.

• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage

from battery leakage and corrosion.

Attaching the foot pads to the subwoofer

Attach the foot pads (supplied) to the bottom of the subwoofer to stabilize the subwoofer and prevent

it from slipping.

Remove the foot pads from

the mount seat.

12GB

Getting Started

Step 1: Positioning the System

For the best possible surround sound, all the speakers other than the subwoofer should be placed at the

same distance from the listening position (A).

However, this system allows you to place the center speaker up to 1.6 meters (5 ft) closer (B) and the

surround speakers up to 5.0 meters (16 ft) closer (C) to the front speakers.

The front speakers can be placed from 1.0 to 7.0 meters (3 to 23 ft) (A) from the listening position.

Place the system as illustrated below.

Note

• Do not set the speakers in an inclined position.

• Do not place the speakers in locations that are:

– Extremely hot or cold

– Dusty or dirty

– Very humid

– Subject to vibrations

– Subject to direct sunlight

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,

oiled, polished, etc.) floor, as staining or discoloration may result.

• Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.

• Do not lean or hang on the speaker, as the speaker may fall down.

• When you change the positions of the speakers, Sony recommends that you change the settings. For details, see

“Getting Optimal Surround Sound for a Room” (page 78) and “Calibrating the Appropriate Settings Automatically”

(page 79).

AAA

C C

A Front speaker (L (left))

B Front speaker (R (right))

C Center speaker

D Surround speaker (L (left))

E Surround speaker (R (right))

F Subwoofer

G Unit

Top view

13GB

Getting Started

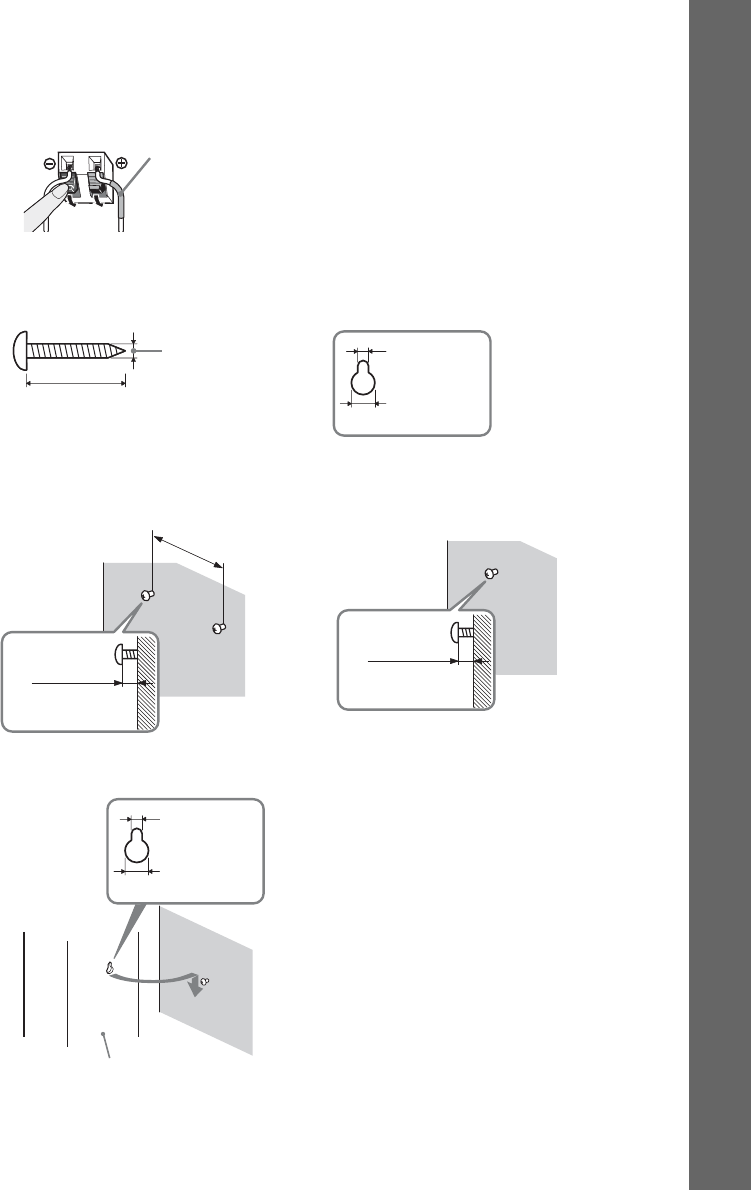

To install the speakers on a wall

Before installing the speakers on a wall, connect the speaker cord to the speaker.

Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with

the color tube to 3, and the speaker cord without the color tube to #.

1Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

2Fasten the screws to the wall.

3Hang the speakers on the screws.

Color tube

Front speaker (L): White

Front speaker (R): Red

Center speaker: Green

Surround speaker (L): Blue

Surround speaker (R): Gray

30 mm (1 3/16 inches)

4 mm (5/32 inch)

Hole on the back of

the speaker

5 mm

(7/32 inch)

10 mm

(13/32 inch)

8 to 10 mm

(

inch

)

145 mm

(5 3/4 inches)

For the center speaker For the other speakers

8 to 10 mm

(

inch

)

5 mm

(7/32 inch)

10 mm

(13/32 inch)

Hole on the back of

the speaker

Rear of the speaker

14GB

Getting Started

Note

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach

the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where

reinforcement is applied.

• Contact a screw shop or installer regarding the wall material or screws to be used.

• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or

improper screw installation, natural calamity, etc.

15GB

Getting Started

Step 2: Connecting the System

See the connection diagram below, and read the additional information from 1 to 5 on the following

pages.

Note

• Be sure to make connections securely to avoid hum and noise.

• When you connect another component with a volume control, turn up the volume of the other components to a level

where sound is not distorted.

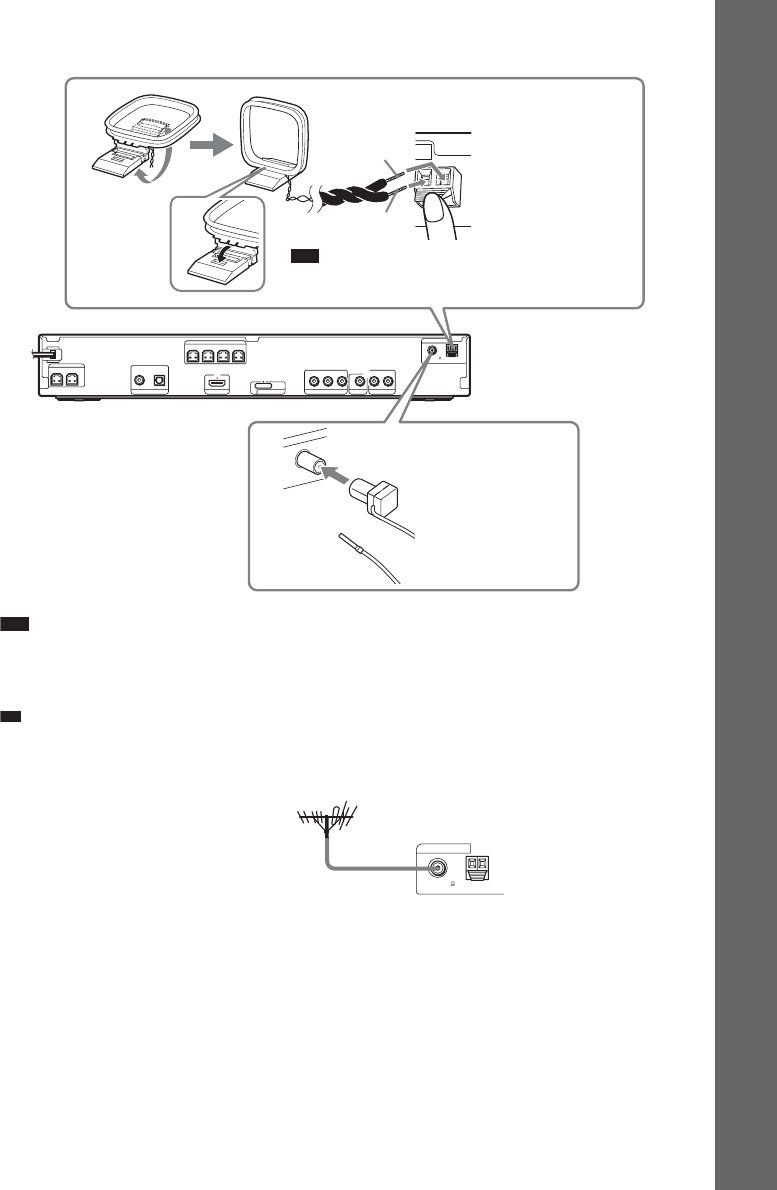

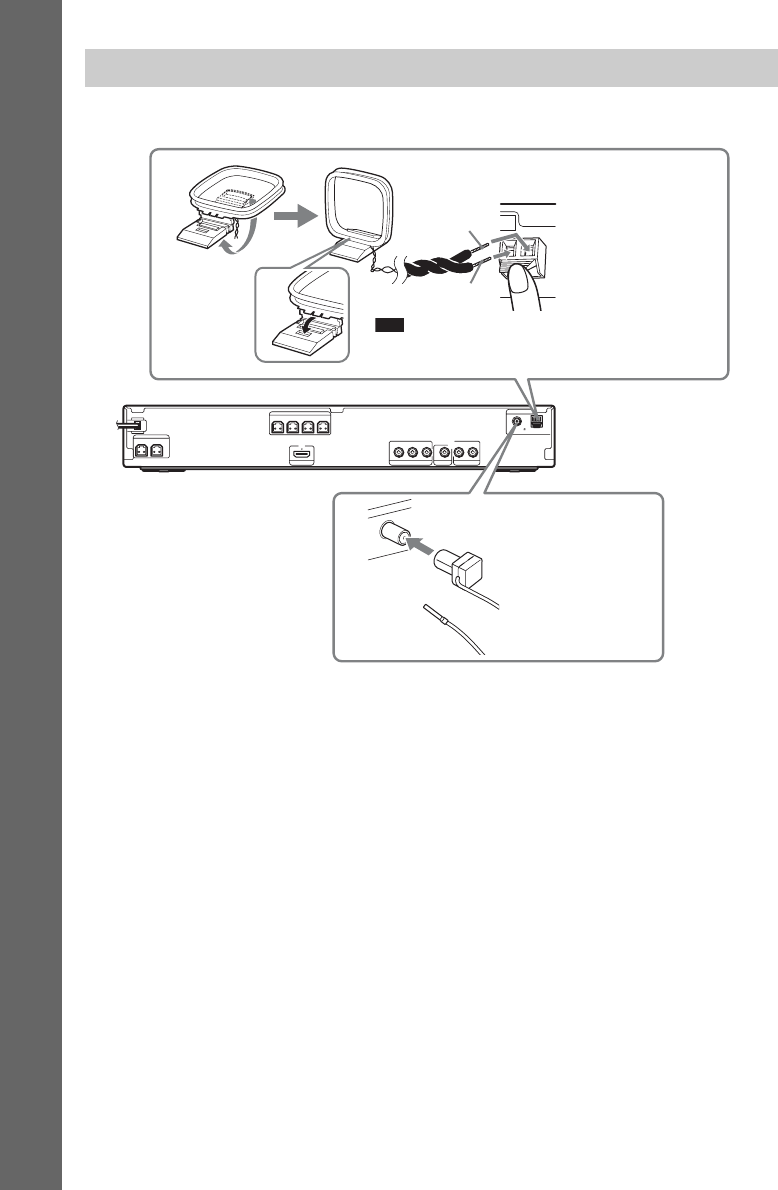

4 AM loop antenna (aerial)

1 Subwoofer

5 AC power cord (mains lead)

4 FM wire antenna (aerial)

2 TV

1 Front speaker (L)

1 Center speaker

1 Front speaker (R)

1 Surround speaker (L) 1 Surround speaker (R)

:Signal flow

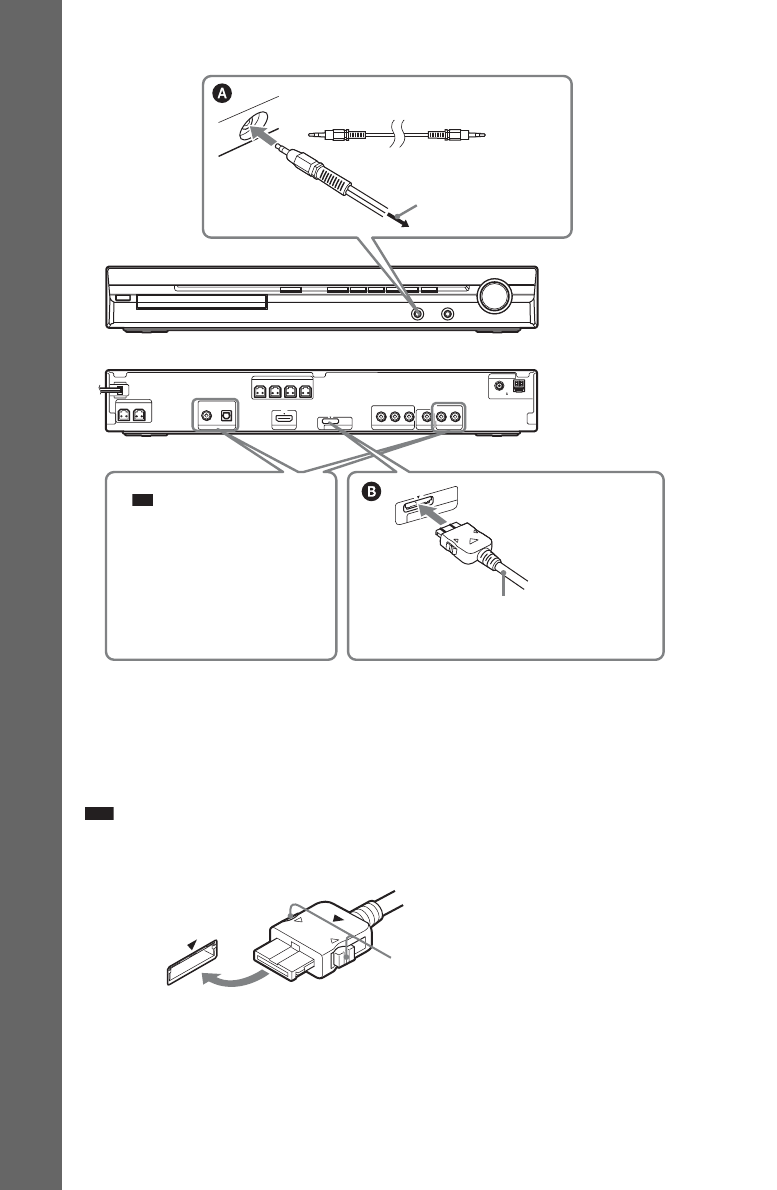

3 DIGITAL MEDIA PORT

adapter (DAV-HDZ278 only) 3 Portable audio source 3 VCR, digital satellite receiver,

or PlayStation, etc.

16GB

Getting Started

The connector and color tube of the speaker cords are the same color as the label of the jacks to be

connected. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker

cord with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the

speaker cord insulation in the speaker terminals.

When connecting to the unit, insert the connector until it clicks.

DAV-DZ270

1 Connecting the Speakers

Color tube

(–)

(+)

Connector

Rear of speaker

CENTER SUBWOOFER

AUDIO IN

YLR

FRONT R FRONT L SUR R SUR L

SPEAKER

VIDEO OUT TV/VIDEO

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

HDMI OUT

SPEAKER

FRONT L

SUR R

SUR L

FRONT R

SPEAKER

SUBWOOFER

CENTER

Rear panel

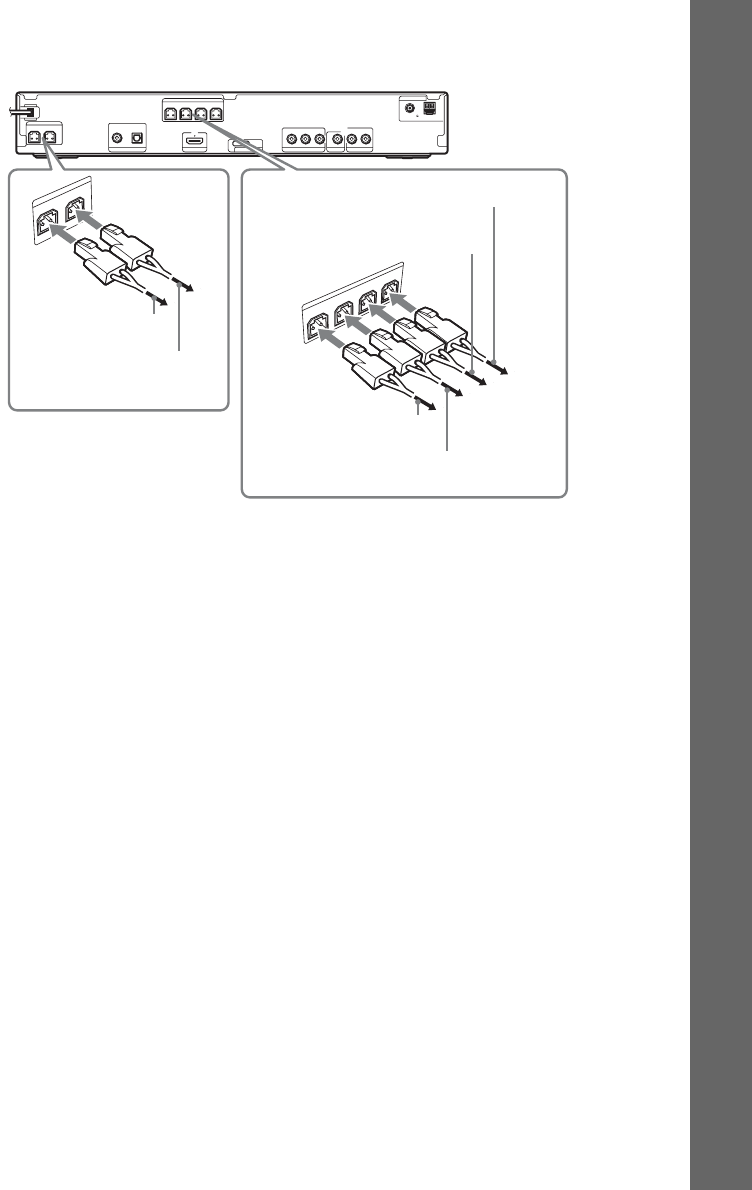

To the center speaker

(green)

To the subwoofer

(purple)

To the front speaker (R)

(red)

To the front speaker (L) (white)

To the surround speaker (L)

(blue)

To the surround speaker (R)

(gray)

17GB

Getting Started

DAV-HDZ278

CENTER SUBWOOFER

DIGITAL IN

COAXIAL OPTICAL

FRONT R FRONT L SUR R SUR L

SPEAKER

TV/VIDEO HDMI OUT

VIDEO OUT

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN LR

TV/VIDEO

SPEAKER

FRONT L

SUR R

SUR L

FRONT R

SPEAKER

SUBWOOFER

CENTER

Rear panel

To the center speaker

(green)

To the subwoofer

(purple)

To the front speaker (R)

(red)

To the front speaker (L) (white)

To the surround speaker (L)

(blue)

To the surround speaker (R)

(gray)

18GB

Getting Started

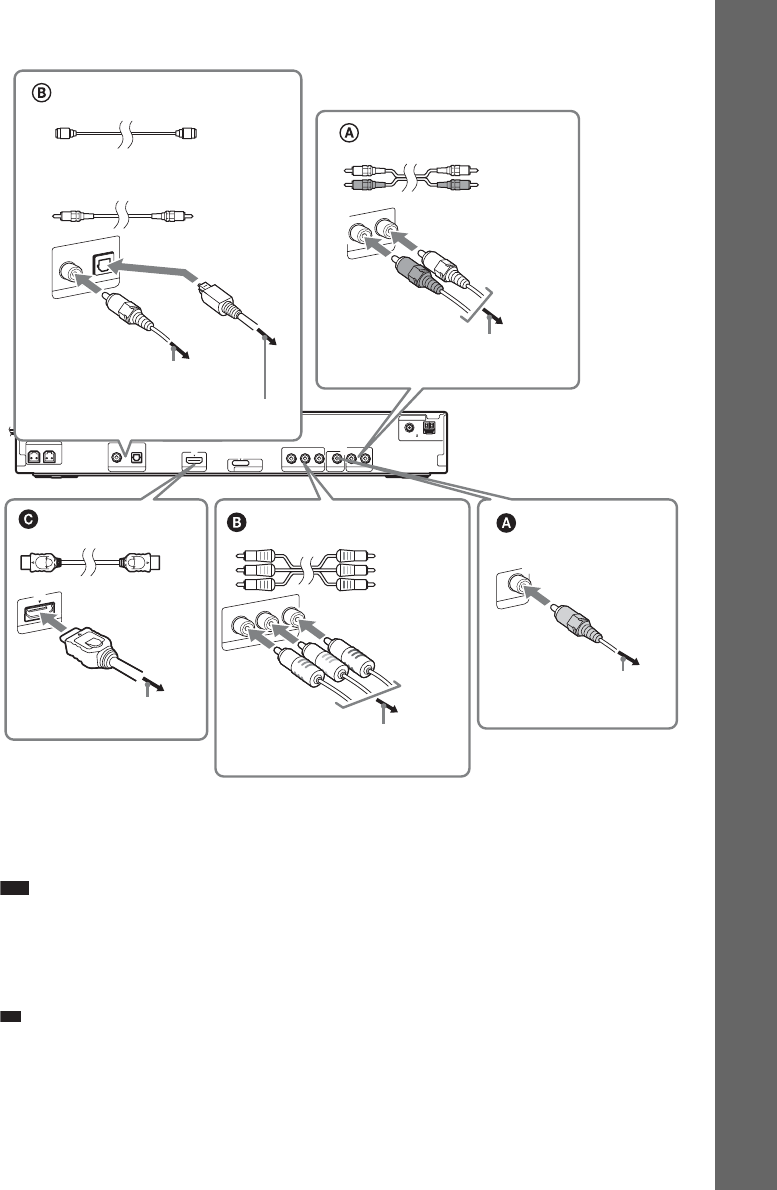

Use the parts as follows:

•Video cord (1)

To listen to TV sound from the six speakers of the system, connect the TV and the system with the

audio cord (not supplied) (A).

For video output to your TV, check the video input jacks of the TV, and select connection method A,

B, or C. Picture quality improves in order from A (standard) to C (HDMI).

When the TV has the digital optical or coaxial output jack, you can improve sound quality by

connecting with the digital cord (B) (DAV-HDZ278 only).

DAV-DZ270

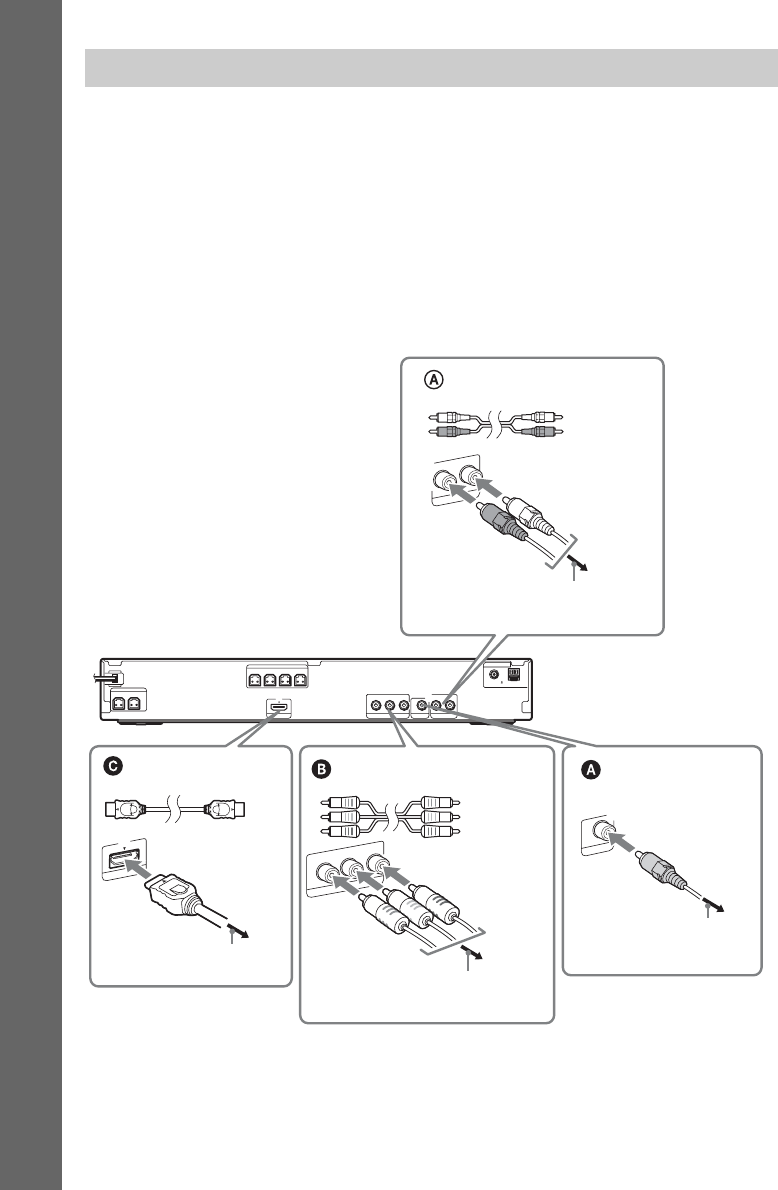

2 Connecting the TV

CENTER SUBWOOFER

AUDIO IN

YLR

FRONT R FRONT L SUR R SUR L

SPEAKER

VIDEO OUT TV/VIDEO

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

HDMI OUT

COMPONENT VIDEO OUT

VIDEO OUT

HDMI OUT

AUDIO IN L

TV/VIDEO

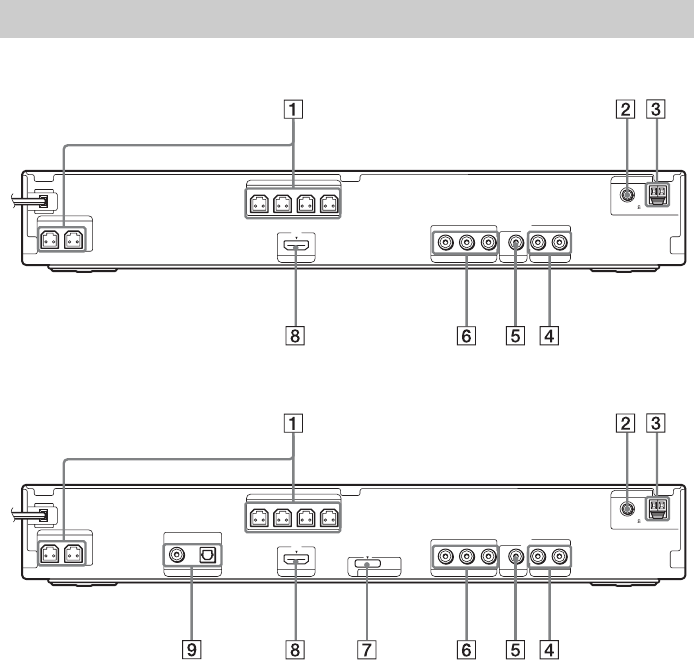

Rear panel

To the COMPONENT VIDEO IN jacks

of the TV

To the HDMI IN jack of the TV

To the VIDEO IN jack of

the TV

To the AUDIO OUT jacks of the TV

Component video cord

(not supplied)*

Video cord

(supplied)

HDMI** cable

(not supplied)

Audio cord

(not supplied)

Green

Blue

Red

White

Red

19GB

Getting Started

DAV-HDZ278

* If your TV accepts progressive format signals, use this connection and set the output signal of the system to

progressive format (page 29).

** HDMI (High-Definition Multimedia Interface)

If your TV has the HDMI jack, use this connection and select the type of output signal (page 29).

Note

• During the “DMPORT” function, video signal is not output from the HDMI OUT and COMPONENT VIDEO OUT

jacks (DAV-HDZ278 only).

• The system can accept both digital and analog signals. Digital signals have priority over analog signals. (COAXIAL

has priority over OPTICAL.) If the digital signal ceases, the analog signal will be processed after 2 seconds. (DAV-

HDZ278 only.)

• You can connect another component, such as a VCR, digital satellite receiver, or PlayStation, to the TV/VIDEO

jacks (A or B*) instead of the TV.

* DAV-HDZ278 only.

CENTER SUBWOOFER

DIGITAL IN

COAXIAL OPTICAL

FRONT R FRONT L SUR R SUR L

SPEAKER

TV/VIDEO HDMI OUT

VIDEO OUT

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN LR

TV/VIDEO

COMPONENT VIDEO OUT

VIDEO OUT

HDMI OUT

DIGITAL IN

COAXIAL OPTICAL

TV/VIDEO

AUDIO IN L

TV/VIDEO

Rear panel

To the COMPONENT VIDEO IN jacks

of the TV

To the HDMI IN jack of the TV

To the VIDEO IN jack of

the TV

To the AUDIO OUT jacks of the TV

Component video cord

(not supplied)*

Video cord

(supplied)

HDMI** cable

(not supplied)

Audio cord

(not supplied)

Green

Blue

Red

White

Red

To the digital coaxial output jack of

the TV

To the digital optical output jack of

the TV

Digital optical cord

(not supplied)

Digital coaxial cord

(not supplied)

20GB

Getting Started

To change the color system (PAL or NTSC) (Asian, Australian, and

Middle Eastern models only)

Depending on the TV to be connected, you may be required to select either PAL or NTSC for the color

system.

The initial setting of the system for Australian and Middle Eastern models is PAL.

The initial setting of the system for Asian models is NTSC.

1Turn off the system by pressing "/1.

2Turn on the system by pressing "/1 while pressing X on the unit.

Each time you perform this operation, the color system toggles between PAL and NTSC.

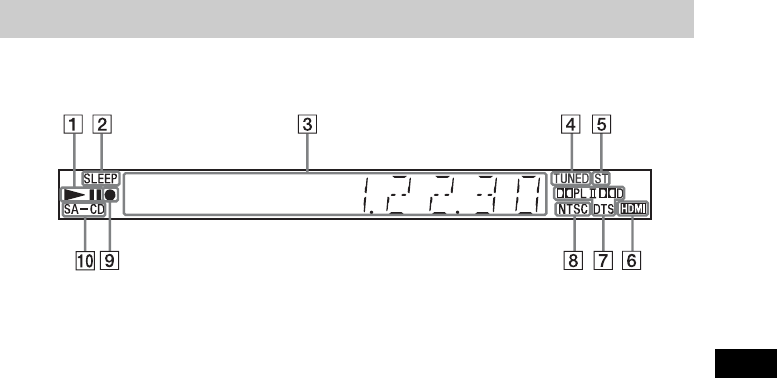

“NTSC” lights up in the front panel display when the color system is set to NTSC.

21GB

Getting Started

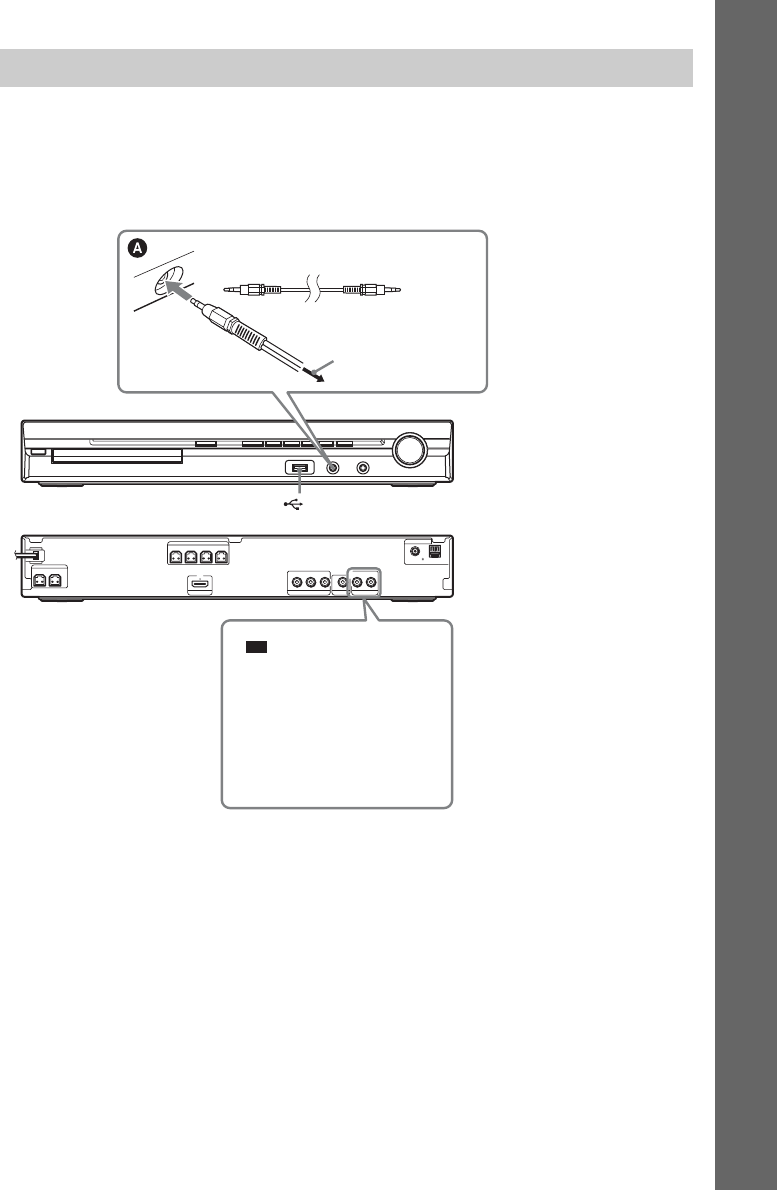

You can enjoy the connected component using the six speakers of the system.

• Portable audio source: A

• DIGITAL MEDIA PORT adapter: B (DAV-HDZ278 only)

DAV-DZ270

3 Connecting the other components

CENTER SUBWOOFER

AUDIO IN

YLR

FRONT R FRONT L SUR R SUR L

SPEAKER

VIDEO OUT TV/VIDEO

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

HDMI OUT

Rear panel

Front panel

(USB) port (See page 67.)

To the portable audio

source

Stereo mini-plug cord

(not supplied)

• You can connect another

component, such as VCR,

instead of the TV. For

connection details, see page

18.

22GB

Getting Started

DAV-HDZ278

To connect the DIGITAL MEDIA PORT adapter

(DAV-HDZ278 only)

Connect a DIGITAL MEDIA PORT adapter (not supplied) to the DMPORT jack. For details, see

“Using the DIGITAL MEDIA PORT Adapter” (page 76).

Note

• Connect the DIGITAL MEDIA PORT adapter so that the V marks are aligned. When disconnecting, pull out while

pressing A.

CENTER SUBWOOFER

DIGITAL IN

COAXIAL OPTICAL

FRONT R FRONT L SUR R SUR L

SPEAKER

TV/VIDEO HDMI OUT

VIDEO OUT

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN LR

TV/VIDEO

DMPORT

DC5V

0.7A MAX

Rear panel

Front panel

DIGITAL MEDIA PORT adapter

(not supplied)

To the portable audio

source

Stereo mini-plug cord

(not supplied)

• You can connect another

component, such as VCR,

instead of the TV. For

connection details, see page

18.

23GB

Getting Started

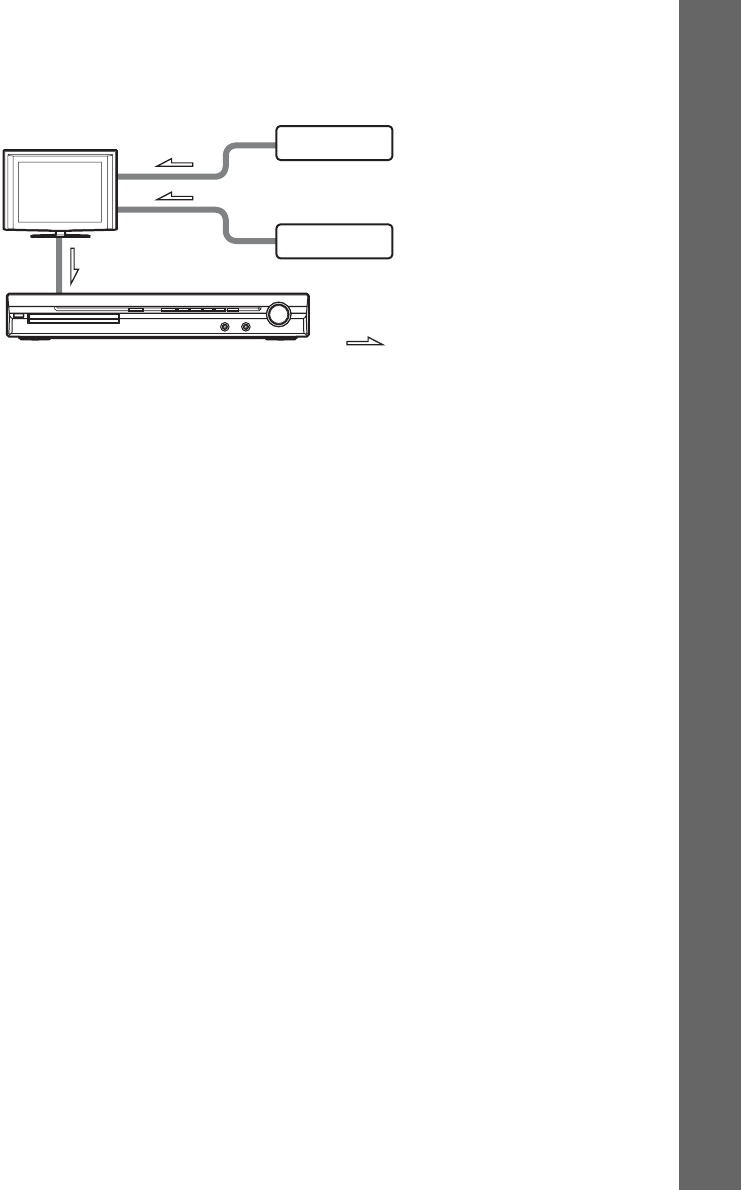

If your TV has multiple audio/video inputs

You can enjoy the sound with the speakers of the system through the connected TV. Connect the

components as follows.

Select the component on the TV. For details, refer to the operating instructions of the TV.

If the TV does not have multiple audio/video inputs, a switcher will be necessary to receive the sound

from more than two components.

System

:Signal flow

VCR, digital satellite receiver

or PlayStation, etc.

VCR, digital satellite receiver

or PlayStation, etc.

24GB

Getting Started

DAV-DZ270

4 Connecting the antenna (aerial)

CENTER SUBWOOFER

AUDIO IN

YLR

FRONT R FRONT L SUR R SUR L

SPEAKER

VIDEO OUT TV/VIDEO

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

HDMI OUT

COAXIAL 75

ANTENNA

Rear panel

AM loop antenna (aerial)

(supplied)

FM wire antenna (aerial)

(supplied)

Note

• Cord (A) or cord (B) can be connected to either

terminal.

25GB

Getting Started

DAV-HDZ278

Note

• Keep the AM loop antenna (aerial) and cord away from the system or other AV components, as noise may result.

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.

• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.

• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM

antenna (aerial) as shown below.

CENTER SUBWOOFER

DIGITAL IN

COAXIAL OPTICAL

FRONT R FRONT L SUR R SUR L

SPEAKER

TV/VIDEO HDMI OUT

VIDEO OUT

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN LR

TV/VIDEO

COAXIAL 75

ANTENNA

Rear panel

AM loop antenna (aerial)

(supplied)

FM wire antenna (aerial)

(supplied)

Note

• Cord (A) or cord (B) can be connected to either

terminal.

COAXIAL 75 AM

ANTENNA

Outdoor FM antenna (aerial) Unit

26GB

Getting Started

Before connecting the AC power cord (mains lead) of the unit to a wall outlet (mains), connect all the

speakers to the unit.

DAV-DZ270

DAV-HDZ278

After connecting the AC power cord (mains lead), the demonstration appears in the front panel display.

Setting the demonstration mode to on/off

1Press [/1 on the unit.

The system turns on.

2Press SYSTEM MENU.

3Press X/x repeatedly until “DEMO” appears in the front panel display, then press or

4Press X/x to select a setting.

• “DEMO ON”: On.

• “DEMO OFF”: Off.

5Press .

The setting is made.

6Press SYSTEM MENU.

The system menu turns off.

• When you purchase the system from new, or if the system is at its factory default settings (ex., after performing

“COLD RESET” (page 85)), you can turn off the demonstration simply by pressing [/1 on the remote.

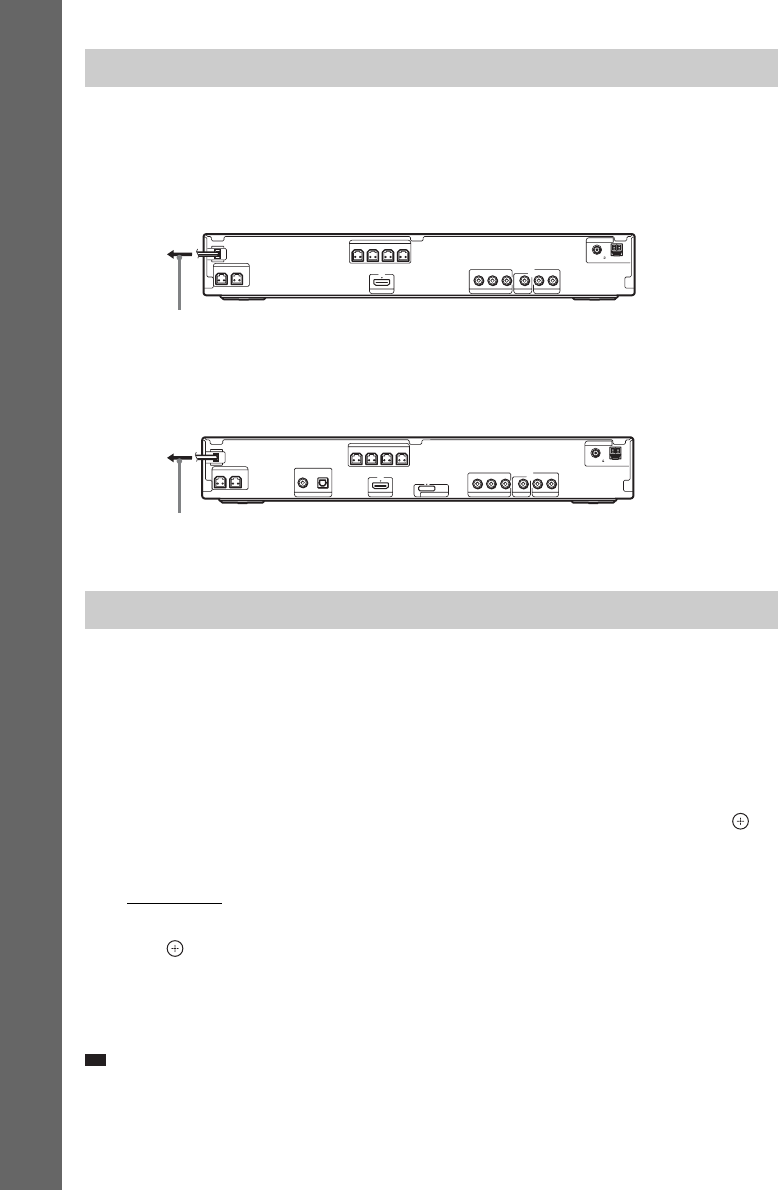

5 Connecting the AC power cord (mains lead)

About the demonstration

CENTER SUBWOOFER

AUDIO IN

YLR

FRONT R FRONT L SUR R SUR L

SPEAKER

VIDEO OUT TV/VIDEO

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

HDMI OUT

Rear panel

To the wall outlet (mains)

CENTER SUBWOOFER

DIGITAL IN

COAXIAL OPTICAL

FRONT R FRONT L SUR R SUR L

SPEAKER

TV/VIDEO HDMI OUT

VIDEO OUT

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN LR

TV/VIDEO

Rear panel

To the wall outlet (mains)

27GB

Getting Started

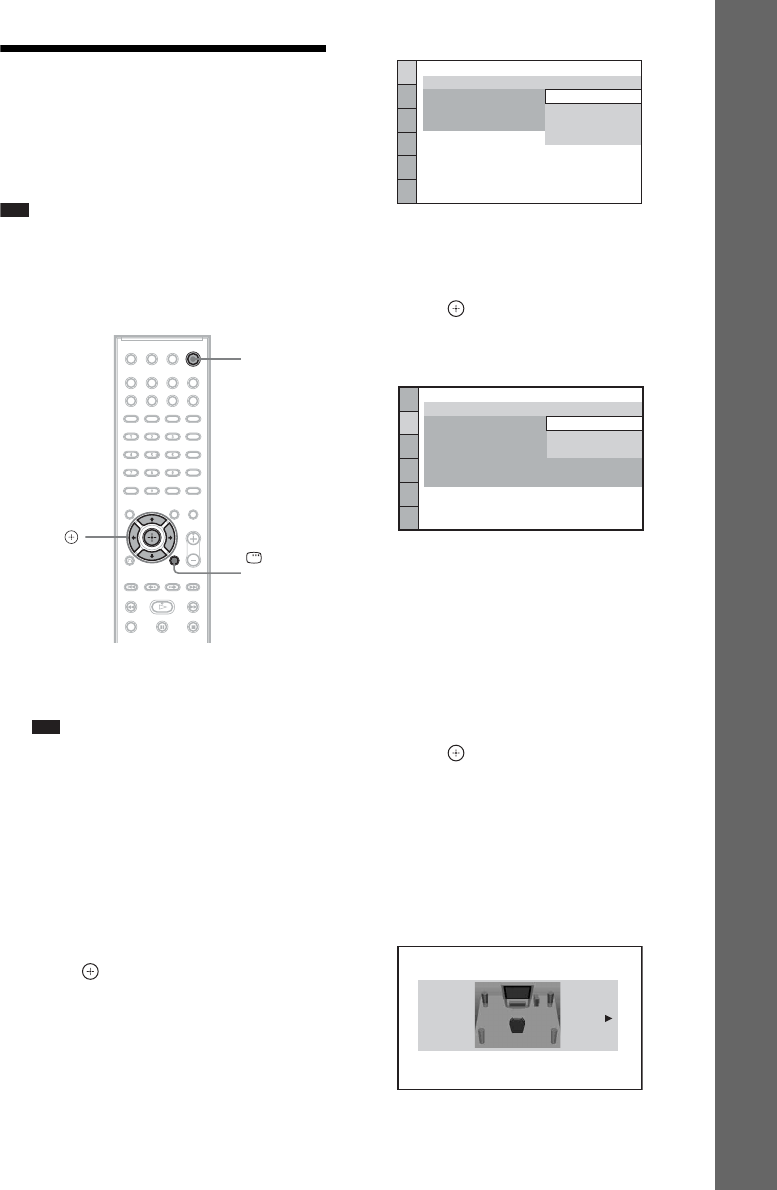

Step 3: Performing the

Quick Setup

Follow the Steps below to make the basic

adjustments for using the system.

Note

• When you connect the system and the TV with the

component video cord (not supplied) or HDMI cable

(not supplied), you need to set the type of video

output for matching your TV. For details, see “Setting

the type of video output to match your TV” (page 29).

1Turn on the TV.

2Press [/1.

Note

• Make sure that the function is set to “DVD”

(page 30).

3Switch the input selector on your TV so

that the signal from the system

appears on the TV screen.

[Press [ENTER] to run QUICK SETUP.]

appears at the bottom of the TV screen. If

this message does not appear, recall the

Quick Setup display (page 28) and perform

again.

4Press without inserting a disc.

The Setup Display for selecting the

language used in the on-screen display

appears.

5Press X/x to select a language.

The system displays the menu and subtitles

in the selected language.

6Press .

The Setup Display for selecting the aspect

ratio of the TV to be connected appears.

7Press X/x to select the setting that

matches your TV type.

xIf you have a wide-screen TV or a 4:3

standard TV with a wide-screen mode

[16:9] (page 54)

xIf you have a 4:3 standard TV

[4:3 LETTER BOX] or [4:3 PAN SCAN]

(page 54)

8Press .

The Setup Display for selecting the speaker

formation appears.

9Press C/c to select the speaker

formation image as the speakers are

actually positioned.

For details, see “Getting Optimal Surround

Sound for a Room” (page 78).

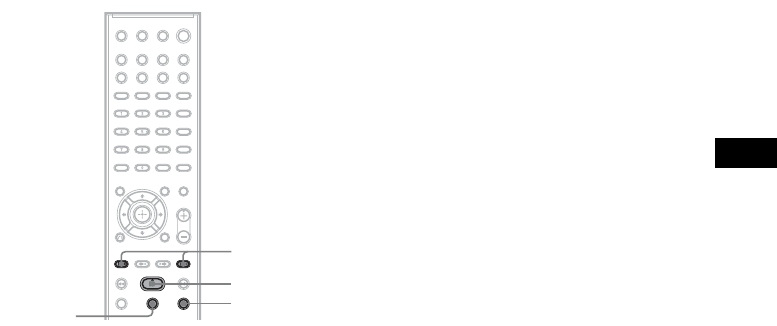

"/1

DISPLAY

C/X/x/c,

LANGUAGE SETUP

MENU:

OSD:

AUDIO:

SUBTITLE:

ENGLISH

FRENCH

SPANISH

PORTUGUESE

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

TV TYPE:

4:3 OUTPUT:

BLACK LEVEL:

PAUSE MODE:

16:9

OFF

AUTO

BLACK LEVEL

(COMPONENT OUT)

16:9

4:3 LETTER BOX

4:3 PAN SCAN

SPEAKER FORMATION

STANDARD

28GB

Getting Started

10 Press .

11 Connect the calibration mic to the

A.CAL MIC jack on the front panel.

Set up the calibration mic at the ear level

using a tripod, etc. (not supplied). The front

of each speaker should face the calibration

mic, and there should be no obstruction

between the speakers and the calibration

mic.

12 Press C/c to select [YES].

Note

• Make sure that the headphones are not

connected to the unit. You cannot operate

following Steps with the headphones connected.

13 Press .

[AUTO CALIBRATION] starts.

Be quiet during the measurement.

Note

• Loud test sound is output when [AUTO

CALIBRATION] starts. You cannot turn the

volume down. Give consideration to children

and neighbors.

• Avoid being in the measurement area and

making noise during the measurement (which

takes about 3 minutes), as it may interfere with

measurement.

14 Unplug the calibration mic and press C/

c to select [YES].

Note

• The environment of the room in which the

system is installed may affect measurements.

• If measurement fails, follow the message then

retry [AUTO CALIBRATION].

15 Press .

Quick Setup is finished. All connections

and setup operations are complete.

To quit the Quick Setup

Press DISPLAY in any Step.

• If you change the position of the speakers, reset the

speaker settings. See “Getting Optimal Surround

Sound for a Room” (page 78) and “Calibrating the

Appropriate Settings Automatically” (page 79).

• If you want to change any of the settings, see “Using

the Setup Display” (page 52).

To recall the Quick Setup display

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

AUDIO IN / A.CAL MIC

Calibration mic

94( 99)

CUSTOM

DVD VIDEO

T 0: 01: 08

1( 1)

QUICK

29GB

Getting Started

4Press X/x to select [QUICK], then press

The Quick Setup display appears.

Depending on the connection of the TV

(page 18), select the type of video output of the

system.

To select the type of video signal

output from the HDMI OUT jack

When you connect the unit and the TV with the

HDMI cable, select the type of video signals

output from the HDMI OUT jack.

For details, refer also to the operating

instructions supplied with the TV/projector, etc.

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

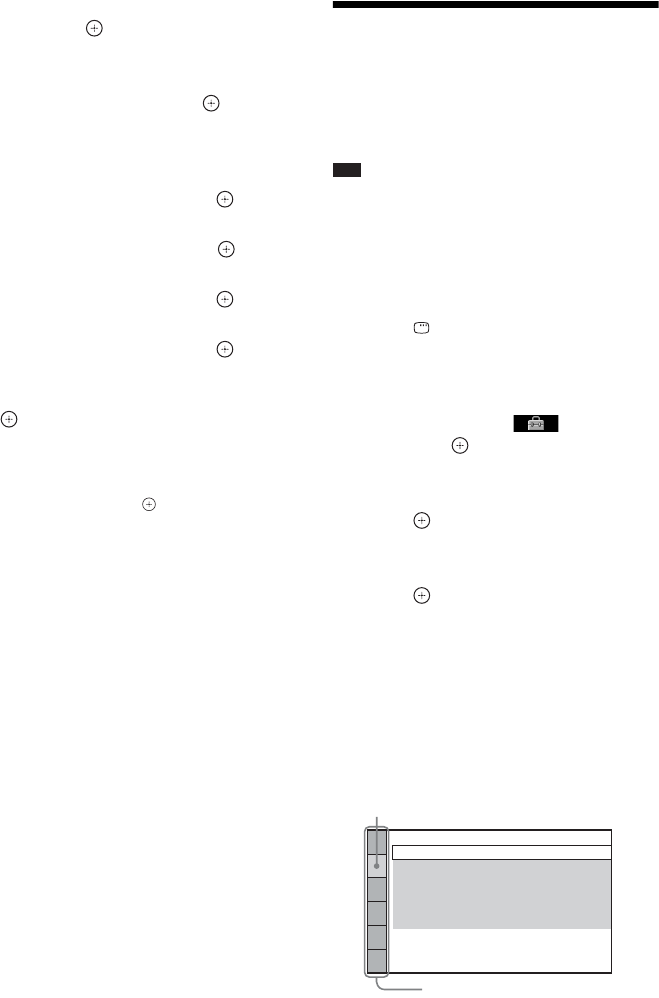

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5Press X/x to select [HDMI SETUP], then

press .

The options for [HDMI SETUP] appear.

6Press X/x to select [HDMI

RESOLUTION], then press .

7Press X/x to select the desired setting,

then press .

• [AUTO (1920

× 1080p)]: The system

outputs the optimal video signal for the

connected TV.

• [1920

× 1080i]: The system outputs 1920

× 1080i* video signals.

• [1280

× 720p]: The system outputs 1280 ×

720p* video signals.

• [720

× 480p]**: The system outputs 720 ×

480p* video signals.

* i: interlace, p: progressive

** Depending on the country model, [720 × 576p]

may appear.

Note

• When “HDMI” lights up in the front panel display,

images other than [720 × 480p] or [720 × 576p] are

stretched vertically.

Does your TV accept progressive

signals?

Progressive is the method for displaying TV

images which reduces flickering and sharpens

the image. To use this method, you need to

connect to a TV that accepts progressive signals.

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5Press X/x to select [VIDEO SETUP],

then press .

The options for [VIDEO SETUP] appear.

6Press X/x to select [PROGRESSIVE

(COMPONENT OUT)], then press .

7Press X/x to select the desired setting,

then press .

[OFF]: The system does not output

progressive signals. Select this setting

when:

– your TV does not accept progressive

signals, or,

– your TV is connected to jacks other than

the COMPONENT VIDEO OUT jacks.

Setting the type of video

output to match your TV

30GB

Getting Started

[ON]: The system outputs progressive

signals. Select this setting when:

– your TV accepts progressive signals,

and,

– the TV is connected to the

COMPONENT VIDEO OUT jacks.

When you select [ON], the confirmation

display appears. Follow the Steps below.

8Press C/c to select [START].

The system outputs the progressive signal

for 5 seconds. Check that the screen is

displayed correctly.

9 Press C/c to select [YES].

The system outputs the progressive signal.

When you select [NO], the system does not

output the progressive signal.

Step 4: Enjoying Sound

from all the Speakers

You can enjoy DVD, TV, or VCR sound from

all the speakers in this system.

1Press FUNCTION +/– repeatedly until

the desired function appears in the

front panel display.

Each time you press FUNCTION +/–, the

function changes as follows.

“DVD” t “TUNER FM” t “TUNER

AM” t “USB”* t “TV/VIDEO” t

“DMPORT”** t “AUDIO” t …

Function Source

“DVD” Disc that is played by the

system

“TUNER FM”/

”TUNER AM”

FM/AM radio (page 61)

“USB”* USB device (page 67)

“TV/VIDEO” TV (or the component that

is connected to the TV/

VIDEO jacks on the rear

panel)

“DMPORT”** DIGITAL MEDIA PORT

adapter (page 76)

“AUDIO” Portable audio source (that

is connected to the AUDIO

IN jack on the front panel)

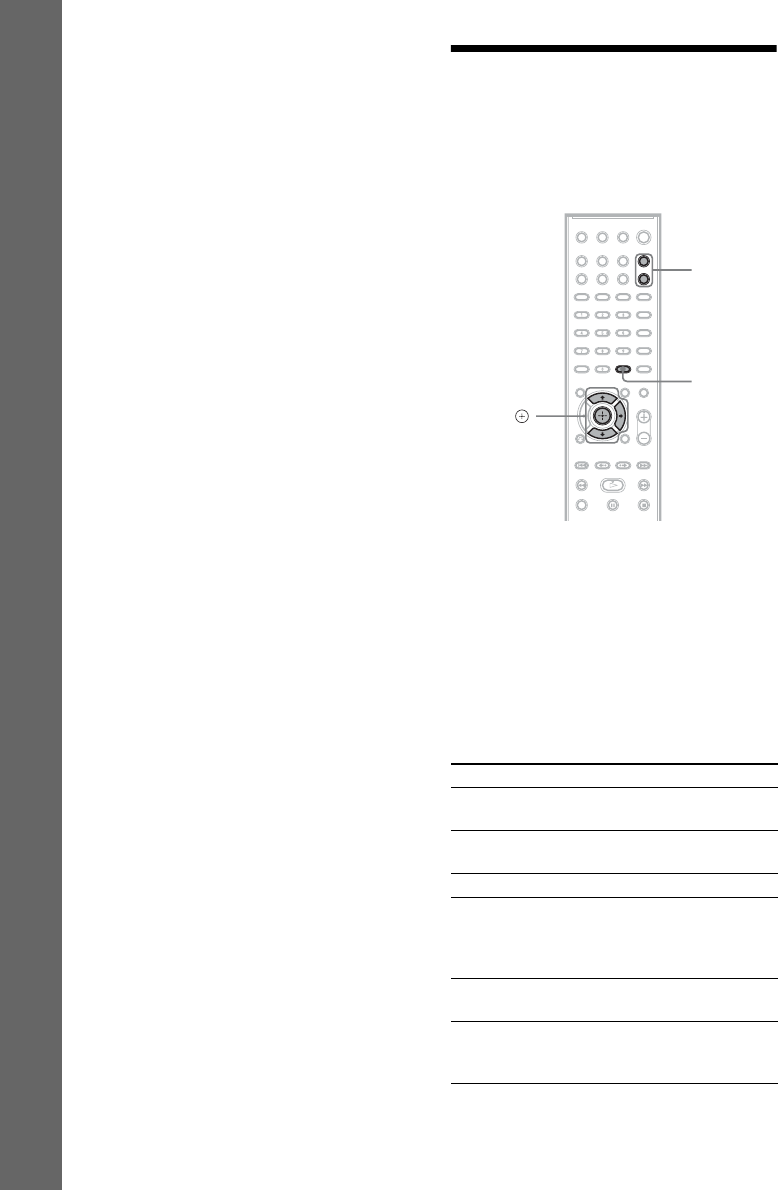

FUNCTION

+/–

SYSTEM

X/x/c,

31GB

Getting Started

* DAV-DZ270 only

** DAV-HDZ278 only

Note

• When you use both the TV/VIDEO (AUDIO

IN) jacks (analog connection) and TV/VIDEO

(COAXIAL or OPTICAL DIGITAL IN) jack

(digital connection) at the same time, the digital

connection takes priority (DAV-HDZ278 only).

2Press SYSTEM MENU.

3Press X/x repeatedly until “DEC.

MODE” appears in the front panel

display, then press or c.

4Press X/x repeatedly until the

decoding mode you want appears in

the front panel display.

When you want to output the TV sound or

stereo sound of a 2 channel source from the

six speakers, select the “PRO LOGIC,”

“PLII MOVIE,” or “PLII MUSIC”

decoding mode.

For details, see page 32.

5Press .

The setting is made.

6Press SYSTEM MENU.

The system menu turns off.

Note

• Depending on your TV, you may need to turn off your

TV’s speaker to enjoy surround sound of the system.

• When listening to audio files using a portable audio

source, you can enhance the sound.

Press FUNCTION +/– to select “AUDIO.” Connect

the portable audio source. Select “A.F.D. STD” for

“DEC. MODE.”

To cancel, select other than “A.F.D. STD.”

Distortion may occur when you listen to a

component connected to the TV/VIDEO jacks

on the rear panel, or to the AUDIO IN jack on

the front panel. Distortion is not a malfunction

and will depend on the component connected.

To prevent distortion, reduce the input level on

the unit.

1Press FUNCTION +/– repeatedly until

“TV/VIDEO” or “AUDIO” appears in the

front panel display.

2Press SYSTEM MENU.

3Press X/x repeatedly until

“ATTENUATE” appears in the front

panel display, then press or c.

4Press X/x to select a setting.

• “ATT ON”: You can attenuate the input

level. The output level is changed.

• “ATT OFF”: Normal input level.

5Press .

The setting is made.

6Press SYSTEM MENU.

The system menu turns off.

Changing the input level of the

sound from connected

components

32GB

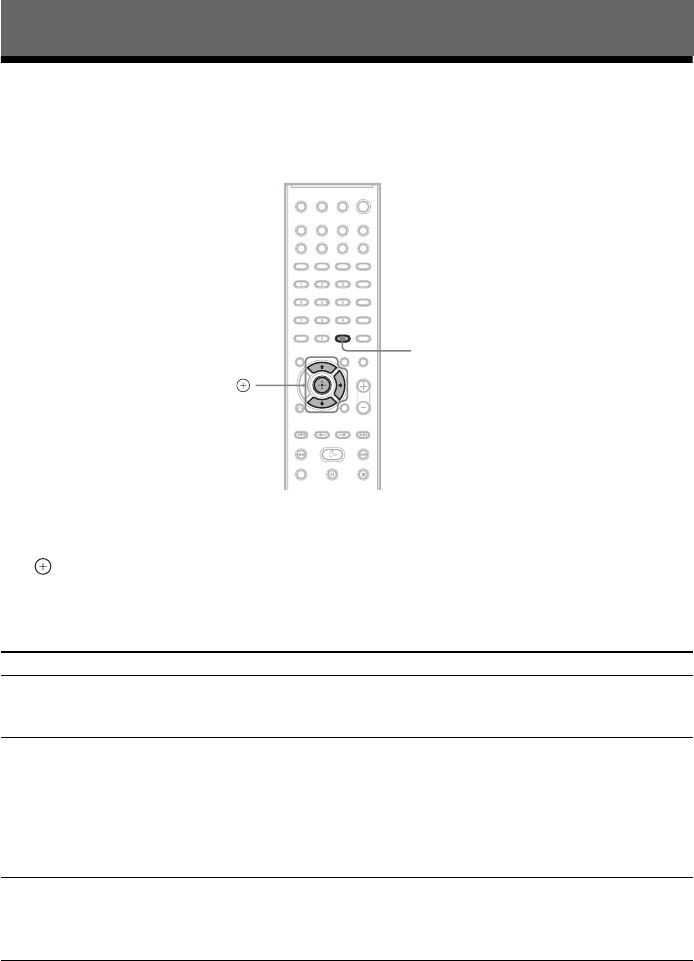

Enjoying Surround Sound by Using Decoding Mode

You can enjoy surround sound simply by selecting one of the system’s pre-programmed decoding

modes. They bring exciting and powerful sound of movie theaters into your home.

1Press SYSTEM MENU.

2Press X/x repeatedly until “DEC. MODE” appears in the front panel display, then press

or c.

3Press X/x repeatedly until the decoding mode you want appears in the front panel

display.

Sound Adjustment

Display Decoding mode Effect

“A.F.D. STD” AUTO FORMAT

DIRECT

STANDARD

Presents sound as it was recorded/encoded.

Depending on the source, the speakers that output sound will vary.

“A.F.D. MULTI” AUTO FORMAT

DIRECT MULTI

2 channel source: Sound that is recorded in 2 channel (front left and

right channel) is also assigned to the surround left and right channel.

This mode outputs sound from the front left and right speakers,

surround left and right speakers, and subwoofer. The center speaker

does not output any sound.

Multi channel source: Depending on the source, speakers that output

the sound will vary.

“PRO LOGIC” Dolby Pro Logic Performs Pro Logic decoding to the input signal and simulates

surround sound from 2 channel sources.

This mode outputs sound from all the speakers and subwoofer. Sound

may not be output from all speakers depending on the source.

SYSTEM

X/x/c,

Sound Adjustment

33GB

4Press .

The setting is made.

5Press SYSTEM MENU.

The system menu turns off.

To turn the surround effect off

Select “A.F.D. STD” or “2CH STEREO” for “DEC. MODE.”

Note

• When the input signal is multi channel source, “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are canceled

and the multi channel source is output directly.

• When the bilingual broadcast sound is input, “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are not effective.

• You cannot select the decoding mode when the unit is reading the files in the USB device or recording/copying

songs (DAV-DZ270 only).

• Depending on the input stream, the decoding mode may not by effective.

• When you select “A.F.D. MULTI,” the surround or stereo effect may not be effective. In this case, select “A.F.D.

STD,” “PRO LOGIC,” “PLII MOVIE,” or “PLII MUSIC.”

“PLII MOVIE” Dolby Pro Logic II

MOVIE

Performs Pro Logic II movie mode decoding to the input signal and

produces five full-bandwidth output channels from 2 channel sources.

This setting is ideal for watching videos of overdubbed or old movies.

This mode outputs sound from all the speakers and subwoofer. Sound

may not be output from all speakers depending on the source.

“PLII MUSIC” Dolby Pro Logic II

MUSIC

Performs Pro Logic II music mode decoding to the input signal and

produces five full-bandwidth output channels from 2 channel sources.

This setting is ideal for normal stereo sources such as a CD.

This mode outputs sound from all the speakers and subwoofer. Sound

may not be output from all speakers depending on the source.

“2CH STEREO” 2 CHANNEL

STEREO

Outputs the sound from the front left and right speakers and

subwoofer. Multi channel surround formats are downmixed to 2

channels.

“HP 2CH” HEADPHONE

2 CHANNEL

STEREO

Outputs the sound from headphone left and right. Multi channel

surround formats are downmixed to 2 channels.

“HP VIRTUAL” HEADPHONE

VIRTUAL

Outputs the sound as surround from headphone left and right. This

mode is effective only when a multi channel source is played.

Display Decoding mode Effect

34GB

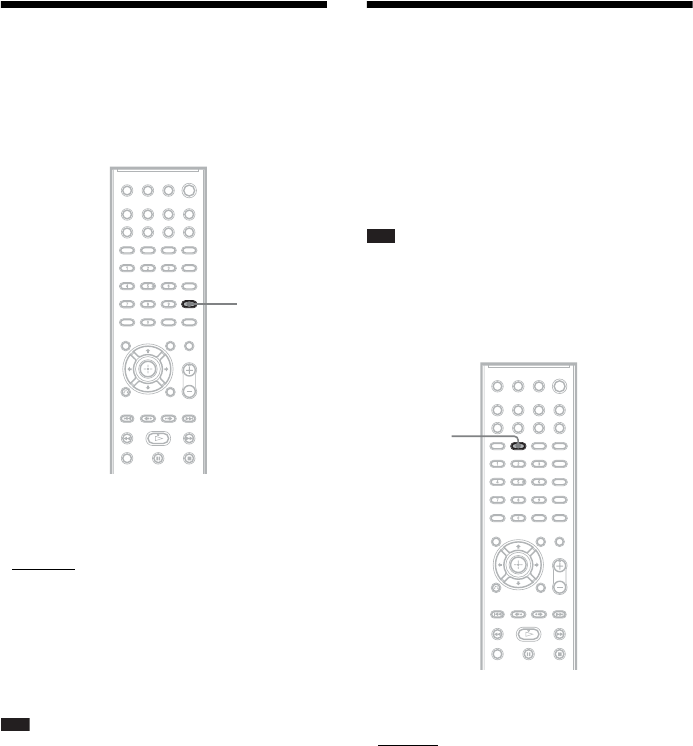

Selecting the Sound

Mode

You can select a suitable sound mode for movies

or music.

Press SOUND MODE repeatedly during

playback until the desired mode appears in

the front panel display.

• “AUTO”: The system selects “MOVIE” or

“MUSIC” automatically to produce the sound

effect depending on the disc.

• “MOVIE”: The system provides the sound for

movies.

• “MUSIC”: The system provides the sound for

music.

Note

• You cannot operate these setup items when you

connect headphones to the unit.

Enjoying Multiplex

Broadcast Sound

(DUAL MONO)

(DAV-HDZ278 only)

You can enjoy multiplex broadcast sound when

the system receives or plays the Dolby Digital

multiplex broadcast signal.

Note

• To receive the Dolby Digital signal, you need to

connect a TV or other component to the unit with an

optical or coaxial digital cord (page 18) and set the

digital output mode of the TV or other component to

Dolby Digital.

Press AUDIO repeatedly until the desired

signal appears in the front panel display.

•“MAIN”: Sound of the main language will be

output.

• “SUB”: Sound of the sub language will be

output.

• “MAIN+SUB”: Mixed sound of both the main

and sub languages will be output.

SOUND

MODE

AUDIO

Disc

35GB

Playing a Disc

Depending on the DVD VIDEO or VIDEO CD,

some operations may be different or restricted.

Refer to the operating instructions supplied with

your disc.

1Turn on your TV.

2Switch the input selector on the TV to

this system.

3Press "/1.

The system turns on.

Unless the system is set to “DVD,” press

FUNCTION +/– to select “DVD.”

4Press A.

5Load a disc.

Place one disc on the tray, and then press A.

Note

• When you play an 8 cm disc, place it on the

inner circle of the tray. Be careful that the disc is

not skewed on the inner circle of the tray.

• Do not forcibly press the disc tray closed with

your finger, as this may cause malfunction.

• Do not place more than one disc on the tray.

6Press H.

The system starts playback (continuous

play).

7Adjust the volume by using VOLUME +/

– on the remote or the VOLUME control

on the unit.

The volume level appears on the TV screen

and in the front panel display.

Note

• Depending on the system status, the volume level

may not appear on the TV screen.

• When you set the Control for HDMI function to on,

the TV that is connected to the system with an HDMI

cable (not supplied) can be sync-operated with the

system. For details, see “Using the Control for HDMI

Function for “BRAVIA” Sync” (page 64).

• When you connect the system and TV with an HDMI

cable (not supplied), you can operate them simply,

using the Control for HDMI function. For details, see

“Using the Control for HDMI Function for

“BRAVIA” Sync” (page 64).

To turn the system off

Press "/1 while the system is on. The system

enters standby mode.

To save power in standby mode

Press "/1 while the system is on.

To enter power saving mode, make sure that the

system is in the following status.

– “DEMO” is set to “OFF” (page 26).

Disc

"/1

Disc tray

FUNCTION

Adjust the volume

Connect

headphones

"/1

FUNCTION

+/–

./>

MUTING

VOLUME +/–

/m/

STEP

36GB

– [CONTROL FOR HDMI] is set to [OFF]

(page 64).

To use the headphones

Connect the headphones to PHONES jack on the

unit. The sound of the system is muted.

Other operations

1)Except for JPEG image files.

2)Scan speeds may differ with some discs.

3)DVD VIDEO, DVD-R, DVD-RW, VIDEO CD only.

4)Except for VIDEO CDs.

5)You cannot search for a still picture on a DVD-VR.

6)For a DATA CD/DATA DVD, this function works

only for DivX video files (except for United

Kingdom and North American models).

7)DVD VIDEO/DVD-RW/DVD-R only.

The button can be used except for DivX video files

(except for United Kingdom and North American

models).

8)DVD VIDEO/DVD-RW/DVD-R/DVD+RW/

DVD+R only.

The button can be used except for DivX video files

(except for United Kingdom and North American

models).

Note

• You may not be able to use the instant replay or

instant advance function with some scenes.

To change the angles

If various angles (multi-angles) for a scene are

recorded on a DVD VIDEO, you can change the

viewing angle.

Press ANGLE during playback to select the

desired angle.

Note

• Depending on the DVD VIDEO, you may not be able

to change the angle even if multi-angles are recorded

on the DVD VIDEO.

To Press

Stop x

Pause X

Resume play after pause X or H

Go to the next chapter,

track, or scene1)

Go back to the

preceding chapter,

track, or scene1)

Turn off the sound

temporarily

MUTING.

To cancel, press it again or

VOLUME + to adjust the

sound volume.

Stop play and remove

the desired disc

A on the unit.

Locate a point quickly

by playing a disc in fast

forward or fast reverse

(Scan)1)2)

M/ or /m while

playing a disc. Each time

you press M/ or /

m during scan, the

playback speed changes.

To return to normal speed,

press H. Actual speeds

may differ with some discs.

Watch frame by frame

(Slow-motion Play)3)

M/ or /m4)

while the system is in pause

mode. Each time you press

M/ or /m4)

during Slow-motion Play,

the playback speed

changes. Two speeds are

available. To return to

normal playback speed,

press H.

Play one frame at a time

(Freeze Frame)3)5)6)

STEP to go to the next

frame while the system is in

pause mode. Press STEP

to go to the preceding

frame while the system is in

pause mode (DVD VIDEO/

DVD-R/DVD-RW only).

To return to normal

playback, press H.

Replay the previous

scene (10 seconds

before)7)

(instant replay) during

playback.

Briefly fast forward the

current scene (30

seconds after)8)

(instant advance)

during playback.

Displaying multi-angles and

subtitles

To Press

Disc

37GB

To display the subtitles

* *

* Except for United Kingdom and North American

models.

If subtitles are recorded on a disc, you can turn

the subtitles on/off during playback. If

multilingual subtitles are recorded on the disc,

you can change the subtitle language during

playback, or turn the subtitles on/off whenever

you want.

Press SUBTITLE during playback to select

the desired subtitle language.

Note

• Depending on the DVD VIDEO, you may not be able

to change the subtitles even if multilingual subtitles

are recorded on the disc. You also may not be able to

turn them off.

• You can change the subtitles if the DivX video file

has an “.AVI” or “.DIVX” extension and contains

subtitle information within the same file (except for

United Kingdom and North American models).

When the system is playing a DVD VIDEO or

DATA CD/DATA DVD (DivX video files*)

recorded in multiple audio formats (PCM,

Dolby Digital, MPEG audio, or DTS), you can

change the audio format. If the DVD VIDEO is

recorded with multilingual tracks, you can also

change the language.

With a VIDEO CD, CD, DATA CD, or DATA

DVD, you can select the sound from the right or

left channel and listen to the sound of the

selected channel through both the right and left

speakers.

You cannot change the sound for a Super Audio

CD.

* Except for United Kingdom and North American

models.

Press AUDIO repeatedly during playback to

select the desired audio signal.

xDVD VIDEO

Depending on the DVD VIDEO, the choice of

language varies.

When 4 digits are displayed, they indicate a

language code. See “Language Code List”

(page 102) to confirm which language the code

represents. When the same language is

displayed two or more times, the DVD VIDEO

is recorded in multiple audio formats.

xDVD-VR

The types of sound tracks recorded on a disc are

displayed.

Example:

•[1: MAIN]

(main sound)

• [1: SUB] (sub sound)

• [1: MAIN+SUB] (main and sub sound)

•[2: MAIN]

•[2: SUB]

•[2: MAIN+SUB]

Note

• [2: MAIN], [2: SUB], and [2: MAIN+SUB] do not

appear when one audio stream is recorded on the disc.

xVIDEO CD/CD/DATA CD (MP3 file)/DATA

DVD (MP3 file)

•[STEREO]: The standard stereo sound.

• [1/L]: The sound of the left channel

(monaural).

• [2/R]: The sound of the right channel

(monaural).

xDATA CD (DivX video file) /DATA DVD

(DivX video file) (Except for United

Kingdom and North American models)

The choice of DATA CD or DATA DVD audio

signal formats differ, depending on the DivX

video file contained on the disc. The format is

shown in the display.

xSuper VCD

• [1:STEREO]: The stereo sound of the audio

track 1.

• [1:1/L]: The sound of the left channel of the

audio track 1 (monaural).

• [1:2/R]: The sound of the right channel of the

audio track 1 (monaural).

• [2:STEREO]: The stereo sound of the audio

track 2.

• [2:1/L]: The sound of the left channel of the

audio track 2 (monaural).

• [2:2/R]: The sound of the right channel of the

audio track 2 (monaural).

Changing the sound

38GB

Note

• While the system is playing a Super VCD on which

the audio track 2 is not recorded, no sound will come

out when you select [2:STEREO], [2:1/L], or [2:2/R].

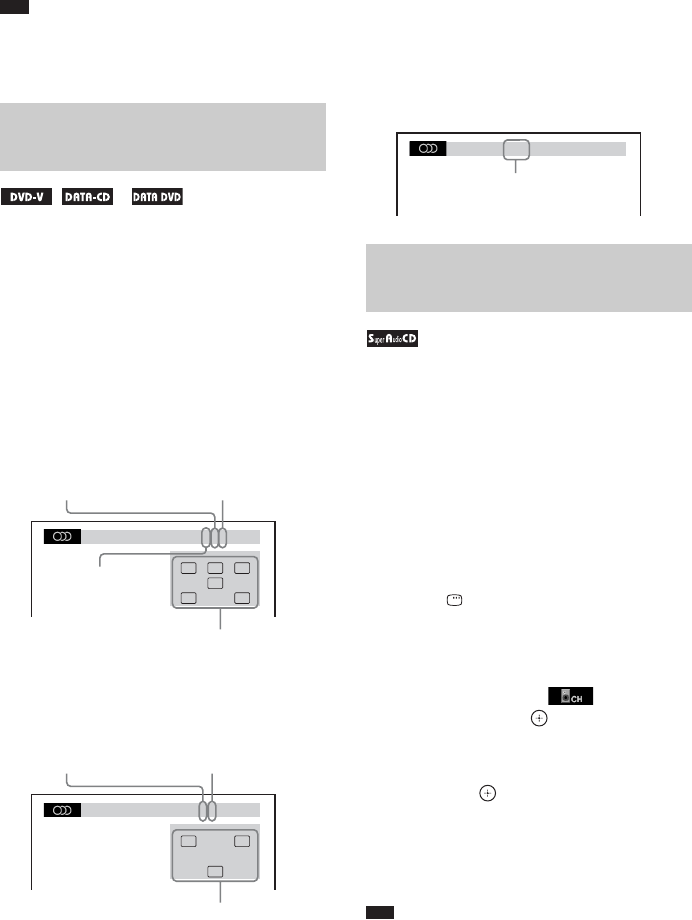

If you press AUDIO repeatedly during

playback, the format of the current audio signal

(PCM, Dolby Digital, DTS, etc.) appears as

shown below.

xDVD

Example:

Dolby Digital 5.1 channel

Example:

Dolby Digital 3 channel

xDATA CD (DivX video file)/DATA DVD

(DivX video file) (Except for United

Kingdom and North American models)

Example:

MP3 audio

You can play the Super Audio CD (page 101) by

selecting the playback area.

To select a playback area on a 2

channel + Multi-channel Super

Audio CD

Some Super Audio CDs consist of a 2 channel

playback area and a multi-channel playback

area. You can select the playback area you want

to listen to.

1Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

2Press X/x to select [MULTI/

2CH], then press .

The options for [MULTI/2CH] appear.

3Press X/x to select the desired setting

and press .

• [MULTI]: You can play the multi-channel

playback area.

• [2CH]: You can play the 2 channel

playback area.

Note

• You cannot change the playback area during

playback.

Checking the audio signal

format

* *

* Except for United Kingdom and North American

models.

1: ENGLISH

DOLBY DIGITAL 3 / 2 .1

LFE

CL R

LS RS

Surround (L/R)

Front (L/R) +

Center

LFE (Low

Frequency Effect)

Currently playing program format

1:SPANISH

DOLBY DIGITAL 2 / 1

L R

Front (L/R)

Surround

(Monaural)

Currently playing program format

Selecting a playback area for a

Super Audio CD

1:MP3 128k

Bit rate

Disc

39GB

To select a playback layer when

playing a hybrid Super Audio CD

Some Super Audio CDs consist of an HD layer

and a CD layer. You can select the playback

layer you want to listen to.

Note

• When the Super Audio CD does not have the HD

layer, you cannot select the playback layer.

1Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

2Press X/x to select [SUPER

AUDIO CD/CD LAYER], then press .

The options for [SUPER AUDIO CD/CD

LAYER] appear.

3Press X/x to select the desired setting

and press .

• [SUPER AUDIO CD]: You can play the

HD layer.

When the system is playing a HD layer,

“SA-CD” lights up in the front panel

display

• [CD]: You can play the CD layer.

When the system is playing a CD layer,

“CD” lights up in the front panel display.

Note

• Each play mode function works only within the

selected layer or playback area.

• When you select a CD layer, you cannot change a

playback area.

• Super Audio CD audio signals are not output from the

HDMI OUT jack.

With PBC (Playback Control) functions, you

can enjoy simple interactive operations, search

functions, and other such operations.

PBC playback allows you to play a VIDEO CD

interactively by following the menu on the TV

screen.

1Start playing a VIDEO CD with PBC

functions.

The menu for your selection appears.

2Select the item number you want using

the number buttons.

3Press .

4Follow the instructions in the menu for

interactive operations.

Refer to the operating instructions supplied

with the disc, as the operating procedure

may differ depending on the VIDEO CD.

To go back to the menu

Press O RETURN.

Note

• Depending on the VIDEO CD, [Press ENTER] in

Step 3 may appear as [Press SELECT] in the

operating instructions supplied with the disc. In this

case, press H.

• To play without using the PBC function, press ./

> or the number buttons while the system is in stop

mode to select a track, then press H or . The

system starts playback. You cannot play still pictures

such as a menu. To return to PBC playback, press x

twice, then press H.

When you stop the disc, the system remembers

the point where you pressed x and “RESUME”

appears in the front panel display. As long as

you do not remove the disc, Resume Play will

work even if the system is set to standby mode

by pressing "/1.

1While playing a disc, press x to stop

playback.

“RESUME” appears in the front panel

display.

2Press H.

The system starts playback from the point

where you stopped the disc in Step 1.

Playing a VIDEO CD with PBC

functions (Ver.2.0)

(PBC Playback)

Resuming playback from the

point where you stopped the disc

(Resume Play)

40GB

Note

• Depending on where you stop the disc, the system

may not resume playback from exactly the same

point.

• The point where you stopped playing may be cleared

when:

– you eject the disc.

– the system enters standby mode (DATA CD/

DATA DVD only).

– you change or reset the settings on the Setup

Display.

– you change the parental control level.

– you change the function by pressing FUNCTION

+/–.

– you disconnect the AC power cord (mains lead).

• For a DVD-VR, VIDEO CD, Super Audio CD, CD,

DATA CD, or DATA DVD, the system remembers

the resume playback point for the current disc.

• Resume Play does not work during Program Play and

Shuffle Play.

• This function may not work properly with some

discs.

• To play from the beginning of the disc, press x twice,

then press H.

To enjoy a disc that is played

before by resume playback

(Multi-disc Resume)

This system recalls the point where you stopped

the disc the last time it was played and resumes

playback from that point the next time you insert

the same disc. When the resume playback

memory is full, the resume playback point for

the earliest disc is deleted.

To activate this function, set [MULTI-DISC

RESUME] in [SYSTEM SETUP] to [ON]. For

details, see “[MULTI-DISC RESUME] (DVD

VIDEO/VIDEO CD only)” (page 58).

Note

• This system can store at least 10 resume playback

points.

• If [MULTI-DISC RESUME] in [SYSTEM SETUP]

is set to [OFF] (page 58), the resume point is cleared

when you change the function by pressing

FUNCTION +/–.

• To play from the beginning of the disc, press x twice,

then press H.

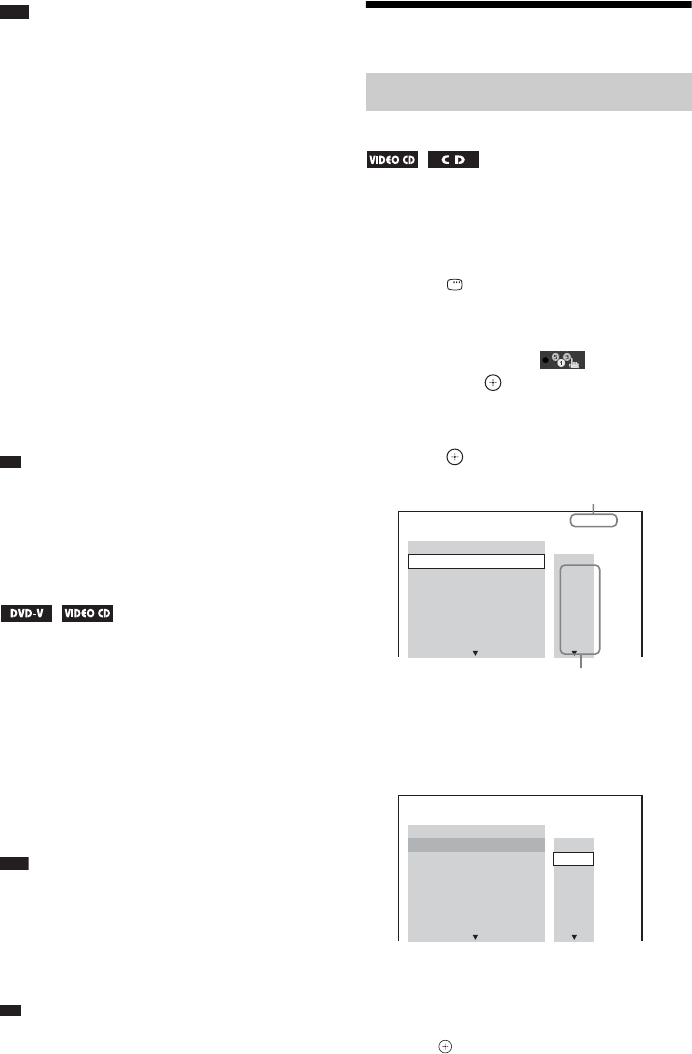

Using Play Mode

You can play the contents of a disc in the order

you want by arranging the order of the tracks on

the disc to create your own program. You can

program up to 99 tracks.

1Press DISPLAY.

The Control Menu display appears on the

TV screen.

2Press X/x to select [PROGRAM],

then press .

The options for [PROGRAM] appear.

3Press X/x to select [SET t], then

press .

4Press c.

The cursor moves to the track row [T] (in

this case, [01]).

5Select the track you want to program.

For example, select track [02].

Press X/x to select [02] under [T], then

press .

Creating your own program

(Program Play)

PROGRAM 0: 00:00

1. TRACK – – – –

– –

ALL CLEAR

2. TRACK

3. TRACK

7. TRACK

6. TRACK

5. TRACK

4. TRACK

Tracks recorded on a disc

Total time of the programmed tracks

PROGRAM 0: 00:00

2. TRACK

1. TRACK – – – –

– –

ALL CLEAR

3. TRACK

7. TRACK

6. TRACK

5. TRACK

4. TRACK

Disc

41GB

6To program other tracks, repeat Steps

4 to 5.

The programmed tracks are displayed in the

selected order.

7Press H to start Program Play.

Program Play starts.

When the program ends, you can restart the

same program again by pressing H.

To return to normal play

Press CLEAR while the display for the program

setting is not displayed on the TV screen, or

select [OFF] in Step 3. To play the same

program again, select [ON] in Step 3 and press

To turn off the Control Menu

display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

To change or cancel a program

1Follow Steps 1 to 3 of “Creating your

own program.”

2Press X/x to select the program

number of the track you want to

change or cancel.

If you want to delete the track from the

program, press CLEAR.

3Follow Step 5 for new programming.

To cancel a program, select [--] under [T],

then press .

To cancel all of the tracks in the

programmed order

1Follow Steps 1 to 3 of “Creating your

own program.”

2Press X and select [ALL CLEAR].

3Press .

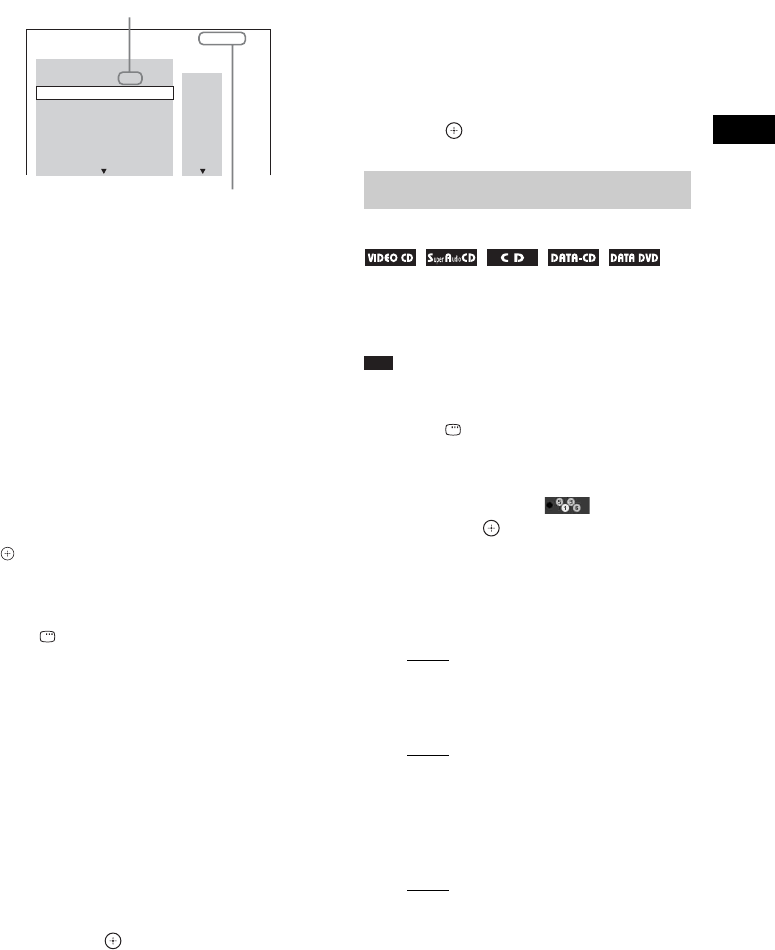

You can play the contents on a disc in random

order. Subsequent Shuffle Play may produce a

different playing order.

Note

• Same song may be played repeatedly when you are

playing MP3 files.

1Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

2Press X/x to select [SHUFFLE],

then press .

The options for [SHUFFLE] appear.

3Press X/x to select the item to be

shuffled.

xVIDEO CD/Super Audio CD/CD

•[OFF]: Off.

• [TRACK]: You can shuffle tracks on the

disc.

xDuring Program Play

•[OFF]: Off.

• [ON]: You can shuffle tracks selected in

Program Play.

xDATA CD (except for DivX video

file*)/DATA DVD (except for DivX video

file*)

•[OFF]: Off.

• [ON (MUSIC)]: You can shuffle MP3

files in the folder on the current disc.

When no folder is selected, the first folder

will play in random order.

* Except for United Kingdom and North

American models.

PROGRAM 0: 03:51

1. TRACK 02 – –

– –

ALL CLEAR

2. TRACK

3. TRACK

7. TRACK

6. TRACK

5. TRACK

4. TRACK

Selected track

Total time of the programmed tracks Playing in random order

(Shuffle Play)

42GB

4Press .

Shuffle Play starts.

To return to normal play

Press CLEAR, or select [OFF] in Step 3.

To turn off the Control Menu

display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

Note

• You cannot use Shuffle Play with a VIDEO CD or

Super VCD with PBC playback.

You can play the contents on a disc repeatedly.

You can use a combination of Shuffle Play or

Program Play modes.

1Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

2Press X/x to select [REPEAT],

then press .

The options for [REPEAT] appear.

3Press X/x to select the item to be

repeated.

xDVD VIDEO/DVD-VR

•[OFF]: Off.

• [DISC]: You can repeat all of the titles on

the disc.

• [TITLE]: You can repeat the current title

on a disc.

• [CHAPTER]: You can repeat the current

chapter.

xVIDEO CD/Super Audio CD/CD

•[OFF]: Off.

• [DISC]: You can repeats all of the tracks

on the disc.

• [TRACK]: You can repeat the current

track.

xDATA CD/DATA DVD

• [OFF]: Off.

• [DISC]: You can repeat all of the folders

on the disc.

• [FOLDER]: You can repeat the current

folder.

• [TRACK] (MP3 files only): You can

repeat the current file.

• [FILE] (DivX video files only): You can

repeat the current file (except for United

Kingdom and North American models).

4Press .

The item is selected.

To return to normal play

Press CLEAR, or select [OFF] in Step 3.

To turn off the Control Menu

display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

Note

• You cannot use Repeat Play with a VIDEO CD or

Super VCD with PBC playback.

• When the system is playing a DATA CD/DATA

DVD which contains MP3 files and JPEG image

files, and their playing time is not the same, the audio

sound will not match the image.

• When [MODE (MUSIC, IMAGE)] is set to [IMAGE]

(page 46), you cannot select [TRACK].

Playing repeatedly

(Repeat Play)

Disc

43GB

Searching/Selecting a

Disc

A DVD is divided into a lot of sections, which

make up a picture or music feature. These

sections are called “titles.” When you play a

DVD which contains several titles, you can

select the title you want using DVD TOP

MENU.

When you play a DVD that allows you to select

items such as the language for the subtitles and

the language for the sound, select these items

using DVD MENU.

1Press DVD TOP MENU or DVD MENU.

The disc’s menu appears on the TV screen.

The contents of the menu vary depending

on the disc.

2Press C/X/x/c or the number buttons to

select the item you want to play or

change.

3Press .

To display the DVD’s menu on the

Control Menu display

1Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

2Press X/x to select [DISC

MENU], then press .

The options for [DISC MENU] appear.

3Press X/x to select [MENU] or [TOP

MENU].

4Press .

To turn off the Control Menu

display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

This function is only available for DVD-VRs

with a playlist created.

1Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

2Press X/x to select [ORIGINAL/

PLAY LIST], then press .

The options for [ORIGINAL/PLAY LIST]

appear.

3Press X/x to select a setting.

• [PLAY LIST]: You can play the titles

created from [ORIGINAL] for editing.

• [ORIGINAL]: You can play the titles

originally recorded.

4Press .

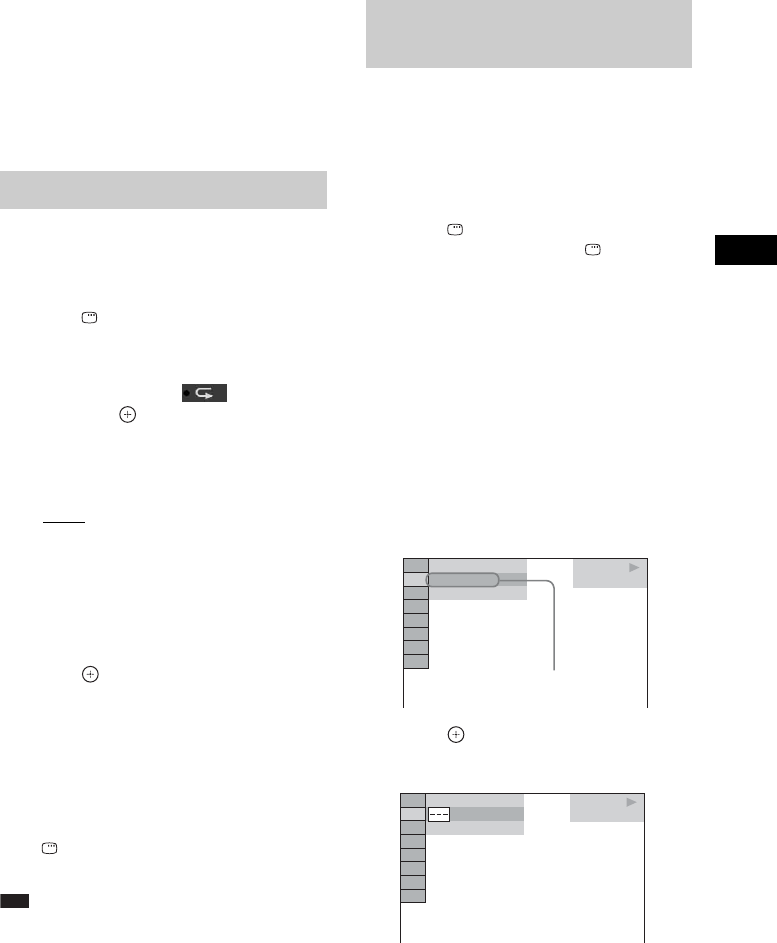

You can search a DVD VIDEO/DVD-VR by

title or chapter, and you can search a VIDEO

CD/Super Audio CD/CD/DATA CD/DATA

DVD by track, index, or scene. For a DATA CD/

DATA DVD, you can search by folder or file.

As titles and tracks are assigned unique numbers

on the disc, you can select the desired title or

track by entering its number. Or, you can search

for a scene using the time code.

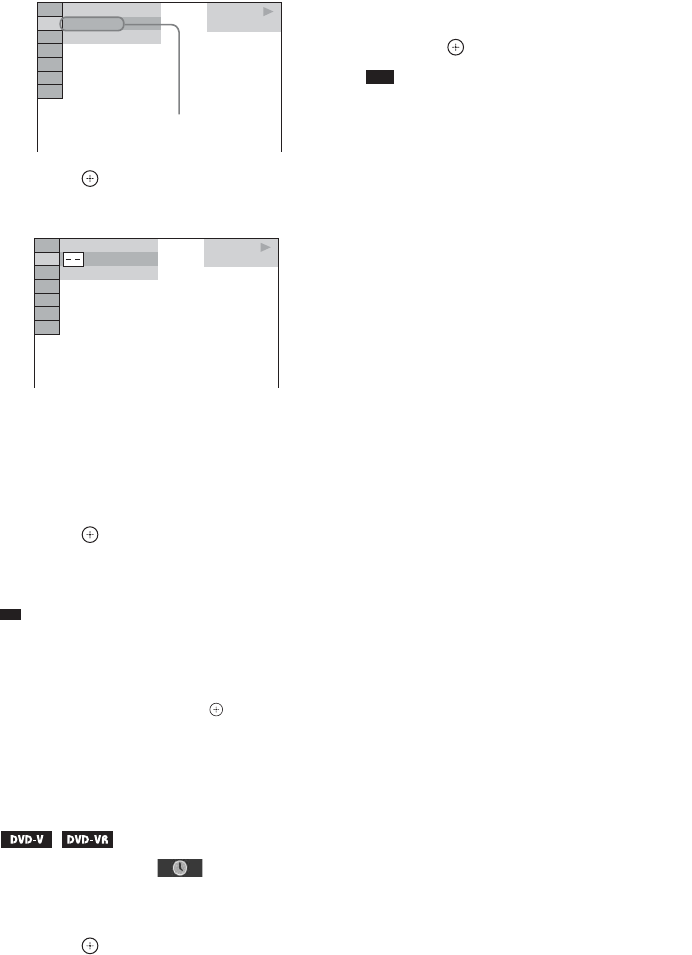

1Press DISPLAY. (When playing a

DATA CD/DATA DVD with JPEG image

files, press DISPLAY twice.)

The Control Menu display appears on the

TV screen.

2Press X/x to select the search method.

Example: [CHAPTER]

[** (**)] is selected (** refers to a number).

Using the DVD’s menu

Selecting [ORIGINAL] or [PLAY

LIST] on a DVD-VR

Searching for a title/chapter/

track/scene, etc.

44GB

The number in parentheses indicates the

total number of titles, chapters, tracks,

indexes, scenes, folders, or files.

3Press .

[** (**)] changes to [– – (**)].

4Press X/x or the number buttons to

select the desired number of the title,

chapter, track, index, scene, etc.

If you make a mistake, press CLEAR to

cancel the number.

5Press .

The system starts playback from the

selected number.

• When the Control Menu display is turned off, you can

search for a chapter (DVD VIDEO/DVD-R/DVD-

RW), track (VIDEO CD/Super Audio CD/CD), or

file (DATA CD/DATA DVD (DivX video file))* by

pressing the number buttons and .

* Except for United Kingdom and North American

models.

To search for a scene using the

time code

1In Step 2, select [TIME].

[T **:**:**] (playing time of the current

title) is selected.

2Press .

[T **:**:**] changes to [T --:--:--].

3Input the time code using the number

buttons.

For example, to find the scene at 2 hours, 10

minutes, and 20 seconds after the

beginning. Press 2, 1, 0, 2, 0 ([2:10:20]).

4Press .

Note

• You cannot search for a scene on a DVD+RW using

the time code.

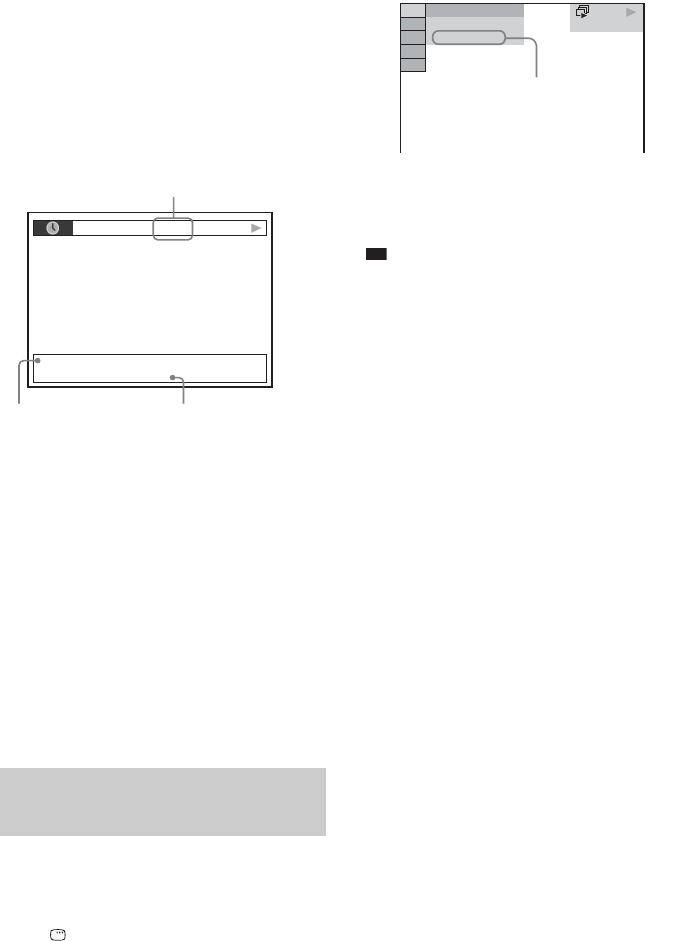

DVD VIDEO

13( 99)

98( 99)

T 0: 03: 17

Selected row

DVD VIDEO

13( 99)

98( 99)

T 0: 03: 17

Disc

45GB

Playing MP3 Files/JPEG

Image Files

You can play the MP3 files or JPEG image files:

• which have the extension “.MP3” (MP3 file)

or “.JPG”/“.JPEG” (JPEG image file)

• which conform to the DCF* image file format

* “Design rule for Camera File system”: Image

standards for digital cameras regulated by Japan

Electronics and Information Technology Industries

Association (JEITA).

Note

• The system will play any data with the extension

“.MP3,” “.JPG,” or “.JPEG” even if they are not in

MP3 or JPEG format. Playing these data may

generate a loud noise which could damage your

speaker system.

• The system does not conform to audio in MP3PRO

format.

• The system can recognize up to 200 folders, and will

not play any folders beyond the 200th. (Depending on

the folder configuration, the number of folders that

can be recognized by the system may decrease.)

• The system can recognize up to 150 MP3 files/JPEG

image files in a folder.

• The system may take longer time to playback, when

progressing to the following folder or jump to other

folder.

• The system may not play certain types of JPEG image

files (ex. a JPEG image file that is less than 8 (width)

× 8 (height)).

1Load a DATA CD or DATA DVD.

The folders recorded on the DATA CD or

DATA DVD appear. When a folder is being

played, its title is shaded.

2Press X/x to select a folder.

xTo play MP3 files in a folder

Press H to start playing the selected

folder.

xTo select a MP3 file

Press .

The list of files contained in the folder

appears.

Press X/x to select a file and press .

The system starts playing the selected file.

You can turn the file list off by pressing

DVD MENU. Pressing DVD MENU again

will display the folder list.

To stop playback

Press x.

To play the next or previous MP3

file

Press >/.. Note that you can select the

next folder by continuing to press > after the

last file on the current folder, but that you cannot

return to the previous folder by pressing ..

To return to the previous folder, select the folder

from the folder list.

To return to the previous display

Press O RETURN.

To turn off the display

Press DVD MENU.

1Load a DATA CD or DATA DVD.

The folders recorded on the DATA CD or

DATA DVD appear. When a folder is being

played, its title is shaded.

Selecting an MP3 file or folder

FOLDER LIST

02 1st Album (1986)

03 In the Middle of Nowhere (1986)

04 Ready for Romance (1986)

05 In the Garden of Venus (1987)

06 Romantic Warriors (1987)

07 Back for Good (1988)

08 Alone (1999)

01 Let's Talk About Love (1985)

Selecting a JPEG image file or

folder

TRACK LIST

03 In the Middle of Nowher...

02_Riding_On_A_White_Swan

03_Give_Me_Peace_On_Earth

04_Sweet_Little_Shella

05_Ten_Thousand_Lonely_Drums

06_Lonely_Tears_In_Chinatown

07_In_Shaire

01_Geronimo_s_Cadillac

46GB

2Press X/x to select a folder.

xTo play JPEG image files in a folder

Press H to start playing the selected

folder.

xTo select a JPEG image file by

displaying the subscreens

Press PICTURE NAVI.

Images of JPEG image files in the folder

appear in 16 subscreens.

Press C/X/x/c to select the JPEG image

file you want to view, then press .

To return to normal screen, press O

RETURN.

Note

• PICTURE NAVI does not work when you set

[MODE (MUSIC, IMAGE)] to [MUSIC].

• A scroll box is displayed at the right side of the

TV screen. To display the additional JPEG

image files, select the bottom JPEG image file

and press x. To return to the previous JPEG

image file, select the top JPEG image file and

press X.

To play the next or previous JPEG

image file

Press c/C when the Control Menu display is not

displayed. Note that you can select the next

folder by continuing to press c after the last

image on the current folder, but that you cannot

return to the previous folder by pressing C. To

return to the previous folder, select the folder

from the folder list.

To rotate a JPEG image file

When a JPEG image file is displayed on the TV

screen, you can rotate the JPEG image file by 90

degrees.

Press X/x while viewing a JPEG image file.

Press CLEAR to return to normal view.

Note

• You cannot rotate the JPEG image file when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD ] or [(1920

× 1080i) HD] (page 56).

To stop playback

Press x.

1Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

2Press X/x to select

[BROWSING], then press .

The options for [BROWSING] appear.

3Press X/x to select the desired list,

then press .

• [FOLDER LIST]: The list of folders

appears. Follow Step 2 of “Selecting an

MP3 file or folder.”

• [PICTURE LIST]: Images of JPEG image

files in the folder appear in 16 subscreens.

Follow Step 2 of “Selecting a JPEG image

file or folder.”

You can play a slide show with sound by first

placing both MP3 files and JPEG image files in

the same folder on a DATA CD or DATA DVD.

1Load a DATA CD or DATA DVD.

FOLDER LIST

02 1st Album (1986)

03 In the Middle of Nowhere (1986)

04 Ready for Romance (1986)

05 In the Garden of Venus (1987)

06 Romantic Warriors (1987)

07 Back for Good (1988)

08 Alone (1999)

01 Let's Talk About Love (1985)

1234

5678

13 14 15 16

9101112

Displaying the list of MP3

files/JPEG image files

Playing MP3 files and JPEG

image files as a slide show

with sound

Disc

47GB

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [MODE

(MUSIC, IMAGE)], then press .

The options for [MODE (MUSIC,

IMAGE)] appear.

4Press X/x to select a setting.

•[AUTO]: You can play both the JPEG

image files and MP3 files in the same

folder as a slide show.

• [MUSIC]: You can play only MP3 files

continuously.

• [IMAGE]: You can play only JPEG

image files as a slide show.

5Press .

6Press DVD MENU.

The list of folders recorded on the DATA

CD or DATA DVD appears.

7Press X/x to select the desired folder

and press H.

The system starts playing the selected

folder.

You can turn the folder list on/off by

pressing DVD MENU repeatedly.

Note

• If you set [MODE (MUSIC, IMAGE)] to [IMAGE]

on a disc that contains MP3 files only or [MUSIC] on

a disc that contains JPEG image files only, you may

not be able to change the [MODE (MUSIC,

IMAGE)] setting.

• PICTURE NAVI does not work when [MUSIC] is

selected.

• If you play large MP3 file and JPEG image file at the

same time, the sound may skip. Sony recommends

that you set the MP3 bit rate to 128 kbps or lower

when creating the file. If the sound still skips, reduce

the size of the JPEG image file.

To select the slide show duration

of JPEG image files

1Press DISPLAY twice.

The Control Menu display appears on the

TV screen.

2Press X/x to select [INTERVAL],

then press .

The options for [INTERVAL] appear.

3Press X/x to select a setting.

• [NORMAL]: You can set to the standard

duration.

• [FAST]: You can set the duration shorter

than [NORMAL].

• [SLOW 1]: You can set the duration

longer than [NORMAL].

• [SLOW 2]: You can set the duration

longer than [SLOW 1].

4Press .

Note

• Some JPEG image files may take longer to display

than the option you selected. Especially progressive

JPEG image files or JPEG image files of 3,000,000

pixels or more.

• Duration of interval depends on the [JPEG

RESOLUTION] setting in [HDMI SETUP]

(page 55).

To select an effect for JPEG

image files in the slide show

1Press DISPLAY twice.

The Control Menu display appears on the

TV screen.

2Press X/x to select [EFFECT],

then press .

The options for [EFFECT] appear.

3Press X/x to select a setting.

• [MODE 1]: The JPEG image file sweeps

in from top to bottom.

• [MODE 2]: The JPEG image file stretches

out from left to right of the TV screen.

• [MODE 3]: The JPEG image file stretches

out from the center of the TV screen.

• [MODE 4]: The JPEG image files

randomly cycle through the effects.

• [MODE 5]: The next JPEG image file

slides over the previous image.

• [OFF]: Off.

4Press .

Note

• The [EFFECT] setting is not effective when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD ] or [(1920

× 1080i) HD] (page 56).

48GB

Enjoying DivX® Videos

(Except for United Kingdom and North

American models)

DivX® is a video file compression technology,

developed by DivX, Inc. This product is an

official DivX® Certified product.

You can play a DATA CD or DATA DVD that

contains DivX® video files.

A DATA CD or DATA DVD that the

system can play

Playback of a DATA CD (CD-ROM/CD-R/CD-

RW) or DATA DVD (DVD-ROM/DVD-R/

DVD-RW/DVD+R/DVD+RW) on this system

is subject to certain conditions:

– With a DATA CD/DATA DVD that contains

DivX video files in addition to MP3 audio

tracks or JPEG image files, the system plays

only the DivX video files.

However, this system only plays a DATA CD of

format ISO 9660 Level 1/Level 2 or Joliet, and a

DATA DVD of Universal Disk Format (UDF).

Refer to the operating instructions supplied with

the disc drives and the recording software (not

supplied) for details on the recording format.

About playback order of data on a

DATA CD or DATA DVD

Note that the playback order may not be

applicable, depending on the software used for

creating the DivX video file, or if there are more

than 200 folders and 150 DivX video files in

each folder.

Note

• The system may not be able to play some DATA

CDs/DATA DVDs created in the Packet Write

format.

DivX video files that the system

can play

The system can play data that is recorded in

DivX format, and which has the extension

“.AVI,” or “.DIVX.” The system will not play

files with the extension “.AVI” or “.DIVX” if

they do not contain a DivX video.

• For details about playable MP3 audio tracks or JPEG

image files on a DATA CD or DATA DVD, see

“Playable Discs” (page 6).

Note

• The system may not play a DivX video file when the

file has been combined from two or more DivX video

files.

• The system cannot play a DivX video file of size

more than 720 (width) × 576 (height) or 2GB.

• Depending on the DivX video file, sound may skip or

not match the pictures on the TV screen.

• The system cannot play some DivX video files that

are longer than 3 hours.

• Depending on the DivX video file, the picture may

pause or be unclear. In which case, it is recommended

that you create the file at a lower bit rate. If the sound

is still noisy, MP3 is the recommended audio format.

Note, however, this system does not conform to

WMA (Windows Media Audio) format for playing

DivX files.

• Because of the compression technology used for

DivX video files, it may take some time after you

press H for the picture to appear.

1Press DVD MENU.

A list of folders on the disc appears. Only

folders that contain DivX video files are

listed.

2Press X/x to select the folder you want

to play.

3Press H.

The system starts playing the selected

folder.

About DivX video files

Selecting a folder

FOLDER LIST

NEW YEAR'S DAY

MY FAVOURITES

SUMMER 2003

Disc

49GB

To select DivX video files, see “Selecting a

DivX video file” (page 49).

To go to the next or previous

page

Press / .

To turn off the display

Press DVD MENU repeatedly.

To stop playback

Press x.

1After Step 2 of “Selecting a folder,”

press .

The list of files in the folder appears.

2Press X/x to select a file and press .

The selected file starts playing.

To go to the next or previous

page

Press / .

To return to the previous display

Press O RETURN.

To stop playback

Press x.

To play the next or previous DivX

video file without turning on the

above file list

You can select the next or previous DivX video

file in the same folder by pressing >/..

You can also select the first file of the next

folder by pressing > during playback of the

last file of the current folder. Note that you

cannot return to the previous folder by pressing

.. To return to the previous folder, select it

from the folder list.

• If the number of viewing times is preset, you can play

the DivX video files as many times as the preset

number. The following occurrences are counted:

– when the system is turned off.

– when another file is played.

– when the disc tray is opened.

Selecting a DivX video file

FILE LIST

MY FAVOURITES

VENUS

HAWAII 2004

50GB

Adjusting the Delay

Between the Picture and

Sound

[A/V SYNC]

* *

* Except for United Kingdom and North American

models

When the sound does not match the pictures on

the TV screen, you can adjust the delay between

the picture and sound.

1Press DISPLAY.

The Control Menu display appears on the

TV screen.

2Press X/x to select [A/V SYNC],

then press .

The options for [A/V SYNC] appear.

3Press X/x to select a setting.

•[OFF]: Off.

• [ON]: You can adjust the difference

between picture and sound.

4Press .

Note

• Depending on the input stream, [A/V SYNC] may not

be effective.

Restricting Playback of

the Disc

[PARENTAL CONTROL]

Playback of some DVD VIDEOs can be limited

according to a predetermined level such as the

age of the users. Scenes may be blocked or

replaced with different scenes.

You can set the playback restriction by

registering a password. When you set the

[PARENTAL CONTROL] function to on, you

need to enter the password to play restricted

discs.

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5Press X/x to select [SYSTEM SETUP],

then press .

The options for [SYSTEM SETUP] appear.

6Press X/x to select [PARENTAL

CONTROL t], then press .

xIf you have not entered a password

The display for registering a new password

appears.

PARENTAL CONTROL

Enter a new 4-digit password,

then press .

ENTER

Disc

51GB

Enter a 4-digit password using the number

buttons, then press .

The display for confirming the password

appears.

xWhen you have already registered a

password

The display for entering the password

appears.

7Enter or re-enter your 4-digit password

using the number buttons, then press

The display for setting the playback

limitation level appears.

8Press X/x to select [STANDARD], then

press .

The selection items for [STANDARD] are

displayed.

9Press X/x to select a geographic area

as the playback limitation level, then

press .

The area is selected.

When you select [OTHERS t], select and

enter a standard code in the table of

“Parental Control Area Code List”

(page 102) using the number buttons.

10 Press X/x to select [LEVEL], then press

The selection items for [LEVEL] are

displayed.

11 Press X/x to select the desired level,

then press .

[PARENTAL CONTROL] setting is

complete.

The lower the value, the stricter the

limitation.

To turn off the [PARENTAL

CONTROL] function

Set [LEVEL] to [OFF] in Step 11.

To play a disc for which

[PARENTAL CONTROL] is set

1Load the disc and press H.

The display for entering your password

appears.

2Enter your 4-digit password using the

number buttons, then press .

The system starts playback.

Note

• When you play discs which do not have the

[PARENTAL CONTROL] function, playback

cannot be limited on this system.

• Depending on the disc, you may be asked to change

the parental control level while playing the disc. In

this case, enter your password, then change the level.

If the Resume Play mode is canceled, the level returns

to the previous level.

• If you forget your password, remove the disc and

repeat Steps 1 to 7 of “Restricting Playback of the

Disc” (page 50). When you are asked to enter your

password, enter “199703” using the number buttons,

then press . The display will ask you to enter a new

4-digit password. After you enter a new 4-digit

password, replace the disc in the unit and press H.

When the display for entering your password appears,

enter your new password.

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

LEVEL:

STANDARD:

CHANGE PASSWORD:

OFF

USA

PARENTAL CONTROL

Changing the password

52GB

5Press X/x to select [SYSTEM SETUP],

then press .

The options for [SYSTEM SETUP] appear.

6Press X/x to select [PARENTAL

CONTROL t], then press .

The display for entering the password

appears.

7Enter your 4-digit password using the

number buttons, then press .

8Press X/x to select [CHANGE

PASSWORD t], then press .

9Enter your 4-digit password using the

number buttons, then press .

10 Enter a new 4-digit password using the

number buttons, then press .

11 To confirm your password, re-enter it

using the number buttons, then press

If you make a mistake entering

your password

Press C before you press , then input the

correct number.

Using the Setup Display

You can make various adjustments of items such

as picture and sound.

Displayed items vary depending on the country

model.

Note

• Playback settings stored in the disc take priority over

the Setup Display settings and not all the functions

described may work.

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5Press X/x to select the setup item, then

press .

• [LANGUAGE SETUP] (page 53)

• [VIDEO SETUP] (page 54)

• [HDMI SETUP] (page 55)

• [AUDIO SETUP] (page 57)

• [SYSTEM SETUP] (page 57)

• [SPEAKER SETUP] (page 58)

Example: [VIDEO SETUP]

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

TV TYPE:

4:3 OUTPUT:

BLACK LEVEL:

16:9

OFF

FULL

BLACK LEVEL

(COMPONENT OUT)

PAUSE MODE:

OFF

AUTO

Selected item

Setup items

Disc

53GB

6Press X/x to select an item, then press

The options for the selected item appear.

Example: [TV TYPE]

7Press X/x to select a setting, then

press .

The setting is selected and setup is

complete.

Note

• When you turn the system on after resetting and no

disc is in the unit, the guide message appears on the

TV screen. To perform the Quick Setup (page 27),

press . To return to normal screen, press CLEAR.

To reset all of the [SETUP]

settings

To reset all of the [SETUP] settings, see

“Returning the [SETUP] settings to the default”

(page 85).

Set various languages for the on-screen display

or sound track.

x[OSD] (On-Screen Display)

You can switch the display language on the TV

screen.

x[MENU] (DVD VIDEO only)

You can switch the language for the disc’s

menu.

x[AUDIO] (DVD VIDEO only)

You can switch the language of the sound track.

When you select [ORIGINAL], the language

given priority in the disc is selected.

x[SUBTITLE] (DVD VIDEO only)

You can switch the language of the subtitle

recorded on the DVD VIDEO.

When you select [AUDIO FOLLOW], the

language for the subtitles changes according to

the language you selected for the sound track.

Note

• When you select a language in [MENU], [AUDIO],

or [SUBTITLE] that is not recorded on the DVD

VIDEO, one of the recorded languages will be

automatically selected (depending on the disc, the

language may not be selected automatically).

• If you select [OTHERS t] in [MENU], [AUDIO],

and [SUBTITLE], select and enter a language code

from “Language Code List” (page 102) using the

number buttons.

OFF

AUTO

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

TV TYPE:

4:3 OUTPUT:

BLACK LEVEL:

BLACK LEVEL

(COMPONENT OUT)

PAUSE MODE:

16:9

OFF

FULL

AUTO

16:9

4:3 LETTER BOX

4:3 PAN SCAN

Options

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

TV TYPE:

4:3 OUTPUT:

BLACK LEVEL:

4:3 LETTER BOX

OFF

FULL

BLACK LEVEL

(COMPONENT OUT)

PAUSE MODE:

OFF

AUTO

Selected setting

Setting the display or sound

track language

[LANGUAGE SETUP]

LANGUAGE SETUP

MENU:

OSD:

AUDIO:

ENGLISH

ORIGINAL

AUDIO FOLLOW

SUBTITLE:

54GB

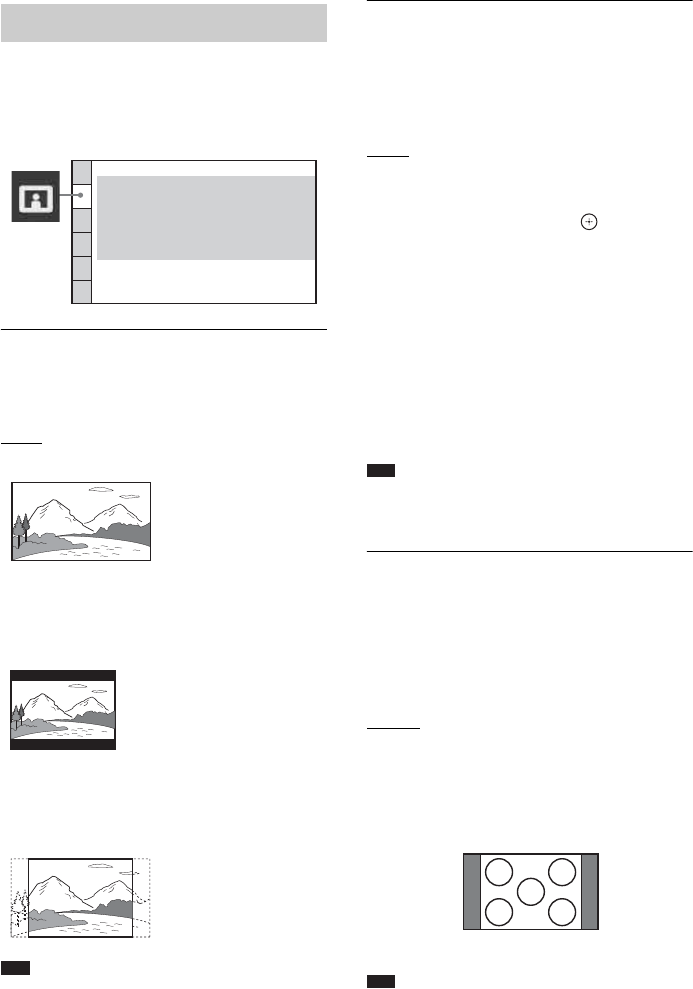

Select settings according to the TV to be

connected.

x[TV TYPE]

You can select the aspect ratio of the connected

TV.

[16:9]: Select this when you connect a wide-

screen TV or a TV with a wide mode function.

[4:3 LETTER BOX]: Select this when you

connect a 4:3 screen TV. Displays a wide picture

with bands on the upper and lower portions of

the TV screen.

[4:3 PAN SCAN]: Select this when you connect

a 4:3 screen TV. The system automatically

displays the wide picture on the entire screen

and cuts off the portions that do not fit.

Note

• Depending on the DVD, [4:3 LETTER BOX] may be

selected automatically instead of [4:3 PAN SCAN] or

vice versa.

x[PROGRESSIVE (COMPONENT OUT)]

You can set the progressive signal that is output

from the COMPONENT VIDEO OUT jacks to

on/off. For details, see “Does your TV accept

progressive signals?” (page 29).

[OFF]: The system outputs interlace signals.

[ON]: The system outputs progressive signals.

When you select [ON], follow the Steps below.

1Select [ON], then press .

The confirmation display appears.

2Press C/c to select [START].

The system outputs the progressive signal

for 5 seconds. Check that the screen is

displayed correctly.

3 Press C/c to select [YES].

The system outputs the progressive signal.

If you select [NO], the system will not

output the progressive signal.

Note

• [PROGRESSIVE (COMPONENT OUT)] is

effective only when you connect the unit and TV with

a component video cord (page 18).

x[4:3 OUTPUT]

When you use a 16:9 aspect ratio TV, you can

adjust the aspect ratio to watch 4:3 aspect ratio

signals. If you can change the aspect ratio on

your TV, change the setting on your TV, not the

system.

[FULL]: Select this when you can change the

aspect ratio on your TV.

[NORMAL]: Select this when you cannot

change the aspect ratio on your TV. A 16:9

aspect ratio signal with black bands on left and

right sides of the image appears.

Note

• [4:3 OUTPUT] is effective only when you set [TV

TYPE] in [VIDEO SETUP] to [16:9].

Settings for the display

[VIDEO SETUP]

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

TV TYPE:

4:3 OUTPUT:

16:9

OFF

FULL

OFF

AUTO

BLACK LEVEL:

PAUSE MODE:

BLACK LEVEL

(COMPONENT OUT)

16:9 aspect ratio TV

Disc

55GB

x[COLOR SYSTEM (VIDEO CD)]

(Asian, Australian, and Middle Eastern

models only)

You can select the color system when you play a

VIDEO CD.

[AUTO]: The system outputs the video signal in

the system of the disc, either PAL or NTSC. If

your TV uses a DUAL system, select [AUTO].

[PAL]: The system changes the video signal of

an NTSC disc and outputs it in the PAL system.

[NTSC]: The system changes the video signal of

a PAL disc and outputs it in the NTSC system.

Note

• You cannot change the color system of the disc itself.

• You can change the color system of this system

according to the connected TV (page 20).

x[BLACK LEVEL]

(North American, Mexican, and Latin

American models only)

You can select the black level (setup level) for

the video signals output from the jacks other

than COMPONENT VIDEO OUT/HDMI OUT.

[ON]: The standard level.

[OFF]: You can lower the standard black level.

Use this when the picture becomes too white.

x[BLACK LEVEL (COMPONENT OUT)]

(North American, Mexican, and Latin

American models only)

You can select the black level (setup level) for

the video signals output from the

COMPONENT VIDEO OUT jacks.

You cannot select this and the setting is not

effective when the system outputs progressive

signal.

[OFF]: You can set the black level of the output

signal to the standard level.

[ON]: You can raise the standard black level.

Use this when the picture becomes too black.

x[PAUSE MODE] (DVD VIDEO/DVD-R/

DVD-RW only)

You can select the picture in pause mode.

[AUTO]: The picture, including subjects that

move dynamically, is output with no jitter.

Normally select this position.

[FRAME]: The picture, including subjects that

do not move dynamically, is output in high

resolution.

x[HDMI RESOLUTION]

You can select the type of video signal that is

output from the HDMI OUT jack. For details,

see “To select the type of video signal output

from the HDMI OUT jack” (page 29).

[AUTO (1920

× 1080p)]: The system outputs

the optimal video signal for the connected TV.

[1920

× 1080i]: The system outputs 1920 ×

1080i* video signals.

[1280

× 720p]: The system outputs 1280 ×

720p* video signals.

[720

× 480p]**: The system outputs 720 ×

480p* video signals.

* i: interlace, p: progressive

** Depending on the country model, [720 × 576p] may

appear.

Note

• When “HDMI” lights up in the front panel display,

images other than [720 × 480p] or [720 × 576p] are

stretched vertically.

x[CONTROL FOR HDMI]

You can set the [CONTROL FOR HDMI]

function to on/off. This function is available

when you connect the system and TV with an

HDMI cable. For details, see “Using the Control

Settings for the HDMI

[HDMI SETUP]

HDMI SETUP

CONTROL FOR HDMI:

HDMI RESOLUTION:

VOLUME LIMIT:

AUTO

(1920x1080P)

OFF

LEVEL2

YCBCR

OFF

YCBCR/RGB(HDMI):

JPEG RESOLUTION:

AUDIO(HDMI):

56GB

for HDMI Function for “BRAVIA” Sync”

(page 64).

[OFF]: Off.

[ON]: On. You can operate mutually between

components that are connected with an HDMI

cable.

Note

• When you set to [ON] without the HDMI connection

of the TV, [Please verify the HDMI connection.]

appears and you cannot set to [ON].

x[VOLUME LIMIT]

If you change the output method of the TV to the

system speaker on the TV menu or by pressing

THEATER/THEATRE*, the System Audio

Control (page 66) is activated and loud sound

may be output depending on the volume level of

the system. You can prevent this by limiting the

maximum level of the volume.

* The button name differs depending on the area.

[LEVEL3]: Maximum volume level is set to 10.

[LEVEL2]: Maximum volume level is set to 15.

[LEVEL1]: Maximum volume level is set to 20.

[OFF]: Off.

Note

• This function is available only when [CONTROL

FOR HDMI] is set to [ON].

x[YCBCR/RGB (HDMI)]

You can select the type of HDMI signal output

from HDMI OUT jack.

[YCBCR]: The system outputs YCBCR signals.

[RGB]: The system outputs RGB signals.

Note

• If the playback picture becomes distorted, set

[YCBCR] to [RGB].

• If the HDMI OUT jack is connected to a component

with a DVI jack, [RGB] signals will be automatically

output even when you select [YCBCR].

x[AUDIO (HDMI)]

You can select the audio output status from the

HDMI OUT jack.

[OFF]: The system does not output the sound

from the HDMI OUT jack.

[ON]: The system outputs audio signals by

converting Dolby Digital, DTS, or 96 kHz/24 bit

PCM signals to 48 kHz/16 bit PCM.

Note

• When you connect the unit and TV with an HDMI

cable and [ON] is selected, [AUDIO DRC], [A/V

SYNC], DYNAMIC BASS, “DEC. MODE,” and

sound mode are not applied to the sound that is output

from the TV.

• When you set the function to other than “DVD,” the

system does not output the sound from the HDMI

OUT jack even if you set [AUDIO (HDMI)] to [ON].

x[JPEG RESOLUTION]

You can select the resolution of JPEG image

files output from the HDMI OUT jack.

[SD ]: The system outputs standard

resolution with a black frame.

[HD ]: The system outputs HD resolution

with a black frame.

[HD]: The system outputs the HD resolution

without a black frame.

[(1920

× 1080i) HD ]: The system outputs

full size HD resolution with a black frame.

[(1920

× 1080i) HD]: The system outputs full

size HD resolution without a black frame.

Note

• [JPEG RESOLUTION] is effective only when you

set [TV TYPE] in [VIDEO SETUP] to [16:9], and

you set [HDMI RESOLUTION] in [HDMI SETUP]

to other than [720 × 480p] or [720 × 576p].

• You can select [(1920

× 1080i) HD ] or [(1920

1080i) HD] only when you set [HDMI

RESOLUTION] in [HDMI SETUP] to [1920

1080i].

• If you select [(1920

× 1080i) HD ] or [(1920

1080i) HD], next image appears after black flame.

• HDMI signal will stop momentarily when:

– The system is loading or unloading a DATA CD or

DATA DVD disc.

– You connect or remove a USB device (DAV-

DZ270 only).

Disc

57GB

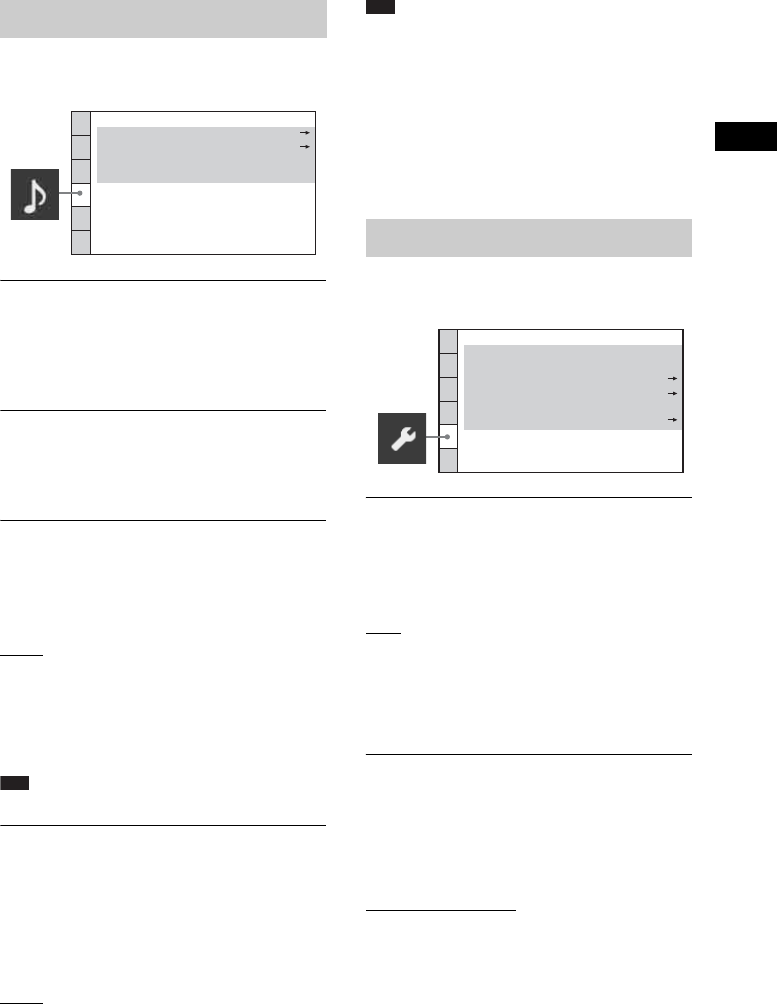

x[SPEAKER FORMATION]

You can select the position of the speakers for

the better surround sound. For details, see

“Getting Optimal Surround Sound for a Room”

(page 78).

x[AUTO CALIBRATION]

You can calibrate the appropriate settings

automatically. For details, see “Calibrating the

Appropriate Settings Automatically” (page 79).

x[AUDIO DRC] (DVD VIDEO only)

You can compress the dynamic range of the

sound track. [AUDIO DRC] is useful for

watching movies at low volume late at night.

[OFF]: No compression of dynamic range.

[STANDARD]: The system reproduces the

sound track with the kind of dynamic range that

the recording engineer intended.

[MAX]: The system compresses dynamic range

fully.

Note

• [AUDIO DRC] works only for Dolby Digital.

x[TRACK SELECTION] (DVD VIDEO only)

You can give the sound track which contains the

highest number of channels priority when you

play a DVD VIDEO on which multiple audio

formats (PCM, DTS, Dolby Digital, or MPEG

audio) are recorded.

[OFF]: Off.

[AUTO]: The system selects the sound track

automatically according to the priority.

Note

• When you set the item to [AUTO], the language may

change. The [TRACK SELECTION] setting has

higher priority than the [AUDIO] settings in

[LANGUAGE SETUP] (page 53). (Depending on

the disc, this function may not work.)

• If PCM, DTS, Dolby Digital sound, and MPEG audio

have the same number of channels, the system selects

PCM, DTS, Dolby Digital sound, and MPEG audio in

this order.

x[SCREEN SAVER]

You can reduce the

display device damages

(ghosting). Press any button (e.g.,

button) to

cancel the screen saver.

[ON]: The screen saver image appears when you

leave the system in pause or stop mode for 15

minutes, or when you play back a Super Audio

CD, CD, DATA CD (MP3 file), or DATA DVD

(MP3 file) for more than 15 minutes.

[OFF]: Off.

x[BACKGROUND]

You can select the background color or picture

on the TV screen in stop mode or while playing

a CD, DATA CD (MP3 file)

, or DATA DVD

(MP3 file).

[JACKET PICTURE]: The jacket picture (still

picture) appears, but only when the jacket

picture is already recorded on the disc (CD-

EXTRA, etc.). If the disc does not contain a

jacket picture, the [GRAPHICS] picture

appears.

[GRAPHICS]: A preset picture stored in the

system appears.

Settings for the audio

[AUDIO SETUP]

AUDIO SETUP

AUTO CALIBRATION:

SPEAKER FORMATION:

AUDIO DRC: OFF

OFF

TRACK SELECTION:

Other Settings

[SYSTEM SETUP]

SYSTEM SETUP

BACKGROUND:

SCREEN SAVER:

PARENTAL CONTROL:

JACKET PICTURE

Registration Code

DivX:

MULTI-DISC RESUME: ON

RESET:

58GB

[BLUE]: The background is blue.

[BLACK]: The background is black.

x[PARENTAL CONTROL]

You can set the playback restrictions. For

details, see “Restricting Playback of the Disc”

(page 50).

x[DivX]

(Except for United Kingdom and North

American models)

You can display the registration code for this

system.

For more information, go to

http://www.divx.com on the Internet.

x[MULTI-DISC RESUME] (DVD VIDEO/

VIDEO CD only)

You can set the [MULTI-DISC RESUME]

function to on/off.

[ON]: The system stores the resume points in

memory for up to 10 discs.

[OFF]: The system does not store the resume

points in memory. Playback restarts at the

resume point only for the current disc in the unit.

x[RESET]

You can return the [SET UP] settings other than

[PARENTAL CONTROL] to the default

settings. For details, see “Returning the

[SETUP] settings to the default” (page 85).

To obtain the best possible surround sound, set

connection of the speakers and their distance

from your listening position. Then use the test

tone to adjust the level and the balance of the

speakers to the same level.

Note

• You cannot operate [SPEAKER SETUP] when you

connect headphones to the unit.

x[CONNECTION]

If you do not connect center or surround

speakers, set the parameters for [CENTER] and

[SURROUND]. Since the front speaker and

subwoofer setting is fixed, you cannot change

them.

[FRONT]

[YES]

[CENTER]

[YES]: Normally select this.

[NONE]: Select this if no center speaker is used.

[SURROUND]

[YES]: Normally select this.

[NONE]: Select this if no surround speaker is

used.

[SUBWOOFER]

[YES]

Note

• When you change the [CONNECTION] setting, the

[STANDARD] of [SPEAKER FORMATION]

setting remains the same, but the other settings of

[SPEAKER FORMATION] return to

[STANDARD].

x[DISTANCE (FRONT)]

When you move the front speakers and center

speaker, be sure to set the parameters of the

distance (A) from the listening position to the

speakers.

You can set the parameters from 1.0 to 7.0

meters1) (3 to 23 ft) for the front speakers, from

0.0 to 7.0 meters2) (0 to 23 ft) for the center

speaker.

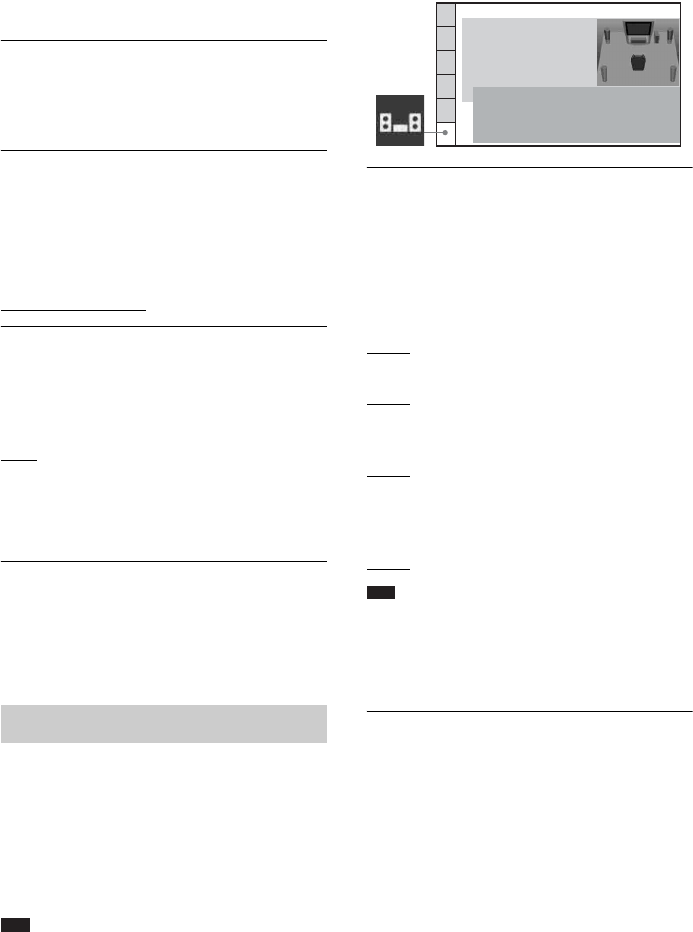

Settings for the speakers

[SPEAKER SETUP]

SPEAKER SETUP

DISTANCE(FRONT)

CONNECTION:

DISTANCE(SURROUND):

LEVEL(FRONT):

LEVEL(SURROUND):

TEST TONE

FRONT:

CENTER:

SURROUND:

SUBWOOFER:

YES

Disc

59GB

[L/R] 3.0 m/10 ft3): Set the front speaker

distance.

[CENTER] 3.0 m/10 ft3)4): Set the center speaker

distance (up to 1.6 meters (5 ft) closer to the

front speakers).

1)0.9 to 6.9 meters for North American models.

2)0.0 to 6.9 meters for North American models.

3)When you perform the Quick Setup (page 27), the

default settings are changed.

4)This item appears when you set [CENTER] to [YES]

in the [CONNECTION] setting.

x[DISTANCE (SURROUND)]

When you move the surround speakers, be sure

to set the parameters of the distance (B) from

the listening position to the speakers.

You can set the parameters from 0.0 to 7.0

meters1) (0 to 23 ft).

[L/R] 3.0 m/10 ft2)3): Set the surround speaker

distance (up to 5.0 meters (16 ft) closer to the

front speakers).

1)0.0 to 6.9 meters for North American models.

2)When you perform the Quick Setup (page 27), the

default settings are changed.

3)This item appears when you set [SURROUND] to

[YES] in the [CONNECTION] setting.

Note

• If all front and surround speakers are not placed at an

equal distance from your listening position, set the

distance according to the closest speaker.

• Do not place the surround speakers farther away from

your listening position than the front speakers.

• Depending on the input stream, the [DISTANCE]

setting may not be effective.

x[LEVEL (FRONT)]

You can adjust the sound level of the front

speakers, center speaker, and subwoofer. Be

sure to set [TEST TONE] to [ON] for easy

adjustment.

[L/R] 0.0 dB: Set the front speaker level.

[CENTER] 0.0 dB*: Set the center speaker

level.

[SUBWOOFER] +2.0 dB: Set the subwoofer

level.

* This item appears when you set [CENTER] to

[YES] in the [CONNECTION] setting.

x[LEVEL (SURROUND)]

You can adjust the sound level of the surround

speakers. Be sure to set [TEST TONE] to [ON]

for easy adjustment.

[L/R] 0.0 dB*: Set the surround speaker level.

* This item appears when you set [SURROUND] to

[YES] in the [CONNECTION] setting.

x[TEST TONE]

The speakers will emit a test tone to adjust

[LEVEL (FRONT)] and [LEVEL

(SURROUND)].

[OFF]: The test tone is not emitted from the

speakers.

[ON]: The test tone is emitted from each speaker

in sequence while adjusting level. When you

select one of the [SPEAKER SETUP] items, the

60GB

test tone is emitted from each speaker in

sequence.

Adjust the sound level as follows.

1Set the [TEST TONE] to [ON].

2Press C/X/x/c repeatedly to select the

desired speaker and the level.

3Press .

4Repeat Steps 1 to 3.

5Press C/X/x/c repeatedly to set [TEST

TONE] to [OFF] after adjusting the

speaker level.

Note

• The test tone signals are not output from the HDMI

OUT jack.

• To adjust the volume of all the speakers at one time,

turn the VOLUME control on the unit, or press

VOLUME +/– on the remote.

• To return to the default setting when changing a

setting, select the item, then press CLEAR. Note that

only the [CONNECTION] setting does not return to

the default setting.

Tuner

61GB

Presetting Radio

Stations

You can preset 20 FM stations, and 10 AM

stations. Before tuning, make sure to turn down

the volume to minimum.

• You can operate the tuner function by observing the

following display on the TV screen.

1Press FUNCTION +/– repeatedly until

“TUNER FM” or “TUNER AM” appears

in the front panel display.

2Press and hold TUNING +/– until the

auto scanning starts.

Scanning stops when the system tunes in a

station. “TUNED” and “ST” (for stereo

program) appear in the front panel display.

3Press SYSTEM MENU.

4Press X/x repeatedly until “MEMORY”

appears in the front panel display.

5Press or c.

A preset number appears in the front panel

display.

6Press X/x to select the preset number

you want.

• You can select the preset number directly by

pressing the number buttons.

7Press .

“COMPLETE” appears in the front panel

display, and the station is stored.

8Repeat Steps 2 to 7 to store other

stations.

9Press SYSTEM MENU.

The system menu turns off.

To change the preset number

Restart from Step 2.

To change the AM tuning interval

(except for Russian and Middle

Eastern models)

The AM tuning interval can be set to either

10 kHz or 9 kHz.

To change the AM tuning interval, first tune in

any AM station, then turn off the system by

pressing "/1 on the unit. While holding down

> on the unit, press "/1 on the unit to turn on

the power. If you change the interval, AM preset

stations will be erased.

To reset the interval, repeat the same procedure.

Tuner

FM 10 : 88.00 MHz

SONY RADIO

Station name

Current band and preset number

Current station

62GB

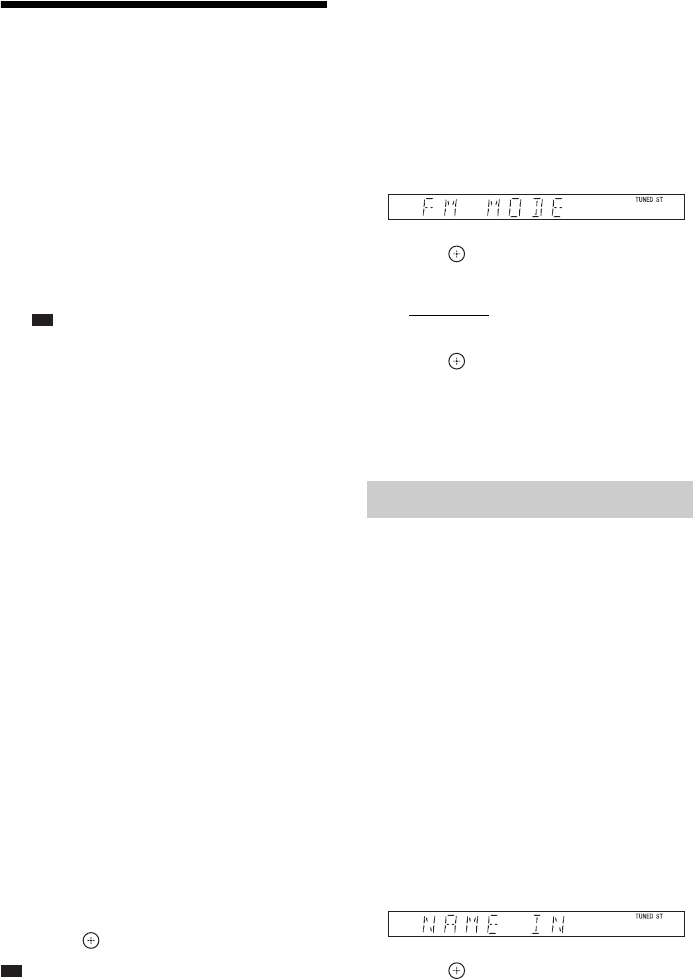

Listening to the Radio

Preset radio stations in the system’s memory

first (see “Presetting Radio Stations” (page 61)).

1Press FUNCTION +/– repeatedly until

“TUNER FM” or “TUNER AM” appears

in the front panel display.

The last received station is tuned in.

2Press PRESET +/– repeatedly to select

the preset station.

Each time you press the button, the system

tunes in one preset station.

• You can select the preset station number directly

by pressing the number buttons.

3Adjust the volume by pressing

VOLUME +/–.

To turn off the radio

Press "/1.

To listen to non-preset radio

stations

Use manual or automatic tuning in Step 2.

For manual tuning, press TUNING +/–

repeatedly.

For automatic tuning, press and hold TUNING

+/–. The automatic tuning stops automatically

when the system receives the radio station. To

stop the automatic tuning manually, press

TUNING +/– or x.

To listen to radio stations when

you know the frequencies

1Press FUNCTION +/– repeatedly until

“TUNER FM” or “TUNER AM” appears

in the front panel display.

2Press D.TUNING.

3Press the number buttons to select the

frequencies.

4Press .

• To improve reception, reorient the connected

antennas (aerials).

If an FM program is noisy

If an FM program is noisy, you can select

monaural reception. There will be no stereo

effect, but reception will improve.

1Press SYSTEM MENU.

2Press X/x repeatedly until “FM MODE”

appears in the front panel display.

3Press or c.

4Press X/x to select “MONO.”

• “STEREO”: Stereo reception.

• “MONO”: Monaural reception.

5Press .

The setting is made.

6Press SYSTEM MENU.

The system menu turns off.

You can enter a name for preset stations. These

names (for example, “XYZ”) appear in the front

panel display when a station is selected.

Only one name can be entered for each preset

station.

1Press FUNCTION +/– repeatedly until

“TUNER FM” or “TUNER AM” appears

in the front panel display.

The last received station is tuned in.

2Press PRESET +/– repeatedly to select

the preset station you want to create an

index name for.

3Press SYSTEM MENU.

4Press X/x repeatedly until “NAME IN”

appears in the front panel display.

5Press or c.

6Create a name by using C/X/x/c.

Press X/x to select a character, then press c

to move the cursor to the next position.

Naming preset stations

Tuner

63GB

You can input letters, numbers, and other

symbols for a radio station.

If you make a mistake

Press C/c repeatedly until the character to

be changed flashes, then press X/x to select

the desired character.

To erase the character, press C/c

repeatedly until the character to be erased

flashes, then press CLEAR.

7Press .

“COMPLETE” appears in the front panel

display, and the station name is stored.

8Press SYSTEM MENU.

The system menu turns off.

When the system is set to “TUNER FM” or

“TUNER AM,” you can check the frequency

using the front panel display.

Press DISPLAY.

Each time you press DISPLAY, the display

changes:

1 t 2 t .... t 1 t ....

x“TUNER FM”

When the station name is set

1 Station name

Ex. “SONY RADIO”

2 Frequency

Ex. “FM1 87.50”

3 The “FM MODE” setting

Ex. “STEREO”

When the station name is not set:

1 Frequency

Ex. “FM1 87.50”

2 The “FM MODE” setting

Ex. “STEREO”

x“TUNER AM”

When the station name is set

1 Station name

Ex. “SONY RADIO”

2 Frequency

Ex. “AM1 576”

When the station name is not set:

1 Frequency

Ex. “AM1 576”

Note

• The system returns to the original display when

several seconds has elapsed.

Viewing the station name or

frequency in the front panel

display

64GB

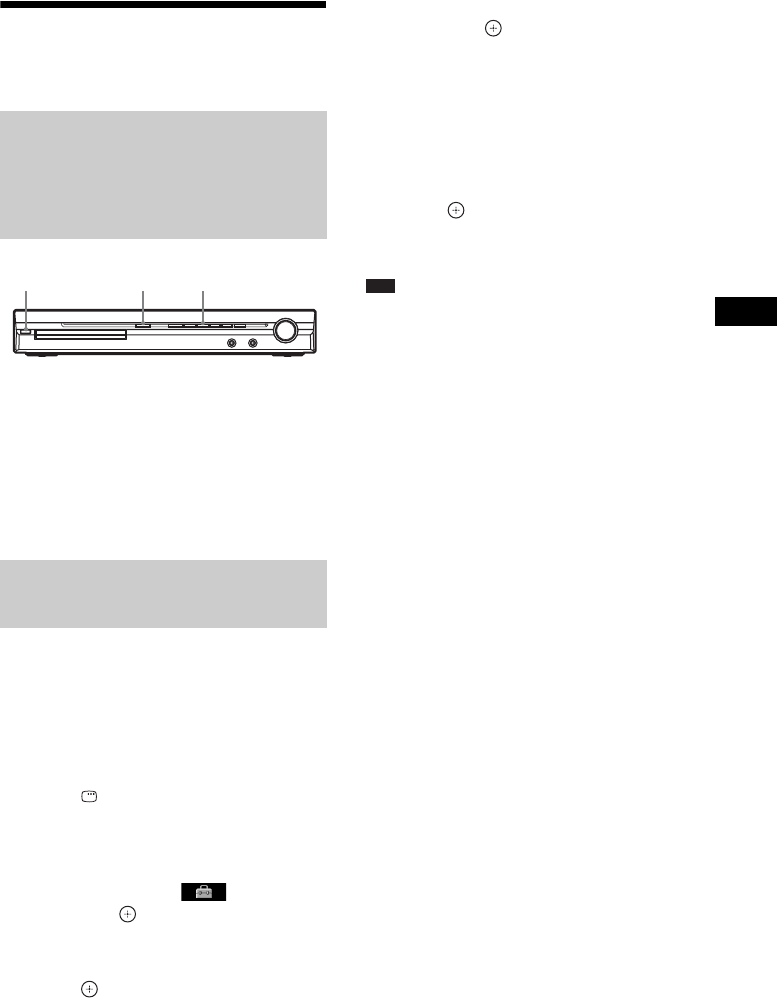

Using the Control for

HDMI Function for

“BRAVIA” Sync

This function is available on TVs with the

“BRAVIA” Sync function only.

By connecting Sony components that are

compatible with the Control for HDMI function

with an HDMI cable (not supplied), operation is

simplified as below:

– Theater/Theatre Mode (page 65)

– One-Touch Play (page 65)

– System Power Off (page 66)

– System Audio Control (page 66)

– Volume Limit (page 66)

Control for HDMI is a mutual control function

standard used by CEC (Consumer Electronics

Control) for HDMI (High-Definition

Multimedia Interface).

The Control for HDMI function will not work in

the following cases:

– When you connect this system to a

component which is not compatible with the

Control for HDMI function.

– A component does not have an HDMI jack.

There are convenient buttons on the system’s

remote for operating the TV, such as

THEATER/THEATRE*, ONE-TOUCH

PLAY, TV [/1. For details, see “Controlling the

TV with the Supplied Remote” (page 80) and

refer to the operating instructions of the TV.

* The button name differs depending on the area.

Note

• Depending on the connected component, the Control

for HDMI function may not work. Refer to the

operating instructions supplied with the component.

• The Control for HDMI function may not work if you

connect a component other than Sony, even if the

component is compatible with the Control for HDMI

function.

(Control for HDMI - Easy Setting)

The system is compatible with the Control for

HDMI - Easy Setting function. If the TV is

compatible with the Control for HDMI - Easy

Setting function, you can set the system’s

[CONTROL FOR HDMI] function

automatically by setting the TV. For details,

refer to the operating instructions of the TV.

If the TV is not compatible with the Control for

HDMI - Easy Setting function, set the Control

for HDMI function of the system and TV

manually.

Note

• Displayed items vary depending on the country

model.

1Make sure that the system and the TV

are connected with an HDMI cable.

2Turn on the TV and press [/1 to turn on

the system.

3Switch the input selector on your TV so

that the signal from the system through

the HDMI input appears on the TV

screen.

4Set the Control for HDMI function of the

system and TV.

For details of the setting of the system, see

the following Steps. For details of the

setting of the TV, refer to the operating

instructions of the TV (depending on the

TV, the default setting of the Control for

HDMI function is set to off).

Control for HDMI/External Audio

Device

THEATER

BRAVIA Sync

ONE-TOUCH

PLAY

Preparing for the Control for

HDMI function

Control for HDMI/External Audio Device

65GB

To set the [CONTROL FOR HDMI]

function to on/off

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5Press X/x to select [HDMI SETUP], then

press .

The options for [HDMI SETUP] appear.

6Press X/x to select [CONTROL FOR

HDMI], then press .

7Press X/x to select the setting, then

press .

•[OFF]: Off.

• [ON]: On.

Note

• When [Please verify the HDMI connection.] appears,

make sure the HDMI connection is correct.

(Theater/Theatre Mode)

If your TV is compatible with the Theater/

Theatre Mode, you can enjoy optimal image

suited for movies and the sound is output from

the system’s speaker automatically by pressing

THEATER/THEATRE*.

* The button name differs depending on the area.

(One-Touch Play)

By only pressing ONE-TOUCH PLAY, the TV

turns on, the TV is set for DVD input mode, and

the system starts playing a disc automatically.

The One-Touch Play also works when:

–You press A while the disc tray is opened and

H appears in the front panel display.

– You close the disc tray by pressing the disc

tray.

– You press DVD TOP MENU/DVD MENU

and H appears in the front panel display.

– You select the “DVD” function by pressing

FUNCTION +/– and H appears in the front

panel display.

Note

• One-Touch Play does not work when you press H.

The system and TV work as follows:

Note

• Make sure the HDMI connection is correct, and set

the [CONTROL FOR HDMI] to [ON].

• Depending on the TV, the beginning of the content

may not be played back.

• Depending on the disc, playback may take a while to

start.

Using the Theater/Theatre

Mode

Watching DVD by a single

button press

This system TV

Turns on. (If not already

turned on.)

Switches to “DVD”

function.

Starts playing the disc and

outputs the sound.

Turns on. (If not already

turned on.)

Switches to HDMI input.

Minimizes sound level.

(System Audio Control)

66GB

(System Power Off)

When you turn the TV off by using the POWER

button on the TV’s remote or TV [/1 on the

system’s remote, the system turns off

automatically.

Note

• Before using the System Power Off function, set the

function for TV power. For details, refer to the

operating instructions of the TV.

• Depending on the status of the system (ex. while

other than “DVD” or “TV/VIDEO” function, or

playing a CD), the system may not turn off

automatically.

(System Audio Control)

You can enjoy TV sound in this system by easy

operation.

To use this function, connect the system and the

TV with an audio cord (not supplied) and an

HDMI cable (not supplied) (page 18).

Depending on the TV, when you set the system

to the “TV/VIDEO” function, the System Audio

Control function is activated. TV sound is output

from the system speakers, and the volume of the

TV speakers is minimized automatically.

You can use the System Audio Control function

as follows:

• While you are watching the TV and the

function of the system is switched to “TV/

VIDEO,” TV sound is output from the system

speakers automatically.

• You can control the system’s volume by the

remote of the TV.

• If you turn the system off or set the function of

the system to other than “TV/VIDEO,” TV

sound is output from the TV speakers.

You can also operate the System Audio Control

function from the TV menu. For details, refer to

the operating instructions of the TV.

Note

• If the TV is turned on before turning on the system,

TV sound will not be output for a moment.

• While the TV is in PAP (picture and picture) mode,

the System Audio Control function will not work.

When the TV exits PAP mode, the output method of

the TV returns to the one before PAP mode.

• If you select a TV program during DVD playback

with the system, the “TV/VIDEO” function is

automatically set to output TV sound.

• When you activate One-Touch Play during watching

TV, the System Audio Control function is activated

and the TV sound is muted.

• While recording songs on an audio CD into a USB

device, the System Audio Control function will not

work (DAV-DZ270 only).

• You can connect the system and the TV audio

digitally. For details, see (page 21).

(Volume Limit)

If you change the output method of the TV to the

system speaker on the TV menu or by pressing

THEATER* or THEATRE*, loud sound may be

output depending on the volume level of the

system. You can prevent this by limiting the

maximum level of the volume. For details, see

“[VOLUME LIMIT]” (page 56).

* The button name differs depending on the area.

Turning the system off in sync

with the TV

Enjoying TV sound from the

speakers in this system

Setting the Maximum Volume

Level of the System

Control for HDMI/External Audio Device

67GB

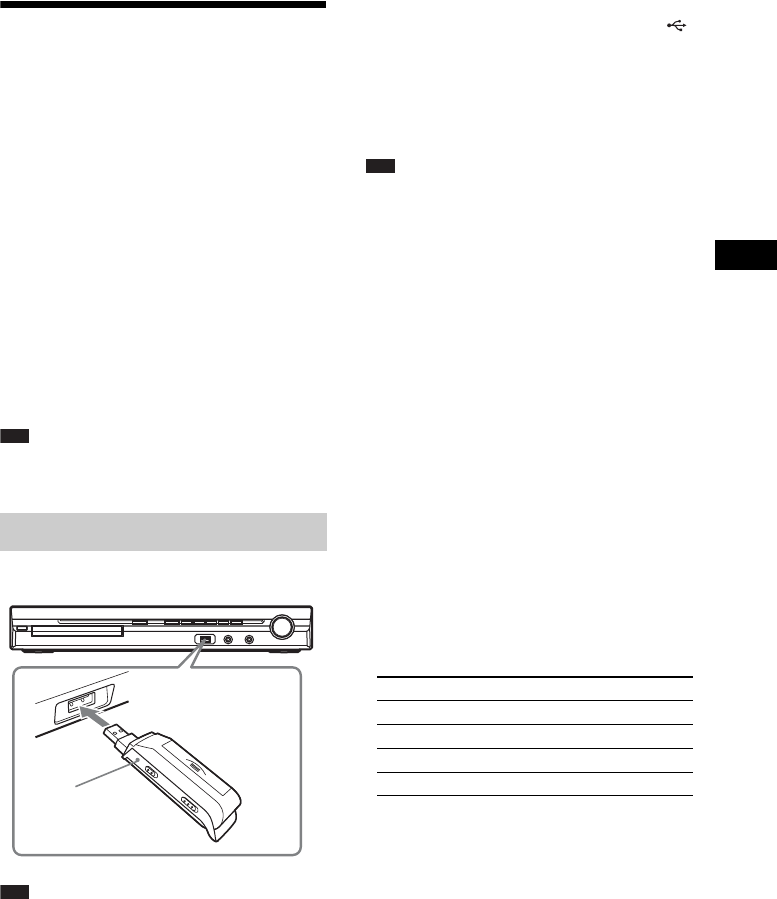

Playing Back Audio

Files/JPEG Image Files

of a USB Device

(DAV-DZ270 only)

You can play audio files (MP3/WMA/AAC

files)/JPEG image files stored in a USB device

such as the digital music player or USB storage

media (not supplied) by connecting the USB

device to the unit.

For a list of USB devices that can be connected

to the unit, see “Playable USB Devices”

(page 76).

The audio format that can be played back by the

system is MP3/WMA/AAC files* only.

* Files with copyright protection (Digital Rights

Management) cannot be played by the system.

Note

• The system cannot play WMA/AAC files on a DATA

CD/DATA DVD.

Note

• When you use the AUDIO IN/A.CAL MIC jack

while a USB device is connected, be careful as space

is restricted.

1Press FUNCTION +/– repeatedly until

“USB” appears in the front panel

display.

2Connect a USB device (digital music

player or USB storage media) to the

(USB) port.

When you connect the USB device,

“READING” appears in the front panel

display until the system reads all data of the

USB device.

Note

• When you connect the USB device, make sure that

the direction of the jack is correct.

• Do not forcibly insert the USB device, as this may

cause the device to be damaged.

• Do not connect other device or objects besides the

USB device.

• It may take about 10 seconds before “READING”

appears in the front panel display depending on the

type of the USB device.

To remove the USB device

1Press x to stop playback.

2Press [/1 to turn off the system.

3Remove the USB device.

Notes on the USB device

• The system can play back up to 200 folders,

including albums that do not contain audio

files and JPEG image files. When more than

200 folders are in the USB device, folders that

are recognized by the system differ depending

on the folder configuration.

• The system can play back the following files.

The system will play back any data with the

extension above, even if it is not MP3/WMA/

AAC/JPEG format. Playing this data may

generate a loud noise which could damage

your speaker system.

• The following USB devices/situations can

increase the time it takes to start playback:

– a USB device recorded with a complicated

tree structure.

– when the audio files or JPEG image files in

another folder have just been played back.

Connecting the USB device

Front panel

USB device

File Extension of the file

MP3 file “.mp3”

WMA file “.wma”

AAC file “.m4a”

JPEG image file “.jpg” or “.jpeg”

68GB

• Some USB devices cannot be played back on

the system depending on the file format.

• The system can play back to a depth of 8

folders only.

• The system may not be able to play an audio

file depending on the kind of file.

• When the USB device is inserted, the system

reads all the files on the USB device. If there

are many folders or files on the USB device, it

may take a long time to finish reading the USB

device.

• Do not connect the system and the USB device

through a USB hub.

• With some connected USB devices, after an

operation is performed, there may be a delay

before it is performed by this system.

• If the system is turned off during Resume Play

mode, when the system is turned on again

playback starts from the beginning of the audio

file that was in Resume Play mode.

• This system does not necessarily support all

the functions provided in a connected USB

device.

• Files recorded by a device such as a computer

may not be played back in the order in which

they were recorded.

• The playback order for the system may differ

from the playback order of the connected USB

device.

• Always turn off the system before removing

the USB device. Removing the USB device

while the system is on may corrupt the data on

the USB device.

• Do not save other types of files or unnecessary

folders on a USB device that has audio files or

JPEG image files.

• Folders that have no audio files or JPEG image

files are skipped.

• Compatibility with all MP3/WMA/AAC

encoding/writing softwares, recording

devices, and recording media cannot be

guaranteed. Incompatible USB device may

produce noise or interrupted audio or may not

play at all.

• Before using the USB device, make sure that

no virus-ridden files are on the USB device.

1Press FUNCTION +/– repeatedly until

“USB” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [MODE

(MUSIC, IMAGE)], then press .

The options for [MODE (MUSIC,

IMAGE)] appear.

4Press X/x to select [MUSIC].

5Press .

6Press DVD MENU.

The folders recorded on the USB device

appear. When a folder is being played, its

title is shaded.

7Press X/x to select a folder.

xTo play audio files in a folder

Press H to start playing the selected

folder.

xTo select an audio file

Press .

The list of files contained in the folder

appears.

Selecting an audio file or

folder

FOLDER LIST

02 1st Album (1986)

03 In the Middle of Nowhere (1986)

04 Ready for Romance (1986)

05 In the Garden of Venus (1987)

06 Romantic Warriors (1987)

07 Back for Good (1988)

08 Alone (1999)

01 Let's Talk About Love (1985)

TRACK LIST

03 In the Middle of Nowher...

02_Riding_On_A_White_Swan

03_Give_Me_Peace_On_Earth

04_Sweet_Little_Shella

05_Ten_Thousand_Lonely_Drums

06_Lonely_Tears_In_Chinatown

07_In_Shaire

01_Geronimo_s_Cadillac

Control for HDMI/External Audio Device

69GB

Press X/x to select a file and press .

The system starts playing the selected file.

You can turn the file list off by pressing

DVD MENU. Pressing DVD MENU again

will display the folder list.

• The system can recognize up to 150 audio files in a

single folder.

To stop playback

Press x.

To play the next or previous

audio file

Press >/.. Note that you can select the

next folder by continuing to press > after the

last file on the current folder, but that you cannot

return to the previous folder by pressing ..

To return to the previous folder, select the folder

from the folder list.

To return to the previous display

Press O RETURN.

To turn off the display

Press DVD MENU.

Other operations

See “Other operations” (page 36).

1Press FUNCTION +/– repeatedly until

“USB” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [MODE

(MUSIC, IMAGE)], then press .

The options for [MODE (MUSIC,

IMAGE)] appear.

4Press X/x to select [IMAGE].

5Press .

6Press DVD MENU.

The folders recorded on the USB device

appear. When a folder is being played, its

title is shaded.

7Press X/x to select a folder.

xTo play JPEG image files in a folder

as a slide show

Press H to start playing the selected

folder.

The JPEG images are played as a slide

show. You can change the interval of the

slide show (page 70), and add effects to the

slide show (page 70).

xTo select a JPEG image file by

displaying the subscreens

Press PICTURE NAVI.

Images of JPEG image files in the folder

appear in 16 subscreens.

Press C/X/x/c to select the JPEG image

file you want to view, then press .

To return to normal screen, press O

RETURN.

• A scroll box is displayed at the right side of the

TV screen. To display the additional JPEG

image files, select the bottom JPEG image file

and press x. To return to the previous JPEG

image file, select the top JPEG image file and

press X.

• The system can recognize up to 150 JPEG

image files in a single folder.

Selecting a JPEG image file or

folder

FOLDER LIST

02 1st Album (1986)

03 In the Middle of Nowhere (1986)

04 Ready for Romance (1986)

05 In the Garden of Venus (1987)

06 Romantic Warriors (1987)

07 Back for Good (1988)

08 Alone (1999)

01 Let's Talk About Love (1985)

1234

5678

13 14 15 16

9101112

70GB

To play the next or previous JPEG

image file

Press c/C when the Control Menu display is not

displayed. Note that you can select the next

folder by continuing to press c after the last

image on the current folder, but that you cannot

return to the previous folder by pressing C. To

return to the previous folder, select the folder

from the folder list.

To rotate a JPEG image file

When a JPEG image file is displayed on the TV

screen, you can rotate the JPEG image file by 90

degrees.

Press X/x while viewing a JPEG image file.

Press CLEAR to return to normal view.

Note

• You cannot rotate the JPEG image file when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD ] or [(1920

× 1080i) HD].

To stop playback

Press x.

Other operations

See “Other operations” (page 36).

To select the slide show duration

of JPEG image files

1Press DISPLAY twice.

The Control Menu display appears on the

TV screen.

2Press X/x to select [INTERVAL],

then press .

The options for [INTERVAL] appear.

3Press X/x to select a setting.

• [NORMAL]: You can set the duration to

about 6 to 9 seconds.

• [FAST]: You can set the duration shorter

than [NORMAL].

• [SLOW 1]: You can set the duration

longer than [NORMAL].

• [SLOW 2]: You can set the duration

longer than [SLOW 1].

4Press .

Note

• Some JPEG image files may take longer to display

than the option you selected. Especially progressive

JPEG image files or JPEG image files of 3,000,000

pixels or more.

To select an effect for JPEG

image files in the slide show

1Press DISPLAY twice.

The Control Menu display appears on the

TV screen.

2Press X/x to select [EFFECT],

then press .

The options for [EFFECT] appear.

3Press X/x to select a setting.

• [MODE 1]: The JPEG image file sweeps

in from top to bottom.

• [MODE 2]: The JPEG image file stretches

out from left to right of the TV screen.

• [MODE 3]: The JPEG image file stretches

out from the center of the TV screen.

• [MODE 4]: The JPEG image files

randomly cycle through the effects.

• [MODE 5]: The next JPEG image file

slides over the previous image.

• [OFF]: Off.

4Press .

Note

• The [EFFECT] setting is not effective when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD ] or [(1920

× 1080i) HD] (page 56).

1Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

2Press X/x to select

[BROWSING], then press .

The options for [BROWSING] appear.

3Press X/x to select the desired list,

then press .

Displaying the list of audio

files/JPEG image files

Control for HDMI/External Audio Device

71GB

• [FOLDER LIST]: The list of folders

appears. Follow Step 2 of “Selecting an

audio file or folder.”

• [PICTURE LIST]: Images of JPEG image

files in the folder appear in 16 subscreens.

Follow Step 2 of “Selecting a JPEG image

file or folder.”

You can play the audio files/JPEG image files

on the USB device repeatedly.

1Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

2Press X/x to select [REPEAT],

then press .

The options for [REPEAT] appear.

3Press X/x to select the item to be

repeated.

•[OFF]: Off.

• [MEMORY]: You can repeat all of the

folders on the USB device.

• [FOLDER]: You can repeat the current

folder.

• [TRACK] (audio files only): You can

repeat the current file.

4Press .

The item is selected.

To return to normal play

Press CLEAR, or select [OFF] in Step 3.

To turn off the Control Menu

display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

Note

• When [MODE (MUSIC, IMAGE)] is set to [IMAGE]

(page 69), you cannot select [TRACK].

You can search a USB device by audio file,

JPEG image file, or folder. As audio files and

JPEG image files are assigned unique numbers

on the USB device, you can select the desired

audio file or JPEG image file by entering its

number.

1Press DISPLAY. (When playing a

JPEG image files, press DISPLAY

twice.)

The Control Menu display appears on the

TV screen.

2Press X/x to select the search method.

• [TRACK]: audio files.

• [FILE]: JPEG image files.

• [FOLDER]: Folders.

[** (**)] is selected (** refers to a number).

The number in parentheses indicates the

total number of audio files, JPEG image

files, or folders.

3Press .

[** (**)] changes to [– – (**)].

Playing repeatedly

(Repeat Play)

Searching for an audio file/

JPEG image file/folder, etc.

USB MUSIC

1( 144)

1( 1)

T 0: 23

Selected row

USB MUSIC

1( 144)

1( 1)

T 1: 31

72GB

4Press X/x or the number buttons to

select the desired number.

If you make a mistake, press CLEAR to

cancel the number.

5Press .

The system starts playback from the

selected number.

Press DISPLAY repeatedly.

Each time you press DISPLAY while playing

the disc, the display changes:

1 y 2

1 Playing time and current track number

2 Track (file) name*

* If an MP3 file has the ID3 tag, the system will

display a folder name/track (file) name from the ID3

tag information.

The system can support ID3 ver 1.0/1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display has priority

when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are

used for a single MP3 file.

Note

• If a file name of the audio file cannot be displayed,

“*” will appear in the front panel display instead.

• The file name may not be displayed depending on the

text.

• Playing time of MP3 files may not be displayed

correctly.

You can display the information of an audio file

such as time information, name of the folder/

audio file, and the audio bit rate (the amount of

data per second of the current audio) on the TV

screen.

Press DISPLAY during playback.

The information of an audio file appears on the

TV screen.

* If an MP3 file has the ID3 tag, the system will

display a folder name/track (file) name from the ID3

tag information.

The system can support ID3 ver 1.0/1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display has priority

when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are

used for a single MP3 file.

Note

• Characters/marks may not be displayed in some

languages.

• Depending on the type of file being played, the

system can only display a limited number of

characters. Also, depending on the file, not all text

characters will be displayed.

You can check the date information during

playback when the Exif* tag is recorded in the

JPEG image file.

Press DISPLAY twice during playback.

The Control Menu display appears on the TV

screen.

* “Exchangeable Image File Format” is a digital

camera image format defined by the Japan

Electronics and Information Technology Industries

Association (JEITA).

Viewing the information of an

audio file in the front panel

display

Viewing the information of an

audio file on the TV screen

Checking the date information

of JPEG image file

T 0: 13 192k MP3

2002_Remixes

Soul_Survivor_rap_version

Bit rate

Folder name*File name*

USB IMAGE

6( 30)

2( 2)

9/16/2002

Date information

Control for HDMI/External Audio Device

73GB

• Date information is [MM/DD/YYYY].

MM: Month

DD: Day

YYYY: Year

• Date information varies depending on the area.

Storing Songs in a USB

Device

(DAV-DZ270 only)

You can record songs on an audio CD in a USB

device by encoding to MP3 format. You can also

copy the MP3 files on a DATA CD/DATA DVD

into the USB device.

For connecting the USB device, see

“Connecting the USB device” (page 67).

The recorded music is limited to private use

only. Use of the music beyond this limit requires

permission of the copyright holders.

Notes on the USB recording/

copying

• Do not connect the unit and the USB device

through an USB hub.

• Make sure there is enough space in the USB

device for recording or copying.

• Do not remove the USB device during

recording/copying.

• When you are recording tracks from a CD, the

tracks are recorded as 128 kbps MP3 files.

• When you are copying MP3 files from a

DATA CD/DATA DVD, the MP3 files are

recorded with the same bit rate as the original

MP3 files.

• CD text information is not recorded in the

created MP3 files.

• If you stop a recording partway, an MP3 file

whose recording was stopped halfway is

deleted.

• Recording stops automatically if:

– The USB device runs out of space during

recording/copying.

– The number of MP3 files on the USB

device reaches the limit for the number that

the system can recognize.

• You can store up to 150 files in a folder.

• You can store up to 199 folders in a single

USB device.

• If the folder to be erased contains non-audio

format files or sub folders, these are not erased.

• If a folder or file that you are trying to record

already exists on the USB device with the

74GB

same name, a sequential number is added after

the name without overwriting the original

folder or file.

• Some USB devices cannot be played back on

the system depending on the file format.

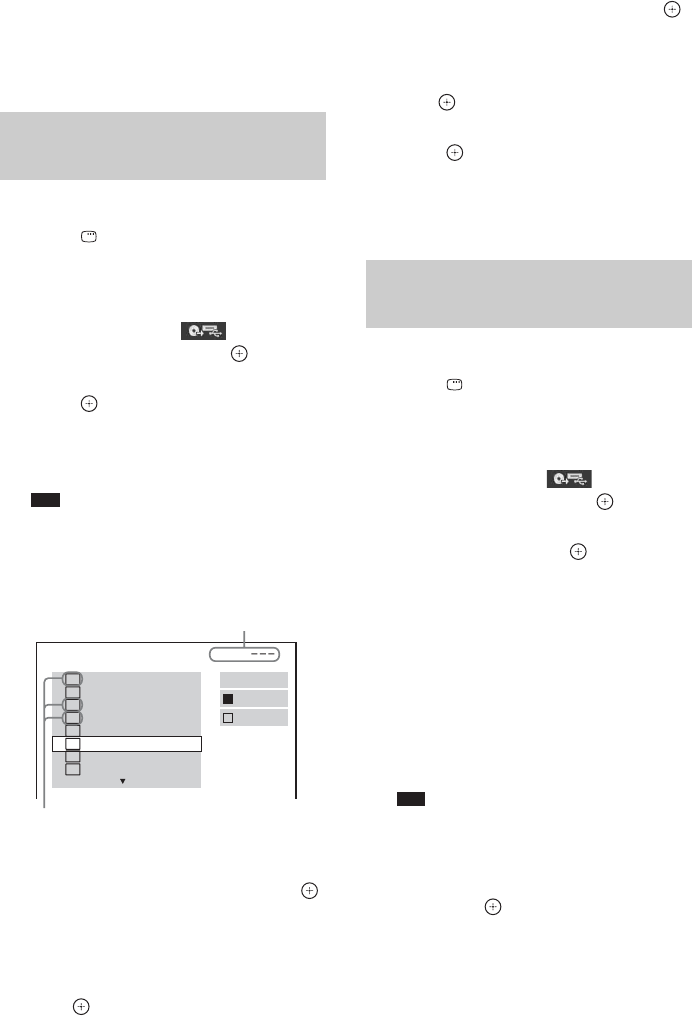

1Load an audio CD.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [USB

RECORDING], then press .

4Press X/x to select [TRACK], then

press .

“READING” appears in the front panel

display until the tracks recorded on the

audio CD appear on the TV screen.

Note

• It takes several minutes to display the tracks

depending on the number of tracks.

5Select a track that you want to record.

xTo select the desired track

Press X/x to select the track, then press .

The tracks are marked in the order that you

select.

xTo select all tracks on the audio CD

Press C/X/x/c to select [x ALL], then

press .

xTo cancel the track

Press X/x to select the track, then press .

The mark on the track is removed.

xTo cancel all the track

Press C/X/x/c to select [s ALL], then

press .

6Press C/X/x/c to select [START], then

press .

The system starts recording and the status

of recording appears.

To cancel recording, press x.

1Load a DATA CD/DATA DVD.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [USB

RECORDING], then press .

4Press X/x to select [TRACK] or

[FOLDER], then press .

• [TRACK]: The folders recorded on the

DATA CD/DATA DVD appear. You can

copy the desired MP3 file.

• [FOLDER]: The folders recorded on the

DATA CD/DATA DVD appear. You can

copy all MP3 files in the folder. Go to

Step 6.

“READING” appears in the front panel

display until the tracks/folders appear on

the TV screen.

Note

• It takes several minutes to display the tracks/

folders depending on the number of tracks/

folders.

5Press X/x to select the desired folder,

then press .

The MP3 files in the selected folder appear.

6Select a MP3 file/folder that you want to

copy.

Recording songs on an audio

CD into a USB device

USB RECORDING Free:

TRACK 01

1START

ALL

TRACK 02

TRACK 03

TRACK 04

TRACK 05

TRACK 06

TRACK 07

TRACK 08

ALL

Recordable space of

the USB device

Tracks to be recorded.

Copying MP3 files on a DATA

CD/DATA DVD into a USB device

Control for HDMI/External Audio Device

75GB

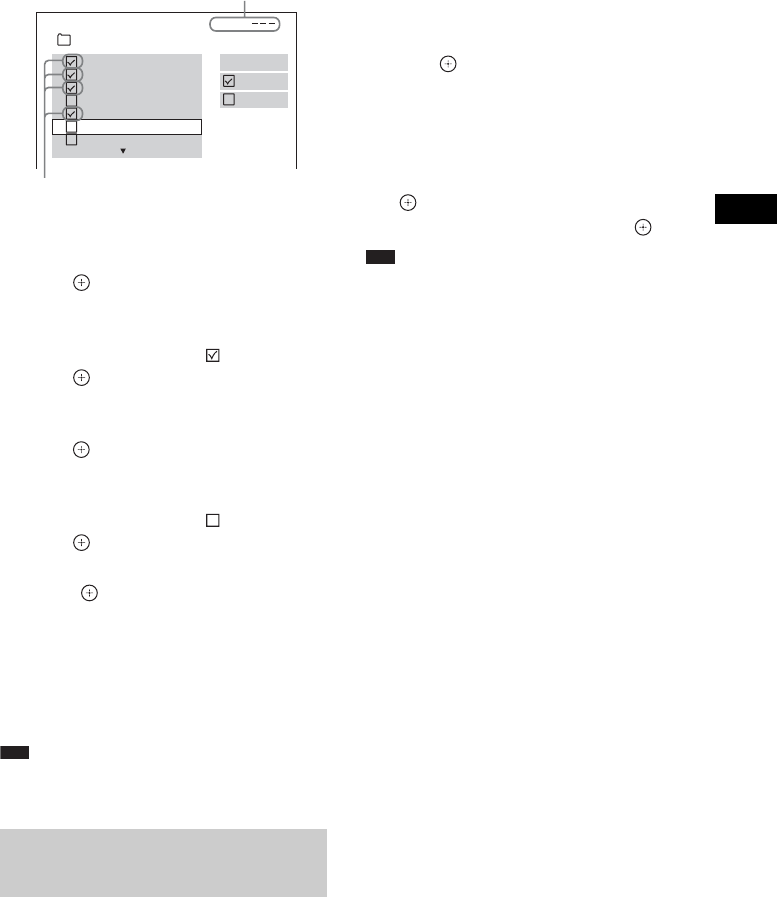

xTo select the desired MP3 file/folder

Press X/x to select the MP3 file/folder, then

press .

The MP3 files/folders are marked.

xTo select all MP3 files/folders

Press C/X/x/c to select [ ALL], then

press .

xTo cancel the MP3 file/folder

Press X/x to select the MP3 file/folder, then

press . The mark on the MP3 file/folder

is removed.

xTo cancel all MP3 files/folder

Press C/X/x/c to select [ ALL], then

press .

7Press C/X/x/c to select [START], then

press .

The system starts copying and the copying

status appears.

To cancel copying, press x.

To return to the previous display

Press O RETURN.

Note

• The audio file on a DATA CD/DATA DVD that you

can copy is the MP3 file only.

You can erase audio files on the USB device.

1Press FUNCTION +/– repeatedly until

“USB” appears in the front panel

display.

2Press X/x to select a folder.

xTo erase all audio files in a folder

Press CLEAR.

xTo erase an audio file

Press .

The list of files contained in the folder

appears.

Press X/x to select the desired audio file,

then press CLEAR.

3Press C/c to select [YES], then press

To cancel, select [NO], then press .

Note

• Do not remove the USB device while erasing.

• If the folder to be erased contains non-audio format

files or sub folders, these are not erased.

To return to the previous display

Press O RETURN.

Erasing audio files on a USB

device

USB RECORDING Free:

START

ALL

01_Back_Seat_O...

02_One_Nights_...

03_Are_You_Ma...

04_I_Can_Lose_...

05_Soul_Survivo...

06_Strangers_B...

07_Stay_maxi_ve...

ALL

2002_Remixes

Recordable space of

the USB device

MP3 files/folders to be copied.

76GB

Playable USB Devices

(DAV-DZ270 only)

You can use the following Sony USB devices on

the system.

Verified Sony digital music player

(as of April 2007)

Verified Sony IC recorder (as of

April 2007)

Verified Sony USB storage media

(as of April 2007)

Note

• Do not use the USB devices other than these USB

devices. Operation of models not listed here is not

guaranteed.

• Operation may not always be ensured even when

using these USB devices.

• Some of these USB devices may not be available for

purchase in certain areas.

Using the DIGITAL MEDIA

PORT Adapter

(DAV-HDZ278 only)

The DIGITAL MEDIA PORT (DMPORT)

adapter (not supplied) is for enjoying sound

from a portable audio source or computer. By

connecting a DIGITAL MEDIA PORT adapter,

you can enjoy sound from the connected

component on the system.

Available DIGITAL MEDIA PORT adapters

vary in each area.

For details on connecting the DIGITAL MEDIA

PORT adapter, see “To connect the DIGITAL

MEDIA PORT adapter” (page 22).

Note

• Do not connect an adapter other than the DIGITAL

MEDIA PORT adapter.

• Do not connect or disconnect the DIGITAL MEDIA

PORT adapter to/from the unit while the system is

turned on.

• Depending on the type of DIGITAL MEDIA PORT

adapter, the images are also output. In this case, the

system outputs the composite video signal only,

regardless of the type of video signal.

1Press FUNCTION +/– repeatedly until

“DMPORT” appears in the front panel

display.

2Start playback of the connected

component.

The sound and images from the connected

component are played on the system or

connected TV.

For operation details, refer to the operating

instructions of the DIGITAL MEDIA

PORT adapter.

• When listening to MP3 files or other compressed

music using a portable audio source, you can enhance

the sound. Select “A.F.D. STD” for “DEC. MODE”

(page 32). To cancel, select other than “A.F.D. STD.”

Product name Model name

Walkman®NWD-B103/B105/B103F/B105F

NWZ-A815/A816/A818

NWZ-S515/S516/S615F/S616F/

S618F

Product name Model name

IC Recorder ICD-U50/U60/U70

ICD-SX57/SX67/SX77

Product name Model name

MICROVAULT USM 512JX/1GJX/2GJX/4GJX

Playing the connected

component on the system

Control for HDMI/External Audio Device

77GB

• Depending on the type of DIGITAL MEDIA PORT

adapter, you may be able to operate a connected

component using either the buttons on the remote or

the unit. The following illustration shows an example

of buttons that can be used in this case.

./>

78GB

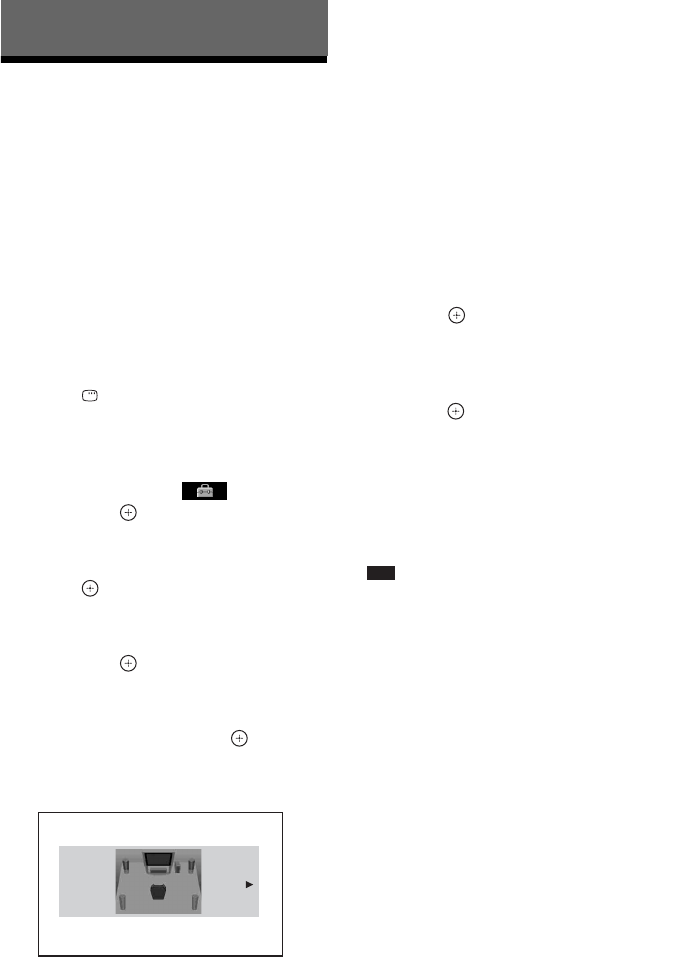

Getting Optimal

Surround Sound for a

Room

[SPEAKER FORMATION]

Depending on the shape of the room, you cannot

install some speakers. For the better surround

sound, Sony recommends that first you decide

the position of the speakers.

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5Press X/x to select [AUDIO SETUP],

then press .

The options for [AUDIO SETUP] appear.

6Press X/x to select [SPEAKER

FORMATION], then press .

The options for [SPEAKER

FORMATION] appear.

7Press C/c to select a setting.

• [STANDARD]: Select this when you

install all the speakers normally.

• [NO CENTER]: Select this when you

install the front and surround speakers

only.

• [NO SURROUND]: Select this when you

install the center and front speakers only.

• [FRONT ONLY]: Select this when you

install the front speakers only.

• [ALL FRONT]: Select this when you

install all the speakers in front of the

listening position.

• [ALL FRONT - NO CENTER]: Select

this when you install the front and

surround speakers in front of the listening

position.

8Press .

The setting is made and the confirmation

display appears.

9Press C/c to select [YES] or [NO], then

press .

• [YES]: Continue with [AUTO

CALIBRATION]. Follow the procedure

from Step 7 of “Calibrating the

Appropriate Settings Automatically”

(page 79).

• [NO]: Exit [SPEAKER FORMATION].

Note

• In order to enjoy the surround sound after you change

the position of the speakers, Sony recommends you

set [SPEAKER FORMATION], and then set [AUTO

CALIBRATION] (page 79).

• When you change the [CONNECTION] setting in

[SPEAKER SETUP] (page 58), the [SPEAKER

FORMATION] setting returns to [STANDARD].

Other Operations

SPEAKER FORMATION

STANDARD

Other Operations

79GB

Calibrating the

Appropriate Settings

Automatically

[AUTO CALIBRATION]

D. C. A. C. (Digital Cinema Auto Calibration)

can set the appropriate surround sound

automatically.

Note

• The system outputs a loud test sound when [AUTO

CALIBRATION] starts. You cannot turn the volume

down. Give consideration to children and neighbors.

• Make sure that the headphones are not connected to

the unit. You cannot operate the following Steps with

the headphones connected.

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5Press X/x to select [AUDIO SETUP],

then press .

The options for [AUDIO SETUP] appear.

6Press X/x to select [AUTO

CALIBRATION], then press .

The options for [AUTO CALIBRATION]

appear.

7Connect the calibration mic (supplied)

to the A.CAL MIC jack on the front

panel

Set up the calibration mic at the ear level

using a tripod, etc. (not supplied).

The front of each speaker should face the

calibration mic, and there should be no

obstruction between the speakers and the

calibration mic.

8Press C/c to select [YES].

9Press .

[AUTO CALIBRATION] starts.

Be quiet during the measurement.

Note

• Avoid being in the measurement area and

making noise during the measurement (about 3

minute), to avoid measurement failure. During

the measurement, test signals are output from

the speakers.

• The environment of the room in which the

system is installed may affect measurements.

• If an error message appears, follow the message,

then select [YES].

An error message appears when:

– the headphones are connected to the unit.

– the calibration mic is not connected.

– front speakers are not correctly connected.

– surround speakers are not correctly

connected.

AUDIO IN / A.CAL MIC

Calibration mic

80GB

– front and surround speakers are not correctly

connected.

10 Press C/c to select [YES] or [NO], then

press .

xThe measurement is OK.

Disconnect the calibration mic, then select

[YES]. The result is implemented.

xThe measurement is not OK.

Follow the message, then select [YES] to

retry.

Note

• While the Auto Calibration function works:

– do not turn off the power.

– do not press any button.

– do not change the volume.

– do not change the function.

– do not change the disc.

– do not insert or eject a disc.

– do not connect the headphones to the unit.

– do not disconnect the calibration mic.

• The measurement for [SUBWOOFER] is always

[YES] since the system does not perform subwoofer

calibration.

• You can check the distance between the listening

position and each speaker. See page 58.

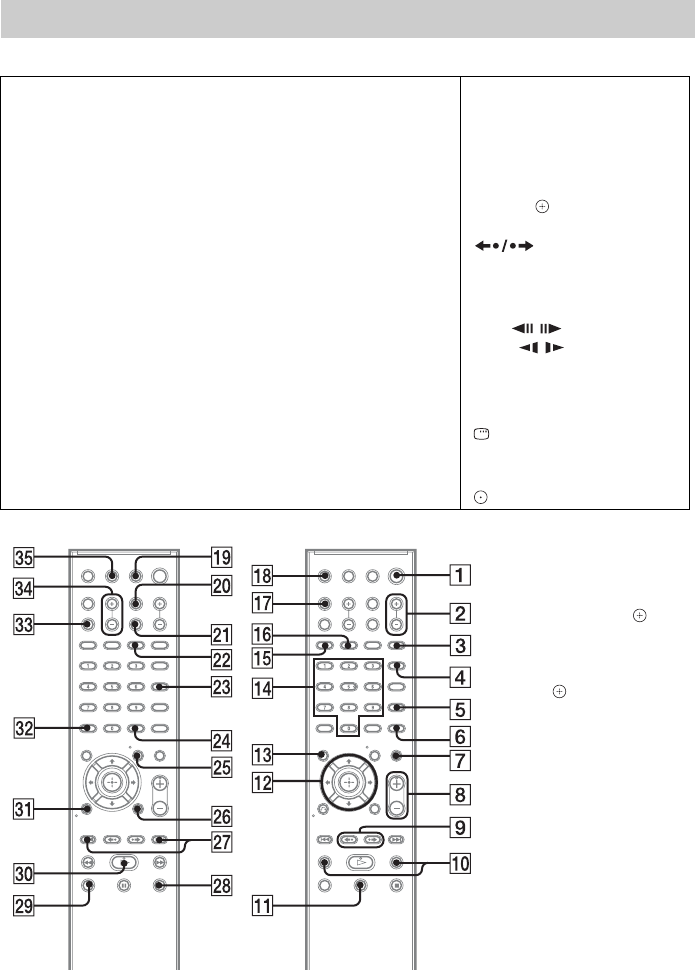

Controlling the TV with

the Supplied Remote

You can control the TV (Sony only) by using

following buttons. Use these buttons (other than

TV [/1, TV INPUT, and TV VOL +/–) while

pressing the TV button.

Note

• Depending on the TV, you may not be able to control

your TV or to use some of the buttons.

• Depending on the area, the name of the button may

differ.

* Use these buttons while pressing the TV button.

By pressing You can

TV [/1Turn the TV on/off.

TV INPUT Switch the TV’s input source

between the TV and other input

sources.

TV VOL +/– Adjust the TV volume.

TV CH +/–*

(PROG +/–*)

Select the TV channel.

Number

buttons*, -*

ENTER*

Select the TV channel.

TOOLS* Displays the operation menu for

the current display.

RETURN* Return to the previous channel or

layer on the menu of the TV.

MENU* Display the menu of the TV.

MUTING* Turn off the TV sound

temporarily.

C/X/x/c*, * Select the item on the menu.

Other Operations

81GB

Using the Sound Effect

You can reinforce bass frequencies.

Press DYNAMIC BASS.

“D. BASS ON” appears in the front panel

display and bass frequencies are effectively

reinforced.

To turn off the sound effect

Press DYNAMIC BASS again.

You can enjoy sound effects or dialogue, as you

would in a movie theater, even at low volume. It

is useful for watching movies at night.

Press NIGHT.

“NIGHT ON” appears in the front panel display

and the sound effect is activated.

Note

• This effect does not work for a Super Audio CD.

When you load a Super Audio CD during “NIGHT

ON,” the sound effect turns off automatically.

• When sound is output from the center speaker, this

effect is more pronounced, as speech (movie dialog,

etc.) is easy to hear. When sound is not output from

the center speaker, or you are using the headphones,

the system optimally adjusts the volume.

To turn off the sound effect

Press NIGHT again.

Using the Sleep Timer

You can set the system to turn off at a preset

time, so you can fall asleep listening to music.

You can preset the time in 1 or 10-minutes

increments.

Press SLEEP.

Each time you press SLEEP, the minutes display

(the remaining time) changes by 10-minutes.

When you set the sleep timer, “SLEEP” flashes

in the front panel display.

To check the remaining time

Press SLEEP once.

To change the remaining time

Press SLEEP repeatedly to select the desired

time.

To cancel the sleep timer

function

Press SLEEP repeatedly until “SLEEP OFF”

appears in the front panel display.

To set the sleep timer using the

system menu

1Press SYSTEM MENU.

2Press X/x repeatedly until “SLEEP”

appears in the front panel display, then

press or c.

3Press X/x to select a setting.

The minutes display (the remaining time)

changes in 10-minutes.

• You can select the remaining time by pressing

the number buttons. In this case, you can preset

the time in 1-minute increments.

4Press .

The setting is made and “SLEEP” flashes in

the front panel display.

5Press SYSTEM MENU.

The system menu turns off.

Reinforcing bass frequencies

Enjoying the sound at low

volume

82GB

Changing the Brightness

of the Front Panel

Display

The brightness of the front panel display can be

set to either of 2 levels.

1Press SYSTEM MENU.

2Press X/x repeatedly until “DIMMER”

appears in the front panel display, then

press or c.

3Press X/x to select the brightness of

the front panel display.

• “DIMMER OFF”: Bright.

• “DIMMER ON”: Dark.

4Press .

The setting is made.

5Press SYSTEM MENU.

The system menu turns off.

Viewing Information

About the Disc

Press DISPLAY repeatedly.

Each time you press DISPLAY while playing

the disc, the display changes:

1 t 2 t ... t 1 t ...

Some displayed items may disappear after a few

seconds.

xDVD VIDEO/DVD-VR

1 Playing time of the current title

2 Remaining time of the current title

3 Playing time of the current chapter

4 Remaining time of the current chapter

5 Disc name

6 Title and chapter

xVIDEO CD (without PBC functions)/

Super Audio CD/CD

1 Playing time of the current track

2 Remaining time of the current track

3 Playing time of the disc

4 Remaining time of the disc

5 Track name

6 Track and index*

* VIDEO CD/Super Audio CD only.

xDATA CD (MP3 file)/DATA DVD (MP3 file)

1 Playing time and current track number

2 Track (file) name*

* If an MP3 file has the ID3 tag, the system will

display a folder name/track (file) name from the ID3

tag information.

The system can support ID3 ver 1.0/1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display has priority

when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are

used for a single MP3 file.

xDATA CD (DivX video file)/DATA DVD

(DivX video file) (Except for United

Kingdom and North American models)

1 Playing time of the current file

Viewing the playing time and

remaining time in the front

panel display

Other Operations

83GB

2 Current file name

3 Current album and file number

Note

• The system can only display the first level of the

DVD/CD text, such as the disc name or title.

• If a file name of the MP3 file cannot be displayed, “*”

will appear in the front panel display instead.

• The disc name or track name may not be displayed

depending on the text.

• Playing time of MP3 files and DivX video files* may

not be displayed correctly.

* Except for United Kingdom and North American

models.

• When the system is playing a VIDEO CD with PBC

functions, the playing time is displayed.

1Press DISPLAY during playback.

The following display appears on the TV

screen.

2Press DISPLAY repeatedly to change

the time information.

The display and the kinds of time that you

can check depend on the disc you are

playing.

xDVD VIDEO/DVD-VR

• T **:**:**

Playing time of the current title

• T-**:**:**

Remaining time of the current title

• C **:**:**

Playing time of the current chapter

• C-**:**:**

Remaining time of the current chapter

xVIDEO CD (with PBC functions)

•**:**

Playing time of the current scene

xVIDEO CD (without PBC functions)/

Super Audio CD/CD

• T **:**

Playing time of the current track

• T-**:**

Remaining time of the current track

• D **:**

Playing time of the current disc

• D-**:**

Remaining time of the current disc

xDATA CD (MP3 file)/DATA DVD (MP3

file)

• T **:**

Playing time of the current track

xDATA CD (DivX video file)/DATA

DVD (DivX video file) (Except for United

Kingdom and North American models)

• **:**:**

Playing time of the current file

Note

• Characters/marks may not be displayed in some

languages.

• Depending on the type of disc being played, the

system can only display a limited number of

characters. Also, depending on the disc, not all text

characters will be displayed.

To check DVD/Super Audio CD/CD

text

Press DISPLAY repeatedly during playback to

display text recorded in the DVD/Super Audio

CD/CD.

The DVD/Super Audio CD/CD text appears

only when text is recorded in the disc. You

cannot change the text. If the disc does not

contain text, “NO TEXT” appears.

Viewing the playing time and

remaining time on the TV

screen

T 1: 01: 40

Time information Checking the play information

of the disc

Dvorak/Tchaikovsky /NedPho/Kreizberg

Adagio - Allegro molto

84GB

To check DATA CD/DATA DVD

(MP3 file/DivX video file3)) text

By pressing DISPLAY while playing MP3 files

or DivX video files3) on a DATA CD/DATA

DVD, you can display the name of the folder/

MP3 file/DivX video file3), and the audio bit

rate (the amount of data per second of the

current audio) on the TV screen.

1)Appears when:

– playing an MP3 file on a DATA CD/DATA DVD.

– playing a DivX video file that contains MP3 audio

signals on a DATA CD/DATA DVD (except for

United Kingdom and North American models).

2)If an MP3 file has the ID3 tag, the system will display

a folder name/track (file) name from the ID3 tag

information.

The system can support ID3 ver 1.0/1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display has priority

when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are

used for a single MP3 file.

3)Except for United Kingdom and North American

models.

You can check the date information during

playback when the Exif* tag is recorded in the

JPEG image file.

Press DISPLAY twice during playback.

The Control Menu display appears on the TV

screen.

* “Exchangeable Image File Format” is a digital

camera image format defined by the Japan

Electronics and Information Technology Industries

Association (JEITA).

• Date information is [MM/DD/YYYY].

MM: Month

DD: Day

YYYY: Year

• Date information varies depending on the area.

Checking the date information

of JPEG image file

T 0: 13 192k MP3

2002_Remixes

Soul_Survivor_rap_version

Bit rate1)

Folder name2) MP3 File2)/DivX video file3)

name

DATA CD JPEG

10( 15)

5( 8)

9/18/2002

Date information

Other Operations

85GB

Returning to the Default

Settings

1Press "/1 to turn on the system.

2Press x, A, and "/1 on the unit at the

same time.

“COLD RESET” appears in the front panel

display and the system returns to default

settings.

You can return the [SETUP] settings (page 52)

other than [PARENTAL CONTROL] to the

default settings.

1Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

4Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

5Press X/x to select [SYSTEM SETUP],

then press .

The options for [SYSTEM SETUP] appear.

6Press X/x to [RESET] and press c.

7Press C/c to select [YES].

You can also quit the process and return to

the Control Menu display by selecting [NO]

here.

8Press .

Do not press [/1 while resetting the system

as it takes a few seconds to complete.

Note

• The [MODE (MUSIC, IMAGE)], [INTERVAL],

[EFFECT], and [MULTI/2CH] settings are also

return to the default settings.

Returning the system

parameters, such as preset

stations, to the default

settings

Returning the [SETUP] settings

to the default

"/1x

86GB

Precautions

On power sources

• Unplug the unit from the wall outlet (mains) if you do

not intend to use it for an extended period of time. To

disconnect the cord, pull it out by the plug, never by

the cord.

On placement

• Place the system in a location with adequate

ventilation to prevent heat build-up in the system.

• At high volume, over long periods of time, the cabinet

becomes hot to the touch. This is not a malfunction.

However, touching the cabinet should be avoided. Do

not place the unit in a confined space where

ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything

on the system. The system is equipped with a high

power amplifier. If the ventilation slots are blocked,

the unit can overheat and malfunction.

• Do not place the unit on surfaces (rugs, blankets, etc.)

or near materials (curtains, draperies) that may block

the ventilation slots.

• Do not install the unit near heat sources such as

radiators, or air ducts, or in a place subject to direct

sunlight, excessive dust, mechanical vibration, or

shock.

• Do not install the unit in an inclined position. It is

designed to be operated in a horizontal position only.

• Keep the unit and discs away from components with

strong magnets, such as microwave ovens, or large

loudspeakers.

• Do not place heavy objects on the unit.

On operation

• If the system is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture

may condense on the lenses inside the control unit.

Should this occur, the system may not operate

properly. In this case, remove the disc and leave the

system turned on for about half an hour until the

moisture evaporates.

• When you move the system, take out any disc. If you

don’t, the disc may be damaged.

• If anything falls into the cabinet, unplug the unit and

have it checked by qualified personnel before

operating it any further.

On adjusting volume

• Do not turn up the volume while listening to a section

with very low level inputs or no audio signals. If you

do, the speakers may be damaged when a peak level

section is suddenly played.

On cleaning

• Clean the cabinet, panel, and controls with a soft cloth

slightly moistened with a mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any questions or problems concerning

your system, please consult your nearest Sony dealer.

On cleaning discs, disc/lens

cleaners

• Do not use cleaning discs or disc/lens cleaners

(including wet or spray types). These may cause

the apparatus to malfunction.

On your TV’s color

• If the speakers should cause the TV screen to have

color irregularity, turn off the TV then turn it on after

15 to 30 minutes. If color irregularity should persist,

place the speakers further away from the TV set.

On moving the system

Before moving the system, make sure that there is no

disc inserted, and remove the AC power cord (mains

lead) from the wall outlet (mains).

Additional Information

IMPORTANT NOTICE

Caution: This system is capable of holding a still

video image or on-screen display image on your

television screen indefinitely. If you leave the still

video image or on-screen display image displayed

on your TV for an extended period of time you risk

permanent damage to your television screen.

Projection televisions are especially susceptible to

this.

Additional Information

87GB

Notes about the Discs

On handling discs

• To keep the disc clean, handle the disc by its

edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or

heat sources such as hot air ducts, or leave it in

a car parked in direct sunlight as the

temperature may rise considerably inside the

car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning

cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner,

commercially available cleaners, or anti-static

spray intended for vinyl LPs.

This system can only play back a standard

circular disc. Using neither standard nor circular

discs (e.g., card, heart, or star shape) may cause

a malfunction.

Do not use a disc that has a commercially

available accessory attached, such as a label or

ring.

88GB

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting

guide to help remedy the problem before requesting repairs. Should any problem persist, consult your

nearest Sony dealer.

Note that if service personnel changes some parts during repair, these parts may be retained.

Power


Symptom Remedy

The power is not turned on. • Check that the AC power cord (mains lead) is connected securely.

•Press "/1 after “STANDBY” disappears from the front panel display.

If “PROTECTOR” and “PUSH

POWER” appear alternately in

the front panel display.

Press "/1 to turn off the system, and check the following items after

“STANDBY” disappears.

• Are the + and – speaker cords short-circuited?

• Are you using only the specified speakers?

• Is anything blocking the ventilation holes of the system?

• After checking the above items and fixing any problems, turn on the system. If

the cause of the problem cannot be found even after checking all the above

items, consult your nearest Sony dealer.

Symptom Remedy

There is no picture. • The video connecting cords are not connected securely.

• The video connecting cords are damaged.

• The unit is not connected to the correct TV input jack (page 18).

• The video input on the TV is not set so that you can view pictures from the

system.

• Check the output method on your system (page 18).

• You have set progressive format but your TV cannot accept the signal in

progressive format. In this case, return the setting to interlace format (the

default setting) (page 29).

• Even if your TV is compatible with progressive format (525p/625p) signals, the

image may be affected when you set progressive format. In this case, return the

setting to interlace format (the default setting) (page 29).

• Re-connect the connecting cord securely.

• The unit is connected to an input device that is not HDCP (High-bandwidth

Digital Content Protection) compliant (“HDMI” on the front panel does not

light up) (page 18).

• If the HDMI OUT jack is used for video output, changing the type of video

signal output from the HDMI OUT jack. It may solve the problem (page 29).

Connect the TV and the unit using a video jack other than the HDMI OUT, and

switch the TV’s input to the connected video input so that you can see the on-

screen displays. Change the type of video signal output from the HDMI OUT

jack, and switch the TV’s input back to HDMI. If the picture still does not

appear, repeat the Steps and try other options.

• You have set [PROGRESSIVE (COMPONENT OUT)] in [VIDEO SETUP] to

[ON] (page 54) even though your TV cannot accept the progressive signal. In

this case, disconnect the HDMI cable from the unit and then set to [OFF].

Additional Information

89GB

Sound

Picture noise appears. • The disc is dirty or flawed.

• If the picture output from your system goes through your VCR to get to your

TV, the copy-protection signal applied to some DVD programs could affect

picture quality. If you still experience problems even when you connect your

unit directly to your TV, try connecting your unit to your TV’s video input

(page 18).

* Depending on the country model, [720 × 576p] may appear.

Even though you set the aspect

ratio in [TV TYPE] of [VIDEO

SETUP], the picture does not fill

the TV screen.

• The aspect ratio on the disc is fixed.

Color irregularity occurs on the

TV screen.

The subwoofer and the front speakers in this system are magnetically shielded to

prevent magnetic leakage. However, some leakage may occur, as a high-strength

magnet is employed. If this happens, check the following items:

• If the speakers are used with a CRT-based TV or projector, install the speakers

at least 0.3 meters (1.0 ft) from the TV set.

• If the color irregularity persists, turn off the TV set once, then turn it on after 15

to 30 minutes.

• If howling occurs, reposition the speakers farther away from the TV set.

• Make sure that no magnetic object (magnetic latch on a TV stand, health care

device, toy, etc.) is placed near the speakers.

Symptom Remedy

There is no sound. • The speaker cord is not connected securely.

• Press MUTING on the remote if “MUTING ON” is displayed in the front panel

display.

• The system is in pause mode or in Slow-motion Play mode. Press H to return

to normal play mode.

• Fast forward or fast reverse is performed. Press H to return to normal play

mode.

• Check the speaker settings (page 58).

• Super Audio CD audio signals are not output from the HDMI OUT jack.

• The component connected to the HDMI OUT jack does not conform to the

audio signal format, in this case set [AUDIO (HDMI)] in [HDMI SETUP] to

[ON] (page 56).

No sound is output from the

HDMI OUT jack.

• Set [AUDIO (HDMI)] in [HDMI SETUP] to [ON] (page 56).

• The HDMI OUT jack is connected to a DVI (Digital Visual Interface) device

(DVI (Digital Visual Interface) jacks do not accept audio signals).

• The HDMI OUT jack does not output Super Audio CD sound.

• Try the following: 1 Turn the system off and on again. 2 Turn the connected

component off and on again. 3 Disconnect and then connect the HDMI cable

again.

The left and right sounds are

unbalanced or reversed.

• Check that the speakers and components are connected correctly and securely.

There is no sound from the

subwoofer.

• Check the speaker connections and settings (pages 16, 58).

• Select “A.F.D. STD” for “DEC. MODE” (page 32).

90GB

Operation

Severe hum or noise is heard. • Check that the speakers and components are connected securely.

• Check that the connecting cords are away from a transformer or motor, and at

least 3 meters (10 ft) away from your TV set or a fluorescent light.

• Move your TV away from the audio components.

• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with

alcohol.

• Clean the disc.

The sound loses stereo effect

when you play a VIDEO CD, a

CD, or an MP3 file.

• Set [AUDIO] to [STEREO] by pressing AUDIO (page 37).

• Make sure the unit is connected properly.

The surround effect is difficult to

hear when you are playing a

sound track of Dolby Digital,

DTS, or MPEG audio.

• Make sure the “DEC. MODE” setting (page 32).

• Check the speaker connections and settings (pages 16, 58).

• Depending on the DVD, the output signal may not be the entire 5.1 channel. It

may be monaural or stereo even if the sound track is recorded in Dolby Digital

or MPEG audio format.

The sound comes from the center

speaker only.

• Depending on the disc, the sound may come from the center speaker only.

No sound is heard from the

center speaker.

• Check the speaker connections and settings (pages 16, 58).

• Make sure the “DEC. MODE” setting (page 32).

• Depending on the source, the effect of the center speaker may be less

noticeable.

• A 2 channel source is being played.

No sound or only a very low-

level sound is heard from the

surround speakers.

• Check the speaker connections and settings (pages 16, 58).

• Make sure the “DEC. MODE” setting (page 32).

• Depending on the source, the effect of the surround speakers may be less

noticeable.

• A 2 channel source is being played.

There is no sound from the

DIGITAL IN COAXIAL/

OPTICAL jack (DAV-HDZ278

only).

• The sampling frequency of the input signal is more than 48 kHz.

Symptom Remedy

Radio stations cannot be tuned

in.

• Check that the antenna (aerial) is connected securely. Adjust the antenna

(aerial) or connect an external antenna (aerial) if necessary.

• The signal strength of the stations is too weak (when tuning in with automatic

tuning). Use direct tuning.

• No stations have been preset or the preset stations have been cleared (when

tuning by scanning preset stations). Preset the stations (page 61).

• Press DISPLAY so that the frequency appears in the front panel display.

The remote does not function. • There are obstacles between the remote and the unit.

• The distance between the remote and the unit is too far.

• The remote is not pointed at the remote sensor on the unit.

• The batteries in the remote are weak.

Symptom Remedy

Additional Information

91GB

The disc does not play. • There is no disc inserted.

• The disc is upside down.

Insert the disc with the playback side facing down.

• The disc is skewed on the disc tray.

• The system cannot play CD-ROMs, etc. (page 6).

• The region code on the DVD does not match the system.

• Moisture has condensed inside the unit and may cause damage to the lenses.

Remove the disc and leave the unit turned on for about half an hour.

The MP3 file cannot be played. • The DATA CD is not recorded in the MP3 format that conforms to ISO 9660

Level 1/Level 2, or Joliet.

• The DATA DVD is not recorded in an MP3 format that conforms to UDF

(Universal Disk Format).

• The MP3 file does not have the extension “.MP3.”

• The data is not formatted in MP3 even though it has the extension “.MP3.”

• The data is not MPEG1 Audio Layer 3 data.

• The system cannot play audio tracks in MP3PRO format.

• The [MODE (MUSIC, IMAGE)] setting has been set to [IMAGE] (page 46).

• If you cannot change the [MODE (MUSIC, IMAGE)] setting, re-load the disc

or turn the system off, then on.

• The DATA CD/DATA DVD contains a DivX video file (except for United

Kingdom and North American models).

The JPEG image file cannot be

played.

• The DATA CD is not recorded in a JPEG format that conforms to ISO 9660

Level 1/Level 2, or Joliet.

• The DATA DVD is not recorded in a JPEG format that conforms to UDF

(Universal Disk Format).

• It has an extension other than “.JPEG” or “.JPG.”

• It is larger than 3,072 (width) × 2,048 (height) in normal mode, or more than

2,000,000 pixels in Progressive JPEG image file which is mainly used on the

Internet WEB site.

• It does not fit the TV screen (those images are reduced).

• The [MODE (MUSIC, IMAGE)] setting has been set to [MUSIC] (page 46).

• If you cannot change the [MODE (MUSIC, IMAGE)] setting, re-load the disc

or turn the system off, then on.

• The DATA CD/DATA DVD contains a DivX video file (except for United

Kingdom and North American models).

The MP3 files and JPEG image

files starts playing

simultaneously.

• [AUTO] has been selected in [MODE (MUSIC, IMAGE)] (page 46).

The DivX video file cannot be

played (except for United

Kingdom and North American

models).

• The file is not created in DivX format.

• The file has an extension other than “.AVI” or “.DIVX.”

• The DATA CD/DATA DVD is not created in a DivX format that conforms to

ISO 9660 Level 1/Level 2 or, Joliet/UDF.

• The DivX video file is larger than 720 (width) × 576 (height).

The titles of folder/file/file name

are not displayed correctly.

• The system can only display numbers and letters of the alphabets. Other

characters are displayed as [*].

Symptom Remedy

92GB

A disc does not start playing

from the beginning.

• Program Play, Shuffle Play, or Repeat Play has been selected.

Press CLEAR to cancel these functions before playing a disc.

• Resume Play has been selected.

During stop, press x on the unit or the remote and then start playback

(page 39).

• The title, DVD or PBC menu automatically appears on the TV screen.

The system starts playing the

disc automatically.

• The DVD features an auto playback function.

Playback stops automatically. • Some discs may contain an auto pause signal. While playing such a disc, the

system stops playback at the auto pause signal.

You cannot perform some

functions such as stop, search,

Slow-motion Play, or Repeat

Play.

• Depending on the disc, you may not be able to perform some of the operations

above. Refer to the operating instructions supplied with the disc.

Messages do not appear on the

TV screen in the language you

want.

• In the Setup Display, select the desired language for the on-screen display in

[OSD] under [LANGUAGE SETUP] (page 53).

The language for the sound track

cannot be changed.

• Multilingual tracks are not recorded on the DVD being played.

• The DVD prohibits changing the language for the sound track.

The subtitle language cannot be

changed.

• Multilingual subtitles are not recorded on the DVD being played.

• The DVD prohibits changing the subtitles.

The subtitle cannot be turned off. • The DVD prohibits turning off subtitles.

The angles cannot be changed. • Multi-angles are not recorded on the DVD being played (page 36).

• The DVD prohibits changing the angles.

A disc cannot be ejected and

“LOCKED” appears in the front

panel display.

• Contact your Sony dealer or local authorized Sony service facility.

[Data error] appears on the TV

screen when playing a DATA

CD or DATA DVD.

• The MP3 file/JPEG image file/DivX video file you want to play is broken

(except for United Kingdom and North American models).

• The data is not MPEG1 Audio Layer 3 data.

• The JPEG image file format does not conform to DCF.

• The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG

format.

• The file you want to play has the extension “.AVI” or “.DIVX” but is not in

DivX format, or is in DivX format but does not conform to a DivX Certified

profiles (except for United Kingdom and North American models).

The system does not work

normally.

• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then

reconnect after several minutes.

Symptom Remedy

Additional Information

93GB

USB device

(DAV-DZ270 only)

The Control for HDMI function

does not work.

• When “HDMI” does not light up in the front panel display, check the HDMI

connection (page 18).

• Set the [CONTROL FOR HDMI] setting in [HDMI SETUP] to [ON] (page 55).

• Make sure that the connected component is compatible with the [CONTROL

FOR HDMI] function.

• Check that the AC power cord (mains lead) of the connected component is

connected securely.

• Check the connected component’s setting for the Control for HDMI function.

Refer to the operating instructions supplied with the component.

• If you change the HDMI connection, connect and disconnect the AC power

cord (mains lead), or have a power failure, set the [CONTROL FOR HDMI]

setting in [HDMI SETUP] to [OFF], then set the [CONTROL FOR HDMI]

setting in [HDMI SETUP] to [ON] (page 55).

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”

(page 64).

No sound is output from the

system and TV while using the

System Audio Control function.

• Set the [AUDIO (HDMI)] setting in [CUSTOM SETUP] to [ON] (page 56).

• Make sure that the connected TV is compatible with the System Audio Control

function.

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”

(page 64).

Symptom Remedy

“OVERLOAD” appears in the

front panel display.

• A problem has been detected with the level of electrical current from the

(USB) port. Turn off the system and remove the USB device from the

(USB) port. Make sure there is no problem with the USB device. If this display

pattern persists, contact your nearest Sony dealer.

Are you using a supported USB

device?

• If you connect an unsupported USB device, the following problems may occur.

See “Playable USB Devices” (page 76) for the supported device types.

– The USB device is not recognized.

– File or folder names are not displayed on this system.

– Playback is not possible.

– The sound skips.

– There is noise.

– A distorted sound is output.

– Recording stops before it is finished.

There is no sound. • The USB device is not connected correctly. Turn off the system, then reconnect

the USB device.

The sound is distorted. • The bit rate used when encoding the audio files was low. Send audio files

encoded with higher bit rates to the USB device.

There is noise or the sound skips. • Turn off the system, then reconnect the USB device.

• Noise may have entered during the recording or copying process. Delete the

file, and try recording or copying again.

• Copy the files to your computer, format the USB device in FAT12, FAT16, or

FAT32 format, and copy the files to the USB device again.*

* This system supports FAT12, FAT16, and FAT32, but some USB device may

not support all of these FAT. For details, refer to the operating instructions of

each USB device or contact the manufacturer.

Symptom Remedy

94GB

The USB device cannot be

connected into the (USB)

port.

The USB device is being connected backwards. Connect the USB device in the

correct orientation.

The USB device which has been

used on another device does not

work.

• It may be recorded in an unsupported format. If so, first take the precaution of

backing up important files on the USB device by copying them to your

computer hard disk. Next, format the USB device with a FAT12, FAT16, or

FAT32 file system and transfer the backed-up audio files onto the USB device

again.*

* This system supports FAT12, FAT16, and FAT32, but some USB device may

not support all of these FAT. For details, refer to the operating instructions of

each USB device or contact the manufacturer.

“READING” is displayed for a

long time.

• The reading process can take a long time in the following cases.

– There are many folders or files on the USB device.

– The file structure is extremely complex.

– The memory capacity is excessive.

– The internal memory is fragmented.

• Sony recommends following these guidelines.

– Total folders on the USB device: 200 or less

– Total files per folder: 150 or less

Erroneous display. • Send the music data to the USB device again, as the data stored in the USB

device may have been corrupted.

• The character codes that can be displayed by this system are numbers and

alphabet only. Other characters are not displayed correctly.

“DATA ERROR” appears in the

front panel display during

playback of an USB device.

• The audio file/JPEG image file you want to play is broken.

• The data is not MPEG1 Audio Layer 3 data.

• The JPEG image file format does not conform to DCF.

• The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG

format.

Playback does not start. • Turn off the system, then reconnect the USB device.

• Connect the USB device that this system can play (page 76).

•Press H to start play.

Playback does not start from the

first track.

• Cancel Repeat Play (page 71).

Symptom Remedy

Additional Information

95GB

The USB device (audio file/

JPEG image file) cannot be

played back.

• USB device formatted with file systems other than FAT12, FAT16, or FAT32

are unsupported.*

• Files that are encrypted or protected by passwords, etc. cannot be played back.

• The MP3 file does not have the extension “.MP3.”

• The WMA file does not have the extension “.wma.”

• The AAC file does not have the extension “.m4a.”

• The data is not stored in the desired format.

• The MP3 files in format other than MPEG 1 Audio Layer 3 cannot be played

back.

• If you use partitioned USB device, only audio files on the first partition can be

played.

• The system can playback to a depth of 8 folders only.

• For audio files/JPEG image files, check the [MODE (MUSIC, IMAGE)] setting

(pages 68, 69).

• The number of folders has exceeded 200.

• The number of files has exceeded 150.

• For audio files/JPEG image files, the folder contains more than 150 files.

• The JPEG image file does not have the extension “.JPG” or “.JPEG.”

• The JPEG image file is larger than 3,072 (width) × 2,048 (height) in normal

mode, or more than 2,000,000 pixels in Progressive JPEG mode which is

mainly used on the Internet website.

• JPEG image files with a high width to length ratio cannot be played back.

• A WMA file that is the WMA DRM, WMA Lossless, or WMA PRO format

cannot be played back.

• An AAC file that is the AAC DRM or AAC Lossless format cannot be played

back.

* This system supports FAT12, FAT16, and FAT32, but some USB device may

not support all of these FAT. For details, refer to the operating instructions of

each USB device or contact the manufacturer.

Audio files or JPEG image files

take longer to play back than

others.

• After the system reads all files on the USB device, playback may take more

time than usual if:

– the number of folders or files is very large.

– the folder or file organization structure is very complex.

– the memory capacity is very large.

– the file size is extremely large.

– the physical structure within the memory is fragmented.

• Sony recommends following these guidelines.

– Total folders on the USB device: 200 or less

– Total files per folder: 150 or less

You cannot start recording/

copying to an USB device.

• The following problems may have occurred.

– The USB device is full.

– The number of MP3 files and folders on the USB device has reached the

upper limit.

– The USB device is write-protected.

Recording/copying is stopped

before it is finished.

• The communication speed of the USB device is extremely slow. Connect the

USB device that this system can play.

• If the recording, copying, and erase operations are repeated multiple times, the

file structure within the USB device becomes complex. Follow the procedure

in the operating instructions of the USB device to format the USB device. If the

problem persists, contact your nearest Sony dealer.

Symptom Remedy

96GB

Recording to an USB device

results in an error.

• You are using an unsupported USB device. See “Playable USB Devices”

(page 76).

• The USB device was disconnected or the power was turned off during

recording/copying. Delete the partially-recorded file, and record/copy again. If

this does not fix the problem, the USB device may be broken. Follow the

procedure in the operating instructions of the USB device to format the USB

device. If the problem persists, contact your nearest Sony dealer.

Audio files or folders on the

USB device cannot be erased.

• Check if the USB device is write-protected.

• The USB device was disconnected or the power was turned off during erasing.

Delete the partially-erased file. If this does not fix the problem, the USB device

may be broken. Follow the procedure in the operating instructions of the USB

device to format the USB device. If the problem persists, contact your nearest

Sony dealer.

Symptom Remedy

Additional Information

97GB

Self-diagnosis Function

(When letters/numbers appear in the

display)

When the self-diagnosis function is activated to

prevent the system from malfunctioning, a 5-

character service number (e.g., C 13 50) with a

combination of a letter and 4 digits appears on

the TV screen or front panel display. In this case,

check the following table.

When displaying the version

number on the TV screen

When you turn on the system, the version

number [VER.X.XX] (X is a number) may

appear on the TV screen. Although this is not a

malfunction and for Sony service use only,

normal system operation will not be possible.

Turn off the system, and then turn on the system

again to operate.

First 3

characters of

the service

number

Cause and/or corrective action

C 13 The disc is dirty.

,Clean the disc with a soft cloth

(page 87).

C 31 The disc is not inserted correctly.

,Restart the system, then re-insert

the disc correctly.

E XX

(XX is a

number)

To prevent a malfunction, the

system has performed the self-

diagnosis function.

,Contact your nearest Sony

dealer or local authorized Sony

service facility and give the 5-

character service number.

Example: E 61 10

C:13:50

VER.X.XX

98GB

Specifications

AUDIO POWER SPECIFICATIONS

for the US model

POWER OUTPUT AND TOTAL HARMONIC

DISTORTION:

With 3 ohms loads, both

channels driven, from 180

- 20,000 Hz; rated 84 watts

per channel minimum

RMS power, with no more

than 0.7% total harmonic

distortion from 250 milli

watts to rated output.

Amplifier Section

US models:

Surround mode (reference) RMS output power

FL/FR/C/SL/SR*: 142 watts

(per channel at 3 ohms, 1

kHz, 10% THD)

Subwoofer*: 140 watts (at

3 ohms, 80 Hz, 10% THD)

Chinese models:

Surround mode (reference) RMS output power

FL/FR/C/SL/SR*: 100

watts (per channel at 3

ohms, 1 kHz)

Subwoofer*: 100 watts (at

3 ohms, 80 Hz)

Other models:

Stereo mode (rated) 108 W + 108 W (at 3 ohms,

1 kHz, 1% THD)

Surround mode (reference) RMS output power

FL/FR/C/SL/SR*: 142

watts (per channel at 3

ohms, 1 kHz, 10% THD)

Subwoofer*: 140 watts (at

3 ohms, 80 Hz, 10% THD)

* Depending on the decoding mode settings and the

source, there may be no sound output.

Inputs (Analog)

TV/VIDEO (AUDIO IN) Sensitivity: 450/250 mV

AUDIO IN Sensitivity: 250/125 mV

Inputs (Digital) (DAV-HDZ278 only)

TV/VIDEO (COAXIAL IN/OPTICAL IN)

Impedance: 75 ohms/-

Outputs (Analog)

Phones Accepts low- and high-

impedance headphones.

Super Audio CD/DVD System

Laser Semiconductor laser

(Super Audio CD/DVD: λ

= 650 nm)

(CD: λ = 790 nm)

Emission duration:

continuous

Signal format system

North American, Mexican, and Latin American

models:

NTSC

Other models: NTSC/PAL

USB Section (DAV-DZ270 only)

Supported bit rate

MP3 (MPEG 1 Audio Layer-3):

32 kbps - 320 kbps

WMA: 48 kbps - 192 kbps

AAC: 48 kbps - 320 kbps

Sampling frequencies

MP3 (MPEG 1 Audio Layer-3):

32/44.1/48 kHz

WMA: 44.1 kHz

AAC: 44.1 kHz

(USB) port:

Maximum current: 500 mA

Tuner Section

System PLL quartz-locked digital

synthesizer

FM tuner section

Tuning range

North American models: 87.5 MHz - 108.0 MHz

(100 kHz step)

Other models: 87.5 MHz - 108.0 MHz (50

kHz step)

Antenna (aerial) FM wire antenna (aerial)

Antenna (aerial) terminals 75 ohms, unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

North American, Mexican, and Latin American

models:

530 kHz - 1,710 kHz (with

the interval set at 10 kHz)

531 kHz - 1,710 kHz (with

the interval set at 9 kHz)

European, Russian, and Middle Eastern models:

531 kHz - 1,602 kHz (with

the interval set at 9 kHz)

Australian and New Zealand models:

531 kHz - 1,710 kHz (with

the interval set at 9 kHz)

530 kHz - 1,710 kHz (with

the interval set at 10 kHz)

Other models: 531 kHz - 1,602 kHz (with

the interval set at 9 kHz)

Additional Information

99GB

530 kHz - 1,610 kHz (with

the interval set at 10 kHz)

Antenna (aerial) AM loop antenna (aerial)

Intermediate frequency 450 kHz

Video Section

Outputs VIDEO: 1 Vp-p 75 ohms

COMPONENT:

Y: 1 Vp-p 75 ohms

PB/CB, PR/CR: 0.7 Vp-p

75 ohms

HDMI OUT: Type A (19

pin)

Speakers

Front/Surround (SS-TS80)

Speaker system Full range Bass reflex,

Magnetically Shielded

Speaker unit 65 mm (2 5/8 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 103 mm × 164 mm × 82

mm (4 1/8 in × 6 1/2 in ×

3 1/4 in) (w/h/d)

Mass (approx.) 0.6 kg (1 lb 6 oz)

Center (SS-CT80)

Speaker system Full range Bass reflex,

Magnetically Shielded

Speaker unit 65 mm (2 5/8 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 265 mm × 93 mm × 71 mm

(10 1/2 in × 3 3/4 in × 2 7/8 in)

(w/h/d)

Mass (approx.) 0.7 kg (1 lb 9 oz)

Subwoofer (DAV-HDZ278) (SS-WS80)

Speaker system Subwoofer Bass reflex

Speaker unit 160 mm (6 3/8 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 205 mm × 325 mm × 325

mm (8 1/8 in × 12 7/8 in ×

12 7/8 in) (w/h/d)

Mass (approx.) 5.2 kg (11 lb 8 oz)

Subwoofer (DAV-DZ270) (SS-WS81)

Speaker system Subwoofer Bass reflex

Speaker unit 160 mm (6 3/8 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 225 mm × 395 mm × 325

mm (8 7/8 in × 15 5/8 in ×

12 7/8 in) (w/h/d)

Mass (approx.) 6.1 kg (13 lb 8 oz)

General

Power requirements

North American models: 120 V AC, 60 Hz

Mexican models: 120 V AC, 60 Hz

Taiwan models: 120 V AC, 50/60 Hz

Argentine models: 220 V - 240 V AC,

50/60 Hz

Latin American models: 110 V - 240 V AC,

50/60 Hz

Saudi Arabian models: 127 V - 240 V AC,

50/60 Hz

Chinese models: 220 V - 240 V AC,

50/60 Hz

Other models: 220 V - 240 V AC,

50/60 Hz

Power consumption

DAV-HDZ278: On: 155 W

Standby: 0.3 W (at the

Power Saving mode)

DAV-DZ270: On: 160 W

Standby: 0.3 W (at the

Power Saving mode)

Output voltage (DIGITAL MEDIA PORT)

(DAV-HDZ278 only) DC 5 V

Output current (DIGITAL MEDIA PORT)

(DAV-HDZ278 only) 700 mA

Dimensions (approx.) 430 mm × 66 mm × 385

mm (17 in × 2 5/8 in ×

15 1/4 in) (w/h/d) incl.

projecting parts

Mass (approx.) 4.2 kg (9 lb 5 oz)

Design and specifications are subject to change

without notice.

• Standby power consumption 0.3 W.

• Halogenated flame retardants are not

used in the printed wiring boards.

• Over 85% power efficiency of

amplifier block is achieved with the

full digital amplifier, S-master.

100GB

Glossary

Digital Cinema Auto Calibration

Digital Cinema Auto Calibration was developed

by Sony to automatically measure and adjusts

the speaker settings to your listening

environment in a short period of time.

Dolby Digital

This movie theater sound format is more

advanced than Dolby Surround Pro Logic. In

this format, the surround speakers output stereo

sound with an expanded frequency range, and a

subwoofer channel for deep bass is

independently provided. This format is also

called “5.1” with the subwoofer channel

designed as the 0.1 channel (since it functions

only when a deep bass effect is needed). All six

channels in this format are recorded separately

for superior channel separation. Furthermore,

since all the signals are processed digitally, less

signal degradation occurs.

Dolby Pro Logic II

Dolby Pro Logic II creates five full-bandwidth

output channels from 2 channel sources. This is

done using an advanced, high-purity matrix

surround decoder that extracts the spatial

properties of the original recording without

adding any new sounds or tonal colorations.

xMovie mode

The Movie mode is for use with stereo television

shows and all programs encoded in Dolby

Surround. The result is enhanced sound field

directionality that approaches the quality of

discrete 5.1-channel sound.

xMusic mode

The Music mode is for use with any stereo music

recordings, and provides a wide and deep sound

space.

Dolby Surround Pro Logic

As one method of decoding Dolby Surround,

Dolby Surround Pro Logic produces four

channels from 2 channel sound. Compared with

the former Dolby Surround system, Dolby

Surround Pro Logic reproduces left-to-right

panning more naturally and localizes sounds

more precisely. To take full advantage of Dolby

Surround Pro Logic, you should have one pair of

surround speakers and a center speaker. The

surround speakers output monaural sound.

DTS

Digital audio compression technology

developed by DTS, Inc. This technology

conforms to 5.1-channel surround. This format

comprises of stereo rear channel and there is

discrete subwoofer channel in this format. DTS

provides the same 5.1 discrete channels of high

quality digital audio. The good channel

separation is realized due to the all channel data

being recorded discretely and processed in

digitally.

HDMI (High-Definition Multimedia

Interface)

HDMI is an interface that supports both video

and audio on a single digital connection,

allowing you to enjoy high quality digital

picture and sound. The HDMI specification

supports HDCP (High-bandwidth Digital

Content Protection), a copy protection

technology that incorporates coding technology

for digital video signals.

Interlace format

(Interlaced scanning)

The Interlace format is the NTSC standard

method for displaying TV images at 30 frames

per second. Each frame is scanned twice -

alternately between the even numbered scanning

lines and then odd numbered scanning lines, at

60 times per second.

Parental Control

A function of the DVD to limit playback of the

disc by the age of the users according to the

limitation level in each country. The limitation

varies from disc to disc; when it is activated,

playback is completely prohibited, violent

scenes are skipped or replaced with other scenes

and so on.

Progressive format

(sequential scanning)

In contrast to the Interlace format, the

progressive format can reproduce 50 - 60 frames

per second by reproducing all scanning lines

(525 lines for the NTSC system). The overall

picture quality increases and still images, text

and horizontal lines appear sharper. This format

Additional Information

101GB

is compatible with the 525 or 625 progressive

format.

Super Audio CD

Super Audio CD is a new high-quality audio

disc standard where music is recorded in the

DSD (Direct Stream Digital) format

(conventional CD is recorded in the PCM

format). The DSD format, using a sampling

frequency 64 times higher than that of a

conventional CD, and with 1-bit quantization,

achieves both a wide frequency range and a wide

dynamic range across the audible frequency

range, and so provides music reproduction

extremely faithful to the original sound.

xSuper Audio CD types

There are two types of discs, depending on the

Super Audio CD layer and CD layer

combination.

• Super Audio CD layer: A high-density

signal layer for Super Audio CD

• CD layer1): A layer that is readable by a

conventional CD player

A Super Audio CD layer consists of the 2

channel area or the multi-channel area.

• 2 channel area: An area in which 2 channel

stereo tracks are recorded

• Multi-channel area: An area in which multi-

channel (up to 5.1 channels) tracks are

recorded

1)You can play the CD layer on a conventional CD

player.

2)Since both layers are on one side, it is not necessary

to turn the disc over.

3)To select a layer, see “To select a playback layer

when playing a hybrid Super Audio CD” (page 39).

4)To select an area, see “To select a playback area on a

2 channel + Multi-channel Super Audio CD”

(page 38).

Single layer disc

(a disc with a single Super Audio CD layer)

Super Audio CD

layer

Hybrid disc2)

(a disc with a Super Audio CD layer and a CD layer)

Super Audio CD

layer3)

CD layer3)

Super Audio CD

layer

Multi channel area4)

2 channel area4)

102GB

Language Code List

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar

1028 Abkhazian

1032 Afrikaans

1039 Amharic

1044 Arabic

1045 Assamese

1051 Aymara

1052 Azerbaijani

1053 Bashkir

1057 Byelorussian

1059 Bulgarian

1060 Bihari

1061 Bislama

1066 Bengali;

Bangla

1067 Tibetan

1070 Breton

1079 Catalan

1093 Corsican

1097 Czech

1103 Welsh

1105 Danish

1109 German

1130 Bhutani

1142 Greek

1144 English

1145 Esperanto

1149 Spanish

1150 Estonian

1151 Basque

1157 Persian

1165 Finnish

1166 Fiji

1171 Faroese

1174 French

1181 Frisian

1183 Irish

1186 Scots Gaelic

1194 Galician

1196 Guarani

1203 Gujarati

1209 Hausa

1217 Hindi

1226 Croatian

1229 Hungarian

1233 Armenian

1235 Interlingua

1239 Interlingue

1245 Inupiak

1248 Indonesian

1253 Icelandic

1254 Italian

1257 Hebrew

1261 Japanese

1269 Yiddish

1283 Javanese

1287 Georgian

1297 Kazakh

1298 Greenlandic

1299 Cambodian

1300 Kannada

1301 Korean

1305 Kashmiri

1307 Kurdish

1311 Kirghiz

1313 Latin

1326 Lingala

1327 Laothian

1332 Lithuanian

1334 Latvian;

Lettish

1345 Malagasy

1347 Maori

1349 Macedonian

1350 Malayalam

1352 Mongolian

1353 Moldavian

1356 Marathi

1357 Malay

1358 Maltese

1363 Burmese

1365 Nauru

1369 Nepali

1376 Dutch

1379 Norwegian

1393 Occitan

1403 (Afan)Oromo

1408 Oriya

1417 Punjabi

1428 Polish

1435 Pashto;

Pushto

1436 Portuguese

1463 Quechua

1481 Rhaeto-

Romance

1482 Kirundi

1483 Romanian

1489 Russian

1491 Kinyarwanda

1495 Sanskrit

1498 Sindhi

1501 Sangho

1502 Serbo-

Croatian

1503 Singhalese

1505 Slovak

1506 Slovenian

1507 Samoan

1508 Shona

1509 Somali

1511 Albanian

1512 Serbian

1513 Siswati

1514 Sesotho

1515 Sundanese

1516 Swedish

1517 Swahili

1521 Tamil

1525 Telugu

1527 Tajik

1528 Thai

1529 Tigrinya

1531 Turkmen

1532 Tagalog

1534 Setswana

1535 Tonga

1538 Turkish

1539 Tsonga

1540 Tatar

1543 Twi

1557 Ukrainian

1564 Urdu

1572 Uzbek

1581 Vietnamese

1587 Volapük

1613 Wolof

1632 Xhosa

1665 Yoruba

1684 Chinese

1697 Zulu

1703 Not specified

Parental Control Area Code List

Code Area Code Area Code Area Code Area

2044 Argentina

2047 Australia

2046 Austria

2057 Belgium

2070 Brazil

2079 Canada

2090 Chile

2092 China

2115 Denmark

2165 Finland

2174 France

2109 Germany

2248 India

2238 Indonesia

2254 Italy

2276 Japan

2304 Korea

2363 Malaysia

2362 Mexico

2376 Netherlands

2390 New Zealand

2379 Norway

2427 Pakistan

2424 Philippines

2436 Portugal

2489 Russia

2501 Singapore

2149 Spain

2499 Sweden

2086 Switzerland

2528 Thailand

2184 United

Kingdom

Additional Information

103GB

Index to Parts and Control

For more information, refer to the pages indicated in parentheses.

A"/1 (on/standby) (27, 85)

BA (open/close) (35)

CFront panel display (105)

DPlay operation buttons (35)

E (remote sensor) (11)

FFUNCTION (30)

GVOLUME control (35)

HPHONES jack (35)

IAUDIO IN/A.CAL MIC jack (21, 27, 79)

J (USB) port (DAV-DZ270 only) (67)

KDisc tray (35)

Front panel

104GB

DAV-DZ270

DAV-HDZ278

ASPEAKER jacks (16)

BCOAXIAL 75Ω FM jack (24)

CAM terminal (24)

DTV/VIDEO (AUDIO IN R/L) jacks (18, 21)

EVIDEO OUT jack (18)

FCOMPONENT VIDEO OUT jacks (18)

GDMPORT (DIGITAL MEDIA PORT) jack

(DAV-HDZ278 only) (21, 76)

HHDMI OUT jack (18)

ITV/VIDEO (DIGITAL IN COAXIAL/

OPTICAL) jacks (DAV-HDZ278 only)

(18)

Rear panel

CENTER SUBWOOFER

AUDIO IN

YLR

FRONT R FRONT L SUR R SUR L

SPEAKER

VIDEO OUT TV/VIDEO

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

HDMI OUT

CENTER SUBWOOFER

DIGITAL IN

COAXIAL OPTICAL

FRONT R FRONT L SUR R SUR L

SPEAKER

TV/VIDEO HDMI OUT

VIDEO OUT

SPEAKER

COMPONENT VIDEO OUT

COAXIAL 75 AM

ANTENNA

DMPORT

DC5V

0.7A MAX

AUDIO IN LR

TV/VIDEO

Additional Information

105GB

About the indications in the front panel display

APlaying status

BFlashes when the sleep timer is set.

(81)

CDisplays system’s status such as

chapter, title, or track number, time

information, radio frequency, playing

status, decoding mode, etc.

DLights up when a station is received.

(Radio only) (61)

EStereo/Monaural effect (Radio only)

(62)

FLights up when the HDMI OUT jack is

correctly connected to HDCP (High-

bandwidth Digital Content Protection)

compliant device with HDMI or DVI

(Digital Visual Interface) input. (18)

GCurrent surround format (Except for

JPEG image file)

HLights up when the color system is set

to NTSC. (Asian, Australian, and Middle

Eastern models only)

ILights up during USB recording/

copying. (DAV-DZ270 only) (73)

JLights up when Super Audio CD/CD is

loaded. (38)

Front panel display

106GB

Remote control

ALPHABETICAL ORDER BUTTON DESCRIPTIONS

A – O P – Z

ANGLE 3 (36)

AUDIO qh (37)

CLEAR es (40, 52, 62)

D.TUNING ws (62)

DISC SKIP1) ed

DISPLAY wa (63, 72, 82)

DVD MENU wg (43)

DVD TOP MENU qd (43)

DYNAMIC BASS 6 (81)

ENTER2) wf (26, 27, 38, 40, 61,

78)

FUNCTION +/– 2 (30, 35)

MENU wg (80)

MUTING 7 (35)

NIGHT wd (81)

ONE-TOUCH PLAY eg (65)

PICTURE NAVI qg (45, 69)

PRESET +/– wj (62)

PROG +/–3) wj (80)

S-AIR MODE1) 4

SLEEP qj (81)

SOUND MODE 5 (34)

SUBTITLE ws (37)

SYSTEM MENU wf (26, 31, 81,

82)

THEATER/THEATRE4) qk (64)

TOOLS wh (80)

TUNING +/– 0 (61)

TV wl (80)

TV CH +/–5) wj (80)

TV INPUT w; (80)

TV VOL +/– ef (80)

VOLUME +/– 8 (35)

Number buttons qf (39, 61, 80)

[/1 (on/standby) 1 (26, 27, 35)

TV [/1 (on/standby) ql (80)

C/X/x/c/ qs (26, 27, 38, 40,

61, 78)

REPLAY/ADVANCE

9 (35)

./> wj (35)

m/M 0 (35)

STEP / 9 (35)

SLOW / 0 (35)

H (play) e; (35)

x (stop) wk (35)

X (pause) qa (35)

DISPLAY6) wh (27, 38, 40, 78)

O RETURN ea (39, 80)

-/--3) es (80)

5) es (80)

1)This button is not available

for this model.

2)The ENTER button has the

same function as the

button. When you operate

the TV, the ENTER button is

used for selecting a channel,

and the button is used for

selecting menu items

(page 80).

3)Except for North American

models.

4)The button name differs

depending on the area.

5)North American models

only.

6)This button is only available

for the “DVD” or “USB*”

function.

* DAV-DZ270 only

Additional Information

107GB

Guide to the Control Menu Display

You can use the Control Menu display to select a function and to view related information.

Press DISPLAY repeatedly.

Each time you press DISPLAY, the Control Menu display changes:

1 t 2 t ... t 1 t ...

1 Control Menu display 1

2 Control Menu display 2 (appears for certain discs only)

3 Control Menu display off

Note

• The Control Menu Display appears only during the “DVD” or “USB*” function.

* DAV-DZ270 only

The Control Menu display 1 and 2 will show different items depending on the disc type. For details,

see the pages in parentheses.

Control Menu display

DISPLAY

108GB

Example: Control Menu display 1 when playing a DVD VIDEO.

1) The scene number for a VIDEO CD (PBC is on), track number for a VIDEO CD/Super Audio CD/CD, folder

number for a DATA CD/DATA DVD. DivX video folder number for a DATA CD/DATA DVD (Except for United

Kingdom and North American models).

2) The index number for a VIDEO CD/Super Audio CD, MP3 file number or JPEG image file number for a DATA

CD/DATA DVD. DivX video file number for a DATA CD/DATA DVD (Except for United Kingdom and North

American models).

3) Super VCD as “SVCD.”

“MP3” in the Control Menu display 1 or “JPEG” in the Control Menu display 2 for a DATA CD/DATA DVD.

4) The date is displayed for JPEG image files.

To turn off the display

Press DISPLAY.

List of Control Menu items (except for USB device)

Item Item Name, Function, Relevant Disc Type

[TITLE] (page 43)/[SCENE] (page 43)/[TRACK] (page 43)

You can select the title, scene, or track to be played.

[CHAPTER] (page 43)/[INDEX] (page 43)

You can select the chapter or index to be played.

[INDEX] (page 43)

You can display the index and select the index to be played.

[TRACK] (page 43)

You can select the track to be played.

[ORIGINAL/PLAY LIST] (page 43)

You can select the type of titles (DVD-RW/DVD-R) to be played, the [ORIGINAL] one, or

an edited [PLAY LIST].

98( 99)

OFF

DVD VIDEO

REPEAT

Quit:

ENTER DISPLAY

T 0: 04: 17

13( 99)

DISC

TITLE

CHAPTER

OFF

Currently playing title number1)

Playing time4)

Total number of chapters2)

Options

Current setting

Total number of titles1)

Playback status

(N Playback,

X Pause,

x Stop, etc.)

Function name of selected

Control Menu item

Operation message

Selected item

Control Menu items

Type of disc being

played3)

Currently playing chapter number2)

Additional Information

109GB

1)Except for United Kingdom and North American models.

2)These items are not displayed when playing a DATA CD/DATA DVD with DivX video file (except for United

Kingdom and North American models).

[TIME] (page 44)

You can check the elapsed time and the remaining playback time.

Input the time code for picture and music searching.

The system displays the DVD/Super Audio CD/CD text or the MP3 file name.

[MULTI/2CH] (page 38)

You can select the playback area on a Super Audio CD when available.

[SUPER AUDIO CD/CD LAYER] (page 38)

You can select the playback layer on a Super Audio CD when available.

[PROGRAM] (page 40)

You can select the track to play in the order you want.

[SHUFFLE] (page 41)

You can play the track/file in random order.

[REPEAT] (page 42)

You can play the entire disc (all titles/all tracks/all folders/all files) repeatedly or one title/

chapter/track/folder/file repeatedly.

[A/V SYNC] (page 50)

You can adjust the delay between the picture and sound.

1) 1)

[DISC MENU] (page 43)

You can display the DVD’s menu.

[BROWSING] (page 46)

You can display the list of folders/JPEG image files.

[SETUP] (page 52)

[QUICK] (page 27)

You can make the basic adjustments. Use Quick Setup to select the desired language of the

on-screen display, the aspect ratio of the TV, and select yes or no to start the Auto Calibration.

[CUSTOM]

In addition to the Quick Setup setting, you can adjust various other settings.

[FOLDER] (page 43)

You can select the folder to be played.

[FILE] (page 43)

You can select the JPEG image file or DivX video file1) to be played.

2) [DATE] (page 84)

You can display the date the picture was taken by a digital camera.

2) [INTERVAL] (page 47)

You can select the duration for which the slides are displayed on the TV screen.

2) [EFFECT] (page 47)

You can select the effects to be used for changing slides during a slide show.

2) [MODE (MUSIC, IMAGE)] (page 46)

You can select the data type; MP3 file, JPEG image file, or both to be played when playing a

DATA CD/DATA DVD.

110GB

List of Control Menu Items for USB device

(DAV-DZ270 only)

• The Control Menu icon indicator lights up in yellow when you select any item except [OFF]

([PROGRAM], [SHUFFLE], [REPEAT], and [A/V SYNC] only). The [ORIGINAL/PLAY LIST] indicator lights

up in yellow when you select [PLAY LIST] (default setting).

Item Item Name, Function, Relevant Disc Type

[REPEAT] (page 71)

You can play the entire USB device (all folders/all files) repeatedly or one folder/file

repeatedly.

[BROWSING] (page 70)

You can display the list of folders/JPEG image files.

[DATE] (page 72)

You can display the date the picture was taken by a digital camera.

[INTERVAL] (page 70)

You can select the duration for which the slides are displayed on the TV screen.

[EFFECT] (page 70)

You can select the effects to be used for changing slides during a slide show.

[MODE (MUSIC, IMAGE)] (pages 68, 69)

You can select the data type; audio file or JPEG image file, when playing a USB device.

[USB RECORDING] (page 73)

You can record tracks on an audio CD or copy MP3 files on an DATA CD to a USB device.

111GB

Index

Numerics

4:3 OUTPUT 54

5.1 Channel Surround 38

A/V SYNC 50

AAC file 67

ANGLE 36

ATT E N UATE 3 1

AUDIO 53

AUDIO (HDMI) 56

AUDIO DRC 57

AUDIO SETUP 57

AUTO CALIBRATION 57, 79,

100

BACKGROUND 57

BLACK LEVEL 55

BLACK LEVEL

(COMPONENT OUT) 55

COLD RESET 85

COLOR SYSTEM (VIDEO

CD) 55

CONTROL FOR HDMI 55

Control Menu Display 107

CUSTOM 52, 85

D. C. A. C. (Digital Cinema

Auto Calibration) 79, 100

DATA CD 48

DATA DVD 48

DEC. MODE 32

DEMO 26

DIGITAL MEDIA PORT 76

DIMMER 82

DISPLAY 63

DivX® 48, 58

Dolby Digital 37, 100

Dolby Pro Logic II 100

Dolby Surround Pro Logic 100

DTS 37, 100

DUAL MONO 34

DVD’s menu 43

DYNAMIC BASS 81

EFFECT 47, 70

FM MODE 62

Front panel 103

Front panel display 82, 105

HDMI

YCBCR/RGB (HDMI) 56

HDMI (High-Definition

Multimedia Interface) 100

HDMI RESOLUTION 55

HDMI SETUP 55

Instant Advance 36

Instant Replay 36

Interlace format 100

INTERVAL 47, 70

JPEG image file 45, 67

JPEG RESOLUTION 56

Language Code List 102

LANGUAGE SETUP 53

MENU 53

MODE (MUSIC, IMAGE) 47,

68, 69

MP3 file 45, 67

Multi Session CD 8

MULTI-DISC RESUME 58

Multiplex broadcast sound 34

Naming preset stations 62

NIGHT 81

ORIGINAL 43

OSD 53

PARENTAL CONTROL 50,

58, 100

PAUSE MODE 55

PBC Playback 39

PICTURE NAVI 46, 69

PLAY LIST 43

Playable discs 6

Program Play 40

PROGRESSIVE

(COMPONENT OUT) 54

Progressive format 29, 100

Quick Setup 27

Rear panel 104

Region Code 8

Remote 11

Repeat Play 42

RESET 58, 85

Resume Play 39

SCREEN SAVER 57

SETUP 52, 85

Shuffle Play 41

SLEEP 81

Slide Show 46

Sound Mode 34

SPEAKER FORMATION 57,

SPEAKER SETUP 58

CONNECTION 58

DISTANCE 58, 59

LEVEL 59

SUBTITLE 37, 53

Super Audio CD 38, 101

SYSTEM MENU 26, 31, 32,

62, 81, 82

SYSTEM SETUP 57

TEST TONE 59

TIME 44

TRACK SELECTION 57

TV TYPE 54

USB device 67

VIDEO SETUP 54

VOLUME LIMIT 56

WMA file 67

(1)

Sony Corporation Printed in China

Sony Dav Dz270 Users Manual DZ270/HDZ278

HDZ278 to the manual c0724bf6-7e01-4705-8816-37f680dba934

Navigation menu

Versions of this User Manual:

Views

Navigation
