Sony Digital Handycam Dcr Trv22 Users Manual

2015-01-23

: Sony Sony-Digital-Handycam-Dcr-Trv22-Dcr-Trv22-Users-Manual-286266 sony-digital-handycam-dcr-trv22-dcr-trv22-users-manual-286266 sony pdf

Open the PDF directly: View PDF PDF.
Page Count: 1

3-080-369-11(1)
©2003 Sony Corporation
Operating Instructions
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the
serial number in the space provided below. Refer to these numbers
whenever you call upon your Sony dealer regarding this product.
Model No. DCR-TRV ____________________ Model No. AC- ________________________
Serial No. _____________________________ Serial No. _____________________________
DCR-TRV19/TRV22/TRV33
Digital
Video Camera
Recorder
DCR-TRV33
2
Welcome!
Congratulations on your purchase of this Sony Handycam. With your Handycam, you can
capture life’s precious moments with superior picture and sound quality. Your Handycam is
loaded with advanced features, but at the same time it is very easy to use. You will soon be
producing home video that you can enjoy for years to come.

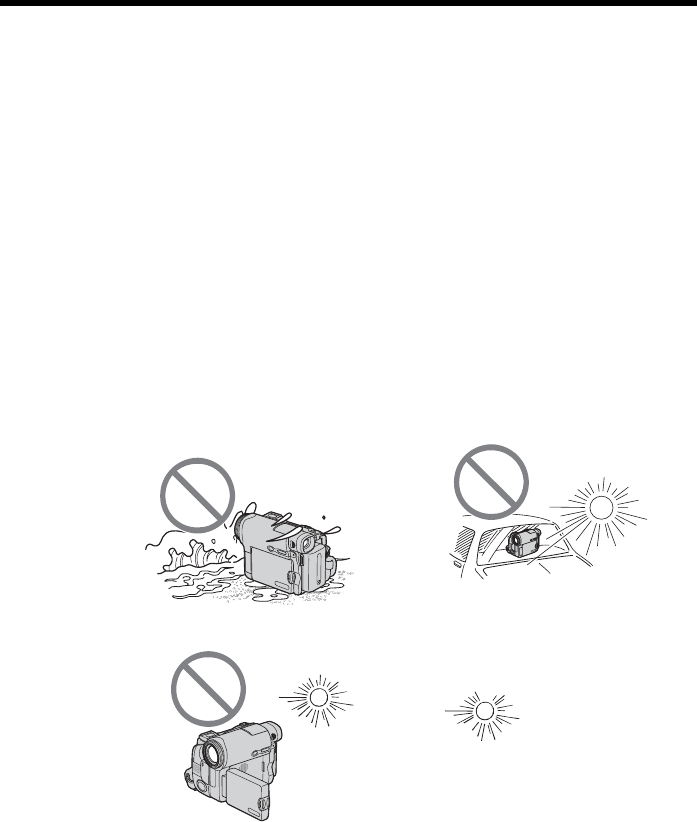

WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
Notice

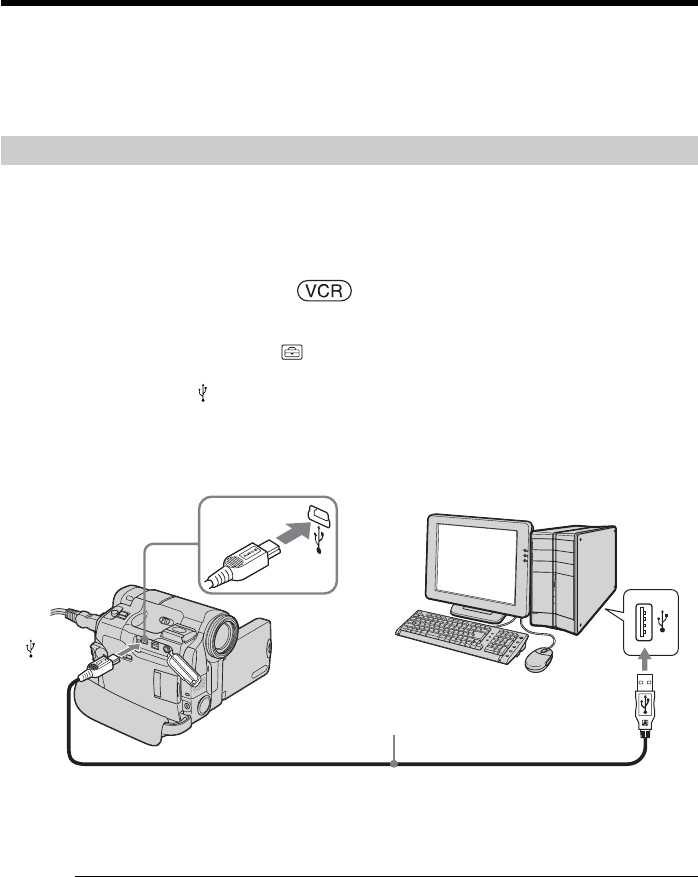

If static electricity or electromagnetism causes
data transfer to discontinue midway (fail),
restart the application or disconnect and

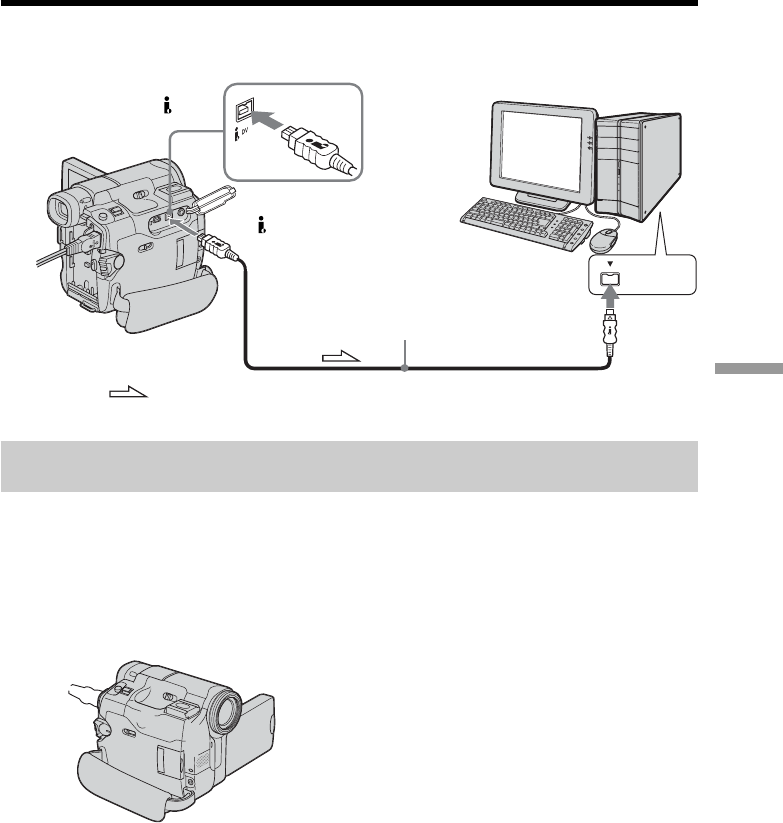

connect the USB cable again.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
For customers in the U.S.A.
and CANADA
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are
recyclable.
You can help preserve our
environment by returning
your used rechargeable
batteries to the collection and
recycling location nearest you.
For more information regarding recycling of
rechargeable batteries, call toll free 1-800-822-
8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking
Lithium-Ion batteries.
“Memory Stick” (DCR-TRV22/
TRV33 only)
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
This Class B digital apparatus complies with
Canadian ICES-003.
3
For customers in the U.S.A.
If you have any questions about this product,
you may call:
Sony Customer Information Center 1-800-222-
SONY (7669)
The number below is for the FCC related
matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: DCR-TRV19
Responsible Party: Sony Electronics Inc.
Address: 680 Kinderkamack
Road, Oradell,
NJ07649 U.S.A.
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2)this device must accept any interference
received, including interference that may
cause undesired operation.
Declaration of Conformity
Trade Name: SONY
Model No.: DCR-TRV22
Responsible Party: Sony Electronics Inc.
Address: 680 Kinderkamack
Road, Oradell,
NJ07649 U.S.A.
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2)this device must accept any interference
received, including interference that may
cause undesired operation.
Declaration of Conformity
Trade Name: SONY
Model No.: DCR-TRV33
Responsible Party: Sony Electronics Inc.
Address: 680 Kinderkamack
Road, Oradell,
NJ07649 U.S.A.
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2)this device must accept any interference
received, including interference that may
cause undesired operation.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Note:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced
radio/TV technician for help.
The supplied interface cable must be used with
the equipment in order to comply with the
limits for a digital device pursuant to Subpart
B of Part 15 of FCC Rules.
4
Main Features
Getting Started
5
Main Features
5
Other uses
Functions for adjusting exposure during recording
•Back light (p. 33)
•NightShot/Super NightShot*/Color Slow Shutter* (p. 34)
•PROGRAM AE (p. 62)
•Manual exposure (p. 64)
•Flexible Spot Meter (p. 65)
Functions for giving images more impact
•Digital zoom (p. 32)
The default setting is OFF. (To zoom greater than 10×,
select the digital zoom power in D ZOOM in the menu settings.)

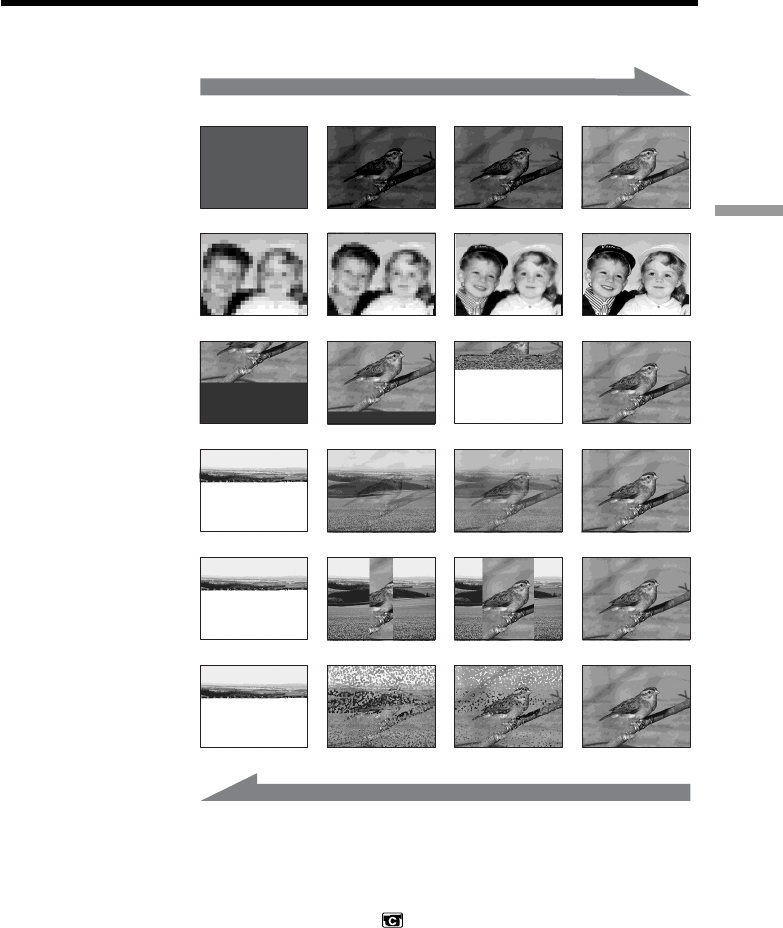

•Fader (p. 55)

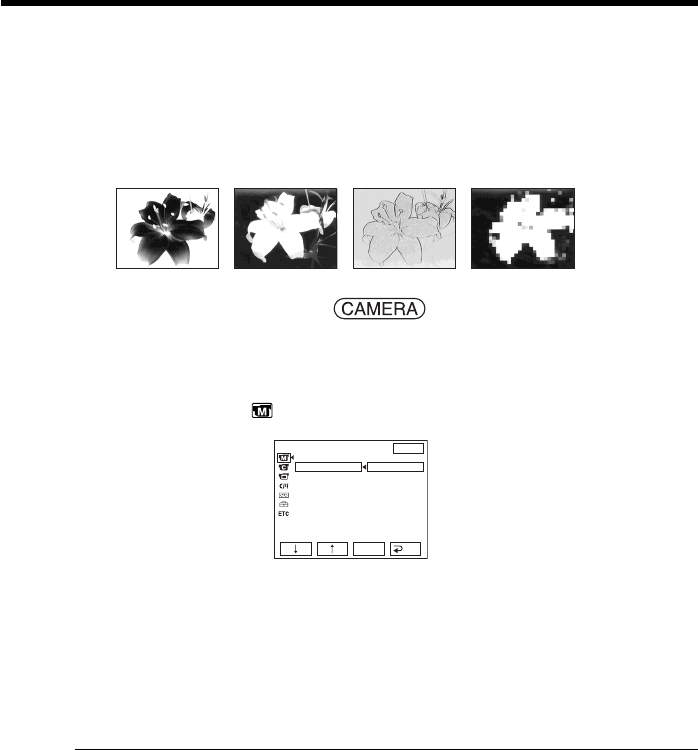

•Picture effect (p. 58, 72)
•Digital effect* (p. 59, 73)
•Title (p. 101)

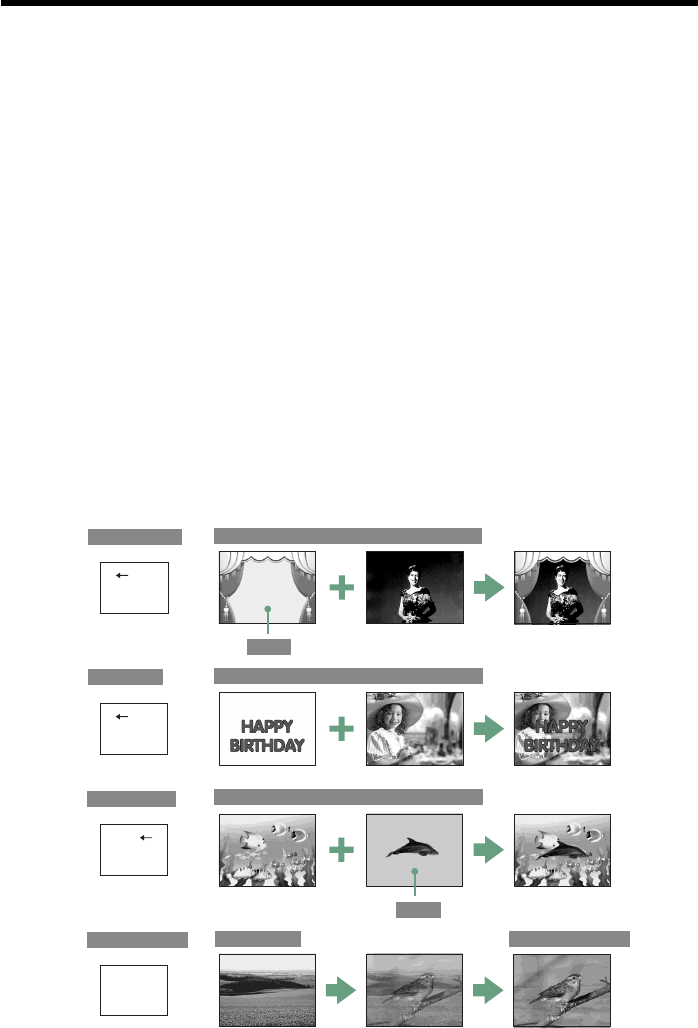

•MEMORY MIX* (p. 120)
Functions for giving a natural appearance to your recordings

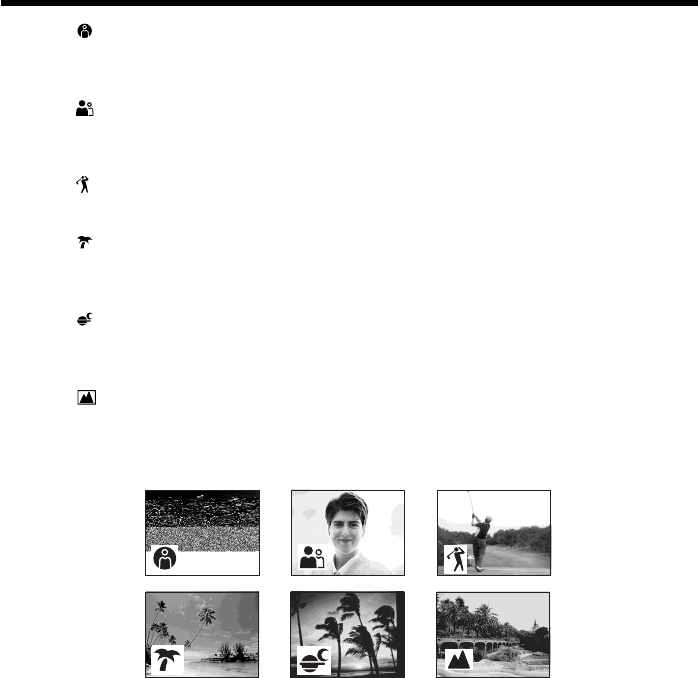

•PROGRAM AE (p. 62)
–SPORTS
–LANDSCAPE
•Manual focus (p. 66)
•Spot Focus (p. 67)
Functions for using after recording
•End search/Edit search/Rec Review (p. 37)
•Data code (p. 40)
•Tape PB ZOOM* (p. 74)/Memory PB ZOOM* (p. 140)
•Zero set memory (p. 75)
•Title search (p. 76)
•Digital program editing (p. 84, 130*)
* DCR-TRV22/TRV33 only
Main Features
Before you start reading this manual and operating your camcorder, check the

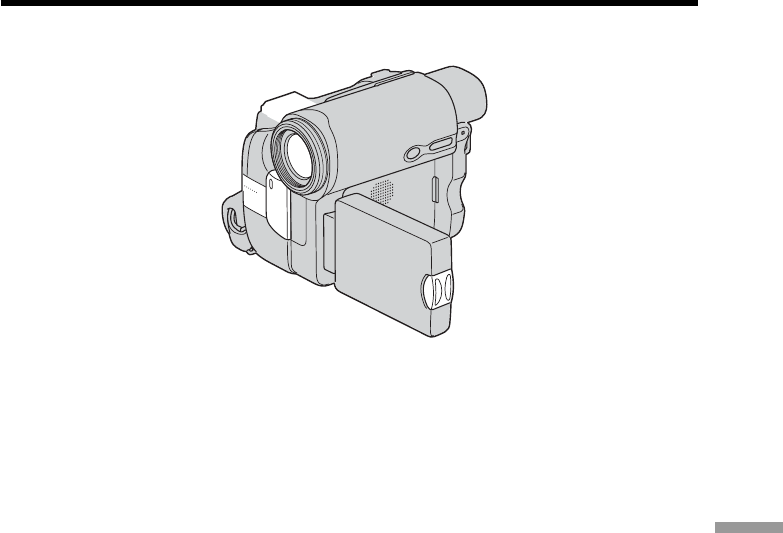

model number by looking at the bottom of your camcorder. The DCR-TRV33 is the
model used for illustration purposes. Otherwise, the model name is indicated in
the illustrations. Any differences in operation are clearly indicated in the text, for
example, “DCR-TRV33 only.”
6
Table of contents
Main Features ........................4

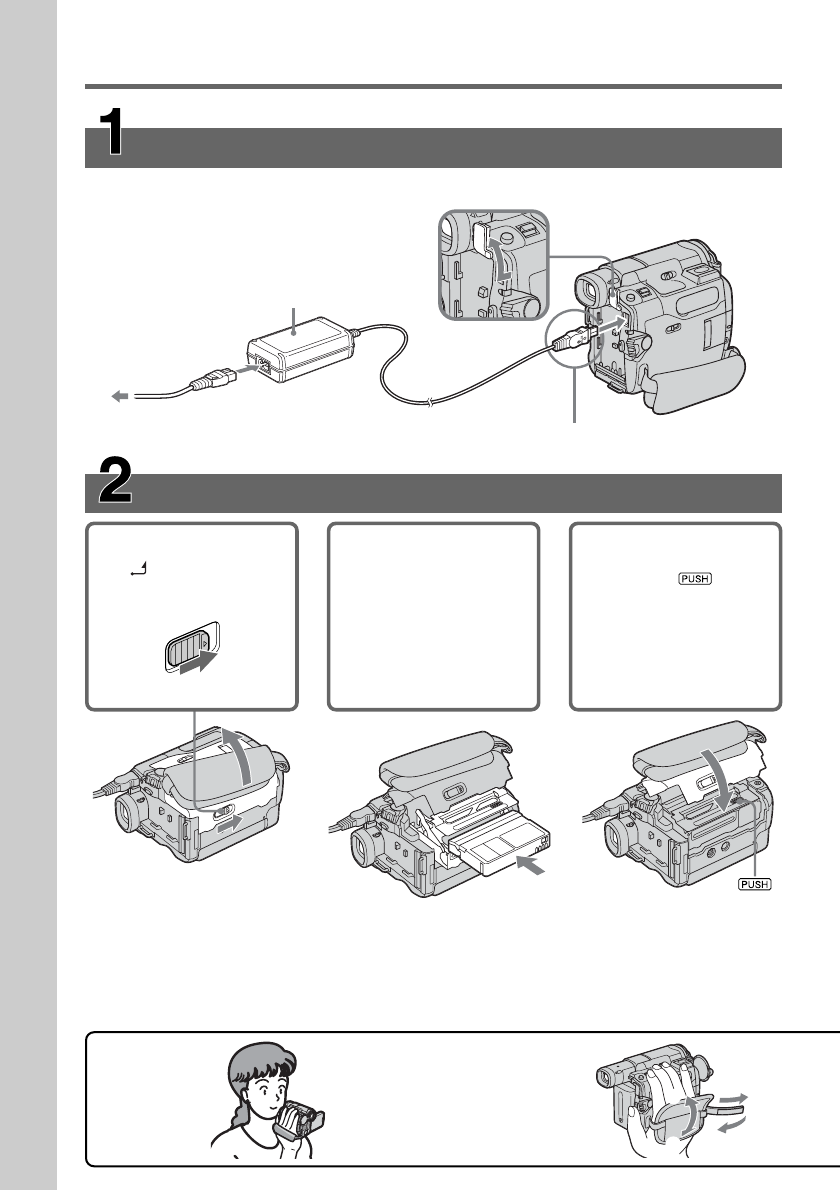

Quick Start Guide
Recording on tape ................................... 8
Recording on “Memory Stick”
(DCR-TRV22/TRV33 only)........... 10
Getting Started
Using this manual ................................. 12
Checking supplied accessories............ 15
Step 1 Preparing the power source..... 16

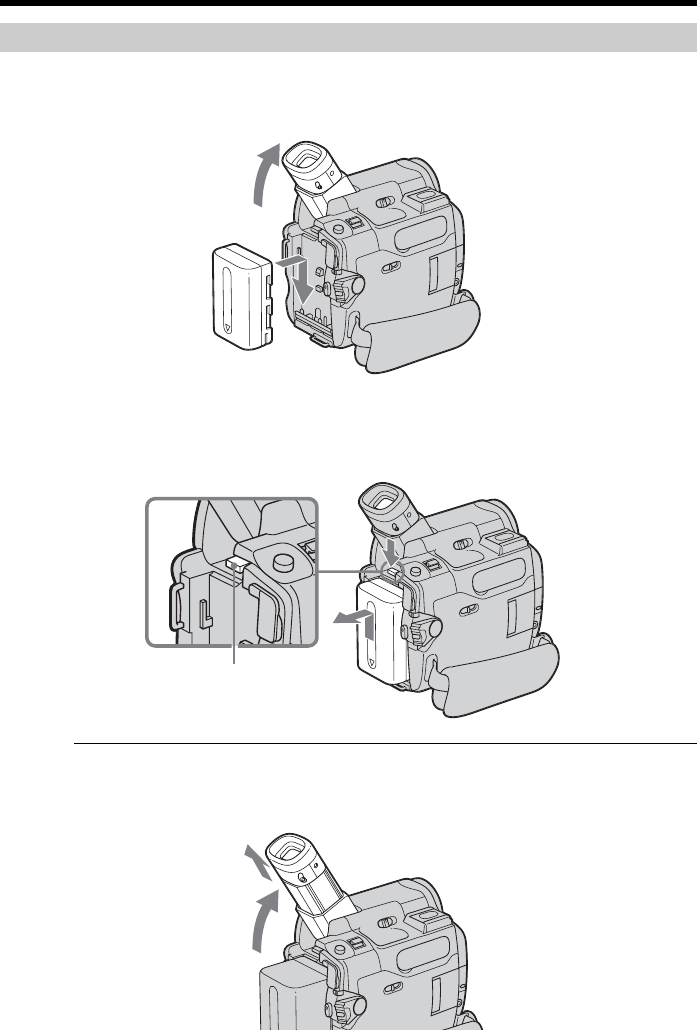

Installing the battery pack............. 16
Charging the battery pack............. 17
Checking status of battery pack –
Battery Info ............................... 20

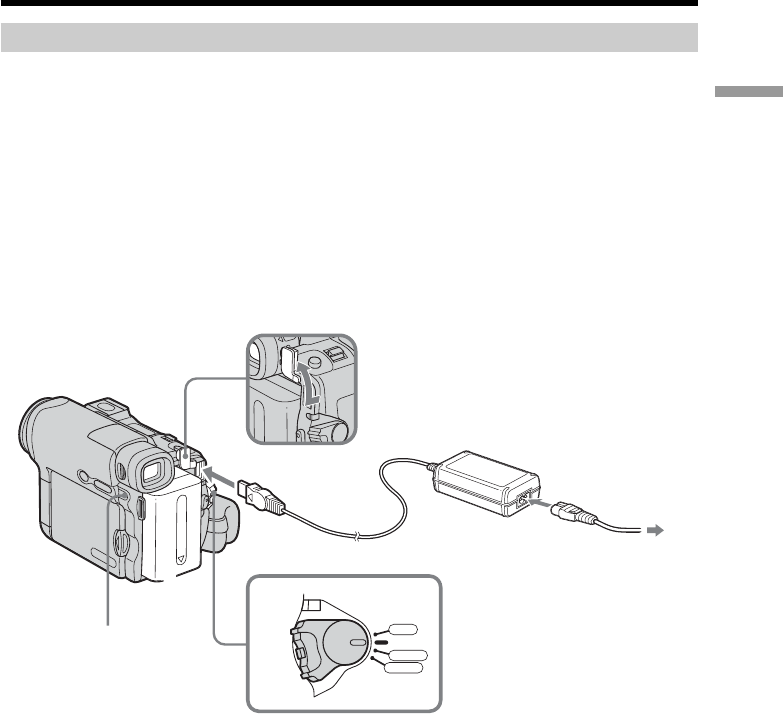

Connecting to a wall outlet ........... 21

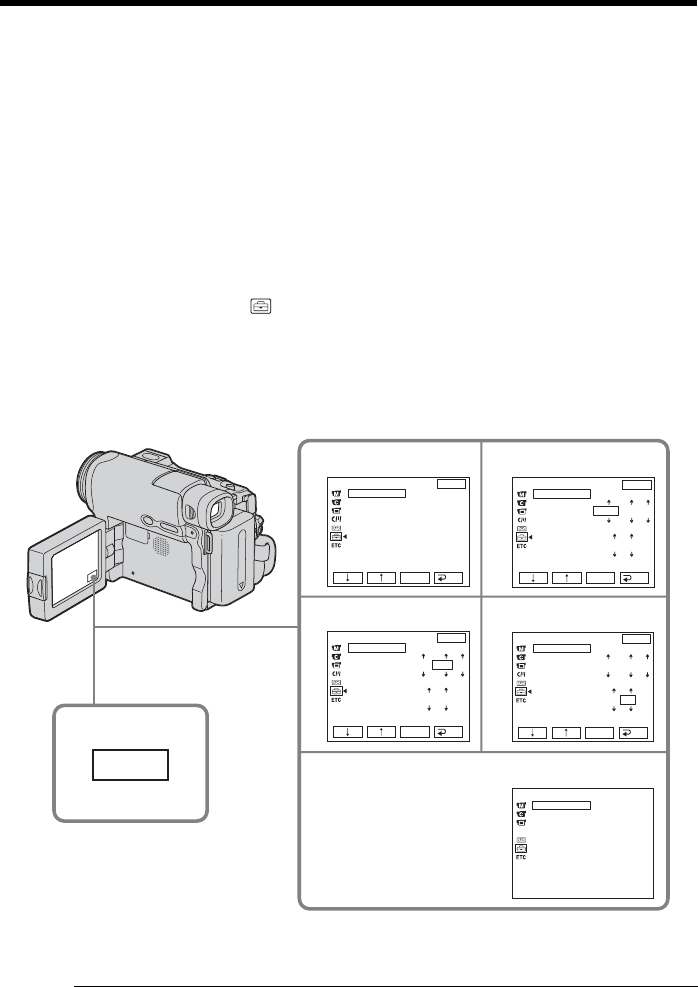

Step 2 Setting the date and time ......... 22
Step 3 Using the touch panel............... 23
Recording – Basics
Recording a picture............................... 25
Shooting backlit subjects
– Back light function................ 33

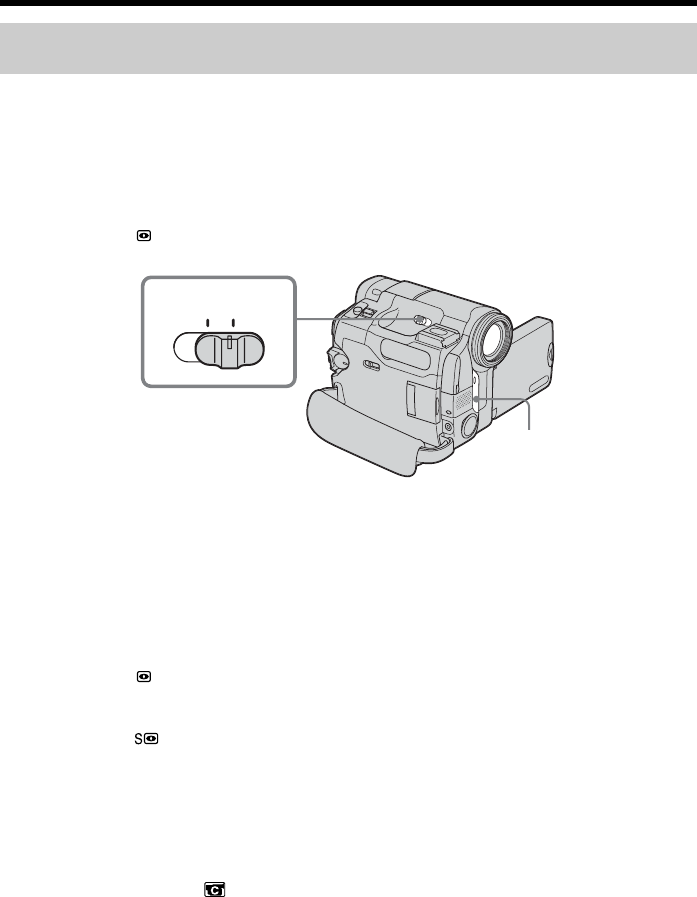

Shooting in the dark
– NightShot/Super NightShot/
Color Slow Shutter .................. 34
Checking recordings
– End search/Edit search/Rec
Review ............................................. 37
Playback – Basics
Playing back tape .................................. 39
To display the screen indicators –
Display function ...................... 40

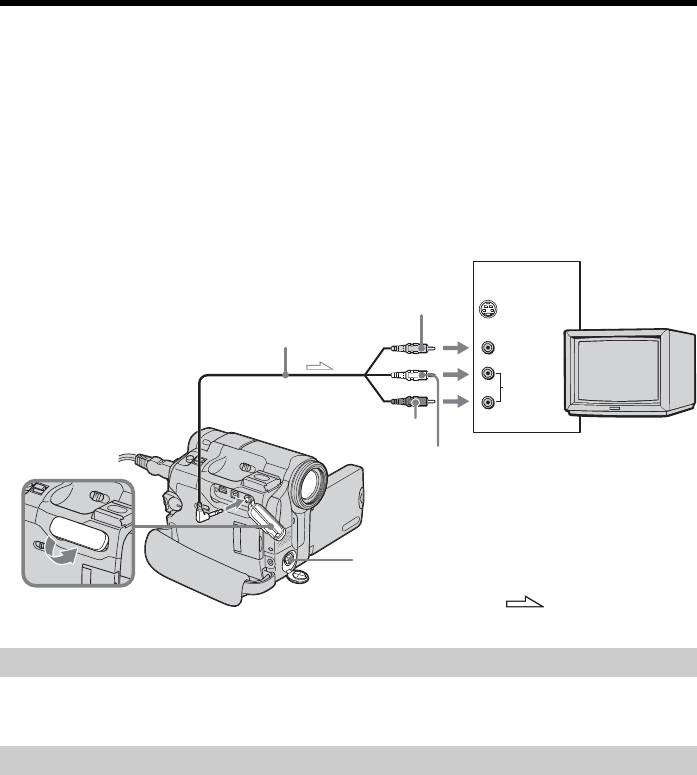

Viewing a recording on TV ................. 44
Advanced Recording
Operations

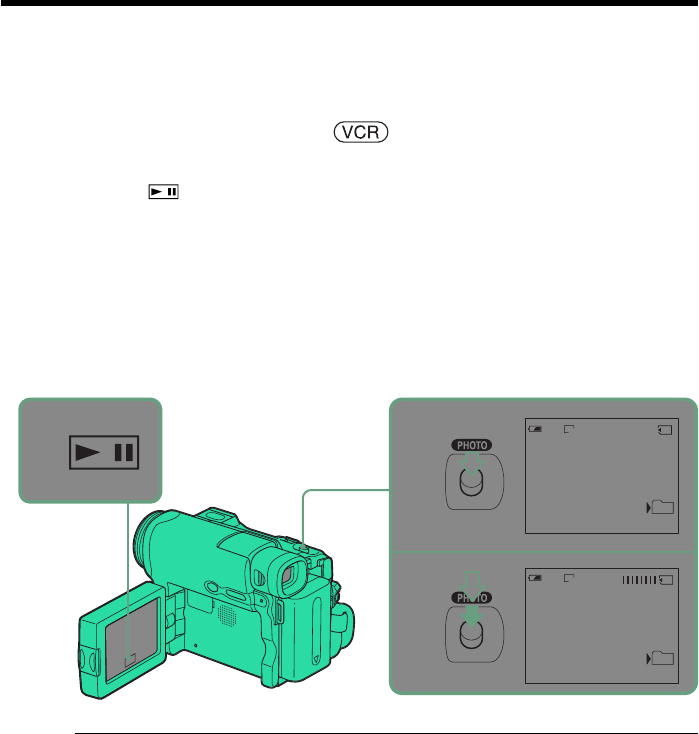

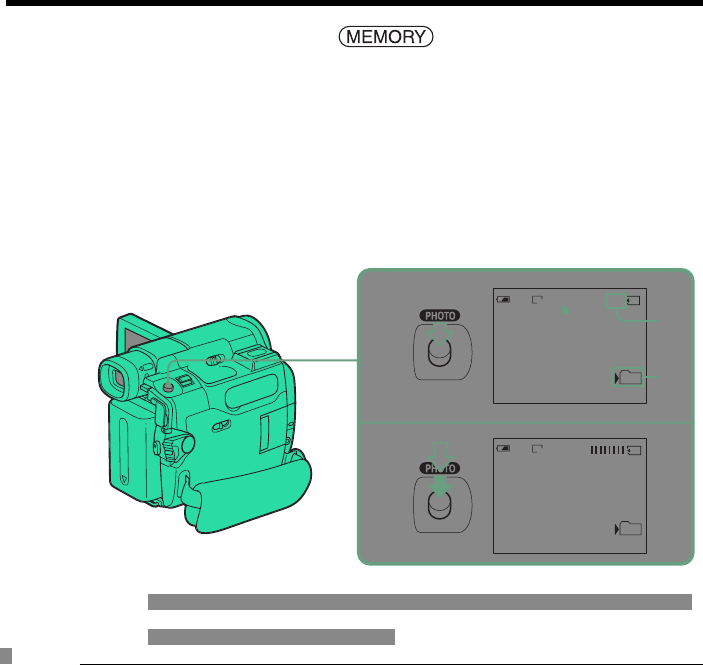

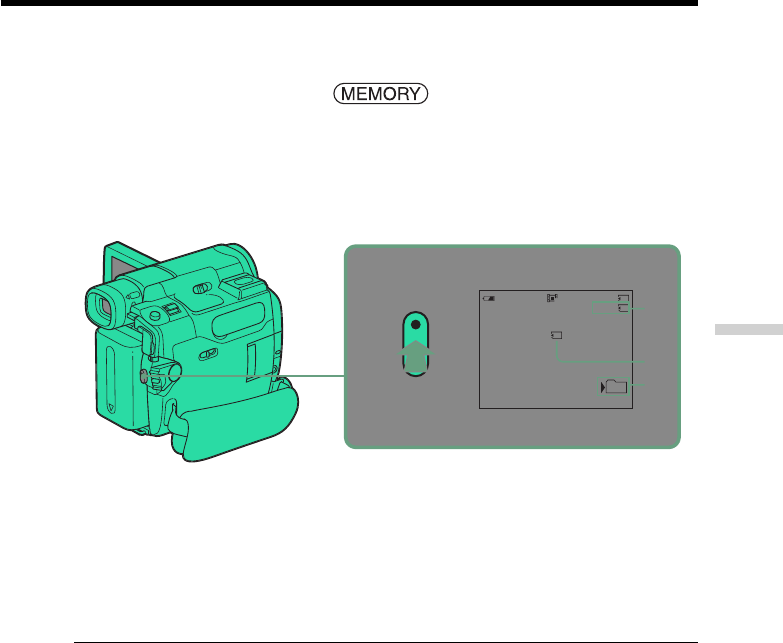

Recording still images on “Memory
Stick” during tape recording
standby or tape recording
(DCR-TRV22/TRV33 only)........... 46
Recording a still image on a tape
– Tape Photo recording
(DCR-TRV19 only) ......................... 48

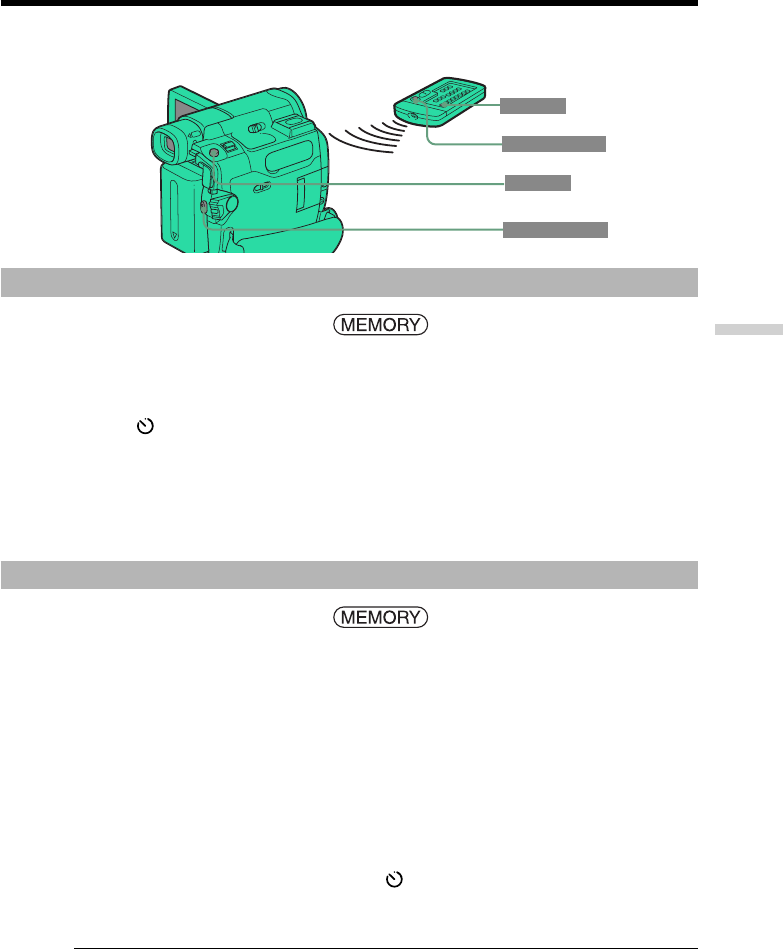

Self-timer recording.............................. 50
Adjusting the white balance
manually.......................................... 52

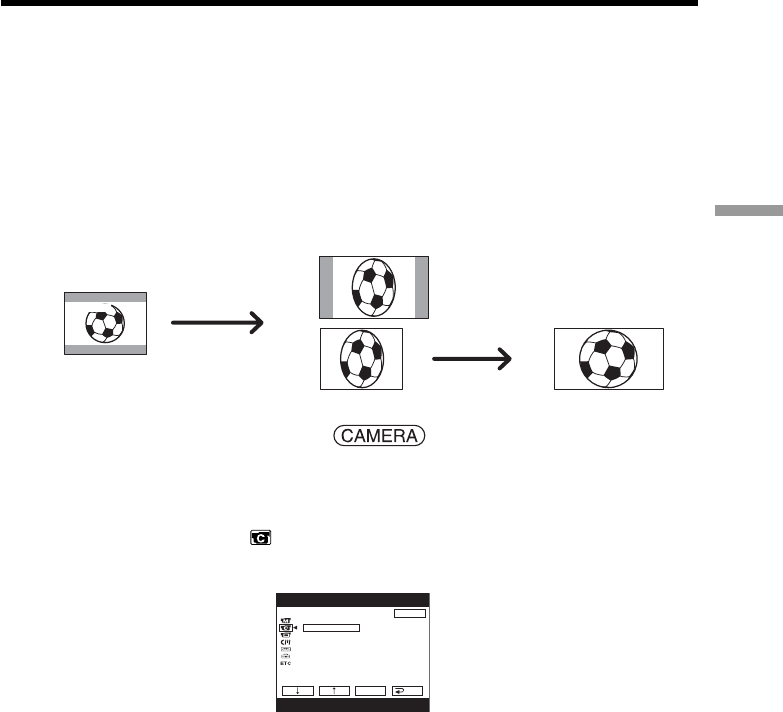

Using the wide mode ........................... 53
Using the fader function ...................... 55
Using special effects – Picture effect .. 58
Using special effects – Digital effect
(DCR-TRV22/TRV33 only)........... 59
Using PROGRAM AE .......................... 62
Adjusting the exposure manually ...... 64
Using spot light-metering function
– Flexible Spot Meter ..................... 65
Focusing manually................................ 66
Using spot focus function
– Spot Focus .................................... 67
Interval Recording ................................ 68
Frame by frame recording
– Frame recording .......................... 69
Using the viewfinder............................ 70
Advanced Playback
Operations
Playing back tape with picture effect. 72
Playing back tape with digital effect
(DCR-TRV22/TRV33 only)........... 73
Enlarging images recorded on tape
– Tape PB ZOOM (DCR-TRV22/
TRV33 only) .................................... 74
Quickly locating a scene
– Zero set memory ......................... 75
Searching the boundaries of recorded
tape by title – Title search ............. 76
Searching a recording by date
– Date search ................................... 77
Searching for a photo – Photo search/
Photo scan (DCR-TRV19 only) ..... 79
Editing

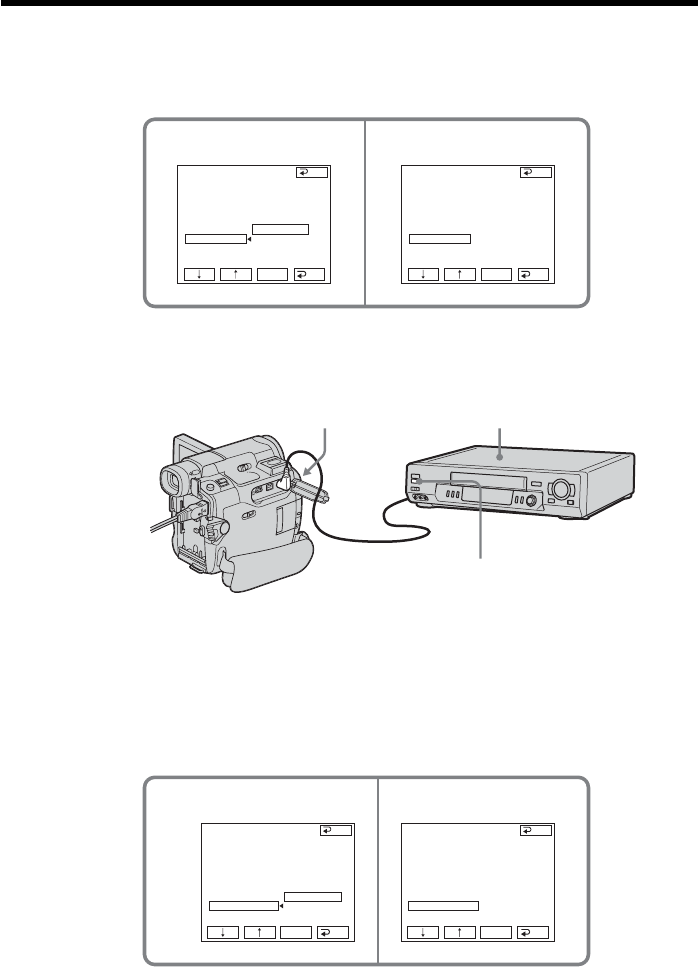

Dubbing tape ......................................... 81

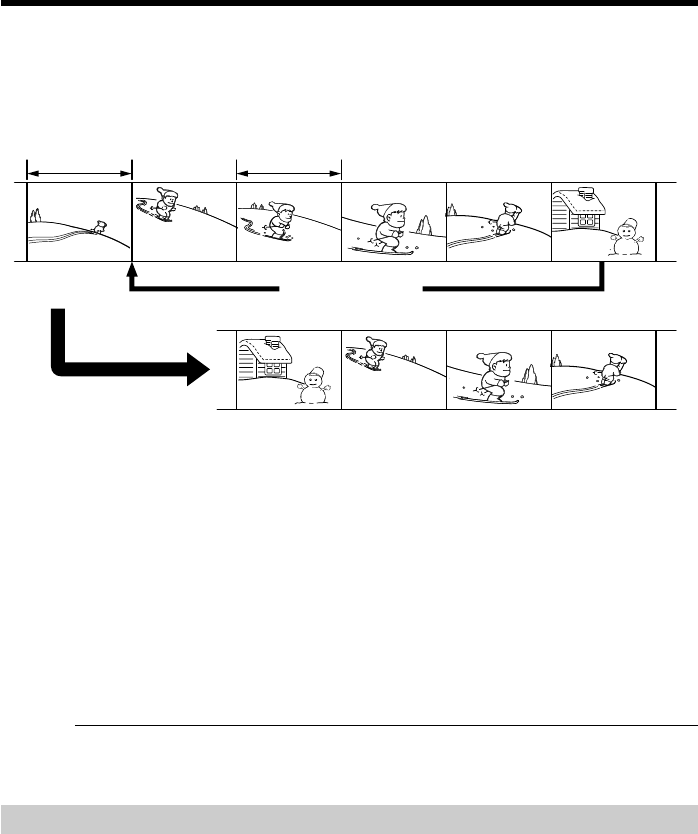

Dubbing only desired scenes
– Digital program editing
(on tape) ........................................... 84
Recording video or TV programs....... 93
Inserting a scene from a VCR
– Insert editing ................................ 95
Audio dubbing ...................................... 97
Superimposing a title on a cassette
with Cassette Memory................. 101
Making your own titles...................... 103
Labeling a cassette on a cassette
with Cassette Memory................. 104
Erasing all the data in Cassette
Memory ......................................... 105
Getting Started
7
Table of contents
“Memory Stick” Operations
(DCR-TRV22/TRV33 only)
Using “Memory Stick” ....................... 106
Inserting/Ejecting the
“Memory Stick” ............................ 109

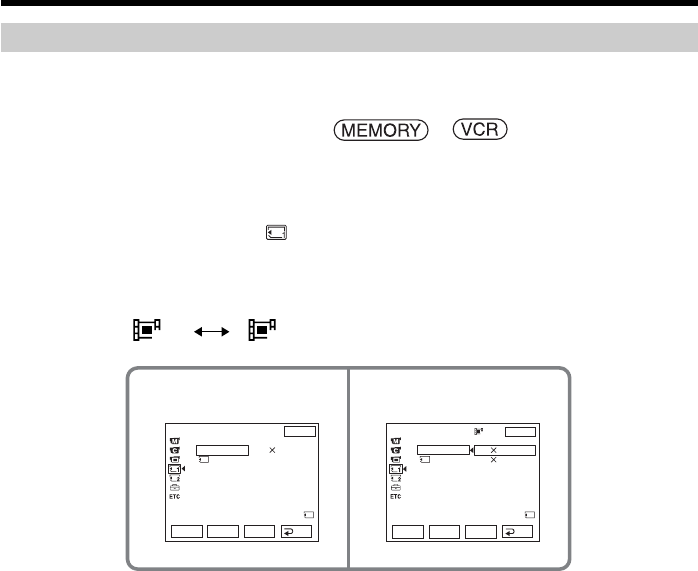

Selecting image quality and size....... 110
Recording still images on “Memory
Stick” – Memory Photo
recording ....................................... 114
Recording an image from tape as
a still image ................................... 118
Superimposing a still image in
“Memory Stick” on an image
– MEMORY MIX .......................... 120
Interval Photo Recording................... 124
Recording moving pictures on
“Memory Stick” – MPEG MOVIE
recording ....................................... 125
Self-timer recording............................ 127
Recording a picture from tape as a
moving picture ............................. 128
Recording edited pictures from
tape as a moving picture – Digital
program editing (on “Memory
Stick”)............................................. 130

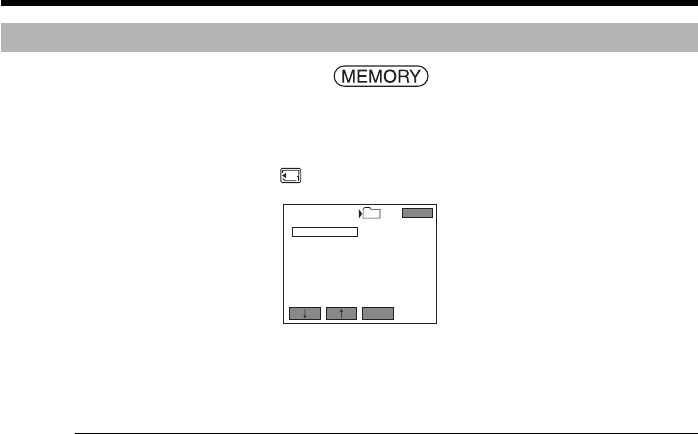

Changing the recording folder.......... 133
Viewing a still image
– Memory Photo playback .......... 135

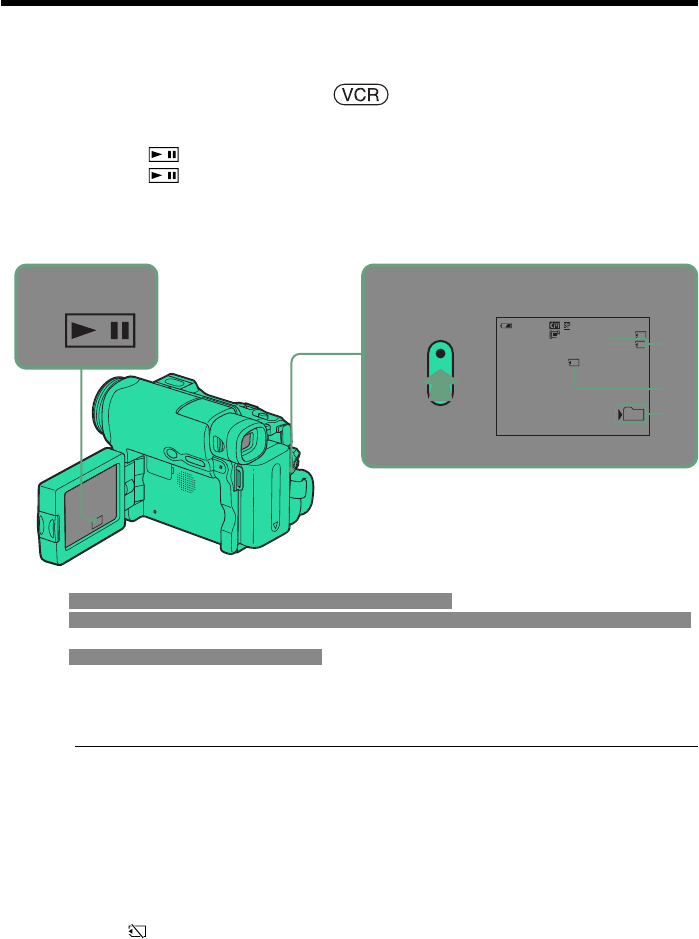

Viewing a moving picture
– MPEG MOVIE playback .......... 137
Choosing a playback folder............... 139
Enlarging still images recorded on
“Memory Stick” – Memory PB
ZOOM ............................................ 140
Playing back images continuously
– Slide show .................................. 141
Preventing accidental erasure
– Image protection........................ 142
Deleting images – DELETE ............... 143
Changing image size – Resize
(DCR-TRV33 only) ....................... 146

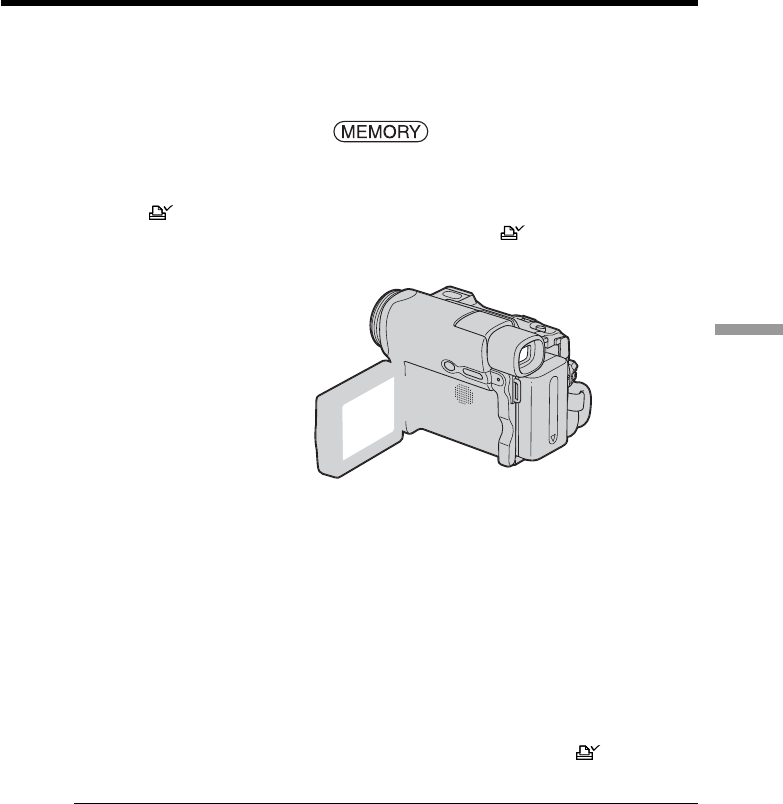

Writing a print mark – Print mark ... 147
Viewing images with your
computer
Viewing images with a computer
– Introduction ............................... 148

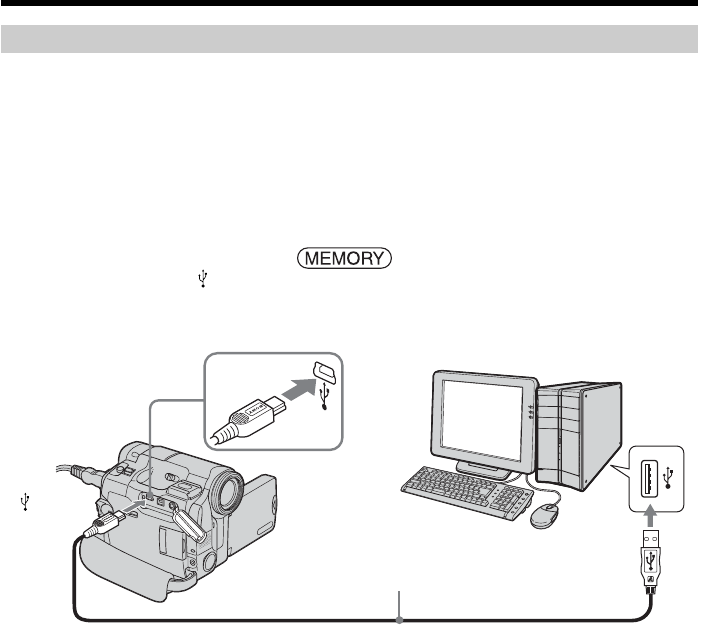

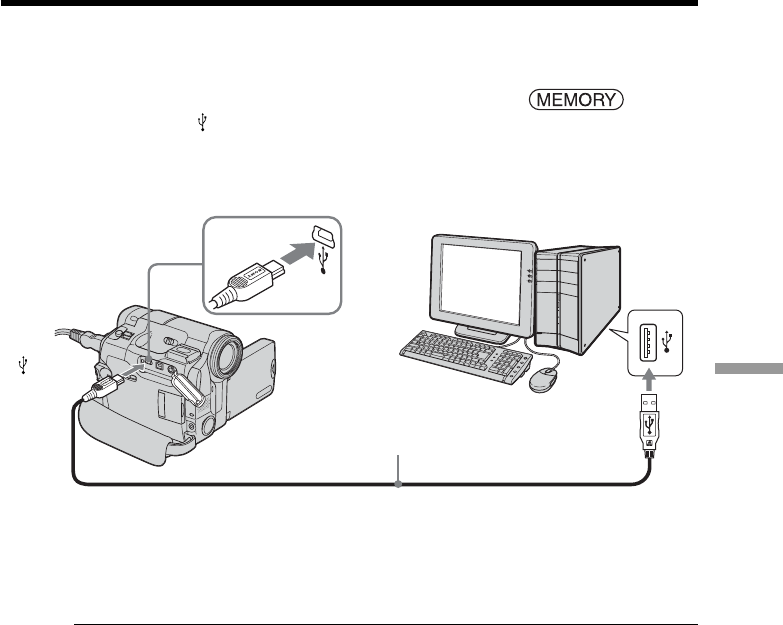

Connecting your camcorder to a
computer using the USB cable
(For Windows users).................... 151

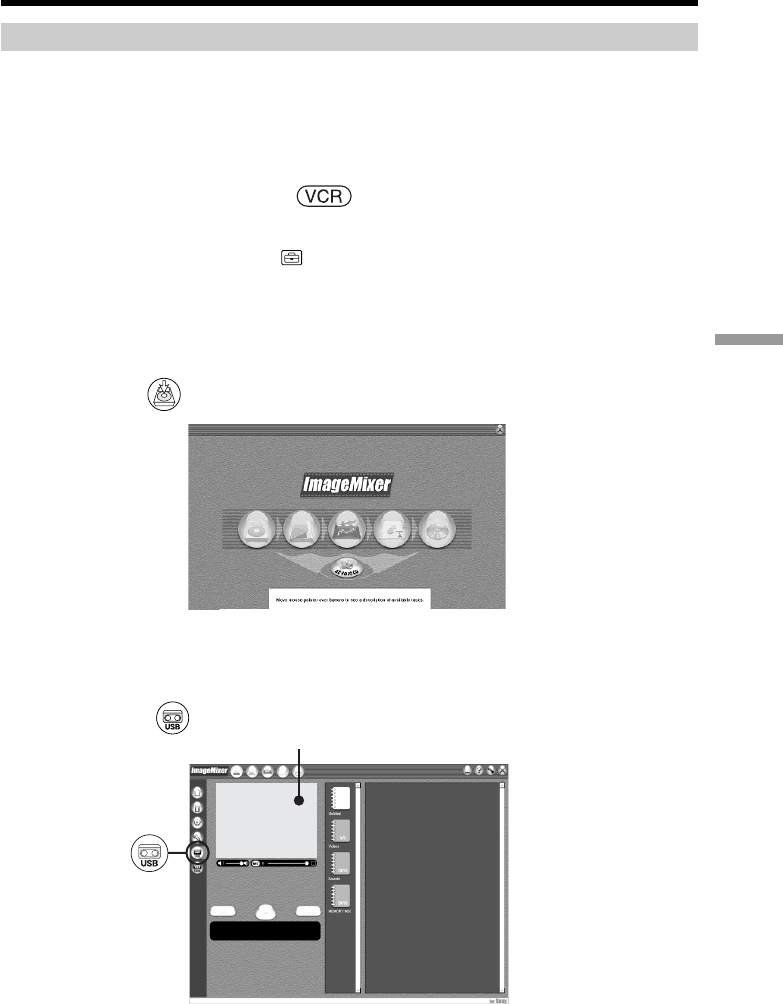

Viewing pictures recorded on tape on a
computer – USB Streaming (For
Windows users) ............................ 161

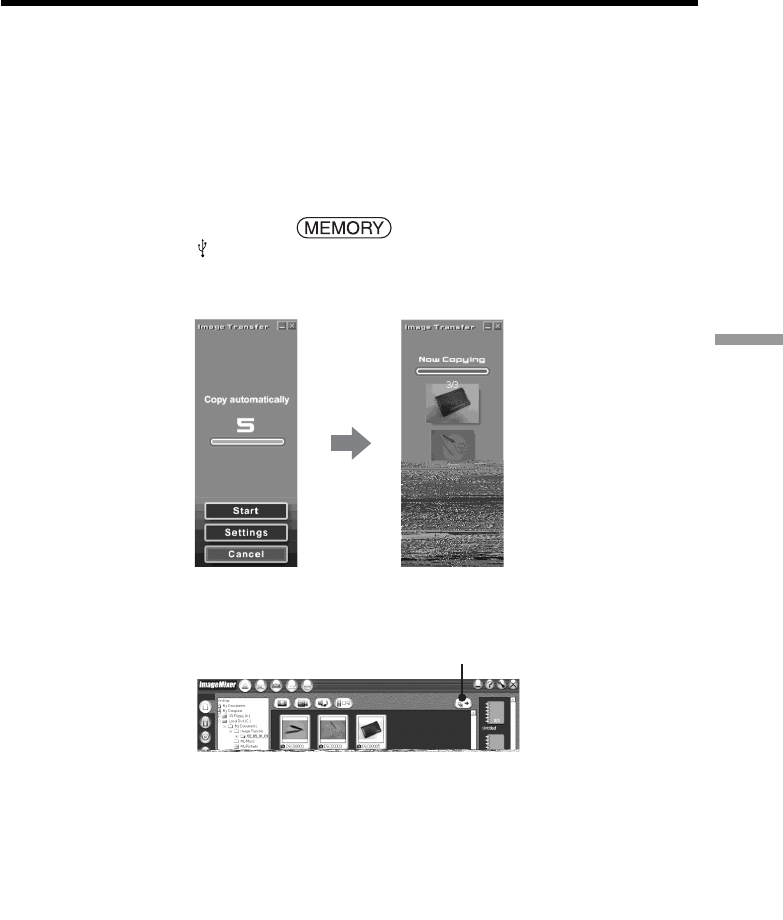

Viewing images recorded on
“Memory Stick” on a computer
(For Windows users)
(DCR-TRV22/TRV33 only)......... 167
Connecting your camcorder to a
computer using the USB cable
(For Macintosh users)
(DCR-TRV22/TRV33 only)......... 170
Viewing images recorded on
“Memory Stick” on a computer
(For Macintosh users)
(DCR-TRV22/TRV33 only)......... 172
Capturing images from an analog
video unit on a computer – Signal
convert function (DCR-TRV22/
TRV33 only) .................................. 173
Customizing Your Camcorder

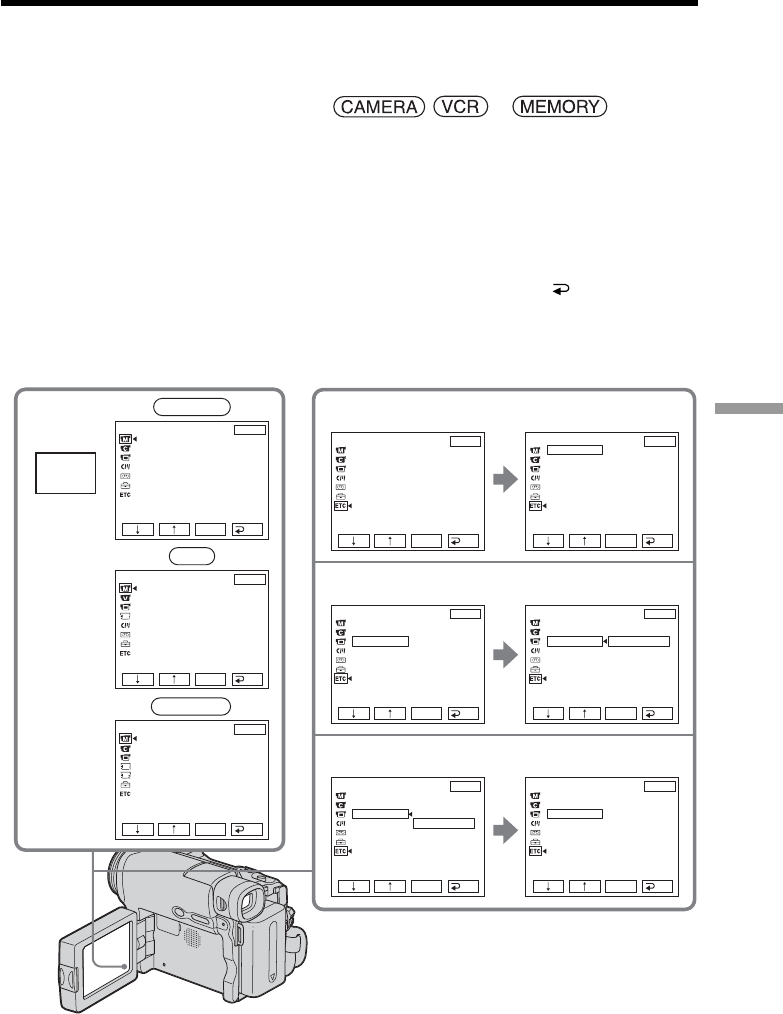

Changing the menu settings.............. 175
Troubleshooting
Types of trouble and how to correct
trouble ............................................ 186
Self-diagnosis display......................... 194
Warning indicators ............................. 195
Warning messages .............................. 196
Additional Information
Usable cassettes ................................... 197
About the “InfoLITHIUM” battery
pack ................................................ 200
About i.LINK ....................................... 202
Using your camcorder abroad .......... 204
Maintenance information and
precautions .................................... 205
Specifications ....................................... 211
Quick Reference
Identifying parts and controls........... 213
Index ..................................................... 219
Quick Start Guide
8
Quick Start Guide – Recording on tape
Connecting the power cord (p. 17)
Use the battery pack when using your camcorder outdoors (p. 16).
AC Adaptor (supplied)
Connect the plug with its v mark facing the
battery.
Open the DC IN
jack cover.
To eject the cassette
Follow the procedures above, and take out the cassette after the cassette compartment
opens completely in step 2.
Note
Do not press the cassette compartment down forcibly. Doing so may cause a
malfunction.
Inserting the cassette
1Slide OPEN/ZEJECT
in the direction of
the arrow and open
the lid.
2Push the center of the
cassette back to insert
the cassette. Insert the
cassette straight as far
as possible into the
cassette compartment
with the window
facing up.
3Close the cassette
compartment by
pressing on the
cassette
compartment.
After the cassette
compartment goes
down completely,
close the lid until it
clicks.
12
3
4

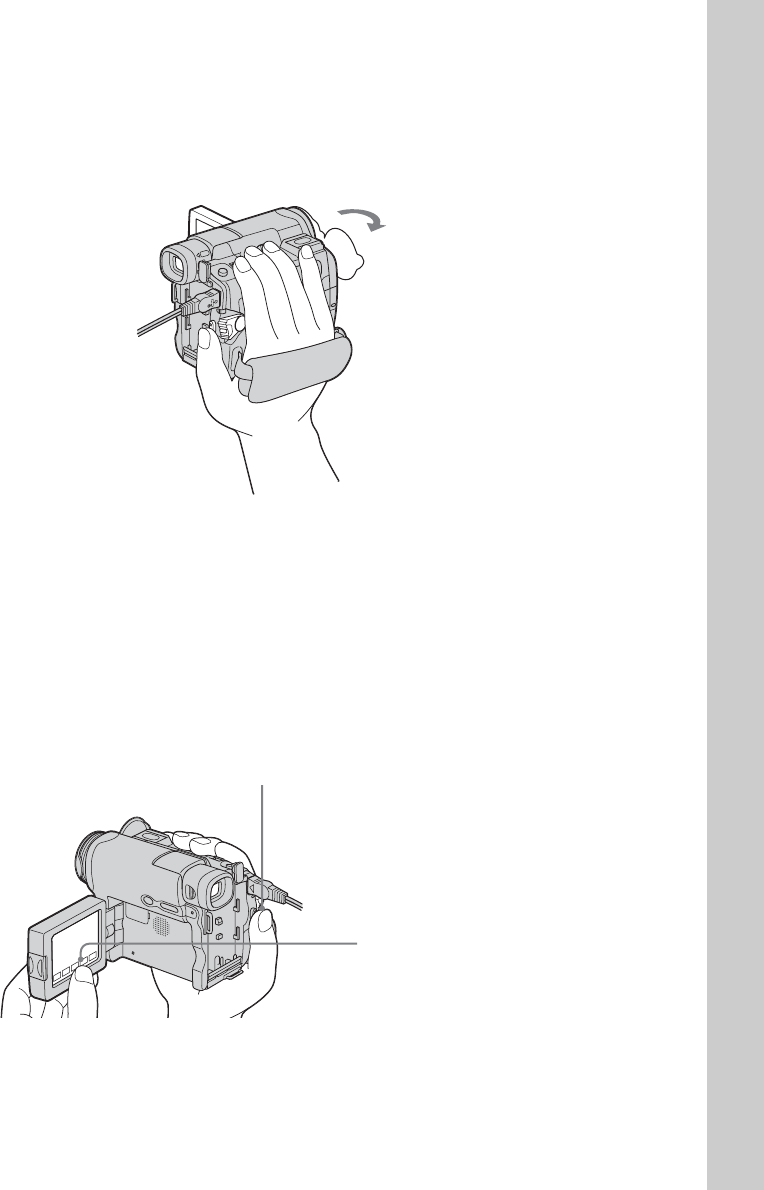

Fastening the grip belt
Fasten the grip belt firmly.

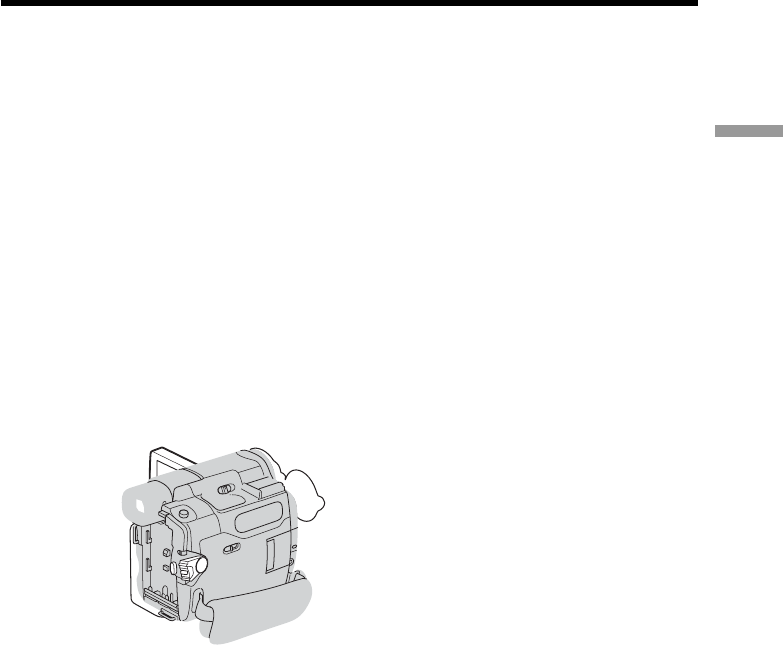

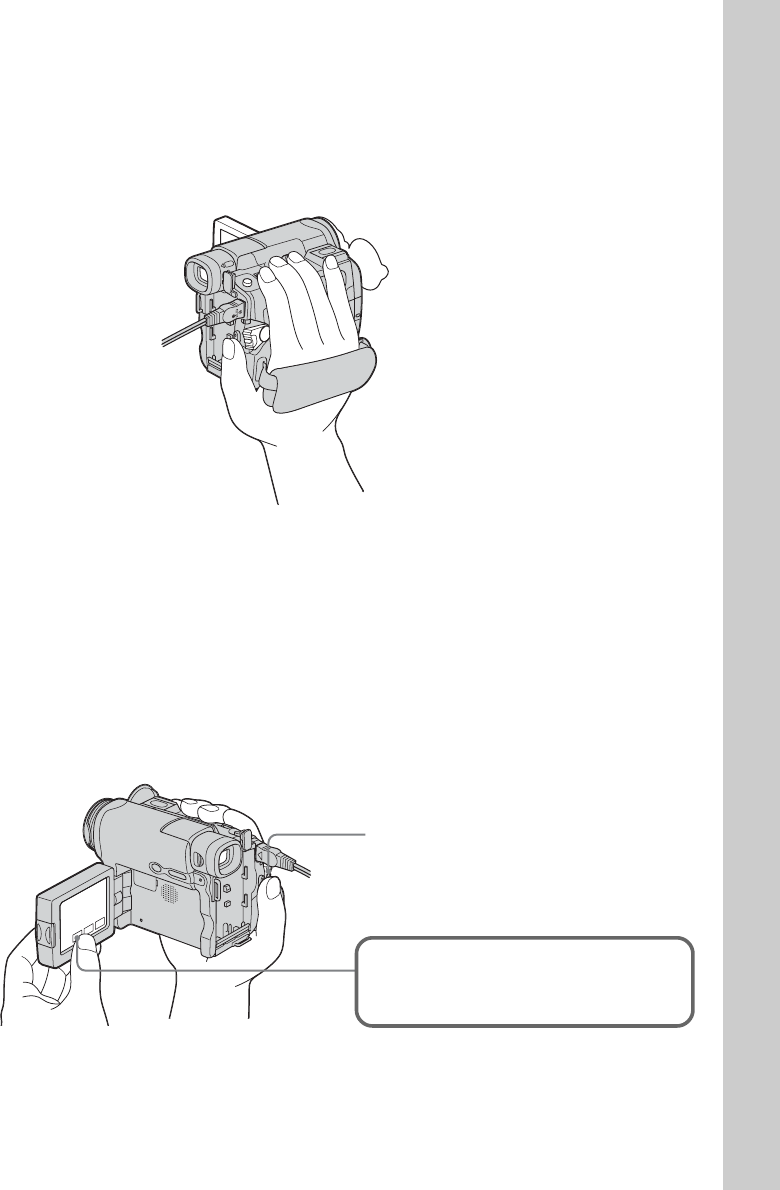

How to hold
your camcorder
1
2
3
Quick Start Guide
9
Quick Start Guide
10
Inserting the “Memory Stick” (p. 109)
Open the lid of the “Memory Stick” slot. Insert the “Memory Stick” in the “Memory Stick”
slot as far as it can go with the b mark facing down as illustrated, then close the lid.
While the access lamp is lit or flashing
Do not shake or strike your camcorder because your camcorder is reading the data from
the “Memory Stick” or recording the data on the “Memory Stick.” Do not turn the
power off, eject the “Memory Stick” or remove the battery pack. Otherwise, image data
breakdown may occur.

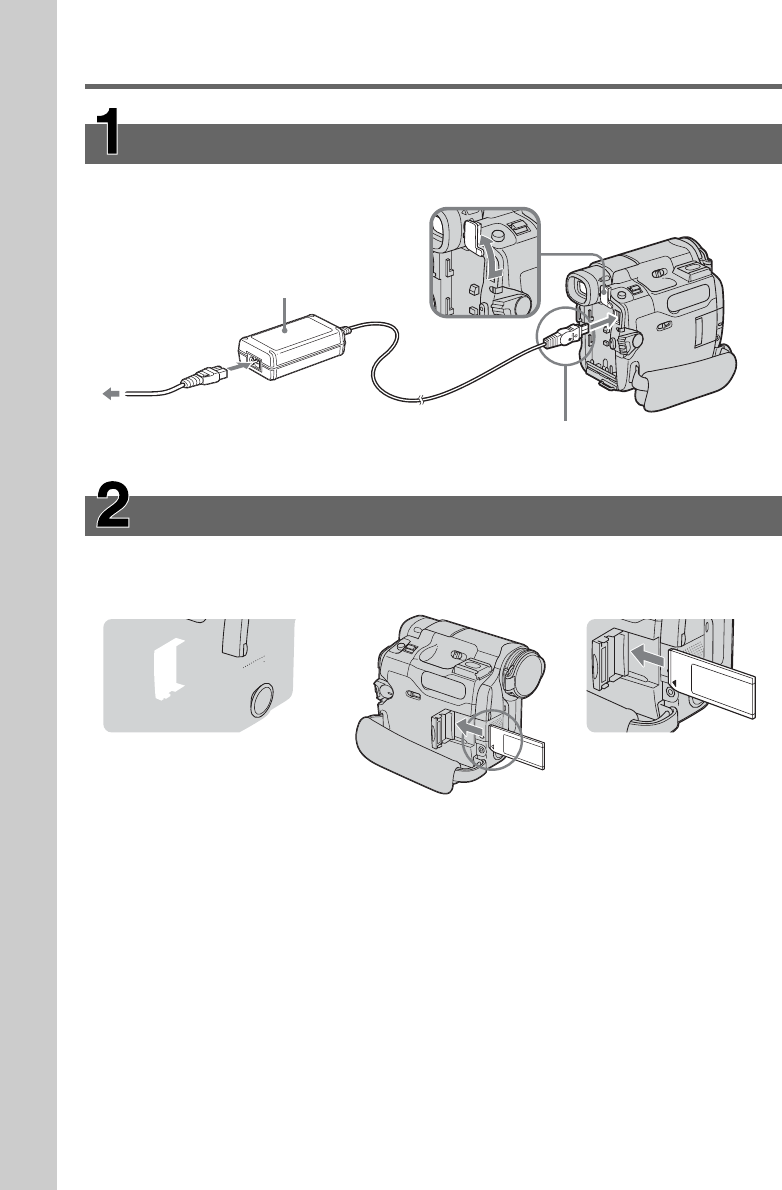

Quick Start Guide – Recording on “Memory Stick”
(DCR-TRV22/TRV33 only)
Connecting the power cord (p. 17)
Use the battery pack when using your camcorder outdoors (p. 16).
Open the DC IN
jack cover.
Connect the plug with its v
mark facing the battery.
AC Adaptor (supplied)
Quick Start Guide
11
12
— Getting Started —
Using this manual
The instructions in this manual are for the 3 models listed in the table below. Before you
start reading this manual and operating your camcorder, check the model number by
looking at the bottom of your camcorder. The DCR-TRV33 is the model used for
illustration purposes. Otherwise, the model name is indicated in the illustrations. Any
differences in operation are clearly indicated in the text, for example, “DCR-TRV33
only.”
As you read through this manual, buttons and settings on your camcorder are shown in
capital letters.
After “Advanced Recording Operations” section of this
manual, position of the POWER switch is shown by the icons
below.
: Set the POWER switch to VCR.
: Set the POWER switch to CAMERA.
: Set the POWER switch to MEMORY.
(DCR-TRV22/TRV33 only)
When you carry out an operation, you can hear a beep to indicate that the operation is
being carried out.
Types of differences
DCR- TRV19 TRV22 TRV33
Viewfinder B&W Color Color
MEMORY mark* — zz
(on the POWER switch)
AUDIO/VIDEO jack z** zz
S VIDEO jack z** zz
zProvided
—Not provided
* The models with MEMORY marked on the POWER switch is provided with
memory functions. See page 106 for details.
** Output only
VCR
OFF(CHG)
POWER
CAMERA
MEMORY
13
Getting Started
Using this manual

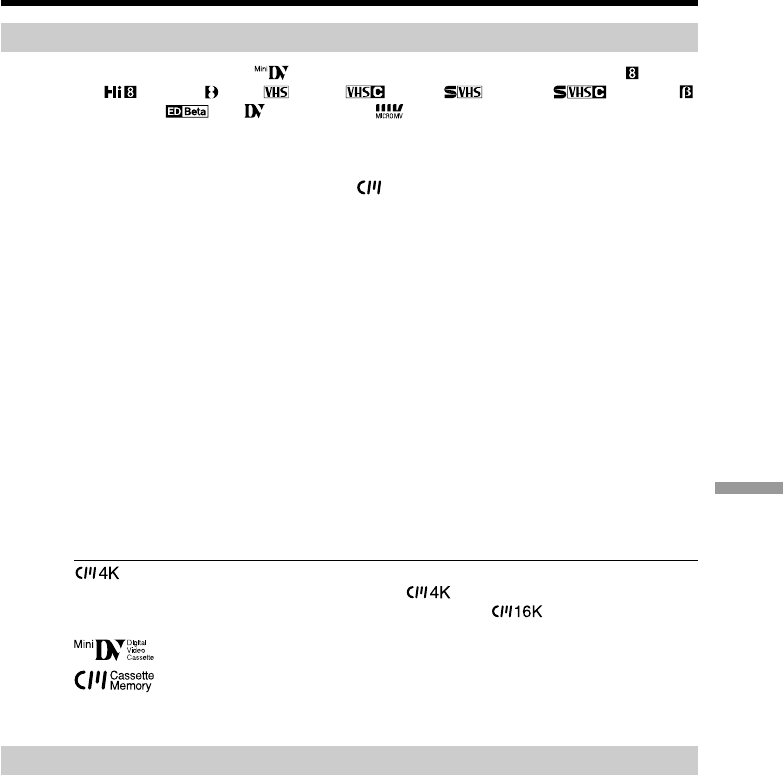

Note on Cassette Memory
Your camcorder is based on the DV format. You can use only mini DV cassettes with
your camcorder. We recommend that you use a cassette with Cassette Memory .
Cassettes with Cassette Memory have the (Cassette Memory) mark.
Note on TV color systems
TV color systems differ depending on the country or area. To view your recordings on a
TV, you need an NTSC system-based TV.
Copyright precautions
Television programs, films, video tapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the copyright laws.
Note on connecting other equipment
When you connect your camcorder to other video equipment or a computer using the
USB cable or i.LINK cable, observe the shape of the jack.
If you forcibly insert the plug, the jack may be damaged and they may result in a
malfunction of your camcorder.
14
[a][b]
[c][d]
15
Getting Started
Checking supplied accessories
Make sure that the following accessories are supplied with your camcorder.
1AC-L15A/L15B AC Adaptor (1), Power
cord (1) (p. 17)
2NP-FM30 rechargeable battery pack
(1) (p. 16)
3A/V connecting cable (1) (p. 44)

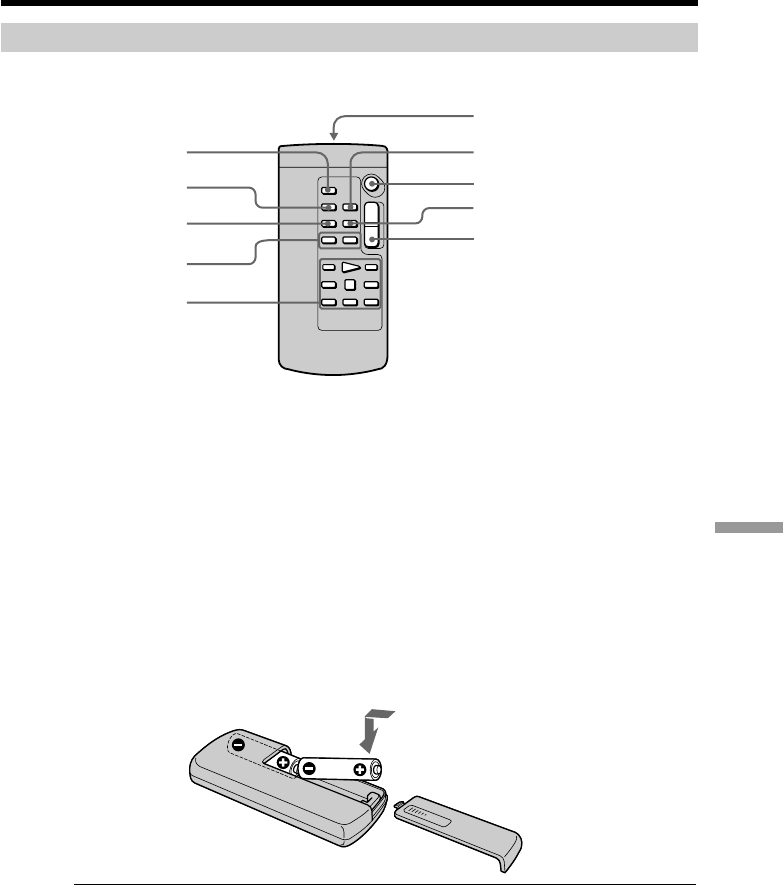

4Wireless Remote Commander (1) (p.
75)
5Size AA (R6) battery for Remote
Commander (2) (p. 217)
6Shoulder strap (1)
Contents of the recording cannot be compensated if recording or playback is not made due to a
malfunction of the camcorder, storage media, etc.
7Lens cap (1) (p. 213)
8 Shoe cover (1) (p. 98)
9“Memory Stick” (1) (DCR-TRV22/
TRV33 only, p. 106)
0USB cable (1) (p. 148)
qa CD-ROM (SPVD-010 USB Driver) (1)
(p. 153, 171)
qs Cleaning cloth (1) (p. 206)
9
1
4
16
Step 1 Preparing the power source
Installing the battery pack

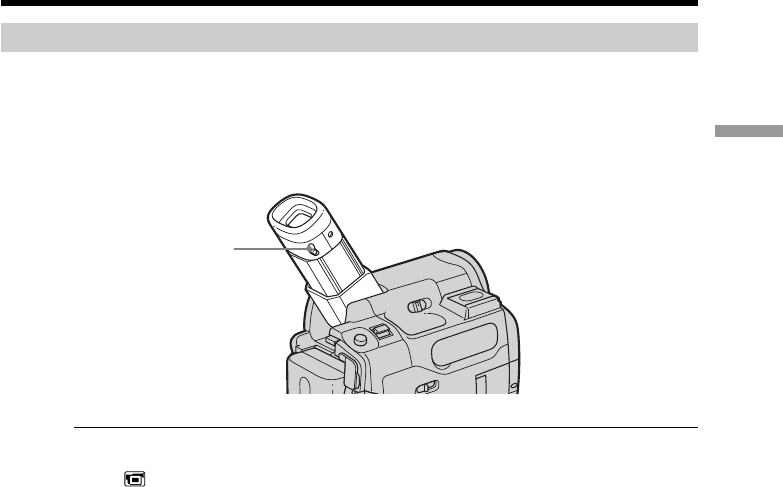

(1)Lift up the viewfinder.
(2)Slide the battery pack down until it clicks.
To remove the battery pack
(1)Lift up the viewfinder.
(2)Slide the battery pack out in the direction of the arrow while pressing BATT
down.
If you use the viewfinder when a large capacity battery pack is installed
If you install the NP-FM70/QM71/QM71D/FM91/QM91/QM91D battery pack on your
camcorder, extend the viewfinder, and lift up the viewfinder to a comfortable angle.
BATT release
button
2
1
17
Getting Started
Charging the battery pack
Use the battery pack after charging it for your camcorder.
Your camcorder operates only with the “InfoLITHIUM” battery pack (M series).
See page 200 for details of “InfoLITHIUM” battery pack.
(1)Install the battery pack on your camcorder.
(2)Connect the AC Adaptor supplied with your camcorder to the DC IN jack with
the v mark on the DC plug facing the battery.
(3)Connect the power cord to the AC Adaptor.
(4)Connect the power cord to a wall outlet.
(5)Set the POWER switch to OFF (CHG).
The CHG lamp lights up when charging begins. After charging is completed,
the CHG lamp goes out (full charge).
After charging the battery pack
Disconnect the AC Adaptor from the DC IN jack on your camcorder.
Step 1 Preparing the power source
3
2
15
VCR
OFF(CHG)
POWER
CAMERA
MEMORY
CHG lamp
18
Step 1 Preparing the power source
Note
Prevent metallic objects from coming into contact with the metal parts of the DC plug of
the AC Adaptor. This may cause a short-circuit, damaging the AC Adaptor.
When you use the AC Adaptor
Place the AC Adaptor near a wall outlet. While using the AC Adaptor, if any trouble
occurs with this unit, disconnect the plug from a wall outlet as soon as possible to cut
off the power.
Note on the CHG lamp
The CHG lamp flashes in the following cases:
–The battery pack is not properly installed.
–Something is wrong with the battery pack.
Charging time
Battery pack Full charge
NP-FM30 (supplied) 145
NP-FM50 150
NP-FM70 240
NP-QM71/QM71D 260
NP-FM91/QM91/QM91D 360
Approximate minutes at 25°C (77°F) to charge an empty battery pack.
The charging time may increase if the battery’s temperature is extremely high or low
because of the ambient temperature.
19
Getting Started
Step 1 Preparing the power source
Recording time
DCR-TRV19/TRV22 Recording with Recording with
Battery pack the viewfinder the LCD screen
Continuous Typical* Continuous Typical*
NP-FM30 (supplied) 125 65 90 45
NP-FM50 200 105 150 75
NP-FM70 415 215 310 160
NP-QM71/QM71D 485 255 365 190
NP-FM91/QM91/QM91D 725 380 550 290
DCR-TRV33 Recording with Recording with
Battery pack the viewfinder the LCD screen
Continuous Typical* Continuous Typical*
NP-FM30 (supplied) 90 50 70 35
NP-FM50 150 85 120 65
NP-FM70 310 175 250 140
NP-QM71/QM71D 365 205 290 165
NP-FM91/QM91/QM91D 550 310 445 250
Approximate minutes when you use a fully charged battery pack
* Approximate number of minutes when recording while you repeat recording start/
stop, zooming and turning the power on/off. The actual battery life may be shorter.
20

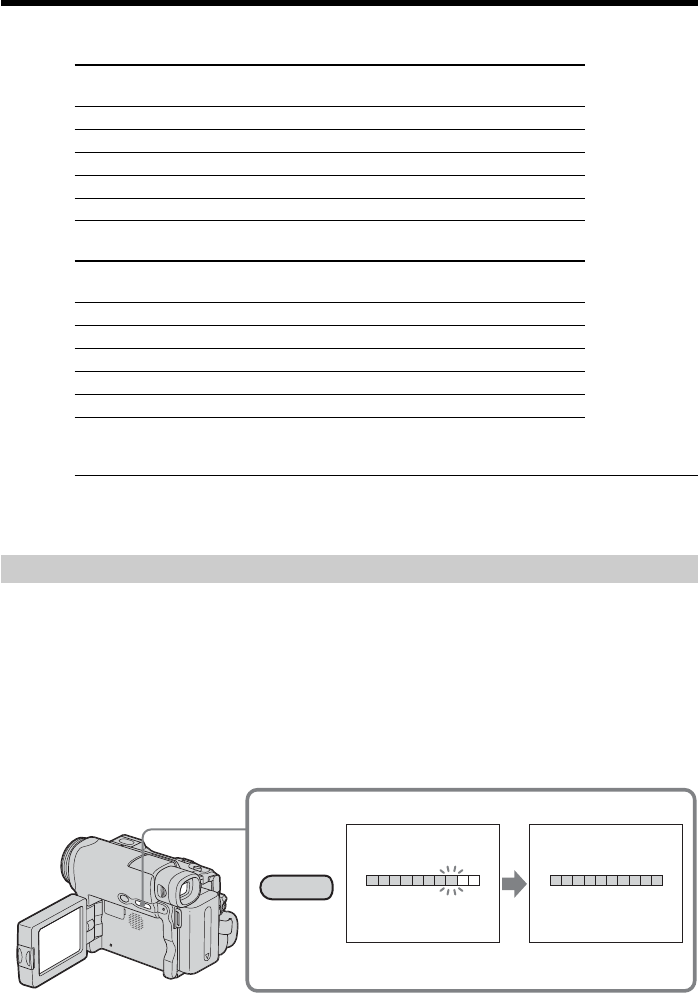

DSPL/BATT INFO
BATTERY INFO
BATTERY CHARGE LEVEL
REC TIME AVAILABLE
LCD SCREEN
VIEWFINDER :
:56
72 min
min
0% 50% 100%
BATTERY INFO
BATTERY CHARGE LEVEL
REC TIME AVAILABLE
LCD SCREEN
VIEWFINDER :
:70
90 min
min
0% 50% 100%
3
During charging Fully charged
Playing time
DCR-TRV19/TRV22
Battery pack Playing time on Playing time on with
the LCD panel the LCD screen closed
NP-FM30 (supplied) 100 150
NP-FM50 165 240
NP-FM70 345 495
NP-QM71/QM71D 400 580
NP-FM91/QM91/QM91D 605 865
DCR-TRV33
Battery pack Playing time on Playing time with
the LCD panel the LCD screen closed
NP-FM30 (supplied) 100 135
NP-FM50 160 220
NP-FM70 335 450
NP-QM71/QM71D 390 530
NP-FM91/QM91/QM91D 585 785
Approximate minutes when you use a fully charged battery pack
Note
Approximate recording time and continuous playing time at 25°C (77°F). The battery
life will be shorter if you use your camcorder in a cold environment.
Checking status of battery pack – Battery Info
(1)Set the POWER switch to OFF (CHG).
(2)Press OPEN to open the LCD panel.
(3)Press DSPL/BATT INFO.
The battery charge level (the percentage of remaining battery time) and
remaining battery time when using the LCD screen or viewfinder are
displayed for about 7 seconds.
If you keep pressing DSPL/BATT INFO, the indicators will be displayed for
about 20 seconds.
Step 1 Preparing the power source
21
Getting Started
Notes
•The BATTERY INFO indicator may not be displayed in the following cases:
–The battery pack is not installed.
–Something is wrong with the battery pack.
–The battery is exhausted.
•The BATTERY INFO indicator will not appear when you press DISPLAY on the
Remote Commander when the POWER switch is set to OFF (CHG).
Battery Info
The number displayed as Battery Info is the approximate recording time.
While the remaining battery time is being calculated
“CALCULATING BATTERY INFO ...” is displayed.
If you press DSPL/BATT INFO with the LCD panel closed
The battery information appears on the viewfinder for about 7 seconds.

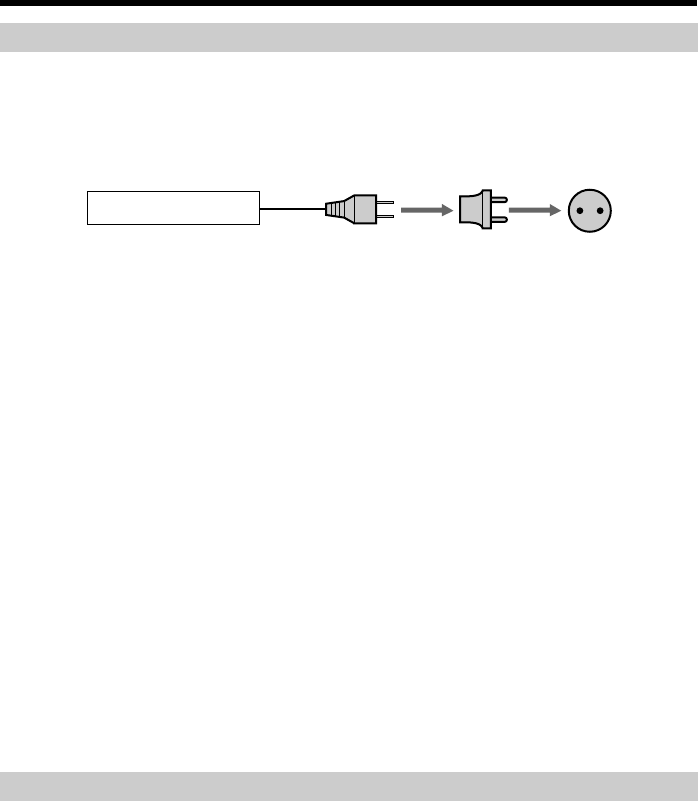

Connecting to a wall outlet
You can use your camcorder without worrying about the power shortage.
Connect the AC Adaptor in the same way as you would when charging the battery
pack.
PRECAUTION
The set is not disconnected from the AC power source (house current) as long as it is
connected to the wall outlet, even if the set itself has been turned off.
Notes
•The AC Adaptor can supply power from a wall outlet even if the battery pack is
attached to your camcorder.
•The DC IN jack has “source priority.” This means that the battery pack cannot supply
any power if the power cord is connected to the DC IN jack, even when the power
cord is not plugged into a wall outlet.
Step 1 Preparing the power source
22

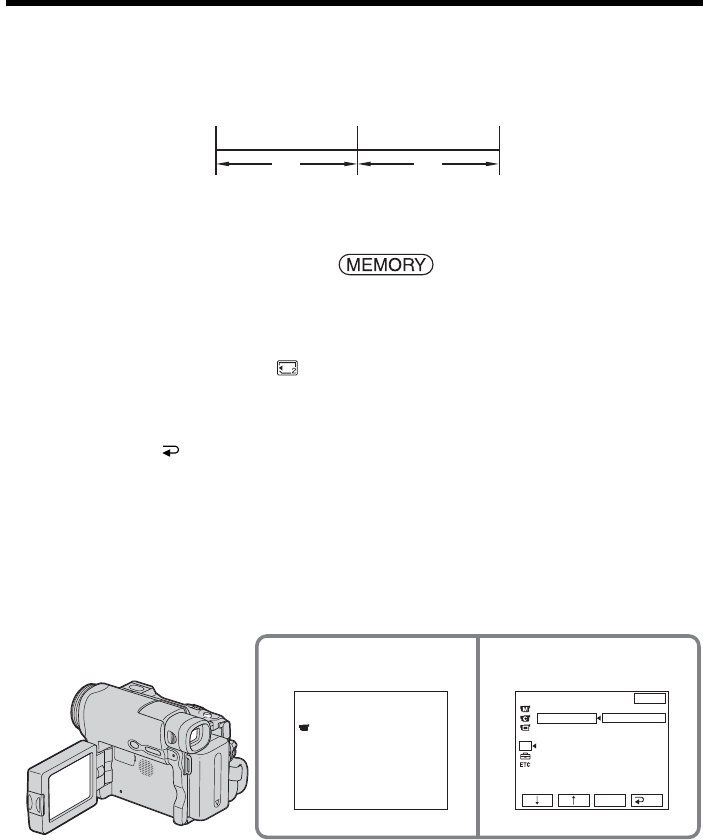

Step 2 Setting the date and time
Set the date and time when you use your camcorder for the first time. The “CLOCK
SET” indicator will appear each time you set the POWER switch to CAMERA or
MEMORY (DCR-TRV22/TRV33 only) unless you set the date and time settings.
If you do not set the date and time, “--- -- ----” and “--:--:--” are recorded on the tape or
the “Memory Stick” (DCR-TRV22/TRV33 only) as the data code.
If you do not use your camcorder for about 4 months, the date and time settings may
be released (bars may appear) because the built-in rechargeable battery installed in your
camcorder will have been discharged (p. 207). In this case, charge the built-in
rechargeable battery, then set the year, the month, the day, the hour and the minute.
(1)Set the POWER switch to CAMERA or MEMORY (DCR-TRV22/TRV33 only).
(2)Press OPEN to open the LCD panel.
(3)Press FN (Function) to display PAGE1 (p. 23).
(4)Press MENU to display the menu.
(5)Press r/R to select , then press EXEC.
(6)Press r/R to select CLOCK SET, then press EXEC.
(7)Press r/R to select a desired year, then press EXEC.
(8)Set the month, day and hour with the same procedure as step 7.
(9)Press r/R to set the minute, then press EXEC by the time signal. The clock
starts to move.
To return to FN (Function)
Press EXIT.
Note on the time indicator
The internal clock of your camcorder operates on a 12-hour cycle.
•12:00 AM stands for midnight.
•12:00 PM stands for noon.
3FN
SETUP MENU
CLOCK SET
USB STREAM
LANGUAGE
DEMO MODE
EXIT
RET.
EXEC
––:––:––
5
9
6
78
SETUP MENU
CLOCK SET
USB STREAM
LANGUAGE
DEMO MODE
EXIT
RET.
EXEC
2003
JAN
1
12 00 AM
SETUP MENU
CLOCK SET
USB STREAM
LANGUAGE
DEMO MODE
EXIT
RET.
EXEC
2003
JAN
1
12 00 AM
SETUP MENU
CLOCK SET
USB STREAM
LANGUAGE
DEMO MODE
EXIT
RET.
EXEC
2003
JUL
4
5 00 PM
SETUP MENU
CLOCK SET
USB STREAM
LANGUAGE
DEMO MODE
23
Getting Started
Your camcorder has operation buttons on the LCD screen.
Touch the LCD screen directly with your finger to operate each function.
(1)Set the POWER switch to CAMERA to record, VCR to play back, or MEMORY
to use the “Memory Stick” (DCR-TRV22/TRV33 only).
(2)Press OPEN to open the LCD panel.
(3)Press FN. Operation buttons on PAGE1 are displayed on the LCD screen.
(4)Press PAGE2/PAGE3 to display PAGE2/PAGE3. Operation buttons on
PAGE2/PAGE3 are displayed on the LCD screen.
(5)Press a desired operation item. See relevant pages of this manual for each
function.
To return to FN
Press EXIT.
To execute settings
Press OK. The display returns to PAGE1/PAGE2/PAGE3.
To cancel settings
Press OFF. The display returns to PAGE1/PAGE2/PAGE3.
To make screen indicators disappear
Press DSPL/BATT INFO.
Step 3 Using the touch panel
24
Operation buttons on each display
When the POWER switch is set to CAMERA
PAGE1 SPOT FOCUS, MENU, FOCUS, FADER, END SCH, SPOT METER,
EXPOSURE
PAGE2 DIG EFFT*, SELFTIMER, LCD BRT, SUPER NS*, VOL, COLOR SLW S*,
MEM MIX*
*DCR-TRV22/TRV33 only
When the POWER switch is set to VCR
PAGE1 MENU, LCD BRT, VOL, END SCH
PAGE2 DATA CODE, DIG EFFT*, PB ZOOM*
PAGE3 V SPD PLAY, A DUB CTRL, REC CTRL
*DCR-TRV22/TRV33 only
When the POWER switch is set to MEMORY (DCR-TRV22/TRV33 only)
During memory camera
PAGE1 SPOT FOCUS, MENU, FOCUS, PLAY, PB FOLDR, SPOT METER,
EXPOSURE
PAGE2 SELFTIMER, PLAY, MEM MIX
PAGE3 LCD BRT, PLAY, VOL
During memory playback
PAGE1 MENU, CAM, PB FOLDR, DEL
PAGE2 PB ZOOM, CAM, RESIZE*, DATA CODE
PAGE3 LCD BRT, CAM, VOL
* DCR-TRV33 only
Notes
•When using the touch panel, press operation buttons lightly with your finger
supporting the LCD panel from the back side of it.
•Do not press the LCD screen with sharp objects such as a pen.
•Do not press the LCD screen too hard.
•Do not touch the LCD screen with wet hands.
•If FN is not on the LCD screen, touch the LCD screen lightly to make it appear. You
can control the display with DSPL/BATT INFO on your camcorder.
When executing each item
The green bar appears above the item.
If the items are not available
The color of the items changes to gray.

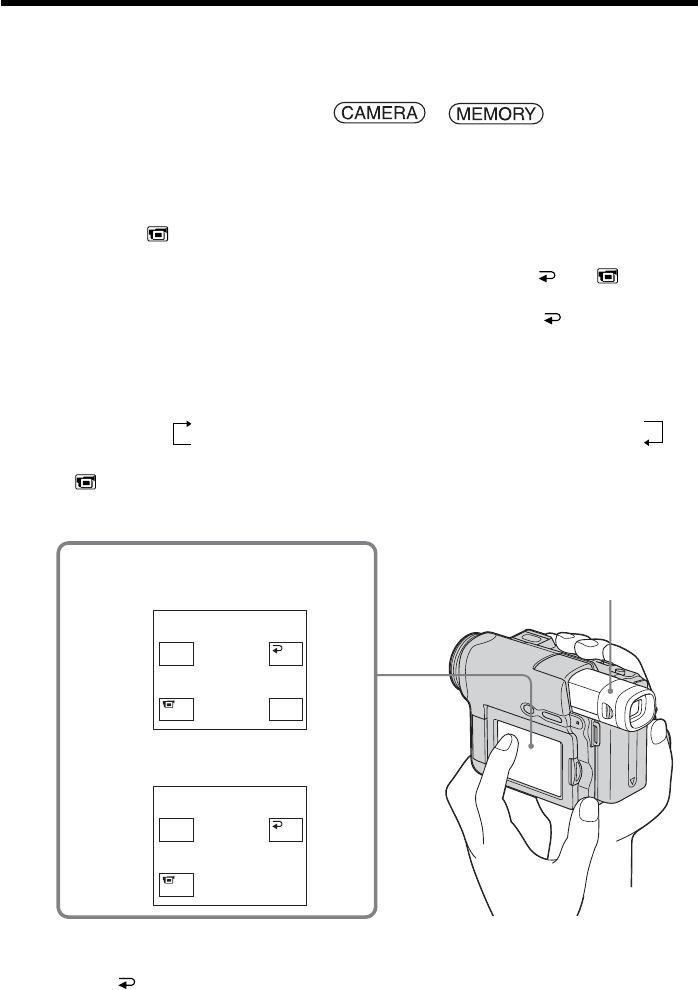

When using the viewfinder
You can also operate with the touch panel (p. 70).
Step 3 Using the touch panel
25
Recording – Basics
Perform Step 1 (p. 16) and Step 2 (p. 22) in advance.
(1)Open the lens cap.
(2)Prepare the power source (p. 16) and insert the cassette (p. 8).
(3)Set the POWER switch to CAMERA while pressing the small green button.
This sets your camcorder to standby.
(4)Press OPEN to open the LCD panel. The picture appears on the screen.
(5)Press START/STOP. Your camcorder starts recording. The REC indicator
appears. The camera recording lamp located on the front of your camcorder
lights up. To stop recording, press START/STOP again.
— Recording – Basics —
Recording a picture
26
Notes
•Position the lens cap so as not to cover the microphone and the infrared emitter.
•Avoid touching the microphone when you are recording.
Note on recording
Your camcorder records and plays back in the SP (standard play) mode and in the LP
(long play) mode. Select SP or LP in in the menu settings (p. 182). In the LP mode,
you can record 1.5 times as long as in the SP mode.
When you record the tape in the LP mode on your camcorder, we recommend playing
back the tape on your camcorder.
To enable smooth transition
Transition between the last scene you recorded and the next scene is smooth as long as
you do not eject the cassette even if you turn off your camcorder.
However, check the following:
–Do not mix recordings in the SP and LP modes on one tape.
–When you change the battery pack, set the POWER switch to OFF (CHG).
If you leave your camcorder during standby for 5 minutes while the cassette is
inserted
Your camcorder automatically turns off. This is to save battery power and to prevent
battery pack and tape wear. To return to standby, set the POWER switch to OFF (CHG)
and then back to CAMERA. However, your camcorder does not turn off automatically
while the cassette is not inserted.
When you record in the SP and LP modes on one tape or you record in the LP
mode
•The transition between scenes may not be smooth.
•The playback picture may be distorted or the time code may not be written properly
between scenes.
Note on the LOCK switch (DCR-TRV22/TRV33 only)
When you slide the LOCK switch to the right, the POWER switch can no longer be set
to MEMORY accidentally. The LOCK switch is set to the left as the default setting.
Self-timer recording
You can record images on the tape with the self-timer. See page 50 for details.
Recording a picture
27
Recording – Basics
Indicators displayed during recording
Indicators are not recorded on the tape.
Remaining battery time indicator during recording
The remaining battery time indicator roughly indicates the continuous recording time.
The indicator may not be correct, depending on the conditions in which you are
recording. When you close the LCD panel and open it again, it takes about one minute
for the correct remaining battery time in minutes to be displayed.
Time code
The time code indicates the recording or playback time, “0:00:00” (hours : minutes :
seconds) in CAMERA and “0:00:00:00” (hours : minutes : seconds : frames) in VCR.
You cannot rewrite only the time code later.
Recording data
28
After recording
(1)Close the lens cap.
(2)Set the POWER switch to OFF (CHG).
(3)Close the LCD panel.
(4)Eject the cassette.
(5)Remove the power source.

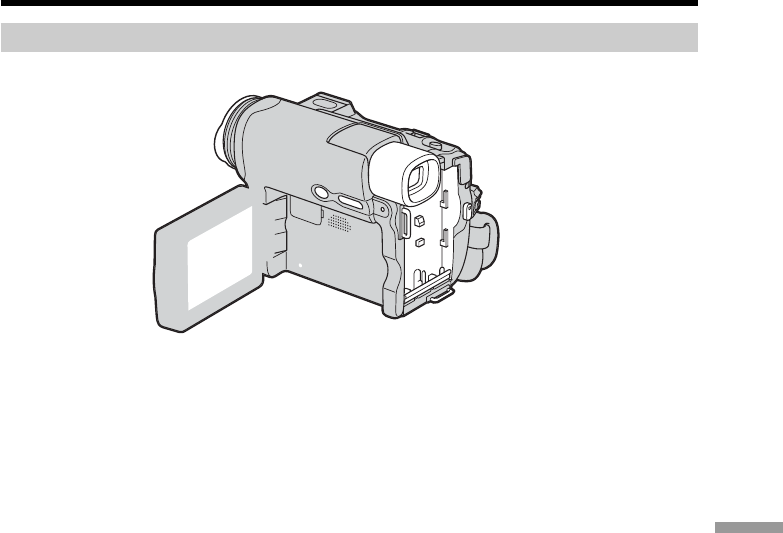

Adjusting the LCD screen
When you adjust the LCD panel, make sure that the LCD panel is opened up to 90
degrees.
When monitoring on the LCD screen
You can turn the LCD panel over and move it back to your camcorder body with the
LCD screen facing out.
Notes
•When using the LCD screen except in the mirror mode, the viewfinder automatically
turns off.
•If you turn the LCD panel over and move it back to your camcorder body when
recording or recording standby, LCD B.L. (panel brightness) is fixed to “BRT
NORMAL.”
Recording a picture
180°
90°
90°
29
Recording – Basics

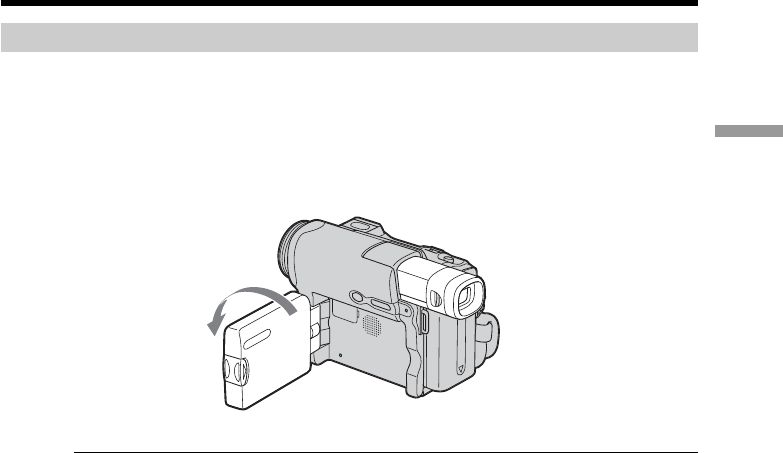

Shooting with the mirror mode
This feature allows the camera subject to view him- or herself on the LCD screen.
The subject uses this feature to check his or her own image on the LCD screen while you
look at the subject in the viewfinder.
(1)Extend the viewfinder.
(2)Rotate the LCD panel 180 degrees.
Picture in the mirror mode
The picture on the LCD screen is a mirror-image. However, the picture will be normal
when recorded.
Recording a picture
2
1
30

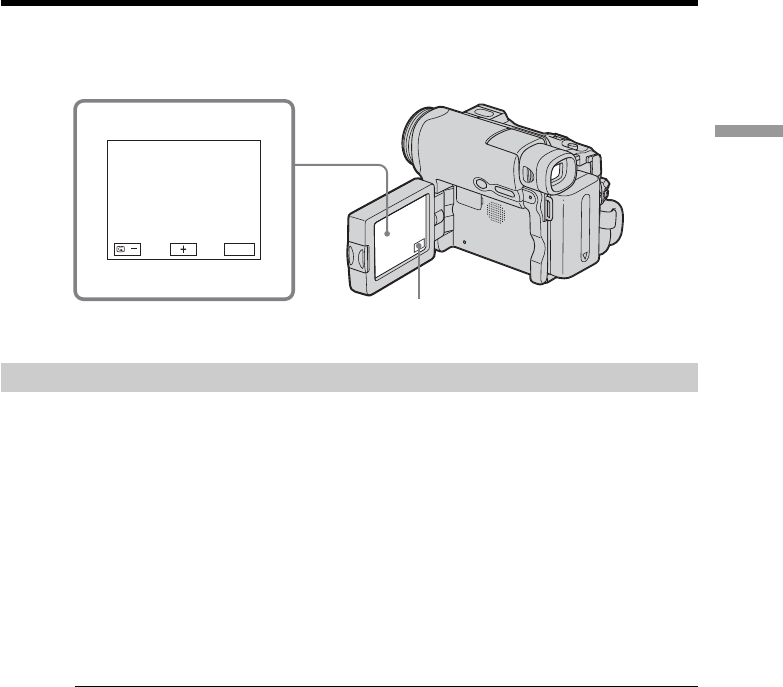

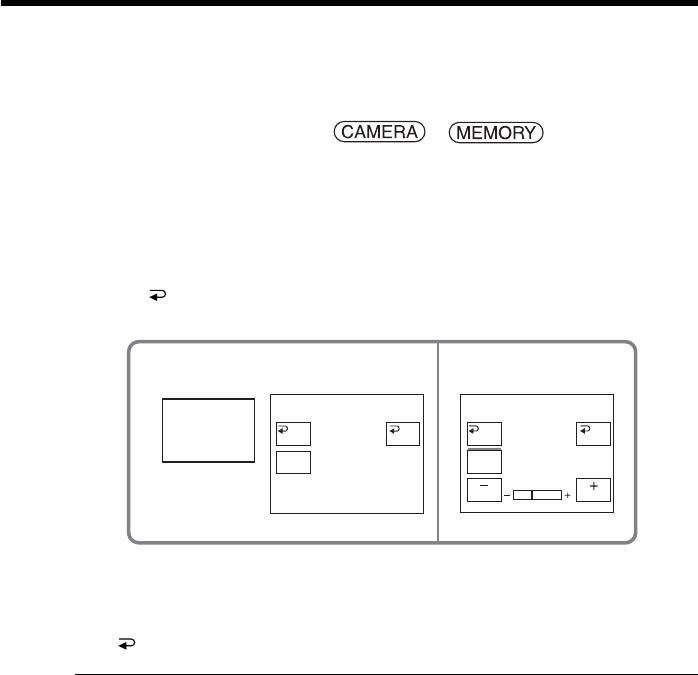

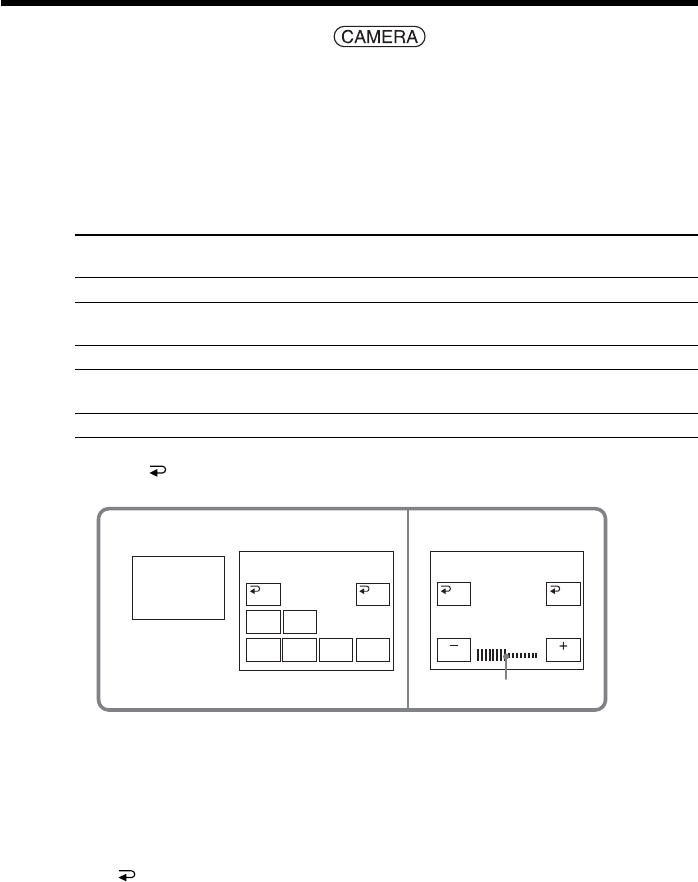

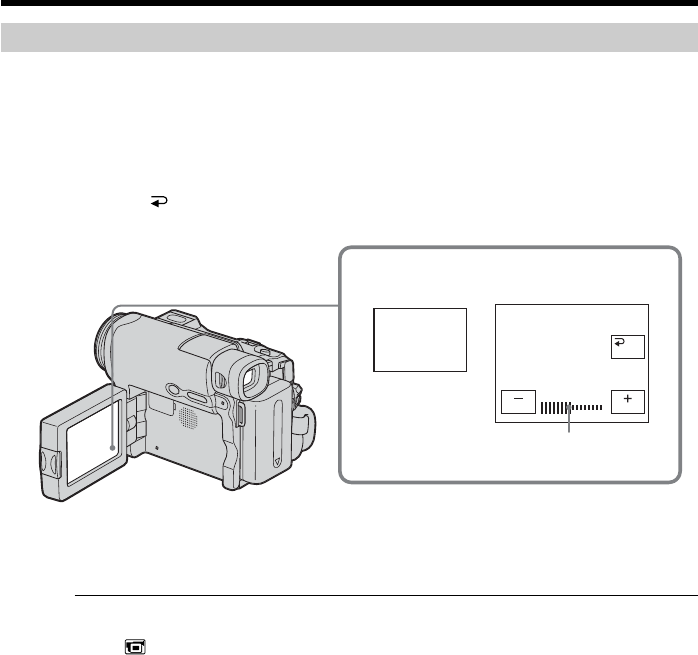

Adjusting the brightness of the LCD screen
(1)When the POWER switch is set to CAMERA, press FN and select PAGE2.
When the POWER switch is set to VCR, press FN to display PAGE1.
When the POWER switch is set to MEMORY (DCR-TRV22/TRV33 only), press
FN and select PAGE3.
(2)Press LCD BRT. The screen to adjust the brightness of the LCD screen appears.
(3)Adjust the brightness of the LCD screen using – (to dim)/+ (to brighten).
(4)Press OK to return to PAGE1/PAGE2/PAGE3 in Step 1.
To return to FN
Press EXIT.
LCD screen backlight
You can change the brightness of the backlight when using the battery pack. Select LCD
B.L. in in the menu settings (p. 178).
Even if you adjust LCD BRT or LCD B.L.
The recorded picture will not be affected.
Shooting using the viewfinder is recommended when:
•You cannot see the picture clearly on the LCD screen.
•You want the battery pack to last longer.
Recording a picture
2,3
LCD
BRT
LCD BRT
OK
The bar indicator
31
Recording – Basics
Adjusting the viewfinder
If you record pictures with the LCD panel closed, check the picture with the viewfinder.
Adjust the viewfinder lens to your eyesight so that the images in the viewfinder come
into sharp focus.
Extend the viewfinder and move the viewfinder lens adjustment lever.
Viewfinder backlight
You can change the brightness of the backlight when using the battery pack. Select VF
B.L. in in the menu settings (p. 178).
Even if you adjust VF B.L.
The recorded picture will not be affected.
The camera recording lamp (DCR-TRV19 only)
The camera recording lamp lights up in the viewfindrer during recording.
Recording a picture
Viewfinder lens
adjustment lever
32
Using the zoom feature
Move the power zoom lever a little for a slower zoom. Move it further for a faster zoom.
Using the zoom sparingly results in better-looking recordings.
W: Wide-angle (subject appears farther away)
T: Telephoto (subject appears closer)
To use zoom greater than 10×
Zoom greater than 10× is performed digitally. Digital zoom can be set to 20× or 120×.
To activate digital zoom, select the digital zoom power in D ZOOM in in the menu
settings (p. 177). The digital zoom is set to OFF as the default setting. Because the
picture is processed digitally, the picture quality deteriorates.
When you shoot close to a subject
If you cannot get a sharp focus, move the power zoom lever to the “W” side until the
focus is sharp. You can shoot a subject that is at least about 80 cm (about 2 5/8 feet)
away from the lens surface in the telephoto position, or about 1 cm (about 1/2 inch)
away in the wide-angle position.
When the POWER switch is set to MEMORY (DCR-TRV22/TRV33 only)
You cannot use the digital zoom.
Recording a picture
33
Recording – Basics
Shooting backlit subjects – Back light function
When you shoot a subject with the light source behind the subject or a subject with a
light background, use the back light function.
(1)Set the POWER switch to CAMERA or MEMORY (DCR-TRV22/TRV33 only).
(2)Press BACK LIGHT.
The . indicator appears on the screen.
To cancel the back light function
Press BACK LIGHT again.
When shooting backlit subjects
If you press MANUAL of EXPOSURE (p. 64) or SPOT METER (p. 65), the back light
function will be canceled.
Recording a picture
BACK LIGHT
34
Recording a picture
Shooting in the dark
– NightShot/Super NightShot/Color Slow Shutter
Using NightShot
The NightShot enables you to shoot a subject in the night or in a dark place.
When recording with the NightShot, the picture may be recorded in incorrect or
unnatural colors.
(1)Set the POWER switch to CAMERA or MEMORY (DCR-TRV22/TRV33 only).
(2)Slide NIGHTSHOT to ON.
The and ”NIGHTSHOT” indicators flash on the screen.
To cancel NightShot
Slide NIGHTSHOT to OFF.
Using Super NightShot (DCR-TRV22/TRV33 only)
Super NightShot makes subjects more than 16 times brighter than those recorded in
NightShot.
(1)Set the POWER switch to CAMERA.
(2)Slide NIGHTSHOT to ON.
The and ”NIGHTSHOT” indicators flash on the screen.
(3)Press FN and select PAGE2.
(4)Press SUPER NS.
The indicator lights up on the screen.
(5)Press EXIT to return to FN.
To cancel Super NightShot
Press SUPER NS again. To cancel NightShot, slide NIGHTSHOT to OFF.
Using NightShot Light
The picture will be clearer with the NightShot Light on. To enable the NightShot Light,
set N.S. LIGHT in to ON in the menu settings. (The default setting is ON.)
OFF ON
NIGHTSHOT
NightShot Light emitter
35
Recording – Basics
Recording a picture
Using Color Slow Shutter (DCR-TRV22/TRV33 only)
Color Slow Shutter enables you to record color images in a dim place.
(1)Set the POWER switch to CAMERA.
(2)Slide NIGHTSHOT to OFF.
(3)Press FN and select PAGE2.
(4)Press COLOR SLW S.
The indicator lights up on the screen.
(5)Press EXIT to return to FN.
To cancel Color Slow Shutter
Press COLOR SLW S again to make the indicator disappear.
Notes
•Do not use NightShot in bright places (e.g. the outdoors in the daytime). This may
cause a malfunction.
•If focusing is difficult during recording with NightShot, focus manually.
•Do not cover the infrared rays emitter during recording with NightShot.
While using NightShot, you cannot use the following functions:
–White balance
–PROGRAM AE (The indicator flashes.)
–Manual exposure
–Flexible Spot Meter
While using Super NightShot or Color Slow Shutter (DCR-TRV22/TRV33 only)
The shutter speed is automatically adjusted depending on the brightness. At this time,
the motion of the picture may slow down.
While using Super NightShot, you cannot use the following functions (DCR-TRV22/
TRV33 only):
–White balance
–Fader
–Digital effect
–PROGRAM AE
–Manual exposure
–Flexible Spot Meter
36
When the POWER switch is set to MEMORY (DCR-TRV22/TRV33 only)
You cannot use the following functions:
–Super NightShot
–Color Slow Shutter
NightShot Light
NightShot Light rays are infrared and so are invisible. The maximum shooting distance
using the NightShot Light is about 3 m (10 feet).
While using Color Slow Shutter, you cannot use the following functions (DCR-
TRV22/TRV33 only):
–Fader
–Digital effect
–PROGRAM AE
–Manual exposure
–Flexible Spot Meter
In total darkness (DCR-TRV22/TRV33 only)
Color Slow Shutter may not work normally.
Recording a picture
37
Recording – Basics
You can use these buttons to check the recorded picture or shoot so that the transition
between the last recorded scene and the next scene you record is smooth.
End search
You can go to the end of the recorded section after you record.
(1)Set the POWER switch to CAMERA.
(2)Press FN to display PAGE1.
(3)Press END SCH.
The last 5 seconds of the recorded section are played back and your camcorder
returns to standby.
To return to FN
Press EXIT.
To cancel end search
Press END SCH again.
End search

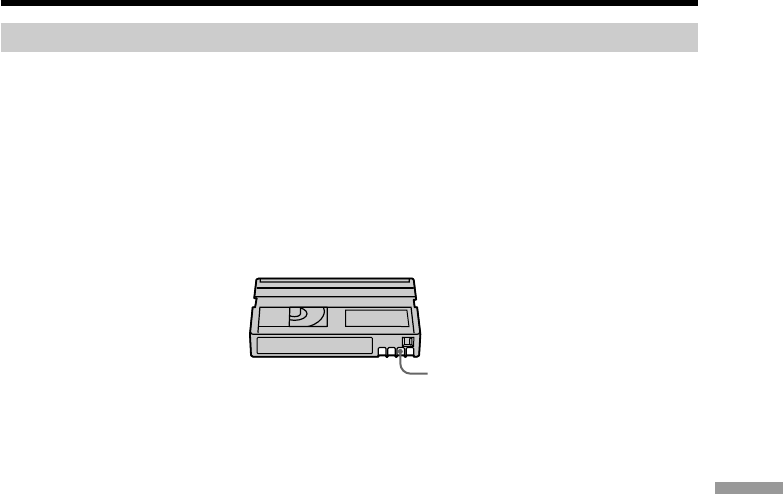

When you use the cassette without Cassette Memory, end search does not work once
you eject the cassette after you have recorded on the tape. If you use a cassette with
Cassette Memory, end search works even once you eject the cassette.
If the tape has a blank portion between recorded portions
End search may not work correctly.
Checking recordings
– End search/Edit search/Rec Review
FNEDIT
/
FN
38
Checking recordings – End search/Edit search/Rec Review

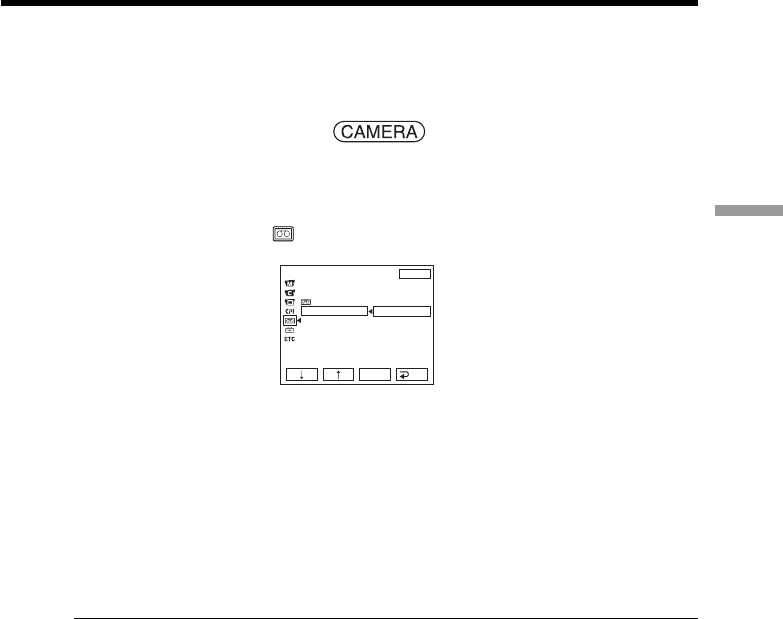

Edit search
You can search for the next recording start point. You cannot monitor the sound.
(1)Set the POWER switch to CAMERA.
(2)Press FN to display PAGE1.
(3)Press MENU to display the menu.
(4)Select EDITSEARCH in , then press EXEC (p. 177).
(5)Select ON, then press EXIT.
(6)Hold down 7 /– or +. The recorded portion is played back.
Release 7 /– or + to stop playback. If you press START/STOP, recording
begins from the point you released 7 /– or +.
7/– : To go backward
+ : To go forward
Rec Review
You can check the last recorded section.
(1)Set the POWER switch to CAMERA.
(2)Press FN to display PAGE1.
(3)Press MENU to display the menu.
(4)Select EDITSEARCH in , then press EXEC (p. 177).
(5)Select ON, then press EXIT.
(6)Press 7 /– momentarily.
The section you have stopped most recently will be played back for a few
seconds, and then your camcorder will return to standby.
39
Playback – Basics
4
31
5
2
VCR
OFF(CHG)
POWER
CAMERA
MEMORY
VOL
OK

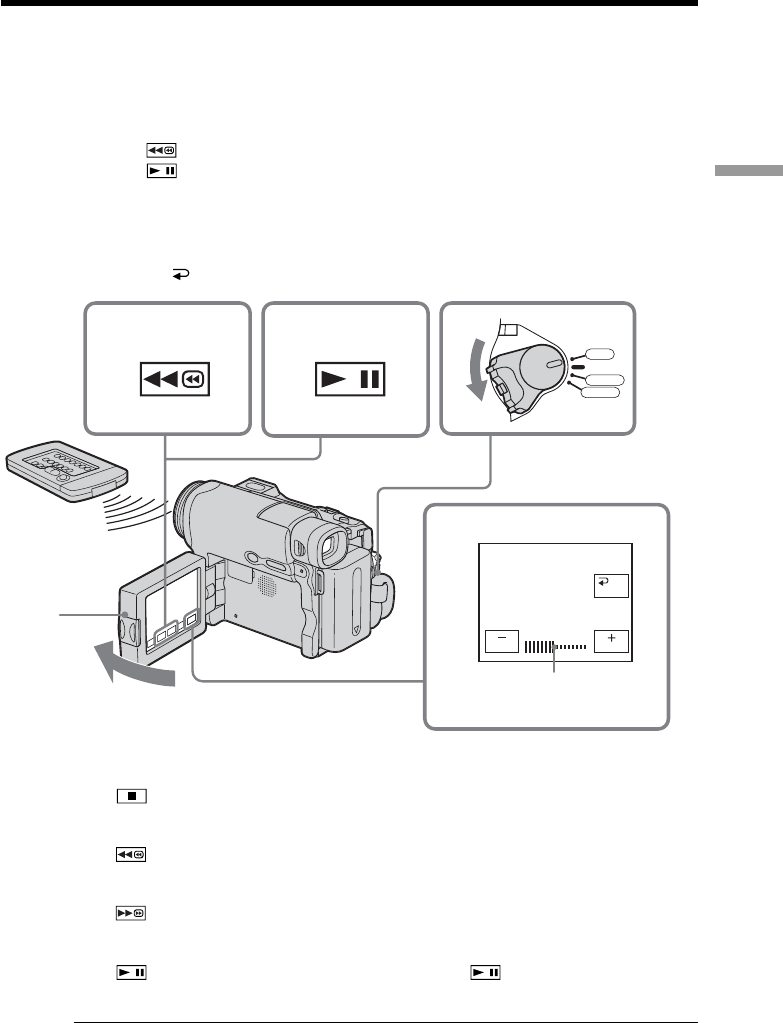

You can monitor the recorded tape on the LCD screen. If you close the LCD panel, you
can monitor the playback picture in the viewfinder. You can also control playback using
the Remote Commander supplied with your camcorder.
(1)Set the POWER switch to VCR while pressing the small green button.
(2)Press OPEN to open the LCD panel.
(3)Press to rewind the tape.
(4)Press to start playback.
(5)Adjust the volume following the steps below.
1Press FN to display PAGE1.
2Press VOL. The screen to adjust volume appears.
3Press – (to turn down the volume)/+ (to turn up the volume).
4Press OK to return to PAGE1.
To return to FN
Press EXIT.
To cancel playback
Press .
To rewind the tape
Press during playback stop.
To fastforward the tape
Press during playback stop.
To view a still image (playback pause)
Press during playback. To resume playback, press again. If the playback
pause lasts more than 5 minutes, the camcorder automatically switches to the stop
mode.
If you leave the power on for a long time
Your camcorder gets warm. This is not a malfunction.
— Playback – Basics —
Playing back tape
The bar indicator
40
To display the screen indicators – Display function
Press DSPL/BATT INFO on your camcorder or DISPLAY on the Remote Commander
supplied with your camcorder.
The indicators disappear from the screen.
To make the indicators appear, press DSPL/BATT INFO or DISPLAY on the Remote
Commander again.
About date/time and various settings
Your camcorder automatically records not only images on the tape but also the
recording data (date/time or various settings when recorded) (Data code).
Follow the steps below to display the data code using the touch panel or the Remote
Commander.
Using the touch panel
(1)Set the POWER switch to VCR, then play back the tape.
(2)During playback, press FN and select PAGE2.
(3)Press DATA CODE.
(4)Select CAM DATA or DATE DATA, then press OK.
(5)Press EXIT.
[a]Tape counter or time code
[b]SteadyShot off
[c]Exposure
[d]White balance
[e]Gain
[f]Shutter speed
[g]Aperture value
Playing back tape
DSPL/BATT INFO
DATA CODE
DISPLAY
Date/time
JUL 4 2003
12:05:56 PM
50min
0:00:23:01
AUTO
50min
0:00:23:01
6
0
AWB
F1.8
9
dB
[a]
[b]
[c]
[d]
[e]
[f]
[g]
Various settings
41
Playback – Basics

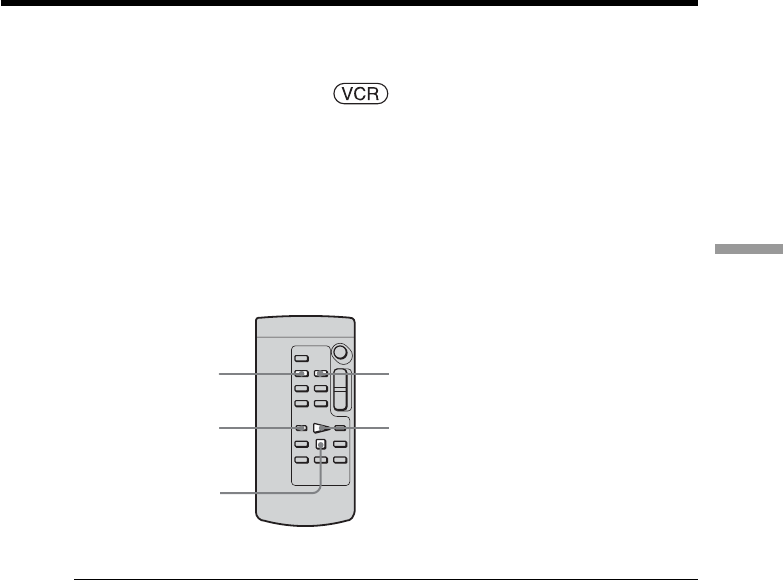

Using the Remote Commander
Press DATA CODE on the Remote Commander during playback.
The display changes as follows:
date/time t various settings (SteadyShot off, exposure, white balance, gain, shutter
speed, aperture value) t (no indicator) t date/time t...
To prevent the various data from being displayed
Select DATE in DATA CODE in in the menu setting (p. 184).
Each time you press DATA CODE on the Remote Commander, the display changes as
follows:
data/time y (no indicator)
Note
If you press DATA CODE on the Remote Commander when the POWER switch is set
to OFF (CHG), no indicator appears.
Various settings
Various settings shows your camcorder’s recording information at the time of
recording. During tape recording standby, the various settings will not be displayed.
When you use data code, bars (-- -- --) appear if:
–A blank portion of the tape is being played back.
–The tape is unreadable due to tape damage or noise.
–The tape was recorded by a camcorder without the date and time set.
Data code
When you connect your camcorder to a TV, the data code also appears on the TV
screen.
Playing back tape
42
Playing back tape

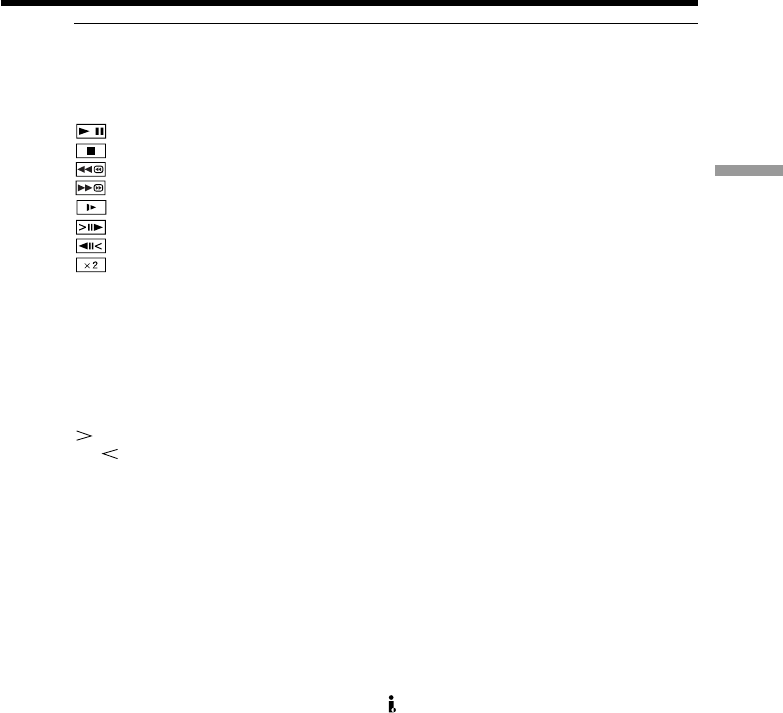

Various playback modes
To operate video control buttons, set the POWER switch to VCR.

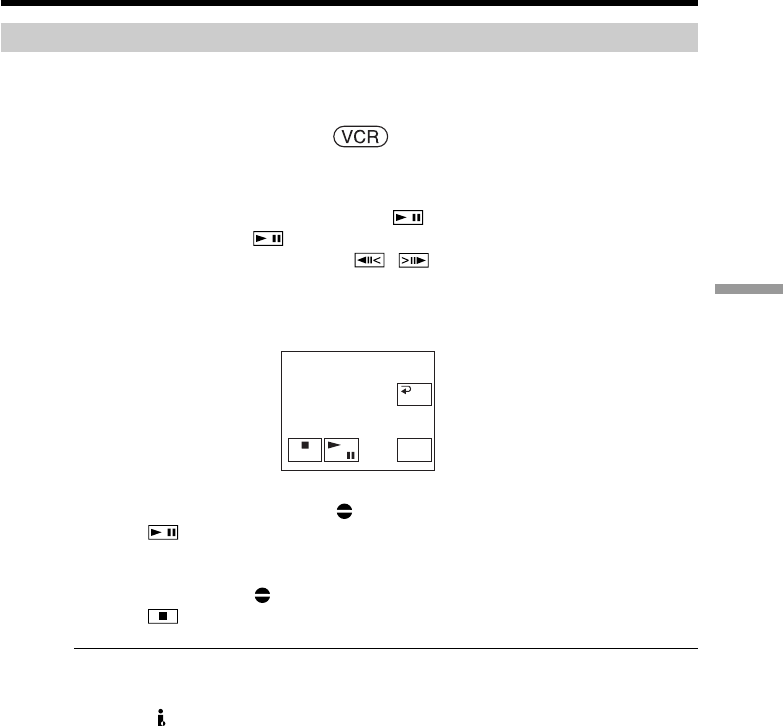

Using the touch panel
(1)Press FN and select PAGE3.
(2)Press V SPD PLAY to display video control buttons.
To change the playback direction
Press during playback to reverse the playback direction.*
To locate a scene while monitoring the picture (picture search)
Keep pressing or during playback. To resume normal playback, release the
button.
To monitor the high-speed picture while fastforwarding or
rewinding the tape (skip scan)
Keep pressing while fastforwarding or while rewinding the tape. To resume
fastforwarding or rewinding, release the button.
To view the picture at slow speed (slow playback)
Press during playback. *
For slow playback in the reverse direction, press , then press .*
To view the picture at double speed
Press during playback. *
For double speed playback in the reverse direction, press , then press .*
To view the picture frame-by-frame
Press during playback pause.**
For frame-by-frame playback in the reverse direction, press .**
To search the last scene recorded (END SEARCH)
Press END SCH on PAGE1 during stop. The last 5 seconds of the recorded section are
played back then your camcorder stops.
* Press to pause playback. Press to resume normal playback.
**Press to resume normal playback.
43
Playback – Basics
Video control buttons
Marks on your camcorder are different from those on the Remote Commander supplied
with your camcorder.
On your camcorder:
To play back or pause the tape
To stop the tape
To rewind the tape
To fastforward the tape
To play back the tape slowly
To forward one frame at a time
To rewind one frame at a time
To play back the tape at double speed
On the Remote Commander:
NTo play back the tape
XTo pause the tape
xTo stop the tape
mTo rewind the tape
MTo fastforward the tape
yTo play back the tape slowly
CTo forward one frame at a time
cTo rewind one frame at a time
×2To play back the tape at double speed
In the various playback modes
•Sound is muted.
•The previous picture may remain as a mosaic image during playback.
When you play back the tape in reverse
Horizontal noise may appear at the center, or the top and bottom of the screen. This is
not a malfunction.
Slow playback
Slow playback can be performed smoothly on your camcorder. However, this function
does not work for an output signal from the DV Interface.
Playing back tape
44
Connect your camcorder to a TV with the A/V connecting cable supplied with your
camcorder to watch the playback pictures on the TV screen. You can operate the
playback control buttons in the same way as when you view playback pictures on the
LCD screen.
When viewing the playback picture on the TV screen, we recommend that you power
your camcorder from a wall outlet using the AC Adaptor. Refer to the operating
instructions of your TV.
Open the jack cover. Connect your camcorder to the TV with the A/V connecting cable.
Then set the TV/VCR selector on the TV to VCR to be able to view images from your
camcorder.
If your TV is already connected to the VCR
Connect your camcorder to the LINE IN input on the VCR with the A/V connecting
cable supplied with your camcorder. Set the input selector on the VCR to LINE.
If your TV or VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video input jack and the
white or the red plug to the audio input jack on the VCR or the TV.
If you connect the white plug, the sound is L (left) signal. If you connect the red plug,
the sound is R (right) signal.

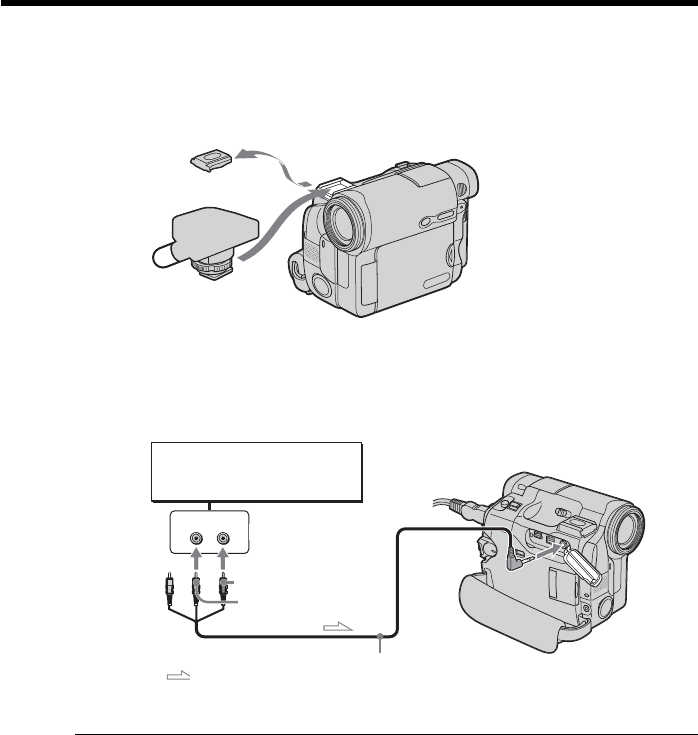

Viewing a recording on TV
S VIDEO
S VIDEO
VIDEO
AUDIO
IN
AUDIO/
VIDEO
Yellow
Red
White
: Signal flow
A/V connecting cable (supplied) TV
45
Playback – Basics
If the equipment to be connected has an S video jack
•Pictures can be reproduced more faithfully by using an S video cable (optional). With
this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable. However, you need to connect the red and white (audio) plugs.
Connect the S video cable (optional) to the S video jacks on both your camcorder and
the TV or the VCR.
This connection produces higher quality DV format pictures.
•There is no sound output when connecting only with an S video cable (optional).
To display the screen indicators on TV
Set DISPLAY in
46
Insert a “Memory Stick” before the following operation.
During tape recording standby
The POWER switch should be set to .
(1)Keep pressing PHOTO lightly until a still image appears. The CAPTURE
indicator appears. Recording does not start yet. To change the still image,
release PHOTO, select a still image again, and then press and hold PHOTO
lightly.
(2)Press PHOTO deeply.
Recording is complete when the bar scroll indicator at the upper right on the
screen disappears.
The image displayed on the screen when you pressed PHOTO deeply will be
recorded on the “Memory Stick.”
During tape recording
The POWER switch should be set to .
Press PHOTO deeply.
The image displayed on the screen when you pressed PHOTO deeply will be recorded
on the “Memory Stick.”
Recording on the “Memory Stick” is complete when the bar scroll indicator disappears.
47
Advanced Recording Operations
Note
You cannot record still images in the “Memory Stick” during the following operations
(The indicator flashes):
–End search
–Wide mode
–During BOUNCE is on
–MEMORY MIX
“Memory Stick”
See page 106 for details.
Still images
•The image size will be 640 × 480.
•If the POWER switch is set to CAMERA, image quality cannot be changed. Images
will be recorded with image quality as set when the POWER switch is set to
MEMORY.
•When recording with higher image quality, use of memory photo recording is
recommended.
During and after recording still images on the “Memory Stick”
Your camcorder continues recording on the tape.
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
To record still images on the “Memory Stick” during tape recording
You cannot check an image on the screen by pressing PHOTO lightly. The image when
you press PHOTO deeply will be recorded on the “Memory Stick.”
Title
You cannot record the titles.
Self-timer recording
During recording standby, you can record still images on the “Memory Stick” with the
self-timer. See page 50 for details.
Recording still images on “Memory Stick” during tape recording
standby or tape recording (DCR-TRV22/TRV33 only)
48
Recording a still image on a tape
– Tape Photo recording (DCR-TRV19 only)
You can record still images such as photographs. You can record about 510 images in
the SP mode and about 765 images in the LP mode on a 60-minute tape.
The POWER switch should be set to .
(1)Keep pressing PHOTO lightly until a still image appears. The CAPTURE
indicator appears. Recording does not start yet.
To change the still image, release PHOTO, select a still image again, and then
press and hold PHOTO lightly.
(2)Press PHOTO deeply.
The still image displayed on the screen when you pressed PHOTO deeply is
recorded for about 7 seconds. The sound during those 7 seconds is also
recorded.
The still image is displayed on the screen until the recording is completed.
Notes
•During tape photo recording, you cannot change the mode or setting.
•When recording a still image, do not shake your camcorder. The image may fluctuate.
•The tape photo recording function does not work when the fader function is on.
CAPTURE
FN
•••••••
FN
1
2
DCR-TRV19
49
Advanced Recording Operations
If you record a moving subject with the tape photo recording function
When you play back the still image on other equipment, the image may fluctuate.
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
To record still images on a tape during tape recording
You cannot check an image on the screen by pressing PHOTO lightly.
Press PHOTO deeply. The still image is recorded for about 7 seconds and your
camcorder returns to tape recording standby.
Recording a still image on a tape – Tape Photo recording (DCR-
TRV19 only)
50

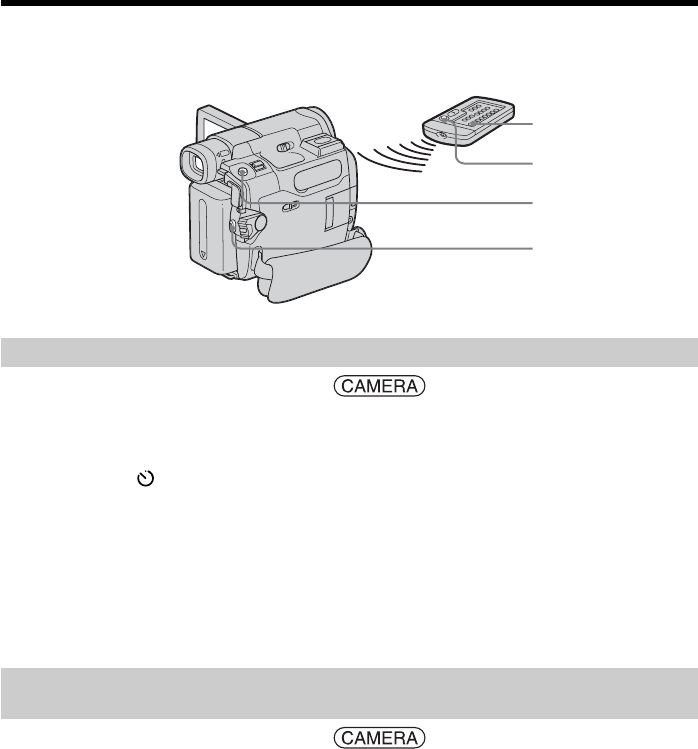

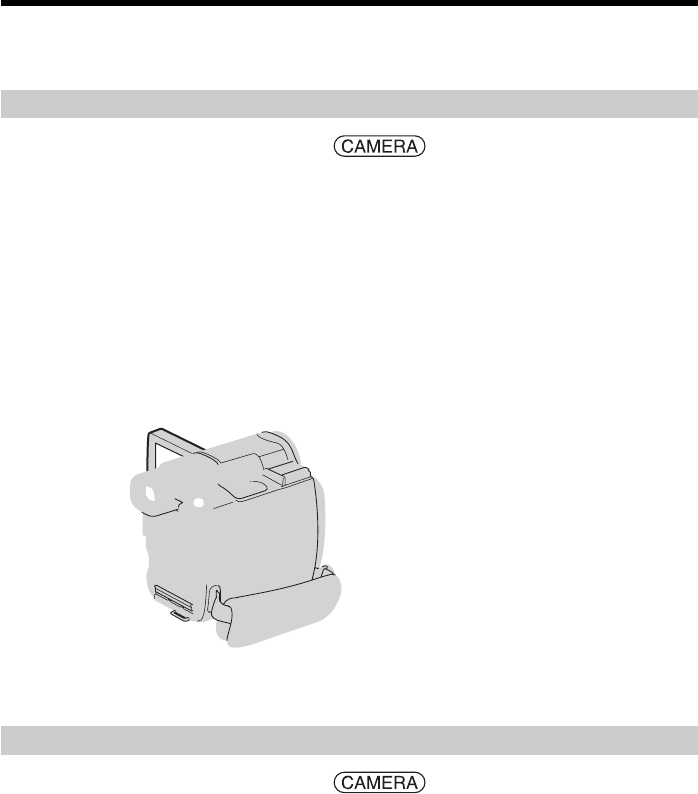

You can record still images and moving pictures using the self-timer recording feature.
You can also use the Remote Commander for this operation.
Recording on the tape
The POWER switch should be set to .
Operate by touching the panel.
(1)During standby, press FN and select PAGE2.
(2)Press SELFTIMER.
The (self-timer) indicator appears on the screen.
(3)Press EXIT to return to FN.
(4)Press START/STOP.
The self-timer starts counting down from about 10 while beeping. In the last
2 seconds of the countdown, the beep gets faster, then recording starts
automatically.
To stop the countdown for recording on the tape
Press START/STOP. To restart the countdown, press START/STOP again.
Recording still images on the “Memory Stick” during recording
standby (DCR-TRV22/TRV33 only)
The POWER switch should be set to .
Operate by touching the panel.
(1)Follow steps 1 to 3 in “Recording on the tape.”
(2)Press PHOTO deeply.
The self-timer starts counting down from about 10 while beeping. In the last
2 seconds of the countdown, the beep gets faster, then the recording starts
automatically.
Self-timer recording
START/STOP
START/STOP
51
Advanced Recording Operations
Recording images (DCR-TRV19 only)
The POWER switch should be set to .
Operate by touching the panel.
(1)Follow steps 1 to 3 in “Recording on the tape.”
(2)Press PHOTO deeply.
To cancel the self-timer
During standby, press SELFTIMER and the (self-timer) indicator disappears from
the screen. You cannot cancel the self-timer using the Remote Commander.
Note
You cannot stop the countdown for self-timer recording of still images.
When self-timer recording is finished
The self-timer recording is automatically canceled.
When the POWER switch is set to MEMORY (DCR-TRV22/TRV33 only)
You can also record still images onto the “Memory Stick” with the self-timer (p. 127).
Setting up a recording using the self-timer
You can set up a recording using the self-timer only in recording standby mode.
Self-timer recording
52

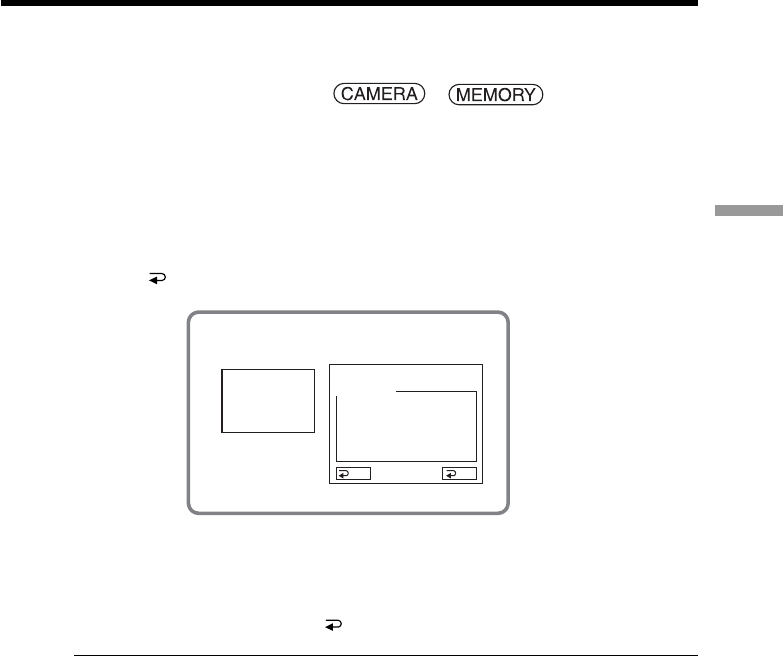

Normally white balance is automatically adjusted.
The POWER switch should be set to or
53
Advanced Recording Operations
You can record a 16:9 wide picture to watch on the 16:9 wide-screen TV (16:9WIDE).
Black bands appear on the screen during recording in the 16:9WIDE mode [a]. The
picture during playing back in the 4:3 mode on a wide-screen TV [b]* or a normal TV
[c] are compressed in the widthwise direction. If you set the screen mode of the wide-
screen TV to the full mode, you can watch pictures of normal images [d].
DCR-TRV33 only – If the zoom lever is set to the W (wide) side, the recording angle will
become wider than that of the usual tape recording. The recording angle will not
become wider with the zoom lever on the T (telephoto) side.
*The picture played back in the wide mode on a normal TV appears the same as the
picture played back in the wide mode on your camcorder [a].
The POWER switch should be set to .
Operate by touching the panel.
(1)During recording standby, press FN to display PAGE1.
(2)Press MENU to display the menu.

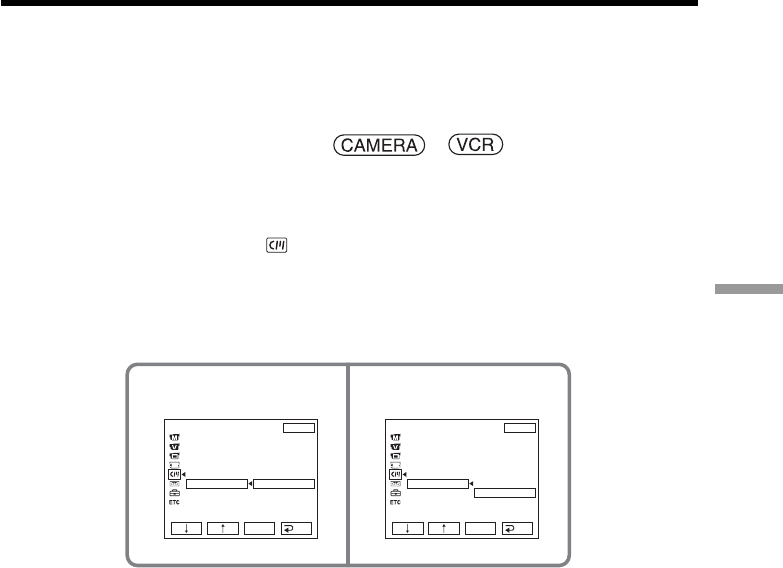

(3)Select 16:9WIDE in , then press EXEC (p. 177).
(4)Select ON, then press EXEC.
To return to FN
Press EXIT.
To cancel the wide mode
Set 16:9WIDE to OFF in the menu settings.
Using the wide mode
[a]
[c]
[b]
[d]
16:9
WIDE
D ZOOM
16 : 9W I DE
STEADYSHOT
EDITSEARCH
N. S. LIGHT
EXIT
RET.
EXEC
ON
CAMERA SET
54
Notes
•In the wide mode, you cannot operate the following functions:
–Recording still images on the “Memory Stick” during tape recording or tape
recording standby (DCR-TRV22/TRV33 only)
–BOUNCE
–OLD MOVIE (DCR-TRV22/TRV33 only)
•Pictures recorded on the tape in wide mode cannot be returned to normal size.
Pictures on a TV screen
Pictures recorded in the 16:9WIDE mode automatically appear on the TV screen at full
size when:
–You connect your camcorder to a TV that is compatible with the video ID (ID-1/ID-2)
system.
–You connect your camcorder to the S video jack on a TV.
ID-1 system
The ID-1 system sends aspect ratio information (16:9, 4:3, or letter box) with video
signals. If you connect a TV compatible with the ID-1 system, the screen size is
automatically selected.
ID-2 system
The ID-2 system sends a copyright protection signal with ID-1 signals inserted between
video signals when you connect your camcorder to other equipment using the A/V
connecting cable.
Using the wide mode
55
Advanced Recording Operations
You can fade in or out to give your recording a professional appearance.
MONOTONE
When fading in, the picture gradually changes from black-and-white to color.
When fading out, the picture gradually changes from color to black-and-white.
1) You can use BOUNCE when D ZOOM in is set to OFF in the menu settings.
2) You can fade in only.
3) DCR-TRV22/TRV33 only
Using the fader function
[a]
RECSTBY
RECSTBY
[b]
NORM. FADER
(normal)
MOSC. FADER
(mosaic)
BOUNCE1) 2)
OVERLAP2) 3)
WIPE2) 3)
DOT2) 3)
56
The POWER switch should be set to .
Operate by touching the panel.
(1) When fading in [a]
Press FN to display PAGE1 during recording standby.
When fading out [b]
Press FN to display PAGE1 during recording.
(2)Press FADER. The screen to select the fader mode appears.
(3)Press a desired mode.
(4)Press OK to return to PAGE1.
(5)Press EXIT to return to FN.
The fader indicator you selected flashes.
(6)Press START/STOP.
After the fade in/out is carried out, your camcorder automatically returns to
the normal mode.
To cancel the fade in/out
Before pressing START/STOP, press OFF on the FADER screen to return to PAGE1.
Press EXIT to return to FN.
Using the fader function
57
Advanced Recording Operations
Using the fader function
Note
You cannot use the following functions while using fader. Also, you cannot use fader
while using following functions:
–Super NightShot (DCR-TRV22/TRV33 only)
–Color Slow Shutter (DCR-TRV22/TRV33 only)
–Digital effect (DCR-TRV22/TRV33 only)
–Interval Recording
–Frame recording
When you select OVERLAP, WIPE or DOT (DCR-TRV22/TRV33 only)
Your camcorder automatically stores the image recorded on the tape. When the image is
being stored, the playback picture disappears.
During BOUNCE is on, you cannot use the following functions:
–Zoom
–Picture effect
–Manual exposure
–Flexible Spot Meter
–Manual focus
–PROGRAM AE
–Wide mode
–Photo recording in “Memory Stick” (DCR-TRV22/TRV33 only)
Note on the BOUNCE mode
You cannot select BOUNCE in the followings:
–D ZOOM is activated in the menu settings
–Wide mode
–Picture effect
–PROGRAM AE
58
NEG. ART [a] : The color and brightness of the picture are reversed.
SEPIA : The picture is sepia.
B&W : The picture is monochrome (black-and-white).
SOLARIZE [b] : The picture looks like an illustration with strong contrast.
PASTEL [c] :The picture looks like a pale pastel drawing.
MOSAIC [d] : The picture is mosaic.
The POWER switch should be set to .
Operate by touching the panel.

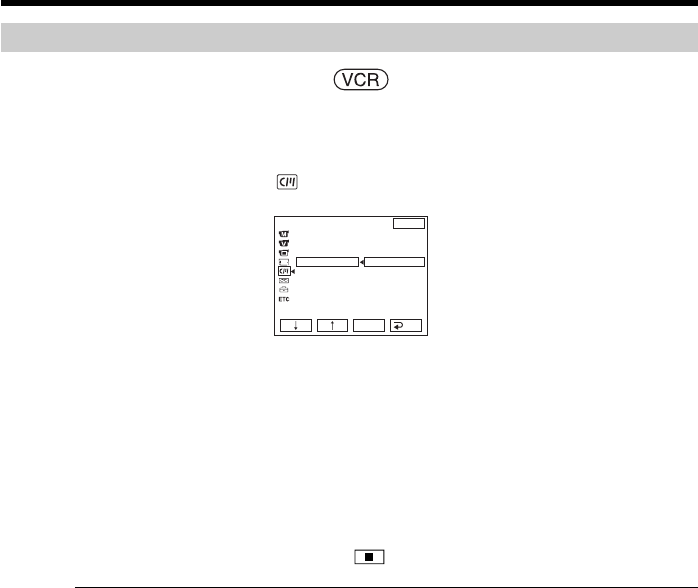

(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select P EFFECT in , then press EXEC (p. 176).
(4)Select a desired mode, then press EXEC.
To return to FN
Press EXIT.
To cancel picture effect
Set P EFFECT to OFF in the menu settings.
Note
While using picture effect, you cannot use following functions:
–BOUNCE
–OLD MOVIE (DCR-TRV22/TRV33 only)
Using special effects – Picture effect
[a] [b] [c] [d]
MANUAL SET
PROGRAM AE
P EFFECT
FLASH MODE
FLASH LVL
WHT BAL
AUTO SHTR
EXIT
RET.
EXEC
OFF
NEG. ART
SEPIA
B&W
SOLARIZE
PASTEL
MOSAIC
59
Advanced Recording Operations
Using special effects – Digital effect
(DCR-TRV22/TRV33 only)
STILL
You can record a still image so that it is superimposed on a moving picture.
FLASH (flash motion)
You can record still images successively at regular intervals.
LUMI. (luminance key)
You can swap the brighter area in a still image with a moving picture.
TRAIL
You can record a picture so that an incidental image like a trail is left.
SLOW SHTR (slow shutter)
You can slow down the shutter speed. The SLOW SHTR mode is good for recording
dark pictures more brightly.
OLD MOVIE
You can add an old movie type atmosphere to pictures. Your camcorder automatically
sets the 16:9WIDE mode, picture effect to SEPIA, and the appropriate shutter speed.

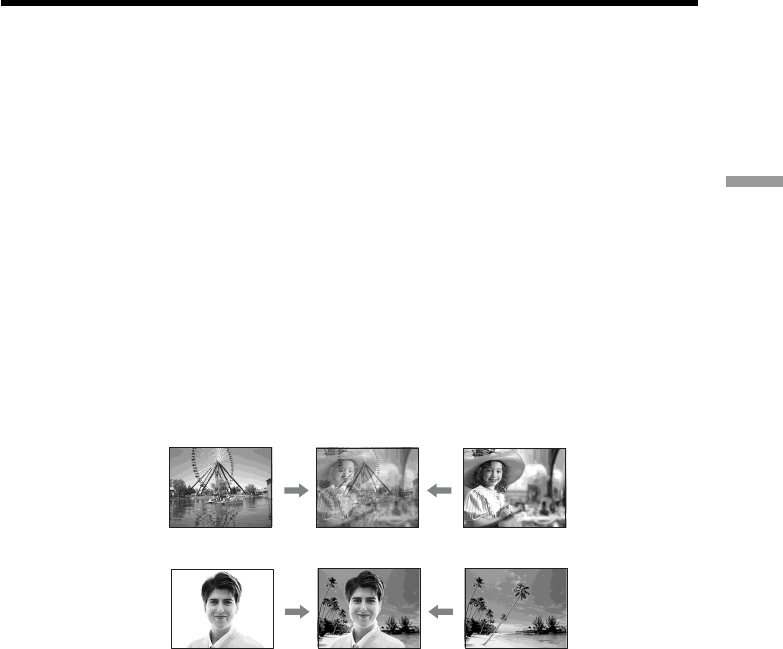

STILL
LUMI.
Still image Moving picture
Still image Moving picture
60
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN and select PAGE2.
(2)Press DIG EFFT. The screen to select a digital effect is displayed.
(3)Press a desired mode. When you select STILL or LUMI., the still image is
stored in memory.
(4)Press – (to decrease the effect)/+ (to increase the effect) to adjust the effect.
Items to adjust
STILL The rate of the still image you want to superimpose on the moving
FLASH The interval of flash motion
LUMI. The color scheme of the area in the still image which is to be swapped
with a moving picture
TRAIL The vanishing time of the incidental image
SLOW SHTR Shutter speed. The larger the shutter speed number, the slower the
shutter speed.
OLD MOVIE No adjustment is necessary.
(5)Press OK to return to PAGE2.
To return to FN
Press EXIT.
To cancel digital effect
Press OFF on the DIG EFFT screen to return to PAGE2.
Using special effects – Digital effect (DCR-TRV22/TRV33 only)
24
DIG
EFFT
DIG EFFT
STILL
SLOW
SHTR OLD
MOVIE
OFF OK
LUMI.FLASH TRAIL
LUMI.
OK
OFF
DIG EFFT
[a]
[a]The bar appears when setting following digital
effect modes: STILL, FLASH, LUMI., TRAIL.
61
Advanced Recording Operations
Using special effects – Digital effect (DCR-TRV22/TRV33 only)
Shutter speed
Shutter speed number Shutter speed
SLOW SHTR 1 1/30
SLOW SHTR 2 1/15
SLOW SHTR 3 1/8
SLOW SHTR 4 1/4
Notes
•While using digital effect, you cannot use the following functions:
–Super NightShot
–Color Slow Shutter
–Fader
•PROGRAM AE does not work in the SLOW SHTR mode.
•The following functions do not work in the OLD MOVIE mode:
–Wide mode
–Picture effect
–PROGRAM AE
When recording in the SLOW SHTR mode
Auto focus may not be effective. Focus manually using a tripod.
62
Using PROGRAM AE
SPOTLIGHT*
This mode prevents people’s faces, for example, from appearing excessively white
when shooting subjects lit by strong light in the theater.
PORTRAIT (soft portrait)
This mode brings out the subject while creating a soft background for subjects such as
people or flowers.
SPORTS (sports lesson)*
This mode minimizes shake on fast-moving subjects such as in tennis or golf.
BEACH&SKI*
This mode prevents people’s faces from appearing dark in strong light or reflected light,
such as at a beach in midsummer or on a ski slope.
SUNSETMOON (sunset & moon)**
This mode allows you to maintain atmosphere when you are recording sunsets, general
night views, fireworks displays and neon signs.
LANDSCAPE**
This mode is for when you record distant subjects such as mountains. Also it prevents
your camcorder from focusing on glass or metal mesh in windows when you record a
subject behind glass or a screen.
* Your camcorder focuses only on subjects in the middle to far distance.
**Your camcorder focuses only distant subject.
63
Advanced Recording Operations
The POWER switch should be set to or (DCR-TRV22/

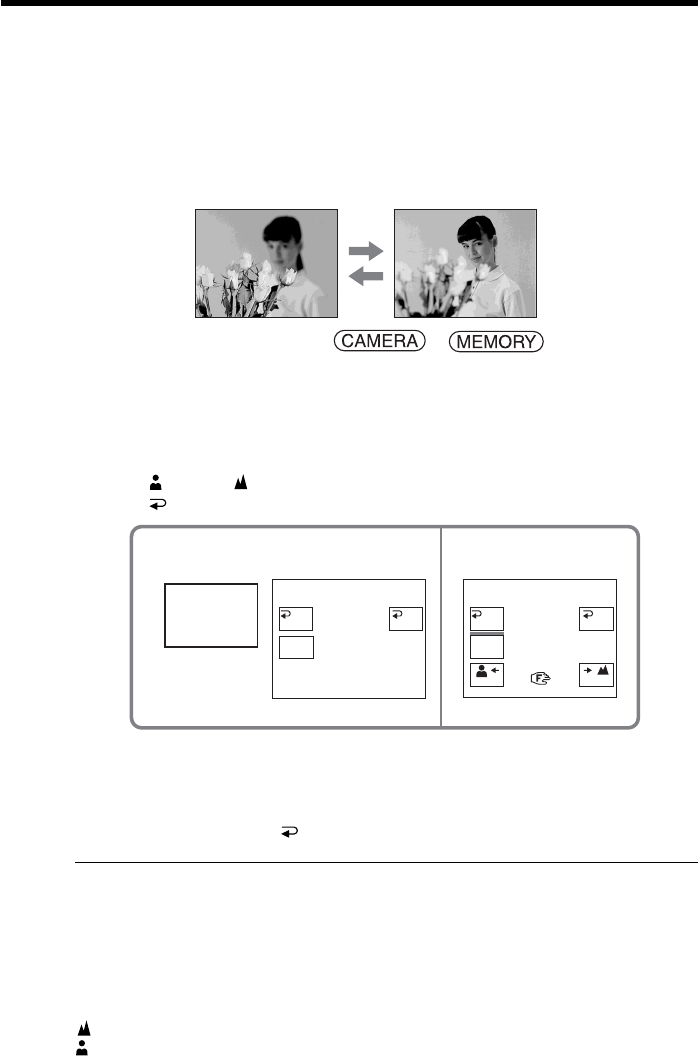

TRV33 only).
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select PROGRAM AE in , then press EXEC (p. 176).
(4)Select a desired mode, then press EXEC.
To return to FN
Press EXIT.
To cancel PROGRAM AE
Set PROGRAM AE to AUTO in the menu settings.
Notes
•The following functions do not work in PROGRAM AE:
–Color Slow Shutter (DCR-TRV22/TRV33 only)
–BOUNCE
–SLOW SHTR (DCR-TRV22/TRV33 only)
–OLD MOVIE (DCR-TRV22/TRV33 only)
– Spot Focus
•PROGRAM AE does not work in the following cases (The indicator flashes.):
–NIGHTSHOT is set to ON.
–To record images on the “Memory Stick” using the MEMORY MIX (DCR-TRV22/
TRV33 only)
•When you set the POWER switch to MEMORY, the SPORTS mode does not work.
(The indicator flashes.) (DCR-TRV22/TRV33 only)
Using PROGRAM AE
MANUAL SET
PROGRAM AE
P EFFECT
FLASH MODE
FLASH LVL
WHT BAL
AUTO SHTR
EXIT
RET.
EXEC
AUTO
SPOTLIGHT
PORTRAIT
SPORTS
BEACH&SKI
SUNSETMOON
LANDSCAPE
64
We recommend that you adjust the exposure manually in the following cases:
–When the subject is backlit
–When the subject is too bright against the background
–When recording dark pictures (e.g. night scenes) faithfully
The POWER switch should be set to or (DCR-TRV22/
TRV33 only).
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press EXPOSURE. The screen to adjust the exposure appears.
(3)Press MANUAL.
(4)Adjust the exposure using – (to dim) /+ (to brighten).
(5)Press OK to return to PAGE1.
To return to FN
Press EXIT.
To return to the automatic exposure
Press AUTO on the EXPOSURE screen to return to PAGE1.
Note
When you adjust the exposure manually, the following functions do not work:
–Back light
–Color Slow Shutter (DCR-TRV22/TRV33 only)
Adjusting the exposure manually
24
EXPO–
SURE
MANU–
AL
AUTO
EXPOSURE
OK
AUTO
MANU–
AL
EXPOSURE
OK
65
Advanced Recording Operations

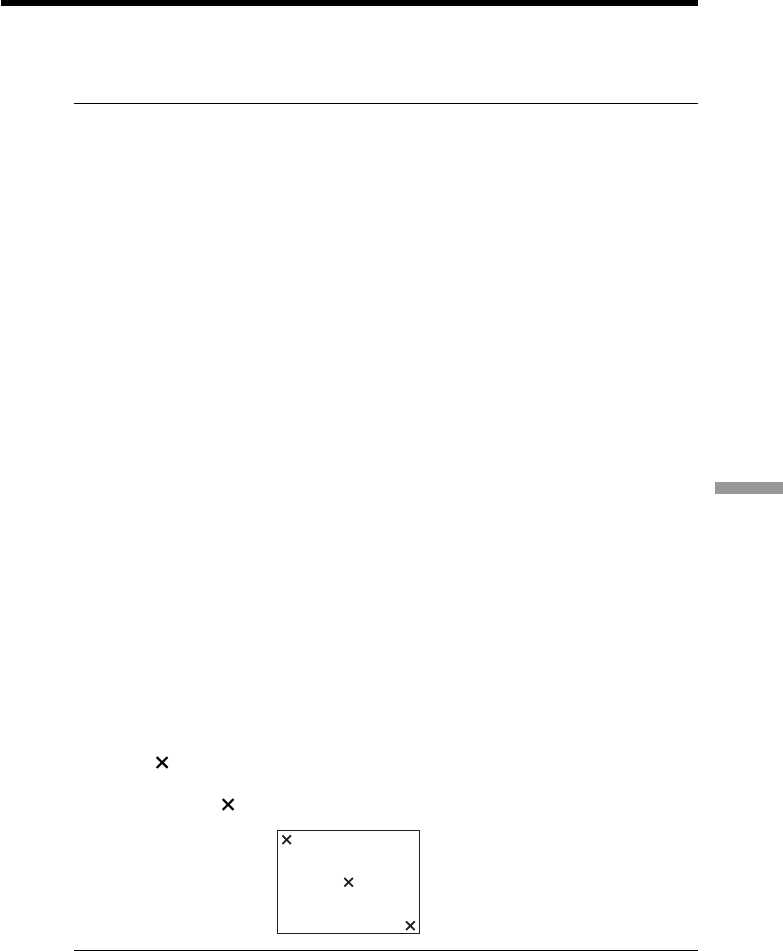

You can take a picture with the appropriate exposure automatically for just the point
you want to focus on and with its exposure fixed.
Use Flexible Spot Meter in the following cases:
–The subject is backlit.
– When there is strong contrast between the subject and background such as with a
subject that is on stage and lit by a spotlight.
The POWER switch should be set to
66
24
FOCUS
MANU–
AL
AUTO
OK
AUTO
MANU–
AL
OK
You can gain better results by manually adjusting the focus in the following cases.
Normally, focus is automatically adjusted.
•The autofocus mode is not effective when shooting:
–Subjects through glass coated with water droplets
–Horizontal stripes
–Subjects with little contrast with backgrounds such as walls or the sky
•Shooting a stationary subject when using a tripod
•When you want to change the focus from a subject in the foreground to a subject in
the background
The POWER switch should be set to or (DCR-TRV22/
TRV33 only).
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press FOCUS.
(3)Press MANUAL. The screen to adjust the focus appears.
(4)Press T or t to sharpen focus.
(5)Press OK to return to PAGE1.
To return to FN
Press EXIT.
To return to the autofocus
On the FOCUS screen, press AUTO to return to PAGE1.
To focus precisely
It is easier to focus on the subject if you adjust the zoom to shoot at the “W” (wide-
angle) position after focusing at the “T” (telephoto) position.
When you shoot close to the subject
Focus at the end of the “W” (wide-angle) position.
9 changes as follows:
when recording a distant subject
when the subject is too close to focus on
Focusing manually
67
Advanced Recording Operations
You can take a picture with the appropriate focus automatically for just the point you
want to focus on and with its focus fixed.
The POWER switch should be set to or (DCR-TRV22/
TRV33 only).
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press SPOT FOCUS. The SPOT FOCUS screen appears.
(3)Press the desired area in the frame.
The SPOT FOCUS indicator flashes on the screen. The focus of the point you
selected is adjusted.
(4)Press OK to return to PAGE1.
To return to FN
Press EXIT.
To return to the autofocus
On the SPOT FOCUS screen, press AUTO to return to PAGE1.
Notes
•Spot Focus does not work while PROGRAM AE is on.
•The back light function does not work during Spot Focus.
Using spot focus function – Spot Focus
2
SPOT
FOCUS
OK
AUTO
SPOT FOCUS
68
Interval Recording
You can make time-lapse recordings by setting your camcorder to automatically record
and standby sequentially. You can achieve excellent recordings of flowers blooming,
insects hatching, etc. with this function.
Example
[a] REC TIME
[b] INTERVAL
There may be a discrepancy in recording time of up to +/– 6 frames from the selected
time.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select INT. REC in , then press EXEC (p. 182).
(4)Select SET, then press EXEC.
(5)Select INTERVAL, then press EXEC.
(6)Select a desired interval time, then press EXEC.
The time: 30SEC y 1MIN y 5MIN y 10MIN
(7)Select REC TIME, then press EXEC.
(8)Select a desired recording time, then press EXEC.
The time: 0.5SEC y 1SEC y 1.5SEC y 2SEC
(9)Press RET.
(10)Select INT. REC to ON, then press EXEC.
(11)Press EXIT to return to FN.
The INTERVAL TAPE indicator flashes on the screen.
(12)Press START/STOP to start Interval Recording.
The INTERVAL TAPE indicator lights up during Interval Recording.
To cancel Interval Recording
Set INT. REC to OFF in the menu settings.
10 min10 min
1 s 1 s
9 min 59 s 9 min 59 s
[a][a]
[b][b]
457
TAPE SET
I
NT. REC
I
NTERVAL
REC T
I
ME
30SEC
EXIT
RET.
EXEC
TAPE SET
I
NT. REC
I
NTERVAL
REC T
I
ME
30SEC
1M
I
N
5M
I
N
10M
I
N
EXIT
RET.
EXEC
TAPE SET
I
NT. REC
I
NTERVAL
REC T
I
ME
0
.
5SEC
1SEC
1
.
5SEC
2SEC
EXIT
RET.
EXEC
69
Advanced Recording Operations
You can make a recording with a stop-motion animated effect using frame recording.
To create this effect, alternately move the subject a little and make frame recording. We
recommend that you use a tripod, and operate your camcorder using the Remote
Commander to avoid camera-shake.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select FRAME REC in , then press EXEC (p. 182).
(4)Select ON, then press EXEC.
(5)Press EXIT to return to FN.
The FRAME REC indicator lights up.
(6)Press START/STOP to start frame recording. Your camcorder makes a
recording for about 6 frames, and returns to recording standby.
(7)Move the subject, and repeat step 6.
To cancel frame recording
Set FRAME REC to OFF in the menu settings.
Note
The proper remaining tape time is not indicated if you use frame recording
continuously.
When using frame recording
The last recorded frame is longer than other frames.
Frame by frame recording
– Frame recording
TAPE SET
REC MODE
AUDIO MODE
REMAIN
FRAME REC
INT. REC
EXIT
RET.
EXEC
OFF
ON
70
You can operate camera brightness and fader on the touch panel when looking at the
viewfinder. Turn the LCD panel over and move it back to your camcorder body with
the LCD screen facing out to do this operation.
The POWER switch should be set to or (DCR-TRV22/
TRV33 only).
Operate by touching the panel.
(1)Turn the LCD panel over and move it back to your camcorder body with the
LCD screen facing out, then extend the viewfinder.
(2)Press OFF. The PANEL OFF indicator appears on the screen.
(3)Press OK. The LCD screen is turned off.
(4)Using the viewfinder, press the LCD screen. EXPOSURE, OK, ON and
FADER (only when the POWER switch is set to CAMERA) appear.
(5)Press the LCD screen and select a desired item, then press OK.
EXPOSURE: Adjust the exposure by pressing –/+.
FADER: Press FADER until a desired fader mode appears.
The indicator changes as follows:
FADER t M. FADER t BOUNCE t MONOTONE
(no indicator) TDOT* TWIPE* TOVERLAP*
* DCR-TRV22/TRV33 only
ON: The LCD screen lights up.
To make the buttons on the LCD screen disappear
Press OK.
Using the viewfinder
4
EXPO–
SURE OK
ON FADER
ON
EXPO–
SURE OK
When the POWER switch is set
to CAMERA
When the POWER switch is set to
MEMORY (DCR-TRV22/TRV33
only)
Viewfinder
71
Advanced Recording Operations
Using the viewfinder
Note
When the POWER switch is set to VCR or during memory playback (DCR-TRV22/
TRV33 only), you cannot operate with the touch panel using the viewfinder.
To operate the items that do not appear
Set the LCD panel and the viewfinder back to the previous position. Operate the items
using the LCD screen.
Available recording time
This is the time when you record pictures using the viewfinder (p. 19).
72

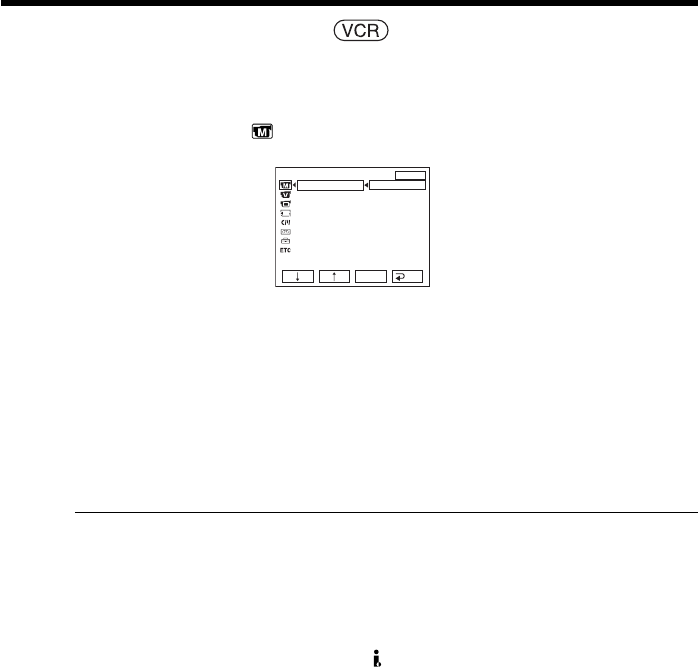

The POWER switch should be set to .
Operate by touching the panel.
(1)During playback or playback pause, press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select P EFFECT in , then press EXEC (p. 176).
(4)Select a desired mode, then press EXEC.
You can use NEG. ART, SEPIA, B&W and SOLARIZE.
See page 58 for details of each mode.
To return to FN
Press EXIT.
To cancel picture effect
Set P EFFECT to OFF in the menu settings.
Notes
•You cannot process externally input scenes using picture effect.
•You cannot record images on the tape on your camcorder while you are processing
the image using picture effect. Record images on the “Memory Stick” (DCR-TRV22/
TRV33 only, p. 118, 128), or on a VCR using your camcorder as a player.
Pictures processed by picture effect
These pictures are not output through the DV Interface.
— Advanced Playback Operations —
Playing back tape with picture effect
MANUAL SET
P EFFECT
EXIT
RET.
EXEC
OFF
NEG. ART
SEPIA
B&W
SOLARIZE
73
Advanced Playback Operations
The POWER switch should be set to .
Operate by touching the panel.
(1)During playback or playback pause, press FN and select PAGE2.
(2)Press DIG EFFT. The screen to select a digital effect is displayed.
(3)Select a desired mode. You can use STILL, FLASH, LUMI. and TRAIL. See
page 59 for details of the each effect.
When you select STILL or LUMI., the picture that you select the mode to is
stored in memory as a still image.
(4)Press –/+ to adjust the effect.
(5)Press OK to return to PAGE2.
To return to FN
Press EXIT.
To cancel digital effect
Press OFF to return to PAGE2.
Notes
•You cannot process externally input scenes using digital effect.
•You cannot record images on the tape on your camcorder while you are processing
the image using digital effect. Record images on the “Memory Stick” (p. 118, 128), or
on a VCR using your camcorder as a player.
Pictures processed by digital effect
These pictures are not output through the DV Interface.
Playing back tape with digital effect
(DCR-TRV22/TRV33 only)
2
DIG
EFFT
OKOFF
STILL FLASH LUMI. TRAIL
DIG EFFT
74
Besides the operation described here, your camcorder can enlarge still images recorded
on the “Memory Stick” (p. 140).
The POWER switch should be set to .
Operate by touching the panel.
(1)During playback or playback pause, press FN and select PAGE2.
(2)Press PB ZOOM. The PB ZOOM screen appears.
(3)Press the area you want to enlarge in the frame.
The area you pressed moves to the center of the screen, and the playback
image is enlarged to about twice the size. If you press another area again, the
area moves to the center of the screen.
(4)Adjust the zoom ratio by the power zoom lever.
You can select the zoom ratio from approximately 1.1 times up to 5 times its
size.
W: Decrease the zoom ratio.
T:Increase the zoom ratio.
To cancel tape PB ZOOM
Press END.
Notes
•You cannot process externally input scenes using tape PB ZOOM with your
camcorder.
•You cannot record images on the tape on your camcorder while you are processing
the image using tape PB ZOOM. However, you can record images on the “Memory
Stick” (DCR-TRV33 only) (p. 118, 128), or on a VCR using your camcorder as a player.
•You cannot record moving pictures on the “Memory Stick” on your camcorder when
you have processed the picture using tape PB ZOOM.
Images in tape PB ZOOM
Images in tape PB ZOOM are not output through the DV Interface.
During tape PB ZOOM
If you press DSPL/BATT INFO, the frame on the PB ZOOM screen disappears. You
cannot move the part you pressed to the center of the screen.
Edge of the enlarged image
The edge of the enlarged image cannot be displayed at the center of the screen.
Enlarging images recorded on tape
– Tape PB ZOOM (DCR-TRV22/TRV33 only)
75
Advanced Playback Operations

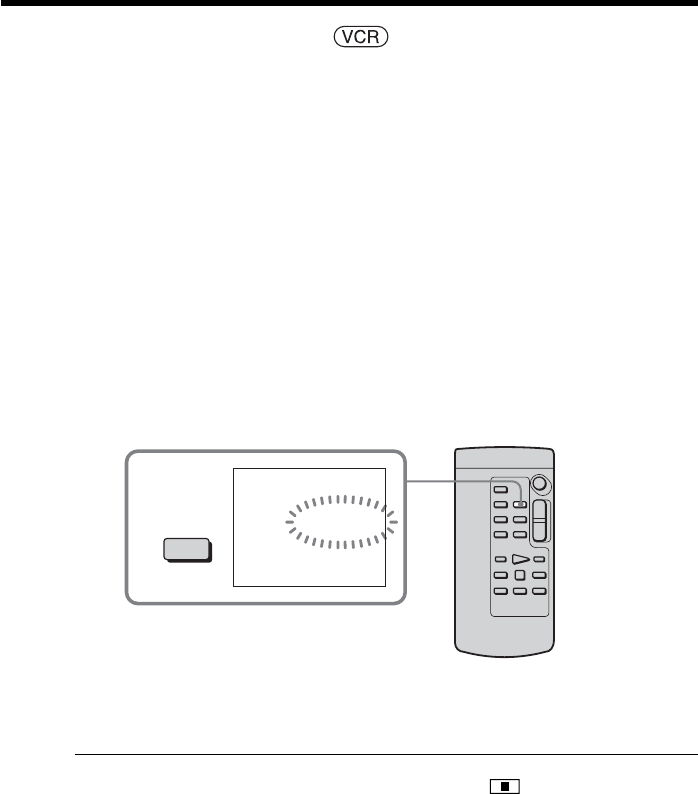

Your camcorder automatically searches for a desired scene having the tape counter
value of “0:00:00.” Use the Remote Commander for this operation.
The POWER switch should be set to .
(1)During playback, press ZERO SET MEMORY on the Remote Commander at
the point you want to locate later. The tape counter shows “0:00:00,” then starts
counting. The ZERO SET MEMORY indicator flashes. If the indicators do not
appear, press DISPLAY.
(2)Press x when you want to stop playback.
(3)Press m to rewind the tape to the tape counter’s zero point. The tape stops
automatically when the tape counter reaches approximately zero.
(4)Press N. Playback starts from the counter’s zero point.
Notes
•When you press ZERO SET MEMORY before rewinding the tape, the zero set memory
function will be canceled.
•There may be a discrepancy of several seconds between the time code and the tape
counter.
•The ZERO SET MEMORY indicator disappears when you press FN.
If the tape has a blank portion in the recorded sections
The zero set memory function may not work correctly.
Quickly locating a scene
– Zero set memory
ZERO SET MEMORYDISPLAY
N
m
x
76
Searching the boundaries of recorded
tape by title – Title search
1
SEARCH
MODE
2
TITLE SEARCH
3 HAPPY NEW YEAR!
4 PRESENT
5 GOOD MORNING
6 WEDDING
7 NIGHT
8 BASEBALL
[b][a]
Use the cassette with Cassette Memory for this operation.
Use the Remote Commander for this operation.
Before operation
Set CM SEARCH in to ON in the menu settings. (The default setting is ON.)
The POWER switch should be set to .

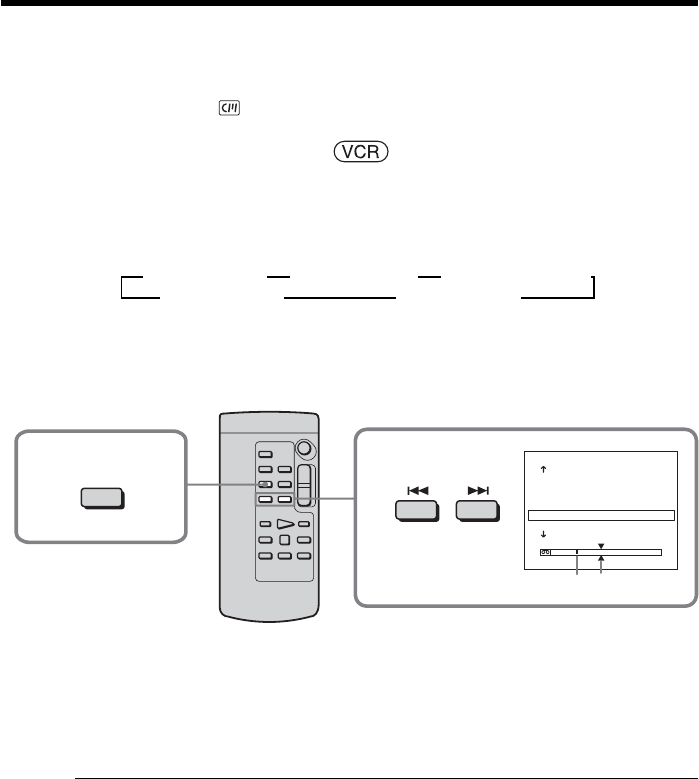

(1)Press SEARCH MODE on the Remote Commander repeatedly, until the TITLE
SEARCH indicator appears.
The title search screen appears.
The indicator changes as follows:
tTITLE SEARCH t DATE SEARCH t PHOTO SEARCH*
(no indicator) TPHOTO SCAN*T
* DCR-TRV19 only
(2)Press . or > on the Remote Commander to select the title for playback.
Your camcorder automatically starts playback of the scene having the title that
you selected.
[a]Actual point you are trying to search for
[b]Present point on the tape
To cancel searching
Press x on the Remote Commander.
If the tape has a blank portion between recorded portions
Title search may not work correctly.
To superimpose a title
See page 101.
77
Advanced Playback Operations
•DATE SEARCH by using Cassette Memory
cSelect the date from the list of recording dates displayed on the screen
•DATE SEARCH without using Cassette Memory
cSearch for the point where the recording date changed
Use the Remote Commander for this operation.

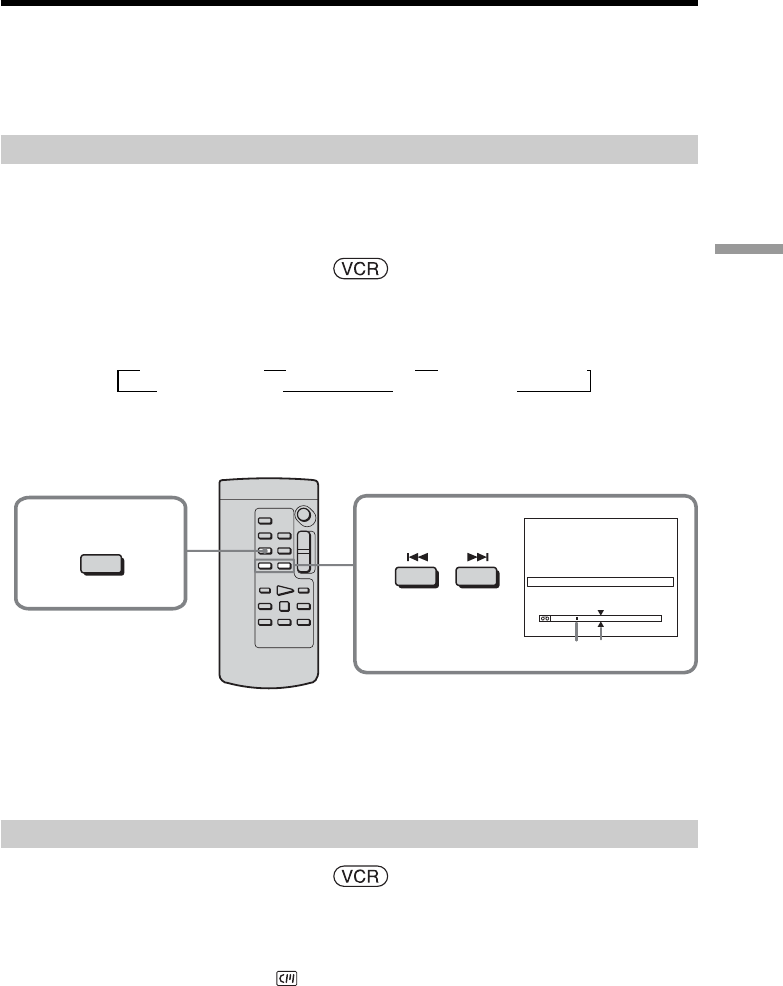

Searching for the date by using Cassette Memory
Before operation
•You can use this function only when playing back the cassette with Cassette Memory.
•Set CM SEARCH in to ON in the menu settings. (The default setting is ON.)
The POWER switch should be set to .
(1)Press SEARCH MODE on the Remote Commander repeatedly, until the DATE
SEARCH indicator appears.
The date search screen appears.
The indicator changes as follows:
tTITLE SEARCH t DATE SEARCH t PHOTO SEARCH*
(no indicator) TPHOTO SCAN*T
* DCR-TRV19 only
(2)Press . or > on the Remote Commander to select the date for playback.
Your camcorder automatically starts playback at the beginning of the selected
date.
[a]Actual point you are trying to search for
[b]Present point on the tape
To cancel searching
Press x on the Remote Commander.
Searching a recording by date
–
Date search
1
SEARCH
MODE
2
DATE SEARCH
1 SEP / 5 / 03
2 SEP / 6 / 03
3 DEC / 24 / 03
4 JAN / 1 / 04
5 FEB / 11 / 04
6 APR / 29 / 04
[b][a]
78
Searching for the date without using Cassette Memory
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select CM SEARCH in , then press EXEC (p. 181).
(4)Select OFF, then press EXEC.
(5)Press SEARCH MODE on the Remote Commander repeatedly, until the DATE
SEARCH indicator appears.
(6)Press . on the Remote Commander to search for the previous date or press
> on the Remote Commander to search for the next date. Your camcorder
automatically starts playback at the point where the date changes. Each time
you press . or >, your camcorder searches for the previous or next date.
To cancel searching
Press x on the Remote Commander or on your camcorder.
Note
If one day’s recording is less than 2 minutes, your camcorder may not accurately find
the point where the recording date changes.
If the tape has a blank portion between recorded portions
Date search may not work correctly.
Cassette Memory
The cassette with Cassette Memory can hold 6 recording date data. If you search the
date among 7 or more data, see “Searching for the date without using Cassette
Memory.”
Searching a recording by date – Date search
CM SET
TITLE
TITLE ERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
EXIT
RET.
EXEC
ON
OFF
79
Advanced Playback Operations
Searching for a photo – Photo search/
Photo scan (DCR-TRV19 only)
You can search for a still image you have recorded on a tape (PHOTO SEARCH).
You can also search for still images one after another and display each image for five
seconds automatically regardless of the cassette memory (PHOTO SCAN). Use the
Remote Commander for these operations.
Use this function to check or edit still images.
Searching for a photo by using cassette memory
Before operation
•You can use this function only when playing back a tape with cassette memory.
•Set CM SEARCH to ON in the menu settings. (The default setting is ON.)
The POWER switch should be set to .
(1)Press SEARCH MODE on the Remote Commander repeatedly, until the
PHOTO SEARCH indicator appears.
The indicator changes as follows:
(2)Press . or > on the Remote Commander to select the date for playback.
Your camcorder automatically starts playback of the photo having the date
that you selected.
[a] Actual point you are trying to search for
[b] Present point on the tape
To stop searching
Press x on the Remote Commander.
Searching for a photo without using cassette memory
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select CM SEARCH in , then press EXEC (p. 181).
tTITLE SEARCH t DATE SEARCH t PHOTO SEARCH
(no indicator) TPHOTO SCAN T
1
SEARCH
MODE
2PHOTO SEARCH
1 SEP / 5 / 03
2 SEP / 6 / 03
3 DEC / 24 / 03
4 JAN / 1 / 04
5 FEB / 11 / 04
6 APR / 29 / 04
5 : 30PM
8 : 50AM
10 : 30AM
10 : 26PM
4 : 11PM
1 : 45PM
[b][a]
80
Searching for a photo – Photo search/Photo scan (DCR-TRV19 only)
(4)Select OFF, then press EXEC.
(5)Press SEARCH MODE on the Remote Commander repeatedly, until the
PHOTO SEARCH indicator appears.
The indicator changes as follows:
(6)Press . or > on the Remote Commander to select the photo for playback.
Each time you press . or >, your camcorder searches for the previous or
next photo.
Your camcorder automatically starts playback of the photo.
To stop searching
Press x on the Remote Commander or on your camcorder.
Scanning photo
The POWER switch should be set to .
(1)Press SEARCH MODE on the Remote Commander repeatedly, until the
PHOTO SCAN indicator appears.
The indicator changes as follows:
*TITLE SEARCH appears only when CM SEARCH is set to ON in the menu
settings.
(2)Press . or > on the Remote Commander.
Each photo is played back for about 5 seconds automatically.
To stop scanning
Press x on the Remote Commander or on your camcorder.
If a tape has a blank section between recorded sections
PHOTO SEARCH and PHOTO SCAN may not work correctly.
The available number of photos that can be searched using the cassette memory
The available number is up to 12 photos. However, you can search 13 photos or more
using the photo scan function.
tTITLE SEARCH* t DATE SEARCH t PHOTO SEARCH
(no indicator) TPHOTO SCAN T
1
SEARCH
MODE
2
PHOTO 00
SCAN
tDATE SEARCH tPHOTO SEARCH
(no indicator) TPHOTO SCAN T
81
Editing
82
Dubbing
If you are connecting the VCR with the A/V connecting cable
•Set DISPLAY in to LCD in the menu settings. (The default setting is LCD.)
•If a search indicator is displayed, press SEARCH MODE on the Remote Commander
to turn it off.
•If you want to dub the data code, display it on the screen.
•If you want to dub the title, set TITLE DSPL in to ON in the menu settings. (The
default setting is ON.)
If you are connecting the VCR with the i.LINK cable
•Recording of only the picture or sound cannot be done.
•Titles, screen indicators, Cassette Memory contents, and “Memory Stick” index screen
lettering cannot be recorded.
The POWER switch should be set to .
(1)Insert a blank tape (or the tape you want to record over) into the VCR, and
insert the recorded tape into your camcorder.
(2)Prepare the VCR for recording. If the VCR has an input selector, set it to input.
Refer to the operating instructions of the VCR.
(3)Play back the recorded tape on your camcorder.
(4)Start recording on the VCR.
Refer to the operating instructions of your VCR.
When you have finished dubbing the tape
Press x on both your camcorder and the VCR.
You can edit on VCRs that support the following systems
8 mm , Hi8 , Digital8 , VHS , S-VHS , VHSC , S-VHSC ,
Betamax , ED Betamax , mini DV , DV and MICROMV
If your VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video input jack and the
white or the red plug to the audio input jack on the VCR or the TV. When the white
plug is connected, the left channel audio is output, and when the red plug is connected,
the right channel audio is output.
If your VCR has an S video jack
See page 45 for details.
About i.LINK
See page 202 for details.
Dubbing tape
83
Editing
Dubbing tape
Pictures processed by picture effect, digital effect* or PB ZOOM*
These are not output through the DV Interface.
*DCR-TRV22/TRV33 only
If you record a paused playback picture
•The recorded picture becomes rough with the DV Interface.
•The picture may jitter when you play back the picture using other video equipment.
84
You can duplicate selected scenes (programs) for editing onto the tape without
operating the VCR.
Scenes can be selected by frame. You can set up to 20 programs.
Your camcorder can dub on the “Memory Stick” (DCR-TRV22/TRV33 only). See page
130 for details.
Before operating Digital program editing on the tape recorded
on other equipment
Step 1 Connecting to the VCR.
Step 2 Setting the VCR to operate (p. 85).
Step 3 Adjusting the synchronization of the VCR (p. 88).
When you dub using the same VCR again, you can skip steps 2 and 3.
Using Digital program editing on the tape recorded on other
equipment
Operation 1 Making a program (p. 90).
Operation 2 Performing Digital program editing (Dubbing the tape) (p. 92).
Note
When editing digital video, the operation signals to the VCR cannot be sent with
LANC jack.
Step 1: Connecting to the VCR
You can connect either the A/V connecting cable or the i.LINK cable.
Connect the devices as illustrated on page 81.
Dubbing only desired scenes
– Digital program editing (on tape)
Unwanted
scene Unwanted
scene
Switch the order
85
Editing
Dubbing only desired scenes – Digital program editing (on tape)

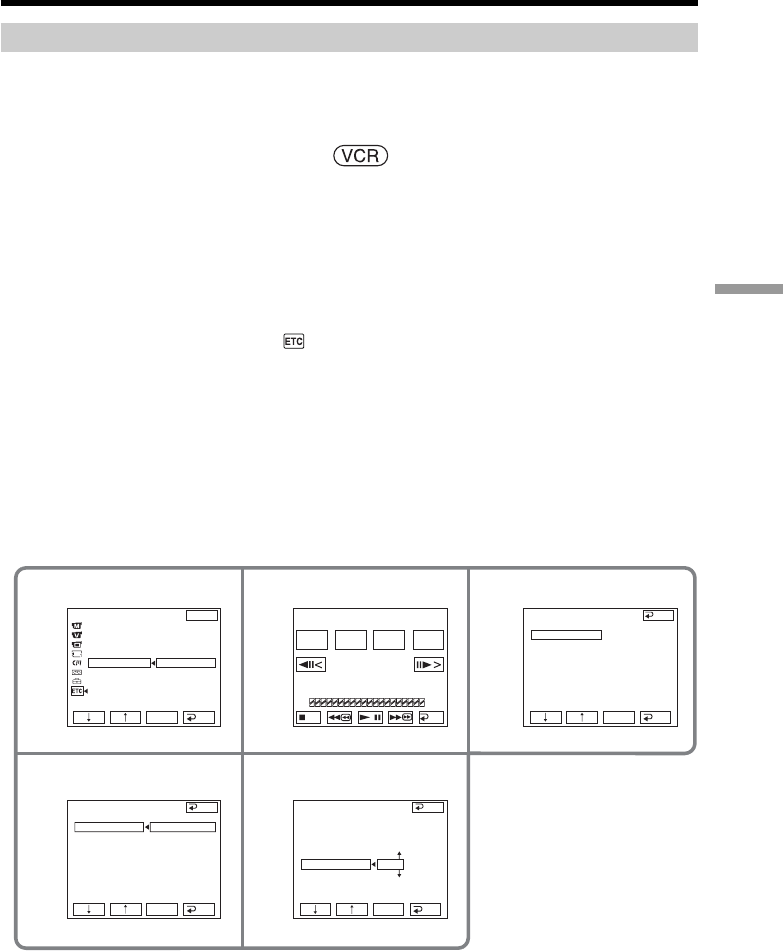

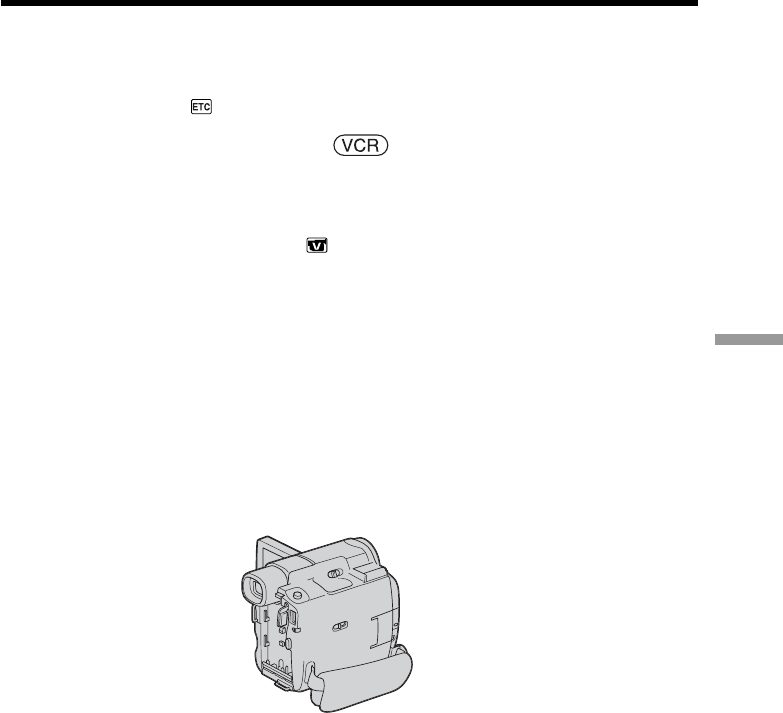

Step 2: Setting the VCR to operate
When you are connecting the camcorder and VCR using the A/V connecting cable, the
signal is emitted from the infrared rays emitter of your camcorder to the remote sensor
on the VCR to control the VCR.
The POWER switch should be set to .
Operate by touching the panel.
(1)Turn the power of the connected VCR on. If the VCR has an input selector, set
it to input.
When you connect a video camera recorder, set its power switch to VCR/
VTR.
(2)Press FN to display PAGE1.
(3)Press MENU to display the menu.
(4)Select VIDEO EDIT in , then press EXEC (p. 185).
(5)Select TAPE, then press EXEC (DCR-TRV22/TRV33 only).
(6)Press EDIT SET.
(7)Select CONTROL, then press EXEC.
(8)When connecting with the A/V connecting cable, select IR, then press EXEC.
When connecting with the i.LINK cable, select i.LINK, press EXEC, then go
to “Step 3: Adjusting the synchronization of the VCR” on page 88.
(9)Select IR SETUP, then press EXEC.
(10)Select the IR SETUP code of your VCR, then press EXEC. Check the code in
“About the IR SETUP code” (p. 87).
45
79
6VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
END
RET.
EXEC
I
R
END
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
3
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
I
R
i. L
I
NK
END
0:32:30:14
TOTAL
SCENE 0:00:00:00
0
V I DEO ED I T
MARK
I
NSTART
ED I T
SET UNDO
OTHERS
DATA CODE
BEEP
COMMANDER
D
I
SPL AY
V
I
DEO ED
I
T
EXIT
RET.
EXEC
RETURN
TAPE
MEMORY
END
86
(11)Select PAUSEMODE, then press EXEC.
(12)Select the mode to cancel recording pause on the VCR, then press EXEC.
The correct button depends on your VCR.
Refer to the operating instructions of your VCR.
(13)Locate the infrared rays emitter of your camcorder and face it towards the
remote sensor of the VCR about 30 cm (12 in.) apart.
(14)Insert a recordable tape into the VCR, then set the VCR to recording
pause.
(15)Select IR TEST, then press EXEC.
(16)Select EXECUTE, then press EXEC.
If the VCR starts recording, the setting is correct.
The indicator you selected to cancel recording pause on the VCR flashes
on the screen. When finished, the indicator changes to COMPLETE.
11 12
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
PAUSE
END
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
PAUSE
REC
PB
END
Dubbing only desired scenes – Digital program editing (on tape)
VCR
Remote sensor
Infrared
rays emitter
15 16
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
ENGAGE
REC PAUSE
RETURN
EXECUTE
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
COMPLETE
END END
87
Editing
Note
When you connect with the i.LINK cable, you may not be able to operate the dubbing
function correctly, depending on the VCR.
Set CONTROL to IR in the menu settings of your camcorder.
About the IR SETUP code
The IR SETUP code is stored in the memory of your camcorder. Be sure to set the
correct code, depending on your VCR. Default setting is code number 3.
Brand IR SETUP code
Sony 1, 2, 3, 4, 5, 6
Admiral (M. Wards) 89
Aiwa 47, 54, 80
Akai 49, 51
Audio Dynamic 21, 35
Bell&Howell 36
(M. Wards)
Broksonic 21, 70, 82
Canon 77, 78
Citizen 47
Craig 47, 73
Curtis Mathis 8, 77, 80
Daewoo 26, 40, 77
DBX 21, 33, 35
Dimensia 8
Emerson 26, 48, 59, 70, 80, 81, 82
Fisher 36, 37, 44, 45
Funai 80
General Electric 8, 32*, 77, 94*, 101
Goldstar/LG 47
GO VIDEO 71
Hitachi 8, 42, 78
HQ 40
Instant Replay 77, 78
JC Penny 8, 21, 33, 35, 36, 42, 77
JVC 12, 13, 14, 21, 33, 35
Kenwood 21, 33, 35, 47
LXI (Sears) 36, 37, 42, 44, 45, 47, 49, 80
Magnavox 17, 77, 78, 83
Marantz 21, 33, 35
Marta 47
Memorex 37, 77
Minolta 8, 42
*TV/VCR component
Dubbing only desired scenes – Digital program editing (on tape)
Brand IR SETUP code
Mitsubishi/MGA 22, 23, 24, 28, 29
Multitech 23, 32, 80
NEC 21, 33, 35
Olympic 77, 78
Optimus 22
Orion 60
Panasonic 16, 17, 77, 78
Pentax 8, 42
Philco 26, 70, 77, 78
Philips 47, 77, 78, 83
Pioneer 78
Quasar 6, 16, 17, 77, 78
RCA/PROSCAN 7, 8, 16, 40, 41, 42, 77, 78, 78*,
83, 101
Realistic 22, 36, 37, 77, 80, 88
Sansui 21
Singer 73
Samsung 24, 24*, 32, 32*, 41, 94, 94*
Sanyo 26, 36, 37, 47
Scott 22, 23, 24, 28, 32, 37, 40, 41
Sharp 88, 89
Shintom 73
Signature 2000 80, 89
Sylvania 77, 78, 80, 83
Symphonic 80
Tashiro 47
Tatung 21, 33, 35
Teac 21, 33, 35, 80
Technics 77, 78
Toshiba 7, 40, 49
Wards 37, 47, 88, 89, 95
Yamaha 21, 33, 35, 36
Zenith 95
88
Dubbing only desired scenes – Digital program editing (on tape)
Note on the IR SETUP code
Digital program editing is not possible if the VCR does not support IR SETUP codes.
When the VCR does not operate correctly
•After checking the code in “About the IR SETUP code” (p. 87), set the IR SETUP or the
PAUSEMODE again.
•Place your camcorder at least 30 cm (12 in.) away from the VCR.
•Refer to the operating instructions of your VCR.

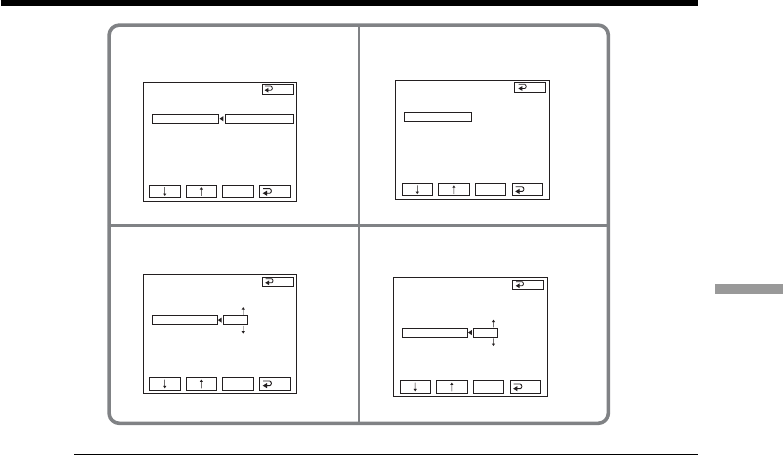

Step 3: Adjusting the synchronization of the VCR
You can adjust the synchronization of your camcorder and the VCR.
Prepare a pen and paper for notes.
Before operation, eject the cassette from your camcorder (if inserted).
(1)Insert the recordable cassette into the VCR, then set the VCR to recording
pause.
When you select i.LINK in CONTROL, the recording pause is not necessary.
(2)Select ADJ TEST, then press EXEC.
(3)Select EXECUTE, then press EXEC.
IN and OUT are recorded on an image for 5 times each to calculate the
number values for adjusting the synchronization.
The EXECUTING indicator flashes on the screen. When finished, the
indicator changes to COMPLETE.
(4)Rewind the tape in the VCR, then start slow playback.
5 IN numbers and corresponding OUT numbers are displayed.
Take a note of the opening number value of each IN and the closing number
value of each OUT.
(5)Calculate the average of 5 opening number values of 5 IN, and the average of
all the closing number values of each OUT.
(6)Select ”CUT-IN,” then press EXEC.
(7)Select the average number value of IN, then press EXEC.
The calculated start position for recording is set.
(8)Select ”CUT-OUT,” then press EXEC.
(9)Select the average number value of OUT, then press EXEC.
The calculated stop position for recording is set.
(10) Press RET. to execute.
89
Editing
Dubbing only desired scenes – Digital program editing (on tape)
23
68
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
RETURN
EXECUTE
ENGAGE
REC PAUSE
END
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
0
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
0
END
END
VIDEO ED I T
ED I T SET
CONTROL
ADJ TEST
”CUT
-
I
N”
”CUT
-OUT”
I
R SETUP
PAUSEMODE
I
R TEST
RET.
EXEC
COMPLETE
END
Notes
•When you complete “Step 3: Adjusting the synchronization of the VCR,” the image to
adjust the synchronization is recorded for about 50 seconds.
•If you start recording from the very beginning of the tape, the first few seconds of the
tape may not be recorded properly. Be sure to allow about 10 seconds’ lead before
starting the recording.
•When the recording unit cannot be operated properly by the i.LINK cable, leave the
connection as it is, and make the A/V connecting cable settings (p. 85). Video and
audio are sent by digital signals.
90

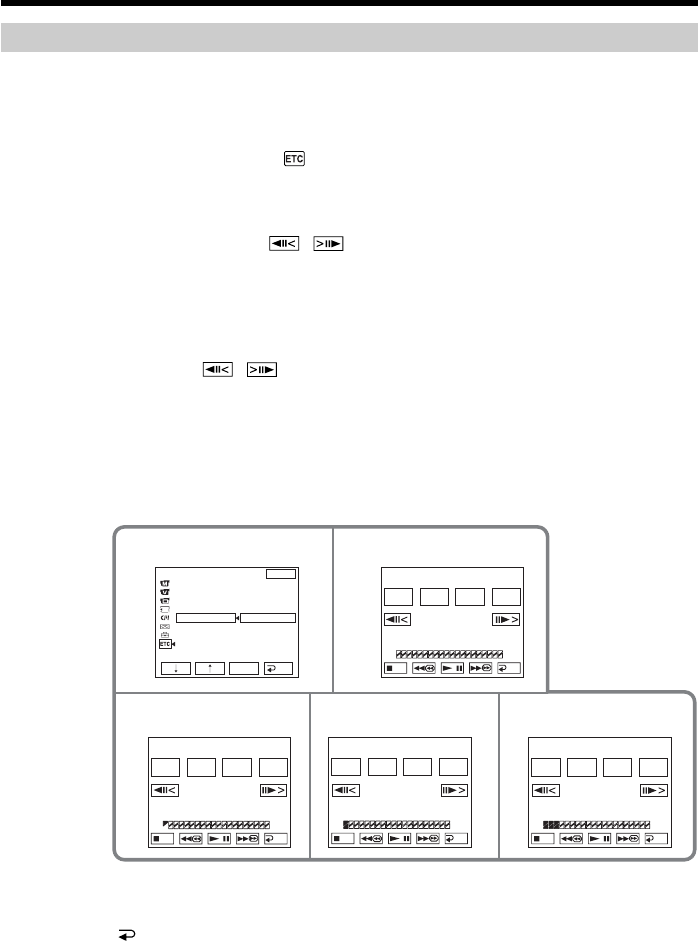

Operation 1: Making a Program
(1)Insert the cassette for playback into your camcorder, and insert the tape for
recording into the VCR.
(2)Press FN to display PAGE1.
(3)Press MENU to display the menu.
(4)Select VIDEO EDIT in , then press EXEC (p. 185).
(5)Select TAPE, then press EXEC (DCR-TRV22/TRV33 only).
(6)Search for the beginning of the first scene you want to insert using the video
control buttons on the screen, then pause playback. You can fine-adjust one
frame at a time with / .
(7)Press MARK IN on the screen.
The IN point of the first program is set, and the upper part of the program
mark changes to light blue.
(8)Search for the end of the first scene you want to insert using the video control
buttons on the screen, then pause playback. You can fine-adjust one frame at
a time with / .
(9)Press MARK OUT on the screen.
The OUT point of the first program is set, then the lower part of the program
mark changes to light blue.
(10)Repeat steps 6 to 9.
When one program is set, the program mark changes to light blue.
You can set 20 programs in maximum.
To finish making programs
Press END.
The program is stored in memory until the tape is ejected.
Dubbing only desired scenes – Digital program editing (on tape)
7910
45
ED I T
SET UNDO
ED I T
SET UNDO
ED I T
SET UNDO
0:08:55:06
TOTAL
SCENE 0:00:00:00
0
V I DEO ED I T
MARK
OUT START
0:09:07:06
TOTAL
SCENE 0:00:13:00
1
V I DEO ED I T
MARK
I N START
0:10:01:23
TOTAL
SCENE 0:00:47:12
3
V I DEO ED I T
MARK
I N START
OTHERS
DATA CODE
BEEP
COMMANDER
D
I
SPL AY
V
I
DEO ED
I
T
EXIT
RET.
EXEC
RETURN
TAPE
MEMORY
0:32:30:14
TOTAL
SCENE 0:00:00:00
0
V I DEO ED I T
MARK
I
NSTART
ED I T
SET UNDO
END
END
END
END
91
Editing
Dubbing only desired scenes – Digital program editing (on tape)
Note
You cannot operate recording during Digital program editing.
On a blank portion of the tape
You cannot set IN or OUT.
If there is a blank portion between the IN point and the OUT point on the tape
The total time may not be displayed correctly.
Erasing the program you have set
Erase OUT mark first, and then IN mark of the last set program.
(1)Follow steps 2 to 5 on page 90.
(2)Press UNDO.
(3)Press ERASE 1 MARK. The last set program mark flashes, then the DELETE ?
indicator appears.
(4)Press EXEC. The last set program is deleted.
To cancel erasing
Press CANCEL in step 4.
Erasing all programs
(1)Follow steps 2 to 5 on page 90.
(2)Press UNDO.
(3)Press ERASE ALL. All the set program marks flash, then the DELETE ?
indicator appears.
(4)Press EXEC. All the set programs are deleted.
To cancel erasing all programs
Press CANCEL in step 4.
92
Dubbing only desired scenes – Digital program editing (on tape)
Operation 2: Performing Digital program editing
(Dubbing the tape)
The POWER switch should be set to .
Operate by touching the panel.
(1)When you use a digital video camera recorder, set the power switch of VCR to
VCR/VTR.
(2)Make sure your camcorder and the VCR are connected, and that the VCR is set
to recording pause.
When you use the i.LINK cable, this step is not necessary.
(3)Press FN to display PAGE1.
(4)Press MENU to display the menu.
(5)Select VIDEO EDIT in , then press EXEC (p. 185).
(6)Select TAPE, then press EXEC (DCR-TRV22/TRV33 only).
(7)Press START.
(8)Press EXEC.
Search for the beginning of the first program, then start dubbing.
The program mark flashes.
The SEARCH indicator appears during searching, and the EDITING indicator
appears during editing on the screen.
When the dubbing ends, your camcorder and the VCR automatically stop.
To cancel dubbing during editing
Press CANCEL.
To end Digital program editing
Your camcorder stops when the dubbing is complete. Then the display returns to
VIDEO EDIT in the menu settings.
Press END to end the video edit function.
When the program has not been set
You cannot press START.
You cannot record on the VCR in the following
Indicator Cause
No indicator •The write-protect tab on the cassette is set to lock.
•The IR SETUP code is not correct. (When IR is
selected.)
•The button to cancel recording pause is not
correct. (When IR is selected.)
CHECK ”i.LINK” & REC STATUS •i.LINK is selected but the i.LINK cable is not
connected.
•The power of the connected VCR is not turned
on. (When i.LINK is selected.)
93
Editing
Recording video or TV programs
S VIDEO
AUDIO/
VIDEO
S VIDEO
VIDEO
AUDIO
OUT
: Signal flow
White
Red
A/V connecting cable (supplied)
Yellow
TV
VCR
94
Recording video or TV programs
If your VCR is a monaural type (DCR-TRV22/TRV33 only)
Connect the yellow plug of the A/V connecting cable to the video output jack and the
white or red plug to the audio output jack on the VCR or the TV. When the white plug
is connected, the left channel audio is output, and when the red plug is connected, the
right channel audio is output.
If your VCR has an S video jack (DCR-TRV22/TRV33 only)
See page 45 for details.
When using the i.LINK cable
•Before recording, make sure if the DV IN indicator appears on the screen. The DV IN
indicator may appear on both equipment.
•Recording of only the picture or sound cannot be done.
Dubbing
Before operation
Set DISPLAY in to LCD in the menu settings when using the A/V connecting cable.
(The default setting is LCD.)
The POWER switch should be set to .
Operate by touching the panel.
(1)Insert the blank tape (or the tape you want to record over) into your
camcorder. If you are recording the tape from the VCR, insert the recorded
tape into the VCR.
(2)Press FN and select PAGE3.
(3)Press REC CTRL.
(4)Press REC PAUSE.
(5)Press N on the VCR to start playback if you record the tape from a VCR.
Select a TV program if you record from a TV. The picture from playback side
appears on the screen.
(6)Press REC START at the scene where you want to start recording from.

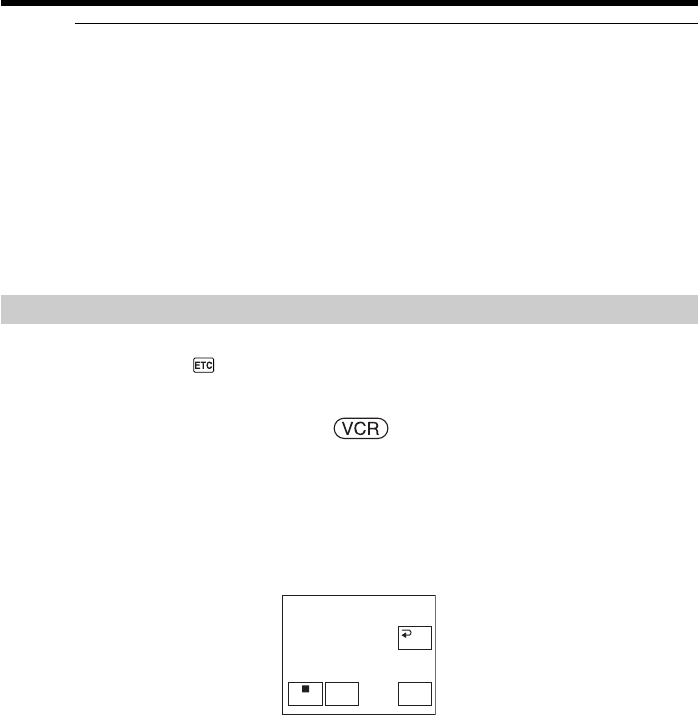

When you have finished dubbing the tape
Press x on your camcorder, and then press the stop button on the VCR.
REC
PAUSE
REC CTRL
RET.
REC
START
95
Editing
You can insert a new scene with sound from a VCR onto your originally recorded tape
by specifying the insert start and end points. Use the Remote Commander for this
operation.
Connections are the same as on page 93. Insert a cassette containing the desired scene to
insert into the VCR.
[A]The tape that contains the scene to be superimposed
[B]The tape before editing
[C]The tape after editing
Inserting a scene from a VCR
– Insert editing
[a]
[b][c]
[A]
[B]
[C]
96
3
ZERO SET
MEMORY
0:00:00
ZERO SET
MEMORY
Inserting a scene from a VCR – Insert editing
The POWER switch should be set to .
Operate by touching the panel.
(1)On the VCR, locate just before the insert start point [a], then set the VCR to
playback pause.
(2)On your camcorder, locate the insert end point [c], then set it to playback
pause.
(3)Press ZERO SET MEMORY on the Remote Commander. The ZERO SET
MEMORY indicator flashes and the end point of the insert is stored in memory.
The tape counter shows “0:00:00.”
(4)On your camcorder, locate the insert start point [b].
(5)Press FN and select PAGE3.
(6)Press REC CTRL.
(7)Press REC PAUSE.
(8)First press X on the VCR, and after a few seconds press REC START on your
camcorder to start inserting the new scene with sound.
Inserting automatically stops near the zero point on the tape counter. Your
camcorder automatically stops recording and the point you set in step 3 is
cleared from memory.
To change the insert end point
Press ZERO SET MEMORY on the Remote Commander again after step 4 to erase the
ZERO SET MEMORY indicator and begin from step 2.
To insert a scene without setting the insert end point
Skip steps 2 and 3. Press x on the Remote Commander or on your camcorder
when you want to stop inserting.
97
Editing
You can record additional audio to the original sound on the tape by connecting audio
equipment or a microphone. If you connect the audio equipment, you can add sound to
your tape already recorded in the 12-bit mode by specifying starting and ending points.
The original sound will not be erased.
Preparing for audio dubbing
You can record additional audio in the following:
•Dubbing with the built-in microphone
•Connecting the microphone (optional) to the MIC jack
•Connecting the microphone (optional) to the intelligent accessory shoe
•Connecting the A/V connecting cable to the AUDIO/VIDEO jack (DCR-TRV22/
TRV33 only)
The audio input to be recorded will take precedence over others in the following order:
•MIC jack
•Intelligent accessory shoe
•AUDIO/VIDEO jack (DCR-TRV22/TRV33 only)
•Built-in microphone
Dubbing with the built-in microphone
No connection is necessary. (If no external microphone is connected, audio recording
will be performed automatically by the built-in microphone.)

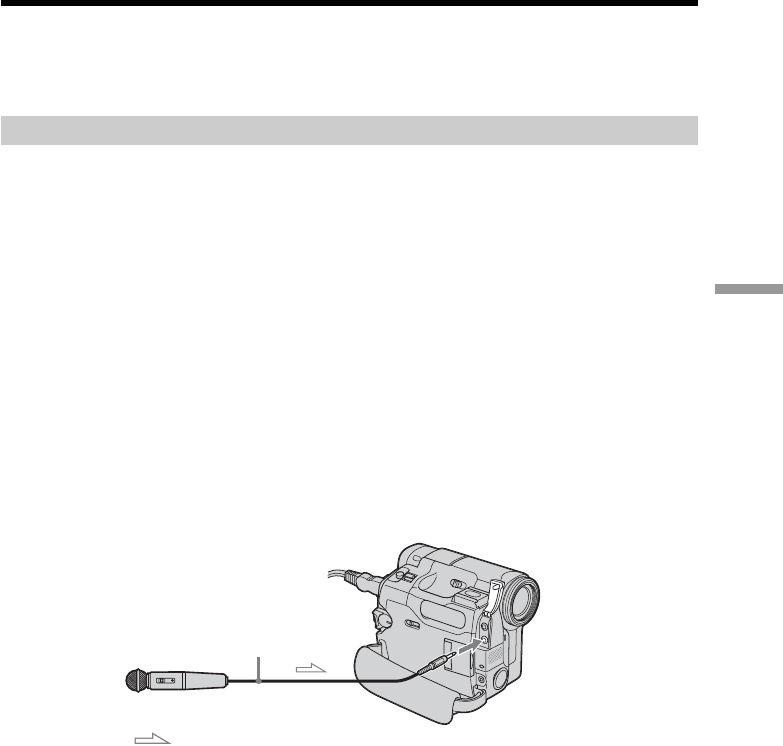

Connecting the microphone (optional) to the MIC jack
You can check the recorded picture and sound by connecting the AUDIO/VIDEO jack
to a TV.
The recorded sound is not output from the speaker. Check the sound by using the
headphones or TV.
Audio dubbing
MIC (PLUG IN
POWER)
Microphone
(optional)
:Signal flow
98

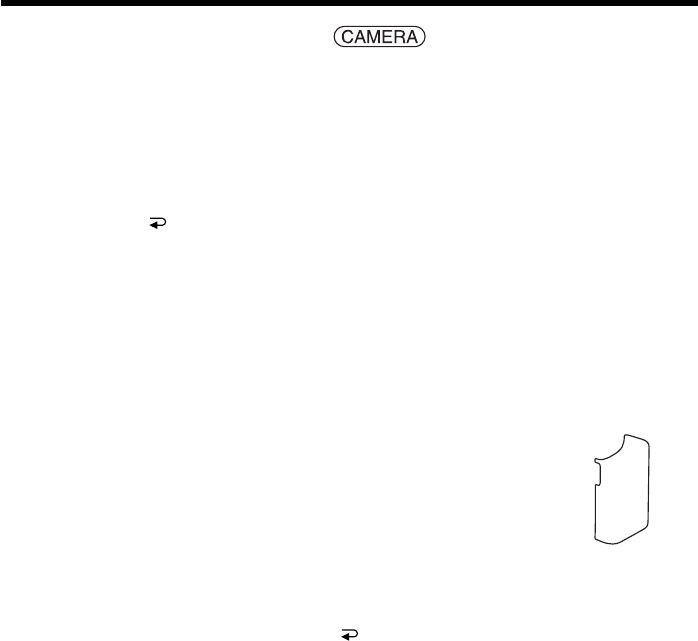

Connecting the microphone (optional) to the intelligent
accessory shoe
Remove the shoe cover, then connect the microphone.
Connecting the A/V connecting cable to the AUDIO/VIDEO jack
(DCR-TRV22/TRV33 only)
Note
When dubbing with the AUDIO/VIDEO jack (DCR-TRV22/TRV33 only) or the built-in
microphone, pictures are not output through the S VIDEO jack or AUDIO/VIDEO jack.
Check the recorded picture on the screen. You can check the recorded sound by using
headphones.
Audio dubbing
LINE OUT
L R
AUDIO/
VIDEO
AUDIO R
Audio equipment
Do not connect the
video (yellow) plug.
:Signal flow
White
Red
A/V connecting cable
(supplied)
AUDIO L
99
Editing
Adding an audio sound on the recorded tape
Choose a connection mentioned on page 97, and connect audio equipment or
microphone to your camcorder. Then follow the procedure below.
The POWER switch should be set to .
Operate by touching the panel.
(1)Insert the recorded tape into your camcorder.
(2)Locate the recording start point. Press to start playing back. To pause
playing back, press at the recording start point. You can fine adjust the
recording start point by pressing / .
(3)Press FN and select PAGE3.
(4)Press A DUB CTRL.
The A DUB CTRL screen appears.
(5)Press AUDIO DUB. The green X indicator appears on the screen.
(6)Press on your camcorder and at the same time start playing back the
audio you want to record.
The new sound is recorded in stereo 2 (ST2) during playback. While recording
new sound, the red indicator appears on the screen.
(7)Press on your camcorder at the point where you want to stop recording.
You cannot perform audio dubbing:
•On the tape recorded in the 16-bit mode
•On the tape recorded in the LP mode
•When the DV Interface is connected
•On blank portions of a tape
•When the write-protect tab of the cassette is set to lock
To add new sound to previously recorded sections more precisely
During playback, press ZERO SET MEMORY at the point where you want to stop
recording new sound.
Follow the procedure on page 75. Recording automatically stops at the point where
ZERO SET MEMORY was pressed.
We recommend that you add new sound on the tape recorded with your
camcorder
If you add new sound on the tape recorded with another camcorder (including other
DCR-TRV19/TRV22/TRV33), the sound quality may become deteriorated.
REC
PAUSE
RET.
REC
PAUSE
RET.
REC
PAUSE
RET.
REC
PAUSE
RET.
REC
PAUSE
RET.
REC
PAUSE
RET.
REC
PAUSE
RET.
A DUB CTRL
RET.
REC
START
REC
START
REC
START
REC
START
REC
START
REC
START
REC
START
AUDIO
DUB
Audio dubbing
100

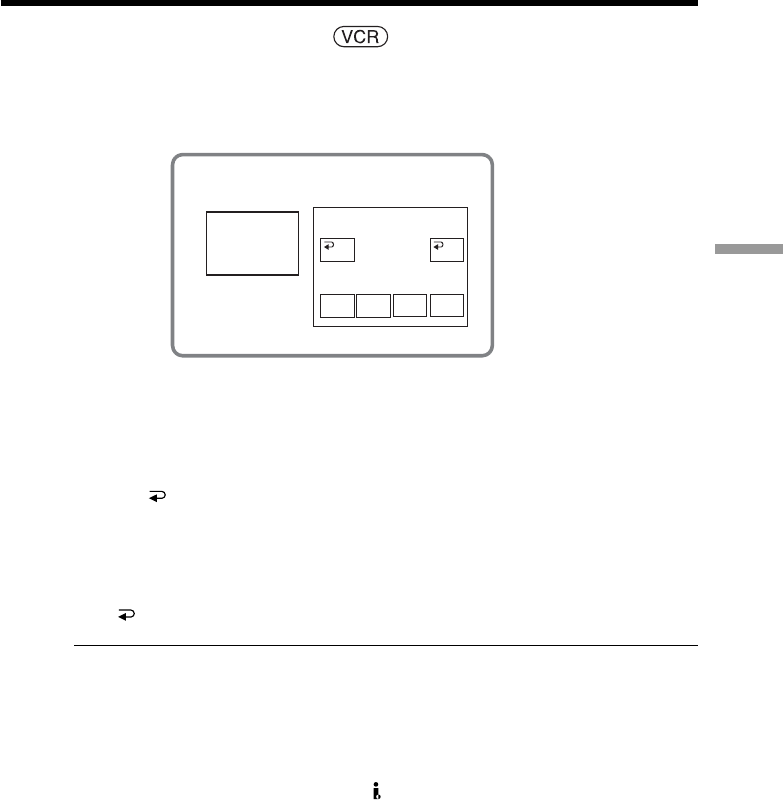

Monitoring the new recorded sound
The POWER switch should be set to .
Operate by touching the panel.
(1)Play back the tape on which you added audio.
(2)Press FN to display PAGE1.
(3)Press MENU to display the menu.
(4)Select AUDIO MIX in , then press EXEC (p. 178).
(5)Press r/R to adjust the balance between the original sound (ST1) and the new
sound (ST2), then press EXEC.
About 5 minutes after you disconnect the power source or remove the battery
pack, the setting of AUDIO MIX returns to the original sound (ST1) only. The
default setting is original sound only.
Audio dubbing
VCR SET
H i F i SOUND
AUD
I
O M
I
X
A
/
VcDV OUT
ST1 ST2
EXIT
RET.
EXEC
Rr
101
Editing

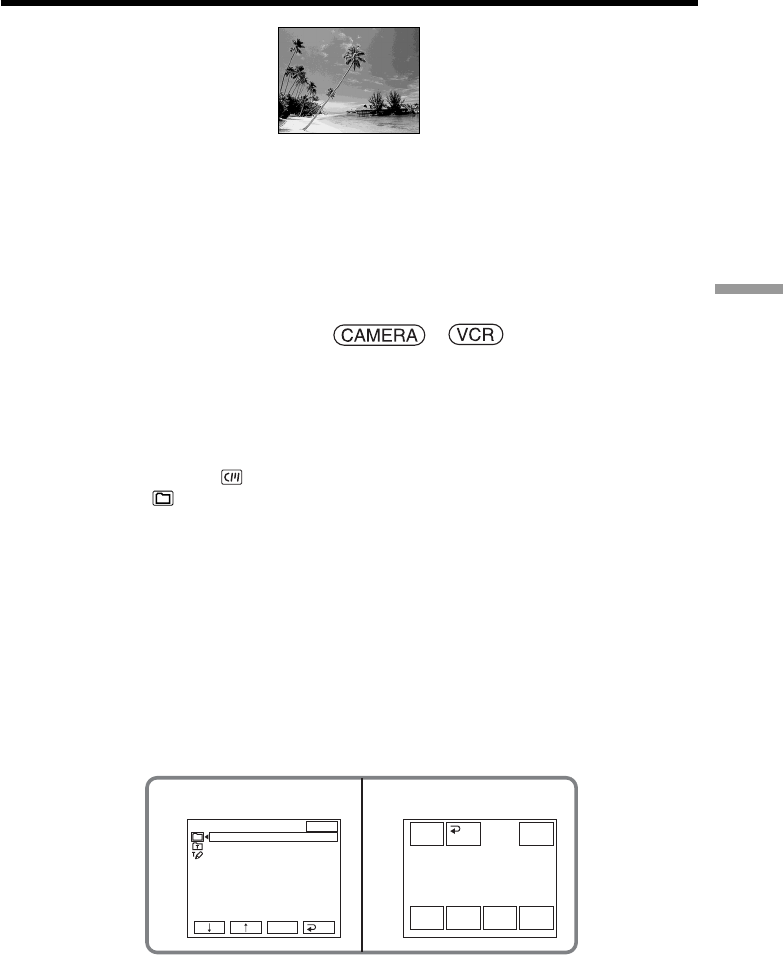

56
VACATION
COLOR
RET.
POS rSIZE
TITLE
OK EXIT
POS R
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
EXIT
RET.
EXEC
A cassette can have up to about 20 titles, if a title consists of 5 characters.
However, if the Cassette Memory is full with date, photo data (DCR-TRV19 only) and
cassette label data, the cassette can have only up to about 11 titles with 5 characters
each.
Cassette Memory capacity is as follows:
–6 date data (maximum)
–1 cassette label (maximum)
– 12 photo data (maximum) (DCR-TRV19 only)
The POWER switch should be set to or .
Operate by touching the panel.
(1)Insert the cassette with Cassette Memory.
(2)During standby, recording, playback or playback pause, press FN to display
PAGE1.
(3)Press MENU to display the menu.
(4)Select TITLE in , then press EXEC (p. 181).
(5)Select , then press EXEC.
(6)Select a desired title, then press EXEC. The title appears on the screen.
(7)If necessary, change the color, size, or position by pressing COLOR, SIZE,
POS r or POS R.
(8)Press TITLE OK.
(9)Press SAVE TITLE.
During playback, playback pause or recording:
The TITLE SAVE indicator appears on the screen for about 5 seconds and the
title is set.
During recording standby:
The TITLE indicator appears. And when you press START/STOP to start
recording, the TITLE SAVE indicator appears on the screen for about 5 seconds
and the title is set.
Superimposing a title on a cassette with
Cassette Memory
VACATION
102
34
T
I
TLE ERASE
1 HELLO
!
2 CONGRATULAT
I
ONS
!
3 HAPPY NEW YEAR
!
4 PRESENT
5 GOOD MORN
I
NG
6 WEDD
I
NG
END
EXEC
Rr
T
I
TLE ERASE
4
PRESENT
ERASE OK?
OK CAN–
CEL
Superimposing a title on a cassette with Cassette Memory
To use the custom title
If you want to use the custom title, select in step 5.
The titles superimposed with your camcorder
•They appear only by DV format video equipment with index titler function.
•The point you superimposed the title may be detected as an index signal when
searching a recording with other video equipment.
To not display title
Set TITLE DSPL in to OFF in the menu settings (p. 181).
Title setting
•The title color changes as follows:
WHITE t YELLOW t VIOLET t RED t CYAN t GREEN t BLUE
•The title size changes as follows:
SMALL y LARGE
You cannot input 13 characters or more in LARGE size.
•The title position:
If you select the title size SMALL, you have 9 choices for the title position.
If you select the title size LARGE, you have 8 choices for the title position.
Erasing a title
The POWER switch should be set to or .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select TITLEERASE in , then press EXEC (p. 181). The TITLE ERASE screen
appears.
(4)Select the title you want to erase, then press EXEC.
The ERASE OK? indicator appears.
(5)Make sure the title is the one you want to erase, then press OK.
The ERASING indicator flashes on the screen.
When the title is erased, the COMPLETE indicator appears.
To return to FN
Press EXIT.
To cancel erasing
Press CANCEL in step 5.
103
Editing
You can make up to 2 titles and store them in the memory of your camcorder. Each title
can have up to 20 characters.
The POWER switch should be set to or .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select TITLE in , then press EXEC (p. 181).
(4)Select , then press EXEC.
(5)Select CUSTOM1 SET or CUSTOM2 SET, then press EXEC.
(6)Select a desired character. Repeat pressing a key to select a desired character
on the key.
(7)Press c to move the cursor to select the next character. Repeat the same
procedure as steps 6 and 7 to complete your title.
(8)Press SET. The title is stored in memory.
To return to FN
Press EXIT.
To change a title you have stored
In step 5, select CUSTOM1 SET or CUSTOM2 SET, depending on which title you want
to change, then press EXEC and enter the new title.
If you take 5 minutes or longer to enter characters during tape recording standby
with the cassette inserted in your camcorder
The power automatically goes off. The characters you have entered remain stored in
memory. Set the POWER switch to OFF (CHG) once and then to CAMERA again, then
start again from step 1.
We recommend setting the POWER switch to VCR or removing the cassette so that
your camcorder does not automatically turn off while you are entering title characters.
To erase the character
Press C. The last character is erased.
To enter a space
Press c.
Making your own titles
457
&?
!
ABC DEF
T t
678
90
123
45
MNO
J
KLGH
I
SET
’ . ,
/
–
WXY
Z
TUVPQR
S
[
PARTY
_______________
]
EXIT
TITLE SET
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
EXIT
RET.
EXEC
Rr
&?
!
ABC DEF
T t
678
90
123
45
MNO
J
KLGH
I
SET
’ . ,
/
–
WXY
Z
TUVPQR
S
[
____________________
]
EXIT
TITLE SET
104
The label can consist of up to 10 characters and is stored in Cassette Memory. When you
insert the labeled cassette and set the POWER switch to CAMERA or VCR, the label is
displayed for about 5 seconds.
The POWER switch should be set to or .
Operate by touching the panel.
(1)Insert the cassette with Cassette Memory you want to label.
(2)Press FN to display PAGE1.
(3)Press MENU to display the menu.
(4)Select TAPE TITLE in , then press EXEC (p. 181).
(5)Select a desired character. Repeat pressing a key to select a desired character
on the key.
(6)Press c to move the cursor to select the next character. Repeat the same
procedure as steps 5 and 6 to complete the label.
(7)Press SET. The label is stored in memory.
To return to FN
Press EXIT.
To erase the label you have made
Erase the label by selecting C in step 5, then press SET.
To change the label you have made
Insert the cassette to change the label, and operate in the same way to make a new label.
If you have superimposed titles in the cassette
When the label appears, up to 4 titles also appear.
To erase the character
Press C. The last character is erased.
To enter a space
Press c.
Labeling a cassette on a cassette with
Cassette Memory
456
&?
!
ABC DEF
T t
678
90
123
45
MNO
J
KLGH
I
SET
’ . ,
/
–
WXY
Z
TUVPQR
S
[
G
_________
]
EXIT
TAPE TITLE
&?
!
ABC DEF
T t
678
90
123
45
MNO
J
KLGH
I
SET
’ . ,
/
–
WXY
Z
TUVPQR
S
[
GRADU
_____
]
EXIT
TAPE TITLE
&?
!
ABC DEF
T t
678
90
123
45
MNO
J
KLGH
I
SET
’ . ,
/
–
WXY
Z
TUVPQR
S
[
__________
]
EXIT
TAPE TITLE
105
Editing
The following data saved in Cassette Memory can be completely erased at once:
–Date data
–Title data
–Cassette label
– Photo data (DCR-TRV19 only)
The POWER switch should be set to or .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select ERASE ALL in , then press EXEC (p. 181).
(4) Select OK, then press EXEC.
The OK indicator changes to EXECUTE.
(5)Select EXECUTE, then press EXEC. The ERASING indicator flashes on the
screen. Once erasing is complete, the COMPLETE indicator appears.
To return to FN
Press EXIT.
To cancel erasing
Select RETURN in step 5, then press EXEC.
Erasing all the data in Cassette Memory
34
CM SET
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
EXIT
RET.
EXEC
RETURN
EXECUTE
CM SET
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
EXIT
RET.
EXEC
RETURN
OK
106
— “Memory Stick” Operations (DCR-TRV22/TRV33 only) —
Using “Memory Stick”
The “Memory Stick” is a new light and small recording media which, despite of the
size, can store greater data than a floppy disk.
In addition to recording images and easily playing back images you want to see, the
“Memory Stick” allows operations such as:
–Copying images into the “Memory Stick” from the tape
–Capturing images into the computer using the supplied USB cable
–Image deletion, protection and writing (with a print mark).
File format
Still image (JPEG)
Your camcorder compresses and records image data in JPEG (Joint Photographic
Experts Group) format. The file extension is .jpg.
Exif * Ver.2.2 JPEG compliant, DPOF compatible
* Exif: Exif is a file format for still images, established by the Japan Electronics and
Information Technology Industries Association (JEITA). Files in this format can have
additional information such as your camcorder’s setting information at the time of
recording.
Moving picture (MPEG)
Your camcorder compresses and records picture data in MPEG (Moving Picture Experts
Group) format. The file extension is .mpg.
Typical image data file name
Still image
101-0001: This file name appears on the screen of your camcorder.
DSC00001.JPG:This file name appears on the display of a computer.
Moving picture
MOV00001: This file name appears on the screen of your camcorder.
MOV00001.MPG: This file name appears on the display of a computer.
To prevent from erasing images accidentally
Rear part of the “Memory Stick”
Slide the write-protect tab on the “Memory Stick” to LOCK.
The position and shape of the write-protect tab may be different depending on the
model.
Notes on the “Memory Stick”
Labeling position
Stick its label on the labeling position.
Write-protect tab
Terminal
Labeling position
107
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Using “Memory Stick”
Image data may be damaged in the following cases. (Damaged image data will
not be compensated.)
–You eject the “Memory Stick” or turn the power off when the data is being recorded
or the image file is being read in the “Memory Stick” (the access lamp is flashing or
lights up).
–You use the “Memory Stick” near magnets or magnetic fields such as those of
speakers and TV.
We recommend backing up important data on the hard disk of a computer.
On handling
•When you carry or store the “Memory Stick,” put it in its case.
•Prevent metallic objects or your finger from coming into contact with the metal parts
of the connecting section.
•Do not bend, drop or apply strong shock to the “Memory Stick.”
•Do not disassemble or modify the “Memory Stick.”
•Do not let the “Memory Stick” get wet.
On location for use
Do not use or keep the “Memory Stick” in locations that are:
–Extremely hot such as in a car parked in the sun or under the scorching sun
–Under direct sunlight
–Very humid or subject to corrosive gases
The “Memory Stick” formatted by a computer
The “Memory Stick” formatted by Windows OS or Macintosh computers does not have
a guaranteed compatibility with your camcorder.
Notes on “MagicGate Memory Stick”
You can use the “MagicGate Memory Stick” for recording image data on your
camcorder. However, you cannot record or play back the music protected by copyright
on your camcorder.
Notes on using the “Memory Stick Duo”
•Make sure to insert the “Memory Stick Duo” into the “Memory Stick Duo” Adaptor
when using the “Memory Stick Duo” with your camcorder.
•Insert the “Memory Stick Duo” in the correct direction. Inserting it in the wrong
direction may cause a malfunction of your camcorder.
•Do not insert the “Memory Stick Duo” into a “Memory Stick” compatible unit without
inserting it into the “Memory Stick Duo” Adaptor first. Doing so may cause a
malfunction of the unit.
108
Notes on image data compatibility
•Image data files recorded on the “Memory Stick” by your camcorder conform with the
Design Rules for Camera File Systems universal standard established by the JEITA
(Japan Electronics and Information Technology Industries Association).
On your camcorder, you cannot play back still images recorded on other equipment
(DCR-TRV890E/TRV900/TRV900E or DSC-D700/D770) that does not conform to this
universal standard. (These models are not sold in some areas.)
•If you cannot use the “Memory Stick” that is used with other equipment, format it
with your camcorder (p. 180). Note that formatting erases all information on the
“Memory Stick.”
•You may not be able to play back the images recorded using your camcorder, on other
playback equipment.
•You may not be able to play back following images with your camcorder:
–image data modified on a computer
–image data shot with other equipment
•The “Memory Stick,” and “MagicGate Memory Stick” are trademarks of Sony
Corporation.
•“Memory Stick Duo” and are trademarks of Sony Corporation.
•“MagicGate” and are trademarks of Sony Corporation.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies.
Furthermore, “™” and “®” are not mentioned in each case in this manual.
Using “Memory Stick”
109
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Inserting the “Memory Stick”
Open the lid of the “Memory Stick” slot. Insert the “Memory Stick” in the “Memory
Stick” slot as far as it can go with the b mark as illustrated, then close the lid.
Ejecting the “Memory Stick”
Open the lid of the “Memory Stick” slot. Slide MEMORY EJECT in the direction of the
arrow.
Notes
•If you insert the “Memory Stick” forcibly in the opposite direction, the “Memory
Stick” slot may be damaged.
•Do not insert anything other than the “Memory Stick” into the “Memory Stick” slot.
This may cause a malfunction.
While the access lamp is lit or flashing
Do not shake or strike your camcorder because your camcorder is reading the data from
the “Memory Stick” or recording the data on the “Memory Stick.” Do not turn the
power off, eject the “Memory Stick” or remove the battery pack. Otherwise, image data
breakdown may occur.
If “ MEMORY STICK ERROR” appears
Reinsert the “Memory Stick” a few times. The “Memory Stick” may be damaged if the
indicator still appears. If this occurs, use another “Memory Stick.”
Inserting/Ejecting the “Memory Stick”
Access lamp
MEMORY EJECT
110

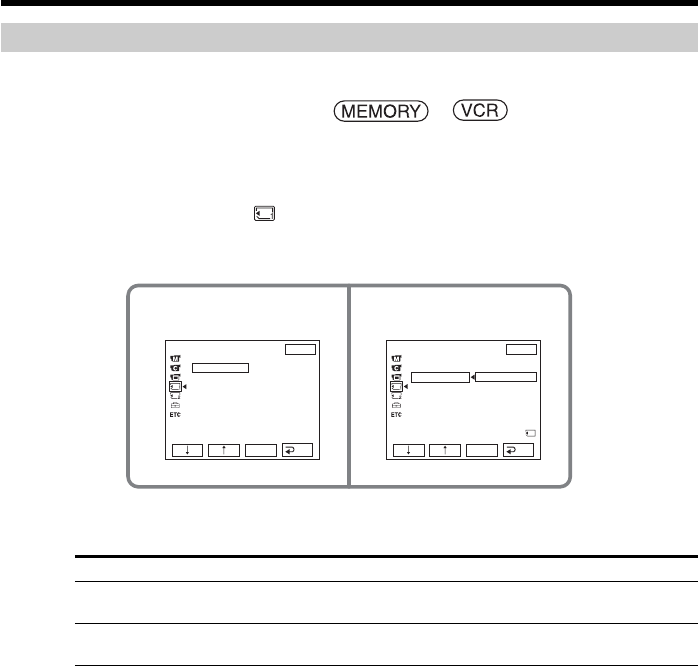

Selecting still image quality
The default setting is FINE.
The POWER switch should be set to or .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select STILL SET in , then press EXEC (p. 179).
(4)Select QUALITY, then press EXEC.
(5)Select a desired image quality, then press EXEC.
Image quality settings
Setting Meaning
FINE (FINE) Use this mode when you want to record high quality
images. Fine images are compressed to about 1/4.
STANDARD (STD) This is the standard image quality. Standard images are
compressed to about 1/10.
To return to FN
Press EXIT.
Selecting image quality and size
34
MEM SET 1
STILL SET
BURST
QUALITY
IMAGESIZE
OFF
EXIT
RET.
EXEC
MEM SET 1
STILL SET
BURST
QUALITY
IMAGESIZE
EXIT
RET.
EXEC
FINE
STANDARD
REMAIN
12
111
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Selecting image quality and size

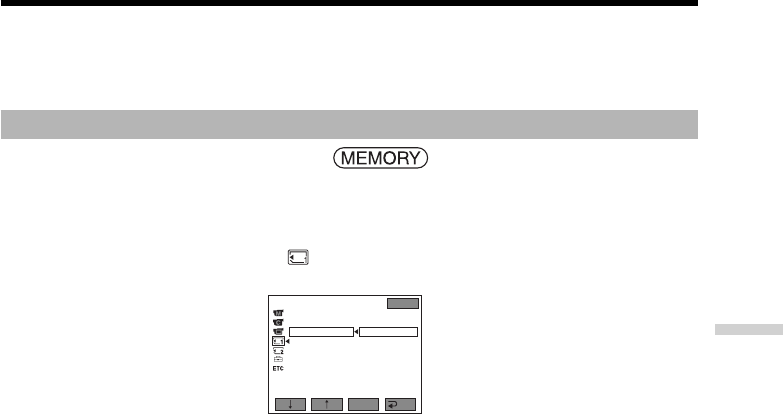

Selecting the still image size (DCR-TRV33 only)
You can select image size 1152 × 864 or 640 × 480 (When the POWER switch is set to
CAMERA or VCR, the image size is automatically set to 640 × 480.)
The default setting is 1152 × 864.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select STILL SET in , then press EXEC (p. 179).
(4)Select IMAGESIZE, then press EXEC.
(5)Select a desired image size, then press EXEC.
The indicator changes as follows:
1152 640
Memory capacity of still images
Recorded images are compressed in JPEG format before being stored in memory. The
memory capacity of still images varies depending on the selected image quality mode
and image size. Details are shown in the table below.
1152 × 864 image size (DCR-TRV33 only)
Image quality Memory capacity
FINE About 500 KB
STANDARD About 200 KB
640 × 480 image size
Image quality Memory capacity
FINE About 150 KB
STANDARD About 60 KB
34
RET.
EXEC
Rr
EXIT
1152
MEM SET 1
STILL SET
BURST
QUALITY
IMAGESIZE 1152 × 864
640 × 480
REMAIN
12
EXIT
RET.
EXEC
Rr
MEM SET 1
STILL SET
BURST
QUALITY
IMAGESIZE
OFF
112
Selecting the moving picture size
You can select picture size 320 × 240 or 160 × 112.
The default setting is 320 × 240.
The POWER switch should be set to or .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select MOVIE SET in , then press EXEC (p. 179).
(4)Select IMAGESIZE, then press EXEC.
(5)Select a desired image size, then press EXEC.
The indicator changes as follows:
320 160
To return to FN
Press EXIT.
Selecting image quality and size
34
EXIT
RET.
EXEC
Rr
MEM SET 1
MOVIE SET
IMAGESIZE
REMAIN 320 240
REMAIN
30sec
320
EXIT
RET.
EXEC
Rr
MEM SET 1
MOVIE SET
IMAGESIZE
REMAIN 320 240
160 112
REMAIN
30sec
113
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Selecting image quality and size
Approximate number of still images and time of moving pictures
that can be recorded on one “Memory Stick”
The number of still images and the time of moving pictures you can record vary
depending on which image quality mode you select and the complexity of the subject.
Still images
Moving pictures
Image size
Type of 320 × 240 160 × 112
“Memory Stick”
320
160
8MB (supplied) 1 min. 20 sec. 5 min. 20 sec.
16MB (optional) 2 min. 40 sec. 10 min. 40 sec.
32MB (optional) 5 min. 20 sec. 21 min. 20 sec.
64MB (optional) 10 min. 40 sec. 42 min. 40 sec.
128MB (optional) 21 min. 20 sec. 1 hr. 25 min. 20 sec.
The table shows approximate number of still images and time of moving pictures that
can be recorded on the “Memory Stick” formatted with your camcorder.
FINE STANDARD
Type of 1152 × 864* 640 × 480 1152 × 864* 640 × 480
“Memory Stick”
1152
640
1152
640
8MB (supplied) 15 50 37 120
16MB (optional) 30 96 74 240
32MB (optional) 61 190 150 485
64MB (optional) 120 390 300 980
128MB (optional) 245 780 600 1970
* DCR-TRV33 only
(unit: image)
114
The POWER switch should be set to .
(1)Keep pressing PHOTO lightly and check the image. The green z indicator
stops flashing, then lights up. The brightness of the image and the focus are
adjusted and fixed while your camcorder targets at the center of the image.
Recording does not start yet.
(2)Press PHOTO deeply.
Recording is complete when the bar scroll indicator disappears.
The image displayed on the screen when you pressed PHOTO deeply will be
recorded on the “Memory Stick.”
[a]Approximate number of images that can be recorded on the “Memory
Stick”
[b]Folder name to be recorded in
Note
The recordable number of the images indicated on the screen depends on the setting of
the image quality and the condition of the subject being recorded. Therefore, the
recordable number may not change even after recording has been done.
You can record still images on the “Memory Stick” during tape recording or tape
recording standby
See page 46 for details.
Recording still images on “Memory
Stick” – Memory Photo recording
1
2
101
FINE
640
50
min
101
12
FINE
640
50
min
[a]
[b]
115
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Recording still images on “Memory Stick”
– Memory Photo recording
When the POWER switch is set to MEMORY
The following functions do not work:
–Digital zoom
–Super NightShot
–Color Slow Shutter
–Wide mode
–Fader
–Picture effect
–Digital effect
–SPORTS of PROGRAM AE (The indicator flashes.)
–Title
–SteadyShot
While you are recording a still image
You cannot turn off the power or press PHOTO.
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
When you press PHOTO lightly in step 1
The image momentarily flickers. This is not a malfunction.
Recording data
The recording data (date/time or various settings when recorded) do not appear during
recording. However, they are recorded automatically onto the “Memory Stick.” To
display the recording data, press DATA CODE during playback. You can also use the
Remote Commander for this operation (p. 40).
If you record still images when the POWER switch is set to MEMORY (DCR-TRV33
only)
The angle of view is slightly larger compared with the angle of view when the POWER
switch is set to CAMERA.
116

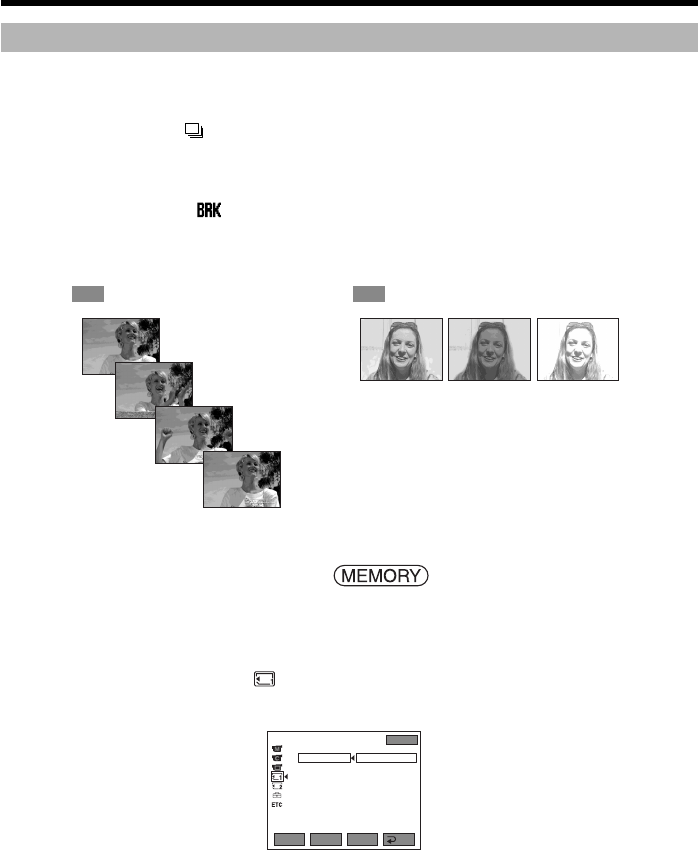

Recording images continuously (DCR-TRV33 only)
You can record still images continuously. Before recording, select a desired mode
described below in the menu settings.
NORMAL [a] ( )
Your camcorder shoots up to 4 still images in 1152 × 864 size or 13 still images in
640 × 480 size at about 0.5 sec intervals.
EXP BRKTG [b] ( )
Your camcorder automatically shoots 3 images at about 0.5 sec intervals at different
exposures.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select STILL SET in , then press EXEC (p. 179).
(4)Select BURST, then press EXEC.
(5)Select a desired mode, then press EXEC.
(6)Press EXIT to make the menu display disappear.
(7)Press PHOTO deeply.
Recording still images on “Memory Stick”
– Memory Photo recording
[a] [b]
RET.
EXEC
Rr
EXIT
STILL SET
BURST
QUALITY
IMAGESIZE
MEM SET 1
OFF
NORMAL
EXP BRKTG
117
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
The number of still images in continuous shooting
The number of still images you can shoot continuously varies depending on the image
size and the capacity of the “Memory Stick.”
During continuous recording of images
The flash (optional) does not work.
When shooting with the self-timer or the Remote Commander
Your camcorder automatically records up to the maximum number of still images.
If remaining capacity on the “Memory Stick” is less than for 3 images
EXP BRKTG does not work. “ FULL” appears when you press PHOTO.
The effect of EXP BRKTG
The effect of EXP BRKTG may not be noticeable on the screen.
We recommend viewing images on TV or the computer to recognize the effect.
When selecting NORMAL
Recording continues up to the maximum number of still images during pressing
PHOTO deeply.
Recording still images on “Memory Stick”
– Memory Photo recording
118
Image size is automatically set to 640 × 480.
Before operation
Insert the “Memory Stick” and the recorded tape into your camcorder.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press . The picture recorded on the tape is played back.
(2)Keep pressing PHOTO lightly and check the image. The picture from the tape
freezes and the CAPTURE indicator appears on the screen. Recording does not
start yet.
To change the still image, release PHOTO, select a still image again, and then
press and hold PHOTO lightly.
(3)Press PHOTO deeply. Recording is complete when the bar scroll indicator
disappears. The image displayed on the screen when you pressed PHOTO
deeply will be recorded on the “Memory Stick.”
Sound recorded on the tape
You cannot record audio from the tape.
Title
You cannot record the titles.
Recording date/time
The date/time when it is recorded on the “Memory Stick” is recorded. Various settings
are not recorded.
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
Recording an image from tape as a still
2
3
101
FINE
640
50
min
101
12
CAPTURE
FINE
640
50
min
1
119
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Recording a still image from other equipment
You can use either A/V connecting cable or i.LINK cable. See page 93 for the
connection.
When connecting with the A/V connecting cable, set DISPLAY in to LCD in the
menu settings. (The default setting is LCD.)
The POWER switch should be set to .
Operate by touching the panel.
(1)Play back the recorded tape on the VCR, or turn the TV on to see a desired
program.
(2)At the point where you want to record, follow steps 2 and 3 on page 118.
Note
If the tape is in poor condition due to being used repeatedly for dubbing and so on,
your camcorder may not be able to record the image, or the recorded image may appear
jagged.
Recording an image from tape as a still image
120
You can superimpose a still image you have recorded on the “Memory Stick” on top of
the moving picture you are recording. (You cannot superimpose a still image on an
image which has already been recorded.)
You can record superimposed images on the tape or the “Memory Stick.” (However,
you can record only superimposed still images on the “Memory Stick.”)
M. CHROM (Memory Chromakey)
You can swap only the blue area of a still image such as an illustration or a frame with a
moving picture.
M. LUMI (Memory Luminancekey)
You can swap the brighter area of a still image (such as a handwritten illustration or a
title) with a moving picture. To use this function, we recommend recording a title on
the “Memory Stick” before a trip or event.
C. CHROM (Camera Chromakey)
You can superimpose a moving picture on top of a still image such as an image which
can be used as background. Shoot the subject against a blue background. Only the blue
area of the moving picture will be swapped with a still image.
M. OVERLAP (Memory Overlap)
You can make a moving picture you are recording with your camcorder fade in on top
of a still image recorded on the “Memory Stick.” You can use Memory Overlap only
when the POWER switch is set to CAMERA.
Superimposing a still image in “Memory
Stick” on an image – MEMORY MIX
Still image Moving picture
Still image
Still image Moving picture
Still image Moving picture
Blue
Moving picture
Blue
M C A M
C H R O M
C A M M
C H R O M
M C A M
L U M I
O V E R –
L A P
M. OVERLAP
C. CHROM
M. LUMI
M. CHROM
121
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Superimposing a still image in “Memory Stick” on an image
– MEMORY MIX
The “Memory Stick” supplied with your camcorder stores 20 images:
–For M. CHROM: 18 images (such as a frame) 101-0001~101-0018
–For C. CHROM: 2 images (such as a background) 101-0019~101-0020
Sample images
Sample images stored in the “Memory Stick” supplied with your camcorder are
protected (p. 142).
Notes
•You cannot use MEMORY MIX for moving pictures recorded on the “Memory Stick.”
•When the overlapping still image has a large amount of white, the thumbnail image of
the picture may not be clear.
•When recording in the mirror mode (p. 29), the image on the LCD screen does not
appear as a mirror-image.
Image data modified on a computer
You may not be able to play back modified images with your camcorder.
Recording a superimposed image to the tape
Before operation
•Insert the “Memory Stick” containing the still images into your camcorder.
•Insert the tape for recording into your camcorder.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN and select PAGE2 .
(2)Press MEM MIX. The image recorded on the “Memory Stick” appears in the
lower right corner of the screen.
(3)Press – (to see the previous image)/+ (to see the next image) in the lower right
corner of the screen to select the still image that you want to superimpose.
(4)Press a desired mode. The still image is superimposed on the moving picture
during recording standby.
(5)Press –/+ in the lower left corner of the screen to adjust the effect, then press
OK to return to PAGE2.
M. CHROM – The color (blue) scheme of the area in the still image which is
to be swapped with a moving picture
M. LUMI – The color (bright) scheme of the area in the still image which
is to be swapped with a moving picture
C. CHROM – The color (blue) scheme of the area in the moving picture
which is to be swapped with a still image
M. OVERLAP – No adjustment necessary (You can select M. OVERLAP only
when the POWER switch is set to CAMERA.)
(6)Press EXIT to return to FN.
(7)Press START/STOP to start recording.
122
Superimposing a still image in “Memory Stick” on an image
– MEMORY MIX
24
MEM
MIX
MEM MIX
MCCAM
LUMI OVER–
LAP
OFF OK
MCCAM
CHROM
CAMCM
CHROM
M. LUMI
MEM MIX
OFF OK
EXITEXIT
101 101
Still image
To change the still image to be superimposed
Press –/+ in the lower right corner before step 5.
To cancel MEMORY MIX
Press OFF to return to PAGE2.
Note
During recording you cannot reselect the mode.
To record still image as they appear on the tape
Select M. LUMI, then press –/+ in the lower left corner of the screen so that the right
end of the bar is visible.
When you select M. OVERLAP
You cannot change the still image. First press OFF to cancel M. OVERLAP and then
select the image again.
123
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Recording a superimposed image to the “Memory Stick” as a still
Before operation
Insert the “Memory Stick” containing the still images into your camcorder.
The POWER switch should be set to .
Operate by touching the panel.
(1)Follow the step 1 to 6 on page 121.
(2)Press PHOTO deeply to start recording.
Recording is complete when the bar scroll indicator disappears. The image
displayed on the screen when you pressed PHOTO deeply will be recorded on
the “Memory Stick.”
To cancel MEMORY MIX
Press OFF to return to PAGE2.
Image size of still images
Image size is automatically set to 640 × 480.
To record still image as they appear on the tape
Select M. LUMI, then press –/+ in the lower left corner of the screen so that the right
end of the bar is visible.
Superimposing a still image in “Memory Stick” on an image
– MEMORY MIX
124
You can carry out a time-lapse recording by setting the camcorder to automatically
record still images.
Example
[a] Memory Photo recording
[b] INTERVAL
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select INT. R -STL in , then press EXEC (p. 180).
(4)Select SET, then press EXEC.
(5)Select INTERVAL, then press EXEC.
(6)Select a desired interval time, then press EXEC.
(7)Press RET.
(8)Set INT. R -STL to ON, then press EXEC.
(9)Press EXIT to return to FN.
The INTERVAL MEM STILL indicator flashes on the screen.
(10)Press PHOTO deeply.
Interval Photo Recording starts.
The INTERVAL MEM STILL indicator lights up on the screen during Interval
Photo Recording.
To cancel Interval Photo Recording
Set INT. R -STL to OFF in the menu settings.
Interval Photo Recording
[b][b]
[a][a][a]
45
MEM SET 2
INT. R -STL
INTERVAL
EXIT
RET.
EXEC
1MIN
5MIN
10MIN
125
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
The picture and sound are recorded up to the full capacity of the “Memory Stick”
(MPEG MOVIE EX).
The POWER switch should be set to .
Press START/STOP.
Your camcorder starts recording. The camera recording lamp located on the front of
your camcorder lights up.
The picture and sound are recorded up to the capacity of the “Memory Stick.” See page
113 for details of recording time.
[a]Available recording time on the “Memory Stick”
[b]This indicator appears for 5 seconds after pressing START/STOP. This indicator is
not recorded.
[c]Folder name to be recorded in
To stop recording
Press START/STOP.
Note
Sound is recorded in monaural.
When the POWER switch is set to MEMORY
The following functions do not work:
–Digital zoom
–Super NightShot
–Color Slow Shutter
–Wide mode
–Fader
–Picture effect
–Digital effect
–SPORTS of PROGRAM AE (The indicator flashes.)
–Title
– SteadyShot
Recording moving pictures on “Memory
Stick” – MPEG MOVIE recording
[a]
[b]
[c]
320
50min REC
15sec
BBB
0:00:00
101
126
Recording moving pictures on “Memory Stick”
– MPEG MOVIE recording
When using an external flash (optional)
Turn the power of the external flash off when recording moving pictures on the
“Memory Stick.” Otherwise, the charging sound of the flash may be recorded.
Recording date/time
The date/time do not appear during recording. However, they are automatically
recorded onto the “Memory Stick.” To display the recording date/time, press DATA
CODE during playback. Various settings cannot be recorded (p. 40).
Self-timer recording
You can record moving pictures on the “Memory Stick” with the self-timer. See page
127 for details.
127
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Self-timer recording
You can record still images and moving pictures on the “Memory Stick” with the self-
timer. You can also use the Remote Commander for this operation.
Recording a still image
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN and select PAGE3.
(2)Press SELFTIMER.
The (self-timer) indicator appears on the screen.
(3)Press EXIT to return to FN.
(4)Press PHOTO deeply.
The self-timer starts counting down from about 10 with a beep. In the last
2 seconds of the countdown, the beep gets faster, then recording starts
automatically.
Recording a moving picture
The POWER switch should be set to .
Operate by touching the panel.
(1)Follow steps 1 to 3 in “Recording a still image.”
(2)Press START/STOP.
The self-timer starts counting down from about 10 with a beep. In the last
2 seconds of the countdown, the beep gets faster, then recording starts
automatically.
To stop the countdown for recording moving picture
Press START/STOP. To restart the countdown, press START/STOP again.
To cancel the self-timer
During standby, press SELFTIMER and the (self-timer) indicator disappears from
the screen. You cannot cancel the self-timer using the Remote
Commander.
Notes
•The self-timer recording is automatically canceled when self-timer recording is
finished.
•You cannot stop the countdown for self-timer recording of the still images.
When the POWER switch is set to CAMERA
You can also perform self-timer recording (p. 50).
START/STOP
START/STOP
128
Before operation
Insert the recorded cassette and “Memory Stick” into your camcorder.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press . The picture recorded on the tape is played back.
(2)Press again to pause playback at the scene where you want to start
recording from.
(3)Press START/STOP. Images and sound are recorded up to the remaining
capacity of the “Memory Stick.” See page 113 for details on recording time.
[a]Available recording time on the “Memory Stick”
[b]This indicator appears for 5 seconds after pressing START/STOP. This indicator is
not recorded.
[c]Folder name to be recorded in
To stop recording
Press START/STOP.
Notes
•Sound recorded in 48 kHz is converted to one in 32 kHz when recording images from
the tape to the “Memory Stick.”
•Sound recorded in stereo is converted to monaural sound when recording from the
tape.
Titles
You cannot record the titles.
If the “ AUDIO ERROR” indicator appears
Sound that cannot be recorded by your camcorder has been recorded. Connect the A/V
connecting cable to input images played back on an external device (p. 93).
Recording a picture from tape as a
moving picture
1,2
320
50min REC
BBB
N
15sec
0:00:03
0:15:42:43
[b]
3
[a]
[c]
101
129
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Recording a picture from tape as a moving picture
Data code recorded on the tape
Instead of the date/time when the picture was recorded on the tape, the date/time
when the picture is recorded on the “Memory Stick” (transferred from the tape) is
recorded on the “Memory Stick.” The various settings that may be saved on the tape are
not recorded.
Recording a moving picture from other equipment
You can use either A/V connecting cable or i.LINK cable. See page 93 for the
connection.
When connecting with the A/V connecting cable, set DISPLAY in to LCD in the
menu settings. (The default setting is LCD.)
The POWER switch should be set to .
(1)Play back the recorded tape on the VCR, or turn the TV on to see a desired
program.
The image of the other equipment is displayed on the LCD screen or in the
viewfinder.
(2)At the starting point of the picture you want to record, press START/STOP.
Note
Recording may stop or the recorded picture may distorted when:
–There are blank portions on the tape.
–The tape on which the image you want to use was recorded, is in poor condition. For
example, if the tape has been repeatedly used for dubbing.
–The input signal is cut off during recording.
130
You can duplicate selected scenes (programs) for editing onto the “Memory Stick.”
Making the program
The POWER switch should be set to .
Operate by touching the panel.
(1)Insert the tape for playback, and the “Memory Stick” for recording into your
camcorder.
(2)Press FN to display PAGE1.
(3)Press MENU to display the menu.
(4)Select VIDEO EDIT in , then press EXEC (p. 185).
(5)Select MEMORY, then press EXEC.
(6)Repeat pressing IMAGESIZE to select a desired size. The image size changes
when you press IMAGESIZE.
(7)Follow steps 6 to 10 on page 90.
To finish making programs
Press END.
The program is stored in memory until the tape is ejected.
Notes
•You cannot dub the titles, display indicators, or the contents of Cassette Memory.
•You cannot operate recording during the Digital program editing on the “Memory
Stick.”
On a blank portion of the tape
You cannot set IN or OUT on a blank portion of the tape.
If there is a blank portion between IN and OUT on the tape
The total time may not appear correctly.
Recording edited pictures from tape as a
moving picture – Digital program editing
(on “Memory Stick”)
45
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
V
I
DEO ED
I
T
EXIT
RET.
EXEC
RETURN
TAPE
MEMORY
0:32:30:14
TOTAL
SCENE 0:00:00
0
V I DEO ED I T
MARK
I
NSTART
SIZE UNDO
320
15sec
END
131
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Recording edited pictures from tape as a moving picture
– Digital program editing (on “Memory Stick”)
During making a program
If you eject the cassette, the NOT READY indicator appears on the screen. The program
will be erased.
Erasing the program you have set
(1)Perform steps 2 to 6 on page 130.
(2)Perform steps 2 to 4 on page 91.
Erasing all programs
(1)Perform steps 2 to 6 on page 130.
(2)Perform steps 2 to 4 on page 91.
132
Recording edited pictures from tape as a moving picture
– Digital program editing (on “Memory Stick”)
Performing the program (Dubbing the “Memory Stick”)
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select VIDEO EDIT in , then press EXEC (p. 185).
(4)Select MEMORY, then press EXEC.
(5)Press START.
(6)Press EXEC.
Your camcorder searches for the beginning of the first program, then starts
dubbing.
The program mark flashes.
The SEARCH indicator appears during searching, the EDITING indicator
appears during writing of data on your camcorder, and the REC indicator
appears during dubbing on the screen.
When the dubbing ends, your camcorder automatically stops.
To stop dubbing
Press CANCEL.
The program you made is recorded on the “Memory Stick” up to the place where you
pressed CANCEL.
To end Digital program editing
Your camcorder stops when the dubbing ends. Then the display returns to VIDEO
EDIT in the menu settings.
Press END to end Digital program editing.
Note
Your camcorder may stop recording the image, or the recorded image may appear
jagged:
–If the tape has the blank portion.
–If the tape is in poor condition due to being used repeatedly for dubbing.
The NOT READY indicator appears on the screen when:
–The program to operate Digital program editing has not been made.
–The “Memory Stick” is not inserted.
–The write-protect tab on the “Memory Stick” is set to LOCK.
When the available recording time of the “Memory Stick” is not enough
The LOW MEMORY indicator appears on the screen. However, you can record pictures
up to the time indicated.
When the program has not been set
You cannot press START.
133
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Changing the recording folder
You can create plural folders in a “Memory Stick.” This feature is convenient for sorting
out the images when you record.
The default recording folder is “101MSDCF.” You can create folders up to “999MSDCF”
in the “Memory Stick.”
Creating a new folder
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select NEW FOLDER in , then press EXEC (p. 179).
(4)Select ADD, then press EXEC. A folder with the maximum number+1 will be
created. A created folder is automatically set to the folder to record in.
To return to FN
Press EXIT.
To cancel creating a new folder
Select RETURN in step 4, then press EXEC.
MEM SET 1
STILL SET
MOVIE SET
NEW FOLDER
REC FOLDER
FILE NO.
EXIT
RET.
EXEC
ADD
RETURN
ADD FOLDER
102MSDCF
134
Selecting the recording folder
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select REC FOLDER in , then press EXEC (p. 179).
(4)Press r/R to select a folder you want to record in, then press EXEC.
To return to FN
Press EXIT.
Notes
•Up to 9999 image files can be recorded in each folder. When a folder is full, a new
folder is automatically created.
•Once a folder is created, it cannot be deleted with your camcorder.
•As the number of folders increases, the number of recordable images in the “Memory
Stick” decreases.
Changing the recording folder
REC FOLDER
101MSDCF
102MSDCF
103MSDCF
104MSDCF
EXIT
EXEC
DATE :
JUL 4 2003
12:24:24 PM
FILES:
7
101
135
“Memory Stick” Operations (DCR-TRV22/TRV33 only)

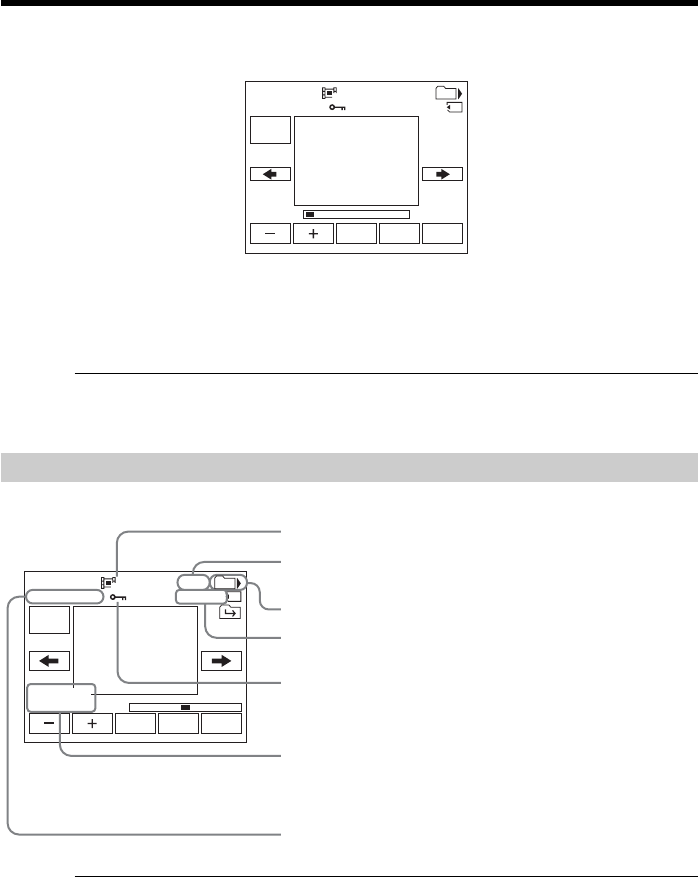

8/8
101–0008
640
JUL 4 2003
12:05:56 PM
FNINDEXCAM
MEMORY PLAY
101
Image size
Image number/Total number of recorded images
in the current playback folder
Data file name
Protect
Print mark
Recording date/time/Various settings
Folder name
You can view the still images recorded in the “Memory Stick.” Further, you can view
6 images including moving pictures at a time arranged in the same order of recording in
the “Memory Stick” by selecting the index screen.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press PLAY. The last recorded image is displayed.
(2)Press – (to see the previous image)/+ (to see the next image) on your
camcorder to select a desired still image.
To cancel Memory Photo playback
Press CAM.
When no file is in the folder
The “NO FILE AVAILABLE” indicator appears.
Screen indicators during still image playback
To make screen indicators disappear, press DSPL/BATT INFO.
Recording data
To display the recording data (date/time or various settings when recorded), press
DATA CODE during playback. You can also use the Remote Commander for this
operation (p. 40).
Notes on the file name
•The folder number may not appear and only the file name may appear if the folder
structure does not conform to the DCF standard.
•The file name flashes on the screen if the file is corrupted or the file is unreadable.
When the “Memory Stick” contains multiple folders
The following icons appear on the screen on the first or last images in a folder.
:You can move to the previous folder.
:You can move to the next folder.
:You can move to both the previous and the next folders.
Viewing a still image
– Memory Photo playback
136
Playing back 6 recorded images at a time (index screen)
This function is especially useful when searching for a particular image.
Press INDEX to display the index screen.
A red B mark appears above the image that was being displayed before the change to
the index screen mode.
T:To display the previous 6 images
t:To display the next 6 images
To return to FN
Press EXIT.
To return to the normal playback screen (single screen)
Press the image you want to display.
Viewing a still image – Memory Photo playback
101
1 / 8
123
456
EXITDEL
MARK
-
MARK
T t
B mark
This number indicates the
recorded order of the image in
the folder.
137
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
You can view the moving pictures recorded in the “Memory Sitck.”
The POWER switch should be set to
138
(2)Press < (to see previous part)/, (to see next part) to select the point where
you want to play back.
(3)Follow steps 3 and 4 on page 137.
To cancel MPEG MOVIE playback
Press MPEG N X.
When recording time is too short
The moving picture may not be divided into parts.
Screen indicators during moving picture playback
To make screen indicators appear or disappear, press DSPL/BATT INFO.
Recording date/time
To display the recording date/time, press DATA CODE during playback. You can also
use the Remote Commander for this operation (p. 40).
Viewing a moving picture – MPEG MOVIE playback
101
1 / 8
FN
MPEG
N X
INDEXCAM
320 0 : 00 : 00MOV00001
8 / 8
FN
MPEG
N X
INDEX
CAM
320
M O V
0 0 0 0 80:00:12
JUL 4 2003
12:05:56 PM
101 Picture number/Total number of recorded pictures in
the current playback folder
Image size
Data file name
Protect
Memory playback time
Recording date/time (Various settings appear as
“– – –”.)
Folder name
139
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Select the folder to be played back. The currently selected folder name appears at the
top right of the screen.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display to PAGE1.
(2)Press PB FOLDR.
(3)Press –/+ to select the folder number you want to play back, then press
END to return to PAGE1.
–:To select the previous folder
+:To select the next folder
To return to FN
Press EXIT.
Note
Your camcorder does not recognize folder names created or changed using the
computer.
Current playback folder
The current playback folder is valid until the next recording is made. Once you record
an image, the current recording folder becomes the current playback folder.
Choosing a playback folder
PB FOLDER
101
FOLDER NAME :
DATE :
FILES :
101MSDCF
JUL 4 2003
12:24:24 PM
50
END
140
You can enlarge the still images to be played back, and record the enlarged images on
the “Memory Stick” (DCR-TRV33 only).
Image size is automatically set to 640 × 480.
The POWER switch should be set to .
Operate by touching the panel.
(1)Play back the image to enlarge.
(2)Press FN and select PAGE2.
(3)Press PB ZOOM. The PB ZOOM screen appears.
(4)Press the area you want to enlarge in the frame.
The area you pressed moves to the center of the screen, and the playback
image is enlarged to about twice the size. If you press the other area again, the
area moves to the center of the screen.
(5)Adjust the zoom ratio by the zoom lever.
You can select the image from approximately 1.1 times up to 5 times its size.
W: Decrease the zoom ratio.
T:Increase the zoom ratio.
To cancel memory PB ZOOM
Press END.
In memory PB ZOOM
If you press DSPL/BATT INFO, the frame on the memory PB ZOOM screen disappears.
You cannot move the part you pressed to the center of the screen.
Edge of an enlarged image
The edge of an enlarged image cannot be displayed at the center of the screen.
Moving pictures recorded on the “Memory Stick”
Memory PB ZOOM does not work.
To record the images processed by Memory PB ZOOM on the “Memory Stick”
(DCR-TRV33 only)
Press PHOTO when the image is being displayed. The image size automatically
becomes 640 × 480.
Enlarging still images recorded on
“Memory Stick” – Memory PB ZOOM
5
PB
ZOOM MEMORY PLAY
END
PB ZOOM
3
141
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
You can display all images on the “Memory Stick” or in the selected folder in sequence
(slide show).
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select SLIDE SHOW in
142
To prevent accidental erasure of important images, you can protect selected images.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press INDEX to display the index screen.
(2)Press - MARK. The screen to protect the image appears.
(3)Press the image you want to protect. The - indicator appears above the
protected image.
To return to FN
Press EXIT.
To cancel image protection
Press the image you want to cancel image protection in step 3 again.
The - indicator disappears from the image.
Note
Formatting erases all information on the “Memory Stick,” including the protected
image data. Check the contents of the “Memory Stick” before formatting.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot turn on or off the - indicator.
Preventing accidental erasure
– Image protection
1
INDEX
2,3
-
MARK
123
456
EXIT
RET.
T t
MARK
101
2 / 8
143
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
You can delete all images or selected images.
Deleting selected images
The POWER switch should be set to .
Operate by touching the panel.
(1)Play back the image you want to delete.
(2)Press FN to display PAGE1.
(3)Press DEL. The DELETE? indicator appears on the screen.
(4)Press OK. The selected image is deleted.
To return to FN
Press EXIT.
To cancel deleting an image
Press CANCEL in step 4.
Notes
•To delete a protected image, first cancel image protection.
•Once you delete an image, you cannot restore it. Check the images to delete carefully
before deleting them.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot delete images.
Deleting images – DELETE
3
DEL
DELETE
101–0003
DELETE?
OK CAN–
CEL
3/8
101
144
Deleting selected images on the index screen
The POWER switch should be set to .
Operate by touching the panel.
(1)Press INDEX to display the index screen.
(2)Press DEL. Then press the image you want to delete. The number of the
selected image is highlighted.
(3)Press EXEC. The DELETE? indicator appears on the screen.
(4)Press OK. The selected images are deleted.
To return to FN
Press EXIT.
To cancel deleting an image
Press CANCEL in step 4.
The maximum number of images you can select in one session
You can select up to 100 images to be deleted.
Deleting images – DELETE
145
“Memory Stick” Operations (DCR-TRV22/TRV33 only)
Deleting images – DELETE
SL
I
DE SHOW
INT. R –STL
DELETE ALL
FORMAT RETURN
ALL FILES
FOLDER 101
MEM SET 2
EXIT
RET.
EXEC
Rr
Deleting all the images
You can delete all the unprotected images in the “Memory Stick.”
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select DELETE ALL in , then press EXEC (p. 180).
(4)Select ALL FILES or FOLDER sss*, then press EXEC.
ALL FILES: To delete all of the images in the “Memory Stick”
FOLDER sss:To delete the images in the folder selected with PB FOLDR
* The folder name appears in sss.
(5)Select OK, then press EXEC.
OK changes to EXECUTE.
(6)Select EXECUTE, then press EXEC.
The DELETING indicator appears, then flashes on the screen.
When all the unprotected images are deleted, the COMPLETE indicator
appears.
To return to FN
Press EXIT.
To cancel deleting all the images in the “Memory Stick”
Select RETURN in step 5 or 6, then press EXEC.
While the DELETING indicator is displayed
Do not turn the POWER switch or press any buttons.
Even if all images are deleted
The folders are not deleted.
146
Changing image size – Resize (DCR-TRV33
only)
After recording, you can change the image size of recorded still images to 640 × 480 or
320 × 240. Resizing is useful when you want the image to be saved in a smaller size such
as when you want to attach it to an e-mail message.
The original image is retained even after resizing.
The POWER switch should be set to .
Operate by touching the panel.
(1)During memory playback, press FN and select PAGE2.
(2)Press RESIZE.
The RESIZE screen appears.
(3)Press 640 × 480 or 320 × 240.
The resized image is recorded as the newest file in the selected folder.
To change still images
Press –/+ before step 3.
To return to FN
Press END to return to PAGE2, then press EXIT.
Notes
•You cannot resize the picture recorded with MPEG MOVIE recording.
•You may not be able to resize the picture recorded on other camcorder.
•You cannot select an image quality level (FINE or STANDARD) for resized pictures.
Size of a resized image
Image size Memory capacity
640 × 480 About 150 KB
320 × 240 About 16 KB
640
RESIZE
END
320×
240
640×
480
3/8
101
101
101–0003
147
“Memory Stick” Operations (DCR-TRV22/TRV33 only)

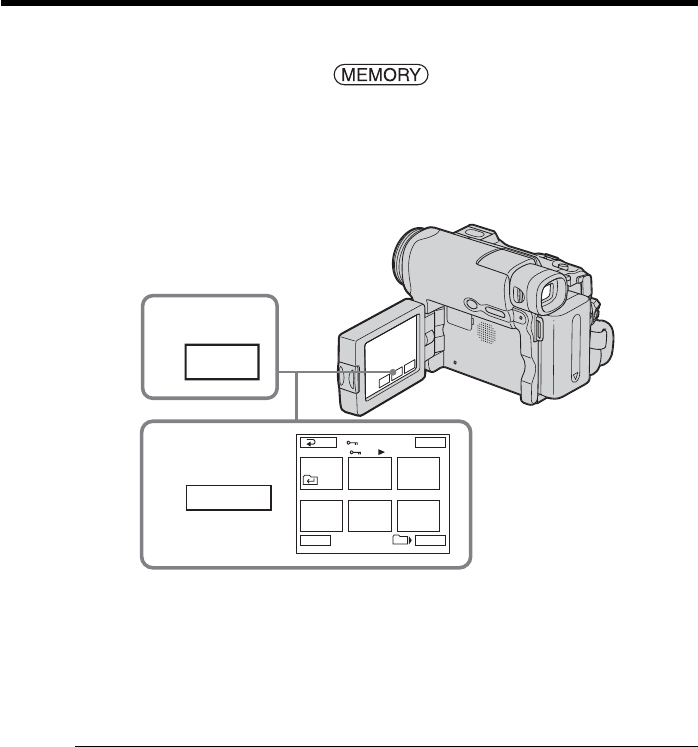

The print mark function is useful for printing out still images later. However you
cannot set the number of printing.
Your camcorder conforms with the DPOF (Digital Print Order Format) standard for
specifying the still images to print out.
The POWER switch should be set to .
Operate by touching the panel.
(1)Press INDEX to display the index screen.
(2)Press MARK. The screen to write a print mark appears.
(3)Press the image you want to write a print mark. The appears on the
selected image.
To return to FN
Press EXIT.
To erase the print marks
Press the image you want to cancel the print mark in step 3 again. The disappears
from the image.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot write or erase print marks on still images.
Moving pictures
You cannot write print marks on moving pictures.
Writing a print mark – Print mark
148
There are following ways of connecting your camcorder to a computer in order to view
images saved on the “Memory Stick” (DCR-TRV22/TRV33 only) or recorded on the
tape on a computer.
To view images on a computer which has a “Memory Stick” slot, first eject the
“Memory Stick” from your camcorder and then insert it into your computer’s “Memory
Stick” slot (DCR-TRV22/TRV33 only).
Tape image/live
from your
camcorder
“Memory Stick“
image (DCR-
TRV22/TRV33
only)
When connecting to a computer with the USB port, complete installation of the
USB driver before connecting your camcorder to the computer. If you connect
your camcorder to the computer first, you will not be able to install the USB
driver correctly.
For details about the computer’s ports and editing software, contact the computer
manufacturer.
Viewing pictures recorded on the tape
When connecting to a computer with the USB port
See page 151 for details.
Connection cable
USB cable
(supplied)
i.LINK cable
(optional)
USB cable
(supplied)
Reference pages
For
Macintosh
Users
–
–
172
— Viewing images with your computer —
Viewing images with a computer
– Introduction
149
Viewing images with your computer
When connecting to a computer with the DV port
The computer must have a DV port and editing software installed that can read video
signals.
Viewing images recorded on the “Memory Stick” (DCR-TRV22/
TRV33 only)
When connecting to a computer with the USB port
See page 167 when using Windows and page 170 when using Macintosh.
You can also use a “Memory Stick” Reader/Writer (optional).
When connecting to a computer without the USB port
Use an optional floppy disk adaptor for “Memory Stick” or a PC card adaptor for
“Memory Stick.”
When purchasing an accessory, check its catalog beforehand for the recommended
operating environment.
Viewing images with a computer – Introduction
: Signal flow
DV
Interface
Plug with mark
facing up.
i.LINK cable (optional)
i.LINK
150
Viewing images with a computer – Introduction
Notes on using your computer
“Memory Stick” (DCR-TRV22/TRV33 only)
•“Memory Stick” operations on your camcorder cannot be assured if a “Memory Stick”
formatted on your computer is used on your camcorder, or if the “Memory Stick” in
your camcorder was formatted from your computer when the USB cable was
connected.
•Do not compress the data on the “Memory Stick.” Compressed files cannot be played
back on your camcorder.
Software
•Depending on your application software, the file size may increase when you open a
still image file.
•When you load an image modified using retouching software from your computer to
your camcorder or when you directly modify the image on your camcorder, the image
format will differ so a file error indicator may appear and you may be unable to open
the file.
Communications with your computer
Communications between your camcorder and your computer may not recover after
recovering from Suspend, Resume, or Sleep.
151
Viewing images with your computer

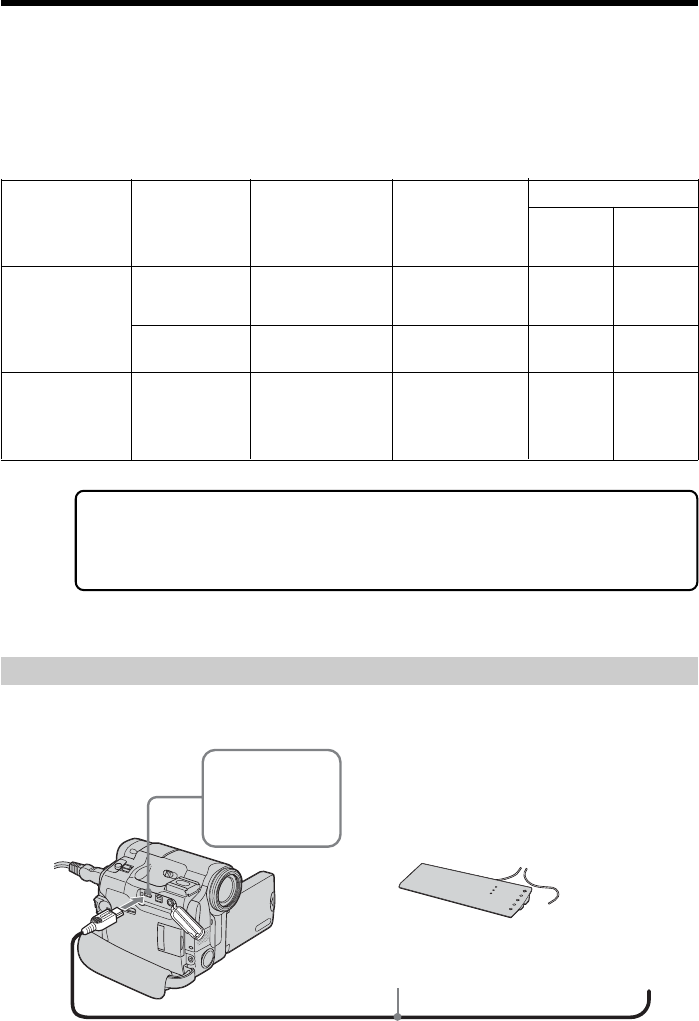

Complete installation of the USB driver before connecting your camcorder to
a computer. If you connect your camcorder to a computer first, you will not
be able to install the USB driver correctly.

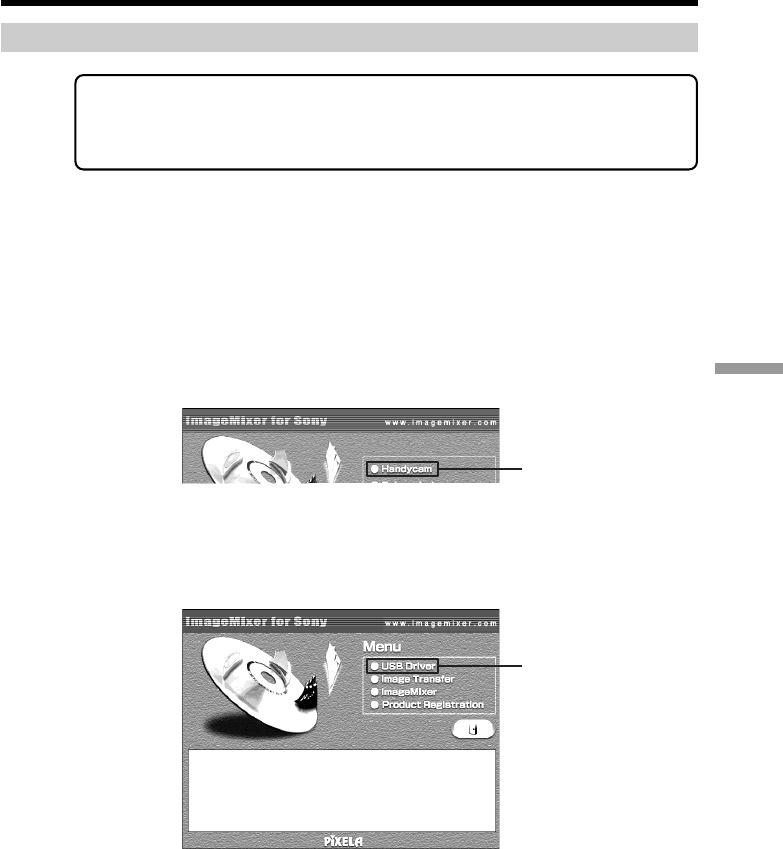

When connecting to a computer with the USB port
You must install a USB driver onto the computer in order to connect your camcorder to
the computer’s USB port. The USB driver can be found on the CD-ROM supplied, along
with the application software required for viewing images.
If you connect your camcorder and a computer using the USB cable, you can view
pictures live from your camcorder and pictures recorded on the tape on a computer
(USB Streaming function).
Furthermore, if you download pictures from your camcorder to a computer, you can
process or edit them in image processing software and attach them to e-mail.
You can view images recorded on the “Memory Stick” on a computer (DCR-TRV22/
TRV33 only).
Recommended computer usage environment when connecting
with the USB cable and viewing tape pictures on a computer
OS:
Microsoft Windows 98SE, Windows Millennium Edition, Windows 2000 Professional,
Windows XP Home Edition or Windows XP Professional
Standard installation is required.
However, operation is not assured if the above environment is an upgraded OS.
You cannot hear sound if your computer is running Windows 98, but you can read still
images.
CPU:
Minimum 500 MHz Intel Pentium III or faster (800 MHz or faster recommended)
Application:
DirectX 8.0a or later
Sound system:
16 bit stereo sound card and stereo speakers
Memory:
64 MB or more
Hard disk:
Available memory required for installation:
at least 250 MB
Available hard disk memory recommended:
at least 1 GB (depending on the size of the image files edited)
Display:
4 MB VRAM video card, Minimum 800 × 600 dot High-color (16 bit color, 65 000 colors),
Direct Draw display driver capability (At 800 × 600 dot or less, 256 colors and less, this
product will not operate correctly.)
Others:
This product is based on DirectX technology, so it is necessary to install DirectX.
To create a Video CD, a CD-R drive is needed.
The USB port must be provided as standard.
You cannot use this function in the Macintosh environment.
Connecting your camcorder to a
computer using the USB cable
(For Windows users)
152
Recommended computer usage environment when connecting
with USB cable and viewing the “Memory Stick” images on a
computer (DCR-TRV22/TRV33 only)
Recommended Windows environment
OS:
Microsoft Windows 98, Windows 98SE, Windows Millennium Edition, Windows 2000
Professional, Windows XP Home Edition or Windows XP Professional
Standard installation is required.
However, operation is not assured if the above environment is an upgraded OS.
CPU:
MMX Pentium 200 MHz or faster
Display:
Minimum 800 × 600 dot High-color (16 bit color, 65 000 colors) (At 800 × 600 dot or less,
256 colors and less, the screen for installing USB driver is not displayed.)
Others:
The USB port must be provided as standard. Windows Media Player must be installed
(to play back moving pictures).
Notes
•Operations are not guaranteed for the Windows environment if you connect two or
more USB equipment to a single computer at the same time, or when using a hub.
•Some equipment may not operate depending on the type of USB equipment that is
used simultaneously.
•Operations are not guaranteed for all the recommended computer environments
mentioned above.
•Windows and Windows Media are registered trademarks of Microsoft Corporation in
the United States and/or other countries.
•Pentium is a trademark or registered trademark of Intel Corporation.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies. Furthermore, “TM” and “®” are not
mentioned in each case in this manual.
Connecting your camcorder to a computer using the USB cable
(For Windows users)
153
Viewing images with your computer
Installing the USB driver
Start the following operation without connecting the USB cable to
the computer.
Connect the USB cable according to “Making the computer recognize
your camcorder” on page 156.
If you are using Windows 2000, log in with permission of administrators.
If you are using Windows XP, log in with permission of computer administrators.
(1)Turn on a computer and allow Windows to load. If you have been using the
computer, close all softwares.
(2)Insert the supplied CD-ROM in the CD-ROM drive of the computer. The
application software starts up.
If the screen does not appear, double-click “My Computer” and then
“ImageMixer” (CD-ROM Drive).
(3)Select “Handycam” on the screen.
Click
The title screen appears.
(4)Move the cursor to “USB Driver” and click. This starts USB driver installation.
Click
(5)Follow the on-screen messages to install the USB driver.
(6)Remove the CD-ROM, then restart the computer and follow the on-screen
messages.
Connecting your camcorder to a computer using the USB cable
(For Windows users)
154
Connecting your camcorder to a computer using the USB cable
(For Windows users)
Notes
•If you connect the USB cable before USB driver installation is complete, the USB driver
will not be properly registered. Carry out installation again following the on-screen
messages.
•The title screen is not displayed if the screen size of the computer is set to less than
800 × 600 dots and 256 colors or less. See pages 151, 152 about the recommended
computer environment.
Installing Image Transfer (DCR-TRV22/TRV33 only)
Make sure USB driver installation is complete.
This function enables image data recorded on the “Memory Stick” to be automatically
transferred (copied) to your computer.
If you are using Windows 2000, log in with permission of administrators.
If you are using Windows XP, log in with permission of computer administrators.
(1)Turn on your computer and allow Windows to load. If you have been using
the computer, close all softwares.
(2)Insert the supplied CD-ROM in the CD-ROM drive of the computer. The
application software starts up.
(3)Select “Handycam” on the screen.
The title screen appears.

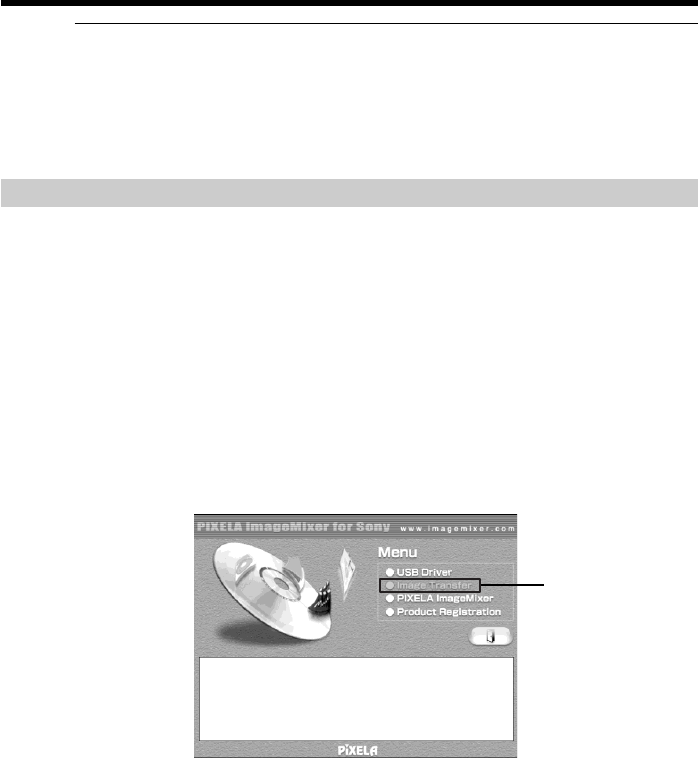

(4)Move the cursor to “Image Transfer” and click.
Click
The Install Wizard program starts up and the “Choose Setup Language”
screen appears.
(5)Select the Language for installation.
(6)Follow the on-screen messages. The installation screen disappears when
installation is complete.
155
Viewing images with your computer
Connecting your camcorder to a computer using the USB cable
(For Windows users)
Installing ImageMixer
Make sure USB driver installation is complete.
“ImageMixer Ver. 1.5 for Sony” is an application that can capture or edit images, or
create video CDs.
To install and use this software in Windows 2000, you must be authorized as
administrators. For Windows XP, you must be authorized as computer administrators.
(1)Turn on a computer and allow Windows to load. If you have been using the
computer, close all softwares.
(2)Insert the supplied CD-ROM into the CD-ROM drive of the computer.
The application software starts up.
(3)Select "Handycam” on the screen.
The title screen appears.

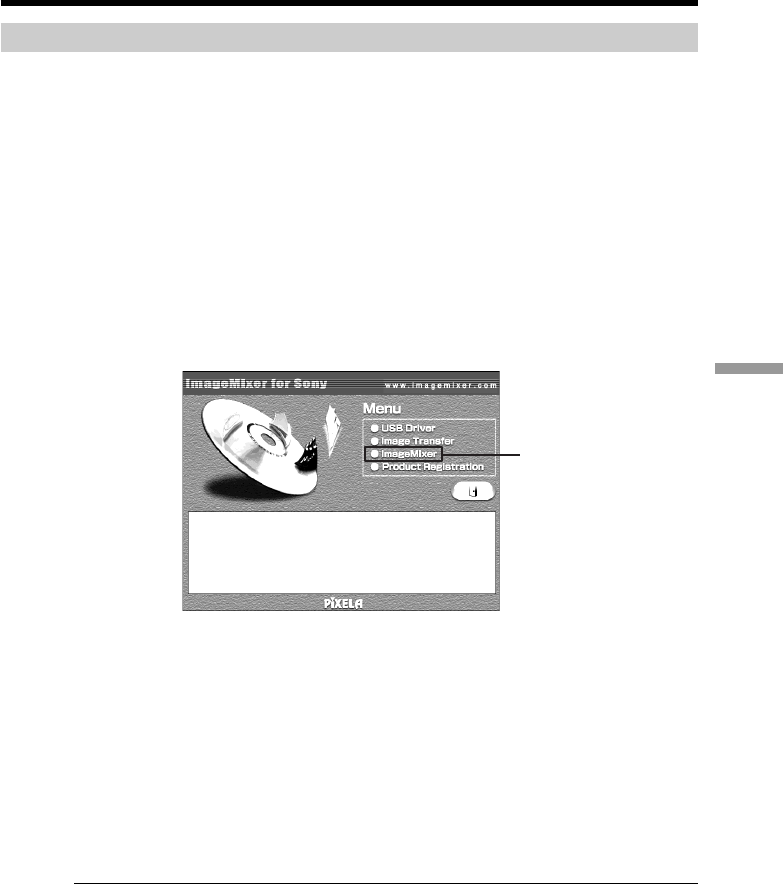

(4)Move the cursor to “ImageMixer” and click.
Click
The Install Wizard program starts up and the “Choose Setup Language”
screen appears.
(5)Select the language for installation.
(6)Follow the on-screen messages.
The installation screen disappears when installation is complete.
(7)Install the Win ASPI following the on-screen message (Windows 2000 and
Windows XP users only).
(8)If DirectX 8.0a or later is not installed on the computer, continue installation
after installing ImageMixer.
Follow the on-screen messages to install DirectX 8.0a. After installation is
complete, restart the computer.
Memory Mix Album (DCR-TRV22/TRV33 only)
Once “ImageMixer” is installed, the Memory Mix album is created in “Album” of
“ImageMixer” and sample images are stored in there.
Those sample images can be transferred from the Memory Mix album to a “Memory
Stick” so that they can be used in MEMORY MIX (p. 120).
For details on the operation procedure, refer to the on-line help.
156
Connecting your camcorder to a computer using the USB cable
(For Windows users)
USB port
USB cable (supplied)
(USB)
jack
Computer
Replacing WinASPI
To use the ImageMixer CD writing function, you need to install WinASPI. If a different
writing application has been already installed, its writing function may not work
correctly. If that happens, reinstall the original application and replace WinASPI. Note
that the ImageMixer CD writing function may not work properly.
Making the computer recognize your camcorder
If you are using Windows 2000, log in with permission of administrators.
If you are using Windows XP, log in with permission of computer administrators.
Viewing pictures recorded on the tape
(1)Connect the AC Adaptor to your camcorder.
(2)Set the POWER switch to .
(3)Press FN to display PAGE1.
(4)Press MENU to display the menu.
(5)Select USB STREAM in , then press EXEC (p. 183).
(6)Select ON, then press EXEC.
(7)Connect the (USB) jack on your camcorder to the USB port on the computer
using the supplied USB cable.
The computer recognizes your camcorder, and the Windows Add Hardware
Wizard starts.
(8)Follow the on-screen messages so that the Add Hardware Wizard recognizes
that the USB drivers have been installed. Be sure to allow the installation to
complete without interrupting it.
For Windows 2000 and Windows XP users
If you are prompted to confirm the digital signature, select “Yes” (Windows 2000) or
“Continue Anyway” (Windows XP).
157
Viewing images with your computer
Connecting your camcorder to a computer using the USB cable
(For Windows users)
Viewing images recorded on the “Memory Stick” (DCR-TRV22/
TRV33 only)
(1)Insert the “Memory Stick” into your camcorder.
(2)Connect the AC Adaptor, then set the POWER switch to .
(3)Connect the (USB) jack on your camcorder to the USB port on the computer
using the supplied USB cable.
The USB MODE indicator appears on the LCD screen of your camcorder. The
computer recognizes your camcorder, and the Add Hardware Wizard starts.
(4)Follow the on-screen messages so that the Add Hardware Wizard recognizes
that the USB drivers have been installed. The Add Hardware Wizard starts
twice because 2 different USB drivers are installed. Be sure to allow the
installation to complete without interrupting it.
You cannot install the USB driver if the “Memory Stick” is not in your camcorder
Be sure to insert the “Memory Stick” into your camcorder before installing the USB
driver.
USB port
USB cable (supplied)
(USB)
jack
Computer
158
Connecting your camcorder to a computer using the USB cable
(For Windows users)
If you cannot install the USB driver
The USB driver has been registered incorrectly as the computer was connected to your
camcorder before installation of the USB driver was complete. Follow the procedure
below to correctly install the USB driver.
Viewing pictures recorded on the tape
Step 1: Uninstall the incorrect USB driver
1Turn on the computer and allow Windows to load.
2Connect the AC Adaptor and set the POWER switch to .
3Connect the USB port on the computer to the (USB) jack on your camcorder
using the USB cable supplied.
4Open the computer’s “Device Manager.”
Windows XP:
Select “Start” t “Control Panel” t “System” t “Hardware”, and click the
“Device Manager” button.
If there is no “System” inside “Pick a category” after clicking “Control Panel,”
click “Switch to classic view” instead.
Windows 2000:
Select “My Computer” t “Control Panel” t “System” t “Hardware” tab,
and click the “Device Manager” button.
Windows 98SE/Windows Me:
Select “My Computer” t “Control Panel” t “System,” and click “Device
Manager.”
5Select and delete the underlined devices below.

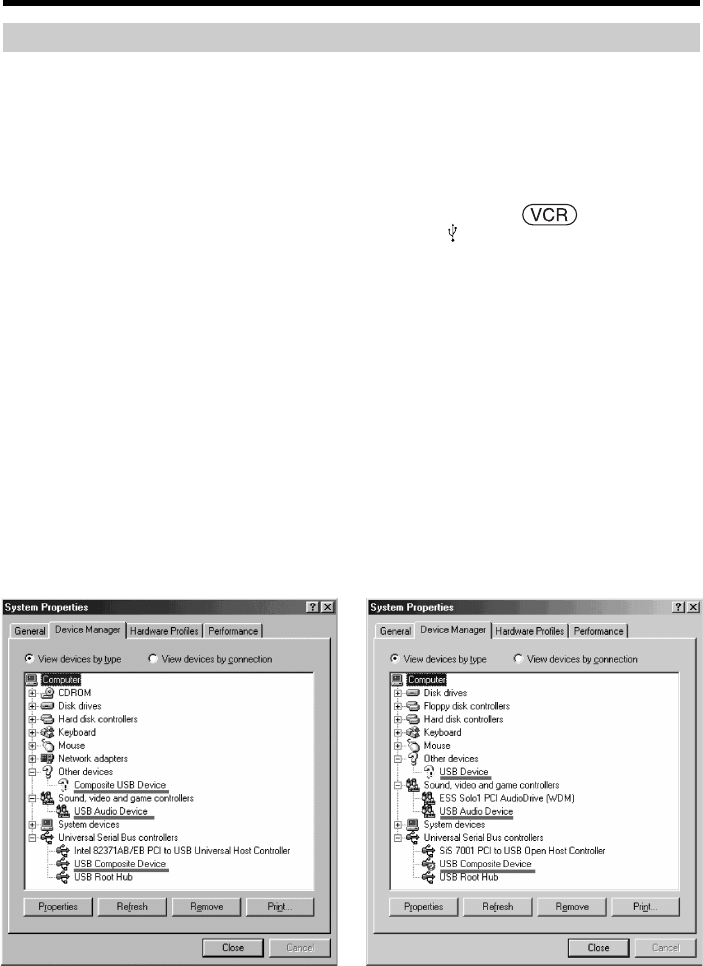

Windows 98SE Windows Me
159
Viewing images with your computer
Connecting your camcorder to a computer using the USB cable
(For Windows users)

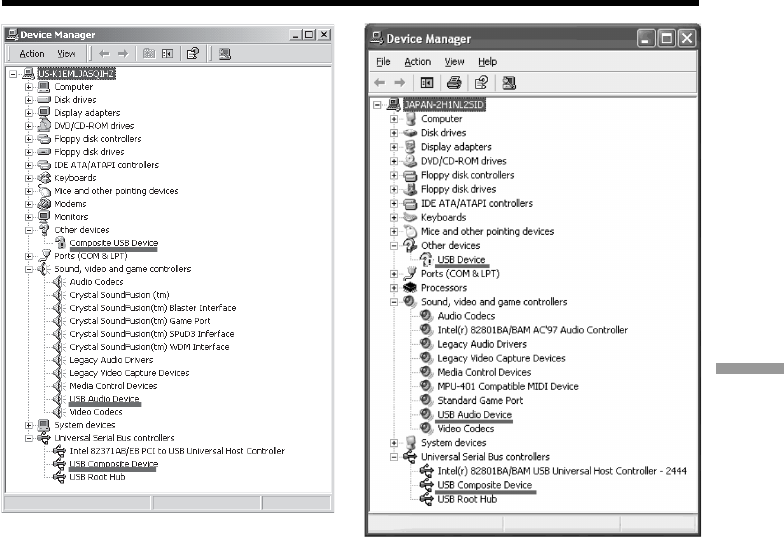

Windows 2000 Windows XP
6Set the POWER switch to OFF (CHG) on your camcorder, then disconnect the
USB cable.
7Restart the computer.
Step 2: Install the USB driver on the supplied CD-ROM
Follow the entire procedure in “Installing the USB driver” on page 153.
160
Viewing images recorded on the “Memory Stick” (DCR-TRV22/
TRV33 only)
Step1: Uninstall the incorrect USB driver
1Turn on the computer and allow Windows to load.
2Insert the “Memory Stick” into your camcorder.
3Connect the AC Adaptor and set the POWER switch to .
4Connect the USB port on the computer to the (USB) jack on your camcorder
using the USB cable supplied.
5Open the computer’s “Device Manager.”
Windows XP:
Select “Start” t “Control Panel” t “System” t “Hardware” tab and click
the “Device Manager” button.
If there is no “System” inside “Pick a category” after clicking “Control Panel,”
click “Switch to classic view” instead.
Windows 2000:
Select “My Computer” t “Control Panel” t “System” t “Hardware,” and
click the “Device Manager” button.
Other OS:
Select “My Computer” t “Control Panel” t “System,” and click “Device
Manager.”
6Select “Other devices.”
Select the device prefixed with the “?” mark and delete.
Ex: (?)Sony Handycam
7Set the POWER switch to OFF (CHG) on your camcorder, then disconnect the
USB cable.
8Restart the computer.
Step2: Install the USB driver on the supplied CD-ROM
Follow the entire procedure in “Installing the USB driver” on page 153.
Connecting your camcorder to a computer using the USB cable
(For Windows users)
161
Viewing images with your computer
Monitor window
Viewing pictures recorded on tape on a
computer
– USB Streaming (For Windows users)
Capturing images with “ImageMixer Ver.1.5 for Sony”
You need to install the USB driver and ImageMixer to view pictures recorded on the
tape on a computer (p. 153, 155).
Viewing pictures recorded on the tape
(1)Turn on the computer and allow Windows to load.
(2)Connect the AC Adaptor, then insert the cassette into your camcorder.
(3)Set the POWER switch to .
(4)Press FN to display PAGE1.
(5)Press MENU to display the menu.
(6)Select USB STREAM in , then press EXEC (p. 183).
(7)Select ON, then press EXEC.
(8)Select “Start” t “Programs” t “PIXELA” t “ImageMixer” t “ImageMixer
Ver.1.5 for Sony.”
The “ImageMixer Ver.1.5 for Sony” startup screen appears on the computer.
The title screen appears.
(9)Click on the screen.
(10)Click .
162
USB port
USB cable (supplied)
(USB)
jack
Viewing pictures recorded on tape on a computer
– USB Streaming (For Windows users)
(11)Connect the (USB) jack on your camcorder to the USB port on the computer
using the supplied USB cable.
(12)Click to start playback.
You can control video operations with the buttons on the screen.
The picture from the tape appears on the monitor window on the computer.
Viewing pictures live from your camcorder
(1)Follow the step 1 and 2 on page 161.
(2)Set the POWER switch to .
(3)Follow the step 4 to 11 on pages 161, 162.
The picture from your camcorder appears on the monitor window on the
computer.
Video control
buttons
Monitor window
Computer
163
Viewing images with your computer
Viewing pictures recorded on tape on a computer
– USB Streaming (For Windows users)

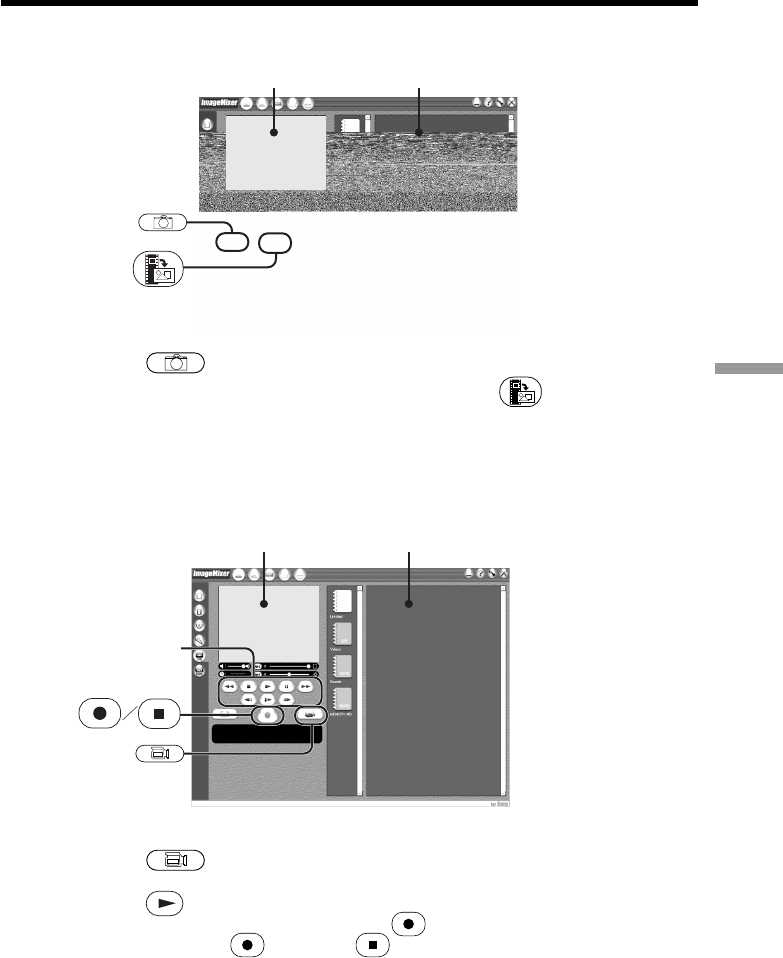

Capturing still images
(1)Click .
(2)Looking at the monitor window, move the cursor to and click it at the
point you want to capture.
The still image on the screen is captured.
Captured images appear in the thumbnail list window.
Capturing moving pictures
(1)Click .
(2)Click the album you want to capture.
(3)Click to start playback.
(4)Looking at the monitor window, click at the first scene of the movie you
want to capture. changes to .
Monitor window Thumbnail list window
Monitor window Thumbnail list window
Video control
buttons
164
Viewing pictures recorded on tape on a computer
– USB Streaming (For Windows users)
(5)Looking at the monitor window, click at the last scene you want to
capture.
The moving picture is captured. The captured images appear in the thumbnail
list window.
To close “ImageMixer”
Click at the top right of the screen.
Notes
•When the USB cable is used for connecting the computer, the images displayed on the
computer monitor may appear jagged.
•When you view images on a computer with the USB connection, the following may
occur. This is not a malfunction.
–The image shakes up and down.
–Some images are not displayed correctly due to noise, etc.
–Some images are displayed with the cracking noise.
–Images of different color systems to that of your camcorder are not displayed
correctly.
•When your camcorder is during standby with a cassette inserted, it turns off
automatically after five minutes.
•We recommend setting DEMO MODE to OFF in the menu settings when your
camcorder is during standby, and no cassette is inserted.
•Indicators on the screen of your camcorder do not appear on images that are captured
into the computer.
•If you capture a fast moving picture, the preview window may not move smoothly.
You can make the picture move more smoothly by shifting the upper right slider on
the bottom of the monitor window to the left, although this reduces the picture
quality.
•You cannot carry out any “Memory Stick” operations during the USB Streaming.
If image data cannot be transferred by the USB connection
The USB driver has been registered incorrectly as the computer was connected to your
camcorder before installation of the USB driver was complete. Reinstall the USB driver
following the procedure on page 158.
If any trouble occurs
Close all running applications, then restart the computer.
Carry out the following operations after quitting the application:
–Disconnect the USB cable.
–Turn the POWER switch to the other position on your camcorder.
165
Viewing images with your computer
Viewing pictures recorded on tape on a computer
– USB Streaming (For Windows users)
Making Video CDs – Easy Video CD
This function makes it simple to create a video CD by capturing images recorded on a
tape or images live from your camcorder.
Capturing images recorded on a tape onto a CD-R
(1)Follow steps 1 to 8 on page 161.
(2)Press after choosing the point on the tape from which you want to
capture images onto the CD-R.
(3)Click .
(4)Connect the (USB) jack on your camcorder to the USB port on the computer
using the supplied USB cable.
(5)Select the CD-R drive and writing speed on the ImageMixer Easy Video CD
screen.
(6)Insert a new CD-R in the CD-R drive of the computer.
(7)Click “Start.”
The tape is automatically played back. Easy Video CD automatically begins to
capture images onto the CD-R to create a Video CD.
(8)After the “Video CD successfully created.” message appears, click “Quit.”
Capturing images live from your camcorder onto a CD-R
Remove the cassette before the following operation. If a cassette is inserted, the power
automatically goes out after about 5 minutes.
(1)Follow steps 1 and 2 on page 162.
(2)Set the POWER switch to on your camcorder.
(3)Follow steps 4 to 8 on page 161.
(4)Follow steps 3 to 7 in “Capturing images recorded on a tape onto a CD-R.”
Click
166
Notes
•A computer equipped with a CD-R drive is required.
•Do not press the button on your camcorder while creating a Video CD. If you press
, only images up to that point are captured onto the Video CD and Easy Vide CD
is closed.
•Once a disc has been created, you cannot add images to the disc.
•Select a hard disc with sufficient memory (at least 6 GB) from the “Option” screen as
location for the "Location of work folder.”
Playing back the Video CDs
You can use a DVD player or a computer with a DVD drive to play back the Video CDs
you created. To play back the Video CDs on a computer, you need to have Video CD
software installed.
You can play back the Video CDs with Windows Media Player. However, you cannot
use menu functions such as capturing function. You also may not be able to play back
the Video CDs in certain computer environment such as OS or hardware.
(1)Start up Windows Media Player.
Windows XP:
Select “Start” t “All Programs” t “Accessory” t “Entertainment,” and
click “Windows Media Player.”
Other OS:
Select “Start” t “Programs” t “Accessory” t “Entertainment,” and click
“Windows Media Player.”
(2)Select “My Computer” t “CD-R,” and click “MPEGAV” folder, then drag
and drop the “sss*.DAT” moving picture file onto the Media Player screen.
The moving picture will be played back.
* The file name is displayed in sss.
Created Video CDs
The maximum recording time is about l hour. Capturing is divided into segments of
about 10 minutes (approximately 4 GB) due to the specifications of the AVI capturing
format. As a result, recording includes segment links about every 10 minutes, at which
point images are skipped for several seconds.
Seeing the on-line help (operating instructions) of ImageMixer
An “ImageMixer Ver.1.5 for Sony” on-line help site is available where you can find the
detailed operating method of “ImageMixer Ver.1.5 for Sony.”
(1)Click located in the upper-right corner of the screen.
The ImageMixer’s Manual screen appears.
(2)You can find the information you need from the list of contents.
To close on-line help
Click at the top right of the screen.
If you have any questions about ImageMixer
“ImageMixer Ver.1.5 for Sony” is the product of PIXELA corporation. For details, refer
to the operating instructions of the CD-ROM supplied with your camcorder.
Viewing pictures recorded on tape on a computer
– USB Streaming (For Windows users)
167
Viewing images with your computer
Viewing images recorded on “Memory
Stick” on a computer (For Windows
users) (DCR-TRV22/TRV33 only)
The image data recorded on the “Memory Stick” is automatically transferred (copied) to
a computer with Image Transfer. You can view images with ImageMixer.
Before operation
You need to install the USB driver, Image Transfer and ImageMixer to view the
“Memory Stick” images on a computer (p. 153).
(1)Turn on your computer and allow Windows to load.
(2)Insert the “Memory Stick” into your camcorder, then connect the AC Adaptor
to your camcorder.
(3)Set the POWER switch to .
(4)Connect the (USB) jack on your camcorder to the USB port on the computer
using the supplied USB cable.
(5)Image Transfer automatically starts up and the transfer of image data begins.
(6)ImageMixer automatically starts up, enabling you to view the copied image.
(7)Select an album and the image, then press the import button. The image is
added in your album, and you can edit the image.
Import button
168
Viewing images without Image Transfer
Before operation
•You need to install the USB driver to view the “Memory Stick” images on a computer
(p. 153).
•An application such as Windows Media Player must be installed to play back moving
pictures in Windows environment.
(1)Turn on the computer and allow Windows to load.
(2)Insert the “Memory Stick” into your camcorder, then connect the AC Adaptor
to your camcorder.
(3)Set the POWER switch to .
(4)Connect the (USB) jack on your camcorder to the USB port on the computer
using the supplied USB cable.
The USB MODE indicator appears on the screen of your camcorder.
(5)Open “My Computer” on Windows and double-click the newly recognized
drive (Example: “Removable Disk (F:)”).
The folders inside the “Memory Stick” appear.
(6)Double-click a desired image file from the folder in this order.
“DCIM” folder t “sssMSDCF” folder1) t Image file2)
See “Image file storage destinations and image files” (p. 169), for the detailed
folder and file name.
1) sss stands for any number (within the range) from 101 to 999.
2) Copying a file to the hard disk of the computer before viewing it is recommended.
If you play back the file directly from the “Memory Stick,” the image and sound
may break off.
USB port
USB cable (supplied)
(USB)
jack
Viewing images recorded on “Memory Stick” on a computer
(For Windows users) (DCR-TRV22/TRV33 only)
Computer
169
Viewing images with your computer
Image file storage destinations and image files
Image files recorded with your camcorder are grouped according to the folders in the
“Memory Stick.” The meanings of the file names are as follows. ssss stands for any
number within the range from 0001 to 9999.

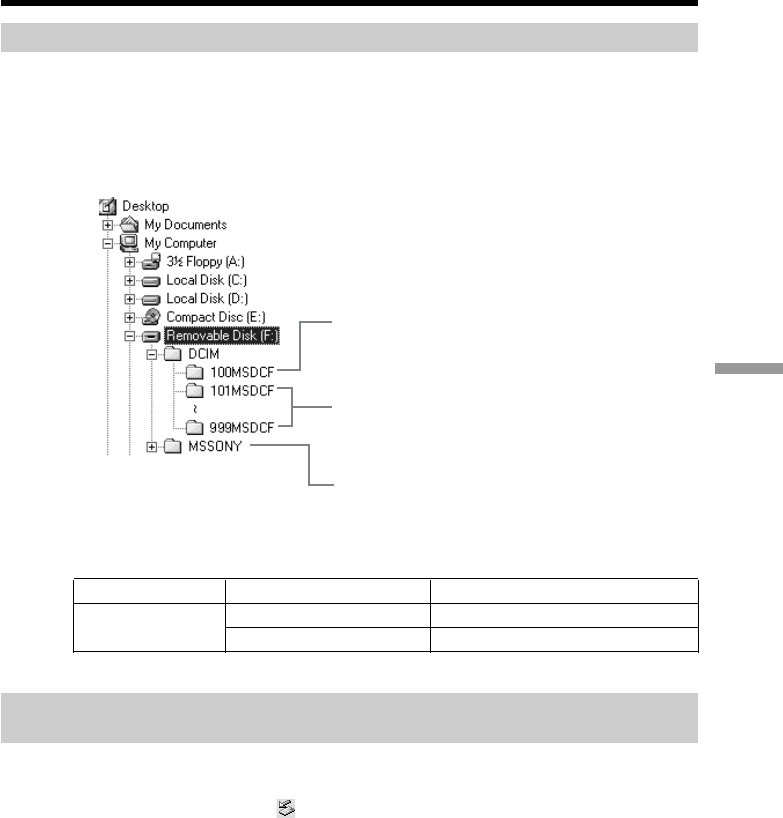

Example: For Windows Me users
(The drive recognizing your camcorder is [F:].)
Folder containing image files recorded using
other camcorders (for playback only)
Folder containing image files recorded with
your camcorder
When no new folders have been created, this
is only “101MSDCF.”
Folder containing moving picture data
recorded using other camcorders (for playback
only)
Folder File Meaning
101MSDCF DSC0ssss.JPG Still image file
(up to 999MSDCF) MOV0ssss.MPG
Moving picture file
When finished, disconnect the USB cable and remove the
“Memory Stick” or set the POWER switch to OFF (CHG)
For Windows 2000, Windows Me, Windows XP users
(1)Move the cursor to the “Unplug or Eject Hardware” on the Task Tray and
click to cancel the applicable drive.
(2)After the “Safe to remove” message appears, disconnect the USB cable and
eject the “Memory Stick” or set the POWER switch to OFF (CHG).
Viewing images recorded on “Memory Stick” on a computer
(For Windows users) (DCR-TRV22/TRV33 only)
170
C
onnecting your camcorder to a
computer using the USB cable (For
Macintosh users) (DCR-TRV22/TRV33 only)
When connecting to a computer with the USB cable
You must install a USB driver onto a computer in order to connect your camcorder to
the computer’s USB port. The USB driver can be found on the CD-ROM supplied, along
with the application software required for viewing images.
Recommended Macintosh environment
Mac OS 8.5.1/8.6/9.0/9.1/9.2 or Mac OS X (v10.0/v10.1/v10.2) standard installation is
required.
However, note that the update to Mac OS 9.0/9.1 should be used for the following
models.
•iMac with the Mac OS 8.6 standard installation and a slot loading type CD-ROM drive
•iBook or Power Mac G4 with the Mac OS 8.6 standard installation
The USB port must be provided as standard.
QuickTime 3.0 or later must be installed to play back moving pictures.
Notes
•Operations are not guaranteed for the Macintosh environment if you connect two or
more USB equipment to a single computer at the same time, or when using a hub.
•Some equipment may not operate depending on the type of USB equipment that is
used simultaneously.
•Operations are not guaranteed for all the recommended computer environments
mentioned above.
•Macintosh, iMac, iBook, Power Mac and Mac OS, QuickTime are trademarks of Apple
Computer Inc.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies. Furthermore, “TM” and “®” are not
mentioned in each case in this manual.
171
Viewing images with your computer
Installing the USB driver
Do not connect the USB cable to a computer before installation of the USB
driver is complete.
For Mac OS 8.5.1/8.6/9.0 users
(1)Turn on the computer and allow the Mac OS to load. If you have been using
the computer, close all softwares.
(2)Insert the supplied CD-ROM in the CD-ROM drive of the computer.
The application software screen appears.
(3)Select “Handycam” on the screen.
The title screen appears.
(4)Click the “USB Driver” to open the folder containing the six files related to
“Driver.”
(5)Select the following two files, and drag and drop them into the System Folder.
•Sony Camcorder USB Driver
•Sony Camcorder USB Shim
(6)When the message appears, click “OK.”
The USB driver is installed on the computer.
(7)Remove the CD-ROM from the computer.
(8)Restart the computer.
For Mac OS 9.1/9.2/Mac OS X (v10.0/v10.1/v10.2)
The USB driver need not be installed. Your camcorder is automatically recognized as a
drive just by connecting your Mac using the USB cable.
Connecting your camcorder to a computer using the USB cable
(For Macintosh users)
(DCR-TRV22/TRV33 only)
Click
172
Viewing images recorded on “Memory
Stick” on a computer (For Macintosh
users) (DCR-TRV22/TRV33 only)
Viewing images
Before operation
•You need to install the USB driver to view the “Memory Stick” images on a computer
(p. 171).
•QuickTime 3.0 or later must be installed to play back moving pictures.
(1)Turn on the computer and allow Mac OS to load.
(2)Insert the “Memory Stick” into your camcorder, then connect the AC Adaptor
to your camcorder.
(3)Set the POWER switch to .
(4)Connect the (USB) jack on your camcorder to the USB port on the computer
using the supplied USB cable.
The USB MODE indicator appears on the screen of your camcorder.
(5)Double-click the “Memory Stick” icon on the desktop.
The folders inside the “Memory Stick” are displayed.
(6)Double-click a desired image file from the folder in this order.
“DCIM” folder t “sssMSDCF” folder1) t Image file2)
1) sss stands for any number (within the range) from 101 to 999.
2) Copying a file to the hard disk of the computer before viewing it is recommended.
If you play back the file directly from the “Memory Stick,” the image and sound
may break off.
When finished, disconnect the USB cable and remove the
“Memory Stick” or set the POWER switch to OFF (CHG)
(1)Close all running applications.
Make sure that the “Memory Stick” access lamp of your camcorder is not lit.
(2)Drag the “Memory Stick” icon into the “Trash.” Alternatively, select the
“Memory Stick” icon by clicking on it, then select “Eject disk” from the
“Special” menu at the top left of the screen.
(3)Disconnect the USB cable and remove the “Memory Stick” or set the POWER
switch to OFF (CHG).
For Mac OS X (v10.0) users
Shut down the computer, then disconnect the USB cable and remove the “Memory
Stick” or set the POWER switch to OFF (CHG).
173
Viewing images with your computer
Capturing images from an analog video
unit on a computer – Signal convert
function (DCR-TRV22/TRV33 only)
You can capture images and sound from an analog video unit connected to a computer
which has the DV port via your camcorder.
Before operation
Set DISPLAY in to LCD in the menu settings. (The default setting is LCD.)
The POWER switch should be set to .
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Select A/V t DV OUT in , then press EXEC (p. 178).
(4)Select ON, then press EXEC.
(5)Start playback on the analog video unit.
(6)Start capturing procedures on the computer.
The operation procedures depend on the computer and the software which
you use.
For details of how to capture images, refer to the operating instructions of the
computer and software.
174
Capturing images from an analog video unit on a computer
– Signal convert function (DCR-TRV22/TRV33 only)
After capturing images and sound
Stop capturing procedures on the computer, and stop playback on the analog video
unit.
Notes
•You need the software and computer that support the exchange of digital video
signals.
•Depending on the condition of the analog video signals, the computer may not be able
to output the images correctly when you convert video signals into digital video
signals via your camcorder. Depending on the analog video unit, the image may
contain noise or incorrect colors.
•You cannot record or capture the video output via your camcorder when the video
tapes include copyright protection signals such as the ID-2 system.
If the computer has a USB port
You can connect using a USB cable, but images may not be transferred smoothly.
If your VCR has an S video jack
See page 45 for details.
175
Customizing Your Camcorder
To change the mode settings in the menu settings, select the menu items with r/R . The
default settings can be partially changed. First, select the icon, then the menu item and
the mode.
The POWER switch should be set to , or (DCR-
TRV22/TRV33 only).
Operate by touching the panel.
(1)Press FN to display PAGE1.
(2)Press MENU to display the menu.
(3)Press r/R to select a desired icon, then press EXEC.
(4)Press r/R to select a desired item, then press EXEC.
(5)Press r/R to select a desired setting, then press EXEC.
(6)Repeat steps 3 to 5 if you want to change other items. Press RET. to return
to step 3.
For details, see “Selecting the mode setting of each item” (p. 176).
To return to FN
Press EXIT.
— Customizing Your Camcorder —
Changing the menu settings
23
4
5
MENU
MANUAL SET
PROGRAM AE
P EFFECT
FLASH MODE
FLASH LVL
WHT BAL
AUTO SHTR
EXIT
RET.
EXEC
MANUAL SET
P EFFECT
EXIT
RET.
EXEC
MANUAL SET
PROGRAM AE
FLASH MODE
FLASH LVL
WHT BAL
EXIT
RET.
EXEC
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
EXIT
EXIT
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
ON
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
ON
OFF
EXIT
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
0 HR
EXIT
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
ON
OFF
EXIT
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
OFF
EXIT
MEMORY
CAMERA
VCR
RET.
EXEC
RET.
EXEC
RET.
EXEC
RET.
EXEC
RET.
EXEC
RET.
EXEC
*
* DCR-TRV22/TRV33 only
176
Changing the menu settings
Menu items are displayed as the following icons:
MANUAL SET
CAMERA SET
VCR SET
LCD/VF SET
MEM SET 1 (DCR-TRV22/TRV33 only)
MEM SET 2 (DCR-TRV22/TRV33 only)
CM SET
TAPE SET
SETUP MENU
OTHERS
Selecting the mode setting of each item z is the default setting.
Menu items differ depending on the position of the POWER switch.
The screen shows only the items you can operate at the moment.
Icon/item
MANUAL SET
PROGRAM AE
P EFFECT
FLASH MODE
FLASH LVL
WHT BAL
AUTO SHTR
*DCR-TRV22/TRV33 only
Mode
——
——
zON
ON
AUTO
AUTO
HIGH
zNORMAL
LOW
——
zON
OFF
Meaning
To suit your specific shooting requirement (p. 62)
To add special effects like those in movies or on
the TV to images (p. 58, 72)
To trigger the flash (optional) regardless of the
brightness of the surroundings
To trigger the flash (optional) regardless of the
brightness of the surroundings. The flash goes off
prematurely to reduce the red-eye phenomenon.
To trigger the flash (optional) automatically
To trigger the flash (optional) automatically. The
flash goes off prematurely to reduce the red-eye
phenomenon.
To make the flash (optional) level higher than
normal
To use the normal setting
To make the flash (optional) level lower than
normal
To adjust the white balance (p. 52)
To automatically activate the electronic shutter
when shooting in bright conditions
Not to activate the electronic shutter even when
shooting in bright conditions
POWER
switch
*
*
*
*
177
Customizing Your Camcorder
Icon/item
CAMERA SET
D ZOOM
16:9WIDE
STEADYSHOT
EDITSEARCH
N.S. LIGHT
*DCR-TRV22/TRV33 only
Notes on SteadyShot
•SteadyShot will not correct excessive camera-shake.
•Attachment of a conversion lens (optional) may influence SteadyShot.
If you cancel SteadyShot
The (SteadyShot off) indicator appears. Your camcorder prevents excessive
compensation for camera-shake.
(continued on the following page)
Mode
zOFF
20×
120×
zOFF
ON
zON
OFF
zOFF
ON
zON
OFF
Meaning
To deactivate the digital zoom. Up to 10× zoom is
carried out.
To activate the digital zoom. More than 10× to 20×
zoom is performed digitally (p. 32).
To activate the digital zoom. More than 10× to
120× zoom is performed digitally.
To not record a 16:9 wide picture
To record a 16:9 wide picture (p. 53)
To compensate for camera-shake
To cancel SteadyShot. Natural pictures are
produced when shooting a stationary subject with
a tripod.
Not to display 7/– · + on the LCD screen
To display 7/– · + on the LCD screen (p. 38)
To use the NightShot Light (p. 34)
To cancel the NightShot Light
POWER
switch
178
Icon/item
VCR SET
HiFi SOUND
AUDIO MIX
A/V t DV OUT*
LCD/VF SET
LCD B.L.
LCD COLOR
VF B.L.
*DCR-TRV22/TRV33 only
Notes on LCD B.L. and VF B.L.
•When you select BRIGHT, battery life is reduced by about 10 percent during
recording.
•When you use power sources other than the battery pack, BRIGHT is automatically
selected.
Even if you adjust LCD B.L., LCD COLOR and VF B.L.
The recorded picture will not be affected.
Mode
zSTEREO
1
2
——
zOFF
ON
z
BRT NORMAL
BRIGHT
——
z
BRT NORMAL
BRIGHT
Changing the menu settings
Meaning
To play back the stereo tape or dual sound track
tape with main and sub sound (p. 198)
To play back the stereo tape with the left sound or
the dual sound track tape with main sound
To play back the stereo tape with the right sound
or the dual sound track tape with sub sound
To adjust the balance between stereo 1 and stereo
2 (p. 100)
To output digital images and sound in analog
format using your camcorder
To output analog images and sound in digital
format using your camcorder (p. 173)
To set the brightness on the LCD screen normal
To brighten the LCD screen
To adjust the color on the LCD screen with r/R
To set the brightness on the viewfinder screen to
normal
To brighten the viewfinder screen
POWER
switch
*
*
*
S
T
1
ST2
Low intensity High intensity
179
Customizing Your Camcorder
Changing the menu settings
Icon/item
MEM SET 1*
STILL SET
BURST**
QUALITY
IMAGESIZE**
MOVIE SET
IMAGESIZE
REMAIN
NEW FOLDER
REC FOLDER
FILE NO.
*DCR-TRV22/TRV33 only
** DCR-TRV33 only
When you select image quality
The number of images you can shoot in the currently selected image quality appears on
the screen. (continued on the following page)
Mode
zOFF
NORMAL
EXP BRKTG
zFINE
STANDARD
z1152 × 864
640 × 480
z320 × 240
160 × 112
zAUTO
ON
zADD
RETURN
——
zSERIES
RESET
Meaning
Not to record continuously
To record from 4 to 13 images continuously (p.
116)
To record 3 images continuously with different
exposure
To record still images in the fine image quality
mode (p. 110)
To record still images in the standard image
quality mode
To record still images in 1152 × 864 size (p. 111)
To record still images in 640 × 480 size
To record moving pictures in 320 × 240 size (p. 112)
To record moving pictures in 160 × 112 size
To display the remaining capacity of the
“Memory Stick” in the following cases:
•For 5 seconds after setting the POWER switch to
MEMORY or VCR
•For 5 seconds after setting the POWER switch to
MEMORY or VCR and inserting the “Memory
Stick”
•When the remaining capacity of the “Memory
Stick” is less than 2 minutes after setting the
POWER switch to MEMORY
•For 5 seconds from the start of moving picture
recording
•For 5 seconds after completing moving picture
recording
To always display the remaining capacity of the
“Memory Stick”
To create a new folder
To cancel creating a new folder
To change image file storage destinations
To assign numbers to files in sequence even if the
“Memory Stick” is changed. However, the file
numbering sequence is reset when a new folder is
made or the recording folder is changed.
To reset the file numbering sequence each time
the “Memory Stick” is changed
POWER
switch
180
Changing the menu settings
Icon/item
MEM SET 2*
SLIDE SHOW
INT. R -STL
DELETE ALL
FORMAT
*DCR-TRV22/TRV33 only
** The folder name is displayed in sss.
Notes on formatting
•Do not do any of the following while the FORMATTING indicator appears:
–Turn the POWER switch to the other position
–Operate buttons
–Eject the “Memory Stick”
•The “Memory Stick” supplied with your camcorder has been formatted at factory.
Formatting with your camcorder is not required.
•You cannot format the “Memory Stick” if the write-protect tab on the “Memory Stick”
is set to LOCK.
•Format the “Memory Stick” if the “ FORMAT ERROR” indicator appears.
•Formatting erases sample images on the “Memory Stick.”
•Formatting erases protected image data on the “Memory Stick.”
•Formatting erases newly created folders.
Mode
RETURN
z ALL FILES
FOLDER
sss**
ON
z OFF
SET
z RETURN
ALL FILES
FOLDER
sss**
zRETURN
OK
Meaning
To cancel slide show
To play back all the images on the “Memory
Stick” executing slide show
To play back all the images in the playback folder
you are selecting executing slide show
To activate Interval Photo Recording (p. 124)
To deactivate Interval Photo Recording
To set INTERVAL for Interval Photo Recording
To cancel deleting all the image
To delete all the unprotected images (p. 145)
To delete all the images in the playback folder you
are selecting
To cancel formatting
To format the inserted “Memory Stick”
Formatting erases all information on the
“Memory Stick.”
Check the contents of the “Memory Stick” before
formatting.
1.Select FORMAT, then press EXEC.
2.Select OK, then press EXEC.
3.After the EXECUTE indicator appears, press
EXEC.
The FORMATTING indicator flashes during
formatting.
The COMPLETE indicator appears when
formatting is complete.
POWER
switch
181
Customizing Your Camcorder
Changing the menu settings
Icon/item
CM SET
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
(continued on the following page)
Mode
——
——
zON
OFF
zON
OFF
——
zRETURN
OK
Meaning
To superimpose a title or make your own title (p.
101, 103)
To erase the title you have superimposed (p. 102)
To display the title you have superimposed
To not display the title (p. 102)
To search using Cassette Memory (p. 76, 77, 79)
To search without using Cassette Memory (p. 78,
79)
To label the cassette (p. 104)
To cancel erasing all the data
To erase all the data in Cassette Memory (p. 105)
POWER
switch
182
Icon/item
TAPE SET
REC MODE
AUDIO MODE
qREMAIN
FRAME REC
INT. REC
*DCR-TRV22/TRV33 only
Notes on the LP mode
•When you record the tape in the LP mode on your camcorder, we recommend playing
back the tape on your camcorder. When you play back the tape on other camcorders
or VCRs, noise may occur in pictures or sound.
•When you record in the LP mode, we recommend using a Sony Excellence/Master
mini DV cassette so that you can get the most out of your camcorder.
•You cannot make audio dubbing on the tape recorded in the LP mode. Use the SP
mode for the tape to be audio dubbed.
•When you record in the SP and LP modes on one tape or you record some scenes in
the LP mode, the playback picture may be distorted or the time code may not be
written properly between scenes.
Notes on AUDIO MODE
•You cannot dub audio sound on the tape recorded in the 16-bit mode.
•When playing back the tape recorded in the 16-bit mode, you cannot adjust the
balance in AUDIO MIX.
Mode
zSP
LP
z12BIT
16BIT
zAUTO
ON
zOFF
ON
ON
zOFF
SET
Meaning
To record in the SP (Standard Play) mode
To increase the recording time to 1.5 times the SP
mode
To record in the 12-bit mode (2 stereo sounds)
To record in the 16-bit mode (1 stereo sound with
high quality)
To display the remaining tape:
•For about 8 seconds after setting the POWER
switch to VCR or CAMERA and inserting a
cassette, then your camcorder calculates the
remaining amount of tape
•For about 8 seconds after DSPL/BATT INFO is
pressed twice
•For about 8 seconds after setting the POWER
switch to VCR and is pressed
To always display the remaining tape indicator
To deactivate frame recording
To activate frame recording (p. 69)
To activate Interval Recording (p. 68)
To deactivate Interval Recording
To set INTERVAL and REC TIME for Interval
Recording
POWER
switch
*
Changing the menu settings
183
Customizing Your Camcorder
Changing the menu settings
Icon/item
SETUP MENU
CLOCK SET
USB STREAM
LANGUAGE
DEMO MODE
*DCR-TRV22/TRV33 only
Notes on DEMO MODE
•You cannot select DEMO MODE when the cassette or the “Memory Stick” (DCR-
TRV22/TRV33 only) is inserted in your camcorder.
•When NIGHTSHOT is slid to ON, the ”NIGHTSHOT” indicator appears on the screen
and you cannot select DEMO MODE in the menu settings.
•If you press the touch panel during the demonstration, the demonstration stops for a
while, then it starts again after about 10 minutes.
•DEMO MODE is set to STBY (Standby) at the default setting and the demonstration
starts about 10 minutes after you have set the POWER switch to CAMERA without
the cassette and the “Memory Stick” inserted.
To cancel the demonstration, insert the cassette, set the POWER switch to other than
CAMERA, or set DEMO MODE to OFF. To set to STBY (Standby) again, leave the
DEMO MODE at ON in the menu settings, set the POWER switch OFF (CHG), then
back to CAMERA.
(continued on the following page)
Meaning
To set the date or time (p. 22)
To deactivate the USB Streaming function
To activate the USB Streaming function
To display the information indicators in English
To display the information indicators in French
To display the information indicators in Spanish
To display the information indicators in
Portuguese
To display the information indicators in Chinese
To display the information indicators in Korean
To make the demonstration appear
To cancel the demonstration mode
POWER
switch
*
*
Mode
——
zOFF
ON
zENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
zON
OFF
184
Icon/item
OTHERS
DATA CODE
(On the Remote
Commander)
WORLD TIME
BEEP
COMMANDER
DISPLAY
Meaning
To display date, time and various settings during
playback when you press DATA CODE on the
Remote Commander (p. 41)
To display date and time during playback when
you press DATA CODE on the Remote
Commander
To set the clock to the local time. Press r/R to set a
time difference. The clock changes by the time
difference you set here. If you set the time
difference to 0, the clock returns to the originally
set time.
To output the melody when you start/stop
recording or when an unusual condition occurs
on your camcorder
To output the beep instead of the melody
To cancel melody, the beep sound and shutter
sound
To activate the Remote Commander supplied
with your camcorder
To deactivate the Remote Commander to avoid
remote control misoperation caused by other
VCR’s remote control
To show the display on the LCD screen and
viewfinder
To show the display on the TV screen, LCD screen
and viewfinder
POWER
switch
*
*
*
*
*
Mode
zDATE/CAM
DATE
——
zMELODY
NORMAL
OFF
zON
OFF
zLCD
V-OUT/LCD
Changing the menu settings
*DCR-TRV22/TRV33 only
Note
If you press DSPL/BATT INFO with DISPLAY set to V-OUT/LCD in the menu
settings, the picture from a TV or VCR will not appear on the LCD screen even when
your camcorder is connected to the output jacks on the TV or VCR.
185
Customizing Your Camcorder
*DCR-TRV22/TRV33 only
When recording a close subject
When REC LAMP is set to ON, the red camera recording lamp on the front of your
camcorder may reflect on the subject if it is close. In this case, we recommend you set
REC LAMP to OFF.
In more than 5 minutes after removing the power source
The PROGRAM AE, FLASH LVL, AUDIO MIX, WHT BAL, HiFi SOUND and
COMMANDER items are returned to their default settings.
Other menu items are held in memory even when the power source is removed.
Changing the menu settings
Icon/item
OTHERS
REC LAMP
VIDEO EDIT
Meaning
To light up the camera recording lamp at the front
of your camcorder
To turn the camera recording lamp off so that the
person is not aware of the recording
To cancel Digital program editing
To make programs and perform Digital program
editing on the tape (p. 85)
To make programs and perform Digital program
editing on the “Memory Stick” (p. 130)
POWER
switch
*
Mode
zON
OFF
zRETURN*
TAPE*
MEMORY*
186
If you run into any problem using your camcorder, use the following table to
troubleshoot the problem. If the problem persists, disconnect the power source and
contact your Sony dealer. If “C:ss:ss” appears on the screen, the self-diagnosis
display function has activated. See page 194.
During recording
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to CAMERA.
cSet it to CAMERA (p. 9, 25).
•Your camcorder automatically turns off to prevent the
battery pack from running out and to protect the tape
when your camcorder has been during recording standby
for more than 5 minutes.
cSet the POWER switch to OFF (CHG) and then to
CAMERA.
•The tape has run out.
cRewind the tape or insert a new one (p. 8, 39).
•The write-protect tab is set to expose the red mark.
cUse a new cassette or slide the tab (p. 198).
•The tape is stuck to the drum (moisture condensation).
cRemove the cassette and leave your camcorder for at
least 1 hour to acclimatize (p. 205).
•Your camcorder automatically turns off to prevent the
battery pack from running out and to protect the tape
when your camcorder has been during recording standby
for more than 5 minutes.
cSet the POWER switch to OFF (CHG) and then to
CAMERA.
•The battery pack is dead or nearly dead.
cInstall a fully charged battery pack.
• The viewfinder is not extended.
cExtend the viewfinder (p. 31).
•The viewfinder lens is not adjusted.
cAdjust the viewfinder lens (p. 31).
•STEADYSHOT is set to OFF in the menu settings.
cSet it to ON (p. 177).
•The setting is the manual focus.
cPress FOCUS to set to the autofocus (p. 66).
•Shooting conditions are not suitable for autofocus.
cAdjust to focus manually (p. 66).
•The LCD panel is open.
cClose the LCD panel.
START/STOP does not operate.
The power goes off.
The picture in the viewfinder is not
clear.
SteadyShot does not work.
The autofocusing function does
not work.
The picture does not appear in the
viewfinder.
— Troubleshooting —
Types of trouble and how to correct trouble
187
Troubleshooting
Types of trouble and how to correct trouble
Symptom Cause and/or Corrective Actions
•The contrast between the subject and background is too
high. This is not a malfunction.
•This is not a malfunction.
• SLOW SHTR, Super NightShot* or Color Slow Shutter* is
activated. This is not a malfunction.
•If 10 minutes elapse after you set the POWER switch to
CAMERA or DEMO MODE is set to ON in the menu
settings without a cassette and the “Memory Stick”*
inserted, your camcorder automatically starts the
demonstration.
cInsert a cassette/a “Memory Stick”* or press the LCD
screen. The demonstration stops. You can also set
DEMO MODE to OFF in the menu settings (p. 183).
• NIGHTSHOT is slid to ON.
cSlide it to OFF (p. 34).
•NIGHTSHOT is slid to ON in a bright place.
cSlide it to OFF (p. 34).
•The back light function is active.
cDeactivate it (p. 33).
•BEEP is set to OFF in the menu settings.
cSet it to MELODY or NORMAL (p. 184).
cSet STEADYSHOT to OFF in the menu settings (p. 177).
•The power of the external flash (optional) is off or the
power source is not installed.
cTurn on the external flash (optional) or install the power
source.
•2 or more external flashes (optional) are attached.
cOnly 1 external flash (optional) can be attached.
• PORTRAIT or SPORTS of PROGRAM AE is on when
recording in light from a discharge tube such as a
fluorescent lamp, sodium lamp or mercury lamp.
cSet PROGRAM AE to AUTO in the menu settings.
*DCR-TRV22/TRV33 only (continued on the following page)
A vertical band appears when you
shoot a subject such as lights or a
candle flame against a dark
background.
A vertical band appears when you
shoot a very bright subject.
Some tiny spots in white, red, blue
or green appear on the screen.
An unknown picture appears on
the screen.
The picture is recorded in incorrect
or unnatural colors.
Picture appears too bright, and the
subject does not appear on the
screen.
The click of the shutter does not
sound.
Black bands appear when you
record a TV screen or computer
screen.
An external flash (optional) does
not work.
Flickering or changes in color
occurs.
188
During playback
Symptom Cause and/or Corrective Actions
•The tape has run out.
cRewind the tape (p. 39).
•The video head may be dirty.
cClean the head using the cleaning cassette (optional) (p.
206).
•The stereo tape is played back with HiFi SOUND set to 2
in the menu settings.
cSet HiFi SOUND to STEREO (p. 178).
• Volume is turned to minimum.
cTurn up the volume (p. 39).
•AUDIO MIX is set to the ST2 side in the menu settings.
cAdjust AUDIO MIX (p. 178).
•The video head may be dirty.
cClean the head using the cleaning cassette (optional) (p.
206).
•The cassette has no Cassette Memory.
cUse a cassette with Cassette Memory (p. 77).
•CM SEARCH is set to OFF in the menu settings.
cSet it to ON (p. 181).
•The tape has a blank portion in the recorded portion (p.
78).
•The cassette has no Cassette Memory.
cUse a cassette with Cassette Memory (p. 76).
•CM SEARCH is set to OFF in the menu settings.
cSet it to ON (p. 181).
•There is no title in the tape.
cSuperimpose the titles (p. 101).
•The tape has a blank portion in the recorded portion (p.
76).
•AUDIO MIX is set to the ST1 side in the menu settings.
cAdjust AUDIO MIX (p. 178).
•TITLE DSPL is set to OFF in the menu settings.
cSet it to ON (p. 181).
•The TV color system recorded on the tape is different from
that of the TV.
Playback is not possible.
There are horizontal lines on the
picture or the playback picture is
not clear or does not appear.
No sound or only a low sound is
heard when playing back the tape.
The sound breaks off.
Displaying the record date, date
search does not work.
Title search does not work.
New sound added to the recorded
tape is not heard.
The title is not displayed.
Picture is distorted and PAL
appears on the screen.
Types of trouble and how to correct trouble
189
Troubleshooting
During recording and playback
Symptom Cause and/or Corrective Actions
• The battery pack is not installed, or is dead or nearly dead.
cInstall a charged battery pack (p. 16, 17).
•The AC Adaptor is not connected to a wall outlet.
cConnect the AC Adaptor to a wall outlet (p. 8).
• The cassette was ejected after recording when using a
cassette without Cassette Memory (p. 37).
•You have not recorded on the new cassette yet (p. 37).
•The tape has a blank portion in the beginning or middle
(p. 37).
•The temperature of the environment is too low.
•The battery pack is not fully charged.
cCharge the battery pack fully again (p. 17).
•The battery pack is completely dead, and cannot be
recharged.
cReplace with a new battery pack (p. 200).
•You have used the battery pack in an extremely hot or
cold environment for a long time.
•The battery pack is completely dead, and cannot be
recharged.
cReplace with a new battery pack (p. 200).
•The battery pack is not fully charged.
cInstall a fully charged battery pack (p. 16, 17).
•A deviation has occurred in the remaining battery time.
cCharge the battery pack fully again so that the indication
on the remaining battery time indicator is correct (p.
201).
•A deviation has occurred in the remaining battery time.
cCharge the battery pack fully again so that the indication
on the remaining battery time indicator is correct (p.
201).
•The power source is disconnected.
cConnect it firmly (p. 8, 17).
•The battery pack is dead.
cUse a charged battery pack (p. 16, 17).
•Moisture condensation has occurred.
cRemove the cassette and leave your camcorder for at
least 1 hour to acclimatize (p. 205).
•The gold-plated connector of the tape is dirty or dusty.
cClean the gold-plated connector (p. 199).
•q REMAIN is set to AUTO in the menu settings.
cSet it to ON to always display the remaining tape
indicator (p. 182).
(continued on the following page)
The power does not turn on.
End search does not work.
End search does not work
correctly.
The battery pack is quickly
discharged.
The remaining battery time
indicator does not indicate the
correct time.
The power goes off although the
remaining battery time indicator
indicates that the battery pack has
enough power to operate.
The cassette cannot be ejected from
the compartment.
The % and Z indicators flash and
no functions except for cassette
ejection work.
The indicator does not appear
when using the cassette with
Cassette Memory.
The remaining tape indicator is not
displayed.
Types of trouble and how to correct trouble
190
When operating using the “Memory Stick” (DCR-TRV22/TRV33
only)
Symptom Cause and/or Corrective Actions
•The POWER switch is not set to MEMORY.
cSet it to MEMORY (p. 11).
•The “Memory Stick” is not inserted.
cInsert the “Memory Stick” (p. 10, 109).
•The “Memory Stick” has already been recorded to its full
capacity.
cDelete unnecessary images and record again (p. 143).
•The “Memory Stick” formatted incorrectly is inserted.
cFormat the “Memory Stick” using your camcorder or
use another “Memory Stick” (p. 107, 180).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
cRelease the lock (p. 106).
•The image is protected.
cCancel image protection (p. 142).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
cRelease the lock (p. 106).
•You tried to delete more than 100 images in one session.
cYou can select up to 100 images on the INDEX screen in
one session (p. 144).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
cRelease the lock (p. 106).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
cRelease the lock (p. 106).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
cRelease the lock (p. 106).
•The index screen does not appear.
cPress INDEX to display the index screen, then protect
the image (p. 142).
The “Memory Stick” does not
function.
Recording does not function.
The image cannot be deleted.
You cannot format the “Memory
Stick.”
Deleting all the images cannot be
carried out.
You cannot protect the image.
Types of trouble and how to correct trouble
191
Troubleshooting
Types of trouble and how to correct trouble
Symptom Cause and/or Corrective Actions
• The write-protect tab on the “Memory Stick” is set to
LOCK.
cRelease the lock (p. 106).
•The index screen does not appear.
cPress INDEX to display the index screen, then write a
print mark (p. 147).
•You are trying to write a print mark on a moving picture.
cPrint marks cannot be written to a moving picture.
•A print mark is written on 999 files.
cA print mark can only be written on up to 999 files.
• Images recorded using other camcorders may not be
resized.
•You may not be able to play back images in actual size
when you try to play back images recorded by other
equipment. This is not a malfunction.
•Your camcorder may not be able to play back some images
processed with the computer or whose folder or file names
have been changed with the computer.
•If you record images with any other equipment, the
images may not be played back normally on your
camcorder.
(continued on the following page)
You cannot write a print mark on
the still image.
You cannot resize the image.
(DCR-TRV33 only)
You cannot play back images in
actual size.
You cannot play back image data.
192
Others
Symptom Cause and/or Corrective Actions
•The cassette has no Cassette Memory.
cUse the cassette with Cassette Memory (p. 101).
• The Cassette Memory is full.
cErase unnecessary title (p. 102).
•The cassette is set to prevent accidental erasure.
cSlide the write-protect tab so that red portion is not
visible (p. 198).
•The tape has a blank portion in the recorded portion.
cSuperimpose the title to the recorded portion (p. 101).
•The cassette has no Cassette Memory.
cUse the cassette with Cassette Memory (p. 104).
• The Cassette Memory is full.
cErase unwanted data (p. 105).
•The tape is set to prevent accidental erasure.
cSlide the write-protect tab so that red portion is not
visible (p. 198).
•The input selector on the VCR is not set correctly.
cSet the selector correctly, then check the connection
between the VCR and your camcorder (p. 81, 92).
•Your camcorder is connected to DV equipment of other
than Sony using the i.LINK cable.
cSet it to IR (p. 85).
•Setting program on a blank portion of the tape is
attempted.
cSet the program again on a recorded portion (p. 90).
•The synchronization of your camcorder and the VCR is
not adjusted.
cAdjust the synchronization of the VCR (p. 88).
•The IR SETUP code is not correct.
cSet the correct code (p. 87).
•Setting program on a blank portion of the tape is
attempted.
cSet the program again on a recorded portion (p. 130).
•COMMANDER is set to OFF in the menu settings.
cSet it to ON (p. 184).
•Something is blocking the infrared rays.
cRemove the obstacle.
• The batteries are inserted in the battery holder with the + –
polarities not matching the + – marks.
cInsert the batteries with the correct polarity (p. 217).
•The batteries are dead.
cInsert new ones (p. 217).
•DISPLAY is set to V-OUT/LCD in the menu settings.
cSet it to LCD (p. 184).
A title is not recorded.
A cassette label is not recorded.
Digital program editing to the tape
does not function.
Digital program editing to the
“Memory Stick” does not function.
(DCR-TRV22/TRV33 only)
The Remote Commander supplied
with your camcorder does not
work.
The picture from a TV or VCR
does not appear even when your
camcorder is connected to the
outputs on the TV or VCR.
Types of trouble and how to correct trouble
193
Troubleshooting
Symptom Cause and/or Corrective Actions
•Moisture condensation has occurred.
cRemove the cassette and leave your camcorder for at
least 1 hour to acclimatize (p. 205).
•Some troubles have occurred in your camcorder.
cRemove the cassette and insert it again, then operate
your camcorder.
cDisconnect the AC Adaptor from a wall outlet or
remove the battery pack, then reconnect it in about 1
minute. Turn the power on. If the functions still do not
work, press the RESET button using a sharp-pointed
object. (If you press the RESET, all the settings including
the date and time return to the default.) (p. 213)
•This is because some functions use a linear mechanism.
This is not a malfunction.
•The battery pack is not properly installed.
cInstall it properly (p. 16).
•The POWER switch is not set to OFF (CHG).
cSet it to OFF (CHG) (p. 17).
cCharge the battery pack fully again (p. 17).
•The battery pack is not properly installed.
cInstall it properly (p. 16).
•Something is wrong with the battery pack.
cPlease contact your Sony dealer or local authorized Sony
service facility.
•DSPL/BATT INFO is pressed.
cPress the LCD screen lightly.
cPress DSPL/BATT INFO on your camcorder or
DISPLAY on the Remote Commander (p. 40).
cAdjust the screen (CALIBRATION) (p. 207).
• The USB cable was connected before installation of the
USB driver was complete.
cUninstall the incorrect USB driver and reinstall the
USB driver (p. 153, 171).
•USB STREAM is set to OFF in the menu settings.
cSet it to ON (p. 183).
•Moisture has started to condense in your camcorder (p.
205).
cRemove the battery pack, then install it again (p. 16).
The melody or beep sounds for
5 seconds.
No function works though the
power is on.
When you set the POWER switch
to VCR or OFF (CHG), if you move
your camcorder, you may hear a
clattering sound from inside your
camcorder. (DCR-TRV33 only)
While charging the battery pack,
no indicator appears.
You cannot charge the battery
pack.
The power runs out quickly, even
though the remaining battery time
indicator is full.
While charging the battery pack,
the CHG (charge) lamp flashes.
The buttons do not appear on the
touch panel.
The buttons on the LCD screen do
not work.
Image data cannot be transferred
to your computer by the USB
connection.
The cassette cannot be ejected even
if the cassette lid is open.
The cassette cannot be ejected.
Types of trouble and how to correct trouble
194
C:21:00
Self-diagnosis display
5-digit display Cause and/or Corrective Actions
• You are using a battery pack that is not an
“InfoLITHIUM” battery pack.
cUse an “InfoLITHIUM” battery pack (p. 17, 200).
•Moisture condensation has occurred.
cEject the cassette and leave your camcorder for at least
1 hour to acclimatize (p. 205).
•The video heads are dirty.
cClean the heads using the cleaning cassette (optional) (p.
206).
•A malfunction other than the above that you can service
has occurred.
cEject the cassette and insert it again, then operate your
camcorder. Do not perform this operation if moisture
starts to condense (p. 205).
cDisconnect the power cord of the AC Adaptor or
remove the battery pack. After reconnecting the power
source, operate your camcorder.
cReplace the cassette.
•A malfunction that you cannot service has occurred.
cContact your Sony dealer or local authorized Sony
service facility and inform them of the 5-digit code.
(e.g. E:61:10)
If you are unable to rectify the problem even if you try corrective actions a few times,
contact your Sony dealer or local authorized Sony service facility.
Your camcorder has a self-diagnosis display
function.
This function displays the current condition
of your camcorder as a 5-digit code (a
combination of a letter and figures) on the
LCD screen or viewfinder. If a 5-digit code
appears, check the following code chart. The
last 2 digits (indicated by ss) will differ
depending on the state of your camcorder.
LCD screen or Viewfinder
Self-diagnosis display
•C:ss:ss
You can service your camcorder
yourself.
•E:ss:ss
Contact your Sony dealer or local
authorized Sony service facility.
C:04:ss
C:21:ss
C:22:ss
C:31:ss
C:32:ss
E:20:ss
E:61:ss
E:62:ss
195
Troubleshooting
Warning indicators
101-0001 Warning indicator as to file2)
Slow flashing:
•The file is corrupted.
•The file is unreadable.
•You are trying to carry out MEMORY MIX
on moving pictures (p. 120).
C:21:00 Self-diagnosis display (p. 194)
EThe battery pack is dead or nearly dead
Slow flashing:
•The battery pack is nearly dead.
Depending on operational, environmental
or battery conditions the E indicator may
flash, even if there are approximately 5 to
10 minutes remaining.
%Moisture condensation has occurred1)
Fast flashing:
•Eject the cassette, set the POWER switch to
OFF (CHG), and leave it for about 1 hour
with the cassette lid open (p. 205).
Warning indicator as to cassette
memory
1)
Slow flashing:
•No cassette with cassette memory is
inserted (p. 197).
Warning indicator as to the “Memory
Stick”
2)
Slow flashing:
•No “Memory Stick” is inserted.
Fast flashing:
•The image cannot be recorded on the
“Memory Stick.”1)
Warning indicator as to the “Memory
Stick” formatting1) 2)
Fast flashing:
•The “Memory Stick” data is corrupted (p.
109).
•The “Memory Stick” is not formatted
correctly (p. 180).
Warning indicator as to incompatible
“Memory Stick”1) 2)
Slow flashing:
•An incompatible “Memory Stick” is
inserted.
If indicators appear on the screen, check the following:
See the page in parentheses “( )” for details.
QWarning indicator as to the tape
Slow flashing:
•The tape is near the end.
•No cassette is inserted.1)
•The write-protect tab of the cassette is
effective (red) (p. 198).1)
Fast flashing:
•The tape has run out.1)
ZYou need to eject the cassette1)
Slow flashing:
•The write-protect tab on the cassette is
effective (red) (p. 198).
Fast flashing:
•Moisture condensation has occurred (p.
205).
•The tape has run out.
•The self-diagnosis display function is
activated (p. 194).
-The image is protected1) 2)
Slow flashing:
•The image is protected (p. 142).
Warning indicator as to the flash
(optional)
Slow flashing:
•During charging
Fast flashing:
•The self-diagnosis display function is
activated (p. 194).1)
•There is something wrong with the external
flash (optional).
Warning indicator as to still image
recording
Slow flashing:
•The still image cannot be recorded on the
“Memory Stick” (p. 47).2)
•The still image cannot be recorded on the
tape (p. 48).3)
1) You hear the melody or beep sound.
2) DCR-TRV22/TRV33 only
3) DCR-TRV19 only
196
If messages appear on the screen, check the following. See the page in parentheses
“( )” for details.
•CLOCK SET Set the date and time (p. 22).
•FOR ”InfoLITHIUM” Use an “InfoLITHIUM” battery pack (p. 17).
BATTERY ONLY
• CLEANING CASSETTE The video heads are dirty (p. 206).
The x indicator and “ CLEANING CASSETTE“ message
appear one after another on the screen.
•COPY INHIBIT You tried to record a picture that has a copyright control signal
(p. 197).1)
• FULL The Cassette Memory is full (p. 102, 104, 105).1)
• 16BIT AUDIO MODE is set to 16BIT.1) You cannot dub new sound (p.
99, 182).
• REC MODE REC MODE is set to LP.1) The tape was recorded in different
color system. You cannot dub new sound (p. 99, 182).
• TAPE There is no recorded portion on the tape.1) You cannot dub new
sound (p. 99).
• ”i.LINK” CABLE i.LINK cable is connected.1) You cannot dub new sound (p. 99).
• FULL3) The “Memory Stick” is full (p. 117).1)
• -3)
The write-protect tab on the “Memory Stick” is set to LOCK
(p. 106)
.
1)
• NO FILE3) No image is recorded or recognized on the “Memory Stick”.1)
• NO MEMORY STICK3) No “Memory Stick” is inserted.1)
• AUDIO ERROR3) You are trying to record an image with sound that cannot be
recorded by your camcorder on the “Memory Stick” (p. 128).1)
• MEMORY STICK ERROR3) The “Memory Stick” data is corrupted (p. 109).1)
• FORMAT ERROR3) The “Memory Stick” is not recognized (p. 109).1)
Check the format.
• PLAY ERROR3) The image is distorted and cannot be played back.1) 2)
• REC ERROR3) Turn the power off once, then on again.1)
• INCOMPATIBLE The “Memory Stick” inserted is not compatible
MEMORY STICK3) with your camcorder.1)
•
READ-ONLY MEMORY STICK
3) A read-only “Memory Stick” is inserted.1)
•Q Z TAPE END The tape has reached the end of the tape.1)
•Q NO TAPE Insert a cassette.1)
•DELETING3) You press PHOTO on your camcorder while deleting data in
the “Memory Stick.”1)
•FORMATTING3) You press PHOTO on your camcorder while formatting the
“Memory Stick.”1)
• NOW CHARGING Charging an external flash (optional) does not work correctly.1)
•FOLDER NO. FULL3) You have reached the maximum number of folders that can be
created.1)
•
USB STREAMING ON GOING
3) USB streaming is being performed.
1) You hear the melody or beep sound.
2) Reinsert the “Memory Stick” and play back.
3) DCR-TRV22/TRV33 only
Warning messages
197
Additional Information
— Additional Information —
Usable cassettes
Selecting cassette types
You can use the mini DV cassette only.* You cannot use any other 8 mm ,
Hi8 , Digital8 , VHS , VHSC , S-VHS , S-VHSC , Betamax ,
ED Betamax , DV or MICROMV cassette.
* There are 2 types of mini DV cassettes: with Cassette Memory and without Cassette
Memory.
Cassettes with Cassette Memory have (Cassette Memory) mark.
We recommend that you use cassettes with Cassette Memory.
IC memory is mounted on this type of cassette. Your camcorder can read and write
data such as dates of recording or titles, etc. to this memory.
The functions using the Cassette Memory require successive signals recorded on the
tape. If the tape has a blank portion at the beginning or between recorded portions,
titles may not be displayed properly or the search functions may not work properly.
Perform the following to prevent a blank portion from being made on the tape.
Press END SCH to go to the end of the recorded portion before you begin the next
recording if you operate the following:
–You have ejected the cassette during recording.
–You have played back the tape.
–You have used edit search.
If there is a blank portion or discontinuous signal on the tape, re-record from the
beginning to the end of the tape as described above.
The same result may occur when you record using a digital video camera recorder
without Cassette Memory on the tape recorded by one with the Cassette Memory.
mark on the cassette
The memory capacity of the tape marked with is 4K bits. Your camcorder can
accommodate up to 16K bits. 16K bits tape is marked with .
This is the Mini DV mark.
This is the Cassette Memory mark.
These are trademarks.
Copyright signal
When you play back
If the tape you play back on your camcorder contains copyright signals, you cannot
copy it with another video camera connected to your camcorder.
When you record
You cannot record software on your camcorder that contains copyright control
signals for copyright protection of software.
The COPY INHIBIT indicator appears on the screen, or on the TV screen if you try to
record such software. Your camcorder does not record copyright control signals on the
tape when it records.
198
Audio mode
12-bit mode:The original sound can be recorded in stereo 1, and the new sound in
stereo 2 in 32 kHz. The balance between stereo 1 and stereo 2 can be
adjusted by selecting AUDIO MIX in the menu settings during playback.
Both sounds can be played back.
16-bit mode:A new sound cannot be recorded but the original sound can be recorded in
high quality. Moreover, it can also play back sound recorded in 32 kHz,
44.1 kHz or 48 kHz. When playing back the tape recorded in the 16-bit
mode, the 16BIT indicator appears on the screen.
When you play back a dual sound track tape
When you play back a dual sound track tape recorded in a stereo system, set HiFi
SOUND in to a desired mode in the menu settings (p. 178).
Sound from speaker
HiFi Sound Mode Playing back the stereo tape Playing back the dual
sound track tape
STEREO Stereo Main sound and sub sound
1L channel Main sound
2R channel Sub sound
You cannot record dual sound programs on your camcorder.
Notes on the cassette
To prevent accidental erasure
Slide the write-protect tab on the cassette to expose the red mark.
When affixing a label on the cassette
Be sure to affix a label only on the locations as illustrated below [a] so as not to cause
malfunction of your camcorder.
After using the cassette
Rewind the tape to the beginning, put the cassette in its case, and store it in an upright
position.
Usable cassettes
[a]
Do not affix a label around this
border.
199
Additional Information
Usable cassettes
When the Cassette Memory function does not work
Reinsert a cassette. The gold-plated connector of mini DV cassettes may be dirty or
dusty.
Cleaning gold-plated connector
If the gold-plated connector on the cassette is dirty or dusty, the remaining tape
indicator sometimes does not appear correctly, and you may not be able to operate
functions using Cassette Memory.
Clean up the gold-plated connector with a cotton-wool swab, about every 10 times
ejection of a cassette. [b]
[b]
200
About the “InfoLITHIUM” battery pack
This unit is compatible with the “InfoLITHIUM” battery pack (M series). Your
camcorder operates only with the “InfoLITHIUM” battery pack. “InfoLITHIUM” M
series battery packs have the mark.
What is the “InfoLITHIUM” battery pack?
The “InfoLITHIUM” battery pack is a lithium-ion battery pack that has functions for
communicating information related to operating conditions between your camcorder
and an optional AC adaptor/charger.
The “InfoLITHIUM” battery pack calculates the power consumption according to the
operating conditions of your camcorder, and displays the remaining battery time in
minutes. With an AC adaptor/charger (optional), the remaining battery time and
charging time appear.
Charging the battery pack
•Be sure to charge the battery pack before you start using your camcorder.
•We recommend charging the battery pack in an ambient temperature of between
10°C to 30°C (50°F to 86°F) until the CHG lamp goes out. If you charge the battery
outside of this temperature range, you may not be able to efficiently charge the battery
pack.
•After charging is complete, either disconnect the cable from the DC IN jack on your
camcorder or remove the battery pack.
Effective use of the battery pack
•Battery pack performance decreases in 10°C (50°F) or below surroundings. So, the
time that the battery pack can be used becomes shorter. We recommend the following
to use the battery pack longer:
–Put the battery pack in a pocket to warm it up, and insert it in your camcorder
immediately before you start taking shots.
–Use the large capacity battery pack
(NP-FM50/FM70/QM71/QM71D/FM91/QM91/QM91D, optional).
•Frequently using the LCD screen or frequently operating playback, fast forward or
rewind wears out the battery pack faster. We recommend using the large capacity
battery pack (NP-FM50/FM70/QM71/QM71D/FM91/QM91/QM91D, optional).
•Be certain to set the POWER switch to OFF (CHG) when not taking shots or playing
back on your camcorder. The battery pack is also consumed when your camcorder is
during tape recording standby or playback pause.
•Have spare battery packs handy for 2 or 3 times the expected recording time, and
make trial recordings before taking the actual recording.
•Do not expose the battery pack to water. The battery pack is not water resistant.
201
Additional Information
About the “InfoLITHIUM” battery pack
Remaining battery time indicator
•If the power goes off although the remaining battery time indicator indicates that the
battery pack has enough power to operate, charge the battery pack fully again so that
the indication on the remaining battery time indicator is correct. Note, however, that
the correct battery indication sometimes will not be restored if it is used in high
temperatures for a long time or left in a fully charged state, or the battery pack is
frequently used. Regard the remaining battery time indication as the approximate
shooting time.
•The E mark indicating little remaining battery time sometimes flashes depending on
the operating conditions or ambient temperature and environment even if the
remaining battery time is about 5 to 10 minutes.
How to store the battery pack
•If the battery pack is not used for a long time, do the following procedure once per
year to maintain proper function.
1. Fully charge the battery pack.
2. Discharge on your electronic equipment.
3. Remove the battery pack from the equipment and store it in a dry, cool place.
•To use the battery pack up on your camcorder, leave your camcorder during tape
recording standby until the power goes off without a cassette inserted.
Battery life
•The battery life is limited. Battery capacity drops little by little as you use it more and
more, and as time passes. When the available battery time is shortened considerably, a
probable cause is that the battery pack has reached the end of its life. Please buy a new
battery pack.
•The battery life varies depending on how it is stored and operating conditions and
environment for each battery pack.
“InfoLITHIUM” is a trademark of Sony Corporation.
202
The DV Interface on this unit is an i.LINK-compliant DV Interface. This section
describes the i.LINK standard and its features.
What is i.LINK?
i.LINK is a digital serial interface for handling digital video, digital audio and other
data in 2 directions between equipment having the i.LINK, and for controlling other
equipment.
i.LINK-compatible equipment can be connected by a single i.LINK cable. Possible
applications are operations and data transactions with various digital AV equipment.
When 2 or more i.LINK-compatible equipment are connected to this unit in a daisy
chain, operations and data transactions are possible with not only the equipment that
this unit is connected to but also with other devices via the directly connected
equipment.
Note, however, that the method of operation sometimes varies according to the
characteristics and specifications of the equipment to be connected, and that operations
and data transactions are sometimes not possible on some connected equipment.
Note
Normally, only 1 piece of equipment can be connected to this unit by the i.LINK cable.
When connecting this unit to i.LINK-compatible equipment having 2 or more DV
Interfaces, refer to the operating instructions of the equipment to be connected.
About the name “i.LINK”
i.LINK is a more familiar term for IEEE 1394 data transport bus proposed by Sony, and
is a trademark approved by many corporations.
IEEE 1394 is an international standard standardized by the Institute of Electrical and
Electronics Engineers.
i.LINK baud rate
i.LINK’s maximum baud rate varies according to the equipment. Three maximum baud
rates are defined:
S100 (approx. 100Mbps*)
S200 (approx. 200Mbps)
S400 (approx. 400Mbps)
The baud rate is listed under “Specifications” in the operating instructions of each
equipment. It is also indicated near the i.LINK on some equipment.
The maximum baud rate of equipment on which it is not indicated such as this unit is
“S100.”
When units are connected to equipment having a different maximum baud rate, the
baud rate sometimes differs from the indicated baud rate.
*What is Mbps?
Mbps stands for megabits per second, or the amount of data that can be sent or received
in 1 second. For example, a baud rate of 100Mbps means that 100 megabits of data can
be sent in 1 second.
About i.LINK
203
Additional Information
i.LINK functions on this unit
For details on how to dub when this unit is connected to other video equipment having
DV Interface, see page 81 and 93.
This unit can also be connected to other i.LINK (DV Interface) compatible equipment
made by Sony (e.g. VAIO series personal computer) other than video equipment.
Before connecting this unit to your computer, make sure that application software
supported by this unit is already installed on your computer.
Some video equipment such as digital TV, DVD, MICRO MV may not be compatible
with the DV Interface even if they have an i.LINK jack. Make sure that the equipment is
compatible with the DV Interface before connecting.
For details on precautions when connecting this unit, also refer to the operating
instructions for the equipment to be connected.
Required i.LINK cable
Use the Sony i.LINK 4-pin-to-4-pin cable (during DV dubbing).
i.LINK and are trademarks.
About i.LINK
204
Using your camcorder abroad
Using your camcorder abroad
You can use your camcorder in any country or area with the AC Adaptor supplied with
your camcorder within 100 V to 240 V AC, 50/60 Hz.
Use a commercially available AC plug adaptor [a], if necessary, depending on the
design of the wall outlet [b].
Your camcorder is an NTSC system based camcorder. If you want to view the playback
picture on a TV, it must be an NTSC system based TV with the AUDIO/VIDEO input
jack.
The following shows TV color systems used overseas.
NTSC system
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Guyana,
Jamaica, Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A.,
Venezuela, etc.
PAL system
Australia, Austria, Belgium, China, Czech Republic, Denmark, Finland, Germany,
Holland, Hong Kong, Hungary, Italy, Kuwait, Malaysia, New Zealand, Norway,
Poland, Portugal, Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand,
United Kingdom, etc.
PAL-M system
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
Simple setting of clock by time difference
You can easily set the clock to the local time by setting a time difference. Select WORLD
TIME in the menu settings. See page 184 for more information.
[b][a]
AC-L15A/L15B
205
Additional Information
Maintenance information and precautions
Moisture condensation
If your camcorder is brought directly from a cold place to a warm place, moisture may
condense inside your camcorder, on the surface of the tape, or on the lens. In this
condition, the tape may stick to the head drum and be damaged or your camcorder may
not operate correctly. If there is moisture inside your camcorder, the beep sounds and
the % indicator flashes. When the Z indicator flashes at the same time, the cassette is
inserted in your camcorder. If moisture condenses on the lens, the indicator will not
appear.
If moisture condensation has occurred
None of the functions except cassette ejection will work. Eject the cassette, turn off your
camcorder, and leave it for about 1 hour with the cassette lid open. Your camcorder can
be used again if the % or Z indicator does not appear when the power is turned on
again.
If moisture starts to condense, your camcorder sometimes cannot detect condensation.
If this happens, the cassette is sometimes not ejected for 10 seconds after the cassette lid
is opened. This is not a malfunction. Do not close the cassette lid until the cassette is
ejected.
Note on moisture condensation
Moisture may condense when you bring your camcorder from a cold place into a warm
place (or vice versa) or when you use your camcorder in a hot place as follows:
–You bring your camcorder from a ski slope into a place warmed up by a heating
device.
–You bring your camcorder from an air-conditioned car or room into a hot place
outside.
–You use your camcorder after a squall or a shower.
–You use your camcorder in a high temperature and humidity place.
How to prevent moisture condensation
When you bring your camcorder from a cold place into a warm place, put your
camcorder in a plastic bag and tightly seal it. Remove the bag when the air temperature
inside the plastic bag has reached the surrounding temperature (after about 1 hour).
206
Maintenance information
Cleaning the video head
To ensure normal recording, clear pictures and sound, clean the video head. The video
head may be dirty when:
–Mosaic-pattern noise appears on the playback picture.
–Playback pictures do not move.
–Playback pictures do not appear or the sound breaks off.
–The x indicator and “ CLEANING CASSETTE” message appear one after another
or the x indicator flashes on the screen during recording.
If the above problem, [a], [b] or [c] occurs, clean the video heads for 10 seconds with
the Sony DVM-12CLD cleaning cassette (optional). Check the picture and if the above
problem persists, repeat cleaning.
If the video heads get dirtier, the entire screen becomes blue [c].
Note on the video head
The video head suffers from wear after long use. If you cannot obtain a clear image
even after using a cleaning cassette, it might be because the video head is worn. Please
contact your Sony dealer or local authorized Sony service facility to have the video head
replaced.
Cleaning the LCD screen
If fingerprints or dust make the LCD screen dirty, we recommend using a cleaning cloth
(supplied) to clean the LCD screen. When you use the LCD Cleaning Kit (optional), do
not apply the cleaning liquid directly to the LCD screen. Clean the LCD screen with
cleaning paper moistened with the liquid.
Removing dust from inside the viewfinder
(1)Pull out the viewfinder in the direction of the arrow 1.
Remove the 2 screws in the direction of the arrow 2 with a screwdriver
(optional).
Remove the eyecup in the direction of the arrow 3.
[a] [b] [c]
Maintenance information and precautions
1
2
2
3
207
Additional Information
Maintenance information and precautions
CALIBRATE
(2)Remove dust from inside the eyecup and viewfinder with a commercially
available blower.
(3)In the reverse way of (1), attach the eyecup.
Caution
Do not remove any other screws. You may remove only the screw to remove the eyecup.
Notes
•Do not drop or bend the eyecup shaft.
•Be careful when handling the eyecup.
Charging the built-in rechargeable battery
Your camcorder has a built-in rechargeable battery so that the date, time and other
settings are retained even when the POWER switch is set to OFF (CHG). The built-in
rechargeable battery is always charged as long as you are using your camcorder. The
battery, however, will get discharged gradually if you do not use your camcorder. It
will be completely discharged in about 4 months if you do not use your camcorder at
all. Even if the built-in rechargeable battery is not charged, it will not affect your
camcorder operation. To retain the date and time, etc., charge the battery if the battery
is discharged.
Charging the built-in rechargeable battery
•Connect your camcorder to the house current using the AC Adaptor supplied with
your camcorder, and leave your camcorder with the POWER switch set to OFF (CHG)
for more than 24 hours.
•Or install the fully charged rechargeable battery pack on your camcorder, and leave
your camcorder with the POWER switch set to OFF (CHG) for more than 24 hours.
Adjusting the LCD screen (CALIBRATION)
The buttons on the touch panel may not work correctly. If this happens, follow the
procedure below.
(1)Set the POWER switch to OFF (CHG).
(2)Eject the tape from your camcorder, then disconnect any connecting cable from
your camcorder.
(3)Set the POWER switch to VCR while pressing DSPL/BATT INFO on your
camcorder, then keep pressing DSPL/BATT INFO for about 5 seconds.
(4)Touch displayed on the screen using an object such as the corner of a
"Memory Stick.”
The position of changes.
Notes
•If you do not press the right spot, start from step 4 again.
•You cannot calibrate the LCD screen when the LCD screen is facing out.
208
Precautions
Camcorder operation
•Operate your camcorder on 7.2 V (battery pack) or 8.4 V (AC Adaptor).
•For DC or AC operation, use the accessories recommended in this operating
instructions.
•If any solid object or liquid get inside the casing, unplug your camcorder and have it
checked by a Sony dealer before operating it any further.
•Avoid rough handling or mechanical shock. Be particularly careful of the lens.
•Keep the POWER switch setting to OFF (CHG) when you are not using your
camcorder.
•Do not wrap your camcorder with a towel, for example, and operate it. Doing so
might cause heat to build up inside.
•Keep your camcorder away from strong magnetic fields or mechanical vibration.
•Do not press the LCD screen with a sharp objects.
•If your camcorder is used in a cold place, a residual image may appear on the LCD
screen. This is not a malfunction.
•While using your camcorder, the back of the LCD screen may heat up. This is not a
malfunction.
On handling the tape
•Do not insert anything into the small holes on the rear of the cassette. These holes are
used to sense the type and thickness of the tape and if the recording tab is in or out.
•Do not open the tape protect cover or touch the tape.
•Avoid touching or damaging the terminals. To remove dust, clean the terminals with
a soft cloth.
Camcorder care
•Eject the tape, and periodically turn on the power, operate the CAMERA and VCR
sections and play back the tape for about 3 minutes when your camcorder is not to be
used for a long time.
•Clean the lens with a soft brush to remove dust. If there are fingerprints on the lens,
remove them with a soft cloth.
•Clean your camcorder body with a dry soft cloth, or a soft cloth lightly moistened
with a mild detergent solution. Do not use any type of solvent which may damage the
finish.
•Do not let sand get into your camcorder. When you use your camcorder on a sandy
beach or in a dusty place, protect it from the sand or dust. Sand or dust may cause
your camcorder to malfunction, and sometimes this malfunction cannot be repaired.
Maintenance information and precautions
209
Additional Information
AC Adaptor
•Unplug the unit from a wall outlet when you are not using the unit for a long time. To
disconnect the power cord, pull it out by the plug. Never pull the power cord itself.
•Do not operate the unit with a damaged cord or if the unit has been dropped or
damaged.
•Do not bend the power cord forcibly, or place a heavy object on it. This will damage
the cord and may cause fire or electrical shock.
•Prevent metallic objects from coming into contact with the metal parts of the
connecting section. If this happens, a short may occur and the unit may be damaged.
•Always keep metal contacts clean.
•Do not disassemble the unit.
•Do not apply mechanical shock or drop the unit.
•While the unit is in use, particularly during charging, keep it away from AM receivers
and video equipment. AM receivers and video equipment disturb AM reception and
video operation.
•The unit becomes warm during use. This is not a malfunction.
•Do not place the unit in locations that are:
–Extremely hot or cold
–Dusty or dirty
–Very humid
–Vibrating
About care and storage of the lens
•Wipe the surface of the lens clean with a soft cloth in the following instance:
–When there are fingerprints on the lens surface
–In hot or humid locations
–When the lens is used in environments such as the seaside
•Store the lens in a well-ventilated location subject to little dirt or dust.
To prevent mold from occurring, periodically perform the above.
We recommend turning on and operating your camcorder about once per month to
keep your camcorder in an optimum state for a long time.
Rechargeable battery pack
•Use only the specified charger or video equipment with the charging function.
•To prevent an accident from a short circuit, do not allow metal objects to come into
contact with the battery terminals.
•Keep the rechargeable battery pack away from fire.
•Never expose the rechargeable battery pack to temperatures above 60°C (140°F), such
as in a car parked in the sun or under direct sunlight.
•Store the rechargeable battery pack in a cool, dry place.
•Do not expose the rechargeable battery pack to any mechanical shock.
•Do not disassemble nor modify the rechargeable battery pack.
•Install the rechargeable battery pack to the video equipment securely.
•Charging while some capacity remains does not affect the original battery capacity.
Maintenance information and precautions
210
Maintenance information and precautions
Note on dry batteries
To avoid possible damage from battery leakage or corrosion, observe the following:
–Be sure to insert the batteries with the + – polarities matched to the + – marks.
–Dry batteries are not rechargeable.
–Do not use a combination of new and old batteries.
–Do not use different types of batteries.
–Current flows from batteries when you are not using them for a long time.
–Do not use leaking batteries.
If batteries are leaking
•Wipe off the liquid in the battery compartment carefully before replacing the batteries.
•If you touch the liquid, wash it off with water.
•If the liquid get into your eyes, wash your eyes with a lot of water and then consult a
doctor.
If any problem occurs, unplug your camcorder and contact your nearest Sony dealer.
211
Additional Information
Specifications
Video camera
recorder
System
Video recording system
2 rotary heads
Helical scanning system
Audio recording system
Rotary heads, PCM system
Quantization: 12 bits (Fs 32 kHz,
stereo 1, stereo 2), 16 bits
(Fs 48 kHz, stereo)
Video signal
NTSC color, EIA standards
Usable cassette
Mini DV cassette with the
mark printed
Tape speed
SP: Approx. 18.81 mm/s
LP: Approx. 12.56 mm/s
Recording/playback time
(using cassette DVM60)
SP: 1 hour
LP: 1.5 hours
Fastforward/rewind time
(using cassette DVM60)
Approx. 2 min. and 40 seconds
Viewfinder
Electric viewfinder
DCR-TRV19: black and white
DCR-TRV22/TRV33: color
Image device
DCR-TRV19: 4.5 mm (1/4 type)
CCD (Charge Coupled Device)
Gross: Approx. 680 000 pixels
Effective (moving):
Approx. 340 000 pixels
DCR-TRV22: 4.5 mm (1/4 type)
CCD (Charge Coupled Device)
Gross: Approx. 680 000 pixels
Effective (still):
Approx. 340 000 pixels
Effective (moving):
Approx. 340 000 pixels
DCR-TRV33: 3.8 mm (1/4.7 type)
CCD (Charge Coupled Device)
Gross: Approx. 1 070 000 pixels
Effective (still):
Approx. 1 000 000 pixels
Effective (moving):
Approx. 690 000 pixels
Lens
Carl Zeiss Vario-Sonnar
Combined power zoom lens
Filter diameter: 30 mm
(1 3/16 in)
10× (Optical), 120× (Digital)
DCR-TRV19/TRV22:
F = 1.7 – 2.2
DCR-TRV33:
F = 1.8 – 2.0
Focal length
DCR-TRV19:
3.3 – 33 mm (5/32 – 1 5/16 in.)1)
42 – 420 mm (1 11/16 – 16 5/8
in.)2)
DCR-TRV22:
3.3 – 33 mm (5/32 – 1 5/16 in.)1)
42 – 420 mm (1 11/16 – 16 5/8
in.)2)
42 – 420 mm (1 11/16 – 16 5/8
in.)3)
DCR-TRV33:
3.7 – 37 mm (5/32 – 1 1/2 in.)1)
50 – 500 mm (2 – 19 3/4 in.)2)
42 – 420 mm (1 11/16 – 16 5/8
in.)3)
1) When converted to a 35 mm still
camera
2) In CAMERA mode
3) In MEMORY mode
Color temperature
Auto, HOLD, INDOOR (3 200 K),
OUTDOOR (5 800 K)
Minimum illumination
DCR-TRV19/TRV22:
5 lx (lux) (F1.7)
0 lx (lux) (in the NightShot
mode)*
DCR-TRV33:
7 lx (lux) (F 1.8)
0 lx (lux) (in the NightShot
mode)*
*Objects unable to be seen due to
the dark can be shot with
infrared lighting.
Input/Output connectors
S video input/output
4-pin mini DIN
Luminance signal: 1 Vp-p,
75 Ω (ohms), unbalanced
Chrominance signal: 0.286 Vp-p,
75 Ω (ohms), unbalanced
Audio/Video input (DCR-TRV22/
TRV33 only)/output
AV MINI JACK, 1 Vp-p,
75 Ω (ohms), unbalanced
327 mV, (at output impedance
more than 47 kΩ (kilohms))
Output impedance with less than
2.2 kΩ (kilohms)/Stereo minijack
(ø 3.5 mm)
Input impedance more than
47 kΩ (kilohms)
DV input/output
4-pin connector
Headphone jack
Stereo minijack (ø 3.5 mm)
LANC jack
Stereo mini-minijack (ø 2.5 mm)
USB jack
mini-B
MIC jack
Minijack, 0.388 mV low impedance
with 2.5 to 3.0 V DC, output
impedance 6.8 kΩ (kilohms)
(ø 3.5 mm)
Stereo type
LCD screen
6.2 cm (2.5 type)
50.3 × 37.4 mm (2 × 1 1/2 in.)
Total dot number
123 200 (560 × 220)
212
Specifications
General
Power requirements
7.2 V (battery pack)
8.4 V (AC Adaptor)
Average power consumption
(when using the battery pack)
DCR-TRV19/TRV22:
3.3 W1)
2.5 W2)
DCR-TRV33:
4.1 W1)
3.3 W2)
1) During camera recording using
LCD
2) Viewfinder
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to + 60°C
(–4°F to + 140°F)
Dimensions (approx.)
71 × 90 × 112 mm
(2 7/8 × 3 5/8 × 4 1/2 in.) (w/h/d)
Mass (approx.)
Main unit only
DCR-TRV19:
520 g (1 lb 2 oz)
DCR-TRV22:
530 g (1 lb 2 oz)
DCR-TRV33:
540 g (1 lb 2 oz)
Including the rechargeable battery
pack NP-FM30, cassette DVM60
and lens cap
DCR-TRV19:
610 g (1 lb 5 oz)
DCR-TRV22:
620 g (1 lb 5 oz)
DCR-TRV33:
630 g (1 lb 5 oz)
Supplied accessories
See page 15.
AC Adaptor
AC-L15A/L15B
Power requirements
100 – 240 V AC, 50/60 Hz
Current consumption
0.35 – 0.18 A
Power consumption
18 W
Output voltage
DC OUT: 8.4 V, 1.5 A
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to + 60°C
(–4°F to + 140°F)
Dimensions (approx.)
56 × 31 × 100 mm
(2 1/4 × 1 1/4 × 4 in.) (w/h/d)
excluding projecting parts
Mass (approx.)
190 g (6.7 oz)
excluding power cord
Rechargeable
battery pack
NP-FM30
Maximum output voltage
DC 8.4 V
Output voltage
DC 7.2 V
Capacity
5.0 Wh (700 mAh)
Dimensions (approx.)
38.2 × 20.5 × 55.6 mm
(1 9/16 × 13/16 × 2 1/4 in.)
(w/h/d)
Mass (approx.)
65 g (2.3 oz)
Operating temperature
0°C to 40°C (32°F to 104°F)
Type
Lithium ion
“Memory Stick”
(DCR-TRV22/TRV33
only)
Memory
Flash memory
8MB: MSA-8A
Operating voltage
2.7 – 3.6 V
Power consumption
Approx. 45 mA during operation
mode
Approx. 130 µA during tape
recording standby
Dimensions (approx.)
50 × 2.8 × 21.5 mm
(2 × 1/8 × 7/8 in.) (w/h/d)
Mass (approx.)
4 g (0.14 oz)
Design and specifications are
subject to change without notice.
Quick Reference
213
— Quick Reference —
Identifying parts and controls
1Lens cap (p. 25)
2LCD/Touch panel screen (p. 23, 28, 29)
3RESET button (p. 193)
If you press RESET, all the settings
including the date and time return to
the default.
4BACK LIGHT button (p. 33)
5Speaker
Camcorder
6DSPL/BATT INFO button (p. 20, 40)
7CHG (charge) lamp (p. 17)
8Eyecup (p. 206)
9Viewfinder (p. 31)
0START/STOP button (p. 9, 25, 125)
qa Battery pack mounting surface (p. 16)
qs Hooks for shoulder strap
214
Identifying parts and controls
qd POWER switch (p. 9, 11, 17)
qf LOCK switch (DCR-TRV22/TRV33
only, p. 11)
qg DC IN jack (p. 8, 10)
qh BATT release button (p. 16)
qj Viewfinder lens adjustment lever (p.
31)
qk MEMORY EJECT knob (DCR-TRV22/
TRV33 only, p. 10, 109)
ql “Memory Stick” slot (DCR-TRV22/
TRV33 only, p. 10, 109)
w; Cassette lid (p. 8)
q
dqk
qf ql
qg
qh w;
qj wa
ws
wa OPEN/ZEJECT lever (p. 8)
ws Tripod receptacle
Make sure that the length of the tripod
screw is less than 5.5 mm (7/32 inch).
Otherwise, you cannot attach the tripod
securely, and the screw may damage
your camcorder.
Quick Reference
215
Identifying parts and controls
wd Intelligent accessory shoe/shoe cover
(p. 98)
wf Lens
wg Camera recording lamp (p. 25)
216
e; PHOTO button (p. 11, 46, 114)
ea Power zoom lever (p. 32, 74, 140)
es (USB) jack (p. 148)
ed DV Interface (p. 81, 93, 149)
The DV Interface is i.LINK compatible.
ef AUDIO/VIDEO jack (yellow) (DCR-
TRV22/TRV33 only, p. 44, 81, 93, 173)
AUDIO/VIDEO OUT jack (yellow)
(DCR-TRV19 only, p. 44, 81)
eg Grip belt (p. 8)
eh NIGHTSHOT switch (p. 34)
ej i (headphones) jack (green)
When you use headphones, the speaker
on your camcorder is silent.
Identifying parts and controls
Quick Reference
217
Identifying parts and controls
Remote Commander
The buttons that have the same name on the Remote Commander as on your camcorder
function identically to the buttons on your camcorder.
1PHOTO button (p. 11, 46, 114)
2DISPLAY button (p. 40)
3SEARCH MODE button (p. 76, 77, 78, 79,
80)
4./> buttons (p. 76, 77, 78, 79, 80)
5Video control buttons (p. 39, 42)
6Transmitter
Point toward the remote sensor to
control your camcorder after turning on
your camcorder.
7ZERO SET MEMORY button (p. 75)
8START/STOP button (p. 9, 25)
9DATA CODE button (p. 40)
q; Power zoom button (p. 32)
To prepare the Remote Commander
Insert 2 size AA (R6) batteries by matching the + and – on the batteries to the + and – in
the battery compartment.
Notes on the Remote Commander
•Point the remote sensor away from strong light sources such as direct sunlight or
overhead lighting. Otherwise, the Remote Commander may not function properly.
•Your camcorder works in the Commander mode VTR 2. Commander modes 1, 2 and
3 are used to distinguish your camcorder from other Sony VCRs to avoid erroneous
remote control operation. If you use another Sony VCR in the Commander mode VTR
2, we recommend changing the Commander mode or covering the sensor of the VCR
with black paper.
1
6
7
8
9
q;
2
3
4
5
218
AUTO
60 AWB
F1.8 9dB
0:12:34
48min
ZERO SET
MEMORY
END
SEARCH
DV IN
16BIT
12:05:56PM
50min STBY
STILL
16:9WIDE
NEG. ART
– +
6
5
4
3
2
1
9
0
qa
qs
wa
w;
ql
qk
qj
qh
qf
q
d
qg
wd
wf
ws
wh
wj
wg
7
8
Identifying parts and controls
Operation indicators
1Cassette Memory (p. 27)
2Remaining battery time (p. 27)
3Zoom (p. 32)/Exposure (p. 64)/
Data file name* (p. 135)
4Digital effect* (p. 59, 73)/MEMORY
MIX* (p. 120)/Fader (p. 55)
516:9WIDE (p. 53)
6Picture effect (p. 58, 72)
7Data code (p. 40)
8Volume (p. 39)/Date (p. 27)
9PROGRAM AE (p. 62)
0Back light (p. 33)
qa SteadyShot off (p. 177)
qs Manual focus (p. 66)
qd Self-timer (p. 50, 127)
qf Recording mode (p. 182)
qg Camera recording lamp*** (p. 48)
qh STBY/REC (p. 25)/Video control mode
(p. 39)/Image size** (p. 111)/Image
quality* (p. 110)
qj NIGHTSHOT (p. 34)/SUPER
NIGHTSHOT* (p. 34)/COLOR SLOW
SHUTTER* (p. 35)
LCD screen and Viewfinder
qk Warning (p. 195)
ql Time code (p. 27)/Tape counter (p. 27)/
Self-diagnosis (p. 194)/Photo
recording (p. 114)/Image number* (p.
135) /Playback folder* (p. 138) /Tape
photo*** (p. 48)
w; Remaining tape (p. 27)/Memory
playback* (p. 135)
wa ZERO SET MEMORY (p. 75)/Interval
Recording (p. 68)/Interval Photo
Recording (p. 124)/Frame recording
(p. 69)
ws END SEARCH (p. 37)
wd A/V t DV* (p. 173)/DV IN*** (p. 94)
wf Audio mode (p. 182)/Recording
folder* (p. 134)
wg Time (p. 27)
wh Flash (p. 176)
This indicator appears only when the
flash (optional) is in use.
wj Continuous photo recording** (p. 116)
*DCR-TRV22/TRV33 only
** DCR-TRV33 only
*** DCR-TRV19 only
219
Quick Reference
Index
A, B
AC Adaptor ....................... 17, 21
Adjusting the viewfinder ...... 31
Audio dubbing........................ 97
AUDIO MIX .......................... 178
AUDIO MODE...................... 182
AUTO SHTR.......................... 176
A/V connecting cable
.................................... 44, 81, 93
BACK LIGHT .......................... 33
Battery Info .............................. 20
Battery pack ............................. 16
BEEP ....................................... 184
BOUNCE.................................. 55
C, D
C. CHROM ............................ 120
CALIBRATION..................... 207
Cassette Memory ............ 13, 197
Charging battery pack ........... 17
Charging built-in rechargeable
battery ................................. 207
CLEANING CASSETTE ...... 206
Clock set ................................... 22
Color Slow Shutter ................. 35
Continuous photo recording
.............................................. 116
Data code ................................. 40
Date search .............................. 77
DEMO MODE ....................... 183
Digital effect ...................... 59, 73
Digital program editing
........................................ 84, 130
DISPLAY................................ 184
DOT .......................................... 55
Dual sound track tape.......... 198
E
Edit search ............................... 38
End search ............................... 37
EXP BRKTG ........................... 116
Exposure .................................. 64
F, G, H
Fader ......................................... 55
FLASH MOTION.................... 59
Flexible Spot Meter................. 65
Format ............................ 107, 180
Frame recording...................... 69
Full charge ............................... 18
Grip belt ..................................... 8
i (headphone) jack .............. 216
Heads...................................... 206
HiFi SOUND ......................... 178
I, J, K, L
i.LINK..................................... 202
i.LINK cable
.......................................... 81, 93
Image protection ................... 142
Image quality ........................ 110
Image size ...................... 111, 112
Index screen........................... 136
“InfoLITHIUM” battery pack
........................................ 16, 200
Infrared rays emitter ........ 34, 86
Insert editing ........................... 95
Intelligent accessory shoe
........................................ 98, 215
Interval Recording.................. 68
Interval Photo Recording
.............................................. 124
JPEG........................................ 106
Labeling a cassette ................ 104
LANC jack ............................. 216
LUMINANCE KEY ................ 59
M, N
M. CHROM ........................... 120
M. LUMI ................................ 120
M. OVERLAP ........................ 120
Main sound............................ 198
Manual focus ........................... 66
MEMORY MIX...................... 120
Memory PB ZOOM .............. 140
Memory photo recording .... 114
“Memory Stick” .................... 106
“Memory Stick” capacity
.............................................. 113
Menu settings ........................ 175
Mirror mode ............................ 29
Moisture condensation ........ 205
MONOTONE .......................... 55
MOSC. FADER........................ 55
MPEG ..................................... 106
NIGHTSHOT .......................... 34
NORM. FADER ...................... 55
NTSC system ......................... 204
O, P, Q
OLD MOVIE............................ 59
Operation indicators .............. 24
OVERLAP ................................ 55
PB FOLDR.............................. 139
Picture effect...................... 58, 72
Picture search .......................... 42
Playback time .......................... 20
Print mark .............................. 147
PROGRAM AE....................... 62
R
REC FOLDER ........................ 134
Rec Review .............................. 38
Recording time........................ 19
Remaining battery time
indicator ................................ 27
Remaining tape indicator ...... 27
Remote Commander ............ 217
Remote sensor ....................... 215
RESET ............................. 193, 213
Resize...................................... 146
S
S VIDEO ID-2 jack .................. 54
Self-diagnosis display .......... 194
Self-timer recording ....... 50, 127
Signal convert function ........ 173
Skip scan .................................. 42
Slide show.............................. 141
SLOW SHTR............................ 59
SPOT FOCUS .......................... 67
STEADYSHOT ...................... 177
Stereo tape ............................. 198
STILL ........................................ 59
Sub sound .............................. 198
Super NightShot ..................... 34
T, U, V
Tape counter............................ 27
Tape PB ZOOM....................... 74
Telephoto ................................. 32
Time code................................. 27
Title ......................................... 101
Title search............................... 76
Touch panel ............................. 23
TRAIL ....................................... 59
Transition................................. 26
TV color systems................... 204
USB jack ................................. 148
USB Streaming ...................... 161
W, X, Y, Z
Warning indicators............... 195
Warning messages................ 196
White balance .......................... 52
Wide-angle .............................. 32
Wide mode .............................. 53
WIPE......................................... 55
Write-protect tab................... 198
Zero set memory..................... 75
Zoom ........................................ 32
Printed in Japan
Printed on 100% recycled paper using
VOC (Volatile Organic Compound)-free
vegetable oil based ink.
