Introducing the TV
Connecting the TV
Watching the TV

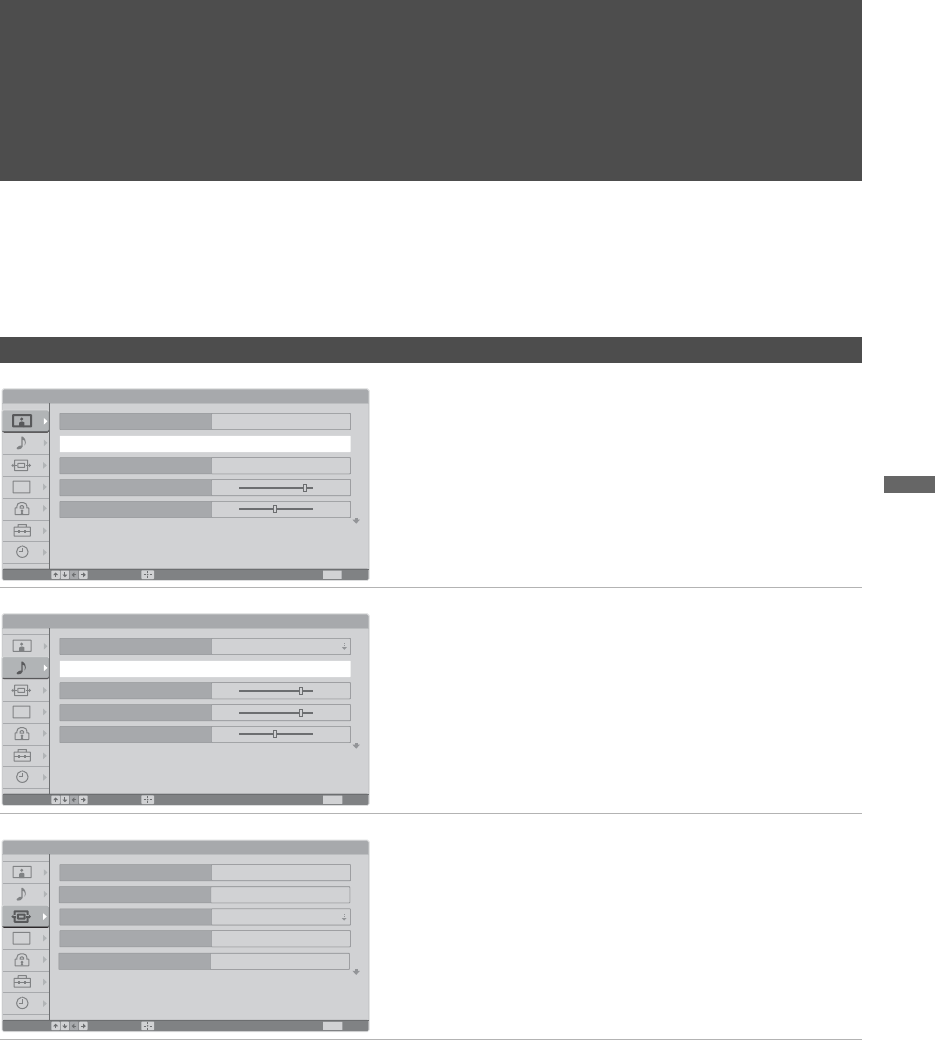

Using the Menus
Using the Settings
Other Information
Index
- Index

LCD Projection TV

Operating Instructions

http://www.sony.net/

Printed in U.S.A.

2-694-282-13(1)

KF-42E200A

KF-50E200A

™

For Your Convenience

Please contact Sony directly if you:

· Have questions on the use of your television after reading your manual

· Experience difﬁ culty operating your television

Contact Sony Customer Support at:

http://www.sony.com/tvsupport

or to speak with a support representative:

Canada

1-877-899-SONY (7669)

Sony will work to resolve your questions more quickly than your retailer or place of purchase.

Please Do Not Return the Product to the Store

Troy2 analog EN.indd 1Troy2 analog EN.indd 1 3/13/2007 2:24:38 PM3/13/2007 2:24:38 PM

C:\Documents and Settings\Meiko\Desktop\SONY TRoy 2

analog\2694282131\01US02Cov2.fm

masterpage:3 columns Right

KF-42/50E200A

2-694-282-13(1)

Owner’s Record

The model and serial numbers are located at the rear of the TV. Record

these numbers in the spaces provided below. Refer to them whenever

you call upon your Sony dealer regarding this product.

Model No.

Serial No.

For Your Convenience

Please contact Sony directly if you:

z Have questions on the use of your television after reading your manual

z Experience difficulty operating your television

Contact Sony Customer Support at:

http://www.sony.com/tvsupport

oor to speak with a support representative:

Canada

1-877-899-SONY (7669)

Sony will work to resolve your questions more quickly than your retailer or place of purchase.

Please Do Not Return the Product to the Store

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US02WAR.fm masterpage:3 columns Right

KF-42/50E200A

2-694-282-12(1)

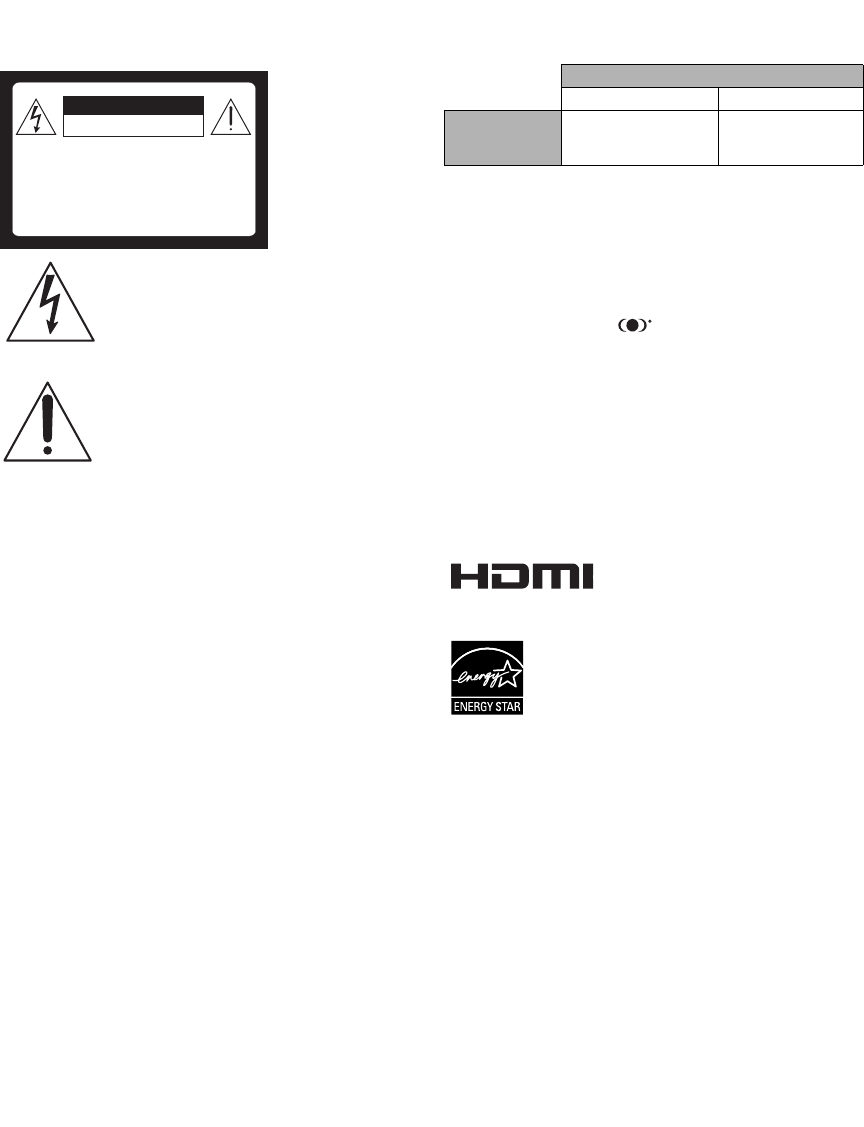

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to

rain or moisture.

This symbol is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

This symbol is intended to alert the user to the presence

of important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

The apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

To prevent electric shock, do not use this polarized AC plug with an

extension cord, receptacle or other outlet unless the blades can be fully

inserted to prevent blade exposure.

Safety

sOperate the TV only on 120 V AC.

sThe plug is designed, for safety purposes, to fit into the wall outlet

only one way. If you are unable to insert the plug fully into the outlet,

contact your dealer.

sIf any liquid or solid object should fall inside the cabinet, unplug the

TV immediately and have it checked by qualified service personnel

before operating it further.

sIf you will not be using the TV for several days, disconnect the power

by pulling the plug itself. Never pull on the cord.

sFor details concerning safety precautions, see “Important Safety

Instructions” on page 4.

Installing

sThe TV should be installed near an easily accessible power outlet.

sTo prevent internal heat buildup, do not block the ventilation

openings.

sDo not install the TV in a hot or humid place, or in a place subject to

excessive dust or mechanical vibration.

sAvoid operating the TV at temperatures below 41°F (5°C).

sIf the TV is transported directly from a cold to a warm location, or if

the room temperature changes suddenly, the picture may be blurred

or show poor color due to moisture condensation. In this case, please

wait a few hours to let the moisture evaporate before turning on the

TV.

sTo obtain the best picture, do not expose the screen to direct

illumination or direct sunlight. It is recommended to use spot lighting

directed down from the ceiling or to cover the windows that face the

screen with opaque drapery. It is desirable to install the TV in a room

where the floor and walls are not of a reflective material.

sSee pages 12 and 13 for more information on the installation.

CAUTION

Use the following Sony appliance(s) only with the following TV STAND.

Use with other TV STAND may cause instability and possibly result in

injury.

To Customers

Sufficient expertise is required for installing the specified product. Be sure

to subcontract the installation to Sony dealers or licensed contractors and

pay adequate attention to safety during the installation.

Trademark Information

TruSurround XT, SRS and the symbol are trademarks of SRS Labs,

Inc. TruSurround XT technology is incorporated under license from SRS

Labs, Inc.

Licensed by BBE Sound, Inc. under one or more of the following US

patents: 5510752, 5736897. BBE and BBE symbol are registered

trademarks of BBE Sound, Inc.

Macintosh is a trademark licensed to Apple Computer, Inc., registered in

the U.S.A and other countries.

Blu-ray Disc is a trademark of the Blu-ray Disc Association.

WEGA, Grand WEGA, Steady Sound, Digital Reality Creation and

CineMotion are registered trademarks of Sony Corporation.

This TV incorporates High-Definition

Multimedia Interface (HDMI™) technology.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE,

NE PAS OUVRIR

PRECAUCION

RIESGO DE CHOQUE ELECTRICO

NO ABRIR

SONY APPLIANCE MODEL NO.

KF-42E200A KF-50E200A

SONY TV

STAND MODEL

NO.

SU-RG11S SU-RG12L

(Continued)

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US02WAR.fm masterpage:3 columns Right

KF-42/50E200A

2-694-282-12(1)

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer’s

instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

9) Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has

two blades with one wider than the other. A

grounding type plug has two blades and a third

grounding prong. The wide blade or the third

prong are provided for your safety. If the

provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11) Only use attachments/accessories specified by

the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13) Unplug this apparatus during lightning storms

or when unused for long periods of time.

14) Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way, such

as power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate

normally, or has been dropped.

sBe sure to observe the TV’s “For Safety”

section on page 5.

Antennas

Outdoor Antenna Grounding

If an outdoor antenna is installed, follow the precautions below. An

outdoor antenna system should not be located in the vicinity of overhead

power lines or other electric light or power circuits, or where it can come

in contact with such power lines or circuits.

WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,

EXTREME CARE SHOULD BE TAKEN TO KEEP FROM

CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT

WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection

against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in USA and Section 54

of the Canadian Electrical Code in Canada provides information with

respect to proper grounding of the mast and supporting structure,

grounding of the lead-in wire to an antenna discharge unit, size of

grounding conductors, location of antenna discharge unit, connection to

grounding electrodes, and requirements for the grounding electrode.

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US02WAR.fm masterpage:3 columns Right

KF-42/50E200A

2-694-282-12(1)

Antenna Grounding According to the NEC

Refer to section 54-300 of Canadian Electrical Code for Antenna

Grounding.

Cleaning

sClean the cabinet of the TV with a dry soft

cloth. To remove dust from the screen, wipe it

gently with a soft cloth. Stubborn stains may be

removed with a cloth slightly dampened with

solution of mild soap and warm water. Never

use strong solvents such as thinner or benzine for cleaning. If the

picture becomes dark after using the TV for a long period of time, it

may be necessary to clean the inside of the TV. Consult qualified

service personnel.

sUnplug the AC power cord when cleaning this unit. Cleaning this

unit with a plugged AC power cord may result in electric shock.

On Contamination on the Screen Surface

The screen surface has a special coating to reduce reflections. To prevent

screen damage, clean the screen as follows:

sClean the screen with a soft cloth.

sTo remove hard contamination, use a cloth moistened with a

solution of mild detergent and water. Do not spray cleaning solution

directly onto the TV. It should only be sprayed to moisten the

cleaning cloth.

sDo not use any type of abrasive pad, alkaline cleaner, acid cleaner,

scouring powder, chemical cloth, or solvent such as alcohol,

benzene or thinner, as these may scratch the screen's coating.

Service

Damage Requiring Service

Do not attempt to service the set by yourself since opening

the cabinet may expose you to dangerous voltage or other

hazards.

Unplug the set from the wall outlet and refer servicing to

qualified service personnel.

Replacement Parts

When replacement parts are required, be sure the service technician

certifies in writing that he has used replacement parts specified by the

manufacturer that have the same characteristics as the original parts.

Unauthorized substitutions may result in fire, electric shock or other

hazards.

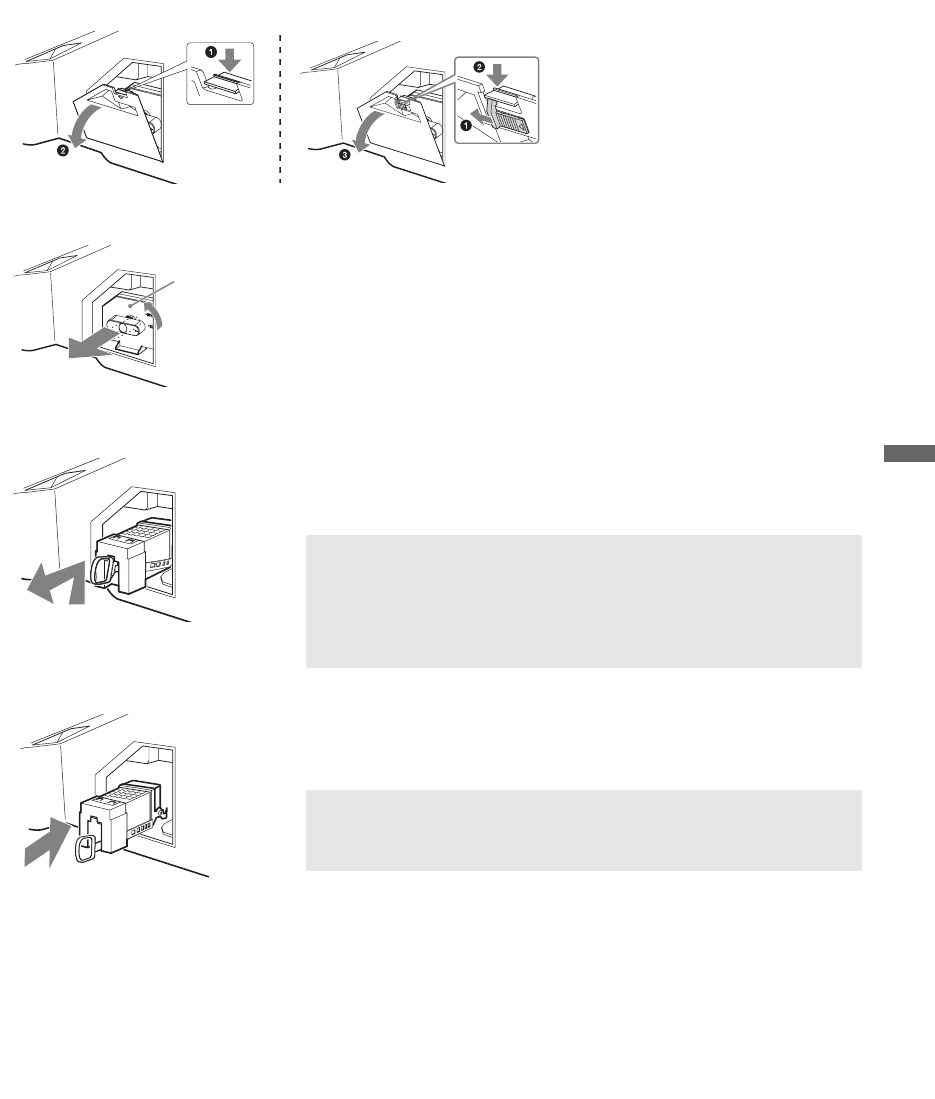

See “Replacing the Lamp” on page 66.

For Safety

Be Careful When Moving the

When you place the TV in position, be careful

not to drop it on your foot or fingers.

Watch your footing while installing the TV.

Carry the TV in the Specified

Manner

If you carry the TV in a manner other than the

specified manner and without the specified number

of persons, it may drop and a serious injury may be

caused. Be sure to follow the instructions

mentioned below.

sCarry the TV with the specified number of persons (see page 12).

sHold the TV tightly when carrying it.

sBefore carrying the TV, disconnect any accessories or cables.

About the TV

Although the TV is made with high-precision technology, black dots may

appear or bright points of light (red, blue, or green) may appear constantly

on the screen. This is a structural property of the panel and is not a defect.

Installation

sThe picture quality may be affected by your viewing position. For

the best picture quality, install your TV according to

“Recommended Viewing Area” on page 13.

sWhen installing your TV against a wall, keep it at least 4 inches (10

cm) away from the wall.

Projection Lamp

sYour TV uses a projection lamp as its light source. It is time to

replace the lamp with a new one (not supplied) when:

• the message, “Projection lamp is nearing end of life. Please

replace the lamp.” appeared on the screen,

• the lamp replacement indicator on the front panel blinks in red,

• screen images become dark,

• no image appears on the display after prolonged use.

sIn rare instances, the bulb may pop inside the lamp unit, but the lamp

unit is designed to contain all of broken glass pieces inside the lamp

unit. (See “Replacing the Lamp” on page 66.)

Cooling Fan

This TV uses a cooling fan. You may hear the noise of fan running,

depending on the placement of your TV. The noise may be more noticeable

during the night or when the background noise level is low.

Disposal of Used Batteries

To preserve our environment, dispose of used batteries according to your

local laws or regulations.

sClean the rear cover area of the TV regularly. Dust in the rear cover

area may cause a problem with the cooling system of the TV set.

Antenna lead-in wire

Ground clamps

Antenna lead-in wire

(NEC Section 810-20)

Grounding conductors

(NEC section 810-21)

Power service grounding

electrode system (NEC Art

250 Part H)

Ground clamp

Electrical

service

equipment

NEC: National

Electrical Code

sIf direct sunlight or other strong illumination shines on the screen,

part of the screen may appear white due to reflections from behind

the screen. This is a structural property of the TV.

Do not expose the screen to direct illumination or direct sunlight.

sWhen the lamp eventually burns out, you may hear a noticeable pop

sound. This is normal and is inherent in this type of lamp.

POWER

STD/DUO

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US02WAR.fm masterpage:3 columns Right

KF-42/50E200A

2-694-282-12(1)

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US02TOC.fm masterpage:3 columns Right

KF-42/50E200A

2-694-282-12(1)

Contents

Introducing the TV

Welcome................................................................9

Package Contents............................................9

Features...........................................................9

Enjoying Your TV................................................10

Notes on the TV.............................................10

Screen............................................................10

Indicators .......................................................11

Projection Lamp .............................................11

Installing the TV..................................................12

Carrying Your TV ...........................................12

Take Precaution during Installation................12

Preventing the TV from Toppling Over ..........12

When Installing Your TV against a Wall.........13

Recommended Viewing Area ........................13

Side and Rear Panel......................................14

TV Controls and Connectors .............................16

Front Panel ....................................................16

Connecting the TV

Overview..............................................................17

Making Video and Audio Connections ...........17

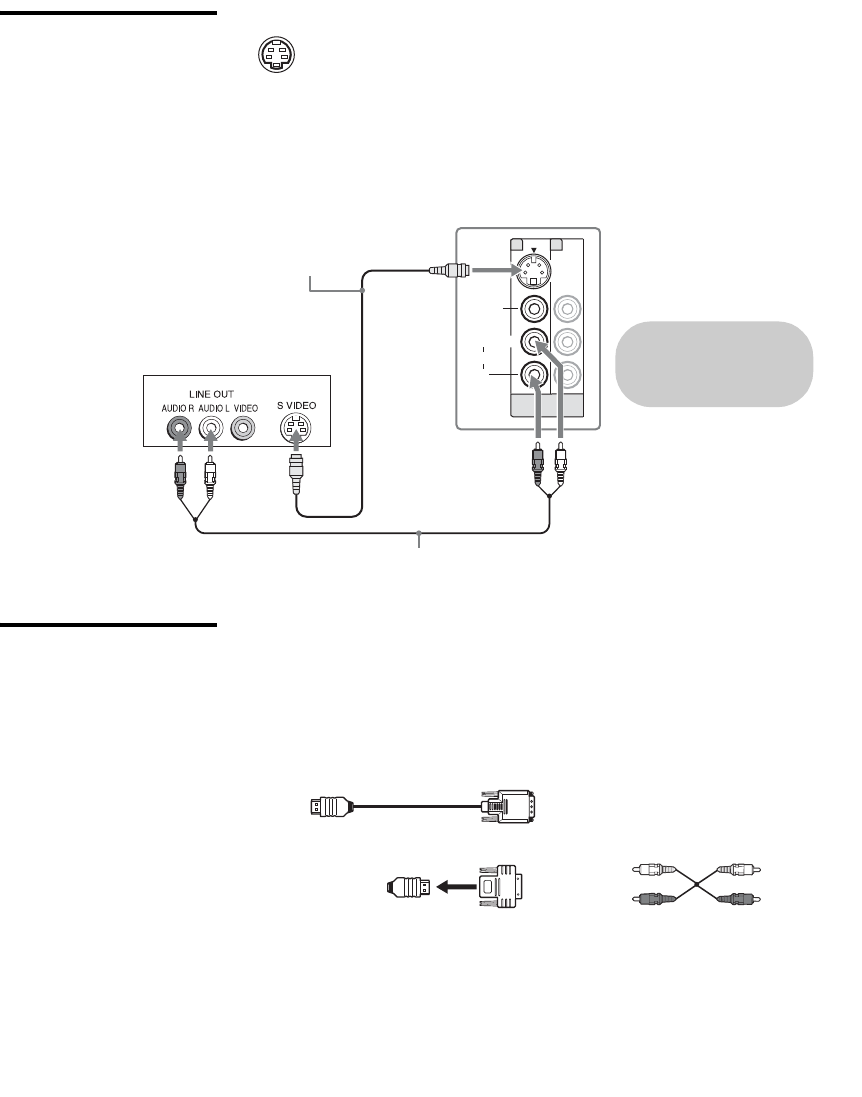

About Using S VIDEO....................................18

About Using HDMI to DVI Adapter.................18

Basic Connections .............................................19

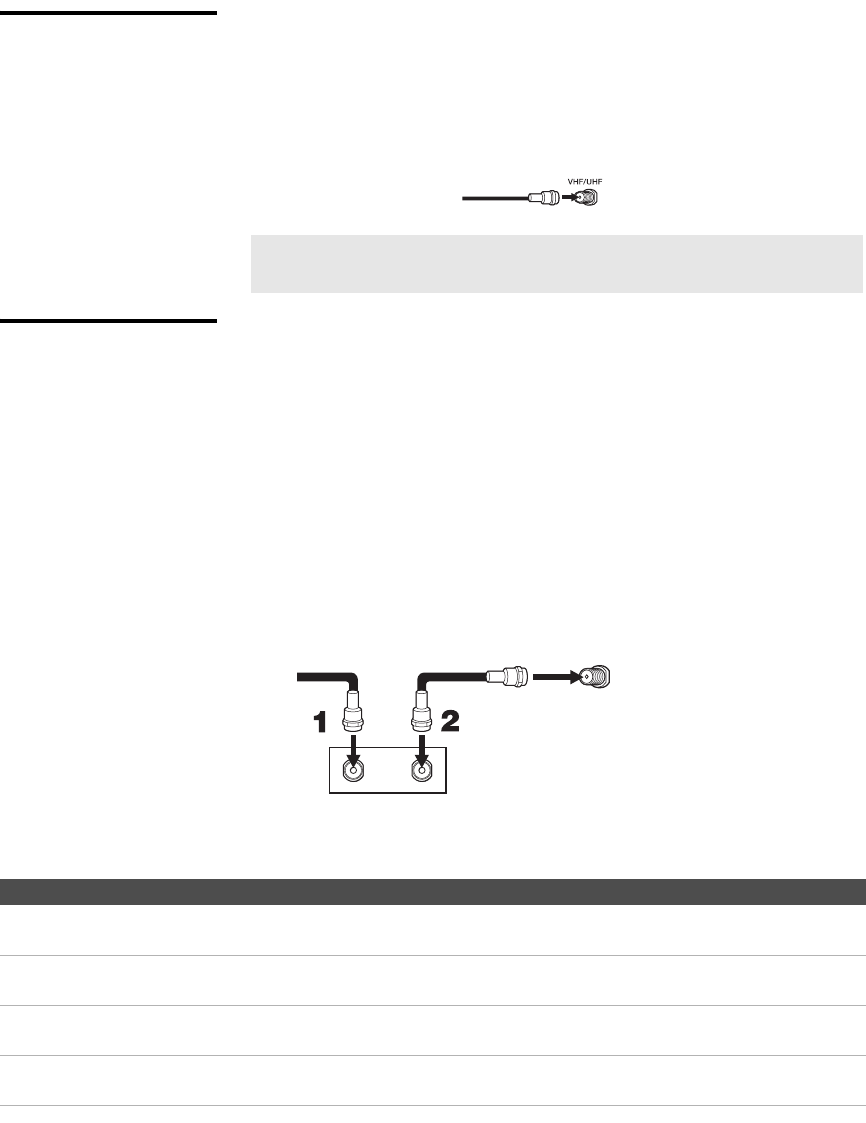

Cable System or VHF/UHF Antenna

System ...........................................................20

Cable Box ......................................................20

Satellite Receiver and Cable/Antenna ...........21

Equipment with HDMI Connection.................22

Equipment with DVI Connection ....................22

Setting Up the Channel List...............................23

Using Initial Setup..........................................23

Connecting Optional Equipment.......................24

VCR and Cable ..............................................25

VCR and Cable Box.......................................26

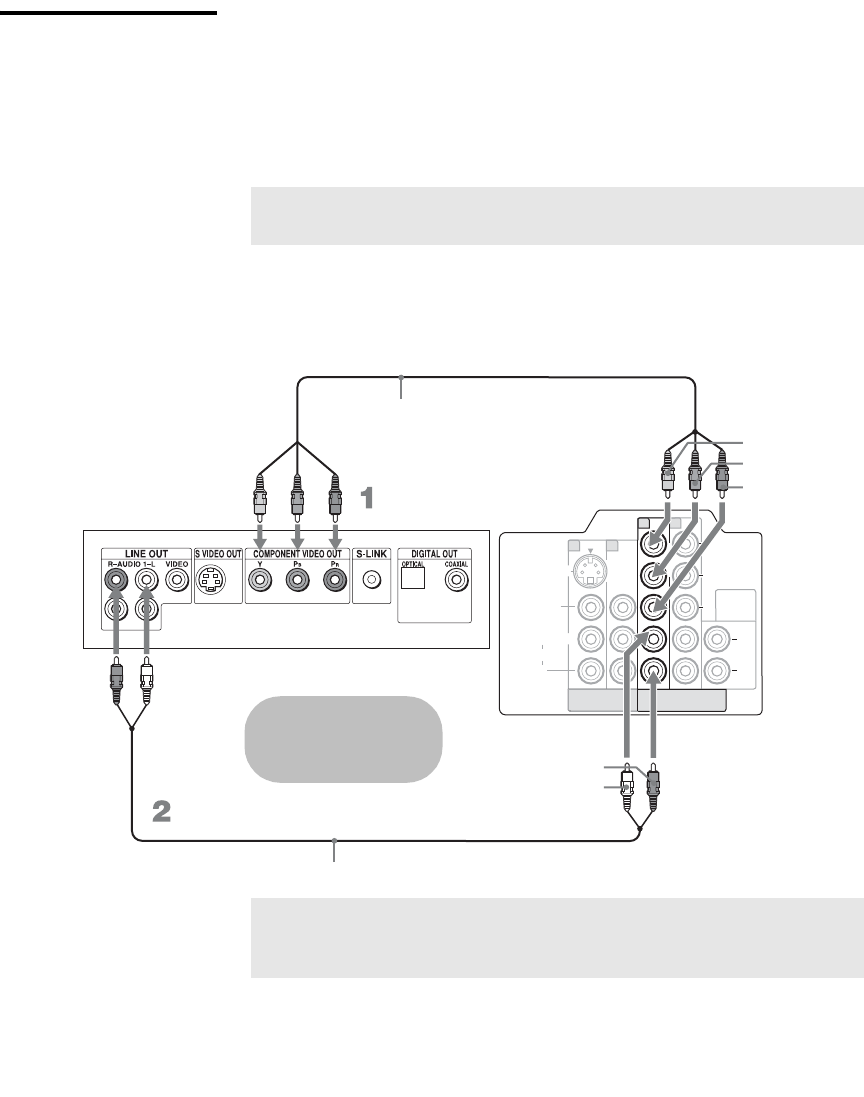

DVD Player with Component

Video Connectors ..........................................28

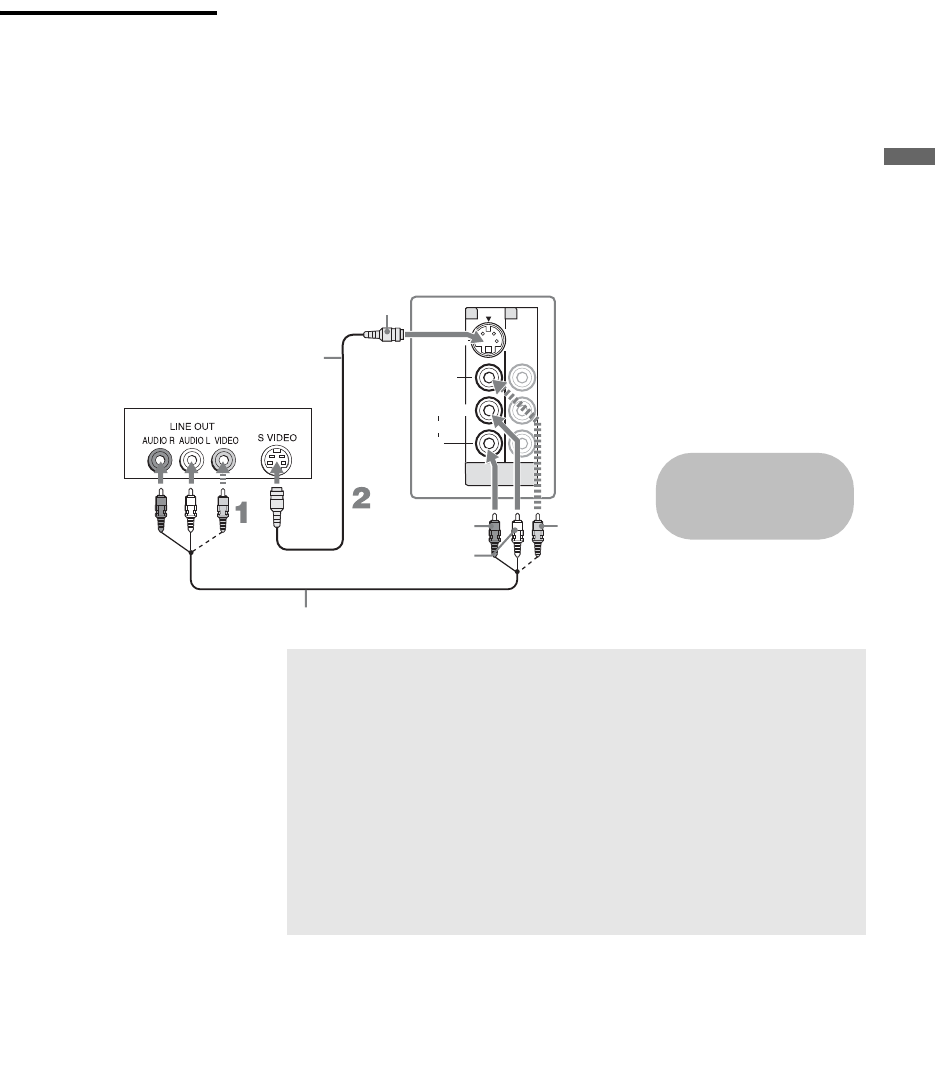

DVD Player with S VIDEO and Audio

Connectors.....................................................29

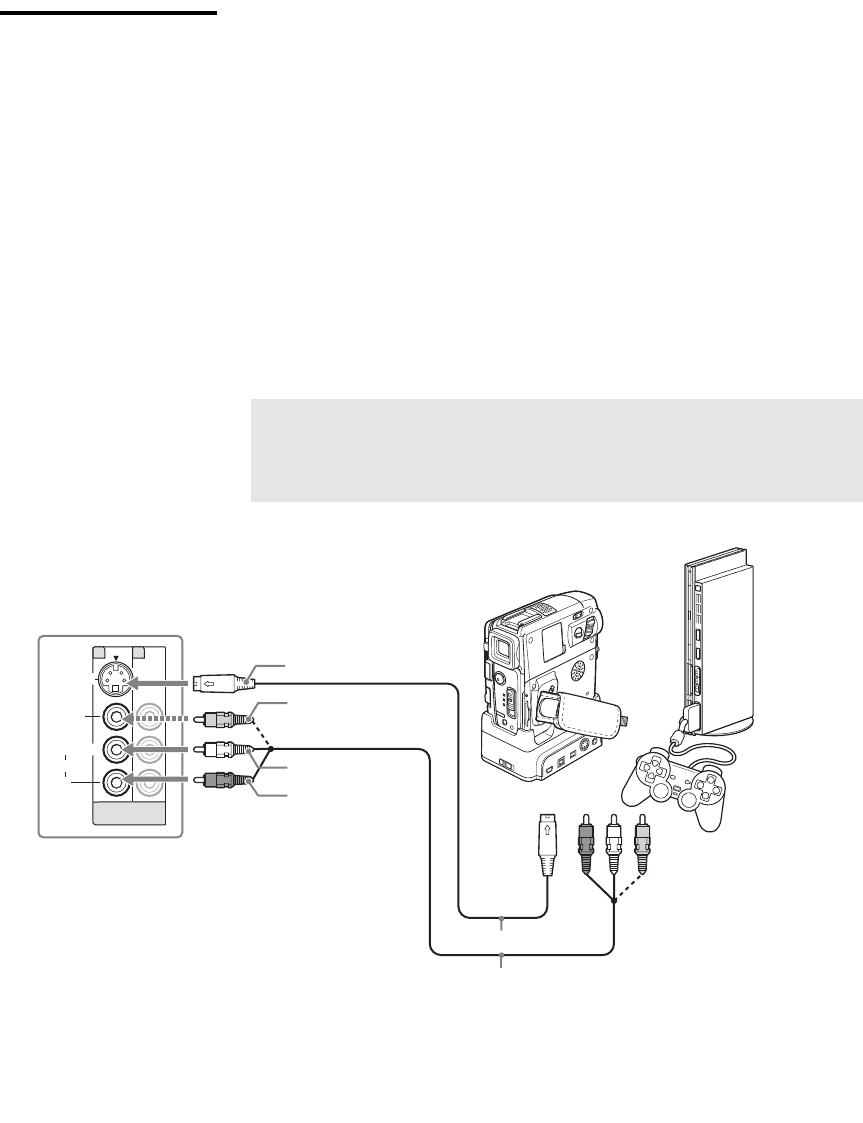

Camcorder or Video Game Equipment..........30

Personal Computer ....................................... 31

Audio Receiver.............................................. 31

Watching the TV

Overview............................................................. 32

Inserting Batteries into the Remote Control ... 32

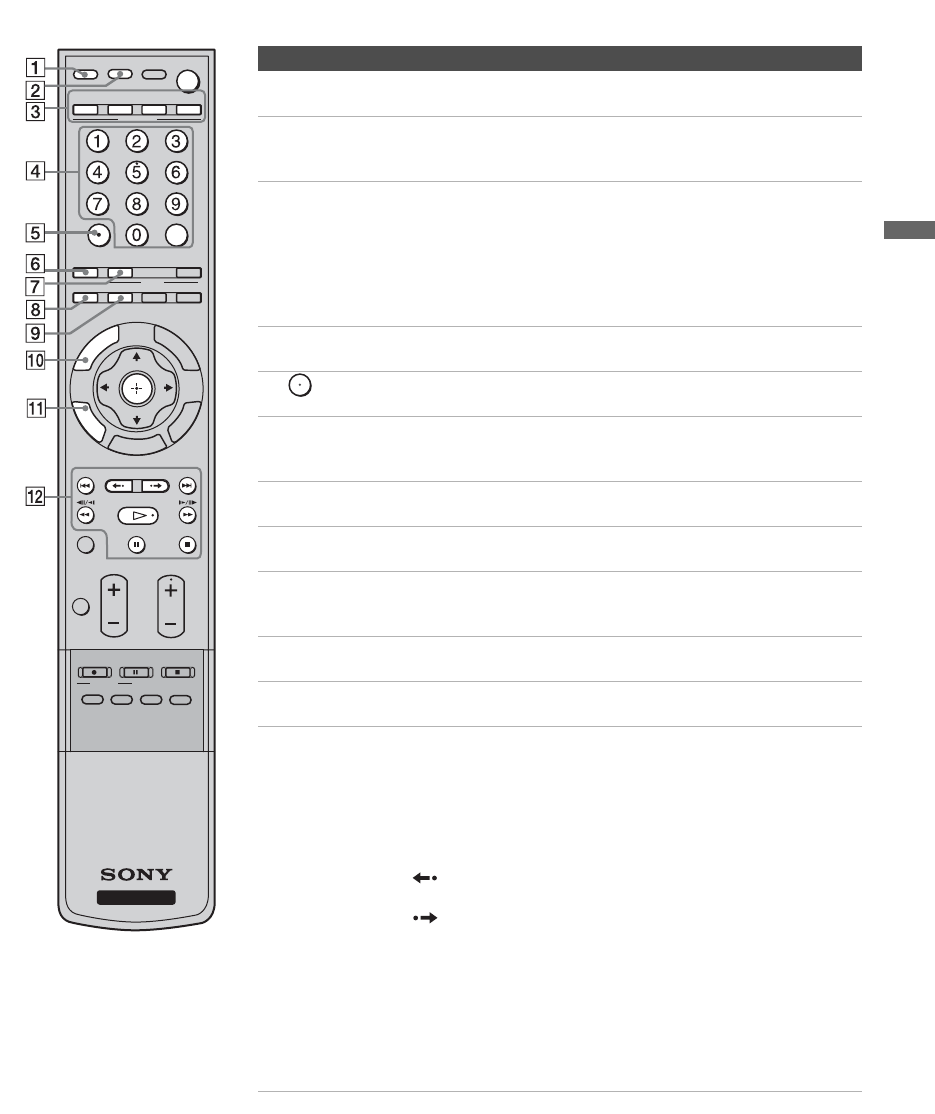

Button Descriptions........................................... 33

Programming the Remote Control ................... 35

Using Other Equipment with Your Remote

Control ......................................................... 37

Special Buttons on the Remote Control.......... 40

Using the TOOLS Button .............................. 40

Using the JUMP Button................................. 40

Using the FREEZE Button ............................ 40

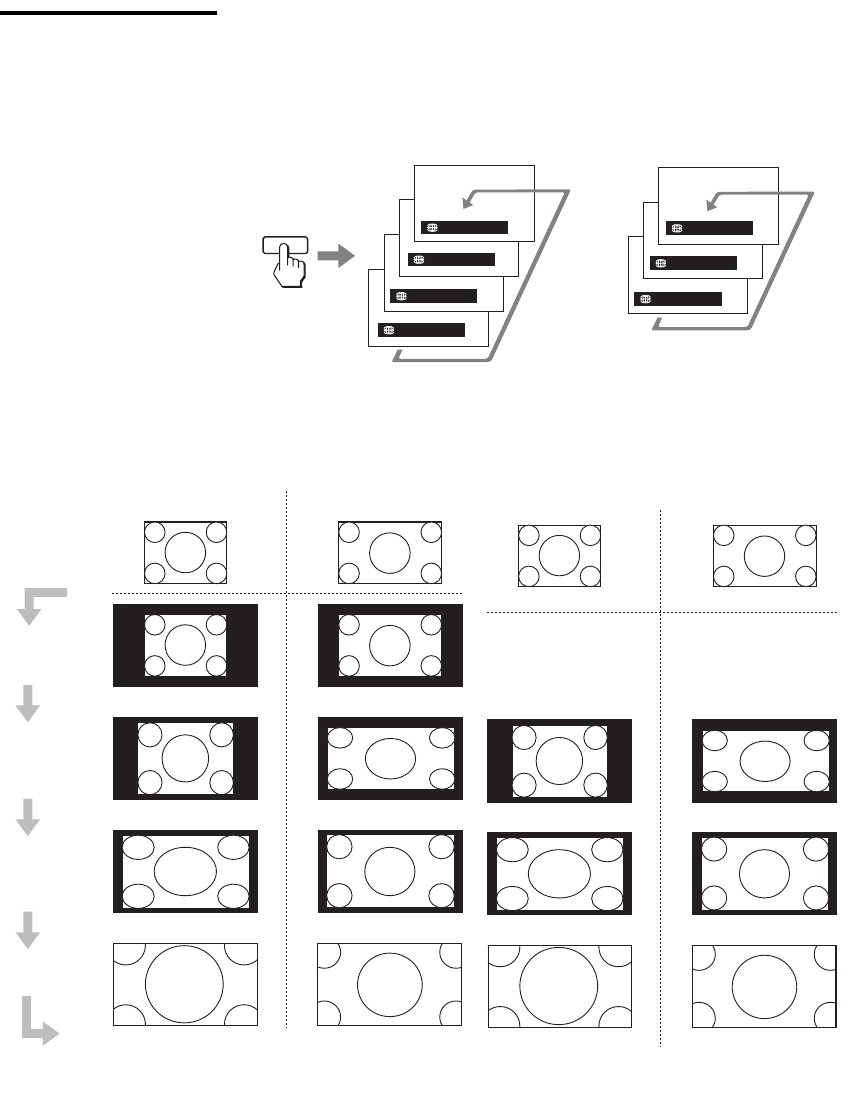

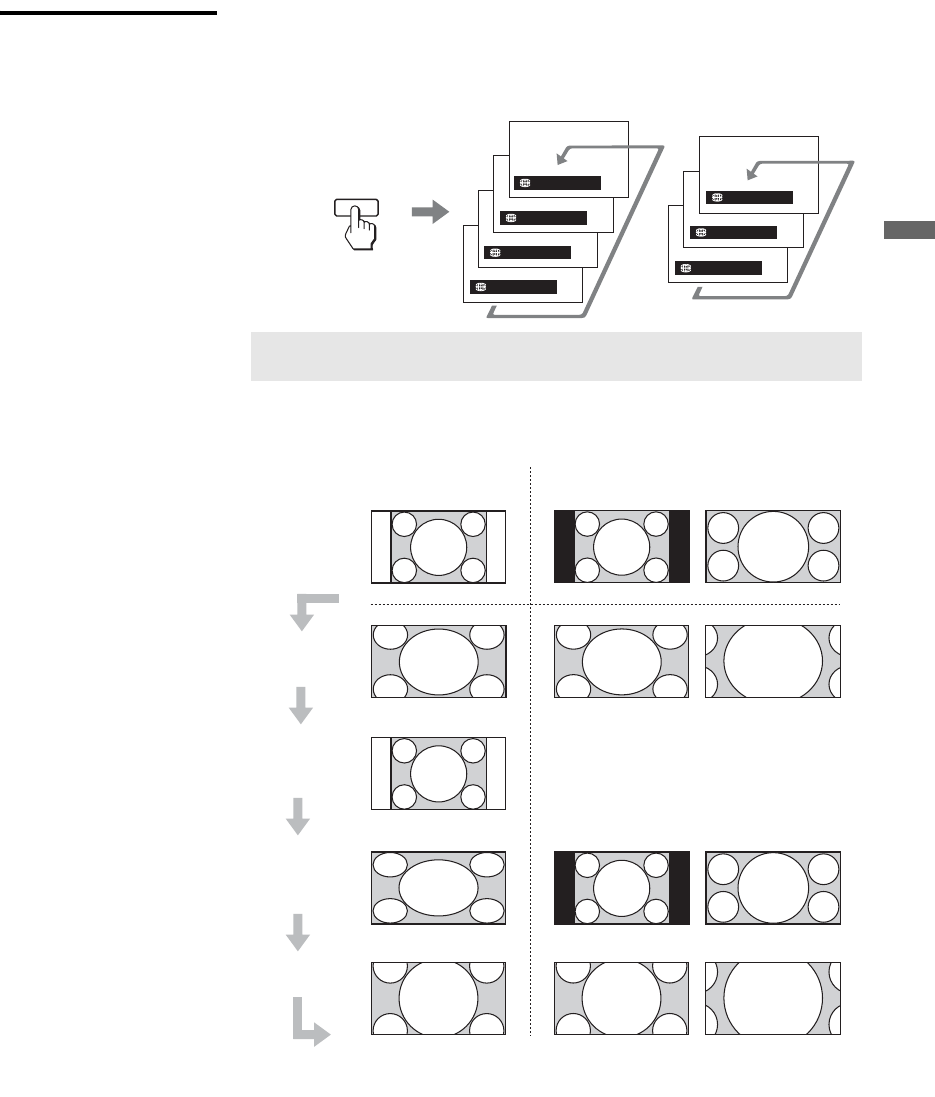

Using the WIDE Button ................................. 41

Using the WIDE Button in PC Mode ............. 42

Using the Menus

Overview of MENU ............................................. 43

Navigating and Selecting Items........................ 45

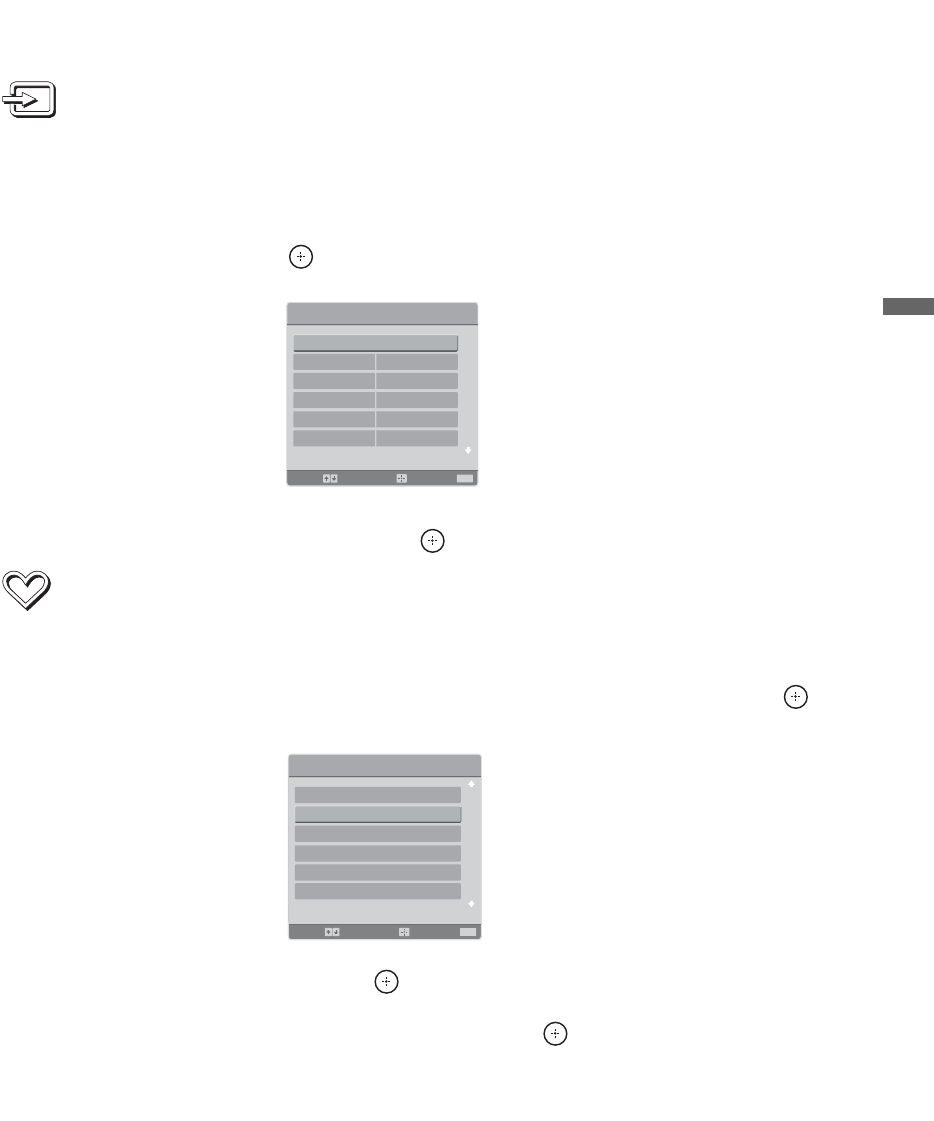

Using External Inputs in MENU ........................ 45

Using Favorites in MENU .................................. 45

Using TV in MENU.............................................. 46

Using Settings in MENU .................................... 46

Using the Settings

Overview............................................................. 47

Accessing the Picture Settings ........................ 49

Selecting Picture Options.............................. 49

Accessing the Sound Settings ......................... 52

Selecting Sound Options............................... 52

Accessing the Screen Settings ........................ 54

Selecting Screen Options.............................. 54

Accessing the Channel Settings ...................... 56

Selecting Channel Options............................ 56

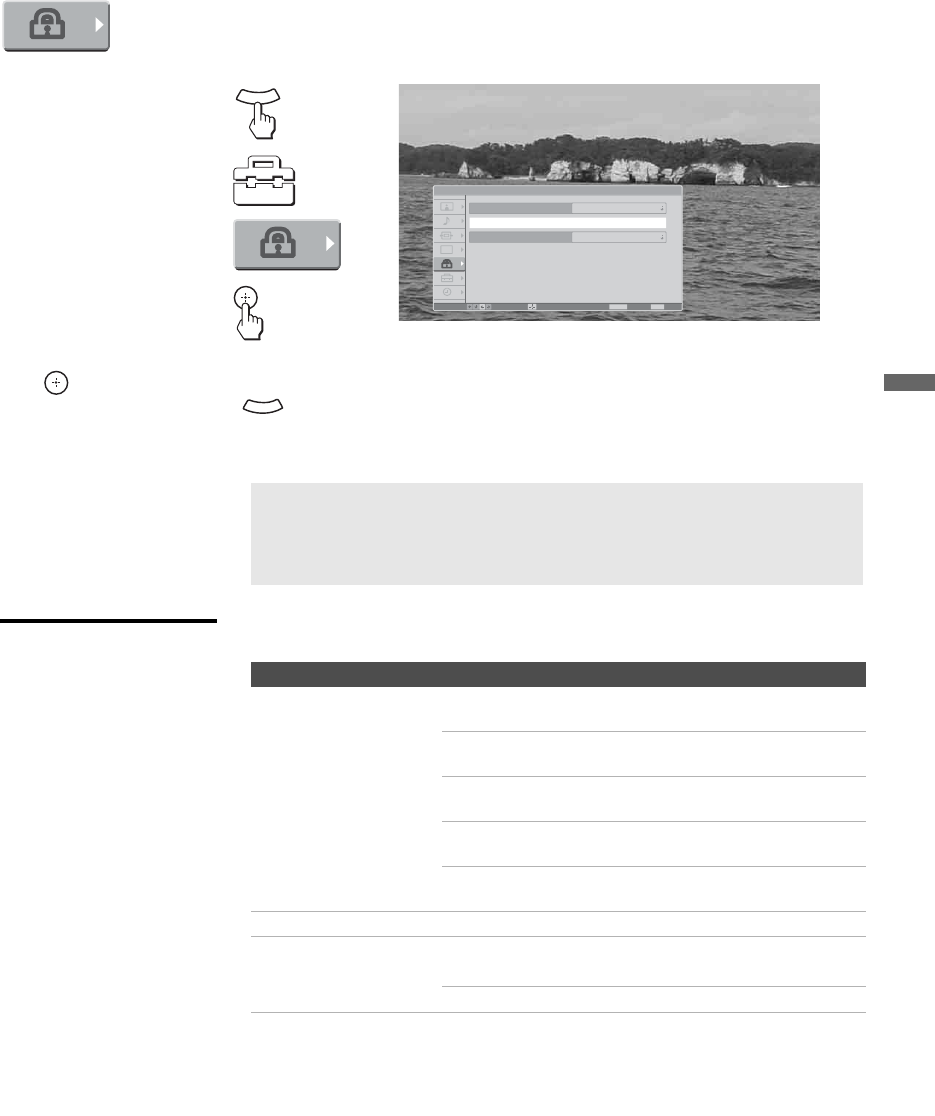

Accessing the Parental Lock Settings............. 57

Selecting Parental Lock Options................... 57

Viewing Blocked Programs ........................... 58

Selecting Custom Rating Options ................. 58

Accessing the Setup Settings .......................... 60

Selecting Setup Options................................ 60

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US02TOC.fm masterpage:3 columns Right

KF-42/50E200A

2-694-282-12(1)

Accessing the Clock/Timers Settings...............62

Selecting Clock/Timers Options.....................62

Other Information

Overview..............................................................65

Contacting Sony .................................................65

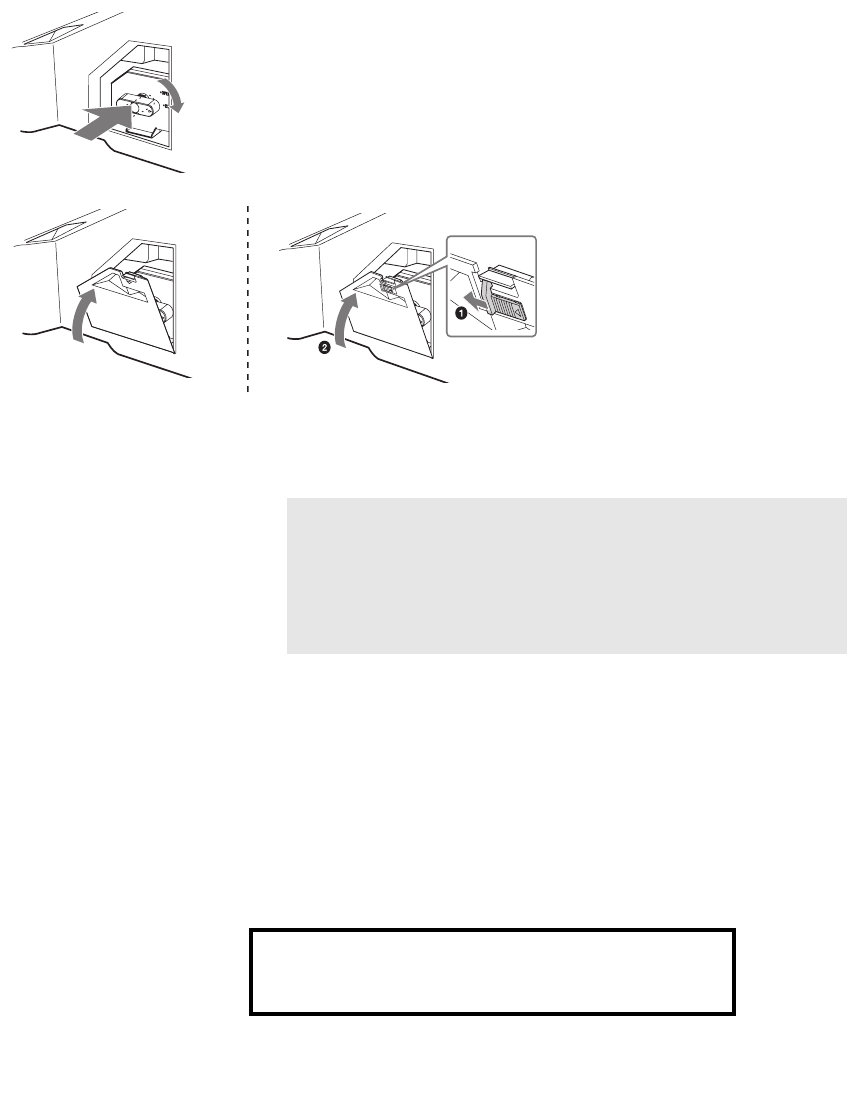

Replacing the Lamp............................................66

How to Replace the Lamp..............................66

Troubleshooting .................................................69

Remote Control..............................................69

Picture............................................................69

Sound.............................................................70

Channels........................................................71

General ..........................................................71

PC Input Signal Compatibility Chart.................73

Specifications ....................................................74

Index

Index ....................................................................76

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US03WEL.fm masterpage:3 columns Right

Introducing the TV

KF-42/50E200A

2-694-282-12(1)

Introducing the TV

Welcome

Thank you for purchasing this Sony’s LCD projection TV. This manual is for

models KF-42E200A and KF-50E200A (Canada model only).

Package Contents Along with your new TV, the packing box contains a remote control and two

AA (R6) batteries. See page 74 for the complete list of packaging contents.

Features Some of the features that you will enjoy with your new TV include:

❑WEGA Engine: Delivers superb picture quality from any video source

by minimizing the signal deterioration caused by digital-to-analog

conversion and stabilizing the signal processing. This engine features

unique Sony technology, including:

•DRC® (Digital Reality Creation)-MF V1: Unlike conventional

line doublers, the DRC Multifunction feature replaces the signal's

NTSC waveform with the near-HD equivalent by digital mapping

processing. The DRC Palette option lets you customize the level of

detail (Reality) and smoothness (Clarity).

❑Advanced Iris: Automatically detects the brightness of the screen. By

adjusting the iris shutter, this feature can provide you with the best

contrast and brightness from one scene to the next for your TV viewing.

❑MENU: Sony’s unique user interface provides easy access to useful TV

functions such as external inputs (switch among connected

equipments), favorite channels (create a list of your favorite channels),

watch TV or to customize your TV settings.

❑Wide Screen Mode: Allows you to watch 4:3 normal broadcasts in

wide screen mode (16:9 aspect ratio).

❑CineMotion®: Using the reverse 3-2 pull down technology, the

CineMotion feature provides smoother picture movement when playing

back movies or other video sources on film.

❑Parental Control: V-Chip technology allows parents to block

unsuitable programming from younger viewers.

❑HDMI (High-Definition Multimedia Interface) Inputs: Provide an

uncompressed, all-digital audio/video interface between this TV and

any HDMI-equipped audio/video component, such as a set-top box,

Blu-ray DiscTM player, DVD player, and A/V receiver. Your personal

computer can be connected to this TV with HDMI Input (see page 30).

HDMI supports enhanced, or high-definition video.

❑Component Video Inputs: Offers a high-quality video for DVD (480p,

480i) and digital set-top box (1080i, 720p, 480p, 480i) connections.

❑S VIDEO Inputs: Provides a high-quality image from connected

equipment.

❑Favorite Channels: Allows you to navigate a list of up to 16 favorite

channels without leaving the current channel.

❑Steady Sound®: Equalizes volume levels so there is consistent output

between programs and commercials.

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US03WEL.fm

KF-42/50E200A

2-694-282-12(1)

Enjoying Your TV

To enjoy your TV for years to come and maintain its original picture quality,

you should perform periodic maintenance.

Notes on the TV To enjoy clear picture

❑Prevent sunlight or other light sources from shining directly onto the

screen.

❑The screen surface is easily scratched. Do not rub, touch, or tap it with

sharp or abrasive objects (see “On Contamination on the Screen

Surface” on page 5).

When not using the TV for a long period of time

❑Unplug the AC power cord from the outlet if you anticipate not using

the TV for more than a week.

When turning off the power

❑The cooling fan will continue to operate for about two minutes. Allow

several minutes before unplugging from the outlet or switching the

breaker off.

On moisture condensation

❑If your TV is moved directly from a cold to a warm location or is placed

in a humid room, or if the room temperature changes suddenly, the

picture may blur or show poor color. This is caused by moisture

condensation on the lenses inside. Wait a few hours to let the moisture

evaporate before turning on the TV. When the condensation has

evaporated, the picture will return to normal.

Screen To minimize reflection, the screen surface has a special coating.

Inappropriate cleaning methods could damage the screen surface. Special

care is required.

Cleaning the Screen Surface

Dust and dirt on the screen can affect the picture quality. To dust off the

screen use a soft cloth. Be sure to follow the cleaning instruction on page 5

for stubborn stains and dirt.

Temporary Image Retention

When high contrast non-moving images such as station logos and channel

numbers are displayed for a long period of time, there may be some image

retention on the screen. This is only a temporary condition. Turning off the

power for a while or letting the TV run on another channel will eliminate the

image retention.

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US03WEL.fm masterpage:3 columns Right

Introducing the TV

KF-42/50E200A

2-694-282-12(1)

Indicators

The indicators show the current status of your TV. If there is a change in the

condition or a problem with the TV, the indicators will flash or light up in

the manner described below to let you know that it requires your attention.

Projection Lamp Your TV uses a projection lamp as its light source. As with any lamp, it has a

lifespan and needs to be replaced when the Lamp indicator flashes or the

screen becomes darker. Your TV also has a function to display a message,

“Projection lamp is nearing end of life. Please replace the lamp.” to let you

know that the lamp has reached its expected lifespan. Note the following:

❑After turning on your TV, it may take a while (1 minute or less) before

the picture appears.

❑When the projection lamp wears out, the screen goes dark. Replace the

lamp with a new Sony XL-2400 replacement lamp (not supplied).

❑After lamp is replaced, please set the “Lamp Replacement” option in the

Setup Settings (see page 61 and 66).

Indicator Flashing because...

POWER flashing green : The lamp for the light source is preparing to turn

on. When it is ready, the green indicator stays on.

red : The lamp door or the lamp is not securely attached.

The red indicator will continue to flash in intervals of three

blinks at a time until the lamp door or the lamp is placed

correctly. When the lamp door or the lamp is securely

attached, the TV will turn on with green indicator.

LAMP indicator

flashes

The projection lamp has burned out. Replace it with new

one (see page 66).

TIMER indicator is

lit

When one of the timers is set, the orange indicator will

remain lit (will not flash) even when the TV is turned off.

PUSH OPEN

POWER/STANDBY

POWER

TIMER LAMP

Indicators

Screen

How to replace the lamp,

see page 66.

✍The light emitted from the lamp is quite bright when your TV is in

use. To avoid eye discomfort or injury, do not look into the light

housing when the power is on.

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US03WEL.fm

KF-42/50E200A

2-694-282-12(1)

Installing the TV

Carrying Your TV Carrying the TV requires at least two people. Do not hold by the pedestal or

the front panel of the TV. Doing so may cause these parts to break off.

When moving the TV, place one hand in the hole on the lower portion of the

TV while grasping the top with the other hand, as shown in the illustration

below.

If you have connected cables and cords, be sure to unplug them before

moving the TV.

Take Precaution

during Installation

To ensure the safety of children and the TV, keep children away from the TV

during installation. Climbing on or pushing the TV or its stand may cause it

to fall and damage the TV.

Preventing the TV

from Toppling Over

As a protective measure, secure the TV as follows.

Using the TV stand with support belts

❑Sony strongly recommends using the TV stand SU-RG11S

(for KF-42E200A)/SU-RG12L (for KF-50E200A) with a support belt

designed for your TV.

KF-42E200A KF-50E200A

✍When using the SU-RG11S (for KF-42E200A)/SU-RG12L

(for KF-50E200A) stand for your TV, you must use the support belt.

Do not grasp the pedestal

or the front panel of the TV.

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US03WEL.fm masterpage:3 columns Right

Introducing the TV

KF-42/50E200A

2-694-282-12(1)

When Installing Your

TV against a Wall

Keep your TV at least 4 inches (10 cm) away from the wall to provide proper

ventilation. Blocking the ventilation opening of the cooling fan may damage the TV

Recommended

Viewing Area

Your viewing position may affect the picture quality.

For the best picture quality, install your TV within the areas shown below.

12 inches

(approx. 30cm)

4 inches

(10cm)

4 inches

(10cm) 4 inches

(10cm)

Never install the TV as follows:

Air blown into cooling fan.

Air circulation is blocked.

✍Do not install the TV near any ventilation, as it may affect the

normal TV operating temperature.

Model Viewing distance

KF-42E200A min. 5.9 ft. (approx. 1.8 m)

KF-50E200A min. 6.6 ft. (approx. 2.0 m)

50 inches min. 6.6 ft. (approx. 2.0 m)

42 inches min.

5.9 ft.

(approx.

1.8 m

)

65.

50 inches min. 6.6 ft. (approx. 2.0 m)

42 inches min. 5.9 ft. (approx. 1.8 m)

Horizontal Viewing Area Vertical Viewing Area

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US03WEL.fm

KF-42/50E200A

2-694-282-12(1)

Side and Rear Panel

PUSH OPEN

TV/VIDEO

CANNELVOLUME

POWER

TIMER LAMP

POWER/STANDBY

VIDEO/HD/DVD IN

(1080i/720p/480p/480i)

R-AUDIO-L(MONO)

VIDEO

S VIDEO

VIDEO

AUDIO

(MONO)

AUDIO

OUT

(

VAR/FIX

)

VIDEO IN HD/DVD IN

(1080i/720p/480p/480i)

SERVICE

ONLY

VHF/UHF

CABLE

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US03WEL.fm masterpage:3 columns Right

Introducing the TV

KF-42/50E200A

2-694-282-12(1)

Jack Description

1HD/DVD IN 2

(1080i/720p/

480p/480i)

Connects to your equipment’s component video (YPBPR) output jacks. Component video

provides better picture quality than the S VIDEO (4 of rear panel) or the composite video

(6 of rear panel) connections.When Auto is selected for the Video 2 (Component) option in

the Setup settings, the component video function will be the default stream when present (see

page 61).

2VIDEO IN 2 Connects to the composite video output jack on your camcorder or other video equipment.

✍When connecting composite video to VIDEO IN 2, be sure to select Video 2

(Component) to Off in the Setup settings to activate both audio and video

function for composite connection (see page 61).

3AUDIO IN 2

L (MONO)/R

Connects to the audio (L/R) output jacks of your equipment such as camcorder or other video

equipment which you want an easy access.

4VIDEO IN 1

S VIDEO

Connects to the S VIDEO output jack of your VCR or other video equipment that has

S VIDEO. S VIDEO provides better picture quality than the composite video (6).

5VHF/UHF/

CABLE

RF input that connects to your cable or VHF/UHF antenna signal.

6VIDEO IN 1/3

VIDEO/

L (MONO)-

AUDIO-R

Connects to the composite video and audio output jacks on your VCR or other video

equipment. A third composite video and audio (VIDEO 2) is located on the left side panel of

the TV.

7HDMI IN 6

HDMI/

R-AUDIO-L

HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital

audio/video interface between this TV and any HDMI-equipped audio/video equipment, such

as a set-top box, Blu-ray Disc player, DVD player, A/V receiver as well as PC. HDMI supports

enhanced, or high-definition video, plus two-channel digital audio. You can also connect a

DVI-equipped device to your TV by using an HDMI-to-DVI cable.

8HDMI IN 7 When HDMI to DVI cable is used to connect your equipment for video, be sure to use audio

cable for the sound. See page 30 for connecting to your personal computer.

9Service Port For service use only.

0AUDIO OUT

(VAR/FIX) L/R

Connects to the left and right audio input jacks of your audio or video equipment. You can use

these outputs to listen to your TV’s audio through your stereo system.

qa HD/DVD IN 4/5

(1080i/720p/

480p/480i)/

L-AUDIO-R

Connects to your equipment’s component video (YPBPR) and audio (L/R) jacks. Component

video provides better picture quality than the S VIDEO (4) or the composite video (6)

connections.

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US03WEL.fm

KF-42/50E200A

2-694-282-12(1)

TV Controls and Connectors

Front Panel

Item Description

1MENU

Press to display

to activate the ,

, and

buttons. Press again to exit

activate the

TV/VIDEO

– VOLUME +

and

– CHANNEL+

buttons.

TV/VIDEO

Press to confirm the selection or setting.

Press repeatedly to cycle through the video equipment connected to the TV’s video inputs.

– VOLUME +

Press to adjust the volume.

– CHANNEL +

Press to scan through channels. To scan quickly through channels, press and hold either

–

5TIMER LED

When lit in orange, indicates one of the timers is set. When it is set, this LED will remain lit even if

the TV is turned off. For details, see page 62.

6LAMP LED

Flashes in red when the lamp for the light source has burned out. For details, see “Replacing the

Lamp” on page 66.

7POWER

Lights up in green when the TV is turned on. If the LED blinks in red continuously, this may

indicate the display unit needs servicing (see contacting Sony information on page 2). When the red

LED blinks only three times, the lamp door of the lamp unit or the lamp itself is not securely

attached (see page 67).

8 Infrared

Receiver

Receives IR signals from the remote control.

Do not put anything near the sensor, as its function may be affected.

9POWER

Press to turn on and off the TV.

q; Speaker

Outputs the audio signal.

✍The CHANNEL + button has a tactile dot. Use the tactile dot as a reference

when operating the TV.

PUSH OPEN

TV/VIDEO

CANNELVOLUME

POWER

TIMER LAMP

POWER/STANDBY

PUSH OPEN

POWER

TV/VIDEO

CHANNELVOLUME

TIMER LAMP

21593 4678

To open the front panel of your TV, push up the

panel door just under the “PUSH OPEN” mark.

To open the panel

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm masterpage:3 columns Right

Connecting the TV

KF-42/50E200A

2-694-282-12(1)

Connecting the TV

Overview

To display clear crisp pictures, you must connect your TV correctly and

select the correct Wide Mode to display the picture in the correct aspect ratio

(see “Using the WIDE Button” on page 41). It is strongly recommended to

connect the antenna using a 75-ohm coaxial cable to receive optimum

picture quality signal. A 300-ohm twin lead cable can be easily affected by

radio noise and the like, resulting in signal deterioration. If you use a 300-

ohm twin lead cable, keep it as far away as possible from the TV.

Making Video and

Audio Connections

The signals that enter your TV and connected devices will need to output in

the correct format using the suitable connections. Below are different types

of video connectors available these days. Your TV comes with all types of

connectors with the exception of the DVI connector but your cable box or

satellite receiver may be equipped with this type. When connecting your TV,

use the inputs that are available on your devices that provide the best video

performance, as described below.

Best Video

Performance Connector type

Separate audio

connection required

HDMI

(High-Definition Multimedia Interface) No

DVI (Digital Visual Interface) *

Ye s

Component video

(480i/480p/720p/1080i)

S VIDEO

Composite video

RF/Coaxial No

* An adapter is necessary when you are connecting a DVI-equipped device to this TV

(see page 18).

L-

AUDIO

-R

YPBPR

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

About Using

S VIDEO

If the optional equipment you are connecting has an S VIDEO jack

(shown at left), you can use an S VIDEO cable for improved picture

quality (compared to an A/V cable). Because S VIDEO carries only

the video signal, you also need to connect audio cables for sound, as

shown below.

Example of an S VIDEO Connection

About Using HDMI

to DVI Adapter

If you are connecting equipment with DVI connector with this TV, you will

need to use an adapter. You can use an HDMI-to-DVI cable or an HDMI

adapter (not supplied). Both are available from your local electronics store.

When you use the adapter, you will also need to use separate audio cables

for sound as DVI connector is for video signals only.

S VIDEO

VIDEO

AUDIO

L (MONO)

VIDEO IN

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Rear of TV

S VIDEO cable

Equipment with S VIDEO

Audio cable

HDMI-to-DVI cable

Audio cable

HDMI adapter

masterpage:3 columns Right

Connecting the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

Basic Connections

The way in which you connect your TV will vary, depending on how your

home receives a signal (antenna and satellite; cable and cable box) and

whether or not you plan to connect a VCR.

If you are connecting a VCR

See the connections described on pages 25 and 26.

If You Are Connecting See Page

Cable System or VHF/UHF Antenna System

❑No cable box or VCR

Cable Box

❑Cable box unscrambles only some channels (usually

premium channels)

❏No VCR

Satellite Receiver and Cable/Antenna

Equipment with HDMI Connection

Equipment with DVI Connection

Setting Up the Channel List

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

Cable System or

VHF/UHF Antenna

System

For best results, use this connection if you:

❑Have a cable or an antenna.

❑Do not have a cable box or VCR. (If you have a cable box, see below. If

you have a VCR, see pages 25 and 26.)

Cable Box For best results, use this connection if:

❑Your cable company scrambles all channels, which requires you to use a

cable box.

❑You do not have a VCR. (If you have a VCR, see pages 25 and 26.)

To connect the cable box

1Connect the CATV cable to the cable box’s input jack.

2Use a coaxial cable to connect the cable box’s output jack to the TV’s

CABLE input.

3Turn on the cable box first, then run Auto Program as described in

“Setting Up the Channel List” on pages 23.

Notes on Using This Connection

✍Do not use an indoor antenna, which is especially susceptible to

radio noise.

75-ohm Coaxial cable

Rear of TV

VHF/UHF

CATV cable

Cable box

Coaxial cable

Rear of TV

CABLE

OUT

To do this... Do This ...

Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3

or 4) and then use the cable box to switch channels.

Set up the TV remote control to operate the cable

box

Program the remote control. See “Programming the Remote

Control” on page 35.

Activate the remote control to operate the cable

box

Press SAT/CABLE (FUNCTION) once, and the SAT/CABLE

indicator lights up.

Prevent the accidental switching of TV channels When using the cable box, ensure that the TV remains tuned to the

channel that the cable box is set to (usually channel 3 or 4).

masterpage:3 columns Right

Connecting the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

Satellite Receiver

and Cable/Antenna

❑SAT signals are selected by the SAT Box connected to the VIDEO

INPUT. TV signals are selected from the signal connected to the

CABLE input.

Disconnect all power sources before making any connections.

1Connect the satellite antenna cable to the satellite receiver’s

SATELLITE IN jack.

2Use A/V and S VIDEO cables to connect the satellite receiver’s AUDIO

and S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

3Use a coaxial cable to connect your cable or your antenna to the TV’s

VHF/UHF/CABLE jacks.

✍If your satellite receiver is not equipped with S VIDEO, use a VIDEO

cable (yellow) instead of the S VIDEO cable.

S VIDEO

VIDEO

AUDIO

L (MONO)

VIDEO IN

VHF/UHF

CABLE

Satellite receiver

A/V cable

Rear of TV

VIDEO

Satellite

antenna

cable

S VIDEO

S VIDEO cable

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

AUDIO-L

AUDIO-R

Coaxial cable

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

Equipment with

HDMI Connection

Use this hookup if:

❑Your equipment has a High-Definition Multimedia Interface (HDMI).

Disconnect all power sources before making any connections.

Using an HDMI cable, connect the equipment’s HDMI OUT jack to the

TV’s HDMI IN (HDMI 6 or HDMI 7) jack.

Equipment with DVI

Connection

Disconnect all power sources before making any connections.

If you are connecting with DVI-HDTV output, you can connect to the TV’s

HDMI IN (HDMI 6) jack by using an HDMI-to-DVI cable or an adapter

(both not supplied).

zThe HDMI jack

provides both video

and audio signals, so it

is not necessary to

connect an audio cable.

AUDIO

Rear of TV

HDMI cable

Equipment with HDMI output

✍When using a HDMI-to-DVI cable or an adapter, be sure to connect

the DVI output connector first; then connect to the HDMI input on

your TV.

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

When connecting to a

DVI output, audio cable

must be used

simultaneously for the

audio signal. DVI carries

video signal only.

DVI-HDTV

AUDIO

Rear of TV

HDMI-to-DVI cable

or adapter

Audio cable

Equipment with DVI output

AUDIO-R

AUDIO-L

masterpage:3 columns Right

Connecting the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

Setting Up the Channel List

After you finish connecting the TV, you can run the Initial Setup to create a

list of available channels. The Initial Setup screen appears when you turn on

the TV for the first time after hooking it up. If you choose to set up the

channels at a later time, select the Auto Program option in the Channel

setting to scan available channels (see below).

Using Initial Setup To run Initial Setup the first time you turn on your TV

1Press to turn on the TV.

The Initial Setup screen appears.

2Press V or v to highlight the on-screen

display language. Then press . The

message “First please connect cable or

antenna” and “Start auto program now?”

will appear.

3Highlight “Yes” then press .

Auto Program performed through Initial Setup will automatically create a

list of receivable channels.

To run Auto Program at a later time

Before running the Auto Program, make sure that you have selected the

correct signal input for your TV. See “Cable” under Selecting Channel

Options on on page 56.

1Select Settings in MENU, and then go to Channel settings.

2Select Auto Program then select “Ye s ”.

✍The Initial Setup feature does not apply for installations that use a

cable box for all channel selection.

✍Auto Program may take a few minutes to complete. If you cancel

the Auto Program before all receivable channels are scanned, you

may want to perform the task later (see “To run Auto Program at a

later time” below).

✍If you selected “No” during the Initial Setup, the Initial Setup

message will appear each time you turn on the TV until you

complete the Auto Program as a reminder.

✍Auto Program will create a list of receivable channels for the

current input (VHF/UHF antenna or CABLE).

Initial Setup

First please connect cable or antenna.

Start auto program now?

Move: Select: Exit:

Yes No

TV POWER

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

Connecting Optional Equipment

You can connect a variety of optional equipment to your TV. This section

provides some of the individual connections you can make. For multiple

connections, please refer to the Quick Setup Guide.

If You Are Connecting See Page

VCR and Cable 25

VCR and Cable Box 26

DVD Player with Component Video Connectors 28

DVD Player with S VIDEO and Audio Connectors 29

Camcorder or Video Game Equipment 30

Audio Receiver 31

masterpage:3 columns Right

Connecting the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

VCR and Cable Use this hookup if:

❑You have cable TV that does not require a cable box.

Disconnect all power sources before making any connections.

1Connect the CATV cable to the single (input) jack of the splitter.

2Use a coaxial cable to connect one of the output jack of the splitter to

the TV’s VHF/UHF/CABLE jack.

3Use a coaxial cable to connect the splitter's other output jack to the

VCR’s input jack.

4Use A/V and S VIDEO cables to connect the VCR’s AUDIO and

S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

✍If your VCR is not equipped with S VIDEO, use a VIDEO cable

(yellow) instead of the S VIDEO cable.

S VIDEO

VIDEO

AUDIO

L (MONO)

AUDIO

OUT

(VAR/FIX)

VIDEO IN HD/DVD IN

(1080i/720p/480p/480i)

VHF/UHF

CABLE

Coaxial

cable

Rear of TV

VIDEO

VCR

A/V cable

S VIDEO

S VIDEO cable

Coaxial

cable

AUDIO-R

AUDIO-L

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

VCR and Cable Box Use this hookup if:

❑Your cable TV company scrambles some channels, but not all of them

(pay channels vs. regular cable channels) and you need to use a cable

box.

With this connection you can:

❑Use the TV’s remote control to change channels on your cable box

when the signal is scrambled. To program your Sony remote control to

operate your cable box, see “Programming the Remote Control” on

page 35.

❑Use the TV’s remote control to change channels on your TV when the

signal is not scrambled. Your TV’s tuner provides a better picture

quality than the output of your cable box.

Disconnect all power sources before making any connections.

1Connect the CATV cable to the single (input) jack of the splitter.

2Use a coaxial cable to connect one of the output jack of the splitter to

the TV’s VHF/UHF/CABLE jack.

3Use a coaxial cable to connect the splitter’s other output jack to the

cable box’s input jack.

4Use a coaxial cable to connect the cable box’s output jack to the VCR’s

RF input jack.

5Use an A/V cable to connect the cable box’s A/V output jacks to the

TV’s A/V input jacks.

6Use an A/V and S VIDEO cables to connect the VCR’s AUDIO and S

VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

7Run Initial Setup, as described in “Setting Up the Channel List” on page

23.

✍If your VCR is not equipped with S VIDEO, use a VIDEO cable

(yellow) instead of the S VIDEO cable.

✍To view scrambled channels, tune the TV to the channel the cable

box is set to (usually channel 3 or 4) and then use the cable box to

switch channels.

masterpage:3 columns Right

Connecting the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

S VIDEO

VIDEO

AUDIO

L (MONO)

AUDIO

OUT

(VAR/FIX)

VIDEO IN HD/DVD IN

(1080i/720p/480p/480i)

VHF/UHF

CABLE

Cable box

Rear of TV

A/V cable

Cables are often

color-coded to

connectors. Connect red

to red,

white to white, etc.

If you are connecting a

digital cable box, you will

need a special bi-

directional splitter

designed to work with your

cable box.

A/V cable

S VIDEO

cable

CATV

cable

VIDEO

AUDIO-L

AUDIO-R

VCR

Splitter

Coaxial

cable

VIDEO

AUDIO-L

AUDIO-R

Coaxial

cable

Coaxial cable

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

DVD Player with

Component

Video Connectors

Use this hookup if:

❑Your DVD player has component (YPBPR) jacks.

Disconnect all power sources before making any connections.

1Use a component video cable to connect the DVD player’s YPBPR jacks

to the TV’s YPBPR jacks. Use the HD/DVD IN 4 or 5 input.

2Use an audio cable to connect the DVD player’s AUDIO OUT jacks to

the TV’s AUDIO IN jacks. Be sure to use the same row of inputs that

you used for the video connection (HD/DVD IN 4 or 5).

✍The YPBPR jacks on your DVD player are sometimes labeled YCBCR,

or Y, B-Y and R-Y. If so, connect the cables to like colors.

S VIDEO

VIDEO

AUDIO

L (MONO)

AUDIO

OUT

(

VAR/FIX

)

VIDEO IN HD/DVD IN

(1080i/720p/480p/480i)

Component video cable

Rear of TV

Audio cable

DVD player

AUDIO-R

AUDIO-L

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

✍To take advantage of the Wide Mode feature, set the DVD player’s

aspect ratio to 16:9. For details, refer to the operating instructions

supplied with your DVD player.

masterpage:3 columns Right

Connecting the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

DVD Player with

S VIDEO and Audio

Connectors

Use this hookup if:

❑Your DVD player does not have component (YPBPR) jacks.

Disconnect all power sources before making any connections.

1Use an A/V cable to connect the DVD player’s AUDIO OUT jacks to

the TV’s AUDIO IN jacks.

2Use an S VIDEO cable to connect the DVD player’s S VIDEO jack to

the TV’s S VIDEO jack.

S VIDEO

VIDEO

AUDIO

L (MONO)

VIDEO IN Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

DVD player

Rear of TV

A/V cable

S VIDEO

cable

S VIDEO

AUDIO-R

AUDIO-L

VIDEO

✍If your DVD player is not equipped with S VIDEO, use a VIDEO

cable (yellow) instead of the S VIDEO cable.

✍To watch a DVD, press TV/VIDEO repeatedly to select the DVD

input (VIDEO 1 in the illustration). If you have a non-Sony DVD

player and want to set up the TV remote control to operate it,

you must program the remote control. See “Programming the

Remote Control” on page 35.

✍To control DVD functions with the TV remote control, see

“Operating a DVD Player or DVD Changer” on page 37.

✍To easily identify equipment connected to the TV, see the

instructions for setting up Label Video Inputs on page 60.

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

Camcorder or Video

Game Equipment

You can connect a camcorder or Video Game Equipment to your TV. For

easy connection, use VIDEO IN 2 on the left side of the TV. To use the S

VIDEO jack instead of the VIDEO jack (yellow), use VIDEO IN 1 on the

rear panel of the TV.

To connect a camcorder or Video Game Equipment to VIDEO IN 1

Use A/V and S VIDEO cables to connect the AUDIO and S VIDEO OUT

jacks on the camcorder or Video Game Equipment to the AUDIO and

S VIDEO IN jacks on the rear panel of the TV, as shown below.

To connect a camcorder or Video Game Equipment to VIDEO IN 2

Select Off in the Video 2 (Component) option in the Setup settings (see

page 61). Use an A/V cable to connect the A/V output jacks on the

camcorder or Video Game Equipment to the A/V input jacks on the left side

of the TV.

✍If your camcorder is not equipped with S VIDEO, use a VIDEO

cable (yellow) instead of the S VIDEO cable.

✍If you have a mono camcorder, connect its audio output jack to the

TV’s L MONO audio input jack.

S VIDEO

VIDEO

AUDIO

L (MONO)

VIDEO IN

To A/V output jacks

Rear of TV

Camcorder

SVIDEO

VIDEO

AUDIO-L

AUDIO-R

SVIDEO

jack

Video Game Equipment

S VIDEO cable

A/V cable

masterpage:3 columns Right

Connecting the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US04INS.fm

KF-42/50E200A

2-694-282-12(1)

Personal Computer If you want to use your TV as your computer monitor, you can connect your

PC to the TV.

To connect a PC (personal computer)

You have a choice of connecting PC to the TV's HDMI 6 Input or HDMI 7

Input (only with HDMI connection). HDMI-to-DVI cable will carry digital

video from your PC to TV. To listen to audio from your PC, you will need to

connect audio cable (see “PC Input Signal Compatibility Chart” on page

73).

Audio Receiver For improved sound quality, you may want to play the TV’s audio through

your stereo system (see page 53).

Disconnect all power sources before making any connections.

Using an audio cable, connect the TV’s AUDIO OUT (VAR/FIX) jacks to

the audio receiver’s audio LINE IN jacks.

AUDIO

Rear of TV

To audio

output jack Audio cable HDMI-to-

DVI cable

Audio-R

Audio-L

AUDIO

OUT

(

VAR/FIX

)

Rear of TV

AUDIO-L

AUDIO-R

Audio cable

Line

input

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Audio receiver

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm masterpage:3 columns Right

KF-42/50E200A

2-694-282-12(1)

Watching the TV

Overview

The table on the next page describes the buttons on the remote control.

Inserting Batteries into the Remote Control

Insert two size AA (R6) batteries (supplied) by matching the e and E on

the batteries to the diagram inside the battery compartment.

Topic Page

Inserting Batteries into the Remote Control 32

Button Descriptions 33

Programming the Remote Control 35

Manufacturer’s Codes 36

Using Other Equipment with Your Remote Control 37

Special Buttons on the Remote Control 40

✍To avoid possible damage from battery leakage, remove the

batteries if you anticipate the remote control will not be used for an

extended period.

✍Handle the remote control with care. Avoid dropping it, getting it

wet, or placing it in direct sunlight, near a heater, or in high

humidity.

✍Your remote control can be programmed to operate most video

equipment. (See “Programming the Remote Control” on page 35.)

masterpage:3 columns Right

Watching the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

Button Descriptions

Button Description

1TV/VIDEO

Press to cycle through the video equipment connected to your TV’s

video inputs.

SLEEP

Press repeatedly to select the desired amount of time (Off, 15

minutes, 30 minutes, 45 minutes, 60 minutes, 90 minutes or 120

minutes) before TV turns off automatically.

3FUNCTION

Buttons

The

FUNCTION

button indicator lights up momentarily when

pressed to show which external equipment the remote control is

operating. When the remote control is set to operate the external

equipment, these buttons will operate the equipment you choose.

You must first press one of these

FUNCTION

buttons to operate

the corresponding equipment. See page 35 for Programming the

Remote Control.

40-9, ENT

Press

0-9

to select a channel: the channel changes after 2 seconds.

Press

ENT

to change channels immediately.

Press to select digital channels on your cable box or satellite

receiver; non-operable button for this TV.

6JUMP

Press to jump back and forth between two channels. The TV

alternates between the current channel and the last channel that was

selected with buttons described above in

and

7ANT

Displays a message and jumps to the TV mode. Non-operable

button.

SURROUND

Press to select TruSurround XT audio effect or Off to turn

this feature off.

9SOUND

Press to cycle through different sound settings:

Dynamic

for

enhanced treble and bass,

Standard

for spoken dialog and

Custom

for flat setting.

0GUIDE

To be used with your connected satellite receiver that supports

program guide. (Non-operable button for this TV.)

qa RETURN

Press

RETURN

to either close the menu screen or move back to

previous layer if you are in the multilayer menu item.

qs BD/DVD,

DVD/VCR

Operating

Buttons

When

FUNCTION

is switched on

BD (Blu-ray Disc)/DVD

DVR/VCR

, these buttons operate the video equipment you have

programmed into the remote control. For details, see “Using

Other Equipment with Your Remote Control” on page 37.

: Press to replay the current program from the

previous Chapter Mark (if any) or from the beginning of the live

TV cache.

REPLAY

: Press to replay the current program for a set

period of time.

ADVANCE

: Press to advance forward a set period of time

when playing back a recorded program.

: Press to advance forward to the next Chapter Mark

(if any) or to live TV when playing back a recorded program.

(fast reverse)

: Press to play a program in fast rewind mode.

PLAY

: Press to play a program at a normal speed.

(fast forward)

: Press to play a program in fast forward mode.

PAUSE

: Press to pause playback.

STOP

: Press to stop the playback of a recorded program.

ENT

RETURN

TOOLS

TV/VIDEO

DVR/VCR

SAT/CABLE

FUNCTION

BD/DVD

POWER TV POWER

JUMP ANT FREEZE

SOUND PICTURE WIDE

VISUAL SEARCH

PAUSE

PLAY

STOP

REC REC PAUSE REC STOP

TOP MENU MENU F1 F2

GUIDE

DISPLAY

REPLAY ADVANCE NEXTPREV

VOL

MUTING

BD/DVD

MODE

SLEEP

SURROUND

zThe 5 button, CH + button

and PLAY button have a

tactile dot. Use the tactile

dot as a reference when

operating the TV. (Continued)

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

VISUAL

To be used only with your connected external equipment with

visual search function. (Non-operable button for TV)

MUTING

Press to mute the sound. Press again or press VOL + to

unmute.

VOL +/–

Press to adjust the volume.

DVD/VCR

Record Buttons

z REC: Press to record. Pressing this button alone starts the

recording process.

X REC PAUSE: Press to pause the recording.

x REC STOP: Press to stop the recording.

BD/DVD TOP

Press to display the top menu or menu.

MENU/

✍For more information, refer to the operating manual of

the connected equipment.

POWER

Press to turn on/off the external equipment selected from the

FUNCTION

buttons

TV POWER

Press to turn on/off the TV.

FREEZE

Press to freeze the current picture. Press again to restore the

picture. For details, see “Using the FREEZE Button” on

page 40.

wa PICTURE

Press repeatedly to cycle through the available video picture

modes:

Vivid, Standard,

Custom

. The video picture modes can

be also accessed in the Video menu. For details, see “Selecting

Picture Options” on page 49.

WIDE

Press repeatedly to step through the Wide Screen Mode

setting. The Wide Screen Mode setting can be also accessed in

the Screen setting. For details, see “Using the WIDE Button”

on page 41 and Wide Screen Mode for PC input on page 42.

DISPLAY

Press once to display channel number, label, current time and

other information. Press again to turn Display off. See page 62

for details on setting the time.

Press V/v/B/b to move the on-screen cursor. To select an

item, press .

TOOLS

Press to access Tools menu with commonly used options such

as: Picture Mode, Sound Mode, Wide Mode, Add to

Favorites and Caption Vision.

Press to access the following with the MENU:

• Watch TV (see page 46).

• Select channels from the Favorite Channels you stored (see

page 45).

• View signals from external equipment such as DVD, VCR

and others (see page 45).

• Adjust or customize TV settings (see Using the Settings on

page 47).

CH +/–

Press to scan through channels. To scan quickly through channels,

press and hold down either

+/–

button.

F1/F2

Press to select the function of connected components. For details, see

“Using Other Equipment with Your Remote Control” on page 37.

Button Description

ENT

RETURN

TOOLS

TV/VIDEO

FUNCTION

BD/DVD

POWER TV POWER

JUMP ANT FREEZE

SURROUND


SOUND WIDE

VISUAL SEARCH

PAUSE

PLAY

STOP

REC REC PAUSE REC STOP

TOP MENU MENU F1 F2

GUIDE

DISPLAY

REPLAY ADVANCE NEXTPREV

VOL

MUTING

BD/DVD

MODE

DVR/VCR

SAT/CABLE

SLEEP

masterpage:3 columns Right

Watching the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

Programming the Remote Control

The remote control is preset to operate Sony brand video equipment.

Follow the steps below to program your TV’s remote control to operate non-

Sony video equipment.

Find the three-digit code for your equipment from the “Manufacturer’s

Codes” listed on page 36. If more than one code number is listed, try

entering from the code listed first.

1Press and hold the , or FUNCTION button you want to

program on the remote control and press the button simultaneously.

The selected FUNCTION button (BD/DVR, VCR/DVD or

SAT/CABLE) will flash.

2Enter the three-digit manufacturer’s code number using the --9

buttons while FUNCTION button is lit. If the code is not entered within

10 seconds, you must start from step 1 again.

3Press the button.

When the programming is correct, the selected FUNCTION button

flashes twice. When not correct, the button flashes five times.

To check if the code works

Aim your TV’s remote control at the equipment, and press the green

button. If the equipment turns on and off, the programming is completed. If

not, try the next code listed.

Sony Equipment Programmable Code Number

BD (Blu-ray Disc)/DVD 101

DVR/VCR 901 (Sony Dream System)

SAT/CABLE 801 (Sony Satellite Receiver)

✍While , and buttons are labeled as such, you can still

program any of your connected equipment using any one of the

buttons regardless of the label. For example, button can be

programmed to operate your VCR. If you have a DVD/VCR combo

that you want to operate with your TV remote control, you can

program with the or or even the , but remember which

button you have programmed for your particular use.

✍If no code is input within the above specified time, or an invalid or

incorrect code number is input, the remote control automatically

goes back to the previous setting.

✍In some cases, you may not be able to program your remote

control to operate other equipment. In such cases, use the

equipment’s own remote control.

ENT

RETURN

TOOLS

TV/VIDEO

FUNCTION

BD/DVD

POWER TV POWER

JUMP ANT FREEZE

SURROUND


SOUND WIDE

VISUAL SEARCH

PAUSE

PLAY

STOP

REC REC PAUSE REC STOP

TOP MENU MENU F1 F2

GUIDE

DISPLAY

REPLAY ADVANCE NEXTPREV

VOL

MUTING

MODE

DVR/VCR

SAT/CABLE

SLEEP

BD/DVD

BD/DVD DVR/VCR

SAT/CABLE

BD/DVD DVR/VCR

SAT/CABLE

BD/DVD

BD/DVD DVR/VCR

SAT/CABLE

POWERPOWER

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

Manufacturer’s Codes

DVD Players

DVD/VCR Combo Units

HDD/DVD Combo Units

DVD Changers

DVR

Blu-ray Disc Player (BD)

5.1ch DVD AV System

AV Receivers

VCRs

Manufacturer Code

Sony 751, 763

General Electric/RCA

755

Hitachi 758

JVC 756

Magnavox 757

Mitsubishi 761

Oritron 759

Panasonic 753

Philips 757

Pioneer 752, 778

RCA/PROSCAN 755

Samsung 758

Tos hiba 7 54

Zenith 760, 762

Manufacturer Code

Sony 767

Broksonic 776

JVC 775

Panasonic 777

Samsung 774

Tos hiba 7 73

Zenith 768

Manufacturer Code

Sony 772, 771, 770

Manufacturer Code

Sony 765

Panasonic 766

Manufacturer Code

Sony 901

Manufacturer Code

Sony 101, 102, 103

Manufacturer Code

Sony (DAV) 601, 602, 603, 604

Manufacturer Code

Sony 764

Manufacturer Code

Sony 301, 302, 303

(VHS, 8mm, Beta)

Sony DV 348

Admiral (M. Ward) 327

Aiwa* 338, 344

Audio Dynamic 314, 337

Broksonic 319, 317

Canon 309, 308

Citizen 332

Craig 302, 332

Curtis Mathes 304, 338, 309

Daewoo 341, 312, 309

DBX 314, 336, 337

Dimensia 304

Emerson 319, 320, 316, 317,

318, 341

Fisher 330, 335

Funai 338

General Electric 329, 304, 309

Go Video 322, 339, 340

Goldstar 332

Hitachi 306, 304, 305, 338

Instant Replay 309, 308

JC Penney 309, 305, 304, 330,

314, 336, 337

JVC 314, 336, 337, 345,

346, 347

Kenwood 314, 336, 332, 337

LG 332

LXI (SEARS) 332, 305, 330, 335,

338

Magnavox 308, 309, 310

Marantz 314, 336, 337

Marta 332

Memorex 309, 335

Minolta 305, 304

Mitsubishi/MGA 323, 324, 325, 326

Multitech 325, 338, 321

NEC 314, 336, 337

Olympic 309, 308

Optimus 327

Orion 317

Panasonic 308, 309, 306, 307

Pentax 305, 304

Philco 308, 309

Philips 308, 309, 310

Pioneer 308

Quasar 308, 309, 306

RCA/PROSCAN 304, 305, 308, 309,

311, 312, 313, 310,

329

Realistic 309, 330, 328, 335,

324, 338

Sansui 314

Manufacturer Code

Cable Boxes

Satellite Receivers

*If an Aiwa VCR does not work even

though you enter the code for Aiwa, enter

the code for Sony instead.

Samsung 322, 313, 321

Sanyo 330, 335

Scott 312, 313, 321, 335,

323, 324, 325, 326

Sharp 327, 328

Signature 2000 (M.

Ward)

338, 327

SV2000 338

Sylvania 308, 309, 338, 310

Symphonic 338

Tashiro 332

Tatung 314, 336, 337

Teac 314, 336, 338, 337

Technics 309, 308

Toshiba 312, 311

Wards 327, 328, 335, 331,

332

Yamaha 314, 330, 336, 337

Zenith 331

Manufacturer Code

Sony 230

Hamlin/Regal 222, 223, 224, 225,

226

Jerrold/

General Inst./

Motorola

201, 202, 203, 204,

205, 206, 207, 208,

218, 222

Oak 227, 228, 229

Panasonic 219, 220, 221

Pioneer 211, 214, 215

Scientific Atlanta 209, 210, 211

Tocom 216, 217

Zenith 212, 213

Manufacturer Code

Sony 801

Dish Network 810

Echostar 810

General Electric 802

Hitachi 805

Hughes 804

JVC 810

Mitsubishi 809

Panasonic 803

Philips 811

RCA/PROSCAN

802, 808

Toshiba 806, 807

Samsung 812

Manufacturer Code

masterpage:3 columns Right

Watching the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

Using Other Equipment with Your Remote Control

To operate other equipment connected to your TV, first turn to page 36 and

program the necessary code. For operating video equipment, press

TV/VIDEO repeatedly until you see the video input on the screen for your

connected equipment. Remote control tips are provided below.

Operating a Cable Box

Operating a Satellite Receiver

Operating a VCR

Operating a DVD Player or DVD Changer

✍Some functions cannot be operated depending on the equipment.

In that case, operate by the remote control supplied with the

equipment.

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the cable box SAT/CABLE (FUNCTION) Select a channel 0-9, ENT

Change channels CH +/–

Turn on/off POWER Back to previous channel JUMP

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the satellite receiver SAT/CABLE (FUNCTION) Display channel number DISPLAY

Turn on/off POWER Display SAT Guide GUIDE

Select a channel 0-9, ENT Display SAT Menu MENU

Change channels CH +/– Move highlight (cursor) V v B b

Back to previous channel JUMP Select item

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the VCR DVR/VCR (FUNCTION)Fast forward M

Rewind the tape m

Turn on/off POWER Pause X (press again to resume

normal playback)

Change channels CH +/–

Record zSelect a channel 0-9, ENT

Play HINPUT SELECT TV/VIDEO

Stop x

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the DVD DVD/VCR (FUNCTION)

Step through different

tracks of the disc

m to fast reverse or M to

fast forward the disc when

pressed during playback

Turn on/off POWER Step through different chapters of the

disc

> to step forward or . to

step backward

If you have a DVD changer,

to skip disc F1 Select a track directly 0-9, ENT

Play H Display the disc menu or top menu BD/DVD MENU or

TOP MENU

Stop xDisplay the system MENU MENU

Pause X (press again to resume

normal playback) Operate the DVD menu V v B b,

(Continued)

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

Operating a Blu-ray Disc Player (BD)

Operating a 5.1ch DVD AV System (Sony DAV)

Operating a DVD/VCR Combo Unit

Operating a HDD/DVD Combo Unit

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the Blu-ray Disc player BD/DVD (FUNCTION)

Step through different

tracks of the disc

m to fast reverse or M to

fast forward the disc when

pressed during playback

Turn on/off POWER Display the POP UP menu (BD) BD/DVD MENU

Play H Display the disc menu (DVD) BD/DVD MENU

Stop xDisplay the top menu (BD) BD/DVD TOP MENU

Pause X (press again to resume

normal playback)

Display the top menu (DVD) BD/DVD TOP MENU

Operate the menu V v B b,

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the DVD BD/DVD (FUNCTION) Play H

Stop x

Turn on/off POWER Pause X

Select other equipment connected to

the DAV F1 Search the picture forward or backward M or m during playback

Disk skip F2 Specify the previous chapter/track

Specify the next chapter/track

Display the disc menu or top menu BD/DVD MENU or

TOP MENU Move highlight (cursor) V v B b

Select a track directly 0-9, ENT Select item

Master volume VOL +/–, MUTING

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the DVD/VCR DVR/VCR (FUNCTION) Search the picture forward or backward M or m during playback

Turn on/off POWER Move highlight (cursor)

and select (DVD)

V v B b

Select the DVD

Select the VCR

F 1

F 2 Record (VCR) z

Display the disc menu or top menu BD/DVD MENU or

TOP MENU Change channels (VCR) CH +/– or 0-9, ENT

(using tuner)

Play HAdjust tracking (VCR) CH +/– (during tape

playback)

Stop xIndex search . >

Pause XINPUT SELECT TV/VIDEO

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the DVD/HDD DVR/VCR (FUNCTION) Record z

REC PAUSE X

Turn on/off POWER REC STOP x

Select the HDD

Select the DVD

F 1

F 2

Specify the previous chapter/track

Specify the next chapter/track

Play H Replay

Stop xAdvance

masterpage:3 columns Right

Watching the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

Operating a DVR

Operating an AV Receiver

Pause XDisplay the disc menu or top menu BD/DVD MENU or

TOP MENU

Search the picture forward or backward M or m during playback INPUT SELECT TV/VIDEO

Move highlight (cursor)

and select

V v B b

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the DVR DVR/VCR (FUNCTION) Jump forward to the next available

chapter >

Turn on/off POWER Stop x

Play H Pause X

Jump back while viewing live or record

programs REPLAY Record z

Slow mode m/m (press lightly) Record Stop x

Jump forward while viewing recorded

programs Record Pause X

To Do This ... Press ... To Do This ... Press ...

Activate the remote control to operate

the AV Receiver DVR (FUNCTION) Master volume VOL +/–, MUTING

Turn on/off POWER Select other input connected to

AV receiver F1

To Do This ... Press ... To Do This ... Press ...

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

Special Buttons on the Remote Control

This TV comes with convenient features that can be either accessed directly

by pressing their buttons on your remote control or pressing the TOOLS

button to display most commonly used functions.

Using the TOOLS

Button

The TOOLS button allows you to access the following functions. The

TOOLS menu items vary by the selected input modes. (TV, PC and external

input.)

Using the JUMP

Button

The JUMP button allows you to jump back and forth between the current

channel and the last channel that was selected.

Using the FREEZE

Button

The FREEZE button allows you to temporarily capture a program’s picture.

You can use this feature to write down information such as phone numbers,

recipes, etc.

To cancel FREEZE and return to normal viewing, press the FREEZE button

again.

✍Add to Favorites is available for TV mode only.

Tools

Picture Mode

Sound Mode

Wide Mode

Add to Favorites

Caption Vision

Menu Item Reference pages

Picture Mode see page 49

Sound Mode see page 52

Wide Mode see page 54

Add to Favorites see page 45

Caption Vision see page 60

Previous channel

JUMP

FREEZE

Frozen


masterpage:3 columns Right

Watching the TV

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

Using the WIDE

Button

Wide screen mode lets you watch 4:3 normal broadcasts in several wide

screen modes (16:9 aspect ratio).

Wide Zoom

Normal

Full

Zoom

Wide Zoom

Full

Zoom

16:9 Original source

(High definition source)

4:3 Original source

(Standard definition source)

WIDE

✍When the TV receives a 720p or 1080i signal, Normal cannot be

selected.

zWhen the TV receives a

720p or 1080i signal

that is 4:3 aspect ratio

picture with a black bar

at each side, Full

returns the picture to its

original size.

zYou can also access the

Wide Mode settings in

the Screen settings. For

details, see page 54.

Changing the wide screen mode

Normal

Full

Zoom

4:3 Original source

(Standard definition source)

16:9 Original source

(High definition source)

Wide Zoom

This mode is not available

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US05REM.fm

KF-42/50E200A

2-694-282-12(1)

Using the WIDE

Button in PC Mode

While in the PC Mode, press the WIDE button to toggle through different

wide screen modes to view the signal from your computer.

zYou can also access the

PC Wide Mode settings

in the Screen settings.

For details, see page

54.

zDepending on the signal

from your PC, your TV

will display black frame

around the picture in

various width.

Completa 2

Normal

Full 1

Full 2

Zoom

Resolution 1152 x 648 or lower

WIDE

Full 1

Full 2

Zoom

Resolution higher than 1152 x 648

Resolution 1152 x 648 or lower

Less than 16:9

PC format

16:9 or more than

16:9 PC format

Incoming

PC signal

Normal

Full 1

Full 2

Zoom

Resolution higher than 1152 x 648

Less than 16:9

PC format

16:9 or more than

16:9 PC format

This mode is

not available

This mode is

not available

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US06USI.fm masterpage:3 columns Right

Using the Menus

KF-42/50E200A

2-694-282-12(1)

Using the Menus

Overview of MENU

MENU provides one button access for controlling your TV. It enables you to

perform a variety of tasks intuitively with a control panel on the screen

rather than a variety of remote control button presses.

When you press the button, you can easily perform basic TV

functions such as:

Switching between external inputs, viewing your favorite stations and

changing or customizing your TV settings.

RETURN

TOOLS

VISUAL SEARCH

PAUS E

PLAY

STOP

VOL

GUIDE

DISPLAY

REPLAY ADVANCE NEXTPREV

MUTING

1Press MENU on the remote.

MENU control panel appears.

2Press V/v to highlight the item.

3Press to select.

4Press to exit.

Move: Select: Exit:

External Inputs

Favorites

Settings

Select from connected equipment

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US06USI.fm

KF-42/50E200A

2-694-282-12(1)

The MENU screen gives you access to the following items:

Icon Description

External Inputs

The External Inputs feature lets you select equipment that is connected to

your TV, such as a DVD player. You can assign a label to your equipment or

skip unused inputs conveniently. For details, see page 45.

Favorites

The Favorites feature lets you select programs from a list of up to 16 favorite

channels that you specify. For details, see page 45.

The TV feature takes you to the most recently viewed channel on the

cable/antenna input. When tuned to the channel, the Channel number will be

displayed.

Settings

The Settings feature lets you adjust the Picture, Sound, Screen, Channel,

Parental Lock, Setup or Clock/Timers settings. For details, see page 46.

✍A dot appears next to the currently active TV mode (external input,

cable TV or antenna TV).

masterpage:3 columns Right

Using the Menus

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US06USI.fm

KF-42/50E200A

2-694-282-12(1)

Navigating and Selecting Items

Use your remote control to navigate through MENU and the settings.

Using External Inputs in MENU

The External Inputs feature lets you view from a selected external input

connected to your TV. You can assign a label or skip over unused inputs by

selecting Edit Video Labels. Input label assignment can also be done by

going to Setup settings and select Label Video Inputs (see page 60).

1Highlight External Inputs from the MENU control panel and press

The External Inputs list appears.

2Make your selection by pressing M/m to highlight the desired external

input then press .

Using Favorites in MENU

The Favorites feature lets you select programs from a list of up to 16

favorite channels that you specify. You can create a list using the Add to

Favorites option.

1Highlight Favorites from the MENU control panel and press .

The Favorite Channels list appears.

2Make your selection by pressing M/m to highlight the desired channel

then press .

• To add the current channel to the list of Favorite Channels, highlight

Add to Favorites and press .

• When the Favorite Channels list is full, select Edit Favorites to

remove a channel from the list or go to the Channel settings and

select Favorite Channels to edit the channel.

External Inputs

Move: Select: Exit:

Exit

Video 1

Video 2

Video 3

Video 4

Video 5

VCR

DVD

Receiver

Satellite

Favorites

Move: Select: Exit:

C D E

12345

KPBS4

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US06USI.fm

KF-42/50E200A

2-694-282-12(1)

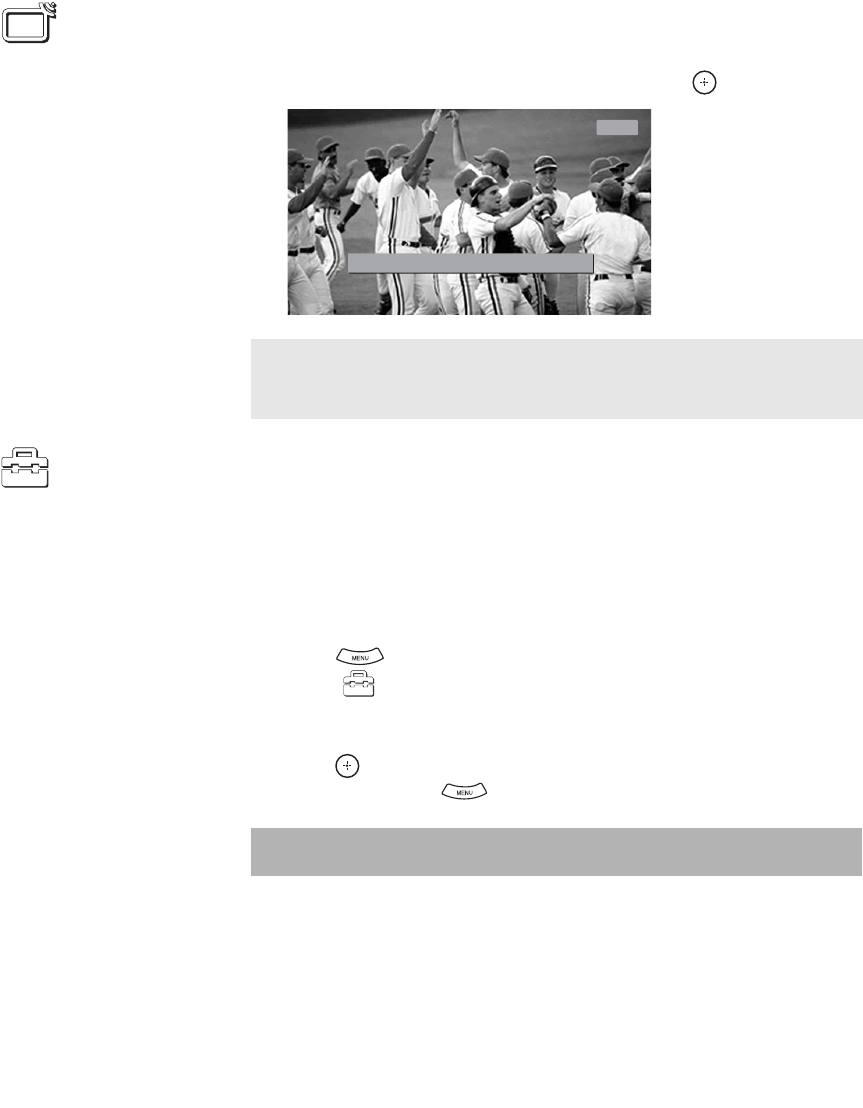

Using TV in MENU

The TV feature displays the most recently viewed channel.

Highlight TV from the MENU control panel and press .

Using Settings in MENU

The Settings feature lets you enter to the settings screen where most of

advanced settings and adjustments are performed. See “Overview ” on page

47.

Navigating Through Settings

The Settings screen provides access to the features:

1Press .

2Select .

3Highlight the item: Picture, Sound, Screen, Channel, Parental

Lock, Setup, Clock/Timers.

4Press to select an option.

To exit Settings, press .

✍If you have not completed the initial channel setup (see page 23)

it will tune to the lowest channel number. To run Auto Program see

page 56.

FIRST DAUGHTER

00:1 4 Remaining

✍The options you can adjust vary depending on the situation.

Unavailable options are grayed out.

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm masterpage:3 columns Right

Using the Settings

KF-42/50E200A

2-694-282-12(1)

Using the Settings

Overview

The Settings give you access to the following features:

(Depending on the signal tuned, you may see a different Setting options on

your screen. Settings displayed here are with the 720p signal.)

Settings Allows you to set/change

Picture Picture Mode (page 49)

Reset (page 49)

Advanced Iris (page 49)

Picture (page 50)

Brightness (page 50)

Color (page 50)

Hue (page 50)

Color Temp. (page 50)

Sharpness (page 50)

Noise Reduction (page 50)

DRC Mode (page 50)

DRC Palette (page 51)

Advanced Settings

(page 51)

Sound Sound Mode (page 52)

Reset (page 52)

Trebl e (page 52)

Bass (page 52)

Balance (page 52)

Steady Sound (page 52)

Volume Offset (page 52)

Surround (page 52)

BBE (page 52)

MTS (page 53)

Speaker (page 53)

Audio Out (page 53)

Screen Wide Mode (page 54)

PC Wide Mode (page 54)

Auto Wide (page 55)

4:3 Default (page 55)

Display Area (page 55)

Horizontal Center (page 55)

Vertical Center (page 55)

Ver tical Size (page 55)


Picture Mode Standard

Reset

Advanced Iris High


Brightness

Move: Select: Exit:

Sound

Sound Mode Dynamic

Reset

Treble

Bass

Balance

Move: Select: Exit:

Screen

Wide Mode Wide Zoom

PC Wide Mode Normal

Auto Wide On

4:3 Default Wide Zoom

Display Area Normal

Move: Select: Exit:

(Continued)

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Channel Favorite Channels (page 56)

Cable (page 56)

Auto Program (page 56)

Show/Hide Channels (page 56)

Label Channels (page 56)

Parental Lock Rating (page 57)

Change Password (page 57)

Select Country (page 57)

Unrated (page 59)

Setup Caption Vision (page 60)

Info Banner (page 60)

Label Video Inputs (page 60)

Language (page 61)

Video 2 (Component) (page 61)

CineMotion (page 61)

Cooling Mode (page 61)

Lamp Replacement (page 61)

Product Information (page 61)

Clock/Timers Sleep (page 62)

Timer 1/Timer 2 (page 62)

Current Time (page 63)

Settings Allows you to set/change

Channel

Favorite Channels

Cable Off

Auto Program

Show/Hide Channels

Label Channels

Move: Select: Exit:

Parental Lock

Password

Press to enter password

Move: Select: Exit:

Setup

Caption Vision CC1

Info Banner On

Label Video Inputs

Language English

Video 2 (Component) Auto

Move: Select: Exit:

Clock/Timers

Sleep Off

Timer 1

Timer 2

Current Time

Move: Select: Exit:

masterpage:3 columns Right

Using the Settings

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Accessing the Picture Settings

Selecting Picture

Options

The Picture settings include the following options:

1. Press MENU..................

2. Select Settings..............

3. Highlight......................

4. Press to select...............

To highlight an option and to change settings, press V v B b.

Press to confirm the selection.

To exit the Picture, press .


Picture Mode Standard

Reset

Advanced Iris


Brightness

Move: Select: Exit:

Option Description


Mode

Customized


viewing

Vivid Select for enhanced picture contrast and sharpness.

Standard Select for standard picture settings. Recommended

for home entertainment.

Custom Select to display a picture with minimum

enhancements.

✍You can alter the Picture settings (Picture,

Brightness, Color, etc.) for each Picture Mode and

each video input.

✍You may set up a Picture Mode (Vivid, Standard,

Custom) independently for each Video input (Video 1

to Video 7, including the Antenna input). Your Picture

Mode settings are automatically saved after each

selection. This allows you to customize the Picture

Mode setting for each type of signal source.

Reset Select OK to reset all settings and adjustments to the default setting

(except for Advanced Settings).

Advanced

Iris

By selecting the iris option, you can obtain the best brightness and

contrast suited for your TV viewing.

Auto 1/2 Automatically detects the brightness of the screen.

These options are best suited for programs such as

movies that often change between bright scenes and

low light setting scenes.

Auto 1 Recommended option for viewing programs

that have larger variation in brightness from

scene to scene.

zTo quickly and easily

change from one

Picture Mode to

another, use PICTURE

on the remote control.

(Continued)

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Auto 2 Recommended option for viewing programs

that have less variation in brightness from

scene to scene.

High With this option, the screen has maximum level of

brightness. It is suitable for TV viewing in a brightly

lit room.

Medium With this option, the brightness is about the standard

level.

Low With this option, the screen is dimmed but contrast is

at a maximum. It is suitable for TV viewing in a room

with low lighting.

✍When Picture Mode is set to Vivid, Advanced Iris

option is automatically set to Auto 1.

Picture Adjust to increase picture contrast and deepen the color or decrease

picture contrast and soften the color.

Brightness Adjust to brighten or darken the picture.

Color Adjust to increase or decrease color intensity.

Hue Adjust to increase or decrease the green tones.

Color Temp.

White

intensity

adjustment

Choose from four color temperatures:

Cool Select to give the white colors a blue tint.

Neutral Select to give the white colors a neutral tint.

Warm 1, 2 Select to give the white colors a red tint. Available

only when Picture Mode is set to Custom.

Sharpness Adjust to sharpen or soften the picture.

Noise

Reduction

Select Auto to reduce the noise level of connected equipment. This

also reduces the noise level to the signal from the

VHF/UHF/CABLE jack.

✍

When Component Input, HDMI Input or Freeze mode is in

use, Auto is not available.

DRC Mode High

Density

Creates a high-resolution picture with 4 x density, for

high quality sources (i.e., DVD player, satellite receiver).

Progressive

Recommended for still pictures.

✍DRC Mode is most effective when watching 480i

source. DRC Mode is not available when using the

Freeze feature; also not available when watching

480p, 720p or 1080i sources.

Option Description

masterpage:3 columns Right

Using the Settings

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

DRC Palette Allows you to customize the level of detail (Reality) and

smoothness (Clarity). For example, you can create one Custom

setting to optimize your cable input’s picture, and create another to

optimize your DVD player's picture.

1Press to select DRC Palette.

2Press the arrow buttons to adjust the position of the marker

(z). As you move the z higher along the Reality axis, the

picture becomes more detailed. As you move the z to the right

along the Clarity axis, the picture becomes smoother.

3To save the setting, press .

✍DRC Palette is most effective when watching 480i

source. DRC Palette is not available when Noise

Reduction is set to Auto or using the Freeze feature;

also not available when watching 480p, 720p or 1080i

sources.

Advanced

Settings

Available in

“Custom


Mode”

Advanced Settings can be adjusted with the following options:

Reset (Cancel/OK), Black Corrector (High/Medium/Low/Off),

Gamma (Max/High/Medium/Low/Off ), Clear White

(High/Low/Off), Color Corrector (High/Low/Off).

Option Description

DRC Palette

Clarity [ 1]

Reality

[ 1]

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Accessing the Sound Settings

Selecting Sound

Options

The Sound settings include the following options:

1. Press MENU..................

2. Select Settings...............

3. Highlight........................

4.Press to select................

To highlight an option and to change settings, press V v B b.

Press to confirm the selection.

To exit the Sound, press .

Sound

Sound Mode Dynamic

Reset

Treble

Bass

Balance

Move: Select: Exit:

Option Description

Sound

Mode

Dynamic Select to enhance treble and bass.

Standard Suitable for spoken dialog.

Custom Flat setting.

Reset Resets the current Sound Mode setting to the default values, except

MTS, Speaker and Audio Out options.

Tr e b l e Adjust to increase or decrease higher-pitched sounds.

Bass Adjust to increase or decrease lower-pitched sounds.

Balance Adjust to emphasize left or right speaker balance.

Steady

Sound

On Select to stabilize the volume across all programs

and commercials.

Off Select to turn off Steady Sound.

Volume

Offset

Adjust to increase or decrease the sound level of the current input

(TV or video input) relative to other inputs.

Surround TruSurround

Select for surround sound (for stereo programs

only).

Off Normal stereo or mono reception.

Select to give sound more impact by compensating for phase effects

in speakers. Select from High, Low, and Off.

BBE

✍The BBE option is not adjustable (it is grayed out) if

the Sound Mode option is set to Dynamic (BBE is

High), or Standard (BBE is Low). All three options are

available only in Custom mode.

zSound Mode settings

are independent of

settings in the

Treble/Bass options.

zTruSurround XT

attempts to create the

same surround effect

produced by a

multichannel system

using the left and right

speakers.

masterpage:3 columns Right

Using the Settings

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

MTS

Enjoy stereo,

bilingual and

mono

programs

Stereo Select for stereo reception when viewing a program

broadcast in stereo.

Auto SAP Select to automatically switch to second audio

programs when a signal is received. (If no SAP

signal is present, the TV remains in Stereo mode.)

Mono Select for mono reception. (Use to reduce noise

during weak stereo broadcasts.)

Speaker On Select to turn on the TV speakers.

Off Select to turn off the TV speakers and listen to the

TV’s sound only through your external audio

system speakers.

Audio Out This option can be set only when the Speaker option is set to Off.

Easy control

of volume

adjustments

Variable The TV’s speakers are turned off and the audio

output from your audio system can still be

controlled by the TV’s remote control.

Fixed The TV’s speakers are turned off, and the audio

output of the TV is fixed. Use your audio receiver’s

volume control to adjust the volume (and other

settings) through your audio system.

✍The MUTING button on your remote control is

available when Audio Out is set to Variable, and does

not function when set to Fixed.

Option Description

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Accessing the Screen Settings

Selecting Screen

Options

The Screen settings include the following options:

1. Press MENU..................

2. Select Settings...............

3. Highlight.......................

4.Press to select................

To highlight an option and to change settings, press V v B b.

Press to confirm the selection.

To exit the Screen, press .

Screen

Move: Select: Exit:

Wide Mode Wide Zoom

PC Wide Mode Normal

Auto Wide On

4:3 Default Wide Zoom

Display Area Normal

Option Description

Wide Mode

Select a screen

mode to use for

4:3 sources.

Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9

screen, keeping the original image as much as

possible.

Normal Select to return the 4:3 picture to its original

size and aspect ratio.

✍Normal is not available when you are watching

720p or 1080i sources.

Full Select to enlarge the 4:3 picture horizontally

only, to fill the display area.

Zoom Select to proportionally enlarge 1080i and

720p sources. For 480p and 480i sources,

Zoom will vertically stretch the image to fill

the screen.

✍To change from one Wide Mode setting to another, use the WIDE

button on the remote control (see page 41).

✍This “Wide Mode” option is not available (grayed out) while your

TV is in PC input mode. For adjusting screen size while in PC

input mode, see “PC Wide Mode”.

PC Wide Mode Normal Select to display the picture in its original size.

✍Normal is not available if the PC input resolution

is greater than 1152 x 648.

Full 1 Select to enlarge the picture to fill the display

area, keeping its original aspect ratio.

✍A black frame will appear on the surrounding of

the picture.

zWide Mode is

unavailable while in

Freeze (page 40).

zPC Wide Mode feature

available only with PC

mode connected

through HDMI inputs

(see page 30 and page

73).

masterpage:3 columns Right

Using the Settings

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Full 2 Select to enlarge the picture to fill the display

area.

✍A black frame will appear on the surrounding of

the picture.

Zoom Select to enlarge the picture horizontally and

vertically to an equal aspect ratio that fills the

wide screen.

Auto Wide On Select to automatically switch the wide mode

based on the input signal.

Off Select to keep the Wide Mode in its original

size and aspect ratio.

✍This option is not available for HDMI PC input.

4:3 Default

Select the default

screen mode to

use for 4:3

sources.

Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9

screen, keeping the original image as much as

possible.

Normal Select to return the 4:3 picture to its original

size and aspect ratio.

Full Select to enlarge the 4:3 picture horizontally

only, to fill the display area.

Zoom Select to enlarge the picture horizontally and

vertically to an equal aspect ratio that fills the

wide screen.

Off Select to continue using the current screen

mode setting when the channel or input is

changed.

✍This option is not available for HDMI PC input.

✍This option is not available if Auto Wide is set to

Off.

Display Area Select Normal to return to the default display area. Select -1 or

-2 to enlarge the picture vertically and horizontally.

✍Display Area option is not available when PC

Wide Mode is set to Normal.

Horizontal

Center

Allows you to move the position of the picture left and right in

the window.

Press B or b and to choose a correction between +5 and –5.

Vertical Center Allows you to move the position of the picture up and down in

the window. (Available only in Wide Zoom, Zoom and PC

Wide modes.)

Press V or v and press to choose a correction between +5

and –5.

Vertical Size Allows you to adjust the vertical size of the picture. (Available

only in Wide Zoom, Zoom and PC Zoom modes.)

Press V or v and press to choose a correction between +5

and –5.

Option Description

zIf 4:3 Default is set to

anything but Off, the

Wide Mode setting

changes only for the

current channel. When

you change channels

(or inputs), Wide Mode

is automatically

replaced with the 4:3

Default setting. To retain

the current Wide Mode

setting as channels and

inputs are changed, set

4:3 Default to Off.

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

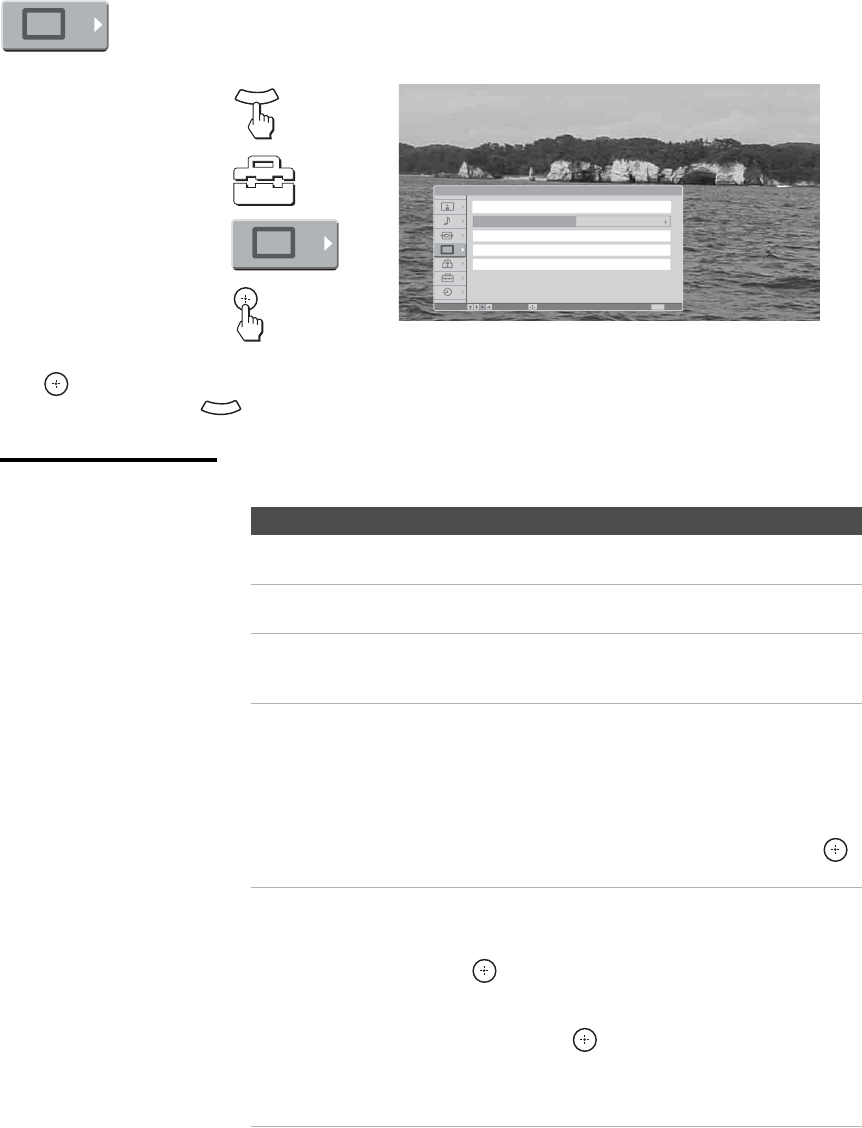

Accessing the Channel Settings

Selecting Channel

Options

The Channel settings include the following options:

1. Press MENU..................

2. Select Settings...............

3. Highlight.......................

4.Press to select................

To highlight an option and to change settings, press V v B b.

Press to confirm the selection.

To exit the Channel, press .

Channel

Favorite Channels

Cable Off

Auto Program

Show/Hide Channels

Label Channels

Move: Select: Exit: MENU

Option Description

Favorite

Channels

Lets you set up a list of your favorite channels. For details, see

“Using Favorites in MENU” on page 45.

Cable Select On if you are using cable. Select Off if you are using an

antenna to receive channels.

Auto Program Automatically sets up the channel list on the TV for all

receivable channels for the current input (VHF/UHF or

CABLE). Select to start the Auto Program.

Show/Hide

Channels

Allows you to show or hide channels that appear in the Program

Guide and when you use the CH+/- buttons to channel surf.

Channels that are set to Hidden do not appear in the Program

Guide or when you use the CH+/- buttons.

1Press V or v to highlight the channel that you want to show

or hide.

To change a channel’s setting to

Shown

Hidden

, press

3To show or hide more channels, repeat steps 1 and 2.

Label Channels Allows you to assign labels (such as station call letters) to

channel numbers.

1Press V or v to scroll through the channel numbers. Then

press to select the channel number that you want to

assign a label.

2Press V or v to scroll through the label characters (A-Z, 0-

9, etc.). Then press to select the highlighted character.

Repeat to add characters to the label.

3Press B to return to the Channel setting, or press MENU to

exit the settings.

zChannels that you set to

Hidden can only be

accessed with the 0-9

buttons.

masterpage:3 columns Right

Using the Settings

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Accessing the Parental Lock Settings

Selecting Parental

Lock Options

The Parental Lock settings include the following options:

1. Press MENU...................

2. Select Settings...............

3. Highlight.......................

4.Press to select................

To highlight an option and to change settings, press V v B b.

Press to confirm the selection.

To exit the Parental Lock, press .

The Parental Lock setting allows you to set up the TV to block programs according to their content and rating

levels.

Parental Lock

Move: Select: Exit: MENU

Back: RETURN

Rating No

Change Password

Select Counrty U.S.A.

✍A password needs to be setup before Parental Lock settings can

be accessed for the first time. This password is required for any

future access to the Parental Lock settings. If you have lost your

password, see “Lost password” on page 71.

Option Description

Rating

Turn ratings on/off and

select a rating system

Off Turn Parental Lock off. No programs are

blocked from viewing.

Child Maximum ratings permitted are:

Canada: C, G, TV-Y

Youth Maximum ratings permitted are:

Canada: C8+, PG, 8 ans+, TV-PG

Young

Adult

Maximum ratings permitted are:

Canada: 14+, 13 ans+, TV-14

Custom...

Select to set ratings manually.

Canada: See page 58 for details.

Change Password Select to change your password.

Select Country U.S.A. Select U.S.A. rating for reference only.

(This model is for Canada and Mexico only.)

Canada Select to use Canadian ratings (see page 58).

zIf you are not familiar

with the Parental

Guideline rating system,

you should select Child,

Youth, or Young Adult to

help simplify the rating

selection. To set more

restrictive ratings, select

Custom.

(Continued)

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

To deactivate the parental control feature

❑Set Parental Lock to Off when in the Parental Lock setting.

To change the password

1In the Parental Lock setting, use the arrow buttons to highlight Change

Password, and press to select it.

2Enter a new four-digit password using the 0-9 buttons.

3Confirm the new password by entering it again.

4Press MENU to exit the setting screen.

Viewing Blocked

Programs

You can view a blocked program by entering the password.

1Press ENT when tuned to a blocked program.

2Enter your password using the 0-9 buttons.

Parental Lock will be canceled temporarily until you turn your TV off.

Selecting Custom

Rating Options

Canadian custom rating options

The Custom Rating setting includes the following options.

Option Description

English Rating C All children.

C8+ Children 8 years and older.

GGeneral programming.

PG Parental guidance.

14+ Viewers 14 and older.

18+ Adult programming.

French Rating G General programming.

8 ans+ Not recommended for ages under 8.

13 ans+ Not recommended for ages under 13.

16 ans+ Not recommended for ages under 16.

18 ans+ Programming restricted to adults.

U.S.A. Rating See “TV Rating” on page 59 for details.

zTo ensure maximum

blocking capability, the

age-based ratings

should be used.

zIf you select Block, be

aware that the following

programs may be

blocked: news, sports,

weather, emergency

broadcasts, political

programs, public

service

announcements, and

religious programs.

masterpage:3 columns Right

Using the Settings

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

This model is for Canada only, the following US custom rating options

are provided for reference.

Option Description

Movie Rating G All children and general audiences.

PG Parental guidance suggested.

PG-13 Parental guidance for children under 13.

RRestricted viewing, parental guidance is suggested

for children under 17.

NC-17

and X

No one 17 and under.

TV Rating

Block programs

by their rating,

content or both

Age-Based Options

TV-Y All children.

TV-Y7 Directed to children age 7 and older.

TV-G General audience.

TV-PG Parental guidance suggested.

TV-14 Parents strongly cautioned.

TV-MA Mature audience only.

Content-Based Options

FV Fantasy violence.

DSuggestive dialog.

LStrong language.

SSexual situations.

VViolence.

Unrated

(Block programs or

movies that are

broadcast without a

rating)

Allow Allows programs and movies that are broadcast

without a rating.

Block Blocks all programs and movies that are broadcast

without a rating.

✍The content ratings will increase depending on the level of the age-

based rating. For example, a program with a TV-PG V (Violence)

rating may contain moderate violence, while a TV-14 V (Violence)

rating may contain more intense violence.

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Accessing the Setup Settings

Selecting

Setup Options

The Setup settings include the following options:

1. Press MENU..................

2. Select Settings..............

3. Highlight.......................

4.Press to select................

To highlight an option and to change settings, press V v B b.

Press to confirm the selection.

To exit the Setup, press .

Setup

Caption Vision Off

Info Banner On

Label Video Inputs

Language English

Video 2 (Component) Auto

Move: Select: Exit:

Option Description

Caption Vision Allows you to select the closed caption options.

CC1, CC2, CC3,

CC4

Displays a printed version of the

dialog or sound effects of a program.

(Should be set to CC1 for most

programs.)

Tex t 1 , Tex t 2 , Text3,

Tex t 4

Displays network/station information

presented using either half or the

whole screen (if available).

Off Caption Vision is turned off.

Info Banner Set to On or Off. Select On to display the program name, time

remaining and other information (if the broadcaster offers this

service). Also displays when the channel is changed or the

DISPLAY button is pressed.

Label Video

Inputs

Allows you to label the audio/video equipment you have

connected to the TV so you can identify them when using

TV/VIDEO. When in this setting:

1Press V or v to highlight an input to label, then press

to select it.

2Use the arrow buttons to scroll through the labels.

3Press to select the equipment you connected to each of

the input jacks on the back of your TV.

Select Skip if you do not have any equipment connected to

a particular input.

masterpage:3 columns Right

Using the Settings

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Video 1-7 DVD, Cable Box, Satellite, BD, VCR,

Receiver, DVR, Game, Camcorder,

PC, 8mm, Skip.

✍

PC label is available for Video 6 and Video 7 only

✍If you select Skip, your TV skips the selected

connection when you press TV/VIDEO.

Language Select to display all on-screen settings in your language of

choice: English, Español, Français.

Video 2

(Component)

Auto Select to switch automatically

between the component video jacks

(YPBPR, AUDIO L (MONO)/

AUDIO R) and the composite video

jacks (VIDEO, AUDIO L

(MONO)/AUDIO R) on the left side

of the TV (VIDEO/HD/DVD 2 IN)

depending on the cable connection.

Off Select to activate the composite video

jacks (VIDEO/AUDIO L(MONO)/

AUDIO R) on the left side of the TV.

CineMotion Select Auto to optimize the screen display automatically

detecting film content and applying a reverse 3-2 pulldown

process. Moving pictures will appear clearer and more natural

looking. Select Off to disable the detection.

Cooling Mode Select High to use the TV at an altitude of 5,000 feet (1,500m)

or higher. Select Normal to use the TV at normal altitude.

Lamp

Replacement

When the lamp nears the end of its life, a message will appear

every time the TV is turned on. After the lamp is replaced,

select this option then follow the steps on screen.

Product

Information

Select to display information about your TV model.

Option Description

zIf you choose to use the

composite connection

for Video 2

(Component), be sure

to select Off to activate

for composite use.

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Accessing the Clock/Timers Settings

Selecting

Clock/Timers

Options

The Clock/Timers settings include the following options:

1. Press MENU..................

2. Select Settings..............

3. Highlight.......................

4.Press to select................

To highlight an option and to change settings, press V v B b.

Press to confirm the selection.

To exit the Clock/Timers, press .

Clock/Timers

Sleep Off

Timer 1

Timer 2

Current Time

Move: Select: Exit:

Option Description

Sleep Allows you to select the amount of time (Off, 15 minutes, 30

minutes, 45 minutes, 60 minutes, 90 minutes or 120

minutes) that you want the TV to remain on before shutting off

automatically.

Timer 1

Timer 2

You can use the Timers to program the TV to turn on and off

and tune to a specific channel at two scheduled viewing times.

Timer 1 and Timer 2 cannot be set until you set the Current

Time.

1Press V or v to highlight Timer 1 or Timer 2. To set the

timer, press b.

✍To go directly to programming Timer 1 or 2, press

instead of pressing b.

2Press V or v to highlight one of the following options, then

press .

Program Select to set the Timer by day, time,

duration, and channel.

Off Select to turn off the Timer. (Your

previous settings are saved.)

3If you selected Program in step 2, press V and v to set the

day(s), hour, minute, AM/PM, duration, and channel

number. Press or press b to confirm each setting and

move to the next setting.

Press B to go back to the previous setting.

4Press MENU to exit the setting screen. An LED on the

front panel will light, indicating the Timer has been set.

zSelect to set the clock

and to program your TV

to turn on and off at two

scheduled viewing

times. Once the options

are set, TIMER LED

lights up in orange.

masterpage:3 columns Right

Using the Settings

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US07MEN.fm

KF-42/50E200A

2-694-282-12(1)

Current Time You can set the current time.

1Press to select Current Time.

2Press V and v to set the current time (day, hour, minute,

and AM/PM). Press (or press b) to confirm each

setting and move to the next setting. Press B to go back the

previous setting.

3Press MENU to exit the setting screen.

Option Description

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm masterpage:3 columns Right

Other Information

KF-42/50E200A

2-694-282-12(1)

Other Information

Overview

This chapter includes the following topics:

Contacting Sony

If, after reading these operating instructions, you have additional questions

related to the use of your Sony television, please contact our Customer

Information Services Center.

Before calling Sony customer support, please write down the model and

serial numbers of your TV.

Topic Page

Contacting Sony 65

Replacing the Lamp 66

Troubleshooting 69

PC Input Signal Compatibility Chart 73

Specifications 74

Optional accessories 75

Index 76

Visit http://www.sony.com/TVsupport

Canada 1-877-899-SONY (7669)

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm

KF-42/50E200A

2-694-282-12(1)

Replacing the Lamp

The Projection lamp, like all lamps, will eventually lose brightness and

functionality, which affects the overall performance of your Television. How

long the Lamp maintains its brightness will vary depending upon your usage

and environmental conditions. To maintain the quality of your viewing

experience, Sony recommends that you replace the Lamp (1) after

approximately 8,000 hours of use (the TV will display a message reminding

you to replace the lamp); (2) when the screen becomes dark or the color looks

unusual; or (3) when the LAMP indicator on the front of the TV flashes.

❑

Use a Sony XL-2400 replacement lamp (not supplied) for replacement.

Use of any other lamp may damage the TV.

❑

Do not remove the lamp for any purpose other than replacement. Doing

so may cause injury or fire.

❑

Do not put flammable materials and metal objects inside the lamp

receptacle of the TV after removing the lamp. Doing so may cause fire or

electrical shock. Do not touch the lamp receptable once the lamp has been

removed.

❑

When the lamp eventually burns out, you may hear a noticeable pop

sound. This is normal and it is inherent to this type of lamp.

❑

In rare instances, the bulb may pop inside the lamp unit, but the lamp unit

is designed to contain all of the broken glass pieces inside the lamp unit.

❑

This television's lamp contains mercury and should be disposed of

properly. Consult your local authorities regarding safe disposal. "The

material contained in this lamp are similar to those of a fluorescent lamp,

so you should dispose of it in the same way.

How to Replace the

Lamp

1Turn off the power on the main unit. Wait several minutes, then unplug

the power cord.

(The cooling fan will continue to operate for about two minutes after

turning the power off.)

2Wait at least 30 minutes after unplugging the power cord to allow the

lamp to cool down before replacing it. To avoid being burned, do not

touch the lamp receptacle once the lamp has been removed.

3Take the new lamp out of the box.

Do not touch the glass portion of the new lamp.

WARNING

Electric appliances can cause fire or high temperature, resulting in

injury or death. Be sure to follow the instructions below.

✍Do not shake the lamp. Vibration can damage the lamp or

shorten its life.

✍

Avoid touching the front glass of a new lamp or the glass of the

lamp receptacle. This may reduce picture quality or lamp life.

masterpage:3 columns Right

Other Information

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm

KF-42/50E200A

2-694-282-12(1)

4Remove the outside lamp cover. (Choose your model type A or B.)

5Remove the lamp door.

Turn the knob counterclockwise to OPEN and pull out the cover.

6Pull out the lamp.

Hook a finger through the loop of the lamp handle and pull the handle

upwards. Then pull the lamp straight out.

7Put the new lamp into its place.

Mount the new lamp securely. Failure to do so may cause a fire or the

screen to go dark.

✍The lamp is very hot immediately after use. Never touch the

glass portion of the lamp or the surrounding parts.

✍After the used lamp has cooled, place it into the empty box

of the replacement lamp. Never put the used lamp into a

plastic bag.

✍If the lamp is not securely reattached, the self-diagnostic

function may be triggered and the POWER indicator flashes

three times (see page 11).

Lamp door

(Continued)

8Reattach the lamp door.

Turn the knob back to CLOSE and secure the cover.

9Put the outside lamp cover back in its place.

10 Select the Lamp Replacement option (MENU > Settings > Setup

menu) and follow the on-screen procedure.

The used lamp

Lamp in this product contains mercury. Disposal of these materials may be

regulated due to environmental considerations. For disposal or recycling

information, please contact your local authorities or the Electronic Industries

Alliance (www.eiae.org).

❑Do not leave the used lamp near flammable materials or within the

reach of children.

❑Do not pour water onto the used lamp or put any object inside the lamp.

Doing so may cause the lamp to burst.

✍Consult your Sony dealer for a Sony XL-2400 replacement

lamp.

✍Take great care when replacing the lamp or plugging

in/unplugging the connecting cords. Rough handling may

cause the TV to fall, damaging the TV, the TV stand and the

floor.

For replacement lamp information visit:

Canada: http://www.sonystyle.ca/tv/

masterpage:3 columns Right

Other Information

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm

KF-42/50E200A

2-694-282-12(1)

Troubleshooting

If you have additional questions, service needs, or technical assistance related to the use of your Sony TV,

please visit our website or call one of the following numbers:

http://www.sony.com/TVsupport

1-877-899-SONY(7669) in Canada

Remote Control


Problem Possible Remedies

Remote control does not

operate

❏The batteries could be weak. Replace the batteries.

❏Check the orientation of the batteries.

❏Press TV (FUNCTION) once, and the TV indicator lights up. You may have

inadvertently pressed SAT/CABLE (FUNCTION), which changes the remote

control to SAT or CABLE mode.

❏Make sure this unit’s power cord is connected securely to the wall outlet.

❏Florescent lamps can interfere with your remote control operation; try turning off

the florescent lamps.

❏Keep the remote control sensor area clear from obstacles.

❏If the "High Temperature Warning" message appears, turn off the TV and wait

until the TV's projection lamp cools down (approximately 5 minutes). If the

remote control still does not work, make sure to dust the ventilation slots on the

rear of the TV and the cooling fan to provide adequate ventilation around the TV.

Cannot change channels with

the remote control

❏If you are using the TV to change channels, first press TV (FUNCTION) once,

and the TV indicator lights up.

❏If you are using another device to change channels, be sure you have not

inadvertently switched your TV from the channel 3 or 4 setting.

❏If you are using another device to change channels, be sure to press FUNCTION

for that device. For example, if you are using your cable box to change channels,

be sure to press SAT/CABLE (FUNCTION) once, and the SAT/CABLE indicator

lights up.

Remote control does not

operate non-Sony video

equipment

❏If you replaced the batteries to the remote recently, the code numbers for the video

equipment may need to be reset.

❏There may be more than one code for the equipment that you are attempting to

operate.

❏There is a possibility that some non-Sony equipment cannot be operated by your

Sony TV remote. You may need to use the equipment’s original remote control.

Problem Possible Remedies

No picture (screen not lit), no

sound

❏If your TV does not turn on and a red light keeps flashing, your TV may need

service. Call your local Sony Service Center.

❏Make sure the power cord is plugged in.

❏Press POWER on the front of the TV.

❏Press TV/VIDEO to cycle through the connected video sources.

❏Try another channel; it could be station trouble.

(Continued)

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm

KF-42/50E200A

2-694-282-12(1)

Sound

Dark, poor or no picture

(screen lit), good sound

❏Adjust the Picture Mode option in the Picture setting (see page 49).

❏Adjust the Brightness option in the Picture setting (see page 50).

❏Check the antenna/cable connections.

No color/dark picture/color is

not correct

❏Adjust the Color option in the Picture setting (see page 50).

Only snow and noise appear on

the screen

❏Check the antenna/cable connections.

❏Try another channel; it could be station trouble.

❏Press ANT to change the input mode (see page 33).

Dotted lines or stripes ❏Adjust the antenna.

❏Move the TV away from noise sources such as cars, neon signs, or hair dryers.

Double images ❏Using a highly directional outdoor antenna or a cable may solve the problem.

“Black box” on screen ❏You have selected a text option in the Setup setting and no text is available. (See

page 60 to reset Setup selections.) To turn off this feature, set the Caption Vision

option to Off. If you were trying to select closed captioning, select CC1 instead of

Tex t 1 - 4.

Black bands appear at the top

and bottom of the screen

❏Some wide-screen programs are filmed in aspect ratios that are greater than 16:9

(this is especially common with theatrical releases). Your TV will show these

programs with black bands at the top and bottom of the screen. For more details,

check the documentation that came with your DVD (or contact your program

provider).

Certain programs on DVD or

other digital sources display a

loss of detail, especially during

fast-motion or dark scenes

❏The compression used by certain digital broadcasts and DVDs may cause your

TV’s screen to display less detail than usual, or cause artifacts (small blocks or

dots, pixelations) to appear on your screen. This is due to your TV’s large screen

and ability to show very fine detail, and is normal for certain digitally recorded

programs. Adjust the reality/clarity in the DRC Palette setting (see page 51) to

optimize the picture while viewing these sources.

Problem Possible Remedies

Good picture, no sound ❏Press MUTING so that Muting disappears from the screen (see page 34).

❏Make sure the Speaker option is set to On in the Sound setting (see page 53).

❏Make sure the MTS option is set to Stereo or Mono (see page 53).

❏When the HDMI IN input is in use, surround sound, such as AC-3 and DTS,

cannot be input. Change the sound setting for the external input device to Linear

PCM.

Audio noise ❏Make sure that the antenna is connected with 75-ohm coaxial cable.

❏Keep the antenna cable away from other connecting cords.

❏To avoid TV interference, make sure to use an undamaged antenna cable.

Cannot gain enough volume

when using a cable box

❏Increase the volume of the cable box using the cable box’s remote control. Then

press TV(FUNCTION) once (the TV indicator lights up) and adjust the TV’s

volume.

Sound seems weak or

insufficient

❏The TV’s audio might be set to Auto SAP or Mono, when it might be better set to

Stereo. In the Sound setting (see page 53), set the MTS setting to Stereo. If

already set to Stereo, switch to Mono (which may reduce background noise

during weak stereo broadcasts).

masterpage:3 columns Right

Other Information

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm

KF-42/50E200A

2-694-282-12(1)

Channels

General

Cannot raise the volume on

external speakers

❏If the Speaker option is set to Off and the Audio Out option is set to Fixed (in

order to output the sound to your audio system), use your audio receiver to adjust

the sound (see page 53). Or, to use the TV remote control, set the Audio Out

option to Variable.

❏To turn on the TV speakers, set the Speaker option to On (see page 53).

No audio for HDMI ❏Confirm DVD player, set-top-box audio settings. Select 2 channel LPCM audio.

Problem Possible Remedies

Cannot receive upper channels

(UHF) when using an antenna

❏Press ANT to select the VHF/UHF/CABLE input (see page 33).

❏Use Auto Program in the Channel setting to add receivable channels that are not

presently in the TV’s memory (see page 56).

Cannot receive any channels

when using cable TV

❏Use Auto Program in the Channel setting to add receivable channels that are not

presently in the TV’s memory (see page 56).

❏Press ANT to select the CABLE input (see page 33).

Cannot receive or select

channels

❏Use Auto Program in the Channel setting to add receivable channels that are not

presently in TV memory (see page 56).

Problem Possible Remedies

How to reset TV to factory

settings

❏Turn on the TV. While holding down the M button on the remote control, press the

POWER button on the TV. Release the POWER button then release the M button.

The TV will turn itself off, then back on again with Initial Setup.

WARNING: This operation will clear all of your customized settings including

Parental Lock setting.

How to restore Picture settings

to factory settings

❏Select Reset setting option while in the Picture setting (see page 49).

How to restore Sound settings

to factory settings

❏Select Reset setting option while in the Sound setting (see page 52).

Cannot cycle through the other

video equipment connected to

the TV

❏Be sure that the Label Video Inputs option is not set to Skip (see page 60).

Cannot operate the setting ❏

If a setting option appears in gray, this indicates that the setting option is not available.

Lost password ❏On the password screen (see page 57), enter the following master password: 4357.

The master password clears your previous password; it cannot be used to

temporarily unblock channels.

TIMER LED on front panel is

lit

❏When lit, indicates that the timer is set (see page 62). When the timer is set, this

LED will remain lit even when the TV is turned off.

LAMP LED blinks in red ❏Replace the lamp (see page 66).

Digital cable box does not work ❏If you are connecting a VCR and digital cable box using a splitter, as described on

page 26, you must use a special bi-directional splitter that is designed to work with

your digital cable box. Contact your cable provider for details.

(Continued)

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm

KF-42/50E200A

2-694-282-12(1)

TV cabinet creaks ❏When the TV is in use, there is a natural rise in temperature, causing the cabinet to

expand or contract and may be accompanied by a slight creaking noise. This is not

a malfunction.

A slight creaking noise occurs

from the bottom part of the TV

❏Advanced Iris applies a mechanical iris system. When Advanced Iris is set, a

natural creaking noise occurs due to the basic structure of the optical unit. The

creaking sound is an inherent nature of this system and is not a defect.

The cooling fan seems to be

louder

❏Dust may be collected around the ventilation fan area blocking the ventilation

holes. Be sure to keep the fan area free from dust.

❏If the TV is used at high altitudes and set to High, the cooling fan runs faster and

its sound becomes louder. If the TV is not used at high altitudes, set Cooling

Mode to Normal (see page 61).

"High Temperature Warning!"

message appears

❏Make sure to remove dust from the ventilation slots on the rear and both sides of

the TV. In addition, make sure that there are no obstacles in front of the ventilation

slots. If the message still appears after the dust or obstacles are removed, the TV

may need servicing. Call your local Sony Service Center.

The TV does not turn on ❏The TV cools down its projection lamp when the power is turned off. It takes up to

two minutes for the picture to come back after the TV is turned on again. Wait for

a while until the picture comes back.

Image left on the screen

(image retention)

❏Turn off the TV for a while or let the TV run on another channel. Unlike plasma

TV and CRT TV, image retention on this TV is not permanent. It is only a

temporary condition, (see page 10).

White spot on the screen

when powered off

If screen is exposed to direct sunlight or strong ambient light, part of the screen may

appear white even when TV is power off. This is due to the strong light reflecting off

the TV screen and reflections coming behind the screen. This is a structural property of

the projection TV and is not a defect.

❏Position your TV away from such light sources.

“Lamp Replacement message”

appears.

It is time for you to replace the projection lamp used in you TV.

❏Turn to page 66 on “How to Replace the Lamp” and follow the direction on

replacing the lamp.

❏Use only the lamp designated for your TV model.

❏After the lamp is replaced, select the “Lamp Replacement” option then select

“Start” in the Setup menu.

The replacement lamp does not

light up

❏The lamp door or lamp might not be securely attached. Repeat the steps on page

66 to ensure that they are both installed securely.

Problem Possible Remedies

masterpage:3 columns Right

Other Information

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm

KF-42/50E200A

2-694-282-12(1)

PC Input Signal Compatibility Chart

*: Corresponding to the VGA signal

**: These signals do not support Normal display mode.

***: Coordinated Video Timing.

Resolution Horizontal

frequency (kHz)

(Refresh rate)

Vertical

frequency (Hz)

VESA standard

Signals Horizontal

(Dot)

xVertical

(Line)

VGA 640 x480 31.5 60 –*

640 x480 37.5 75 ✔

640 x480 43.3 85 ✔

720 x400 31.5 70 –*

SVGA 800 x600 35.2 56 ✔

800 x600 37.9 60 ✔

800 x600 46.9 75 ✔

800 x600 48.1 72 ✔

XGA** 1024 x768 48.4 60 ✔

1024 x768 56.5 70 ✔

1024 x768 60 75 ✔

WXGA** 1280 x768 47.4 60 ✔

1280 x768 47.8 60 ✔

1152 x648 40.3 60 CVT***

✍This TV does not support Sync on Green or Composite Sync.

✍If a signal other than in the above chart is input, it may not be displayed properly or may not be

displayed as you set.

✍For the best picture quality, it is recommended to use signals with a 60Hz vertical frequency

from a personal computer. In plug and play, signals with 60Hz vertical frequency will be selected

automatically.

✍Noise may be detected under certain conditions. If unsupported signals are used, you will see

the message, “Unsupported Signal”.

masterpage:3 columns Right

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm

KF-42/50E200A

2-694-282-12(1)

Specifications

Projection System 3 LCD Panels, 1 lens projection system

LCD Panel 0.73 inch TFT LCD panel (1,280 × 720 pixels)

Projection Lens High Performance, large diameter hybrid lens F2.4

Antenna 75-ohm external terminal for VHF/UHF

Lamp 100W, XL-2400 Ultra High Pressure Lamp

Television System NTSC American TV Standard

Visible Screen Size (Picture measured

diagonally)

KF-42E200A: 42 inches

KF-50E200A: 50 inches

Channel Coverage Terrestrial (analog) 2-69

Cable TV (analog) 1-125

Number of Inputs/Outputs

HDMI IN 2 Video 1080i, 720p, 480p, 480i, PC

1 Audio Two channel linear PCM 32, 44.1 and 48 kHz,

16, 20 and 24 bit

Video (IN) 3 total (1 on side panel) 1 Vp-p, 75 ohms unbalanced, sync negative

S Video (IN) 1 Y: 1 Vp-p, 75 ohms unbalanced, sync

negative

C: 0.286 Vp-p (Burst signal), 75 ohms

Audio (IN) 5 total (1 on side panel) 500 mVrms (100% modulation)

Impedance: 47 kilohms

Component Video Input 3 (YPBPR) (1 on side panel) Y: 1 Vp-p, 75 ohms unbalanced, sync

negative

PB: 0.7 Vp-p, 75 ohms

PR: 0.7 Vp-p, 75 ohms

AUDIO (VAR/FIX) OUT 1 500 mVrms at the maximum volume setting

(Variable)

500 mVrms (Fixed)

Impedance (output): 2 kilohms

RF Inputs 1

Speaker output 12 W + 12 W

Power requirement 120 V, 60 Hz

Power consumption In use: 200 W

In standby: 0.8 W

Dimensions (W/H/D) KF-42E200A: 999 × 722 × 357 mm (39 3/8 × 28 1/2 × 14 1/8 inches)

KF-50E200A: 1184 × 827 × 408 mm (46 5/8 × 32 5/8 × 16 1/8 inches)

Mass KF-42E200A: 25.3 kg (55.8 lb.)

KF-50E200A: 29.3 kg (64.7 lb.)

Supplied Accessories

Remote Control RM-YD010

AA (R6) Batteries 2 supplied for remote control

Operating Instructions 1

masterpage:3 columns Right

Other Information

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US08OTH.fm

KF-42/50E200A

2-694-282-12(1)

Design and specifications are subject to change without notice.

Non-metric weights and measures are approximate.

Optional accessories:

❑HDMI cable

❑HDMI-to-DVI cable

❑Component video cable

❑S VIDEO cable

❑A/V cable

❑Audio cable

❑TV Stand : SU-RG11S for KF-42E200A, SU-RG12L for KF-50E200A

❑Lamp : XL-2400 Ultra High Pressure Lamp

Quick Setup Guide 1

Warranty Card 1

Product Registration Card 1

✍The availability of optional accessories

depends on stock.

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US09IX.fm masterpage:3 columns Right

KF-42/50E200A

2-694-282-12(1)

Index

0-9 buttons 33

4:3 Default 55

5.1 Channel DVD using with

remote control 38

Adding channels to the channel

list 56

Adjusting audio, Steady Sound

Advanced Iris 49

Advanced Settings 51

ANT button 33

AUDIO (L/R) jacks, described

Audio Out 53

AUDIO OUT jack, described 15

Audio receiver, connecting 31

Auto Program 56

Auto Wide 55

Balance, adjusting 52

Bass, adjusting 52

Batteries, inserting in remote 32

BBE 52

Blu-ray Disc player

using with remote control 38

Brightness, adjusting 50

Cable 56

connecting with VCR 25

using with remote control 37

Cable Box

connecting with VCR 26

Camcorder connection 30

Canadian Ratings 58

Caption Vision 60

Change Password 57

CHANNEL +/– button 16

Channel settings 48, 56

Channel Show/Hide 56

Channels

Auto Program 56

creating labels 56

CineMotion 9, 61

Clear White 51

Clock/Timers settings 48, 62

Closed caption modes 60

Color Temp., adjusting 50

Color, adjusting 50

Connecting

Audio receiver 31

Cable box 20

Camcorder 30

DVD player 28–29

Personal Computer 30, 31

VCR 25–27

Cooling Mode 61

Display Area 55

DISPLAY button 34

Display, turning off 34

DRC Mode 50

DRC Palette 51

DVD player

using with remote control 37

with A/V connectors,

connecting 29

with component video

connectors, connecting 28

English Rating 58

ENT button 33

External Inputs, MENU 44, 45

Favorite Channels

setting up 56

Favorites, MENU 44, 45

FREEZE button 34, 40

French Rating 58

FUNCTION button 33

Gamma 51

HD/DVD IN jack (1080i/720p/

480p/ 480i), described 15

HDMI 15

HDMI IN jack, described 15

High-Definition Multimedia

Interface (HDMI) 9

Horizontal Center 55

Hue, adjusting 50

Infrared Receiver (IR) 16

Inputs, labeling 60

JUMP 40

JUMP button 33

Label

Channels 56

Label Video Inputs 60

LAMP LED 16

Lamp Replacement 61

Lamp, replacing 66–68

Language 61

MENU 43

MENU button 16, 37

Movie Rating 59

MTS 53

MUTING button 34

Noise Reduction 50

Index

F:\Worker\SONY TROY2 ANA EN 12(1)\2694282121\01US09IX.fm masterpage:3 columns Right

KF-42/50E200A

2-694-282-12(1)

Off, turning off the TV 16

On, turning on the TV 16

Parental Control, described 9

Parental Lock settings 48, 57

Password, changing 57

PC Wide Mode 54

Personal Computer

connecting 31

Picture 50

PICTURE button 34

Picture Mode

Custom 49

Standard 49

Vivid 49

Picture settings 47, 49

POWER button 16

POWER/STANDBY LED 16

Problems, Troubleshooting 69–

Product Information 61

Rating 57

Ratings

setting 58

viewing blocked programs 58

Remote control

inserting batteries 32

programming 35–36

Removing channels from the

channel list 56

Reset 49, 52

S VIDEO jack, described 15

Satellite receiver, using with

remote control 37

Screen settings 47, 54

Select Country 57

Settings

Channel 48, 56

Clock/Timers 48, 62

Parental Lock 48, 57

Picture 47, 49

Screen 47, 54

Setup 48, 60

Sound 47, 52

Settings, MENU 44, 46

Setup settings 48, 60

Sharpness, adjusting 50

Show/Hide Channels 56

Sound Mode 52

Sound settings 47, 52

Speaker 16, 53

Specifications 74–75

Steady Sound

adjusting 52

described 9

Support Belt 12

Surround 52

Timer

set current 63

TIMER indicator 11

TIMER LED 16

TOOLS button 34

Treble, adjusting 52

Troubleshooting 69–72

Turning on/off the TV 16

TV FUNCTION button 33

TV POWER button 34

TV Rating 59

TV, MENU 44

TV/VIDEO button 16, 33

Unrated 59

VCR

using with remote control 37

with cable box, connecting 26

with cable, connecting 25

Vertical Center 55

Vertical Size 55

VHF/UHF jack, described 15

Video 2 (Component) 61

VIDEO IN jacks, described 15

Video inputs, labeling 60

VIDEO/AUDIO (L/R) jacks,

described 15

VISUAL SEARCH 34

VOL +/– button 34

VOLUME +/– button 16

Volume Offset 52

WEGA Engine 9

Wide Mode 54

Wide Screen Mode, described 9

Sony Grand Wega 2 694 282 131 Users Manual KF 42/50E200A

KF-50E200A KF50E200A

2-694-282-13 to the manual fc3be584-84ff-43b2-9507-ff97758d5e68

Navigation menu

Versions of this User Manual:

Views

Navigation
