Home Theatre

System

Operating Instructions

HT-SF1000

HT-SS1000

GB01COV_HT-SF1000-CEL.book Page 1 Sunday, February 12, 2006 10:44 AM

2GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB02REG_HT-SF1000-CEL.fm2-661-769-14 (1)

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

To reduce the risk of fire or electric

shock, do not expose this apparatus to

rain or moisture.

To prevent fire, do not cover the ventilation of the

apparatus with newspapers, table-cloths, curtains,

etc. And don’t place lighted candles on the

apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Don’t throw away batteries with

general house waste; dispose of

them correctly as chemical waste.

For customers in Europe

Disposal of Old Electrical & Electronic

Equipment (Applicable in the European

Union and other European countries

with separate collection systems)

WARNING

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

This symbol on the product or on its

packaging indicates that this product

shall not be treated as household waste.

Instead it shall be handed over to the

applicable collection point for the

recycling of electrical and electronic

equipment. By ensuring this product is

disposed of correctly, you will help

prevent potential negative

consequences for the environment and

human health, which could otherwise

be caused by inappropriate waste

handling of this product. The recycling

of materials will help to conserve

natural resources. For more detailed

information about recycling of this

product, please contact your local

Civic Office, your household waste

disposal service or the shop where you

purchased the product.

GB01COV_HT-SF1000-CEL.book Page 2 Sunday, February 12, 2006 10:44 AM

3GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB02REG_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

About This Manual

• The instructions in this manual are for model

HT-SF1000 and HT-SS1000. In this manual,

models of area code CEL is used for illustration

purposes unless stated otherwise. Any difference

in operation is clearly indicated in the text, for

example, “Models of area code CEL only”.

The HT-SF1000 consists of:

• Receiver STR-KS1000

• Speaker systema)

– Front speakers SS-FSP1000

– Center speaker SS-CNP1000F

– Surround speakers SS-FRP1000

– Sub woofer SS-WP1000

The HT-SS1000 consists of:

• Receiver STR-KS1000

• Speaker systema)

– Front speakers SS-MSP1000

– Center speaker SS-CNP1000

– Surround speakers SS-SRP1000

– Sub woofer SS-WP1000

a) Be sure to use only the supplied speakers.

• The instructions in this manual describe the

controls on the supplied remote. You can also use

the controls on the receiver if they have the same

or similar names as those on the remote.

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTS** Digital Surround

System.

* Manufactured under license from Dolby

Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol

are trademarks of Dolby Laboratories.

**“DTS” and “DTS Digital Surround” are

registered trademarks of Digital Theater

Systems, Inc.

This receiver incorporates High-Definition

Multimedia Interface (HDMITM) technology.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC.

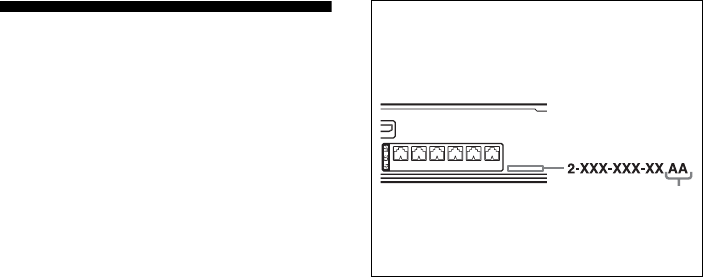

About area codes

The area code of the receiver you purchased is

shown on the lower portion of the rear panel (see

the illustration below).

Any differences in operation, according to the area

code, are clearly indicated in the text, for example,

“Models of area code AA only”.

FRONT R

– +

FRONT L

– + – + – + – + – +

SUR R SUR L CENTER

SUBWOOFER

OR OUT

Area code

GB01COV_HT-SF1000-CEL.book Page 3 Sunday, February 12, 2006 10:44 AM

4GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB01COV_HT-SF1000-CELTOC.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Table of Contents

Getting Started

Description and location of parts...................5

1: Installing speakers ...................................12

2: Connecting speakers................................15

3: Connecting the audio/video

components.............................................17

4: Connecting the antennas..........................21

5: Preparing the receiver and the remote .....22

6: Calibrating the appropriate settings

automatically

(AUTO CALIBRATION).......................23

7: Adjusting the speaker levels and

balance (TEST TONE)...........................26

Playback

Selecting a component.................................28

Listening/Watching a component ................29

Amplifier Operations

Navigating through menus...........................31

Adjusting the level (LEVEL menu).............34

Adjusting the tone (TONE menu) ...............35

Settings for the surround sound

(SUR menu)............................................35

Settings for the tuner (TUNER menu).........36

Settings for the audio (AUDIO menu).........36

Settings for the system (SYSTEM menu) ...37

Calibrating the appropriate settings

automatically (A. CAL menu)................39

Enjoying Surround Sound

Enjoying Dolby Digital and DTS Surround

sound (AUTO FORMAT DIRECT)....... 39

Selecting a pre-programmed sound field .... 41

Using only the front speakers and sub

woofer (2CH STEREO)......................... 43

Resetting sound fields to the initial

settings ................................................... 44

Tuner Operations

Listening to FM/AM radio.......................... 44

Storing FM stations automatically

(AUTOBETICAL) ................................. 46

(Models of area code CEL, CEK only)

Presetting radio stations.............................. 47

Using the Radio Data System (RDS).......... 48

(Models of area code CEL, CEK only)

Other Operations

Using the Sleep Timer ................................ 50

Using the Remote

Changing button assignments ..................... 50

Additional Information

Glossary ...................................................... 51

Precautions.................................................. 52

Troubleshooting .......................................... 54

Specifications.............................................. 57

Index ............................................. Back cover

GB01COV_HT-SF1000-CEL.book Page 4 Sunday, February 12, 2006 10:44 AM

5GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

Description and location of parts

Front panel

Getting Started

Receiver

VIDEO 1 VIDEO 2 DVD

SA-CD/CD

TUNER

PRESET TUNING SOUND FIELD MUTING

AUTO CAL MIC

MASTER VOLUME

1 52 4 63

;

9 8 7

INPUT SELECTOR

?/1

Name Function

A?/1Press to turn the receiver

on or off (page 22, 29, 30,

44, 46, 57).

BDisplay The current status of the

selected component or a

list of selectable items

appears here (page 6).

CInput lamps The lamp of the chosen

input source lights up

(page 28).

DRemote sensor Receives signals from

remote commander.

EINPUT

SELECTOR

Press to select the input

source to playback (page

28, 29, 30, 45, 46, 47, 48,

54).

FMUTING Press to mute the sound

(page 28).

Name Function

GMASTER

VOLUME

Turn to adjust the volume

level of all speakers at the

same time (page 27, 28,

29, 30).

HAUTO CAL MIC

jack

Connects to the supplied

ECM-AC2 optimizer

microphone for the Auto

Calibration function (page

23).

ISOUND FIELD

+/–

Press to select a sound,

field (page 39, 41, 43, 44).

JPRESET TUNING

+/–

Press to select a preset

station (page 48, 57).

continued

GB01COV_HT-SF1000-CEL.book Page 5 Sunday, February 12, 2006 10:44 AM

6GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

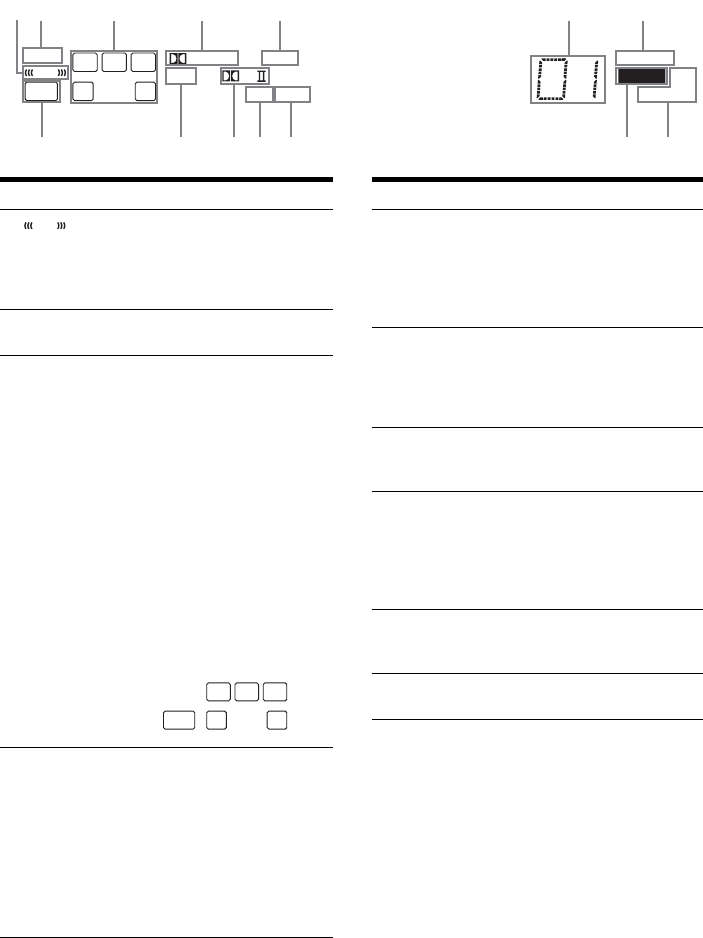

About the indicators on the display

LCR

SL SR

D.RANGE

RDS

ST MONO

MEMORY

SLEEP

DIGITAL

DTS

HDMI

LFE

OPT COAX

21 3 4 5 6 7

89q

;

Name Function

ALights up when the disc being

played back contains an LFE

(Low Frequency Effect) channel

and the LFE channel signal is

actually being reproduced.

BSLEEP Lights up when the sleep timer is

activated (page 50).

CPlayback

channel

indicators

The letters (L, C, R, etc.) indicate

the channels being played back.

The boxes around the letters vary

to show how the receiver

downmixes the source sound.

Front Left

Front Right

Center (monaural)

Surround Left

Surround Right

Surround (monaural or the

surround components obtained

by Pro Logic processing)

Example:

Recording format (Front/

Surround): 3/2.1

Sound Field: A.F.D. AUTO

D;DIGITAL Lights up when Dolby Digital

signals are input.

Note

When playing a Dolby Digital

format disc, be sure that you have

made digital connections and the

audio input mode for VIDEO 2

input or SA-CD/CD input is not

set to “V2 ANLG” or “CD

ANLG” (page 37).

LFE

LCR

SL SR

Name Function

EHDMI

(Except for

models of

area code

MX, E51,

AR)

Lights up when a playback

component is connected to this

receiver using a HDMI jack

(page 20).

FPreset

station

indicators

Lights up when using the

receiver to tune in radio stations

you have preset. For details on

presetting radio stations, see

page 47.

GD.RANGE Lights up when dynamic range

compression is activated (page

32).

HTuner

indicators

Lights up when using the

receiver to tune in radio stations

(page 44), etc.

Note

“RDS” lights up for models of

area code CEL, CEK only.

IMEMORY Lights up when a memory

function, such as Preset Memory

(page 47), etc., is activated.

JCOAX Lights up when the DVD input is

selected.

GB01COV_HT-SF1000-CEL.book Page 6 Sunday, February 12, 2006 10:44 AM

7GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

Name Function

KOPT Lights up when

– audio input mode for VIDEO 2

input is set to “V2 AUTO” and

the source signal is a digital

signal being input through

VIDEO 2 OPT IN jack (page

37).

– audio input mode for SA-CD/

CD input is set to “CD AUTO”

and the source signal is a

digital signal being input

through SA-CD/CD OPT IN

jack (page 37).

– audio input mode for VIDEO 2

input or SA-CD/CD input is set

to “V2 OPT” or “CD OPT”

(page 37).

L;PL(II)Lights up when the receiver

applies Pro Logic processing to 2

channel signals in order to output

the center and surround channel

signals. “; PLII” lights up

when the Pro Logic II Movie/

Music decoder is activated.

Note

Dolby Pro Logic and Dolby Pro

Logic II decoding do not

function for DTS format signals.

MDTS Lights up when DTS signals are

input.

Note

When playing a DTS format

disc, be sure that you have made

digital connections and the audio

input mode for VIDEO 2 input

or SA-CD/CD input is not set to

“V2 ANLG” or “CD ANLG”

(page 37).

NSW Lights up when the audio signal

is output from the

SUBWOOFER jack.

continued

GB01COV_HT-SF1000-CEL.book Page 7 Sunday, February 12, 2006 10:44 AM

8GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Rear panel

ANTENNA

DVD

COAX IN

OPT IN

SA-CD/CD

OPT IN

VIDEO 2

DIGITAL

SA-CD/CD

AUDIO IN

VIDEO 2

AUDIO IN

VIDEO 1

AUDIO IN

HDMI

DVD IN VIDEO 2 IN MONITOR OUT

FRONT R

– +

FRONT L

– + – + – + – + – +

SUR R SUR L CENTER

SUBWOOFER

1 2

4 3

AANTENNA section

ANTENNA

Connects to the

FM wire antenna

supplied with this

receiver (page 21).

ANTENNA

Connects to the

AM loop antenna

supplied with this

receiver (page 21).

BAUDIO INPUT section

AUDIO IN

jack

Connects to a

satellite tuner, CD

player, etc. (page

18, 19).

CSPEAKER section

Connects to speakers (page

15).

The following table shows

the respective color for the

speaker jacks.

White (L)

Red (R)

Speaker jack Color

FRONT R

(Front right speaker)

Red

FRONT L

(Front left speaker)

White

SUR R

(Surround right speaker)

Grey

SUR L

(Surround left speaker)

Blue

CENTER

(Center speaker)

Green

SUBWOOFER

(Sub woofer)

Purple

DDIGITAL INPUT/OUTPUT section

OPTICAL

IN jack

Connects to a DVD

player, etc. The COAX

IN jack provides a better

quality of loud sound

(page 19).

COAXIAL

IN jack

HDMI IN/

MONITOR

OUT jack

(Except for

models of

area code

MX, E51,

AR)

Connects to a DVD

player or a satellite tuner.

An image and the sound

are output to a TV or a

projector (page 20).

GB01COV_HT-SF1000-CEL.book Page 8 Sunday, February 12, 2006 10:44 AM

9GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

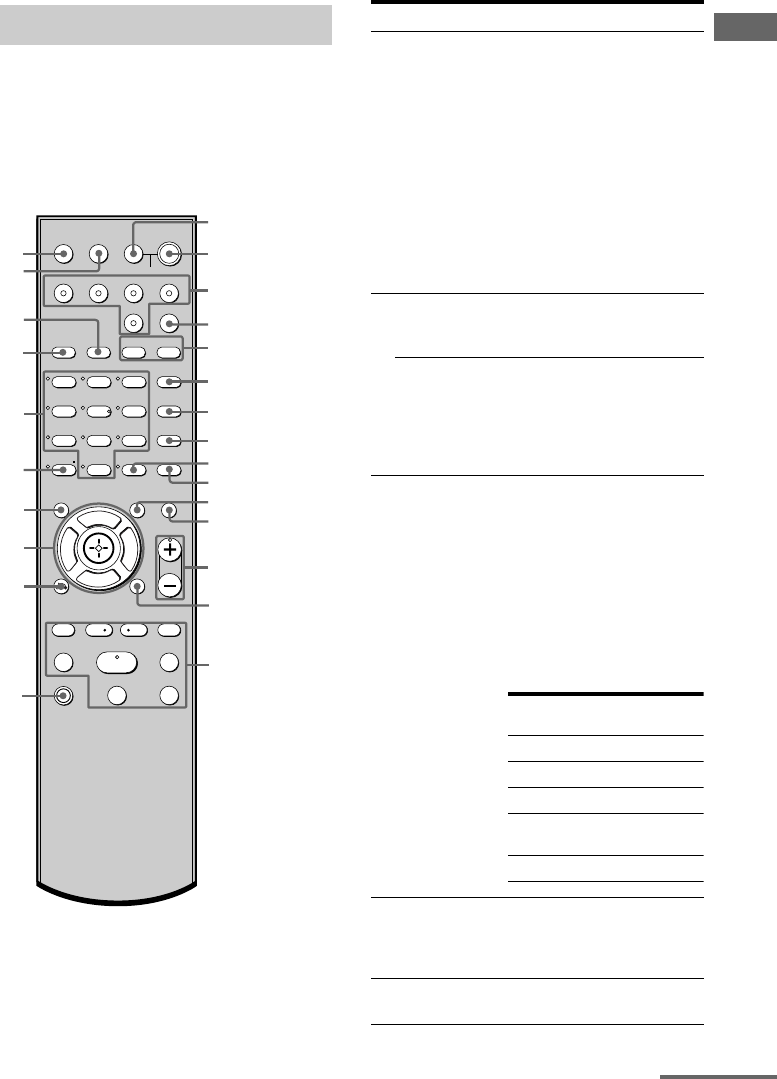

Getting Started

You can operate the receiver with the supplied

remote. You can also use the remote to control

the Sony audio/video components that the

remote is assigned to operate (page 50).

RM-AAU006

Remote commander

AV ?/1

(on/standby) switch

TV ?/1, ?/1

(

on/standby) switch

123

0/10

ENTER

SYSTEM STANDBY

TV/VIDEO

SLEEP

AUTO

CAL

?/1

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT

TV CH –

PRESET –

TV CH +

PRESET +

TUNING –

TUNING +

REPLAY ADVANCE

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

?/1

>10/

HmM

ql qa

Name Function

AAV ?/1Press to turn on or off the

Sony audio/video components

that the remote is assigned to

operate (page 50).

If you press ?/1 (B) at the

same time, it will turn off the

receiver and other

components (SYSTEM

STANDBY).

Note

The function of the AV ?/1

switch changes automatically

each time you press the input

buttons (C).

BTV ?/1Press TV ?/1 and TV (P) at

the same time to turn the TV

on or off.

?/1Press to turn the receiver on or

off.

To turn off all components,

press ?/1 and AV ?/1 (A) at

the same time (SYSTEM

STANDBY).

CInput buttons Press one of the buttons to

select the component you

want to use. When you press

any of the input buttons, the

receiver turns on. The buttons

are factory assigned to control

Sony components as follows.

You can change the button

assignments following the

steps in “Changing button

assignments” on page 50.

DAMP MENU Press to display the menu of

the receiver. Then, use the

control buttons to perform

menu operations.

EMOVIE,

MUSIC

Press to select sound fields for

movie or music.

Button Assigned Sony

component

VIDEO 1 VCR (VTR mode 3)

VIDEO 2 VCR (VTR mode 2)

DVD DVD player

SA-CD/CD Super Audio CD/CD

player

TUNER Built-in tuner

continued

GB01COV_HT-SF1000-CEL.book Page 9 Sunday, February 12, 2006 10:44 AM

10GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

FDUAL MONO Press to select the language

you want during digital

broadcast.

GFM MODE Press to select FM monaural

or stereo reception.

HD.TUNING Press to enter direct tuning

mode.

D.SKIP Press to skip disc of the CD

player or DVD player (multi-

disc changer only).

IENTER Press to enter the value after

selecting a channel, disc or

track using the numeric

buttons.

MEMORY Press to store a station.

JDVD MENU Press to display the menu of

the DVD player on the TV

screen. Then, use the control

buttons to perform menu

operations.

KTOOLS Press to display options

applicable to the entire disc

(e.g. disc protection), recorder

(e.g. audio settings during

recording), or multiple items

on a list menu (e.g. erasing

multiple titles).

LMUTING Press to mute the sound.

MTV VOL

+a)/–

Press TV VOL +/– and TV

(P) at the same time to adjust

the TV volume level.

MASTER

VOL +a)/–

Press to adjust the volume

level of all speakers at the

same time.

NMENU Press to display the menus of

the VCR, DVD player, or

satellite tuner on the TV

screen. Then, use the control

buttons to perform menu

operations.

Name Function Name Function

O./>Press to skip tracks of the CD

player, DVD player, MD

deck, or tape deck.

REPLAY /

ADVANCE

Press to replay the previous

scene or fast forward the

current scene of the VCR or

DVD player.

m/MPress to

– search tracks in the forward/

backward direction of the

DVD player.

– fast forward/rewind of the

VCR, CD player, MD deck,

or tape deck.

Ha) Press to start playback of the

VCR, CD player, DVD player,

MD deck, or tape deck.

XPress to pause playback or

recording of the VCR, CD

player, DVD player, MD

deck, or tape deck. (Also

starts recording with

components in recording

standby.)

xPress to stop playback of the

VCR, CD player, DVD player,

MD deck, or tape deck.

TV CH +/– Press TV CH +/– and TV (P)

at the same time to select

preset TV channels.

PRESET +/– Press to select

– preset stations.

– preset channels of the VCR

or satellite tuner.

TUNING +/– Press to scan a station.

PTV To activate the buttons with

orange printing, press TV and

the button with orange

printing simultaneously.

QRETURN/

EXIT O

Press to

– return to the previous menu.

– exit the menu while the

menu or on-screen guide of

the VCR, DVD player, or

satellite tuner is displayed

on the TV screen.

GB01COV_HT-SF1000-CEL.book Page 10 Sunday, February 12, 2006 10:44 AM

11GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

a)The number 5, MASTER VOL +, TV VOL +, and

H buttons have tactile dots. Use the tactile dots as

references when operating the receiver.

b)Models of area code CEL, CEK only.

Notes

• Some functions explained in this section may not

work depending on the model.

• The above explanation is intended to serve as an

example only. Therefore, depending on the

component, the above operation may not be

possible or may operate differently than described.

Name Function

RControl

buttons

After pressing AMP MENU

(D), DVD MENU (J), or

MENU (N), press the control

button V, v, B or b to select

the settings. When you press

DVD MENU or MENU, press

the control button to enter the

selection.

SDISPLAY Press to

– select information displayed

on the receiver’s display (for

TUNER input only).b)

– select information displayed

on the TV screen of the

VCR, satellite tuner, CD

player, DVD player, or MD

deck.

T-/-- Press -/-- and TV (P) at the

same time to select the

channel entry mode, either

one or two digits of the TV.

>10/xPress to select

– track numbers over 10 of the

VCR, satellite tuner, CD

player or MD deck.

– channel numbers of the

Digital CATV terminal.

CLEAR Press to

– clear a mistake when you

press the incorrect numeric

button.

– return to continuous

playback, etc. of the satellite

tuner or DVD player.

UNumeric

buttons

(number 5a))

Press to

– preset/tune to preset

stations.

– select track numbers of the

CD player, DVD player or

MD deck. Press 0/10 to

select track number 10.

– select channel numbers of

the VCR or satellite tuner.

Press the numeric buttons and

TV (P) at the same time to

select the TV channels.

V2CH Press to select 2CH STEREO

mode.

WA.F.D. Press to select A.F.D. mode.

XAUTO CAL Press to activate the Auto

Calibration function.

Name Function

YTV/VIDEO Press TV/VIDEO and TV

(P) at the same time to select

the input signal (TV input or

video input).

SLEEP Press to activate the Sleep

Timer function and the

duration which the receiver

turns off automatically.

GB01COV_HT-SF1000-CEL.book Page 11 Sunday, February 12, 2006 10:44 AM

12GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

1: Installing speakers

This receiver allows you to use a 5.1 channel

speaker system. To fully enjoy theater-like

multi channel surround sound requires five

speakers (two front speakers, a center speaker,

and two surround speakers) and a sub woofer

(5.1 channel).

HT-SF1000 only

AFront speaker (Left)

BFront speaker (Right)

CCenter speaker

DSurround speaker (Left)

ESurround speaker (Right)

FSub woofer

HT-SS1000 only

AFront speaker (Left)

BFront speaker (Right)

CCenter speaker

DSurround speaker (Left)

ESurround speaker (Right)

FSub woofer

Tip

Since the sub woofer does not emit highly

directional signals, you can place it wherever you

want.

GB01COV_HT-SF1000-CEL.book Page 12 Sunday, February 12, 2006 10:44 AM

13GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

Before you install the speaker and sub woofer,

be sure to attach the supplied foot pads to

prevent vibration or movement as shown in the

illustration below.

Example of HT-SS1000 front

speaker

HT-SF1000 only

You need to attach the supplied foot pads to the

sub woofer only.

HT-SS1000 only

You need to attach the supplied foot pads to the

speakers and sub woofer.

HT-SS1000 only

For greater flexibility in positioning the

speakers, use the optional WS-FV11 or

WS-FV10D speaker stand (available only in

certain countries). For details, refer to

operating instructions supplied with the

speaker stand.

HT-SS1000 only

You can install your front and surround

speakers on the wall.

1Prepare screws (not supplied)

that are suitable for the hole on

the back of each speaker. See

the illustrations below.

2Fasten the screws to the wall.

The screws should protrude 5

to 7 mm.

Installing the speakers on a flat

surface

Installing the speakers on the

speaker stand

Installing the speakers on the

wall

more than 4 mm

more than 25 mm

Hole on the back of the speaker

4.6 mm

10 mm

5 to 7 mm

continued

GB01COV_HT-SF1000-CEL.book Page 13 Sunday, February 12, 2006 10:44 AM

14GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

3Hang the speakers on the

screws.

Notes

• Use screws that are suitable for the wall material

and strength. As a plaster board wall is especially

fragile, attach the screws securely to a beam and

fasten them to the wall. Install the speakers on a

vertical and flat wall where reinforcement is

applied.

• Contact a screw shop or installer regarding the wall

material or screws to be used.

• Sony is not responsible for accident or damage

caused by improper installation, insufficient wall

strength or improper screw installation, natural

calamity, etc.

4.6 mm

10 mm

Hole on the back of the speaker

GB01COV_HT-SF1000-CEL.book Page 14 Sunday, February 12, 2006 10:44 AM

15GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

2: Connecting speakers

AFront speaker (Left)

BFront speaker (Right)

CCenter speaker

DSurround speaker (Left)

ESurround speaker (Right)

FSub woofer

SA-CD/CD

AUDIO IN

VIDEO 2

AUDIO IN

VIDEO 1

HDMI

AUDIO IN

– + – +

CENTER

SUBWOOFER

DVD IN VIDEO 2 IN MONITOR OUT

FRONT R

– +

FRONT L

– + – + – +

SUR R SUR L

EDAB

Connector

ASpeaker cord (supplied)

color tube

continued

GB01COV_HT-SF1000-CEL.book Page 15 Sunday, February 12, 2006 10:44 AM

16GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Notes on speaker cords

• The connector and the color tube* of the

speaker cords are the same color as the

speaker jack to be connected. When

connecting a speaker cord, be sure to match

the colored connector to the speaker jack on

the receiver:

• The color tube* on the speaker cord

represents plus (+) in polarity, make sure that

you connect it to plus (+) terminal on the

speaker.

* The speaker cord which is attached to the sub

woofer does not have color tube on it.

Note on speakers

To connect the speakers correctly, be sure to

check the type of speakers by referring to the

speaker label* at the rear panel or bottom of

the speakers.

* The center speaker and sub woofer do not have the

character on the speaker label. For details on the

speaker type, see page 3.

Connector Speaker jack

Red FRONT R

White FRONT L

Grey SUR R

Blue SUR L

Green CENTER

Purple SUBWOOFER

Character on

speaker label

Speaker type

L Front left

R Front right

SL Surround left

SR Surround right

GB01COV_HT-SF1000-CEL.book Page 16 Sunday, February 12, 2006 10:44 AM

17GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

3: Connecting the audio/video components

This section describes how to hook up your

components to this receiver. Before you begin,

refer to “Component to be connected” below

for the pages which describe how to connect

the audio/video components.

After hooking up all your components,

proceed to “4: Connecting the antennas” (page

21).

Component to be connected

The sound quality depends on the connecting

jack. Refer to the illustration that follows.

Select the connection according to the jacks of

your components.

How to hook up your

components

To connect See

Audio components

• Super Audio CD player/

CD player

page 18

Video components

• DVD player

• DVD recorder

• Satellite tuner

•VCR

page 19

Components with HDMI jack page 20

Audio input jack to be

connected

Digital Analog

High quality sound

GB01COV_HT-SF1000-CEL.book Page 17 Sunday, February 12, 2006 10:44 AM

18GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

The following illustration shows how to

connect audio components such as Super

Audio CD player or CD player.

Note

When you play a Super Audio CD disc on a Super

Audio CD player, the sound is output only if you

make the connection to SA-CD/CD AUDIO IN

jacks (analog input jack) on the receiver. Refer to the

operating instructions supplied with the Super

Audio CD player.

Connecting audio components

AUDIO IN

VIDEO 2

AUDIO IN

VIDEO 1

HDMI

AUDIO IN

ANTENNA

DVD IN VIDEO 2 IN MONITOR OUT

FRONT R

– +

FRONT L

– + – + – +

SUR R SUR L

DVD

COAX IN

OPT IN

SA-CD/CD

OPT IN

VIDEO 2

DIGITAL

SA-CD/CD

Super Audio

CD player/

CD player

AOptical digital cord (not supplied)

BAudio cord (not supplied)

GB01COV_HT-SF1000-CEL.book Page 18 Sunday, February 12, 2006 10:44 AM

19GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

The following illustration shows how to

connect video components such as DVD

player, DVD recorder, satellite tuner or VCR.

If you connect a DVD recorder

Be sure to change the factory setting of the

DVD input button on the remote so that you

can use the button to control your DVD

recorder. For details, see “Changing button

assignments” (page 50).

Notes

• You cannot do recording on the DVD recorder or

VCR via this receiver. For details, refer to the

operating instructions supplied with the DVD

recorder or VCR.

• To input multi channel digital audio from the DVD

player, set the digital audio output setting on the

DVD player. Refer to the operating instructions

supplied with the DVD player.

• When connecting optical digital cords, insert the

plugs straight in until they click into place.

• Do not bend or tie optical digital cords.

Tip

All the digital audio jacks are compatible with

32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling

frequencies.

Connecting video components

SA-CD/CD

AUDIO IN AUDIO IN

VIDEO 1

HDMI

OPT IN

SA-CD/CD

ANTENNA

DIGITAL

DVD IN VIDEO 2 IN MONITOR OUT

FRONT R

– +

FRONT L

– + – + – +

SUR R SUR L

OPT IN

VIDEO 2

AUDIO IN

DVD

COAX IN

Satellite tuner

AOptical digital cord (not supplied)

BAudio cord (not supplied)

CCoaxial digital cord (orange) (supplied)

DVD player/

DVD recorder VCR

GB01COV_HT-SF1000-CEL.book Page 19 Sunday, February 12, 2006 10:44 AM

20GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

(Except for models of area code

MX, E51, AR)

HDMI is the abbreviated name for High-

Definition Multimedia Interface. It is an

interface which transmits video and audio

signals in digital format.

The sound is output from the TV speaker only

when a playback component and this receiver,

as well as this receiver and the TV are

connected via the HDMI jack. To output the

sound from the supplied speakers and to take

advantage of the multi channel surround

sound, be sure to

– connect the digital audio jacks on the

playback component to the receiver.

– turn off or mute the TV’s volume.

Notes on HDMI connections

• The multi/stereo area audio signals of a

Super Audio CD are not output.

• Audio signals (sampling frequency, bit

length, etc.) transmitted from a HDMI jack

may be restricted by the connected

component. If the image is poor or no sound

is output from the component connected via

the HDMI cable, check the setup of the

connected component.

• Be sure to turn on the receiver, when video

and audio signals of a playback component

are being output to a TV through HDMI

jacks of the receiver. Unless the power is on,

neither video nor audio signals will be

transmitted.

• For details on HDMI setup of the connected

component, refer to operating instructions

supplied with the connected component.

Connecting components with

HDMI jacks

SA-CD/CD

AUDIO IN

VIDEO 2

AUDIO IN

VIDEO 1

AUDIO IN

DVD

COAX IN

OPT IN

SA-CD/CD

OPT IN

VIDEO 2

ANTENNA

DIGITAL

FRONT R

– +

FRONT L

– + – + – +

SUR R SUR L

HDMI

DVD IN VIDEO 2 IN MONITOR OUT

DVD player Satellite tuner TV monitor,

projector, etc.

AHDMI cable (not supplied)

We recommend that you use a Sony HDMI cable.

AA A

GB01COV_HT-SF1000-CEL.book Page 20 Sunday, February 12, 2006 10:44 AM

21GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

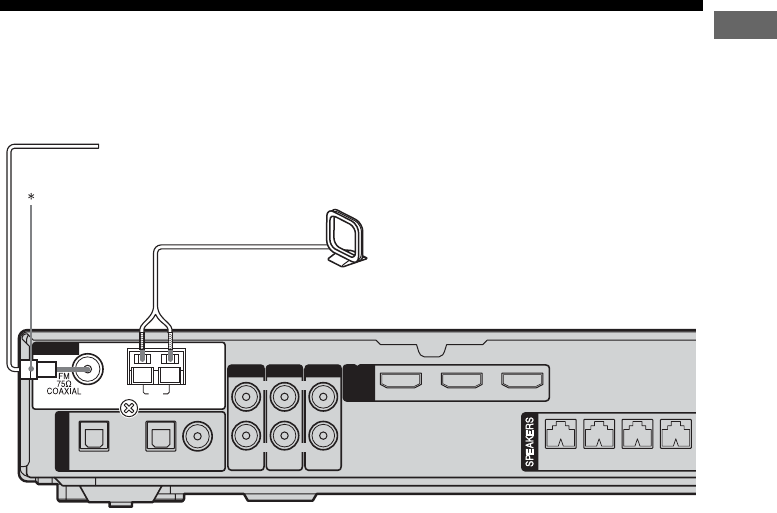

4: Connecting the antennas

Connect the supplied AM loop antenna and

FM wire antenna.

* The shape of the connector varies depending on

the area code of this receiver.

Notes

• To prevent noise pickup, keep the AM loop antenna

away from the receiver and other components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as

horizontal as possible.

SA-CD/CD

AUDIO IN

VIDEO 2

AUDIO IN

VIDEO 1

HDMI

AUDIO IN

DVD

COAX IN

OPT IN

SA-CD/CD

OPT IN

VIDEO 2

DIGITAL

DVD IN VIDEO 2 IN MONITOR OUT

FRONT R

– +

FRONT L

– + – + – +

SUR R SUR L

ANTENNA

FM wire antenna (supplied)

AM loop antenna (supplied)

GB01COV_HT-SF1000-CEL.book Page 21 Sunday, February 12, 2006 10:44 AM

22GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

5: Preparing the receiver

and the remote

Connect the AC power cord to a wall outlet.

Note

Install this system so that the power cord can be

unplugged from the wall socket immediately in the

event of trouble.

Before using the receiver for the first time,

initialize the receiver by performing the

following procedure. This procedure can also

be used to return settings you have made to

their factory defaults.

Be sure to use the buttons on the receiver for

this operation.

1Press ?/1 to turn off the

receiver.

2Hold down ?/1 for 5 seconds.

“INITIAL” appears on the display.

The following items are reset to their

factory settings.

• All settings in the LEVEL, TONE,

SUR, TUNER, AUDIO and SYSTEM

menus.

• The sound field memorized for each

input and preset station.

• All sound field parameters.

• All preset stations.

• MASTER VOLUME is set to “VOL

MIN”.

• Input is set to “DVD”.

Connecting the AC power cord

AC power cord

To the wall outlet

Performing initial setup

operations

?/1

VIDEO 1 VIDEO 2 DVD

SA-CD/CD

TUNER

PRESET TUNING SOUND FIELD MUTING

AUTO CAL MIC

INPUT SELECTOR MASTER VOLUME

1,2

GB01COV_HT-SF1000-CEL.book Page 22 Sunday, February 12, 2006 10:44 AM

23GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

Insert two R6 (size-AA) batteries in the

RM-AAU006 remote commander.

Observe the correct polarity when installing

batteries.

Notes

• Do not leave the remote in an extremely hot or

humid place.

• Do not use a new battery with old ones.

• Do not mix alkaline batteries and other kinds of

batteries.

• Do not expose the remote sensor to direct sunlight

or lighting apparatuses. Doing so may cause a

malfunction.

• If you do not intend to use the remote for an

extended period of time, remove the batteries to

avoid possible damage from battery leakage and

corrosion.

Tip

Under normal conditions, the batteries should last

for about 3 months. When the remote no longer

operates the receiver, replace all the batteries with

new ones.

6: Calibrating the

appropriate settings

automatically

(AUTO CALIBRATION)

This receiver is equipped with D.C.A.C.

(Digital Cinema Auto Calibration)

Technology which allows you to perform

automatic calibration as follows:

• Check the connection between each speaker

and the receiver.

• Adjust the speaker level.

• Measure the distance of each speaker to your

listening position.

You can also adjust the speaker levels and

balance manually. For details, see

“7: Adjusting the speaker levels and balance

(TEST TONE)” (page 26).

1Connect the supplied ECM-AC2

optimizer microphone to the

AUTO CAL MIC jack.

2Place the optimizer

microphone at your listening

position.

3Place the speakers so that the

speakers are facing the

optimizer microphone.

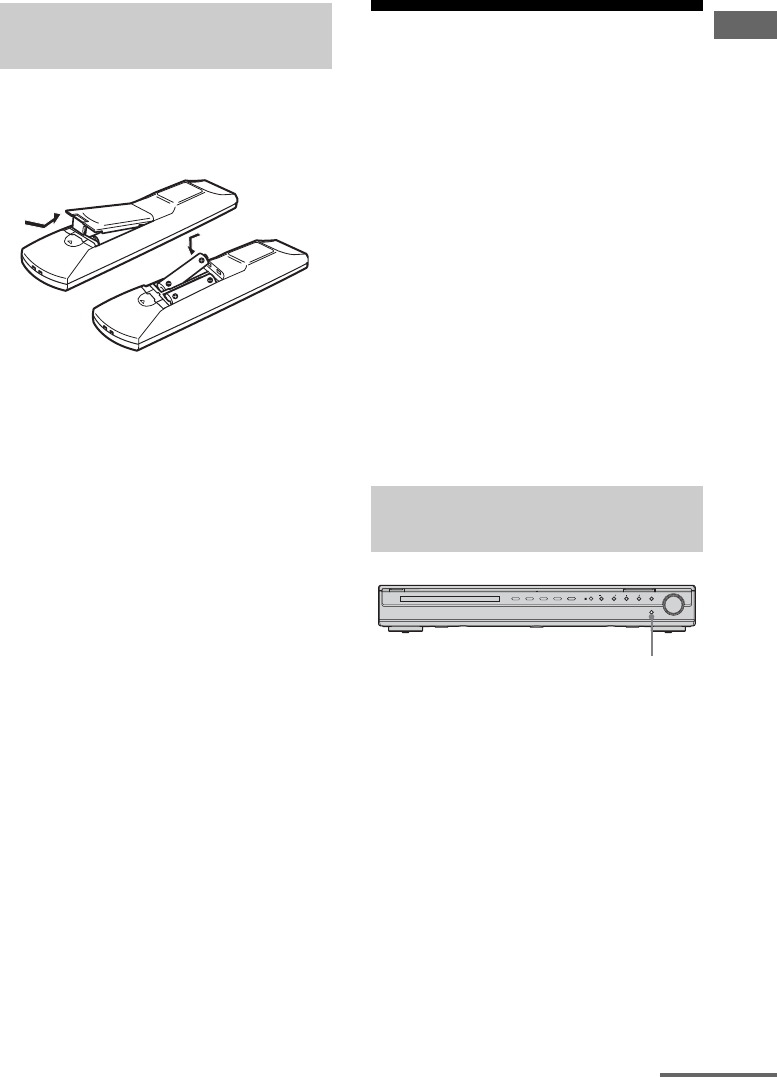

Inserting batteries into the

remote

Before you perform Auto

Calibration

?/1

VIDEO 1 VIDEO 2 DVD

SA-CD/CD

TUNER

PRESET TUNING SOUND FIELD MUTING

AUTO CAL MIC

INPUT SELECTOR MASTER VOLUME

continued

GB01COV_HT-SF1000-CEL.book Page 23 Sunday, February 12, 2006 10:44 AM

24GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Tips

• You can also fix the optimizer microphone to a

tripod (not supplied) and place the tripod at your

listening position.

• Be sure to remove any obstacles in the path

between the optimizer microphone and the

speakers.

• When you face the speaker towards the optimizer

microphone, you will get a more accurate

measurement.

Press AUTO CAL.

The following appears on the display.

A.CAL [5] t A.CAL [4] t A.CAL [3] t

A.CAL [2] t A.CAL [1]

The table below shows the display when

measurement starts.

* The corresponding speaker indicator lights up in

the display during measurement.

When measurement ends, “COMPLETE”

appears on the display and the settings are

registered.

Notes

• Auto Calibration cannot detect the sub woofer.

Therefore, all sub woofer settings will be

maintained.

• The measurement process will take a few minutes

to complete.

Tips

• When Auto Calibration starts:

– Stand some distance from the speakers and the

listening position to avoid measurement failure.

This is because test signals are output from the

speakers during measurement.

– Avoid making noise to get a more accurate

measurement.

• The Auto Calibration function will be canceled

when you do the following during the

measurement process:

– Press ?/1 or MUTING.

– Press input buttons on the remote or INPUT

SELECTOR on the receiver.

– Change the volume level.

– Press AUTO CAL again.

Performing Auto Calibration

123

0/10

ENTER

SYSTEM STANDBY

TV/VIDEO

SLEEP

AUTO

CAL

?/1

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT MENU

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

?/1

>10/

AUTO

CAL

Control

button

MUTING

Input

buttons

?/1

switch

MASTE

VOL +/–

Measurement for Display

Environment noise level NOISE.CHK

Speaker connection MEASURE and SP

DET. appears

alternately*

Speaker level MEASURE and

GAIN appears

alternately*

Speaker distance MEASURE and

DISTANCE appears

alternately*

GB01COV_HT-SF1000-CEL.book Page 24 Sunday, February 12, 2006 10:44 AM

25GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

Error codes

When an error is detected during Auto

Calibration, an error code will appear on the

display cyclically after each measurement

process as follows:

Error code t blank display t (error code t

blank display)a) t PUSH t blank display

t ENTER

a) Appears when there are more than one error code.

To rectify the error

1Record down the error code.

2Press the control button.

3Press ?/1 to turn off the receiver.

4Rectify the error.

For details, see “Error code and remedies”

below.

5Turn on the receiver and perform Auto

Calibration again (page 24).

Error code and remedies

Warning codes

During Auto Calibration, the warning code

provides information on the measurement

result. The warning code will appear on the

display cyclically as follows:

Warning code t blank display t (warning

code t blank display)b) t PUSH t blank

display t ENTER

b)Appears when there are more than one warning

code.

You can choose to ignore the warning code as

the Auto Calibration function will

automatically adjust the settings. You can also

change the settings manually.

To change the settings

manually

1Record down the warning code.

2Press the control button.

3Press ?/1 to turn off the receiver.

4Follow the solution provided in the

“Warning code and solution” below.

5Turn on the receiver and perform Auto

Calibration again (page 24).

Error and warning codes

Error

code

Explanation Remedies

ERROR 10 The environment

is too noisy.

Make sure the

environment is

quiet during Auto

Calibration.

ERROR 11 The speakers are

placed too near

the optimizer

microphone.

Place your speakers

further away from

the optimizer

microphone.

ERROR 20 Front speakers

are not detected

or only one front

speaker is

detected.

Check the front

speaker

connection.

ERROR 21 Only one

surround speaker

is detected.

Check the surround

speaker

connection.

continued

GB01COV_HT-SF1000-CEL.book Page 25 Sunday, February 12, 2006 10:44 AM

26GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Warning code and solution

c)For details, refer “Front speaker distance”

(page 37).

d)For details, refer “Center speaker distance”

(page 37).

e)For details, refer “Surround left speaker distance”

(page 38).

f) For details, refer “Surround right speaker

distance” (page 38).

7: Adjusting the speaker

levels and balance

(TEST TONE)

You can adjust the speaker levels and balance

while listening to the test tone from your

listening position.

Tip

The receiver employs a test tone with a frequency

centered at 800 Hz.

1Press AMP MENU.

“1-LEVEL” appears on the display.

2Press the control button or

control button b to enter the

menu.

3Press control button V/v

repeatedly to select “T. TONE”.

4Press the control button or

control button b to enter the

parameter.

Warning

code

Explanation Solution

WARN. 40 The environment

is noisy.

Make sure the

environment is

quiet during Auto

Calibration.

WARN. 50 The center speaker

is not connected.

Be sure to connect

the center speaker.

WARN. 51 The surround

speakers are not

connected.

Be sure to connect

the surround

speakers.

WARN. 60 The front speaker

balance is out of

range.

Reposition your

front speakers.c)

WARN. 62 The center speaker

level is out of

range.

Reposition your

center speaker.d)

WARN. 63 The surround left

speaker level is out

of range.

Reposition your

surround left

speaker.e)

WARN. 64 The surround right

speaker level is out

of range.

Reposition your

surround right

speaker.f)

WARN. 70 The front speaker

distance is out of

range.

Reposition your

front speakers.c)

WARN. 72 The center speaker

distance is out of

range.

Reposition your

center speaker.d)

WARN. 73 The surround left

speaker distance is

out of range.

Reposition your

surround left

speaker.e)

WARN. 74 The surround right

speaker distance is

out of range.

Reposition your

surround right

speaker.f)

123

0/10

ENTER

SYSTEM STANDBY

TV/VIDEO

SLEEP

AUTO

CAL

?/1

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT MENU

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

?/1

>10/

2-5 MASTER

VOL +/–

GB01COV_HT-SF1000-CEL.book Page 26 Sunday, February 12, 2006 10:44 AM

27GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB03CON_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Getting Started

5Press control button V/v

repeatedly to select “T. TONE

Y”.

The test tone is output from each speaker

in sequence as follows:

Front left t Center t Front right t

Surround right t Surround left t

Sub woofer

6Adjust the speaker levels and

balance using the LEVEL menu

so that the level of the test tone

sounds the same from each

speaker.

For details, see “Adjusting the level

(LEVEL menu)” (page 34).

Tips

• To adjust the level of all speakers at the same

time, press MASTER VOL +/–. You can also

use MASTER VOLUME on the receiver.

• The adjusted value are shown on the display

during adjustment.

To turn off the test tone

Repeat steps 1 to 5 above. Then, select

“T. TONE N” in step 5.

GB01COV_HT-SF1000-CEL.book Page 27 Sunday, February 12, 2006 10:44 AM

28GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB04PLA_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Selecting a component

1Press the input button to select

a component.

You can also use INPUT SELECTOR on

the receiver.

The selected input appears on the display.

2Turn on the component and

start playback.

3Press MASTER VOL +/– to

adjust the volume.

You can also use MASTER VOLUME on

the receiver.

To mute the sound

Press MUTING.

The muting function will be canceled when

you do the following.

• Press MUTING again.

• Increase the volume.

• Turn off the receiver.

To avoid damaging your

speakers

Before you turn off the receiver, be sure to turn

down the volume level.

Playback

Selected input

[Display]

Components that can

be played back

VIDEO 1 or

VIDEO 2

[VIDEO 1 or

VIDEO 2]

VCR, etc., connected to

the VIDEO 1 or VIDEO 2

jack

DVD

[DVD]

DVD player, etc.,

connected to DVD jack

SA-CD/CD

[SA-CD/CD]

Super Audio CD/CD

player, etc., connected to

the SA-CD/CD jack

TUNER

[FM or AM band]

Built-in radio tuner

123

0/10

ENTER

SYSTEM STANDBY

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT

TV CH –

PRESET –

TV CH +

PRESET +

REPLAY ADVANCE

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

>10/

MUTING

GB01COV_HT-SF1000-CEL.book Page 28 Sunday, February 12, 2006 10:44 AM

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB04PLA_HT-SF1000-CEL.fm

masterpage: R-2

29GB

Playback

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Listening/Watching a component

Listening to a Super Audio CD/CD

123

0/10

ENTER

SYSTEM STANDBY

TV/VIDEO

SLEEP

AUTO

CAL

?/1

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT

TV CH –

PRESET –

TV CH +

PRESET +

TUNING –

TUNING +

REPLAY ADVANCE

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

?/1

>10/

HmM

VIDEO 1 VIDEO 2 DV D

SA-CD/CD

TUNER

PRESET TUNING SOUND FIELD MUTING

AUTO CAL MIC

?/1

INPUT SELECTOR MASTER VOLUME

Notes

• The operation is described for a

Sony Super Audio CD player.

• Refer to the operating

instructions supplied with the

Super Audio CD player or CD

player.

Tips

• You can select the sound field to

suit the music. Refer to page 41

for details.

Recommended sound fields:

Classical: HALL

Jazz: JAZZ

Live concert: CONCERT

• You can listen to the sound that

was recorded in the 2 channel

format from all speakers (multi

channel). Refer to page 39 for

details.

1Turn on the Super Audio CD player/CD

player, then place the disc on the tray.

2Turn on the receiver.

3Press SA-CD/CD.

You can also use INPUT SELECTOR on the receiver to

select SA-CD/CD.

4Playback the disc.

5Adjust to a suitable volume.

6After you have finished listening to the

Super Audio CD/CD, eject the disc and turn

off the receiver and Super Audio CD player/

CD player.

GB01COV_HT-SF1000-CEL.book Page 29 Sunday, February 12, 2006 10:44 AM

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB04PLA_HT-SF1000-CEL.fm

masterpage: L-2

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

30GB

Watching a DVD

123

0/10

ENTER

SYSTEM STANDBY

TV/VIDEO

SLEEP

AUTO

CAL

?/1

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT

TV CH –

PRESET –

TV CH +

PRESET +

TUNING –

TUNING +

REPLAY ADVANCE

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

?/1

>10/

HmM

VIDEO 1 VIDEO 2 DVD

SA-CD/CD

TUNER

PRESET TUNING SOUND FIELD MUTING

AUTO CAL MIC

?/1

INPUT SELECTOR MASTER VOLUME

Notes

• Refer to the operating

instructions supplied with the

TV and DVD player.

• Check the following if you

cannot listen to multi channel

sound.

– Be sure this receiver is

connected to the DVD player

via a digital connection.

– Be sure the digital audio

output of the DVD player is

set up properly.

Tips

• Select the audio format of the

disc to be played, if necessary.

• You can select the sound field to

suit the movie/music. Refer to

page 41 for details.

Recommended sound fields:

Movie: C.ST.EX

Music: CONCERT

1Turn on the TV and DVD player.

2Turn on the receiver.

3Press DVD.

You can also use INPUT SELECTOR on this receiver to

select DVD.

4Switch the input of the TV so that an image

of the DVD is displayed.

If no image is displayed on the TV screen, make sure that

the video output of the DVD player is connected to the TV.

5Set up the DVD player.

6Playback the disc.

7Adjust to a suitable volume.

8After you have finished watching the DVD,

eject the disc and turn off the receiver, TV

and DVD player.

GB01COV_HT-SF1000-CEL.book Page 30 Sunday, February 12, 2006 10:44 AM

31GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Amplifier Operations

Navigating through

menus

By using the amplifier menus, you can make

various adjustments to customize the receiver.

1Press AMP MENU.

“1-LEVEL” appears on the display.

2Press control button V/v

repeatedly to select the menu

you want.

3Press the control button or

control button b to enter the

menu.

4Press control button V/v

repeatedly to select the

parameter you want to adjust.

5Press the control button or

control button b to enter the

parameter.

6Press control button V/v

repeatedly to select the setting

you want.

The setting is entered automatically.

To return to the previous

display

Press control button B.

To exit the menu

Press AMP MENU.

Note

Some parameters and settings may appear dimmed

on the display. This means that they are either

unavailable or fixed and unchangeable.

Amplifier Operations

123

0/10

ENTER

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT

TV CH –

PRESET –

TV CH +

PRESET +

REPLAY ADVANCE

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

>10/

2-6

GB01COV_HT-SF1000-CEL.book Page 31 Sunday, February 12, 2006 10:44 AM

32GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

The following options are available in each

menu. For details on navigating through

menus, see page 31.

Overview of the menus

[Display]

Parameters

[Display]

Settings Initial setting

LEVEL (34)

[1-LEVEL]

Test tonea)

[T. TONE]

T. TONE Y, T. TONE N T. TONE N

Front speaker balancea)

[FRT BAL]

BAL. L +1 to BAL. L +8, BALANCE,

BAL. R +1 to BAL. R +8

BALANCE

Center speaker level

[CNT LVL]

CNT –10 dB to CNT +10 dB

(1 dB step)

CNT 0 dB

Surround left speaker level

[SL LVL]

SUR L –10 dB to SUR L +10 dB

(1 dB step)

SUR L 0 dB

Surround right speaker level

[SR LVL]

SUR R –10 dB to SUR R +10 dB

(1 dB step)

SUR R 0 dB

Sub woofer level

[SW LVL]

SW –10 dB to SW +10 dB

(1 dB step)

SW 0 dB

Dynamic range compressora)

[D. RANGE]

COMP. OFF, COMP. STD,

COMP. MAX

COMP. OFF

TONE (35)

[2-TONE]

Front speaker bass level

[BASS LVL]

BASS –6 dB to BASS +6 dB

(1 dB step)

BASS 0 dB

Front speaker treble level

[TRE LVL]

TRE –6 dB to TRE +6 dB

(1 dB step)

TRE 0 dB

SUR (35)

[3-SUR]

Sound field selectiona)

[S.F. SELCT]

2CH ST., A.F.D. AUTO, DOLBY PL,

PLII MV, PLII MS, MULTI ST.,

C.ST.EX A, C.ST.EX B, C.ST.EX C,

HALL, JAZZ, CONCERT

A.F.D. AUTO

Effect levela)

[EFFECT]

EFCT. MIN, EFCT. STD,

EFCT. MAX

EFCT. STD

TUNER (36)

[4-TUNER]

FM station receiving modea)

[FM MODE]

FM AUTO, FM MONO FM AUTO

GB01COV_HT-SF1000-CEL.book Page 32 Sunday, February 12, 2006 10:44 AM

33GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Amplifier Operations

a) For details, refer to the page in the parentheses.

[Display]

Parameters

[Display]

Settings Initial setting

AUDIO (36)

[5-AUDIO]

Digital audio input decoding

prioritya)

[DEC. PRI.]

DEC. AUTO, DEC. PCM DEC. AUTO

for:

VIDEO 2;

DEC. PCM for:

DVD, SA-CD/

Digital broadcast language

selectiona)

[DUAL]

DUAL M/S, DUAL M, DUAL S,

DUAL M+S

DUAL M

A/V Synca)

[A.V. SYNC.]

A.V.SYNC. Y, A.V.SYNC. N A.V.SYNC. N

Audio input mode for

VIDEO 2 inputa)

[V2 INPUT]

V2 AUTO, V2 OPT, V2 ANLG V2 AUTO

Audio input mode for

SA-CD/CD inputa)

[CD INPUT]

CD AUTO, CD OPT, CD ANLG CD AUTO

SYSTEM (37)

[6-SYSTEM]

Front speaker distancea)

[FRT DIST.]

DIST. 1.0 m to DIST. 7.0 m

(0.1 m step)

DIST. 3.0 m

Center speaker distancea)

[CNT DIST.]

DIST. 1.0 m to DIST. 7.0 m

(0.1 m step)

DIST. 3.0 m

Surround left speaker distancea)

[SL DIST.]

DIST. 1.0 m to DIST. 7.0 m

(0.1 m step)

DIST. 3.0 m

Surround right speaker distancea)

[SR DIST.]

DIST. 1.0 m to DIST. 7.0 m

(0.1 m step)

DIST. 3.0 m

Surround speaker placementa)

[SUR PL.]

PL. LOW, PL. HIGH PL. LOW

A. CAL (39)

[7 - A. CAL]

Auto calibrationa)

[AUTO CAL.]

A.CAL YES, A.CAL NO A.CAL NO

GB01COV_HT-SF1000-CEL.book Page 33 Sunday, February 12, 2006 10:44 AM

34GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Adjusting the level

(LEVEL menu)

You can use the LEVEL menu to adjust the

balance and level of each speaker. These

settings are applied to all sound fields.

Select “1-LEVEL” in the amplifier menus. For

details on adjusting the parameters, see

“Navigating through menus” (page 31) and

“Overview of the menus” (page 32).

LEVEL menu parameters

xT. TONE (Test tone)

Lets you adjust the speaker levels and balance

while listening to the test tone from your

listening position. For details, see “7:

Adjusting the speaker levels and balance

(TEST TONE)” (page 26).

xFRT BAL (Front speaker

balance)

Lets you adjust the balance between front left

and right speakers.

xCNT LVL (Center speaker level)

xSL LVL (Surround left speaker

level)

xSR LVL (Surround right speaker

level)

xSW LVL (Sub woofer level)

xD. RANGE (Dynamic range

compressor)

Lets you compress the dynamic range of the

sound track. This may be useful when you

want to watch movies at low volumes late at

night. Dynamic range compression is possible

with Dolby Digital sources only.

• COMP. OFF

The dynamic range is not compressed.

•COMP. STD

The dynamic range is compressed as

intended by the recording engineer.

•COMP. MAX

The dynamic range is compressed

dramatically.

Tip

Dynamic range compressor lets you compress the

dynamic range of the soundtrack based on the

dynamic range information included in the Dolby

Digital signal.

“COMP. STD” is the standard setting, but it only

enacts light compression. Therefore, we recommend

using the “COMP. MAX” setting. This greatly

compresses the dynamic range and lets you view

movies late at night at low volumes. Unlike analog

limiters, the levels are predetermined and provide a

very natural compression.

GB01COV_HT-SF1000-CEL.book Page 34 Sunday, February 12, 2006 10:44 AM

35GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Amplifier Operations

Adjusting the tone

(TONE menu)

You can use the TONE menu to adjust the

tonal quality (bass/treble level) of the front

speakers.

Select “2-TONE” in the amplifier menus. For

details on adjusting the parameters, see

“Navigating through menus” (page 31) and

“Overview of the menus” (page 32).

TONE menu parameters

xBASS LVL (Front speaker bass

level)

xTRE LVL (Front speaker treble

level)

Settings for the surround

sound

(SUR menu)

You can use the SUR menu to select the sound

field you want for your listening pleasure.

Select “3-SUR” in the amplifier menus. For

details on adjusting the parameters, see

“Navigating through menus” (page 31) and

“Overview of the menus” (page 32).

SUR menu parameters

xS.F. SELCT (Sound field

selection)

Lets you select the sound field you want. For

details, see “Enjoying Surround Sound” (page

39).

Note

The receiver lets you apply the last selected sound

field to an input whenever it is selected (Sound Field

Link). For example, if you select HALL for the

SA-CD/CD input, then change to a different input

and then return to SA-CD/CD, HALL will

automatically be applied again.

xEFFECT (Effect level)

Lets you adjust the “presence” of the surround

effect for sound fields selected with the

MOVIE or MUSIC button.

•EFCT. MIN

The surround effect is minimum.

•EFCT. STD

The surround effect is standard.

•EFCT. MAX

The surround effect is maximum.

GB01COV_HT-SF1000-CEL.book Page 35 Sunday, February 12, 2006 10:44 AM

36GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Settings for the tuner

(TUNER menu)

You can use the TUNER menu to set the FM

station receiving mode.

Select “4-TUNER” in the amplifier menus.

For details on adjusting the parameters, see

“Navigating through menus” (page 31) and

“Overview of the menus” (page 32).

TUNER menu parameters

xFM MODE (FM station receiving

mode)

•FM AUTO

This receiver will decode the signal as stereo

signal when the radio station is broadcast in

stereo.

• FM MONO

This receiver will decode the signal as mono

signal regardless of the broadcast signal.

Settings for the audio

(AUDIO menu)

You can use the AUDIO menu to make settings

for the audio to suit your preference.

Select “5-AUDIO” in the amplifier menus. For

details on adjusting the parameters, see

“Navigating through menus” (page 31) and

“Overview of the menus” (page 32).

AUDIO menu parameters

xDEC. PRI. (Digital audio input

decoding priority)

Lets you specify the input mode for the digital

signal input to the DIGITAL IN jacks.

•DEC. AUTO

Automatically switches the input mode

between DTS, Dolby Digital, or PCM.

•DEC. PCM

PCM signals are given priority (to prevent

interruption when playback starts).

However, when other signals are input, there

may be no sound depending on the format.

In this case, set to “DEC. AUTO”.

Note

When set to “DEC. AUTO” and the sound from the

digital audio jacks (for CD, etc.) is interrupted when

playback starts, set to “DEC. PCM”.

xDUAL (Digital broadcast

language selection)

Lets you select the language you want to listen

to during digital broadcast. This feature only

functions for Dolby Digital sources.

•DUAL M/S (Main/Sub)

Sound of the main language will be output

through the front left speaker and sound of

the sub language will be output through the

front right speaker simultaneously.

•DUAL M (Main)

Sound of the main language will be output.

•DUAL S (Sub)

Sound of the sub language will be output.

• DUAL M+S (Main + Sub)

Mixed sound of both the main and sub

languages will be output.

GB01COV_HT-SF1000-CEL.book Page 36 Sunday, February 12, 2006 10:44 AM

37GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Amplifier Operations

xA.V. SYNC. (A/V Sync)

• A.V.SYNC. Y (Yes) (Delay time: 68 ms)

The audio output is delayed so that the time

gap between the audio output and visual

display is minimized.

• A.V.SYNC. N (No) (Delay time: 0 ms)

The audio output is not delayed.

Notes

• This parameter is useful when you use a large LCD

or plasma monitor or a projector.

• This parameter is valid only when you use a sound

field selected with the 2CH or A.F.D. buttons.

• This parameter is not valid when PCM 96 kHz or

DTS 2048 signals are input.

xV2 INPUT (Audio input mode for

VIDEO 2 input)

Lets you select the audio input mode for

VIDEO 2 input.

•V2 AUTO

Gives priority to digital audio signals when

there are both digital and analog

connections. If there are no digital audio

signals, analog audio signals are selected.

•V2 OPT

Specifies the digital audio signals input to

the DIGITAL VIDEO 2 OPT IN jack.

• V2 ANLG

Specifies the analog audio signals input to

the VIDEO 2 AUDIO IN (L/R) jacks.

xCD INPUT (Audio input mode for

SA-CD/CD input)

Lets you select the audio input mode for

SA-CD/CD input.

•CD AUTO

Gives priority to digital audio signals when

there are both digital and analog

connections. If there are no digital audio

signals, analog audio signals are selected.

• CD OPT

Specifies the digital audio signals input to

the DIGITAL SA-CD/CD OPT IN jack.

• CD ANLG

Specifies the analog audio signals input to

the SA-CD/CD AUDIO IN (L/R) jacks.

Settings for the system

(SYSTEM menu)

You can use the SYSTEM menu to set the

distance of the speakers connected to this

system.

Select “6-SYSTEM” in the amplifier menus.

For details on adjusting the parameters, see

“Navigating through menus” (page 31) and

“Overview of the menus” (page 32)

SYSTEM menu parameters

xFRT DIST. (Front speakers

distance)

Lets you set the distance from your listening

position to the front speakers (A). If both

front speakers are not placed an equal distance

from your listening position, set the distance as

the average distance between the front

speakers.

xCNT DIST. (Center speaker

distance)

Lets you set the distance from your listening

position to the center speaker. Center speaker

distance should be set from a distance equal to

the front speaker distance (A) to a distance

1.5 meters closer to your listening position

(B).

30˚30˚

100˚-120˚100˚-120˚

continued

GB01COV_HT-SF1000-CEL.book Page 37 Sunday, February 12, 2006 10:44 AM

38GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

xSL DIST. (Surround left speaker

distance)

Lets you set the distance from your listening

position to the surround left speaker. Surround

left speaker distance should be set from a

distance equal to the front speaker distance (A

on page 37) to a distance 4.5 meters closer to

your listening position (C on page 37).

xSR DIST. (Surround right

speaker distance)

Lets you set the distance from your listening

position to the surround right speaker.

Surround right speaker distance should be set

from a distance equal to the front speaker

distance (A on page 37) to a distance 4.5

meters closer to your listening position (D on

page 37).

Tip

The receiver lets you to input the speaker position in

terms of distance. However, it is not possible to set

the center speaker further than the front speakers.

Also, the center speaker cannot be set more than

1.5 meter closer from the front speakers.

Likewise, the surround speakers can not be set

further away from the listening position than the

front speakers. And they can be no more than

4.5 meter closer. This is because incorrect speaker

placement is not conducive to the enjoyment of

surround sound.

Please note that, setting the speaker distance closer

than the actual location of the speakers will cause a

delay in the output of the sound from that speaker. In

other words, the speaker will sound like it is further

away.

For example, setting the center speaker distance

1-2 meter closer than the actual speaker position will

create a fairly realistic sensation of being “inside”

the screen. If you cannot obtain a satisfactory

surround effect because the surround speakers are

too close, setting the surround speaker distance

closer (shorter) than the actual distance will create a

larger sound stage.

Adjusting these parameter while listening to the

sound often results in much better surround sound.

Give it a try!

xSUR PL.

(Surround speaker placement)

Lets you specify the height of your surround

speakers for proper implementation of the

surround effects in the Cinema Studio EX

modes (page 42).

• PL. LOW

Select if the height of your surround

speakers corresponds to section A.

• PL. HIGH

Select if the height of your surround

speakers corresponds to section B.

GB01COV_HT-SF1000-CEL.book Page 38 Sunday, February 12, 2006 10:44 AM

39GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Enjoying Surround Sound

Calibrating the

appropriate settings

automatically

(A. CAL menu)

For details, see “6: Calibrating the appropriate

settings automatically (AUTO

CALIBRATION)” (page 23).

Enjoying Dolby Digital

and DTS Surround sound

(AUTO FORMAT DIRECT)

The Auto Format Direct (A.F.D.) mode allows

you to listen to higher fidelity sound and select

the decoding mode for listening to a 2 channel

stereo sound as multi channel sound.

Press A.F.D. repeatedly to select

the sound field you want.

You can also use SOUND FIELD +/– on the

receiver.

For details, see “Types of A.F.D. mode” (page

40).

Enjoying Surround Sound

123

2CH A.F.D. MOVIE MUSIC

DUAL MONO

TUNER

AMP MENU

A.F.D.

continued

GB01COV_HT-SF1000-CEL.book Page 39 Sunday, February 12, 2006 10:44 AM

40GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Types of A.F.D. mode

Note

Dolby Pro Logic and Dolby Pro Logic II decoding do no function for DTS format signals.

Decoding

mode

A.F.D. mode

[Display]

Multi channel

audio after

decoding

Effect

(Detecting

automatically)

A.F.D. AUTO

[A.F.D. AUTO]

(Detecting

automatically)

Presents the sound as it was recorded/

encoded without adding any surround

effects. However, this receiver will

generate a low frequency signal for output

to the sub woofer when there is no LFE

signals.

Dolby Pro Logic PRO LOGIC

[DOLBY PL]

4 channel Performs Dolby Pro Logic decoding. The

source recorded in 2 channel format is

decoded into 4.1 channels.

Dolby Pro Logic

PRO LOGIC II MOVIE

[PLII MV]

5 channel Performs Dolby Pro Logic II Movie mode

decoding. This setting is ideal for movies

encoded in Dolby Surround. In addition,

this mode can reproduce sound in 5.1

channel for watching videos of overdubbed

or old movies.

PRO LOGIC II MUSIC

[PLII MS]

5 channel Performs Dolby Pro Logic II Music mode

decoding. This setting is ideal for normal

stereo sources such as CDs.

(Multi Stereo) MULTI STEREO

[MULTI ST.]

(Multi Stereo) Outputs 2 channel left/right signals from

all speakers.

GB01COV_HT-SF1000-CEL.book Page 40 Sunday, February 12, 2006 10:44 AM

41GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Enjoying Surround Sound

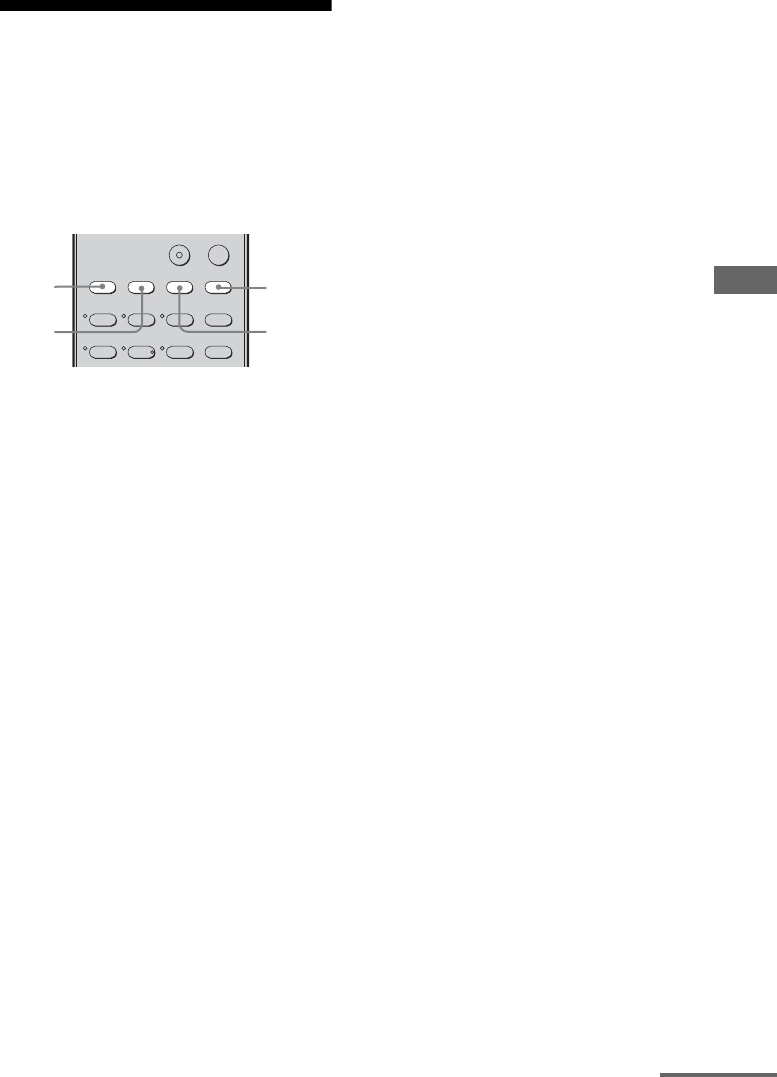

Selecting a pre-

programmed sound field

You can take advantage of surround sound

simply by selecting one of the receiver’s pre-

programmed sound fields. They bring the

exciting and powerful sound of movie theaters

and concert halls into your home.

Press MOVIE repeatedly to select a

sound field for movies or press

MUSIC repeatedly to select a sound

field for music.

You can also use SOUND FIELD +/– on the

receiver.

For details, see “Types of sound field

available” (page 42).

123

2CH A.F.D. MOVIE MUSIC

FM MODE

DUAL MONO

TUNER

AMP MENU

MUSIC

MOVIE

2CH

A.F.D.

continued

GB01COV_HT-SF1000-CEL.book Page 41 Sunday, February 12, 2006 10:44 AM

42GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Types of sound field available

About DCS (Digital Cinema

Sound)

Sound fields with DCS mark use DCS

technology.

DCS is a unique sound reproduction

technology for home theater developed by

Sony, in cooperation with Sony Pictures

Entertainment, for enjoying the exciting and

powerful sound of movie theaters at home.

With this “Digital Cinema Sound” developed

by integrating a DSP (Digital signal processor)

and measured data, the ideal sound field

intended by film makers can be experienced at

home.

About CINEMA STUDIO EX

modes

CINEMA STUDIO EX modes are suitable for

watching motion picture DVDs (etc.), with

multi channel surround effects. You can

reproduce the sound characteristics of Sony

Pictures Entertainment’s dubbing studio in

your home.

The CINEMA STUDIO EX modes consist of

the following three elements.

• Virtual Multi Dimension

Creates 5 sets of virtual speakers from a

single pair of actual surround speakers.

• Screen Depth Matching

Creates the sensation that the sound is

coming from inside the screen like in

theaters.

• Cinema Studio Reverberation

Reproduces the type of reverberation found

in theaters.

The CINEMA STUDIO EX modes integrate

these three elements simultaneously.

Sound field

for

Sound field

[Display]

Effect

Movie CINEMA STUDIO EX A

DCS [C.ST.EX A]

Reproduces the sound characteristics of the Sony Pictures

Entertainment “Cary Grant Theater” cinema production

studio. This is a standard mode, great for watching almost any

type of movie.

CINEMA STUDIO EX B

DCS [C.ST.EX B]

Reproduces the sound characteristics of the Sony Pictures

Entertainment “Kim Novak Theater” cinema production

studio. This mode is ideal for watching science-fiction or

action movies with lots of sound effects.

CINEMA STUDIO EX C

DCS [C.ST.EX C]

Reproduces the sound characteristics of the Sony Pictures

Entertainment scoring stage. This mode is ideal for watching

musicals or films where orchestra music is featured in the

soundtrack.

Music HALL [HALL] Reproduces the acoustics of a classical concert hall.

JAZZ CLUB [JAZZ] Reproduces the acoustics of a jazz club.

LIVE CONCERT

[CONCERT]

Reproduces the acoustics of a 300-seat live house.

GB01COV_HT-SF1000-CEL.book Page 42 Sunday, February 12, 2006 10:44 AM

43GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Enjoying Surround Sound

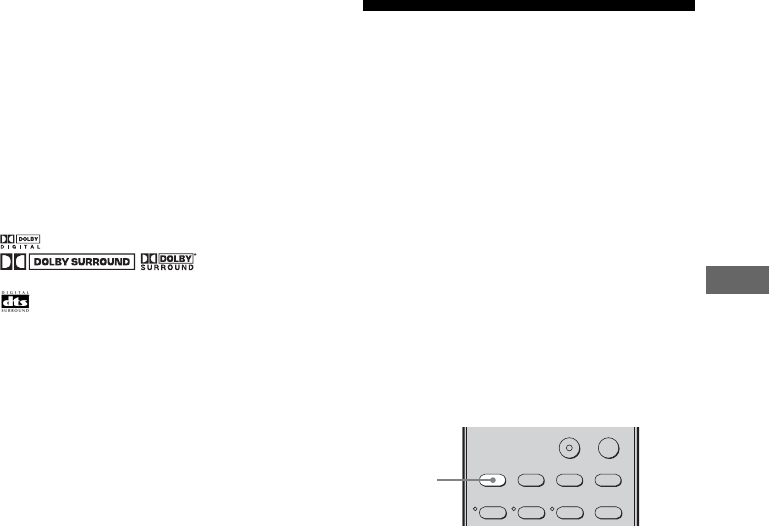

Notes

• The effects provided by the virtual speakers may

cause increased noise in the playback signal.

• When listening with sound fields that employ the

virtual speakers, you will not be able to hear any

sound coming directly from the surround speakers.

• This function does not work for signals with a

sampling frequency of more than 48 kHz.

Tip

You can identify the encoding format of DVD

software, etc., by looking at the logo on the package.

• : Dolby Digital discs

• : Dolby Surround

encoded programs

• : DTS Digital Surround encoded programs

To turn off the surround effect

for movie/music

Press 2CH to select “2CH ST.” or press A.F.D.

repeatedly to select “A.F.D. AUTO”.

Using only the front

speakers and sub woofer

(2CH STEREO)

In this mode, the receiver outputs the sound

from the front left/right speakers and

subwoofer only.

When multi channel surround formats are

input, the signals are downmixed to 2 channel

with bass frequencies being output from the

sub woofer.

When standard 2 channel stereo sources are

input, the receiver’s bass redirection circuitry

will be activated. The front channel bass

frequencies will be output from the sub

woofer.

Press 2CH.

You can also use SOUND FIELD +/– on the

receiver.

123

2CH A.F.D. MOVIE MUSIC

DUAL MONO

TUNER

AMP MENU

2CH

GB01COV_HT-SF1000-CEL.book Page 43 Sunday, February 12, 2006 10:44 AM

44GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Resetting sound fields to

the initial settings

Be sure to use the buttons on the receiver for

this operation.

1Press ?/1 to turn off the

receiver.

2While holding down SOUND

FIELD +, press ?/1.

“S.F. CLR.” appears on the display and all

sound fields are reset to their initial

setting.

Listening to FM/AM radio

You can listen to FM and AM broadcasts

through the built-in tuner. Before operation,

make sure you have connected the FM and

AM antennas to the receiver (page 21).

Tip

The tuning scale for direct tuning differs depending

on the area code as shown in the following table. For

details on area codes, see page 3.

* The AM tuning scale can be changed (page 57).

?/1

VIDEO 1 VIDEO 2 DVD

SA-CD/CD

TUNER

PRESET TUNING SOUND FIELD MUTING

AUTO CAL MIC

INPUT SELECTOR MASTER VOLUME

1,2

Tuner Operations

Area code FM AM

CEL, CEK, AU, SP 50 kHz 9 kHz

E51 50 kHz 10 kHz*

AR, MX 50 kHz 10 kHz

GB01COV_HT-SF1000-CEL.book Page 44 Sunday, February 12, 2006 10:44 AM

45GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Tuner Operations

1Press TUNER repeatedly to

select the FM or AM band.

You can also use INPUT SELECTOR on

the receiver.

2Press TUNING + or TUNING –.

Press TUNING + to scan from low to

high; press TUNING – to scan from high

to low.

The receiver stops scanning whenever a

station is received.

In case of poor FM stereo

reception

If the FM stereo reception is poor and “ST”

flashes on the display, select monaural audio

so that the sound will be less distorted.

To select monaural audio, you can

– press FM MODE repeatedly until the

“MONO” indicator lights up on the display.

– set “FM MODE” in TUNER menu to “FM

MONO” (page 36).

To return to stereo mode, you can

– press FM MODE repeatedly until the

“MONO” indicator on the display do not

light up.

– set “FM MODE” in TUNER menu to “FM

AUTO” (page 36).

You can enter the frequency of a station

directly by using the numeric buttons.

1Press TUNER repeatedly to

select the FM or AM band.

You can also use INPUT SELECTOR on

the receiver.

2Press D.TUNING.

3Press the numeric buttons to

enter the frequency.

Example 1: FM 102.50 MHz

Select 1 b 0 b 2 b 5 b 0

Example 2: AM 1,350 kHz

Select 1 b 3 b 5 b 0

If you have tuned in an AM station, adjust

the direction of the AM loop antenna for

optimum reception.

4Press ENTER.

If you cannot tune in a station

Make sure you have entered the right

frequency. If not, repeat steps 2 to 4. If you still

cannot tune in a station, the frequency is not

used in your area.

Automatic tuning

123

0/10

ENTER

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT

TV CH –

PRESET –

TV CH +

PRESET +

TUNING – TUNING +

REPLAY ADVANCE

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

>10/

HmM

FM MODE

Direct tuning

123

0/10

ENTER

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D. MOVIE MUSIC

MEMORY DVD MENU

CLEAR

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

>10/

GB01COV_HT-SF1000-CEL.book Page 45 Sunday, February 12, 2006 10:44 AM

46GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Storing FM stations

automatically

(AUTOBETICAL)

(Models of area code CEL, CEK

only)

This function lets you store up to 30 FM and

FM RDS stations in alphabetical order without

redundancy. Additionally, it only stores the

stations with the clearest signals.

If you want to store FM or AM stations one by

one, see “Presetting radio stations” (page 47).

Be sure to use the buttons on the receiver for

this operation.

1Press ?/1 to turn off the

receiver.

2Hold down INPUT SELECTOR

and press ?/1 to turn the

receiver back on.

“AUTO-BETICAL SELECT” appears on

the display and the receiver scans and

stores all the FM and FM RDS stations in

the broadcast area.

For RDS stations, the tuner first checks

for stations broadcasting the same

program, then stores only the ones with

the clearest signal. The selected RDS

stations are sorted alphabetically by their

Program Service name, then assigned a 2-

character preset code. For more details on

RDS, see page 48.

Regular FM stations are assigned 2-

character preset codes and stored after the

RDS stations.

When this process is finished, “FINISH”

appears on the display momentarily and

the receiver returns to normal operation.

Notes

• Do not press any button on the receiver or supplied

remote during autobetical operation, except ?/1.

• If you move to another area, repeat this procedure

to store stations in your new area.

• For details on tuning the stored stations, see

“Tuning to preset stations” (page 48).

• If you move the antenna after storing stations with

this procedure, the stored settings may no longer be

valid. If this happens, repeat this procedure to store

the stations again.

?/1

VIDEO 1 VIDEO 2 DVD

SA-CD/CD

TUNER

PRESET TUNING SOUND FIELD MUTING

AUTO CAL MIC

INPUT SELECTOR MASTER VOLUME

1,2 2

GB01COV_HT-SF1000-CEL.book Page 46 Sunday, February 12, 2006 10:44 AM

47GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Tuner Operations

Presetting radio stations

You can preset up to 30 FM stations and 30

AM stations. Then you can easily tune in the

stations you often listen to.

1Press TUNER repeatedly to

select the FM or AM band.

You can also use INPUT SELECTOR on

the receiver.

2Tune in the station that you

want to preset using automatic

tuning (page 45) or direct

tuning (page 45).

Switch the FM reception mode, if

necessary (page 45).

3Press MEMORY.

“MEMORY” lights up for a few seconds.

Perform steps 4 and 5 before

“MEMORY” goes out.

4Press the numeric buttons to

select a preset number.

You can also press the TUNING + or

TUNING – to select a preset number.

If “MEMORY” goes out before you select

the preset number, start again from step 3.

5Press ENTER.

The station is stored as the selected preset

number.

If “MEMORY” goes out before you press

MEMORY, start again from step 3.

6Repeat steps 1 to 5 to preset

another station.

Presetting radio stations

123

0/10

ENTER

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT

TV CH –

PRESET –

TV CH +

PRESET +

TUNING – TUNING +

REPLAY ADVANCE

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

>10/

HmM

3,5

TUNING

+/–

GB01COV_HT-SF1000-CEL.book Page 47 Sunday, February 12, 2006 10:44 AM

48GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

1Press TUNER repeatedly to

select the FM or AM band.

2Press PRESET + or PRESET –

repeatedly to select the preset

station you want.

Each time you press the button, you can

select a preset station as follows:

You can also press the numeric buttons to

select the preset station you want. Then,

press ENTER to enter the selection.

Using the controls on the

receiver

1Press INPUT SELECTOR repeatedly to

select the FM or AM band.

2Press PRESET TUNING + or PRESET

TUNING – repeatedly to select the preset

station you want.

Using the Radio Data

System (RDS)

(Models of area code CEL, CEK

only)

This receiver also allows you to use RDS

(Radio Data System), which enables radio

stations to send additional information along

with the regular program signal. You can

display RDS information.

Notes

• RDS is operable only for FM stations.

• Not all FM stations provide RDS service, nor do

they provide the same type of services. If you are

not familiar with the RDS services in your area,

check with your local radio stations for details.

Simply select a station on the FM

band using direct tuning (page 45),

automatic tuning (page 45), or

preset tuning (page 48).

When you tune in a station that provides RDS

services, “RDS” lights up and the program

service name appears on the display.

Note

RDS may not work properly if the station you tuned

to is not transmitting the RDS signal properly or if

the signal strength is weak.

Tuning to preset stations

123

0/10

ENTER

VIDEO 1 VIDEO 2 DVD SA-CD/CD

2CH A.F.D.

RETURN/EXIT

TV CH –

PRESET –

TV CH +

PRESET +

REPLAY ADVANCE

MOVIE MUSIC

MEMORY DVD MENU

CLEAR

TOOLSDISPLAY MUTING

TV VOL

MASTER VOL

FM MODE

D.TUNING

D.SKIP

DUAL MONO

TUNER

AMP MENU

>10/

ENTER

Numeric

buttons

01 02 03 04 05 27...

30 29 28

Receiving RDS broadcasts

GB01COV_HT-SF1000-CEL.book Page 48 Sunday, February 12, 2006 10:44 AM

49GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB05AMP_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Tuner Operations

While receiving an RDS station,

press DISPLAY repeatedly.

Each time you press the button, RDS

information on the display changes cyclically

as follows:

Program Service name t Frequency t

Program Type indicationa) t Radio Text

indicationb) t Current Time indication (in

24-hour system mode) t Sound field

currently applied t Vo l u m e l e v e l

a) Type of program being broadcast (page 49).

b)Text messages sent by the RDS station.

Notes

• If there is an emergency announcement by

government authorities, “ALARM” flashes in the

display.

• When the message consists of 9 characters or more,

the message scrolls across the display.

• If a station does not provide a particular RDS

service, “NO XXXX” (such as “NO TEXT”)

appears on the display.

Displaying RDS information

Description of program types

Program type

indication

Description

NEWS News programs

AFFAIRS Topical programs that expand on

current news

INFO Programs offering information on

a wide spectrum of subjects,

including consumer affairs and

medical advice

SPORT Sports programs

EDUCATE Educational programs, such as

“how-to” and advice programs

DRAMA Radio plays and serials

CULTURE Programs about national or

regional culture, such as language

and social concerns

SCIENCE Programs about the natural

sciences and technology

VARIED Other types of programs such as

celebrity interviews, panel

games, and comedy

POP M Popular music programs

ROCK M Rock music programs

EASY M Easy Listening

LIGHT M Instrumental, vocal, and choral

music

CLASSICS Performances of major

orchestras, chamber music,

opera, etc.

OTHER M Music that does not fit into any

categories above, such as Rhythm

& Blues and Reggae

WEATHER Weather information

FINANCE Stock market reports and trading,

etc.

CHILDREN Programs for children

SOCIAL Programs about people and the

things that affect them

RELIGION Programs of religious content

PHONE IN Programs where members of the

public express their views by

phone or in a public forum

TRAVEL Programs about travel. Not for

announcements that are located

by TP/TA.

LEISURE Programs on recreational

activities such as gardening,

fishing, cooking, etc.

JAZZ Jazz programs

COUNTRY Country music programs

NATION M Programs featuring the popular

music of the country or region

OLDIES Programs featuring oldies music

FOLK M Folk music programs

DOCUMENT Investigative features

NONE Any programs not defined above

Program type

indication

Description

GB01COV_HT-SF1000-CEL.book Page 49 Sunday, February 12, 2006 10:44 AM

50GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Using the Sleep Timer

You can set the receiver to turn off

automatically at a specified time.

Press SLEEP repeatedly while the

power is on.

Each time you press the button, the display

changes cyclically as follows:

2-00-00 t 1-30-00 t 1-00-00 t 0-30-00

t OFF

When Sleep Timer is being used, “SLEEP”

lights up on the display.

Tip

To check the remaining time before the receiver

turns off, press SLEEP. The remaining time appears

on the display. If you press SLEEP again, the sleep

timer will be canceled.

Changing button

assignments

You can change the factory settings of the

input buttons to suit the components in your

system. For example, if you connect a DVD

recorder to the DVD jacks on the receiver, you

can set the DVD button on this remote to

control the DVD recorder.

1Hold down the input button of

which you want to change the

assignment.

Example: Hold down DVD.

2Referring to the table below,

press the corresponding button

for the category you want.

Example: Press 4.

Now you can use the DVD button to

control the DVD recorder.

Other Operations Using the Remote

GB01COV_HT-SF1000-CEL.book Page 50 Sunday, February 12, 2006 10:44 AM

51GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Other Operations/Using the Remote/Additional Information

Categories and the

corresponding buttons

a) Sony VCRs are operated with a VTR 2 or VTR 3

setting which correspond to 8 mm and VHS

respectively.

b)Sony DVD recorders are operated with a DVD1 or

DVD3 setting. For details, refer to the operating

instructions supplied with the DVD recorders.

To clear all remote button

assignments

Press ?/1, AUTO CAL and MASTER VOL –

at the same time.

The remote is reset to its factory settings.

Glossary

xDolby Digital

Digital audio encoding/decoding technology

developed by Dolby Laboratories, Inc. It

consists of front (Left/Right), center, surround

(Left/Right) and sub woofer channels. It is a

designated audio standard for DVD-video and

also known as 5.1ch surround. Since surround

information is recorded and reproduced in

stereo, more realistic sound with fuller

presence is delivered than with Dolby

surround.

xDolby Pro Logic II

This technology converts 2ch stereo recorded

audio into 5.1ch for playback. There is a

MOVIE mode for movies and MUSIC mode

for stereo sources such as music. Old movies

encoded in the traditional stereo format can be

enhanced with 5.1ch surround sound.

xDolby Surround (Dolby Pro

Logic)

Audio processing technology developed by

Dolby Laboratories, Inc. Center and mono

surround information is matrixed into two

stereo channels. When reproduced, audio is

decoded and output in 4ch surround sound.

This is the most common audio processing

method for DVD-video.

xDTS Digital Surround

Digital audio encoding/decoding technology

for theaters developed by Digital Theater

Systems, Inc. It compresses audio less than

Dolby Digital, delivering a higher quality

sound reproduction.

Categories Press

VCR (command mode VTR 3)a) 1

VCR (command mode VTR 2)a) 2

DVD player/DVD recorder

(command mode DVD1)b)

DVD recorder

(command mode DVD3)b)

CD player 5

MD deck 6

Tape dec k B 7

Tuner (this receiver) 8

DVR (Digital CATV terminal) 9

DSS (Digital Satellite Receiver) 0/10

Additional Information

continued

GB01COV_HT-SF1000-CEL.book Page 51 Sunday, February 12, 2006 10:44 AM

52GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

xHDMI (High-Definition

Multimedia Interface)

Technology developed by modifying the

display connecting technology, DVI (Digital

Visual Interface), for AV equipment. This

interface can transmit video, audio, and

control signals in digital format.

xSampling frequency

To convert analog audio to digital, analog data

should be quantified. This process is called

sampling, and the number of times per second

the analog data is quantified is called the

sampling frequency. A standard music CD

stores data quantified at 44,100 times per

second, which is expressed as a sampling

frequency of 44.1 kHz. Generally speaking, a

higher sampling frequency means better sound

quality.

Precautions

On safety

Should any solid object or liquid fall into the

cabinet, unplug the receiver and have it

checked by qualified personnel before

operating it any further.

On power sources

• Before operating the receiver, check that the

operating voltage is identical with your local

power supply.

The operating voltage is indicated on the

nameplate on the back of the receiver.

• The unit is not disconnected from the AC

power source (mains) as long as it is

connected to the wall outlet, even if the unit

itself has been turned off.

• If you are not going to use the receiver for a

long time, be sure to disconnect the receiver

from the wall outlet. To disconnect the AC

power cord, grasp the plug itself; never pull

the cord.

• The AC power cord must be changed only at

a qualified service shop.

On heat buildup

Although the receiver heats up during

operation, this is not a malfunction. If you

continuously use this receiver at a large

volume, the cabinet temperature of the top,

side and bottom rises considerably. To avoid

burning yourself, do not touch the cabinet.

GB01COV_HT-SF1000-CEL.book Page 52 Sunday, February 12, 2006 10:44 AM

53GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Additional Information

On placement

• Place the receiver in a location with adequate

ventilation to prevent heat buildup and

prolong the life of the receiver.

• Do not place the receiver near heat sources,

or in a place subject to direct sunlight,

excessive dust, or mechanical shock.

• Do not place anything on top of the cabinet

that might block the ventilation holes and

cause malfunctions.

• Do not place the receiver near equipment

such as a TV, VCR, or tape deck. (If the

receiver is being used in combination with a

TV, VCR, or tape deck, and is placed too

close to that equipment, noise may result,

and picture quality may suffer. This is

especially likely when using an indoor

antenna. Therefore, we recommend using an

outdoor antenna).

• Use caution when placing the receiver or

speakers on surfaces that have been specially

treated (with wax, oil, polish, etc.) as

staining or discoloration of the surface may

result.

On operation

Before connecting other components, be sure

to turn off and unplug the receiver.

If you encounter color

irregularity on a nearby TV

screen

The front speakers, center speaker and the sub

woofer are magnetically shielded to allow it to

be installed near a TV set. However, color

irregularities may still be observed on certain

types of TV sets. As the surround speakers are

not magnetically shielded, we recommend that

you place the surround speakers slightly

further away from TV set (page 12).

If color irregularity is

observed...

Turn off the TV set, then turn it on again after

15 to 30 minutes.

If color irregularity is observed

again...

Place the speaker further away from the TV

set.

If howling occurs

Reposition the speakers or turn down the

volume on the receiver.

On cleaning

Clean the cabinet, panel, and controls with a

soft cloth slightly moistened with a mild

detergent solution. Do not use any type of

abrasive pad, scouring powder, or solvent,

such as alcohol or benzine.

If you have any questions or problems

concerning your receiver, please consult your

nearest Sony dealer.

GB01COV_HT-SF1000-CEL.book Page 53 Sunday, February 12, 2006 10:44 AM

54GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Troubleshooting

If you experience any of the following

difficulties while using the receiver, use this

troubleshooting guide to help you remedy the

problem.

There is no sound, no matter which

component is selected, or only a very

low-level sound is heard.

• Check that the speakers and components

are connected securely.

• Check that both the receiver and all

components are turned on.

• Check that MASTER VOLUME is not set

to “VOL MIN”.

• Press MUTING to cancel the muting

function.

• Check that you have selected the correct

component with the input buttons on the

remote or INPUT SELECTOR on the

receiver.

• The protective device on the receiver has

been activated. Turn off the receiver,

eliminate the short-circuit problem, and

turn on the power again.

There is no sound from a specific

component.

• Check that the component is connected

correctly to the audio input jacks for that

component.

• Check that the cord(s) used for the

connection is (are) fully inserted into the

jacks on both the receiver and the

component.

• Check that you have selected the correct

component with the input buttons on the

remote or INPUT SELECTOR on the

receiver.

There is no sound from one of the front

speakers.

• Make sure you have connected to both the

L and R jacks of an analog component, and

not only to either the L or R jack. Use an

audio cord (not supplied).

The source sound input to the HDMI

jack on the receiver is not output from

the TV speaker.a)

• Check the HDMI connection.

• You cannot listen to the Super Audio CD

by connecting HDMI.

• Depending on the playback component,

you may need to set up the component.

Refer to the operating instructions

supplied with each component.

The left and right sounds are

unbalanced or reversed.

• Check that the speakers and components

are connected correctly and securely.

• Adjust the balance parameters using the

LEVEL menu (page 34).

There is severe hum or noise.

• Check that the speakers and components

are connected securely.

• Check that the connecting cords are away

from a transformer or motor, and at least

3 m away from a TV set or fluorescent

light.

• Move your audio components away from

the TV.

• The plugs and jacks are dirty. Wipe them

with a cloth slightly moistened with

alcohol.

There is no sound, or only a very low-

level sound is heard from the center/

surround speakers.

• Select a CINEMA STUDIO EX mode

(page 42).

• Adjust the speaker level (page 26).

There is no sound from the sub woofer.

• Check that the sub woofer is connected

correctly and securely.

The surround effect cannot be

obtained.

• Make sure you have selected a sound field

with MOVIE or MUSIC button.

• Sound fields do not function for signals

with a sampling frequency of more than

48 kHz.

GB01COV_HT-SF1000-CEL.book Page 54 Sunday, February 12, 2006 10:44 AM

55GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Additional Information

Dolby Digital or DTS multi channel

sound is not reproduced.

• Check that the DVD, etc. you are playing

is recorded in Dolby Digital or DTS

format.

• When connecting the DVD player, etc., to

the digital input jacks of this receiver,

check the audio setting (the settings for the

audio output) of the connected component.

The FM reception is poor.

• Use a 75-ohm coaxial cable (not supplied)

to connect the receiver to an outdoor FM

antenna as shown below. If you connect

the receiver to an outdoor antenna, ground

it against lightning. To prevent a gas

explosion, do not connect the ground wire

to a gas pipe.

Radio stations cannot be tuned in.

• Check that the antennas are connected

securely. Adjust the antennas and connect

an external antenna, if necessary.

• The signal strength of the stations is too

weak (when tuning in with automatic

tuning). Use direct tuning (page 45).

• Make sure you set the tuning interval

correctly (when tuning in AM stations

with direct tuning).

• No stations have been preset or the preset

stations have been cleared (when tuning by

scanning preset stations). Preset the

stations (page 47).

RDS does not work.b)

• Make sure that you are tuned to an FM

RDS station.

• Select a stronger FM station.

The RDS information that you want

does not appear.b)

• Contact the radio station and find out

whether they actually provide the service

in question. If so, the service may be

temporarily out of order.

There is no picture or an unclear

picture appears on the TV screen or

monitor.

• Make sure you have connected the video

output of your video component to the TV.

• Move your audio components away from

the TV.

The source image input to the HDMI

jack on the receiver is not output from

the TV.a)

• Check the HDMI connection.

• Depending on the playback component,

you may need to set up the component.

Refer to the operating instructions

supplied with each component.

ANTENNA

Receiver

To ground

Ground wire

(not supplied)

Outdoor FM antenna

continued

GB01COV_HT-SF1000-CEL.book Page 55 Sunday, February 12, 2006 10:44 AM

56GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Remote control

The remote does not function.

• For receiver operation, you can only use

the DISPLAY button when the TUNER

input is selected.b)

• Point the remote at the remote sensor on

the receiver.

• Remove any obstacles in the path between

the remote and the receiver.

• Replace all the batteries in the remote with

new ones, if they are weak.

• Make sure you select the correct input on

the remote.

a)Except for models of area code MX, E51, AR.

b)Models of area code CEL, CEK only.

Error messages

If there is a malfunction, the display shows a

message. You can check the condition of the

system by the message. Refer to the following

table to solve the problem. If any problem

persists, consult your nearest Sony dealer.

If an error message appears while you perform

Auto Calibration, see “Error and warning

codes” (page 25) to solve the problem.

PROTECT

Irregular current is output from the

speakers. The receiver will automatically

turn off after a few seconds. Check the

speaker connection and turn on the power

again.

If you are unable to remedy the

problem using the

troubleshooting guide

Clearing the receiver’s memory may remedy

the problem (page 22). However, note that all

memorized settings will be reset to their

factory settings and you will have to readjust

all settings on the receiver.

If the problem persist

Consult your nearest Sony dealer.

Reference sections for clearing

the receiver’s memory

To clear See

All memorized settings page 22

Customized sound fields page 44

GB01COV_HT-SF1000-CEL.book Page 56 Sunday, February 12, 2006 10:44 AM

57GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Additional Information

Specifications

Amplifier section

HT-SF1000 only

Power Output1)

Stereo mode (rated) 70 W + 70 W

(4 ohms at 1 kHz, 0.7%)

Music power output (reference)

FRONT2): 143 W/ch

(With SS-FSP1000)

CENTER2): 143 W

(With SS-CNP1000F)

SUR2): 143 W/ch

(With SS-FRP1000)

SUBWOOFER2): 285 W

(With SS-WP1000)

HT-SS1000 only

Power Output1)

Stereo mode (rated) 70 W + 70 W

(4 ohms at 1 kHz, 0.7%)

Music power output (reference)

FRONT2): 143 W/ch

(With SS-MSP1000)

CENTER2): 143 W

(With SS-CNP1000)

SUR2): 143 W/ch

(With SS-SRP1000)

SUBWOOFER2): 285 W

(With SS-WP1000)

1)Measured under the following conditions:

2)Depending on the sound field settings and the

source, there may be no sound output.

Inputs (Analog)

Inputs (Digital)

Reproduction frequency range:

28 – 20,000 Hz

Tone

FM tuner section

Tuning range 87.5 - 108.0 MHz

Antenna FM wire antenna

Antenna terminals 75 ohms, unbalanced

Intermediate frequency

10.7 MHz

AM tuner section

Tuning range

Models of area code CEL, CEK, AU, SP

With 9-kHz tuning scale:

531 – 1,602 kHz

Models of area code E51

With 10-kHz tuning scale:

530 – 1,610 kHz3)

With 9-kHz tuning scale:

531 – 1,602 kHz3)

Models of area code AR, MX

With 10-kHz tuning scale:

530 – 1,610 kHz

Antenna Loop antenna

Intermediate frequency

450 kHz

3)You can change the AM tuning scale to 9 kHz or

10 kHz. After tuning in any AM station, turn off

the receiver. While holding down PRESET

TUNING +, press ?/1. All preset stations will be

erased when you change the tuning scale. To reset

the scale to 10 kHz (or 9 kHz), repeat the

procedure.

Area code Power requirements

CEL, CEK, AR, SP 230 V AC, 50 Hz

AU, E51 240 V AC, 50 Hz

MX 127 V AC, 60 Hz

SA-CD/CD,

VIDEO 1, 2

Sensitivity: 1 V

Impedance: 50 kohms

DVD (Coaxial) Sensitivity: –

Impedance: 75 ohms

VIDEO 2, SA-CD/

CD (Optical)

Sensitivity: –

Impedance: –

Gain levels ±6 dB, 1 dB step

continued

GB01COV_HT-SF1000-CEL.book Page 57 Sunday, February 12, 2006 10:44 AM

58GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Left

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

General

Power requirements

Power consumption

Power consumption (during standby mode)

0.3 W

Dimensions (w/h/d) (Approx.)

430 × 64 × 338 mm

including projecting parts

and controls

Mass (Approx.) 3.5 kg

Speaker section

HT-SF1000 only

• Front speakers (SS-FSP1000)

• Center speaker (SS-CNP1000F)

• Surround speakers (SS-FRP1000)

Front speakers 2 way, magnetically

shielded

Center speaker Full range, magnetically

shielded

Surround speakers Full range

Speaker units

Front speakers 70 × 100 mm cone type,

25 mm Balance Dome

Tweeter

Center speaker 55 × 110 mm cone type

Surround speakers 70 × 100 mm cone type

Enclosure type Bass reflex

Rated Impedance 2.7 ohms

Dimension (w/h/d) (Approx.)

Front/surround speakers

265 × 1,108 × 265 mm

Center speaker 300 × 76 × 116 mm

Mass (Approx.)

Front/surround speakers

3.5 kg

Center speaker 1.2 kg

HT-SS1000 only

• Front speakers (SS-MSP1000)

• Center speaker (SS-CNP1000)

• Surround speakers (SS-SRP1000)

Front/center speakers

Full range, magnetically

shielded

Surround speakers Full range

Speaker units 57 mm cone type

Enclosure type Bass reflex

Rated Impedance 2.7 ohms

Dimension (w/h/d) (Approx.)

Front/surround speakers

83 × 180 × 98 mm

Center speaker 250 × 85 × 98 mm

Mass (Approx.)

Front speakers 0.6 kg

Center speaker 0.7 kg

Surround speakers 0.5 kg

Subwoofer (SS-WP1000)

Speaker system Magnetically shielded

Speaker unit 160 mm cone type

Enclosure type Bass reflex

Rated Impedance 1.3 ohms

Dimensions (w/h/d) (Approx.)

200 × 379 × 335 mm

including front panel

Mass (Approx.) 6 kg

Area code Power requirements

CEL, CEK 230 V AC, 50/60 Hz

AU 240 V AC, 50 Hz

AR 220 – 230 V AC,

50/60 Hz

E51 120 – 240 V AC,

50/60 Hz

MX 127 V AC, 60 Hz

SP 230 – 240 V AC,

50/60 Hz

Area code Power consumption

CEL, CEK, AU, SP,

E51, AR, MX

110 W

GB01COV_HT-SF1000-CEL.book Page 58 Sunday, February 12, 2006 10:44 AM

59GB

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB06OTH_HT-SF1000-CEL.fm

masterpage: Right

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Additional Information

Supplied accessories

FM wire antenna (1)

AM loop antenna (1)

Remote commander RM-AAU006 (1)

R6 (size-AA) batteries (2)

Optimizer microphone ECM-AC2 (1)

Speaker cords (5)

Coaxial digital cord (1)

Foot pads

• Speakers (HT-SS1000 only) (20)

• Sub woofer (4)

Speakers

• Front speakers (2)

• Center speaker (1)

• Surround speakers (2)

• Sub woofer (1)

Design and specifications are subject to

change without notice.

For details on the area code of the

component you are using, see page 3.

GB01COV_HT-SF1000-CEL.book Page 59 Sunday, February 12, 2006 10:44 AM

E:\SEM_Janet\Year2006\Revision_Data\Revision4_SF1000\JC06xxx_2661769141SF1000_GB\2

661769141\GB01COV_HT-SF1000-CELIX.fm

masterpage: Left

Sony Corporation Printed in Malaysia

model name1[HT-SF1000]

model name2[HT-SS1000]

2-661-769-14 (1)

Index

Numerics

2 channel 43

2CH STEREO 43

5.1 channel 12

AUTO CALIBRATION 23

AUTO FORMAT DIRECT

(A.F.D.) 39

AUTOBETICAL 46

CD player

connecting 18

playback 29

Digital Cinema Sound

(DCS) 42

Dolby Digital 51

DVD player

connecting 19

playback 30

DVD recorder

connecting 19

Error messages 56

HDMI

connecting 20

Initial setup 22

A. CAL 39

AUDIO 36

LEVEL 34

SUR 35

SYSTEM 37

TONE 35

TUNER 36

Muting 28

RDS 48

Satellite tuner

connecting 19

Selecting

component 28

sound field 41

Sleep Timer 50

Sound fields

resetting 44

selecting 41

Speakers

connecting 15

installing 12

Super Audio CD player

connecting 18

playback 29

TEST TONE 26

Tuner

connecting 21

Tuning

automatically 45

directly 45

to preset stations 48

VCR

connecting 19

GB01COV_HT-SF1000-CEL.book Page 60 Sunday, February 12, 2006 10:44 AM

Sony Home Theatre System Ht Ss1000 Users Manual SF1000/SS1000

HT-SS1000 to the manual 48bdfa07-a6a6-4f1a-8866-7d27326dde6f

48bdfa07-a6a6-4f1a-8.. 48bdfa07-a6a6-4f1a-8866-7d27326dde6f

Navigation menu

Versions of this User Manual:

Views

Navigation
