LCD Digital Colour TV

3-219-178-14(1)

KDL-70X3500

KDL-52X3500

KDL-46X3500

KDL-40X3500

KDL-46X3000

KDL-40X3000

Operating Instructions

Before operating the TV, please read the “Safety

information” section of this manual.

Retain this manual for future reference.

For useful information about Sony products

2 GB

Thank you for choosing this Sony product.

Before operating the TV, please read this manual

thoroughly and retain it for future reference.

For KDL-70X3500 Users

Refer to “KDL-70X3500 Start-up Guide” for details

about the installation.

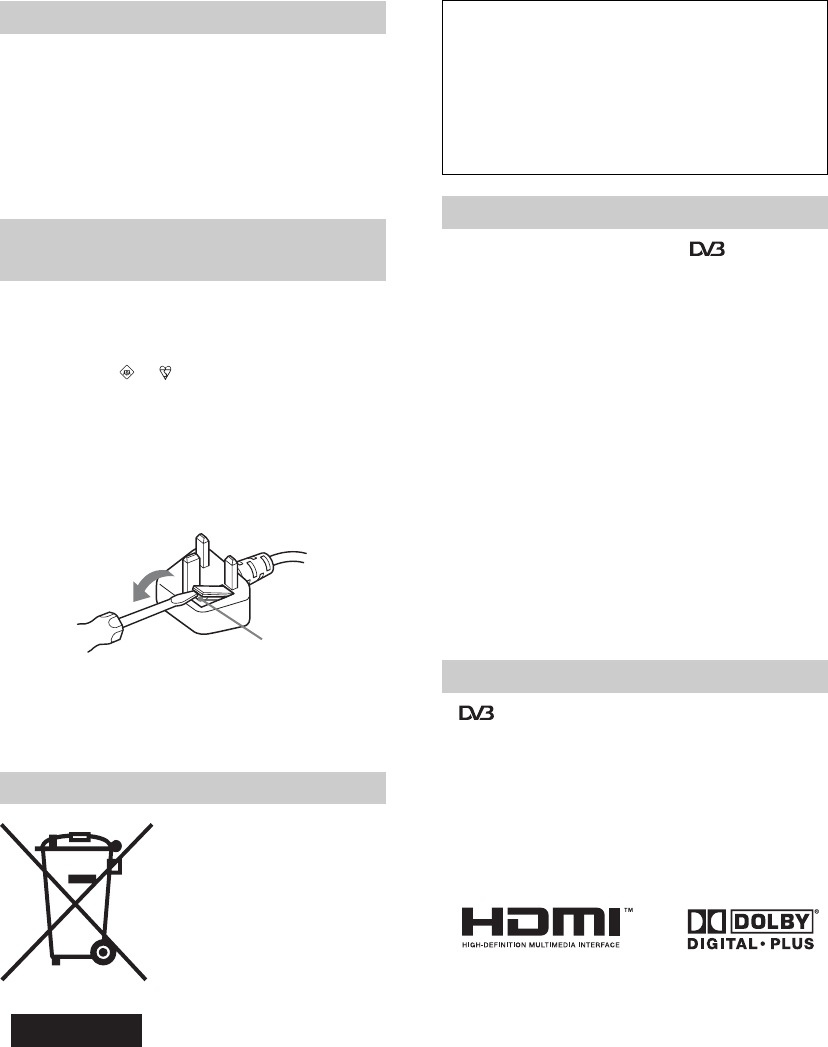

A moulded plug complying with BS1363 is fitted to this

equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced with

the same rating of fuse approved by ASTA or BSI to BS 1362

(i.e., marked with or ) must be used.

When an alternative type of plug is used it should be fitted

with the same rating of fuse, otherwise the circuit should be

protected by a 13 AMP FUSE at the distribution board.

If the plug supplied with this equipment has a detachable fuse

cover, be sure to attach the fuse cover after you change the

fuse. Never use the plug without the fuse cover. If you should

lose the fuse cover, please contact your nearest Sony service

station.

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and

replace the fuse.

Disposal of Old Electrical &

Electronic Equipment

(Applicable in the European

Union and other European

countries with separate

collection systems)

This symbol on the product or on

its packaging indicates that this

product shall not be treated as

household waste. Instead it shall

be handed over to the applicable

collection point for the recycling

of electrical and electronic

equipment. By ensuring this product is disposed of correctly,

you will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. The

recycling of materials will help to conserve natural

resources. For more detailed information about recycling of

this product, please contact your local Civic Office, your

household waste disposal service or the shop where you

purchased the product.

• Any functions related to Digital TV ( ) will only work

in countries or areas where DVB-T (MPEG2 and MPEG4

AVC) digital terrestrial signals are broadcast or where you

have access to a compatible DVB-C (MPEG2 and

MPEG4 AVC) cable service. Please confirm with your

local dealer if you can receive a DVB-T signal where you

live or ask your cable provider if their DVB-C cable

service is suitable for integrated operation with this TV.

• The cable provider may charge an additional fee for such

services and you may be required to agree to their terms

and conditions of business.

• Although this TV set follows DVB-T and DVB-C

specifications, compatibility with future DVB-T digital

terrestrial and DVB-C digital cable broadcasts cannot be

guaranteed.

• Some Digital TV functions may not be available in some

countries/regions and DVB-C cable may not operate

correctly with some providers.

For a list of compatible cable providers, refer to the support

web site:

http://support.sony-europe.com/TV/DVBC/

• is a registered trademark of the DVB Project

• HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

• Adobe is a registered trademark or a trademark of Adobe

Systems Incorporated in the United States and/or other

countries.

• Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of

Dolby Laboratories.

The illustrations used in this manual are of the KDL-

40X3500 unless otherwise stated.

Introduction

NOTICE FOR CUSTOMERS IN THE

UNITED KINGDOM

Disposal of the TV set

FUSE

The manufacturer of this product is Sony

Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-

0075 Japan. The Authorized Representative for

EMC and product safety is Sony Deutschland

GmbH, Hedelfinger Strasse 61, 70327 Stuttgart,

Germany. For any service or guarantee matters

please refer to the addresses given in separate

service or guarantee documents.

Notice for Digital TV function

Trademark information

3 GB

Table of Contents

Start-up Guide 4

Safety information .....................................................................................................................9

Precautions .............................................................................................................................11

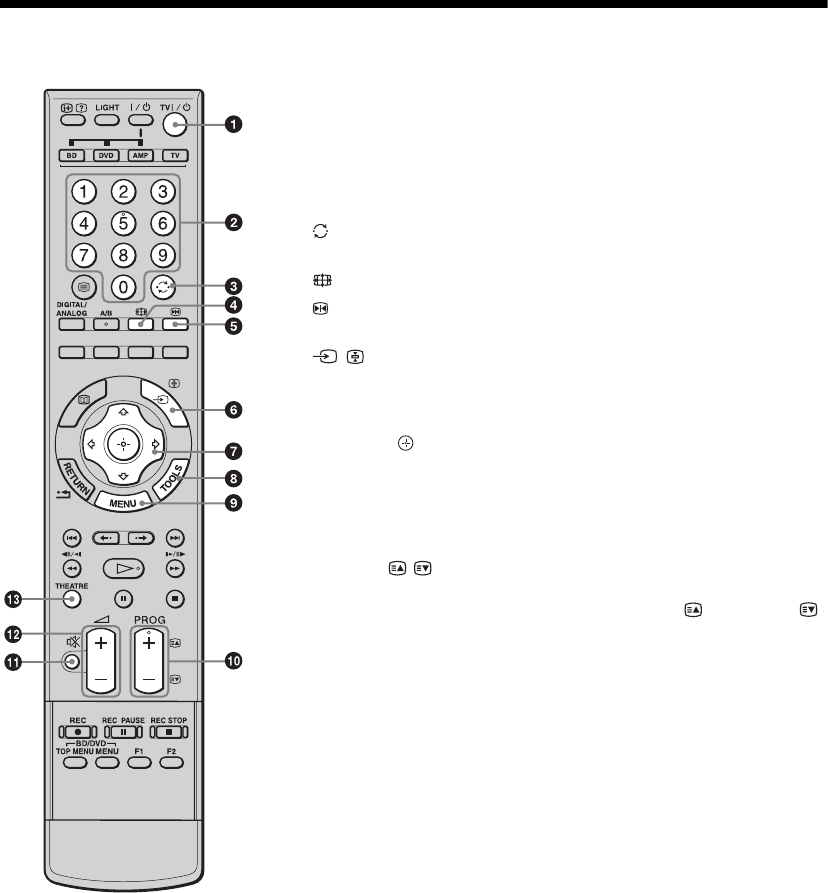

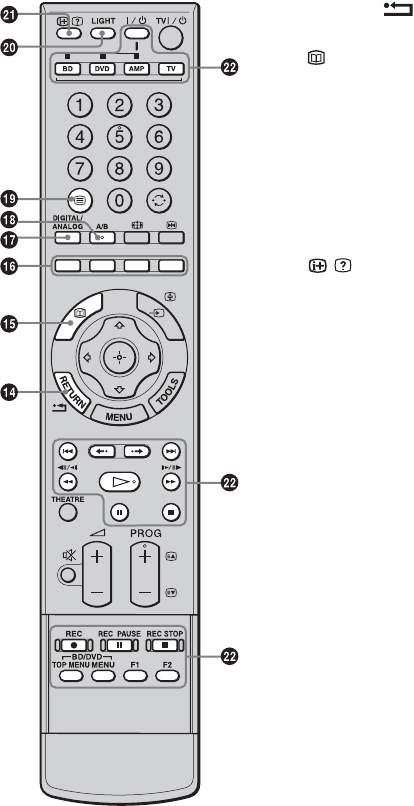

Overview of the remote ........................................................................................................12

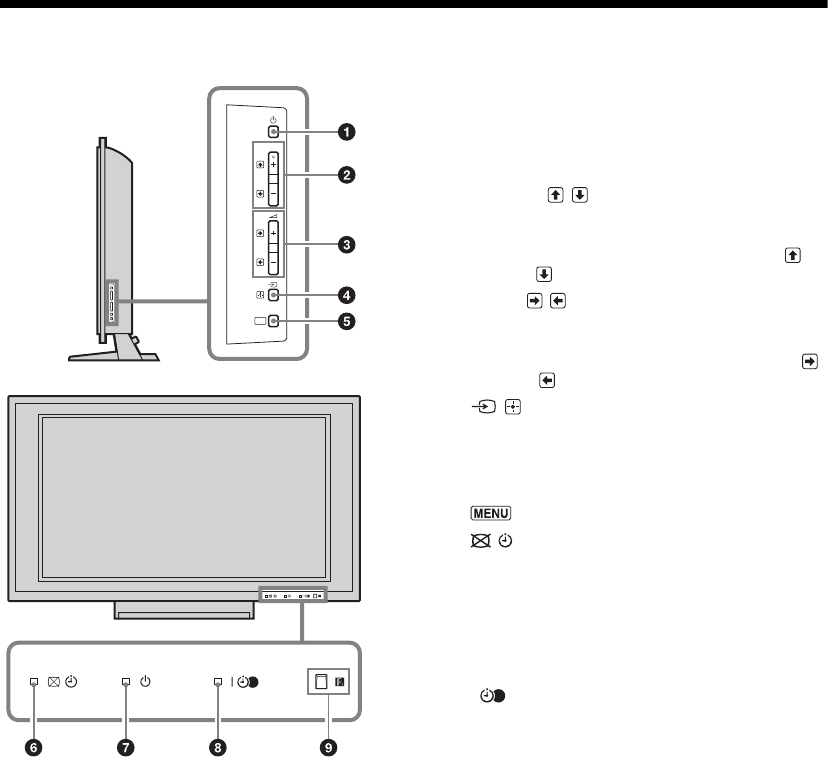

Overview of the TV buttons and indicators ........................................................................14

Watching TV............................................................................................................................15

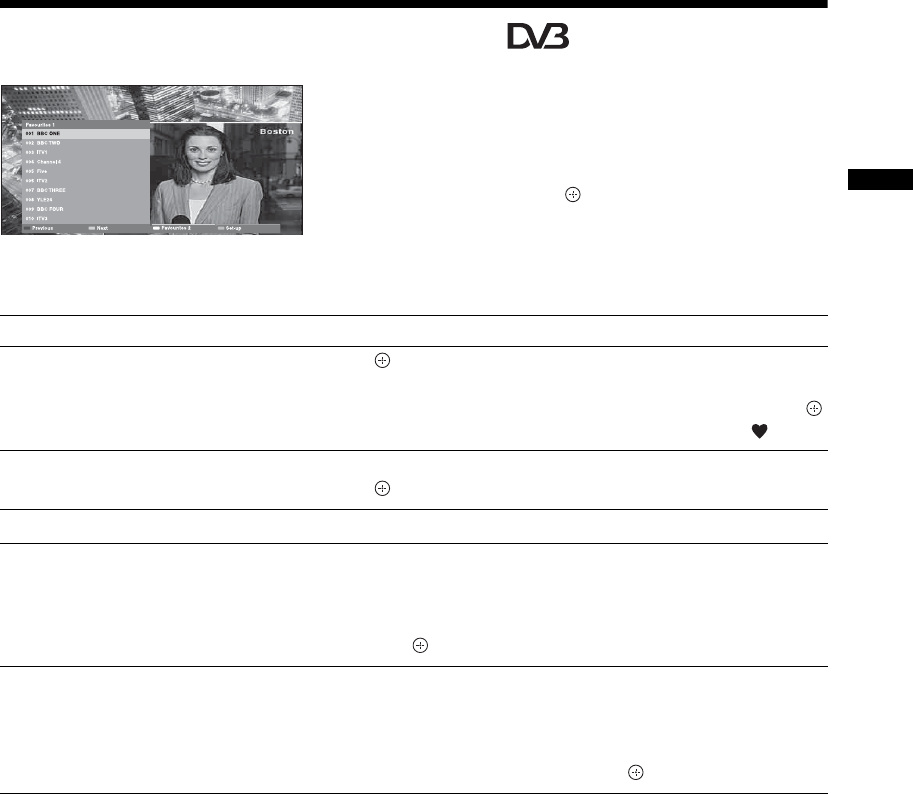

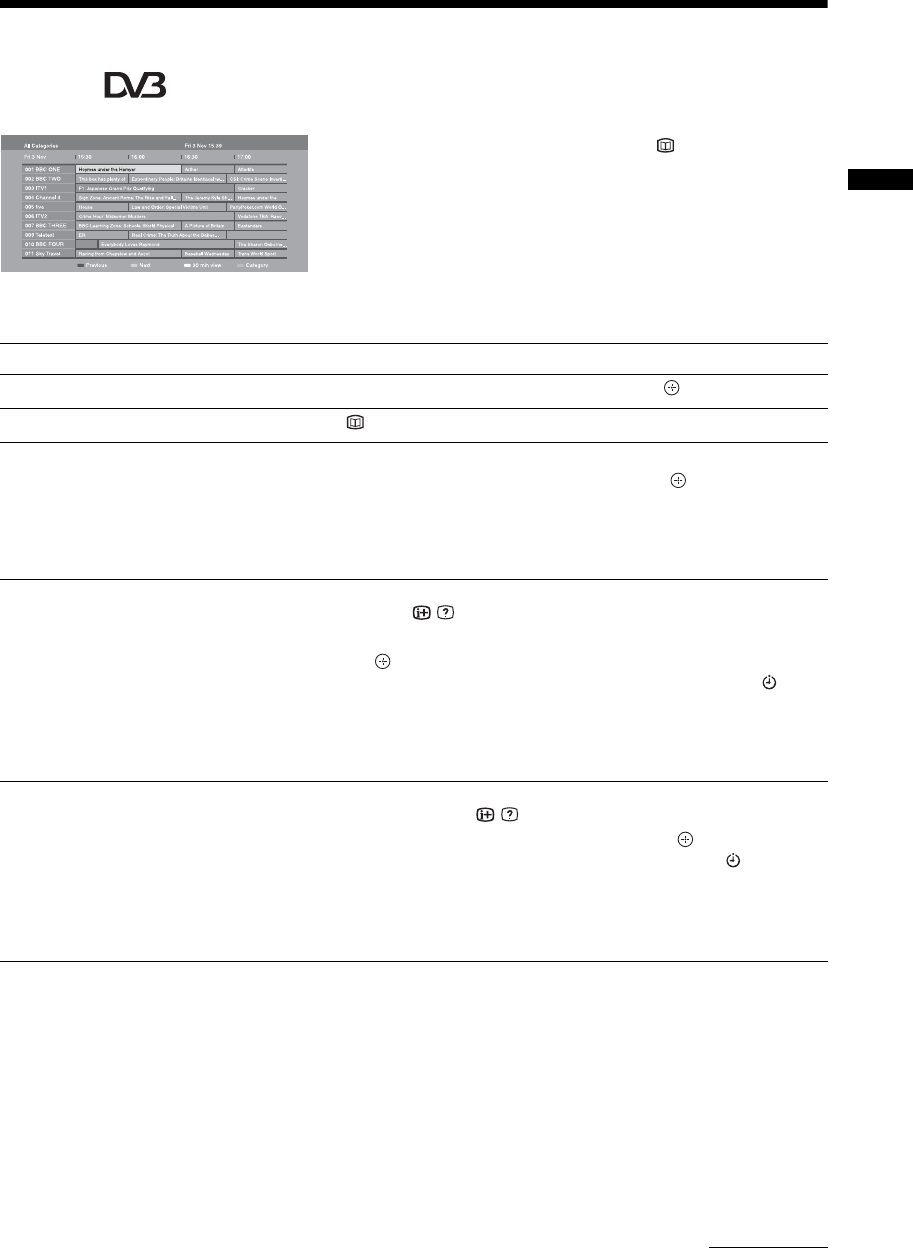

Using the Digital Electronic Programme Guide (EPG) ....................................................17

Using the Digital Favourite list ........................................................................................19

Connecting optional equipment...............................................................................................20

Viewing pictures from the connected equipment ....................................................................22

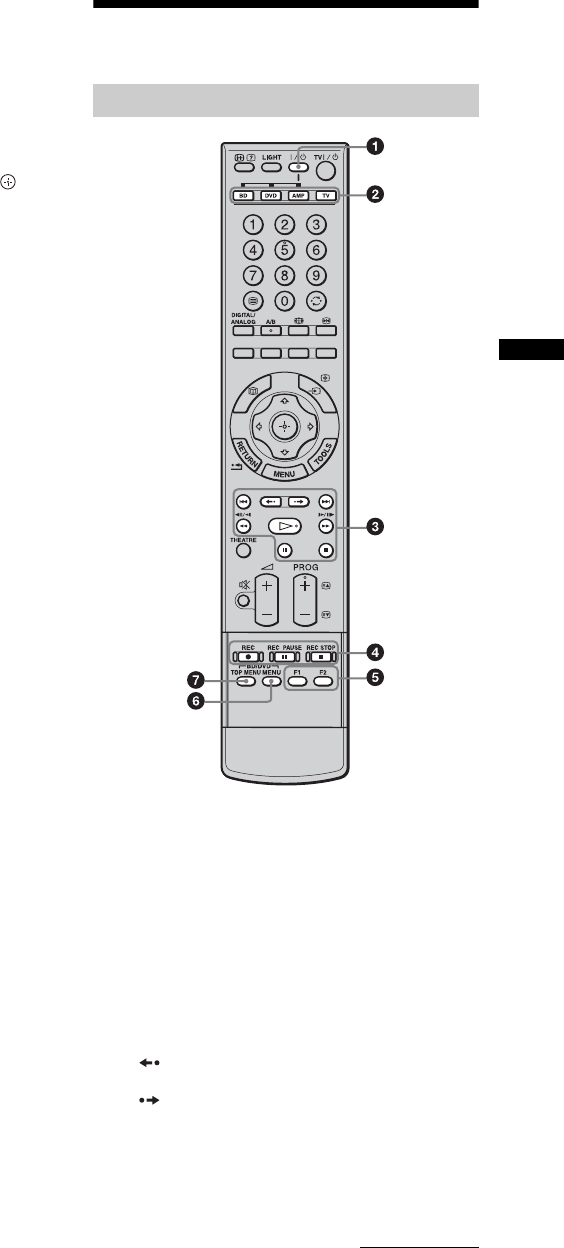

Using the remote.....................................................................................................................23

Using USB photo viewer .........................................................................................................26

Using HDMI control .................................................................................................................26

Navigating through menus ......................................................................................................27

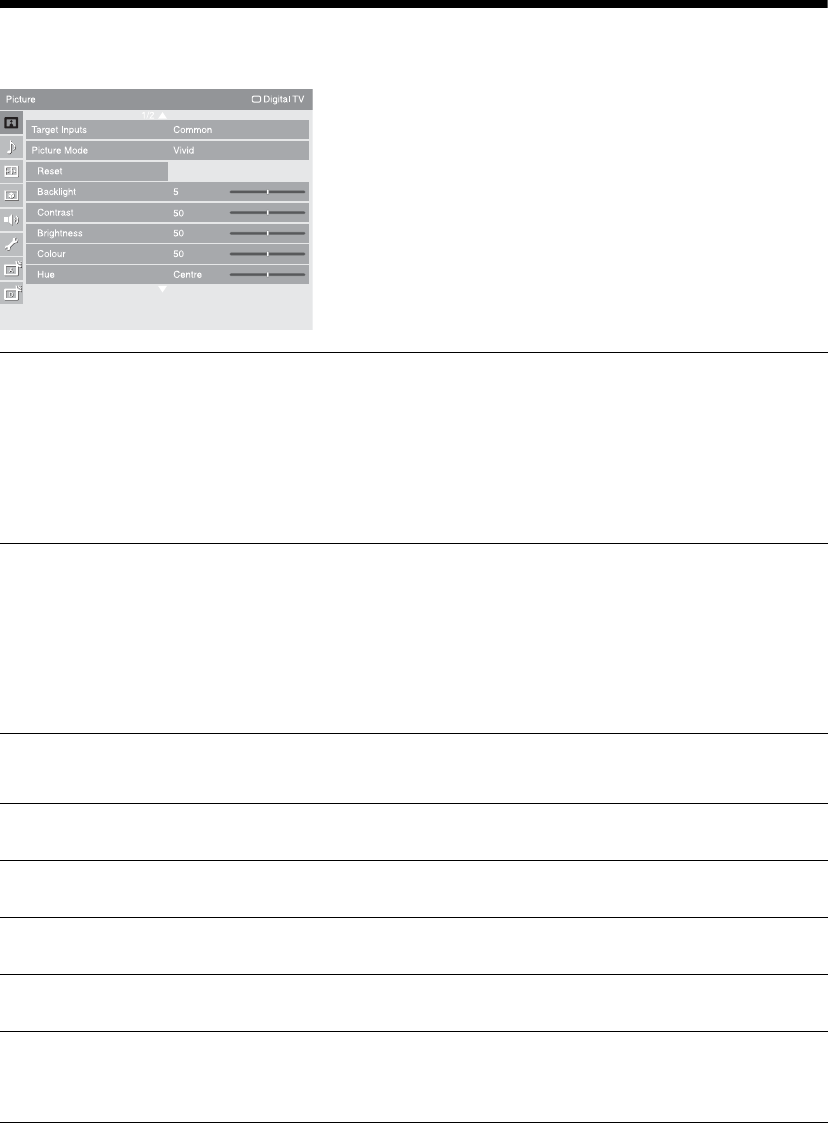

Picture menu ...........................................................................................................................28

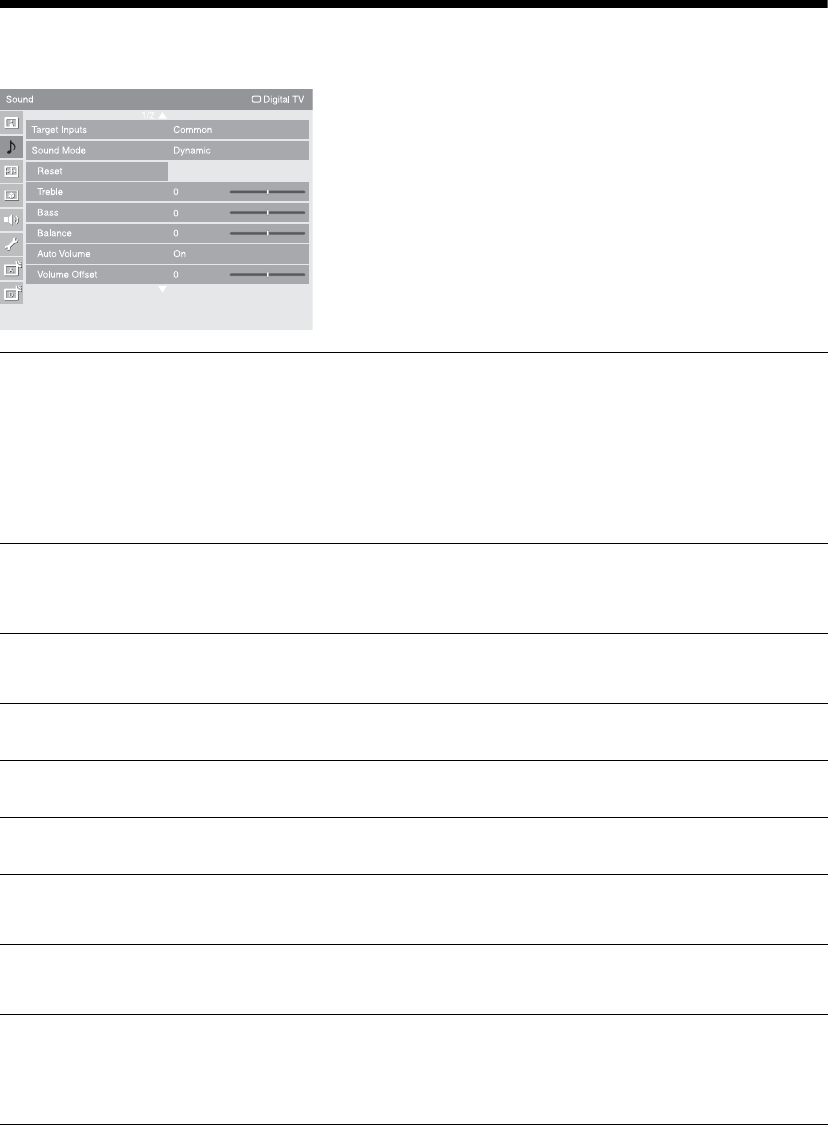

Sound menu............................................................................................................................30

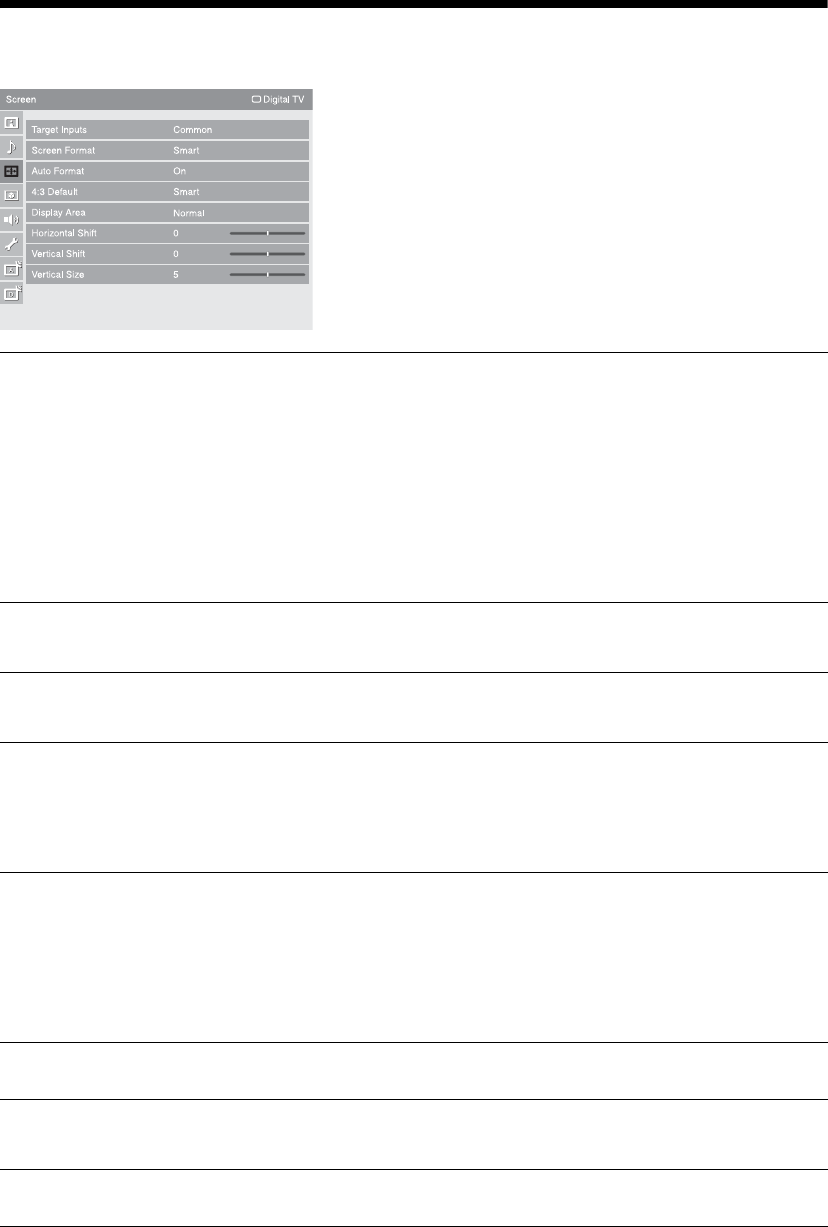

Screen menu (except for PC input).........................................................................................32

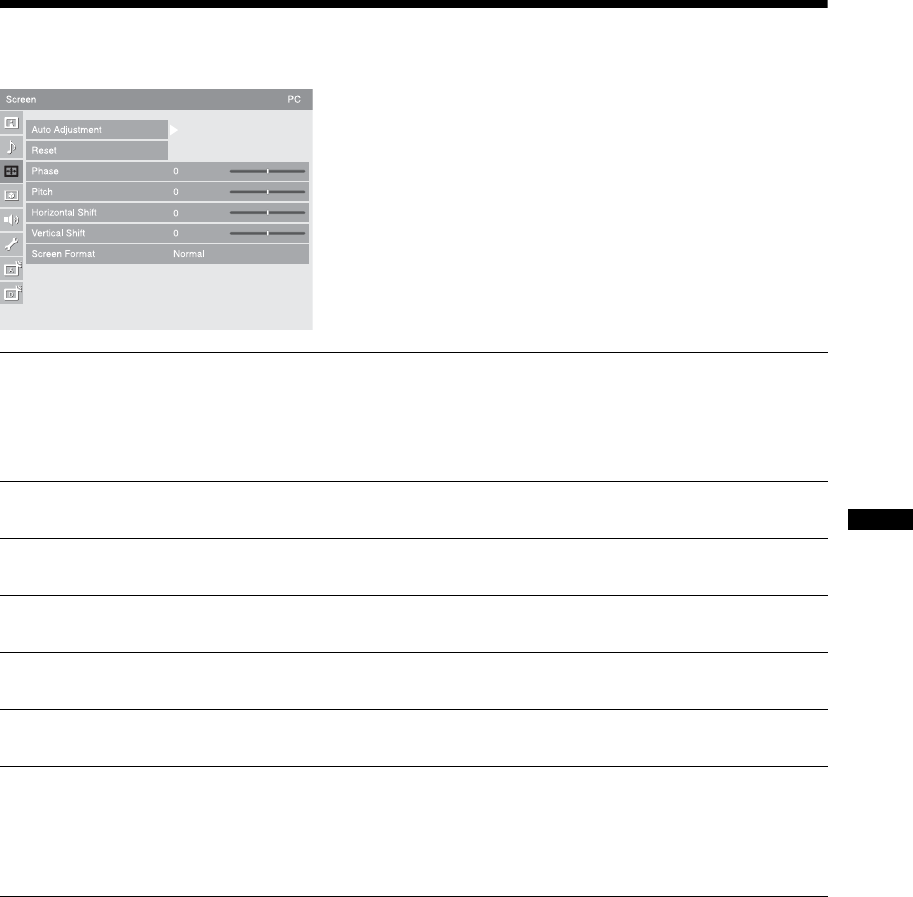

Screen menu (for PC input) ....................................................................................................33

Video Settings menu ...............................................................................................................34

Audio Settings menu ...............................................................................................................36

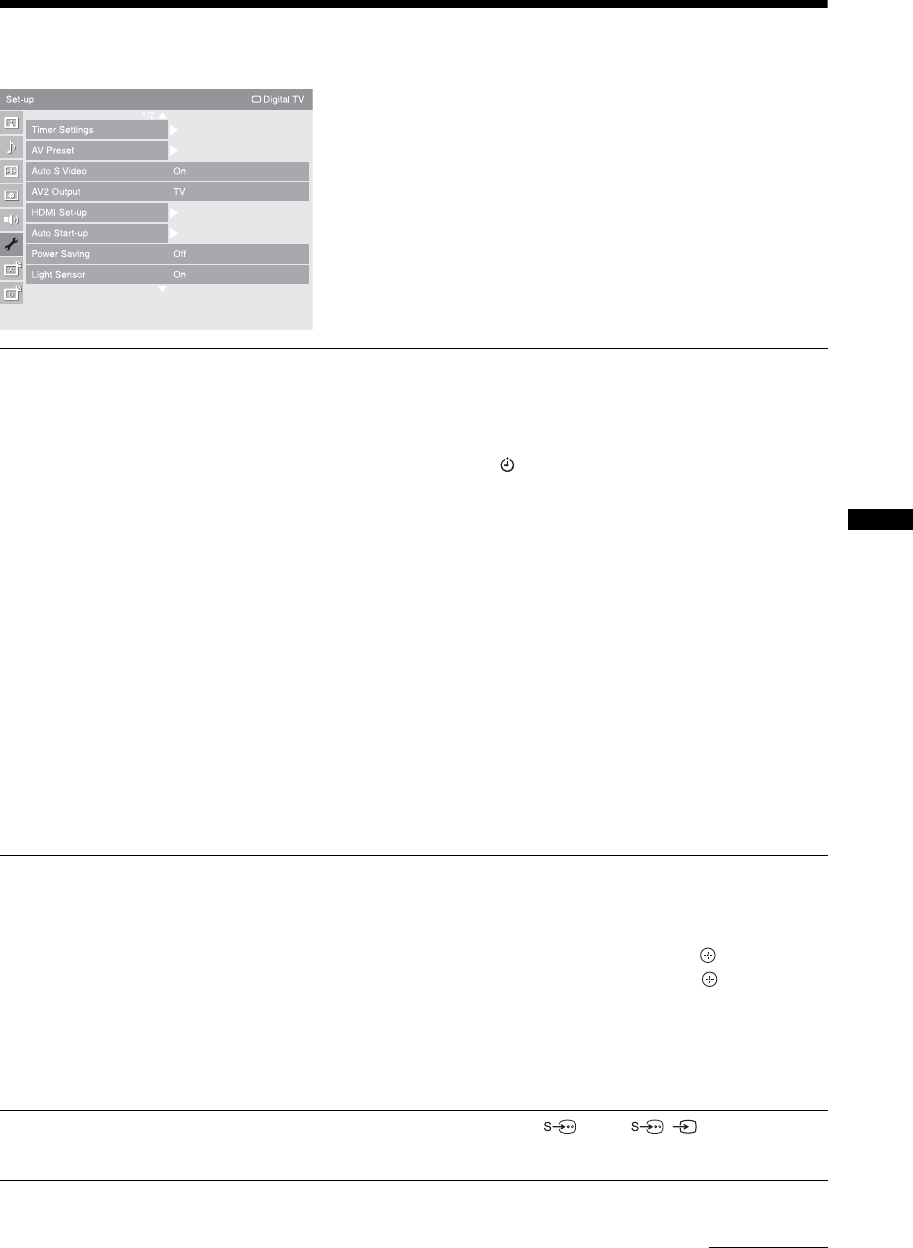

Set-up menu............................................................................................................................37

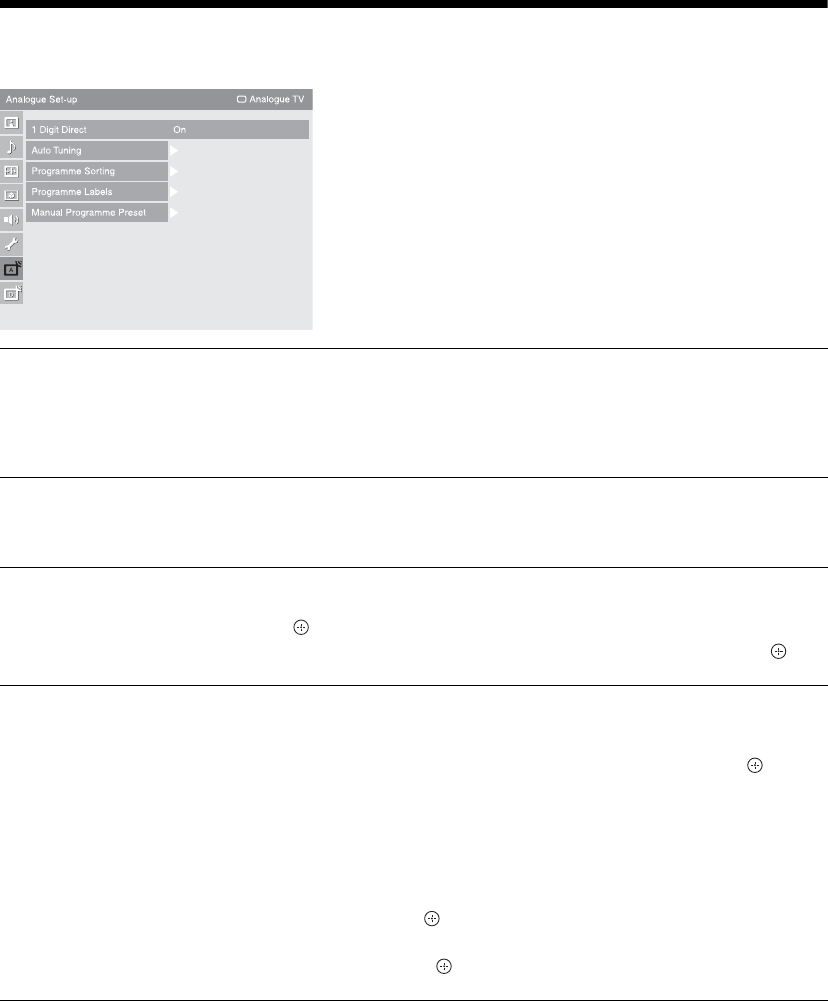

Analogue Set-up menu ...........................................................................................................40

Digital Set-up menu ........................................................................................................43

Specifications ..........................................................................................................................46

Cleaning ..................................................................................................................................48

Troubleshooting ......................................................................................................................48

Watching TV

Using Optional Equipment

Using Menu Functions

Additional Information

: for digital channels only

4 GB

Start-up Guide

1: Checking the

accessories

Mains lead (Type BF)* (1)

Coaxial cable* (1)

PC cable* (1)

Support belt (1) and screws (2)

Stand (1) and screws (4) (only for KDL-46X3500/

40X3500/46X3000/40X3000)

Remote RM-ED010 (1)

Size AA batteries (R6 type) (2)

* Do not remove the ferrite cores.

To insert batteries into the remote

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old

and new batteries.

• Dispose of batteries in an environmentally friendly way.

Certain regions may regulate the disposal of batteries.

Please consult your local authority.

• Handle the remote with care. Do not drop or step on it, or

spill liquid of any kind onto it.

• Do not place the remote in a location near a heat source, a

place subject to direct sunlight, or a damp room.

To replace the bezel unit

(only for KDL-46X3000/40X3000)

The bezel unit can be replaced with others that are sold

separately. However, do not remove the unit except to

replace it. For details, see the instructions supplied

with bezel units.

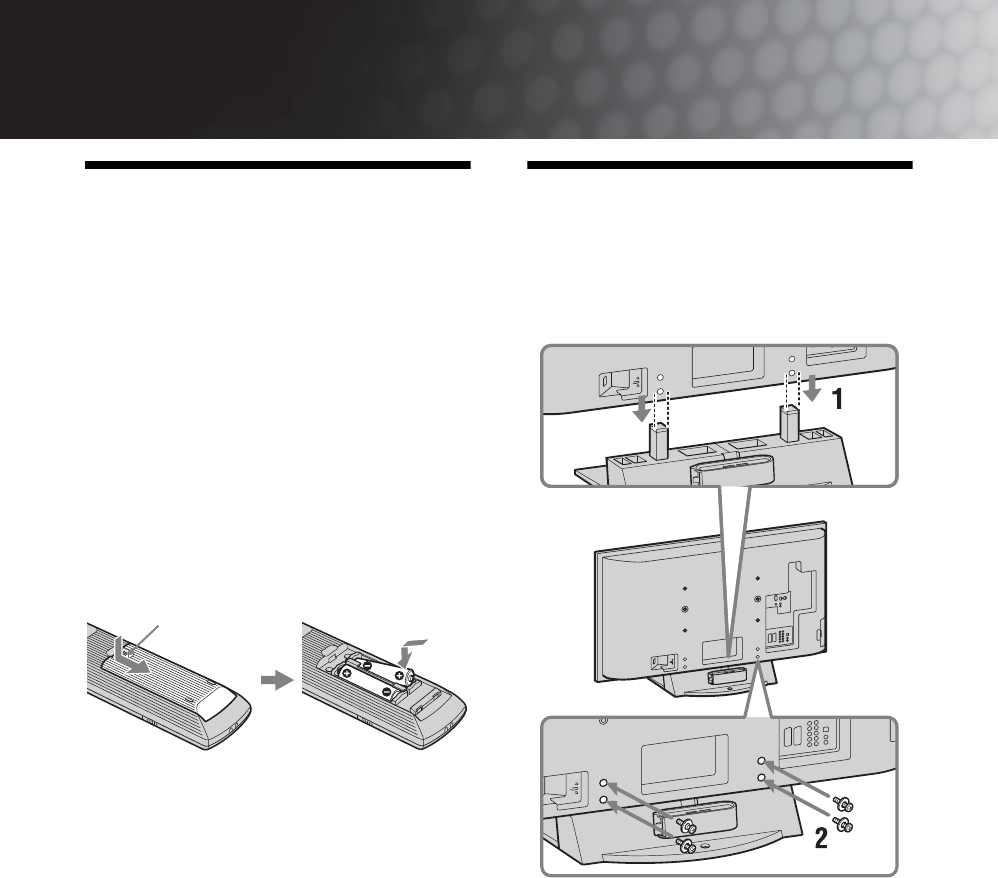

2: Attaching the stand

(except for KDL-

70X3500/52X3500)

1Place the TV onto the stand by aligning the

screw hole alignment lines over the stand

as shown.

2Fix the TV to the stand using the supplied

screws.

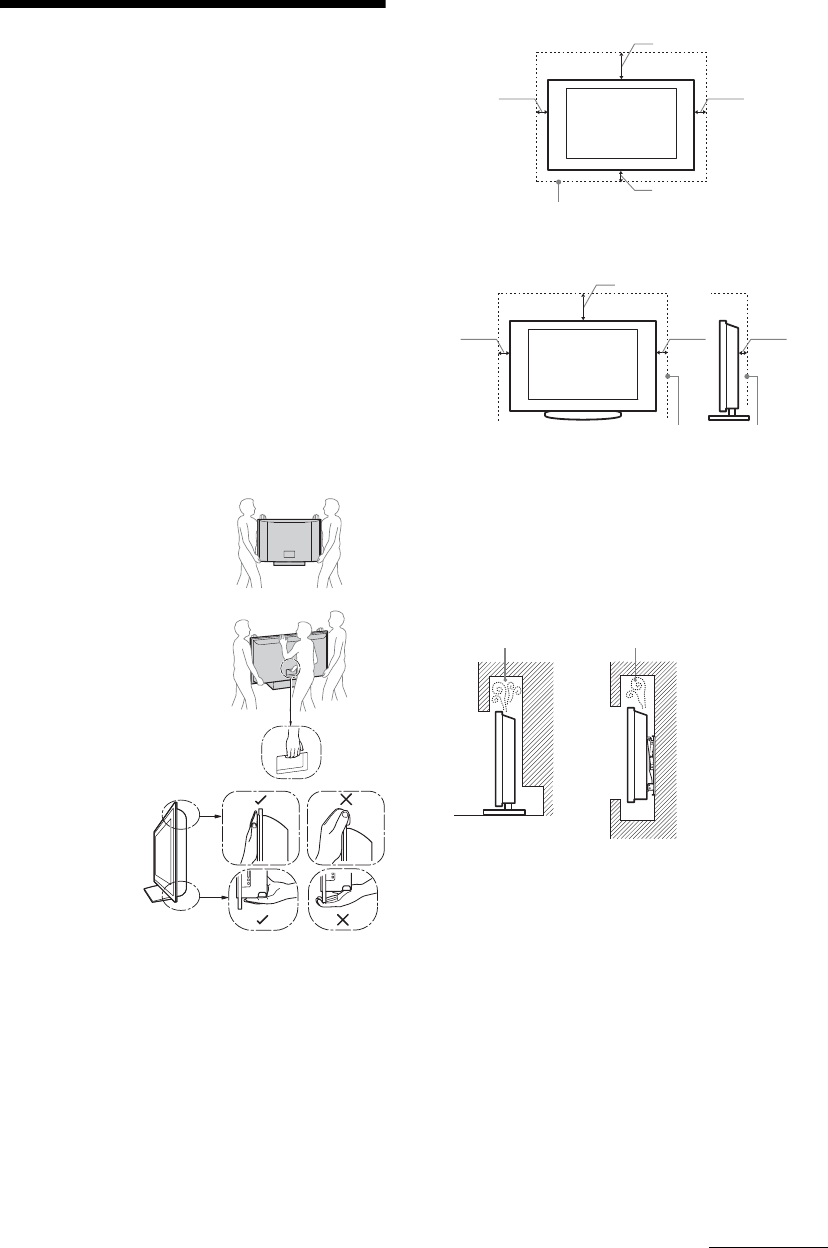

• This TV is very heavy, so two or more people should place

the TV on the stand.

• If using an electric screwdriver, set the tightening torque

at approximately 1.5 N·m (15 kgf·cm).

Push and slide to open.

5 GB

Start-up Guide

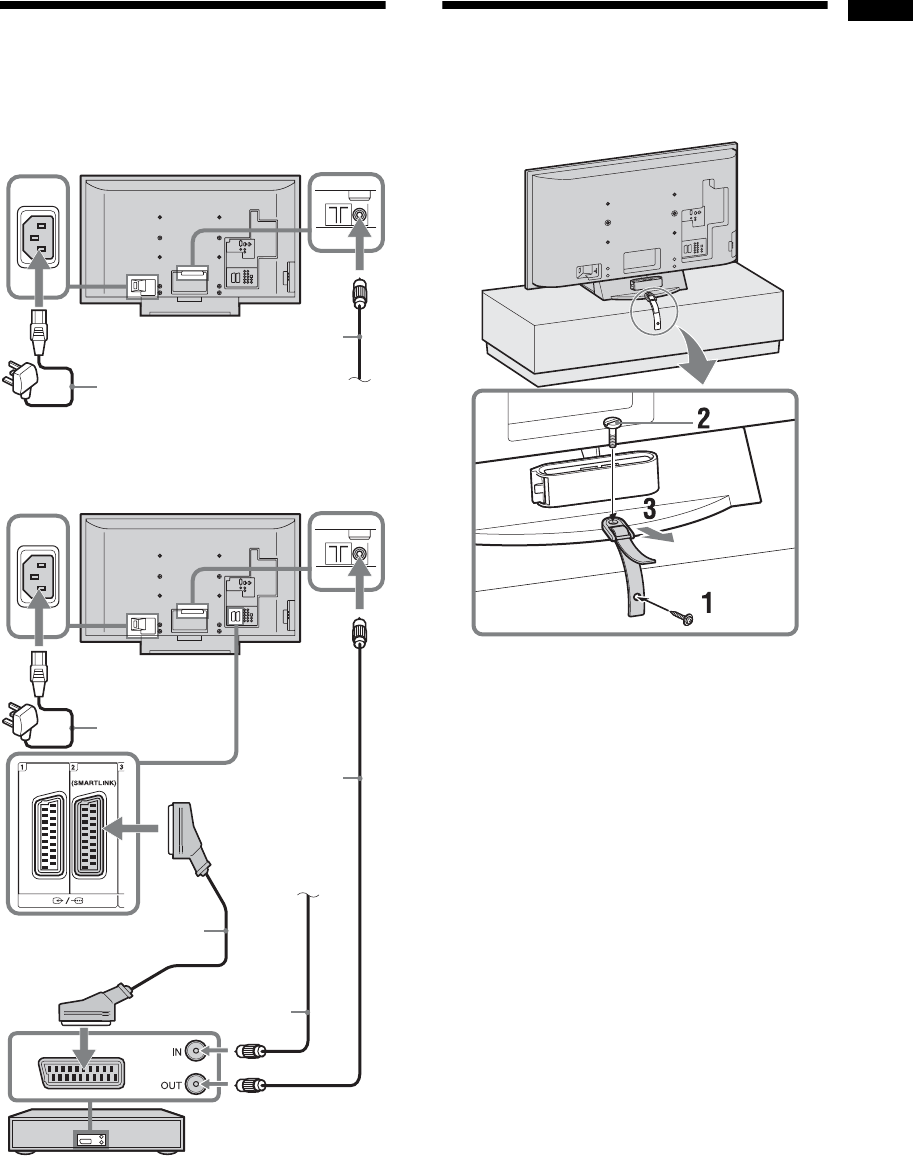

3: Connecting an aerial/

cable/VCR

4: Preventing the TV

from toppling over

Connecting an aerial/cable

Connecting an aerial/cable and VCR

Coaxial cable (supplied)

Mains lead

(supplied)

Scart lead (not supplied)

VCR

Mains lead

(supplied)

Coaxial cable

(not supplied)

Coaxial cable

(supplied)

Terrestrial signal

or cable

Terrestrial signal

or cable

6 GB

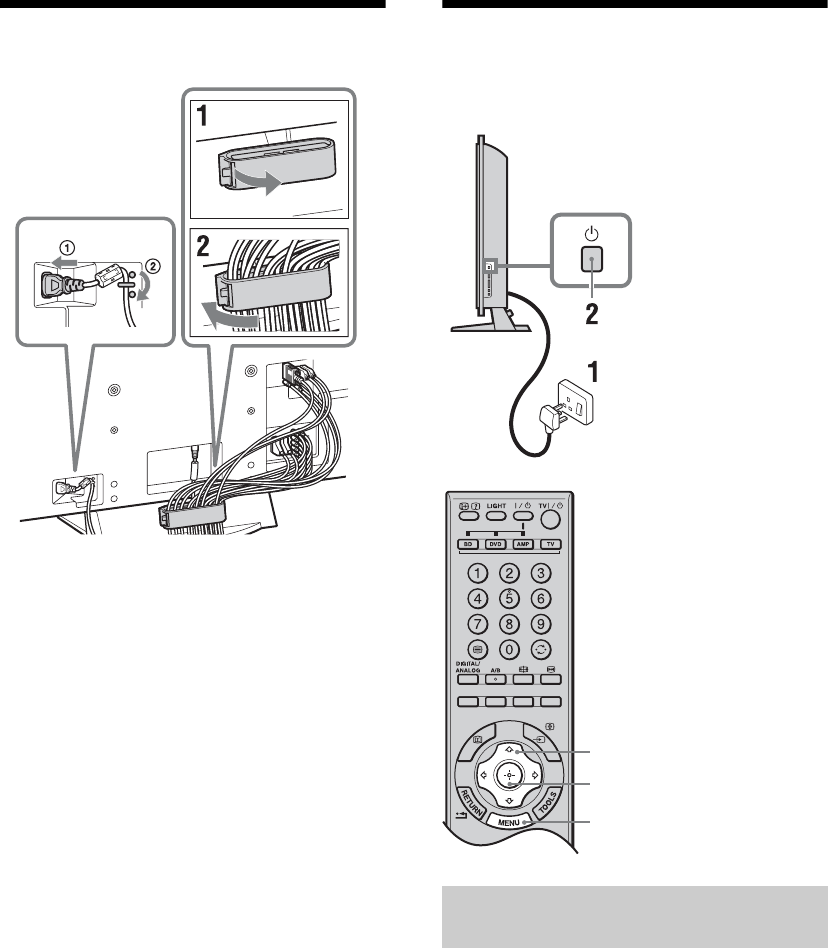

5: Bundling the cables

The hook of the cable holder can be opened from either sides

depending on attaching position.

6: Performing the initial

set-up

1Connect the TV to your mains socket

(220–240 V AC, 50 Hz).

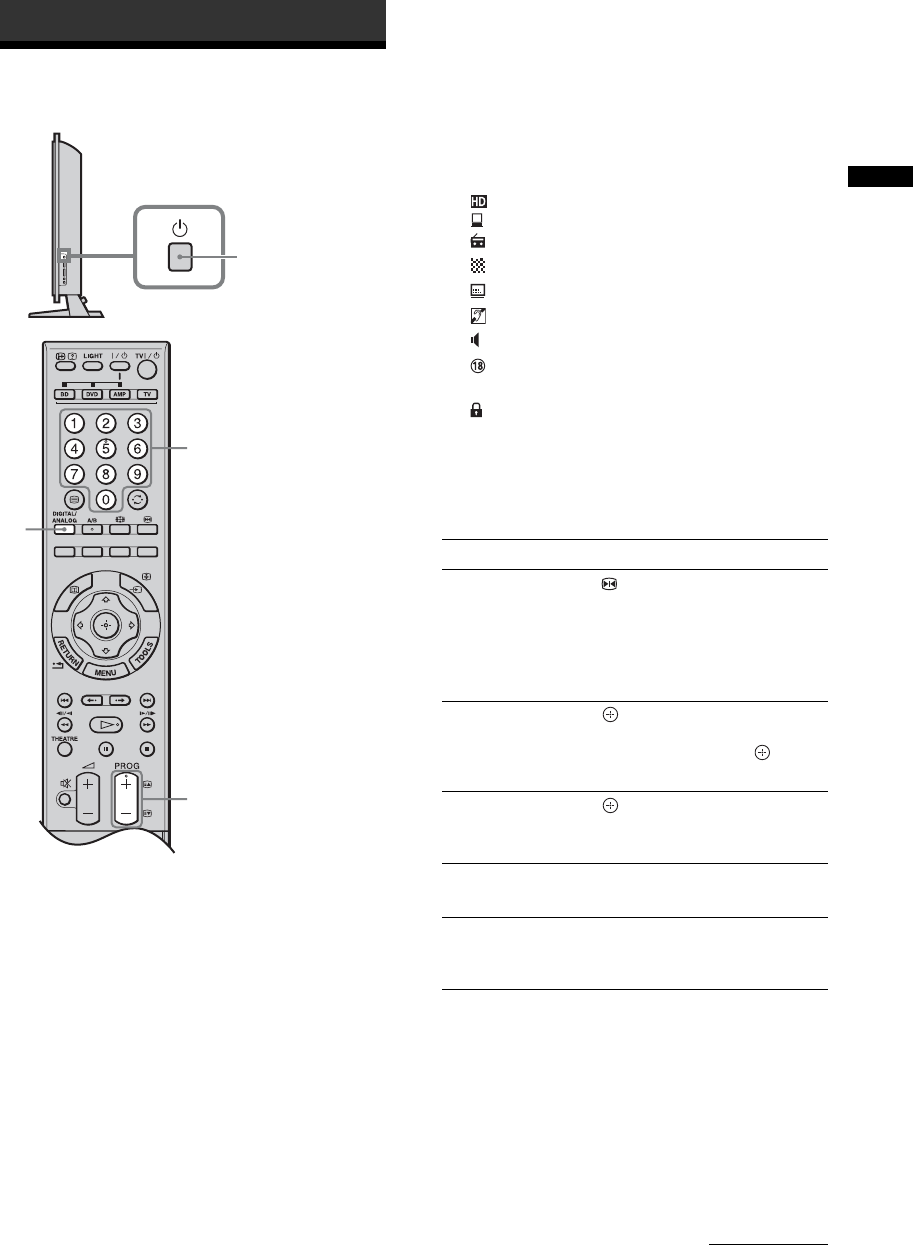

2Press 1 on the right side of the TV.

When you turn on the TV for the first time, the

Language menu appears on the screen.

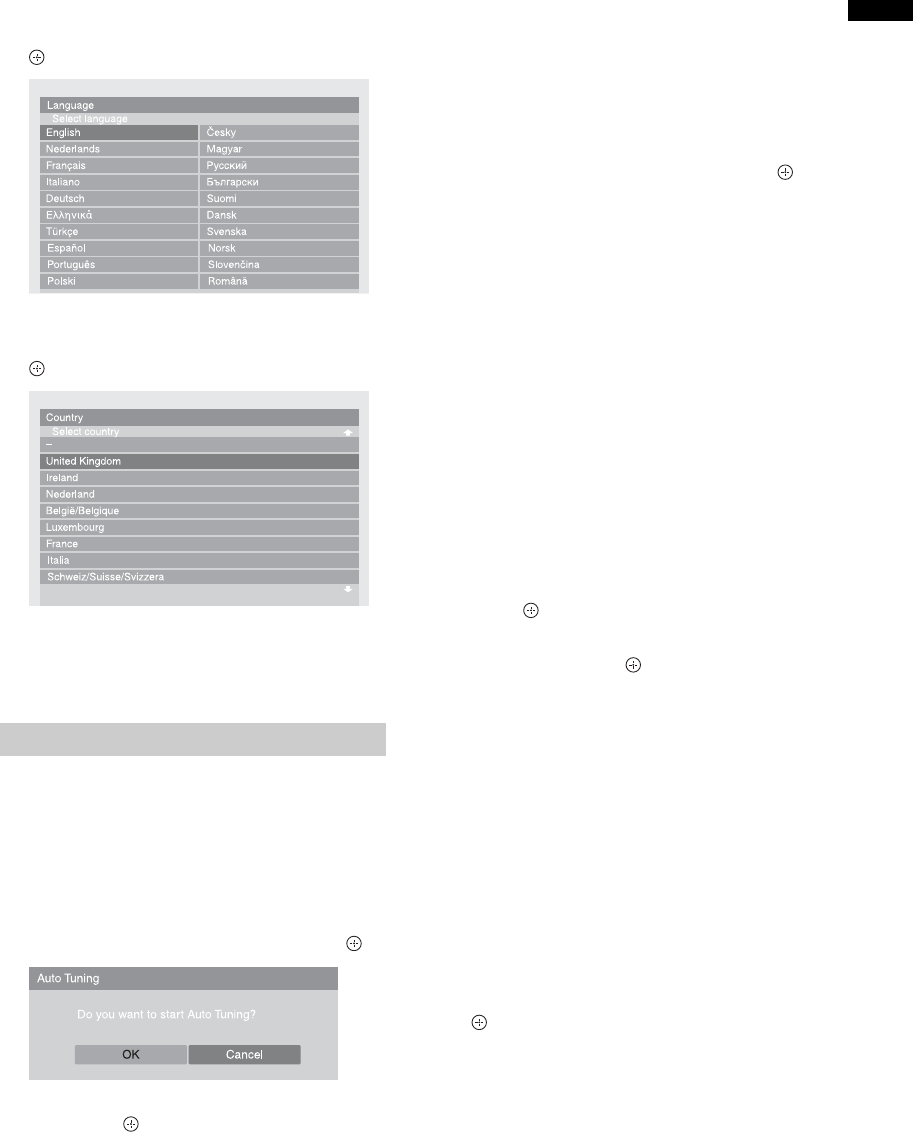

Selecting the language and country/

region

3, 4, 6, 7

7 GB

Start-up Guide

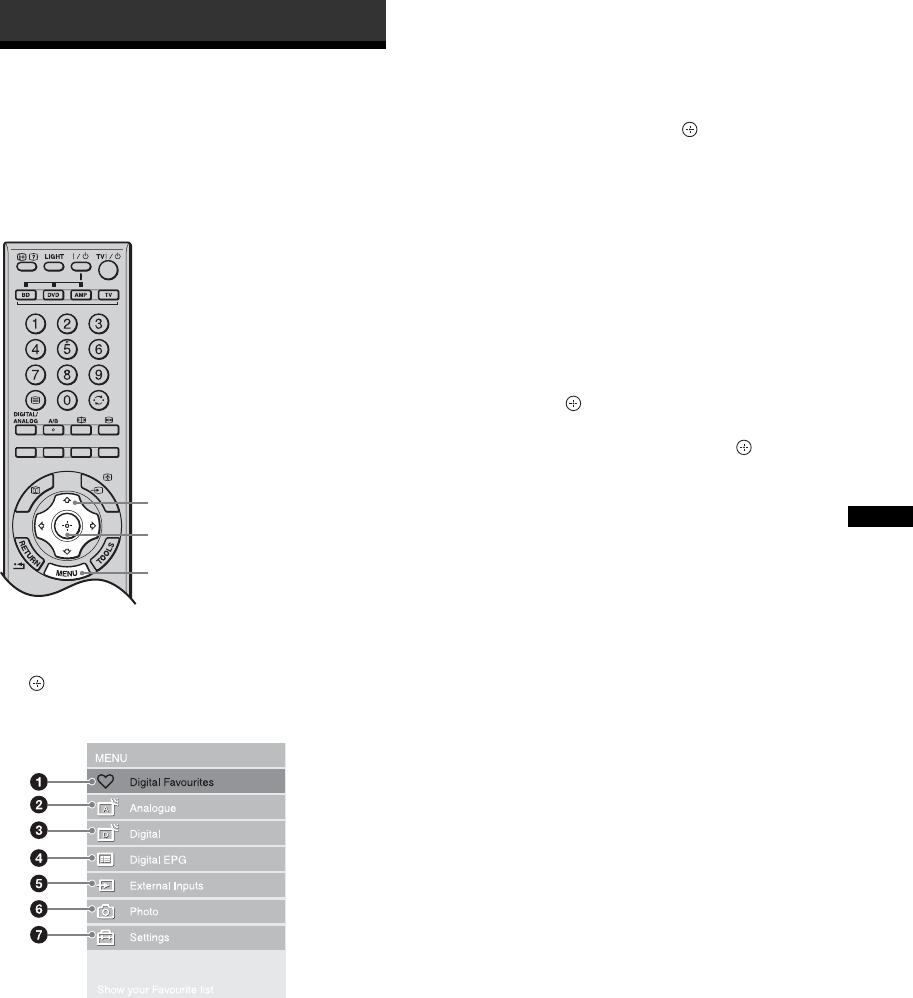

3Press F/f/G/g to select the language

displayed on the menu screens, then press

4Press F/f to select the country/region in

which you will operate the TV, then press

If the country/region which you want to use on the

TV does not appear in the list, select “–” instead

of a country/region.

5Before you start auto tuning the TV, insert

a pre-recorded tape into the VCR

connected to the TV (page 5) and start play

back.

The video channel will be located and stored on

the TV during auto tuning.

If no VCR is connected to the TV, skip this step.

6Press G/g to select “OK”, then press .

7Press F/f to select “Antenna” or “Cable”,

then press .

If you select “Cable”, the screen for selecting the

scan type appears. See “To tune the TV for digital

cable connection” on page 7.

The TV starts searching for all available digital

channels, followed by all available analogue

channels. This may take some time, so do not

press any buttons on the TV or remote while

proceeding.

If a message appears for you to confirm the aerial

connection

No digital or analogue channels were found.

Check all the aerial connections and press to

start auto tuning again.

8When the Programme Sorting menu

appears on the screen, follow the steps of

“Programme Sorting” on page 40.

If you do not wish to change the order in which the

analogue channels are stored on the TV, go to next

step.

9Press MENU to exit.

The TV has now tuned in all the available

channels.

When a digital broadcast channel cannot be received, or

when selecting a country/region in which there are no digital

broadcasts in step 4 (page 7), the time must be set after

performing step 9.

To tune the TV for digital cable connection

1Press F/f to select “Scan Type”, then

press .

2Press F/f to select “Quick Scan” or “Full

Scan”, then press .

“Quick Scan”: Channels are tuned according to

the cable provider’s information within the

broadcast signal. The recommended setting for

“Frequency”, “Network ID” and “Symbol Rate” is

“Auto” unless your cable provider has supplied

actual values to use. “Quick Scan” is

recommended for fast tuning when this is

supported by your cable provider.

“Full Scan”: All available channels are tuned and

stored. This procedure may take some time. This

option is recommended when “Quick Scan” is not

supported by your cable provider.

For further information about supported cable

providers, refer to the support web site:

http://support.sony-europe.com/TV/DVBC/

3Press G/g/f to select “Start”, then press

The TV starts searching for channels. Do not press

any buttons on the TV or remote.

Some cable providers do not support “Quick Scan”. If no

channels are detected using “Quick Scan”, perform “Full

Scan”.

Auto tuning the TV

8 GB

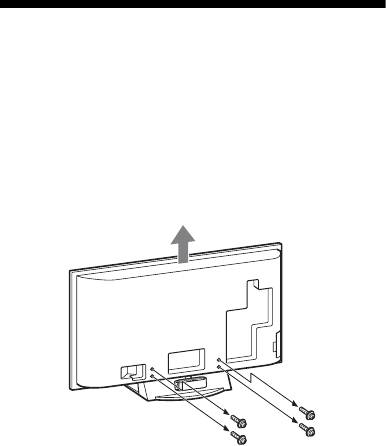

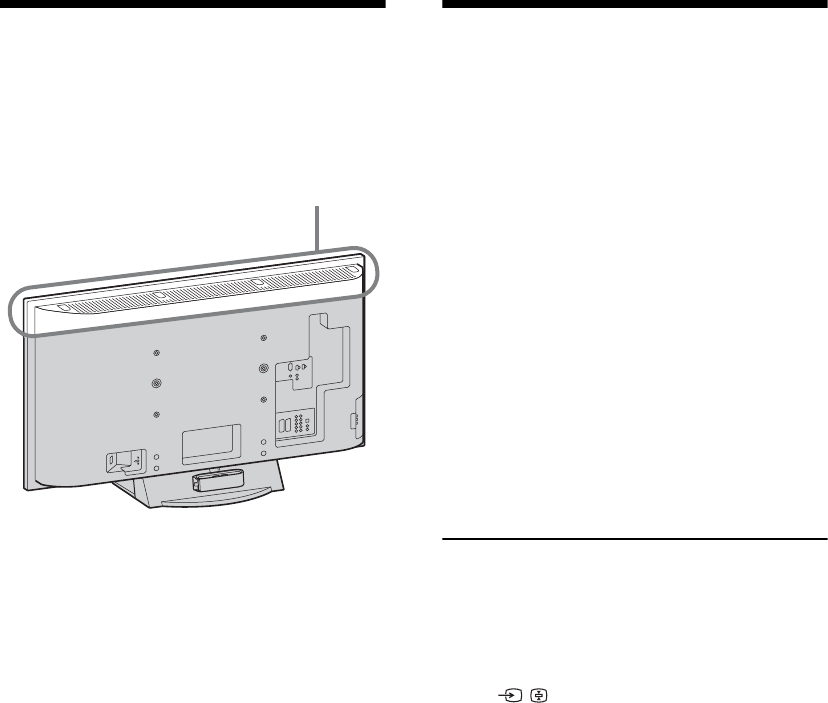

Detaching the Table-

Top Stand from the TV

Do not remove the Table-Top Stand for any reason other than

to wall-mount the TV or to attach the optional TV stand.

9 GB

Safety information

Installation/Set-up

Install and use the TV set in accordance with the

instructions below in order to avoid any risk of fire,

electrical shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible

mains socket.

• Place the TV set on a stable, level surface.

• Only qualified service personnel should carry out wall

installations.

• For safety reasons, it is strongly recommended that you

use Sony accessories, including:

KDL-52X3500/46X3500/40X3500/46X3000/40X3000:

– Wall-mount bracket SU-WL500

KDL-52X3500/46X3500/40X3500/46X3000/40X3000:

– Floor stand SU-FL62

Transporting

• Before transporting the TV

set, disconnect all cables.

• Two or three people are

needed to transport a large

TV set.

• When transporting the TV

set by hand, hold it as

shown on the right. Do not

put stress on the LCD

panel and frame around the

screen.

• When lifting or moving the

TV set, hold it firmly from

the bottom.

• When transporting the TV

set, do not subject it to jolts

or excessive vibration.

• When

transporting the

TV set for

repairs or when

moving, pack it

using the original

carton and

packing material.

Ventilation

• Never cover the ventilation holes or insert anything in the

cabinet.

• Leave space around the TV set as shown below.

• It is strongly recommended that you use a Sony wall-

mount bracket in order to provide adequate air-circulation.

Installed on the wall

Installed with stand

• To ensure proper ventilation and prevent the collection of

dirt or dust:

– Do not lay the TV set flat, install upside down,

backwards, or sideways.

– Do not place the TV set on a shelf, rug, bed or in a

closet.

– Do not cover the TV set with a cloth, such as curtains,

or items such as newspapers, etc.

– Do not install the TV set as shown below.

Mains lead

Handle the mains lead and socket as follows in order

to avoid any risk of fire, electrical shock or damage

and/or injuries:

– Connect the TV set using a three-wire grounding type

mains plug to a mains socket with a protective earthing

connection.

– Use only Sony mains leads, not those of other brands.

– Insert the plug fully into the mains socket.

– Operate the TV set on a 220–240 V AC supply only.

– When wiring cables, be sure to unplug the mains lead

for your safety and take care not to catch your feet on

the cables.

– Disconnect the mains lead from the mains socket before

working on or moving the TV set.

– Keep the mains lead away from heat sources.

except for KDL-52X3500

KDL-52X3500

30 cm

10 cm 10 cm

10 cm

Leave at least this space around the set.

30 cm

10 cm 10 cm 6 cm

Leave at least this space around the set.

Air circulation is blocked.

Wall Wall

Continued

10 GB

– Unplug the mains plug and clean it regularly. If the plug

is covered with dust and it picks up moisture, its

insulation may deteriorate, which could result in a fire.

Notes

• Do not use the supplied mains lead on any other

equipment.

• Do not pinch, bend, or twist the mains lead excessively.

The core conductors may be exposed or broken.

• Do not modify the mains lead.

• Do not put anything heavy on the mains lead.

• Do not pull on the mains lead itself when disconnecting

the mains lead.

• Do not connect too many appliances to the same mains

socket.

• Do not use a poor fitting mains socket.

Prohibited Usage

Do not install/use the TV set in locations,

environments or situations such as those listed below,

or the TV set may malfunction and cause a fire,

electrical shock, damage and/or injuries.

Location:

Outdoors (in direct sunlight), at the seashore, on a ship or

other vessel, inside a vehicle, in medical institutions,

unstable locations, near water, rain, moisture or smoke.

Environment:

Places that are hot, humid, or excessively dusty; where

insects may enter; where it might be exposed to mechanical

vibration, near flammable objects (candles, etc). The TV set

shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the TV.

Situation:

Do not use when your hands are wet, with the cabinet

removed, or with attachments not recommended by the

manufacturer. Disconnect the TV set from mains socket and

aerial during lightning storms.

Broken pieces:

• Do not throw anything at the TV set. The screen glass may

break by the impact and cause serious injury.

• If the surface of the TV set cracks, do not touch it until you

have unplugged the mains lead. Otherwise electric shock

may result.

When not in use

• If you will not be using the TV set for several days, the TV

set should be disconnected from the mains for

environmental and safety reasons.

• As the TV set is not disconnected from the mains when the

TV set is just turned off, pull the plug from the mains to

disconnect the TV set completely.

• However, some TV sets may have features that require the

TV set to be left in standby to work correctly. The

instructions in this manual will inform you if this applies.

For children

• Do not allow children to climb on the TV set.

• Keep small accessories out of the reach of children, so that

they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the mains lead

immediately if any of the following problems occur.

Ask your dealer or Sony service centre to have it

checked by qualified service personnel.

When:

– Mains lead is damaged.

– Poor fitting of mains socket.

– TV set is damaged by being dropped, hit or having

something thrown at it.

– Any liquid or solid object falls through openings in the

cabinet.

11 GB

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in poor

light or during long period of time, strains your eyes.

• When using headphones, adjust the volume so as to avoid

excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision

technology and 99.99% or more of the pixels are effective,

black dots may appear or bright points of light (red, blue,

or green) may appear constantly on the LCD screen. This

is a structural property of the LCD screen and is not a

malfunction.

• Do not push or scratch the front filter, or place objects on

top of this TV set. The image may be uneven or the LCD

screen may be damaged.

• If this TV set is used in a cold place, a smear may occur in

the picture or the picture may become dark. This does not

indicate a failure. These phenomena disappear as the

temperature rises.

• Ghosting may occur when still pictures are displayed

continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in

use. This is not a malfunction.

• The LCD screen contains a small amount of liquid crystal

and mercury. The fluorescent tubes used in this TV set

also contain mercury. Follow your local ordinances and

regulations for disposal.

Handling and cleaning the screen surface/cabinet of

the TV set

Be sure to unplug the mains lead connected to the TV set

from mains socket before cleaning.

To avoid material degradation or screen coating degradation,

observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe

gently with a soft cloth. If dust is persistent, wipe with a

soft cloth slightly moistened with a diluted mild detergent

solution.

• Never use any type of abrasive pad, alkaline/acid cleaner,

scouring powder, or volatile solvent, such as alcohol,

benzene, thinner or insecticide. Using such materials or

maintaining prolonged contact with rubber or vinyl

materials may result in damage to the screen surface and

cabinet material.

• When adjusting the angle of the TV set, move it slowly so

as to prevent the TV set from moving or slipping off from

its table stand.

Optional Equipment

Keep optional components or any equipment emitting

electromagnetic radiation away from the TV set. Otherwise

picture distortion and/or noisy sound may occur.

12 GB

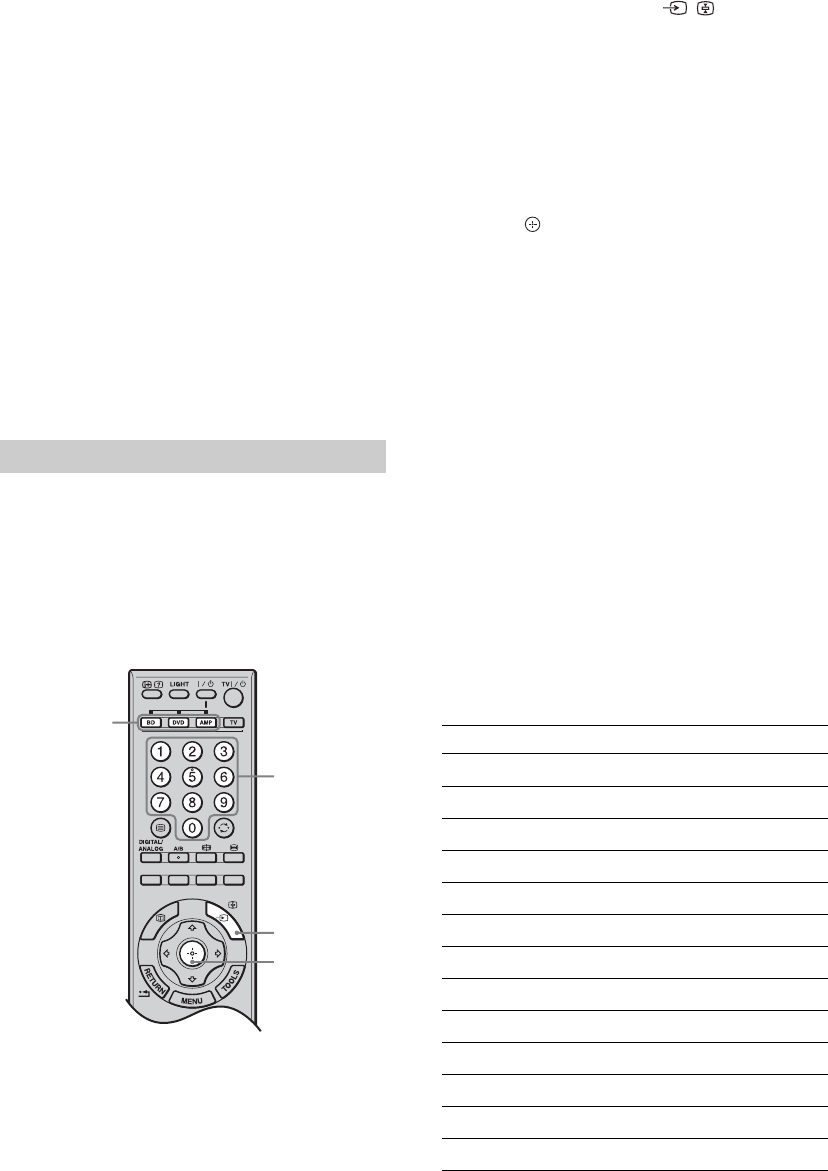

Overview of the remote

1TV "/1 — TV standby

Turns the TV on and off from standby mode.

2Number buttons

• In TV mode: Selects channels. For channel numbers 10 and above, enter

the second and third digit quickly.

• In Text mode: Enters the page number to select the page.

3 — Previous channel

Returns to the previous channel watched (for more than five seconds).

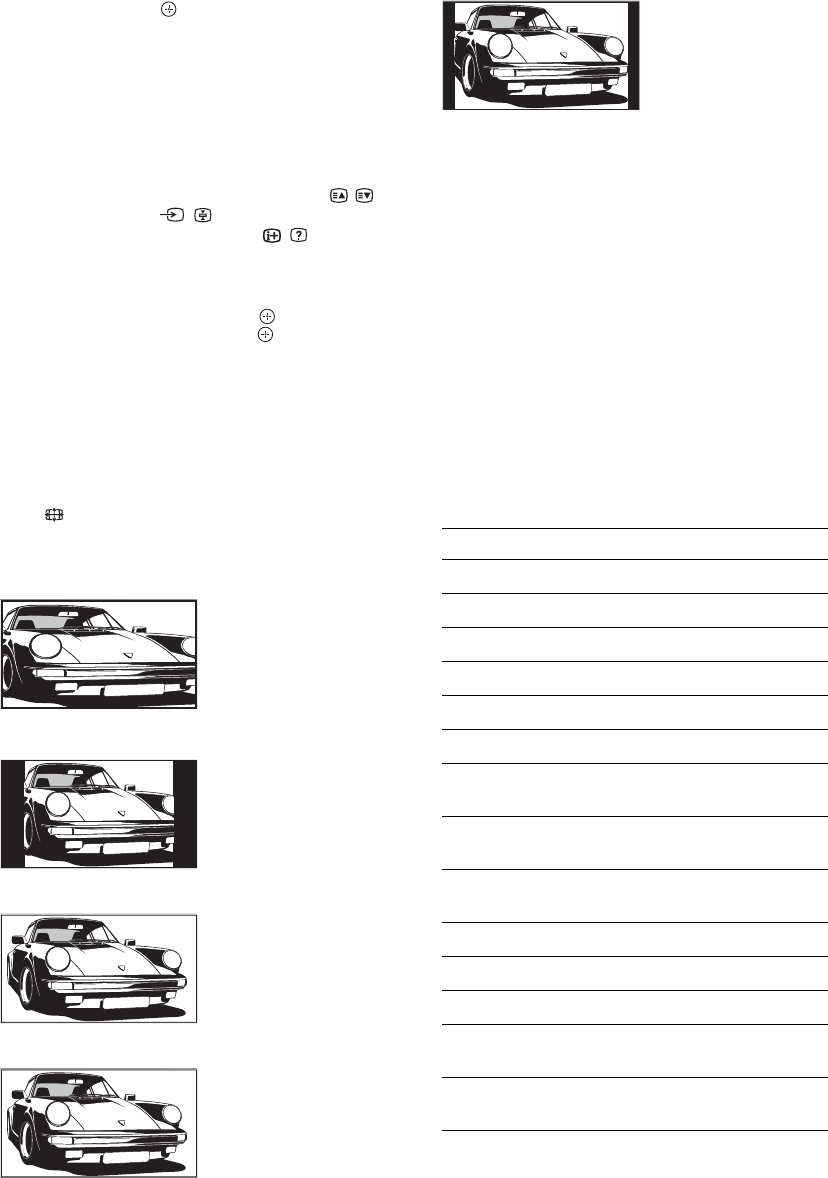

4 — Screen mode (page 16)

5 — Picture freeze (page 15)

Freezes the TV picture.

6/ — Input select / Text hold

• In TV mode (page 22): Selects the input source from equipment connected

to the TV sockets.

• In Analogue Text mode (page 16): Holds the current page.

7F/f/G/g/ (page 15, 27)

8TOOLS (page 16, 22)

Enables you to access various viewing options and change/make adjustments

according to the source and screen format.

9MENU (page 27)

0PROG +/–/ /

• In TV mode (page 15): Selects the next (+) or previous (–) channel.

• In Analogue Text mode (page 16): Selects the next ( ) or previous ( )

page.

qa % — Mute (page 15, 22)

qs 2 +/– — Volume (page 22)

qd THEATRE

You can set Theatre Mode on or off. When Theatre Mode is set to on, the

optimum audio output (if the TV is connected with an audio system using an

HDMI cable) and picture quality for film-based contents are automatically

set.

If you turn the TV off, Theatre Mode is also turned off.

13 GB

qf RETURN /

Returns to the previous screen of any displayed menu.

qg — EPG (Digital Electronic Programme Guide) (page 17)

qh Coloured buttons (page 16, 17, 19)

qj DIGITAL/ANALOG — TV mode (page 15)

qk A/B — Dual Sound (page 31)

ql / — Text (page 15)

w; LIGHT

Illuminates the buttons on the remote so that you can see them easily even if

the room is dark.

wa / — Info / Text reveal

• In digital mode: Displays brief details of the programme currently being

watched.

• In analogue mode: Displays information such as current channel number

and screen format.

• In Analogue Text mode (page 16): Reveals hidden information (e.g.

answers to a quiz).

ws Buttons for using optional equipment

See page 23.

The number 5, H, PROG + and A/B buttons have tactile dots. Use the tactile dots as

references when operating the TV.

14 GB

Overview of the TV buttons and indicators

11 — Power

Turns the TV on or off.

To disconnect the TV completely, pull the plug from the

mains.

2PROG +/–/ /

• In TV mode: Selects the next (+) or previous (–)

channel.

• In TV menu: Moves through the options up ( ) or

down ( ).

32 +/–/ /

• In TV mode: Increases (+) or decreases (–) the

volume.

• In TV menu: Moves through the options right ( )

or left ( ).

4/ — Input select / OK

• In TV mode (page 22): Selects the input source

from equipment connected to the TV sockets.

• In TV menu: Selects the menu or option, and

confirms the setting.

5 (page 27)

6 — Picture Off / Timer indicator

• Lights up in green when the picture is switched off

(page 38).

• Lights up in orange when the timer is set

(page 37).

71 — Standby indicator

Lights up in red when the TV is in standby mode.

8" — Power / Timer REC programme indicator

• Lights up in green when the TV is turned on.

• Lights up in orange when the timer recording is set

(page 17).

• Lights up in red during the timer recording.

9Remote control sensor / Light sensor (page 38)

• Receives IR signals from the remote.

• Do not put anything over the sensor, as its function

may be affected.

Make sure that the TV is completely turned off before

unplugging the mains lead. Unplugging the mains lead while

the TV is turned on may cause the indicator to remain lit or

may cause the TV to malfunction.

PROG

15 GB

Watching TV

1Press 1 on the right side of the TV to turn

on the TV.

When the TV is in standby mode (the 1 (standby)

indicator on the TV front panel is red), press

TV "/1 on the remote to turn on the TV.

2Press DIGITAL/ANALOG to switch

between digital and analogue modes.

The channels available vary depending on the

mode.

3Press the number buttons or PROG +/– to

select a TV channel.

To select channel numbers 10 and above using the

number buttons, enter the second and third digits

quickly.

To select a digital channel using the Digital

Electronic Programme Guide (EPG), see page 17.

In digital mode

An information banner appears briefly. The

following icons may be indicated on the banner.

: HD service

: Interactive service is available (Digital Text)

: Radio service

: Scrambled/Subscription service

: Subtitles available

: Subtitles available for the hearing impaired

: Multiple audio languages available

: Recommended minimum age for current

programme (from 4 to 18 years)

: Parental Lock

c (in red):

Current programme is being recorded

Additional operations

To access Digital Text

Many broadcasters provide a Digital Text service.

Digital Text offers graphically rich contents,

compared to Analogue Text.

Select a digital channel which provides Digital Text,

then press /.

When a broadcaster provides a dedicated Digital Text

channel, select this channel to access Digital Text.

To navigate through Digital Text, follow the

instructions on the screen.

Watching TV

To Press

Freeze the picture

(Picture freeze)

Press again to return to normal

TV mode.

This function is not available for a

PC input source.

Access the

Programme index

table (in analogue

mode only)

To select an analogue channel,

press F/f, then press .

Access the Digital

Favourites (in digital

mode only)

For details, see page 19.

Mute the sound %.

Press again to restore.

Turn on the TV

without sound from

standby mode

Continued

16 GB

To exit Digital Text, press RETURN.

To move around, press F/f/G/g.

To select items, press and the number buttons.

To access shortcuts, press the coloured buttons.

To access Analogue Text

In analogue mode, press /. Each time you press /,

the display changes cyclically as follows:

Text and TV picture t Text t No Text (exit the

Text service)

To select a page, press the number buttons or / .

To hold a page, press / .

To reveal hidden information, press / .

• You can also jump directly to a page by selecting the page

number displayed on the screen. Press and F/f/G/g

to select the page number, then press .

• When four coloured items appear at the bottom of the Text

page, Fastext is available. Fastext allows you to access

pages quickly and easily. Press the corresponding

coloured button to access the page.

To change the screen format manually to

suit the broadcast

Press repeatedly to select the desired screen

format.

* Parts of the top and bottom of the picture may be cut off.

Some characters and/or letters at the top and the bottom of

the picture may not be visible in “Smart”. In such a case, you

can select “Vertical Size” using the “Screen” menu and

adjust vertical size to make it visible.

• When “Auto Format” is set to “On”, the TV will

automatically select the best mode to suit the broadcast

(page 32).

• You can adjust the position of the picture when selecting

“Smart” (50Hz), “Zoom” or “14:9”. Press F/f to move

up or down (e.g. to read subtitles).

• Select “Smart” or “Zoom” to adjust for 720p, 1080i or

1080p source pictures with edge portions cut off.

Using the Tools menu

Press TOOLS to display the following options when

viewing a TV programme.

Smart*

Displays conventional

4:3 broadcasts with an

imitation wide screen

effect. The 4:3 picture

is stretched to fill the

screen.

4:3

Displays conventional

4:3 broadcasts (e.g.

non-wide screen TV) in

the correct proportions.

Wide

Displays wide screen

(16:9) broadcasts in the

correct proportions.

Zoom*

Displays cinemascopic

(letter box format)

broadcasts in the

correct proportions.

14:9*

Displays 14:9

broadcasts in the

correct proportions. As

a result, black border

areas are visible on the

screen.

Options Description

Close Closes the Tools menu.

Picture Mode See page 28.

Sound Mode See page 30.

Motion Enhancer See page 34.

Speaker See page 36.

PAP See page 22.

Audio Language (in

digital mode only)

See page 44.

Subtitle Setting (in

digital mode only)

See page 43.

Digital Favourites (in

digital mode only)

See page 19.

i Volume See page 36.

Sleep Timer See page 37.

Power Saving See page 38.

Auto Clock Set (in

analogue mode only)

Allows you to switch to digital

mode and obtain the time.

System Information (in

digital mode only)

Displays the system

information screen.

17 GB

Watching TV

Using the Digital Electronic Programme Guide

(EPG) *

1In digital mode, press .

2Perform the desired operation as shown in

the following table or displayed on the

screen.

* This function may not be available in some countries/regions.

Digital Electronic Programme Guide (EPG)

To Do this

Watch a programme Press F/f/G/g to select the programme, then press .

Turn off the EPG Press .

Sort the programme information by

category

– Category list

1Press the blue button.

2Press F/f to select a category, then press .

The categories available include:

“All Categories”, “Radio”: Contains all available channels.

Other category name (e.g. “News”): Contains all programmes

corresponding to the selected category.

Set a programme to be recorded

– Timer REC

1Press F/f/G/g to select the programme you want to record,

then press /.

2Press F/f to select “Timer REC”.

3Press to set the TV and your VCR timers.

A red c symbol appears by that programme’s information. The

indicator on the TV front panel lights up in orange.

The above procedure can be used even if the programme to be recorded has already

started.

Set a programme to be displayed

automatically on the screen when it

starts

– Reminder

1Press F/f/G/g to select the future programme you want to

display, then press / .

2Press F/f to select “Reminder”, then press .

A c symbol appears by that programme’s information. The indicator on

the TV front panel lights up in orange.

If you switch the TV to standby mode, it will automatically turn itself on

when the programme is about to start.

Continued

18 GB

• You can set VCR timer recording on the TV only for SmartLink compatible VCRs. If your VCR is not SmartLink compatible,

a message will be displayed to remind you to set your VCR timer.

• Once a recording has begun, you can switch the TV to standby mode, but do not turn off the TV completely or the recording

will be cancelled.

• If an age restriction for programmes has been selected, a message asking for a PIN code will appear on the screen. For details,

see “Parental Lock” on page 44.

Set the time and date of a programme

you want to record

– Manual timer REC

1Press /.

2Press F/f to select “Manual timer REC”, then press .

3Press F/f to select the date, then press g.

4Set the start and stop time in the same way as in step 3.

5Press F/f to select the programme, then press .

6Press to set the TV and your VCR timers.

The indicator on the TV front panel lights up in orange.

Cancel a recording/reminder

– Timer list

1Press /.

2Press F/f to select “Timer list”, then press .

3Press F/f to select the programme you want to cancel, then

press .

4Press F/f to select “Cancel Timer”, then press .

A display appears to confirm that you want to cancel the programme.

5Press G/g to select “Yes”, then press to confirm.

To Do this

19 GB

Watching TV

Using the Digital Favourite list *

The Favourite feature allows you to specify up to four

lists of your favourite programmes.

1Press MENU.

2Press F/f to select “Digital Favourites”,

then press .

3Perform the desired operation as shown in

the following table or displayed on the

screen.

* This function may not be available in some countries/regions.

Digital Favourite list

To Do this

Create your Favourite list for the first

time

1Press to select “Yes”.

2Press the yellow button to select the Favourite list.

3Press F/f to select the channel you want to add, then press .

Channels that are stored in the Favourite list are indicated by a symbol.

Watch a channel 1Press the yellow button to navigate through your Favourite lists.

2Press while selecting a channel.

Turn off the Favourite list Press RETURN.

Add or remove channels in the currently

edited Favourite list

1Press the blue button.

2Press the yellow button to select the Favourite list you want to

edit.

3Press F/f to select the channel you want to add or remove,

then press .

Remove all channels from the current

Favourite list

1Press the blue button.

2Press the yellow button to select the Favourite list you want to

edit.

3Press the blue button.

4Press G/g to select “Yes”, then press to confirm.

20 GB

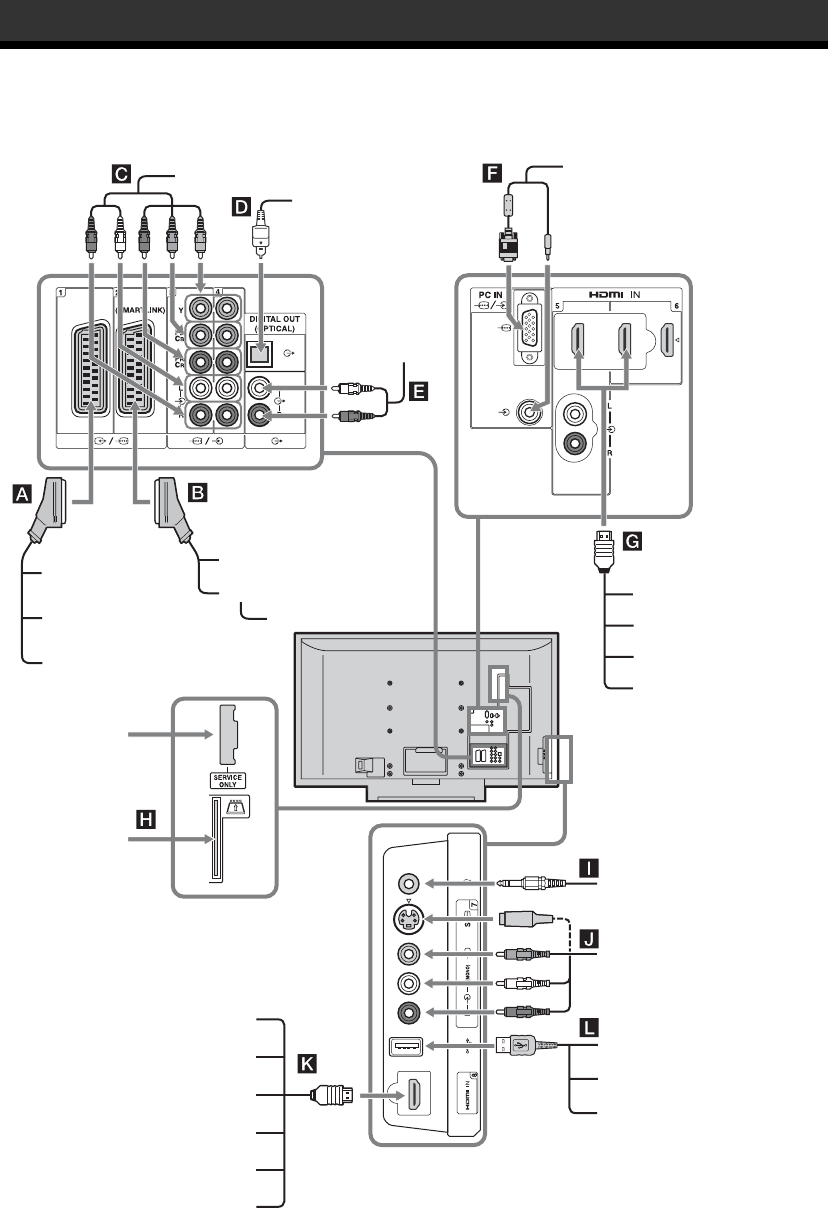

Connecting optional equipment

You can connect a wide range of optional equipment to your TV.

Using Optional Equipment

PC IN

For service use

only

Camcorder

Headphones

DVD player with component output

Digital audio component

Hi-Fi audio

equipment

DVD recorder

Decoder

VCR

Video game

equipment

DVD player

Decoder

Camcorder

Digital still camera (HDMI output)

PC (HDMI output)

Audio system

PC (HDMI output)

Blu-ray disc player

DVD player

Blu-ray disc player

CAM Card

Digital still camera

Camcorder

USB storage media

Audio system

21 GB

Using Optional Equipment

Connect to Input symbol on

screen

Description

A / 1 AV1 or AV1 When you connect the decoder, the scrambled signal from the

TV tuner is output to the decoder, then the unscrambled signal

is output from the decoder.

B / 2 AV2 or AV2 SmartLink is a direct link between the TV and a VCR/DVD

recorder.

C / 3 or

AV3 or AV4

D DIGITAL OUT

(OPTICAL)

Use an Optical audio cable.

E You can listen to the sound from the TV on Hi-Fi audio

equipment.

F PC IN / PC It is recommended to use the supplied PC cable with ferrite

cores.

G HDMI IN 5 or 6

K HDMI IN 8

AV5, AV6 or

AV 8

The digital video and audio signals are input from the

equipment.

In addition, when HDMI control compatible equipment is

connected, communication with the connected equipment is

supported. Refer to page 38 to set up this communication.

If the equipment has a DVI socket, connect the DVI socket to

the HDMI IN 5 socket through a DVI - HDMI adaptor interface

(not supplied), and connect the equipment’s audio out sockets

to the audio in the HDMI IN 5 sockets.

• The HDMI sockets only support the following video inputs: 480i,

480p, 576i, 576p, 720p, 1080i, 1080p and 1080/24p. For PC

video inputs, see page 47.

• Be sure to use only an HDMI cable that bears the HDMI logo.

• When connecting an HDMI control compatible audio system, be

sure to also connect to the DIGITAL OUT (OPTICAL) socket.

H CAM

(Conditional Access

Module)

To use pay TV services. For details, refer to the instruction

manual supplied with your CAM.

To use the CAM, remove the “dummy” card from the CAM

slot. Turn off the TV when inserting your CAM into the CAM

slot. When you do not use the CAM, we recommend that the

“dummy” card be inserted and kept in the CAM slot.

CAM is not supported in some countries/regions. Check with your

authorized dealer.

I Headphones You can listen to sound from the TV on headphones.

J 7 or 7, and

AV7 or AV7 To avoid picture noise, do not connect the camcorder to the

video 7 socket and the S video 7 socket at the same

time. If you connect mono equipment, connect to the 7 L

socket.

L USB You can view photographs on a Sony digital still camera,

camcorder or USB storage media connected to the TV. For

details, see page 26.

22 GB

Viewing pictures from

the connected

equipment

Turn on the connected equipment, then

perform one of the following operation.

For equipment connected to the scart sockets using a

fully-wired 21-pin scart lead (page 20)

Start playback on the connected equipment.

The picture from the connected equipment appears on

the screen.

For an auto-tuned VCR (page 7)

In analogue mode, press PROG +/–, or the number

buttons, to select the video channel.

For other connected equipment (page 20)

Press / to display the connected equipment list.

Press F/f to select the desired input source, then press

. (The highlighted item is selected if 2 seconds pass

without any operation after pressing F/f.)

When the input source is set to “Skip” in the “AV

Preset” menu under the “Set-up” menu (page 37), that

input does not appear in the list.

Additional operations

Using the Tools menu

Press TOOLS to display the following options when

viewing pictures from connected equipment.

To view two pictures simultaneously

– PAP (Picture and Picture)

You can view two pictures (external input and TV

programme) on the screen simultaneously.

Connect the optional equipment (page 20), and make

sure that images from the equipment appear on the

screen (page 22).

• This function is not available for a PC input source.

• You cannot change the size of the pictures.

1Press TOOLS to display the Tools menu.

2Press F/f to select “PAP”, then press .

The picture from connected equipment is

displayed on the left and the TV programme is

displayed on the right.

3Press number buttons or PROG +/– to

select the TV channel.

To return to single picture mode

Press or RETURN.

The picture framed in green is audible. You can switch the

audible picture by pressing G/g.

To Do this

Return to normal TV

mode

Press DIGITAL/ANALOG.

Access the Input signal

index table (except

analogue mode)

Press to access the Input

signal index table. To select an

input source, press F/f, then

press .

Change the volume of

the connected HDMI

control compatible

audio system

Press 2 +/–.

Mute the sound of the

connected HDMI

control compatible

audio system

Press %.

Press again to restore.

Options Description

Close Closes the Tools menu.

Picture Mode See page 28.

Sound Mode See page 30.

Motion Enhancer See page 34.

Speaker See page 36.

PAP (except PC input

mode)

See page 22.

PIP (in PC input

mode only)

See page 23.

Auto Adjustment (in

PC input mode only)

See page 33.

Horizontal Shift (in

PC input mode only)

See page 33.

i Volume See page 36.

Sleep Timer (except

PC input mode)

See page 37.

Power Saving See page 38.

Auto Clock Set Allows you to switch to digital

mode and obtain the time.

23 GB

Using Optional Equipment

To view two pictures simultaneously

– PIP (Picture in Picture)

You can view two pictures (PC input and TV

programme) on the screen simultaneously.

Connect a PC (page 20), and make sure that images

from a PC appear on the screen.

1Press TOOLS to display the Tools menu.

2Press F/f to select “PIP”, then press .

The picture from the connected PC is displayed with

full size and the TV programme is displayed on the

right corner.

You can use F/f/G/g to move the TV programme

screen position.

3Press number buttons or PROG +/– to

select the TV channel.

To return to single picture mode

Press RETURN.

You can switch the audible picture by selecting “TV Sound /

PC Sound” from the Tools menu.

Using the remote

1"/1

Turns on or off the optional equipment selected from

the function buttons.

2Function buttons

Enables you to operate the corresponding equipment.

For details, see “Programming the remote” on

page 24.

3BD/DVD operating buttons

•. : Replays the current programme from the

previous chapter mark (if any).

•> : Advances forward to the next chapter mark

(if any).

• : Replays the current programme for a set

period of time.

• : Advances forward a set period of time.

•m : Plays a programme in fast reverse mode.

•M : Plays a programme in fast forward mode.

•H : Plays a programme at a normal speed.

•X : Pauses playback.

•x : Stops the playback.

Buttons for using optional equipment

Continued

24 GB

4DVD record buttons

•zREC: Starts recording.

•XREC PAUSE: Pauses the recording.

•xREC STOP: Stops the recording.

5F1/F2

• Selects a disc when using a DVD changer.

• Selects a function when using a combination unit

(e.g. a BD/DVD).

For details, see the operating instructions supplied

with the DVD changer or combination unit.

6BD/DVD MENU

Displays the DVD disc menu. For details, see the

operating instructions supplied with the connected

equipment.

7BD/DVD TOP MENU

Displays the top menu of the DVD disc. For details,

see the operating instructions supplied with the

connected equipment.

The H button has a tactile dot. Use the tactile dot as a

reference when operating other equipment.

This remote is preset to operate Sony TVs, most Sony

BDs, DVDs and AMPs (Home Theatre, etc.).

To control BDs and DVDs of other manufacturers

(and some other Sony BD, DVD and AMP models),

do the following procedure to programme the remote.

Before you start, look up the three-digit code for your brand

of BD, DVD or AMP from the “Manufacturer’s codes” on

page 24.

1Press and hold the BD, DVD or AMP

function button you want to programme on

the remote, then press / , keeping the

function button pressed down.

The selected function button (BD, DVD or AMP)

will flash.

2Press the number buttons to enter the

three-digit manufacturer’s code number

when the button flashes.

If code is not entered within 10 seconds, you must

perform the step 1 again.

3Press .

When the programming is correct, the selected

function button will flash twice, and when not, it

will flash five times.

4Turn on your equipment and check that the

following main functions work.

H (playback), x (stop), m (rewind), M (fast

forward), channel selection for both BDs and

DVDs, TOP MENU/MENU and F/f/G/g only

for DVDs.

If your equipment is not working, or some of the

functions do not work

Enter the correct code or try the next code listed

for the brand. However, not all models of every

brand may be covered.

To return to normal TV operation

Press the TV function button.

Manufacturer’s codes

DVD brand list

DVD Player

Programming the remote

Brand Code

SONY 001, 029, 030, 036 – 044, 053 – 055

AIWA 021

AKAI 032

DENON 018, 027, 020, 002

GRUNDIG 009, 028, 023, 024, 016, 003

HITACHI 025, 026, 015, 004, 035

JVC 006, 017

KENWOOD 008

LG 015, 014, 034

LOEWE 009, 028, 023, 024, 016, 003

MATSUI 013, 016

ONKYO 022, 033

PANASONIC 018, 027, 020, 002, 045 – 047

25 GB

Using Optional Equipment

BD (Blu-ray Disc) Player

DVD/VCR Player

DVD recorder

VCR brand list

AUX Sony systems brand list

DAV Home Theatre System

AV receiver

Digital terrestrial receiver

PHILIPS 009, 028, 023, 024, 016, 003, 031

PIONEER 004, 050, 051, 052

SAMSUNG 011, 014

SANYO 007

SHARP 019, 027

THOMSON 012

TOSHIBA 003, 048, 049

YAMAHA 018, 027, 020, 002

Brand Code

SONY 101 – 103

Brand Code

SONY 251

Brand Code

SONY 201 – 203

Brand Code

SONY 301 – 310, 362

AIWA 325, 331, 351

AKAI 326, 329, 330

DAEWOO 342, 343

GRUNDIG 358, 355, 360, 361, 320, 351, 366

HITACHI 327, 333, 334

JVC 314, 315, 322, 344, 352 – 354, 348, 349

LG 332, 338

LOEWE 358, 355, 360, 361, 320, 351

MATSUI 356, 357

ORION 328

PANASONIC

321, 323

PHILIPS 311 – 313, 316 – 318, 358, 359, 363,

364

SAMSUNG 339 – 341, 345

SANYO 335, 336

Brand Code

SHARP 324

THOMSON 319, 350, 365

TOSHIBA 337

Brand Code

SONY (DAV) 401 – 404

Brand Code

SONY 451 – 454

Brand Code

SONY 501 – 503

Brand Code

26 GB

Using USB photo viewer

You can view photographs (in JPEG format) stored in

a Sony digital still camera, camcorder or USB storage

media on your TV.

1Connect a supported USB device to the

TV.

2Press MENU.

3Press F/f to select “Photo”, then press .

The thumbnail screen appears.

4Press F/f/G/g to select the photograph or

folder you want to view, and then press .

If you want to view a slide show, press G/f to

select “Slide Show”, then press .

Advanced operations

Press G/f to select an option, then press .

• USB photo viewer only supports DCF-compliant JPEG

photographs.

• Set the camera’s USB connection mode to Auto or “Mass

Storage” mode when you are connecting Sony digital still

camera. For more information about USB connection

mode, see the instructions supplied with the device that

you use.

• Do not turn off the TV or connected USB device, or

disconnect the USB cable or remove the recording media

while the data on the recording media is being accessed.

The data on the recording media may be damaged.

• Using unsupported USB device is not guaranteed and may

cause malfunctions.

• Sony cannot be held liable for any damage to or loss of

data on the recording media due to a malfunction of any

connected devices or the TV.

• Check the website below for the up to date information

about compatible USB devices.

http://support.sony-europe.com/TV/compatibility/

Using HDMI control

The HDMI control function allows equipment to

control each other using HDMI CEC (Consumer

Electronics Control) specified by HDMI.

You can connect Sony HDMI control compatible

equipment such as TVs, hard disk DVD recorders and

audio systems (with HDMI cables) to let them work

integratedly.

Be sure to correctly connect and set the compatible

equipment to use the HDMI control function.

To connect the HDMI control compatible

equipment

Connect the compatible equipment and the TV with an

HDMI cable. When connecting an audio system, in

addition to the HDMI cable, be sure to also connect

the DIGITAL OUT (OPTICAL) socket of the TV and

the audio system using an optical audio cable. For

details, see page 20.

To make the HDMI control settings

HDMI control must be set on both the TV side and the

connected equipment side. See “HDMI Set-up” on

page 38 for the TV side settings. See the operating

instructions of the connected equipment for setting

details.

HDMI control functions

• Turns the connected equipment automatically off

when you turn the TV off.

• Turns the TV on and automatically switches the

input to the connected equipment when the

equipment starts to play.

• If you turn on a connected audio system while the

TV is on, the sound output switches from the TV

speaker to the audio system.

• Adjusts the volume and mutes the sound of a

connected audio system.

Options Description

Device Selection Select the device if multiple

devices are connected.

Picture Settings You can make “Backlight”

(page 28), “Contrast” (page 28)

and “Colour Temperature”

settings.

Set-up You can make advanced settings

for the slide show and set the

display sequence for the

thumbnails.

27 GB

Using Menu Functions

Navigating through

menus

Menu functions allow you to enjoy various convenient

features of this TV. You can easily select channels or

inputs sources and change the settings for your TV.

1Press MENU.

2Press F/f to select an option, then press

To exit the menu, press MENU.

1Digital Favourites*

Displays the Favourite list (page 19).

2Analogue

Returns to the last viewed analogue channel.

3Digital*

Returns to the last viewed digital channel.

4Digital EPG*

Displays the Digital Electronic Programme

Guide (EPG) (page 17).

5External Inputs

Selects equipment connected to your TV.

• To watch the desired external input, select the

input source, then press .

• To assign a label to an external input, select

“Edit AV Labels” (page 37).

• To select the connected HDMI control

compatible equipment, select “HDMI Device

Selection”.

6Photo

The thumbnail screen appears (page 26).

7Settings

Displays the “Settings” menu where most of the

advanced settings and adjustments are

performed.

1Press F/f to select a menu icon, then

press .

2Press F/f/G/g to select an option or

adjust a setting, then press .

For details about settings, see pages 28 to 45.

The options you can adjust vary depending on the

situation. Unavailable options are greyed out or not

displayed.

* This function may not be available in some countries/

regions.

Using Menu Functions

28 GB

Picture menu

You can select the options listed below on the

“Picture” menu. To select options in “Settings”, refer

to “Navigating through menus” (page 27).

Target Inputs For the input currently being viewed, select whether to use the common setting or to

set each item separately.

“Common”: Applies common settings whose adjustments are shared with other

inputs in which “Target Inputs” is set to “Common”.

Current input name (e.g. AV1): Allows you to set each option separately for the

current input.

Set each input to “Common” if you require the same settings to apply to each input.

Picture Mode Selects the picture mode. The options for “Picture Mode” may differ depending on

the “Video/Photo” setting (page 34).

“Vivid”: For enhanced picture contrast and sharpness.

“Standard”: For standard picture. Recommended for home entertainment.

“Cinema”: For viewing film-based content. Most suitable for viewing in a theatre-

like environment.

“Photo”: Sets the optimum picture quality for photographs.

“Custom”: Allows you to store your preferred settings.

Reset Resets all the “Picture” settings except “Target Inputs”, “Picture Mode” and

“Advanced Settings” to the factory settings.

Backlight Adjusts the brightness of the backlight.

Contrast Increases or decreases picture contrast.

Brightness Brightens or darkens the picture.

Colour Increases or decreases colour intensity.

Hue Increases or decreases the green tones and red tones.

“Hue” can only be adjusted for an NTSC colour signal (e.g. U.S.A. video tapes).

29 GB

Using Menu Functions

Colour Temperature Adjusts the whiteness of the picture.

“Cool”: Gives the white colours a blue tint.

“Neutral”: Gives the white colours a neutral tint.

“Warm 1”/“Warm 2”: Gives the white colours a red tint. “Warm 2” gives a redder

tint than “Warm 1”.

“Warm 1” and “Warm 2” are not available when “Picture Mode” is set to “Vivid”.

Sharpness Sharpens or softens the picture.

Noise Reduction Reduces the picture noise (snowy picture) in a weak broadcast signal.

“Auto”: Automatically reduces the picture noise (in analogue TV mode or

composite signals only).

“High”/“Medium”/“Low”: Modifies the effect of the noise reduction.

“Off”: Turns off the “Noise Reduction” feature.

MPEG Noise Reduction Reduces the picture noise in MPEG-compressed video.

DRC Mode Produces a high-resolution picture for high-density sources (e.g., Blu-ray disc

player, DVD player, satellite receiver).

“Mode 1”: Recommended mode.

“Mode 2”: Only available for 1080i format. “Mode 2” is especially effective when

original standard-definition signals have been up-converted to 1080i format.

“Off”: Turns off the “DRC Mode” feature.

DRC Palette Customizes the level of detail (“Reality”) and smoothness (“Clarity”) for each input

signal. For example, you can create a custom setting for your cable input’s picture,

and create another for your DVD player’s pictures.

The “DRC Palette” appears. Press F/f/G/g to adjust the position of the marker (z).

As you move the z higher along the “Reality” axis, the picture becomes more

detailed. As you move the z to the right along the “Clarity” axis, the picture

becomes smoother.

Advanced Settings Customizes the Picture function in more detail. When you set “Picture Mode” to

“Vivid”, you cannot set/change these settings.

“Reset”: Resets all the advanced settings to the factory settings.

“Black Corrector”: Enhances black areas of the picture for stronger contrast.

“Adv. Contrast Enhancer”: Automatically adjusts “Backlight” and “Contrast” to

the most suitable settings judging from the brightness of the screen. This setting is

especially effective for dark images scenes. It will increase the contrast distinction

of the darker picture scenes.

“Gamma”: Adjusts the balance between bright and dark areas of the picture.

“Clear White”: Emphasizes white colours.

“Colour Space”: Changes the colour reproduction gamut. “Wide” reproduces the

vivid colour and “Standard” reproduces the standard colour.

“Live Colour”: Makes colours more vivid.

“White Balance”: Adjusts the colour temperature colour by colour.

“Detail Enhancer”: Enhances the details of the picture.

“Edge Enhancer”: Enhances the outline of the picture.

30 GB

Sound menu

You can select the options listed below on the

“Sound” menu. To select options in “Settings”, refer

to “Navigating through menus” (page 27).

Target Inputs For the input currently being viewed, select whether to use the common setting or to

set each item separately.

“Common”: Applies common settings whose adjustments are shared with other

inputs in which “Target Inputs” is set to “Common”.

Current input name (e.g. AV1): Allows you to set each option separately for the

current input.

Set each input to “Common” if you require the same settings to apply to each input.

Sound Mode “Dynamic”: Enhances treble and bass.

“Standard”: For standard sound. Recommended for home entertainment.

“Custom”: Flat response. Also allows you to store your preferred settings.

Reset Resets all the “Sound” settings except “Target Inputs”, “Sound Mode” and “Dual

Sound” to the factory settings.

Treble Adjusts higher-pitched sounds.

Bass Adjusts lower-pitched sounds.

Balance Emphasizes left or right speaker balance.

Auto Volume Keeps a constant volume level even when volume level gaps occur (e.g. adverts tend

to be louder than programmes).

Volume Offset Adjusts the volume level of the current input relative to other inputs, when “Target

Inputs” is set to the current input name (e.g. AV1).

Surround “S-FORCE Front Surround”: Available for normal stereo broadcast and 5.1ch

digital broadcast surround audio, and the audio input from connected equipment.

“Off”: Converts and reproduces 5.1ch and other digital broadcast surround audio as

normal stereo audio (2ch). Reproduces the original audio of other broadcasts as is.

31 GB

Using Menu Functions

Voice Zoom Adjusts the clarity of human voices. For example, if the voice of a news announcer

is indistinct, you can turn up this setting to make the voice clearer. Conversely, if you

are watching a sports programme, you can turn down this setting to soften the voice

of the commentator.

Sound Booster Gives sound more impact by compensating for phase effects in speakers.

Dual Sound Selects the sound from the speaker for a stereo or bilingual broadcast.

“Stereo”/“Mono”: For a stereo broadcast.

“A”/“B”/“Mono”: For a bilingual broadcast, select “A” for sound channel 1, “B”

for sound channel 2, or “Mono” for a mono channel, if available.

If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A” or “B”.

However, when the external equipment connected to the HDMI socket is selected, this is fixed

to “Stereo” (except when using the audio in sockets).

32 GB

Screen menu (except for PC input)

You can select the options listed below on the

“Screen” menu. To select options in “Settings”, refer

to “Navigating through menus” (page 27).

Target Inputs For the input currently being viewed, select whether to use the common setting or to

set each item separately.

“Common”: Applies common settings whose adjustments are shared with other

inputs in which “Target Inputs” is set to “Common”.

Current input name (e.g. AV1): Allows you to set each option separately for the

current input.

The selectable items are “Screen Format”, “Display Area”, “Vertical Shift” and “Vertical

Size”.

Set each input to “Common” if you require the same settings to apply to each input.

Screen Format For details about the screen format, see “To change the screen format manually to

suit the broadcast” on page 16.

Auto Format Automatically changes the screen format according to the broadcast signal. To keep

your setting, select “Off”.

4:3 Default Selects the default screen format for use with 4:3 broadcasts.

“Smart”: Displays conventional 4:3 broadcasts with an imitation wide screen effect.

“4:3”: Displays conventional 4:3 broadcasts in the correct proportions.

“Off”: Keeps the current “Screen Format” setting when the channel or input is

changed.

Display Area Adjusts the screen area for displaying the picture.

“Full Pixel”: Displays the picture for 1080i or 1080p sources in the original size

when parts of the picture are cut off.

“+1”: Displays the original picture area. This setting can be selected for HDMI video

input signals, except for 1080i or 1080p signals.

“Normal”: Displays the recommended picture area.

“-1”/“-2”: Enlarges the picture to hide the edge of the picture.

Horizontal Shift Adjusts the horizontal position of the picture.

Vertical Shift Adjusts the vertical position of the picture when “Screen Format” is set to “Smart”,

“Zoom” or “14:9”.

Vertical Size Adjusts the vertical size of the picture when “Screen Format” is set to “Smart”.

33 GB

Using Menu Functions

Screen menu (for PC input)

When you select the PC input, you can select the

options listed below on the “Screen” menu. To select

options in “Settings”, refer to “Navigating through

menus” (page 27).

Auto Adjustment Automatically adjusts the display position, phase and pitch of the picture when the

TV receives an input signal from the connected PC.

“Auto Adjustment” may not work well with certain input signals. In such cases, manually

adjust “Phase”, “Pitch”, “Horizontal Shift” and “Vertical Shift”.

Reset Resets the PC screen settings to the factory settings.

Phase Adjusts the phase when the screen flickers.

Pitch Adjusts the pitch when the picture has unwanted vertical stripes.

Horizontal Shift Adjusts the horizontal position of the picture.

Vertical Shift Adjusts the vertical position of the picture.

Screen Format Selects a screen format for displaying input from your PC.

“Normal”: Displays the picture in its original size.

“Full 1”: Enlarges the picture to fill the vertical display area, keeping its original

horizontal-to-vertical aspect ratio.

“Full 2”: Enlarges the picture to fill the display area.

34 GB

Video Settings menu

You can select the options listed below on the “Video

Settings” menu. To select options in “Settings”, refer

to “Navigating through menus” (page 27).

Motion Enhancer Provides smoother picture movement and reduces picture blur.

“High”: Provides smoother picture movement such as for film-based contents.

“Standard”: Provides smooth picture movement. Use this setting for standard use.

“Off”: Use this setting when the “High” and “Standard” settings result in noise.

Depending on the video, you may not see the effect visually, even if you have changed the

setting.

Film Mode Provides improved picture movement when playing DVD or VCR images taken on

film, reducing picture blur and graininess.

“Auto 1”: Provides smoother picture movement than the original film-based

content. Use this setting for standard use.

“Auto 2”: Provides the original film-based content as is.

“Off”: Turns off the “Film Mode” feature.

If the image contains irregular signals or too much noise, “Film Mode” will be automatically

turned off even if “Auto 1” or “Auto 2” is selected.

Game/Text Mode Provides the optimum screen for viewing images with fine lines and characters that

are input from video game equipment and PCs. Set to “On” for the sharp display of

fine lines or characters.

Video/Photo Provides suitable image quality by selecting the option depending on the input

source (video or photograph data).

“Video-A”: Sets suitable image quality, depending on the input source, video data

or photograph data when directly connecting Sony HDMI output-capable equipment

that supports “Video-A” mode.

“Video”: Produces suitable image quality for moving pictures.

“Photo”: Produces suitable image quality for still images.

The setting is fixed to “Video” when Video-A mode is not supported on the connected

equipment, even if “Video-A” is selected.

x.v.Colour Displays moving pictures that is more faithful to the original source by matching the

colour space of source.

The setting is fixed to “Normal” when the input signal is HDMI (RGB), even if “x.v.Colour”

is selected.

35 GB

Using Menu Functions

Photo Colour Space Selects the option (sRGB, sYCC, Adobe RGB) to match the output colour space

within the output signal from the equipment connected to the HDMI or component

input jacks.

• Select “sYCC” when using the equipment that supports “x.v.Colour”.

• The setting is fixed to “sRGB” when the input signal is HDMI (RGB), even if “sYCC” is

selected.

Colour Matrix Usually used in the factory setting (AV1/2/7 (Composite and S video input signal) is

set to “ITU601”, and AV3/4/5/6/8 (Component input signal) is set to “Auto”). If the

colour tone of the picture from the input source does not match the colour standard

and looks unnatural, select either “ITU601” or “ITU709”, which normalizes the

colour tone.

RGB Dynamic Range Produces natural colour by changing the luminance tone reproduction of HDMI

input colour signals (RGB). Set to “Auto” for standard use. Change the settings only

when the luminance tone of the display is unnatural.

Colour System Selects the colour system (“Auto”, “PAL”, “SECAM”, “NTSC3.58” or

“NTSC4.43”) according to the input signal from the input source.

36 GB

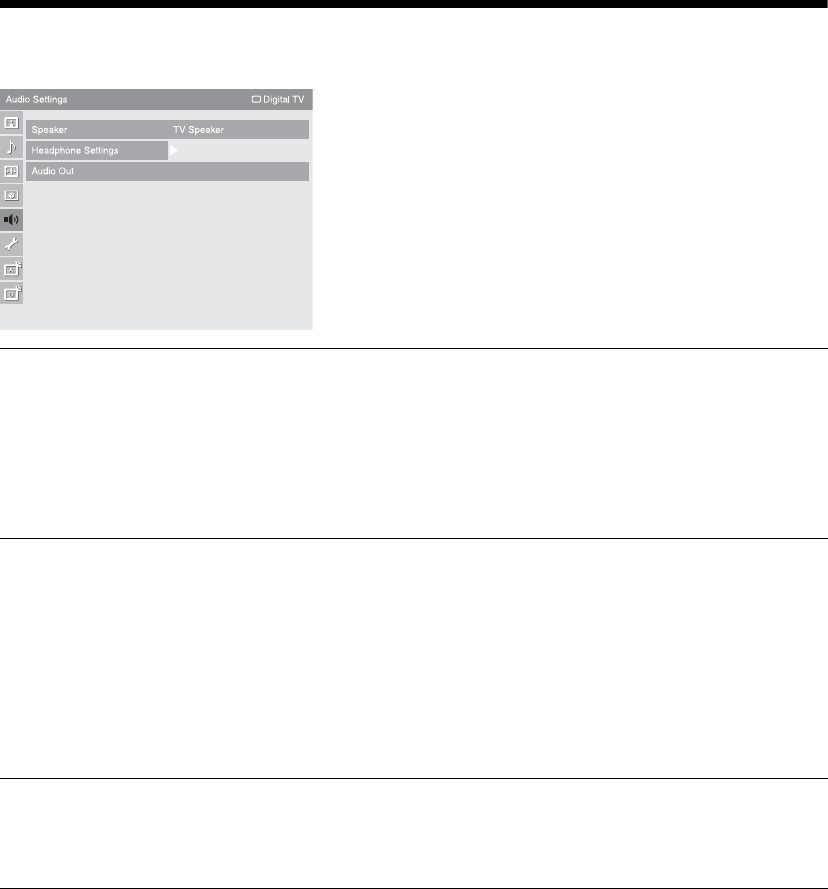

Audio Settings menu

You can select the options listed below on the “Audio

Settings” menu. To select options in “Settings”, refer

to “Navigating through menus” (page 27).

Speaker Turns on/off the TV’s internal speakers.

“TV Speaker”: The TV speakers are turned on in order to listen to the TV’s sound

through the TV speakers.

“Audio System”: The TV speakers are turned off in order to listen to the TV’s sound

only through your external audio equipment connected to the audio output sockets.

When HDMI control compatible equipment is connected, you can turn on the

equipment whose operations are linked to the TV. This setting must be made after

connecting the equipment.

Headphone Settings i Speaker Link

Switches the TV’s internal speakers on/off when headphones are connected.

“On”: Sound is output only from headphones.

“Off”: Sound is output from both the TV and headphones.

i Volume

Adjusts the volume of the headphones when “i Speaker Link” is set to “Off”.

i Dual Sound

Selects the sound from the headphone for a stereo or bilingual broadcast.

Audio Out “Variable”: The audio output from your audio system can be controlled by the TV’s

remote.

“Fixed”: The audio output of the TV is fixed. Use your audio receiver’s volume

control to adjust the volume (and other audio settings) through your audio system.

Variable

37 GB

Using Menu Functions

Set-up menu

You can select the options listed below on the “Set-

up” menu. To select options in “Settings”, refer to

“Navigating through menus” (page 27).

Timer Settings Sets the timer to turn on/off the TV.

Sleep Timer

Sets a period of time after which the TV automatically switches itself into standby

mode.

When “Sleep Timer” is activated, the (Timer) indicator on the TV front panel

lights up in orange.

• If you turn off the TV and turn it on again, “Sleep Timer” is reset to “Off”.

• A notification message appears on the screen one minute before the TV switches to standby

mode.

On Timer

Sets the timer to turn on the TV from standby mode.

“Day”: Selects the day on which you want to activate the “On Timer”.

“Time”: Sets the time to turn on the TV.

“Duration”: Selects the time period after which the TV automatically switches to

standby mode again.

“Volume Set-up”: Sets the volume for when the timer turns on the TV.

Clock Set

Allows you to adjust the clock manually. When the TV is receiving digital channels,

the clock cannot be adjusted manually since it is set to the time code of the broadcast

signal.

AV Preset Assigns a name to any equipment connected to the side and rear sockets. The name

will be displayed briefly on the screen when the equipment is selected. You can skip

input signals from connected equipment that you do not want displayed on the

screen.

1Press F/f to select the desired input source, then press .

2Press F/f to select the desired option below, then press .

Equipment labels: Uses one of the preset labels to assign a name to connected

equipment.

“Edit:”: Creates your own label. Follow steps 2 to 4 of “Programme Labels”

(page 40).

“Skip”: Skips an unnecessary input source.

Auto S Video Selects the input signal from S video sockets 7 when / 7 sockets are both

connected.

Continued

38 GB

AV2 Output Sets a signal to be output through the socket labelled / 2 on the rear of the TV.

If you connect a VCR or other recording equipment to the / 2 socket, you can

then record from the equipment connected to other sockets of the TV.

“TV”: Outputs a broadcast.

“AV1”: Outputs signals from equipment connected to the / 1 socket.

“AV7”: Outputs signals from equipment connected to the /7 socket.

“Auto”: Outputs whatever is being viewed on the screen (except signals from the

/ 3, / 4, HDMI IN 5, HDMI IN 6, HDMI IN 8 and PC IN /

sockets).

HDMI Set-up This is used to set the HDMI control compatible equipment connected to the HDMI

sockets. Note that the link setting must also be made on the side of the HDMI control

compatible equipment that is connected.

HDMI Control

Sets whether or not to link the operations of the HDMI control compatible equipment

and the TV. When set to “On”, the following menu items can be performed.

Auto Devices Off

When this is set to “On”, any connected HDMI control compatible equipment will

be turned off with the TV.

Auto TV On

When this is set to “On”, and if the connected HDMI control compatible equipment

is turned on, the TV automatically turns on, and then displays the HDMI input from

the connected equipment.

HDMI Device List

Displays the connected HDMI control compatible equipment.

You cannot use “HDMI Control” if the TV operations are linked to the operations of an audio

system that is compatible with HDMI control.

Auto Start-up Starts the initial set-up to select the language and country/region, and tune in all

available digital and analogue channels.

Usually, you do not need to do this operation because the language and country/

region will have been selected and channels already tuned when the TV was first

installed (page 6).

However, this option allows you to repeat the process (e.g. to retune the TV after

moving house, or to search for new channels that have been launched by

broadcasters).

Power Saving Selects the power saving mode to reduce the power consumption of the TV.

When “Picture Off” is selected, the picture is switched off and the (Picture Off)

indicator on the TV front panel lights up in green. The sound remains unchanged.

Light Sensor “On”: Automatically optimises the picture settings according to the ambient light in

the room.

“Off”: Turns off the “Light Sensor” feature.

Be sure not to put anything over the sensor, as its function may be affected. See page 14 for

further information on the sensor.

Logo Illumination Lights up and turns off the Sony logo on the front of the TV.

PC Power Management Switches the TV to standby mode if no signal is received for 30 seconds in the PC

input.

39 GB

Using Menu Functions

Language Selects the language in which the menus are displayed.

Product Information Displays your TV’s product information.

All Reset Resets all settings to the factory settings and then displays the “Auto Start-up”

screen.

• Be sure not to turn the TV off during this period (it takes about 30 seconds) or press any

buttons.

• All settings, including Digital Favourite list, country/region, language, auto tuned channels,

etc. will be reset.

40 GB

Analogue Set-up menu

You can select the options listed below on the

“Analogue Set-up” menu. To select options in

“Settings”, refer to “Navigating through menus”

(page 27).

1 Digit Direct When “1 Digit Direct” is set to “On”, you can select an analogue channel using one

preset number button (0 – 9) on the remote.

When “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above entering

two digits using the remote.

Auto Tuning Tunes in all the available analogue channels.

This option allows you to retune the TV after moving house, or to search for new

channels that have been launched by broadcasters.

Programme Sorting Changes the order in which the analogue channels are stored on the TV.

1Press F/f to select the channel you want to move to a new position, then

press .

2Press F/f to select the new position for your channel, then press .

Programme Labels Assigns a channel name of your choice up to five letters or numbers. The name will

be displayed briefly on the screen when the channel is selected. (Names for channels

are usually taken automatically from Analogue Text (if available).)

1Press F/f to select the channel you want to name, then press .

2Press F/f to select the desired letter or number (“_” for a blank space),

then press g.

If you input a wrong character

Press G/g to select the wrong character. Then, press F/f to select the correct

character.

To delete all the characters

Select “Reset”, then press .

3Repeat the procedure in step 2 until the name is completed.

4Select “OK”, then press .

41 GB

Using Menu Functions

Manual Programme

Preset

Before selecting “Label”/“AFT”/“Audio Filter”/“Skip”/“Decoder”/“LNA”, press

PROG +/– to select the programme number with the channel. You cannot select a

programme number that is set to “Skip” (page 41).

Programme/System/Channel

Presets programme channels manually.

1Press F/f to select “Programme”, then press .

2Press F/f to select the programme number you want to manually tune (if

tuning a VCR, select channel 00), then press RETURN.

3Press F/f to select “System”, then press .

4Press F/f to select one of the following TV broadcast systems, then

press RETURN.

B/G: For western European countries/regions

I: For the United Kingdom

D/K: For eastern European countries/regions

L: For France

5Press F/f to select “Channel”, then press .

6Press F/f to select “S” (for cable channels) or “C” (for terrestrial

channels), then press g.

“S” is not available when “United Kingdom” is selected for “Country” (page 7).

7Tune the channels as follows:

If you do not know the channel number (frequency)

Press F/f to search for the next available channel. When a channel has been found,

the search will stop. To continue searching, press F/f.

If you know the channel number (frequency)

Press the number buttons to enter the channel number of the broadcast you want or your

VCR channel number.

8Press to jump to “Confirm”, then press .

9Press f to select “OK”, then press .

Repeat the procedure above to preset other channels manually.

Label

Assigns a name of your choice, up to five letters or numbers, to the selected channel.

This name will be displayed briefly on the screen when the channel is selected.

To input characters, follow steps 2 to 4 of “Programme Labels” (page 40).

AFT

Allows you to fine-tune the selected programme number manually if you feel that a

slight tuning adjustment will improve the picture quality.

You can adjust the fine tuning over a range of –15 to +15. When “On” is selected,

the fine tuning is performed automatically.

Audio Filter

Improves the sound for individual channels in the case of distortion in mono

broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or

intermittent sound muting when watching mono programmes.

If you do not experience any sound distortion, we recommend that you leave this

option set to the factory setting “Off”.

You cannot receive stereo or dual sound when “Low” or “High” is selected.

Skip

Skips unused analogue channels when you press PROG +/– to select channels. (You

can still select a skipped channel using the number buttons.)

Continued

42 GB

Decoder

Shows and records the scrambled channel selected when using a decoder connected

directly to scart connector / 1, or to scart connector / 2 via a VCR.

This option is not available when “United Kingdom” is selected for “Country” (page 7).

LNA

Improves the picture quality for individual channels in the case of very weak

broadcast signals (noisy picture).

If you cannot see any improvement in the picture quality even if you set to “On”, set

this option to “Off” (factory setting).

Confirm

Saves changes made to the “Manual Programme Preset” settings.

43 GB

Using Menu Functions

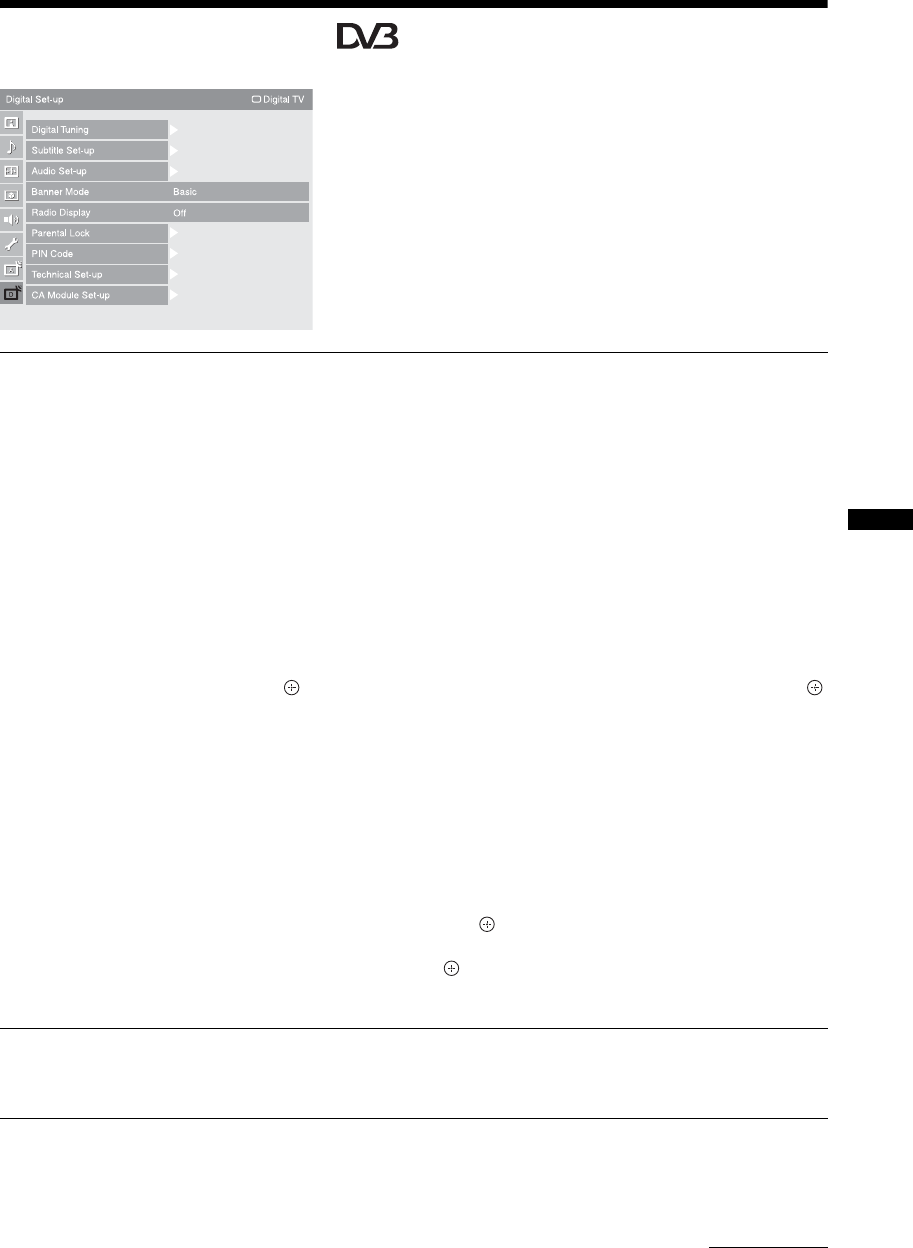

Digital Set-up menu

You can select the options listed below on the “Digital

Set-up” menu. To select options in “Settings”, refer to

“Navigating through menus” (page 27).

Some functions may not be available in some countries/

regions.

Digital Tuning Digital Auto Tuning

Tunes in the available digital channels.

This option allows you to retune the TV after moving house, or to search for new

channels that have been launched by broadcasters. For details, see “Auto tuning the

TV” on page 7.

Programme List Edit

Removes any unwanted digital channels stored on the TV, and changes the order of

the digital channels stored on the TV.

1Press F/f to select the channel you want to remove or move to a new

position.

Press the number buttons to enter the known three-digit programme number of the

broadcast you want.

2Remove or change the order of the digital channels as follows:

To remove the digital channel

Press . After a confirmation message appears, press G to select “Yes”, then press .

To change the order of the digital channels

Press g, then press F/f to select the new position for the channel and press G.

3Press RETURN.

Digital Manual Tuning

Tunes the digital channels manually. This feature is available when “Digital Auto

Tuning” is set to “Antenna”.

1Press the number button to select the channel number you want to

manually tune, then press F/f to tune the channel.

2When the available channels are found, press F/f to select the channel

you want to store, then press .

3Press F/f to select the programme number where you want to store the

new channel, then press .

Repeat the above procedure to manually tune other channels.

Subtitle Set-up “Subtitle Setting”: When “For Hard Of Hearing” is selected, some visual aids may

also be displayed with the subtitles (if TV channels broadcast such information).

“Subtitle Language”: Selects which language subtitles are displayed in.

Continued

44 GB

Audio Set-up “Audio Type”: Switches to broadcast for the hearing impaired when “For Hard Of

Hearing” is selected.

“Audio Language”: Selects the language used for a programme. Some digital

channels may broadcast several audio languages for a programme.

“Audio Description”: Provides audio description (narration) of visual information,

if TV channels broadcast such information.

“Mixing Level”: Adjusts the TV main audio and Audio Description output levels.

“Dynamic Range”: Compensates for differences in the audio level between

different channels. Note that this function may have no effect for some channels.

“Optical Out”: Selects the audio signal that is output from the DIGITAL OUT

(OPTICAL) terminal on the rear of the TV. Set to “Auto” when equipment

compatible with Dolby Digital is connected, and set to “PCM” when non-compatible

equipment is connected.

Banner Mode “Basic”: Displays programme information with a digital banner.

“Full”: Displays programme information with a digital banner, and displays detailed

programme information below that banner.

Radio Display The screen wallpaper is displayed when listening to a radio broadcast. You can select

the screen wallpaper colour, or display a random colour. To cancel the screen

wallpaper display temporarily, press any button.

Parental Lock Sets an age restriction for programmes. Any programme that exceeds the age

restriction can only be watched after a PIN Code is entered correctly.

1Press the number buttons to enter your existing PIN code.

If you have not previously set a PIN, a PIN code entry screen appears. Follow the

instructions of “PIN Code” below.

2Press F/f to select the age restriction or “None” (for unrestricted

watching), then press .

3Press RETURN.

PIN Code To set your PIN for the first time

1Press the number buttons to enter the new PIN code.

2Press RETURN.

To change your PIN

1Press the number buttons to enter your existing PIN code.

2Press the number buttons to enter the new PIN code.

3Press RETURN.

PIN code 9999 is always accepted.

45 GB

Using Menu Functions

Technical Set-up “Auto Service Update”: Enables the TV to detect and store new digital services as

they become available.

“Software Download”: Enables the TV to automatically receive software updates

free through your existing aerial/cable (when issued). It is recommended that this

option be set to “On” at all times. If you do not want your software to be updated, set

this option to “Off”.

“System Information”: Displays the current software version and the signal level.

“Time Zone”: Allows you to manually select the time zone you are in, if it is not the

same as the default time zone setting for your country/region.

“Auto DST”: Sets whether or not to automatically switch between summer time and

winter time.

• “Off”: The time is displayed according to the time difference set by “Time Zone”.

• “On”: Automatically switches between summer time and winter time according to the

calendar.

CA Module Set-up Allows you to access a pay TV service once you obtain a Conditional Access Module

(CAM) and a view card. See page 20 for the location of the (PCMCIA) socket.

46 GB

Specifications

Additional Information

Model name KDL-40X3500/

40X3000

KDL-46X3500/

46X3000

KDL-52X3500 KDL-70X3500

System

Panel System LCD (Liquid Crystal Display) Panel

TV System Analogue: Depending on your country/region selection: B/G/H, D/K, L, I

Digital: DVB-T/DVB-C

Colour/Video System Analogue: PAL, SECAM, NTSC 3.58, 4.43 (only Video In)

Digital: MPEG-2 MP@ML/HL, MPEG-4 HP@L3/L4

Channel Coverage Analogue: VHF: E2–E12/UHF: E21–E69/CATV: S1–S20/HYPER: S21–S41

D/K: R1–R12, R21–R69/L: F2–F10, B–Q, F21–F69/I: UHF B21–B69

Digital: VHF/UHF

Sound Output 11 W + 11 W

Input/Output jacks

Aerial/Cable 75 ohm external terminal for VHF/UHF

/1 21-pin scart connector (CENELEC standard) including audio/video input, RGB input, and TV audio/video

output.

/2 (SmartLink) 21-pin scart connector (CENELEC standard) including audio/video input, RGB input, selectable audio/video

output, and SmartLink interface.

3/ 4 Supported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

Y: 1 Vp-p, 75 ohms, 0.3V negative sync/PB/CB: 0.7 Vp-p, 75 ohms/

PR/CR: 0.7 Vp-p, 75 ohms

3/ 4 Audio input (phono jacks): 500 mVrms, Impedance: 47 kilohms

HDMI IN 5, 6, 8 Video: 1080/24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

Audio: Two channel linear PCM

32, 44.1 and 48 kHz, 16, 20 and 24 bits

Analogue audio input (phono jacks): 500 mVrms, Impedance: 47 kilohms (HDMI IN 5 only)

PC Input (see page 47)

7S video input (4-pin mini DIN)

7Video input (phono jack)

7Audio input (phono jacks)

DIGITAL OUT (OPTICAL) (digital optical jack)/Audio output (phono jacks)

PC IN PC Input (D-sub 15-pin) (see page 47)

G: 0.7 Vp-p, 75 ohms, non Sync on Green/B: 0.7 Vp-p, 75 ohms/

R: 0.7 Vp-p, 75 ohms/HD: 1-5 Vp-p/VD: 1-5 Vp-p

PC audio input (minijack)

iHeadphones jack

CAM (Conditional Access Module) slot

USB port

Power and others

Power Requirements 220–240 V AC, 50 Hz

Screen Size 40 inches (Approx.

101.6 cm measured

diagonally)

46 inches (Approx.

116.8 cm measured

diagonally)

52 inches (Approx.

132.2 cm measured

diagonally)

70 inches (Approx.

177.8 cm measured

diagonally)

Display Resolution 1,920 dots (horizontal) × 1,080 lines (vertical)

Power Consumption 240 W 285 W 320 W 630 W

Standby Power Consumption* 0.3 W 0.4 W

Dimensions

(w × h × d)

(with stand) Approx. 1,111 × 717 ×

322 mm

Approx. 1,262 × 795 ×

322 mm

Approx. 1,415 × 890 ×

384 mm

Approx. 1,842 × 1,131 ×

422 mm

(without stand) Approx. 1,111 × 657 ×

123 mm (KDL-40X3500)

Approx. 1,111 × 657 ×

121 mm (KDL-40X3000)

Approx. 1,262 × 734 ×

123 mm (KDL-46X3500)

Approx. 1,262 × 734 ×

121 mm (KDL-46X3000)

Approx. 1,415 × 827 ×

125 mm

Approx. 1,842 × 1,073 ×

150 mm

Mass (with stand) Approx. 31.0 kg Approx. 38.0 kg Approx. 49.0 kg Approx. 93.5 kg

(without stand) Approx. 26.0 kg Approx. 33.0 kg Approx. 42.0 kg Approx. 80.5 kg

Supplied Accessories Refer to “1: Checking the accessories” on page 4. Refer to “KDL-70X3500

Start-up Guide”.

47 GB

Additional Information

* Specified standby power is reached after the TV finishes necessary internal processes.

Design and specifications are subject to change without notice.

PC Input Signal Reference Chart

• This TV’s PC input does not support Sync on Green or Composite Sync.

• This TV’s PC input does not support interlaced signals.

• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60 Hz vertical frequency

from a personal computer. In plug and play, signals with a 60 Hz vertical frequency will be selected automatically.

Optional Accessories Wall-Mount Bracket SU-WL500

Floor stand SU-FL62

Colour Variation Unit

CRU-40X1

(KDL-40X3000 only)

Colour Variation Unit

CRU-46X1

(KDL-46X3000 only)

Signals Horizontal (Pixel) Vertical (Line)

Horizontal

frequency

(kHz)

Vertical

frequency (Hz) Standard

VGA 640 480 31.5 60 VGA

640 480 37.5 75 VESA

720 400 31.5 70 VGA-T

SVGA 800 600 37.9 60 VESA Guidelines

800 600 46.9 75 VESA

XGA 1024 768 48.4 60 VESA Guidelines

1024 768 56.5 70 VESA

1024 768 60.0 75 VESA

WXGA 1280 768 47.4 60 VESA

1280 768 47.8 60 VESA

1280 768 60.3 75

1360 768 47.7 60 VESA

SXGA 1280 1024 64.0 60 VESA

1280 1024 80.0 75 VESA

HDTV 1920 1080 67.5 60

Model name KDL-40X3500/

40X3000

KDL-46X3500/

46X3000

KDL-52X3500 KDL-70X3500

48 GB

Cleaning

Clean the ventilation holes of this TV set regularly

(once a month). If dust accumulates, the cooling fan

may not operate properly.

Troubleshooting

Check whether the 1 (standby) indicator is

flashing in red.

When it is flashing

The self-diagnosis function is activated.

1Count how many 1 (standby) indicator

flashes between each two second break.

For example, the indicator flashes three times, then

there is a two second break, followed by another

three flashes, etc.

2Press 1 on the right side of the TV to turn it

off, disconnect the mains lead, and inform

your dealer or Sony service centre of how

the indicator flashes (number of flashes).

When it is not flashing

1Check the items in the tables below.

2If the problem still persists, have your TV

serviced by qualified service personnel.


No picture (screen is dark) and no sound

• Check the aerial/cable connection.

• Connect the TV to the mains, and press 1 on the right side

of the TV.

• If the 1 (standby) indicator lights up in red, press TV "/1.

No picture or no menu information from equipment

connected to the scart connector

• Press / to display the connected equipment list,

then select the desired input.

• Check the connection between the optional equipment and

the TV.

Double images or ghosting

• Check the aerial/cable connection.

• Check the aerial location and direction.

Only snow and noise appear on the screen

• Check if the aerial is broken or bent.

• Check if the aerial has reached the end of its serviceable

life (three to five years in normal use, one to two years at

the seaside).

Distorted picture (dotted lines or stripes)

• Keep the TV away from electrical noise sources such as

cars, motorcycles, hair-dryers or optical equipment.

• When installing optional equipment, leave some space

between the optional equipment and the TV.

• Make sure that the aerial/cable is connected using the

supplied coaxial cable.

• Keep the aerial/cable TV cable away from other

connecting cables.

Picture or sound noise when viewing a TV channel

• Adjust “AFT” (Automatic Fine Tuning) to obtain better

picture reception (page 41).

Ventilation holes

49 GB

Additional Information

Some tiny black points and/or bright points appear

on the screen

• The picture of a display unit is composed of pixels. Tiny

black points and/or bright points (pixels) on the screen do

not indicate a malfunction.

No colour on programmes

• Select “Reset” (page 28).

No colour or irregular colour when viewing a

signal from the 3 or 4 sockets

• Check the connection of the 3 or 4 sockets and check

if each sockets are firmly seated in their respective

sockets.

Sound

No sound, but good picture

• Press 2 +/– or % (Mute).

• Check if the “Speaker” is set to “TV Speaker” (page 36).

• When using HDMI input with Super Audio CD or DVD-

Audio, DIGITAL OUT (Optical) may not provide audio

signal.

There is a whirring sound

• This is the sound of the internal fans of the TV (except for

KDL-52X3500). This is not a malfunction.

Channels

The desired channel cannot be selected

• Switch between digital and analogue mode and select the

desired digital/analogue channel.

Some channels are blank

• Scrambled/Subscription only channel. Subscribe to the

pay TV service.

• Channel is used only for data (no picture or sound).

• Contact the broadcaster for transmission details.

Digital channels are not displayed

• Contact a local installer to find out if digital transmissions

are provided in your area.

• Upgrade to a higher gain aerial.

General

The TV turns off automatically (the TV enters

standby mode)

• Check if the “Sleep Timer” is activated, or confirm the

“Duration” setting of “On Timer” (page 37).

• If no signal is received and no operation is performed in

the TV mode for 10 minutes, the TV automatically

switches to standby mode.

The TV turns on automatically

• Check if the “On Timer” is activated (page 37).

Some input sources cannot be selected

• Select “AV Preset” and cancel “Skip” of the input source

(page 37).

The remote does not function

• Replace the batteries.

A channel cannot be added to the Favourite list

• Up to 999 channels can be stored in the Favourite list.

The “Store Display Mode: On” message appears

on the screen

• Select “All Reset” in the “Set-up” menu (page 39).

Not all channels are tuned for cable

• Check support website for cable provide information.

http://support.sony-europe.com/TV/DVBC/

The picture contours are disrupted

• Select “Standard” or “Off” in “Motion Enhancer”

(page 34).

You cannot select “Off” in “HDMI Control”.

• If any HDMI control compatible audio equipment is

connected to the TV, you cannot select “Off” in this menu.

If you want to change the audio output to the TV speaker,

select “TV Speaker” in the “Speaker” menu (page 36).

Printed in Spain

3-219-178-14(1)

KDL-70X3500

KDL-52X3500

KDL-46X3500

KDL-40X3500

KDL-46X3000

KDL-40X3000

Sony Kdl 40X3000 Users Manual 70/52/46/40X3500 46/40X3000

KDL-46X3500 3219178141

Navigation menu

Versions of this User Manual:

Views

Navigation
