Projection TV
Projection TVProjection TV
Projection TV
KP-57XBR10W
KP-65XBR10W
Operating Instructions
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\02WAR.fm masterpage:Warning
Open Here For Table of Contents and Remote Control Graphics
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
WARNING
To prevent fire or shock
hazard, do not expose the TV
to rain or moisture.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
To prevent electric shock, do not use this polarized AC
plug with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade
exposure.
CAUTION
When using TV games, computers, and similar products
with your projection TV, keep the brightness and contrast
functions at low settings. If a fixed (non-moving) pattern is
left on the screen for long periods of time especially at a
high brightness or contrast setting, the image can be
permanently imprinted onto the screen. These types of
imprints are not covered by your warranty because they
are the result of misuse.
Note on Caption Vision
This television receiver provides display of television
closed captioning in accordance with §15.119 of the FCC
rules.
Note on convergence adjustment
Before you use your projection TV, make sure to adjust
convergence. For details, see on page 25.
Note to CATV system installer
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as practical.
Use of this television receiver for other than private viewing
of programs broadcast on UHF or VHF or transmitted by
cable companies for the use of the general public may
require authorization from the broadcaster/cable company
and/or program owner.
NOTIFICATION
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference with radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antennas.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
This document is for the remote control RM-Y907
MODELS: KP-57XBR10W, KP-65XBR10W
Please keep this notice with the instruction manual.
ATTENTION
Pour prévenir les chocs électriques, ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
ou une autre sortie de courant, sauf si les lames peuvent
tre inserées à fond sans en laisser aucune partie à
decouvert.
Owner’s Record
The model and serial numbers are located at the rear of
the projection TV, below the Sony logo, on the sticker, and
also on the TV box (white label). Record these numbers in
the spaces provided below. Refer to them whenever you
call upon your Sony dealer regarding this product.
Model No.
Serial No.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
NO ABRIR
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
As an ENERGY STAR Partner, Sony
Corporation has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\03REM.fm masterpage:Remocon
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]

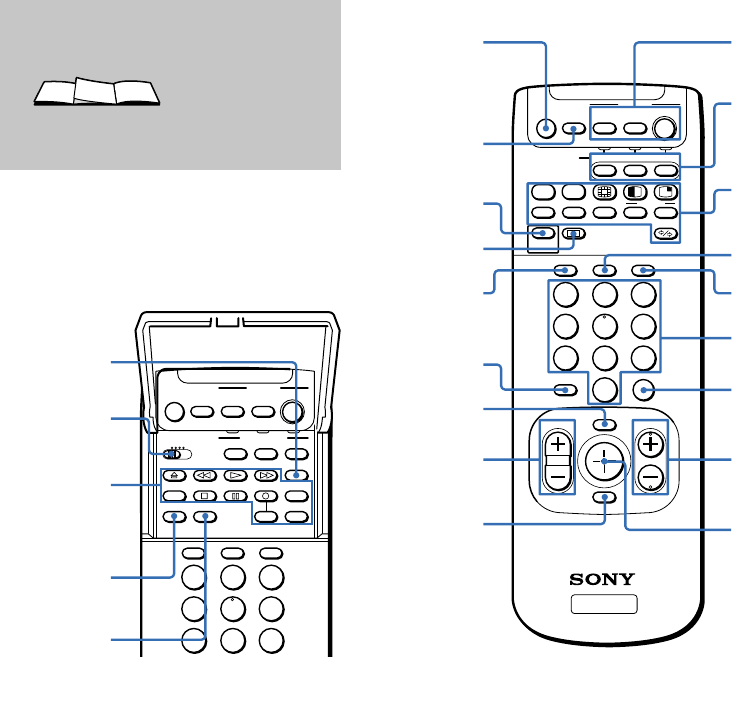

Remote Control
Remote ControlRemote Control
Remote Control
In the instructions that
follow, we will refer to
the buttons on your remote control.
Keep this flap unfolded and use this page for
reference.
For a detailed explanation of most buttons, see
“Watching the TV” on page 26.
2
5
8
1
4
7
3
6
9
WIDE MODE TV/VIDEO
ANT
MUTING
AV 1 2 3 DVD/MDP
TV
POWER
DISPLAY
DVD/
VCR SAT/
CABLE
FUNCTION
DVD/VCR SAT/CABLE
TV
SLEEP
DVD MENU
TITLE
RECTV/VCR
MTS
CODE SET
MTS
(page 37)
AV1/2/3/
DVD/MDP
switch
(page 54)
VCR/DVD/
MDP
operation
buttons
(page 55)
CODE SET
(pages 54,
56)
SLEEP
(page 27)
TV
2
5
8
0
1
4
7
3
6
9
WIDE MODE TV/VIDEO
ANT
JUMP
ENTER
MENU
RESET
VOL CH
MUTING
TV
OFF
AUDIO SWAP
TV/SAT
MODE
GUIDE ACTIVE
POSITION LEFT RIGHT
ZOOM IN
FREEZE
CC
POWER
DISPLAY
DVD/
VCR SAT/
CABLE
FUNCTION
DVD/VCR SAT/CABLE
TV
MUTING
(page 26)
GUIDE/[CC]
(pages 27, 56)
JUMP
(page 26)
MENU
(page 36)
VOL +/–
(page 26)
RESET
(pages 37, 38)
POWER
(pages 26, 56)
FUNCTION
(pages 26, 56)
DISPLAY
(page 27)
ANT
(page 26)
0-9 buttons
(page 26)
ENTER
(pages 26, 54)
CH +/–
(page 26)
Joystick
(page 23)
TV/SAT/
MODE
(page 36)
WIDE MODE
(page 29)
PIP/P&P/
CHANNEL INDEX
(pages 30 - 34)
TV/VIDEO
(page 27)
Getting to know the
Getting to know the Getting to know the
Getting to know the
buttons on the remote
buttons on the remote buttons on the remote
buttons on the remote
control
controlcontrol
control
Names of the buttons on the remote
control are presented in different
colors to represent the available
functions.
Button color
Black:Press to select the
component you want to control;
e.g. VCR/MDP/DVD Player,
SAT/CABLE, or projection TV.
Green:Buttons relevant to power
operations, like turning the
projection TV, SAT/CABLE, or
VCR/MDP/DVD Player on or
off
Label color
White:TV/VCR/MDP/DVD
Player/SAT/CABLE operation
buttons
Yellow:PIP, P&P, and CHANNEL
INDEX operation buttons
Blue:SAT operation buttons
Pink:DVD Player operation
buttons
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\01COVTOC.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Table of Contents
Table of ContentsTable of Contents
Table of Contents
Before You Begin
Before You BeginBefore You Begin
Before You Begin
Welcome! . . . . . . . . . . . . . . . . . . . . . . . .1
Using this Manual . . . . . . . . . . . . . . . . .2
Precautions. . . . . . . . . . . . . . . . . . . . . . .2
Important Safeguards . . . . . . . . . . . . . .3
Installing and Connecting
Installing and Connecting Installing and Connecting
Installing and Connecting
the Projection TV
the Projection TVthe Projection TV
the Projection TV
Carrying Your Projection TV. . . . . . . . . . . . . 6
Installing the Projection TV . . . . . . . . . . . . . . 6
Mounting the Rear Speakers (not supplied). . 6
Connector Types . . . . . . . . . . . . . . . . . . . . . . 7
Making Connections . . . . . . . . . . . . . . . . . . . 8
Connecting Directly to a Cable or an
Antenna . . . . . . . . . . . . . . . . . . . . . . 8

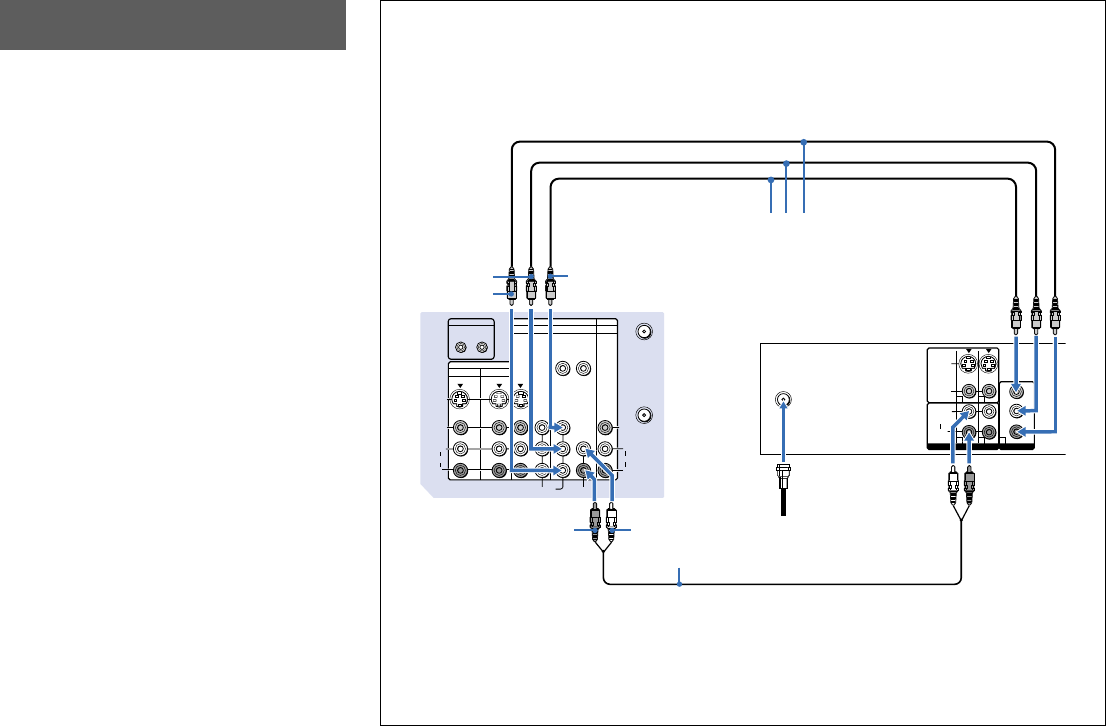

Connecting a Cable Box . . . . . . . . . . . 9
Connecting an Antenna/Cable TV
System to a VCR . . . . . . . . . . . . . . 10
Connecting a VCR and Projection TV to
a Cable Box . . . . . . . . . . . . . . . . . . 11
Connecting a DTV (Digital Television)
Receiver . . . . . . . . . . . . . . . . . . . . . 12
Connecting a Satellite Receiver
(SAT) . . . . . . . . . . . . . . . . . . . . . . . 14
Connecting a Satellite Receiver
(SAT) and VCR . . . . . . . . . . . . . . . 15

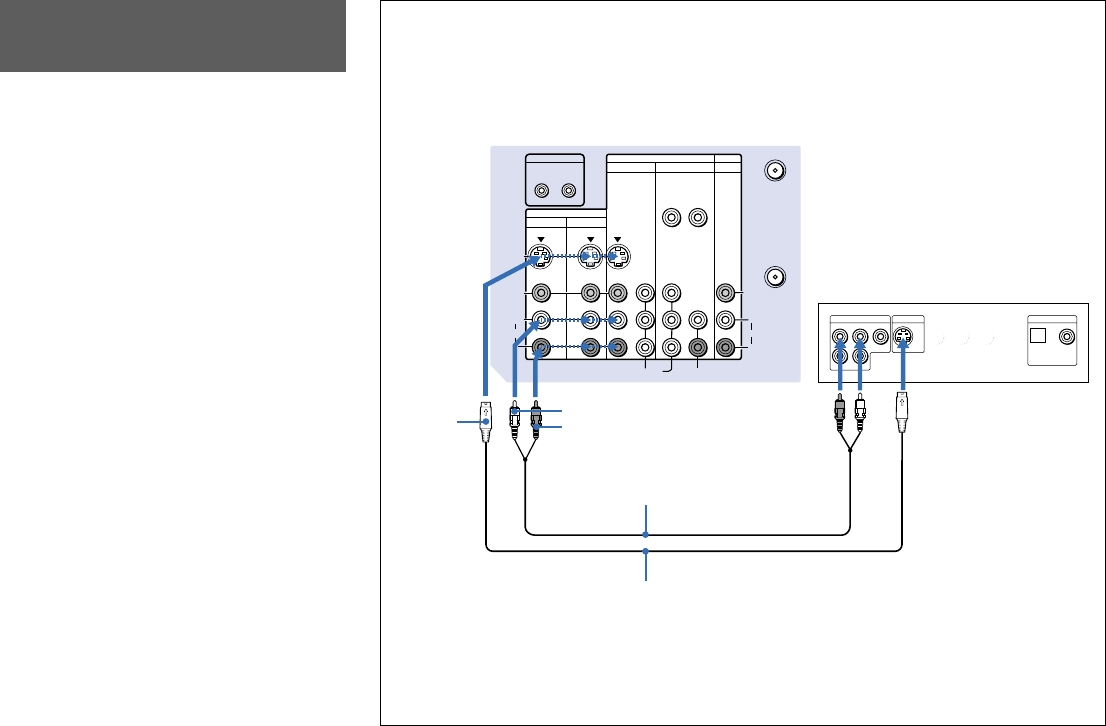

Connecting a Camcorder . . . . . . . . . . 16
Connecting Two VCRs for Tape
Editing . . . . . . . . . . . . . . . . . . . . . .17
Connecting a DVD Player With S Video
or Composite Video Output
Connectors . . . . . . . . . . . . . . . . . . .18

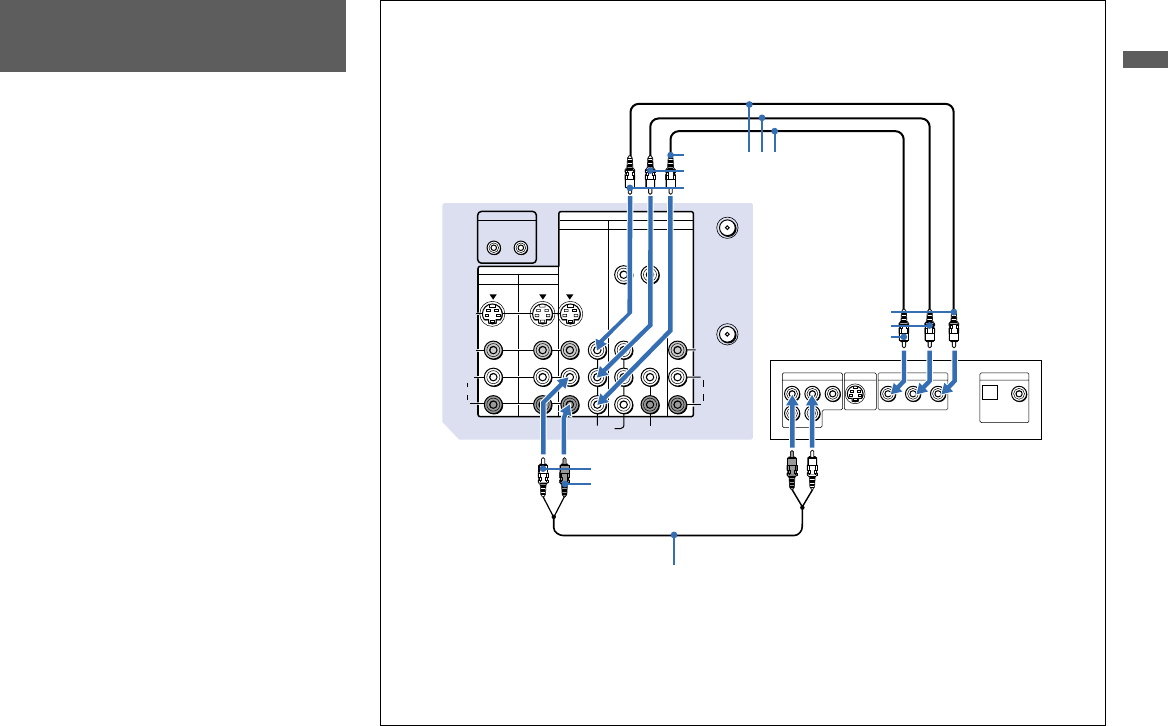

Connecting a DVD Player With
Component Video Output
Connectors . . . . . . . . . . . . . . . . . . .19
Connecting an AV Receiver . . . . . . .20
Connecting an Audio System . . . . . . .21
Connecting an Amplifier That Supports
Dolby Pro Logic Decoder . . . . . . . 22
Basic Set Up
Basic Set UpBasic Set Up
Basic Set Up
Using the Remote Control. . . . . . . . . . . . . . .23
Setting Up the Projection TV Automatically 24
Adjusting the Convergence Automatically
(FLASH FOCUS) . . . . . . . . . . . . . . . . . . .25
Using Your New Projection
Using Your New Projection Using Your New Projection
Using Your New Projection
TV
TVTV
TV
Watching the TV. . . . . . . . . . . . . . . . . . . . . .26
Watching Digital TV. . . . . . . . . . . . . . . . . . . 28
Watching the Picture in Wide Screen Mode
Automatically — AUTO WIDE . . . . . . . .28
Watching the Picture in Wide Screen Mode
Manually — WIDE MODE. . . . . . . . . . . 29
Watching Two Programs at One Time
— PIP. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Watching Two Programs at One Time
— P&P (Twin View™) . . . . . . . . . . . . . . 32
Using CHANNEL INDEX . . . . . . . . . . . . . 33
Adjusting Your SET UP
Adjusting Your SET UP Adjusting Your SET UP
Adjusting Your SET UP
(menus)
(menus)(menus)
(menus)
Learning Menu Selection. . . . . . . . . . . . . . . 35
Using the VIDEO Menu . . . . . . . . . . . . 36

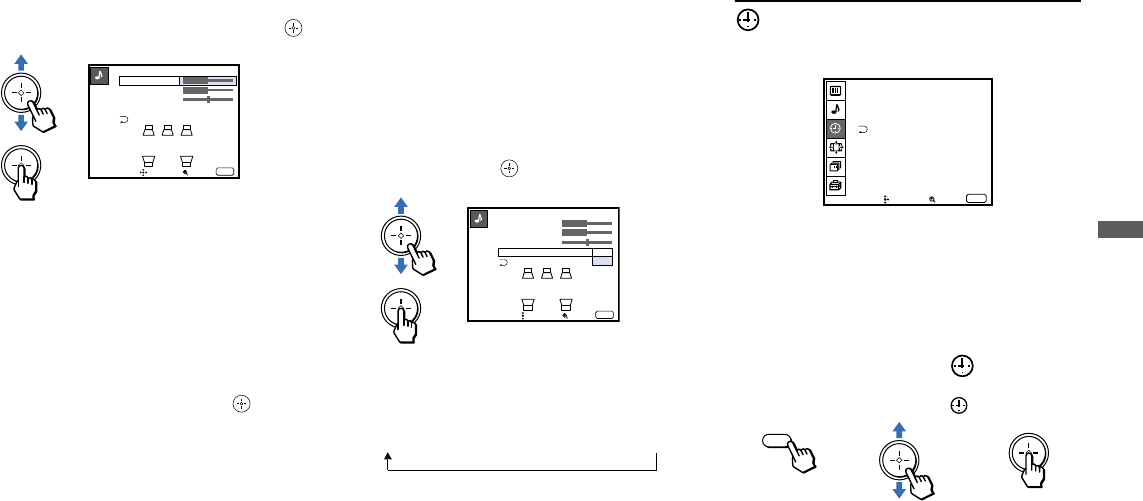

Using the AUDIO Menu . . . . . . . . . . . . 37
Adjusting the Speaker Volume for
Customized Surround Mode . . . . . 38

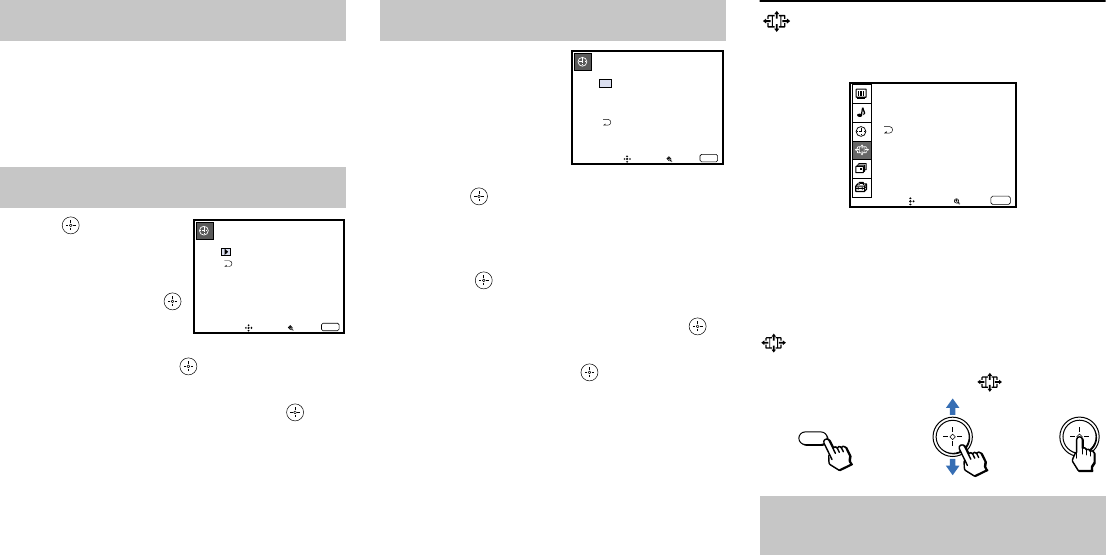

Using the TIMER Menu . . . . . . . . . . . . 39

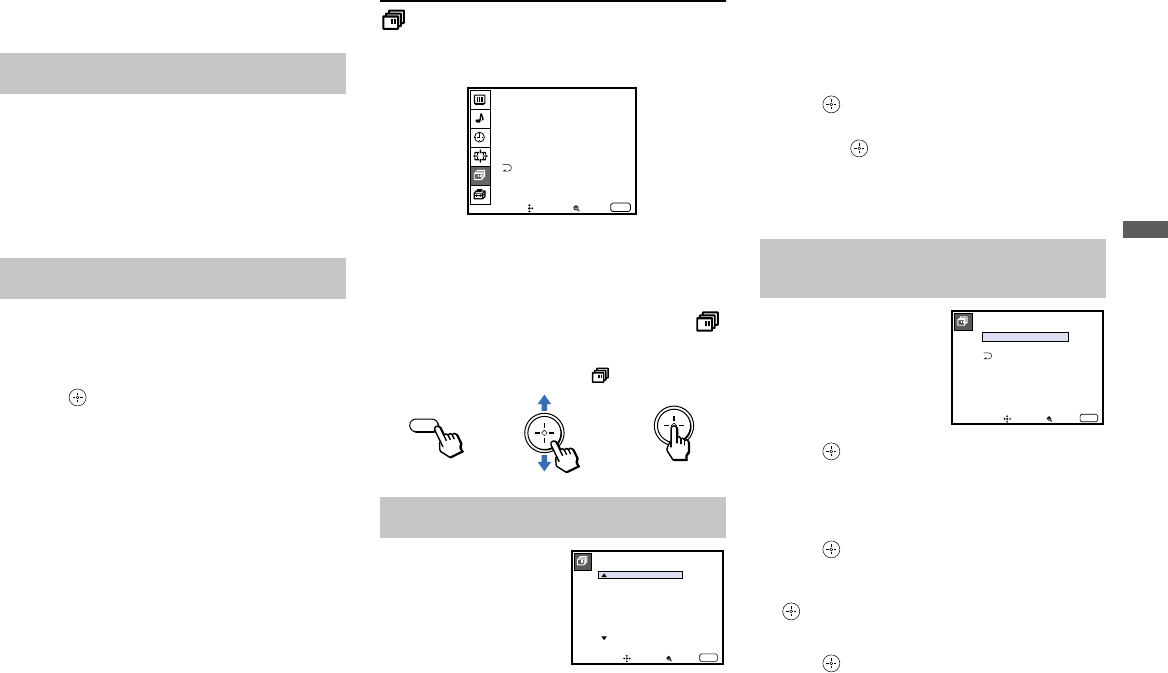

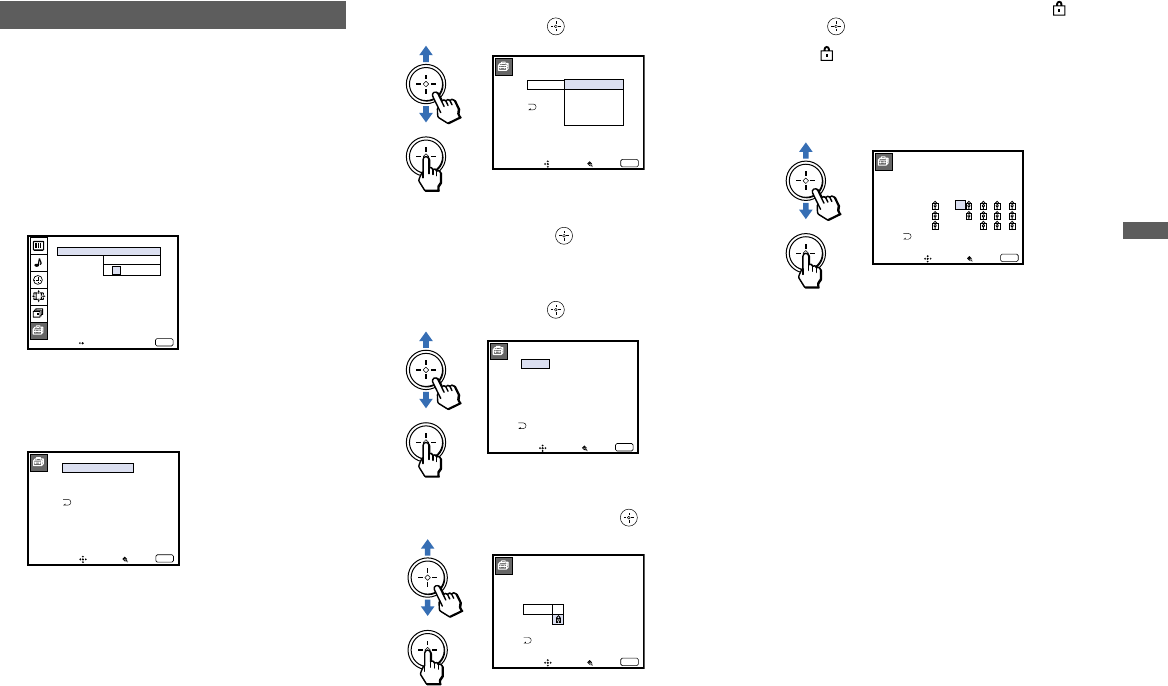

Using the WIDE SCREEN MODE
Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using the CHANNEL SET UP Menu . . 41
Setting and Selecting FAVORITE
CHANNEL . . . . . . . . . . . . . . . . . . . . . . . 42
Setting FAVORITE CHANNEL
manually . . . . . . . . . . . . . . . . . . . . 43
Resetting FAVORITE CHANNEL
choices . . . . . . . . . . . . . . . . . . . . . 43
Using FAVORITE CHANNEL . . . . 44
Using the SET UP Menu . . . . . . . . . . . . 44
Using the PARENTAL CONTROL Feature 47
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-
KP57XBRUC\01COVTOCp1.fm
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Activating the PARENTAL CONTROL
feature . . . . . . . . . . . . . . . . . . . . . . 47
Selecting a Custom Rating . . . . . . . . 49
Changing the Password . . . . . . . . . . . 51
What the Ratings Mean . . . . . . . . . . . . . . . . 52
Additional Operations
Additional OperationsAdditional Operations
Additional Operations
Operating Video Equipment. . . . . . . . . . . . . 54
Setting the Manufacturer’s Code . . . 54
Operating video equipment . . . . . . . . 55
Operating a Cable Box or Satellite Receiver
(SAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Setting the Manufacturer’s Code . . . 56
Operating a cable box or satellite
receiver . . . . . . . . . . . . . . . . . . . . . 56
Additional Information
Additional InformationAdditional Information
Additional Information
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 57
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 60
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
* Manufactured under license from Dolby Laboratories
Licensing Corporation. Additionally licensed under
Canadian patent number 1,037,877. “Dolby,” the double-D
symbol ; and “Pro Logic” are trademarks of Dolby
Laboratories Licensing Corporation
Before You Begin
Before You BeginBefore You Begin
Before You Begin
Welcome!
Thank you for purchasing the Sony Projection TV.
This manual is for models KP-57XBR10W and
KP-65XBR10W.
Model KP-57XBR10W is used for illustration
purposes.
The features you will enjoy include:
“1080i Capable,” enabling you to receive the 1080i,
720p, 480p and 480i digital TV formats. By using
the VIDEO 5 (DTV) IN jacks, you can connect a
DTV (digital television) receiver to view DTV
programs.
The VIDEO 5 (DTV) IN jacks also function as R/
G/B connectors with SYNC signal (HD/VD), but
are not compatible with a computer’s 5BNC video
output connectors.
WIDE SCREEN MODE, allowing you to watch 4:3
normal broadcasts in wide screen mode (16:9 aspect
ratio).
AUTO WIDE, allowing you to select the wide
screen mode automatically.
PARENTAL CONTROL, enabling you to block
programs that are unsuitable for your children.
DRC (Digital Reality Creation), a technology
unique to Sony, allowing you to obtain a finer, more
detailed picture with four-times higher density than
the conventional NTSC picture. (not available for
input from the VIDEO 5 (DTV) IN jacks)
MID (Multi Image Driver), a newly developed
device, allowing you to enjoy the following features
and, at the same time, to use your projection TV
easily. (not available for input from the VIDEO 5
(DTV) IN jacks)
— Picture & Picture (P&P) with zoom-in function
(Twin View™)
— Picture-in-Picture (PIP)
— CHANNEL INDEX, allowing you to view and
choose from twelve programs
— FAVORITE CHANNEL, allowing you to view
and choose from eight of your favorite channels
FLASH FOCUS, allowing you to adjust
convergence automatically.
•Two Y/P
B/PR inputs for DVD Player connection
(480p format capability is on the VIDEO 5 (DTV)
IN jacks).
Four AUDIO/VIDEO/S VIDEO inputs.
1
Before You Begin
2
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\04WEL.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Using this Manual
We recommend that you carefully review the
contents of the following four sections in the order
provided to ensure that you fully understand the
operation of your new projection TV.
1Installing and Connecting the Projection TV
This section guides you through your initial set
up. It shows you how to install your projection
TV, to connect your new components and to
connect to the antenna and cable.
2Basic Setup
This section teaches you the basic skills needed
to operate your new projection TV, including
Easy Set Up. It shows you how to operate the
remote control’s special functions.
3Using Your New Projection TV
This section shows you how to begin using
your new projection TV. It shows you how to
use your remote controls features.
4Adjusting Your Set Up (menus)
This section teaches you how to access on-
screen menus and adjust your projection TV’s
settings.
Instructions in this manual are written for the remote
control. Similar controls may be found on the
projection TV console.
Precautions
Safety
SafetySafety
Safety
Operate the projection TV only on 120 V AC.
The plug is designed, for safety purposes, to fit into
the wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact your
dealer.
If any liquid or solid object should fall inside the
cabinet, unplug the projection TV immediately and
have it checked by qualified service personnel
before operating it further.
If you will not be using the projection TV for
several days, disconnect the power by pulling the
plug itself. Never pull on the cord.
For details concerning safety precautions, see
“Important Safeguards” on page 3.
Note on cleaning
Note on cleaningNote on cleaning
Note on cleaning
Clean the cabinet of the projection TV with a dry
soft cloth. To remove dust from the screen, wipe it
gently with a soft cloth. Stubborn stains may be
removed with a cloth slightly dampened with
solution of mild soap and warm water. Never use
strong solvents such as thinner or benzine for
cleaning.
If the picture becomes dark after using the
projection TV for a long period of time, it may be
necessary to clean the inside of the projection TV.
Consult qualified service personnel.
Installing
InstallingInstalling
Installing
To prevent internal heat buildup, do not block the
ventilation openings.
Do not install the projection TV in a hot or humid
place, or in a place subject to excessive dust or
mechanical vibration.
Avoid operating the projection TV at temperature
below 5°C (41°F).
If the projection TV is transported directly from a
cold to a warm location, or if the room temperature
changes suddenly, the picture may be blurred or
show poor color. In this case, please wait a few
hours to let the moisture evaporate before turning
on the projection TV.
To obtain the best picture, do not expose the screen
to direct illumination or direct sunlight. It is
recommended to use spot lighting directed down
from the ceiling or to cover the windows that face
the screen with opaque drapery. It is desirable to
install the projection TV in a room where the floor
and walls are not of a reflective material.
3
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\04WEL.fm masterpage:Right
Before You Begin
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Important Safeguards
For your protection, please read these instructions
completely, and keep this manual for future
reference.
Carefully observe and comply with all warnings,
cautions and instructions placed on the set, or
described in the operating instructions or service
manual.
WARNING
WARNINGWARNING
WARNING
To guard against injury, the following basic safety
precautions should be observed in the installation,
use, and servicing of the set.
Use
UseUse

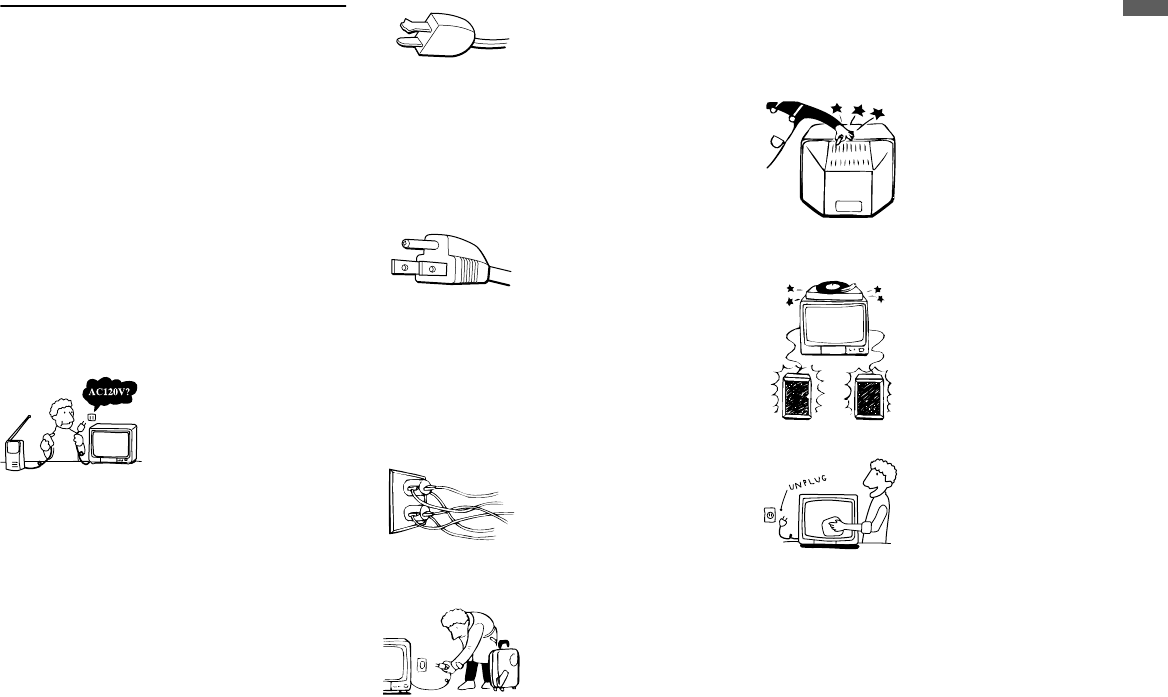

Use Power Sources
This set should be operated
only from the type of power
source indicated on the
serial/model plate.
If you are not sure of the
type of electrical power
supplied to your home, consult your dealer or local
power company. For those sets designed to operate
from battery power, refer to the operating
instructions.
Grounding or Polarization
This set is equipped with a polarized AC power
cord plug (a plug having one blade wider than the
other), or with a three-wire grounding type plug (a
plug having a third pin for grounding).
Follow the instructions below:
For the set with a
polarized AC power
cord plug
This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact
your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the polarized
plug by forcing it in.
Alternate Warning
For the set with a
three-wire grounding
type AC plug
This plug will only fit into a grounding-type power
outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your
electrician to have a suitable outlet installed. Do
not defeat the safety purpose of the grounding
plug.
Overloading
Do not overload wall outlets,
extension cords or
convenience receptacles
beyond their capacity, since
this can result in fire or
electric shock.
Always turn the set off when
it is not to be used. When the
set is left unattended and
unused for long periods of
time, unplug it from the wall
outlet as a precaution against
the possibility of an internal malfunction that
could create a fire hazard.
Object and Liquid
Entry
Never push objects of any
kind into the set through the
cabinet slots as they may
touch dangerous voltage
points or short out parts that
could result in a fire or
electric shock. Never spill
liquid of any kind on the set.
Attachments
Do not use attachments not
recommended by the
manufacturer, as they may
cause hazards.
Cleaning
Unplug the set from the wall
outlet before cleaning or
polishing it. Do not use
liquid cleaners or aerosol
cleaners. Use a cloth lightly
dampened with water for
cleaning the exterior of the
set.
(continued)
4
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\04WEL.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
If a snapping or popping
sound from a projection TV
set is continuous or frequent
while the projection TV is
operating, unplug the
projection TV and consult
your dealer or service
technician. It is normal for
some projection TV sets to
make occasional snapping or popping sounds,
particularly when being turned on or off.
Installation
InstallationInstallation
Installation Water and Moisture
Do not use power-line
operated sets near water—
for example, near a bathtub,
washbowl, kitchen sink, or
laundry tub, in a wet
basement or near a
swimming pool, etc.
Accessories
Do not place the set on an
unstable cart, stand, table or
shelf. The set may fall,
causing serious injury to a
child or an adult, and
serious damage to the set.
Use only a cart or stand
recommended by the
manufacturer for the
specific model of projection
TV.
An appliance and cart
combination should be
moved with care. Quick
stops, excessive force, and
uneven surfaces may cause
the appliance and cart
combination to overturn.
Ventilation
The slots and openings in the cabinet and in the
back or bottom are provided for necessary
ventilation. To ensure reliable operation of the set,
and to protect it from overheating, these slots and
openings must never be blocked or covered.
- Never cover the slots and
openings with a cloth or
other materials.
- Never block the slots and
openings by placing the set
on a bed, sofa, rug or other
similar surface.
- Never place the set in a
confined space, such as a
bookcase, or built-in cabinet
unless proper ventilation is
provided.
- Do not place the set near or
over a radiator or heat
register, or where it is
exposed to direct sunlight.
Power-Cord Protection
Do not allow anything to rest
on or roll over the power
cord, and do not place the set
where the power cord is
subject to wear or abuse.
Antennas

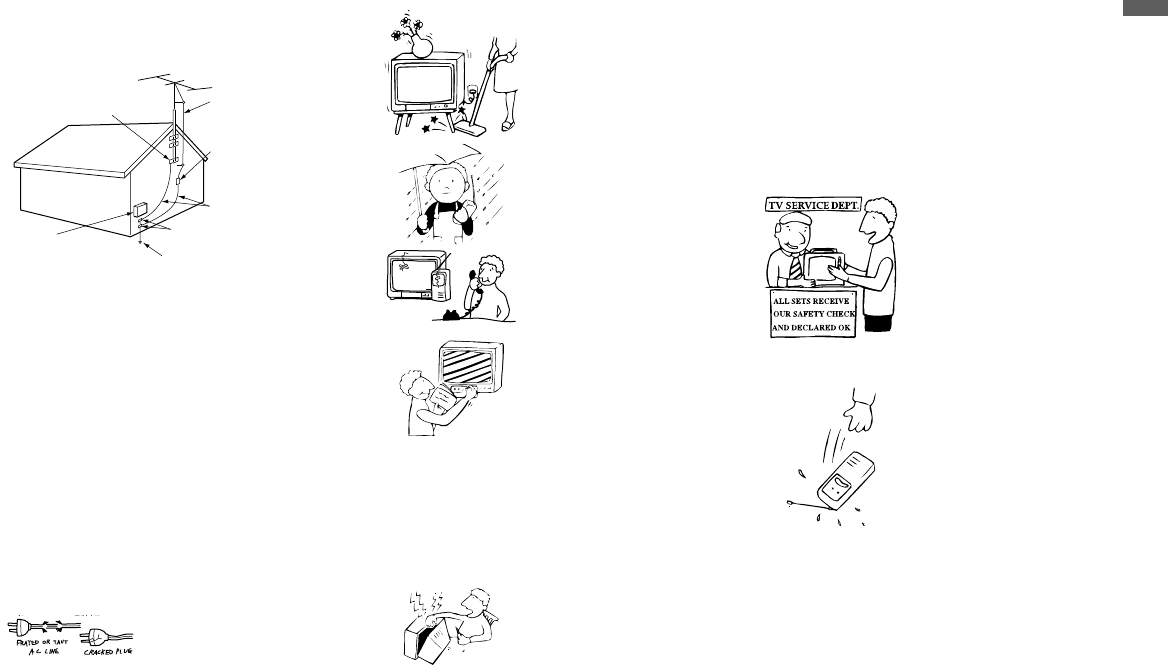

Outdoor Antenna Grounding — If an
outdoor antenna is installed, follow the precautions
below.
An outdoor antenna system should not be located
in the vicinity of overhead power lines or other
electric light or power circuits, or where it can
come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR
ANTENNA SYSTEM, EXTREME CARE
SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR
CIRCUITS AS CONTACT WITH THEM IS
ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to
provide some protection against voltage surges and
built-up static charges.
Section 810 of the National Electrical Code (NEC)
in USA and Section 54 of the Canadian Electrical
Code in Canada provides information with respect
to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding
conductors, location of antenna discharge unit,
connection to grounding electrodes, and
requirements for the grounding electrode.
5
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\04WEL.fm masterpage:Right
Before You Begin
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Antenna Grounding According to the
NEC — Refer to section 54-300 of Canadian
Electrical Code for Antenna Grounding.
Lightning
For added protection for this television receiver
during a lightning storm, or when it is left
unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the
antenna. This will prevent damage to the receiver
due to lightning and power-line surges.
Service
ServiceService
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer
servicing to qualified service personnel under the
following conditions: - When the power cord or
plug is damaged or frayed.
- If liquid has been spilled
into the set.
- If the set has been exposed
to rain or water.
- If the set has been subject
to excessive shock by being
dropped, or the cabinet has
been damaged.
- If the set does not operate
normally when following the
operating instructions.
Adjust only those controls
that are specified in the
operating instructions.
Improper adjustment of other controls may result
in damage and will often require extensive work by
a qualified technician to restore the set to normal
operation.
- When the set exhibits a distinct change in
performance—this indicates a need for service.
Servicing
Do not attempt to service the
set yourself since opening
the cabinet may expose you
to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
Replacement Parts
When replacement parts are required, be sure the
service technician certifies in writing that he has
used replacement parts specified by the
manufacturer that have the same characteristics as
the original parts.
Unauthorized substitutions may result in fire,
electric shock, or other hazards.
Safety Check
Upon completion of any
service or repairs to the set,
ask the service technician to
perform routine safety
checks (as specified by the
manufacturer) to determine
that the set is in safe
operating condition, and to
so certify.
When the set reaches the end
of its useful life, improper
disposal could result in a
picture tube implosion. Ask
a qualified service technician
to dispose of the set.
Ground clamp
Electric service
equipment
Antenna lead-in
wire
Antenna discharg
unit (NEC Section
810-20)
Grounding
conductors (NEC
Section 810-21)
Ground clamps
Power service
grounding electrode
system (NEC Art 250
Part H)
NEC: National
Electrical Code
6
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\05INT.fm masterpage:First-Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Installing and Connecting
Installing and Connecting Installing and Connecting
Installing and Connecting
the Projection TV
the Projection TVthe Projection TV
the Projection TV
Carrying Your
Projection TV
Carrying the projection TV requires three or more
people.
The projection TV has been equipped with casters
for easy movement on a hard surface. Please move
your projection TV using the casters.
Installing the
Projection TV

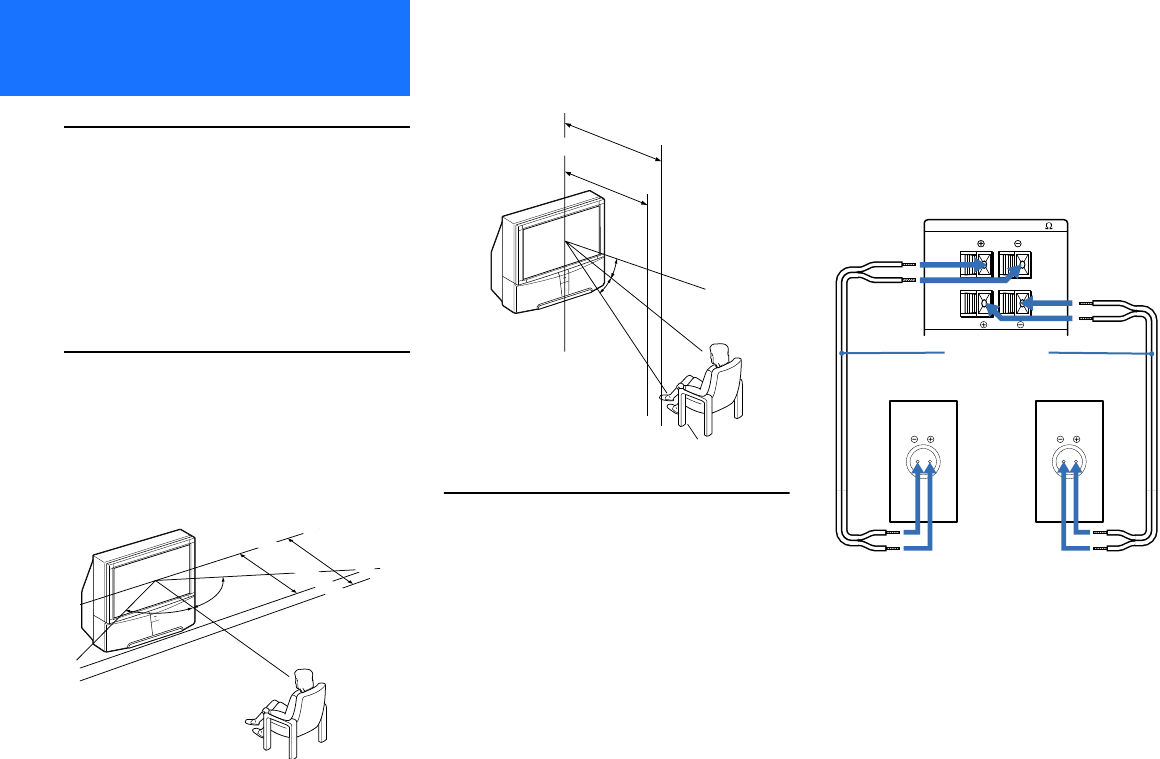

Recommended viewing area
Recommended viewing area Recommended viewing area
Recommended viewing area
(Horizontal)
(Horizontal)(Horizontal)
(Horizontal)
Recommended viewing area
Recommended viewing area Recommended viewing area
Recommended viewing area
(Vertical)
(Vertical)(Vertical)
(Vertical)
Mounting the Rear
Speakers (not
supplied)
For enhanced surround effect, connect the rear
speakers to your projection TV.
Connecting the rear speakers
Connecting the rear speakersConnecting the rear speakers
Connecting the rear speakers
Using the speaker cords, connect REAR
SPEAKER OUT L on your projection TV to the
speaker terminal on one rear speaker, and connect
REAR SPEAKER OUT R to the terminal on the
other one.
Note:
When you use a speaker other than one that we
recommend, use a speaker with maximum input
power of more than 20 W and impedance of 8
ohms.
60˚
60 60˚
min. 2.1m (approx. 7 ft.)
57"
min. 2.4m (approx. 8 ft.)
65"
20
˚
20
˚
min. 2.4m (approx. 8ft.)
65"
min. 2.1m (approx. 7ft.)
57"
L
R
REAR SPEAKER OUT(MIN 8 )
L
R
(Rear of projection TV)
Speaker cord
(not supplied)
Speaker
SS-MB115
(not supplied) etc.
Speaker
SS-MB115
(not supplied) etc.
7
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\05INT.fm masterpage:Right
Installing and Connecting the Projection TV
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Installation
InstallationInstallation
Installation

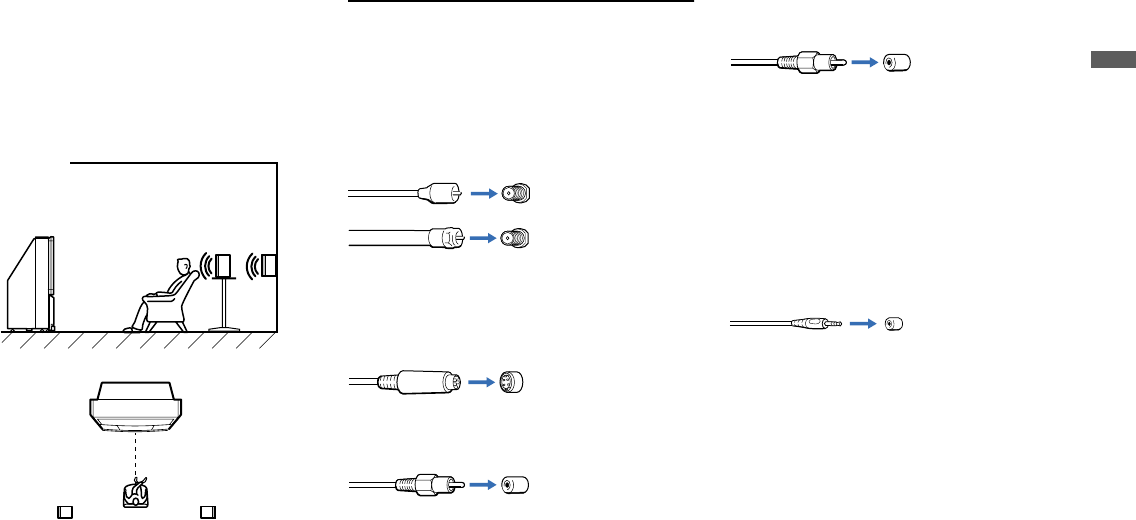

For optimum surround effect, mount the rear
speakers in the following places (as shown in the
illustration):
on a wall, as high as the listener’s ears.
on a table, as high as the listeners ears.
Connector Types
You may find it necessary to use some of the
following connector types during set up.
Coaxial cable
Coaxial cableCoaxial cable
Coaxial cable
Standard TV cable and antenna cable
S Video cable
S Video cableS Video cable
S Video cable
High quality video cable for enhanced picture
quality
Audio/Video cable
Audio/Video cableAudio/Video cable
Audio/Video cable
Video - Yellow
Audio (Left) - White
Audio (Right) - Red
Some DVD Players are equipped with the
following three video connectors.
Y - Green
PB (CB, Cb or B–Y) - Blue
PR (CR, Cr or R–Y) - Red
Component video cable for a DTV
Component video cable for a DTV Component video cable for a DTV
Component video cable for a DTV
receiver
receiverreceiver
receiver
G/Y - Green
B/PB - Blue
R/PR - Red
HD - Gray
VD - Black
CONTROL S cable
CONTROL S cableCONTROL S cable
CONTROL S cable
Sony cable for CONTROL S connections. These
features are exclusive to Sony products and allow
greater control of all Sony equipment.
(continued)
Rear speaker
Projection TV
(Rear of projection TV)
Left rear
speaker Right rear
speaker
Plug Type
Screw-on Type
Push into connection.
Screw into connection.
Align guides and
push into connection.
Push into connection.
Push into connection.
Push into connection.
8
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\05INT.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
About the
About the About the
About the CONTROL S IN/OUT
CONTROL S IN/OUT CONTROL S IN/OUT
CONTROL S IN/OUT
jacks
jacksjacks
jacks
To control other Sony equipment with the
projection TVs remote control, connect the
CONTROL S IN jack of the equipment to the
CONTROL S OUT jack on the projection TV with
the CONTROL S cable.
To control the projection TV with a remote control
for another Sony product, connect the CONTROL
S OUT jack of the equipment to the CONTROL S
IN jack on the projection TV with the CONTROL
S cable.
Making Connections
The connection you choose will depend on the
cable found in your home. Newer homes will be
equipped with standard coaxial cable (see A);
older homes will probably have 300-ohm twin lead
cable (see B); still other homes may contain both
(see C).
A
B
C
Cable or antenna
Cable or antennaCable or antenna
Cable or antenna
This is the simplest connection. Connection is
made directly from the cable or antenna to the
projection TV.
Cable and antenna
Cable and antennaCable and antenna
Cable and antenna
You may find it convenient to use the following set
up if your cable provider does not feature local
channels that you are able to receive using an
antenna.
Select Cable or ANT mode by pressing ANT on
the remote control.
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
CONTROL S
IN OUT

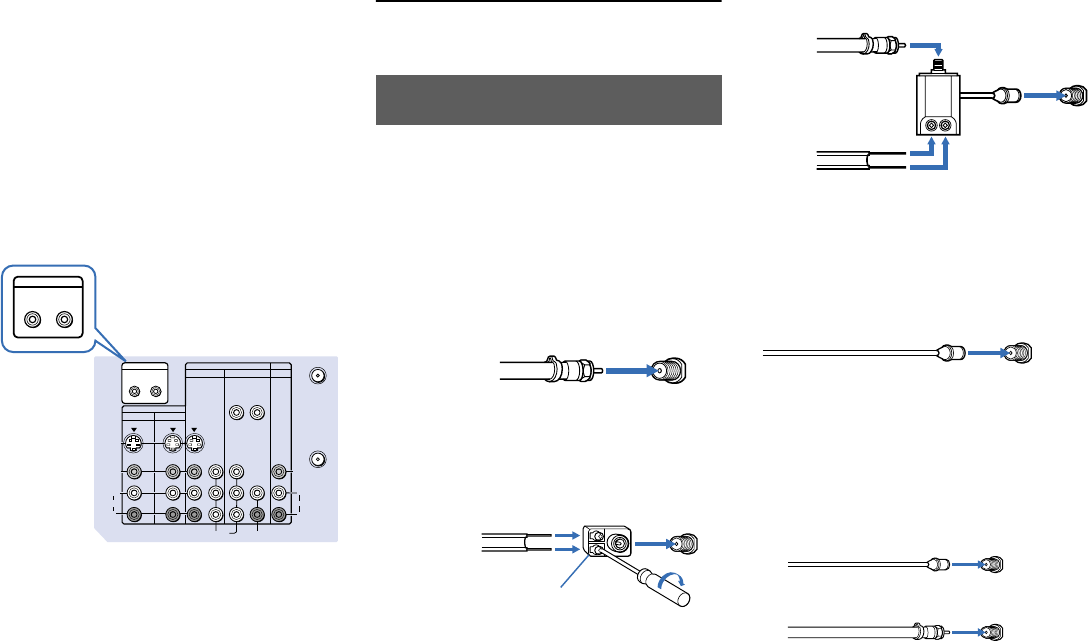

Connecting Directly to a Cable
or an Antenna
VHF only
or
VHF/UHF
or
Cable
75-ohm
coaxial cable
(Rear of
projection TV)
VHF/UHF
VHF only
or
UHF only
or
VHF/UHF
300-ohm twin
lead cable
(Rear of
projection TV)
VHF/UHF
Antenna connector
VHF
and
UHF
75-o
m coax
a
ca
e(Rear of
projection TV)
VHF/UH
EAC-66 U/V mixer
(not supplied)
300-ohm twin lead cable
Cable (Rear of projection TV)
VHF/UHF
CATV cable
Antenna cable
(Rear of
projection TV)
AUX
VHF/UHF
9
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\05INT.fm masterpage:Right
Installing and Connecting the Projection TV
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Some pay cable TV systems use scrambled or
encoded signals that require a cable box* to view
all channels.
Also, set CABLE to ON in the CHANNEL SET
UP menu. (see page 41)
Note:
If you will be controlling all channel selection
through your cable box, you should consider using
the CHANNEL FIX feature. (see “CHANNEL
FIX” on page 42)
Cable box and cable
Cable box and cableCable box and cable
Cable box and cable
Some pay cable TV systems use scrambled or
encoded signals requiring a cable box* only for
certain channels (e.g. HBO, SHOWTIME, etc.)
For this set up, you can switch between scrambled
channels (through your cable box), and normal
(CATV) channels by pressing ANT on your remote
control.
Notes:
You may be able to program your Sony remote
control to operate your cable box. (see “Operating a
Cable Box or Satellite Receiver (SAT)” on page 56)
During PIP, P&P, CHANNEL INDEX or
FAVORITE CHANNEL viewing, the AUX input
can only be viewed in the main picture.
If you are connecting a cable box through the AUX
input and would like to switch between the AUX
and normal (CATV) input, you should consider
using CHANNEL FIX. (see “CHANNEL FIX” on
page 42)
Connecting a Cable Box
ear o
ro
ec
on
VHF/UHF
Cable
IN OUT
*cable box
*cable box (Rear of Projection TV)
AUX
VHF/UHF
CATV cable
(unscrambled channels)
10
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Disconnect all power sources before making any connections.

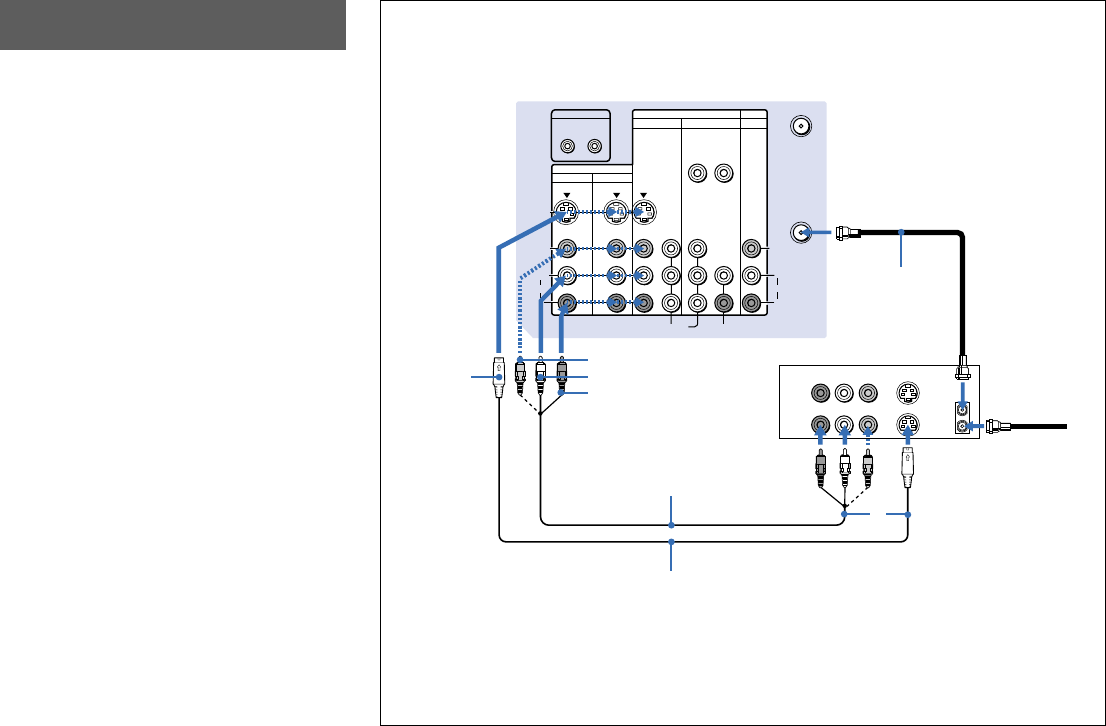

1Attach the coaxial cable from the incoming
cable connection or antenna to IN on the VCR.
2Using a coaxial cable, connect OUT on the
VCR to VHF/UHF on the projection TV.
3Using AUDIO and S VIDEO* cables, connect
AUDIO and S VIDEO OUT on the VCR to
AUDIO and S VIDEO IN on the projection TV
(White-AUDIO Left, Red-AUDIO Right).
* If your VCR is not equipped with S VIDEO, use
a VIDEO cable (yellow) instead of the S VIDEO
cable.
Note:
If you are connecting a monaural VCR, connect
only the single audio output to the left (MONO)
input on the projection TV.
Connecting an Antenna/Cable
TV System to a VCR
LINE
OUT
OUT
IN
AUDIO R AUDIO L VIDEO
S VIDEO
VHF/UHF
LINE
IN
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
(Rear of projection TV)
VIDEO
AUDIO-L
AUDIO-R
3
2
VMC-810S/820S
(not supplied)
YC-15V/30V (not supplied)
Coaxial cable
VCR 1
Cable/
Antenna
S VIDEO
11
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Right
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Installing and Connecting the Projection TV
Disconnect all power sources before making any connections.

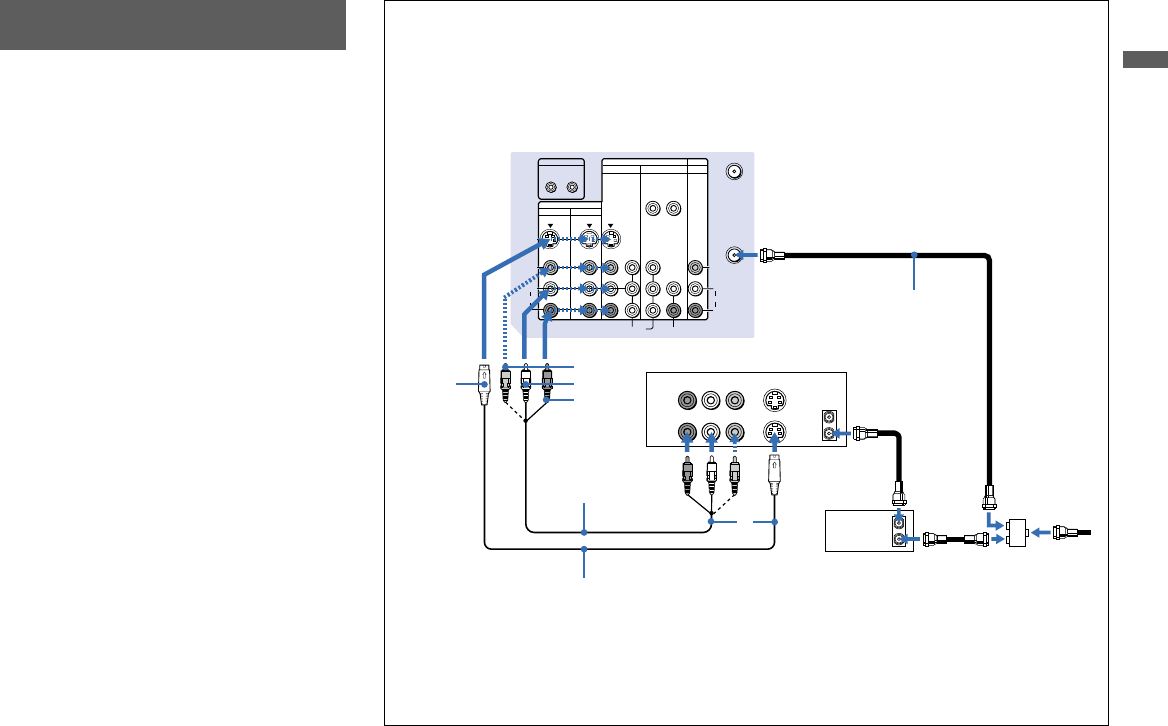

1Connect the single (input) jack of the splitter to
the incoming cable connection, and connect
the other two (output) jacks (using the coaxial
cable) to IN on the cable box and VHF/UHF
on the projection TV.
2Using a coaxial cable, connect OUT on the
cable box to IN on the VCR.
3Using AUDIO and S VIDEO* cables, connect
AUDIO and S VIDEO OUT on the VCR to
AUDIO and S VIDEO IN on the projection TV
(White-AUDIO Left, Red-AUDIO Right).
* If your VCR is not equipped with S VIDEO, use
a VIDEO cable (yellow) instead of the S VIDEO
cable.
Note:
To view scrambled channels through the cable box,
select the video input which the cable box is
connected to by pressing TV/VIDEO.
Connecting a VCR and
Projection TV to a Cable Box
S VIDEO
VIDEO
AUDIO
RR
VIDEO
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
LINE
OUT
OUT
IN
AUDIO R AUDIO L VIDEO
S VIDEO
VHF/UHF
LINE
IN
L
(MONO)
OUT
IN
(Rear of projection TV)
S VIDEO AUDIO-R
AUDIO-L
VIDEO
VMC-810S/820S
(not supplied)
YC-15V/30V (not supplied)
Coaxial cable
VCR
Cable/
Antenna
Cable box Splitter
(not supplied)
1
3
2
12
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Disconnect all power sources before making any connections.
Before connecting, be sure to read the Operating
Instructions of the DTV receiver.
Connecting a DTV (digital
Connecting a DTV (digital Connecting a DTV (digital
Connecting a DTV (digital
television) receiver with the Y/P
television) receiver with the Y/Ptelevision) receiver with the Y/P
television) receiver with the Y/PB
BB
B/
//
/
P
PP
PR
RR
R (component video input) jacks
(component video input) jacks (component video input) jacks
(component video input) jacks
1Attach the coaxial cable from the roof antenna
to VHF/UHF on the DTV receiver.
2Using three VIDEO cables, connect Y, PB and
PR of COMPONENT VIDEO OUT on the
DTV receiver to Y, PB and PR of VIDEO 5
(DTV) IN on the projection TV.
3Using an AUDIO cable, connect LINE OUT
on the DTV receiver to AUDIO of VIDEO 5
(DTV) IN on the projection TV (White-
AUDIO Left, Red-AUDIO Right).
4Select VIDEO 5 by the TV/VIDEO button.
5Select the SET UP menu and set DTV INPUT
to Y PB PR. (see “DTV INPUT” on page 47)
Note:
Some DTV receiver terminals may be labeled
differently. If so, connect as follows:
Connect Y (green) to Y.
Connect PB (blue) to CB, Cb or B-Y.
Connect PR (red) to CR, Cr or R-Y.
Connecting a DTV (Digital
Television) Receiver
S VIDEO
1
VIDEO
L
R
VHF/UHF
(DTV)
(MONO)
AUDIO OUT
2Y
PB
PR
1 2 3
VIDEO OUT
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
3
2
1
VMC-10HG
(not supplied)
AUDIO-L
RK-74A (not supplied)
Y
AUDIO-R
PB
PR
DTV receiver
Roof Antenna
13
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Right
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Installing and Connecting the Projection TV
Disconnect all power sources before making any connections.

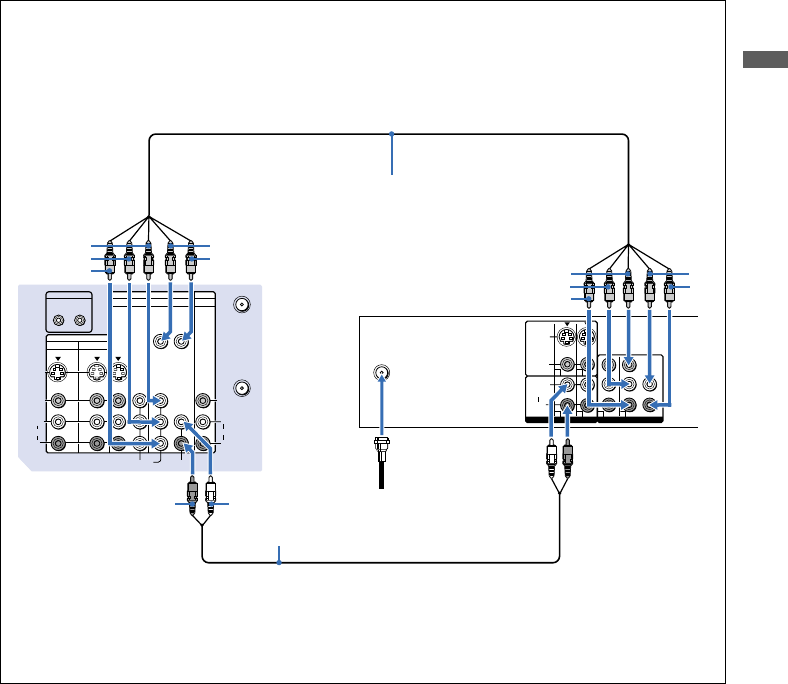

Connecting a DTV (digital
Connecting a DTV (digital Connecting a DTV (digital
Connecting a DTV (digital
television) receiver with the G/B/R/
television) receiver with the G/B/R/television) receiver with the G/B/R/
television) receiver with the G/B/R/
HD/VD jacks
HD/VD jacksHD/VD jacks
HD/VD jacks
1Attach the coaxial cable from the roof antenna
to VHF/UHF on the DTV receiver.
2Using a component video cable for DTV
receiver, connect G, B, R, HD and VD of
VIDEO OUT on the DTV receiver to G, B, R,
HD and VD respectively of VIDEO 5 (DTV)
IN on the projection TV.
If the DTV receiver is equipped with the Y/PB/
PR jacks, proceed to step 2 in “Connecting a
DTV (digital television) receiver with the Y/
PB/PR (component video input) jacks on page
12.
3Using an AUDIO cable, connect AUDIO OUT
on the DTV receiver to AUDIO of VIDEO 5
(DTV) IN on the projection TV (White-
AUDIO Left, Red-AUDIO Right).
4Select VIDEO 5 by the TV/VIDEO button.
5Select the SET UP menu and set DTV INPUT
to R.G.B. (see “DTV INPUT” on page 47)
S VIDEO
1
VIDEO
L
R
VHF/UHF
(DTV)
(MONO)
AUDIO OUT
2Y
PB
PR
R
G
B
HD
VD
1 2 3 4
VIDEO OUT
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
3
2
1
Component video cable for
DTV receiver (not supplied)
AUDIO-R AUDIO-L
RK-74A (not supplied)
HD
VD
G
B
R
DTV receiver
Roof Antenna
HD
VD
R
G
B
14
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Disconnect all power sources before making any connections.
1Connect the cable from the satellite antenna to
the satellite receiver.
2Attach the coaxial cable from the incoming
cable connection or antenna to VHF/UHF on
the projection TV.
3Using AUDIO and S VIDEO cables, connect
AUDIO and S VIDEO OUT on the satellite
receiver to AUDIO and S VIDEO IN on the
projection TV (White-AUDIO Left, Red-
AUDIO Right).
Note:
To view input from the satellite receiver, select the
video input which the satellite receiver is connected
to by pressing TV/VIDEO on the remote control.
Connecting a Satellite
Receiver (SAT)
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
VHF/UHF
S VIDEO
OUT
IN
LINE OUT
SATELLITE IN
AUDIO R AUDIO L VIDEO
(Rear of projection TV)
RK-74A (not supplied)
YC-15V/30V (not supplied)
S-VIDEO
AUDIO-L
AUDIO-R
1
3
2
Satellite receiver
Cable/
Antenna Satellite antenna
cable
15
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Right
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Installing and Connecting the Projection TV
Disconnect all power sources before making any connections.
1Connect the cable from the satellite antenna to
the satellite receiver.
2Attach the coaxial cable from the incoming
cable connection or antenna to VHF/UHF IN
on the VCR.
3Using a coaxial cable, connect VHF/UHF
OUT on the VCR to VHF/UHF on the
projection TV.
4Using AUDIO and S VIDEO* cables, connect
AUDIO and S VIDEO OUT on the satellite
receiver to AUDIO and S VIDEO IN on the
VCR.
5Using AUDIO and S VIDEO* cables, connect
AUDIO and S VIDEO OUT on the VCR to
AUDIO and S VIDEO IN on the projection TV
(White-AUDIO Left, Red-AUDIO Right).
* If your VCR or satellite receiver is not equipped
with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
Note:
To view input from the satellite receiver or VCR,
select the video input which your satellite receiver
or VCR is connected to by pressing TV/VIDEO on
the remote control.
Connecting a Satellite
Receiver (SAT) and VCR
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
LINE
OUT
OUT
IN
AUDIO R AUDIO L VIDEO
S VIDEO
VHF/UHF
LINE
IN
AUDIO R AUDIO L VIDEO
SATELLITE IN
VHF/UHF
S VIDEO
OUT
IN
LINE OUT
(Rear of projection TV)
AUDIO-R
VMC-810S/820S
(not supplied)
YC-15V/30V
(not
supplied)
S
VIDEO AUDIO-L
4
2
Cable/
Antenna
Satellite
antenna
cable
VIDEO
5VCR
VMC-810S/820S (not supplied)
YC-15V/30V (not supplied)
1
3
Satellite
receiver
16
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Use this connection to view a picture directly from
your camcorder.
1Using AUDIO and S VIDEO* cables, connect
AUDIO and S VIDEO OUT on the camcorder
to AUDIO and S VIDEO IN on the right side
panel inside the drop-down panel on the front
of the projection TV (White-AUDIO Left,
Red-AUDIO Right**).
2Press VIDEO 2 to select the video inputs from
a camcorder.
* If your camcorder is not equipped with S VIDEO,
use a VIDEO cable (yellow) instead of the S
VIDEO cable.
**If you are connecting a monaural camcorder,
connect only the single audio output to the left
(MONO) input on the projection TV.
Connecting a Camcorder
VIDEO 2 INPUT
S VIDEO
VIDEO
AUDIO
L
(MONO)
R
VOLUME
TV/VIDEO
CHANNEL
+
+
(Inside the drop down panel on
the Front of projection TV)
VIDEO
AUDIO-L
AUDIO-R
VMC-810S/820S
(not supplied)
Audio/video
outputs
Camcorder
1
1
S VIDEO
YC-15V/30V
(not supplied)
Push to open.
17
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Right
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Installing and Connecting the Projection TV
Disconnect all power sources before making any connections.
SELECT OUT allows you to use a second VCR to
record a program being played by the primary
VCR or to perform tape editing and dubbing.
1Connect the VCR intended for playback using
the connection instructions on page 10 of this
manual.
2Using an AUDIO/VIDEO cable, connect
AUDIO and VIDEO IN on the VCR intended
for recording to AUDIO and VIDEO OUT of
SELECT OUT on the projection TV.
Notes:
Do not change the input signal while editing
through SELECT OUT.
When connecting a single VCR to the projection
TV: if VCR LINE OUT is connected to VIDEO IN
on the projection TV, do not connect the SELECT
OUT on the projection TV to the VCR LINE
INPUT (see right). Doing so will cause program
interference and other viewing problems.
You can select the output signal from SELECT
OUT of the SET UP menu. (see “SELECT OUT”
on page 45)
When the projection TV turns off, the signal is not
output through SELECT OUT.

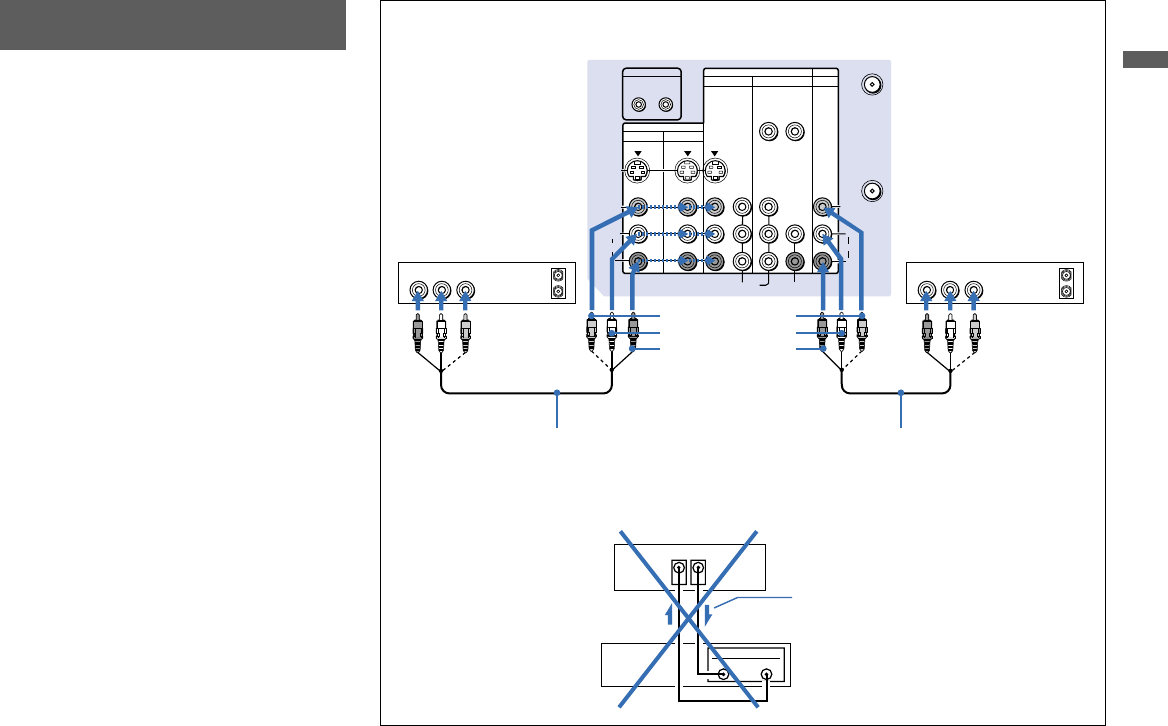

Connecting Two VCRs for
Tape Editing
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
AUDIO R AUDIO L VIDEO
LINE
OUT
OUT
IN
AUDIO R AUDIO L VIDEO
LINE
IN
OUT
IN
(Rear of projection TV)
AUDIO-R
VCR (for playback)
AUDIO-L
2
VIDEO
VMC-810S/820S
(not supplied)
VIDEO
AUDIO-L
AUDIO-R
VCR (for recording)
VMC-810S/820S
(not supplied)
1
LINEOUT
IN
SELECT
OUT
VIDEO IN
Indicates direction
of signal
(Rear of projection TV)
18
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Disconnect all power sources before making any connections.
Using an AUDIO and S VIDEO cables, connect
AUDIO and S VIDEO IN on the projection TV to
AUDIO and S VIDEO OUT on the DVD Player
(White-AUDIO Left, Red-AUDIO Right).
Note:
Since the high quality pictures on a DVD disc
contain a lot of information, picture noise may
appear. In this case, adjust NR in the VIDEO menu.
(see “NR” on page 37)
Connecting a DVD Player With
S Video or Composite Video
Output Connectors
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
R-Y
R-Y
YB-Y
B-Y
COMPONENT VIDEO OUT
COMPONENT VIDEO OUT
LINE OUT
S VIDEO OUT DIGITAL OUT
R–AUDIO 1L VIDEO
OPTICAL COAXIAL
Connect the DVD Player directly
to the projection TV. Connecting
the DVD Player through other
video equipment will cause
unwanted picture noise.
(Rear of projection TV)
RK-74A (not supplied)
Audio/S video
outputs
DVD
YC-15V/30V (not supplied)
AUDIO-L
AUDIO-R
S VIDEO
19
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Right
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Installing and Connecting the Projection TV
Disconnect all power sources before making any connections.
1Using an AUDIO cable, connect AUDIO R and
L of LINE OUT on the DVD Player to AUDIO
R and L of VIDEO 4 IN or VIDEO 5 (DTV)
IN on the projection TV (White-AUDIO Left,
Red-AUDIO Right).
2Using three VIDEO cables, connect Y, PB and
PR of the COMPONENT VIDEO OUT on the
DVD Player to Y, PB and PR of VIDEO 4 IN or
VIDEO 5 (DTV) IN on the projection TV.
Notes:
If your DVD Player has 480p format capability,
connect it to the Y, PB and PR of VIDEO 5 (DTV)
IN on the projection TV.
Some DVD Player terminals may be labeled
differently. If so, connect as follows:
Connect Y (green) to Y.
Connect PB (blue) to CB, Cb or B-Y.
Connect PR (red) to CR, Cr or R-Y.
Since the high quality pictures on a DVD disc
contain a lot of information, picture noise may
appear. In this case, adjust NR in the VIDEO menu.
(see “NR” on page 37)
Connecting a DVD Player With
Component Video Output
Connectors
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
LINE OUT
S VIDEO OUT DIGITAL OUT
R–AUDIO 1–L VIDEO
OPTICAL COAXIAL
PRYPB
COMPONENT VIDEO OUT
Connect the DVD Player directly to
the projection TV. Connecting the
DVD Player through other video
equipment will cause unwanted
picture noise.
(Rear of projection TV)
AUDIO-L
RK-74A (not supplied)
DVD
VMC-10HG
(not supplied)
AUDIO-R
2
1
PR
PB
Y
PR
PB
Y
You can connect three VIDEO
cables to Y/PB/PR of VIDEO 5
(DTV) IN also.
You can connect an AUDIO
cable to AUDIO R and L of
VIDEO 5 (DTV) IN also.
20
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Disconnect all power sources before making any connections.
For greater control of all audio and video
equipment, connect an AV receiver.
1-2Perform as described on page 10.
3Using a VIDEO cable, connect VIDEO of
VIDEO 1 IN on the projection TV to
MONITOR OUT on the AV receiver.
4Using an AUDIO/VIDEO cable, connect
SELECT OUT on the projection TV to VIDEO
2 IN on the AV receiver.
5Using an AUDIO/VIDEO cable, connect the
video equipment to the AV receiver.
6Select the SET UP menu and set SELECT
OUT to TV OUT. (see “SELECT OUT” on
page 45)
Note:
You may want to use CHANNEL FIX to fix your
TV’s input to the AV receiver (VIDEO 1). (see
“CHANNEL FIX” on page 42)
Connecting an AV Receiver
S VIDEO
VIDEO
AUDIO
L
RR
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
PB
PR
Y/G
HD VD
PB/B
PR/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
LINE
OUT
OUT
IN
AUDIO R AUDIO L VIDEO
S VIDEO
VHF/UHF
LINE
IN
A
OFF
A+B
B
– +
010
19
8
7
2
3
6
5
4
1/u
+
– +
Coaxial cable VMC-810S/820S (not supplied)
VCR
3
5
2
Cable/
Antenna
VMC-810S/
820S (not
supplied)
AUDIO/
VIDEO 1 IN
AUDIO/
VIDEO 1
OUT
STR-V555ES etc.
(not supplied)
AUDIO/
VIDEO
2 IN
VMC-810S/820S (not supplied)
VMC-10HG (not supplied)
4
VIDEO
AUDIO-R
AUDIO-L
1
MONITOR
OUT
VIDEO
(Rear of projection TV)
21
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Right
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Installing and Connecting the Projection TV
Disconnect all power sources before making any connections.
For more dynamic sound, connect an audio system
to the projection TV.
1Using an AUDIO cable, connect AUDIO
(VAR) OUT on the projection TV to one of the
unused Line inputs (e.g. Tape-2, AUX1, etc.)
on the stereo (White-AUDIO Left, Red-
AUDIO Right).
2Set the stereo to the chosen Line input and use
the AUDIO menu to switch the TVs speakers
off. (see “SPEAKER” on page 38)
Note:
You can adjust VOLUME, BASS, TREBLE and
BALANCE through the projection TV on AUDIO
(VAR) OUT only.
Connecting an Audio System
R
L
AUDIO OUT
VARFIX
L
R
L
R
PHONES
SPEAKERS
A
OFF
A
+
B
10
+
10
TONE
SUBSONIC
EON LINK
B
SOURCE
TAPE1 TAPE2
BASS
0
10
+
10
TREBLE
0
LEFT RIGHT
BALANCE
TAPE MONITOR
LOUDNESS
¯ ON ¿ OFF ¯ ON ¿ OFF
PROTECTION
INPUT SELECTOR VOLUME
SOURCE DIRECT
010
TAPE1/DATEON LINK SACD/CD TUNER PHONOAUXTAPE2/MD
POWER
(Rear of projection TV)
AUDIO (VAR) OUT-L
AUDIO (VAR)
OUT-R RK-74A
(not supplied)
Line
input
1
Stereo amplifier
22
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\06INT.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Disconnect all power sources before making any connections.
If you use an amplifier with a Dolby Pro Logic
decoder instead of the projection TV’s audio
system, you can still use the projection TV’s
speaker as a center speaker.
1Using the speaker cords (supplied with the
amplifier), connect the speaker terminals on
the amplifier to CENTER SPEAKER IN +/–
on the projection TV.
2Using an AUDIO cable, connect AUDIO (FIX)
OUT on the projection TV to one of the unused
Line inputs (e.g. Tape-2, AUX1, etc.) on the
amplifier (White-AUDIO Left, red-AUDIO
Right).
3Set the amplifier to the chosen Line input and
use the AUDIO menu to set “SPEAKER” to
“CENTER IN” on the projection TV. (see
“SPEAKER” on page 38)
Connecting an Amplifier That
Supports Dolby Pro Logic
Decoder
R
L
AUDIO OUT
VARFIX
L
R
L
R
(Rear of projection TV)
CENTER IN #
CENTER IN 3
AUDIO (FIX) OUT-L AUDIO (FIX) OUT-R
RK-74A (not supplied)
Line input
Amplifier with Dolby
Pro Logic decoder
Rear
speaker (L) Rear
speaker (R)
Front
speaker (R)
Front
speaker (L)
1
2
3
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\07SET.fm masterpage:First-Right
23
Basic Set Up
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Basic Set Up
Basic Set UpBasic Set Up
Basic Set Up

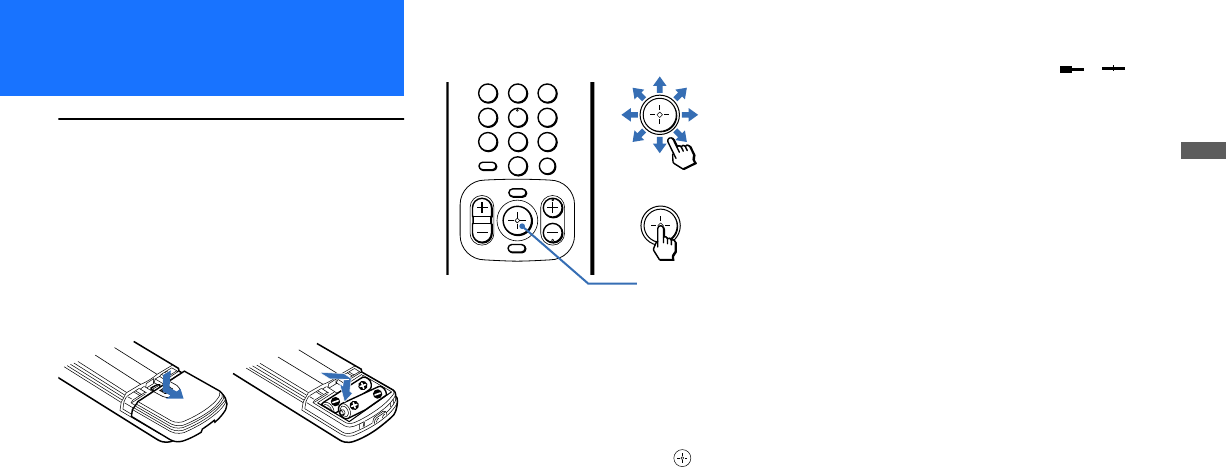

Using the Remote
Control
Inserting the batteries
Inserting the batteriesInserting the batteries
Inserting the batteries
Insert two size AA (R6) batteries (supplied) by
matching the + and – on the batteries to the
diagram inside the remote control’s battery
compartment.
Notes:
Remove the batteries to avoid damage from
possible battery leakage whenever you anticipate
that the remote control will not be used for an
extended period.
Handle the remote control with care. Avoid
dropping it, getting it wet, or placing it in direct
sunlight, near a heater or where the humidity is
high.
Your remote control can be programmed to operate
most video equipment. (see “Operating Video
Equipment” on page 54)
Using the remote control
Using the remote control Using the remote control
Using the remote control joystick
joystickjoystick
joystick
The supplied remote control has a joystick which
moves the on-screen selector in eight directions. In
most cases, moving the joystick up, down, left or
right will cause the selector to move in the selected
direction.
In some cases, the selector may move in eight
directions according to the function. Pressing
down on the center of the joystick will activate
the selected item.
You may also move the joystick right to activate a
selected item. (There are some exceptions to this
option.)
Adjusting sliders
Adjusting slidersAdjusting sliders
Adjusting sliders
When menu items present a slider ( or ),
move the joystick up, down, left or right to adjust
the setting.
On-line help/instructions
On-line help/instructionsOn-line help/instructions
On-line help/instructions
Several menu windows will provide prompts and
instructions to assist you in navigating through the
different functions.
2
8
0
1
4
7
3
6
9
5
m
Move
Select
Joystick
24
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\07SET.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Setting Up the
Projection TV
Automatically
The AUTO SET UP feature will allow you to set
the on-screen language and set all receivable
channels.
The AUTO SET UP feature does not apply for
installations that use a cable box for all channel
selection.
You can also set up the projection TV manually. (see
“Using the CHANNEL SET UP Menu” on page 41)
Notes:
Perform this function during the day, with the
antenna and/or cable properly connected, to
ensure that all available channels will be
broadcasting and receivable.
Before you perform AUTO SET UP again, make
sure that the input from ANT (not AUX) is
selected by pressing ANT untilAUX” does not
appear next to the channel number.
When you perform AUTO PROGRAM, your
CHANNEL FIX and ON/OFF TIMER settings
will be erased.
When you perform AUTO SET UP, all the
settings in the VIDEO and AUDIO menus are
reset to the factory settings.
Using the buttons on the front panel and inside the
drop-down panel on the projection TV:
1Press POWER to turn on the projection TV.
2Press SET UP inside the drop-down panel.
The AUTO SET UP screen appears.
3Press CHANNEL + to select English,
CHANNEL – to select Spanish.
The screen will change to reflect your choice.
4Press VOLUME – to continue.
5Press CHANNEL + to preset channels
automatically.
AUTO PROGRAM” appears and the
projection TV starts scanning and presetting
channels automatically. While scanning, the
received channel will be displayed on the sub
screen. When all the receivable channels are
stored, the lowest numbered channel will be
displayed.
CHANNELVOLUME
+
+
TV/VIDEO
STEREO
TIMER/
STAND BY
POWER
FLASH FOCUSSET UP
POWER
Press [ SET UP ] to exit.
First Please connect
the antenna.
ESPAÑOL :
ENGLISH :
AUTO SET UP : [ CH – ]
[ CH + ]
[ VOL – ]
SET UP
ESPAÑOL :
ENGLISH : [ CH – ]
[ CH + ]
Press [ SET UP ] to exit.
First Please connect
the antenna.
AUTO SET UP : [ VOL – ]
CHANNEL
VOLUME
CONTINUE TO
AUTO PROGRAM?
YES: [CH +]
NO : [CH –]
CHANNEL
AUTO PROGRAM
25
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\07SET.fm masterpage:Right
Basic Set Up
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
If your projection TV is not
If your projection TV is not If your projection TV is not
If your projection TV is not
connected to a cable system
connected to a cable systemconnected to a cable system
connected to a cable system
If you perform AUTO SET UP, CABLE is set to
ON automatically. After finishing AUTO SET UP,
set CABLE to OFF in the CHANNEL SET UP
menu, then set AUTO PROGRAM to YES to
perform automatic channel presetting. (see
CABLE and AUTO PROGRAM on page 42)
To perform AUTO SET UP again
To perform AUTO SET UP againTo perform AUTO SET UP again
To perform AUTO SET UP again
Press SET UP inside the drop-down panel on the
projection TV, and perform steps 3-5 on page 24.
Press CHANNEL + or CHANNEL to select a
language.
Press VOLUME to restore factory settings
(CONTINUE TO AUTO PROGRAM? will
appear on the screen. Press CHANNEL + to
execute or CHANNEL to exit).
Press SET UP to exit.
Adjusting the
Convergence
Automatically (FLASH
FOCUS)
The projection tube image appears on the screen in
three layers (red, green and blue). If they do not
converge, the color is poor and the picture blurs.
Before you use your projection TV, be sure to
adjust the convergence.
The FLASH FOCUS feature allows you to adjust
the convergence automatically.
Tip z
It is recommended to perform FLASH FOCUS about
30 minutes after the projection TV is first turned on.
1Receive a TV or cable TV program.
2Press FLASH FOCUS for every wide screen
mode; NORMAL, WIDE ZOOM, ZOOM and
FULL.
To select the wide screen mode, press WIDE
MODE on the remote control.
The cross pattern appears and FLASH FOCUS
begins to work. The adjustment is completed
when the cross pattern becomes white.
To obtain an optimum convergence
To obtain an optimum convergence To obtain an optimum convergence
To obtain an optimum convergence
for Digital TV programs
for Digital TV programsfor Digital TV programs
for Digital TV programs
The optimum convergence alignment varies with
digital TV formats. Whenever you find that the
picture blurs, press FLASH FOCUS.
Notes:
You cannot perform any other functions until
FLASH FOCUS has completed its cycle.
If you perform any other operation while FLASH
FOCUS is in progress, FLASH FOCUS operation is
canceled.
CHANNELVOLUME
+
+
TV/VIDEO
STEREO
TIMER/
STAND BY
POWER
FLASH FOCUSSET UP
FLASH FOCUS
21
4
3
65
WIDE
MODE
FLASH FOCUS
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\08CTV.fm masterpage:First-Left
26
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Using Your New
Using Your New Using Your New
Using Your New
Projection TV
Projection TVProjection TV
Projection TV
Watching the TV
Many TV features can be accessed directly
through the remote control. The following will
explain the function of some buttons found on your
remote control.
Using the white labeled buttons for
Using the white labeled buttons for Using the white labeled buttons for
Using the white labeled buttons for
projection TV operations
projection TV operationsprojection TV operations
projection TV operations
REFER TO THE
ILLUSTRATION OF THE
REMOTE CONTROL ON THE INSIDE FRONT
COVER OF THIS MANUAL AS YOU REVIEW THE
FOLLOWING DESCRIPTIONS
Activates the remote control for use with the
projection TV.
Press to change between the VHF/UHF input and
the AUX input. (for detailed connection
information, see Cable and antenna on page 8 or
Cable box and cable on page 9).
Turns the projection TV on and off. If a video
input indication (e.g., VIDEO 1, VIDEO 2)
appears on the screen, press TV/VIDEO until a
channel number appears.
Use for direct channel selection. Press 0-9 to select a
channel (for example, to select channel 10, press 1
and 0). The channel will change after 2 seconds, or
you can press ENTER for immediate selection.
Press to scan through the channels (+ up or
down).
Press to adjust the volume (+ up or down).
Press to alternate or jump back and forth between two
channels. The projection TV will jump between the
current channel and the last channel selected using the
0-9 buttons.
Press to mute the sound. MUTING will appear on
the screen and will dim three seconds later. To restore
sound, press again or press VOL +.
This is useful when you need to copy down
information that appears on the TVs screen.
Press to freeze the picture.
Press again or press (OFF) to cancel.
If you select TWIN as a FREEZE MODE in the
SET UP menu, you can freeze the desired scene
and display it on the left while viewing the normal
picture on the right. (see FREEZE MODE on
page 46)
TV (FUNCTION)
ANT
— (AUX input)
TV POWER
and ENTER
0 9
-
CH +/
VOL +/
JUMP
MUTING
FREEZE
— (yellow labeled button)
27
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\08CTV.fm masterpage:Right
Using Your New Projection TV
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Notes:
The FREEZE button does not function with the
picture from VIDEO 5 (DTV) IN.
If the frozen picture mode is not canceled for more
than an hour, the normal picture is resumed
automatically.
Press repeatedly until the projection TV displays
the approximate time in minutes (30, 60, or 90)
that you want the projection TV to remain on
before shutting off automatically.
Cancel by pressing until SLEEP OFF appears.
Press to display the channel number, current time,
channel caption (if set), and MTS mode (if SAP is
selected). The SAP indication disappears and the
other indications dim three seconds later.
To turn the display off, press DISPLAY again.
Press repeatedly to scroll through available
displays:
Caption Vision
Displayed on the screen if the broadcaster offers
this service. (see CAPTION VISION on page
45)
XDS (Extended Data Service)
Displays a network name, program name, program
type, program length, program description, call
letters and time of the show if the broadcaster
offers this service.
No display
OFF appears and the display is canceled.
Press repeatedly to scroll through available video
inputs:
TV, VIDEO 1, VIDEO 2, VIDEO 3, VIDEO 4
and VIDEO 5
If you select SKIP as a VIDEO LABEL in the SET
UP menu, your projection TV will skip the video
input you selected. (see VIDEO LABEL on page
46)
Press to scroll through the Multi-channel TV
Sound (MTS) options. (see MTS on page 37)
Press PICTURE MODE repeatedly to directly
choose one of five different video modes that best
suits the program you are watching.
VIVID:
Select for enhanced picture contrast and sharpness.
STANDARD:
Select to display a standard picture for normal
viewing environments.
MOVIE:
Select to display a finely detailed picture for low
light environments.
GAME:
Select to display graphics such as a video game.
PRO (Professional):
Select to display a picture with minimum
enhancements.
When you select each mode, you can also adjust
the picture quality (such as BRIGHTNESS,
COLOR, etc.) to suit your taste.
For details, see “MODE” on page 36.
SLEEP
DISPLAY
[CC]
TV/VIDEO
MTS
PICTURE MODE
28
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\08CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Watching Digital TV
When you have connected the DTV receiver, you
can enjoy digital TV programs. This projection TV
is capable of receiving the 1080i, 720p, 480p and
480i digital TV formats.
Note:
This projection TV is not capable of displaying a
720p format signal as it is. When the 720p format
signal is received, it is converted into a 480p format
signal.
1Connect the DTV receiver to VIDEO 5 (DTV)
IN on the projection TV. (for details, see pages
13 and 12)
2Press TV/VIDEO to select VIDEO 5.
The digital TV format being received is
displayed on the screen for three seconds.
Note:
You cannot select VIDEO 5 unless a DTV
receiver is connected.
3Select a digital channel on the DTV receiver.
For details, see the Operating Instructions of
the DTV receiver.
4Adjust the volume on this projection TV.
Tip z
The optimum convergence alignment varies with
digital TV formats. Whenever you find that the picture
blurs, press FLASH FOCUS. (for details, see page 25)
Watching the Picture
in Wide Screen Mode
Automatically
AUTO
WIDE
When a 480i format signal with an ID-1 (16:9
aspect ratio recorded) signal is received, the
projection TV automatically selects wide screen
mode.
Notes:
When the AUTO WIDE function does not work
correctly due to the quality of signal, select wide
screen mode manually. (see page 29)
The AUTO WIDE function does not work when the
following signals are received:
- 480i format signal without an ID-1 (aspect ratio
recorded) signal
- 480p format signal
- 720p/1080i format signals (The picture is always
displayed in FULL mode)
Set AUTO WIDE in the WIDE SCREEN MODE
menu to ON. (see page 40)
To deactivate the AUTO WIDE function
Set AUTO WIDE in the WIDE SCREEN MODE
menu to OFF. (see page 40)
To view a digital TV program
TV/VIDEO
DTV FORMAT : 480p
Activating the AUTO WIDE function
29
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\08CTV.fm masterpage:Right
Using Your New Projection TV
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
When a normal 4:3 aspect ratio picture with an ID-
1 signal is received, NORMAL mode is
automatically selected. The picture is not enlarged
and is displayed as it is.
Tip z
When enlarging the picture to fill the 16:9 screen,
select WIDE ZOOM in WIDE SCREEN MODE menu
manually. (see “Using WIDE ZOOM mode” on this
page)
When a squeezed video camera or DVD picture
with an ID-1 signal is received, FULL mode is
automatically selected.
The picture is enlarged horizontally only, to fill the
16:9 screen.
Note:
The 720p/1080i format signal is displayed in FULL
mode always.
Watching the Picture in
Wide Screen Mode
Manually
WIDE MODE
You can select the wide screen mode manually.
Note:
The 720p/1080i format signal is displayed in FULL
mode always.
Press WIDE MODE repeatedly on the remote
control.
Each press scrolls through the following modes:
For details on each mode, see To select the wide
screen mode automatically WIDE MODE.
When the wide screen mode is selected by pressing
the WIDE MODE button on the remote control,
the AUTO WIDE function does not work
temporarily. However, the settings of AUTO
WIDE in WIDE SCREEN MODE menu remains.
AUTO WIDE function works again when:
- video input signals are changed (see TV/VIDEO
on page 27)
- the projection TV is turned off
- DIRECT PLAY is selected (see page 46)
- ON/OFF TIMER works (see page 40)
- AUTO WIDE in WIDE SCREEN MODE menu is
set to ON again (see page 40).
You can enlarge a normal 4:3 picture of 480i
format signal by selecting WIDE ZOOM.
The picture is enlarged, while the upper and lower
parts of the picture are condensed to fit the 16:9
screen.
You can enlarge a letter box movie (16:9 aspect
ratio) of a video tape or a DVD disc by selecting
ZOOM.
The picture is enlarged horizontally and vertically
to an equal aspect ratio that fills the 16:9 screen.
When receiving a normal 4:3 broadcast
NORMAL
When receiving a 4:3 squeezed picture
FULL
NORMAL
,
FULL
,
When selecting the wide screen mode
manually Temporarily Auto Wide Off
WIDE MODE
Using WIDE ZOOM mode
Using ZOOM mode
WIDE
ZOOM
,
ZOOM
,
30
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\08CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Notes:
Depending on the picture format, black bands may
be present on the top and bottom of the screen.
For ZOOM and WIDE ZOOM modes you can
adjust the vertical position of the picture. (see V
CENTER on page 41)
Watching Two
Programs at One Time
— PIP
The Picture-in-Picture (PIP) feature allows you to
view two channels simultaneously, one in the full
size main picture and one in a smaller window
picture.
You can move the window picture to any location
on the screen.
Using the yellow labeled buttons
Using the yellow labeled buttons Using the yellow labeled buttons
Using the yellow labeled buttons
for PIP operations
for PIP operationsfor PIP operations
for PIP operations
REFER TO THE
ILLUSTRATION OF THE
REMOTE CONTROL ON THE INSIDE FRONT
COVER OF THIS MANUAL AS YOU REVIEW THE
FOLLOWING DESCRIPTION
Tip z
If you press RESET in PIP mode, the window picture
will move to the bottom right (factory-preset
location).
Press to display a window picture.
Each time you press this button, the picture size
will change (1/4 t 1/9 t 1/16).
Press (OFF) to close the window picture.
Press to change the location of the window picture
(counterclockwise) around the main picture.
Press to select either the main or window picture in
order to change the TV channel or video source
using the white labeled buttons below. The symbol
b (or B) will appear to indicate which
pictures channel or input mode can be changed.
Caution about continued wide screen
mode usage for 4:3 aspect ratio pictures
This projection TV was designed primarily for
viewing TV broadcasts in wide screen mode (16:9
aspect ratio pictures). Consistent and exclusive
viewing of 4:3 aspect ratio programs in NORMAL
mode will lead to permanent imprinting of the
gray band on both sides of the picture.
Therefore, when you watch conventional 4:3 ratio
TV programs, we recommend you select WIDE
ZOOM mode by using WIDE MODE button.
Note:
The PIP feature is not available for the inputs
from VIDEO 5 (DTV) IN.
10
10
6
10
The symbol b or
B indicates which
pictures TV channel
or input source can
be changed.
The symbol 9
indicates which
pictures sound is
being received.
Main
TV channel or
input-source
mode for the
main picture (It
will dim in
about 3
seconds.)
TV channel or
input-source
mode for the
window picture
(It will dim in
about 3
seconds.)
Window picture
POSITION
ACTIVE
31
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\08CTV.fm masterpage:Right
Using Your New Projection TV
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
To change the location of the window picture,
move the joystick in any direction and release it
when the picture is in the desired location.
Press repeatedly to scroll through the available
video inputs for the picture on which the symbol
b (or B) is displayed. (see TV/VIDEO on
page 27)
Press to select the TV channel on which the
symbol b (or B) is displayed. (for details, see
Watching the TV on page 26)
Press to change between the VHF/UHF input and
the AUX input for the picture on which the symbol
b (or B) is displayed.
Press to alternate sound between the main picture
and the window picture. The symbol 9 will
appear for a few seconds to indicate which
pictures sound is being received.
This is useful when you need to copy down
information that appears on the TVs screen.
Press to freeze the main and window pictures.
Press again to resume PIP viewing. Press (OFF)
to cancel and resume normal TV viewing.
Press to switch the audio and video of the main
picture and the window picture.
Each time you press SWAP, the picture and sound
of the two will be exchanged.
Press to access CHANNEL INDEX for direct
channel selection. (see Using CHANNEL
INDEX on page 33)
Press to cancel the PIP function and return to
normal viewing.
Notes:
If one of the pictures received through PIP is snowy,
the entire screen may become unstable. In this case,
erase the snowy channel. (see CHANNEL SKIP
on page 41)
If you select VIDEO 5 when the main picture is
active, the window picture disappears and you
can view the picture from VIDEO 5 (DTV) IN.
When the window picture is active, you cannot view
the picture from VIDEO 5 (DTV) IN.
(white labeled button)
(white labeled button)
(white labeled button)
(white labeled button)
TV/VIDEO
CH
0 9
-JUMP
or or
and ENTER
ANT
AUDIO
FREEZE
SWAP
OFF
32
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\08CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]

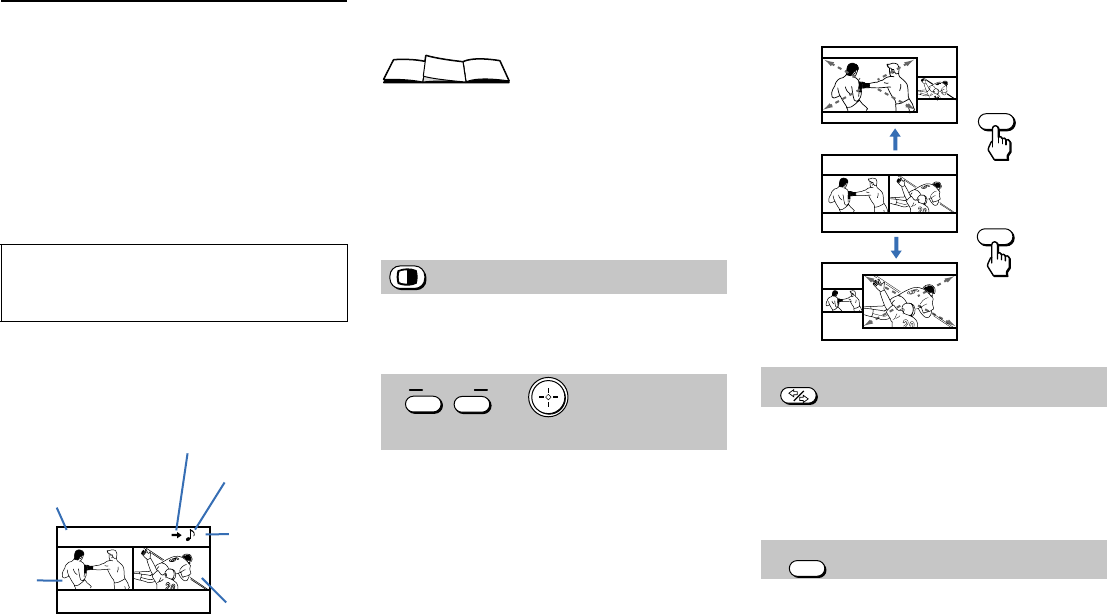

Watching Two
Programs at One Time
P&P (Twin View)
The Picture-and-Picture (P&P) feature allows you
to view two channels simultaneously, both in a
reduced size screen. The main picture will appear
on the right.
You can change the size of both pictures to suit
your personal preference.
Using the yellow labeled buttons
Using the yellow labeled buttons Using the yellow labeled buttons
Using the yellow labeled buttons
for P&P operations
for P&P operationsfor P&P operations
for P&P operations
REFER TO THE
ILLUSTRATION OF THE
REMOTE CONTROL ON THE INSIDE FRONT
COVER OF THIS MANUAL AS YOU REVIEW THE
FOLLOWING DESCRIPTIONS
Tip z
If you press RESET in P&P mode, the right and left
pictures will be reset to the same size (factory-preset
size.)
Press to display right (main) and left pictures.
Press (OFF) to close the sub picture.
Press and hold either RIGHT or LEFT to zoom in
on the selected picture.
Release at the desired size. The other picture will
be zoomed out simultaneously.
Moving the joystick right or left will activate the
same function.
Press to select either the right or left picture in
order to change the TV channel or video source
using the white labeled buttons below. The symbol
b (or B) will appear to indicate which
pictures channel or input mode can be changed.
Press repeatedly to scroll through the available
video inputs for the picture on which the symbol
b (or B) is displayed. (see TV/VIDEO on
page 27)
Note:
The P&P feature is not available for the inputs
from VIDEO 5 (DTV) IN.
6
7
TV channel
or input-
source
mode for the
sub picture
(It will dim in
about 3
seconds.) TV channel or
input-source
mode for the
main picture (It
will dim in
about 3
seconds.)
Main picture
Sub
The symbol b
or B indicates
which pictures
TV channel or
input source can
be changed.
The symbol
9 indicates
which
pictures
sound is
being
received.
(white labeled button)
LEFT RIGHT
ZOOM IN
or
(white labeled button)
LEFT
RIGHT
ACTIVE
TV/VIDEO
33
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\08CTV.fm masterpage:Right
Using Your New Projection TV
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Press to select the TV channel on which the
symbol b (or B) is displayed. (for details, see
Watching the TV on page 26)
Press to change between the VHF/UHF input and
the AUX input for the picture on which the symbol
b (or B) is displayed.
Press to alternate sound between the right and left
pictures. The symbol 9 will appear for a few
seconds to indicate which pictures sound is being
received.
This is useful when you need to copy down
information that appears on the TVs screen.
Press to freeze both the right and left pictures.
Press again to resume P&P viewing or press
(OFF) to cancel and resume normal TV viewing.
Press to switch the audio and video of the right and
left pictures.
Each time you press SWAP, the picture and sound
of the two will be exchanged.
Press to cancel the P&P function and return to
normal viewing.
Notes:
If one of the pictures received through P&P is
snowy, the entire screen may become unstable. In
this case, erase the snowy channel. (see
CHANNEL SKIP on page 41)
If you select VIDEO 5 when the right picture is
active, the left picture disappears and you can view
the picture from VIDEO 5 (DTV) IN. When the left
picture is active, you cannot view the picture from
VIDEO 5 (DTV) IN.
Using CHANNEL
INDEX
You can use the CHANNEL INDEX feature to
display multiple channels and select one directly.
Channels used for CHANNEL INDEX will come
directly from the TVs list of receivable channels
(those set during AUTO PROGRAM or through
the CHANNEL SET UP menu).
1Press .
The current channel will be reduced in size and
displayed in the center of the screen in normal
motion picture format. The first twelve
receivable channels will appear one after
another, clockwise, around the center picture.
These small pictures are updated in intervals of
one second. The channel number and channel
caption (if set) on the second and later
appearances will dim.
A cyan-colored frame will appear to indicate
current channel selection.
2Move the joystick in any direction to move the
cyan frame to the picture that you wish to view,
and press .
(continued)
(white labeled button)
(white labeled button)
CH
0 9
-JUMP
or or
and ENTER
ANT
AUDIO
FREEZE
SWAP
OFF
Note:
The CHANNEL INDEX feature is not available
for the inputs from VIDEO 5 (DTV) IN.
10
Reciipe
flour - - - - 2
sugar - - - 1/ 2
salt - - - - - 1/2
butter - - - 1
34
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\08CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]

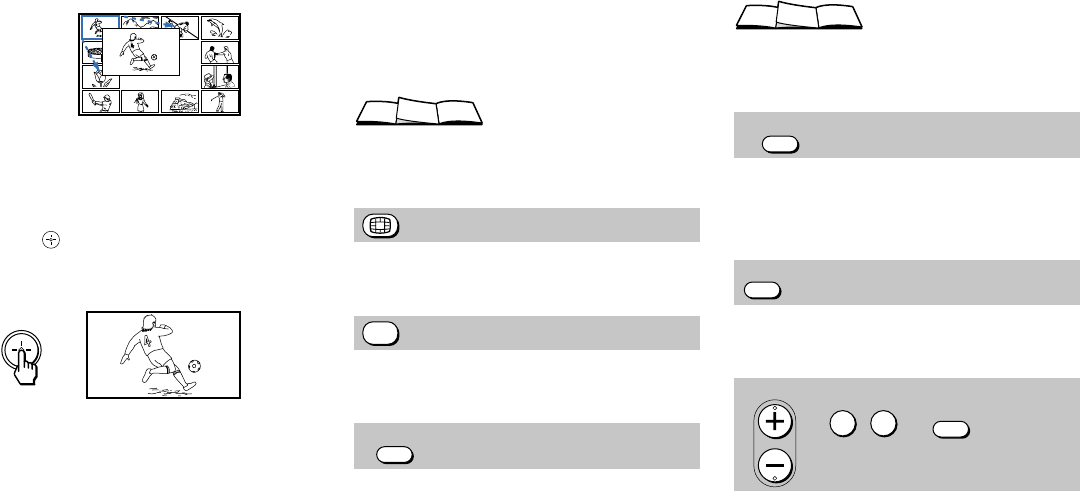

The selected channel will zoom in and move to
the center, and the sound of that channel will
be heard.
3If you wish to view another channel, repeat
step 2.
To view the normal picture of the selected
channel, proceed to step 4.
4Press .
The center picture will be enlarged for normal
viewing.
Notes:
You cannot move the cyan frame until all of the
surrounding pictures appear.
The projection TV will continually update each of
the surrounding pictures while the CHANNEL
INDEX screen is displayed.
Sound will only be heard from the center picture.
If one of the pictures received through CHANNEL
INDEX is snowy, the entire screen may become
unstable. In this case, erase the snowy channel. (see
CHANNEL SKIP on page 41)
If you leave the CHANNEL INDEX screen
displayed for an hour without any additional
operation, CHANNEL INDEX is canceled and the
normal picture reappears.
Using the yellow labeled buttons
Using the yellow labeled buttons Using the yellow labeled buttons
Using the yellow labeled buttons
for CHANNEL INDEX operations
for CHANNEL INDEX operationsfor CHANNEL INDEX operations
for CHANNEL INDEX operations
REFER TO THE
ILLUSTRATION OF THE
REMOTE CONTROL ON THE INSIDE FRONT
COVER OF THIS MANUAL AS YOU REVIEW THE
FOLLOWING DESCRIPTIONS
Press to display the next twelve receivable
channels.
Press to cancel the current operation and return to
normal TV viewing.
Press to freeze the center picture.
Press again to cancel the frozen picture and resume
normal center picture viewing.
Using the white labeled buttons for
Using the white labeled buttons for Using the white labeled buttons for
Using the white labeled buttons for
center picture operations
center picture operationscenter picture operations
center picture operations
REFER TO THE
ILLUSTRATION OF THE
REMOTE CONTROL ON THE INSIDE FRONT
COVER OF THIS MANUAL AS YOU REVIEW THE
FOLLOWING DESCRIPTIONS
Press to scroll the center picture through the video
inputs.
The surrounding channels will not change.
Press to switch the center picture between the
VHF/UHF input and the AUX input.
Press to select a channel for the center picture. (for
details, see Watching the TV on page 26)
Reciipe
flour - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butter - - - 1
OFF
FREEZE
TV/VIDEO
ANT
CH
0 9
-JUMP
or or
and ENTER
35

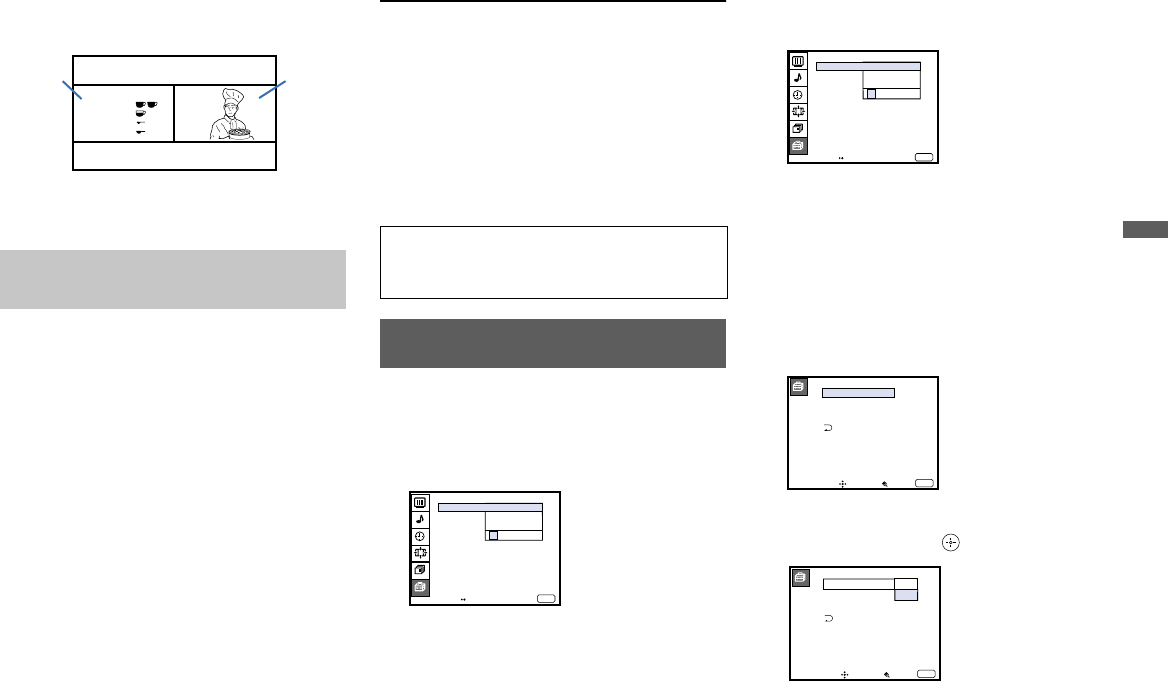

D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:First-Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Adjusting Your SET UP
Adjusting Your SET UP Adjusting Your SET UP
Adjusting Your SET UP
(menus)
(menus)(menus)
(menus)
Learning Menu
Selection
Use the MENU button to access a menu and use
the joystick to alter the settings. Use the following
example to learn how to modify settings.
1Press the MENU button.
The main menu appears.
2Move the joystick up or down to highlight the
desired menu and press (press down on the
center of the joystick) to activate it.
You may also move the joystick right to
activate your selection.
3Move the joystick up or down to highlight the
desired option.
4Press (press down on the center of the
joystick).
Options for your selection (Pop-up menu or
Adjusting menu) will be displayed.
5Move the joystick up or down to make your
selection and press to activate it.
The previous screen will reappear.
Some adjustment menus may require further
operations. For details, see each menu option.
To return to the previous screen (except for the
slider adjustment menus), choose at the
bottom of the menu and press or move the
joystick left.
6Once you have completed all menu
corrections, press MENU to exit the menu
screens.
To exit from the menus at any time
To exit from the menus at any timeTo exit from the menus at any time
To exit from the menus at any time
Press MENU.
MENU
VIDEO
MODE : VIVID
HUE
COLOR
BRIGHTNESS
SHARPNESS
COLOR TEMP :
COOL
NR :
OFF
DYNAMIC PICTURE :
OFF
Move Select Exit
MENU
DTV INPUT:
Y PB PR
FREEZE MODE: NORMAL
LANGUAGE: ENGLISH
Move Select Exit
MENU
SET UP
PARENTAL CONTROL
CAPTION VISION:
VIDEO LABEL
DIRECT PLAY
CC1
SELECT OUT: MONITOR
DTV INPUT:
Y PB PR
FREEZE MODE: NORMAL
LANGUAGE: ENGLISH
Move Select Exit
MENU
SET UP
PARENTAL CONTROL
CAPTION VISION:
VIDEO LABEL
DIRECT PLAY
CC1
SELECT OUT: MONITOR
DTV INPUT: R.G.B
FREEZE MODE:NORNAL
LANGUAGE: ENGLISH
TV OUT
Move Select Exit
MENU
SET UP
PARENTAL CONTROL
CAPTION VISION
VIDEO LABEL
DIRECT PLAY
CC1
VIDEO1
VIDEO2
VIDEO3
VIDEO4
SELECT OUT: MONITOR
TV OUT
VIDEO LABEL
VIDEO1
VIDEO2
VIDEO3
VIDEO4
VIDEO5
VIDEO1:
VIDEO2:
VIDEO3:
VIDEO4:
VIDEO5:
Move Select Exit
MENU
Pop-up menu
Adjusting menu
DTV INPUT:
Y PB PR
FREEZE MODE: NORMAL
LANGUAGE: ENGLISH
Move Select Exit
MENU
SET UP
PARENTAL CONTROL
CAPTION VISION:
VIDEO LABEL
DIRECT PLAY
CC1
SELECT OUT: VIDEO1
MENU
36
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]

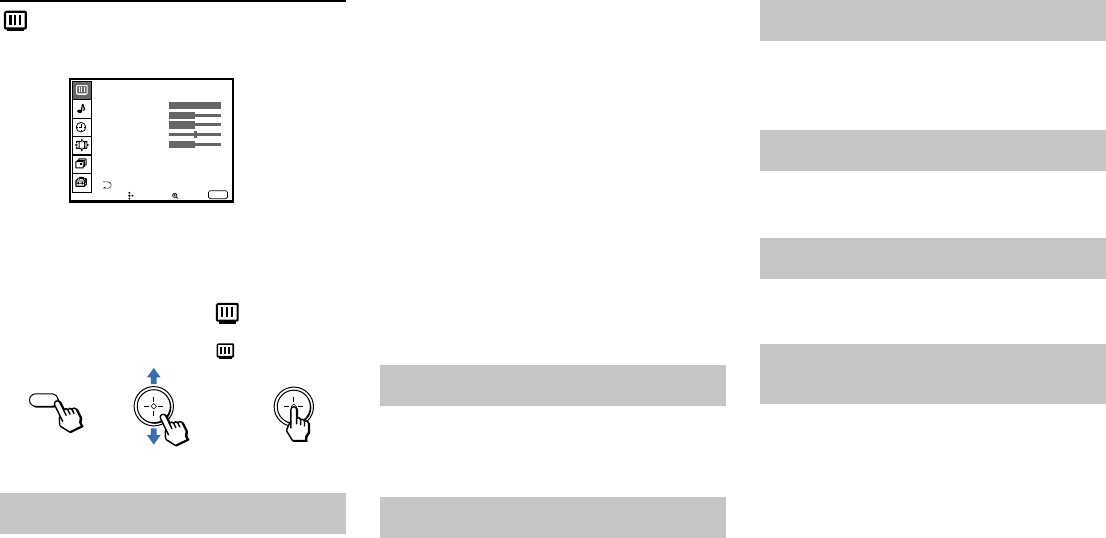

Using the VIDEO
Menu
For detailed information on using the remote
control to modify menu settings, refer to Learning
Menu Selection on page 35.
To select the VIDEO
To select the VIDEO To select the VIDEO
To select the VIDEO menu:
menu: menu:
menu:
You can choose one of five different video modes
that best suits the program you are watching. You
can also adjust the picture quality (such as
BRIGHTNESS, COLOR, etc.) for each MODE to
suit your taste.
First select each MODE individually before
adjusting the picture quality.
VIVID:
Select for enhanced picture contrast and sharpness.
STANDARD:
Select to display a standard picture for normal
viewing environments.
MOVIE:
Select to display a finely detailed picture for low
light environments.
GAME:
Select to display graphics such as a video game.
PRO (Professional):
Select to display a picture with minimum
enhancements.
Press PICTURE MODE on the remote control for
direct selection of a MODE setting.
Adjust slider right (up) to increase picture contrast.
Adjust slider left (down) to decrease picture
contrast.
Adjust slider right (up) to brighten the picture.
Adjust slider left (down) to darken the picture.
Adjust slider right (up) to increase color intensity.
Adjust slider left (down) to decrease color
intensity.
Adjust slider right (up) to increase the green tones.
Adjust slider left (down) to increase the red tones.
Adjust slider right (up) to sharpen the picture.
Adjust slider left (down) to soften the picture.
COOL:
Select to give the white colors a blueish tint.
NEUTRAL:
Select to give the white colors a neutral tint.
WARM:
Select to give the white colors a reddish tint.
MODE
Customized picture viewing
VIDEO
MODE : VIVID
HUE
COLOR
BRIGHTNESS
SHARPNESS
COLOR TEMP :
COOL
NR :
OFF
DYNAMIC PICTURE :
OFF
Move Select Exit
MENU
Sliders
}
MENU
Display , Highlight , Select
Picture Adjustment
BRIGHTNESS
Picture Adjustment
COLOR
Picture Adjustment
HUE
Picture Adjustment
SHARPNESS
Picture Adjustment
COLOR TEMP
White Intensity (Color Temperature)
Adjustment
37
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Select ON to reduce picture noise.
Select OFF to cancel the feature.
NR can be set separately from the MODE settings
of the VIDEO menu.
Select ON to emphasize the black level and to
produce a bolder dynamic picture.
Select OFF to cancel the feature.
To restore the
To restore the To restore the
To restore the factory settings
factory settingsfactory settings
factory settings
Press RESET on the remote control while the
VIDEO menu is selected. To restore each MODE
to the factory setting, press RESET after selecting
the mode to be reset.
Using the AUDIO
Menu
For detailed information on using the remote
control to modify menu settings, refer to Learning
Menu Selection on page 35.
To select the AUDIO
To select the AUDIO To select the AUDIO
To select the AUDIO menu:
menu: menu:
menu:
Adjust slider right (up) to increase high pitched
sounds.
Adjust slider left (down) to decrease high pitched
sounds.
Adjust slider right (up) to increase low pitched
sounds.
Adjust slider left (down) to decrease low pitched
sounds.
Adjust slider right (up) to emphasize right speaker
volume.
Adjust slider left (down) to emphasize left speaker
volume.
STEREO:
Select for stereo reception when viewing a
program broadcast in stereo.
SAP:
Select to listen to a bilingual broadcast. (non-SAP
programs will be muted when this feature is
selected)
MONO:
Select for mono reception. (use to reduce noise
during stereo broadcasts)
Quick MTS access:
Press MTS on your remote control to cycle through
the MTS options as follows: (STEREO
b
SAP
b
MONO
b
STEREO).
(continued)
NR
Picture Noise Reduction
DYNAMIC PICTURE
Black Intensity Adjustment
TREBLE
Sound Adjustment
BASS
Sound Adjustment
AUDIO
TREBLE
BASS
BALANCE
MTS : STEREO
SPEAKER : ALL ON
EFFECT: OFF
SURROUND LEVEL
Move Select Exit
MENU
Sliders
}
MENU
Display , Highlight , Select
BALANCE
Sound Adjustment
MTS
Enjoy stereo, bilingual and mono
programs
Note:
The MTS function is not available for input
from an external equipment connected VIDEO
1, VIDEO 2, VIDEO 3, VIDEO 4 or VIDEO 5
(DTV) IN.
38

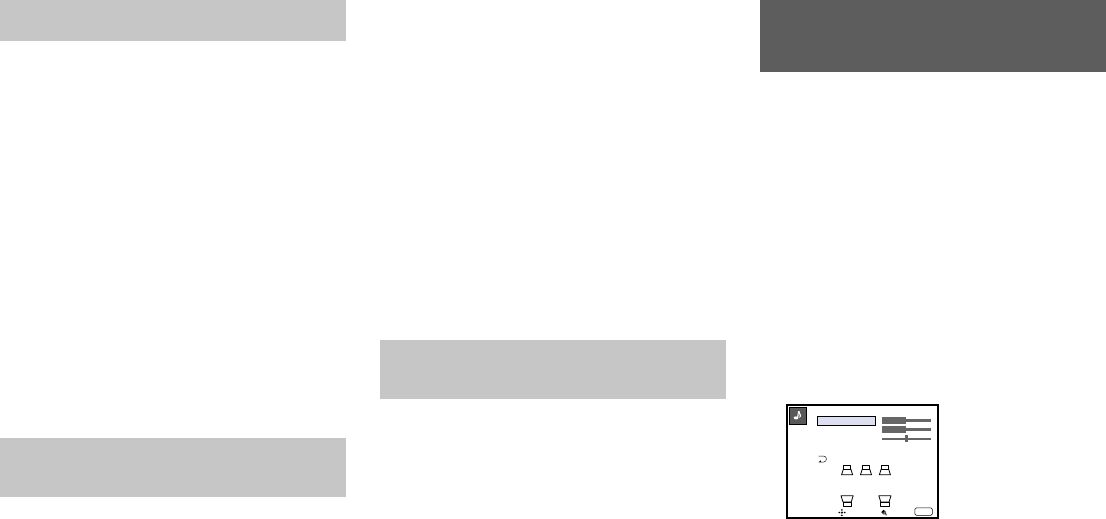

D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
ALL ON:
Select to listen to the sound from the projection
TV speakers alone.
L/R OFF:
Select to turn off the projection TV left and right
speakers and listen to the left and right channel
sounds through a separate audio systems speakers.
ALL OFF:
Select to turn off the projection TV speakers and
listen to the projection TVs sound only through an
external audio systems speakers.
CENTER IN:
Select to use the projection TV center speaker as
center speaker when you connect an amplifier with
a Dolby Pro Logic decoder. (see Connecting an
Amplifier That Supports Dolby Pro Logic
Decoder on page 22)
EFFECT can only be set when SPEAKER is set to
ALL ON or L/R OFF.
; PRO LOGIC:
Produces superb theater-like surround effects.
Most effective for programs encoded in Dolby
surround.
; 3 STEREO:
Produces a dynamic three dimensional sound
without using the rear speakers. The sound of the
rear channel is output from the front speakers.
SRS 3D MONO:
Adds a surround-like effect to mono programs.
LIVE:
Produces surround effects with the atmosphere of a
concert hall.
GAME:
Produces maximum audio impact. Most effective
for video games.
OFF:
Normal stereo or mono reception.
After selecting one of the surround modes, adjust
the volume of each speaker so that the sound will
be even and natural. (see Adjusting the Speaker
Volume for Customized Surround Mode on the
right column)
To restore the
To restore the To restore the
To restore the factory settings
factory settingsfactory settings
factory settings
Press RESET on the remote control while the
AUDIO menu is selected.
However, EFFECT is not reset to the factory
setting even if you press RESET.
After you set EFFECT to one of the modes, adjust
the volume of the front, center and rear speakers to
the same level so that the projection TVs sound
will be even and natural. For ;PRO LOGIC and
;3 STEREO, adjust the speaker volume using
the test tone feature.
Adjusting the speaker volume
Adjusting the speaker volumeAdjusting the speaker volume
Adjusting the speaker volume
1Connect the rear speakers (not supplied).
For details, see Mounting the Rear Speakers
(not supplied) on pages 6 and 7.
2Select SURROUND LEVEL from the AUDIO
menu. (see SURROUND LEVEL on the left
column)
SPEAKER
Custom selection of audio output source
EFFECT
Customizes surround sound effects
based on the programs audio type
SURROUND LEVEL
Speaker volume adjustment for
surround modes
Adjusting the Speaker Volume
for Customized Surround
Mode
;PRO-LOGIC
REAR
BALANCE
TEST TONE : OFF
CENTER
Move Select Exit
MENU
39
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
3Move the joystick up or down to select the
speaker for volume adjustment and press .
CENTER: Select to adjust the level of the
center speaker. (not available for SRS 3D
MONO)
REAR: Select to adjust the level of the rear
speakers. (not available for ;3 STEREO)
BALANCE: Select to adjust the balance
between the right and left speakers.
4Move the joystick up, down, left or right to
adjust the volume level and press .
5Use the joystick to select other speakers and to
adjust the volume levels.
Adjusting the speaker volume
Adjusting the speaker volume Adjusting the speaker volume
Adjusting the speaker volume
using the test tone
using the test toneusing the test tone
using the test tone
The TEST TONE feature makes it easier to adjust
the volume level. You can use this feature for
;PRO LOGIC and ;3 STEREO modes only.
1With the SURROUND LEVEL window open,
move the joystick up or down to select TEST
TONE and press .
2Move the joystick up or down to select ON.
A test tone will be output from each speaker in
sequence:
Front left t Center t Front right t Rear
To turn off the test tone, select OFF.
3Follow steps 2 through 4 in Adjusting the
speaker volume.
Note:
You can adjust the volume using the test tone
independent of the projection TVs operation.
Using the TIMER
Menu
After setting the clock you can use the timer to
turn the projection TV on and off.
For detailed information on using the remote
control to modify menu settings, refer to Learning
Menu Selection on page 35.
To select the TIMER menu:
To select the TIMER menu:To select the TIMER menu:
To select the TIMER menu:
Tip z
Set daylight saving time before setting the clock. Any
loss of power will cause these settings to be erased.
(continued)
;PRO-LOGIC
REAR
BALANCE
TEST TONE : OFF
CENTER
Move Select Exit
MENU
REAR
BALANCE
TEST TONE : ON
OFF
CENTER
;PRO-LOGIC
Move Select Exit
MENU
TIMER
DAYLIGHT SAVING: NO
CURRENT TIME
ON / OFF TIMER
––:––AM
Move Select Exit
MENU
MENU
Display , Highlight , Select
40
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Select YES to compensate for Daylight Saving
Time in spring. The current time automatically
moves ahead one hour.
Select NO at the end of Daylight Saving Time in
fall. The current time moves back one hour.
1Press , then move the
joystick up or down
until the current day
(MON-SUN) is
displayed, and press .
2Move the joystick up or
down until the current hour (1-12) and AM/PM
is displayed, and press .
3Move the joystick up or down until the current
minute (00-59) is displayed, and press .
The Clock has now started. Press MENU to exit.
1Select the desired timer
(1 or 2).
2Move the joystick up or
down until the desired
day (MON-SUN) or
range of days (EVERY
SUN-SAT or EVERY MON-FRI) is displayed,
and press .
3Move the joystick up or down until the time
(hours and minutes) that you want the
projection TV to remain on is displayed, and
then press .
4Move the joystick up or down to set the time
duration (maximum of 6 hours) and press .
5Move the joystick up or down to select the
desired channel and press .
The timer is now set. The TIMER/STAND BY
indicator on your projection TV will be lit.
Press MENU to exit. To cancel your timer setting,
select timer 1 or 2 and press RESET while in the ON/
OFF TIMER window. Performing AUTO PROGRAM
will erase all TIMER settings.
Using the WIDE
SCREEN MODE Menu
For detailed information on using the remote
control to modify menu settings, refer to Learning
Menu Selection on page 35.
To select the WIDE SCREEN MODE
To select the WIDE SCREEN MODE To select the WIDE SCREEN MODE
To select the WIDE SCREEN MODE
menu:
menu: menu:
menu:
Select ON to automatically display the picture
with an ID-1 (aspect ratio recorded) signal of 480i
format in an optimum wide screen mode; normal
4:3 picture in NORMAL, letterbox picture in
ZOOM, and 4:3 squeezed picture in FULL. (for
details, see pages 28 and 29)
Select OFF if you want to choose the wide screen
DAYLIGHT SAVING
Automatically adjusts the time.
CURRENT TIME
Necessary for the TIMER.
CURRENT TIME
––– ––: –AM
Move Select Exit
MENU
ON/OFF TIMER
Wake up or scheduled viewing.
ON / OFF TIMER
2.
––––––
––: – AM Hch
–––
––––
––: – AM Hch
–––
SUN 12: 0AM0
1.
Move Select Exit
MENU
AUTO WIDE
Automatically selects the wide screen
mode
WIDE SCREEN MODE
AUTO WIDE : ON
WIDE MODE : ZOOM
V CENTER : 0
Move Select Exit
MENU
MENU
Display , Highlight , Select
41
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
mode manually by pressing the WIDE MODE
button repeatedly.
You can select NORMAL, WIDE ZOOM, ZOOM
or FULL for the 4:3 or letterbox picture to fill the
16:9 screen manually by pressing the WIDE
MODE button repeatedly. (for details on each
mode, see Watching the Picture in Wide Screen
Mode Automatically AUTO WIDE on page
28)
Allows you to move the picture vertically within
the screen (available only in ZOOM and WIDE
ZOOM modes).
Move the joystick up or down to move the picture,
and press .
Using the CHANNEL
SET UP Menu
For detailed information on using the remote
control to modify menu settings, refer to Learning
Menu Selection on page 35.
To select the CHANNEL SET UP
To select the CHANNEL SET UP To select the CHANNEL SET UP
To select the CHANNEL SET UP
menu:
menu:menu:
menu:
After AUTO SET UP, you
can erase unnecessary TV
channels from the channel
preset memory.
With the CHANNEL SKIP
window open:
1Move the joystick up or down to select the
desired channel. You can view the channel that
is selected with the CHANNEL SKIP menu in
the center sub screen. You can also use CH +/
or 09 and ENTER buttons.
2Press .
3Move the joystick up or down to select YES,
and press .
The selected channel will be erased.
If you want to re-enter the skipped channel, follow
the steps above and select NO.
You can add a caption for
up to 32 channels of both
VHF/UHF and AUX
inputs.
With the CHANNEL
CAPTION window open:
1Press and then move the joystick up or
down to select the desired channel. You can
view the channel that is selected with the
CHANNEL CAPTION menu in the center sub
screen.
2Press .
3Move the joystick up or down to display the
first letter or number of the caption and press
to select it.
4Repeat until up to four digits are selected.
5Press .
To erase a caption, press RESET. (continued)
WIDE MODE
Manually selects the wide screen mode
V CENTER
Adjusts the position of the picture
CHANNEL SKIP
Skips unnecessary channels
CHANNEL SET UP
CHANNEL SKIP
CHANNEL CAPTION
CABLE : ON
AUTO PROGRAM
FAVORITE CHANNEL : AUTO
CHANNEL FIX : OFF
Move Select Exit
MENU
MENU
Display , Highlight , Select
CHANNEL SKIP
Select a channel
2 :
3 :
4 :
5 :
6 :
7 :
8 :
NO
1 :
Move Select Exit
MENU
NO
NO
NO
NO
NO
NO
NO
CHANNEL CAPTION
Easy recognition of the channel you are
watching
CHANNEL CAPTION
CAPTION : ––––
CHANNEL : ––
Move Select Exit
MENU
42
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Select ON if your projection TV is connected to a
cable system.
Select OFF if your projection TV is connected to
an antenna.
AUTO SET UP will set CABLE to ON
automatically.
Select YES to signal the projection TV to
automatically program all receivable TV channels.
When all the receivable channels are stored, the
lowest numbered channel is displayed.
Select NO to cancel AUTO PROGRAM.
The FAVORITE CHANNEL feature enables easy
access to the eight channels that you preset (or the
last channel that you were watching).
(for details on how to set up this feature, see
Setting and Selecting FAVORITE CHANNEL
on this page.)
2-6:
When the cable box is connected to the VHF/UHF
input, you can fix the TVs input to one of the
channels between 2 and 6. Press SAT/CABLE
(FUNCTION) and then CH +/ to change the
cable box channels.
AUX 2-6:
Use this when a cable box is connected to AUX,
and a cable or antenna is connected to VHF/UHF.
VIDEO 1:
Use this when you have connected external video
equipment (e.g. AV receiver) and you want the
projection TVs input fixed to it.
OFF:
When you want to switch CHANNEL FIX off.
If the projection TV is in the AUX mode when you
turn CHANNEL FIX off, press ANT to return to
UHF input mode.
TIMER settings are erased when CHANNEL FIX is
set.
Note:
You cannot change channels with the TVs tuner
when you set CHANNEL FIX. If you want to use
the TVs tuner while fixing the TVs input to
VIDEO 1, use the SET UP menu to set SELECT
OUT to TV OUT. (see SELECT OUT on page
45)
Setting and Selecting
FAVORITE CHANNEL
The FAVORITE CHANNEL feature of your
projection TV enables easy access to the eight
channels that you preset (or the last channel that
you were watching).
Your FAVORITE CHANNEL options can be set
automatically or manually.
The factory setting for FAVORITE CHANNEL is
AUTO.
When FAVORITE CHANNEL is set to AUTO, the
last eight channels selected with the 09 buttons
will be set as FAVORITE CHANNEL options. If
you want to input your own selections as
FAVORITE CHANNEL settings, set to
MANUAL.
CABLE
Cable system setting
AUTO PROGRAM
Automatic channel presetting
FAVORITE CHANNEL
Users favorite channels
CHANNEL FIX
Locks selection of your projection TVs
input when used in conjunction with
external equipment such as a cable box, AV
receiver, etc.
Note:
You can not use the FAVORITE CHANNEL
when watching the signal input from VIDEO 5
(DTV) IN.
43
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
1Select FAVORITE CHANNEL from the
CHANNEL SET UP menu. (see page 41)
2Move the joystick up or down to select
MANUAL and press .
The FAVORITE CHANNEL menu will appear.
If you set CHANNEL CAPTION names (e.g.
CNN, HBO), they will also be displayed. (see
CHANNEL CAPTION on page 41)
3Move the joystick up or down to select a
position (18), and press .
4Move the joystick up or down to select a
channel.
You have now selected a favorite channel.
5Press and use the joystick to program other
favorite channels. (Follow steps 3 and 4.)
6Press MENU when you have finished.
Your favorite channels are now ready for use.
You have the option of returning to the FAVORITE
CHANNEL screen to adjust any of your favorite
channel choices.
Simply proceed as described in Setting
FAVORITE CHANNEL manually (skip step 2 if
MANUAL is already selected).
When you reach step 3, select the position you
want to change and press . Press RESET to
clear the channel for that position.
Move the joystick up or down to select a new
channel.
Press MENU when you are done.
Note:
The FAVORITE CHANNEL feature is not
available for the picture input from AUX or
VIDEO 5 (DTV) IN.
(continued)
Setting FAVORITE CHANNEL
manually
CHANNEL SET UP
CHANNEL SKIP
CHANNEL CAPTION
CABLE : ON
AUTO PROGRAM
CHANNEL FIX :
MANUAL
Move Select Exit
MENU
FAVORITE CHANNEL : AUTO
FAVORITE CHANNEL
Select a position
2 .
3 .
4 .
5 .
6 .
7 .
8 .
Move Select Exit
MENU
1 . 2
10
22
30
40
52
125
1
SPTN
CNN
FAVORITE CHANNEL
Select a channel
2 .
3 .
4 .
5 .
6 .
7 .
8 .
Move Select Exit
MENU
1 . 2
10
22
30
40
52
125
SPTN
1 CNN
FAVORITE CHANNEL
Select a channel
2 .
3 .
4 .
5 .
6 .
7 .
8 .
Move Select Exit
MENU
1 . 125
10
22
30
40
52
125
SPTN
1 CNN
Resetting FAVORITE
CHANNEL choices
FAVORITE CHANNEL
Select a channel
2 .
3 .
4 .
5 .
6 .
7 .
8 .
Move Select Exit
MENU
1 . 2
10
22
30
40
52
125
SPTN
___
44
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]

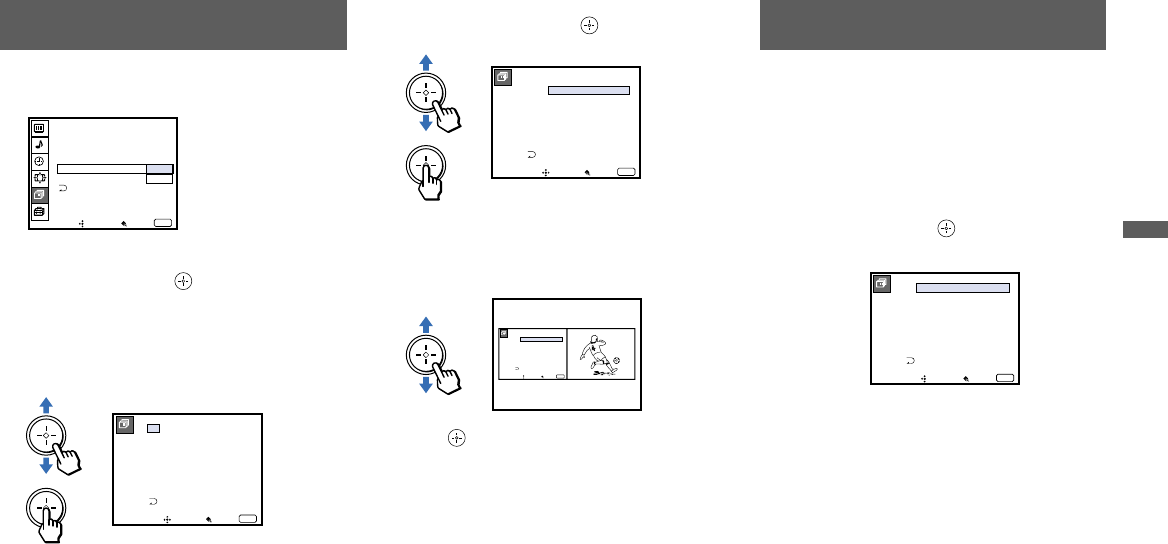

You can use the FAVORITE CHANNEL feature to
directly select the channel you want to watch.
1Press once.
The favorite channel menu and a window
picture will be superimposed over the current
channel. The window picture displays the
channel selected from the menu.
2Move the joystick up or down to select the
channel that you wish to view from the menu.
The picture of the selected channel will be
displayed in the window picture.
3Press to select the channel.
The selected channel will be displayed for
normal viewing.
To cancel the favorite channel menu before
selecting a channel, move the joystick up or down
to select EXIT at the bottom of the menu and press
.
Using the SET UP
Menu
For detailed information on using the remote
control to modify menu settings, refer to Learning
Menu Selection on page 35.
To select the SET UP menu:
To select the SET UP menu:To select the SET UP menu:
To select the SET UP menu:
Allows you to block TV programs that you feel are
unsuitable for your children.
(see Using the PARENTAL CONTROL Feature
on page 47 for details)
Using FAVORITE CHANNEL
FAVORITES
12 CNN
36 ESPN
50
60
70
80
90
120 MTV
EXIT
FAVORITES
12 CNN
36 ESPN
50
60
70
80
90
120 MTV
EXIT
PARENTAL CONTROL
Blocks programs unsuitable for children
Move Select Exit
MENU
SET UP
PARENTAL CONTROL
CAPTION VISION:
SELECT OUT: MONITOR
LANGUAGE: ENGLISH
VIDEO LABEL
DIRECT PLAY
FREEZE MODE: NORMAL
CC1
DTV INPUT:
Y PB PR
MENU
Display , Highlight , Select
45
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Some programs are
broadcast with Caption
Vision.
To display Caption Vision,
select [CC]
[CC][CC]
[CC] 1, [CC]
[CC][CC]
[CC] 2, [CC]
[CC][CC]
[CC]
3, [CC]
[CC][CC]
[CC] 4, TEXT1,
TEXT2, TEXT3 or TEXT4 from the menu. Then
press the [CC] button until Caption Vision is
displayed.
[CC]
[CC][CC]
[CC] 1, [CC]
[CC][CC]
[CC] 2, [CC]
[CC][CC]
[CC] 3 or [CC]
[CC][CC]
[CC] 4 displays a printed
version of the dialogue or sound effects of a
program. (The mode should be set to [CC]
[CC][CC]
[CC] 1 for
most programs.) TEXT1, TEXT2, TEXT3 or
TEXT4 displays network/station information
presented using either half or the whole screen.
Note:
Poor reception of TV programs can cause errors in
Caption Vision and XDS.
Captions may appear with a white box or other
errors instead of the intended text.
You can select the desired
output signal from the
SELECT OUT jacks at the
rear of the projection TV.
MONITOR:
Select to edit tapes while monitoring. SELECT
OUT outputs the picture displayed on the screen.
VIDEO1VIDEO4:
Select to edit tapes while viewing an input image
different from that being recorded. SELECT OUT
outputs the signal input to the projection TV
regardless of the displayed picture on the screen.
TV OUT:
Select if you connect an AV receiver to VIDEO 1
IN. SELECT OUT outputs the signal that the TV is
tuned to, regardless of the displayed picture. (see
Connecting an AV Receiver on page 20 for
connection)
If you select TV OUT, the following pop-up menu
appears.
Select YES only if you
have connected an AV
receiver, with no other
equipment, to your
projection TV. You can
always select the signal
from the receiver by
pressing TV/VIDEO once.
Select NO if you have connected multiple
components to your projection TV. You can select
an input (VIDEO1 VIDEO4) with the TV/
VIDEO button.
Note:
The SELECT OUT signal is only available when
the projection TV is on.
Select from available languages (ENGLISH or
ESPAÑOL) to display all menus in your language
of choice.
CAPTION VISION
Television closed caption display
DTV INPUT: Y PB PR
FREEZE MODE:NORMAL
SELECT OUT:MONITOR
LANGUAGE: ENGLISH
Move Select Exit
MENU
SET UP
PARENTAL CONTROL
CAPTION VISION
VIDEO LABEL
DIRECT PLAY TEXT1
TEXT2
TEXT3
TEXT4
CC1
CC2
CC3
CC4
SELECT OUT
Output signal selection from SELECT
OUT
Note:
SELECT OUT setting is not available for the
inputs from VIDEO 5 (DTV) IN.
DTV INPUT: R.G.B
FREEZE MODE:NORNAL
LANGUAGE: ENGLISH
Move Select Exit
MENU
SET UP
PARENTAL CONTROL
CAPTION VISION
VIDEO LABEL
DIRECT PLAY
CC1
VIDEO1
VIDEO2
VIDEO3
VIDEO4
SELECT OUT: MONITOR
TV OUT
LANGUAGE
Users preferred language
DTV INPUT: R.G.B
DTV ASPECT: 4:3
FREEZE MODE:
Move Select Exit
MENU
SET UP
PARENTAL CONTROL
CAPTION VISION:
LANGUAGE:
SELECT OUT:
VIDEO LABEL
DIRECT PLAY
CC1
VIDEO1
MONITOR
VIDEO2
VIDEO3
VIDEO4
TV OUT
Set up using YES
only VIDEO1 input? NO
46
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
This feature allows you to
label each input mode so
that you can easily identify
the connected equipment
(e.g. you can label VIDEO
1 IN as VHS).
With the VIDEO LABEL window open:
1Move the joystick up or down to select the input
mode you want to label and press .
2Move the joystick up or down to select the label
and press .
VIDEO LABEL Options:
VIDEO 1: VIDEO 1, VHS, 8mm, BETA, LD,
SAT, DVD, AV RECEIVER, SKIP
VIDEO 24: VIDEO 24, VHS, 8mm, BETA,
LD, SAT, DVD, SKIP
VIDEO 5: VIDEO 5, DTV, DVD, SKIP
If you select SKIP, your projection TV will skip this
connection when you scan through video sources
using the TV/VIDEO button.
This feature allows you to
switch the input mode from
the TV to a Sony VCR
(MDP or DVD) and start
playing by only pressing
the N (playback) button
on the remote control. You have to set the AV 1/2/
3/DVD/MDP switch on the remote control (e.g.,
you connect your VCR to the VIDEO 3 IN jacks
and set the AV 1/2/3/DVD/MDP switch to VTR 3).
With the DIRECT PLAY window open:
1Move the joystick up or down to select the input
to which your video equipment is connected,
and press .
2Move the joystick up or down to select the
position of the AV 1/2/3/DVD/MDP switch, and
press .
Useful when you need to copy down information
that appears on the TVs screen.
NORMAL:
Select to freeze the whole picture on the screen by
pressing FREEZE.
TWIN:
Select to freeze the desired scene and display it on
the left of the screen while viewing the normal
picture of the current channel on the right by
pressing FREEZE.
VIDEO LABEL
Easy recognition of connected
equipment (e.g. SAT, VHS, etc.)
VIDEO LABEL
VIDEO1
VIDEO2
VIDEO3
VIDEO4
VIDEO5
VIDEO1:
VIDEO2:
VIDEO3:
VIDEO4:
VIDEO5:
Move Select Exit
MENU
VIDEO LABEL
VIDEO1:
VIDEO2:
VIDEO3:
VIDEO4:
VIDEO5:
VIDEO1
VHS
8mm
BETA
LD
SAT
DVD
AV RECEIVER
SKIP
Move Select Exit
MENU
DIRECT PLAY
Easy operation of a connected VCR
Note:
DIRECT PLAY setting is not available for the
inputs from VIDEO 5 (DTV) IN.
DIRECT PLAY
VIDEO1:
VIDEO2:
VIDEO3:
VIDEO4:
OFF
OFF
OFF
OFF
1 2 3 DVD/MDP
Move Select Exit
MENU
DIRECT PLAY
VIDEO1:
VIDEO2:
VIDEO3:
VIDEO4:
OFF
AV1
AV2
AV3
DVD/MDP
1 2 3 DVD/MDP
Move Select Exit
MENU
FREEZE MODE
Freeze picture mode
Note:
The FREEZE MODE feature is not available for
the inputs from VIDEO 5 (DTV) IN jacks.
Recipe
flour - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butter - - - 1
The current picture freezes.
47
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
This mode is not available for PIP, P&P or CH
INDEX screens.
Press FREEZE again or press (OFF) to display
the normal picture.
Select Y PB PR when you connect a DTV
receiver to the Y/PB/PR jacks of VIDEO 5 (DTV)
IN.
Select R.G.B when you connect a DTV receiver to
the G/B/R/HD/VD jacks of VIDEO 5 (DTV) IN
on the rear of the projection TV.
Using the PARENTAL
CONTROL Feature
The TV programs and movies shown on TV are
given a rating signal based on the following rating
systems: Television Parental Guidelines to rate
television programs (TV ratings), and Motion
Picture Association of America (MPAA)
Guidelines to rate movies including those shown
on TV (movie ratings)
First, set a password, then select your desired
rating from Sonys predetermined ratings.
1Select PARENTAL CONTROL from the SET
UP menu. (see page 44)
2Enter a four digit password* using the 09
buttons.
* Do not enter 4357 corresponding to HELP
on a phone number pad. (see page 52)
3To confirm the password, re-enter the same
password with the 09 buttons.
Your password is stored and the PARENTAL
CONTROL menu automatically appears.
If you want to change the password, see page
51.
4Make sure that PARENTAL LOCK is
highlighted, and press .
(continued)
DTV INPUT
–– Input signal selection from the DTV
receiver
Recipe
flour - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butter - - - 1
6
Frozen
picture Normal
motion
Note:
The PARENTAL CONTROL feature is not
available for the inputs from VIDEO 5 (DTV) IN.
Activating the PARENTAL
CONTROL feature
DTV INPUT: R.G.B
DTV ASPECT: 4:3
Move Exit
MENU
SET UP
CAPTION VISION:
Use [0-9] to enter
password
SELECT OUT:
LANGUAGE:ENGLISH
VIDEO LABEL
DIRECT PLAY
DTV INPUT: Y PB PR
SET NEW
PASSWORD
_
FREEZE MODE:NORMAL
PARENTAL CONTROL
___
Move Exit
MENU
SET UP
CAPTION VISION:
Confirm password
SELECT OUT:
LANGUAGE:ENGLISH
VIDEO LABEL
DIRECT PLAY
CONFIRM
PASSWORD
_
FREEZE MODE:NORMAL
DTV INPUT: Y PB PR
PARENTAL CONTROL
___
PARENTAL CONTROL
Move Select Exit
MENU
OFFPARENTAL LOCK:
RATING: CHILD
CHANGE PASSWORD
PARENTAL LOCK:
RATING: CHILD
CHANGE PASSWORD
PARENTAL CONTROL
Move Select Exit
MENU
ON
OFF
48
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]

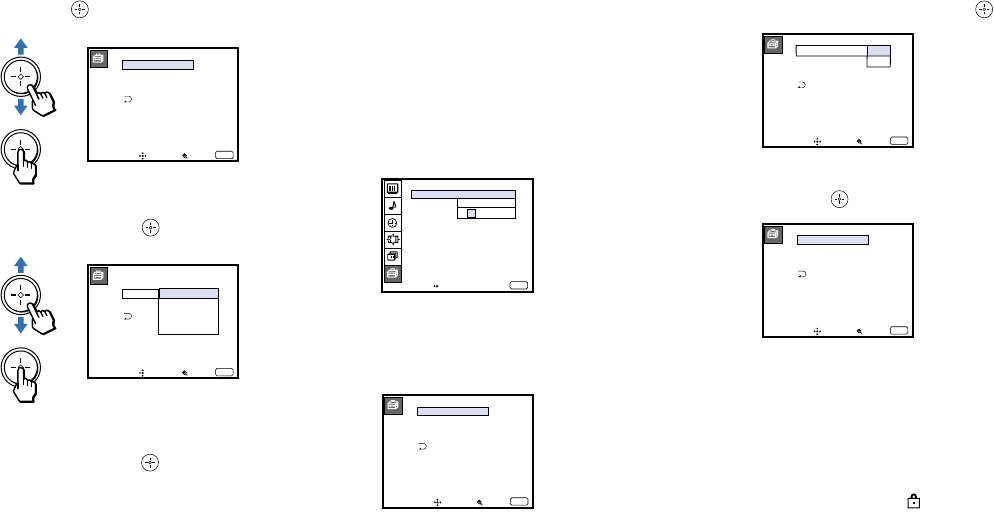

5Move the joystick up or down to select ON,
and press .
6Move the joystick up or down to select
RATING, and press .
7Move the joystick up or down to select a
desired rating (CHILD, YOUTH and YOUNG
ADULT), and press .
If you want to select the ratings from
CUSTOM, go to step 4 of Selecting a
Custom Rating on page 49.
8Press MENU to exit the menu.
To deactivate the PARENTAL
To deactivate the PARENTAL To deactivate the PARENTAL
To deactivate the PARENTAL
CONTROL feature
CONTROL featureCONTROL feature
CONTROL feature
If you set PARENTAL LOCK in the PARENTAL
CONTROL menu to OFF, the PARENTAL
CONTROL feature will be canceled and you can
view all TV programs and movies shown on TV.
1Select PARENTAL CONTROL from the SET
UP menu. (see page 44)
2Enter your four digit password using the 09
buttons.
The PARENTAL CONTROL menu appears.
3Move the joystick up or down to select
PARENTAL LOCK, and press .
4Move the joystick up or down to select OFF,
and press .
5Press MENU to exit the menu.
To unlock the PARENTAL CONTROL
To unlock the PARENTAL CONTROL To unlock the PARENTAL CONTROL
To unlock the PARENTAL CONTROL
feature temporarily
feature temporarilyfeature temporarily
feature temporarily
When you select a PARENTAL CONTROL
program, no sound or picture except for a channel
number will appear. The indicator is displayed.
To view the program, follow the steps below.
1Press ENTER to display the Password
screen.
2Enter your password using the 09 buttons.
PARENTAL CONTROL will be canceled
(PARENTAL LOCK set to OFF) until you turn
your projection TV off.
PARENTAL CONTROL
PARENTAL LOCK:
RATING: CHILD
CHANGE PASSWORD
Move Select Exit
MENU
ON
PARENTAL CONTROL
Move
Age up to 6
Select Exit
MENU
ONPARENTAL LOCK:
RATING:
CHANGE PASSWORD
CHILD
YOUTH
YOUNG ADULT
CUSTOM
Move Exit
MENU
SET UP
CAPTION VISION:
Use [0-9] to enter
password
SELECT OUT:
LANGUAGE:ENGLISH
VIDEO LABEL
DIRECT PLAY
PASSWORD
_
FREEZE MODE:NORMAL
PARENTAL CONTROL
___
DTV INPUT: Y PB PR
PARENTAL CONTROL
PARENTAL LOCK:
RATING: CHILD
CHANGE PASSWORD
Move Select Exit
MENU
ON
PARENTAL LOCK:
RATING: CHILD
CHANGE PASSWORD
PARENTAL CONTROL
Move Select Exit
MENU
ON
OFF
PARENTAL CONTROL
PARENTAL LOCK:
RATING: CHILD
CHANGE PASSWORD
Move Select Exit
MENU
OFF
49
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
If you want to select the ratings to be blocked from
CUSTOM once you have activated the
PARENTAL CONTROL feature (see page 47),
follow the procedure below.
For a detailed description of each rating, see pages 52
and 53.
1Select PARENTAL CONTROL from the SET
UP menu. (see page 44)
2Enter your four digit password using the 09
buttons.
The PARENTAL CONTROL menu appears.
3Move the joystick up or down to select
RATING, and press .
4Move the joystick up or down to select
CUSTOM, and press .
First, select a TV rating.
5Move the joystick up or down to select TV
RATING, and press .
6Move the joystick up or down to select the TV
rating to be blocked, and press .
7Move the joystick up or down to select , and
press .
The indicator automatically appears beside
the selected rating and all higher ratings,
indicating that the programs that match the
ratings will be blocked.
Some ratings have additional content ratings
called extenders. The extenders are defined
as follows: D (sexually suggestive Dialog), FV
(Fantasy Violence), L (coarse Language), S
(Sexual situations) and V (Violence). By
setting the extenders, you can define additional
viewing limits. For more details of extenders,
see page 53.
All of the extenders included in the selected
ratings will be blocked. If you wish to allow
any of them to be viewed, go to step 8.
(continued)
Selecting a Custom Rating
Move Exit
MENU
SET UP
CAPTION VISION:
Use [0-9] to enter
password
SELECT OUT:
LANGUAGE:ENGLISH
VIDEO LABEL
DIRECT PLAY
PASSWORD
_
FREEZE MODE:NORMAL
PARENTAL CONTROL
___
DTV INPUT: Y PB PR
PARENTAL CONTROL
PARENTAL LOCK:
RATING: CHILD
CHANGE PASSWORD
Move Select Exit
MENU
ON
PARENTAL CONTROL
Move
Age up to 6
Select Exit
MENU
ONPARENTAL LOCK:
RATING:
CHANGE PASSWORD
CHILD
YOUTH
YOUNG ADULT
CUSTOM
TV RATING
Move
Select rating
Select Exit
MENU
TV–Y
TV–Y7
TV–G
TV–PG
TV–14
TV–MA
_
_ :FV _
_
_ :D _ L _ S _ V _
_ :D _ L _ S _ V _
_ : L _ S _ V _
TV RATING
Move
Allow rating
Select Exit
MENU
TV–Y
TV–Y7
TV–G
TV–PG
TV–14
TV–MA
_
_ :FV _
_
:D _ L _ S _ V _
_ :D _ L _ S _ V _
: L _ S _ V _
_
TV RATING
Move
Select category
Select Exit
MENU
TV–Y
TV–Y7
TV–G
TV–PG
TV–14
TV–MA
_
_ :FV _
_
:D – L – S – V
:D – L – S – V
: L – S – V
50
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
8Move the joystick left or right to select the
extender to be viewed, and press .
9Move the joystick up or down to select
“–, and press .
“–” appears beside the selected extender,
indicating that the programs that match the
extender can be viewed.
If you select , is displayed to show that
the programs that match the extender will be
blocked again.
10Repeat steps 8 and 9 for other extenders.
All programs that match the ratings you select
and higher, except for the extenders that were
canceled, will be blocked.
11After setting of the TV rating is complete,
move the joystick up or down to select ,
and press .
Second, select a movie rating.
12Move the joystick up or down to select MOVIE
RATING, and press .
13Move the joystick up or down to select the
movie rating to be blocked, and press .
14Move the joystick up or down to select , and
press .
The indicator automatically appears beside
the selected rating and all higher ratings,
indicating that the programs that match the
ratings will be blocked.
15Press MENU to exit the menu.
TV RATING
Move
Block content
Select Exit
MENU
TV–Y
TV–Y7
TV–G
TV–PG
TV–14
TV–MA
_
_ :FV _
_
:D – L – S – V
:D – L – S – V
: L – S – V
TV RATING
Move
Select category
Select Exit
MENU
TV–Y
TV–Y7
TV–G
TV–PG
TV–14
TV–MA
_
_ :FV _
_
:D – L – S – V _
:D – L – S – V
: L – S – V
CUSTOM RATING
Move
Select category
Select Exit
MENU
TV RATING
MOVIE RATING
UNRATED: VIEW ALL
MOVIE RATING
Move
Select rating
Select Exit
MENU
G
PG
PG–13
R
NC–17
X
MOVIE RATING
Move
Block rating
Select Exit
MENU
G
PG
PG–13
R
NC–17
X
MOVIE RATING
Move
Select rating
Select Exit
MENU
G
PG
PG–13
R
NC–17
X
51
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
To block TV programs and/or
To block TV programs and/or To block TV programs and/or
To block TV programs and/or
movies for which a rating signal is
movies for which a rating signal is movies for which a rating signal is
movies for which a rating signal is
not given (NR and N/A)
not given (NR and N/A)not given (NR and N/A)
not given (NR and N/A)
For a description of the NR and N/A ratings, see page
53.
1Perform steps 14 of Selecting a Custom
Rating on page 49.
2Move the joystick up or down to select
UNRATED, and press .
3Move the joystick up or down to select the type
of programs to be blocked, and press .
4Press MENU to exit the menu.
1Select PARENTAL CONTROL from the SET
UP menu. (see page 44)
2Enter your four digit password using the 09
buttons.
The PARENTAL CONTROL menu appears.
3Move the joystick up or down to select
CHANGE PASSWORD, and press .
(continued)
CUSTOM RATING
Move
No block
Select Exit
MENU
TV RATING
MOVIE RATING
UNRATED: VIEW ALL
TV
MOVIE
BOTH
CUSTOM RATING
Move Select Exit
MENU
TV RATING
MOVIE RATING
UNRATED: BOTH
Block all unrated
programming
To block ... Select ...
No program
(to view any unrated
TV program and
movie)
VIEW ALL
Unrated TV programs TV
Unrated movies MOVIE
Unrated TV programs
and movies BOTH
Changing the Password
Move Exit
MENU
SET UP
CAPTION VISION:
Use [0-9] to enter
password
SELECT OUT:
LANGUAGE:ENGLISH
VIDEO LABEL
DIRECT PLAY
PASSWORD
_
FREEZE MODE:NORMAL
PARENTAL CONTROL
___
DTV INPUT: Y PB PR
PARENTAL CONTROL
PARENTAL LOCK:
RATING: CHILD
CHANGE PASSWORD
Move Select Exit
MENU
ON
PARENTAL CONTROL
PARENTAL LOCK: ON
RATING:
CHANGE PASSWORD
Move Exit
MENU
CHILD
Use [0-9] to enter
new four digit
password
NEW
____
52
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Left
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
4Enter a new four digit password using the 09
buttons.
5Enter the password set in step 4 again to
confirm.
If you entered it incorrectly, Password
incorrect appears.
Re-enter the correct password.
6Press MENU to exit the menu.
If you have forgotten your
If you have forgotten your If you have forgotten your
If you have forgotten your
password
passwordpassword
password
In step 1 of Changing the Password, enter the
master password 4357 (corresponding to
HELP on a phone number pad). You can then
store a new password.
Notes:
If you entered 4357 as your password the first
time, you cannot store a new password. (see step 2
of Activating the PARENTAL CONTROL feature
on page 47)
When you select a PARENTAL CONTROL
program and the indicator is displayed on the
screen, you cannot view that program even if you
enter 4357. (see To unlock the PARENTAL
CONTROL feature temporarily on page 48)
What the Ratings
Mean
Sonys predetermined ratings
Sonys predetermined ratingsSonys predetermined ratings
Sonys predetermined ratings
These are original ratings that Sony predetermined
according to the viewers age. Each rating allows
you to view the certain programs, as follows.
See the center column to page 53 for a description of
TV and movie ratings.
CHILD:
Suitable for children under the age of 6.
Viewable movie ratings: G, NR, and N/A
Viewable TV ratings: TV-Y, TV-G, and TV-NR
YOUTH:
Suitable for children aged 7 and older.
Viewable movie ratings: G, PG, NR, and N/A
Viewable UTV ratings: TV-Y, TV-Y7, TV-G, TV-
PG, and TV-NR
YOUNG ADULT:
Suitable for children aged 14 and older.
Viewable movie ratings: G, PG, PG-13, NR, and
N/A
Viewable TV ratings: TV-Y, TV-Y7, TV-G, TV-
PG, TV-14, and TV-NR
Movie ratings
Movie ratings Movie ratings
Movie ratings
Movie ratings are for movies (including those
shown on TV) rated according to the Motion
Picture Association of America (MPAA)
Guidelines.
G (General AudiencesAll Ages
Admitted):
In G-rated films no strong words are used, the
violence is at a minimum, nudity and sex scenes
are not present, nor is there any drug use.
PG (Parental Guidance Suggested. Some
Material May Not Be Suitable For
Children):
This is a film which may need to be monitored first
by parents.
PG-13 (Parents Strongly Cautioned. Some
Material May Be Inappropriate For Children
Under 13):
Parents are alerted to be very careful about the
attendance of their under-teenage children when
viewing.
R (Restricted, Under 17 Require
Accompanying Parent Or Adult Guardian):
This film includes hard language, tough violence,
nudity, drug abuse or other elements of concern.
NC-17 or X (No One 17 Or Under
Admitted.):
This is a film that most parents would consider not
suitable for children aged 17 and under. There may
be violence, sex, aberrational behavior, drug abuse
or other elements of concern.
PARENTAL CONTROL
Move Exit
MENU
Confirm password
PARENTAL LOCK: ON
RATING:
CHANGE PASSWORD
CHILD
COMFIRM
____
53
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\09CTV.fm masterpage:Right
Adjusting Your SET UP (menus)
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
NR (Not Rated):
This is a film that a producer has not rated,
intending to have his film widely released.
N/A (Not Applicable):
This is a film that a producer considers outside the
scope of the MPAA ratings.
Note:
NR and N/A ratings are shown together as
UNRATED in the menu.
TV ratings
TV ratings TV ratings
TV ratings
TV ratings are for TV programs rated according to
the Television Parental Guidelines.
TV-Y (All Children):
This program is designed for young children aged
26 and is appropriate for all children.
TV-Y7 (Directed to Older Children):
This program is designed for children aged 7 and
above. Themes and elements in this program may
include mild fantasy violence or slapstick
violence, or may frighten children under the age of
7.
TV-G (General Audience):
Most parents would find this program suitable for
all ages. It contains little or no violence, no strong
language and little or no sexual dialog or
situations.
TV-PG (Parental Guidance Suggested):
This program contains some material that parents
may find unsuitable for younger children.
TV-14 (Parents Strongly Cautioned):
This program contains some material that many
parents would find unsuitable for children under
the age of 14.
TV-MA (Mature Audience Only):
This program is specifically designed to be viewed
by adults and therefore may be unsuitable for
children under the age of 17.
TV-NR (Not Rated/Unrated):
This is a program broadcast without any rating,
such as news, news flashes or sports.
Note:
The TV-NR rating is shown as UNRATED in the
menu.
About the extenders of TV ratings
About the extenders of TV ratingsAbout the extenders of TV ratings
About the extenders of TV ratings
TV-Y7, TV-PG, TV-14 and TV-MA ratings have
additional content ratings called extenders to
define additional viewing limits. The extenders are
defined as follows:
D (sexually suggestive Dialog):
Programs containing suggestive dialog, or sexual
innuendo
FV (Fantasy Violence):
Programs containing cartoon violence occurring in
TV-Y7 programs only
L (coarse Language):
Programs containing coarse language
S (Sexual situations):
Programs containing sexual content
V (Violence):
Programs containing violence
There may be some profanity, violence or brief
nudity in these programs.
D:\810nouhin\4080199111\408019911KP57XBRUC\02US-COV-KP57XBRUC\10OVE.fm masterpage:First-Left
54
Model name1[KP-57XBR10W] Model name2[KP-65XBR10W]
[4-080-199-11 (1)]
Additional Operations
Additional OperationsAdditional Operations
Additional Operations
Operating Video
Equipment
You can use the supplied remote control to operate
Sony or non-Sony video equipment that has an
infrared sensor.
1Set the AV1/2/3/DVD/MDP switch to the input
through which you would like to access your
video equipment.
The following Sony equipment is preset to
each input as shown below:
AV1 (303) Beta, ED Beta VCRs
AV2 (302) 8 mm VCR
AV3 (301) VHS VCR
DVD/MDP (751) DVD Player
2Press CODE SET, DVD/VCR (FUNCTION),
and the 0-9 buttons to enter the manufacturers
code number (see the following chart), then
press ENTER.
For example, to operate a Sony 8mm VCR:
If the remote control doesnt work
If the remote control doesnt workIf the remote control doesnt work
If the remote control doesnt work
See the tips on page 56.
VCR manufacturer code numbers
VCR manufacturer code numbersVCR manufacturer code numbers
VCR manufacturer code numbers
Setting the Manufacturers
Code
2
30
CODE SET
ENTER
DVD/VCR
FUNCTION
Manufacturer Code
Sony 301, 302, 303
Aiwa 338
Admiral (M. Ward) 327
Audio Dynamic 314, 337
Bell & Howell (M. Ward) 330, 343
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 315, 302, 332
Criterion 315
Curtis Mathis 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316, 317, 318, 341
Fisher 330, 334, 335, 333
Funai 338
General Electric 329, 304, 309
Go Video 340, 339, 322
Goldstar 332
Hitachi 306, 304, 305, 338
Instant Replay 309, 308
JC Penney 309, 305, 304, 330, 314, 336,
337
JVC 314, 336, 337
Kenwood 314, 336, 332, 337
LXI (Sears) 332, 305, 333, 334, 330, 335,
338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/MGA 323, 324, 325, 326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Panasonic 308, 309, 306, 307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/PROSCAN 304, 305, 308, 309, 311, 329,
312, 313, 310
Realistic 309, 330, 328, 335, 324, 338
Sansui 314
Singer 315
