Operating Instructions

Owner’s Record

The model and serial numbers are located on the rear panel. Record the serial

number in the space provided below. Refer to them whenever you call upon your

Sony dealer regarding this product.

Model No. Serial No.

3-865-548-11(1)

Compact Hi-Fi

Stereo System

LBT-DR6

LBT-DR5

LBT-DR440

LBT-DR4

LBT-W5000

LBT-W300

LBT-XB700

LBT-XB500

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

INFORMATION

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may

cause harmful interference to radio

communications. However, there is no guarantee

that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which

can be determined by turning the equipment off and

on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment

and receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modifications

not expressly approved in this manual could void

your authority to operate this equipment.

NOTICE FOR THE CUSTOMERS IN

CANADA

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE

THIS POLARIZED AC PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER

OUTLET UNLESS THE BLADES CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE.

This stereo system is equipped with the Dolby* B-

type noise reduction system.

* Dolby noise reduction manufactured under license

from Dolby Laboratories Licensing Corporation.

“DOLBY” and the double-D symbol a are

trademarks of the Dolby Laboratories Licensing

Corporation.

NOTICE FOR THE CUSTOMERS IN THE

U.S.A.

CAUTION

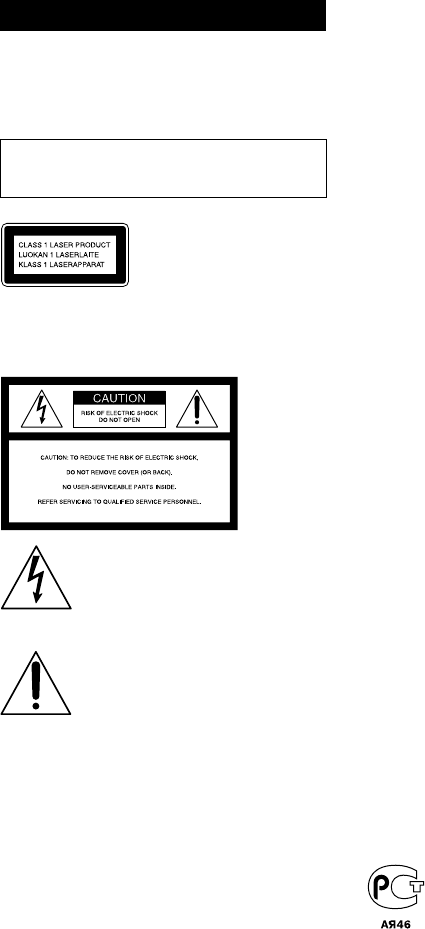

The use of optical instruments with this product will

increase eye hazard.

This appliance is classified as

a CLASS 1 LASER product.

The CLASS 1 LASER

PRODUCT MARKING is

located on the rear exterior.

This symbol is intended to alert the

user to the presence of important

operating and maintenance (servicing)

instructions in the literature

accompanying the appliance.

This symbol is intended to alert the

user to the presence of uninsulated

“dangerous voltage” within the

product’s enclosure that may be of

sufficient magnitude to constitute a

risk of electric shock to persons.

(LBT-XB700/XB500 only)

Table of Contents

Getting Started

Step 1: Using this manual..................... 4

Step 2: Hooking up the system............ 5

Step 3: Setting the time ......................... 7

Step 4: Presetting radio stations .......... 8

Saving power in standby mode*........ 10

Basic Operations

Playing a CD ......................................... 11

Recording a CD .................................... 12

Listening to the radio........................... 13

Recording from the radio .................... 15

Playing a tape........................................ 16

Recording from a tape ......................... 18

The CD Player

Using the CD display........................... 19

Playing CD tracks repeatedly............. 20

Playing CD tracks in random order .. 20

Programming CD tracks ..................... 21

Playing CDs without interruption..... 23

The Tape Deck

Recording on a tape manually ........... 24

Recording CDs by specifying the track

order ................................................ 25

DJ Effects

Looping part of a CD ........................... 27

Flashing part of a CD........................... 27

Sound Adjustment

Adjusting the sound ............................ 28

Selecting the audio emphasis ............. 29

Adjusting the audio emphasis............ 30

Making a personal audio

emphasis file................................... 32

Other Features

Using the Radio Data System

(RDS)** ............................................ 33

Singing along: Karaoke ...................... 35

Falling asleep to music ........................ 37

Waking up to music............................. 38

Timer-recording radio programs ....... 39

Optional AV components

Connecting audio components .......... 41

Connecting video components........... 42

Connecting outdoor antennas ............ 43

Additional Information

Precautions............................................ 45

Troubleshooting ................................... 46

Specifications ........................................ 48

Index....................................................... 51

* For LBT-W5000/W300/XB700/XB500

only

**For the European model only

Step 1: Using this manual

The instructions in this manual are for LBT-DR6/DR5/DR440/DR4/W5000/W300/XB700/

XB500. The LBT-DR4 is the model used for illustration purposes. Any difference in operation is

clearly indicated in the text, for example, “LBT-W5000/W300 only” or “For European models.”

Wide display is used for LBT-DR6/DR5 and normal display is used for LBT-DR440/DR4/

W5000/W300/XB700/XB500.

Notice for customers in the United

Kingdom

The AC power cord has been fixed temporarily

on the rear panel with the plug band for

shipment.

Unlock the plug band to remove the plug.

Plug band

Back panel

Getting Started

The instructions in this manual describe the controls on the player. You can also use the controls

on the remote if they have the same or similar names as those on the player.

Before operating the system, please read this manual thoroughly and retain it for future

reference.

Wide display for LBT-DR6/DR5 Normal display for LBT-DR440/DR4/W5000/

W300/XB700/XB500

Step 2: Hooking up the system

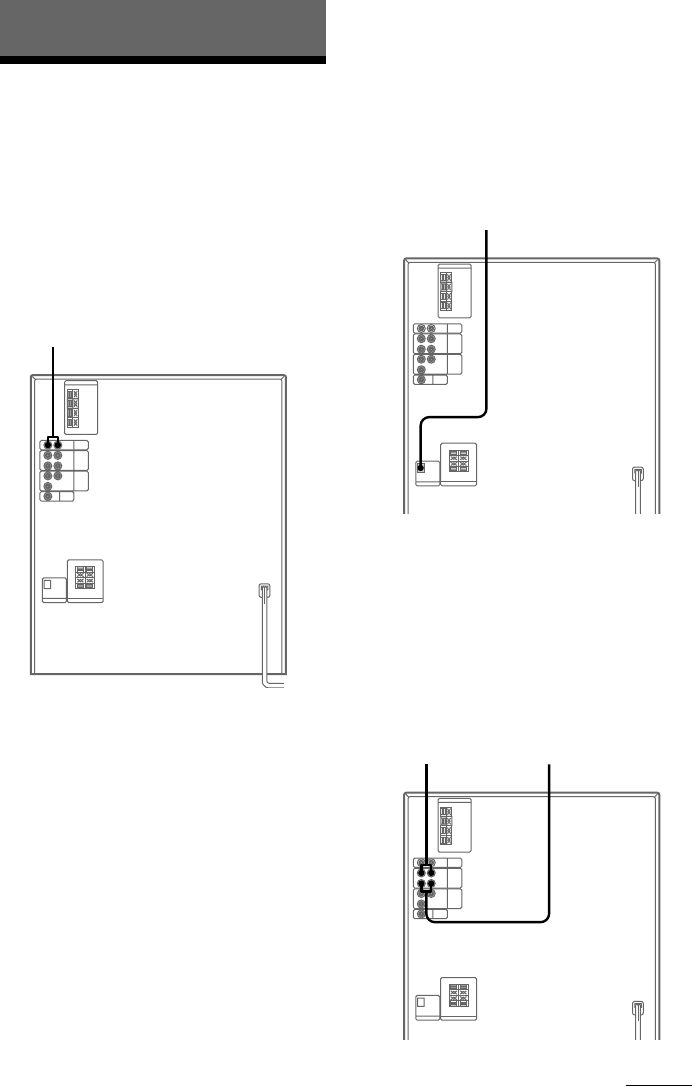

Follow steps 1 through 5 to hook up your system using the supplied cords and accessories.

The above illustration is of the LBT-DR4.

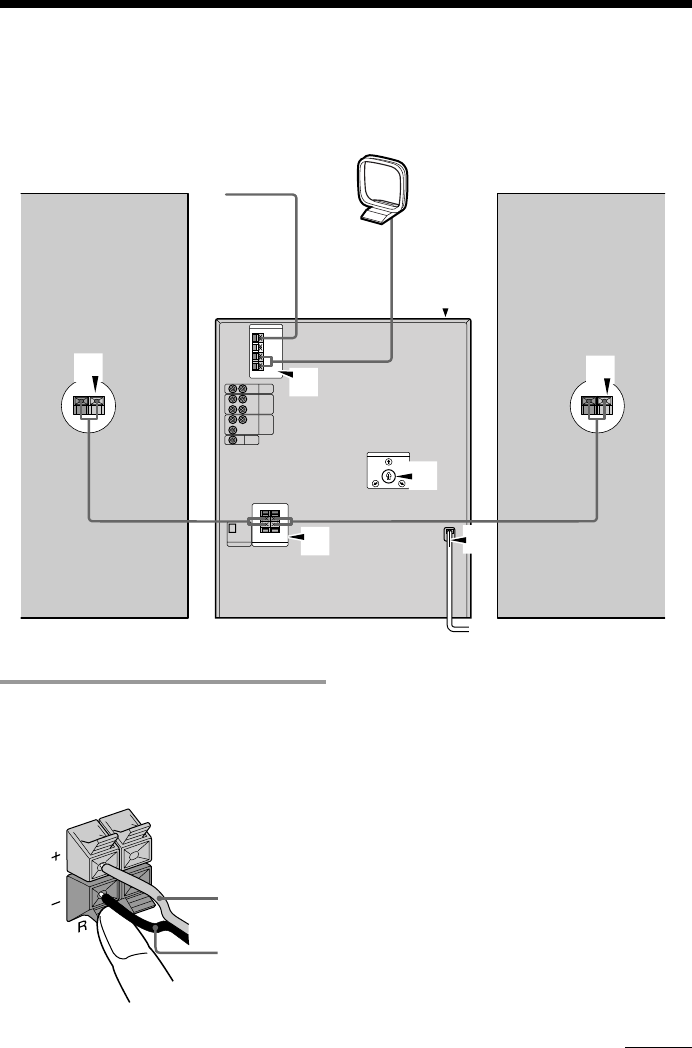

1Connect the speakers.

1Connect the speaker cords to FRONT

SPEAKER jacks.

Keep the speaker cords away from the

antennas to prevent noise.

2Insert only the stripped portion of the

cord. Inserting the vinyl portion will

interfere with the speaker connection

and no sound will come from the

speaker.

Note

If “PUSH POWER” appears in the display when you

turn on the system, press 1/u to turn off the system

and check the speaker connections.

Left speakerRight speaker

AM loop antenna

FM antenna

Black/Stripe (’)

Red/Solid (‘)

continued

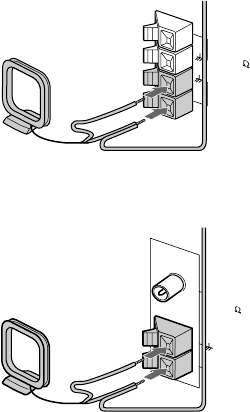

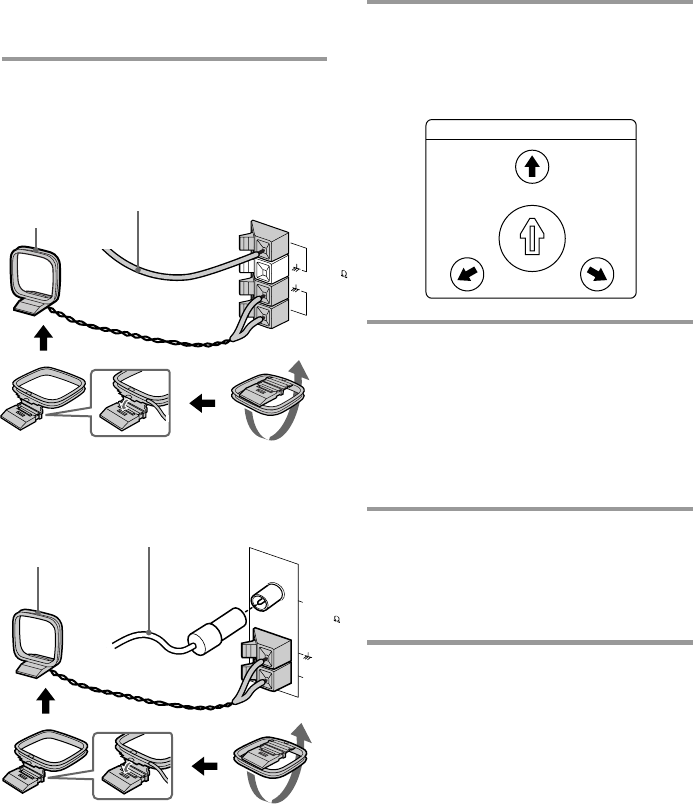

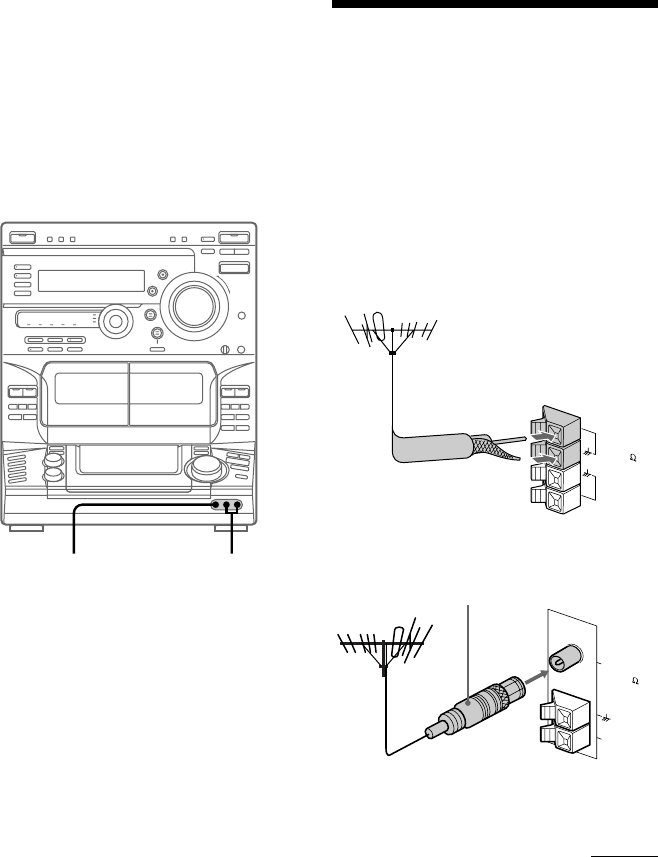

2Connect the FM/AM antennas.

Set up the AM loop antenna, then

connect it.

AM loop antenna

Extend the FM wire

antenna horizontally.

Except for European models

For European models

AM loop antenna

Extend the FM wire

antenna horizontally.

Step 2: Hooking up the system

(continued)

FM 75

COAXIAL

FM 75

3If your system has a VOLTAGE

SELECTOR on the rear panel, set it

to the position of your local power

line voltage.

4Connect the power cord to a wall

outlet.

The demonstration appears in the

display.

If the supplied adapter on the plug does

not fit your wall outlet, detach it from

the plug (only for models equipped with

an adapter).

5Deactivate the demonstration mode

by pressing DISPLAY (for LBT-

W5000/W300/XB700/XB500 only)

or DEMO (STANDBY) (for other

models) while the system is off.

To connect optional AV

components

See page 41.

VOLTAGE SELECTOR

220V

120V

230

240V

Step 3: Setting the

time

You must set the time before using the timer

functions. The clock is on a 24-hour system

for the European and Brazilian models, and a

12-hour system for other models.

The 24-hour system model is used for

illustration purposes.

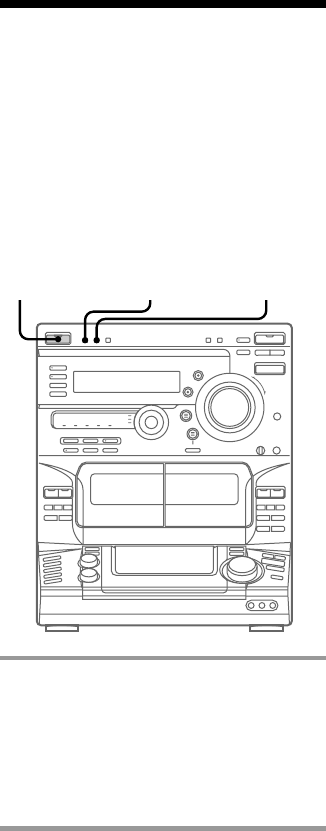

3,51 2,4

Inserting two R6 (size AA)

batteries into the remote

Tips

•With normal use, the batteries should last for

about six months. When the remote no longer

operates the system, replace both batteries with

new ones.

•When you set the time, the demonstration is

deactivated.

To activate the demonstration again, press

DISPLAY (for LBT-W5000/W300/XB700/XB500

only) or DEMO (STANDBY) (for other models)

while the system is off.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

When carrying this system

Do the following to protect the CD

mechanism.

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Hold down LOOP and press 1/u to turn

off the system.

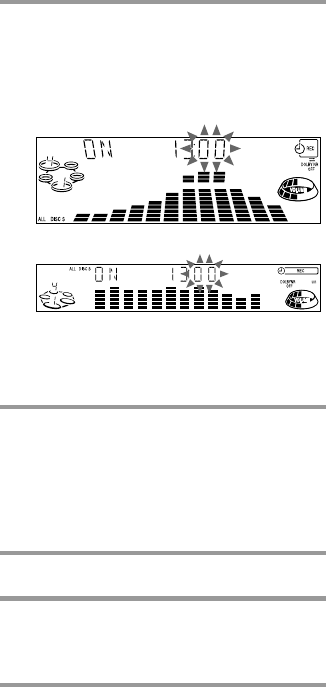

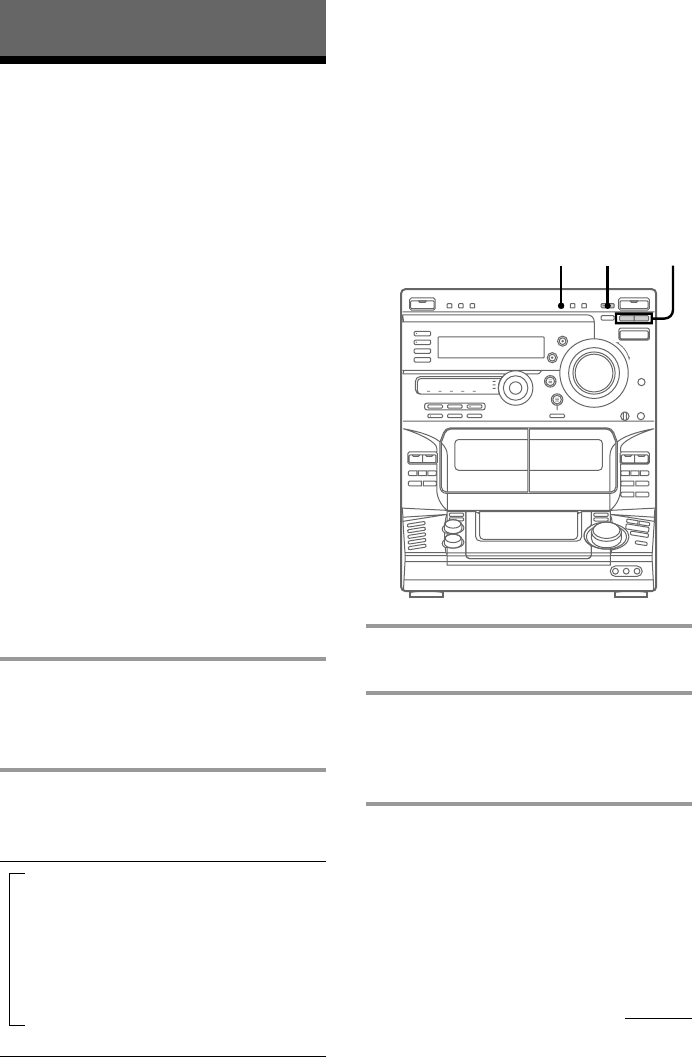

1Press t/CLOCK SET.

The hour indication flashes.

2Press TUNING +/– to set the hour.

3Press ENTER/NEXT.

The minutes indication flashes.

4Press TUNING +/– to set the

minutes.

5Press ENTER/NEXT.

The clock starts.

continued

Step 4: Presetting

radio stations

You can preset the following number of

stations:

— 2 band model: 20 for FM and 10 for AM

— 3 band model:

20 for FM, 10 for AM, and 5 for UKV

The bands you can select depend on the kind

of tuner built into your system. Confirm the

bands by pressing TUNER/BAND

repeatedly.

5124

1/u

(Power) 3

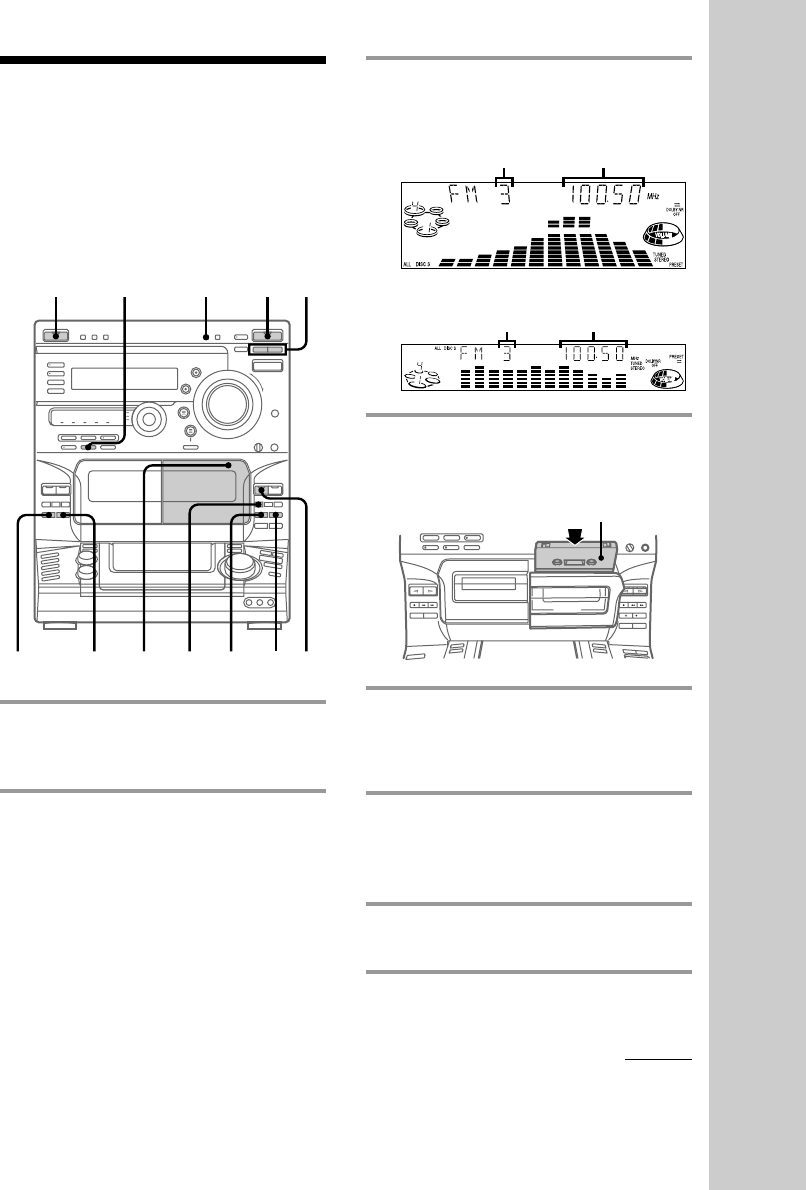

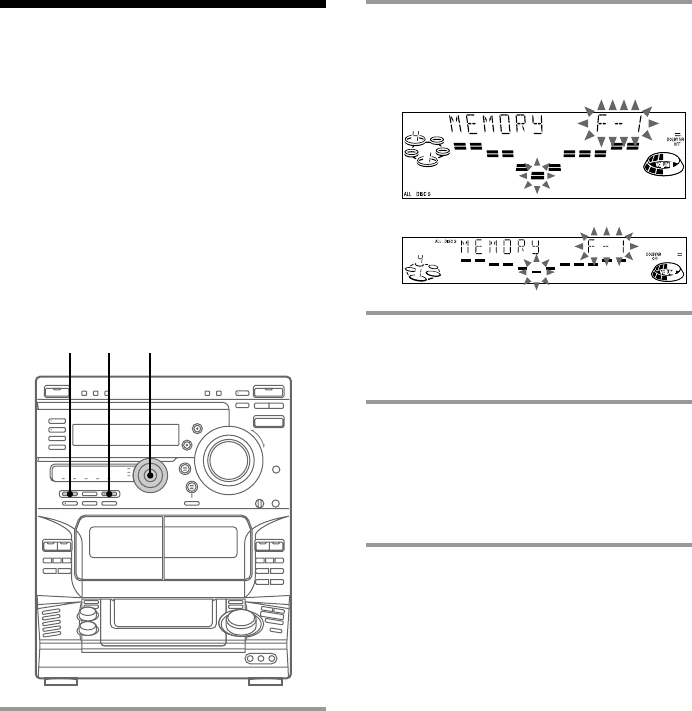

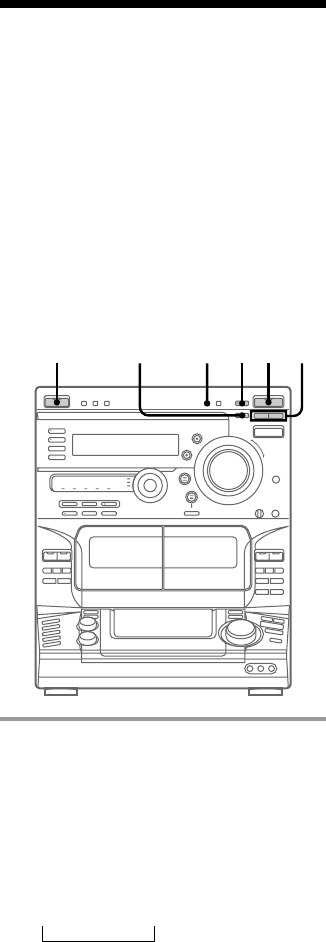

1Press TUNER/BAND repeatedly

until the desired band appears in

the display.

Each time you press this button, the

band changes as follows:

2 band model:

FM ˜ AM

3 band model:

FM n AM n UKV*

* When you select this band, “STEREO

PLUS” appears in the display.

Tip

If you make a mistake, start over from step 1.

Notes

•You cannot set the time in Power Saving mode

(see page 10).

•The clock setting is canceled when you disconnect

the power cord or if a power failure occurs.

Step 3: Setting the time

(continued)

To tune in a station with a weak

signal

Press TUNING MODE repeatedly until

“MANUAL” appears in step 2, then press

TUNING +/– to tune in a station.

To store another station on an

existing preset number

Start over from step 1. After step 4, press

TUNING +/– to select the preset number on

which you want to store the station.

You can add a new preset number after the

last preset number.

To erase a preset number

1Press and hold TUNER MEMORY until the

preset number flashes in the display.

2Press TUNING +/– to select the preset

number you want to erase. Select “ALL

ERASE” to erase all preset numbers.

3Press ENTER/NEXT.

When you erase a preset number, all the

following preset numbers shift up and reduce

by one.

To change the AM tuning interval

(Except for the European and the

Middle Eastern models)

The AM tuning interval is factory-preset to 9 kHz

(10 kHz in some areas). To change the AM tuning

interval to 10 kHz (or 9 kHz), press TUNER/BAND

repeatedly until “AM” appears, then turn off the

system. While holding down ENTER, turn the

system back on. When you change the interval, the

AM preset stations will be erased. To reset the

interval, repeat the same procedure.

Note

The preset stations are canceled when you

disconnect the power cord or if a power failure

occurs for more than half a day.

Wide display

Normal display

2Press TUNING MODE repeatedly

until “AUTO” appears in the

display.

3Press TUNING +/–.

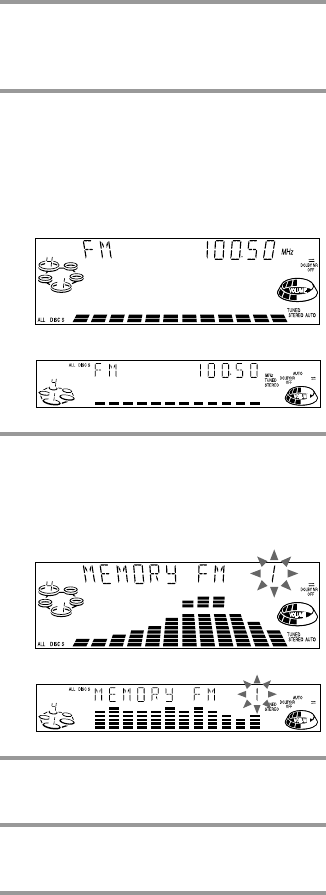

The frequency indication changes and

scanning stops when the system tunes in

a station. “TUNED” and “STEREO” (for

a stereo program) appear.

4Press TUNER MEMORY.

The next available preset number flashes

in the display. The stations are stored

from preset number 1.

5Press ENTER/NEXT.

The station is stored.

6Repeat steps 1 through 5 to store

other stations.

Normal display

Wide display

Saving power in

standby mode (For

LBT-W5000/W300/

XB700/XB500 only)

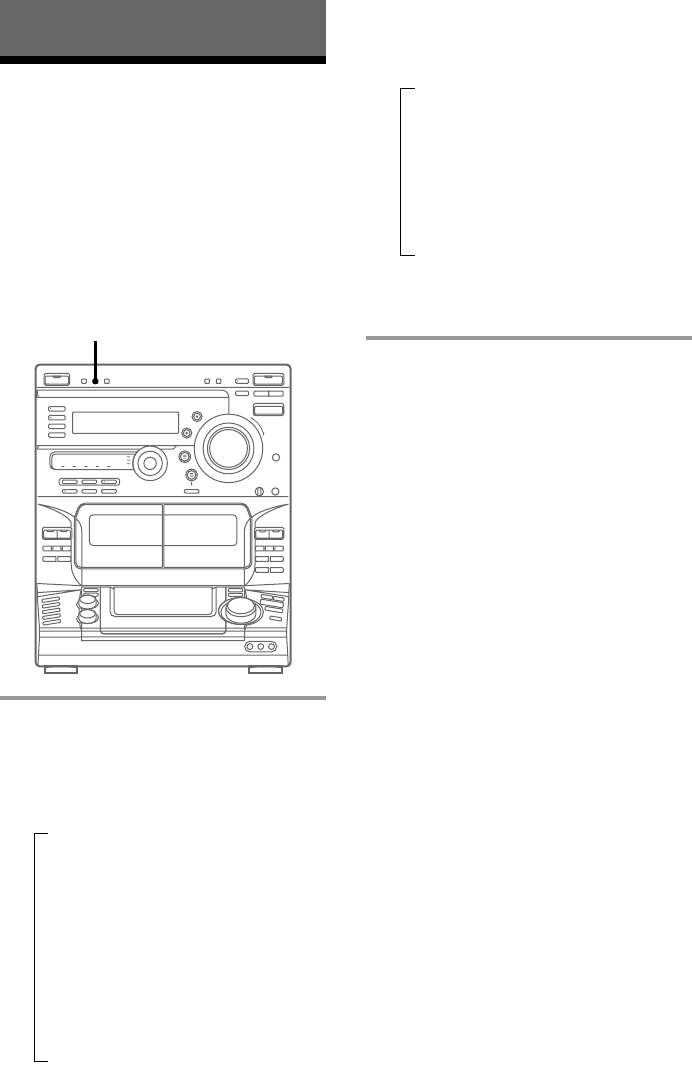

In standby mode, you can reduce the power

consumption to a minimum (Power Saving

mode) and thus save energy.

POWER SAVE/DEMO

(STANDBY) DISPLAY

/Press POWER SAVE/DEMO

(STANDBY) while the system is

turned off.

The system switches to the Power Saving

mode and the clock display disappears.

The system is turned on/off by pressing

1/u.

To cancel the Power Saving mode

Press DISPLAY.

The clock display reappears.

1/u

(Power)

Tips

•Each time you press POWER SAVE/DEMO

(STANDBY) in the Power Saving mode, the

display switches between the Power Saving mode

and the demo mode.

•The 1/u indicator and timer indicator (when the

timer is set) light up even in the Power Saving

mode.

•The timer works in the Power Saving mode.

Notes

•You cannot set the time in the Power Saving

mode.

•One Touch Play function does not work in the

Power Saving mode.

Basic Operations

Playing a CD

— Normal Play

Basic Operations

You can play up to five CDs in a row.

1Press PUSH OPEN and place a CD

on the disc tray.

If the disc is not placed properly, it will

not be recognized.

2Press DISC SKIP to place up to four

more CDs on the tray.

The disc tray rotates so you can insert

other CDs.

3Close the front cover.

4Press one of the DISC 1 - DISC 5

buttons.

Playback starts.

If you press ·P (or CD ( on the

remote), playback starts from the CD in

the playing position.

AMS =/+

VOL +/–

1,3

CD (

VOLUME

With the label

side up.

When you play

a CD single,

place it on the

inner circle of

the tray.

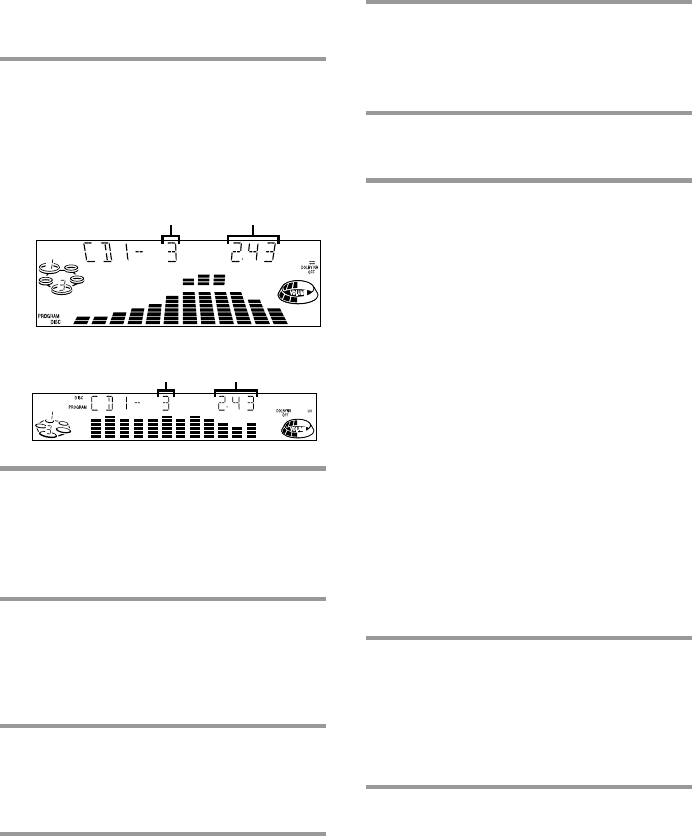

Disc number in the playing position

Track number Elapsed time

Wide display

Normal display

Disc number in the playing position

Track number Elapsed time

1/u

(Power)

0/)

·P

Jog dial

PLAY MODE 2

continued

Stop playback

Pause

Select a track

Find a point

in a track

Select a CD

Play only the

CD you have

selected

Play all CDs

Remove or

change the

CDs

Adjust the

volume

* AMS: Automatic Music Sensor

Tips

•Pressing ·P while the system power is off

automatically turns on the system and starts CD

playback if there is a CD on the tray (One Touch

Play).

One Touch Play is not available in Power Saving

mode.

•You can switch from another source and begin

playing a CD just by pressing ·P, one of the

DISC 1 - DISC 5 buttons, or CD ( on the remote

(Automatic Source Selection).

•If there is no CD in the player, “NO DISC”

appears in the display.

•You can change the CD which is in the loading

position during playback of the CD which is in the

playing position.

Do this

Press p.

Press ·P (or P on the remote).

Press ·P again to resume

playback (or CD ( on the

remote).

During playback or pause, turn

the jog dial clockwise (to go

forward) or counterclockwise (to

go backward) and release it when

you reach the desired track.

Or press AMS* + (to go

forward) or AMS = (to go

backward) on the remote.

Press and hold ) or 0 during

playback, and release at the

desired point.

Press one of the DISC 1 - DISC 5

buttons (or DISC SKIP).

Press PLAY MODE repeatedly

until “1 DISC” appears.

Press PLAY MODE repeatedly

until “ALL DISCS” appears.

Press PUSH OPEN.

Turn VOLUME (or press

VOL +/– on the remote).

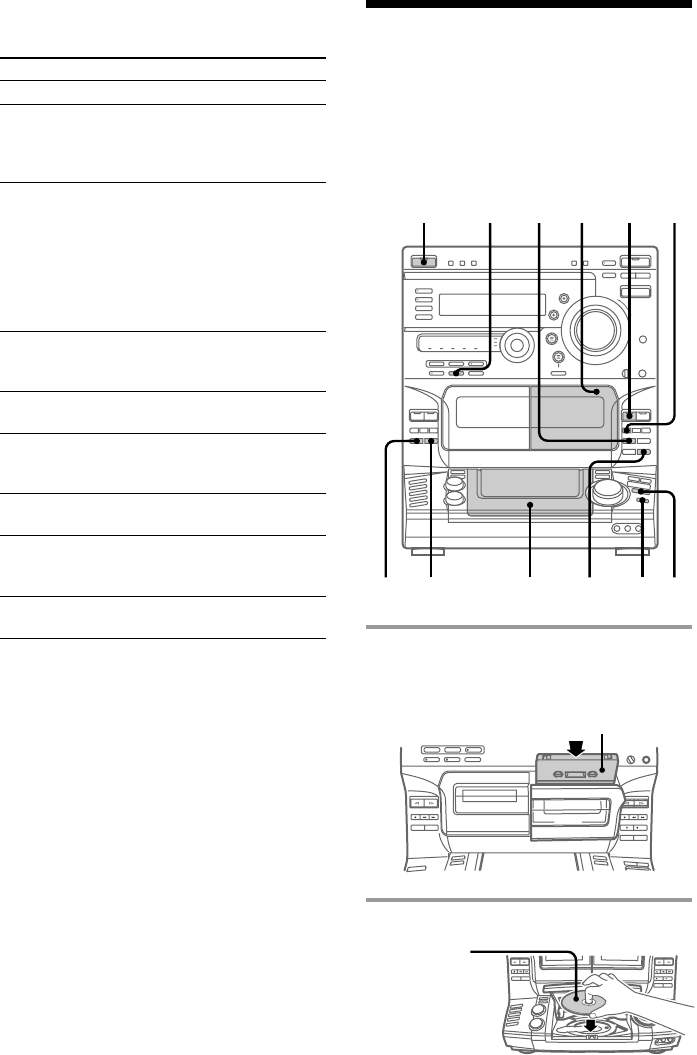

Recording a CD

— CD Synchro Recording

This function lets you easily record from a

CD to a tape. You can use TYPE I (normal) or

TYPE II (CrO2) tapes. The recording level is

automatically adjusted.

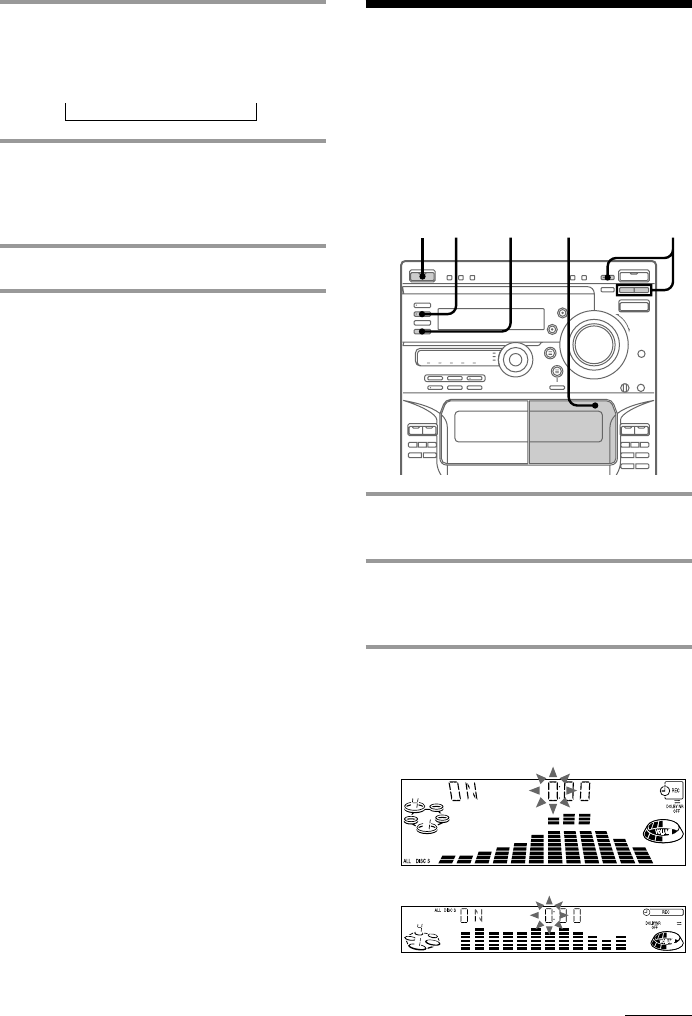

2,3 56

SURROUND

DOLBY NR

With the label

side up.

When you play

a CD single,

place it on the

inner circle of

the tray.

With the side you want to

record on facing forward

1/u

(Power)

1Press PUSH 6 and insert a blank

tape into deck B.

2Press PUSH OPEN and place a CD.

Playing a CD (continued)

Basic Operations

Listening to the

radio

— Preset Tuning

Before using this function, preset radio

stations in the tuner’s memory (see “Step

4: Presetting radio stations” on page 8).

PRESET +/–

STEREO/MONO

VOLUME

VOL +/–

1/u

(Power)

3Close the front cover.

4Press DISC SKIP repeatedly until

the disc number you want to record

appears in the playing position

indicator.

5Press CD SYNC.

Deck B stands by for recording, the CD

player stands by for playback, and the

indicator on the · button (for the front

side) lights up green.

6Press DIRECTION repeatedly until

A appears to record on one side or

ß (or RELAY) to record on both

sides.

7Press P.

Recording starts.

To stop recording

Press p on deck B or on the CD player.

Tips

•When you want to record on the reverse side,

press ª after pressing CD SYNC in step 5 so the

indicator on the ª button (for the reverse side)

lights up green.

•When you record on both sides, be sure to start

from the front side. If you start from the reverse

side, recording stops at the end of the reverse side.

•When you want to reduce the hiss noise in low-

level, high-frequency signals, press DOLBY NR

before step 7 so “DOLBY NR B” appears in the

display.

•To record with the surround effect, press

SURROUND so “SUR ” appears in the

display.

The equalizer settings will not be recorded.

Note

You cannot listen to other sources while recording.

continued

1Press TUNER/BAND repeatedly

until the desired band appears in

the display.

Each time you press this button, the

band changes as follows:

2 band model:

FM ˜ AM

3 band model:

FM nAMn UKV*

* When you select this band, “STEREO

PLUS” appears in the display.

2Press TUNING MODE repeatedly

until “PRESET” appears in the

display.

MANUAL n AUTO n PRESET

3Press TUNING +/– (or PRESET +/–

on the remote) to tune in the desired

preset station.

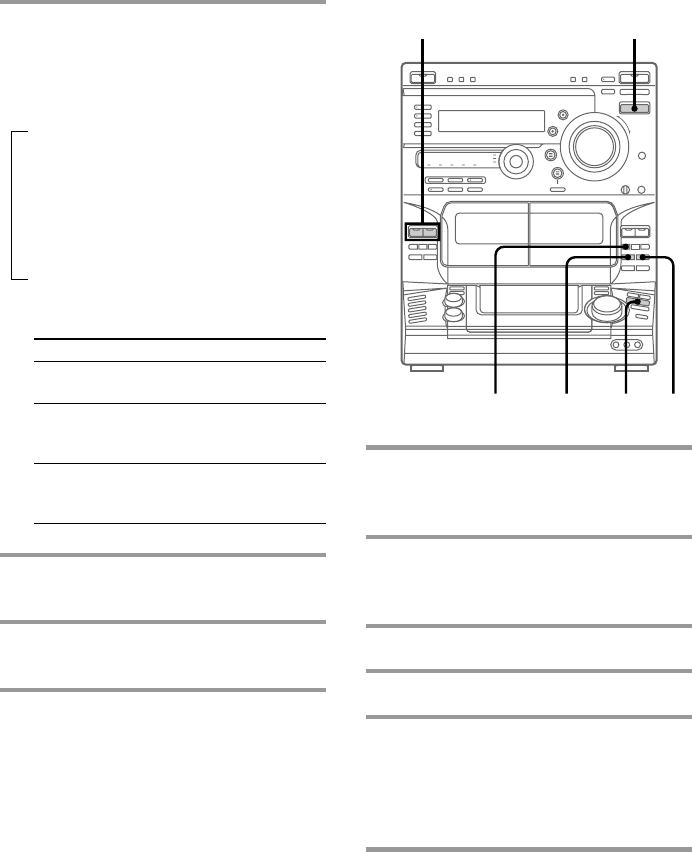

To Do this

Turn off the radio Press 1/u.

Adjust the volume Turn VOLUME (or press

VOL +/– on the remote).

To listen to non-preset radio

stations

Press TUNING MODE repeatedly in step 2

until “MANUAL” appears, then press

TUNING +/– to tune in the desired station.

Tips

•Pressing TUNER/BAND while the system power

is off automatically turns on the system and tunes

in the last received station (One Touch Play).

One Touch Play is not available in Power Saving

mode.

•You can switch from another source to the radio

by pressing TUNER/BAND (Automatic Source

Selection).

•If an FM program is noisy, press STEREO/

MONO so “MONO” appears in the display. There

will be no stereo effect, but the reception will

improve. Press this button again to restore the

stereo effect.

•To improve broadcast reception, move the

supplied antennas.

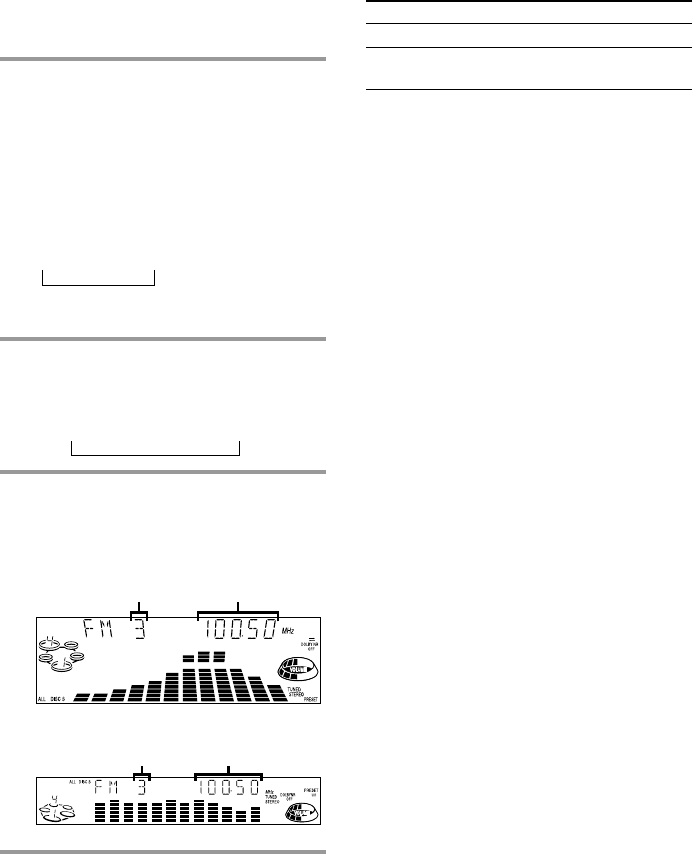

FrequencyPreset number

Wide display

Normal display

Preset number Frequency

Listening to the radio (continued)

Basic Operations

Recording from the

radio

You can record a radio program on a tape by

tuning in a preset station. You can use TYPE I

(normal) or TYPE II (CrO2) tapes. The

recording level is automatically adjusted.

4576

123

SURROUND

DOLBY NR pª

With the side you want to

record on facing forward

1/u

(Power)

1Press TUNER/BAND repeatedly

until the desired band appears in

the display.

2Press TUNING MODE repeatedly

until “PRESET” appears in the

display.

3Press TUNING +/– to tune in the

desired preset station.

4Press PUSH 6 and insert a blank

tape into deck B.

5Press r REC.

Deck B stands by for recording, and the

indicator on the · button (for the front

side) lights up green.

6Press DIRECTION repeatedly until

A appears to record on one side or

ß (or RELAY) to record on both

sides.

7Press P.

Recording starts.

To stop recording

Press p on deck B.

Frequency

Preset number

Wide display

Normal display

Preset number Frequency

continued

Tips

•When you want to record on the reverse side,

press ª after pressing r REC in step 5 so the

indicator on the ª button (for the reverse side)

lights up green .

•When you record on both sides, be sure to start

from the front side. If you start from the reverse

side, recording stops at the end of the reverse side.

•To record non-preset stations, select “MANUAL”

in step 2, then press TUNING +/– to tune in the

desired station.

•When you want to reduce the hiss noise in low-

level, high-frequency signals, press DOLBY NR

before step 7 so “DOLBY NR B” appears in the

display.

•To record with the surround effect, press

SURROUND so “SUR ” appears in the

display.

The equalizer settings will not be recorded.

•To improve broadcast reception, move the

supplied antennas.

Playing a tape

You can play any type of tape, TYPE I

(normal), TYPE II (CrO2), or TYPE IV (metal).

The deck automatically detects the tape type.

You can also use the AMS* functions to locate

quickly the desired songs.

To select either deck A or B, press DECK A

( or DECK B ( on the remote.

* AMS: Automatic Music Sensor

VOLUME

DOLBY NR 0/

)

1/u

(Power)

DECK A (

DECK B (

VOL +/–

)

AMS =/+

Recording from the radio

(continued)

Basic Operations

To search for the beginning of a

track (AMS)

Press ) to search forward or 0 to search

backward when playing the front side (or

vice-versa when playing the reverse side).

When you use the remote, AMS = or +.

The search direction, + (forward) or –

(backward), and number of songs being

skipped (1 - 9) appear in the display.

Example: searching forward 2 songs

Tips

•Pressing · or ª while the system power is off

automatically turns on the system and starts tape

playback if there is a tape in the deck (One Touch

Play).

One Touch Play is not available in Power Saving

mode.

•You can switch from another source to the tape

deck by pressing · or ª (Automatic Source

Selection).

•You can fast-forward or rewind the tape,

regardless of the selected source.

•When you want to reduce the hiss noise in low-

level, high-frequency signals, press DOLBY NR so

“DOLBY NR B” appears in the display.

Notes

The AMS function may not operate correctly under

the following circumstances:

– When the unrecorded space between songs is less

than 4 seconds long.

– If completely different information is recorded on

the left and right channels.

– When there are continuous sections of extremely

low level or low frequency sound (like those of a

baritone sax).

– When the system is placed near a TV. (In this case,

we recommend moving the system farther away

from the TV or turning off the TV.)

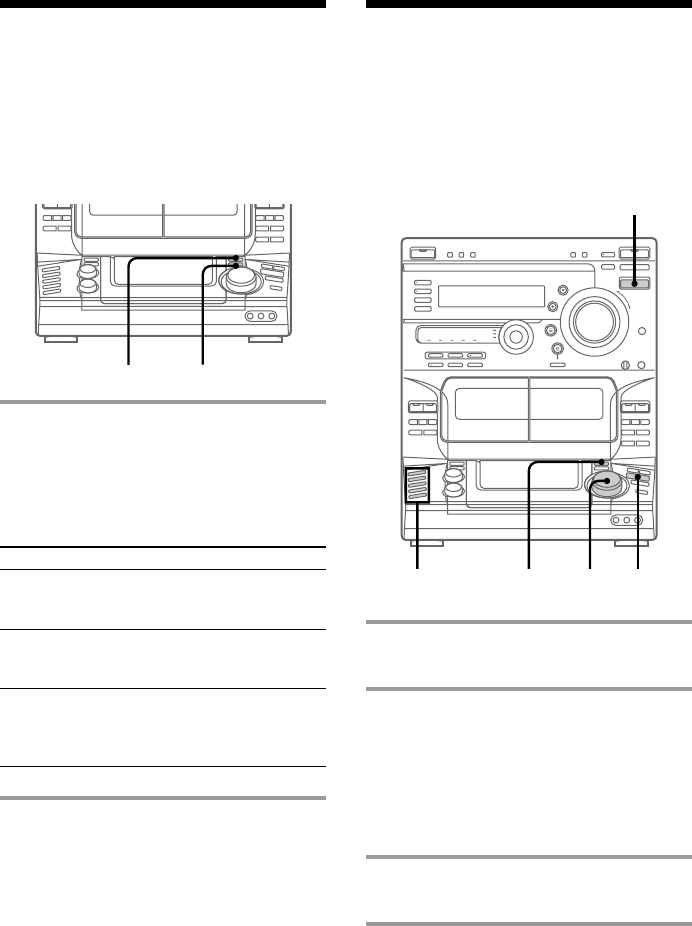

1Press PUSH 6 and insert a recorded

tape in deck A or B.

2Press DIRECTION repeatedly to

select A to play one side, ß* to

play both sides, or RELAY (Relay

Play)** to play both decks in

succession.

3Press ·.

Press ª to play the reverse side. The

tape starts playing.

* The deck stops automatically after playing

both sides five times.

** Relay Play always plays according to the

following sequence:

Deck A front side, Deck A reverse side,

Deck B front side, Deck B reverse side.

To Do this

Stop play Press p.

Pause (Deck B only) Press P. Press again to

resume playback.

Fast-forward Press ) or 0.

Rewind Press 0 or ).

Remove the cassette Press PUSH 6.

Adjust the volume Turn VOLUME (or press

VOL +/– on the remote).

With the side you want

to play facing forward

Recording from a

tape

— High-speed Dubbing

You can use TYPE I (normal) or TYPE II

(CrO2) tapes. The recording level is

automatically adjusted.

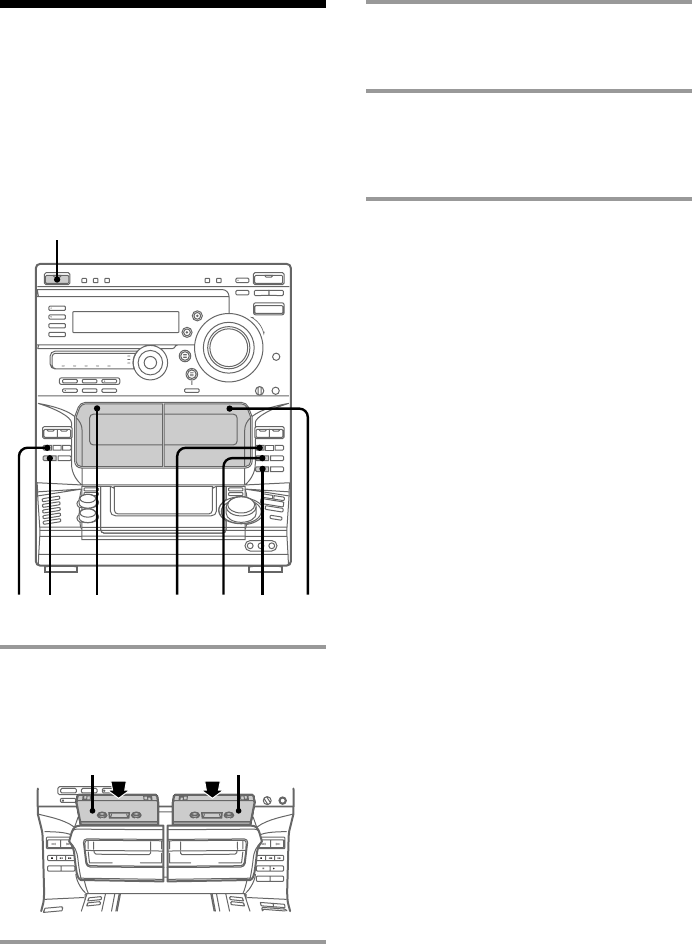

1Press PUSH 6 and insert a recorded

tape in deck A and a blank tape in

deck B.

2Press H SPEED DUB.

Deck B stands by for recording.

11234

With the side you want to

play/record on facing forward

1/u

(Power)

3Press DIRECTION repeatedly until

A appears to record on one side or

ß to record on both sides.

4Press P.

Dubbing starts.

When dubbing ends, decks A and B

automatically stop.

To stop dubbing

Press p on deck A or B.

Tips

•When you record on both sides, be sure to start

from the front side. If you start from the reverse

side, recording stops at the end of the reverse side.

•You don’t have to set DOLBY NR, since the tape in

deck B is automatically recorded in the same state

as the tape in deck A.

Notes

•If you set DIRECTION to ß, when the tapes you

use have different lengths, the tape in each deck

reverses independently. If you want to start

dubbing from the same point for the other side, set

DIRECTION to A and reverse tapes manually

after both decks stop. Then press H SPEED DUB

again to start recording the other side.

•You cannot record the surround effect.

nn nn n

nn nn

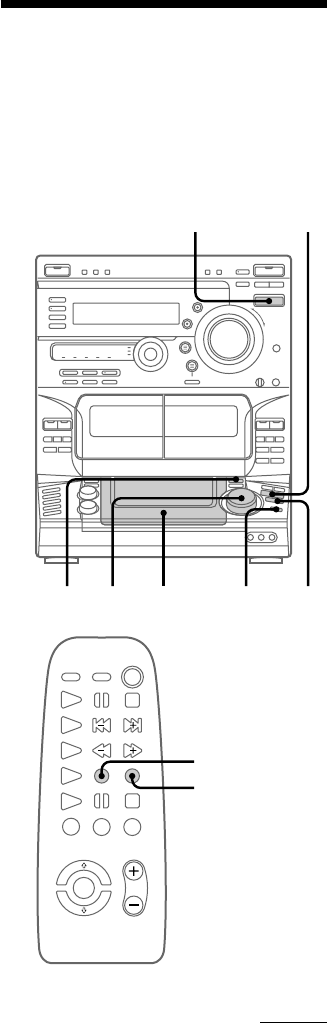

The CD Player

Using the CD

display

You can check the remaining time of the

current track or that of the CD.

When a CD TEXT disc is loaded, you can

check the information stored on the disc, such

as the disc titles or artist names. When the

system detects CD TEXT discs, “CD TEXT”

appears in the display.

DISPLAY

In the stop mode

nDisc number (Disc title*)

Artist information*

Total number of tracks and total playing

time

Clock display (for a few seconds)

Effect (P FILE) name or “EFFECT ON/

OFF”

* With CD TEXT discs only

Notes

•The display may not show all the characters

depending on the disc.

•This player can only display the disc titles, track

titles and artist names from CD TEXT discs. Other

information cannot be displayed.

•If a title or name has more than 12 characters, the

first 12 characters will light up after the title or

name scrolls by in the display.

/Press DISPLAY.

Each time you press this button during

Normal Play or in stop mode, the

display changes as follows:

During Normal Play

nElapsed time on the current track

Remaining time on the current track

Remaining time on the current CD

(1 DISC mode) or “--.--” (ALL DISCS

mode)

Track title*

Clock display (for a few seconds)

Effect (P FILE) name or “EFFECT ON/

OFF”

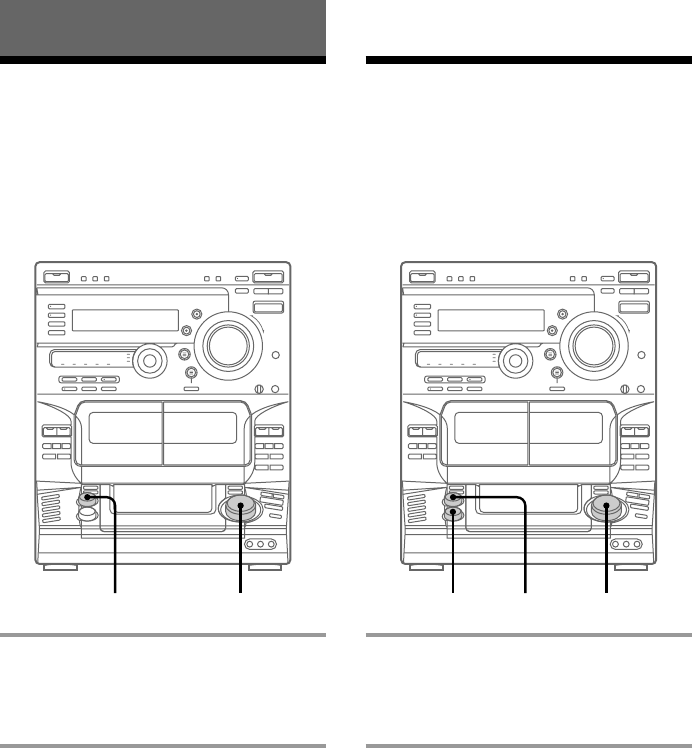

Playing CD tracks

repeatedly

— Repeat Play

This function lets you repeat a single CD or

all CDs in Normal Play, Shuffle Play, and

Program Play.

REPEATPLAY MODE

/Press REPEAT repeatedly during

playback until “REPEAT” appears

in the display.

Repeat Play starts. The following table

describes the various repeat modes.

To repeat

All the tracks on

the current CD

All the tracks on

all CDs

Only one track

To cancel Repeat Play

Press REPEAT repeatedly until “REPEAT” or

“REPEAT 1” disappears from the display.

Playing CD tracks

in random order

— Shuffle Play

You can play all the tracks on one or all CDs

in random order.

1Press FUNCTION repeatedly until

“CD” appears in the display.

2Press PLAY MODE repeatedly until

“ALL DISCS SHUFFLE” or “1 DISC

SHUFFLE” appears in the display.

“ALL DISCS SHUFFLE” shuffles the

tracks on all the CDs in the player.

“1 DISC SHUFFLE” shuffles the tracks

on the CD in the playing position.

3Press ·P.

All the tracks play in random order.

DISC 1 - DISC 5 Jog dial

Press

PLAY MODE repeatedly

until “1 DISC” appears in the

display.

PLAY MODE repeatedly

until “ALL DISCS” appears

in the display.

REPEAT repeatedly while

playing the track you want to

repeat until “REPEAT 1”

appears in the display.

Programming CD

tracks

–– Program Play

You can create a program of up to 32 tracks

from all the CDs in the order you want them

to be played.

CHECK

CLEAR

145p

3,6

To cancel Shuffle Play

Press PLAY MODE repeatedly until “ALL

DISCS SHUFFLE,” “1 DISC SHUFFLE,” or

“PROGRAM” disappears from the display.

The tracks continue playing in their original

order.

To select the desired CD

Press one of the DISC 1 - DISC 5 buttons

during 1 Disc Shuffle Play.

Tips

•You can start Shuffle Play during Normal Play by

pressing PLAY MODE repeatedly until “ALL

DISCS SHUFFLE” or “1 DISC SHUFFLE” appears

in the display.

•To skip a track, turn the jog dial clockwise (or

press AMS + on the remote).

continued

1Place CDs and close the front cover.

2Press FUNCTION repeatedly until

“CD” appears in the display.

3Press PLAY MODE repeatedly until

“PROGRAM” appears in the

display.

4Press DISC SKIP to select a CD.

5Turn the jog dial until the desired

track appears in the display.

6Press PLAY MODE once.

The track is programmed. First “STEP”

and the programmed playing order

appear, then the total playing time

appears.

Wide display

Disc number

Normal display

Disc number

Total playing time

Track number

Track number Total playing time

Wide display

Normal display

The last programmed track

Total playing timeThe last programmed track

Total playing time

Press

CHECK on the remote

repeatedly. After the

last track, “CHECK

END” appears.

CLEAR on the remote

in stop mode.

CHECK on the remote

repeatedly until the

number of the track to

be cleared lights up,

then press CLEAR.

1 Press DISC SKIP to

select a CD.

2 Turn the jog dial to

select a track.

3 Press PLAY MODE.

p once in stop mode or

twice while playing.

7Repeat steps 4 through 6 to program

additional tracks.

Skip step 4 to select tracks from the same

disc.

8Press ·P.

All the tracks play in the order you

selected.

To cancel Program Play

Press PLAY MODE repeatedly until

“PROGRAM,” “ALL DISCS SHUFFLE,” or

“1 DISC SHUFFLE” disappears from the

display.

Check the program

Clear the last selected

track

Clear a specific track

Add a track to the

program

Clear the entire

program

Tips

•The program you created remains in the CD

player’s memory even after it has been played.

Press ·P to play the same program again.

• If “--.--” appears instead of the total playing time

while programming, this means:

– you have programmed a track numbered over

20, or

– the total playing time has exceeded 100 minutes.

Programming CD tracks

(continued)

Playing CDs

without

interruption

–– Non-Stop Play

You can play CDs without pausing between

tracks.

1Press FUNCTION repeatedly until

“CD” appears in the display.

2Press NON-STOP so the indicator

on this button lights up.

3Press ·P.

To cancel Non-Stop Play

Press NON-STOP so the indicator on this

button goes off.

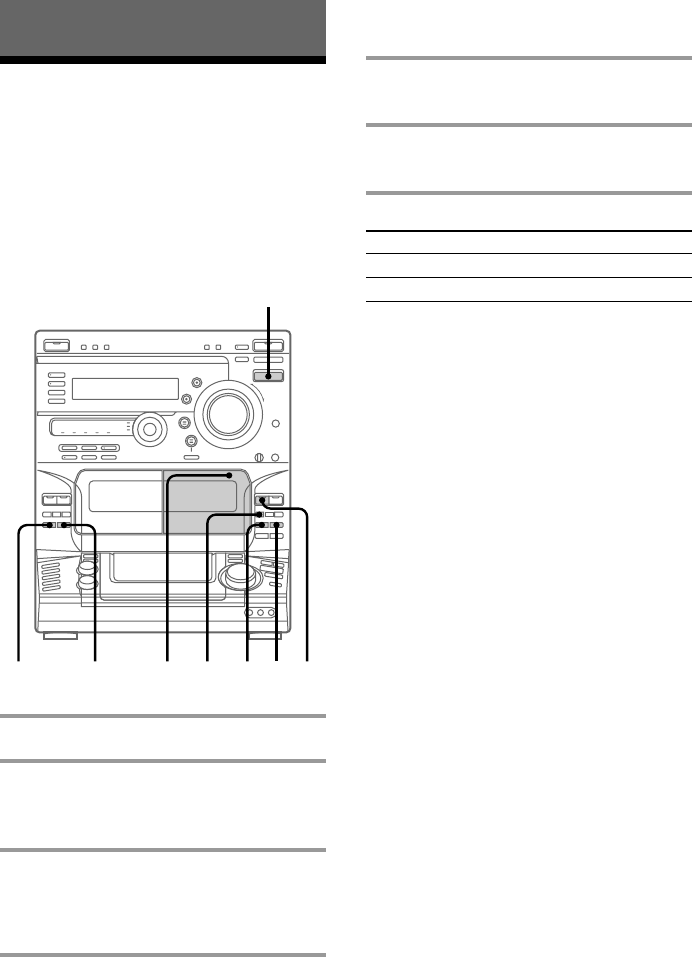

You can record from CDs, tapes, or the radio.

For example, you can record just the desired

songs or begin recording from the middle of a

tape. The recording level is automatically

adjusted.

1Insert a blank tape into deck B.

2Press FUNCTION repeatedly until

the source you want to record (e.g.,

CD) appears in the display.

3Press r REC.

Deck B stands by for recording, and the

indicator on the · button (for the front

side) lights up green.

4Press DIRECTION repeatedly until

A appears to record on one side or

ß (or RELAY) to record on both

sides.

Recording on a

tape manually

The Tape Deck

1345

pDOLBY NR

5Press P.

Recording starts.

6Start playing the source to be

recorded.

To Press

Stop recording p on deck B

Pause recording P

Tips

•When you want to record on the reverse side,

press ª after pressing r REC in step 3 so the

indicator on the ª button (for the reverse side)

lights up green.

•When you want to reduce the hiss noise in low-

level, high-frequency signals, press DOLBY NR

before step 5 so “DOLBY NR B” appears in the

display.

Recording CDs by

specifying the

track order

— Program Edit

You can record tracks from all the CDs in the

order you want. When programming, make

sure the playing times for each side do not

exceed the length of one side of the tape.

1Place CDs and close the front cover.

2Insert a blank tape into deck B.

3Press FUNCTION repeatedly until

“CD” appears in the display.

4Press PLAY MODE repeatedly until

“PROGRAM” appears in the

display.

5Press DISC SKIP to select a CD.

6Turn the jog dial until the desired

track appears in the display.

312 2 1113

54,7 61p

CHECK

EDIT

Wide display

Disc number

Normal display

Disc number

Total playing time

Track number

Track number Total playing time

continued

7Press PLAY MODE once.

The track is programmed. First “STEP”

and the programmed playing order

appear, then the total playing time

appears.

8Repeat steps 5 through 7 to program

additional tracks to be recorded on

side A.

Skip step 5 to select tracks from the same

disc.

9Press P on the remote to insert a

pause at the end of side A.

“P” appears in the display and the total

playing time resets to “0.00” in the

display.

Repeat steps 5 through 7 to program

the tracks to be recorded on side B.

Skip step 5 to select tracks from the same

disc.

Press CD SYNC.

Deck B stands by for recording, the CD

player stands by for playback, and the

indicator on the · button (for the front

side) lights up green.

Press DIRECTION repeatedly until

A appears to record on one side or

ß (or RELAY) to record on both

sides.

Press P.

Recording starts.

To stop recording

Press p on deck B or on the CD player.

To check the order

Press CHECK on the remote repeatedly. After

the last track, “CHECK END” appears.

To cancel Program Edit

Press PLAY MODE repeatedly until

“PROGRAM,” “ALL DISCS SHUFFLE,” or

“1 DISC SHUFFLE”disappears from the

display.

Selecting the tape length

automatically

— Tape Select Edit

You can check the most suitable tape length

for recording a CD. Note that you cannot use

Tape Select Edit for discs containing more

than 20 tracks.

/After inserting a CD, press EDIT

once so “EDIT” flashes.

First the required tape length for the CD

in the playing position appears, then the

total playing time for sides A and B

appears.

Note

You cannot use this function when Program Play

mode has been set. After clearing the entire

program, follow the above procedure (see “Clear the

entire program” in the table on page 22).

Wide display

Normal display

The last programmed track

Total playing timeThe last programmed track

Total playing time

Recording CDs by specifying the

track order (continued)

Looping part of a

— Loop

Flashing part of a

— Flash

DJ Effects

With the Loop function, you can repeat part

of a CD during playback. This lets you create

original recordings.

/Press and hold LOOP during

playback at the point you want to

start the Loop function, and release

to resume normal playback.

To adjust the loop length

Turn the jog dial while holding LOOP (or

press FILE SELECT V/v while holding LOOP

on the remote) to select different loop lengths.

With the Flash function, you can “flash” the

CD sound during playback. This lets you

create original recordings.

/Press and hold FLASH during

playback at the point you want to

start the Flash function, and release

to resume normal playback.

To adjust the flash length

Turn the jog dial while holding FLASH (or

press FILE SELECT V/v while holding

FLASH on the remote) to select different flash

lengths.

To use LOOP and FLASH together

Press and hold both LOOP and FLASH at the

same time.

Note

The loop and flash length cannot be adjusted

in stop mode. Adjust the loop and flash

lengths during playback.

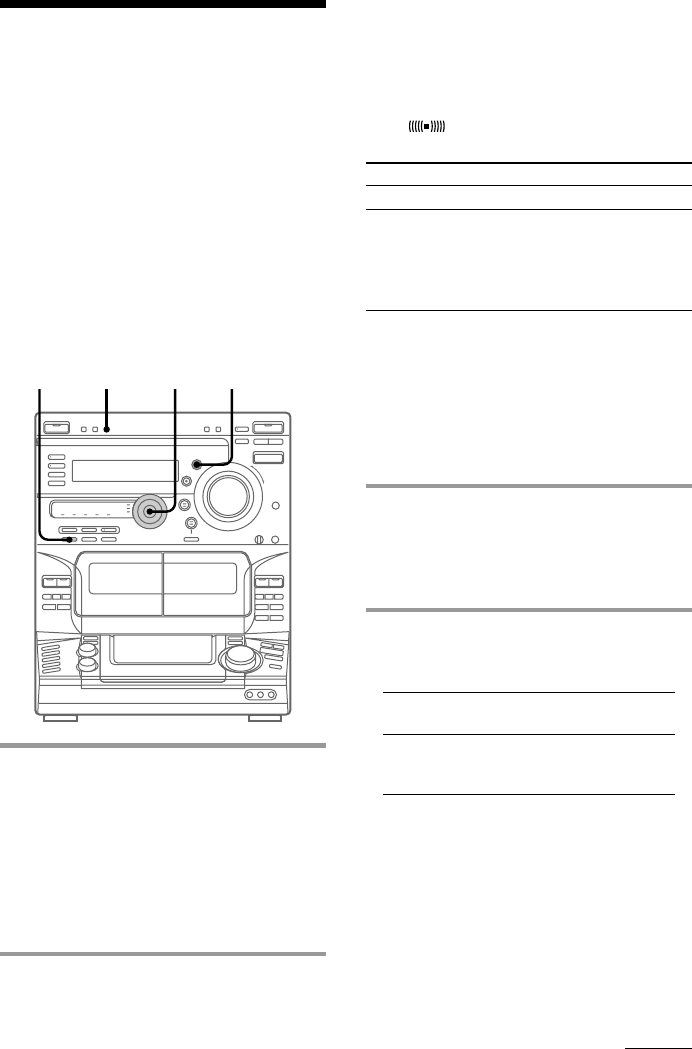

LOOP Jog dial FLASH Jog dial

LOOP

Adjusting the

sound

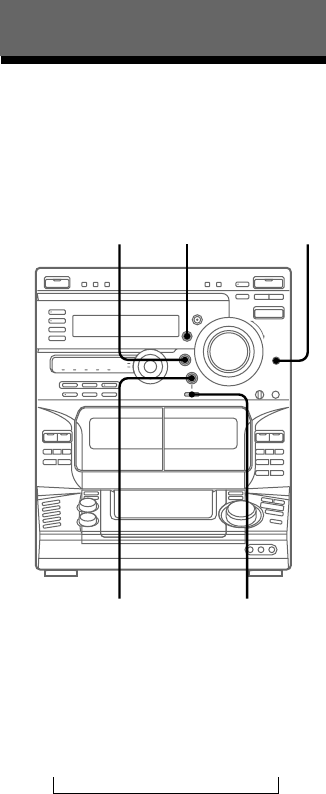

Sound Adjustment For a powerful sound (GROOVE)

Press GROOVE.

The volume switches to power mode, the

equalizer curve changes, the super woofer

level changes to “HIGH,” and the indicator

on the GROOVE button lights up. Press

GROOVE again to return to the previous

volume.

Note

Canceling the Groove mode cancels the equalizer

curve and super woofer level. Adjust the equalizer

settings to obtain the desired effect.

For the most suitable bass sound

(SYNC BASS)

Press SYNC BASS.

The bass frequencies of the music you are

listening to are measured and those areas

with heavy bass tones are effectively

reinforced. The indicator on the SYNC BASS

button flashes while measuring. Once

measured, the indicator stops flashing and

remains lit. Press SYNC BASS again to return

to the previous level.

Notes

• The super woofer mode changes to MUSIC in the

SYNC BASS (Synchronized Bass) mode.

• If you press MODE in the SYNC BASS mode, this

mode is canceled and the super woofer mode

changes to MOVIE.

• You can change the super woofer level to LOW or

HIGH in the SYNC BASS mode. However, if you

change the level to SUPER WOOFER FLAT, the

SYNC BASS mode is canceled.

To listen through the headphones

Connect the headphones to the PHONES jack.

No sound will come from the speakers.

GROOVE

MODE

PHONES

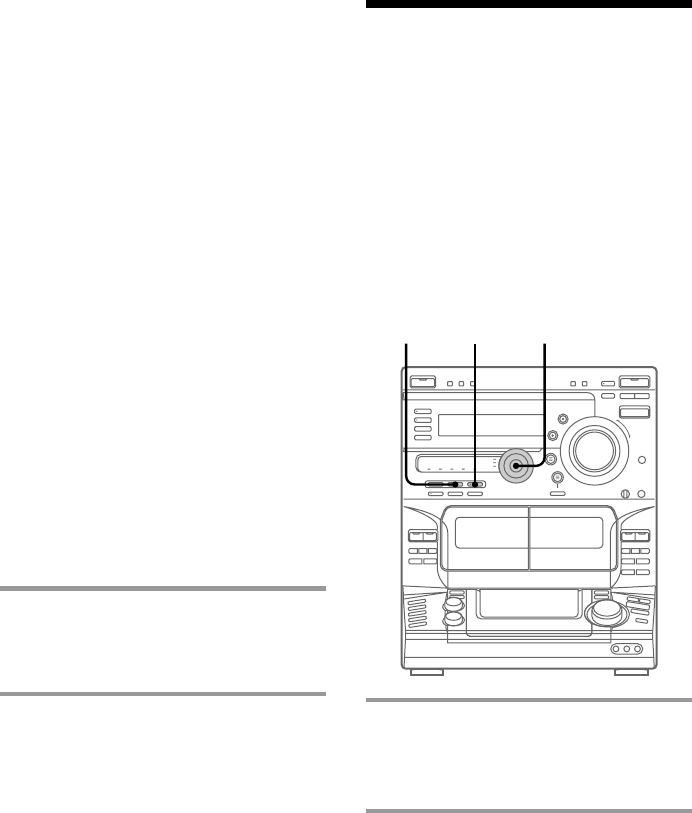

You can create a more powerful sound and

listen with headphones.

To reinforce the bass from the

super woofer (SUPER WOOFER)

Press SUPER WOOFER.

Each time you press this button, the super

woofer level display changes as follows:

SUPER WOOFER FLAT n LOWn HIGH

To select the super woofer mode

Press MODE while the super woofer is on.

Each time you press this button, the super

woofer mode display changes as follows:

MOVIE ˜ MUSIC

SUPER WOOFER

SYNC BASS

Selecting the audio

emphasis

The audio emphasis menu lets you select the

sound characteristics according to the music

you are listening to.

And you can also enjoy the audio emphasis

using the Synchronized Equalizer function.

When using this function, the system

automatically switches the equalizer

according to the genre of the music.

The Personal File function (see “Making a

personal audio emphasis file (Personal File)”

on page 32) lets you store your own effects.

EFFECT SPECTRUM

ANALYZER SYNC EQ

V/v/B/b

/Press V/v to select MENU 1 or

MENU 2, then press B/b to select

the desired audio emphasis.

See the chart “Music menu options” on

this page. The audio emphasis name

appears in the display.

When using the remote, press FILE

SELECT V/v repeatedly until the

desired audio emphasis name appears.

continued

To cancel the audio emphasis

Press EFFECT (or FILE SELECT ON/OFF on

the remote) repeatedly so the indicator on the

EFFECT button goes off.

Music menu options

“SUR ” appears if you select an audio

emphasis with a surround effect.

Press To select

V/vMENU 1 MENU 2

B/bROCK MOVIE

POP GAME

JAZZ NIGHT

DANCE PARTY

SALSA RELAX

Using the Synchronized

Equalizer function

You can set the audio emphasis to change

automatically according to the beat and

tempo of the music.

/Press SYNC EQ.

The indicator on the SYNC EQ button

flashes while measuring the beat and

tempo of the source. Once measured, the

indicator stops flashing and remains lit.

SYNC EQ classifies the music source as

follows:

Beat Density

Beat Strength

SMOOTH

MEDIUM

STRONG

To cancel the Synchronized

Equalizer function

Press SYNC EQ again so the indicator goes

off.

The Synchronized Equalizer function is

canceled also when:

– you cancel the audio emphasis

– you reselect the audio emphasis from the

music menu

– you activate the surround effect

– you adjust the graphic equalizer

– you sing along (KARAOKE)

Notes

•The Synchronized Equalizer function does not

work in KARAOKE mode.

•P FILE MEMORY does not work in this mode.

•The name of classification are not related with the

genre of the music source.

Changing the equalizer

display

You can change the equalizer display

according to the music you are listening to.

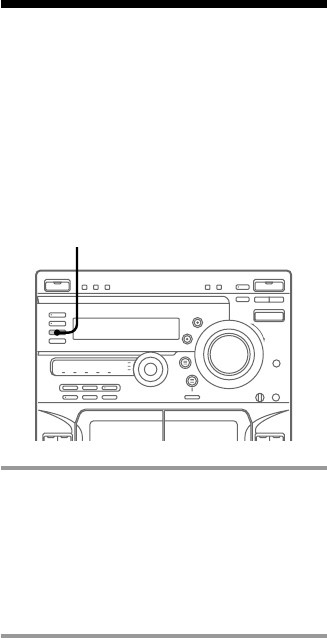

/Press SPECTRUM ANALYZER.

The display changes to show the display

pattern. It changes according to the

music you are listening to.

To cancel the display pattern

Press SPECTRUM ANALYZER again. The

display changes to show the equalizer curve.

Adjusting the

audio emphasis

You can adjust the audio emphasis using the

graphic equalizer and surround effect.

Adjusting the graphic

equalizer

You can adjust the sound by raising or

lowering the levels of specific frequency

ranges.

2 3,46

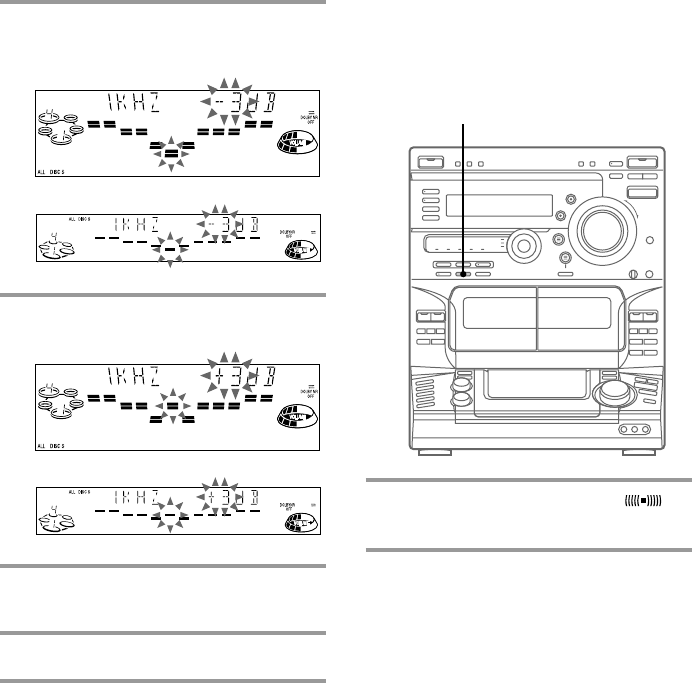

1Select the desired basic audio

emphasis for your sound (see

“Selecting the audio emphasis” on

page 29).

2Press GEQ CONTROL.

The frequency range appears and the

level value flashes in the display.

Selecting the audio emphasis

(continued)

3Press B/b repeatedly to select a

frequency band.

4Press V/v to adjust the level.

5Repeat steps 3 and 4 to adjust the

other frequency bands.

6Press ENTER when finished.

Note

If you choose another audio emphasis (other than

“EFFECT OFF”), the adjusted sound effect is lost. To

retain the adjusted sound effect for future use, store

it in a personal file (see “Making a personal audio

emphasis file” on page 32).

Wide display

Normal display

Activating the surround

effect

You can enjoy the surround effect.

Wide display

Normal display

SURROUND

/Press SURROUND so “SUR ”

appears in the display.

Note

If you choose other sound effects, the surround

effect will be canceled. To retain the effect, store it in

a personal file (see “Making a personal audio

emphasis file” on page 32).

Making a personal

audio emphasis file

— Personal File

You can create personal files of audio

patterns (surround effect and graphic

equalizer) and store them in the system’s

memory. Later, you can call up an audio

pattern when playing a favorite tape, CD, or

radio program. You can create up to five

audio files. Before operation, first select the

basic audio emphasis you want for your

sound.

24 3

1Create the desired sound effect by

using the graphic equalizer and/or

surround effect (see “Adjusting the

audio emphasis” on page 30).

2Press P FILE MEMORY.

A personal file number appears in the

display.

3Press B/b to select the file number

(P FILE) where you want to store

the sound effect.

4Press ENTER.

The adjusted sound effects are stored

under the selected file number. Any

settings previously stored at this

memory location are erased and

replaced by the new settings.

To call up the personal file

Press V/v repeatedly to display the last

selected personal file, then press B/b

repeatedly to select the desired personal file.

When using the remote, press FILE SELECT

V/v repeatedly.

Wide display

Normal display

Other Features

nnnn

Using the Radio

Data System (RDS)

(For the European model

only)

What is the Radio Data

System?

The Radio Data System (RDS) is a broadcasting

service that allows radio stations to send

additional information along with the regular

program signal. This tuner offers convenient

RDS features, such as monitoring traffic, news,

or information programs and locating a station

by program type. RDS is available only on FM

stations.*

Note

RDS may not work properly if the station you are

tuned to is not transmitting the RDS signal properly

or if the signal strength is weak.

* Not all FM stations provide RDS service, nor do

they all provide the same types of services. If you

are not familiar with the RDS system, check with

your local radio stations for details on RDS services

in your area.

Receiving RDS broadcasts

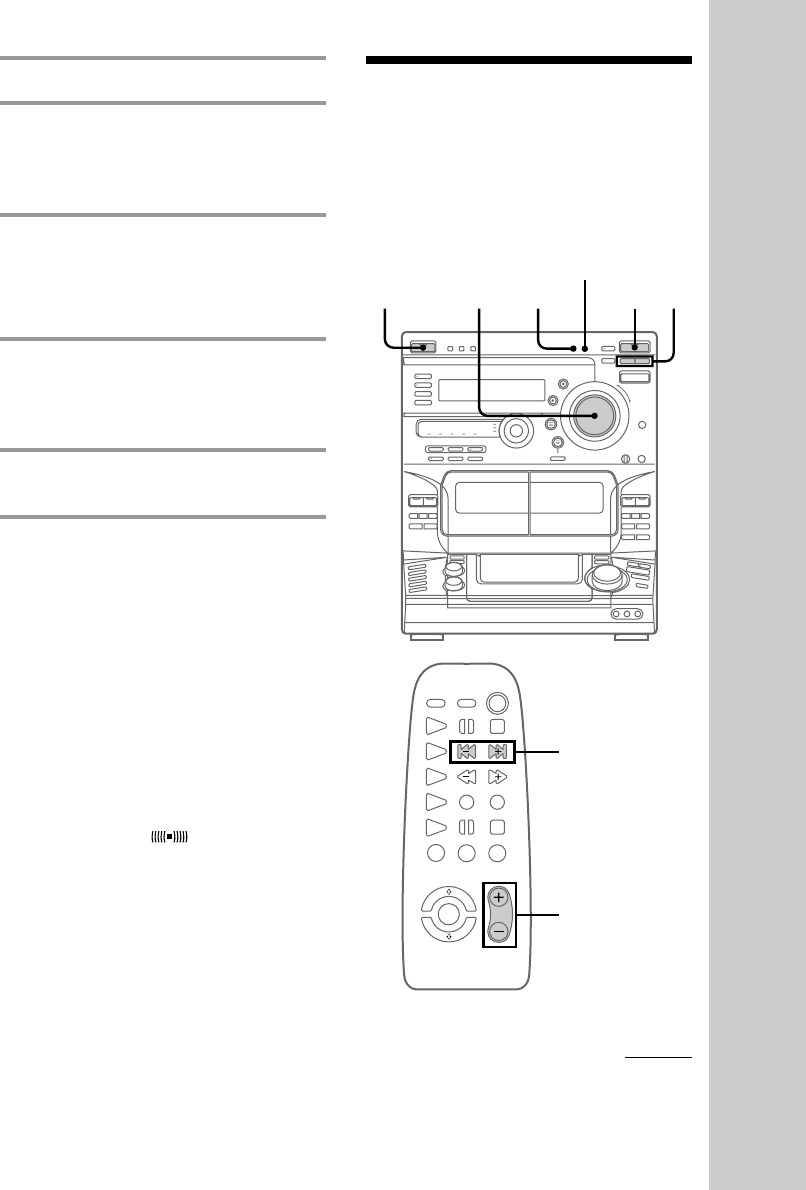

/Select a station from the FM band.

When you tune in a station that

provides RDS services, the station

name appears in the display.

To check the RDS information

Each time you press DISPLAY, the display

changes as follows:

nStation name*

Frequency

Program type*

Clock display

Effect (P FILE) name or “EFFECT ON

(OFF)”

* If an RDS broadcast is not received, the station

name and the program type may not appear in

the display.

Locating a station by

program type (PTY)

You can locate the desired station by selecting

a program type. The system tunes in that type

of program currently being broadcast from

the RDS stations stored in the tuner’s preset

memory.

1Press PTY while listening to the

radio.

2Press TUNING +/– to select the

desired program type. See the “List

of program types (PTY)” on the

following page.

3Press ENTER/NEXT.

The system starts searching for the

preset RDS stations (“SEARCH” and the

selected program type appear alternately

in the display).

When the tuner receives a program, the

preset station number flashes.

2,43,51

continued

4Press TUNING +/– until the desired

preset station number flashes in the

display.

5Press ENTER/NEXT while the

preset station number is flashing.

To stop the search while it is in

progress

Press PTY.

List of program types (PTY)

NONE

No program type or undefined.

NEWS

News programs.

AFFAIRS

Topical programs that expand on current

news.

INFORMATION

Programs about consumer affairs and

medical advice.

SPORT

Sports programs.

EDUCATION

Educational programs, such as “how-to”

programs and advice.

DRAMA

Radio plays and serials.

CULTURE

Programs about national or regional

culture, language, and social concerns.

SCIENCE

Programs about the natural sciences

VARIED

Programs containing celebrity interviews,

panel games, and comedy.

POP

Popular music programs.

ROCK

Rock music programs.

EASY MUSIC

Easy listening (middle of the road music).

L.CLASSICAL

Classical music, such as instrumental,

vocal, and choral works.

S.CLASSICAL

Performances of major orchestras, chamber

music, opera, etc.

OTHER MUSIC

Music, such as rhythm and blues and

reggae.

WEATHER

Weather information.

FINANCE

Stock market reports and trading, etc.

CHILDREN

Programs for the young.

SOCIAL

Programs about people and the things that

affect them.

RELIGION

Programs of religious content.

PHONE IN

Programs where members of the public

express their views by phone or in a public

forum.

TRAVEL

Programs about travel. Not for

announcements that are located by TP/TA.

LEISURE

Programs on recreational activities such as

gardening, fishing, cooking, etc.

JAZZ

Jazz programs.

COUNTRY

Country music programs.

NATION

Programs featuring the popular music of

the country or region.

OLDIES

Programs featuring oldies music.

FOLK

Folk music programs.

Using the Radio Data System (RDS)

(continued)

Singing

along: Karaoke

You can sing along with any stereo CD or

tape by turning down the singer’s voice. You

need to connect an optional microphone.

1,5324

1Turn MIC LEVEL to MIN to turn

down the microphone level.

2Connect an optional microphone to

the MIX MIC.

DOCUMENTARY

Investigative features.

ALARM TEST

Test signal for emergency broadcasts.

ALARM-ALARM

Emergency broadcasts.

continued

Note

“NO PTY” appears when the program you selected

is not currently being broadcasted.

nnn

Mixing and recording

sounds 2

3Press KARAOKE PON/MPX

repeatedly to obtain the desired

karaoke effect.

Each time you press this button, the

display changes as follows:

KARAOKE PON

MPX R

MPX L

EFFECT OFF or audio emphasis name

“h” appears in the display when the

karaoke mode is activated.

Reduce the singer’s

voice on a CD or tape

Reduce the left channel

on a multiplex CD or

tape

Reduce the right

channel on a multiplex

CD or tape

4Start playing the music and adjust

the volume.

5Turn MIC LEVEL to adjust the

microphone volume.

When you are done

Turn MIC LEVEL to MIN and disconnect the

microphone from MIX MIC, then press

KARAOKE PON/MPX repeatedly until “h”

disappears from the display.

Note

With some songs, vocals may not be canceled when

you select KARAOKE PON.

1Prepare the microphone and the

karaoke effect. Then, insert a blank

tape in deck B.

2Press FUNCTION repeatedly to

select the source you desire and set

it to pause mode.

3Press r REC.

4Press P.

5Press ·P to start playing the CD

(or · on deck A to start playing

the tape).

Playback starts.

Start singing along with the music.

To stop recording

Press p on deck B.

Singing along: Karaoke

(continued)

Select

KARAOKE PON

MPX R

MPX L

Falling asleep to

music

— Sleep Timer

You can set the system to turn off at a preset

time, so you can fall asleep listening to music.

You can preset the remaining time in 10

minute increments.

SLEEP

Tips

•If acoustic feedback (howling) occurs, move the

microphone away from the speakers or change the

direction of the microphone.

•If you want to record your voice through the

microphone only, you can do so by selecting CD

as the source but not playing a CD.

•When high level sound signals are input, the

system automatically adjusts the recording level to

prevent distortion of the recorded sound signal

(Auto Level Control function).

Notes

•If you press EFFECT or select a sound effect, the

karaoke mode is canceled.

•The instrumental sound may be reduced as well as

the singer’s voice when the source sound was

recorded monaurally.

•The singer’s voice may not be reduced when:

— only a few instruments are playing.

— a duet is being sung.

— the source has strong echoes or chorus.

— the singer’s voice deviates from the center.

— the voice on the source is singing high soprano

or tenor notes.

/Press SLEEP.

Each time you press this button, the

minutes display (the remaining time)

changes as follows:

AUTO n 90MIN n 80MIN n 70MIN

OFF N 10MIN ....... 50MIN N 60MIN

When you choose AUTO

The system turns off when the current CD or

tape finishes playback (up to 100 minutes).

The system turns off if you manually stop

playing a CD or tape.

To check the remaining time

Press SLEEP once.

To change the remaining time

Press SLEEP repeatedly to select the desired

time.

To cancel the Sleep Timer function

Press SLEEP repeatedly until “SLEEP OFF”

appears in the display.

Waking up to

music

— Daily Timer

You can wake up to music at a preset time

every day. Make sure you have set the clock

(see “Step 3: Setting the time” on page 7).

The 24-hour system model is used for

illustration purposes.

1Prepare the music source you want

to play.

• CD: Insert a CD. To start from a

specific track, create a program (see

“Programming CD tracks” on page

21).

• Tape: Insert a tape with the side you

want to play facing forward.

• Radio: Tune in the preset station you

want (see “Step 4: Presetting radio

stations” on page 8).

2Turn VOLUME to adjust the

volume.

3 4,5,6,7,8

DAILY

3Press t/CLOCK SET.

“SET” appears and “DAILY” flashes in

the display.

4Press TUNING +/– to select

“DAILY,” then press ENTER/

NEXT.

“ON” appears and the hour indication

flashes in the display.

5Set the time to start playback.

Press TUNING +/– to set the hour, then

press ENTER/NEXT.

The minutes indication flashes.

Press TUNING +/– to set the minutes,

then press ENTER/NEXT.

The hour indication flashes again.

6Set the time to stop playback

following the above procedure.

Wide display

Normal display

Wide display

Normal display

Timer-recording

radio programs

To timer-record, you must preset the radio

station (see “Step 4: Presetting radio stations”

on page 8) and set the clock (see “Step 3:

Setting the time” on page 7) beforehand.

3,4,5

REC 2

Wide display

Normal display

1Tune in the preset radio station (see

“Listening to the radio” on page 13).

2Press t/CLOCK SET.

“SET” appears and “DAILY” flashes in

the display.

3Press TUNING +/– to select “REC,”

then press ENTER/NEXT.

“ON” appears and the hour indication

flashes in the display.

7Press TUNING +/– until the desired

music source appears.

The indication changes as follows:

TUNER n CD PLAY n TAPE PLAY

8Press ENTER/NEXT.

The start time, the stop time, and the

music source appear in turn before the

original display returns.

9 Turn off the system.

To check the setting

1Press DAILY.

2“TIMER OFF” appears in the display.

3Press DAILY again.

To cancel the timer operation

1Press DAILY.

2“TIMER OFF” appears in the display.

Notes

•The system turns on 15 seconds before the preset

time.

•You cannot set the timer if the timer on and off

times are the same.

•When you set the Sleep Timer, the Daily Timer

will not turn on the system until the Sleep Timer

turns it off.

•You cannot set the Daily Timer and Timer-

recording to be activated at the same time.

continued

4Set the time to start recording.

Press TUNING +/– to set the hour, then

press ENTER/NEXT.

The minutes indication flashes.

Press TUNING +/– to set the minutes,

then press ENTER/NEXT.

The hour indication flashes again.

5Set the time to stop recording

following the above procedure.

The start time, the stop time, the

recording source, and the preset station

appear in turn before the original display

returns.

6Insert a blank tape in deck B.

7Turn off the system.

When recording starts, the volume level

is set to the minimum.

To check the setting

1Press REC.

2“TIMER OFF” appears in the display.

3Press REC again.

To change the setting, start over from step 1

on the previous page.

To cancel the timer operation

1Press REC.

2“TIMER OFF” appears in the display.

Wide display

Normal display

Notes

•The system turns on 15 seconds before the preset

time.

•If the system is on at the preset time, the Timer

recording will not be made.

•You cannot set the timer if the timer on and off

times are the same.

•When you set the Sleep Timer, the Timer-

recording will not start until the Sleep Timer turns

off the system.

•You cannot set the Daily Timer and Timer-

recording to be activated at the same time.

•Recording starts from the front side.

Timer-recording radio programs

(continued)

Connecting an MD deck

for digital recording

You can record a CD to an MD digitally by

connecting your MD deck using an optical

cable. Refer to the instructions included with

your MD deck for details.

To the digital input of the MD deck

To the audio outputs

of the MD deck To the audio inputs of

the MD deck

Connecting audio

components

Connecting a turntable

Be sure to match the color of the plugs and

the connectors. To listen to the sound from

the connected turntable, press FUNCTION

repeatedly until “PHONO” appears. Refer to

the instructions included with your turntable

for details.

To the audio output of the turntable

Optional AV components

Connecting an MD deck

for analog recording

Be sure to match the color of the plugs and

the connectors. To listen to the sound of the

connected MD deck, press FUNCTION

repeatedly until “MD” appears. Refer to the

instructions included with your MD deck for

details.

Note

Using the turntable at high volume may cause

distortion or howling. This is often caused by the

bass sound from the speakers. The bass sound may

be picked up by the needle of the turntable, and

produce the distortion or howling. To avoid this, do

the following:

1Keep some distance between the speakers and the

turntable.

2Stop using the surround effect.

3Install the speakers or the turntable on a firm and

stable surface.

4Press SUPER WOOFER repeatedly until the

indicator on this button goes off.

continued

Connecting surround

speakers (LBT-W300 only)

You can connect optional surround speakers.

Refer to the instructions included with your

surround speakers for details.

To surround

speaker (L)

To surround

speaker (R)

To the audio output

of the VCR

Connecting video

components

To the video output

of the VCR

Note

You need to connect both left and right surround

speakers. Otherwise, the sound will not be heard.

Connecting audio components

(continued)

You can connect a VCR, camcorder, or video

game to the VIDEO 1 jack on the rear panel

and/or the VIDEO2 INPUT jack on the front

panel. To see the picture from the connected

components, connect the input jack of your

TV to the VIDEO OUT jack with the video

connecting cable (not supplied).

Connecting a VCR

Be sure to match the color of the plugs and

the connectors. To listen to the sound from

the connected VCR, press FUNCTION

repeatedly until “VIDEO 1” appears.

Refer to the instructions included with your

VCR for details.

Connecting

outdoor antennas

75-ohm coaxial cable

(not supplied)

Except for European models

For European models

IEC standard socket

(not supplied)

Connecting a camcorder

or video game

Be sure to match the color of the plugs and

the connectors. To listen to the sound from

the connected camcorder or video game,

press FUNCTION repeatedly until

“VIDEO 2” appears.

Refer to the instructions included with each

component for details.

To the audio

output of the

component

To the video

output of the

component

FM 75

COAXIAL

FM 75

continued

Connect an outdoor antenna to improve the

reception. Refer to the instructions of each

component.

FM antenna

Connect an optional FM outdoor antenna.

You can also use the TV antenna instead.

Insulated wire (not supplied)

AM antenna

Connect a 6 to 15 meter (20 to 50 feet)

insulated wire to the AM antenna terminal.

Leave the supplied AM loop antenna

connected.

Except for European models

Important

If you connect an outdoor antenna, connect a

ground wire to the y terminal with the screw

clamp. To prevent a gas explosion, do not

connect the ground wire to a gas pipe.

For European models

Insulated wire (not supplied)

FM 75

COAXIAL

FM 75

Connecting outdoor antennas

(continued)

Precautions

On operating voltage

Before operating the system, check that the

operating voltage of your system is identical with

the voltage of your local power supply.

On safety

•The unit is not disconnected from the AC power

source (mains) as long as it is connected to the

wall outlet, even if the unit itself has been turned

off.

•Unplug the system from the wall outlet (mains) if

it is not to be used for an extended period of time.

To disconnect the cord (mains lead), pull it out by

the plug. Never pull the cord itself.

•Should any solid object or liquid fall into the

component, unplug the stereo system and have

the component checked by qualified personnel

before operating it any further.

•The AC power cord must be changed only at a

qualified service shop.

On placement

•Place the stereo system in a location with adequate

ventilation to prevent heat build-up in the stereo

system.

•Do not place the system in an inclined position.

•Do not place the system in locations where it is;

— Extremely hot or cold

— Dusty or dirty

— Very humid

— Subject to vibrations

— Subject to direct sunlight

On operation

• If the stereo system is brought directly from a cold

to a warm location, or is placed in a very damp

room, moisture may condense on the lens inside

the CD player. Should this occur, the system will

not operate properly. Remove the CD and leave

the system turned on for about an hour until the

moisture evaporates.

•When you move the system, take out any discs.

If you have any questions or problems concerning

your stereo system, please consult your nearest

Sony dealer.

Notes on CDs

•Before playing, clean the CD with a cleaning cloth.

Wipe the CD from the center out.

•Do not use solvents such as benzine, thinner,

commercially available cleaners, or anti-static

spray intended for vinyl LPs.

•Do not expose the CD to direct sunlight or heat

sources such as hot air ducts, nor leave it in a car

parked in direct sunlight.

Additional Information Cleaning the cabinet

Use a soft cloth slightly moistened with mild

detergent solution.

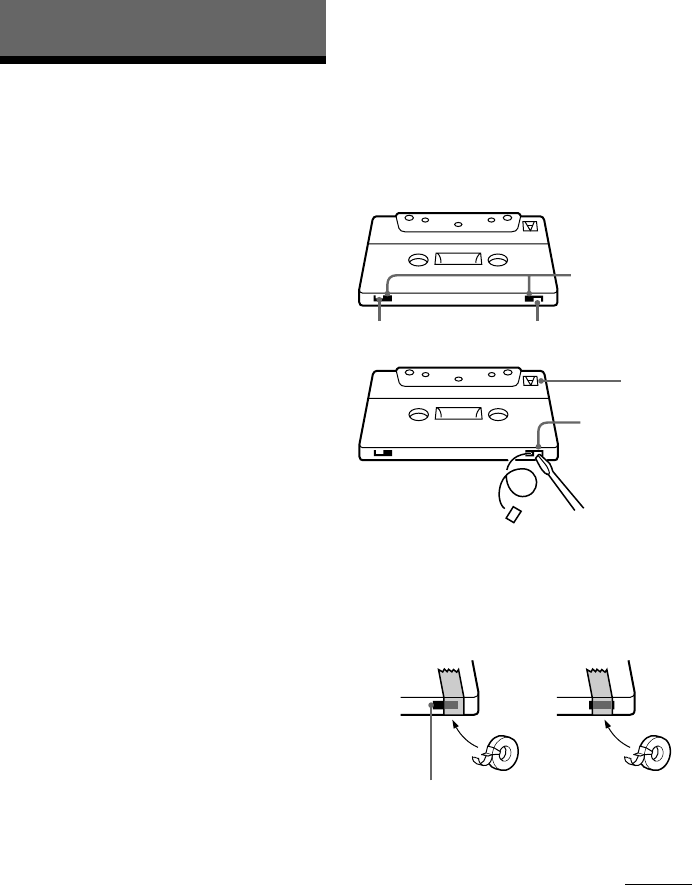

To save a tape permanently

To prevent a tape from being accidentally recorded

over, break off the cassette tab from side A or B as

illustrated.

Detector slots

Tab of side B Tab of side A

Side A

Break off the

cassette tab of

side A

Detector slots

continued

If you later want to reuse the tape for recording,

cover the broken tab with adhesive tape. However,

be careful not to cover the detector slots which allow

the tape player to automatically detect the type of

tape.

Tape type: CrO2/Metal Normal

Troubleshooting

If you run into any problem using this stereo

system, use the following checklist.

First, check that the power cord is connected

firmly and the speakers are connected

correctly and firmly.

Should any problem persist, consult your

nearest Sony dealer.

General

The display starts flashing as soon as you

plug in the power cord even though you

haven’t turned on the system

(demonstration mode).

•Press DISPLAY (for LBT-W5000/W300/

XB700/XB500) or DEMO (STANDBY)

(for other models) while the system is off.

If the system is in the Power Saving

mode, press POWER SAVE/DEMO

(STANDBY) (for LBT-W5000/W300/

XB700/XB500).

The demonstration appears automatically

the first time you plug in the power cord,

or if there is a power outage lasting

longer than half a day.

The clock setting/radio presetting is

canceled.

•The power cord is disconnected or a

power failure occurs for more than half a

day.

Redo the following procedures:

– “Step 3: Setting the time” on page 7.

– “Step 4: Presetting radio stations” on

page 8.

To set the timer function again, also redo

“Waking up to music” on page 38 and

“Timer-recording radio programs” on

page 39.

There is no sound.

•Turn VOLUME clockwise.

•The headphones are connected.

•Insert only the stripped portion of the

speaker cord into the SPEAKER jack.

Inserting the vinyl portion of the speaker

cord will interfere with the speaker

connection.

•The volume level is automatically set to

the minimum during the Timer-

recording.

Before placing a cassette in the

tape deck

Take up any slack in the tape. Otherwise the tape

may get entangled inside the tape deck and become

damaged.

When using a tape longer than 90

minutes

The tape is very elastic. Do not frequently change

the tape operations such as play, stop, and fast-

forwarding, etc. The tape may get entangled in the

tape deck.

Cleaning the tape heads

Clean the tape heads after every 10 hours of use.

When the tape heads become dirty

— the sound is distorted

— there is a decrease in sound level

— the sound drops out

— the tape does not erase completely

— the tape does not record

Make sure to clean the tape heads before you start

an important recording or after playing an old tape.

Use a separately sold dry-type or wet-type cleaning

cassette. For details, refer to the instructions of the

cleaning cassette.

Demagnetizing the tape heads

Demagnetize the tape heads and the metal parts that

have contact with the tape every 20 to 30 hours of

use with a separately sold demagnetizing cassette.

For details, refer to the instructions of the

demagnetizing cassette.

Precautions (continued)

Speakers

There is no sound and “POWER OFF”

appears in the display.

•Press 1/u to turn off the system and

check the speaker connections and

placement.

Sound comes from only one channel or the

left and right volumes are unbalanced.

•Check the speaker connections and

placement.

There is no sound from the surround

speakers (LBT-W300 only).

•Press SURROUND to turn on the

surround effect.

CD Player

The CD tray does not rotate.

•A CD is not placed properly.

A CD will not play.

•The CD is not lying flat in the disc tray.

•The CD is dirty.

•The CD is inserted label side down.

•Moisture condensation has built up.

Remove the CD and leave the system

turned on for about an hour until the

moisture evaporates.

Play does not start from the first track.

•The player is in Program or Shuffle Play

mode. Press PLAY MODE repeatedly

until “PROGRAM,” “ALL DISCS

SHUFFLE,” or “1 DISC SHUFFLE”

disappears from the display.

Tape Deck

The tape does not record.

•No tape is in the cassette holder.

•The tab has been removed from the

cassette (see page 45).

•The tape has reeled to the end.

There is no microphone sound.

•Turn VOLUME or MIC LEVEL to adjust

the microphone volume.

•Make sure the microphone is connected

to the MIX MIC jack correctly.

There is severe hum or noise.

•A TV or VCR is placed too close to the

stereo system. Move the stereo system

away from the TV or VCR.

“0:00” (for European and Brazilian models)

or “12:00AM” (for other models) flashes in

the display.

•A power interruption occurred. Reset the

clock and timer settings.

The timer does not function.

•Set the clock correctly.

DAILY and REC do not appear when you

press t/CLOCK SET.

•Set the timer correctly.

•Set the clock.

The remote does not function.

•There is an obstacle between the remote

and the system.

•The remote is not pointing in the

direction of the system’s sensor.

•The batteries have run down. Replace the

batteries.

There is acoustic feedback.

•Decrease the volume level.

•Move the microphone away from the

speakers or change the direction of the

microphone.

The color irregularity on a TV screen

persists.

•Turn off the TV set once, then turn it on

after 15 to 30 minutes. If the color

irregularity still persists, place the

speakers farther away from the TV set.

continued

Specifications

For the U.S. model

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL

HARMONIC DISTORTION:

With 8 ohm loads, both channels driven, from

70 – 20,000 Hz; rated 100 watts per channel

minimum RMS power, with no more than

0.9% total harmonic distortion from

250 milliwatts to rated output.

Amplifier section

(LBT-W5000/W300)

Continuous RMS power output

120 + 120 watts

(8 ohms at 1 kHz, 10%

THD)

Total harmonics distortionLess than 0.07%

(8 ohms at 1 kHz, 50 W)

(LBT-XB700/XB500)

DIN power output (Rated)90 + 90 watts

(8 ohms at 1 kHz, DIN)

Continuous RMS power output (Reference)

120 + 120 watts

(8 ohms at 1 kHz, 10%

THD)

Music power output (Reference)

200 + 200 watts

(8 ohms at 1 kHz, 10%

THD)

(LBT-DR440/DR4)

The following measured at AC 120/220/240 V,

50 Hz

DIN power output (Rated)140 + 140 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (Reference)

170 + 170 watts

(6 ohms at 1 kHz, 10%

THD)

(LBT-DR5)

The following measured at AC 120/220/240 V,

50 Hz

DIN power output (Rated)160 + 160 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (Reference)

200 + 200 watts

(6 ohms at 1 kHz, 10%

THD)

The tape does not record nor play, or there

is a decrease in sound level.

•The heads are dirty. Clean them (see page

46).

•The record/playback heads are

magnetized. Demagnetize them (see page

46).

The tape does not erase completely.

•The record/playback heads are

magnetized. Demagnetize them (see page

46).

There is excessive wow or flutter, or the

sound drops out.

•The capstans or pinch rollers are dirty.

Clean them (see page 46).

Noise increases or the high frequencies are

missing.

•The record/playback heads are

magnetized. Demagnetize them (see page

46).

Tuner

Severe hum or noise (“TUNED” or

“STEREO” flashes in the display).

•Adjust the antenna.

•The signal strength is too weak. Connect

an external antenna.

A stereo FM program cannot be received in

stereo.

•Press STEREO/MONO so “STEREO”

appears in the display.

If other problems not described

above occur, reset the system as

follows:

1Unplug the power cord.

2Plug the power cord back in.

3Press t/CLOCK SET, ENTER, and

1/u at the same time.

The system is reset to the factory settings. All

the settings you made, such as the preset

stations, clock, and timer are cleared. You

should set them again.

Troubleshooting (continued)

Tape player section

Recording system 4-track 2-channel stereo

Frequency response (DOLBY NR OFF)

40 – 13,000 Hz ( ±3 dB),

using a Sony TYPE I

cassette

40 – 14,000 Hz ( ±3 dB),

using a Sony TYPE II

cassette

Wow and flutter ±0.15% W. Peak (IEC)

0.1% W. RMS (NAB)

±0.2% W. Peak (DIN)

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range

(2 band model)

North American model: 87.5 – 108.0 MHz

(100 kHz step)

Other models: 87.5 – 108.0 MHz

(50 kHz step)

(3 band model)

FM: 87.5 – 108.0 MHz (50 kHz

step)

UKV: 65.0 – 74.0 MHz (10 kHz

step) STEREO PLUS

Antenna FM wire antenna

Antenna terminals 75 ohm unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

North American model: 530 – 1,710 kHz

(with the tuning interval

set at 10 kHz)

531 – 1,602 kHz

(with the tuning interval

set at 9 kHz)

Middle Eastern models: 531 – 1,602 kHz

(with the tuning interval

set at 9 kHz)

Other models: 531 – 1,602 kHz

(with the tuning interval

set at 9 kHz)

530 – 1,710 kHz

(with the tuning interval

set at 10 kHz)

Antenna AM loop antenna,

External antenna

terminals

Intermediate frequency 450 kHz

(LBT-DR6)

The following measured at AC 120/220/240 V,

50 Hz

DIN power output (Rated)180 + 180 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (Reference)

250 + 250 watts

(6 ohms at 1 kHz, 10%

THD)

Inputs

PHONO IN (phono jacks):sensitivity 3 mV,

impedance 47 kilohms

MIX MIC (phone jack): sensitivity 1 mV,

impedance 10 kilohms

VIDEO1 IN (phono jacks):sensitivity 250 mV,

impedance 47 kilohms

VIDEO2 IN (phono jacks):sensitivity 250 mV,

impedance 47 kilohms

MD IN (phono jacks): sensitivity 450 mV,

impedance 47 kilohms

Outputs

PHONES (stereo phone jack):

accepts headphones of 8

ohms or more

VIDEO OUT (phono jack):voltage 250 mV,

impedance 1 kilohm

MD OUT (phono jacks): voltage 250 mV,

impedance 1 kilohm

FRONT SPEAKER:

(LBT-W5000/W300/XB700/XB500)

accepts impedance of 8 to

16 ohms

(LBT-DR6/DR5/DR440/DR4)

accepts impedance of 6 to

16 ohms

SURROUND SPEAKER (LBT-W300 only):

accepts impedance of

16 ohms

CD player section

System Compact disc and digital

audio system

Laser Semiconductor laser

(λ = 780 nm)

Emission

duration: continuous

Laser output Max. 44.6

* This output is the value

measured at a distance of

200 mm from the

objective lens surface on

the Optical Pick-up Block

with 7 mm aperture.

Wavelength 780 – 790 nm

Frequency response 2 Hz – 20 kHz (±0.5 dB)

Signal-to-noise ratio More than 90 dB

Dynamic range More than 90 dB

CD DIGITAL OUT

(square optical connector jack, rear panel)

Wave length: 660 nm

Output level: –18 dBm

Speakers

SS-DR440/DR4/W300/W300/XB500 for

LBT-DR440/DR4/W5000/W300/XB500

Speaker system

(SS-DR440/DR4) 3-way, 3-unit, bass-reflex

type, magnetically

shielded type

(SS-W300/XB500) 3-way, 3-unit, bass-reflex

type

Speaker units

Super Woofer: 17 cm dia., cone type

Woofer: 17 cm dia., cone type

Tweeter: 6 cm dia., cone type

Rated impedance:

(SS-DR440/DR4) 6 ohms

(SS-W300/XB500) 8 ohms

Dimensions (w/h/d):

(SS-DR440/W300/XB500) Approx. 255 × 505 × 345

mm (10 1/8 × 20 ×

13 5/8 in)

(SS-DR4) Approx. 255 × 505 × 360

mm (10 1/8 × 20 ×

14 1/4 in)

Mass Approx. 9 kg (20 lb) net

per speaker

SS-DR5/XB700 for LBT-DR5/XB700

Speaker system 3-way, 4-unit, bass-reflex

type, magnetically

shielded type

Speaker units

Super Woofer: 17 cm dia., cone type

Woofer: 17 cm dia., cone type

Tweeter: 5 cm dia., cone type × 2

Rated impedance:

(SS-DR5) 6 ohms

(SS-XB700) 8 ohms

Dimensions (w/h/d) Approx. 265 × 530 × 420

mm (10 1/2 × 20 7/8 × 16

5/8 in)

Mass Approx. 12 kg (26 lb 8

oz.) net per speaker

SS-DR6 for LBT-DR6

Speaker system 4-way, 4-unit, bass-reflex

type, magnetically

shielded type

Speaker units

Super Woofer: 20 cm dia., cone type

Woofer: 20 cm dia., cone type

Tweeter: 6 cm dia., cone type × 2

Rated impedance 6 ohms

Dimensions (w/h/d) Approx. 290 × 595 × 445

mm (11 1/2 × 23 1/2 × 17

5/8 in)

Mass Approx. 16.0 kg (35 lb 8

oz.) net per speaker

General

Power requirements

North American model: 120 V AC , 60 Hz

European model: 230 V AC, 50/60 Hz

Mexican model: 120 V AC , 50/60 Hz

Australian model: 230 – 240 V AC, 50/60 Hz

Other models: 120 V, 220 V, or 230 –

240 V AC, 50/60 Hz

Adjustable with voltage

selector

Power consumption

(LBT-DR6) 220 watts

(LBT-DR5) 200 watts

(LBT-DR440/DR4) 170 watts

(LBT-W5000/W300)

U.S.A. model: 200 watts

Canadian model : 200 VA

(LBT-XB700/XB500) 180 watts

Dimensions (w/h/d) Approx. 356 × 423 × 446

mm (141/8 × 16 3/4 ×

17 5/8 in) incl. projecting

parts and controls

Mass

(LBT-DR6) Approx. 15.0 kg (33 lb 2

oz.)

(LBT-DR5) Approx. 14.0 kg (30 lb 14

oz.)

(LBT-DR440/DR4) Approx. 13.5 kg (29 lb 13

oz.)

(LBT-W5000/W300) Approx. 13.5 kg (29 lb 13

oz.)

(LBT-XB700/XB500) Approx. 13.5 kg (29 lb 13

oz.)

Supplied accessories AM loop antenna (1)

Remote RM-SR5 (1)

R6 (size AA) batteries (2)

FM wire antenna (1)

Speaker cords (2)

Optional accessory

(LBT-W300 (Canadian model only))

Surround speaker SS-SR101

Speaker system 1-way, 1-unit, bass-reflex

type

Speaker unit 10 cm dia., cone type

Nominal impedance 16 ohms

Dimensions (w/h/d) Approx. 205 × 95 × 240

mm (8 1/8 × 3 3/4 × 9 1/2

in)

Mass Approx. 1.1 kg (2 lb 7 oz.)

net per speaker

Design and specifications are subject to change

without notice.

Index K

Karaoke 35

to reduce the vocals

(KARAOKE PON) 36

to sing along with a

multiplex CD or tape

(MPX R/MPX L) 35

Loop 27

Microphone

mixing 36

Mixing sound 36

Normal Play 11

Non-Stop Play 23

One Touch Play 12, 14, 17

P , Q

Personal File 32

Playing

a CD 11

a preset radio station 13

a tape 16

tracks in random order

(Shuffle Play) 20

tracks in the desired

order (Program Play) 21

tracks repeatedly

(Repeat Play) 20

without interruption 23

Presetting radio stations 8

Preset tuning 13

Program Edit 25

Program Play 21

Protecting recordings 45

PTY* 33

Radio stations

presetting 8

tuning in 13

RDS* 33

Recording

a CD 12

a radio program 15

another tape 18

CDs by specifying the

track order 25

on a tape manually 24

selecting tape length

automatically 26

timer-recording 39

Repeat Play 20

Resetting the system 48

Saving power 10

Saving recordings 45

Setting the time 7

Shuffle Play 20

Sleep Timer 37

Sound adjustment 28

Speakers 5, 42

Surround effect 31

SYNC BASS 28

SYNC EQ 29

T, U, V, W, X, Y, Z

Tape Select Edit 26

Timer

falling asleep to music

timer-recording 39

waking up to music 38

Troubleshooting 46

Tuner 8, 13, 15

Tuning interval 9

Turntable 41

* For the European model

only

Adjusting

the audio emphasis 30

the sound 28

the volume 12, 14, 17

AMS 12, 16

Antennas 6, 43

Audio emphasis 29, 30

Automatic Source Selection

12, 14, 17

Batteries 7

CD player 11, 19

CD Synchro Recording 12

Clock setting 7

Connecting. See Hooking up

D, E

Daily timer 38

Display 4, 19, 30

Dubbing 18

F, G

Flash 27

H, I, J

Hooking up

optional components 41

optional speakers 42

speakers 5

the antennas 6, 43

the power 6

the system 5

Sony Corporation Printed in Indonesia

Sony Lbt Dr4 Users Manual DR6.3 865 548 11

LBT-W300 Operating Instructions LBTDR6

LBT-DR440 to the manual a673b77d-b387-45f1-b190-f6824e0f2e6e

a673b77d-b387-45f1-b.. a673b77d-b387-45f1-b190-f6824e0f2e6e

Navigation menu

Versions of this User Manual:

Views

Navigation
