4-134-739-11 (3)

LCD Monitor

LMD-940W

Operating Instructions

Owner’s Record

The model and serial numbers are located at the rear.

Record these numbers in the spaces provided below.

Refer to these numbers whenever you call upon your

Sony dealer regarding this product.

Model No.____________________

Serial No.____________________

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings.

Install in accordance with the manufacturer's

instructions.

• Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding-type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety.

If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete

outlet.

• Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

• Only use attachments/accessories specified by the

manufacturer.

• Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury

from tip-over.

• Unplug this apparatus during lightning storms or

when unused for long periods of time.

• Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate

normally, or has been dropped.

WARNING

To reduce the risk of fire or electric shock, do

not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the

cabinet. Refer servicing to qualified personnel

only.

WARNING

THIS APPARATUS MUST BE EARTHED.

WARNING

When installing the unit, incorporate a readily

accessible disconnect device in the fixed wiring, or

connect the power plug to an easily accessible socket-

outlet near the unit. If a fault should occur during

operation of the unit, operate the disconnect device to

switch the power supply off, or disconnect the power

plug.

Attention-when the product is installed in Rack:

1. Prevention against overloading of branch

circuit

When this product is installed in a rack and is supplied

power from an outlet on the rack, please make sure that

the rack does not overload the supply circuit.

2. Providing protective earth

When this product is installed in a rack and is supplied

power from an outlet on the rack, please confirm that the

outlet is provided with a suitable protective earth

connection.

Important Safety Instructions

This symbol is intended to alert the user to

the presence of uninsulated “dangerous

voltage” within the product’s enclosure

that may be of sufficient magnitude to

constitute a risk of electric shock to

persons.

This symbol is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in

the literature accompanying the

appliance.

3. Internal air ambient temperature of the rack

When this product is installed in a rack, please make

sure that the internal air ambient temperature of the rack

is within the specified limit of this product.

4. Prevention against achieving hazardous

condition due to uneven mechanical loading

When this product is installed in a rack, please make

sure that the rack does not achieve hazardous condition

due to uneven mechanical loading.

5. Install the equipment while taking the

operating temperature of the equipment into

consideration

For the operating temperature of the equipment, refer to

the specifications of the Operation Manual.

6. When performing the installation, keep the

following space away from walls in order to

obtain proper exhaust and radiation of heat.

Upper : 4.4 cm (1 3/4 inches) or more

Lower (when not using the stand) : 1.7 cm

(11/16 inches) or more

Rear : 10.0 cm (4 inches) or more

CAUTION

The apparatus shall not be exposed to dripping or

splashing. No objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

Excessive sound pressure from earphones and

headphones can cause hearing loss.

In order to use this product safely, avoid prolonged

listening at excessive sound pressure levels.

For kundene i Norge

Dette utstyret kan kobles til et IT-

strømfordelingssystem.

For the customers in the U.S.A.

This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference when the equipment is operated in a

commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

You are cautioned that any changes or modifications not

expressly approved in this manual could void your

authority to operate this equipment.

All interface cables used to connect peripherals must be

shielded in order to comply with the limits for a digital

device pursuant to Subpart B of Part 15 of FCC Rules.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2)

this device must accept any interference received,

including interference that may cause undesired

operation.

WARNING:

Using this unit at a voltage other than 120 V may require

the use of a different line cord or attachment plug, or

both. To reduce the risk of fire or electric shock, refer

servicing to qualified service personnel.

For the customers in Canada

This Class A digital apparatus complies with Canadian

ICES-003.

For the customers in Europe

This product with the CE marking complies with both

the EMC Directive and the Low Voltage Directive issued

by the Commission of the European Community.

Compliance with these directives implies conformity to

the following European standards:

• EN60065 : Product Safety

• EN55103-1 : Electromagnetic Interference

(Emission)

• EN55103-2 : Electromagnetic Susceptibility

(Immunity)

This product is intended for use in the following

Electromagnetic Environments:

E1 (residential), E2 (commercial and light industrial),

E3 (urban outdoors), E4 (controlled EMC environment,

ex. TV studio).

For the customers in Europe

The manufacturer of this product is Sony Corporation,

1-7-1 Konan, Minato-ku, Tokyo, Japan.

The Authorized Representative for EMC and product

safety is Sony Deutschland GmbH, Hedelfinger Strasse

61, 70327 Stuttgart, Germany. For any service or

guarantee matters please refer to the addresses given in

separate service or guarantee documents.

For the customers in the USA

Lamp in this product contains mercury. Disposal of

these materials may be regulated due to environmental

considerations. For disposal or recycling information,

please contact your local authorities or the Electronic

Industries Alliance (www.eiae.org).

Table of Contents

Precaution .............................................................. 5

On Safety ............................................................ 5

On Installation .................................................... 5

Handling the LCD Screen .................................. 5

About the Fluorescent Tube ............................... 5

On Cleaning ....................................................... 5

On Repacking ..................................................... 6

On Mounting on a Rack ..................................... 6

On Fan Error ...................................................... 6

On AC Adaptor Terminal .................................. 6

Features .................................................................. 6

Location and Function of Parts and Controls .... 8

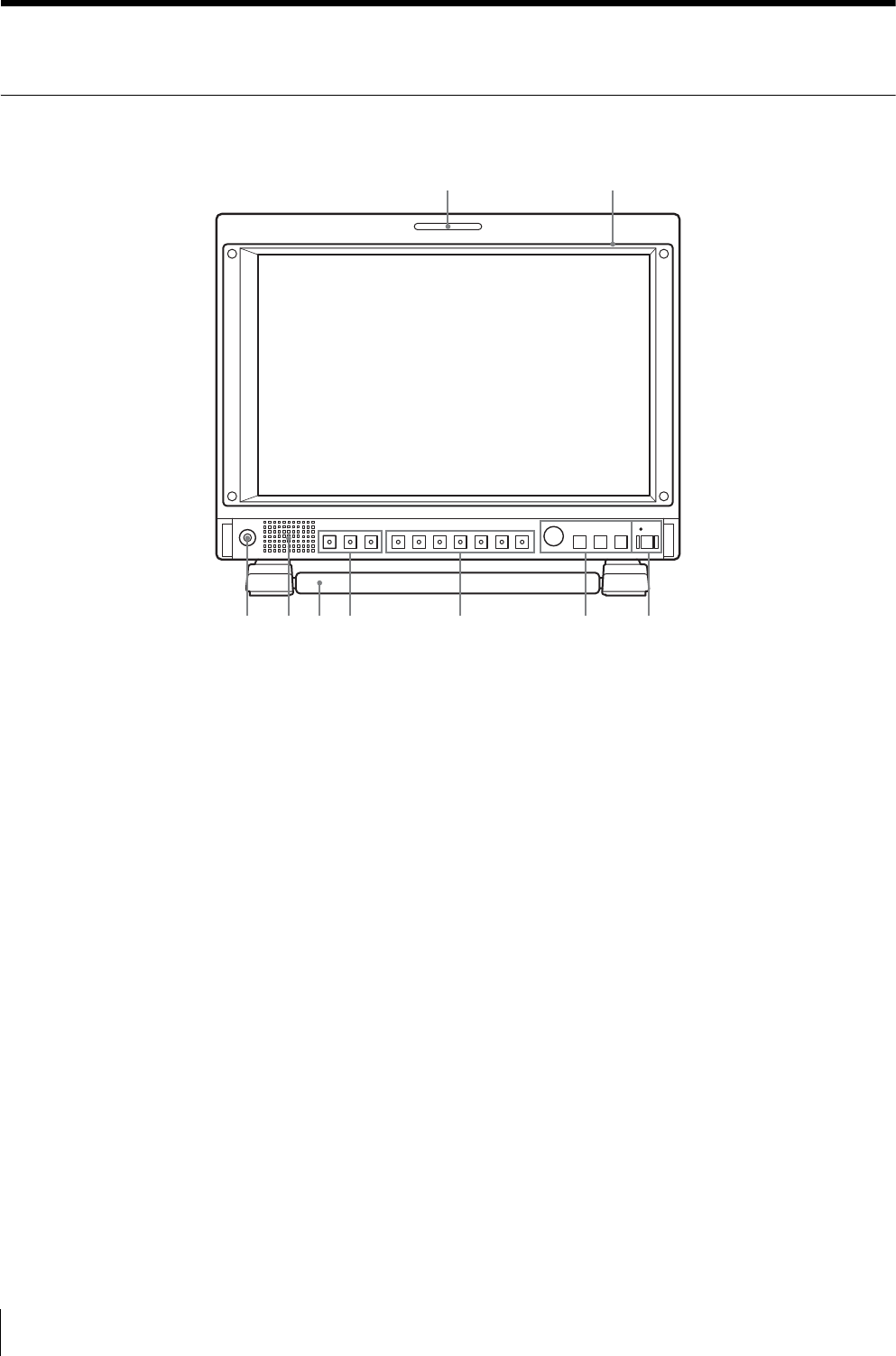

Front Panel ......................................................... 8

Input Signals and Adjustable/Setting Items ..... 10

Rear/Bottom Panel ........................................... 11

Installing to the Rack (Using MB-531) .............. 12

Power Supply ....................................................... 13

Attaching the AC Adaptor ............................... 13

Connecting the AC Power Cord ....................... 13

Selecting the Default Settings ............................. 14

Selecting the Menu Language ............................ 15

Using the Menu .................................................... 16

Adjustment Using the Menus ............................. 18

Items ................................................................. 18

Adjusting and Changing the Settings ............... 18

STATUS menu............................................. 18

COLOR TEMP/SPACE menu..................... 18

USER CONTROL menu.............................. 19

USER CONFIG menu.................................. 20

REMOTE menu ........................................... 24

KEY INHIBIT menu.................................... 25

Troubleshooting ................................................... 26

Specifications ....................................................... 26

Dimensions ........................................................... 29

Precaution 5

Precaution

On Safety

• Operate the unit only with a power source as specified

in the “Specifications” section.

• A nameplate indicating operating voltage, etc., is

located on the bottom.

• Should any solid object or liquid fall into the cabinet,

unplug the unit and have it checked by qualified

personnel before operating it any further.

• Do not drop or place heavy objects on the power cord.

If the power cord is damaged, turn off the power

immediately. It is dangerous to use the unit with a

damaged power cord.

• Unplug the unit from the wall outlet if it is not to be

used for several days or more.

• Disconnect the power cord from the AC outlet by

grasping the plug, not by pulling the cord.

• The socket-outlet shall be installed near the equipment

and shall be easily accessible.

On Installation

• Allow adequate air circulation to prevent internal heat

build-up.

Do not place the unit on surfaces (rugs, blankets, etc.)

or near materials (curtains, draperies) that may block

the ventilation holes.

• Do not install the unit in a location near heat sources

such as radiators or air ducts, or in a place subject to

direct sunlight, excessive dust, mechanical vibration

or shock.

Handling the LCD Screen

• The LCD panel fitted to this unit is manufactured with

high precision technology, giving a functioning pixel

ratio of at least 99.99%. Thus a very small proportion

of pixels may be “stuck”, either always off (black),

always on (red, green, or blue), or flashing. In

addition, over a long period of use, because of the

physical characteristics of the liquid crystal display,

such “stuck” pixels may appear spontaneously. These

problems are not a malfunction.

• Do not leave the LCD screen facing the sun as it can

damage the LCD screen. Take care when you place

the unit by a window.

• Do not push or scratch the LCD monitor’s screen. Do

not place a heavy object on the LCD monitor’s screen.

This may cause the screen to lose uniformity.

• If the unit is used in a cold place, horizontal lines or a

residual image may appear on the screen. This is not

a malfunction. When the monitor becomes warm, the

screen returns to normal.

• If a fixed picture such as a frame of a divided picture

or time code, or a still picture is displayed for a long

time, an image may remain on the screen and be

superimposed as a ghosting image.

• The screen and the cabinet become warm during

operation. This is not a malfunction.

About the Fluorescent Tube

A specially designed fluorescent tube is installed as the

lighting apparatus for this unit. If the LCD screen

becomes dark, unstable or does not turn on, consult your

Sony dealer.

On Cleaning

Before cleaning

Be sure to disconnect the AC power cord from the AC

outlet.

On cleaning the monitor screen

The monitor screen surface is especially treated to

reduce reflection of light.

As incorrect maintenance may impair the performance

of the monitor, take care with respect to the following:

• Wipe the screen gently with a soft cloth such as a

cleaning cloth or glass cleaning cloth.

• Stubborn stains may be removed with a soft cloth such

as a cleaning cloth or glass cleaning cloth lightly

dampened with water.

• Never use solvent such as alcohol, benzene or thinner,

or acid, alkaline or abrasive detergent, or chemical

cleaning cloth, as they will damage the screen surface.

On cleaning the cabinet

• Clean the cabinet gently with a soft dry cloth.

Stubborn stains may be removed with a cloth lightly

dampened with mild detergent solution, followed by

wiping with a soft dry cloth.

• Use of alcohol, benzene, thinner or insecticide may

damage the finish of the cabinet or remove the

indications on the cabinet. Do not use these chemicals.

• If you rub on the cabinet with a stained cloth, the

cabinet may be scratched.

• If the cabinet is in contact with a rubber or vinyl resin

product for a long period of time, the finish of the

cabinet may deteriorate or the coating may come off.

Features

On Repacking

Do not throw away the carton and packing materials.

They make an ideal container which to transport the

unit.

On Mounting on a Rack

Leave 1U space empty above and below the monitor to

ensure adequate air circulation or install a fan to

maintain the monitor’s performance.

If you have any questions about this unit, contact your

authorized Sony dealer.

On Fan Error

The fan for cooling the unit is built in. When the fan

stops and the 1 (standby) switch indicator on the front

panel blinks in green for fan error indication, turn off the

power and contact an authorized Sony dealer.

On AC Adaptor Terminal

The AC adaptor terminal of this unit (the connector for

AC adaptors) is a consumable part.

The unit may not operate properly if the pins of the AC

adaptor terminal are bent or deformed by shock or

vibrations, or if they become corroded due to prolonged

outdoor use.

Periodic inspections are recommended to keep the unit

working properly and to prolong its usable lifetime.

Contact your dealer or a Sony service representative for

more information about inspections.

Features

The LMD-940W (9 type) is a multiple format LCD

monitor for broadcast or business use featuring a precise

image and high performance. It supports both digital or

analog main broadcast signal and HDMI 1) input. It is

also equipped with functions to adjust for various

objects or use.

1) HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI

Licensing LLC.

High brightness LCD panel

Because of precise image, wide viewing angle

technology and high speed response, real color image

can be reproduced. Use the light intercepting hood,

connector protector and carrying handle (optional Sony

VF-510 Monitor ENG Kit) for outdoor use.

Multi-format

The monitor supports video, HDMI, SDI (3G/HD/SD)

signals and NTSC/PAL color systems.

For more information, see “Available signal formats”

on page 28.

External remote function

The input signal is selected or various items are adjusted

by use of the serial (Ethernet) remote function. Up to 32

monitors and control units (max. 4) can be connected by

the Ethernet (10BASE-T/100BASE-TX) connection

and controlled remotely on the network. You can

control individual monitors or monitor groups simply by

entering the monitor ID or group ID number. You can

also execute the same operation on all connected

monitors, or put all connected monitors into the same

setup and adjustment state.

For more information, see SERIAL REMOTE of

REMOTE menu on page 24.

Refer to the Operation Manual of the BKM-15R Monitor

Control Unit.

Rack mount monitors

Using the optional MB-531 Mounting Bracket, up to

two monitors may be mounted on the EIA-standard 19-

inch rack. A height of 4U space-saving design allows

more equipment to be installed in tight space, such as an

outdoor broadcasting van.

Monitor stand

You can set the monitor display in 15° by using the

stand.

Features 7

Protection plate

You can attach and detach the LCD screen’s protection

plate easily with the four screws.

Strong, slim and lightweight

The strong, slim, and lightweight design of the

aluminum die-cast chassis makes the monitor suitable

for use with rack mounts or as a portable monitor. This

reduces the weight burden on an outdoor broadcasting

van, and allows for a wider working space.

Two power systems

This unit can also be operated by DC 12V or its

exclusive AC power adaptor. The AC power adaptor can

be mounted on the rear of the monitor for easy use.

Input signal waveform and audio level display

The waveform of the input signal or the audio level

(embedded audio only) can be displayed.

For more information, see SUB INPUT SELECT of

“WFM/ALM (waveform monitor and audio level meter)

DISPLAY SETTING” on page 21.

Camera focus

This function sharpens the edges of the image more than

the amount set by the upper limit of the aperture value in

the USER CONTROL menu.

This is convenient for focusing with the camera.

Auto chroma/phase function

The chroma and phase of the decoder are automatically

adjusted with the auto chroma/phase function.

Blue only mode

In the blue only mode, a monochrome display is

obtained with all three of the R/G/B picture elements

driven with a blue signal. This mode is convenient for

chroma and phase adjustments and monitoring of VCR

noise.

H/V delay mode

The horizontal and vertical sync signals can be

monitored simultaneously.

Select marker/scan display

Various items for broadcast use can be displayed.

The center marker, aspect marker or display size (scan),

etc are displayed by selecting according to use.

For more information, see “MARKER SETTING” on

page 21 and SCAN of “FUNCTION BUTTON

SETTING” on page 22.

Scan setting /native display

When video signals are input, you can set the display

size to 0% scan (normal), 5% over scan (over) or zoom

mode (full screen).

A native display function that maps the pixel of the

signal to the panel in one-to-one mode is also equipped.

With this, scaling to correct the screen aspect ratio is

done to the horizontal direction of SD signals with non-

square pixels (number of horizontal pixels of the signal

system is 720 or 1440) or 640 × 480 SD signal of HDMI

video.

Select color temperature mode

You can select the color temperature from among two

settings (9300 K, 6500 K).

Color space function

You can select one from among three color space

settings (SMPTE-C/EBU/ITU-R BT.709).

On-screen menus

You can set the appropriate settings according to the

connected system by using the on-screen menus.

Select language display

You can select from seven display languages, English,

French, German, Spanish, Italian, Japanese and

Chinese.

Key inhibit function

You can inhibit a key function to prevent misoperation.

Monaural speaker

The monitor has a monaural speaker to reproduce sound.

Location and Function of Parts and Controls

Front Panel

aTally lamp

You can check the status of the monitor by the color of

the tally lamp.

The tally lamp lights in red, green or amber according to

the setting of PARALLEL REMOTE in the REMOTE

menu.

bProtection plate

You can detach the protection plate by removing the

four screws.

ci (headphones) jack

The audio signal which is selected by the input select

button is output in stereo sound.

dSpeaker

The audio signal which is selected by the input select

button is output in monaural sound (L + R).

When SDI signals are input, the audio signal of the

channel which is selected in AUDIO SETTING of the

USER CONFIG menu is output (see page 20).

The audio signals from the speaker are output from the

AUDIO OUT connector on the rear (see page 11).

Audio signals will not be output when headphones are

connected to the i jack.

eStand

Pull the stand toward you to tilt the monitor screen by

15°. When using the optional VF-510 Monitor ENG Kit,

set the stand at positions B and C. (see “Using the stand”

on page 9).

fInput select buttons

Press to monitor the signal input to each connector.

SDI button: to monitor the signal through the SDI IN

connector

HDMI button: to monitor the signal through the

HDMI connector

COMPOSITE button: to monitor the signal through

the COMPOSITE IN connector

gFunction buttons

You can turn the assigned function on or off.

The factory setting is as follows;

F1 button: BRIGHTNESS

F2 button: CONTRAST

F3 button: CHROMA

F4 button: SCAN

F5 button: H/V DELAY

F6 button: VOLUME

F7 button: I/P MODE

You can assign various functions in FUNCTION

BUTTON SETTING of the USER CONFIG menu.

1 2

4 96 7 853

Location and Function of Parts and Controls 9

For details of the function assigned to the function

button, see page 22.

hMenu operation buttons

Displays or sets the on-screen menu.

MENU SEL (menu selection) control

When the menu is displayed, turn the control to select

a menu item or setting value, and then press the

control to confirm the setting.

When the menu is not displayed, press the control to

light up the characters that represent the names of the

buttons. Press the control again to turn off the lights.

ENTER button

Press to confirm a selected item on the menu.

When the menu is not displayed, press the button to

display the distinguished signal format.

RETURN button

When the menu is displayed, press the button to reset

the value of an item to the previous value.

When the menu is not displayed, press the button to

display the names of the functions selected in

FUNCTION BUTTON SETTING of the USER

CONFIG menu on the side of the F1 to F7 buttons.

MENU button

Press to display the on-screen menu.

Press again to clear the menu.

i1 (standby) switch and indicator

Press to turn on the power when this unit is in standby

mode. The indicator lights in green. Press the switch

again to set the monitor in standby mode. The indicator

goes out. When fan error occurs, the indicator blinks in

green. In power saving mode, it lights in amber.

Using the stand

Pull the stand toward you to tilt the monitor screen by

15°.

The mounting position of the stand can be changed.

Move the mounting screws on the underside of the stand

to positions A and C, or positions B and C.

A and C: Sets the stand towards the back.

B and C: Sets the stand towards the front.

When using the optional VF-510 Monitor ENG Kit, set

the stand at positions B and C.

ACB

Location and Function of Parts and Controls

Input Signals and Adjustable/Setting Items

a : Adjustable/can be set

× : Not adjustable/cannot be set

*1 Adjustment of SUB CONTROL is the same.

*2 Only the interlace signal is input.

*3 The audio levels of WFM or ALM are displayed when SDI

signal is input. Select the displayed audio level channels in

SDI AUDIO SETTING (see “WFM/ALM SELECT” on page

22).

*4 Adjustable when RGB format of HDMI signals are input.

Input signal

Item Video B & W SDI HDMI

SD HD 3G SD HD

CONTRAST*1aaaaaaa

BRIGHT*1aaaaaaa

CHROMA*1a×aaaaa

PHASE*1a

(NTSC) ××××××

APERTURE aaaaaaa

COLOR TEMP aaaaaaa

COLOR SPACE aaaaaaa

AUTO CHROMA/PHASE a××××××

ACC a××××××

CTI a××××××

V SHARPNESS aaa××a×

NTSC SETUP a

(NTSC)

(480/60I) ×××××

SCAN aaaaaaa

ASPECT aaa××a×

MARKER aaaaaaa

BLUE ONLY a×aaaaa

MONO a×aaaaa

H/V DELAY aaaaa××

SHIFT aaaaaaa

POWER SAVING aaaaaaa

I/P MODE*2aaaa×aa

WFM/ALM*3aaaaaaa

CAMERA FOCUS aaaaaaa

RGB RANGE*4×××××aa

Location and Function of Parts and Controls 11

Rear/Bottom Panel

aSDI (3G/HD/SD) input and output connectors

(BNC)

IN connector

Input connector for serial digital component signals.

OUT connector

Output connector for serial digital component signals.

Note

The signal from the OUT connector does not satisfy

the ON-LINE signal specifications.

bCOMPOSITE input and output connectors

(BNC)

IN connector

Input connector for composite video signals or audio

signals.

OUT connector

Loop-through output connector.

Note

When inputting a video signal with the jitters, etc. the

picture may be disturbed. We recommend using the

TBC (time base corrector).

cAUDIO input and output connectors (stereo

mini jack)

IN connector

Connect to the audio outputs of external equipment

such as a VCR.

OUT connector

Outputs the audio signal which is selected by the input

select button on the front panel.

When SDI signal is selected, the audio signal of the

channel which is selected in AUDIO SETTING of the

USER CONFIG menu is output.

dPARALLEL REMOTE connector (modular

connector, 8-pin)

Forms a parallel switch and controls the monitor

externally.

For details on the pin assignment and factory setting

function assigned to each pin, see page 28.

CAUTION

For safety, do not connect the connector for peripheral

device wiring that might have excessive voltage to this

port. Follow the instructions for this port.

eSERIAL REMOTE connector (RJ-45)

Connect to the network or Sony BKM-15R Monitor

Control Unit by using a 10BASE-T/100BASE-TX LAN

cable (shielded type, optional).

For details, refer to the Interface Manual for

Programmers (saved in the supplied CD-ROM,

Japanese and English only).

4 5 9 06 7 8

Installing to the Rack (Using MB-531)

CAUTION

• For safety, do not connect the connector for peripheral

device wiring that might have excessive voltage to this

port. Follow the instructions for this port.

• When an optional LAN cable is connected, use a

shield type cable to prevent miss-operation due to

noises.

• The connection speed may be affected by the network

system. This unit does not guarantee the

communication speed or quality of 10BASE-T/

100BASE-TX.

fHDMI input connector

Input connector for HDMI signals.

HDMI (High-Definition Multimedia Interface) is an

interface that supports both video and audio on a single

digital connection, allowing you to enjoy high quality

digital picture and sound. The HDMI specification

supports HDCP (High-bandwidth Digital Content

Protection), a copy protection technology that

incorporates coding technology for digital video signals.

Note

Use HDMI compliant cable (optional) with HDMI logo.

gEJECT button

While sliding this button, remove the AC adaptor.

hTripod socket hole (1/4-20UNC, 3/8-16UNC)

When using a tripod, secure it to the monitor with this

hole.

iAC adaptor attachment

The monitor can also be operated with AC power by

attaching the AC adaptor.

jDC 12V IN jack (XLR-type, 4-pin)

Connects the DC 12V external power source to use the

monitor.

Installing to the Rack

(Using MB-531)

You can attach up to two monitors to the rack by using

the optional MB-531 Mounting Bracket.

Attach the mounting bracket to the monitor.

For details on attaching the mounting bracket,

refer to the Mounting Instructions of the MB-531.

Attach the unit to the rack with four screws.

Note

The screws are not supplied. Prepare screws according

to the rack.

Power Supply 13

Power Supply

Attaching the AC Adaptor

Attaching

Removing

Notes

• The AC adaptor is for LMD-940W only. It cannot be

used with other products.

• To remove the AC adaptor, first unplug the AC power

cord and then remove the AC adaptor.

Connecting the AC Power Cord

Attach the AC adaptor to the monitor, and then connect

the supplied AC power cord.

Attach the AC plug holder to

the AC power cord, and

connect it to the AC IN

connector so that the cord

does not come loose.

AC power cord (supplied)

AC plug holder (supplied)

Selecting the Default Settings

Selecting the Default

Settings

When you turn on the unit for the first time after

purchasing it, select the area where you intend to use this

unit from among the options.

The default setting values for each area

Press the 1 (standby) switch.

The unit is turned on and the SELECT SETTING

screen appears.

Turn the MENU SEL control to select the area

where you intend to use the unit and press the

MENU SEL control or the ENTER button.

If you select either 1, 3 or 5

The confirmation screen is displayed. Confirm the

selected area. When the setting is wrong, press the

RETURN button to return to the previous screen.

If you select either 2 or 4

One of the following screens appears. Turn the

MENU SEL control to narrow the area further and

then press the MENU SEL control or the ENTER

button.

The confirmation screen is displayed. Confirm the

selected area.

If the setting is wrong, press the RETURN button to

return to the previous screen.

COLOR

TEMP

NTSC

SETUP

COLOR

SPACE

1NORTH AMERICA D65 7.5 SMPTE-C

2LATIN AMERICA

PAL&PAL-N

AREA

ARGENTINA D65 0 EBU

PARAGUAY D65 0 EBU

URUGUAY D65 0 EBU

NTSC&PAL-M

AREA OTHER AREA D65 7.5 SMPTE-C

3AFRICA AUSTRALASIA

EUROPE MIDDLE-EAST D65 0 EBU

4ASIA EXCEPT

JAPAN

NTSC AREA D65 7.5 SMPTE-C

PAL AREA D65 0 EBU

5JAPAN D93 0 EBU

COMPOSITEHDMISDI F1 F2 F3 F4 F5 F6 F7 ENTER RETURN MENU

ENTER RETURN MENU

12~3

S E L E C T S E T T I N G

N O R T H _ A M E R I C A

L A T I N A M E R I C A

A F R I C A A U S T R A L A S I A E

A S I A E X C E P T J A P A N

J A P A N

1North America

2Latin America

3Africa, Australia/New

Zealand, Europe,

Middle East, Russia

4Asia Except Japan

5Japan

S E L E C T T H I S A R E A ?

[ E N T E R ] Y E S

[ R E T U R N ] NO

N O R T H A M E R I C A

Selecting the Menu Language 15

2If LATIN AMERICA is selected:

4If ASIA EXCEPT JAPAN is selected:

Customers who will use this unit in the shaded

areas shown in the map below should select NTSC

AREA.

Other customers should select PAL AREA.

Press the MENU SEL control or the ENTER

button.

The SELECT SETTING screen disappears and the

menu item settings suitable for the selected area are

applied.

Note

When you have selected the wrong area, set the

following items using the menu.

• COLOR TEMP (on page 19)

• NTSC SETUP (on page 20)

• COLOR SPACE (on page 19)

See “The default setting values for each area” (page 14)

on the setting value.

Selecting the Menu

Language

You can select one of seven languages (English, French,

German, Spanish, Italian, Japanese, Chinese) for

displaying the menu and other on-screen displays.

“ENGLISH (English)” is selected in the default setting.

The current settings are displayed in place of the x

marks on the illustrations of the menu screen.

Turn on the unit.

Press the MENU button.

The menu appears.

The menu presently selected is shown in yellow.

Turn the MENU SEL control to select SYSTEM

SETTING of the USER CONFIG (user

configuration) menu, then press the MENU SEL

control or the ENTER button.

L A T I N A M E R I C A

P A L & P A L - N _ A R E A

A R G E N T I N A

P A R A G U A Y

U R U G U A Y

N T S C & P A L - M A R E A

O T H E R A R E A

PAL&PAL-N area

Argentina

Paraguay

Uruguay

NTSC&PAL-M area

Other area

A S I A E X C E P T J A P A N

N T S C _ A R E A

P A L A R E A

NTSC area

PAL area

ENTER RETURN MENU

COMPOSITEHDMISDI F1 F2 F3 F4 F5 F6 F7 ENTER RETURN MENU

123~5

FORMAT xxxxxxxxx

xxxxxxxx

COLOR TEMP xxx

HDMI FORMAT xxxxx

NTSC SETUP x

SCAN MODE xxxxxxxx

POWER SAVING xx

I/P MODE xxxxxxx

STATUS 1 /2

Using the Menu

The setting items (icons) in the selected menu are

displayed in yellow.

Turn the MENU SEL control to select

“LANGUAGE”, then press the MENU SEL control

or the ENTER button.

The selected item is displayed in yellow.

Turn the MENU SEL control to select a language,

then press the MENU SEL control or the ENTER

button.

The menu changes to the selected language.

To clear the menu

Press the MENU button.

The menu disappears automatically if a button is not

pressed for one minute.

Using the Menu

The unit is equipped with an on-screen menu for making

various adjustments and settings such as picture control,

input setting, set setting change, etc. You can also

change the menu language displayed in the on-screen

menu.

To change the menu language, see “Selecting the Menu

Language” on page 15.

The current settings are displayed in place of the x

marks on the illustrations of the menu screen.

Press the MENU button.

The menu appears.

The menu presently selected is shown in yellow.

Turn the MENU SEL control to select a menu, then

press the MENU SEL control or the ENTER

button.

NTSC SETUP: xxxxxx

FORMAT DISPLAY: xxxxxx

LANGUAGE: ENGLISH

POWER SAVING: xxxxxx

I/P MODE: xxxxxxx

LED BRIGHTNESS: xxxxxx

RGB RANGE: xxxxxx

USER CONFIG – SYSTEM SETTING

NTSC SETUP: xxxxxx

FORMAT DISPLAY: xxxxxx

LANGUAGE: ENGLISH

POWER SAVING: xxxxxx

I/P MODE: xxxxxxx

LED BRIGHTNESS: xxxxxx

RGB RANGE: xxxxxx

USER CONFIG – SYSTEM SETTING

NTSC SETUP: xxxxxx

FORMAT DISPLAY: xxxxxx

LANGUAGE: ENGLISH

POWER SAVING: xxxxxx

I/P MODE: xxxxxxx

LED BRIGHTNESS: xxxxxx

RGB RANGE: xxxxxx

USER CONFIG – SYSTEM SETTING

ENTER RETURN MENU

COMPOSITEHDMISDI F1 F2 F3 F4 F5 F6 F7 ENTER RETURN MENU

12~4

RETURN button

FORMAT

xxxxxxxxx

xxxxxxxx

COLOR TEMP

xxx

HDMI FORMAT

xxxxx

NTSC SETUP

SCAN MODE

xxxxxxxx

POWER SAVING

I/P MODE

xxxxxxx

STATUS 1/2

Using the Menu 17

The menu icon presently selected is shown in

yellow and setting items are displayed.

Select an item.

Turn the MENU SEL control to select the item,

then press the MENU SEL control or the ENTER

button.

The item to be changed is displayed in yellow.

If the menu consists of multiple pages, turn the

MENU SEL control to go to the desired menu page.

Make the setting or adjustment on an item.

When changing the adjustment level:

To increase the number, turn the MENU SEL

control right.

To decrease the number, turn the MENU SEL

control left.

Press the MENU SEL control or the ENTER button

to confirm the number, then restore the original

screen.

When changing the setting:

Turn the MENU SEL control to change the setting,

then press the MENU SEL control or the ENTER

button to confirm the setting.

When returning the adjustment or setting to the

previous value:

Press the RETURN button before pressing the

MENU SEL control or the ENTER button.

Notes

• An item displayed in black cannot be accessed.

You can access the item if it is displayed in white.

• If the key inhibit has been turned on, all items are

displayed in black. To change any of the items,

turn the key inhibit to OFF first.

For details on the key inhibit, see page 25.

To return the display to the previous

screen

Press the RETURN button.

To clear the menu

Press the MENU button.

The menu disappears automatically if a button is not

pressed for one minute.

About the memory of the settings

The settings are automatically stored in the monitor

memory.

NTSC SETUP: xxxxxx

FORMAT DISPLAY: xxxxxx

LANGUAGE: ENGLISH

POWER SAVING: xxxxxx

I/P MODE: xxxxxxx

LED BRIGHTNESS: xxxxxx

RGB RANGE: xxxxxx

USER CONFIG – SYSTEM SETTING

Adjustment Using the Menus

Adjustment Using the

Menus

Items

The screen menu of this monitor consists of the

following items.

STATUS (the items indicate the

current settings.)

FORMAT

COLOR TEMP

HDMI FORMAT

NTSC SETUP

SCAN MODE

POWER SAVING

I/P MODE

Model name and serial number

COLOR TEMP/SPACE

COLOR TEMP

MANUAL ADJUSTMENT

COLOR SPACE

USER CONTROL

SUB CONTROL

AUTO CHROMA/PHASE

PICTURE CONTROL

INPUT SETTING

USER CONFIG

SYSTEM SETTING

NTSC SETUP

FORMAT DISPLAY

LANGUAGE

POWER SAVING

I/P MODE

LED BRIGHTNESS

RGB RANGE

MARKER SETTING

MARKER ENABLE

MARKER SELECT

CENTER MARKER

MARKER LEVEL

MARKER MAT

WFM/ALM (waveform monitor and audio level

meter) DISPLAY SETTING

WFM/ALM

WFM/ALM SELECT

POSITION

TRANSPARENCY

FUNCTION BUTTON SETTING

F1 BUTTON

F2 BUTTON

F3 BUTTON

F4 BUTTON

F5 BUTTON

F6 BUTTON

F7 BUTTON

AUDIO SETTING

SDI AUDIO SETTING

REMOTE

PARALLEL REMOTE

SERIAL REMOTE

KEY INHIBIT

Adjusting and Changing the

Settings

STATUS menu

The STATUS menu is used to display the current status

of the unit. The following items are displayed:

• Signal format

• Color temperature

• HDMI format

•NTSC setup

• Scan mode

• Power saving

• I/P mode

• Model name and serial number

COLOR TEMP/SPACE menu

The COLOR TEMP/SPACE menu is used for adjusting

the picture white balance or color space.

FORMAT xxxxxxxxx

xxxxxxxx

COLOR TEMP xxx

HDMI FORMAT xxxxx

NTSC SETUP x

SCAN MODE xxxxxxxx

POWER SAVING xx

I/P MODE xxxxxxx

STATUS 1/2

LMD-940W xxxxxxx

STATUS 2/2

Adjustment Using the Menus 19

You need to use the measurement instrument to adjust

the white balance.

Recommended: Konica Minolta color analyzer CA-210

USER CONTROL menu

The USER CONTROL menu is used for adjusting the

picture.

Items that cannot be adjusted depending on the input

signal are displayed in black.

For details of input signal and adjustable / setting items,

see page 10.

Submenu Setting

COLOR TEMP Selects the color temperature from

among D65, D93 and USER

setting.

MANUAL

ADJUSTMENT

If you set the COLOR TEMP to

USER setting, the item displayed is

changed from black to white, which

means you can adjust the color

temperature.

The set values are memorized.

•ADJUST GAIN: Adjusts the

color balance (GAIN).

•ADJUST BIAS: Adjusts the

color balance (BIAS).

•COPY FROM: If you select D65

or D93, the white balance

data for the selected color

temperature will be copied

in the USER setting.

COLOR SPACE Selects the color space from among

EBU, SMPTE-C, ITU-709 and

OFF. OFF sets the color space to

the original color reproduction of

the LCD panel.

COLOR TEMP: xxxxxx

MANUAL ADJUSTMENT

ADJUST GAIN:

ADJUST BIAS:

COPY FROM: xxx

COLOR SPACE: x

COLOR TEMP/SPACE

Submenu Setting

SUB CONTROL Adjusts finely the adjustment range

of the function buttons which

CONTRAST, BRIGHTNESS,

CHROMA and PHASE are

assigned.

•CONTRAST: Adjusts the

picture contrast.

•BRIGHTNESS: Adjusts the

picture brightness.

•CHROMA: Adjusts color

intensity. The higher the

setting, the greater the

intensity. The lower the

setting, the lower the

intensity.

•PHASE: Adjusts color tones.

The higher the setting, the

more greenish the picture.

The lower the setting, the

more purplish the picture.

•APERTURE: Adjusts the picture

sharpness.

The higher the setting, the

sharper the picture. The

lower the setting, the softer

the picture. APERTURE

does not work when the

camera focus function is

activated.

•BACKLIGHT: Adjusts the

backlight. When the setting

is changed, the brightness of

the backlight is changed.

•VOLUME: Adjusts the volume.

AUTO CHROMA/PHASE

AUTO ADJ VALUE: xx

START:

USER CONTROL 2/3

SUB CONTROL

CONTRAST: x

BRIGHTNESS: x

CHROMA: x

PHASE: x

APERTURE: x

BACKLIGHT: x

VOLUME: x

USER CONTROL 1/3

PICTURE CONTROL

ACC: xx

CTI: x

V SHARPNESS: x

INPUT SETTING

SHIFT H: xxx

SHIFT V: xx

USER CONTROL 3/3

Adjustment Using the Menus

USER CONFIG menu

The USER CONFIG menu is used for setting the

system, marker, WFM/ALM display, function button,

and audio.

SYSTEM SETTING

AUTO CHROMA/

PHASE

Adjusts color intensity (CHROMA)

and tones (PHASE).

•AUTO ADJ VALUE: Selects

ON or OFF of the auto

adjustment. When you set

to OFF, this parameter is

reset to the factory setting.

When you set to ON, the

automatically adjusted value

is enabled.

•START: The auto adjustment

starts when you display the

color bar signals (Full/

SMPTE/EIA) on the screen

and press the ENTER

button. After adjusting the

color intensity, press the

MENU button to clear the

adjustment screen. After the

adjustment is done correctly,

the AUTO ADJ VALUE is

automatically set to ON.

PICTURE CONTROL Adjusts the picture.

•ACC (Auto Color Control):

Sets ACC circuit on or off.

To check the fine

adjustment, select OFF.

Normally select ON.

•CTI (Chroma Transient

Improvement): When a low

color resolution signal is

input, a crisp image can be

displayed. When the setting

is higher, the picture

becomes even more crisp.

•V SHARPNESS: A crisp image

can be displayed. When the

setting is higher, the picture

becomes even more crisp.

INPUT SETTING • SHIFT H: Adjusts the position of

the picture. As the setting

increases, the picture moves

to the right, and as the

setting decreases, the picture

moves to the left.

•SHIFT V: Adjusts the position of

the picture. As the setting

increases, the picture moves

up, and as the setting

decreases, the picture moves

down.

Submenu Setting

NTSC SETUP Selects the NTSC setup level from

two modes.

The 7.5 setup level is used mainly

in North America. The 0 setup level

is used mainly in Japan.

FORMAT DISPLAY Selects the display mode of the

signal format and scan mode.

•ON: The format and scan mode

are always displayed.

•OFF: The display is hidden.

•AUTO: The format and scan

mode are displayed for

about 10 seconds when the

input of the signal starts.

LANGUAGE Selects the menu or message

language from among seven

languages.

•ENGLISH: English

•FRANÇAIS: French

•DEUTSCH: German

•ESPAÑOL: Spanish

•ITALIANO: Italian

• : Japanese

•: Chinese

POWER SAVING Sets the power saving mode on or

off. When you set to ON, the

monitor goes into power saving

mode if no signal is input for about

one minute.

SYSTEM SETTING:

MARKER SETTING:

WFM/ALM DISPLAY SETTING:

FUNCTION BUTTON SETTING:

AUDIO SETTING:

USER CONFIG

NTSC SETUP: xxxxxx

FORMAT DISPLAY: xxxxxx

LANGUAGE: ENGLISH

POWER SAVING: xxxxxx

I/P MODE: xxxxxxx

LED BRIGHTNESS: xxxxxx

RGB RANGE: xxxxxx

USER CONFIG – SYSTEM SETTING

Adjustment Using the Menus 21

MARKER SETTING

WFM/ALM (waveform monitor and audio

level meter) DISPLAY SETTING

I/P MODE (picture delay

minimum)

Selects to set the delay by the

picture processing to the minimum

level when the interlace signal is

input.

•INTER-FIELD: Mode for

giving precedence to the

picture quality. Performs

interpolation depending on

the movement of the images

between the fields. It takes

longer than “FIELD

MERGE” or “LINE

DOUBLER” for processing

the picture. “INTER-

FIELD” is the factory

setting.

•FIELD MERGE: The

processing time is shorter.

Combines the lines in the

odd fields and even fields

alternately regardless of the

movement of images.

Suitable for viewing still

images.

•LINE DOUBLER: The

processing time is shorter.

Performs interpolation by

repeating each line in the

data receiving sequence

regardless of the field. As

the line flicker is displayed

in this mode, it is available

for checking the line flicker

of the telop work and so on.

LED BRIGHTNESS Sets the brightness of the LED of

the buttons.

•0: The LED becomes brighter.

•1: The LED becomes darker.

RGB RANGE Sets the black level and white level

for the RGB format of HDMI

signals.

•FULL: 0 (black level) to 255

(white level)

•LIMITED: 16 (black level) to

235 (white level)

Submenu Setting

MARKER ENABLE: xxx

MARKER SELECT: xxx

CENTER MARKER: xx

MARKER LEVEL: x

MARKER MAT: xxx

USER CONFIG – MARKER SETTING

Submenu Setting

MARKER ENABLE Selects ON to display the marker

and OFF not to display.

Note

When NATIVE is selected in the

SCAN setting, the marker is not

displayed.

To display the marker, select a

setting other than NATIVE.

MARKER SELECT Selects the aspect ratio according to

the film, when the frame of the film

is displayed on the screen.

When 16:9 aspect ratio is selected

with the button which the aspect

function is assigned

You can select from among

4:3, 15:9, 14:9, 13:9, 1.85:1,

2.35:1, 1.85:1 & 4:3 and

OFF.

When 4:3 aspect ratio is selected

with the button which the aspect

function is assigned

You can select 16:9 or OFF.

CENTER MARKER Selects ON to display the center

mark of the picture and OFF not to

display.

MARKER LEVEL Sets the luminance to display the

MARKER SELECT and CENTER

MARKER. You can select from

among 1 to 3. When the setting is

low, the marker is displayed dark.

MARKER MAT Selects whether you put mat on the

outside of the marker display.

•OFF: No mat is put.

•HALF: Gray mat is put.

•BLACK: Black mat is put.

Submenu Setting

WFM/ALM Selects ON to display the WFM/ALM

display and OFF not to display.

Note

When the WFM/ALM display is

enabled, the marker display is not

available.

WFM/ALM: xx

WFM/ALM SELECT: xxx

POSITION: x

TRANSPARENCY: x

USER CONFIG – WFM/ALM DISPLAY SETTING

Adjustment Using the Menus

FUNCTION BUTTON SETTING

About the function assigned to the

function button

SCAN

Press the button to change the scan size of the picture.

With every press of the button for the 4:3 display, the

picture switches in the sequence NORMAL scan t

OVER scan t NATIVE. With every press of the button

for the 16:9 display, the picture switches in the sequence

NORMAL scan t OVER scan t FULL screen t

NATIVE (see “Scan mode image” on page 23).

WFM/ALM

SELECT

•WFM: A waveform monitor is

displayed.

•ALM: An audio level meter is

displayed.

When WFM is selected, the waveform

and audio level are displayed. When

ALM is selected, the audio level is

displayed in eight channels.

The audio levels of WFM or ALM are

displayed when SDI signal is input.

Select the displayed audio level channels

in SDI AUDIO SETTING.

The indications of the waveform (only

when WFM is selected) and audio level

signify as illustrated below, although the

percentage of the waveform, units and

values of the scale for the audio level do

not appear on the display.

When WFM is selected

When ALM is selected

Submenu Setting

-4%

25%

50%

75%

100%

OVER

(dB)

-10

-20

-30

-60

109%

Audio levelWaveform

Channel number

(The channel number which is selected in

SDI AUDIO SETTING is displayed.)

(dB)

-10

-20

-30

-60

OVER

12345678

Audio level

Channel number

(Displayed in eight channels, including the channel

which is selected in SDI AUDIO SETTING.)

POSITION Sets the position of the WFM/ALM

display. You can select from among 1 to

•1: Bottom left

•2: Bottom right

•3: Top right

•4: Top left

TRANSPARENCY Selects from black and half (transparent)

for the background of the WFM/ALM

display.

•BLACK: The background is black.

Displayed image is hidden behind

the background.

•HALF: The background is

transparent. Displayed image can

be seen indistinctly behind the

WFM/ALM display.

Submenu Setting

F1 BUTTON to F7

BUTTON

Assigns the function to the function

buttons of the front panel and turns the

function on or off.

You can assign the function from among

SCAN, ASPECT, BLUE ONLY,

MONO, MARKER, I/P MODE and

WFM/ALM.

Factory setting

•F1 button: BRIGHTNESS

•F2 button: CONTRAST

•F3 button: CHROMA

•F4 button: SCAN

•F5 button: H/V DELAY

•F6 button: VOLUME

•F7 button: I/P MODE

Submenu Setting

F1 BUTTON: xxxx

F2 BUTTON: xxxx

F3 BUTTON: xxxx

F4 BUTTON: xxxx

F5 BUTTON: xxxx

F6 BUTTON: xxxx

F7 BUTTON: xxxx

USER CONFIG –

FUNCTION BUTTON SETTING

Adjustment Using the Menus 23

ASPECT

Press the button to set the aspect ratio of the picture, 4:3

or 16:9.

Note

The panel of the monitor is 15:9.

When the 16:9 signal is displayed, black bars appear in

the upper and lower positions of the display. This is not

a malfunction (see “Scan mode image” on page 23).

BLUE ONLY

Press the button to eliminate the red and green signals.

Only blue signal is displayed as an apparent

monochrome picture on the screen. This facilitates

“chroma” and “phase” adjustments and observation of

VCR noise.

MONO

Press the button to display a monochrome picture. When

the buttons is pressed again, the monitor switches

automatically to color mode.

MARKER

Press the button to display the marker. Set the aspect

marker in the MARKER SETTING menu (see page 21).

H/V DELAY

Press the button to observe the horizontal and vertical

sync signals at the same time.

WFM/ALM

Press the button to display the WFM/ALM display. Set

the WFM/ALM display setting in the WFM/ALM

DISPLAY SETTING menu (see page 21).

BRIGHTNESS

Press the button to adjust the picture brightness. Turn the

MENU SEL control right to increase the brightness and

turn left to decrease it.

CONTRAST

Press the button to adjust the picture contrast. Turn the

MENU SEL control right to increase the contrast and

turn left to decrease it.

CHROMA

Press the button to adjust the color intensity. Turn the

MENU SEL control right to increase the intensity and

turn left to decrease it.

VOLUME

Press the button to adjust the volume. Turn the MENU

SEL control right to increase the volume and turn left to

decrease it.

I/P MODE

Press the button to set the delay by the picture

processing to the minimum level when interlace signal

is input. The mode switches in the sequence INTER-

FIELD t FIELD MERGE t LINE DOUBLER with

every press of the button (see “I/P MODE” on page 21).

PHASE

Press the button to adjust the color tones. Turn the

MENU SEL control right to increase the green tone and

turn left to increase the purple tone.

APERTURE

Press the button to adjust the picture sharpness. Turn the

MENU SEL control right to make the picture sharper

and turn left to make the picture softer.

CAMERA FOCUS

Press the button to confirm the camera focus.

An image with sharpened edges is displayed.

Scan mode image

640 × 480 800 × 450

–

800 × 480

–

800 × 480

–

800 × 480

INPUT

NORMAL

(zeroscan)

4:3 16:9

OVER

(5% over scan)

FULL

NATIVE

(1080i)

Screen frame

NATIVE

(720P)

Adjustment Using the Menus

AUDIO SETTING

REMOTE menu

768 × 480 (575i, 576P)

–

The image is scaled horizontally to display in an aspect

ratio of 4:3.

Submenu Setting

SDI AUDIO SETTING Sets the audio channel when SDI

signal is input.

•3G/HD/SD: Selects from among

channels CH1 to CH16, odd

channel + even channel

(CH1+CH2,

CH3+CH4···CH15+CH16)

and OFF.

You can display the L/R audio

levels of the selected channels on

the display when the WFM/ALM

display is enabled (see “WFM/

ALM (waveform monitor and audio

level meter) DISPLAY SETTING”

on page 21).

INPUT

NATIVE

(480i, 575i,

480P, 576P

)

645 × 480 (480i, 480P)

SDI AUDIO SETTING: xxx

3G/HD/SD: xxx

USER CONFIG – AUDIO SETTING

PARALLEL REMOTE:

SERIAL REMOTE: xxxxxxx

MONITOR:

CONTROLLER:

CONNECTION: xxx

REMOTE

Submenu Setting

PARALLEL REMOTE Selects the PARALLEL REMOTE

connector pins for which you want

to change the function.

You can assign various functions to

1 to 4 pins and 6 to 8 pins. The

following lists the functions you

can assign to the pins.

• – – – (“– – –”: No function is

assigned.)

•COMPOSITE

•SDI

• HDMI

• OVERSCAN

•FULL

• NORMAL

• NATIVE

•4:3

•16:9

• TALLY R

• TALLY G

• BLUE ONLY

• MONO

• H/V DELAY

• 16:9 MARKER

• 15:9 MARKER

• 14:9 MARKER

• 13:9 MARKER

•1.85:1 MARKER

•2.35:1 MARKER

• 1.85:1 & 4:3 MARKER

•4:3 MARKER

• CENTER MARKER

• MARKER MAT HALF

• MARKER MAT BLACK

•WFM/ALM

Notes

• If you use the PARALLEL

REMOTE function, you need to

connect cables. For more details,

see page 28.

• Set MARKER ENABLE

(page 21) to ON to control the

aspect marker and center

marker.

Adjustment Using the Menus 25

KEY INHIBIT menu

You can lock the setting so that they cannot be changed

by an unauthorized user.

Select OFF or ON.

If you set to ON, all items are displayed in black,

indicating the items are locked.

SERIAL REMOTE

MONITOR

CONTROLLER

CONNECTION

Selects the mode to be used.

•OFF: SERIAL REMOTE does

not function.

•ETHERNET: The monitor is

controlled by the command

of Ethernet.

•BKM-15R: Sets BKM-15R.

Sets the monitor setting.

MONITOR ID: Sets the ID

of the monitor.

GROUP ID: Sets the group

ID of the monitor.

IP ADDRESS: Sets the IP

address.

SUBNET MASK: Sets the

subnet mask.

(255.255.255.000)

DEFAULT GATEWAY:

Sets the default gateway on

or off.

ADDRESS: Sets the default

gateway.

CANCEL: Selects to cancel

the setting.

CONFIRM: Selects to save

the setting.

Sets the address of the remote

controller.

IP ADDRESS: Sets the IP

address.

SUBNET MASK: Sets the

subnet mask.

(255.255.255.000)

DEFAULT GATEWAY:

Sets the default gateway on

or off.

ADDRESS: Sets the default

gateway.

CANCEL: Selects to cancel

the setting.

CONFIRM: Selects to save

the setting.

Sets the connection of the monitor

and the controller.

PEER TO PEER: for one

to one connection

LAN: for connection via a

network

Submenu Setting

KEY INHIBIT: xx

KEY INHIBIT

Troubleshooting / Specifications

Troubleshooting

This section may help you isolate the cause of a problem

and as a result, eliminate the need to contact technical

support.

•The unit cannot be operated t The key protection

function works. Set the KEY INHIBIT setting to OFF

in the KEY INHIBIT menu.

Or, a function that does not work is assigned. Press the

RETURN button to check the assigned functions.

•The black bars appear at the upper and lower

positions of the display t When the signal aspect

ratio is different from that of the panel, the black bars

appear. This is not a failure of the unit.

•Adjustments and settings cannot be made t

Adjustments and settings may not be possible

depending on the input signals and the status of the

unit. See “Input Signals and Adjustable/Setting Items”

(page 10).

Specifications

Picture performance

LCD panel a-Si TFT Active Matrix

Pixel efficiency 99.99%

Picture size 9 type

Viewing angle (up/down/left/right, contrast > 10:1)

85°/85°/85°/85° (typical)

Scan Normal 0%

Over scan 5%

Efficient picture size

195 × 117, 227 mm

(73/4 × 45/8, 9 inches)

Resolution H 800 dots, V 480 lines

Aspect ratio 15:9

Input

Composite input (NTSC/PAL) connector

BNC type (1)

1 Vp-p ± 3 dB sync negative

SDI input connector

BNC type (1)

HDMI input connector

HDMI (1)

Audio input connector

Stereo mini jack (1)

–5 dBu 47 kΩ or higher

Remote input connector

Parallel remote

Modular connector 8-pin (1)

Serial remote

RJ-45 modular connector

(ETHERNET) (1)

DC IN connector

DC 12 V (output impedance 0.05 Ω or

less)

Output

SDI (3G/HD/SD) output connector

BNC type (1)

Output signal amplitude: 800 mVp-p

±10%

Output impedance: 75 Ω unbalanced

Composite output connector

BNC type (1)

Loop-through, with 75 Ω automatic

terminal function

Audio monitor output connector

Stereo mini jack (1)

Built-in speaker output

0.5 W Monaural

Headphones output connector

Stereo mini jack (1)

Specifications 27

General

Power AC 100 to 240 V, 50/60 Hz, 0.5 A to

0.3 A

DC 12 V, 1.9 A

Power consumption

Maximum: approx. 27 W

Peak inrush current

(1) Power ON, current probe method:

30 A (100 V), 60 A (240 V)

(2) Hot switching inrush current,

measured in accordance with

European standard EN55103-1:

14 A (230 V)

Dimensions Approx. 222.4 × 183.5 × 161.8 mm

(87/8 × 71/4 × 63/8 inches)

(w/h/d)

Mass Approx. 2.0 kg (4 lb 6 oz)

Approx. 2.6 kg (5 lb 12 oz) (when AC

adaptor is installed)

Operating conditions

Temperature

0 °C to 40 °C (32 °F to 104 °F)

Recommended temperature

20 °C to 30 °C (68 °F to 86 °F)

Humidity 30% to 85% (no condensation)

Pressure 700 hPa to 1060 hPa

Storage and transport conditions

Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Humidity 0% to 90%

Pressure 700 hPa to 1060 hPa

Accessories supplied

AC power cord (1)

AC power adaptor (1)

AC plug holder (1)

Operating Instructions (1)

CD-ROM (1)

Using the CD-ROM Manual (1)

Warranty book (1)

Optional accessories

Mounting bracket

MB-531

Mounting panel

MB-532

Monitor ENG kit

VF-510

Design and specifications are subject to change without

notice.

Note

Always verify that the unit is operating properly before

use. SONY WILL NOT BE LIABLE FOR

DAMAGES OF ANY KIND INCLUDING, BUT

NOT LIMITED TO, COMPENSATION OR

REIMBURSEMENT ON ACCOUNT OF THE LOSS

OF PRESENT OR PROSPECTIVE PROFITS DUE

TO FAILURE OF THIS UNIT, EITHER DURING

THE WARRANTY PERIOD OR AFTER

EXPIRATION OF THE WARRANTY, OR FOR

ANY OTHER REASON WHATSOEVER.

Specifications

Pin assignment

PARALLEL REMOTE connector

Modular connector

(8-pin)

You can allocate functions using the REMOTE menu

(see page 24).

Wiring required to use the Remote Control

Connect the function you want to use with a Remote

Control to the Ground (Pin 5).

Available signal formats

The unit is applicable to the following signal formats.

*1 The format on the screen is displayed as 1080/48I.

*2 The format on the screen is displayed as 1080/50I.

*3 The frame rate is also compatible with 1/1.001.

*4 The format is compatible with 4:2:2 YCbCr 10-bit of 3G-SDI.

Pin number Functions

1 Designating SDI input signal

2 Designating HDMI input signal

3 Designating composite input signal

4 Setting tally lamp green ON/OFF

185 GND

6 Setting tally lamp red ON/OFF

7 Selecting over scan

8 Selecting normal scan

Pin number Functions

System Total

lines

Active

lines

Frame

rate*3Scanning Aspect

ratio

Signal standard

Analog SDI (3G/HD/SD) HDMI

575/50I(PAL) 625 575 25 2:1 interlace 16:9/4:3 PAL:ITU-R BT.470 SMPTE-259M CEA-861

480/60I(NTSC) *3525 483 30 2:1 interlace 16:9/4:3 NTSC:SMPTE-170M SMPTE-259M CEA-861

576/50P 625 576 50 Progressive 16:9/4:3 ––CEA-861

480/60P *3525 483 60 Progressive 16:9/4:3 ––CEA-861

640 × 480/60P *3525 480 60 Progressive 4:3 ––

CEA-861

1080/24PsF *1*31125 1080 24 Progressive(sF) 16:9 –SMPTE RP211 –

1080/25PsF *2*31125 1080 25 Progressive(sF) 16:9 –SMPTE RP211 –

1080/24P *31125 1080 24 Progressive 16:9 –SMPTE-274M CEA-861

1080/25P 1125 1080 25 Progressive 16:9 –SMPTE-274M CEA-861

1080/30P *31125 1080 30 Progressive 16:9 –SMPTE-274M CEA-861

1080/50I 1125 1080 25 2:1 interlace 16:9 –SMPTE-274M CEA-861

1080/60I *31125 1080 30 2:1 interlace 16:9 –SMPTE-274M CEA-861

720/50P 750 720 50 Progressive 16:9 –SMPTE-296M CEA-861

720/60P *3750 720 60 Progressive 16:9 –SMPTE-296M CEA-861

1080/50P *41125 1080 50 Progressive 16:9 –SMPTE-274M CEA-861

1080/60P *3*41125 1080 60 Progressive 16:9 –SMPTE-274M CEA-861

Dimensions 29

Dimensions

Front

Side

Bottom

(Without the stand)

Top

Side

(When the stand is moved)

222.4 (87/8)

183.5 (71/4)

166 (65/8)

17.5 (23/32)

148.8 (57/8)

161.8 (63/8)

13 (17/32)

161.5 (63/8)

130 (51/8)

149.6 (6)

5.6 (1/4)

70 (27/8) 60 (23/8)

173.6 (6

)

(

)

33.2

)

(1)

55.2

)

1/4-20UNC Maximum

depth 6 mm (1/4 inch)

3/8-16UNC Maximum

depth 6 mm (1/4 inch)

4-M3 Maximum depth

6 mm (1/4 inch)

100 (4)

31.2

(11/4)

38 (1

)

Unit: mm (inches)

Sony Corporation

Sony Lmd 940W Users Manual

LMD-940W to the manual 83ecd399-cf0d-4bce-ba2c-f4ccb4c1248d

Navigation menu

Versions of this User Manual:

Views

Navigation
