Sony Mex Dv1100 Users Manual

MEX-DV1100 to the manual 697aba77-cc1f-6ff4-5922-815ae850763c

: Sony Sony-Mex-Dv1100-Users-Manual-287905 sony-mex-dv1100-users-manual-287905 sony pdf

Open the PDF directly: View PDF .
Page Count: 60

Инструкция по эксплуатации

Інcтpyкції з eкcплyaтaції

©

2007 Sony Corporation

MEX-DV1100

3-276-507-21 (1)

RU

UA

Multi Disc Player

Multi Disc Player

Многодисковый

проигрыватель

2

Warning

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the

cabinet. Refer servicing to qualified

personnel only.

CAUTION

The use of optical instruments with this product

will increase eye hazard. As the laser beam used

in this CD/DVD player is harmful to eyes, do not

attempt to disassemble the cabinet.

Refer servicing to qualified personnel only.

CAUTION

RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.

DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

:CLASS 1M VISIBLE/INVISIBLE LASER

This label is located on the bottom of the

chassis.

This label is located on the drive unit’s internal

chassis.

Disposal of Old Electrical &

Electronic Equipment (Applicable in

the European Union and other

European countries with separate

collection systems)

This symbol on the product or on its

packaging indicates that this product shall not be treated

as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical

and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential

negative consequences for the environment and human

health, which could otherwise be caused by inappropriate

waste handling of this product. The recycling of materials

will help to conserve natural resources. For more detailed

information about recycling of this product, please contact

your local Civic Office, your household waste disposal

service or the shop where you purchased the product.

Applicable accessory: Remote commander

Disposal of waste batteries

(applicable in the European Union

and other European countries with

separate collection systems)

This symbol on the battery or on the packaging indicates

that the battery provided with this product shall not be

treated as household waste. By ensuring these batteries are

disposed of correctly, you will help prevent potentially

negative consequences for the environment and human

health which could otherwise be caused by inappropriate

waste handling of the battery. The recycling of the

materials will help to conserve natural resources. In case

of products that for safety, performance or data integrity

reasons require a permanent connection with an

incorporated battery, this battery should be replaced by

qualified service staff only. To ensure that the battery will

be treated properly, hand over the product at end-of-life to

the applicable collection point for the recycling of

electrical and electronic equipment. For all other batteries,

please view the section on how to remove the battery from

the product safely. Hand the battery over to the applicable

collection point for the recycling of waste batteries. For

more detailed information about recycling of this product

or battery, please contact your local Civic Office, your

household waste disposal service or the shop where you

purchased the product.

3

On safety

• Comply with the traffic laws in your country.

• For your safety, the monitor connected to the

VIDEO OUT turns off automatically when the

parking brake is not applied.

Warning if your car’s ignition has no

ACC position

Be sure to set the Auto Off function

(page 43).

The unit will shut off completely and

automatically in the set time after the unit is

turned off, which prevents battery drain.

If you do not set the Auto Off function, press

and hold (OFF) until the display disappears

each time you turn the ignition off.

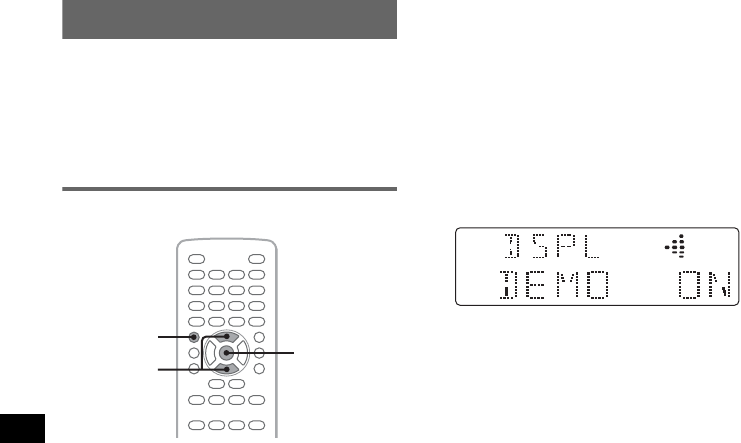

To cancel the demonstration (DEMO) display,

see page 43.

Preventing an accident

Pictures and karaoke function are available

only after you park the car and set the parking

brake.

If the car starts moving during video playback

or karaoke mode, pictures from the VIDEO

OUT automatically disappear after displaying

the following caution.

The pictures on the screen are turned off and

the karaoke mode is deactivated, but audio

source can be heard.

Do not operate the unit or watch the monitor

while driving.

Video blocked for your

safety.

Karaoke function blocked.

4

Table of Contents

Welcome ! . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Copyrights . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Playable discs and symbols used in this

manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Location and function of controls . . . . . . . . . .10

Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . .10

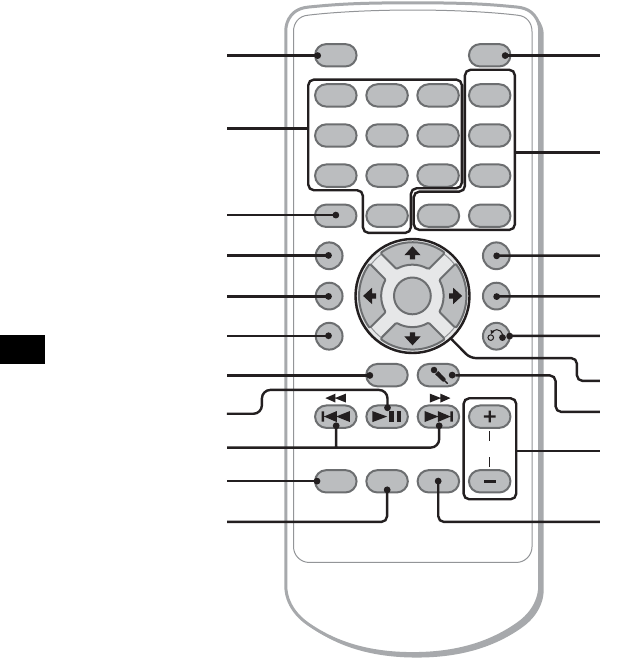

Card remote commander RM-X166 . . . . . .12

Getting Started

Installing the unit and the optional

monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Resetting the unit. . . . . . . . . . . . . . . . . . 14

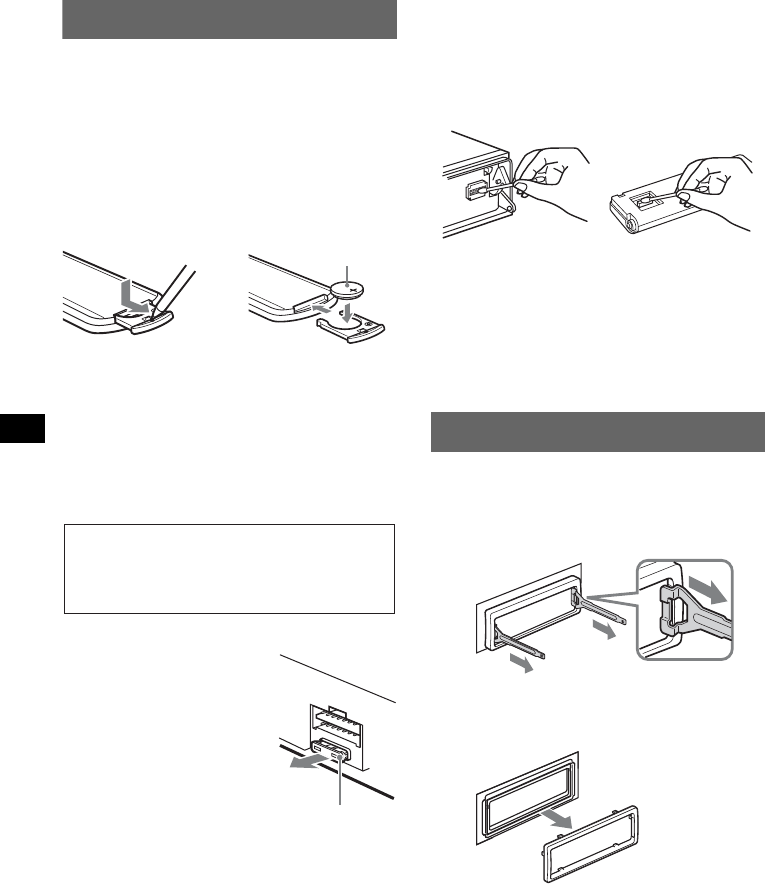

Preparing the card remote

commander. . . . . . . . . . . . . . . . . . . . . . . 14

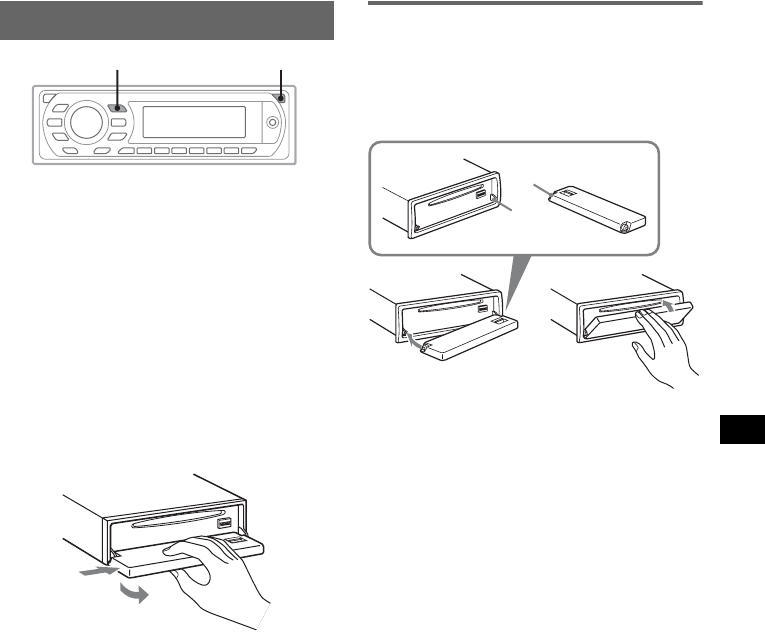

Detaching the front panel . . . . . . . . . . . 15

Attaching the front panel. . . . . . . . . . 15

Basic Operations

Playing video discs . . . . . . . . . . . . . . . . 16

Playing audio discs . . . . . . . . . . . . . . . . 18

Listening to the radio. . . . . . . . . . . . . . . 20

Advanced Operations — Discs

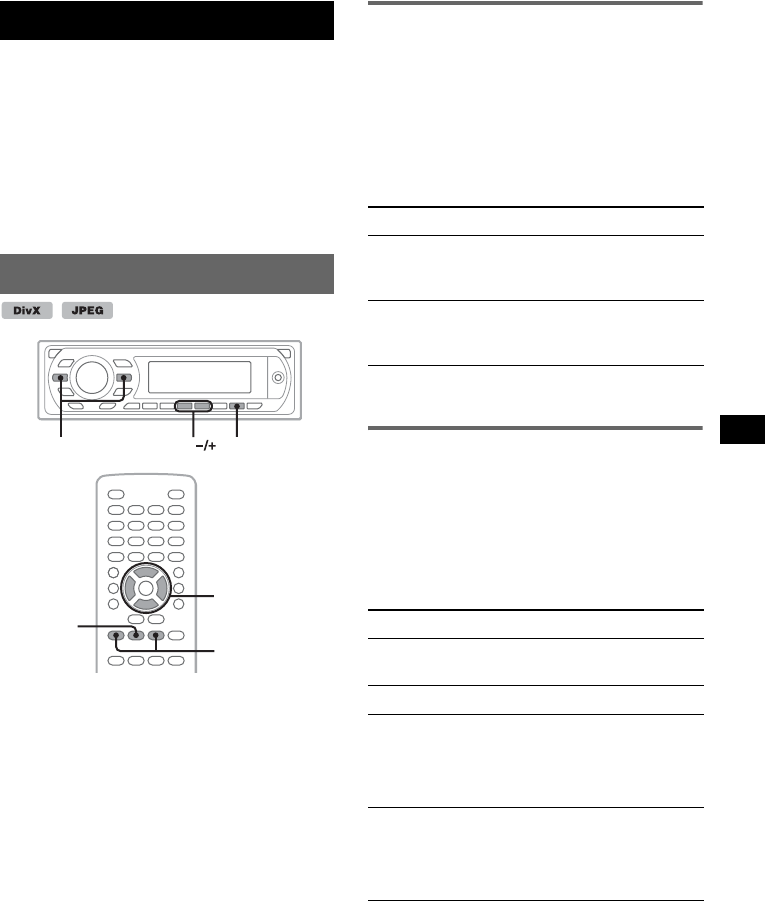

Playing DivX®/JPEG files . . . . . . . . . . . . . . . .21

DivX® video playback. . . . . . . . . . . . . . . . .21

JPEG image playback . . . . . . . . . . . . . . . . .21

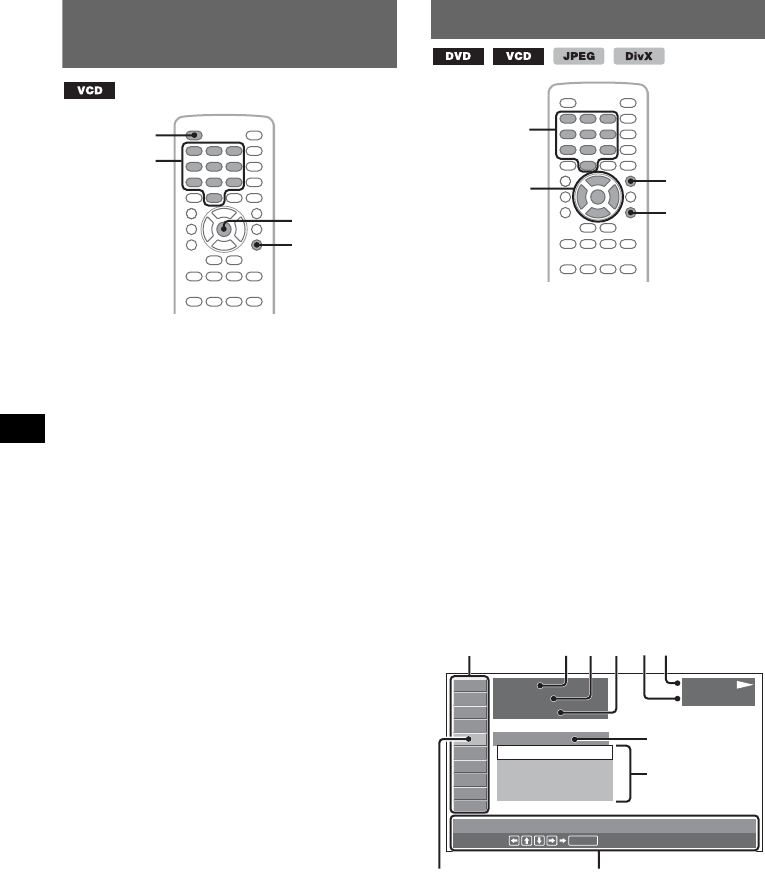

Using PBC functions — Playback control. . . .22

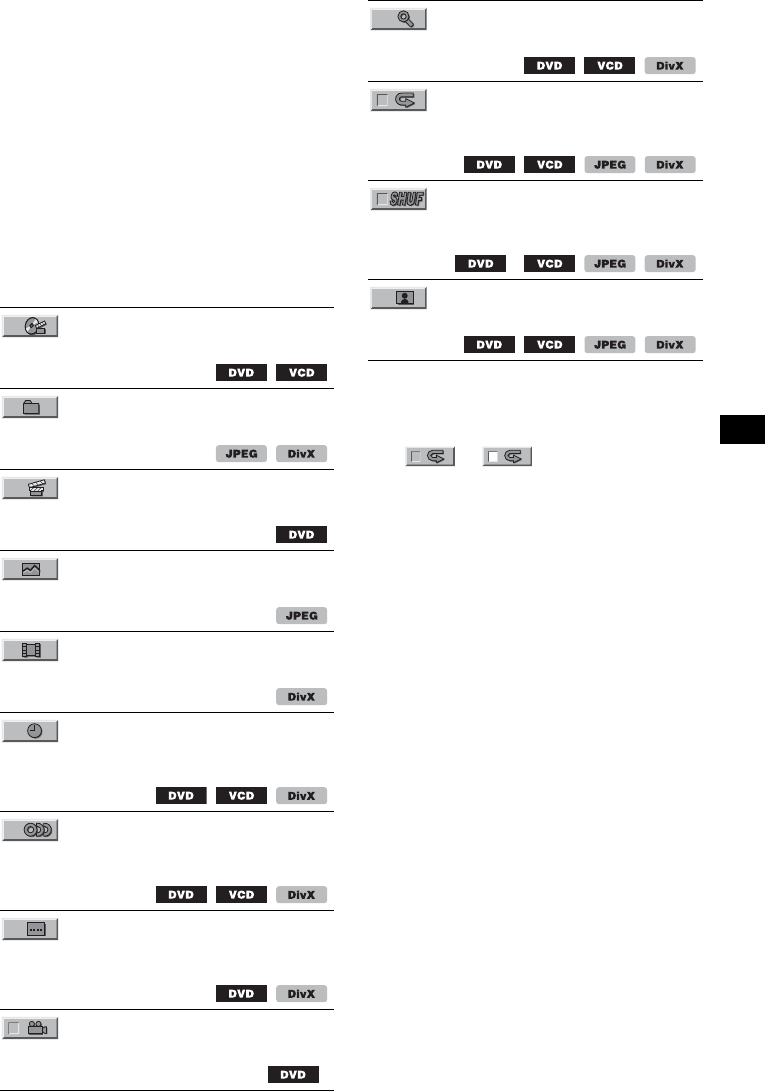

Using play mode menu. . . . . . . . . . . . . . . . . . .22

Viewing time/text information of the disc . . . .24

Configuring audio settings . . . . . . . . . . . . . . . .24

Changing the audio language/format. . . . . .25

Checking the program format . . . . . . . . . . .25

Adjusting the audio output level

— DVD level. . . . . . . . . . . . . . . . . . . . . . . .26

Magnifying pictures . . . . . . . . . . . . . . . . . . . . .26

Adjusting the picture quality

— Picture EQ . . . . . . . . . . . . . . . . . . . . . . . . . .27

Customizing the picture quality. . . . . . . . . .27

Locking discs — Parental control . . . . . . . . . .28

Activating parental control . . . . . . . . . . . . .28

Changing the area and its movie rating

level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

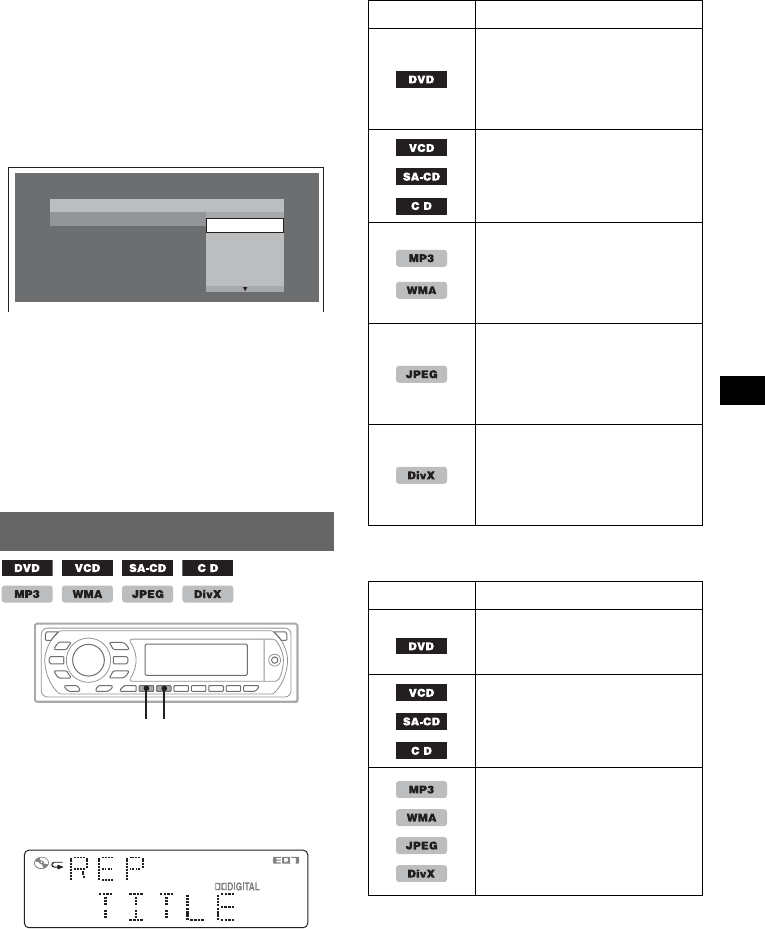

Repeat and shuffle play . . . . . . . . . . . . . . . . . . 29

Direct search play . . . . . . . . . . . . . . . . . . . . . . 30

Enjoying karaoke. . . . . . . . . . . . . . . . . . . . . . . 31

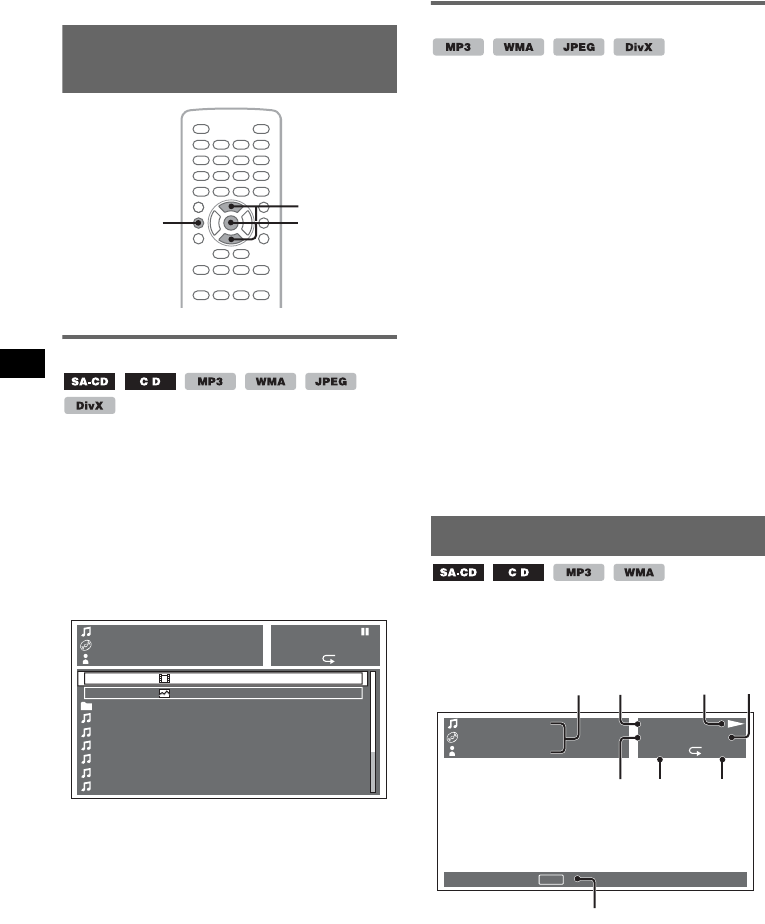

Listing up tracks/images/video files

— LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Selecting a track/image/video file. . . . . . . . 32

Selecting a file type. . . . . . . . . . . . . . . . . . . 32

Viewing audio disc information . . . . . . . . . . . 32

Configuring playback settings for Super Audio

CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Selecting a playback layer . . . . . . . . . . . . . 33

Selecting the sound quality . . . . . . . . . . . . . 34

Advanced Operations — Radio

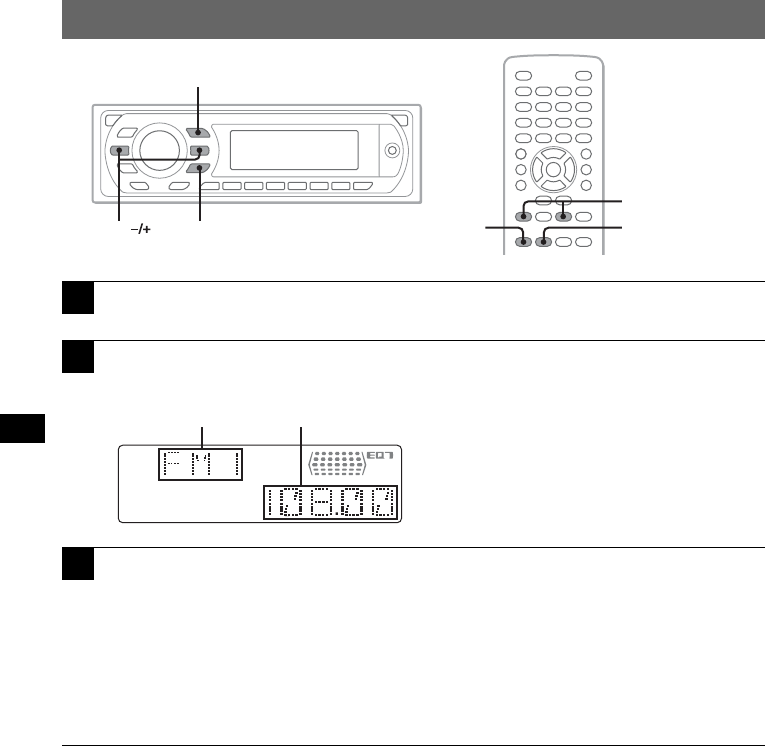

Storing and receiving stations . . . . . . . . . . . . . 34

Storing automatically — BTM . . . . . . . . . . 34

Storing manually. . . . . . . . . . . . . . . . . . . . . 34

Receiving stored stations . . . . . . . . . . . . . . 35

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Setting AF and TA . . . . . . . . . . . . . . . . . . . 35

Selecting PTY . . . . . . . . . . . . . . . . . . . . . . . 36

Setting CT. . . . . . . . . . . . . . . . . . . . . . . . . . 36

Sound Adjustment

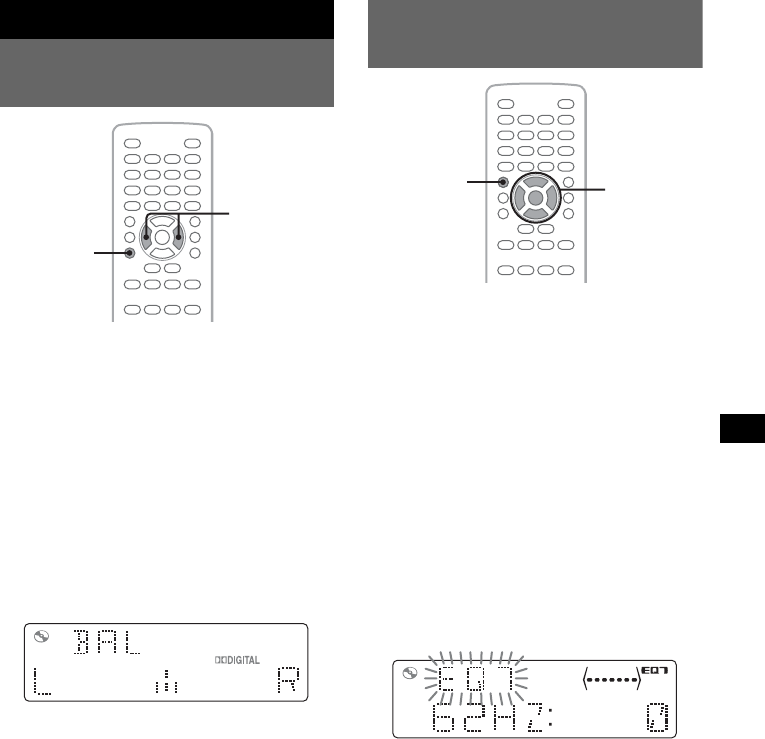

Adjusting the sound characteristics. . . . . . . . . 37

Customizing the equalizer curve

— EQ7 Tune . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Settings

Visual setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Basic operation of visual setup . . . . . . . . . . 38

Language setup for display or

soundtrack. . . . . . . . . . . . . . . . . . . . . . . . . . 39

Display setup. . . . . . . . . . . . . . . . . . . . . . . . 39

Custom setup. . . . . . . . . . . . . . . . . . . . . . . . 40

Audio setup. . . . . . . . . . . . . . . . . . . . . . . . . 41

Resetting all settings . . . . . . . . . . . . . . . . . . 41

System setup . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Basic operation of system setup . . . . . . . . . 42

Setting the clock . . . . . . . . . . . . . . . . . . . . . 45

For installation and connections, see the

supplied installation/connections manual.

5

Using Optional Equipment

Auxiliary equipment . . . . . . . . . . . . . . . . . . . . 45

CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Rotary commander RM-X4S. . . . . . . . . . . . . . 47

Additional Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Notes on discs . . . . . . . . . . . . . . . . . . . . . . . 48

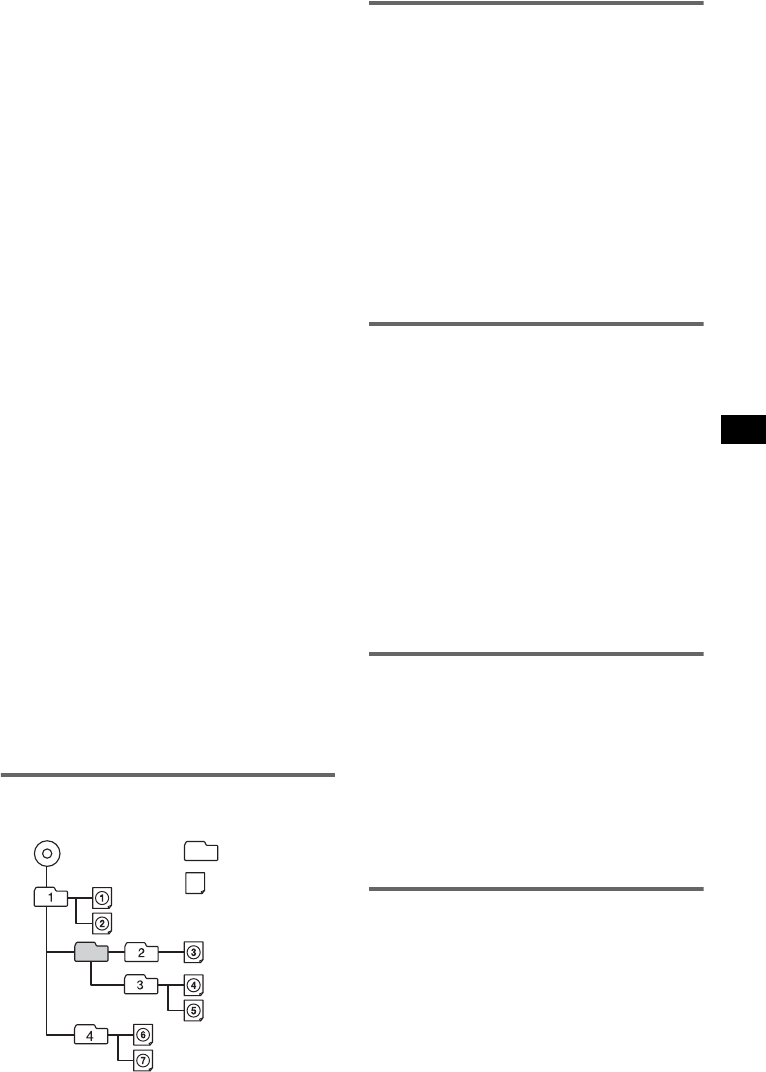

Playback order of MP3/WMA/JPEG/DivX®

files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

About MP3 files . . . . . . . . . . . . . . . . . . . . . 49

About WMA files . . . . . . . . . . . . . . . . . . . . 49

About JPEG files . . . . . . . . . . . . . . . . . . . . 49

About DivX® files . . . . . . . . . . . . . . . . . . . 49

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Removing the unit . . . . . . . . . . . . . . . . . . . . . . 50

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 51

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . 52

Error displays/Messages . . . . . . . . . . . . . . . 54

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Language code/area code list. . . . . . . . . . . . . . 57

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

6

Welcome !

Thank you for purchasing this Sony Multi Disc

Player. Before operating this unit, read this

manual thoroughly and retain it for future

reference.

Features

Follow the page reference for details. *1 Playback of multi-channel area is not supported.

*2 Depending on track length and recorded sampling

rate.

*3 Unavailable when another optional device is

connected to the BUS CONTROL IN terminal.

DVD, VCD, Super Audio CD*1, CD

playback

t page 8

Compatible with various disc formats.

2000MP3, 2000WMA

Can play up to 2,000 tracks*2 recorded on

DVD-R DL in MP3/WMA format.

Multi-disc resume playback

t page 40

Stores the point where playback is stopped for

up to 5 discs and can resume DVD VIDEO/

VCD playback even after the disc is ejected.

t page 37

7 preset equalizer curves, which can be further

customized by tuning 7 different bands.

t page 27

Picture tone selectable from preset settings

according to the car’s interior/ambient light.

t page 31

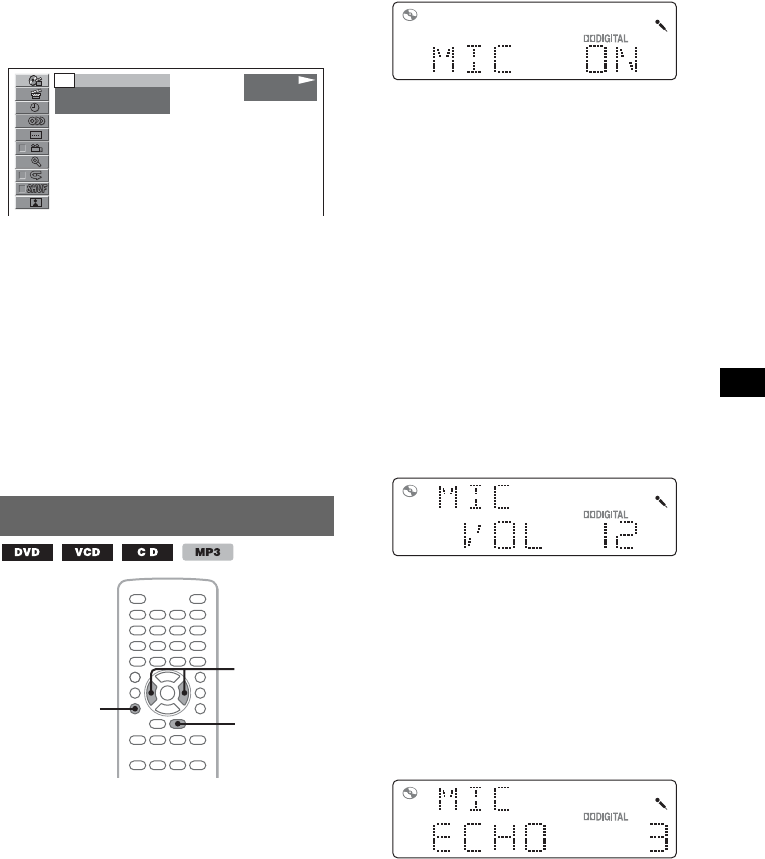

You can connect a microphone (not supplied)

and enjoy karaoke.

t page 45

Allows connection of a portable audio device

(analog connection).

REAR-AUX IN (Lite)

t page 45

The BUS AUDIO IN/AUX AUDIO IN

terminals*3 on the rear allow connection and

audio output of an auxiliary device, such as

portable audio device (analog connection),

hideaway navigation device, TV tuner box, etc.

7

Copyrights

This product incorporates copyright protection

technology that is protected by U.S. patents and

other intellectual property rights. Use of this

copyright protection technology must be

authorized by Macrovision, and is intended for

home and other limited viewing uses only unless

otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited.

“DVD VIDEO,” “DVD-R,” “DVD-RW,”

“DVD+R,” and “DVD+RW” are trademarks.

“DivX” and “DivX Certified” are

registered trademarks or trademarks

of DivX, Inc.

THIS PRODUCT IS LICENSED UNDER THE

MPEG-4 VISUAL PATENT PORTFOLIO

LICENSE FOR THE PERSONAL AND NON-

COMMERCIAL USE OF A CONSUMER FOR

DECODING MPEG-4 VIDEO THAT WAS

ENCODED BY A CONSUMER ENGAGED IN

A PERSONAL AND NON-COMMERCIAL

ACTIVITY AND/OR WAS OBTAINED FROM

A VIDEO PROVIDER LICENSED BY MPEG

LA TO PROVIDE MPEG-4 VIDEO. NO

LICENSE IS GRANTED OR SHALL BE

IMPLIED FOR ANY OTHER USE.

ADDITIONAL INFORMATION INCLUDING

THAT RELATING TO PROMOTIONAL,

INTERNAL AND COMMERCIAL USES AND

LICENSING MAY BE OBTAINED FROM

MPEG LA, LLC. SEE

HTTP://WWW.MPEGLA.COM

Manufactured under license

from Dolby Laboratories.

“Dolby” and the double-D

symbol are trademarks of Dolby Laboratories.

Microsoft, Windows Media,

and the Windows logo are

trademarks or registered

trademarks of Microsoft

Corporation in the United States and/or other

countries.

8

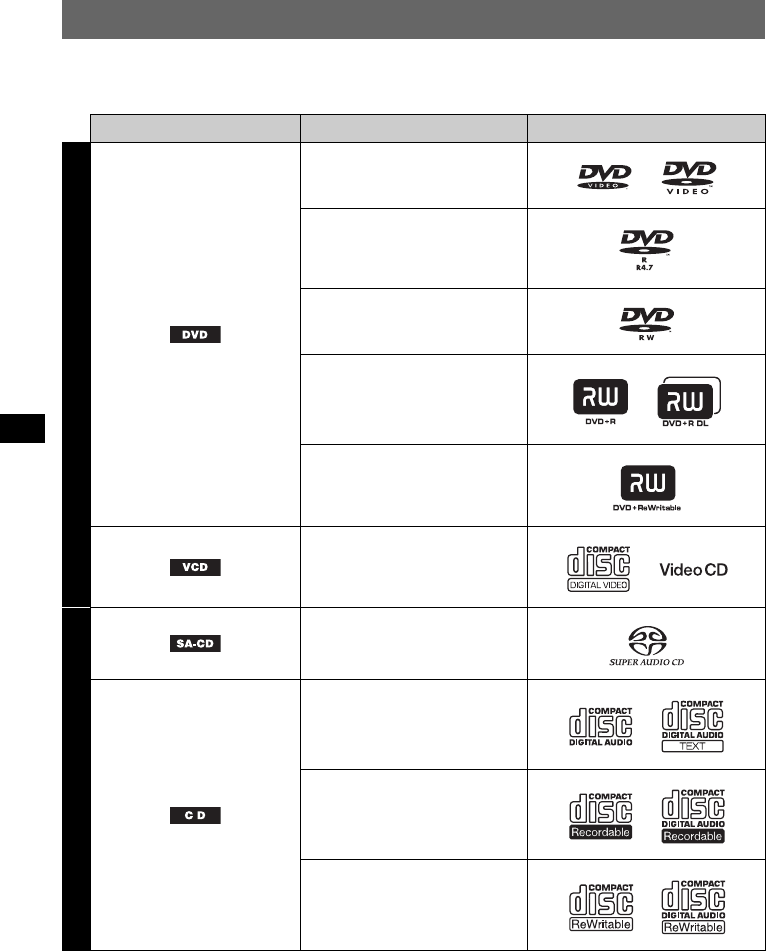

Playable discs and symbols used in this manual

This unit can play various video/audio discs.

The following chart helps you to check if a disc is supported by this unit, as well as what functions are

available for a given disc type.

*1 Audio files can also be stored. For details, see page 9.

*2 Video/image files can also be stored. For details, see page 9.

Note

“DVD” may be used in this manual as a general term for DVD VIDEOs, DVD-Rs/DVD-RWs, and DVD+Rs/

DVD+RWs.

Disc symbol in manual Disc format Disc logo

VIDEO

DVD VIDEO

DVD-R*1

DVD-R DL*1

(Video mode/VR mode)

DVD-RW*1

(Video mode/VR mode)

DVD+R*1

DVD+R DL*1

DVD+RW*1

Video CD

(Ver. 1.0/1.1/2.0)

AUDIO

Super Audio CD

Audio CD

CD-ROM*2

CD-R*2

CD-RW*2

9

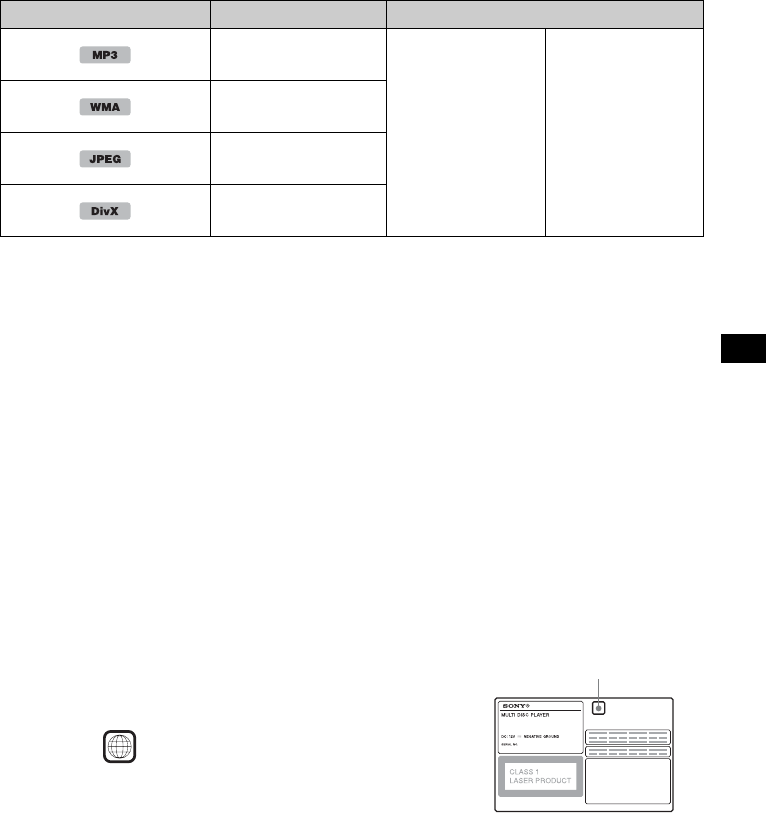

The following chart shows the supported compression formats, their file types, and the disc types on

which those files can be stored.

Available functions differ depending on the format, regardless of disc type. The format symbols below

appear next to the description of functions available for that format.

Tip

For details on compression formats, see page 49.

Unsupported discs

The following discs cannot be played on this unit.

•8 cm (3 1/4 in) discs

• 12 cm (4 3/4 in) discs utilizing only the inner 8 cm (3 1/4 in) data portion (the rest is transparent)

• CD-ROM containing files other than MP3/WMA/JPEG/DivX

•CD-G

•Photo-CD

• VSD (Video Single Disc)

• DVD-ROM containing files other than MP3/WMA/JPEG/DivX

•DVD-RAM

•DVD-Audio

• Active-Audio (Data)

• SVCD (Super Video CD)

•CDV

• Discs created in Packet Write format

• Discs in DTS format

Note

Even compatible discs may not be playable on this unit, depending on their recorded condition.

Region code

The region system is used to protect software copyrights.

The region code is located on the bottom of the unit, and only DVDs

labeled with an identical region code can be played on this unit.

DVDs labeled can also be played.

If you try to play any other DVD, the message “Playback prohibited

by region code.” will appear on the monitor screen. Depending on

the DVD, no region code may be labeled even though playing the

DVD is prohibited by area restrictions.

Format symbol in manual File type Storable disc type

MP3 audio file DATA DVDs

DVD-ROM

DVD-R

DVD-R DL

DVD-RW

DVD+R

DVD+R DL

DVD+RW

DATA CDs

CD-ROM

CD-R

CD-RW

WMA audio file

JPEG image file

DivX® video file

Region code

ALL

10

Location and function of controls

Main unit

Front panel removed

Refer to the pages listed for details.

Instructions in this manual generally describe the

controls on the card remote commander. You can

also use the controls on the main unit if they have

the same or similar names to those on the card

remote commander.

AOFF button 16, 18, 22

To power off/stop the source (press); shut off

completely (press and hold).

Bm (Microphone) button 31

To activate the karaoke mode.

CVolume control dial/SOUND/ENTER

button 26, 32, 34, 36, 37, 42, 45, 46

To adjust the volume/adjust a setting (rotate);

open the sound menu/apply a setting (press).

DSOURCE button 15, 20, 34, 46

To power on; change the source (Radio/Disc/

AUX).

EDisplay window

OFF

OPEN

DSPL AF

/

TA

SEEK SEEK

ALBUM

REP SHUF

AUX

PUSH SOUND/

ENTER

123456

MODE

SETUP

LIST

SOURCE

SYSTEM

PTY

1

q;

9 qa qd qgqs

2

qf

4 5

8

67

3

MEX-DV1100

RESET

q

j

q

k

q

h

11

FAUX input jack 45

To connect a portable audio device.

GOPEN button 15, 16, 17, 18

HLIST/PTY (Program Type) button 32,

36

To list up*1; select PTY in RDS.

IReceptor for the card remote

commander

JSEEK –/+ buttons 17, 19, 20, 21

Disc:

To skip a chapter/track/scene/file (press);

reverse/fast-forward disc (press and hold

momentarily); reverse/fast-forward track

(press and hold).*2

Radio:

To tune in stations automatically (press); find

a station manually (press and hold).

KSYSTEM SETUP button 26, 33, 34, 37,

42, 45, 46

To open the system setup menu.

LMODE button 20, 34, 46

To select the radio band (FM/MW/LW);

select an auxiliary device*3.

MDSPL (Display) button 24, 35, 45

To change display items.

NNumber buttons

Disc:

(1): b REP 16, 17, 29, 47

(2): SHUF B 16, 17, 29, 47

(3)/(4): ALBUM –/+ (V/v) 16, 17, 19,

21, 46

To skip an album or folder/move the

cursor (press); skip albums or folders

continuously (press and hold).*4

(6): u (play/pause) 16, 17, 18, 19, 21

To start/pause playback.

Radio:

To receive stored stations (press); store

stations (press and hold).

OAF (Alternative Frequencies)/TA

(Traffic Announcement) button 35, 36

To set AF and TA in RDS.

PRESET button 14

QZ (eject) button 17, 18

To eject the disc.

RDisc slot 16, 18

To insert the disc.

*1 When a Super Audio CD/CD/MP3/WMA/JPEG/

DivX is played.

*2 Operation differs depending on the disc (page 17,

19).

*3 When two auxiliary devices are used.

*4 If the changer is connected, operation is different

(page 46).

12

Card remote commander RM-X166

Refer to the pages listed for details.

Remove the insulation film before use (page 14).

AOFF button 16, 18, 22

To power off/stop the source (press); shut off

completely (press and hold).

BNumber buttons 16, 17, 22, 23, 28, 29,

30, 31, 34, 36

Disc:

To locate a title/chapter/track.

Radio:

To receive stored stations (press); store

stations (press and hold).

CCLEAR button 28, 31

To delete an entered number.

DSYSTEM SETUP button 26, 33, 34, 37,

42, 45, 46

To open the system setup menu.

ELIST/PTY (Program Type) button 32,

36

To list up*1; select PTY in RDS.

FSOUND button 31, 37

To open the sound menu.

Z

X

Z PL

OFF ATT

AUDIO

SUBTITLE

ANGLE

MENUCLEAR

SYSTEM SETUP

LIST/PTY

SOUND


VISUAL SETUP

DSPL

AF/TA

TOP MENU

1

0

23

VOL

EQ

445566

778899

SRC

MODE

ENTER

qs1

2

3

4

5

6

7

8

9

0

qa

ql

w;

qd

qf

qg

qj

qh

qk

13

GPICTURE EQ button 27

To select the picture quality.

Hu (Play/Pause) button 16, 17, 18, 19,

21

To start/pause playback.

I.m/M> buttons 17, 19, 20,

21

Disc:

To skip a chapter/track/scene/file (press);

reverse/fast-forward disc (press and hold

momentarily); reverse/fast-forward track

(press and hold).*2

Radio:

To tune in stations automatically (press); find

a station manually (press and hold).

JSRC (Source) button 20, 34, 46

To power on; change the source (Radio/Disc/

AUX).

KMODE button 20, 34, 46

To select the radio band (FM/MW/LW);

select an auxiliary device*3.

LATT (Attenuate) button

To attenuate the sound (to cancel, press

again).

MDVD playback setting buttons

(AUDIO): 17, 25

To change the audio language/format.

(For VCD/CD/MP3/WMA, to change the

audio channel.)

(SUBTITLE): 17

To change the subtitle language.

(ANGLE): 17

To change the viewing angle.

(TOP MENU): 17

To open the top menu on a DVD.

(MENU): 17

To open the menu on a disc.

NVISUAL SETUP button 22, 25, 26, 27,

28, 30, 31, 33, 34, 38

To open the play mode/visual setup menu.

ODSPL (Display) button 24, 35, 45

To change display items.

PO (Return) button 22, 23, 28, 29, 33,

38

To return to the previous display; return to

the menu on a VCD*4.

Q</M/m/, (Cursor)/ENTER buttons

To move the cursor and apply a setting.

Rm (Microphone) button 31

To activate the karaoke mode.

SVOL (Volume) +/– buttons 36

To adjust the volume.

TAF (Alternative Frequencies)/TA

(Traffic Announcement) button 35, 36

To set AF and TA in RDS.

*1 When a Super Audio CD/CD/MP3/WMA/JPEG/

DivX is played.

*2 Operation differs depending on the disc (page 17,

19).

*3 When two auxiliary devices are used.

*4 When playing with PBC function.

Note

If the unit is turned off and the display disappears, it

cannot be operated with the card remote commander

unless (SOURCE) on the main unit is pressed, or a

disc is inserted to activate the unit first.

Tip

For details on how to replace the battery, see

“Replacing the lithium battery of the card remote

commander” on page 50.

14

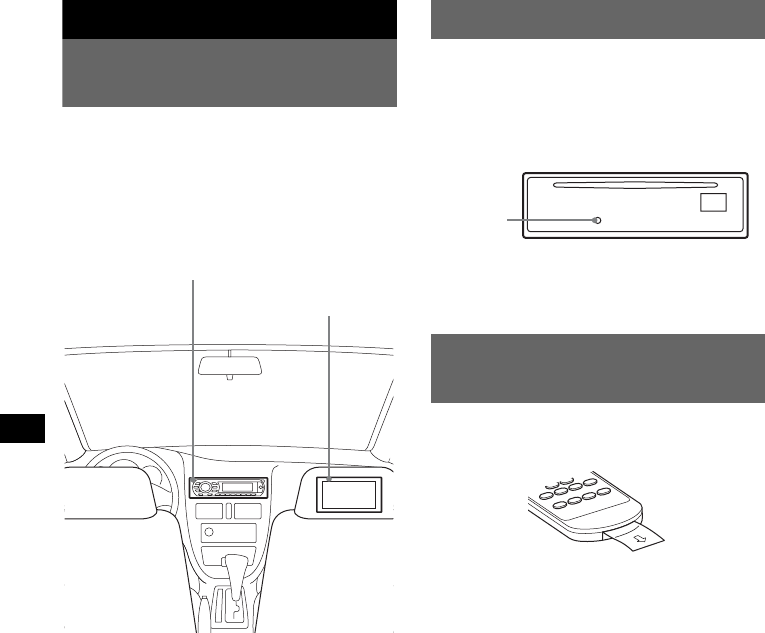

Getting Started

Installing the unit and the

optional monitor

Firstly, install and connect the unit and the

optional monitor.

This unit can be operated using the displays that

appear on the unit and/or the optional monitor.

Note that this manual includes instructions

concerning displays on both unit and/or optional

monitor.

For details, see the supplied installation/

connections manual.

Note

Be sure to install the optional monitor safely, and in a

place where it does not obstruct the driver’s view.

Resetting the unit

Before operating the unit for the first time, or

after replacing the car battery or changing the

connections, you must reset the unit.

Detach the front panel (page 15) and press the

RESET button with a pointed object, such as a

ball-point pen.

Note

Pressing the RESET button will erase the clock setting

and some stored contents.

Preparing the card remote

commander

Before using the card remote commander for the

first time, remove the insulation film.

Unit

Optional monitor

RESET

button

15

Detaching the front panel

You can detach the front panel of this unit to

prevent theft.

Caution alarm

If you turn the ignition switch to the OFF

position without detaching the front panel, the

caution alarm will sound for a few seconds.

The alarm will only sound if the built-in

amplifier is used.

1Press (OPEN) while the unit is off.

The front panel is flipped down.

2Slide the front panel to the right, then

gently pull out the left end of the front

panel.

Notes

•Do not drop or put excessive pressure on the front

panel and display window.

•Do not subject the front panel to heat/high

temperature or moisture. Avoid leaving it in a parked

car or on a dashboard/rear tray.

Attaching the front panel

Place the hole A of the front panel onto the

spindle B on the unit, then lightly push the left

side in.

Press (SOURCE) on the main unit (or insert a

disc) to operate the unit.

Note

Do not put anything on the inner surface of the front

panel.

SOURCE OPEN

1

2

c

A

B

16

Basic Operations

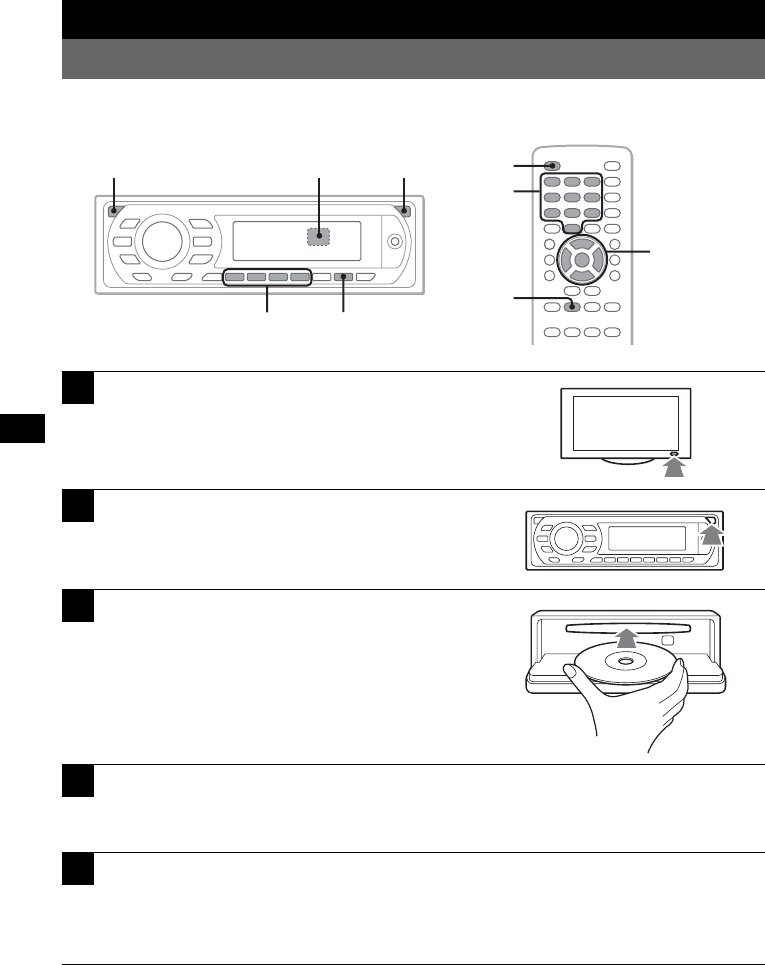

Playing video discs

Depending on the disc, some operations may be different or restricted.

Refer to the operating instructions supplied with your disc.

To stop playback

Press (OFF).

Note

Discs in DTS format are not supported. The sound is not output if the DTS format is selected.

1Turn on your monitor, then select the

input source on your monitor

corresponding to this unit.

2Press (OPEN) on the main unit.

3Insert the disc (label side up).

4Close the front panel.

Playback starts automatically.

If playback does not start automatically, press u.

5If the DVD menu appears, press (1)(b)/(2)(B)/(3)(V)/(4)(v) to move

the cursor, then press (6) (u) to confirm.

With the card remote commander, press the </M/m/,/number buttons to move the cursor,

then press (ENTER) to confirm.

ZXZPL

</M/m/,

ENTER

OFF

u

u

b/B/V/v

OFF OPENZ

Number

buttons

17

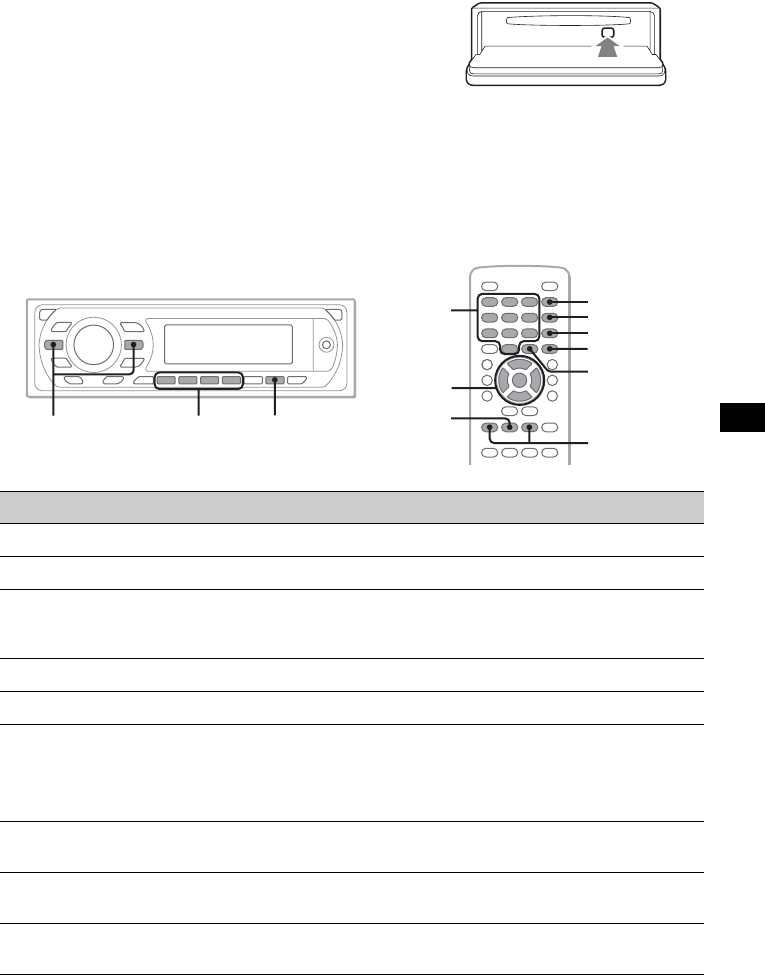

To eject the disc

1Press (OPEN) on the main unit.

2Press Z (rear of front panel).

3Close the front panel.

About the DVD menu

A DVD is divided into several sections, which make up a picture or music feature. These sections are

called “titles.” When you play a DVD that contains several titles, you can select a desired title using the

DVD’s top menu. For DVDs that allow you to select items such as subtitle/sound language(s), select

these items using the DVD menu.

Other playback operations

*1 Unavailable depending on the disc.

*2 When the 4-digit input prompt appears, input the language code (page 57) for the desired language.

To Press

pause/resume play after pause u

skip a chapter/track/scene/file .m/M>

reverse/fast-forward disc and hold .m/M> momentarily; and then

repeatedly to switch the speed (× 2 t × 12 t × 120 t

× 2…)

cancel reverse/fast-forward u

show the DVD menu*1Remote: (TOP MENU) or (MENU)

select items in the DVD menu*1Main unit: (1)(b)/(2)(B)/(3)(V)/(4)(v) to move the

cursor, then press (6) (u) to confirm

Remote: </M/m/,/number buttons to move the cursor,

then press (ENTER) to confirm

change audio language/format/channel

(page 25)*1

Remote: (AUDIO) repeatedly until the desired item appears

turn off/change the subtitle language*1Remote: (SUBTITLE) repeatedly until the desired item

appears*2

change the viewing angle*1Remote: (ANGLE) repeatedly until the desired angle number

appears

ZXZPL

</M/m/,

ENTER

MENU

SUBTITLE

ANGLE

AUDIO

TOP MENU

.m/M>

u

u

.m/M> b/B/V/v

Number

buttons

18

Playing audio discs

Depending on the disc, some operations may be different or restricted.

Refer to the operating instructions supplied with your disc.

To stop playback

Press (OFF).

Note

Discs in DTS format are not supported. The sound is not output if the DTS format is selected.

To eject the disc

1Press (OPEN) on the main unit.

2Press Z (rear of front panel).

3Close the front panel.

1Press (OPEN) on the main unit.

2Insert the disc (label side up).

3Close the front panel.

Playback starts automatically.

If playback does not start automatically, press u.

ZXZPL

u

OFF

u

OFF OPENZ

19

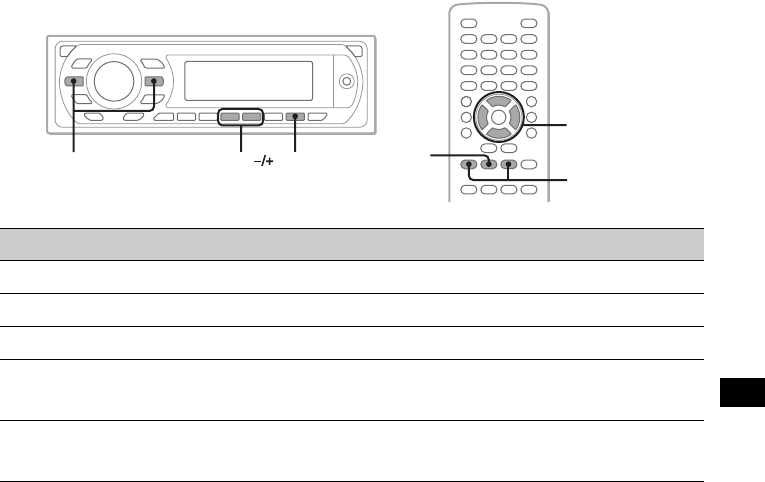

Other playback operations

*When an MP3/WMA is played.

To Press

pause/resume play after pause u

skip a track .m (<)/M> (,)

reverse/fast-forward track and hold .m/M>

skip an album* Main unit: (3) (ALBUM –)/(4) (ALBUM +)

Remote: M/m

skip albums continuously* Main unit: and hold (3) (ALBUM –)/(4) (ALBUM +)

Remote: and hold M/m

ZXZPL

</M/m/,

.m/M>

u

u

.m/M> ALBUM

20

Listening to the radio

Tip

For details on other radio functions, see “Advanced Operations — Radio” on page 34.

With the card remote commander

Use (SRC) instead of (SOURCE), and .m/M> instead of (SEEK) –/+.

1Press (SOURCE) repeatedly until “TUNER” appears.

2Press (MODE) repeatedly until the desired band (FM1, FM2, FM3, MW

or LW) appears.

3Perform tuning.

To tune automatically

Press (SEEK) –/+.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station

is received.

To tune manually

Press and hold (SEEK) –/+ to locate the approximate frequency, then press (SEEK) –/+

repeatedly to fine adjust to the desired frequency.

ZXZPL

MODE

.m/M>

SRC

SEEK MODE

SOURCE

BA ARadio band/Function

BFrequency*

*While receiving an RDS station, program service

name appears. For details, see “RDS” on page 35.

21

Advanced Operations — Discs

This chapter consists of the following sections.

•Video-specific operations*

t page 21 to 29

•Video*/audio common operations

t page 29 to 32

•Audio-specific operations

t page 32 to 34

*Including JPEG operations.

Playing DivX®/JPEG files

Note

If the disc contains multiple file types, only the

selected file type (audio/video/image) can be played.

To play DivX video files or JPEG image files of such a

disc, press (LIST/PTY) during playback, select the

desired file type (video/image) to list up, then select

the desired file (page 32).

DivX® video playback

DivX® is a video file compression technology,

developed by DivX, Inc. This product is an

official DivX® Certified product and can play all

versions of DivX® video (including DivX® 6)

with standard playback of DivX® media files.

You can control the DivX playback in the same

way as other video discs (page 16), as well as

some audio playback control features.

Tip

You can also select a file to play using a list (page 32).

JPEG image playback

You can enjoy a slide show of JPEG files on this

unit. The slide show starts automatically when

you insert a disc or press u. For details on how

to start playback, follow step 1 to 4 of “Playing

video discs” on page 16.

Other playback operations

Notes

•If a large-sized image is rotated, it may take longer

to display.

•Progressive JPEG files cannot be displayed.

Tip

You can also select a file to play using a list (page 32).

u

.m/M> ALBUM

ZXZPL

</M/m/,

.m/M>

u

To Press

skip an album

(folder)

Main unit:

(3) (ALBUM –)/

(4) (ALBUM +)

skip albums (folders)

continuously

Main unit:

and hold (3) (ALBUM –)/

(4) (ALBUM +)

To Press

rotate the image Remote:

</, (rotates every 90º)

skip an image .m/M>

skip an album Remote: M/m

Main unit:

(3) (ALBUM –)/

(4) (ALBUM +)

skip albums

continuously

Remote: and hold M/m

Main unit:

and hold (3) (ALBUM –)/

(4) (ALBUM +)

22

Using PBC functions

— Playback control

The PBC menu assists your operation

interactively while a PBC compatible VCD is

played.

1Start playing a PBC compatible VCD.

The PBC menu appears.

2Press the number buttons to select the

desired item, then press (ENTER).

3Follow the instructions in the menu for

interactive operations.

To return to the previous display, press O.

Playing without the PBC function

1During playback, press (OFF).

Playback stops.

2Press the number buttons to select the

desired item, then press (ENTER).

“Play without PBC.” appears and playback

starts. The PBC menu does not appear during

playback.

Notes

•The items on the menu, and operation procedures

differ depending on the disc.

•During PBC playback, the track number, playback

item, etc., do not appear in the play mode menu

(page 22).

•Resume playback is unavailable during playback

without PBC.

Tip

To resume PBC playback, stop playback by pressing

(OFF), then press u.

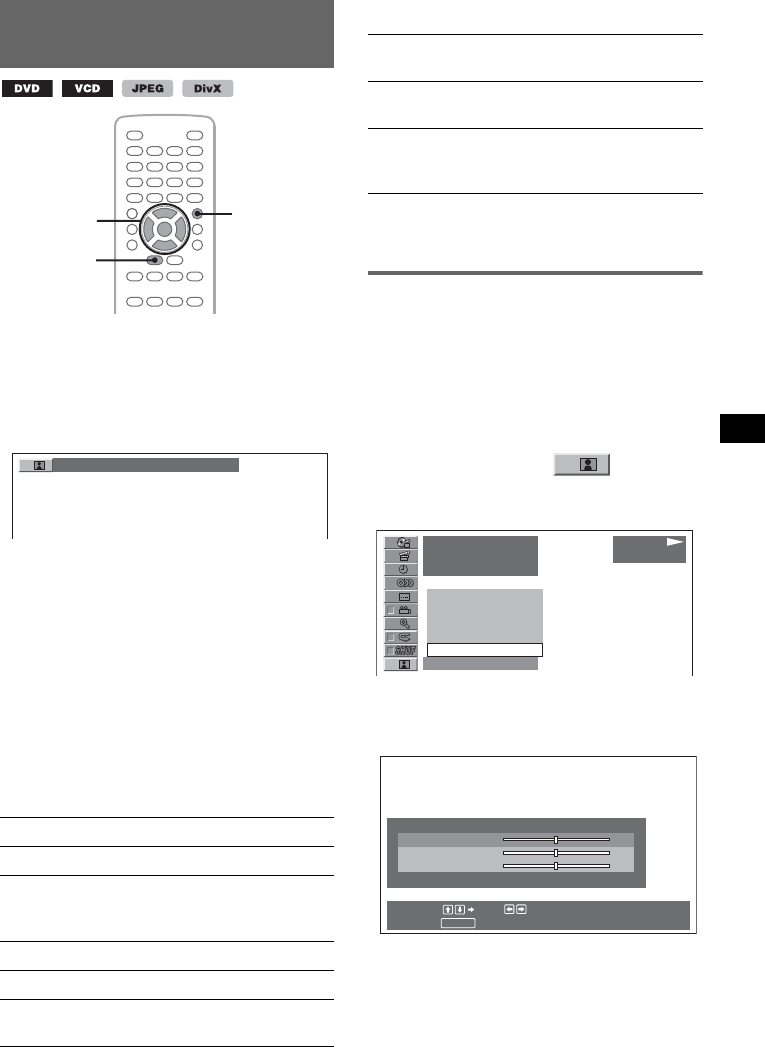

Using play mode menu

You can use the play mode menu on this unit to

control playback or configure playback settings.

To show the play mode menu, press

(VISUAL SETUP) during playback.

To hide, press (VISUAL SETUP) again.

Notes

•During audio disc playback, (VISUAL SETUP) is

inactive.

•During JPEG playback, (VISUAL SETUP) is active

only when an image is fully displayed.

Tip

If you press (VISUAL SETUP) while the playback is

stopped, the visual setup menu (by the monitor)

appears where you can configure various settings,

such as display language, audio adjustment, etc.

(page 38).

E.g., when playing a DVD

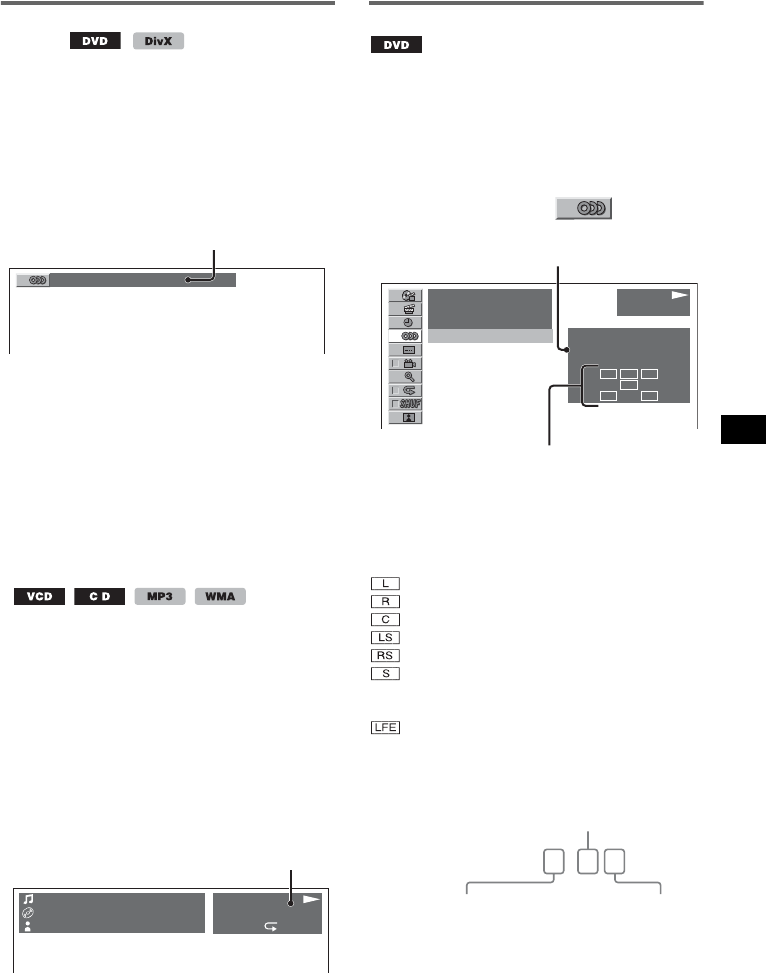

APlay mode menu items

For details, see “List of play mode menu

items” on page 23.

BDVD: Title number/Total

VCD: Track number/Total*1

JPEG: Album number/Total

DivX: Album (folder) number/Total

CDVD: Chapter number/Total

JPEG: Image number/Total

DivX: File number/Total

DElapsed playback time*2

ZXZPL

ENTER

O

OFF

Number

buttons

ZXZPL

</M/m/,

ENTER

O

VISUAL

SETUP

Number

buttons

12(67)

018(034)

T 1:35:55

1:ENGLISH

OFF

1:ENGLISH

2:FRENCH

3:SPANISH

PLAY

DVDVIDEO

SUBTITLE

Select :

ENTER

G

BCD F

E

H

A

IJ

23

EFormat

FPlayback status (PLAY N, PAUSE X, etc.)

GCurrent setting

HOptions

ISelected item

JSelected item name and/or operation assist

messages

*1 When playing a VCD with the PBC function

(page 22), no indication appears.

*2 During JPEG playback, no indication appears.

List of play mode menu items

Press </M/m/,/number buttons to select an

item, then press (ENTER).

To return to the previous display, press O.

Refer to the pages listed for details.

*Excluding DVD-R/DVD-R DL/DVD-RW in VR mode.

Tip

When “SHUFFLE” or “REPEAT” is activated or

“ANGLE” is available, its check-box lights up in green

(e.g., t ). However, you may not be

able to change the angle depending on the scene,

even if the check-box is lit in green.

TITLE, TRACK 30

To select a title, scene or track to play.

ALBUM 30

To select an album or folder to display.

CHAPTER 30

To select a chapter to play.

IMAGE 30

To select an image to display.

FILE 30

To select a video file to play.

TIME 30

To check the elapsed playback time; input time

code.

AUDIO 17, 25

To change the audio language/format/channel;

check the program format.

SUBTITLE 17

To turn subtitles on or off/change the subtitle

language.

ANGLE 17

To change the angle.

*

CENTER ZOOM 26

To magnify an image.

REPEAT 30

To play a title/chapter/track/album/image/video

file repeatedly.

SHUFFLE 30

To play chapters/tracks/images/video files in

random order.

*

PICTURE EQ 27

To adjust picture quality.

24

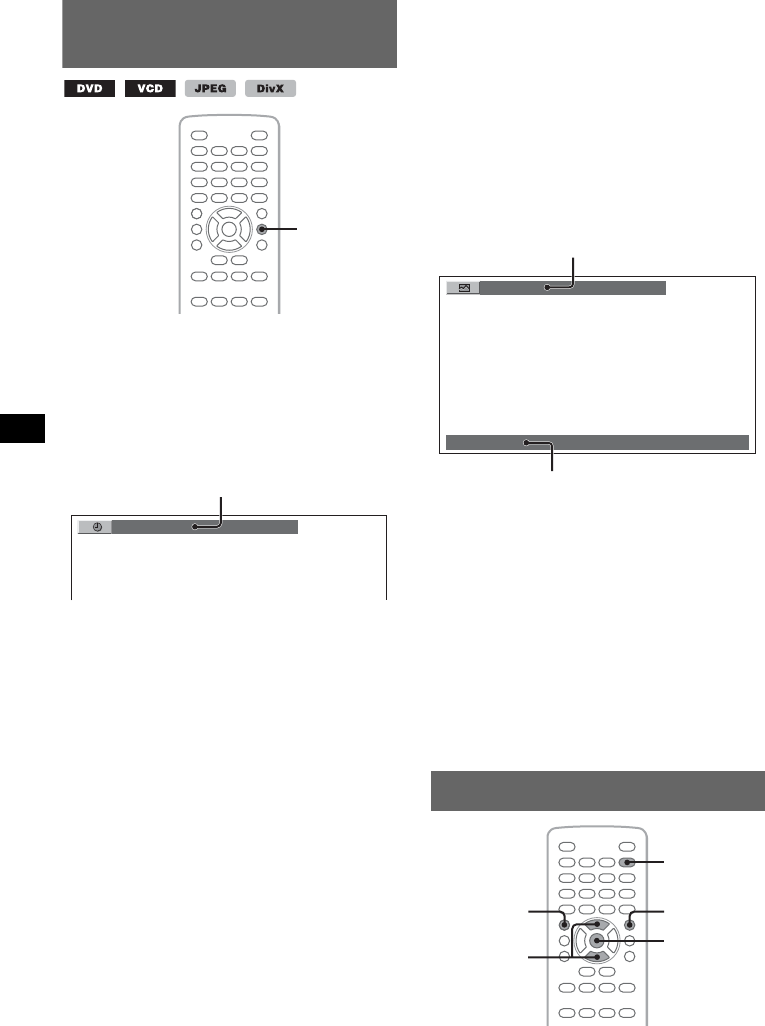

Viewing time/text information

of the disc

Checking time information

The playback time and remaining time of the

current title, chapter, track, etc., can be checked

during video/image playback.

1During playback, press (DSPL).

The current playback information appears.

2Press (DSPL) repeatedly to switch the

time information.

Time information differs depending on the disc/

format as follows.

DVD playback

• T **:**:**

Elapsed playback time of the current title

• T-**:**:**

Remaining time of the current title

• C **:**:**

Elapsed playback time of the current chapter

• C-**:**:**

Remaining time of the current chapter

VCD playback

(Only when playing version 1.0/1.1, or version

2.0 without PBC function.)

• T **:**

Elapsed playback time of the current track

• T-**:**

Remaining time of the current track

• D **:**

Elapsed playback time of the current disc

• D-**:**

Remaining time of the current disc

JPEG playback

• Album number/Total

• Image number/Total

DivX playback

• Album (folder) number/Total

• File number/Total

•T **:**

Elapsed playback time of the current file

Checking text information

The text information (album name, image name,

etc.) of JPEG/DivX files can be checked.

*“NO TEXT” appears it there is no text information.

Text information differs depending on the format

as follows.

JPEG playback

• Album name (when the album number is

displayed)

• Image name (when the image number is

displayed)

DivX playback

• Album (folder) name (when the album (folder)

number is displayed)

• File name (when the file number is displayed)

Configuring audio settings

Note

Discs in DTS format are not supported. The sound is

not output if the DTS format is selected.

ZXZPL

DSPL

T 1:01:57

Time information

037(325)

Image name

Album/image/folder/file number

Text information*

ZXZPL

M/m

ENTER

AUDIO

VISUAL

SETUP

SYSTEM

SETUP

25

Changing the audio language/

format

For DVD, the audio language can be changed if

the disc is recorded with multilingual tracks. For

DVD/DivX, you can change the audio format

when playing a disc recorded in multiple audio

formats (e.g., Dolby Digital).

1During playback, press (AUDIO)

repeatedly until the desired audio

language/format appears.

*When playing DivX, audio format/channel (e.g.,

“Dolby D 2CH”) appears.

The audio language switches among the

available languages.

When the 4-digit input prompt appears, input

the language code (page 57) for the desired

language.

When the same language is displayed two or

more times, the disc is recorded in multiple

audio formats.

Changing the audio channel

When playing VCD/CD/MP3/WMA, you can

select the right or left channel sound to listen

through both right and left speakers.

The options are indicated below.

STEREO (ST): Standard stereo sound (default)

1/L (L): Left channel sound (monaural)

2/R (R): Right channel sound (monaural)

1During playback, press (AUDIO)

repeatedly until the desired audio

channel appears.

E.g., when playing an MP3

Note

You may not be able to change the audio setting

depending on the disc.

Tip

You can also change the settings of video discs by

selecting “AUDIO” in the play mode menu (page 22).

Checking the program format

You can check the number of channels and

component position on the DVD VIDEO being

played.

1During playback, press

(VISUAL SETUP).

The play mode menu appears.

2Press M/m to select (AUDIO).

The program format appears.

*“PCM,” “DOLBY DIGITAL,” etc., appears depending

on the disc.

The letters in the program format display

represent the following sound components and

its position.

: Front (left)

: Front (right)

: Center

: Rear (left)

: Rear (right)

: Rear (monaural): The rear component of

the Dolby Surround processed signal and

the Dolby Digital signal

: Low Frequency Effect signal

The program format name and channel numbers

appear as follow.

Example: Dolby Digital 5.1 ch

To hide the play mode menu, press

(VISUAL SETUP).

1:ENGLISH Dolby D

Audio language/format*

TRACK NAME

ALBUM NAME

ARTIST NAME

MP3

0003/1000 L

003:17 SHUF

Audio channel

PLAY

DVDVIDEO

L C

LFE

LS

R

RS

12(67)

018(034)

T 1:35:55

1:ENGLISH Dolby D

PROGRAM FORMAT

DOLBY DIGITAL

3 / 2. 1

Current program format

Current audio format*

DOLBY DIGITAL

3 / 2 . 1

Rear component × 2

Front component × 2 +

Center component × 1

LFE component × 1

26

Adjusting the audio output level

— DVD level

You can adjust the audio output level for a DVD

recorded in Dolby Digital format, to reduce the

volume level differences between disc and

source.

1During playback, press

(SYSTEM SETUP).

The system setup item appears on the main

unit.

2Press M/m to select “DVD-LVL,” then

press (ENTER).

3Press m to set to “ADJST ON,” then

press (ENTER).

4Press M/m to adjust the output level.

The output level is adjustable in single steps,

between –10 and +10.

5Press (ENTER).

The setting is complete.

With the main unit

Rotate the volume control dial instead of pressing M/

m.

Magnifying pictures

You can magnify pictures.

1During playback, press

(VISUAL SETUP).

The play mode menu appears.

2Press M/m to select (CENTER

ZOOM), then press (ENTER).

The current option appears.

3Press M/m to select the desired option

(×1, ×1.6*), then press (ENTER).

*The picture may become grainy.

The picture is magnified.

To scroll the picture, press </M/m/,.

To restore the original scale, select “×1” in step

3.

To hide the play mode menu, press

(VISUAL SETUP).

Notes

•Depending on the disc, you may not be able to

change the magnification.

•When you resume playback, the picture returns to its

original scale.

ZXZPL

</M/m/,

ENTER

VISUAL

SETUP

12(67)

018(034)

T 1:35:55

x1

x1

x1.6

PLAY

DVDVIDEO

27

Adjusting the picture quality

— Picture EQ

You can select a picture quality suitable for the

interior brightness of the car.

1During playback, press (PICTURE EQ)

repeatedly until the desired option

appears.

Options differ depending on the setting in visual

setup (page 40).

In visual setup, the settings of “PICTURE EQ” in

“CUSTOM SETUP” switch the options as

follows.

AUTO: Switches the night time/day time use

options automatically according to the dimmer

setting in system setup (page 43).

LIGHT OFF: Shows the day time use options.

LIGHT ON: Shows the night time use options.

The options for each setting are indicated below.

For all settings

When set to “LIGHT OFF”/“AUTO” (with

“DIM OFF”)

When set to “LIGHT ON”/“AUTO” (with

“DIM ON”)

Tip

You can also change the picture quality by selecting

“PICTURE EQ” in the play mode menu (page 22).

Customizing the picture quality

The option “CUSTOM” allows you to make your

own picture quality setting by adjusting picture

tones. You can store adjustments for both

“LIGHT OFF’ and “LIGHT ON” settings.

1During playback, press

(VISUAL SETUP).

The play mode menu appears.

2Press M/m to select (PICTURE

EQ), then press (ENTER).

The current option appears.

3Press M/m to select “CUSTOM,” then

press (ENTER).

4Press M/m to select the picture tone,

then press </, to adjust the level.

5Press (ENTER).

To hide the play mode menu, press

(VISUAL SETUP).

NORMAL: Normal picture quality.

CUSTOM: User-adjustable settings (page 27).

DAYTIME: Suitable in a bright place.

SUNSET: Suitable when it gets little dark.

SHINE: Suitable in a very bright place (e.g.,

when sunlight reflects on the monitor).

ZXZPL

</M/m/,

ENTER

PICTURE EQ

VISUAL

SETUP

DAYTIME

NIGHT: Darkens the monitor to not distract

your driving at night.

MIDNIGHT: Darkens the monitor more than the

“NIGHT” setting.

THEATER: Brightens the monitor; suitable

when you want to enjoy a bright monitor at

night.

12(67)

018(034)

T 1:35:55

DAYTIME

SUNSET

SHINE

CUSTOM

NORMAL

NORMAL

PLAY

DVDVIDEO

RETURN

Cancel

Select : Set :

USER CUSTOM SETUP

COLOR 0

BRIGHT 0

SHARPNESS 0

28

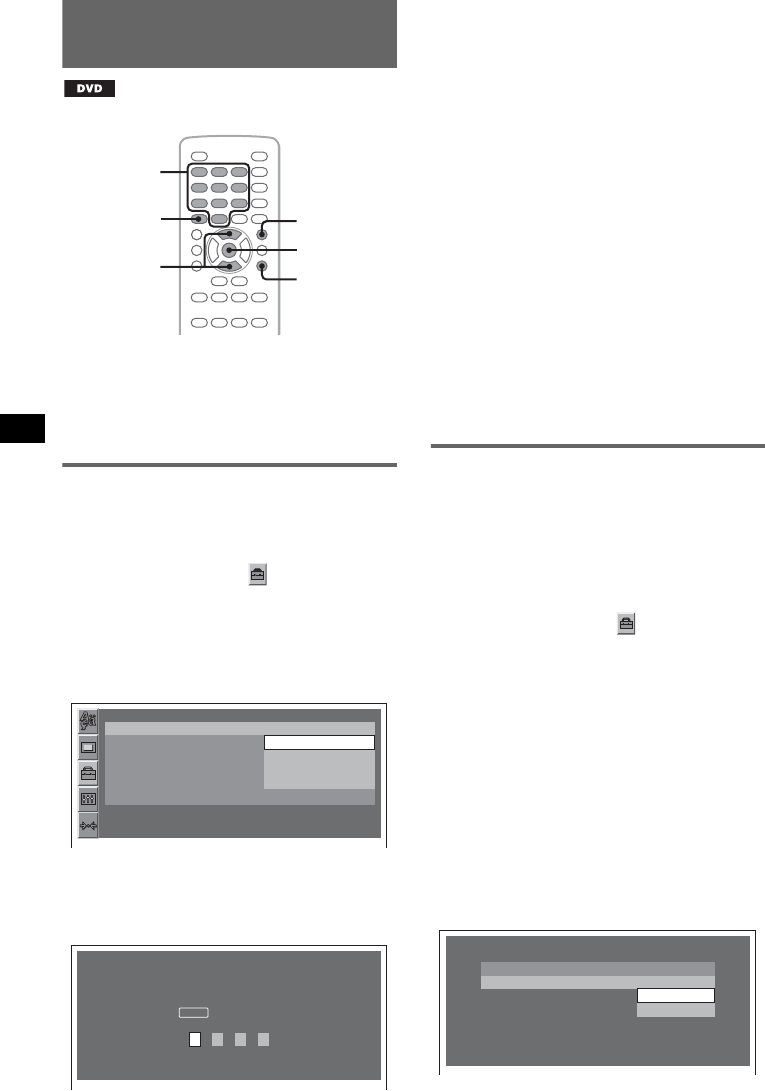

Locking discs — Parental

control

*

*Excluding DVD-R/DVD-R DL/DVD-RW in VR mode.

You can lock a disc, or set playback restrictions

according to a predetermined level such as

viewer age. Restricted scenes can be blocked or

replaced with different scenes when a parental

control compatible DVD is played.

Activating parental control

1Press (VISUAL SETUP) while the unit is

off.

The visual setup menu appears.

2Press M/m to select (CUSTOM

SETUP), then press (ENTER).

The custom setup items appear.

3Press M/m to select “PARENTAL

CONTROL,” then press (ENTER).

The options appear.

4Press M/m to select “ON t,” t h e n

press (ENTER).

The password setting display appears.

5Press the number buttons to enter

your password, then press (ENTER).

The confirmation display appears.

6To confirm, press the number buttons

to reenter your password, then press

(ENTER).

The setting is complete.

To delete an entered number, press (CLEAR).

To return to the previous display, press O.

To hide the visual setup menu, press

(VISUAL SETUP).

Deactivating parental control

Select “OFF t” in step 4 above, then enter your

password.

If parental control is deactivated, “Parental

control canceled” appears.

Changing the password

Select “PASSWORD t” in step 4 above, enter

your current password, enter your new password,

then reenter to confirm.

Changing the area and its movie

rating level

The restriction levels can be set depending on the

area and its movie ratings.

1Press (VISUAL SETUP) while the unit is

off.

The visual setup menu appears.

2Press M/m to select (CUSTOM

SETUP), then press (ENTER).

The custom setup items appear.

3Press M/m to select “PARENTAL

CONTROL,” then press (ENTER).

The options appear.

4Press M/m to select “PLAYER t,” t he n

press (ENTER).

When parental control is already activated,

the display to enter your password appears.

To change the setting, enter your password,

then press (ENTER).

5Press M/m to select “STANDARD,”

then press (ENTER).

The options appear.

ZXZPL

M/m

ENTER

CLEAR VISUAL

SETUP

O

Number

buttons

CUSTOM SETUP

PARENTAL CONTROL :

DivX VOD :

SLIDE SHOW TIME :

MULTI-DISC RESUME :

PLAY LIST PLAY :

PICTURE EQ :

OFF

OFF

ONt

PLAYERt

PASSWORDt

AUTO

PARENTAL CONTROL

Enter a new 4-digit password,

then press .

ENTER

PARENTAL CONTROL

LEVEL :

STANDARD : USA

USA

OTHERSt

8:

29

6Press M/m to select the desired area to

apply its movie ratings, then press

(ENTER).

The area is selected.

When you select “OTHERS t,” enter the

area code selecting from “Area code list” on

page 57, using the number buttons.

7Press M/m to select “LEVEL,” then

press (ENTER).

The options appear.

The lower the number, the stricter the

restriction level.

8Press M/m to select the desired rating,

then press (ENTER).

The setting is complete.

To return to the previous display, press O.

To hide the visual setup menu, press

(VISUAL SETUP).

Repeat and shuffle play

1During playback, press (1) (REP) or

(2) (SHUF) on the main unit

repeatedly until the desired option

appears.

Repeat or shuffle play starts.

The repeat options and switching order of each

disc/format are indicated below.

The shuffle options and switching order of each

disc/format are indicated below.

*1 Available only when playing version 1.0/1.1 VCD,

or version 2.0 VCD without PBC function.

*2 Excluding DVD-R/DVD-R DL/DVD-RW in VR

mode.

To return to normal play mode, select “OFF.”

PARENTAL CONTROL

LEVEL :

STANDARD :

8:

8:

7:

6:

5:

4:

NC17

R

PG13

SHUFREP

Disc/format Options

OFF

TITLE: Repeats the current

title.

CHAPTER: Repeats the

current chapter.

*1OFF

TRACK: Repeats the current

track.

OFF

TRACK: Repeats the current

track.

ALBUM: Repeats the current

album.

OFF

IMAGE: Repeats the current

image.

ALBUM: Repeats the current

album.

OFF

FILE: Repeats the current video

file.

ALBUM: Repeats the current

album (folder).

Disc/format Options

*2

OFF

TITLE: Plays chapters in

current title in random order.

*1OFF

DISC: Plays tracks in current

disc in random order.

OFF

ALBUM: Plays tracks/images/

video files in current album

(folder) in random order.

continue to next page t

30

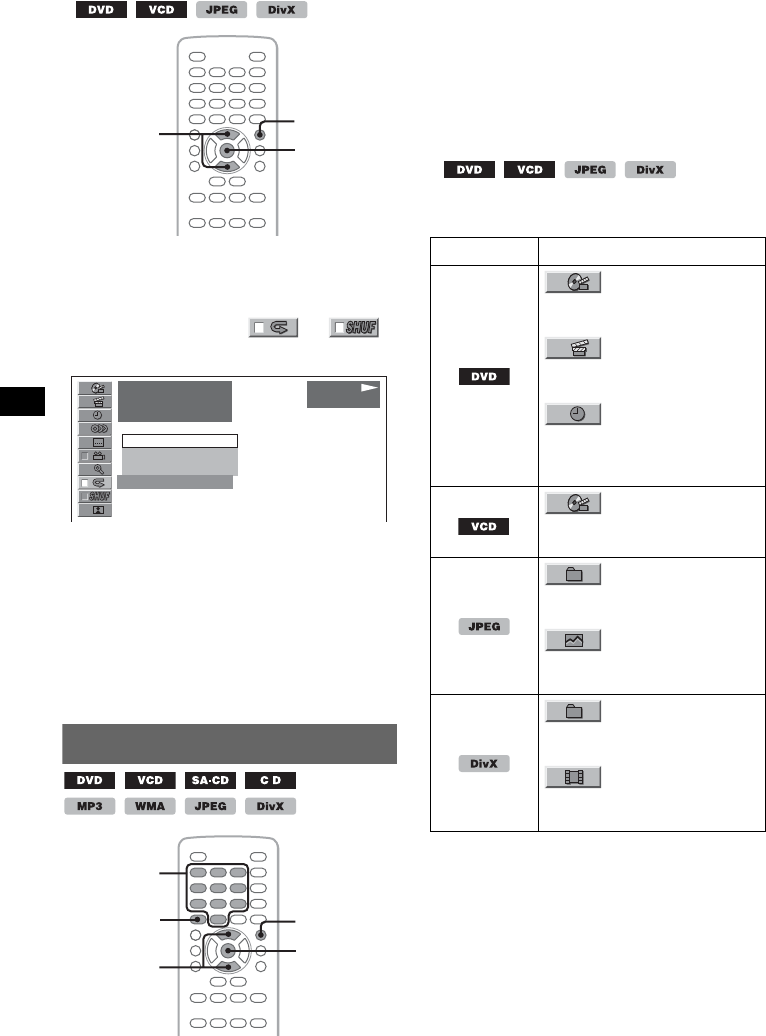

Setting from the play mode menu

1During playback, press

(VISUAL SETUP).

The play mode menu appears.

2Press M/m to select or ,

then press (ENTER).

3Press M/m to select the desired option,

then press (ENTER).

Repeat or shuffle play starts.

Press (VISUAL SETUP) to hide the play mode

menu.

Note

The selected play mode is canceled when the disc

being played is ejected.

Direct search play

You can directly locate a desired point by

specifying the title number, chapter number, etc.

1During playback, press the number

buttons to enter an item (track, title,

etc.) number, then press (ENTER).

Playback starts from the beginning of the

selected point.

Setting from the play mode menu

Search items differs depending on the disc/

format as follows.

*Available only when playing VCD without PBC

function.

ZXZPL

M/m

ENTER

VISUAL

SETUP

PLAY

DVDVIDEO

12(67)

018(034)

T 1:35:55

OFF

CHAPTER

TITLE

OFF

ZXZPL

M/m

ENTER

CLEAR VISUAL

SETUP

Number

buttons

Disc/Format Items

TITLE

Starts playing from a selected

title.

CHAPTER

Starts playing from a selected

chapter.

TIME

Starts playing from the point

determined by the input time

code.

*

TRACK

Starts playing from a selected

track.

ALBUM

Starts playing from a selected

album.


Starts playing from a selected

image.

ALBUM

Starts playing from a selected

album (folder).

FILE

Starts playing from a selected

file.

31

1During playback, press

(VISUAL SETUP).

The play mode menu appears.

2Press M/m to select the desired item,

then press (ENTER).

The number in parentheses indicates the total

number of selected item.

3Press the number buttons to enter an

item number or time code.

For example, to locate 2 hours, 10 minutes,

and 20 seconds, just enter “21020.”

To clear numbers already input, press

(CLEAR).

4Press (ENTER).

Playback starts from the selected point.

Press (VISUAL SETUP) to hide the play mode

menu.

Enjoying karaoke

You can connect a microphone (not supplied) to

the unit, and enjoy karaoke (singing along with a

disc) by setting the unit to karaoke mode.

The karaoke mode options and switching order

are indicated below.

MIC ON: Activates the microphone and echo

effects.

MIC ON+VC: Activates the microphone and

cancels the vocal sound.

MIC OFF: Cancels the karaoke mode.

Before starting, connect a microphone to the

MIC input jack of the unit.

1During playback, press m repeatedly

until the desired option appears.

The karaoke mode is activated.

When playback is stopped, the MIC input is

deactivated.

Notes

•Some karaoke DVDs/VCDs/CDs may have the

instruments on one channel and vocals on the other

channel, and may ask you to select a channel (Left,

Right, or Stereo). In this case, set to “MIC ON” and

press (AUDIO) repeatedly to set the channel.

•Some karaoke DVDs/VCDs/CDs may have a control

menu where you can cancel vocal sound, etc. In this

case, follow the instructions of the disc.

•While the karaoke mode is activated, the settings of

EQ7 (page 37) and HPF (page 44) are deactivated.

•Discs in DTS format are not supported. The sound is

not output if the DTS format is selected.

Adjusting the microphone volume

1While the karaoke mode is activated, press

(SOUND) repeatedly until “MIC VOL”

appears on the main unit.

2Press </, to adjust the volume level.

The volume level is adjustable in single steps,

between 0 and 20.

After 3 seconds, the setting is complete and

the display returns to normal play mode.

Adjusting the echo

1While the karaoke mode is activated, press

(SOUND) repeatedly until “MIC ECHO”

appears on the main unit.

2Press </, to adjust the echo level.

The echo level is adjustable in single steps,

between 1 and 6.

After 3 seconds, the setting is complete and

the display returns to normal play mode.

To cancel the echo, select “MIC ECHO OFF” in

step 2.

PLAY

DVDVIDEO

- - (67)

018(034)

T 1:35:55

ZXZ

SOUND m

</,

continue to next page t

32

With the main unit

Press the volume control dial instead of (SOUND),

rotate the volume control dial instead of pressing </

,.

Listing up tracks/images/video

files — LIST

Selecting a track/image/video file

You can list up albums/folders/tracks/images/

video files on the monitor, and select a desired

one to play.

This function is convenient especially for the

disc in MP3/WMA/JPEG/DivX format

containing many albums/tracks, etc.

1During playback, press (LIST/PTY).

The list of tracks/images/video files in the

current disc/album*/folder* appears.

If you want to move to the upper level, press

M to select the folder icon at the top of the

list, then press (ENTER).*

*Only when playing MP3/WMA/JPEG/DivX.

2Press M/m to select the desired track/

image/video file, then press (ENTER).

Playback of the selected track/image/video

file starts.

Note

The discs in the CD changer (if connected) cannot be

listed up.

With the main unit

Rotate the volume control dial instead of pressing M/

m.

Selecting a file type

If the disc contains multiple file types, only the

selected file type (audio/video/image) can be

played. The playback priority order of file type is

initially set to audio, video, then image (e.g., if

the disc contains video files and image files, only

video files are played). You can select the file

type to list up, then select the desired file to play.

1During playback, press (LIST/PTY).

2Press M/m to select the file type to list

up, then press (ENTER).

To list up MP3 and WMA files, select “LIST

UP AUDIO FILES.”

To list up DivX files, select “LIST UP

VIDEO FILES.”

To list up JPEG files, select “LIST UP

IMAGE FILES.”

3Press M/m to select the desired file,

then press (ENTER).

Playback of the selected file starts.

With the main unit

Rotate the volume control dial instead of pressing M/

m.

Viewing audio disc information

During audio playback, you can check the disc

information on the monitor.

E.g., when playing an MP3

ATrack number or track name

Disc name/Album name

Artist name

BFormat

CPlayback status (N, X, etc.)

ZXZPL

M/m

LIST/PTY ENTER

TRACK NAME

ALBUM NAME

ARTIST NAME

MP3

0003/1000 ST

003:17 SHUF

LIST UP VIDEO FILES

LIST UP IMAGE FILES

. . .

01 TRACK 01

02 TRACK 02

03 TRACK 03

04 TRACK 04

05 TRACK 05

06 TRACK 06

TRACK NAME

ALBUM NAME

ARTIST NAME

MP3

0003/1000 ST

003:17 SHUF

To list up, press .

LIST

B

E

H

CD

FG

A

33

DCurrent audio channel

When playing CD/MP3/WMA, the audio

channel can be changed. For details, see

“Changing the audio channel” on page 25.

ETrack number/Total

FElapsed playback time

GCurrent play mode

HOperation assist messages

Tip

You can select a track to play using a list (page 32).

Configuring playback settings

for Super Audio CD

Selecting a playback layer

Some Super Audio CD consists of 2 layers:

Super Audio CD layer and CD layer, and Super

Audio CD layer consists of 2 areas: 2-channel

area and multi-channel area.

ACD layer

A layer that is readable by a conventional CD

player.

BSuper Audio CD layer

A high density signal layer.

C2-channel area

An area in which 2-channel stereo tracks are

recorded.

DMulti-channel area*

An area in which multi-channel (up to 5.1

channels) tracks are recorded.

*Cannot play this area on this unit.

If the disc contains different content on its layers,

you can select a layer (to compare sound quality,

for example).

The setting is configurable both from the visual

setup menu (page 38) and the system setup menu

(page 42).

The options for “SUPER AUDIO CD LAYER”

(visual setup) and “DISC.LAYER” (system

setup) are indicated below.

2CH: Plays 2-channel (stereo) area in the Super

Audio CD layer.

CD: Plays the CD layer.

By the visual setup menu

1Press (VISUAL SETUP) while the unit is

off.

The visual setup menu appears.

2Press M/m to select (AUDIO

SETUP), then press (ENTER).

The audio setup items appear.

3Press M/m to select “SUPER AUDIO

CD LAYER,” then press (ENTER).

The options appear.

4Press M/m to select “2CH” or “CD,”

then press (ENTER).

The setting is complete.

To return to the previous display, press O.

To hide the visual setup menu, press

(VISUAL SETUP).

By the system setup menu

1Press (SYSTEM SETUP) while the unit is

off.

The system setup item appears.

2Press M/m to select “DISC.LAYER,”

then press (ENTER).

The option appears.

3Press M/m to select “2CH” or “CD,”

then press (ENTER).

The setting is complete.

ZXZPL

M/m

ENTER

SYSTEM

SETUP

VISUAL

SETUP

O

BD

C

A

continue to next page t

AUDIO SETUP

SUPER AUDIO CD MODE:

SUPER AUDIO CD LAYER :

AUDIO DRC :

HQ

2CH

2CH

CD

34

To hide the system setup display, press

(SYSTEM SETUP).

Note

For Super Audio CDs consisting of only a Super Audio

CD layer, that layer is played regardless of setting.

Tip

The setting in visual setup will switch the setting in

system setup automatically, and vice versa.

Selecting the sound quality

This unit allows you to change the sound quality

of Super Audio CD playback by switching the

sampling frequency.

The setting is configurable both from the visual

setup menu (page 38) and the system setup menu

(page 42).

The options for “SUPER AUDIO CD MODE”

(visual setup) and “SA-CD MOD” (system

setup) are indicated below.

HQ: Outputs at 176.4 kHz (high sound quality).

STD: Outputs at 44.1 kHz (standard CD sound

quality).

By the visual setup menu

The setting procedure is the same as for setting

the playback layer (page 33).

Press (VISUAL SETUP), then select “AUDIO

SETUP” c “SUPER AUDIO CD MODE” c

“HQ” or “STD.”

By the system setup menu

The setting procedure is the same as for setting

the playback layer (page 33).

Press (SYSTEM SETUP), then select “SA-CD

MOD” c “HQ” or “STD.”

Note

When set to “HQ,” EQ7 (page 37) and HPF (page 44)

settings are deactivated. To activate, set to “STD.”

Tip

The setting in visual setup will switch the setting in

system setup automatically, and vice versa.

Advanced Operations — Radio

Storing and receiving stations

Caution

When tuning in stations while driving, use Best

Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1Press (SRC) repeatedly until “TUNER”

appears on the main unit.

To change the band, press (MODE)

repeatedly. You can select from FM1, FM2,

FM3, MW or LW.

2Press (SYSTEM SETUP).

The system setup item appears.

3Press M/m to select “BTM,” then press

(ENTER).

The unit stores stations in order of frequency

on the number buttons ((1) to (6)).

A beep sounds when the setting is stored.

With the main unit

Press (SOURCE) instead of (SRC), rotate the volume

control dial instead of pressing M/m.

Storing manually

1While receiving the station that you

want to store, press and hold a

number button ((1) to (6)) until

“MEM” appears on the main unit.

The number button indication appears on the

main unit.

Note

If you try to store another station on the same number

button, the previously stored station will be replaced.

Tip

When an RDS station is stored, the AF/TA setting is

also stored (page 35).

ZXZPL

M/m

ENTER

MODE

SYSTEM

SETUP

SRC

Number

buttons

35

Receiving stored stations

1Select the band, then press a number

button ((1) to (6)).

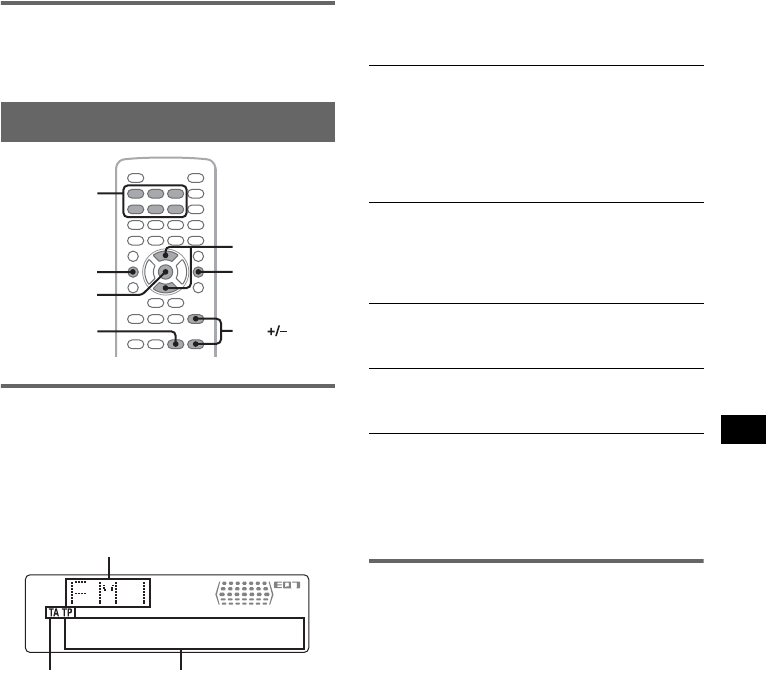

RDS

Overview

FM stations with Radio Data System (RDS)

service send inaudible digital information along

with the regular radio program signal.

Display items

ARadio band, Function

BTA/TP *1

CFrequency*2 (Program service name), Preset

number, Clock, RDS data

*1 “TA” flashes during traffic information. “TP” lights

up while such a station is received.

*2 While receiving the RDS station, “ *” is displayed

on the left of the frequency indication.

To change display items C, press (DSPL).

RDS services

This unit automatically provides RDS services as

follows:

Notes

•Depending on the country/region, not all RDS

functions may be available.

•RDS will not work if the signal strength is too weak,

or if the station you are tuned to is not transmitting

RDS data.

Setting AF and TA

The AF/TA settings and switching order are

indicated below.

AF ON: Activates AF and deactivates TA.

TA ON: Activates TA and deactivates AF.

AF, TA ON: Activates both AF and TA.

AF, TA OFF: Deactivates both AF and TA.

1Press (AF/TA) repeatedly until the

desired setting appears.

Storing RDS stations with the AF and

TA setting

You can preset RDS stations along with the AF/

TA setting. If you use the BTM function, only

RDS stations are stored with the same AF/TA

setting.

If you preset manually, you can preset both RDS

and non-RDS stations with the AF/TA setting for

each.

1Set AF/TA, then store the station with BTM or

manually.

ZXZPL

VOL

AF/TA

ENTER

DSPL

M/m

LIST/PTY

Number

buttons

BC

A

AF (Alternative Frequencies)

Selects and retunes the station with the

strongest signal in a network. By using this

function, you can continuously listen to the

same program during a long-distance drive

without having to retune the same station

manually.

TA (Traffic Announcement)/TP (Traffic

Program)

Provides current traffic information/programs.

Any information/program received, will

interrupt the currently selected source.

PTY (Program Types)

Displays the currently received program type.

Also searches your selected program type.

CT (Clock Time)

The CT data from the RDS transmission sets

the clock.

continue to next page t

36

Presetting the volume of traffic

announcements

You can preset the volume level of the traffic

announcements so as to not miss hearing them.

1Press (VOL) +/– repeatedly to adjust the

volume level.

2Press and hold (AF/TA) until “TA” appears.

With the main unit

Rotate the volume control dial instead of pressing

(VOL) +/–.

Receiving emergency

announcements

With AF or TA on, the emergency

announcements will automatically interrupt the

currently selected source.

Staying with one regional program

— REG

When the AF function is on: this unit’s factory

setting restricts reception to a specific region, so

you will not be switched to another regional

station with a stronger frequency.

If you leave this regional program’s reception

area, set “REG OFF” in system setup during FM

reception (page 44).

Note

This function does not work in the UK and in some

other areas.

Local Link function (UK only)

This function enables you to select other local

stations in the area, even if they are not stored on

your number buttons.

1During FM reception, press a number button

((1) to (6)) on which a local station is stored.

2Within 5 seconds, press again a number button

of the local station.

Repeat this procedure until the local station is

received.

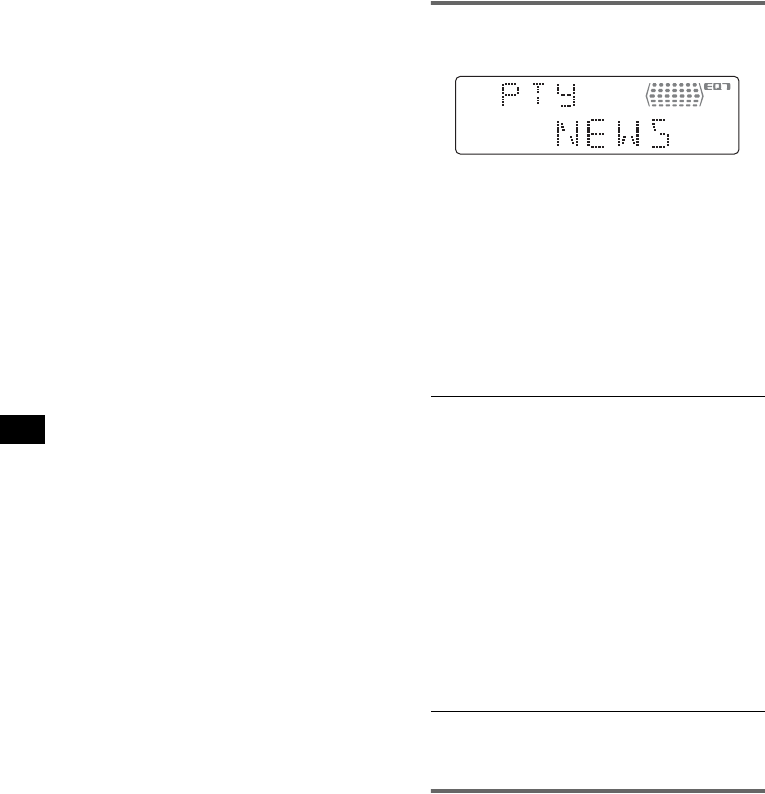

Selecting PTY

1Press (LIST/PTY) during FM reception.

The current program type name appears if the

station is transmitting PTY data.

2Press M/m to select the program type.

3Press (ENTER).

The unit searches for a station broadcasting

the selected program type.

With the main unit

Rotate the volume control dial instead of pressing M/

m, press the volume control dial instead of (ENTER).

Type of programs

Note

You cannot use this function in countries/regions

where no PTY data is available.

Setting CT

1Set “CT ON” in system setup

(page 43).

Notes

•The CT function may not work even though an RDS

station is being received.

•There might be a difference between the time set by

the CT function and the actual time.

NEWS (News), AFFAIRS (Current Affairs),

INFO (Information), SPORT (Sports),

EDUCATE (Education), DRAMA (Drama),

CULTURE (Culture), SCIENCE (Science),

VARIED (Varied), POP M (Popular Music),

ROCK M (Rock Music), EASY M (Easy

Listening), LIGHT M (Light Classical),

CLASSICS (Classical), OTHER M (Other

Music Type), WEATHER (Weather),

FINANCE (Finance), CHILDREN (Children’s

Programs), SOCIAL A (Social Affairs),

RELIGION (Religion), PHONE IN (Phone In),

TRAVEL (Travel), LEISURE (Leisure), JAZZ

(Jazz Music), COUNTRY (Country Music),

NATION M (National Music), OLDIES (Oldies

Music), FOLK M (Folk Music), DOCUMENT

(Documentary)

37

Sound Adjustment

Adjusting the sound

characteristics

You can adjust the sound characteristics

according to your preference.

The setting items in the sound menu and

switching order are indicated below.

BAL (Balance): Adjusts the sound balance

between the left and right speakers.

FAD (Fader): Adjusts the relative level between

the front and rear speakers.

EQ7: Selects an equalizer curve from 7 music

types.

1During playback/reception, press

(SOUND) repeatedly until the desired

setting item appears on the main unit.

2Press </, to adjust the level or

select the desired option.

After 3 seconds, the setting is complete and

the display returns to normal play/reception

mode.

With the main unit

Press the volume control dial instead of (SOUND),

rotate the volume control dial instead of pressing </

,.

Customizing the equalizer curve

— EQ7 Tune

“CUSTOM” of EQ7 allows you to make your

own equalizer settings. You can adjust the level

of 7 different bands: 62 Hz, 157 Hz, 396 Hz,

1 kHz, 2.5 kHz, 6.3 kHz, and 16 kHz.

1During playback/reception, press

(SYSTEM SETUP).

The system setup item appears on the main

unit.

2Press M/m to select “EQ7 TUNE,” then

press (ENTER).

3Press M/m to select “CUSTOM,” then

press (ENTER).

4Adjust the level of each frequency.

To adjust the level, press M/m.

The level is adjustable in single steps,

between –8 and +8.

To switch the frequency, press </,.

To restore the factory-set equalizer curve,

press and hold (ENTER).

5Press (ENTER).

The setting is complete and the display

returns to normal play/reception mode.

Note

EQ7 is not selectable in karaoke mode, or when

“SUPER AUDIO CD MODE” in visual setup (page 41)/

“SA-CD MOD” in system setup (page 44) is set to

“HQ.”

Tip

Other equalizer types are also adjustable.

With the main unit

Rotate the volume control dial instead of pressing M/

m, press the volume control dial instead of </, or

(ENTER).

ZXZPL

</,

SOUND

ZXZPL

</M/m/,

ENTER

SYSTEM

SETUP

38

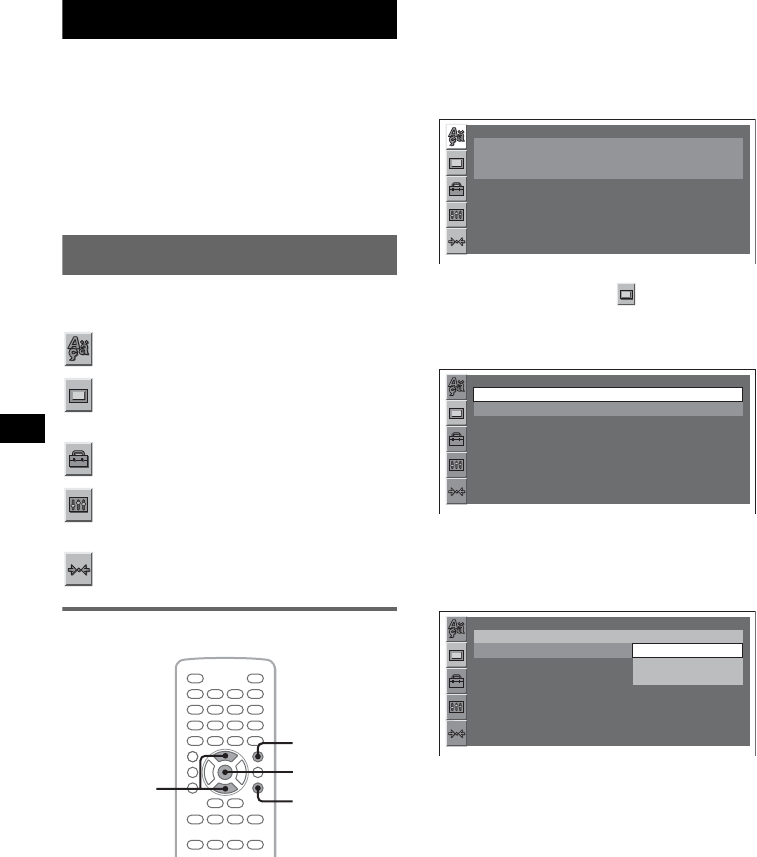

Settings

Various settings are configurable from the

following two setup menus.

•Visual setup menu (page 38)

Allows configuration of visual-related items

(by the monitor).

•System setup menu (page 42)

Allows configuration of system-related items

(by the main unit).

Visual setup

The visual setup menu includes the following

categories.

LANGUAGE SETUP (page 39)

Sets the menu, subtitle language, etc.

DISPLAY SETUP (page 39)

Adjusts the settings of the connected

monitor.

CUSTOM SETUP (page 40)

Customizes the playback of discs.

AUDIO SETUP (page 41)

Adjusts the sound settings according to the

disc.

RESET (page 41)

Resets all setting items.

Basic operation of visual setup

You can set items in the menu by the following

procedure.

E.g., when setting the aspect ratio to “4:3 PAN

SCAN.”

1Press (VISUAL SETUP) while the unit is

off.

The visual setup menu appears.

2Press M/m to select (DISPLAY

SETUP), then press (ENTER).

The display setup items appear.

3Press M/m to select “MONITOR TYPE,”

then press (ENTER).

The options appear.

4Press M/m to select “4:3 PAN SCAN,”

then press (ENTER).

The setting is complete.

To return to the previous display, press O.

To hide the visual setup menu, press

(VISUAL SETUP).

ZXZPL

M/m

ENTER

VISUAL

SETUP

O

LANGUAGE SETUP

MENU :

AUDIO :

SUBTITLE :

ENGLISH

ENGLISH

ENGLISH

DISPLAY SETUP

MONITOR TYPE :

WALLPAPER :

16:9

WALLPAPER 1

DISPLAY SETUP

MONITOR TYPE :

WALLPAPER :

16:9

16:9

4:3 LETTER BOX

4:3 PAN SCAN

39

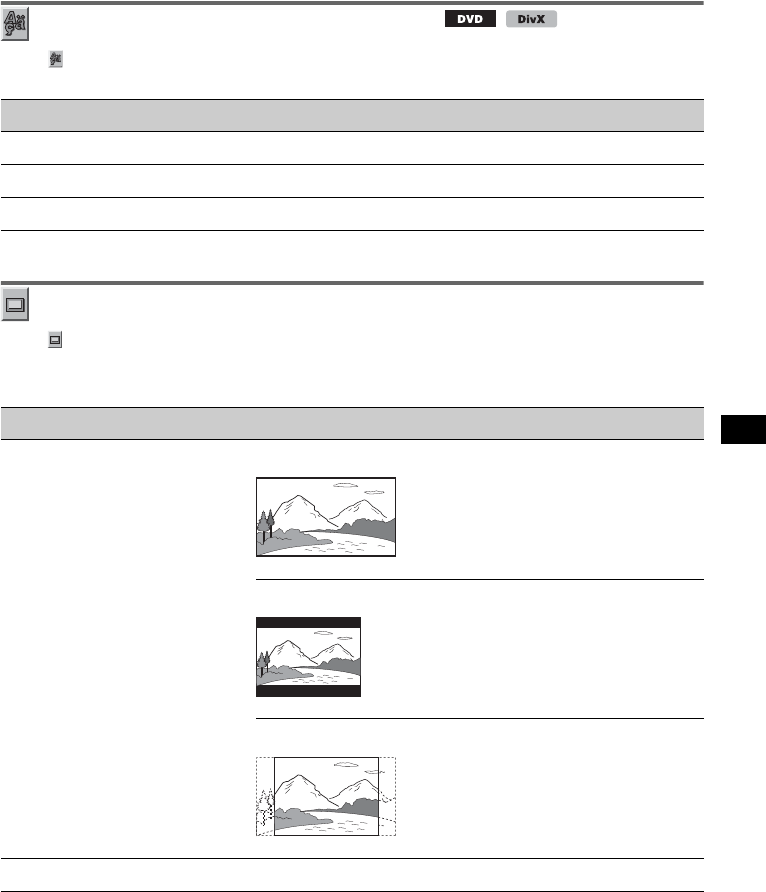

Language setup for display or soundtrack

Select (LANGUAGE SETUP), then select the desired item and option below, using M/m and

(ENTER). For details on this procedure, see “Basic operation of visual setup” on page 38.

Display setup

Select (DISPLAY SETUP), then select the desired item and option below, using M/m and (ENTER).

For details on this procedure, see “Basic operation of visual setup” on page 38.

“z” indicates the default setting.

Note

Depending on the disc, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN,” and vice

versa.

Item Purpose

MENU To change the disc’s menu language.

AUDIO To change the soundtrack language.

SUBTITLE To change the subtitle language recorded on the disc.

Item Option Purpose

MONITOR TYPE

Selects an aspect ratio suitable for

the connected monitor.

16:9 (z)To display the wide picture.

Suitable when connecting to a

wide-screen monitor or a monitor

with a wide mode function.

4:3 LETTER BOX To display a wide picture with

bands on the upper and lower

positions of the screen.

Suitable when connecting to a 4:3

screen monitor.

4:3 PAN SCAN To display a wide picture on the

entire screen and automatically cut

off the portions that do not fit.

WALLPAPER WALLPAPER 1 (z), 2, 3 To select the design of wallpaper.

40

Custom setup

Select (CUSTOM SETUP), then select the desired item and option below, using M/m and

(ENTER). For details on this procedure, see “Basic operation of visual setup” on page 38.

Follow the page reference for details. “z” indicates the default setting.

*1 Excluding DVD-R/DVD-R DL/DVD-RW in VR mode.

*2 DVD VIDEO only.

Note

If parental control is applied, the resume playback will not work. In this case, playback starts from the beginning of

the disc when it is inserted.

Item Option Purpose

PARENTAL CONTROL

(page 28) *1

Sets the playback restrictions to

not play inappropriate discs or

scenes.

OFF t (z)To deactivate parental control.

ON tTo activate parental control.

PLAYER tTo set the restriction standard and

its level.

PASSWORD tTo set a new 4-digit password.

DivX VOD

Displays the registration code for

this unit. For more information,

visit the website below:

http://www.divx.com/vod

Done To close the display.

SLIDE SHOW TIME 5 sec. (z), 10 sec.,

20 sec., 40 sec., 60 sec.

To select the slide show interval.

FIXED To deactivate the slide show.

MULTI-DISC RESUME

*2

ON (z)To store the resume settings in

memory for up to 5 discs. (The

settings remain in memory even if

you set to “OFF.”)

OFF To not store the resume settings in

memory.

Resume playback is available only

for the current disc in the unit.

PLAY LIST PLAY

(For DVD-R/DVD-R DL/DVD-RW

in VR mode only)

ORIGINAL (z)To play originally recorded titles.

PLAY LIST To play edited play list.

PICTURE EQ (page 27)

Selects the setting option to show

in the play mode menu.

AUTO (z)To switch the night time/day time

use options automatically according

to the dimmer setting in system

setup (page 43).

LIGHT OFF To show the day time use options.

LIGHT ON To show the night time use options.

41

Audio setup

Select (AUDIO SETUP), then select the desired item and option below, using M/m and (ENTER).

For details on this procedure, see “Basic operation of visual setup” on page 38.

Follow the page reference for details. “z” indicates the default setting.

*Excluding DVD-R/DVD-R DL/DVD-RW in VR mode.

Resetting all settings

All settings (excluding parental control setting) in visual setup can be reset.

Select (RESET), then “YES” using M/m and (ENTER).

For details on this procedure, see “Basic operation of visual setup” on page 38.

Note

Do not power off the unit while resetting, as it takes a few seconds to complete.

Item Option Purpose

SUPER AUDIO CD MODE

(page 34)

Selects the sound quality for Super

Audio CD playback.

HQ (z)To have high sound quality.

STD To have standard sound quality.

SUPER AUDIO CD LAYER

(page 33)

Selects the playback layer (area) of

a Super Audio CD.

2CH (z)To play 2-channel (stereo) area in

the Super Audio CD layer.

CD To play CD layer (if contained).

AUDIO DRC *

Makes the sound clear when the

volume is low. Only for a DVD

conforming to Audio DRC

(Dynamic Range Control).

STANDARD (z)To select the standard setting.

WIDE RANGE To obtain the feeling of being at a

live performance.

42

System setup

The system setup menu includes the following

categories.

•SET: General settings (page 43)

•DSPL: Display settings (page 43)

•R/M: Receive mode settings (page 44)

•SOUND: Sound settings (page 44)

Basic operation of system setup

You can set items in the menu by the following

procedure.

E.g., when setting the demonstration

1Press (SYSTEM SETUP) while the unit is

off.

The system setup item appears on the main

unit.

2Press M/m to select “DEMO,” then

press (ENTER).

The option appears.

3Press M/m to select “ON” or “OFF,”

then (ENTER).

The setting is complete.

To hide the system setup display, press

(SYSTEM SETUP).

With the main unit

Use the volume control dial to select items/options and

confirm.

ZXZPL

M/m

ENTER

SYSTEM

SETUP

43

Follow the page reference for details. “z” indicates the default setting.

SET (Setup)

DSPL (Display)

Item Option Purpose Unit status

CLOCK ADJ (Clock Adjust)

(page 45)

––

Any status.

CT (Clock Time) (page 35, 36) ON To activate the CT function.

OFF (z)To deactivate the CT

function.

BEEP ON (z)To activate the operation

sound.

OFF To deactivate the operation

sound.

RM (Rotary Commander)

Changes the operative

direction of the rotary

commander controls.

NORM (z)To use in the factory-set

position.

REV To use on the right side of

the steering column.

A.OFF (Auto Off)

Shuts off automatically after a

desired time when the unit is

off.

NO (z)To deactivate the Auto Off

function.

30S, 30M, 60M To select the desired time.

Item Option Purpose Unit status

M.DSPL (Motion Display)

Selects the Motion Display

mode.

SA (z)To show moving patterns

and spectrum analyzer.

During playback/

radio reception.

ON To show moving patterns.

OFF To deactivate the Motion

Display.

DEMO (Demonstration) ON (z)To activate the

demonstration.

Unit off.

OFF To deactivate the

demonstration.

DIM (Dimmer)

Changes the display

brightness.

ON To dim the display.

Any status.

OFF (z)To deactivate the dimmer.

A.SCRL (Auto Scroll)

Scrolls long items

automatically.

ON (z)To scroll.

During playback.

OFF To not scroll.

continue to next page t

44

R/M (Receive mode)

SOUND

*Unavailable during karaoke mode or when “SA-CD MOD” is set to “HQ.”

Item Option Purpose Unit status

LOCAL (Local Seek Mode) ON To only tune into stations

with stronger signals. During radio

reception.

OFF (z)To tune normal reception.

MONO (Monaural Mode)

Selects monaural reception

mode to improve poor FM

reception.

ON To hear stereo broadcast in

monaural.

During FM

reception.

OFF (z)To hear stereo broadcast in

stereo.

REG (Regional) (page 36) ON (z)To stay with one regional

program.

OFF To deactivate when leaving

the program’s reception

area.

BTM (Best Tuning Memory)

(page 34)

––During radio

reception.

Item Option Purpose Unit status

EQ7 TUNE (page 37) ––

During

playback*/

radio reception.

HPF (High Pass Filter)

Selects the front/rear speaker

cut-off frequency.

OFF (z)To not cut out the

frequency.

80HZ, 120HZ To select the frequency.

AUX-LVL (AUX Level)

(page 46)

(–6 ~ +18 dB)

z: 0 To select the level. During AUX

playback.

DVD-LVL (DVD Level)

(page 26)

(–10 ~ +10 dB)

z: ADJST OFF

To select the level. During disc

playback.

DISC.LAYER (page 33)

Selects the playback layer

(area) of a Super Audio CD.

2CH (z)To play 2-channel (stereo)

area in the Super Audio CD

layer.

Unit off.

CD To play CD playback layer

(if contained).

SA-CD MOD (page 34)

Selects the sound quality for

Super Audio CD playback.

HQ (z)To have high sound quality.

STD To have standard sound

quality.

45

Setting the clock

The clock uses a 24-hour indication.

1Press (SYSTEM SETUP).

The system setup item appears on the main

unit.

2Press M/m to select “CLOCK ADJ,”

then press (ENTER).

The hour indication flashes.

3Press M/m to set the hour and minute.

To move the digital indication, press </,.

4Press (ENTER).

The setting is complete.

To show the clock during playback, press

(DSPL) repeatedly until it appears.

With the main unit

Rotate the volume control dial instead of pressing M/

m, press the volume control dial instead of </, or

(ENTER).

Using Optional Equipment

Auxiliary equipment

You can connect auxiliary devices to the unit,

and listen on your car speakers.

Up to 2 devices can be connected, one to the

AUX input jack (stereo mini jack) on the front,

and the other to the BUS AUDIO IN/AUX

AUDIO IN terminals* on the rear. The volume

level is adjustable for any difference between the

unit and the auxiliary device.

*Unavailable when another optional device is

connected to the BUS CONTROL IN terminal. To

connect both an auxiliary device and optional

device, use the optional AUX-IN selector.

Connecting an auxiliary device

1Turn off the auxiliary device.

2Turn down the volume on the unit.

3Connect to the unit.

On the front

Connect to the AUX input jack.

*Be sure to use a straight type plug.

On the rear

Connect to the BUS AUDIO IN/AUX AUDIO

IN terminals.

ZXZPL

DSPL

SYSTEM

SETUP

</M/m/,

ENTER

continue to next page t

ZXZ

M/m

ENTER

SYSTEM

SETUP

MODE

SRC

AUX

AUX

Connecting cord*

(not supplied)

46

Selecting an auxiliary device

1Press (SRC) repeatedly until “AUX” appears

on the main unit.

2Press (MODE) to select “FRONT-IN” or

“REAR-IN.”

Operate by the auxiliary device itself.

Adjusting the volume level

Be sure to adjust the volume of each connected

device before playback.

1Turn down the volume on the unit.

2Press (SRC) repeatedly until “AUX” appears

on the main unit.

If two auxiliary devices are connected, select

the device to adjust its volume by pressing

(MODE).

3Start playback of the auxiliary device at a

moderate volume.

4Set your usual listening volume on the unit.

5Press (SYSTEM SETUP).

6Press M/m to select “AUX-LVL,” then press

(ENTER).

7Press M/m to adjust the input level.

The input level is adjustable in single steps,

between –6 and +18.

8Press (ENTER).

The setting is complete.

With the main unit

Press (SOURCE) instead of (SRC), rotate the volume

control dial instead of pressing M/m.

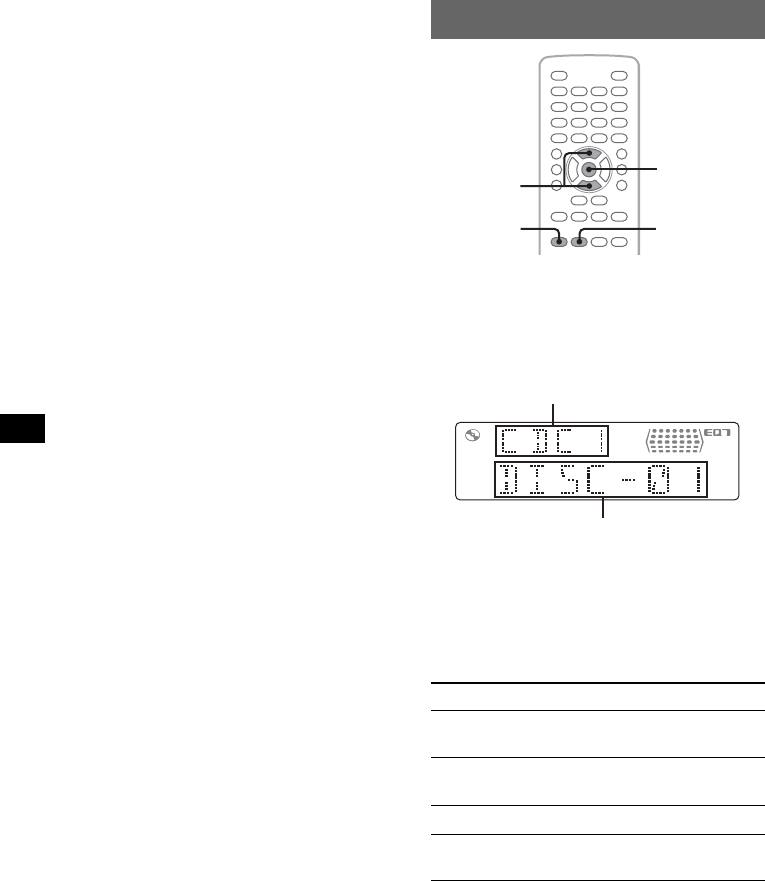

CD changer

Selecting the changer

1Press (SRC) repeatedly until “CDC” appears.

2Press (MODE) repeatedly until the desired

changer appears.

Playback starts.

With the main unit

Press (SOURCE) instead of (SRC).

Skipping albums and discs

1During playback, press M/m.

With the main unit

Use (3)/(4) (ALBUM –/+) instead of M/m.

To skip Press M/m

album and release (hold for a

moment).

album

continuously

within 2 seconds of first

releasing.

discs repeatedly.

discs

continuously

then, press again within 2

seconds and hold.

ZXZPL

M/m

ENTER

MODE

SRC

Disc number

Unit number

47

Repeat and shuffle play

1During playback, press (1) (REP) or (2)

(SHUF) on the main unit repeatedly until the

desired setting appears.

*When one or more CD changers are connected.

To return to normal play mode, select “REP

OFF” or “SHUF OFF.”

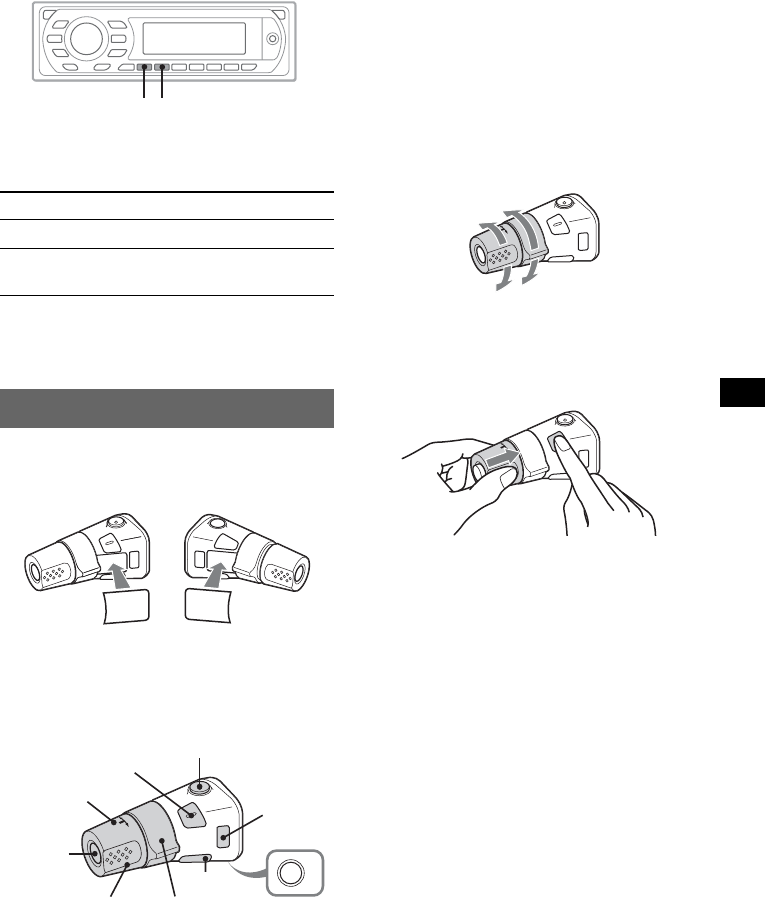

Rotary commander RM-X4S

Attaching the label

Attach the indication label depending on how

you mount the rotary commander.

Location of controls

The corresponding buttons on the rotary

commander control the same functions as those

on the card remote commander or the main unit.

The following controls on the rotary commander

require a different operation from the unit.

•PRESET/DISC control

The same as M/m on the card remote

commander or (3)/(4) (ALBUM –/+) on the

main unit (push in and rotate).

•VOL (volume) control

The same as (VOL) +/– on the card remote

commander or the volume control dial on the

main unit (rotate).

•SEEK/AMS control

The same as .m/M> on the card

remote commander or (SEEK) –/+ on the main

unit (rotate, or rotate and hold).

Changing the operative direction

The operative direction of the controls is factory-

set as shown below.

If you need to mount the rotary commander on

the right hand side of the steering column, you

can reverse the operative direction.

1While pushing the VOL control, press and

hold (SOUND).

Select To play

REP DISC* disc repeatedly.

SHUF

CHANGER*

tracks in the changer in random

order.

SHUFREP

SOUND

DSPL

MODE

SOUND

DSPL

MODE

OFF

ATT

SOUND

SOURCE

DSPL

MODE

OFF

VOL SEEK/AMS

PRESET/

DISC

To increase

To decrease

48

Additional Information

Precautions

• If your car has been parked in direct sunlight,

allow the unit to cool off before operating it.

• Power antenna (aerial) will extend automatically

while the unit is operating.

Moisture condensation

On a rainy day or in a very damp area, moisture

condensation may occur inside the lenses and

display of the unit. Should this occur, the unit will

not operate properly. In such a case, remove the disc

and wait for about an hour until the moisture has

evaporated.

To maintain high sound quality

Be careful not to splash juice or other soft drinks

onto the unit or discs.

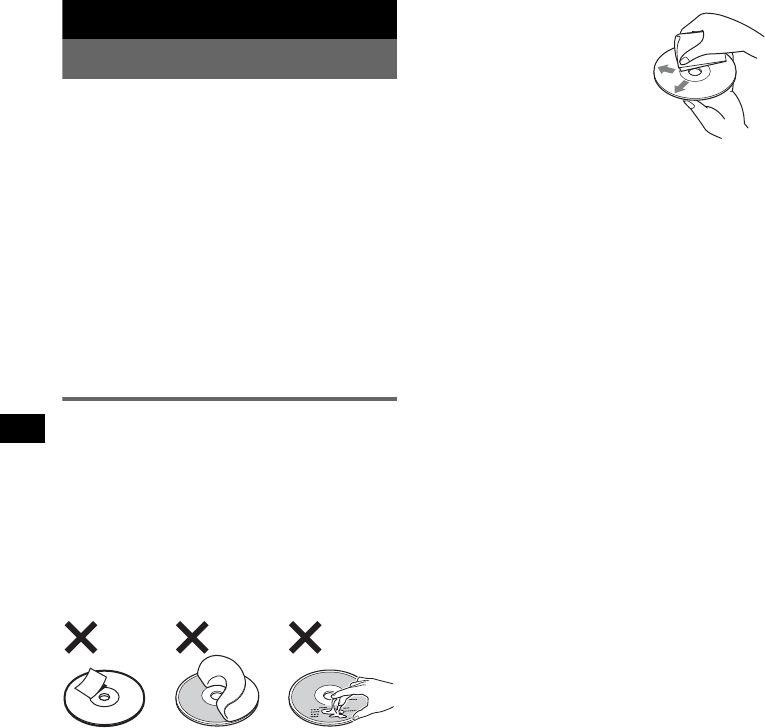

Notes on discs

• To keep a disc clean, do not touch its surface.

Handle the disc by its edge.

• Keep your discs in their cases or disc magazines

when not in use.

• Do not subject discs to heat/high temperature.

Avoid leaving them in a parked car or on a

dashboard/rear tray.

• Do not attach labels, or use discs with sticky ink/

residue. Such discs may stop spinning when used,

causing a malfunction, or may ruin the disc.

• Do not use any discs with labels or stickers

attached.

The following malfunctions may result from using

such discs:

– Inability to eject a disc (due to a label or sticker

peeling off and jamming the eject mechanism).

– Inability to read audio data correctly (e.g.,

playback skipping, or no playback) due to heat

shrinking of a sticker or label causing a disc to

warp.

• Discs with non-standard shapes (e.g., heart,

square, star) cannot be played on this unit.

Attempting to do so may damage the unit. Do not

use such discs.

• Before playing, clean the discs

with a commercially available

cleaning cloth. Wipe each disc

from the center out. Do not use

solvents such as benzine,

thinner, commercially available

cleaners, or antistatic spray

intended for analog discs.

Note on playback operations of DVDs

and VCDs

Some playback operations of DVDs and VCDs may

be intentionally set by software producers. Since

this unit plays DVDs and VCDs according to the

disc contents the software producers designed, some

playback features may not be available. Also, refer

to the instructions supplied with the DVDs or

VCDs.

Notes on DATA CDs and DATA DVDs

• Some DATA CDs/DATA DVDs (depending on the

equipment used for its recording, or the disc

condition) may not play on this unit.

• Finalization is required for some discs (page 48).

• The unit is compatible with the following

standards.

For DATA CDs

– ISO 9660 level 1/level 2 format, Joliet/Romeo in

the expansion format

– Multi Session

For DATA DVDs

– UDF Bridge format (combined UDF and ISO

9660)

–Multi Border

• The maximum number of:

– folders (albums): 256 (including root and empty

folders).

– files (tracks/images/videos) and folders

contained in a disc: 2,000 (if a folder/file names

contain many characters, this number may

become less than 2,000).

– displayable characters for a folder/file name: 64

(Joliet/Romeo).

Notes on finalizing discs

The following discs are required to be finalized to

play on this unit.

• DVD-R/DVD-R DL (in video mode/VR mode)

• DVD-RW in video mode

• DVD+R/DVD+R DL

•CD-R

•CD-RW

The following discs can be played without

finalization.

• DVD+RW – automatically finalized.

• DVD-RW in VR mode – finalization not required.

For details, see the manual supplied with the disc.

49

Notes on Multi Session CDs/Multi

Border DVDs

This unit can play Multi Session CDs/Multi Border

DVDs under the following conditions. Note that the

session must be closed and the disc must be

finalized.

• When CD-DA (Compact Disc Digital Audio) is

recorded in the first session:

The unit recognizes the disc as CD-DA and only

CD-DA of the first session is played, even if an

other format (e.g., MP3) is recorded in other

sessions.

• When CD-DA is recorded other than in the first

session:

The unit recognizes the disc as a DATA CD or

DATA DVD, and all CD-DA sessions are skipped.

• When an MP3/WMA/JPEG/DivX is recorded:

Only the sessions containing the selected file type

(audio/video/image)* are played (if CD-DA or

other data exists in other sessions, they are

skipped).

*For details on how to select the file type, see

page 32.

Music discs encoded with copyright

protection technologies

This product is designed to play back discs that

conform to the Compact Disc (CD) standard.

Recently, various music discs encoded with

copyright protection technologies are marketed by

some record companies. Please be aware that among

those discs, there are some that do not conform to

the CD standard and may not be playable by this

product.

Playback order of MP3/WMA/JPEG/

DivX® files

About MP3 files

• MP3, which stands for MPEG-1 Audio Layer-3, is

a music file compression format standard. It

compresses audio CD data to approximately 1/10

of its original size.

• ID3 tag versions 1.0, 1.1, 2.2, 2.3 and 2.4 apply to

MP3 only. ID3 tag is 15/30 characters (1.0 and

1.1), or 63/126 characters (2.2, 2.3 and 2.4).

• When naming an MP3 file, be sure to add the file

extension “.mp3” to the file name.

• During playback or fast-forward/reverse of a VBR

(variable bit rate) MP3 file, elapsed playback time

may not display accurately.

Note on MP3

If you play a high-bit-rate MP3, such as 384 kbps,

sound may be intermittent.

About WMA files

• WMA, which stands for Windows Media Audio,

is a music file compression format standard. It

compresses audio CD data to approximately 1/22*

of its original size.

• WMA tag is 63 characters.

• When naming a WMA file, be sure to add the file

extension “.wma” to the file name.

• During playback or fast-forward/reverse of a VBR

(variable bit rate) WMA file, elapsed playback

time may not display accurately.

*only for 64 kbps

Note on WMA

Playback of the following WMA files is not supported.

– lossless compression

– copyright-protected

About JPEG files

• JPEG, which stands for Joint Photographic

Experts Group, is an image file compression

format standard. It compresses still images

approximately 1/10 to 1/100 of original size.

• When naming a JPEG file, be sure to add the file

extension “.jpg” to the file name.

Note on JPEG

Playback of the following JPEG files is not supported.

– lossless compression

– copyright-protected

About DivX® files

DivX®, which stands for Digital Video Express, is a

digital video file compression format standard

developed by DivX, Inc.

Note on DualDiscs

A DualDisc is a two sided disc product which

mates DVD recorded material on one side with

digital audio material on the other side. However,

since the audio material side does not conform to

the Compact Disc (CD) standard, playback on this

product is not guaranteed.

Folder

(album)

MP3/WMA/

JPEG/DivX file

(track/image/

video)

MP3/WMA/

JPEG/DivX

50

Maintenance

Replacing the lithium battery of the

card remote commander

Under normal conditions, the battery will last

approximately 1 year. (The service life may be

shorter, depending on the conditions of use.)

When the battery becomes weak, the range of the

card remote commander becomes shorter. Replace

the battery with a new CR2025 lithium battery. Use

of any other battery may present a risk of fire or

explosion.

Notes on the lithium battery

•Keep the lithium battery out of the reach of children.

Should the battery be swallowed, immediately

consult a doctor.

•Wipe the battery with a dry cloth to assure a good

contact.

•Be sure to observe the correct polarity when

installing the battery.

•Do not hold the battery with metallic tweezers,

otherwise a short-circuit may occur.

Fuse replacement

When replacing the fuse, be

sure to use one matching the

amperage rating stated on the

original fuse. If the fuse blows,

check the power connection and

replace the fuse. If the fuse

blows again after replacement,

there may be an internal

malfunction. In such a case,

consult your nearest Sony

dealer.

Cleaning the connectors

The unit may not function properly if the connectors

between the unit and the front panel are not clean. In

order to prevent this, detach the front panel

(page 15) and clean the connectors with a cotton

swab. Do not apply too much force. Otherwise, the

connectors may be damaged.

Notes

•For safety, turn off the ignition before cleaning the

connectors, and remove the key from the ignition

switch.

•Never touch the connectors directly with your fingers

or with any metal device.

Removing the unit

1Remove the protection collar.

1Detach the front panel (page 15).

2Engage the release keys together with the

protection collar.

3Pull out the release keys to remove the

protection collar.

c

+ side up

WARNING

Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of

in fire.

Fuse (10 A)

Main unit Back of the front

panel

Orient the release

keys as shown.

51

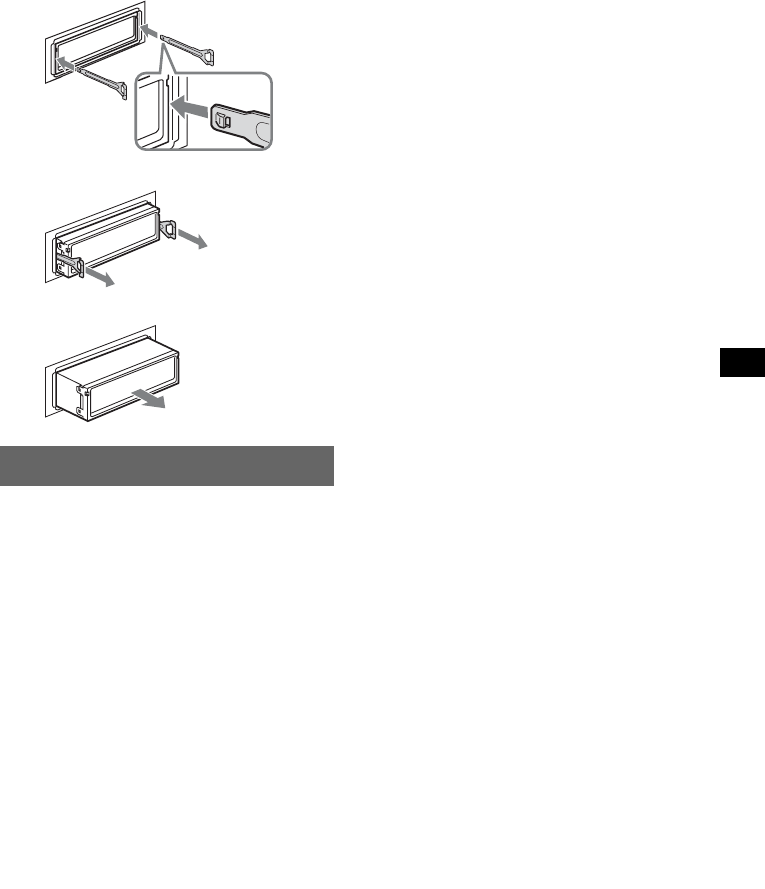

2Remove the unit.

1Insert both release keys simultaneously

until they click.

2Pull the release keys to unseat the unit.

3Slide the unit out of the mounting.

Specifications

System

Laser: Semiconductor laser

Signal format system: PAL

DVD/CD Player section

Signal-to-noise ratio: 120 dB

Frequency response: 10 – 20,000 Hz

Wow and flutter: Below measurable limit

Harmonic distortion: 0.01 %

Tuner section

FM

Tuning range: 87.5 – 108.0 MHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 10.7 MHz/450 kHz

Usable sensitivity: 9 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 67 dB (stereo), 69 dB (mono)

Harmonic distortion at 1 kHz: 0.5 % (stereo),

0.3 % (mono)

Separation: 35 dB at 1 kHz

Frequency response: 30 – 15,000 Hz

MW/LW

Tuning range:

MW: 531 – 1,602 kHz

LW: 153 – 279 kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 10.7 MHz/450 kHz

Sensitivity: MW: 30 µV, LW: 40 µV

Power amplifier section

Outputs: Speaker outputs (sure seal connectors)

Speaker impedance: 4 – 8 ohms

Maximum power output: 52 W × 4 (at 4 ohms)

General

Outputs:

Video output terminal

Rear audio output terminals

Power antenna (aerial) relay control terminal

Power amplifier control terminal

Inputs:

BUS audio input/AUX audio input terminals

BUS control input terminal

Remote controller input terminal

Antenna (aerial) input terminal

Parking break control terminal

Microphone input terminal

AUX input jack (stereo mini jack)

Power requirements: 12 V DC car battery

(negative ground (earth))

Dimensions: Approx. 178 × 50 × 181 mm

(7 1/8 × 2 × 7 1/4 in) (w/h/d)

Mounting dimensions: Approx. 182 × 53 × 181 mm

(7 1/4 × 2 1/8 × 7 1/4 in) (w/h/d)

Mass: Approx. 1.4 kg (3 lb 2 oz)

Supplied accessories:

Card remote commander: RM-X166

Parts for installation and connections (1 set)

Optional accessories/equipment:

Rotary commander: RM-X4S

BUS cable (supplied with an RCA pin cord):

RC-61 (1 m), RC-62 (2 m)

CD changer (10 discs): CDX-757MX

CD changer (6 discs): CDX-T70MX, CDX-T69

Source selector: XA-C40

AUX-IN selector: XA-300

Interface adaptor for iPod: XA-120IP

Your dealer may not handle some of the above listed

accessories. Please ask the dealer for detailed

information.

DivX, DivX Certified, and associated logos are

trademarks of DivX, Inc. and are used under license.

Note

This unit cannot be connected to a digital preamplifier

or an equalizer which is Sony BUS system compatible.

Design and specifications are subject to change

without notice.

Hook facing

inwards.

continue to next page t

US and foreign patents licensed from Dolby

Laboratories.

MPEG Layer-3 audio coding technology and

patents licensed from Fraunhofer IIS and Thomson.

This product is protected by certain intellectual

property rights of Microsoft Corporation. Use or

distribution of such technology outside of this

product is prohibited without a license from

Microsoft or an authorized Microsoft subsidiary.

52

Troubleshooting

The following checklist will help you remedy

problems you may encounter with your unit.

Before going through the checklist below, check the

connection and operating procedures.

Depending on the connected monitor, the unit

may take a few seconds to turn off after turning

the ignition off. This is not a malfunction.

General

No power is being supplied to the unit.

• Check the connection. If everything is in order, check

the fuse.

• If the unit is turned off and the display disappears, it

cannot be operated with the remote commander.

tTurn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

No beep sound.

• The beep sound is canceled (page 43).

• An optional power amplifier is connected and you are

not using the built-in amplifier.

The contents of the memory have been erased.

• The RESET button has been pressed.

tStore again into the memory.

• The power supply lead or battery has been

disconnected.

• The power supply lead is not connected properly.

Stored stations and correct time are erased.

The fuse has blown.

Makes noise when the position of the ignition

is switched.

The leads are not matched correctly with the car’s

accessory power connector.

The display disappears from/does not appear

in the display window.

• The dimmer is set “DIM ON” (page 43).

• The display disappears if you press and hold (OFF).

tPress and hold (OFF) on the unit until the

display appears.

• The connectors are dirty (page 50).

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates

after turning off the unit.

tTurn off the unit.

• Halogenated flame retardants are not used in the

certain printed wiring boards.

• Halogenated flame retardants are not used in

cabinets.

• Packaging cushions are made from paper.

Card remote commander operation is not

possible.

Make sure the insulation film has been removed

(page 14).


There is no picture/picture noise occurs.

• A connection has not been made correctly.

• Check the connection to the connected equipment,

and set the input selector of the equipment to the

source corresponding to this unit.

• Defective or dirty disc.

• Installation is not correct.

tInstall the unit at an angle of less than 45° in a

sturdy part of the car.

• The monitor is connected to the AUDIO/VIDEO

OUT, and the parking cord (light green) is not

connected to the parking brake switch cord, or the

parking brake is not applied.

Picture does not fit in the screen.

The aspect ratio is fixed on the DVD.

Sound

There is no sound/sound skips/sound cracks.

• A connection has not been made correctly.

• Check the connection to the connected equipment,

and set the input selector of the equipment to the

source corresponding to this unit.

• Defective or dirty disc.

• Installation is not correct.

tInstall the unit at an angle of less than 45° in a

sturdy part of the car.

• The MP3 file sampling rate is not 16, 22.05, 24, 32,

44.1, or 48 kHz.

• The WMA file sampling rate is not 32, 44.1, or

48 kHz.

• The MP3 file bit rate is not 8 to 384 kbps.

• The WMA file bit rate is not 32 to 384 kbps.

• The unit is in pause/reverse/fast-forward mode.

• The settings for the outputs are not made correctly.

• The DVD output level is too low (page 26).

• The volume is too low.

• The ATT function is activated.

• The position of the fader control “FAD” is not set for

a 2-speaker system.

• The CD changer is incompatible with the disc (MP3/

WMA).

tPlay back with this unit.

• Unsupported format (such as DTS).

tCheck if the format is supported by this unit

(page 8).

Sound is noisy.

• Keep cords and cables away from each other.

• If an Super Audio CD is played and “SUPER AUDIO

CD MODE”/ “SA-CD MOD” is set to “HQ,” instead

set to “STD” (page 41, 44).

53

Disc operation

The disc cannot be loaded.

• Another disc is already loaded.

• The disc has been forcibly inserted upside down or in

the wrong way.

The disc does not play back.

• Defective or dirty disc.

• The disc is not applicable.

• The DVD is not applicable due to the region code.

• The disc is not finalized (page 48).

• The disc format and file version are incompatible

with this unit (page 8, 48).

•Press Z to remove the disc.

MP3/WMA/JPEG/DivX files do not play back.

• Recording was not performed according to the ISO

9660 level 1 or level 2, the Joliet or Romeo in the

expansion format (DATA CD), or the UDF Bridge

format (DATA DVD) (page 48).

• The file extension is incorrect (page 49).

• Files are not stored in MP3/WMA/JPEG/DivX

format.

• If the disc contains multiple file types, only the

selected file type (audio/video/image) can be played.

tSelect the appropriate file type using the list

(page 32).

MP3/WMA/JPEG/DivX files take longer to play

back than others.

The following discs take a longer time to start

playback.

– a disc recorded with a complicated tree structure.

– a disc recorded in Multi Session/Multi Border.

– a disc to which data can be added.

The disc does not start playing from the

beginning.

Resume playback or multi-disc resume playback

(page 40) has taken effect.

Certain functions cannot be performed.

Depending on the disc, you may not be able to perform

operations such as stop, search, or repeat/shuffle play.

For details, see the manual supplied with the disc.

The soundtrack/subtitle language or angle

cannot be changed.

• Use the DVD menu instead of the direct selection

button on the card remote commander (page 17).

• Multilingual tracks, multilingual subtitles, or multi-

angles are not recorded on the DVD.

• The DVD prohibits changing.

The display items do not scroll.

• For discs with very many characters, those may not

scroll.

• “A.SCRL” is set to “OFF.”

tSet “A.SCRL ON” (page 43).

The operation buttons do not function.

The disc will not eject.

Press the RESET button (page 14).

You forgot the password for parental control.

Enter “5776” in the password input display to unlock

(page 28).

Radio reception

The stations cannot be received.

The sound is hampered by noises.

• Connect a power antenna (aerial) control lead (blue)

or accessory power supply lead (red) to the power

supply lead of a car’s antenna (aerial) booster (only

when your car has built-in FM/MW/LW antenna

(aerial) in the rear/side glass).

• Check the connection of the car antenna (aerial).

• The auto antenna (aerial) will not go up.

tCheck the connection of the power antenna

(aerial) control lead.

• Check the frequency.

Preset tuning is not possible.

• Store the correct frequency in the memory.

• The broadcast signal is too weak.

Automatic tuning is not possible.

• Setting of the local seek mode is not correct.

tTuning stops too frequently:

Set “LOCAL ON” (page 44).

tTuning does not stop at a station:

Set “MONO ON” (page 44).

• The broadcast signal is too weak.

tPerform manual tuning.

During FM reception, the “ST” indication

flashes.

• Tune in the frequency accurately.

• The broadcast signal is too weak.

tSet “MONO ON” (page 44).

An FM program broadcast in stereo is heard in

monaural.

The unit is in monaural reception mode.

tSet “MONO OFF” (page 44).

RDS

The SEEK starts after a few seconds of

listening.

The station is non-TP or has weak signal.

tDeactivate TA (page 35).

No traffic announcements.

• Activate TA (page 35).

• The station does not broadcast any traffic

announcements despite being TP.

tTune in another station.

PTY displays “- - - - - - - -.”

• The current station is not an RDS station.

• RDS data has not been received.

• The station does not specify the program type.

54

Error displays/Messages

If these solutions do not help improve the situation,

consult your nearest Sony dealer.

If you take the unit to be repaired because of disc

playback trouble, bring the disc that was used at the

time the problem began.

On the main unit

ERROR*1

• The disc is dirty or inserted upside down.*2

tClean or insert the disc correctly.

• A blank disc has been inserted.

• The disc cannot play due to a problem.

tInsert another disc.

• The disc is not compatible with this unit.

tInsert a compatible disc.

• Press Z to remove the disc.

FAILURE

The connection of speakers/amplifiers is incorrect.

tSee the supplied installation/connections manual to

check the connection.

LOAD

The changer is loading the disc.

tWait until loading is complete.

L. SEEK +/–

The local seek mode is on during automatic tuning.

NO AF

There is no alternative frequency for the current

station.

tPress .m/M> while the program service

name is flashing. The unit starts searching for

another frequency with the same PI (Program

Identification) data (“PI SEEK” appears).

NO DISC

The disc is not inserted in the CD changer.

tInsert discs in the changer.

NO INFO

Text information is not written in the MP3/WMA/

JPEG/DivX files.

NO MAGAZINE

The disc magazine is not inserted in the CD changer.

tInsert the magazine in the changer.

NO MUSIC

The disc is not a music file.

tInsert a music CD in this unit or MP3 playable

changer.

NO NAME

A disc/album/folder/track/image/video name is not

written in the file.

NOT READ

The disc information has not been read by the unit.

tLoad the disc, then select it on the list.

NO TP

The unit will continue searching for available TP

stations.

OFFSET

There may be an internal malfunction.

tCheck the connection. If the error indication

remains on in the display, consult your nearest

Sony dealer.

READ

The unit is reading all file/album (folder) information

on the disc.

tWait until reading is complete and playback starts

automatically. Depending on the disc structure, it

may take more than a minute.

RESET

The unit and CD changer cannot be operated due to a

problem.

tPress the RESET button (page 14).

“” or “ ”

During reverse or fast-forward, you have reached the

beginning or the end of the disc and you cannot go any

further.

“ ”

The character cannot be displayed with the unit.

*1 If an error occurs during playback, the disc number

does not appear in the display.

*2 The disc number of the disc causing the error

appears in the display.

On the monitor

Playback prohibited by region code.

The DVD playback is prohibited due to the different

region code.

Cannot play this disc.

• The disc is incompatible with this unit.

• The disc is not finalized.

No playable data.

The disc does not contain playable data.

Cannot read this disc.

• The unit cannot read the data due to some problem.

• The data is damaged or corrupted.

Please press RESET.

The unit cannot operate due to some problem.

tPress the RESET button (page 14).

55

Glossary

Album

Section of a music piece or an image on a DATA

CD/DVD containing MP3/WMA audio tracks or

JPEG files.

Chapter

Subdivision of a title on a DVD. A title is composed

of several chapters.

DivX®

Digital video technology created by DivX, Inc.

Videos encoded with DivX technology are among

the highest quality with a relatively small file size.

Dolby Digital

Digital audio compression technology developed by

Dolby Laboratories. This technology conforms to

5.1-channel surround sound. The rear channel is

stereo and there is a discrete subwoofer channel in

this format. Dolby Digital provides the same 5.1

discrete channels of high quality digital audio found

in Dolby Digital cinema audio systems. Good

channel separation is realized because all of the

channel data are recorded discretely and little

deterioration is realized because all channel data

processing is digital.

DVD

A disc that contains up to 8 hours of moving

pictures even though its diameter is the same as a

CD.

The data capacity of a single-layer and single-sided

DVD is 4.7 GB (Giga Byte), which is 7 times that of

a CD. The data capacity of a double-layer and

single-sided DVD is 8.5 GB, a single-layer and

double-sided DVD is 9.4 GB, and double-layer and

double-sided DVD is 17 GB.

The picture data uses the MPEG 2 format, one of the

worldwide standards of digital compression

technology. The picture data is compressed to about

1/40 (average) of its original size. The DVD also

uses a variable rate coding technology that changes

the data to be allocated according to the status of the

picture. Audio information is recorded in a multi-

channel format, such as Dolby Digital, allowing you

to enjoy a more real audio presence.

Furthermore, various advanced functions such as the

multi-angle, multilingual, and Parental Control

functions are provided with the DVD.

DVD-RW

A DVD-RW is a recordable and rewritable disc that

is the same size as a DVD VIDEO. The DVD-RW

has two different modes: VR mode and video mode.

DVD-RWs created in video mode have the same

format as a DVD VIDEO, while discs created in VR

(Video Recording) mode allow the contents to be

programmed or edited.

DVD+RW

A DVD+RW (plus RW) is a recordable and

rewritable disc. DVD+RWs use a recording format

that is comparable to the DVD VIDEO format.

File

An MP3/WMA track, JPEG image, or a DivX video

on a DATA CD/DATA DVD. (“File” is an exclusive

definition for this unit.) A single file consists of a

single track, image, or movie.

Film based software, Video based software

DVDs can be classified as Film based or Video

based software. Film based DVDs contain the same

images (24 frames per second) that are shown at

movie theaters. Video based DVDs, such as

television dramas or sit-coms, displays images at 30

frames (or 60 fields) per second.

Scene

On a VIDEO CD with PBC (playback control)

functions, the menu screens, moving pictures and

still pictures are divided into sections called

“scenes.”

Super Audio CD

Super Audio CD is a new high-quality audio disc

standard where music is recorded in the DSD

(Direct Stream Digital) format (conventional CDs

are recorded in the PCM format). The DSD format,

using a sampling frequency 64 times higher than

that of a conventional CD, and with 1-bit

quantization, achieves both a wide frequency range

and a wide dynamic range across the audible

frequency range, and so provides music

reproduction extremely faithful to the original

sound.

Title

The longest section of a picture or music feature on

a DVD, movie, etc., in video software, or the entire

album in audio software.

Track

Section of a picture or a music piece on a VIDEO

CD, CD, Super Audio CD, or MP3/WMA. An

album is composed of several tracks (MP3/WMA

only).

continue to next page t

56

VIDEO CD

A compact disc that contains moving pictures.

The picture data uses the MPEG 1 format, one of a

worldwide standard of digital compression

technology. The picture data is compressed to about

1/140 of its original size. Consequently, a 12 cm

VIDEO CD can contain up to 74 minutes of moving

pictures.

VIDEO CDs also contain compact audio data.

Sounds outside the range of human hearing are

compressed while sounds we can hear are not

compressed. VIDEO CDs can hold 6 times the

audio information of conventional audio CDs.

There are 3 versions of VIDEO CDs.

• Version 1.0, 1.1: You can play only moving

pictures and sound.

• Version 2.0: You can play high-resolution still

pictures and enjoy PBC functions.

This unit conforms to all 3 versions above.

57

Language code/area code list

Language code list

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Area code list

Code Language Code Language Code Language Code Language

1027

1028

1032

1039

1044

1045

1051

1052

1053

1057

1059

1060

1061

1066

1067

1070

1079

1093

1097

1103

1105

1109

1130

1142

1144

1145

1149

1150

1151

1157

1165

1166

1171

1174

1181

Afar

Abkhazian

Afrikaans

Amharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bislama

Bengali;

Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

German

Bhutani

Greek

English

Esperanto

Spanish

Estonian

Basque

Persian

Finnish

Fiji

Faroese

French

Frisian

1183

1186

1194

1196

1203

1209

1217

1226

1229

1233

1235

1239

1245

1248

1253

1254

1257

1261

1269

1283

1287

1297

1298

1299

1300

1301

1305

1307

1311

1313

1326

1327

1332

1334

1345

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

Inupiak

Indonesian

Icelandic

Italian

Hebrew

Japanese

Yiddish

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian;

Lettish

Malagasy

1347

1349

1350

1352

1353

1356

1357

1358

1363

1365

1369

1376

1379

1393

1403

1408

1417

1428

1435

1436

1463

1481

1482

1483

1489

1491

1495

1498

1501

1502

1503

1505

1506

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Occitan

(Afan)Oromo

Oriya

Punjabi

Polish

Pashto;

Pushto

Portuguese

Quechua

Rhaeto-

Romance

Kirundi

Romanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sangho

Serbo-

Croatian

Singhalese

Slovak

Slovenian

1507

1508

1509

1511

1512

1513

1514

1515

1516

1517

1521

1525

1527

1528

1529

1531

1532

1534

1535

1538

1539

1540

1543

1557

1564

1572

1581

1587

1613

1632

1665

1684

1697

1703

Samoan

Shona

Somali

Albanian

Serbian

Siswati

Sesotho

Sundanese

Swedish

Swahili

Tam i l

Telugu

Taj ik

Thai

Tigrinya

Turkmen

Tag a l o g

Setswana

Ton g a

Tu r k is h

Tsonga

Tat a r

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapük

Wolof

Xhosa

Yo r u b a

Chinese

Zulu

Not specified

Code Area Code Area Code Area Code Area

2044

2047

2046

2057

2070

2079

2090

2092

2115

Argentina

Australia

Austria

Belgium

Brazil

Canada

Chile

China

Denmark

2165

2174

2109

2248

2238

2254

2276

2304

2363

Finland

France

Germany

India

Indonesia

Italy

Japan

Korea

Malaysia

2362

2376

2390

2379

2427

2424

2436

2489

2501

Mexico

Netherlands

New Zealand

Norway

Pakistan

Philippines

Portugal

Russia

Singapore

2149

2499

2086

2528

2184

Spain

Sweden

Switzerland

Thailand

United

Kingdom

58

Index

Numerics

16:9 39

2000MP3 6

2000WMA 6

4:3 LETTER BOX 39

4:3 PAN SCAN 39

A

Album (ALBUM) 30

Alternative Frequencies

(AF) 35

Angle (ANGLE) 17

Area code 57

Audio (AUDIO)

Channel 25

Format 25

Language 25, 39

Audio DRC (AUDIO DRC) 41

Audio setup

(AUDIO SETUP) 41

Auto Off (A.OFF) 43

Auto Scroll (A.SCRL) 43

Auxiliary equipment 45

Auxiliary Level

(AUX-LVL) 44, 46

B

Balance (BAL) 37

Beep sound (BEEP) 43

Best Tuning Memory

(BTM) 34

C

Card remote commander

12, 14, 50

Chapter (CHAPTER) 30

Clock Adjust

(CLOCK ADJ) 45

Clock Time (CT) 35, 36, 43

Custom setup

(CUSTOM SETUP) 40

D

Demonstration (DEMO) 43

Dimmer (DIM) 43

Direct search play 30

Discs 8

Display setup

(DISPLAY SETUP) 39

DivX VOD 40

DivX® 9, 21, 49

Dolby Digital 25, 26

DVD Level (DVD-LVL) 26, 44

DVD menu 17

DVD’s top menu 17

Dynamic Range Control

(DRC) 41

E

EQ7 37

Equalizer


(PICTURE EQ) 27, 40

Sound (EQ7) 37

F

Fader (FAD) 37

File (FILE) 30

Folder (ALBUM) 30

Formats 9

Front AUX 45

Fuse 50

H

High Pass Filter (HPF) 44

I

Image (IMAGE) 30

J

JPEG 9, 21, 49

K

Karaoke 31

L

Language code 57

Language setup

(LANGUAGE SETUP) 39

Layer

(SUPER AUDIO CD LAYER,

DISC.LAYER) 33, 41, 44

List up (LIST) 32

Lithium battery 50

Local Seek Mode (LOCAL) 44

M

Menu language (MENU) 39

Monaural Mode (MONO) 44

Monitor type

(MONITOR TYPE) 39

Motion Display (M.DSPL) 43

MP3 9, 49

Multi Border DVD 49

Multi Session CD 49

Multi-disc resume playback

(MULTI-DISC RESUME)

6, 40

P

Parental control (PARENTAL

CONTROL) 28, 40

Picture EQ

(PICTURE EQ) 27, 40

Play list play

(PLAY LIST PLAY) 40

Play mode menu 22

Playable discs 8

Playback control (PBC) 22

Program format 25

Program Types (PTY) 35, 36

R

Radio Data System (RDS) 35

Region code 9

Regional (REG) 36, 44

Repeat play (REP) 29, 47

Reset (RESET) 14, 41

Resume play 17, 19

Rotary Commander

(RM) 43, 47

59

S

Setup menu

System setup 42

Visual setup 38

Shuffle play (SHUF) 29, 47

Slide show interval

(SLIDE SHOW TIME) 40

Soundtrack language

(AUDIO) 25, 39

Subtitle language

(SUBTITLE) 17, 39

Super Audio CD

Layer

(SUPER AUDIO CD

LAYER, DISC.LAYER)

33, 41, 44

Sound quality (SUPER

AUDIO CD MODE, SA-

CD MOD) 34, 41, 44

System setup 42

T

Time/text information

(TIME) 24, 30

Title (TITLE) 30

Track (TRACK) 30

Traffic Announcement (TA) 35

Traffic Program (TP) 35

V

Visual setup 38

Volume

Echo 31

Main unit 10

Microphone 31

Traffic announcement 36

W

Wallpaper (WALLPAPER) 39

WMA 9, 49

Z

Zoom (CENTER ZOOM) 26

Sony Corporation

Printed in Thailand

http://www.sony.net/
