model name1[MZ-R501/R501PC/R501DPC] model name2[MZ-----]

[3-234-036-13(1)]

masterpage:Right

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\01COV-

MZR501UCE\00GB01COV-CED.fm]

3-234-036-13(1)

Portable

MiniDisc Recorder

Operating Instructions

© 2001 Sony Corporation

MZ-R501/R501PC/R501DPC

WALKMAN and

are trademarks of

Sony Corporation.

00GB01COV-CED.fm Page 1 Monday, November 5, 2001 1:37 PM

2

To prevent fire or shock hazard, do

not expose the unit to rain or

moisture.

To avoid electrical shock, do not

open the cabinet. Refer servicing to

qualified personnel only.

To prevent fire, do not cover the

ventilation of the apparatus with news

papers, table cloths, curtains, etc. And

don’t place lighted candles on the

apparatus.

To prevent fire or shock hazard, do not

place objects filled with liquids, such as

vases, on the apparatus.

Don’t throw a battery, dispose it as the

injurious wastes.

Caution

The use of optical instruments with this

product will increase eye hazard.

CAUTION — INVISIBLE LASER

RADIATION WHEN OPEN

AVOID EXPOSURE TO BEAM

Information

Certain countries may regulate disposal of

battery used to power this product.

Please consult with your local authority.

For customers in the USA

Owner’s Record

The serial number is located at the rear of

the disc compartment lid and the model

number is located at the top and bottom.

Record the serial number in the space

provided below. Refer to them whenever

you call upon your Sony dealer regarding

this product.

Model No.

Serial No.

This equipment has been tested and found

to comply with the limits for a Class B

digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential

installation. This equipment generates,

uses, and can radiate radio frequency

energy and, if not installed and used in

accordance with the instructions, may

cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur

in a particular installation. If this

equipment does cause harmful

interference to radio or television

reception, which can be determined by

turning the equipment off and on, the user

is encouraged to try to correct the

interference by one or more of the

following measures:

— Reorient or relocate the receiving

antenna.

— Increase the separation between the

equipment and receiver.

— Connect the equipment into an outlet

on a circuit different from that to

which the receiver is connected.

— Consult the dealer or an experienced

radio/TV technician for help.

Do not install the appliance in a

confined space, such as a bookcase or

built-in cabinet.

IN NO EVENT SHALL SELLER BE

LIABLE FOR ANY DIRECT,

INCIDENTAL OR

CONSEQUENTIAL DAMAGES OF

ANY NATURE, OR LOSSES OR

EXPENSES RESULTING FROM

ANY DEFECTIVE PRODUCT OR

THE USE OF ANY PRODUCT.

WARNING

3

This device complies with Part 15 of the

FCC Rules. Operation is subject to the

following two conditions: (1) This device

may not cause harmful interference, and

(2) this device must accept any

interference received, including

interference that may cause undesired

operation.

You are cautioned that any changes or

modifications not expressly approved in

this manual could void your authority to

operate this equipment.

The CE mark on the unit is

valid only for products

marketed in the European

Union.

4

Table of contents

Looking at the controls .................................... 6

Getting started ................................................. 8

Recording an MD right away! .........................10

Playing an MD right away! ..............................13

Various ways of recording ..............................15

Two ways of connecting to a sound source ..........................................15

Recording with analog input (line cable required) ...............................16

Recording for long times ......................................................................16

To start/stop recording in sync with the source player

(Synchro-recording) ........................................................................18

Recording without overwriting existing material .................................19

Adding track marks automatically at specified intervals (Auto Time

Stamp) ..............................................................................................19

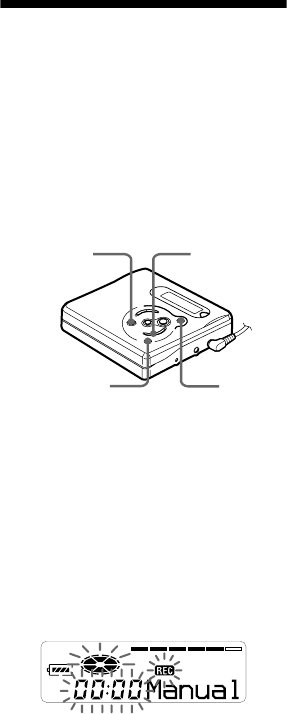

Adjusting the recording level manually

(Manual recording) ..........................................................................20

Checking the remaining time or the recording position .......................21

Various ways of playback ..............................23

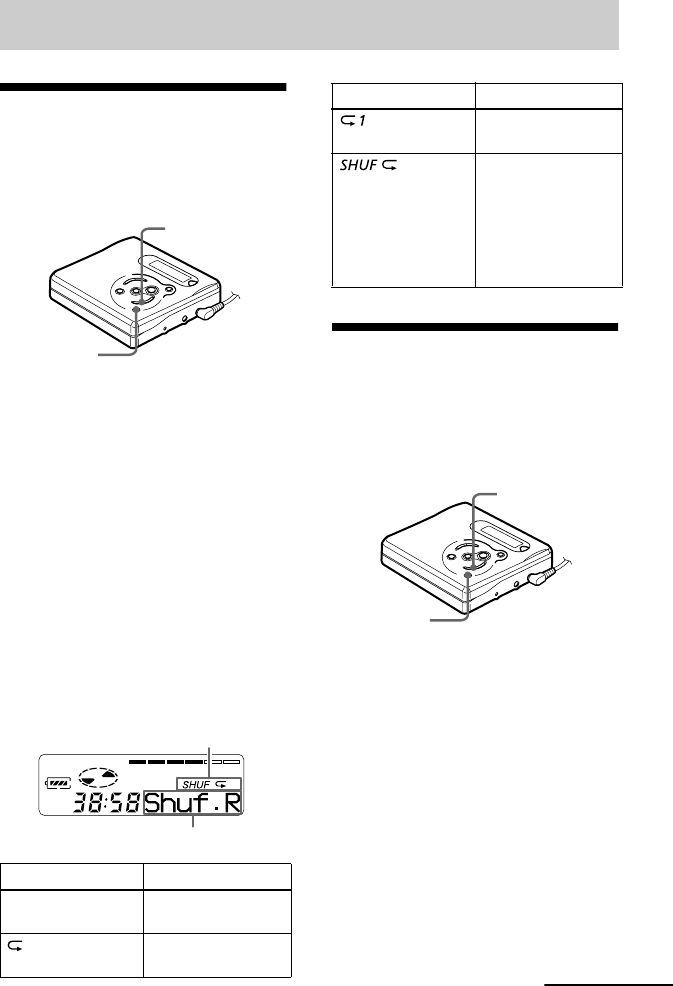

Playing tracks repeatedly ......................................................................23

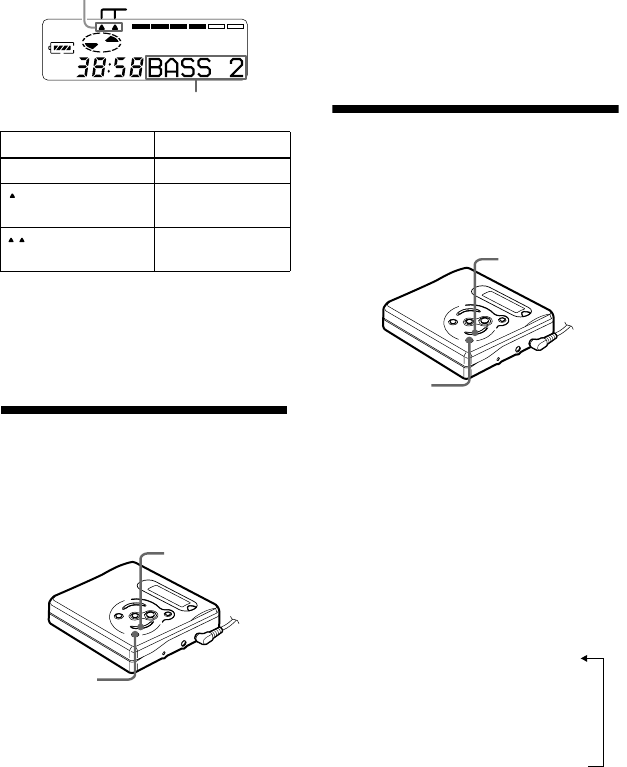

Emphasizing bass (DIGITAL MEGA BASS) ......................................23

Protecting your hearing (AVLS) ...........................................................24

Checking the remaining time or the playing position ...........................24

Locking the controls (HOLD) ...............................................................25

Connecting to a stereo system ..............................................................25

5

Editing recorded tracks .................................. 26

Labeling recordings .............................................................................. 26

Moving recorded tracks ....................................................................... 28

Adding a track mark ............................................................................. 28

Erasing a track mark ............................................................................ 29

Erasing tracks ....................................................................................... 30

To erase a track .............................................................................. 30

To erase the whole disc .................................................................. 30

Additional information .................................... 31

Precautions ........................................................................................... 31

Troubleshooting ................................................................................... 33

System limitations ................................................................................ 35

Messages .............................................................................................. 36

Specifications ....................................................................................... 38

Explanations ......................................................................................... 39

6

model name1[MZ-R501/R501PC/R501DPC] model name2[MZ----]

[3-234-036-13(1)]

masterpage:Left

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\02GB-

MZR501UCE\030GET.fm]

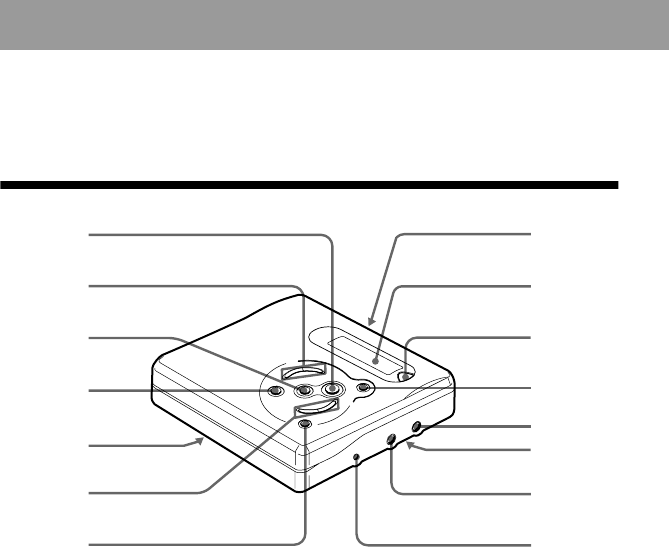

Looking at the controls

See pages in ( ) for more details.

The recorder

AN button (11) (13) (17) (25)

BVOL +/– buttons (13) (26)

Cx button (11) (13) (27)

DX button (11) (13) (20) (26) (29)

EHOLD switch (at the rear) (9) (25)

FSELECT >/. buttons (16)

(23) (26)

./> (search /AMS) buttons

(11) (13) (26) (29)

GMENU/ENTER button (16) (23) (26)

HOPEN switch (9)

IDisplay window (18) (23)

JEND SEARCH button (11) (26)

KT MARK button (28)

REC (record) button (11) (17)

Li (headphones) jack (9) (25)

MBattery compartment (at the rear) (8)

NLINE IN (OPTICAL) jack (10) (16)

ODC IN 3V jack (10) (31)

A

C

B

E

D

F

G

I

J

K

H

O

N

M

L

020REG.book Page 6 Monday, November 5, 2001 1:37 PM

model name1[MZ-R501/R501PC/R501DPC] model name2[MZ----]

[3-234-036-13(1)]

masterpage:Right

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\02GB-

MZR501UCE\030GET.fm]

7

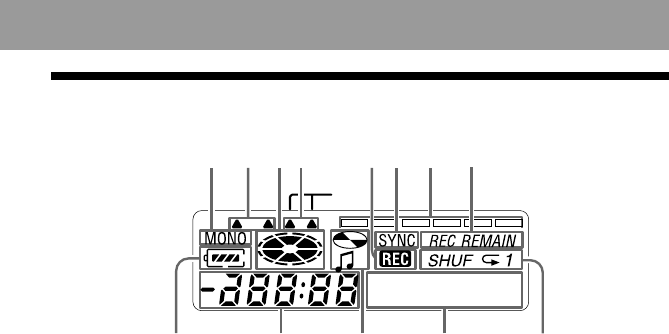

The display window

AMONO (monaural) indication

BLP mode indication (17)

CDisc indication

Shows that the disc is rotating for

recording, playing or editing an MD

DMega bass indication (24).

EREC indication

Lights up while recording. When

flashing, the recorder is in record

standby mode.

FSYNC (synchro-recording) indication

(18)

GLevel meter (21)

Shows the volume of the MD being

played or recorded.

HREC REMAIN/REMAIN (remaining

time/tracks) indication (21) (24)

Lights up along with the remaining

time of the track, the remaining time

of the MD, or the remaining number

of tracks.

IBattery indication (9)

Shows approximate battery condition.

JTime display

KDisc name/track name indication

Lights up when labeling a disc or a

track.

LCharacter information display (21)

(25)

Displays the disc and track names,

error messages, track numbers, etc.

MPlay mode indication (23)

Shows the play mode of the MD.

LMK

LP2.4

Digital

MEGA BASS

C

AB D

JI

FG H

E

020REG.book Page 7 Monday, November 5, 2001 1:37 PM

8

model name1[MZ-R501/R501PC/R501DPC] model name2[MZ----]

[3-234-036-13(1)]

masterpage:Left

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\02GB-

MZR501UCE\030GET.fm]

Getting started

Checking the supplied accessories.

AC power adaptor (European and Chinese models only) (1)

Headphones/earphones (1)

Optical cable (except U.S.A. model) (1)

PCLink kit (supplied with MZ-R501PC only) (1)

Digital PCLink kit (supplied with MZ-R501DPC only) (1)

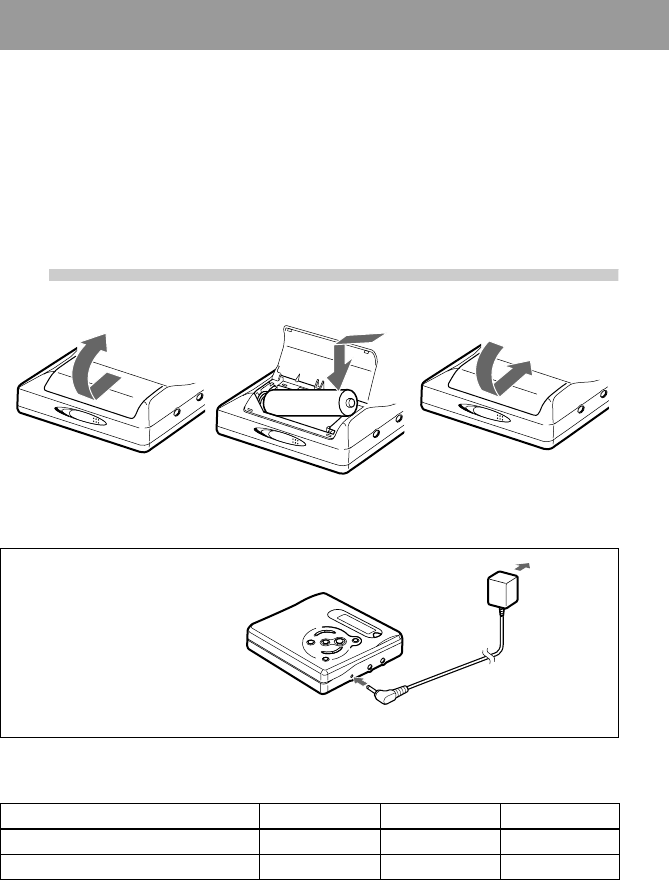

1

Insert an alkaline dry battery.

e

E

Insert an LR6 (SG) alkaline dry

battery minus end first.

Slide to open the battery

compartment lid.

Close the lid.

Using on a house

current.

Connect the AC power adaptor.

Battery life1)

(Unit: Approx. hours) (JEITA2))

1) The battery life may be shorter due to operating conditions, the temperature of the location, and

varieties of batteries.

2) Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries

Association).

LR6 (SG) alkaline dry battery3)

3) When using a Sony LR6 (SG) “STAMINA” alkaline dry battery (produced in Japan).

Normal LP2 LP4

Recording4)

4) To prevent interrupted recording due to drained battery, use new battey for recording operations.

7.5 10 13.5

Playback 36 42 48

To DC IN 3V

To a wall outlet

AC power

adaptor

020REG.book Page 8 Monday, November 5, 2001 1:37 PM

model name1[MZ-R501/R501PC/R501DPC] model name2[MZ----]

[3-234-036-13(1)]

masterpage:Right

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\02GB-

MZR501UCE\030GET.fm]

9

When to replace the battery

When the dry battery is weak, flashing r or “LoBATT” appears in the display. Replace

the dry battery.

Note that the battery level indicated by the battery indication is only approximate and

varies with the recorder condition.

Note

Stop the recorder before replacing battery.

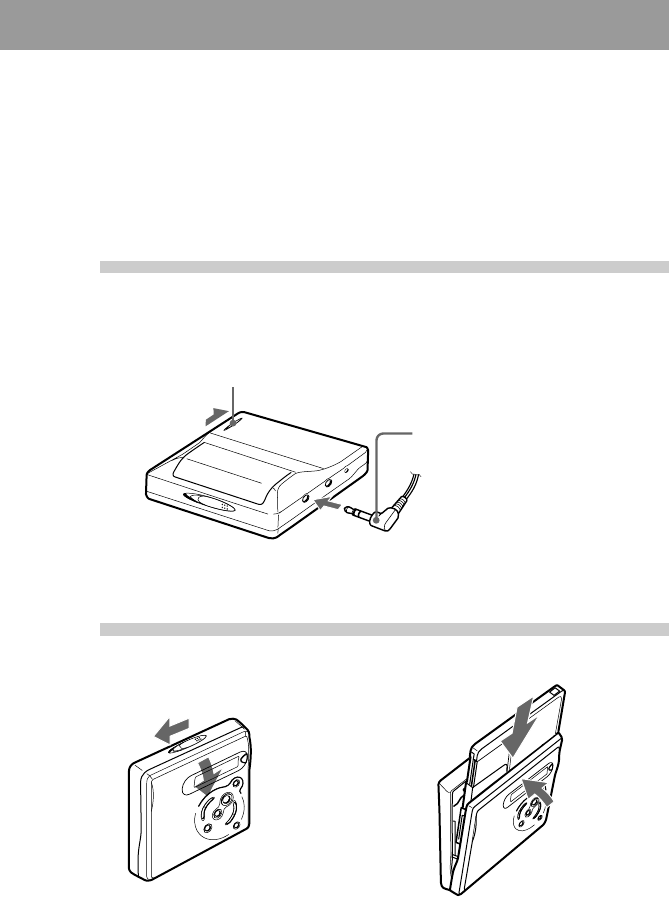

2

Connect the headphones/

earphones and unlock the control.

3

Insert an MD.

1Slide OPEN to open the lid. 2Insert an MD with the label side facing

front, and press the lid down to close.

To i

Connect firmly

HOLD

headphones/earphones

(supplied)

Insert an recordable MD when recording.

020REG.book Page 9 Monday, November 5, 2001 1:37 PM

10

model name1[MZ-R501/R501PC/R501DPC] model name2[MZ----]

[3-234-036-13(1)]

masterpage:Left

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\02GB-

MZR501UCE\030GET.fm]

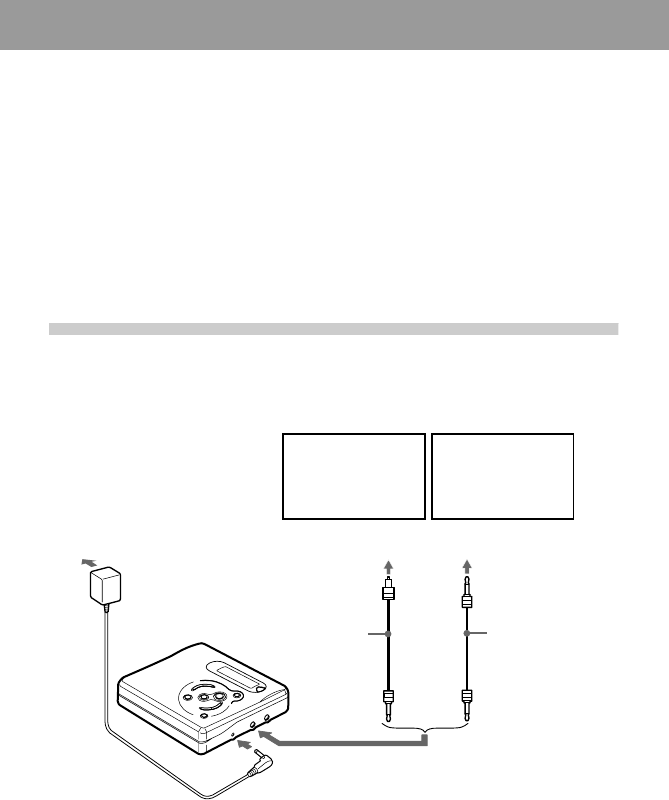

Recording an MD right away!

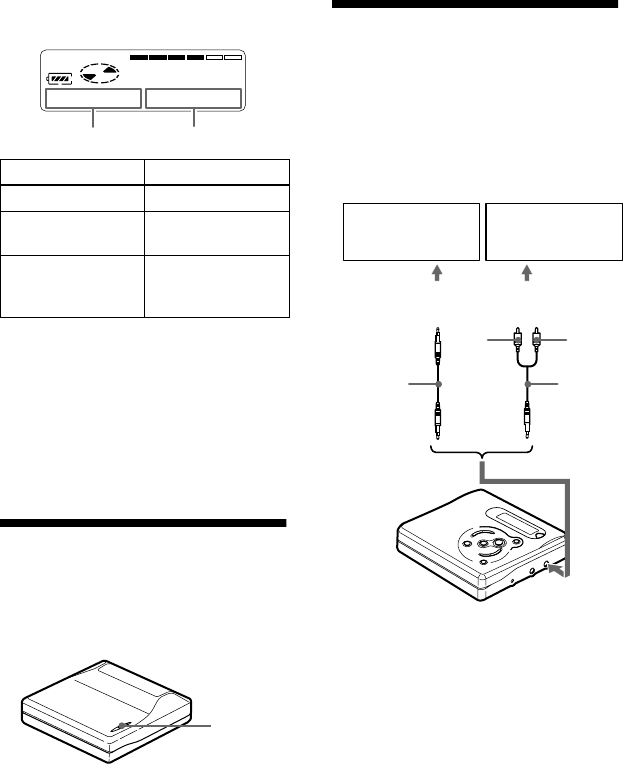

Connect to a digital source using an optical cable to make digital

recordings. Digital recording is possible even from digital equipment

with different sampling rates, such as a DAT deck or a BS tuner, using

the built-in sampling rate converter. To record from an analog source,

see “Recording with analog input (line cable required)” (page 16). To

record from an MD, see “Note on digital recording” (page 32).

1

Make connections.

(Insert the cables

firmly and completely into the appropriate jacks.)

to a wall

outlet

AC power adaptor

to LINE IN (OPTICAL)

to DC IN 3V

CD player, MD

player, digital

amplifier, etc.

Portable CD

player, etc.

Optical mini-plug

to DIGITAL OUT (OPTICAL)

Optical cable

Optical plug

Optical cable

020REG.book Page 10 Monday, November 5, 2001 1:37 PM

model name1[MZ-R501/R501PC/R501DPC] model name2[MZ----]

[3-234-036-13(1)]

masterpage:Right

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\02GB-

MZR501UCE\030GET.fm]

11

2

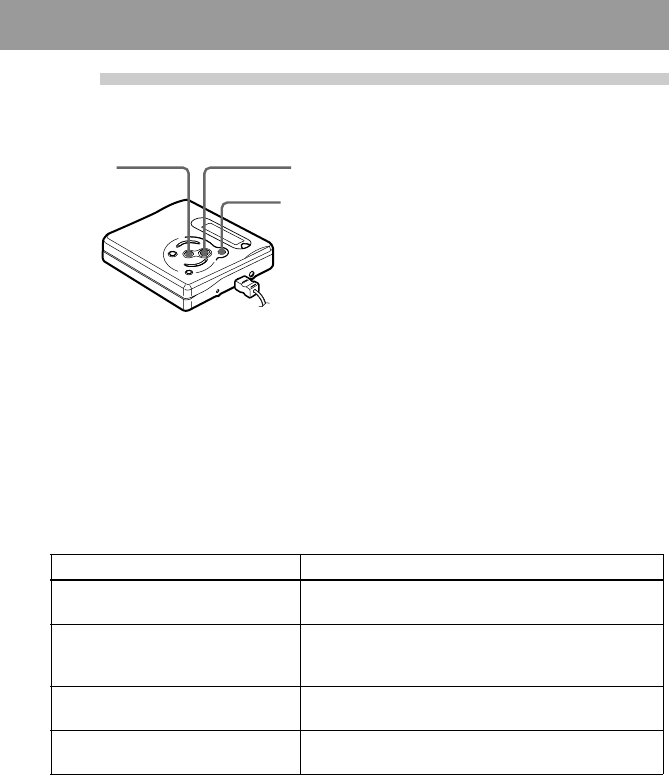

Record an MD.

1Press N while pressing REC.

Recording starts.

2Play the source you want to record.

To stop recording, press x.

After you press x and “Edit” stops

flashing in the display, the recorder will

automatically turn off after:

—about 10 seconds when using a

battery.

—about 5 minutes when using the AC

power adaptor.

Notes

•“Saving” or “Edit” flashes while data of the recording (the track’s start and end points, etc.) is being

recorded. Do not move or jog the recorder or disconnect the power source while the indication is

flashing in the display.

•The lid does not open until “Edit” disappears in the display.

REC

xN

To Press

Record from the end of the

previous recording1)

END SEARCH and press N while pressing REC.

Record partway through the

previous recording1)

N, > or . to find the start point of

recording and press x to stop. Then press N

while pressing REC.

Pause X2)

Press X again to resume recording.

Remove the MD x and open the lid.3) (The lid does not open while

“Edit” flashing in the display.)

1) By setting “R-Posi” to “Fr End”, recording operations will always start from the end of the

previousely recorded material (page 19).

2) A track mark is added at the point where you press X again to resume recording while pausing; thus

the remainder of the track will be counted as a new track.

3) If you open the lid while “R-Posi” is set to “FrHere,” recording will begin with the first track the next

time you record (page 19).

020REG.book Page 11 Monday, November 5, 2001 1:37 PM

12

model name1[MZ-R501/R501PC/R501DPC] model name2[MZ----]

[3-234-036-13(1)]

masterpage:Left

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\02GB-

MZR501UCE\030GET.fm]

If the recording does not start

•Make sure the recorder is not locked

(page 25).

•Make sure the MD is not record-protected

(page 32).

•Premastered MDs cannot be recorded over.

For models supplied with the AC plug

adaptor

If the AC power adaptor does not fit the wall

outlet, use the AC plug adaptor.

Notes

•If the power supply is disrupted (i.e. the

battery is removed or becomes exhausted or

the AC power adaptor is disconnected) during

a recording or editing operation, or while

“Edit” appears in the display, then it will not

be possible to open the lid until power is

restored.

•You can make a digital recording only from an

optical type output.

•When recording from a portable CD player,

set the CD player to pause, and then do the

recording procedure on the recorder.

•Note the following when recording from a

portable CD player:

—Some portable CD players may not be

capable of digital out unless powered by the

AC power.

—Connect the AC power adaptor to the

portable CD player and use it on AC power

as the power source.

—Disable any anti-skip function (such as

ESP*) on the portable CD player.

∗Electronic Shock Protection

z

•LINE IN (OPTICAL) jack is for both digital

and analog input. The recorder automatically

recognizes the type of line cable and switches

to digital or analog input.

•The level of the recorded sound is adjusted

automatically.

•You can monitor the sound during recording.

Connect the supplied headphones/earphones

to i and adjust the volume by pressing VOL

+/–. This does not affect the recording level.

020REG.book Page 12 Monday, November 5, 2001 1:37 PM

model name1[MZ-R501/R501PC/R501DPC] model name2[MZ----]

[3-234-036-13(1)]

masterpage:Right

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\02GB-

MZR501UCE\030GET.fm]

13

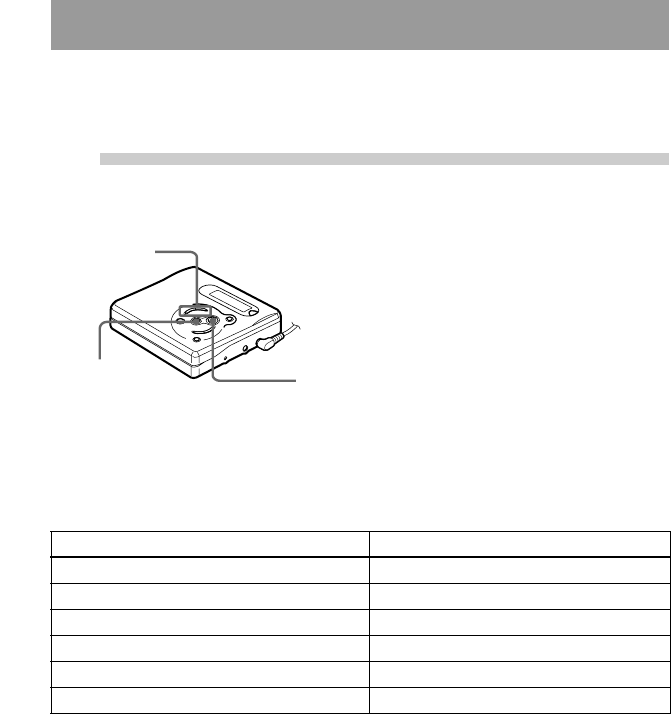

Playing an MD right away!

1

Play an MD.

1Press N.

2Press VOL +/– to adjust the volume.

The volume will be shown in the

display.

To stop play, press x.

Playback starts from the point you last

stopped playing.

After you press x and “Edit” stops flashing in the display, the recorder will automatically

turn off after:

—about 10 seconds when using a battery.

—about 5 minutes when using the AC power adaptor.

VOL +/–

xN

To Press

Find the beginning of the current track . once

Find the beginning of the next track > once

Pause X. Press X again to resume play.

Go backwards while playing1)

1) To go backward or forward quickly without listening, press X and keep pressing . or >.

press and hold ..

Go forward while playing1) press and hold >.

Remove the MD x and open the lid2).

2) Once you open the lid, the point to start play will change to the beginning of the first track.

020REG.book Page 13 Monday, November 5, 2001 1:37 PM

14

model name1[MZ-R501/R501PC/R501DPC] model name2[MZ----]

[3-234-036-13(1)]

masterpage:Left

filename[\\Ww001\WW001\ON GOING\MZ-R501\3234036131MZR501UCE\02GB-

MZR501UCE\030GET.fm]

G-PROTECTION function

The G-PROTECTION function has been

developed to provide excellent protection

against sound skipping during many active

uses. This function provides a higher level of

shock protection during playback than the

traditional one.

If the play does not start

Make sure the recorder is not locked (page 25).

z

Playback will switch automatically between

stereo and monaural according to the sound

source.

Note

Sound may skip if:

—the recorder receives stronger continuous

shock than expected.

—a dirty or scratched MiniDisc is played.

020REG.book Page 14 Monday, November 5, 2001 1:37 PM

15

Various ways of recording

Two ways of connecting to a sound source

The input jack of this recorder works as both digital and analog input jacks. Connect the

recorder to a CD player or a cassette recorder using either digital (optical) input or analog

(line) input. To record, see “Recording an MD right away!” (page 10) to record using

digital (optical) input, and “Recording with analog input (line cable required)” (page 16) to

record using analog (line) input.

Difference between digital (optical) and analog (line) inputs

Note

Track marks may be copied incorrectly:

•when you record from some CD players or multi disc players using digital (optical) input.

•when the source is in shuffle or program play mode while recording using digital (optical) input. In

this case, play the source in normal play mode.

•when recording BS or CS programs through digital (optical) input.

Difference Digital (optical) input Analog (line) input

Connectable

source Equipment with a digital (optical)

output jack Equipment with an analog (line)

output jack

Usable cord Optical cable (with an optical or an

optical-mini plug)(page 10) Line cable (with 2 phono plugs

or a stereo-mini plug)(page 16)

Signal from the

source Digital Analog

Even when a digital source (such

as a CD) is connected, the signal

sent to the recorder is analog.

Recorded track

numbers Marked (copied) automatically

•at the same positions as the source

(when the sound source is a CD or

an MD).

•after more than 2 seconds of blank

or low-level segment (with a sound

source other than a CD or an MD).

•when the recorder is paused during

synchro-recording (the recorder

pauses automatically when it

encounters a section with no audio

signal for 3 seconds or more).

You can erase unnecessary marks

after recording. (“Erasing a track

mark”, page 29).

Marked automatically

•after more than 2 seconds of

blank or low-level segment.

•when the recorder is paused

while recording.

•at specified intervals when the

Auto Time Stamp is on.

You can erase unnecessary marks

after recording (“Erasing a track

mark”, page 29).

Recorded

sound level Same as the source.

Can also be adjusted manually

(Digital REC level control)

(“Adjusting the recording level

manually (Manual recording)”,

page 20).

Adjusted automatically. Can also

be adjusted manually (“Adjusting

the recording level manually

(Manual recording)”, page 20).

16

Recording with analog

input (line cable

required)

The sound will sent from the connected

equipment as analog signal but will be

recorded digitally on the disc.

1Insert a recordable MD and start

recording.

For recording operations, see

“Recording an MD right away!”

(page 10). To record from a portable

CD player, set the CD player to pause

and then start recording.

LINE IN (OPTICAL) jack is for both

digital and analog input

The recorder automatically recognizes the type

of line cable and switches to digital or analog

input.

Note

A track mark is added at the point where you

press X again to resume recording while

pausing recording; thus the track will be

counted as a new track.

Recording for long

times

Select each recording mode according to

the recording time that you want.

Stereo recording is possible at 2 times

(LP2) or 4 times (LP4) the normal

recording time.

MDs recorded in monaural, LP2 or

LP4 mode can be played back only

on MD players or recorders with

monaural, LP2 or LP4 playback

mode.

1Press MENU/ENTER, press

SELECT >/. repeatedly until

“R-MODE” flashes in the display,

and then press MENU/ENTER again.

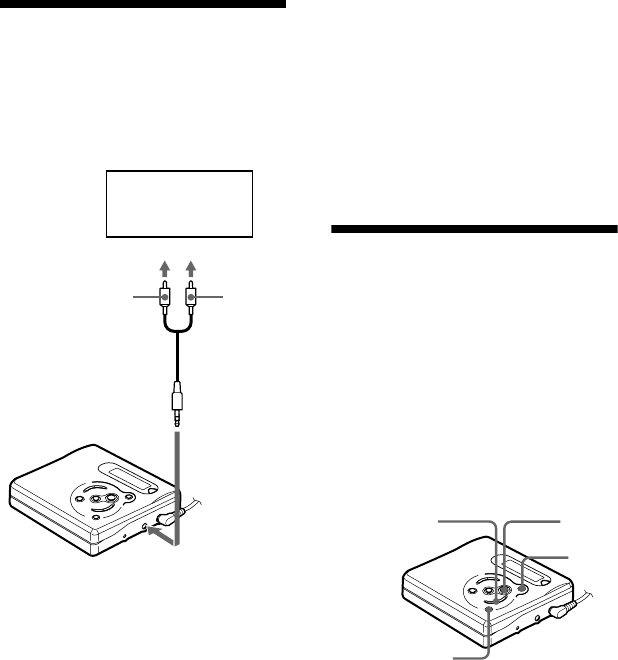

to LINE IN (OPTICAL)

Line cable

(RK-G129,

not supplied)*

CD player,

cassette recorder,

etc.

to LINE OUT

L (white) R (red)

∗Use the connecting cords without an

attenuator. To connect to a component

such as a portable CD player having a

stereo mini-jack, use the RK-G136

connecting cord (not supplied).

SELECT

>/.N

MENU/ENTER

REC

17

2Press SELECT >/. repeatedly

to select the desired recording mode.

3Press MENU/ENTER.

4Press N while pressing REC.

The recording starts.

5Play the source sound.

To stop recording, press x.

The settings of the recording mode

remains when you record the next time.

z

•Audio components that support the LP2 or

LP4 modes are indicated by the or

logo marks.

•Once you set, the recorder keeps its recording

mode when you record the next time.

•You can achieve high sound quality and rich

tones when recording in normal stereo (or

monaural) thanks to the newly developed DSP

TYPE-R for ATRAC (Adaptive TRansform

Acoustic Coding).

What is the newly developed DSP

TYPE-R for ATRAC?

“TYPE-R” is a high-level Sony specification

used in the Digital Signal Processor (DSP),

which is heart of the MiniDisc sound. This

technology gives the MiniDisc recorder twice

the signal processing capability as previous

MiniDisc Walkman models, producing a

sound quality close to that of MiniDisc decks.

Notes

•You cannot change the recording mode while

recording.

•It is recommended that you use the AC power

adaptor for long recordings.

•If you try to play an MD recorded in LP2

stereo or LP4 stereo on a player/recorder that

is not support these modes, playback will not

start and “LP:” will appear on the display.

•Sound recorded through digital (optical) input

can be monitored in stereo through

headphones/earphones, etc.

•When you record in LP4 stereo mode,

momentary noise may be produced on very

rare occasions with certain sound sources.

This is because of the special digital audio

compression technology that enables a

recording time 4 times longer than normal. If

noise is produced, it is recommended that you

record in normal stereo or LP2 stereo mode to

obtain better sound quality.

Recording

mode

1)

1) For better sound quality, record in normal

stereo or LP2 stereo mode.

Display

(indication)

Recording

time

3)

3) When using an 80-minute recordable MD.

Stereo Stereo (none) 80 min.

LP2 stereo LP2 ( ) 160 min.

LP4 stereo LP4 ( ) 320 min.

Monaural2)

2) If you record a stereo source in monaural, the

sounds from left and right will be mixed.

Mono

(MONO) 160 min.

18

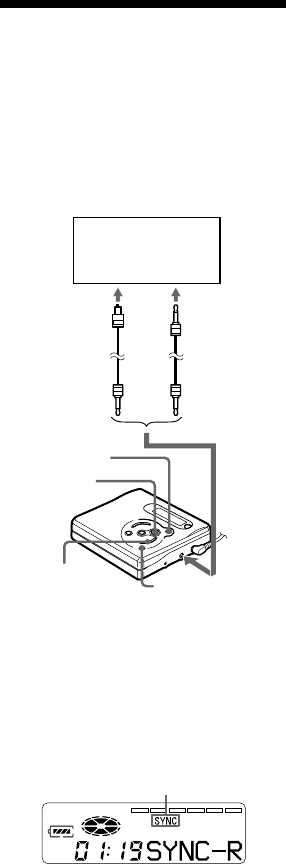

To start/stop recording

in sync with the source

player

(Synchro-recording)

You can easily make digital recordings of

a digital source on an MD.

Before synchro-recording, make

connections to the digital source with a

digital cable, and insert a recordable MD.

1Press MENU/ENTER while the

recorder is stopped.

2Press SELECT >/. repeatedly

until “SYNC-R” flashes in the

display, and then press MENU/

ENTER.

“SYNC” lights up in the display.

“SYNC” does not lights up if optical

cable is not connected to the recorder.

3Press SELECT >/. repeatedly

until “ON” flashes in the display, and

then press MENU/ENTER.

4Press N while pressing REC.

The recorder stands by for recording.

5Play the source sound.

The recorder starts recording when it

receives the playing sound.

To stop recording

Press x.

z

•You cannot pause manually during synchro-

recording.

•When there is no sound from the player for

more than 3 seconds during synchro-

recording, the recorder goes into the standby

mode automatically. When the sound comes

from the player again, the recorder resumes

synchro-recording. If the recorder is kept in

the standby mode for 5 minutes or longer, the

recorder stops automatically.

•For longer recording, follow steps 1 to 3 of

“Recording for long times” (page 16) to select

the recording mode, and then start the

procedure of synchro-recording.

Notes

•Do not change the “SYNC-R” setting while

recording. Recording may not be done

properly.

•Even when there is no recorded sound on the

sound source, there may be cases when

recording does not pause automatically during

synchro-recording due to the noise level

emitted from the sound source.

•If a silent portion is encountered for 2 seconds

or more during synchro-recording, a new track

mark is automatically added at the point

where the silent portion ends.

•Synchro-recording cannot be done if the

connecting cord is not an optical cable.

•You cannot adjust the recording level

manually during synchro-recording.

CD players,

etc.

N

REC

SELECT

>/.MENU/ENTER

SYNC indication

19

Recording without

overwriting existing

material

If you wish to avoid overwriting the

current contents of an MD, do the

following procedure. All new material

will then be recorded from the end of the

current contents.

1While the recorder is stopped, press

MENU/ENTER.

2Press SELECT >/. repeatedly

until “R-Posi” flashes in the display,

and then press MENU/ENTER.

3Press SELECT >/. repeatedly

until “Fr End” flashes in the display,

and then press MENU/ENTER.

To start recording over the

current contents

Select “FrHere” in step 3.

Notes

•If you start recording while the recorder is in

play-pause mode, the recording will begin

from the point at which is paused.

•The setting will remain even after the power is

turned off.

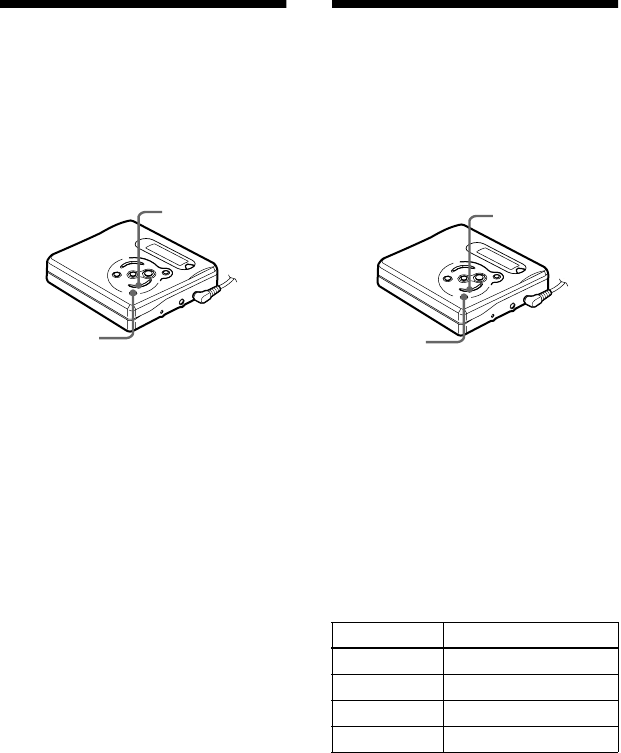

Adding track marks

automatically at

specified intervals

(Auto Time Stamp)

Use this feature to add track marks

automatically at specified intervals when

recording through the analog input

connector.

1While the recorder is recording or in

recording pause, press MENU/

ENTER.

2Press SELECT >/. repeatedly

until “TimeMK” flashes in the

display, and then press MENU/

ENTER.

3Press SELECT >/. repeatedly

until the desired time interval flashes

in the display.

Select one of the following intervals.

4Press MENU/ENTER.

To cancel Auto Time Stamp

Select “OFF” in step 3, and then press

MENU/ENTER, or stop recording.

SELECT >/.

MENU/ENTER

Display Time

OFF —

5 min Approx. 5 min.

10 min Approx. 10 min.

15 min Approx. 15 min.

SELECT >/.

MENU/ENTER

20

Using Auto Time Stamp to add

track marks while recording

When the elapsed recording time

exceeds the time interval for Auto

Time Stamp:

From that point the recorder adds a track

mark whenever the time interval has

elapsed.

Example: 8 minutes of recording has

already been done when an Auto Time

Stamp time interval of 5 minutes is set.

A track mark will be added at the 13-

minute point (after the start of recording)

and after each 5-minute interval

thereafter.

When the time interval set for Auto

Time Stamp exceeds the elapsed

recording time:

The recorder adds a track mark when the

set Auto Time Stamp time interval has

elapsed.

Example: 3 minutes of recording has

already been done when an Auto Time

Stamp time interval of 5 minutes is set

A track mark will be added at the 5-

minute point (after the start of recording)

and after each 5-minute interval

thereafter.

Notes

•Automatic track marking by Auto Time Stamp

starts when you add a normal track mark to

the disc (i.e., by pressing T MARK or X,

etc.).

•The setting will be lost when the recording

stopped.

Adjusting the recording

level manually

(Manual recording)

When you record, the sound level is

adjusted automatically. If necessary, you

can set the level manually.

Note

Adjust the recording level while the recorder is

in standby mode. You cannot adjust it while

recording.

1Press REC while pressing X.

The recorder stands by for recording.

2Press MENU/ENTER, press

SELECT >/. repeatedly until

“RecVol” flashes in the display, and

then press MENU/ENTER again.

3Press SELECT >/. repeatedly

until “Manual” flashes in the display,

and then press MENU/ENTER.

To switch back to the automatic

control, Press SELECT >/.

repeatedly until “Auto” flashes in the

display, and then press MENU/

ENTER.

4Play the source.

REC

MENU/ENTER

XSELECT

>/.

21

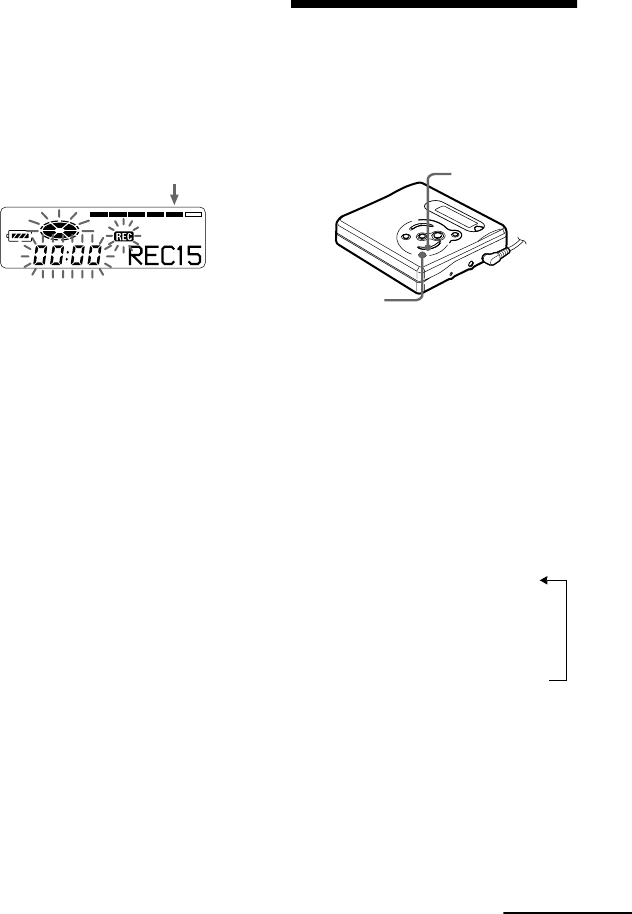

5While observing the level meter in the

display, adjust the recording level by

pressing SELECT >/..

Set the level so that the maximum

input lights up the fifth segment on

the level meter. If the sixth segment

lights up, lower the level by pressing

SELECT >.

Recording does not start in this step.

If your source is an externally

connected component, be sure to cue

the source to the beginning of the

material to be recorded before you

start playback.

6Press X again to start recording.

To stop recording

Press x.

The recording level control is switched back to

automatic control when you record the next

time.

Notes

•The recording level cannot be adjusted while

recording is in progress. If you want to adjust

the recording level after you have started the

recording, press X to pause the recorder. Then

do the procedure from step 5.

•You cannot adjust the recording level

manually during synchro-recording.

Checking the remaining

time or the recording

position

You can check the remaining time, track

number, etc. when recording or during

stop.

1While the recorder is recording or

stopped, press MENU/ENTER, press

SELECT >/. repeatedly until

“DISP” flashes in the display, and

then press MENU/ENTER again.

2Press SELECT >/. repeatedly

until the information you want flashes

in the display.

Each time you press SELECT .,

the display changes as follows.

LapTim (elapsed time)

r

RecRem (remaining time for

recording)1)

r

AllRem (remaining time after the

current location)

1)“RecRem” start flashing in the

display when the remaining time for recording

become 3 minutes or less.

fifth segment SELECT >/.

MENU/ENTER

continued

22

3Press MENU/ENTER.

The display changes as follows.

Note

Items may appear differently depending on the

recorder’s operating status or the recorder

settings.

z

If you want to check the playing position or

track name while playing, see page 24.

AB

Elapsed time Track number

Remaining time for

recording Track name

Remaining time

after the current

location

Disc name

A B

23

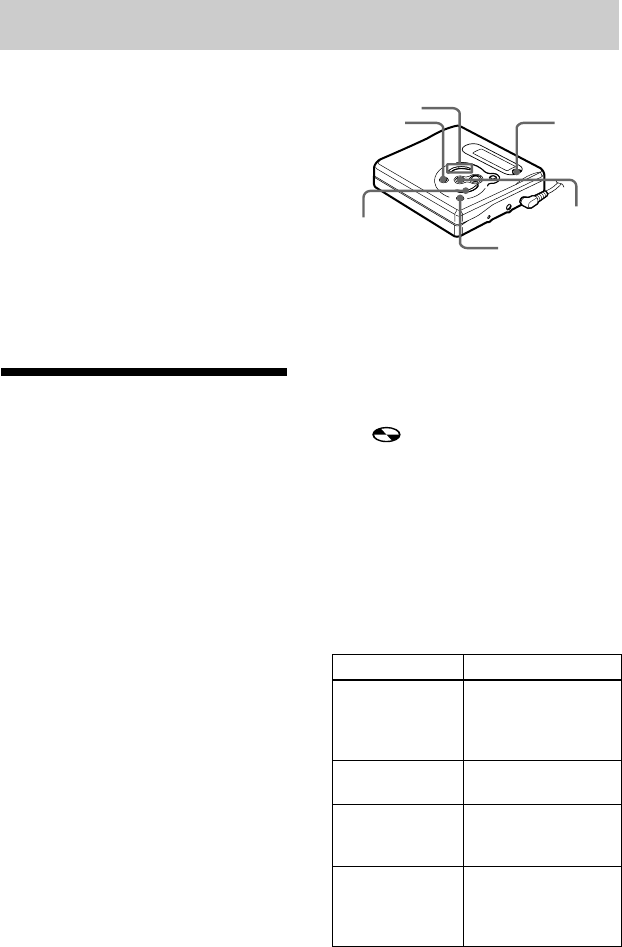

Various ways of playback

Playing tracks

repeatedly

You can play tracks repeatedly in three

ways — all repeat, single repeat, and

shuffle repeat.

1While the recorder is playing or

stopped, press MENU/ENTER, press

SELECT >/. repeatedly until

“P-MODE” flashes in the display, and

then press MENU/ENTER again.

2Press SELECT >/. repeatedly

to select the play mode, and then

press MENU/ENTER.

Each time you press SELECT .,

the display item indicated by B

changes as shown in the table below.

Pressing MENU/ENTER while B is

flashing causes the play mode to

change.

The new mode then appears in the

window indicated by A.

Emphasizing bass

(DIGITAL MEGA BASS)

The Mega Bass function intensifies low

frequency sound for richer quality audio

reproduction. It affects only the sound

from the headphones/earphones.

1Press MENU/ENTER, press

SELECT >/. repeatedly until

“BASS” flashes in the display, and

then press MENU/ENTER again.

Indication A/BPlay mode

—/Normal All the tracks are

played once.

/AllRep All the tracks are

played repeatedly.

SELECT >/.

MENU/ENTER

A

B

/1 Rep A single track is

played repeatedly.

/Shuf.R After the currently

selected track

finishes playing,

the remaining

tracks are played

repeatedly in

random order.

Indication A/BPlay mode

SELECT >/.

MENU/ENTER

continued

24

2Press SELECT >/. to select

the item, and then press MENU/

ENTER.

Each time you press SELECT .,

A and B change as follows.

Notes

•If the sound becomes distorted when

emphasizing bass, turn down the volume.

•The Mega Bass function does not affects the

sound being recorded.

Protecting your hearing

(AVLS)

The AVLS (Automatic Volume Limiter

System) function keeps down the

maximum volume to protect your ears.

1Press MENU/ENTER, press

SELECT >/. repeatedly until

“AV L S ” flashes in the display, and

then press MENU/ENTER again.

2Press SELECT >/. repeatedly

until “ON” flashes in the display, and

then press MENU/ENTER.

When you try to turn the volume too

high, “AV L S ” flashes in the display.

The volume is kept to a moderate

level.

To cancel AVLS

Select “OFF” in step 2.

Checking the remaining

time or the playing

position

You can check the track name, disc name,

etc. during playback.

1While the recorder is playing, press

MENU/ENTER, press SELECT

>/. repeatedly until “DISP”

flashes in the display, and then press

MENU/ENTER again.

2Press SELECT >/. repeatedly

until the information you want flashes

in the display.

Each time you press SELECT .,

the display changes as follows.

LapTim (erapsed time)

r

1 Rem (remaining time of the

current track)

r

AllRem (remaining time after

current location)

Indication A/BPlay mode

—/OFF Normal play

/BASS 1 Mega Bass

(moderate effect)

/BASS 2 Mega Bass

(strong effect)

Digital

MEGA BASS

B

A

MENU/ENTER

SELECT >/.

MENU/ENTER

SELECT >/.

25

3Press MENU/ENTER.

The display changes as follows.

Note

Items may appear differently depending on the

recorder’s operating status or the recorder

settings.

z

If you want to check the remaining time or the

recording position while recording or in stop

mode, see page 21.

Locking the controls

(HOLD)

To prevent the buttons from being

accidentally operated when you carry the

recorder, use this function.

1Slide HOLD in the direction of the

SELECT ..

To unlock the controls

Slide HOLD in the opposite direction of

the arrow.

Connecting to a stereo

system

Connect the i jack of the recorder to the

LINE IN jacks of an amplifier or a

recorder with a line cable (not supplied).

The output is analog. The recorder plays

the MD digitally and sends analog signals

to the externally connected equipment.

1Press N to start playing.

Notes

•Even when connecting to the externally

connected equipment, the Mega Bass function

is operative. If you do not want the effect of

the Mega Bass function on your recording or

the output from the externally connected

equipment, set “BASS” to “OFF” (page 23).

•When recording to an externally connected

equipment, press VOL +/– repeatedly to

adjust the volume level until “VOL 27”

appears in the display, which is optimum for

recording to an externally connected

equipment.

AB

Elapsed time Track number

Remaining time of

the current track Track name

Remaining time

after the current

location

Disc name

A B

HOLD

Portable DAT

recorder, etc.

Stereo system,

etc.

to LINE IN

2 phono plugs

L

(white)

Stereo mini-plug

R (red)

RK-G129

(not

supplied)

to i

RK-G136

(not supplied)

26

Editing recorded tracks

You can edit your recordings by adding/

erasing track marks or labeling tracks and

MDs. Premastered MDs cannot be edited.

Notes on editing

•Do not move or jog the recorder while “Edit”

is flashing in the display.

•You cannot edit tracks on an MD that is

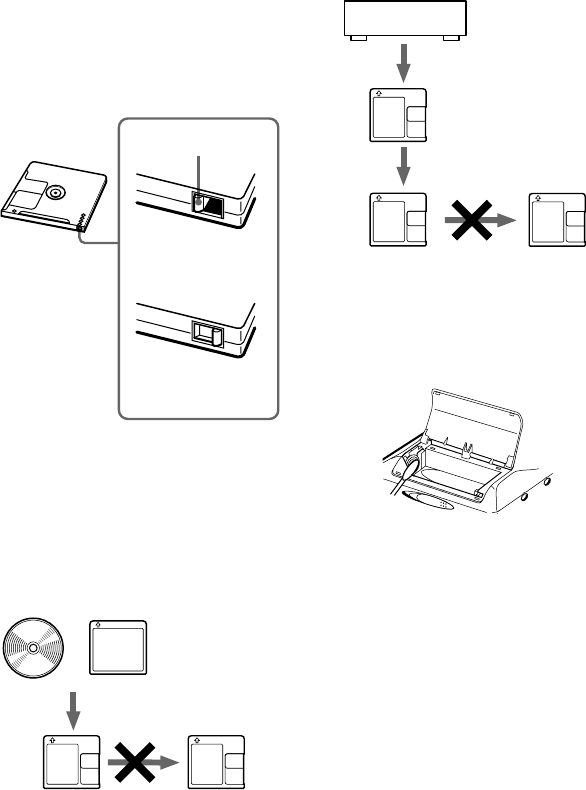

record-protected. Before editing tracks, close

the tab on the side of the MD (page 32).

•If you perform an editing operation while

playing, be sure not to turn the power off until

“Edit” disappears in the display.

•The lid does not open until “Edit” disappears

in the display after editing.

Labeling recordings

You can name discs while the recorder is

stopped, tracks while the recorder is

playing, and both while the recorder is

recording. Each name can be as long as

200 letters.

Each disc can hold up to 1,700

alphanumeric letters during playback or

stop.

Available characters

•Capital and small letters of the English

alphabet

•Numbers 0 to 9

•! " # $ % & ( ) * . ; < = > ?

@ _ ` + – ' , / : _ (space)

Note

If you try to enter more letters than the disc can

hold, “FULL” appears in the display. Enter a

shorter name for the track or disc, or delete

“LP:” from the track name recorded in MDLP

mode.

Labeling a disc during stop

1Press MENU/ENTER, press

SELECT >/. repeatedly until

“EDIT” flashes in the display, and

then press MENU/ENTER again.

“” and “Name” flash in the

display.

2Press MENU/ENTER.

The disc is ready to be labeled.

3Press SELECT >/. repeatedly

to select a letter and press MENU/

ENTER.

The selected letter stops flashing and

the cursor moves to the next input

position.

Press To

XSwitch between

capital letters, small

letters and marks /

numbers.

VOL +/–Move the cursor to

the left or right.

./>Change the letter to

the one before / next

one.

END SEARCH/

VOL + Insert a blank space

to type in a new letter

pressing both buttons

together.

SELECT

>/./

./>

VOL +/–

X

x

MENU/ENTER

END

SEARCH

27

4Repeat step 3 and enter all characters

of the label name.

5Press MENU/ENTER for 2 seconds

or more.

The track or disc is labeled.

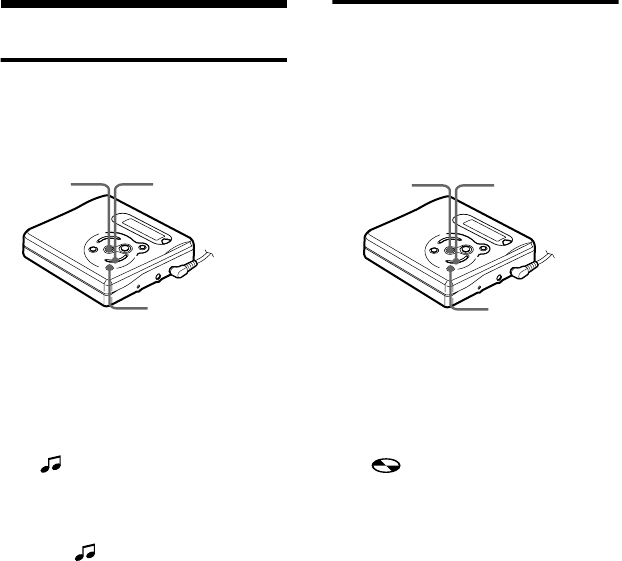

Labeling a track during

playback

1Insert a disc and play the track you

want to label.

2Press MENU/ENTER, press

SELECT >/. repeatedly until

“EDIT” flashes in the display, and

then press MENU/ENTER again.

“” and “Name” flash in the

display.

3Press MENU/ENTER.

The track is ready to be labeled.

4Follow steps 3 to 5 of “Labeling a

disc during stop”.

Labeling a track or a disc

during recording

1While recording, press MENU/

ENTER, press SELECT >/.

repeatedly until “EDIT” flashes in the

display, and then press MENU/

ENTER again.

“” and “Name” flash in the

display.

2To label a track, press MENU/

ENTER while “” and “Name” are

flashing.

To label a disc, press SELECT >/

. repeatedly until “” and

“Name” flash in the display.

The track or disc is ready to be

labeled.

3Follow steps 3 to 5 of “Labeling a

disc during stop”.

To cancel labeling

Press x.

Notes

•When the recording is stopped while labeling

a track or a disc during recording, or when the

recording moves on to the next track while

labeling a track, the input at that point is

entered automatically.

•“LP:” has automatically been added at the

beginning of track names for tracks recorded

in LP2 stereo or LP4 stereo.

Relabeling recordings

Follow the steps corresponding to the

labeling method until the disc or track is

ready to be labeled. Enter a new character

over the one you want to change, then

press MENU/ENTER.

Notes

•You cannot relabel premastered MDs or label

MDs that have not been recorded.

•The recorder is able to display, but cannot

label using Japanese “Katakana” characters.

•The recorder cannot rewrite a disc or track

name of more than 200 letters that was created

by another device.

END SEARCH/

VOL –Delete a letter and

move back all

following letters to

the left pressing both

buttons together.

xCancel labeling.

Press To

28

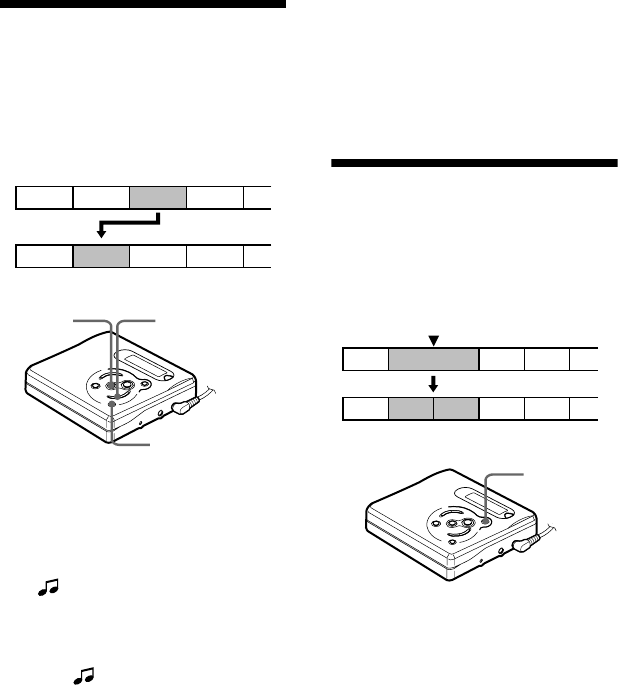

Moving recorded tracks

You can change the order of the recorded

tracks.

Example

Move track C from the third to the second

track

1While playing the track you want to

move, press MENU/ENTER, press

SELECT >/. repeatedly until

“EDIT” flashes in the display, and

then press MENU/ENTER again.

“” and “Name” flash in the

display and the recorder plays the

selected track repeatedly.

2Press SELECT >/. repeatedly

until “” and “Move” flash in the

display, and then press MENU/

ENTER.

For the example above, “003 t” and

“t 003” appear alternately in the

display.

3Press SELECT >/. to select

the destination track number.

For the example above, “003 t” and

“t 002” appears in the display.

4Press MENU/ENTER again.

The track moves to the selected

destination track.

To cancel moving

Press x.

Adding a track mark

You can add track marks so that the part

after the new track mark is counted as a

new track.

The track numbers will increase as

follows.

1While playing or pausing an MD,

press T MARK at the point you want

to mark.

“MK ON” appears in the display, and

a track mark is added. The track

number will increase by one.

To add track marks while

recording

Press T MARK at the point you want to

add a track mark.

You can use Auto Time Stamp to add

track marks automatically at specified

intervals (except while digital recording)

(page 19).

A C DB

A B DC

Before moving

After moving

x

MENU/ENTER

SELECT >/.

1 3 42

231 4 5

Add a track mark

Track numbers increase

T MARK

29

Note

You cannot add track marks during synchro-

recording.

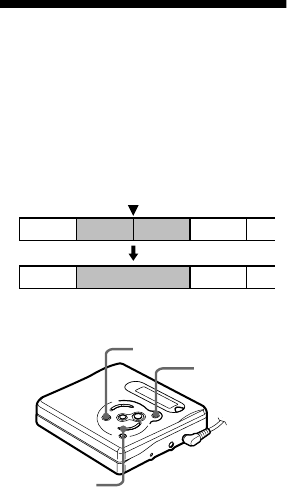

Erasing a track mark

When you record with analog (line) input,

unnecessary track marks may be recorded

where recording level is low. You can

erase a track mark to combine the tracks

before and after the track mark. The track

numbers will change as follows.

1While playing the track with the track

mark you want to erase, press X to

pause.

2Find the track mark by pressing .

slightly.

For example, to erase the third track

mark, find the beginning of the third

track. “00:00” appears in the display.

“MK 003” appears in the display for

2 seconds.

3Press T MARK to erase the mark.

“MK OFF” appears in the display.

The track mark is erased and the two

tracks are combined.

z

When you erase a track mark and name

assigned to the mark are also erased.

Note

You cannot erase a track marks according to the

system limitations. For details, see “System

limitations” (page 35).

1 3 42

1 32

Erase a track mark

Track numbers decrease

T MARK

X

.

30

Erasing tracks

To erase a track

Note that once a recording has been

erased, you cannot retrieve it. Make sure

of the track you are erasing.

1While playing the track you want to

erase, press MENU/ENTER, press

SELECT >/. repeatedly until

“EDIT” flashes in the display, and

then press MENU/ENTER again.

“” and “Name” flash in the

display, and the recorder plays the

selected track repeatedly.

2Press SELECT >/. repeatedly

until “” and “Erase” flash in the

display, and then press MENU/

ENTER.

“Erase?” and “ENTER” appear

alternately in the display.

3Press MENU/ENTER.

The track is erased and the next track

starts to play. All the tracks after the

one erased are automatically

renumbered.

To erase a part of a track

Add track marks at the beginning and the

end of the part you want to erase, then

erase the part (page 28).

To erase the whole disc

You can quickly erase all the tracks and

data of the MD at the same time.

Note that once a recording has been

erased, you cannot retrieve it. Be sure to

check the contents of the disc you want to

erase.

1While the recorder is stopped, press

MENU/ENTER, press SELECT

>/. repeatedly until “EDIT”

flashes in the display, and then press

MENU/ENTER again.

“” and “Name” flash in the

display.

2Press SELECT >/. repeatedly

until “Erase” flashes in the display,

and then press MENU/ENTER.

“Erase?” and “ENTER” appear

alternately in the display.

3Press MENU/ENTER again.

“Edit” flashes in the display, and all

the tracks will be erased.

When erasing is complete, “BLANK”

appears in the display.

To cancel erasing

Press x.

x

MENU/ENTER

SELECT >/.x

MENU/ENTER

SELECT >/

.

31

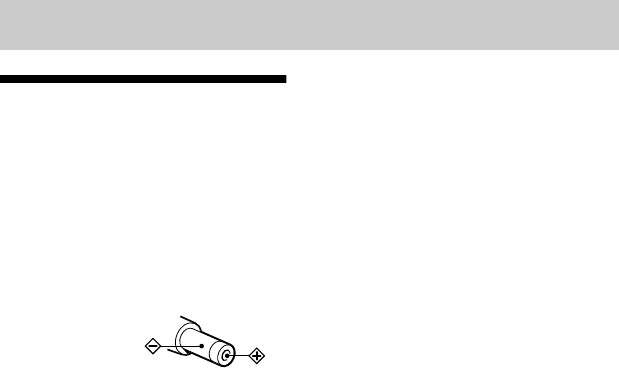

Additional information

Precautions

On safety

Do not put any foreign objects in the DC IN 3V

jack.

On power sources

•Use house current or LR6 (size AA) battery.

•For use in your house: Use the AC power

adaptor. Do not use any other AC power

adaptor than the ones designated for this

recorder since it may cause the recorder to

malfunction.

•The recorder is not disconnected from the AC

power source (mains) as long as it is

connected to the wall outlet, even if the

recorder itself has been turned off.

•If you are not going to use this recorder for a

long time, be sure to disconnect the power

supply (AC power adaptor or dry battery). To

remove the AC power adaptor from the wall

outlet, grasp the adaptor plug itself; never pull

the cord.

On heat build-up

Heat may build up in the recorder if it is used

for an extended period of time. In this case,

leave the recorder turned off until it cools down.

On installation

•Never use the recorder where it will be

subjected to extremes of light, temperature,

moisture or vibration.

•Never wrap the recorder in anything when it is

being used with the AC power adaptor. Heat

build-up in the recorder may cause

malfunction or damage.

On the headphones/earphones

Road safety

Do not use headphones/earphones while

driving, cycling, or operating any motorized

vehicle. It may create a traffic hazard and is

illegal in many areas. It can also be potentially

dangerous to play your recorder at high volume

while walking, especially at pedestrian

crossings. You should exercise extreme caution

or discontinue use in potentially hazardous

situations.

Preventing hearing damage

Avoid using headphones/earphones at high

volume. Hearing experts advise against

continuous, loud and extended play. If you

experience a ringing in your ears, reduce the

volume or discontinue use.

Caring for others

Keep the volume at a moderate level. This will

allow you to hear outside sounds and to be

considerate of the people around you.

On the MiniDisc cartridge

•When carrying or storing the MiniDisc, keep

it in its case.

•Do not break open the shutter.

•Do not place the cartridge where it will be

subject to light, extreme temperatures,

moisture or dust.

•Attach the supplied MD label only in the

space designated for it on the disc. Do not

stick it on any other disc surface.

On cleaning

•Clean the recorder casing with a soft cloth

slightly moistened with water or a mild

detergent solution. Do not use any type of

abrasive pad, scouring powder or solvent such

as alcohol or benzene as it may mar the finish

of the casing.

•Wipe the disc cartridge with a dry cloth to

remove dirt.

•Dust on the lens may prevent the unit from

operating properly. Be sure to close the disc

compartment lid after inserting or ejecting an

MD.

•To obtain the best sound quality, use a dry

cloth to wipe the plugs of the headphones/

earphones. Dirty plugs may cause sound

distortion or intermittent breaks in the sound.

Notes on battery

Incorrect battery usage may lead to leakage of

battery fluid or bursting battery. To prevent

such accidents, observe the following

precautions:

•Install the + and – poles of the battery

correctly.

•Do not try to recharge dry battery.

•When the recorder is not to be used for a long

time, be sure to remove the battery.

•If a battery leak should develop, carefully and

thoroughly wipe away battery fluid from the

battery compartment before inserting new

ones.

Polarity of the

plug

32

Note on mechanical noise

The recorder gives off mechanical noise while

operating, which is caused by the power-saving

system of the recorder and it is not a problem.

To protect a recorded MD

To record-protect an MD, slide open the tab at

the side of the MD. In this position, the MD

cannot be recorded or edited. To record again,

slide the tab back so the tab is visible.

Note on digital recording

This recorder uses the Serial Copy

Management System, which allows only first-

generation digital copies to be made from

premastered software. You can only make

copies from a home-recorded MD by using the

analog connections.

Note on maintenance

Clean the terminal periodically with a cotton

swab or a soft cloth as illustrated below.

If you have any questions or problems

concerning your recorder, please consult your

nearest Sony dealer. (If a trouble occurred when

the disc was in the recorder, we recommend that

the disc be left in the recorder when you consult

your Sony dealer so that the cause of trouble

may be better understood.)

Back of the MD

Recorded material

is protected.

Tab

Recorded material

is not protected.

Premastered software such

as CDs or MDs.

Digital recording

Home-

recorded

MD

No

digital

recording

Recordable

MD

Microphone, record player, tuner, etc.

(with analog output jacks).

Home-recorded MD

No

digital

recording

Recordable

MD

Digital recording

Analog recording

Recordable

MD

33

Troubleshooting

Should any problem persist after you have made these checks, consult your nearest Sony

dealer.

Symptom Cause/Solution

The recorder does

not work or works

poorly.

•Audio sources may not be securely connected.

,Disconnect the audio sources once and connect them again

(pages 10, 16).

•The HOLD function is turned on (“HOLD” appears in the display

when you press an operation button on the recorder).

,Disable HOLD by sliding the HOLD switch in the opposite

direction of the arrow (page 25).

•Moisture has condensed inside the recorder.

,Take the MD out and leave the recorder in a warm place with

the lid open for several hours until the moisture evaporates.

•The dry battery is weak (r or “LoBATT” flashes).

,Replace the dry battery (page 9).

•The dry battery have been inserted incorrectly.

,Insert the battery correctly (page 8).

•You pressed a button while the disc indication was rotating

quickly.

,Wait until the indication rotates slowly.

•When recording digitally from a portable CD player, you did not

use AC power or did not disable the anti-skip function such as ESP

(page 12).

•The analog recording was made using a connecting cord with an

attenuator.

,Use a connecting cord without an attenuator (page 16).

•The AC power adaptor was unplugged or a power outage occured.

•While operating, the recorder received a mechanical shock, too

much static, abnormal power voltage caused by lightning, etc.

,Restart the operation as follows.

1Remove the battery from the battery compartment lid.

2Leave the recorder for about 30 seconds.

3Insert the battery into the battery compartment.

•The disc is damaged or does not contain proper recording or

editing data.

,Reinsert the disc. Rerecord the disc. If the message still

appears, replace it with another disc.

“No SIG” appears

in the display

when recording

from a portable

CD player.

•There is no digital signal from a portable CD player.

,When recording digitally from a portable CD player, use the

AC power adaptor and disable the anti-skip function (such as

ESP) on the CD player (page 12).

34

There is no

recording on the

MD after a

recording

operation.

•The AC power adaptor was unplugged or a power outage occurred

during recording.

The lid does not

open. •The battery have been exhausted.

,Replace the exhausted battery with new ones.

Volume cannot be

turned up. •AVLS is o n .

,Set AVLS to “OFF” (page 24).

No sound comes

through the

headphones/

earphones.

•The headphones/earphones plug is not firmly connected.

,Plug in the plug of the headphones/earphones firmly to i.

•Volume is too low.

,Adjust the volume by pressing VOL +/–.

An MD is not

played from the

first track.

•Disc playing stopped before it came to the last track.

,Press . repeatedly or open and close the lid once to go back

to the beginning of the disc, and restart playing after checking

the track number in the display.

Playback sound

skips. •The recorder is placed where it receives continuous vibration.

,Put the recorder on a stable place.

•A very short track may cause sound to skip.

Sound has a lot of

static. •Strong magnetism from a television or such device is interfering

with operation.

,Move the recorder away from the source of strong magnetism.

Cannot find the

track marks. •You pressed X after pressing . or >.

,Press X before or pressing . or > (page 29).

The disc cannot

edit on other

component.

•The component does not support LP2 stereo and LP4 stereo mode.

,Edit on other component that support LP2 stereo and LP4

stereo mode.

Momentary noise

is heard. •Due to the special digital audio compression technology used in

LP4 stereo mode, momentary noise may occur on very rare

occasions with certain sound sources.

,Record in normal stereo or LP2 stereo mode.

Symptom Cause/Solution

35

System limitations

The recording system in your MiniDisc recorder is radically different from those used in

cassette and DAT decks and is characterized by the limitations described below. Note,

however, that these limitations are due to the inherent nature of the MD recording system

itself and not to mechanical causes.

Symptom Cause

“TrFULL” appears

even before the disc

has reached the

maximum recording

time (60, 74, or 80

minutes).

When 254 tracks have been recorded on the disc, “TrFULL”

appears regardless of the total recorded time. More than 254

tracks cannot be recorded on the disc. To continue recording,

erase unnecessary tracks.

“TrFULL” appears

even before the disc

has reached the

maximum track

number or recording

time.

Repeated recording and erasing may cause fragmentation and

scattering of data. Although those scattered data can be read,

each fragment is counted as a track. In this case, the number of

tracks may reach 254 and further recording is not possible. To

continue recording, erase unnecessary tracks.

Track marks cannot be

erased.

The remaining

recording time does

not increase even after

erasing numerous

short tracks.

When the data of a track is fragmented, the track mark of a

fragment under 12 seconds long (recorded in stereo), 24 seconds

long (recorded in LP2 stereo mode or monaural mode), or 48

seconds long (recorded in LP4 stereo mode) cannot be erased.

You cannot combine tracks recorded in different recording

modes, e.g., a track recorded in stereo and a track recorded in

monaural; nor can you combine a track recorded with digital

connection and a track recorded with analog connection.

Tracks of under 12 seconds, 24 seconds, or 48 seconds in length

are not counted and so erasing them may not lead to an increase

in the recording time.

The total recorded

time and the remaining

time on the disc may

not total the maximum

recording time (60, 74,

or 80 minutes).

Normally, recording is done in minimum units of approximately

2 seconds (in stereo), 4 seconds (in LP2 stereo mode or

monaural), or 8 seconds (in LP4 stereo mode). When recording

is stopped, the last unit of recording always uses this unit of 2

seconds, 4 seconds, or 8 seconds even if the actual recording is

shorter. Likewise, when recording is restarted after the stop, the

recorder will automatically insert a blank space amounting to 2

seconds, 4 seconds, or 8 seconds before the next recording.

(This is to prevent accidental erasing of a previous track

whenever a new recording is started). Therefore, the actual

recording time will decrease whenever a recording is stopped by

a maximum of 6 seconds, 12 seconds, or 24 seconds.

The edited tracks may

exhibit sound dropout

during search

operations.

The fragmentation of data may cause sound dropout while

searching because the tracks are played in higher speed than

normal playback.

36

Messages

If the following error messages flash in the display window, check the chart below.

Error message Meaning/Remedy

BLANK •An MD with no recording on it is inserted.

,Insert a recorded MD.

BUSY •You tried to operate the recorder while it was accessing the

recorded data.

,Wait until the message goes out (in rare cases, it may take

2–3 minutes).

Edit •The MD player is recording information (track start and end

position) from the memory to the disk.

,Wait until this process is completed. Do not expose the

player to physical shock, nor disrupt power supply.

ERROR •The disc is damaged or does not contain proper recording or

editing data.

,Reinsert the disc. If this fails, rerecord.

FULL •There is no more space to record on the disc (less than 12

seconds in stereo, 24 seconds in LP2 stereo mode or monaural

or 48 seconds in LP4 stereo mode available).

,Replace the disc.

•You tried to enter more than 200 letters to label a single track

or disc.

•You tried to enter a total of more than 1,700 letters for track or

disc names during playback or stop.

,Enter a shorter name for track or disc, or delete “LP:” from

the beginning of the track name recorded in MDLP mode

(page 26).

HiDCin •Voltage of the power supply is too high (The recommended

AC power adaptor is not used).

,Use the recommended AC power adaptor.

HOLD •The recorder is locked.

,Slide HOLD against the arrow to unlock the recorder

(page 25).

LoBATT •Battery is weak.

,Replace the dry battery (page 9).

MEMORY •You tried to record with the recorder placed where it receives

continuous vibration.

,Put the recorder on a stable place, and start recording

again.

37

NoCOPY •You tried to make a copy from a disc that is protected by the

Serial Copy Management System. You cannot make copies

from a digitally connected source which was itself recorded

using digital connection.

,Use analog connection instead (page 16).

NoDISC •You tried to play or record with no disc in the recorder.

,Insert an MD.

No SIG •The recorder could not detect digital input signals.

,Make sure that the source is connected firmly (page 10).

PbONLY •You tried to record or edit on a premastered MD (Pb stands for

“playback”).

,Insert a recordable MD.

SAVED •You tried to record or edit on a MD with the tab in the record-

protect position.

,Slide the tab back (page 32).

Saving •The MD player is recording information (sounds) from the

memory to the disk.

,Wait until this process is completed. Do not expose the

player to any physical shock, nor disrupt power supply.

SORRY •You tried to erase the track mark at the beginning of the first

track.

•You tried to erase a track mark to combine tracks the recorder

cannot combine (a track recorded in stereo and in mono, for

example).

•You tried to press X or T MARK during synchro-recording.

TEMP •Heat has built up in the recorder.

,Let the recorder cool down.

TrFULL •There is no more space for new data when you are editing the

MD.

,Erase unnecessary tracks (page 30).

TrPROT •You tried to record or edit on a track that is protected from

erasing.

,Record or edit on other tracks.

Error message Meaning/Remedy

38

Specifications

System

Audio playing system

MiniDisc digital audio system

Laser diode properties

Material: GaAlAs

Wavelength: λ = 790 nm

Emission duration: continuous

Laser output: less than 44.6 µW

(This output is the value measured at a distance

of 200 mm from the lens surface on the optical

pick-up block with 7 mm aperture.)

Recording and playback time

When using MDW-80:

Maximum 160 min. in monaural

Maximum 320 min. in stereo

Revolutions

350 rpm to 2,800 rpm (CLV)

Error correction

ACIRC (Advanced Cross Interleave Reed

Solomon Code)

Sampling frequency

44.1 kHz

Sampling rate converter

Input: 32 kHz/44.1 kHz/48 kHz

Coding

ATRAC (Adaptive TRansform Acoustic

Coding)

ATRAC3 - LP2/LP4

Modulation system

EFM (Eight to Fourteen Modulation)

Number of channels

2 stereo channels

1 monaural channel

Frequency response

20 to 20,000 Hz ± 3 dB

Wow and Flutter

Below measurable limit

Inputs

Line in: stereo mini-jack, minimum input level

49 mV

Optical (Digital) in: optical (digital) mini-jack

Outputs

i: stereo mini-jack, maximum output level 5

mW + 5 mW, load impedance 16 ohm

General

Power requirements

Sony AC power adaptor connected at the DC IN

3V jack (supplied with the European and

Chinese models only):

120 V AC, 60 Hz (U.S.A., Canadian and

Taiwan model)

230 V AC, 50/60 Hz (Europe continental

model)

240 V AC, 50 Hz (Australian model)

220 V AC, 50 Hz (Chinese model)

230 - 240 V AC, 50 Hz (U.K. and Hong

Kong model)

220 V AC, 50 Hz (Argentina model)

110/220 V AC, 60 Hz (Korean model)

100 - 240 V AC, 50/60 Hz (Other models)

One LR6 (size AA) alkaline dry battery (not

supplied)

Battery operation time

See “Battery life” (page 8)

Dimensions

Approx. 83.0 × 27.8 × 75.8 mm (w/h/d) (33/8 ×

11/8 × 3 in.) without projections.

Mass

Approx. 113 g (4.0 oz) the recorder only

Supplied accessories

See “Getting started” (page 8).

US and foreign patents licensed from Dolby

Laboratories.

Design and specifications are subject to change

without notice.

Optional accessories

Optical Cable

POC-15B, POC-15AB, POC-DA12SP

Line Cable RK-G129, RK-G136

Stereo Headphones* MDR-D77, MDR-D55

Active Speakers SRS-Z500

Recordable MDs MDW-series

AC power adaptor AC-E30HG

Your dealer may not handle some of the above

listed accessories. Please ask the dealer for

detailed information about the accessories in

your country.

∗Use only headphones/earphones with stereo

mini plugs. You cannot use headphones/

earphones with micro plugs.

39

Explanations

How the MiniDisc got so small

The 2.5-inch MiniDisc, encased in a plastic

cartridge that looks like a 3.5-inch diskette,

uses a new digital audio compression

technology called ATRAC (Adaptive

TRansform Acoustic Coding). To store more

sound in less space, ATRAC extracts and

encodes only those frequency components

actually audible to the human ear.

Quick Random Access

Like CDs, MDs offer instantaneous random

access to the beginning of any music track.

Premastered MDs are recorded with location

addresses corresponding to each music

selection.

Recordable MDs are manufactured with a

“User TOC Area” to contain the order of the

music. The TOC (Table of Contents) system

is similar to the “directory management

system” of floppy disks. In other words,

starting and ending addresses for all music

tracks recorded on the disc are stored in this

area. This lets you randomly access the

beginning of any track as soon as you enter

the track number (AMS), as well as label the

location with a track name as you would a

file on a diskette.

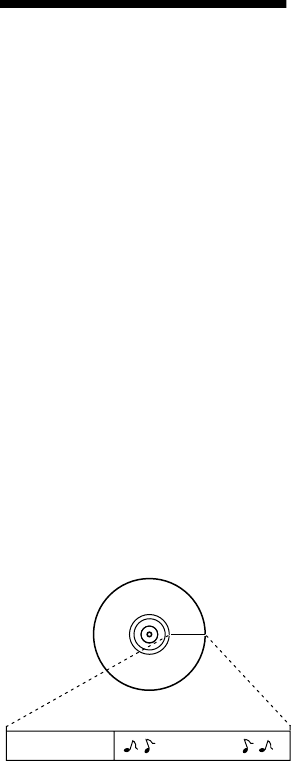

BA

A — User TOC area

Contains the order and start/end points of

the music.

B — Music Data

Sony Corporation Printed in JapanSony Corporation Printed in Malaysia

This warranty is valid only in the United States.
