Introducing the Sony LCD TV
- Presenting the Sony LCD TV
Setting Up the TV
Using the Remote Control
Using the Features
Using the Memory Stick Viewer
Using i.LINK
Using the Menus
Other Information
Index

Actual total number: Sony QUALIA 005 2-592-150-12(2) OTF

Printed on 100% recycled paper.

Sony QUALIA 005 2-592-150-12(2) OTF

KDX-46Q005

2-592-150-12(2)

Owner’s Record

The model and serial numbers are located at the rear of

the Display Unit, below the Sony logo, on the sticker, and

also on the Media Receiver Unit (white label). Record

these numbers in the spaces provided below. Refer to

them whenever you call upon your Sony dealer regarding

this product.

Model No.

Display Unit _____________________________

Media Receiver Unit _______________________

Serial No.

Display Unit _____________________________

Media Receiver Unit _______________________

Contacting Sony

If, after reading the following instructions, you have

additional questions related to the use of your Sony TV,

Please call one of the following numbers.

Customers in the continental United States contact the

QUALIA Customer Center at:

1-877-QUALIA3 (782-5423)

Customers in Canada contact the Customer Information

Service Center at:

1-877-899-SONY (7669)

Product Name:

LCD Digital Color TV

Model Name:

KDX-46Q005

Display Unit: XDM-F4600Q

Media Receiver Unit: MBD-Q005

KDX-46Q005

2-592-150-12(2)

WARNING

To reduce the risk of fire or electric

shock, do not expose this apparatus to

rain or moisture.

This symbol is intended to alert the user to the

presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of

electric shock to persons.

This symbol is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

CAUTION

To prevent electric shock, do not use this polarized AC

plug with an extension cord, receptacle or other outlet

unless the blades can be fully inserted to prevent blade

exposure.

Note on Caption Vision

This television receiver provides display of television

closed captioning in accordance with §15.119 of the FCC

rules.

NOTIFICATION

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

❑Reorient or relocate the receiving antenna.

❑Increase the separation between the equipment and

receiver.

❑Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

❑Consult the dealer or an experienced radio/TV

technician for help.

For Customers in the United States

If you have any questions about this product, you may

call:

QUALIA Customer Center

1-877-QUALIA3 (782-5423)

The number below is for FCC related matters only.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE,

NE PAS OUVRIR

PRECAUCION

RIESGO DE CHOQUE ELECTRICO

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NO ABRIR

Declaration of Conformity

Trade Name: SONY

Model No.: MBD-Q005

Responsible Party: Sony Electronics Inc.

Address: 16450 W. Bernardo Dr.,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference; and (2)

this device must accept any interference received,

including interference that may cause undesired

operation.

You are cautioned that any changes or

modifications not expressly approved in

this manual could void your warranty and

your authority to operate this equipment.

(Continued)

KDX-46Q005

2-592-150-12(2)

For Customers in Canada

This Class B digital apparatus complies with Canadian

ICES-003.

Safety

❑Operate this TV only on 120 V AC.

❑Use the AC power cord specified by Sony and

suitable for the voltage where you use it.

❑The plug is designed, for safety purposes, to fit into

the wall outlet only one way. If you are unable to

insert the plug fully into the outlet, contact your

dealer.

❑If any liquid or solid object should fall inside the

cabinet, unplug the TV immediately and have it

checked by qualified service personnel before

operating it further.

❑If you will not be using the TV for several days,

disconnect the power by pulling the plug itself.

Never pull on the cord.

❑For details concerning safety precautions, see

“Important Safeguards” on page 5.

Installing

❑The TV should be installed near an easily accessible

power outlet.

❑To prevent internal heat buildup, do not block the

ventilation slots.

❑Do not install the TV in a hot or humid place, or in a

place subject to excessive dust or mechanical

vibration.

❑Avoid operating the TV at temperature below 41°F

(5°C).

❑If the TV is transported directly from a cold to a

warm location, or if the room temperature changes

suddenly, the picture may be blurred or show poor

color. In this case, please wait a few hours to let the

moisture evaporate before turning on the TV.

❑To obtain the best picture, do not expose the screen

to direct illumination or direct sunlight. It is

recommended to use spot lighting directed down

from the ceiling or to cover the windows that face

the screen with opaque drapery. It is desirable to

install the TV in a room where the floor and walls

are not of a reflective material.

Note

This digital television is capable of receiving analog

basic, digital basic and digital premium cable television

programming by direct connection to a cable system

providing such programming. A security card provided

by your cable operator is required to view encrypted

digital programming. Certain advanced and interactive

digital cable services such as video-on-demand, a cable

operator’s enhanced program guide and data-enhanced

television services may require the use of a set-top box.

For more information call your local cable operator.

This television also includes a QAM demodulator which

should allow you to receive unscrambled digital cable

television programming via subscription service to a

cable service provider. Availability of digital cable

television programming in your area depends on the type

of programming and signal provided by your cable

service provider.

Trademark Information

CableCARD™ is a trademark of Cable Television

Laboratories, Inc.

TruSurround, SRS and the ( )® symbol are trademarks

of SRS Labs, Inc. TruSurround technology is

incorporated under license from SRS Labs, Inc.

BBE and BBE Symbol are trademarks of BBE Sound,

Inc. and are licensed by BBE Sound, Inc. under U.S.

Patent No. 4,638,258 and 4,482,866.

Macintosh is a trademark licensed to Apple Computer,

Inc., registered in the U.S.A and other countries.

Manufactured under license from

Dolby Laboratories. “Dolby” and the

double-D symbol are trademarks of

Dolby Laboratories.

This TV incorporates High-Definition

Multimedia Interface (HDMI™)

technology. HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC.

WEGA, Steady Sound, Digital Reality Creation,

CineMotion, BN Smoother, Memory Stick, Memory

Stick Duo, Memory Stick PRO, Memory Stick PRO Duo,

MagicGate, MID and Twin View are trademarks of Sony

Corporation. i.LINK is a trademark of Sony Corporation

and used only to designate that a product contains an

IEEE 1394 connector. All products with an i.LINK

connector may not communicate with each other.

Caution

This TV for use only with Sony TABLE-TOP STAND

SU-XTQ005, WALL-MOUNT BRACKET SU-

XWQ005, and FLOOR STAND SU-XFQ005. Use with

other stand models may result in instability causing

possible injury.

KDX-46Q005

2-592-150-12(2)

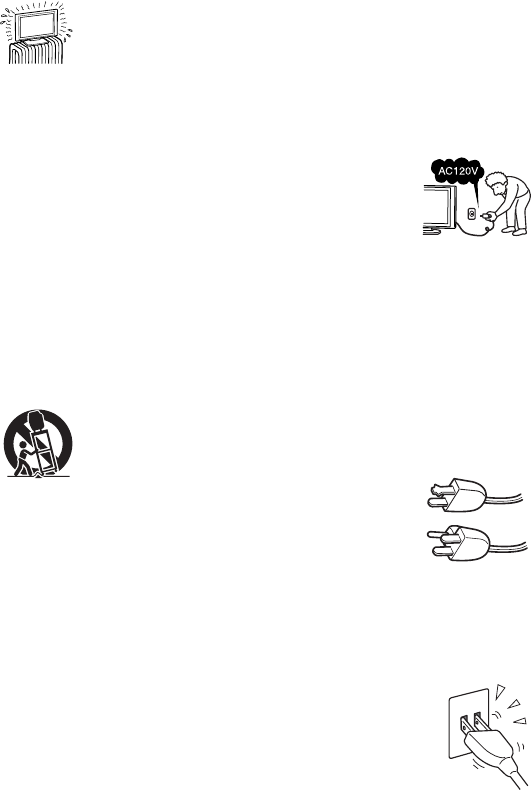

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation slots. Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources

such as radiators, heat registers,

stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into

your outlet, consult an electrician for replacement of

the obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination

to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate

normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases, shall be placed on the apparatus.

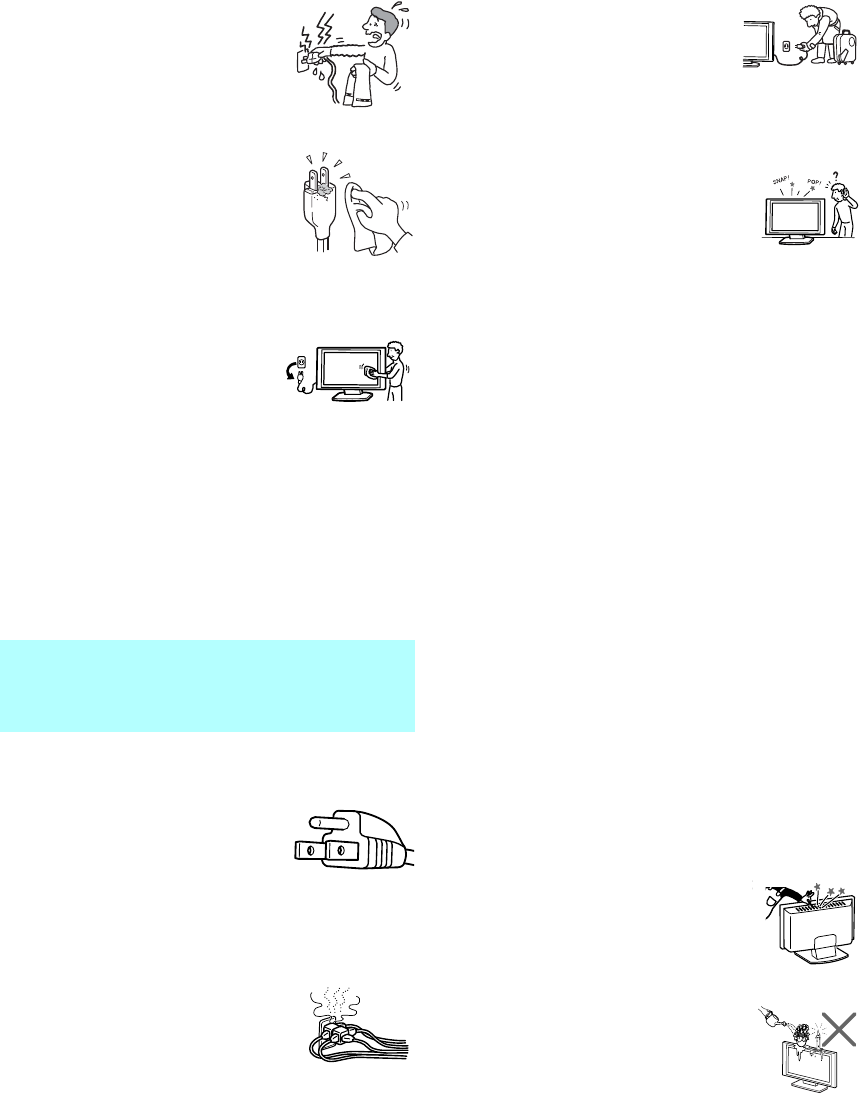

Important

Safeguards

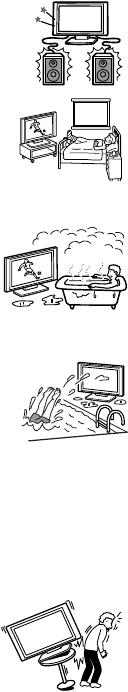

Before using your TV, please read these instructions

completely, and keep this manual for future reference.

Carefully observe and comply with all warnings, cautions

and instructions placed on the set or described in the

operating instructions or service manual.

WARNING

To guard against injury, the following basic safety

precautions should be observed in the installation, use

and servicing of the set.

Use

Power Sources

This set should be operated only from

the type of power source indicated on

the serial/model plate.

If you are not sure of the type of

electrical power supplied to your home,

consult your dealer or local power company.

Grounding or Polarization

This set is equipped with a polarized AC power cord plug

(a plug having one blade wider than the other), or with a

three-wire grounding type plug (a plug having a third pin

for grounding). Follow the instructions below:

For the set with a polarized AC power cord

plug

This plug will fit into the power outlet

only one way. This is a safety feature. If

you are unable to insert the plug fully

into the outlet, try reversing the plug.

If the plug still fails to fit, contact your

electrician to have a suitable outlet installed. Do not

defeat the safety purpose of the polarized plug by forcing

it in.

Wall outlet

Do not use a poor fitting outlet.

Insert the plug fully into the outlet. If it is

loose, it may cause arcing and result in fire.

Contact your electrician to have the outlet

changed.

Wiring

For your safety, unplug the AC power cord when wiring

cables.

(Continued)

KDX-46Q005

2-592-150-12(2)

Electric shock

Do not touch the AC power cord or the

unit with a wet hand.

If you plug/unplug the AC power cord

from the unit with a wet hand, it may

cause electric shock.

Cleaning

❑Clean the AC power plug regularly.

❑If the plug is covered with dust and

it picks up moisture, its insulation

may deteriorate and result in fire.

Unplug the AC power plug and

clean it regularly.

❑Unplug the AC power cord when cleaning this unit.

If not, it may result in electric shock.

❑Clean the cabinet of the TV with

a dry soft cloth. To remove dust

from the screen, wipe it gently

with a soft cloth. Stubborn stains

may be removed with a cloth slightly dampened

with solution of mild soap and warm water. Never

use strong solvents such as thinner or benzine for

cleaning.

❑If using a chemically pretreated cloth, please follow

the instruction provided on the package.

❑If the picture becomes dark after using the TV for a

long period of time, it may be necessary to clean the

inside of the TV. Consult qualified service

personnel.

For the set with a three-wire grounding type

AC plug

This plug will only fit into a grounding-

type power outlet. This is a safety

feature. If you are unable to insert the

plug into the outlet, contact your

electrician to have a suitable outlet

installed. Do not defeat the safety purpose of the

grounding plug.

Overloading

Do not overload wall outlets, extension

cords or convenience receptacles beyond

their capacity, since this can result in fire

or electric shock.

Power

Always turn the set off when it is not

being used. When the set is left

unattended and unused for long

periods of time, unplug it from the

wall outlet as a precaution against the possibility of an

internal malfunction that could create a fire hazard.

Sound

If a snapping or popping sound from a TV

set is continuous or frequent while the TV

is operating, unplug the TV and consult

your dealer or service technician. It is

normal for some TV sets to make occasional snapping or

popping sounds, particularly when being turned on or off.

AC power cord

If you damage the AC power cord, it may result in fire or

electric shock.

❑Do not pinch, bend, or twist the cord excessively.

The core lines may be bared and cut, and cause

short-circuit, resulting in fire or electric shock.

❑Do not convert or damage the AC power cord or

display interface cable.

❑Do not put anything heavy on the AC power cord.

Do not pull the AC power cord.

❑Keep the AC power cord away from heat sources.

❑Be sure to grasp the plug when disconnecting the

AC power cord.

If the AC power cord is damaged, stop using it and ask

your dealer or Sony service center to exchange it.

Batteries

Do not dispose of batteries in fire.

Do not short circuit, disassemble or overheat the

batteries.

Dispose of used batteries

To preserve our environment, dispose the used batteries

according to your local laws or regulations.

Object and Liquid Entry

Never push objects of any kind into the

set through the cabinet slots as they may

touch dangerous voltage points or short

out parts that could result in a fire or

electric shock. Never spill liquid of any

kind on the set.

Do not place any objects on the unit.

The apparatus shall not be exposed to

dripping or splashing and that no objects

filled with liquids, such as vases, shall be

placed on the apparatus.

❑Clean the rear cover area of the display unit and

both sides of the media receiver unit regularly. Dust

in these areas may cause a problem with the cooling

system of the TV set.

KDX-46Q005

2-592-150-12(2)

Attachments

Do not use attachments not recommended

by the manufacturer, as they may cause

hazards.

Medical institution

Do not place this unit in a place where

medical equipment is in use.

It may cause malfunction of medical

instruments.

Moisture and flammable objects

❑Do not use power-line operated

sets near water — for example,

near a bathtub, washbowl, kitchen

sink, or laundry tub, in a wet

basement, or near a swimming pool, etc. It may

result in fire or electric shock.

❑Do not let this unit get wet. Never

spill liquid of any kind on the unit.

If any liquid or solid object does fall

through, do not operate the unit. It

may result in electric shock or

damage to the unit. Have it checked immediately by

qualified personnel.

❑To prevent fire, keep inflammable objects or naked

lights (e.g. candles) away from the unit.

Accessories

Do not place the set on an unstable

cart, stand, table or shelf. The set may

fall, causing serious injury to a child or

an adult and serious damage to the set.

Use only a cart or stand recommended

by the manufacturer for the specific model of TV. An

appliance and cart combination should be moved with

care. Quick stops, excessive force, and uneven surfaces

may cause the appliance and cart combination to

overturn.

Broken pieces

Do not throw anything at the unit.

The screen glass may break by the impact and cause

serious injury.

Cable wiring

Take care not to catch your feet on the cables. It may

damage the unit.

Heat

Do not touch the surface of the TV.

It remains hot, even for some time after the TV is turned

off.

Volume adjustment

Adjust the volume so as not to trouble your neighbors.

Sound carries very easily at night time. Therefore, closing

the windows or using headphones is suggested.

When using headphones, adjust the volume so as to avoid

excessive levels, as hearing damage may result.

Disposal of the TV

❑Do not dispose the TV with general household

waste.

❑The LCD contains a small amount of liquid crystal.

Follow your local ordinances and regulations for

disposal.

Handling of broken glass and liquid crystal

leakage

If the LCD panel gets damaged, crystalline liquid leakage

may occur, or scattered broken glass may result. Do not

touch broken glass or crystalline liquid (which is toxic),

with bare hands as cuts or poisoning/skin irritation may

occur. Also, do not let glass fragments or leaked

crystalline liquid get into your eyes or mouth. Should

either contact your eyes or mouth, rinse the contacted

area thoroughly with water and consult your doctor.

LCD screen

❑Although the LCD screen is made with high-

precision technology and has effective pixels of

99.99% or more, black dots may appear or bright

points of light (red, blue, or green) may appear

constantly on the LCD screen. This is a structural

property of the LCD panel and is not a malfunction.

❑Do not expose the LCD screen surface to the sun.

Doing so may damage the screen surface.

❑Do not push or scratch the front filter, or place

objects on top of the TV. The image may be uneven

or the LCD panel may be damaged.

❑If the TV is used in a cold place, a smear may occur

in the picture or the picture may become dark. This

does not indicate a failure. These phenomena

improve as the temperature rises.

❑Ghosting may occur when still pictures are

displayed continuously. It may disappear after a few

moments.

❑The screen and cabinet get warm when the TV is in

use. This is not a malfunction.

❑Avoid spraying insect repellent with volatile

material to the screen.

❑Avoid prolonged contact with rubber or plastic made

material.

(Continued)

KDX-46Q005

2-592-150-12(2)

Installation and moving

Installation

❑When installing the display unit on

the wall, be sure to have assemblers

install and keep away from the unit.

If a person other than the assemblers

install the display unit on the wall using a wall

mount unit, the unit may fall and cause serious

injury if the unit is not installed securely.

❑To prevent injury, this apparatus must be securely

attached to the stand/wall in accordance with the

installation instructions.

Placement for viewing

It is recommended to watch the TV at a distance of 3-7

times that of the screen, and in moderate brightness.

Watching the TV for too long or in a dark room will cause

eye fatigue.

Recommended place for the media receiver unit

Place the media receiver unit on a stable,

level surface. Otherwise, the media

receiver unit may fall and cause injury.

Use an optional Sony stand, which has

adequate strength.

Weight

Do not stand on the media receiver unit. The unit may fall

or break, causing injury. Pay special attention to little

children.

Optional accessories

Observe the following when installing the

TV using a stand or wall-mount bracket. If

the TV is not secured properly, it may fall

and cause injury.

❑Be sure to follow the operating instructions supplied

with your stand or wall-mount bracket when

installing the unit.

❑Be sure to attach the brackets supplied with your

stand or wall-mount bracket.

Protruding location

Do not install the TV in protruding locations. If you

install the unit in the following locations, injury may

result.

❑Do not install the unit in a location where the unit

protrudes, such as pillars.

❑Do not install the unit in a location that may cause

facial injury.

Oils

Do not install this unit in restaurants where oily vapors

occur. Dust absorbing oil may enter into the unit and

damage the unit.

Corrosion

Use of this set near the seashore may subject the set to

excessive salt, corrosion and internal damage and result

in deterioration of the set’s performance. If the set will be

subjected to these conditions, steps should be taken to

reduce the humidity and temperature of the area where

the set is located.

Ventilation

The slots and openings in the cabinet and in the back or

bottom are provided for necessary ventilation. To ensure

reliable operation of the set, and to protect it from

overheating, these slots and openings must never be

blocked or covered.

Unless proper ventilation is provided, the unit

may gather dust and get dirty. For proper

ventilation, observe the following:

❑Do not install the unit turned backward or

sideways.

❑Do not install the unit turned over or upside down.

❑Never cover the slots and openings

with a cloth or other materials.

❑Never block the slots and openings

by placing the set on a bed, sofa, rug

or other similar surface.

❑Never place the set in a confined

space, such as a bookcase or built-in

cabinet, unless proper ventilation is

provided.

❑Leave some space around the unit.

When installing the unit against a wall, keep it at

least 4 inches (10 cm) away from the wall.

Otherwise, adequate air circulation may be blocked,

causing overheating that may result in fire or

damage to the unit.

Carry the TV in the specified manner

If you carry the TV in a manner other

than the specified manner and without

the specified number of persons, it

may drop and a serious injury may be

caused. Be sure to follow the

instructions mentioned below.

❑Carry the TV with the specified number of persons

(see page 25).

❑Hold the TV tightly when carrying it.

❑Before carrying the TV, disconnect any accessories

or cables.

KDX-46Q005

2-592-150-12(2)

Place the media receiver unit on a stable level surface so

as not to block the inlets at the bottom of the media

receiver unit.

Media receiver unit: Top view

Never place the media receiver unit in a confined space.

Make sure to provide sufficient space in front of the front

and back of the media receiver unit. Failure to do so may

cause overheating and result in fine or damage to the unit.

Ensure reliable operation of the unit by ensuring proper

ventilation of the exhaust fan.

Outdoor use

Do not install this unit outdoors. If the unit

is exposed to rain, it may result in fire or

electric shock. If the unit is exposed to direct

sunlight, the unit may heat up and it may

damage the unit.

Vehicle and ceiling

Do not install this unit in a vehicle or hung

from the ceiling.

Bumping of the vehicle may cause the set to

fall down and cause injury.

11 7/8 inches (30 cm)

4 inches

(10 cm)

4 inches

(10 cm)

4 inches (10 cm)

When installing the unit on the wall,

allow this much space.

11 7/8 inches (30 cm)

4 inches

(10 cm)

4 inches

(10 cm)

When installing the unit using a stand,

allow this much space.

6 inches

(15 cm)

Never install the unit as follows:

Air circulation is blocked.

Air circulation is

blocked.

POWER

QUALIA

MEDIA RE EIVER UNIT MBD-Q 0/5

OPEN

POWER/STANDBY

TIMER

STANDBY

Media receiver unit: Front view

Allow this

much

space.

2 7/8 inches

(7 cm)

2 inches

(5 cm)

2 inches

(5 cm)

13/32 inches

(1 cm)

When installing upright:

Allow this

much

space.

2 7/8 inches

(7 cm)

2 inches

(5 cm)

2 inches

(5 cm)

13/32 inches (1 cm)

Allow this

much

space.

2 inches

(5 cm)

2 inches

(5 cm)

(Continued)

KDX-46Q005

2-592-150-12(2)

Ship and vessel

Do not install this unit in a ship or vessel. If

the unit is exposed to seawater, it may cause

fire or damage the unit.

Preventing the TV from toppling over

Take measures to prevent the unit from toppling over and

causing injury.

To prevent the unit from toppling over, secure the unit to

the wall or pillar.

Installing on a level surface

If you install the unit on an inclined

surface, the unit may fall or drop and cause

injury or damage.

Placing on a stable surface

If you place the unit on an unstable surface,

the unit may fall and cause injury or

damage.

Fall

Do not hang anything on the unit.

The unit may fall from the stand or wall-

mount unit, causing damage or serious

injury.

AC power cord

Unplug the AC power cord when moving

the unit. Do not move the unit with the AC

power cord plugged in. It may damage the

AC power cord and result in fire or

electric shock.

Do not allow anything to rest on or roll over the power

cord, and do not place the unit where the power cord is

subject to wear or abuse.

Magnet influence

This TV contains a strong magnet in the speaker unit that

generates a magnetic influence. Keep any items

susceptible to magnetic influence away from the TV

speaker.

Antennas

Outdoor Antenna Grounding

If an outdoor antenna is installed, follow the precautions

below. An outdoor antenna system should not be located

in the vicinity of overhead power lines or other electric

light or power circuits, or where it can come in contact

with such power lines or circuits.

WHEN INSTALLING AN OUTDOOR ANTENNA

SYSTEM, EXTREME CARE SHOULD BE TAKEN TO

KEEP FROM CONTACTING SUCH POWER LINES

OR CIRCUITS AS CONTACT WITH THEM IS

ALMOS T I NVARIA BLY FATA L.

Be sure the antenna system is grounded so as to provide

some protection against voltage surges and built-up static

charges.

Section 810 of the National Electrical Code (NEC) in

USA and Section 54 of the Canadian Electrical Code in

Canada provides information with respect to proper

grounding of the mast and supporting structure,

grounding of the lead-in wire to an antenna discharge

unit, size of grounding conductors, location of antenna

discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode.

Antenna Grounding According to the NEC

Refer to section 54-300 of Canadian Electrical Code for

Antenna Grounding.

Lightning

For added protection for this television receiver during a

lightning storm, or when it is left unattended and unused

for long periods of time, unplug it from the wall outlet

and disconnect the antenna. This will prevent damage to

the receiver due to lightning and power-line surges.

Service

Damage requiring service

Unplug the set from the wall outlet and refer servicing to

qualified service personnel under the following

conditions:

❑When the power cord or plug is

damaged or frayed.

❑If liquid has been spilled into the set.

❑If the surface of the TV cracks, do not touch it,

unplug the AC power cord.

Otherwise electric shock may result.

Antenna lead-in wire

Ground clamps

Antenna lead-in wire

(NEC Section 810-20)

Grounding conductors

(NEC section 810-21)

Power service grounding

electrode system (NEC Art

250 Part H)

Ground clamp

Electrical

service

equipment

NEC: National

Electrical Code

KDX-46Q005

2-592-150-12(2)

❑If the set has been exposed to rain or water.

❑If the set has been subject to

excessive shock by being dropped,

or the cabinet has been damaged.

❑If the set does not operate normally

when following the operating

instructions. Adjust only those

controls that are specified in the

operating instructions. Improper

adjustment of other controls may

result in damage and will often

require extensive work by a

qualified technician to restore the

set to normal operation.

❑When the set exhibits a distinct

change in performance, it indicates

a need for service.

Servicing

Do not attempt to service the set by yourself

since opening the cabinet may expose you to

dangerous voltage or other hazards.

Replacement parts

When replacement parts are required, be

sure the service technician certifies in

writing that he has used replacement parts

specified by the manufacturer that have the

same characteristics as the original parts.

Unauthorized substitutions may result in fire, electric

shock or other hazards.

Safety check

Upon completion of any service or repairs

to the set, ask the service technician to

perform routine safety checks (as specified

by the manufacturer) to determine that the

set is in safe operating condition, and to so certify. Ask a

qualified service technician to dispose of the set.

KDX-46Q005

2-592-150-12(2)

Contents

Introducing the Sony LCD TV

Presenting the Sony LCD TV ................................15

Package Contents...........................................15

Using This Manual.........................................15

Features..........................................................16

Setting Up the TV

Overview................................................................19

TV Controls and Connectors .................................20

Display Unit...................................................20

Media Receiver Unit .....................................21

Installing the TV ....................................................25

Carrying Your TV..........................................25

Take Precaution during the Installation .........26

To Prevent the TV from Falling ....................26

When Installing Your TV against a Wall ......26

Installing the Media Receiver Unit

Vertically .......................................................27

Connecting the TV.........................................28

Basic Connections: Connecting a Cable or

Antenna..........................................................30

Cable or Antenna ...........................................31

Cable and Antenna.........................................32

Cable Box and Antenna .................................33

Cable Box ......................................................34

Connecting Optional Equipment ...........................35

Making Video Connections ...........................36

About Using S VIDEO ..................................36

VCR and Cable ..............................................37

VCR and Cable Box ......................................38

Two VCRs for Tape Editing..........................40

Satellite Receiver ...........................................41

Satellite Receiver with a VCR and Cable......42

DVD Player with Component

Video Connectors ..........................................44

DVD Player with

S VIDEO and Audio Connectors...................45

Personal Computer.........................................46

Camcorder......................................................47

Audio Receiver ..............................................48

Sub Woofer ....................................................49

Digital Cable Box ..........................................49

Digital Satellite Receiver ...............................50

Digital Satellite Receiver with an HDMI

Connector.......................................................51

DVD Player or Digital Satellite Receiver via an

AV Receiver with CENTER SPEAKER IN

Terminals .......................................................53

Connecting a Device with an Optical IN

Connector.......................................................55

Using the CONTROL S Feature............................56

Using CableCARD ................................................57

About Using CableCARD .............................57

Activating CableCARD Service....................57

Removing the CableCARD ...........................58

Setting Up the TV Channel List ............................59

Using Initial Setup .........................................59

Using the Remote Control

Overview................................................................61

Inserting Batteries into the Remote Control ..........61

Button Descriptions ...............................................62

Programming the Remote Control.........................64

Manufacturer’s Codes............................................65

Using Other Equipment with Your TV Remote

Control ...........................................................66

Operating a VCR ...........................................66

Operating a Satellite Receiver .......................66

Operating a Cable Box...................................67

Operating a DVD Player................................67

Operating an MDP

(Laserdisc Player) ..........................................67

Using the Features

Overview................................................................69

Watching TV .........................................................69

Using the Program Guide ......................................70

Displaying the Program Guide ......................70

Using the Guide Menu...................................71

Using the Program Options Menu .................71

Using Wide Screen Mode......................................72

Changing the Wide Screen Mode for 4:3 Source

(Standard definition source) ..........................72

Changing the Wide Screen Mode for 16:9

Source (High definition source).....................73

Using Twin View...................................................74

Displaying Twin Pictures ..............................74

Activating the Picture ....................................74

Changing the Picture Size..............................76

KDX-46Q005

2-592-150-12(2)

Using Favorite Channels........................................77

Using the Channel Menu ...............................77

Using the Favorite Channels Guide ...............78

Using the Freeze Function .....................................79

Using Picture Off ...................................................80

Using the PC Input.................................................81

Displaying the PC Screen ..............................81

Using the Memory Stick Viewer

About Memory Stick .............................................83

Features..........................................................83

Memory Stick Compatibility .........................84

Memory Stick Functionality ..........................84

File Compatibility..........................................85

Trademark Information..................................85

Inserting and Removing a Memory Stick ..............86

Inserting a Memory Stick ..............................86

Inserting the Memory Stick Duo ...................87

Removing a Memory Stick............................88

Using the Memory Stick Index..............................89

Using the Memory Stick Index......................90

Viewing Photos......................................................91

Photo Controls ...............................................91

Photo Menu Bar Options ...............................92

Using Zoom and Pan......................................93

Using Rotate ..................................................93

Playing Movies ......................................................94

Movie Controls ..............................................94

Movie Menu Bar Options ..............................95

Memory Stick Index Menu Bar Options................96

Slide Show Menu Options .............................96

Contents Menu Options .................................97

Memory Stick Menu ......................................97

Notes on Using Memory Stick Media ...................98

About DCF File Names .................................98

Memory Stick Precautions.............................99

Using i.LINK

About i.LINK.......................................................101

Using i.LINK Cables ...................................101

Connecting i.LINK Devices ........................102

Selecting an i.LINK Device.................................104

Using the i.LINK Control Panel ..........................105

i.LINK Setup........................................................107

Using the Menus

Overview..............................................................109

Using the Video Menu.........................................110

Selecting Video Options..............................110

Selecting PC Video Options ........................113

Using the Audio Menu.........................................114

Selecting Audio Options..............................114

Selecting PC Audio Options........................116

Using the Screen Menu........................................117

Selecting Screen Options.............................117

Using the Channel Menu .....................................119

Selecting Channel Options ..........................119

Using the Parent Menu ........................................121

Selecting Parent Options..............................121

Viewing Blocked Programs.........................122

Selecting Custom Rating Options................123

Using the Setup Menu .........................................125

Selecting Setup Options...............................125

Programming Caption Vision......................126

Selecting PC Setup Options.........................127

Using the Applications Menu ..............................130

Selecting Applications Options ...................130

Other Information

Overview..............................................................133

Glossary ...............................................................134

Contacting Sony...................................................135

Troubleshooting...................................................135

Twin View ...................................................135

Remote Control............................................136

CableCARD.................................................136

Memory Stick ..............................................137

Video............................................................139

Audio ...........................................................140

Channels ......................................................141

General.........................................................141

Specifications.......................................................143

Optional Accessories ...........................................145

Index

Index ....................................................................146

Introducing the Sony LCD TV

KDX-46Q005

2-592-150-12(2)

Introducing the Sony LCD TV

Presenting the Sony LCD TV

Thank you for purchasing this high definition built-in Sony LCD TV.

This manual is for model KDX-46Q005.

Package Contents Along with your new LCD TV (Display Unit and Media Receiver Unit), the

packing box contains a remote control and two AA (R6) batteries. It also

contains cables and cords necessary for setup. See page 144 for the complete

list of packaging contents.

Using This Manual We recommend that you carefully review the contents of the following six

sections in the order shown to ensure that you fully understand the operation

of your new TV.

1Setting Up the TV

This section guides you through your initial setup. It shows you how to

install your TV, to connect your new components and to connect the

antenna and cable.

2Using the Remote Control

This section shows you how to begin using your new TV. It also shows

you how to use your remote control functions.

3Using the Features

This section provides information on using the Program Guide, Wide

Screen Mode, Twin View, Favorite Channels and Freeze Function.

4Using the Memory Stick Viewer

This section shows you how to use the Memory Stick Viewer to view

files that are stored on Memory Stick media, such as photographs and

movies.

5Using i.LINK

This section explains how to use the i.LINK feature.

6Using the Menus

This section teaches you how to access on-screen menus and adjust your

TV settings.

Instructions in this manual are written for the remote control. Similar

controls are also found on the TV console.

Introducing the Sony LCD TV

KDX-46Q005

2-592-150-12(2)

Features Some of the features that you will enjoy with your new TV include:

❑WEGA Engine™: Delivers superb picture quality from any video

source by minimizing the signal deterioration caused by digital-to-

analog conversion and stabilizing the signal processing. This engine

features unique Sony technology, including:

●The first step in the digital processing system, Composite

Component Processor (CCP-X), which enhances input signal-to-

noise ratio by chroma decoder digital processing.

●DRC (Digital Reality Creation®) MultiFunction 2 circuitry:

Enables the digital mapping of any NTSC source (DVD, VHS,

DBS, Cable, etc.), to create a picture that is precise and finer in

detail, rivaling high definition resolution. Incoming HD signals

(1080i) are also bitmapped, utilizing Sony’s proprietary algorithm

to provide a crisp and clear picture.

●IFP (Image Format Processor): The Digital Texture Enhancer

function of this chip provides the optimal contrast by utilizing a

wide dynamic range. This chip also reduces signal noise, by using

an improved motion vector algorithm, while maintaining image

sharpness.

❑Integrated HDTV: You can watch digital television programs and

enjoy the improved audio/video quality offered by these programs.

❑S-master Full Digital Amplifier: Delivers superb clear dialog and

reproduces the original sound quality while minimizing any sound

fragmentation or jitter noise.

❑BN Smoother™: Reduces the block noise caused by digital video

encoding and decoding process.

❑CineMotion®: Using the reverse 3-2 pull down technology, the

CineMotion feature provides smoother picture movement when playing

back movies or other video sources on film.

❑Twin View®: Twin View allows you to watch two programs side by side

with the ability to zoom in on one picture and listen to the program in

the selected window. You can watch pictures from two different sources

(1080i, 720p, 480p or 480i) simultaneously.

❑Memory Stick Viewer: Allows you to view digital photos (JPEG) and

movies (MPEG1) from Memory Stick media on your TV screen.

❑Parental Control: V-Chip technology allows parents to block

unsuitable programming from younger viewers.

❑CableCARD™ slot: Provides cable subscribers with access to digitally

encrypted cable channels — without the need for a set-top box — that

will enable you to receive not only standard definition but also high

definition television. The CableCARD, which is provided by your cable

Introducing the Sony LCD TV

KDX-46Q005

2-592-150-12(2)

TV company, is inserted into the TV’s rear panel CableCARD slot.

After the service is activated with your cable TV company, the card

replaces the need for a separate set-top box. (Check with your cable TV

company about CableCARD service details, limitations, pricing, and

availability. For more information about CableCARD in this manual,

see page 57.)

❑Component Video Inputs: Offers the best video quality for DVD

(480p, 480i) and digital set-top box (1080i, 720p, 480p, 480i)

connections.

❑S VIDEO Inputs: Provides a high-quality image from connected

equipment.

❑Favorite Channel Preview: Allows you to preview up to sixteen

favorite channels without leaving the current channel.

❑Wide Screen Mode: Allows you to watch 4:3 normal broadcasts in

wide screen mode (16:9 aspect ratio).

❑Steady Sound®: Equalizes volume levels so there is consistent output

between programs and commercials.

❑HDMI (High-Definition Multimedia Interface): Provides an

uncompressed, all-digital audio/video interface between this TV and

any HDMI-equipped audio/video component, such as a set-top box,

DVD player, and A/V receiver. HDMI supports enhanced, or high-

definition video, plus two-channel digital audio.

❑i.LINK: Provides a secure digital interface to other digital home

entertainment devices. i.LINK allows for the secure transfer of

your TV.

❑Light Sensor: Allows the picture brightness level to be optimized to

ambient light. The effect from the Light Sensor depends on the setting

of Picture Mode and Power Saving. The factory setting is Off.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Setting Up the TV

Overview

This chapter includes illustrated instructions for setting up your TV.

Topic Page(s)

TV Controls and Connectors 20

Installing the TV 25

Basic Connections: Connecting a Cable or Antenna 30

Connecting Optional Equipment

Making Video Connections

About Using S VIDEO

VCR and Cable

VCR and Cable Box

Two VCRs for Tape Editing

Satellite Receiver

Satellite Receiver with a VCR and Cable

DVD Player with Component Video Connectors

DVD Player with S VIDEO and Audio Connectors

Personal Computer

Camcorder

Audio Receiver

Sub Woofer

Digital Cable Box

Digital Satellite Receiver

Digital Satellite Receiver with an HDMI Connector

DVD Player or Digital Satellite Receiver via an AV Receiver with

CENTER SPEAKER IN Terminals

Connecting a Device with an Optical IN Connector 55

Using the CONTROL S Feature 56

Using CableCARD 57

Setting Up the TV Channel List 59

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

TV Controls and Connectors

Display Unit

Item Description

1Speakers

(Left/Right)

Output audio signal.

2PICTURE OFF

LED

When lit, indicates that the Picture Off feature is

activated. For details, see page 80.

3 TIMER LED When lit, indicates one of the timers is set. When the

timer is set, this LED will remain lit even if the TV set is

turned off. For details, see page 130.

4POWER ON/

STANDBY LED

Lights up in green when the TV set is turned on. The LED

lights up in red when in standby mode. If the LED blinks

in red continuously, this may indicate the media receiver

unit needs servicing (see “Contacting Sony” on page 135).

5(IR) Infrared

Receiver

Receives IR signals from the remote control.

POWER ON/STANDBYTIMERPICTURE OFF

234

Front Panel

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Media Receiver Unit

Item Description

1DISPLAY

SIGNAL IN

Connect to the DISPLAY SIGNAL OUT jacks on the rear

of the media receiver unit by using the supplied display

interface cable.

2AC IN Connects the supplied AC power cord.

WHITE

AC IN

BLACK

DISPLAY SIGNAL IN

WHITE

DISPLAY SIGNAL IN

BLACK

AC IN

Rear Panel

To open the front panel of the media receiver unit:

Front Panel

VIDEO 8 (PC) IN

POWER

POWER/STANDBY TIMER STANDBY

PC i.LINK TV/VIDEO - VOL + - CH +

AUDIO

S VIDEO VIDEO

VIDEO 2 IN

L(MONO)-AUDIO-R

i.LINK

S400

(HDV/DV/TS/MICROMV)

RGB

123 56740

qsqdqg qf

(Continued)

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Item Description

1Main POWER Press to turn on and off the main power of the TV set.

2POWER/

STANDBY LED

Lights up in green when the TV set is turned on. The LED

lights up in red when in standby mode. If the LED blinks in

red continuously, this may indicate the media receiver unit

needs servicing (see “Contacting Sony” on page 135).

3PC button Press to display the screen of the connected PC. For details,

see page 81.

4TIMER LED When lit, indicates a timer is set. When the timer is set, this

LED will remain lit even if the TV set is turned off. For

details, see page 130.

5i.LINK button Press to display the i.LINK Control Panel. For details, see

page 105.

6i.LINK

STANDBY LED

When lit in red, indicates the i.LINK Standby is on. For

details, see page 126.

7TV/VIDEO Press to select between the TV's tuner and other video

equipment inputs.

8– VOL + Press to adjust the volume.

9– CH + Press to scan through channels. To scan quickly through

channels, press and hold down either CH - or +.

0Memory Stick

indicator

When lit, indicates that the Memory Stick is being read.

(Do not remove the Memory Stick when the indicator is lit.)

qa Memory Stick

slot

Memory Stick insertion slot. For details, see “Inserting and

Removing a Memory Stick” on page 86.

qs i.LINK Connect to the i.LINK jack on your i.LINK-compatible

portable device. Provides a secure digital connection

between your TV and your i.LINK-compatible portable

device.

qd VIDEO 2 IN

VIDEO/

L (MONO)-

AUDIO-R

Connect to the composite A/V output jacks on your

camcorder or other video equipment.

qf VIDEO 2 IN

S VIDEO

Connect to the S VIDEO OUT jack on your camcorder or

other video equipment that has S VIDEO. Provides better

picture quality than composite video (qd).

qg VIDEO 8 (PC) IN Connect to the video output connector and audio output

jack on your personal computer. For details, see page 46.

The CH + button has a

tactile dot. Use the

tactile as a reference

when operating the TV.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Connection Description

1VIDEO 1/3 IN

S VIDEO

Connect to the S VIDEO OUT jack of your VCR or other

video equipment that has S VIDEO. S VIDEO provides

better picture quality than composite video (qg).

2i.LINK Used for connecting i.LINK-equipped devices. These

terminals are not intended for connection with personal

computers.

3HD/DVD 4 /5 IN

(1080i/720p/480p/

480i)

Connect to your DVD player’s or digital set-top box’s

component video (YPBPR) and audio (L/R) jacks.

Component video provides better picture quality than the S

VIDEO (1) or the composite video (qg) connections.

4DIGITAL AUDIO

(OPTICAL) OUT

(PCM/DOLBY*

DIGITAL)

Connects to the optical audio input of a digital audio

component that is PCM/Dolby Digital compatible.

5SUB WOOFER

OUT (VAR)

Connects to the input jack of your sub woofer.

6CONTROL S IN/

OUT

Allow the TV to receive (IN) and send (OUT) remote

control signals to other Sony infrared-controlled audio or

video equipment that has the CONTROL S function.

7VHF/UHF RF input that connects to your VHF/UHF antenna.

8CABLE RF input that connects to your cable signal.

9AC IN Connects the supplied AC power cord.

q; VIDEO 6 IN and

VIDEO 7 IN HDMI

IN/R-AUDIO-L

HDMI (High-Definition Multimedia Interface) provides an

uncompressed, all-digital audio/video interface between

this TV and any HDMI-equipped audio/video component,

such as a set-top box, DVD player, and A/V receiver.

HDMI supports enhanced, or high-definition video, plus

two-channel digital audio. You can also connect a DVI-

equipped device to your TV by using an HDMI-DVI cable.

qa DISPLAY SIGNAL

OUT

Connect to the DISPLAY SIGNAL IN jacks of the display

unit by using the supplied display interface cable.

S VIDEO

VIDEO

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

VIDEO IN

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

CENTER SPEAKER IN

180W(6 ) MAX

L (MONO)

VHF/UHF

CABLE

DISPLAY SIGNAL OUT

BLACK WHITE

AUDIO

AUDIO OUT

AUDIO

SUBWOOFER

OUT(VAR)

(VAR/FIX)

345

i.LINK

S400

Cable CARD

CONTROL S

OUT

(HDV/DV/TS/

MICROMV)

135 642 978

qdqg qf qs 0

Rear Panel

(Continued)

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

* Manufactured under license from Dolby Laboratories. “Dolby” and the double-D

symbol are trademarks of Dolby Laboratories.

qs CableCARD slot CableCARD provides cable subscribers with access to

secure, digitally encrypted cable channels -- without the

need for a set-top box -- that will enable you to receive not

only standard definition but also high definition television.

For more information, see page 57.

qd AUDIO OUT (VAR/

FIX) L/R

Connect to the left and right audio input jacks of your audio

or video equipment. You can use these outputs to listen to

your TV’s audio through your stereo system.

qf CENTER

SPEAKER IN

180W (6Ω) MAX

Connect the center output terminals of Dolby Pro Logic*

system decoder amplifier. You can use the TV speakers as a

center speaker.

qg VIDEO 1/3 IN

VIDEO/L(MONO)-

AUDIO-R

Connect to the composite A/V output jacks on your VCR or

other video component. A third composite A/V input jack

(VIDEO 2) is located on the front panel of the media

receiver unit.

Connection Description

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Installing the TV

Carrying Your TV Carrying this TV requires at least two people. Do not hold by the pedestal or

the Front Panel Cover of the TV. Doing so may cause these parts to break off.

If you carry the TV in a manner other than specified here, it may drop and a

serious injury may result. Be sure to follow the instructions given below.

❑Carry the TV with at least two persons.

❑Carry the TV holding the upper and bottom frames of

the TV as illustrated. Do not carry it holding the

speaker units.

❑Hold the TV securely when carrying it.

❑As the glass surface of the display unit has a special coating, avoid

touching the glass surface as much as possible.

To carry the TV, hold it by

the top and bottom of the

panel.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Take Precaution

during the

Installation

To ensure the safety of children and the TV, keep children away from the TV

during installation. Climbing on or pushing the TV or its stand may cause it

to fall.

To Prevent the TV

from Falling

Prepare a commercially available strong rope or chain and wall anchor

bracket beforehand.

❑After all the necessary connections including other equipment are

completed, be sure to attach a sturdy strong rope or chain securely to

each clamp screw (not supplied), and attach it to a wall or pillar. (The

clamp screw is supplied with the optional Table-Top Stand or Floor

Stand.)

When Installing Your

TV against a Wall

Keep your TV at least 4 inches (10 cm) away from the wall to provide proper

ventilation.

WARNING

Be sure to take measures to prevent the stand from toppling over.

If you fail to do so, the TV may topple over and cause injury. Anchor the

TV to a wall, pillar, etc., to prevent it from toppling over.

Rear of Display Unit

Clamp screw

When installing the unit on the wall:

Allow at least this much space

11 7/8 inches (30 cm)

4 inches

(10 cm)

4 inches

(10 cm)

4 inches (10 cm)

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Installing the Media

Receiver Unit

Vertically

When you install the media receiver unit vertically, use the supplied stand for

vertical installation. Attach the stand to the right side of the media receiver

unit. When you attach the stand, use the edge of a desk or a table, as shown

below.

1Remove the two small screws from the right side of the media receiver

unit.

2Match the two screw holes on the stand to those on the media receiver

unit.

3Insert the two screws with washers (supplied) into the holes and tighten

them securely.

Media receiver unit

Vertical installation stand Desk or table

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Connecting the TV

1Connect the display interface cable (supplied or VMC-X10 as an

optional accessary) to the DISPLAY SIGNAL IN jacks, and the AC

power cord (supplied) to the AC IN jack of the unit.

2Secure the AC plug holder to the display’s AC IN jack.

✍Disconnect all power sources before making any connections.

✍Do not tighten the screws too much. It may damage the screws.

✍Insert the connector until you hear a click. (Both sides of the connector

should be held securely by the clips.)

After connecting, make sure the connectors are firmly plugged in and

can not easily be pulled out.

✍Refer to the optional accessory’s instruction manual for proper cable

installation.

✍If you wish to install the media receiver unit and the display unit away

from each other, use an optional display cable, VMC-X10, which allows

you to place the two units up to 10 meters away from each other.

WHITE

DISPLAY SIGNAL IN

BLACK

AC IN

WHITE

AC IN

BLACK

DISPLAY SIGNAL IN

Display interface

cable (supplied or

VMC-X10 as an

optional accessory)

Tighten the

screw slowly

until the screw

is stabilized.

AC power cord

(supplied)

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

3Install the display unit using an optional stand or rack unit.

For details, refer to the operating instructions supplied with your stand

or rack unit.

4Connect the other end of the display interface cable to the media

receiver unit’s DISPLAY SIGNAL OUT jacks, and connect the AC

power cord to the media receiver unit’s AC IN jack.

5After making all connections, connect the AC power cords to wall

outlets.

✍When you unplug the AC power cord, drag the holder down by pushing

both sides of the holder, then pull out the plug.

✍Be sure to use the supplied AC power cords.

✍When connecting equipment, do not connect the AC power cords to wall

outlets until you have completed making all connections.

✍Do not tighten the screws too much. It may damage the screws.

✍Do not use damaged cables, such as cables with deformed connectors.

✍This unit may fall and cause injury if accidently knocked or pulled by the

connected cable. Handle the display interface cable with care.

AC power cord

(supplied) AC IN (power supply

input) jack on the display

AC plug

holder

(supplied)

1Attach the AC plug holder

to the AC power cord.

2Clip on to the AC IN

jack until you hear

clicking.

S VIDEO

VIDEO

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

VIDEO IN

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

CENTER SPEAKER IN

180W(6 ) MAX

L (MONO)

VHF/UHF

CABLE

DISPLAY SIGNAL OUT

BLACK WHITE

AUDIO

AUDIO OUT

AUDIO

SUBWOOFER

OUT(VAR)

(VAR/FIX)

345

i.LINK

S400

Cable CARD

CONTROL S

OUT

(HDV/DV/TS/

MICROMV)

Tighten the screw slowly until the

screw is stabilized.

Display interface cable (supplied or

VMC-X10 as an optional accessory)

AC power

cord

(supplied)

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Basic Connections: Connecting a Cable or Antenna

The way in which you connect your TV will vary, depending on how your

home receives a signal (cable box and/or antenna) and whether or not you

plan to connect a VCR.

If you are connecting a VCR

❑See the connections described on pages 37 and 38.

If You Are Connecting See Page

Cable or Antenna

❏No cable box or VCR

Cable and Antenna

❏No cable box or VCR

Cable Box and Antenna

❏Cable box unscrambles only some channels (usually

premium channels)

❏No VCR

Cable Box

❏Cable box unscrambles all channels

❏No VCR

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Cable or Antenna For best results, use one of the following connections if you are

connecting a cable or an antenna and you:

❑Do not need a cable box to unscramble channels. (If you have a cable

box, see pages 33 and 34.)

❑Do not intend to connect a VCR. (If you have a VCR, see pages 37 and

38.)

The connection you choose depends on the cable type you have in your

home, as described below.

75-ohm coaxial cable (usually found in newer homes)

Cable Type Connect As Shown

VHF Only or

combined

VHF/UHF

Cable

300-ohm twin lead cable (usually found in older homes)

Cable Type Connect As Shown

VHF Only or

UHF Only or

combined

VHF/UHF

75-ohm coaxial and 300-ohm twin lead cable (found in some homes)

Cable Type Connect As Shown

VHF and UHF

75-ohm coaxial

cable Rear of Media

Receiver Unit

VHF/UHF

75-ohm coaxial

cable

CABLE

Rear of Media

Receiver Unit

Rear of Media Receiver Unit

Antenna connector

(not supplied)

300-ohm twin lead cable

VHF/UHF

Rear of Media

Receiver Unit

75-ohm coaxial cable

VHF/UHF

U/V mixer

(not supplied)

300-ohm twin lead cable

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Cable and Antenna For best results, use this connection if you:

❑Have a cable and an antenna.

(This is convenient if you are using a separate rooftop antenna to receive

additional channels that are not provided by your cable TV company.)

❑Do not have a cable box or VCR. (If you have a cable box, see pages 33

and 34. If you have a VCR, see pages 37 and 38.)

Notes on Using This Connection

Antenna and CATV cable

Cable Type Connect As Shown

Cable TV

(CATV) and

Antenna

To Do This ... Do This ...

Switch the Media Receiver

Unit’s input between the cable

and antenna

Press ANT to switch back and forth between the

Media Receiver Unit’s VHF/UHF and CABLE

inputs.

✍For optimum picture quality, a 75-ohm coaxial cable antenna connection

is highly recommended. Radio waves and other interference can easily

affect a 300-ohm twin lead cable, resulting in signal deterioration. If you

use a 300-ohm twin lead cable, keep it as far away as possible from the

TV.

✍Do not use an indoor antenna, which is especially susceptible to radio

noise.

Antenna cable CATV cable

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Cable Box and

Antenna

For best results, use this connection if:

❑Your cable company scrambles some channels, such as premium

channels (which requires you to use a cable box), but does not scramble

all channels.

❑You do not have a VCR. (If you have a VCR, see pages 37 and 38.)

With this connection you can:

❑Use the TV’s remote control to change channels coming through the

cable box to the Media Receiver Unit’s cable input. (You must first

program the remote control for your specific cable box; see

“Programming the Remote Control” on page 64.)

❑Use the TV’s remote control to change channels coming directly into

the Media Receiver Unit’s VHF/UHF input jack.

Notes on Using This Connection

Before connecting a cable

box, see “Using

CableCARD” on page 57.

✍This connection will allow you to take advantage of dual picture features

such as Twin View, Freeze, etc.

IN OUT

CABLE

VHF/UHF

CATV cable

Rear of Media Receiver Unit

Cable box

Antenna Cable

Coaxial

cable

To Do This ... Do This ...

Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3

or 4) and then use the cable box to switch channels.

Set up the TV remote control to operate the cable

box

Program the remote control. See “Programming the Remote

Control” on page 64.

Activate the remote control to operate the cable

box

Press FUNCTION repeatedly until the SAT/CABLE indicator lights

up.

Prevent the accidental switching of TV channels When using the cable box, the TV must stay on the channel the cable

box is set to (usually channel 3 or 4). You can use the TV’s Channel

Fix feature to lock in a specific channel. For details, see “Using the

Channel Menu” on page 119.

Switch the TV’s input between the cable box and

cable

Press ANT to switch back and forth between the TV’s VHF/UHF

(scrambled channels) and CABLE (unscrambled) inputs.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Cable Box For best results, use this connection if:

❑Your cable company scrambles all channels, which requires you to use a

cable box.

❑You do not have a VCR. (If you have a VCR, see pages 37 and 38.)

With this connection you can:

❑Use the TV’s remote control to change channels coming through the

cable box to the TV’s VHF/UHF jack. (You must first program the

remote control for your specific cable box.)

To connect the cable box

1Connect the CATV cable to the cable box’s input jack.

2Use a coaxial cable to connect the cable box’s output jack to the TV’s

VHF/UHF jack.

3Run Auto Program, as described in “Setting Up the TV Channel List”

on page 59.

Notes on Using This Connection

Before connecting a cable

box, see “Using

CableCARD” on page 57.

✍With this connection, all channels come into the TV through your cable

box and only one unscrambled signal is sent to the TV, so you cannot

use the dual picture features. If some of your channels are scrambled,

but others are not, consider using the “Cable Box and Antenna”

connection on page 33 instead.

VHF/UHF

CATV cable Coaxial cable

Rear of Media Receiver Unit

Cable box

OUT

To do this... Do This ...

Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3

or 4) and then use the cable box to switch channels.

Set up the TV remote control to operate the cable

box

Program the remote control. See “Programming the Remote

Control” on page 64.

Activate the remote control to operate the cable

box

Press FUNCTION repeatedly until the SAT/CABLE indicator lights

up.

Prevent the accidental switching of TV channels When using the cable box, the TV must stay on the channel the cable

box is set to (usually channel 3 or 4). You can use the TV’s Channel

Fix feature to lock in a specific channel. For details, see “Using the

Channel Menu” on page 119.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Connecting Optional Equipment

Use the directions in this section to connect the following optional

equipment:

If You Are Connecting See Page

Making Video Connections 36

About Using S VIDEO 36

VCR and Cable 37

VCR and Cable Box 38

Two VCRs for Tape Editing 40

Satellite Receiver 41

Satellite Receiver with a VCR and Cable 42

DVD Player with Component Video Connectors 44

DVD Player with S VIDEO and Audio Connectors 45

Personal Computer 46

Camcorder 47

Audio Receiver 48

Sub Woofer 49

Digital Cable Box 49

Digital Satellite Receiver 50

Digital Satellite Receiver with an HDMI Connector 51

DVD Player or Digital Satellite Receiver via an AV Receiver

with CENTER SPEAKER IN Terminals

Connecting a Device with an Optical IN Connector 55

Using the CONTROL S Feature 56

Using CableCARD 57

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Making Video

Connections

Your TV includes several types of video inputs. When connecting your TV,

use the inputs that are available on your components that provide the best

video performance, as described below.

About Using

S VIDEO

If the optional equipment you are connecting has an S VIDEO jack

(shown at left), you can use an S VIDEO cable for improved picture

quality (compared to an A/V cable). Because S VIDEO carries only

the video signal, you also need to connect audio cables for sound, as

shown below.

Example of an S VIDEO Connection

Best Video

Performance

Connector Type Separate audio

connection required

HDMI (High-Definition

Multimedia Interface) No

Component video Yes

S VIDEO

Composite video

RF/Coaxial No

L-AUDIO-R

S VIDEO

VIDEO

VIDEO IN

AUDIO

L (MONO)

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Rear of Media Receiver Unit

S VIDEO cable

Equipment with S VIDEO

Audio cable

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

VCR and Cable Use this hookup if:

❑You have cable TV that does not require a cable box.

Disconnect all power sources before making any connections.

1Connect the CATV cable to the single (input) jack of the splitter.

2Using a coaxial cable, connect one of the output jack of the splitter to

the TV’s CABLE jack.

3Using a coaxial cable, connect the splitter's other output jack to the

VCR's input jack.

4Using A/V and S VIDEO cables, connect the VCR’s AUDIO and

S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

✍If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)

instead of the S VIDEO cable.

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

CENTER SPEAKER IN

180W(6 ) MAX

VHF/UHF

CABLE

DISPLAY SIGNAL OUT

BLACK WHITE

AUDIO

AUDIO OUT

AUDIO

SUBWOOFER

OUT(VAR)

(VAR/FIX)

i.LINK

S400

Cable CARD

CONTROL S

OUT

(HDV/DV/TS/

MICROMV)

S VIDEO

VIDEO

VIDEO IN

AUDIO

L (MONO)

Coaxial cable

Rear of Media Receiver Unit

VIDEO

AUDIO-L

AUDIO-R VCR

A/V cable

S VIDEO

S VIDEO cable

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Coaxial

cable

CATV

Cable

Splitter

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

VCR and Cable Box Use this hookup if:

❑Your cable TV company scrambles some channels, but not all of them

(pay channels vs. regular cable channels) and you need to use a cable

box.

❑You want to enjoy the Twin View feature.

With this setup you can:

❑Use the TV’s remote control to change channels on your cable box

when the signal is scrambled. To program your Sony remote control to

operate your cable box, see “Programming the Remote Control” on

page 64.

❑Use the TV’s remote control to change channels on your TV when the

signal is not scrambled. Your TV’s tuner provides a better signal than

the cable box.

❑Use the Twin View feature. (When all channels are routed through your

cable box, only one signal is sent to the TV, so you cannot use the Twin

View feature.)

Disconnect all power sources before making any connections.

1Connect the CATV cable to the single (input) jack of the splitter.

2Using a coaxial cable, connect one of the splitter’s two output jacks to

the TV’s CABLE jack.

3Using a coaxial cable, connect the splitter’s other output jack to the

cable box’s input jack.

4Using a coaxial cable, connect the cable box’s output jack to the VCR’s

RF input jack.

5Using an A/V cable, connect the cable box’s A/V output jacks to the

TV’s A/V input jacks.

6Using an A/V and S VIDEO cables, connect the VCR’s AUDIO and S

VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN input jacks.

7Run Initial Setup, as described in “Setting Up the TV Channel List” on

page 59.

Before connecting a cable

box, see “Using

CableCARD” on page 57.

✍If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)

instead of the S VIDEO cable.

✍To view scrambled channels, tune the TV to the channel the cable box is

set to (usually channel 3 or 4) and then use the cable box to switch

channels.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

CENTER SPEAKER IN

180W(6 ) MAX

VHF/UHF

CABLE

DISPLAY SIGNAL OUT

BLACK WHITE

AUDIO

AUDIO OUT

AUDIO

SUBWOOFER

OUT(VAR)

(VAR/FIX)

i.LINK

S400

Cable CARD

CONTROL S

OUT

(HDV/DV/TS/

MICROMV)

S VIDEO

VIDEO

VIDEO IN

AUDIO

L (MONO)

Cable box

VCR

Rear of Media Receiver Unit

A/V cable

VIDEO

AUDIO-L

AUDIO-R

CATV

cable

Coaxial

cable

Splitter

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

If you are connecting a

digital cable box, you will

need a special bi-

directional splitter

designed to work with

your cable box.

Coaxial

cable

A/V cable

S VIDEO

cable

Coaxial cable

VIDEO

AUDIO-L

AUDIO-R

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Two VCRs for Tape

Editing If you connect two VCRs, you can record from one VCR to the other while

using your TV to monitor what is being recorded.

Disconnect all power sources before making any connections.

1Using an A/V cable, connect the playback VCR’s AUDIO and VIDEO

OUT jacks to the recording VCR’s AUDIO and VIDEO IN jacks.

2Using an A/V cable, connect the recording VCR’s AUDIO and VIDEO

OUT jacks to the TV’s AUDIO and VIDEO IN jacks.

Using

S VIDEO jacks?

See page 36.

S VIDEO

VIDEO

VIDEO IN

AUDIO

L (MONO)

Rear of Media Receiver Unit

VCR (playback) VCR (recording)

A/V cable

AUDIO-R

AUDIO-L

VIDEO

A/V cable

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

✍To perform tape editing, set the TV to the video input intended for

playback by pressing TV/VIDEO on the remote control.

✍You may need to change the video input on your VCR. See your VCR’s

operating manual for instructions.

✍If your VCRs have S VIDEO jacks: For best picture quality, use an

S VIDEO connection instead of the yellow video cable on your combined

A/V cable.

Using an S VIDEO cable, connect the playback VCR’s S VIDEO OUT jack

to the recording VCR’s S VIDEO IN jack. S VIDEO does not provide audio,

so audio cables must be connected to provide sound.

✍You cannot record signals from equipment connected to the YPBPR input.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Satellite Receiver Disconnect all power sources before making any connections.

1Connect the satellite antenna cable to the satellite receiver’s

SATELLITE IN jack.

2Using A/V and S VIDEO cables, connect the satellite receiver’s AUDIO

and S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

✍If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable

(yellow) instead of the S VIDEO cable.

S VIDEO

VIDEO

VIDEO IN

AUDIO

L (MONO)

Satellite receiver

A/V cable

Rear of Media Receiver Unit

VIDEO

AUDIO-L

AUDIO-R

Satellite

antenna

cable

S VIDEO

S VIDEO cable

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Satellite Receiver

with a VCR and

Cable

Disconnect all power sources before making any connections.

1Connect the CATV cable to the single (input) jack of the splitter.

2Using a coaxial cable, connect one of the splitter’s two output jacks to

the TV’s CABLE jack.

3Using a coaxial cable, connect the splitter’s other output jack to the

VCR’s VHF/UHF IN jack.

4Connect the satellite antenna cable to the satellite receiver’s

SATELLITE IN jack.

5Using A/V and S VIDEO cables, connect the satellite receiver’s AUDIO

and S VIDEO OUT jacks to the VCR’s AUDIO and S VIDEO IN jacks.

6Using A/V and S VIDEO cables, connect the VCR’s AUDIO and S

VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

7Run Initial Setup, as described in “Setting Up the TV Channel List” on

page 59.

✍If your VCR or satellite receiver is not equipped with S VIDEO, use a

VIDEO cable (yellow) instead of the S VIDEO cable.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

CENTER SPEAKER IN

180W(6 ) MAX

VHF/UHF

CABLE

DISPLAY SIGNAL OUT

BLACK WHITE

AUDIO

AUDIO OUT

AUDIO

SUBWOOFER

OUT(VAR)

(VAR/FIX)

i.LINK

S400

Cable CARD

CONTROL S

OUT

(HDV/DV/TS/

MICROMV)

S VIDEO

VIDEO

VIDEO IN

AUDIO

L (MONO)

Rear of Media Receiver Unit

S VIDEO VIDEO

AUDIO-L

AUDIO-R

Satellite receiver

VCR

S VIDEO cable A/V cable

A/V cable

Satellite

antenna

cable

S VIDEO

cable

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

CATV cable

Splitter

Coaxial cable

Coaxial

cable

Coaxial

cable

✍Be sure your VCR’s video input is set correctly. See your VCR’s operating

manual for instructions.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

DVD Player with

Component

Video Connectors

Use this hookup if:

❑Your DVD player has component (YPBPR) jacks.

Disconnect all power sources before making any connections.

1Using a component video cable, connect the DVD player’s YPBPR jacks

to the TV’s YPBPR jacks. Use the HD/DVD IN 4 or 5 input.

2Using an audio cable, connect the DVD player’s AUDIO OUT jacks to

the TV’s AUDIO IN jacks. Be sure to use the same row of inputs that

you used for the video connection (HD/DVD IN 4 or 5).

✍The YPBPR jacks on your DVD player are sometimes labeled YCBCR,

or Y, B-Y and R-Y. If so, connect the cables to like colors.

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

Component video cable

Rear of Media

Receiver Unit

Audio cable

DVD player

AUDIO-R

AUDIO-L

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

✍To take advantage of the Wide Mode feature, set the DVD player’s

aspect ratio to 16:9. For details, refer to the operating instructions

supplied with your DVD player.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

DVD Player with

S VIDEO and Audio

Connectors

Use this hookup if:

❑Your DVD player does not have component (YPBPR) jacks.

Disconnect all power sources before making any connections.

1Using an A/V cable, connect the DVD player’s AUDIO OUT jacks to

the TV’s AUDIO IN jacks.

2Using an S VIDEO cable, connect the DVD player’s S VIDEO jack to

the TV’s S VIDEO jack.

S VIDEO

VIDEO

VIDEO IN

AUDIO

L (MONO)

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

DVD player

Rear of Media Receiver Unit

A/V cable

S VIDEO

cable

S VIDEO

AUDIO-R

AUDIO-L

VIDEO

✍If your DVD player is not equipped with S VIDEO, use a VIDEO cable

(yellow) instead of the S VIDEO cable.

✍To watch the DVD player, press TV/VIDEO repeatedly to select the

DVD input (VIDEO 1 in the illustration). If you have a non-Sony DVD

player, and want to set up the TV remote control to operate the DVD

player you must program the remote control. See “Programming the

Remote Control” on page 64.

✍To control DVD functions with the TV remote control, see “Operating

a DVD Player” on page 67.

✍To label video inputs to easily identify equipment connected to the

TV, see the instructions for setting up Video Labels on page 125.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Personal Computer You can connect a personal computer to your TV to display the PC screen on

the large screen of the TV and output the sound to the TV's speakers.

Disconnect all power sources before making any connections.

Using an HD15-HD15 video cable (analog RGB), connect the VIDEO 8

(PC) IN RGB jack on the front panel of the media receiver unit to the PC's

monitor port (15-pin D-Sub). To output the PC's sound to the TV speakers,

connect the VIDEO 8 (PC) IN AUDIO jack on the media receiver unit to the

PC's audio output jack, using an audio cable with stereo mini plugs.

✍For details on using the PC Input feature, see “Using the PC Input” on

page 81.

When connecting to an

Apple Macintosh

computer, use the

display output

connecting cord

supplied with your

Macintosh computer to

connect to the VIDEO

8 (PC) IN (RGB)

terminal of the TV. Use

an optional adapter if

necessary. If you use

an adapter, first

connect the adapter to

your computer, then

connect the D-Sub pin

signal cable.

Depending on the PC,

you may find a flicker

or noisy picture on the

screen when inputting

corresponding signal.

In that case, adjust

Phase and Pitch in the

PC Setup options.

VIDEO 8 (PC) IN

AUDIO

S VIDEO VIDEO

VIDEO 2 IN

L(MONO)-AUDIO-R

RGB

Front of Media Receiver Unit

HD15-HD15

video cable

(analog RGB)

Audio cable

(stereo mini

plugs)

To monitor port

(15-pin D-Sub)

To audio output jack

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Camcorder Disconnect all power sources before making any connections.

For easy connection of the camcorder, the TV has front audio and video

inputs (shown below). However, if you prefer, you can also connect the

camcorder to the TV’s rear AUDIO and S VIDEO IN jacks.

Using A/V and S VIDEO cables, connect the camcorder’s audio and

S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.

✍If your camcorder is equipped with an i.LINK jack, you can connect it

using i.LINK instead of the A/V inputs. See “Using i.LINK” on page 101.

✍If you have a mono camcorder, connect its left audio output to the TV’s

AUDIO L (MONO) jack.

✍If your camcorder is not equipped with S VIDEO, use a VIDEO cable

(yellow) instead of the S VIDEO cable.

VIDEO 8 (PC) IN

AUDIO

S VIDEO VIDEO

VIDEO 2 IN

L(MONO)-AUDIO-R

RGB

VIDEO

To A/V output

AUDIO-L

AUDIO-R

S VIDEO

A/V cable

S VIDEO cable

Front of Media Receiver Unit

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

To S VIDEO

output

Camcorder

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Audio Receiver For improved sound quality, you may want to play the TV’s audio through

your stereo system (see page 115).

Disconnect all power sources before making any connections.

Using an audio cable, connect the TV’s AUDIO OUT (VAR/FIX) jacks to

the audio receiver’s audio LINE IN jacks.

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

AUDIO

AUDIO OUT

SUBWOOFER

OUT(VAR)

(VAR/FIX)

i.LINK

S400

Cable CARD

CONTROL S

OUT

(HDV/DV/TS/

MICROMV)

Rear of Media Receiver Unit

AUDIO-L AUDIO-R

Audio cable

Line

input

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Audio receiver

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Sub Woofer Use a monaural audio cable to connect the TV’s SUB WOOFER OUT jack

to the sub woofer’s input jack.

Digital Cable Box Disconnect all power sources before making any connections.

1Using a component video cable, connect the digital cable box’s YPBPR

jacks to the TV’s YPBPR jacks. Use the HD/DVD IN 4 or 5 input.

2Using an audio cable, connect the digital cable box’s AUDIO OUT

jacks to the TV’s AUDIO IN jacks.

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

AUDIO

AUDIO OUT

SUBWOOFER

OUT(VAR)

(VAR/FIX)

i.LINK

S400

Cable CARD

CONTROL S

OUT

(HDV/DV/TS/

MICROMV)

Rear of Media Receiver Unit

Sub Woofer

Monaural audio cable

Sub woofer

input

✍Component video (YPBPR) connection is necessary to view 480p, 720p,

and 1080i formats. Note that this TV displays all format types of picture

in a resolution of 1920 dots x 1080 lines.

✍The YPBPR jacks do not provide audio, so audio cables must be

connected to provide sound.

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

i.LINK

S400

(HDV/DV/TS/

MICROMV)

Rear of Media Receiver Unit

AUDIO-L

AUDIO-R

Audio cable

Component video cable

Digital cable box

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Digital Satellite

Receiver

Disconnect all power sources before making any connections.

1Using a component video cable, connect the digital satellite receiver’s

YPBPR jacks to the TV’s YPBPR jacks. Use the HD/DVD IN 4 or 5 input.

2Using an audio cable, connect the digital satellite receiver’s AUDIO

OUT jacks to the TV’s AUDIO IN jacks.

✍Component video (YPBPR) connection is necessary to view 480p, 720p,

and 1080i formats. Note that this TV displays all format types of picture

in a resolution of 1920 dots x 1080 lines.

✍The YPBPR jacks do not provide audio, so audio cables must be

connected to provide sound.

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

i.LINK

S400

(HDV/DV/TS/

MICROMV)

Rear of Media Receiver Unit

AUDIO-L

AUDIO-R

Audio cable

Component video cable

Digital satellite receiver

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Digital Satellite

Receiver with an

HDMI Connector

Use this hookup if:

❑Your digital satellite receiver has a High-Definition Multimedia

Interface (HDMI).

Disconnect all power sources before making any connections.

Using an HDMI cable (not supplied), connect the digital satellite receiver’s

HDMI OUT jack to the TV’s HDMI IN jack.

Use the HDMI IN 6 or 7 input.

The HDMI jack

provides both video

and audio signals, so it

is not necessary to

connect an audio

cable.

If the display interface

cable is already in

place, it may be

difficult to insert an

HDMI cable into the

HDMI jack. We

recommend that you

reserve enough space

for the HDMI

connection before

connecting the display

interface cable.

AUDIO

Rear of Media Receiver Unit

HDMI cable

Digital satellite receiver

(Continued)

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

When connecting to the Digital Satellite Receiver’s DVI-HDTV connector

If you are connecting to a digital satellite receiver with DVI-HDTV output,

you can connect to the TV’s HDMI IN jack by using an HDMI-DVI cable.

1Using an HDMI-DVI cable, connect the digital satellite receiver’s DVI-

HDTV OUT jack to the TV’s HDMI IN jack.

Use the HDMI IN 6 input.

2Using an audio cable, connect the digital satellite receiver’s AUDIO

OUT jacks to the TV’s AUDIO IN jacks.

✍The DVI-HDTV VIDEO jack does not provide audio, so audio cables must

be connected to provide sound when an HDMI-DVI cable is used.

✍Use only the HDMI IN 6 input for this connection. If the HDMI IN 7 input

is used for this connection, the AUDIO IN jacks in HDMI IN 6 become

unavailable.

AUDIO

Rear of Media Receiver Unit

HDMI-DVI cable

Audio cable

Digital satellite receiver

AUDIO-R

AUDIO-L

Cables are often

color-coded to connectors.

Connect red to red,

white to white, etc.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

DVD Player or

Digital Satellite

Receiver via an AV

Receiver with

CENTER SPEAKER

IN Terminals

Use this connection if you have a digital audio device that is PCM/Dolby

Digital compatible, such as an AV receiver with a Dolby Pro Logic system

decoder.

Disconnect all power sources before making any connections.

1Using a speaker cord, connect the TV’s CENTER SPEAKER IN

terminals to the AV receiver’s CENTER SPEAKER OUT terminals.

2Using a component video cable, connect the DVD player or digital

satellite receiver’s YPBPR jacks to the YPBPR jacks on the TV. Use the

HD/DVD IN 4 connections. Using an audio cable, connect the DVD

player or digital satellite receiver’s AUDIO OUT to the TV’s AUDIO IN

jacks.

3Using an optical digital cable, connect the DVD player or digital

satellite receiver’s OPTICAL OUT jack to the AV receiver’s OPTICAL

IN jack.

✍If your DVD player does not have component (YPBPR) jacks, you can

connect the DVD player with A/V connectors. Use the connection

described on page 45.

✍If your digital satellite receiver has an HDMI connector, use the

connection described on page 51 for best picture quality.

(Continued)

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

When using the TV’s speakers as the center speaker

Using Center Speaker In in the Audio menu, select the video input for

which you want to use the TV’s speakers as the center speaker and set it to

On.

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

CENTER SPEAKER IN

180W(6 ) MAX

AUDIO

AUDIO OUT

SUBWOOFER

OUT(VAR)

(VAR/FIX)

i.LINK

S400

Cable CARD

(HDV/DV/TS/

MICROMV)

COAXIAL

VIDEO OUTAUDIO OUT

SCAN SELECT

SELECTABLE

INTERLACE

VIDEO INAUDIO IN

VIDEO 2

MONITOR OUT

VIDEO 1

COMPONENT VIDEO OUT

SPEAKER

COMPONENT

VIDEO OUT

VIDEO IN

VIDEO

OPTICAL

DIGITAL

S VIDEO

AUDIO IN

CENTER FRONT LFRONT R

SURR LSURR R

SUB

WOOFER

AUDIO

OUT

Component

video cable

Audio cable

Speaker cord

DVD Player or

Digital satellite receiver

AV receiver

Optical digital cable

Rear of Media Receiver Unit

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Connecting a Device with an Optical IN Connector

You can use the TV's DIGITAL AUDIO (OPTICAL) OUT jack to connect a

digital audio device that is PCM/Dolby digital compatible, such as an audio

amplifier.

Using an optical audio cable, connect the device's OPTICAL IN jack to the

TV's DIGITAL AUDIO (OPTICAL) OUT jack.

✍You should also connect the TV’s analog audio output jacks to the

amplifier’s analog audio input jacks so that the amplifier can output

audio for analog channels. For details, see page 48.

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

AUDIO

AUDIO OUT

SUBWOOFER

OUT(VAR)

(VAR/FIX)

i.LINK

S400

Cable CARD

(HDV/DV/TS/

MICROMV)

OPTICAL

LINE

OUT

L AUDIO R

LINE

Optical audio cable

Rear of Media Receiver Unit

Audio amplifier

The DIGITAL AUDIO

(OPTICAL) OUT jack is

available when the TV

receives a digital TV

channel or signals from a

Memory Stick or an i.LINK-

equipped device.

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Using the CONTROL S Feature

CONTROL S allows you to control your TV system and other Sony

equipment with one remote control. In addition to allowing you to control

multiple devices with one remote control, the CONTROL S feature allows

you to always point your remote control at your TV, instead of having to

point it at the other equipment, which might be hidden or out of direct line of

sight.

VIDEO

0p/480i)

DIGITAL AUDIO

(OPTICAL)OUT

AUDIO OUT

SUBWOOFER

OUT(VAR)

(VAR/FIX)

Cable CARD

CONTROL S

OUT

CONTROL S

OUT

Rear of Media Receiver Unit

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Using CableCARD

CableCARD provides cable subscribers with access to digitally encrypted

cable channels — without the need for a set-top box — that will enable you

to receive not only standard definition but also high definition television. The

CableCARD, which is provided by your cable TV company, is inserted into

the TV’s rear panel CableCARD slot. After the service is activated with your

cable TV company, the card replaces the need for a separate set-top box.

Activating

CableCARD Service

Before you can use CableCARD service, you need to insert the CableCARD

(supplied by your cable TV company) and activate the service, as described

below:

1First remove the dummy card by pushing the eject button (see

“Removing the CableCARD” on page 58).

2Insert the CableCARD into the TV’s CableCARD slot.

About Using CableCARD

If you are planning to use a separate cable box for digital cable TV services, you may be able to receive

programming using this TV with the CableCARD instead — except in the following circumstances:

❑Your cable TV company does not provide CableCARD service in your viewing area.

❑You want to access your cable TV company’s interactive or advanced features (such as video-on-

demand or, in some cases, pay-per-view). At this time, these services require a bidirectional link, which

are only available through the use of a separate set-top box. CableCARD is currently a unidirectional

device only, and cannot provide these advanced services.

Check with your cable TV company for CableCARD service details, limitations, pricing, and availability,

all of which are determined by your cable TV company — not Sony.

✍If you remove the dummy card without pushing the eject button, the

CableCARD cannot be inserted. In that case, insert the dummy card again,

remove it by pushing the eject button, and then insert the CableCARD.

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

BLA

AUDIO

AUDIO OUT

SUBWOOFER

OUT(VAR)

(VAR/FIX)

i.LINK

S400

Cable CARD

CONTROL S

OUT

(HDV/DV/TS/

MICROMV)

(Continued)

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

3Gently push the card into the slot until it locks into place.

4After 1-2 minutes, the CableCARD setup screen is automatically

displayed. This screen includes information your cable TV company

will request before they can activate your service.

5Follow the displayed instructions: Phone your cable TV company. A

representative will guide you through the activation process.

6After your CableCARD is activated, your cable TV company will

download the service information, including the channel list, to the

CableCARD. After the CableCARD has acquired channels from your

cable TV company, the TV tunes to the lowest available channel.

Removing the

CableCARD

In the event you want to cancel your service, contact your cable TV

company.

1Push the eject button on the TV’s CableCARD slot to release the card.

2Pull the CableCARD straight out of the slot to remove it.

To install a different CableCARD, follow the instructions in “Activating

CableCARD Service” on page 57.

✍CAUTION: Inserting the CableCARD incorrectly may result in permanent

damage to the card and the TV.

You can also access

information about your

CableCARD in the

Applications Menu (see

page 131).

✍Once the CableCARD is removed, your TV will no longer decrypt digital

cable TV programming services that require CableCARD.

Eject button

Setting Up the TV

KDX-46Q005

2-592-150-12(2)

Setting Up the TV Channel List

After you finish connecting the TV, you need to run the Initial Setup feature,

which automatically creates a list of available analog and digital channels.

The Initial Setup screen appears when you turn on your TV for the first time

after hooking it up. If you want to refresh the list of available channels

because there has been a change in your cable/satellite service or

connections, you can do so by selecting the Auto Program option in the

Channel menu (see page 119).

Using Initial Setup To run Initial Setup the first time you turn on your TV

1Press POWER to turn on the TV.

The Initial Setup screen appears.

2Press V or v to select the on-screen display language. Then press .

The message “Start auto program now?” appears.

3Press V or v to select “Yes”, then press .

Initial Setup automatically creates a list of receivable channels. When

finished, the lowest numbered channel is displayed.

To run Auto Program again at a later time

❑Use the Auto Program feature as described on page 119.

To add individual digital channels

❑Use the Digital Channel feature as described on page 119.

✍The Initial Setup feature does not apply for installations that use a

cable box for all channel selection.

✍Auto Program may take more than 50 minutes to complete. A

progress bar is displayed while the channel list is being created.

If you are using a

CableCARD, Auto

Program is disabled for

the CABLE input.

KDX-46Q005

2-592-150-12(2)

Using the Remote Control

Overview

The table on the next page describes the buttons on the remote control.

Inserting Batteries into the Remote Control

Insert two size AA (R6) batteries (supplied) by matching the e and E on

the batteries to the diagram inside the battery compartment.

✍To avoid possible damage from battery leakage, remove the batteries if

you anticipate the remote control will not be used for an extended period.

✍Handle the remote control with care. Avoid dropping it, getting it wet, or

placing it in direct sunlight, near a heater, or in high humidity.

✍Your remote control can be programmed to operate most video

equipment. (See “Programming the Remote Control” on page 64.)

Using the Remote Control

KDX-46Q005

2-592-150-12(2)

Button Descriptions

Button Description

1MUTING Press to mute the sound. Press again or press VOL + to restore

the sound.

2FUNCTION Press repeatedly until the indicator of the equipment (TV,

SAT/CABLE, DVD/VCR, i.LINK) that you want to operate

lights up.

3PIC OFF Press to have the TV screen turn off. For details, see page 80.

4SLEEP Press repeatedly until the TV displays the time in minutes (15,

30, 45, 60 or 90) that you want the TV to remain on before

shutting off. To cancel Sleep timer, press SLEEP repeatedly

until Sleep Off appears.

5GUIDE Press to display the digital program guide.

While FUNCTION is switched on SAT/CABLE, press to

display the program guide of your satellite program provider.

6Use with 0-9 and ENTER buttons to select digital channels

(for example, 2.1). For details on selecting digital channels,

see page 69.

7PICTURE Press repeatedly to step through the available video picture

modes: Vivid, Standard, Pro. Also available in the Video

menu. For details, see “Selecting Video Options” on page 110.

8WIDE Press to step through the wide screen modes: Wide Zoom,

Normal, Full and Zoom. For details, see “Using Wide Screen

Mode” on page 72.

9V/v/B/b

X/x/m/M

When the menu is displayed, move the on-screen cursor.

X: Pause

x: Stop

m: Fast-Rewind

M: Fast-Forward

q; H: Playback

: When the menu is displayed, select the item.

(Twin View)

Press to turn on/off Twin View. For details, see “Using Twin

View” on page 74.

qs ANT

INDEX

Press to change between the VHF/UHF input and the CABLE

input.

While FUNCTION is switched on SAT/CABLE, press to

display the index of your satellite program provider.

qd VOL +/– Press to adjust the volume.

qf POWER

buttons

(Green)

SAT/CABLE

Press to turn on and off the TV and other equipment you have

programmed into the remote control. For instructions, see

“Programming the Remote Control” on page 64.

Using the Remote Control

KDX-46Q005

2-592-150-12(2)

Using the Remote Control

qg z REC

RESET

Press to record a program.

Press when in a menu to reset the settings to the factory

defaults.

qh TV/VIDEO Press to

cycle through the video equipment connected to your

’s video inputs:

VIDEO 1

VIDEO 2

VIDEO 3

VIDEO 4

VIDEO 5

VIDEO 6

VIDEO 7

and

VIDEO 8

(PC)

qj DISPLAY Press once to display the current time and channel label (if set)

and channel number. Press again to turn Display off. See page

131 for details on setting the time.

qk JUMP Press to jump back and forth between two channels. The TV

alternates between the current channel and the last channel

that was selected.

ql 0 – 9 and

ENTER

Press 0 - 9 to select a channel; the channel changes after 3

seconds. Press ENTER to select immediately.

w; FAVORITES Press to display the Favorite Channels list. For details, see

“Using Favorite Channels” on page 77.

wa FREEZE Press to freeze the window picture. Press again to restore the

picture.

ws i.LINK Press to display the i.LINK Control Panel. For information on

using the i.LINK Control Panel, see page 105. Also available

in the Applications Menu (page 130).

MEMORY

STICK

Press to display the Memory Stick Menu.

For details, see “Using the Memory Stick Viewer” on page 83.

wf MENU Press to display the TV on-screen menu. Press again to exit

from the menu.

wg CH +/– Press to scan through channels. To scan quickly through the

channels, press and hold down CH+ or CH–.

wh EXIT Press to exit the on-screen menu or display and return to

normal viewing.

Button Description

The 5 and CH + buttons

have a tactile dot. Use the

tactile as a reference

when operating the TV.

Using the Remote Control

KDX-46Q005

2-592-150-12(2)

Programming the Remote Control

The remote control is preset to operate Sony brand video equipment.

If you have video equipment other than Sony brand that you want to control

with the TV’s remote control, use the following procedure to program the

remote control.

1Turn to the list of “Manufacturer’s Codes” on page 65, and find the

three-digit code number for the manufacturer of your equipment. (If

more than one code number is listed, use the number listed first.)

2Press repeatedly until the DVD/VCR, SAT/CABLE or i.LINK

indicator lights up.

3Press for five seconds until the indicator of the selected input

flashes.

4While the desired indicator is flashing, enter the three-digit

manufacturer’s code number.

5Press .

6To check if the code number works, aim the TV’s remote control at the

equipment and press that corresponds with that equipment. If it

responds, you are done. If not, try using another code listed for that

manufacturer.

Function Equipment Programmable Code

Number

DVD/VCR Sony DVD player 751

SAT/CABLE Sony Satellite Receiver 801

i.LINK Sony DVD player (i.LINK) 901

✍The equipment must have infrared (IR) remote capability in order to be

used with the remote control.

✍You must do step 5 within 10 seconds of step 4, or you must redo

steps 4 through 5.

✍If more than one code number is listed, try entering them one by one

until you come to the correct code for your equipment.

✍If you enter a new code number, the code number you previously

entered at that setting is erased.

✍In some cases, you may not be able to program your remote control to

operate other equipment. In such cases, use the equipment’s own

remote control.

✍Dead batteries or removing the batteries may cause the programmable

codes to be lost and revert back to factory settings. Reprogramming the

codes may be necessary.

3, 6

Using the Remote Control

KDX-46Q005

2-592-150-12(2)

Using the Remote Control

Manufacturer’s Codes

DVD Players

Laserdisc Players

VCRs

Cable Boxes

Satellite Receivers

*If an Aiwa VCR does not work even

though you enter the code for Aiwa,

enter the code for Sony instead.

Manufacturer Code

Sony 751

Sony (i.LINK) 901

General Electric 755

Hitachi 758

JVC 756

Magnavox 757

Mitsubishi 761

Oritron 759

Panasonic 753

Philips 757

Pioneer 752

RCA/PROSCAN 755

Samsung 758

Toshiba 754

Zenith 760

Manufacturer Code

Sony 701

Panasonic 704, 710

Pioneer 702

Manufacturer Code

Sony 301, 302, 303

Admiral

(M. Ward)

327

Aiwa* 338, 344

Audio Dynamic 314, 337

Broksonic 319, 317

Canon 309, 308

Citizen 332

Craig 302, 332

Criterion 315

Curtis Mathes 304, 338, 309

Daewoo 341, 312, 309

DBX 314, 336, 337

Dimensia 304

Emerson 319, 320, 316,

317, 318, 341

Fisher 330, 335

Funai 338

General Electric 329, 304, 309

Go Video 322, 339, 340

Goldstar 332

Manufacturer Code

Hitachi 306, 304, 305,

338

Instant Replay 309, 308

JC Penney 309, 305, 304,

330, 314, 336,

337

JVC 314, 336, 337,

345, 346, 347

Kenwood 314, 336, 332,

337

LG 332

LXI (SEARS) 332, 305, 330,

335, 338

Magnavox 308, 309, 310

Marantz 314, 336, 337

Marta 332

Memorex 309, 335

Minolta 305, 304

Mitsubishi/

MGA

323, 324, 325,

326

Multitech 325, 338, 321

NEC 314, 336, 337

Olympic 309, 308

Optimus 327

Orion 317

Panasonic 308, 309, 306,

307

Pentax 305, 304

Philco 308, 309

Philips 308, 309, 310

Pioneer 308

Quasar 308, 309, 306

RCA/

PROSCAN

304, 305, 308,

309, 311, 312,

313, 310, 329

Realistic 309, 330, 328,

335, 324, 338

Sansui 314

Samsung 322, 313, 321

Sanyo 330, 335

Scott 312, 313, 321,

335, 323, 324,

325, 326

Sharp 327, 328

Signature 2000

(M. Ward)

338, 327

SV2000 338

Manufacturer Code

Sylvania 308, 309, 338,

310

Symphonic 338

Tas hiro 3 32

Tatung 314, 336, 337

Teac 314, 336, 338,

337

Technics 309, 308

Toshiba 312, 311

Wards 327, 328, 335,

331, 332

Yamaha 314, 330, 336,

337

Zenith 331

Manufacturer Code

Sony 230

Hamlin/Regal 222, 223, 224,

225, 226

Jerrold/G. I./

Motorola

201, 202, 203,

204, 205, 206,

207, 208, 218

Oak 227, 228, 229

Panasonic 219, 220, 221

Pioneer 214, 215

Scientific Atlanta 209, 210, 211

Tocom 216, 217

Zenith 212, 213

Manufacturer Code

Sony 801

Dish Network 810

Echostar 810

General Electric 802

Hitachi 805

Hughes 804

Mitsubishi 809

Panasonic 803

RCA/

PROSCAN

802, 808

Toshiba 806, 807

Using the Remote Control

KDX-46Q005

2-592-150-12(2)

Using Other Equipment with Your TV Remote Control

To operate other connected equipment with your TV remote control, first

turn to page 65 and program the necessary code. For operating video

equipment, press TV/VIDEO repeatedly until you see the video input on the

screen for your connected equipment. Remote control operation tips are

provided below.

Operating a VCR

Operating a Satellite

Receiver

To Do This ... Press

Activate the remote control to

operate the VCR

FUNCTION repeatedly until the DVD/VCR

indicator lights up.

Turn on/off SAT/CABLE

Change channels CH +/–

Record z REC

Play

Stop x

Fast forward M

Rewind the tape m

Pause X

Search the picture forward or

backward

M or m during playback

(release to resume normal playback)

To Do This ... Press

Activate the remote control to

operate the satellite receiver

FUNCTION repeatedly until the SAT/CABLE

indicator lights up.

Turn on/off SAT/CABLE

Select a channel 0-9, ENTER

Change channels CH +/–

Back to previous channel JUMP

Display channel number DISPLAY

Display SAT Index INDEX

Display SAT Guide GUIDE

Display SAT Menu MENU

Move highlight (cursor) V v B b

Select item

Using the Remote Control

KDX-46Q005

2-592-150-12(2)

Using the Remote Control

Operating a Cable

Box

Operating a DVD

Player

Operating an MDP

(Laserdisc Player)

To Do This ... Press

Activate the remote control to

operate the cable box

FUNCTION repeatedly until the SAT/CABLE

indicator lights up.

Turn on/off SAT/CABLE

Select a channel 0-9, ENTER

Change channels CH +/–

Back to previous channel JUMP

To Do This ... Press

Activate the remote control to

operate the DVD

FUNCTION repeatedly until the DVD/VCR

indicator lights up.

Turn on/off SAT/CABLE

Play

Stop x

Pause X

Step through different

tracks of the disc

M to step forward or m to step backward

Step through different chapters

of a video disc

CH+ to step forward or CH– to step backward

To Do This ... Press

Activate the remote control to

operate the MDP

FUNCTION repeatedly until the indicator of the

position you programmed for the MDP player lights

up.

Turn on/off SAT/CABLE

Play

Stop x

Pause X

Search the picture forward or

backward

M or m during playback

(release to resume normal playback)

Search a chapter forward or

backward

CH +/–

Using the Features

KDX-46Q005

2-592-150-12(2)

Using the Features

Overview

This chapter describes how to use the features of your TV.

Watching TV

Topic Page

Watching TV 69

Using the Program Guide 70

Using Wide Screen Mode 72

Using Twin View 74

Using Favorite Channels 77

Using the Freeze Function 79

Using Picture Off 80

Using the PC Input 81

To Do This ... Do This ...

Activate the remote control to

operate the TV

Press FUNCTION repeatedly until the TV

indicator lights up.

Turn on/off the TV Press POWER.

Tune directly to a channel To tune to analog channels, press 0-9 and then

ENTER.

For digital subchannels, press 0-9,,

press 0-9 again, and then ENTER.

For example, to select subchannel 21.13, press

2+1+ +1+3, and then press ENTER.

You can also select channels using the

program guide. See page 70 for details.

Adjust the volume Press VOL +/–.

Mute the sound Press MUTING (press again or VOL + to

restore the sound).

Alternate back and forth between

two channels

Press JUMP.

The TV alternates between the current channel

and the last channel that was selected.

Display the current channel

number (and other information)

Press DISPLAY once to display the channel

number, current time, and channel label (if

set). Press DISPLAY again to turn Display off.

Switch the TV’s input to the VCR,

DVD player, or other connected

equipment

Press TV/VIDEO repeatedly to cycle through

the video equipment connected to the TV’s

video inputs.

Change video and audio options,

customize the TV’s setup, set

parental controls, and more

Press MENU to display the Menu. For details,

see “Using the Menus” on page 109.

Switch the TV’s input between

sources connected to the TV’s

VHF/UHF and CABLE inputs

Press ANT to alternate between sources

connected to the TV’s VHF/UHF and CABLE

inputs.

For a complete list of all

the functions of the

remote control, see

pages 61-67.

Using the Features

KDX-46Q005

2-592-150-12(2)

Using the Program Guide

Displaying the

Program Guide

This TV is equipped to show program information if it is available from the

station. The program guide lets you review program information and select

both analog and digital channels.

To display the program guide

1Tune your TV to a channel by using the 0-9,, and ENTER buttons.

2Press GUIDE on the TV’s remote control. The program guide will

appear with the currently selected program showing in the background.

✍Program information in the guide is provided by the broadcasters. As a

result, it may sometimes include only the channel number, without a

program title or description.

Make Way for Ducks!

Series follows the aquatic misadventures of Henry and Riley, two

wayward ducks on a unique mission.

Time remaining: 1:26

FAM

TV-G

1 ABC

10 DISC

23.1

FAM

36 TLC

65 HIST

68 SHOW

C23.1

Channel number,

call letters, etc.

Program title and

description,

program

duration, time

remaining, rating

information,

closed-caption

availability, etc.

Selectable

channel list.

Using the Features

KDX-46Q005

2-592-150-12(2)

Using the Guide

The Program Guide menu allows you to select channels from a dropdown

list. The Guide provides information about the current program being shown

on each channel.

Using the Program

Options Menu

The Program Options menu allows you to customize the program settings on

the currently tuned channel.

✍Subchannels are additional channels of programming broadcast

simultaneously. For example, channel 4 might include three subchannels

(4.1, 4.2, 4.3) that are showing programs at the same time.

Main

Video 1

Video 2

Video 3

Make Way for Ducks!

Series follows the aquatic misadventures of Henry and Riley, two

wayward ducks on a unique mission.

Time remaining: 1:26

TV-G

Alternate Video

Alternate Audio

FAM

C23.1

1 ABC

10 DISC

23.1

FAM

36 TLC

65 HIST

68 SHOW

Option Description

Alternate

Video

(when

available)

Each program has a main video stream (the video that you see when

the channel is first tuned), and may have alternate video streams. This

option allows you to switch among these alternate video streams.

Alternate

Audio

(when

available)

Each program has a main audio stream (the audio that you hear when

the channel is first tuned), and may have alternate audio streams. This

option allows you to switch among these alternate audio streams (e.g.,

for different languages).

Using the Features

KDX-46Q005

2-592-150-12(2)

Using Wide Screen Mode

Wide screen mode lets you watch 4:3 normal broadcasts in several wide

screen modes (16:9 aspect ratio).

❑Press WIDE repeatedly to toggle through the following screen mode

settings.

Changing the Wide Screen Mode for 4:3 Source (Standard definition source)

You can also access the

screen mode settings in

the Screen menu. For

details, see page 117.

Example Description

Wide Zoom enlarges the center portion of

the picture. The left and right edges of the

picture are stretched to fill the 16:9 screen.

Normal displays the 4:3 picture in its

original size. Side bars are shown to fill the

16:9 screen.

Full stretches the 4:3 picture horizontally,

to fill the 16:9 screen.

Zoom enlarges the 4:3 picture to fill the

16:9 screen. Zoom is useful for watching

Letterbox movies.

✍When you change channels or inputs, the Wide Mode settings revert

to the 4:3 Default setting in the Screen Menu. To retain the current

Wide Mode setting as channels and inputs are changed, set 4:3

Default to Off. For details, see page 118.

original source

Wide Zoom

Normal

Full

Zoom

Using the Features

KDX-46Q005

2-592-150-12(2)

Changing the Wide Screen Mode for 16:9 Source (High definition source)

Example Description

Wide Zoom enlarges the center portion of the picture. The left and right edges of

the picture are stretched to fill the 16:9 screen.

Full displays the picture in its original size.

Zoom enlarges the picture proportionately, both vertically and horizontally.

✍When the TV receives a 720p or 1080i signal, Normal cannot be selected.

✍When TV receives a 720p or 1080i signal that is 4:3 aspect ratio picture

(upconverted to 16:9) with a black bar at each side, Full returns the picture to

its original size.

original source

(Upconverted 4:3)(Upconverted 4:3) (Native 16:9)

Wide Zoom

Full

Zoom

Using the Features

KDX-46Q005

2-592-150-12(2)

Using Twin View

Twin View lets you see two pictures from two sources — from an antenna,

VCR, DVD, etc. — on the screen at the same time. You hear the sound from

only one of the sources at a time, but you can choose which source’s sound is

selected. You can also change the relative size of each of the pictures.

Displaying Twin

Pictures

To display Twin View

1Make sure your TV is tuned to a working channel.

2Press .

A second picture appears. A mark appears above the activated

picture.

To cancel Twin View and watch the active picture

❑Press again (or press ).

Activating the


You can use B or b buttons to activate the left and right pictures while using

Twin View.

To activate the right picture To activate the left picture

❑Press b.Press B.

FOX

C8.1

Video 1

DVD

FOX

C8.1

Video 1

DVD

C8.1

FOX

Video 1

DVD

Using the Features

KDX-46Q005

2-592-150-12(2)

Functions available in the active window

Factors Affecting Twin View

❑If you use a cable box to view all channels, the same channel appears in

both windows because the cable box unscrambles and sends only one

channel at a time. (To view the picture in dual picture features such as

Twin View, Freeze, etc., see “Cable Box and Antenna” on page 33.)

❑If you use a cable box and other video equipment, you can view the

cable box output in one window and view a different source (such as a

VCR or DVD player) in the second window by using the TV/VIDEO

button.

❑Digital TV channels, as well as any sources connected to the HD/DVD

IN 4-5, and HDMI IN 6-7 inputs display in the left window, but not the

right.

❑If you are viewing a 4:3 source and a 16:9 enhanced source (such as a

DVD) side by side, the 4:3 source appears larger.

❑Twin View does not display channels that are blocked by parental

settings (see page 121).

❑Twin View does not display images from a Memory Stick, an i.LINK-

equipped device, or a personal computer.

To Do This ... Do This ...

Tune to a channel To tune to analog channels, press 0-9 and then

ENTER.

For digital subchannels, press 0-9,,

press 0-9 again, and then ENTER.

For example, to select subchannel 21.13, press

2+1++1+3, and then press ENTER.

Adjust the volume Press VOL +/–.

Mute the sound Press MUTING (press again or press VOL +

to restore the sound).

Switch the TV’s input between

sources connected to the TV’s

VHF/UHF and CABLE inputs

Press ANT.

Switch the TV’s input between

sources connected to the TV’s A/V

inputs

Press TV/VIDEO.

Change the picture size Press V or v. (For details, see “Changing the

Picture Size” on page 76.)

Using the Features

KDX-46Q005

2-592-150-12(2)

Changing the

Picture Size

The zoom feature lets you change the size of the left and right pictures.

To enlarge the left

picture (reduce the

right)

1Press B to

activate the left

picture (if not

already

activated).

2Press V to

enlarge the

picture and v to

reduce the

picture.

To enlarge the right

picture (reduce the

left)

1Press b to

activate the right

picture (if not

already

activated).

2Press V to enlarge

the picture and v

to reduce the

picture.

✍When you adjust the picture sizes in Twin View, the TV memorizes the

change. The next time you use the Twin View function, the memorized

sizes appear.

Using the Features

KDX-46Q005

2-592-150-12(2)

Using Favorite Channels

The Favorite Channels feature lets you select programs from a list of up to

16 favorite channels that you specify. You can create a list using the Favorite

Channels option in the Channel Menu, or by using the Add to Favorites

feature in the Favorite Channels guide.

Using the Channel

1Press MENU to display the Menu.

2Press V or v to highlight the Channel icon and press .

3Press to select Favorite Channels.

4Use the 0-9 and ENTER buttons to enter the channel number that you

want to assign to the Favorite Channel number. A preview of the

highlighted channel appears in the upper right of the screen.

Press to select that channel as a Favorite Channel.

5To add more channels to your favorites list, repeat step 4.

To clear a Favorite Channel, press V or v to highlight the channel you

want to clear. Press RESET.

6Press MENU to exit the Menu.

✍Digital channels do not display in the preview window.

✍To enter digital channel numbers in step 4, use the 0-9, , 0-9 and

ENTER buttons.

For details on using the

Channel Menu, see

page 119.

Using the Features

KDX-46Q005

2-592-150-12(2)

Using the Favorite

Channels Guide

1Press FAVORITES.

The Favorite Channels list appears.

2Press V or v to highlight the channel you want to watch. A preview of

the highlighted Favorite Channel appears.

To add the current channel to the list of Favorite Channels, highlight

Add to Favorites and press .

3Press to select the channel you want to watch.

To change your Favorite Channels list or delete a channel from the list,

highlight Edit Favorites and press .

✍Digital channels do not display in the preview window.

Add to Favorites

Favorite Channels

1 8.14 PBS

2 15.8 NBC

3 27 HGTV

4 45.12 TNT

5 98 CNN

6 112.3 ESPN

7 120 NICK

Preview of

highlighted

Favorite

Channel

Favorite

Channels

Using the Features

KDX-46Q005

2-592-150-12(2)

Using the Freeze Function

The FREEZE button allows you to temporarily capture a program’s picture.

You can use this feature to write down information such as phone numbers,

recipes, etc.

To use the Freeze function

1When the program information you want to capture is displayed on the

screen, press FREEZE.

2The TV switches to Twin View and displays the “frozen” picture on the

right, while the current program continues on the left.

3To cancel and return to normal viewing, press FREEZE again (or just

turn to another channel).

✍The Freeze feature is not available if you are using Favorite Channels (see

page 77) or Twin View (see page 74).

Current

program

in progress

Frozen


Call 555-1234

Using the Features

KDX-46Q005

2-592-150-12(2)

Using Picture Off

The Picture Off feature lets you enjoy music from radio programs of digital

broadcasts or DVDs with the TV screen turned off.

1Press PIC OFF.

The PICTURE OFF LED lights up in blue and the screen turns off.

To cancel and return to normal viewing, press any button except for

VOL +/–, POWER and MUTING.

✍This feature turns off the display unit only.

Using the Features

KDX-46Q005

2-592-150-12(2)

Using the PC Input

The PC Input feature allows you to connect a personal computer to your TV

so that you can enjoy the PC's contents on the large screen of the TV and the

sound from the PC with the TV's speakers.

Displaying the PC

Screen

To display the PC screen using the remote control:

❑Press TV/VIDEO repeatedly until VIDEO 8 (PC) appears.

To display the PC screen using the media receiver unit:

❑Press the PC button on the front panel.

Notes on the PC Input Feature

❑If the i.LINK button on the remote control or the media receiver unit is

pressed while the TV is displaying the PC screen, the following message

will appear: Feature not available.

❑If the Memory Stick button on the remote control is pressed while the

TV is displaying the PC screen, the Memory Stick Index will appear on

the TV screen.

❑To switch to the PC input while using the Twin View feature, try the PC

button on the media receiver, instead of the remote control. Pressing TV/

VIDEO repeatedly on the remote control will skip VIDEO 8 (PC) if

Twin View is in use.

✍For details on how to connect a personal computer to your TV, see

“Personal Computer” on page 46.

✍You can change the settings for the PC input while the TV is displaying

the PC screen. For details, see pages 113, 116, and 127.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Using the Memory Stick Viewer

About Memory Stick

Memory Stick (sold separately) is a compact, portable, and versatile

Integrated Circuit recording medium with a data capacity that exceeds that

of a floppy disk. Memory Stick is specially designed for sharing digital data

among Memory Stick compatible products such as digital cameras and

digital video cameras. Because it is removable, Memory Stick can also be

used for external data storage.

The Memory Stick Viewer on your TV allows you to view files that are

stored on Memory Stick media. You can view:

❑Digital photos (JPEG files)

❑Movies (MPEG1 files)

You can also play slide show background music using MP3 files stored on

your Memory Stick.

For more information about handling Memory Stick media, see “Notes on

Using Memory Stick Media” on page 98.

Features With the Memory Stick Viewer, you can:

❑View photo (JPEG) and movie (MPEG1) files in a thumbnail index or

Slide Show

❑Set customized Slide Show options, including transitions and

background audio

❑Pan, zoom, and rotate photos

❑Mark photos and set quantities of prints to be output when the Memory

Stick is inserted into your photo printer (not supplied)

❑Lock (protect) or delete files on the Memory Stick

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Memory Stick

Compatibility

This television is compatible with the following Sony brand Memory Stick

media types:

❑Memory Stick Media

❑Memory Stick Duo and PRO Duo Media (can be used without the

Memory Stick adaptor)

❑Memory Stick Media with Memory Select Function

❑Memory Stick PRO Media

About Memory Stick PRO Media

Memory Stick PRO media features vary by and are dependent upon the

design of host hardware devices. Memory Stick PRO in this TV has been

tested to support up to 1 GB media capacity and does not support high-speed

transfer, MagicGate copyright protection technology, or access control

security features.

Memory Stick

Functionality

Sony cannot guarantee or assure the Memory Stick functionality on this

television in the following cases:

❑You are using non-Sony brand Memory Stick media.

❑You are using video or audio clips that have been processed on a

computer.

❑You are using files that were obtained from the Internet or from a

printed film processing center.

❑The Memory Stick has been formatted on a personal computer.

Sony recommends that you back up all data stored on Memory Stick media

to avoid potential data loss. In the above two cases, in order to avoid

potential data corruption that may occur, be sure to back up data prior to use

with the TV’s Memory Stick Viewer. Sony cannot accept responsibility in

the event that data recorded to Memory Stick media is lost or damaged. For

certain non-Sony brand Memory Stick media, you can view images, but you

cannot rotate, delete or protect/unprotect images on the television. An error

message will occur if you attempt any of these operations. This is a result of

the unique file directory structure on these particular flash memory media

and is not a malfunction of the television.

✍CAUTION: The Memory Stick slot on your TV has been designed to

accommodate standard and compact versions of Memory Stick. It is not

necessary to use an adaptor for Memory Stick Duo and Memory Stick

PRO Duo. If you use an adaptor, it may damage the adaptor and Memory

Stick slot.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

File Compatibility The Memory Stick Viewer is compatible with JPEG images taken with Sony

digital still cameras and MPEG1* movies taken with Sony digital cameras

and camcorders. To be viewable in the Memory Stick Viewer, files must

have the following file name extensions:

* Some variations of MPEG1 movies may not play back correctly.

Trademark

Information

Memory Stick, Memory Stick Duo, Memory Stick PRO, Memory Stick PRO

Duo, and MagicGate are trademarks of Sony Corporation.

File Type Supported File Name Extensions

JPEG .jpg

.jpeg

MPEG1 .mpg

.mpeg

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Inserting and Removing a Memory Stick

If you are using a Memory Stick Duo and PRO Duo, see “Inserting the

Memory Stick Duo” on page 87.

Inserting a Memory

Stick

Locate the Memory Stick slot and insert the Memory Stick into the Memory

Stick slot as illustrated below. When inserted properly, it should slide in with

little resistance and click into place.

To remove the Memory Stick, see “Removing a Memory Stick” on page 88.

✍Be sure to insert the Memory Stick in the correct direction. Forcing the

Memory Stick in the wrong way may damage it.

✍Insert only Memory Stick media into the Memory Stick slot. Attempting

to insert other objects into the Memory Stick slot may damage the TV.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Inserting the

Memory Stick Duo

Memory Stick Duo is a new, compact version of the standard-sized Memory

Stick recording medium.

Insert the Memory Stick Duo as shown below.

To remove the Memory Stick Duo, see “Removing a Memory Stick” on

page 88.

✍CAUTION: The Memory Stick slot on your TV has been designed to

accommodate standard and compact versions of Memory Stick. It is not

necessary to use an adaptor for Memory Stick Duo and Memory Stick

PRO Duo. If you use an adaptor, it may damage the adaptor and Memory

Stick slot.

✍CAUTION: Inserting the Memory Stick Duo incorrectly may result in

permanent damage to the Memory Stick Duo and the TV.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Removing a Memory

Stick

1Check that the Memory Stick indicator is off. (When the light is on, this

indicates that the TV is reading data from the Memory Stick.)

2Push the Memory Stick gently into the Memory Stick slot, and then

release it. The Memory Stick media is ejected.

3Pull the Memory Stick completely out of the slot.

✍Removing the Memory Stick while a file is being accessed (when the

Memory Stick indicator on the TV’s front panel is lit) may damage the

Memory Stick or its contents.

✍When removing the Memory Stick, do not attempt to pull it from its slot

without first pushing it in to release it.

✍To protect small children from injury by Memory Stick media, remove all

Memory Stick media from the TV’s Memory Stick slot and store in a safe

location when not in use.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Using the Memory Stick Index

Turn on the TV and insert a Memory Stick that contains the photo or movie

files you want to view. To insert a Memory Stick, see “Inserting a Memory

Stick” on page 86.

The Memory Stick Index appears, which displays thumbnail images of the

files stored on the Memory Stick.

About the Lock and Movie Icons on the Thumbnail Images

✍If the Memory Stick Index does not appear, press on the remote

control.

Summer 2004 / DSC0001

Jul 30, 2004 12:59PM 640x480

Slide Show Contents Memory Stick

1 of 25

Thumbnails of photos and

movies

Memory Stick menu bar

Information about the highlighted

photo or movie

Highlighted thumbnail

Indicates the thumbnail is a movie (MPEG1) file instead of a photo (JPEG)

file.

Indicates the thumbnail is locked. Locked files cannot be changed or deleted.

For details, see “Protect“ on pages 92 and 95.

Indicates that the photo is marked to be printed.

Indicates that the photo has an associated voice memo.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Using the Memory

Stick Index

The following describes how to use the Memory Stick Index.

To Do This ... Do This ...

Move the highlight to

a photo, voice memo

( ), or movie ( )

thumbnail

Press V v B b.

Display the

highlighted photo,

voice memo, or movie

file full screen

Press . For details, see “Viewing Photos” on page

91 and “Playing Movies” on page 94.

Display the next page

of thumbnails

1Press v to select V.

2Press v to display the next page of thumbnails.

Display the previous

or next page of

thumbnails

1Press v to select V.

2Press B to select .

3To go to the previous page, press V.

To go to the next page, press v.

Use the Memory Stick

menu bar to access

additional options

1Press v to select V.

2Press B or b to select Slide Show, Contents, or

Memory Stick.

3Press V or v to select the option you want to change.

For details on these options, see “Memory Stick Index

Menu Bar Options” on page 96.

Move the highlight

from the Memory

Stick menu bar back

to the thumbnails

1Press B or b to select V.

2Press V to return to the currently displayed

thumbnails, or v to display the next page of

thumbnails.

Exit Memory Stick

Viewer

Press on the remote control.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Viewing Photos

When you select a photo from the Memory Stick Index (described on

pages 89), it displays as shown below, with the following controls.

Photo Controls

Summer 2004 / DSC00012

Jul 30, 2004 12:59PM 640x480 12 of 25

Slide ShowIndex View File

Photo menu bar

Information about

selected photo

Selected photo

Previous/Next buttons

✍JPEGs captured using a digital video camera may appear to display

motion in full screen. This is a result of the way digital video cameras

record still images, and is not a result of a malfunction with the TV.

To Do This ... Do This ...

Display the next or

previous file on the

Memory Stick

Press V to highlight the (Previous/Next) button.

Then press B to go to the previous file, or b to go to the

next file.

Hide the Photo menu bar,

displaying only the photo

With the highlight in the Photo menu bar, press v.

Display the hidden Photo

menu bar

Press V.

Play the JPEG voice memo

( files only)

Highlight B (Play) and then press . To pause the

voice memo, highlight X (Pause) and then press .

Display the Memory Stick

Index again

Press B or b to highlight Index in the Photo menu bar

and press .

For details on the Memory Stick Index, see pages 90.

Access additional options

in the Photo menu bar

See “Photo Menu Bar Options” on page 92.

Exit Memory Stick Viewer Press on the remote control.

When the menu is

hidden, press B or b to

go to the previous or

next photo.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Photo Menu Bar

Options

The Photo menu bar lets you access additional photo viewing options.

To access the Photo menu bar

1Press B or b to select Index, Slide Show, View, or File.

2Use V v B b to select the desired option.

Option Description

Index Displays the Memory Stick Index, with the highlight on the

currently displayed photo’s thumbnail. For details, see “Using the

Memory Stick Index” on page 89.

Slide Show Displays the Slide Show menu. For details, see “Slide Show Menu

Options” on page 96.

View Rotate Allows you to rotate the photo in 90 degree

increments clockwise or counterclockwise. For

details, see “Using Rotate” on page 93.

Zoom/Pan Allows you to magnify and pan across the photo.

For details, see “Using Zoom and Pan” on page 93.

File Protect Allows you to protect the JPEG file from any

changes. When a JPEG file is protected, it cannot

be rotated or deleted. Select On or Off.

Quantity

Allows you to indicate the number of prints to make

of the specific photo when the Memory Stick is

inserted into a compatible photo printer (not

supplied).

Delete Deletes the JPEG file from the Memory Stick.You

cannot delete a JPEG file that has been protected

(or if the Memory Stick is locked).

JPEG files that are

protected are indicated

by the Lock icon.

The Print Quantity

feature is also known

as DPOF (Digital Print

Order Format).

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Using Zoom and

Pan

To Zoom and Pan a photo

1In the Photo menu bar, press B or b to highlight View.

2Press V or v to highlight Zoom/Pan and press .

3Specify the zoom center point by using V v B b, then press to set

the center.

The Zoom and Pan controls are displayed.

Using Rotate To Rotate a photo

1In the Photo menu bar, press B or b to highlight View.

2Press V or v to highlight Rotate.

3To rotate clockwise, press V or v to highlight Clockwise and press .

To rotate counterclockwise, press V or v to highlight Counterclockwise

and press .

The photo is rotated 90 degrees each time you press .

To Do This ... Do This ...

Zoom in (increase magnification)

or out (decrease magnification)

Press B or b to highlight Zoom and press . Then press V to zoom in or v to

zoom out.

To stop using Zoom, press .

Pan (left, right, up, down) (You can use Pan only when the photo is magnified using Zoom.)

Press B or b to highlight Pan and press . Then press B b V v to pan

around the photo.

To stop using Pan, press .

Exit the Zoom/Pan controls Press B or b to highlight Exit and press .

Exit Memory Stick Viewer Press on the remote control.

You cannot rotate a

photo that has been

protected. See

“Protect” on page 92.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Playing Movies

When you select a movie from the Memory Stick Index (described on

pages 89), it displays as shown below, with the following controls.

Movie Controls

Information about

selected movie

Selected movie

Enlarge button

Movie menu bar

Previous/Next buttons

Play/Pause button

✍MPEG movies recorded in VX Fine mode with Sony digital cameras cannot be

played back with the Memory Stick Viewer.

To Do This ... Do This ...

Enlarge the movie window Press V or v to highlight Enlarge, and then

press . To display the movie controls again,

press .

Play the movie with the

movie controls displayed

Press V or v to highlight B (Play) and then

press .

Pause the movie While the movie is playing, the B button changes to

the X (Pause) button.

Press V or v to highlight X (Pause) and then

press .

Display the previous or next

file on the Memory Stick

Press V or v to highlight the (Previous/Next)

button. Then press B to go to the previous file, or b to

go to the next file.

Hide the Movie menu bar,

displaying only the movie

With the highlight in the Movie menu bar, press v.

Display the hidden Movie

menu bar

Press V.

Access additional options in

the Movie menu bar

See “Movie Menu Bar Options” on page 95.

Exit Memory Stick Viewer Press on the remote control.

The quality of the movie

when enlarged

depends on the

resolution of the

MPEG1 file. See your

camera’s instruction

manual for details.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Movie Menu Bar

Options

To access the Movie menu bar

1Use V or v to highlight Index in the Movie menu bar.

2Press B or b to select Index, Slide Show, or File.

3Press V or v to select the desired option.

Option Description

Index Displays the Memory Stick Index, with the highlight on the thumbnail

of the currently displayed movie.

Slide

Show

Displays the Slide Show menu. For details, see “Slide Show Menu

Options” on page 96.

File Protect

Allows you to protect the MPEG1 file from any

changes. When an MPEG1 file is protected, it

cannot be deleted. Select On or Off.

Delete Deletes the MPEG1 file from the Memory

Stick.You cannot delete an MPEG1 file that has

been protected (or if the Memory Stick is locked).

MPEG1 files that are

protected are indicated

by the Lock icon.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Memory Stick Index Menu Bar Options

Slide Show Menu

Options

The Slide Show menu includes the following options:

Option Description

Start Starts the Slide Show.

Music Allows you to select background audio to play during the Slide

Show.

Off No additional background audio is played during

the Slide Show. Audio that is associated with the

JPEG or MPEG1 files will play.

Play Memory

Stick

Plays all MP3 files on the Memory Stick. The

Piano MP3 file is not played.

Piano

(Built-in

music)

Plays the MP3 file stored in the TV’s internal

memory.

(List of MP3

Files)

Displays a list of all MP3 files found at the top level

(root) of the Memory Stick. To show additional

MP3 files stored in other folders on the Memory

Stick, select Complete list.

Complete list Displays a list of all available MP3 files. The list is

sorted in alphabetical order, grouped by folder.

Transition

Effect

Allows you to select an effect to be used when advancing to the next

file in the Slide Show.

Slide

Advance

Allows you to specify when to advance to the next slide.

Fast Slide advances after about 3 seconds.

Medium Slide advances after about 6 seconds.

Slow Slide advances after about 12 seconds.

Manual

advance

Slide advances only after you press B or b.

File

Information

Determines whether file information is displayed. Select On or Off.

Repeat On Slide Show continuously loops.

Off Slide Show plays once through all files and ends.

The Slide Show menu

is the same whether

you select it from the

Memory Stick Index

(pages 89), Photo

(pages 91), or Movie

(pages 94) menus.

When you select

Complete list, it may

take a moment to

display the list of all

MP3 files.

Some JPEG files may

take longer to display

than others, which may

make it seem longer

than the interval you

selected for Slide

Advance.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Contents Menu

Options

The Contents menu includes the following options:

Memory Stick Menu The Memory Stick menu displays the current status of the Memory Stick,

including total capacity, used capacity, and free capacity.

Option Description

Select

Folder

Allows you to select different folders to view in the Memory Stick

Viewer.

Digital Camera

Folders

Selects all folders within the directories

defined by the DCF rules used by Sony digital

cameras (see pages 98). JPEG and MPEG1

files in those directories are recognized even if

they do not conform to the DCF file naming

rules.

Select a Folder Allows you to access individual folders on the

Memory Stick.

File Order Allows you to change the order in which the Memory Stick files are

displayed.

Date Order Displays files in chronological order by

modification date.

Date Order

Reverse

Displays files in reverse chronological order

by modification date.

Alphabetical Displays files in alphabetical order by

filename.

Filter Allows you to selectively display specific file types within the

selected folder.

Show Photos and

Movies

Displays all readable files.

Show Photos

Only

Displays only photo (JPEG) files.

Show Movies

Only

Displays only movie (MPEG1) files.

Show All Print

Marks

Displays all files marked with the Print Mark

feature, regardless of the currently selected

folder. For details, see “Print Quantity” on

pages 92.

The Rotate and Protect

functions do not

change the file’s

modification date.

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Notes on Using Memory Stick Media

About DCF File

Names

Most Sony brand digital still and video cameras automatically record still

photo and movie files using DCF compliant directory and file names.

If you selected the Digital Camera Folders option, as described on pages 97,

you might want to have your digital camera’s instruction manual handy in

order to check how files and directories are organized for your specific

model of digital camera.

DCF stands for “Design Rules for Camera File Systems,” which are

specifications established by the Japan Electronics and Information

Technology Industries Association (JEITA: formerly JEIDA).

Using the Memory Stick Viewer

KDX-46Q005

2-592-150-12(2)

Memory Stick

Precautions

When using Memory Stick media, follow these precautions:

❑To avoid permanent damage to still image data, do not turn off the TV or

remove Memory Stick media from the insertion slot while data is being

read (as indicated by the Memory Stick indicator light being on).

❑Avoid touching the terminal of Memory Stick media or bringing it into

contact with a metal object.

❑Do not drop, bend, or submit Memory Stick media to external shock.

❑Do not disassemble or modify Memory Stick media.

❑Avoid getting liquid on Memory Stick media.

❑Apply labels only within the designated label area.

❑To avoid permanent damage to still image data, do not use or store

Memory Stick media in a location subject to:

●High temperature (such as near a heater or inside a hot car)

●High humidity

●Direct sunlight

●Corrosive substances

●Magnetic fields

●Excessive dust

●Static electricity or electric noise

●Electric surges

❑Store and carry Memory Stick media in its original case to ensure

protection of stored data.

❑Save a backup of stored data.

❑When using the Memory Stick Duo, insert it without using the Memory

Stick Duo adaptor. For details, see page 87.

Label Area

101

Using i.LINK

KDX-46Q005

2-592-150-12(2)

Using i.LINK

About i.LINK

This TV is equipped with i.LINK, which provides a secure digital interface

to other digital home entertainment devices, such as digital VCRs, digital

camcorders, set-top boxes, and other devices that also are equipped with

i.LINK. i.LINK allows for the secure transfer of copyright-protected digital

content between these devices and your digital television.

i.LINK is a trademark of Sony Corporation and used only to designate that a

product contains an IEEE 1394 connector.

All products with an i.LINK connector may not communicate with each

other.

Using i.LINK Cables This TV has three S400 i.LINK terminals (one in the front panel, and two in

the back panel). You can use the following i.LINK cables with this TV:

✍Do not use cables other than the ones listed above.

Sony Model Length

VMC-IL4415 1.5 meters

VMC-IL4435 3.5 meters

4-pin i.LINK cable

Using i.LINK

102

KDX-46Q005

2-592-150-12(2)

Connecting i.LINK

Devices

To connect a digital i.LINK device (using only a digital signal)

1Using an i.LINK cable (see page 101), connect the device’s i.LINK jack

to either of the TV’s i.LINK jacks.

To connect an i.LINK device that supports an EIA-775A connection

1Using an i.LINK cable (see page 101), connect the device’s i.LINK jack

to either of the TV’s i.LINK jacks.

2Using an A/V cable, connect the i.LINK device's A/V output jacks to

the TV's VIDEO 3 A/V input jacks.

✍Before connecting this unit to i.LINK-compatible equipment, read the

instruction manual of the i.LINK device to be connected.

✍Only one i.LINK cable should connect the TV and any given i.LINK

device.

S VIDEO

VIDEO

VIDEO VIDEO

HD/DVD IN(1080i/720p/480p/480i)

VIDEO IN

AUDIO

DIGITAL AUDIO

(OPTICAL)OUT

CENTER SPEAKER IN

180W(6 ) MAX

L (MONO)

AUDIO

AUDIO OUT

SUBWOOFER

OUT(VAR)

(VAR/FIX)

1345

i.LINK

S400

Cable CARD

(HDV/DV/TS/

MICROMV)

Rear of the Media Receiver Unit

A/V cable

i.LINK cable

i.LINK-equipped device

VIDEO

AUDIO-R

AUDIO-L

Cables are often color-

coded to connectors.

Connect red to red,

white to white.

Using i.LINK

103

Using i.LINK

KDX-46Q005

2-592-150-12(2)

Notes on Using This Connection

Notes on Connecting i.LINK Devices

To connect two or more i.LINK devices, use i.LINK cables to connect them

as shown below.

You can connect up to 63 i.LINK devices. However, the maximum number

of cables in any serial route is 16.

Do not connect i.LINK devices in a way that creates a loop.

Connecting non-compatible devices, such as PCs or PC peripherals, may

result in malfunctions.

To Do This ... Do This ...

Set up a digital i.LINK

device

For digital i.LINK devices (devices that require only the

i.LINK connection), no setup is necessary. The TV

automatically recognizes the device as soon as the

connection is made.

Set up an i.LINK

device that supports an

EIA-775A analog

connection

1Connect analog A/V cables to the VIDEO 3 input (see

page 102).

2Use the i.LINK Control Panel to activate the analog

connection to your i.LINK device (see page 107).

A B C D E

i.LINK i.LINK i.LINK i.LINK

A B C D

F G

i.LINK i.LINK i.LINK i.LINK

i.LINK i.LINK

A B C

i.LINK i.LINK

i.LINK

Using i.LINK

104

KDX-46Q005

2-592-150-12(2)

Selecting an i.LINK Device

Before an i.LINK device can be viewed, it must first be selected via the

i.LINK Device List.

1Connect the i.LINK device that you wish to operate.

2Press i.LINK on the media receiver unit or the remote control.

The TV (DTV), along with all devices connected by i.LINK to the TV,

appear on the i.LINK Device List.

Devices that are not supported by the TV appear on the Device List as

“Other Device,” but cannot be controlled using the TV's remote control

or on-screen i.LINK Control Panel. For these devices, use the remote

control supplied with the device.

3Press V or v to navigate among the i.LINK-connected devices.

4Press to select the desired device and display the device's i.LINK

Control Panel. Use the i.LINK Control Panel to operate the selected

device. For details, see page 105.

✍For instructions on connecting i.LINK devices, see page 102.

✍i.LINK devices can be connected to one another and to the TV while the

TV is powered on. The Device List will automatically update to include

the newly-connected device. See page 102 for more information on

connecting i.LINK devices.

Digital VCR

Status:

Viewing.

i.LINK Device List

Sony DTV

DTV

Using i.LINK

105

Using i.LINK

KDX-46Q005

2-592-150-12(2)

Using the i.LINK Control Panel

After you select an i.LINK device using the Device List, the TV displays the

i.LINK Control Panel, which allows you to use the TV's remote to control

the selected i.LINK device.

1If the i.LINK Control Panel is not already displayed, press i.LINK on the

remote control.

2Press V v B b on the remote control to navigate through the options

available in the i.LINK Control Panel.

3Press to select a desired option.

4Press EXIT to exit the Control Panel and view the i.LINK device full-

screen.

The i.LINK Control Panel displays the signal from the TV to the left on

screen (if available), and the signal from the currently selected device to the

right on screen.

✍If i.LINK is pressed while the TV is displaying an analog or digital channel

(not the i.LINK device), then the Device List will appear. Select the

desired device from the list and press to display the Control Panel.

✍To exit i.LINK mode, select DTV from the Device List or press CH +/–.

Setup

Exit i.LINK

i.LINK

Control Panel

Power

Swap Audio

Full Screen

Status: Playing. 00:00:31

Back to Device List

VICTOR HM-DH35000

52.3

The DTV window appears only if the

i.LINK menus were entered while

watching a digital TV channel

(Continued)

Using i.LINK

106

KDX-46Q005

2-592-150-12(2)

To Do This ... Do This ...

Go to the Device List Press V v B b to highlight Back to Device List and press .

Change the audio being played from the

TV to the current selected device, and

vice versa

Press V v B b to highlight Swap Audio and press . An icon appears next

to the window that currently has sound.

Play a recording from the selected

i.LINK camcorder or digital VCR

Press V v B b to highlight and press .

Fast-forward or rewind a recording from

the selected i.LINK camcorder or digital

VCR

Press V v B b to highlight or and press .

Record from TV to the selected i.LINK

digital VCR

If the (Record) button is available, press V v B b to highlight

and press .

Stop a recording from the selected

i.LINK digital VCR

Press V v B b to highlight and press .

Turn the selected device power on and

off

Press V v B b to highlight Power and press .

Setup the selected device Press V v B b to highlight Setup and press . For more details on Setup,

see page 107.

Notes About Controlling i.LINK Devices

❑You can control the functions of the selected i.LINK device by using the equivalent buttons on the TV's

remote control. To program the remote control to operate i.LINK devices, see “Programming the

Remote Control” on page 64.

❑Some options on the i.LINK Control Panel may not be available, depending on the device being

controlled.

❑Only i.LINK-equipped digital camcorders and digital VCRs can be controlled directly through the

i.LINK Control Panel.

❑Not all functions are supported for all i.LINK devices.

❑If you are using a digital VCR, turn off any Auto LINC functionality of the VCR. For details, see the

digital VCR’s user manual.

Using i.LINK

107

Using i.LINK

KDX-46Q005

2-592-150-12(2)

i.LINK Setup

You can use the i.LINK Control Panel to access digital setup options, some

of which are also available through the Digital Program Guide (described on

page 71).

To set up the selected device:

Press V v B b to highlight Setup and press .

The following options are displayed:

Option Description

Alternate

Video

(when available)

Each program has a main video stream (the video that you see

when the channel is first tuned), and may have alternate video

streams. This option allows you to switch among these alternate

video streams.

Alternate

Audio

(when available)

Each program has a main audio stream (the audio that you hear

when the channel is first tuned), and may have alternate audio

streams. This option allows you to switch among these alternate

audio streams (e.g., for different languages).

Analog Video The TV is able to accept an analog signal from a selected set-top

box. The set-top box must be EIA-775A compliant and must be

connected to the TV’s VIDEO 3 input. To associate the device

with the TV's analog VIDEO 3 input, press V or v to select

Analog Video and press . All EIA-775A-compliant devices

will be shown in the list. Select the desired device from the list

and press .

Alternate Video

Alternate Audio

Analog Video

i.LINK Control Panel

Power

Swap Audio

Full Screen

Sony DV-VCR

888.888

Setup

Back to Device List

Notes on i.LINK

❑The TV can act as an i.LINK repeater, so that i.LINK signals are relayed to another device even when

the TV is powered off. To enable this feature, set the i.LINK Standby option to On using the Setup Menu

as described on page 126.

❑Parental Control settings apply to the signal from a selected device. For more details, see page 121.

109

Using the Menus

KDX-46Q005

2-592-150-12(2)

Using the Menus

Overview

Opening and choosing a menu

1Press MENU to display the menu screen.

2Press V or v to highlight the desired menu icon and press to select it.

3Use the arrow button to scroll through the features.

4See the specific menu page for instructions on moving through the

menu.

To end a menu session:

❑Press MENU again.

To end one menu session and move to another:

❑Press B to return to the menu icons.

Press the arrow buttons to choose the next menu icon and press to

select it.

The Menu gives you access to the following features:

Menu Icon Description Page

The Video Menu allows you to make adjustments to your

picture settings. It also allows you to customize the Picture

Mode based on the type of program you are viewing, select

Advanced Video options, and more.

110

The Audio Menu offers enhanced audio options such as

listening to second audio programming (SAP) or

customizing the Effect of the sound on your TV.

114

The Screen Menu allows you to make Wide Mode

adjustments and make changes to the screen’s vertical

center and size. The Overscan feature lets you fix the

overscan problem.

117

The Channel Menu allows you to set up a Favorite

Channels list, run the Auto Program function, label

channels, and more.

119

The Parent Menu lets you control the viewing of programs

based on their ratings.

121

The Setup Menu provides options for setting up your

system, including selecting closed caption modes, labeling

video inputs, selecting the language of the on-screen

menus, and more.

125

The Applications Menu lets you display the Memory Stick

Viewer and the i.LINK Control Panel, set on/off Timers,

access CableCARD and diagnostics information, and more.

130

Press MENU to enter

and exit Menus.

Using the Menus

110

KDX-46Q005

2-592-150-12(2)

Using the Video Menu

To select the Video menu

1Press MENU.

2Press V or v to highlight the

Video icon and press .

3Use the arrow buttons to scroll

through the features.

4Press to select a feature.

5Use the arrow buttons to make

the desired adjustments.

6Press to select/set.

7Press MENU to exit the menu screen.

To restore the factory default settings for the Video settings:

❑Press RESET on the remote control when in the Video menu.

Selecting Video

Options

The Video menu includes the following options:

Antenna

Video

Picture Mode Pro

Picture Max

Brightness 31

Color 31

Hue 0

Sharpness 31

Color Temp. Cool

Noise Reduction

Off

Direct Mode

Off

Option Description

Picture Mode

Customized


viewing

Vivid Select for enhanced picture contrast and sharpness.

Standard Select for standard picture settings. Recommended for

home entertainment.

Pro Select to display a picture with minimum

enhancements.

✍You can alter the Video menu settings (Picture, Brightness,

Color, etc.) for each Picture Mode and each video input.

✍You can set up a Picture Mode (Vivid, Standard or Pro)

independently for each Video input (Video 1- Video 7,

including the Antenna input). Your Picture Mode settings

are automatically saved after each selection. This allows

you to customize the Picture Mode setting for each type of

signal source.

Picture Adjust to increase picture contrast and deepen the color or decrease

picture contrast and soften the color.

Brightness Adjust to brighten or darken the picture.

Color Adjust to increase or decrease color intensity.

Hue Adjust to increase or decrease the green tones.

Sharpness Adjust to sharpen or soften the picture.

To quickly and easily

change from one

Picture Mode to

another, use PICTURE

on the remote control.

Using the Menus

111

Using the Menus

KDX-46Q005

2-592-150-12(2)

Color Temp.

White

intensity

adjustment

Choose from three color temperatures:

Cool Select to give the white colors a blue tint.

Neutral Select to give the white colors a neutral tint.

Warm Select to give the white colors a red tint.

Noise

Reduction

Select to reduce the noise level of connected equipment. This also

reduces the noise level to and signal from the VHF/UHF jack. Select

from High, Medium, Low and Off.

Direct Mode On Select for a natural, soft picture.

Off Select to turn off the Direct Mode.

Game Mode On Select to optimize the lipsync when playing games.

Off Select to turn off the Game Mode.

Backlight Adjust Select to adjust the brightness of the screen.

Contrast

Enhancer

Automatically measures the brightness of the screen and adjusts the

screen's backlight and contrast for optimal settings. Especially useful

in adjusting dark images that tend to look smeared, this feature helps

create clear and vibrant pictures. Select from On or Off.

Advanced

Video

Select Program to choose among the options described below.

DRC Mode Creates a high-resolution picture with 4 x density, for

high quality sources (i.e., DVD player, satellite

receiver).

Mode 1 Recommended for moving pictures.

Mode 2 Recommended for still images and

text.

CineMotion Provides an optimized display by

automatically detecting film content

and applying a reverse 3-2 pulldown

process. Moving pictures will appear

clearer and more natural-looking.

✍DRC Mode is not available when you are watching 480p

and 720p sources or using multi-picture functions (Twin

View, Freeze or Memory Stick), or when Direct Mode is set

to On or Game Mode is set to On.

Option Description

Direct Mode is not

available when you are

watching 480p or 720p

sources.

(Continued)

Using the Menus

112

KDX-46Q005

2-592-150-12(2)

DRC

Palette

Allows you to customize the level of detail (Reality)

and smoothness (Clarity) for up to three input sources.

For example, you can create one Custom setting to

optimize your cable input's picture, and create another

to optimize your DVD player's picture. You can switch

among the three Custom settings.

1Press the arrow buttons to highlight Custom 1,

Custom 2, or Custom 3 and then press .

The DRC palette appears.

2Press the arrow buttons to adjust the position of

the marker (z). As you move the z higher along

the Reality axis, the picture becomes more

detailed. As you move the z to the right along the

Clarity axis, the picture becomes smoother.

3To save the setting, press .

To return the Custom options to the default factory

settings, press the RESET button.

✍DRC Palette is not available when you are watching 480p

and 720p sources or using multi-picture functions (Twin

View, Freeze or Memory Stick), or when Direct Mode is set

to On or Game Mode is set to On.

Smoother

Select to reduce noise caused by digital video

encoding and decoding process. It is especially

effective for watching a DVD or digital TV picture.

Select from High, Medium, Low, and Off.

✍BN Smoother may not be able to correct image quality

from some connected equipment.

✍BN Smoother is not available when you are watching 480p,

720p, and 1080i sources or using multi-picture functions

(Twin View, Freeze or Memory Stick).

Color

Space

Use to select the range of color reproduction from

Normal or Wide.

Color

Corrector

Select to make the colors more vivid. Select from

High, Low, and Off.

DTE Select to enhance the texture of the picture. Select

from High, Medium, Low, and Off.

Option Description

Custom 1

Press

Reality

(25)

Clarity

(1)

to exit

BN Smoother may not

be effective for some

connected equipment.

Using the Menus

113

Using the Menus

KDX-46Q005

2-592-150-12(2)

Selecting PC Video

Options

To display the PC screen:

❑See “Using the PC Input” on

page 81.

The PC Input Video menu includes the following options:

Clear White Select to emphasize the white colors. Select from On

or Off.

Detail

Enhancer

Select to sharpen picture definition. Select from High,

Medium, Low, and Off.

Black

Corrector

Select to enhance the black colors to give the picture

strong contrast. Select from High, Medium, Low, and

Off.

Gamma

Corrector

Select to adjust the balance between bright and dark

areas of the picture. Select from High, Medium, Low,

and Off.

White

Balance

Select to fine-adjust the white color intensity by

changing the red, green and blue levels. Select to

choose among the R-Gain, G-Gain, B-Gain, R-Bias,

G-Bias, and B-Bias options. To restore the factory

default setting of White Balance, select Initial set.

Option Description

Display Mode Video Select to view video images.

Tex t Select to view text, charts or tables.

Picture Adjust to increase or decrease picture contrast.

Brightness Adjust to brighten or darken the picture.

Color Temp. Choose from three color temperatures:

Cool Select to give the white colors a blue tint.

Neutral Select to give the white colors a neutral tint.

Warm Select to give the white colors a red tint.

Backlight Select to adjust the brightness of the screen.

Reset Select to restore the factory default settings.

Display Mode Text


Brightness

Color Temp. Neutral

Backlight

Exit

TextVideo

Adjust the picture settings

Resolution − − − x − − − / − − Hz

Using the Menus

114

KDX-46Q005

2-592-150-12(2)

Using the Audio Menu

To select the Audio menu

1Press MENU.

2Press V or v to highlight the

Audio icon and press .

3Use the arrow buttons to scroll

through the options.

4Press to select an option.

5Use the arrow buttons to scroll

through the settings.

6Press to select the desired setting.

7Press MENU to exit the menu screen.

To restore the factory default settings for Treble, Bass and Balance

❑Press RESET on the remote control when in the Audio menu.

Selecting Audio

Options

The Audio menu includes the following options:

Antenna

Audio

Sound Mode Dynamic

Treble 31

Bass 31

Woofer Level Max

Balance 0

Steady Sound Off

Effect Off

MTS Mono

Center Speaker In

Option Description

Sound

Mode

Customized

audio

settings

Dynamic Select to enhance treble and bass.

Clear Voice Suitable for spoken dialogue.

Custom Flat setting. Also allows you to customize the

settings.

✍Treble and Bass are not available when Dynamic or Clear

Voice is selected in Sound Mode.

Treble Adjust to increase or decrease higher-pitched sounds.

Bass Adjust to increase or decrease lower-pitched sounds.

Woofer

Level

Adjust to decrease or increase woofer sound level.

Balance Adjust to emphasize left or right speaker volume.

Steady

Sound

Auto Select to stabilize the volume across all programs

and commercials.

Off Select to turn off Steady Sound.

✍Steady Sound is not available when Effect is set to Dolby

Virtual, TruSurround or Simulated.

Effect Dolby Virtual Select for surround sound (for Dolby surround

encoded programs only).

Dolby Virtual and

TruSurround attempt to

create the same

surround effect

produced by a

multichannel system

using the left and right

speakers.

Using the Menus

115

Using the Menus

KDX-46Q005

2-592-150-12(2)

TruSurround Select for surround sound (for stereo programs

only).

Simulated Adds a surround-like effect to mono programs.

Off Normal stereo or mono reception.

MTS

Enjoy stereo,

bilingual and

mono

programs

Stereo Select for stereo reception when viewing a program

broadcast in stereo.

Auto SAP Select to automatically switch to second audio

programs when a signal is received. (If no SAP

signal is present, the TV remains in Stereo mode.)

Mono Select for mono reception. (Use to reduce noise

during weak stereo broadcasts.)

✍MTS is available only for analog programs.

Center

Speaker In

Select the video input (TV, Video 1-7, Memory Stick, or i.LINK)

you want to use with the TV’s speakers as the center speaker.

✍The Center Speaker In option is not available for the PC

input.

Phase This option can be set when the Center Speaker In option is set to

On. Select Reverse, if the sound from the TV’s speaker (as the

center speaker) sounds unnatural. The default setting is Normal.

Audio Out

Easy control

of volume

adjustments

Variable The TV’s speakers are turned off, but the audio

output from your audio system can still be

controlled by the TV’s remote control.

Fixed The TV’s speakers are turned off and the audio

output of the TV is fixed. Use your audio receiver’s

volume control to adjust the volume (and other

settings) through your audio system.

✍Audio Out is automatically set to Fixed when Center

Speaker In is set to On.

Speaker On Select to turn on the TV speakers.

Off Select to turn off the TV speakers and output the

TV’s sound only through your external audio

system speakers.

✍The Speaker option is not available when Center Speaker

In is set to On.

Option Description

Using the Menus

116

KDX-46Q005

2-592-150-12(2)

Selecting PC Audio

Options

To display the PC screen:

❑See “Using the PC Input” on

page 81.

The PC Input Audio menu includes the following options:

Option Description

Sound Mode Dynamic Select to enhance treble and bass.

Clear Voice Suitable for spoken dialogue.

Natural Flat setting.

Sound Mode Natural

Exit

Audio

Adjust the sound settings

Resolution − − − x − − − / − − Hz

Using the Menus

117

Using the Menus

KDX-46Q005

2-592-150-12(2)

Using the Screen Menu

To select the Screen menu

1Press MENU.

2Press V or v to highlight the

Screen icon and press

3Use the arrow buttons to scroll

through the features.

4Press to select a feature.

5Use the arrow buttons to scroll through the options.

6Press to select the desired option.

7Press MENU to exit the menu screen.

Selecting Screen

Options

The Screen menu includes the following options:

Antenna

Screen

Wide Mode Full

Game Picture

4:3 Default Off

Overscan Normal

Vertical Center

Vertical Size

Option Description

Wide Mode

Select a screen

mode to use for

4:3 sources.

Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9

screen, keeping the original image as much as

possible.

Normal Select to return the 4:3 picture to its original

size and aspect ratio.

✍Normal is not available when you are watching 720p

or 1080i sources.

Full Select to enlarge the 4:3 picture horizontally

only, to fill the wide screen.

Zoom Select to enlarge the 4:3 picture horizontally

and vertically to an equal aspect ratio that fills

the wide screen.

✍To change from one Wide Mode setting to another, use WIDE on the

remote control (see page 72).

Game Picture Adjust Allows you to move the position of the picture

left and right in the window. (This feature also

allows you to adjust the picture from any

connected equipment.) Select while watching

the picture to be adjusted. The TV stores the

position in memory for each input.

Press B or b and press to choose a

correction between +10 and –10.

Wide Mode is not

available if you are

using Twin View (page

74), Freeze (page 79)

or Memory Stick

(page 83).

(Continued)

Using the Menus

118

KDX-46Q005

2-592-150-12(2)

4:3 Default

Select the default

screen mode to

use for 4:3

sources.

Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9

screen, keeping the original image as much as

possible.

Normal Select to return the 4:3 picture to normal

mode.

Full Select to enlarge the 4:3 picture horizontally

only, to fill the wide screen.

Zoom Select to enlarge the 4:3 picture horizontally

and vertically to an equal aspect ratio that fills

the wide screen.

Off Select to continue using the current screen

mode setting when the channel or input is

changed.

Overscan Normal Select to display the picture in the original

size.

+1 or +2 Select to enlarge the picture to hide the edge of

the picture and image noise.

Vertical Center Adjust Allows you to move the position of the picture

up and down in the window. (Available only in

Wide Zoom and Zoom modes.)

Press V or v and press to choose a

correction between +10 and –10.

Vertical Size Adjust Allows you to adjust the vertical size of the

picture. (Available only in Wide Zoom and

Zoom modes.)

Press V or v and press to choose a

correction between +10 and –10.

Option Description

If 4:3 Default is set to

anything but Off, the

Wide Mode setting

changes only for the

current channel. When

you change channels

(or inputs), Wide Mode

is automatically

replaced with the 4:3

Default setting. To

retain the current Wide

Mode setting as

channels and inputs

are changed, set 4:3

Default to Off.

Using the Menus

119

Using the Menus

KDX-46Q005

2-592-150-12(2)

Using the Channel Menu

To select the Channel menu

1Press MENU.

2Press V or v to highlight the

Channel icon and press

3Use the arrow buttons to scroll

through the features.

4Press to select a feature.

5Use the arrow buttons to scroll through the options.

6Press to select the desired option.

7Press MENU to exit the menu screen.

Selecting Channel

Options

The Channel menu includes the following options:

Antenna

Channel

Channel Fix Off

Digital Channels

Auto Program

Show/Hide Channels

Label Channels

Favorite Channels

Option Description

Favorite

Channels

Lets you set up a list of your favorite channels. For details, see

“Using Favorite Channels” on page 77.

Channel Fix

Useful when you

have a cable box

or satellite

receiver connected

Off Turns off Channel Fix.

2-6 “Fix” your TV’s channel setting to one channel

(2-6) and use the cable box, VCR or satellite

receiver to change channels. Select one of these

settings if you have connected the device to the

VHF/UHF jack.

C2–C6 “Fix” your TV’s channel setting to C2–C6

(CABLE input) and use the cable box or

satellite receiver to change channels.

Video 1, 4 Use when connecting a cable box. TV output

should be connected through the cable box.

Digital Channels Add Select to add digital channels.

Auto Program Start Automatically sets up the channel list on the TV

for all receivable channels for the current input

(VHF/UHF or CABLE).

✍Auto Program may take more than 50 minutes to complete. A progress

bar will display the approximate progress of the Auto Program and

Digital Channels/Add sequences.

If you are using Video 1

or 4 from the Channel

Fix options, you can

switch back and forth

between these inputs

by using the TV/VIDEO

button only. Note that

pressing any other

buttons does not allow

you to change the

video input.

(Continued)

Using the Menus

120

KDX-46Q005

2-592-150-12(2)

Show/Hide

Channels

Allows you to show or hide channels that appear in the Program

Guide (see page 70) and when you use the CH +/– buttons to

channel surf. Channels that are set to Hidden do not appear in

the Program Guide or when you use the CH +/– buttons.

1Press V or v to highlight the channel that you want to show

or hide.

To move between the Major and Digital subchannel lists,

press B or b.

2To change a channel’s setting to Shown or Hidden, press

3To show or hide more channels, repeat steps 1 and 2.

✍If you select to hide or show a major digital channel, all the sub-channels

are automatically hidden or shown. To show or hide an individual sub-

channel within a digital channel, you must individually select that sub-

channel to show or hide.

✍If you hide all sub-channels of a major digital channel, that major digital

channel is automatically set to Hidden.

Label Channels Allows you to assign labels (such as station call letters) to

channel numbers.

1Press V v to scroll through the channel numbers. Then

press to select the channel number that you want to

assign a label.

2Press V v to scroll through the label characters (A-Z, 0-9,

etc.). Then press to select the highlighted character.

Repeat to add characters to the label.

3Press B to return to the Channel menu, or press MENU to

exit the menus.

Option Description

Channels that you set

to hide can only be

accessed with the 0-9

buttons.

Using the Menus

121

Using the Menus

KDX-46Q005

2-592-150-12(2)

Using the Parent Menu

The Parent menu allows you to set up the TV to block programs according to

their content and rating levels.

To select the Parent menu

1Press MENU.

2Press V or v to highlight the

Parent icon and press .

3Use the 0-9 buttons on the

remote control to enter a four-

digit password.

4If this is the first time you are

creating this password, confirm the password by entering it again. (The

Parent menu options appear.)

5Press V v B b to change settings. Press to select the changed

setting.

6Press MENU to exit the menu screen.

Selecting Parent

Options

The Parent menu includes the following options:

✍You need your password for any future access into the Parent menu. If

you lose your password, see “Lost password” on page 142.

Antenna

Parental Lock

Password

Option Description

Parental Lock

Turn ratings on/off and

select a rating system

Off Turn Parental Lock off. No programs are

blocked from viewing.

Child Maximum ratings permitted are:

US: TV-Y, TV-G, G

Canada: C, G, TV-Y

Yo u t h Maximum ratings permitted are:

US: TV-PG, PG

Canada: C8+, PG, 8 ans+, TV-PG

Y. Adult Maximum ratings permitted are:

US: TV-14, PG-13

Canada: 14+, 13 ans+, TV-14

Custom Select to set ratings manually.

US: See page 123 for details.

Canada: See page 124 for details.

(Continued)

Using the Menus

122

KDX-46Q005

2-592-150-12(2)

To deactivate the parental control feature

❑Set Parental Lock to Off when in the Parent menu.

To change the password

1In the Parent menu, use the arrow buttons to highlight Change

Password, and press to select it.

2Enter a new four-digit password using the 0-9 buttons.

3Confirm the new password by entering it again.

4Press MENU to exit the menu screen.

Viewing Blocked

Programs

You can view a blocked program by entering the password.

1Press ENTER when tuned to a blocked program.

2Enter your password using the 0-9 buttons.

Parental control will be canceled temporarily until you turn your TV off.

Change Password Select to change your password.

Select Country U.S.A. Select to use U.S.A. ratings (see page 123).

Canada Select to use Canadian ratings (see page 124).

Option Description

If you are not familiar

with the Parental

Guideline rating

system, you should

select Child, Yo u t h , or

Y. A d u l t to help simplify

the rating selection. To

set more restrictive

ratings, select Custom.

For descriptions of

Child, Yo u t h , and

Y. A d u l t ratings, see

page 121.

Using the Menus

123

Using the Menus

KDX-46Q005

2-592-150-12(2)

Selecting Custom

Rating Options

US custom rating options

If you selected U.S.A. as the country of residence on page 122, the Custom

Rating menu includes the following options. (If you selected Canada, see

page 124.)

Option Description

Movie Rating G All children and general audiences.

PG Parental guidance suggested.

PG-13 Parental guidance for children under 13.

RRestricted viewing, parental guidance is suggested

for children under 17.

NC-17

and X

No one 17 and under.

TV Rating

Block programs

by their rating,

content or both

Age-Based Options

TV-Y All children.

TV-Y7 Directed to children age 7 and older.

TV-G General audience.

TV-PG Parental guidance suggested.

TV-14 Parents strongly cautioned.

TV-MA Mature audience only.

Content-Based Options

FV Fantasy violence.

DSuggestive dialog.

LStrong language.

SSexual situations.

VViolence.

Unrated

Block programs

or movies that are

broadcast without

a rating

Allow Allows programs and movies that are broadcast

without a rating.

Block Blocks all programs and movies that are broadcast

without a rating.

✍The content ratings will increase depending on the level of the age-based rating.

For example, a program with a TV-PG V (Violence) rating may contain

moderate violence, while a TV-14 V (Violence) rating may contain more intense

violence.

To ensure maximum

blocking capability, the

age-based ratings

should be blocked.

If you select Block, be

aware that the following

programs may be

blocked: news, sports,

weather, emergency

broadcasts, political

programs, public

service

announcements, and

religious programs.

(Continued)

Using the Menus

124

KDX-46Q005

2-592-150-12(2)

Canadian custom rating options

If you selected Canada as the country of residence on page 122, the Custom

Rating menu includes the following options. (If you selected U.S.A., see

page 123.)

Option Description

English Rating C All children.

C8+ Children 8 years and older.

GGeneral programming.

PG Parental guidance.

14+ Viewers 14 and older.

18+ Adult programming.

French Rating G General programming.

8 ans+ Not recommended for ages under 8.

13 ans+ Not recommended for ages under 13.

16 ans+ Not recommended for ages under 16.

18 ans+ Programming restricted to adults.

U.S.A. Rating See “TV Rating” on page 123 for details.

Using the Menus

125

Using the Menus

KDX-46Q005

2-592-150-12(2)

Using the Setup Menu

To select the Setup menu

1Press MENU.

2Press V or v to highlight the

Setup icon and press .

3Use the arrow buttons to scroll

through the features.

4Press to select a feature.

5Use the arrow buttons to scroll

through the options.

6Press to select the desired option.

7Press MENU to exit the menu screen.

Selecting Setup

Options

The Setup menu includes the following options:

Antenna

Setup

Caption Vision Off

Info Banner On

Label Video Inputs

Language English

i.LINK Standby Off

Menu Color Gray

Power Saving Standard

Light Sensor Off

Option Description

Caption Vision Allows you to select from four closed caption modes (for

programs that are broadcast with closed captioning).

Program Allows you to set basic and advanced Caption

Vision options. See “Programming Caption

Vision” on page 126.

On Caption Vision is turned on.

Off Caption Vision is turned off.

Info Banner Set to On or Off. When on, displays the program name, time

remaining and other information (if the broadcaster offers this

service). Displays when the channel is changed or the

DISPLAY button is pressed.

Label Video

Inputs

Allows you to label the audio/video equipment you have

connected to the TV so you can identify them when using TV/

VIDEO. When in this menu:

1Press V or v to highlight an input to label, then press

to select it.

2Use the arrow buttons to scroll through the labels.

3Press to select the equipment you connected to

each of the input jacks on the back of your TV.

Select Skip if you do not have any equipment

connected to a particular input.

(Continued)

Using the Menus

126

KDX-46Q005

2-592-150-12(2)

Programming

Caption Vision

If you selected the Program option under Caption Vision (see page 125), you

can change the following settings:

Video 1-3 Video 1-3, VHS, DVD, Receiver, Satellite,

Cable Box, 8mm, DTV, Game, LD, Beta, Skip

Video 4-7 Video 4-7, DVD, Satellite, Cable Box, DTV,

HD, Game, PVR, Skip

Video 8 (PC) Video 8 (PC), Skip

✍If you select Skip, your TV skips the selected

connection when you press TV/VIDEO.

Language Select to display all on-screen menus in your language of

choice: English, Español, Français.

i.LINK Standby On Allows the i.LINK signal to pass through to

connected i.LINK devices even when the TV is

turned off. The front panel i.LINK Standby

LED shows red. The TV uses more standby

power than when this option is set to Off.

Off Does not allow the i.LINK signal to pass

through to connected i.LINK devices when the

TV is turned off. The TV uses less standby

power than when this option is set to On.

Menu Color Enables you to select a specific color for the on-screen menus

from Gray, Red, Aqua, Purple, and Ta n.

Power Saving Standard Select to view picture without the benefit of

Power Saving.

Reduced Select to view picture with reduced power

consumption. The picture becomes darker, but

also enhances the black level.

Picture Off Select to turn off the picture.

Light Sensor Set to On or Off. When on, the brightness of the screen is

automatically adjusted according to the brightness of the room.

Option Description

If a CableCARD is

inserted, the i.LINK

Standby Off setting uses

the same amount of power

as the i.LINK Standby On

setting.

Option Description

Basic Allows you to select basic analog (EIA-608) closed caption options.

CC1, CC2,

CC3, CC4

Displays a printed version of the dialog or sound

effects of a program. (Should be set to CC1 for most

programs.)

Text1, Text2,

Tex t 3 , Tex t 4

Displays network/station information presented using

either half or the whole screen (if available). For closed

captioning, set to CC1.

Advanced Allows you to select advanced digital (EIA-708) closed caption

options. Select from the available options.

Using the Menus

127

Using the Menus

KDX-46Q005

2-592-150-12(2)

Selecting PC Setup

Options

To display the PC screen:

❑See “Using the PC Input” on

page 81.

The PC Input Setup menu includes the following options:

Digital CC Allows you to set digital closed captioning to Basic (digital EIA-608)

or Advanced (digital EIA-708).

Advanced

Settings

Allows you to make additional settings for digital (EIA-708) closed

caption options. Select from As Broadcast, Small Text, Large Text

and Custom.

Custom Allows you to customize the following settings:

Character Size Small, Standard,

Large

Character Style Style 1-7

Character Color Color 1-8

Edge Color Color 1-8

Edge Type None, Raised,

Depressed,

Outline, Left

shadow, Right

shadow

Background Color None, Color 1-8

Window Color None, Color 1-8

✍Color options can also be set to Solid or

Translucent.

Option Description

When there is no

signal input, settings

for the PC Setup

options except Power

Management cannot

be changed.

Option Description

Auto

Adjustment

Select to automatically adjust the display position of the picture

when the TV receives an input signal from the connected PC.

Note that Auto Adjustment may not work well with certain

input signals. In such cases, manually adjust the options below.

Phase Select to adjust the phase when the screen flickers.

Pitch Select to adjust the pitch when the picture has unwanted

vertical stripes.

Auto Adjustment

Phase

Pitch

Horizontal Center

Vertical Center

Exit

Setup

Adjust PC setup options

Resolution − − − x − − − / − − Hz

(Continued)

Using the Menus

128

KDX-46Q005

2-592-150-12(2)

Horizontal

Center

Select to adjust the horizontal position of the picture.

Allows you to move the picture left and right in the window.

Press B or b and press to choose a correction between +63

and -64.

Vertical Center Select to adjust the vertical position of the picture.

Allows you to move the picture up and down in the window.

Press B or b and press to choose a correction between +63

and -64.

Wide Mode Normal Select to display the picture in its original size.

Full 1 Select to enlarge the picture to fill the wide

screen, keeping its original horizontal-to-

vertical ratio.

Full 2 Select to enlarge the picture to fill the wide

screen.

Power

Management

On Select to automatically switch to the Power

Saving mode when there is no signal input for

30 seconds.

Off Select to turn off Power Management.

Reset Select to restore the factory default settings.

Option Description

Using the Menus

129

Using the Menus

KDX-46Q005

2-592-150-12(2)

PC Input Signal Compatibility Chart

This TV is not compatible with Sync on Green or Composite Sync.

If a signal other than the ones listed above is input, the TV may not properly display the PC screen or it may

not allow you to change the settings for the PC input.

Resolution Horizontal

frequency (kHz)

Vertical frequency

(Hz)

VESA standard

Signal Horizontal (Pixel) Vertical (Line)

VGA 640 400 31.5 70 –

720 400 31.5 70 –

640 480 31.5 60 ✔

640 480 37.9 72 ✔

640 480 37.5 75 ✔

640 480 43.3 85 ✔

SVGA 800 600 35.1 56 ✔

800 600 37.9 60 ✔

800 600 48.1 72 ✔

800 600 46.9 75 ✔

800 600 53.7 85 ✔

XGA 1024 768 48.4 60 ✔

1024 768 56.5 70 ✔

1024 768 60 75 ✔

1024 768 68.7 85 ✔

WXGA 1280 768 47.8 60 ✔

SXGA 1280 1024 64 60 ✔

Using the Menus

130

KDX-46Q005

2-592-150-12(2)

Using the Applications Menu

To select the Applications menu

1Press MENU.

2Press V or v to highlight the

Applications icon and

press .

3Use the arrow buttons to scroll

through the features.

4Press to select a feature.

5Use the arrow buttons to scroll through the options.

6Press to select the desired option.

7Press MENU to exit the menu screen.

Selecting

Applications

Options

Antenna

Applications

Memory Stick

i.LINK

Clock/Timers

Diagnostics

CableCARD

You can also use the

MEMORY STICK and

i.LINK buttons on the

remote control or front

panel.

Option Description

Memory Stick Start Displays the Memory Stick Viewer.

For details, see page 90.

i.LINK Start Displays the i.LINK Device List. For

details, see page 104.

Clock/Timers Select to set the clock and to program your TV to turn on and

off at two scheduled viewing times.

Sleep Allows you to select the amount of

time (15 minutes, 30 minutes, 45

minutes, 60 minutes, 90 minutes or

Off) that you want the TV to remain

on before shutting off automatically.

Timer 1

Timer 2

You can use the Timers to program the

TV to turn on and off and tune to a

specific channel at two scheduled

viewing times.

Timer 1 and Timer 2 cannot be set until you set the Current

Time.

1Press V or v to highlight Timer 1 or Timer 2. To set the

timer, press b.

✍To go directly to programming Timer 1 or 2, press

instead of pressing b.

Using the Menus

131

Using the Menus

KDX-46Q005

2-592-150-12(2)

2Press V or v to highlight one of the following options, then

press .

Program Select to set the Timer by day, time,

duration, and channel.

Off Select to turn off the Timer. (Your

previous settings are saved.)

3If you selected Program in step 2, press V and v to set the

day(s), hour, minute, duration, and channel number. Press

or press b to confirm each setting and move to the

next setting.

Press B to go back to the previous setting.

4Press MENU to exit the menu screen. An LED on the front

panel will light, indicating the Timer has been set.

Current Time You can set the current time.

1Press to select Current Time.

2Press V and v to set the current time (day, hour, minute,

and AM/PM). Press (or press b) to confirm each

setting and move to the next setting. Press B to go back the

previous setting.

3Press MENU to exit the menu screen.

✍When the AC power cord is unplugged, the Clock/Timers settings will be

reset. Set the clock or timer again.

Diagnostics Display diagnostics information about the TV. This can be

useful in providing information to an authorized technician or

repair person.

CableCARD This list of selectable CableCARD options will vary, depending

on your cable service provider.

Option Description

133

KDX-46Q005

2-592-150-12(2)

Other Information

Overview

This chapter includes the following topics:

Topic Page

Glossary 134

Contacting Sony 135

Troubleshooting 135

Specifications 143

Optional Accessories 145

Index 146

Other Information

134

KDX-46Q005

2-592-150-12(2)

Glossary

analog signal A signaling method that uses continuous changes in the amplitude or frequency of an

electronic transmission to convey information.

aspect ratio Refers to the ratio between the width and height of the screen. This TV has a 16:9

(widescreen) aspect ratio, as opposed to a 4:3 aspect ratio.

CableCARD The PCMIA shaped card provided by your cable TV company which descrambles the

digitally encrypted cable channels. You should check with your local cable TV

company about CableCARD service.

component video Component video is sent through three cables: two color shade (chrominance) signals

and one brightness (luminance) signal. Component video achieves greater color

accuracy than composite video or S VIDEO by splitting chrominance into two

separate portions.

composite video Composite video is sent through a single cable. Composite video combines the color

shade (chrominance) and brightness (luminance) information into one video signal.

digital television (DTV) A new technology for transmitting and receiving broadcast television signals. DTV

provides higher resolution and improved sound quality over analog television.

HDMI (High-Definition

Multimedia Interface)

Provides an uncompressed, all-digital audio/video interface between this TV and any

HDMI-equipped audio/video component, such as a set-top box, DVD player, and

A/V receiver. HDMI supports enhanced, or high-definition video, plus two-channel

digital audio.

National Television

System Committee

(NTSC)

A unit of the Federal Communications Commission, Washington, DC, that

establishes television standards in the United States, such as NTSC Color, the

standard used in this TV.

RF Radio Frequency. The part of the frequency spectrum that is used to transmit TV and

radio signals.

S VIDEO S VIDEO requires a single cable, which carries the brightness (luminance) and color

(chrominance) signals of the picture separately. S VIDEO provides better resolution

than composite video, which carries the signals together.

VHF/UHF VHF (Very High Frequency) is the part of the frequency spectrum from 30 to 300

megahertz. UHF (Ultra High Frequency) is the part of the frequency spectrum from

300 to 3,000 megahertz.

480i Provides 480 lines of resolution. Displays images using interlaced scanning, which

first transmits all the odd lines on the TV screen and then the even lines.

480p Provides 480 lines of resolution. Displays images using progressive scanning, which

transmits each line from top to bottom.

720p Provides 720 lines of resolution. Displays images using progressive scanning, which

transmits each line from top to bottom.

1080i Provides 1080 lines of resolution. Displays images using interlaced scanning, which

first transmits all the odd lines on the TV screen and then the even lines. 1080i is one

of the formats used by HDTV (High Definition TV).

4:3 aspect ratio 16:9 aspect ratio

Other Information

135

Other Information

KDX-46Q005

2-592-150-12(2)

Contacting Sony

If, after reading these operating instructions, you have additional questions

related to the use of your Sony television, please call our QUALIA Customer

Center at 1-877-QUALIA3(782-5423) (US residents only) or Customer

Information Service Center at 1-877-899-SONY (7669) (Canadian residents

only).

Before calling Sony customer support, please write down the model and

serial numbers of your TV. You’ll find this information on the front cover of

this manual.

Troubleshooting

Twin View

Problem Possible Remedies

I cannot get Twin View to work ❏If you are using a cable box to unscramble all channels (as shown on page 34),

you cannot use the Twin View feature. This is because the cable box can

unscramble only one channel at a time.

❏You can use Twin View to view a signal from a different source that is connected

to the TV’s A/V jacks (such as a VCR or DVD player) in the second window by

pressing TV/VIDEO while in Twin View.

❏Sources connected to the CABLE, VIDEO 4, VIDEO 5, VIDEO 6 and VIDEO 7

inputs, as well as digital source display only in the left Twin View window.

❏Twin View does not display images from a Memory Stick, an i.LINK-equipped

device, or a personal computer.

There is no Twin View window,

or it is just static

❏Be sure the Twin View window is set to a video input or channel that has a signal

airing.

❏You might be tuned to a video input with nothing connected to it. Try cycling

through the video inputs by pressing TV/VIDEO.

Twin View cannot display

anything but TV channels

❏Try cycling through the video inputs by pressing TV/VIDEO. Check that the

Label Video Inputs option is not set to Skip. (See the Setup menu on page 125.)

❏Twin View does not display images from a Memory Stick, an i.LINK-equipped

device, or a personal computer.

Twin View displays the same

program in both windows

❏Both Twin View windows might be set to the same channel. Try changing

channels in either window.

Other Information

136

KDX-46Q005

2-592-150-12(2)

Remote Control

CableCARD

Problem Possible Remedies

Remote control does not

operate

❏The batteries could be weak. Replace the batteries.

❏Check the orientation of the batteries.

❏Press FUNCTION repeatedly until the TV indicator lights up. You may have

inadvertently pressed FUNCTION, which changes the remote control to SAT or

CABLE mode.

❏Make sure this unit’s power cord is connected securely to the wall outlet.

❏Locate the unit at least 3-4 feet away from fluorescent lights.

Cannot change channels with

the remote control

❏If you are using the TV to change channels, first press FUNCTION repeatedly

until the TV indicator lights up.

❏If you are using another device to change channels, be sure you have not

inadvertently switched your TV from the channel 3 or 4 setting. Use the Channel

Fix option to “Fix” the channel based on the hookup you used (see page 119).

❏If you are using another device to change channels, be sure to press FUNCTION

for that device. For example, if you are using your cable box to change channels,

be sure to press FUNCTION repeatedly until the SAT/CABLE indicator lights up.

Remote control does not

operate non-Sony video

equipment

❏If you replaced the batteries to the remote recently, the code numbers for the video

equipment may need to be reset.

❏There may be more than one code for the equipment that you are attempting to

operate.

❏There is a possibility that some non-Sony equipment cannot be operated by your

Sony TV remote. You may need to use the equipment’s original remote control.

Problem Possible Remedies

Problems using CableCARD or

CableCARD services

❏Check that the CableCARD is inserted properly (see pages 57-58).

❏The CableCARD must be activated by your local cable TV provider before you can

receive digital cable TV services. See the activation instructions on pages 57-58.

❏Check the Diagnostics and CableCARD menu options (see page 131). (This can

be useful in providing information to an authorized technician or repair person.)

❏Contact your cable TV provider.

Other Information

137

Other Information

KDX-46Q005

2-592-150-12(2)

Memory Stick

Problem Possible Remedies

Image does not display/Cannot

see all files

❏Some variations of MPEG1 movies may not play back correctly.

❏Make sure the image file is a JPEG (.jpg, .jpeg) file or an MPEG1 (.mpg, .mpeg)

file.

❏Make sure the Memory Stick is inserted properly (see page 86).

❏Check the Filter option setting (see page 97).

❏Check the Select Folder setting (see page 97) and ensure that files are either in

DCF directories if Digital Camera Folders is selected (see page 97), or in the

currently selected folder if Select a Folder is selected (see page 97).

❏The maximum number of files the Memory Stick Viewer can display is 2,000 files

total, including all JPEG, MPEG1, and MP3 files.

JPEG image displays

undesirable motion or flicker in

full screen

❏JPEGs captured using a digital video camera may appear to display motion in full

screen. This is a result of the way digital video cameras record still images, and is

not a result of a malfunction with the TV.

Rotation not saved after

Memory Stick is ejected or

Memory Stick Viewer is closed

❏The Memory Stick might be locked. Unlock the Memory Stick and try rotating the

image again.

❏The file might not have information (EXIF data) that is usually generated when a

digital camera records a photo. In this case, it is not possible to save the rotation.

❏There might be insufficient space on the Memory Stick to save the rotated file. Try

deleting one or more files and rotating the image again.

Cannot show (or hide) file

information in full screen or

Slide Show

❏Set the File Information option to On or Off (see page 96).

Cannot see menu ❏Press V to display the menu again.

Cannot hear audio while

using Memory Stick

❏Check the TV’s volume or Speaker (see page 115) settings.

❏To hear JPEG voice memo, select the Digital Camera Folders option and set the

Filter option to Show All Print Marks (see page 97).

❏Check that the Music option is not set to Off (see page 96).

Not all MP3 files on Memory

Stick are included when the

Music /Complete List option is

selected (page 96)

❏The Memory Stick Viewer can display a maximum of 2,000 files total, including

all JPEG, MPEG1, and MP3 files.

❏Make sure that the file is named with the file extension (.mp3).

MP3 files on the Memory Stick

are not listed

❏Only MP3 files that are named with the file extension (.mp3) are displayed in the

list.

Music files are playing in wrong

order

❏MP3 files are played in alphabetical order, according to the folder in which they

are stored. If you want to change the playlist order, rename your files

alphabetically in the order in which you want them to play or create a MP3 playlist

(.m3u file) on a PC.

Cannot see MP3 list to play

music

❏MP3 files on your Memory Stick only can be played as background music during a

Slide Show (see page 96).

MPEG1 movie does not

play back correctly

❏Some variations of MPEG1 movies may not be compatible with the Memory Stick

Viewer.

❏MPEG1 movies recorded in VX Fine mode with Sony digital cameras cannot be

played back with the Memory Stick Viewer.

(Continued)

Other Information

138

KDX-46Q005

2-592-150-12(2)

MPEG1 quality is poor when

enlarged (page 94)

❏The quality of the movie when enlarged depends on the resolution of the MPEG1

file. See your camera’s instruction manual for details.

Error message is displayed ❏No Memory Stick There is no Memory Stick in the slot.

❏Memory Stick is

Locked

The lock mechanism on the Memory Stick is engaged.

❏Memory Stick Error The Memory Stick in the slot might be damaged; try a

different Memory Stick.

❏Format Error The Memory Stick may have been formatted using a PC

or other device that is not compatible with cameras.

Error icon is displayed The file is not a valid MPEG1 or JPEG format, or it is a

progressive JPEG (which is not supported).

The thumbnail is not DCF-compatible.

The file is a JPEG or an MPEG1, but the thumbnail is

unreadable.

The file is unreadable.

Problem Possible Remedies

Other Information

139

Other Information

KDX-46Q005

2-592-150-12(2)

Video

Problem Possible Remedies

No picture (screen not lit), no

sound

❏If your TV does not turn on, and a red light keeps flashing, your TV may need

service. Call your local Sony Service Center.

❏Make sure to securely plug the AC power cords of the media receiver unit and the

display unit into the wall outlet.

❏Press POWER on the front of the media receiver unit.

❏Press TV/VIDEO to cycle through the connected video sources.

❏Try another channel; it could be station trouble.

❏Press PIC OFF so that the PICTURE OFF LED on the display unit goes off.

❏Make sure the display interface cable is connected to the display unit as well as

the media receiver unit.

Dark, poor or no picture

(screen lit), good sound

❏Adjust the Picture option in the Video menu (see page 110).

❏Adjust the Brightness option in the Video menu (see page 110).

❏Check the antenna/cable connections.

No color/dark picture/color is

not correct

❏Adjust the Color option in the Video menu (see page 110).

Only snow and noise appear on

the screen

❏Check the antenna/cable connections.

❏Try another channel; it could be station trouble.

❏Press ANT to change the input mode (see page 62).

Dotted lines or stripes ❏Adjust the antenna.

❏Move the TV away from noise sources such as cars, neon signs, or hair dryers.

Double images ❏Using a highly directional outdoor antenna or a cable may solve the problem.

“Black box” on screen ❏You have selected a text option in the Setup menu and no text is available. (See

page 125 to reset Setup selections.) To turn off this feature, set the Caption

Vision option to Off. If you were trying to select closed captioning, select CC1

instead of Text 1 -4.

Black bands appear at the top

and bottom of the screen

❏Some wide-screen programs are filmed in aspect ratios that are greater than 16:9

(this is especially common with theatrical releases). Your TV will show these

programs with black bands at the top and bottom of the screen. For more details,

check the documentation that came with your DVD (or contact your program

provider).

Certain programs on DVD or

other digital sources display a

loss of detail, especially during

fast-motion or dark scenes

❏The compression used by certain digital broadcasts and DVDs may cause your

TV’s screen to display less detail than usual, or cause artifacts (small blocks or

dots, pixelations) to appear on your screen. This is due to your TV’s large screen

and ability to show very fine detail, and is normal for certain digitally recorded

programs. Adjust the reality/clarity in the DRC Palette menu (see page 112) to

optimize the picture while viewing these sources.

The connected PC's screen is

not displayed on the TV screen

❏Depending on the type of personal computer, its screen may not be displayed on

the TV screen because of the default signal setting. Change the signal setting of

your PC so that it outputs one of the signal types listed in the PC Input Signal

Compatibility Chart on page 129. For information on how to change the settings

of your PC, see its user guide.

(Continued)

Other Information

140

KDX-46Q005

2-592-150-12(2)

Audio

Striped noise during playback/

recording of a VCR

❏This is caused by video head interference. Keep your VCR away from the media

receiver unit.

❏Leave a space of 30 cm (11 7/8 inches) between your VCR and the media receiver

unit to avoid noise.

❏Avoid installing your VCR in front of the media receiver unit or at the side of the

media receiver unit.

Problem Possible Remedies

Good picture, no sound ❏Press MUTING so that Muting disappears from the screen (see page 62).

❏Make sure the Speaker option is set to On in the Audio menu (see page 115).

❏Make sure the MTS option is set to Stereo or Mono (see page 115).

❏Make sure the speakers are connected correctly (see page 53).

❏When the HDMI IN input is in use, surround sound, such as AC-3 and DTS,

cannot be input. Change the sound setting for the external input device to Linear

PCM.

❏Make sure the Center Speaker In option is set to Off when you are not using the

TV's speakers as a center speaker (see page 115).

Audio noise ❏Communication problems may occur if infrared communication equipment (e.g.,

infrared cordless headphones) is used near the TV. Please use headphones other

than infrared cordless headphones. Also, if you use infrared communication

equipment other than infrared cordless headphones, move the infrared transceiver

away from the TV until the noise is eliminated, or move the transmitter and

receiver of the infrared communication equipment closer together.

Cannot gain enough volume

when using a cable box

❏Increase the volume of the cable box using the cable box’s remote control. Then

press FUNCTION repeatedly until the TV indicator lights up and adjust the TV’s

volume.

Sound seems weak or

insufficient

❏The TV’s audio might be set to Auto SAP or Mono, when it might be better set to

Stereo. In the Audio menu (see page 115), set the MTS setting to Stereo. If

already set to Stereo, switch to Mono (which may reduce background noise

during weak stereo broadcasts).

Cannot raise the volume on

external speakers

❏If the Audio Out option is set to Fixed, use your audio receiver to adjust the

sound (see page 115). Or, to use the TV remote control, set the Audio Out option

to Variable.

❏To turn on the TV speakers, set the Speaker option to On (see page 115).

Although the Center Speaker In

option is set to On, the TV

speakers do not output sound

❏Make sure to connect the center speaker output jack of an audio device, such as an

AV amplifier, to the CENTER SPEAKER IN jack on the rear of the media

receiver unit.

❏Make sure the connected audio device is not muted.

❏Make sure you are watching a program on TV or DVD that has center-channel

sound.

Other Information

141

Other Information

KDX-46Q005

2-592-150-12(2)

Channels

General

Switching the channel while

using the TV speakers as a

center speaker causes sound to

stop coming out of the TV

speakers

❏This is because the program on the new channel does not have center-channel

sound. Switch the Center Speaker In option to Off (see page 115).

Switching the Center Speaker

In option to Off causes sound to

stop coming out of the TV

speakers

❏Make sure to connect the audio output jacks on an audio device, such as a VCR or

a DVD player, to the audio input jacks on the media receiver unit. For the devices

that you wish to output sound from the TV speakers, connect them to the audio

input jacks as well as the video input jacks on the media receiver unit.

There is a whirring sound ❏This is the sound of the internal fans of the display unit and the media receiver

unit. It is not a malfunction.

Problem Possible Remedies

Cannot receive upper channels

(UHF) when using an antenna

❏Press ANT to select the VHF/UHF input (see page 62).

❏Use Auto Program in the Channel menu to add receivable channels that are not

presently in the TV’s memory (see page 119).

TV is fixed to one channel ❏Use Auto Program in the Channel menu to add receivable channels that are not

presently in the TV’s memory (see page 119).

❏Check your Channel Fix settings (see page 119).

Cannot receive any channels

when using cable TV

❏Use Auto Program in the Channel menu to add receivable channels that are not

presently in the TV’s memory (see page 119).

❏Press ANT to select the CABLE input (see page 62).

Cannot receive or select

channels

❏Use Auto Program in the Channel menu to add receivable channels that are not

presently in TV’s memory (see page 119).

Some digital cable channels are

not being displayed

❏Certain cable companies have limitations on the broadcast of digital cable

channels. Check with your cable company for more information.

❏The digital cable channel may be set to Hidden in the Channel menu (see page

120).

Problem Possible Remedies

How to reset TV to factory

settings

❏Turn on the TV. While holding down the RESET button on the remote control,

press the POWER button on the Media Receiver Unit. (The TV will turn itself

off, then back on again.) Release the RESET button.

How to restore Video settings

to factory settings

❏Press RESET on the remote control while in the Video menu (see page 110).

How to restore Audio settings

to factory settings

❏Press RESET on the remote control while in the Audio menu (see page 114).

Cannot cycle through the other

video equipment connected to

the TV

❏Be sure the Label Video Inputs option is not set to Skip (see page 125).

(Continued)

Other Information

142

KDX-46Q005

2-592-150-12(2)

Cannot operate Menu ❏If a menu option appears in gray, this indicates that the menu option is not

available.

Lost password ❏In the password screen (see page 121), enter the following master password:

4357. The master password clears your previous password; it cannot be used to

temporarily unblock channels.

TIMER LED on front panel is

lit

❏The LED (see page 20 or 130) blinks when the TV is turned on, then shuts off

when the picture is displayed. If the red LED blinks continuously, this may

indicate the TV needs service. When lit, indicates that the timer is set (see page 20

or 130). When the timer is set, this LED will remain lit even when the TV is

turned off.

Digital cable box does not work ❏If you are connecting a VCR and digital cable box using a splitter, as described on

page 38, you must use a special bi-directional splitter that is designed to work

with your digital cable box. Contact your cable provider for details.

Cannot record digital channels

to VCR

❏Only analog channels can be recorded to your VCR.

TV cabinet creaks ❏When the TV is in use, there is a natural rise in temperature, causing the cabinet to

expand or contract and may be accompanied by a slight creaking noise. This is not

a malfunction.

The signal from a selected

i.LINK device is not being

displayed

❏If you have several i.LINK devices connected and operating at once, the TV may

not be able to display the signal from the selected device. Turn the other i.LINK

devices off, and reselect the desired i.LINK device.

❏If you are using a digital VCR, turn off any Auto LINC functionality of the VCR.

For details, see the digital VCR’s user manual.

❏The i.LINK STANDBY LED blinks in red when the signal from an i.LINK device

is being shown.

The TV does not turn on ❏The TV cools down when the power is turned off. It takes up to two minutes for

the picture to come back after the TV is turned on again. Wait for a while until the

picture comes back.

Problem Possible Remedies

Other Information

143

Other Information

KDX-46Q005

2-592-150-12(2)

Specifications

Panel System LCD Panel

Display Resolution 1920 pixels (horizontal) x 1080 pixels (vertical)

Antenna 75 ohm external terminal for VHF/UHF

Television System NTSC American TV Standard

ATSC (8VSB terrestrial) ATSC compliant 8VSB

QAM on cable ANSI/SCTE 07 2000

Screen Size (measured diagonally) 46 inches

Channel Coverage Terrestrial (analog) 2-69

Cable TV (analog) 1-125

Terrestrial (digital) 2-69

Cable TV (digital) 1-135

Power Requirements 120V, 60 Hz

Inputs/Outputs

HDMI IN 2 total Video: 1080i, 720p, 480p, 480i

Audio: Two channel linear PCM 32, 44.1 and

48 kHz, 16, 20 and 24 bit

✍Not compatible with compressed sound,

such as AC-3 and DTS.

Video (IN) 3 total (1 on front unit) 1 Vp-p, 75 ohms unbalanced, sync negative

S Video (IN) 3 total (1 on front unit) Y: 1 Vp-p, 75 ohms unbalanced, sync negative

C: 0.286 Vp-p (Burst signal), 75 ohms

Audio (IN) 6 total (1 on front unit) 500 mVrms (100% modulation)

Impedance: 47 kilohms

Component Video Input 2 (YPBPR) Y: 1.0 Vp-p, 75 ohms unbalanced, sync

negative

PB: 0.7 Vp-p, 75 ohms

PR: 0.7 Vp-p, 75 ohms

CONTROL S (IN) 1 Mini jack

CONTROL S (OUT) 1 Mini jack

AUDIO (VAR/FIX) OUT 1 500 mVrms at the maximum volume setting

(Variable)

500 mVrms (Fixed)

Impedance (output): 2 kilohms

i.LINK 3 total (1 on front panel) 4-pin S400 i.LINK terminal

RF Inputs 2

Digital Audio Optical Output

(PCM/Dolby Digital)

1 Optical Rectangular (1)

CableCARD Slot 1 PCMCIA Type I/II

SUBWOOFER (VAR)(OUT) 1 Phono jack

CENTER SPEAKER (IN) 1 Max. 180 W (6 Ω), 1 kHz, Sensitivity 30 Vp-p

DISPLAY SIGNAL OUT 1 Black

1 White

(Continued)

Other Information

144

KDX-46Q005

2-592-150-12(2)

Design and specifications are subject to change without notice.

PC (IN) 1 (D-sub 15pin)

PC AUDIO (IN) 1 Stereo mini jack, 500 mVrms, 47 kilohms

Speaker Output 25 W (L), 25 W (R), 50 W (Woofer)

Dimensions (W × H × D) Display 1239 x 717 x 130 (mm) Media Receiver Unit 430 x 97 x 350 (mm)

Mass Display Approx. 59 kg Media Receiver Unit Approx. 9.1 kg

Power Consumption

In Use Display 612 W

Media Receiver Unit 60 W

In Standby Display 0.5 W

Media Receiver Unit 0.4 W

In i.LINK/CableCARD Standby Less than 30 W

Supplied Accessories

Remote Control RM-Y1000

AA (R6) Batteries 2 supplied for remote control

AC Power Cord 2

AC Plug Holder 1

Display Interface Cable 1

Antenna Cable 1

Vertical Installation Stand 1

Vertical Installation Stand Screws 2

Owner’s Guide 1

Quick Setup Guide 1

Warranty 1

Product Registration Card 1

Other Information

145

Other Information

KDX-46Q005

2-592-150-12(2)

Optional Accessories

❑HDMI cable

❑Component video cable

❑S VIDEO cable

❑A/V cable

❑Audio cable

❑Optical cable

❑CONTROL S cable : RK-G69

❑i.LINK cables: VMC-IL4415 (4-pin to 4-pin, 1.5 meters)

VMC-IL4435 (4-pin to 4-pin, 3.5 meters)

❑Display interface cable: VMC-X10 (10 meters)

❑Table-Top Stand: SU-XTQ005

❑Wall-Mount Bracket: SU-XWQ005

❑Floor Stand: SU-XFQ005

146

KDX-46Q005

2-592-150-12(2)

Index

Numerics

0 – 9 buttons 63, 69

4:3 Default settings 118

AC IN 21, 23

Advanced Video 111

Alternate Audio 71, 107

Alternate Video 71, 107

ANT button 62, 69

Antenna, connecting 31, 32

Applications Menu 109, 130

Audio Menu 109, 114

AUDIO OUT jack 24

Audio receiver, connecting 48

Auto Program (channel setup)

59, 119

Auto SAP 115

Backlight 111, 113

Balance, adjusting 114

Bass, adjusting 114

Batteries, inserting in remote

control 61

Black Corrector 113

BN Smoother 112

Brightness, adjusting 110

Cable

connecting 31

with VCR, connecting 37

Cable box

connecting with VCR 38

using with TV remote control

CABLE jack 23

CableCARD 57, 131

CableCARD slot 24

Camcorder, connecting 47

Caption Vision 125, 126

Center Speaker In 115

CENTER SPEAKER IN jack 24

CH +/– button 22, 63

Change Password 122

Channel Fix 119

Channel Menu 109, 119

Channels

adding 77–78

Auto Program 119

creating labels 120

deleting 77–78

setting up 59

Clear Voice 114

Clear White 113

Clock/Timers 130

Closed caption modes 109, 125

Color Corrector 112

Color Space 112

Color Temperature, adjusting

111

Color, adjusting 110

Connecting

Audio receiver 48

Cable and antenna 32

Cable box 33–34

Cable or antenna 31

Camcorder 47

DVD player 44

Personal Computer 46

Satellite receiver 41–43

VCR 37–40, 42

Contents 97

Contrast Enhancer 111

CONTROL S 56

CONTROL S IN/OUT jack,

described 23

Detail Enhancer 113

Diagnostics 131

DIGITAL AUDIO (OPTICAL)

OUT 23

Digital CC 127

Digital Channels 119

Digital Reality Creation 16

Direct Mode 111

DISPLAY button 63, 69

DISPLAY SIGNAL IN 21

DISPLAY SIGNAL OUT 23

Dolby Virtual 114

DRC Mode 111

DRC Palette 112

DTE 112

DVD player

using with TV remote control

with A/V connectors,

connecting 45

with component video

connectors,

connecting 44

Dynamic 114

Effect 114

English Rating 124

ENTER button 63, 69

Error messages, Memory Stick

138

EXIT button 63

Favorite Channels

setting up 119

using 77

FAVORITES button 63

Features 16

File 92, 95

File Information 96

File Order 97

Filter 97

FREEZE button 63

Freeze, using 79

French Rating 124

Front Panel 21

FUNCTION button 62

Game Mode 111

Game Picture 117

Gamma Corrector 113

GUIDE button 62, 70

147

KDX-46Q005

2-592-150-12(2)

HD/DVD IN jack (1080i/720p/

480p/ 480i) jacks, described

HDMI 23

Hue, adjusting 110

i.LINK 101–107

i.LINK button 22, 63

i.LINK jack 22, 23

i.LINK Standby 126

i.LINK STANDBY indicator 22

Index 92, 95

INDEX button 62

Info Banner 125

Infrared Receiver 20

Installation of the TV 25–28

JUMP button 63, 69

Label Channels 120

Label Video Inputs 125

Language, setting 126

Light Sensor 126

MDP, using with TV remote

control 67

Media receiver unit

connecting 29

Memory Stick 130

button 63

Duo 87

features 83

Index 89

indicator 22

panning photos 93

photo options 92

playing movies 94

precautions 99

removing 88

rotating photos 93

slide show options 96

slot 22

troubleshooting 137

viewing photos 91

zooming photos 93

MENU button 63, 69

Menu Color 126

Menus

Applications 109, 130

Audio 109, 114

Channel 109, 119

Parent 109, 121

Screen 109, 117

Setup 109, 125

Video 109, 110

Movie Rating 123

MTS 115

Music 96

MUTING button 62, 69

Noise Reduction 111

Overscan 118

Parent Menu 109, 121

Parental control, described 16

Parental Lock 121

PC button 22

PC IN 22

PC Input 81, 113, 116, 127

Personal Computer

connecting 46

Phase 115

PIC OFF button 62

PICTURE button 62

Picture contrast, adjusting 110

Picture Mode

Pro 110

Standard 110

Vivid 110

Picture Off 80

PICTURE OFF indicator 20

POWER button 22

POWER buttons (GREEN) 62

POWER ON/STAND BY

indicator 20

Power Saving 126

POWER/STANDBY indicator

Problems, troubleshooting 135–

142

Program Guide menu 70, 71

Program Options menu 71

Protect 92

Ratings

setting 123

viewing blocked programs 122

REC button 63

Remote control

button descriptions 62–63

inserting batteries 61

programming 64

Repeat 96

RESET button 63

Resetting

Audio options 114

Video options 110

S VIDEO jack, described 22, 23

SAT/CABLE power button 62

Satellite receiver

connecting 41

using with TV remote control

Screen Menu 109, 117

Select Country 122

Select Folder 97

Setup Menu 109, 125

Sharpness, adjusting 110

Show/Hide Channels 120

Simulated 115

SLEEP button 62

Slide Advance 96

Slide Show 92, 95

Sound Mode 114

Speaker 115

Speakers (Left/Right) 20

Specifications 143–144

Steady Sound

adjusting 114

Subchannels 71

SUBWOOFER OUT jack,

described 23

Timer (Continued)

148

KDX-46Q005

2-592-150-12(2)

set current 131

setting 130

TIMER indicator 20, 22

Transition Effect 96

Treble, adjusting 114

Troubleshooting 135–142

TruSurround 115

turning on/off the TV 22

TV Rating 123

TV/VIDEO button 22, 63

Twin View

activating a picture 74

button 62

described 16

enlarging pictures 76

picture size, adjusting 76

using 74

Zoom feature 76

U.S.A. Rating 124

Unrated 123

VCR

using with TV remote control

with cable box, connecting 38

with cable, connecting 37

with satellite receiver and cable,

connecting 42

Vertical Center 118

Vertical Size 118

VHF/UHF jack, described 23

VIDEO (L/R)/AUDIO jacks,

described 24

Video inputs, labeling 125

Video Menu 109, 110

VIDEO/ L (MONO)-AUDIO-R

VOL +/– button 22, 62, 69

White Balance 113

WIDE button 62

Wide Mode 117

Wide Screen Mode 72

Woofer Level 114

Sony Qualia Mbd Q005 Users Manual KDX 46Q005

QUALIA MBD-Q005 KDX46Q005guide

MBD-Q005 to the manual 448b9547-d269-4027-8ade-b517093801d9

Navigation menu

Versions of this User Manual:

Views

Navigation
