3-090-241-E2 (1) GB

Video Cassette

Recorder

Operating Instructions

SLV-SE840B

SLV-SE740B

SLV-SE640B

SLV-SE240B

© 2004 Sony Corporation

PAL SECAM

2WARNING

WARNING

To prevent fire or shock hazard, do not expose the

unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Mains lead must only be changed at a qualified

service shop.

Precautions

Safety

• This unit operates on 220 – 240 V AC, 50 Hz.

Check that the unit’s operating voltage is

identical with your local power supply.

• If anything falls into the cabinet, unplug the unit

and have it checked by qualified personnel before

operating it any further.

• The unit is not disconnected from the mains as

long as it is connected to the mains, even if the

unit itself has been turned off.

• Unplug the unit from the wall outlet if you do not

intend to use it for an extended period of time.

To disconnect the cord, pull it out by the plug,

never by the cord.

Installing

• Do not install this equipment in a confined space

such as a book or similar unit.

• Allow adequate air circulation to prevent internal

heat buildup.

• Do not place the unit on surfaces (rugs, blankets,

etc.) or near materials (curtains, draperies) that

may block the ventilation slots.

• Do not install the unit near heat sources such as

radiators or air ducts, or in a place subject to

direct sunlight, excessive dust, mechanical

vibration or shock.

• Do not install the unit in an inclined position. It

is designed to be operated in a horizontal position

only.

• Keep the unit and cassettes away from equipment

with strong magnets, such as microwave ovens or

large loudspeakers.

• Do not place heavy objects on the unit.

• If the unit is brought directly from a cold to a

warm location, moisture may condense inside the

VCR and cause damage to the video head and

tape. When you first install the unit, or when you

move it from a cold to a warm location, wait for

about three hours before operating the unit.

Caution

Television programmes, films, video tapes and other

materials may be copyrighted. Unauthorized

recording of such material may be contrary to the

provisions of the copyright laws. Also, use of this

recorder with cable television transmission may

require authorization from the cable television

transmitter and/or programme owner.

Compatible colour systems

• This VCR is designed to record using the PAL

(B/G) and SECAM colour systems and play back

using the PAL (B/G) and SECAM colour

systems. Recording of video sources based on

other colour systems cannot be guaranteed.

• Tapes recorded with the MESECAM colour

system can be played back on this VCR using a

TV or a colour monitor supporting the SECAM

colour system.

SHOWVIEW is a registered trademark of Gemstar

Development Corporation. The SHOWVIEW system

is manufactured under license from Gemstar

Development Corporation.

3

Table of contents

Getting Started

Table of contents

Getting Started

4Index to parts and controls

11 Step 1 : Unpacking

12 Step 2 : Setting up the remote

commander

16 Step 3 : Connecting the VCR

19 Step 4 : Setting up the VCR with

the Auto Set Up function

21 Setting the clock

23 Downloading the TV tuner’s preset

data (not available on SLV-SE640B

and SE240B)

24 Selecting a language

25 Presetting channels

28 Changing/disabling programme

positions

33 Setting the Canal Plus decoder

Basic Operations

36 Playing a tape

39 Recording TV programmes

43 Recording TV programmes using

the Dial Timer (SLV-SE840B only)

48 Recording TV programmes using

the ShowView® system (not

available on SLV-SE640B and

SE240B)

52 Recording TV programmes using

the timer

Additional Operations

55 Playing/searching at various speeds

57 Setting the recording duration time

58 Synchronized Recording (not

available on SLV-SE640B and

SE240B)

60 Checking/changing/cancelling

timer settings

62 Recording stereo and bilingual

programmes (not available on SLV-

SE240B)

65 Searching using the index function

(not available on SLV-SE240B)

67 Adjusting the picture

68 Reducing the VCR’s power

consumption

69 Changing menu options

Editing

71 Connecting to a VCR or stereo

system

73 Basic editing

74 Audio dubbing (SLV-SE840B only)

Additional Information

75 Troubleshooting

79 Specifications

81 Index

Back Cover

Quick Start Guide

4Index to parts and controls

Getting Started

Index to parts and controls

Refer to the pages indicated in parentheses ( ) for details.

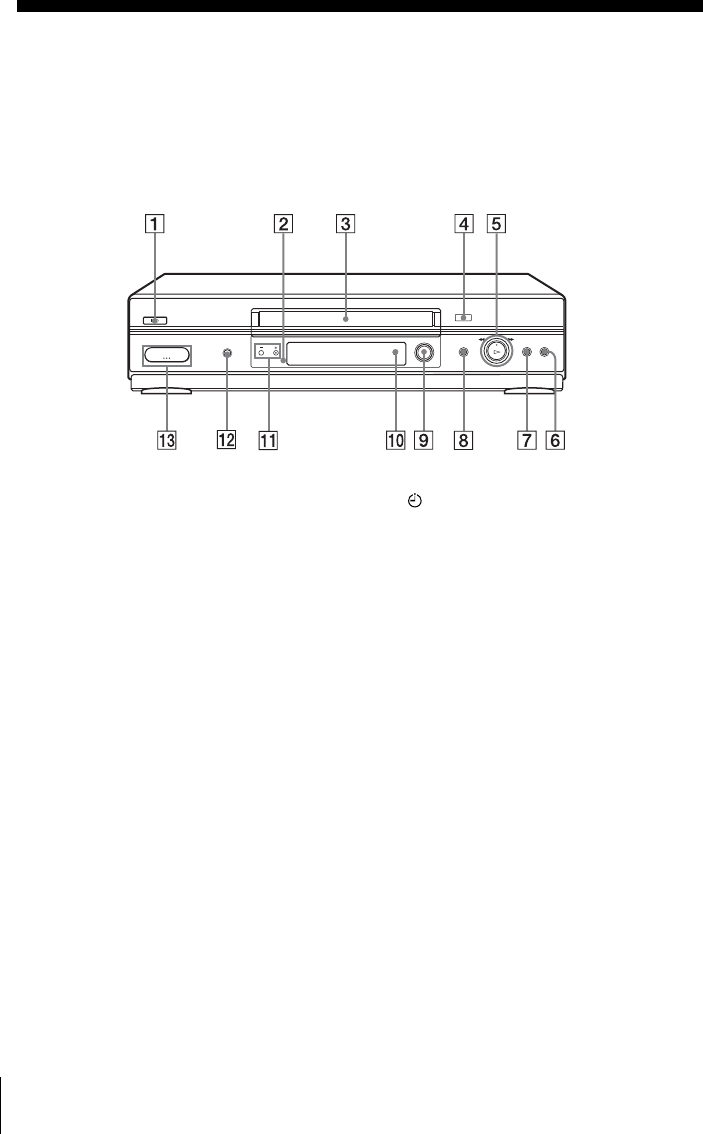

Front panel

For SLV-SE840B

A?/1 (on/standby) switch

BRemote sensor (12)

CTape compartment

DA(eject) button (36)

EH (play) button* (36) (55)/M

(fast-forward)/m (rewind) (37)

(56)/Playback Dial (37) (56)

Fx(stop) button (20) (36) (73) (74)

GX(pause) button (36) (47) (73) (74)

HENR z (record) button (40) (57)

(73)

IPROG (Dial Timer) (43)

JDOUBLAGE SON button (74)

KCHAINE +/– buttons* (44) (56) (67)

LENR SYNCHRO (Synchronized

Recording) button*2 (59)

Mt LIGNE-2 G (left) o D (right)

jacks (covered)* (71) (72) (74)

How to open the jack cover

1Press the bottom of the cover.

2Hook your finger on the top edge of the

cover and pull it open.

*The

H(play), CHAINE + buttons and

jack cover have a tactile dot.

Getting Started

5

Index to parts and controls

For SLV-SE740B and SE640B

A?/1 (on/standby) switch

BRemote sensor (12)

CTape compartment

DA(eject) button (36)

EH (play) button*1 (36) (55)/M

(fast-forward)/m (rewind) (37)

(56)/Playback Dial (37) (56)

Fx(stop) button (20) (36) (73) (74)

GX(pause) button (36) (73) (74)

HENR z (record) button (40) (57)

(73)

ICHAINE +/– buttons*1 (56) (67)

JENR SYNCHRO (Synchronized

Recording) button*2 (59)

*1The H(play) and CHAINE + buttons

have a tactile dot.

*2not available on SLV-SE640B

continued

6Index to parts and controls

For SLV-SE240B

A?/1 (on/standby) switch

BA(eject) button (36)

CRemote sensor (12)

DTape compartment

EH (play) button* (36) (55)/M

(fast-forward)/m (rewind) (37)

(56)/Playback Dial (37) (56)

Fx(stop) button (20) (36) (73) (74)

GX(pause) button (36) (73) (74)

HENR z (record) button (40) (57)

(73)

ICHAINE +/– buttons* (56) (67)

*The H(play) and CHAINE + buttons

have a tactile dot.

Getting Started

7

Index to parts and controls

Display window

For SLV-SE840B and SE740B

ATape indicator

BMAGN indicator (16) (40)

CTime counter/clock/line/programme

position indicator (37) (39) (73)

D (smartlink) indicator (17)

ETV indicator (42)

FSTEREO indicator (62)

GTape speed indicators (39)

HTimer/recording indicator (40) (45)

(50) (53)

For SLV-SE640B and SE240B

ATape indicator

BTime counter/clock/line/programme

position indicator (37) (39) (73)

CTimer indicator (45) (50) (53)

DRecording indicator (40)

ESTEREO indicator* (62)

FVIDEO (video) indicator (16) (40)

GPlayback indicator

* not available on SLV-SE240B

3

1

45

2

678

continued

8Index to parts and controls

Rear panel

For SLV-SE840B, SE740B and SE640B

For SLV-SE240B

A (in from antenna) connector (16)

BLIGNE-3 (DEC/EXT) connector*1

LIGNE-2 (DEC/EXT) connector*2

(18) (33) (72)

CMains lead (16)

DAUDIO (OUT/SORTIE) R/D (right)

L/G (left) jacks*3 (18)

ELIGNE-1 (EURO AV) connector

(16) (33) (71)

F (out to tv) connector (16)

*1SLV-SE840B only

*2SLV-SE740B, SE640B and SE240B only

*3not available on SLV-SE640B

Getting Started

9

Index to parts and controls

Remote commander AZ (eject) button (36)

B (wide) button (for TV) (14) (15)

C AFFICH button (14) (37) (40)

DCOMPT/DUREE REST button (40)

EProgramme number buttons*1 (13)

(41)

F- (ten’s digit) button (13) (41)

G/(Teletext) button (for TV)*2 (14)

H2 (volume) +/– buttons (for TV)

(13)

IaTV power on/TV mode select

button (for TV)*2 (13)

JzENR (record) button (40) (57)

KSP (Standard Play)/LP (Long Play)

button*3 (39)

LMENU button (21) (60)

MX (pause)/M button (21) (36)

x (stop)/m button (21) (36)

m (rewind)/< button (21) (36)

(55)

M (fast-forward)/, button (21)

(36) (55)

H (play)/OK button*1 (21) (36)

(55)

*1The H (play), CHOIX SON, number 5

and CHAINE + buttons have a tactile dot.

*2SLV-SE840B only

*3not available on SLV-SE240B

123

456

789

0

continued

10 Index to parts and controls

N[TV] / [MAGN] remote control switch

(12)

O?/1 (on/standby) switch (13) (14)

(50)

PCHOIX SON button*1*3 (14) (63)

QtTV/MAGN button (13) (16) (40)

RANNUL/0 button (37) (49) (60)

SCHOIX ENTREE button (39) (53)

(73)

TCHAINE (programme) +/– buttons*1

(13) (39)

c / C Teletext page access buttons

(for TV)*2 (14)

UyRALENTI button*4 (55)

V×2 button*4 (55)

W./> (index search)

buttons*3*4 (65)

X MINUTERIE button (48) (52)

*1The H (play), CHOIX SON, number 5

and CHAINE + buttons have a tactile dot.

*2SLV-SE840B only

*3not available on SLV-SE240B

*4FASTEXT buttons (for TV) (SLV-SE840B

only)

123

456

789

0

Getting Started

11

Unpacking

Step 1 : Unpacking

Check that you have received the following items with the VCR:

• Remote commander • Aerial cable

• R6 (size AA) batteries • PERITEL cable

Note

• The supplied remote commander is for the exclusive use of this VCR.

How to use this manual

The instructions in this manual are for the 4 models: SLV-SE840B, SE740B,

SE640B and SE240B. Check your model name by looking at the rear panel of

your VCR.

SLV-SE840B is the model used for illustration purposes. Any difference in

operation is clearly indicated in the text, for example, “SLV-SE840B only.”

This manual mainly explains operations using the remote, but the same operations

can also be performed using the buttons on the VCR having the same or similar

names.

12 Setting up the remote commander

Step 2 : Setting up the remote commander

Inserting the batteries

Insert two R6 (size AA) batteries

by matching the + and – on the

batteries to the diagram inside the

battery compartment.

Insert the negative (–) end first,

then push in and down until the

positive (+) end clicks into

position.

Using the remote

commander

You can use this remote

commander to operate this VCR

and a Sony TV. Buttons on the

remote commander marked with a

dot (•) can be used to operate your

Sony TV. If the TV does not have

the symbol near the remote

sensor, this remote commander

will not operate the TV.

To operate Set [TV] / [MAGN] to

the VCR [MAGN] and point at the remote sensor at the VCR

a Sony TV [TV] and point at the remote sensor at the TV

123

456

789

0

Remote sensor

[TV] /

[MAGN]

Getting Started

13

Setting up the remote commander

TV control buttons

To Press

Set the TV to standby mode ?/1

Select an input source: aerial in or line in tTV/MAGN

Select the TV’s programme position Programme number buttons,

-, CHAINE +/–

Adjust the volume of the TV 2 +/–

Switch to TV (Teletext off)*1a(TV)

CHAINE +/–/

c / C

2 +/–

123

456

789

0

Programme

number

buttons

/

AFFICH

?/1

tTV/MAGN

-

CHOIX SON

FASTEXT buttons

a

continued

14 Setting up the remote commander

Notes

• With normal use, the batteries should last about three to six months.

• If you do not use the remote commander for an extended period of time, remove

the batteries to avoid possible damage from battery leakage.

• Do not use a new battery together with an old one.

• Do not use different types of batteries together.

• Do not leave the remote commander in an extremely hot or humid place.

• Do not drop any foreign object into the remote casing, particularly when replacing

the batteries.

• Do not expose the remote sensor to direct light from the sun or lighting apparatus.

Doing so may cause a malfunction.

• Some buttons may not work with certain Sony TVs.

*1SLV-SE840B only

*2not available on SLV-SE240B

Controlling other TVs with the remote commander (SLV-

SE840B only)

The remote commander is preprogrammed to control non-Sony TVs. If your

TV is listed in the following table, set the appropriate manufacturer’s code

number.

* These buttons may not work with all TVs.

Switch to Teletext*1/(Teletext)

Select the sound*2CHOIX SON

Use FASTEXT*1FASTEXT buttons

Call up the on-screen display AFFICH

Change the Teletext page*1c / C

Switch to/from wide mode of a Sony wide TV (For

other manufactures’ wide TVs, see “Controlling

other TVs with the remote commander (SLV-

SE840B only)” below.)

(wide)

1Set [TV] / [MAGN] at the top of the remote commander to [TV].

2Hold down ?/1, and enter your TV’s code number using the programme

number buttons. Then release ?/1.

Now you can use the following TV control buttons to control your TV:

?/1, tTV/MAGN, programme number buttons, - (ten’s digit),

CHAINE +/–, 2 +/–, a(TV), /(Teletext), FASTEXT buttons,

(wide)*, MENU*, M/m/</,*, and OK*.

To Press

Getting Started

15

Setting up the remote commander

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until

you find the one that works with your TV.

To switch to wide mode, see the footnotes below this table for the applicable

code numbers.

*1Press (wide) to switch the wide picture mode on or off.

*2Press (wide), then press 2 +/– to select the wide picture mode you want.

*3Press (wide). The menu appears on the TV screen. Then, press M/m/</, to

select the wide picture you want and press OK.

Tip

• When you set your TV’s code number correctly while the TV is turned on, the TV

turns off automatically.

Notes

• If you enter a new code number, the code number previously entered will be

erased.

• If the TV uses a different remote control system from the one programmed to work

with the VCR, you cannot control your TV with the remote commander.

• When you replace the batteries of the remote commander, the code number may

change. Set the appropriate code number every time you replace the batteries.

Manufacturer Code number

Sony 01*1, 02

Akai 68

Ferguson 52

Grundig 10*1, 11*1

Hitachi 24

JVC 33

Loewe 45

Mivar 09, 70

NEC 66

Nokia 15, 16, 69*3

Panasonic 17*1, 49

Philips 06*1, 07*1, 08*1

Saba 12, 13

Samsung 22, 23

Sanyo 25

Sharp 29

Telefunken 36

Thomson 43*2

Toshiba 38

Manufacturer Code number

16 Connecting the VCR

Step 3 : Connecting the VCR

*1SLV-SE840B and SE740B only

*2SLV-SE640B and SE240B only

1Disconnect the aerial cable from

your TV and connect it to on the

rear panel of the VCR.

2Connect of the VCR and the

aerial input of your TV using the

supplied aerial cable.

3Connect LIGNE-1 (EURO AV) on

the VCR and the PERITEL

connector on the TV with the

supplied PERITEL cable.

Whenever you want to watch the

VCR picture, press tTV/MAGN

to display the MAGN*1 or

VIDEO*2 indicator in the display

window.

4Connect the mains lead to the mains.

Mains lead

LIGNE-1

(EURO AV)

ANTENNE

ENTREE

PERITEL

to mains

Aerial cable (supplied)

: Signal flow PERITEL cable (supplied)

Getting Started

17

Connecting the VCR

About the SMARTLINK features (not available on SLV-SE640B and

SE240B)

If the connected TV complies with

SMARTLINK, MEGALOGIC*1,

EASYLINK*2, Q-Link*3, EURO

VIEW LINK*4, or T-V LINK*5, this

VCR automatically runs the

SMARTLINK function after you complete the steps on the previous page

(the indicator appears in the VCR’s display window when you turn on the

TV). You can enjoy the following SMARTLINK features.

• TV Direct Rec

You can easily record what you are watching on the TV when the VCR is

turned on. For details, see “Recording what you are watching on the TV

(TV Direct Rec) (not available on SLV-SE640B and SE240B)” on page 42.

• One Touch Play

With One Touch Play, you can start playback automatically without turning

on the TV. For details, see “Starting playback automatically with one

button (One Touch Play) (not available on SLV-SE640B and SE240B)” on

page 38.

• One Touch Menu

When the VCR is turned on, you can turn on the TV, set the TV to the

video channel, and display the VCR’s on-screen display automatically by

pressing MENU on the remote commander.

• One Touch Timer

When the VCR is turned on, you can turn on the TV, set the TV to the

video channel, and display the timer recording menu (the MINUTERIE

menu or the SHOWVIEW menu) automatically by pressing

MINUTERIE on the remote commander.

You can set which timer recording menu is displayed using OPTIONS

PROG. in the FONCTIONS AVANCÉES menu (see page 70).

• NexTView Download

You can easily set the timer by using the NexTView Download function on

your TV. Please refer to your TV’s instruction manual.

*1“MEGALOGIC” is a registered trademark of Grundig Corporation.

*2“EASYLINK” is a trademark of Philips Corporation.

*3“Q-Link” is a trademark of Panasonic Corporation.

*4“EURO VIEW LINK” is a trademark of Toshiba Corporation.

*5“T-V LINK” is a trademark of JVC Corporation.

Note

• Not all TVs respond to the functions above.

continued

18 Connecting the VCR

Additional connections

To a stereo system (not

available on SLV-SE640B

and SE240B)

You can improve sound

quality by connecting a

stereo system to the AUDIO

R/D L/G jacks as shown on

the right.

To a satellite or digital

tuner with Line Through

Using the Line Through

function, you can watch

programmes from a satellite

or digital tuner connected to

this VCR on the TV even

when the VCR is turned off.

When you turn on the

satellite or digital tuner, this

VCR automatically sends the

signal from the satellite or

digital tuner to the TV

without turning itself on.

Notes

• The Line Through function will not operate properly if VEILLE ECO in the

RÉGLAGES UTILISATEUR menu is set to ECO2. Set VEILLE ECO to NON or

ECO1 to ensure proper operation (see page 68).

• You cannot watch programmes on the TV while recording unless you are recording

a satellite or digital programme.

• This function may not work with some types of satellite or digital tuners.

• When the VCR is turned off, set the TV to the video channel.

*1SLV-SE840B only

*2SLV-SE740B, SE640B and SE240B only

1Connect the satellite or digital tuner to the LIGNE-3 (DEC/EXT)*1 or

LIGNE-2 (DEC/EXT)*2 connector as shown above.

2Turn off the VCR.

To watch a programme, turn on the satellite or digital tuner and the TV.

Audio cable (not supplied)

AUDIO R/D L/G ENTREE

LIGNE

: Signal flow

PERITEL cable (not supplied)

LIGNE-3 (DEC/EXT)*1 or

LIGNE-2 (DEC/EXT)*2SORTIE

LIGNE

: Signal flow

Getting Started

19

Setting up the VCR with the Auto Set Up function

Step 4 : Setting up the VCR with the Auto

Set Up function

Before using the VCR for the first time, set up the VCR using the Auto Set Up

function. With this function, you can set the TV channels, guide channels for the

ShowView system*, and VCR clock* automatically.

1Turn on your TV and set it to the video channel.

2Connect the mains lead to the mains.

The VCR automatically turns on, and the message for the Auto Set

Up function appears.

3Press OK.

The SÉLECTION DU PAYS menu*

appears.

4For SLV-SE840B, SE740B and

SE240B

Press </, to select your country,

then press OK.

The VCR starts searching for all of

the receivable channels and presets

them (in the appropriate order for

your local area).

If you want to change the order of the channels or disable unwanted

programme positions, see “Changing/disabling programme

positions” on page 28.

After the search or download is complete, the current time appears

for any stations that transmit a time signal. If the time does not

appear, set the clock manually. See “Setting the clock” on page 21.

For SLV-SE640B

The clock setting menu appears. See “Setting the clock” on

page 21.

OK

MENU:OK:

SÉLECTION DU PAYS

:

RÉGLER

SÉLECT. SORTIE

FRANÇAIS SCHWEIZ

OK

MENU:

MERCI D’ATTENDRE

INSTALLATION AUTO

40%

SORTIE

continued

20 Setting up the VCR with the Auto Set Up function

To cancel the Auto Set Up function

Press MENU.

Notes

• Whenever you operate the Auto Set Up function, some of the settings

(ShowView*, timer, etc.) will be reset. If this happens, you have to set them again.

• Auto preset starts automatically only when you plug in the mains lead for the first

time after you purchase the VCR.

• If you want to use the Auto Set Up function again, press MENU, then press M/m/

</, to highlight INSTALLATION and press OK. Press M/m to highlight

INSTALLATION AUTO, then repeat all procedures from step 3.

• Auto preset can be performed by pressing x (stop) on the VCR continuously for 5

seconds or more with no tape inserted.

* not available on SLV-SE640B

Getting Started

21

Setting the clock

Setting the clock

You must set the time and date on the VCR to use the timer features properly.

The Auto Clock Set function* works only if a station in your area is broadcasting a

time signal.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

• Refer to “Index to parts and controls” for button locations.

1Press MENU, then press M/m/</

, to highlight RÉGLAGE

HORLOGE and press OK.

2Press M/m to set the hour.

3Press , to select the minutes and

set the minutes by pressing M/m.

MENU

OK

RÉGLER

MENU::

OK:FIN

SÉLECT.

1 2 0 1 JAN/0:20

JEU

04/

HORLOGE AUTO OUI:

:SORTIE

OK 1 8 0 1 JAN/0:2004/

HORLOGE AUTO OUI:

RÉGLER

MENU::

OK:FIN

SÉLECT. :

JEU

SORTIE

OK 1 8 3 1 JAN/0:2004/

RÉGLER

MENU::

OK:FIN

SÉLECT.

HORLOGE AUTO OUI:

:

JEU

SORTIE

continued

22 Setting the clock

Tips

• If you set HORLOGE AUTO* to OUI, the Auto Clock Set function is activated

whenever the VCR is turned off. The time is adjusted automatically by making

reference to the time signal from the station.

• To change the digits while setting, press < to return to the item to be changed, and

select the digits by pressing M/m.

* not available on SLV-SE640B

4Set the day, month, and year in

sequence by pressing , to select

the item to be set, and press M/m to

select the digits, then press ,.

The day of the week is set

automatically.

5Press M/m to select OUI for the

setting of the Auto Clock Set

function*.

The VCR automatically sets the

clock according to the time signal

broadcast between the channels

ST 1 to ST 5.

If you do not need the Auto Clock

Set function, select NON.

6Press MENU to exit the menu.

OK 18 3 82 SEP/0:20

MAR

04/

HORLOGE AUTO OUI:

RÉGLER

MENU::

OK:FIN

SÉLECT. : SORTIE

OK 18 3 82 SEP/0:20

MAR

04/

RÉGLER

MENU::

OK:FIN

SÉLECT.

HORLOGE AUTO OUI:

:SORTIE

MENU

Getting Started

23

Downloading the TV tuner’s preset data (not available on SLV-SE640B and SE240B)

Downloading the TV tuner’s preset data

(not available on SLV-SE640B and SE240B)

You can download your TV tuner’s preset data to the VCR and tune the VCR

according to that data using the SMARTLINK connection.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

• Refer to “Index to parts and controls” for button locations.

1Press MENU, then press M/m/</

, to highlight INSTALLATION

and press OK.

2Press M/m to highlight

SMARTLINK, then press ,.

3Press M/m to highlight

TRANSFERT DES

PROGRAMMES TV, then press

,. Press , again. The Preset

Download function starts and the

indicator flashes in the display

window during download.

MENU

OK RÉGLER

MENU::

OK:FIN

SÉLECT.

INSTALLATION AUTO

INSTALLATION MANUELLE

SMARTLINK

:SORTIE

OK

MENU::

OK:

SMARTLINK

ENREG.TV DIRECT : OUI

TRANSFERT DES

PROGRAMMES TV

:RÉGLER

FIN

SÉLECT. SORTIE

OK

MENU:

40%

SORTIE

TRANSFERT DES

PROGRAMMES TV

OK:

FIN

MERCI D’ATTENDRE

24 Selecting a language

Selecting a language

If you prefer an on-screen language other than French, use the on-screen display to

select another language.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

• Refer to “Index to parts and controls” for button locations.

The abbreviations of the languages are as follows:

1Press MENU, then press M/m/</

, to highlight SÉLECTION

LANGUE and press OK.

2Press M/m/</, to highlight the abbreviation of the desired

language from the table below, then press OK.

MENU

OK

MENU:OK:RÉGLER

SÉLECT.

GB

ES

NL

FI

DE

IT

SE

GR

FR

PT

DK

TR

:SORTIE

OK

Abbreviation Language

GB English

ES Spanish

NL Dutch

FI Finnish

DE German

IT Italian

SE Swedish

GR Greek

FR French

PT Portuguese

DK Danish

TR Turkish

Abbreviation Language

Getting Started

25

Presetting channels

Presetting channels

If some channels could not be preset using the Auto Set Up function, you can preset

them manually.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

• Refer to “Index to parts and controls” for button locations.

1Press MENU, then press M/m/</

, to highlight INSTALLATION

and press OK.

2Press M/m to highlight

INSTALLATION MANUELLE,

then press ,.

3Press M/m to highlight the row

which you want to preset, then press

,.

To display other pages for

programme positions 6 to 80, press

M/m repeatedly.

4Press M/m to highlight SYS if

necessary.

MENU

OK RÉGLER

MENU::

OK:FIN

SÉLECT.

INSTALLATION AUTO

INSTALLATION MANUELLE

SMARTLINK

:SORTIE

OK

5

4

3

2

1

0

0

0

0

3

3

2

2

2

0

9

7

I

C

L

A

J

D

M

A

K

E

N

B

–

–

–

–

NON

NON

NON

NON

LISTE STATIONS TV

ST CAN. NOM DEC

MENU:ANNUL:EFFACE MODIF. ST OK:

SORTIE

L / L’

L / L’

L / L’

L / L’

SYS.

OK

MENU:OK:FIN

SÉLECT.

ST

CANAL

RÉGL.FIN

DECODEUR

NOM

:RÉGLER :

RECHERCHE MANUELLE

:5

: –––

:–

: NON

: ––––

SORTIE

SYS. : L / L’

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

: 033

: ––––

MENU:OK:FIN

SÉLECT.

CANAL

NOM

:RÉGLER :

RECHERCHE MANUELLE

SORTIE

SYS. : L / L’

continued

26 Presetting channels

5Press </, to set L/L’ or B/G if necessary.

• To receive broadcast in France, highlight L/L’.

• To receive broadcast using the PAL system (for example, in

Germany or Switzerland), highlight B/G.

6Press M/m to highlight CANAL,

then press </, repeatedly until

the channel you want is displayed.

7Press M/m to highlight NOM, then

press ,.

8Enter the station name.

1Press M/m to select a character.

Each time you press M, the

character changes as shown

below.

A t B t … t Z t 0 t 1 t

… t 9 t A

2Press , to set the next

character.

The next space flashes.

To correct a character, press </, until the character you want

to correct flashes, then reset it.

You can set up to 4 characters for the station name.

9Press OK to confirm the station name.

OK

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

: 033

: ––––

MENU:OK:FIN

SÉLECT.

CANAL

NOM

:RÉGLER :

RECHERCHE MANUELLE

SORTIE

SYS. : L / L’

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

CANAL : 0 3 3

NOM : ––––

MENU:OK:FIN

SÉLECT. :

RECHERCHE MANUELLE

RÉGLER :

SORTIE

SYS. : L / L’

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

: 033

: O–––

MENU:OK:FIN

SÉLECT.

CANAL

NOM

:

RECHERCHE MANUELLE

RÉGLER :

SORTIE

SYS. : L / L’

OK

Getting Started

27

Presetting channels

If the picture is not clear

If the picture is not clear, you may use the Manual Fine Tuning (RÉGL.FIN)

function. After step 6, press M/m to select RÉGL.FIN. Press </, to get a

clear picture, then press MENU to exit the menu.

Tip

• To set the programme position for the decoder, see “Setting the Canal Plus

decoder” on page 33.

Note

• When adjusting RÉGL.FIN, the menu may become difficult to read due to

interference from the picture being received.

10 Press MENU to exit the menu.

MENU

28 Changing/disabling programme positions

Changing/disabling programme positions

After setting the channels, you can change the programme positions as you like. If

any programme positions are unused or contain unwanted channels, you can disable

them.

You can also change the station names. If the station names are not displayed, you can

enter them manually.

Changing programme positions

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

• Refer to “Index to parts and controls” for button locations.

1Press MENU, then press M/m/</

, to highlight INSTALLATION

and press OK.

2Press M/m to highlight

INSTALLATION MANUELLE,

then press ,.

3Press M/m to highlight the row

which you want to change the

programme position.

To display other pages for

programme positions 6 to 80, press

M/m repeatedly.

MENU

OK RÉGLER

MENU::

OK:FIN

SÉLECT.

INSTALLATION AUTO

INSTALLATION MANUELLE

SMARTLINK

:SORTIE

OK

5

4

3

2

1

0

0

0

0

3

3

2

2

2

0

9

7

I

C

L

A

J

D

M

A

K

E

N

B

–

–

–

–

NON

NON

NON

NON

LISTE STATIONS TV

ST CAN. NOM DEC

MENU:ANNUL:EFFACE MODIF. ST OK:

SORTIE

L / L’

L / L’

L / L’

L / L’

SYS.

OK

5

4

3

2

1

0

0

0

0

3

3

2

2

2

0

9

7

I

C

L

A

J

D

M

A

K

E

N

B

–

–

–

–

NON

NON

NON

NON

LISTE STATIONS TV

ST CAN. NOM DEC

MENU:ANNUL:EFFACE MODIF. ST OK:

SORTIE

L / L’

L / L’

L / L’

L / L’

SYS.

Getting Started

29

Changing/disabling programme positions

Disabling unwanted programme positions

After presetting channels, you can disable unused programme positions. The disabled

positions will be skipped later when you press the CHAINE +/– buttons.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

• Refer to “Index to parts and controls” for button locations.

4Press OK, then press M/m to move

to the desired programme position.

5Press OK to confirm the setting.

6To change the programme position of another station, repeat steps 3

through 5.

7Press MENU to exit the menu.

1Press MENU, then press M/m/</

, to highlight INSTALLATION,

and press OK.

OK

5

4

3

2

1

0

0

0

0

2

3

3

2

9

2

0

7

L

I

C

A

M

J

D

A

N

K

E

B

–

–

–

–

NON

NON

NON

NON

LISTE STATIONS TV

CAN. NOM DEC

MENU:OK:

SORTIE

ST

MODIF. ST

L / L’

L / L’

L / L’

L / L’

SYS.

OK

MENU

MENU

OK RÉGLER

MENU::

OK:FIN

SÉLECT.

INSTALLATION AUTO

INSTALLATION MANUELLE

SMARTLINK

:SORTIE

continued

30 Changing/disabling programme positions

Note

• Be sure to select the programme position you want to disable correctly. If you

disable a programme position by mistake, you need to reset that channel manually.

2Press M/m to highlight

INSTALLATION MANUELLE,

then press ,.

3Press M/m to highlight the row

which you want to disable.

To display other pages for

programme positions 6 to 80, press

M/m repeatedly.

4Press ANNUL/0.

The selected row will be cleared as

shown on the right.

5Repeat steps 3 and 4 for any other programme positions you want to

disable.

6Press MENU to exit the menu.

OK

5

4

3

2

1

0

0

0

0

3

3

2

2

2

0

9

7

I

C

L

A

J

D

M

A

K

E

N

B

–

–

–

–

NON

NON

NON

NON

LISTE STATIONS TV

ST CAN. NOM DEC

MENU:ANNUL:EFFACE MODIF. ST OK:

SORTIE

L / L’

L / L’

L / L’

L / L’

SYS.

OK

5

4

3

2

1

0

0

0

0

3

3

2

2

2

0

9

7

I

C

L

A

J

D

M

A

K

E

N

B

–

–

–

–

NON

NON

NON

NON

LISTE STATIONS TV

ST CAN. NOM DEC

MENU:ANNUL:EFFACE MODIF. ST OK:

SORTIE

L / L’

L / L’

L / L’

L / L’

SYS.

ANNUL/0

5

4

3

2

1

0

0

0

3

3

2

2

0

7

I

C

A

J

D

A

K

E

B

–

–

–

NON

NON

NON

LISTE STATIONS TV

ST CAN. NOM DEC

MENU:ANNUL:EFFACE MODIF. ST OK:

SORTIE

L / L’

L / L’

L / L’

SYS.

MENU

Getting Started

31

Changing/disabling programme positions

Changing the station names

You can change or enter the station names (up to 4 characters). The VCR must

receive channel information for station names to appear automatically*.

* not available on SLV-SE640B

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

• Refer to “Index to parts and controls” for button locations.

1Press MENU, then press M/m/</

, to highlight INSTALLATION

and press OK.

2Press M/m to highlight

INSTALLATION MANUELLE,

then press ,.

3Press M/m to highlight the row

which you want to change or enter

the station name, then press ,.

To display other pages for

programme positions 6 to 80, press

M/m repeatedly.

4Press M/m to highlight NOM, then

press ,.

MENU

OK

OK RÉGLER

MENU::

OK:FIN

SÉLECT.

INSTALLATION AUTO

INSTALLATION MANUELLE

SMARTLINK

:SORTIE

OK ST

LISTE STATIONS TV

5

4

3

2

1

0

0

0

0

0

3

3

3

2

2

3

2

0

9

7

–

I

C

L

A

–

J

D

M

A

–

K

E

N

B

–

–

–

–

–

NON

NON

NON

NON

NON

CAN. NOM DEC

MENU:ANNUL:EFFACE OK:

SORTIE

MODIF. ST

SORTIE

L / L’

L / L’

L / L’

L / L’

L / L’

SYS.

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

: 033

: ––––

MENU:OK:FIN

SÉLECT.

CANAL

NOM

:RÉGLER :

RECHERCHE MANUELLE

SORTIE

SYS. : L / L’

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

CANAL : 0 3 3

NOM : ––––

MENU:OK:FIN

SÉLECT. :

RECHERCHE MANUELLE

RÉGLER :

SORTIE

SYS. : L / L’

continued

32 Changing/disabling programme positions

5Enter the station name.

1Press M/m to select a character.

Each time you press M, the

character changes as shown

below.

A t B t … t Z t 0 t 1 t

… t 9 t A

2Press , to set the next

character.

The next space flashes.

To correct a character, press </, until the character you want

to correct flashes, then reset it.

You can set up to 4 characters for the station name.

6Press OK to confirm the new name.

7Press MENU to exit the menu.

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

: 033

: O–––

MENU:OK:FIN

SÉLECT.

CANAL

NOM

:

RECHERCHE MANUELLE

RÉGLER :

SORTIE

SYS. : L / L’

OK

MENU

Getting Started

33

Setting the Canal Plus decoder

Setting the Canal Plus decoder

You can watch or record Canal Plus programmes if you connect a decoder (not

supplied) to the VCR.

Connecting a decoder

Setting Canal Plus channels

To watch or record Canal Plus programmes, set your VCR to receive the channels

using the on-screen display.

In order to set the channels correctly, be sure to follow all of the steps below.

Before you start…

• Turn on the VCR, the TV, and the decoder.

• Set the TV to the video channel.

• Refer to “Index to parts and controls” for button locations.

LIGNE-3 (DEC/EXT)

*

1

or

LIGNE-2 (DEC/EXT)

*

2

ANTENNE

ENTREE

LIGNE-1 (EURO AV)

Aerial cable (supplied)

PERITEL cable

(not supplied)

PERITEL

PERITEL cable (supplied)

Canal Plus decoder

: Signal flow

PERITEL

continued

34 Setting the Canal Plus decoder

1Press MENU, then press M/m/</

, to highlight INSTALLATION

and press OK.

2Press M/m to highlight

INSTALLATION MANUELLE,

then press ,.

3Press M/m to highlight the row

which you want to set for the

decoder, then press ,.

To display positions 6 to 80, press

M/m repeatedly.

4Press M/m to highlight SYS if

necessary.

5Press </, to set L/L’ or B/G if necessary.

• To receive broadcast in France, highlight L/L’.

• To receive broadcast using the PAL system (for example, in

Germany or Switzerland), highlight B/G.

MENU

OK RÉGLER

MENU::

OK:FIN

SÉLECT.

INSTALLATION AUTO

INSTALLATION MANUELLE

SMARTLINK

:SORTIE

OK ST

LISTE STATIONS TV

5

4

3

2

1

0

0

0

0

0

3

3

3

2

2

3

2

0

9

7

–

I

C

L

A

–

J

D

M

A

–

K

E

N

B

–

–

–

–

–

NON

NON

NON

NON

NON

CAN. NOM DEC

MENU:ANNUL:EFFACE OK:

SORTIE

MODIF. ST

L / L’

L / L’

L / L’

L / L’

SYS.

L / L’

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

: 033

: ––––

MENU:OK:FIN

SÉLECT.

CANAL

NOM

:RÉGLER :

RECHERCHE MANUELLE

SORTIE

SYS. : L / L’

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

: 033

: ––––

MENU:OK:FIN

SÉLECT.

CANAL

NOM

:RÉGLER :

RECHERCHE MANUELLE

SORTIE

SYS. : L / L’

OK

Getting Started

35

Setting the Canal Plus decoder

Notes

• To superimpose subtitles while watching Canal Plus programmes, make both

decoder-VCR and VCR-TV connections using 21-pin PERITEL cables that are

compatible with the RGB signals. You cannot record subtitles on the VCR.

• When you watch Canal Plus programmes through the RFU input of the TV, press

tTV/MAGN so that the MAGN*3 or VIDEO*4 indicator appears in the display

window.

*1SLV-SE840B only

*2SLV-SE740B, SE640B and SE240B only

*3SLV-SE840B and SE740B only

*4SLV-SE640B and SE240B only

6Press M/m to highlight CANAL,

then press </, repeatedly until

the channel you want is displayed.

7Press M/m to highlight

DECODEUR.

8Press , to set DECODEUR to

OUI, then press OK.

9Press MENU to exit the menu.

OK ST

RÉGL.FIN

DECODEUR :–

: NON

:5

: 033

: ––––

MENU:OK:FIN

SÉLECT.

CANAL

NOM

:RÉGLER :

RECHERCHE MANUELLE

SORTIE

SYS. : L / L’

OK

RÉGL.FIN

DECODEUR :–

: NON

:5

: 033

: ––––

MENU:OK:FIN

SÉLECT.

ST

CANAL

NOM

:

RECHERCHE MANUELLE

RÉGLER :

SORTIE

SYS. : L / L’

OK

RÉGL.FIN

DECODEUR :–

: OUI

:5

: 033

: ––––

MENU:OK:FIN

SÉLECT.

ST

CANAL

NOM

:

RECHERCHE MANUELLE

RÉGLER :

SORTIE

SYS. : L / L’

MENU

36 Playing a tape

Basic Operations

Playing a tape

Before you start...

• Refer to “Index to parts and controls” for button locations.

Additional tasks

1Turn on your TV and set it to the video channel.

2Insert a tape.

The VCR turns on and starts playing

automatically if you insert a tape with

its safety tab removed.

3Press H (play).

When the tape reaches the end, it will rewind automatically.

To Do this

Stop play Press x (stop)

Pause play Press X (pause)

Resume play after pause Press X (pause) or H (play)

Fast-forward the tape Press M (fast-forward) during stop

Rewind the tape Press m (rewind) during stop

Eject the tape Press Z (eject)

OK

37

Playing a tape

Basic Operations

Using Playback Dial on the

VCR

With Playback Dial, you can operate

the following playback options.

Note

• Do not turn Playback Dial forcibly. It may damage Playback Dial.

To set the colour system

If the playback picture has no colour, or streaks appear during playback, set

the SYST. COULEUR option in the RÉGLAGES UTILISATEUR menu to

conform to the system that the tape was recorded in (see page 69) (Normally

set the option to AUTO).

To use the time counter

Press ANNUL/0 at the point on the tape that you want to find later. The

counter in the display window resets to “0:00:00” or “00:00.” Search for the

point afterwards by referring to the counter.

To display the counter on the TV screen, press AFFICH.

To Do this

Resume play after pause Press H (play)

Fast-forward the tape Quickly turn and release Playback Dial to the right

(M (fast-forward)) during stop

Rewind the tape Quickly turn and release Playback Dial to the left

(m (rewind)) during stop

Playback Dial

Hour Minute

Hour Minute Second

SE840B, SE740B SE640B, SE240B

continued

38 Playing a tape

Notes

• The counter resets to “0:00:00” or “00:00” whenever a tape is reinserted.

• The counter stops counting when it comes to a portion with no recording.

• Depending on your TV, the following may occur while playing an NTSC-recorded

tape:

–The picture becomes black and white.

–The picture shakes.

–No picture appears on the TV screen.

–Black streaks appear horizontally on the TV screen.

–The colour density increases or decreases.

• Tapes recorded in the LP mode cannot be played back on SLV-SE240B.

• While setting the menu on the TV screen, buttons for playback on the remote

commander do not function.

Starting playback automatically with one button (One

Touch Play) (not available on SLV-SE640B and SE240B)

If you use the SMARTLINK connection, you can turn on the TV, set the TV

to the video channel, and start playback automatically with one button.

Tip

• When there already is a tape in the VCR, press ?/1 to turn on the VCR first. When

you press H (play), the TV turns on, the TV is set to the video channel, and

playback starts automatically in one sequence.

Note

• When you use the One Touch Play function, leave the TV on or in the standby

mode.

1Insert a tape.

The VCR automatically turns on.

If you insert a tape with its safety tab removed, the TV turns on and

switches to the video channel. Playback starts automatically.

2Press H (play).

The TV turns on and switches to the video channel automatically.

Playback starts.

39

Recording TV programmes

Basic Operations

Recording TV programmes

Before you start...

• Refer to “Index to parts and controls” for button locations.

1Turn on your TV and set it to the video channel.

To record from a decoder, turn it on.

If no picture or sound is reproduced on the TV, press

t TV/MAGN on the remote commander to display MAGN or

VIDEO indicator on the display window.

2Insert a tape with its safety tab in place.

3• To record a normal channel, press CHAINE +/– until the

programme position number or station name you want appears in

the display window.

• To record from a decoder or other source connected to one or

more of the LIGNE inputs, press CHOIX ENTREE until the

connected line appears in the display window.

4Press SP/LP to select the tape speed, SP or LP.*1

LP (Long Play) provides recording time twice as long as SP.

However, SP (Standard Play) produces better picture and audio

quality.

• CHAINE

CHOIX ENTREE

SP / LP

continued

40 Recording TV programmes

To stop recording

Press x (stop).

To check the remaining time

Press AFFICH twice. With the display on, press COMPT/DUREE REST

to check the remaining time. Each time you press COMPT/DUREE REST,

the time counter and the remaining time appear alternately.

In order to get an accurate remaining time indication, be sure

SÉLECT.CASSETTE in the RÉGLAGES UTILISATEUR menu is set

according to the tape type you use (see page 69).

To watch another TV programme while recording

5Press zENR to start recording.

The recording indicator lights up in the display window.

1Press tTV/MAGN to turn off the MAGN*2 or VIDEO*3 indicator in

the display window.

2Select another programme position on the TV.

ENR

Recording indicator

Recording indicator

SE840B, SE740B

SE640B, SE240B

461:

RESTANT

20:00:2

Remaining timeTime counter

41

Recording TV programmes

Basic Operations

To save a recording

To prevent accidental erasure, break off the

safety tab as illustrated. To record on the

same tape again, cover the tab hole with

adhesive tape.

Tips

• To select a programme position, you can use the programme number buttons on the

remote commander. For two-digit numbers, press -/-- (ten’s digit) followed by the

programme number buttons.

• If you connect additional equipment to a LIGNE connector or jack, you can select

the input signal using the CHOIX ENTREE or CHAINE +/– buttons.

• The AFFICH information appears on the TV screen indicating information

about the tape, but the information will not be recorded on the tape.

• If you do not want to watch TV while recording, you can turn off the TV. When

using a decoder, make sure to leave it on.

Notes

• The AFFICH information does not appear during still (pause) mode or slow-

motion playback.

• If a tape has portions recorded in both PAL (SECAM, MESECAM) and NTSC

systems, the time counter reading will not be correct. This discrepancy is due to

the difference between the counting cycles of the two video systems.

• You cannot watch a Canal Plus programme while recording another Canal Plus

programme.

• When you insert a non-standard commercially available tape, the remaining time

may not be correct.

• The remaining time is intended for rough measurement only.

• About 30 seconds after the tape begins playback, the tape remaining time will be

displayed.

*1not available on SLV-SE240B

*2SLV-SE840B and SE740B only

*3SLV-SE640B and SE240B only

Safety tab

continued

42 Recording TV programmes

Recording what you are watching on the TV (TV Direct

Rec) (not available on SLV-SE640B and SE240B)

If you use the SMARTLINK connection, you can easily record what you are

watching on the TV (other than tapes being played on the VCR).

Tip

• The TV indicator appears in the display window after you press zENR in some

situations such as:

–when you are watching a source connected to the TV’s line input, or

–when the TV tuner preset data for the programme position is different from the

data in the VCR tuner preset.

Notes

• You cannot record what you are watching using this method when the VCR is in

the following modes; pause, timer standby, tuner preset, Auto Set Up, and

recording.

• When the TV indicator is lit in the display window, do not turn off the TV nor

change the TV programme position. When the TV indicator is not lit, the VCR

continues recording the programme even if you change the TV programme

position on the TV.

• To use the TV Direct Rec function, select SMARTLINK in the INSTALLATION

menu, then set ENREG. TV DIRECT to OUI.

1Press ?/1 to turn on the VCR.

2Insert a tape with its safety tab in place.

3Press zENR while you are watching a TV programme or external

source.

The TV indicator lights up and the VCR starts recording what you are

watching on the TV.

43

Recording TV programmes using the Dial Timer (SLV-SE840B only)

Basic Operations

Recording TV programmes using the Dial

Timer (SLV-SE840B only)

The Dial Timer function allows you to

make timer recordings of programmes

without turning on your TV. Set the

recording timer to record up to eight

programmes, including settings made with

other timer methods, that will be broadcast

within the next month. The recording start

time and recording stop time can be set at

one minute intervals.

Before you start...

• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording

time.

• To record from a decoder, turn it on.

• Refer to “Index to parts and controls” for button locations.

1Press PROG.

“DATE” and “TODAY” appear alternately in the display window.

If the date and time are not set, “DAY” will appear. See step 2 in the

following section, “To set the clock” to set the date and time.

2Turn PROG to set the recording date.

PROG

CHAINE +/–

?/1 X

x

PROG

PROG

continued

44 Recording TV programmes using the Dial Timer (SLV-SE840B only)

3Press PROG.

“START” and the current time appear alternately in the display

window.

4Turn PROG to set the recording start time.

You can set the recording start time in 15 minute intervals or adjust

the time in one minute intervals by pressing the CHAINE +/–

buttons.

5Press PROG.

“STOP” and the recording stop time alternately appear in the

display window.

6Turn PROG to set the recording stop time.

You can set the recording stop time in 15 minute intervals or adjust

the time in one minute intervals by pressing the CHAINE +/–

buttons.

PROG

PROG

CHAINE

PROG

PROG

CHAINE

45

Recording TV programmes using the Dial Timer (SLV-SE840B only)

Basic Operations

To return to the previous step

To return to the previous step, press the CHAINE + and – buttons on the

VCR at the same time during any of the Dial Timer settings.

To stop recording

To stop the VCR while recording, press x (stop).

To use the VCR after setting the timer

To use the VCR before a recording begins, just press ?/1. The indicator

turns off and the VCR switches on. Remember to press ?/1 to reset the VCR

to recording standby after using the VCR.

You can also do the following tasks while the VCR is recording:

• Reset the counter (page 37).

• Display tape information on the TV screen (page 40).

• Check the timer settings (page 60).

• Watch another TV programme (page 40).

7Press PROG.

The programme position or LIGNE input appears in the display

window.

8Turn PROG to set the programme position.

To record from a decoder or other source connected to one or more

of the LIGNE inputs, turn PROG or press CHOIX ENTREE to

display the connected line in the display window.

9Press PROG to complete the setting.

“OK” appears in the display window for about five seconds.

The indicator appears in the display window and the VCR stands

by for recording.

To record from a decoder or other source, leave the connected

equipment switched on.

PROG

PROG

CHOIX ENTREE

PROG

continued

46 Recording TV programmes using the Dial Timer (SLV-SE840B only)

To set the clock

Tips

• To cancel a Dial Timer setting, press x (stop) on the VCR while you are making

the setting.

• The programme is recorded in the current tape speed mode. To change the tape

speed, press SP/LP before you complete the setting in step 9.

• To check, change, or cancel the programme setting, see “Checking/changing/

cancelling timer settings” on page 60.

Notes

• If eight programmes have already been set using the ShowView system or the

MINUTERIE menu, “FULL” appears in the display window for about five

seconds.

•The and indicators flash in the display window when you complete the

setting in step 9 with no tape inserted.

• If you set the clock using the Auto Clock Set function and HORLOGE AUTO is

set to OUI, the clock will adjust itself to the incoming time signal regardless of

adjustments made with the Dial Timer. Be sure you have set the Auto Clock Set

correctly.

• When the time is set incorrectly, “ERROR” appears in the display window in step

9. Set the timer again from step 1.

• You cannot set the tape speed to AUTO using the Dial Timer. To select AUTO, set

the tape speed in the MINUTERIE menu (see page 60).

1Hold down PROG so that “DAY” appears in the display window.

However, if the clock has already been set, the current setting appears.

2Turn PROG to set the day.

3Press PROG.

“MONTH” appears in the display window.

4Turn and press PROG to set the month, and then the year.

After you set the year, “CLOCK” appears in the display window again.

5Turn and press PROG to set the hour and minute.

6When you have finished setting the time, press PROG to start the

clock.

47

Recording TV programmes using the Dial Timer (SLV-SE840B only)

Basic Operations

About the Demonstration Mode

The Dial Timer function has a Demonstration Mode that allows the user, such as a

salesperson, to enter more than eight examples of timer settings when demonstrating

the use of the Dial Timer. It cancels the “FULL” notice which appears if eight

programmes have already been set. Do not use the Demonstration Mode for making

timer recordings. Doing so may cause the settings to be inaccurate.

To activate the Demonstration Mode

Press X(pause) on the VCR while turning the PROG. “DEMO” appears

in the display window for a few seconds.

To cancel the Demonstration Mode

Turn the power off and unplug the mains lead. Although the Demonstration

Mode is cancelled, the timer settings entered while using the Demonstration

Mode will remain. Be sure to manually cancel the timer settings before you

use the Dial Timer or any other timer method after reconnecting the mains

lead (see page 60).

48 Recording TV programmes using the ShowView® system (not available on SLV-SE640B and SE240B)

Recording TV programmes using the

ShowView® system (not available on SLV-

SE640B and SE240B)

The ShowView system is the feature that simplifies programming the VCR to make

timer recordings. Just enter the ShowView number listed in the TV programme guide.

The date, times, and programme position of that programme are set automatically.

You can preset a total of eight programmes, including settings made with other timer

methods.

Before you start…

• Check that the VCR clock is set to the correct time and date.

• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording

time.

• To record from a decoder, turn it on.

• Turn on your TV and set it to the video channel.

• Set OPTIONS PROG. to SHOWVIEW or MIXTE in the FONCTIONS AVANCÉES menu

(see page 70).

• Refer to “Index to parts and controls” for button locations.

1Press MINUTERIE.

• When you set OPTIONS PROG.

to MIXTE:

The OPTIONS PROG. menu

appears on the TV screen. Press

M/m to select SHOWVIEW, then

press OK.

• When you set OPTIONS PROG.

to SHOWVIEW:

The SHOWVIEW menu appears

on the TV screen.

MINUTERIE

OK

MENU:OK:RÉGLER

SÉLECT.

OPTIONS PROG.

NORMALE

SHOWVIEW

:SORTIE

CODE 0 – 9

SHOWVIEW

CODE –––––––––

:MENU:OK:RÉGLER SORTIE

49

Recording TV programmes using the ShowView® system (not available on SLV-SE640B and SE240B)

Basic Operations

2Press the programme number

buttons to enter the ShowView

number.

If you make a mistake, press

ANNUL/0 and re-enter the correct

number.

3Press OK.

The date, start and stop times,

programme position, tape speed and

VPS/PDC setting appear on the TV

screen.

• If “– –” appears in the “ST”

(programme) column (this may

happen for local broadcasts), you

have to set the appropriate

programme position manually.

Press M/m to select the desired programme position.

• To record from a decoder or other source connected to one or

more of the LIGNE inputs, press CHOIX ENTREE to display the

connected line in the “ST” position.

You will only have to do this operation once for the referred

channel. The VCR will then store your setting.

If the information is incorrect, press ANNUL/0 to cancel the setting.

4If you want to change the date, tape

speed and the VPS/PDC setting:

1Press </, to select the item

you want to change.

2Press M/m to reset it.

• To record the same programme

every day or the same day every

week, see “Daily/weekly

recording” on page 50.

• To use the VPS/PDC function, set V/P to P. For details about the

VPS/PDC function, see “Timer recording with VPS/PDC signals”

on page 50.

5Press MENU to exit the menu.

123

456

789

0

ANNUL/0

MENU:OK:RÉGLER

CODE 0 – 9

SHOWVIEW

CODE 1234–––––

:SORTIE

ANNUL/0

OK

CHOIX ENTREE

:OK:

–– –––– –– –– – –– ––::

35 SA29 19 00 2 000::

–– –––– –– –– – –– –

–

–::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

SP

–

–

–

––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

––::

:

ST JOUR DÉBUT FIN

V/P

MENUFIN

SÉLECT. SORTIE

RÉGLER :

OK

:OK:

–– –––– –– –– – –– ––::

35 SA29 19 00 2 00

P

0::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

SP

–

–

–

––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

––::

:

ST JOUR DÉBUT FIN

V/P

RÉGLER

MENUFIN

SÉLECT. SORTIE :

MENU

continued

50 Recording TV programmes using the ShowView® system (not available on SLV-SE640B and SE240B)

To stop recording

To stop the VCR while recording, press x (stop).

Daily/weekly recording

In step 4 above, press m to select the recording pattern. Each time you press

m, the indication changes as shown below. Press M to change the indication

in reverse order.

today t JOUR (Monday to Sunday) t S-SA (every Saturday) ..... t

S-DI (every Sunday) t 1 month later t (dates count down) t today

Timer recording with VPS/PDC signals

Some broadcast systems transmit VPS (Video Programme System) or PDC

(Programme Delivery Control) signals with their TV programmes. These

signals ensure that your timer recordings are made regardless of broadcast

delays, early starts, or broadcast interruptions.

To use the VPS/PDC function, set V/P to P in step 4 above. You can also use

the VPS/PDC function for a source connected to one or more of the LIGNE

inputs.

To use the VCR after setting the timer

To use the VCR before a recording begins, just press ?/1. The indicator

turns off and the VCR switches on. Remember to press ?/1 to reset the VCR

to recording standby after using the VCR.

You can also do the following tasks while the VCR is recording:

• Reset the counter (page 37).

• Display tape information on the TV screen (page 40).

• Check the timer settings (page 60).

• Watch another TV programme (page 40).

6Press ?/1 to turn off the VCR.

The indicator appears in the display window and the VCR stands

by for recording.

To record from a decoder or other source, leave the connected

equipment switched on.

51

Recording TV programmes using the ShowView® system (not available on SLV-SE640B and SE240B)

Basic Operations

To use the Auto Tape Speed function

In step 4 above, press m to select AUTO. When you are recording a

programme in the SP mode and the remaining tape length becomes shorter

than the recording time, the recording tape speed is automatically changed to

the LP mode. Note that some noise will appear on the picture when the tape

speed is changed. To operate this function correctly, the

“SÉLECT.CASSETTE” setting in the RÉGLAGES UTILISATEUR menu

must be accurate (see page 69).

Tips

• To set the line input video source, you can also use the CHOIX ENTREE button.

• You can set the extended time for the ShowView setting by 10, 20, 30, 40, 50, or 60

minutes. Set ÉTENDRE SHOWVIEW in the FONCTIONS AVANCÉES menu to

the desired extended time on page 70.

• To check, change, or cancel the programme setting, see “Checking/changing/

cancelling timer settings” on page 60.

Notes

• If the VPS/PDC signal is too weak or the broadcasting station failed to transmit

VPS/PDC signals, the VCR will start recording at the set time without using the

VPS/PDC function.

• The and indicators flash in the display window when you press ?/1 with

no tape inserted.

• When you set OPTIONS PROG. to NORMALE in the FONCTIONS AVANCÉES

menu, the SHOWVIEW menu does not appear on the TV screen. Select

SHOWVIEW or MIXTE.

52 Recording TV programmes using the timer

Recording TV programmes using the timer

You can preset a total of eight programmes, including settings made with other timer

methods.

Before you start…

• Check that the VCR clock is set to the correct time and date.

• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording

time.

• To record from a decoder, turn it on.

• Turn on your TV and set it to the video channel.

• Set OPTIONS PROG.*1 to NORMALE or MIXTE in the FONCTIONS AVANCÉES menu

(see page 70).

• Refer to “Index to parts and controls” for button locations.

1Press MINUTERIE.

For SLV-SE640B and SE240B

The MINUTERIE menu appears on

the TV screen.

For SLV-SE840B and SE740B

• When you set OPTIONS PROG.

to MIXTE:

The OPTIONS PROG. menu

appears on the TV screen. Press

M/m to select NORMALE, then

press OK.

• When you set OPTIONS PROG.

to NORMALE:

The MINUTERIE menu appears

on the TV screen.

MINUTERIE

OK

–– –––– –– –– – –– ––::

:

–– –––– –– –– – –– –––

:

–– –––– –– –– – –– ––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

–

–

–

––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

––::

ST JOUR DÉBUT FIN

V/P

:OK:

:MENUFIN

SÉLECT. SORTIE

RÉGLER :

MENU:OK:RÉGLER

SÉLECT.

OPTIONS PROG.

NORMALE

SHOWVIEW

:SORTIE

–– –––– –– –– – –– ––::

:

–– –––– –– –– – –– –––

:

–– –––– –– –– – –– ––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

–

–

–

––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

––::

ST JOUR DÉBUT FIN

V/P

:OK:

:MENUFIN

SÉLECT. SORTIE

RÉGLER :

53

Recording TV programmes using the timer

Basic Operations

To stop recording

To stop the VCR while recording, press x (stop).

Daily/weekly recording

In step 2 above, press m to select the recording pattern. Each time you press

m, the indication changes as shown below. Press M to change the indication

in reverse order.

today t JOUR (Monday to Sunday) t S-SA (every Saturday) ..... t

S-DI (every Sunday) t 1 month later t (dates count down) t today

2Set the date, start and stop times,

programme position, tape speed*3

and VPS/PDC function*2:

1Press , to select each item in

turn.

2Press M/m to set each item.

To correct a setting, press < to

return to that setting and reset.

• To record the same programme every day or the same day every

week, see “Daily/weekly recording” on page 53.

• To use the VPS/PDC function*2, set V/P to P. For details about

the VPS/PDC function, see “Timer recording with VPS/PDC

signals” on page 50.

• To record from a decoder or other source connected to one or

more of the LIGNE inputs, press CHOIX ENTREE to display the

connected line in the “ST” position.

3Press MENU to exit the menu.

4Press ?/1 to turn off the VCR.

The indicator appears in the display window and the VCR stands

by for recording.

To record from a decoder or other source, leave the connected

equipment switched on.

OK

CHOIX ENTREE

:OK:

–– –––– –– –– – –– ––::

::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

–

–––– –– –– – –– –––

–

–

––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

––::

:

ST JOUR DÉBUT FIN

V/P

RÉGLER

MENUFIN

SÉLECT. SORTIE

35

:

MENU

continued

54 Recording TV programmes using the timer

To use the VCR after setting the timer

To use the VCR before a recording begins, just press ?/1. The indicator

turns off and the VCR switches on. Remember to press ?/1 to reset the VCR

to recording standby after using the VCR.

You can also do the following tasks while the VCR is recording:

• Reset the counter (page 37).

• Display tape information on the TV screen (page 40).

• Check the timer settings (page 60).

• Watch another TV programme (page 40).

To use the Auto Tape Speed function*3

In step 2 above, press m to select AUTO. When you are recording a

programme in the SP mode and the remaining tape length becomes shorter

than the recording time, the recording tape speed is automatically changed to

the LP mode. Note that some noise will appear on the picture when the tape

speed is changed. To operate this function correctly, the

“SÉLECT.CASSETTE” setting in the RÉGLAGES UTILISATEUR menu

must be accurate (see page 69).

Tips

• To set the line input video source, you can also use the CHOIX ENTREE button.

• Even if you set OPTIONS PROG.*1 to SHOWVIEW in the FONCTIONS

AVANCÉES menu, you can set the timer manually. Press MENU to select

MINUTERIE, then go to step 2.

• To check, change, or cancel the programme setting, see “Checking/changing/

cancelling timer settings” on page 60.

Notes

• When setting the timer with VPS/PDC*2 signals, enter the start and stop times

exactly as indicated in the TV programme guide. Otherwise, the VPS/PDC

function will not work.

• If the VPS/PDC*2 signal is too weak or the broadcasting station failed to transmit

VPS/PDC signals, the VCR will start recording at the set time without using the

VPS/PDC function.

• The and indicators flash in the display window when you press ?/1 with

no tape inserted.

• The VPS/PDC function*2 is automatically set to off for the timer recording of a

satellite programme.

*1not available on SLV-SE640B/SE240B

*2not available on SLV-SE640B

*3not available on SLV-SE240B

55

Playing/searching at various speeds

Additional Operations

Additional Operations

Playing/searching at various speeds

Before you start…

• Refer to “Index to parts and controls” for button locations.

Playback options

To resume normal playback

Press H (play).

To Do this

View the picture during

fast-forward or rewind During fast-forward, hold down M (fast-forward).

During rewind, hold down m (rewind).

Play at high speed • During playback, briefly press M (fast-forward)

or m (rewind). The tape continues to play at high

speed.

• During playback, hold down M (fast-forward) or

m(rewind). When you release the button, normal

playback resumes.

Play at twice the normal

speed During playback, press ×2.

Play in slow motion During playback, press yRALENTI.

continued

56 Playing/searching at various speeds

Using Playback Dial on the

VCR

With Playback Dial, you can

operate the following playback

options.

Tip

• Adjust the picture using the CHAINE +/– buttons on the VCR if:

–Streaks appear while playing in slow motion.

–Bands appear at the top or bottom while pausing.

–The picture shakes while pausing.

To set tracking to the centre position, press both buttons (+/–) at the same time.

Notes

• The sound is muted during these operations.

• In the LP mode, noise may appear or there may be no colour.

• If the playback mode mark does not appear on the TV screen, press AFFICH.

• The picture may show noise when playing at high speed in reverse.

• Do not turn Playback Dial forcibly. It may damage Playback Dial.

To Do this

View the picture during

fast-forward or rewind During fast-forward, turn and hold Playback Dial to

the right (M (fast-forward)). During rewind, turn

and hold Playback Dial to the left (m (rewind)).

Play at high speed • During playback, quickly turn and release Playback

Dial to the right ( M (fast-forward)) or left (m

(rewind)). The tape continues to play at high speed.

• During playback, turn and hold Playback Dial to the

right (M (fast-forward)) or left (m(rewind)).

When you release Playback Dial, normal playback

resumes.

Playback Dial

57

Setting the recording duration time

Additional Operations

Setting the recording duration time

After you have started recording in the normal way, you can have the VCR stop

recording automatically after a specified duration.

Before you start…

• Refer to “Index to parts and controls” for button locations.

To extend the duration

Press zENR repeatedly to set a new duration time.

To cancel the duration

Press zENR repeatedly until the indicator disappears and the VCR

returns to the normal recording mode.

To stop recording

To stop the VCR while recording, press x (stop).

Note

• You cannot display the current tape time in the display window when setting the

recording duration time.

1While recording, press zENR.

The indicator appears in the display window.

2Press zENR repeatedly to set the duration time.

In SP mode

Each press advances the time in increments of 30 minutes.

In LP mode

Each press advances the time as shown below.

The tape counter decreases minute by minute to 0:00, then the VCR stops

recording and turns off automatically.

0:30 1:00 4:00 4:30

Normal recording

0:30 1:00 8:00 9:00 Normal recording

58 Synchronized Recording (not available on SLV-SE640B and SE240B)

Synchronized Recording

(not available on SLV-SE640B and SE240B)

You can set the VCR to automatically record programmes from equipment

such as a satellite tuner by connecting the equipment to the LIGNE-3 (DEC/

EXT)*1 (or LIGNE-2 (DEC/EXT)*2) connector. The connected equipment

must have a timer function for this feature to work.

When the connected equipment turns on, the VCR also automatically turns

on and starts recording a programme from LIGNE-3 (DEC/EXT)*1 (or

LIGNE-2 (DEC/EXT)*2).

How to connect for Synchronized Recording

Connect the LIGNE-3 (DEC/EXT)*1 (or LIGNE-2 (DEC/EXT)*2) connector

of the VCR to the TV Scart connector of the satellite tuner. Then connect the

LIGNE-1 (EURO AV) connector to the TV.

PERITEL cable (not supplied)

LINGE-3 (DEC/EXT)*1

or LIGNE-2 (DEC/EXT)*2

LIGNE-1 (EURO AV)

PERITEL

connector

Satellite tuner, etc.

PERITEL cable (supplied) PERITEL

: Signal flow

59

Synchronized Recording (not available on SLV-SE640B and SE240B)

Additional Operations

To cancel the Synchronized Recording function

Press ENR SYNCHRO on the VCR. The ENR SYNCHRO indicator

disappears.

To stop recording

Press x (stop) while recording.

Notes

• This function may not work with some types of satellite tuners.

• Some TVs or other equipment with timer functions will automatically turn off if no

operation is performed within a certain amount of time. In this case, the

Synchronized Recording also stops automatically.

• When the connected equipment turns on while the ENR SYNCHRO indicator

lights up in red, recording starts automatically.

• If the settings for timer recording and Synchronized Recording overlap, the

programme that starts first has priority and the second programme starts recording

only after the first programme has finished.

• The Auto Clock Set function does not work while the VCR stands by for

Synchronized Recording.

*1SLV-SE840B

*2SLV-SE740B, SE640B and SE240B

Recording programmes using

the Synchronized Recording

function

Before you start...

• Insert a tape with its safety tab in place.

Make sure the tape is longer than the total

recording time.

• Refer to “Index to parts and controls” for

button locations.

1Press CHOIX ENTREE or CHAINE +/– to display “L3*1 (or L2*2)” in

the display window.

2Set the timer on the connected equipment to the time of the programme

you want to record, then turn it off.

3Press SP/LP to select the tape speed.

4Hold down ENR SYNCHRO on the VCR for more than two seconds.

The ENR SYNCHRO indicator lights up in red and the VCR stands by

for recording.

The VCR automatically turns on and starts recording when it receives an

input signal from the connected equipment.

The VCR automatically stops recording when the tape reaches the end or

when the connected equipment stops transmitting an input signal.

ENR SYNCHRO button/indicator

60 Checking/changing/cancelling timer settings

Checking/changing/cancelling timer

settings

Before you start…

• Turn on your TV and set it to the video channel.

• Refer to “Index to parts and controls” for button locations.

1Press ?/1 to turn on the VCR.

2Press MENU, then press M/m to highlight MINUTERIE and press OK.

• If you want to change or cancel a

setting, go on to the next step.

• If you do not need to change or cancel

the settings, press MENU, then turn

off the VCR to return to recording

standby.

3Press M/m to select the setting you want

to change or cancel, then press ,.

The ST number on the selected row

flashes.

4• To change the setting, press </, to select the item you want to

change, then press M/m to reset it.

• To cancel the setting, press ANNUL/0.

5Press MENU to exit the menu.

If any settings remain, turn off the VCR to return to recording standby.

MENU:OK:

–– –––– –– –– – –– ––::

35 SA29 19 00 2 000::

29 SA29 21 00 2 30 –1::

30 SA 6 12 00 1 30 –3::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

–

–

–

––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

––::

V/P

ST JOUR DÉBUT FIN

RÉGLER :

OKFIN

SÉLECT. : SORTIE

PSP

–– –––– –– –– – –– ––::

35SA2919002 000::

29SA2921002 30 –1::

30SA612001 30 –3::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

–

–

–

––::

–– –––– –– –– – –– ––::

–– –––– –– –– – –– –

–

––::

V/P

ST JOUR DÉBUT FIN

MENU:OK:RÉGLER :

OKFIN

SÉLECT. : SORTIE

PSP

61

Checking/changing/cancelling timer settings

Additional Operations

When the timer settings overlap

The programme that starts first has priority and the second programme starts

recording only after the first programme has finished. If the programmes

start at the same time, the programme listed first in the menu has priority.

about 20 seconds

will be cut off

Programme 1

Programme 2

about 20 seconds will be cut off

Programme 1

Programme 2

62 Recording stereo and bilingual programmes (not available on SLV-SE240B)

Recording stereo and bilingual

programmes (not available on SLV-SE240B)

In the ZWEITON (German stereo) system

This VCR automatically receives and records stereo and bilingual

programmes based on the ZWEITON system. When a stereo or bilingual

programme is received, the STEREO indicator appears in the display

window.

To select bilingual sound while recording

Press CHOIX SON to select the sound you want.

* Usually the main channel heard from both the left and right in bilingual

programmes

To select stereo programme while recording

* Usually the mixed sound of left and right channels in stereo programmes

In the NICAM system

This VCR receives and records stereo and bilingual programmes based on

the NICAM system (NICAM appears on the TV screen). When a stereo or

bilingual programme is received, the STEREO indicator appears in the

display window.

To record a NICAM programme, NICAM in the RÉGLAGES

UTILISATEUR menu should be set to OUI (initial setting). To check the

menu setting, see page 70 for details.

To listen to On-screen display Display window

Main PRINCIPALE STEREO

Sub SECONDAIRE STEREO

Main and sub PRINCIP./SEC. STEREO

Standard sound* MONO STEREO

To listen to On-screen display Display window

Stereo STEREO STEREO

Left channel CANAL G STEREO

Right channel CANAL D STEREO

Standard sound* CANAL G + CANAL D STEREO

63

Recording stereo and bilingual programmes (not available on SLV-SE240B)

Additional Operations

To select the sound while recording

Press CHOIX SON to select the sound you want.

* Usually the mixed sound of left and right channels

* Usually the main sound (monaural)

Selecting the sound during Hi-fi playback

Press CHOIX SON to select the sound you want.

* The mixed sound of left and right channels, and the normal mono audio track

Stereo programmes

To listen to On-screen display Display window

Stereo NICAM, STEREO STEREO

Left channel NICAM, CANAL G STEREO

Right channel NICAM, CANAL D STEREO

Left and right channels* NICAM, CANAL G +

CANAL D STEREO

Bilingual programmes

To listen to On-screen display Display window

Main NICAM, PRINCIPALE STEREO

Sub NICAM, SECONDAIRE STEREO

Main and sub NICAM, PRINCIP./SEC. STEREO

Standard sound* NICAM, MONO STEREO

To listen to On-screen display Display window

Stereo STEREO STEREO

Left channel CANAL G STEREO

Right channel CANAL D STEREO

Mix sound* MIX STEREO

Mono sound MONO No indicator

continued

64 Recording stereo and bilingual programmes (not available on SLV-SE240B)

How sound is recorded on a video tape

The VCR records sound onto two separate tracks. Hi-fi audio is recorded

onto the main track along with the picture. Monaural sound is recorded onto

the normal audio track along the edge of the tape.

Notes

• To listen to playback sounds in stereo, you must use the PERITEL or SORTIE

AUDIO connections.

• When you play a tape recorded in monaural, the sound is heard in monaural

regardless of the CHOIX SON setting.

Stereo

Usually mixed

left/right channels

Bilingual

Usually main sound

Normal audio track

(monaural)

Hi-fi audio track

(main track)

Stereo sound

(left/right channels) Main (left channel)

Sub (right channel)

65

Searching using the index function (not available on SLV-SE240B)

Additional Operations

Searching using the index function

(not available on SLV-SE240B)

The VCR automatically marks the tape with an index signal at the point where each

recording begins. Use these signals as references to find a specific recording.

To find a specific recording by scanning (Index scan)

To search a specific recording (Index search)

To stop searching

Press x (stop).

1Insert an indexed tape into the VCR.

2Press ./> (index search). The

VCR starts scanning each recording for

five seconds in the corresponding

direction.

3Press H (play) to start playback when you find the desired point.

1Insert an indexed tape into the VCR.

2Press ./> (index search) twice.

• To search ahead, press > (index

search) twice.

• To search backwards, press . (index

search) twice.

3Press ./> (index search) depending on the direction where your

desired programme is located.

Each time you press the button, the number increases or decreases up to

±20, respectively.

4The VCR starts searching, and playback starts automatically from that

point.

INDEX BALAYAGE BB

:

INDEX RECHERCHE : BB +02

continued

66 Searching using the index function (not available on SLV-SE240B)

Notes

• No index signal will be added when recording starts from recording pause.

However, an index signal will be marked if you change the programme position

during recording pause.

• When you press . (index search), if there is nothing recorded before the

selected index signal, playback may not start exactly at the index signal.

67

Adjusting the picture

Additional Operations

Adjusting the picture

Adjusting the tracking

Although the VCR automatically adjusts the

tracking when playing a tape, distortion may

occur if the recording is in poor condition. In

this case, manually adjust the tracking.

During playback, press CHAINE +/– on the

VCR to display the tracking meter. The

distortion should disappear as you press one

of the two buttons. To resume automatic

tracking adjustments, eject the tape and re-

insert it.

Adjusting the picture sharpness (Smart trilogic)

You can automatically adjust the sharpness of the picture.

1During playback, press MENU, then press M/m/</, to highlight

RÉGLAGES UTILISATEUR and press OK.

2Press M/m to highlight SMART

TRILOGIC, then press ,.

3Press M/m to set SMART TRILOGIC to

OUI or NON.

• OUI: Picture sharpness is

automatically adjusted.

• NON: Adjust the picture sharpness

manually.

To soften the picture, press <.

To sharpen the picture, press ,.

4Press MENU to return to the original screen.

–––––– ––––––

ALIGN.

Tracking meter

AFFICHAGE ÉCRAN OUI:

OUI:

SÉLECT.CASSETTE E1 8 0

:

SYST. COULEUR AUTO:

FORMAT 16:9

SMART TRILOGIC

AUTO:

NICAM OUI:

VEILLE ECO NON:

RÉGLER

MENU::

OK:FIN

SÉLECT. : SORTIE

MENU:OK:

DOUCE CONTRASTÉE

–– –––––––––– ––– ––––––


FIN SORTIE

RÉGLER :

SMART TRILOGIC : NON

OUI/NON :

68 Reducing the VCR’s power consumption

Reducing the VCR’s power consumption

You can turn off the indicators in the display window when the VCR is off (standby

mode) to reduce the VCR’s power consumption.

To turn on the indicators in the display window

Set VEILLE ECO to NON in step 3.

Notes

• When the VCR stands by for recording, the indicator in the display window

remains lit even when VEILLE ECO is set to ECO1 or ECO2.

• The Line Through function will not operate properly if VEILLE ECO is set to

ECO2. Set VEILLE ECO to NON or ECO1 to ensure proper operation.

1Press MENU, then press M/m/</, to highlight RÉGLAGES

UTILISATEUR and press OK.

2Press M/m to highlight VEILLE ECO.

3Press , to set to ECO1 or ECO2, then

press OK.

• ECO1: To reduce the power

consumption.

• ECO2: To reduce the power

consumption to a minimum.

AFFICHAGE ÉCRAN OUI:

OUI:

SÉLECT.CASSETTE E1 8 0

:

SYST. COULEUR AUTO:

FORMAT 16:9

SMART TRILOGIC

AUTO:

NICAM OUI:

VEILLE ECO ECO1:

RÉGLER

MENU::

OK:FIN

SÉLECT. : SORTIE

69

Changing menu options

Additional Operations

Changing menu options

Menu choices

Initial settings are indicated in bold print.

RÉGLAGES UTILISATEUR

1Press MENU, then select RÉGLAGES UTILISATEUR or FONCTIONS

AVANCÉES and press OK.

2Press M/m to select the option.

3Press , to change the setting, then press OK.

Menu option Set this option to

AFFICHAGE

ÉCRAN •OUI to display the menu on the TV screen.

• NON to disappear the menu from the TV screen.

SÉLECT.CASSETTE • E180 to use an E-180 or shorter type tape.

• E240 to use an E-240 type tape.

• E260 to use an E-260 type tape.

• E300 to use an E-300 type tape.

SYST. COULEUR • AUTO to select the colour system automatically.

• PAL to use the tape recorded in the PAL colour system.

• SECAM to use the tape recorded in the SECAM colour

system.

• MESECAM to use the tape recorded in the MESECAM

colour system.

• N/B to use the tape recorded in black and white.

FORMAT 16:9 • AUTO when you use a wide screen TV. The VCR

automatically detects if programmes being played back

or recorded are in normal or wide screen format.

• OUI if the VCR cannot detect wide screen TV

programmes with AUTO. The VCR always plays back

and records in wide screen format.

• NON if you are not using a wide screen TV.

AFFICHAGE ÉCRAN OUI:

OUI:

SÉLECT.CASSETTE E1 8 0

:

SYST. COULEUR AUTO:

FORMAT 16:9

SMART TRILOGIC

AUTO:

NICAM OUI:

VEILLE ECO NON:

RÉGLER

MENU::

OK:FIN

SÉLECT. : SORTIE

VPS / PDC PAR DÉFAUT

ÉTENDRE SHOWVIEW NON:

VEILLE AUTO NON:NON:

OPTIONS PROG. MIXTE:

RÉGLER

MENU::

OK:FIN

SÉLECT. : SORTIE

continued

70 Changing menu options

FONCTIONS AVANCÉES

*1not available on SLV-SE240B

*2not available on SLV-SE640B

*3not available on SLV-SE640B and SE240B

NICAM*1•OUI to record NICAM broadcasts on the hi-fi audio

track.

• NON to record standard sound on the hi-fi audio track.

For details, see page 62.

VEILLE ECO • ECO1 to turn off the indicators in the display window to

conserve the VCR’s power.

• ECO2 to turn off the indicators in the display window

during standby mode to reduce the VCR’s power

consumption to a minimum. For using the Line

Through function and Canal Plus function, select ECO1

or OFF.

•NON to turn on the indicators in the display window

while the VCR is standing by.

SMART TRILOGIC • OUI to automatically adjust the sharpness of the picture.

• NON to manually adjust the sharpness of the picture.

Menu option Set this option to

VPS/PDC PAR

DÉFAUT*2

•NON to deactivate the VPS/PDC function.

• OUI to activate it.

ÉTENDRE

SHOWVIEW*3

•NON to deactivate the ShowView Extend function.

• 10/20/30/.../60 (minutes) to extend the time of the

ShowView setting by the selected amount of time.

VEILLE AUTO • NON to deactivate the Auto Power Off function.

• 2HEURES/3HEURES to turn the VCR off automatically

if no signal is received and you do not press any of the

buttons during this time.

OPTIONS PROG.*3•MIXTE to display the OPTIONS PROG. menu for

selecting NORMALE or SHOWVIEW when pressing

the MINUTERIE button.

• NORMALE to display the MINUTERIE menu when

pressing the MINUTERIE button.

• SHOWVIEW to display the SHOWVIEW menu when

pressing the MINUTERIE button.

For details, see pages 48 and 52.

Menu option Set this option to

71

Connecting to a VCR or stereo system

Editing

Editing

Connecting to a VCR or stereo system

How to connect to record on this VCR

Connect the line outputs of the other VCR to the input connector of this

VCR. Refer to the examples A through C and choose the connection that

best suits your VCR.

Example A

Example B (SLV-SE840B only)

TV

LIGNE-1 (EURO AV)

PERITEL cable (supplied)

PERITEL

: Signal flow

Your VCR (Recorder)

Other VCR (Player)

TV

Audio/video cable (not supplied)

SORTIE

LIGNE

Your VCR (Recorder)

Other VCR (Player)

: Signal flow

t LIGNE-2 G o D

(open cover to connect)

continued

72 Connecting to a VCR or stereo system

Example C

How to connect to a stereo system (SLV-SE840B only)

Connect the t LIGNE-2 G o D jacks on this VCR to the audio output jacks

on the stereo system, using an audio cable (not supplied).

Notes

• Make sure you connect the plugs to jacks of the same colour.

• If the other VCR is a monaural type, leave the red plugs unconnected.

• If you connect this VCR to both the ENTREE LIGNE and SORTIE LIGNE jacks

of the other VCR, select the input correctly to prevent a humming noise.

• If the other VCR does not have a PERITEL connector, use an adequate cable

instead and connect the cable to the line out jacks of the other VCR.

• When you connect another VCR to the LIGNE-3 (DEC/EXT)*1 or LIGNE-2

(DEC/EXT)*2 connector, press CHOIX ENTREE to display “L3”*1 or “L2”*2 in

the display window.

*1SLV-SE840B

*2SLV-SE740B, SE640B and SE240B

TV

LIGNE-3 (DEC/EXT)*1 or

LIGNE-2 (DEC/EXT)*2

PERITEL cable (not supplied)

PERITEL

: Signal flow

Your VCR (Recorder)

Other VCR (Player)

73

Basic editing

Editing

Basic editing

When recording on this VCR

Before you start editing

• Turn on your TV and set it to the video

channel.

• Press CHOIX ENTREE to display the

connected line in the display window.

• Press SP/LP to select the tape speed, SP or

LP.*

To stop editing

Press the x(stop) buttons on both VCRs.

Tip

• To cut out unwanted scenes while editing, press X (pause) on this VCR when an

unwanted scene begins. When it ends, press X (pause) again to resume recording.

* not available on SLV-SE240B

1Insert a source tape with its safety tab removed into the other (playback)

VCR. Search for the point to start playback and set it to playback pause.

2Insert a tape with its safety tab in place into this (recording) VCR.

Search for the point to start recording and press X (pause) to set it to

playback pause.

3Press ENR z on this VCR to set it to recording pause.

4To start editing, press the X (pause) buttons on both VCRs at the same

time.

X

ENR z

74 Audio dubbing (SLV-SE840B only)

Audio dubbing (SLV-SE840B only)

This feature lets you record over the normal

audio track. The monaural sound previously

recorded is replaced while the original hi-fi

sound remains unchanged. Use this feature

to add commentary to a tape that you have

recorded with a camcorder.

Before you start...

• Open the t LIGNE-2 G o D jacks cover on

the front panel and connect a playback source.

• Turn on the TV and set it to the video channel.

To stop editing

Press x(stop) on this VCR and the stereo system (or other VCR).

1Insert a source tape into your stereo system (or the playback VCR).

Search for the point to start playback and set it to playback pause.

2Insert a prerecorded tape with its safety tab in place into this (recording)

VCR. Search for the start of the section to be replaced and press

X(pause).

The VCR enters pause mode.

3Press DOUBLAGE SON.

“A_DUB” and the indicator appears in the display window.

4To start editing, press the X(pause) buttons on this VCR and the stereo

system (or other VCR) at the same time.

After you use this feature, the audio in playback mode is automatically

set to monaural.

t LIGNE-2 G o D X

DOUBLAGE SON

75

Troubleshooting

Additional Information

Additional Information

Troubleshooting

If you have any questions or problems not covered below, please consult your nearest

Sony service facility.

Symptom Remedy

Power

The ?/1 (on/standby)

switch does not function. • Connect the mains lead to the mains securely.

The power is turned on

but the VCR does not

operate.

• Moisture condensation has occurred. Turn the power off,

unplug the mains lead and leave the VCR to dry for over

three hours.

The VCR is plugged in

but the display window

remains dark.

• Set VEILLE ECO in the RÉGLAGES UTILISATEUR

menu to NON (see page 68).

Clock

The clock has stopped

and “– –:– –” appears in

the display window.

• The clock stops if the VCR is disconnected from the mains.

Reset the clock (and timer).

Playback

The playback picture

does not appear on the

TV screen.

• Make sure the TV is set to the video channel. If you are

using a monitor, set it to video input.

• If the VCR is connected to the TV with the PERITEL

cable, make sure the MAGN or VIDEO indicator is lit in

the display window. Use the t TV/MAGN button on the

remote commander to light up the MAGN or VIDEO

indicator.

The picture is not clear. • Adjust the tracking with the CHAINE +/– buttons on the

VCR.

• The video heads are dirty (see the last page of

Troubleshooting). Clean the video heads using a Sony

video head cleaning cassette. If a Sony cleaning cassette is

not available in your area, have the heads cleaned at your

nearest Sony service facility (a standard service charge will

be required). Do not use a commercially available liquid

type cleaning cassette other than Sony’s, as it may damage

the video heads.

• The video heads may have to be replaced. Consult your

local Sony service facility for more information.

The picture has no

colour. • The SYST. COULEUR option in the RÉGLAGES

UTILISATEUR menu is set to the wrong position. Set the

option to conform to the system that the tape was recorded

in.

continued

76 Troubleshooting

Playback

The picture rolls

vertically during picture

search.

• Adjust the vertical hold control on the TV or monitor.

The picture has no

sound. • The tape is defective.

• If you made A/V connections, check the audio cable

connection.

The sound from a tape

recorded with the VCR is

not in stereo or the

STEREO indicator in the

display window is

flashing.

• Adjust the tracking.

• The video heads are dirty. Clean the video heads using a

Sony video head cleaning cassette as explained above.

Recording

No TV programme

appears on the TV

screen.

• Make sure the TV is set to the video channel. If you are

using a monitor, set it to video input.

• Select the correct source with the CHOIX ENTREE button.

Select a programme position when recording TV

programmes; select a line input when recording from other

equipment.

TV reception is poor. • Make sure the aerial cable is connected securely.

• Adjust the TV aerial.

• Make sure SYS. (L/L’ or B/G) in the RECHERCHE

MANUELLE menu is set to the same system in your local

area.

The tape starts playing as

soon as it is inserted. • The safety tab has been removed. To record on this tape,

cover the tab hole (see page 41).

The tape is ejected when

you press zENR. • The safety tab has been removed. To record on this tape,

cover the tab hole (see page 41).

Nothing happens when

you press zENR. • Make sure the tape is not at its end.

Timer recording

The timer does not

operate. • Check that the clock is set.

• Make sure a tape has been inserted.

• Check that the safety tab has not been removed.

• Make sure the tape is not at its end.

• Make sure a programme has been set for timer recording.

• Make sure your timer settings are past the current time.

• Check that the decoder is turned on.

• Check that the satellite tuner is turned on.

• The clock stops if the VCR is disconnected from the mains

for more than one hour. Reset the clock and timer.

• Turn the power off and unplug the mains lead.

Symptom Remedy

77

Troubleshooting

Additional Information

Timer recording

The SHOWVIEW menu

or the MINUTERIE

menu does not appear.

• Check that OPTIONS PROG. in the FONCTIONS

AVANCÉES menu is set correctly (see page 70).

The VPS/PDC function

does not operate

properly.

• Check that the clock and the date are set correctly.

• Check that the VPS/PDC time you set is the correct one

(there might be a mistake in the TV programme guide). If

the broadcast you wanted to record did not send the good

VPS/PDC information, the VCR will not start recording.

• If the reception is poor, the VPS/PDC signal might be

altered and the VCR might not start recording.

Synchronized Recording

The ENR SYNCHRO

button turns off while

recording or does not go

back to recording

standby mode.

• The tape has reached its end. Insert a new tape and press

ENR SYNCHRO again.

The Synchronized

Recording function does

not work.

• The connected equipment was not turned off.

Turn off the connected equipment and press ENR

SYNCHRO again.

• There was a power failure. Press ENR SYNCHRO again.

The programme recorded

with the Synchronized

Recording function is

incomplete.

• If the settings for timer recordings and Synchronized

Recording overlap, the programme that starts first has

priority and the second programme starts recording only

after the first programme has finished.

• There was a power failure. Press ENR SYNCHRO again.

Canal Plus

You cannot watch Canal

Plus programmes when

the VCR is in standby

mode.

• Check that DEC is set to OUI for this channel in the LISTE

STATIONS TV menu.

• Make sure the Canal Plus PERITEL cable is plugged

securely.

A Canal Plus programme

is always recorded

scrambled.

• Make sure the Canal Plus PERITEL cable is plugged

securely.

• Check that DEC is set to OUI for this channel in the LISTE

STATIONS TV menu.

Symptom Remedy

continued

78 Troubleshooting

Others

A tape cannot be

inserted. • Check that a tape is not already in the tape compartment.

The remote commander

does not function. • Make sure you are pointing the remote commander at the

remote sensor on the VCR.

• Replace all the batteries in the remote commander with

new ones if they are weak.

• Make sure the [TV] / [MAGN] remote control switch is set

correctly.

The selected input line

connector number does

not appear in the display

window.

• Press CHOIX ENTREE to display the connected line.

The tracking meter does

not appear on the TV

screen.

• The recording condition of the tape is very poor and

tracking cannot be adjusted.

You cannot control other

TVs. • Set your TV’s code number. The code number may change

when you replace the batteries of the remote commander.

The display window

becomes dim. • The display window automatically becomes dim when the

VCR is in standby or timer recording mode.

The VCR needs to be

cleaned. • Clean the cabinet, panel and controls with a dry, soft cloth,

or a soft cloth slightly moistened with a mild detergent

solution. Do not use any type of solvent, such as alcohol or

benzine.

The Line Through

function does not

operate.

• Set VEILLE ECO in the RÉGLAGES UTILISATEUR

menu to NON (see page 68).

Symptom Remedy

Symptoms caused by contaminated video heads

• Normal picture • Rough picture

initial

contamination

• Unclear picture • No picture (or

black & white

screen appears)

terminal

79

Specifications

Additional Information

Specifications

System

Channel coverage

SECAM (L):

VHF F2 to F10

UHF F21 to F69

CATV B to Q

HYPER S21 to S41

PAL (B/G):

VHF E2 to E12

VHF Italian channel A to H

UHF E21 to E69

CATV S01 to S05, S1 to S20

HYPER S21 to S41

Aerial out

75-ohm asymmetrical aerial socket

Tape speed

SP: PAL 23.39 mm/s (recording/

playback)

NTSC 33.35 mm/s (playback only)

SECAM

23.39 mm/s (recording/

playback)

MESECAM

23.39 mm/s (playback only)

LP: PAL 11.70 mm/s (recording/

playback)*

NTSC 16.67 mm/s (playback only)

SECAM

11.70 mm/s (recording/

playback)

MESECAM

1.70 mm/s (playback only)

EP: NTSC 11.12 mm/s (playback only)*

Maximum recording/playback time

10 hrs. in LP mode (with E300 tape)

Rewind time

Approx. 1 min. (with E180 tape)

* not available on SLV-SE240B

Inputs and outputs

LIGNE-1 (EURO AV)

21-pin

Video input: pin 20

Audio input: pins 2 and 6

Video output: pin 19

Audio output: pins 1 and 3

LIGNE-2 (DEC/EXT)/LIGNE-3 (DEC/

EXT)

21-pin

Video input: pin 20

Audio input: pins 2 and 6

t LIGNE-2 G o D*1

VIDEO IN, phono jack (1)

Input signal: 1 Vp-p, 75 ohms,

unbalanced, sync negative

AUDIO IN, phono jack (2)

Input level: 327 mVrms

Input impedance: more than 47 kilohms

AUDIO (OUT/SORTIE) R/D L/G*2

Phono jack (2)

Rated output level: 327 mVrms

Load impedance: 47 kilohms

Output impedance: less than 10 kilohms

*1SLV-SE840B only

*2not available on SLV-SE640B and SE240B

General

Power requirements

220 – 240 V AC, 50 Hz

Power consumption

•SLV-SE240B

15 W

1.2 W (VEILLE ECO is set to ECO2,

minimum)

•SLV-SE640B

17 W

1.2 W (VEILLE ECO is set to ECO2,

minimum)

• SLV-SE840B, SE740B

17 W

1.3 W (VEILLE ECO is set to ECO2,

minimum)

continued

80 Specifications

Operating temperature

5°C to 40°C

Storage temperature

–20°C to 60°C

Dimensions including projecting parts and

controls (w/h/d)

Approx. 360 × 95 × 255 mm

(SLV-SE240B)

Approx. 430 × 96 × 255 mm

(SLV-SE840B, SE740B and SE640B)

Mass

Approx. 2.8 kg (SLV-SE240B)

Approx. 3.1 kg (SLV-SE840B, SE740B

and SE640B)

Supplied accessories

Remote commander (1)

R6 (size AA) batteries (2)

Aerial cable (1)

PERITEL cable (1)

Design and specifications are subject to

change without notice.

81

Index

Index

A

Adjusting

picture 67

tracking 67

Aerial hookup 16

Audio dubbing 74

Audio monitor 63

Audio track 64

Auto Clock Set 19

Auto Set Up 19

C

Canal Plus 33

Changing the programme

position 28

Changing the station name 31

Cleaning the video heads 75

Clock setting 21

Colour system

compatible colour systems

2

setting 37

Connecting

the VCR and your TV 16

to a stereo system 18, 71

to a TV with a PERITEL

connector 16

to digital tuner 18

to satellite tuner 18

Counter 37

Country selection 19

D

Demonstration 47

Dial Timer 43

Disabling the programme

positions 29

Dubbing. see Editing

E

Editing 71

H

Hi-fi audio track 64

I

Index scan 65

Index search 65

L

Language selection 24

LP mode 39

M

Manual fine tuning 27

Monaural 63

N

NICAM broadcasts 62

Normal audio track 64

O

Optional setting 69

P

PDC (Programme Delivery

Control) 50

PERITEL connection 16

Playback 36

at various speeds 55

selecting the sound 63

slow motion 55

Power save 68

Preset download 23

Presetting channels 25

R

Recording 39

bilingual programmes 62

duration time 57

saving 41

stereo programmes 62

timer setting 52

using the Dial Timer 43

using the ShowView

system 48

what you are watching on

the TV 42

while watching another

programme 40

S

Safety tab 41

Searching

at various speeds 55

using the index function 65

ShowView

recording 48

Smart trilogic 67

SMARTLINK

NexTView Download 17

One Touch Menu 17

One Touch Play 17, 38

One Touch Timer 17

TV Direct Rec 17, 42

SP mode 39

Stereo 62

Synchronized Recording 59

T

Timer setting 52

cancelling 60

changing 60

checking 60

daily/weekly recording 50,

53

using the Dial Timer 43

using the ShowView

system 48

V

VPS (Video Programme

System) 50

W

Wide screen format 69

Z

ZWEITON broadcasts 62

AC68-02164L

Sony Corporation Printed in Indonesia

Quick Start Guide

1Connecting the VCR

1...Connect the aerial to of the VCR.

2...Connect and the aerial input of your

TV using the supplied aerial cable.

3...For better picture and sound, connect

LIGNE-1 (EURO AV) to your TV using

a PERITEL cable.

4...Connect the mains lead to the mains.

2Using the Auto Set Up function

1...Turn on your TV and set it to the video

channel.

2...Connect the mains lead to the mains.

3...Press OK.

4... Press </, to select your country, then

press OK (not available on SLV-

SE640B).

When all of the receivable channels are

preset, the menu disappears from the TV

screen. You can rearrange the programme

position in any order (see “Changing/

disabling programme positions”).

3Setting the clock

1... Press MENU, then press M/m/</, to

highlight RÉGLAGE HORLOGE and

press OK.

2... Press M/m to set the hour, then press ,.

3... Press M/m to set the minutes. Set the

day, month, and year in sequence by

pressing , to select the item to be set,

and press M/m to select the digits, then

press OK.

4... Press MENU.

Now you can operate your VCR.

1

23

4

:Signal flow

LIGNE-1

(EURO AV)
