Network Camera
User’s Guide
Software Version 1.2
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
SNC-CH110/CH210
SNC-DH210/DH210T
4-194-204-12 (1)
© 2010 Sony Corporation
2Table of Contents
Table of Contents
Overview
Features .................................................................. 4
How to Use This User’s Guide .............................. 5
System Requirements ............................................ 5
Preparation
Assigning the IP Address to the Camera ............ 6

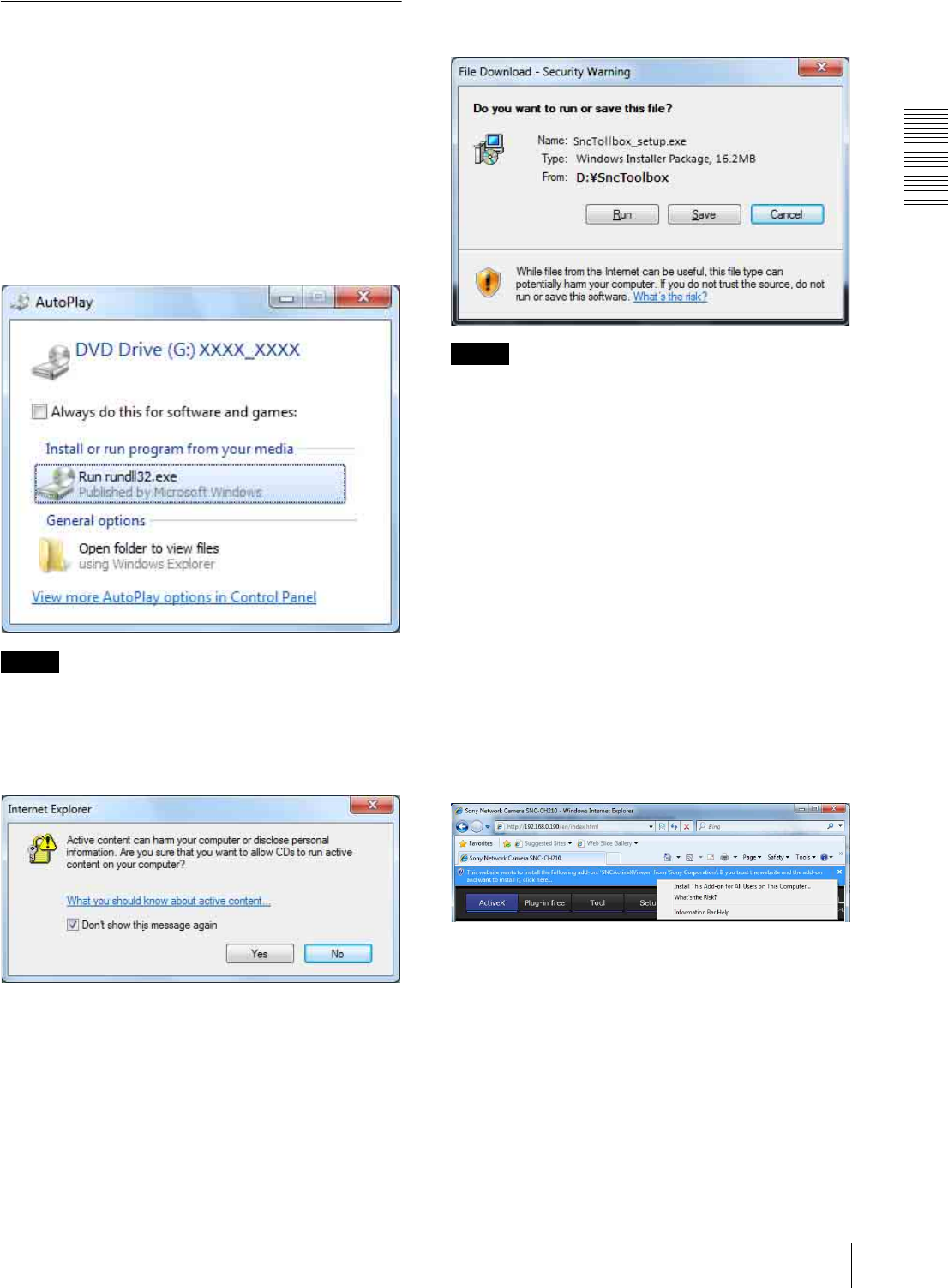

Assigning an IP address using SNC toolbox ..... 6

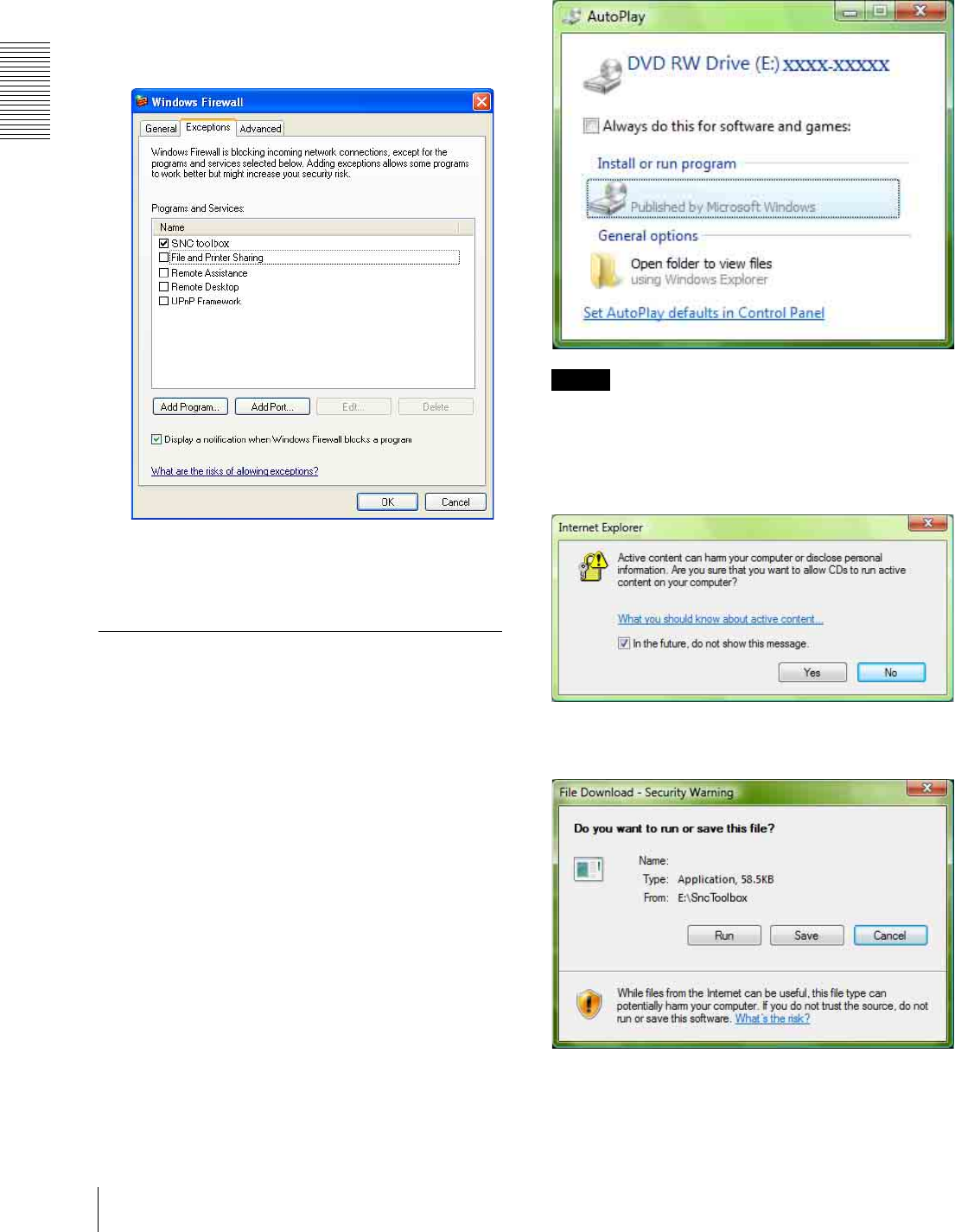

When using Windows XP Service Pack 2 or
later ................................................................... 8
When using Windows Vista ............................. 10
When using Windows 7 ................................... 13
Accessing the Camera Using the
Web Browser ........................................................ 15
Basic Configuration by the Administrator ....... 18
Operating the Camera
Administrator and User ...................................... 19
Logging in to the System ..................................... 20
Logging in as a user ......................................... 20
About Viewers .................................................. 20

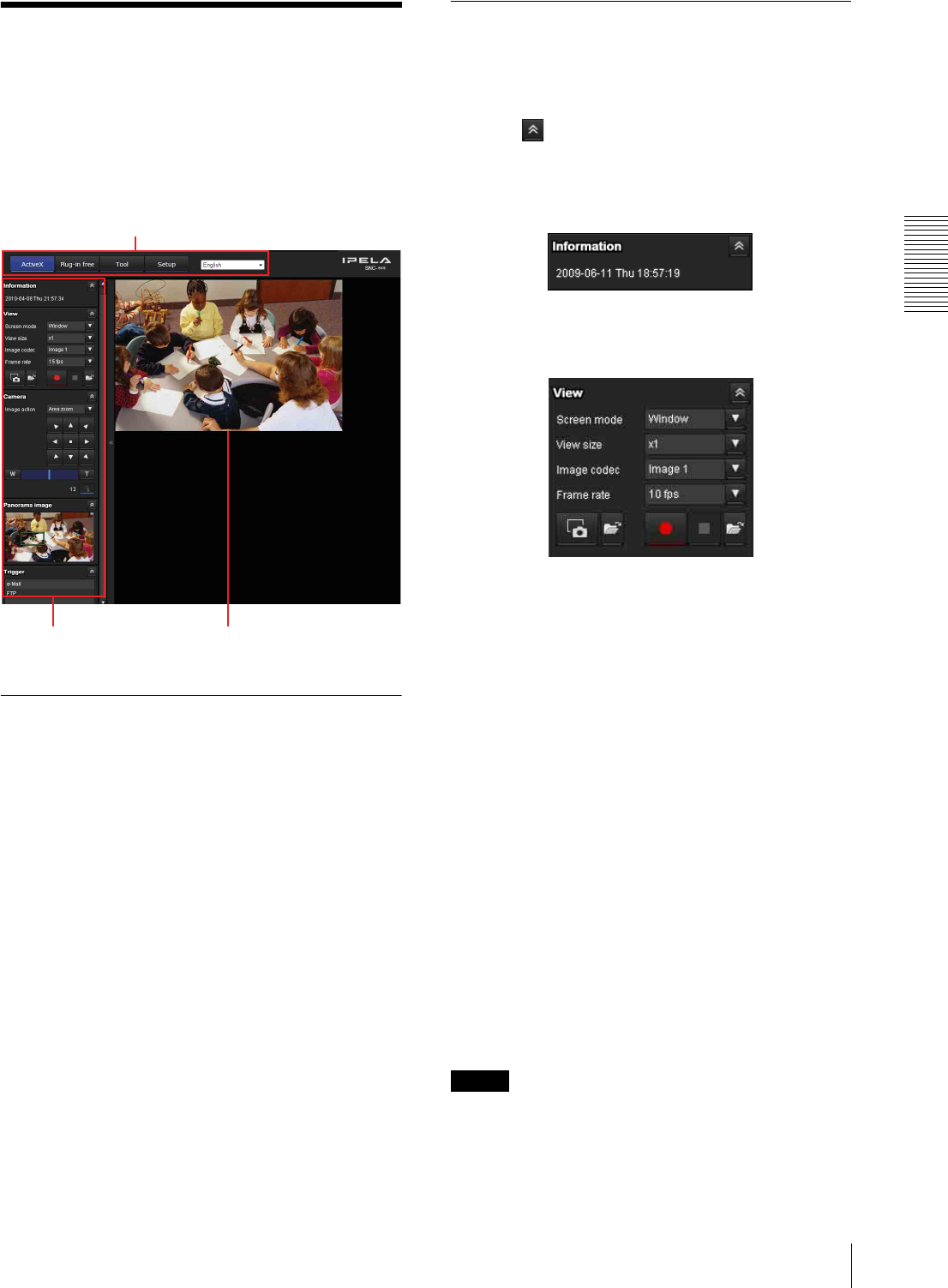

Configuration of Main Viewer ........................... 21
Main menu ....................................................... 21

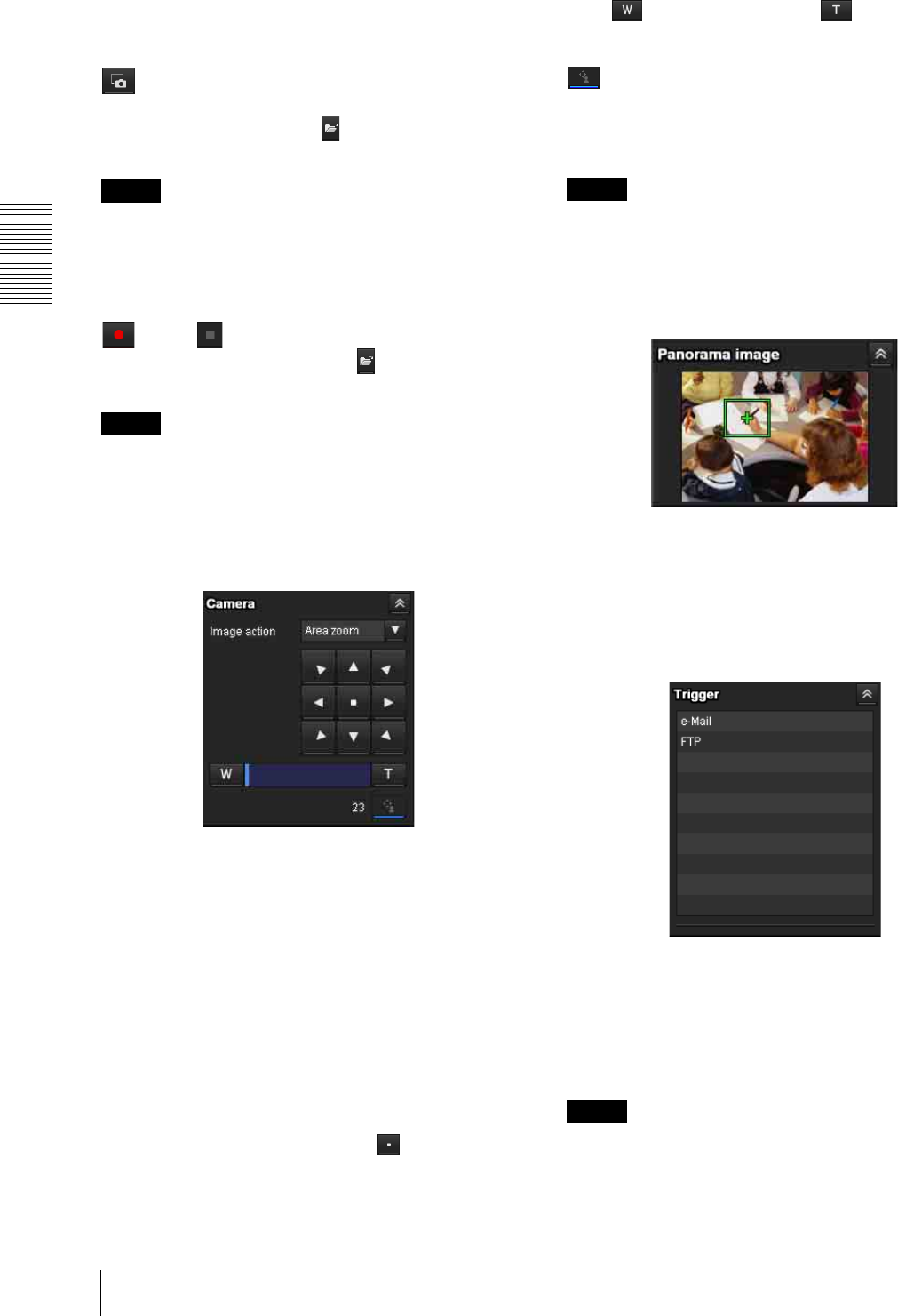

Control panel section ....................................... 21
Monitor image .................................................. 23
Plug-in free viewer ........................................... 23
Using SolidPTZ function ................................. 24

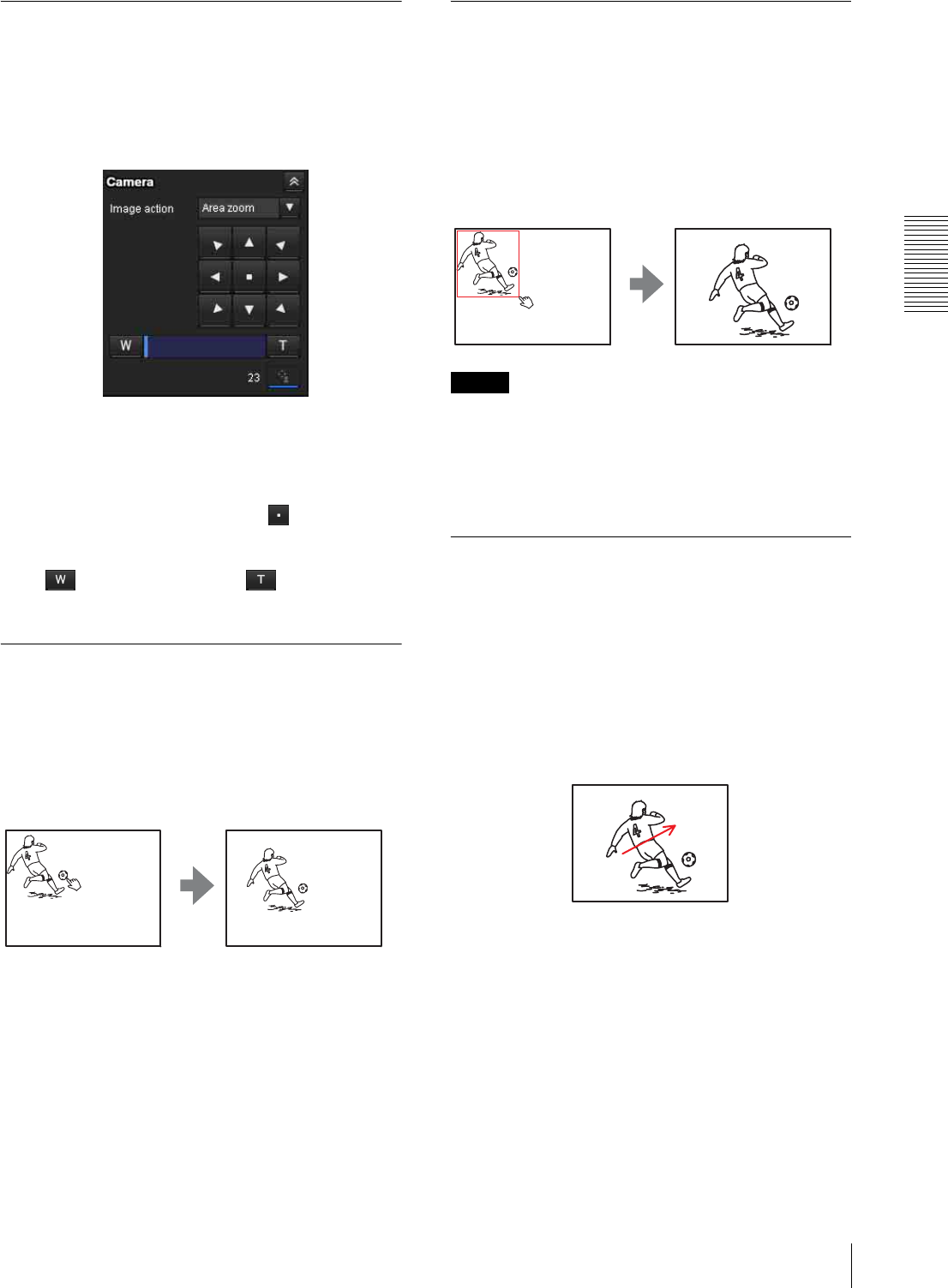

Controlling via the control panel (Operation
common to Area zoom mode and Vector
dragging mode) .............................................. 25
Panning and tilting by clicking the monitor
image (Area zoom mode only) ....................... 25
Panning, tilting and zooming by specifying the
area (Area zoom mode only) .......................... 25
Panning and tilting by dragging the screen
(Vector dragging mode only) ......................... 25
Moving the camera to a preset position
(Common operations in Area zoom and
Vector dragging modes) ................................. 26
Using pan/tilt/zoom operations with the displayed
control bar (PTZ Control bar only) ................ 26
Controlling the Camera on a Full Image .......... 26
Using the Trigger Button ................................... 27
Sending a monitor image via e-mail ................ 27
Sending a monitor image to an FTP server ...... 27
Switching TCP/UDP Transmission Mode ......... 27
Using the System Utility ......................................28
SNC viewer .......................................................28
SNC Desktop viewer ........................................30
Administrating the Camera

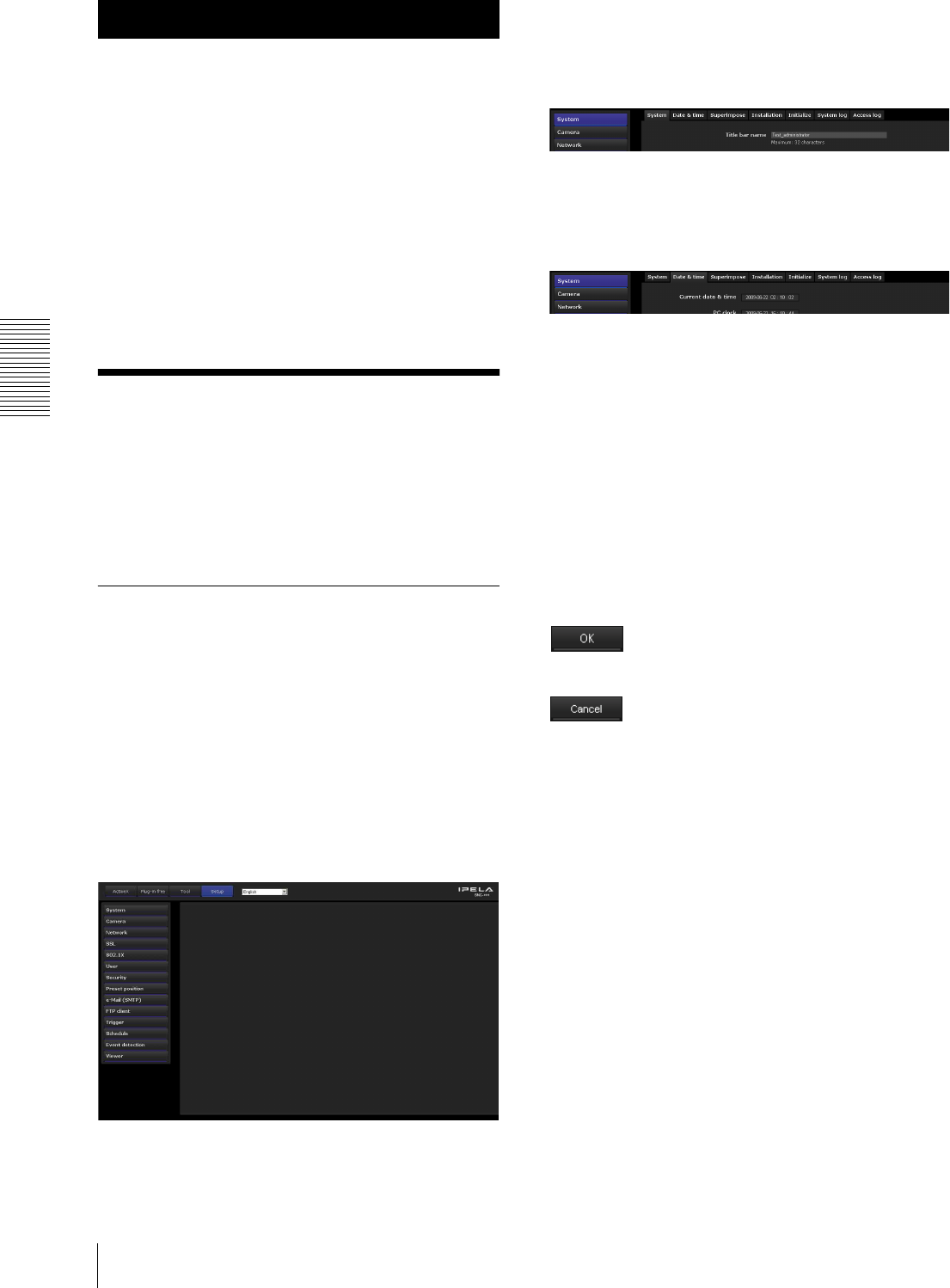

Basic Operations of the Administrator Menu ...32
How to set up the Administrator menu .............32
Configuration of the Administrator menu ........33
Configuring the System — System Menu ..........34
System Tab ........................................................34

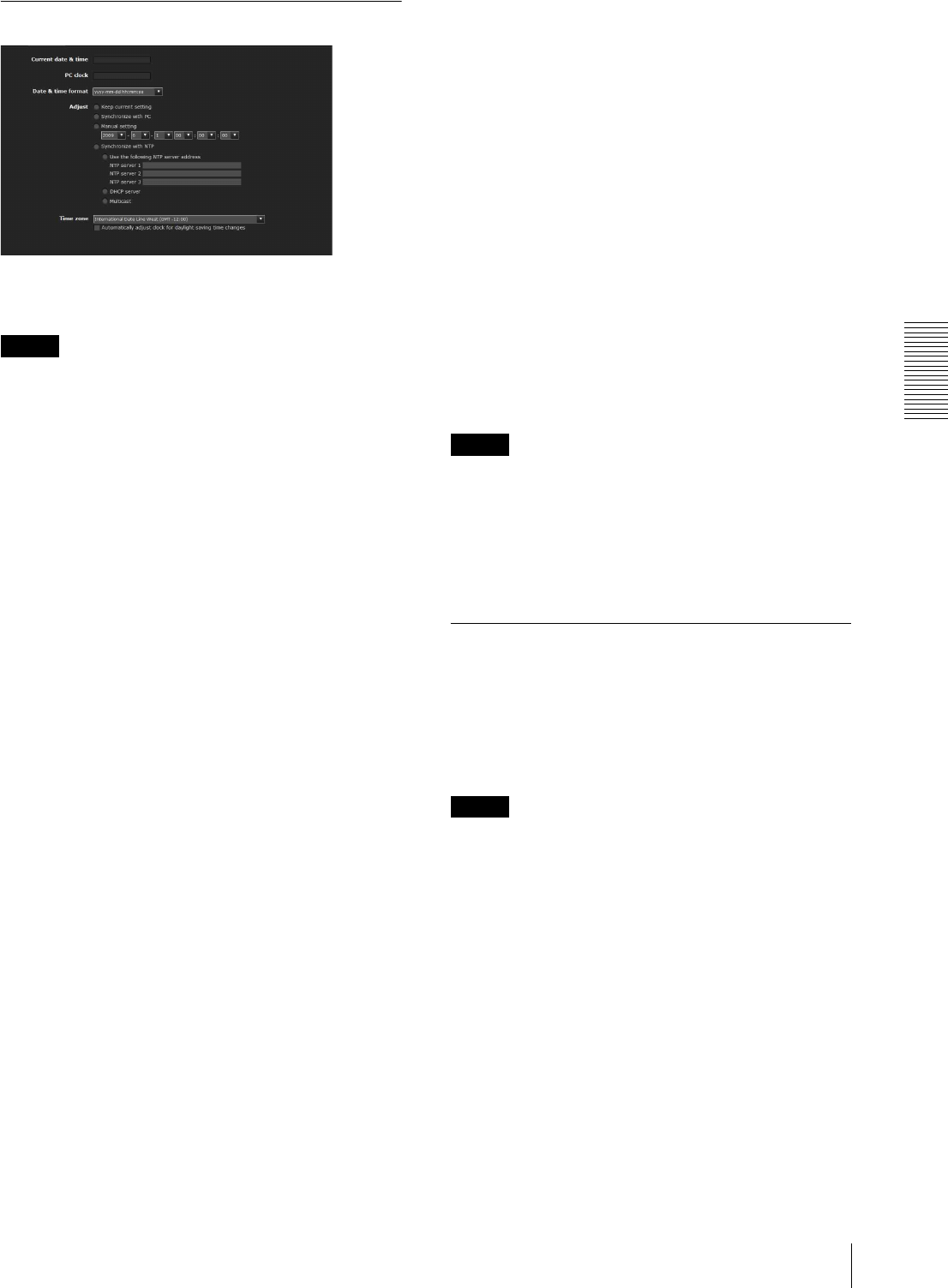

Date & time Tab ................................................35

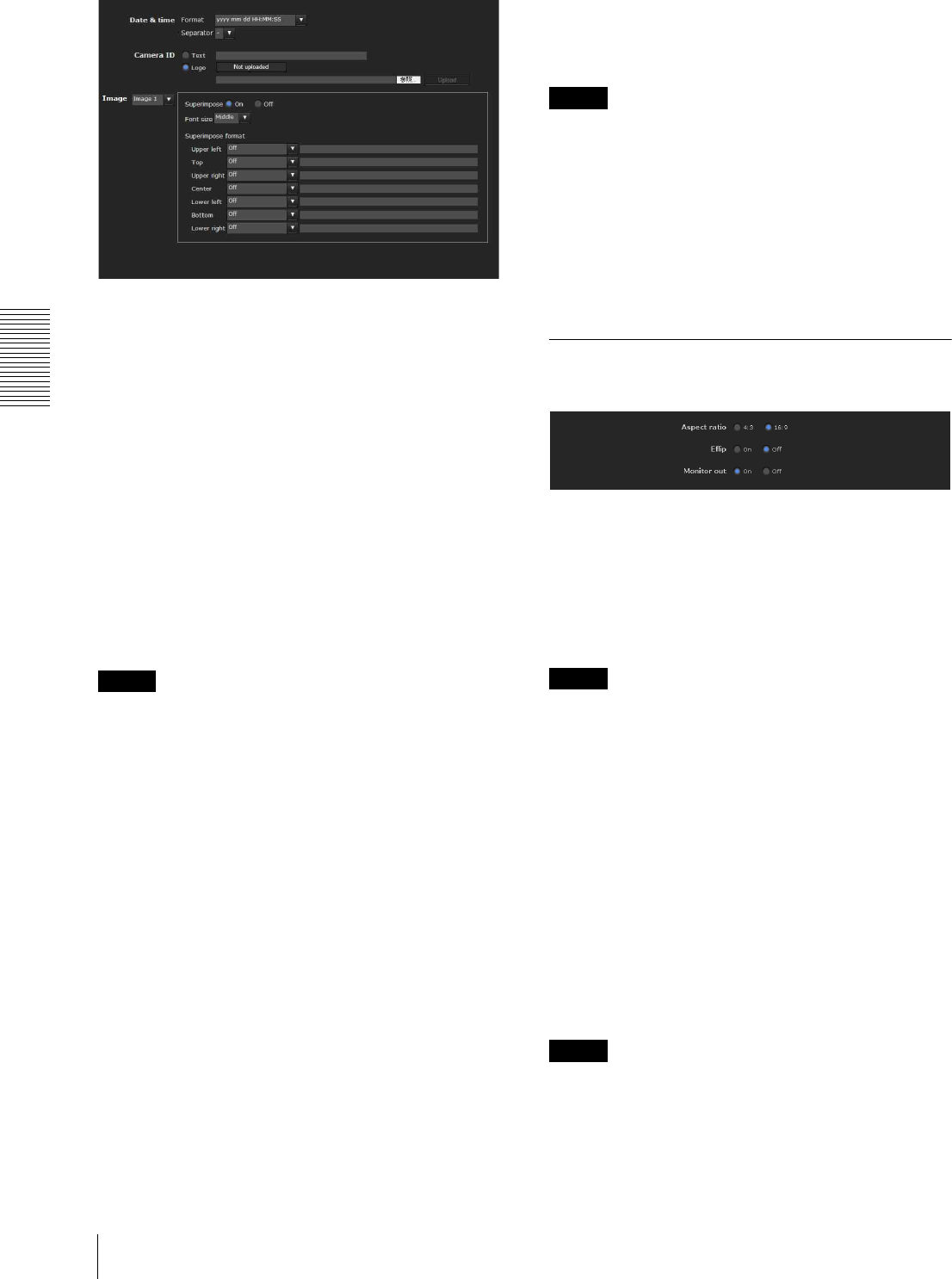

Superimpose Tab ..............................................35
Installation Tab .................................................36

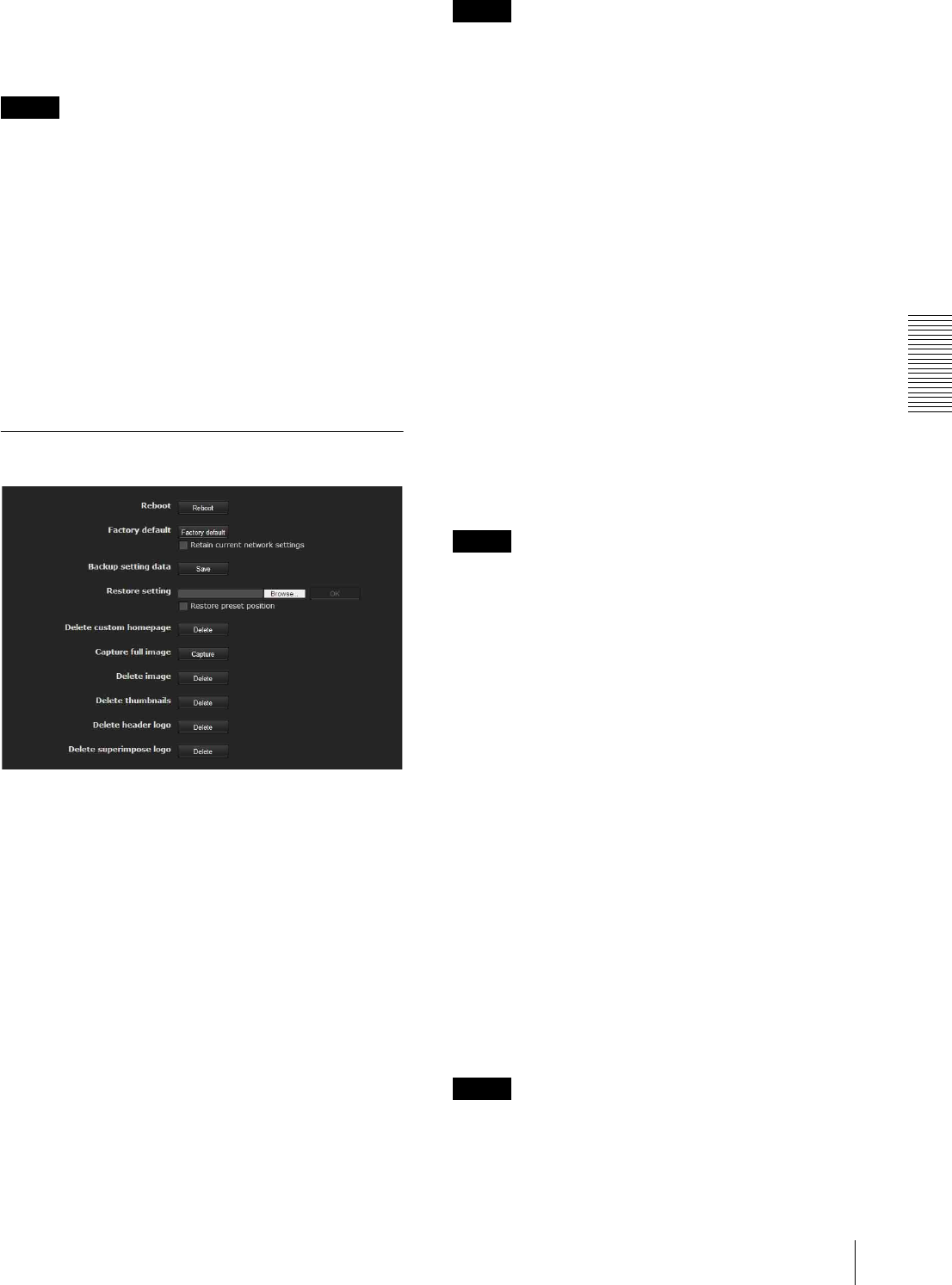

Initialize Tab .....................................................37
System log Tab .................................................38
Access log Tab ..................................................38
Setting the Camera Image — Camera Menu ....38
Picture Tab ........................................................38
Day/Night Tab ..................................................40
Video codec Tab ...............................................40
Streaming Tab ...................................................43
Configuring the Network — Network Menu .....44
Network Tab .....................................................44
QoS Tab ............................................................45
Dynamic IP address notification Tab
— Notifying the IP Address ...........................47
Setting the SSL function — SSL Menu ..............49
Common tab .....................................................49

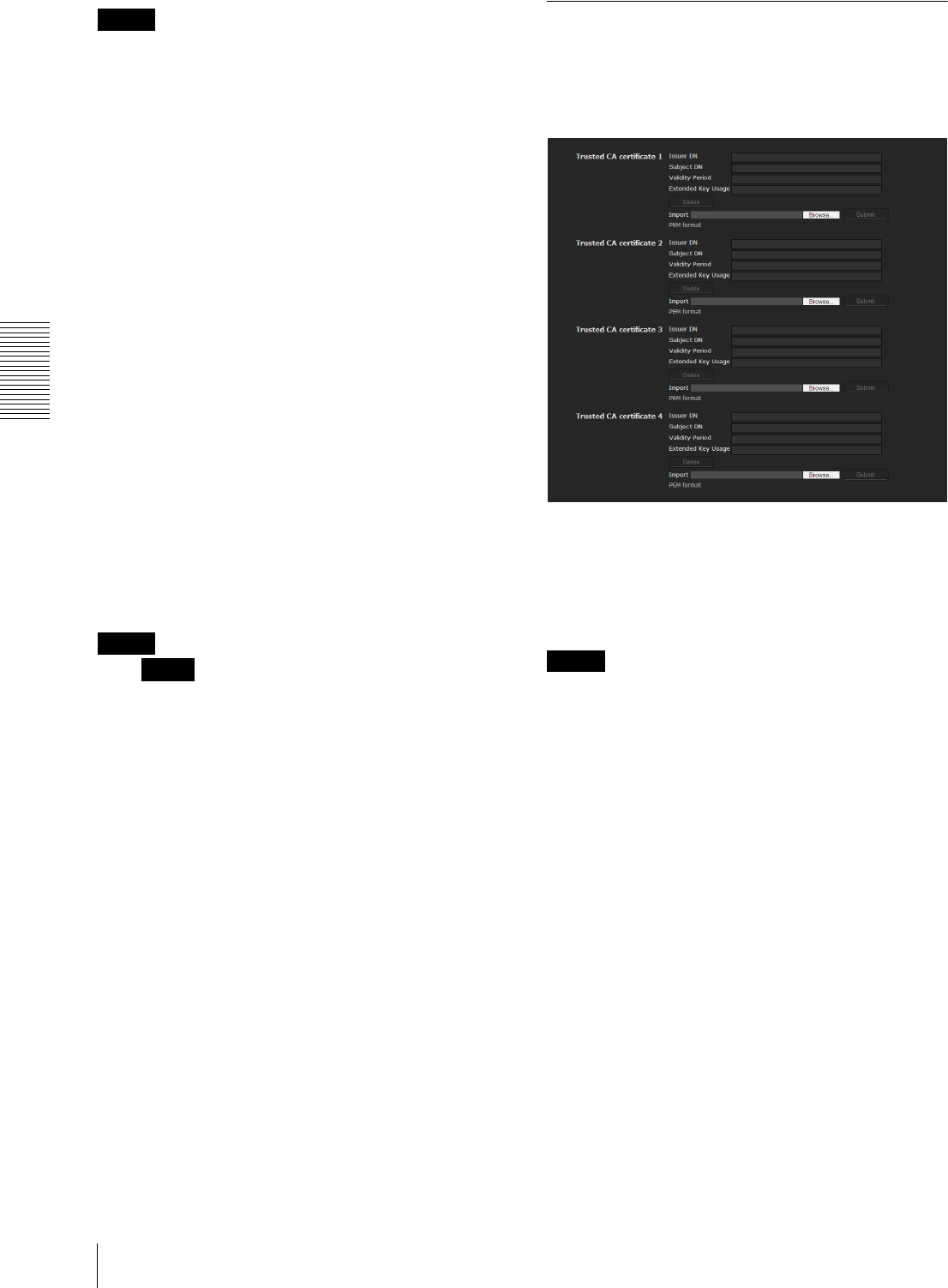

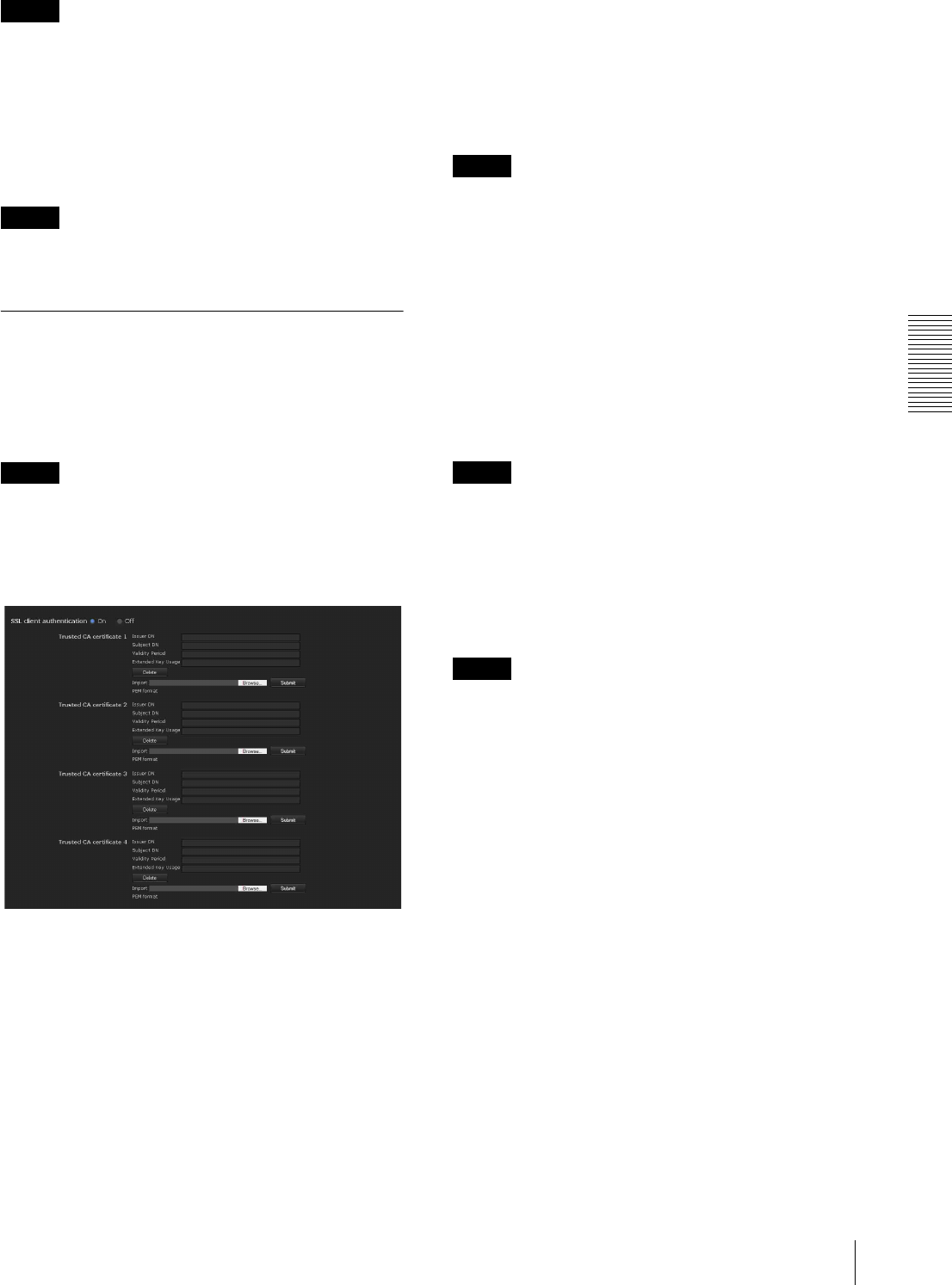

CA certificate tab — Adding the CA certificate
for client authentication ..................................51
How to install the CA certificate ......................52
To remove an installed CA certificate ..............53
Using the 802.1X Authentication Function
— 802.1X Menu ....................................................54
System configuration of 802.1X network ........54
Common Tab — Basic setting of 802.1X
authentication function ...................................54

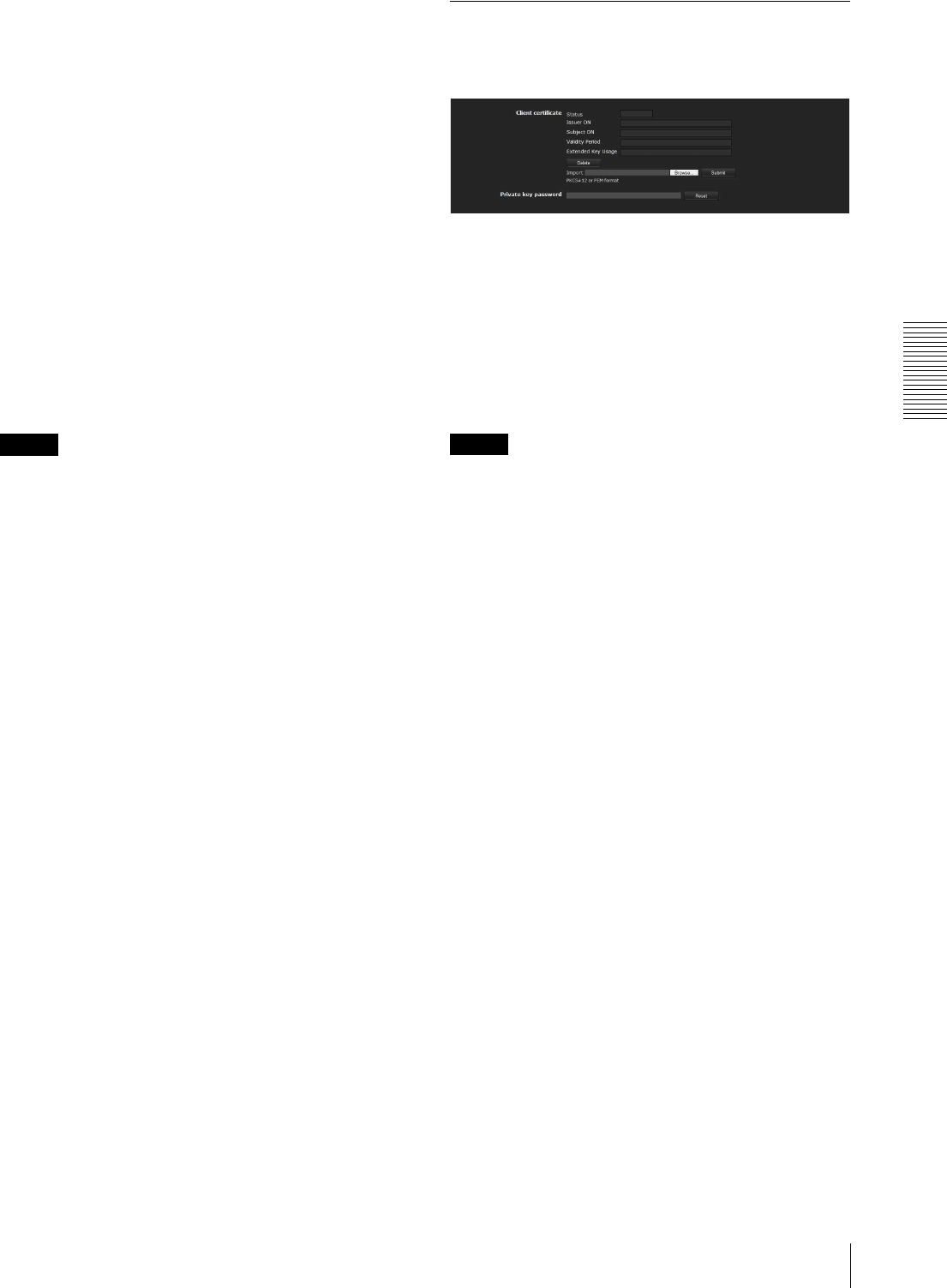

Client certificate Tab .........................................55
CA certificate Tab .............................................56
Setting the 802.1X authentication function
— Example of Windows Server 2003 ............57
Setting the User — User Menu ...........................60
Setting the Security — Security Menu ...............61
Saving the Camera Position and Action
— Preset position Menu ......................................61
Position Tab — Saving pan/tilt/zoom
position ...........................................................61
Preset tour Tab — Setting a position tour .........63
Sending an Image via E-mail — e-Mail (SMTP)
Menu .....................................................................64
Table of Contents 3

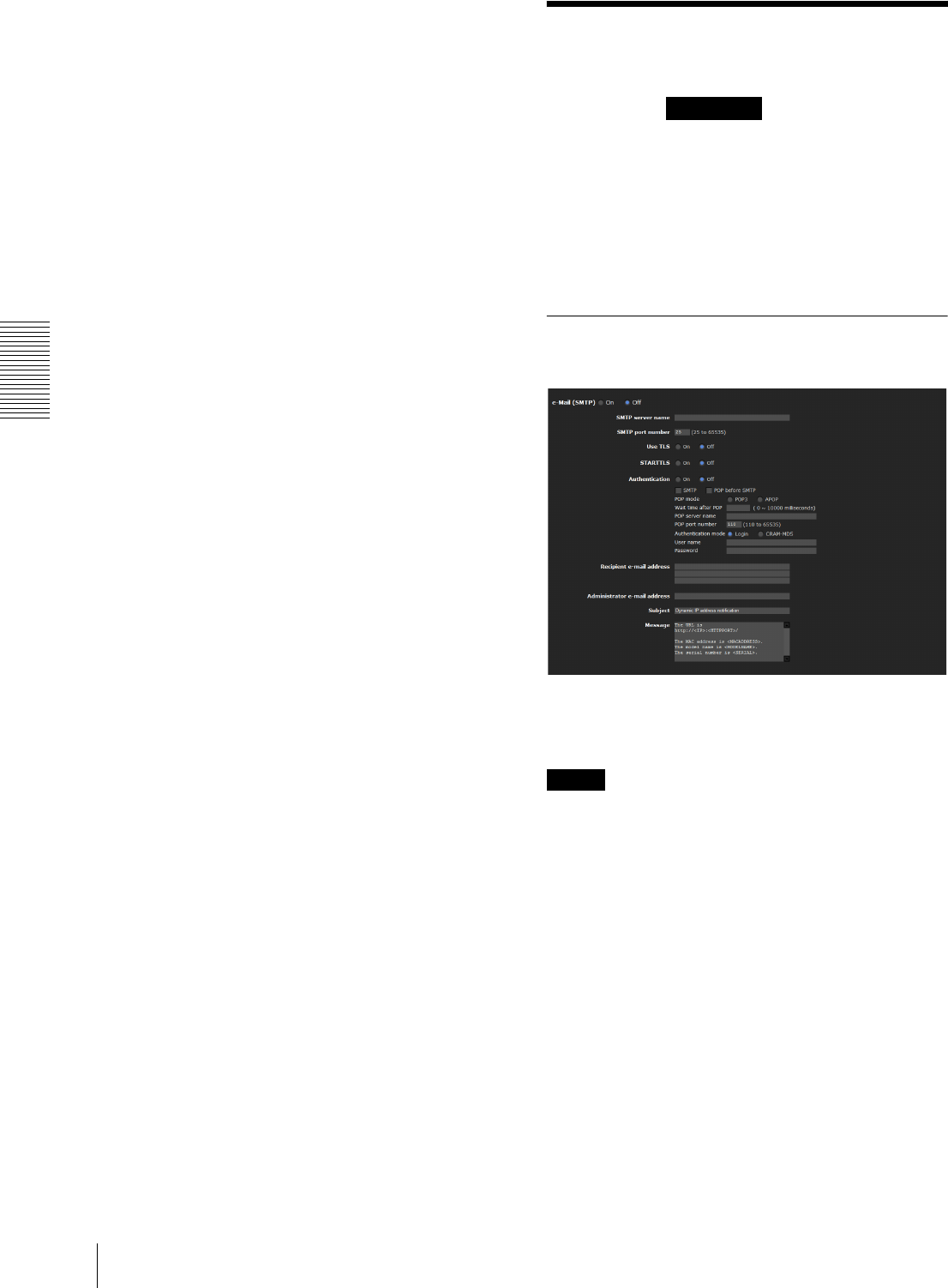

Common Tab — Setting the e-Mail (SMTP)
Function .......................................................... 64
Alarm sending Tab — Setting the e-mail sending
mode when detecting the alarm ...................... 66
Periodical sending Tab — Setting the periodical
e-mail sending mode ...................................... 67
Sending Images to FTP Server — FTP Client
Menu ..................................................................... 68

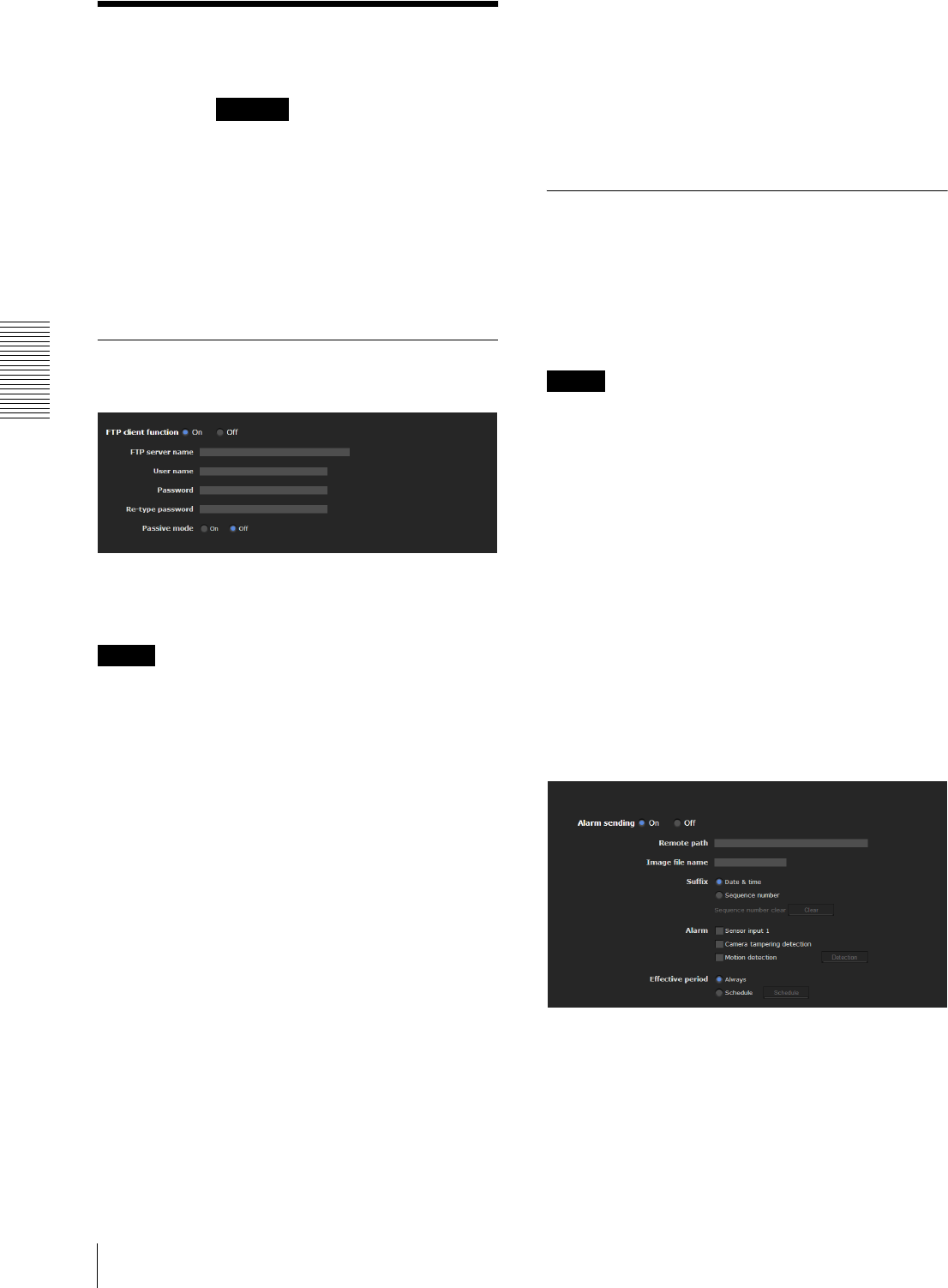

Common Tab — Setting the FTP client
function .......................................................... 68
Alarm sending Tab — Setting the FTP client
action when detecting the alarm ..................... 68

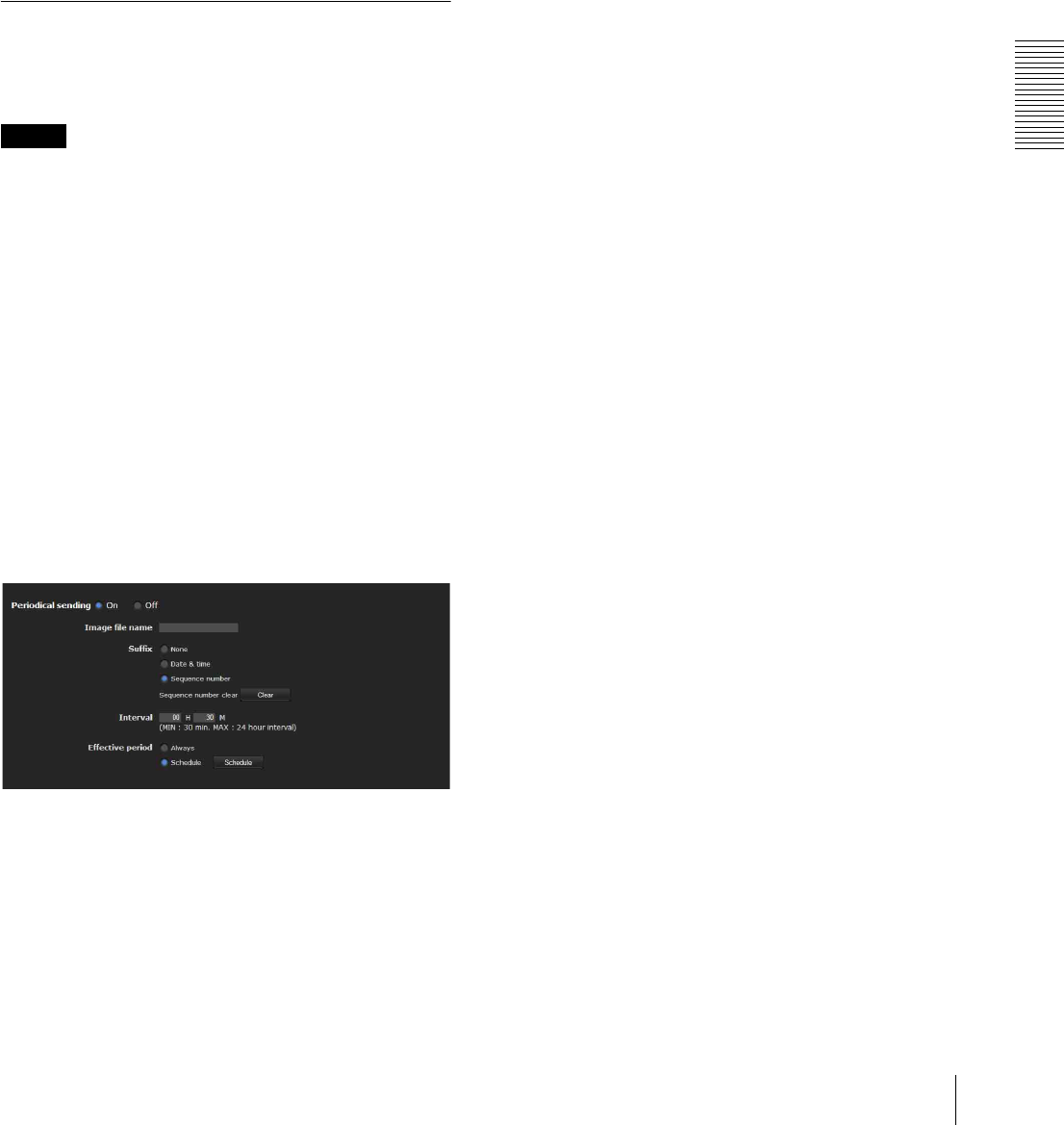

Periodical sending Tab — Setting the periodical
FTP client activity .......................................... 69
Setting the Operations from the Viewer
— Trigger Menu .................................................. 71
Setting the Schedule — Schedule Menu ............ 72
Setting the Sensor input/Camera tampering
detection/Motion detection
— Event detection Menu ..................................... 73
Sensor input tab — Set the sensor input .......... 73
Camera tampering detection tab — Set the
camera tampering detection ........................... 73
Motion detection tab — Set the motion
detection ......................................................... 73

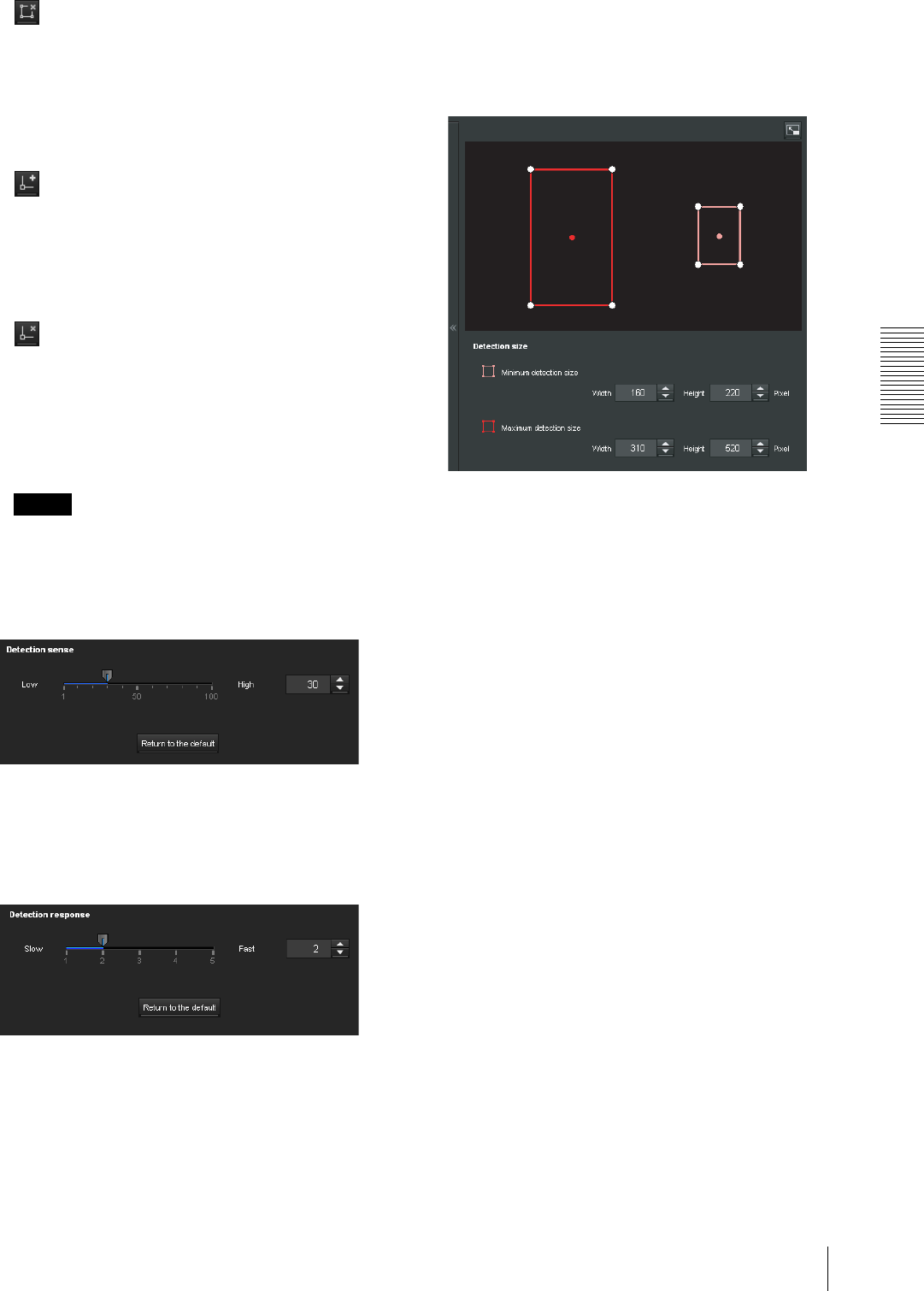

Setting items for motion detection ................... 74
Configuring the Viewer — Viewer Menu .......... 76

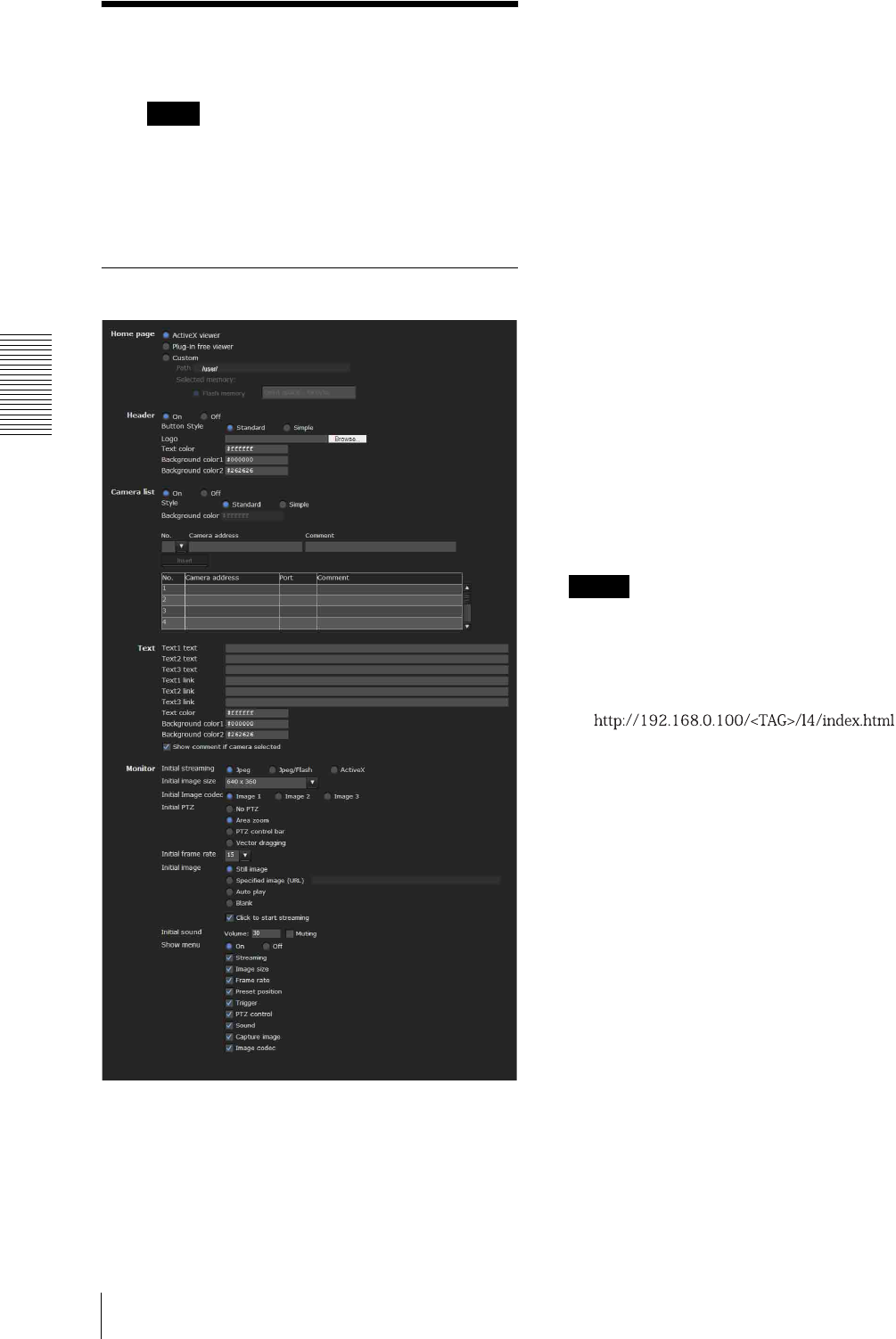

Layout tab ......................................................... 76

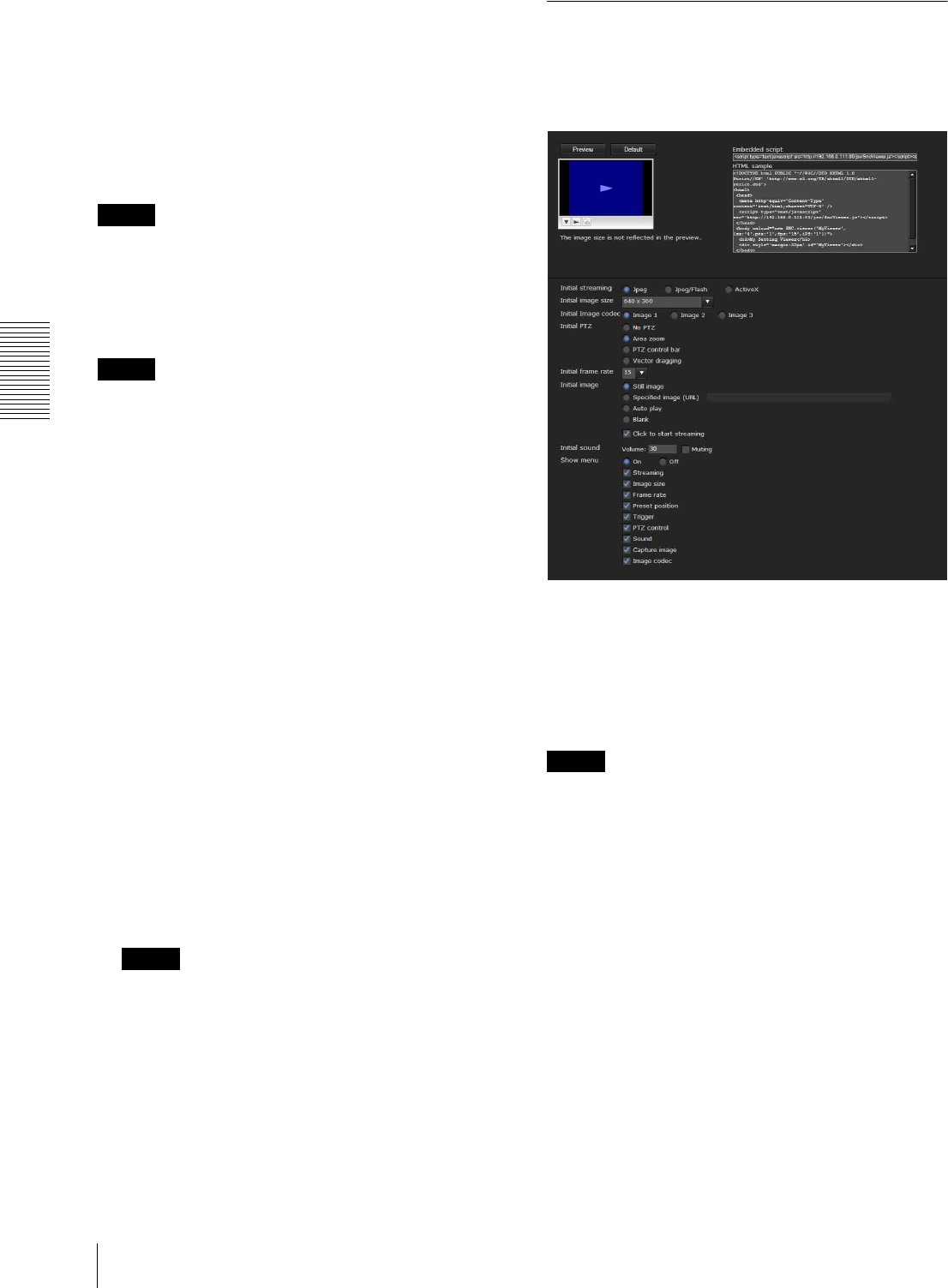

HTML output tab ............................................. 78
Others
Using the SNC toolbox ........................................ 79
Starting SNC toolbox ....................................... 79

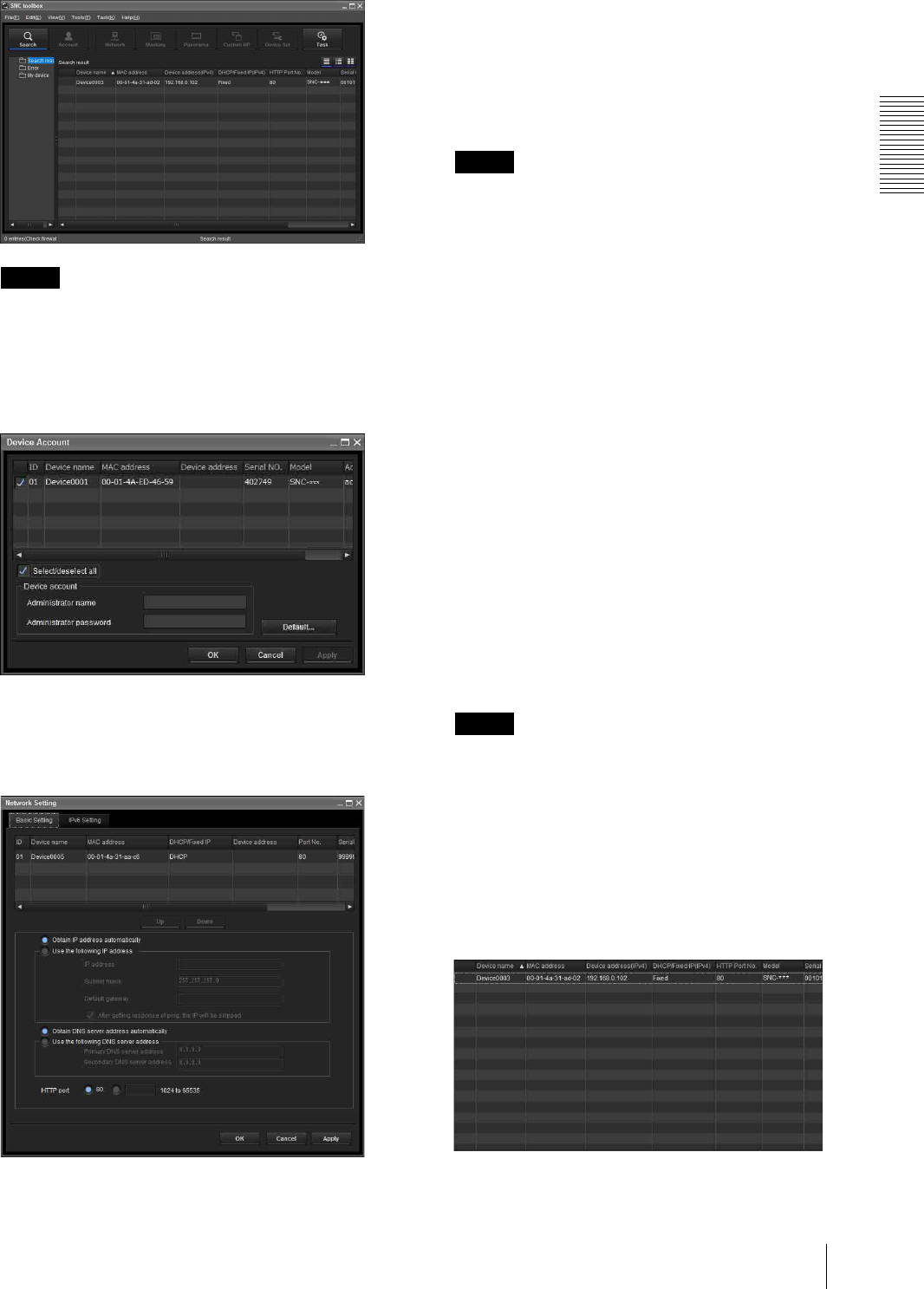

How to use SNC toolbox .................................. 79

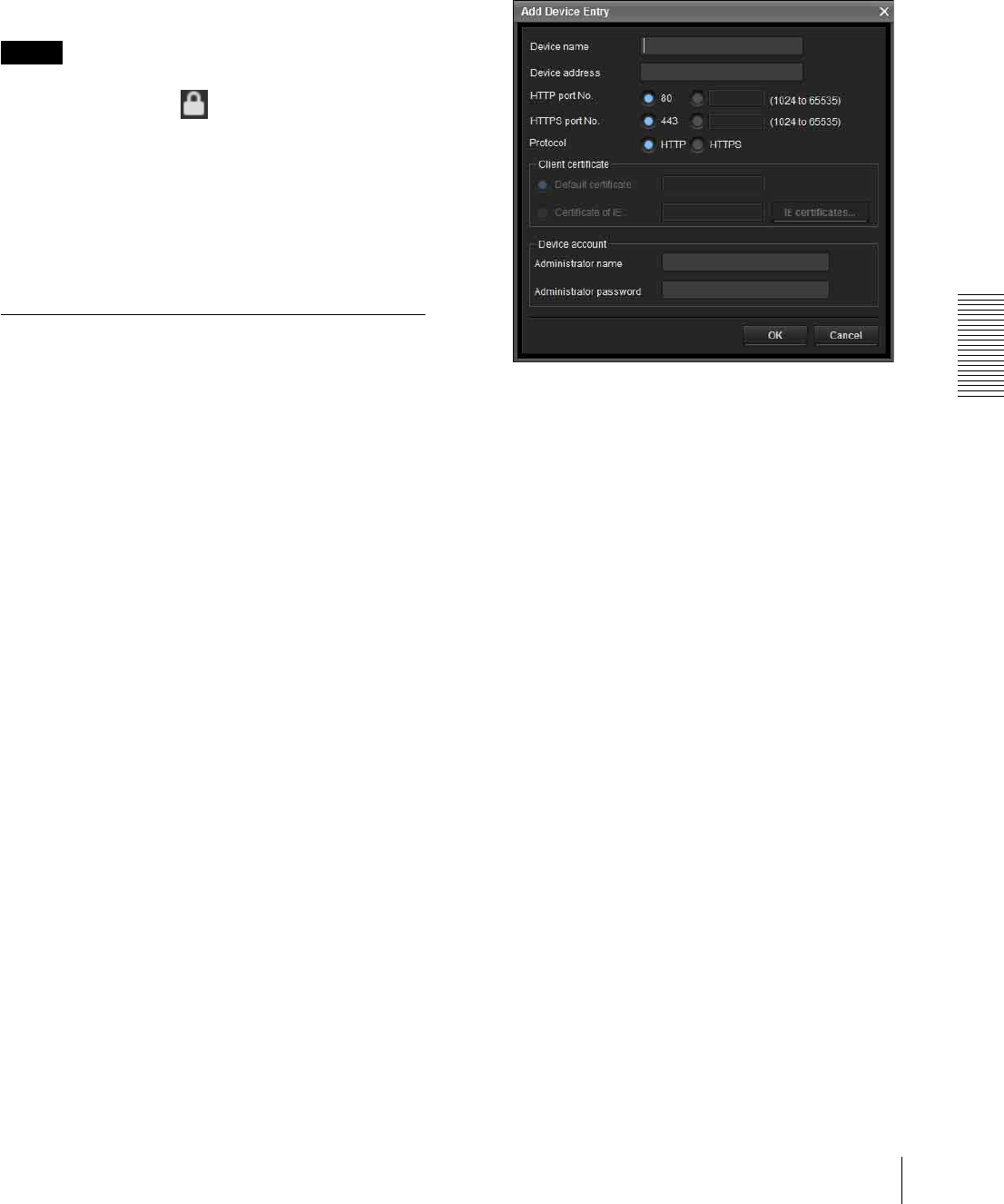

Registering in My device ................................. 81
Changing the Device list display method ......... 82

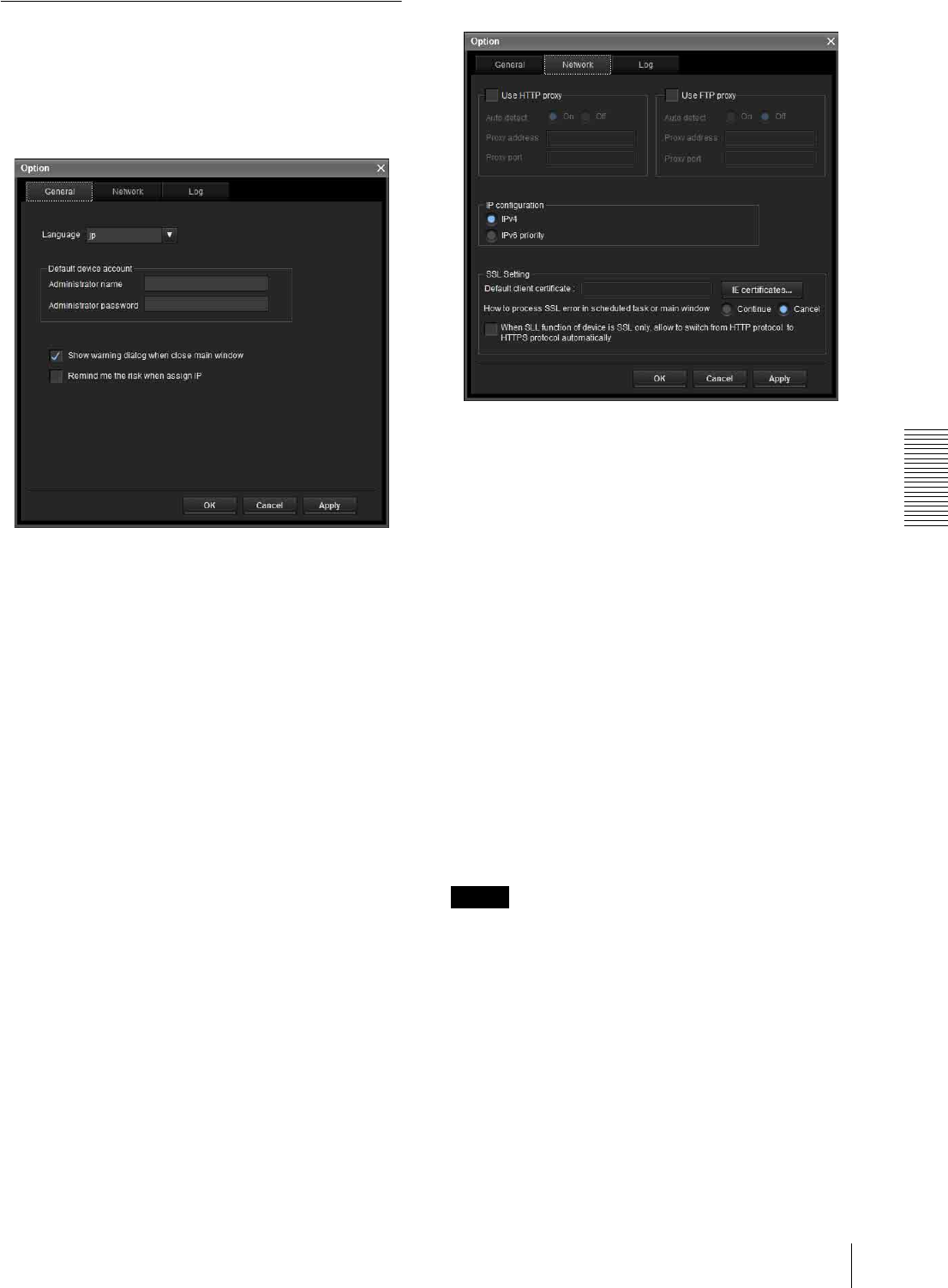

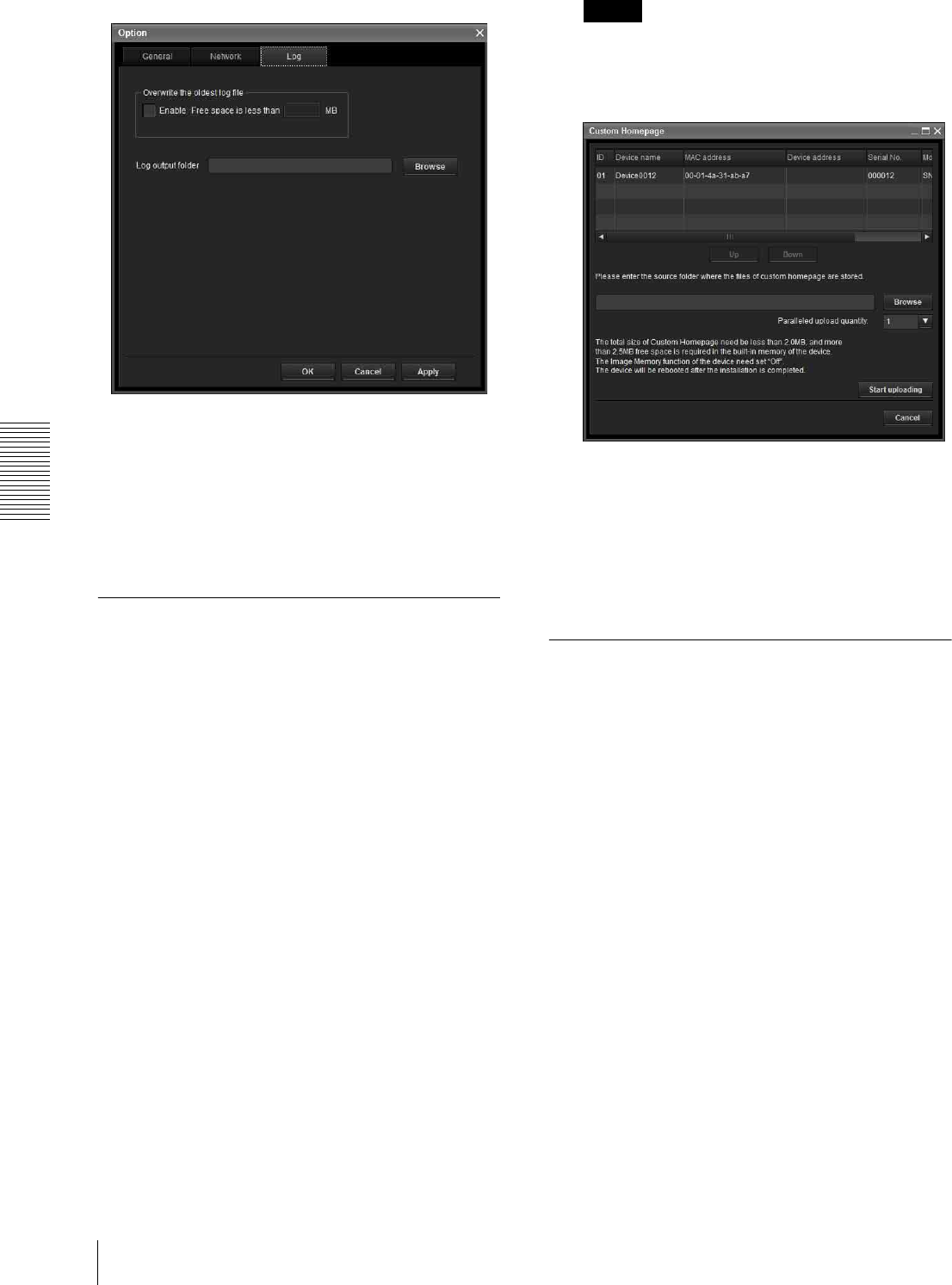

Setting SNC toolbox options ............................ 83
Using the Custom Homepage — Setting the
customized homepage .................................... 84
Using the Firmware Upgrade ........................... 84

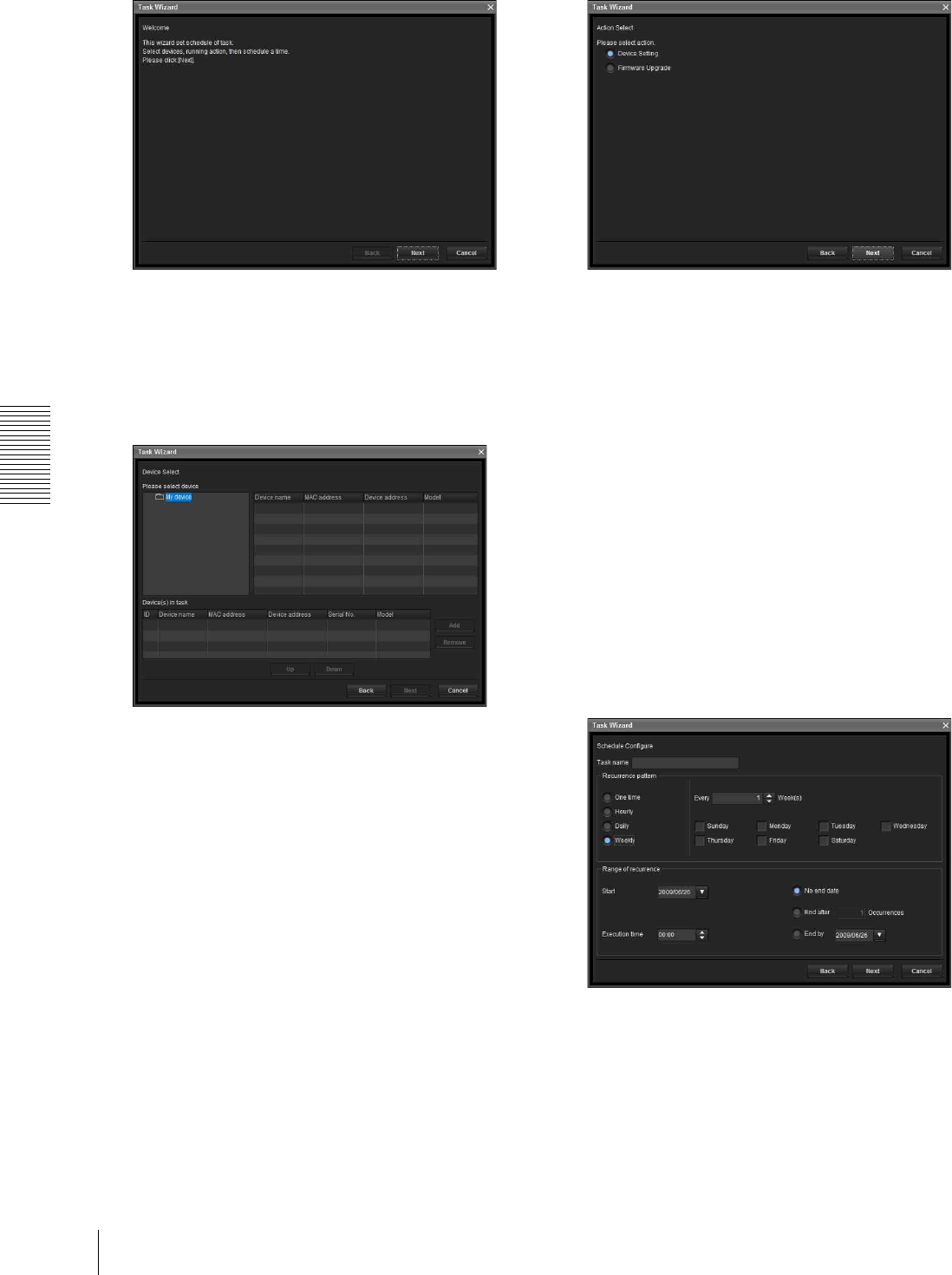

Using the Schedule Task .................................. 85
Configuring the device setting ......................... 87
Camera restart and initialization ...................... 88
Assigning the IP Address to the Camera Using
ARP Commands .................................................. 89

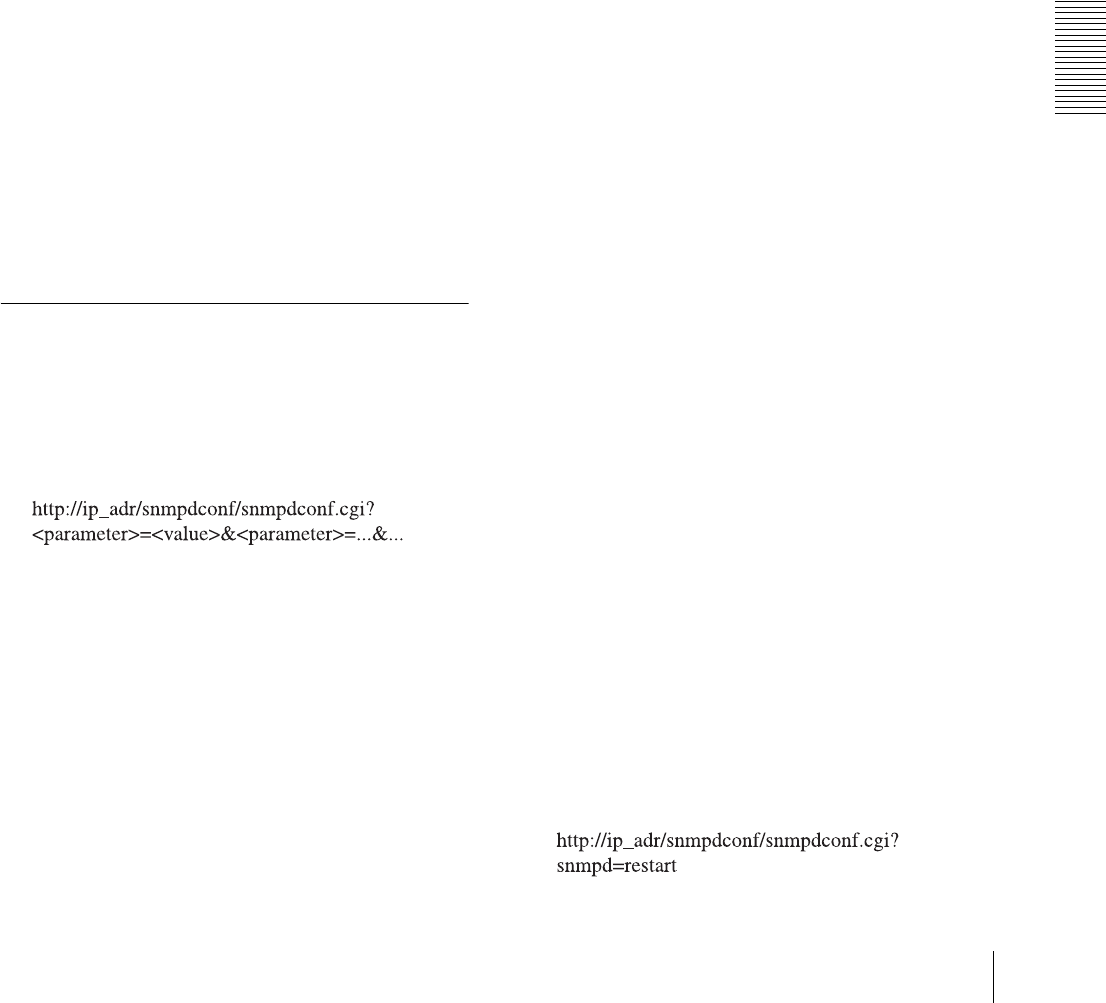

Using the SNMP ................................................... 90
1. Inquiry Commands ....................................... 90
2. Setting Commands ....................................... 91
Glossary ................................................................ 92
Index ..................................................................... 95
Overview
Features
4
Overview
Features
High quality streaming, maximum image size
(2048 × 1536 (SNC-CH210/DH210/DH210T)/
1280 × 960 (SNC-CH110)).
High-quality HD (720P) live images from camera can
be monitored at a maximum frame rate of 30 fps.
Exmor CMOS sensor for high quality streamed
images. (SNC-CH210/DH210/DH210T)
Dual streaming for transmission of images with
different angles of view. (Stream Squared function)
Backlight compensation function enables clearer
images for streaming in a bright environment.
NR enables clearer images for streaming in the low
lightness environment.
Three video compression modes (video codecs)
JPEG/MPEG4/H.264 are supported.
Single codec mode and dual codec mode are available.
Motion detection, camera tampering detection and
alarm functions.
Up to 5 users can view images from one camera at the
same time.
Date/time can be superimposed on images.
PoE (Power over Ethernet) compliant.
NOTICE TO USERS
© 2010 Sony Corporation. All rights reserved. This
manual or the software described herein, in whole or in
part, may not be reproduced, translated or reduced to
any machine readable form without prior written
approval from Sony Corporation.
SONY CORPORATION PROVIDES NO
WARRANTY WITH REGARD TO THIS MANUAL,
THE SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN AND HEREBY EXPRESSLY
DISCLAIMS ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE WITH REGARD TO THIS
MANUAL, THE SOFTWARE OR SUCH OTHER
INFORMATION. IN NO EVENT SHALL SONY
CORPORATION BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES, WHETHER BASED ON TORT,
CONTRACT, OR OTHERWISE, ARISING OUT OF
OR IN CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
Sony Corporation reserves the right to make any
modification to this manual or the information
contained herein at any time without notice.
The software described herein may also be governed by
the terms of a separate user license agreement.
“IPELA” and are trademarks of
Sony Corporation.
is a trademark of Sony Corporation.
“Exmor” and are trademarks of Sony
Corporation.
Microsoft, Windows, Internet Explorer and
Microsoft DirectX are registered trademarks of
Microsoft Corporation in the United States and/or
other countries.
Java is a trademark of Sun Microsystems, Inc., in the
United States and other countries.
Intel and Pentium are registered trademarks of Intel
Corporation or its subsidiaries in the United States
and other countries.
Adobe, Adobe Reader and Adobe Flash are
trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
All other company and product names are trademarks
or registered trademarks of the respective companies or
their respective makers.
Overview
How to Use This User’s Guide / System Requirements 5
How to Use This User’s
Guide
This User’s Guide explains how to operate the Network
Camera from a computer.
The User’s Guide is designed to be read on the computer
display.
This section gives tips on making the most of the User’s
Guide-read it before you operate the camera.
Jumping to a related page
When you read the User’s Guide on the computer
display, you can click on a sentence to jump to a related
page.
Software display examples
Note that the displays shown in the User’s Guide are
explanatory examples. Some displays may be different
from the ones that appear in actual use.
Printing the User’s Guide
Depending on your system, certain displays or
illustrations in the User’s Guide, when printed out, may
differ from those that appear on your screen.
Installation Manual (printed matter)
The supplied Installation Manual describes the names
and functions of parts and controls of the Network
Camera, connection examples, how to set up the camera,
and precautions. Be sure to read the Installation Manual
beforehand.
System Requirements
The following computer environment is necessary for
the computer to display images and the controls of the
camera.
(June 2010)
CPU
Intel Core 2 Duo, 2 GHz or higher
Memory
1 GB or more
OS
Microsoft Windows XP, Windows Vista (32bit version
only), Windows 7 (32-bit version only)
Authorized editions:
Windows XP: Professional
Windows Vista: Ultimate, Business
Windows 7: Ultimate, Professional
Microsoft DirectX 9.0c or higher
Web Browser
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Display
SNC-CH210/SNC-DH210/SNC-DH210T:
1600 × 1200 pixels or higher
(2560 × 1600 pixels or higher is recommended)
SNC-CH110:
1600×1200 pixels or higher
Preparation
Assigning the IP Address to the Camera
6
Preparation
The Preparation section explains what the administrator
has to prepare for monitoring images after installation
and connection of the camera.
Assigning the IP
Address to the Camera
To connect the camera to a network, you need to assign
a new IP address to the camera when you install it for the
first time.
You can assign an IP address in two ways:
Using SNC toolbox stored in the supplied CD-ROM
(see this page)
Using the ARP (Address Resolution Protocol)
commands (see page 89)
This section explains how to assign an IP address to the
camera using the SNC toolbox and how to configure the
network.
Before starting, connect the camera, referring to
“Connecting the Camera to a Local Network” in the
supplied Installation Manual.
Consult the administrator of the network about the
assigned IP address.
Notes
SNC toolbox may not operate correctly if you use a
personal firewall or antivirus software in your
computer. In that case, disable the software or assign
an IP address to the camera using another method. For
example, see “Assigning the IP Address to the Camera
Using ARP Commands” on page 89.
If you are using Windows XP Service Pack 2 or later,
Windows Vista or Windows 7, disable the Windows
Firewall function; otherwise, SNC toolbox will not
operate correctly. For the setting, see “Configuring
Windows Firewall” in “When using Windows XP
Service Pack 2 or later” on page 9, “Configuring
Windows Firewall” in “When using Windows Vista”
on page 11, or “Configuring Windows Firewall” in
“When using Windows 7” on page 14.
Assigning an IP address using SNC
toolbox
1
Insert the CD-ROM in your CD-ROM drive.
A cover page appears automatically in your Web
browser.
If it does not appear automatically in the Web
browser, double-click the index.htm file on the
CD-ROM.
When you are using Windows Vista, the “Auto
play” pop-up may appear. For details, see
“Installing software” in “When using Windows
Vista” on page 10.
2
Click the Setup icon of SNC toolbox.
The “File Download” dialog opens.
When you are using Windows XP Service Pack 2 or
later, Windows Vista or Windows 7, a message
regarding the active contents may appear. For
details, see “Installing software” in “When using
Windows XP Service Pack 2 or later” on page 8,
“Installing software” in “When using Windows
Vista” on page 10, or “Installing software” in
“When using Windows 7” on page 13.
3
Click File Open.
Note
If you click Save on the “File Download” dialog,
you will not be able to perform set up correctly.
Delete the downloaded file, and click the Setup
icon again.
4
Install SNC toolbox on your computer using the
wizard.
If the Software License Agreement is displayed,
read it carefully and click Accept to continue with
the installation.
5
Start SNC toolbox.
When you are using Windows Vista, the message
“User Account Control – An unidentified program
wants access to your computer” may appear. In this
case, click “Allow”.
6
Click Search.
SNC toolbox detects the network cameras
connected to the local network and lists them.
Preparation
Assigning the IP Address to the Camera 7
Tip
The factory setting of the camera network is DHCP
mode.
7
Select a camera you want to assign an IP address
from the list and click Network.
The account settings screen is displayed.
8
Register the name and password of the
administrator and click OK.
The factory settings for both items are “admin”.
The Network Setting screen is displayed.
9
Set the IP address.
To obtain the IP address automatically from a
DHCP server:
Select Obtain an IP address automatically.
The IP address, Subnet mask and Default gateway
are assigned automatically.
Note
When you select Obtain an IP address
automatically, make sure that the DHCP server is
operating on the network.
To specify the IP address manually:
Select Use the following IP address, and type the
IP address, Subnet mask and Default gateway in the
relevant boxes.
10
Set the DNS server address.
To obtain the DNS server addresses
automatically:
Select Obtain DNS server address automatically.
To specify the DNS server addresses manually:
Select Use the following DNS server address, and
type the Primary DNS server address and
Secondary DNS server address in the relevant
boxes.
11
Set the HTTP port No.
Normally, select 80 for the HTTP port No. To use
another port number, type a port number between
1024 and 65535 in the text box.
Note
When using a port number other than 80, check
with the network administrator first.
12
Confirm that all items are correctly set, then click
OK.
If “Setting OK” is displayed, the IP address is
correctly assigned.
13
When setting is finished, to access the camera
directly, double-click the camera name in the list.
Preparation
Assigning the IP Address to the Camera
8

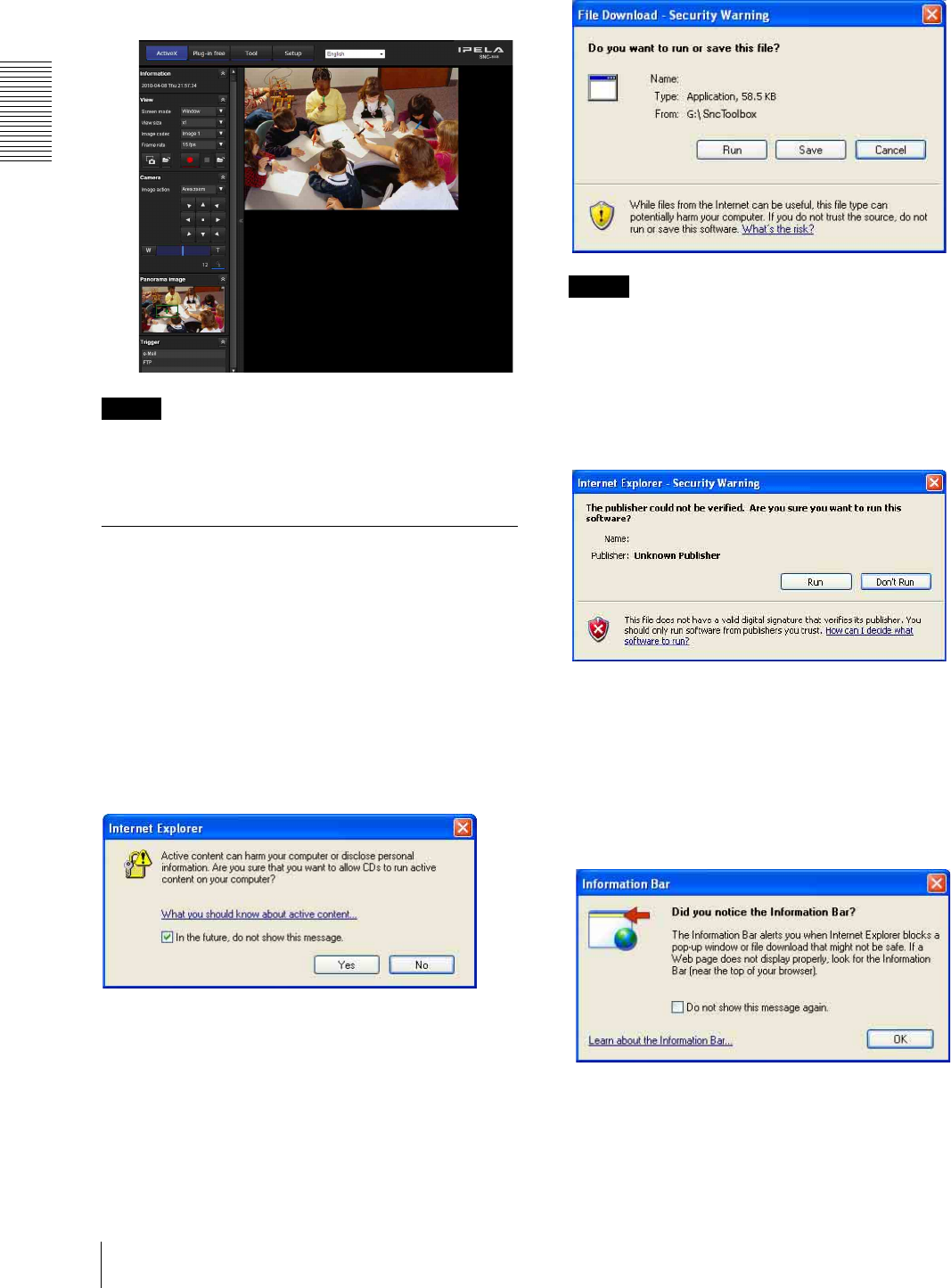

The viewer screen of the network camera is
displayed on the Web browser.
Display sample
Note
If the IP address is not set correctly, the viewer does not
appear after step 13. In that case, try to set the IP address
again.
When using Windows XP Service
Pack 2 or later
Installing software
A warning message regarding the active contents may
appear when you install software such as SNC toolbox
from CD-ROM. In this case, operate as follows:
Example: In case of SNC toolbox
If message “Internet Explorer” appears, click Ye s .
If the message “File Download – Security Warning”
appears, click Run.
Note
If you select Save in the “File Download – Security
Warning” dialog, you will not be able to perform the
installation correctly. Delete the downloaded file, and
click the Setup icon again.

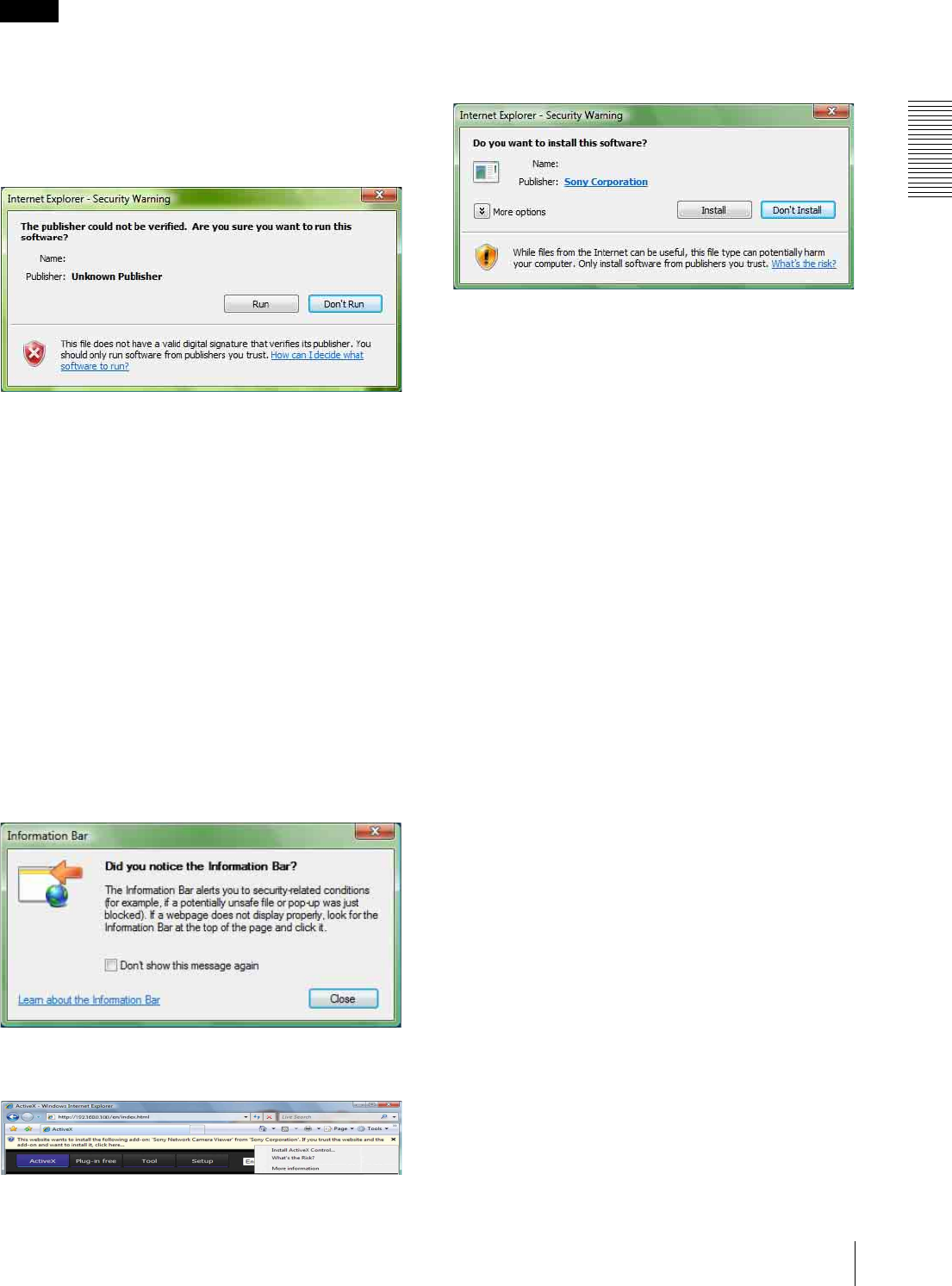

If the message “Internet Explorer – Security Warning
appears, click Run.
The software installation starts.
Installing ActiveX Control
During installation of ActiveX Control, the
“Information Bar” or “Security Warning” message may
appear. In this case, operate as follows:
If the message “Information Bar” appears, click OK.
Program name
Program name
Preparation
Assigning the IP Address to the Camera 9
If the information bar appears, click on the bar and select
Install ActiveX Control….
If “Internet Explorer – Security Warning” appears, click
Install.
The installation of ActiveX Control starts. When
installation is completed, the main viewer or the Motion
detection menu appears.
Configuring Windows Firewall
SNC toolbox may not operate correctly depending on
the configuration of Windows Firewall. (No cameras are
shown in the list even if they are detected.) In this case,
confirm the Windows Firewall configuration as follows:
Example: In case of SNC toolbox
To turn Windows Firewall off
1
Select Control Panel from the Start menu of
Windows.
2
Select Security Center of the working field.
3
Select Off in the Windows Firewall dialog.
The camera will be displayed in the list.
To turn Windows Firewall on
1
Select Control Panel from the Start menu of
Windows.
2
Select Security Center of the working field.
3
Select Exceptions in the Windows Firewall dialog.
4
Click Add Program….
Program name
Preparation
Assigning the IP Address to the Camera
10
5
In the Add Program dialog, select SNC toolbox and
click OK.
SNC toolbox is added to the Programs and Services
list.
6
Click OK.
When the above procedure is completed, the
camera connected in the local network are
displayed in SNC toolbox.
When using Windows Vista
Installing software
A warning message regarding the active contents may
appear when you install software such as SNC toolbox
from the CD-ROM. In this case, operate as follows:
Example: In case of SNC toolbox
If the pop-up “AutoPlay” appears when a CD-ROM is
inserted into the CD-ROM drive, click Install or run
program.
Note
If you click Open folder to view files, the Web browser
will not open automatically. In this case, double-click
the “index.htm” file in the CD-ROM.
If the “Internet Explorer” message appears, click Ye s .
If the “File Download – Security Warning” message
appears, click Run.
Program name
Program name
Preparation
Assigning the IP Address to the Camera 11
Note
If you select Save in the “File Download – Security
Warning” dialog, you will not be able to perform
installation correctly. Delete the downloaded file, and
click the Setup icon again.
If the message “Internet Explorer – Security Warning”
appears, click Run.
If the message “User Account Control – An unidentified
program wants access to your computer” appears, click
Allow.
The software installation starts.
Starting the software
When you start software such as SNC toolbox, the
message “User Account Control – An unidentified
program wants access to your computer” may appear. In
this case, click Allow.
Installing ActiveX Control
During installation of ActiveX Control, the information
bar or “Security Warning” may appear. In this case,
operate as follows:
If the message “Information Bar” appears, click Close.
If the information bar appears, click on the bar and select
Install ActiveX Control….
If the message “User Account Control – Windows needs
your permission to continue” appears, click Continue.
If the “Internet Explorer – Security Warning” message
appears, click Install.
Installation of ActiveX Control starts. When installation
is completed, the main viewer or Motion detection menu
appears.
Configuring Windows Firewall
SNC toolbox may not operate correctly depending on
the configuration of Windows Firewall. (No cameras are
shown in the list even if they are detected.) In this case,
confirm the Windows Firewall configuration as follows:
Example: In the case of SNC toolbox
To turn Windows Firewall off
1
Select Control Panel from the Start menu of
Windows.
2
Click Windows Firewall.
3
Select Turn Windows Firewall on or off.
“User Account Control – Windows needs your
permission to continue” may appear. In this case,
click Continue.
Program name
Program name
Preparation
Assigning the IP Address to the Camera
12
4
Select Off in the General tab.
The cameras will be displayed in the list.
To turn Windows Firewall on
1
Select Control Panel from the Start menu of
Windows.
2
Click Windows Firewall.
3
Select Turn Windows Firewall on or off.
If the message “User Account Control - Windows
needs your permission to continue” appears, click
Proceed.
4
Select Exceptions in the Windows Firewall dialog.
5
Click Add Program….
6
If the Add Program dialog appears, select SNC
toolbox and click OK.
SNC toolbox is added to the Program or port list.
7
Click OK.
When the above procedure is completed, the
cameras connected in the local network are
displayed in SNC toolbox.
Preparation
Assigning the IP Address to the Camera 13
When using Windows 7
Installing software
A warning message regarding the active contents may
appear when you install software such as SNC toolbox
from the CD-ROM. In this case, operate as follows:
Example: In case of SNC toolbox
If the pop-up “AutoPlay” appears when a CD-ROM is
inserted into the CD-ROM drive, click Install or run
program from your media.
Note
If you click Open folder to view files, the Web browser
will not open automatically. In this case, double-click
the “index.htm” file in the CD-ROM.
If the message “Internet Explorer” appears, click Ye s .
If the message “File Download - Security Warning”
appears, click Run.
Note
If you select Save in the “File Download - Security
Warning” dialog, you will not be able to perform
installation correctly. Delete the downloaded file, and
click the Setup icon again.
If the message “User Account Control - Do you want to
allow the following program from an unknown
publisher to make changes to this computer?” appears,
click Allow.
The software installation starts.
Installing ActiveX Control
During installation of ActiveX Control, the information
bar or “Security Warning” may appear. In this case,
operate as follows:
If the information bar appears, click on the bar and select
Install This Add-on for All Users on This
Computer....
If the message “User Account Control - Do you want to
allow the following program to make changes to this
computer?” appears, click Allow.
The installation of ActiveX Control starts. When
installation is completed, the main viewer or the Motion
detection menu appears.
Preparation
Assigning the IP Address to the Camera
14
Configuring Windows Firewall
SNC toolbox may not operate correctly depending on
the configuration of Windows Firewall. (No cameras are
shown in the list even if they are detected.) In this case,
confirm the Windows Firewall configuration as follows:
Example: In the case of SNC toolbox
To turn Windows Firewall off
1
Select Control Panel from the Start menu of
Windows.
2
Click Windows Firewall.
3
Select Turn Windows Firewall on or off.
4
Select Disable Windows Firewall.
The cameras will be displayed in the list.
To turn Windows Firewall on
1
Select Control Panel from the Start menu of
Windows.
2
Click Windows Firewall.
3
Select Allow a program or feature through
Windows Firewall.
4
Select Allow another program....
Preparation
Accessing the Camera Using the Web Browser 15
5
Add program.
When the above procedure is completed, the
cameras connected in the local network are
displayed in SNC toolbox.
Accessing the Camera
Using the Web Browser
After the IP address has been assigned to the camera,
check that you can actually access the camera using the
Web browser installed on your computer.
Use Internet Explorer as a Web browser.
1
Start the Web browser on the computer and type the
IP address of the camera in the URL address bar.
The viewer window is displayed.
Display sample
Note
When accessing the camera, images will not be
displayed in the following conditions.
When the maximum number of viewers exceeds 5
The bit rate including new requests exceeds 16Mbps
Using the SSL function
Note
The model on sale in China does not support the SSL
function.
Preparation
Accessing the Camera Using the Web Browser
16

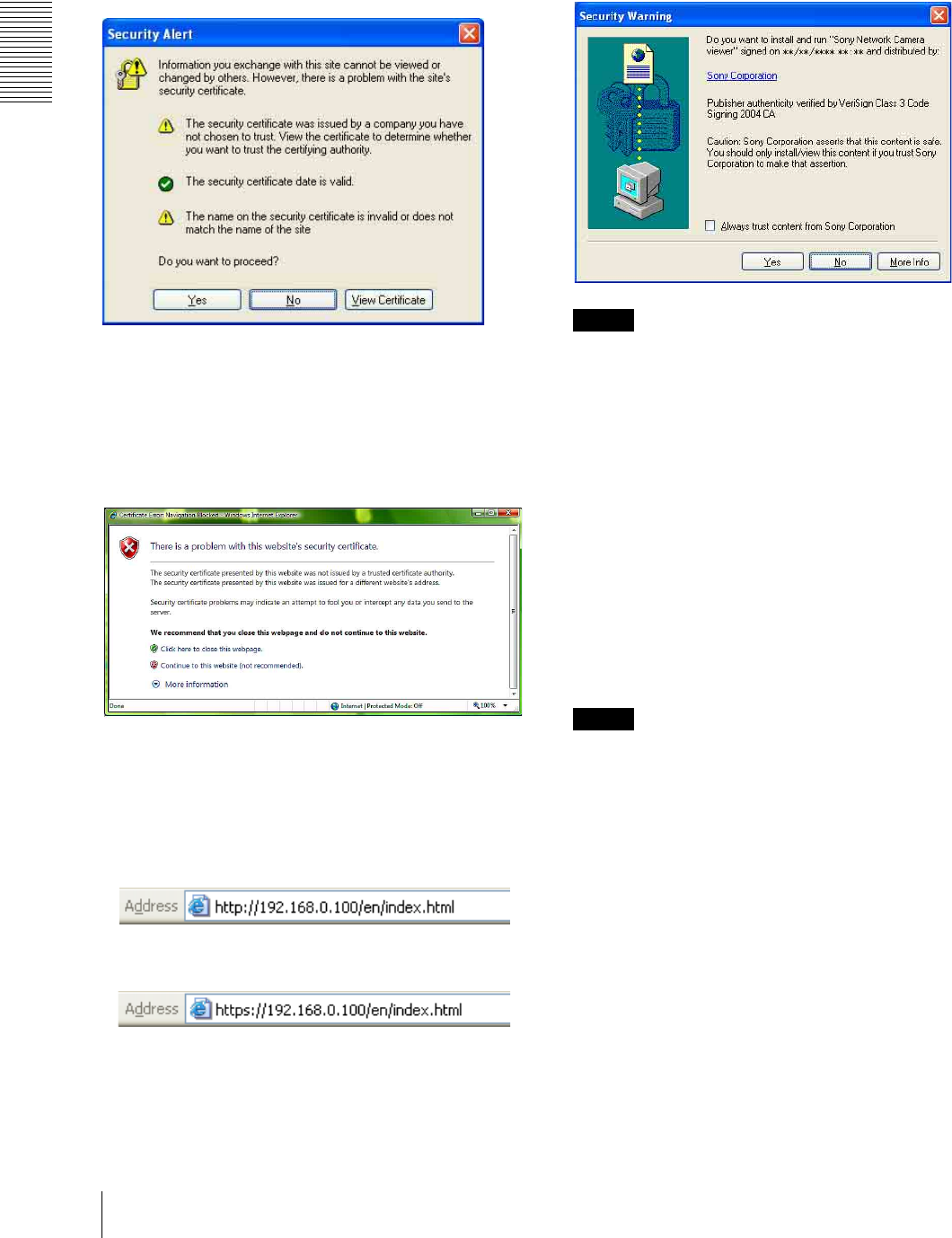

When Internet Explorer 6 is used
“Security Alert” dialog may appear according to the
status of the certificate. In this case, click Ye s to
continue.
The viewer window is displayed (in SSL
communication).
When Internet Explorer 7 or Internet Explorer 8
is used
When you enter the camera IP address, “Certificate
Error” may appear according to the status of the
certificate set on the camera. In this case, click Continue
to this website (not recommended). to continue.
The welcome page appears (in SSL communication).
When “Allow HTTP connection for some
clients” (page 49) is checked
To use HTTP and SSL connections separately to access,
enter the following in the address box of the browser.
For HTTP connection
For SSL connection
When the viewer of the camera is
displayed for the first time
“Security Warning” is displayed. When you click Ye s ,
ActiveX control is installed and the viewer is displayed.
Notes
If Automatic configuration is enabled in the Local
Area Network (LAN) settings of Internet Explorer, the
image may not be displayed. In that case, disable
Automatic configuration and set the Proxy server
manually. For the setting of the Proxy server, consult
your network administrator.
When you install ActiveX Control, you should be
logged in to the computer as Administrator.
If you are using Windows XP Service Pack 2 or later,
Windows Vista or Windows 7, the information bar or
“Security Warning” may appear. For details, see
“Installing ActiveX Control” in “When using
Windows XP Service Pack 2 or later” on page 8,
“Installing ActiveX Control” in “When using
Windows Vista” on page 11, or “Installing ActiveX
Control” in “When using Windows 7” on page 13.
Tip
The software is optimized for Internet Explorer using
medium font.
To display the viewer correctly
To operate the viewer correctly, set the security level of
Internet Explorer to Medium or lower, as follows:
1
Select Tools from the menu bar for Internet
Explorer, then select Internet Options and click
the Security tab.
2
Click the Internet icon (when using the camera via
the Internet), or Local intranet icon (when using
the camera via a local network).
3
Set the slider to Medium or lower. (If the slider is
not displayed, click Default Level.)
Preparation
Accessing the Camera Using the Web Browser 17
When using antivirus software, etc., on
the computer
When you use antivirus software, security software,
personal firewall or pop-up blocker on your computer,
the camera performance may be reduced, for example,
the frame rate for displaying the image may be lower.
The Web page displayed when you log in to the
camera uses JavaScript. The display of the Web page
may be affected if you use antivirus software or other
software described above on your computer.
Preparation
Basic Configuration by the Administrator
18
Basic Configuration by
the Administrator
You can monitor the camera image by logging in with
the initial conditions set for this network camera. You
can also set various functions according to the installing
position, network conditions or purpose of the camera.
We recommend you configure the following items
before monitoring images from the camera.
Setting contents Setting menu
Set the format of the image sent from the camera. Video codec Tab (page 40)
Select the White Balance mode according to the installation position. White balance (page 39)
Select the brightness of the image sent from the camera. Exposure (page 38)
Brightness (page 40)
Select the quality of the image sent from the camera. Video codec Tab (page 40)
Select the view size of the image. View size (page 21)
Synchronize the date and time of the camera with those of the computer. Date & time Tab (page 35)
Make the setting for sending the monitor image attached to an e-mail. e-Mail (SMTP) Menu (page 64)
Set the user access right for the camera. User Menu (page 60)
Set a place to be watched beforehand. Preset position Menu (page 61)
Prepare a panorama image. To create a full image (page 26)
Operating the Camera
Administrator and User 19
Operating the Camera
This section explains how to monitor the image from the
camera using your Web browser (Internet Explorer).
The functions of the camera should be set by the
Administrator. For the setting of the camera, see
Administrating the Camera” on page 32.
Administrator and User
This network camera identifies those who log in as the
Administrator or User.
The Administrator can use all the functions of this
network camera, including camera settings. The User
can use the functions for monitoring the image from the
camera, and control the camera. The Viewer mode
setting is used to restrict the user’s access rights. There
are five types of users.
Each type of user can use the corresponding functions below.
zUsable function
Not usable function
The access rights of the administrator and the user can
be set in “Setting the User — User Menu” of the
Administrator menu on page 60.
Function Administrator
User
Full Pan/Tilt Preset
position
Light View
Monitor a live image z zzzzz
View the date and time z zzzzz
Control the frame rate (JPEG mode only) zz––––
Control the image view size z zzzz
Save a still image and movie in the computer z zzzz
Send an image file to the FTP server zz––––
Send an image attached to an e-mail zz––––
Switch the Day/Night function mode zz––––
Switch the TCP/UDP transmission mode (Available in
MPEG4/H.264 mode only) zz––––
Call the preset position z zzz ––
Perform the pan/tilt/zoom operation zzz–––
Select the codec mode z zzzz
Control the setting menu z–––––
Operating the Camera
Logging in to the System
20
Logging in to the System
Logging in as a user
1
Start the Web browser on your computer and type
the IP address of the camera you want to monitor.
The viewer is displayed.
Display sample:
Three types of viewer are available: ActiveX
viewer, Plug-in free viewer and custom homepage.
By default, ActiveX viewer is displayed. To switch
the viewer, make changes to the Viewer menu
(page 76).
Note
If the main viewer does not start correctly, the security
level of the Internet Explorer may be set to higher than
Medium. See “To display the viewer correctly” on
page 16 and check the security level.
About Viewers
You can use the following viewers.
ActiveX viewer
This viewer can monitor the camera image in any of the
JPEG, MPEG4 and H.264 video codecs.
You must install this viewer when you access the main
viewer for the first time.
When you display the main viewer of the
camera for the first time
When you access the network camera using ActiveX
viewer for the first time, the Security Warning appears.
Click Ye s and install ActiveX Control. You can use all
the functions of the viewer with ActiveX Control.
Plug-in free viewer
This viewer allows the user to select from three image
display methods: JPEG, JPEG/Flash or ActiveX viewer.
JPEG method: JPEG images will be displayed in
sequence.
JPEG/Flash method: JPEG images will be displayed in
sequence. Adobe Flash is required to display the image.
ActiveX viewer method: The image can be viewed when
the image display is set to JPEG, MPEG4 or H.264.
Notes
If Automatic configuration is enabled in the Local
Area Network (LAN) Settings of Internet Explorer,
the camera image may not be displayed. In that case,
disable Automatic configuration and set the Proxy
server manually. For the setting of the Proxy server,
consult your network administrator.
When you install ActiveX Control, you should be
logged in to the computer as the Administrator.
Tip
Every page of this software is optimized for Internet
Explorer in Medium font.
Operating the Camera
Configuration of Main Viewer 21
Configuration of Main
Viewer
This section explains the functions of the parts and
controls of the main viewer. For a detailed explanation
on each part or control, see the specified pages.
Main viewer using ActiveX viewer
Main menu
ActiveX
Displays the ActiveX viewer.
Plug-in free
Displays the Plug-in free viewer.
Tool
You can download system utility from here. (page 28)
This operation is only available when you are logged in
as administrator.
Setup
Click to display the Administrator menu. (page 32)
You can operate this function only when logging in as
the administrator.
Language
Set language from pull-down.
Control panel section
You can drag the panels to the monitor screen and
configure them.
To return to the operation panel, drag the panel and
configure the operation panel.
Click the to hide the detail setting menu or click it
again to show the menu.
Information panel
Check the date and time here.
View panel
You can change the screen mode, size of the image,
image codec mode and frame rate. Also, still images and
movies can be saved (movie saving can also be stopped)
from here.
Screen Mode
Select Window or Full Screen.
View size
Selects the view size to be displayed.
Click View size list box to select the view size.
Select x1/4 to display the images set in Image size of the
Camera menu (page 41) in 1/4 size.
Select x1/2 to display the images set in Image size of the
Camera menu (page 41) in 1/2 size.
Select x1 to display images set in Image size of the
Camera menu. (page 41)
Select Full to display images according to the view size.
Select Fit to display images according to the view size,
with fixed aspect ratio.
Image Codec
Select Image 1 or Image 2 for the image codec mode.
Note
When Codec of Image 2 is set to Off in the Camera
menu-Video codec tab, you cannot select Image 2.
Control panel
section
Monitor image
section
Main menu
Operating the Camera
Configuration of Main Viewer
22
Frame rate
(Displayed only when the camera image is in JPEG.)
Selects the frame rate to transmit images.
(Capture)
Click to capture a still image shot by the camera and to
store it in the computer. Click to open the folder to be
saved.
Note
In the case of Windows VISTA or Windows 7, if
“Enable Protected Mode” is checked in Control
Panel-Internet Option-Security, still images cannot be
shot.
(Run)/ (Stop Save Video)
Runs and stops Save Video. Click to open the folder
to be saved.
Note
In the case of Windows VISTA or Windows 7, if
“Enable Protected Mode” is checked in Control
Panel-Internet Option-Security, video content cannot be
saved.
Camera control panel
The camera control panel appears when SolidPTZ is set
to On. This panel allows you to control the camera’s
pan/tilt/home position and zoom (page 25). In addition,
you can obtain authority to operate the camera in
exclusive control mode.
Image action
Select the mode of operation from Off, Area zoom and
Vector dragging.
Pan/Tilt control
Click the arrow button the direction in which you want
to move the camera. Keep it pressed to move the camera
continuously.
To return to the home position, click .
Zoom control
Press to zoom out, and press to zoom in.
Zooming continues while the button remains pressed.
Exclusive control
Click this button to display the time remaining for
operation authority. However, if operation authority has
not been obtained, the waiting time is displayed.
Note
Set the Exclusive control mode in the System Tab of the
System Menu to On to perform exclusive control
(page 34).
Panorama panel
It is displayed when SolidPTZ is set to on.
The image will be displayed if capture full image
(page 37) is clicked.
If you click on the Panorama panel, the image of that
place is displayed on the monitor.
Trigger panel
The above is displayed only when Viewer mode
(page 60) is set to Full, and one or more triggers are
enabled in the Trigger menu (page 71).
The configured functions are displayed as buttons on
this panel.
Note
When the Exclusive control mode is set to on, the
configured function cannot be used without operation
authority.
Operating the Camera
Configuration of Main Viewer 23
Click the function button you want to use on the Trigger
panel. The selected function is activated. The selectable
functions are as follows:
send still image files attached to an e-mail (page 27)
send still image files to an FTP server (page 27)

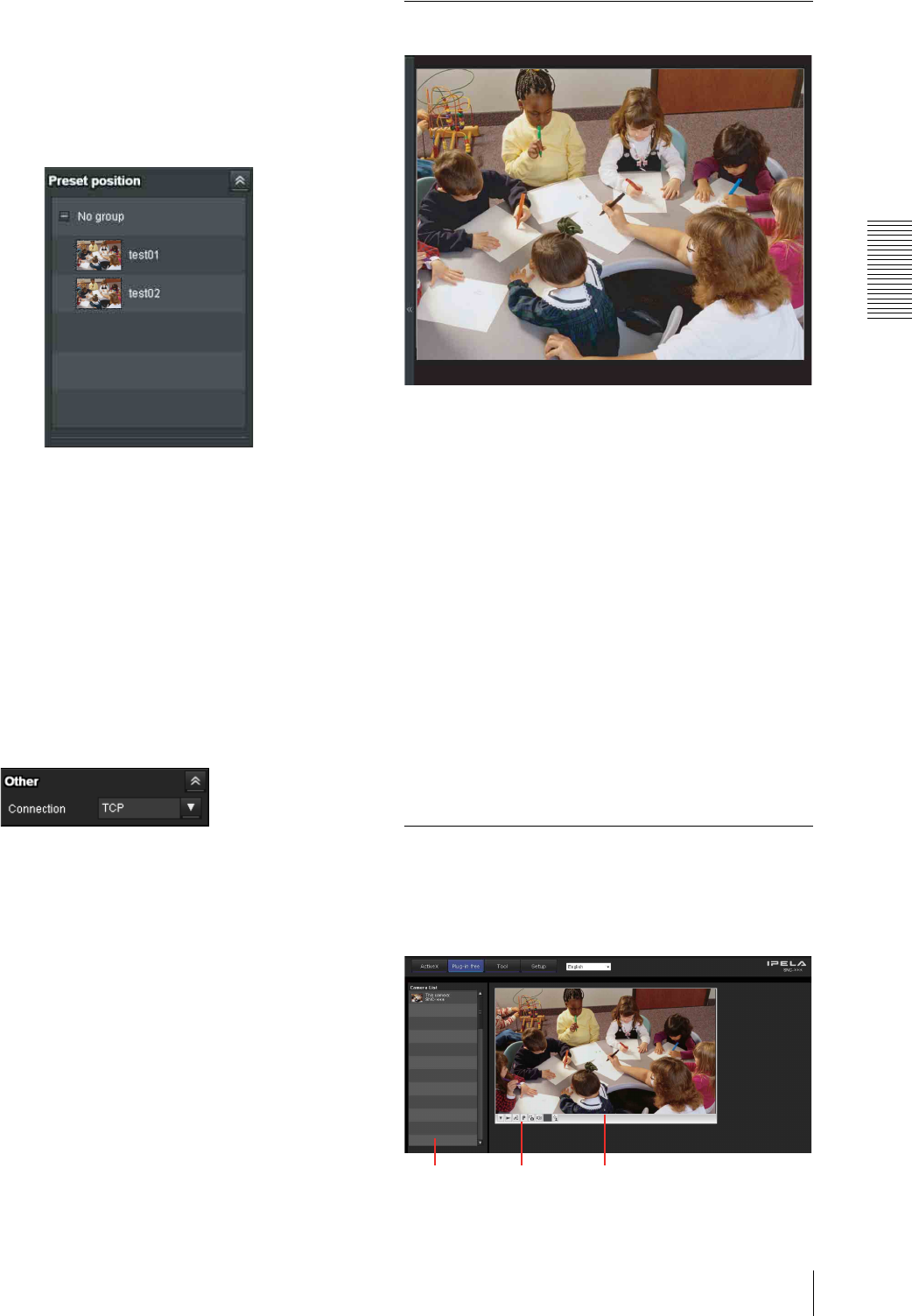

Preset position panel
The above is displayed only when one or more preset
positions are stored in memory.
The registered preset position is displayed.
If you select a thumbnail when registering a preset
position, it will be displayed with a thumbnail.
Select the Preset position name from the list. The
camera will move to the preset position that you have
stored in memory using the Preset position menu.

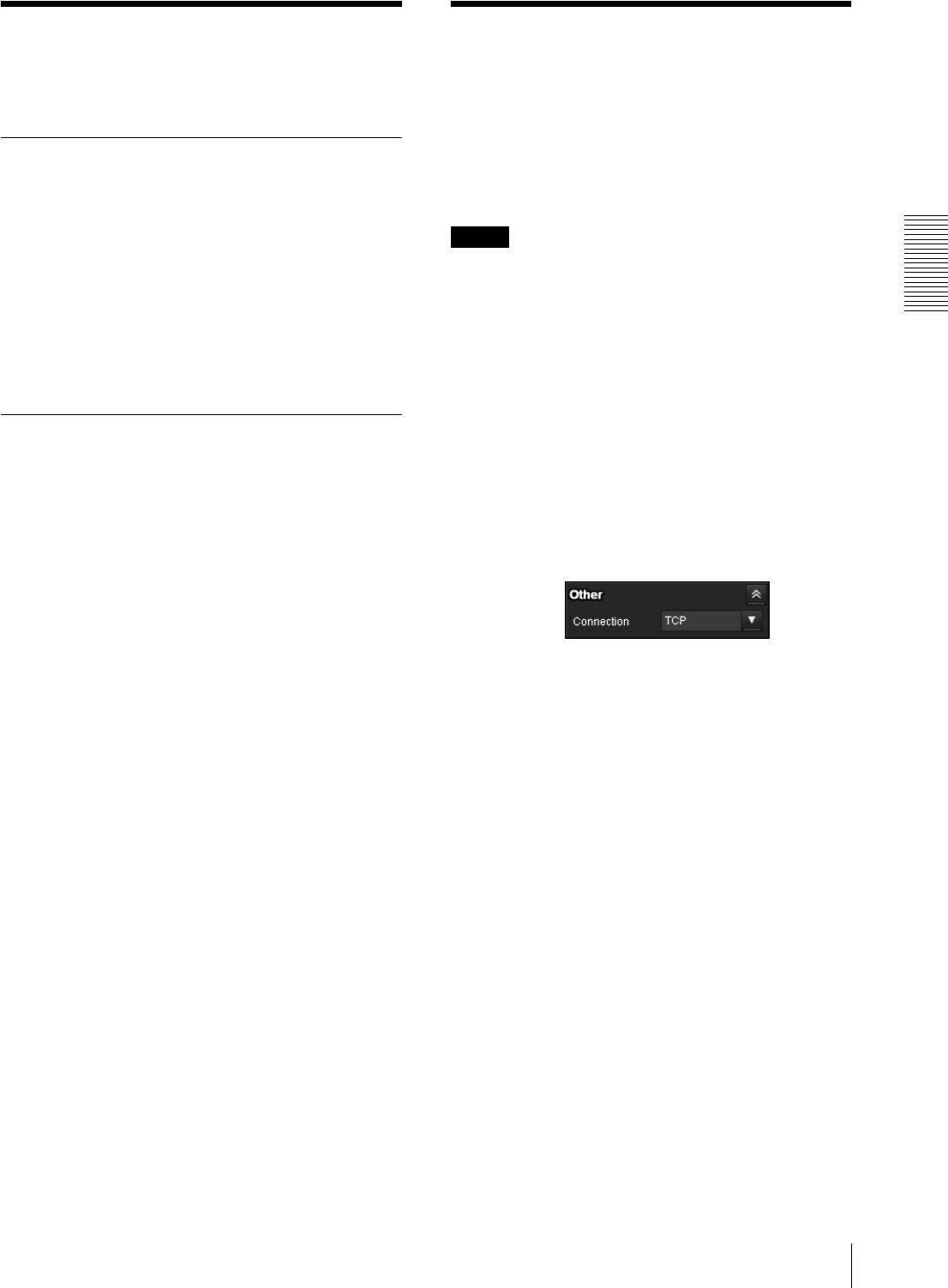

Others panel
(The Other panel is displayed in the case of an MPEG4
or H.264 image.)
You can switch between TCP and UDP (Unicast/
Multicast).
Each click switches the transmission mode of the video
data between TCP mode, Unicast mode, and Multicast
mode (page 27).
Monitor image
The image shot by the camera is shown here.
There are two modes for on-screen pan/tilt/zoom
operation using a mouse: Area zoom mode and Vector
dragging mode.
In the Area zoom mode, clicking will pan or tilt the
camera towards the center of the image, and will move
the camera in the direction that displays the area selected
by the operator and zooms in at the same time. The
operator can choose a part of the image to view and
zoom in by surrounding an area with a frame by
dragging the mouse.
In the Vector dragging mode, the camera pans or tilts in
the dragged direction. How long you drag the mouse
determines the speed. Releasing the button on the mouse
after dragging stops the panning or tilting of the camera.
You can also use the camera control panel bar to pan or
tilt.
The zoom operation using the mouse wheel is available
in all modes.
Plug-in free viewer
Main viewer using Plug-in free viewer
Display sample:
Camera list Monitor screen
Control bar
Operating the Camera
Configuration of Main Viewer
24
Monitor screen
There are two modes for on-screen pan/tilt/zoom
operation using a mouse: Area zoom mode and Vector
dragging mode. A control bar is displayed on the screen.
In the Area zoom mode, clicking will pan or tilt the
camera towards the center of the image, and will move
the camera in the direction that displays the area selected
by the operator and zooms in at the same time. The
operator can choose a part of the image to view and
zoom in by surrounding the area with a frame by
dragging the mouse.
In the Vector dragging mode, the camera pans or tilts in
the dragged direction. How long you drag the mouse
determines the speed. Releasing the button on the mouse
after dragging stops the panning or tilting of the camera.
You can also use the tool bar to pan or tilt.
The zoom operation using the mouse wheel is available
in all modes.

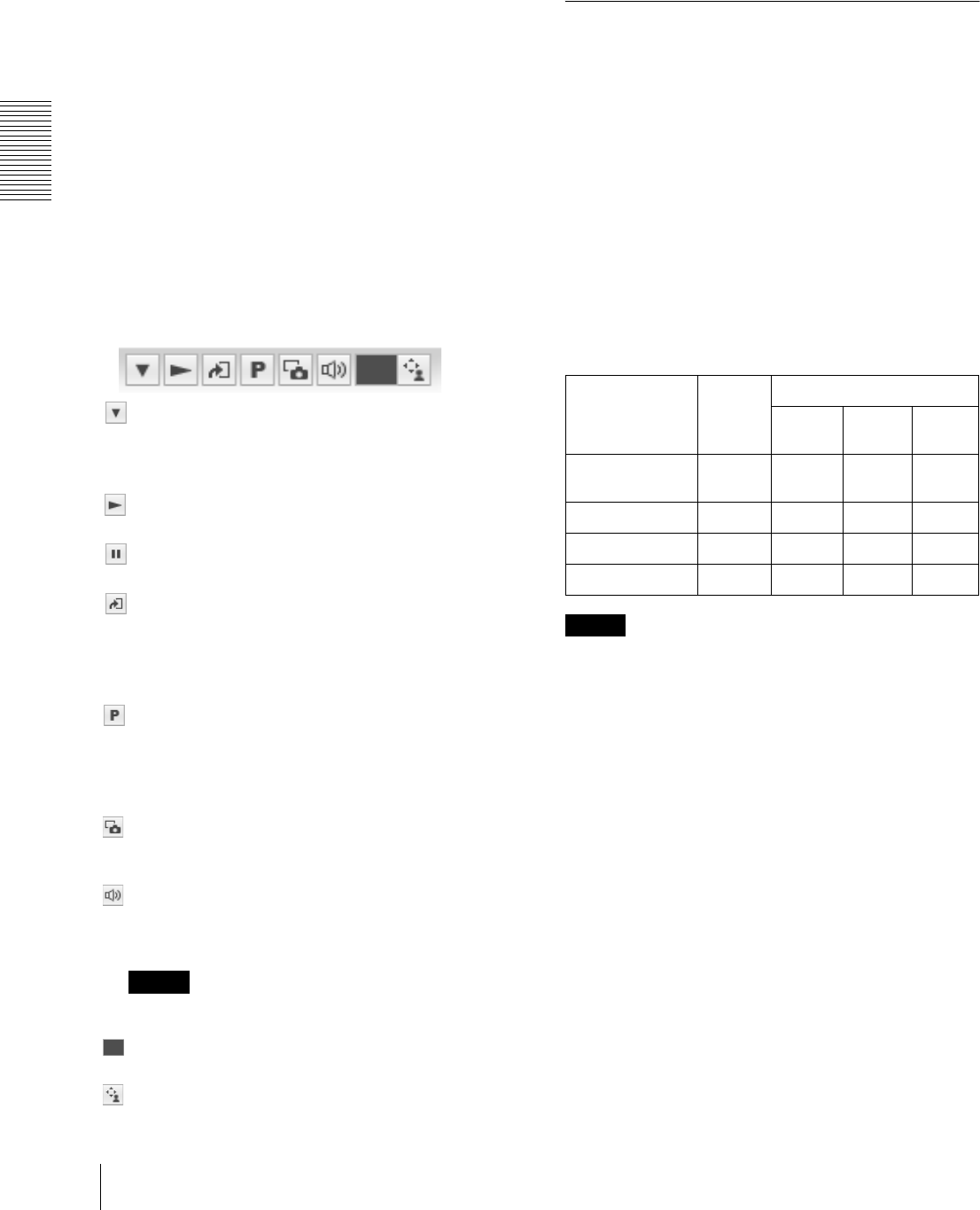

Control bar
The following operation buttons are available.
Camera list
The camera list is displayed when Camera list is set to
On in the Viewer menu, and at least one camera is
registered.
Using SolidPTZ function
You can operate the camera by using the SolidPTZ
function, which provides panning, tilting and zooming
by adjusting the position and zooming ratio from the
maximum image size, without moving the camera.
Maximum image size for SNC-CH110 is 1280 × 960.
For SNC-CH210/DH210/DH210T, maximum image
size is 2048 × 1536 when resolution is selected in
SolidPTZ Priority (page 41), and 1024 × 768 when
Frame rate is selected.
There are three modes of camera operation: Area zoom
mode, Vector dragging mode and PTZ Control bar.
You can control pan/tilt and zoom in either mode.
The available functions for the camera operation modes
vary according to the viewer display. The available
functions are as follows:
Notes
Pan/Tilt limitation
The SolidPTZ function controls streaming by
cropping or reducing a maximum size image.
Thus, the more the camera zooms out, the less area to
be panned or tilted, and becomes unavailable at the
WIDE setting.
•Zoom
The SolidPTZ function enables you to display an area
of the cropped image from the maximum image size,
when zoomed in at the TELE setting.
And the whole area shot in the maximum image size
will be displayed if the camera is zoomed out at the
WIDE setting.
The SolidPTZ function’s zoom is performed digitally;
therefore, some deterioration in image quality may be
observed at the TELE setting.
Setting
You can set the streaming method, image size,
frame rate, PTZ operation mode, trigger selection
and image codec.
Preset
Select a preset position to move the camera to the
registered preset position.
(Displayed only when a camera preset position is
registered.)
Streaming stop button
Stops streaming. (Appears while streaming.)
Trigger run button
Runs the selected trigger.
(Displayed only when
Viewer mode
from
User
menu
(page 60) is set to
Full
, and one or more
triggers are enabled in the
Trigger menu
(page 71).)
Streaming start button
Starts streaming. (Appears while stops streaming.)
Save still image button
Captures still images taken by the camera and saves
them to the computer.
Audio output volume slider
Use the slider to adjust the volume. Clicking the
button will stop sound output.
Note
This unit is not equipped with audio functions.
Control waiting time and control time for exclusive
control
Exclusive control button
ActiveX
viewer
Plug-in free viewer
JPEG JPEG/
FLASH
ActiveX
Operation from
control panel
a×××
Area zoom aaaa
Vector dragging aaaa
PTZ control bar ×aa×
Operating the Camera
Configuration of Main Viewer 25
Controlling via the control panel
(Operation common to Area zoom
mode and Vector dragging mode)
You can operate the camera direction, zoom, and focus
by using the control panel for the monitor image
currently displayed.
Pan/Tilt control
Click the arrow button in the direction in which you
want to move the camera. Keep it pressed to move the
camera continuously.
To return to the home position, click .
Zoom control
Click to zoom out, and click to zoom in.
Zooming continues while the button remains pressed.
Panning and tilting by clicking the
monitor image (Area zoom mode
only)
Click on the monitor image, and the camera moves so
that the clicked portion is positioned at the center of the
display.
Panning, tilting and zooming by
specifying the area (Area zoom
mode only)
Click and hold the left button of the mouse on the
monitor image, and drag the mouse diagonally to draw a
red frame around the portion you want to enlarge. The
camera moves so that framed portion is positioned at the
center of the display and is zoomed in.
Note
When the specified area is zoomed in, the center may be
shifted or some portion of the image may appear out of
the monitor image section. In this case, click the point
you want to move to the center or click the arrow button
on the camera control panel.
Panning and tilting by dragging the
screen (Vector dragging mode
only)
When you click on the starting point on the image and
drag to the end point, the camera pans/tilts in the
direction of the arrow from the starting point to the end
point. The speed of operation is determined by the
length of arrow. Releasing the button on the mouse stops
the panning/tilting of the camera.
Operating the Camera
Configuration of Main Viewer
26
Moving the camera to a preset
position (Common operations in
Area zoom and Vector dragging
modes)
Select a preset position name from the Preset position
panel. The camera will move to the preset position that
you have stored in memory using the Preset position
menu (page 61).
Using pan/tilt/zoom operations with
the displayed control bar (PTZ
Control bar only)
Pan/Tilt operations
Click the arrow of the direction you wish to move the
camera. Continue clicking on the arrow to keep moving
the direction of the camera.
Zoom operation
Click to zoom out, click to zoom in. The zoom
operation continues while you are clicking on the
button.
Controlling the Camera on a Full
When the camera is in controllable condition, the full
image appears on the panorama panel.
The full image is the still image of entire area to be shot
by the camera in reduced-sized image. By clicking on
the full image, the selected location appears on the
panorama panel.
To create a full image
Create the full image with Capture full image in the
Initialize tab of the System menu. See page 37 for
details.
Tip
Be sure to recreate the full image if you move the camera
position, invert the image or change the layout around
the camera.
To display a specified position on the
monitor
1
Create the full image and display on the monitor.
2
Click the potion you want to see on the full image.
The current specified position appears on the monitor
screen.
Operating the Camera
Using the Trigger Button / Switching TCP/UDP Transmission Mode 27
Using the Trigger Button
You can execute various functions by clicking their
respective buttons on the Trigger panel.
Sending a monitor image via e-mail
You can send a captured still image by attaching it to an
e-mail.
To use this function, you need to make e-Mail (SMTP)
active and set the address in the Trigger menu of the
Administrator menu properly (page 71).
1
Click e-Mail (SMTP) on the Trigger panel.
The still image of the time you click is captured,
and your e-mail with the image file attached is sent
to the specified mail address.

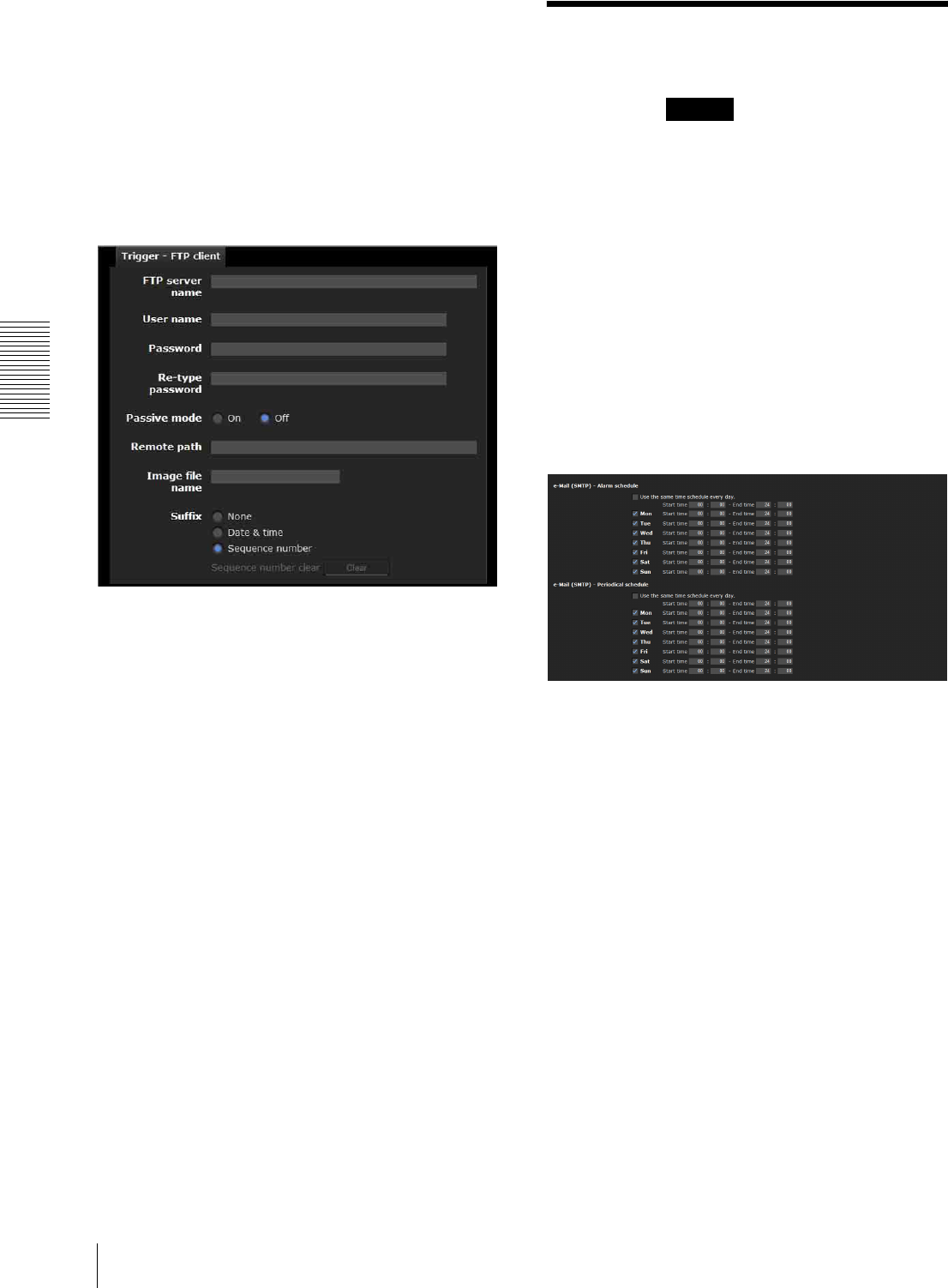

Sending a monitor image to an FTP
server
You can send a captured still image to the FTP server.
To use this function, you need to make FTP active and
set the address in the Trigger menu of the Administrator
menu properly (page 72).
1
Click FTP client on the Trigger panel.
The still image of the time you click is captured,
and the image file is sent to the FTP server.
Switching TCP/UDP
Transmission Mode
You can select TCP or UDP as the communication port
for video data.
This function can be used when Mode (video codec
mode) is set to MPEG4 or H.264 and the ActiveX
viewer is used.
Notes
The function may not operate correctly if you use
personal firewall software or antivirus software on
your computer. In that case, disable the software or
select the TCP mode.
If you are using Windows XP Service Pack 2 or later,
Windows Vista or Windows 7, disable “Windows
Firewall”. For details, see “Configuring Windows
Firewall” in “When using Windows XP Service Pack
2 or later” on page 9, “Configuring Windows
Firewall” in “When using Windows Vista” on
page 11, or “Configuring Windows Firewall” in
“When using Windows 7” on page 14.
1
Select TCP, Unicast or Multicast from the
Connection drop-down list in the Others panel.
TCP: This is normally selected.
When TCP is selected as the communication port,
HTTP communication is adopted for video
communication.
HTTP is the protocol used for reading the usual
Web page.
In an environment capable of reading Web pages,
you can watch video by selecting the TCP port.
Unicast: When Unicast is selected as the
communication port, RTP (Real-time Transport
Protocol) is adopted for video communication.
Since RTP is the protocol for running video data,
the video playback is smoother than when TCP
(HTTP) is selected. If a firewall is installed between
the camera and the computer, or depending on the
network environment, video may not be played
back properly when Unicast is selected. In this
case, select TCP.
Operating the Camera
Using the System Utility
28
Multicast: This protocol is selectable when
Multicast streaming (page 43) is On. When
Multicast is selected as the transmission port, RTP
(Real-time Transport Protocol) and UDP multicast
techniques are adopted for video transmission. By
selecting it, the network transmission load of the
camera can be reduced. If a router that does not
correspond to a multicast or firewall is installed
between the camera and the computer, video may
not be played back properly. In this case, select
TCP or Unicast.
Using the System Utility
You can download system utility from the tools tab on
the main menu.
To use the utility, click Download to begin download.
SNC viewer
SNC viewer is an application which allows you to set the
initial state of the viewer.
Installing the SNC viewer
1
Execute the downloaded SNCViewer.msi file.
2
Install the SNC viewer following the instructions
on the wizard.
When the license agreement policies are displayed,
agree after reading them carefully and install the
SNC viewer.
Using the SNC viewer
Click SNC viewer in the control panel.
Operating the Camera
Using the System Utility 29

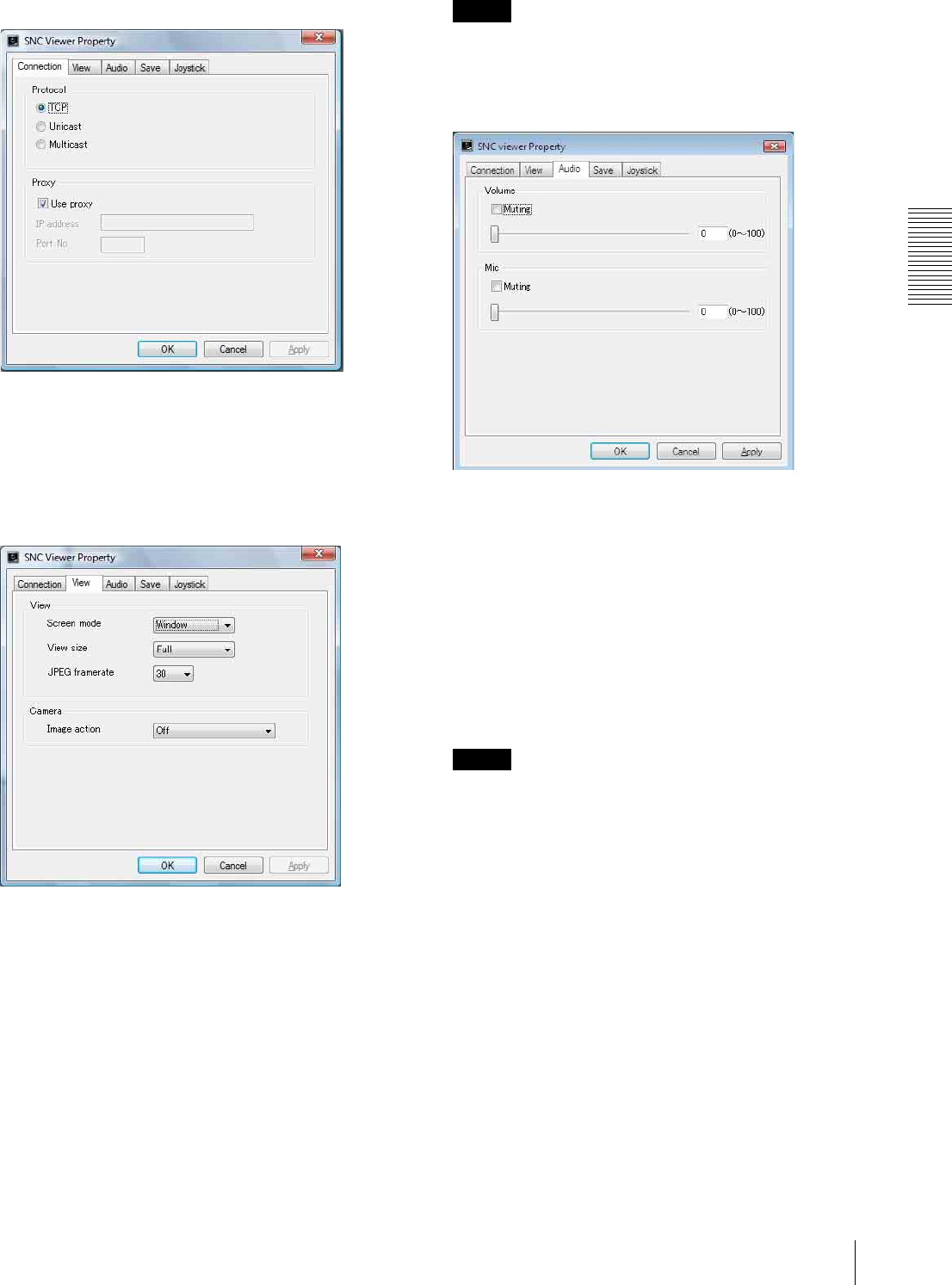

Connection tab
You can set the connection method.
Select the start-up connection from: TCP, Unicast, and
Multicast.
If TCP connection is selected, you can configure proxy
settings by selecting Use proxy.
View tab
Screen mode
You can select Window or Full.
View size
You can select the view size.
JPEG framerate
You can set the frame rate for JPEG.
Image action
Select from the image operation modes Area zoom,
Vector dragging and Off.
Tip
The operation mode of SolidPTZ have been changed for
this device.
Audio tab
Volume
Muting: Select this option for Muting the sound at
start-up.
Use the slide bar to set the volume for start-up sound
output.
Mic
Muting: Select this option for Muting the microphone
sound at start-up.
Use the slide bar to set the volume for start-up
microphone input.
Note
This unit is not equipped with audio functions.
Operating the Camera
Using the System Utility
30

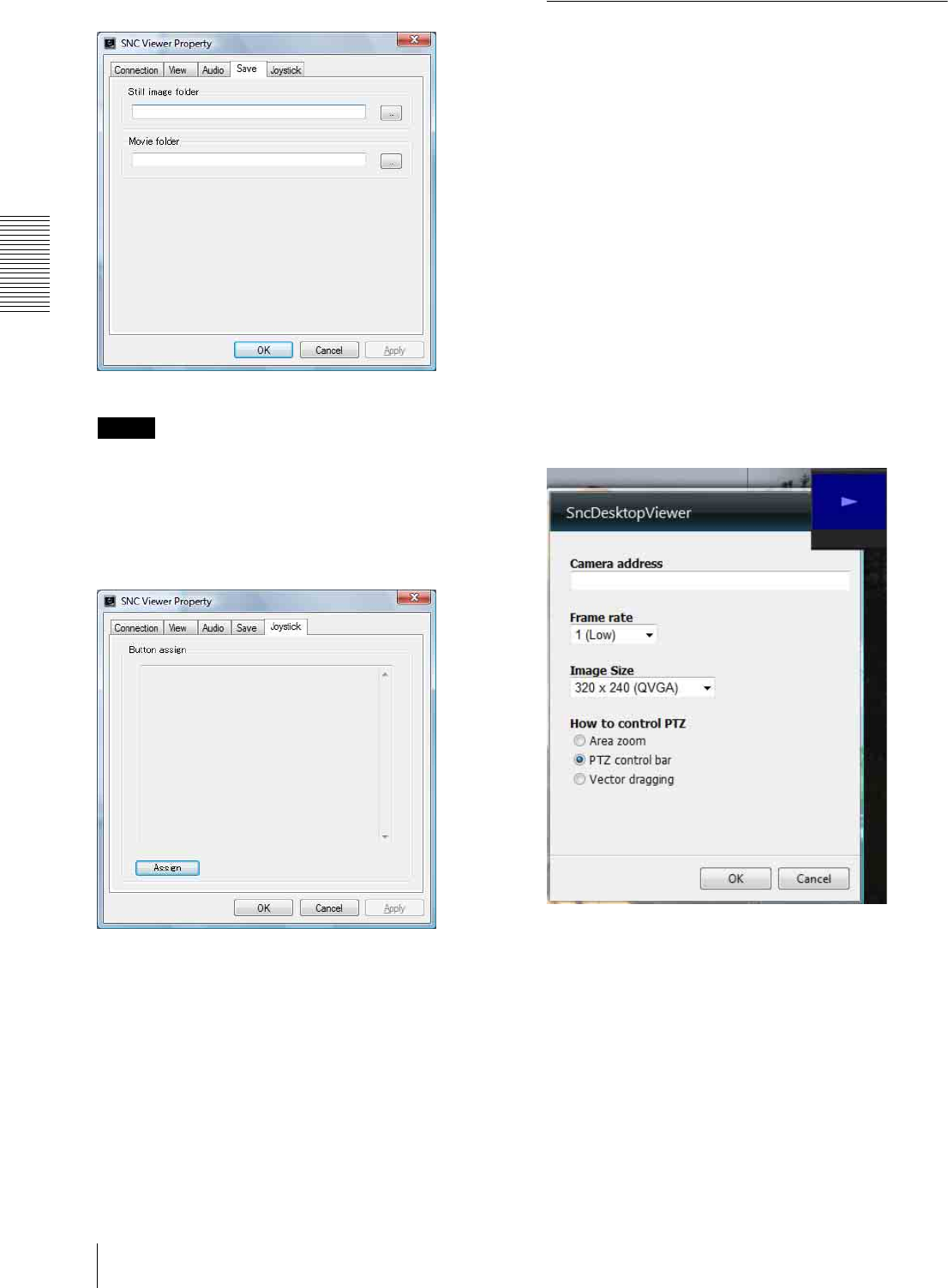

Save tab
Specify a folder to save the still images and movies to.
Note
When using the operating system of Windows VISTA or
Windows 7, you can not save video if “Enable Protected
Mode” is checked in the Control Panel-Internet Option-
Security.
Joystick tab
You can assign the joystick buttons here.
SNC Desktop viewer
The gadget that displays the camera image on the side
bar of Windows Vista or Desktop in the case of
Windows 7.
Installing the SNC desktop viewer
1
Click Download.
When the license agreement policies are displayed
on the SNC desktop viewer download screen, agree
after reading them carefully and download the SNC
desktop viewer.
2
Execute the downloaded SncDesktopViewer.gadjet
file.
Using the SNC desktop viewer
When installation is finished, SNC desktop viewer is
displayed on the side bar of Windows Vista or Desktop
in the case of Windows 7.
Camera address
Set the IP address for the camera to display on the
Gadget.
Frame rate
Select the frame rate for the image to display on the
Gadget.
Image size
Select the image size for the image to display on the
Gadget.
Operating the Camera
Using the System Utility 31
How to control PTZ
Select the PTZ operation mode for the Gadget screen
from the options Area zoom, PTZ control bar, and
Vector dragging.
Click (Exit) to exit Gadget.
When you click (Set), you will see the following
setting screen.
Tip
The operation mode of SolidPTZ has been changed for
this device.
Administrating the Camera
Basic Operations of the Administrator Menu
32
Administrating the Camera
This section explains how to set the functions of the
camera by the Administrator.
For details about monitoring the camera image, see
“Operating the Camera” on page 19.
This section explains the basic operations and each
option of the Administrator menu.
Note on the display of menu options
The setting menus of this unit will clearly display only
the setting options that you can currently select. Grayed
out options cannot be selected.

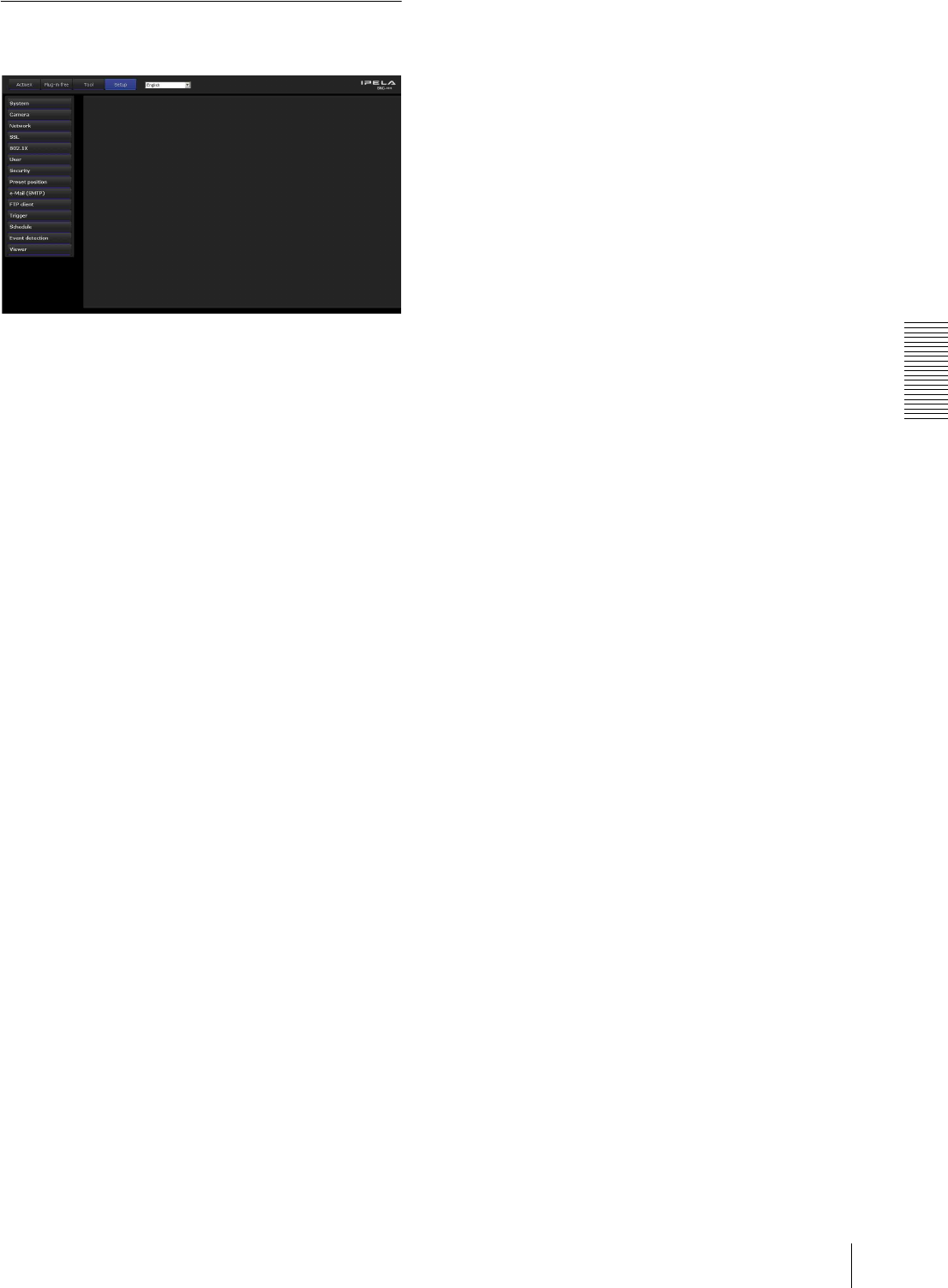

Basic Operations of the
Administrator Menu
You can use the Administrator menu to set all functions
to suit the user’s needs.
Click Setting in the viewer to display the Administrator
menu.
How to set up the Administrator
menu
1
Log in to the homepage to display the viewer.
For details, see “Logging in as a user” on page 20.
2
Click Setting on the main menu.
The authentication dialog appears. Enter the user
name and password for Administrator.
The user name “admin” and password “admin” are
set at the factory for the Administrator.
The Administrator menu appears.
3
Click the menu name (example: System) on the left
side of the Administrator menu.
The clicked menu appears.
Example: “System” menu
4
Select the required tab above the menu, and set each
setting option in the tab.
Example: “Date & time” tab of “System” menu
See pages 34 to 78 for details of the menu tabs and
setting options.
5
After setting, click OK.
The settings you have made become active.
Click Cancel to nullify the set values and return to
the previous settings.
Buttons common to every menu
The following buttons are displayed on all the menus.
The functions of the buttons are the same on every
menu.
Click this button to confirm the settings.
Click this button to nullify the set values and return to
the previous settings.
General notes on menus
One-byte katakana character is not valid for any text
field, such as User name.
After changing a setting on a menu, wait at least 10
seconds before turning off the power of the camera.
If the power is turned off immediately, the new setting
may not be stored correctly.
If the camera settings are changed while watching the
main viewer, some settings cannot be restored. To
reflect the change on the opening main viewer, click
Refresh on the Web browser.
Administrating the Camera
Basic Operations of the Administrator Menu 33
Configuration of the Administrator
menu
System
Displays the System menu. (“Configuring the System —
System Menu” on page 34).
Camera
Displays the Camera menu for setting the camera image.
( “Setting the Camera Image — Camera Menu” on page
38).
Network
Displays the Network menu for setting the network
connection. (“Configuring the Network — Network
Menu” on page 44).
SSL
Displays the SSL menu for performing SSL
communication between the client device and camera.
(“Setting the SSL function — SSL Menu” on page 49)
802.1X
Displays the 802.1X menu for connecting the camera to
a network configured in compliance with the 802.1X
standard for port authentication. (“Using the 802.1X
Authentication Function — 802.1X Menu” on page 54)
User
Displays the User menu for setting the log in user name
and password. (“Setting the User — User Menu” on
page 60)
Security
Displays the Security menu for specifying a computer
that is allowed to connect to the camera. (“Setting the
Security — Security Menu” on page 61)
Preset position
Displays the Preset position menu to register a position
you want to save. “Tour function,” which rotates the
registered positions, is also set here. (“Saving the
Camera Position and Action — Preset position Menu
on page 61)

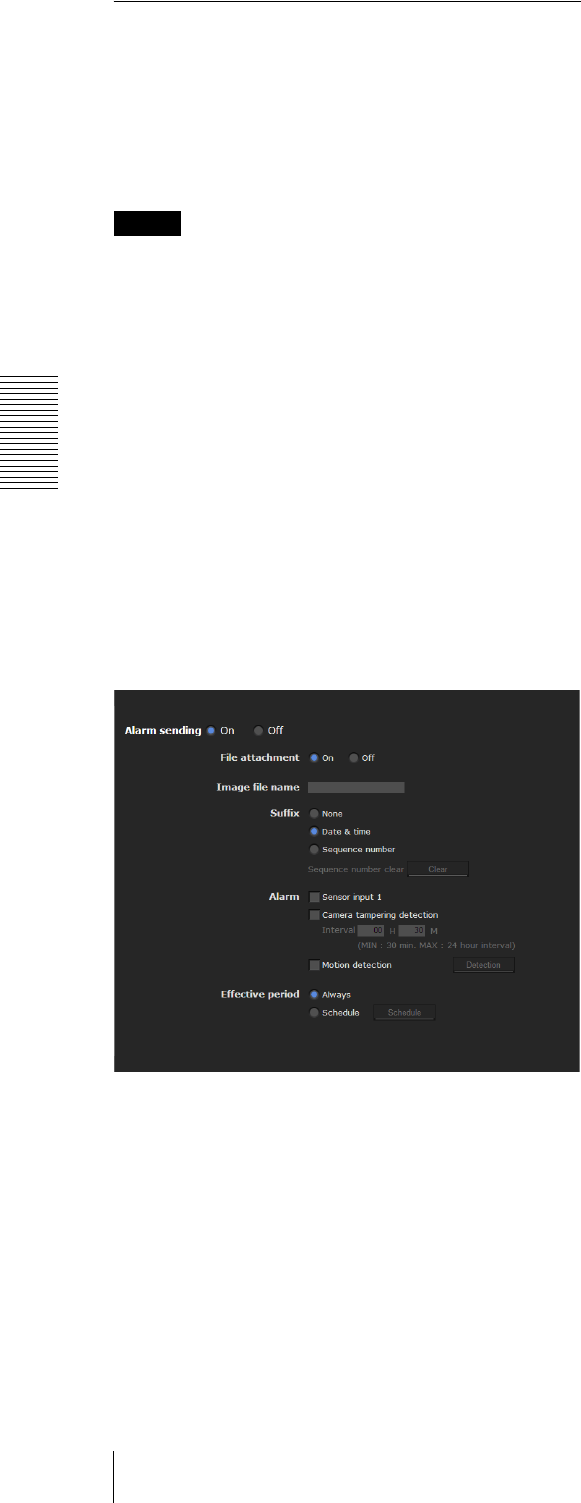

e-Mail (SMTP)
Displays the e-Mail (SMTP) menu for sending an e-
mail. (“Sending an Image via E-mail — e-Mail (SMTP)
Menu” on page 64)
FTP client
Displays the FTP client menu for sending an image file
to an FTP server. (“Sending Images to FTP Server —
FTP Client Menu” on page 68)
Trigger
Displays the Trigger menu for designating the operation
to execute when you run a trigger. (“Setting the
Operations from the Viewer — Trigger Menu” on page
71)
Schedule
Displays the Schedule menu for the e-Mail (SMTP)
function, FTP client function, etc. (“Setting the
Schedule — Schedule Menu” on page 72)

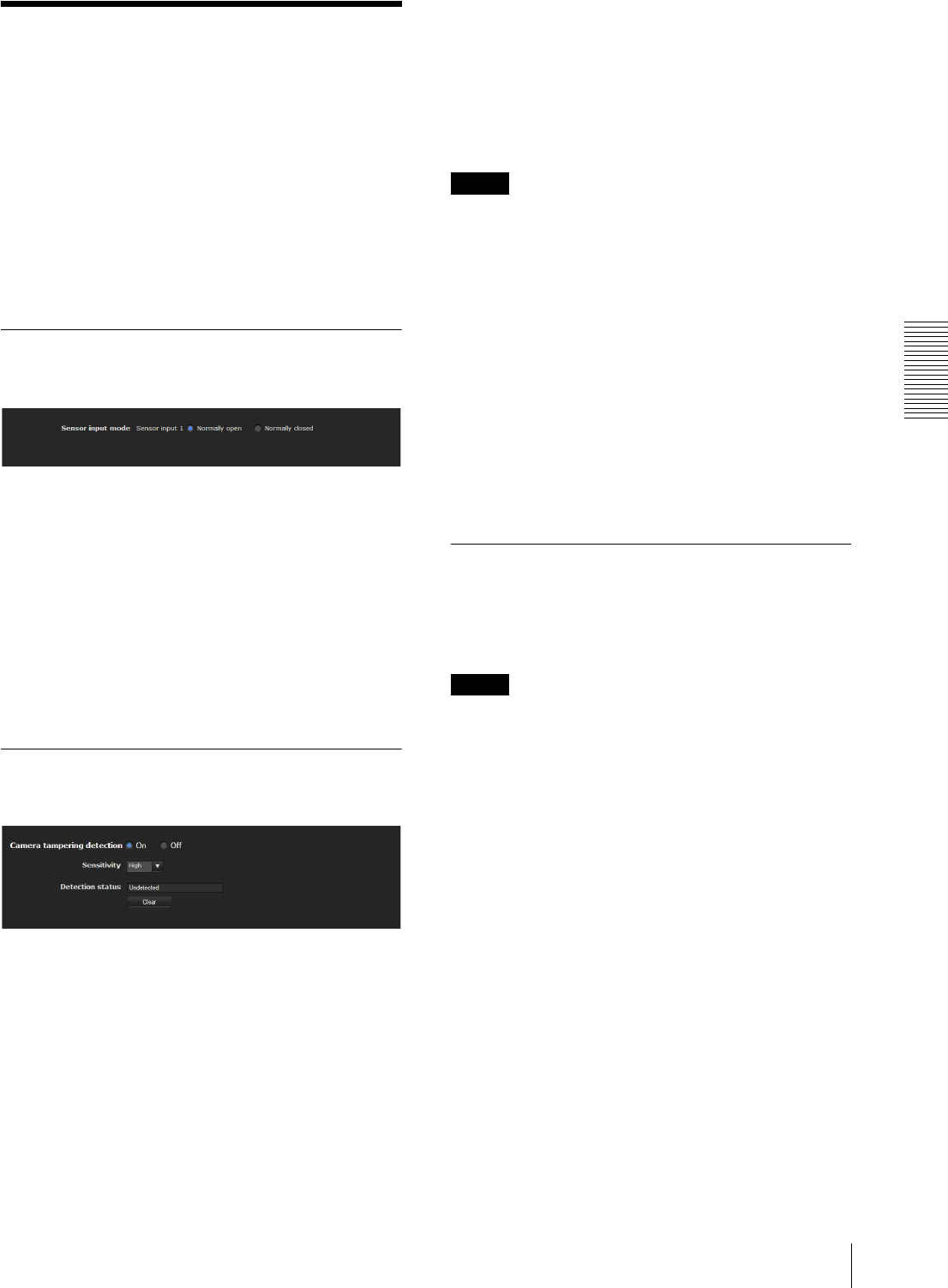

Event detection
Displays the setting menu for all built-in detection
functions. (“Setting the Sensor input/Camera tampering
detection/Motion detection — Event detection Menu”
on page 73)
Viewer
Displays the Viewer menu from which you can select the
viewer to use and configure advanced settings.
(“Configuring the Viewer — Viewer Menu” on page 76)
Administrating the Camera
Configuring the System — System Menu
34
Configuring the System
— System Menu
When you click in the Administrator menu,
the System menu appears.
Use this menu to perform the principal settings of the
software.
The System menu has seven tabs: System, Date & time,
Superimpose, Installation, Initialize, System log and
Access log.
System Tab
Title bar name
Type a name of up to 48 characters to be displayed on the
title bar. The characters typed here are displayed on the
title bar of the Web browser.
Serial number
The serial number of the camera is displayed.
Software version
The software version of this camera is displayed.
Exclusive control mode
Controls the authority to operate pan, tilt, zoom and
some other functions of the camera.
On: Only one user has control authority. Set the
operation time for one user in Operation time.
If a user tries to operate a function during operation
by another user, the authority is controlled by the
settings of Operation time and Maximum wait
number.
Off: Multiple users can control pan, tilt and zoom at the
same time. When multiple users control these
functions at the same time, the last operation has
priority.
Operation time
Sets the time length for a user who has control authority.
The selectable range is from 10 to 600 seconds. This is
effective when Exclusive control mode is set to On.
Maximum wait number
Sets the number of users who are permitted to wait for
their turn for control authority during operation by one
user. The selectable number is from 0 to 5. This is
effective when Exclusive control mode is set to On.
Notes
•To use Exclusive control mode, the date and time of
this unit and the connected computer must be set
correctly first.
•To use Exclusive control mode, do not disable the
Web browser Cookie. If it is disabled, this mode
cannot be used.
When you change the Exclusive control mode
setting, click Refresh on the Web browser to reflect
the change when opening the main viewer page.
PTZ mode
Select the pan/tilt control mode using the 8-direction
arrow buttons (page 22) and the zoom control mode
using the / buttons (page 22). Select Normal or
Step.
Normal: When you click the mouse button, the camera
starts panning, tilting or zooming, and the operation
continues while you hold down the mouse button. To
stop the operation, release the mouse button.
Step: Each time you click the mouse button, the camera
moves (pans, tilts or zooms). If you keep the mouse
button held down for more than 1 second, the
operation mode is temporarily changed to Normal.
When you release the mouse button, camera
operation stops and the Step mode is restored.
When you select Step, Pan/Tilt level and Zoom level
are selectable.
Pan/Tilt level: Select the camera transition level from 1
to 10 by clicking the 8-direction arrow buttons for
panning/tilting. Selecting 10 provides the maximum
transition level.
Zoom level: Select the camera transition level from 1 to
10 by clicking / for zooming. Selecting 10
provides the maximum transition level.
OK/Cancel
See “Buttons common to every menu” on page 32.
System
Administrating the Camera
Configuring the System — System Menu 35
Date & time Tab
Current date & time
Displays the date and time set on this unit.
Note
After you have purchased the camera, be sure to check
the date and time of the camera and set as necessary.
PC clock
Displays the date and time set on your computer.
Date & time format
Select the format of date and time to be displayed in the
main viewer from the drop-down list.
You can select the format between yyyy-mm-dd
hh:mm:ss (year-month-day hour:minutes:seconds),
mm-dd-yyyy hh:mm:ss (month-day-year
hour:minutes:seconds), and dd-mm-yyyy hh:mm:ss
(day-month-year hour:minutes:seconds).
Adjust
Select how to set the day and time.
Keep current setting: Select if you do not need to set
the date and time.
Synchronize with PC: Select if you want to
synchronize the camera’s date and time with the
computer.
Manual setting: Select if you want to set the camera’s
date and time manually.
Select the year, month, date, hour, minutes and
seconds from each drop-down list.
Synchronize with NTP: Select if you want to
synchronize the camera’s date and time with those of
the time server called NTP server (Network Time
Protocol).
Set the NTP server when Synchronize with NTP is
selected.
Use the following NTP server address: Synchronize
with the selected NTP server address.
NTP server 1: Enter the first choice for NTP server
address.
NTP server 2: Enter the second choice for NTP
server address.
NTP server 3: Enter the third choice for NTP server
address.
DHCP server: Select DHCP server when you need to
get NTP server information from DHCP server.
Multicast: Select Multicast when you search for an
NTP server with Multicast.
Time zone
Set the time difference from Greenwich Mean Time in
the area where the camera is installed.
Select the time zone in the area where the camera is
installed from the drop-down list.
For Japan, select “Osaka, Sapporo, Tokyo
(GMT+9:00)
Automatically adjust the clock for daylight
saving time changes
When selected, the clock is automatically adjusted
according to the daylight saving time of the selected
time zone.
Note
If the time zone selected in Time zone is different from
that set on the computer, the time is adjusted using the
time zone difference and set on the camera.
OK/Cancel
See “Buttons common to every menu” on page 32.
Superimpose Tab
Select whether to superimpose the camera ID, date/time
and other information on an image or not. A still image
can be also superimposed.
You can select whether to superimpose on Image 1 and
Image 2 or not, set the font size and configure each
displayed item.
Note
The superimpose setting for Image 1 is applied to Image
2 in the following conditions.
Codec information is not displayed.
Image 1 and Image 2 are the same size and larger than
640 × 480.
•When Cropping is set to On in the Camera menu,
either vertical or lateral size of the cropped image is
larger than that of 640 × 480.
Administrating the Camera
Configuring the System — System Menu
36
Date/time
Set the format of date/time and the separator. These
settings are applied to both Image 1 and Image 2.
Camera ID
Select Tex t or Logo to display Camera ID.
You can modify the Text string and upload an image file
you want to use for Logo. However, both Text and Logo
cannot be used at the same time. Camera ID is applied to
both Image 1 and Image 2.
Images that can be used as a logo should be in GIF89a
format, and should not support the GIF animation or
transparent GIF format. The image size can be up to
640 × 120. The number of pixels horizontally should be
an even number. The maximum file size can be
approximately 50 KB.
Note
If the image size of the logo is larger than the image, it
cannot be displayed.
Select whether to superimpose on Image 1 and Image 2
or not, set the font size and configure each item that
display position is assigned.
Superimpose
On/Off: When using the Superimpose function, select
On.
Font size: Set the font size.
Superimpose format
Set the items to superimpose according to the displayed
position. Available items are as follows:
Off: Set not to superimpose.
Text : Set to display a string that you want. You can
enter characters in the right free space.
Date & time: Set to display date and time.
Camera ID: Set to display Camera ID.
Codec: Set to display the bit rate and frame rate.
Zoom ratio: Set to display the zoom ratio.
Camera direction: Set to display the name of a preset
position.
Event: Set to display an event record.
Notes
The items except for Off and Text cannot be set at the
same time.
Depending on the length of the string you enter in
Text, the string display may crossover the other item.
In this case, change the display position or modify the
string.
OK/Cancel
See “Buttons common to every menu” on page 32.
Installation Tab
You can perform settings related to installation.
Aspect ratio
Select an aspect ratio for the image from either 4:3 or
16:9 for Image 1.
When you change this setting, the selectable value of the
image size of Image 1 in Video codec tab (page 40) is
changed.
Notes
When Aspect ratio is changed, this unit restarts. It
takes about 2 minutes to restart.
When Aspect ratio is set to 16:9, SolidPTZ cannot be
set to On.
When Aspect ratio is changed, the following settings
return to default.
Video codec tab.
Position (all preset position will be cleared).
Motion detection tab (except the detection setting
for the maximum size).
Eflip
You can display flip vertical images on the computer.
Select Off when you hang the camera from a ceiling.
Select On when you install the camera on a rack, etc.
Note
Even if the On/Off setting of the inverted image is
switched, the thumbnail set in the panorama image (or
preset setting) will not be inverted. To invert the image,
make the setting again.
Administrating the Camera
Configuring the System — System Menu 37
Monitor out
You can configure the output setting for the monitor
output terminal of this unit. Select On to output an
NTSC or PAL signal.
Notes
Monitor out is used when you install this unit to
adjust the angle of view, etc. Be sure to set Off and
unplug the AV cable when you do not use this
function.
Be aware that the system performance may be
influenced, if monitor out is set to on.
The output signal format is determined according to
the setting of the camera’s NTSC/PAL switch.
Motion detection function is not available when
Monitor out is set to On.
OK/Cancel
See “Buttons common to every menu” on page 32.
Initialize Tab
Reboot
Used when rebooting the camera.
Click Reboot, and the message “This System will be
rebooted. Are you sure?” appears. Click OK to reboot
the camera. It takes about two minutes to restart.
Factory default
Resets the camera to the factory settings.
Retain current network settings
When this item is checked, only the current network
settings will be retained after reset.
Click Factory default, and the message “Setup data will
be initialized. Are you sure?” appears.
When you click OK, the network indicator on the
camera starts to blink. After adjustments of the default
settings have finished, the camera reboots automatically.
Do not turn off the camera until the camera reboots.
Tip
The camera can also be reset to the factory settings by
turning on the power of the camera while pressing the
reset button on the camera. For details, see the supplied
Installation Manual.
Backup setting data
Saves the setting data of the camera in a file.
Click Save, and follow the instructions on the Web
browser to specify the folder and save the setting data of
the camera.
The file name preset at the factory is “snc-ch210.cfg” for
SNC-CH210.
Restore setting
Loads the stored setting data of the camera.
Click Browse and select the file in which the setting data
is stored. Click OK, and the camera is adjusted
according to the loaded data, and restarted.
Restore preset position
If you select this, the stored setting data of the camera
and the preset position data are loaded.
Notes
•With Restore setting, some items in the Network
menu (page 44) cannot be restored.
•When Restore preset position is selected, it may take
some time to load the setting data.
The following items cannot be stored or restored with
Backup setting data or Restore setting.
a homepage created using Custom Homepage of
SNC toolbox
a client certificate and CA certificate to be used in
the 802.1X authentication function
Header logo
superimpose logo
Delete custom homepage
Click Delete to delete the homepages recorded in the
flash memory of the camera with Custom Homepage of
SNC toolbox (page 84).
Capture full image
When you click Capture, a full image covering the
entire shooting range is shot and saved to the camera.
The full image is captured regardless of the image size
and crop settings.
Note
Main viewer image may be interrupted or image and/or
audio files may not be created correctly during image
capturing.
Administrating the Camera
Setting the Camera Image — Camera Menu
38
Delete image
By pressing Delete, you can delete the full image
recorded in the camera.
Delete thumbnails
Click Delete to delete the thumbnails set in the Preset
Setting menu.
Delete header logo
Click Delete to delete the header logo set in the Viewer
menu.
Delete superimpose logo
Click Delete to delete the superimposed logo, set in the
camera ID on the Superimpose tab of the System menu,
from the camera.
To set whether to show or hide the superimpose logo,
you need to configure the setting under the Superimpose
tab.
System log Tab
The data of the software activity of the camera is
recorded in this log. It includes data that is useful if a
problem occurs.
Click Reload to reload the latest data.
Access log Tab
The access record of the camera is displayed.
Click Reload to reload the latest data.
Setting the Camera
— Camera Menu
When you click in the Administrator menu, the
Camera menu appears.
Use this menu to set the functions of the camera.
The camera menu consists of four tabs: Picture, Day/
Night, Video codec and Streaming.
Picture Tab
You can set the color conditions, exposure, etc., of the
camera.
Preview screen
Preview the image and adjust the picture setting.
For details on each button, refer to the Control bar of the
Plug-in free viewer (page 24).
Exposure
Adjust the settings of exposure.
Backlight compensation
Select On to enable the backlight compensation
function.
Note
If you use the backlight compensation function
effectively, adjust the angle of view so that subject be
centered in the image.
Camera
Administrating the Camera
Setting the Camera Image — Camera Menu 39
Exposure compensation
Select the exposure correction value from the list box to
adjust the target brightness for the automatic exposure
setting.
A larger value brightens the image, and a smaller value
darkens the image. Selectable values are as follows:
+2.0, +1.6, +1.3, +1.0, +0.6, +0.3, 0, –0.3, –0.6, –1.0,
–1.3, –1.6, –2.0 (EV)
AGC
Select the maximum gain value of the automatic
exposure setting as follows.
SNC-CH210/DH210/DH210T:
38, 30, 24, 18, 12, 6, Off (db)
SNC-CH110:
30, 24, 18, 12, 6, Off (db)
If you select Off, the automatic exposure setting by gain
control is not performed.
Shutter speed
Select the shutter speed control mode.
Auto: Auto-controlled shutter speed automatically sets
the exposure.
Fixed: Select the shutter speed from list box. Selectable
shutter speed values are as follows:
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/50, 1/60, 1/100, 1/250,
1/500, 1/1000, 1/2000, 1/4000, 1/10000 (sec.)
Note
Shutter speed 1 cannot be selected on the SNC-CH110.
Auto slow shutter
The automatic exposure setting including long term
exposure is set to compensate for the brightness of a
scene.
Select the minimum shutter speed in the long term
exposure mode from the list box.
Selectable shutter speed values are as follows:
1, 1/2, 1/4, 1/8, 1/15, 1/30 (sec.)
When Off is selected, the automatic exposure function
cannot be set in the long term exposure mode.
Notes
If the shutter speed is Fixed 1, 1/2, 1/4, 1/8 or 1/15, this
setting will be fixed to Off.
Shutter speed 1 cannot be selected on the
SNC-CH110.
Tip
Depending on the setting, the range of Auto-controlled
shutter speed is as follows
Shutter speed: Fixed
When Auto slow shutter is Off
Shutter speed is fixed to the value set in Shutter
speed.
When Auto slow shutter is set except for Off
The range of shutter speed is from the value set in
Auto slow shutter to the value set in Shutter speed.
Shutter speed: Auto
When Auto slow shutter is Off
The range of shutter speed is from 1/30 sec. to 1/10000
sec.
When Auto slow shutter is set except for Off
The range of shutter speed is from the value set in
Auto slow shutter to 1/10000 sec.
White balance
Select the White Balance mode.
ATW: Eliminating the influences caused by
environmental illumination or lights, adjust the white
balance automatically to reproduce original colors of
the objects (approximately 2000 K to 10000 K).
ATW-PRO: Automatically adjusts the color to be
closest to the image you are viewing (approximately
3000 K to 5800 K).
Fluorescent lamp: Sets the white balance to that
suitable for photography under three-band
fluorescent lighting with a neutral white color.
Mercury lamp: Sets the white balance to that suitable
for photography under a mercury lamp.
Sodium vapour lamp: Sets the white balance to that
suitable for photography under a high-pressure
sodium vapor lamp.
Metal halide lamp: Sets the white balance to that
suitable for photography under a metal halide lamp.
White LED: Sets the white balance to that suitable for
photography under the light of white LEDs.
One push WB: The One push trigger button becomes
active. Click the button to adjust the white balance
instantly.
Manual: When this option is selected, R gain and B
gain become active. Selectable gain values are from
0 to 4095.
NR
Image noise can be reduced by using the NR function.
Select Off to disable the function.
Gamma setting
Set the gamma curve in the camera. Depending on
subject or recording conditions, the following settings
will be available:
Normal: This setting is suitable for many scenes.
Scene 1: This setting is suitable for shooting dark areas
without losing detail of bright areas when the subject
is in high contrast, such as both sunlight and shadow.
Administrating the Camera
Setting the Camera Image — Camera Menu
40
Scene 2: This setting is suitable for obtaining an effect
stronger than Scene 1.
Scene 3: This setting is suitable for shooting dark areas
brightly when the subject is in high contrast, such as
both sunlight and shadow.
Scene 4: This setting does not perform gamma
correction. It is suitable for picture processing of an
image you shot.
Scene 5: This setting is suitable for preventing bright
subjects from overexposure.
Scene 6: This setting is suitable for using a display
system with a gamma characteristic of 1.8.
Brightness
Select the brightness in 11 steps, from –5 to +5.
Selecting +5 provides the brightest picture.
Saturation
Select the saturation in 7 steps, from –3 to +3. Selecting
+3 provides the highest image saturation.
Sharpness
Select the sharpness in 7 steps, from –3 to +3. Selecting
+3 provides the sharpest picture.
Contrast
Select the contrast in 7 steps, from –3 to +3. Selecting +3
provides the highest contrast.
OK/Cancel
See “Buttons common to every menu” on page 32.

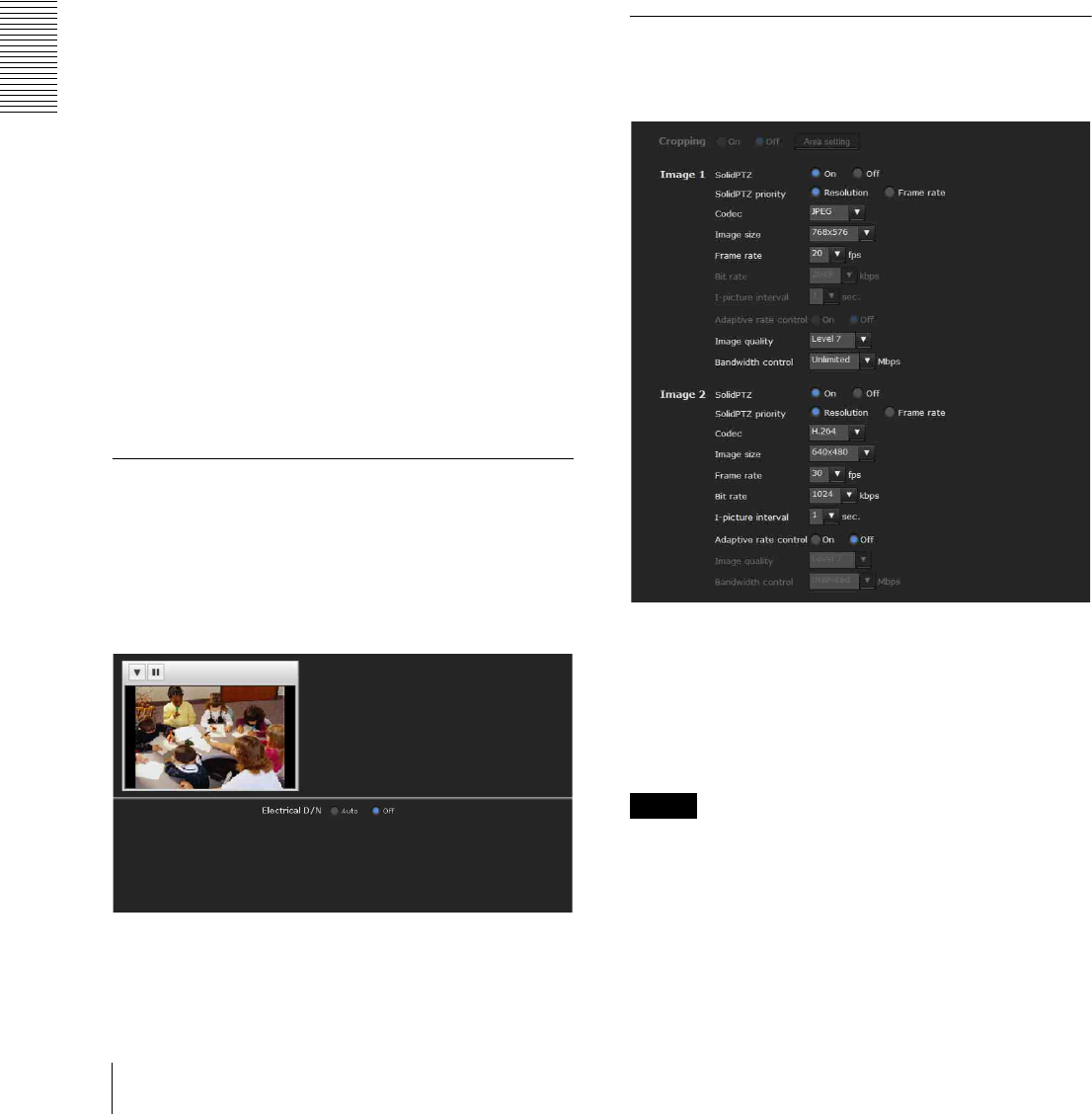

Day/Night Tab
Use this tab to set the easy day/night function of the
camera.
Since this function enables noise reduction, dark
monitoring images from the camera can be switched
automatically to monochrome images (night mode).
Preview screen
This screen is for monitoring images and configuring
easy day/night settings.
For details on each button, refer to the Control bar of the
Plug-in free viewer (page 24).
Electrical D/N
Auto: Normally works in day mode; switches
automatically to night mode in a dark place.
Off: Always works in day mode.
OK/Cancel
See “Buttons common to every menu” on page 32.
Video codec Tab
Set the items of Video 1 and Video 2 respectively for the
video codec.
Cropping
You can crop a portion of the image and display the
cropped image on the computer. Cropping reduces the
transmitting data size and thus the network load, and a
higher frame rate is achieved.
Select On to crop the image, or Off.
Notes
The motion detection function is not available when
Cropping is set to On.
Cropping is not available when SolidPTZ is enabled.
Video 2 image is cropped with the same setting as
Video 1.
Administrating the Camera
Setting the Camera Image — Camera Menu 41
The maximum size of a cropped image is 1280 × 720
(SNC-CH210/DH210/DH210T)/1280×960
(SNC-CH110) pixels.
To crop an image
1
Set Cropping to On and click the Area setting
button.
The area setting window appears.
2
Setting the trimming portion
Hold down the left button of the mouse on the still
image and drag the cursor diagonally. The area in a red
frame is the trimming portion.
3
Click OK at the bottom of the window.
The cropped image is displayed on the main viewer.
4
To close the image, click in the upper-right
corner.
SolidPTZ
Select ON to enable the SolidPTZ function.
Notes
SolidPTZ is not available when Cropping is enabled.
•When Aspect ratio in the System menu- Installation
tab is set to 16:9, this function is not available.
•When SolidPTZ is set to On, the motion detection
function is not available.
•When SolidPTZ of Image 1 is set to On, SolidPTZ
of Image 2 can be set to On.
SolidPTZ priority
When SolidPTZ is set to On, select Resolution or
Frame rate. When you use the SolidPTZ function,
select Resolution to zoom the image clearly, or select
Frame rate to shoot high-speed subjects.
Notes
SolidPTZ priority setting is not available on the
SNC-CH110.
You cannot select SolidPTZ priority for Video 2
since the setting value for Video 1 is applied to Video
2.
Codec
Select JPEG, MPEG4, H.264 or OFF. Note that Image
1 cannot be set to Off.
Notes
The selectable size of images and frame rate for
Image 2 may be limited depend on the setting of codec
type, size of images and/or frame rate for Image 1.
Motion detection function is not available when Image
2 is set to other than Off.
Image size
You can select the size of images sent from the camera.
The selectable image sizes depend on the aspect ratio
setting in the installation tab. For details on selecting
aspect ratio, refer to “Installation tab” in “System menu”
in page 36.
The selectable image sizes for Image 1 and Image 2 are
as follows:
Notes
2048 × 1536 image size can only be selected when the
codec is JPEG.
Some image sizes for Image 2 cannot be configurable
if the size is not the same as Image 1.
Therefore, when an image size of Image 1 is changed,
the image size of Image 2 may be changed
automatically.
Aspect ratio [4:3]
a: Configurable. ×: Not configurable. f: Configurable
only when Image 1 is this image size.
SNC-CH210/DH210/DH210T
Image 1 Image 2
2048 × 1536 a×
1920 × 1080 × ×
1600 × 1200 a×
1680 × 1056 × ×
1440 ×
912 × ×
1376 ×
768 × ×
1280 ×
1024 a×
1280 ×
960 a×
1280 ×
800 × ×
1280 ×
720 × ×
1024 ×
768 af
1024 ×
576 × ×
800 ×
480 × ×
768 ×
576 af
720 ×
576 af
704 ×
576 af
720 ×
480 af
640 ×
480 aa
640 ×
368 × a
384 ×
288 aa
352 × 288 aa
320 ×
240 aa
320 ×
192 × a
176 × 144 aa
Administrating the Camera
Setting the Camera Image — Camera Menu
42
SNC-CH110
Aspect ratio [16:9]
a: Configurable. ×: Not configurable. f: Configurable
only when Image 1 is this image size.
SNC-CH210/DH210/DH210T
SNC-CH110
When SolidPTZ is set to On, selectable image
sizes are as follows.
a: Configurable. ×: Not configurable. f: Configurable
when SolidPTZ of Image 2 is set to Off.
Frame rate
Set the frame rate of the image.
Selectable frame rates are as follows:
1, 2, 3, 4, 5, 6, 8, 10, 12, 15, 16, 20, 25, 30 (fps)
“fps” is a unit indicating the number of frames
transmitted per second.
Configurable frame rates are as follows:
Image 1 Image 2
1280 ×
960 af
1280 ×
800 × ×
1280 ×
720 × ×
1024 ×
768 af
1024 ×
576 × ×
800 ×
480 × ×
768 ×
576 af
720 ×
576 af
704 ×
576 af
720 ×
480 af
640 ×
480 aa
640 ×
368 × a
384 ×
288 aa
352 × 288 aa
320 ×
240 aa
320 ×
192 × a
176 × 144 aa
Image 1 Image 2
2048 × 1536 × ×
1920 × 1080 a×
1600 × 1200 × ×
1680 × 1056 a×
1440 ×
912 a×
1376 ×
768 a×
1280 ×
1024 × ×
1280 ×
960 × ×
1280 ×
800 a×
1280 ×
720 af
1024 ×
768 × ×
1024 ×
576 af
800 ×
480 af
768 ×
576 × ×
720 ×
576 × ×
704 ×
576 × ×
720 ×
480 × ×
640 ×
480 × a
640 ×
368 aa
384 ×
288 × a
352 × 288 × a
320 ×
240 × a
320 ×
192 aa
176 × 144 × a
Image 1 Image 2
1280 ×
960 × ×
1280 ×
800 × ×
1280 ×
720 af
1024 ×
768 × ×
1024 ×
576 af
800 ×
480 af
768 ×
576 × ×
720 ×
576 × ×
704 ×
576 × ×
720 ×
480 × ×
640 ×
480 × a
640 ×
368 aa
384 ×
288 × a
352 × 288 × a
320 ×
240 × a
320 ×
192 aa
176 × 144 × a
Image 1 Image 2
768 × 576 a×
720 × 576 a×
704 × 576 a×
720 × 480 a×
640 × 480 aa
640 × 368 × f
384 × 288 aa
352 × 288 aa
320 × 240 aa
320 × 192 × f
176 × 144 aa
Administrating the Camera
Setting the Camera Image — Camera Menu 43
Image size [1280 × 720]
Bit rate
Set the bit rate of MPEG4 or H.264 image transmission
for a line. When the bit rate is set to a high level, better
image quality can be enjoyed.
Selectable bit rates are as follows:
64, 128, 256, 384, 512, 768, 1024, 1536, 2048, 3072,
4096, 5120, 6144, 7168, 8192 (kbps)
I-picture interval
Set the I-picture insertion interval.
Adaptive rate control
This function adjusts the frame rate and the bit rate
automatically so that the camera plays back a smooth
image to suit the connected computer environment. If
On is selected, the MPEG4 or H.264 image rate is
automatically adjusted.
Notes
The actual frame rate and bit rate may be different
depending on the image size, shooting scene, or
network condition.
•When Adaptive rate control is set to On, the actual
frame rate and bit rate change within the range that
does not exceed the values set in Frame rate and Bit
rate.
Image quality
Set the JPEG image quality.
Selectable values are from Level 1 to Level 10.
When Level 10 is selected, the best image quality is
achieved.
Bandwidth control
Limits the network bandwidth for the JPEG image data
output from the camera.
OK/Cancel
See “Buttons common to every menu” on page 32.
Streaming Tab
Use this tab to set the items for the transmission by
unicast or multicast.
Unicast streaming
Specify the transmission port numbers of the MPEG4/
H.264 video data to be used when Unicast is selected
from the Connection drop-down list in the Other panel
on the main viewer.
Video port number 1, 2
Specify the transmission port number of the MPEG4/
H.264 video data. It is initially set to 50000.
Specify an even number from 1024 to 65534. Two port
numbers (the number specified here and an odd number
with 1 added to the specified number) are actually used
for video data communication and control.
The setting for Image 1 and Image 2 apply for Video port
number 1 and 2 respectively.
Multicast streaming
Set whether the camera uses multicast streaming for
MPEG4/H.264 video data or not. It reduces the
transmission load on the camera by having a computer
of the same segment network receive the same
transmitting data.
Select On to allow, or Off not to allow multicast
sending.
When you select On, set Multicast address and Video
port number properly.
Multicast address
Type the multicast address used on the multicast
streaming.
Video port number 1, 2
Specify the MPEG4/H.264 video transmission port
number used for the multicast streaming. It is initially
set to 60000. Specify an even number from 1024 to
65534. Two port numbers (the number specified here
and an odd number with 1 added to the specified
number) are used for video data communication and
control.
The setting for Image 1 and Image 2 apply for Video port
number 1 and 2 respectively.
OK/Cancel
See “Buttons common to every menu” on page 32.
Image 1 Image 2
Codec Frame rate
(fps)
Codec Frame rate
(fps)
Single
codec
H.264 30 -
MPEG4 30 -
JPEG 30 -
Dual codec
H.264 15 H.264 6
H.264 15 JPEG 10
H.264 15 MPEG4 8
MPEG4 20 MPEG4 8
MPEG4 25 JPEG 6
JPEG 30 JPEG 10
Administrating the Camera
Configuring the Network — Network Menu
44
Configuring the Network
— Network Menu
When you click in the Administrator menu, the
Network menu appears.
Use this menu to configure the network to connect the
camera and the computer.
The Network menu consists of three tabs: Network,
QoS and Dynamic IP address notification.
Network Tab
This section provides the menus for connecting the
camera through the network cable.
MAC address
Displays the MAC address of this unit.
Ethernet status
Displays the current transmission rate.
Auto-MDI/MDIX
According to the port of the connected Ethernet device,
automatically switches the port of the unit between MDI
and MDI-X for transmission.
Displays the Ethernet port mode of the unit.
IPv4 setting
Configure the IPv4 network setting.
IP address
Configure the IP address.
Obtain an IP address automatically (DHCP): Select
this option when a DHCP server is installed on the
network to allow IP address assignment. With this
setting, the IP address is assigned automatically.
Note
When you select Obtain an IP address automatically
(DHCP), make sure that a DHCP server is operating on
the network.
Use the following IP address: Select this option when
you set a fixed IP address. With this setting, specify
the IP address, Subnet mask and Default gateway
manually.
IP address
Type the IP address of the camera.
Subnet mask
Type the subnet mask.
Default gateway
Type the default gateway.
DNS server
Configure the DNS server address.
Obtain DNS server address automatically: Select this
option to obtain the IP address of DNS server
automatically. It can be set only when Obtain an IP
address automatically (DHCP) is selected in the
Network tab.
Note
When you select Obtain DNS server address
automatically, make sure that a DHCP server is
operating on the network.
Use the following DNS server address: Select this
when you set a fixed address as the IP address of the
DNS server. With this setting, specify the addresses
on Primary DNS server and Secondary DNS
server manually.
Primary DNS server
Type the IP address of the primary DNS server.
Secondary DNS server
Type the IP address of the secondary DNS server, if
necessary.
MTU
Enter the MTU value for the Ethernet port. (1000 - 1500)
If IPv6 is enabled, the value must be 1280 or greater.
Network
Administrating the Camera
Configuring the Network — Network Menu 45
Host name
Type the host name of this unit to be transmitted to the
DHCP server. This setting is valid only when Obtain an
IP address automatically (DHCP) is selected in the
Network tab.
Domain suffix
Type the domain suffix of this unit to be transmitted to
the DHCP server. This setting is valid only when Obtain
an IP address automatically (DHCP) is selected in the
Network tab.
Note
The domain suffix is sent to the DHCP server as FQDN
(Fully Qualified Domain Name) information when Host
name is set.
HTTP port number
Normally select 80. If you want to use a port number
other than 80, select the text box and type a port number
between 1024 and 65535.
Note
When you have set the HTTP port number to a number
other than 80 in the Network menu or in SNC toolbox,
access the camera again by typing the IP address of the
camera on your Web browser as follows:
Example: Setting port number 8000 when IP address is
192.168.0.100
IPv6 setting
Configure the IPv6 network settings.
IPv6 can be used simultaneously with IPv4.
Only IPv6-specific details are explained here. For
common details, see “IPv4 setting” on page 44.
On/Off
To use IPv6, select On.
Prefix
Enter the Prefix value. (0 to 128)
IPv6 MTU
Enter the MTU value for IPv6. (1280 -1500)
The value must not exceed the MTU value for the
Ethernet port.
OK/Cancel
See “Buttons common to every menu” on page 32.
QoS Tab
In this tab, you can mark the data traffic packets sent
from the device and configure the settings for QoS
control. Rules for the types of data traffic can be created
using IPv4/IPv6 address, port number, protocol, etc. A
maximum of 10 rules can be registered for IPv4 and
IPv6, respectively.
IPv4 QoS
Select On to configure the QoS setting for IPv4.
Rule
Used to register, edit and delete QoS.
No.
Select the number to use when registering on the QoS
table.
When you select a registered number, the registered QoS
information is displayed.
Network address
Enter the network address of the target on which to
perform QoS.
Subnet
Enter the subnet mask values of the target on which to
perform QoS.
Tip
The subnet mask value represents the number of bits
from the left side of the network address.
Port
Enter the port number for the data traffic of the device
(e.g. HTTP:80).
Administrating the Camera
Configuring the Network — Network Menu
46
Protocol
Select the protocol.
DSCP
Set a value to mark the data traffic (0 ~ 63).
This value is set in the DSCP field included in the IP
header of the data traffic.
Set
Used when registering on the QoS table.
QoS is set according to the following procedure:
1
Select No. from No. and enter the necessary
conditions for Network address, Subnet, Protocol
and/or Port No..
2
Enter values in DSCP.
3
Click Set and configure the QoS.
Delete
select No. to delete the setting and click Delete.
Up
Increases the priority of the rule.
Select a rule from the QoS table to prioritize and click
Up.
Down
Decreases the priority of the rule.
Select a rule from the QoS table to lower its priority and
click Down.
QoS table
Displays the list of registered QoS information. If
multiple conditions match, the rule with the smallest
number has priority.
IPv6 QoS
Select On to configure the QoS setting for IPv6.
Rule
Used to register, edit and delete QoS.
No.
Select the number to use when registering on the QoS
table.
When you select a registered number, the registered QoS
information is displayed.
Network address
Enter the network address of the target on which to
perform QoS.
Prefix
Enter the prefix value of the target on which to perform
QoS.
Tip
The prefix value represents the number of bits from the
left side of the network address.
Port
Enter the port number for the data traffic of the device
(e.g. HTTP:80).
Protocol
Select the protocol.
DSCP
Set a value to mark the data traffic (0 ~ 63).
This value is set in the DSCP field included in the IP
header of the data traffic.
Set
Used when registering on the QoS table.
QoS is set according to the following procedure:
1
Select the number you want to register from No.
and enter the necessary conditions for Network
address, Subnet, Protocol and Port No..
2
Enter values in DSCP.
3
Click Set and configure the QoS.
Delete
select No. to delete the setting and click Delete.
Up
Increases the priority of the rule.
Select a rule from the QoS table to prioritize and click
Up.
Down
Decreases the priority of the rule.
Select a rule from the QoS table to lower its priority and
click Down.
QoS table
Displays the list of registered QoS information. If
multiple conditions match, the rule with the smallest
number has priority.
Tip
To attain QoS of data traffic, the target device must be
connected to a router or switch that supports the QoS
function.
Administrating the Camera
Configuring the Network — Network Menu 47
OK/Cancel
See “Buttons common to every menu” on page 32.
Dynamic IP address notification
Tab — Notifying the IP Address
When Obtain an IP address automatically (DHCP) is
selected in the Network tab, you can send notification of
completion of the network settings using the SMTP or
HTTP protocol.

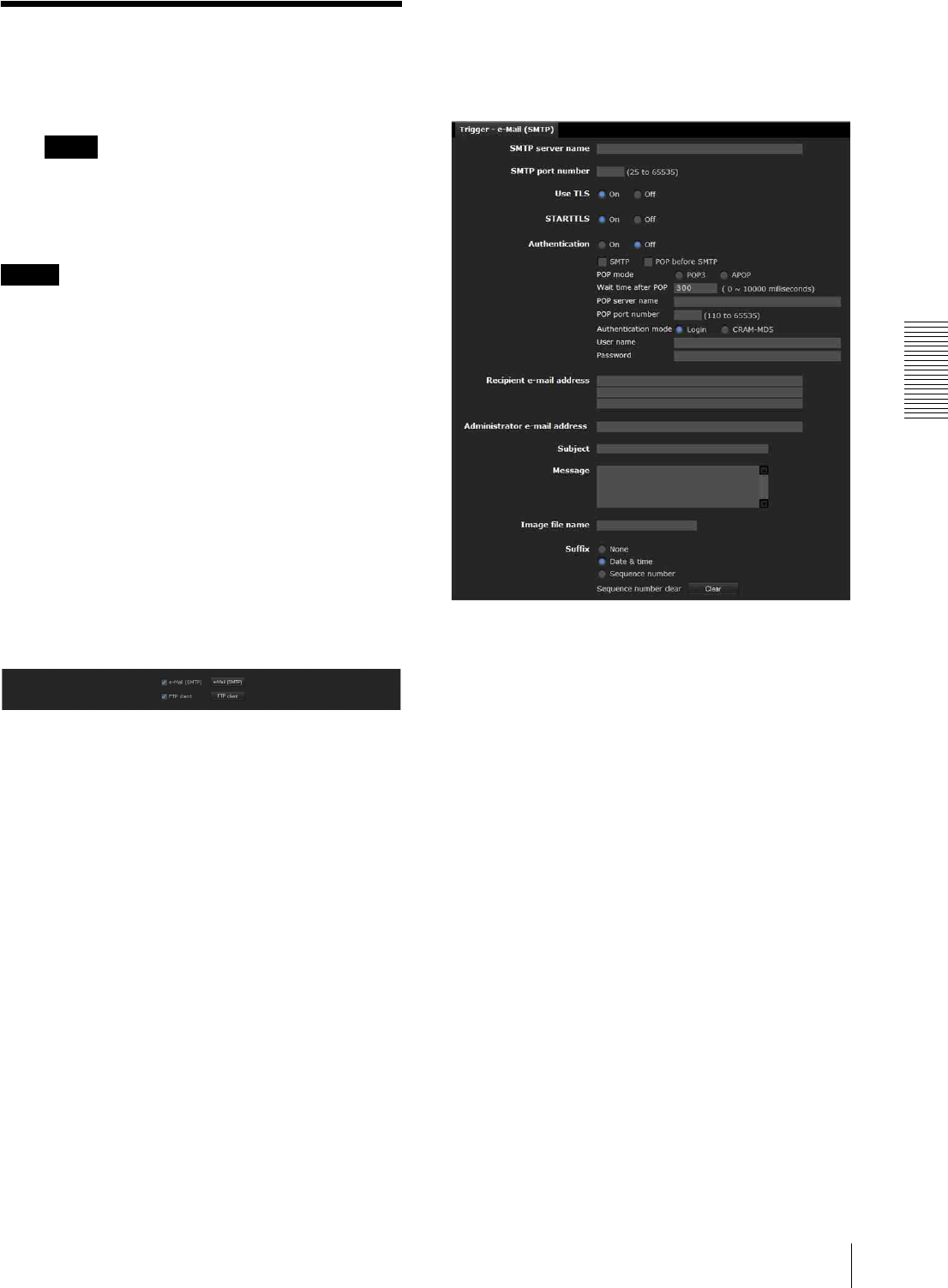

e-Mail (SMTP) notification
Select On to send an e-mail when the DHCP setting is
completed.
SMTP server name
Type the name or IP address of the SMTP server for
sending an e-mail, using up to 64 characters.
SMTP port number
Enter a port number from 25 to 65535.
The standard port number is 25. If TLS is enabled, the
standard port number for SMTPs is 465.
Use TLS
To use the encryption function by TLS, set to On.
Note
The model on sale in China does not support the TLS
function.
STARTTLS
To use the encryption function by STARTTLS, set to
On.
Note
The model on sale in China does not support the
STARTTLS function.
Authentication
Select the authentication required when you send an
e-mail.
Off: Select if no authentication is required when an
e-mail is sent.
On: Select if authentication is required when an e-mail
is sent. Select one of the authentication methods
from the following and specify the POP server
name, User name and Password as required.
SMTP: Select when SMTP authentication is
required.
POP before SMTP: Select when POP before SMTP
authentication is required.
Note
When you set Authentication to On, be sure to select
SMTP and/or POP before SMTP.
POP mode
Select POP3 or APOP as the authentication method for
POP authentication.
Note
The model on sale in China does not support APOP
authentication.
Wait time after POP
Set the waiting time in POP before SMTP before
SMTP authentication after POP authentication is
completed. Timeout can be set from 0 to 10,000 msec.
POP server name
This is necessary when POP before SMTP is selected
for Authentication.
Type the POP (receiving mail) server name, using up to
64 characters. Or type the IP address of the POP server.
This setting is necessary when the SMTP server that
sends e-mails performs authentication using the POP
user account.
POP port number
Enter a port number from 110 to 65535.
The standard port number is 110. If TLS is enabled, the
standard port number for POP3s is 995.
Authentication mode
Select Login or CRAM-MD5 as the authentication
method for SMTP authentication.
Administrating the Camera
Configuring the Network — Network Menu
48
Note
The model on sale in China does not support
CRAM-MD5 authentication.
User name, Password
Type the user name and password of the owner of the
mail account, using up to 64 characters. This setting is
necessary when the SMTP server that sends e-mails
performs authentication.
Recipient e-mail address
Type the recipient e-mail address, using up to 64
characters. You can specify only one recipient e-mail
address.
Administrator e-mail address
Type the e-mail address of the camera administrator,
using up to 64 characters. This is used as the reply
address or the address for a system mail from the mail
server.
Subject
Type the subject/title of the e-mail, using up to 64
characters.
Message
Type the text of the e-mail using up to 384 characters. (A
line break is equivalent to 2 characters.) You can
describe the information of the acquired IP address, etc.,
using the special tags mentioned below.
HTTP notification
Select On to output a command to the HTTP server
when the DHCP setting is completed. Using this
function, you can configure a useful system, for
example, to view the access log stored in the HTTP
server, or start an external CGI program.
URL
Specify the URL to send an HTTP request, using up to
256 characters. The URL is normally written as follows:
ip_address: Type the IP address or host name of the host
to which you want to connect.
To enter an IPv6 address:
http:// [IPv6 address]
http:// [IPv6 address]: port
[:port]: Specify the port number to which you want to
connect. If you want to use the established port
number 80, you do not need to input a value.
path: Type the command.
parameter: Type the command parameter if necessary.
You can use the special tags mentioned below for the
parameters.
Proxy server name
When you send an HTTP request via a proxy server,
type the name or IP address of the proxy server, using up
to 64 characters.
Proxy port number
Specify the port number when you send an HTTP
request via the proxy server. Set a port number between
1024 and 65535.
Method
Select the HTTP method GET or POST.
OK/Cancel
See “Buttons common to every menu” on page 32.
About the special tags
You can use the following five special tags to allow
notification of the settings acquired by DHCP, such as an
IP address. Type the tags in the parameter section of the
URL that you described in the Message field of the
HTTP.
<IP>
Use this tag to embed the IP address acquired by DHCP
in the text or parameter.
<HTTPPORT>
Use this tag to embed the specified HTTP server port
number in the text or parameters.
<MACADDRESS>
Use this tag to embed the MAC address of the interface,
whose IP address was acquired by DHCP, in the text or
parameter.
<MODELNAME>
Use this tag to embed the camera’s model name in the
text or parameter.
<SERIAL>
Use this tag to embed the camera’s serial number in the
text or parameter.
Administrating the Camera
Setting the SSL function — SSL Menu 49
Setting the SSL function
— SSL Menu
When you click in the Administrator menu, the
SSL menu appears.
Use this menu to configure the SSL or TLS function
(called “SSL” hereafter).
The settings allows the camera to communicate with the
client PC by using SSL.
SSL menu consists of the Common tab and CA
certificate tab.
Notes
The model on sale in China does not support the SSL
function.
When using the SSL function, always configure the
settings after setting the date and time of the camera.
If the date and time are not correctly set, it may cause
browser connection problems.
Common tab
SSL function
On: Select this to use the SSL function. When Allow
HTTP connection for some clients is selected, both
HTTP and SSL connections are allowed. When
Allow HTTP connection for some clients is not
selected, only SSL connection is allowed.
When Microsoft Internet Explorer Ver.6.0 is used
When SSL session is established, appears in the
status bar on your web browser.
When Microsoft Internet Explorer Ver.7.0 Ver.8.0 is
used
When SSL session is established, appears in the right
of the address bar on your web browser.
Off: Select this to not use the SSL function. Only HTTP
connection is allowed with the camera.
When you use SSL connection for the first time
When you use SSL connection only with the SSL
function On, you cannot access the camera if the SSL
function does not work properly.
In this case, you must reset the camera to the factory
settings. (All settings will be initialized.)
To avoid this, check that SSL connection is possible by
performing the following steps.
1
Set the SSL function to On, and select Allow
HTTP connection for some clients.
2
Click OK to close the main viewer and the setting
window.
3
Display the main viewer in SSL connection.
Refer to “Using the SSL function” on page 15 for
connection.
4
After checking that SSL connection is possible,
cancel Allow HTTP connection for some clients
selected in step 1.
Even if the setting window or the browser is closed as
SSL connection is impossible, http connection will be
possible if Allow HTTP connection for some clients is
selected. First check the setting contents of SSL tab in
http connection, then check the SSL connection again.
If Allow HTTP connection for some clients is not
selected, you will not be able to access the camera if SSL
connection becomes impossible. In this case, turn on the
power of the main unit while pressing the reset switch on
the camera to initialize. For details, refer to the supplied
Installation Manual.
Note
SSL connection will load the camera down; therefore,
not all images may be downloaded, and the mark
may appear when the camera accesses the setting
window from the browser. In this case, reload the
window. Press the F5 key on the keyboard to reload.
Certificate options
Select an installation mode of the certificate.
Use an external certificate: Uses the certificate
including private key information issued by a CA.
The PKCS#12 and PEM formats are supported.
Note
SSL is not available when Certificate options-Use an
external certificate is selected, or certificate and private
key password is not set properly, even if SSL is set to
ON
SSL
Administrating the Camera
Setting the SSL function — SSL Menu
50
Use a self-signed certificate (For test use): This mode
uses the certificate and private key pair generated by
“Generating a self-signed certificate” on page 50.
Private key information corresponding to the
certificate is stored in the camera.
You do not need to install an external certificate.
However, you cannot execute the existence proof that
is one of the SSL functions for the following reasons.
The private key generated in the camera is self-
signed by the camera.
A prepared value is set for a distinguished name
(Common name, etc.).
The certificate is not issued by a trusted CA.
For reasons of security, we recommend using this
mode only when there is no problem even if perfect
security is not saved.
Notes
•When Use a self-signed certificate (For test use) is
selected, the Security Alert dialog appears on the
SSL connection with a browser.
For details, refer to “Using the SSL function”
(page 15).
SSL connection may be impossible due to the type of
certificate installed in the camera. In this case, refer to
“How to install the CA certificate” on page 52 and
install.
Certificates
Import, display or delete the certificate.
To import the certificate
Click Browse... to select the certificate to be imported.
Click Submit to import the certificate, and the selected
file to the camera.
Note
The import process becomes invalid if the selected file is
not a certificate or the imported certificate is not
allowed.
Generating a self-signed certificate
A self-signed certificate can be generated in the camera
to be used when Use a self-signed certificate (For test
use) is selected from Certificate options.
Click Generate to generate a self-signed certificate in
the camera. Clicking Generate again after Generate
has been clicked once will update the self-signed
certificate stored in the camera.
Note
Make sure to set the date and time on the camera
correctly before performing this operation. If the date
and time are not correctly set, it may cause browser
connection problems.
To display certificate information
When the certificate has been set in the camera correctly,
its information appears on Status, Issuer DN, Subject
DN, Validity Period and Extended Key Usage.
Status
Shows if the status of the certificate is valid or invalid.
The following statuses are recognised.
Valid: The certificate is correctly stored and set.
Invalid: The certificate is not correctly stored and set.
Possible causes are as follows:
Use an external certificate is selected and the
private key password included in the certificate is
not specified correctly.
Use an external certificate is selected and the
private key password is specified in spite of the fact
that the key pair in the certificate is not encrypted.
Use an external certificate is selected and the key
pair is not included in the certificate.
Use a self-signed certificate (For test use) is
selected without the self-signed certificate being
generated.
Note
When the certificate to be imported is of PKCS#12
format and the private key password is not set correctly,
<Put correct private key password> is displayed in the
boxes of Issuer DN, Subject DN, Validity Period and
Extended Key Usage. Specify the correct private key
password to confirm the information of the certificate.
To delete the imported certificate or self-signed
certificate
Click Delete to delete the certificate or self-signed
certificate imported to the camera.
Private key password
Type the password for the private key information
included in the certificate using up to 50 characters. This
text box is active only when Certificate options is set to
Use an external certificate.
Leave the text box blank if the private key information
included in the certificate is not encrypted.
If no private key password is set in the camera, an active
text field is displayed and this allows a password to be
entered.
If a private key password is already set, it is displayed as
an inactive text field.
Reset
To change the private key password, click this button.
The current password is cleared and the password text
box becomes active to allow a new password entry.
Administrating the Camera
Setting the SSL function — SSL Menu 51
Note
Click Cancel at the bottom of the menu if you want to
cancel changing the private key password after clicking
Reset. Doing so restores the other setting items in the
Client certificate tab to the previous settings.
OK/Cancel
See “Buttons common to every menu” on page 32.
Note
When you click OK after changing SSL setting, close
the main viewer and the setting window once.
CA certificate tab — Adding the CA
certificate for client authentication
In this tab, you can manage the CA certificate needed for
the camera to use the client authentication of the SSL
function.
Note
When using the client authentication, the personal
certificate must be successfully installed on the PC to
use it. If this preparation cannot be performed, do not
configure settings on this tab. Otherwise, you may not be
able to connect to the camera.
SSL client authentication
You can configure whether to enable the client
authentication of the SSL function.
Trusted CA certificate 1 to 4
You can import a trusted CA certificate (route
certificate, etc.) to the camera.
Up to four certificates from trusted CAs can be imported
to the camera. Only PEM format is supported.
To import the CA certificate
1
Click Browse… to select the CA certificate to be
saved in the camera.
2
Click Submit
The selected file will be imported to the camera.
Note
Import process will be invalid if the selected file is not a
CA certificate.
To display the information of the CA certificate
When the CA certificate has been saved in the camera
correctly, its information appears on Issuer DN,
Subject DN, Validity Period, and Extended Key
Usage for your reference.
To delete the CA certificate
Click Delete to delete the selected CA certificate from
the camera.
Tip
To enable a client certificate, it is recommended that the
settings are configured following the procedure below:
1Import the necessary CA certificate.
2Set SSL client authentication to On and
click OK.
Note
When you set SSL client authentication to On and click
OK, the camera will immediately operate to enable
client authentication. Make sure that the personal
certificate on your PC is successfully installed.
OK/Cancel
See “Buttons common to every menu” on page 32.
Administrating the Camera
Setting the SSL function — SSL Menu
52
How to install the CA certificate
The camera may not be connected because the browser
(Internet Explorer) does not display whether the
certificate will be accepted or not due to the type of
certificate. In this case, install the CA certificate as
follows.
1
Save in the PC the certificate of CA which has
signed the certificate to be installed in the camera.
The extension of the certificate file is normally
“.cer”. Double-click this file. The following
Certificate dialog appears.
2
Click Install Certificate....
The Certificate Import Wizard appears.
3
Click Next.
4
Select Automatically select the certificate store
based on the type of certificate and click Next.
Completing the Certificate Import Wizard
appears.
5
Check the contents, then click Finish.
The CA certificate will be installed.
Administrating the Camera
Setting the SSL function — SSL Menu 53
To remove an installed CA
certificate
1
In Internet Explorer, click in the order Tool s,
Internet options, Content tab and Certificates.
The Certificates dialog appears.
2
Select the certificate you want to remove.
The CA certificate is usually stored in Trusted
Root Certification Authorities.
3
Click Remove.
Do you want to delete the certificate appears,
requesting confirmation.
4
Click Ye s .
The certificate will be removed.
There may be a case that a certificate cannot be
removed by the steps above due to the type of
certificate. Check the installation condition and
remove it following the steps below.
Note
You need to log in as Administrator to perform these
steps.
1
Open Run... of the Windows menu, then enter mmc
and click OK.
2
Select File in the Console 1 window and Add/
Remove Snap-in... (when Windows XP
Professional is used)
Add/Remove Snap-in... dialog appears.
3
Click Add to display Add Stand-alone Snap-in
dialog.
You need to follow this step if using Windows XP
Professional.
4
Select Certificates from the list, then click Add.
Certificate Snap-in is displayed.
5
Select Computer account as the certificate
administrated in this Snap-in, then click Next.
6
Select Local Computer as the computer
administrated in this Snap-in, then click Finish.
7
Close Add Standalone Snap-in (for Windows XP
Professional only) and Add/Remove Snap-in...
dialogs.
The items for administrating Certificates appears
in the Console Route window.
Confirm the relevant certificate, then remove it.
Administrating the Camera
Using the 802.1X Authentication Function — 802.1X Menu
54
Using the 802.1X
Authentication Function
— 802.1X Menu
When you click in the Administrator menu, the
802.1X menu appears.
Use this menu to configure the wired port-based
authentication in compliance with the 802.1X standard.
The 802.1X menu consists of three tabs: Common,
Client certificate and CA certificate.
Notes
To use the 802.1X authentication function, you need
knowledge of the 802.1X authentication (WPA and
WPA2) and digital certificate. To establish an 802.1X
network, you need to configure the authenticator,
authentication server and other elements. For details
on these settings, refer to the manual of the
corresponding equipment.
When using the 802.1X authentication function,
always configure the settings after setting the date and
time of the camera. If the date and time are incorrect,
port authentication may not be performed correctly.
System configuration of 802.1X
network
The following figure shows a general system
configuration of an 802.1X network.
Supplicant
A supplicant is a device that connects to the
authentication server to join the network. This unit
serves as a supplicant in the 802.1X network. The
supplicant can enter the 802.1X network after
appropriate authentication by the authentication server.
Authenticator
An authenticator forwards certificate request data or
response data that the supplicant or authentication server
issues to the other party. Normally a hub or router serves
as an authenticator.
Authentication server
An authentication server has a database of connected
users and verifies if the supplicant is a valid user or not.
It can also be called RADIUS server.
CA (Certificate Authority)
A CA issues and manages certificates of the
authentication server (CA certificates) and user
certificates. The CA is essential for certificate-based
user authentication. Normally a CA is located inside an
authentication server.
Note
This camera supports EAP mode in which the supplicant
and the server authenticate using the certificate. This
mode requires a CA to issue the certificate.
Common Tab — Basic setting of
802.1X authentication function
802.1X authentication function
This item is used for enabling/disabling the 802.1X
authentication function for wired ports. The wired
interface status can also be checked here.
Wired interface
To activate the 802.1X authentication function for wired
ports, select On.
802.1X
Supplicant (camera)
Authenticator
(hub or router)
Authentication server + CA
Administrating the Camera
Using the 802.1X Authentication Function — 802.1X Menu 55
Wired interface status
Shows the authentication status of the 802.1X
authentication function for wired ports.
Click Refresh to update the status.
EAP identity
Type the user name to identify the client in the 802.1X
authentication server using 3 to 253 characters.
EAP password
A supplicant EAP password is needed to be inputted
when PEAP is selected with EAP condition. The
password can contain half-width letters and the length
should be between 1 to 50.
Reset
To change the once set EAP password, click Reset and
clear the current password. A new password can be
entered.
Note
After you click Reset, if you wish to cancel the EAP
password change, click Cancel at the bottom of the
screen. This will cancel other changes made to the
settings.
EAP method
You can select the authentication method used with the
authentication server. This device supports TLS and
PEAP.
TLS: By this method, the supplicant and the server
authenticate each other using a certificate. This
enables secure port authentication.
PEAP: By this method, an EAP password is used for the
supplicant authentication and a certificate is used for
server authentication.
OK/Cancel
See “Buttons common to every menu” on page 32.
Client certificate Tab
When TLS is selected as the EAP method, the client
certificate is imported for authentication by the camera.
Client certificate request
Import, display or delete the client certificate.
To import the client certificate
Click Browse… to select the client certificate to be
imported.
Then click Submit, and the selected file will be
imported to the camera.
Note
The import process becomes invalid if the selected file is
not a client certificate or the imported client certificate is
not allowed.
To display the information of the client
certificate
When the client certificate has been saved in the camera
correctly, its information appears on Status, Issuer DN,
Subject DN, Validity Period and Extended Key
Usage.
Status: Shows if the status of the client certificate is
valid or invalid.
Valid means the client certificate is correctly stored
and set.
Invalid means the client certificate is not correctly
stored and set.
Possible causes of Invalid are as follows:
The private key password included in the client
certificate is not specified correctly.
The private key password is specified in spite of
the fact that the key pair in the client certificate is
not encrypted.
The key pair is not included in the client certificate.
Administrating the Camera
Using the 802.1X Authentication Function — 802.1X Menu
56
Note
When the client certificate to be imported is of
PKCS#12 format and the private key password is not set
correctly, “<Put correct private key password>” is
displayed in the boxes of Issuer DN, Subject DN,
Validity Period and Extended Key Usage. Specify the
correct private key password to confirm the information
of the certificate.
To delete the client certificate
Click Delete, and the client certificate stored in the
camera will be deleted.
Private key password
Type the password for the private key information
included in the client certificate using up to
50 characters.
Leave the text box blank if the private key information
included in the client certificate is not encrypted.
If no private key password is set in the camera, the text
box is activated to allow entering of a password.
If a private key password is already set, it is displayed as
hidden letters.
Reset
To change the private key password, click this button.
The current password is cleared and the password text
box is actived to allow new password entry.
Note
Click at the bottom of the menu if you want to
cancel changing the private key password after clicking
Reset. Doing so restores the other setting items in the
Client certificate tab to their previous settings.
OK/Cancel
See “Buttons common to every menu” on page 32.
CA certificate Tab
You can import a trusted CA certificate (server
certificate or route certificate) to the camera. Up to four
certificates from trusted CAs can be imported to the
camera. Only the PEM format is supported.
To import a CA certificate
Click Browse… to select the CA certificate to be
imported.
Then click Submit, and the selected file will be
imported to the camera.
Note
Import process becomes invalid if the selected file is not
a CA certificate.
To display the information of the CA certificate
When the CA certificate has been saved in the camera
correctly, its information appears on Issuer DN,
Subject DN, Validity Period and Extended Key
Usage.
To delete the CA certificate
Click Delete, and the CA certificate stored in the camera
will be deleted.
Cancel
Administrating the Camera
Using the 802.1X Authentication Function — 802.1X Menu 57
Setting the 802.1X authentication
function — Example of Windows
Server 2003
This section explains how to configure the
authentication server and CA using Microsoft Windows
Server 2003.
Note
As this section describes authentication based on the
user interface in English on Windows Server 2003, the
UI terminology and page configuration may be different
depending on the version of the Operating System or
Service Pack and patch update status.
Before setting
Perform the following settings before configuring an
802.1X network.
Active Directory (domain controller)
The following setting example is based on the
assumption that the Active Directory has been
configured.
Windows IAS configuration
Configure Remote access/VPN server in Manage
You r Se rv er of Windows Server 2003. Open Add or
Remove Programs from Control Panel of Windows
menu. Install Internet Authentication Service in Add/
Remove Windows Components.
CA configuration
To configure the CA, perform the following steps:
1
Open Add or Remove Programs from Control
Panel of the Windows menu.
2
Select Add/Remove Windows Components.
3
Add Certificate Services in the Component menu.
4
Select Enterprise root CA on CA Type.
5
Type the CA name on Common Name for this CA,
and configure the CA.
Creating a security group for Active
Directory
1
Open Active Directory Users and Computers
from Administrative Tools of the Windows menu.
2
Select Users of the domain with which you want to
perform 802.1X connection.
3
Select New from the context menu, then select
Group and configure the group for 802.1X
connection.
For example, the group “Wired_802.1X_Group” is
assumed for explanation purposes.
Configuring the Internet Authentication
Service
1
Open Internet Authentication Service from
Administrative Tools of the Windows menu.
2
Click Register Server in Active Directory on the
operation menu.
3
Read the displayed precautions carefully and click
OK to accept them.
Then, continue to configure the EAP-TLS policy.
4
Select Remote Access Policy and right-click.
5
Select New from the context menu, and select
Remote Access Policy to open “New Remote
Access Policy Wizard”.
6
Select Set up a custom policy.
7
Set the following items:
Policy name: Type “Allow 802.1X Access” as an
example.
Policy conditions: Click Add and add the
following items:
NAS Port-Type: Ethernet, Wireless-
IEEE802.11, Wireless-Other and Virtual
(VPN)
Windows-Groups: Wired_802.1X_Group
Permissions: Select Grant remote access
permission.
Edit Profile:
Dial-in Constraints tab: Specify the session
time out period during which the client is
allowed to be connected, as required.
Authentication tab: Delete checks from all the
boxes. Click EAP Method and add Smart
Card or other certificates.
Then, continue to configure the RADIUS client.
8
Select RADIUS Clients and right-click.
9
Select New RADIUS Client from the context
menu.
Administrating the Camera
Using the 802.1X Authentication Function — 802.1X Menu
58
10
Set the following items:
Friendly name: Type “authenticator” as an
example.
Client address (IP or DNS): IP address of the
authenticator
Client-Vender: RADIUS Standard
Shared secret: Specify the shared secret to be set
in the authenticator.
Adding a user
1
Open Active Directory Users and Computers
from Administrative Tools of Windows menu.
2
Select Users of the domain with which you want to
add a user and right-click.
3
Select New from the context menu, then select
User.
4
Set the following items to configure a new user:
For example, the log-on user name “1XClient” is
assumed for explanation purposes.
First name: 1XClient
User logon name: 1XClient@<domain name>
Password: Specify a password. Then select
Password never expires in account options.
5
Select the user to be added and right-click.
6
Select Properties from the context menu.
7
Set the following items:
Dial-in tab: Select Allow access in Remote
Access Permission (Dial-in or VPN)
Member Of tab: Add “Wired_802.1X_Group”.
The preparations for configuring a 802.1X network are
now completed.
Proceed to issue the certificate to be imported to the
camera.
Issuing the CA certificate
Prepare a Windows client PC (called “client PC
hereafter) to temporarily store the certificate, and
configure so that the client PC and Windows Server
2003 computer can be connected through the network.
1
Start Internet Explorer on the client PC.
2
Type the CAs URL in the address bar, and click Go
To.
The CAs URL is normally as follows:
The “Microsoft Certificate Services” page opens.
Note
If the Microsoft Certificate Service page does not appear
using the URL above, check the following:
Is the service of the Web site enabled on Internet
Information Service (IIS)?
Is Certificate Services enabled?
Is the firewall or antivirus software setting on the
client PC blocking connection?
Are the network configuration and Internet
Explorer settings on the client PC correct?
3
When Internet Explorer prompts entering the log-in
user and password, type the user name as follows.
Example: when the user name is “1XClient” and
the domain name “localnetwork.net”
1XClient@localnetwork.net
4
Click Download a CA certificate, certificate
chain, or CRL.
5
Select Base 64 in Encoding method and click
Download CA certificate.
The “File Download” dialog opens.
6
Specify the file storage location and save the CA
certificate.
After saving the CA certificate, import it to the camera.
The CA certificate import procedure is completed.
Downloading the client certificate
This section explains the procedure to download the
client certificate.
1
Start Internet Explorer on the client PC and type the
CAs URL in the address bar.
The CAs URL is normally as follows:
2
Click Go To.
Administrating the Camera
Using the 802.1X Authentication Function — 802.1X Menu 59
3
Type the log-in user name and password correctly.
The “Microsoft Certificate Services” page opens.
4
Click Request a certificate, advanced certificate
request and Create and submit a request to this
CA in sequence.
5
Set the following items.
Certificate Template: User
Key Options: Create new key set
CSP: Microsoft Enhanced Cryptographic
Provider v1.0
Key Size: 1024
Check Mark keys as exportable.
Additional Options: Select SHA-1 for Hash
Algorithm.
6
Click Submit.
The message “The certificate you requested was
issued to you.” appears.
7
Click Install this certificate. to install the
certificate in the certificate store on the client PC.
8
Click Internet Options, Content and Certificates
of Internet Explorer in sequence.
The new client certificate is displayed in the
Personal tab.
9
Select the installed certificate and click Export....
The “Certificate Export Wizard” opens.
10
Click Next and select as follows.
Do you want to export the private key with the
certificate?: Select Yes, export the private key.
Select the format you want to use: Select
Personal Information Exchange –
PKCS#12(PFX).
Password: Specify the private key password.
File to export: Specify the name of the file to be
exported.
The certificate is exported. Import the exported file to
the camera as the camera’s client certificate.
For details, see “To import the client certificate” in the
Client certificate tab on page 55.
Administrating the Camera
Setting the User — User Menu
60

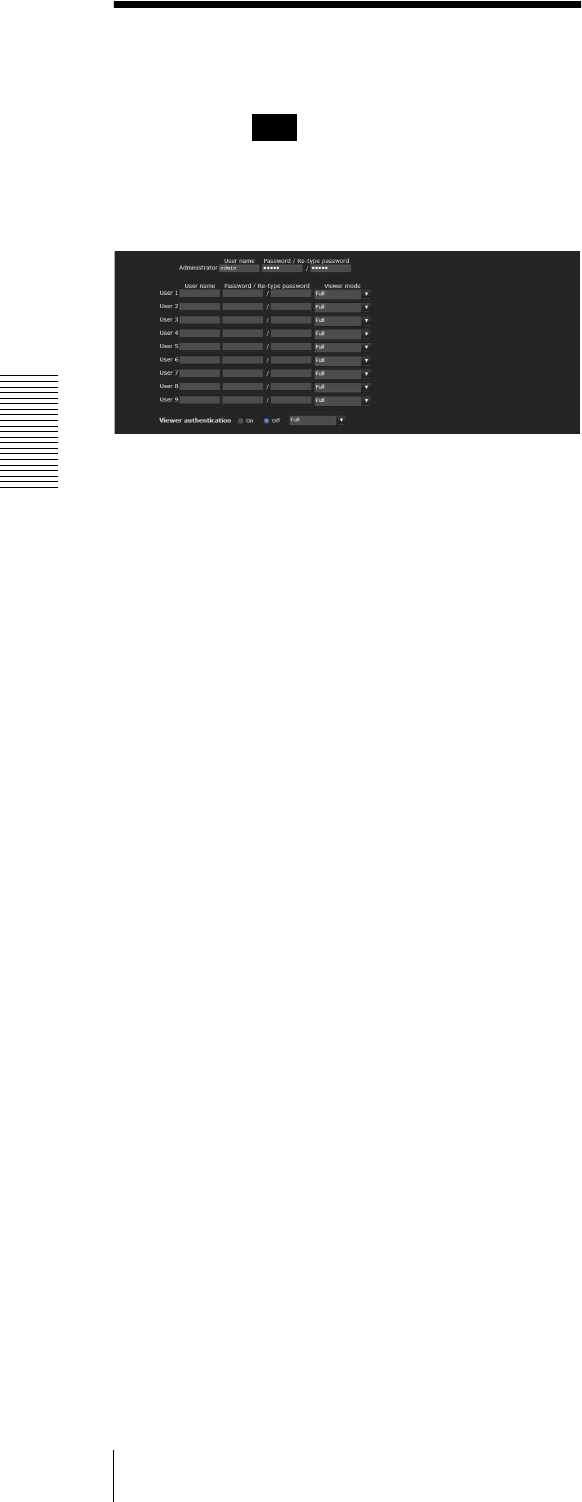

Setting the User
— User Menu
When you click in the Administrator menu, the
User menu appears.
Use this menu to set the user names and passwords of the
Administrator and (up to 9) users (User 1 to User 9), and
the access right of each user.
Administrator
Specify User name, Password and Re-type password.
User 1 to 9
Specify User name, Password, Re-type password and
Viewer mode for each user ID.
User name
Type a user name between 5 and 16 characters.
Password
Type a password between 5 and 16 characters.
Re-type password
To confirm the password, retype the password that you
typed in the Password box.
Viewer mode
When the user is authenticated for logging in the main
viewer, select the viewer mode to be displayed after
authentication.
Full: The user can operate all functions in this mode.
Pan/Tilt: In addition to the Light mode, the user can
operate pan/tilt/zoom.
Preset position: In addition to the Light mode, the user
can perform the camera’s preset position settings.
Light: In addition to the View mode, the user can select
the image size of the main viewer, select codec and
capture a still image.
View: The user can only monitor the camera image.
For the functions available for each viewer mode, see
Administrator and User” on page 19.
Viewer authentication
Set whether the user is authenticated or not when the
main viewer is displayed.
On: The main viewer is displayed in accordance with
the viewer mode of the authenticated user.
Off: Select the viewer mode of the main viewer which is
displayed without authentication from Full, Light or
View.
OK/Cancel
See “Buttons common to every menu” on page 32.
User
Administrating the Camera
Setting the SecuritySecurity Menu / Saving the Camera Position and Action — Preset position Menu 61

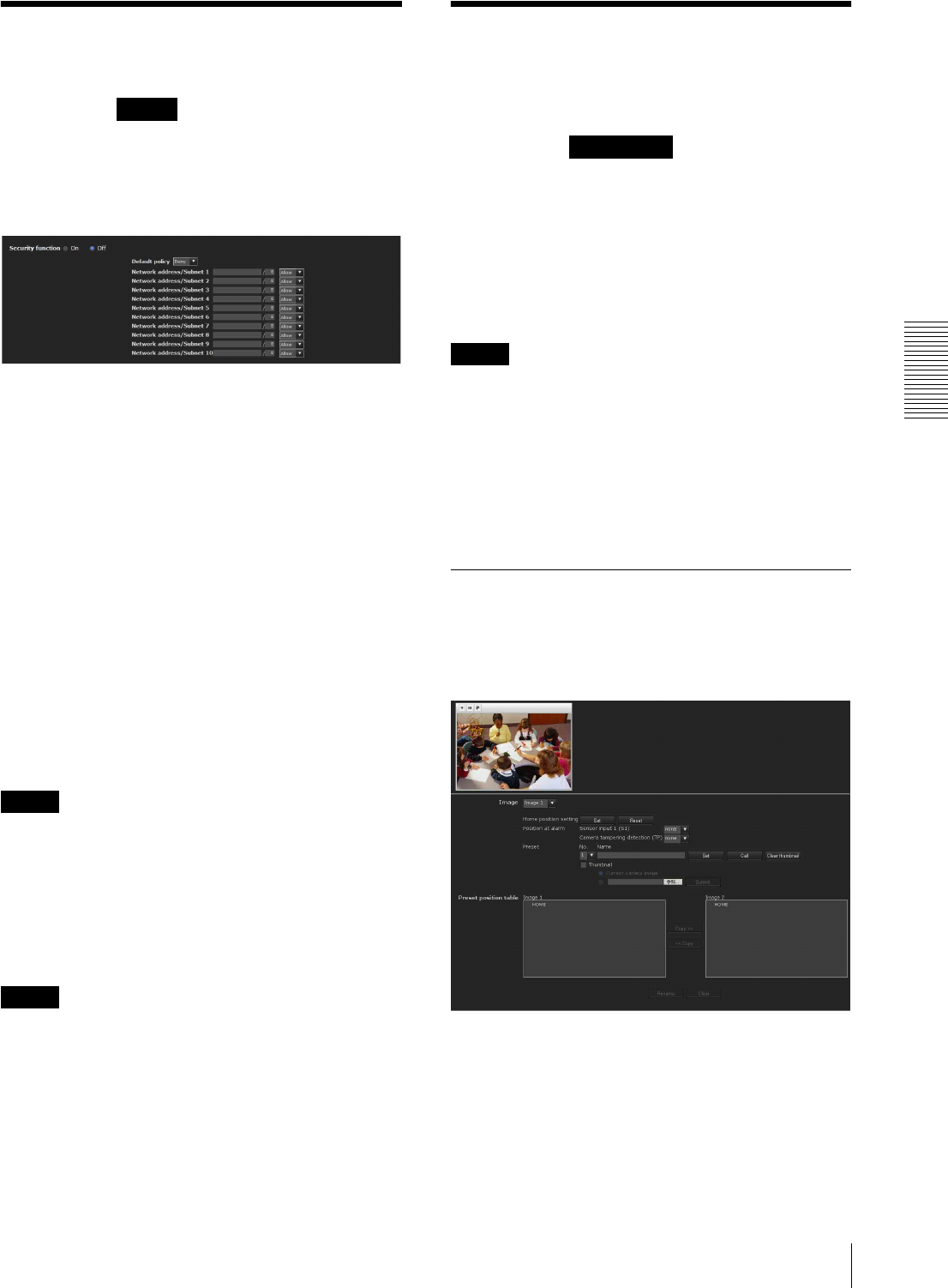

Setting the Security
— Security Menu
When you click in the Administrator menu, the
Security menu appears.
This allows you to control which computers can have
access to the camera.
Likewise, when using IPv6, security settings can be
configured for each network.
Security function
To activate the security function, select On.
Default policy
Select the basic policy of the limit from Allow and Deny
for the computers specified in the Network address/
Subnet 1 to Network address/Subnet 10 menus below.
Network address/Subnet 1 to Network
address/Subnet 10
Type the network addresses and subnet mask values that
you want to allow or deny access to the camera.
You can specify up to 10 network addresses and subnet
mask values. For a subnet mask, type 8 to 32.
(In the case of IPv6, enter a value between 8 and 128.)
Select Allow or Deny from the drop-down list on the
right for each network address/subnet mask.
Tip
The subnet mask value represents the bit number from
the left of the network address.
For example, the subnet mask value for “255.255.255.0”
is 25.
If you set 192.168.0.0/24 and Allow, you can allow
access from computers having an IP address between
“192.168.0.0” and “192.168.0.255”.
Note
You can access the camera even from a computer having
an IP address whose access right is set to Deny, if you
enter the user name and password set for the
Administrator boxes in the User menu.
OK/Cancel
See “Buttons common to every menu” on page 32.
Saving the Camera
Position and Action
Preset position Menu
When you click in the Administrator
menu, the Preset position menu appears. This allows you
to save the camera’s pan, tilt and zoom positions and set
position (programmed action of the camera).
The Preset position menu consists of 2 tabs: Position
and Preset tour.
The Preview screen is displayed.
Every setting item can be set to Image 1 and Image 2
respectively.
Notes
Preset position menu is not available when SolidPTZ
is set to On in the Camera menu-Video codec tab.
Only Image 1 can be set when SolidPTZ of Image 2
is set to Off.
When Aspect ratio in the System menu- Installation
tab is set to 16:9, this function is not available.
All of the preset positions will be deleted when aspect
ratio is changed from 3:4 to 16:9.
Position Tab — Saving pan/tilt/
zoom position
You can save camera positions (pan, tilt and zoom
positions).
Preview screen
This screen is for monitoring images and setting preset
positions.
For details of each button, please refer to the Control bar
of the Plug-in free viewer (page 23).
Security
Preset position
Administrating the Camera
Saving the Camera Position and Action — Preset position Menu
62
Select the image to configure.
Home position setting
Set the current camera position as the home position.
Set
Click to save the current pan, tilt and zoom positions as
the home position. To move the camera to the home
position, click in the control panel (page 22).
Reset
Click to reset the home position to the factory-set
position.
Position at alarm
This unit can synchronize a preset position with Sensor
input or with Camera tampering detection.
If an alarm is detected by the sensor input or the camera
tampering detection function, the camera automatically
moves to the corresponding preset position.
If you do not want to synchronize with any preset
number, select none.
Sensor input 1 (S1)
Select a preset position to synchronize with the alarm
from Sensor input 1.
Camera tampering detection (TP)
Select the preset position to synchronize with the camera
tampering detect alarm.
Preset
You can configure and save preset positions and
thumbnails. Click Call to move the camera to a specified
preset position and click Clear thumbnail to delete the
thumbnail information for the specified preset position.
No.
Select a preset number from 1 to 8 from the drop-down
list.
Name
Type the preset position name of the selected preset
number using up to 32 characters.
Set
Click to save the current camera position to the selected
preset number.
To save a preset position, operate as follows:
1
Move the camera to the position to be saved, while
checking the image with the preview viewer.
2
Select a preset number for saving, and type the
preset position Name.
3
Click the Set button.
The camera position is saved.
Call
Click to move the camera to the preset position.
Clear Thumbnail
Click to delete the thumbnail of the specific preset
position.
Thumbnail
Checking this checkbox registers a thumbnail when you
register a preset position.
Select a radio button to determine whether to register the
current camera image as a thumbnail or to register with
a specified image.
To specify an image, click Browse. Then click Submit.
Note
The available image file is JPEG format. Maximum file
size is 50KB.
Preset position list
By clicking Preset, you can view the information of the
preset positions.
Copy
You can copy the preset position of Video 1 and Video 2.
Select the preset position you want to copy, and then
click Copy.
Rename
Select the preset position you want to rename, and then
click Rename. You can enter characters. Press the enter
(return) key to confirm.
Clear
You can delete preset positions.
OK/Cancel
See “Buttons common to every menu” on page 32.
Note
Only the setting items of Position at Alarm can be
saved or cancelled by clicking OK/Cancel.
Administrating the Camera
Saving the Camera Position and Action — Preset position Menu 63
Preset tour Tab — Setting a
position tour
The camera moves to the programmed positions
sequentially (Tour).
Up to five programs can be set as Tours A to E.
Preview screen
This screen is for monitoring images and configuring
preset tour settings.
For details of each button, please refer to the Control bar
of the Plug-in free viewer (page 23).
Select the image to configure.
Tour
Select On to enable the tour function.
Resume time on inactivity
This item becomes active when Tour is set to On.
With this item, you can select whether you restart or stop
the tour after it has stopped by manual pan, tilt or zoom
operation or by camera movement to the preset position
triggered by an alarm.
On: Specify the wait time before the tour restarts,
between 5 and 3600 seconds. The tour restarts
automatically after the specified time has elapsed.
Off: The tour does not restart.
Tour A to Tour E
Configure Tour A to Tour E respectively.
Each tour setting consists of 5 items: On/Off,
Sequence, Speed, Stay time, Effective period.
Select the tour to configure from the drop-down list.
On: The tour operates.
Off: The tour does not operate.
Note
If nothing is added to the Sequence list and you click
OK when On is selected, the tour function will fail.
Sequence
Set the sequence of the tour.
The preset positions saved using the Position tab are
displayed in Preset position list.
Select the preset position from Preset position list, then
click Add. The selected preset position is added in the
Sequence list. Repeat this procedure to specify the
preset positions in sequence.
To check a preset position, select it from Preset position
list, and then click Call.
To delete a preset position from Sequence, select it, and
then click Delete.
To change the order in Sequence, select the preset
position and then click Up or Down.
Speed
Select the speed of camera movement between 1 and 23,
or Fastest from the drop-down list. The camera moves
faster with a higher number setting. The fastest speed is
obtained with Fastest.
Stay time
Type a period of time during which the camera is to stay
at each preset position, between 1 and 3600 seconds.
Preview
Previews the order of movements of the selected tour.
The operation speed and stop time do not influence the
preview operation.
Stop
Stops the preview in action.
Effective period
Select the period during which the tour is activated.
Always: The tour can be activated any time.
Schedule: The tour is activated according to the
schedule you have set.
Click Schedule, and the menu for the effective
period is displayed. (“Setting the Schedule —
Schedule Menu” on page 72.)
Note
You cannot set tours if the effective periods overlap each
other.
Administrating the Camera
Sending an Image via E-mail — e-Mail (SMTP) Menu
64
OK/Cancel
See “Buttons common to every menu” on page 32. Sending an Image via
E-mail — e-Mail (SMTP) Menu
When you click in the Administrator
menu, the e-Mail (SMTP) menu appears.
Using the e-Mail (SMTP) function, you can send an
e-mail with an attached image file that has been shot
linked with an external sensor input or with the built-in
detection functions. An image file can also be sent
periodically.
The e-Mail (SMTP) menu consists of three tabs:
Common, Alarm sending and Periodical sending.
Common Tab — Setting the e-Mail
(SMTP) Function
e-Mail (SMTP)
Select On when you use the e-Mail (SMTP) function.
Note
The frame rate and operability on the main viewer may
be reduced while a file is being transmitted by the e-Mail
(SMTP) function.
SMTP server name
Type the SMTP server name using up to 64 characters,
or the IP address of the SMTP server.
SMTP port number
Enter a port number from 25 to 65535.
The standard port number is 25. If TLS is enabled, the
standard port number for SMTPs is 465.
Use TLS
To use the encryption function by TLS, select On.
e-Mail (SMTP)
Administrating the Camera
Sending an Image via E-mail — e-Mail (SMTP) Menu 65
Note
The model on sale in China does not support the TLS
function.
STARTTLS
To use the encryption function by STARTTLS, select
On.
Note
The model on sale in China does not support the
STARTTLS function.
Authentication
Select whether authentication is required when you send
an e-mail.
Off: No authentication is required when an e-mail is
sent.
On: Authentication is required when an e-mail is sent.
Select one of the authentication methods from the
following and specify the POP server name, User
name and Password as required.
SMTP: Select when SMTP authentication is
required.
POP before SMTP: Select when POP before SMTP
authentication is required.
Note
When you set Authentication to On, be sure to select
SMTP and/or POP before SMTP.
POP mode
Select POP3 or APOP as the authentication method for
POP authentication.
Note
The model on sale in China does not support APOP
authentication.
Wait time after POP
Set the waiting time in POP before SMTP before
SMTP authentication after POP authentication is
completed. Timeout can be set from 0 to 10,000 msec.
POP server name
This is necessary when POP before SMTP is selected
for Authentication.
Type the POP (receiving mail) server name using up to
64 characters, or type the IP address of the POP server.
This setting is necessary when the SMTP server that
sends e-mails performs authentication using the POP
user account.
POP port number
Enter a port number from 110 to 65535.
The standard port number is 110. If TLS is enabled, the
standard port number for POP3s is 995.
Authentication mode
Select Login or CRAM-MD5 as the authentication
method for SMTP authentication.
Note
The model on sale in China does not support the CRAM-
MD5 authentication.
User name, Password
Type the user name and password of the user who owns
the mail account using up to 64 characters. This setting
is necessary when the SMTP server that sends e-mails
performs authentication.
Recipient e-mail address
Type the recipient e-mail address using up to 64
characters.
You can specify up to three recipient e-mail addresses.
Administrator e-mail address
Type the Administrator e-mail address using up to 64
characters.
This address is used for reply e-mails and sending
system messages from the mail server.
Subject
Type the subject/title of the e-mail using up to 64
characters.
When Alarm sending of the Alarm sending tab is set to
On, an e-mail sent in response to alarm detection will
indicate the type of alarm in the subject. S1 is added for
sensor input detection, TP for camera interference
detection, MD is additionally available for motion
detection.
Message
Type the text of the e-mail using up to 384 characters. (A
line break is equivalent to 2 characters.)
OK/Cancel
See “Buttons common to every menu” on page 32.
Administrating the Camera
Sending an Image via E-mail — e-Mail (SMTP) Menu
66
Alarm sending Tab — Setting the
e-mail sending mode when
detecting the alarm
Set to send an e-mail linked with alarm detection by the
external sensor input or by the built-in detection
functions.
Note
When more than two of the following settings are
activated, the camera only creates two still images at the
same time. A third still image cannot be created unless
one of the previous two still images is sent.
e-Mail (SMTP) menu
Alarm sending tab Alarm sending (when file
attachment is set to On).
Periodical sending Periodical sending
FTP client menu
Alarm sending tab Alarm sending
Periodical sending Periodical sending
Trigger menu
Mail (SMTP)
–FTP Client
Alarm sending
Select On to set sending an e-mail linked with alarm
detection.
File attachment
Set whether an image file (JPEG file) is to be attached to
the e-mail or not.
When On is selected, the image file made using the
settings below is attached. When Off is selected, only
the message is sent.
Image file name
Type the file name you want to assign to the image to be
attached to an e-mail. You can use up to 10
alphanumeric characters, – (hyphen) and _ (underscore)
for naming.
Suffix
Select a suffix to be added to the file name.
None: No suffix is added. The image file name is
assigned to the image to be sent via e-mail.
Date & time: The date & time suffix is added to the
image file name.
The date/time suffix consists of lower two-digits of
the year (2 digits), month (2 digits), date (2 digits),
hour (2 digits), minute (2 digits), second (2 digits),
and sequential number (2 digits), thus adding 14-
digit number to the image file name.
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and two fixed
digits 00 are added to the image file name.
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Alarm
Select the alarm to be linked with e-mail notification.
Sensor input 1: The external sensor that is connected to
sensor input of the camera I/O port.
Camera tampering detection: An alarm that is
triggered when the camera detects tampering such as
direction shifting or spray.
Interval: Set the interval at which you want to send an
e-mail periodically after detection.
E-mails are sent after a specified interval, until the
Camera tampering detection setting is cleared or the
detection setting is turned off. You can set the hour
(H) and minutes (M) between 30 minutes and
24 hours (one day).
When file attachment is set to ON, a file is only
attached to an initial mail and will not be attached to
the following mails.
Motion detection: The alarm is detected by the motion
detection function.
Click Detection, and the motion detection menu is
displayed to allow you to set the motion detection
function (page 73).
Administrating the Camera
Sending an Image via E-mail — e-Mail (SMTP) Menu 67
Effective period
Set the period during which alarm detection is effective.
Always: Alarm detection is always effective.
Schedule: You can specify the period during which
alarm detection is effective.
Click Schedule and the menu for the effective period
is displayed. (“Setting the Schedule — Schedule
Menu” on page 72)
OK/Cancel
See “Buttons common to every menu” on page 32.
Periodical sending Tab — Setting
the periodical e-mail sending mode
You can set to send e-mails periodically.
Note
When more than two of the following settings are
activated, the camera only creates two still images at the
same time. A third still image cannot be created unless
one of the previous two still images is sent.
e-Mail (SMTP) menu
Alarm sending tab Alarm sending (when file
attachment is set to On).
Periodical sending Periodical sending
FTP client menu
Alarm sending tab Alarm sending
Periodical sending Periodical sending
Trigger menu
Mail (SMTP)
FTP Client
Periodical sending
Select On when you want to use periodical e-mail
sending.
Image file name
Type the file name of the image attached to the e-mail
using up to 10 alphanumeric characters, – (hyphen) and
_ (under score).
The actual image file name will be the specified image
file name with a suffix and the extension .jpg.
Suffix
Select a suffix to be added to the file name used when the
e-mail is sent.
None: The name of the sent file will be the image file
name.
Date & time: The date & time suffix is added to the
image file name.
The date & time suffix consists of the year (2 digits),
month (2 digits), date (2 digits), hour (2 digits),
minutes (2 digits) and seconds (2 digits), and
sequential number (2 digits), thus adding a 14-digit
number to the image file name.
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and two fixed
digits 00 are added to the image file name.
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Interval
Type the interval at which you want to send an e-mail
periodically. You can set the hour (H) and minutes (M)
between 30 minutes and 24 hours (one day).
Effective period
Set the period during which periodical sending will be
effective.
Always: Periodical sending is always effective.
Schedule: You can specify the period during which
periodical sending is effective.
Click Schedule and the menu for the effective period
is displayed. (“Setting the Schedule — Schedule
Menu” on page 72)
OK/Cancel
See “Buttons common to every menu” on page 32.
Administrating the Camera
Sending Images to FTP Server — FTP Client Menu
68
Sending Images to FTP
Server — FTP Client Menu
When you click in the Administrator menu,
the FTP client menu appears.
Use this menu to set up for capturing and sending still
images to an FTP server. Using the FTP client function,
you can send an image file that has been shot and
recorded linked with external sensor input or the built-in
detection functions to an FTP server. An image file can
also be sent periodically.
The FTP client menu consists of three tabs: Common,
Alarm sending and Periodical sending.
Common Tab — Setting the FTP
client function
FTP client function
To activate the FTP client function, select On.
Note
The frame rate and operability on the main viewer may
be reduced while a file is being transmitted by the FTP
client function.
FTP server name
Type either the FTP server name to upload still images
using up to 64 characters, or the IP address of the FTP
server.
User name
Type the user name for the FTP server using up to 64
characters.
Password
Type the password for the FTP server using up to 64
characters.
Re-type password
To confirm the password, type the same characters as
you typed in the Password box.
Passive mode
Set whether you use the passive mode of FTP server or
not when connecting to the FTP server. Select On to
connect to the FTP server using the passive mode.
OK/Cancel
See “Buttons common to every menu” on page 32.
Alarm sending Tab — Setting the
FTP client action when detecting
the alarm
Set to forward an image file to a specified FTP server
linked with alarm detection by the external sensor input
or by the built-in detection functions.
Note
When more than two of the following settings are
activated, the camera only creates two still images at the
same time. A third still image cannot be created unless
one of the previous two still images is sent.
e-Mail (SMTP) menu
Alarm sending tab Alarm sending (when file
attachment is set to On).
Periodical sending Periodical sending
FTP client menu
Alarm sending tab Alarm sending
Periodical sending Periodical sending
Trigger menu
Mail (SMTP)
FTP Client
Alarm sending
Select On to send the image file to the FTP server linked
with alarm detection.
FTP client
Administrating the Camera
Sending Images to FTP Server — FTP Client Menu 69
Remote path
Type the path to the destination using up to 64
characters.
Image file name
Type the file name you want to assign to the images
when sending to the FTP server. You can use up to 10
alphanumeric characters, – (hyphen) and _ (underscore)
for naming.
Suffix
Select a suffix to be added to the file name.
Date & time: The date & time suffix is added to the
image file name.
The date/time suffix consists of the year (2 digits),
month (2 digits), date (2 digits), hour (2 digits),
minute (2 digits) and second (2 digits), and
sequential number (2 digits), thus adding a 14-digit
number to the image file name.
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and a
sequential 2-digit number are added to the image file
name.
Tip
A sequential number added to Date & time and
Sequence number is used to identify individual files
created with consecutive alarm events.
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Alarm
Select the alarm to be linked with the file to be
forwarded to the FTP server.
Sensor input 1: The external sensor that is connected to
sensor input of the camera I/O port.
Camera tampering detection: An alarm that is
triggered if the camera detects tampering, such as
direction shifting or spray.
Motion detection: The alarm detected by the motion
detection function.
Click Detection, and the Motion detection menu is
displayed to allow you to set the motion detection
function (page 73).
Note
When a preset position is set in the menu of Preset
Position-Alarm linked position, the alarm is invalid if
the camera is moved to a preset position.
Effective period
Set the period during which alarm detection is effective.
Always: Alarm detection is always effective.
Schedule: You can specify the period during which
alarm detection is effective.
Click Schedule and the menu for the effective period
is displayed. (“Setting the Schedule — Schedule
Menu” on page 72)
OK/Cancel
See “Buttons common to every menu” on page 32.
Periodical sending Tab — Setting
the periodical FTP client activity
You can set to send image files (JPEG files) to an FTP
server periodically.
Note
When more than two of the following settings are
activated, the camera only creates two still images at the
same time. A third still image cannot be created unless
one of the previous two still images is sent.
e-Mail (SMTP) menu
Alarm sending tab Alarm sending (when file
attachment is set to On).
Periodical sending Periodical sending
FTP client menu
Alarm sending tab Alarm sending
Periodical sending Periodical sending
Trigger menu
Mail (SMTP)
FTP Client
Periodical sending
Select On when you want to use periodical sending.
Remote path
Type the remote path using up to 64 characters.
Administrating the Camera
Sending Images to FTP Server — FTP Client Menu
70
Image file name
Type the file name of the image sent to the FTP server
using up to 10 alphanumeric characters, – (hyphen) and
_ (under score).
The actual image file name will be the specified image
file name with a suffix and extension .jpg.
Suffix
Select a suffix to be added to the file name sent to the
FTP server.
None: The name of the sent file will be the image file
name.
Date & time: The date & time suffix is added to the
image file name.
The date & time suffix consists of the year (2 digits),
month (2 digits), date (2 digits), hour (2 digits),
minute (2 digits) and second (2 digits), and
sequential number (2 digits), thus adding a 14-digit
number to the image file name.
Sequence number: A sequential number of 10 digits
between 0000000001 and 4294967295 and two fixed
digits 00 are added to the image file name.
Sequence number clear
Click Clear to reset the Sequence number suffix to 1.
Mode
Select the periodical sending mode.
Periodical mode: An image file is sent periodically
according to the specified Interval and Effective
period.
Tour mode: An image file is sent each time the camera
is moved to a preset position during the tour.
Interval
Type the interval at which you want to send images to
the FTP server periodically. You can set the hour (H),
minutes (M) and seconds (S) between 1 second and 24
hours (one day).
Note
The actual interval may be longer than the set value,
depending on the image size, image quality setting, bit
rate and network environments.
Effective period
Set the period during which periodical sending is
effective.
Always: Periodical sending is always effective.
Schedule: You can specify the period during which
periodical sending is effective.
Click Schedule to display the menu for the effective
period. (“Setting the Schedule — Schedule Menu”
on page 72)
OK/Cancel
See “Buttons common to every menu” on page 32.
Administrating the Camera
Setting the Operations from the Viewer — Trigger Menu 71
Setting the Operations
from the Viewer — Trigger
Menu
Click in the Administrator menu to display the
Trigger menu.
This allows you to select the activities that can be
performed when the button on the Trigger panel is
clicked on the main viewer.
Note
When more than two of the following settings are
activated, the camera only creates two still images at the
same time. A third still image cannot be created unless
one of the previous two still images is sent.
e-Mail (SMTP) menu
Alarm sending tab Alarm sending (when file
attachment is set to On).
Periodical sending Periodical sending
FTP client menu
Alarm sending tab Alarm sending
Periodical sending Periodical sending
Trigger menu
Mail (SMTP)
FTP Client
e-Mail (SMTP)
Checking this box allows you to select e-Mail (SMTP)
on the Trigger panel in the main viewer.
By clicking e-Mail (SMTP), a still image of the time
you click is captured, and your e-mail with the image file
attached is sent to the specified mail address.
When you click e-Mail (SMTP), the Trigger-e-Mail
(SMTP) menu is displayed. You can set the necessary
options here. The setting options and setting procedures
are the same as those of the e-Mail (SMTP) menu
(page 64).
Trigg er
Administrating the Camera
Setting the Schedule — Schedule Menu
72
FTP client
Checking this box allows you to select FTP client on the
Trigger panel in the main viewer.
By clicking FTP client a still image of the time you
click is captured, and the image file is sent to the FTP
server.
When you click FTP client, the Trigger-FTP client
menu is displayed. You can set the necessary options
here. The setting options and setting procedures are the
same as those of the FTP client menu (page 68).
Setting the Schedule
— Schedule Menu
When you click in the Administrator menu,
the Schedule menu appears.
The Schedule menu consists of four tabs: Preset
position (Image 1), Preset position (Image 2),
e-Mail and FTP.
This is the same menu as the Schedule menu that is
displayed when you click Schedule to set the Effective
period in the following menus.
Preset position (Image 1 or 2): Schedule in the
Position Tour of the Preset position menu
e-Mail: Schedule in the Alarm sending or Periodical
sending tab of the e-Mail (SMTP) menu
FTP: Schedule in the Alarm sending or Periodical
sending tab of the FTP client menu
Example: When setting e-Mail (SMTP) (Periodical
sending) in the Schedule menu
Use the same time schedule every day
When this item is checked, the same Start time and End
time are applied to all days. In that case, the Start time
and End time of the day from Mon (Monday) to Sun
(Sunday) cannot be input.
Mon (Monday) to Sun (Sunday)
The time period on the right of the checked day is the
effective period of the schedule.
Start time, End time
Specify the start time and the end time.
OK/Cancel
See “Buttons common to every menu” on page 32.
Schedule
Administrating the Camera
Setting the Sensor input/Camera tampering detection/Motion detection — Event detection Menu 73
Setting the Sensor input/
Camera tampering
detection/Motion
detection
— Event detection Menu
When you click Event detection in the Administrator
menu, the Event detection menu appears. The Event
detection menu consists of three tabs: Sensor input,
Camera tampering detection and Motion detection.
Sensor input tab — Set the sensor
input
Sensor input mode
Set the direction of the detected input signal to the
sensor input terminal of the camera.
Normally open: Detects the alarm when the sensor
input is short-circuited.
Normally closed: Detects the alarm when the sensor
input is open-circuited.
OK/Cancel
See “Buttons common to every menu” on page 32.
Camera tampering detection tab —
Set the camera tampering detection
Camera tampering detection
Select On to activate the function to detect camera
tampering, such as direction shifting or spray. When you
select On, you can select the Sensitivity.
Sensitivity: Set the sensitivity of camera tampering
detection to High, Middle or Low.
Detection status: Display the tampering detection state
of the time when Camera tampering detection tab is
opened. To clear the detection status, click the Clear
button.
OK/Cancel
See “Buttons common to every menu” on page 32.
Note
Activation of the camera tampering detection function
may be delayed in the following conditions.
–When Auto slow shutter in the Camera menu-
Picture tab is active.
When the image size of Video 1 in the Camera
menu-Video codec tab is as follows.
2048 × 1536
1920 × 1080
1600 × 1200
1680 × 1056
1440 × 912
1280 × 1024
1280 × 960
–When Cropping in the Camera menu-Video codec
tab is set to On.
Motion detection tab — Set the
motion detection
Motion detection detects moving objects in the camera
image and outputs an alarm.
Notes
Before actual use, perform an operation test and
confirm that the motion detection function works
correctly.
The Motion detection menu may not be displayed
depending on the function settings. To display the
Motion detection menu, configure as follows.
Motion detection doesn’t work after you set Motion
detection and change the following settings to the ones
other than Off.
System menu- Installation tab (page 36)
Monitor out: Off.
Camera menu-Video codec tab (page 40)
Cropping: Off.
SolidPTZ: Off.
Codec of Image 2: Off.
When the Motion detection menu is
displayed for the first time
When you click Motion detection, “Security Warning”
is displayed.
When you click Ye s , ActiveX control is installed and the
Motion detection menu is displayed.
Administrating the Camera
Setting the Sensor input/Camera tampering detection/Motion detection — Event detection Menu
74
Notes
If Automatic configuration is enabled in the Local
Area Network (LAN) settings of Internet Explorer, the
image may not be displayed. In that case, disable
Automatic configuration and set the Proxy server
manually. For the setting of the Proxy server, consult
your network administrator.
When you install ActiveX control, you should be
logged in to the computer as Administrator.
When you are using Windows XP Service Pack 2 or
later, Windows Vista or Windows 7, the information
bar or “Security Warning” may appear as you click
Motion detection. For details, see “Installing ActiveX
Control” in “When using Windows XP Service Pack 2
or later” on page 8, “Installing ActiveX Control” in
“When using Windows Vista” on page 11, or
“Installing ActiveX Control” in “When using
Windows 7” on page 13.

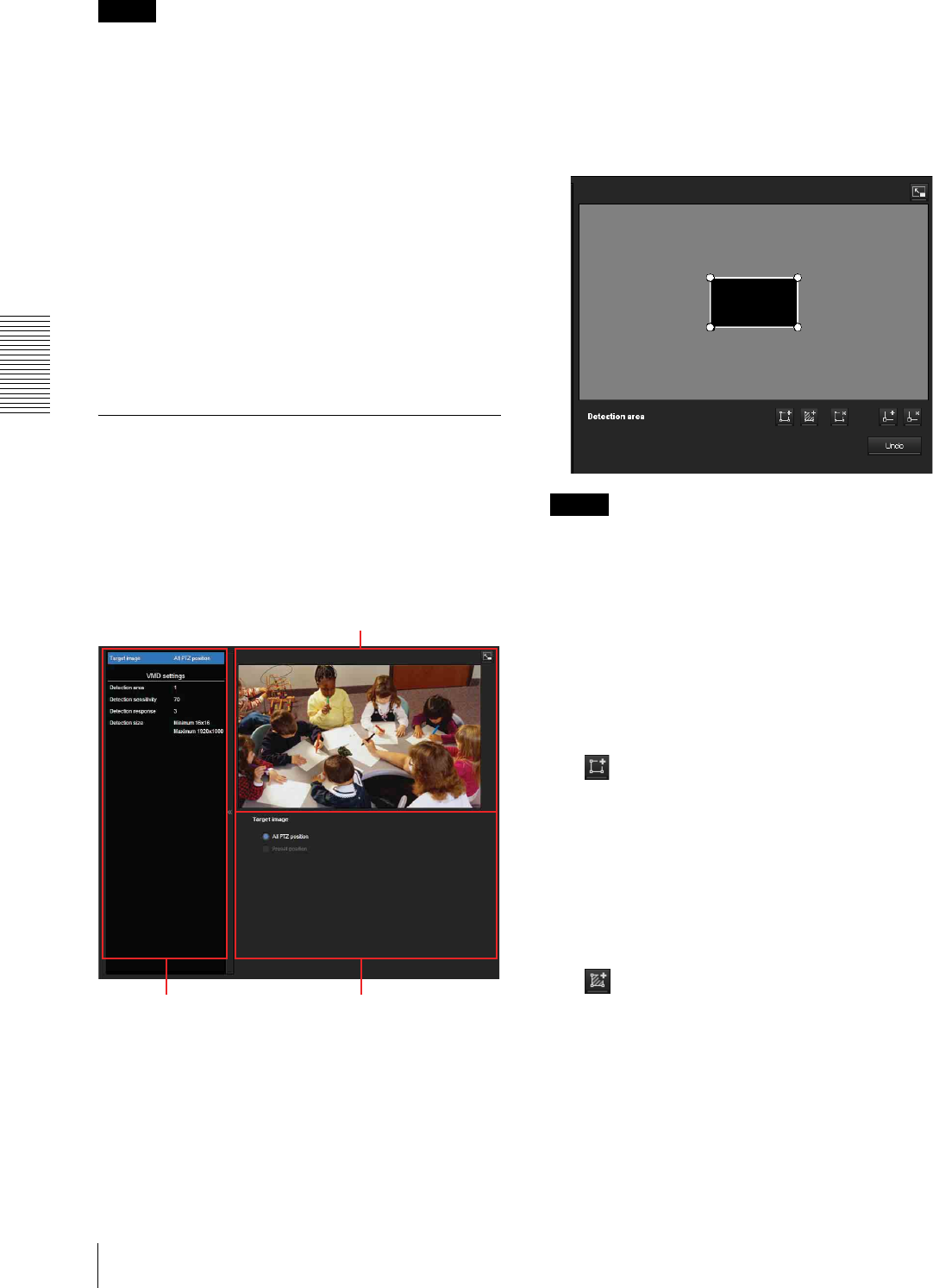

Setting items for motion detection
Use the settings tab to set the conditions for the motion
detection function while observing camera images. This
menu is the same as the settings menu displayed when
you click Detection on Alarm transmission on the
e-Mail (SMTP) menu, or on the FTP client menu.
Click the desired item in the setting item list to set the
respective detection area.
Detection target
All PTZ position or Preset position
VMD settings (VMD: Motion detection)
Set the detection area, detection response, detection
response speed and detection size for Motion detection.
Click the desired item in the setting item list to set the
respective detection area.
Detection area
Specify the effective scope of motion detection.
Note
The frames shown on the monitor screen are not
displayed on the image files sent or recorded with
motion detection.
Configuring the detection area
The following procedure is used to configure the motion
detection area:
1
Use the following buttons to specify the active
area(s) and inactive area(s).
Add detection area
Clicking this button will add an active area window
in the center of the screen.
When you place the cursor on the area, the cursor
changes to a crossed arrow, which you can drag to
move the area.
When you place the cursor on the vertex of the area,
the cursor changes to n, which you can drag to
move the vertex.
Add non detection area
Clicking this button will add an inactive area
window in the center of the screen.
When you place the cursor on the area, the cursor
changes to a crossed arrow, which you can drag to
move the area.
When you place the cursor on the vertex of the area,
the cursor changes to n, which you can drag to
move the vertex.
Monitor screen
Setting item list Setting area
Administrating the Camera
Setting the Sensor input/Camera tampering detection/Motion detection — Event detection Menu 75
Delete Area
Clicking this button will change the cursor to a
button. While the cursor is a button, click on a part
of the area to delete that area.
After the deletion, the cursor will return to its
original form. To exit this operation, click this
button again.
Add vertex
Clicking this button will change the cursor to a
button. In that state, when you click on a part of the
side of the area, a vertex is added to that point. After
the addition, the cursor will return to its original
form. To exit this operation, click this button again.
Delete vertex
Clicking this button will change the cursor to a
button. In that state, when you click on a part of the
vertex of the area, the vertex added to that point is
deleted. After the deletion, the cursor will return its
original form. To exit this operation, click this
button again.
Note
The vertex can be moved in an outward direction
but cannot be moved toward the inside of an area.
Detection sense
Set the sensitivity of motion detection.
A value from 1 to 100 can be specified.
Clicking Return to the default changes the value to the
default value.
Detection response
Set the response velocity of motion detection.
A value from 1 to 5 can be specified.
Clicking Return to the default changes the value to the
default value.
Detection size
Specify the minimum detection size and maximum
detection size of motion detection. To specify the
detection size, you can either enter values or drag the
vertexes of the area.
The area size is measured in pixels.
When you place the cursor on the area, the cursor
changes to a crossed arrow, which you can drag to
move to the minimum detection size area and
maximum detection size area.
When you place the cursor on the vertex of the area,
the cursor changes to n. Drag and move the vertex
to adjust the detection size.
OK/Cancel
See “Buttons common to every menu” on page 32.
Administrating the Camera
Configuring the Viewer — Viewer Menu
76
Configuring the Viewer
— Viewer Menu
Click in the Administrator menu to display the
Viewer menu.
Using this menu, you can select the viewer to use and
configure advanced settings.
The Viewer menu consists of two tabs: Layout and
HTML output.
Layout tab
Homepage
Set the viewer or homepage to be displayed at the time
of access.
ActiveX viewer: Displays the ActiveX viewer at time of
access.
Plug-in free viewer: Displays the Plug-in free viewer at
time of access.
Custom: Select the homepage to be displayed.
To store a homepage HTML file in the built-in flash
memory, use the Custom Homepage function of
SNC toolbox included in the supplied CD-ROM.
To learn how to use the Custom Homepage, see
page 84.
To display your Custom homepage perform the
following operation:
1
Select Custom.
2
Type the path of the HTML file using up to 64
characters in the text box on the right of Path.
3
In Selected memory, select the memory in which
the homepage is stored.
Header
Configure the setting for the bar menu displayed at the
top of the viewer screen. Select On to display the header,
or Off to hide it.
Tip
Even when you select Off, the Administrator menu can
be displayed by entering the following URL in the
address box of your Web browser.
Example: When the IP address of the camera is set to
192.168.0.100
Enter the following value to <TAG> according to the
language you wish to use.
en : English
ja : Japanese
fr : French
de : German
it : Italian
es : Spanish
zh_hant : Chinese (Traditional Chinese character)
zh_hans : Chinese (simplified Chinese character)
ko : Korean
Button Style
Select Standard or Simple.
Logo
To set the logo image, click Browse and specify the
image to display. The image file format that can be used
is GIF, PNG, JPEG. The maximum file size is 50KB.
The uploaded image is displayed as 150 × 480 pixels.
Click Delete header logo to delete the log set on the
Initialize Tab of system menu (page 38).
Viewer
Administrating the Camera
Configuring the Viewer — Viewer Menu 77
Text color, Background color 1, and
Background color 2
Specify the background colors and font color.
To specify the color, enter “#” followed by an RGB
value in 6-digit hexadecimal.
The first 2 digits after # represent red, the next 2 digits
green, and the last 2 digits blue. Specify the brightness
for each color. 256 brightness levels are available
(00-FF).
Camera list
You can register cameras in the camera list. By selecting
a registered camera on the viewer screen, you can see the
images from the registered camera.
Note
The camera list can be set only when Plug-in free viewer
is selected as the homepage.
On/Off
Select On to show the camera list, and Off to hide it.
Style
You can configure the camera list style.
Background color
Specify the background color of the camera list. The
colors are specified in the same way as those for the
header.
Registering in Cameras
Specify a number on the camera list and set the IP
address, port number, and comment for each camera.
Insert: Click to register a camera in the camera list.
Modify: Click to edit a selected camera list.
Delete: Click to delete a selected camera list.
Down: Click to decrement the number indicating
registered camera numbers.
Up: Click to increment the number indicating registered
camera numbers.
Text
Note
The camera list can be set only when Plug-in free viewer
is selected as the homepage.
Text1 text, Text2 text and Text3 text
Enter the text to be displayed on the viewer screen.
Text1 link, Text2 link and Text3 link
Specify the URL of the link to assign a link to the text.
Text color, Background color 1, and
Background color 2
Specify the font color of the text and background colors.
The colors are specified in the same way as specifying
those for the header.
Show comment if camera selected
Select this option to display comments on the viewer
screen.
Monitor
Configure the setting for the camera image display part
of Plug-in free viewer.
Note
The camera list can be set only when Plug-in free viewer
is selected as the homepage.
Initial streaming
Set the display method for camera image for streaming.
Initial image size
Set the initial camera image size.
Initial image codec
Set the initial codec mode.
Image1: Display the image set in Image 1 of camera
menu-video codec tab when streaming starts.
Image2: Display the image set in Image 2 of camera
menu-video codec tab when streaming starts.
Image3: Display the image set in Image 3 of camera
menu-video codec tab when streaming starts.
Note
When selecting the image with video codec off, it will
switch to image1.
Initial PTZ
Set the pan/tilt/zoom operation modes for streaming.
No PTZ: PTZ is not available when streaming starts.
Area zoom: Area zoom is available when streaming
starts.
PTZ control bar: Display the PTZ operation bar when
streaming starts.
Vector dragging: Vector drag is available when
streaming starts.
Initial frame rate
Set the initial camera image frame rate.
Initial image
Set what to initially display on the camera image display
area.
Administrating the Camera
Configuring the Viewer — Viewer Menu
78
Still image: JPEG still images are acquired from the
camera and displayed at start-up.
Specified image (URL): Specify a still image of your
choice by URL at start-up.
Auto play: Run to start playback.
Blank: No display at start-up.
Click to start streaming: By ticking this when Still
image or Specified image is selected, you can start
play by clicking on the image.
Tip
If the menu display is Off, Blank cannot be selected.
Initial sound
Set the initial volume for when streaming starts. Check
Muting for muting sound.
Note
This setting is valid only when SNC ActiveX viewer is
selected for Streaming method from Setting of the
Plug-in free viewer control bar. However, this unit is not
equipped with audio functions.
Show menu
Set whether to show or hide operation buttons at the
bottom of the camera image area.
Select On to display the menu, select Off to hide the
menu.
When On is selected, the items below can be set:
Streaming: Displays the setting options of Streaming,
if it is checked.
Image size: Displays the setting menu of Image size, if
it is checked.
Frame rate: Displays the setting menu of Frame rate,
if it is checked.
Preset position: Displays the setting menu of Preset
position, if it is checked.
Trigger: Displays the setting options of Trigger, if it is
checked.
PTZ operation: Displays the setting menu of PTZ
operation mode, if it is checked.
Sound: Displays the setting menu of Sound, if it is
checked.
Note
This unit is not equipped with audio functions.
Capture image: Displays the Capture image button, if
it is checked.
Image codec: Displays the setting menu of Image
codec, if it is checked.
OK/Cancel
See “Buttons common to every menu” on page 32.
HTML output tab
If the monitor is for personal use, this tab can be used to
output sample source for HTML and script.
For details on the setting, refer to “Monitor” of the
Layout tab.
Monitor
Displays a preview.
Preview: Displays a preview on the monitor based on
the current settings.
Default: Resets the setting to that set in Viewer - Layout
tab.
Note
The selected image size is not used for the preview
screen.
Embedded script
Displays the sample source for script.
HTML sample
Displays the sample source for HTML.
Others
Using the SNC toolbox 79
Others
This section explains how to use the application
software and commands, including the supplied CD-
ROM.
Using the SNC toolbox
Explains the functions except those of the Network tab
in SNC toolbox.
To install SNC toolbox, to assign an IP address and to set
the network, see “Assigning the IP Address to the
Camera” on page 6 in “Preparation”.
Notes
SNC toolbox may not operate correctly if you use a
personal firewall or antivirus software in your
computer. In this case, disable the software or assign
an IP address to the camera using another method. For
an example, see “Assigning the IP Address to the
Camera Using ARP Commands” on page 89.
If you are using Windows XP Service Pack 2 or later,
Windows Vista or Windows 7, disable the Windows
Firewall function. Otherwise SNC toolbox will not
operate correctly. For the setting, see “Configuring
Windows Firewall” in “When using Windows XP
Service Pack 2 or later” on page 9, “Configuring
Windows Firewall” in “When using Windows Vista”
on page 11, or “Configuring Windows Firewall” in
“When using Windows 7” on page 14.
The model on sale in China does not support the SSL
function.
Starting SNC toolbox
Select Program from the Start menu of Windows, then
select SNC toolbox and SNC toolbox in sequence.
SNC toolbox starts.
The main screen appears. SNC toolbox detects cameras
connected to the local network and lists them on the
Network tab window.
When you are using Windows Vista, message “User
Account Control – An unidentified program wants
access to your computer” may appear. In this case, click
Allow.

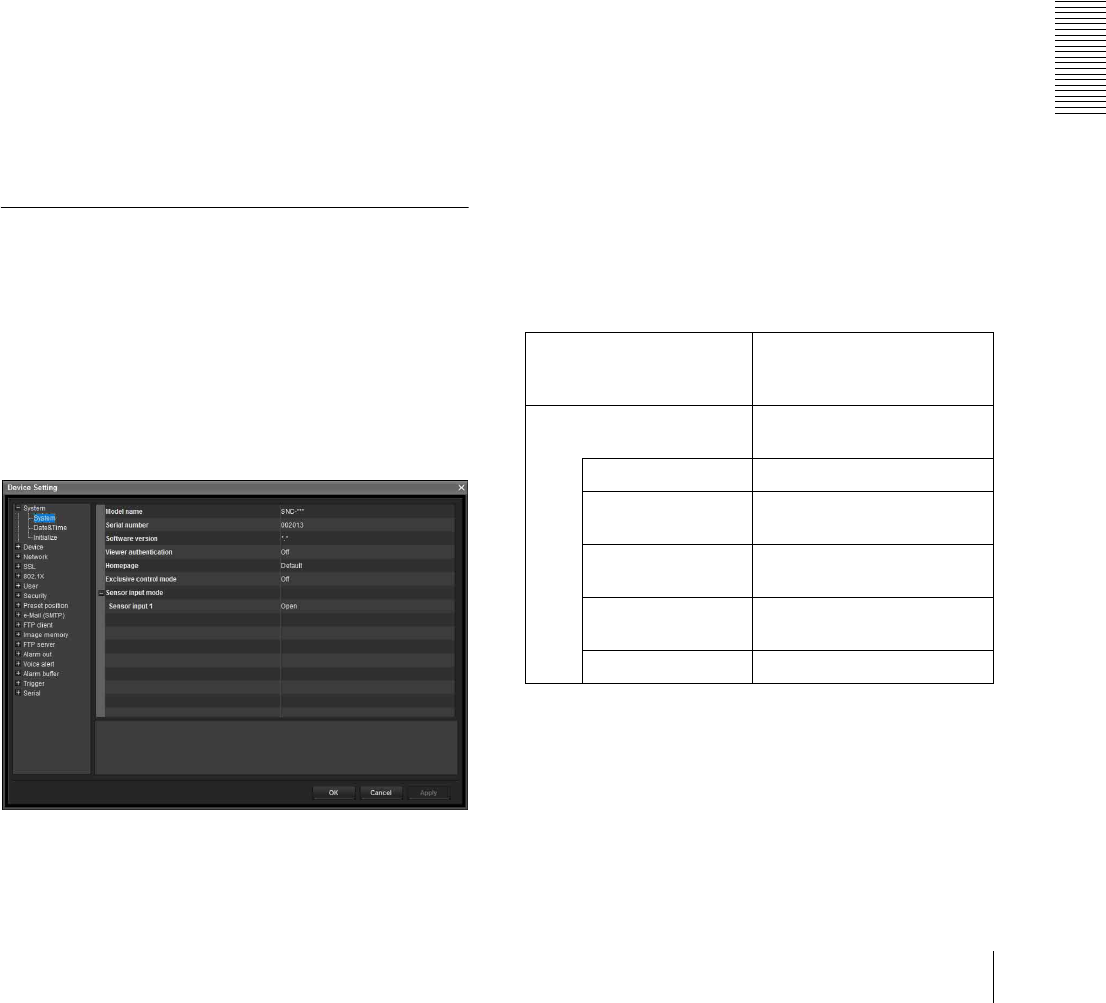

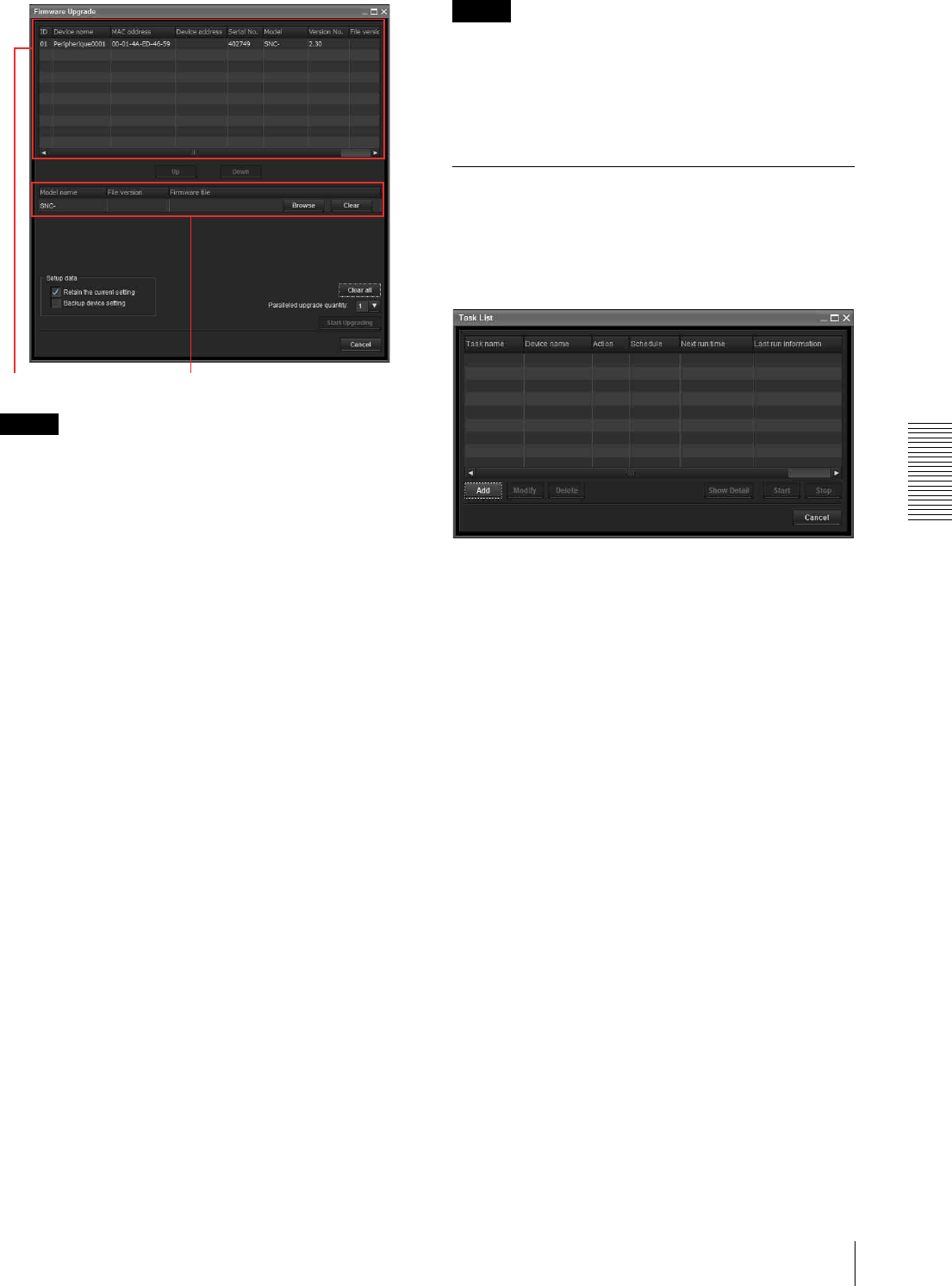

How to use SNC toolbox
Menu bar
All functions can be selected from here.
File (F) menu
Import: Reads the Device list file (CSV format).
Export: Outputs the Device list in a CSV format file.
Close: Exits SNC toolbox.
Edit (E) menu
Cut: Cuts off a device or folder.
Copy: Copies a device or folder.
Paste: Pastes a device or folder.
Select All: Selects all devices in the Device list.
Add Folder: Creates a folder.
Add Device Entry: Manually registers a device.
Modify Device Entry: Edits the device information.
Remove: Removes a device from a folder.
Delete: Deletes a device or folder.

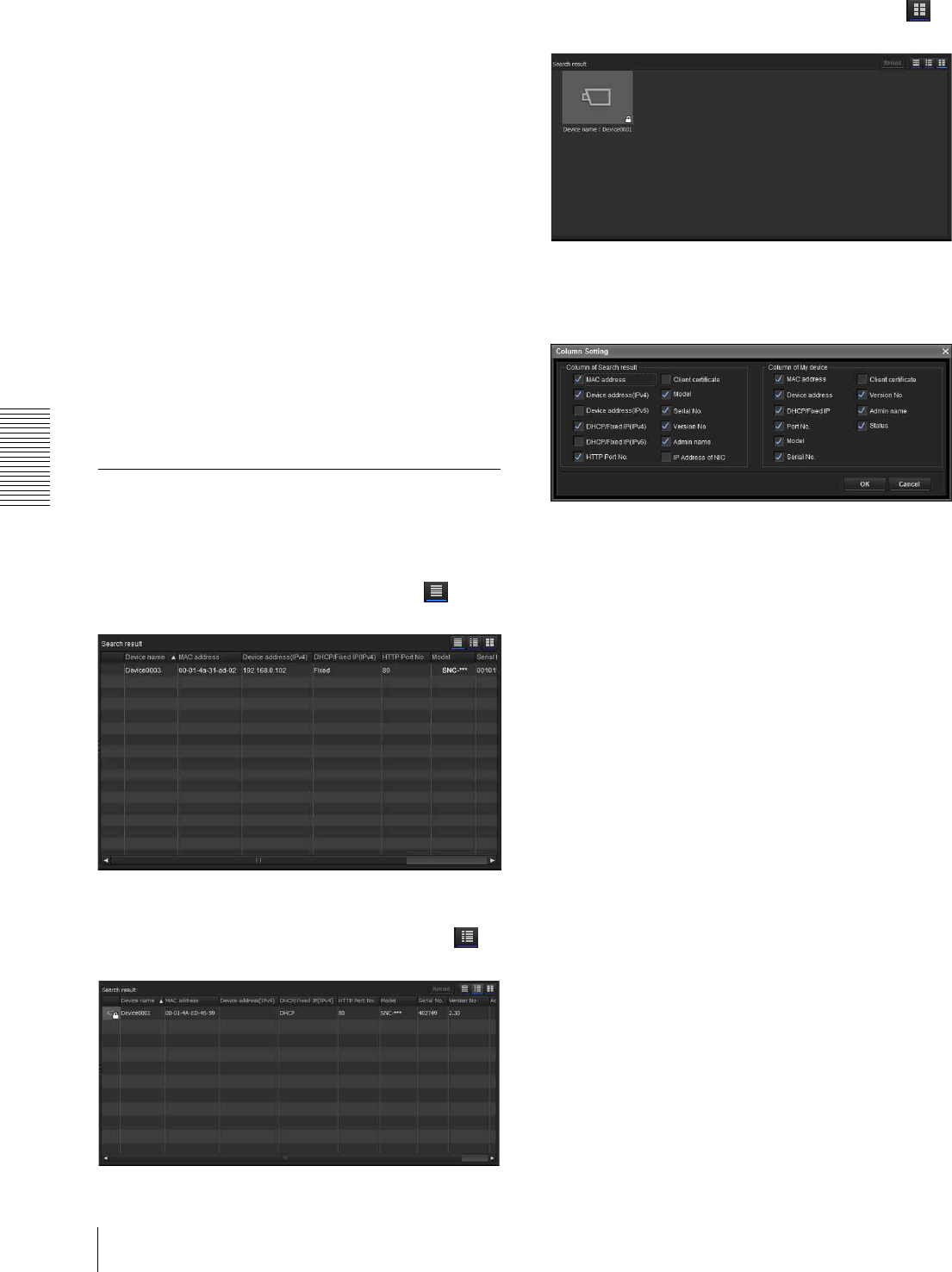

View (V) menu
Status Bar:
