 2011 Sony Corporation

HD Color Video Camera

EVI-H100S/H100V

A-E4U-100-11(1)

Technical Manual

Table of Contents

Features ............................................................................. 3

Connection ........................................................................ 4

Locations of Controls ....................................................... 6

Basic Functions ...............................................................10

Overview of Functions .................................................................. 10

Initial Settings and Position Preset ........................................... 16

Mode Condition .............................................................................. 18

Command List .................................................................23

VISCA RS-232C Commands ......................................................... 23

EVI-H100S/H100V Commands ................................................... 31

D70 Mode ........................................................................47

Overview ........................................................................................... 47

Switching the Mode ...................................................................... 47

Accepting or Sending Back Commands ................................. 48

Translating Parameters ................................................................. 49

Specifications .................................................................51

Precautions .....................................................................54

Features

 The 1/2.8 type Exmor CMOS camera (utilising

approximately 2 million valid pixels) allows for high-

definition shooting with superior picture quality.

 The camera is equipped with a bright, F1.6 zoom lens

with 20× optical zoom.

 By adopting its wide and dynamic range functions,

you can see the optimised shooting image which

incorporates bright and dark subjects at the same

time.

 The camera has a variety of HD video format choices

and digital and analogue interface connectors. The

EVI-H100S camera has HD-SDI (High Definition-

Serial Digital Interface) output, suitable for long-

distance transmission. The EVI-H100V camera has a

DVI-I (VIDEO OUT) connector supporting both

digital and analogue output.

 The camera can be used for NTSC and PAL output in

letter box size (EVI-H100S).

 Adopts the industry standard RS-232C interface of

VISCA camera protocol in external communication.

It is possible to operate from long distances by using

both RS-232C and RS-422.

 You can install the camera on ceilings due to the

functions of high-speed and wide range pan/tilt

action and vertical image flip.

 You can use the infrared remote commander to set

the camera and also to select panning, tilting and

zooming from the setting menu.

 You can store up to 6 kinds of camera direction and

camera status into the camera.

Connection

EVI-H100S

1) When the camera is connected to a computer with a VISCA cable (cross type, RS-232C), you can operate the

camera with the computer. To obtain a cable, consult the dealer where you bought your camera.

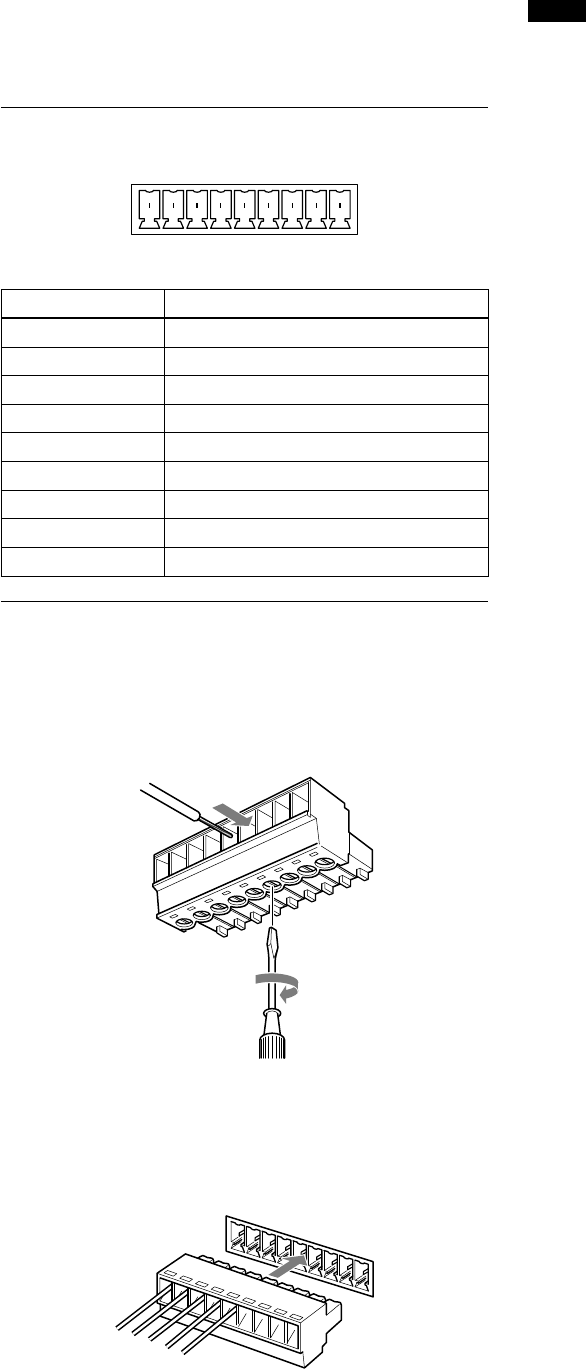

2) For details on how to connect using VISCA RS-422, see page 28.

Video cable

(not supplied)

to VIDEO

to Video

input

Cable with BNC connector

(not supplied)

to HD-SDI to HD-SDI input

connector

VISCA cable (not supplied) 1)

to VISCA IN to RS-232C

to VISCA OUT To VISCA IN of other

EVI-H100S/H100V

(when connecting

to more than one

camera)

to VISCA RS-422 2)

to DC 12V

AC power adaptor (supplied)

Power cord (supplied)

to AC outlet

Computer, video

monitor, HD video

monitor, VCR or HD

CAM VTR with a video

input jack, etc.

(Continued)

Notes

 Use only the AC power adaptor (JEITA type4)

supplied with the unit. Do not use any other AC

power adaptor.

Polarity of the plug

 You have to set the video format of the signal to be

output from the camera. For detailed information on

how to set the video format, see “ SYSTEM

SELECT switch” on page 7.

 Do not make VISCA RS-232C and RS-422

connections at the same time, as this may cause

malfunctions.

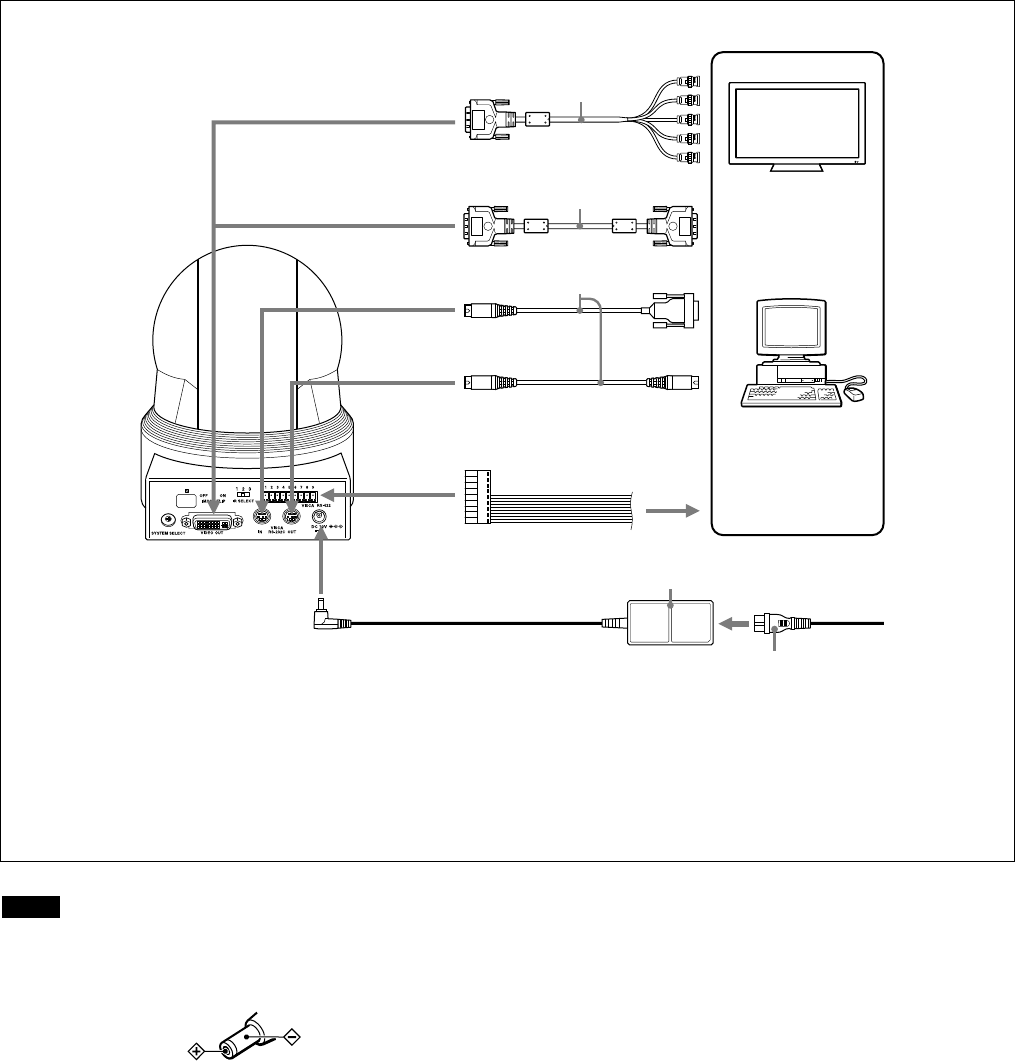

EVI-H100V

1) When the camera is connected to a computer with a VISCA cable (cross type, RS-232C), you can operate the

camera with the computer. To obtain a cable, consult the dealer where you bought your camera.

2) For details on how to connect using VISCA RS-422, see page 28.

DVI to

component

adapter cable

(not supplied)

to component

input

connector

to VIDEO OUT

DVI cable

(not supplied)

to VIDEO OUT to DVI input connector

VISCA cable (not supplied) 1)

to VISCA IN to RS-232C

to VISCA OUT To VISCA IN of other

EVI-H100S/H100V

(when connecting

to more than one

camera)

to VISCA RS-422 2)

to DC 12V

AC power adaptor (supplied)

Power cord (supplied)

to AC outlet

Computer with serial

communication

interface, HD video

monitor with DVI input

interface, etc.

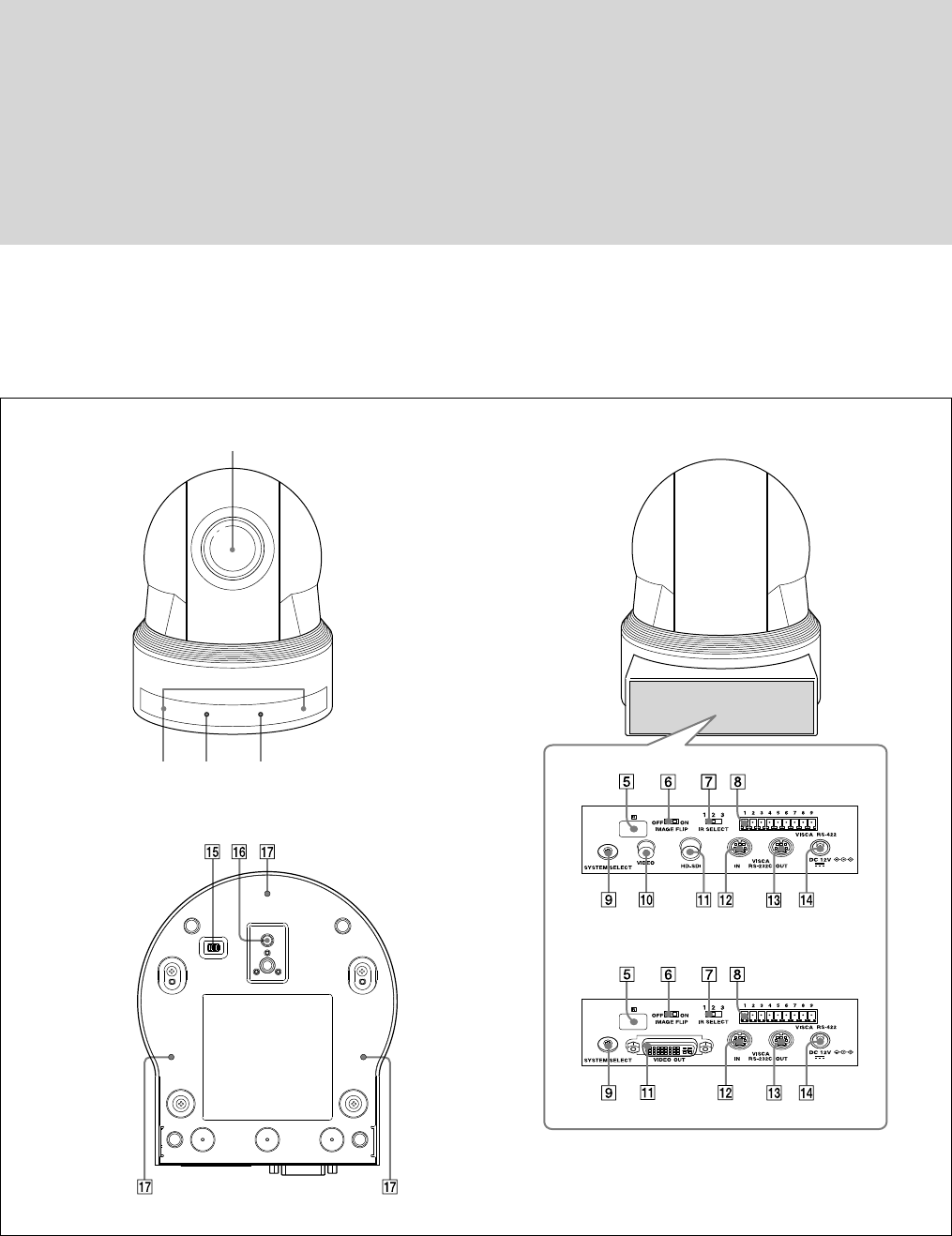

Locations of Controls

(Continued)

 Lens

 Remote sensors

 POWER lamp

 STANDBY lamp

For detailed information on LED status of the POWER lamp

and STANDBY lamp, see “LED Status” on page 46.

 Remote sensors

Main Unit

Front

  



Bottom

Rear

EVI-H100S

EVI-H100V

Locations of Controls

 IMAGE FLIP switch

Flips the image upside down. Normally set this to OFF when

you use the camera. When the camera is attached to the

ceiling, set this to ON. Before you set the IMAGE FLIP

switch, turn off the unit (or set to standby mode) and then,

turn the power on by connecting the power adaptor, by

VISCA control or the remote commander. When you switch

this, the preset setting is returned to the initial setting.

 IR SELECT switch

 VISCA RS-422 connector

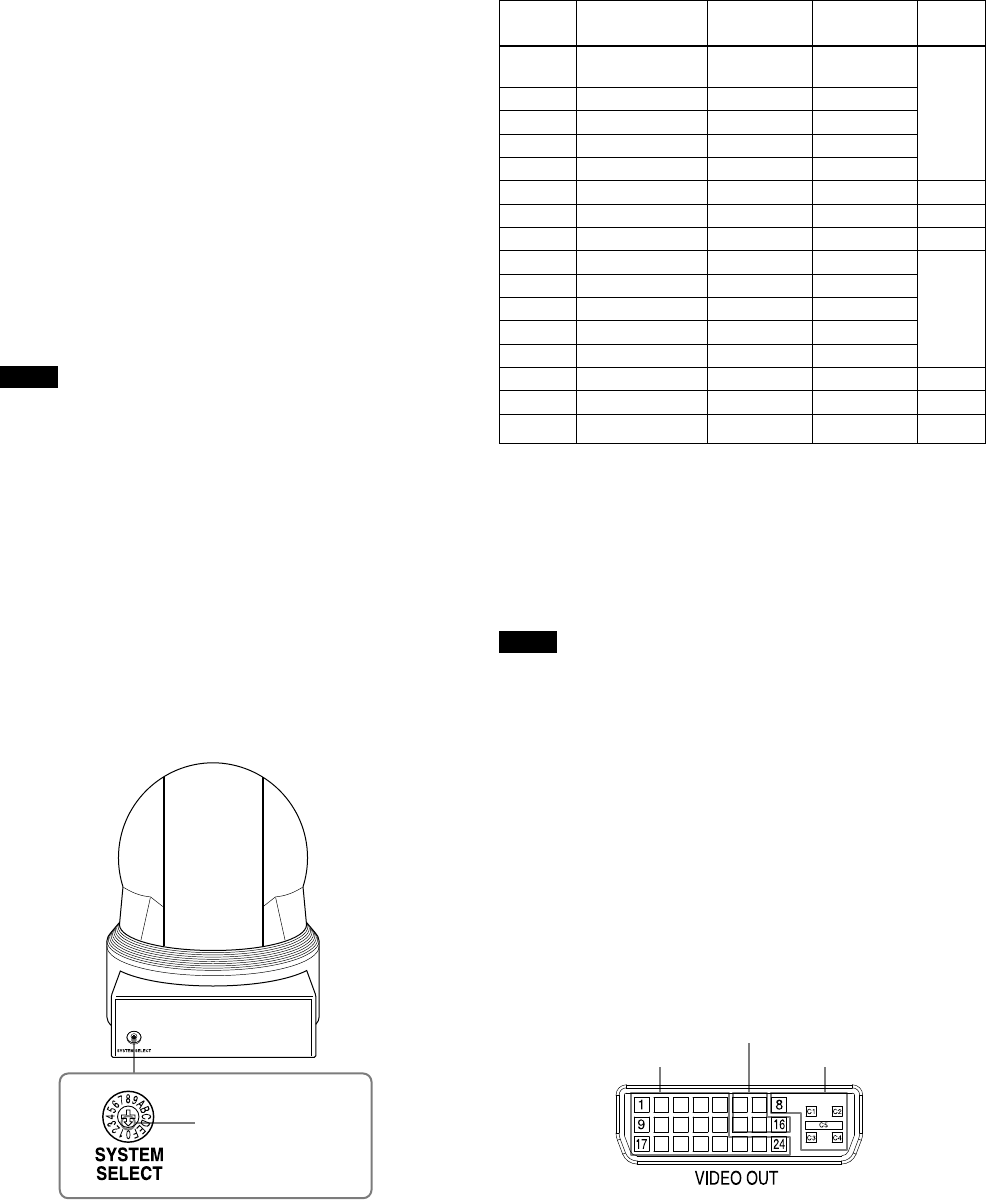

 SYSTEM SELECT switch

This switch allows you to select the video format of the

signal to be output from the VIDEO OUT connectors.

Notes



Be sure to set this switch before you turn on the power of the

camera. You can also set this switch in the standby mode of

the camera. After completing the setting, turn on the power

of the camera by connecting it to an AC outlet using the

supplied AC power adaptor and AC power cord, by using

the VISCA command or remote commander.



Be sure to use a Phillips-head screwdriver when changing

the switch position. If you use a tool other than the

designated screwdriver, the crossed groove may be damaged.



This camera does not include a function that automatically

selects video output signals based on the DVI monitor’s

resolution. Be sure to configure settings based on the

monitor manually. (EVI-H100V)



HDTV video signal outputs display without distortion on

monitors with 16:9 aspect ratios.

Set this arrow to the

desired video format.

Switch

position Video format EVI-H100S

support

EVI-H100V

support

01080i/

59.94 (29.97PsF) Yes Yes

59.94 Hz

system

1 1080p/29.97 Yes Yes

2 720p/59.94 Yes Yes

3 720p/29.97 Yes Yes

4 NTSC (LB) Yes (SD OUT) No

5 No output — — —

6 No output — — —

7 VISCA Control Yes Yes —

8 1080i/50 (25PsF) Yes Yes

50 Hz

system

9 720p/50 Yes Yes

A 720p/25 Yes Yes

B 1080i/50 Yes Yes

C PAL (LB) Yes (SD OUT) No

D No output — — —

E No output — — —

F No output — — —

Yes: Outputs the image signal.

No: Does not output the image signal

LB: Abbreviation of LETTER BOX. A 4:3 aspect ratio

video signal converted from 16:9 is output with a blank

area (no signal, black) top and bottom to display the

image on a 4:3 aspect ratio monitor without distortion.

Notes

 If the switch position is set to “no output,” the

POWER lamp and STANDBY lamp will both remain

lit. In such cases, control via the remote commander

and VISCA commands is disabled.

 The VISCA CONTROL switch position allows you to

configure the video format via external

communication. Note that your configured video

format will be activated only after restarting the

camera. For details on the video output format

settings command, see page 33.

 SD OUT VIDEO connector

 HD OUT HD-SDI connector (EVI-H100S), VIDEO OUT

connector (EVI-H100V)

TMDS ANALOG

PLUG & PLAY

Locations of Controls

 RS-232C/RS-422 select switch

Set to ON to operate colour video camera using the

VISCA command via the RS-422 interface. To change

the mode, turn off the camera (not including standby

mode) first, set the switch and then turn on the camera

again. The mode cannot be switched while the camera is

turned on.

 Baud rate select switch

Set to ON for 38,400 bps or OFF for 9,600 bps. To

change the mode, turn off the camera (not including

standby mode) first, set the switch and then turn on the

camera again. Mode switching is not possible while the

camera is turned on.

 Switch 5 (Not used)

Be sure to set this switch to OFF.

 Tripod screw hole

 Ceiling bracket mounting screw holes

Remote Commander

 CAMERA SELECT buttons

Press the button corresponding to the camera you want to

operate with the Remote Commander.

The camera number can be set using the IR SELECT switch

on the rear of the camera.

Note

If two or more cameras are adjacent and have the same

camera number, they are operated simultaneously with the

same Remote Commander. When you install the cameras

close to each other, set different camera numbers.

For the camera number setting, see “Operating Multiple

Cameras with the Remote Commander” described in the

Operating Instructions supplied with the camera.

Pin No. Function

1 Data_2-

2 Data_2+

3 Shield (2, 4)

4 No connection

5 No connection

6 No connection

7 No connection

8 Analog Vertical Sync

9 Data_1-

10 Data_1+

11 Shield (1, 3)

12 No connection

13 No connection

14 Power_+5 V

15 GND

16 Hot Plug

17 Data_0-

18 Data_0+

19 Shield (0, 5)

20 No connection

21 No connection

22 Shield Clock

23 Clock+

24 Clock-

C1 Analog Pr

C2 Analog Y

C3 Analog Pb

C4 Analog Horizontal Sync

C5 Analog GND

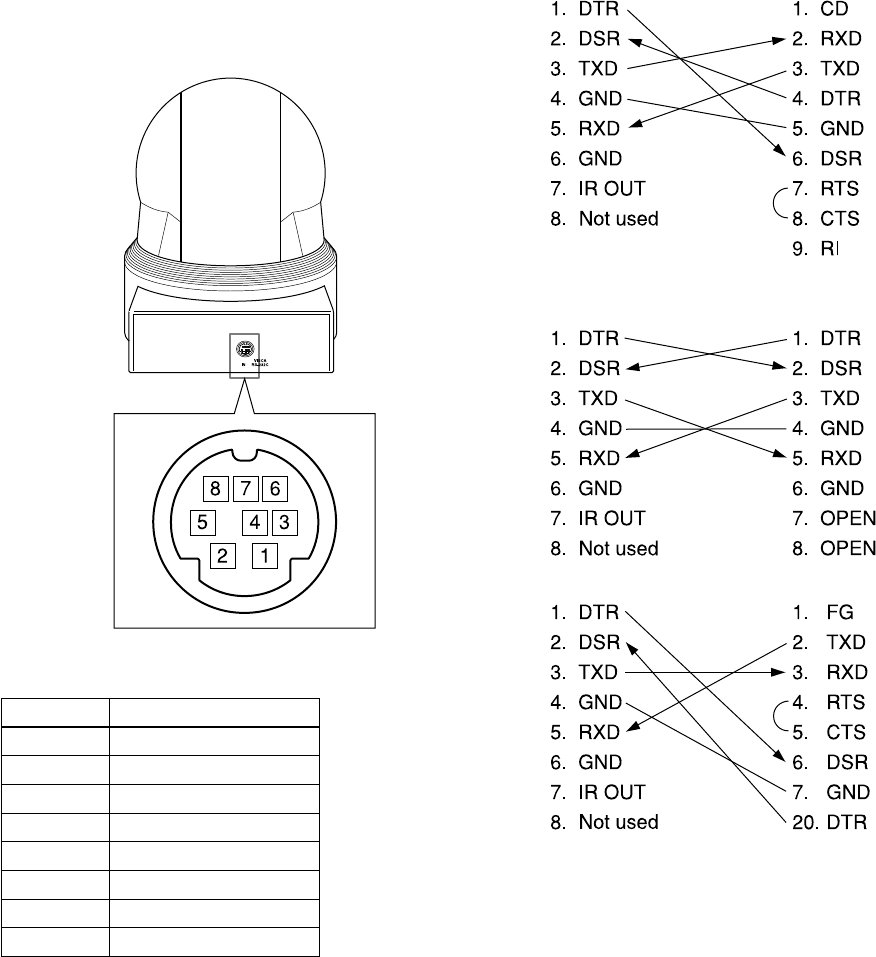

 VISCA IN connector

 VISCA OUT connector

 DC 12V connector

 BOTTOM switches

 D70 mode switch

Set to ON to use the VISCA command for EVI-D70/

D70P.

 IR OUT switch

Set to ON to enable output of the receiver signals, which

are transmitted from the infrared remote commander

via the VISCA IN connector (page 27), or set it to OFF

to disable the output.

Locations of Controls

 FOCUS buttons

Used for focus adjustment.

Press the AUTO button to adjust the focus automatically. To

adjust the focus manually, press the MANUAL button, and

adjust it with the FAR and NEAR buttons.

 DATA SCREEN button

Press this button to display the main menu. Press it again to

turn off the menu. If you press the button when a lower-level

menu is selected, the display goes back to a higher-level

menu.

Note

Pan/tilt operations are disabled when the menu is displayed.

 PAN-TILT buttons

Press the arrow buttons to perform panning and tilting.

Press the HOME button to face the camera back to the front.

When the menu is displayed, use  or  to select the menu

items and  or  to change the set values. The selected

setting menu is displayed, by pressing the HOME button

when the main menu is displayed.

The Pan/tilt speed will slow down when the camera is

zoomed, in order to allow precise positioning.

 L/R DIRECTION SET button

Hold down this button and press the REV button to change

the direction of the camera movement opposite to that

indicated by the arrow of the / buttons.

To reset the direction of the camera movement, press the

STD button while holding down this button.

 POWER switch

Press this button to turn on/off the camera when the camera

is connected to an AC outlet.

 BACK LIGHT button

Press this button to enable the backlight compensation.

Press it again to disable the backlight compensation.

 POSITION buttons

Hold down the PRESET button and press button 1 to 6 to

store the current camera direction, zooming, focus

adjustment and backlight compensation in the memory of

the pressed number button.

To erase the memory contents, hold down the RESET

button and press button 1 to 6.

Note

These buttons do not function when the menu is displayed.

 PAN-TILT RESET button

Press this button to reset the pan/tilt position.

 ZOOM buttons

Use the SLOW button to zoom slowly, and the FAST button

to zoom quickly.

Press the T (telephoto) side of the button to zoom in, and

the W (wide angle) side to zoom out.

Basic Functions

Overview of Functions

Zoom

The camera employs a 20× optical zoom lens combined

with a digital zoom function; this camera allows you to

zoom up to 240×.

Optical 20×, f = 4.7 mm to 94.0 mm (F 1.6 to F 3.5)

The horizontal angle of view (1080i mode) is

approximately 55.4 degrees (wide end) to 2.9 degrees

(tele end).

Digital Zoom enlarges the center of the subject by

expanding each image in both the vertical and

horizontal directions. When 240× zoom is used, the

number of effective picture elements in each direction

reduces to 1/12 and the overall resolution deteriorates.

You can activate the zoom in the following ways with a

VISCA command.

Using Standard Mode

Using Variable Mode

There are eight levels of zoom speed.

Direct Mode

Setting the zoom position enables quick movement

to the designated position.

Digital Zoom ON/OFF

In these standard and variable Speed Modes, it is necessary to

send Stop Command to stop the zoom operation.

Focus

Focus has the following modes, all of which can be set

using VISCA Commands.

Auto Focus Mode

The minimum focus distance is 10 mm at the optical

wide end and 800 mm at the optical tele end, and is

independent of the digital zoom.

The Auto Focus (AF) function automatically adjusts

the focus position to maximise the high frequency

content of the picture in a center measurement area,

taking into consideration the high luminance and

strong contrast components.

- Normal AF Mode

This is the normal mode for AF operations.

- Interval AF Mode

The mode used for AF movements carried out at

particular intervals. The time intervals for AF

movements and for the timing of the stops can be

set in one-second increments using the Set Time

Command. The initial value for both is set to five

seconds.

- Zoom Trigger Mode

When the zoom is changed, the pre-set value

(initially set at 5 seconds) becomes that for AF

Mode. Then, it stops.

AF sensitivity can be set to either Normal or LOW.

- Normal

Reaches the highest focus speed quickly. Use this

when shooting a subject that moves frequently.

Usually, this is the most appropriate mode.

- LOW

Improves the stability of the focus. When the

lighting level is low, the AF function does not take

effect, even though the brightness varies,

contributing to a stable image.

Manual Focus Mode

Manual Focus has both a Standard Speed Mode and

a Variable Speed Mode. Standard Speed Mode

focuses at a fixed rate of speed. Variable Speed Mode

has eight speed levels that can be set using a VISCA

Command.

Basic Functions

In these standard and variable Speed Modes, it is necessary to send

Stop Command to stop the zoom operation.

 One Push Trigger Mode

When a Trigger Command is sent, the lens moves to

adjust the focus for the subject. The focus lens then

holds that position until the next Trigger Command

is input.

 Infinity Mode

The lens is forcibly moved to a position suitable for

an unlimited distance.

 Near Limit Mode

Can be set in a range from 1000 (∞) to F000

(10 mm).

Default setting: D000h (30 cm)

White Balance

White Balance has the following modes, all of which

can be set using VISCA Commands.

 Auto White Balance

This mode computes the white balance value output

using color information from the entire screen. It

outputs the proper value using the color temperature

radiating from a black subject based on a range of

values from 3,000 to 7,500 K.

This mode is the default setting.

Indoor

3,200 K Base Mode

Outdoor

5,800 K Base Mode

 One Push WB

The One Push White Balance mode is a fixed white

balance mode that may be automatically readjusted

only at the request of the user (One Push Trigger),

assuming that a white subject, in correct lighting

conditions and occupying more than 1/2 of the

image, is captured by the camera.

One Push White Balance data is lost when the power

is turned off. If the power is turned off, reset the One

Push White Balance.

Manual WB

Manual control of R and B gain, 256 steps each

Automatic Exposure Mode

A variety of AE functions are available for optimal

output of subjects in lighting conditions that range

from low to high.

Full Auto

Exposure is adjusted automatically by gain, iris and

electronic shutter setting.

AE Gain Limit Setting

The gain limit can be set at the Full Auto, Shutter

Priority and Iris Priority in the AE mode. Use this

setting when image signal-to-noise ratio is

particularly important.

Shutter Priority 1)

Variable Shutter Speed, Auto Iris and Gain

(1/1 to 1/10,000 sec., 16 high-speed shutter speeds

plus 6 low-speed shutter speeds)

1) Flicker can be eliminated by setting shutter to

 1/100s for NTSC models used in countries with a 50 Hz

power supply frequency

 1/120s for PAL models used in countries with a 60 Hz power

supply frequency

Iris Priority

Variable Iris (F1.6 to Close, 14 steps), Auto Gain and

Shutter speed

Manual

Variable Shutter, Iris and Gain

Bright

Variable Iris and Gain (Close to F1.6, 17 steps at

0 dB: F1.6, 15 steps from 0 to 28 dB)

AE – Shutter priority

The shutter speed can be set freely by the user to a total

of 22 steps – 16 high speeds and 6 low speeds. When

the slow shutter is set, the speed can be 1/30s, 1/15s, 1/8s,

1/4s, 1/2s, 1/1s. The picture output is read at a normal rate

from the memory. The memory is updated at a low rate

from the CMOS. AF capability is low.

In high speed mode, the shutter speed can be set up to

1/10,000s. The iris and gain are set automatically,

according to the brightness of the subject.

Data 60/30 mode 50/25 mode

15 1/10000 1/10000

14 1/6000 1/6000

13 1/4000 1/3500

12 1/3000 1/2500

11 1/2000 1/1750

10 1/1500 1/1250

0F 1/1000 1/1000

0E 1/725 1/600

0D 1/500 1/425

0C 1/350 1/300

0B 1/250 1/215

0A 1/180 1/150

09 1/125 1/120

08 1/100 1/100

07 1/90 1/75

06 1/60 1/50

05 1/30 1/25

04 1/15 1/12

Basic Functions

Data 60/30 mode 50/25 mode

03 1/8 1/6

02 1/4 1/3

01 1/2 1/2

00 1/1 1/1

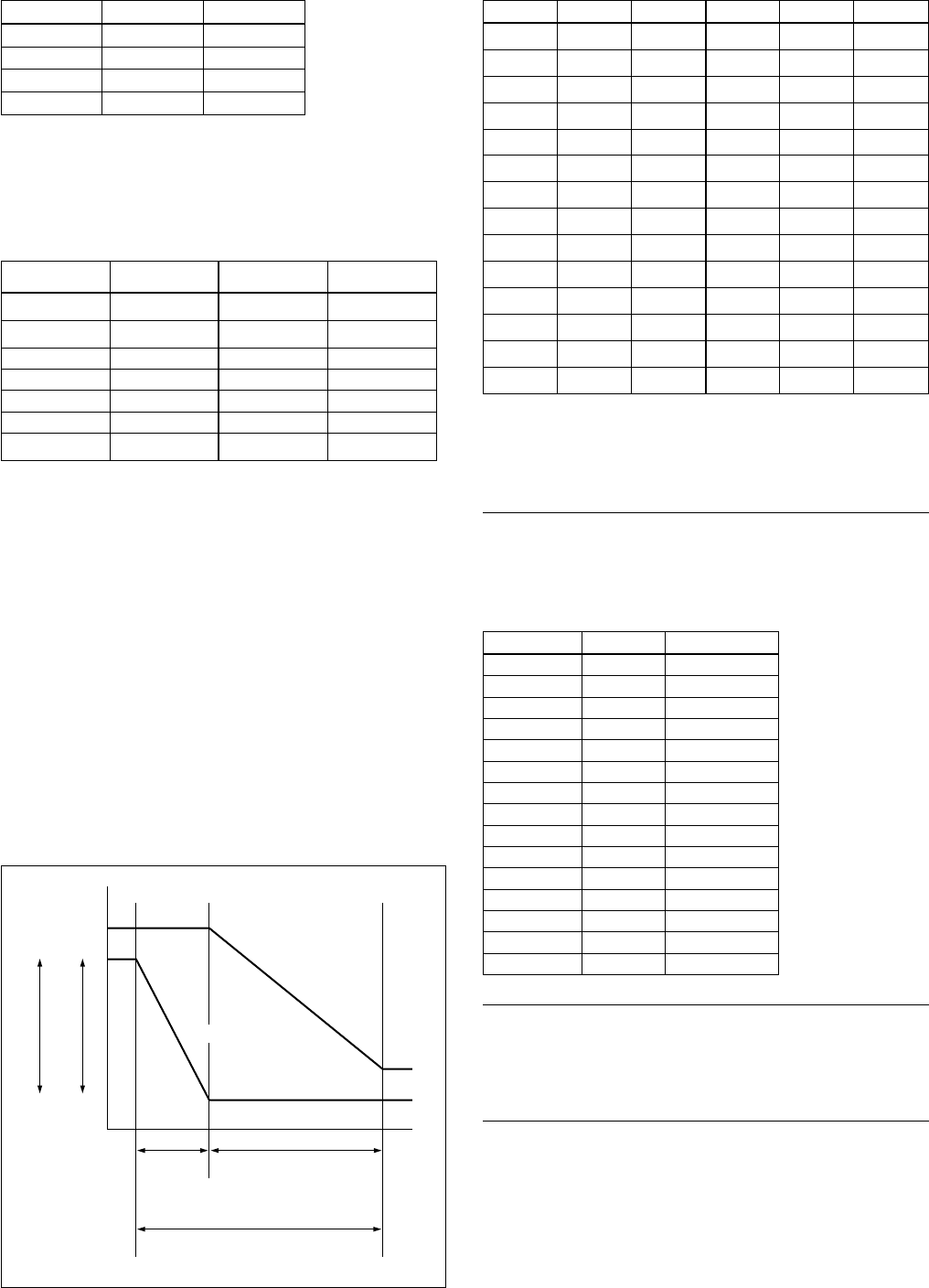

AE – Iris priority

The iris can be set freely by the user to 14 steps

between F1.6 and Close.

The gain and shutter speed are set automatically,

according to the brightness of the subject.

Data

Setting value

Data

Setting value

11 F1.6 0A F5.6

10 F2 09 F6.8

0F F2.4 08 F8

0E F2.8 07 F9.6

0D F3.4 06 F11

0C F4 05 F14

0B F4.8 00 CLOSE

AE – Manual

The shutter speed (22 steps), iris (14 steps) and gain

(16 steps) can be set freely by the user.

AE – Bright

The bright control function adjusts both gain and iris

using an internal algorithm, according to a brightness

level freely set by the user. Exposure is controlled by

gain when dark, and by iris when bright.

As both gain and iris are fixed, this mode is used when

exposing at a fixed camera sensitivity. When switching

from Full Auto or Shutter Priority Mode to Bright

Mode, the current status will be retained for a short

period of time.

Only when the AE mode is set to “Full Auto” or

“Shutter Priority,” can you switch it to “Bright.”

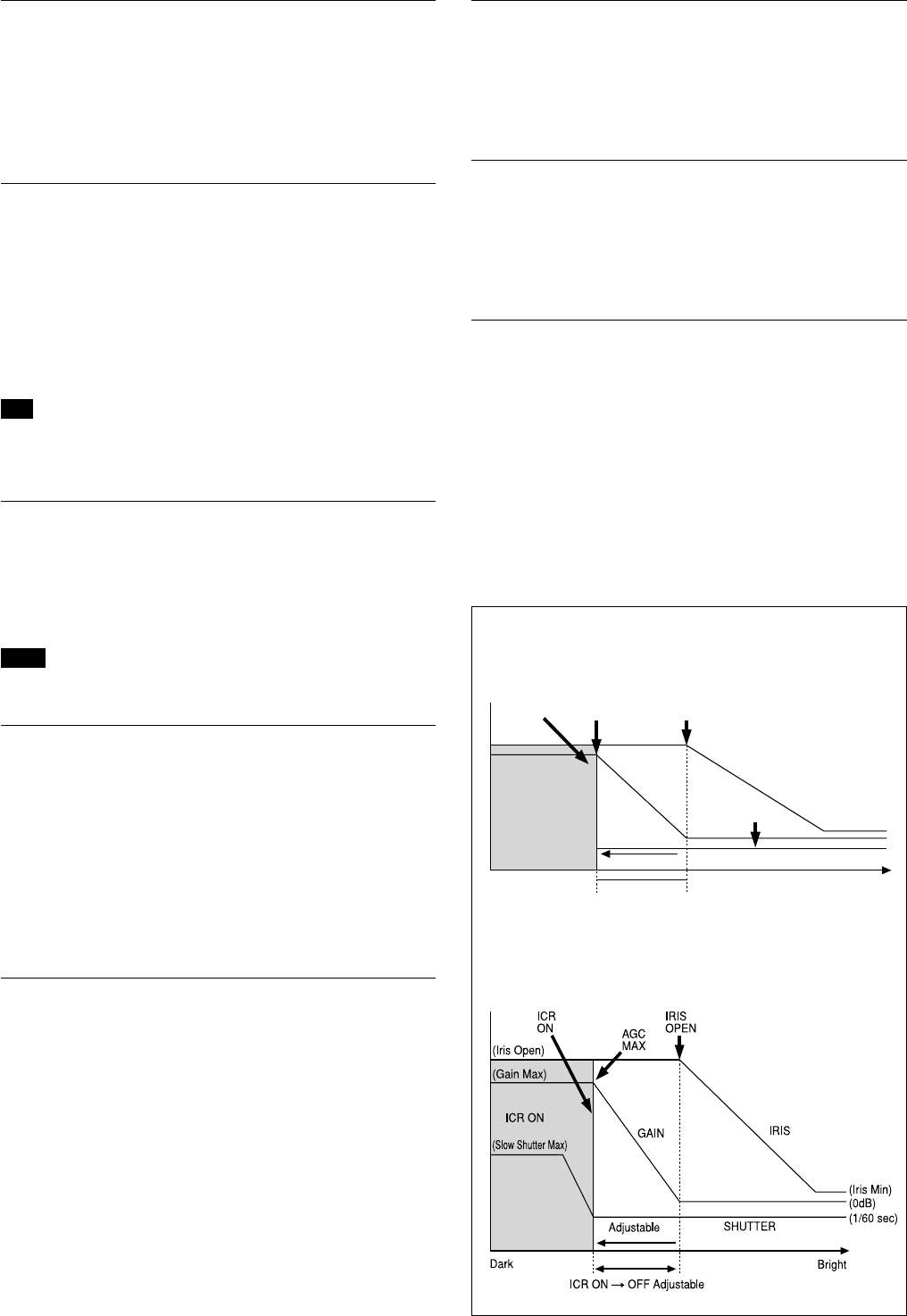

MIN

MAX

AGC

OPEN

IRIS

Gain

Dark Bright

IRIS gain curve

Controlled

by gain

Controlled by IRIS

Bright limit controllable

for this unit

AGC gain curve

Data Iris Gain Data Iris Gain

1F F1.6 28 dB 11 F1.6 0 dB

1E F1.6 26 dB 10 F2 0 dB

1D F1.6 24 dB 0F F2.4 0 dB

1C F1.6 22 dB 0E F2.8 0 dB

1B F1.6 20 dB 0D F3.4 0 dB

1A F1.6 18 dB 0C F4 0 dB

19 F1.6 16 dB 0B F4.8 0 dB

18 F1.6 14 dB 0A F5.6 0 dB

17 F1.6 12 dB 09 F6.8 0 dB

16 F1.6 10 dB 08 F8 0 dB

15 F1.6 8 dB 07 F9.6 0 dB

14 F1.6 6 dB 06 F11 0 dB

13 F1.6 4 dB 05 F14 0 dB

12 F1.6 2 dB 00 CLOSE 0 dB

When switching from the Shutter Priority mode to the

Bright mode, the shutter speed set in the Shutter

Priority mode is maintained.

Exposure Compensation

Exposure compensation is a function which offsets the

internal reference brightness level used in the AE mode

by steps of 1.5 dB.

Data Step

Setting value

0E +7 +10.5 dB

0D +6 +9 dB

0C +5 +7.5 dB

0B +4 +6 dB

0A +3 +4.5 dB

09 +2 +3 dB

08 +1 +1.5 dB

07 0 0 dB

06 −1 −1.5 dB

05 −2 −3 dB

04 −3 −4.5 dB

03 −4 −6 dB

02 −5 −7.5 dB

01 −6 −9 dB

00 −7 −10.5 dB

High Resolution Mode

This mode enhances edges and produces higher

definition images.

Aperture Control

Aperture control is a function which adjusts the

enhancement of the edges of objects in the picture.

There are 16 levels of adjustment, starting from “no

enhancement.” When shooting text, this control may

help by making the text sharper.

Basic Functions

Back Light Compensation

When the background of the subject is too bright, or

when the subject is too dark due to shooting in the AE

mode, back light compensation will make the subject

appear clearer.

Wide Dynamic Range Mode (WD)

The Wide Dynamic Range mode is a function for

dividing an image into several blocks and correcting

blocked-up shadows and blown-out highlights in

accordance with the intensity difference. It enables you

to obtain images in which portions ranging from dark

to light can be recognized, even when capturing a

subject with a large intensity difference that is backlit

or includes extremely light portions.

Images with wide dynamic range are produced by

combining long-exposure signals (normal shutter) with

the signals of the high-intensity portions obtained with

a short exposure (high-speed shutter).

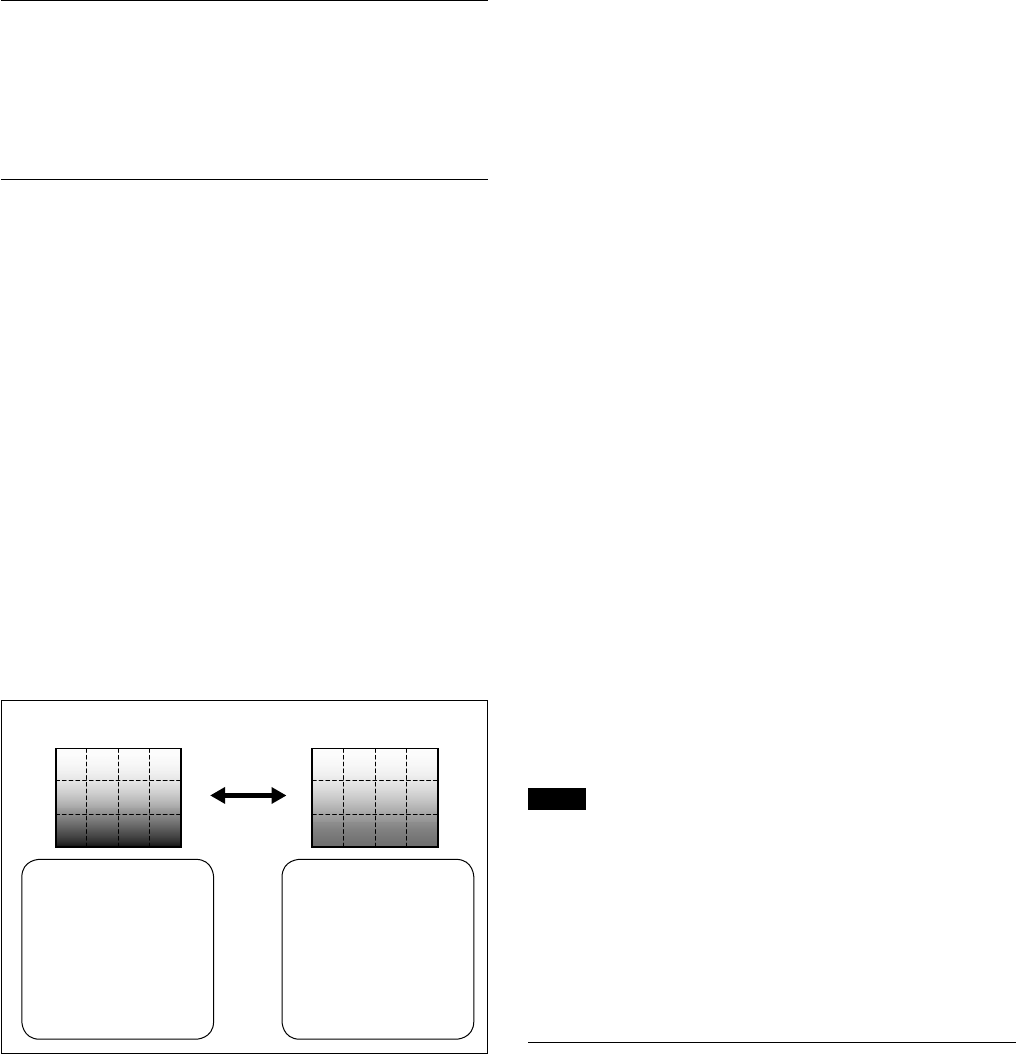

Wide Dynamic Range Auto On/Off Mode

The wide dynamic range can be set to be automatically

switched ON/OFF in accordance with the intensity

difference obtained by dividing an image into several

blocks and then averaging the intensity of each block.

Wide Dynamic Range Auto On/Off Mode

When the intensity

difference between the

dark portions and light

portions of a subject

becomes large because

of back lighting or the

like, the wide dynamic

range mode is switched

ON.

Auto On/Off

When the subject

changes and the

intensity difference

between the dark

portions and light

portions becomes small,

the wide dynamic range

mode is switched OFF.

The wide dynamic range mode includes the following

operation modes.

 WD Mode

This mode corrects blocked-up shadows and blown-

out highlights in accordance with the intensity

difference.

 WD Auto ON/OFF Mode

This mode switches WD ON/OFF automatically in

accordance with the intensity difference of the

subject.

Configure the sensitivity for when WD is switched

from OFF to ON with the detection sensitivity

parameter.

 Exposure Ratio Mode

This mode fixes the shutter speed of a long exposure.

Configure the shutter speed of a short exposure by

setting the ratio with regards to a long exposure with

the exposure ratio parameter.

Blown-out highlight correction is not performed in

this mode.

 Histogram Mode

This mode uses a histogram to correct blocked-up

shadows and blown-out highlights.

 About WD Set Parameter

(Command: 8x 01 04 2D 0p 0q 0r 0s 0t 0u 00 00 FF)

p: Screen display (0: Combined image, 2: Long-time,

3: Short-time)

Set the screen display to the combined image, a

long exposure image or short exposure image.

q: Detection sensitivity (0: Low, 1: Mid, 2: Hi)

Select from three levels for detecting the

intensity within the image for when switching

Auto WD from OFF to ON.

r: Blocked-up shadow correction level can be

set to one of four levels. (0:L 1:M 2:H 3:S)

s: Blown-out highlight correction level can be

set to one of three levels. (0:L 1:M 2:H)

tu: Parameter to use in the exposure ratio mode.

Specify the short exposure time by setting

the magnification ratio (×1 to ×64) with

regards to a long exposure time.

Notes

• When the wide dynamic range mode is ON, solarization may be

observed in the images of some subjects. This phenomenon is

unique to wide dynamic range mode, and is not an indication of a

camera malfunction.

• The frame rate during Wide Dynamic Range mode will be half of

that during standard mode.

Example: When Wide Dynamic Range mode is ON in 1080/30P

mode, the frame rate is 15 fps.

Noise Reduction

The NR (Noise Reduction) function removes noise

(both random and non-random) to provide clearer

images.

This function has six steps: levels 1 to 5, plus off.

The NR effect is applied in levels based on the gain,

and this setting value determines the limit of the effect.

In bright conditions, changing the NR level will not

have an effect.

Basic Functions

High Sensitivity Mode

In this mode, higher sensitivity gain is applied as

standard gain increases, reaching a gain level at MAX

gain of up to 4x the standard gain. In such cases,

however, there will be a high volume noise in the

image.

Custom Gamma Mode

Gamma correction can be changed in this mode. The

following five options are available.

1: Standard

2: Straight gamma

3: S-curve - Low

4: S-curve - Mid

5: S-curve - High

Tip

Blocked-up shadows in images will be more noticeable

than usual.

Slow shutter – Auto/Manual

When set to “Auto,” ensures that the slow shutter is set

automatically when the brightness drops. Effective only

when the AE mode is set to “Full Auto.”

Set to “Slow Shutter Manual” at shipment.

Note

The Slow Shutter Auto function is not available in WD mode.

Low-Illumination Chroma Suppress Mode

You can configure a chroma suppress mode for low-

illumination conditions. This can be useful when color

noise is particularly noticeable in such conditions.

Four levels (disabled and three levels) are available for

the low-illumination chroma suppress mode. Set the

effect to be applied at approximately 15 dB. Higher

setting values produce stronger chroma suppressing

effects.

ICR (IR Cut-Removable) Mode

An infrared (IR) Cut-Filter can be disengaged from the

image path for increased sensitivity in low light

environments. The ICR will automatically engage

depending on the ambient light, allowing the camera to

be effective in day/night environments.

When the auto ICR mode is set to ON, the image

becomes black and white.

Custom Color Gain

You can customize and configure the color gain. Use

this setting when bright color is particularly important.

The initial setting 100% (4h) can be set to range from

approx. 60% (Oh) to 200% (Eh) with 15 stages.

Custom Color Phase

You can customize and configure the color phase.

The initial setting 0 degrees (7h) is adjustable between

approx. −14 degrees (0h) and +14 degrees (Eh), in

15 increments.

Auto ICR Mode

Auto ICR Mode automatically switches the settings

needed for attaching or removing the IR Cut Filter.

With a set level of darkness, the IR Cut Filter is

automatically disabled (ICR ON), and the infrared

sensitivity is increased. With a set level of brightness,

the IR Cut Filter is automatically enabled (ICR OFF).

Also, on systems equipped with an IR light, the internal

data of the camera is used to make the proper decisions

to avoid malfunctions.

Auto ICR Mode operates with the AE Full Auto setting.

ICR

SHUTTER

Dark Bright

AGC

MAX

IRIS

OPEN

Shutter 1/60 sec

ICR OFF U ON

GAIN

ICR ON

IRIS

When Auto Slow Shutter is ON

When Auto Slow Shutter is OFF (initial setting)

Basic Functions

Note

When in Auto_ICR_OFF state and WB data is added (default), a

malfunction may occur when the subjects largely consisting of blue

and green colors are taken.

Camera ID

The ID can be set up to 65,536 (0000 to FFFF). As this

will be memorized in the nonvolatile memory inside

the camera, data will be saved regardless of whether it

has been backed up.

Effect

It consists of the following functions.

• Neg. Art: Negative/Positive Reversal

• Black White: Monochrome Image

Checking the Location of the Camera for

Signals from the IR Remote Commander

The supplied Remote Commander may not work

correctly near inverter lighting fixtures. Good IR

detection can be verified to determine proper camera

location.

While the camera is being initialized after the power is

turned on by connecting the camera to an AC outlet

using the AC power adaptor and AC power cord, or by

using a VISCA command, the camera detects whether

or not the camera is able to receive infrared signals

from the Remote Commander. You can check the result

of this operation via the IR_ConditionInq command

(see page 37).

When the installation location does not allow stable

reception, try to install the camera farther away from

the inverter lighting fixtures.

Others

Power On/Off

Powers the camera on and off. When the power is off,

the camera is able to accept only the lowest level of

VISCA Commands and POWER of the Remote

Commander; the display and other features are turned

off.

I/F clear

Clears the Command buffer of the camera. Clearing

the buffer can also be carried out from the control

application software when the power is on.

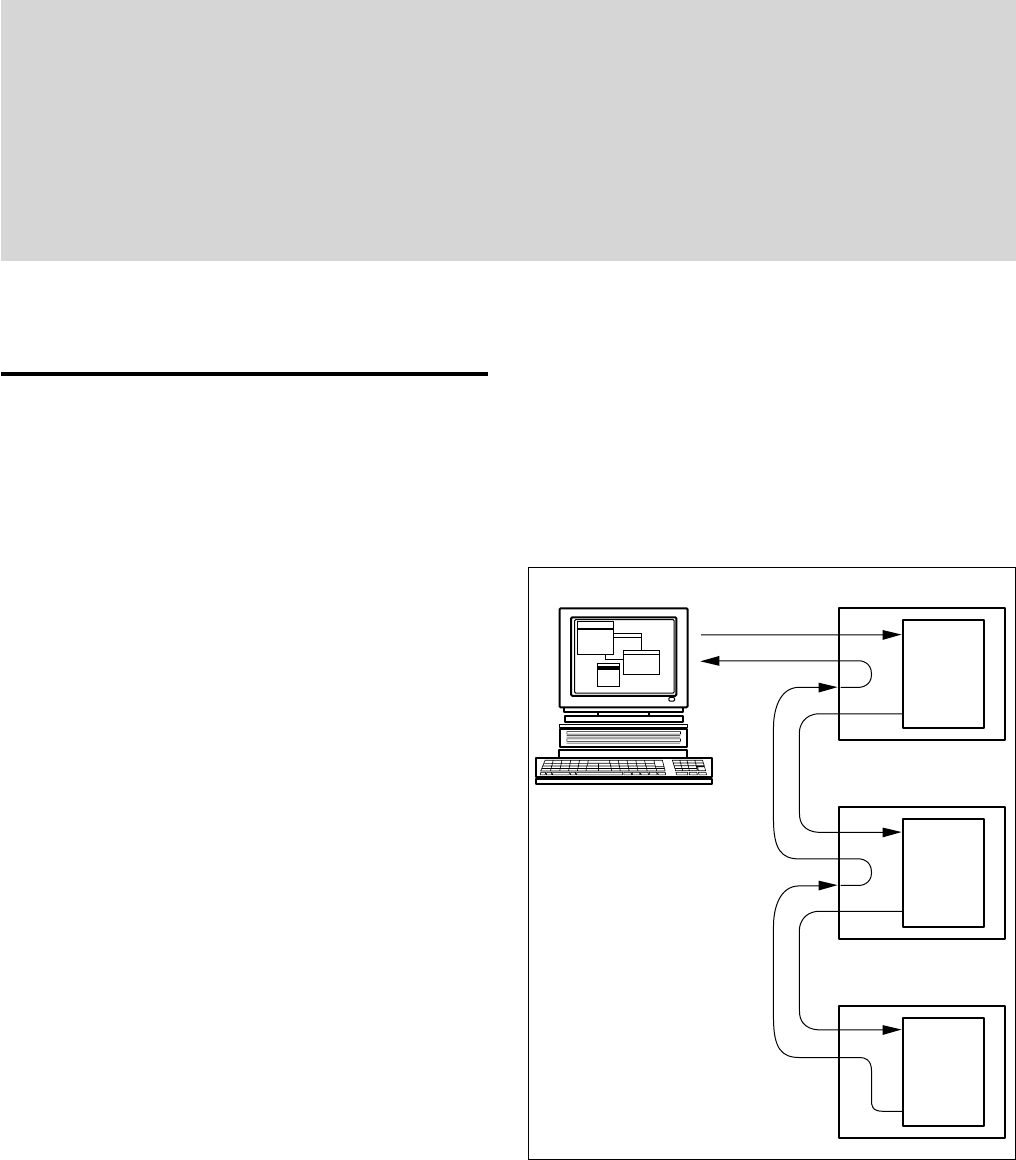

Address set

VISCA is a protocol, which normally can support a

daisy chain of up to seven attached devices. Therefore,

whenever a camera is connected for the first time, be

sure to use the address set to confirm the address.

Memory (Position Preset)

Using the position preset function, 6 sets of camera

shooting conditions can be stored and recalled.

This function allows you to achieve the desired status

instantly without adjusting the following items each

time.

 Pan/Tilt Position

 Zoom Position

 Digital Zoom On/Off

 Focus Auto/Manual

 Focus Position

 AE Mode

 Shutter control parameters

 Bright Control

 Iris control parameters

 Gain control parameters

 Exposure Compensation On/Off

 Exposure Level

 Backlight Compensation On/Off

 Slow Shutter Auto/Manual

 White Balance Mode

 R/B Gain

 Aperture

 ICR Shoot On/Off

 WD On/Off

The settings are recalled when the power is turned on.

For setting items, see the “Initial Settings, Position Preset”

section on page 16.

Note

If the camera is placed on a desk, when you pan the

camera to the right or left beyond 120° with the camera

tilted downward by 20° (or tilted upward by 20° if it is

installed on a ceiling), the camera base may be

captured by the lens, depending on the zoom position

of the lens.

Basic Functions

The initial values are those set at the factory. Settings

for items in Position presets 1 to 6 that will be retained

even when the power to the camera is turned off are

indicated by a “Yes,” those that will be lost are indicated

by an “No.”

 When the power is turned on, the settings retained in

POSITION 1 will be called up as the initial settings.

 When a CAM_Memory Reset command is sent, or a

choice is made from POSITION 1 to 6 while the

RESET button on the Remote Commander is being

pressed, the settings selected will be used as the

initial settings.

 Position preset 1 becomes VISCA command CAM_

Memory memory number 0. Position presets 2

through 6 become VISCA command CAM_Memory

memory numbers 1 through 5.

Mode/Position Initial settings Position

preset 1

Position

presets 2 to 6

Pan/Tilt Position Home position  

Pan/Tilt Limit Position movable-range maximum  

Zoom Position Wide end  

D-Zoom On/Off On  

Focus Position — 

Focus Auto/Manual Auto  

Near Limit Setting D000h (30 cm)  

AF Sensitivity Normal  

AF Mode Normal  

AF Run Time 5 sec  

AF Interval 5 sec  

WB Mode Auto  

WB Data (Rgain, Bgain) — 

One Push WB Data — 

AE Mode Full Auto  

WD On/Off/Auto Off  

Slow Shutter Mode Manual  

Shutter Position 1/30 sec  

Iris Position — 

Gain Position — 

Bright Position — 

Exposure Compensation On/Off Off  

Exposure Compensation Amount ±0  

BackLight On/Off Off  

Aperture Level 08h  

High Resolution Mode On/Off Off  

Picture Effect Off  

ICR On/Off Off  

Auto ICR On/Off Off  

Auto ICR Threshold Level 0Ah  

NR Level 3 

AE Gain Limit — 

Low-Illumination Chroma Suppress 2h (Middle)  

Color Gain 4h (100%)  

Color Hue 7h (0degrees)  

Camera ID 0000h  

IR_Receive On/Off On  

IR_ReceiveReturn On/Off Off  

Display Information On  

A circle “” in this column signifies that the data is preserved.

A cross “” signifies that the data IS NOT preserved.

Initial Settings and Position Preset

Basic Functions

Notes

 The number of times data can be written to the EEPROM (by executing Position Preset) is limited.

 If you want the camera status and Pan/Tilt positions in effect before the camera is turned off to be retained when the power

is turned OFF, then turned ON again, have the camera memorize those positions in POSITION 1.

 It takes approximately 2 seconds longer to memorize or erase settings in POSITION 1 than it does to memorize or erase

settings in any other channel.

 Camera ID data will be saved regardless of the position preset.

 If IMAGE FLIP or D70 mode has been switched, all of the Position Presets are reset to their initial values.

Basic Functions

Mode Condition

Basic settings

Mode

Power

Off1)

Power On

IFC2) Initializing3) During displaying

the menu

Memory

Command

Address Set Yes Yes Yes Yes Yes

IF_Clear Yes Yes Yes Yes Yes

CAM_Power On Yes No No Yes No

CAM_Power Off Yes No No Yes No

IR_Receive On/Off No No No Yes4) 6) No

IR_ReceiveReturn On/Off No No No Yes6) No

CAM_VersionInq Yes Yes Yes5) Yes Yes

CAM_PowerInq Yes Yes Yes Yes Yes

BlockInquiry No No No Yes6) No

InquiryCommand (and similar commands) No No No Yes6) No

1) DC power is being supplied, but the camera has been turned off by a VISCA command.

2) The period from the time IF Clear is sent, until the Reply Packet is returned.

3) The period from the time DC power is turned on or the camera is turned on via a VISCA command, and the camera subsequently finishes the pan/tilt reset operation

and stops at the Home position, until the video signal is output. Or the period from the time the CAM Power ON command is sent, until Completion is returned.

4) The camera does not receive the operation sent from the Remote Commander.

5) Commands can be executed after the pan/tilt movement has been started. Before that, camera movement may be inconsistent.

6) When the menu display is updating, operation is not possible.

Basic Functions

Zoom/Focus

Mode

Power Off1)

Power On

Command IFC2) Initializing3) Zoom Direct Focus Direct AF ON During displaying

the menu Memory Recall

CAM_Zoom Tele/Wide/Stop [VISCA] No No No No Yes Yes Yes4) No

CAM_Zoom Tele/Wide/Stop [RC] No No No No Yes Yes Yes4) No

CAM_Zoom Direct No No No Yes Yes Yes Yes4) No

D-Zoom Limit No No No No Yes Yes Yes4) No

CAM_Focus Far/Near/Stop [VISCA] No No No Yes No No Yes4) No

CAM_Focus Far/Near/Stop [RC] No No No Yes No No Yes4) No

CAM_Focus Direct No No No Yes Yes No Yes4) No

CAM_Focus Mode (Auto/Manual) No No No Yes No Yes Yes4) No

CAM_Focus One Push Trigger No No No Yes No No Yes4) No

CAM_Focus Infinity No No No Yes No Yes Yes4) No

CAM_Focus Near Limit No No No Yes No Yes Yes4) No

AF Sensitivity Normal/Low No No No Yes Yes Yes Yes4) No

AF Mode Norm/Interval/Zoom No No No Yes Yes Yes Yes4) No

AF Activation Time/Interval Setting No No No Yes Yes Yes Yes4) No

1) DC power is being supplied, but the camera has been turned off by a VISCA command.

2) The period from the time IF Clear is sent, until the Reply Packet is returned.

3) The period from the time DC power is turned on or the camera is turned on via a VISCA command, and the camera subsequently finishes the pan/tilt reset operation and stops at the Home position, until the video signal is

output. Or the period from the time the CAM Power ON command is sent, until Completion is returned.

4) When the menu display is updating, operation is not possible.

White Balance

Mode

Power Off1)

Power On

IFC2) Initializing3) White balance mode During displaying

the menu Memory Recall

Command Auto Indoor Outdoor One Push Manual

CAM_WB Auto/Indoor/Outdoor/

OnePhshWB/Manual No No No Yes Yes Yes Yes Yes Yes4) No

CAM_WB One Push Trigger No No No No No No Yes5) No Yes4) No

CAM_WB R(B) Gain

Reset/Up/Down/Direct No No No No No No No Yes Yes4) No

1) DC power is being supplied, but the camera has been turned off by a VISCA command.

2) The period from the time IF Clear is sent, until the Reply Packet is returned.

output. Or the period from the time the CAM Power ON command is sent, until Completion is returned.

4) When the menu display is updating, operation is not possible.

5) Commands are ignored during a One Push AWB operation.

Basic Functions

Exposure

Mode

Power Off1)

Power On

IFC2) Initializing3) Exposure mode Wide-D ON

During displaying

the menu

Memory Recall

Command Full Auto Bright Shutter Pri Iris Pri Manual

CAM_AE

Full Auto/Manual/Shutter Pri/

Iris Pri/Spot Light

No No No Yes Yes4) Yes Yes Yes Yes Yes5) No

CAM_AE Bright No No No Yes Yes Yes No No Yes Yes5) No

CAM_Slow Shutter Limit ON/OFF No No No Yes Yes Yes Yes Yes No7) Yes5) No

CAM_Shutter Reset/Up/Down/Direct No No No No No Yes No Yes Yes Yes5) No

CAM_Iris Reset/Up/Down/Direct No No No No No No Yes Yes Yes Yes5) No

CAM_Gain Reset/Up/Down/Direct No No No No No No No Yes Yes Yes5) No

CAM_Bright/Up/Down/Direct No No No No Yes No No No Yes Yes5) No

CAM_ExComp On/Off No No No Yes Yes Yes Yes Yes No7) Yes5) No

CAM_ExComp Reset/Up/Down/Direct6) No No No Yes Yes Yes Yes Yes No7) Yes5) No

CAM_Backlight On/Off No No No Yes No No No No No7) Yes5) No

CAM_WD On/Off No No No Yes Yes Yes Yes Yes Yes Yes5) No

1) DC power is being supplied, but the camera has been turned off by a VISCA command.

2) The period from the time IF Clear is sent, until the Reply Packet is returned.

output. Or the period from the time the CAM Power ON command is sent, until Completion is returned.

4) Yes: Only when the camera changes to BRIGHT mode from Full Auto or SHUTTER Pri mode.

5) When the menu display is updating, operation is not possible.

6) No: This is not allowed when EX-COMP is set to OFF.

7) The settings are available; however, command actions will be executed only after Wide-D is set to OFF.

Basic Functions

Effect

Mode

Power Off1)

Power On

Command IFC2) Initializing3) During displaying

the menu Memory Recall

CAM_Aperture Reset/Up/Down/Direct No No No Yes4) No

Display info. (ON/OFF) No No No Yes4) No

CAM_PictureEffect

OFF/Neg.Art/B&W No No No Yes4) No

CAM_ICR ON/OFF No No No Yes4) No

CAM_AutoICR ON/OFF/Threshold No No No Yes4) No

CAM_HR ON/OFF No No No Yes4) No

CAM_NR No No No Yes4) No

CAM-ChromaSuppress No No No Yes4) No

CAM_ColorGain No No No Yes4) No

CAM_ColorHue No No No Yes4) No

1) DC power is being supplied, but the camera has been turned off by a VISCA command.

2) The period from the time IF Clear is sent, until the Reply Packet is returned.

3) The period from the time DC power is turned on or the camera is turned on via a VISCA command, and the camera subsequently finishes the pan/tilt reset operation and stops at the Home

position, until the video signal is output. Or the period from the time the CAM Power ON command is sent, until Completion is returned.

4) When the menu display is updating, operation is not possible.

Basic Functions

Pan/Tilt

Mode

Power

Off1)

Power On

IFC2) Initia-

lizing3)

Zoom

(Direct)

Focus

(Direct)

Pan/Tilt normal status

Position

detection error

Pan/tilt

movement

according to

the command4)

Absolute

Position

execution

Relative

Position

execution

Home

execution Reset execution Memory Recall During

displaying the

Command Transmit

device Common Common VISCA RC VISCA VISCA VISCA RC VISCA RC VISCA RC

Pan-tiltDrive Up/Down/Left/

Right/UpLeft/UpRight/

DownLeft/DownRight

VISCA No No No Yes Yes Yes Yes No No No No No No No No No Yes 8)

RC No No No Yes Yes Yes No No No No No No No No No No Yes 8)

Pan-tiltDrive Stop VISCA No No No Yes Yes Yes Yes No No No No No No No No No Yes

Pan-tiltDrive AbsolutePosition VISCA No No No Yes Yes No No Yes No No No No No No No Yes 5) No

Pan-tiltDrive RelativePosition VISCA No No No Yes Yes No No No No No No No No No No Yes 5) Yes

Pan-tiltDrive Home VISCA No No No Yes Yes No No No No Yes No No No No No No No

RC No No No Yes Yes No No No No No Yes No No No No No No

Pan-tiltDrive Reset VISCA No No No Yes Yes No No No No No No No No No No Yes 5) Yes

RC No No No Yes Yes No No No No No No No No No No Yes 5) Yes

Pan-tiltLimitSet LimitSet VISCA No No No Yes Yes Yes Yes No No No No No No No No Yes 5) No

Pan-tiltLimitSet LimitClear VISCA No No No Yes Yes Yes Yes No No No No No No No No Yes 5) No

Memory Set Common No No No No No No No No No No No No No No No No No

Memory Reset Common No No No No No No No No No No No No No No No No No

Memory Recall VISCA No No No No 6) No 7) No No No No No No No No Yes Yes No No

RC No No No No 6) No 7) No No No No No No No No Yes Yes No No

CAM_NR 9) VISCA No No No Yes Yes No 10) No 10) No 10) No 10) No 10) No 10) Yes Yes No No Yes 5) Yes

1) DC power is being supplied, but the camera has been turned off by a VISCA command.

2) The period from the time IF Clear is sent, until the Reply Packet is returned.

output.

4) The pan/tilt operation works by Pan-tiltDrive Up/Down/Left/Right/UpLeft/UpRight/DownLeft/DownRight commands.

5) When the menu display is updating, operation is not possible.

6) Yes: while the camera operates in Tele/Wide zoom mode.

7) Yes: while the camera operates in Far/Near focus mode.

8) Yes: only for movements away from the direction where a position detection error has been recognized.

9) When CAM commands or other inquiry commands are received after the pan/tilt movement has been stopped, “Command not executable” may be returned for a maximum of 120 msec due to internal processing. In this case,

please transmit the command again.

10) Yes: when pan/tilt moves at high speed.

Command List

VISCA1) RS-232C

Commands

Use of RS-232C control software which has been

developed based upon this command list may cause

malfunction or damage to hardware and software. Sony

Corporation is not liable for any such damage.

Overview of VISCA

In VISCA, the device producing the commands, for

example, a computer, is called the controller, while the

device receiving the commands, such as an

EVI-H100S/H100V, is called the peripheral device. The

EVI-H100S/H100V serves as a peripheral device in

VISCA. In VISCA, up to seven peripheral devices like

the EVI-H100S/H100V can be connected to one

controller using communication conforming to the

RS-232C standard. The parameters of RS-232C are as

follows.

 Communication speed: 9,600 bps/38,400 bps

 Data bits : 8

 Start bit : 1

 Stop bit : 1

 Non parity

Flow control using XON/XOFF and RTS/CTS, etc., is

not supported.

Peripheral devices are connected in a daisy chain. As

shown in Fig. 1, the actual internal connection is a one-

direction ring, so that messages return to the controller

via the peripheral devices. The devices on the network

are assigned addresses.

The address of the controller is fixed at 0. The

addresses of the peripheral devices are 1, 2, 3 ... in

order, starting from the one nearest the controller. The

address of the peripheral device is set by sending

address commands during the initialization of the

network.

The VISCA devices each have a VISCA IN and VISCA

OUT connector.

Set the DSR input (the DTR output of the controller) of

VISCA IN to H when controlling VISCA equipment

from the controller.

Fig. 1 VISCA network configuration

VISCA Equipment

OUT

VISCA Controller

.......................................................................................................................................................................................................................................................

1) VISCA is a protocol which controls consumer camcorders developed by Sony. “VISCA” is a trademark of Sony Corporation.

Command List

VISCA Communication

Specifications

VISCA packet structure

The basic unit of VISCA communication is called a

packet (Fig. 2). The first byte of the packet is called the

header and comprises the sender’s and receiver’s

addresses. For example, the header of the packet sent to

the EVI-H100S/H100V assigned address 1 from the

controller (address 0) is hexadecimal 81H. The packet

sent to the EVI-H100S/H100V assigned address 2 is

82H. In the command list, as the header is 8X, input

the address of the EVI-H100S/H100V at X. The header

of the reply packet from the EVI-H100S/H100V

assigned address 1 is 90H. The packet from the

EVI-H100S/H100V assigned address 2 is A0H.

Some of the commands for setting EVI-H100S/H100V

units can be sent to all devices at one time (broadcast).

In the case of broadcast, the header should be

hexadecimal 88H.

When the terminator is FFH, it signifies the end of the

packet.

Bit 7

(MSB)

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

(LSB)

1 0

Bit 7

(MSB)

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

(LSB)

1 1 1 1 1 1 1 1

Packet (3 to 16 bytes)

Message (1 to 14 bytes)Header Terminator

Byte 1 Byte 2 Byte 3

Sender’s

address Receiver’s address

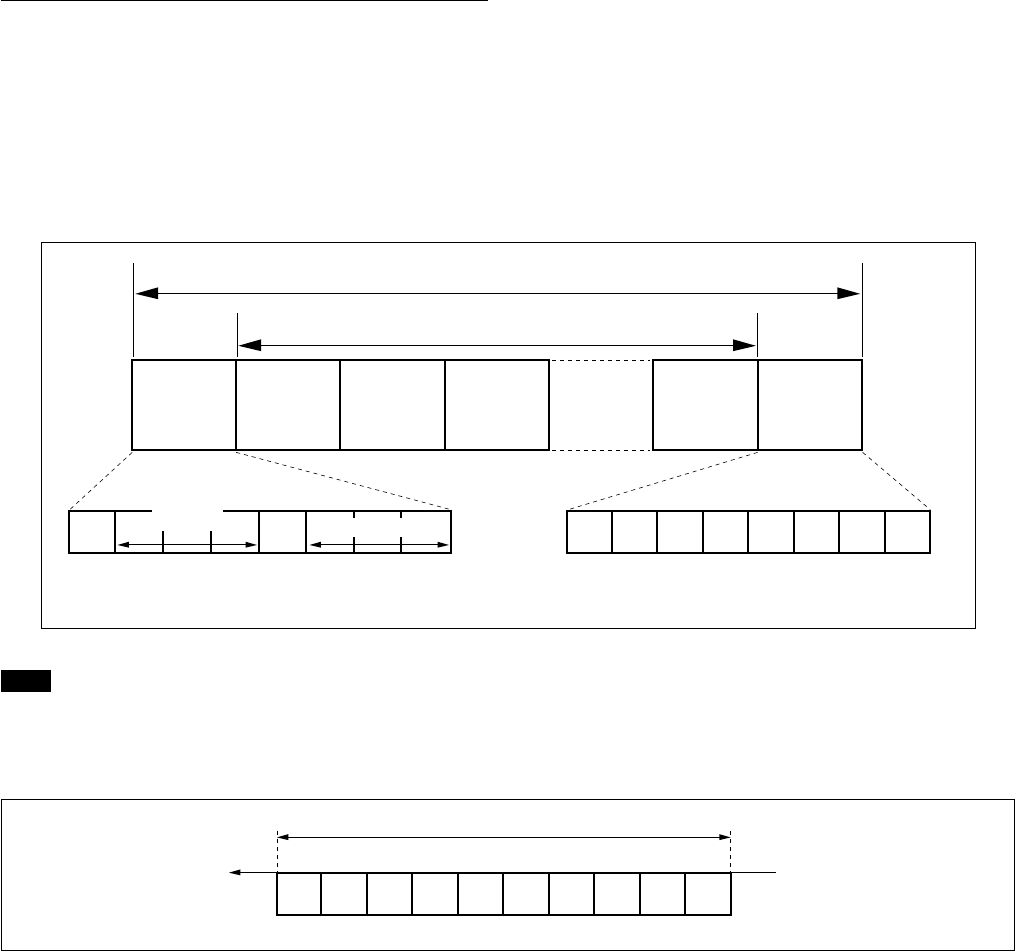

Fig. 2 Packet structure

Note

Fig. 2 shows the packet structure, while Fig. 3 shows

the actual waveform. Data flow will take place with the

LSB first.

Bit 0 Bit 1 Bit 2 Bit 3 Bit 4 Bit 5

(LSB) (MSB)

Bit 6 Bit 7

Start

bit

Stop

bit.

1 byte

Fig. 3 Actual waveform for 1 byte.

Command List

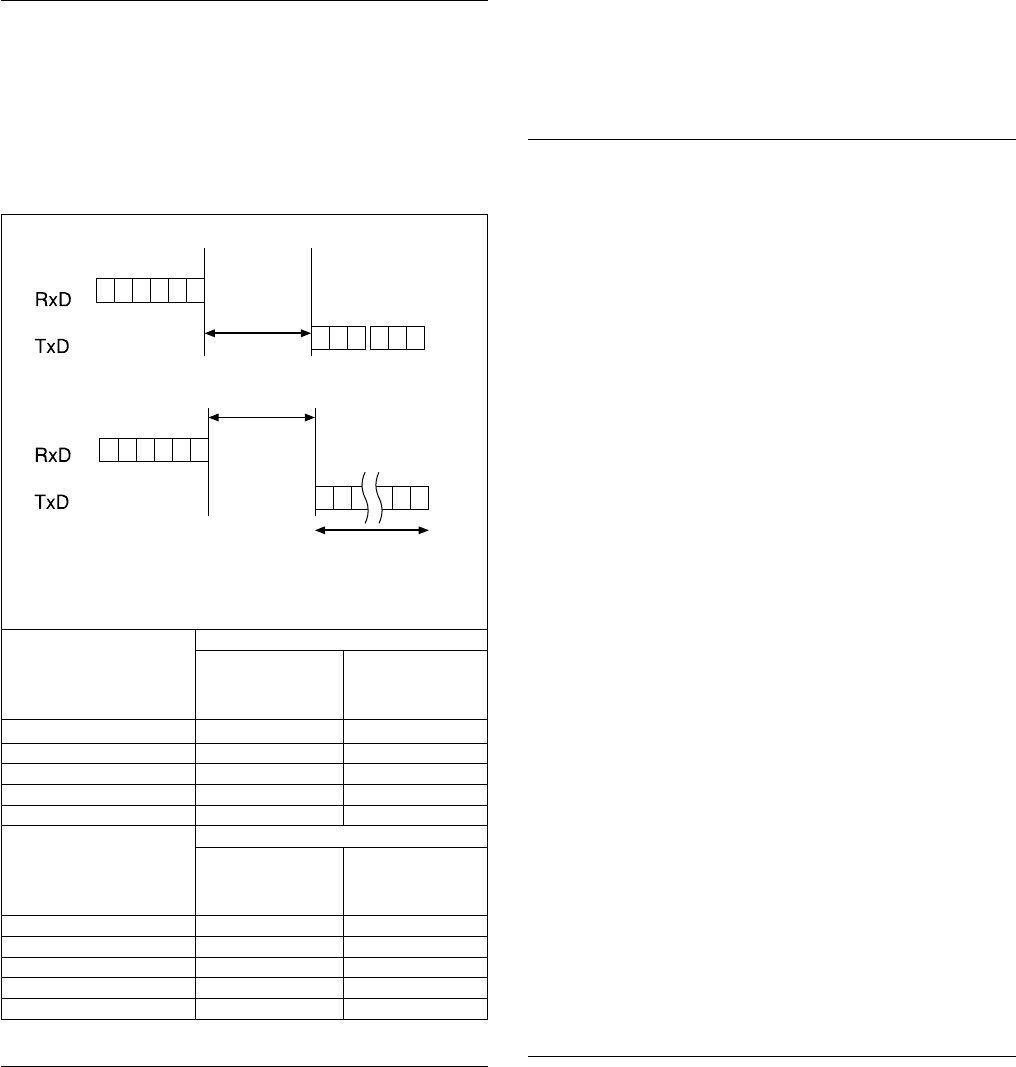

Timing Chart

As VISCA Command processing can only be carried

out one time in a Vertical cycle, it takes the maximum

1V cycle time for an ACK/Completion to be returned.

If the Command ACK/Completion communication

time can be cut shorter than the 1V cycle time, then

every 1V cycle can receive a Command.

16 Byte

General Commands

Command

ACK Completion

Command

Completion

1) 1V cycle times on each SYSTEM SELECT and Shutter Speed.

Shutter Speed

SYSTEM SELECT

1080i/60/59.94

1080p/30/29.97

720p/30/29.97

720p/60/59.94

1/10000 sec to 1/60 sec 1/30 sec 1/60 sec

1/30 sec 1/30 sec 1/30 sec

1/15 sec 1/15 sec 1/15 sec

1/8 sec 1/8 sec 1/8 sec

1/4 sec to 1/1 sec 1/4 sec to 1/1 sec

1/4 sec to 1/1 sec

Shutter Speed

SYSTEM SELECT

1080i/50

1080p/25

720p/25

720p/50

1/10000 sec to 1/50 sec 1/25 sec 1/50 sec

1/25 sec 1/25 sec 1/25 sec

1/12 sec 1/12 sec 1/12 sec

1/6 sec 1/6 sec 1/6 sec

1/3 sec to 1/1 sec 1/3 sec to 1/1 sec

1/3 sec to 1/1 sec

Command and inquiry

 Command

Sends operational commands to the

EVI-H100S/H100V.

 Inquiry

Used for inquiring about the current state of the

EVI-H100S/H100V.

Command Packet Note

Inquiry 8X QQ RR ... FF QQ1) = Command/Inquiry,

RR2) = category code

1) QQ = 01 (Command), 09 (Inquiry)

2) RR = 00 (Interface), 04 (camera 1), 06 (Pan/Tilter)

X = 1 to 7: EVI-H100S/H100V address

Responses for commands and inquiries

 ACK message

Returned by the EVI-H100S/H100V when it receives

a command. No ACK message is returned for

inquiries.

 Completion message

Returned by the EVI-H100S/H100V when execution

of commands or inquiries is completed. In the case

of inquiry commands, it will contain reply data for

the inquiry after the 3rd byte of the packet. If the

ACK message is omitted, the socket number will

contain a 0.

Reply Packet Note

Ack X0 4Y FF Y = socket number

Completion (commands) X0 5Y FF Y = socket number

Completion (Inquiries) X0 5Y ... FF Y = socket number

X = 9 to F: EVI-H100S/H100V address + 8

 Error message

When a command or inquiry command could not

be executed or failed, an error message is returned

instead of the completion message.

Error Packet Description

X0 6Y 02 FF Syntax Error

X0 6Y 03 FF Command buffer full

X0 6Y 04 FF Command canceled

X0 6Y 05 FF No socket (to be canceled)

X0 6Y 41 FF Command not executable

X = 9 to F: EVI-H100S/H100V address + 8, Y = socket number

Socket number

When command messages are sent to the

EVI-H100S/H100V, it is normal to send the next

command message after waiting for the completion

message or error message to return. However to deal

with advanced uses, the EVI-H100S/H100V has two

buffers (memories) for commands, so that up to two

commands including the commands currently being

executed can be received. When the

EVI-H100S/H100V receives commands, it notifies the

sender which command buffer was used using the

socket number of the ACK message.

Command List

As the completion message or error message also has a

socket number, it indicates which command has ended.

Even when two command buffers are being used at any

one time, an EVI-H100S/H100V management

command and some inquiry messages can be executed.

The ACK message is not returned for these commands

and inquiries, and only the completion message of

socket number 0 is returned.

The following command use two sockets during

execution of each command that is sent. The

EVI-H100S/H100V cannot receive other requests

during execution of these commands. In addition,

these commands cannot be executed during operation

of other commands.

 SYS_Menu

Command execution cancel

To cancel a command which has already been sent,

send the Cancel command as the next command. To

cancel one of any two commands which have been

sent, use the cancel message.

Cancel Packet Note

Cancel 8X 2Y FF Y = socket number

X = 1 to 7: EVI-H100S/H100V address, Y = socket number

The Command canceled error message will be returned

for this command, but this is not a fault. It indicates

that the command has been canceled.

VISCA Device Setting Command

Before starting control of the EVI-H100S/H100V, be

sure to send the Address command and the IF_Clear

command using the broadcast function.

For VISCA network administration

 Address Set

Sets an address of a peripheral device. Use when

initializing the network, and receiving the following

network change message.

Command Reply

Address Set 88 30 01 FF 88 30 0w FF

w = 2 to 7: EVI-H100S/H100V address + 1

 Network Change

Sent from the peripheral device to the controller

when a device is removed from or added to the

network. The address must be re-set when this

message is received.

Received Packet

Network Change X0 38 FF

X = 9 to F: EVI-H100S/H100V address + 8

VISCA interface command

 IF_Clear

Clears the command buffers in the

EVI-H100S/H100V and cancels the command

currently being executed.

Command Packet Reply Packet Note

IF_Clear 8X 01 00 01FF Y0 50 FF

IF_Clear (broadcast) 88 01 00 01 FF 88 01 00 01 FF

X = 1 to 7: EVI-H100S/H100V address

Y = 9 to F: EVI-H100S/H100V address +8

VISCA interface and inquiry

 CAM_VersionInq

Returns information on the VISCA interface.

Inquiry Inquiry Packet Reply Packet Description

CAM_VersionInq 8X 09 00 02 FF Y0 50 GG GG HH HH JJ JJ KK FF GGGG = Vender ID

(0001: Sony)

HHHH = Model ID

050E: EVI-H100V

050F: EVI-H100S

JJJJ = ROM revision

KK = Maximum socket # (02)

X = 1 to 7: EVI-H100S/H100V address (For inquiry packet)

X = 9 to F: EVI-H100S/H100V address +8 (For reply packet)

Command List

Pin assignment

VISCA IN connector (mini-DIN 8-pin, female)

VISCA IN

No Pins

1 DTR IN*

2 DSR IN*

3 TXD IN

4 GND

5 RXD IN

6 GND

7 IR OUT **

8 Not used

* The “IN” in the function names for pins 1 and 2 (“DTR IN” and

“DSR IN”) are in reference to being within the VISCA IN

connector. For details on signal direction, see the diagrams to the

right.

** You can change ON/OFF of IR OUT of pins 7 using the

BOTTOM switch (see page 8).

 EVI-H100S/H100V Windows D-sub 9 pin

 EVI-H100S/H100V EVI Camera or Mini

DIN 8 pin serial

 EVI-H100S/H100V Windows D-sub 25 pin

Command List

Using the VISCA RS-422 connector

pin assignments

The VISCA RS-422 connector pin assignments

1 2 3 4 5

VISCA RS-422

6 7 8 9

Pin No. Function

1 TXD IN+

2 TXD IN–

3 RXD IN+

4 RXD IN–

5 GND

6 TXD OUT+

7 TXD OUT–

8 RXD OUT+

9 RXD OUT–

Using the VISCA RS-422 connector plug

1 Insert a wire (AW G Nos. 28 to 18) into the desired

wire opening on the supplied VISCA RS-422

connector plug, and tighten the screw for that wire

using a flat-head screwdriver.

Flat-head screwdriver

Wire

2 Insert the VISCA RS-422 connector plug into the

VISCA RS-422 connector on the rear of the

camera.

123456789

Notes

 In order to stabilize the voltage level of the signal,

connect both ends to GND.

 Do not make a VISCA RS-232C connection when

there is already an existing VISCA RS-422

connection.

Command List

VISCA Command/ACK Protocol

Command Command Message Reply Message Comments

General Command 81 01 04 38 02 FF

(Example)

90 41 FF (ACK)+90 51 FF

(Completion)

90 42 FF 90 52 FF

Returns ACK when a command has been accepted, and

Completion when a command has been executed.

81 01 04 38 FF

(Example)

90 60 02 FF (Syntax Error) Accepted a command which is not supported or a command

lacking parameters.

81 01 04 38 02 FF

(Example)

90 60 03 FF

(Command Buffer Full)

There are two commands currently being executed, and the

command could not be accepted.

81 01 04 08 02 FF

(Example)

90 61 41 FF

(Command Not Executable)

90 62 41FF

Could not execute the command in the current mode.

Inquiry Command 81 09 04 38 FF

(Example)

90 50 02 FF (Completion) ACK is not returned for the inquiry command.

81 09 05 38 FF

(Example)

90 60 02 FF (Syntax Error) Accepted an incompatible command.

Address Set 88 30 01 FF 88 30 0w FF w: Returned the device address to +1. (2 to 8)

IF_Clear(Broadcast) 88 01 00 01 FF 88 01 00 01 FF Returned the same command.

IF_Clear (For x) 8x 01 00 01 FF z0 50 FF (Completion) ACK is not returned for this command.

Command Cancel 8x 2y FF

(y:Socket No.)

z0 6y 04 FF

(Command Canceled)

Returned when the command of the socket specified is canceled.

Completion for the command canceled is not returned.

z0 6y 05 FF (No Socket) Returned when the command of the specified socket has already

been completed or when the socket number specified is wrong.

z = Device address + 8

Command List

VISCA Camera-Issued Messages

ACK/Completion Messages

Command Messages Comments

ACK z0 4y FF

(y:Socket No.)

Returned when the command is accepted.

Completion z0 5y FF

(y:Socket No.)

Returned when the command has been executed.

z = Device address + 8

Error Messages

Command Messages Comments

Syntax Error z0 60 02 FF Returned when the command format is different or when a command with illegal

command parameters is accepted.

Command Buffer Full z0 60 03 FF Indicates that two sockets are already being used (executing two commands) and the

command could not be accepted when received.

Command Canceled z0 6y 04 FF

(y:Socket No.)

Returned when a command which is being executed in a socket specified by the

cancel command is canceled. The completion message for the command is not

returned.

No Socket z0 6y 05 FF

(y:Socket No.)

Returned when no command is executed in a socket specified by the cancel

command, or when an invalid socket number is specified.

Command Not Executable z0 6y 41 FF

(y:Execution command

Socket No. Inquiry

command:0)

Returned when a command cannot be executed due to current conditions. For

example, when commands controlling the focus manually are received during auto

focus.

z = Device address + 8

Network Change Message

Command Message Comments

Network Change z0 38 FF Issued when power is being routed to the camera, or when the VISCA device is

connected to or disconnected from the VISCA OUT connector.

z = Device address + 8

Command List

EVI-H100S/H100V Commands

EVI-H100S/H100V Command List (1/4)

Command Set Command Command Packet Comments

AddressSet Broadcast 88 30 01 FF Address setting

IF_Clear Broadcast 88 01 00 01 FF I/F Clear

CommandCancel 8x 2p FF p: Socket No. (=1 or 2)

CAM_Power On 8x 01 04 00 02 FF Power ON/OFF

Off (Standby) 8x 01 04 00 03 FF

CAM_Zoom Stop 8x 01 04 07 00 FF

Tele (Standard) 8x 01 04 07 02 FF

Wide (Standard) 8x 01 04 07 03 FF

Tele (Variable) 8x 01 04 07 2p FF p=0 (Low) to 7 (High)

Wide (Variable) 8x 01 04 07 3p FF

Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position

CAM_DZoom On 8x 01 04 06 02 FF Digital zoom ON/OFF

Off 8x 01 04 06 03 FF

CAM_Focus Stop 8x 01 04 08 00 FF

Far (Standard) 8x 01 04 08 02 FF

Near (Standard) 8x 01 04 08 03 FF

Far (Variable) 8x 01 04 08 2p FF p=0 (Low) to 7 (High)

Near (Variable) 8x 01 04 08 3p FF

Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position

Auto Focus 8x 01 04 38 02 FF AF ON/OFF

Manual Focus 8x 01 04 38 03 FF

Auto/Manual 8x 01 04 38 10 FF

One Push Trigger 8x 01 04 18 01 FF One Push AF Trigger

Infinity 8x 01 04 18 02 FF Forced infinity

Near Limit 8x 01 04 28 0p 0q 0r 0s FF pqrs: Focus Near Limit Position

*The lower 1 byte (rs) is fixed at 00.

AF Sensitivity Normal 8x 01 04 58 02 FF AF Sensitivity High/Low

Low 8x 01 04 58 03 FF

CAM_AFMode Normal AF 8x 01 04 57 00 FF AF Movement Mode

Interval AF 8x 01 04 57 01 FF

Zoom Trigger AF 8x 01 04 57 02 FF

Active/Interval Time 8x 01 04 27 0p 0q 0r 0s FF pq: Movement Time, rs: Interval

CAM_IRCorrection Standard 8x 01 04 11 00 FF FOCUS IR compensation data switching

IR Light 8x 01 04 11 01 FF

CAM_ZoomFocus Direct 8x 01 04 47 0p 0q 0r 0s

0t 0u 0v 0w FF

pqrs: Zoom Position

tuvw: Focus Position

CAM_WB Auto 8x 01 04 35 00 FF Normal Auto

Indoor 8x 01 04 35 01 FF Indoor mode

Outdoor 8x 01 04 35 02 FF Outdoor mode

One Push WB 8x 01 04 35 03 FF One Push WB mode

Manual 8x 01 04 35 05 FF Manual Control mode

One Push Trigger 1) 6) 8x 01 04 10 05 FF One Push WB Trigger

CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R Gain

Up 8x 01 04 03 02 FF

Down 8x 01 04 03 03 FF

Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain

Command List

EVI-H100S/H100V Command List (2/4)

Command Set Command Command Packet Comments

CAM_BGain Reset 8x 01 04 04 00 FF Manual Control of B Gain

Up 8x 01 04 04 02 FF

Down 8x 01 04 04 03 FF

Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain

CAM_AE Full Auto 8x 01 04 39 00 FF Automatic Exposure mode

Manual 8x 01 04 39 03 FF Manual Control mode

Shutter Priority 8x 01 04 39 0A FF Shutter Priority Automatic Exposure mode

Iris Priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode

Bright 2) 8x 01 04 39 0D FF Bright Mode (Manual control)

CAM_SlowShutter Auto 8x 01 04 5A 02 FF Auto Slow Shutter ON/OFF

Manual 8x 01 04 5A 03 FF

CAM_Shutter Reset 8x 01 04 0A 00 FF Shutter Setting

Up 8x 01 04 0A 02 FF

Down 8x 01 04 0A 03 FF

Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position

CAM_Iris Reset 8x 01 04 0B 00 FF Iris Setting

Up 8x 01 04 0B 02 FF

Down 8x 01 04 0B 03 FF

Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position

CAM_Gain Reset 8x 01 04 0C 00 FF Gain Setting

Up 8x 01 04 0C 02 FF

Down 8x 01 04 0C 03 FF

Direct 8x 01 04 4C 00 00 0p 0q FF pq: Gain Position

AE Gain Limit 8x 01 04 2C 0p FF p: Gain Position (4-F)

CAM_Bright Up 8x 01 04 0D 02 FF Bright Setting

Down 8x 01 04 0D 03 FF

Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Position

CAM_ExpComp On 8x 01 04 3E 02 FF Exposure Compensation ON/OFF

Off 8x 01 04 3E 03 FF

Reset 8x 01 04 0E 00 FF Exposure Compensation Amount Setting

Up 8x 01 04 0E 02 FF

Down 8x 01 04 0E 03 FF

Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position

CAM_BackLight On 8x 01 04 33 02 FF Back Light Compensation ON/OFF

Off 8x 01 04 33 03 FF

CAM_WD On 8x 01 04 3D 02 FF Wide-D ON/OFF

Off 8x 01 04 3D 03 FF

Auto On Off 8x 01 04 3D 00 FF Wide dynamic ON/OFF auto switching

On (Ratio Fix) 8x 01 04 3D 01 FF Wide dynamic ON (Fixed exposure ratio mode)

On (Histogram) 8x 01 04 3D 04 FF Wide dynamic ON (Histogram mode)

Refresh 8x 01 04 10 0D FF Wide dynamic Refresh

Set Parameter

8x 01 04 2D 0p 0q 0r 0s 0t 0u 00 00 FF

p: Screen display

(0: Combined image, 2: Long-time, 3: Short-time)

q: Detection sensitivity (0: L 1: M 2: H)

r: Blocked-up shadow correction level (0: L 1: M 2: H 3: S)

s: Blown-out highlight correction level (0: L 1: M 2: H)

tu: Exposure ratio of short exposure (x1 to x64)

CAM_Aperture Reset 8x 01 04 02 00 FF Aperture Control

Up 8x 01 04 02 02 FF

Down 8x 01 04 02 03 FF

Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain

Command List

EVI-H100S/H100V Command List (3/4)

Command Set Command Command Packet Comments

CAM_HR On 8x 01 04 52 02 FF High-Resolution Mode ON/OFF

Off 8x 01 04 52 03 FF

CAM_NR 8x 01 04 53 0p FF p: NR Setting (0: OFF, level 1 to 5)

CAM_Gamma 8x 01 04 5B 0p FF p: Gamma setting (0: Standard, 1 to 4)

CAM_HighSensitivity On 8x 01 04 5E 02 FF High Sensitivity mode ON/OFF

Off 8x 01 04 5E 03 FF

CAM_PictureEffect Off 8x 01 04 63 00 FF Picture Effect Setting

Neg.Art 8x 01 04 63 02 FF

B&W 8x 01 04 63 04 FF

CAM_ICR On 8x 01 04 01 02 FF Infrared Mode ON/OFF

Off 8x 01 04 01 03 FF

CAM_AutoICR On 8x 01 04 51 02 FF Auto dark-field mode On/Off

Off 8x 01 04 51 03 FF

Threshold 8x 01 04 21 00 00 0p 0q FF pq: ICR ON → OFF Threshold Level

CAM_Memory Reset 3) 6) 8x 01 04 3F 00 0p FF p: Memory Number (=0 to 5)

Corresponds to 1 to 6 on the Remote Commander.

Set 3) 6) 8x 01 04 3F 01 0p FF

Recall 3) 4) 8x 01 04 3F 02 0p FF

CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF)

CAM-ChromaSuppress 8×01 04 5F pp FF pp: Chroma Suppress setting level

00: OFF

1 to 3: ON (3 levels)

Effect increases as the level number increases.

CAM_ColorGain Direct 8x 01 04 49 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%)

CAM_ColorHue Direct 8x 01 04 4F 00 00 00 0p FF p: Color Hue setting 0h (− 14 degrees) to Eh (+14 degrees)

SYS_Menu Off 8x 01 06 06 03 FF Turns off the menu screen.

VideoSystem SET 5) 8x 01 06 35 00 0p FF p Video format

EVI-H100S EVI-H100V

0 1080i/59.94

(29.97PsF)

Yes Yes

59.94 Hz

system

1 1080p/29.97 Yes Yes

2 720p/59.94 Yes Yes

3 720p/29.97 Yes Yes

4 NTSC (LB) Yes (SD

OUT)

8 1080i/50 (25PsF) Yes Yes

50 Hz

system

9 720p/50 Yes Yes

A 720p/25 Yes Yes

B 1080i/50 Yes Yes

C PAL (LB) Yes (SD

OUT)

IR_Receive On 8x 01 06 08 02 FF IR(remote commander) receive ON/OFF

Off 8x 01 06 08 03 FF

On/Off 8x 01 06 08 10 FF

IR_ReceiveReturn On 8x 01 7D 01 03 00 00 FF IR (remote commander) receive message via the VISCA

communication ON/OFF

Off 8x 01 7D 01 13 00 00 FF For contents of messages, see page 37.

Information Display On 8x 01 7E 01 18 02 FF ON/OFF of the Operation status display of One Push

Off 8x 01 7E 01 18 03 FF Trigger of CAM_Memory and CAM_WB

Command List

EVI-H100S/H100V Command List (4/4)

Command Set Command Command Packet Comments

Pan-tiltDrive Up 3) 8x 01 06 01 VV WW 03 01 FF VV: Pan speed 01 to 18

WW: Tilt Speed 01 to 17

YYYY: Pan Position E1E5 to 1E1B (center 0000)

ZZZZ: Tilt Position FC75 to 0FF0 (IMAGE FLIP: OFF)

(center 0000)

Tilt Position F010 to 038B (IMAGE FLIP: ON)

(center 0000)

See page 46

Down 3) 8x 01 06 01 VV WW 03 02 FF

Left 3) 8x 01 06 01 VV WW 01 03 FF

Right 3) 8x 01 06 01 VV WW 02 03 FF

UpLeft 3) 8x 01 06 01 VV WW 01 01 FF

UpRight 3) 8x 01 06 01 VV WW 02 01 FF

DownLeft 3) 8x 01 06 01 VV WW 01 02 FF

DownRight 3) 8x 01 06 01 VV WW 02 02 FF

Stop 3) 8x 01 06 01 VV WW 03 03 FF

AbsolutePosition 8x 01 06 02 VV WW

0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

RelativePosition 8x 01 06 03 VV WW

0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

Home 8x 01 06 04 FF

Reset 8x 01 06 05 FF

Pan-tiltLimitSet LimitSet 8x 01 06 07 00 0W

0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

W: 1 UpRight

YYYY: Pan Limit Position 0001 to 1E1B

ZZZZ:

Tilt Limit Position 0001 to 0FF0 (IMAGE FLIP: OFF)

Tilt Limit Position 0001 to 038B (IMAGE FLIP: ON)

W: 0 DownLeft

YYYY: Pan Limit Position E1E5 to FFFF

ZZZZ: Tilt Limit Position FC75 to FFFF (IMAGE FLIP: OFF)

Tilt Limit Position F010 to FFFF (IMAGE FLIP: ON)

LimitClear 8x 01 06 07 01 0W

07 0F 0F 0F 07 0F 0F 0F FF

1) After an ACK to a One Push White Balance Trigger is sent until the operation is completed, “Not Executable” is sent as a reply when any

other commands are received.

2) Bright can be set only in Full Auto mode or Shutter Priority mode.

3) When the menu is displayed, this operation is ignored.

4) When other commands are received after a Completion notification for the Recall command is sent, “Command not executable” may be

returned for a maximum of 240 msec due to internal processing. In this case, please transmit the command again.

5) Can be configured when the SYSTEM SELECT switch at the rear of the camera is set to position 7.

Use one of the following methods to apply the settings.

 Turn off DC power, and turn it on again.

 Turn off power using the IR remote commander, and turn it on again.

 Send CAM_Power On and Off commands.

6) If Information Display is set to ON, the next command action may be delayed due to Operation status display internal processing after

these commands are executed.

Command List

EVI-H100S/H100V Inquiry Command List (1/3)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF On

y0 50 03 FF Off

CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position

CAM_DZoomModeInq 8x 09 04 06 FF y0 50 02 FF D-Zoom On

y0 50 03 FF D-Zoom Off

CAM_FocusModeInq 8x 09 04 38 FF y0 50 02 FF Auto Focus

y0 50 03 FF Manual Focus

CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position

CAM_FocusNearLimitInq 8x 09 04 28 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Near Limit Position

CAM_AFSensitivityInq 8x 09 04 58 FF y0 50 02 FF AF Sensitivity Normal

y0 50 03 FF AF Sensitivity Low

CAM_AFModeInq 8x 09 04 57 FF y0 50 00 FF Normal AF

y0 50 01 FF Interval AF

y0 50 02 FF Zoom Trigger AF

CAM_AFTimeSettingInq 8x 09 04 27 FF y0 50 0p 0q 0r 0s FF pq: Movement Time, rs: Interval

CAM_IRCorrectionInq 8x 09 04 11 FF y0 50 00 FF Standard

y0 50 01 FF IR Light

CAM_WBModeInq 8x 09 04 35 FF y0 50 00 FF Auto

y0 50 01 FF In Door

y0 50 02 FF Out Door

y0 50 03 FF One Push WB

y0 50 05 FF Manual

CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain

CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain

CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF Full Auto

y0 50 03 FF Manual

y0 50 0A FF Shutter Priority

y0 50 0B FF Iris Priority

y0 50 0D FF Bright

CAM_SlowShutterModeInq 8x 09 04 5A FF y0 50 02 FF Auto

y0 50 03 FF Manual

CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position

CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position

CAM_GainPosInq 8x 09 04 4C FF y0 50 00 00 0p 0q FF pq: Gain Position

CAM_AEGainLimitInq 8x 09 04 2C FF y0 50 0p FF p: Gain Limit

CAM_BrightPosInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position

CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 02 FF On

y0 50 03 FF Off

CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position

CAM_BackLightModeInq 8x 09 04 33 FF y0 50 02 FF On

y0 50 03 FF Off

CAM_WDModeInq 8x 09 04 3D FF y0 50 02 FF On

y0 50 03 FF Off

y0 50 00 FF Auto On Off

y0 50 01 FF On (Ratio Fix)

y0 50 04 FF On (Histogram mode)

Command List

EVI-H100S/H100V Inquiry Command List (2/3)

Inquiry Command Command Packet Inquiry Packet Comments

CAM_WDParameterInq 8x 09 04 2D FF y0 50 0p 0q 0r 0s 0t 0u 00 00 FF p: Screen display

q: Detection sensitivity

r: Blocked-up shadow correction level

s: Blown-out highlight correction level

tu: Exposure ratio of short exposure

CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain

CAM_HRModeInq 8x 09 04 52 FF y0 50 02 FF On

y0 50 03 FF Off

CAM_NRInq 8x 09 04 53 FF y0 50 0p FF p: NR level

CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF p: Gamma

CAM_HighSensitivityInq 8x 09 04 5E FF y0 50 02 FF On

y0 50 03 FF Off

CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 00 FF Off

y0 50 02 FF Neg.Art

y0 50 04 FF B&W

CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF On

y0 50 03 FF Off

CAM_AutoICRModeInq 8x 09 04 51 FF y0 50 02 FF On

y0 50 03 FF Off

CAM_AutoICRThresholdInq 8x 09 04 21 FF y0 50 00 00 0p 0q FF pq: ICR ON → OFF Threshold Level

CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID

CAM_VersionInq 8x 09 00 02 FF y0 50 00 01

mn pq rs tu vw FF

mnq: Model Code (H100V: 050E/H100S: 050F)

rstu: ROM version

vw: Socket Number (=02)

See page 25.

CAM_ChromaSuppresslnq 8x 09 04 5F FF y0 50 pp FF pp: Chroma Suppress setting level

CAM_ColorGainlnq 8x 09 04 49 FF y0 50 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%)

CAM_ColorHueInq 8x 09 04 4F FF y0 50 00 00 00 0p FF p: Color Hue setting 0h (− 14 degrees) to

Eh (+ 14 degrees)

Information Display 8x 09 7E 01 18 FF y0 50 02 FF On

y0 50 03 FF Off

Video SystemInq 8x 09 06 23 FF Video format

EVI-H100S

EVI-H100V

y0 50 00 FF 1080i/59.94

(29.97PsF) Yes Yes

59.94 Hz

system

y0 50 01 FF 1080p/29.97 Yes Yes

y0 50 02 FF 720p/59.94 Yes Yes

y0 50 03 FF 720p/29.97 Yes Yes

y0 50 04 FF NTSC (LB) Yes (SD

OUT) No

y0 50 08 FF 1080i/50

(25PsF) Yes Yes

50 Hz

system

y0 50 09 FF 720p/50 Yes Yes

y0 50 0A FF 720p/25 Yes Yes

y0 50 0B FF 1080i/50 Yes Yes

y0 50 0C FF PAL (LB) Yes (SD

OUT) No

Command List

EVI-H100S/H100V Inquiry Command List (3/3)

Inquiry Command Command Packet Inquiry Packet Comments

Next Power ON Video SystemInq 1) 8x 09 06 33 FF Video format

EVI-H100S

EVI-H100V

y0 50 00 FF 1080i/59.94

(29.97PsF) Yes Yes

59.94 Hz

system

y0 50 01 FF 1080p/29.97 Yes Yes

y0 50 02 FF 720p/59.94 Yes Yes

y0 50 03 FF 720p/29.97 Yes Yes

y0 50 04 FF NTSC (LB) Yes (SD

OUT) No

y0 50 08 FF 1080i/50

(25PsF) Yes Yes

50 Hz

system

y0 50 09 FF 720p/50 Yes Yes

y0 50 0A FF 720p/25 Yes Yes

y0 50 0B FF 1080i/50 Yes Yes

y0 50 0C FF PAL (LB) Yes (SD

OUT) No

IR_Receive 8x 09 06 08 FF y0 50 02 FF On

y0 50 03 FF Off

IR_ReceiveReturn y0 07 7D 01 04 00 FF Power ON/OFF

y0 07 7D 01 04 07 FF Zoom tele/wide

y0 07 7D 01 04 38 FF AF On/Off

y0 07 7D 01 04 33 FF CAM_Backlight

y0 07 7D 01 04 3F FF CAM_Memory

y0 07 7D 01 06 01 FF Pan_tiltDrive

IR_ConditionInq 8x 09 06 34 FF y0 50 00 FF

Stable reception from the IR Remote

Commander

y0 50 01 FF

Unstable reception from the IR Remote

Commander

y0 50 02 FF Impossible to detect the infrared signals from

the Remote Commander because the camera is

turned on by the Remote Commander.

Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF ww = Pan Max Speed

xx = Tilt Max Speed

Pan-tiltPosInq 2) 8x 09 06 12 FF y0 5 50 0w 0w 0w 0w

0z 0z 0z 0z FF

wwww = Pan Position

zzzz = Tilt Position

See page 46.

Pan-tiltModeInq 8x 09 06 10 FF y0 50 pq rs FF pqrs: Pan-tilt Status

See page 46.

Cooling fan condition Inq 8x 09 7E 01 38 FF y0 50 00 FF Working

y0 50 01 FF Stop

1) Can be configured when the SYSTEM SELECT switch at the rear of the camera is set to position 7.

Use one of the following methods to apply the settings.

 Turn off DC power, and turn it on again.

 Turn off power using the IR remote commander, and turn it on again.

 Send CAM_Power On and Off commands.

2) If a Pan-tiltPosInq command is received after Pan-tiltDrive Reset, the pan/tilt position may be different for 1-2 addresses.

Command List

EVI-H100S/H100V Block Inquiry Command List

Lens Control System Inquiry Commands ............ Command Packet 8x 09 7E 7E 00 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

Destination Address

7 0

6 6 0 6 0

5 5 0 5 0

4 4 0 4 0

Source Address

Focus Near Limit (H)

3 0

2 2 2 0

1 1 1 0

0 0 0 0

7 0 Completion Message (50h)

7 0

6 1 6 0 6 0

5 0 5 0 5 0

4 1 4 0 4

0: Normal 1: Interval

2: Zoom Trigger

3 0 3

Focus Near Limit (L)

2 0 2 2AF Sensitivity 0: Slow

1: Normal

1 0 1

0 0 0 1 Digital Zoom 1: On 0: Off

7 0

7 0 0

Focus Mode 0: Manual 1: Auto

6 0 6 0

7 0

5 0 5 0 6 0

4 0 4 0 5 0

Zoom Position (HH)

Focus Position (HH)

4 0

2 2 3

Low Contrast Detection 1: Yes

0: No

1 1

0 0 2Camera Memory Recall

1: Executing 0: Stopped

7 0

6 0 6 0 1Focus Command 1: Executing

0: Stopped

5 0 5 0

4 0 4 0 0

Zoom Command 1: Executing

0: Stopped

Zoom Position (HL)

Focus Position (HL)

2 2

7 1 Terminator (FFh)

1 1 6 1

0 0 5 1

7 0

7 0 4 1

6 0 6 0 3 1

5 0 5 0 2 1

4 0 4 0 1 1

Zoom Position (LH)

Focus Position (LH)

0 1

2 2

1 1

0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0

Zoom Position (LL)

Focus Position (LL)

2 2

1 1

0 0

Command List

Camera Control System Inquiry Commands ....... Command Packet 8x 09 7E 7E 01 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

Destination Address

7 0

6 6 0 6 0

5 5 0 5 0

4 4 0 4 0

Source Address

WB Mode

Gain Position

2 2 2

1 1 1

0 0 0

0 Completion Message (50h)

7 0

6 1 6 0 6 0

5 0 5 0 5 0

4 1 4 0 4

Bright Position

3 0 3

Aperture Gain

2 0 2 2

1 0 1 1

0 0 0 0

7 0

6 0 6 0 6 0

5 0 5 0 5 0

4 0 4

Exposure Mode

4 0

R Gain (H)

3 3

Exposure Comp.

Position

2 2 2

1 1 1

0 0 0

7 0

7 1 Terminator (FFh)

6 0 6 0 6 1

5 0 5 High-Resolution 1: On 0: Off 5 1

4 0 4

Wide-D (1: Other than Off,

0: Off)

4 1

R Gain (L)

3 1

2 3 0 2 1

1 2 Back Light 1: On 0: Off 1 1

0 1 Exposure Comp. 1: On 0: Off 0 1

7 0 0

Slow Shutter 1: Auto 0: Manual

6 0

7 0

5 0 6 0

4 0 5 0

B Gain (H)

Shutter Position

2 3

1 2

0 1

7 0 0

6 0

7 0

5 0 6 0

4 0 5 0

B Gain (L)

Iris Position

2 3

1 2

0 1

Command List

Other Inquiry Commands ............................................. Command Packet 8x 09 7E 7E 02 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

Destination Address

7 0

6 6 0 6 0

5 5 0 5 0

4 4 0 4 1

Source Address

3 0 3 0

2 2 0 2 1

1 1 0 1 0

0 0 0 0 1: 1/50, 1/25 0: 1/60, 1/30

7 0 Completion Message (50h)

7 0

6 1 6 0 6 0

5 0 5 0 5 0

4 1 4 0 4 0

3 0 3 0 3 0

2 0 2 0 2 0

1 0 1 0 1 0

0 0 0 0 0 0

7 0

6 0 6 0 6 0

5 0 5 0 5 0

4 0 4 0 4 0

3 0 3

Camera ID (HH)

3 0

2 Auto ICR 1: On 0: Off 2 2 0

1 0 1 1 0

0 Power 1: On 0: Off 0 0 0

7 0

7 1 Terminator (FFh)

6 0 6 0 6 1

5 0 5 0 5 1

4 ICR 1: On 0: Off 4 0 4 1

3 0 3

Camera ID (HL)

3 1

2 0 2 2 1

1 0 1 1 1

0 0 0 0 1

7 0

6 0 6 0

5 0 5 0

4 Inconsistent 4 0

3 Inconsistent 3

Camera ID (LH)

2 Inconsistent 2

1 0 1

0 0 0

7 0

6 0 6 0

5 0 5 0

4 0 4 0

Picture Effect Mode

Camera ID (LL)

2 2

1 1

0 0

Command List

Enlargement Function1 Query Command .................... Command Packet 8x 09 7E 7E 03 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

Destination Address

7 0

6 6 0 6

Color Gain (0h (60%) to

Eh (200%))

5 5 0 5

4 4 0 4

Source Address

AF Interval Time (H)

2 2 2 1

1 1 1 1

0 0 0 1

7 0 Completion Message (50h)

7 0

6 1 6 0 6 0

5 0 5 0 5 0

4 1 4 0 4 0

3 0 3

AF Interval Time (L)

3 0

2 0 2 2 0

1 0 1 1 0

0 0 0 0 1

7 0

6 0 6 0 6

Gamma5 0 5 0 5

4 0 4 0 4

3 0 3 1 3High Sensitivity mode

(1: ON, 0: OFF)

2 0 2 0

1 0 1 0 2

NR Level

0 0 0 0 1

7 0

7 0 0

6 0 6 0

7 0

5 0 5 0 6

Chroma Suppress

4 0 4 0 5

3 0 3 1 4

2 0 2 0 3

AE Gain Limit

1 0 1 0 2

0 0 0 0 1

7 0

7 0 0

6 0 6 0

7 1 Terminator (FFh)

5 0 5 0 6 1

4 0 4 0 5 1

AF Activation Time (H)

3 0 4 1

2 2 0 3 1

1 1 0 2 1

0 0 0 1 1

7 0 0 1

6 0

5 0

4 0

AF Activation Time (L)

Command List

Enlargement Function2 Query Command .................... Command Packet 8x 09 7E 7E 04 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

Destination Address

7 0

6 6 0 6 0

5 5 0 5 0

4 4 0 4 0

Source Address

WideD short exposure

Exposure ratio (L)

3 0

2 2 2 0

1 1 1 0

0 0 0 0

7 0 Completion Message (50h)

7 0

6 1 6 0 6 0

5 0 5 0 5 0

4 1 4 0 4 0

3 0 3 0 3 0

2 0 2 0 2 0

1 0 1 0 1 0

0 0 0 0 0 0

7 0

6 0 6 0 6 0

5 0 5 0 5 0

4 0 4 0 4 0

3 0 3 0 3 0

2WideD mode (0: OFF, 1: ON,

2: Auto ON/OFF, 3: ON

(RatioFIx), 4: ON (Dver))

2 0 2 0

1 1 0 1 0

0 0 0 0 0

7 0

6 0 6 0 6 0

5 0 5 0 5 0

4 0 4 0 4 0

WideD screen display

0: Combined image

2: Long-time 3: Short-time

3 0 3 0

2 0 2 0

1 0 1 0

1WideD detection sensitivity

0: L 1: M 2: H

0 0 0 0

7 0

7 1 Terminator (FFh)

7 0 6 0 6 1

6 0 5 0 5 1

5 0 4 0 4 1

4 0 3 0 3 1

WideD blocked-up shadow

correction level 0: L 1: M 2: H

3: S

2 0 2 1

1 0 1 1

0 0 0 1

WideD blown-out highlight

correction level 0: L 1: M 2: H

7 0

6 0

5 0

4 0

WideD short exposure

Exposure ratio (H)

Command List

Enlargement Function3 Query Command .................... Command Packet 8x 09 7E 7E 05 FF

Byte Bit Comments Byte Bit Comments Byte Bit Comments

Destination Address

7 0

6 6

Reserved

5 5 5

4 4 4

Source Address

3 3

2 2 2

1 1 1

0 0 0

7 0 Completion Message (50h)

7 0

6 1 6

Reserved

5 0 5 5

4 1 4 4

3 0 3 3

2 0 2 2

1 0 1 1

0 0 0 0

7 0

6 0 6

Reserved

5 0 5 5

4 0 4 4

3Color Hue

(0h(− 14 degrees) to Eh(+ 14

degrees))

3 3

2 2 2

1 1 1

0 0 0

7 0

Reserved

5 5 5

4 4 4

3 3 3

2 2 2

1 1 1

0 0 0

7 0

7 1 Terminator (FFh)

Reserved

6 1

5 5 5 1

4 4 4 1

3 3 3 1

2 2 2 1

1 1 1 1

0 0 0 1

7 0

Reserved

Command List

VISCA Command Setting Values

Exposure control (1/2)

60/30 mode 50/25 mode

Shutter Speed 15 1/10000 1/10000

14 1/6000 1/6000

13 1/4000 1/3500

12 1/3000 1/2500

11 1/2000 1/1750

10 1/1500 1/1250

0F 1/1000 1/1000

0E 1/725 1/600

0D 1/500 1/425

0C 1/350 1/300

0B 1/250 1/215

0A 1/180 1/150

09 1/125 1/120

08 1/100 1/100

07 1/90 1/75

06 1/60 1/50

05 1/30 1/25

04 1/15 1/12

03 1/8 1/6

02 1/4 1/3

01 1/2 1/2

00 1/1 1/1

Iris 11 F1.6

10 F2

0F F2.4

0E F2.8

0D F3.4

0C F4

0B F4.8

0A F5.6

09 F6.8

08 F8

07 F9.6

06 F11

05 F14

00 CLOSE

Gain 0F +28 dB

0E +26 dB

0D +24 dB

0C +22 dB

0B +20 dB

0A +18 dB

09 +16 dB

08 +14 dB

07 +12 dB

06 +10 dB

05 +8 dB

04 +6 dB

03 +4 dB

02 +2 dB

01 0 dB

00 −3 dB

Gain Limit 0F +28 dB

0E +26 dB

0D +24 dB

0C +22 dB

0B +20 dB

0A +18 dB

09 +16 dB

08 +14 dB

07 +12 dB

06 +10 dB

05 +8 dB

04 +6 dB

Command List

Exposure control (2/2)

IRIS GAIN

Bright 1F F1.6 +28 dB

1E F1.6 +26 dB

1D F1.6 +24 dB

1C F1.6 +22 dB

1B F1.6 +20 dB

1A F1.6 +18 dB

19 F1.6 +16 dB

18 F1.6 +14 dB

17 F1.6 +12 dB

16 F1.6 +10 dB

15 F1.6 +8 dB

14 F1.6 +6 dB

13 F1.6 +4 dB

12 F1.6 +2 dB

11 F1.6 0 dB

10 F2 0 dB

0F F2.4 0 dB

0E F2.8 0 dB

0D F3.4 0 dB

0C F4 0 dB

0B F4.8 0 dB

0A F5.6 0 dB

09 F6.8 0 dB

08 F8 0 dB

07 F9.6 0 dB

06 F11 0 dB

05 F14 0 dB

00 CLOSE 0 dB

Exposure Comp. 0E +7 +10.5 dB

0D +6 +9 dB

0C +5 +7.5 dB

0B +4 +6 dB

0A +3 +4.5 dB

09 +2 +3 dB

08 +1 +1.5 dB

07 0 0 dB

06 −1 −1.5 dB

05 −2 −3 dB

04 −3 −4.5 dB

03 −4 −6 dB

02 −5 −7.5 dB

01 −6 −9 dB

00 −7 −10.5 dB

Zoom Ratio and Zoom Position

(for reference)

Zoom Ratio

×36 Lens

Optical Zoom

Positon Data

×1 0000

×2 1851

×3 22BE

×4 28F6

×5 2D45

×6 3086

×7 3320

×8 3549

×9 371E

×10 38B3

×11 3A12

×12 3B42

×13 3C47

×14 3D25

×15 3DDF

×16 3E7B

×17 3EFB

×18 3F64

×19 3FBA

×20 4000

Digital Zoom

Ratio

Digital Zoom

Position Data

×1 4000

×2 6000

×3 6A80

×4 7000

×5 7300

×6 7540

×7 76C0

×8 7800

×9 78C0

×10 7980

×11 7A00

×12 7AC0

Command List

Focus and Focus Distance (for reference)

Zoom Position

0000 to 4000 to 7AC0

Wide end Optical Digital

Tele end Tele end

Focus Position

1000 to F000*

Far end Near end

* Depending on the Focus Near Limit

setting.

Focus Near

Limit

1000: Over Inf

2000: 25 m

3000: 11 m

4000: 7 m

5000: 4.9 m

6000: 3.7 m

7000: 2.9 m

8000: 2.3 m

9000: 1.85 m

A000: 1.5 m

B000: 1.23 m

C000: 1 m

D000: 30 cm

(initial setting)

E000: 8 cm

F000: 1 cm

As the distance on the left

will differ due to

temperature

characteristics, etc., use as

approximate values.

* The lower 1 byte is fixed at

00.

Others

AF Active Time1) 00 to FF

AF Interval Time1) 00 to FF

R Gain 00 to FF

B Gain 00 to FF

Aperture Level 00 to 0F

NR Level 00 to 05

AutoICR ON 

OFF Threshold Level 00 to 1C

Chroma Suppress setting level 00 to 03

Color Gain setting level 00 to 0E

Color Hue setting level 00 to 0E

1) Unit: One second

Pan/Tilt Status Code List

P Q R S

- - - - - - - - 0 - - - - - - 1 A Pan movement all the way to the left

- - - - - - - - 0 - - - - - 1 - A Pan movement all the way to the right

- - - - - - - - 0 - - - - 1 - - A Tilt movement all the way up

- - - - - - - - 0 - - - 1 - - - A Tilt movement all the way down

- - - - - - - - - - 0 0 - - - - Pan movement is correct

- - - - - - - - - - 0 1 - - - - Pan position cannot be detected

- - - - - - 0 0 0 - - - - - - - The Tilt movement is correct

- - - - - - 0 1 0 - - - - - - - The Tilt position cannot be detected

- - - - 0 0 - - 0 - - - - - - - No movement instructions

- - - - 0 1 - - 0 - - - - - - - In the midst of a Pan/Tilt

- - - - 1 0 - - 0 - - - - - - - Pan/Tilt completed

- - - - 1 1 - - 0 - - - - - - - Pan/Tilt failed

- - 0 0 - - - - 0 - - - - - - - Not initialized

- - 0 1 - - - - 0 - - - - - - - Initializing

- -1 0 - - - - 0 - - - - - - - Initialization completed

- -1 1 - - - - 0 - - - - - - - Initialization failed

( - : optional)

Pan/Tilt Position (for reference)

Parameter (position)

PAN E1E5 (–170 degree) to 1E1B (+170 degree)

TILT FC75 (–20 degree) to 0FF0 (+90 degree)

(IMAGE FLIP: OFF)

F010 (–90 degree) to 038B (+20 degree)

(IMAGE FLIP: ON)

LED Status

Status POWER (Green) STANDBY (Orange)

Main power ON Power On (including initializing period) On Off

When receiving infrared signals form Remote Commander Blinking Off

At position detection error On Blinking

Standby status Off On

Power off by VISCA or the Remote Commander

Main power Off Off Off

Initialization

error

Pan/tilt error Blinking Blinking

Internal error(LSI, etc.) Blinking alternately

BOTTOM switch

and SYSTEM

SELECT switch

Setting error (Example: when the SYSTEM SELECT switch is set to

positions “4 - 6” or “C - F” for the EVI-H100V, or positions “5 - 6” or “D -

F” for the EVI-H100S.)

On On

Cooling fan malfunction (camera images still output) Blinking alternately (slow)

Overview

The D70 mode allows you to control the EVI-H100S/

H100V using VISCA commands for the EVI-D70/P.

Most of the VISCA commands for the EVI-H100S/

H100V correspond to one for the EVI-D70/P. However,

some of the VISCA commands for the EVI-H100S/

H100V are different from those for the EVI-D70/P in

definitions of parameters.

When you send those commands to an EVI-H100S/

H100V whose D70 mode is set to ON, the camera

translates the parameters for the EVI-D70/P to those

for the EVI-H100S/H100V and executes the command.

The following parameters are subject to translation.

 Zoom position

 Pan-tilt speed

 Pan-tilt position

Notes

 Even if you set the D70 mode to ON, the EVI-

H100S/H100V may not emulate the EVI-D70/P

perfectly. This is caused by differences in hardware

between the two models.

 The functions that are provided with the EVI-D70/

P but not with the EVI-H100S/H100V cannot be

executed.

Switching the Mode

You can switch the D70 mode ON or OFF by switching

the BOTTOM switch at the bottom of the EVI-H100S/

H100V. To change the D70 mode setting, move the

BOTTOM switch to ON or OFF while the camera’s

power is off or the camera is in standby mode. Then,

turn the power on by connecting the camera to an AC

outlet or by using the VISCA commands or the Remote

Commander.

It takes about 7-16 seconds for the image to be

displayed after Pan/Tilt initialization motion has

stopped.

Do not turn off DC power until the image has been

displayed.

The mode will not change if you change the switch

setting of the BOTTOM switch after the power has

been turned on.

After you change the mode, previously saved position

preset data will be lost. (Zoom, Pan/Tilt positions, etc.

will be reset to their initial settings.)

D70 Mode

Accepting or Sending Back Commands

When accepting commands

Type of command D70 mode on D70 mode off

Common to both the D70 and

H100S/H100V

Common parameters Accepts as is

Different parameters Translates the D70’s parameters to those of

the H100S/H100V

Accepts as is

CAM_Memory Reset Memorized data items are erased and

camera settings return to initial values

Memorized data items are erased

Only for the H100S/H100V Accepts as is

Only for the D70 Refuses and sends back the SyntaxError message

When accepting inquiry commands

Type of command D70 mode on D70 mode off

Common to both the D70 and

H100S/H100V

Common parameters Sends back parameters common to both the D70 and H100S/H100V

Different parameters Sends back the D70’s parameters translated

from those of the H100S/H100V

Sends back the H100S/H100V’s parameters

Only for the H100S/H100V Sends back the H100S/H100V’s parameters

Only for the D70 Refuses and sends back the SyntaxError message

D70 Mode

Translating Parameters

Zoom position

The camera employs an 18× optical zoom lens. There

are no translating parameters. The zoom ratio and

corresponding position data are as shown in the table

below (for reference).

Zoom Ratio

× 18 Lens

Optical Zoom

Position Data

× 1

0000

× 2

1606

× 3

2151

× 4

2860

× 5

2CB5

× 6

3060

× 7

32D3

× 8

3545

× 9

3727

× 10

38A9

× 11

3A42

× 12

3B4B

× 13

3C85

× 14

3D75

× 15

3E4E

× 16

3EF7

× 17

3FA0

× 18

4000

Pan/tilt speed

The actual speed that is defined by the parameters

corresponds to that of the D70.

When the camera receives commands such as

PantiltDrive Home, Reset, or CAM_Memory Recall,

that do not include speed indications, these operations

are carried out at the same speed as they would be

when the D70 mode is set to OFF.

Speed (deg/sec)

Parameters H100S/H100V D70

01h 1.3 1.7

02h 1.7 2.2

03h 2.2 2.9

04h 3.2 4.1

05h 5.4 6.8

06h 11 11

07h 16 16

08h 21 21

09h 27 27

0Ah 31 31

0Bh 35 35

0Ch 40 40

0Dh 42 47

0Eh 44 49

0Fh 46 54

10h 48 56

11h 50 62

12h 79 64

13h 81 69

14h 83 72

15h 85 79

16h 87 84

17h 90 90

18h 1) 100 100

1) Max. pan speed is 18h; max. tilt speed is 17h.

Pan/tilt position

Pan position

Cameras Parameters

EVI-D70/P F725h (–170 degrees) to 08DBh (+170 degrees)

EVI-H100S/H100V E1E5h (–170 degrees) to 1E1Bh (+170 degrees)

Tilt position

Cameras Parameters

EVI-D70/P FE70h (–30 degrees) to 04B0h (+90 degrees)

EVI-H100S/H100V FC75h (–20 degrees) to 0FF0 (+90 degrees)

Translation of commands

Accepting parameters

Translation

Pan position Multiplies received parameters by 17/5

Tilt position Multiplies received parameters by 17/5

D70 Mode

D70 H100S/H100V

Pan/Tilt Pan Tilt

F725h E1E5h –

… … –

FEF5h FC75h FC75h

… … …

FFFDh FFF6h FFF6h

FFFEh FFFAh FFFAh

FFFFh FFFDh FFFDh

0000h 0000h 0000h

0001h 0003h 0003h

0002h 0006h 0006h

0003h 000Ah 000Ah

0004h 000Dh 000Dh

0005h 0011h 0011h

0006h 0014h 0014h

0007h 0017h 0017h

0008h 001Bh 001Bh

0009h 001Eh 001Eh

000Ah 0022h 0022h

000Bh 0025h 0025h

… … –

04B0h 0FF0h 0FF0h

… … –

08DBh 1E1Bh –

Translation when answering inquiry commands

The camera sends back values that are calculated by

inverse conversion performed when the camera accepts

commands.

Note

Repetitive use of the Absolute position command may

increase the variance that is accumulated from

translation.

Example

When you execute the Relative position command

100 times, one step after another to turn the camera to

the right side:

Cameras Results

EVI-D70/P Turns to the right side by 7.5 degrees.

EVI-H100S/H100V whose

D70 mode is ON

Turns to the right side by 6.6 degrees.

For Absolute Position commands, the permissible

range for drive settings are the same as those for the

EVI-D70/P.

Pan direction: –170 degrees to + 170 degrees.

Tilt direction: –20 degrees to + 90 degrees.

System

Video signal EVI-H100V:

1920 × 1080p/29.97,

1920 × 1080p/25,

1920 ×1080i/59.94 (29.97PsF),

1920 ×1080i/50 (25PsF),

1280 × 720p/59.94,

1280 × 720p/50,

1280 × 720p/29.97,

1280 × 720p/25,

VISCA CONTROL (switched

with the SYSTEM SELECT

switch)

EVI-H100S:

1920 × 1080p/29.97,

1920 × 1080p/25,

1920 × 1080i/59.94 (29.97PsF),

1920 × 1080i/50 (25PsF),

1280 × 720p/59.94,

1280 × 720p/50,

1280 × 720p/29.97,

1280 × 720p/25,

NTSC(Letter Box), PAL(Letter

Box), VISCA CONTROL

(switched with the SYSTEM

SELECT switch)

Synchronization Internal synchronization

Image device 1/2.8 type Exmor CMOS

Lens 20× (optical), 12× (digital)

f = 4.7 – 94.0 mm, F1.6 – F3.5

Horizontal angle: 2.9 (TELE end) to 55.4 degrees

(WIDE end) (1080 line mode)

2.0 (TELE end) to 37.6 degrees

(WIDE end) (720 line mode)

Minimum object distance

10 mm (0.4 inches) (WIDE end) to

800 mm (31.5 inches) (TELE

end) 290 mm (11 27/64 inches)

(Default)

Minimum illumination

Less or equal to1.7 lux (50%, high-

sensitivity mode off)

Less or equal to 0.5 lux (50%, high-

sensitivity mode on)

Shutter speed 1 to 1/10,000 sec. (22 steps)

Video S/N 50 dB

Pan/tilt action Horizontal: ±170 degrees

Maximum panning speed:

100 degrees/sec.

Vertical: +90, –20 degrees

Maximum tilting speed:

90 degrees/sec.

Input/output connectors

Video output EVI-H100V:

COMPONENT (VIDEO OUT):

DVI-I connector

Y: 1 Vp-p (sync, at 75-ohm

termination)

Pb/Pr: ±350 mVp-p (75-ohm

termination)

3 values Sync : ±300mV p-p

(75-ohm termination)

HD/VD Sync: 3.3 Vp-p

DVI Digital VIDEO (VIDEO

OUT): DVI-I connector

EVI-H100S:

COMPOSITE (VBS VIDEO

OUT):

1 Vp-p (sync, at 75-ohm

termination)

HD-SDI (HD OUT) : BNC type

800mVp-p, 75-ohm

SMPTE292M compliant with

serial interface

Control input/output

VISCA IN: Mini DIN 8-pin type,

RS-232C

VISCA OUT: Mini DIN 8-pin type,

RS-232C

VISCA RS-422: 9-pin

Power connector JEITA type4 (DC 12 V)

General

Input voltage 12 V DC (10.8 to 13.0 V DC)

Current consumption

EVI-H100S : 1.0 A max. (at 12 V DC)

EVI-H100V : 0.92 A max. (at 12 V

DC)

Specifications

Operating temperature

0 ºC to 40 ºC (32 ºF to 104 ºF)

Storage temperature

–20 ºC to +60 ºC (–4 ºF to 140 ºF)

Dimensions Video camera:

145 × 164 × 164 mm

(5 1/32 × 6 15/32 × 6 15/32

inches, excluding protruding

parts) (w/h/d)

Remote Commander: 56 × 26 ×

210 mm (2 1/4 × 1 1/16 ×

8 3/8 inches) (w/h/d)

Mass Video camera: Approx. 1550g

(3 lb 6 5/8 oz)

Remote Commander: 110 g

(3 7/8 oz)

Installation angle

Less than ±15 degrees to the

horizontal surface

Supplied accessories

AC power adaptor (MPA-AC1) (AC 100 V, 50/60 Hz) (1)

AC power cord (1)

Remote Commander (RM-EV100) (1)

Ceiling bracket (A) (1)

Ceiling bracket (B) (1)

Wire rope (1)

Screw M3×8 (8)

VISCA RS-422 connector plug (1)

Operating Instructions (1)

Design and specifications are subject to change without

notice.

Note

Always verify that the unit is operating properly

before use. SONY WILL NOT BE LIABLE FOR

DAMAGES OF ANY KIND INCLUDING, BUT

NOT LIMITED TO, COMPENSATION OR

REIMBURSEMENT ON ACCOUNT OF THE

LOSS OF PRESENT OR PROSPECTIVE PROFITS

DUE TO FAILURE OF THIS UNIT, EITHER

DURING THE WARRANTY PERIOD OR AFTER

EXPIRATION OF THE WARRANTY, OR FOR

ANY OTHER REASON WHATSOEVER.

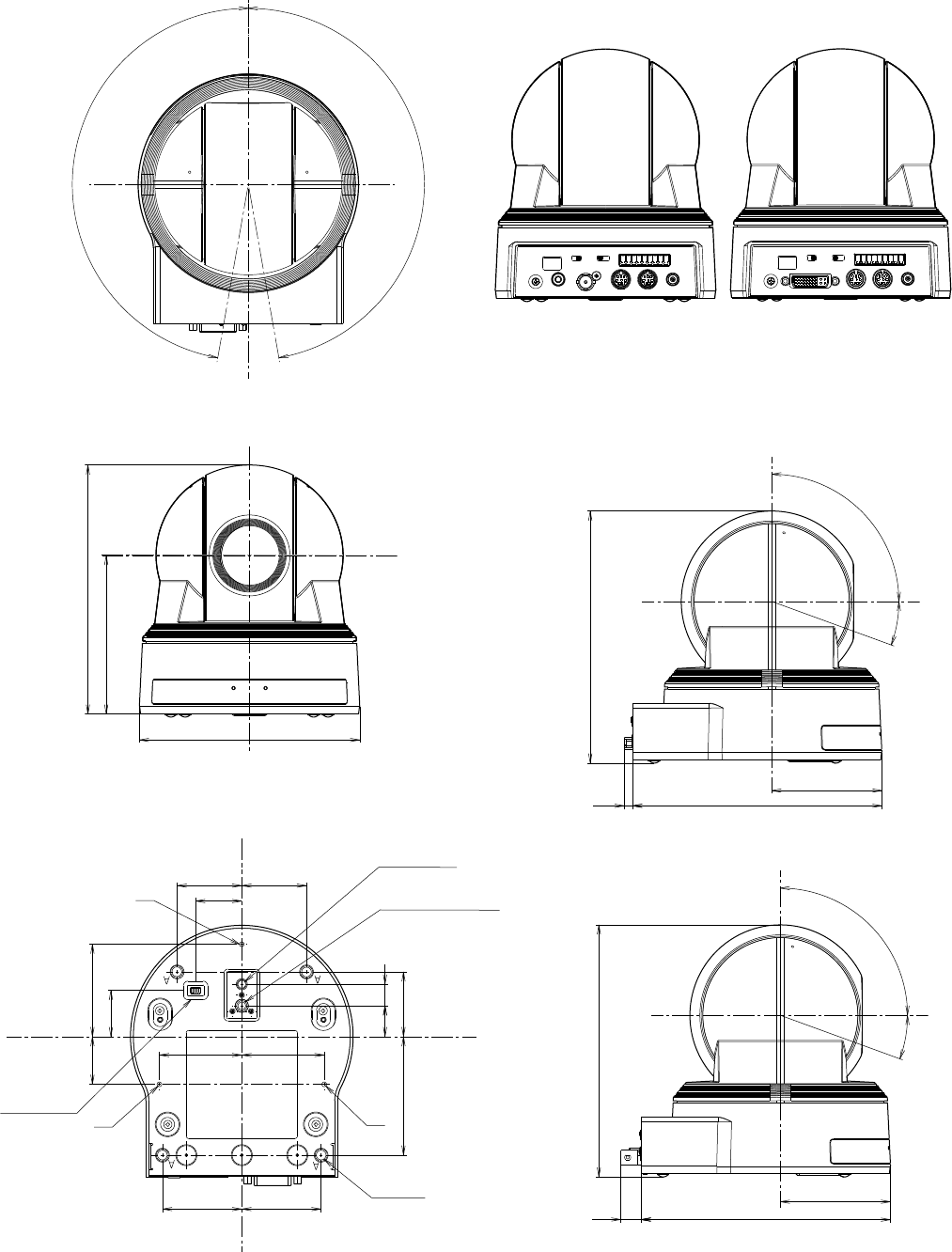

Dimensions

Top Back

Bottom

170°

51.5(2 1/32) 51.5(2 1/32)

77(3 1/32)

42(1 43/64)

42(1 21/32) 42(1 21/32)

60(2 3/8) 31

(1 15/64)

30(1 3/16)

14( 9/16) 20( 25/32)

53.5 53.5

(2 7/64) (2 7/64)

(Leg)

4-Ø9(A)

Ø5, depth 5

1/4-20UNC, depth 6.5

Tripod screw hole

BOTTOM

switch

90°

166 (6 35/64)

164 (6 15/32)

72 (2 27/32)

14 (9/16)

20°

Front Side

104(4 3/32)

164(6 15/32)

Ø145(5 1/32)

166 (6 35/64)

164 (6 15/32)

72 (2 27/32)

6 (15/64)

20°

90°

EVI-H100S EVI-H100V

EVI-H100S

EVI-H100V

Unit: mm (inches)

Software

Use of the demonstration software developed by Sony

Corporation or use of the software with customer

developed application software may damage hardware,

the application program or the camera. Sony

Corporation is not liable for any damages under these

conditions.

Operation

Start the camera control software on your computer

after you turn on the camera and the image is

displayed.

Operation and storage locations

Do not shoot images that are extremely bright (e.g.,

light sources, the sun, etc.) for long periods of time. Do

not use or store the camera in the following extreme

conditions:

 Extremely hot or cold places (operating temperature

0 ˚C to 40 ˚C (32 ˚F to 104 ˚F))

 Close to generators of powerful electromagnetic

radiation such as radio or TV transmitters

 Where it is subject to fluorescent light reflections

 Where it is subject to unstable (flickering, etc.)

lighting conditions

 Where it is subject to strong vibration

Care of the unit

Remove dust or dirt on the surface of the lens with a

blower (commercially available).

Other

Do not apply excessive voltage. (Use only the specified

voltage.) Otherwise, you may get an electric shock or a

fire may occur.

In case of abnormal operation, contact your authorized

Sony dealer or the store where you purchased the

product.

Precautions

Sony Camcorder Evi H100S Users Manual H100S/H100V

EVI-H100S, EVI-H100SW, EVI-H100VW, EVI-H100SW - Tech Manual EVI-H100S, EVI-H100SW, EVI-H100VW, EVI-H100SW - Tech Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
