User's Manual

DVD/CD/USB receiver Sony XAV-E722

In the online store Winauto you also can buy DVD/USB receiver Sony XAV-E722 . Delivery in Kiev and throughout

Ukraine with payment upon receipt!

http://winauto.ua

Car Receivers - Facia Plates - Head Units - Car TVs and Monitors - Antennas - Car Audio - DVR - GPS Navigation - Trip Computers - Alarm

Systems - Mechanical Locking - Parking Systems - Car Cameras - Xenon and Lights - Established Optics - Tuning - Car Heating and Cooling -

Sound Marine and Electronics - Car Accessories - Isolation - Installation Components - Batteries, Power - Oils and Fluids -

Operating Instructions

4-263-230-13(1)

XAV-722

AV Center

Car audio and car goods internet store Winauto

winauto.ua

Warning

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the

cabinet. Refer servicing to qualified

personnel only.

CAUTION

The use of optical instruments with this product

will increase eye hazard. As the laser beam used

in this CD/DVD player is harmful to eyes, do not

attempt to disassemble the cabinet. Refer

servicing to qualified personnel only.

Be sure to install this unit in the dashboard of

the car for safety. For installation and

connections, refer to the supplied

“Installation/Connections” guide.

This label is located on the bottom of the

chassis.

Note on the lithium battery

Do not expose the battery to excessive heat such as

direct sunlight, fire or the like.

Warning if your car’s ignition has no

ACC position

Be sure to set the Auto Off function

(page 38).

The unit will turn off automatically in the set

time when no source is selected, which

prevents battery drainage.

If you do not set the Auto Off function, press

and hold (SOURCE/OFF) until the display

disappears each time you turn the ignition off.

To cancel the demonstration (Demo) display,

see page 42.

Car audio and car goods internet store Winauto

winauto.ua

Car audio and car goods internet store Winauto

winauto.ua

Table of Contents

Notes on safety. . . . . . . . . . . . . . . . . . . . . . . . . .7

Notes on installation. . . . . . . . . . . . . . . . . . . . . .7

Copyrights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Playable discs and symbols used in these

Operating Instructions . . . . . . . . . . . . . . . . . . . .9

Location and function of controls . . . . . . . . . .10

Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . .10

RM-X170 Remote Commander . . . . . . . . . 12

Getting Started

Resetting the unit . . . . . . . . . . . . . . . . . . . . . . .14

Performing initial settings . . . . . . . . . . . . . . . .14

Preparing the remote commander . . . . . . . . . .14

Radio

Listening to the radio . . . . . . . . . . . . . . . . . . . .15

Reception controls . . . . . . . . . . . . . . . . . . . .15

Reception indications . . . . . . . . . . . . . . . . .16

Storing and receiving stations . . . . . . . . . . . . .16

Storing automatically — BTM . . . . . . . . . .16

Storing manually . . . . . . . . . . . . . . . . . . . . .16

Receiving stored stations. . . . . . . . . . . . . . .16

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Selecting PTY . . . . . . . . . . . . . . . . . . . . . . .17

Setting CT . . . . . . . . . . . . . . . . . . . . . . . . . .17

Discs

Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Playback controls . . . . . . . . . . . . . . . . . . . . 18

Playback indications . . . . . . . . . . . . . . . . . . 19

Using PBC (playback control) functions. . . . . 20

Configuring audio settings . . . . . . . . . . . . . . . 20

Changing the audio language/format . . . . . 20

Changing the audio channel . . . . . . . . . . . . 21

Adjusting the audio output level

— Dolby D level. . . . . . . . . . . . . . . . . . . . . 21

Locking discs — Parental control . . . . . . . . . . 21

Activating parental control . . . . . . . . . . . . . 21

Changing the area and its movie rating

level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Repeat and shuffle play . . . . . . . . . . . . . . . . . . 22

Direct search play . . . . . . . . . . . . . . . . . . . . . . 23

USB Device Operations

Playing from a USB device . . . . . . . . . . . . . . . 24

Repeat and shuffle play . . . . . . . . . . . . . . . . . . 24

Enjoying music according to your mood

— SensMe™ . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Before using the SensMe™ function . . . . . 25

Installing “SensMe™ Setup” and “Content

Transfer” on your computer . . . . . . . . . . . . 25

Registering a USB device using “SensMe™

Setup” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Transferring tracks to the USB device using

“Content Transfer” . . . . . . . . . . . . . . . . . . . 26

Playing tracks in channels

— SensMe™ channels . . . . . . . . . . . . . . . . 26

Playing tracks in mood maps

— SensMe™ mood. . . . . . . . . . . . . . . . . . . 28

Car audio and car goods internet store Winauto

winauto.ua

iPod Operations

Playing an iPod . . . . . . . . . . . . . . . . . . . . . . . . 29

Setting the play mode . . . . . . . . . . . . . . . . . . . 29

Repeat and shuffle play . . . . . . . . . . . . . . . . . . 30

Operating an iPod directly

— Passenger control . . . . . . . . . . . . . . . . . . . . 30

Useful Functions

Listing up tracks/images/video files

— List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Selecting a track/image/video file. . . . . . . . 31

Selecting a file type. . . . . . . . . . . . . . . . . . . 31

Searching for a track by listening to track

passages — ZAPPIN™ . . . . . . . . . . . . . . . . . . 31

Using Gesture Command . . . . . . . . . . . . . . . . 32

Sound Adjustment

Selecting the sound quality — EQ7 . . . . . . . . 32

Customizing the equalizer curve

— EQ7 Tune. . . . . . . . . . . . . . . . . . . . . . . . 32

Adjusting the sound characteristics . . . . . . . . . 33

Optimizing sound for the listening position

— Intelligent Time Alignment . . . . . . . . . . . . 33

Calibrating the listening position

— Intelligent Time Alignment Tune . . . . . 34

Speaker configuration and volume setup. . . . . 34

Creating a virtual center speaker

— CSO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Using rear speakers like subwoofers

— Rear Bass Enhancer . . . . . . . . . . . . . . . . 34

Adjusting the speaker volume. . . . . . . . . . . 35

Monitor Adjustment

Adjusting the monitor angle . . . . . . . . . . . . . . 35

Touch panel calibration . . . . . . . . . . . . . . . . . 35

Setting the background screen . . . . . . . . . . . . 36

Adjusting the picture — Picture EQ . . . . . . . . 36

Customizing the picture . . . . . . . . . . . . . . . 36

Selecting the aspect ratio . . . . . . . . . . . . . . . . 37

Settings

Basic setting operation . . . . . . . . . . . . . . . . . . 37

General settings. . . . . . . . . . . . . . . . . . . . . . . . 38

Sound settings. . . . . . . . . . . . . . . . . . . . . . . . . 40

Screen settings . . . . . . . . . . . . . . . . . . . . . . . . 42

DVD and other playback settings . . . . . . . . . . 43

Setting the security code. . . . . . . . . . . . . . . . . 45

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . 45

Using Optional Equipment

Auxiliary audio/video equipment . . . . . . . . . . 46

Rear view camera . . . . . . . . . . . . . . . . . . . . . . 46

Rear view camera settings . . . . . . . . . . . . . 47

continue to next page t

Car audio and car goods internet store Winauto

winauto.ua

Additional Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Notes on LCD panel . . . . . . . . . . . . . . . . . .47

Notes on discs . . . . . . . . . . . . . . . . . . . . . . .48

Playback order of MP3/WMA/AAC/JPEG/

Xvid/MPEG-4 files . . . . . . . . . . . . . . . . . . .48

About MP3 files . . . . . . . . . . . . . . . . . . . . .49

About WMA files . . . . . . . . . . . . . . . . . . . .49

About AAC files . . . . . . . . . . . . . . . . . . . . .49

About JPEG files . . . . . . . . . . . . . . . . . . . . .49

About MPEG-4 files . . . . . . . . . . . . . . . . . .49

About iPod. . . . . . . . . . . . . . . . . . . . . . . . . .49

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Removing the unit . . . . . . . . . . . . . . . . . . . . . .50

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .51

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .52

Error displays/messages . . . . . . . . . . . . . . .55

Language code/area code list . . . . . . . . . . . . . .56

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Support site

If you have any questions or for the latest support information on this

product, please visit the web site below:

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/

Provides information on models and manufacturers of compatible digital

audio players.

Car audio and car goods internet store Winauto

winauto.ua

Notes on safety

• Comply with your local traffic rules, laws and

regulations.

• While driving

– Do not watch or operate the unit, as it may lead

to distraction and cause an accident. Park your

car in a safe place to watch or operate the unit.

– Do not use the setup feature or any other

function which could divert your attention from

the road.

–When backing up your car, be sure to

look back and watch the surroundings

carefully for your safety, even if the rear

view camera is connected. Do not

depend on the rear view camera

exclusively.

• While operating

– Do not insert your hands, fingers or foreign

object into the unit, as it may cause injury or

damage to the unit.

– Keep small articles out of the reach of children.

– Be sure to fasten seatbelts to avoid injury in the

event of a sudden movement of the car.

Notes on installation

• We recommend this unit should be installed by a

qualified technician or service personnel.

– If you try to install this unit by yourself, refer to

the supplied “Installation/Connections” guide

and install the unit properly.

– Improper installation may cause battery drain or

a short circuit.

• If the unit does not work properly, check the

connections first, referring to the supplied

“Installation/Connections” guide. If everything is

in order, check the fuse.

• Protect the unit surface from damage.

– Do not expose the unit surface to chemicals,

such as insecticide, hair spray, insect repellent,

etc.

– Do not leave rubber or plastic materials in

contact with the unit for a long time. Otherwise,

the finish of the unit may be impaired, or

deformation may occur.

• When installing, be sure to fix securely.

• When installing, be sure to turn the ignition off.

Installing the unit with the ignition on may cause

battery drain or a short circuit.

• When installing, be sure not to damage any car

parts such as pipes, tubes, fuel tank or wiring by

using a drill, as it may cause a fire or an accident.

Preventing an accident

Pictures appear only after you park the car and set

the parking brake.

If the car starts moving during video playback,

the picture is automatically switched to the

background screen after displaying the caution

below.

“Video blocked for your safety.”

The monitor connected to the REAR VIDEO

OUT is active while the car is in motion.

The picture on the display is switched to the

background screen, but audio source can be

heard.

Do not operate the unit or watch the monitor

while driving.

Car audio and car goods internet store Winauto

winauto.ua

Copyrights

Microsoft, Windows, Windows Vista and Windows

Media and logos are trademarks or registered

trademarks of Microsoft Corporation in the United

States and/or other countries.

“DVD VIDEO,” “DVD-R,” “DVD-RW,” “DVD+R,”

and “DVD+RW” are trademarks.

ZAPPIN is a trademark of Sony Corporation.

12 TONE ANALYSIS and its

logo are trademarks of Sony

Corporation.

“WALKMAN” and

“WALKMAN” logo are

registered trademarks of

Sony Corporation.

SensMe and the SensMe logo are

trademarks or registered

trademarks of Sony Ericsson

Mobile Communications AB.

Music recognition technology and related data

are provided by Gracenote®. Gracenote is the

industry standard in music recognition

technology and related content delivery. For

more information, please visit

www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and video-

2000 to present Gracenote. Gracenote Software,

more patents owned by Gracenote apply to this

product and service. See the Gracenote website

for a non-exhaustive list of applicable Gracenote

patents.

Gracenote, CDDB, MusicID, MediaVOCS, the

Gracenote logo and logotype, and the “Powered

by Gracenote” logo are either registered

trademarks or trademarks of Gracenote in the

United States and/or other countries.

This product uses font data which is licensed to

Sony by Monotype Imaging Inc. or its affiliates.

iPhone, iPod, iPod classic, iPod nano, and

iPod touch are trademarks of Apple Inc., registered

in the U.S. and other countries.

Apple, Macintosh and iTunes are trademarks of

Apple Inc., registered in the U.S. and other

countries.

THIS PRODUCT IS LICENSED UNDER THE

MPEG-4 VISUAL PATENT PORTFOLIO

LICENSE FOR THE PERSONAL AND NON-

COMMERCIAL USE OF A CONSUMER FOR

DECODING MPEG-4 VIDEO THAT WAS

ENCODED BY A CONSUMER ENGAGED IN A

PERSONAL AND NON-COMMERCIAL

ACTIVITY AND/OR WAS OBTAINED FROM A

VIDEO PROVIDER LICENSED BY MPEG LA

TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS

GRANTED OR SHALL BE IMPLIED FOR ANY

OTHER USE. ADDITIONAL INFORMATION

INCLUDING THAT RELATING TO

PROMOTIONAL, INTERNAL AND

COMMERCIAL USES AND LICENSING MAY

BE OBTAINED FROM MPEG LA, LLC. SEE

HTTP://WWW.MPEGLA.COM

All other trademarks are trademarks of their

respective owners.

The following applies only to East Asia

models:

This product uses fonts designed by RICOH.

Manufactured under license

from Dolby Laboratories.

“Dolby” and the double-D

symbol are trademarks of Dolby Laboratories.

This product is protected by certain intellectual

property rights of Microsoft Corporation. Use or

distribution of such technology outside of this

product is prohibited without a license from

Microsoft or an authorized Microsoft subsidiary.

Car audio and car goods internet store Winauto

winauto.ua

Playable discs and symbols used in these Operating Instructions

This unit can play various video/audio discs.

The following chart helps you to check if a disc is supported by this unit, as well as what functions are

available for a given disc type.

*1 Audio files can also be stored.

*2 Video/image files can also be stored.

Note

“DVD” may be used in these Operating Instructions as a general term for DVD VIDEOs, DVD-Rs/DVD-RWs, and

DVD+Rs/DVD+RWs.

The following chart shows the supported file types and their symbols.

Available functions differ depending on the format, regardless of disc type. The format symbols below

appear in these Operating Instructions next to the description of functions available for their

corresponding file types.

Tip

For details on compression formats, see page 49.

Note

Even compatible discs may not be playable on this unit, depending on their recording condition.

Disc symbol in manual Disc format

VIDEO

DVD VIDEO

DVD-R*1/DVD-R DL*1/DVD-RW*1

(Video mode/VR mode)

DVD+R*1/DVD+R DL*1/DVD+RW*1

Video CD

(Ver. 1.0/1.1/2.0)

AUDIO

Audio CD

CD-ROM*2/CD-R*2/CD-RW*2

Format symbol in manual File type

MP3 audio file

WMA audio file

AAC audio file

JPEG image file

Xvid video file

MPEG-4 video file

MPEG-4

Car audio and car goods internet store Winauto

winauto.ua

Location and function of controls

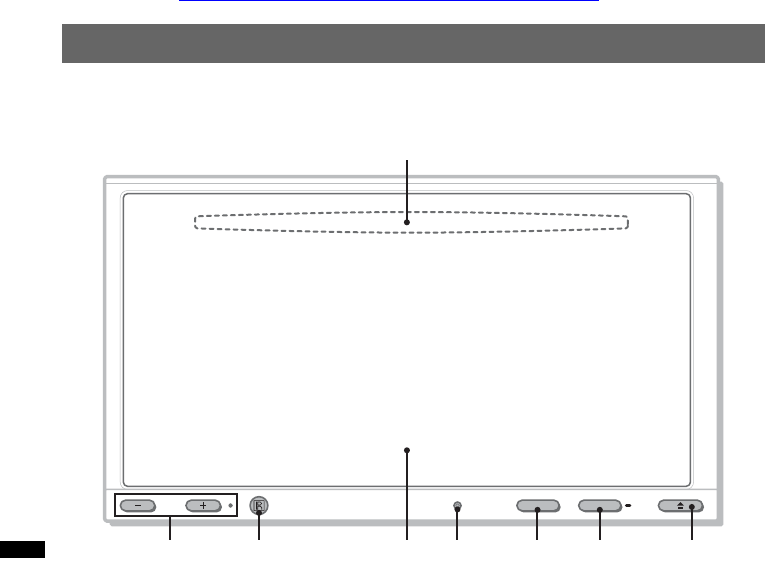

Main unit

For details, see the pages listed below.

ADisc slot (located behind the front panel)

page 17

BVOL (Volume) –/+* buttons

CReceptor for the remote commander

DDisplay/touch panel

EReset button page 14

FTOP button

Press to open the source list.

GSOURCE/OFF button

Press to turn on the power/change the source:

“Tuner” (Radio), “Disc,” “iPod/USB,”

“AUX” (Auxiliary equipment).

Press and hold for 1 second to exit the

source.

Press and hold for more than 2 seconds to

turn off.

HZ (Open/Close) button page 17

*There is a tactile dot to the right of the VOL + button.

VOL

TOP

OFFSOURCE

2 3 4 5

76 8

Car audio and car goods internet store Winauto

winauto.ua

Screen displays A“Source List” key

Touch to open the source list.

B“Top” key

Touch to open the source list.

CClock page 42, 45

D (Close) key

Touch to close the menu.

E“ATT” (Attenuate) key*

Touch to attenuate the sound. To cancel,

touch again.

F (Setting) key

Touch to open the setting menu.

G“M.OFF” (Monitor off) key

Touch to turn off the monitor and the button

illumination. To turn back on, touch

anywhere on the display.

HSource select keys

Touch to change the source: “Tuner”

(Radio), “Disc,” “AUX” (Auxiliary

equipment), “iPod/USB,” “SensMe™.”

*Appears only when a source is selected.

Source List

10:00 AM

Top

ATT

SensMe™

Disc AUX

iPod/USB

M.OFF

Tun er

45 67

When no source is selected:

Source list:

Car audio and car goods internet store Winauto

winauto.ua

RM-X170 Remote Commander

• The remote commander can be used to operate

the audio controls. For menu operations, use

the touch panel.

• For details, see the pages listed below.

• Remove the insulation film before use

(page 14).

AOFF button

Press to exit the source/stop the source.

Press and hold to turn off.

BMONITOR OFF button

Press to turn off the monitor and the button

illumination. To turn back on, press again.

CPOSITION button

Press to switch the listening position (“Front

L”/“Front R”/“Front”/“All”/“Custom”/

“OFF”).

DO (Return) button

Press to return to the previous display/return

to the menu on a VCD*1.

EEQ (Equalizer) button

Press to select an equalizer curve from 7

music types (“Xplod”/“Vocal”/“Edge”/

“Cruise”/“Space”/“Gravity”/“Custom”/

“OFF”).

FNumber buttons page 23

Radio:

Press to receive stored stations.

Press and hold to store stations.

Disc/USB:

Press to locate a title/chapter/track.

GCLEAR button

Press to delete an entered number.

HATT (Attenuate) button

Press to attenuate the sound. To cancel, press

again.

Iu (Play/Pause) button

Car audio and car goods internet store Winauto

winauto.ua

J.m/M> buttons

Radio:

Press to tune to stations automatically.

Press and hold to find a station manually.

Disc*2/USB:

Press to skip a chapter/track/scene/file.

Press and hold momentarily to reverse/

fast-forward video.

Press and hold to reverse/fast-forward a

track.

KDVD playback setting buttons

(AUDIO):

Press to change the audio language/format.

(For a VCD/CD/MP3/WMA/AAC/MPEG-

4, to change the audio channel.)

(SUBTITLE):

Press to change the subtitle language.

(ANGLE):

Press to change the viewing angle.

(TOP MENU):

Press to open the top menu on a DVD.

(MENU):

Press to open the menu on a disc.

LZAP button

Press to enter ZAPPIN™ mode.

M</M/m/, (Cursor)/ENTER buttons

page 17

Press to control the menu on a DVD.

NSRC (Source) button

Press to turn on/change the source: “Tuner”

(Radio), “Disc,” “iPod/USB,” “AUX”

(Auxiliary equipment).

OMODE button

Press to select the radio band (FM/AM)/

select an auxiliary device (AUX1/AUX2)*3.

PVOL (Volume) +/– buttons

*1 When playing with PBC functions.

*2 Operation differs depending on the disc (page 18).

*3 When two auxiliary devices are used.

Note

The remote commander will not operate when the unit

is turned off and the display has disappeared. Press

(SOURCE/OFF) on the main unit, or insert a disc to

activate the unit and enable operation via the remote

commander.

Car audio and car goods internet store Winauto

winauto.ua

Getting Started

Resetting the unit

Before operating the unit for the first time, or

after replacing the car battery or changing the

connections, you must reset the unit.

Press the reset button (page 10) with a pointed

object, such as a ballpoint pen.

Note

Pressing the reset button will erase the clock setting

and some stored contents.

Performing initial settings

After resetting, the display for the initial settings

appears. (The following illustration is for East

Asia models.)

1Touch “Subwoofer” to set the

subwoofer connection status.

Set to “ON” if a subwoofer is connected, or

“OFF” if not.

2Touch “Listening Position” to set the

listening position.

Set to “Front L” if your listening position is

front left, or “Front R” if front right.

3Touch “Name Character”/“Language”

to set the character encoding/display

language.

Touch repeatedly until the desired character

encoding/display language appears.

For East Asia models, select the character

encoding.

For Middle East models, select the display

language.

4Touch “OK.”

The setting is complete.

This setting can then be further configured in the

setting menu.

• For details on setting the subwoofer connection

status, see page 41.

• For details on setting the listening position, see

“Optimizing sound for the listening position —

Intelligent Time Alignment” on page 33.

• For details on setting the character encoding,

see page 38.

• For details on setting the display language, see

page 38.

Note

For East Asia models, some characters may not be

displayed correctly, depending on the language/

country/region.

Preparing the remote

commander

Before using the remote commander for the first

time, remove the insulation film.

Initial Setting

Subwoofer

Listening Position

Name Character

OFF / ON

Front L / Front R

Chinese

Car audio and car goods internet store Winauto

winauto.ua

Radio

Listening to the radio

1Touch “Source List,” then “Tuner.”

The radio reception display appears, and the

preset list is displayed automatically.

2Touch “Band.”

The band list appears.

3Touch the desired band (“FM1,” “FM2,”

“FM3,” “AM1,” or “AM2”).

Touch “Band” again to close the band list.

4Perform tuning.

To tune automatically

Touch ./>.

Scanning stops when the unit receives a

station. Repeat this procedure until the

desired station is received.

To tune manually

Touch m/M repeatedly until the desired

frequency is received.

To skip frequencies continuously, touch and

hold m/M.

Reception controls

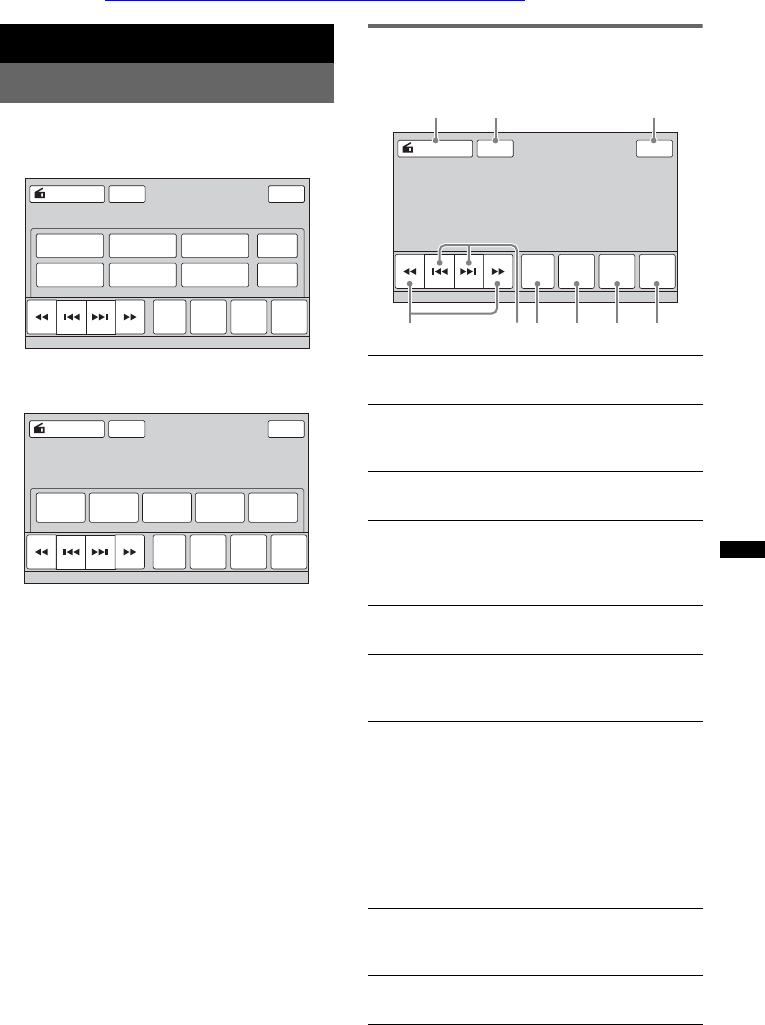

Touch the display if the reception controls are not

displayed.

ATTSource List

Band Receive

Preset

List

PTY

List

Top

P1 P2 P3 BTM

Memory

P4 P5 P6

ATT

Band

FM1

Receive

Preset

List

FM2 FM3 AM2

PTY

List

Top

AM1

Source List

1“Source List”

Touch to open the source list. (page 11)

2“ATT”

Touch to attenuate the sound. To cancel,

touch again.

3“Top”

Touch to open the source list. (page 11)

4m/M

Touch to tune manually.

Touch and hold to continuously skip

frequencies.

5./>

Touch to tune automatically.

6“Band”

Touch to open the band list and change

the band.

7“Receive Menu”

Touch to open the receive menu, which

contains the following items.

•“Mono”: Touch to activate monaural

mode if FM reception is poor. To restore

stereo reception, select “OFF.”

•“Local”: Touch to tune only to stations

with strong signals. To tune normally,

select “OFF.”

8“Preset List”

Touch to list up stored stations, or store

stations. (page 16)

9“PTY List”

Touch to open the PTY list. (page 17)

ATT

Band Receive

Preset

List

PTY

List

Top

Source List

456

2 3

7 8 9

Car audio and car goods internet store Winauto

winauto.ua

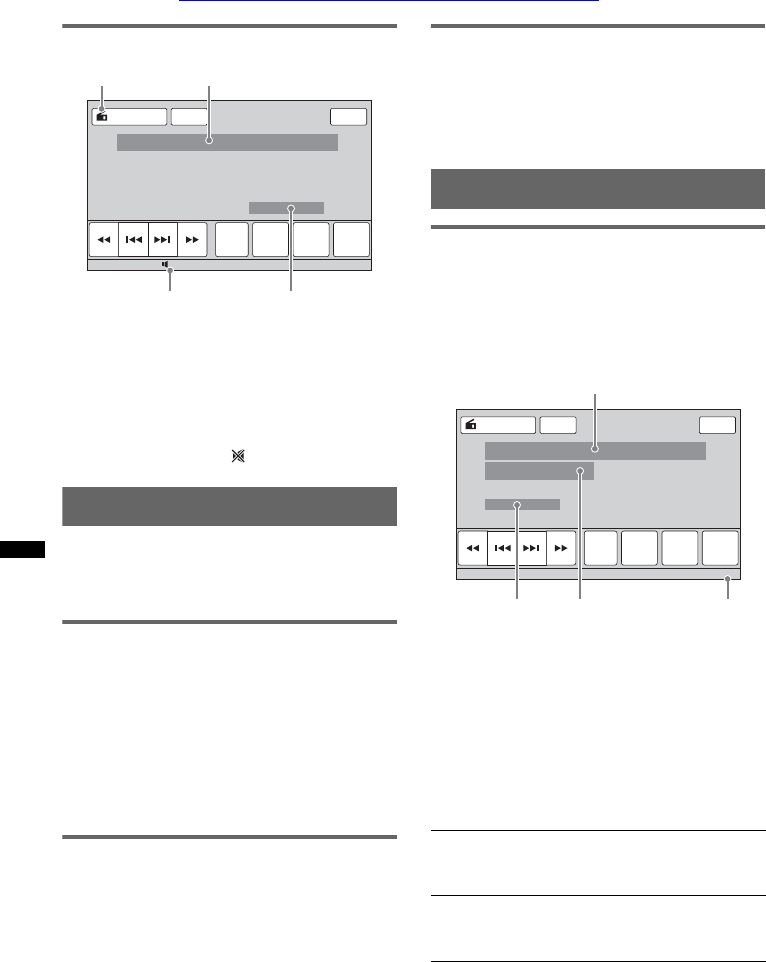

Reception indications

ACurrent source icon*1

BBand name, preset number*2, frequency/

status

CVolume level*3

DSetting status (EQ7, RBE)

*1 Appears only when the controls are displayed.

*2 Appears only when a preset station is received.

*3 When ATT is activated, appears.

Storing and receiving stations

Caution

When tuning to stations while driving, use Best

Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1Touch “Source List,” then “Tuner.”

To change the band, touch “Band,” then select

the desired band (“FM1,” “FM2,” “FM3,”

“AM1,” or “AM2”).

2Touch “Preset List,” then “BTM.”

The unit stores the first six available stations

in the preset list (“P1” to “P6”).

A beep sounds when the setting is stored.

Storing manually

1While receiving the station that you

want to store, touch “Preset List.”

2Touch “Memory,” then touch a number

in the list (“P1” to “P6”).

The number and the confirmation display

appear.

3Touch “Yes.”

The station is stored.

Note

If you try to store another station to the same number,

the previously stored station will be replaced.

Receiving stored stations

1Select the band, then touch “Preset

List.”

2Touch the desired number (“P1” to

“P6”).

RDS

Overview

FM stations with Radio Data System (RDS)

service send inaudible digital information along

with the regular radio program signal.

Display items

ABand name, preset number, frequency

BStereo*1, RDS*2

CProgram service name

DClock

*1 During FM reception.

*2 During RDS reception.

RDS services

This unit automatically provides RDS services as

follows:

Notes

•Depending on the country/region, not all RDS

functions may be available.

•RDS will not work if the signal strength is too weak,

or if the station you are tuned to is not transmitting

RDS data.

ATT

Band Receive

Preset

List

PTY

List

Top

Source List

PTY (Program Types)

Displays the currently received program type.

Also searches for a designated program type.

CT (Clock Time)

The CT data from the RDS transmission sets

the clock.

ATT

Band Receive

Preset

List

PTY

List

Top

10:00 AM

Source List

Car audio and car goods internet store Winauto

winauto.ua

Selecting PTY

1During FM reception, touch “PTY List.”

The PTY list appears if the station is

transmitting PTY data.

To scroll the list, touch v/V.

2Touch the desired program type.

The unit searches for a station broadcasting

the selected program type.

To close the PTY list, touch “PTY List.”

Type of programs

Notes

•You cannot use this function in countries/regions

where no PTY data is available.

•You may receive a different radio program from the

one you select.

Setting CT

1Set “CT” to “ON” in setting (page 38).

Notes

•The CT function may not work even though an RDS

station is being received.

•There may be a difference between the time set by

the CT function and the actual time.

Discs

Playing discs

Depending on the disc, some operations may be

different or restricted.

Refer to the operating instructions supplied with

your disc.

1Press Z on the main unit.

The front panel opens automatically.

2Insert the disc (label side up).

The front panel closes automatically, then

playback starts.

If the DVD menu appears

Touch the item in the DVD menu.

You can also use the menu control panel, which

can be displayed by touching outside of the DVD

menu. Touch b/v/V/B to move the cursor, then

touch “Enter” to confirm.

If the menu control panel does not appear by

touching the display, use the remote commander.

About the DVD menu

A DVD is divided into several sections, which make up

a picture or music feature. These sections are called

“titles.” When you play a DVD that contains several

titles, you can select a desired title using the DVD’s top

menu. For DVDs that allow you to select items such as

subtitle/sound language(s), select these items using

the DVD menu.

If the disc contains JPEG files

The slide show starts automatically.

To stop playback

Press and hold (SOURCE/OFF) for 1 second.

Note

Discs in DTS format are not supported. The sound is

not output if the DTS format is selected.

To eject the disc

1Press Z on the main unit.

The front panel opens automatically, then the

disc is ejected.

2Press Z on the main unit to close the

front panel.

Note

The front panel closes automatically after the caution

alarm sounds.

“News” (News), “Current Affairs” (Current

Affairs), “Information” (Information),

“Sport” (Sports), “Education” (Education),

“Drama” (Drama), “Cultures” (Culture),

“Science” (Science), “Varied Speech”

(Varied), “Pop Music” (Pop Music), “Rock

Music” (Rock Music), “Easy Listening”

(M.O.R. Music), “Light Classics M” (Light

classical), “Serious Classics” (Serious

classical), “Other Music” (Other Music),

“Weather & Metr” (Weather), “Finance”

(Finance), “Children’s Progs” (Children’s

program), “Social Affairs” (Social Affairs),

“Religion” (Religion), “Phone In” (Phone

In), “Travel & Touring” (Travel), “Leisure &

Hobby” (Leisure), “Jazz Music” (Jazz

Music), “Country Music” (Country Music),

“National Music” (National Music), “Oldies

Music” (Oldies Music), “Folk Music” (Folk

Music), “Documentary” (Documentary)

Car audio and car goods internet store Winauto

winauto.ua

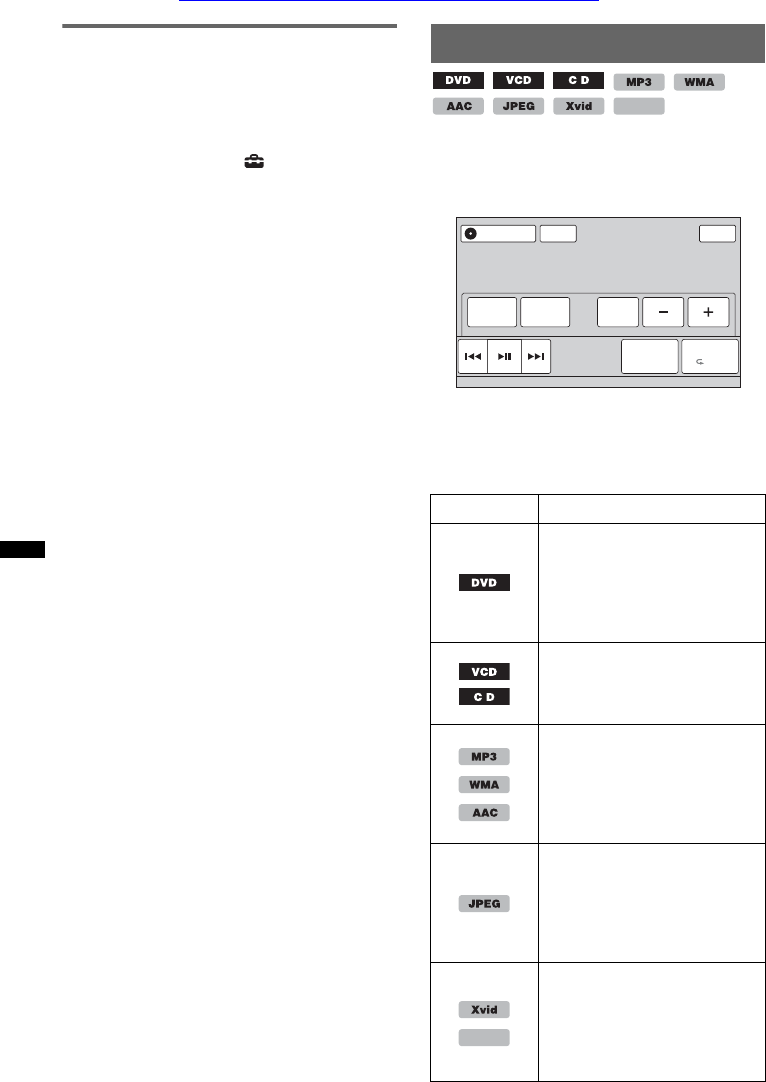

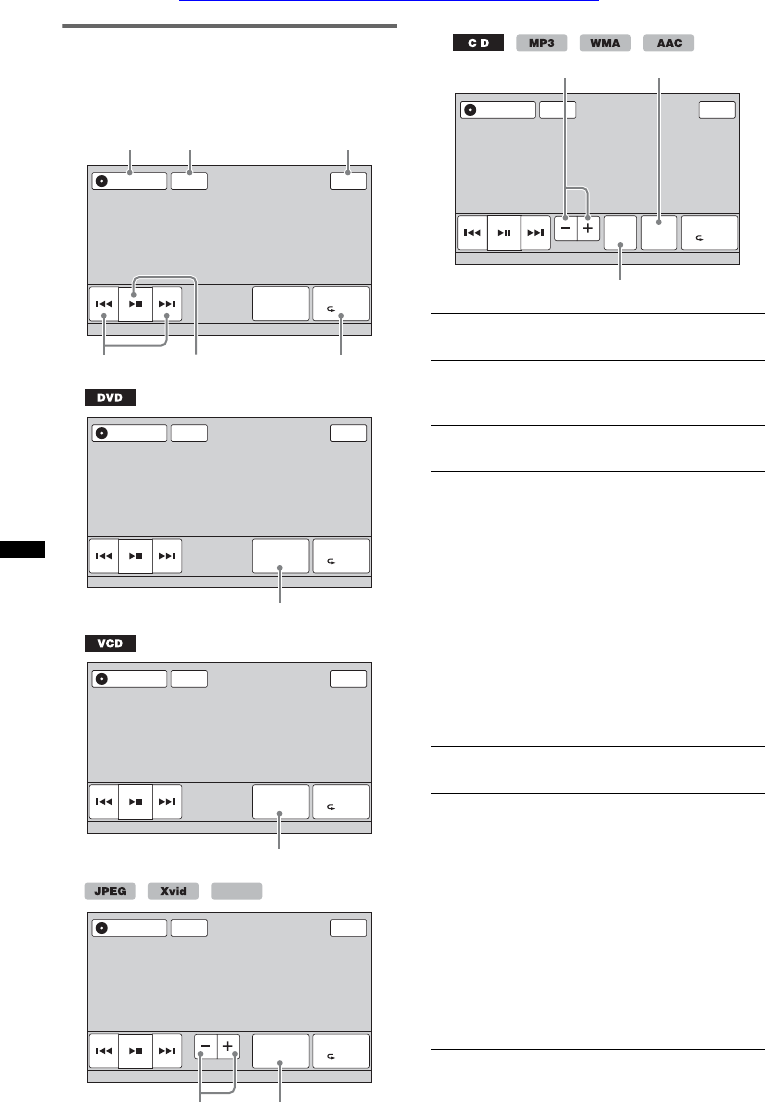

Playback controls

Touch the display if the playback controls are not

displayed.

ATT Top

Play Menu

SHUF

DVD

Control

Source List

2 3

Common to all discs/formats

ATT Top

Play Menu

SHUF

DVD

Control

Source List

ATT Top

Play Menu

SHUF

PBC Panel

Source List

ATT

Album

Top

Play Menu

SHUF

List

Source List

MPEG-4

1“Source List”

Touch to open the source list. (page 11)

2“ATT”

Touch to attenuate the sound. To cancel,

touch again.

3“Top”

Touch to open the source list. (page 11)

4./>

Touch to skip a chapter/track/scene/

image/file.

Touch and hold momentarily to reverse/

fast-forward the video; and then

repeatedly to switch the speed (× 2 t

×12 t × 120 t ×2…)*

1. To cancel,

touch u.

Touch and hold to reverse/fast-forward

the audio track.

During pause, touch and hold down >

to play the video in slow motion. To

cancel, release the key.

Touch to pause/resume play after pause.

6“Play Menu”

Touch to open the play menu, which

contains the following items.

•“Repeat”/“Shuffle” (page 22)

•“Dolby D Level” (DVD VIDEO

playback only) (page 21)

•“Stereo” (VCD/CD/MP3/WMA/AAC

playback only) (page 21)

•“Image Turn” (JPEG playback only):

Touch to rotate an image left/right.

•“Audio” (Xvid/MPEG-4 playback

only) (page 21)

ATT

Album

Top

Play Menu

SHUF

List

Source List

ZAP

Car audio and car goods internet store Winauto

winauto.ua

*1 The speed depends on the format or the recording

method.

*2 Availability depends on the disc.

*3 When the 4-digit input prompt appears, input the

language code (page 56) for the desired language.

Note

If the disc contains multiple file types, only the

selected file type (audio/video/image) can be played.

For details on how to select the file type, see

“Selecting a file type” on page 31.

Notes on JPEG playback

•If a large-sized image is rotated, it may take longer

to display.

•Progressive JPEG files cannot be displayed.

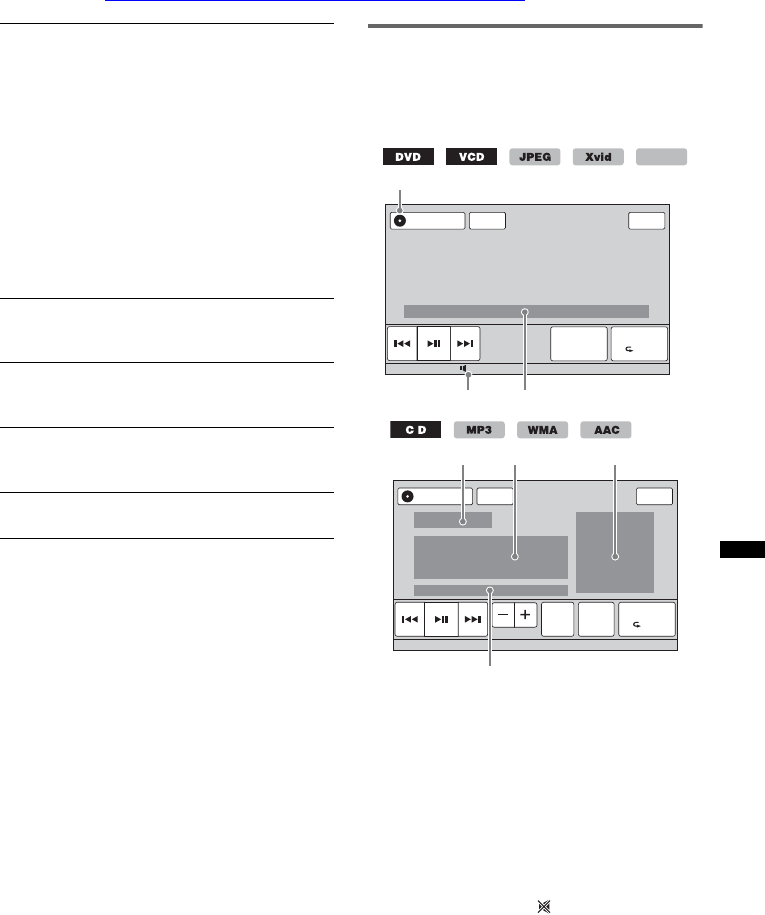

Playback indications

Touch the display if the indications are not

displayed.

For audio discs, some indications are always

displayed during playback.

ACurrent source icon

BVolume level*1

CFormat, playback status, elapsed playback

time*2, chapter/title/album (folder)/track

number*3*4, audio format*5, setting status

(CSO, EQ7, RBE)

DPlayback status, elapsed playback time*2

ETrack name, album name, artist name

FAlbum artwork display*6

GFormat, track number, album number*7,

setting status (CSO, EQ7, RBE)

*1 When ATT is activated, appears.

*2 During JPEG playback or VCD playback with PBC

functions, no indication appears.

*3 Indications differ depending on the disc/format.

*4 When playing a VCD with PBC functions

(page 20), no indication appears.

*5 DVD only.

*6 The recommended size is from 240 × 240 to 960 ×

960 pixels.

*7 MP3/WMA/AAC only.

7“DVD Control”

Touch to open the DVD control menu,

which contains the following items.

•“Audio”: Touch repeatedly to select

the audio language/format. (page 20)*2

•“Subtitle”: Touch repeatedly to turn

off/select the subtitle language.*2*3

•“Angle”: Touch repeatedly to change

the viewing angle.*2

•“Top Menu”: Touch to open the top

menu on the DVD.*2

•“Menu”: Touch to open the menu on

the disc.*2

8“PBC Panel”

Touch to display the control panel for the

PBC menu. (page 20)

9“Album” –/+

Touch to skip an MP3/WMA/AAC/JPEG/

Xvid/MPEG-4 album (folder).

0“List”

Touch to list up tracks/images/video files.

(page 31)

qa “ZAP”

Touch to enter ZAPPIN mode. (page 31)

ATT Top

Play Menu

SHUF

DVD

Control

Source List

B C

MPEG-4

ATT

Album

Top

Play Menu

SHUF

List

Source List

D E F

ZAP

Car audio and car goods internet store Winauto

winauto.ua

Using PBC (playback control)

functions

The PBC menu interactively assists with

operations while a PBC-compatible VCD is

played.

1Start playing a PBC-compatible VCD.

The PBC menu appears.

2Touch “PBC Panel.”

The menu control panel appears.

3Touch the number keys to select the

desired item, then touch “Enter.”

4Follow the instructions in the menu for

interactive operations.

To return to the previous display, press O.

To hide the controls, touch “Close.”

Playing without PBC functions

1While no source is selected, touch

“Source List,” then .

2Touch “Visual.”

The visual setting menu appears.

3Touch v/V to scroll, then touch “Video

CD PBC” to set to “OFF.”

4Start playing a VCD.

The PBC menu does not appear during

playback.

Notes

•The items on the menu, and operation procedures

differ depending on the disc.

•During PBC playback, the track number, playback

item, etc., do not appear on the playback display.

•Resume playback is unavailable during playback

without PBC.

Configuring audio settings

Note

Discs in DTS format are not supported. The sound is

not output if the DTS format is selected.

Changing the audio language/

format

The audio language can be changed if the disc is

recorded with multilingual tracks. You can also

change the audio format when playing a disc

recorded in multiple audio formats (e.g., Dolby

Digital).

1During playback, touch “DVD Control.”

2Touch “Audio” repeatedly until the

desired audio language/format

appears.

The audio language switches among the

available languages.

When the 4-digit input prompt appears, input

the language code (page 56) for the desired

language.

When the same language is displayed two or

more times, the disc is recorded in multiple

audio formats.

*The format name and channel numbers appear as

follows:

Example: Dolby Digital 5.1 ch

To close the DVD control menu, touch “DVD

Control.”

ATT Top

Play Menu

SHUF

DVD

Control

Source List

Audio Subtitle Angle MenuTop Menu

Audio 1: English Dolby D 3/2.1

Audio language

Audio format/channel numbers*

Dolby D 3 / 2 . 1

Rear channel × 2

Front channel × 2 +

Center channel × 1

LFE channel × 1

Car audio and car goods internet store Winauto

winauto.ua

Changing the audio channel

When playing a VCD/CD/MP3/WMA/AAC/

Xvid/MPEG-4, you can listen to both the right

and left channel, only the right channel, or only

the left channel via both the right and left

speakers.

The options are indicated below.

“2-Ch”: Standard stereo sound (default)

“L-Ch”: Left channel sound (monaural)

“R-Ch”: Right channel sound (monaural)

For VCD/CD/MP3/WMA/AAC

1During playback, touch “Play Menu,”

then “Stereo” repeatedly until the

desired audio channel appears.

For Xvid/MPEG-4

1During playback, touch “Play Menu,”

then “Audio” repeatedly until the

desired audio channel appears.

To close the play menu, touch “Play Menu.”

Note

You may not be able to change the audio setting

depending on the disc.

Tip

Operation via the remote commander by pressing

(AUDIO) repeatedly is also available.

Adjusting the audio output level

— Dolby D level

You can adjust the audio output level for a DVD

recorded in Dolby Digital format, to reduce the

volume level differences between discs.

1During playback, touch “Play Menu.”

2Touch the “Adjust” box to set to “ON.”

3Touch –/+ repeatedly to adjust the

output level.

The output level is adjustable in single steps,

between –10 and +10.

To close the play menu, touch “Play Menu.”

Locking discs

— Parental control

*Excluding DVD-R/DVD-R DL/DVD-RW in VR mode.

You can lock a disc, or set playback restrictions

according to a predetermined level such as

viewer age. Restricted scenes can be blocked or

replaced with different scenes when a parental

control-compatible DVD is played.

Activating parental control

1While no source is selected, touch

“Source List,” then .

2Touch “Visual.”

The visual setting menu appears.

3Touch v/V to scroll, then touch “DVD

Parental Control.”

The password setting display appears.

4Touch the number keys to enter your

password, then touch “OK.”

5To confirm, touch the number keys to

reenter your password, then touch

“OK.”

The setting is complete.

To delete an entered number, touch “Clear.”

To return to the previous display, touch “Back.”

Deactivating parental control

1Follow steps 1 to 3 above.

The parental unlock display appears.

2Touch the number keys to enter your current

password.

“Parental Unlocked” appears, and the parental

control is deactivated.

Changing the password

Deactivate the parental control, then activate

again using the new password.

MPEG-4

Car audio and car goods internet store Winauto

winauto.ua

Changing the area and its movie

rating level

The restriction levels can be set based on the area

and its movie ratings.

1While no source is selected, touch

“Source List,” then .

2Touch “Visual.”

The visual setting menu appears.

3Touch v/V to scroll, then touch “DVD

Parental Area.”

When parental control is already activated,

the display to enter your password appears.

To change the setting, enter your password.

The options appear.

4Touch the desired area to apply its

movie ratings.

When you select “Other,” enter the area code

by selecting from “Area code list” on page 56

using the number keys.

5Touch “DVD Parental Rating.”

The options appear.

The lower the number, the stricter the

restriction level.

6Touch the desired rating.

The setting is complete.

To return to the previous display, touch “Back.”

Repeat and shuffle play

1During playback, touch “Play Menu,”

then the “Repeat” or “Shuffle” box

repeatedly until the desired option

appears.

Repeat or shuffle play starts.

To close the play menu, touch “Play Menu.”

The repeat options and switching order of each

disc/format are indicated below.

Disc/format Options

“OFF”: Returns to normal play

mode.

“Chapter”: Repeats the

current chapter.

“Title”: Repeats the current

title.

*1“OFF”: Returns to normal play

mode.

“Track”: Repeats the current

track.

“OFF”: Returns to normal play

mode.

“Track”: Repeats the current

track.

“Album”: Repeats the current

album (folder).

“OFF”: Returns to normal play

mode.

“Image”: Repeats the current

image.

“Album”: Repeats the current

album.

“OFF”: Returns to normal play

mode.

“Movie”: Repeats the current

video file.

“Album”: Repeats the current

album (folder).

MPEG-4

ATT Top

Play Menu

SHUF

DVD

Control

Source List

Chapter OFF ON

Repeat Shuffle Adjust Dolby D Level 0

MPEG-4

Car audio and car goods internet store Winauto

winauto.ua

The shuffle options and switching order of each

disc/format are indicated below.

*1 Available only when playing a version 1.0/1.1 VCD,

or a version 2.0 VCD without PBC functions.

*2 Excluding a DVD-R/DVD-R DL/DVD-RW in VR

mode.

Direct search play

You can directly locate a desired point by

specifying the title number, chapter number, etc.

1During playback, press the number

buttons on the remote commander to

enter an item (track, title, etc.) number,

then press (ENTER).

Playback starts from the beginning of the

selected point.

The search items for a disc/format are as follows:

DVD: Title or chapter*1

VCD*2/CD/MP3/WMA/AAC: Track

JPEG: Image

Xvid/MPEG-4: Movie

*1 The search item depends on the setting.

*2 Available only when playing a VCD without PBC

functions.

Setting the search item (DVD only)

You can set the search item (title or chapter) for

DVD playback.

1Touch “Source List,” then touch .

2Touch “Visual.”

The visual setting menu appears.

3Touch v/V to scroll, then touch “DVD

Direct Search” to set to “Chapter” or

“Title.”

The setting is complete.

To return to the previous display, touch “Back.”

Disc/format Options

“OFF”: Returns to normal play

mode.

“Title”: Plays chapters in the

current title in random order.

*1“OFF”: Returns to normal play

mode.

“Disc”: Plays tracks in the

current disc in random order.

“OFF”: Returns to normal play

mode.

“Album”: Plays tracks/images/

video files in the current album

(folder) in random order.

MPEG-4

Car audio and car goods internet store Winauto

winauto.ua

USB Device Operations

For details on the compatibility of your USB

device, visit the support site.

• MSC (Mass Storage Class) and MTP (Media

Transfer Protocol) type USB devices compliant

with the USB standard can be used.

• Compatible codecs are MP3 (.mp3), WMA

(.wma), AAC (.m4a), JPEG (.jpg), Xvid (.avi),

and MPEG-4 (.mp4).

• Backup of data in a USB device is

recommended.

Notes

•Connect the USB device after starting the engine.

Depending on the USB device, malfunction or

damage may occur if it is connected before starting

the engine.

•A large-sized file may take time to start playing.

Playing from a USB device

1Remove the cap from the USB

connector, and connect the USB

device to the USB connector.

Playback starts automatically.

If a USB device is already connected, touch

“Source List,” then “iPod/USB” to start

playback.

For details on the location of the USB connector,

refer to the supplied “Installation/Connections”

guide.

About the playback controls and

indications

You can control USB playback in the same way

as disc playback. For details, see “Playback

controls” on page 18.

For details on playback indications, see

“Playback indications” on page 19.

To stop playback

Press and hold (SOURCE/OFF) for 1 second.

To disconnect the USB device

Stop playback, then disconnect.

Do not disconnect during playback, as data in the

USB device may be damaged.

Notes on use

•Do not use USB devices so large or heavy that they

may fall down due to vibration, or cause a loose

connection.

•Do not leave a USB device in a parked car, as

malfunction may result.

•This unit cannot recognize USB devices via a USB

hub.

•Be sure to use the USB cable supplied with the

device if a cable is needed when making a USB

connection.

Notes on playback

•If a USB device contains multiple file types, only the

selected file type (audio/video/image) can be played.

For details on how to select the file type, see

“Selecting a file type” on page 31.

•Displayed indications will differ, depending on the

USB device, recorded format and settings. For

details, visit the support site.

•The maximum number of displayable data is as

follows:

– folders (albums): 256

– files (tracks): 2,000

•It may take time for playback to begin, depending on

the amount of recorded data.

•DRM (Digital Rights Management) files may not be

played.

•During playback or reverse/fast-forward of a VBR

(Variable Bit Rate) MP3/WMA/AAC file, elapsed

playing time may not display accurately.

•Playback of a lossless compression file is not

supported.

Repeat and shuffle play

1During playback, touch “Play Menu,”

then the “Repeat” or “Shuffle” box

repeatedly until the desired option

appears.

Repeat or shuffle play starts.

The repeat options are as follows:

The shuffle options are as follows:

*1 Options depend on the file type.

*2 When two or more drives exist on the USB device.

To close the play menu, touch “Play Menu.”

Support site

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/

“OFF”: Returns to normal play mode.

“Track”/“Image”/“Movie”*1: Repeats the

current track/image/video file.

“Album”: Repeats the current album (folder).

“Drive”*2: Repeats the current drive.

“OFF”: Returns to normal play mode.

“Album”: Plays tracks/images/video files in the

current album (folder) in random order.

Car audio and car goods internet store Winauto

winauto.ua

Enjoying music according to

your mood — SensMe™

Sony’s unique “SensMe™ channels” and

“SensMe™ mood” features automatically group

tracks by channel or mood, and allow you to

enjoy music intuitively.

Before using the SensMe™

function

The following is the basic procedure required to

enjoy the SensMe™ function on the unit.

1Installing “SensMe™ Setup” and

“Content Transfer” to your computer

First install “SensMe™ Setup” and “Content

Transfer” from the supplied CD-ROM.

2Registering a USB device using

“SensMe™ Setup”

Connect a USB device to your computer, and

perform registration using “SensMe™ Setup”

to enable the SensMe™ function on this unit.

Tip

Registration can be performed either along with the

installation procedure or after installation.

3Transferring tracks to the USB device

using “Content Transfer”

In order to group tracks by channel or mood,

track sound patterns need to be analyzed by 12

TONE ANALYSIS, which is loaded with

“Content Transfer.”

With the USB device connected to your

computer, drag and drop tracks from Windows

Explorer or iTunes, etc., to “Content

Transfer.”

Both analysis and transfer of tracks will be

performed by “Content Transfer.”

4Connecting the USB device and

enjoying the SensMe™ function on the

unit

Connect the set up USB device. You can then

enjoy “SensMe™ channels” or “SensMe™

mood” on this unit.

Installing “SensMe™ Setup” and

“Content Transfer” on your

computer

Use of the supplied software (“SensMe™ Setup”

and “Content Transfer”) is required to enable the

SensMe™ function on this unit.

Install the software to your computer from the

supplied CD-ROM.

1Insert the supplied CD-ROM into your

computer.

The Installation Wizard runs automatically.

2Follow the on-screen instructions to

complete the installation.

Content

Transfer

SensMe™

Setup

SensMe™

Setup

Content

Transfer

SensMe™

Car audio and car goods internet store Winauto

winauto.ua

Registering a USB device using

“SensMe™ Setup”

USB device registration is required to enable the

SensMe™ function on the unit.

If registration is not performed along with the

installation procedure, follow the steps below.

1Start “SensMe™ Setup” on your

computer.

2Connect a USB device to your

computer.

3Complete registration following the

on-screen instructions.

Tip

If you connect a registered USB device containing

analyzed tracks, the USB device can be unregistered

again.

Transferring tracks to the USB

device using “Content Transfer”

To enable the SensMe™ function on this unit,

tracks need to be analyzed and transferred to the

registered USB device using “Content Transfer.”

1Connect the registered USB device to

your computer.

For “WALKMAN,” connect via MTP mode.

For USB devices other than “WALKMAN,”

connect via MSC mode.

“Content Transfer” starts automatically.

If a message appears, follow the on-screen

instructions to proceed.

2Drag and drop tracks from Windows

Explorer or iTunes, etc., to “Content

Transfer.”

The analysis and transfer of tracks starts.

For details on operations, refer to the Help of

“Content Transfer.”

Note

The track analysis by 12 TONE ANALYSIS may take

time, depending on the computer environment.

Tip

Not only audio files but also image or video files can

be transferred using “Content Transfer.” For details,

refer to the Help of “Content Transfer.”

Playing tracks in channels

— SensMe™ channels

“SensMe™ channels” automatically group tracks

into channels by their tunes. You can select and

play a channel that fits your mood, activity, etc.

1Connect a USB device set up for the

SensMe™ function.

2Touch “Source List,” then “SensMe™.”

3Touch “channels.”

The channel list appears.

4Touch v/V to scroll the channel list.

Playback of the first track in the current

channel starts from the track’s most melodic

or rhythmical section*.

*May not be detected correctly.

5Touch the desired channel.

Playback of tracks in the selected channel

starts.

Notes

•Depending on the track, it may not be detected

correctly or may be grouped in a channel not suited

to the track’s mood.

•If the connected USB device contains many tracks, it

may take time for “SensMe™ channels” to start, due

to data reading.

Tip

Tracks are played in random order. The order will vary

with each channel selection.

Shuffle All

Relax

Energetic

ZAP

Car audio and car goods internet store Winauto

winauto.ua

Channel list

xRecommended, Shuffle All

xBasic channels

Plays tracks according to the music type.

xIn-car channels

Plays tracks that are suitable while driving.

“SensMe™ channels” playback

controls and indications

ATo display the control keys: “Source List,”

“ATT,” “Top.” (page 18)

BTo scroll the list and select another channel.

CIndicates the current channel.

DIndicates the album artwork display*1.

EIndicates the elapsed playback time, track

name and artist name.

FTo pause/resume play after pause.

GTo skip a track.

HTo enter ZAPPIN mode. (page 31)

During ZAPPIN playback of “SensMe™

channels,” the most melodic or rhythmical

sections*2 of the tracks are played.

*1 The recommended size is from 240 × 240 to 960 ×

960 pixels.

*2 May not be detected correctly.

“Morning” (5:00 AM – 9:59 AM)

“Daytime” (10:00 AM – 3:59 PM)

“Evening” (4:00 PM – 6:59 PM)

“Night” (7:00 PM – 11:59 PM)

“Midnight” (12:00 AM – 4:59 AM)

Plays tracks recommended for each time of day.

Set the clock (page 45) for the channel to be

displayed accurately.

“Shuffle All”: Plays all analyzed tracks in

random order.

“Energetic”: High-spirit tracks.

“Relax”: Calm tracks.

“Mellow”: Mellow, melancholy tracks.

“Upbeat”: Happy tracks to improve your

mood.

“Emotional”: Ballad tracks.

“Lounge”: Lounge tracks.

“Dance”: Rhythm and rap, rhythm and blues

tracks.

“Extreme”: Intense rock tracks.

“Freeway”: Speedy, high-spirit tracks.

“Chillout Drive”: Intoned, healing ballad

tracks.

“Weekend Trip”: Delightful, bright and happy

tracks.

“Midnight Cruise”: Jazz or piano-featured

tracks with a mature mood.

“Party Ride”: Up-tempo and lively tracks.

“Morning Commute”: Bright and breezy

tracks.

“Goin’ Home”: Warm and relaxing tracks.

Shuffle All

Relax

Energetic

ZAP

A C D E

HGF

Car audio and car goods internet store Winauto

winauto.ua

Playing tracks in mood maps

— SensMe™ mood

“SensMe™ mood” distributes tracks as dots on a

two-axis mood map, based on the characteristics

of the individual tracks.

By touching the point on the map according to

your mood, a circle appears around the touched

point, and the tracks inside the circle are played.

1Connect a USB device set up for the

SensMe™ function.

2Touch “Source List,” then “SensMe™.”

3Touch “mood.”

The two-axis mood map appears.

4Touch the desired point on the map.

A circle appears around the touched point,

and playback of tracks inside the circle starts.

Playback of the first track starts from its most

melodic or rhythmical section*.

*May not be detected correctly.

Notes

•Only the 200 most recently transferred tracks using

“Content Transfer” are mapped.

•Depending on the track, it may not be detected

correctly or may be mapped in a position not suited

to the track’s mood.

•If the connected USB device contains many tracks, it

may take time for “SensMe™ mood” to start, due to

data reading.

Tips

•In the mood map, the currently played track is

indicated as a green dot.

•Tracks are played from the circle’s center outward.

“SensMe™ mood” playback controls

and indications

ATo display the control keys: “Source List,”

“ATT,” “Top.” (page 18)

BTo move the circle and regroup tracks.

CTo change the size of the circle: small,

medium, or large.

DIndicates the album artwork display*1.

EIndicates the elapsed playback time, track

name and artist name.

FTo change parameters on the horizontal axis.

GTo skip a track.

HTo pause/resume play after pause.

ITo enter ZAPPIN mode. (page 31)

During ZAPPIN playback of “SensMe™

mood,” the most melodic or rhythmical

sections*2 of the tracks are played.

*1 The recommended size is from 240 × 240 to 960 ×

960 pixels.

*2 May not be detected correctly.

Changing parameters on the

horizontal axis

In the mood map, you can change parameters on

the horizontal axis. Tracks are remapped

according to the characteristics of the

parameters.

Mood

Type

Style

Time ZAP

Fast

Slow

Sad Happy

Circle

Dots representing tracks

Do this To change parameters to

Touch “Mood” “Sad” – “Happy”

Touch “Type” “Acoustic” – “Electronic”

Touch “Style” “Soft” – “Hard”

Touch “Time” “Morning” – “Midnight”

Mood

Type

Style

Time ZAP

Fast

Slow

Sad Happy

A B C D E

IFGH

Car audio and car goods internet store Winauto

winauto.ua

iPod Operations

For details on the compatibility of your iPod, see

“About iPod” on page 49 or visit the support site.

In these Operating Instructions, “iPod” is used as

a general reference for the iPod functions on the

iPod and iPhone, unless otherwise specified by

the text or illustrations.

Playing an iPod

1Reduce the volume on this unit.

2Remove the cap from the USB

connector, and connect the iPod to the

USB connector.

Use of the optional USB connection cable

RC-202IPV is recommended.*1

For details, refer to the supplied “Installation/

Connections” guide.

The following display appears on the iPod

screen*2, then playback starts from the item

last played.

If an iPod is already connected, to start

playback, touch “Source List,” then “iPod/

USB.”

*1 To play videos from an iPod with video, use of

the RC-202IPV is required.

*2 May not appear in the case of an iPod touch or

iPhone being connected, or when the iPod was

last played using passenger control.

3Adjust the volume on this unit.

About playback controls and

indications

You can control iPod playback in the same way

as disc playback. For details, see “Playback

controls” on page 18.

For details on playback indications, see

“Playback indications” on page 19.

To stop playback

Press and hold (SOURCE/OFF) for 1 second.

To disconnect the iPod

Stop playback, then disconnect.

Do not disconnect during playback, as data in the

iPod may be damaged.

About resuming mode

When the iPod currently playing is connected to

the dock connector, the mode of this unit changes

to resuming mode and playback starts in the

mode set by the iPod.

In resuming mode, repeat/shuffle play are not

available.

Caution for iPhone

When you connect an iPhone via USB, telephone

volume is controlled by the iPhone itself. In order to

avoid emitting sudden loud sound after a call, do not

increase the volume on the unit during a call.

Note

This unit cannot recognize an iPod via a USB hub.

Tips

•When the ignition key is turned to the ACC position

with the unit on, the iPod will be recharged.

•If the iPod is disconnected during playback, “USB

device is not connected.” appears on the display of

the unit.

Setting the play mode

You can set one of the following play modes.

For audio playback

“ALBUM,” “TRACK,” “GENRE,”

“PLAYLIST,” “ARTIST,” “MUSIC

PODCAST”*

For video playback

“MOVIE,” “RENTAL,” “TV SHOW,” “MUSIC

VIDEO,” “VIDEO PLAYLIST,” “VIDEO

PODCAST”*

*May not appear depending on iPod setting.

1During playback, touch “List.”

2Touch “MUSIC” or “VIDEO.”

3Touch the desired play mode.

To start playback, touch the desired item(s) in

the list.

To scroll the list, touch v/V.

To skip items of the selected play

mode

During playback, touch –/+ of the selected play

mode.

Support site

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/

Car audio and car goods internet store Winauto

winauto.ua

Repeat and shuffle play

1During playback, touch “Play Menu,”

then the “Repeat” or “Shuffle” box

repeatedly until the desired option

appears.

Repeat or shuffle play starts.

To close the play menu, touch “Play Menu.”

The repeat options are as follows:

The shuffle options are as follows:

*Differs depending on the selected play mode.

Note

Displayed options may not conform to actual

operation.

Operating an iPod directly

— Passenger control

You can directly operate an iPod connected to

this unit.

1During playback, touch “Play Menu,”

then the “Passenger Control” box to

set to “ON.”

Deactivating the passenger control

Touch the “Passenger Control” box to set to

“OFF.”

The play mode changes to resuming mode.

To close the play menu, touch “Play Menu.”

Notes

•To output video to this unit, you need to activate the

video output of the iPod.

•The volume can be adjusted only by this unit.

•The repeat setting will be off if the passenger control

mode is canceled.

For audio playback

“OFF”: Returns to normal play mode.

“TRACK”: Repeats the current track.

“ALBUM”/“MUSIC PODCAST”/“ARTIST”/

“PLAYLIST”/“GENRE”*: Repeats the current

item of the selected play mode.

For video playback

“OFF”: Returns to normal play mode.

“TRACK”: Repeats the current video.

“RENTAL”/“TV SHOW”/“MUSIC VIDEO”/

“VIDEO PLAYLIST”/“VIDEO PODCAST”

Repeats the current item of the selected play

mode.

For audio playback

“OFF”: Returns to normal play mode.

“ALBUM”/“MUSIC PODCAST”/“ARTIST”/

“PLAYLIST”/“GENRE”*: Plays tracks of the

selected play mode in random order.

“Device”: Plays all tracks in an iPod in random

order.

Car audio and car goods internet store Winauto

winauto.ua

Useful Functions

Listing up tracks/images/video

files — List

Selecting a track/image/video file

You can list up albums/folders/tracks/images/

video files, and select a desired one to play.

This function is convenient especially for the

disc in MP3/WMA/AAC/JPEG/Xvid/MPEG-4

format or USB device containing many albums/

tracks, etc.

1During playback, touch “List.”

The list of categories or files from the

currently played item appears.

To move to the upper level, touch .

To scroll the list, touch v/V.

To jump pages, touch the page position bar.

2Touch the desired item.

Playback starts.

Selecting a file type

If the disc/USB device contains multiple file

types, only the selected file type (audio/video/

image) can be played. The playback priority

order of file type is initially set to audio, video,

then image (e.g., if the disc contains video files

and image files, only video files are played). You

can select the file type to list up, then select the

desired file to play.

1During playback, touch “List.”

2Touch , then “Audio,” “Image,” or

“Video” to select the file type.

3Touch the desired file.

Playback of the selected file starts.

Searching for a track by

listening to track passages

— ZAPPIN™

While playing short track passages from a disc or

USB device in sequence, you can search for a

track you want to listen to.

This function is convenient, for example, when

searching for a track in shuffle or shuffle repeat

mode.

1During audio playback, touch “ZAP.”

Playback starts from a passage of the next

track.

The passage is played for the set time, and a

beep sounds before the next passage starts.

2Touch “ZAP” when a track you want to

listen to is played.

The track that you select returns to normal

play mode from the beginning.

To search for a track via ZAPPIN mode

again, repeat steps 1 and 2.

In the case of “SensMe™ channels”

or “SensMe™ mood” playback

If you enter ZAPPIN mode during “SensMe™

channels” or “SensMe™ mood” playback, the

most melodic or rhythmical sections* of tracks

are played. For details on the SensMe™

function, see “Enjoying music according to your

mood — SensMe™” on page 25.

*May not be detected correctly.

Tips

•You can change the playback time (page 44), but

cannot select the track passage to play.

•You can deactivate the beep sound between track

passages (page 44).

MPEG-4

File 01

File 02

File 03

File 05

File 06

Contents List

1/5

File 04

Page position bar

MPEG-4

“ZAP”

touched.

The playback section of each

track in ZAPPIN mode.

Car audio and car goods internet store Winauto

winauto.ua

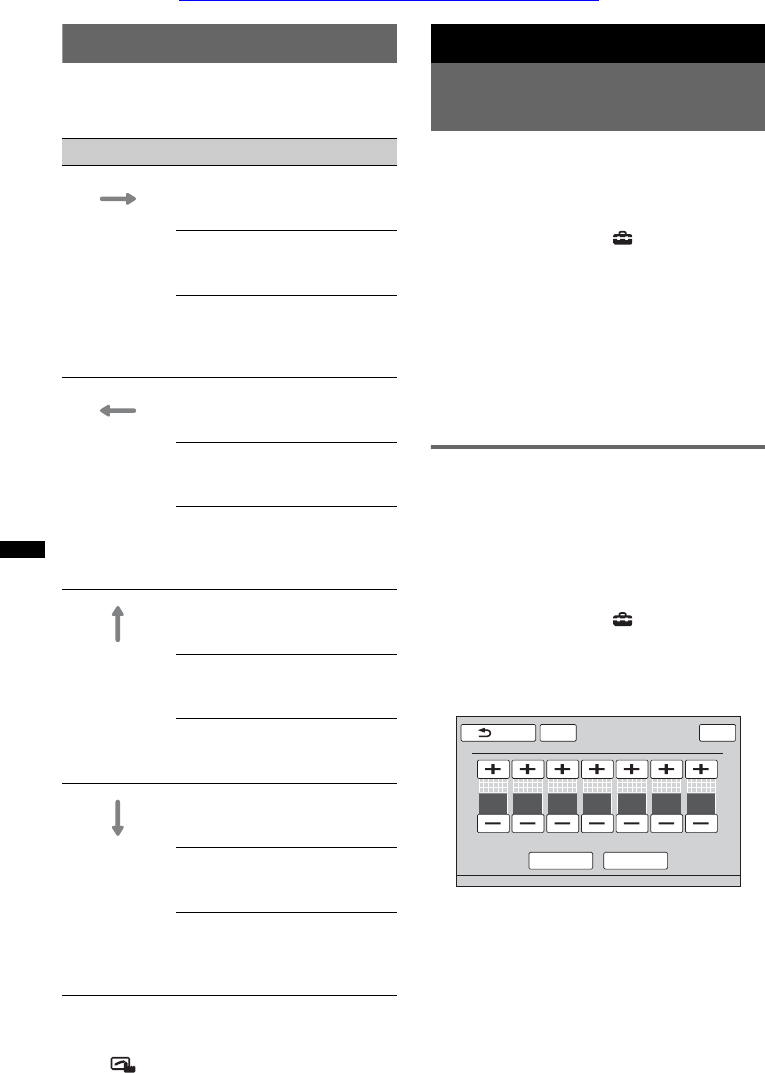

Using Gesture Command

You can perform frequently-used operations by

drawing the following command stroke on the

reception/playback display.

To view the instructions on Gesture

Command

Touch when it is displayed in the top right

corner of the display.

Sound Adjustment

Selecting the sound quality

— EQ7

You can select an equalizer curve from 7 music

types (“Xplod,” “Vocal,” “Edge,” “Cruise,”

“Space,” “Gravity,” “Custom,” or “OFF”).

1During reception/playback, touch

“Source List,” then .

2Touch “Sound.”

The sound setting menu appears.

3Touch “EQ7.”

The options appear.

4Touch the desired equalizer curve.

The setting is complete.

To cancel the equalizer curve, select “OFF.”

To return to the previous display, touch “Back.”

Customizing the equalizer curve

— EQ7 Tune

The EQ7 “Custom” curve allows you to make

your own equalizer settings. You can adjust the

level of 7 different bands: 62 Hz, 157 Hz,

396Hz, 1kHz, 2.5kHz, 6.3kHz, and 16kHz.

1During reception/playback, touch

“Source List,” then .

2Touch “Sound,” then “EQ7.”

3Touch “Custom,” then “Tune.”

The tuning display appears.

4Touch +/– of each frequency to adjust

their levels.

The level is adjustable in single steps,

between –8 and +8.

To restore the factory-set equalizer curve,

touch “Reset.”

5Touch “OK.”

The setting is complete.

To return to the previous display, touch “Back.”

Do this To

Draw a

horizontal line

(left to right)

Radio reception:

seek forward stations.

(The same as >.)

DVD/VCD playback:

skip forward a chapter/track.

(The same as >.)

JPEG/Xvid/MPEG-4/audio

playback:

skip forward a file/track.

(The same as >.)

Draw a

horizontal line

(right to left)

Radio reception:

seek backward stations.

(The same as ..)

DVD/VCD playback:

skip backward a chapter/track.

(The same as ..)

JPEG/Xvid/MPEG-4/audio

playback:

skip backward a file/track.

(The same as ..)

Draw a vertical

line

(upwards)

Radio reception:

receive stored stations (go

forward).

DVD/VCD/Xvid/MPEG-4

playback:

fast-forward the video.

JPEG/audio playback:

skip forward an album (folder).

(The same as “Album” +.)

Draw a vertical

line

(downwards)

Radio reception:

receive stored stations (go

backward).

DVD/VCD/Xvid/MPEG-4

playback:

reverse the video.

JPEG/audio playback:

skip backward an album

(folder).

(The same as “Album” –.)

ATT

Reset OK

Back

EQ7 Tune : Custom

Top

62 Hz

157 Hz

396 Hz

1 kHz

2.5 kHz

6.3 kHz

16 kHz

Car audio and car goods internet store Winauto

winauto.ua

Tip

Other equalizer types are also adjustable.

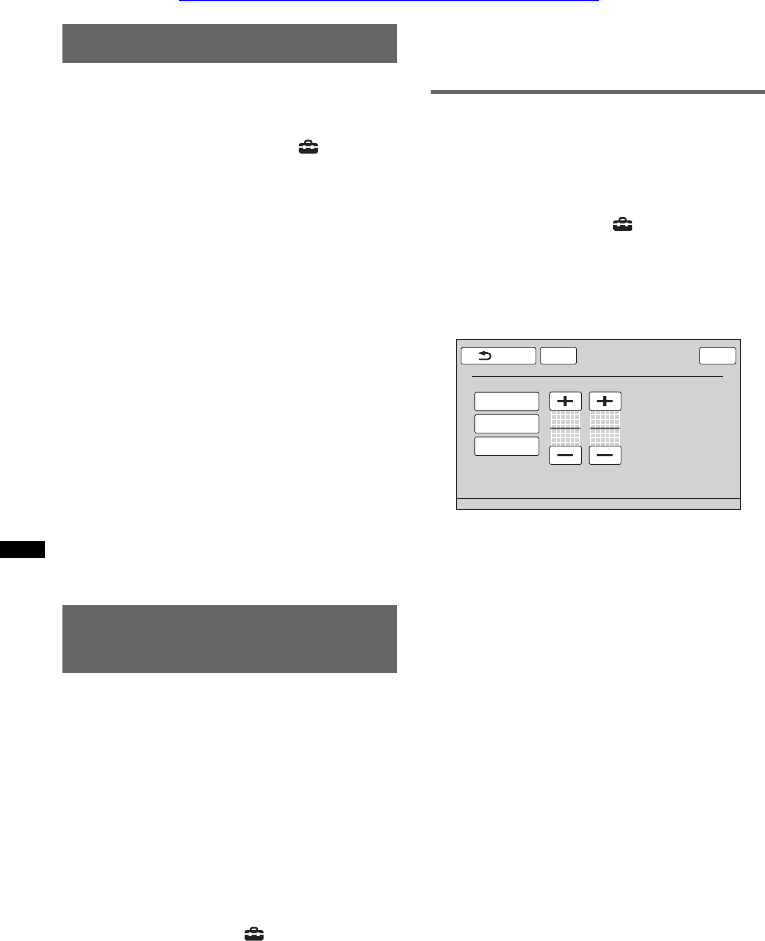

Adjusting the sound

characteristics

The sound balance between left and right

speakers (“Balance”) and front and rear speakers

(“Fader”) can be adjusted to your preference.

You can also adjust the volume level of the

subwoofer if it is connected.

1During reception/playback, touch

“Source List,” then .

2Touch “Sound.”

The sound setting menu appears.

3Touch “Balance/Fader.”

The setting display appears.

4Touch B/V/v/b to adjust the balance/

fader.

The level is adjustable in single steps between

–15 and +15 (Balance)/–15 and +15 (Fader).

5Touch +/– to adjust the volume level of

the subwoofer.

This setting is adjustable only when a

subwoofer is connected and “Subwoofer” is

set to “ON” (page 41).

The level is adjustable in single steps,

between –6 and +6.

To return to the previous display, touch “Back.”

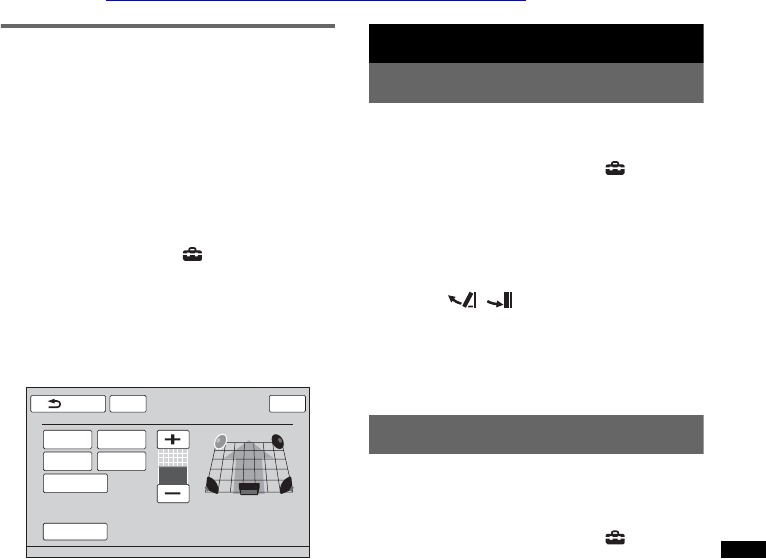

Optimizing sound for the

listening position

— Intelligent Time Alignment

The unit can change the localization of sound by

delaying the sound output from each speaker to

suit your position, and simulate a natural sound

field with the feeling of being in the center of it

wherever you sit in the car.

The options for “Listening Position” are

indicated below.

You can also set the approximate subwoofer

position from your listening position if:

– the subwoofer is connected and “Subwoofer” is

set to “ON” (page 41).

– the listening position is set to “Front L,” “Front

R,” “Front,” or “All.”

1During reception/playback, touch

“Source List,” then .

2Touch “Sound.”

The sound setting menu appears.

3Touch “Listening Position.”

The setting display appears.

4Set the listening position.

Touch “Front L,” “Front R,” “Front,” “All,” or

“Custom.”

5Set the subwoofer position.

If you select “Front L,” “Front R,” “Front,” or

“All” in step 4 above, you can set the

subwoofer position.

Touch “Near,” “Normal,” or “Far.”

The setting is complete.

To cancel Intelligent Time Alignment, select

“OFF.”

To return to the previous display, touch “Back.”

ATTBack

Balance/Fader/Subwoofer Level Adjust

Top

Subwoofer

Fader : 0

Balance : 0

“Front L” (1): Front left

“Front R” (2): Front right

“Front” (3): Center front

“All” (4): In the center of

your car

“Custom”: Precisely

calibrated position (page 34)

“OFF”: No position set

Car audio and car goods internet store Winauto

winauto.ua

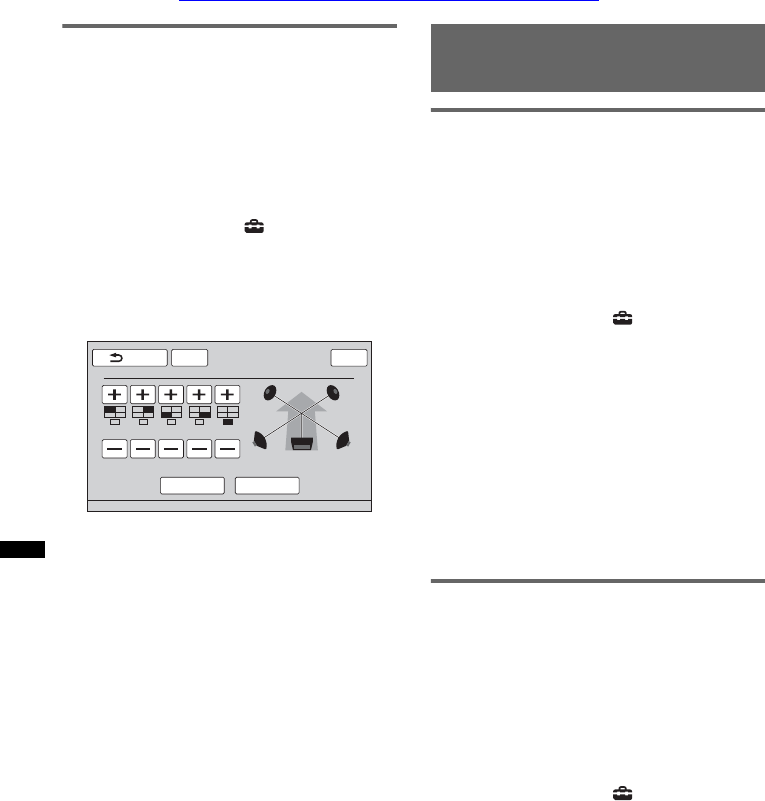

Calibrating the listening position

— Intelligent Time Alignment Tune

You can precisely calibrate your listening

position from each speaker so that the sound

delay reaches the listener more correctly.

Before starting, measure the distance between

your listening position and each speaker.

1During reception/playback, touch

“Source List,” then .

2Touch “Sound,” then “Listening

Position.”

3Touch “Custom,” then “Custom Tune.”

The setting display appears.

4Touch +/– of each speaker to set the

distance between your listening

position and the speakers.

The distance is adjustable in 2 cm (13/16 in)

steps, between 0 and 400 cm (0 and 13 1/10 ft).

To restore the default setting, touch “Reset.”

5Touch “OK.”

The setting is complete.

To return to the previous display, touch “Back.”

Note

The setting is applied only after “OK” is touched.

Speaker configuration and

volume setup

Creating a virtual center speaker

— CSO

To fully enjoy surround sound, it is preferable to

have 5 speakers (front left/right, rear left/right,

center) and 1 subwoofer. CSO (Center Speaker

Organizer) allows you to create a virtual center

speaker even though a real center speaker is not

connected.

1During disc/USB playback, touch

“Source List,” then .

2Touch “Sound.”

The sound setting menu appears.

3Touch “CSO.”

The options appear.

4Touch “CSO1,” “CSO2,” or “CSO3.”

The setting is complete.

To return to the previous display, touch “Back.”

Note

“CSO” is effective only when “Multi Ch Output” is set to

“Multi” (page 43), as it is effective only for playback of

multi-channel sources.

Using rear speakers like

subwoofers — Rear Bass

Enhancer

Rear Bass Enhancer enhances the bass sound by

applying the low pass filter setting (page 41) to

the rear speakers. This function allows the rear

speakers to work like a pair of subwoofers if one

is not connected.

1During reception/playback, touch

“Source List,” then .

2Touch “Sound.”

The sound setting menu appears.

3Touch v/V to scroll, then touch “RBE.”

The options appear.

4Touch “RBE1,” “RBE2,” or “RBE3.”

The setting is complete.

To return to the previous display, touch “Back.”

ATT

Reset OK

Back

Position Tune

Top

100 100 100 100 100

(cm)

Car audio and car goods internet store Winauto

winauto.ua

Adjusting the speaker volume

You can adjust the volume level of each

connected speaker.

The adjustable speakers are “Front R” (Front

Right), “Front L” (Front Left), “Surround L”

(Rear Left), “Surround R” (Rear Right) and

“Subwoofer*.”

*Adjustable only when a subwoofer is connected and

“Subwoofer” is set to “ON” (page 41).

1While no source is selected, touch

“Source List,” then .

2Touch “Sound.”

The sound setting menu appears.

3Touch v/V to scroll, then touch “4.1ch

Speaker Level.”

The setting display appears.

4Touch the speaker, then +/– to adjust

the level.

Repeat this step to adjust each speaker’s

volume.

To restore the default setting, touch “Reset.”

To return to the previous display, touch “Back.”

Monitor Adjustment

Adjusting the monitor angle

You can adjust the monitor angle for best

viewing.

1Touch “Source List,” then .

2Touch “General.”

The general setting menu appears.

3Touch v/V to scroll, then touch

“Monitor Angle.”

The setting display appears.

4Touch / to adjust the angle.

The adjustment is stored.

The monitor retains the angle even after the

front panel is opened and closed.

To return to the previous display, touch “Back.”

Touch panel calibration

Touch panel calibration is required if the

touching position does not correspond with the

proper item.

1Touch “Source List,” then .

2Touch “General.”

The general setting menu appears.

3Touch v/V to scroll, then touch “Touch

Panel Adjust.”

The setting display appears.

4Touch the targets in sequence.

The calibration is complete.

To cancel calibration, touch “Cancel.”

Front L

Surround L

Subwoofer

Front R

Surround R

ATT

Reset

Back

4.1ch Speaker Level

Top

Car audio and car goods internet store Winauto

winauto.ua

Setting the background screen

You can select the screen theme, visualizer and

picture brightness for the background screen

according to your preference.

1Touch “Source List,” then .

2Touch “Screen.”

The screen setting menu appears.

3Touch “Screen Select.”

The options appear.

4Select the screen theme.

Touch “Screen Theme,” then the desired type.

5Select the visualizer.

Touch “Visualizer,” then the desired type.

6Select the picture brightness.

Touch “Day / Night mode,” then one of the

following options.

“Auto”: Switches the brightness

automatically when you turn the lights on.

(Available only when the illumination control

lead is connected.)

“Always Day”: Fixes the brightness suitable

for daytime use.

“Always Night”: Fixes the brightness

suitable for nighttime use.

To return to the previous display, touch “Back.”

Adjusting the picture

— Picture EQ

You can adjust the picture to suit the interior

brightness of the car.

The options are indicated below.

“Dynamic”: Vivid picture with bright, clear

colors.

“Standard”: Standard picture.

“Theater”: Brightens the monitor; suitable for

darkly-lit movies.

“Sepia”: Applies a sepia tone to the picture.

“Custom 1,” “Custom 2”: User-adjustable

settings (page 36).

1During video/image playback, touch

“Source List,” then .

2Touch “Screen.”

The screen setting menu appears.

3Touch “Picture EQ.”

The options appear.

4Touch the desired option.

To return to the previous display, touch “Back.”

Note

This setting is available only when the parking brake is

set.

Customizing the picture

The options “Custom 1” and “Custom 2” of

Picture EQ allow you to make your own picture

setting by adjusting the picture tones.

1During video/image playback, touch

“Source List,” then .

2Touch “Screen,” then “Picture EQ.”

3Touch “Custom 1” or “Custom 2,” then

“Custom Tune.”

The setting display appears.

4Touch “Warm,” “Normal,” or “Cool” to

select “Color Tone.”

5Touch +/– of “Brightness” and “Color”

to adjust their levels.

To return to the previous display, touch “Back.”

Note

The picture of the rear view camera cannot be

adjusted.

ATTBack

Picture EQ : Custom Tune

Top

Cool

Color Tone Brightness

Color

Normal

Warm

Car audio and car goods internet store Winauto

winauto.ua

Selecting the aspect ratio

You can change the screen aspect ratio.

The options are indicated below.

1During video/image playback, touch

“Source List,” then .

2Touch “Screen.”

The screen setting menu appears.

3Touch “Aspect.”

The options appear.

4Touch the desired option.

To return to the previous display, touch “Back.”

Notes

•This setting is available only when the parking brake

is set.

•The screen aspect ratio of the rear view camera

cannot be changed.

Settings

The setting menu includes the following

categories.

•“General”: General settings (page 38)

•“Sound”: Sound settings (page 40)

•“Screen”: Screen settings (page 42)

•“Visual”: DVD and other playback settings

(page 43)

Basic setting operation

You can set items in the menu via the following

procedure.

For example, when setting the demonstration:

1While no source is selected, touch

“Source List,” then .

The setting menu appears.

2Touch “Screen.”

The screen setting display appears.

3Touch “Demo” to set to “ON” or “OFF.”

The setting is complete.

To scroll the options (only when required), touch

v/V.

To return to the previous display, touch “Back.”

“Normal”: Picture with 4:3

aspect ratio (regular picture).

“Wide”: Picture with 4:3

aspect ratio enlarged to the left

and right edges of the screen,

with overflowing parts of the

top and bottom cut off to fill the

screen.

“Full”: Picture with 16:9

aspect ratio.

“Zoom”: Picture with 4:3

aspect ratio enlarged to the left

and right edges of the screen.

ATT

General Sound Screen Visual

1/4

Security Control

Clock Adjust

Auto OFF

Output Color System

Locked

OFF / ON

NTSC / PAL

Back Top

ATT

Screen Select

Picture EQ

Aspect

Clock

Demo

Dynamic

Full

OFF / ON

Back Top

General Sound Screen Visual

1/1

Car audio and car goods internet store Winauto

winauto.ua

General settings

Touch c “General” c the desired item c the desired option. For details on this procedure, see

“Basic setting operation” on page 37.

For details, see the pages listed below. “z” indicates the default setting.

Item Option Purpose Unit status

Security Control (page 45) ––Any status

Clock Adjust (page 45) ––Any status

Auto OFF

Shuts off automatically after a

desired time when no source is

selected.

No (z)To deactivate the Auto Off

function. Any status

30sec, 30min,

60min

To select the desired time.

CT (Clock Time) (page 16, 17) ON To activate the CT function.

Any status

OFF (z)To deactivate the CT

function.

Output Color System

Changes the color system

according to the connected

monitor.

(SECAM is not supported.)

PAL ( z)To set to PAL.

No source

selected

NTSC To set to NTSC.

Dimmer

Changes the display

brightness.

Auto (z)To dim the display

automatically when you

turn lights on. (Available

only when the illumination

control lead is connected.)

Any status

ON To dim the display.

Dimmer Level

Sets the brightness level when

the dimmer is activated.

(–5 ~ +5)

z: 0

To select the level.

Any status

Touch Panel Adjust

(page 35)

––Any status

Beep ON (z)To activate the operation

sound.

Any status

OFF To deactivate the operation

sound.

Name Character

(East Asia models)

Chinese (

Chinese,

Korean,

Latin Character

To select the character

encoding. No source

selected

Language

(Middle East models)

English (z),

Español,

Русский

To select the display

language. No source

selected

Car audio and car goods internet store Winauto

winauto.ua

Item Option Purpose Unit status

Key Illumination ON (z)To turn on the button

illumination.

Any status

OFF To turn off the button

illumination.

Rotary Commander

Changes the operative

direction of rotary commander

controls.

Default (z)To use in the factory-set

position.

Any status

Reverse To use on the right side of

the steering column.

AUX1 Input (page 46)

Sets the type of device

connected to the AUX1 IN

terminals to switch the

background screen

accordingly.

Video (z)To display the picture from

the connected device.

No source

selected

Audio To display this unit’s

background screen.

OFF To deactivate the AUX

input.

AUX2 Input (page 46)

Sets the type of device

connected to the AUX2 IN

terminals to switch the

background screen

accordingly.

Video (z)To display the picture from

the connected device.

No source

selected

Audio To display this unit’s

background screen.

OFF To deactivate the AUX

input.

No Signal

Changes the screen

automatically when no

external video signal is

detected.

Through To display the no signal

screen.

No source

selected

Blank (z)To display the audio

playback screen with no

signal notification.

Camera Input

Activates the video input from

the connected rear view

camera.

OFF To deactivate the input.

Any status

ON (z)To display the picture from

the rear view camera when

the back lamp lights up (or

the shift lever is set to the R

(reverse) position).

Rear View Camera Setting

(page 47)

––Any status

Monitor Angle (page 35) ––Any status

Car audio and car goods internet store Winauto

winauto.ua

Sound settings

Touch c “Sound” c the desired item c the desired option. For details on this procedure, see “Basic

setting operation” on page 37.

For details, see the pages listed below. “z” indicates the default setting.

Item Option Purpose Unit status

EQ7 (page 32) OFF (z)To cancel the equalizer

curve.

During reception/

playback

Xplod, Vocal,

Edge, Cruise,

Space, Gravity,

Custom

To select the equalizer

curve; customize the

equalizer curve.

Balance/Fader (page 33) Balance:

(–15 ~ +15)

Fader:

(–15 ~ +15)

z: 0

To adjust the level.

During reception/

playback

Subwoofer:

(–6 ~ +6)

z: 0

To adjust the volume level

of the subwoofer.

(Available only when

“Subwoofer” is set to

“ON.”)

Listening Position (page 33)

Sets the listening position and

subwoofer position.

OFF (z)To not set the listening

position.

During reception/

playback

Front L To set to front left.

Front R To set to front right.

Front To set to center front.

All To set to the center of your

car.

Custom To precisely calibrate the

listening position

(page 34).

Subwoofer:

Near,

Normal (z),

Far

To select the subwoofer

position. (Available only

when “Subwoofer” is set to

“ON,” and the listening

position is set to “Front L,”

“Front R,” “Front,” or

“All.”)

CSO (Center Speaker

Organizer) (page 34)

Sets the virtual center speaker

mode.

OFF (z),

CSO1, CSO2,

CSO3

To select the mode.

During disc/USB

playback

Car audio and car goods internet store Winauto

winauto.ua

Item Option Purpose Unit status

Subwoofer

Sets the subwoofer connection

status.

ON (z)To set the connection status

to on. No source

selected

OFF To set the connection status

to off.

RBE (Rear Bass Enhancer)

(page 34)

Uses rear speakers like

subwoofers.

OFF (z),

RBE1, RBE2,

RBE3

To select the mode.

During reception/

playback

Crossover Filter

Selects the cut-off frequency

of the front/rear speakers

(HPF) and subwoofer (LPF).

LPF: 50 Hz,

60 Hz, 80 Hz,

100 Hz (z),

120 Hz

To select the cut-off

frequency. (Available only

when “Subwoofer” is set to

“ON.”)

During reception/

playback

HPF: OFF (z)To not cut out the

frequencies.

HPF: 50 Hz,

60 Hz, 80 Hz,

100 Hz, 120 Hz

To select the cut-off

frequency.

Subwoofer

Phase:

Normal (z),

Reverse

To select the subwoofer

phase. (Available only

when “Subwoofer” is set to

“ON.”)

4.1ch Speaker Level

(page 35)

–– No source

selected

Car audio and car goods internet store Winauto

winauto.ua

Screen settings

Touch c “Screen” c the desired item c the desired option. For details on this procedure, see “Basic

setting operation” on page 37.

For details, see the pages listed below. “z” indicates the default setting.

*This setting is available only when the parking brake is set.

Item Option Purpose Unit status

Screen Select (page 36) ––Any status

Picture EQ* (page 36) Dynamic (z),

Standard,

Theater, Sepia

To select the picture

quality. During video/

image playback

Custom 1,

Custom 2

To customize the picture

quality.

Aspect* (page 37) Full (z),

Normal,

Wide,

Zoom

To select the screen aspect

ratio. During video/

image playback

Clock

Displays/hides the clock in the

bottom right corner of the

display.

ON (z)To display the clock.

Any status

OFF To hide the clock.

Demo ON (z)To activate the

demonstration. No source

selected

OFF To deactivate the

demonstration.

Car audio and car goods internet store Winauto

winauto.ua

DVD and other playback settings

Touch c “Visual” c the desired item c the desired option. For details on this procedure, see “Basic

setting operation” on page 37.

For details, see the pages listed below. “z” indicates the default setting.

Item Option Purpose Unit status

DVD Menu Language –To change the disc’s menu

language.

No source

selected

DVD Audio Language –To change the soundtrack

language.

No source

selected

DVD Subtitle Language –To change the subtitle

language recorded on the

disc.

No source

selected

Audio DRC

Makes the sound clear when

the volume is low. Only for a

DVD* conforming to Audio

DRC (Dynamic Range

Control).

*Excluding DVD-R/DVD-R DL/

DVD-RW in VR mode.

Standard (z)To select the standard

setting.

No source

selected

Wide To obtain the feeling of

being at a live performance.

Multi Ch Output

Switches the method of

outputting multi channel

sources.

Multi (z)To output in 4.1 channels.

No source

selected

Stereo To downmix to 2 channels.

DVD Parental Control

(page 21)

–To lock/unlock a disc. No source

selected

DVD Parental Rating

(page 22)

–To set the restriction level

based on the selected area.

No source

selected

DVD Parental Area (page 22) –To set the restriction

standard by area.

No source

selected

DVD Playlist Play

(For DVD-R/DVD-R DL/

DVD-RW in VR mode only)

Original (z)To play titles as they were

originally recorded. No source

selected

Playlist To play an edited playlist.

DVD Direct Search

(page 23)

Sets the search item for DVD

direct search play.

Chapter (z)To search for a chapter.

Any status

Title To search for a title.

continue to next page t

Car audio and car goods internet store Winauto

winauto.ua

Note

If parental control is applied, resume playback will not work. In this case, playback starts from the beginning of the

disc when it is inserted.

Item Option Purpose Unit status

Monitor Type

Selects an aspect ratio suitable

for the connected monitor.

(The screen aspect ratio of this

unit also changes.)

Depending on the disc, “4:3

Letter Box” may be selected

automatically instead of “4:3

Pan Scan,” and vice versa.

16:9 (z)To display a wide picture.

Suitable when connecting

to a wide-screen monitor or

a monitor with a wide

mode function.

No source

selected

4:3 Letter Box To display a wide picture

with bands on the upper

and lower positions of the

screen.

Suitable when connecting

to a 4:3 screen monitor.

4:3 Pan Scan To display a wide picture

on the entire screen and

automatically cut off the

portions that do not fit.

ZAPPIN Time (page 31) 6sec, 15sec

(z), 30sec

To select the playback time

for the ZAPPIN function.

During audio

playback

ZAPPIN Tone (page 31) ON (z)To have the beep sound

between track passages. During audio

playback

OFF To deactivate the beep

sound.

Multi Disc Resume ON (z)To store the resume settings

in memory for up to 5

video* discs.

*DVD VIDEO/VCD/Xvid/

MPEG-4 only. No source

selected

OFF To not store the resume

settings in memory.

Resume playback is

available only for the

current disc in the unit.

USB Resume ON (z)To store resume settings in

memory for Xvid/MPEG-4

files in the USB device. No source

selected

OFF To not store the resume

settings in memory.

JPEG Slide Show 5sec (z),

20sec, 60sec,

Fixed

To select the slide show

interval. No source

selected

Video CD PBC (page 20) ON (z)To play a VCD with PBC

functions. No source

selected

OFF To play a VCD without

PBC functions.

Car audio and car goods internet store Winauto

winauto.ua

Setting the security code

This unit has a security function to discourage

theft. Enter a 4-digit number as your security

code.

Once the security function is activated, you need

to enter the security code to turn on the unit after

re-installing the unit in another car or charging

the battery.

Activating the security function

1Touch “Source List,” then .

The general setting menu appears. If not,

touch “General.”

2Touch “Security Control.”

The security code setting display appears.

3Touch the number keys to enter your

security code, then touch “OK.”

4To confirm, touch the number keys to

reenter your security code, then touch

“OK.”

The setting is complete.

To delete an entered number, touch “Clear.”

To return to the previous display, touch “Back.”

The 4-digit input prompt appears when you turn

on the unit after re-installing in another car or

charging the battery. Touch the number keys to

enter your security code.

Deactivating the security function

1Follow steps 1 to 2 above.

The security unlock display appears.

2Touch the number keys to enter your security

code.

“Unlocked” appears, and the security function

is deactivated.

Setting the clock

The clock uses a 12-hour indication.

1Touch “Source List,” then .

The general setting menu appears. If not,

touch “General.”

2Touch “Clock Adjust.”

The setting display appears.

3Set the hour and minute.

For example, to set to 8:30, touch “0830.”

4Touch “AM” or “PM.”

5Touch “OK.”

The setting is complete.

To delete an entered number, touch “Clear.”

To return to the previous display, touch “Back.”

Car audio and car goods internet store Winauto

winauto.ua

Using Optional Equipment

Auxiliary audio/video

equipment

You can connect up to 2 optional devices, such as

a portable media player, game console, etc., to

the AUX1 IN and AUX2 IN terminals on the

unit.

Selecting an auxiliary device

1Touch “Source List,” then “AUX.”

The AUX playback display appears.

2Touch “AUX1” or “AUX2” to select the

device.

Operate via the portable device itself.

Adjusting the volume level

Be sure to adjust the volume for each connected

device before playback.

The volume level is common to “AUX1” and

“AUX2.”

1Reduce the volume on the unit.

2Touch “Source List,” then “AUX.”

The AUX playback display appears.

3Start playback of the portable device

at a moderate volume.

4Set your usual listening volume on the

unit.

5Touch –/+ in the “Level” box

repeatedly to adjust the level.

The level is adjustable in single steps,

between –8 and +18.

Setting the type of device

By setting the type (video or audio) of each

connected device, the background screen can be

switched accordingly.

1While no source is selected, touch

“Source List,” then .

The general setting menu appears. If not,

touch “General.”

2Touch v/V to scroll, then touch “AUX1

Input” or “AUX2 Input.”

3Touch “Audio” or “Video.”

The setting is complete.

To deactivate the AUX input, select “OFF.”

To return to the previous display, touch “Back.”

Rear view camera

By connecting the optional rear view camera to

the CAMERA IN terminal, you can display the

picture from the rear view camera.

The picture from the rear view camera appears

when the back lamp lights up (or the shift lever is

set to the R (reverse) position).

Notes

•When backing up your car, watch the surroundings

carefully for safety. Do not depend on the rear view

camera exclusively.

•The picture from a rear view camera does not

appear in the rear monitor.

Tip

Even if a rear view camera is connected, you can set

the unit to not display the picture from a rear view

camera by deactivating the camera input (page 39).

ATT

Level 0

TopSource List

AUX1 AUX2

Car audio and car goods internet store Winauto

winauto.ua

Rear view camera settings

You can display setting items on the picture from

the rear view camera to assist operation.

This setting is available only when:

– “Camera Input” is set to “ON” (page 39).

– the parking brake is applied.

1Touch “Source List,” then .

The general setting menu appears. If not,

touch “General.”

2Touch v/V to scroll, then touch “Rear

View Camera Setting.”

The setting items appear.

Displaying marker lines

Touch “Marker.”

Touch “Marker” again to hide the marker lines.

Reversing the picture

Touch “Mirror.”

A mirror-reversed picture appears.

Editing lines

1Touch “Line Edit.”

2Select the line to edit.

Touch “1 Edit,” “2 Edit,” or “3 Edit”

corresponding to the line to edit.

3Edit the line.

To increase the length, touch B b.

To reduce the length, touch bB.

To adjust the position, touch V or v.

To restore the default setting, touch “Reset.”

To return to the previous display, touch “Back.”

Additional Information

Precautions

• Cool off the unit beforehand if your car has been

parked in direct sunlight.

• Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit,

remove the disc and wait for about an hour for it to

dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on LCD panel

•Do not wet the LCD panel or expose it to

liquids. This may cause a malfunction.

• Do not press on the LCD panel as doing so can

distort the picture or cause a malfunction (i.e., the

picture may become unclear, or the LCD panel

may be damaged).

• Do not touch other than with the finger, as it may

damage or break the LCD panel.

• Clean the LCD panel with a dry soft cloth. Do not

use solvents such as benzine, thinner,

commercially available cleaners, or antistatic

spray.

• Do not use this unit outside the temperature range

5 – 45 ºC (41 – 113 ºF).

• If your car was parked in a cold or hot place, the

picture may not be clear. However, the monitor is

not damaged, and the picture will become clear

after the temperature in your car becomes normal.

• Some stationary blue, red or green dots may

appear on the monitor. These are called “bright

spots,” and can happen with any LCD. The LCD

panel is precision-manufactured with more than

99.99% of its segments functional. However, it is

possible that a small percentage (typically 0.01%)

of the segments may not light up properly. This

will not, however, interfere with your viewing.

Line Edit

Marker

Mirror

Turn off engine but keep the key in the “IGN” position.

Back

Turn off engine but keep the key in the “IGN” position.

2 Edit

3 Edit

1 Edit

Reset

Car audio and car goods internet store Winauto

winauto.ua

Notes on discs

• Do not expose discs to direct sunlight or heat

sources such as hot air ducts, nor leave it in a car

parked in direct sunlight.

• Before playing, wipe the discs

with a cleaning cloth from the

center out. Do not use solvents

such as benzine, thinner,

commercially available

cleaners.

• This unit is designed to play

discs that conform to the

Compact Disc (CD) standard.

DualDiscs and some of the music discs encoded

with copyright protection technologies do not

conform to the Compact Disc (CD) standard,

therefore, these discs may not be playable by this

unit.

•Discs that this unit CANNOT play

– Discs with labels, stickers, or sticky tape or

paper attached. Doing so may cause a

malfunction, or may ruin the disc.

– Discs with non-standard shapes (e.g., heart,

square, star). Attempting to do so may damage

the unit.

–8 cm (3 1/4 in) discs.

Note on playback operations of DVDs

and VCDs

Some playback operations of DVDs and VCDs may

be intentionally set by software producers. Since

this unit plays DVDs and VCDs according to the

disc contents the software producers designed, some

playback features may not be available. Also, refer

to the instructions supplied with the DVDs or

VCDs.

Notes on DATA CDs and DATA DVDs

• Some DATA CDs/DATA DVDs (depending on the

equipment used for its recording, or the disc

condition) may not play on this unit.

• Finalization is required for some discs (page 48).

• The unit is compatible with the following

standards.

For DATA CDs

– ISO 9660 level 1/level 2 format, Joliet/Romeo in

the expansion format

– Multi Session

For DATA DVDs

– UDF Bridge format (combined UDF and ISO

9660)

–Multi Border

• The maximum number of:

– folders (albums): 256 (including root and empty

folders).

– files (tracks/images/videos) and folders

contained in a disc: 2,000 (if a folder/file names

contain many characters, this number may

become less than 2,000).

– displayable characters for a folder/file name: 64

(Joliet/Romeo).

Notes on finalizing discs

The following discs are required to be finalized to

play on this unit.

• DVD-R/DVD-R DL (in video mode/VR mode)

• DVD-RW in video mode

• DVD+R/DVD+R DL

•CD-R

•CD-RW

The following discs can be played without

finalization.

• DVD+RW – automatically finalized.

• DVD-RW in VR mode – finalization not required.

For details, refer to the manual supplied with the

disc.

Notes on Multi Session CDs/Multi

Border DVDs

This unit can play Multi Session CDs/Multi Border

DVDs under the following conditions. Note that the

session must be closed and the disc must be

finalized.

• When CD-DA (Compact Disc Digital Audio) is

recorded in the first session:

The unit recognizes the disc as CD-DA and only

CD-DA of the first session is played, even if

another format (e.g., MP3) is recorded in other

sessions.

• When CD-DA is recorded other than in the first

session:

The unit recognizes the disc as a DATA CD or

DATA DVD, and all CD-DA sessions are skipped.

• When an MP3/WMA/AAC/JPEG/Xvid/MPEG-4

is recorded:

Only the sessions containing the selected file type

(audio/video/image)* are played (if CD-DA or

other data exists in other sessions, they are

skipped).

*For details on how to select the file type, see

page 31.

Playback order of MP3/WMA/AAC/

JPEG/Xvid/MPEG-4 files

Folder

(album)

MP3/WMA/AAC/

JPEG/Xvid/

MPEG-4 file

(track/image/

video)

MP3/WMA/AAC/

JPEG/Xvid/

MPEG-4

Car audio and car goods internet store Winauto

winauto.ua

About MP3 files

• MP3, which stands for MPEG-1 Audio Layer-3, is

a music file compression format standard. It

compresses audio CD data to approximately 1/10

of its original size.

• ID3 tag versions 1.0, 1.1, 2.2, 2.3 and 2.4 apply to

MP3 only. ID3 tag is 15/30 characters (1.0 and

1.1), or 63/126 characters (2.2, 2.3 and 2.4).

• When naming an MP3 file, be sure to add the file

extension “.mp3” to the file name.

• During playback or fast-forward/reverse of a VBR

(Variable Bit Rate) MP3 file, elapsed playback

time may not display accurately.

Note on MP3

If you play a high-bit-rate MP3, such as 192 kbps,

sound may be intermittent.

About WMA files

• WMA, which stands for Windows Media Audio,

is a music file compression format standard. It

compresses audio CD data to approximately 1/22*

of its original size.

• WMA tag is 63 characters.

• When naming a WMA file, be sure to add the file

extension “.wma” to the file name.

• During playback or fast-forward/reverse of a VBR

(Variable Bit Rate) WMA file, elapsed playback

time may not display accurately.

*only for 64 kbps

Note on WMA

Playback of the following WMA files is not supported.

– lossless compression

– copyright-protected

About AAC files

• AAC tag is 126 characters.

• When naming an AAC file, be sure to add the file

extension “.m4a” to the file name.

About JPEG files

• JPEG, which stands for Joint Photographic

Experts Group, is an image file compression

format standard. It compresses still images

approximately 1/10 to 1/100 of original size.

• When naming a JPEG file, be sure to add the file

extension “.jpg” to the file name.

Note on JPEG

Playback of progressive JPEG files is not supported.

About MPEG-4 files

MPEG-4 files meeting the following

requirements can be played. Playback is not be

guaranteed for all MPEG-4 files meeting the

requirements.

• Profile: MPEG-4 Simple profile

• Bit rate: Max. 7 Mbps on USB FS, 10 Mbps on

DVD, 7 Mbps on CD

• Frame rate: Max. 30 fps

• Image size: Max. 720 × 480 pixels

• Audio: Max. 320 kbps (AAC-LC)

• File extension: .mp4

About iPod

• You can connect to the following iPod models.

Update your iPod devices to the latest software

before use.

Made for

– iPod touch (4th generation)

– iPod touch (3rd generation)

– iPod touch (2nd generation)

– iPod touch (1st generation)

– iPod classic

– iPod with video*

– iPod nano (6th generation)

– iPod nano (5th generation)

– iPod nano (4th generation)

– iPod nano (3rd generation)

– iPod nano (2nd generation)

– iPod nano (1st generation)*

– iPhone 4

– iPhone 3GS

– iPhone 3G

– iPhone

*Passenger control is not available for iPod nano (1st

generation) or iPod with video.

• “Made for iPod,” and “Made for iPhone” mean

that an electronic accessory has been designed to

connect specifically to iPod or iPhone,

respectively, and has been certified by the

developer to meet Apple performance standards.

Apple is not responsible for the operation of this

device or its compliance with safety and

regulatory standards. Please note that the use of

this accessory with iPod or iPhone may affect

wireless performance.

Car audio and car goods internet store Winauto

winauto.ua

Maintenance

Replacing the lithium battery of the

remote commander

Under normal conditions, the battery will last

approximately 1 year. (The service life may be

shorter, depending on the conditions of use.)

When the battery becomes weak, the range of the

remote commander becomes shorter. Replace the

battery with a new CR2025 lithium battery. Use of

any other battery may present a risk of fire or

explosion.

Notes on the lithium battery

•Keep the lithium battery out of the reach of children.

Should the battery be swallowed, immediately

consult a doctor.

•Wipe the battery with a dry cloth to assure a good

contact.

•Be sure to observe the correct polarity when

installing the battery.

•Do not hold the battery with metallic tweezers,

otherwise a short-circuit may occur.

Fuse replacement

When replacing the fuse, be

sure to use one matching the

amperage rating stated on the

original fuse. If the fuse blows,

check the power connection and

replace the fuse. If the fuse

blows again after replacement,

there may be an internal

malfunction. In such a case,

consult your nearest Sony

dealer.

Removing the unit

1Insert both release keys

simultaneously until they click.

2Pull the release keys to unseat the

unit.

3Slide the unit out of the mounting.

+ side up

WARNING

Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of

in fire.

Fuse (10A)

Hook facing

inwards.

Car audio and car goods internet store Winauto

winauto.ua

Specifications

Monitor section

Display type: Wide LCD color monitor

Dimensions: 7.0 in

System: TFT active matrix

Number of pixels:

1,152,000 pixels (800 × 3 (RGB) × 480)

Color system:

PAL/NTSC/SECAM/PAL-M automatic select

Tuner section

Tuning range: 87.5 – 108.0 MHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 150 kHz

Usable sensitivity: 10 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 70 dB (mono)

Separation: 40 dB at 1 kHz

Frequency response: 20 – 15,000 Hz

Tuning range: 531 – 1,602 kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 25 kHz

Sensitivity: 26 µV

DVD/CD Player section

Signal-to-noise ratio: 120 dB

Frequency response: 10 – 20,000 Hz

Wow and flutter: Below measurable limit

Harmonic distortion: 0.01%

Region code: Labeled on the bottom of the unit

USB Player section

Interface: USB (Full-speed)

Maximum current: 500 mA

Power amplifier section

Outputs: Speaker outputs

Speaker impedance: 4 – 8 ohms

Maximum power output: 52 W × 4 (at 4 ohms)

General

Outputs:

Video output terminal (rear)

Audio output terminals (front/rear)

Subwoofer output terminal

Power antenna (aerial) relay control terminal

Power amplifier control terminal

Inputs:

Telephone ATT control terminal

Illumination control terminal

Remote controller input terminal

Antenna (aerial) input terminal

Parking break control terminal

Reverse input terminal

Camera input terminal

AUX audio input terminals

AUX video input terminals

USB signal input connector

External input terminal

Power requirements: 12 V DC car battery

(negative ground (earth))

Dimensions: Approx. 178 × 100 × 189 mm

(7 1/8 × 4 × 7 1/2 in) (w/h/d)

Mounting dimensions: Approx. 182 × 111 × 164 mm

(7 1/4 × 4 3/8 × 6 1/2 in) (w/h/d)

Mass: Approx. 2.5 kg (5 lb 9 oz)

Supplied accessories:

Remote Commander: RM-X170

Parts for installation and connections (1 set)

CD-ROM (Application disc)

Optional accessories/equipment:

Mobile monitor: XVM-B62

USB and Video connection cable for iPod:

RC-202IPV, RC-200IPV

Rear View Camera: XA-R800C

Your dealer may not handle some of the above listed

accessories. Please ask the dealer for detailed

information.

Design and specifications are subject to change

without notice.

Region code

The region system is used to protect software

copyrights.

The region code is located on the bottom of the unit,

and only DVDs labeled with an identical region code

can be played on this unit.

DVDs labeled can also be played.

If you try to play any other DVD, the message

“Playback prohibited by region code.” will appear on

the monitor screen. Depending on the DVD, no region

code may be labeled even though playing the DVD is

prohibited by area restrictions.

System requirements for the software

in the supplied CD-ROM

Computer

•CPU/RAM

– IBM PC/AT compatible machine

– CPU: Intel Pentium III Processor 450 MHz or

higher

– RAM: 256 MB or more (For Windows XP), 512

MB or more (For Windows Vista or later)

•CD-ROM drive

• USB port

continue to next page t

US and foreign patents licensed from Dolby

Laboratories.

MPEG Layer-3 audio coding technology and

patents licensed from Fraunhofer IIS and Thomson.

ALL

Car audio and car goods internet store Winauto

winauto.ua

Windows XP, Windows Vista, Windows 7

For details on compatible editions or Service Packs,

visit the following support site:

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/

Monitor

High color (16-bit) or more, 800 × 600 pixels or more

Other

Internet connection

Notes

•The following system environments are not

supported.

– Non IBM PC type computers, such as Macintosh,

etc.

– Homemade computers

– OS upgraded computers

– Multi-display environment

– Multi-boot environment

– Virtual machine environment

•Depending on the computer condition, operation

may not be possible even with the recommended

environment.

Troubleshooting

The following checklist will help you remedy

problems you may encounter with your unit.

Before going through the checklist below, check the

connection and operating procedures.

If the problem is not solved, visit the following

support site.

General

No power is being supplied to the unit.

• Check the connection or fuse.

• If the unit is turned off and the display disappears, it

cannot be operated with the remote commander.

tTurn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

There is no beep sound.

• The beep sound is canceled (page 38).

• An optional power amplifier is connected and you are

not using the built-in amplifier.

The contents of the memory have been erased.

• The reset button has been pressed.

tStore again into the memory.

• The power supply lead or battery has been

disconnected or it is not connected properly.

Stored stations and correct time are erased.

The fuse has blown.

The unit makes noise when the position of the

ignition is switched.

The leads are not matched correctly with the car’s

accessory power connector.

The display disappears from/does not appear

on the monitor.

• The dimmer is set to “ON” (page 38).

• The display disappears if you press and hold

(SOURCE/OFF).

tPress (SOURCE/OFF) on the unit until the

display appears.

• “M.OFF” is set to on and the Monitor Off function is

activated (page 11).

tTouch anywhere on the display to turn the display

back on.

The display does not respond to your touch

correctly.

• Touch one part of the display at a time. If two or more

parts are touched simultaneously, the display will not

operate correctly.

• Calibrate the touch panel of the display (page 35).

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates

after turning off the unit.

tExit the source.

Support site

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/

Car audio and car goods internet store Winauto

winauto.ua

Operation of the remote commander is not

possible.

If the Monitor Off function is activated (no lighting),

operation of the remote commander is not possible

(page 11).

The menu items cannot be selected.

Unavailable menu items are displayed in gray.

AUX cannot be selected as the source.

All AUX input settings are set to “OFF.”

tSet “AUX1 Input”/“AUX2 Input” to “Video” or

“Audio” (page 46).

The monitor angle cannot be adjusted.

The monitor was opened while the unit was being

reset.

tBe sure to close the front panel before you reset the

unit.

Radio reception

The stations cannot be received.

The sound is hampered by noises.

• The connection is not correct.

tConnect a power antenna (aerial) control lead

(blue) or accessory power supply lead (red) to the

power supply lead of a car’s antenna (aerial)

booster (only when your car has built-in FM/AM

antenna (aerial) in the rear/side glass).

tCheck the connection of the car antenna (aerial).

tIf the auto antenna (aerial) will not extend, check

the connection of the power antenna (aerial)

control lead.

Preset tuning is not possible.

• Store the correct frequency in the memory.

• The broadcast signal is too weak.

Automatic tuning is not possible.

• Setting of the local seek mode is not correct.

tTuning stops too frequently:

Set “Local” to “ON” (page 15).

tTuning does not stop at a station:

Set “Mono” to “ON” (page 15).

• The broadcast signal is too weak.

tPerform manual tuning.

During FM reception, the “Stereo” indication

flashes.

• Tune precisely to the desired frequency.

• The broadcast signal is too weak.

tSet “Mono” to “ON” (page 15).

An FM program broadcast in stereo is heard in

monaural.

The unit is in monaural reception mode.

tSet “Mono” to “OFF” (page 15).

RDS

PTY displays “None.”

• The current station is not an RDS station.

• RDS data has not been received.

• The station does not specify the program type.


There is no picture/picture noise occurs.

• A connection has not been made correctly.

• Check the connection to the connected equipment,

and set the input selector of the equipment to the

source corresponding to this unit.

• The disc is defective or dirty.

• Installation is not correct.

tInstall the unit at an angle of less than 45° in a

sturdy part of the car.

• The parking cord (light green) is not connected to the

parking brake switch cord, or the parking brake is not

applied.

The picture does not fit in the screen.

The aspect ratio is fixed on the DVD.

There is no picture/picture noise occurs in the

rear monitor.

• A source/mode which is not connected is selected. If

there is no input, no picture appears in the rear

monitor.

• The color system setting is incorrect.

tSet the color system to “PAL” or “NTSC”

according to the connected monitor (page 38).

• The picture of the rear view camera is displayed on

this unit.

tNo picture appears in the rear monitor if the

picture of the rear view camera is displayed on

this unit.

Sound

There is no sound/sound skips/sound cracks.

• A connection has not been made correctly.

• Check the connection to the connected equipment,

and set the input selector of the equipment to the

source corresponding to this unit.

• The disc is defective or dirty.

• Installation is not correct.

tInstall the unit at an angle of less than 45° in a

sturdy part of the car.

• The MP3 file sampling rate is not 32, 44.1, or

48 kHz.

• The WMA file sampling rate is not 32, 44.1, or

48 kHz.

• The AAC file sampling rate is not 44.1 or 48 kHz.

• The MP3 file bit rate is not 48 to 192 kbps.

• The WMA file bit rate is not 64 to 192 kbps.

• The AAC file bit rate is not 40 to 320 kbps.

• The unit is in pause/reverse/fast-forward mode.

• The settings for the outputs are not made correctly.

• The DVD output level is too low (page 21).

• The volume is too low.

• The ATT function is activated, or the Telephone ATT

function (when the interface cable of a car telephone

is connected to the ATT lead) is activated.

• The position of the fader control “Fader” is not set for

a 2-speaker system.

• The format is not supported (such as DTS).

tCheck if the format is supported by this unit

(page 9).

continue to next page t

Car audio and car goods internet store Winauto

winauto.ua

Sound is noisy.

Keep cords and cables away from each other.

Disc operation

The disc cannot be loaded.

• Another disc is already loaded.

• The disc has been forcibly inserted upside down or in

the wrong way.

The disc does not play.

• The disc is defective or dirty.

• The disc is not playable.

• The DVD is not playable due to the region code.

• The disc is not finalized (page 48).

• The disc format and file version are incompatible

with this unit (page 9, 48).

• Press Z to remove the disc.

MP3/WMA/AAC/JPEG/Xvid/MPEG-4 files do not

play.

• Recording was not performed according to the ISO

9660 level 1 or level 2 format or the Joliet or Romeo

expansion format (DATA CD), or the UDF Bridge

format (DATA DVD) (page 48).

• The file extension is incorrect (page 49).

• Files are not stored in MP3/WMA/AAC/JPEG/Xvid/

MPEG-4 format.

• If the disc contains multiple file types, only the

selected file type (audio/video/image) can be played.

tSelect the appropriate file type using the list

(page 31).

MP3/WMA/AAC/JPEG/Xvid/MPEG-4 files take

longer to play than others.

The following discs take a longer time to start

playback.

– a disc recorded with a complicated tree structure.

– a disc recorded in Multi Session/Multi Border.

– a disc to which data can be added.

The disc does not start playing from the

beginning.

Resume playback or multi-disc resume playback

(page 44) has taken effect.

Certain functions cannot be performed.

Depending on the disc, you may not be able to perform

operations such as stop, search, or repeat/shuffle play.

For details, refer to the manual supplied with the disc.

The soundtrack/subtitle language or angle

cannot be changed.

• Use the DVD menu instead of the direct selection

button on the remote commander (page 17).

• Multilingual tracks, multilingual subtitles, or multi-

angles are not recorded on the DVD.

• The DVD prohibits changing.

The operation buttons do not function.

The disc will not eject.

Press the reset button (page 14).

USB playback

Items cannot be played via a USB hub.

This unit cannot recognize USB devices via a USB

hub.

Items cannot be played.

Reconnect the USB device.

The USB device takes longer to play.

The USB device contains large-sized files or files with

a complicated tree structure.

A beep sounds.

During playback, the USB device has been

disconnected.

tBefore disconnecting a USB device, make sure to

stop playback first for data protection.

The sound is intermittent.

The sound may be intermittent at a high bit rate of

more than 320 kbps.

Car audio and car goods internet store Winauto

winauto.ua

Error displays/messages

If these solutions do not help improve the situation,

consult your nearest Sony dealer.

If you take the unit to be repaired because of disc

playback trouble, bring the disc that was used at the

time the problem began.

Cannot read.

• The unit cannot read the data due to some problem.

• The data is damaged or corrupted.

• The disc is corrupted.

• The disc is incompatible with this unit.

• The disc is not finalized.

Disc Error

• The disc is dirty or inserted upside down.

tClean or insert the disc correctly.

• A blank disc has been inserted.

• The disc cannot play due to a problem.

tInsert another disc.

• The disc is not compatible with this unit.

tInsert a compatible disc.

•Press Z to remove the disc.

Disc Reading...

The unit is reading all file/album (folder) information

on the disc.

tWait until reading is complete and playback starts

automatically. Depending on the disc structure, it

may take more than a minute.

Error

The USB device was not automatically recognized.

tReconnect it again.

Hubs not supported.

USB hubs are not supported on this unit.

Local Seek +/Local Seek –

The local seek mode is on during automatic tuning.

No playable data.

The disc does not contain playable data.

No SensMe™ data on device.

The connected USB device does not contain data for

the SensMe™ function, or the data has been moved to

an improper location on the USB device.

Offset

There may be an internal malfunction.

tCheck the connection. If the error indication

remains on the display, consult your nearest Sony

dealer.

Output connection failure.

The connection of speakers/amplifiers is incorrect.

tSee the supplied “Installation/Connections” guide

to check the connection.

Overcurrent Caution on USB

The USB device is overloaded.

tDisconnect the USB device, then change the source

by pressing (SOURCE/OFF).

tIndicates that the USB device is out of order, or an

unsupported device is connected.

Playback prohibited by region code.

The DVD’s region code differs from the unit’s region

code.

Please push reset.

This unit or USB device cannot be operated due to a

problem.

tPress the reset button (page 14).

SensMe™ data Reading...

The unit is reading all data for the SensMe™ function

in the connected USB device.

tWait until reading is complete. Depending on the

amount of data, etc., it may take time.

The connected USB device is not supported.

For details on the compatibility of your USB device,

visit the support site.

The SensMe™ data is corrupted.

The data for the SensMe™ function has a problem,

such as altered file name, information, etc.

USB device is not connected.

USB is selected as source without a USB device

connected. A USB device or a USB cable has been

disconnected during playback.

tBe sure to connect a USB device and USB cable.

USB Reading...

The unit is reading all file/album (folder) information

in the connected USB device.

tWait until reading is complete and playback starts

automatically. Depending on the structure, it may

take time.

“” or “”

During reverse or fast-forward, you have reached the

beginning or the end of the disc and you cannot go any

further.

“”

The character cannot be displayed with the unit.

Car audio and car goods internet store Winauto

winauto.ua

Language code/area code list

Language code list

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Area code list

Code Language Code Language Code Language Code Language

1027 Afar

1028 Abkhazian

1032 Afrikaans

1039 Amharic

1044 Arabic

1045 Assamese

1051 Aymara

1052 Azerbaijani

1053 Bashkir

1057 Byelorussian

1059 Bulgarian

1060 Bihari

1061 Bislama

1066 Bengali;

Bangla

1067 Tibetan

1070 Breton

1079 Catalan

1093 Corsican

1097 Czech

1103 Welsh

1105 Danish

1109 German

1130 Bhutani

1142 Greek

1144 English

1145 Esperanto

1149 Spanish

1150 Estonian

1151 Basque

1157 Persian

1165 Finnish

1166 Fiji

1171 Faroese

1174 French

1181 Frisian

1183 Irish

1186 Scots Gaelic

1194 Galician

1196 Guarani

1203 Gujarati

1209 Hausa

1217 Hindi

1226 Croatian

1229 Hungarian

1233 Armenian

1235 Interlingua

1239 Interlingue

1245 Inupiak

1248 Indonesian

1253 Icelandic

1254 Italian

1257 Hebrew

1261 Japanese

1269 Yiddish

1283 Javanese

1287 Georgian

1297 Kazakh

1298 Greenlandic

1299 Cambodian

1300 Kannada

1301 Korean

1305 Kashmiri

1307 Kurdish

1311 Kirghiz

1313 Latin

1326 Lingala

1327 Laothian

1332 Lithuanian

1334 Latvian;

Lettish

1345 Malagasy

1347 Maori

1349 Macedonian

1350 Malayalam

1352 Mongolian

1353 Moldavian

1356 Marathi

1357 Malay

1358 Maltese

1363 Burmese

1365 Nauru

1369 Nepali

1376 Dutch

1379 Norwegian

1393 Occitan

1403 (Afan)Oromo

1408 Oriya

1417 Punjabi

1428 Polish

1435 Pashto;

Pushto

1436 Portuguese

1463 Quechua

1481 Rhaeto-

Romance

1482 Kirundi

1483 Romanian

1489 Russian

1491 Kinyarwanda

1495 Sanskrit

1498 Sindhi

1501 Sangho

1502 Serbo-

Croatian

1503 Singhalese

1505 Slovak

1506 Slovenian

1507 Samoan

1508 Shona

1509 Somali

1511 Albanian

1512 Serbian

1513 Siswati

1514 Sesotho

1515 Sundanese

1516 Swedish

1517 Swahili

1521 Tamil

1525 Telugu

1527 Tajik

1528 Thai

1529 Tigrinya

1531 Turkmen

1532 Tagalog

1534 Setswana

1535 Tonga

1538 Turkish

1539 Tsonga

1540 Tatar

1543 Twi

1557 Ukrainian

1564 Urdu

1572 Uzbek

1581 Vietnamese

1587 Volapük

1613 Wolof

1632 Xhosa

1665 Yoruba

1684 Chinese

1697 Zulu

1703 Not specified

Code Area Code Area Code Area Code Area

2044 Argentina

2047 Australia

2046 Austria

2057 Belgium

2070 Brazil

2079 Canada

2090 Chile

2092 China

2115 Denmark

2165 Finland

2174 France

2109 Germany

2248 India

2238 Indonesia

2254 Italy

2276 Japan

2304 Korea

2363 Malaysia

2362 Mexico

2376 Netherlands

2390 New Zealand

2379 Norway

2427 Pakistan

2424 Philippines

2436 Portugal

2489 Russia

2501 Singapore

2149 Spain

2499 Sweden

2086 Switzerland

2528 Thailand

2184 United

Kingdom

Car audio and car goods internet store Winauto

winauto.ua

Index

AAC 9, 49

Angle (Angle) 19

Area code 56

Audio channel (Stereo) 21

Audio DRC (Audio DRC) 43

Audio format (Audio) 20

Auto Off (Auto OFF) 38

Auxiliary equipment 46

Auxiliary level (Level) 46

Auxiliary settings (AUX1

Input, AUX2 Input) 39, 46

Background screen

(Screen Select) 36

Balance

(Balance/Fader) 33, 40

Best Tuning Memory

(BTM) 16

Button illumination

(Key Illumination) 39

Center Speaker Organizer

(CSO) 34, 40

Character encoding

(Name Character) 14, 38

Clock (Clock) 11, 42

Clock setting

(Clock Adjust) 45

Clock Time (CT) 16, 17, 38

Crossover filter

(Crossover Filter) 41

Demonstration (Demo) 42

Dimmer level

(Dimmer Level) 38

Dimmer setting (Dimmer) 38

Discs 9

Display language

(Language) 14, 38

Dolby D level

(Dolby D Level) 21

Dolby Digital 20, 21

DVD audio language (Audio,

DVD Audio Language) 20, 43

DVD control menu

(DVD Control) 19

DVD direct search play

(DVD Direct Search) 23, 43

DVD menu 17

DVD menu language

(DVD Menu Language) 43

DVD playlist play

(DVD Playlist Play) 43

DVD’s top menu

(Top Menu) 17, 19

Dynamic Range Control

(DRC) 43

EQ7 32, 40

Fader (Balance/Fader) 33, 40

Formats 9

Fuse 50

General settings (General) 38

Gesture Command 32

High Pass Filter (HPF) 41

Image rotate (Image Turn) 18

Initial settings

(Initial Setting) 14

Intelligent Time Alignment

33, 34

iPod 29, 49

JPEG 9, 49

Language code 56

List up (List) 31

Listening position

(Listening Position) 33, 40

Local seek mode (Local) 15

Low Pass Filter (LPF) 41

Monaural mode (Mono) 15

Monitor angle

(Monitor Angle) 35

Monitor type

(Monitor Type) 44

MP3 9, 49

MPEG-4 9, 49

Multi Border DVD 48

Multi channel output

(Multi Ch Output) 43

Multi Session CD 48

Multi-disc resume playback

(Multi Disc Resume) 44

No signal (No Signal) 39

NTSC 38

Operation sound (Beep) 38

Output color system

(Output Color System) 38

continue to next page t

Car audio and car goods internet store Winauto

winauto.ua

PA L 3 8

Parental control settings

(DVD Parental Control) 21, 43

Passenger control

(Passenger Control) 30

Picture EQ 36, 42

Play menu (Play Menu) 18

Playable discs 9

Playback control

(Video CD PBC) 20, 44

Playback settings (Visual) 43

Program Types (PTY) 16, 17

Radio Data System (RDS) 16

Rear Bass Enhancer

(RBE) 34, 41

Rear view camera 46

Rear view camera input

(Camera Input) 39

Rear view camera settings

(Rear View Camera Setting)

Receive menu

(Receive Menu) 15

Remote Commander

12, 14, 50

Repeat play

(Repeat) 22, 24, 30

Reset 14

Resume play 18

Rotary commander

(Rotary Commander) 39

Screen aspect ratio

(Aspect) 37, 42

Screen settings (Screen) 42

Security function

(Security Control) 45

SensMe™ 25

Shuffle play

(Shuffle) 22, 24, 30

Slide show interval

(JPEG Slide Show) 44

Slow-motion play 18

Sound settings (Sound) 40

Speaker volume

(4.1ch Speaker Level) 35

Subtitle language

(Subtitle, DVD Subtitle

Language) 19, 43

Subwoofer position 33

Subwoofer setting

(Subwoofer) 14, 41

Subwoofer volume

(Balance/Fader) 33, 40

Touch panel calibration

(Touch Panel Adjust) 35

USB device 24

USB resume playback

(USB Resume) 44

Volume 10

WMA 9, 49

Xvid 9

ZAPPIN beep sound

(ZAPPIN Tone) 44

ZAPPIN playback time

(ZAPPIN Time) 44

ZAPPIN™ 31

Car audio and car goods internet store Winauto

winauto.ua

Car audio and car goods internet store Winauto

winauto.ua

Sony Corporation

Printed in Thailand

http://www.sony.net/

Car audio and car goods internet store Winauto

winauto.ua

Sony Car Stereo System Xav E722 Users Manual DVD/CD/USB Receiver

XAV-E722 to the manual ef5dd307-bedb-4373-a318-296ba9f9ae17

Navigation menu

Versions of this User Manual:

Views

Navigation
