– 1 –

Model Name Using Similar Mechanism XR-C7200/C7200W

Tape Transport Mechanism Type MG-25D-136

SERVICE MANUAL

AEP Model

UK Model

XR-C8100R

E Model

XR-C8100

XR-C8100/C8100R

MICROFILM

FM/AM CASSETTE CAR STEREO

XR-C8100

FM/MW/LW CASSETTE CAR STEREO

XR-C8100R

Photo : XR-C8100R

Cassette player section

Tape track 4-track 2-channel stereo

Wow and flutter 0.08 % (WRMS)

Frequency response 30 - 20,000 Hz (C8100)

10 - 20,000 Hz (C8100R)

Signal-to-noise ratio

Cassette type Dolby B NR Dolby NR off

TYPE II, III, IV 67 dB 61 dB

TYPE I 64 dB 58 dB

Tuner section

Tuning range C8100:

FM tuning interval:

50 kHz / 200 kHz

switchable

87.5 - 108.0 MHz

(at 50 kHz step)

87.5 - 107.9 MHz

(at 200 kHz step)

C8100R:

87.5 - 108.0 MHz

Aerial terminal External antenna connector

Intermediate frequency 10.7 MHz

Usable sensitivity 9 dBf

Selectivity 75 dB at 400 kHz

Signal-to-noise ratio 65 dB (stereo),

68 dB (mono)

Harmonic distortion at 1 kHz

0.7% (stereo),

0.4% (mono)

Separation 35 dB at 1 kHz

Frequency response 30 - 15,000 Hz

Capture ratio 2 dB

SPECIFICATIONS

AM (C8100)

Tuning range AM tuning interval:

9 kHz / 10 kHz switchable

531 - 1,602 kHz

(at 9 kHz step)

530 - 1,710 kHz

(at 10 kHz step)

Aerial terminal External antenna connector

Intermediate frequency 10.71 MHz / 450 kHz

Sensitivity 30 µV

MW/LW (C8100R)

Tuning range MW: 531 - 1,602 kHz

LW: 153 - 281 kHz

Aerial terminal External antenna connector

Intermediate frequency 10.71 MHz / 450 kHz

Sensitivity MW: 30 µV

LW: 50 µV

Power amplifier section

Outputs Speaker outputs

(sure seal connectors)

Speaker impedance 4 - 8 ohms

Maximum power output 45 W × 4 (at 4 ohms)

– Continued on next page –

– 2 –

TABLE OF CONTENTS

1. GENERAL

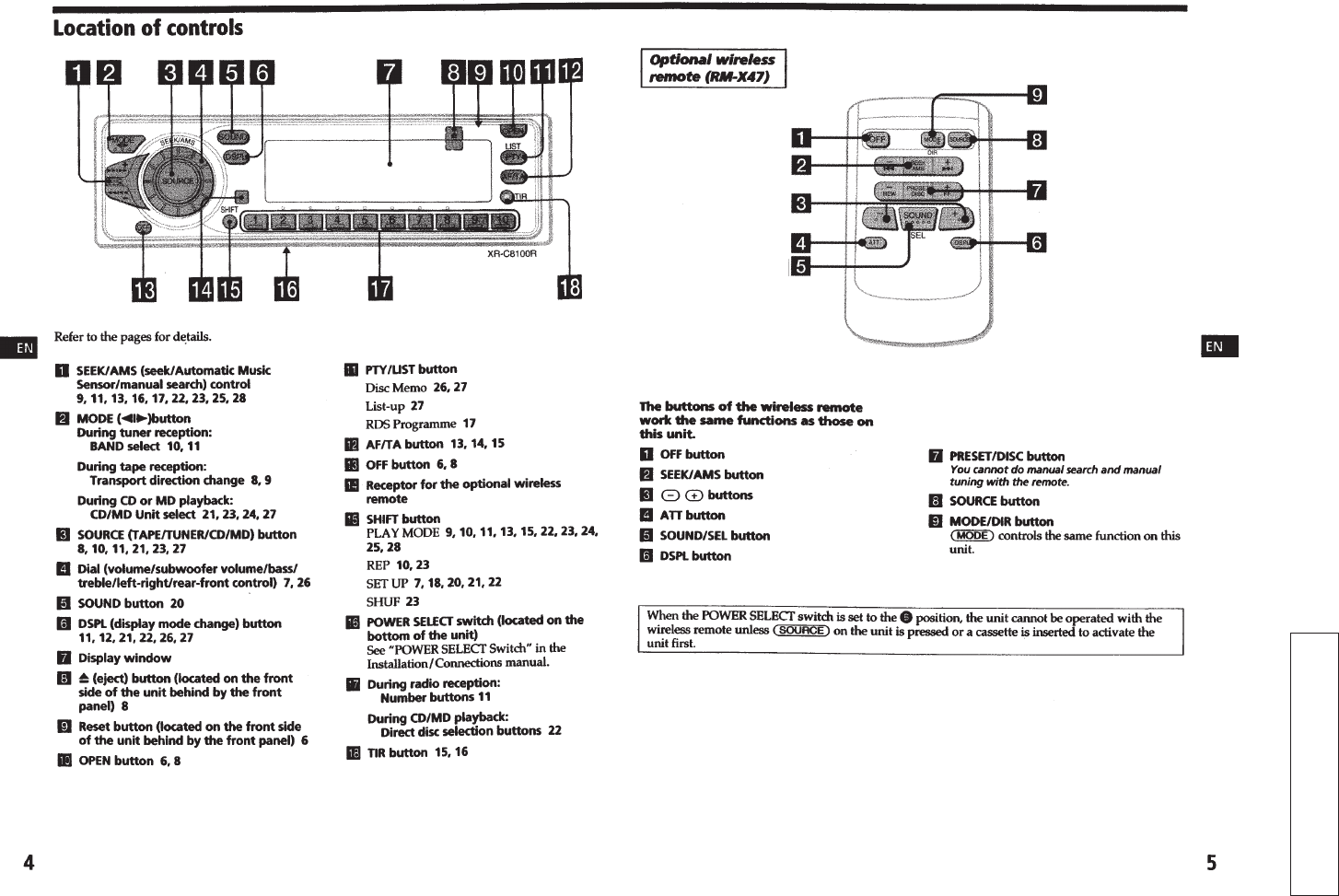

Location of Controls ...............................................................3

Getting Started ........................................................................4

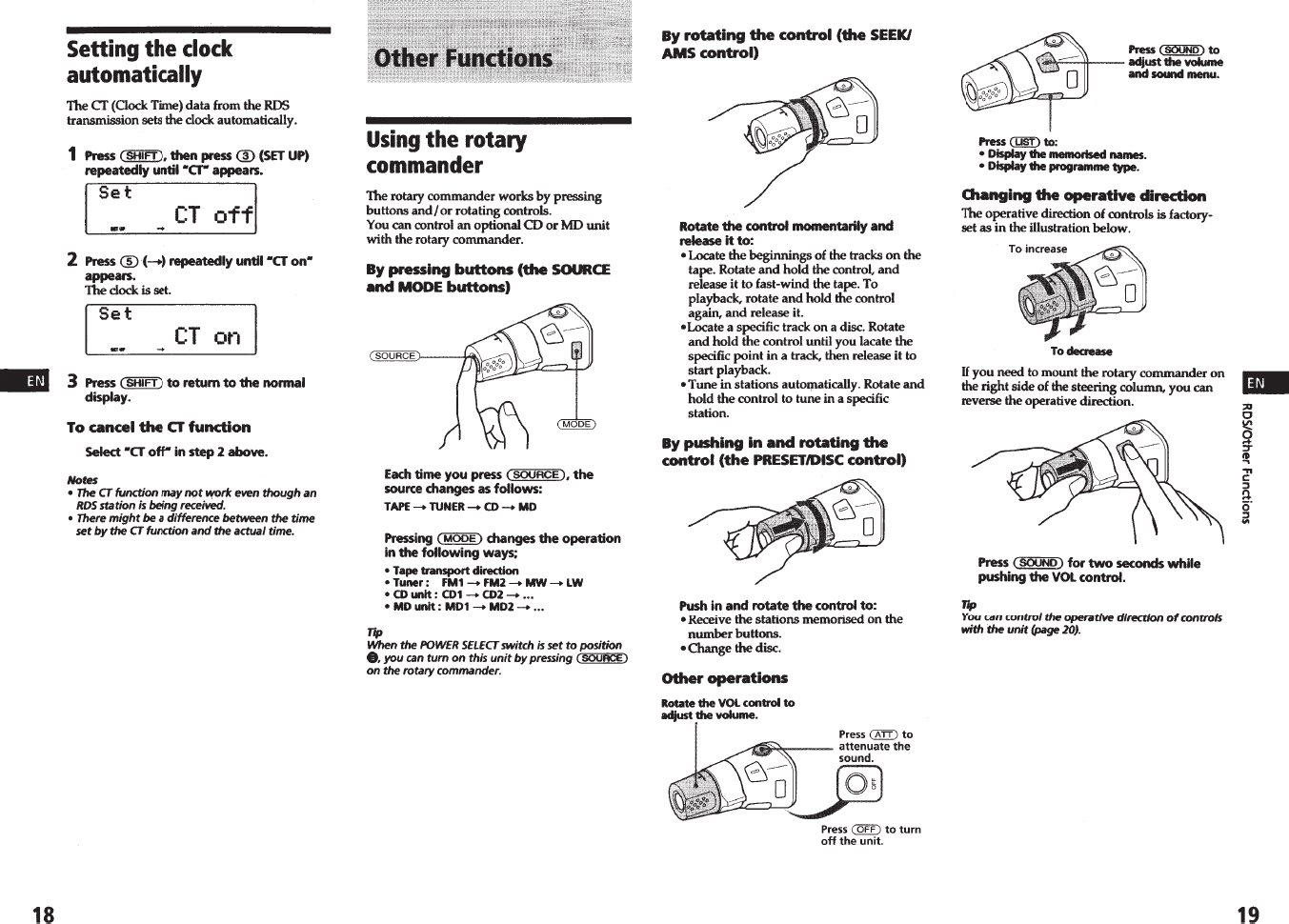

Setting the Clock ....................................................................4

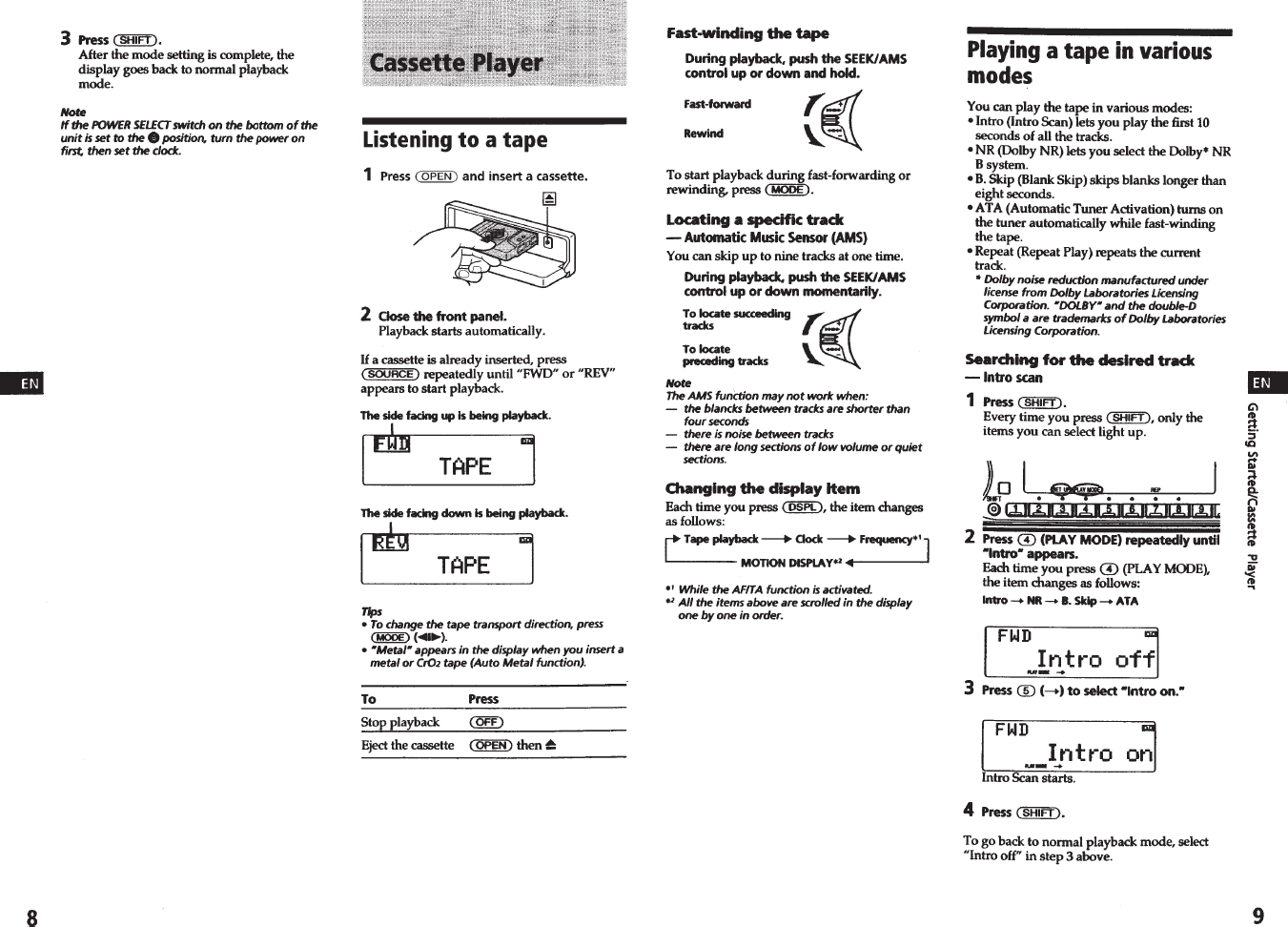

Cassette Player .......................................................................5

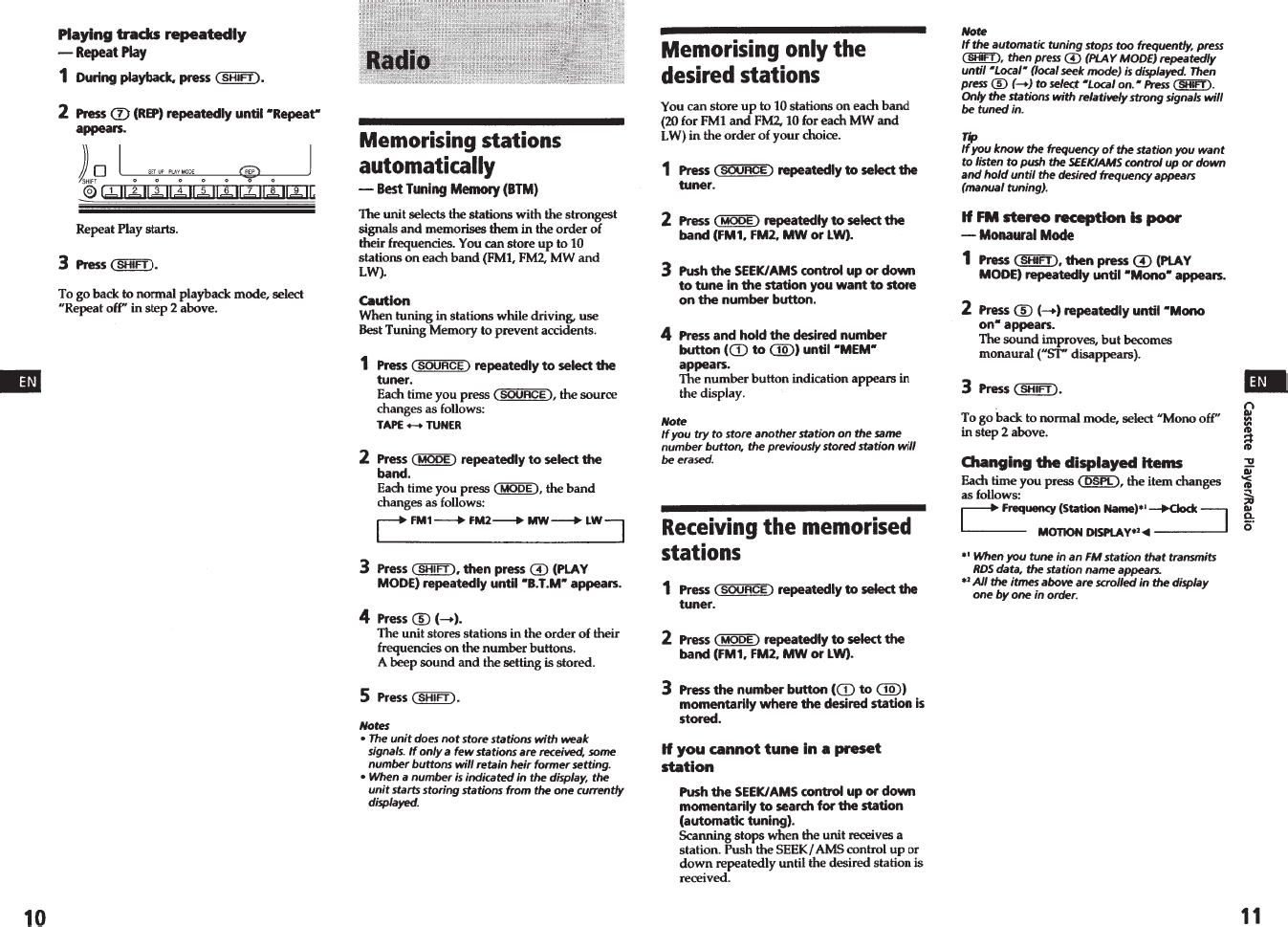

Radio ......................................................................................6

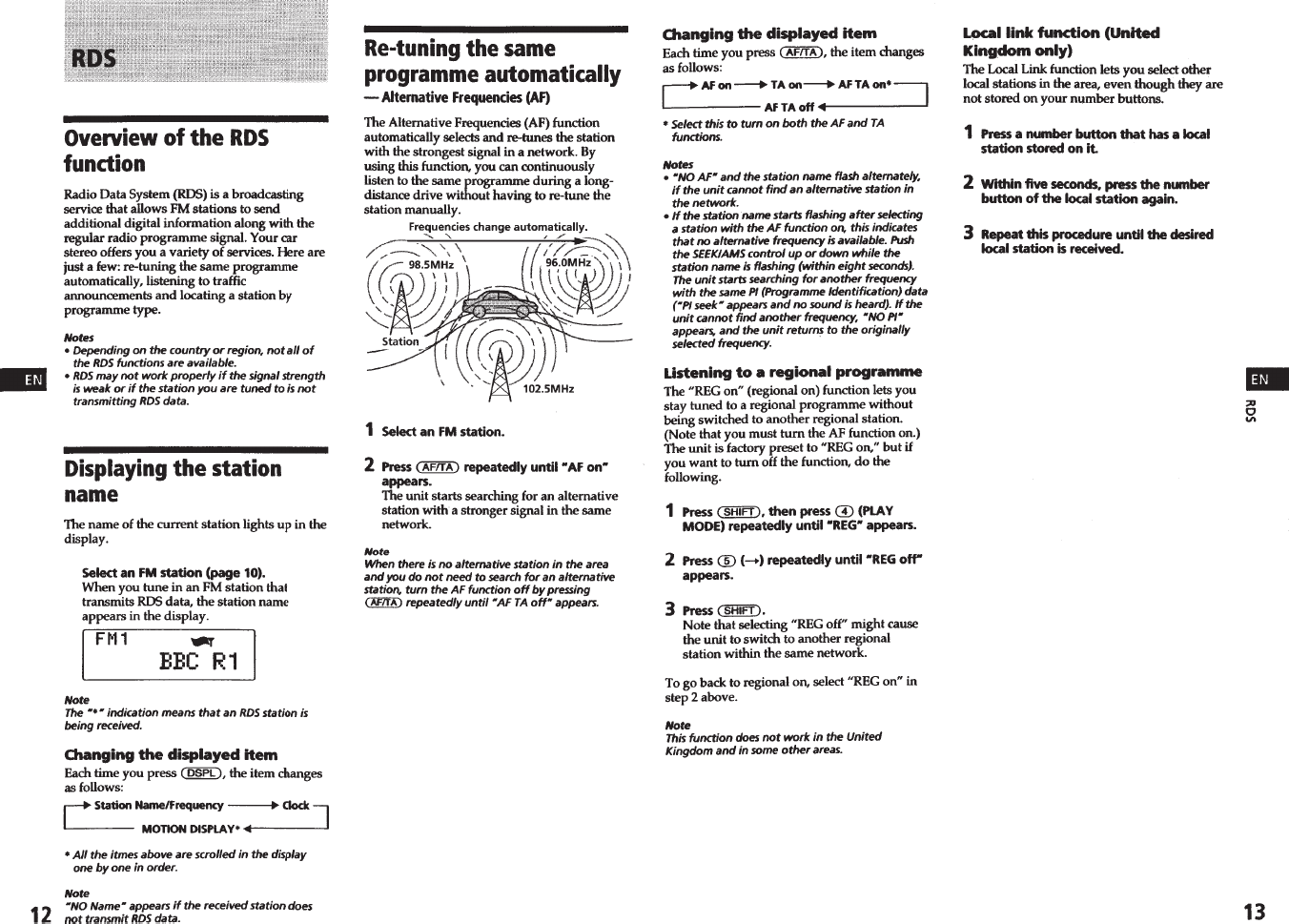

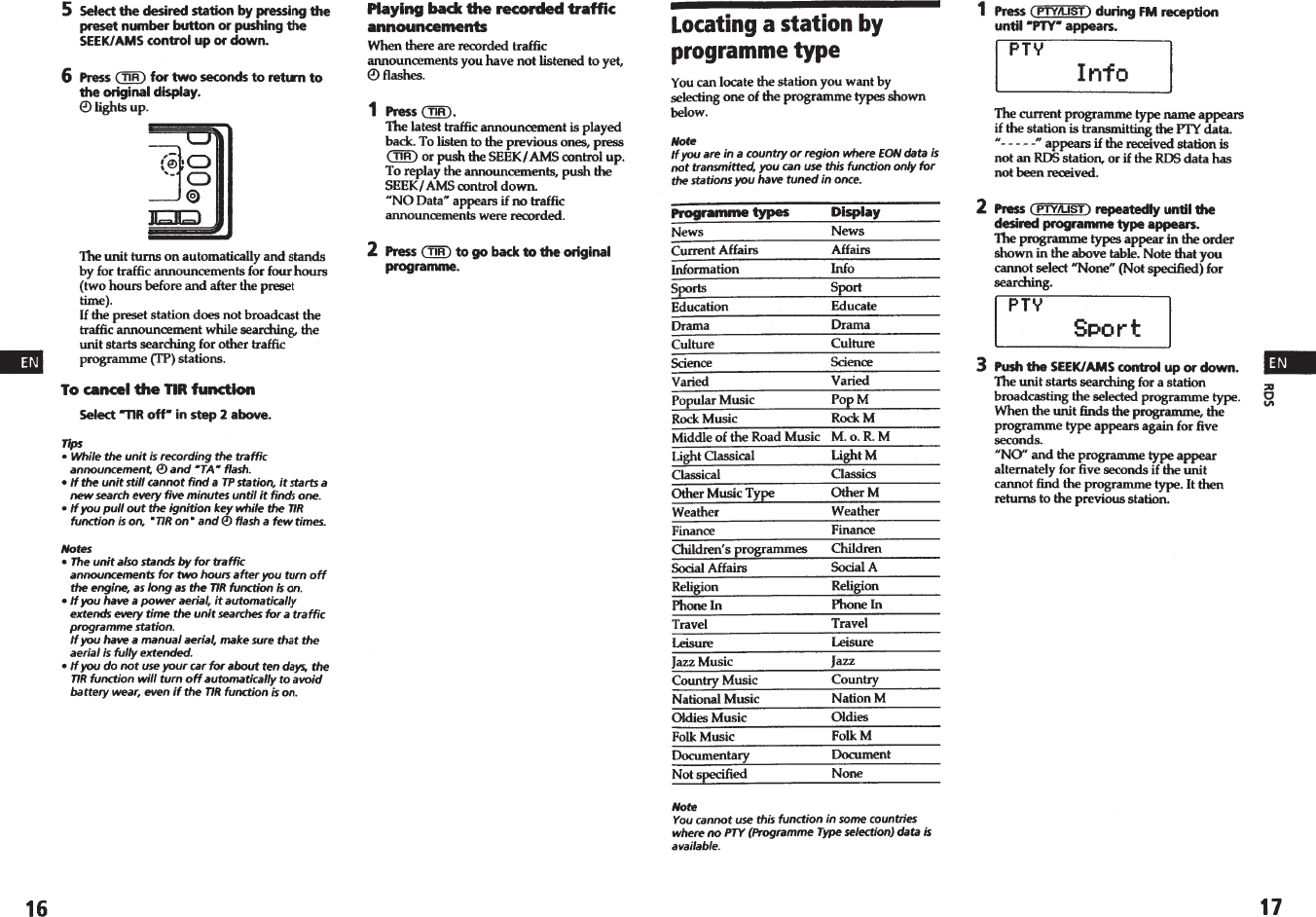

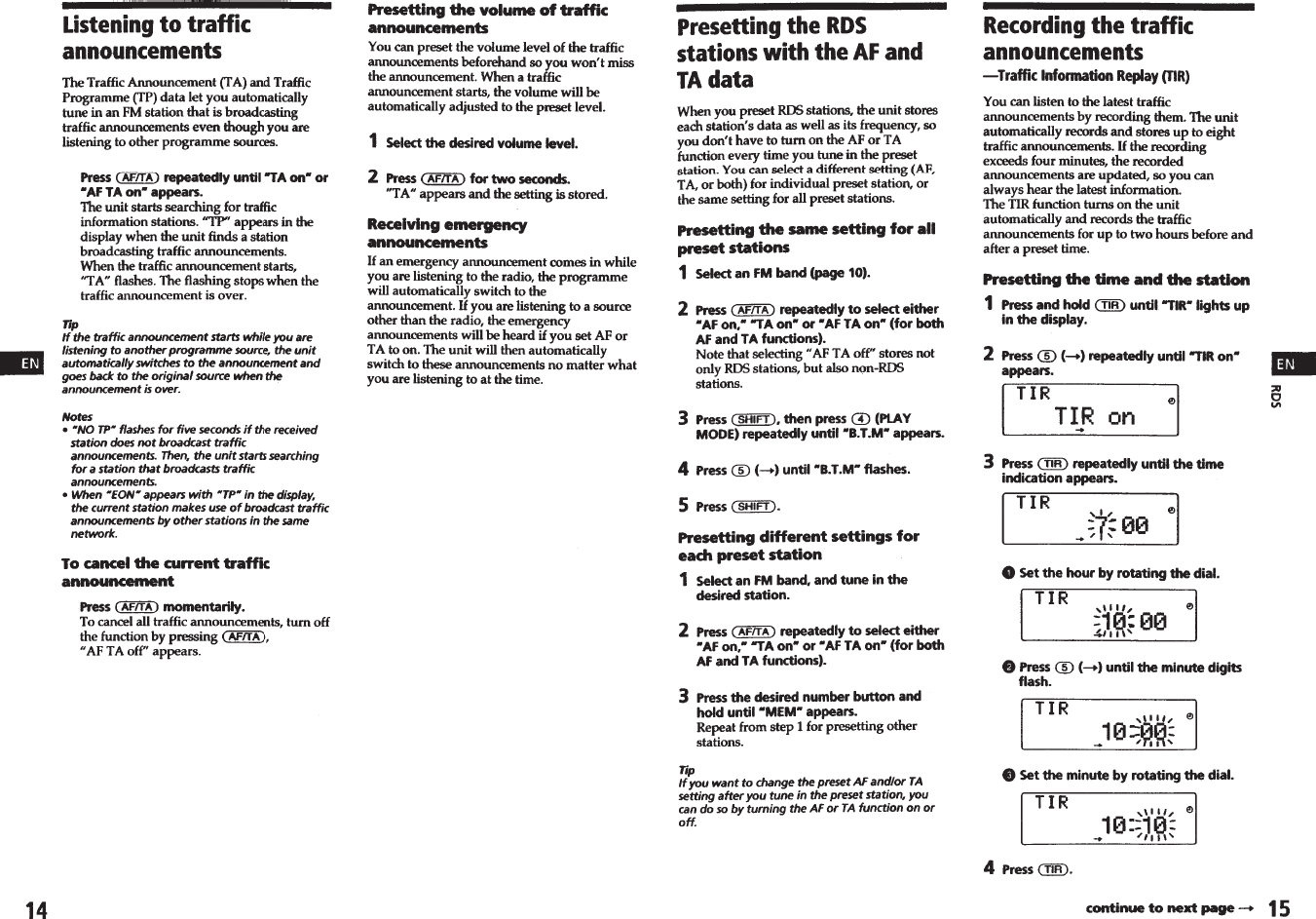

RDS ........................................................................................7

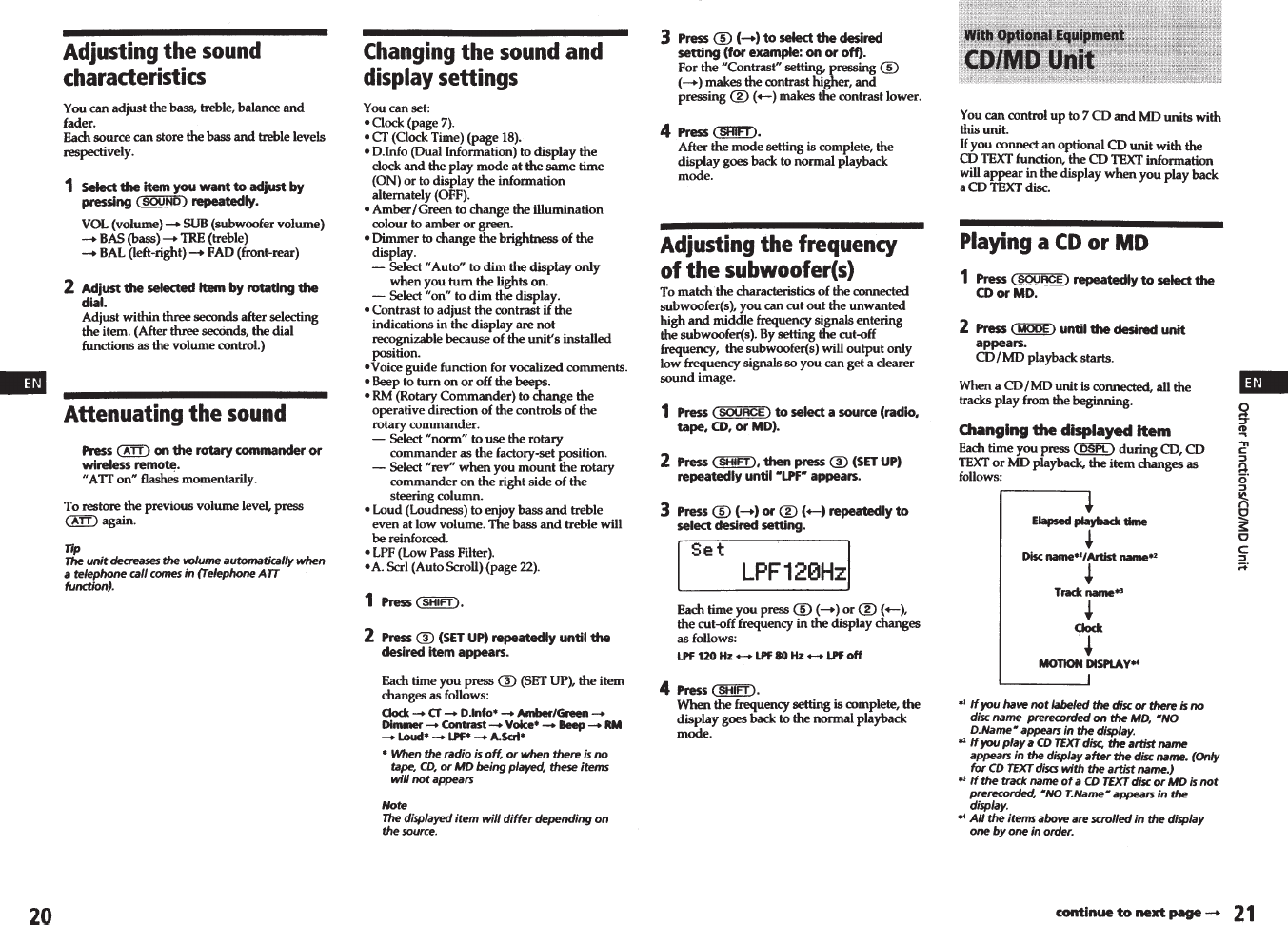

Other Functions .................................................................... 10

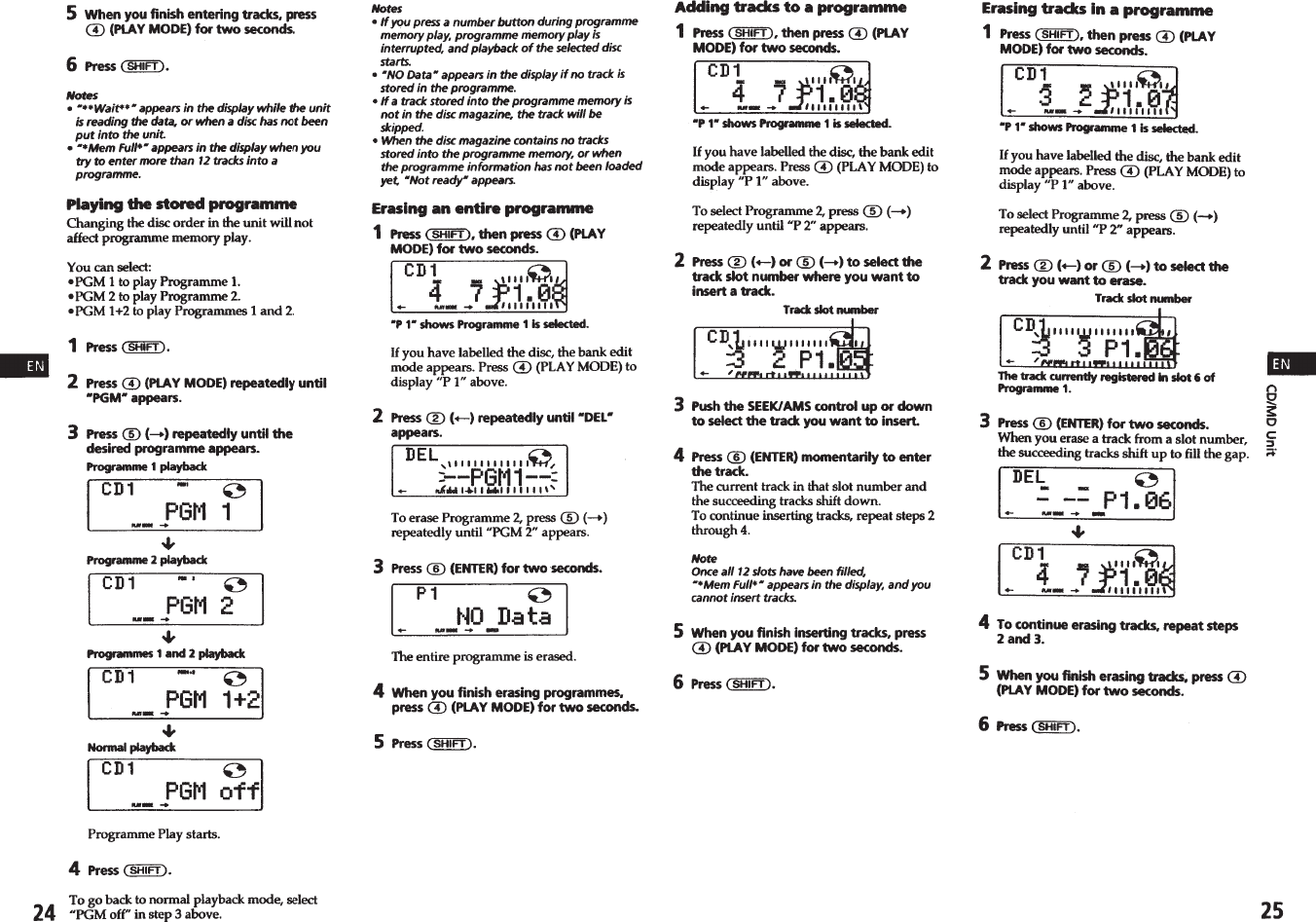

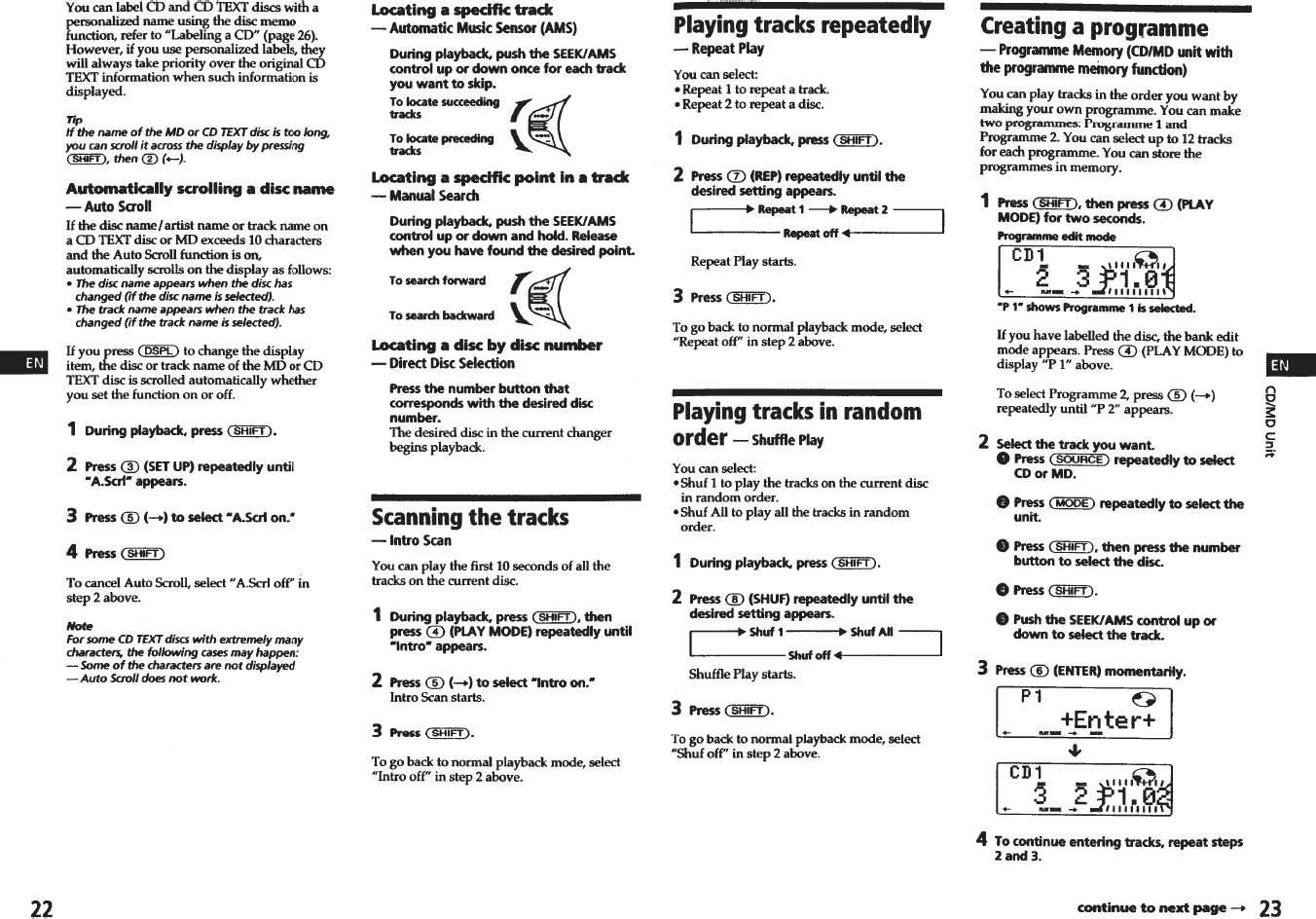

CD/MD Unit ......................................................................... 11

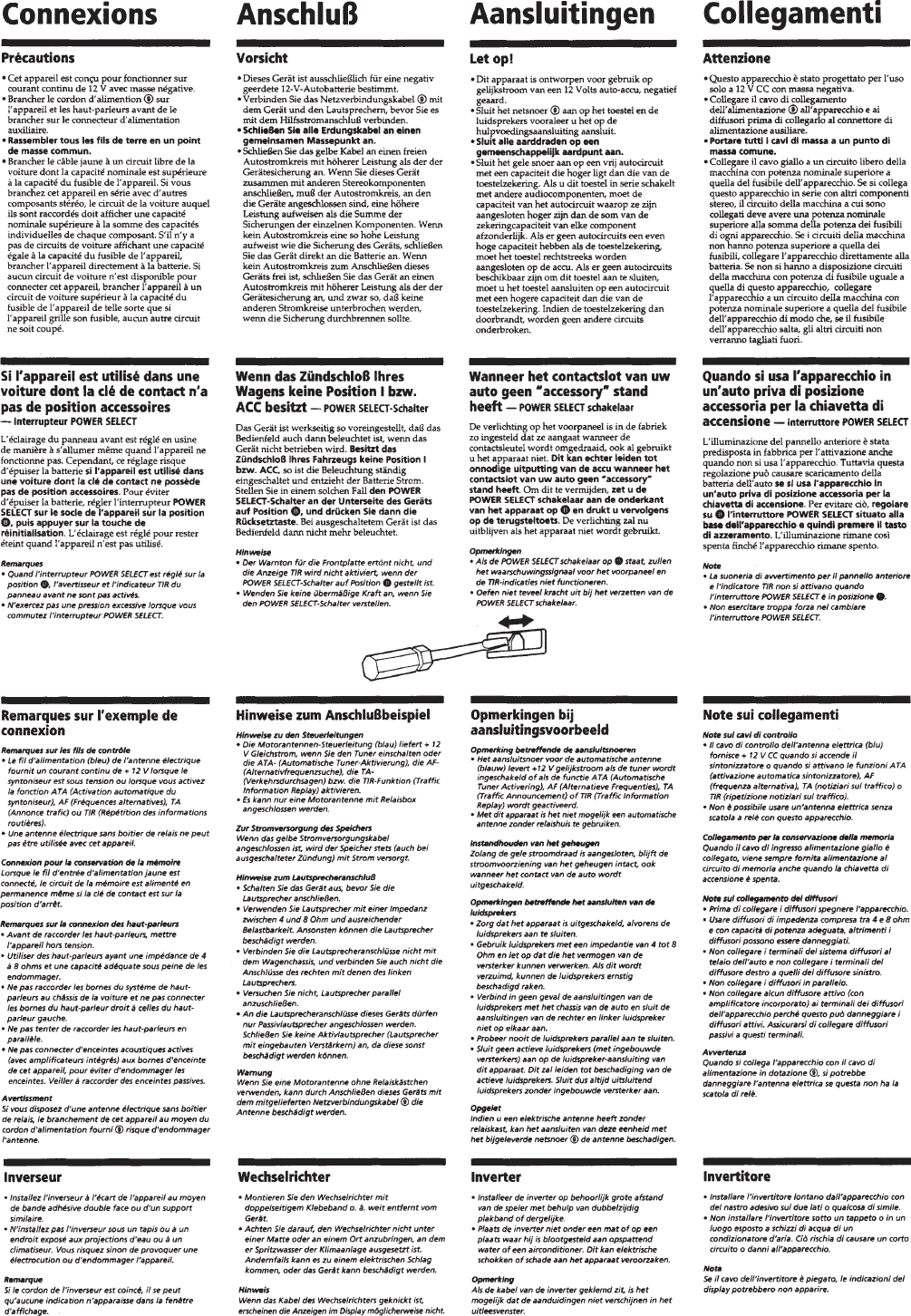

Connections .......................................................................... 16

2. DISASSEMBLY

2-1. Cover ................................................................................18

2-2. Front Panel Assy .............................................................. 18

2-3. Sub Panel Assy .................................................................19

2-4. Mechanism Deck.............................................................. 19

2-5. Main Board ...................................................................... 20

2-6. Heat Sink .......................................................................... 20

3. ASSEMBLY OF MECHANISM DECK

Housing ................................................................................21

Arm (Suction) .......................................................................21

Lever (LDG-A) / (LDG-B) ................................................... 22

Gear (Loading FT)................................................................ 22

Guide (C) .............................................................................. 23

Mounting Position of Capstan/Reel Motor (M901) ............. 23

4. MECHANICAL ADJUSTMENTS ...........................24

5. ELECTRICAL ADJUSTMENTS

Tape Section ......................................................................... 24

Tuner Section ........................................................................ 25

6. DIAGRAMS

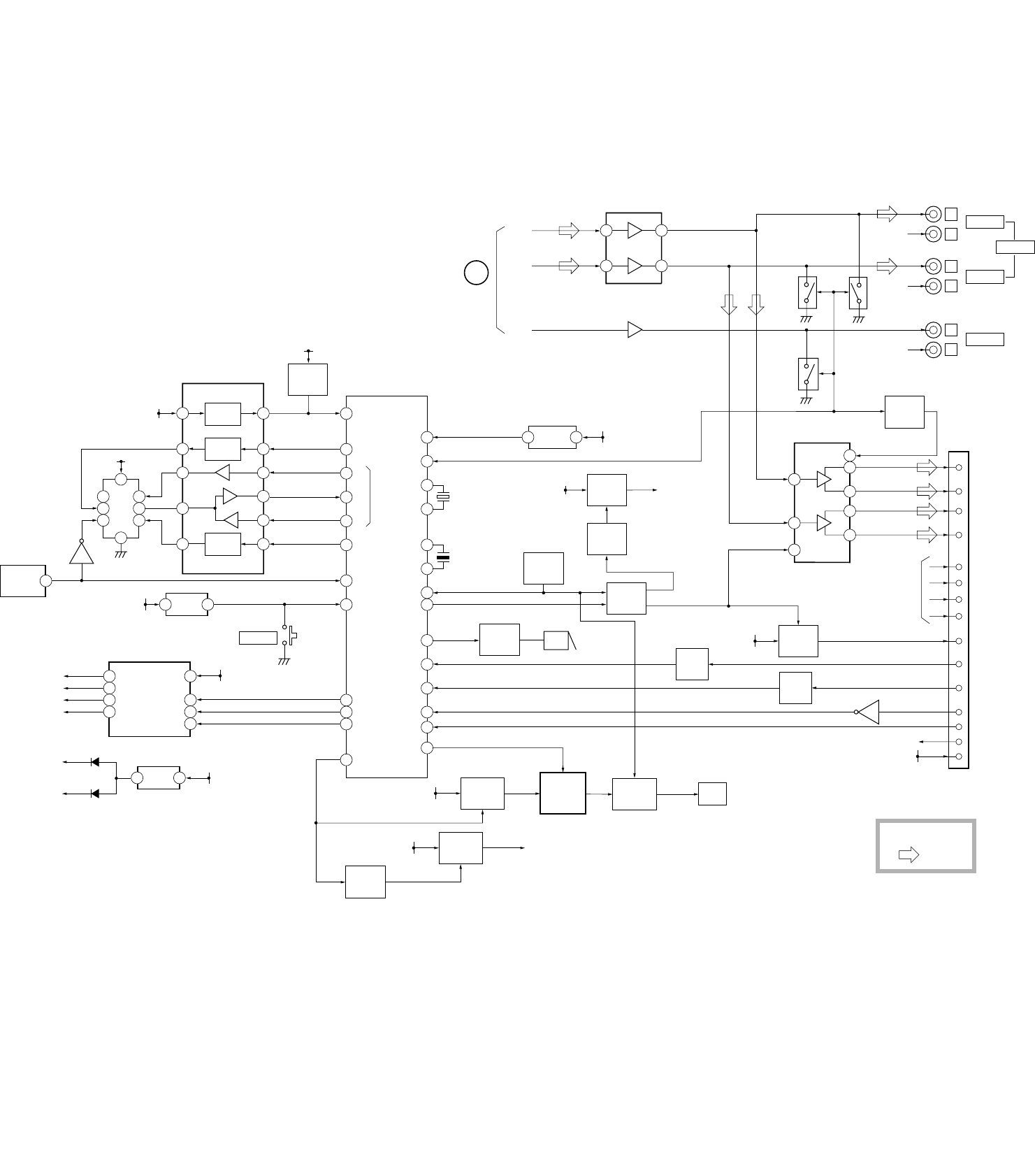

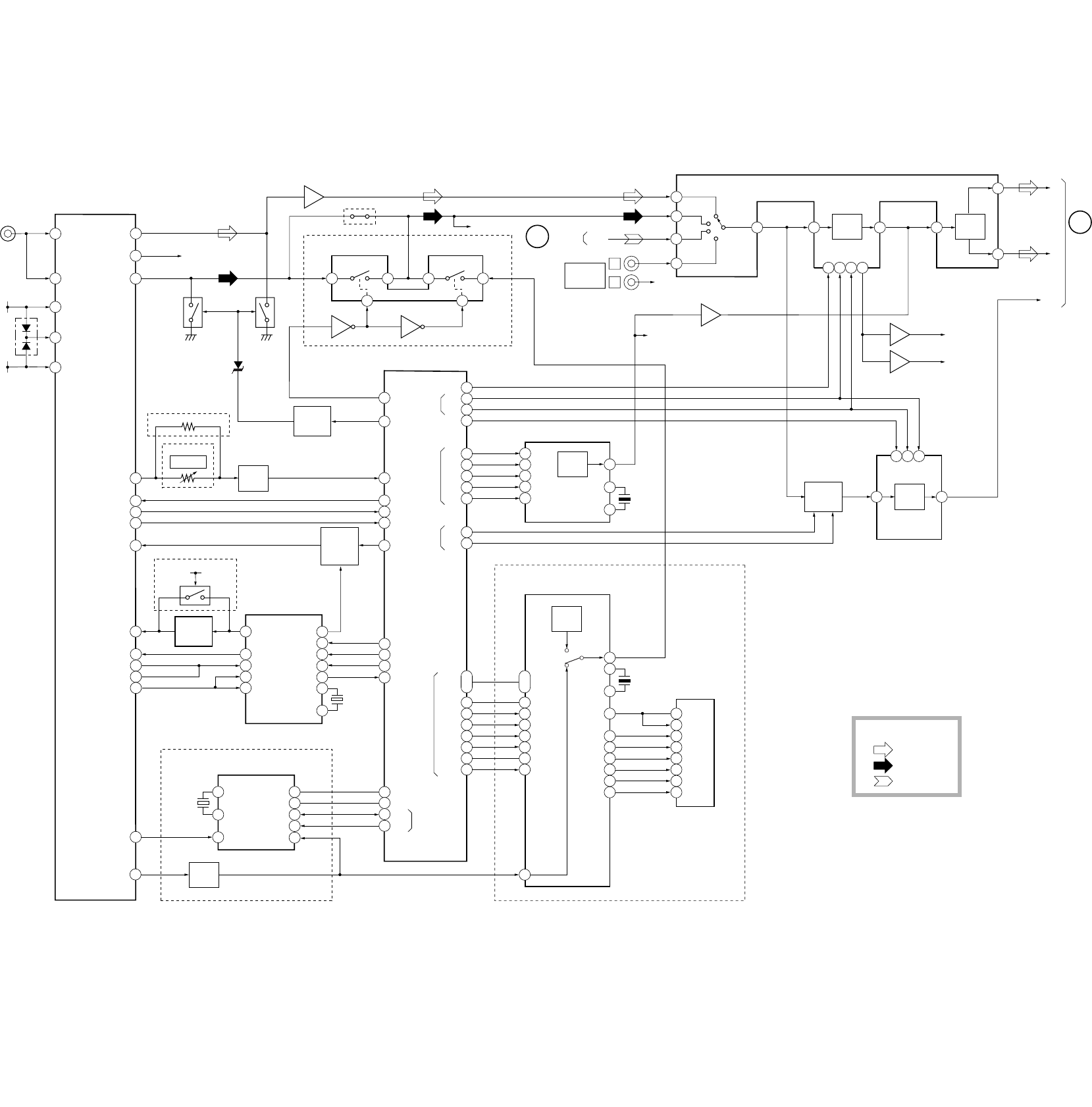

6-1. Block Diagram –Tape Section– ....................................... 29

6-2. Block Diagram –Tuner Section– ...................................... 31

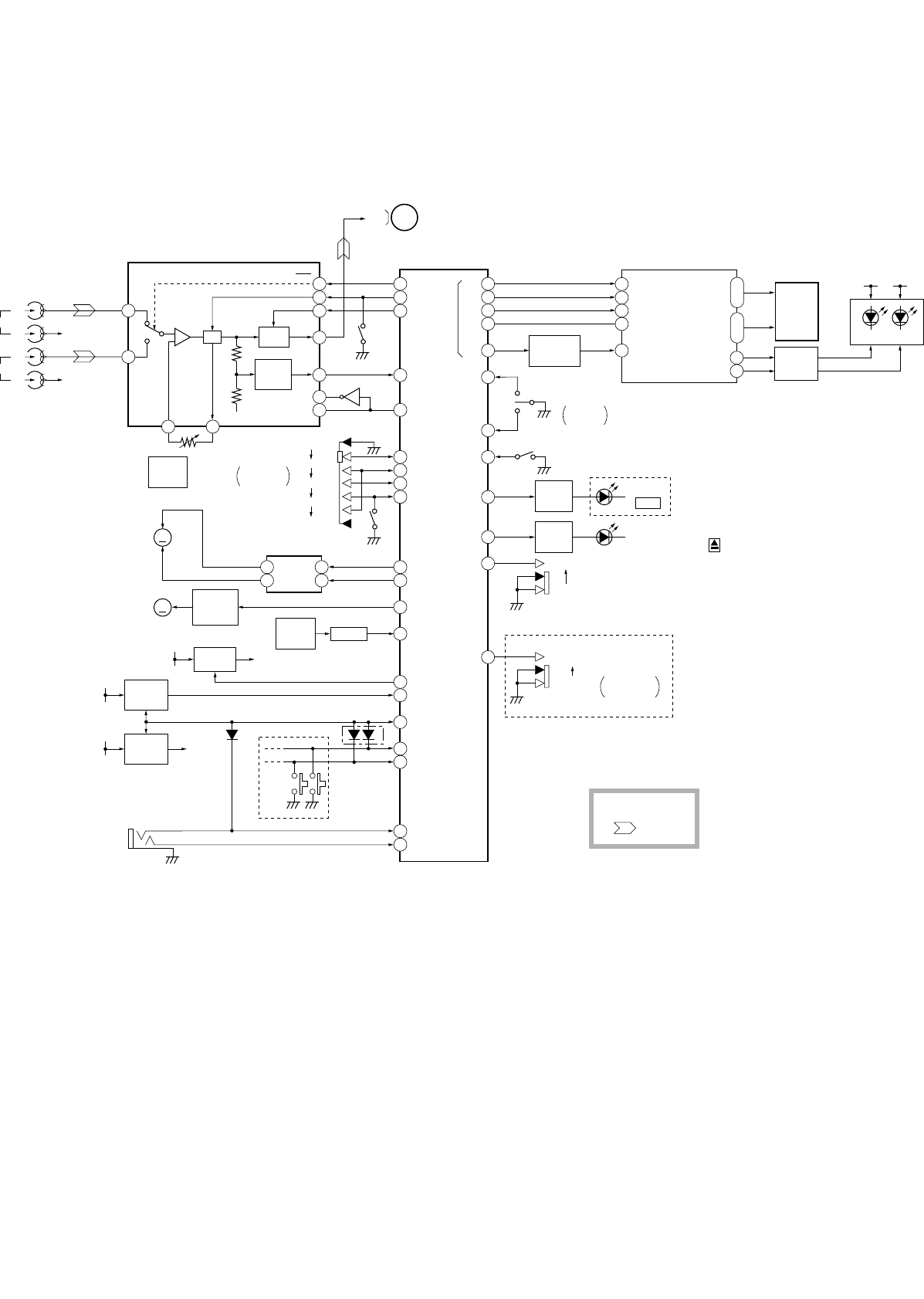

6-3. Block Diagram –Main Section– ....................................... 33

6-4. Printed Wiring Boards –Main Section– ........................... 36

6-5. Schematic Diagram –Main Section–................................ 41

6-6. Printed Wiring Board –Display Section– ......................... 46

6-7. Schematic Diagram –Display Section–............................ 48

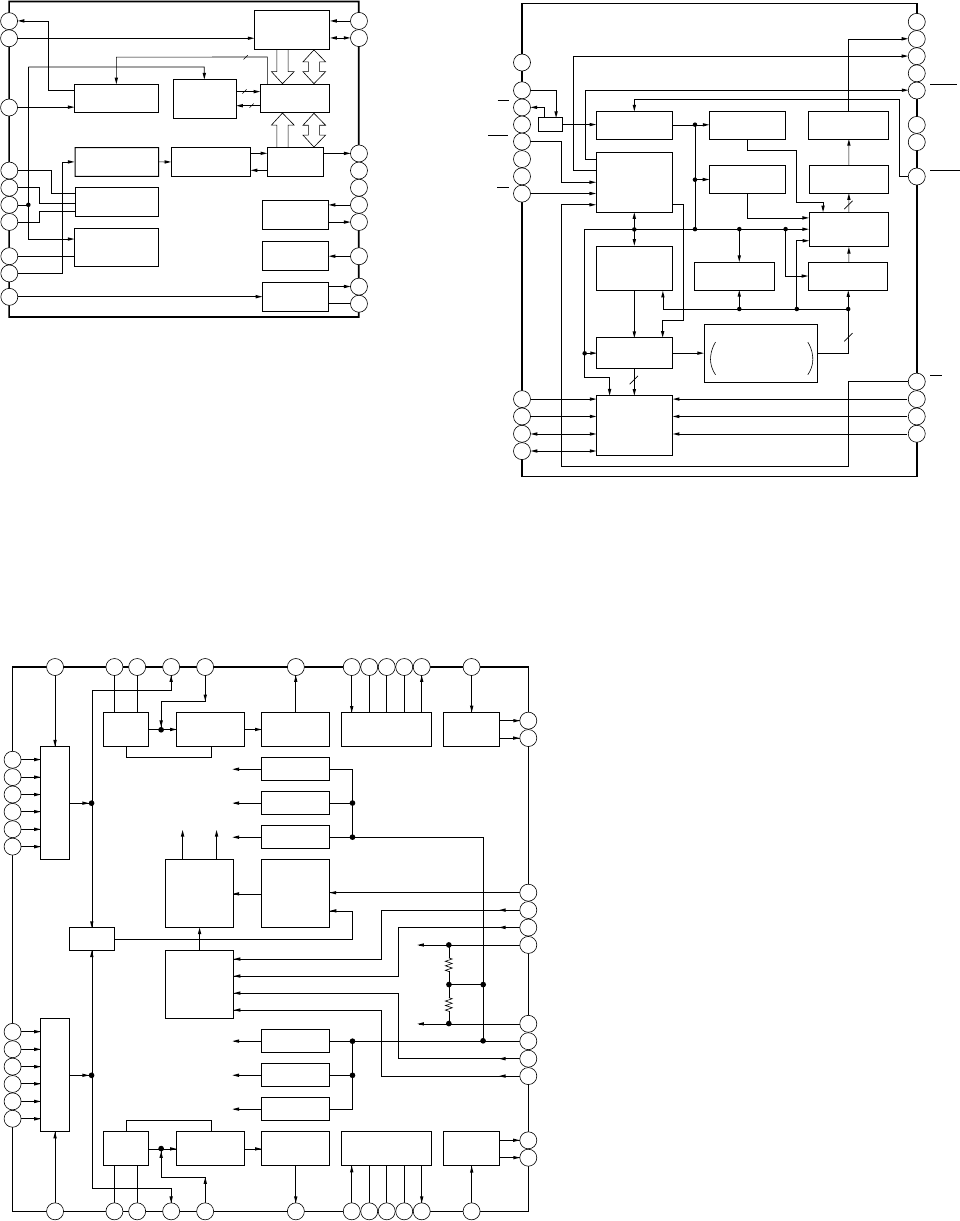

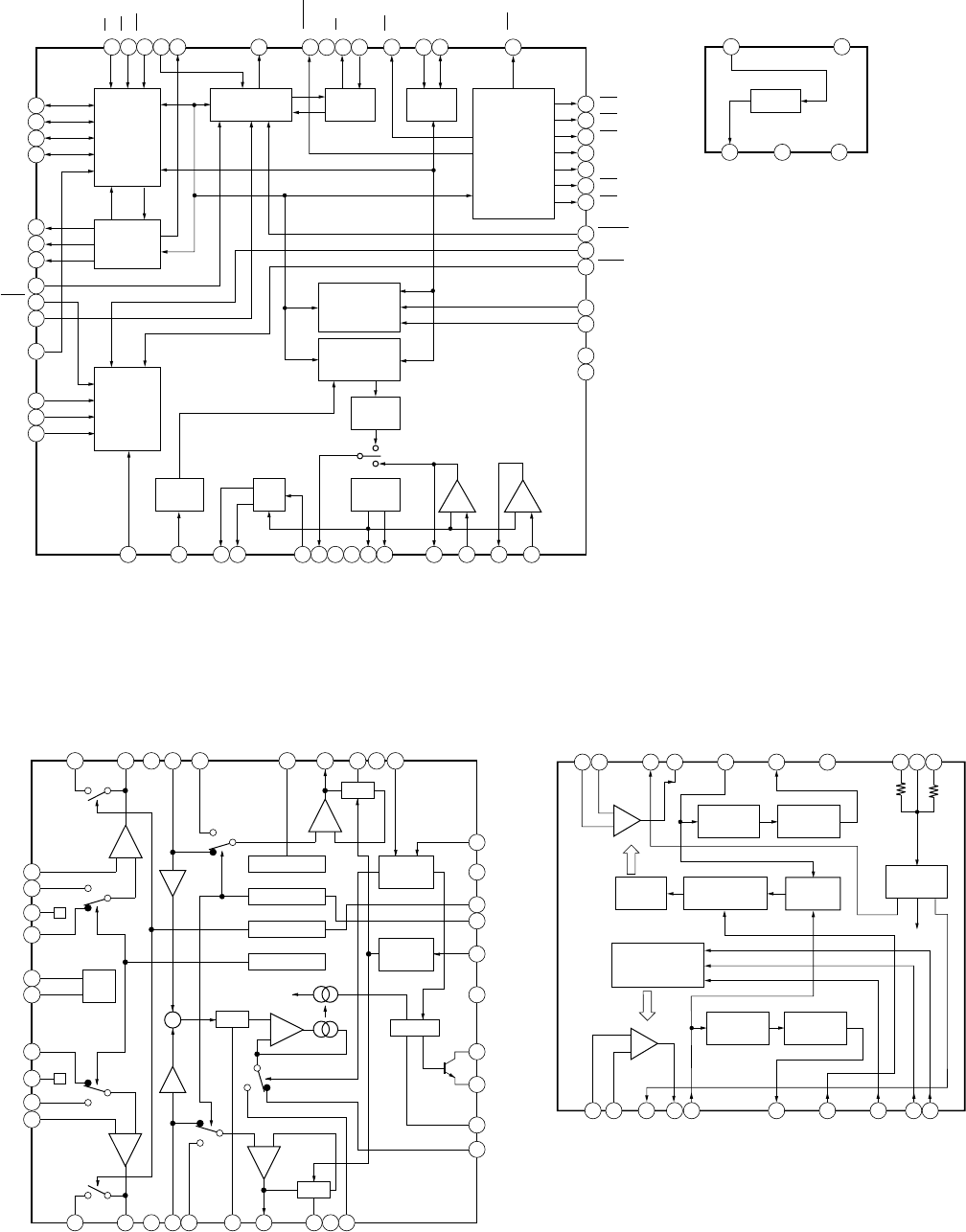

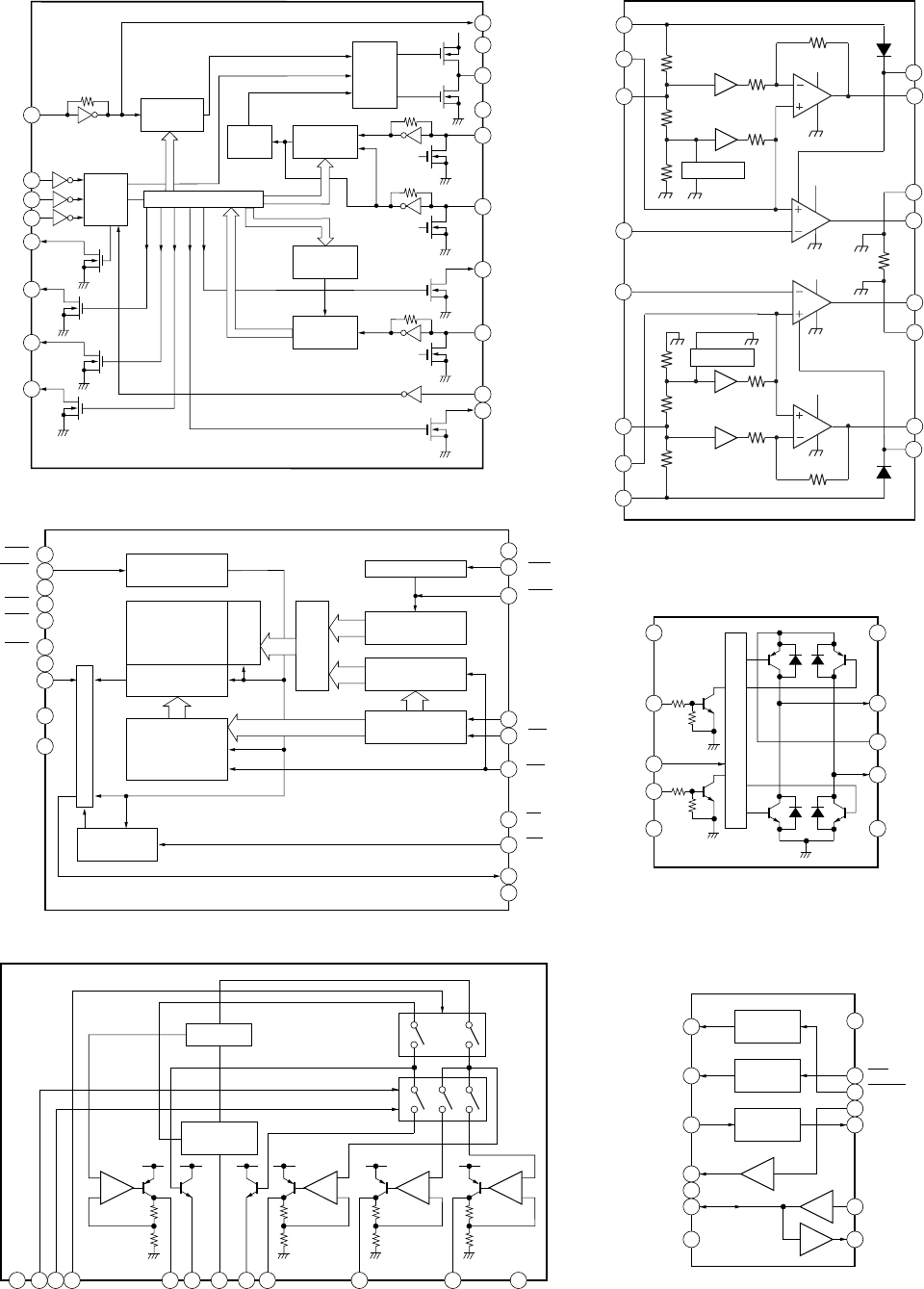

6-8. IC Pin Description ............................................................ 51

7. EXPLODED VIEWS

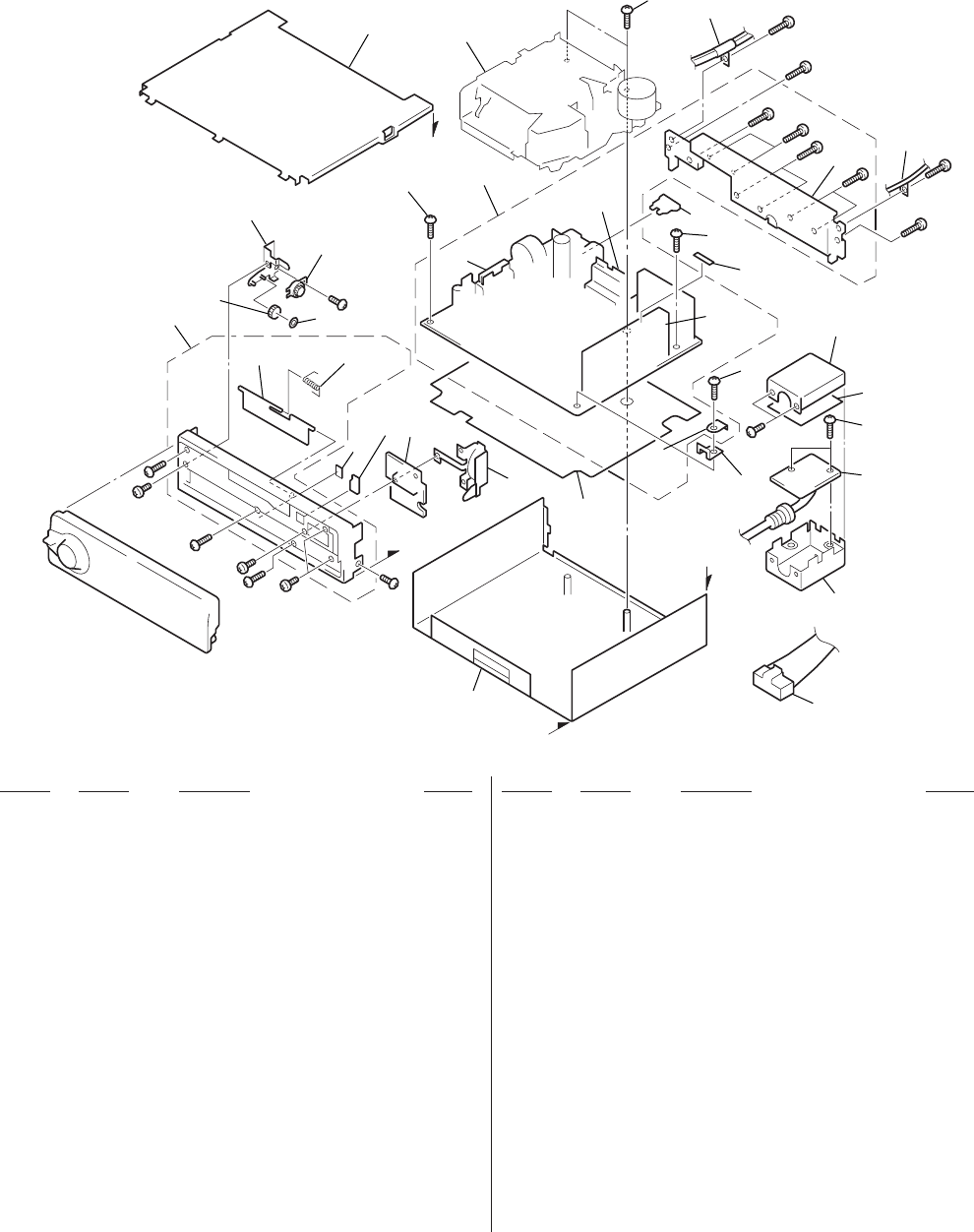

7-1. Chassis Section ................................................................ 57

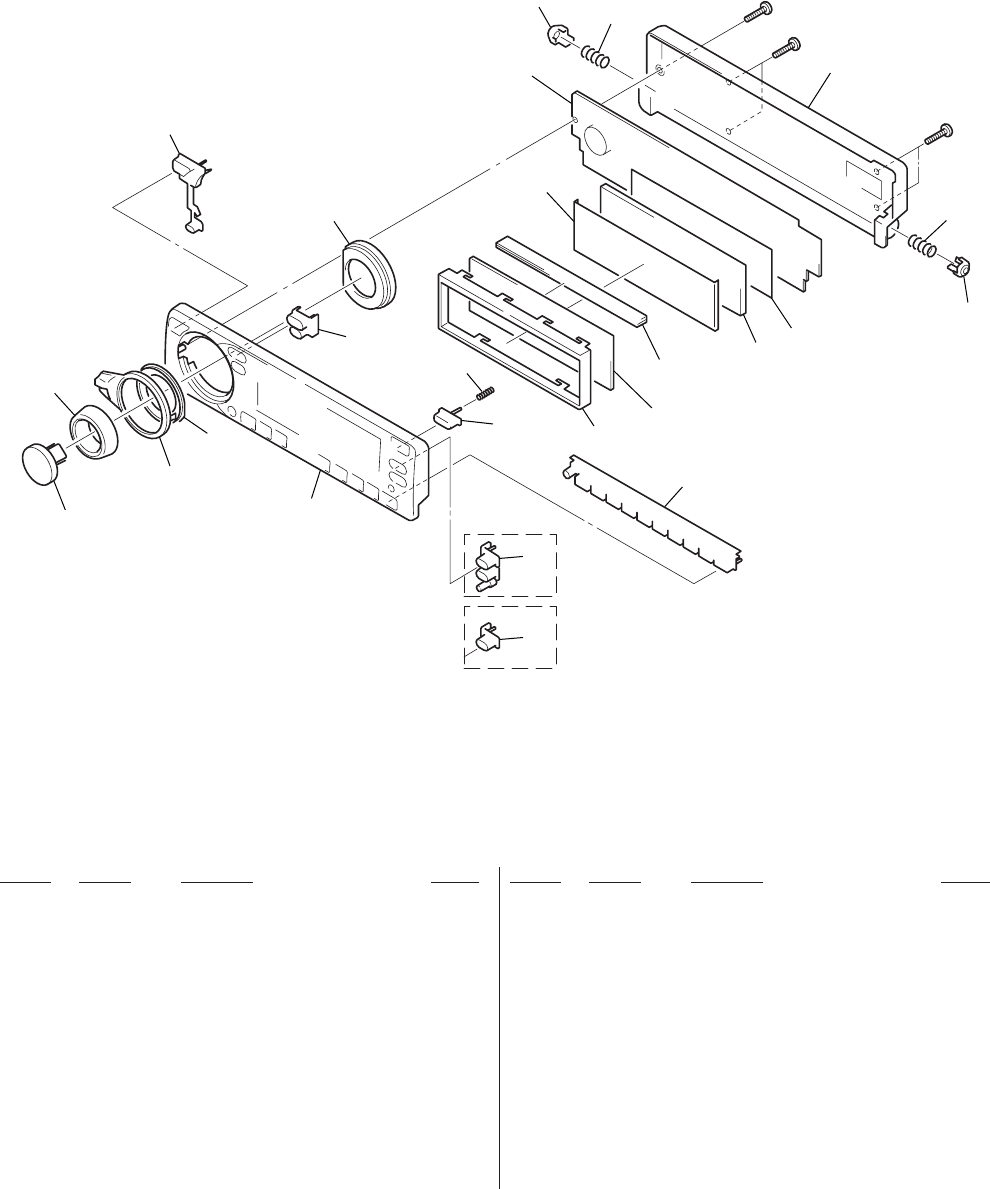

7-2. Front Panel Section .......................................................... 58

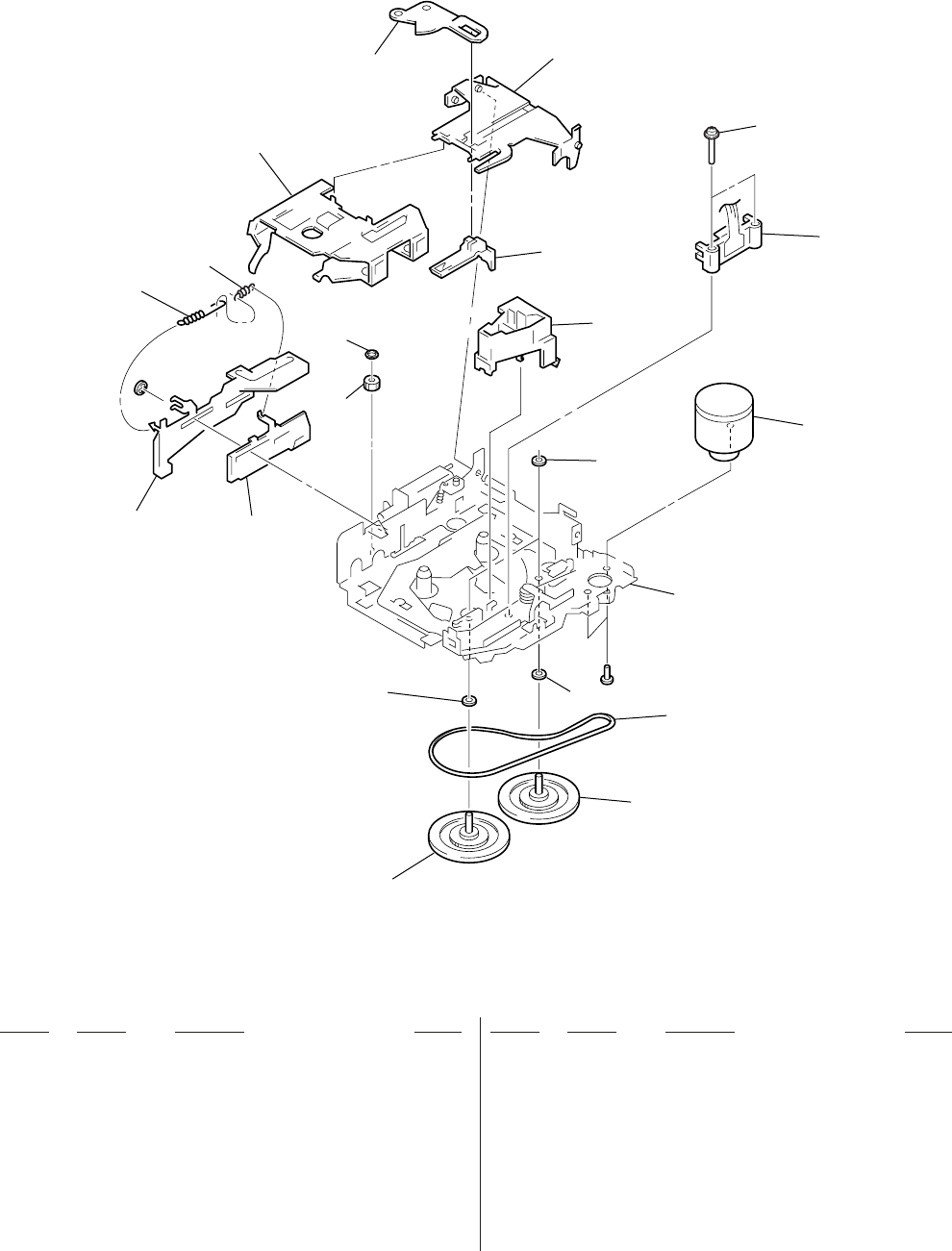

7-3. Mechanism Deck Section................................................. 59

8. ELECTRICAL PARTS LIST ...................................60

Notes on Chip Component Replacement

•Never reuse a disconnected chip component.

•Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Dolby noise reduction manufactured under license from Dolby Labo-

ratories Licensing Corporation.

“DOLBY” and the double-D symbol a are trademarks of Dolby

Laboratories Licensing Corporation.

General

Outputs Line outputs (3)

Power antenna relay control

lead

Power amplifier control

lead

Telephone ATT control

lead

Illumination control lead (C8100)

Tone controls Bass ± 10 dB at 100 Hz

Treble ± 10 dB at 10 kHz

Power requirements 12 V DC car battery

(negative ground)

Dimensions Approx. 178 × 50 × 180 mm

(w/h/d)

Mounting dimensions Approx. 182 × 53 × 160 mm

(w/h/d)

Mass Approx. 1.5 kg

Supplied accessories Rotary commander RM-X4S (1)

Wireless remote

RM-X47 (1) (C8100)

Parts for installation and

connections (1 set)

Front panel case (1)

Design and specifications are subject to change without

notice.

– 3 –

SECTION 1

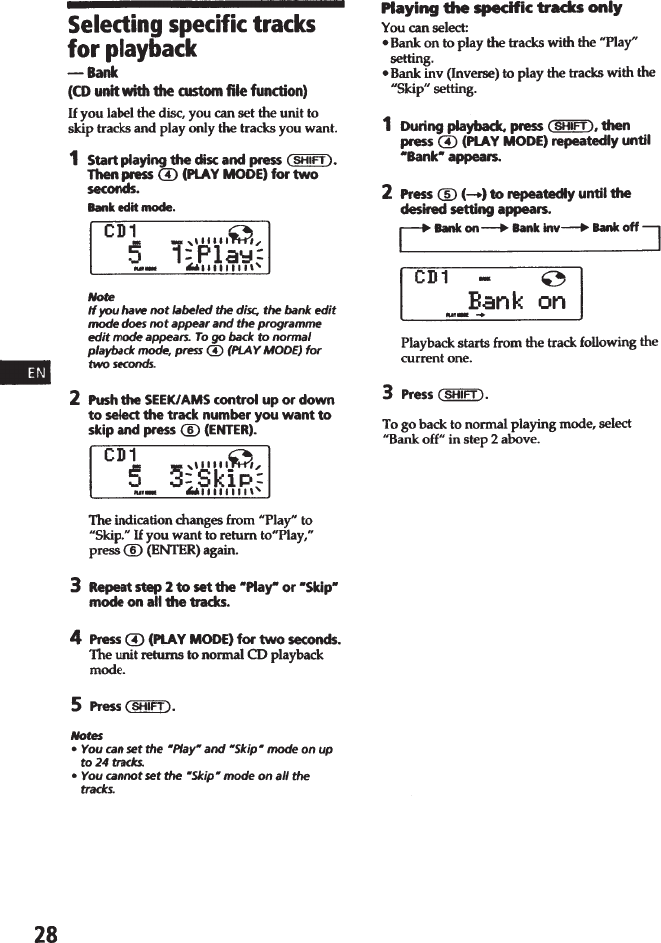

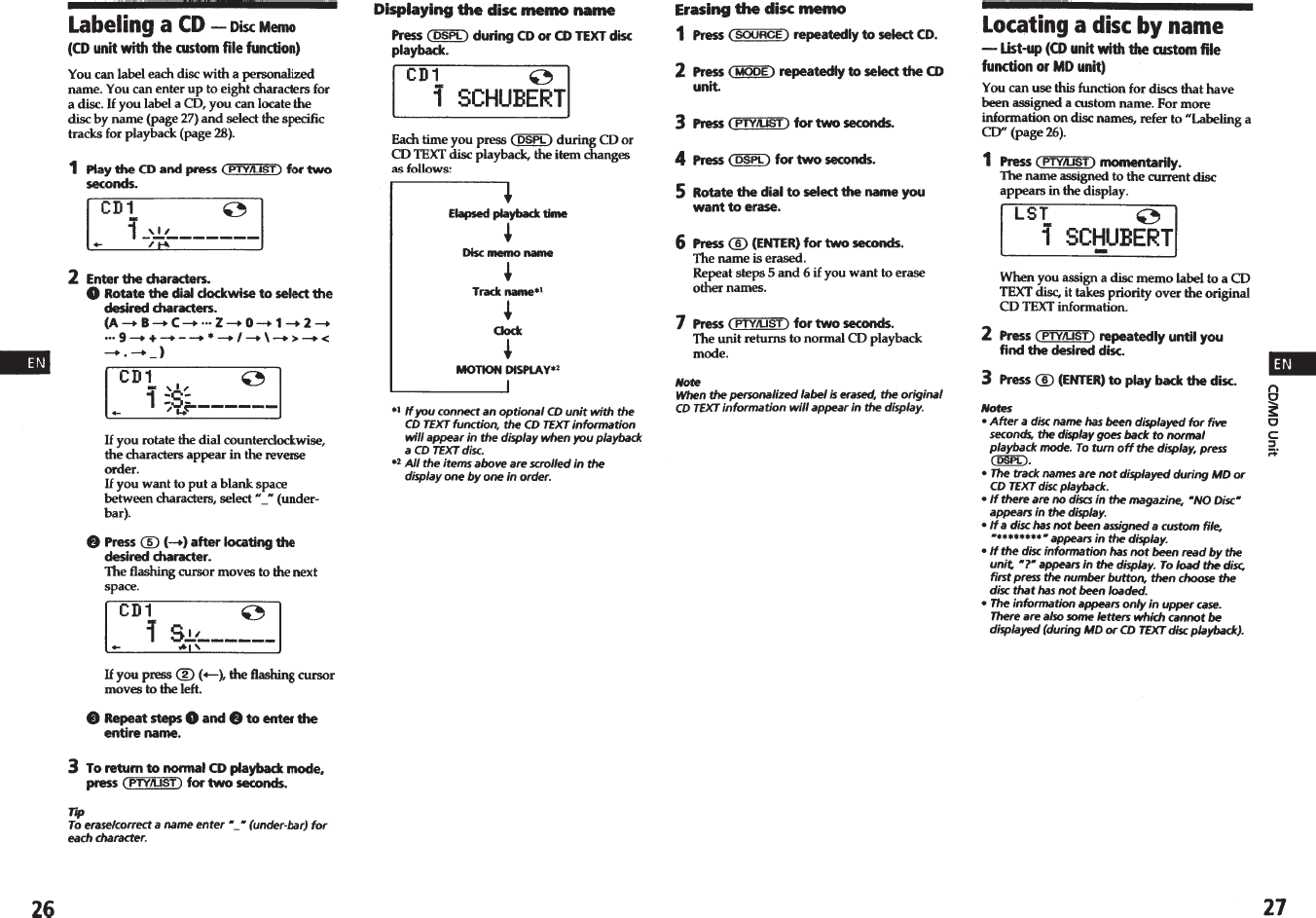

GENERAL This section extracted from

XR-C8100R’s instruction manual.

– 4 –

– 5 –

– 6 –

– 7 –

– 8 –

– 9 –

– 10 –

– 11 –

– 12 –

– 13 –

– 14 –

– 15 –

– 16 –

– 17 –

– 18 –

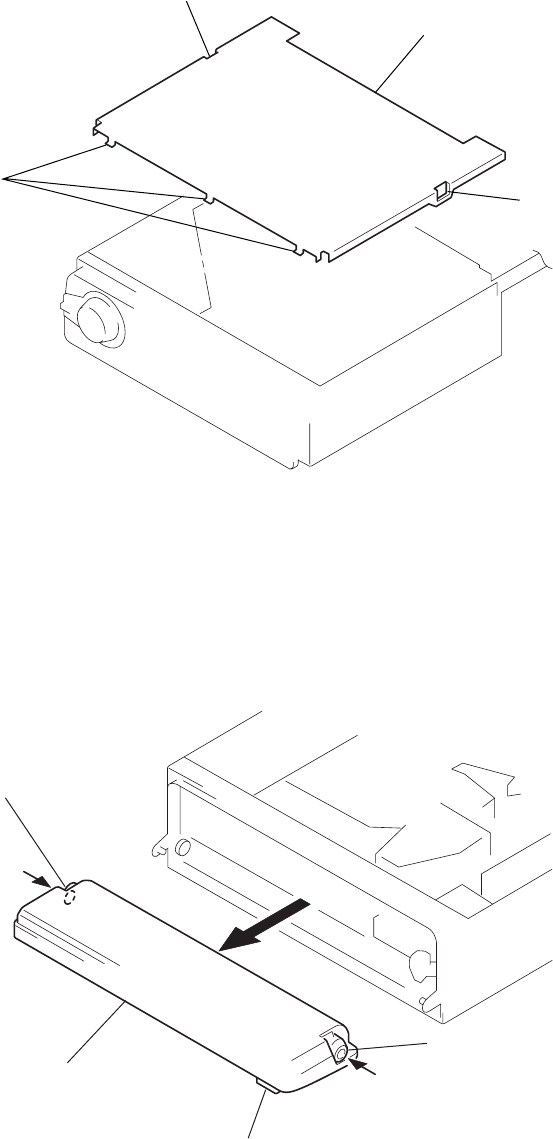

2-2. FRONT PANEL ASSY

SECTION 2

DISASSEMBLY

Note : Follow the disassembly procedure in the numerical order given.

2-1. COVER

claw

cover

claw

claws

Push the bearing (L).

front panel assy

Push the button (open).

Push the bearing (R).

– 19 –

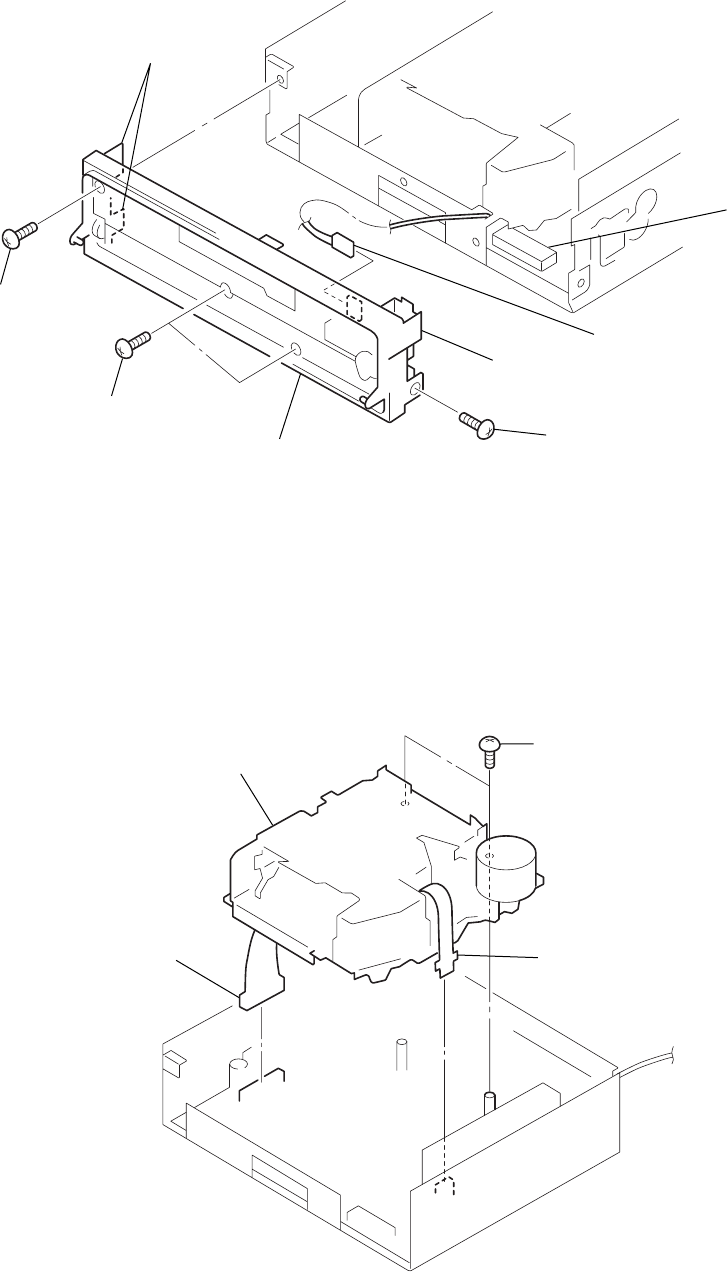

2-3. SUB PANEL ASSY

2-4. MECHANISM DECK

PTT 2.6x6

claws

claw

CN802

CN50

sub panel assy

screws

(2.6x6) (C TIGHT

)

CN201

CN250

mechanism deck

– 20 –

2-5. MAIN BOARD

2-6. HEAT SINK

PTT 2.6x10

insulated plate

PTT 2.6x1

ground point screw

ground point screws

MAIN board

PTT 2.6x10

cord (with connector) (INVERTER

)

cord (with connector)

(ANTENNA)

CN551

J10

heat sink

– 21 –

SECTION 3

ASSEMBLY OF MECHANISM DECK

ARM (SUCTION)

Note : Follow the assembly procedure in the numerical order given.

HOUSING

part

Hold the hanger by

bending the claw.

Fit projection on

part.

Fit claw on

part.

Put the housing

under

part.

Fit projection on

part.

Install the catcher to the hanger.

Install the hanger onto

two claws of the housing.

Holder the hanger by bending the claw.

hanger

housing

Move the arm (suction) in the arrow

direction and fit on projection.

Fit the arm (suction) on the shaft.

projection

– 22 –

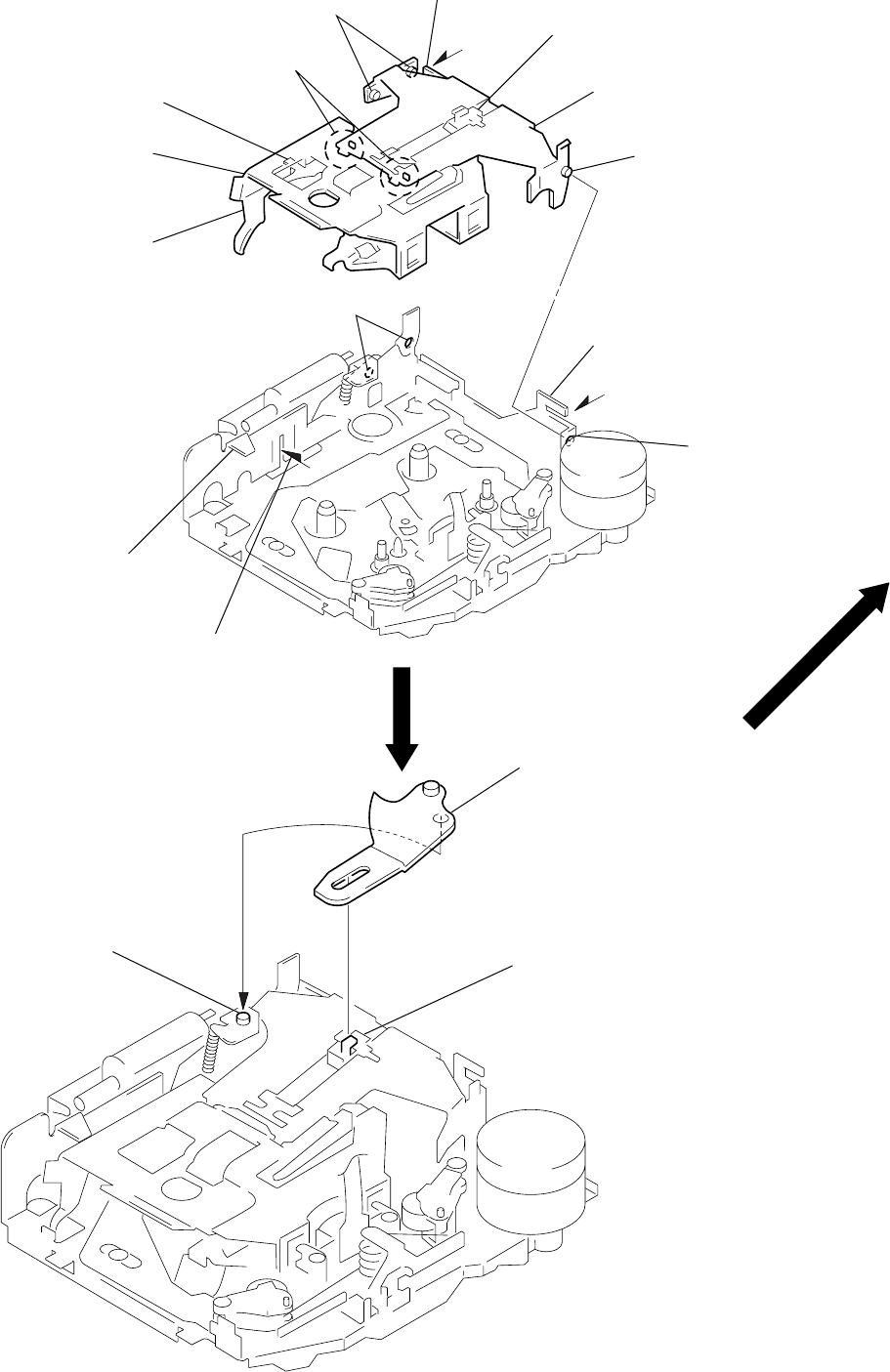

LEVER (LDG-A) / (LDG-B)

GEAR (LOADING FT)

shaft

Fit the lever (LDG-A) on

shafts

–

and install it.

shaft

Fit the lever (LDG-B) on

shafts

and

install it.

type-E stop ring 2.0

gear (LDG-D)

gear (loading FT)

polyethylene washer

tension spring (LD-2)

tension spring (LD-1)

gear (LDG-FB)

lever (LDG-A)

hole

Align hole in the gear (LDG-D)

with hole the lever (LDG-A).

Move the lever (LDG-B)

in the arrow direction.

– 23 –

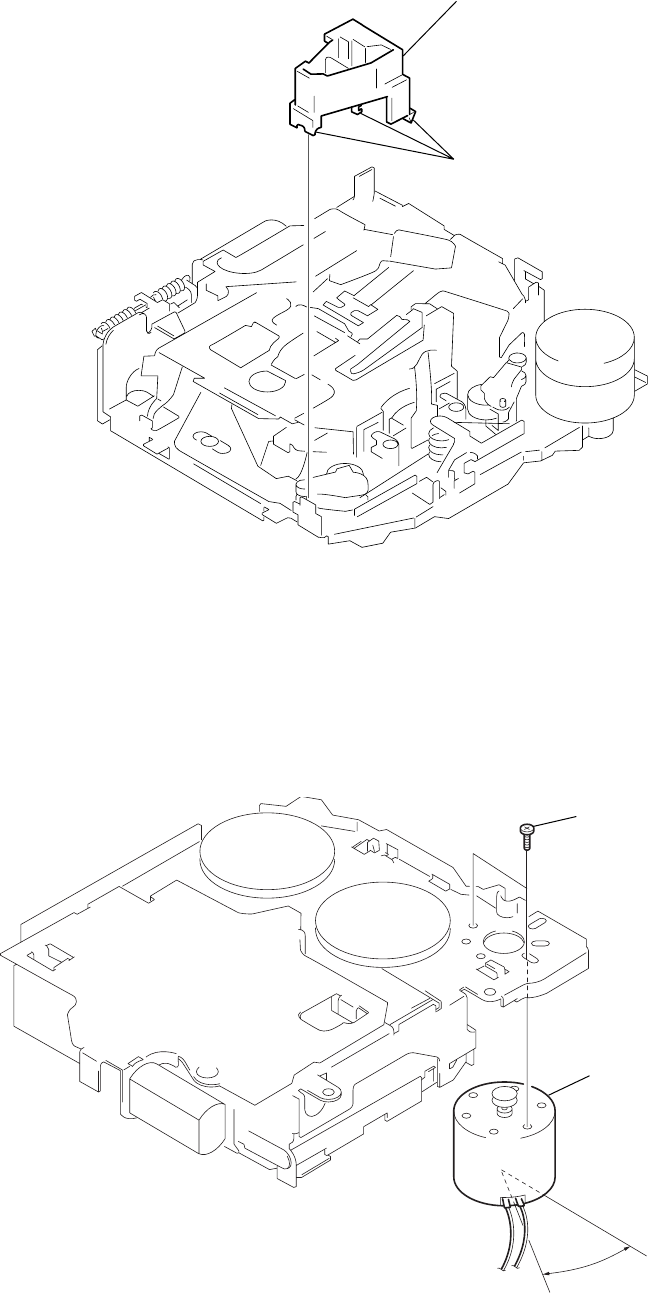

GUIDE (C)

guide (C)

three claws

MOUNTING POSITION OF CAPSTAN/REEL MOTOR (M901)

precision screws

+P 2x2

capstan/ reel moto

30˚

– 24 –

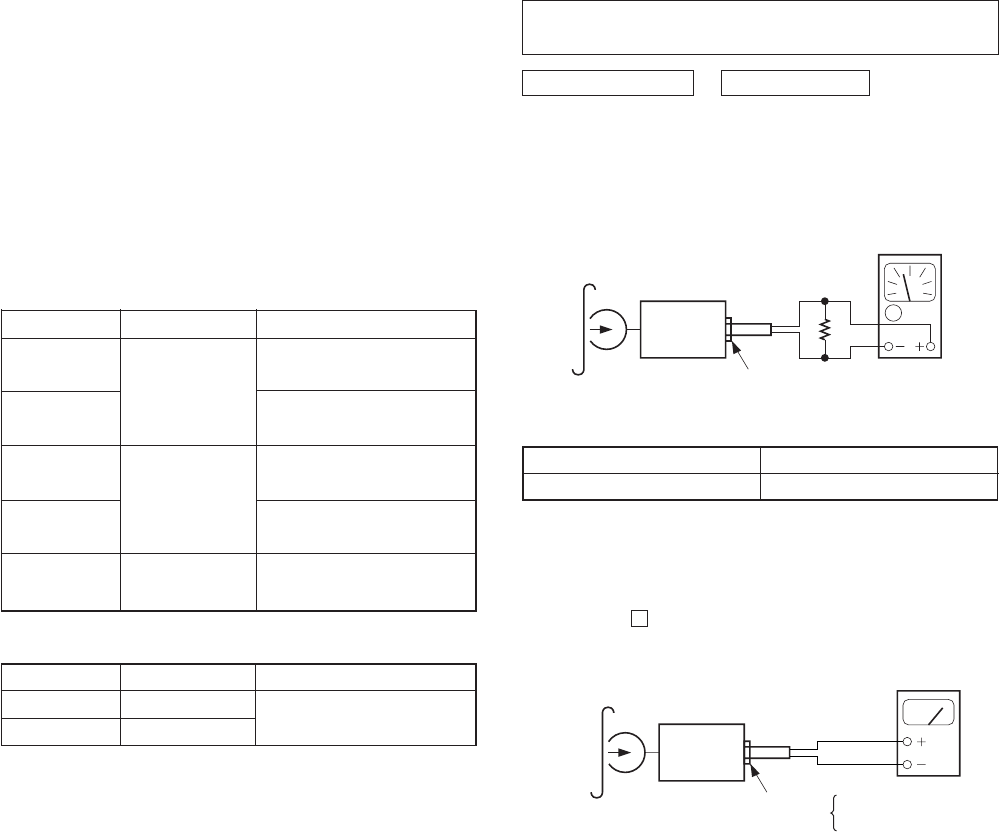

PRECAUTION

1. Wipe the following components with an absorbent cotton cloth

moistened with alcohol before adjustment :

PB head Pinch roller

Idler Rubber belt

Capstan

2. Demagnetize the PB head using a head demagnetizer.

3. Be careful not to use a magnetized screwdriver.

4. After the adjustment is completed, lock the adjustment parts

using screws.

5. Unless otherwise specified, make adjustments at the specified

voltage (14.4V).

Torque Measurement

Mode Torque Meter Meter Reading

35 – 65 g • cm

FWD

CQ-102C (0.49 – 0.90 oz • inch)

FWD 0.5 – 5.0 g • cm

Back Tension (0.01 – 0.07 oz • inch)

35 – 65 g • cm

REV

CQ-102RC (0.49 – 0.90 oz • inch)

REV 0.5 – 5.0 g • cm

Back Tension (0.01 – 0.07 oz • inch)

60 – 200 g • cm

FF, REW CQ-201B (0.83 – 2.78 oz • inch)

Tape Tension Measurement

Mode Tension Meter Meter Reading

FWD CQ-403A more than 60 g

REV CQ-403R (more than 2.12 oz)

SECTION 5

ELECTRICAL ADJUSTMENTS

SECTION 4

MECHANICAL ADJUSTMENTS

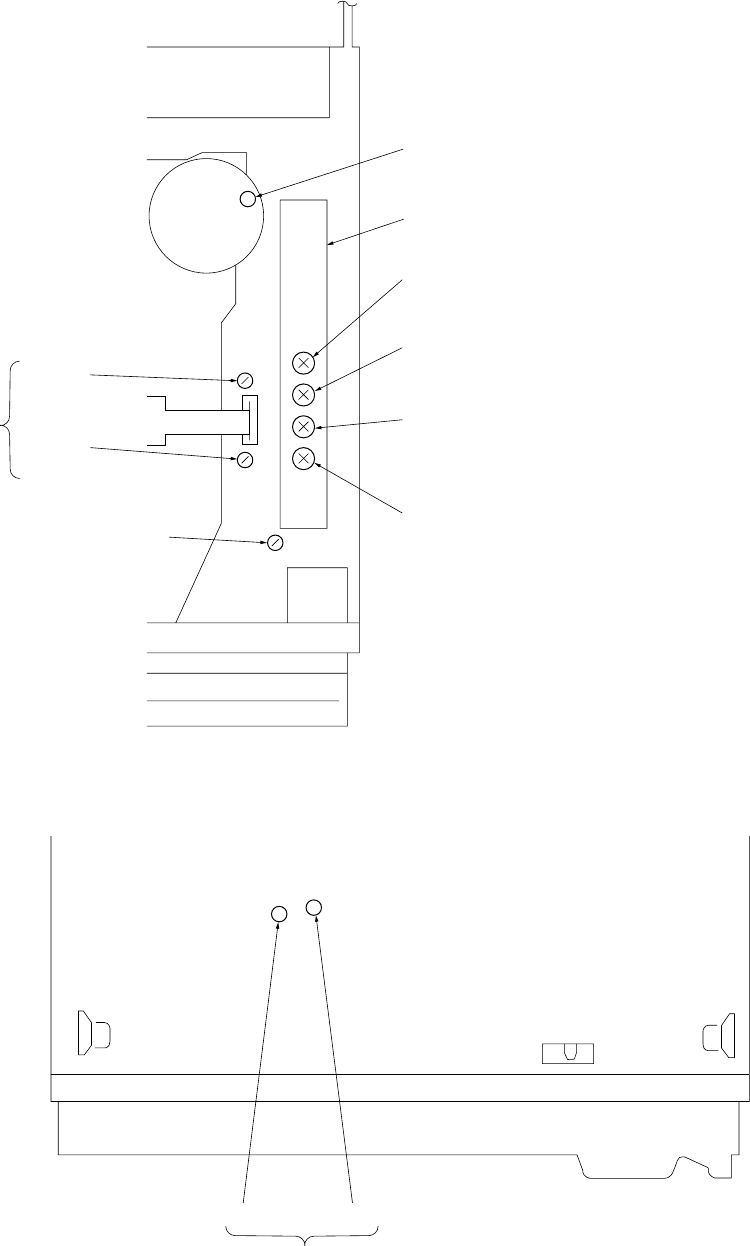

See the adjustment location from on page 28 for the adjust-

ment.

TAPE SECTION

Tape Speed Adjustment

Procedure :

1. Put the set into the FWD PB mode.

Specification : Constant speed

Speed checker Frequency counter

– 1 to + 2 % 2,970 to 3,060 Hz

Adjustment Location : See page 28.

DOLBY Level Adjustment

Setting :

SHIFT n 3 (PLAY MODE) (twice) button : NR off

Procedure :

1. Put the set into the FWD PB mode.

2. Adjust RV230 (L-CH) and RV240 (R-CH) so that level meter

reading is – 6 ± 1 dB (0.35 to 0.44 V).

Adjustment Location : See page 28.

0 dB = 0.775 V

LINE OUT REAR

test tape

WS-48A

(3 kHz, 0 dB)

set

10 k

Ω

speed checker

frequency counte

main board

TP (DOLBY) TP230 (L-CH)

TP240 (R-CH)

test tape

P-4-D400

(400 Hz, 0 dB)

set

level mete

– 25 –

TUNER SECTION

Cautions during repair

When the tuner unit is defective, replace it by a new one because

its internal block is difficult to repair.

Procedure :

1. Set to the test mode.

2. Push the SOURCE button and set to FM.

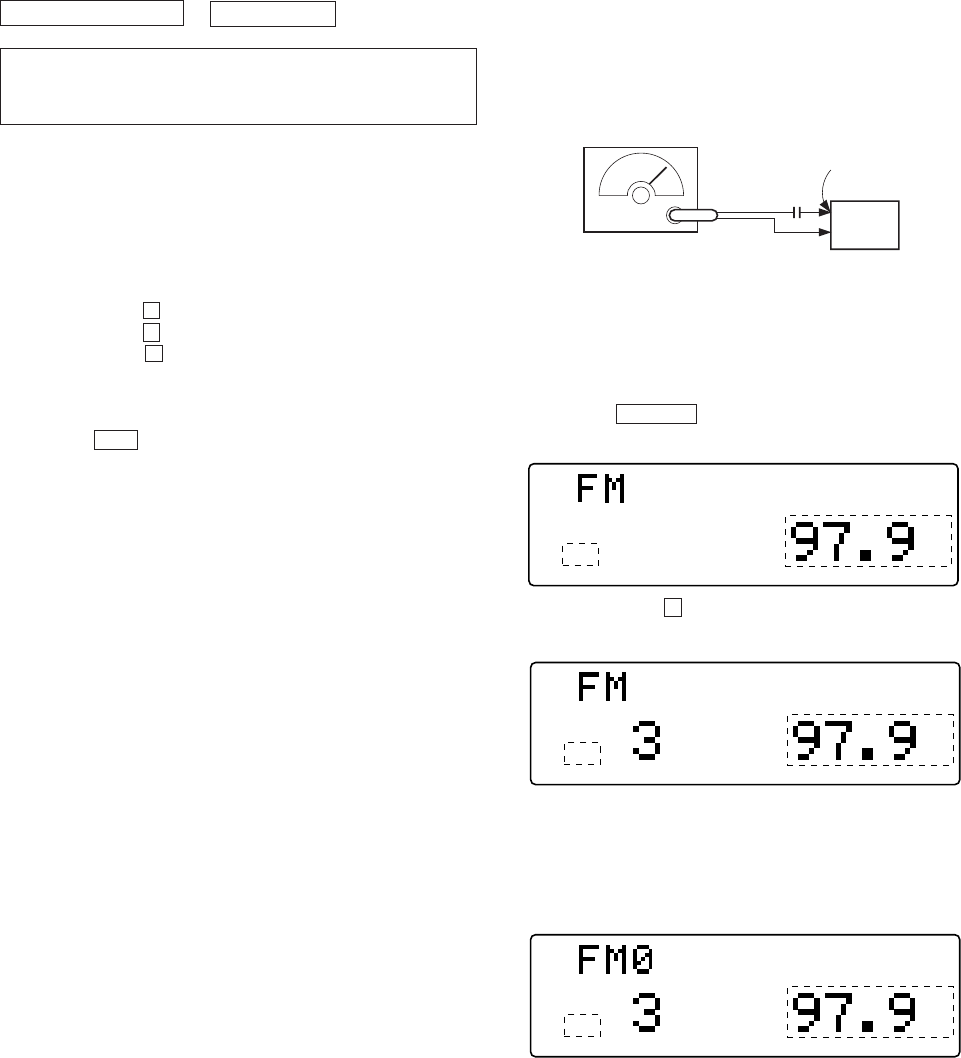

FM Auto Scan/Stop Level Adjustment

Setting :

SOURCE button : FM

FREQUENCY SELECT switch (C8100) : FM 200K

3. Push the preset 3 button.

4. Adjust with the volume RV2 on TUX10 so that the “FM”

indication turns to “FM0” indication on the display window.

But, in case of already indicated “FM0”, turn the RV2 so that

put out light “0” indication and adjustment.

0 dB = 1 µV

TEST MODE

This set have the test mode function. In the test mode, FM Auto

Scan/Stop Level and AM (MW) Auto Scan/Stop Level adjustments

can be performed easier than it in ordinary procedure.

1. Set the “OFF” mode.

2. Push the preset 4 button.

3. Push the preset 5 button.

4. Press the preset 1 button for more than two seconds.

5. Then the display indicates all lights, the test mode is set.

1. Push the OFF button.

Note on Adjustment

The adjustments of tuner section, should be performed according

to the following sequence.

1. FM Auto Scan/Stop Level Adjustment

2. FM Stereo Separation Adjustment (WIDE)

3. FM Stereo Separation Adjustment (NARROW)

4. FM RDS S-Meter Adjustment (XR-C8100R only)

5. AM (MW) Auto Scan/Stop Level Adjustment

Carrier frequency : 97.9 MHz (C8100)

98.00 MHz (C8100R)

Output level : 22 dB (12.6

Mode : mono

Modulation : 1 kHz, 22.5 kHz deviation (30%)

Display

*1 : XR-C8100R has the “98.00” displayed.

*2 : “REG” is displayed only for XR-C8100R.

Adjustment Location : See page 28.

Display

antenna

terminal

FM RF signal

generator

0.01

SHUF

REG

SHUF

REG

SHUF

REG

– 26 –

FM Stereo Separation Adjustment (WIDE)

Setting :

SOURCE button : FM

FREQUENCY SELECT switch (C8100) : FM 200K

FM stereo Level meter Level meter

signal generator connection reading (dB)

output channel

L-CH L-CH A

R-CH L-CH Adjust RV3 on TUX10

for minimum reading.

R-CH R-CH C

L-CH R-CH Adjust RV3 on TUX10

for minimum reading.

L-CH stereo separation : A – B

R-CH stereo separation : C – D

The separations of both channels should be equal.

Specification : Separation more than 24 dB

Adjustment Location : See page 28.

Procedure :

FM Stereo Separation Adjustment (NARROW)

Setting :

SOURCE button : FM

FREQUENCY SELECT switch (C8100) : FM 200K

FM stereo Level meter Level meter

signal generator connection reading (dB)

output channel

L-CH L-CH A

R-CH L-CH Adjust RV4 on TUX10

for minimum reading.

R-CH R-CH C

L-CH R-CH Adjust RV4 on TUX10

for minimum reading.

L-CH stereo separation : A – B

R-CH stereo separation : C – D

The separations of both channels should be equal.

Specification : Separation more than 18 dB

Adjustment Location : See page 28.

Procedure :

1. Push the SHIFT button.

2. Push the 4 button three times.

3. Push the 5 button twice and set to NARROW mode.

FM RF signal

generator antenna

terminal

set

level meter

10 k

Ω

LINE OUT REAR

0.01

Carrier frequency : 97.9 MHz (C8100)

: 98.00 MHz (C8100R)

Output level : 70 dB (3.2 mV)

Mode : stereo

Modulation : main : 1 kHz, 33.75 kHz deviation (45%) (C8100)

1 kHz, 20 kHz deviation (26.5%) (C8100R)

sub : 1 kHz, 33.75 kHz deviation (45%) (C8100)

1 kHz, 20 kHz deviation (26.5%) (C8100R)

19 kHz pilot : 7.5 kHz deviation (10%)

FM RF signal

generator antenna

terminal

set

level meter

10 k

Ω

LINE OUT REAR

0.01

Carrier frequency : 97.9 MHz (C8100)

: 98.00 MHz (C8100R)

Output level : 70 dB (3.2 mV)

Mode : stereo

Modulation : main : 1 kHz, 33.75 kHz deviation (45%) (C8100)

1 kHz, 20 kHz deviation (26.5%) (C8100R)

sub : 1 kHz, 33.75 kHz deviation (45%) (C8100)

1 kHz, 20 kHz deviation (26.5%) (C8100R)

19 kHz pilot : 7.5 kHz deviation (10%)

– 27 –

4. Push the preset 3 button.

Display

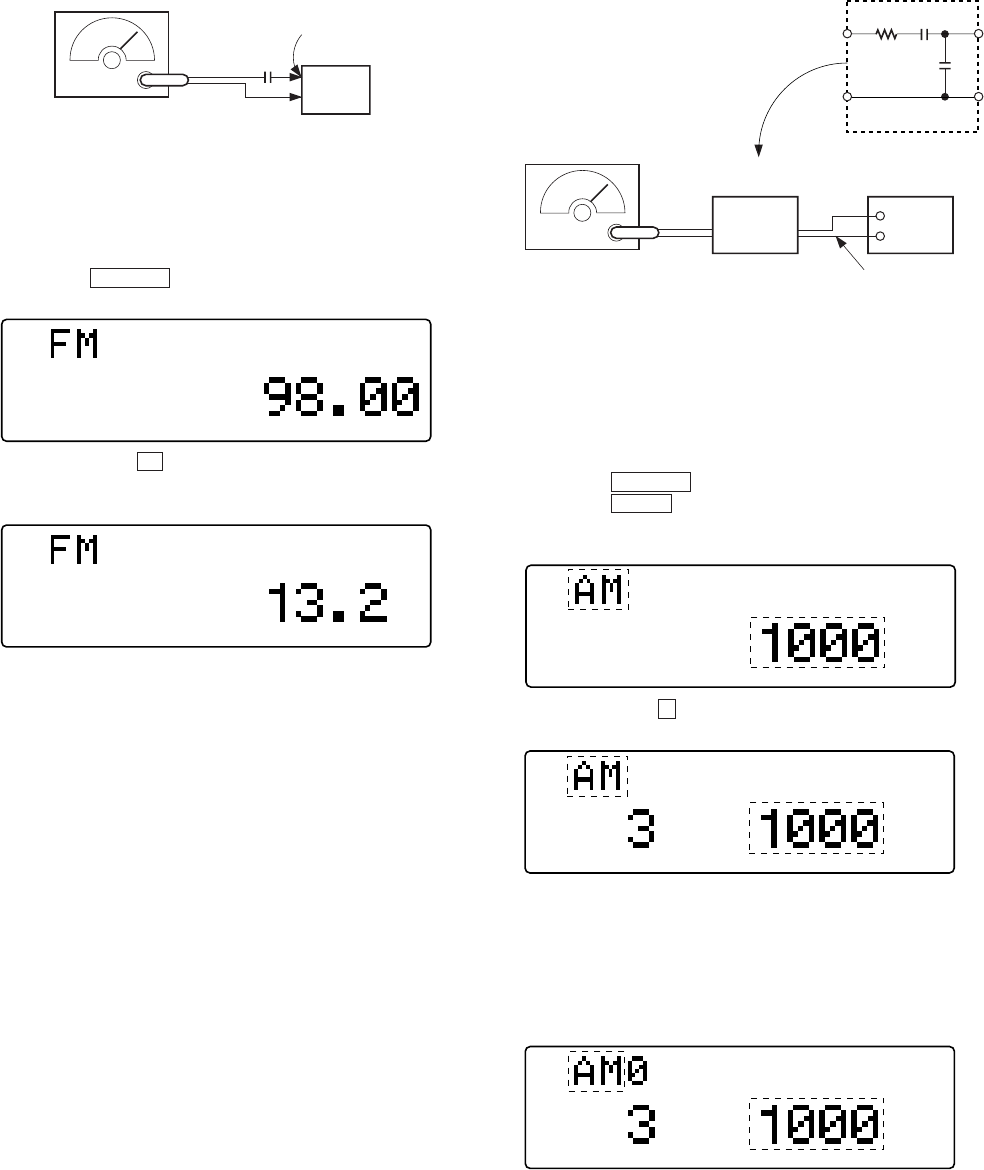

AM (MW) Auto Scan/Stop Level Adjustment

Setting :

SOURCE n MODE button : AM (C8100)

MW (C8100R)

FREQUENCY SELECT switch (C8100) : AM 10K

Procedure :

1. Set to the test mode. (See page 25.)

2. Push the SOURCE button.

3. Push the MODE button and set to AM (C8100) or MW

(C8100R). Display

5. Adjust with the volume RV1 on TUX10 so that the “AM”

(C8100) or “MW” (C8100R) indication turns to “AM0” (C8100)

or “MW” (C8100R) indication on the display window.

But, in case of already indicated “AM0” (C8100) or “MW”

(C8100R), turn the RV1 so that put out light “0” indication and

adjustment. Display

Carrier frequency : 1000 kHz (C8100)

999 kHz (C8100R)

30% amplitude

modulation by

1 kHz signal

output level : 33 dB (44.7 µV)

*1 : XR-C8100R has the “MW” displayed.

*2 : XR-C8100R has the “999” displayed.

Adjustment Location : See page 28.

Carrier frequency : 98.00 MHz

Output level : 35 dB (56.2 µV)

Mode : mono

Modulation : no modulation

Procedure :

1. Set to the test mode. (See page 25.)

2. Push the SOURCE button and set to FM.

Display

FM RDS S-Meter Adjustment (XR-C8100R only)

Setting :

SOURCE button : FM

3. Push the preset 10 button.

4. Adjust RV10 so that the display indication is “13.2”.

Display

Specification : Display indication : 13.0 to 13.4

Adjustment Location : See page 28.

FM RF signal

generator

0.01

antenna

terminal

set

antenna

terminal

AM RF signal

generator AM dummy

antenna (50

Ω

)

set

Ω

15 pF

65 pF

SHUF

REG

SHUF

REG

– 28 –

Adjustment Location : tuner unit (TUX10)

– set lower view –

– set upper view –

L-CH R-CH

TP (DOLBY)

DOLBY LEVEL

ADJ

TAPE SPEED ADJ

RV1

AM (MW) AUTO SCAN/

STOP LEVEL ADJ

RV2

FM AUTO SCAN/

STOP LEVEL ADJ

RV3

FM STEREO

SEPARATION ADJ

(WIDE)

RV4

FM STEREO

SEPARATION ADJ

(NARROW)

RV10

FM RDS

S-METER ADJ

(XR-C8100R only)

TUX10

RV240

(R-CH)

RV230

(L-CH)

DOLBY

LEVEL

ADJ

6-1. BLOCK DIAGRAM — TAPE SECTION —

– 29 – – 30 –

XR-C8100/C8100R SECTION 6

DIAGRAMS

116

103

114

105

106

107

108

109

110

111

104

112

102

113

27 29

R-CH

FWD

REV

EQ DOLBY

AUTO

MUSIC

SENSOR 14

MUTE

AMS/PLAY

NR ON

MTL/NRM

FWD/REV

TAPE EQ/DOLBY NR

IC250

TA-L

N-R SO

CKO

INH

41 11 1

ANG

REIN1

REIN0

NOSESW

TIRIND

PACKIND

POWSEL

DSTSEL2

MTL

DOLBY

AMS

AMS ON

POS0

POS1

POS2

POS3

LMEJ

LMLOD

CMON

REEL

TAPE ON

KEY ACK

AD ON

KEY IN0

KEY IN1

RC IN0

RC IN1

(TAPE DET)

EJECT

FF (NOR)

REW (NOR)

REV

FWD

S901

TAPE

OPERATION

MOTOR

DRIVER

IC201

MOTOR

DRIVER

Q201, 204

BUFFER

T/R

REEL

SENSOR

8.5V REG

Q202, 203

BATT

BU5VA

PON10V LCD10V

GRN YEL

TA8.5V

KEY-ACK

DETECT

Q510

KEY-ACK

DETECT

Q511 I/F+B

D510 D506

R230

DOLBY

LEVEL

(L ch)

M902

LOADING/TAPE

OPERATION MOTOR

M901

CAPSTAN/REEL

MOTOR

KEY IN

MATRIX

J500

(REMOTE IN)

LCD ANGLE

CONTROL

Q508, 509

RE900

ROTARY

ENCODER

LED

DRIVER

Q502

LED801

TIR

LED

DRIVER

Q501

LED800

(TAPE WINDOW)

LED802

C8100

C8100R

S600

(POWER SELECT)

FM50k

AM9k

FM100k

AM10k

OFF

S601

FREQUENCY

SELECT

DATA

CLK

INH

VLCD

26-90

SEG101

SEG165

93-100

COM100

COM107

GREEN

AMBER

LCD900

LIQUID

CRYSTAL

DISPLAY

PANEL

COLOR

SELECT

Q900-903

LCD DRIVER

IC900

HP901

PLAYBACK HEAD

SYSTEM CONTROL

IC600 (3/3)

TUNER

SECTION

LCD

SW500

(NOSE SW)

(METAL DET)

Q250

• Signal path

: TAPE

XR-C8100/C8100R

– 31 – – 32 –

6-2. BLOCK DIAGRAM — TUNER SECTION —

CONTROL

Q17

MUTE

CONTROL

Q51

FM 8V

D10

AM 8V

OUT

DET

S-METER

SD IND

WIDE/NARROW

S-METER

(RDS)

FM DET

TUNER UNIT

TUX10

RECEIVE/SEEK 13

32 26 25

22 16

DATA

CLK

VCT

CLK

DATA

VOL/

TONE

20 15

ELECTRONIC VOLUME

IC301

R-CH

CONTROL

Q360, 362

X10

7.2MHz

X150

4.332MHz

X650

4.19MHz

X100

4.19MHz

VSM

1SEEK OUT

20 SD IN

4ST/MONO

3WIDE

TUN

MUTE

TIR

PLAY

CKO

FADER

VOL

BUFFER

Q13

ADPCM/

DAC

BUS AUDIO

IN R

Q60Q50

R-CH

18 PD

LO/DX

IF IN

15 AM OSC

6FM OSC

LO/DX

AMIF

FMIF

VCO

DOUT

SEK

CLK

DIN

TUNER PLL

IC10

MTP

DAVN

SIO

CKO

VOL CE

CKO

SUB CE

RST

NAR

117

CKO 22

SW1 61

SW0 62

100

RES

101

CE1

BUSY

D0-3

PDWN

CE0

SYSTEM CONTROL

IC600 (1/3)

RESET

NAR

15 SD

A OUT

VOICE SYNTHESIZER

IC650

ADPCM/

DAC

TIR CONTROL

IC100

TIR SIGNAL

IC101

FM+B

AM+B

OSCD

DSCI

LVIN

DAVN

SDA

SCL

MPX

MPTH 2

RDS DEMODULATOR

IC150

-1

-2

S-METER

82-85

1-4

VOL/

SUB

CSV

SUB

TIR

I2C

RV10

(ANTENNA)

7 23

6 51

Q53 Q52

SWITCH

IC51

D50

C8100R

C8100

AMP

IC50

D0-3

BUSY

RESET

PDWN

RWCK

D-IN/OUT

XT2

XT1

A OUT

CSI

TAS

SAS

SADX

RWCK

DOUT

11 D-IN

TAS

SAS

SAD

TAPE

AUX

AMP

IC320

CN780

TA-L

TAPE

SECTION

R-CH

ELECTRONIC

VOLUME

IC350

VREF (L)

VREF (R)

REF VOLTAGE

IC302

SUBL

MAIN

SECTION

BUFFER

Q12

WIDE/

NARROW

CONTROL

Q14, 15

AM+B

C8100R

C8100

C8100R

AM ANT

FM ANT

• Signal path

: FM

: AM(MW)

: TAPE

IC11

– 33 – – 34 –

XR-C8100/C8100R

6-3. BLOCK DIAGRAM — MAIN SECTION —

POWER AMP

IC700

CN700

X601

32.768KHz

X600

3.68MHz

FL+

FL–

R-CH

-2

-1

4ST-BY

RL+

RL–

R-CH

-4

-3

R-CH

-4

-3

BEEP

DRIVE

Q601

10V REG

Q504

POWER

CONTROL

Q505

MUTE

CONTROL

Q702

DOOR

DET

D524

RESET

IC500

RESET

BUS

EL900

BATT(L)

CHECK

BATT

POWER SUPPLY

IC502

BUIN

RA MBU 55

SYSRST

MUTE 65

X1A

X0A

X0BUS ON 92

X1 93

SIRCS

DOOR SW 12

LED ONRST 118

BEEP 15

ACC IN 81

ILL IN 78

POW ON

TEL MUTE 79

TEST IN

FM ON

TU ON 58

DIMMER 30

ILL ON

120

SYSTEM CONTROL

IC600(2/3)

DOOR

DET

Q503

POWER

CONTROL

Q507

POWER

CONTROL

Q703,704

ILL

CHECK

Q512

ACC

CHECK

Q705 14

BATT

BATT(H)

CHECK

Q600

RECEIVER

IC901

DIMMER

CONTROL

IC550

Q552-555

BATT

POWER

SWITCH

Q550,551

10V REG

Q506

ON/OFF

DRIVE

Q556,557

BATT

R-CH

FR+

FR–

RR+

RR–

AMP-R

ACC

TEL MUTE

15 TEST

BATT

ANT-R

TUNER

SECTION

BZ600

(BUZZER)

6V REG

IC503 13

BUS INTERFACE

IC602

BATT

ILL

SUB OUT

RESET

FM+B

AM+B

COM+B

ANT+B

VCC

STB

MODE1

MODE2

SW800

CLK

Q602

D532

D533

BU5VA

BU5VB

LCD10V

BU5VA

BU CHECK

IC501 21

LINE DRIVER

IC310

AMP

IC383

PON10V

ANT+B

Q603

BATT

MUTE

Q330 Q340

Q361

CN781

REAR

CN780

FRONT

LINE OUT

CN781

SUB L

UNI

CN600

(BUS CONTROL IN)

BU5VA

BATT

FM8V

AM8V

COM8V

ANT+B

• Signal path

: FM

– 51 –

6-8. IC PIN DESCRIPTION

• IC600 MB90574PFV-G-115-BND (SYSTEM CONTROL) (XR-C8100R)

MB90574PFV-G-116-BND (SYSTEM CONTROL) (XR-C8100)

Pin No. Pin Name I/O Pin Description

1 SEKOUT O SEEK OUT output

2 AF-SEEK O AF SEEK output

3 WIDE O WIDE/NARROW select output

4 ST-MONO I/O Use a thing both as ST-IND display input and force MONO output.

5 TUNMUTE O Tuner mute output

6 FM-ON O FM ON output

7 TU-ON O Tuner ON output

8 VCC — Power supply pin (+5 V)

9 CSV-RST O Audio composition IC reset output

10 BUSON O Bus ON control output

11 SYSRST O System reset output

12 DOORSW I Door OPEN/CLOSE detection input

13 LCDSO O LCD serial data output

14 LCDCKO O LCD serial clock output

15 BEEP O BEEP output

16 LCDCE O LCD chip enable output

17 UNISI O Serial data input

18 UNISO O Serial data output

19 UNICKI I Serial clock input

20 SD-IN I Signal detector input

21 CSV-SO O Audio composition serial data output

22 CSV-CKO O Audio composition serial clock output

23 CSV-CE O Audio composition chip enable output

24 SIRCS I Remote commander input

25 PLLSI I PLL data input

26 PLLSO O PLL data output

27 PLLCKO O PLL clock output

28 PLLCE O PLL chip enable output

29 ILL-ON O Illumination power control output

30 DIMMER I/O Dimmer control input/output

31 TIRIND O TIR indicator control output (C8100R)

32 LCDINH O LCD blank display control output

33 VSS — GND

34 C — Power stabilization capacitor pin

35 AD-ON O Power control output of A/D conversion.

36, 37 RE-IN0, 1 I Rotary encoder input 0, 1

38 DVCC — D/A converter VREF input

39 DVSS — GND of D/A converter.

40 EL-ON O Not used.

41 LCDANG O LCD view angle alignment output

42 AVCC — Analog power supply pin (+5 V)

43 AVRH — A/D converter VREF+ input

44 AVRL — A/D converter VREF- input

45 AVSS — Analog GND

46, 47 KEYIN0, 1 I Key input 0, 1

48 RC-IN0 I Rotary commander input 0

49 DSTSEL0 I Destination select input 0 (Fixed at “L” in this set.)

50 DSTSEL1 I Destination select input 1 (Fixed at “H” in this set.)

51 DSTSEL2 I Destination select input 2 (Fixed at “L” in this set.) (C8100R)

Frequency select input (C8100)

– 52 –

Pin No. Pin Name I/O Pin Description

52 MTP I Tuner multi-pass input

53 VSM I S-Meter voltage detection input

54 VCC — Power supply pin (+5 V)

55 RAMBU I RAM reset detection input

56 POWSEL I Power select initial setting input

57 EQ-SEL I Equalizer connection with/without detection initial input

58 TESTIN I Test mode setting detection input

59 PACK-IND O Door indicator output

60 TIRPLAY O Audio line select control output at TIR playback. (C8100R)

61, 62 SUB-SW1, 0 O Simple SUB WOOFER control output 1, 0

63 VSS — GND

64 VOLCE O Electric volume serial chip enable output

65 MUTE O System mute control output

66 VOLSO/SUBSO O Main/Sub volume serial data output

67 VOLCKO/SUBCKO O Main/Sub volume serial clock output

68 SUBCE O Sub volume serial chip enable output

69 FLASH-W I Flash write in mode detection input

70 I2CSIO I/O RDS serial data input/output

71 I2CCKO O RDS serial clock output

72 RC-IN1 I Rotary commander input

73 X1A — Low speed oscillation input (32.768 kHz)

74 X0A — Low speed oscillation input (32.768 kHz)

75 DAVN I RDS IC data taking in detection input

76 KEYACK I Key input acknowledge

77 BU-IN I Back-up power detection input

78 ILLIN I Illumination line detection input

79 TELMUTE I Telephone mute detection input

80 NOSESW I Front panel detachable detection input

81 ACCIN I Accessory power detection input

82 – 85 TIR-D0 – D3 I/O TIR IC command input/output 0 – 3 (C8100R)

86 (VCC) — Connect to power supply pin.

87 (VSS) — Connect to GND.

88, 89 (VCC) — Connect to power supply pin.

90 RST I Microcomputer reset input

91 VSS — GND

92 X0 — High speed oscillation input (3.68 MHz)

93 X1 — High speed oscillation input (3.68 MHz)

94 VCC — Power supply pin (+5 V)

95 TIR-BUSY I TIR IC BUSY output monitor pin (C8100R)

96 TIR-WR O TIR IC data write in pulse output (C8100R)

97, 98 TIR-CE0, 1 O TIR IC chip enable output (C8100R)

99 TIR-RES O TIR IC reset/power down output (C8100R)

100 TIR-PDWN O TIR IC power down output (C8100R)

101 TIR-RD O TIR IC data read in pulse output (C8100R)

102 MTLIN I Auto METAL detection input

103 AMSTIN I Tape AMS music detection input

104 REEL I Tape reel table rotation detection input

105 POS0 I Tape position detection input 0

106 POS1 I Tape position detection input 1

107 POS2 I Tape position detection input 2

108 POS3 I Tape position detection input 3

109 LM-EJ O Tape loading motor control output (Eject direction)

110 LM-LOD O Tape loading motor control output (Loading direction)

– 53 –

Pin No. Pin Name I/O Pin Description

111 CM-ON O Tape capstan motor control output

112 TAPEON O Tape power control output

113 N-ROUT O Tape forward/reverse detection output

114 AMSON O Tape AMS control output

115 DOLBC O Tape DOLBY B/C select control output

116 DOLBY O Tape DOLBY control output

117 CSV-NAR I Space condition indicate signal input for voice synthesizer IC.

118 LEDON O Front panel LED control output

119 VSS — GND

120 POWON O System power control output

– 54 –

–

OVER VOLTAGE

PROTECT

REGULATOR

12 3 45 6 7 8 9 10 1211

MODE2

MODE1

STB

VDD

AMP

VCC

ANT

COM

GND

• IC Block Diagrams

IC10 BU2624FV

PHASE

DET

PRESCALER

MAIN

COUNT

IF COUNT

CTL

20BIT COUNT

SHIFT REGISTER LATCH

REFERENCE

DIVIDER

I/O

CTL

XIN

XOUT

VSS

VDD

FMIN

AMIN

IFIN

IC310, 410 TDA8574

IC101 MSM6684

IC201 LB1638M

IC500 BA3918-V3

IC602 BA8270F

REFERENCE

VCCL

INL

SVRL

INML

INMR

SVRR

INR

VCCR

BUFFER

LIFT

AMP

SIGNAL

AMP

LIFT

AMP

SIGNAL

AMP

CL+

CL–

LGND

OUTL

OUTR

RGND

CR–

CR+

TIMING

GENERATOR

8,388,608DATA

COLUMN DECODER

COLUMN ADDRESS

COUNTER

ROW

DECODER

ADDRESS

MULTIPLEXER

REFRESH ADDRESS

COUNTER

ROW ADDRESS

COUNTER

ROW ADDRESS

REFRESH TIMER

I/O CONTROL

WRITE CLOCK

GENERATOR

125

TEST

RWCK

TEST

DIN

VSS

VCC

RS/A

RFSH

SAD

SAS

TAS

DOUT

5 6

GND

IN1

VCC

IN2

GND N.C.

OUT2

OUT1

N.C.

CONTROL LOGIC

7 8

BUS ON

SWITCH

RESET

SWITCH

BATTERY

SWITCH

BUS ON

RST

BATT

CLK

VREF

DATA

GND

VCC

RST

BUS ON

CLK IN

BU IN

DATA IN

DATA OUT

– 55 –

IC100 MSM6688GS IC501 RN5VD33A-TU

15 16 17 18 19 20 21 22 23 24 25 26 27 28

43444547484950

5253545556 51 46

MCU I/F

STATUS

TEST

CIRCUIT

12BIT

ADC LPF

12BIT

DAC

CIRCUIT

ADDRESS

CONTROLLER

ADPCM

ANALYZER/

SYNTHESIZER

TIMING

CONTROLLER OSC DATA

I/O

CONTROLLER

BUSY

RPM

VPM

TEST

MCUM

ACON

CS3

CS2

CS1

SADX

SADY

PDWN

TEST

AGND

RSEL2

RSEL1

DGND

TEST

ADIN

FOUT

AOUT

FIN

AMON

DVDD

AVDD

SGC

LOUT

LINE

MOUT

MIN

RESET

NAR

RWCK

DVDD

DROM

DI/0

CS4

TAS

SAS

MON

12 3

OUT

VDD

GND

RESET

–

–+–

–

+–

12345 6 7 8 9 10

2122232627282930

2425

PBFB2

PBRIN2

PBREF2

PBFIN2

PBGND

VCT

PBFIN1

PBREF1

PBRIN1

PBFB1

PBEQ2

PBOUT2

VCC

TAPEIN2

AUXIN2

MSLPF

LINEOUT2

TCH2

PLAY

MSTC

DGND

MSOUT

NRSW

INSW

TAPESW

MSMODE

DRSW

MSSW

TCH1

LINEOUT1

DIREF

AUXIN1

TAPEIN1

PBEQ1

PBOUT1

GND

120µ/

70µ

VCT

120µ/

70µNR

OFF/B

LPF

VCC

DETECT

MS ON/

OFF

MODE

FWD/RVS

TAPE EQ

TAPE/AUX

NR BIAS

MODE

OFF/B

20 19 18 17 16 15 14 13 12 11

1 2 3 4 5 6 7 8 910

1dB STEP

VOLUME

8dB STEP

VOLUME

1dB STEP

VOLUME

8dB STEP

VOLUME

VCT

BUFFER

LATCH

SHIFT

LATCH

CONTROL ZC

DET

–

INP 1

INN 1

VCT 1

INAO 1

VRIN 1

OUT 1

N.C.

GND

VCT

VCC

INP 2

INN 2

VCT 2

INAO 2

VRIN 2

OUT 2

DATA

CLK

INIT

IC250 CXA2510AQ IC350 CXA1846N

– 56 –

IC150 SAA6588 IC650 MSM6654A-519GS

PAUSE

DETECTOR INTERFACE

RDS/RDBS

DECODER

OSCILLATOR

AND CLOCK

TEST

CONTROL

MULTI-PATH

DETECTOR

RDS/RDBS

DEMODULATOR

CLOCKED

COMPARATOR

POWER SUPPLY

AND RESET

57kHz

8th ORDER

BAND-PASS

SIGNAL

QUALITY

DETECTOR

IIC-BUS

SLAVE

TRANSCEIVER

SCL

SDA

DAVN

VDDD

VSSD

OSCI

OSC0

TCON

MPTH

MRO

LVIN

CIN

SCOUT

VREF

MPX

VSSA

VDDA

AFIN

MAD

PSWN

TIMMING

CONTROLLER BEEP TONE

GENARATOR

MELODY

GENARATOR

17 BIT

ADDRESS

COUNTER

17 BIT

MULTIPLEXER

I/O

INTERFACE

ADDRESS

COMMAND

CONTROLLER

1M BIT ROM

EDITING ROM &

ADDRESS ROM

CONTAINS 22KBIT

DATA

CONTROLLER ADPCM

SYNTHESIZER

PCM

SYNTHSIZER

12 BIT

DAC

LPF

OSC

7CH

RESET

NAR

AOUT

GND

BUSY

16/SD

15/SI

VDD

CMD

12/PoRT0

13/PoRT1

GAIN12 38

GAIN11 39

IN14 40

IN13 41

IN12 42

IN11

INPUT SW

GAIN134

LOUD VOLUME

8dB STEP VOLUME

1dB STEP TONE FADER

LDLC1

LDHC1

INAO1

VRIN1

VOUT1

TIN1

TCLC1

TCLC11

TCLC12

TCO1

FDIN1

24 FNTO1

23 REO1

VCTBUFF

LATCH

CONTROL

LATCH

GAIN234

LOUD VOLUME

8dB STEP VOLUME

1dB STEP TONE FADER

LDLC2

LDHC2

INAO2

VRIN2

VOUT2

TIN2

TCLC2

TCLC21

TCLC22

TCO2

FDIN2

14 REO2

13 FNTO2

VCTBUFF

SHIFT

ZCDET

IN21 44

IN22 45

IN23 46

IN24 47

GAIN21 48

GAIN22

INPUT SW

18 VCC

17 VCT

16 DATA

15 TIMER

22 CE

21 CLK

20 DGND

19 GND

45k

IC301 CXA1946BQ

– 57 –

• -XX and -X mean standardized parts, so

the y ma y ha ve some diff erence from the

original one.

• Color Indication of Appear ance P ar ts

Example :

KNOB, BALANCE (WHITE) ... (RED)

Par ts Color Cabinet’ s Color

SECTION 7

EXPLODED VIEWS

NOTE:

• The mechanical parts with no reference

number in the e xploded vie ws are not supplied.

• Items mar ked “*” are not stoc ked since

the y are seldom required f or routine ser vice.

Some delay should be anticipated

when ordering these items.

• Abbreviation

G : German model

• Accessories and packing materials and

hardware (# mark) list are given in

the last of this parts list.

Ref. No. Part No. Description Remark

7-1. CHASSIS SECTION

Ref. No. Part No. Description Remark

*1 3-022-316-01 COVER

2 X-3375-092-1 PANEL ASSY, SUB (C8100)

2 X-3375-093-1 PANEL ASSY, SUB (C8100R)

3 3-922-165-92 DOOR, CASSETTE

4 3-935-003-01 SPRING (C DOOR), TORSION

5 3-022-338-01 BUTTON (EJECT)

*6 1-669-656-11 SUB BOARD

7 X-3375-068-1 LOCK ASSY

8 X-3375-066-1 BRACKET (GEAR) ASSY

9 3-011-170-01 GEAR (HOLDER)

10 3-341-752-11 WASHER, POLYETHYLENE

11 3-953-235-01 DAMPER, OIL

12 3-919-171-01 SCREW (2.6X6) (C TIGHT)

*13 A-3313-644-A MAIN BOARD, COMPLETE (AEP,UK)

*13 A-3313-652-A MAIN BOARD, COMPLETE (C8100)

*13 A-3313-656-A MAIN BOARD, COMPLETE (G)

*14 3-011-078-01 BRACKET (POWER IC)

*15 3-022-317-01 BRACKET (AMP)

*16 3-022-306-01 HEAT SINK

17 1-783-495-11 CORD (WITH CONNECTOR) (INVERTER)

18 1-777-246-11 CORD (WITH CONNECTOR) (ANTENNA)

19 3-937-282-01 CASE (UPPER)

*20 3-938-138-01 SHEET (E)

*21 A-3313-646-A INVERTER BOARD, COMPLETE

22 3-937-812-01 CASE (LOWER)

23 1-776-207-71 CORD (WITH CONNECTOR) (POWER) (C8100)

23 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)

(C8100R)

*24 3-022-307-01 INSULATED PLATE (C8100R)

*24 3-022-312-01 INSULATED PLATE (C8100)

*25 X-3375-081-1 CHASSIS ASSY

26 3-915-923-01 SCREW, GROUND POINT

27 3-015-565-31 SPACER (SW)

*28 3-355-209-01 PLATE (B), GROUND

*29 3-023-774-01 PLATE (LOCK), GROUND

F701 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A

*LUG1 1-537-738-21 TERMINAL, EARTH

TUX10 A-3282-045-A TUNER UNIT (TUX-012(E))

12 17

#2 #2

#3 #3

MG-25D-136

F701

TUX10

LUG1

– 58 –

7-2. FRONT PANEL SECTION

Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

51 3-022-329-01 BUTTON (SOURCE)

52 3-022-322-01 KNOB

53 3-022-323-01 LEVER (SHUTTLE)

54 3-022-324-01 PLATE (SHUTTLE), LIGHT GUIDE

55 X-3375-681-1 PANEL SUB ASSY, FRONT (C8100)

55 X-3375-682-1 PANEL SUB ASSY, FRONT (C8100R)

56 3-022-330-01 BUTTON (MODE)

57 3-022-331-01 BUTTON (SOUND)

58 3-022-325-01 PLATE (RING), LIGHT GUIDE

59 3-022-333-01 BUTTON (OPEN)

60 3-932-225-01 SPRING (OPEN)

61 3-022-308-01 BUTTON (PTY) (C8100R)

61 3-022-334-01 BUTTON (LIST) (C8100)

62 3-022-332-01 BUTTON (10 KEY)

*63 3-022-327-01 PLATE (LCD), GROUND

64 1-694-414-11 CONDUCTOR BOARD, CONNECTION

*65 3-022-328-01 ILLUMINATOR (LCD)

*66 3-022-326-01 PLATE (LCD), LIGHT GUIDE

67 3-010-999-01 BEARING (L)

68 3-010-998-01 SPRING (BEARING)

69 3-011-000-01 BEARING (R)

70 3-022-319-01 PANEL, FRONT BACK

EL900 1-517-766-11 LIGHT, ELECTRO LUMINESCENT

LCD900 1-803-107-11 DISPLAY PANEL, LIQUID CRYSTAL

not supplied

(KEY board)

EL900

LCD900

C8100R

C8100

67 68

– 59 –

7-3. MECHANISM DECK SECTION

(MG-25D-136)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 A-3291-667-A CLUTCH (FR) ASSY

102 3-019-130-01 LEVER (LDG-A)

103 3-020-522-03 LEVER (LDG-B)

104 3-020-539-01 SPRING (LD-1), TENSION

105 3-020-540-01 SPRING (LD-2), TENSION

106 3-020-542-01 GEAR (LOADING FT)

107 3-341-753-11 WASHER, POLYETHYLENE

108 3-020-533-01 HOUSING

109 3-020-532-01 ARM (SUCTION)

110 3-020-534-01 HANGER

111 3-933-346-01 CATCHER

112 3-933-344-01 GUIDE (C)

113 3-014-798-01 SCREW (HEAD), SPECIAL

114 3-364-151-01 WASHER

115 X-3375-625-1 CHASSIS (SV) ASSY (D)

116 3-017-302-01 BELT (25)

117 3-936-853-01 FLYWHEEL (F)

118 3-701-437-21 WASHER

HP901 1-500-157-21 HEAD, MAGNETIC (PLAYBACK)

M901 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL)

110

109

108

105

104

103 102

106

107

113

111

112

114

115

116

117

101

118 118

HP901

M901

– 60 –

SECTION 8

ELECTRICAL PARTS LIST

NOTE:

• Due to standardization, replacements in

the par ts list ma y be different from the

par ts specified in the diag rams or the

components used on the set.

• -XX and -X mean standardized parts, so

the y ma y ha ve some diff erence from the

original one.

• RESIST ORS

All resistors are in ohms.

METAL:Metal-film resistor .

METAL OXIDE: Metal o xide-film resistor .

F:nonflammable

• Items mar ked “*” are not stoc ked since

the y are seldom required f or routine ser vice.

Some delay should be anticipated

when ordering these items.

• SEMICONDUCT ORS

In each case , u : µ, for e xample:

uA.. : µA.. uPA.. : µPA..

uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..

• CAPACITORS

uF : µF

• COILS

uH : µH

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

When indicating parts by reference

number , please include the board.

• Abbreviation

G : German model

KEYINVERTER

*A-3313-646-A INVERTER BOARD, COMPLETE

*************************

< CAPACITOR >

C551 1-126-157-11 ELECT 10uF 20% 16V

C552 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C553 1-126-923-11 ELECT 220uF 20% 10V

C554 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C555 1-124-257-00 ELECT 2.2uF 20% 50V

C556 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

< CONNECTOR >

*CN550 1-564-507-11 PLUG, CONNECTOR 4P

CN551 1-564-505-11 PLUG, CONNECTOR 2P

< DIODE >

D550 8-719-422-49 DIODE MA8056-L

D551 8-719-422-80 DIODE MA8075-H-TX

D552 8-719-404-49 DIODE MA111

D553 8-719-033-43 DIODE RB751H

D554 8-719-422-49 DIODE MA8056-L

< IC >

IC550 8-759-495-75 IC NJM317F

< TRANSISTOR >

Q552 8-729-421-22 TRANSISTOR UN2211

Q553 8-729-026-68 TRANSISTOR 2SD2525(TP)

Q554 8-729-421-22 TRANSISTOR UN2211

Q555 8-729-903-46 TRANSISTOR 2SB1132-P

Q556 8-729-016-11 TRANSISTOR 2SD1507M

Q557 8-729-021-94 FET 2SK1657-T1B

< RESISTOR >

R552 1-216-198-00 RES,CHIP 1K 5% 1/8W

R553 1-216-198-00 RES,CHIP 1K 5% 1/8W

R555 1-216-158-00 RES,CHIP 22 5% 1/8W

R556 1-216-158-00 RES,CHIP 22 5% 1/8W

R557 1-216-001-00 METAL CHIP 10 5% 1/10W

R558 1-216-097-00 RES,CHIP 100K 5% 1/10W

R559 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R560 1-216-063-00 RES,CHIP 3.9K 5% 1/10W

R561 1-216-031-00 METAL CHIP 180 5% 1/10W

R562 1-216-097-00 RES,CHIP 100K 5% 1/10W

R563 1-216-097-00 RES,CHIP 100K 5% 1/10W

< TRANSFORMER >

T550 1-431-831-11 TRANSFORMER, OSCILLATION (EL)

*************************************************************

KEY BOARD

**********

1-694-414-11 CONDUCTOR BOARD, CONNECTION

*3-022-326-01 PLATE (LCD), LIGHT GUIDE

*3-022-327-01 PLATE (LCD), GROUND

*3-022-328-01 ILLUMINATOR (LCD)

< CAPACITOR >

C900 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C901 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C902 1-164-232-11 CERAMIC CHIP 0.01uF 50V

< CONNECTOR >

CN900 1-778-183-11 PLUG, CONNECTOR 18P

< DIODE >

D901 8-719-420-90 DIODE MA8051-M

D903 8-719-420-90 DIODE MA8051-M

< ELECTRO LUMINESCENT LIGHT >

EL900 1-517-766-11 LIGHT, ELECTRO LUMINESCENT

< IC >

IC900 8-759-496-75 IC uPD16432BGC-018-9EU

IC901 8-749-012-25 IC RS-170-TU

< LIQUID CRYSTAL DISPLAY >

LCD900 1-803-107-11 DISPLAY PANEL, LIQUID CRYSTAL

< DIODE >

LED900 8-719-987-45 LED CL-155Y/PG-CD

LED901 8-719-987-45 LED CL-155Y/PG-CD

LED902 8-719-987-45 LED CL-155Y/PG-CD

LED903 8-719-987-45 LED CL-155Y/PG-CD

LED904 8-719-987-45 LED CL-155Y/PG-CD

LED905 8-719-987-45 LED CL-155Y/PG-CD

LED906 8-719-033-13 LED CL-170Y-CD-T

– 61 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

KEY MAIN

LED907 8-719-033-14 LED CL-170PG-CD-T

< SWITCH >

LSW900 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (OFF)

LSW901 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (MODE)

LSW902 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (SOURCE)

LSW903 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (SOUND)

LSW904 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (DSPL)

LSW905 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (SHIFT)

LSW906 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (1)

LSW907 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (2)

LSW908 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (3)

LSW909 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (PTY/LIST)

LSW910 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (AF/TA)

(C8100R)

LSW911 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (TIR)

(C8100R)

LSW912 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (10)

LSW913 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (9)

LSW914 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (8)

LSW915 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (7)

LSW916 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (6)

LSW917 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (5)

LSW918 1-762-620-11 SWITCH, KEY BOARD (WITH LED) (4)

< TRANSISTOR >

Q900 8-729-904-66 TRANSISTOR DTD113EK

Q901 8-729-904-66 TRANSISTOR DTD113EK

Q902 8-729-424-08 TRANSISTOR UN2111

Q903 8-729-424-08 TRANSISTOR UN2111

< RESISTOR >

R901 1-216-045-00 METAL CHIP 680 5% 1/10W

R902 1-216-045-00 METAL CHIP 680 5% 1/10W

R903 1-216-045-00 METAL CHIP 680 5% 1/10W

R904 1-216-049-11 RES,CHIP 1K 5% 1/10W

R905 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R906 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R907 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R908 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R909 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R910 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R911 1-216-045-00 METAL CHIP 680 5% 1/10W

R912 1-216-045-00 METAL CHIP 680 5% 1/10W

R913 1-216-045-00 METAL CHIP 680 5% 1/10W

R914 1-216-049-11 RES,CHIP 1K 5% 1/10W

R915 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R916 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R917 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R918 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R919 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R920 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R931 1-216-033-00 METAL CHIP 220 5% 1/10W

R932 1-216-037-00 METAL CHIP 330 5% 1/10W

R933 1-216-037-00 METAL CHIP 330 5% 1/10W

R935 1-216-182-00 RES,CHIP 220 5% 1/8W

R936 1-216-182-00 RES,CHIP 220 5% 1/8W

R937 1-216-037-00 METAL CHIP 330 5% 1/10W

R938 1-216-037-00 METAL CHIP 330 5% 1/10W

R939 1-216-190-00 RES,CHIP 470 5% 1/8W

R941 1-216-025-00 RES,CHIP 100 5% 1/10W

R942 1-216-041-00 METAL CHIP 470 5% 1/10W

R943 1-216-025-00 RES,CHIP 100 5% 1/10W

R944 1-216-037-00 METAL CHIP 330 5% 1/10W

R945 1-216-081-00 METAL CHIP 22K 5% 1/10W

R946 1-216-089-00 RES,CHIP 47K 5% 1/10W

R947 1-216-089-00 RES,CHIP 47K 5% 1/10W

R948 1-216-049-11 RES,CHIP 1K 5% 1/10W

R949 1-216-049-11 RES,CHIP 1K 5% 1/10W

R950 1-216-049-11 RES,CHIP 1K 5% 1/10W

R951 1-216-049-11 RES,CHIP 1K 5% 1/10W

R952 1-216-097-00 RES,CHIP 100K 5% 1/10W

R953 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R954 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R955 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R956 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R957 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R958 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R960 1-216-025-00 RES,CHIP 100 5% 1/10W

(C8100)

R961 1-216-025-00 RES,CHIP 100 5% 1/10W

(C8100)

R962 1-216-025-00 RES,CHIP 100 5% 1/10W

(C8100)

R963 1-216-025-00 RES,CHIP 100 5% 1/10W

(C8100)

< ROTARY ENCODER >

RE900 1-475-014-11 ENCODER, ROTARY

< SWITCH >

S900 1-771-290-11 SWITCH, SLIDE (SEEK/AMS)

*************************************************************

*A-3313-644-A MAIN BOARD, COMPLETE (AEP,UK)

*A-3313-652-A MAIN BOARD, COMPLETE (C8100)

*A-3313-656-A MAIN BOARD, COMPLETE (G)

*********************

*3-011-078-01 BRACKET (POWER IC)

*3-022-306-01 HEAT SINK

*3-022-317-01 BRACKET (AMP)

7-685-794-09 SCREW +PTT 2.6X10 (S)

< BUZZER >

BZ600 1-504-920-11 BUZZER

– 62 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

MAIN

< CAPACITOR >

C10 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C11 1-126-933-11 ELECT 100uF 20% 10V

C12 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V

C13 1-126-933-11 ELECT 100uF 20% 10V

C14 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V

C15 1-126-933-11 ELECT 100uF 20% 10V

C16 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V

C17 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C18 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

(C8100R)

C19 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C20 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C21 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C22 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C23 1-164-222-11 CERAMIC CHIP 0.22uF 25V

C24 1-126-157-11 ELECT 10uF 20% 16V

C25 1-124-234-00 ELECT 22uF 20% 16V

C28 1-164-222-11 CERAMIC CHIP 0.22uF 25V

(C8100R)

C29 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V

C31 1-124-589-11 ELECT 47uF 20% 16V

C32 1-126-157-11 ELECT 10uF 20% 16V

C33 1-163-234-11 CERAMIC CHIP 20PF 5% 50V

C34 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C35 1-124-234-00 ELECT 22uF 20% 16V

C37 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

(C8100R)

C38 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V

C39 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V

(C8100)

C39 1-164-232-11 CERAMIC CHIP 0.01uF 50V

(C8100R)

C40 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C41 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C50 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V

C51 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V

C52 1-126-301-11 ELECT 1uF 20% 50V

(C8100R)

C53 1-126-157-11 ELECT 10uF 20% 16V

C54 1-126-157-11 ELECT 10uF 20% 16V

C60 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V

C61 1-126-163-11 ELECT 4.7uF 20% 50V

C62 1-124-257-00 ELECT 2.2uF 20% 50V

C63 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V

C64 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V

C80 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V

C81 1-126-163-11 ELECT 4.7uF 20% 50V

C82 1-124-257-00 ELECT 2.2uF 20% 50V

C83 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V

C84 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V

C100 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V

(C8100R)

C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(C8100R)

C102 1-126-157-11 ELECT 10uF 20% 16V

(C8100R)

C103 1-126-157-11 ELECT 10uF 20% 16V

(C8100R)

C104 1-162-957-11 CERAMIC CHIP 220PF 5% 50V

(C8100R)

C105 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(C8100R)

C106 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

(C8100R)

C107 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V

(C8100R)

C150 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

(C8100R)

C152 1-163-237-11 CERAMIC CHIP 27PF 5% 50V

(C8100R)

C153 1-163-237-11 CERAMIC CHIP 27PF 5% 50V

(C8100R)

C154 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

(C8100R)

C155 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

(C8100R)

C158 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V

(C8100R)

C159 1-163-135-00 CERAMIC CHIP 560PF 5% 50V

(C8100R)

C160 1-164-505-11 CERAMIC CHIP 2.2uF 16V

(C8100R)

C161 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

(C8100R)

C162 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

(C8100R)

C201 1-126-935-11 ELECT 470uF 20% 16V

C202 1-124-234-00 ELECT 22uF 20% 16V

C204 1-117-370-11 CERAMIC CHIP 10uF 10V

C205 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C206 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C207 1-164-222-11 CERAMIC CHIP 0.22uF 25V

C230 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C231 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C232 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C233 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

C234 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

C235 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C236 1-126-159-11 ELECT 0.47uF 20% 50V

C237 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C240 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C241 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C242 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C243 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

C244 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

C245 1-164-232-11 CERAMIC CHIP 0.01uF 50V

– 63 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

MAIN

C246 1-126-159-11 ELECT 0.47uF 20% 50V

C247 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C250 1-124-234-00 ELECT 22uF 20% 16V

C251 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V

C252 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V

C253 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V

C254 1-124-589-11 ELECT 47uF 20% 16V

C255 1-163-139-00 CERAMIC CHIP 820PF 5% 50V

C301 1-124-257-00 ELECT 2.2uF 20% 50V

C303 1-124-257-00 ELECT 2.2uF 20% 50V

C304 1-124-257-00 ELECT 2.2uF 20% 50V

C305 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V

C306 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V

C307 1-126-157-11 ELECT 10uF 20% 16V

C308 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V

C309 1-126-159-11 ELECT 0.47uF 20% 50V

C310 1-126-157-11 ELECT 10uF 20% 16V

C316 1-124-234-00 ELECT 22uF 20% 16V

C320 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C321 1-163-012-00 CERAMIC CHIP 0.0018uF 10% 50V

C322 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C330 1-126-157-11 ELECT 10uF 20% 16V

C331 1-115-175-11 ELECT 100uF 20% 16V

C332 1-126-157-11 ELECT 10uF 20% 16V

C333 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C340 1-126-157-11 ELECT 10uF 20% 16V

C341 1-115-175-11 ELECT 100uF 20% 16V

C342 1-126-157-11 ELECT 10uF 20% 16V

C343 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C350 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C351 1-126-154-11 ELECT 47uF 20% 6.3V

C352 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C353 1-124-584-00 ELECT 100uF 20% 10V

C354 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C355 1-126-157-11 ELECT 10uF 20% 16V

C356 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C357 1-124-584-00 ELECT 100uF 20% 10V

C358 1-126-163-11 ELECT 4.7uF 20% 50V

C359 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C360 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C361 1-124-234-00 ELECT 22uF 20% 16V

C362 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V

C363 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V

C364 1-126-157-11 ELECT 10uF 20% 16V

C365 1-126-157-11 ELECT 10uF 20% 16V

C366 1-126-163-11 ELECT 4.7uF 20% 50V

C367 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C401 1-124-257-00 ELECT 2.2uF 20% 50V

C403 1-124-257-00 ELECT 2.2uF 20% 50V

C404 1-124-257-00 ELECT 2.2uF 20% 50V

C405 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V

C406 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V

C407 1-126-157-11 ELECT 10uF 20% 16V

C408 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V

C409 1-126-159-11 ELECT 0.47uF 20% 50V

C410 1-126-157-11 ELECT 10uF 20% 16V

C416 1-124-234-00 ELECT 22uF 20% 16V

C420 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C421 1-163-012-00 CERAMIC CHIP 0.0018uF 10% 50V

C422 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C430 1-126-157-11 ELECT 10uF 20% 16V

C431 1-115-175-11 ELECT 100uF 20% 16V

C432 1-126-157-11 ELECT 10uF 20% 16V

C433 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C440 1-126-157-11 ELECT 10uF 20% 16V

C441 1-115-175-11 ELECT 100uF 20% 16V

C442 1-126-157-11 ELECT 10uF 20% 16V

C443 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V

C461 1-124-234-00 ELECT 22uF 20% 16V

C462 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V

C463 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V

C464 1-126-157-11 ELECT 10uF 20% 16V

C465 1-126-157-11 ELECT 10uF 20% 16V

C466 1-126-163-11 ELECT 4.7uF 20% 50V

C467 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C500 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V

C501 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V

C503 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V

C504 1-125-701-11 DOUBLE LAYERS 0.047F 5.5V

C505 1-124-584-00 ELECT 100uF 20% 10V

C506 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V

C507 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C510 1-126-157-11 ELECT 10uF 20% 16V

C511 1-124-234-00 ELECT 22uF 20% 16V

C513 1-126-157-11 ELECT 10uF 20% 16V

C514 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C515 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C516 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C517 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C518 1-126-157-11 ELECT 10uF 20% 16V

C519 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C520 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C521 1-164-346-11 CERAMIC CHIP 1uF 16V

C530 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C531 1-124-584-00 ELECT 100uF 20% 10V

C532 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C550 1-126-157-11 ELECT 10uF 20% 16V

C601 1-126-157-11 ELECT 10uF 20% 16V

C602 1-126-154-11 ELECT 47uF 20% 6.3V

C603 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C604 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C605 1-163-229-11 CERAMIC CHIP 12PF 5% 50V

C606 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C607 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C608 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C609 1-124-229-00 ELECT 33uF 20% 10V

– 64 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

MAIN

C610 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C611 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C612 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C613 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C614 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C615 1-163-229-11 CERAMIC CHIP 12PF 5% 50V

C650 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C651 1-126-157-11 ELECT 10uF 20% 16V

C701 1-111-233-11 ELECT 5600uF 20% 16V

C702 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C703 1-115-334-11 FILM 0.47uF 5% 50V

C704 1-124-589-11 ELECT 47uF 20% 16V

C705 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C706 1-136-227-11 MYLAR 0.001uF 5% 50V

C707 1-136-227-11 MYLAR 0.001uF 5% 50V

C708 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C709 1-115-326-11 FILM 0.1uF 5% 50V

C710 1-126-163-11 ELECT 4.7uF 20% 50V

C711 1-126-933-11 ELECT 100uF 20% 16V

C712 1-126-301-11 ELECT 1uF 20% 50V

C713 1-126-157-11 ELECT 10uF 20% 16V

C714 1-126-163-11 ELECT 4.7uF 20% 50V

C715 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C720 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C740 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C750 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C760 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C770 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C782 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C783 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C784 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C785 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C786 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C787 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C788 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C789 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

< CONNECTOR >

*CN201 1-506-995-11 PIN, CONNECTOR (PC BOARD) 13P

CN250 1-766-260-11 CONNECTOR, FFC/FPC (ZIF) 7P

CN500 1-770-411-11 CONNECTOR, BOARD TO BOARD 20P

CN551 1-564-510-11 PLUG, CONNECTOR 7P

CN600 1-580-907-31 PLUG, CONNECTOR 8P (BUS CONTROL IN)

CN700 1-774-701-11 PIN, CONNECTOR 16P

< JACK >

CN780 1-774-699-12 JACK, PIN 4P (BUS AUDIO IN, LINE OUT REAR)

CN781 1-774-699-12 JACK, PIN 4P (LINE OUT FRONT, SUB OUT)

< DISCHARGE GAP >

CP10 1-519-504-11 GAP, DISCHARGE

< DIODE >

D10 8-719-040-04 DIODE MA721WK-(TX)

D11 8-719-422-49 DIODE MA8056-L

D12 8-719-422-97 DIODE MA8091-M

D50 8-719-422-16 DIODE MA8039-L-TX

D200 8-719-040-04 DIODE MA721WK-(TX)

D201 8-719-200-82 DIODE 11ES2

D202 8-719-422-97 DIODE MA8091-M

D350 8-719-422-16 DIODE MA8039-L-TX

D351 8-719-422-16 DIODE MA8039-L-TX

D501 8-719-423-23 DIODE MA8110-M

D502 8-719-423-23 DIODE MA8110-M

D503 8-719-423-32 DIODE MA8120-M

D504 8-719-423-32 DIODE MA8120-M

D506 8-719-400-20 DIODE MA152WA

D507 8-719-404-49 DIODE MA111

D508 8-719-422-64 DIODE MA8062-M

D509 8-719-422-64 DIODE MA8062-M

D510 8-719-404-49 DIODE MA111

D512 8-719-422-64 DIODE MA8062-M

D513 8-719-422-64 DIODE MA8062-M

D514 8-719-422-64 DIODE MA8062-M

D515 8-719-422-64 DIODE MA8062-M

D516 8-719-422-64 DIODE MA8062-M

D517 8-719-422-64 DIODE MA8062-M

D518 8-719-422-64 DIODE MA8062-M

D519 8-719-422-64 DIODE MA8062-M

D520 8-719-422-64 DIODE MA8062-M

D521 8-719-422-64 DIODE MA8062-M

D522 8-719-422-64 DIODE MA8062-M

D523 8-719-404-49 DIODE MA111

D524 8-719-040-04 DIODE MA721WK-(TX)

D525 8-719-404-49 DIODE MA111

D530 8-719-067-56 DIODE MA112-TX

D532 8-719-067-56 DIODE MA112-TX

D533 8-719-404-49 DIODE MA111

D534 8-719-404-49 DIODE MA111

D601 8-719-022-90 DIODE MA8160M

D602 8-719-060-80 DIODE MA8180-L-TX

D603 8-719-060-80 DIODE MA8180-L-TX

D604 8-719-404-49 DIODE MA111

D605 8-719-422-64 DIODE MA8062-M

D606 8-719-017-62 DIODE MA8068-L-TX

D608 8-719-033-43 DIODE RB751H

D701 8-719-313-73 DIODE SFPB-52

D702 8-719-313-73 DIODE SFPB-52

D703 8-719-313-73 DIODE SFPB-52

D704 8-719-313-73 DIODE SFPB-52

D705 8-719-313-73 DIODE SFPB-52

D706 8-719-313-73 DIODE SFPB-52

D707 8-719-313-73 DIODE SFPB-52

D708 8-719-313-73 DIODE SFPB-52

– 65 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

MAIN

D709 8-719-422-64 DIODE MA8062-M

D710 8-719-049-38 DIODE 1N5404TU

D711 8-719-404-49 DIODE MA111

D712 8-719-200-82 DIODE 11ES2

D713 8-719-422-76 DIODE MA8075-M

D714 8-719-801-78 DIODE 1SS184

D715 8-719-404-49 DIODE MA111

D717 8-719-404-49 DIODE MA111

D718 8-719-313-73 DIODE SFPB-52

D719 8-719-313-73 DIODE SFPB-52

< IC LINK >

F550 1-533-674-11 LINK, CHIP IC (ICP-S0.5) 0.5A

< FUSE >

F701 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A

< FERRITE BEAD >

FB100 1-414-233-21 INDUCTOR, FERRITE BEAD (C8100R)

FB500 1-414-233-21 INDUCTOR, FERRITE BEAD

FB600 1-414-233-21 INDUCTOR, FERRITE BEAD

< IC >

IC10 8-759-448-85 IC BU2624FV-E2

IC11 8-759-184-64 IC TC4W66FU (C8100R)

IC50 8-759-711-82 IC NJM4580E

IC51 8-759-242-66 IC TC4W66F (C8100R)

IC100 8-759-374-66 IC MSM6688GS-2K (C8100R)

IC101 8-759-448-87 IC MSM6684JSDR1 (C8100R)

IC150 8-759-492-59 IC SAA6588T-118 (C8100R)

IC201 8-759-823-87 IC LB1638M

IC250 8-752-079-79 IC CXA2510AQ-T4

IC301 8-752-078-67 IC CXA1946BQ-T6

IC302 8-759-711-82 IC NJM4580E

IC310 8-759-444-50 IC TDA8574(T)

IC320 8-759-711-82 IC NJM4580E

IC350 8-752-067-30 IC CXA1846N

IC383 8-759-711-82 IC NJM4580E

IC410 8-759-444-50 IC TDA8574(T)

IC500 8-759-443-72 IC RH5VL43AA-T1

IC501 8-759-495-76 IC RN5VD33AA-TL

IC502 8-759-347-50 IC BA3918-V3

IC503 8-759-540-27 IC TA78DL06AS

IC600 8-759-531-90 IC MB90574PFV-G-115-BND (C8100R)

IC600 8-759-531-91 IC MB90574PFV-G-116-BND (C8100)

IC602 8-759-449-89 IC BA8270F-E2

IC650 8-759-530-58 IC MSM6654A-519GS-KR1

IC700 8-759-486-44 IC TDA7386

< CONNECTOR >

*J10 1-506-984-11 PIN, CONNECTOR (PC BOARD) 2P

< JACK >

J500 1-566-822-41 JACK (REMOTE IN)

< COIL >

L10 1-414-146-31 INDUCTOR 2.2uH

L11 1-414-146-31 INDUCTOR 2.2uH

L12 1-410-204-31 INDUCTOR CHIP 10uH

L13 1-410-204-31 INDUCTOR CHIP 10uH

L14 1-410-999-11 INDUCTOR CHIP 3.3uH

L100 1-410-204-31 INDUCTOR CHIP 10uH (C8100R)

L150 1-410-204-31 INDUCTOR CHIP 10uH (C8100R)

L500 1-410-513-11 INDUCTOR 22uH

L550 1-414-712-21 INDUCTOR 1mH

L650 1-410-204-31 INDUCTOR CHIP 10uH

L700 1-416-712-11 COIL, CHOKE

< EARTH TERMINAL >

*LUG1 1-537-738-21 TERMINAL, EARTH

< TRANSISTOR >

Q10 8-729-920-85 TRANSISTOR 2SD1664-QR

Q11 8-729-208-21 TRANSISTOR 2SC2712L-TE85L-T

Q12 8-729-208-21 TRANSISTOR 2SC2712L-TE85L-T (C8100R)

Q13 8-729-208-21 TRANSISTOR 2SC2712L-TE85L-T

Q14 8-729-421-22 TRANSISTOR UN2211

Q15 8-729-020-67 TRANSISTOR XN1A312-TX

Q17 8-729-021-94 FET 2SK1657-T1B

Q50 8-729-920-21 TRANSISTOR DTC314TKH04

Q51 8-729-020-67 TRANSISTOR XN1A312-TX

Q52 8-729-421-22 TRANSISTOR UN2211 (C8100R)

Q53 8-729-421-22 TRANSISTOR UN2211 (C8100R)

Q60 8-729-920-21 TRANSISTOR DTC314TKH04

Q80 8-729-920-21 TRANSISTOR DTC314TKH04

Q201 8-729-421-22 TRANSISTOR UN2211

Q202 8-729-020-67 TRANSISTOR XN1A312-TX

Q203 8-729-931-13 TRANSISTOR 2SD1858-P-TV2

Q204 8-729-106-60 TRANSISTOR 2SB1115A

Q250 8-729-421-22 TRANSISTOR UN2211

Q330 8-729-420-68 TRANSISTOR 2SD1328-R-TX

Q340 8-729-420-68 TRANSISTOR 2SD1328-R-TX

Q360 8-729-920-21 TRANSISTOR DTC314TKH04

Q361 8-729-920-21 TRANSISTOR DTC314TKH04

Q362 8-729-920-21 TRANSISTOR DTC314TKH04

Q430 8-729-420-68 TRANSISTOR 2SD1328-R-TX

Q440 8-729-420-68 TRANSISTOR 2SD1328-R-TX

Q460 8-729-920-21 TRANSISTOR DTC314TKH04

Q461 8-729-920-21 TRANSISTOR DTC314TKH04

Q462 8-729-920-21 TRANSISTOR DTC314TKH04

Q501 8-729-020-67 TRANSISTOR XN1A312-TX

Q502 8-729-020-67 TRANSISTOR XN1A312-TX

– 66 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

MAIN

Q503 8-729-424-59 TRANSISTOR UN2212

Q504 8-729-931-13 TRANSISTOR 2SD1858-P-TV2

Q505 8-729-020-67 TRANSISTOR XN1A312-TX

Q506 8-729-931-13 TRANSISTOR 2SD1858-P-TV2

Q507 8-729-020-67 TRANSISTOR XN1A312-TX

Q508 8-729-216-22 TRANSISTOR 2SA1162-G

Q509 8-729-208-21 TRANSISTOR 2SC2712L-TE85L-T

Q510 8-729-015-74 TRANSISTOR UN5111

Q511 8-729-015-74 TRANSISTOR UN5111

Q512 8-729-208-21 TRANSISTOR 2SC2712L-TE85L-T

Q550 8-729-019-03 TRANSISTOR 2SB1202FA-T-TL

Q551 8-729-421-22 TRANSISTOR UN2211

Q600 8-729-421-22 TRANSISTOR UN2211

Q601 8-729-421-22 TRANSISTOR UN2211

Q602 8-729-403-35 TRANSISTOR UN5113

Q603 8-729-208-21 TRANSISTOR 2SC2712L-TE85L-T

Q700 8-729-424-56 TRANSISTOR UN211L

Q701 8-729-021-94 FET 2SK1657-T1B

Q702 8-729-021-94 FET 2SK1657-T1B

Q703 8-729-019-03 TRANSISTOR 2SB1202FA-T-TL

Q704 8-729-421-22 TRANSISTOR UN2211

Q705 8-729-208-21 TRANSISTOR 2SC2712L-TE85L-T

< RESISTOR >

R9 1-216-049-11 RES,CHIP 1K 5% 1/10W

R10 1-216-049-11 RES,CHIP 1K 5% 1/10W

R11 1-216-037-00 METAL CHIP 330 5% 1/10W

R12 1-216-073-00 METAL CHIP 10K 5% 1/10W

R13 1-216-097-00 RES,CHIP 100K 5% 1/10W

(C8100R)

R14 1-216-097-00 RES,CHIP 100K 5% 1/10W

(C8100R)

R15 1-216-049-11 RES,CHIP 1K 5% 1/10W

R18 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

(C8100R)

R19 1-216-049-11 RES,CHIP 1K 5% 1/10W

R20 1-216-081-00 METAL CHIP 22K 5% 1/10W

R21 1-216-081-00 METAL CHIP 22K 5% 1/10W

R22 1-216-073-00 METAL CHIP 10K 5% 1/10W

R23 1-216-073-00 METAL CHIP 10K 5% 1/10W

R25 1-216-089-00 RES,CHIP 47K 5% 1/10W

R26 1-216-845-11 METAL CHIP 100K 5% 1/16W

(C8100)

R27 1-216-845-11 METAL CHIP 100K 5% 1/16W

(C8100)

R30 1-216-025-00 RES,CHIP 100 5% 1/10W

R32 1-216-073-00 METAL CHIP 10K 5% 1/10W

R33 1-216-089-00 RES,CHIP 47K 5% 1/10W

(C8100R)

R34 1-216-075-00 METAL CHIP 12K 5% 1/10W

(C8100)

R34 1-216-081-00 METAL CHIP 22K 5% 1/10W

(C8100R)

R35 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R36 1-216-049-11 RES,CHIP 1K 5% 1/10W

R50 1-216-073-00 METAL CHIP 10K 5% 1/10W

R51 1-216-081-00 METAL CHIP 22K 5% 1/10W

R52 1-216-045-00 METAL CHIP 680 5% 1/10W

R53 1-216-037-00 METAL CHIP 330 5% 1/10W

R54 1-216-089-00 RES,CHIP 47K 5% 1/10W

(C8100R)

R55 1-216-073-00 METAL CHIP 10K 5% 1/10W

(C8100R)

R56 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

(C8100R)

R57 1-216-001-00 METAL CHIP 10 5% 1/10W

R58 1-216-295-00 SHORT 0 (C8100)

R60 1-216-081-00 METAL CHIP 22K 5% 1/10W

R61 1-216-089-00 RES,CHIP 47K 5% 1/10W

R62 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R63 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R64 1-216-073-00 METAL CHIP 10K 5% 1/10W

R65 1-216-071-00 METAL CHIP 8.2K 5% 1/10W

(G)

R65 1-216-077-00 METAL CHIP 15K 5% 1/10W

(EXCEPT G)

R80 1-216-081-00 METAL CHIP 22K 5% 1/10W

R81 1-216-089-00 RES,CHIP 47K 5% 1/10W

R82 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R83 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R84 1-216-073-00 METAL CHIP 10K 5% 1/10W

R85 1-216-071-00 METAL CHIP 8.2K 5% 1/10W

(G)

R85 1-216-077-00 METAL CHIP 15K 5% 1/10W

(EXCEPT G)

R100 1-216-097-00 RES,CHIP 100K 5% 1/10W

(C8100R)

R101 1-216-849-11 METAL CHIP 220K 5% 1/16W

(C8100R)

R102 1-216-809-11 METAL CHIP 100 5% 1/16W

(C8100R)

R103 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

(AEP,UK)

R104 1-216-821-11 METAL CHIP 1K 5% 1/16W

(C8100R)

R105 1-216-089-00 RES,CHIP 47K 5% 1/10W

(C8100R)

R106 1-216-097-00 RES,CHIP 100K 5% 1/10W

(C8100R)

R107 1-216-845-11 METAL CHIP 100K 5% 1/16W

(C8100R)

R108 1-216-845-11 METAL CHIP 100K 5% 1/16W

(C8100R)

R109 1-216-845-11 METAL CHIP 100K 5% 1/16W

(C8100R)

R110 1-216-089-00 RES,CHIP 47K 5% 1/10W

(C8100R)

R111 1-216-845-11 METAL CHIP 100K 5% 1/16W

(C8100R)

R150 1-216-853-11 METAL CHIP 470K 5% 1/16W

(C8100R)

R151 1-216-821-11 METAL CHIP 1K 5% 1/16W

(C8100R)

– 67 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

MAIN

R152 1-216-067-00 METAL CHIP 5.6K 5% 1/10W

(C8100R)

R154 1-216-817-11 METAL CHIP 470 5% 1/16W

(C8100R)

R155 1-216-814-11 METAL CHIP 270 5% 1/16W

(C8100R)

R156 1-216-814-11 METAL CHIP 270 5% 1/16W

(C8100R)

R157 1-216-001-00 METAL CHIP 10 5% 1/10W

(C8100R)

R158 1-216-001-00 METAL CHIP 10 5% 1/10W

(C8100R)

R201 1-216-150-00 RES,CHIP 10 5% 1/8W

R202 1-216-150-00 RES,CHIP 10 5% 1/8W

R203 1-216-150-00 RES,CHIP 10 5% 1/8W

R204 1-216-150-00 RES,CHIP 10 5% 1/8W

R205 1-216-073-00 METAL CHIP 10K 5% 1/10W

R206 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R207 1-216-049-11 RES,CHIP 1K 5% 1/10W

R209 1-216-089-00 RES,CHIP 47K 5% 1/10W

R230 1-216-097-00 RES,CHIP 100K 5% 1/10W

R231 1-216-097-00 RES,CHIP 100K 5% 1/10W

R232 1-216-027-00 METAL CHIP 120 5% 1/10W

R233 1-216-109-00 METAL CHIP 330K 5% 1/10W

R234 1-216-079-00 METAL CHIP 18K 5% 1/10W

R235 1-216-075-00 METAL CHIP 12K 5% 1/10W

R240 1-216-097-00 RES,CHIP 100K 5% 1/10W

R241 1-216-097-00 RES,CHIP 100K 5% 1/10W

R242 1-216-027-00 METAL CHIP 120 5% 1/10W

R243 1-216-109-00 METAL CHIP 330K 5% 1/10W

R244 1-216-079-00 METAL CHIP 18K 5% 1/10W

R245 1-216-075-00 METAL CHIP 12K 5% 1/10W

R250 1-216-681-11 METAL CHIP 18K 0.5% 1/10W

(EXCEPT G)

R250 1-218-722-11 METAL CHIP 18K 0.50% 1/16W

(G)

R251 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R252 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R253 1-216-113-00 METAL CHIP 470K 5% 1/10W

R254 1-216-089-00 RES,CHIP 47K 5% 1/10W

R301 1-216-073-00 METAL CHIP 10K 5% 1/10W

R302 1-216-073-00 METAL CHIP 10K 5% 1/10W

R303 1-216-073-00 METAL CHIP 10K 5% 1/10W

R304 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R305 1-216-079-00 METAL CHIP 18K 5% 1/10W

R306 1-216-077-00 METAL CHIP 15K 5% 1/10W

R307 1-216-809-11 METAL CHIP 100 5% 1/16W

R320 1-216-073-00 METAL CHIP 10K 5% 1/10W

R321 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R330 1-216-049-11 RES,CHIP 1K 5% 1/10W

R331 1-216-082-00 RES,CHIP 24K 5% 1/10W

R332 1-216-086-00 RES,CHIP 36K 5% 1/10W

R333 1-216-033-00 METAL CHIP 220 5% 1/10W

R334 1-216-081-00 METAL CHIP 22K 5% 1/10W

R335 1-216-049-11 RES,CHIP 1K 5% 1/10W

R336 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R340 1-216-049-11 RES,CHIP 1K 5% 1/10W

R341 1-216-082-00 RES,CHIP 24K 5% 1/10W

R342 1-216-086-00 RES,CHIP 36K 5% 1/10W

R343 1-216-033-00 METAL CHIP 220 5% 1/10W

R344 1-216-081-00 METAL CHIP 22K 5% 1/10W

R345 1-216-049-11 RES,CHIP 1K 5% 1/10W

R346 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R350 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R351 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R352 1-216-298-00 METAL CHIP 2.2 5% 1/10W

R353 1-216-298-00 METAL CHIP 2.2 5% 1/10W

R355 1-216-001-00 METAL CHIP 10 5% 1/10W

R356 1-216-109-00 METAL CHIP 330K 5% 1/10W

R360 1-216-077-00 METAL CHIP 15K 5% 1/10W

R361 1-216-085-00 METAL CHIP 33K 5% 1/10W

R362 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R363 1-216-689-11 METAL CHIP 39K 0.5% 1/10W

R364 1-216-033-00 METAL CHIP 220 5% 1/10W

R365 1-216-081-00 METAL CHIP 22K 5% 1/10W

R366 1-216-073-00 METAL CHIP 10K 5% 1/10W

R367 1-216-073-00 METAL CHIP 10K 5% 1/10W

R368 1-216-097-00 RES,CHIP 100K 5% 1/10W

R369 1-216-097-00 RES,CHIP 100K 5% 1/10W

R401 1-216-073-00 METAL CHIP 10K 5% 1/10W

R402 1-216-073-00 METAL CHIP 10K 5% 1/10W

R403 1-216-073-00 METAL CHIP 10K 5% 1/10W

R404 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R405 1-216-079-00 METAL CHIP 18K 5% 1/10W

R406 1-216-077-00 METAL CHIP 15K 5% 1/10W

R407 1-216-025-00 RES,CHIP 100 5% 1/10W

R420 1-216-073-00 METAL CHIP 10K 5% 1/10W

R421 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R422 1-216-073-00 METAL CHIP 10K 5% 1/10W

R423 1-216-073-00 METAL CHIP 10K 5% 1/10W

R430 1-216-049-11 RES,CHIP 1K 5% 1/10W

R431 1-216-082-00 RES,CHIP 24K 5% 1/10W

R432 1-216-086-00 RES,CHIP 36K 5% 1/10W

R433 1-216-033-00 METAL CHIP 220 5% 1/10W

R434 1-216-081-00 METAL CHIP 22K 5% 1/10W

R435 1-216-049-11 RES,CHIP 1K 5% 1/10W

R436 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R440 1-216-049-11 RES,CHIP 1K 5% 1/10W

R441 1-216-082-00 RES,CHIP 24K 5% 1/10W

R442 1-216-086-00 RES,CHIP 36K 5% 1/10W

R443 1-216-033-00 METAL CHIP 220 5% 1/10W

R444 1-216-081-00 METAL CHIP 22K 5% 1/10W

R445 1-216-049-11 RES,CHIP 1K 5% 1/10W

R446 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R460 1-216-077-00 METAL CHIP 15K 5% 1/10W

R461 1-216-085-00 METAL CHIP 33K 5% 1/10W

R462 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

– 68 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

MAIN

R463 1-216-689-11 METAL CHIP 39K 0.5% 1/10W

R464 1-216-033-00 METAL CHIP 220 5% 1/10W

R465 1-216-081-00 METAL CHIP 22K 5% 1/10W

R466 1-216-073-00 METAL CHIP 10K 5% 1/10W

R467 1-216-073-00 METAL CHIP 10K 5% 1/10W

R468 1-216-097-00 RES,CHIP 100K 5% 1/10W

R469 1-216-097-00 RES,CHIP 100K 5% 1/10W

R500 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R501 1-216-845-11 METAL CHIP 100K 5% 1/16W

R502 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R503 1-216-073-00 METAL CHIP 10K 5% 1/10W

R504 1-216-049-11 RES,CHIP 1K 5% 1/10W

R505 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R506 1-216-073-00 METAL CHIP 10K 5% 1/10W

R507 1-216-067-00 METAL CHIP 5.6K 5% 1/10W

R508 1-216-097-00 RES,CHIP 100K 5% 1/10W

R509 1-216-097-00 RES,CHIP 100K 5% 1/10W

R510 1-216-097-00 RES,CHIP 100K 5% 1/10W

R511 1-216-675-11 METAL CHIP 10K 0.5% 1/10W

R512 1-216-675-11 METAL CHIP 10K 0.5% 1/10W

R514 1-216-089-00 RES,CHIP 47K 5% 1/10W

R515 1-216-073-00 METAL CHIP 10K 5% 1/10W

R516 1-216-097-00 RES,CHIP 100K 5% 1/10W

R517 1-216-097-00 RES,CHIP 100K 5% 1/10W

R518 1-216-025-00 RES,CHIP 100 5% 1/10W

R519 1-216-025-00 RES,CHIP 100 5% 1/10W

R520 1-216-049-11 RES,CHIP 1K 5% 1/10W

R530 1-216-675-11 METAL CHIP 10K 0.5% 1/10W

R531 1-216-675-11 METAL CHIP 10K 0.5% 1/10W

R532 1-216-675-11 METAL CHIP 10K 0.5% 1/10W

R533 1-216-675-11 METAL CHIP 10K 0.5% 1/10W

R550 1-216-089-00 RES,CHIP 47K 5% 1/10W

R551 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R600 1-216-295-00 SHORT 0

R602 1-216-845-11 METAL CHIP 100K 5% 1/16W

R603 1-216-097-00 RES,CHIP 100K 5% 1/10W

R607 1-216-097-00 RES,CHIP 100K 5% 1/10W

R608 1-216-845-11 METAL CHIP 100K 5% 1/16W

R609 1-216-097-00 RES,CHIP 100K 5% 1/10W

R613 1-216-049-11 RES,CHIP 1K 5% 1/10W

R614 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R615 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R616 1-216-049-11 RES,CHIP 1K 5% 1/10W

R617 1-216-097-00 RES,CHIP 100K 5% 1/10W

R618 1-216-097-00 RES,CHIP 100K 5% 1/10W

R619 1-216-097-00 RES,CHIP 100K 5% 1/10W

R620 1-216-097-00 RES,CHIP 100K 5% 1/10W

R621 1-216-097-00 RES,CHIP 100K 5% 1/10W

R622 1-216-097-00 RES,CHIP 100K 5% 1/10W

R623 1-216-097-00 RES,CHIP 100K 5% 1/10W

R624 1-216-097-00 RES,CHIP 100K 5% 1/10W

R625 1-216-017-00 RES,CHIP 47 5% 1/10W

R626 1-216-206-00 RES,CHIP 2.2K 5% 1/8W

R627 1-216-073-00 METAL CHIP 10K 5% 1/10W

R628 1-216-025-00 RES,CHIP 100 5% 1/10W

R629 1-216-025-00 RES,CHIP 100 5% 1/10W

R630 1-216-089-00 RES,CHIP 47K 5% 1/10W

R631 1-216-049-11 RES,CHIP 1K 5% 1/10W

R632 1-216-815-11 METAL CHIP 330 5% 1/16W

R633 1-216-097-00 RES,CHIP 100K 5% 1/10W

R634 1-216-097-00 RES,CHIP 100K 5% 1/10W

R635 1-216-097-00 RES,CHIP 100K 5% 1/10W

R636 1-216-097-00 RES,CHIP 100K 5% 1/10W

R637 1-216-085-00 METAL CHIP 33K 5% 1/10W

R638 1-216-073-00 METAL CHIP 10K 5% 1/10W

R639 1-216-073-00 METAL CHIP 10K 5% 1/10W

R640 1-216-089-00 RES,CHIP 47K 5% 1/10W

R641 1-216-295-00 SHORT 0

R651 1-216-097-00 RES,CHIP 100K 5% 1/10W

R652 1-216-845-11 METAL CHIP 100K 5% 1/16W

R655 1-216-864-11 METAL CHIP 0 5% 1/16W

R656 1-216-097-00 RES,CHIP 100K 5% 1/10W

(C8100)

R657 1-216-864-11 METAL CHIP 0 5% 1/16W

(C8100R)

R658 1-216-097-00 RES,CHIP 100K 5% 1/10W

R660 1-216-049-11 RES,CHIP 1K 5% 1/10W

R661 1-216-049-11 RES,CHIP 1K 5% 1/10W

R662 1-216-049-11 RES,CHIP 1K 5% 1/10W

R663 1-216-049-11 RES,CHIP 1K 5% 1/10W

R701 1-216-222-00 RES,CHIP 10K 5% 1/8W

R702 1-216-206-00 RES,CHIP 2.2K 5% 1/8W

R703 1-216-049-11 RES,CHIP 1K 5% 1/10W

R704 1-216-017-00 RES,CHIP 47 5% 1/10W

R705 1-216-073-00 METAL CHIP 10K 5% 1/10W

R706 1-216-089-00 RES,CHIP 47K 5% 1/10W

R707 1-216-073-00 METAL CHIP 10K 5% 1/10W

R708 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R709 1-216-295-00 SHORT 0

R710 1-216-089-00 RES,CHIP 47K 5% 1/10W

R711 1-216-206-00 RES,CHIP 2.2K 5% 1/8W

R712 1-216-085-00 METAL CHIP 33K 5% 1/10W

R713 1-216-089-00 RES,CHIP 47K 5% 1/10W

R714 1-216-089-00 RES,CHIP 47K 5% 1/10W

R715 1-216-121-00 METAL CHIP 1M 5% 1/10W

R780 1-216-049-11 RES,CHIP 1K 5% 1/10W

R781 1-216-049-11 RES,CHIP 1K 5% 1/10W

< NETWORK RESISTOR >

RB100 1-236-412-11 NETWORK RESISTOR (CHIP) 1.0K (C8100R)

RB601 1-236-412-11 NETWORK RESISTOR (CHIP) 1.0K

RB602 1-236-412-11 NETWORK RESISTOR (CHIP) 1.0K

< VARIABLE RESISTOR >

RV10 1-238-095-11 RES, ADJ, CERMET 470K (C8100R)

RV230 1-238-090-11 RES, ADJ, CERMET 10K

RV240 1-238-090-11 RES, ADJ, CERMET 10K

– 69 –

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

SUB

< SWITCH >

S600 1-571-478-11 SWITCH, SLIDE (POWER SELECT)

S601 1-571-478-11 SWITCH, SLIDE (FREQUENCY SELECT) (C8100)

SW500 1-762-108-31 SWITCH, PUSH (1 KEY) (NOSE DET)

< THERMISTOR (POSITIVE) >

TH600 1-801-792-21 THERMISTOR, POSITIVE 2.2

TH700 1-801-792-21 THERMISTOR, POSITIVE 2.2

< TUNER >

TUX10 A-3282-045-A TUNER UNIT (TUX-012(E))

< VIBRATOR >

X10 1-577-126-51 VIBRATOR, CRYSTAL (7.2MHz)

X100 1-577-101-11 VIBRATOR, CERAMIC (4.19MHz) (C8100R)

X150 1-760-556-31 VIBRATOR, CRYSTAL (4.332MHz) (C8100R)

X600 1-767-833-21 VIBRATOR, CERAMIC (3.68MHz)

X601 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz)

X650 1-577-101-11 VIBRATOR, CERAMIC (4.19MHz)

*************************************************************

*1-669-656-11 SUB BOARD

**********

< CONNECTOR >

CN800 1-779-170-11 SOCKET, CONNECTOR 20P

CN801 1-779-169-11 SOCKET, CONNECTOR 18P

CN802 1-778-330-21 PIN, CONNECTOR (PC BOARD) 2P

< DIODE >

LED800 8-719-058-14 LED CL-220PG-C-TS (TAPE WINDOW)

LED801 8-719-051-01 LED CL-170HR-CD-T (TIR) (C8100R)

LED802 8-719-038-07 LED CL-190PG-CD-T (6)

< RESISTOR >

R800 1-216-049-11 RES,CHIP 1K 5% 1/10W

R801 1-216-025-00 RES,CHIP 100 5% 1/10W

R802 1-216-025-00 RES,CHIP 100 5% 1/10W

R803 1-216-025-00 RES,CHIP 100 5% 1/10W

R804 1-216-025-00 RES,CHIP 100 5% 1/10W

R806 1-216-025-00 RES,CHIP 100 5% 1/10W

R807 1-216-025-00 RES,CHIP 100 5% 1/10W

R808 1-216-025-00 RES,CHIP 100 5% 1/10W

R809 1-216-025-00 RES,CHIP 100 5% 1/10W

< SWITCH >

SW800 1-572-921-11 SWITCH, KEY BOARD (RESET)

SW801 1-771-027-11 SWITCH, KEY BOARD (WITH LED) (6)

*************************************************************

MISCELLANEOUS

***************

17 1-783-495-11 CORD (WITH CONNECTOR) (INVERTER)

18 1-777-246-11 CORD (WITH CONNECTOR) (ANTENNA)

23 1-776-207-71 CORD (WITH CONNECTOR) (POWER) (C8100)

23 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)

(C8100R)

F701 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A

HP901 1-500-157-21 HEAD, MAGNETIC (PLAYBACK)

M901 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL)

*************************************************************

ACCESSORIES & PACKING MATERIALS

********************************

1-467-559-91 REMOTE COMMANDER (RM-X47) (C8100)

9-939-081-01 LID, BATTERY (for RM-X47) (C8100)

1-473-067-71 REMOTE COMMANDER (RM-X4S)

3-012-070-01 LABEL (SOUND) (2) (FOR RM-X4S)

3-862-253-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH,

CHINESE) (C8100)

3-862-253-21 MANUAL, INSTRUCTION (ENGLISH,SPANISH,

SWEDISH,PORTUGUESE) (AEP,UK)

3-862-253-31 MANUAL, INSTRUCTION (FRENCH,GERMAN,

DUTCH,ITALIAN) (AEP)

3-862-253-41 MANUAL, INSTRUCTION (GERMAN) (G)

3-862-255-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

SPANISH,CHINESE) (C8100)

3-862-255-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

SPANISH,SWEDISH,PORTUGUESE) (AEP,UK)

3-862-255-31 MANUAL, INSTRUCTION, INSTALL (FRENCH,

GERMAN,DUTCH,ITALIAN) (AEP,G)

3-862-619-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

FRENCH,GERMAN,SPANISH,DUTCH,SWEDISH,

ITALIAN,PORTUGUESE,CHINESE) (RM-X4S)

X-3373-926-1 CASE ASSY (XR)

*************************************************************

**************

HARDWARE LIST

**************

#1 7-621-772-30 SCREW +B 2X6

#2 7-685-792-09 SCREW +PTT 2.6X6 (S)

#3 7-685-794-09 SCREW +PTT 2.6X10 (S)

#4 7-621-255-15 SCREW +P 2X3

#5 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT

#6 7-624-104-04 STOP RING 2.0, TYPE -E

#7 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE 3

*************************************************************

MAIN

– 70 –

Ref. No. Part No. Description Remark

Sony Corporation

Personal & Mobile Communication Company

9-925-904-11

XR-C8100/C8100R

98B0469-1

Printed in Japan C1998. 2

Published by Quality Assurance Dept.

PARTS FOR INSTALLATION AND CONNECTIONS

***************************************

151 3-009-613-21 FRAME

152 3-386-828-01 SCREW, FITTING

153 3-349-410-01 BUSHING

154 X-3366-405-1 SCREW ASSY (EXP), FITTING

155 3-934-325-01 SCREW, +K (5X8) TAPPING

156 3-022-310-01 COLLAR

157 7-682-560-04 SCREW +P 4X6

158 3-934-787-01 SPRING, FITTING

159 X-3373-432-1 BRACKET ASSY (RM-X4S)

160 1-776-207-71 CORD (WITH CONNECTOR) (POWER) (C8100)

161 1-775-543-11 CORD, GROUND

162 1-465-459-21 ADAPTOR, ANTENNA (C8100R)

163 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)

(C8100R)

Sony Car Stereo System Xr C8100 Users Manual 1_01 26_XRC8100_11

XR-C8100R to the manual 7bd979e0-280c-4666-a4fb-af783961c7ed

Navigation menu

Versions of this User Manual:

Views

Navigation
