SERVICE MANUAL AE-5 CHASSIS

MODEL

COMMANDER DEST CHASSIS NO.

MODEL

COMMANDER DEST CHASSIS NO.

KV-29FS60A

RM-891 Italian SCC-Q12E-A

KV-29FS60B

RM-891 French SCC-Q13E-A

KV-29FS60D

RM-891 AEP SCC-Q11E-A

KV-29FS60E

RM-891 Spanish SCC-Q14E-A

KV-29FS60K

RM-891 OIRT SCC-Q16G-A

KV-29FS60R

RM-891 OIRT SCC-Q16H-A

KV-29FS60U

RM-891 UK SCC-Q15D-A

KV-32FS60A

RM-891 Italian SCC-Q12F-A

KV-32FS60B

RM-891 French SCC-Q13F-A

KV-32FS60D

RM-891 AEP SCC-Q11F-A

KV-32FS60E

RM-891 Spanish SCC-Q14F-A

MICROFILM

TRINITRON

COLOR TV

www.ELEKO.de

Hier finden Sie das Service-Manual für die Modelle KV-29FS60A bis KV-29FS60U und KV-32FS60A bis KV-32FS60E.

[PICTURE TUBE]

KV-29FS60 FD Trinitron

Approx. 72 cm (29 inches)

(Approx. 68 cm picture measured

diagonally)

102 degree deflection

KV-32FS60 FD Trinitron

Approx. 82 m (32 inches)

(Approx. 76 cm pi ture measured

diagon lly)

102 degr e deflection

Input/Output Terminals

[REAR]

21-pin Euro connector (CENELEC standard).

- Inputs for Audio and Video signals.

- Inputs for RGB.

- Outputs of TV Video and Audio signals.

21-pin Euro connector

- Inputs for Audio and Video signals.

- Inputs for S video.

- Outputs forVideo and Audio signals (selectable).

21-pin Euro connector

- Inputs for Audio and Video signals.

- Inputs for S video.

External speaker terminals : 2-pin DIN (5)

[FRONT]

3 Video output - phono jack

3 Audio inputs - phono jacks

3 S Video input - 4 pin DIN

Headphone jack : stereo minijack

Sound output 2x25W (Music Power)

Power requirements 220 - 240V

Dimensions

KV-29FS60 Approx 738 x 588 x 507 mm (w/h/d)

KV-32FS60 Approx 867 x 564 x 558 mm (w/h/d)

Weight

KV-29FS60 Approx 55kg

KV-32FS60 Approx 68kg

Supplied accessories RM-891 Remote Commander (1)

IEC designated R6 battery (2)

Other features NICAM*, FASTEXT, TOPTEXT

* (KV-29FS60B/29FS60E/29FS60K/

29FS60U/32FS60B/32FS60E only)

ITEM MODEL Television System Stereo System Channel Coverage Color System

Italian B/G/H,D/K GERMAN Stereo ITALIA VHF : A-H2 (C) UHF : 21-69 PAL

B/G/H VHF : E2-E12 UHF : E21-E69

CABLE TV (1) : S1-S41

CABLE TV (2) : S01-S05,M1-M10,U1-U10

DK VHF : R01-R12 UHF : R21-R69

PAL, SECAM

NTSC4.43, NTSC3 58

(VIDEO IN)

French B/G/H, D/K,L,I GERMAN/NICAM

Stereo

L VHF : F02-F10 UHF : F21-F60

CABLE : B-Q B/G/H VHF : E2-E12

UHF : E21-E69

CABLE TV (1) : S1-S41

CABLE TV (2) : S01-S05, M1-M10, U1-U10

ITALIA VHF : A-H2 (C) UHF : 21-69

I UHF : B21-B69

PAL, SECAM

NTSC4.43, NTSC3 58

(VIDEO IN)

AEP B/G/H, D/K GERMAN Stereo PAL B/G/H/ VHF : E2-E12 : E21-E69

CABLE TV (1) : S1-S41

CABLE TV (2) : S01-S05, M1-M10, U1-U10

ITALIA VHF : A-H2 (C) UHF : 21-69

D/K VHF : R01-R12 UHF : R21-R69

PAL, SECAM

NTSC4.43, NTSC3 58

(VIDEO IN)

Spanish B/G/H, D/K GERMAN/NICAM

Stereo

PAL B/G/H/ VHF : E2-E12 : E21-E69

CABLE TV (1) : S1-S41

CABLE TV (2) : S01-S05, M1-M10, U1-U10

ITALIA VHF : A-H2 (C) UHF : 21-69

PAL, SECAM

NTSC4.43, NTSC3 58

(VIDEO IN)

OIRT B/G/H, D/K

KV-29FS60K

GERMAN/NICAM

Stereo

KV-29FS60R

GERMAN Stereo

B/G/H/ VHF : E2-E12 UHF : E21-E69

CABLE TV (1) : S1-S41

D/K VHF : R01-R12 UHF : R21 R 9

PAL, SECAM

NTSC4.43, NTSC3 58

(VIDEO IN)

UK I NICAM Stereo UHF : B21-B69 PAL

NTSC4.43, NTSC3 58

(VIDEO IN)

MODEL 29FS60A 29FS60B 29FS60D 29FS60E 29FS60K 29FS60R 29FS60U 32FS60A 32FS60B 32FS60D 32FS60E

Power

Consumption 149Wh 148Wh 148Wh 148Wh 148W 1 8W 148Wh 144Wh 149Wh 149Wh 149Wh

www.ELEKO.de

WARNING (KV-29FS60U only)

The flexible mains lead is supplied connected to a B.S. 1363 fused plug

having a fuse of 5 AMP capacity. Should the fuse need to be replaced,

use a 5 AMP FUSE approved by ASTA to BS 1362, ie one that carries the

mark.

IF THE PLUG SUPPLIED WITH THIS APPLIANCE IS NOT SUITABLE

FOR THE OUTLET SOCKETS IN YOUR HOME, IT SHOULD BE CUT

OFF AND AN APPROPRIATE PLUG FITTED. THE PLUG SEVERED

FROM THE MAINS LEAD MUST BE DESTROYED AS A PLUG WITH

BARED WIRES IS DANGEROUS IF ENGAGED IN A LIVE OUTLET

SOCKET.

When an alternative type of plug is used it should be fitted with a 5 AMP

FUSE, otherwise the circuit should be protected by a 5 AMP FUSE at the

distribution board.

ASA

How to replace the fuse.

Open the fuse compartment with

a screwdriver blade and replace

the fuse.

FUSE

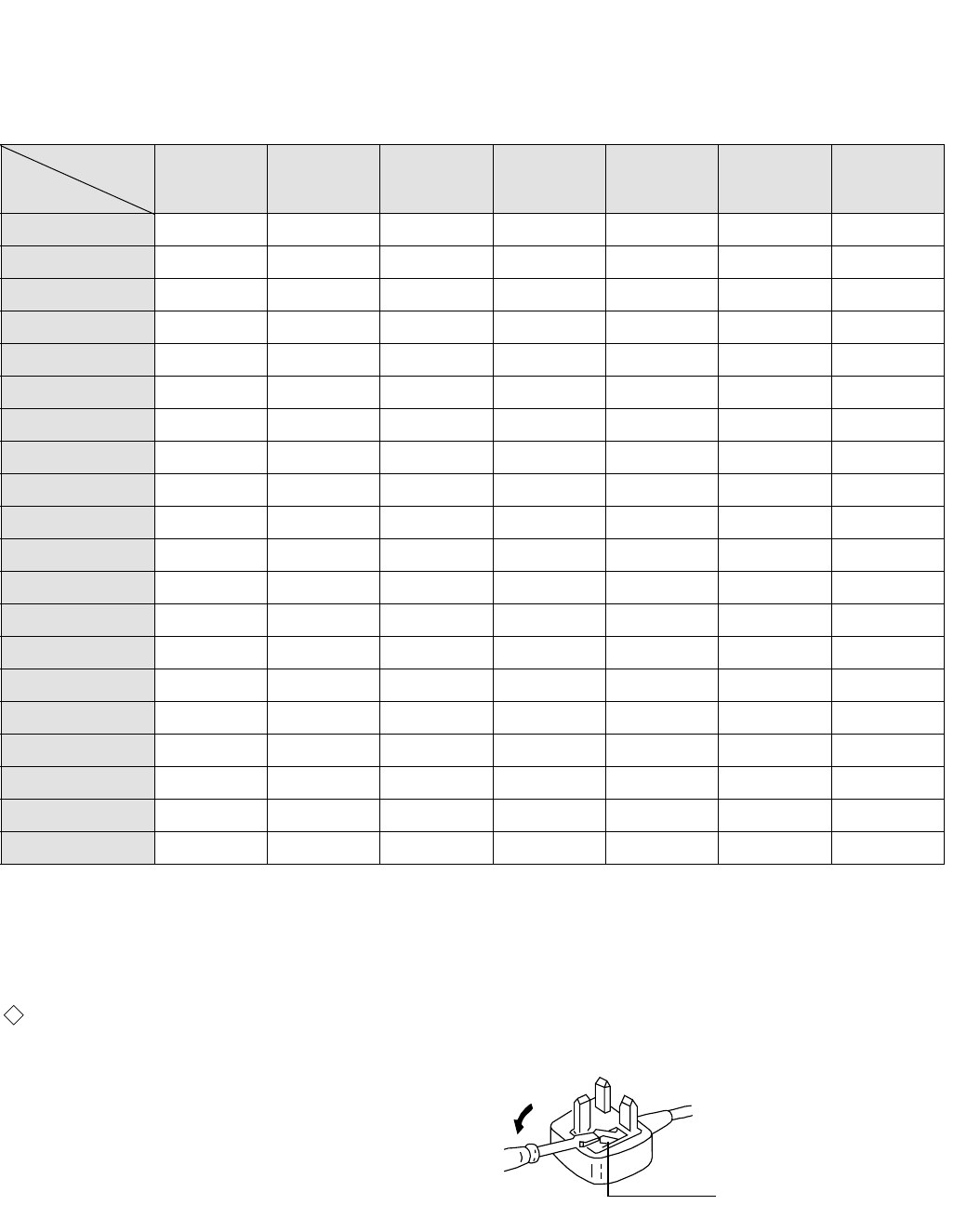

Model Name

Item

KV-29FS60A

KV-32FS60A

KV-29FS60B

KV-32FS60B

KV-29FS60D

KV-32FS60D

KV-29FS60E

KV-32FS60E KV-29FS60K KV-29FS60R KV-29FS60U

Pal Comb ON ON ON ON ON ON ON

PIP OFFOFFOFFOFFOFFOFFOFF

RGB Priority ON ON ON ON ON ON ON

Woofer Box OFFOFFOFFOFFOFFOFFOFF

Scart 1 ON ON ON ON ON ON ON

Scart 2 ON ON ON ON ON ON ON

Front in (3) ON ON ON ON ON ON ON

Scart 4 ON ON ON ON ON ON ON

Projector OFFOFFOFFOFFOFFOFFOFF

AKB in 16:9 mode ON ON ON ON ON ON ON

Norm B/G ON ON ON ON ON ON OFF

Norm I OFF ON OFF OFF OFF OFF ON

Norm D/K ON ON ON ON ON ON OFF

Norm AUS OFFOFFOFFOFFOFFOFFOFF

Norm L OFF ON OFF OFF OFF OFF OFF

Norm SAT OFFOF OFFOFFOFFOFFOFF

Norm M OFFOFFOFFOFFOFFOFFOFF

Teletext ON ON ON ON ON ON ON

Nicam Stereo OFF ON OFF ON ON OFF ON

Language Preset Italia French German Spanish OIRT OIRT English

[RM-891]

Remote control system Infrared control

Power requirements 3V dc

2 batteries IEC designation

R6 (size AA)

Dimensions Approx 210x56x24mm (w/h/d)

Weight Approx 110g (Not including battery)

Design and specifications are subject to change without notice.

www.ELEKO.de

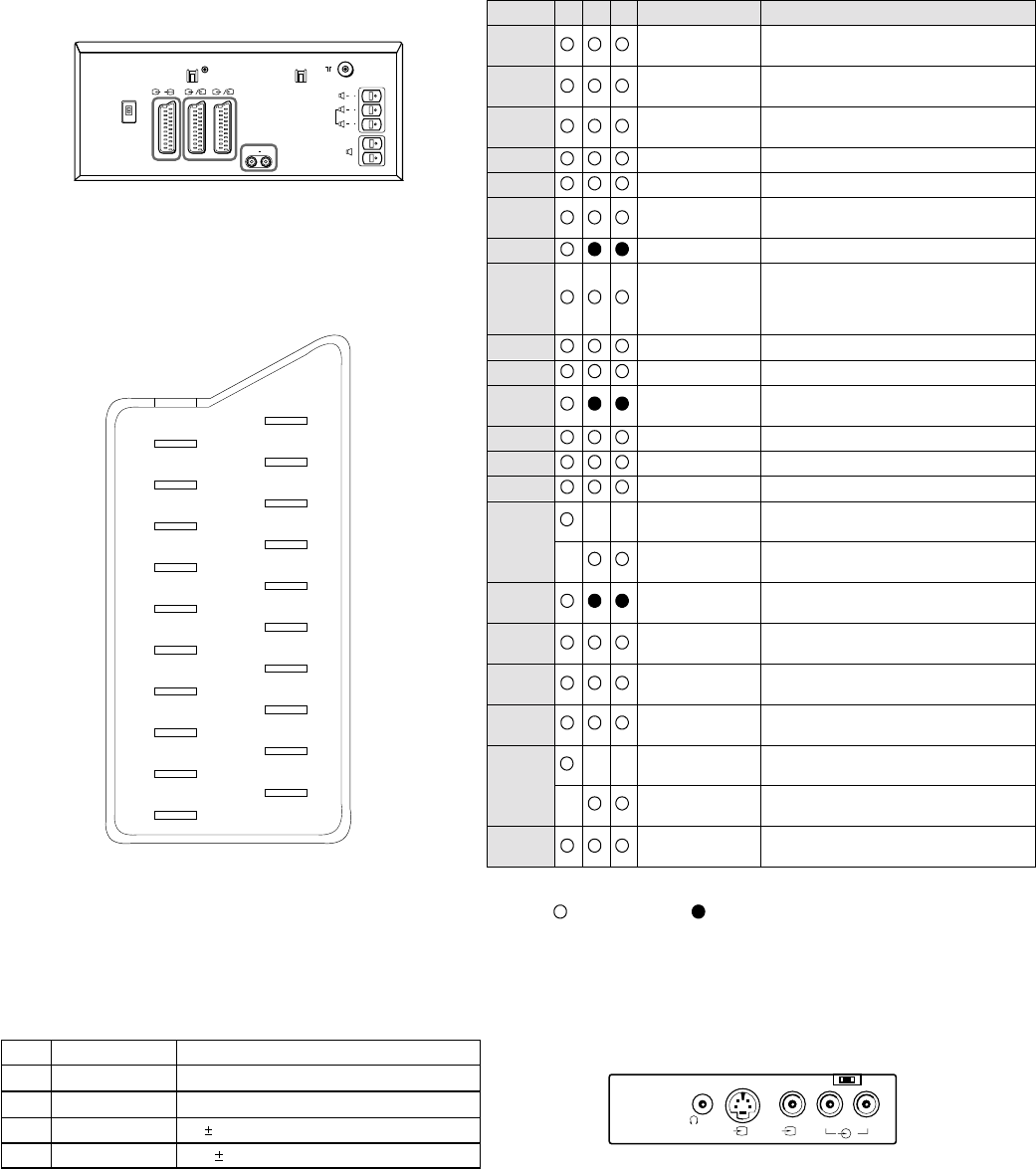

21 pin connector

Connected Not Connected (open) * at 20Hz - 20kHz

L/G/S/I R/D/D/D

S33

RDDD GSI

R/D/D/D

L/G/S/I

223S3

Pin No 124 Signal Signal level

1Audio output B

(right) Standard level : 0.5V rms

Output impedence : Less than 1kohm*

2Audio output B

(right) Standard level : 0.5V rms

Output impedence : More than 10kohm*

3Audio output A

(left) Standard level : 0.5V rms

Output impedence : Less than 1kohm*

4Ground (audio)

5Ground (blue)

6Audio input A

(left) Standard level : 0.5V rms

Output impedence : More than 10kohm*

7Blue input 0.7 +/- 3dB, 75 ohms positive

8Function select

(AV control)

High s ate (9.5 2V) : Part mode

L w sta (0-2V) : TV mode

Inpu impedence : More than 10K ohms

Input c pacitance : Less than 2nF

9Ground (green)

10 Open

11 G een Green signal : 0.7 +/- 3dB, 75 ohms,

positive

12 Open

13 G d (red)

14 Ground (blanking)

_ _ Red input 0.7 +/- 3dB, 75 ohms, positive

_ (S signal Chroma

input) 0 3 +/- 3dB, 75 ohms, positive

6Blanking input

(Ys signal) High state (1-3V) Low state (0-0.4V)

Input impedence : 75 ohms

17 Ground (video

output)

18 Ground (video

input)

19 Video output 1V +/- 3dB, 75ohms, positive sync 0.3V

(-3+10dB)

_ _ Video input 1V +/- 3dB, 75ohms, positive sync 0.3V

(-3+10dB)

_ Video input

Y (S signal) 1V +/- 3dB, 75ohms, positive sync 0.3V

(-3+10dB)

21 Common ground

(plug, shield)

Signal

Ground

Y (S signal) input

C (S signal) input

Pin No.

Signal Level

1V 3dB 75 ohm, positive Sync. 0.3V -3 + 10dB

0.3V 3dB 75 ohm, positive Sync.

www.ELEKO.de

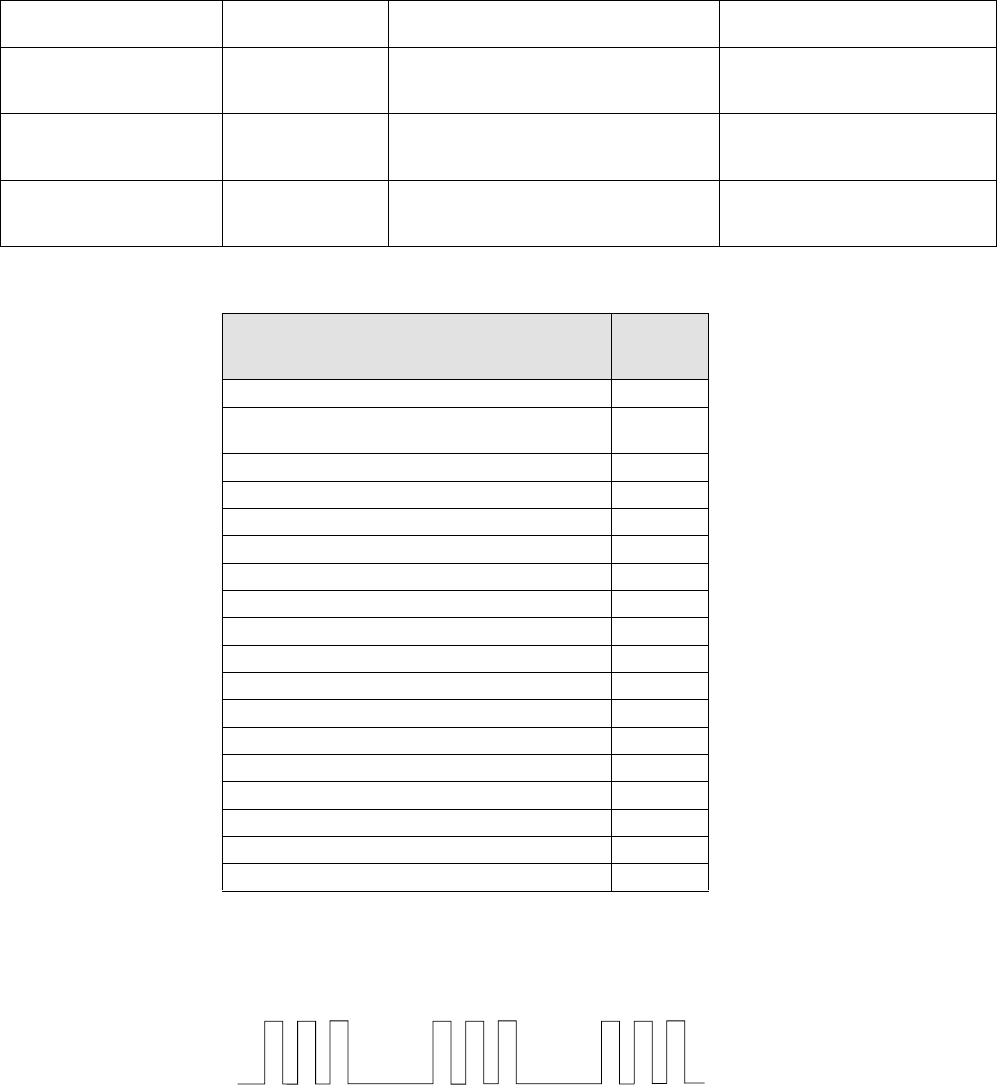

AE-5 SELF DIAGNOSTIC SOFTWARE

The identification of errors within the AE-5 chassis is triggered in one of two ways :- 1: Busy or 2: Device failure to respond to IIC. In the event

of one of these situations arising the software will first try to release the bus if busy (Failure to do so will report with continuous flashing LED) and

then communicate with each device in turn to establish if a device is faulty. If a device is found to be faulty the relevant device number will be dis-

played through the LED (Series of flashes which must be counted) See table 1., non fatal errors are reported using this method.

ERROR LED

ERROR

COUNT

No error 00

Not allowed (may be confused with S rcs response

flash!)

Over Current Prote ti n 02

Over Voltage Protectio 03

Vertical Protec ion 04

AKB 05

H - Protectio 06

Speak r Protection 07

Ge eral IIC Line 0 error 08

MEGATEXT 09

NVM 10

Main colour decoder 11

Feature Box 12

D/A converter 13

Backend 14

Multi sound processor 15

Auto Wide 16

External RAM 17

StBy LED

ON ON ON

OFF OFF

Flash Timing Example : e.g. error number 3

Diagnostic Item

Description

No of times Standby

LED Flashes

Probable cause

Location

Detected Symptoms

Power does not turn on Does not light Power cord is not plugged in

Fuse is burned out

Power does not come on

No p wer is supplied to the TV

AC power supply is faulty

+B Overcurrent (OCP) 2 times H.OUT (Q6803/6804) is shorted. (D Board)

Linearity FET (Q6806) is shorted. (D Board)

IC6604 Power IC is shorted. (D Board)

Pow r do s not come on

Lo d on power line has shorted

Vertical Deflection stopped 4 times +15V is not supplied R6835 ope (D Board)

-15V is not supplied R6834 open (D B ard)

IC6700 is shorted (D Board)

Vertical deflection pulse has stopped

Power line has shorted

www.ELEKO.de

ERROR DETECTION MONITOR

Device acknowledge is used to check IIC errors. Device acknowledge is checked by sending an IIC start sequence during CRT power on. Each

device is checked three times, if there is no acknowledge after every attempt, it will be regarded as an error.

There are three steps to check errors

1. IIC line 0

If all devices except the NVM have errors, IIC line 0 error is displayed

2. Board check

If all devices mounted on one board have errors, board error is displayed

3. Each device check

If IIC line error and board error are not detected then the device with an error is displayed

The detected errors can be displayed as follows:

1. Error Monitor Menu

2. Error Reader

1. ERROR MONITOR MENU

The error monitor menu is displayed by selecting TT33. The following menu will be displayed:

ERROR MONITOR

Operating Time :

930360h 15h

Saved Err rs :

1. 100h = A-Board

2. 401h = BP-B CXD2069 MID

3. 704h = J-B TDA9320 Main Col Dec

4. 000h = no error occured

5. 000h = no error occured

Actual Error :

New error code sequence is starting

Ignore Errors : [off]

www.ELEKO.de

2. ERROR READER DISPLAY

The error reader display is connected to the service connector to read actual error codes. The part number for the error reader display is S-188-900-10.

Once an error has been detected it will then be displayed on the two digit error reader. The errors displayed refer to the following table :

Send Data to Error Reader

Error Code Data high Data Low Error type Function

00 00h - f0h no device

Gen.IIC Error

00 01h f0h 01h IIC 0 line

00 02h f0h 02h IIC 1 line not used

Board Error

01 00h f1h 00h A Board

02 00h f2h 00h B1 Board

03 00h f3h 00h B2 Board

04 00h f4h 00h BP Boa d

05 00h f5h 00h D1 Boa d

06 00h f6h 00h E oard

07 00h f7h 00h J Boar

Device Error

A Board

01 01h f1h 01h CXA1875 Port Expander

01 02h f1h 02h TU1326 Main Tuner

01 03h f1h 03h TU1350 Sub Tuner

B1 Board

02 01h f2h 01h P83C654 Feature Box

02 02h f2h 02h SDA9280 D/A Converter

B2 Board

03 01h f3h 01h SAA4977 Basic

03 02h f3h 02h SAA4950 Memory

BP Board

04 01h f4h 01h CXD2069 MID

D1 B ard

05 01h f5h 01h CXA8070 Dynamic Conv.

05 02h f5h 02h CXA1875 Port Expander

E Board

06 01h f6h 01h CXD2100 Backend

J Board

07 01h f7h 01h CXD2057 Auto Wide

07 02h f7h 02h SDA9288 PIP

07 03h f7h 03h TDA9320 Sub Colour

07 04h f7h 04h TDA9320 Main Colour

07 05h f7h 05h CXA1875 Sub Sound

07 06h f7h 06h TDA7309 HP Amp

07 07h f7h 07h TEA6422DT Audio SW

07 08h f7h 08h MSP3410D Sound Proc

07 09h f7h 09h TC9337F Sound DSP

www.ELEKO.de

TABLE OF CONTENTS

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE

ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR THE

CARBON PAINTED ON THE CRT, AFTER REMOVAL OF THE

ANODE CAP

WARNING !!

AN ISOLATING TRANSFORMER SHOULD BE USED DURING ANY

SERVICE WORK TO AVOID POSSIBLE SHOCK HAZARD DUE TO

LIVE CHASSIS. THE CHASSIS OF THIS RECEIVER IS DIRECTLY

CONNECTED TO THE POWER LINE.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY SHADING AND MARKED ON

THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE

PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE

THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY.

ATTENTION

APRES AVOIR DECONNECTE LE CAP DE’LANODE,

COURT-CIRCUITER L’ANODE DU TUBE CATHODIQUE ET

CELUI DE L’ANODE DU CAP AU CHASSIS METALLIQUE

DE L’APPAREIL, OU AU COUCHE DE CARBONE PEINTE

SUR LE TUBE CATHODIQUE OU AU BLINDAGE DU TUBE

CATHODIQUE.

ATTENTION !!

AFIN D’EVITER TOUT RISQUE D’ELECTROCUTION PROVENANT

D’UN CHÁSSIS SOUS TENTION, UN TRANSFORMATEUR

D’ISOLEMENT DOIT ETRE UTILISÈ LORS DE TOUT DÈPANNAGE.

LE CHÁSSIS DE CE RÈCEPTEUR EST DIRECTMENT RACCORDÈ

Á L’ALIMENTATION SECTEUR.

ATTENTION AUX COMPOSANTS RELATIFS Á LA

SÈCURITÈ !!

LES COMPOSANTS IDENTIFIÈS PAR UNE TRAME ET PAR UNE

MARQUE SUR LES SCHÈMAS DE PRINCIPE, LES VUES

EXPLOSÈES ET LES LISTES DE PIECES SONT D’UNE IMPORTANCE

CRITIQUE POUR LA SÈCURITÈ DU FONCTIONNEMENT, NE LES

REMPLACER QUE PAR DES COMPSANTS SONY DONT LE NUMÈRO

DE PIÈCE EST INDIQUÈ DANS LE PRÈSENT MANUEL OU DANS

DES SUPPLÈMENTS PUBLIÈS PAR SONY.

Section Title Page Section Title Page

Warning and Caution .....................3

Self-Diagnostic Function .....................5

1. GENERAL

Overview .....................9

Installation .....................10

Advanced Operations .....................11

Teletext .....................16

2. DISASSEMBLY

2-1. Rear Cover Removal .....................17

2-2. Chassis Assy Removal .....................17

2-3. Service Position .....................17

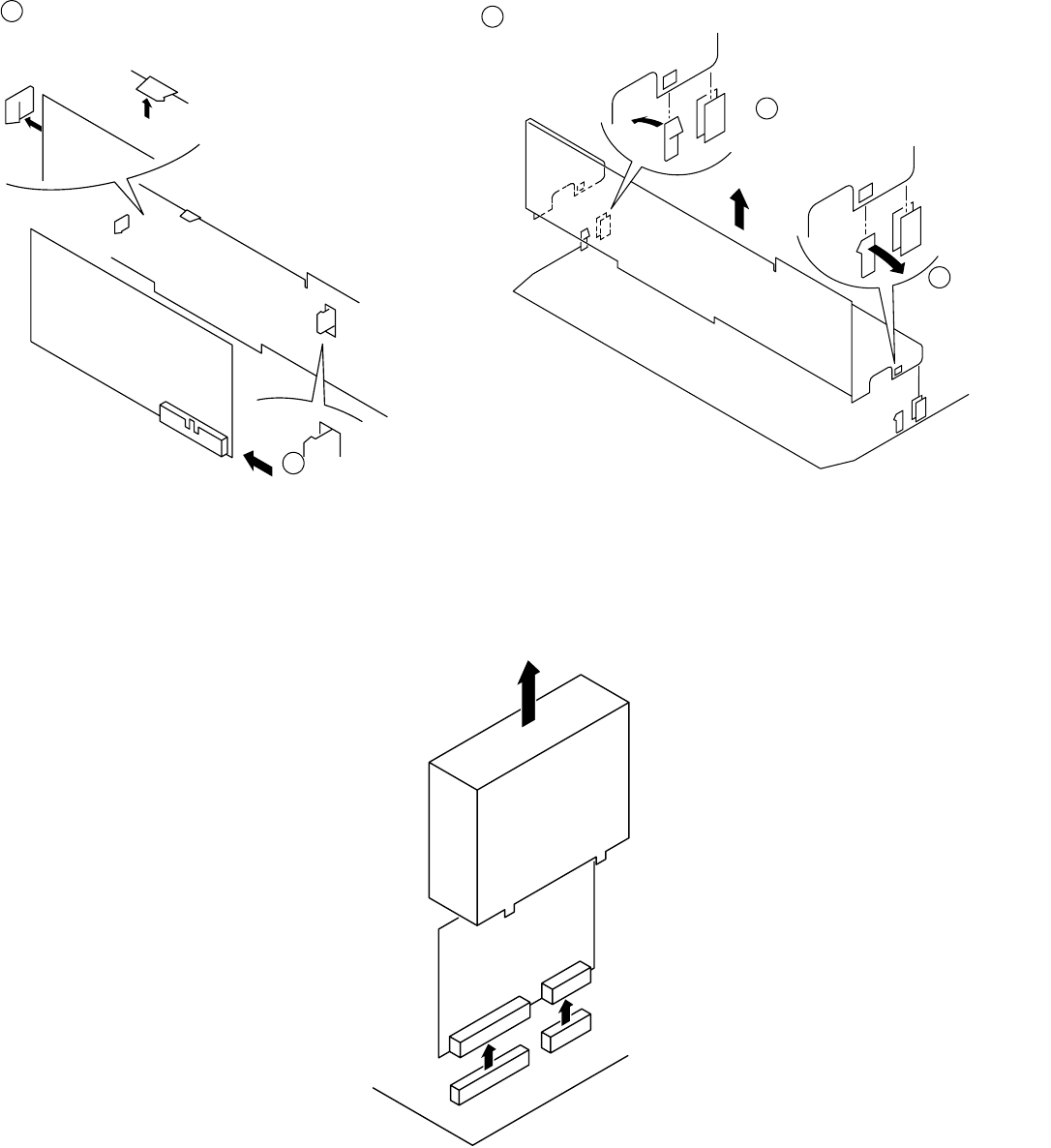

2-4. U Board Removal .....................17

2-5. J Board Removal .....................18

2-6. J Shield Removal .....................18

2-7. B1 Board Removal .....................18

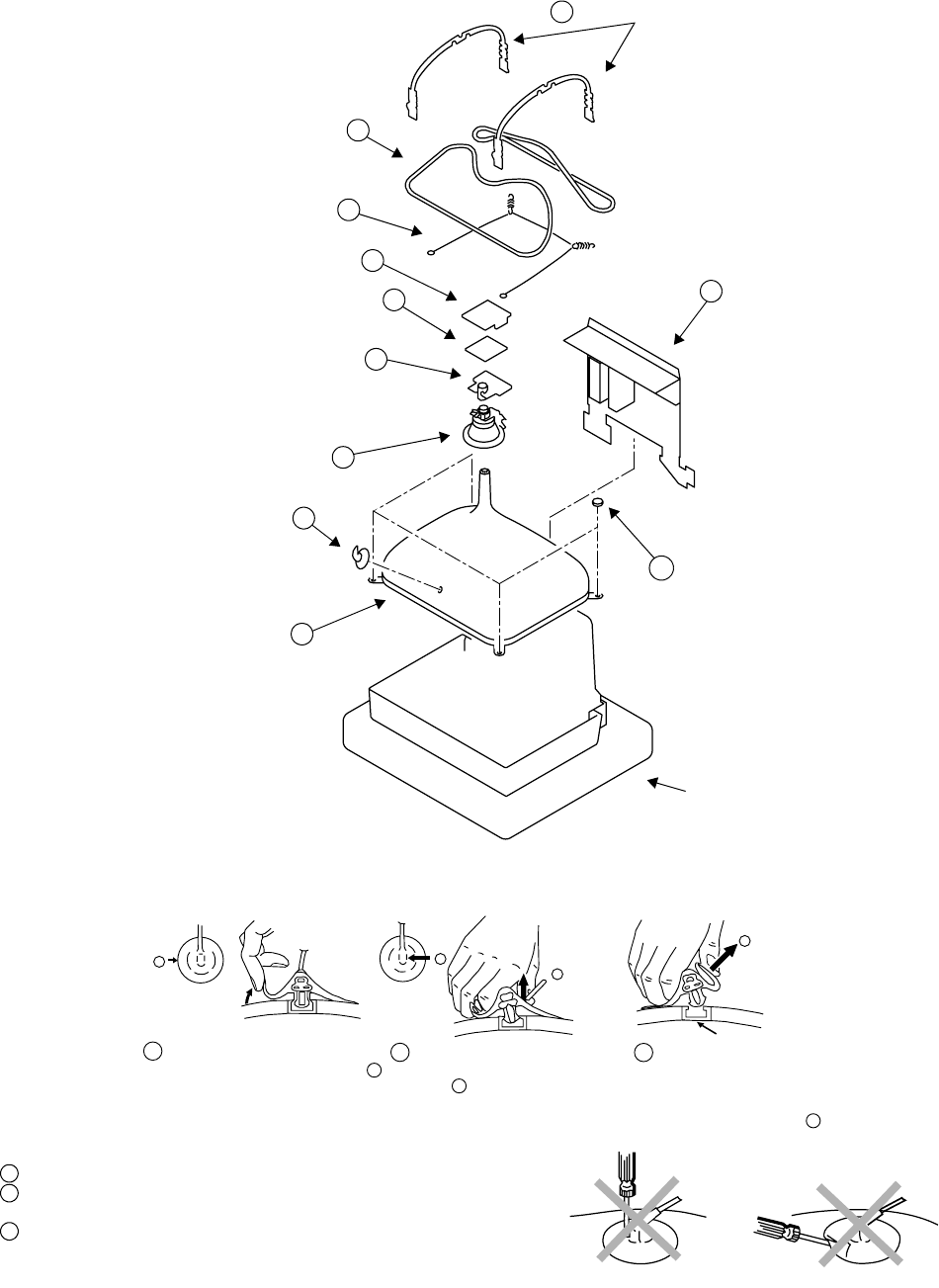

2-8. Picture Tube Removal .....................19

Removal and Replacement of the

Main-Bracket bottom plates .....................20

3. SET-UP ADJUSTMENTS

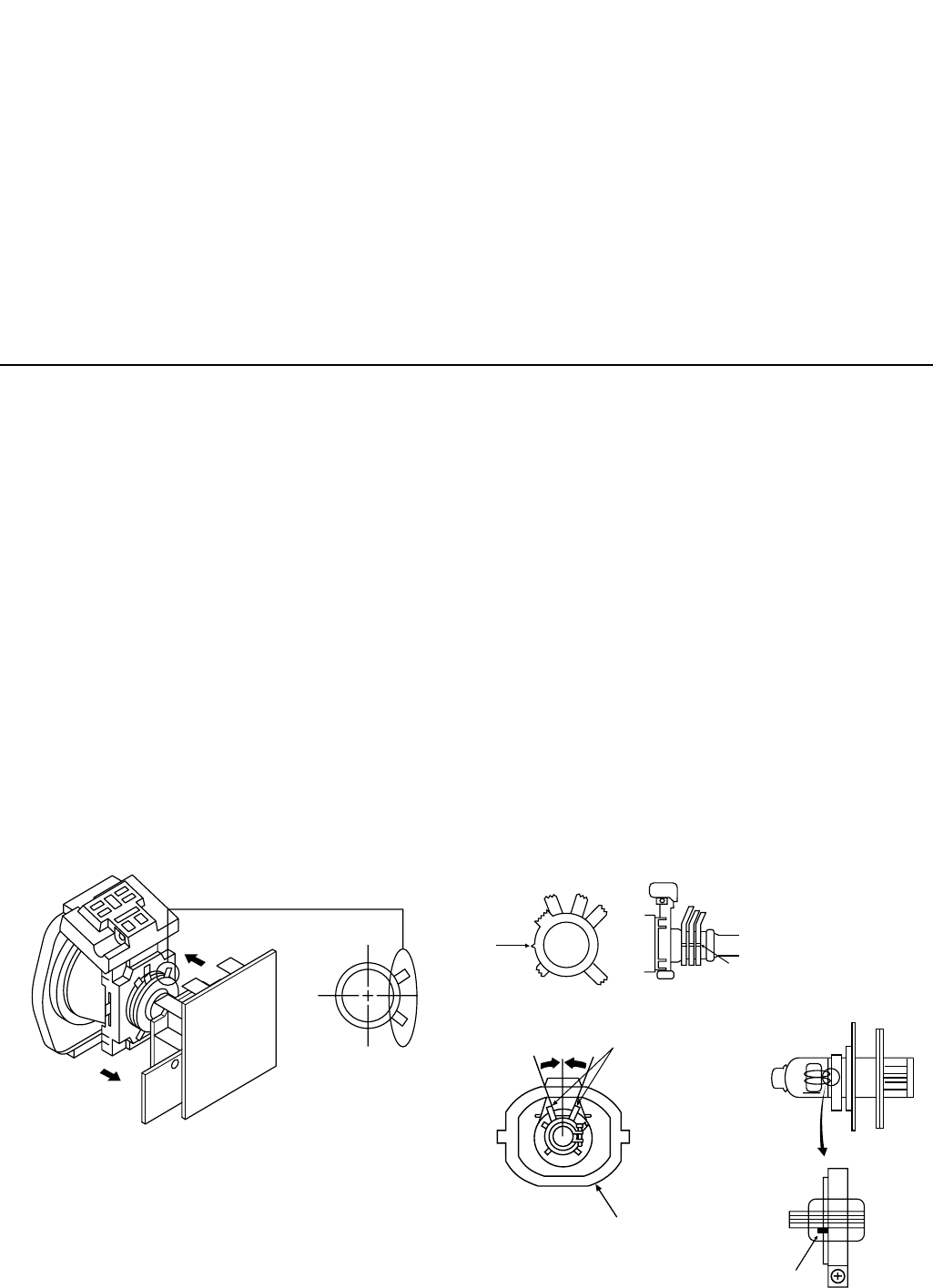

3-1. Beam Landing .....................21

3-2. Convergence .....................22

3-3. Focus .....................24

3-4. Screen [G2] White Balance .....................24

4. CIRCUIT ADJUSTMENTS

4-1. Electrical Adjustments .....................26

4-2. Volume Electrical Adjustments .................. 32

4-3. Test Mode 2 .............. ...33

5. DIAGRAMS

5-1. Block Diagram (1) .....................35

Block Diagram (2) .....................40

Block Diagram (3) .....................45

Block Diagram (4) .....................50

5-2. Circuit Board Location .....................55

5-3. Schematic Diagrams and

Printed Wiring Boards .....................55

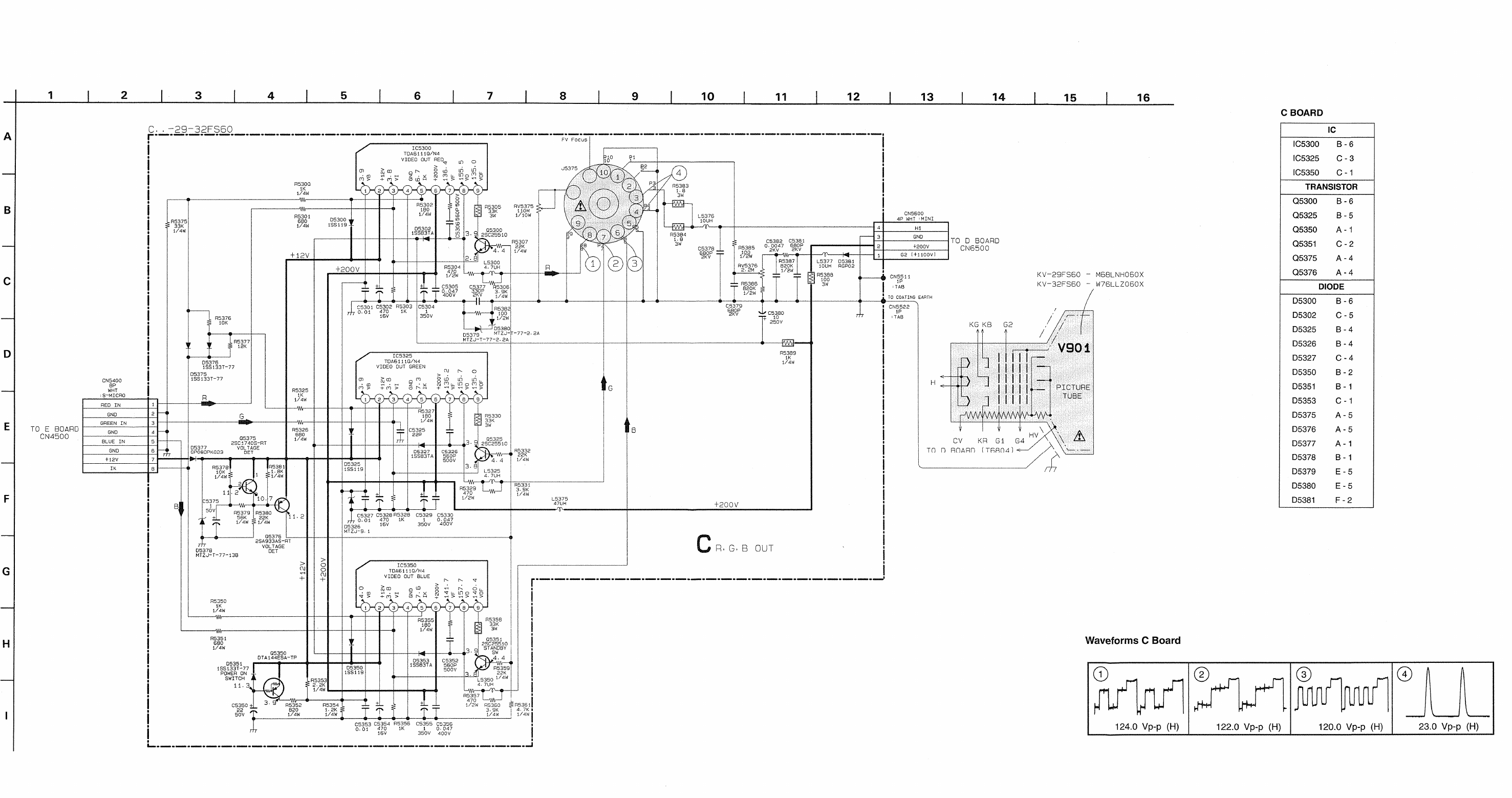

* C Board .....................57

* J Board .....................65

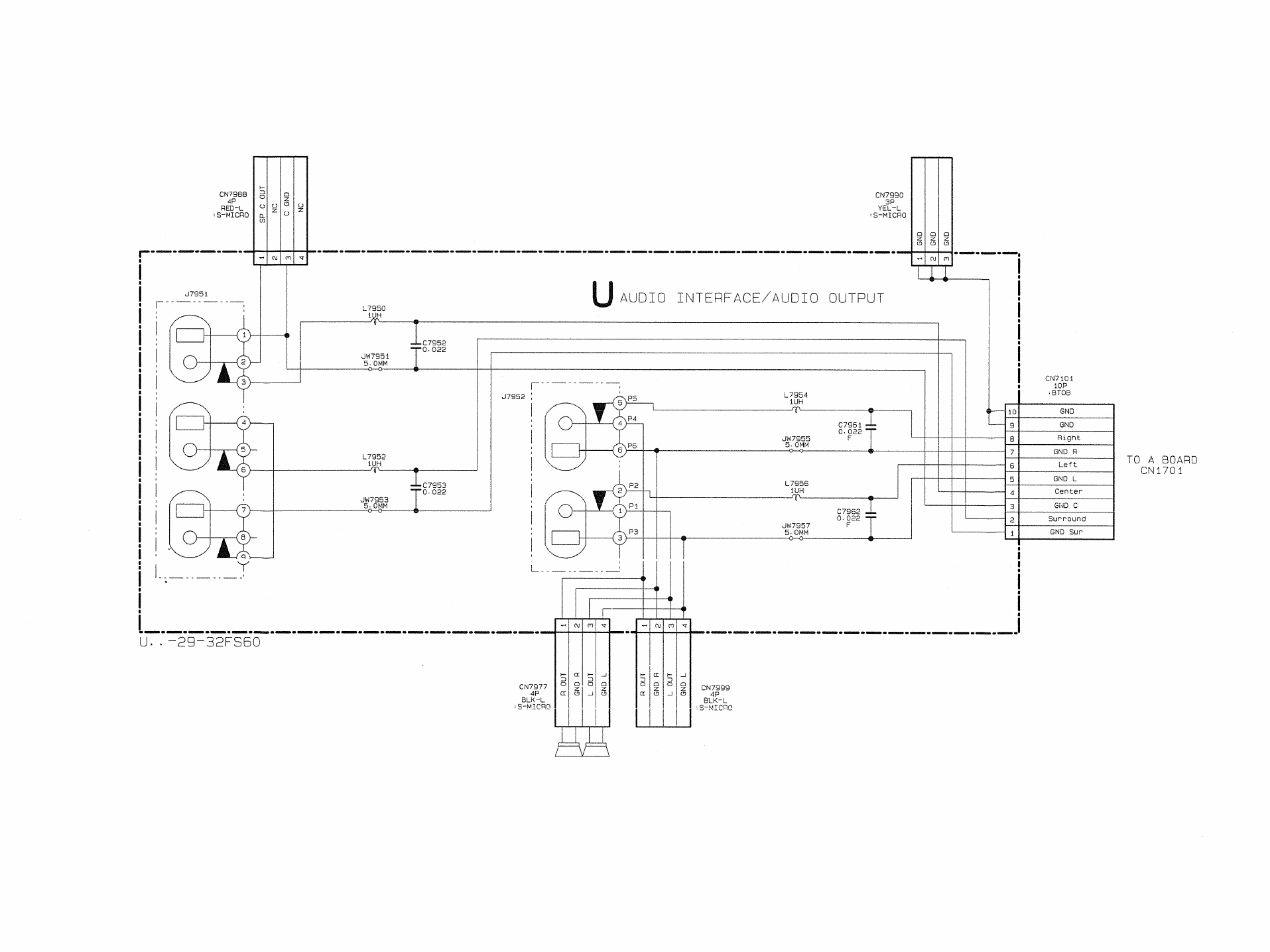

* U Board .....................74

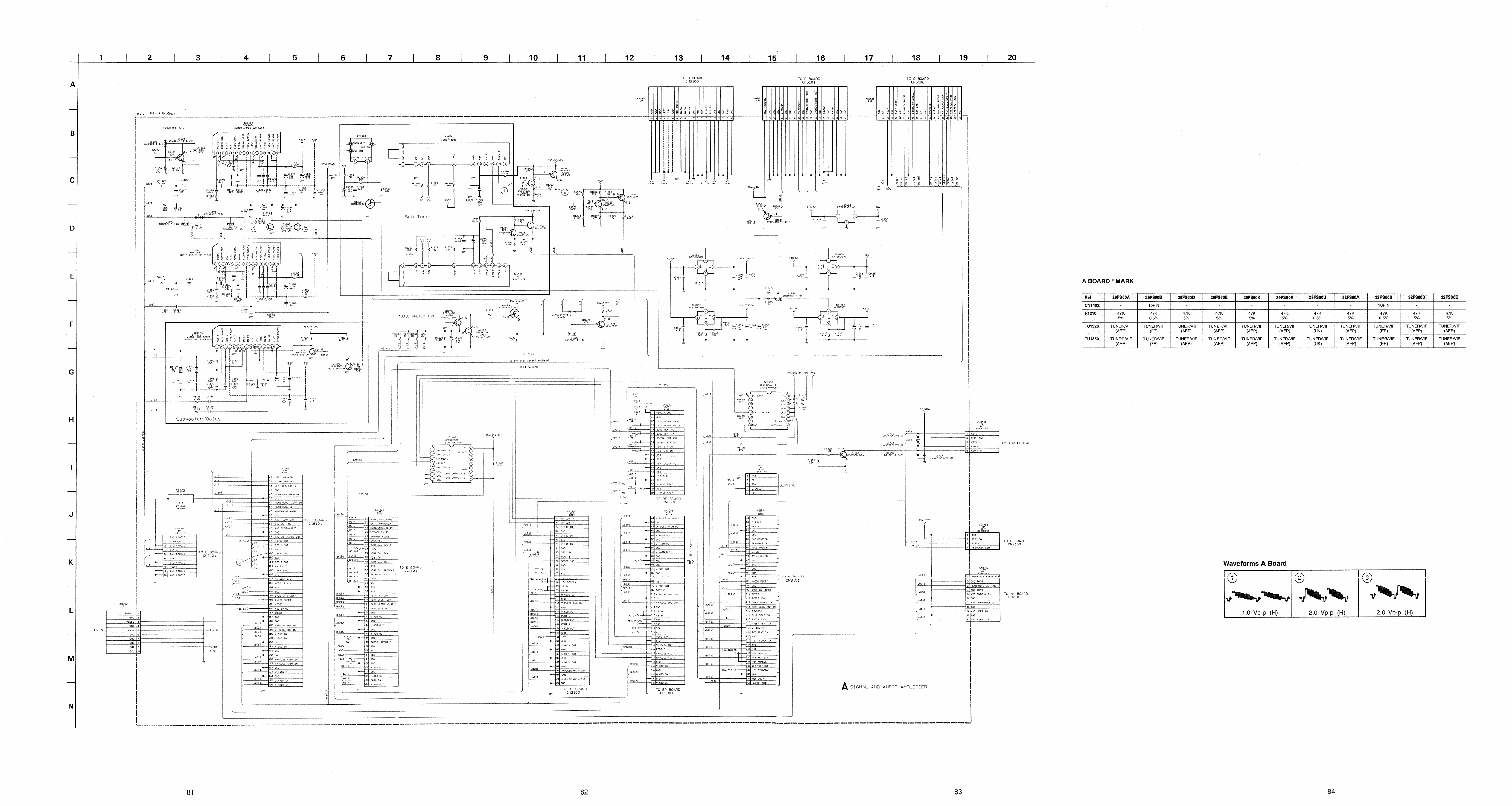

* A Board .....................81

* BP Board .....................85

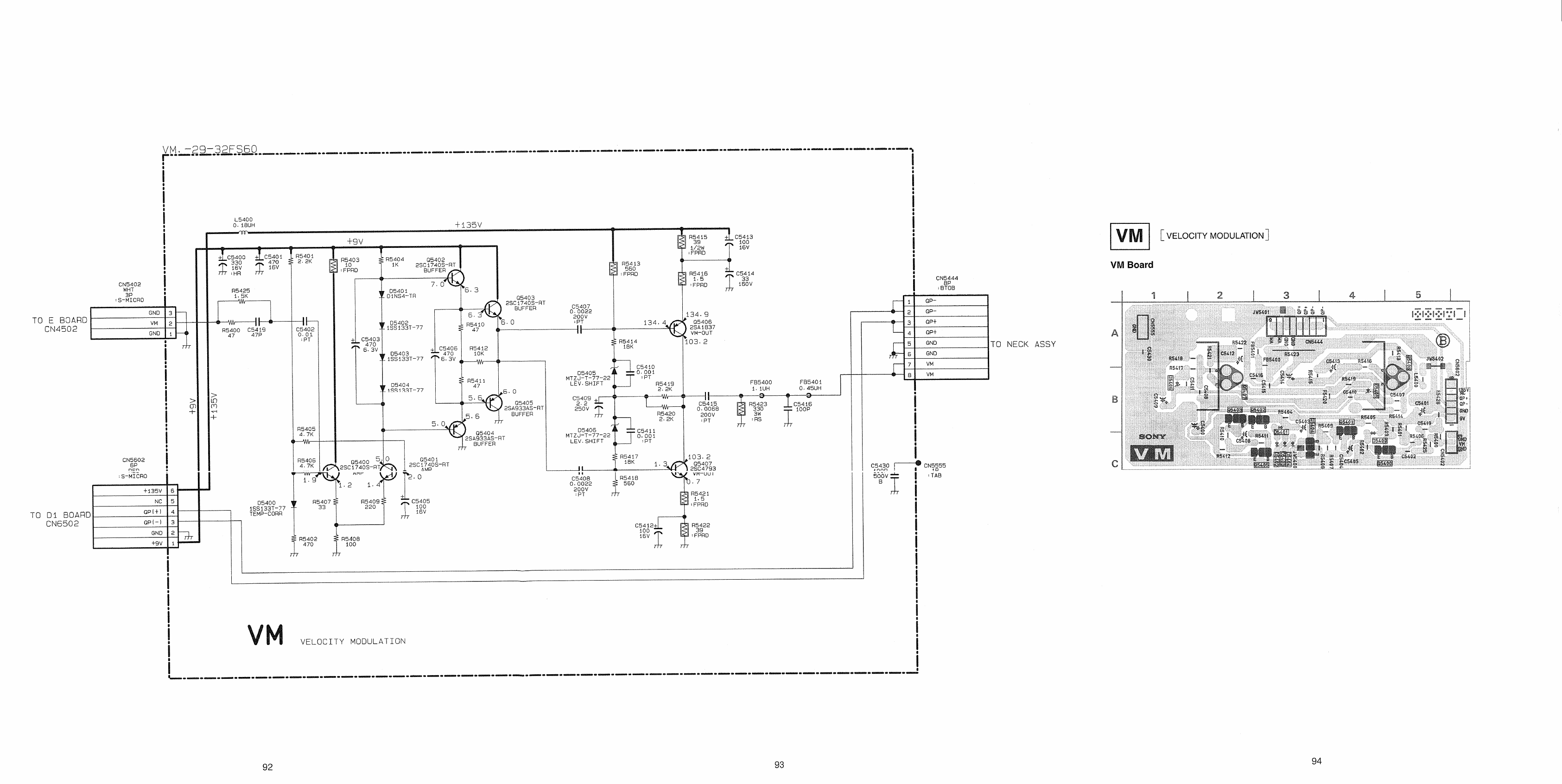

* VM Board .....................92

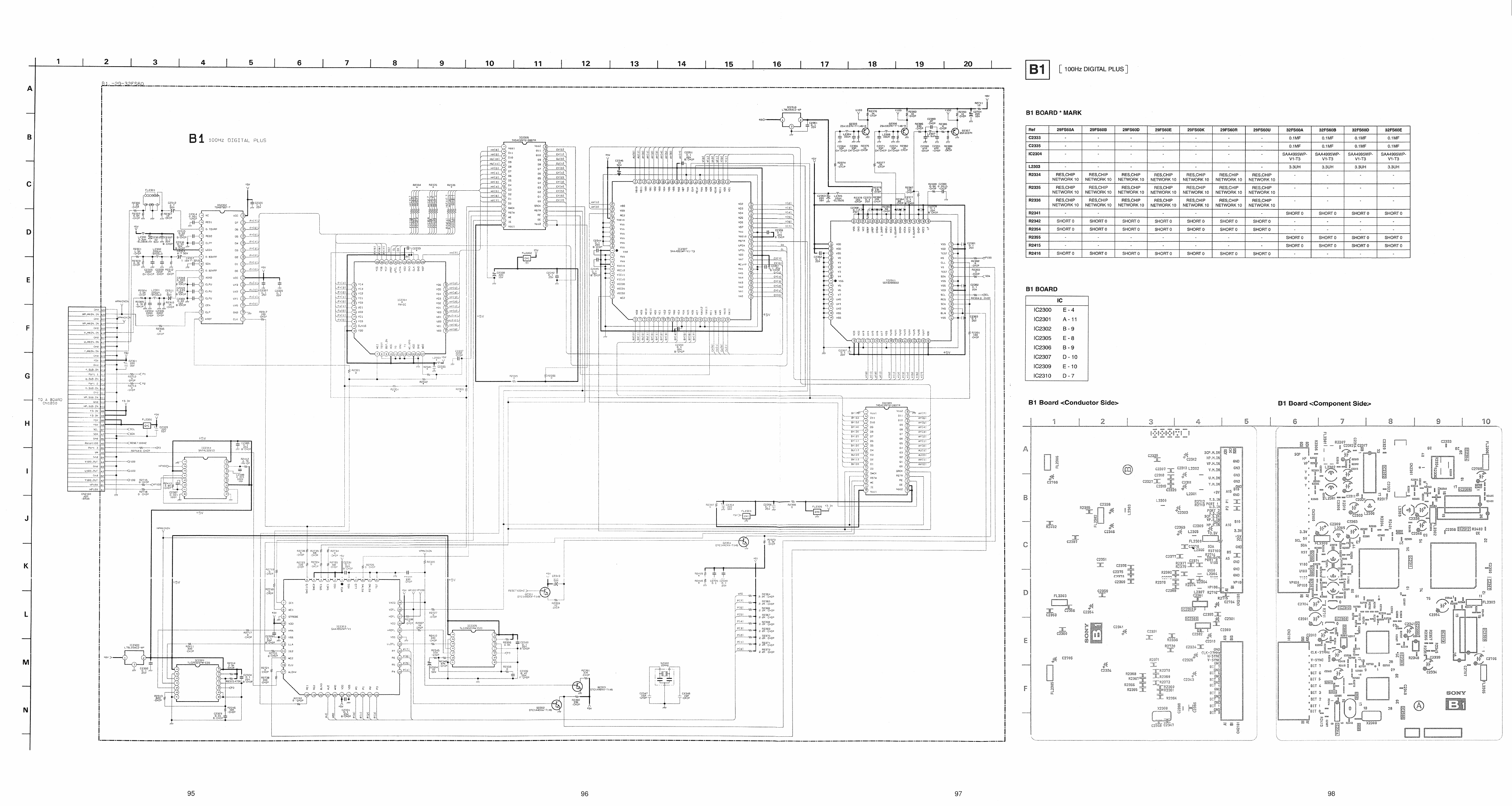

* B1 Board .....................95

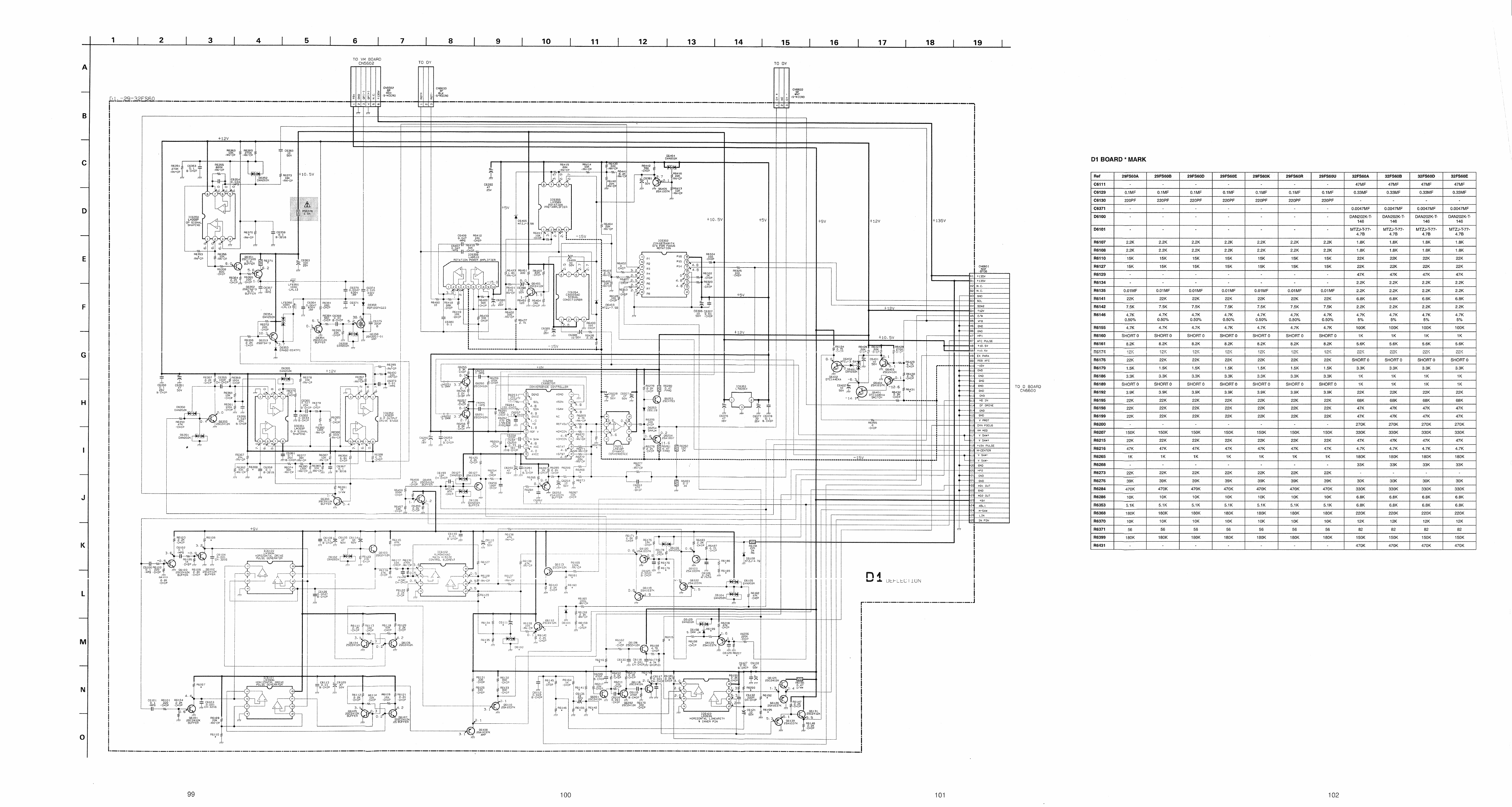

* D1 Board .....................99

* F Board .....................103

* F1 Board .....................106

* M Board .....................107

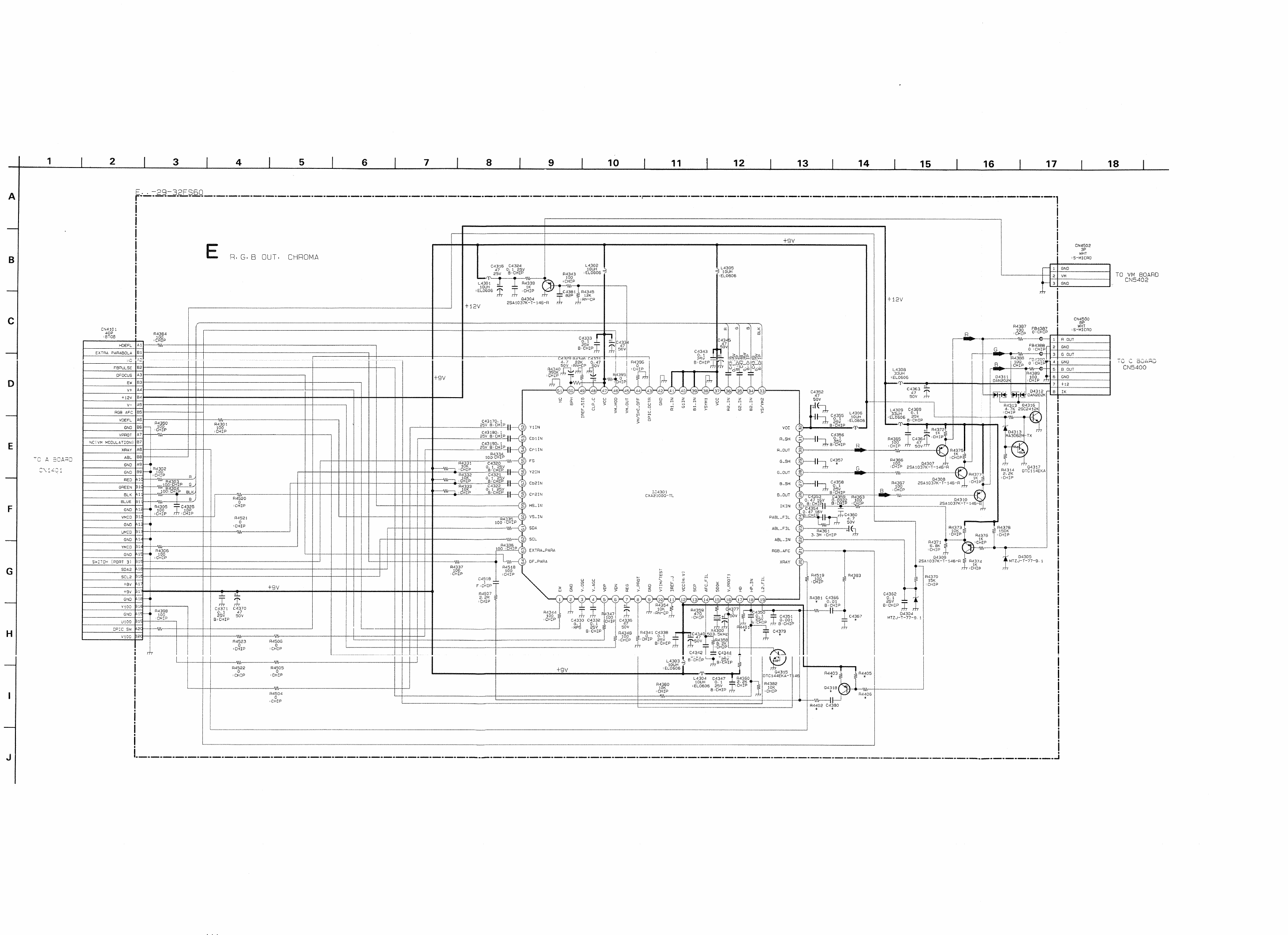

* E Board .....................111

* D B ard .....................116

* H1 Board .....................122

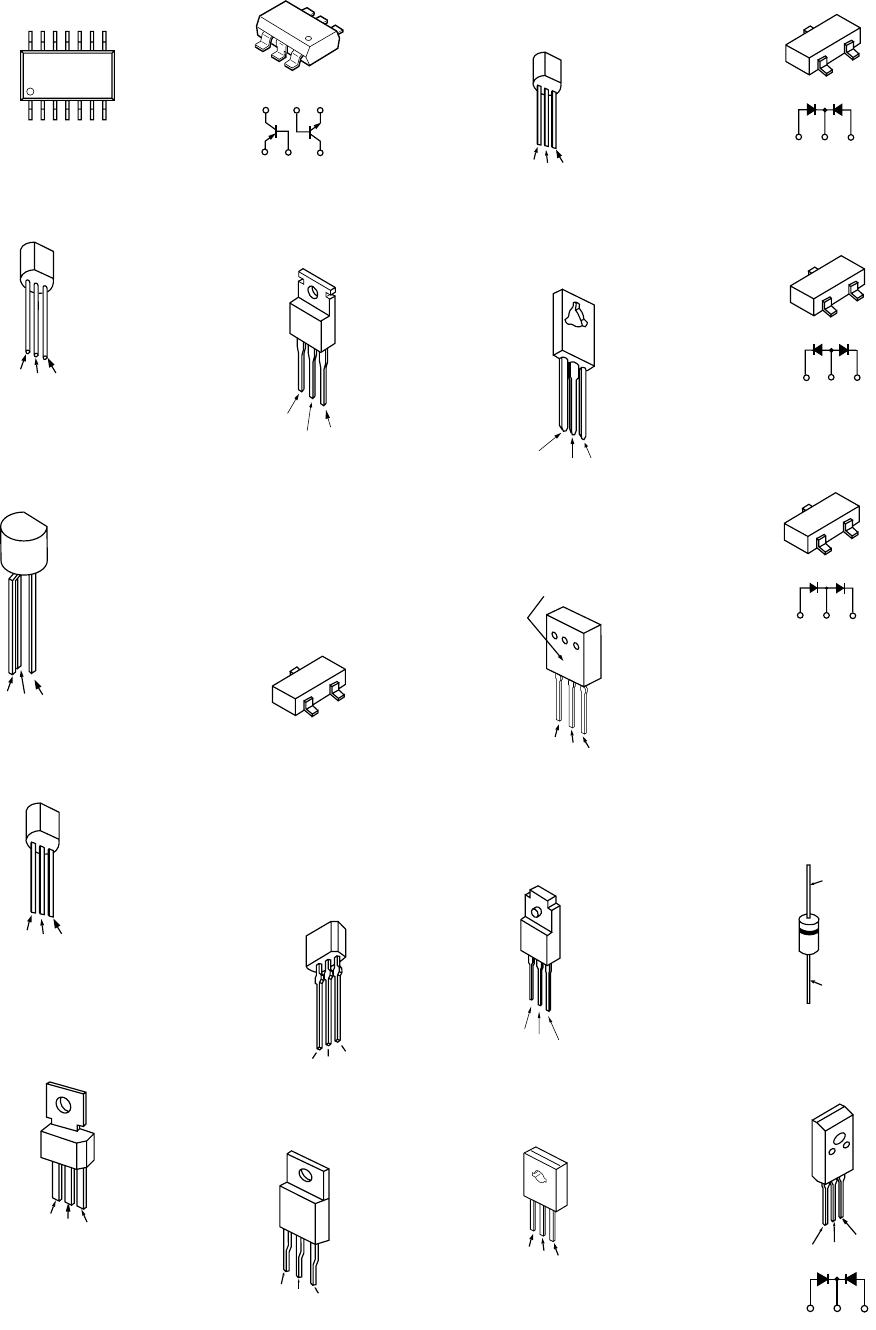

5-4. Semi onductors .....................125

5-5. IC Blocks .....................128

6. EXPLODED VIEWS

6-1 Chassis .....................129

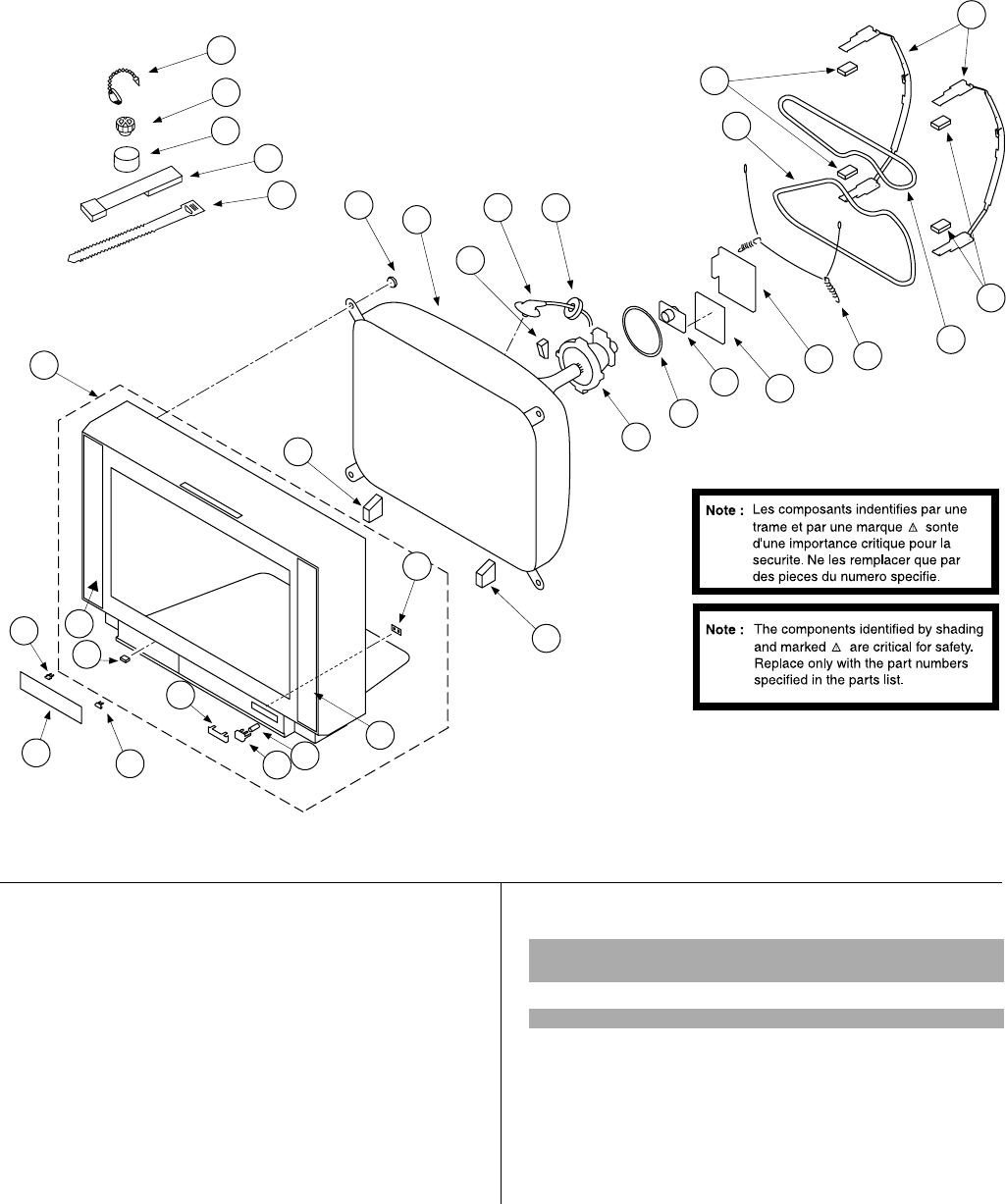

6 2. Picture Tube .....................131

7 ELECTRICAL PARTS LIST .....................133

www.ELEKO.de

SECTION 1

GENERAL The operating instructions mentioned here are partial abstracts from the Operating

Instruction Manual. The page numbers of the Operating Instruction Manual remain

as in the manual.

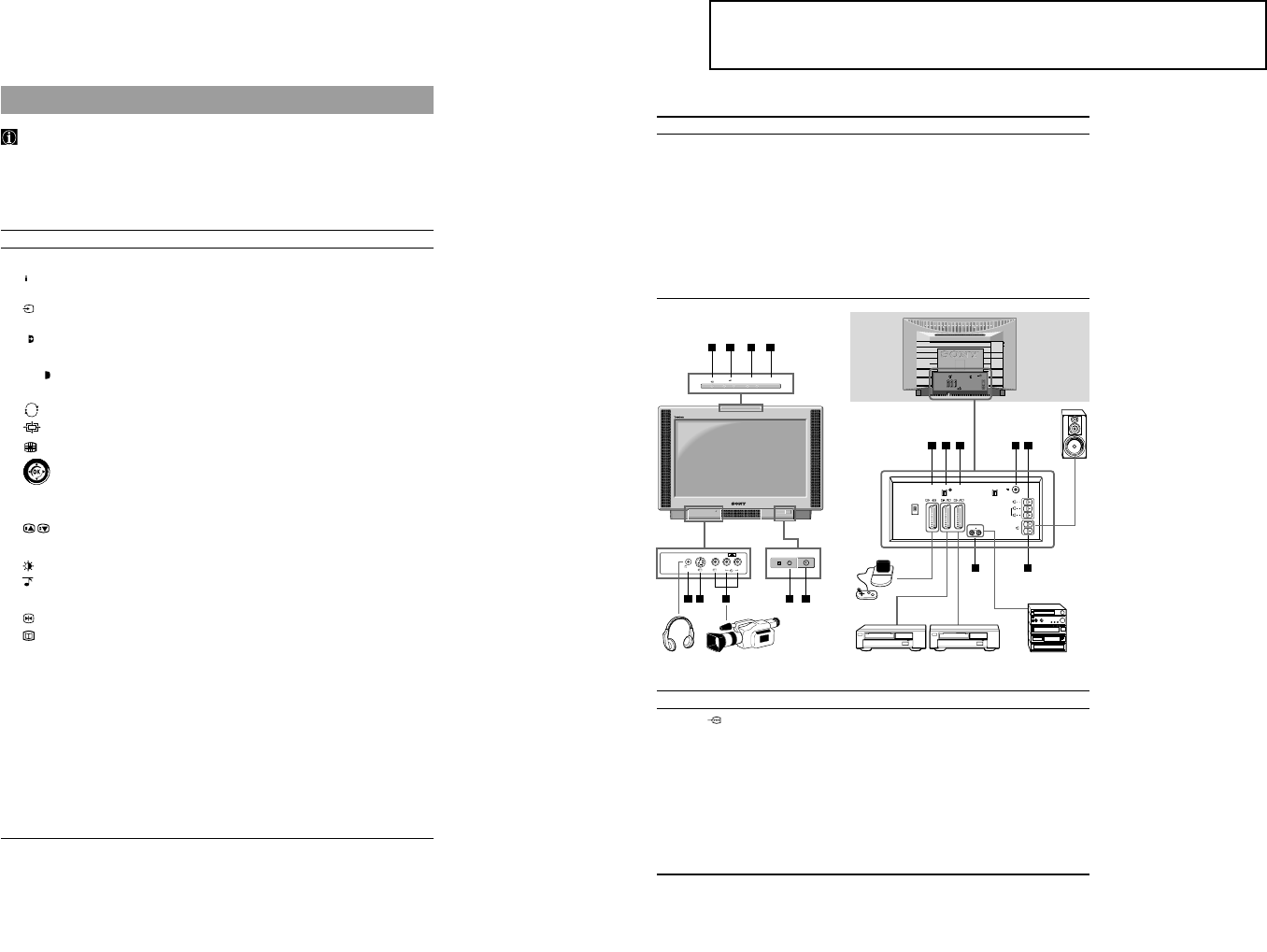

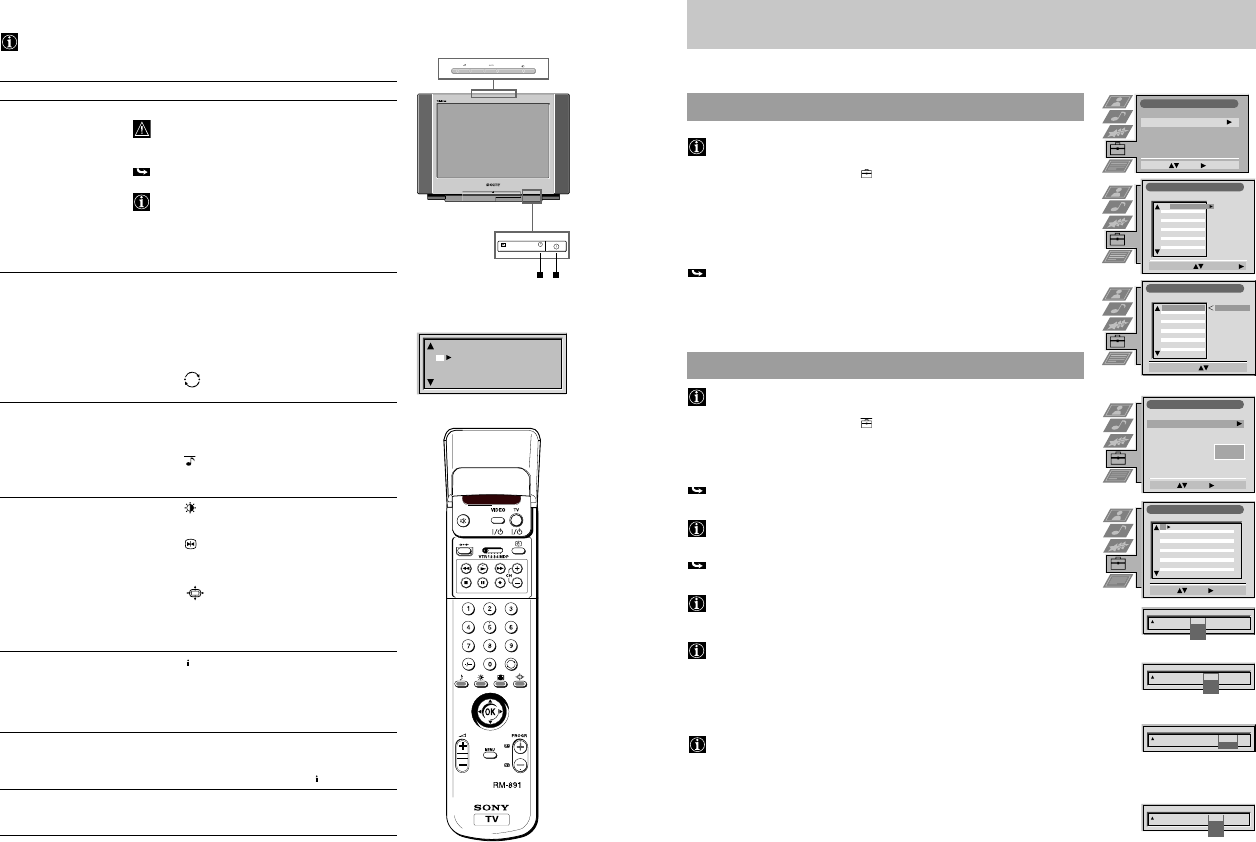

Overview

This section briefly describes the buttons and controls on the TV set and the Remote Control.

Open the flaps at the front and back of his Instruction Manual for detailed illustrations.

For more information refer to the page numbers given in the overview.

Remote Control

Symbol Description See page

1TV

uTV: standby mode on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

;

TV: on-screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Teletext: index page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

3Selecting of input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

R Teletext: Freezing a subpage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Å/a

PIP: Swapping the screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

5>PIP: Selecting the source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

´/´

PIP: Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

71, 2, … 9, 0 Number buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8 Back to the channel last selected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

9Selecting of screen format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

0 No function on this set

!¡ Joystick for menu selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Press OK to confirm

!™ MENU Switching on and off of Menu system . . . . . . . . . . . . . . . . . . . . . . . . . . 31

!£ PROGR +/– TV: Channel selection up- and downwards . . . . . . . . . . . . . . . . . . . . . 32

Teletext: Page selection up-and downwards . . . . . . . . . . . . . . . . . . . . . 42

!¢ ¸ +/– Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

!∞ Picture mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

!§ Equaliser mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

!¶

-/--

Selection of double digit channel numbers . . . . . . . . . . . . . . . . . . . . . 32

!• Freezing of TV picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

!ª No function on this set

@º

Teletext: Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

@¡

;

TV: Selecting of TV mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Teletext: Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

@™

Muting of sound on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

@£ VIDEO

uVCR: Standby mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Buttons under cover

@¢

Displaying of the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

@∞ CH +/– VCR operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

VTR 1 2 3 4 MDP Video equipment selector

0 z ) p P rButtons for VCR operation

@§

Resetting of picture setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

TV-set – front and top

Symbol Description See page

Headphone jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Bq 3 S-video input jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

C… 3,

≤

3 Ph no vide /aud inp ts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

DuIndica r for ndby mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

EUP wer sw h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

F…S ecting inpu ource . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

G¸ +/– Volu c rol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

HPROGR – Channel selection up- and downwards . . . . . . . . . . . . . . . . . . . . . . 37

ICON ROL Control panel: Switching on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

TV-set – rear

Symbol Description See page

1/ 1 21-pin Euro connector (Scart) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

2 21-pin Euro connector (Scart) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

3 21-pin Euro connector (Scart) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Aerial socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

NR/D/D/D, L/G/S/I, External speaker terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

C (Centre, Surround)

OL/G/S/I ™Left and right speaker terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

R/D/D/D

L/G/S/I Audio phono jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

R/D/D/D

M NLKJ

A B C

–+

–ROGR

CON RO

F G H I

R D/D D

/G/S I

www.ELEKO.de

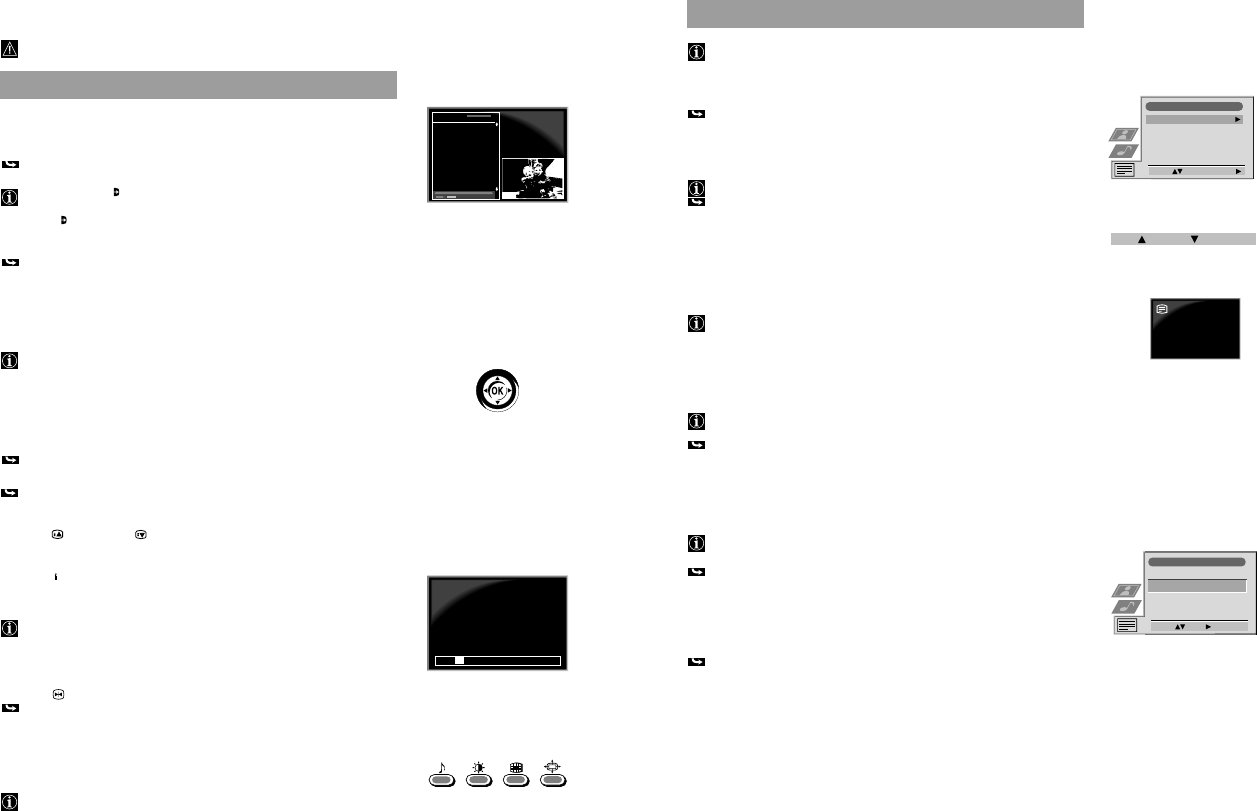

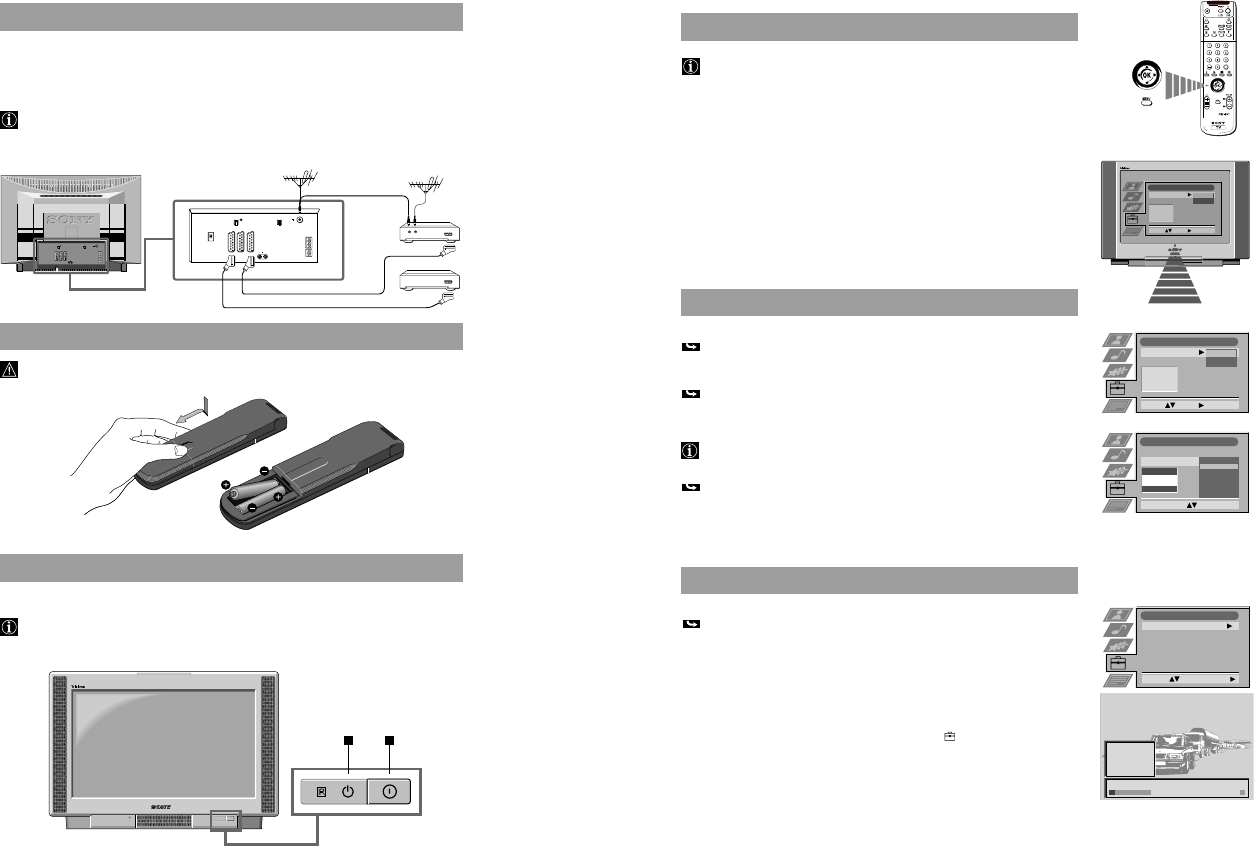

First Time Operation

Step 2 Basic Presetting

A The Menu System

Your TV uses an on-screen menu system to guide you through the operations.

Use the following buttons on the Remote Control to operate the menu system:

•

Press MENU !™ to switch the menu on and off.

•

Use “, ”, 4, $ of the joystick !¡ to select within the menu system.

•

Press OK to store.

•

When menu is switched off:

Press “ to return to the last menu scre n.

C Automatic Tuning In of Channels

•

Push the joystick !¡ to ” for more than 2 sec..

After all available channels are stored, the TV goes back to the programme

position with which you started the automatic tuning. Your TV is now ready

for use.



To stop the automatic tuning: Press OK !¡.



If you wish to change the sequence of the stored channels, go to

Sorting Programme Positions in Advanced Presetting.



If you need to change or repeat the tuning afterwards (e.g. when you move

house) : select the menu Auto Tuning in the Set Up menu.

1Press th ENU !™ utton.

The menu Language/Country appears on the screen.

2h the joystick !¡ to ”. Push the joystick !¡ to $ to select the language.

Press OK !¡.

The menus appear in the selected language.

3P h the joystick !¡ to $ to select Country. Push the joystick !¡ to ”.

4Select the country in which you will operate the TV set using $ or 4.

Select Off if you wish an automatic tuning without ACI (fast presetting with a

given channel sequence).

•

Confirm by pressing OK !¡.

The menu Auto Tuning appears.

B Se ecting Language and Country

anguage Count y

anguage

Count y

Select En e

Eng ish

Language/Country

Language

Country

Select: Enter:

Language/Country

Language

Country

Select Country:

Con irm: OK

Eng ish

Off

Austria

Be gium

Bu garia

Czech Rep.

Denmark

Finland

Engl sh

Off

Set Up

Auto Tuning

Programme Sorting

AV Preset

Instal ation

Select:

Start Au o Tuning:

Start

CO2

CO3

CO7

CO8

Searching

B Connecting the TV Set

1Connect the TV set to the mains socket (220-240 V. AC, 50 Hz).

2a Connect a conventional aerial cable to the socket marked ˘ M on the rear of the TV set

2b Connect your Satellite Receiver to one of the Scart connectors J K L of the TV set.

When connecting a VCR to your TV set:

We recommend that you use the preset function Manual Programme Preset (page 38) to tune

in the VCR signal to programme position 0.

First Time Operation

Installation

C Inserting the Batteries into the Remote Control

Make sure to insert the batteries using the correct polarities.

Dispose of exhausted batteries according to your local regulations.

D Switching on the TV Set

•

Press the switch U E at the front of the TV set.

If the standby mode indicator u D on the TV is lit, press TV I/u 1 on the

Remote Control to switch on the TV set.

VIDEO

SAT

www.ELEKO.de

Step 3 Basic TV operation

This section explains the most important functions for the daily use of your TV

set. When using the control panel on the top of the TV set, first press CONTROL

I, then F, G or H.

Function Operation

Switching on/off

•

Press U E on the TV set.

To save energy, we recommend to switch off the

TV completely when set is not in use.

Switching off temporarily

•

Press TV I/

u 1.

(Standby mode) TV is now in standby mode. Indicator u D lights

up.

After 15 min. without any TV signal and no

pressing of a button, the TV automatically goes into

standby mode.

Switch on from standby

•

Press TV I/

u 1

, PROGR +/– !£ H or any number

mode button 7.

Selecting channels

•

Press PROGR +/- !£ H or the number buttons 7.

For a double

digit number first press -/--

!¶

, then

the two number buttons.

Using the Channel

•

Press OK !¡.

overview Push to $ or 4 to select a channel, push to z to

confirm.

Going to the channel

•

Press 8.

last selected

Adjusting the volume

•

Press ¸ + or – !¢ G.

Muting the sound

•

Press

@™ to switch sound off or on.

Selecting Equaliser mode

•

Press repeatedly !§ to select one of the

(See also page 39) following modes: Personal, Vocal, Jazz,

Rock, Pop or Flat

Selecting Picture mode

•

Press repeatedly !∞ to select one

(see also page 38) of the following modes: Personal, Movie or Live.

Freezing the picture

•

Press !• if you wish to make a note of an

information, e.g., a telephone number.

Press again to return to the normal TV screen.

Changing the

•

Press 9 repeatedly to select 4:3 or 16:9

screen format (imitation of wide screen format).

Resetting picture/sound

•

Open the cover of the Remote Control.

settings to factory levels Press

@§.

Displaying on-screen

•

Press

;

2 to switch indications on or off.

indications

Displaying the time

•

Open the cover of the Remote Control

(only when teletext is Press ˚ @¢ to switch time on or off.

broadcast)

Using Teletext

•

Press f @º to switch on. Press ; @¡ s itch off.

(see also page 42) Select a page using the number buttons 7

E.g. for page 125 press 1,2 and 5.

Select the indexpage by pressing

;

Viewing the input signal

•

Press … 3 repeatedly to select the desired input

of a connected device source.

(see also page 44) Press ; @¡ to return to the TV picture.

First Time Operation

–+

–

Soul Music

News

Game Show

Animal Report

Stones in Interviev

Pink Panther

Afternoon Report

VIVA

RTL

SAT 1

VIVA 2

PRO 7

ARD

First Time Operation

Advanced Operation

Advanced Presetting

Sorting of Programme Positions

After having used Automatic Tuning chan els y u may wish to rearrange

the order of the channels.

1Press MENU. Select the symb sing $ h to ”.

2Select Programme Sorting u ng $. Pus to ” to enter.

3Select the programme positio of the channel you wish to sort using 4 or $.

Push to ” to ter.

4Move t e channel t e new programme position using 4 or $. Store by

pressi g OK.

The c nnel is now at e new position. The other programme positions

move a ordingly.

5To sort oth mme positions repeat steps 3 to 4.

6Press MENU to return to the normal TV screen.

M nual Tuning In of Channels

Use this function to preset channels or a video input source one by one to

programme positions of your choice.

1Press MENU. Select the symbol using $. Push to ”.

2Select Installation using $. Push to ” to enter.

Select Manual Programme Preset using $. Push to ” to enter.

3Select the programme position by pushing to 4 or $. Push twice to ”.

The column SYS is highlighted.

4Select the TV system using 4 or $. Push to ” to enter.

Available TV systems are B/G for western European countries,

D/K for eastern European countries, EXT for a video input source

(please go to step 5c after selecting EXT)

The column CH is highlighted.

5Select your method for the channel tuning using 4 or $. Push to ” to enter.

You have the choice between C for a terrestrial channel, S for a cable channel,

F for direct frequency input.

aDirect Channel Input - S, C or F

For channel numbers input a two digit number, for the channel frequency a

three digit number.

•

Select the two or three digits by using the number buttons 0 to 9.

•

To start the search and to store the channel, press OK.

•

To preset other channels repeat steps 3 to 5a.

bChannel search (SEARCH)

Use Search if you do not know the channel number or frequency

•

Start the search for the next available channel by pushing to $.

•

Store the channel by pressing OK or continue the search by pushing again to $.

•

To search for other channels repeat steps 3 to 5b.

cFor video input sources (EXT)

•

Select the Video Input source using 4 or $.

•

Store your selection by pressing OK.

•

To allocate other sources repeat steps 3 to 5c.

6Press MENU to return to the normal TV screen.

Programme Sorting

Se ect Prog.: Confirm:

Set Up

Auto Tuning

Programme Sor ing

AV Preset

Installation

Select: Enter:

PROG CH LABEL

Programme Sorting

Se ect Pos tion: Move: OK

C03 5

PROG CH LABEL

C03

C05

C07

C08

C09

C 2

C 3

C 4

C 5

C 6

PRO 7

EU- P

SWF

R L

MDR

DDI

DSF

R L 2

KAB

C03

C05

C07

C08

C09

C 2

C 3

C 4

C 5

C 6

PRO 7

EU- P

SWF

R L

MDR

DDI

DSF

R L 2

KAB

PROG SYS

O f

SKIP LABEL

1B/G

Insta lation

Se ect: Enter:

Language/Country

Manual Programme Preset

Further Programme Preset

RGB Set Up

Picture Rotation

Personal ID O

- - - - - - -

Manual Programme Preset

Se ect: Enter:

PROG CH

SYSSKIP LABEL

C09

C10 ARD

BBC

B/G

O f

PROG

O f

SKIP

1B/G

D/K

EXT

SYS LABEL

ROG CH

S S

SKI ABE

0EX AV

AV2

AV3

PROG SYS

O f

SKIP LABEL

1B G

www.ELEKO.de

Captioning a Station Name

During presetting the channels are usually labelled automatically.

You can, however, individually name a channel or a video input source.

1Press MENU. Select the symbol using $. Push to ”.

2Select Installation using $. Push to ” to enter.

Select Manual Programme Preset using $. Push to ” to enter.

3Select the programme position of the channel or the video source you wish to

label by pushing to $ or 4. Push repeatedly to ” until the first element of the

position LABEL is highlighted.

4Select a number, a letter, + or a blank using 4 or $. Push to ” to confirm.

Select the other four characters in the same way.

5Store your selection by pressing OK.

6To label other channels or video sources repeat steps 3 to 5.

7Press MENU to return to the normal TV screen.

Skipping of Programme Positions

In case of 100 programme positions there may be unused positions, which

you can skip in the menu Manual Programme Preset. When changing

channels with the PROGR +/– buttons they do then not appear.

You can, however, still select them using the number buttons.

1Press MENU. Select the symbol using $. Push to ”.

2Select Installation using $. Push to ” to enter.

Select Manual Programme Preset using $. Push to ” to enter.

3Select the programme position you wish to skip by pushing to 4 or $.

Push to ” to enter.

The column SKIP is highlighted.

4Select ON using $.

5Store by pressing OK.

6To skip other programme positions repeat steps 3 to 5.

7Press MENU to return to the normal TV screen.

Advanced Operation

Advanced Presetting

Manual Programme Preset

Select: Enter:

PROG CHSYSSK P LABEL

C09

C10 ARD

BBC

B G

Off

PROG CHSYS

Off

SK P LABEL

6 B/G C07 TE

Manual Programme Preset

Select: Ent

PROG CHSYSSK P LABEL

PROG CHSSKIP L

53 B G 9 O f

C09

C10 ARD

BBC

B G

Off

Selecting your NexTView Provider*

*depending on availability of service

NexTView is an on-screen electronic programme guide, providing you with

programme information on many broadcasters. Your TV set automatically

selects a NexTView provider. This provider will be available about 30 minutes

after the channel tuning. You can however, also select a provider of your choice.

See Using NexTView on page 48 for information on the operation of NexTView.

When using a satellite receiver make sure to connect the receiver to the aerial

socket of your TV set.

1Press MENU. Select the symbol using . Push z to enter.

2Select Select NexTView using $ Push z o e ter.

A list is displayed containing all a ilabl exTView providers and the

supported broadcasters.

3Select the desired NexTView rovider by sing 4 or $. Store by pressing OK.

4Press MENU to return to the no al TV creen.

Using of Furth r Programme Preset

Using t menu Furthe rogramme Preset you can

individu ly attenu te the strength of a channel signal in case of a strong

local aerial signal (striped picture).

idually adjust the volume level of each channel.

improve the quality of a weak channel (picture or sound distortions) with

manual fine tuning.

d)p eset the AV output for programme positions of those channels with

scrambled signals (e.g. from a Pay TV decoder). In this way a connected

Smartlink VCR records the unscrambled signal.

Press MENU. Select the symbol using $. Push ” to enter.

2Select Installation using $. Push ” to enter. Select Further Programme Preset

using $. Push ” to enter.

3Select the programme position of the desired channel by pushing 4 or $.

Push ” repeatedly to select:

ATT (RF attenuator), VOL (Volume Offset), AFT (Automatic Fine Tuning) or

DECODER.

The selected item changes colour.

4a ATT

Push $ to select ON. Store by pressing OK.

Repeat steps 3 and 4a if you wish to attenuate other channels.

b VOL

Push 4 or $ to adjust the volume level (range -7 to +7) of the channel.

Store by pressing OK.

Repeat steps 3 and 4b if you wish to adjust the volume level of other channels.

c AFT

Push 4 or $ to fine tune the channel (range -15 to +15). Store by pressing OK.

Repeat steps 3 and 4c if you wish to fine tune other channels.

d DECODER

Push to 4 or $ to select AV1 (Euro AV socket 1) or AV2 (Euro AV socket 2) as

output for the video source on this programme position. Store by pressing OK.

Repeat steps 3 and 4d if you wish to preset the AV output of other video sources.

Should you use Auto Tuning afterwards, this setting will

be cancelled.

5Press MENU to return to the normal TV screen.

Advanced Operation

Advanced Presetting

Select Next View

EURON

VOX

DRS 3SAT ARTE

Channe s:

Swiss Text

Euro News

Installation

Select: Enter:

Language/Country

Manual Programme Preset

Further Programme Preset

RGB Set Up

P cture Rotat on

Personal ID

Demo

- - - - - - -

Further Programme Preset

Select: Enter:

PROG AFTVOLATT DECODER

Off

PROG AFTVOLATT DECODER

1Off

PROG AFTVOLATT DECODER

1On 0

PROG AFTVOLATT DECODER

1 On -5 On

PROG AFTVOLATT DECODER

1 On -5 On Off

AV1

AV2

www.ELEKO.de

When connecting an RGB source such as a Sony playstation you may need to

readjust the picture geometry.

1Select the connected RGB source by pressing … repeatedly.

2Press MENU. Select the symbol using $. Push to ”.

3Select Installation using $. Push to ” to enter. Select RGB Set Up using $.

Push to ” to enter.

4Select H Centre by pushing to ”. Adjust the centre of the picture

(range from -10 to +10) using 4 or $. Store by pressing OK.

5Select H Size using $. Push to ” to enter. Adjust the horizontal coordinates

(range from -10 to +10) using 4 or $. Store by pressing OK.

6Press MENU to return to the normal TV screen.

Advanced Presetting

Advanced Operation

Adjusting the Picture Rotation

Because of the earth magnetism the picture might slant. In this case you can

readjust the picture.

1Press MENU. Select the symbol using $. Push to ”.

2Select Installation using $. Push to ” to enter. Select Picture Rotation using $.

Push to ” to enter.

3Adjust the Picture Rotation (adjusting range -5 to +5) by pushing to 4 or $.

Store by pressing OK.

4Press MENU to return to the normal TV picture.

Adjusting the Picture Geometry

for an RGB Source

RGB Set Up

Adjust Size: Confirm: OK

H Centre O

H S ze O

RGB Set Up

Adjust Pos tion: Confirm: OK

H Centre O

H S ze O

Instal ation

Rotate: Confirm:

Language/Country

Manual Programme P t

Further Programme eset

RGB Set Up

Picture Rota i

Personal ID

1Press MENU. Select the symbol using $. Push to ”.

2Select AV Preset using $. Push to ” to enter.

3Select the desired AV input (AV 1, 2 or 3) using 4 or $. Push to ” enter.

After each step you have the choice between memorizing (press OK) or going to

the next item (push to ”).

4To label the source:

aPush to ” to select Label.

bSelect the first character using 4 or $. Push to ” to confirm.

cRepeat step b to select the other 4 characters.

dStore by pressing OK.

5Repeat steps 3 to 4 for the other AV inputs.

6Selecting the AV3 Input Source:

In case of AV3 you have the choice between the front AV3 sockets BCor the

rear Scart 3 L connector.

aPush to $ to select AV3 Input. Push to ” to enter.

bSelect Front or Rear using 4 or $.

cStore by pressing OK.

7Press MENU to return to the normal TV screen.

Presetting and Labelling of Input Sources

Advanced Presetting

Inputting Your Personal ID

You can programme your TV with a safety code, so that you can be traced if

your TV is stolen and recovered. This code can only be input once!

Make sure to write it down in this Instruction Manual.

1Press MENU. Select the symbol using $ Push to ”.

2Select Installation using $. Push to ” t enter. S ect Personal ID using $.

Push to ” to enter.

3a Select the first of a total of 11 cha ters tter, number, + or a blank) by

using 4 or $.

bPush to ” to go to the next aracter.

cRepeat a and b for all charac s.

4Store by pres ing OK.

5Press MENU to retu to the normal TV screen.

Advanced Operation

Ins allat on

Select A-Z, 0-9

: Store: OK

Language/Country

Manual Programme Preset

Further Programme Preset

RGB Set Up

Picture Rotation

Personal ID - - - - - -

AV Preset

Se ect: Enter:

AV 3 Input Rear

INPU LABEL

IDEO

A 2

A 3

AV Preset

Select Mode: Confirm: OK

AV 3 Input

NPU LABEL

DEO

A 2

A 3

F ont

Rea

www.ELEKO.de

Advanced TV operation

Picture and sound are adjusted at the factory. You can however, adjust

them individually.

1Press MENU.

Select the symbol for Picture or for Sound using 4 or $.

Push to ” to enter.

The menu Picture or Sound Control is displayed.

2Select the desired item using 4 or $. Push to ” to enter.

3Adjust the selected item using 4, $, ” and “. Press OK to store.

Refer to the tables on this and the following page for more information.

4Repeat steps 2 and 3 to adjust other items.

5Press MENU to return to the normal TV screen.

Picture Control

Item Effect/Operation

Picture Mode $Live (for live broadcasts)

Personal (for individual settings)

4Movie (for movie broadcasts)

Contrast Less “” More

Brightness* Darker “” Brighter

Colour* Less “” More

Hue** Reddish “” Greenish

Sharpness* Softer “” Sharper

Reset Resets picture to the factory preset levels

AI 4Off: normal

(Artificial Intelligence) $On: Automatic optimization of contrast level

according to the TV signal

Noise Reduction 4Off: Normal

$On: Reduces picture noise in case of a weak

broadcasting signal

Digital Mode $Normal: 100 Hz

Digital+: 100 Hz plus line flicker reduction

4Advanced: Digital+ plus smoothing of motions

* Only if Personal is selected in Picture Mode

** Only available for NTSC colour signal (e.g. US video tapes)

Sound Control

Item Effect/Operation

Equaliser mode Select between the following sound setting

$Personal

Vocal

Jazz

Rock

Pop

4Flat (fixed setting, cannot be adjusted)

Adjusting Picture and Sound

Advanced Operation

Picture Adjustment

Select Mode: Enter:

Picture Mode

Contrast

Brightness

Color

Sharpness

Reset

Noise Reduct on

Digi al Mode

Personal

Normal

Picture Mode

Live

Pe sonal

Movie

Contrast

Off

Noise Reduct

Digit ode

Digital

Advanced

Aud o Adjustmen

Equa iser Mode

Equa iser

Adjustment

Surround Mode

SRS Mode

Auto Vol. Control

Dual Sound

Volume

Dual Sound

Mono

O f

SRS 2

SRS

Mono

Personal

Vocal

Jazz

Rock

Pop

F at

Select Mode: Confirm: OK

Sound Control (continued)

Item Effect/Operation

Equaliser adjustment You can adjust the mode selected in Equaliser

mode by cutting and boosting of 5 selected

frequency bands.

Only the changes made in Personal can be stored,

the others return to factory setting.

•

Select the desired bar using ” or “, adjust using 4

and $.

Press OK to store

Surround mode 4Off: Norm

D lby Sur (Pro ogic Tru Surround **)

Sele when ceiving Dolby broadcast.

A ter th broa return to off, otherwise the

V autom ically selects Dolby for any stereo

oadcast an the sound will be distorted.

Hall

Church

Disco

$Stadium

SRS Mode* 4SRS 1

*on when SRS l d SRS 2

in S rround mode $SRS 3

Au Volum ntrol 4On: volume level of the channels will stay the same

independent of the broadcast signal

(e.g. in case of advertisements)

$Off: volume level changes according to the

broadcast signal

ual Sound For a bilingual broadcast:

$A for channel 1

4B for channel 2

For a stereo broadcast:

$Mono

4Stereo

Headphones

2 Volume Less “ ” More

2 Dual Sound For a bilingual broadcast:

$A for channel 1

4B for channel 2

PAP

When PAP is switched on, you can additionally

select the PAP sound for the headphones

** TruSurround is a trademark of SRS Labs, Inc. SRS and the SRS symbol are

registered trademarks of SRS Labs, Inc. in the Unites States and selected foreign

countries. SRS and TruSurround are incorporated under license from SRS Labs, Inc.

and is protected under United States Patent Nos. 4,748,669 and 4,841,572 with

numerous additional issued and pending foreign patents. Purchase of this product

does not convey the right to sell recordings made with the TruSurround technology.

Advanced TV operation

Advanced Operation

Equaliser Adjustment

Sel: Adjust: Confirm:OK

Personal

–

20 50 5K 5 K 0 K

SRS 2

SRS Mode

Auto Vol. Control

O f

Dual Sound

Mono

Ste eo

Volume

Dual Sound

Aud o Adjustment

Mono

SRS 2

Mono

Stad um

Disco

Chu ch

Ha l

SRS

Dolby Su

Select Mode: Confirm: OK

Equa iser Mode

Equa iser

Adjustment

Surround Mode

SRS Mode

Auto Vol. Control

Dual Sound

Volume

Dual Sound

www.ELEKO.de

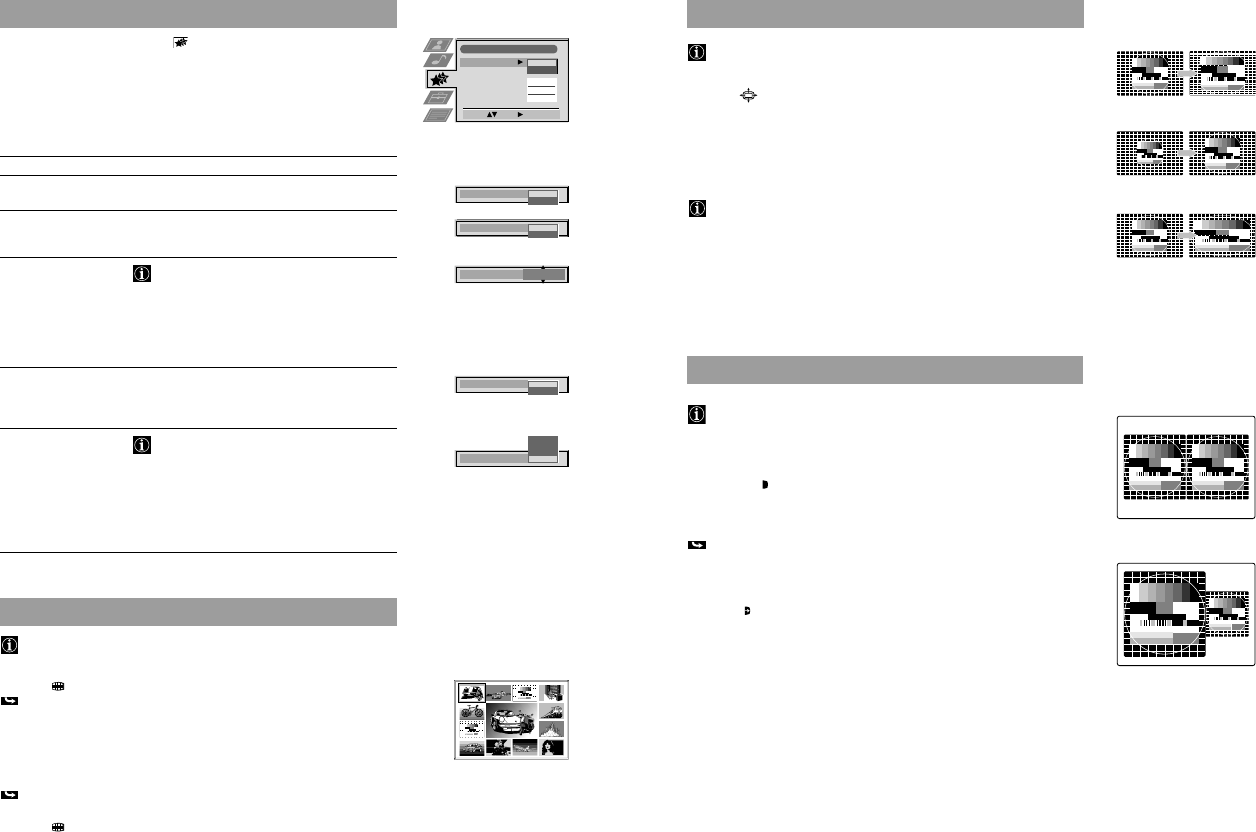

Using the Features Menu

1Press MENU. Select the symbol using $. Push z to enter.

2Select the desired menu item using $. Push z to enter.

3Select the desired setting using 4 or $.

4Store by pressing OK.

5Press MENU to return to the normal TV screen.

Using Multi PIP

Multi PIP (picture in picture) mode displays a succession of 12 still pictur

and a 13th that is live. You can manually select which channel you wish o

watch, either full-screen or in the PIP mode.

1Press .

Now 13 programme positions appear on the screen, with th curren chann n

the centre.

2Press PROGR +/- repeatedly to get the next or the preceding 12 programme

positions .

3Use 4, $, “ and ” to move within the 13 displayed channels.

Press OK to select the framed channel.

The selected channel moves to the centre.

4When the centre channel is framed, press OK to get the channel full screen or

press to return to the normal TV mode.

Advanced Operation

Advanced TV operation

Features

Item Effect/Operation

Auto Format* 4On: Automatic selection of the screen format

*only for aerial signal $Off: Normal mode

Format Correction* 4On: Smart mode is selected automatically for 4:3/

*only if Auto Format is on 14:9 broadcasts

$Off: 4:3/14:9 is selected

Sleep Timer You can select a time period after which the TV

switches itself into standby mode

4Off

10 min.

20 min.

$90 min.

Parental Lock $Off: Normal mode

4On: TV can only be switched on out of

standby-mode using the Remote Commander,

the buttons on the TV do not work.

AV2 Source You can select the source to be output from the

Scart connector

2. In this way you can

record from this socket while watching another

source.

4TV audio/video signal from the aerial ˘

AV1 audio/video signal from Scart 1

AV2 audio/video signal from Scart 2

$AV3 audio/video signal from front or rear connectors

Features

Auto Format

Format Correction

Sleep Timer

Parental Lock

AV 2 Source

O f

Select: Enter:

Auto Format

Off

Format Correction

Off

10 min

Sleep Timer

Parental Look

AV 2 Source

AV 3

AV 2

03 5

01 6

11 09

Using Screen Mode

When Auto Format in the Features menu is preset to »On« and a format signal

is being transmitted, the TV set automatically selects the detected screen format.

Screen mode, however, lets you select the screen format of your choice.

•

Press 9 repeatedly to get one of the f ll wing formats:

Smart imitation of wide screen effec or 4:3 roadcasts, parts of the top and

bottom of the pictur re cut f

4:3 conventional 4:3 aspect tio, fu picture nformation

14:9 compromise betwe 4:3 and 16:9 a pect ratios

Zoom imitation of wide s reen effec or letterboxed movies

Wide for 16:9 broadcasts

In Zoom and 14:9 modes parts of top and the bottom of the screen are cut

off. Usi g 4 and ou can adjust the position of the image onscreen to e.g.

read s btitles. Press OK to con rm.

Advanced TV operation

Advanced Operation

Operating PAP (Picture and Picture)

PAP divides the screen into two for watching two channels simultaneously

(with a video source on one if you want).

The sound of the left screen is on the TV loudspeakers, the sound of the right

screen is selectable via headphones.

Switching PAP on and off

•

Press

´/´

6 once to display the screens in format 4:3 and twice to switch

PAP off.

Selecting a PAP source

1Press > 5.

The symbol > appears in the right screen.

2Select the desired source using the number buttons (for a TV channel) 7 or

…3 (for a video source).

Swapping screens

•

Press

Å/a

4 to swap the two screens.

Zooming the screens

•

Using the joystick buttons “ and ” you can change the size of the two screens.

When you press ” repeatedly the right screen gets bigger, while the left screen

gets smaller.

Smart

Zoom

Wide

www.ELEKO.de

Teletext

Most TV channels broadcast information via teletext. The index page of the teletext

service (usually page 100) gives you information on how to use the service.

Make sure to use a TV channel with a strong signal, otherwise there may be

Teletext errors.

Direct Access Functions

Switching Teletext on and off

1Select the TV channel which carries the teletext service you want to view.

2a Press f @º once for Picture and Teletext (P&T).

The screen is divided in two, with the TV channel in the right corner and the

Teletext display on the left.

P&T mode: Press

Å/a

4. Press PROGR +/- !£ to change the channel of the

TV screen. Push “ or ” to change the size of the TV screen.

Press

Å/a

4 again to resume normal teletext reception.

bPress f twice to get Teletext only.

cPress f three times for Mix mode.

The TV broadcast and the Teletext display are overlapped.

3Press

;

@¡ or press f a fourth time to switch teletext off.

Selecting a Teletext Page

Direct Page Selection

•

Input the three digits of the page number using the number buttons 7.

If you have made a mistake:

Type in any three digits, then re-enter the correct page number.

Page Catching

1Select a teletext page which has several page numbers on it (e.g., the index

page).

2Press OK !¡.

Page Catching is displayed.

3Select the desired page number using 4 or $ !¡ and press OK.

The requested page is displayed after some seconds.

Selecting the next or the preceding page

•

Press

!£ (Page +) or (Page -).

Selecting the index page

•Press

;

Selecting a subpage

A teletext page may consist of several subpages. In this case an information line

is displayed, showing the number of subpages.

•

Select the mode by pushing 4. Select the subpage by using 4 or $.

Freezing a Teletext subpage

1Press !• or R 3

The symbol R is displayed and the subpage is not updated.

2Press f @º to resume normal teletext reception.

Using Fastext*

*depending on availability of service

Fastext lets you access pages with one button stroke. When Fastext is broadcast,

a colour-coded menu appears at the bottom of the screen. The colours of this

menu correspond to the red, green, yellow and blue buttons 9, !º, !∞, !§ on

the Remote Control.

•

Press the coloured button which corresponds to the colour in the

colour-coded menu.

Advanced Operation

100

Teletext TV

216-02

01 04 05 06 07 0802

Using the Teletext Menu

This TV set has a menu-guided teletext system. When teletext is switched on

you can use the joystick buttons to operate the teletext menu.

Select the menu functions as follows:

1Press MENU !™.

The Teletext menu is superimposed onto the teletext display.

2Select the teletext function using 4 or $ !¡. Push ” to enter.

Top/Bottom/Full

For convenient reading of a Tel ext pa e ou can nlarge it.

After having selected the functi sub nu T p 4 Bottom $ Full OK is

displayed.

•

Push 4 to enlarge the upper alf of the c een, push $ to enlarge the lower

half. Press OK to resume the n mal si e.

Press f to e the normal Teletext operation.

Text Cle r

After h ving selected e function, you can watch a TV channel while waiting

for a requ ted Telet xt page. As soon as the page is available, the symbol f

changes colour.

•

f t view the page.

Re eal

Some teletext pages contain hidden information (e.g., for a quiz), which you can

reveal.

After having selected the function, the hidden information appears.

•

Press f to resume the normal Teletext operation.

Time Page*

*depending on availability of service

You can call up a time-coded page - such as an alarm page - at a time specified

by you.

After having selected the function a sub menu is displayed.

1Select On using 4 or $. Push ” to enter.

2Enter the three digits of the desired page using the number buttons 7.

3Enter the four digits of the desired time using the number buttons 7.

4Press OK to store.

The time is displayed in the top left-handed corner of the screen.

At the requested time the page is displayed.

Teletext

Advanced Operation

Teletext

Top / Bottom / Full

Text Clear

Reveal

Time Page

Select: Enter Menu:

Top: Bottom: Full: OK

Time Page

PAGE TIME

Select: Enter

– – – - - : - -

www.ELEKO.de

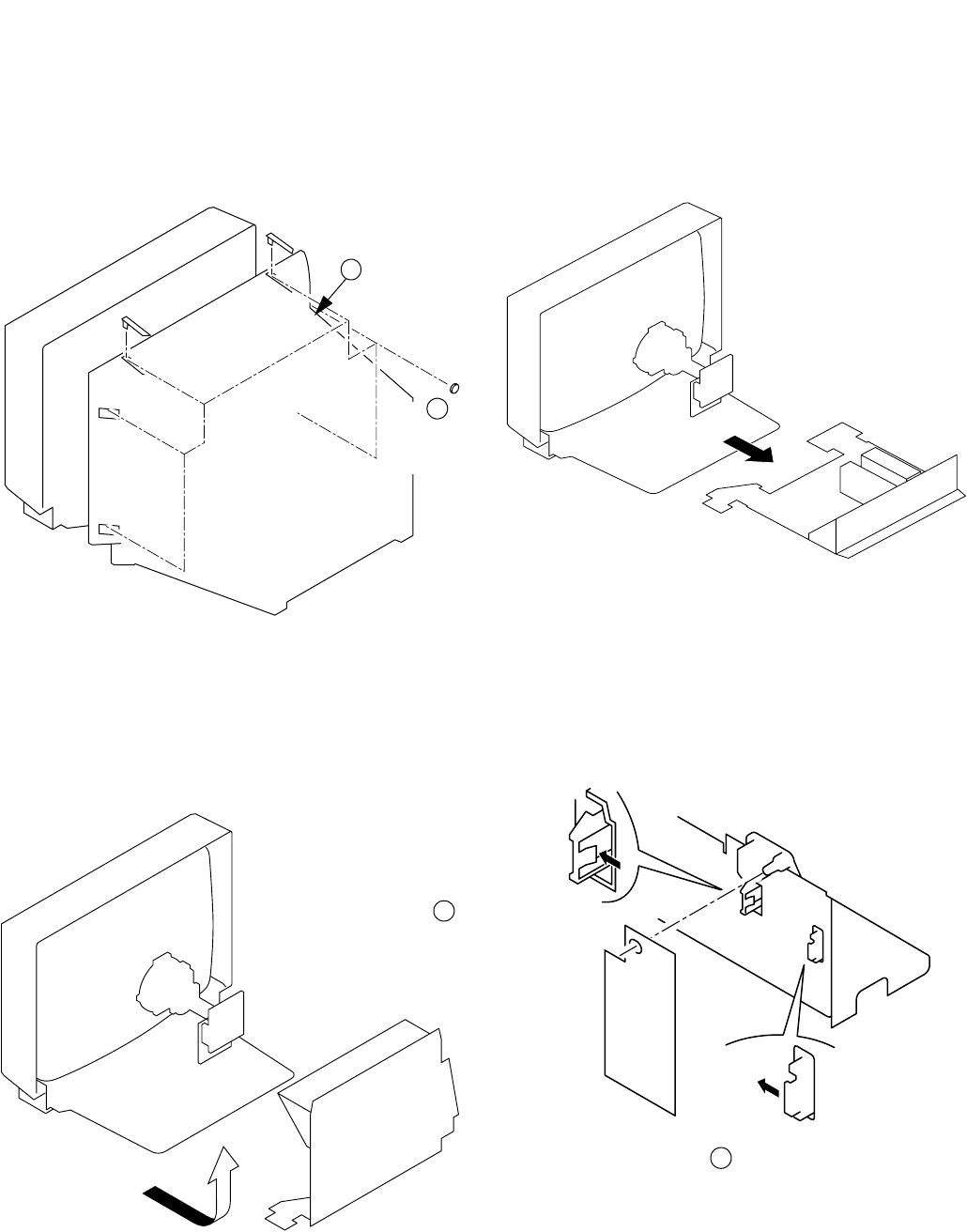

2-1. REAR COVER REMOVAL

2-3. SERVICE POSITION

2-2. CHASSIS ASSY REMOVAL

6 Screws

BTV 4x16

2 Rear Cover

2-4. U BOARD REMOVAL

2 Pull the Board in

the direction of the

arrow and remove.

SECTION 2

DISASSEMBLY

CAUTION:

Take care not to damage the C Board when removing

or refitting the rear cover.

1 Push the

claw in the

direction of the

arrow and

remove.

www.ELEKO.de

2-5. J BOARD REMOVAL

2-7. B1 BOARD REMOVAL

2-6. J SHIELD REMOVAL

1 Push the claw in

the direction of the

arrow and remove.

2 Pull the Board in

the direction of the

arrow and remove.

1 Push the claw in

the direction of the

arrow and remove.

2 Push the

claw in the

direction of

the arrow

and remove.

3 Remove the shield in

the direction of the arrow.

All other boards are removed in a

similar manner to those shown

NOTE

www.ELEKO.de

Anode button

* REMOVING PROCEDURES.

Turn up one side of the rubber cap in

the direction indicated by the arrow a

12 Using a thumb pull up the rubber cap

firmly in the direction indicated by the

arrow b

3 When one side of the rubber cap is

separated from the anode button, the

anode-cap can be removed by turning

up the rubber cap and pulling it up in

the direction of the arrow c

Note : Short circuit the an de of the picture tube and the anode cap to the metal chassis, CRT shield or carbon paint on the CRT, after removing the anode.

• REMOVAL OF ANODE-CAP

• HOW TO HANDLE THE ANODE-CAP

1 To prevent damaging the surface of the anode-cap do not use sharp materials.

2 Do not apply too great a pressure on the rubber, as this may cause damage to

the anode connector.

3 A metal fitting called a shatter hook terminal is fitted inside the rubber cap.

Do not turn the rubber foot over excessively this may cause damage if the

shatter hook sticks out.

Cushion

7 DGC holder

Picture tube 11

C board 3

Spring tension 9

Degaussing coils 8

Anode cap 1

Neck assy 5

VM board 4

Deflection yolk 6

2 Chassis assy

10 Four PT screws

2-8. PICTURE TUBE REMOVAL

www.ELEKO.de

REMOVAL AND REPLACEMENT OF THE MAIN-BRACKET

BOTTOM PLATES.

(1) REMOVING THE PLATES

In the event of servicing being required to the solder side of the D Board printed

wiring board, the bottom plates fitted to the main chassis bracket require to be

removed.

This is performed by cutting the gates with a sharp wire cutter at the locations

indicated by arrows.

Note :There are 4 plates fitted to the main bracket and secured by 4 gates.

Only remove the necessary plate to gain access to the printed wiring board.

(2) REFITTING THE PLATES

Because the plates differ in size it is important that the correct plates are refitted in

their original location.

Please note that the plates need o be rotated 180 degrees from the cut position to

allow the tabs to be fitted in the catch po itions.

£For safety reasons, on no account should the plates be

removed and not refitted after servicing.

Tab

Catch

www.ELEKO.de

• When complete readjustment is necessary or a new

picture tube is installed, carry out the following

adjustments.

• Unless there are specific instructions to the contrary,

carry out these adjustments with the rated power supply.

• Unless there are specific instructions to the contrary, set the

controls and switches to the following settings:

Contrast ............... normal

Brightness ............... normal

Carry out the following adjustments in this order:

3-1. Beam Landing

3-2. Convergence

3-3. Focus

3-4. White balance

Note: Test equipment required

1. Color bar/pattern generator.

2. Degausser.

3. Digital multimeter.

4. Oscilloscope.

SECTION 3

SET-UP ADJUSTMENTS

3-1. BEAM LANDING

Preparation:

1. In order to reduce the influence of geomagnetism on the set’s

picture tube, face it in an easterly or westerly direction.

2. Switch on the set’s power and degauss with the

degausser.

(1) Adjustment of Correction Magnet for Y-Splitting

Axis

1. Input a crosshatch signal from the pattern generator.

2. Set the Picture control to minimum and confirm that he

Brightness control is set to normal.

3. Position the neck assembly as indicated in Fig 3-2.

4. Move the deflection yolk as far forward as is possible.

5. Adjust the upper and lower pin symmetrically by opening or

closing the Y-splitting axis correction magnets locat d on the

neck assembly.

6. Return the deflection yolk to its origin l pos tion.

Caution :

High voltages are present on the Deflection yolk terminals - take care

when handling the Deflection yolk whilst carrying out adjustments.

(2) Landing

Note :Before carrying out the following adjustments

adjust the magnets as indicated below [See Fig.3-3].

1. Input an all-white signal from the pattern generator.

M ximize the picture setting and adjust the Brightness

setting

2. Rough-adjust the focus and horizontal convergence.

3 Loosen the deflection yolk screws and align the purity

adjustment knob to its central position. [See Fig.3-1].

4. Switch from the all-white pattern to an all-green pattern.

5 Move the deflection yolk backwards and adjust with the

purity magnet so that the green is at the centre and it aligns

symmetrically. [See Fig.3-4].

6. Move the deflection yolk forward and adjust so that the

entire screen becomes green.

7. Switch the raster signal to red, then to blue and verify the

landing condition.

8. When the position of the deflection yolk has been determined,

fasten the deflection yolk with the screw.

9. If the beam does not land correctly in all the corners of the

screen, use magnets to correct it. [See Fig.3-5].

Y-splitting axis correction magnet

Fig.3-1

Fig.3-2

Purity

Align Pips

on each

magnet Neck assy

Align the bottom edge

of the neck assy with

the G3 hole centre.

Deflection yoke

Fig.3-3

www.ELEKO.de

(Open) (Close)

BGR

Fig.3-4

Fig. 3-5

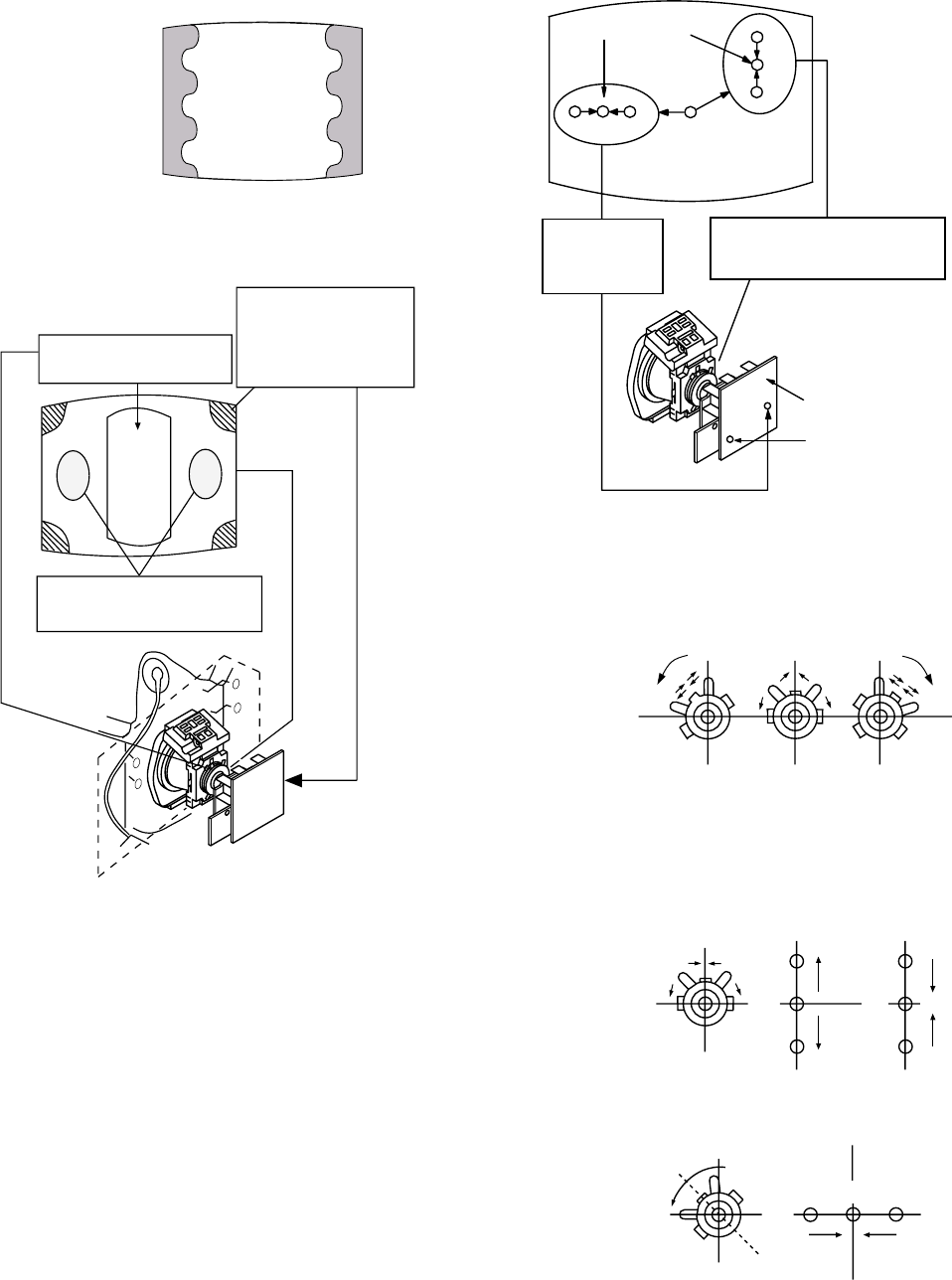

3-2. CONVERGENCE

(1) Screen centre convergence

[Static convergence]

1. Input a dot signal from the pattern generator.

Normalize the picture setting.

2. [Moving horizontally], adjust the H.STAT control so that the

horizontal red, green and blue dots coincide at the centre of the

screen.

3. [Moving vertically], adjust the V.STAT magnet so that the

vertical red, green and blue dots coincide at the centre of the

screen.

• If the horizontal dots are unable to coincide with the variable

range of the H.STAT convergence, adjust together with the

V.STAT convergence while tracking.

[Adjust the convergence by tilting the V.STAT convergence or

by opening and closing the V.STAT convergence.]

4. Movement of the red, green and blue dots by tilting the

V.STAT magnet and by opening or closing the V.STAT

magnet.

a). By opening or closing the V.STAT magnet, the red, green and

blue dots move as indicated

below.

b). By rotating the V.STAT magnet counter

clockwise, the red,

green and blue

dots move as

indicated

below.

Purity control corrects

this area.

Disk magnets or

rotatable disk

magnets correct

these areas (a-d).

Deflection yoke positioning

corrects these areas

H.STAT

convergence

control

V.STAT

vertical static magnet

Center dot

H.STAT VR on

mount side

RV5376

Screen (G2)

H.STAT convergence

GREEN

BLUE

RED

www.ELEKO.de

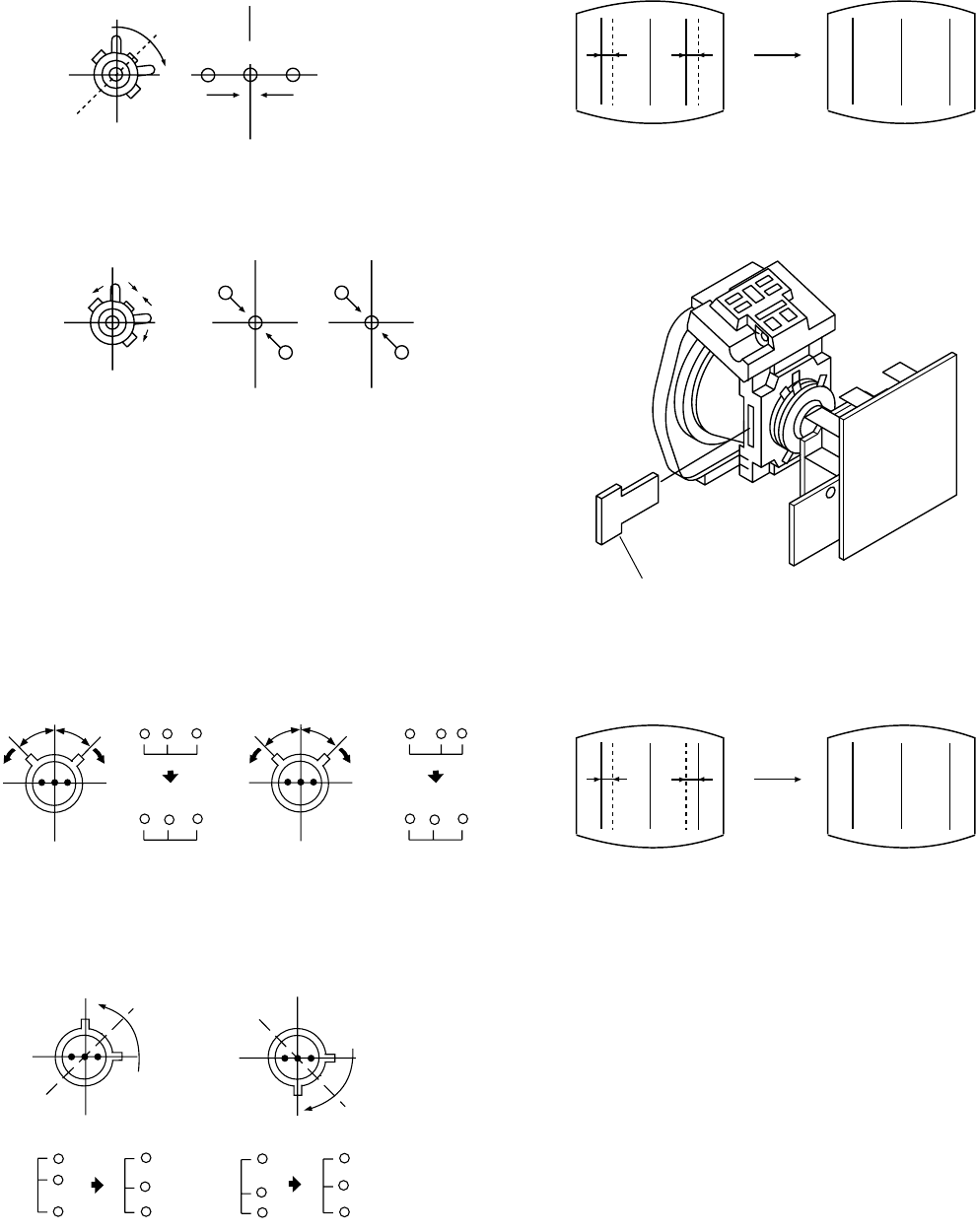

BGR

HMC correction(A) HMC correc ion(B)

A < B

A = B

RG B

A > B

A = B

RGB

RG B

C < D C = D C > D C = D

VMC correction(A) VMC correction(B)

c). By rotating the V.STAT magnet clockwise, the red, green and

blue dots move in the direction indicated below.

d). By opening or closing the V.STAT magnet, the red, green and

blue dots move in the direction indicated below.

Note : If the blue dot does not coincide with the red and

green points correct the points by using the BMC

[Hexapole] magnet.

5. Correction for HMC [horizontal mis-convergence] and

VMC [vertical mis-convergence] by using the BMC

[Hexapole] magnet.

a). HMC correction by BMC [Hexapole] magne and movement

of the electron beam.

b). VMC correction by BMC [Hexapole] magnet and movement

of the electron beam.

HAMP

7. HTIL correction can be performed by adding a THL correction

ASSY to the DY.

HTIL

TLH correction Assy

4-057-714-01

www.ELEKO.de

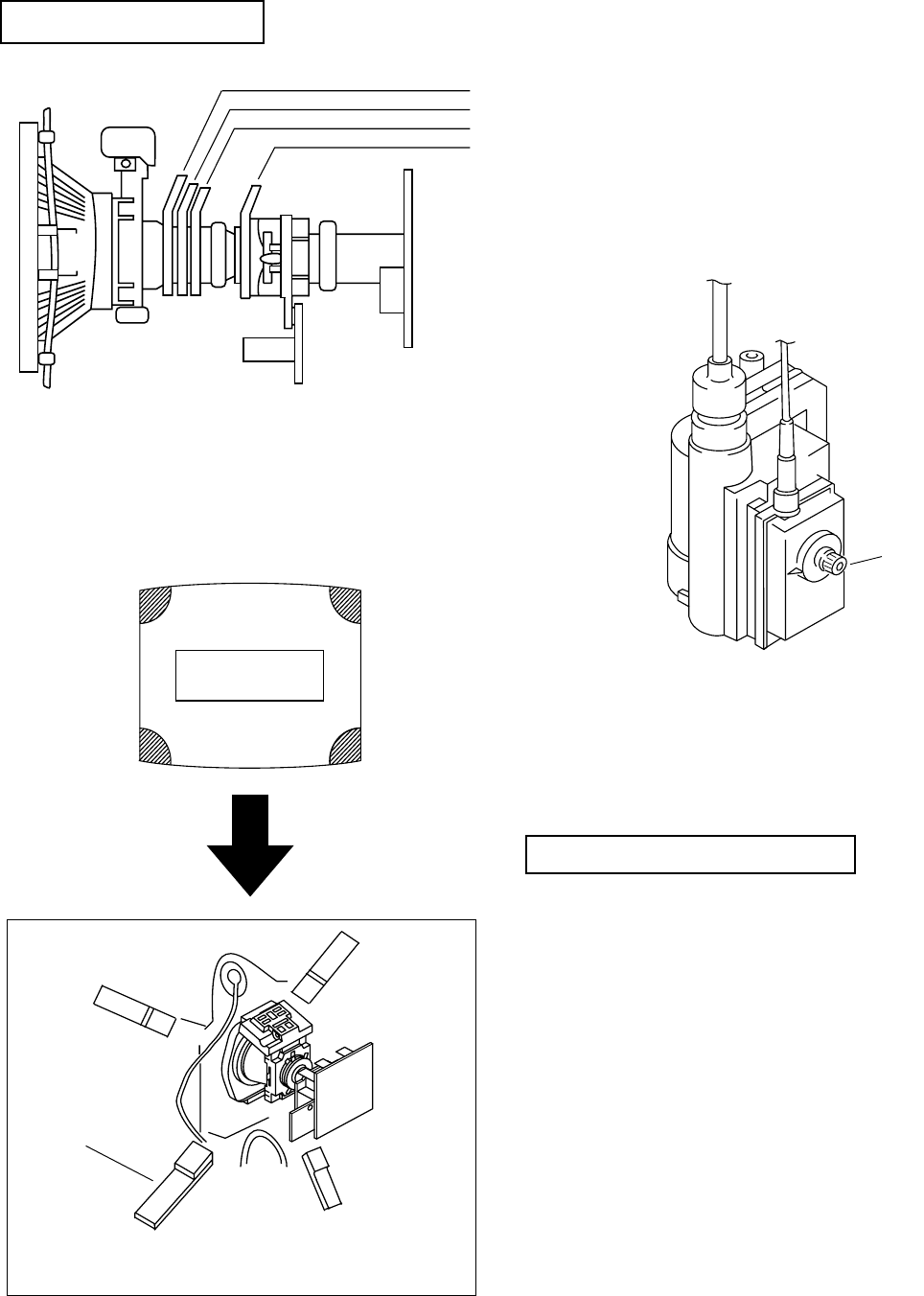

FOCUS

Layout of each control

Fig 3-5

Note : If you are unable to adjust the corner convergence

properly, this can be corrected with the use of

permalloys.

3-3. FOCUS

1. Receive a television broadcast signal.

2. Normalize the picture setting.

3. Adjust the focus control located on the flyback transformer to

obtain the best focus at the centre of the screen.

Bring only the centre area of the screen into focus, the

magenta-ring appears on the screen. In this case, adjust the

focus to optimize the screen uniformly.

3-4. SCREEN (G2), WHITE BALANCE

[Adjustment in the service mode using the remote

commander]

G2 adjustment (RV5376)

1. Input a dot signal from the pattern generator.

2. Set the Picture, Brightness and Colour to minimum.

3. Apply 175V DC from an external power supply to the

R, G and B cathodes of the CRT.

4. Whilst watching the picture, adjust the G2 control

RV5376 [SCREEN] located on the C Board to the point

just before the flyback return lines disappear.

Y-splitting axis correction magnet

V STAT convergence magnet

BMC (Hexaploe) magnet

Purity magnet

a-d: screen-corner

convergence defect

Convergence adjustment with permalloy

Permalloy Assy

X-4387-214-1

www.ELEKO.de

White balance adjustment for TV mode

1. Input an all-white signal.

2. Enter into the Service Mode by pressing ‘TEST’, ‘TEST’ and

‘MENU’ ‘MENU’on the Service Commander.

3. Select ‘Backend’ from the on screen menu

display and press ‘OK’.

4. The ‘Backend’ menu will appear on the screen.

5. Set the contrast to MAX.

6. Set the ‘R DRIVE’ to 41.

7. Adjust the ‘G DRIVE’ and ‘B DRIVE’ so that the white

balance becomes optimum.

8. Press the ‘OK’ button to write the data for each item.

9. Set the contrast to MIN.

10. Set the ‘R CUT-OFF’ to 31.

11. Adjust the ‘G CUT-OFF’, and ‘B CUT-OFF’ with the left and

right buttons on the remote commander so that the white balance

becomes optimum.

12. Press the ‘OK’ button to write the data for each item.

Backend

No Descr. Def Min Max Data

1R-on ONOFFON ON

2G-on ONOFFON ON

3 B-on ON OFF ON ON

4 D-col OFF OFF ON ON

5Color-axis 2032

6Contrast 6306363

7Limit-Luv 3033

8Hue 3106331

9Colour 3106328

10CTI -Level 2032

11 Brightness 31 0 63 31

12Gamma 2032

13 Sharpnes 31 0 63 44

14LTI-Level 0030

5 R-Drive 41 0 63 40

6 BLK-Bottom 0030

7G-Drive 4106338

18ABL-TH 0030

19 B-Drive 41 0 63 21

20ABL-Mode 2032

21 Sub Bright 31 0 63 32

22VM-Level 2032

23 R-Cutoff 31 0 63 41

24Preover 2032

25 G-Cutoff 31 0 63 45

26DPIC-Level 2032

27 B-Cutoff 31 0 63 48

28DC-Tran 1031

29 Sub-Cont 7 0 15 7

30 LRGB2-Lvl 12 0 15 12

31 P-Abl 15 0 15 15

32 DL-Pass OFF OFF ON OFF

33 Sharp.Fo ON OFF ON ON

34 Aging-W OFF OFF ON OFF

35 Aging-B OFF OFF ON OFF

36 CB-offset1 7 0 15 7

37 CR-offset1 7 0 15 7

38 CB-offset2 7 0 15 7

39 CR-offset2 7 0 15 7

40 Sub Colour 0 -8 8 -1

www.ELEKO.de

SECTION 4

CIRCUIT ADJUSTMENTS

4-1. ELECTRICAL ADJUSTMENTS

Service adjustments to this model can be performed using the supplied Remote Commander RM-891.

HOW TO ENTER INTO SERVICE MODE

1. Turn on the main power switch of the set while pressing PROG + (plus) and PROG - (minus) buttons on the top panel.

2. "TT" will appear in the upper right corner of the screen.

3. Press the ‘MENU’ button twice on the remote commander to obtain the service menu on the s reen.

4. Push the joystick up or down on the remote commander to select the adjustment item.

5. Push the right button to proceed to the next menu.

6. If the required adjustment item is ‘Deflection’, push the down button to move to ‘Deflection’.

7. Push the joystick to the right to enter into ‘Deflection’.

8. Change the data in order to comply with each standard.

NOTE:

• Before performing any adjustments assure that the correct model has been selected in the Model Setting menu.

• After carrying out the service adjustments, to prevent the customer accessing the Service Menu switch the TV set OFF and then ON.

–+

–

PROGR

CONTROL

SERVICE MENU

Initialising

Reset Devices

Monitoring

ackend

Defl ction

Dynamic Convergence

Colour Decoder 1

Colour Decoder 2

Feature Low - End

PIP

Special Adjustment

Select :

Backend

Deflection

Dynamic Convergence

Colour Decoder 1

Colour Decoder 2

Feature Box

PIP

Sound

RESET DEVICES

INITIALISING

Model Setting

Basic Setting

Feature Setting

Device Status monitor

Error Monitor

Production Monitor

NVM Monitor

Line 23 Monitor

MONITORING

Next Menu

www.ELEKO.de

Fig.4-1

Model Setting

1 KV-29FX60A/D/E

2KV-29FX60B

3KV-29FX60U

4 KV-29FC60A/D/E

5 KV-29FC60B

6 KV-29FC60K

7 KV-29FC60R

8 KV-29FS60A/D/E

9KV-29FS60B

10 KV-29FS60K

11 KV-29FS60R

12 KV-28/32FX60A/D/E

13 KV-28/32FX60B

14 KV-28/32FX60K

15 KV-28/32FX60R

16 KV-28/32FX60U

17 KV-29FS60A/D/E

18 KV-29FS60B

Fig.4-2

Basic setting

No Descr. Min Max Data

1 Sys.B/G OFF ON ON

2 Sys.D/K OFF ON ON

3Sys.L OFFON ON

4 Sys I (UK) OFF ON OFF

5 Sys I (IRL) OFF ON OFF

6 Russian sound OFF N OFF

7 TXT Nod.option 1 4 3

8 sim pl e PAT O FF ON OF F

9 16:9 CRT OFF ON OFF

10 Sub-woofer OFF ON ON

11 Auto stand-by OFF ON ON

12 comb-filter OFF ON OFF

13 Auto YC det OFF ON ON

14 Auto comb det OFF ON OFF

15 AV2 Available OFF ON ON

16 AV3 Available OFF ON ON

17 AV4 Available OFF ON OFF

18 AV3 Front & rear OFF ON ON

19 SECAM Tape OFF ON OFF Fig.4-3

Backend

No Descr. Def Min Max Data

1R-on ONOFFON ON

2G-on ONOFFON ON

3 B-on ON OFF ON ON

4 D-col OFF OFF ON ON

5Color-axis 2032

6Contrast 6306363

7Limit-Luv 3033

8Hue 3106331

9Colour 3106328

10CTI -Level 2032

11 Brightness 31 0 63 31

12Gamma 2032

13 Sharpne s 31 0 63 44

14LTI-Level 0030

5 R Drive 41 0 63 40

6 BLK-Bottom 0030

17G-Drive 4106338

18ABL-TH 0030

19 B-Drive 41 0 63 21

20ABL-Mode 2032

21 Sub Bright 31 0 63 32

22VM-Level 2032

23 R-Cutoff 31 0 63 41

24Preover 2032

25 G-Cutoff 31 0 63 45

26DPIC-Level 2032

27 B-Cutoff 31 0 63 48

28DC-Tran 1031

29 Sub-Cont 7 0 15 7

30 LRGB2-Lvl 12 0 15 12

31 P-Abl 15 0 15 15

32 DL-Pass OFF OFF ON OFF

33 Sharp.Fo ON OFF ON ON

34 Aging-W OFF OFF ON OFF

35 Aging-B OFF OFF ON OFF

36 CB-offset1 7 0 15 7

37 CR-offset1 7 0 15 7

38 CB-offset2 7 0 15 7

39 CR-offset2 7 0 15 7

40 Sub Colour 0 -8 8 -1

NOTE:

The above table is dependant on model, destination & size.

www.ELEKO.de

Fig.4-4

Feature setting

No Descr. Min Max Data

1PIP OFFON ON

Fig.4-5

Colour Decoder 1

No Descr. Def Min Max Data

1 DelayLinMd OFF OFF ON OFF

2Gain set 1031

3 Y-Delay 7 0 15 7

4Phase Time 0030

5 Vid Ident Md OFF OFF ON OFF

6 Sync Mode OFF OFF ON OFF

7 Vid Ident Sw ON OFF ON ON

8 H-Output OFF OFF ON OFF

9 Enagating OFF OFF ON OFF

10 IF Circuit ON OFF ON ON

11 GP Delay OFF OFF ON OFF

Fig.4-6

Colour Decoder 2

No Descr. Def Min Max Data

1 DelayLinMd OFF OFF ON OFF

2Gain set 031

3 Y-Delay 7 0 15 7

4Phase Time 0030

5 Vid Ident Md OFF OFF ON OFF

6 Sync Mode OFF OFF ON OFF

7 Vid Ident Sw ON OFF ON ON

8 H-Output OFF OFF ON OFF

9 Enagating OFF OFF ON OFF

10 IF Circuit ON OFF ON ON

11 GP Delay OFF OFF ON OFF

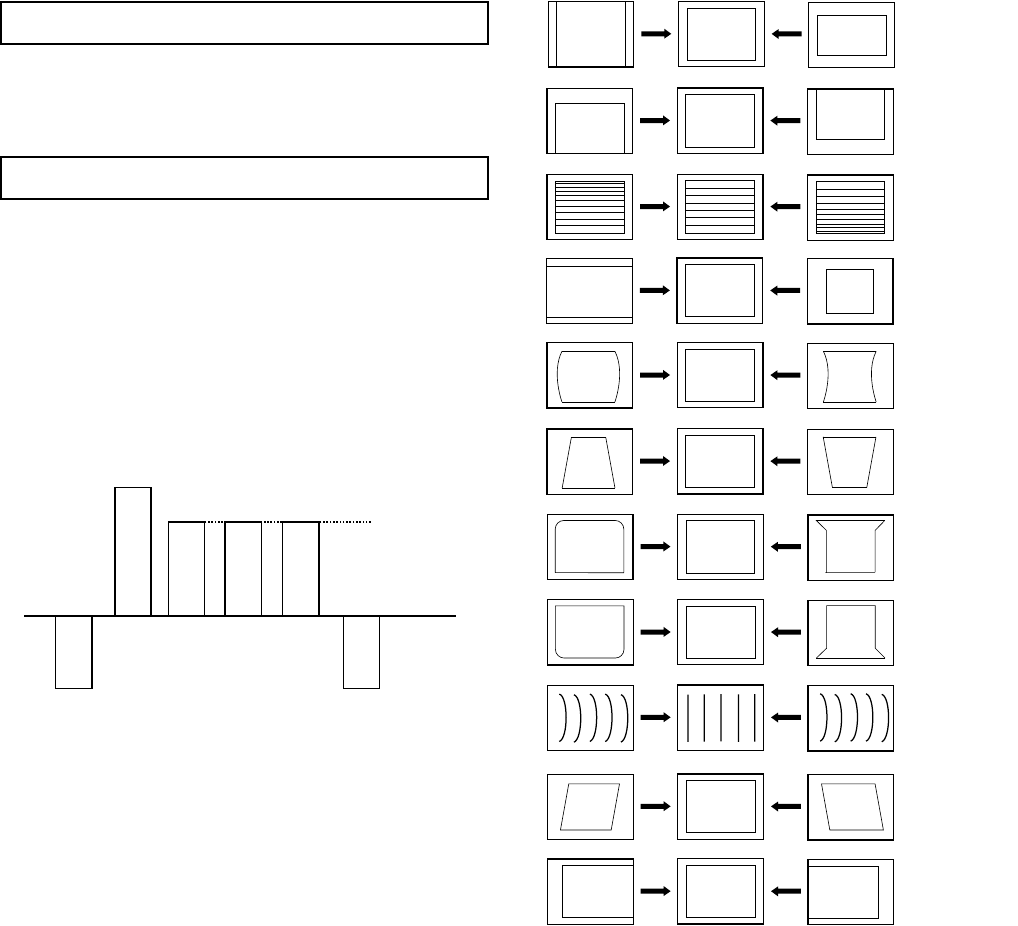

Fig.4-7

Deflection

No Descr. Def Min Max Data

1 V-Size 31 0 63 34

2V-Position 3106321

3V-Comp 1031

4 V-Linear 7 0 15 7

5S-Corr 7 0158

6 H-Size 31 0 63 29

7 EW-DC OFF OFF ON OFF

8 Pin-Amp 31 0 63 36

9Up-Cpin 3106335

10M-Pin 2032

11 Lo-Cpin 31 0 63 37

12 Trapezium 7 0 15 7

13 H-Posit on 31 0 63 25

14 AFC-B w 7 0 15 7

15 A C-Angle 7 0 15 9

16 Up Vlin 0 0 15 0

17 L Vlin 0 0 15 0

Fig.4-8

Dynamic Convergence

No Descr. Def Min Max Data

1 Range 63 0 63 32

2 H Stat 33 0 63 33

3 H amp L 37 0 63 37

4 H amp R 36 0 63 36

5Up Y 3106331

6Low Y 3306333

7Y Up L 3006330

8Y Up R 3006330

9Y Low L 3106331

10 Y Low R 30 0 63 30

11Mbow Up L 3106331

12Mbow Up R 3206332

13 Mbow Low L 32 0 63 32

14 Mbow Low R 32 0 63 32

15 V Stat 32 0 63 32

16 Linearity 128 0 255 104

17 H Centre 32 0 63 32

18 H Trap 32 0 63 32

19 Rotation 0 0 255 0

20 Focus Phase 128 0 255 128

www.ELEKO.de

Fig.4-9

Feature Low-End

No Descr. Def Min Max Data

1 F.S.F.M OFF OFF ON OFF

2 G-Mode OFF OFF ON OFF

3 Picture Pos 0 0 3 0

4 Comp Mode OFF OFF ON OFF

5 CompSW OFF OFF ON OFF

6 Acqu.freq OFF OFF ON OFF

7 Still Pic OFF OFF ON OFF

8 Init OFF OFF ON OFF

9 Dis Feature ON OFF ON ON

10 Dis Vlimit ON OFF ON ON

11 Scr Fade 0 0 3 0

12 Hwe Delay 20 0 255 20

13 Auto Vshift OFF OFF ON OFF

14 Vwe Delay 0 0 127 0

15 SFR sw OFF OFF ON OFF

16IPQ 0030

17 D.Col Dec OFF OFF ON OFF

18 Blankfield 0 0 15 0

19 P1.5 OFF OFF ON OFF

20 P1.4 OFF OFF ON OFF

21 P1.3 OFF OFF ON OFF

22 P1.2 OFF OFF ON OFF

23 P1.1 OFF OFF ON OFF

24 Set Vdba OFF OFF ON OFF

25 Set Sidep ON OFF ON ON

26 Set Hwe OFF OFF ON OFF

27 Set Clv OFF OFF ON OFF

28 Set Hddel OFF OFF ON OFFF

29 Set Hblnd OFF OFF ON OFF

30 Set Hre ON OFF ON ON

31 Set Hbda ON OFF ON ON

32 Set Hdav ON OFF ON ON

33 Vbdasta 0 0 255 0

34 Vsdasto 0 0 255 0

35 Msbhwesto OFF OFF ON OFF

36 Msbhwesta OFF OFF ON OFF

37 Msbvbdasto OFF OFF ON OFF

38 Msbvbdasta OFF OFF ON OFF

39 Hdavsta 40 0 255 40

40 Hdavsto 255 0 255 255

Feature Low-End(Cont.)

No Descr. Def Min Max Data

41 Hbdasta 223 0 255 223

42 Hbdasto 222 0 255 222

43 Hresta 38 0 255 38

44 Hresto 202 0 255 202

45 Hblndsta 31 0 255 31

46 Hblndsto 30 0 255 30

47 MsbHblndsta OFF OFF ON OFF

48 MsbHblndsto OFF OFF ON OFF

49 Msb Hresto ON OFF ON ON

50 Msb Hresta OFF OFF ON OFF

51 Msbhbdasta ON OFF ON ON

52 Msbhbdasto ON OFF ON ON

53 Msbhdav to ON OFF ON ON

54 Msbhdavs a OFF OFF ON OFF

5 Hddel 0 0 15 0

Clvsta 0 0 255 0

7 Clvsto 9 0 255 9

58 Hwesta 44 0 255 44

59 Hwesto 208 0 255 208

60 Ex-Thres OFF OFF ON OFF

61 Wes ON OFF ON OFF

62 Demo mode ON OFF ON OFF

63Limerick NR 0040

64 Nthr 0 0 255 2

65 Wval 200 0 255 200

66 Agc Ych 203 0 255 203

67 Agc Uvch 209 0 255 209

68 Aal-Bypass OFF OFF ON OFF

69 Stby Fr OFF OFF ON OFF

70 Lsb Agc-Uv OFF OFF ON OFF

71 Lsb Agc-Y OFF OFF ON OFF

72Vcl cor 0030

73Ucl cor 0030

74Uv cor mode 0030

75Uvcl tau 3033

76Uvcol Lvl 0030

77 Fil Mem OFF OFF ON OFF

78Overl Thr 1031

79Y delay f 4074

80 Dcti pdxsel ON OFF ON ON

www.ELEKO.de

Feature Low-End (Cont.)

No Descr. Def Min Max Data

81 Dcti Thres 0 0 15 0

82Dcti Gain 0070

83 Dcti Super ON OFF ON ON

84 Dcti Fil ON OFF ON ON

85 Dcti Prot ON OFF ON ON

86 Dcti Sep ON OFF ON ON

87Dcti Limit 2032

88Peak Beta 0070

89Peak Alpha 2072

90Peak Neg g 0030

91Peak Delta 0030

92Peak Tau 0070

93 Peak Corth 0 0 15 0

94Overlay V 0 0150

95Overlay U 0 0150

96 Overlay Y 10 0 255 10

97 Sidep sta 240 0 255 240

98 Sidep sto 36 0 255 36

99Y delay B 7077

100 Invert UV ON OFF ON ON

101 Output Range ON OFF ON ON

102Sidep Fdel 0030

Fig.4-10

PIP

No Descr. Def Min Max Data

1 Freeze OFF OFF ON OFF

2Frame ONOFFON ON

3Pipon ONOFFONOFF

4 Seldel 1 0 15 1

5 Mixdis ON OFF ON ON

6H-Poshi 0030

7 H-Pos 137 0 255 137

8 V-Pos 59 0 255 59

9Y-Delay 0070

10 V-Dec OFF O F ON OFF

11 H-Dec OFF OFF ON OFF

12 Insvh ON OFF ON ON

13 Chrins ON OFF ON ON

14Pmod 0030

15Imd 0030

16 Cl ON OFF ON ON

17 H ide 4 0 15 4

18 Vsiisq OFF OFF ON OFF

19 Vsidel 0 0 31 0

20 Parasynd ON OFF ON ON

21 Vspisq OFF OFF ON OFF

22 Vspdel 10 0 31 10

23Con 1 0151

24Fry 8 0158

25Frv 3 0153

26Fru 4 0154

27 Sel Down OFF OFF ON OFF

28Frwidv 1031

29Frwidh 2072

30Mat 4074

31 Daconst OFF OFF ON OFF

32Plltc 1031

33 Dacontle OFF OFF ON OFF

34 Left 83 0 255 83

35RightHi 1031

36 Right 192 0 255 192

37 Up 46 0 255 46

38 Down 189 0 255 189

www.ELEKO.de

Fig.4-11

Sound

No Descr. Def Min Max Data

1 Ref.Level 40 0 20 40

2 Auto-gain ON OFF ON ON

3Ana-in 0010

4 Corr-mute ON OFF ON ON

5 Clock out ON OFF ON ON

6 AM-gain ON OFF ON ON

7 Clip mode 0 0 2 0

8SCART1 Vol 79 0 127 79

9SCART2 Vol 79 0 127 79

10 SCART Pr 27 0 127 27

11 Izs1-pr 16 0 127 16

12 Izs2-pr 16 0 127 16

13 FM pr 27 0 127 27

14 BG Nic-pr 53 0 127 53

15 L Nic-pr 59 0 127 59

16 DK Nic-pr 53 0 127 53

17 I Nic-pr 97 0 127 97

18 Irl Nic-pr 97 0 127 97

19AVC-Decay 2082

20 Subw-vol 0 0 -127 0

21 Subw-freq 20 5 40 20

22 Subw-Hpuss OFF OFF ON OFF

23 Spat-stre 127 0 -1 12

24 Spat-Coeff 0 0 8 0

25 Bass offs 0 -3 3 0

26 Treble offs 0 -3 3 0

27 Loudn offs 0 0 9 0

28 Hp-voloffs -2 -5 5 -2

29 M-S Limit 30 28 127 30

30 M-B Limit 30 -128 127 -30

31 S-M Limit 12 -128 127 12

32 S-B Limit -20 -128 127 -20

33 B-M Limit -12 -128 127 -12

34 B-S Limit 20 -128 127 20

35 Err.Max 40 0 255 40

36 Err.Min 14 0 255 18

Fig 4-12

Special Adjustment

No Descr. Min Max Data

1RGB Level 070

2 RGB Gain 0 31 9

3 RGB PatLevel 0 7 7

4 RGB Patgain 0 31 31

5 RGB H-position -10 10 -1

6 Extra Fw 0 255 255

7 EPG Chks Check OFF ON ON

8 Slicer High OFF ON ON

9 FCW Wide OFF ON ON

10 High Pll OFF ON OFF

11 Panic offset 0 2 0

12 Wide Mute OFF ON ON

www.ELEKO.de

V SIZE

V POS

V LIN

H SIZE

H PIN CUSH

H TILT

H UP COR

H LOWER COR

AFC V BOW

AFC V ANGLE

H POS

DEFLECTION SYSTEM ADJUSTMENT

1. Enter into the service mode and select ‘Deflection ’. The

‘Deflect ’ adjustment menu will be displayed.

2. Select and adjust each item to obtain the optimum image.

4-2.VOLUME ELECTRICAL ADJUSTMENTS

Sub Colour Adjustment

1. Input a PAL colour bar signal.

2. Connect an oscilloscope to CN5400 pin 5 on the C board.

3. Enter into the ‘SERVICE MODE’.

4. Choose ‘Backend’.

5. Adjust Sub Colour data so that the right sides of the

waveforms are of equal height.

Same Level

B-Out Waveform

www.ELEKO.de

4-3. TEST MODE 2:

00 Switch back to normal mode - ‘TT’ mode off

01 Set picture maximum

02 Set picture minimum

03 Set speaker/headphone Volume to 30%

04 Set speaker/headphone Volume to 50%

05 Set speaker/headphone Volume to 65%

06 Set speaker/headphone Volume to 80%

07 Ageing Mode

08 Shipping Condition

09 Language Reset

10 No function

11 Sub picture adjustment

12 Sub colour adjustment

13 Display software version and TV set configuration

14 Production Info Display

15 Picture Rotation

16 Picture level 50%

17 Audio mute on

18 No function

19 Sub brightness adjustment

20 See ‘TT10’

21 Destination A includes text setting display TV status

22 Destination L includes text settings, displ y TV status

23 Destination E includes text se tings, display TV status

24 Destination U includes text sett gs, display TV status

25 Destination D includ s text ettings, display TV status

26 Destination B includes text settings, display TV status

27 Destination K cludes text settings, display TV status

28 Destination R includes text settings, display TV status

30 See ‘TT10’

31 Geometry Adjustment 1

32 Geometry Adjustment 2

33 Error monitor

34 No function

35 CRT 4:3 < > 16:9 ; Display TV status

36 Line 23 detection switch

37 Velocity Modulation (VM) test

38 No function

39 No function

40 See ‘TT10’

41 Screen mode check

42 Re initialise geometry

43 No function

44 No function

45 No function

46 Reserved for deale commander

47 Re initialise NVM

48 Set NVM as non virgin

49 Set NVM as v gin

50 See ‘TT10’

51 Set Do b volume to 90%

2Dolby on left speaker only

3Dolby on right speaker only

54 Dolby on left centre only

55 Dolby on surround speaker only

59 No function

60 See ‘TT10’

61 Service mode

62 Production mode

65 Reset error codes

68 Ignore errors on

69 Ignore errors off

70 See ‘TT10’

72 No function

73 Clear programs

79 No function

80 See ‘TT10’

81 PAP H adjustment left image

82 PAP H adjustment right image

86 No function

87 Personal ID reset

88 Parental Lock off

89 No function

90 See ‘TT10’

Is available by pressing ‘TEST’ button twice, OSD ‘TT’ appears. The functions described below are available by pressing the two numbers. To

release the Test mode 2, press 0, 10, 20 ... twice or switch the TV set into Stand-by Mode. Pressing the two Local Control buttons ( + and - ) during

Power ON will also switch into ‘TT’ mode.

In ‘TT’ mode, it is possible to remove the Menu from the screen by pressing the Speaker Off button once. Pressing the Speaker OFF button a

second time will cause the menu to reappear. The Function is kept even when the menu is not displayed !!.

www.ELEKO.de

35 6 37 38 39

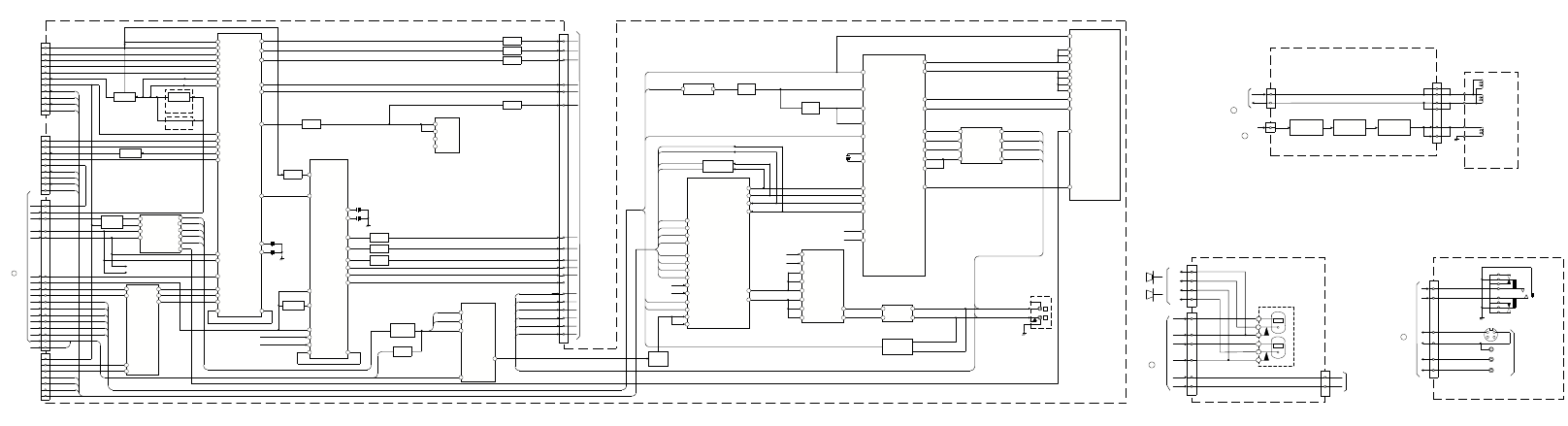

5-1 BLOCK DIAGRAMS (1)

O A BOARD

CN 80

VBS

B S

0 0 B

V 9 S 0

S 0

V S 0

Y S

CN8 0

( 2)

CN890

AV2

CN8900

CN8902

AV4

V V

Y V V

Y V

V S V

B V

V S V

B00 VBS V

VBS

V S

Y S B

S B

V S B

S S B

V S S B

S S

VBS

B S

B SS B00

S B

0 0

IC8 25

AUDIO SWI CH

IC8 00

H AM

C8200

D ROCESSOR

S S

C8 0

OU U AM

C8 0

H OU

890

VAR AB E OU

820

O A BOARD

CN 0

V Y

C8400

SUB

CO OR DECODER

CN8 0

(2 2)

HEAD HONE OU

HEAD HONE R OU

(

)

IN ER ACE I

AUD O CHROMA

AUDIO DS

IC8250

AUD O DS

B 0

C8 50

M DEMODU A OR

B900

S 0

C8700

AU OWIDE

VM AM

Q5400 540

VM BU ER

Q5402 5403

5404 5 05

VM OU

Q5406 5407

VM N

CN5444

Q +

Q -

D BOARD

CN6502 4

Q +

CN5602

O E BOARD

CN4502

VM ( )

VE OCI MODU A ON

CN5402

NECK

ASSY

A BOARD

CN 70

GND

E AUDIO

GND R

R GH AUD O

CEN ER AUD O

GND C

SUBWOO ER

CN7988

CN7977

CN7 0

7952

S R

U ( )

AUDIO N ER ACE

OU U

9AV3 OU

AV3 R OU

VIDEO

O A BOARD

CN 703

7900

CN7 03

37925

HEAD HONE

HEAD HONE R IN

HEAD HONE N

AV3 CHROMA OU

AV3 UM NANCE OU

H1 ( )

AV3 N U

www.ELEKO.de

0 1 2 3

BLOCK DIAGRAMS (2)

O IC URE UBE

O C BOARD

RE A

R 60

CN66 0

CN67 0

RE A

R 602 MA N REC

D66 4

660

+6 5V REC

D66 9

+ 0 5V REC

D66 6

+ 35V REC

D66 7

+4 5V REC

D6 20

+2 V REC

D66 8

6 00 R

C603

OWER MODU E

22V

+ 5V

+ 0 V

+6 5V

+4 5V

C6654

5VREG

C6667

+ V

IC665

665

IC6604

REG OU

CN6 02

B 3

A 6

B 6

B 5

A 7

B 7

A 9

B 9

A 3

A 2

B 4

B 5

E W

A C U SE

EX ARA

RGB A C

HD N

D N OCUS

VMOD

V RO

V SAW +

V SAW -

HD2 OU

HD OU

H SAW

N IN

H CEN ER

H OU DR VE

Q 80

H OU DR VE

Q 802

802

H-OU

Q6803

Q6804

B 0 H 2

A7 H

A 4

D DR VE

A 4

IC 80

Q68 5

Q68 6

6 05 Q6

6804 B

+ 5V REC

D68 8

- 5V REC

D68 9

- V

+ 5V D

6852 D DR VE

Q6 5

O C BOARD

CN560

CN65 0

V+

H-

V D

- D +

DY ASSY

V D -

H D

H- D +

H D -

C6700

V OU

Q6700

CN66

+ 00V

+ 35V

O D BOARD

CN660

+ 35V

OWER

S760

C7 25

RECE VER

D7 25

SI CS

S B +5V

O A BOARD

CN 700

F1 ( )

7626

CN7600CN7633 CN76 4

2 0V R C

D68 5

CN 6

CHECK

AC IN

DGC

CHE K

DGC CHECK

CN6600

Q6809

Q68 0

O A BOARD

CN 602

AC I ER USE CN7 0

F ( )

OWER SWI CH AND

RES ONSE ED IR Rx

D ( )

OWER SU AND DE EC ION

CN6 0

O A

BOARD

CN 0

Q66 7

+5V

S ANDB

OVER CURREN RO

OVER VO AGE RO

AC ON O

O A BOARD

CN 90

IC9 05

MAIN M CRO-CON RO ER

CN9 0

M D BUS

AV INK OU

WI CH

Q9 0

AV NK N

V 00

H 00

IC9 0

MAS ER RESE I C

C OCK

S R

M X RES

DA A

DSD O

IC9500

EX B ANKING GENERA OR SWI CH

Q95 4 95 3

C9 02

MEGA EX I C

CVBS

G O

RES

A 0

B 7

B 8

B 3

B 4

AM I ER

Q9 00 950

95 2

D( 6)

D( 5)

D( 4)

D( 3)

D( 2)

D( )

D( 0)

D 6)

D 7)

D 8)

D 9)

D 5)

D 4)

D 3)

D 2)

D( )

A 7

A 6

A 9

A 8

A( 9)

A( 8)

A( 6)

A 2

A 0

A 5

A 4

A 3

A( 5)

A( 4)

A( 3)

A 9)

A( 0)

A( )

A( 2)

A 8)

A 7)

A 6)

A 5)

A( )

A 2)

A 3)

A 4)

A 0)

C9 09

ROGRAMMAB E O

Q 2

Q 0

Q A-

Q 4

Q 3

IC9 07

R A M

A 4

A 3

A 2

A 0

D 6)

D 5)

D( )

D 2)

D 3)

D 4)

D 0)

XOU

XIN

X9 00

20 480MHZ

RS OU

C OCK

DA A

S R

KE 2

SC O

D SAB E

SWI H

Q9 05

AGC MONI OR

RES ED

KE 2

C N

SDA

SDA0

CS D SAB E

SC O

WI CH

Q9 0

SDA

C9 08

SD O

7X A 2

X A

X9 0

6MHZ

AGC MON

OU 2+2

IC9 00

KE AD DRIVER

WD C K

U SE

IC9 04

ENAB E 6

RESE

A 0

RES ED

WD EN

IN8

S B

S RCS

AC ON O

SIRCS

A 2

A 3

A 4

S B

AC ON O

RES AUD O

RES C URE

C ED

AUD O MU E

B 0

RES AUD O

RESE 00

C D

AUDIO MU E

V 00

H 00

B 5 X C K

X B K

VIDEO

X B

X G

X R

M3 EN

SC K

M SR

MRS

A( 8)

A( 7)

A( 6)

A( 5)

A( 7)

A( 6)

A( 9)

A( 8)

A( 2)

A( )

A( 0)

A 9)

A 8)

A( 5)

A( 4)

A( 3)

A 4)

A 3)

A 2)

A( )

A 7)

A 6)

A 5)

D( 5)

D( 4)

D( 3)

D( 2)

D( )

D( 0)

D 6)

D 7)

D 8)

D 9)

D 5)

D 4)

D 3)

D 2)

D( )

D 0)

B AN

C K

A( 4)

A( 3)

A 9)

A( 0)

A( )

A( 2)

A 8)

A 7)

A 6)

A 5)

A( )

A 2)

A 3)

A 4)

A 0)

A( 4)

A( 3)

A( )

A( 0)

A( )

A( 2)

A( )

A( ) A

CS2

SWI CH

Q9 6 9 07

SWI CH

Q9 8 9 09

RS IN

MID BUS

AV INK

M ( )

MICRO EX

www.ELEKO.de

5 6 7 8 9

BLOCK DIAGRAMS (3)

IC2307

VA9

VA2

VA0

VA 0

VA3

C K

VA7

VA6

VA5

VA4

RE N

C (7)

C (6)

C (5)

C (4)

C (3)

C (2)

C ( )

CV ( )

CU (0)

CU ( )

C (0)

CV (0)

RS R

VA8

VB0

VB 0

VB9

VB8

VB5

VB4

VB3

VB2

VB7

VB6

A20

H MA N N

A 7

O A BOARD

CN 200

IC2302

V MAIN IN

U MAIN IN

CN2 00

( 2)

0 72 V

0 82 V

0 83 V

UV3

UV2

UV0

CEN

(7)

(6)

(5)

(4)

(3)

(2)

( )

V ( )

U (0)

U ( )

(0)

V (0)

(7)

(6)

(5)

(4)

(3)

(2)

( )

V ( )

U (0)

U ( )

(0)

V (0)

H 7)

H 6)

H 5)

H 4)

H 3)

H 2)

H ( )

HV 9)

HU ( 0)

HU ( )

H 0)

HV 8)

B1 ( )

C K

A 6

MA N IN

2 0

BAND ASS

I ER

IC2304

UO0

VO0

V 0

UI 0

WE 0

C2303

RS W

HRD

SRC

HRA

RE2

A DVV

SWC 2

SWC

VACQ

IC230

V 00

H 00

A 9

V MAIN N

IC23 4

IC2305

C K

VC0

VC 0

VC9

VC8

VC5

VC4

VC3

VC2

VC7

VC6

B (7)

B (6)

B (5)

B (4)

B (3)

B (2)

B ( )

B (0)

BU ( )

BU 0)

BV ( )

BV (0)

A (7)

A (6)

A (5)

A (4)

A (3)

A (2)

A ( )

A (0)

AU ( )

AU 0)

AV ( )

AV (0)

VD3

VD4

VD5

VD6

VD7

VD 0

VD0

VD2

VD8

VD9

V (0)

V ( )

U (0)

U ( )

(0)

( )

(2)

(3)

(4)

(5)

(6)

(7)

C2309

SRCK

D 0

B 7)

B 6)

B 5)

B 4)

B 3)

B 2)

B ( )

BV ( )

BU 0)

BU ( )

B 0)

BV 0) D0

Q 0

A 7)

A 6)

A 5)

A 4)

A 3)

A 2)

A ( )

AV ( )

AU 0)

AU ( )

A 0)

AV 0) Q0

SWCK

C2306

Q 0

D 0

C (7)

C (6)

C (5)

C (4)

C (3)

C (2)

C ( )

C (0)

CU ( )

CU (0)

CV ( )

CV (0)

SRCK

RS W

RS R

H 7)

H 6)

H 5)

H 4)

H 3)

H 2)

H ( )

HV 9)

HU ( 0)

HU ( )

H 0)

HV 8)

SWCK RE

IC23

05V

0 64V

UV7

UV2

UV3

UV4

UV5

UV6

UV4

UV5

UV6

UV7

UV0

V (0)

V ( )

U (0)

U ( )

(0)

( )

(2)

(6)

(5)

(4)

(3)

(7)

WE2

VD8

AM I IER

Q 305

Q 306

U 00 OU

V 00 OU

00 OU

O A BOARD

CN 200

N2 00

(2 2)

00 Hz DIGI A US

CN4 0

B 5

B 3

A 6

B 6

B 0

A20

EX RA ARABO A

VMID

HDE

SD 2

RED

D OCUS

U 00

V 00

SWI CH ( OR 3)

MID

UMID

VDE

SDA2

GREEN

B UE

B K

D IC SW

B U SE

XRA

CR2 N

HS N

R2 N

CR2 N

H2 N

2 N

VS N

SDA

G2 IN

B2 N

S M2

D C DC R

H IN

AB N

AB I

B 8

3EX RA ARA

D ARA

CG2 N

CN4500

X43 0

503 5 kHz

O VM BOARD

CN5402

B OU

G OU

R OU

IK IN

VM OU

500K

CN4502

O A BOARD

CN 40

C430

C URE UBE

CN5400

O D BOARD

HV ( 6804)

5IK

9VD

3VI

S ANB SW

Q5 5

VO AGE DE

Q53 5 5376

+ 2V

C5350

V DEO OU (B UE)

5IK

9VD

3VI

C5325

VIDEO OU (GREEN)

5IK

9VD

3VI

C5300

VIDEO OU (RED)

S ANB SW

Q5 25

S ANB SW

Q5 00

OWER ON

SWI CH

Q5 50

+ 2V

O D BOARD

V ( 680 )

RV5375

CN5600

O D BOARD

CN6500

5375

RED

GREEN

B UE

E ( )

RGB OU CHROMA

C ( )

CR DR VE

www.ELEKO.de

50 51 52 53 5

CN 80

QS 2 OU

HE D HONE R GH N

HE D HONE E IN

AV3 HROMA OU

AV3 UM NANCE OU

AM 2 OU

CV S 2 U

AU IO E

AU IO SURRO ND

AUD O CEN ER

AU IO R GH

HE D HONE MU E

AV3 R GH OU

AV3 E OU

AV NK I O

MODE ( IN B)

CV S N ( EX )

AUD O RESE

H U E UB IN

V U E UB IN

V UB IN

20 U SUB N

H U SE MAIN N

2 SUB N

V U E M IN N

V MA N N

25 U MA N N

25 MA N N

MODE ( N )

5AV NK I

CVBS N ( X )

AUD O RESE

EX B AN ING N

2B E EX N

4RED X IN

3N EX IN

7V S NC EX

H S NC EX

2S NDB

3RO EC ON

4AC ON O

20 AUD O MU E

AGC MONI OR

S A

AGC MONI OR

AGC

MONI OR

QSS

C BS

BU ER

Q 328

Q 329

BU ER

Q 3 6

Q 327

MU E SW

Q 20

O E BOARD

CN4 0

O B BOARD

CN2 00

H- U SE MA N OU

- U SE MA N OU

V MA N OU

U MA N OU

M IN OU

UB OU

U S B OU

V S B OU

V- U SE SUB OU

H - UB OU

D C W

V- 00 N

- 00 N

U- 00 N

V- 00 OU

- 00 OU

U- 00 OU

D C W

O H BOARD

CN7 03

O D BOARD

CN6 2

O BOARD

CN8 0

O M BOARD

CN9 0

O D BO RD

CN6 0

O U BO RD

CN7 0

S NDB

AC ON O

OVER VO AGE

OVER CUR EN RO

C 400

I O EX ANDER

AUD O

RO C ON

Q 26 2 7

MU E W

Q 08

AUD O E

AUD O

SURRO ND

AUD O CEN R

AUD O R GH

HEAD HONE R GH OU

AV3 C ROMA IN

HEAD HONE E OU

AV3 MIN NCE IN

AV3 E OU

AV3 R GH OU

HOR ZON A DE

RED EX OU

VER I A DE

GREEN X OU

EX B AN ING OU

B UE EX OU

EX RA RABO A

BACK U SE

HOR ZON A DR VE

D NAM C OCUS

EAS WES

VER ICA AW+

VER ICA RO EC

VER I A SAW-

RGB A C

X RA

VM MODU A ION

I S +

U S

NC+

MU E

OU C

URROUND

CEN ER

IC 26

AUDIO AM I IER

C 6

AUD O AM I ER

CEN ER AND

SURROUND

IC 26

AUDIO AM I IER

RIGH

CN 00

CN 0

CN 03

CN 70

CN 60

CN 02

CN 90

U 3 6

N U

OU U

S B MU E

OU U

N U

V RO

UD O O

C RO

S ANDB

IC 60

+5VREG

+6 5V

A OGUE

IC 6 2

+5VREG

D GI A

IC 6 5

+3 5VREG

+4 V 3 5V

IC 6 4

+9VREG

+ 0 5 + V

A ( )

S GNA AND AUDIO AM

O BOARD

CN7 00

CN 700

S RCS

O O

CON RO

CV S U

QSS OU

CVB 2

QS 2

SDA

BU ER

Q 3 8

Q 3 9

U 350

(SUB- UNER)

RES ONSE ED

S RCS

3B E EX OU

RED X OU

4GRE N EX OU

9V S NC EX

0H S NC EX

CN 300

O B BOARD

CN0300

H- U SE SUB OU

- U SE SUB OU

V S B OU

U S B OU

M IN SUB OU OU

M IN OU

U MA N OU

V MA N OU

V- U SE MA N OU

- U SE MA N OU

CN 30

O B BOARD

CN030

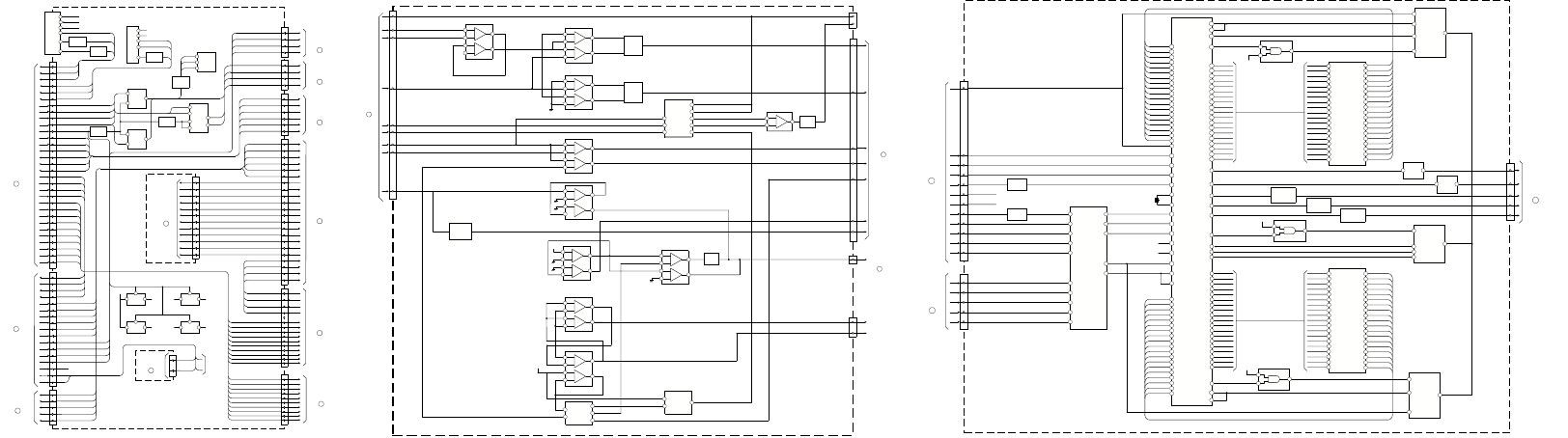

BLOCK DIAGRAMS (4)

IC63

RO A ION R I ER

IC6356

RO A ION OWER AM I IER

C635

Q SIGNA SHA NG C

Q OU U D E

IC6350

Q S GNA SHA ING

C6 03

HOR ZON A INEARI & NNER N CON RO

C6 0

HORIZON A DRIVE U SE GENERA OR

IC6 00

HORIZON A DR VE U SE GENERA OR

C6 02

AC IVE HOR ZON A SIZE

AD US MEN CON RO

SWI CH

Q6 04

Q6 06

SWI CH

Q6 04

Q6 06

3C AM

Q 253

62 4

A 2

A 3

A 5

B 6

Q OU

Q6 58

+ 2V

D A O US R ?

CN6502

CN660

(2 2)

CN6622

A 4

CN6 0

( 2)

C625

O DR VE S AGE OR D NAM

CONVERGNCE

IC6250

MAIN HD & VD CONVERGANCE CON RO ER

354

H? I EXER S GNA

CO ONER & H? N

E W

H 2

H IN

VS S

SDA

HS A

RE VO

HD CO

SAW

3SC

DA2

X ARA

V B

V RO

Q 403 Q6404

Q 402 Q640

O D BOARD

CN6600

CN6633

R VE

V RO

Q -

M MOD

N IN

D OU

D2OU

RO A ON

COI

C +

C -

O D BOARD

CN6600

O VM BOARD

CN5602

+ V

D1 ( )

DE EC ON

O A BOARD

CN 30

CN030

( 2)

(

)

ADVANCED 00Hz

V S

Y S B

S B

V S B

V S S B

S S B

O A BOARD

CN 300

V SY

B 0

B B

V B

C300

RGB UV CONVER ER

C309

READ

B 0

B 9

IC303

B 0

B 9

B 0

IC3

C3 2

C3 4

BCH

C3 6

E D MEMOR

B 9

B 0

B 9

B 0

C3 7

E D MEMOR

IC30

EVE SHI

IC305

EVE SHI

C302

A CH

B 9

O A BOARD

CN 30

V OU M D

H OU M D

OU M D

U OU M D

V OU M D

CN0300

CN030

(2 2)

C308

EVE SHI

www.ELEKO.de

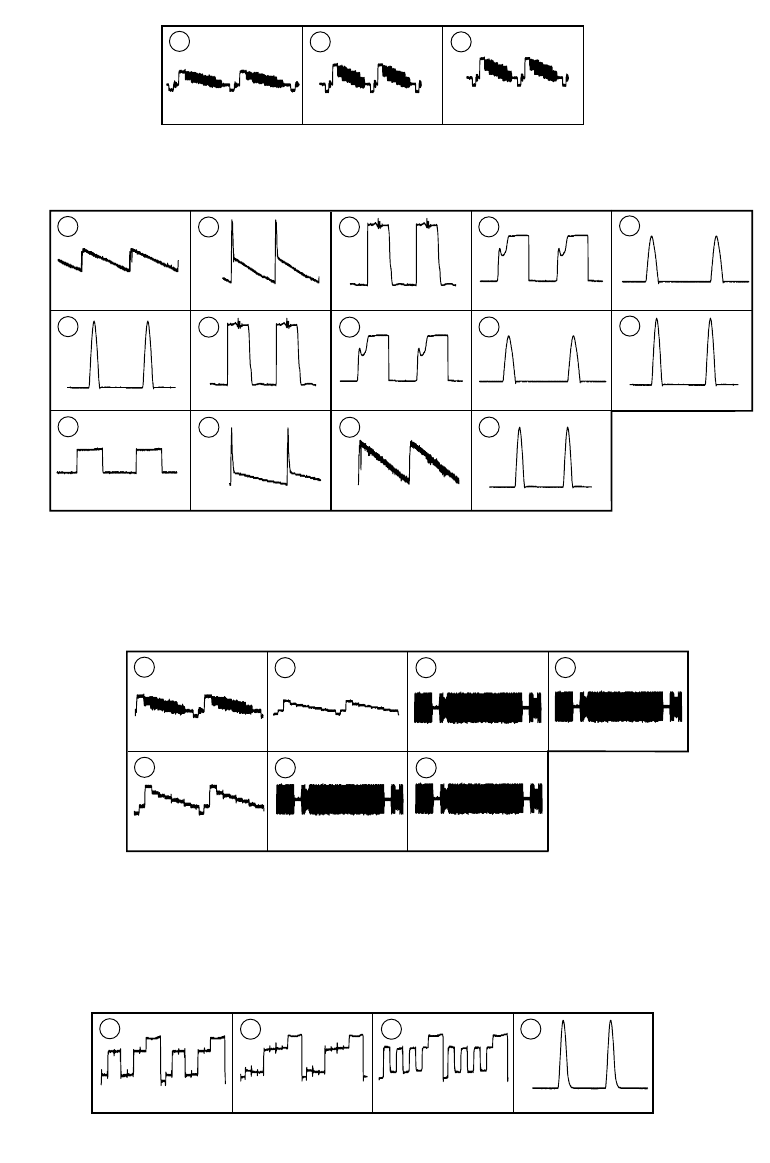

Waveforms A Board

1.0 Vp-p (H)

2.0 Vp-p (H)

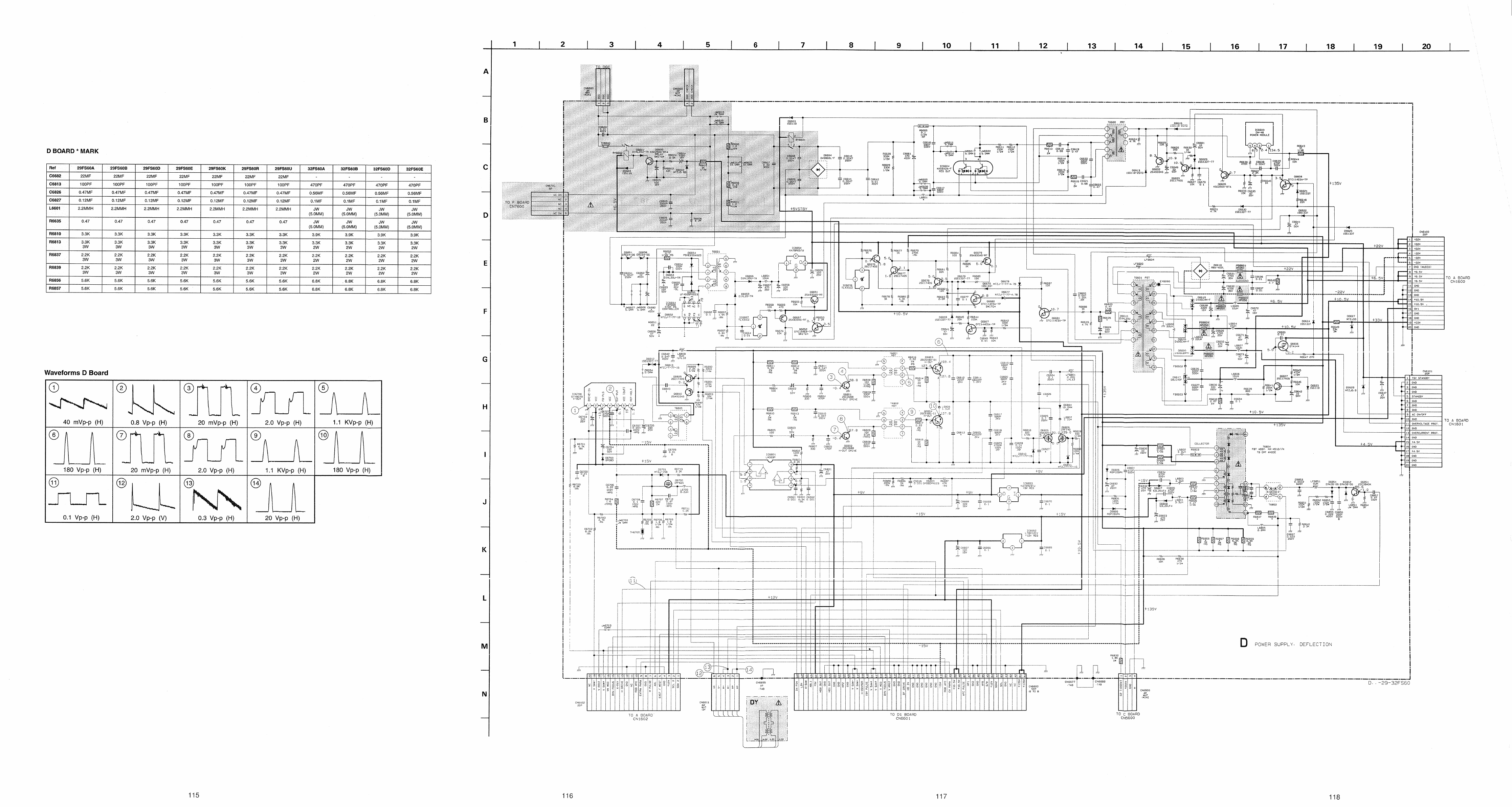

Waveforms D Board

40 mVp-p (H)

180 Vp-p (H)

0.1 Vp-p (H)

0 8 Vp-p (H)

20 mVp-p (H)

2.0 Vp-p (V)

20 mVp-p (H)

2.0 Vp-p (H)

0.3 Vp-p (H)

2.0 Vp-p (H)

1.1 KVp-p (H)

20 Vp-p (H)

1.1 KVp-p (H)

180 V p (H)

0.4 Vp-p (H)

0 2 Vp-p (H)

0 2 Vp-p (H

1 2 Vp-p (H)

1.2 Vp-p (H)

1.0 Vp-p (H)

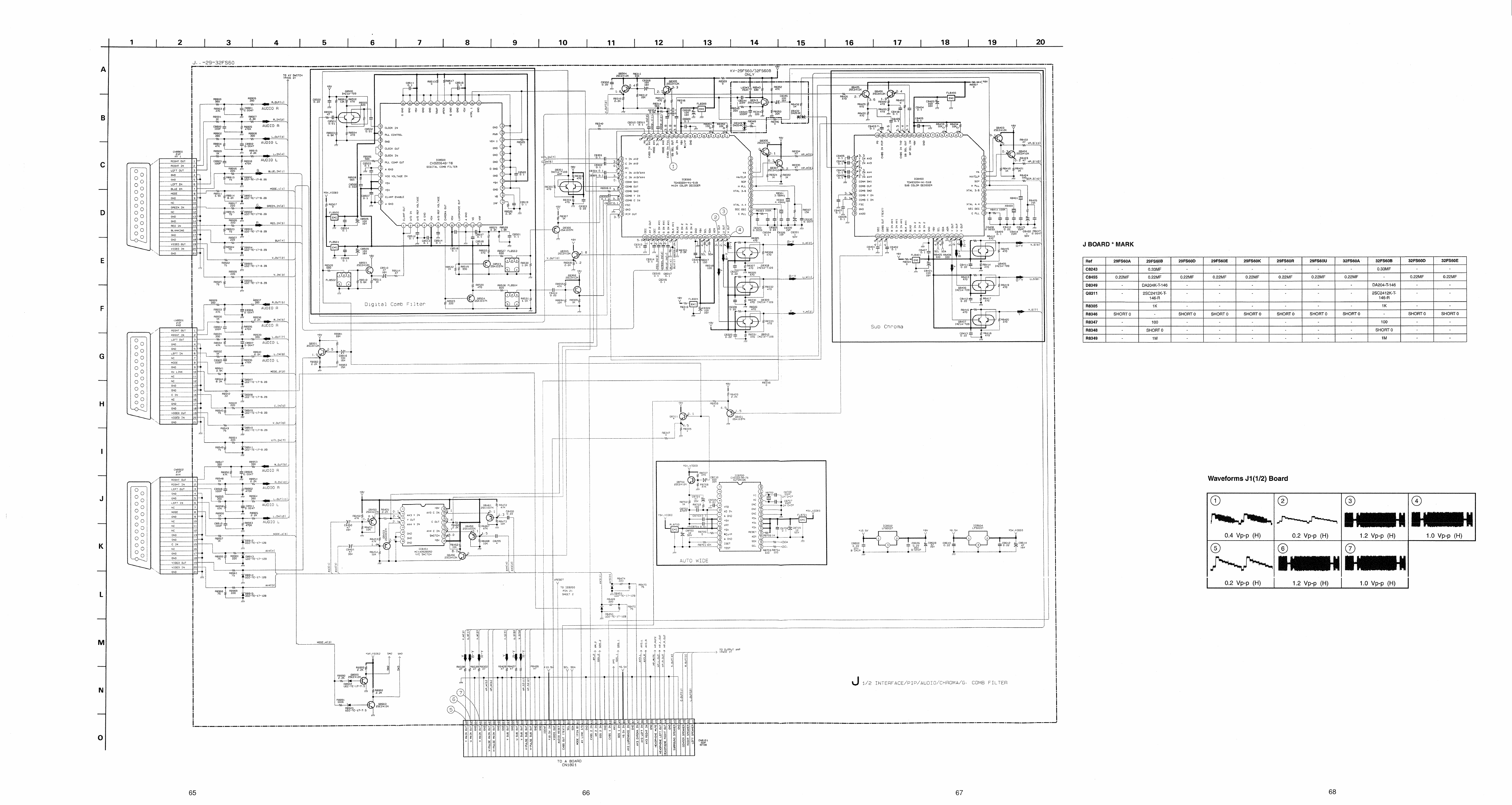

Waveforms J1(1/2) Board

Wa forms C Board

124.0 Vp-p (H)

122 0 Vp-p (H)

120.0 Vp-p (H)

23.0 Vp-p (H)

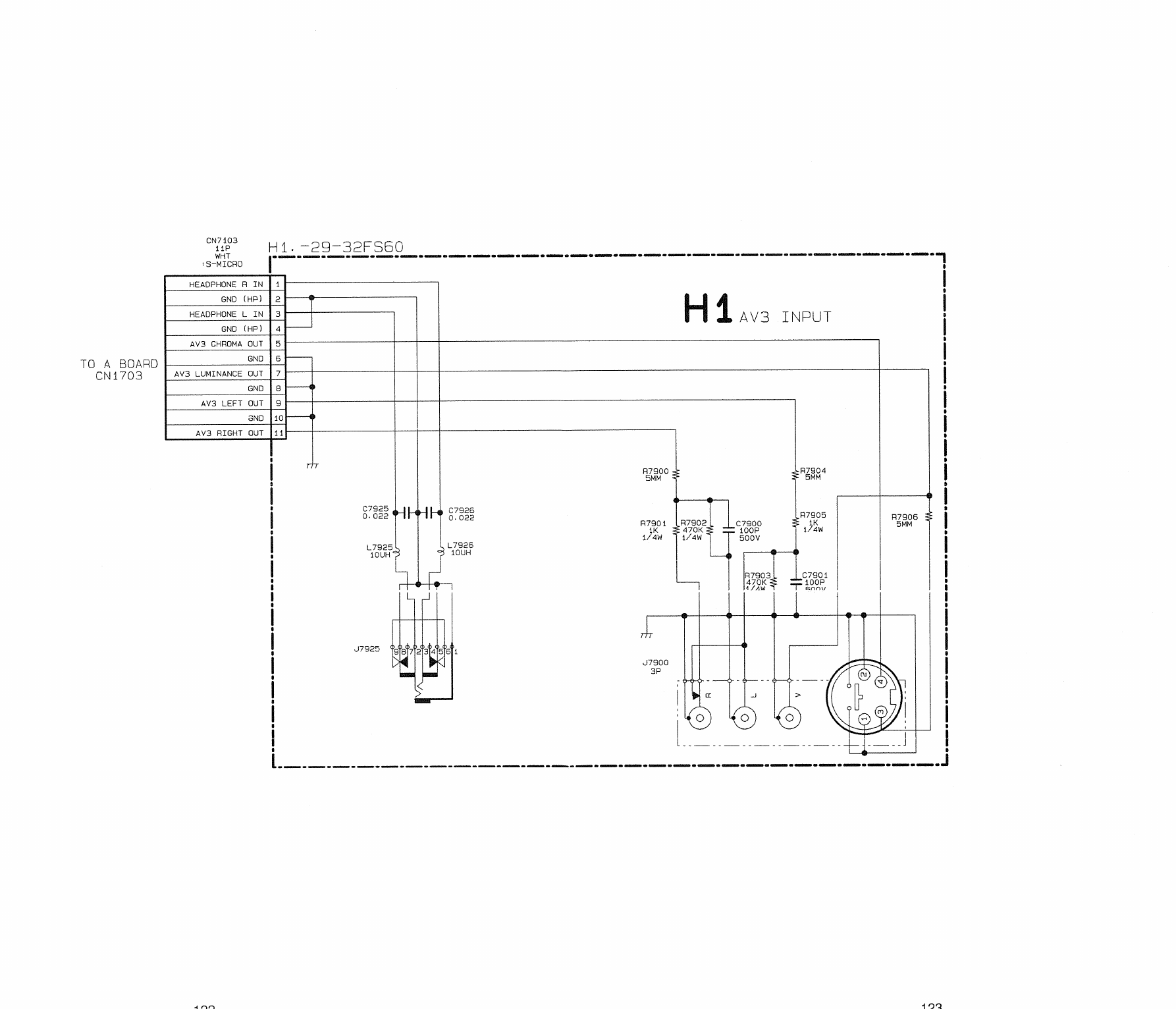

www.ELEKO.de

125

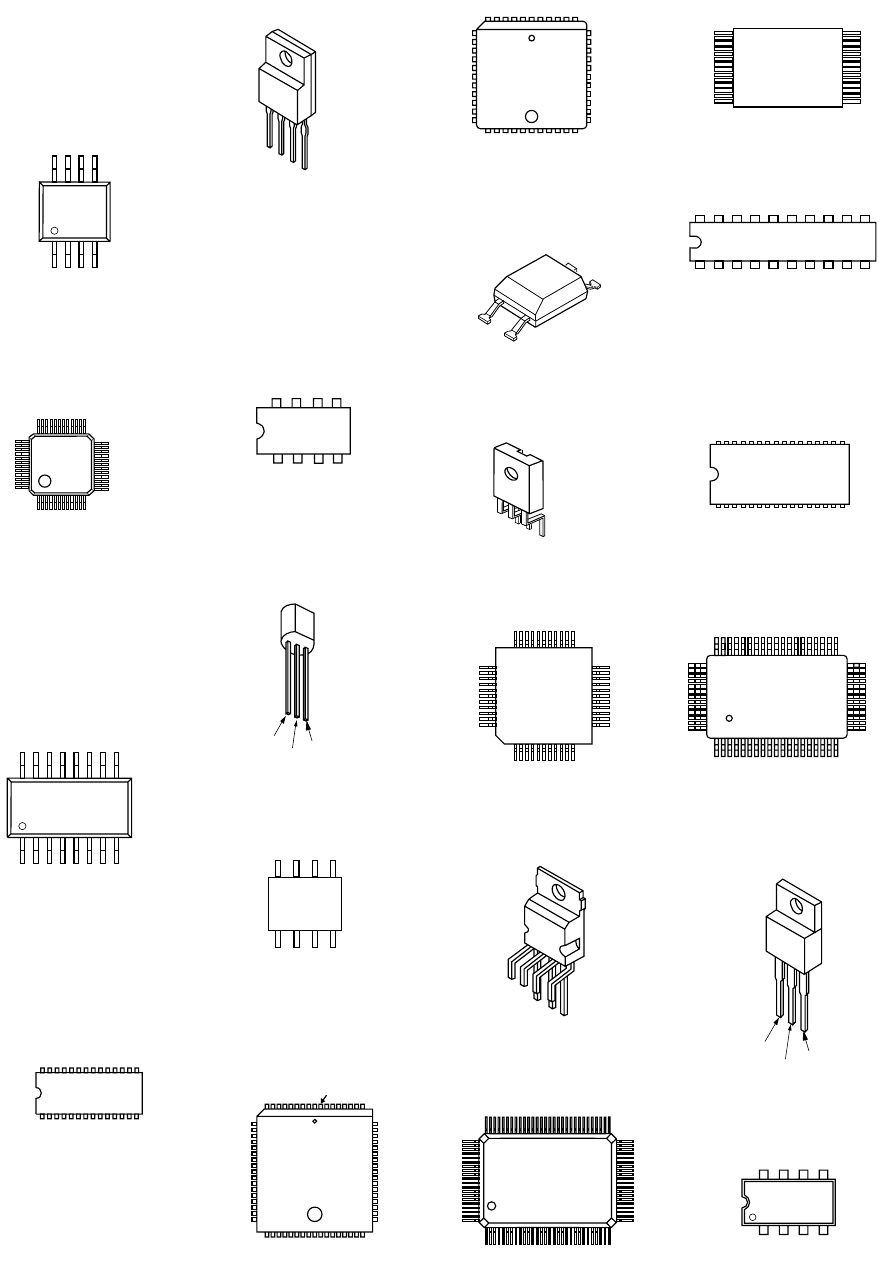

5-4 SEMICONDUCTORS

( TOP VIEW )

112

( TOP VIEW )

16 9

28 15

114

( TOP VIEW )

GND OUT

8765

134

IN GND UT

68 61

433527

( TOP VIEW )

1 : V IN

2 : V OUT

3 : GND

4 : ON/OFF CONTROL

234

( TOP VIEW )

640144

18 28

17 29

111

2333

PC123F2

PC123FY2

(TOP VIEW)

51 33

BA7046F

BA7046F-T1

LM393PS-E20

MB3793-42NF

MB3793-42NF-ER

NJM2240M

NJM2240M(TE2)

NJM3404AD

CXA1855Q-T6

CXA1875AM-T4

HE4094BT

MC14052BDR2

MC74F157ADR2

SN74LS221D

74HCT4046AD/S470

CXD2053S

TDA4780/V3

TEA6422DT

LM393N

LM393D

M5216P

M24C32-BN6

ST24C16FB6

TDA2822M

UPC393C

LM78L05ACZ

LM78L12ACZ

L78L05ACZ-AP

L78L12ACZ-AP

MSP3410D-QA-B4

SAA7185WP

SDA5273P-C134-GEG

SDA5275

KA78R05TU

KA78R09TU

KA78R33TU

SBX1981-51

M27C800-100K1

SDA9361

STV9379

( TOP IEW )

TDA7309D013TR

( TOP VIEW )

SDA9288X-B121

TDA9143/N2

TDA9144/N2

TDA9170T

TOP209P

( TOP VIEW )

MB3793-42PNF-ER

SAB-C161R1-LM

TC55257DFTL-70V-EL

TDA9320H-N1-518

www.ELEKO.de

126

ECB

MARKING SIDE VIEW

IMZ1A-T109

IRF614

IRF620

DTA144EK

DTA144EK-T146

DTC114EK

DTC114YKA-T146

DTC123EK

DTC123EK-T146

DTC124EKA-T146

DTC144EK

DTC144EK-T146

2SA1037K-T-146-R

2SA1162-G

2SC2412K-QR

2SC2412K-T-1 6-R

DTA144ESA

DTA144ESA-TP

DTC114ESA-TP

DTC144ESA-TP

2SA1175-HFE

2SA733-K

2SA933AS-RT

2SA933AS-QRT

2SA933S-RT

2SC1740S-RT

2SC2785-HFE

2SA1837

2SC2500-B

2SC2551-O

2SC2551O-TPE2

2SC2688-LK

2SC3840K

2SC3997CA

2SC4793

2SD2396H

BF87-127

EBC

DAN202K

DAN202K-T-146

DAP202K

DAP202K-T-146

DA204K

DA204K-T-146

CATHODE

ANODE

D1NL20-TA

D1NL20U-TR

D1N54-TR

EGP20G

EL1Z

GP08D

GP08DPKG23

R2K-V1

RGP02-20EG23

RGP10GPKG23

RGP15GPKG23

S2LA20F

1SS133T-77

1SS83

1SS83TD

EBC

BF199

BF199-AMMO

ECB

BF421-AMMO

BC546B

BC556B

( TOP VIEW )

14 8

U2860B-BFPG3

74LVC08D

123

D10SC4M

D10SC6M

www.ELEKO.de

127

123

231

C THODE

ANODE

CATHODE

ANODE

ESAC39M-06C

ESAC39M-06CF38

MA3033-L

MA3033L-TX

MA3056M-TX

MA3062M-TX

MA3030-H-(TX)

MA3051L TX

MA73-TX

RD12SB2

UDZ-TE-17-6.2B

UDZ-TE-17-6.8B

UDZ-TE-12B

CATHODE

ANODE

UF4005PKG23

CATHODE

ANODE

ERD08M-15

CATHODE

ANODE

D4SB60L

D4SB60L-F

RBA-402L

ERA38-06TP1

ERA82-004TP1

GP08DPKG23

MTZJ-T-77-12

MTZJ-T-77-15

MTZJ-T-77-2.2B

MTZJ-T-77-22

MTZJ-T-77-33C

MTZJ-T-77-3.6B

MTZJ-T-77-4.7B

MTZJ-T-77-5.6B

MTZJ-T-77-6.8

MTZJ-T-77-7.5B

MTZJ-T-77-9.1

MTZJ-33C

RD5.6ESB2

RD9.1ESB2

PGKE200AG23

1SS119-25

1SS119-25TD

CATHODE

ANODE

ERC04-06SE

www.ELEKO.de

128

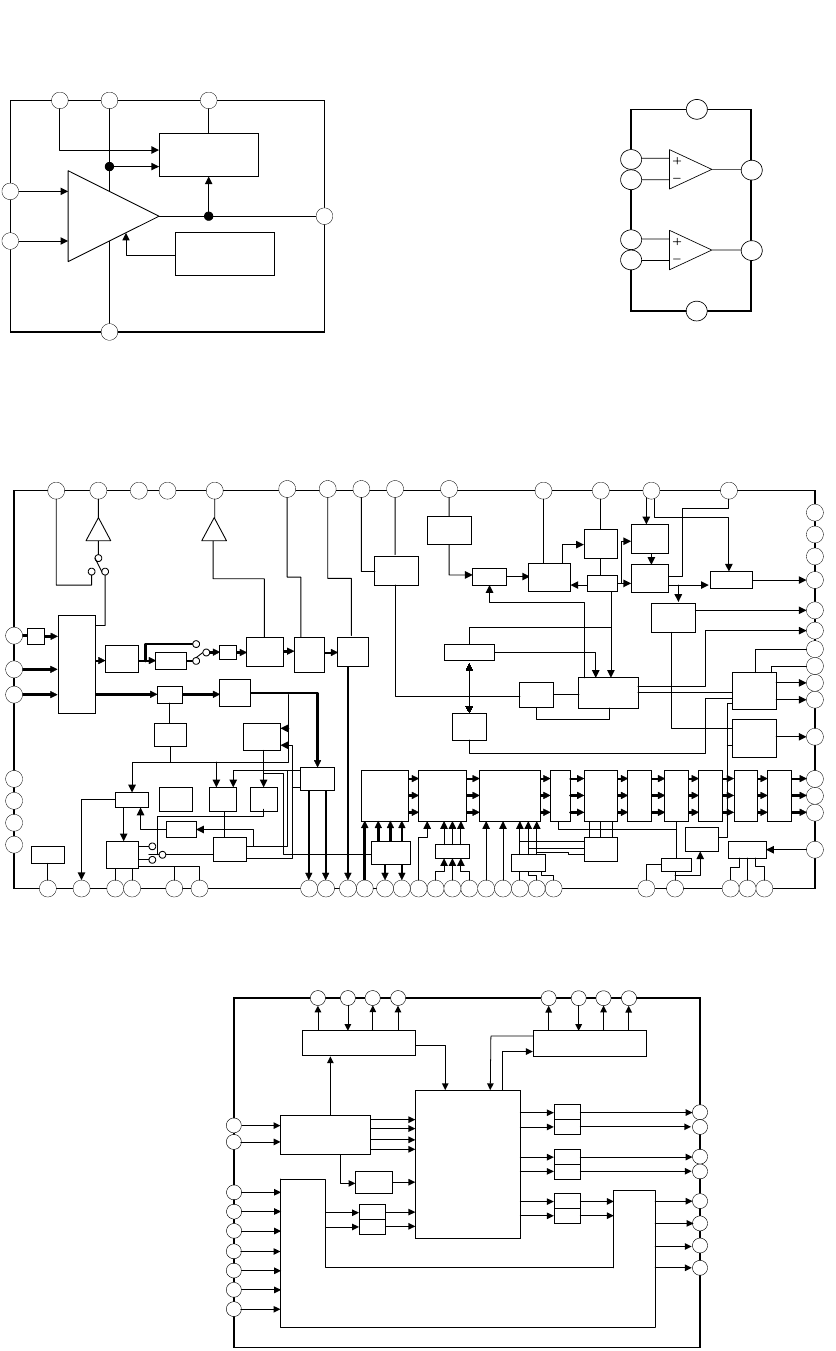

56 48

ACC

DET KILLER

DET

V SYNC

SEP G TE 1/32

50/60 ID

GATE

SAND

CASTLE

H.DRIVE

WIDE

Sawtooth

Gen.

INTER-

LACE

APC PAL/

NTSC fsc

I REF

HUE

CLP

CLP ABL

COMP AKB

51 50 49 54 52 45 46 47 40 41 39

252328291918171615121114616260

WIDE

Parabola

Gen.

Count Down

525/625

21141387654343

SUB

CONT TRAP

ACC

SHARP

NESS

PAL

DEM

TOT

DEM

A S

VCO

VIDEO

PIC

PHASE

DET

PHASE

SHIFT

PHASE

DET

H SYNC

SEP 32fH

VCO

SW YS/YM

SEP DC

TRAN

CLP

OSD

MIX

D-

COL

yBRT GB

DRV

CUT

OFF BLK

DIG

Y/C

MIX

COLOR

&AXIS

D PIC

FLYBACK

GENERATOR

THERMAL

PROTECTION

2 6 3

POWER

AMPLIFIER

5-5. IC BLOCK DIAGRAMS

DFP

DENT

SCART Switching Facilities

67 645

A D

D A

DEMODULATOR

SBUS Interface I2C Interface

D BOARD IC6700 STV 9379 J BOARD IC8101 TDA2822D

E BOARD IC4301 CXA2100Q-TL

J BOARD IC8200 MSP3410D-QA-B4

www.ELEKO.de

129

• Items with no part number and no description are not

stocked because they are seldom required for routine

service.

• The construction parts of an assembled part are indi-

cated with a collation number in the remarks column.

• Items marked “ * “ are not stocked

since they are seldom required for

routine service. Some delay should

be anticipated when ordering

these items.

SECTION 6

EXPLODED VIEWS

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

NOTE :

1 *A-1624-073-A F BOARD, COMPLETE (KV-29FS60)

*A-1624-075-A F BOARD, COMPLETE (KV-32FS60)

2 *4-204-551-01 BRACKET, F (KV-29FS60)

*4-204-551-11 BRACKET, F (KV-32FS60)

3 £ 1-571-433-21 SWITCH, PUSH (AC POWER)

4 *1-204-549-01 BRACKET, MAIN

5 *A-1640-342-A D BOARD (29”), COMPLETE (KV-29FS60)

*A-1640-326-A D BOARD (32”), COMPLETE (KV-32FS60)

6 £ 1-453-272-11 TRANSFORMER ASSY, FLYBACK

(NX-4512/U2B4)

7 4-204-476-01 BRACKET, J1

8 *A-1651-102-A J BOARD, COMPLETE (KV-29FS60A/29FS60D/

29FS60E/29FS60K/

29FS60R/29FS60U)

*A-1651-106-A J BOARD, COMPLETE (KV-29FS60B)

*A-1651-101-A J BOARD, COMPLETE (KV-32FS60A/32FS60D/

32FS60E)

*A-1651-107-A J BOARD, COMPLETE (KV-32FS60B)

9 *A-1640-320-A D1 BOARD, COMPLETE (KV-29FS60)

*A-1640-325-A D1 BOARD, COMPLETE (KV-32FS60)

10 *A-1640-319-A E BOARD, COMPLETE (KV-29FS60)

*A-1640-324-A E BOARD, COMPLETE (KV-32FS60)

11 *A-1648-018-A U BOARD, COMPLETE (KV-29FS60)

*A-1648-017-A U BOARD, COMPLETE (KV-32FS60)

12 *A-1620-117-A BP BOARD, COMPLETE (KV-29FS60)

*A-1620-115-A BP BOARD, COMPLETE (KV-32FS60)

13 4-204-477-01 BRACKET, J2

14 *A-1620-116-A B1 BOARD, COMPLETE (KV-29FS60)

*A-1620-114-A B1 BOARD, COMPLETE (KV-32FS60)

15 1-790-082-11 CABLE, RF

16 1-693-338-11 TUNER/VIF (AEP)

(KV-29FS60A/29FS60D/29FS60E/29FS60K

29FS60R/32FS60A/32FS60D/32FS60E)

1-693-340-11 TUNER/VIF (FR) (KV-29FS60B/32FS60B)

1-693-339-11 TUNER/VIF (UK) (KV-29FS60U)

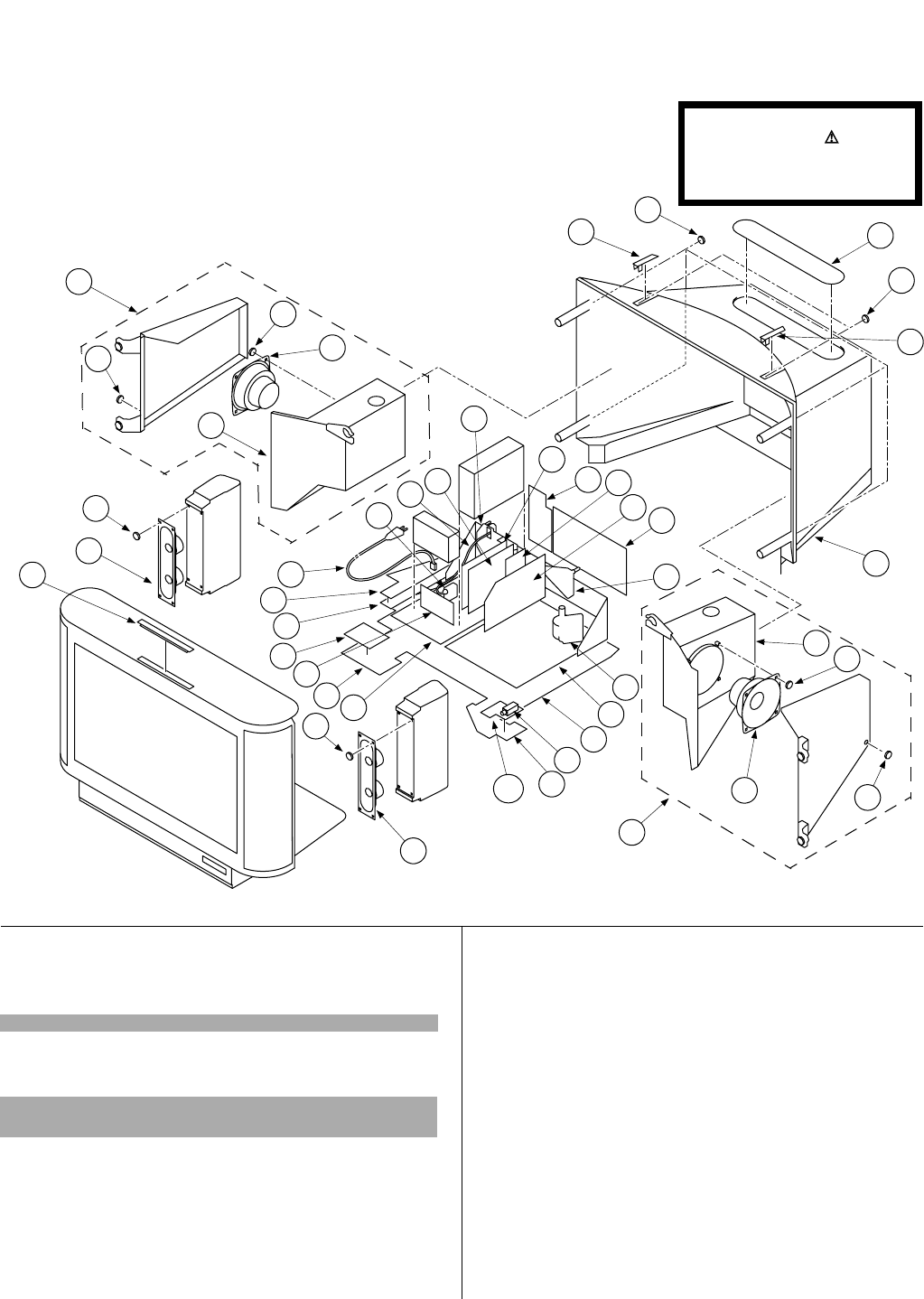

6-1. CHASSIS

11 10

9 8

2 23

www.ELEKO.de

130

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

17 £ 1-574-062-61 CORD, POWER (WITH CONNECTOR)

(KV-29FS60A/29FS60B/29FS60D/29FS60E/29FS60K/

29FS60R/32FS60A/32FS60B/32FS60D/32FS60E)

£ 1-590-762-21 CORD, POWER (WITH UK PLUG) (KV-29FS60U)

18 *A-1624-074-A F1 BOARD, COMPLETE (KV-29FS60)

*A-1624-076-A F1 BOARD, COMPLETE (KV-32FS60)

19 *4-204-552-01 BRACKET, F1

20 *A-1646-170-A H1 BOARD, COMPLETE (KV-29FS60)

*A-1646-174-A H1 BOARD, COMPLETE (KV-32FS60)

21 *A-1634-049-A M BOARD, COMPLETE (KV-29FS60)

*A-1634-048-A M BOARD, COMPLETE (KV-32FS60)

22 4-204-550-01 BRACKET, H (KV-29FS60)

4-204-550-11 BRACKET, H (KV-32FS60)

23 *A-1630-980-A A BOARD, COMPLETE

(KV-29FS60A/29FS60D/29FS60E/

29FS60K/29FS60R)

*A-1630-993-A A BOARD, COMPLETE (KV-29FS60B)

*A-1630-994-A A BOARD, COMPLETE (KV-29FS60U)

*A-1630-979-A A BOARD, COMPLETE (KV-32FS60A/32FS60D/

32FS60E)

*A-1630-995-A A BOARD, COMPLETE (KV-32FS60B)

24 4-039-358-01 SCREW (4X16), (+) BV TAPPING

25 1-529-153-11 SPEAKER (4.8X20CM)

26 1-771-599-11 SWITCH, ARRAY

27 A-1678-188-A WOOFER (R) ASSY 28-30

28 1-529-144-11 SPEAKER (13CM)

29 4-039-355-01 SCREW (4X12), (+) BV TAPPING

30 *A-1678-158-A WOOFER (R) ASSY, SP FX

31 *A-1678-157-A WOOFER (L) ASSY, SP FX

32 A-1678-150-A WOOFER (L) ASSY 28,29,31

33 4-204-508-01 COVER, REAR (KV-29FS60)

4-204-367-11 COVER, REAR (KV-32FS60)

34 4-204-460-01 COVER, SCREW (LEFT) (KV-29FS60)

4-204-369-01 COVER, SC EW (LEF ) (KV-32FS60)

35 4-302-404-03 SCREW (WASHE HEAD) (+P 4X16)

36 4-204-458-01 CO ER, PORT

37 4-039-461-01 COVER SCREW (RIGHT) (KV-29FS60)

4-204-370-0 COVER, SCREW (RIGHT) (KV-32FS60)

www.ELEKO.de

131

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

64 66

67 68

51 X-4200-423-1 BEZNET ASSY (KV-29FS60)

A-1605-585-A BEZNET ASSY (KV-32FS60)

52 4-204-473-01 GRILLE, SPEAKER (KV-29FS60)

4-204-368-01 GRILLE, SPEAKER (KV-32FS60)

53 4-042-192-11 CATCHER, PUSH (KV-29FS60)

4-042-192-01 CATCHER, PUSH (KV-32FS60)

54 4-204-492-01 WINDOW, ORNAMENTAL

55 4-204-438-01 BUTTON, POWER

56 4-202-964-11 SPRING

57 4-204-439-01 GUIDE, LIGHT

58 4-202-555-01 SHAFT, DOOR

59 4-204-435-21 DOOR

60 4-045-250-01 DAMPER

61 4-203-098-01 SUPPORTER, CRT (KV-32FS60A/32FS60B/

32FS60D/32FS60E)

62 £ 8-451-504-11 DEFLECTION YOKE Y29RSC-M (KV-29FS60)

£ 1-451-480-11 DEFLECTION YOKE Y32RVC2 (KV-32FS60)

63 1-452-896-11 COIL, NA ROTATION (RT200)

64 £ 8-453-011-11 NECK ASSY, NA299-M

65 *A-1644-094-A VM BOARD, COMPLETE (KV-29FS60)

*A-1644-095-A VM BOARD, COMPLETE (KV-32FS60)

66 *A-1638-123-A C BOARD, COMPLETE (KV-29FS60)

*A-1638-122-A C BOARD, COMPLETE (KV-32FS60)

67 4-200-433-01 SPRING, EXTENSION (KV-29FS60)

4-369-318-51 SPRING, TENSION (KV-32FS60)

6-2. PICTURE TUBE

www.ELEKO.de

132

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

68 £ 1-416-654-11 COIL, DEMAGNETIC (KV-29FS60)

£ 1-416-769-11 COIL, DEMAGNETIC (KV-32FS60)

69 *4-202-988-01 CUSHION, BOX

70 *4-060-802-01 HOLDER, DGC (KV-29FS60)

*4-059-569-01 HOLDER, DGC (KV-32FS60)

71 3-704-372-01 HOLDER, HV CABLE

72 £ 1-251-317-31 CAP ASSY, HIGH-VOLTAGE

73 3-704-495-01 SPACER, DY

74 £ 8-735-053-05 PICTURE TUBE (M68LNH060X) (KV-29FS60)

£ 8-735-054-05 PICTURE TUBE (W76LLZ060X) (SD-302)

(KV-32FS60)

75 4-036-188-01 SCREW, SELF TAPPING (KV-29FS60)

4-203-043-01 SCREW (PT) (KV-32FS60)

76 4-308-870-00 CLIP, LEAD WIRE

77 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM

78 1-425-032-00 MAGNET, DISK; 10MM

79 X-4387-214-1 PERMALLOY ASSY, CORRECTION

80 3-701-007-00 BAND, BINDING

www.ELEKO.de

133

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DE CRIPTIO REMARK

SECTION 7

ELECTRICAL PARTS LIST

• Items marked “ * “ are not stocked since

they are seldom required for routine serv-

ice. Some delay should be anticipated

when ordering these items.

•

• All variable and adjustable resistors have

characteristic curve B, unless otherwise

noted.

•RESISTORS

• All resistors are in ohms.

• F : nonflammable.

When indicating parts by reference number,

please include the board

name.

CAPACITORS COILS

MF : mF, PF : mmF MMH : mH , uH

*A-1620-116-A B1 BOARD, COMPLETE (KV-29FS60)

******************

*A-1620-114-A B1 BOARD, COMPLETE (KV-32FS60)

******************

< CAPACITOR >

C2301 1-126-934-11 ELECT 220MF 20% 16V

C2302 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2303 1-126-964-11 ELECT 10MF 20% 50V

C2304 1-163-125-00 CERAMIC CHIP 220PF 5% 50V

C2305 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C2306 1-163-125-00 CERAMIC CHIP 220PF 5% 50V

C2307 1-164-004-11 CERAMIC CHIP 0.1MF 10 2 V

C2308 1-163-125-00 CERAMIC CHIP 220PF 5% 50V

C2309 1-126-934-11 ELECT 220MF 20% 1 V

C2311 1-126-963-11 ELECT 4.7MF 20% 50V

C2312 1-126-963-11 ELECT 4 7MF 20% 50V

C2313 1-126-963-11 ELECT 4.7MF 20% 50V

C2314 1-163-141-00 CERAMIC CHIP 0 001MF 5% 50V

C2315 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V

C2316 1-110-501-11 CERAMI CHIP 33MF 10% 16V

C2317 1-162-638-11 CERAMIC CHIP 1MF 16V

C2318 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V

C2319 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V

C2320 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V

C2323 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C2324 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2325 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2327 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2328 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2329 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2330 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2331 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2332 1-163-105-00 CERAMIC CHIP 33PF 5% 50V

C2333 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C2334 1-126-964-11 ELECT 10MF 20% 50V

C2335 1-164-004-11 CERAM C CHIP 0.1MF 10% 25V

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C2337 1-163 125-00 CERAMIC CHIP 220PF 5% 50V

C2338 1-126-934-11 ELECT 220MF 20% 16V

C2339 1-164-00 -11 CERAMIC CHIP 0.47MF 25V

C23 0 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C 3 2 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C234 1-126-961-11 ELECT 2.2MF 20% 50V

C2344 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2 45 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2346 1-126-964-11 ELECT 10MF 20% 50V

C2347 1-163-097-00 CERAMIC CHIP 15PF 5% 50V

C2348 1-163-097-00 CERAMIC CHIP 15PF 5% 50V

C2349 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2350 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2351 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2354 1-126-934-11 ELECT 220MF 20% 16V

C2356 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2357 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2358 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2361 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2362 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2363 1-126-934-11 ELECT 220MF 20% 16V

C2364 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C2366 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C2367 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2368 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2371 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C2372 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2374 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C2377 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2378 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2380 1-163-145-00 CERAMIC CHIP 0.0015MF 5% 50V

C2381 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2382 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2383 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2385 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2387 1-136-250-11 FILM 0.001MF 2% 100V

www.ELEKO.de

134

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C2388 1-136-479-11 FILM 0.001MF 1% 100V

C2389 1-163-085-00 CERAMIC CHIP 2PF 0.25PF 50V

C2390 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C2391 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C2704 1-126-934-11 ELECT 220MF 20% 16V

C2705 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

< CONNECTOR >

CN2100 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P

< FILTER >

FL2300 1-236-071-11 ENCAPSULATED COMPONENT

FL2301 1-233-767-21 FILTER

FL2302 1-236-071-11 ENCAPSULATED COMPONENT

FL2303 1-236-071-11 ENCAPSULATED COMPONENT

FL2305 1-236-071-11 ENCAPSULATED COMPONENT

< IC >

IC2300 8-759-991-41 IC LM78L05ACZ

IC2301 8-759-295-09 IC TLC2932IPW

IC2302 8-759-257-59 IC TDA8755T-T

IC2303 8-759-438-64 IC SAA4952WP/V1

IC2304 8-759-546-02 IC SAA4995WP-V1-T3

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

IC2305 8-759-295-09 IC TLC2932IPW

IC2306 8-759-439-27 IC TMS4C2972-26DTR

IC2307 8-759-546-04 IC SAA4991WP-V1-T3

IC2309 8-759-439-27 IC TMS4C2972-28DTR

IC2310 8-759-991-41 IC LM78L05ACZ

IC2311 8-759-467-19 IC SDA9280B22

IC2314 8-759-439-26 IC SN74LS221D

< COIL >

L2300 1-408-597-31 INDUCTOR 3 3UH

L2301 1-410-435-21 INDUCTOR 220UH

L2302 1-410-435-21 INDUCTOR 220UH

L2303 1-408-597-31 INDUCTOR 3.3UH

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

L2304 1-414-186-31 INDUCTOR 33UH

L2305 1-408-603-31 INDUCTOR 10UH

L2306 1-414-186-31 INDUCTOR 33UH

L2307 1-414-384-11 INDUCTOR 5.6UH

< TRANSISTOR >

Q2301 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q2302 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q2303 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q2304 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q2305 8-729-216-22 TRANSISTOR 2SA1162-G

Q2306 8-729-216-22 TRANSISTOR 2SA1162-G

Q2307 8-729-216-22 TRANSISTOR 2SA1162-G

< RESISTOR >

R2300 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R2301 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R2302 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R2303 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R2304 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R2305 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R2306 1-216-295-91 SHORT 0

R2307 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2310 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2312 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2313 1-216-047-91 RES,CHIP 20 5% 1/10W

R2314 1-216-063-91 RES,CHIP 3.9K 5% 1/10W

R2315 1-216-113-00 RES,CHI 470K 5% 1/10W

R2316 1-216-073-00 RES,CHIP 10K 5% 1/10W

R2317 1-216-025 1 RES,CHIP 100 5% 1/10W

R2320 1-216-2 5-91 SHOR 0

R2321 1- 16-295 91 SHORT 0

R2334 1- 33-574-11 RES, CHIP NETWORK 10

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

R23 1 233-574-11 RES, CHIP NETWORK 10

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

R23 6 1-233-574-11 RES, CHIP NETWORK 10

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

R2337 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2338 1-216-295-91 SHORT 0

R2341 1-216-295-91 SHORT 0

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R2342 1-216-295-91 SHORT 0

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

R2345 1-216-025-91 RES,CHIP 100 5% 1/10W

R2348 1-216-089-91 RES,CHIP 47K 5% 1/10W

R2354 1-216-295-91 SHORT 0

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

R2355 1-216-295-91 SHORT 0

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R2356 1-216-063-91 RES,CHIP 3.9K 5% 1/10W

R2358 1-216-295-91 SHORT 0

R2359 1-216-001-00 RES,CHIP 10 5% 1/10W

R2360 1-216-085-00 RES,CHIP 33K 5% 1/10W

R2361 1-216-085-00 RES,CHIP 33K 5% 1/10W

R2364 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R2365 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R2366 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R2367 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R2368 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

www.ELEKO.de

135

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R2369 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R2370 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R2371 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R2372 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R2373 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R2374 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2375 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2376 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2377 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2378 1-216-029-00 RES,CHIP 150 5% 1/10W

R2379 1-216-076-00 RES,CHIP 13K 5% 1/10W

R2380 1-216-073-00 RES,CHIP 10K 5% 1/10W

R2381 1-216-021-00 RES,CHIP 68 5% 1/10W

R2382 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2383 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2384 1-216-021-00 RES,CHIP 68 5% 1/10W

R2385 1-216-037-00 RES,CHIP 330 5% 1/10W

R2386 1-216-295-91 SHORT 0

R2387 1-216-027-00 RES,CHIP 120 5% 1/10W

R2388 1-216-037-00 RES,CHIP 330 5% 1/10W

R2389 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R2390 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2391 1-216-025-91 RES,CHIP 100 5% 1/10W

R2392 1-216-295-91 SHORT 0

R2393 1-216-295-91 SHORT 0

R2394 1-216-295-91 SHORT 0

R2395 1-216-295-91 SHORT 0

R2396 1-216-295-91 SHORT 0

R2397 1-216-295-91 SHORT 0

R2398 1-216-295-91 SHORT 0

R2410 1-216-037-00 RES,CHIP 330 5% 1/10W

R2411 1-216-037-00 RES,CHIP 33 5% 1/10W

R2412 1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W

R2413 1-216-664-11 METAL CHIP 3.6K 0.50% 1/10W

R2415 1-216-295-91 SHORT 0

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R2416 1-216-295-91 SHORT 0

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

R2711 1-216-001-00 RES,CHIP 10 5% 1/10W

R2712 1-216-295-91 SHORT 0

R2713 1-216-295-91 SHORT 0

R2714 1-216-295-91 SHORT 0

R2715 1-216-295-91 SHORT 0

R2716 1-216-295-91 SHORT 0

R2717 1-216-295-91 SHORT 0

R2718 1-216-295-91 SHORT 0

R2719 1-216-295-91 SHORT 0

R2720 1-216-295-91 SHORT 0

R2721 1-216-295-91 SHORT 0

R2722 1-216-295-91 SHORT 0

R2723 1-216-027-00 RES,CHIP 120 5% 1/10W

R2724 1-216-295-91 SHORT 0

R2725 1-216-021-00 RES,CHIP 68 5% 1/10W

R2726 1-216-295-91 SHORT 0

R2727 1-216-295-91 SHORT 0

R2734 1-216-295-91 SHORT 0

R2735 1-216-021-00 RES,CHIP 68 5% 1/10W

R2736 1-216-295-91 SHORT 0

R2738 1-216-025-91 RES,CHIP 100 5% 1/10W

< CRYSTAL >

X2300 1-579-175-11 VIBRATOR, CE AMIC

**************************** **** *** **********************

*A-1620-117-A B BOAR , COMPLETE (KV-29FS60)

*****************

A-1620-115 A BP BOARD, COMPLETE (KV-32FS60)

*****************

< CAPACITOR >

C300 1-164-222-11 CERAMIC CHIP 0.22MF 25V

C301 1-164-222-11 CERAMIC CHIP 0.22MF 25V

C302 1-164-222-11 CERAMIC CHIP 0.22MF 25V

C303 1-164-222-11 CERAMIC CHIP 0.22MF 25V

C304 1-164-222-11 CERAMIC CHIP 0.22MF 25V

C305 1-126-967-11 ELECT 47MF 20% 50V

C306 1-126-967-11 ELECT 47MF 20% 50V

C307 1-126-967-11 ELECT 47MF 20% 50V

C308 1-126-964-11 ELECT 10MF 20% 50V

C309 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C310 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C311 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C312 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C313 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C314 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C315 1-126-964-11 ELECT 10MF 20% 50V

C316 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C317 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C318 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C319 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C320 1-126-967-11 ELECT 47MF 20% 50V

C321 1-126-967-11 ELECT 47MF 20% 50V

C322 1-126-967-11 ELECT 47MF 20% 50V

C323 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C324 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C325 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C326 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C327 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C328 1-126-964-11 ELECT 10MF 20% 50V

C329 1-126-964-11 ELECT 10MF 20% 50V

C330 1-126-964-11 ELECT 10MF 20% 50V

BPB1

www.ELEKO.de

136

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C331 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C332 1-126-964-11 ELECT 10MF 20% 50V

C333 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C334 1-126-964-11 ELECT 10MF 20% 50V

C335 1-126-964-11 ELECT 10MF 20% 50V

C336 1-126-964-11 ELECT 10MF 20% 50V

C337 1-126-964-11 ELECT 10MF 20% 50V

C338 1-126-964-11 ELECT 10MF 20% 50V

C339 1-126-964-11 ELECT 10MF 20% 50V

C340 1-126-964-11 ELECT 10MF 20% 50V

C341 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C342 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C343 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C344 1-126-964-11 ELECT 10MF 20% 50V

C345 1-126-964-11 ELECT 10MF 20% 50V

C346 1-126-964-11 ELECT 10MF 20% 50V

C347 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C348 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C349 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C350 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C351 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C352 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C353 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C354 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C355 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C357 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50

C358 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C359 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V

C361 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C362 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C363 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C364 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C365 1-126-964-11 ELECT 1 MF 0% 50V

C366 1-126-964-11 ELECT 10MF 20% 50V

C367 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C368 1-163-038-91 CERAMIC CHIP .1MF 25V

C369 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C370 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C371 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C372 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C373 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C374 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C375 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C376 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C377 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C378 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C379 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C380 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C381 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C382 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C383 1-163-099-00 CERAMIC CHIP 18PF 5% 50V

C384 1-126-964-11 ELECT 10MF 20% 50V

C385 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C386 1-126-964-11 ELECT 10MF 20% 50V

C387 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C388 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C389 1-126-964-11 ELECT 10MF 20% 50V

C391 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C392 1-126-964-11 ELECT 10MF 20% 50V

C393 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C394 1-126-964-11 ELECT 10MF 20% 50V

C395 1-126-933-11 ELECT 100MF 20% 16V

C396 1-126-933-11 ELECT 10 MF 20% 16V

C397 1-126-933-11 ELECT 100MF 20% 16V

C398 1-163-239-11 CERAMIC CH 33PF 5% 50V

C399 1-163-038-91 CERAMIC CHIP 0. MF 25V

C400 1-163-038 1 ERAMIC CHIP 0.1MF 25V

C401 1-163-0 8-91 CERAMIC CHIP 0.1MF 25V

C402 1-126-9 4-11 ELECT 10MF 20% 50V

C403 1- 63-038 91 CER MIC CHIP 0.1MF 25V

C404 1- 07-823-11 CERAMIC CHIP 0.47MF 10% 16V

C405 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V

406 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C40 1 163-235-11 CERAMIC CHIP 22PF 5% 50V

C408 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C409 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C410 1-163-038-91 CERAMIC CHIP 0.1MF 25V

< CONNECTOR >

CN300 1-695-300-11 CONNECTOR, BOARD TO BOARD 20P

CN301 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P

< FILTER >

FL300 1-233-505-21 FILTER, LOW PASS

FL301 1-233-505-21 FILTER, LOW PASS

FL302 1-236-071-11 ENCAPSULATED COMPONENT

FL303 1-236-071-11 ENCAPSULATED COMPONENT

FL304 1-236-071-11 ENCAPSULATED COMPONENT

FL305 1-233-446-11 FILTER, LOW PASS

FL306 1-233-446-11 FILTER, LOW PASS

FL307 1-233-446-11 FILTER, LOW PASS

< IC >

IC300 8-752-067-36 IC CXA1815S

IC301 8-759-485-79 IC TC7SET08FU(TE85L)

IC302 8-759-295-09 IC TLC2932IPW

IC303 8-752-392-55 IC CXD2079Q

IC304 8-759-295-09 IC TLC2932IPW

IC305 8-759-485-79 IC TC7SET08FU(TE85L)

IC306 8-759-467-22 IC MSM548331TS-K

IC307 8-759-467-22 IC MSM548331TS-K

IC308 8-759-485-79 IC TC7SET08FU(TE85L)

www.ELEKO.de

137

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

IC309 8-759-295-09 IC TLC2932IPW

IC311 8-759-062-66 IC TC7S66F

IC312 8-759-062-66 IC TC7S66F

< COIL >

L300 1-412-029-11 INDUCTOR CHIP 10UH

L301 1-410-435-21 INDUCTOR 220UH

L302 1-410-435-21 INDUCTOR 220UH

L303 1-412-029-11 INDUCTOR CHIP 10UH

L304 1-410-435-21 INDUCTOR 220UH

L305 1-410-435-21 INDUCTOR 220UH

L306 1-412-029-11 INDUCTOR CHIP 10UH

L307 1-412-029-11 INDUCTOR CHIP 10UH

L308 1-412-029-11 INDUCTOR CHIP 10UH

L309 1-412-029-11 INDUCTOR CHIP 10UH

L311 1-412-029-11 INDUCTOR CHIP 10UH

L312 1-412-029-11 INDUCTOR CHIP 10UH

L313 1-412-029-11 INDUCTOR CHIP 10UH

L314 1-412-029-11 INDUCTOR CHIP 10UH

L315 1-412-029-11 INDUCTOR CHIP 10UH

L316 1-412-029-11 INDUCTOR CHIP 10UH

L317 1-412-029-11 INDUCTOR CHIP 10UH

L318 1-412-029-11 INDUCTOR CHIP 10UH

L319 1-412-029-11 INDUCTOR CHIP 10UH

L320 1-412-029-11 INDUCTOR CHIP 10UH

L321 1-412-004-31 INDUCTOR CHIP 6.8UH

L322 1-412-004-31 INDUCTOR CHIP 6.8UH

L323 1-412-004-31 INDUCTOR CHIP 6.8UH

< TRANSISTOR >

Q300 8-729-620-06 TRANSISTOR 2SC3 52-EF

Q301 8-729-620-06 TRANSISTOR SC3052-EF

Q302 8-729-620-06 TRANSISTOR 2 C3052 EF

Q303 8-729-620-06 TRANSI TOR 2SC3052-EF

Q304 8-729-620-06 TR NSISTOR 2SC3052-EF

Q305 8-729-620-06 TRAN STOR 2SC3052-EF

Q306 8-729-216-22 TRANSISTOR 2SA1162-G

Q307 8-729-216-22 TRANSISTOR 2SA1162-G

Q308 8-729-216-22 TRANSISTOR 2SA1162-G

Q309 8-729-216-22 TRANSISTOR 2SA1162-G

Q310 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q311 8-729-216-22 TRANSISTOR 2SA1162-G

Q312 8-729-216-22 TRANSISTOR 2SA1162-G

Q313 8-729-216-22 TRANSISTOR 2SA1162-G

Q314 8-729-216-22 TRANSISTOR 2SA1162-G

Q315 8-729-620-06 TRANSISTOR 2SC3052-EF

Q316 8-729-216-22 TRANSISTOR 2SA1162-G

Q317 8-729-620-06 TRANSISTOR 2SC3052-EF

Q318 8-729-216-22 TRANSISTOR 2SA1162-G

Q319 8-729-216-22 TRANSISTOR 2SA1162-G

Q320 8-729-620-06 TRANSISTOR 2SC3052-EF

Q322 8-729-620-06 TRANSISTOR 2SC3052-EF

Q324 8-729-620-06 TRANSISTOR 2SC3052-EF

Q325 8-729-620-06 TRANSISTOR 2SC3052-EF

Q326 8-729-216-22 TRANSISTOR 2SA1162-G

Q327 8-729-216-22 TRANSISTOR 2SA1162-G

Q328 8-729-216-22 TRANSISTOR 2SA1162-G

Q329 1-801-806-11 TRANSISTOR DTC144EKA-T146

< RESISTOR >

R300 1-216-049-91 RES,CHIP 1K 5% 1/10W

R301 1-216-049-91 RES,CHIP 1K 5% 1/10W

R302 1-216-642-11 METAL CHIP 430 0.50% 1/10W

R303 1-216-045-00 RES,CHIP 80 5% 1/10W

R304 1-216-045-00 RES,CHIP 680 5% 1/10W

R305 1-216-656-11 METAL CHIP 1.6K 0.50% 1/10W

R306 1 216 37-00 RES,CHIP 330 5% 1/10W

R307 1-216-037 00 RES,CHIP 330 5% 1/10W

R308 1-216-643- 1 METAL CHIP 470 0.50% 1/10W

R309 1 216-045 00 RES,CHIP 680 5% 1/10W

R310 1 216-045-00 RES,CHIP 680 5% 1/10W

R311 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R312 1-216-654-11 METAL CHIP 1.3K 0.50% 1/10W

R313 1-216-037-00 RES,CHIP 330 5% 1/10W

R314 1-216-037-00 RES,CHIP 330 5% 1/10W

R315 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R316 1-216-663-11 METAL CHIP 3.3K 0.50% 1/10W

R317 1-216-049-91 RES,CHIP 1K 5% 1/10W

R318 1-216-049-91 RES,CHIP 1K 5% 1/10W

R319 1-216-025-91 RES,CHIP 100 5% 1/10W

R320 1-216-025-91 RES,CHIP 100 5% 1/10W

R321 1-216-041-00 RES,CHIP 470 5% 1/10W

R322 1-216-041-00 RES,CHIP 470 5% 1/10W

R323 1-216-041-00 RES,CHIP 470 5% 1/10W

R324 1-216-017-91 RES,CHIP 47 5% 1/10W

R325 1-216-025-91 RES,CHIP 100 5% 1/10W

R326 1-216-663-11 METAL CHIP 3.3K 0.50% 1/10W

R327 1-216-049-91 RES,CHIP 1K 5% 1/10W

R328 1-216-049-91 RES,CHIP 1K 5% 1/10W

R329 1-216-025-91 RES,CHIP 100 5% 1/10W

R330 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R331 1-216-025-91 RES,CHIP 100 5% 1/10W

R332 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R333 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R336 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R337 1-216-049-91 RES,CHIP 1K 5% 1/10W

R338 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R339 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R340 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R341 1-216-049-91 RES,CHIP 1K 5% 1/10W

R342 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R343 1-216-623-11 METAL CHIP 68 0.50% 1/10W

www.ELEKO.de

138

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R344 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R345 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R346 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R347 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R351 1-216-049-91 RES,CHIP 1K 5% 1/10W

R352 1-216-025-91 RES,CHIP 100 5% 1/10W

R353 1-216-049-91 RES,CHIP 1K 5% 1/10W

R357 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R358 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R359 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R360 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R361 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R362 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R363 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R364 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R365 1-216-623-11 METAL CHIP 68 0.50% 1/10W

R368 1-216-025-91 RES,CHIP 100 5% 1/10W

R369 1-216-025-91 RES,CHIP 100 5% 1/10W

R371 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R372 1-216-049-91 RES,CHIP 1K 5% 1/10W

R373 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R374 1-216-033-00 RES,CHIP 220 5% 1/10W

R375 1-216-037-00 RES,CHIP 330 5% 1/10W

R376 1-216-117-00 RES,CHIP 680K 5% 1/10W

R377 1-216-041-00 RES,CHIP 470 5% 1/10W

R378 1-216-041-00 RES,CHIP 470 5% 1/10W

R379 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R380 1-216-033-00 RES,CHIP 220 5% 1/10W

R381 1-216-117-00 RES,CHIP 680K 5% 1/10W

R382 1-216-037-00 RES,CHIP 330 5% 1/ 0W

R383 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R385 1-216-667-11 METAL CHIP 4.7K 0 50% 1/10W

R386 1-216-025-91 RES,CHIP 100 5% 1/10W

R387 1-216-643-11 METAL CHIP 470 0 50% 1/10W

R388 1-216-025-91 RES,CHIP 100 5% 1/10W

R389 1-216-025-91 RES,CHIP 100 5% 1/10W

R390 1-216-663-11 METAL CHIP 3.3K 0.50% 1/10W

R391 1-216-651-11 METAL CHIP 1K 0.50% 1/10W

R393 1-216-037-00 RES,CHIP 330 5% 1/10W

R394 1-216-033-00 RES,CHIP 220 5% 1/10W

R395 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R396 1-216-636-11 METAL CHIP 240 0.50% 1/10W

R397 1-216-636-11 METAL CHIP 240 0.50% 1/10W

R398 1-216-049-91 RES,CHIP 1K 5% 1/10W

R399 1-216-025-91 RES,CHIP 100 5% 1/10W

R400 1-216-638-11 METAL CHIP 300 0.50% 1/10W

R401 1-216-025-91 RES,CHIP 100 5% 1/10W

R402 1-216-025-91 RES,CHIP 100 5% 1/10W

R403 1-216-025-91 RES,CHIP 100 5% 1/10W

R404 1-216-017-91 RES,CHIP 47 5% 1/10W

R405 1-216-017-91 RES,CHIP 47 5% 1/10W

R406 1-216-017-91 RES,CHIP 47 5% 1/10W

R407 1-216-025-91 RES,CHIP 100 5% 1/10W

R408 1-216-017-91 RES,CHIP 47 5% 1/10W

R409 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R410 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R411 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R412 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R413 1-216-041-00 RES,CHIP 470 5% 1/10W

R414 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R415 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R417 1-216-117-00 RES,CHIP 680K 5% 1/10W

R418 1-216-033-00 RES,CHIP 2 0 % 1/10W

R419 1-216-037-00 RES,CHIP 30 5% 1/10W

R420 1-216-033-00 RES,CHIP 220 5% 1/10W

R421 1-216-037-00 RES,CHI 3 0 5% 1/10W

R422 1-216-017 1 ES,CHIP 47 5% 1/10W

R423 1-216-0 7-91 RES,CHIP 47 5% 1/10W

R424 1-216-0 7-91 RES, HIP 47 5% 1/10W

R425 1- 16-017 91 RES,CHIP 47 5% 1/10W

R426 1- 16-017-91 RES,CHIP 47 5% 1/10W

R427 1-216-017-91 RES,CHIP 47 5% 1/10W

429 1-216-295-91 SHORT 0

R43 1 216-029-00 RES,CHIP 150 5% 1/10W

R432 1-216-029-00 RES,CHIP 150 5% 1/10W

R433 1-216-029-00 RES,CHIP 150 5% 1/10W

R434 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R436 1-216-049-91 RES,CHIP 1K 5% 1/10W

R438 1-216-041-00 RES,CHIP 470 5% 1/10W

R439 1-216-653-11 METAL CHIP 1.2K 0.50% 1/10W

R440 1-216-049-91 RES,CHIP 1K 5% 1/10W

R441 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R442 1-216-041-00 RES,CHIP 470 5% 1/10W

R444 1-216-049-91 RES,CHIP 1K 5% 1/10W

R445 1-216-041-00 RES,CHIP 470 5% 1/10W

R447 1-216-049-91 RES,CHIP 1K 5% 1/10W

R448 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R449 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R450 1-216-049-91 RES,CHIP 1K 5% 1/10W

R451 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R452 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R453 1-216-049-91 RES,CHIP 1K 5% 1/10W

R454 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R455 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R456 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R457 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R458 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R459 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R460 1-216-041-00 RES,CHIP 470 5% 1/10W

R461 1-216-037-00 RES,CHIP 330 5% 1/10W

R462 1-216-037-00 RES,CHIP 330 5% 1/10W

R463 1-216-041-00 RES,CHIP 470 5% 1/10W

www.ELEKO.de

139

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

R464 1-216-638-11 METAL CHIP 330 0.50% 1/10W

R465 1-216-636-11 METAL CHIP 240 0.50% 1/10W

R466 1-216-049-91 RES,CHIP 1K 5% 1/10W

R468 1-216-017-91 RES,CHIP 47 5% 1/10W

R469 1-216-017-91 RES,CHIP 47 5% 1/10W

R470 1-216-017-91 RES,CHIP 47 5% 1/10W

R471 1-216-033-00 RES,CHIP 220 5% 1/10W

R472 1-216-033-00 RES,CHIP 220 5% 1/10W

R473 1-216-033-00 RES,CHIP 220 5% 1/10W

R474 1-216-033-00 RES,CHIP 220 5% 1/10W

R475 1-216-033-00 RES,CHIP 220 5% 1/10W

R476 1-216-033-00 RES,CHIP 220 5% 1/10W

< CRYSTAL >

X300 1-767-262-31 VIBRATOR, CRYSTAL

*************************************************************

*A-1624-073-A F BOARD, COMPLETE (KV-29FS60)

*****************

*A-1624-075-A F BOARD, COMPLETE (KV-32FS60)

*****************

*4-203-258-11 HOLDER, LED

< CAPACITOR >

C7125 1-126-969-11 ELECT 220MF 2 % 5 V

< CONNECTOR >

CN7100 *1-568-879-11 PIN, CONNECTOR 4P

CN7600 £ *1-691-291-11 PIN, CONNECTOR (PC BO RD) 5P

CN7644 £ *1-580-844-11 PIN, CONNECTOR (POWER)

< DIODE >

D7125 8-719-030-11 DIODE SLA-570KT3F

< IC >

IC7125 8-749-014-59 IC TSOP1740KS1

< RESISTOR >

R7125 1-247-815-91 CARBON 220 5% 1/4W

R7126 1-249-411-11 CARBON 330 5% 1/4W

< SWITCH >

S7601 £ 1-571-433-21 SWITCH, PUSH (AC POWER)

*A-1624-074-A F1 BOARD, COMPLETE (KV-29FS60)

******************

*A-1624-076-A F1 BOARD, COMPLETE (KV-32FS60)

******************

< CAPACITOR >

C7626 £ 1-136-527-12 FILM 0.47MF 20% 300V

< CONNECTOR >

CN7611 £ *1-580-844-11 PIN, CONNECTOR (POWER)

CN7622 1-695-915-11 TAB (CONTACT)

CN7633 £ *1-580-843-11 PIN, CONNECT R (POWER)

< FUSE >

F7626 £ 1-532-299-11 F SE 5A 250V

£ *1 33 25-11 HOLDER, FUSE (F7626)

< FILTER >

LF762 £ 1-433-488-11 TRANSFORMER, LINE FILTER

< RESISTOR >

R762 £ 1-202-719-00 SOLID 1M 20% 1/2W

< VARISTOR >

VDR762 £ 1-801-073-31 VARISTOR ERZV14D471

*********************************************************************

*A-1630-980-A A BOARD, COMPLETE (KV-29FS60A/29FS60D/

****************** 29FS60E/29FS60K/

29FS60R)

*A-1630-993-A A BOARD, COMPLETE (KV-29FS60B)

*****************

*A-1630-994-A A BOARD, COMPLETE (KV-29FS60U)

*****************

*A-1630-979-A A BOARD, COMPLETE (KV-32FS60A/32FS60D/

***************** 32FS60E)

*A-1630-995-A A BOARD, COMPLETE (KV-32FS60B)

*****************

4-204-625-01 HEAT SINK, AUDIO

4-382-854-11 SCREW (M3X10), P, SW (+)

*4-931-401-01 HEAT SINK, V.OUT

< CAPACITOR >

C1100 1-104-664-11 ELECT 47MF 20% 25V

C1101 1-104-666-11 ELECT 220MF 20% 25V

C1126 1-162-568-11 CERAMIC CHIP 0.33MF 10% 16V

C1127 1-136-177-00 FILM 1MF 5% 50V

C1128 1-163-135-00 CERAMIC CHIP 560PF 5% 50V

C1129 1-130-777-00 FILM 0.1MF 5% 63V

C1130 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C1131 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

BP F1 A

www.ELEKO.de

140

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C1132 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C1133 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1134 1-126-961-11 ELECT 2.2MF 20% 50V

C1135 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1136 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1137 1-126-953-11 ELECT 2200MF 20% 35V

C1138 1-126-953-11 ELECT 2200MF 20% 35V

C1139 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V

C1140 1-111-216-91 ELECT 150MF 20% 63V

C1151 1-162-568-11 CERAMIC CHIP 0.33MF 10% 16V

C1152 1-136-177-00 FILM 1MF 5% 50V

C1153 1-163-135-00 CERAMIC CHIP 560PF 5% 50V

C1154 1-130-777-00 FILM 0.1MF 5% 63V

C1155 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C1156 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1157 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C1158 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1159 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1160 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1161 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V

C1162 1-111-216-91 ELECT 150MF 20% 63V

C1176 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1177 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1178 1-126-964-11 ELECT 10MF 20% 50V

C1179 1-126-964-11 ELECT 10MF 20% 50V

C1180 1-126-952-11 ELECT 1000MF 20% 35

C1181 1-126-952-11 ELECT 1000MF 20% 35V

C1182 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1183 1-164-004-11 CERAMIC CHIP 0.1MF 10% 5V

C1184 1-107-823-11 CERAMIC CHIP 0.47MF 10 1 V

C1185 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C1226 1-104-661-91 ELECT 330MF 20% 16V

C1300 1-126-933-11 ELECT 1 0MF 0% 16V

C1301 1-163-059-91 CERAMIC CHIP 0 01MF 10% 50V

C1326 1-163-059-91 CERAMIC CH P 0.01MF 10% 50V

C1327 1-126-934-11 ELECT 20MF 20% 10V

C1328 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C1350 1-163-059-91 CERAMIC CHIP 0.01MF 10% 50V

C1351 1-126-934-11 ELECT 220MF 20% 10V

C1601 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1602 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1603 1-126-933-11 ELECT 100MF 20% 16V

C1604 1-126-933-11 ELECT 100MF 20% 16V

C1605 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1607 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1608 1-126-934-11 ELECT 220MF 20% 16V

C1609 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1610 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1611 1-126-933-11 ELECT 100MF 20% 16V

C1612 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1613 1-126-933-11 ELECT 100MF 20% 16V

C1614 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1615 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C1617 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

< CONNECTOR >

CN1111 *1-564-520-11 PLUG, CONNECTOR 5P

CN1200 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P

CN1300 1-695-297-11 CONNECTOR, BOARD TO BOARD 20P

CN1301 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P

CN1401 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P

CN1402 1-573-296-11 CONNECTOR, BOARD TO BOARD 10P

(KV-29FS60B/32FS60B)

CN1600 1-900-903-64 CONNECTOR ASSY 20P

CN1601 1-900-903-64 CONNECTOR SY, 2 P

CN1602 1-900-903-64 CONNECT R ASSY, 20P

CN1700 *1-568-879 11 IN, CONNECTOR 4P

CN1701 1-573-2 6-11 CONNECTOR, BOARD TO BOARD 10P

CN1702 *1-568-8 0-51 PIN, CONNECTOR 5P

CN1703 *1- 64-514 11 PLU , CONNECTOR 11P

CN1801 1- 95-299-11 CONNECTOR, BOARD TO BOARD 50P

CN1901 1- 95-298-11 CONNECTOR, BOARD TO BOARD 40P

< COMPOSITION CIRCUIT BLOCK >

CP1300 1-251-658-11 SPLITTER RF

< DIODE >

D1100 8-719-914-43 DIODE DAN202K

D1101 8-719-914-44 DIODE DAP202K

D1102 8-719-914-43 DIODE DAN202K

D1103 8-719-914-43 DIODE DAN202K

D1401 8-719-105-99 DIODE RD6.2M-B1

D1402 8-719-105-99 DIODE RD6.2M-B1

D1403 8-719-105-99 DIODE RD6.2M-B1

D1404 8-719-105-99 DIODE RD6.2M-B1

D1626 8-719-914-43 DIODE DAN202K

D1627 8-719-914-43 DIODE DAN202K

D1629 8-719-914-43 DIODE DAN202K

< FERRITE BEAD >

FB1126 1-535-143-61 LEAD, JUMPER (5.0MM)

FB1151 1-535-143-61 LEAD, JUMPER (5.0MM)

< IC >

IC1126 8-759-544-25 IC TDA7482

IC1151 8-759-544-25 IC TDA7482

IC1176 8-759-333-24 IC LM1876TF

IC1400 8-752-072-94 IC CXA1875AM-T4

IC1401 8-759-439-64 IC HEF4053BT

IC1601 8-759-457-44 IC KA78R05TU

IC1602 8-759-544-09 IC KA278R05TU

www.ELEKO.de

141

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

IC1603 8-759-295-82 IC L78L08ACZ-AP

IC1604 8-759-544-13 IC KA78R09TU

IC1605 8-759-544-11 IC KA78R33TU

< COIL >

L1126 1-416-966-11 CHOKE, COIL 30uH

L1127 1-414-158-11 INDUCTOR 2.2UH

L1128 1-535-143-61 LEAD, JUMPER (5.0MM)

L1151 1-416-966-11 CHOKE, COIL 30uH

L1152 1-414-158-11 INDUCTOR 2.2UH

L1153 1-535-143-61 LEAD, JUMPER (5.0MM)

L1300 1-414-183-41 INDUCTOR 10UH

L1326 1-414-183-41 INDUCTOR 10UH

L1350 1-414-183-41 INDUCTOR 10UH

< TRANSISTOR >

Q1100 8-729-216-22 TRANSISTOR 2SA1162-G

Q1201 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1202 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1203 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1204 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1226 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1227 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1229 8-729-027-38 TRANSISTOR DTA144EKA-T146

Q1300 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q1326 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1327 8-729-216-22 TRANSISTOR 2SA1162-G

Q1328 8-729-620-06 TRANSISTOR 2SC3052-EF

Q1329 8-729-216-22 TRANSISTOR 2SA1162-G

Q1350 8-729-620-06 TRANSISTOR 2SC3052-E

Q1351 8-729-216-22 TRANSISTOR 2SA1162-G

Q1400 8-729-046-47 TRANSISTOR KSC25 0-BTA

Q1601 8-729-620-06 TRANSISTOR 2 C305 EF

Q1626 8-729-620-06 TRANSI TOR 2S 3052-EF

< RESISTO >

R1001 1-216-295-91 SHORT 0

R1002 1-216-295-91 SHORT 0

R1003 1-216-295-91 SHORT 0

R1004 1-216-295-91 SHORT 0

R1005 1-216-295-91 SHORT 0

R1006 1-216-295-91 SHORT 0

R1100 1-216-025-91 RES,CHIP 100 5% 1/10W

R1101 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R1102 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R1126 1-216-631-11 METAL CHIP 150 0.50% 1/10W

R1127 1-216-075-00 RES,CHIP 12K 5% 1/10W

R1128 1-216-041-00 RES,CHIP 470 5% 1/10W

R1151 1-216-631-11 METAL CHIP 150 0.50% 1/10W

R1152 1-216-075-00 RES,CHIP 12K 5% 1/10W

R1153 1-216-041-00 RES,CHIP 470 5% 1/10W

R1176 1-216-063-91 RES,CHIP 3.9K 5% 1/10W

R1177 1-216-063-91 RES,CHIP 3.9K 5% 1/10W

R1178 1-216-357-00 METAL OXIDE 4.7 5% 1W F

R1179 1-216-357-00 METAL OXIDE 4.7 5% 1W F

R1180 1-216-081-00 RES,CHIP 22K 5% 1/10W

R1181 1-216-045-00 RES,CHIP 680 5% 1/10W

R1182 1-216-081-00 RES,CHIP 22K 5% 1/10W

R1183 1-216-045-00 RES,CHIP 680 5% 1/10W

R1184 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1185 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1201 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1202 1-216-083-00 RES,CHI 27K 5% 1/10W

R1203 1-216-083-00 RES,CHIP 7K 5% 1/10W

R1204 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R1205 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1206 1 216 73-00 RES,CHIP 10K 5% 1/10W

R1207 1-216-065 91 RES,CHIP 4.7K 5% 1/10W

R1208 1-216-089- 1 RES,CHIP 47K 5% 1/10W

R1209 1 216-065 91 RES,CHIP 4.7K 5% 1/10W

R1210 1-216-089-91 METAL CHIP 47K 5% 1/10W

(KV-29FS60A/29FS60D/29FS60E/29FS60K/

29FS60R/32FS60A/32FS60D/32FS60E)

1-216-691-11 METAL CHIP 47K 0.50% 1/10W

(KV-29FS60B/29FS60U/32FS60B)

R1226 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1227 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1228 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1229 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1230 1-216-055-00 RES,CHIP 1.8K 5% 1/10W

R1232 1-216-295-91 SHORT 0

R1233 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1300 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1301 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1326 1-216-025-91 RES,CHIP 100 5% 1/10W

R1327 1-216-025-91 RES,CHIP 100 5% 1/10W

R1328 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1329 1-216-025-91 RES,CHIP 100 5% 1/10W

R1330 1-216-041-00 RES,CHIP 470 5% 1/10W

R1331 1-216-041-00 RES,CHIP 470 5% 1/10W

R1332 1-216-041-00 RES,CHIP 470 5% 1/10W

R1333 1-216-075-00 RES,CHIP 12K 5% 1/10W

R1334 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R1335 1-216-025-91 RES,CHIP 100 5% 1/10W

R1336 1-216-041-00 RES,CHIP 470 5% 1/10W

R1337 1-216-041-00 RES,CHIP 470 5% 1/10W

R1338 1-216-001-00 RES,CHIP 10 5% 1/10W

R1339 1-216-041-00 RES,CHIP 470 5% 1/10W

R1340 1-216-043-91 RES,CHIP 560 5% 1/10W

R1342 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1350 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1351 1-216-025-91 RES,CHIP 100 5% 1/10W

R1352 1-216-025-91 RES,CHIP 100 5% 1/10W

www.ELEKO.de

142

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R1353 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1354 1-216-025-91 RES,CHIP 100 5% 1/10W

R1355 1-216-041-00 RES,CHIP 470 5% 1/10W

R1356 1-216-041-00 RES,CHIP 470 5% 1/10W

R1357 1-216-041-00 RES,CHIP 470 5% 1/10W

R1400 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R1401 1-216-081-00 RES,CHIP 22K 5% 1/10W

R1402 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1405 1-216-025-91 RES,CHIP 100 5% 1/10W

R1406 1-216-025-91 RES,CHIP 100 5% 1/10W

R1407 1-216-025-91 RES,CHIP 100 5% 1/10W

R1408 1-216-025-91 RES,CHIP 100 5% 1/10W

R1409 1-216-025-91 RES,CHIP 100 5% 1/10W

R1410 1-216-025-91 RES,CHIP 100 5% 1/10W

R1601 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R1602 1-216-691-11 METAL CHIP 47K 0.50% 1/10W

R1603 1-216-025-91 RES,CHIP 100 5% 1/10W

R1605 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1609 1-216-089-91 RES,CHIP 47K 5% 1/10W

R1610 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1615 1-216-025-91 RES,CHIP 100 5% 1/10W

R1616 1-216-304-11 RES,CHIP 3.3 5% 1/10W

R1617 1-216-304-11 RES,CHIP 3.3 5% 1/10W

R1618 1-216-295-91 SHORT 0

R1621 1-216-027-00 RES,CHIP 120 5% 1/10W

R1622 1-216-029-00 RES,CHIP 150 5% 1/10W

R1623 1-216-033-00 RES,CHIP 220 5% 1/10W

R1625 1-216-295-91 SHORT 0

< TUNER >

TU1326 1-693-338-21 TUNER/VIF (AEP)

(KV-29FS60A/29 S60D/ 9FS60E/29FS60K/

29FS60R/32FS60A/32FS60D/32FS60E)

1-693-340-21 TUNER/VIF (FR) (KV-29 S60B/32FS60B)

1-693-339-21 TUNER/VIF UK) KV-29FS60U)

TU1350 1-693-338-21 TUNER/VIF (AEP)

(KV-29FS60A/29FS60D/29FS60E/29FS60K/

29FS60R/32FS60A/32FS60D/32FS60E)

1-693-340-21 TUNER/VIF (FR) (KV-29FS60B/32FS60B)

1-693-339-21 TUNER/VIF (UK) (KV-29FS60U)

**********************************************************************

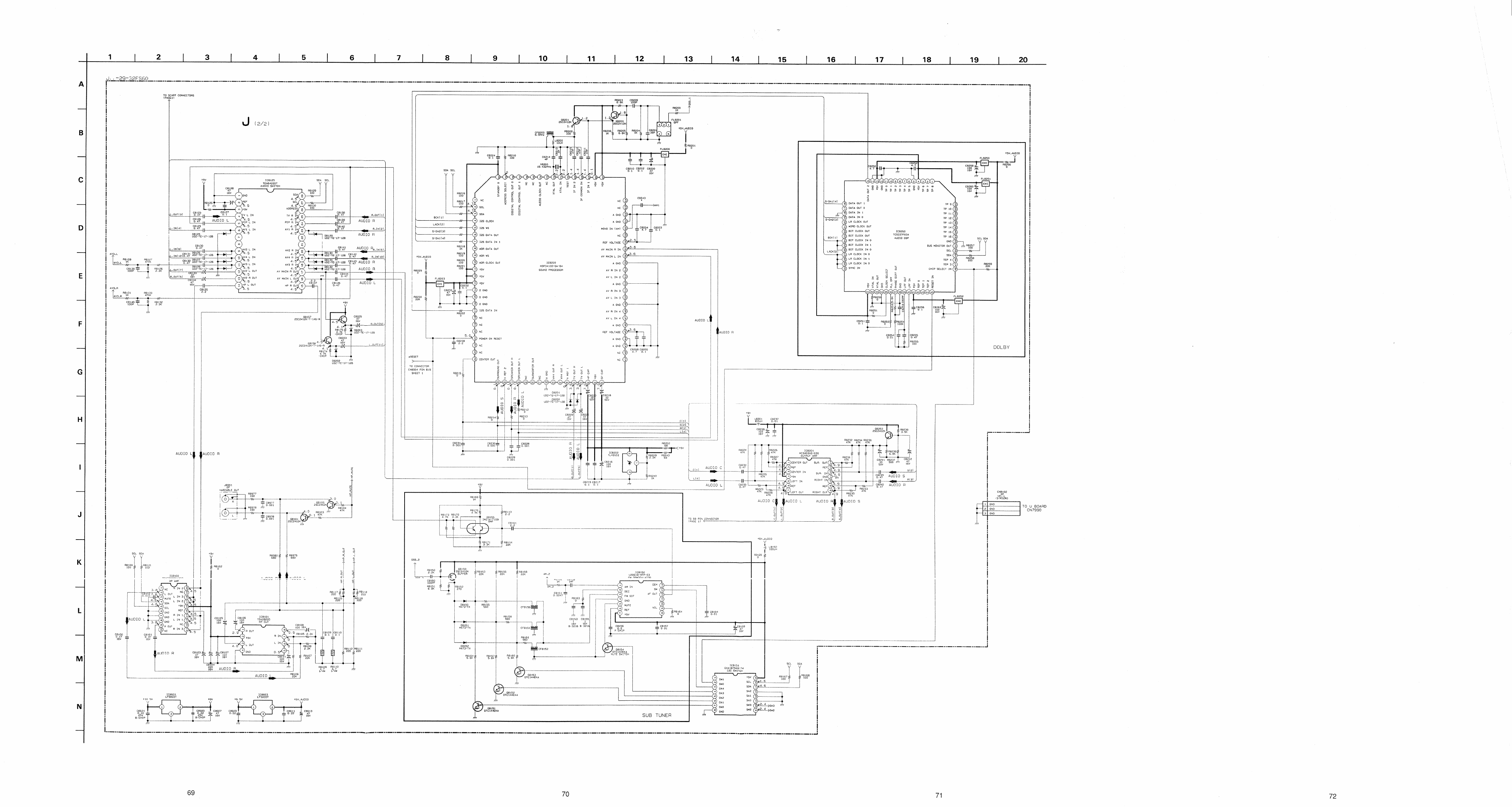

*A-1634-049-A M BOARD, COMPLETE (KV-29FS60)

*****************

*A-1634-048-A M BOARD, COMPLETE (KV-32FS60)

*****************

< CAPACITOR >

C9100 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C9101 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C9102 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C9104 1-104-664-11 ELECT 47MF 20% 25V

C9105 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9110 1-165-321-11 CERAMIC CHIP 0.68MF 10% 16V

C9111 1-164-157-11 CERAMIC CHIP 0.068MF 10% 25V

C9112 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9113 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9114 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9115 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C9117 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9118 1-104-664-11 ELECT 47MF 20% 25V

C9119 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C9121 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C9122 1-115-340-11 CERAMIC CHIP 0 2MF 10% 25V

C9123 1-164-004-11 CERAMIC HIP 0 1MF 10% 25V

C9124 1-164-004-11 CERAMIC CH 0.1MF 10% 25V

C9125 1-164-004-11 CERAMIC CHIP 0. MF 10% 25V

C9126 1-163-105 0 ERAMIC CHIP 33PF 5% 50V

C9127 1-163-1 5-00 CERAMIC CHIP 33PF 5% 50V

C9128 1-163-1 5-00 CERA IC CHIP 33PF 5% 50V

C9129 1- 63-105 00 CER MIC CHIP 33PF 5% 50V

C9130 1- 63-105-00 CERAMIC CHIP 33PF 5% 50V

C9131 1-163-105-00 CERAMIC CHIP 33PF 5% 50V

9132 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C94 1 115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C9500 1-104-664-11 ELECT 47MF 20% 25V

C9502 1-104-664-11 ELECT 47MF 20% 25V

C9503 1-126-964-11 ELECT 10MF 20% 50V

C9504 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9505 1-104-665-11 ELECT 100MF 20% 25V

C9506 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C9507 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C9508 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C9509 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C9510 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C9511 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9512 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9513 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C9514 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C9515 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C9516 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C9517 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C9518 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C9519 1-126-964-11 ELECT 10MF 20% 50V

C9520 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

< CONNECTOR >

CN9101 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P

< DIODE >

D9100 8-719-988-62 DIODE 1SS355

D9101 8-719-988-62 DIODE 1SS355

D9102 8-719-988-62 DIODE 1SS355

www.ELEKO.de

143

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

D9103 8-719-988-62 DIODE 1SS355

D9104 8-719-056-83 DIODE UDZ-TE-17-6.8B

D9105 8-719-914-43 DIODE DAN202K

D9107 8-719-025-31 DIODE 02CZ5.6-TE85L

D9108 8-719-914-44 DIODE DAP202K

D9109 8-719-105-91 DIODE RD5.6M-B2

D9110 8-719-914-43 DIODE DAN202K

D9111 8-719-105-91 DIODE RD5.6M-B2

< FILTER >

FL9101 1-236-071-11 ENCAPSULATED COMPONENT

FL9500 1-236-071-11 ENCAPSULATED COMPONENT

FL9501 1-236-071-11 ENCAPSULATED COMPONENT

< IC >

IC9100 8-759-988-13 IC LM393PS

IC9104 8-759-259-18 IC MB3793-42PNF

IC9105 8-759-544-30 IC SAB-C161R1-LM

IC9107 8-759-395-27 IC TC55257DFTL-70V

IC9108 8-759-531-64 IC M24C32-BN6

IC9109 8-759-544-32 IC M27C800-100K1

IC9110 8-759-559-96 IC HEF4094BT

IC9400 8-759-481-78 IC M29F040-120N1

IC9500 8-759-034-47 IC MC74F00M-T2

IC9501 8-759-483-52 IC HYB514400BJ-60

IC9502 8-759-438-62 IC SDA5275

< COIL >

L9400 1-412-029-11 INDUCTOR CHIP 10UH

L9401 1-412-029-11 INDUCTOR CHIP 10UH

< TRANSISTOR >

Q9100 8-729-620-06 TRANSI TOR 2S 3052-EF

Q9101 8-729-620-06 TRANSISTOR 2SC3052-EF

Q9102 8-729-216-22 TRA SISTOR 2SA1162-G

Q9103 8-729-620-06 TRAN ISTOR 2SC3052-EF

Q9105 8-729-620-06 TRANSISTOR 2SC3052-EF

Q9106 8-729-027-46 TRANSISTOR DTC114YKA-T146

Q9107 8-729-027-46 TRANSISTOR DTC114YKA-T146

Q9108 8-729-027-46 TRANSISTOR DTC114YKA-T146

Q9109 8-729-027-46 TRANSISTOR DTC114YKA-T146

Q9110 8-729-620-06 TRANSISTOR 2SC3052-EF

Q9500 8-729-216-22 TRANSISTOR 2SA1162-G

Q9501 8-729-216-22 TRANSISTOR 2SA1162-G

Q9502 8-729-216-22 TRANSISTOR 2SA1162-G

Q9503 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q9504 1-801-806-11 TRANSISTOR DTC144EKA-T146

< RESISTOR >

R9100 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9101 1-216-033-00 RES,CHIP 220 5% 1/10W

R9102 1-216-033-00 RES,CHIP 220 5% 1/10W

R9103 1-216-025-91 RES,CHIP 100 5% 1/10W

R9104 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9105 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9107 1-216-025-91 RES,CHIP 100 5% 1/10W

R9108 1-216-025-91 RES,CHIP 100 5% 1/10W

R9109 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9110 1-216-081-00 RES,CHIP 22K 5% 1/10W

R9111 1-216-025-91 RES,CHIP 100 5% 1/10W

R9112 1-216-025-91 RES,CHIP 100 5% 1/10W

R9113 1-216-033-00 RES,CHIP 220 5% 1/10W

R9114 1-216-083-00 RES,CHI 27K 5% 1/10W

R9115 1-216-081-00 RES,CHIP 2K 5% 1/10W

R9116 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9117 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9119 1 216 73-00 RES,CHIP 10K 5% 1/10W

R9120 1-216-073 00 RES,CHIP 10K 5% 1/10W

R9121 1-216-017- 1 RES,CHIP 47 5% 1/10W

R9122 1 216-049 91 RES,CHIP 1K 5% 1/10W

R9123 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9127 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9138 1-216-049-91 RES,CHIP 1K 5% 1/10W

R914 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R 141 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9142 1-216-041-00 RES,CHIP 470 5% 1/10W

R9143 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9144 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R9145 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9146 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9147 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9148 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9149 1-216-025-91 RES,CHIP 100 5% 1/10W

R9150 1-216-025-91 RES,CHIP 100 5% 1/10W

R9151 1-216-025-91 RES,CHIP 100 5% 1/10W

R9153 1-216-025-91 RES,CHIP 100 5% 1/10W

R9159 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R9161 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R9162 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R9164 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R9166 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9168 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R9169 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R9172 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R9173 1-216-295-91 SHORT 0

R9174 1-216-025-91 RES,CHIP 100 5% 1/10W

R9175 1-216-025-91 RES,CHIP 100 5% 1/10W

R9176 1-216-025-91 RES,CHIP 100 5% 1/10W

R9177 1-216-025-91 RES,CHIP 100 5% 1/10W

R9178 1-216-025-91 RES,CHIP 100 5% 1/10W

R9184 1-216-025-91 RES,CHIP 100 5% 1/10W

R9185 1-216-025-91 RES,CHIP 100 5% 1/10W

www.ELEKO.de

144

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

M C

R9186 1-216-025-91 RES,CHIP 100 5% 1/10W

R9187 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R9188 1-216-025-91 RES,CHIP 100 5% 1/10W

R9189 1-216-025-91 RES,CHIP 100 5% 1/10W

R9190 1-216-025-91 RES,CHIP 100 5% 1/10W

R9191 1-216-025-91 RES,CHIP 100 5% 1/10W

R9192 1-216-025-91 RES,CHIP 100 5% 1/10W

R9193 1-216-097-91 RES,CHIP 100K 5% 1/10W

R9194 1-216-097-91 RES,CHIP 100K 5% 1/10W

R9195 1-216-097-91 RES,CHIP 100K 5% 1/10W

R9196 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9197 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9500 1-216-295-91 SHORT 0

R9501 1-216-295-91 SHORT 0

R9502 1-216-295-91 SHORT 0

R9504 1-216-041-00 RES,CHIP 470 5% 1/10W

R9505 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R9506 1-216-073-00 RES,CHIP 10K 5% 1/10W

R9507 1-216-097-91 RES,CHIP 100K 5% 1/10W

R9508 1-216-017-91 RES,CHIP 47 5% 1/10W

R9509 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9510 1-216-017-91 RES,CHIP 47 5% 1/10W

R9511 1-216-049-91 RES,CHIP 1K 5% 1/10W

R9512 1-216-017-91 RES,CHIP 47 5% 1/10W

R9513 1-216-017-91 RES,CHIP 47 5% 1/10W

R9514 1-216-017-91 RES,CHIP 47 5% 1/10W

R9515 1-216-295-91 SHORT 0

R9516 1-216-295-91 SHORT 0

R9517 1-216-295-91 SHORT 0

R9518 1-216-049-91 RES,CHIP 1K 5% 1/ 0W

R9519 1-216-039-00 RES,CHIP 390 5% 1/10W

R9520 1-216-039-00 RES,CHIP 390 5% 1/10W

R9521 1-216-039-00 RES,CHIP 390 5% 1/10W

R9522 1-216-295-91 SHORT

R9523 1-216-295-91 SHORT 0

R9524 1-216-295-91 SHORT 0

R9525 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R9526 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R9527 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R9528 1-216-025-91 RES,CHIP 100 5% 1/10W

R9529 1-216-025-91 RES,CHIP 100 5% 1/10W

R9530 1-216-025-91 RES,CHIP 100 5% 1/10W

R9531 1-216-295-91 SHORT 0

< CRYSTAL >

X9101 1-781-107-21 RESONATOR

X9500 1-760-551-21 VIBRATOR, CERAMIC

*A-1638-123-A C BOARD, COMPLETE (KV-29FS60)

*****************

*A-1638-122-A C BOARD, COMPLETE (KV-32FS60)

*****************

1-671-108-11 PWB, C IC

4-382-854-11 SCREW (M3X10), P, SW (+)

< CAPACITOR >

C5301 1-102-129-00 CERAMIC 0.01MF 10% 50V

C5302 1-128-528-11 ELECT 470MF 20% 16V

C5304 1-107-666-11 ELECT 1MF 20% 350V

C5305 1-136-207-11 FILM 0 47MF 10% 400V

C5306 1-102-157-00 CERAMIC 560PF 10% 500V

C5325 1-102-959-00 CERAMIC 22PF 5% 50V

C5326 1-102-157-00 CERAMIC 560PF 10% 500V

C5327 1-102-129 0 ERAMIC 0.01MF 10% 50V

C5328 1-128-5 8-11 ELE T 470MF 20% 16V

C5329 1-107-6 6-11 ELECT 1MF 20% 350V

C5330 1- 36-207-11 FILM 0.047MF 10% 400V

C5350 1- 07-907 11 ELECT 22MF 20% 50V

C5352 1-102-157-00 CERAMIC 560PF 10% 500V

5353 1-102-129-00 CERAMIC 0.01MF 10% 50V

C53 1 128-528-11 ELECT 470MF 20% 16V

C5355 1-107-666-11 ELECT 1MF 20% 350V

C53 6 1-136-207-11 FILM 0.047MF 10% 400V

C5375 1-107-902-11 ELECT 1MF 20% 50V

C5377 1-162-115-00 CERAMIC 330PF 10% 2KV

C5378 1-162-116-00 CERAMIC 680PF 10% 2KV

C5379 1-162-116-00 CERAMIC 680PF 10% 2KV

C5380 1-107-652-11 ELECT 10MF 20% 250V

C5381 1-162-116-00 CERAMIC 680PF 10% 2KV

C5382 1-162-114-00 CERAMIC 0.0047MF 2KV

< CONNECTOR >

CN5400 1-564-511-11 PLUG, CONNECTOR 8P

CN5511 1-695-915-11 TAB (CONTACT)

CN5522 1-695-915-11 TAB (CONTACT)

CN5600 1-508-766-00 PIN, CONNECTOR (5MM PITCH) 4P

< DIODE >

D5300 8-719-911-19 DIODE 1SS119-25

D5302 8-719-901-83 DIODE 1SS83

D5325 8-719-911-19 DIODE 1SS119-25

D5326 8-719-923-60 DIODE MTZJ-T-77-9.1A

D5327 8-719-901-83 DIODE 1SS83

D5350 8-719-911-19 DIODE 1SS119-25

D5351 8-719-991-33 DIODE 1SS133T-77

D5353 8-719-901-83 DIODE 1SS83

D5375 8-719-991-33 DIODE 1SS133T-77

D5376 8-719-991-33 DIODE 1SS133T-77

D5377 8-719-908-03 DIODE GP08D

www.ELEKO.de

145

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

D5378 8-719-921-88 DIODE MTZJ-13B

D5379 8-719-982-96 DIODE MTZJ-T-77-2.2A

D5380 8-719-982-96 DIODE MTZJ-T-77-2.2A

D5381 8-719-031-34 DIODE RGP02-20EG23

< IC >

IC5300 8-759-360-83 IC TDA6111Q/N4

IC5325 8-759-360-83 IC TDA6111Q/N4

IC5350 8-759-360-83 IC TDA6111Q/N4

< SOCKET >

J5375 £ 1-540-071-22 SOCKET, CRT

< COIL >

L5300 1-408-599-31 INDUCTOR 4.7UH

L5325 1-408-599-31 INDUCTOR 4.7UH

L5350 1-408-599-31 INDUCTOR 4.7UH

L5375 1-410-671-31 INDUCTOR 47UH

L5376 1-412-525-31 INDUCTOR 10UH

L5377 1-414-183-41 INDUCTOR 10UH

< TRANSISTOR >

Q5300 8-729-255-12 TRANSISTOR 2SC2551-O

Q5325 8-729-255-12 TRANSISTOR 2SC2551-O

Q5350 8-729-029-56 TRANSISTOR DTA144ESA

Q5351 8-729-255-12 TRANSISTOR 2SC2551-O

Q5375 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q5376 8-729-026-41 TRANSISTOR 2SA933AS-QRT

< RESISTOR >

R5300 1-249-417-11 CARBON 1K 5% 1/4W

R5301 1-249-415-11 CARBON 680 5% 1/4W

R5302 1-249-408-11 CARBON 80 5% 1/4W

R5303 1-249-417-11 CA BON 1K 5% 1/4W

R5304 1-202-565-00 SOL D 470 20% 1/2W

R5305 1-215-926-00 METAL OXIDE 33K 5% 3W F

R5306 1-249-424-11 CARBON 3.9K 5% 1/4W

R5307 1-247-863-91 CARBON 22K 5% 1/4W

R5325 1-249-417-11 CARBON 1K 5% 1/4W

R5326 1-249-415-11 CARBON 680 5% 1/4W

R5327 1-249-408-11 CARBON 180 5% 1/4W

R5328 1-249-417-11 CARBON 1K 5% 1/4W

R5329 1-202-565-00 SOLID 470 20% 1/2W

R5330 1-215-926-00 METAL OXIDE 33K 5% 3W F

R5331 1-249-424-11 CARBON 3.9K 5% 1/4W

R5332 1-247-863-91 CARBON 22K 5% 1/4W

R5350 1-249-417-11 CARBON 1K 5% 1/4W

R5351 1-249-415-11 CARBON 680 5% 1/4W

R5352 1-249-416-11 CARBON 820 5% 1/4W

R5353 1-249-421-11 CARBON 2.2K 5% 1/4W

R5354 1-249-418-11 CARBON 1.2K 5% 1/4W

R5355 1-249-408-11 CARBON 180 5% 1/4W

R5356 1-249-417-11 CARBON 1K 5% 1/4W

R5357 1-202-565-00 SOLID 470 20% 1/2W

R5358 1-215-926-00 METAL OXIDE 33K 5% 3W F

R5359 1-247-863-91 CARBON 22K 5% 1/4W

R5360 1-249-424-11 CARBON 3.9K 5% 1/4W

R5361 1-249-425-11 CARBON 4.7K 5% 1/4W

R5375 1-249-435-11 CARBON 33K 5% 1/4W

R5376 1-249-429-11 CARBON 10K 5% 1/4W

R5377 1-249-430-11 CARBON 12K 5% 1/4W

R5378 1-249-429-11 CARBON 10K 5% 1/4W

R5379 1-249-438-11 CARBON 6K 5% 1/4W

R5380 1-247-863-91 CAR ON 22K 5% 1/4W

R5381 1-249-420-11 CARBON 1.8K 5% 1/4W

R5382 1 202 549-00 SOLID 100 20% 1/2W

R5383 1-216-392 1 METAL OXIDE 6.8 5% 3W F

R5384 1-216-392- 1 METAL OXIDE 6.8 5% 3W F

R5385 1 202-549 00 SOLID 100 20% 1/2W

R5386 1-202-884-11 SOLID 820K 20% 1/2W

R5387 1-202-884-11 SOLID 820K 20% 1/2W

R5388 1-215-911-11 METAL OXIDE 100 5% 3W F

R538 1-249-417-11 CARBON 1K 5% 1/4W F

< VARIABLE RESISTOR >

RV5375 1-241-656-21 RES, ADJ, METAL FILM 110M

RV5376 1-230-641-11 RES, ADJ, METAL GLAZE 2.2M

**********************************************************************

*A-1640-319-A E BOARD, COMPLETE (KV-29FS60)

*****************

*A-1640-324-A E BOARD, COMPLETE (KV-32FS60)

*****************

< CAPACITOR >

C4316 1-104-664-11 ELECT 47MF 20% 25V

C4317 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4318 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4319 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4320 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4321 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4322 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4324 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4325 1-163-093-00 CERAMIC CHIP 10PF 5% 50V

C4329 1-126-963-11 ELECT 4.7MF 20% 50V

C4330 1-136-165-00 FILM 0.1MF 5% 50V

C4331 1-126-959-11 ELECT 0.47MF 20% 50V

C4332 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4333 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4334 1-126-967-11 ELECT 47MF 20% 50V

C4336 1-126-967-11 ELECT 47MF 20% 50V

www.ELEKO.de

146

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C4338 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4340 1-126-967-11 ELECT 47MF 20% 50V

C4342 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C4343 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4344 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V

C4345 1-126-967-11 ELECT 47MF 20% 50V

C4346 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4347 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4348 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4349 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4350 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4351 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C4352 1-126-967-11 ELECT 47MF 20% 50V

C4353 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C4354 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C4355 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4356 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4357 1-164-004-11 CERAMIC CHIP 0.1MF 10% 50V

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C4358 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4359 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V

C4360 1-126-963-11 ELECT 4.7MF 20% 50V

C4362 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4363 1-126-967-11 ELECT 47MF 20% 50V

C4364 1-126-967-11 ELECT 47MF 20% 50V

C4366 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50

C4367 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-104-760-11 CERAMIC CHIP 0.047MF 10 5 V

(KV-32FS60A/32FS60B/32FS60D/32 S60E)

C4369 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4370 1-126-967-11 ELECT 47MF 0% 50V

C4371 1-164-004-11 CERAMIC CHIP 0 1MF 10% 25V

C4377 1-126-960-11 ELECT 1MF 20% 50V

C4379 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

(KV-32FS 0A/32FS60B/32FS60D/32FS60E)

C4380 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C4381 1-163-249-11 CERAMIC CHIP 82PF 5% 50V

C4518 1-162-638-11 CERAMIC CHIP 1MF 16V

< CONNECTOR >

CN4101 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P

CN4500 1-564-511-11 PLUG, CONNECTOR 8P

CN4502* 1-568-878-51 PIN, CONNECTOR 3P

< DIODE >

D4304 8-719-923-60 DIODE MTZJ-T-77-9.1A

D4305 8-719-923-60 DIODE MTZJ-T-77-9.1A

D4311 8-719-914-43 DIODE DAN202K

D4312 8-719-914-43 DIODE DAN202K

D4313 8-719-401-63 DIODE MA3062M-TX

< FERRITE BEAD >

FB4387 1-216-295-91 SHORT 0

FB4388 1-216-295-91 SHORT 0

FB4389 1-216-295-91 SHORT 0

< IC >

IC4301 8-752-086-23 IC CXA2100Q-TL

< COIL >

L4301 1-414-183-41 INDUCTOR 10UH

L4302 1-414-183-41 INDUCTOR 10UH

L4303 1-414-183-41 INDUCTO 0UH

L4304 1-414-183-41 INDUCTOR 10UH

L4305 1-414-183 41 INDUCTOR 10UH

L4306 1-414-1 3-41 INDU TOR 10UH

L4308 1- 08-609 41 IND CTOR 33UH

L4309 1- 08-609-41 INDUCTOR 33UH

< TRANSISTOR >

Q43 8 729-216-22 TRANSISTOR 2SA1162-G

Q4307 8-729-216-22 TRANSISTOR 2SA1162-G

Q4308 8-729-216-22 TRANSISTOR 2SA1162-G

Q43 9 8-729-216-22 TRANSISTOR 2SA1162-G

Q4310 8-729-216-22 TRANSISTOR 2SA1162-G

Q4315 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q4316 8-729-620-06 TRANSISTOR 2SC3052-EF

Q4317 8-729-900-53 TRANSISTOR DTC114EK

Q4318 8-729-902-21 TRANSISTOR 2SA1037K-T-146-R

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

< RESISTOR >

R4301 1-216-025-91 RES,CHIP 100 5% 1/10W

R4302 1-216-025-91 RES,CHIP 100 5% 1/10W

R4303 1-216-025-91 RES,CHIP 100 5% 1/10W

R4304 1-216-025-91 RES,CHIP 100 5% 1/10W

R4305 1-216-025-91 RES,CHIP 100 5% 1/10W

R4306 1-216-025-91 RES,CHIP 100 5% 1/10W

R4313 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R4314 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R4331 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4332 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4333 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4334 1-216-025-91 RES,CHIP 100 5% 1/10W

R4335 1-216-025-91 RES,CHIP 100 5% 1/10W

R4336 1-216-025-91 RES,CHIP 100 5% 1/10W

R4337 1-216-025-91 RES,CHIP 100 5% 1/10W

R4339 1-216-049-91 RES,CHIP 1K 5% 1/10W

R4340 1-216-111-00 RES,CHIP 390K 5% 1/10W

R4341 1-216-295-91 SHORT 0

www.ELEKO.de

147

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R4343 1-216-025-91 RES,CHIP 100 5% 1/10W

R4344 1-216-025-91 RES,CHIP 100 5% 1/10W

R4345 1-216-677-11 METAL CHIP 12K 0.50% 1/10W

R4346 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R4347 1-216-025-91 RES,CHIP 100 5% 1/10W

R4348 1-216-025-91 RES,CHIP 100 5% 1/10W

R4350 1-216-025-91 RES,CHIP 100 5% 1/10W

R4354 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R4358 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R4359 1-216-041-00 RES,CHIP 470 5% 1/10W

R4360 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R4361 1-216-133-00 RES,CHIP 3.3M 5% 1/10W

R4363 1-216-025-91 RES,CHIP 100 5% 1/10W

R4365 1-216-025-91 RES,CHIP 100 5% 1/10W

R4366 1-216-025-91 RES,CHIP 100 5% 1/10W

R4367 1-216-025-91 RES,CHIP 100 5% 1/10W

R4370 1-216-077-00 RES,CHIP 15K 5% 1/10W

R4371 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R4372 1-216-049-91 RES,CHIP 1K 5% 1/10W

R4373 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4374 1-216-049-91 RES,CHIP 1K 5% 1/10W

R4375 1-216-049-91 RES,CHIP 1K 5% 1/10W

R4376 1-216-049-91 RES,CHIP 1K 5% 1/10W

R4377 1-216-049-91 RES,CHIP 1K 5% 1/10W

R4378 1-216-101-00 RES,CHIP 150K 5% 1/10W

R4380 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4381 1-216-125-00 RES,CHIP 1.5M 5% 1/10

(KV-29FS60A/29FS60B/29FS60D/2 F 60E/

29FS60K/29FS60R/ 9FS60U)

1-216-127-11 RES,CHIP 1.8M 1/10W

(KV-32FS60A/32FS60B/32 S60D/32FS60E)

R4382 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4383 1-216-089-91 RES,CHIP 47K 5% 1/10W

(KV-29FS6 A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-079-00 RES,CHIP 18K 5% 1/10W

KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4384 1-216-025-91 RES,CHIP 100 5% 1/10W

R4387 1-216-025-91 RES,CHIP 100 5% 1/10W

R4388 1-216-025-91 RES,CHIP 100 5% 1/10W

R4389 1-216-025-91 RES,CHIP 100 5% 1/10W

R4395 1-216-295-91 SHORT 0

R4396 1-216-295-91 SHORT 0

R4398 1-216-025-91 RES,CHIP 100 5% 1/10W

R4401 1-216-107-00 RES,CHIP 270K 5% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-099-00 RES,CHIP 120K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4402 1-216-133-91 RES,CHIP 56K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4403 1-216-073-91 RES,CHIP 10K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4404 1-216-073-91 RES,CHIP 10K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4405 1-216-087-91 RES,CHIP 39K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4406 1-216-105-91 RES,CHIP 220K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4407 1-216-091-91 RES,CHIP 56K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R4504 1-216-295-91 SHORT 0

R4505 1-216-295-91 SHORT 0

R4506 1-216-295-91 SHORT

R4507 1-216-129-00 RES,CHIP 2.2M 5% 1/10W

R4518 1-216-025-91 RES,CHIP 100 5% 1/10W

R4519 1-216-025-91 RES,CHIP 100 5% 1/10W

R4520 1-216-295 91 SHORT 0

R4521 1-216-295- 1 SHORT 0

R4522 1 216-295 91 SHORT 0

R4523 1-216-295-91 SHORT 0

< CRYSTAL >

X430 1-767-127-11 VIBRATOR, CERAMIC

**********************************************************************

*A-1640-320-A D1 BOARD, COMPLETE (KV-29FS60)

******************

*A-1640-325-A D1 BOARD, COMPLETE (KV-32FS60)

******************

4-382-854-11 SCREW (M3X10), P, SW (+)

< CAPACITOR >

C6100 1-136-165-00 FILM 0.1MF 5% 50V

C6101 1-136-165-00 FILM 0.1MF 5% 50V

C6102 1-136-165-00 FILM 0.1MF 5% 50V

C6103 1-163-205-00 CERAMIC CHIP 0.001MF 5% 50V

C6104 1-163-205-00 CERAMIC CHIP 0.001MF 5% 50V

C6105 1-126-967-11 ELECT 47MF 20% 50V

C6106 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C6108 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C6109 1-126-967-11 ELECT 47MF 20% 50V

C6110 1-126-967-11 ELECT 47MF 20% 50V

C6111 1-126-967-11 ELECT 47MF 20% 50V

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6112 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C6113 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C6114 1-126-964-11 ELECT 10MF 20% 50V

C6115 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C6116 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V

C6117 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V

C6119 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

www.ELEKO.de

148

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C6121 1-126-964-11 ELECT 10MF 20% 50V

C6122 1-126-967-11 ELECT 47MF 20% 50V

C6125 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C6126 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V

C6127 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C6128 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C6129 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-164-336-11 CERAMIC CHIP 0.33MF 10% 50V

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6130 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

C6131 1-126-964-11 ELECT 10MF 20% 50V

C6132 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C6199 1-163-229-11 CERAMIC CHIP 12PF 5% 50V

C6207 1-126-967-11 ELECT 47MF 20% 50V

C6208 1-126-967-11 ELECT 47MF 20% 50V

C6209 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C6210 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C6250 1-104-664-11 ELECT 47MF 20% 16V

C6253 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V

C6254 1-136-177-00 FILM 1MF 5% 50V

C6255 1-136-177-00 FILM 1MF 5% 50V

C6256 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C6257 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V

C6258 1-163-127-00 CERAMIC CHIP 270PF 5% 50V

C6259 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V

C6260 1-104-664-11 ELECT 47MF 20 1 V

C6261 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50

C6262 1-136-165-00 FILM 0.1MF 5% 50V

C6263 1-163-109-00 CERAMIC CHIP 47PF % 50V

C6264 1-126-964-11 ELECT 10MF 20% 50V

C6306 1-126-964-11 ELECT 10MF 20% 50V

C6307 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C6350 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C6351 1-126-967-11 ELECT 47MF 20% 50V

C6353 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V

C6354 1-136-159-00 FILM 0.033MF 5% 50V

C6355 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C6356 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V

C6357 1-136-165-00 FILM 0.1MF 5% 50V

C6358 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V

C6359 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V

C6360 1-107-714-11 ELECT 10MF 20% 50V

C6361 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C6362 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V

C6363 1-104-665-11 ELECT 100MF 20% 25V

C6364 1-137-493-11 FILM 0.0047MF 5% 630V

C6365 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V

C6367 1-104-329-11 CERAMIC CHIP 0.1MF 10% 50V

C6368 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C6370 1-137-493-11 FILM 0.0047MF 5% 630V

C6371 1-137-493-11 FILM 0.0047MF 5% 630V

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6373 1-136-153-00 FILM 0.01MF 5% 50V

C6374 1-137-499-11 FILM 0.015MF 5% 630V

C6375 1-102-110-00 CERAMIC 220PF 10% 50V

C6376 1-104-664-11 ELECT 47MF 20% 16V

C6377 1-128-551-11 ELECT 22MF 20% 25V

C6378 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V

C6380 1-136-165-00 FILM 0 1MF 5% 50V

C6381 1-126-960-11 ELECT 1MF 20% 50V

C6385 1-104-664-11 ELECT 47MF 20% 25V

C6386 1-104-664-11 ELECT 47MF 20% 25V

C6388 1-126-964 11 ELECT 10MF 20% 50V

C6389 1-126-9 4-11 ELE T 10MF 20% 50V

C6392 1-104-6 4-11 ELECT 47MF 20% 25V

C6401 1- 26-964 11 ELECT 10MF 20% 50V

C6402 1- 07-714-11 ELECT 10MF 20% 50V

C6407 1-136-161-00 FILM 0.047MF 5% 50V

6408 1-136-161-00 FILM 0.047MF 5% 50V

C64 1 126-964-11 ELECT 10MF 20% 50V

< CONNECTOR >

CN6502* 1-568-881-51 PIN, CONNECTOR 6P

CN6601 1-695-302-11 CONNECTOR, BOARD TO BOARD 50P

CN6622* 1-568-878-51 PIN, CONNECTOR 3P

CN6633* 1-568-878-51 PIN, CONNECTOR 3P

< DIODE >

D6100 8-719-914-43 DIODE DAN202K-T-146

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

D6101 8-719-921-40 DIODE MTZJ-T-77-4-7B

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

D6102 8-719-914-43 DIODE DAN202K

D6104 8-719-914-43 DIODE DAN202K

D6105 8-719-914-43 DIODE DAN202K

D6106 8-719-914-43 DIODE DAN202K

D6108 8-719-921-40 DIODE MTZJ-4.7C

D6127 8-719-914-43 DIODE DAN202K

D6128 8-719-914-43 DIODE DAN202K

D6129 8-719-914-43 DIODE DAN202K

D6198 1-535-303-00 LEAD, JUMPER (5.0MM)

D6253 8-719-911-19 DIODE 1SS119-25

D6254 1-535-303-00 LEAD, JUMPER (5.0MM)

D6350 8-719-914-43 DIODE DAN202K

D6351 8-719-914-43 DIODE DAN202K

D6352 8-719-914-43 DIODE DAN202K

D6353 8-719-987-87 DIODE ERA85-009

D6354 8-719-914-43 DIODE DAN202K

www.ELEKO.de

149

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

D6355 8-719-914-43 DIODE DAN202K

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W

D6358 8-719-914-43 DIODE DAN202K

D6359 8-719-302-43 DIODE EL1Z

D6401 8-719-914-43 DIODE DAN202K

D6402 8-719-982-03 DIODE MTZJ-3.6A

D6403 8-719-921-63 DIODE MTZJ-7.5B

D6404 8-719-914-43 DIODE DAN202K

D6405 8-719-921-63 DIODE MTZJ-7.5B

< IC >

IC6100 8-759-450-95 IC LM393N

IC6101 8-759-450-95 IC LM393N

IC6102 8-759-701-50 IC NJM3404AD

IC6103 8-759-450-95 IC LM393N

IC6250 8-759-478-66 IC CXA8070P

IC6251 8-759-903-16 IC LM318P

IC6302 8-752-072-94 IC CXA1875AM-T4

IC6350 8-759-008-70 IC LM358N

IC6351 8-759-450-95 IC LM393N

IC6352 8-759-450-95 IC LM393N

IC6353 8-759-231-53 IC TA7805S

IC6354 8-759-325-48 IC CA0005AD

IC6355 8-759-008-70 IC LM358N

IC6356 8-759-822-38 IC LA6510

< FILTER >

LF6350 1-406-989-21 INDUCTOR 0UH

LF6351 1-406-989-21 INDUCTOR 0UH

< IC LINK >

PS6376 £ 1-532-637-00 LINK, IC 1A (IC N25)

< TRANSISTOR >

Q6100 8-729-620-06 TRAN ISTOR 2SC3052-EF

Q6101 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6102 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6103 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6104 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6105 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6106 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6107 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6108 8-729-216-22 TRANSISTOR 2SA1162-G

Q6110 8-729-216-22 TRANSISTOR 2SA1162-G

Q6112 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6113 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6118 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6119 8-729-216-22 TRANSISTOR 2SA1162-G

Q6120 8-729-216-22 TRANSISTOR 2SA1162-G

Q6122 8-729-216-22 TRANSISTOR 2SA1162-G

Q6123 8-729-216-22 TRANSISTOR 2SA1162-G

Q6125 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6126 8-729-216-22 TRANSISTOR 2SA1162-G

Q6127 8-729-216-22 TRANSISTOR 2SA1162-G

Q6128 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6129 8-729-216-22 TRANSISTOR 2SA1162-G

Q6130 8-729-216-22 TRANSISTOR 2SA1162-G

Q6131 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6201 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6202 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6250 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6251 8-729-620-06 TRANSISTOR 2 C3052-EF

Q6252 8-729-216-22 TRANSISTOR 2SA 162-G

Q6253 8-729-017-06 TRA ISTO 2SC4793

Q6254 8-729-017-05 TRANSISTOR 2SA1837

Q6350 8 29 20-06 TRANSISTOR 2SC3052-EF

Q6351 8-729-119 78 TRANSISTOR 2SC2785-HFE

Q6352 8-729-140- 7 TRANSISTOR 2SB734-34

Q6353 8 729-140 97 TRANSISTOR 2SB734-34

Q6354 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6356 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6358 8-729-038-83 TRANSISTOR 2SK2251-01-F19

Q6401 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q 402 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q6403 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6404 8-729-216-22 TRANSISTOR 2SA1162-G

Q6405 8-729-216-22 TRANSISTOR 2SA1162-G

Q6455 8-729-620-06 TRANSISTOR 2SC3052-EF

Q6465 8-729-620-06 TRANSISTOR 2SC3052-EF

< RESISTOR >

R6100 1-216-033-00 RES,CHIP 220 5% 1/10W

R6101 1-216-033-00 RES,CHIP 220 5% 1/10W

R6102 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6103 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6104 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6105 1-216-049-91 RES,CHIP 1K 5% 1/10W

R6106 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6107 1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-657-11 METAL CHIP 1.8K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6108 1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-657-11 METAL CHIP 1.8K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6109 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

www.ELEKO.de

150

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R6110 1-216-679-11 METAL CHIP 15K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-683-11 METAL CHIP 22K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6111 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6112 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6113 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6114 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6115 1-216-089-91 RES,CHIP 47K 5% 1/10W

R6116 1-216-089-91 RES,CHIP 47K 5% 1/10W

R6117 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6118 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6119 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6120 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6121 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6122 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6123 1-216-089-91 RES,CHIP 47K 5% 1/10W

R6124 1-216-089-91 RES,CHIP 47K 5% 1/10W

R6125 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6126 1-216-037-00 RES,CHIP 330 5% 1/10W

R6127 1-216-663-11 RES,CHIP 3.3K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6128 1-216-691-11 METAL CHIP 47K 0.50% 1/10W

R6129 1-216-691-11 METAL CHIP 47K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6130 1-218-768-11 METAL CHIP 470K 0.50% 1/ 0W

R6131 1-216-037-00 RES,CHIP 330 5% 1/1 W

R6132 1-216-037-00 RES,CHIP 330 5% 1/10W

R6133 1-216-037-00 RES,CHIP 330 5% 1/10W

R6134 1-216-057-00 RES,CHIP .2K 5% 1/10W

(KV-3 FS60A/32FS60B/32FS60D/32FS60E)

R6135 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

(KV-29FS 0A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-057-00 RES,CHIP 2.2K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6136 1-216-691-11 METAL CHIP 47K 0.50% 1/10W

R6137 1-216-691-11 METAL CHIP 47K 0.50% 1/10W

R6138 1-216-691-11 METAL CHIP 47K 0.50% 1/10W

R6139 1-216-691-11 METAL CHIP 47K 0.50% 1/10W

R6140 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6141 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-671-11 METAL CHIP 6.8K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6142 1-216-672-11 METAL CHIP 7.5K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6143 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6145 1-216-045-00 RES,CHIP 680 5% 1/10W

R6146 1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-065-91 RES,CHIP 4.7K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6147 1-216-057-00 RES,CHIP 2 2K 5% 1/10W

R6148 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6149 1-216-025-91 RES,CHI 1 0 5% 1/10W

R6154 1-216-651-11 METAL CHIP 1K 0.50% 1/10W

R6155 1-216-699 11 ETAL CHIP 100K 0.50% 1/10W

R6158 1-216-6 3-11 META CHIP 6.8K 0.50% 1/10W

R6159 1- 16-295 91 SHORT 0

R6160 1- 16-295-91 SHORT 0

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-655-11 METAL CHIP 1.5K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6161 1-216-673-11 METAL CHIP 8.2K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-669-11 METAL CHIP 5.6K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6162 1-216-049-91 RES,CHIP 1K 5% 1/10W

R6165 1-216-699-11 METAL CHIP 100K 0.50% 1/10W

R6168 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R6169 1-216-699-11 METAL CHIP 100K 0.50% 1/10W

R6170 1-216-037-00 RES,CHIP 330 5% 1/10W

R6171 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6174 1-216-075-00 RES,CHIP 12K 5% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-081-00 RES,CHIP 22K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6175 1-216-075-00 RES,CHIP 12K 5% 1/10W

R6176 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-295-91 SHORT 0

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6177 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R6178 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6179 1-216-655-11 METAL CHIP 1.5K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-061-00 METAL CHIP 3.3K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

www.ELEKO.de

151

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R6180 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6182 1-216-089-91 RES,CHIP 47K 5% 1/10W

R6183 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6186 1-216-663-11 METAL CHIP 3.3K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-049-91 METAL CHIP 1K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6187 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R6189 1-216-295-91 SHORT 0

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-049-91 RES,CHIP 1K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6190 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6191 1-215-925-11 METAL OXIDE 22K 5% 3W F

R6192 1-216-665-11 METAL CHIP 3.9K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-683-11 METAL CHIP 22K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6194 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R6195 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-695-11 METAL CHIP 68K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6196 1-249-377-11 CARBON 0.47 5% 1/4W F

R6198 1-216-081-00 RES,CHIP 22K 5% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS R/29FS60U)

1-216-089-00 RES,CHIP 47K 5% 1 10W

(KV-32FS60A/32FS60 /32FS60D/32FS60E)

R6199 1-216-081-00 RES,CHIP 22K 5% 1/10W

(KV-29FS6 A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-089-00 RES,CHIP 47K 5% 1/10W

KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6200 1-218-762-11 METAL CHIP 270K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6205 1-216-025-91 RES,CHIP 100 5% 1/10W

R6206 1-216-105-91 RES,CHIP 220K 5% 1/10W

R6207 1-216-101-00 RES,CHIP 150K 5% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-109-00 RES,CHIP 330K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6208 1-216-089-91 RES,CHIP 47K 5% 1/10W

R6210 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6211 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6212 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6215 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-089-91 RES,CHIP 47K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6216 1-216-089-91 RES,CHIP 47K 5% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-065-00 RES,CHIP 4.7K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6217 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6254 1-216-049-91 RES,CHI 1K 5% 1/10W

R6255 1-216-061-00 RES,CHIP 3K 5% 1/10W

R6256 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6257 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R6258 1 216 57-00 RES,CHIP 2.2K 5% 1/10W

R6259 1-216-097 91 RES,CHIP 100K 5% 1/10W

R6260 1-216-049- 1 RES,CHIP 1K 5% 1/10W

R6261 1 216-097 91 RES,CHIP 100K 5% 1/10W

R6262 1-260-321-71 CARBON 270 5% 1/2W

R6263 1-216-025-91 RES,CHIP 100 5% 1/10W

R6264 1-216-025-91 RES,CHIP 100 5% 1/10W

R6265 1-216-097-91 RES,CHIP 100K 5% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-103-00 RES,CHIP 180K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6267 1-216-049-91 RES,CHIP 1K 5% 1/10W

R6268 1-216-085-00 RES,CHIP 33K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6269 1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W

R6270 1-216-667-11 METAL CHIP 4.7K 0.50% 1/10W

R6271 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R6272 1-216-081-00 RES,CHIP 22K 5% 1/10W

R6273 1-216-081-00 RES,CHIP 22K 5% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

R6276 1-216-689-11 METAL CHIP 39K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-686-11 METAL CHIP 30K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6277 1-216-686-11 METAL CHIP 30K 0.50% 1/10W

R6278 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6279 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6280 1-249-377-11 CARBON 0.47 5% 1/4W F

R6281 1-249-377-11 CARBON 0.47 5% 1/4W F

R6282 1-215-886-11 METAL OXIDE 100 5% 2W F

R6283 1-216-393-00 METAL OXIDE 2.2 5% 3W F

www.ELEKO.de

152

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R6284 1-216-113-00 RES,CHIP 470K 5% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-109-00 RES,CHIP 330K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6285 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6286 1-216-073-00 RES,CHIP 10K 5% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-069-00 RES,CHIP 6.8K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6287 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6313 1-216-295-91 SHORT 0

R6322 1-216-049-91 RES,CHIP 1K 5% 1/10W

R6323 1-216-049-91 RES,CHIP 1K 5% 1/10W

R6324 1-216-025-91 RES,CHIP 100 5% 1/10W

R6325 1-216-025-91 RES,CHIP 100 5% 1/10W

R6350 1-216-089-91 RES,CHIP 47K 5% 1/10W

R6351 1-218-762-11 METAL CHIP 270K 0.50% 1/10W

R6353 1-216-668-11 METAL CHIP 5.1K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-671-11 METAL CHIP 6.8K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6355 1-218-774-11 METAL CHIP 820K 0.50% 1/10W

R6356 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R6357 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6358 1-216-047-91 RES,CHIP 820 5% 1/10W

R6359 1-216-097-91 RES,CHIP 100K 5% 1/10W

R6360 1-216-073-00 RES,CHIP 10K 5% 1/ 0W

R6361 1-216-097-91 RES,CHIP 100K 5% 1/1 W

R6362 1-216-687-11 METAL CHIP 33K 0.50% 1/10W

R6363 1-216-675-11 METAL CHIP 10K 0 50% 1/10W

R6364 1-216-057-00 RES,CHIP 2 2K 5% 1/10W

R6365 1-216-033-00 RES,CHIP 220 5% 1/10W

R6366 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6367 1-216-679-11 METAL CHIP 15K 0.50% 1/10W

R6368 1-218-758-11 METAL CHIP 180K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-218-760-11 METAL CHIP 220K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6369 1-218-762-11 METAL CHIP 270K 0.50% 1/10W

R6370 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-677-11 METAL CHIP 12K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6371 1-216-473-11 METAL OXIDE 56 5% 3W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-474-11 METAL OXIDE 82 5% 3W F

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6372 1-216-033-00 RES,CHIP 220 5% 1/10W

R6373 1-216-681-11 METAL CHIP 18K 0.50% 1/10W

R6374 1-216-689-11 METAL CHIP 39K 0.50% 1/10W

R6375 1-216-041-00 RES,CHIP 470 5% 1/10W

R6377 1-216-689-11 METAL CHIP 39K 0.50% 1/10W

R6378 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R6379 1-216-295-91 SHORT 0

R6380 1-218-754-11 METAL CHIP 120K 0.50% 1/10W

R6381 1-216-045-00 RES,CHIP 680 5% 1/10W

R6382 1-218-754-11 METAL CHIP 120K 0.50% 1/10W

R6383 1-216-687-11 METAL CHIP 33K 0.50% 1/10W

R6384 1-216-043-91 RES,CHIP 5 0 % 1/10W

R6385 1-216-295-91 SHORT

R6386 1-216-699-11 METAL CHIP 100K 0.50% 1/10W

R6387 1-216-677-11 METAL C IP 1 K 0.50% 1/10W

R6391 1-249-417 11 ARBON 1K 5% 1/4W

R6394 1-216-0 9-00 RES,CHIP 6.8K 5% 1/10W

R6395 1-216-0 1-00 RES, HIP 22K 5% 1/10W

R6397 1- 16-675 11 METAL CHIP 10K 0.50% 1/10W

R6398 1- 16-065-91 RES,CHIP 4.7K 5% 1/10W

R6399 1-218-758-11 METAL CHIP 180K 0.50% 1/10W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-218-756-11 METAL CHIP 150K 0.50% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6400 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R6401 1-216-295-91 SHORT 0

R6402 1-216-295-91 SHORT 0

R6403 1-216-661-11 METAL CHIP 2.7K 0.50% 1/10W

R6404 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R6405 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R6409 1-216-025-91 RES,CHIP 100 5% 1/10W

R6410 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6411 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6412 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6413 1-216-679-11 METAL CHIP 15K 0.50% 1/10W

R6414 1-216-679-11 METAL CHIP 15K 0.50% 1/10W

R6415 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R6416 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R6418 1-216-093-00 RES,CHIP 33K 5% 1/10W

R6419 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6420 1-216-091-00 RES,CHIP 22K 5% 1/10W

R6421 1-216-637-11 METAL CHIP 270 0.50% 1/10W

R6422 1-216-639-11 METAL CHIP 330 0.50% 1/10W

R6423 1-216-657-11 METAL CHIP 1.8K 0.50% 1/10W

R6426 1-216-081-00 RES,CHIP 22K 5% 1/10W

R6427 1-216-081-00 RES,CHIP 22K 5% 1/10W

R6428 1-216-107-00 RES,CHIP 150K 5% 1/10W

R6429 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R6430 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

www.ELEKO.de

153

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

R6431 1-216-113-00 RES,CHIP 470K 5% 1/10W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6432 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6433 1-216-073-00 RES,CHIP 10K 5% 1/10W

R6437 1-249-422-11 CARBON 2.7K 5% 1/4W

R6438 1-249-421-11 CARBON 2.2K 5% 1/4W

R6439 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R6440 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R6441 1-216-673-11 METAL CHIP 8.2K 0.50% 1/10W

R6442 1-216-039-00 RES,CHIP 390 5% 1/10W

R6455 1-216-295-91 SHORT 0

R6456 1-216-097-91 RES,CHIP 100K 5% 1/10W

R6457 1-216-075-00 RES,CHIP 12K 5% 1/10W

R6458 1-216-089-91 RES,CHIP 47K 5% 1/10W

R6459 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R6460 1-249-393-11 CARBON 10 5% 1/4W

R6461 1-249-411-11 CARBON 330 5% 1/4W

R6462 1-249-406-11 CARBON 120 5% 1/4W

R6463 1-216-095-00 RES,CHIP 82K 5% 1/10W

R6464 1-216-079-00 RES,CHIP 18K 5% 1/10W

**********************************************************************

*A-1640-342-A D BOARD, COMPLETE (KV-29FS60)

*****************

*A-1640-326-A D BOARD, COMPLETE (KV-32FS60)

*****************

4-201-023-01 SPACER, INSULATING

4-202-373-01 SPRING, IC

4-382-854-11 SCREW (M3X10), P, SW (+)

*4-931-401-01 HEAT SINK, V.OUT

< CAPACITOR >

C6600 £ 1-161-744-00 CERAMIC 0.01 F 400V

C6603 1-126-933-11 ELECT 00MF 20% 16V

C6604 1-126-767-11 ELE T 1000MF 20% 16V

C6605 £ 1-119-888-51 CER MIC 2200PF 20% 250V

C6606 £ 1-119-888-51 CERAMIC 2200PF 20% 250V

C6607 £ 1-107-565-11 FILM 0.33MF 20% 300V

C6608 £ 1-162-599-12 CERAMIC 0.0047MF 250V

C6609 £ 1-162-599-12 CERAMIC 0.0047MF 250V

C6610 1-162-599-12 CERAMIC 0.0047MF 250V

C6611 1-162-599-12 CERAMIC 0.0047MF 250V

C6612 1-161-744-00 CERAMIC 0.01MF 400V

C6616 1-164-625-11 CERAMIC 680PF 10% 500V

C6617 1-164-625-11 CERAMIC 680PF 10% 500V

C6618 1-136-175-00 FILM 0.68MF 5% 50V

C6619 1-137-194-91 FILM 0.47MF 5% 50V

C6620 1-136-618-11 FILM 0.047MF 5% 1.25KV

C6621 1-136-175-00 FILM 0.68MF 5% 50V

C6622 1-164-625-11 CERAMIC 680PF 10% 500V

C6623 1-137-194-91 FILM 0.47MF 5% 50V

C6624 1-126-968-11 ELECT 100MF 20% 50V

C6626 1-164-625-11 CERAMIC 680PF 10% 500V

C6627 1-164-625-11 CERAMIC 680PF 10% 500V

C6628 1-126-936-11 ELECT 3300MF 20% 16V

C6629 1-128-548-11 ELECT 4700MF 20% 25V

C6630 1-110-626-11 ELECT 330MF 20% 160V

C6631 1-126-955-11 ELECT 4700MF 20% 35V

C6632 1-126-955-11 ELECT 4700MF 20% 35V

C6633 1-126-935-11 ELECT 470MF 20% 16V

C6634 1-136-165-00 FILM 0.1MF 5% 50V

C6635 1-104-664-11 ELECT 47MF 20% 25V

C6636 1-102-129-00 CERAMIC 0.01MF 10% 50V

C6637 1-102-129-00 CERAMIC .01MF 10% 50V

C6638 1-137-368-11 FILM 0 047MF 5% 50V

C6639 1-102-228-00 CER MIC 470PF 10% 500V

C6641 1-126-967-11 ELECT 47MF 20% 50V

C6642 1 126 964-11 ELECT 10MF 20% 50V

C6647 1-104-664 1 ELECT 47MF 20% 25V

C6649 1-126-965- 1 ELECT 22MF 20% 50V

C6651 1 162-599 12 CERAMIC 0.0047MF 250V

C6652 1-107-679-91 ELECT 10MF 20% 450V

C6653 1-126-968-11 ELECT 100MF 20% 50V

C6654 1-162-117-00 CERAMIC 100PF 10% 500V

C6655 1-109-879-11 CERAMIC 22PF 5% 2KV

C 656 1-126-967-11 ELECT 47MF 20% 50V

C6657 1-126-941-11 ELECT 470MF 20% 25V

C6658 1-104-665-11 ELECT 100MF 20% 25V

C6659 1-104-665-11 ELECT 100MF 20% 25V

C6661 1-117-753-11 ELECT(BLOCK) 470MF 20% 450V

C6662 1-136-165-00 FILM 0.1MF 5% 50V

C6664 1-136-153-00 FILM 0.01MF 5% 50V

C6665 1-136-165-00 FILM 0.1MF 5% 50V

C6666 1-136-165-00 FILM 0.1MF 5% 50V

C6667 1-126-933-11 ELECT 100MF 20% 16V

C6668 1-126-933-11 ELECT 100MF 20% 16V

C6669 1-136-165-00 FILM 0.1MF 5% 50V

C6670 1-136-165-00 FILM 0.1MF 5% 50V

C6671 1-104-664-11 ELECT 47MF 20% 16V

C6672 1-104-664-11 ELECT 47MF 20% 16V

C6673 1-104-664-11 ELECT 47MF 20% 16V

C6677 1-136-165-00 FILM 0.1MF 5% 50V

C6679 1-130-495-00 FILM 0.1MF 5% 50V

C6680 1-137-370-11 FILM 0.01MF 5% 50V

C6681 1-126-964-11 ELECT 10MF 20% 50V

C6682 1-107-680-91 ELECT 22MF 20% 450V

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

C6700 1-102-129-00 CERAMIC 0.01MF 10% 50V

C6703 1-128-527-11 ELECT 330MF 20% 25V

C6704 1-126-968-11 ELECT 100MF 20% 50V

C6705 1-128-527-11 ELECT 330MF 20% 25V

C6706 1-106-228-00 MYLAR 0.22MF 10% 100V

www.ELEKO.de

154

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

C6707 1-129-702-00 FILM 0.001MF 10% 400V

C6708 1-106-220-00 MYLAR 0.1MF 10% 100V

C6709 1-102-129-00 CERAMIC 0.01MF 10% 50V

C6710 1-130-785-11 MYLAR 0.47MF 10% 100V

C6727 1-102-228-00 CERAMIC 470PF 10% 500V

C6801 1-104-664-11 ELECT 47MF 20% 25V

C6802 1-126-960-11 ELECT 1MF 20% 50V

C6803 1-126-960-11 ELECT 1MF 20% 50V

C6804 1-102-114-00 CERAMIC 470PF 10% 50V

C6805 1-102-114-00 CERAMIC 470PF 10% 50V

C6808 1-102-030-00 CERAMIC 330PF 10% 500V

C6809 1-102-030-00 CERAMIC 330PF 10% 500V

C6810 1-107-368-11 FILM 0.047MF 10% 200V

C6811 1-107-368-11 FILM 0.047MF 10% 200V

C6812 1-162-131-11 CERAMIC 220PF 10% 2KV

C6813 1-162-558-11 CERAMIC 100PF 10% 2KV

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-162-134-11 CERAMIC 470PF 10% 2KV

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6814 1-117-640-11 FILM 6800PF 3% 1.2KV

C6815 1-117-835-11 FILM 6200PF 3% 2KV

C6816 1-137-364-11 FILM 0.001MF 5% 50V

C6817 1-125-893-11 FILM 680PF 3% 2KV

C6818 1-125-893-11 FILM 680PF 3% 2KV

C6819 1-125-893-11 FILM 680PF 3% 2K

C6820 1-125-893-11 FILM 680PF 3% 2KV

C6824 1-107-846-11 FILM 0.1MF 5% 200V

C6825 1-107-846-11 FILM 0.1MF 5% 250V

C6826 1-115-518-11 FILM 0.47MF 5% 250V

(KV-29FS60A/29FS60B/29FS60D/29 S60E/

29FS60K/29FS60R/29FS60U

1-115-519-11 FILM 0.56MF 5% 250V

(KV-32FS60 /32FS60B/3 FS60D/32FS60E)

C6827 1-115-511-11 FILM 0.12MF 5% 250V

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS K/29FS60R/29FS60U)

1-107-846-11 FILM 0.1MF 5% 250V

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

C6828 1-127-681-11 CAPACITOR 10000PF 2% 100V

C6829 1-127-680-11 CAPACITOR 4700PF 2% 100V

C6830 1-107-655-11 ELECT 47MF 20% 250V

C6831 1-102-228-00 CERAMIC 470PF 10% 500V

C6832 1-126-941-11 ELECT 470MF 20% 25V

C6833 1-126-941-11 ELECT 470MF 20% 25V

C6834 1-102-228-00 CERAMIC 470PF 10% 500V

C6835 1-102-228-00 CERAMIC 470PF 10% 500V

C6836 1-123-024-21 ELECT 33MF 160V

C6837 1-106-375-12 MYLAR 0.022MF 10% 250V

C6840 1-137-370-11 FILM 0.01MF 5% 50V

C6841 1-104-664-11 ELECT 47MF 20% 16V

C6842 1-136-207-11 FILM 0.047MF 10% 400V

C6843 1-136-177-00 FILM 1MF 5% 50V

C6851 1-162-131-11 CERAMIC 220PF 10% 2KV

C6852 1-162-129-00 CERAMIC 150PF 10% 2KV

C6853 1-137-536-11 FILM 0.0022MF 5% 630V

C6855 1-136-205-11 FILM 0.022MF 10% 400V

C6856 1-102-030-00 CERAMIC 330PF 10% 500V

C6857 1-130-785-11 FILM 0.47MF 10% 100V

C6861 1-137-364-11 FILM 0.001MF 5% 50V

C6862 1-137-364-11 FILM 0.001MF 5% 50V

< CONNECTOR >

CN6100 1-785-802-11 20PIN CONNECTOR

CN6101 1-785-802-11 20PIN CONNECTO

CN6102 1-785-802-11 20PIN CONNE TOR

CN6500 1-508-766-00 PIN, CO ECTOR (5MM PITCH) 4P

CN6600 1-695-299-11 CONNECTOR BOARD TO BOARD 50P

CN6611 *1-785-2 0-11 PIN, DY CONNECTOR (PC BOARD)

CN6620 £ 1-508-7 5-00 PIN, CONNECTOR (5MM PITCH) 3P

CN6655 1- 95-915 11 TAB (CONTACT)

CN6666 £ 1- 08-786-00 PIN, CONNECTOR (5MM PITCH) 2P

CN6677 1- 95-915 1 TAB (CONTACT)

N6688 1-695-915-11 TAB (CONTACT)

CN6 0 £ *1 691-291-11 PIN, CONNECTOR (PC BOARD) 5P

< DIODE >

D6600 8-719-911-19 DIODE 1SS119-25

D6601 8-719-510-64 DIODE S2LA20F

D6602 8-719-109-89 DIODE RD5.6ESB2

D6603 8-719-911-19 DIODE 1SS119-25

D6604 8-719-510-53 DIODE D4SB60L

D6610 8-719-510-64 DIODE S2LA20F

D6613 8-719-911-19 DIODE 1SS119-25

D6615 8-719-911-19 DIODE 1SS119-25

D6616 8-719-510-12 DIODE D10SC4M

D6617 8-719-500-71 DIODED8LC40

D6618 8-719-047-31 DIODE RBA-402L

D6619 8-719-510-12 DIODE D10SC4M

D6620 8-719-510-09 DIODE D10SC6M

D6621 8-719-991-33 DIODE 1SS133T-77

D6622 8-719-991-33 DIODE 1SS133T-77

D6623 8-719-911-19 DIODE 1SS119-25

D6624 8-719-991-33 DIODE 1SS133T-77

D6625 8-719-991-33 DIODE 1SS133T-77

D6627 8-719-982-27 DIODE MTZJ-33C

D6628 8-719-109-97 DIODE RD6.8ESB2

D6629 8-719-991-33 DIODE 1SS133T-77

D6630 8-719-991-33 DIODE 1SS133T-77

D6651 8-719-068-00 DIODE ERC04-06SE

D6652 8-719-923-78 DIODE MTZJ-T-77-12

D6653 8-719-510-64 DIODE S2LA20F

D6654 8-719-059-23 DIODE P6KE200AG23

www.ELEKO.de

155

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

D6655 8-719-979-64 DIODE UF4005PKG23

D6656 8-719-510-64 DIODE S2LA20F

D6658 8-719-068-00 DIODE ERC04-06SE

D6659 8-719-510-64 DIODE S2LA20F

D6676 8-719-991-33 DIODE 1SS133T-77

D6677 8-719-921-40 DIODE MTZJ-4.7C

D6678 8-719-921-40 DIODE MTZJ-4.7C

D6679 8-719-991-33 DIODE 1SS133T-77

D6700 8-719-908-03 DIODE GP08D

D6701 8-719-110-41 DIODE RD15ESB2

D6803 8-719-908-03 DIODE GP08D

D6804 1-535-143-11 LEAD, JUMPER (10.0MM)

D6805 8-719-302-43 DIODE EL1Z

D6806 8-719-979-85 DIODE EGP20G

D6807 8-719-510-73 DIODE S3L20UF4

D6808 8-719-510-73 DIODE S3L20UF4

D6809 8-719-991-33 DIODE 1SS133T-77

D6810 8-719-110-41 DIODE RD15ESB2

D6811 8-719-110-41 DIODE RD15ESB2

D6812 8-719-991-33 DIODE 1SS133T-77

D6813 8-719-110-41 DIODE RD15ESB2

D6851 8-719-970-87 DIODE ERA38-06

D6852 8-719-970-87 DIODE ERA38-06

< FERRITE BEAD >

FB6602 1-410-396-41 FERRITE 0.45UH

FB6603 1-410-396-41 FERRITE 0.45UH

< IC >

IC6600 1-810-051-11 POWER MODULE DM 48

IC6604 8-729-045-40 TRANSISTOR MX0842A-F

IC6651 8-759-468-89 IC TOP209P

IC6652 8-759-604-39 IC M5F78M12L

IC6653 8-759-544-13 IC KA7 R09TU

IC6654 8-759-457-44 IC A78R05TU

IC6667 8-759-908-15 IC TL431CLP

IC6676 8-759-908-15 IC TL431CLP

IC6700 8-759-192-71 IC STV9379

IC6801 8-759-103-93 IC UPC393C

< COIL >

L6601 1-408-947-00 INDUCTOR 2.2MMH

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-535-303-00 LEAD, JUMPER (5.0MM)

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

L6602 1-412-529-11 INDUCTOR 22UH

L6603 1-412-529-11 INDUCTOR 22UH

L6604 1-412-525-31 INDUCTOR 10UH

L6605 1-412-525-31 INDUCTOR 10UH

L6606 1-412-525-31 INDUCTOR 10UH

L6607 1-412-525-31 INDUCTOR 10UH

L6651 1-414-183-41 INDUCTOR 10UH

L6700 1-412-524-11 INDUCTOR 8.2UH

L6801 1-412-519-11 INDUCTOR 3.3UH

L6802 1-412-519-11 INDUCTOR 3.3UH

L6803 1-412-519-11 INDUCTOR 3.3UH

L6805 1-408-947-00 INDUCTOR 2.2MMH

L6806 1-410-397-21 FERRITE 1.1UH

L6807 1-410-397-21 FERRITE 1.1UH

L6808 1-406-675-11 INDUCTOR 0UH

L6851 1-535-303-00 LEAD, JUMPER (5.0MM)

< FILTE >

LF6603 1-406-660-41 INDUCTO 0UH

LF6604 1-406-660-41 I DUCTO 0UH

LF6801 1 406 985-11 INDUCTOR 0UH

LF6851 1-406-674 1 INDUCTOR 0UH

< IC LINK >

PS660 £ 1 801-550-21 PROTECTOR MODULE 2.5A MP250

PS6602 £ 1-801-550-21 PROTECTOR MODULE 2.5A MP250

PS6603 £ 1-801-549-21 PROTECTOR MODULE 4.0A MP250

PS66 4 £ 1-801-550-21 PROTECTOR MODULE 2.5A MP250

P 6605 £ 1-801-550-21 PROTECTOR MODULE 2.5A MP250

< TRANSISTOR >

Q6600 8-729-046-47 TRANSISTOR KSC2500-BTA

Q6602 8-729-026-41 TRANSISTOR 2SA933AS-QRT

Q6603 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q6605 8-729-046-47 TRANSISTOR KSC2500-BTA

Q6606 8-729-029-56 TRANSISTOR DTA144ESA

Q6607 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q6608 8-729-029-66 TRANSISTOR DTC114ESA

Q6651 8-729-026-41 TRANSISTOR 2SA933AS-QRT

Q6652 8-729-029-86 TRANSISTOR DTC124ESA

Q6667 8-729-026-41 TRANSISTOR 2SA933AS-QRT

Q6676 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q6677 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q6678 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q6679 8-729-026-41 TRANSISTOR 2SA933AS-QRT

Q6680 8-729-029-66 TRANSISTOR DTC114ESA

Q6681 8-729-029-66 TRANSISTOR DTC114ESA

Q6700 8-729-039-68 TRANSISTOR IRF620

Q6801 8-729-119-80 TRANSISTOR 2SC2688-LK

Q6802 8-729-119-80 TRANSISTOR 2SC2688-LK

Q6803 8-729-046-18 TRANSISTOR 2SC5480-01

Q6804 8-729-046-18 TRANSISTOR 2SC5480-01

Q6805 8-729-038-83 TRANSISTOR 2SK2251-01-F19

Q6806 8-729-930-91 TRANSISTOR IRF740

Q6807 8-729-030-02 TRANSISTOR DTC144ESA

Q6809 8-729-119-78 TRANSISTOR 2SC2785-HFE

www.ELEKO.de

156

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

Q6810 8-729-026-41 TRANSISTOR 2SA933AS-QRT

Q6851 8-729-043-95 TRANSISTOR 2SC3840(3)

< RESISTOR >

R6601 £ 1-202-968-11 CEMENTED 1.2 5% 10W

R6603 1-249-430-11 CARBON 12K 5% 1/4W

R6604 1-249-421-11 CARBON 2.2K 5% 1/4W

R6605 1-249-417-11 CARBON 1K 5% 1/4W F

R6606 £ 1-202-968-11 CEMENTED 1.2 5% 10W

R6608 £ 1-220-797-11 CEMENTED 0.47 5% 10W F

R6611 1-260-125-11 CARBON 150K 5% 1/2W

R6612 1-260-125-11 CARBON 150K 5% 1/2W

R6613 1-216-369-00 METAL OXIDE 1 5% 2W F

R6614 1-260-125-11 CARBON 150K 5% 1/2W

R6615 1-260-125-11 CARBON 150K 5% 1/2W

R6616 1-216-369-00 METAL OXIDE 1 5% 2W F

R6619 1-249-425-11 CARBON 4.7K 5% 1/4W

R6620 1-249-443-11 CARBON 0.47 5% 1/4W F

R6624 1-249-425-11 CARBON 4.7K 5% 1/4W

R6625 1-249-429-11 CARBON 10K 5% 1/4W

R6626 1-247-807-31 CARBON 100 5% 1/4W

R6627 1-249-429-11 CARBON 10K 5% 1/4W

R6628 1-260-129-11 CARBON 330K 5% 1/2W

R6629 1-260-129-11 CARBON 330K 5% 1/2W

R6630 1-249-417-11 CARBON 1K 5% 1/4W

R6631 1-249-425-11 CARBON 4.7K 5% 1/4W

R6632 1-207-905-00 WIREWOUND 0.27 10% 2W F

R6633 1-249-429-11 CARBON 10K 5% 1/4W

R6635 1-249-443-11 CARBON 0.47 5% 1/4W

(KV-29FS60A/29FS60B/29F 0D/2 FS60E/

29FS60K/29FS60R/29FS6 U)

1-535-303-00 LEAD, JUMPER (5.0MM)

(KV-32FS60A/32 S60B/ 2FS60D/32FS60E)

R6637 1-249-421-11 CARBON .2K 5% 1/4W

R6638 1-247-895-91 CARBON 4 0K 5% 1/4W

R6639 1-249-416-11 CARBON 820 5% 1/4W

R6640 1-249-417-11 CARBON 1K 5% 1/4W

R6641 1-260-127-11 CARBON 220K 5% 1/2W

R6642 1-249-389-11 CARBON 4.7 5% 1/4W F

R6643 1-249-417-11 CARBON 1K 5% 1/4W F

R6644 1-249-429-11 CARBON 10K 5% 1/4W

R6645 1-260-131-11 CARBON 470K 5% 1/2W

R6646 1-249-429-11 CARBON 10K 5% 1/4W

R6647 1-249-410-11 CARBON 270 5% 1/4W

R6648 1-247-863-91 CARBON 22K 5% 1/4W

R6649 1-215-926-00 METAL OXIDE 33K 5% 3W F

R6651 1-247-791-91 CARBON 22 5% 1/4W

R6652 1-249-389-11 CARBON 4.7 5% 1/4W F

R6653 1-249-421-11 CARBON 2.2K 5% 1/4W

R6655 1-249-429-11 CARBON 10K 5% 1/4W

R6656 £ 1-218-265-11 METAL 8.2M 5% 1W

R6657 1-215-425-00 METAL 1.5K 1% 1/4W

R6666 1-202-933-61 FUSIBLE 0.1 10% 1/2W F

R6667 1-215-441-00 METAL 6.8K 1% 1/4W

R6668 1-249-429-11 CARBON 10K 5% 1/4W

R6669 1-249-413-11 CARBON 470 5% 1/4W

R6670 1-249-429-11 CARBON 10K 5% 1/4W

R6676 1-249-417-11 CARBON 1K 5% 1/4W

R6677 1-249-417-11 CARBON 1K 5% 1/4W

R6678 1-249-417-11 CARBON 1K 5% 1/4W

R6679 1-215-479-00 METAL 270K 1% 1/4W

R6681 1-215-467-00 METAL 82K 1% 1/4W

R6682 1-215-447-00 METAL 12K 1% 1/4W

R6683 1-215-429-00 METAL 2 2K % 1/4W

R6684 1-247-807-31 CARBON 00 5% 1/4W

R6685 1-249-417-11 CARBON 1K 5% 1/4W

R6686 1-215-449-00 METAL 15K 1% 1/4W

R6687 1-249-431 11 ARBON 15K 5% 1/4W

R6688 1-249-4 7-11 CARBON 1K 5% 1/4W

R6700 1-215-4 1-00 META 6.8K 1% 1/4W

R6701 1- 15-437 00 METAL 4.7K 1% 1/4W

R6702 1- 15-441-00 METAL 6.8K 1% 1/4W

R6703 1-215-437-00 METAL 4.7K 1% 1/4W

6704 1-249-383-11 CARBON 1.5 5% 1/4W F

R67 1 247-791-91 CARBON 22 5% 1/4W

R6707 1-215-888-00 METAL OXIDE 220 5% 2W F

R6708 1-214-798-21 METAL 1.8 1% 1/2W

R6709 1-214-798-21 METAL 1.8 1% 1/2W

R6710 1-247-843-11 CARBON 3.3K 5% 1/4W

R6711 1-249-418-11 CARBON 1.2K 5% 1/4W

R6801 1-215-440-00 METAL 6.2K 1% 1/4W

R6802 1-214-915-00 METAL 120K 1% 1/2W

R6803 1-249-421-11 CARBON 2.2K 5% 1/4W

R6804 1-247-807-31 CARBON 100 5% 1/4W

R6805 1-247-807-31 CARBON 100 5% 1/4W

R6806 1-249-411-11 CARBON 680 5% 1/4W

R6807 1-249-411-11 CARBON 330 5% 1/4W

R6808 1-260-340-11 CARBON 10K 5% 1/2W

R6809 1-260-340-11 CARBON 10K 5% 1/2W

R6810 1-215-920-11 METAL OXIDE 3.3K 5% 3W

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-216-460-11 METAL OXIDE 3.9K 5% 3W F

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6811 1-216-461-00 METAL OXIDE 5.6K 5% 2W F

R6812 1-215-895-11 METAL OXIDE 3.3K 5% 2W F

R6813 1-215-920-11 METAL OXIDE 3.3K 5% 3W F

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-215-895-11 METAL OXIDE 3.3K 5% 2W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6814 1-215-880-00 METAL OXIDE 10 5% 2W F

R6815 1-215-880-00 METAL OXIDE 10 5% 2W F

R6816 1-216-361-00 METAL OXIDE 0.22 5% 2W F

www.ELEKO.de

157

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

R6817 1-216-361-00 METAL OXIDE 0.22 5% 2W F

R6818 1-247-807-31 CARBON 100 5% 1/4W

R6819 1-247-807-31 CARBON 100 5% 1/4W

R6831 1-260-124-11 CARBON 120K 5% 1/2W

R6832 1-216-434-11 METAL OXIDE 1.8K 5% 1W F

R6833 1-202-972-61 FUSIBLE 1 5% 1/4W F

R6834 1-249-377-11 CARBON 0.47 5% 1/4W F

R6835 1-249-377-11 CARBON 0.47 5% 1/4W F

R6836 1-249-431-11 CARBON 15K 5% 1/4W

R6837 1-215-919-11 METAL OXIDE 2.2K 5% 3W F

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-215-894-11 METAL OXIDE 2.2K 5% 2W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6838 1-214-905-11 METAL 47K 1% 1/2W

R6839 1-215-919-11 METAL OXIDE 2.2K 5% 3W F

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-215-894-11 METAL OXIDE 2.2K 5% 2W

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6840 1-247-843-11 CARBON 3.3K 5% 1/4W

R6842 1-260-123-11 CARBON 100K 5% 1/2W

R6843 1-249-429-11 CARBON 10K 5% 1/4W

R6844 1-249-441-11 CARBON 100K 5% 1/4W

R6845 1-247-863-91 CARBON 22K 5% 1/4W

R6851 1-260-123-11 CARBON 100K 5% 1/2

R6852 1-260-123-11 CARBON 100K 5% 1 2W

R6853 1-260-123-11 CARBON 100K 5% 1/2W

R6854 1-249-417-11 CARBON 1K 5% 1/4W

R6856 1-216-485-11 METAL OXIDE 5.6K 5% 3W

(KV-29FS60A/29F 0B/29FS60D/29FS60E/

29FS60K/29FS6 R/29F 60U)

1-215-922-11 METAL OXIDE 6 8K 5% 3W F

(KV-32 S60A/ 2FS60B/32FS60D/32FS60E)

R6857 1-216-485-11 METAL OXIDE 5.6K 5% 3W

(KV 29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U)

1-215-922-11 METAL OXIDE 6.8K 5% 3W F

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

R6858 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R6859 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R6880 1-215-436-00 METAL 4.3K 1% 1/4W

R6885 1-215-493-00 METAL 1M 1% 1/4W

R6886 1-215-477-00 METAL 220K 1% 1/4W

R6887 1-215-461-00 METAL 47K 1% 1/4W

R6888 1-249-441-11 CARBON 100K 5% 1/4W

R6889 1-249-421-11 CARBON 2.2K 5% 1/4W

R6890 1-247-887-00 CARBON 220K 5% 1/4W

R6891 1-247-895-91 CARBON 470K 5% 1/4W

R6892 1-249-437-11 CARBON 47K 5% 1/4W

R6893 1-249-429-11 CARBON 10K 5% 1/4W

R6894 1-535-303-00 LEAD, JUMPER (5.0MM)

R6895 1-249-443-11 CARBON 0.47 5% 1/4W F

R6896 1-249-443-11 CARBON 0.47 5% 1/4W F

R6897 1-215-485-00 METAL 470K 1% 1/4W

R6898 1-215-493-00 METAL 1M 1% 1/4W

R6899 1-215-493-00 METAL 1M 1% 1/4W

< RELAY >

RY6601 £ 1-755-266-11 RELAY, AC POWER

RY6602 £ 1-755-167-11 RELAY, AC POWER

< TRANSFORMER >

T6600 £ 1-431-616-11 TRANSFORMER, CONVERTER

T6601 £ 1-433-516-11 TRANSFORMER, CONVERTER

T6651 1-431-732-11 TRANSFORMER, C NVERTER (SRT)

T6801 1-433-489-11 TRA FORMER FERRITE (HDT)

T6802 1-433-489-11 TRANSFO MER, FERRITE (HDT)

T6804 £ 1 453 272-11 TRANSFORMER FLYBACK ASSEMBLY NX-4512/U2B4

T6805 1-429-741 1 TRANSFORMER, DRIVE

T6852 1-426-896- 1 TRANSFORMER, FERRITE (DFT)

< THERMISTOR >

TH660 £ 1-809-827-11 THERMISTOR, POSITIVE

TH6700 1-800-193-00 THERMISTOR

* **************************************************************

*A-1644-094-A VM BOARD, COMPLETE (KV-29FS60)

******************

*A-1644-095-A VM BOARD, COMPLETE (KV-32FS60)

******************

4-382-854-11 SCREW (M3X10), P, SW (+)

< CAPACITOR >

C5400 1-107-883-11 ELECT 330MF 20% 16V

C5401 1-126-935-11 ELECT 470MF 20% 16V

C5402 1-137-370-11 FILM 0.01MF 5% 50V

C5403 1-126-935-11 ELECT 470MF 20% 6.3V

C5405 1-126-933-11 ELECT 100MF 20% 16V

C5406 1-126-935-11 ELECT 470MF 20% 6.3V

C5407 1-104-989-91 FILM 0.0022MF 5% 200V

C5408 1-104-989-91 FILM 0.0022MF 5% 200V

C5409 1-107-649-11 ELECT 2.2MF 20% 250V

C5410 1-137-364-11 FILM 0.001MF 5% 50V

C5411 1-137-364-11 FILM 0.001MF 5% 50V

C5412 1-126-933-11 ELECT 100MF 20% 16V

C5413 1-126-933-11 ELECT 100MF 20% 16V

C5414 1-107-638-11 ELECT 33MF 20% 160V

C5415 1-107-363-91 FILM 0.0068MF 10% 200V

C5416 1-102-106-00 CERAMIC 100PF 10% 50V

C5419 1-101-880-00 CERAMIC 47PF 5% 50V

C5430 1-162-117-00 CERAMIC 100PF 10% 500V

www.ELEKO.de

158

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

< CONNECTOR >

CN5402 *1-568-878-51 PIN, CONNECTOR 3P

CN5444 *1-770-723-11 CONNECTOR, BOARD TO BOARD 8P

CN5555 1-695-915-11 TAB (CONTACT)

CN5602 *1-568-881-51 PIN, CONNECTOR 6P

< DIODE >

D5400 8-719-991-33 DIODE 1SS133T-77

D5401 8-719-510-02 DIODE D1NS4

D5402 8-719-991-33 DIODE 1SS133T-77

D5403 8-719-991-33 DIODE 1SS133T-77

D5404 8-719-991-33 DIODE 1SS133T-77

D5405 8-719-924-11 DIODE MTZJ-T-77-22

D5406 8-719-924-11 DIODE MTZJ-T-77-22

< FERRITE BEAD >

FB5400 1-410-397-21 FERRITE 1.1UH

FB5401 1-410-396-41 FERRITE 0.45UH

< COIL >

L5400 1-410-784-41 INDUCTOR 0.18UH

< TRANSISTOR >

Q5400 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q5401 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q5402 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q5403 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q5404 8-729-026-41 TRANSISTOR 2SA933AS-QRT

Q5405 8-729-026-41 TRANSISTOR 2SA933AS-QRT

Q5406 8-729-017-05 TRANSISTOR 2SA1837

Q5407 8-729-017-06 TRANSISTOR 2SC4793

< RESISTOR >

R5400 1-249-401-11 CARBON 47 5% 1/4W

R5401 1-249-421-11 CARBON 2.2K 5% 1/4W

R5402 1-249-413-11 CARBON 470 5% 1/4W

R5403 1-249-393-11 CARBON 10 5% 1/4W F

R5404 1-249-417-11 CARBON 1K 5% 1/4W

R5405 1-249-425-11 CARBON 4.7K 5% 1/4W

R5406 1-249-425-11 CARBON 4.7K 5% 1/4W

R5407 1-249-399-11 CARBON 33 5% 1/4W

R5408 1-247-807-31 CARBON 100 5% 1/4W

R5409 1-247-815-91 CARBON 220 5% 1/4W

R5410 1-249-401-11 CARBON 47 5% 1/4W

R5411 1-249-401-11 CARBON 47 5% 1/4W

R5412 1-249-429-11 CARBON 10K 5% 1/4W

R5413 1-249-414-11 CARBON 560 5% 1/4W F

R5414 1-249-432-11 CARBON 18K 5% 1/4W

R5415 1-260-311-11 CARBON 39 5% 1/2W

R5416 1-249-383-11 CARBON 1.5 5% 1/4W F

R5417 1-249-432-11 CARBON 18K 5% 1/4W

R5418 1-249-414-11 CARBON 560 5% 1/4W

R5419 1-249-421-11 CARBON 2.2K 5% 1/4W

R5420 1-249-421-11 CARBON 2.2K 5% 1/4W

R5421 1-249-383-11 CARBON 1.5 5% 1/4W F

R5422 1-249-400-11 CARBON 39 5% 1/4W F

R5423 1-215-914-11 METAL OXIDE 330 5% 3W F

R5425 1-249-419-11 CARBON 1.5K 5% 1/4W

*****************************************************************

*A-1646-170-A H1 BOARD, COMPLETE (KV-29FS60)

**************** *

*A-1646-174-A H1 BOARD, COMPLETE (KV- 2FS60)

************ ****

< CAPACITOR >

C7900 1-101-8 0-00 CERAMIC 100PF 5% 500V

C7901 1-101-8 0-00 CERA IC 100PF 5% 500V

C7925 1- 37-372 11 FILM 0.022MF 5% 50V

C7926 1- 37-372-11 FILM 0.022MF 5% 50V

< CONNECTOR >

CN7 3* 1 564-514-11 PLUG, CONNECTOR 11P

< JACK >

J7900 1-779-947-21 TERMINAL BLOCK, S

J7925 1-764-606-11 JACK

< COIL >

L7925 1-414-183-41 INDUCTOR 10UH

L7926 1-414-183-41 INDUCTOR 10UH

< RESISTOR >

R7900 1-535-303-00 LEAD, JUMPER (5.0MM)

R7901 1-249-417-11 CARBON 1K 5% 1/4W

R7902 1-247-895-91 CARBON 470K 5% 1/4W

R7903 1-247-895-91 CARBON 470K 5% 1/4W

R7904 1-535-303-00 LEAD, JUMPER (5.0MM)

R7905 1-249-417-11 CARBON 1K 5% 1/4W

R7906 1-535-303-00 LEAD, JUMPER (5.0MM)

*****************************************************************

*A-1648-018-A U BOARD, COMPLETE (KV-29FS60)

*****************

*A-1648-017-A U BOARD, COMPLETE (KV-32FS60)

*****************

< CAPACITOR >

C7952 1-101-005-00 CERAMIC 0.022MF 50V

C7953 1-101-005-00 CERAMIC 0.022MF 50V

(KV-32FS60A/32FS60B/32FS60D/32FS60E)

VM H1 U

www.ELEKO.de

159

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C7961 1-101-005-00 CERAMIC 0.022MF 50V

C7962 1-101-005-00 CERAMIC 0.022MF 50V

< CONNECTOR >

CN7101 1-573-299-21 CONNECTOR, BOARD TO BOARD 10P

CN7977* 1-564-519-11 PLUG, CONNECTOR 4P

CN7988* 1-564-519-11 PLUG, CONNECTOR 4P

CN7990* 1-564-518-11 PLUG, CONNECTOR 3P

CN7999* 1-564-519-11 PLUG, CONNECTOR 4P

< JACK >

J7951 1-694-470-11 TERMINAL BOARD

J7952 1-537-339-11 TERMINAL BOARD

< COIL >

L7950 1-402-711-11 INDUCTOR 0UH

L7952 1-402-711-11 INDUCTOR 0UH

L7954 1-402-711-11 INDUCTOR 0UH

L7956 1-402-711-11 INDUCTOR 0UH

**********************************************************************

*A-1651-102-A J BOARD, COMPLETE (KV-29FS60A/29FS60D/29FS6 E/

***************** 29FS60K/29FS60R/29FS60U)

*A-1651-106-A J BOARD, COMPLETE (KV-29FS60B)

*****************

*A-1651-101-A J BOARD, COMPLETE (KV-32FS60A/32FS60D/32F 60E)

*****************

*A-1651-107-A J BOARD, COMPLETE (KV-32FS60B)

*****************

< CAPACITOR >

C8100 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8101 1-107-823-11 CERAMIC CHIP 0 4 MF 10% 16V

C8102 1-104-760-11 CERAMIC CHIP 0.04 MF 10% 50V

C8103 1-104-664-11 ELECT 7MF 20% 16V

C8104 1-126-934-11 ELE T 220MF 20% 16V

C8105 1-126-933-11 ELECT 100MF 20% 16V

C8106 1-126-933-11 ELECT 100MF 20% 16V

C8107 1-126-933-11 ELECT 100MF 20% 16V

C8108 1-126-933-11 ELECT 100MF 20% 16V

C8109 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8110 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8111 1-126-933-11 ELECT 100MF 20% 16V

C8125 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8126 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8127 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8128 1-104-664-11 ELECT 47MF 20% 16V

C8129 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8130 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8131 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8132 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8133 1-104-664-11 ELECT 47MF 20% 16V

C8134 1-104-664-11 ELECT 47MF 20% 16V

C8135 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C8136 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C8137 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C8138 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8139 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8140 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8141 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8142 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8143 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8144 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8145 1-107-823-11 CERAMIC CHIP .47MF 10% 16V

C8146 1-163-251-11 CERAMIC CHIP 1 PF 5% 50V

C8150 1-163-251-11 CER MIC CHIP 100PF 5% 50V

C8151 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8152 1 164 346-11 CERAMIC CHIP 1MF 16V

C8153 1-107-682 1 CERAMIC CHIP 1MF 10% 16V

C8154 1-163-021- 1 CERAMIC CHIP 0.01MF 10% 50V

C8155 1 107-682 11 CERAMIC CHIP 1MF 10% 16V

C8156 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C8157 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C8159 1-104-664-11 ELECT 47MF 20% 16V

C8161 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C 200 1-104-664-11 ELECT 47MF 20% 16V

C8201 1-163-241-11 CERAMIC CHIP 39PF 5% 50V

C8202 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8203 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8204 1-164-506-11 CERAMIC CHIP 4.7MF 16V

C8205 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C8208 1-164-506-11 CERAMIC CHIP 4.7MF 16V

C8209 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C8210 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8211 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C8212 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C8213 1-163-087-00 CERAMIC CHIP 4PF 0.25PF 50V

C8214 1-163-087-00 CERAMIC CHIP 4PF 0.25PF 50V

C8215 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C8216 1-126-933-11 ELECT 100MF 20% 16V

C8217 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8218 1-126-964-11 ELECT 10MF 20% 50V

C8219 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8220 1-126-964-11 ELECT 10MF 20% 50V

C8221 1-104-664-11 ELECT 47MF 20% 16V

C8222 1-104-664-11 ELECT 47MF 20% 16V

C8223 1-104-664-11 ELECT 47MF 20% 16V

C8224 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8225 1-104-664-11 ELECT 47MF 20% 16V

C8228 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C8229 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C8230 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C8231 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

www.ELEKO.de

160

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C8232 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8233 1-104-664-11 ELECT 47MF 20% 16V

C8234 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8235 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8236 1-126-933-11 ELECT 100MF 20% 16V

C8237 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C8238 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C8239 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8240 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8241 1-126-964-11 ELECT 10MF 20% 50V

C8242 1-104-664-11 ELECT 47MF 20% 16V

C8243 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V

(KV-29FS60B/32FS60B)

C8250 1-164-506-11 CERAMIC CHIP 4.7MF 16V

C8251 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8252 1-164-506-11 CERAMIC CHIP 4.7MF 16V

C8253 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

C8254 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C8255 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C8256 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8258 1-126-933-11 ELECT 100MF 20% 16V

C8260 1-126-933-11 ELECT 100MF 20% 16V

C8263 1-126-933-11 ELECT 100MF 20% 16V

C8300 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8301 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8302 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25

C8303 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8304 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8305 1-164-004-11 CERAMIC CHIP 0.1MF 10% 5V

C8306 1-164-004-11 CERAMIC CHIP 0.1MF 10 25V

C8307 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8308 1-126-933-11 ELECT 100MF 20% 16V

C8310 1-164-004-11 CERAMIC CHIP 0 1MF 0% 25V

C8311 1-164-004-11 CERAMIC CHIP 0 1MF 10% 25V

C8312 1-164-004-11 CERAMIC CH P 0.1MF 10% 25V

C8313 1-164-004-11 CERAMIC CHIP .1MF 10% 25V

C8314 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8315 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8316 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8317 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8318 1-126-933-11 ELECT 100MF 20% 16V

C8319 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8320 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8321 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8322 1-126-933-11 ELECT 100MF 20% 16V

C8323 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V

C8324 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8325 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8326 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C8327 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8328 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8329 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8330 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C8331 1-126-960-11 ELECT 1MF 20% 50V

C8332 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8343 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

(KV-29FS60B/32FS60B)

C8344 1-163-173-00 CERAMIC CHIP 47PF 5% 50V

(KV-29FS60B/32FS60B)

C8345 1-126-933-11 ELECT 100MF 20% 16V

(KV-29FS60B/32FS60B)

C8401 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8402 1-164-004-11 CERAMIC CHIP 0 1MF 10% 25V

C8403 1-164-004-11 CERAMIC HIP 0 1MF 10% 25V

C8404 1-164-004-11 CERAMIC CH 0.1MF 10% 25V

C8405 1-164-004-11 CERAMIC CHIP 0. MF 10% 25V

C8406 1-164-004-11 CERAMIC CHIP 0 1MF 10% 25V

C8407 1-164-0 4-11 CERAMIC CHIP 0.1MF 10% 25V

C8408 1-164-1 2-11 CERA IC CHIP 0.0033MF 10% 50V

C8409 1- 64-004 11 CER MIC CHIP 0.1MF 10% 25V

C8410 1- 15-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8411 1- 15-340 1 CERAMIC CHIP 0.22MF 10% 25V

8412 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C84 1 115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8414 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C8415 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C8416 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8417 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8418 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8419 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8420 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8421 1-126-933-11 ELECT 100MF 20% 16V

C8422 1-126-960-11 ELECT 1MF 20% 50V

C8423 1-126-933-11 ELECT 100MF 20% 16V

C8424 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8425 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8426 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8427 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8450 1-104-664-11 ELECT 47MF 20% 16V

C8451 1-104-664-11 ELECT 47MF 20% 16V

C8455 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

(KV-29FS60A/29FS60B/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U/

32FS60A/32FS60D/32FS60E)

C8456 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8500 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8501 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C8502 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C8503 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8504 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8505 1-126-933-11 ELECT 100MF 20% 16V

C8506 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C8507 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

www.ELEKO.de

161

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

C8508 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8509 1-126-933-11 ELECT 100MF 20% 16V

C8510 1-104-664-11 ELECT 47MF 20% 16V

C8511 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8512 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8513 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8514 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8515 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8516 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8517 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8518 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8519 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8520 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8521 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8601 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8602 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8605 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8606 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8607 1-104-664-11 ELECT 47MF 20% 16V

C8608 1-104-664-11 ELECT 47MF 20% 16V

C8609 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8610 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8611 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8612 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C8613 1-104-664-11 ELECT 47MF 20% 16V

C8614 1-104-664-11 ELECT 47MF 2 % 1 V

C8700 1-126-964-11 ELECT 10MF 20% 50V

C8701 1-104-664-11 ELECT 47MF 20% 16V

C8702 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C8703 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C8704 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C8705 1-163-021-91 CERAMIC CHIP 0 01MF 10% 50V

C8706 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C8707 1-163-235-11 CERAMIC CHIP 2PF 5% 50V

C8708 1-164-004-11 CE AMIC CHIP 0.1MF 10% 25V

C8709 1-126-964-11 ELECT 10MF 20% 50V

C8710 1-126-933-11 ELECT 100MF 20% 16V

C8900 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C8901 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8902 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8903 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C8904 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C8905 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C8906 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8907 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8908 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C8909 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8910 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C8911 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C8916 1-126-933-11 ELECT 100MF 20% 16V

C8977 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C8978 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

< FILTER >

CF8150 1-760-106-11 FILTER, CERAMIC

CF8151 1-567-100-00 FILTER, CERAMIC

CF8152 1-760-450-21 FILTER, CERAMIC

CF8200 1-409-327-00 TRAP, CERAMIC (6.5MHZ)

< CONNECTOR >

CN1402 1-573-296-11 CONNECTOR, BOARD TO BOARD 10P

(KV-29FS60B/32FS60B)

CN8101 1-695-302-11 CONNECT R, B ARD TO BOARD 50P

CN8102* 1-564-518-11 PLUG, CONNECTO 3P

CN8900 1-561-534-41 SOC ET, PIN 21P

CN8901 1-695-293-11 SOCKET 21P

CN8902 1 95 293-11 SOCKET 21P

< DIODE >

D8125 8-719-158-49 DIODE RD12SB2

D8126 8 719-158-49 DIODE RD12SB2

D8127 8-719-158-49 DIODE RD12SB2

D8128 8-719-158-49 DIODE RD12SB2

D812 8-719-158-49 DIODE RD12SB2

D8130 8-719-158-49 DIODE RD12SB2

D8131 8-719-158-49 DIODE RD12SB2

D8132 8-719-158-49 DIODE RD12SB2

D8150 8-719-421-57 DIODE MA73-TX

D8151 8-719-421-57 DIODE MA73-TX

D8152 8-719-421-57 DIODE MA73-TX

D8200 8-719-158-49 DIODE RD12SB2

D8201 8-719-158-49 DIODE RD12SB2

D8202 8-719-158-49 DIODE RD12SB2

D8203 8-719-158-49 DIODE RD12SB2

D8349 8-719-914-42 DIODE DA204K-T-146 (KV-29FS60B/32FS60B)

D8432 8-719-914-42 DOIDE DA204K-T-146 (KV-29FS60B/32FS60B)

D8450 8-719-158-49 DIODE RD12SB2

D8451 8-719-158-49 DIODE RD12SB2

D8900 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8901 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8902 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8903 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8904 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8905 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8906 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8907 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8908 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8909 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8910 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8911 8-719-056-85 DIODE UDZ-TE-17-8.2B

D8912 8-719-158-49 DIODE RD12SB2

D8913 8-719-158-49 DIODE RD12SB2

www.ELEKO.de

162

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

D8914 8-719-158-49 DIODE RD12SB2

D8915 8-719-158-49 DIODE RD12SB2

D8922 8-719-056-84 DIODE UDZ-TE-17-7.5B

D8923 8-719-978-04 DIODE DTZ-TT11-3.3B

< FILTER >

FL8200 1-236-071-11 ENCAPSULATED COMPONENT

FL8201 1-233-764-21 FILTER

FL8203 1-236-071-11 ENCAPSULATED COMPONENT

FL8250 1-236-071-11 ENCAPSULATED COMPONENT

FL8251 1-236-071-11 ENCAPSULATED COMPONENT

FL8252 1-236-071-11 ENCAPSULATED COMPONENT

FL8300 1-236-071-11 ENCAPSULATED COMPONENT

FL8301 1-236-071-11 ENCAPSULATED COMPONENT

FL8400 1-236-071-11 ENCAPSULATED COMPONENT

FL8401 1-236-071-11 ENCAPSULATED COMPONENT

FL8500 1-236-071-11 ENCAPSULATED COMPONENT

FL8501 1-236-071-11 ENCAPSULATED COMPONENT

FL8502 1-233-765-21 FILTER

FL8503 1-233-768-21 FILTER (SMD)

FL8504 1-233-766-21 FILTER

FL8700 1-236-071-11 ENCAPSULATED COMPONENT

FL8701 1-236-071-11 ENCAPSULATED COMPONENT

< IC >

IC8100 8-759-352-94 IC TDA7309D013TR

IC8101 8-759-085-34 IC TDA2822D

IC8125 8-759-351-01 IC TEA6422DT

IC8150 8-759-478-90 IC U2861B-MFP-G3

IC8151 8-752-072-94 IC CXA1875AM-T4

IC8200 8-759-544-10 IC MSP3410D-QA-B4

IC8201 8-759-701-36 IC NJM3403AM

IC8202 8-759-908-15 IC TL431CLP

IC8250 8-759-567-38 IC TC9337F-034

IC8300 8-759-546-01 IC TDA9320 N1-518

IC8400 8-759-546-01 IC TDA9320H N -518

IC8451 8-759-385-76 IC MC14052BDR2

IC8500 8-752-390-37 IC CXD2064Q-T6

IC8601 8-759-544-24 IC LF90CDT

IC8602 8-759-544-23 IC LF80CDT

IC8603 8-759-544-22 IC LF50CDT

IC8604 8-759-544-22 IC LF50CDT

IC8700 8-752-390-35 IC CXD2057M-T6

< JACK >

J8901 1-774-747-11 JACK BLOCK, PIN

< COIL >

L8150 1-414-757-11 INDUCTOR 100UH

L8200 1-412-006-31 INDUCTOR CHIP 10UH

L8201 1-412-064-11 INDUCTOR CHIP 100UH

L8343 1-410-421-11 INDUCTOR 15UH

(KV-29FS60B/32FS60B)

< TRANSISTOR >

Q8100 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8101 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8150 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8151 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q8152 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q8153 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q8154 1-801-806-11 TRANSISTOR DTC144EKA-T146

Q8155 8-729-038-96 TRANSISTOR IMZ1A-T10

Q8156 8-729-620-06 TRANSIST R 2SC 052 EF

Q8157 8-729-620-06 TRANSISTOR SC305 EF

Q8200 8-729-620-06 TRANSISTO 2SC3052-EF

Q8201 8-729-620 06 RANSISTOR 2SC3052-EF

Q8202 8-729-6 0-06 TRANSISTOR 2SC3052-EF

Q8300 8-729-2 6-22 TRAN ISTOR 2SA1162-G

Q8301 8- 29-038 96 TRANSISTOR IMZ1A-T109

Q8302 8- 29-620 06 TRANSISTOR 2SC3052-EF

Q8303 8- 29-620-06 TRANSISTOR 2SC3052-EF

8304 8-729-620-06 TRANSISTOR 2SC3052-EF

Q83 8 729-620-06 TRANSISTOR 2SC3052-EF

Q8306 8-729-620-06 TRANSISTOR 2SC3052-EF

Q83 7 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8308 8-729-038-96 TRANSISTOR IMZ1A-T109

Q8309 8-729-038-96 TRANSISTOR IMZ1A-T109

Q8310 8-729-038-96 TRANSISTOR IMZ1A-T109

Q8311 8-729-620-06 TRANSISTOR 2SC2412K-T-146-R

(KV-29FS60B/32FS60B)

Q8343 8-729-620-06 TRANSISTOR 2SC2412K-T-146-R

(KV-29FS60B/32FS60B)

Q8400 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8401 8-729-216-22 TRANSISTOR 2SA1162-G

Q8403 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8404 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8405 8-729-038-96 TRANSISTOR IMZ1A-T109

Q8406 8-729-038-96 TRANSISTOR IMZ1A-T109

Q8407 8-729-038-96 TRANSISTOR IMZ1A-T109

Q8425 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8450 8-729-216-22 TRANSISTOR 2SA1162-G

Q8453 8-729-216-22 TRANSISTOR 2SA1162-G

Q8456 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8459 8-729-216-22 TRANSISTOR 2SA1162-G

Q8461 8-729-216-22 TRANSISTOR 2SA1162-G

Q8500 8-729-038-96 TRANSISTOR IMZ1A-T109

Q8501 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8503 8-729-216-22 TRANSISTOR 2SA1162-G

Q8504 8-729-216-22 TRANSISTOR 2SA1162-G

Q8700 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8900 8-729-620-06 TRANSISTOR 2SC3052-EF

www.ELEKO.de

163

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

Q8901 8-729-620-06 TRANSISTOR 2SC3052-EF

Q8903 8-729-620-06 TRANSISTOR 2SC3052-EF

< RESISTOR >

R8100 1-216-025-91 RES,CHIP 100 5% 1/10W

R8101 1-216-025-91 RES,CHIP 100 5% 1/10W

R8102 1-216-295-91 SHORT 0

R8103 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8104 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8105 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8106 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8107 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8108 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8109 1-249-389-11 CARBON 4.7 5% 1/4W F

R8110 1-249-389-11 CARBON 4.7 5% 1/4W F

R8111 1-216-033-00 RES,CHIP 220 5% 1/10W

R8112 1-216-033-00 RES,CHIP 220 5% 1/10W

R8113 1-216-095-00 RES,CHIP 82K 5% 1/10W

R8114 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8115 1-216-033-00 RES,CHIP 150 5% 1/10W

R8116 1-216-033-00 RES,CHIP 150 5% 1/10W

R8117 1-216-033-00 RES,CHIP 150 5% 1/10W

R8118 1-216-033-00 RES,CHIP 150 5% 1/10W

R8125 1-216-295-91 SHORT 0

R8126 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8127 1-216-113-00 RES,CHIP 470K 5% 1/10W

R8128 1-216-049-91 RES,CHIP 1K 5% 1/1

R8129 1-216-025-91 RES,CHIP 100 5% 1/10W

R8130 1-216-025-91 RES,CHIP 100 5% 1/10W

R8131 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8132 1-216-057-00 RES,CHIP 2 2K 5% 1/10W

R8133 1-216-113-00 RES,CHIP 47 K 5% 1/10W

R8150 1-216-057-00 RES,CHIP 2.2 5% 1/10W

R8151 1-216-069-00 RES,CH P 6.8K 5% 1/10W

R8152 1-216-035-00 RES,CHIP 270 5% 1/10W

R8153 1-216-081-00 RES, HIP 22K 5% 1/10W

R8154 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R8155 1-216-043-91 RES,CHIP 560 5% 1/10W

R8156 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8157 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R8158 1-216-043-91 RES,CHIP 560 5% 1/10W

R8159 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8160 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R8161 1-216-043-91 RES,CHIP 560 5% 1/10W

R8162 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8163 1-216-295-91 SHORT 0

R8164 1-216-295-91 SHORT 0

R8165 1-216-295-91 SHORT 0

R8167 1-216-025-91 RES,CHIP 100 5% 1/10W

R8168 1-216-025-91 RES,CHIP 100 5% 1/10W

R8169 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8170 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R8171 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R8172 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R8173 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R8174 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R8175 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R8200 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8201 1-216-295-91 SHORT 0

R8202 1-216-021-00 RES,CHIP 68 5% 1/10W

R8203 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R8204 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8205 1-216-069-00 RES,CHI 6.8K 5% 1/10W

R8206 1-216-049-91 RES,CHIP K 5% 1/10W

R8208 1-216-037-00 RES,CHIP 330 5% 1/10W

R8209 1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W

R8210 1 216 25-91 RES,CHIP 100 5% 1/10W

R8212 1-216-295 91 SHORT 0

R8213 1-216-295- 1 SHORT 0

R8214 1 216-295 91 SHORT 0

R8215 1-216-295-91 SHORT 0

R8216 1-216-025-91 RES,CHIP 100 5% 1/10W

R8217 1-216-025-91 RES,CHIP 100 5% 1/10W

R821 1-216-049-91 RES,CHIP 1K 5% 1/10W

R 219 1-216-025-91 RES,CHIP 100 5% 1/10W

R8220 1-216-025-91 RES,CHIP 100 5% 1/10W

R8221 1-216-025-91 RES,CHIP 100 5% 1/10W

R8222 1-216-295-91 SHORT 0

R8223 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8224 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8225 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8226 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8227 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8228 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8229 1-216-295-91 SHORT 0

R8230 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8231 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8232 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8233 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8234 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8235 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8236 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8237 1-216-043-91 RES,CHIP 560 5% 1/10W

R8238 1-216-063-91 RES,CHIP 3.9K 5% 1/10W

R8239 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R8240 1-216-651-11 METAL CHIP 1K 0.50% 1/10W

R8243 1-216-021-00 RES,CHIP 68 5% 1/10W

R8250 1-216-295-91 SHORT 0

R8251 1-216-295-91 SHORT 0

R8252 1-216-295-91 SHORT 0

R8253 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R8254 1-216-097-91 RES,CHIP 100K 5% 1/10W

www.ELEKO.de

164

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R8255 1-216-025-91 RES,CHIP 100 5% 1/10W

R8256 1-216-295-91 SHORT 0

R8257 1-216-025-91 RES,CHIP 100 5% 1/10W

R8258 1-216-025-91 RES,CHIP 100 5% 1/10W

R8259 1-216-081-00 RES,CHIP 22K 5% 1/10W

R8300 1-216-041-00 RES,CHIP 470 5% 1/10W

R8302 1-216-017-91 RES,CHIP 47 5% 1/10W

R8303 1-216-041-00 RES,CHIP 470 5% 1/10W

R8304 1-216-041-00 RES,CHIP 470 5% 1/10W

R8305 1-216-049-91 RES,CHIP 1K 5% 1/10W

(KV-29FS60B/32FS60B)

R8306 1-216-295-91 SHORT 0

R8307 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8308 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8309 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8310 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8311 1-216-085-00 RES,CHIP 33K 5% 1/10W

R8312 1-216-077-00 RES,CHIP 15K 5% 1/10W

R8313 1-216-041-00 RES,CHIP 470 5% 1/10W

R8314 1-216-043-91 RES,CHIP 560 5% 1/10W

R8316 1-216-295-91 SHORT 0

R8317 1-216-025-91 RES,CHIP 100 5% 1/10W

R8318 1-216-025-91 RES,CHIP 100 5% 1/10W

R8319 1-216-295-91 SHORT 0

R8320 1-216-295-91 SHORT 0

R8321 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8322 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8323 1-216-097-91 RES,CHIP 100K 5% 1/10W

R8325 1-216-041-00 RES,CHIP 470 5% 1/10W

R8326 1-216-041-00 RES,CHIP 470 5% 1/ 0W

R8327 1-216-041-00 RES,CHIP 470 5% 1/1 W

R8328 1-216-041-00 RES,CHIP 470 5% 1/10W

R8329 1-216-041-00 RES,CHIP 470 5% 1/10W

R8330 1-216-041-00 RES,CHIP 470 5% 1/10W

R8331 1-216-041-00 RES,CHIP 4 0 5% 1/10W

R8332 1-216-041-00 RES,CHIP 470 5% 1/10W

R8333 1-216-041-00 RES,CHIP 470 5% 1/10W

R8334 1-216-017-91 RES,CHIP 47 5% 1/10W

R8335 1-216-017-91 RES,CHIP 47 5% 1/10W

R8337 1-216-077-00 RES,CHIP 15K 5% 1/10W

R8338 1-216-017-91 RES,CHIP 47 5% 1/10W

R8339 1-216-017-91 RES,CHIP 47 5% 1/10W

R8340 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8343 1-216-045-00 RES,CHIP 680 5% 1/10W

(KV-29FS60B/32FS60B)

R8344 1-216-033-00 RES,CHIP 220 5% 1/10W

(KV-29FS60B/32FS60B)

R8345 1-216-033-00 RES,CHIP 220 5% 1/10W

(KV-29FS60B/32FS60B)

R8346 1-216-295-91 SHORT 0

(KV-29FS60A/29FS60D/29FS60E/

29FS60K/29FS60R/29FS60U/

32FS60A/32FS60D/32FS60E)

R8347 1-216-025-91 RES,CHIP 100 5% 1/10W

(KV-29FS60B/32FS60B)

R8348 1-216-295-91 SHORT 0

(KV-29FS60B/32FS60B)

R8349 1-216-121-91 RES,CHIP 1M 5% 1/10W

(KV-29FS60B/32FS60B)

R8350 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8351 1-216-073-00 RES,CHIP 1 K % 1/10W

R8352 1-216-089-91 RES,CHIP 7K 5% 1/10W

(KV-29FS60B/32FS60B)

R8353 1-216-081-00 RES,CHI 2 K 5% 1/10W

(KV-29FS60B/32FS60B)

R8354 1-216-0 7-00 RES,CHIP 5.6K 5% 1/10W

R8355 1-216-0 7-00 RES, HIP 2.2K 5% 1/10W

R8356 1- 16-057 00 RES,CHIP 2.2K 5% 1/10W

R8400 1- 16-041-00 RES,CHIP 470 5% 1/10W

R8402 1- 16-295 1 SHORT 0

8403 1-216-041-00 RES,CHIP 470 5% 1/10W

R84 1 216-295-91 SHORT 0

R8405 1-216-025-91 RES,CHIP 100 5% 1/10W

R8406 1-216-025-91 RES,CHIP 100 5% 1/10W

R84 7 1-216-295-91 SHORT 0

R8408 1-216-295-91 SHORT 0

R8409 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8410 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8411 1-216-097-91 RES,CHIP 100K 5% 1/10W

R8412 1-216-041-00 RES,CHIP 470 5% 1/10W

R8413 1-216-041-00 RES,CHIP 470 5% 1/10W

R8414 1-216-041-00 RES,CHIP 470 5% 1/10W

R8416 1-216-041-00 RES,CHIP 470 5% 1/10W

R8417 1-216-041-00 RES,CHIP 470 5% 1/10W

R8418 1-216-041-00 RES,CHIP 470 5% 1/10W

R8419 1-216-041-00 RES,CHIP 470 5% 1/10W

R8420 1-216-041-00 RES,CHIP 470 5% 1/10W

R8421 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8422 1-216-017-91 RES,CHIP 47 5% 1/10W

R8423 1-216-017-91 RES,CHIP 47 5% 1/10W

R8424 1-216-025-91 RES,CHIP 100 5% 1/10W

R8425 1-216-077-00 RES,CHIP 15K 5% 1/10W

R8426 1-216-017-91 RES,CHIP 47 5% 1/10W

R8427 1-216-017-91 RES,CHIP 47 5% 1/10W

R8428 1-216-017-91 RES,CHIP 47 5% 1/10W

R8429 1-216-041-00 RES,CHIP 470 5% 1/10W

R8430 1-216-041-00 RES,CHIP 470 5% 1/10W

R8431 1-216-017-91 RES,CHIP 47 5% 1/10W

R8432 1-216-121-91 RES,CHIP 1M 5% 1/10W

(KV-29FS60B/32FS60B)

www.ELEKO.de

165

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

R8433 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8434 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8450 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8451 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8453 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8454 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8455 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8460 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8462 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8467 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8468 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8469 1-216-033-00 RES,CHIP 220 5% 1/10W

R8470 1-216-022-00 RES,CHIP 75 5% 1/10W

R8472 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8473 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8474 1-216-033-00 RES,CHIP 220 5% 1/10W

R8475 1-216-022-00 RES,CHIP 75 5% 1/10W

R8500 1-216-017-91 RES,CHIP 47 5% 1/10W

R8501 1-216-075-00 RES,CHIP 12K 5% 1/10W

R8502 1-216-041-00 RES,CHIP 470 5% 1/10W

R8503 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R8504 1-216-041-00 RES,CHIP 470 5% 1/10W

R8505 1-216-047-91 RES,CHIP 820 5% 1/10W

R8506 1-216-091-00 RES,CHIP 56K 5% 1/10W

R8507 1-216-295-91 SHORT 0

R8508 1-216-043-91 RES,CHIP 560 5% 1/10W

R8509 1-216-045-00 RES,CHIP 680 5% 1/1

R8510 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R8511 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8513 1-216-295-91 SHORT 0

R8514 1-216-017-91 RES,CHIP 47 5% 1/10W

R8517 1-216-295-91 SHORT 0

R8519 1-216-037-00 RES,CHIP 330 5% 1/10W

R8520 1-216-041-00 RES,CH P 470 5% 1/10W

R8521 1-216-061-00 RE ,CHI 3.3K 5% 1/10W

R8522 1-216-041-00 RES, HIP 470 5% 1/10W

R8523 1-216-033-00 RES,CHIP 220 5% 1/10W

R8525 1-216-295-91 SHORT 0

R8526 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R8527 1-216-047-91 RES,CHIP 820 5% 1/10W

R8528 1-216-047-91 RES,CHIP 820 5% 1/10W

R8529 1-216-055-00 RES,CHIP 1.8K 5% 1/10W

R8530 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R8531 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R8532 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8700 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8701 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8702 1-216-025-91 RES,CHIP 100 5% 1/10W

R8703 1-216-025-91 RES,CHIP 100 5% 1/10W

R8704 1-216-025-91 RES,CHIP 100 5% 1/10W

R8705 1-216-295-91 SHORT 0

R8706 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8707 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8708 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8900 1-216-039-00 RES,CHIP 390 5% 1/10W

R8901 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8902 1-216-039-00 RES,CHIP 390 5% 1/10W

R8903 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8904 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8905 1-216-113-00 RES,CHIP 470K 5% 1/10W

R8906 1-216-039-00 RES,CHIP 390 5% 1/10W

R8907 1-216-057-00 RES,CHI 2.2K 5% 1/10W

R8908 1-216-039-00 RES,CHIP 90 5% 1/10W

R8909 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8911 1-216-063-91 RES,CHIP 3.9K 5% 1/10W

R8913 1-216-022-00 RES,CHIP 75 5% 1/10W

R8914 1-216-071 00 RES,CHIP 8.2K 5% 1/10W

R8915 1-216-022- 0 RES,CHIP 75 5% 1/10W

R8916 1 216-033 00 RES,CHIP 220 5% 1/10W

R8917 1-216-033-00 RES,CHIP 220 5% 1/10W

R8918 1 16-113-00 RES,CHIP 470K 5% 1/10W

R8919 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R892 1-216-022-00 RES,CHIP 75 5% 1/10W

R 923 1-216-022-00 RES,CHIP 75 5% 1/10W

R8924 1-216-022-00 RES,CHIP 75 5% 1/10W

R8925 1-216-022-00 RES,CHIP 75 5% 1/10W

R8926 1-216-033-00 RES,CHIP 220 5% 1/10W

R8927 1-216-033-00 RES,CHIP 220 5% 1/10W

R8928 1-216-033-00 RES,CHIP 220 5% 1/10W

R8929 1-216-039-00 RES,CHIP 390 5% 1/10W

R8930 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8931 1-216-039-00 RES,CHIP 390 5% 1/10W

R8932 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8933 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8934 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8935 1-216-113-00 RES,CHIP 470K 5% 1/10W

R8936 1-216-113-00 RES,CHIP 470K 5% 1/10W

R8937 1-216-039-00 RES,CHIP 390 5% 1/10W

R8938 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8939 1-216-039-00 RES,CHIP 390 5% 1/10W

R8940 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8941 1-216-063-91 RES,CHIP 3.9K 5% 1/10W

R8942 1-216-009-00 RES,CHIP 22 5% 1/10W

R8943 1-216-022-00 RES,CHIP 75 5% 1/10W

R8944 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R8945 1-216-022-00 RES,CHIP 75 5% 1/10W

R8946 1-216-033-00 RES,CHIP 220 5% 1/10W

R8947 1-216-039-00 RES,CHIP 390 5% 1/10W

R8948 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8949 1-216-022-00 RES,CHIP 75 5% 1/10W

R8950 1-216-089-91 RES,CHIP 47K 5% 1/10W

www.ELEKO.de

166

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

R8951 1-216-033-00 RES,CHIP 220 5% 1/10W

R8952 1-216-113-00 RES,CHIP 470K 5% 1/10W

R8953 1-216-039-00 RES,CHIP 390 5% 1/10W

R8954 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8955 1-216-039-00 RES,CHIP 390 5% 1/10W

R8956 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8957 1-216-049-91 RES,CHIP 1K 5% 1/10W

R8958 1-216-089-91 RES,CHIP 47K 5% 1/10W

R8959 1-216-022-00 RES,CHIP 75 5% 1/10W

R8960 1-216-033-00 RES,CHIP 220 5% 1/10W

R8961 1-216-022-00 RES,CHIP 75 5% 1/10W

R8963 1-216-113-00 RES,CHIP 470K 5% 1/10W

R8964 1-216-039-00 RES,CHIP 390 5% 1/10W

R8965 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8968 1-216-022-00 RES,CHIP 75 5% 1/10W

R8969 1-216-033-00 RES,CHIP 220 5% 1/10W

R8977 1-216-037-00 RES,CHIP 330 5% 1/10W

R8978 1-216-037-00 RES,CHIP 330 5% 1/10W

R8979 1-216-045-00 RES,CHIP 680 5% 1/10W

R8980 1-216-045-00 RES,CHIP 680 5% 1/10W

R8981 1-216-085-00 RES,CHIP 33K 5% 1/10W

R8982 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8983 1-216-077-00 RES,CHIP 15K 5% 1/10W

R8990 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8991 1-216-097-91 RES,CHIP 100K 5% 1/10W

R8992 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8993 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R8994 1-216-073-00 RES,CHIP 10K 5% 1/10W

R8995 1-216-089-91 RES,CHIP 47K 5% 1/10W

< CRYSTAL >

X8200 1-781-148-21 VIBRATOR, CRYSTAL

X8300 1-567-504-11 OSCILLATOR, CRYSTAL

X8301 1-567-505-11 OSCILLATOR, CRYSTAL

X8400 1-567-504-11 OSCILLATOR CRYSTAL

X8401 1-567-505-11 OSCILL TOR, CRYSTAL

X8700 1-767-342-21 VIBRATOR, CRYSTAL

MISCELLANEOUS

*************

£ 1-416-654-11 COIL DEMAGNETIC (KV-29FS60)

£ 1-416-769-11 COIL DEMAGNETIC (KV-32FS60)

1-425-032-00 MAGNET, DISK: 10MM

1-452-094-00 MAGNET, ROTATABLE DISK; 15MM

£ 1-453-272-11 TRANSFORMER ASSY, FLYBACK (NX-4512/U2B4)

1-529-153-11 SPEAKER (4.8X20CM)

1-529-144-11 SPEAKER (13CM)

1-452-896-11 COIL, NA ROTATION (RT200)

£ 1-571-433-21 SWITCH, PUSH (AC POWER)

£ 1-574-062-61 CORD POWER (WITH CON ECTOR)

(KV-2 FS60A/29FS60B/29FS60D/

29FS 0E/29FS60K/29FS60R/

32FS60A/32FS60B/32FS60D/

32FS60E)

£ 1-590- 62-21 CORD POWER (WITH UK PLUG) (KV-29FS60U)

1-693- 38-11 TUNER/VIF (AEP)

(KV-29FS60A/29FS60D/29FS60E/

29FS60K/29FS60R/

32FS60A/32FS60D/32FS60E)

1-693-340-11 TUNER/VIF (FR) (KV-29FS60B/32FS60B)

1 693-339-11 TUNER/VIF (UK) (KV-29FS60U)

£ 8-735-053-05 PICTURE TUBE (M68LNH060X) (KV-29FS60)

£ 8-735-054-05 PICTURE TUBE (W76LLZ060X) (SD-302)(KV-32FS60)

£ 8-451-504-11 DEFLECTION YOKE (KV-29FS60)

£ 1-451-480-11 DEFLECTION YOKE (KV-32FS60)

£ 8-453-011-11 NECK ASSY, NA299-M

£ 1-251-317-31 CAP ASSY, HIGH VOLTAGE

*1-204-549-01 BRACKET, MAIN

1-790-082-11 CABLE, RF

1-771-599-11 SWITCH ARRAY

********************************************************************

www.ELEKO.de

167

REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

The components identified by

shading and marked are critical

for safety

Replace only with the part number

specified.

ACCESSORIES AND PACKAGING MATERIALS (KV-29FS60)

***********************************

1-765-654-11 CABLE,SPEAKER

4-204-589-41 MANUAL, INSTRUCTION (KV-29FS60A)

(ITALIAN)

4-204-589-51 MANUAL, INSTRUCTION (KV-29FS60B)

(FRENCH/GERMAN/ITALIAN/DUTCH)

4-204-589-11 MANUAL, INSTRUCTION (KV-29FS60D)

(GREEK/ENGLISH/DUTCH/TURKISH)

4-204-589-71 MANUAL, INSTRUCTION (KV-29FS60E)

(SPANISH)

4-204-589-81 MANUAL, INSTRUCTION (KV-29FS60E)

(PORTUGUESE/FINNISH/DANISH/NORWEGIAN/SWEDISH)

4-204-589-91 MANUAL, INSTRUCTION (KV-29FS60K/29FS60R)

(RUSSIAN/BULGARIAN/ENGLISH/POLISH/HUNGARIAN)

4-204-589-61 MANUAL, INSTRUCTION (KV-29FS60U)

(ENGLISH)

*4-204-476-01 BAG PROTECTION

*4-204-475-01 INDIVIDUAL CARTON

*4-204-553-01 CUSHION (UPPER) (ASSY)

*4-204-556-01 CUSHION (LOWER) (ASSY)

**********************************************************************

ACCESSORIES AND PACKAGING MATERIALS (KV-32FS60)

***********************************

1-765-654-11 CABLE, SPEAKER

4-204-562-41 MANUAL, INSTRUCTION (KV-32FS60A)

(ITALIAN)

4-204-562-51 MANUAL, INSTRUCTION (KV-32FS60B)

(FRENCH/GERMAN/ITALIAN/DUTCH)

4-204-562-11 MANUAL, INSTRUCTION (KV-32FS60D)

(ENGLISH/GERMAN)

4-204-562-71 MANUAL, INSTRUCTION (KV-32FS60E)

(SPANISH/PORTUGUESE/FINNISH/

DANISH/NORWEGIAN/SWEDISH)

*4-060-976-01 BAG PROTECTION

*4-204-475-01 INDIVIDUAL CARTON

*4-204-380-01 CUSHION (UPPER) (ASSY)

*4-204-381-01 CUSHION (LOWER) (ASSY)

********************************************************************

REMOTE COMMANDER

****************

1-418-047-11 REMOTE COMMANDER (RM-891)

www.ELEKO.de

Sony Crt Television Kv 29Fs60A Users Manual Service TV Chassis AE5

KV-32FS60A to the manual 9d01df24-68a6-4805-a68f-adfe49d9c25a

Navigation menu

Versions of this User Manual:

Views

Navigation
