©2010 Sony Corporation

4-165-486-12(1)

DVD Home Theatre

System

Operating Instructions

DAV-DZ310/DZ510/DZ610/DZ810

2GB

Caution – The use of

optical instruments with

this product will increase

eye hazard.

Do not install the appliance in a

confined space, such as a bookcase

or built-in cabinet.

To reduce the risk of fire, do not

cover the ventilation opening of the

apparatus with newspapers,

tablecloths, curtains, etc. Do not

place the naked flame sources such

as lighted candles on the apparatus.

To reduce the risk of fire or electric

shock, do not expose this apparatus

to dripping or splashing, and do not

place objects filled with liquids,

such as vases, on the apparatus.

Do not expose batteries or

apparatus with battery-installed to

excessive heat such as sunshine,

fire or the like.

To prevent injury, this apparatus

must be securely attached to the

floor/wall in accordance with the

installation instructions.

Indoor use only.

This appliance is classified as a

CLASS 1 LASER product. This

marking is located on the rear

exterior.

For the customers in

Australia

Disposal of

Old Electrical

& Electronic

Equipment

(Applicable in

the European

Union and other European

countries with separate

collection systems)

This symbol on the product or on its

packaging indicates that this

product shall not be treated as

household waste. Instead it shall be

handed over to the applicable

collection point for the recycling of

electrical and electronic equipment.

By ensuring this product is

disposed of correctly, you will help

prevent potential negative

consequences for the environment

and human health, which could

otherwise be caused by

inappropriate waste handling of

this product. The recycling of

materials will help to conserve

natural resources. For more

detailed information about

recycling of this product, please

contact your local Civic Office,

your household waste disposal

service or the shop where you

purchased the product.

Precautions

On power sources

• The unit is not disconnected from

the mains as long as it is

connected to the AC outlet, even

if the unit itself has been turned

off.

• As the main plug is used to

disconnect the unit from the

mains, connect the unit to an

easily accessible AC outlet.

Should you notice an abnormality

in the unit, disconnect the main

plug from the AC outlet

immediately.

Copyrights

This product incorporates

copyright protection

technology that is protected by

U.S. patents and other

intellectual property rights.

Use of this copyright

protection technology must be

authorized by Macrovision,

and is intended for home and

other limited viewing uses only

unless otherwise authorized by

Macrovision. Reverse

engineering or disassembly is

prohibited.

This system incorporates with

Dolby* Digital and Dolby Pro

Logic (II) adaptive matrix

surround decoder and the

DTS** Digital Surround

System.

* Manufactured under license

from Dolby Laboratories.

Dolby, Pro Logic, and the

double-D symbol are trademarks

of Dolby Laboratories.

** Manufactured under license

under U.S. Patent #’s:

5,451,942; 5,956,674;

5,974,380; 5,978,762; 6,487,535

& other U.S. and worldwide

patents issued & pending. DTS

and DTS Digital Surround are

registered trademarks and the

DTS logos and Symbol are

trademarks of DTS, Inc. © 1996-

2008 DTS, Inc. All Rights

Reserved.

This system incorporates High-

Definition Multimedia

Interface (HDMITM)

technology.

HDMI, the HDMI logo and

High-Definition Multimedia

Interface are trademarks or

registered trademarks of HDMI

Licensing LLC.

“DVD-RW,” “DVD-R,”

“DVD+RW,” “DVD+R,”

“DVD VIDEO,” and the “CD”

logos are trademarks.

“BRAVIA” is a trademark of

Sony Corporation.

“PLAYSTATION” is a

trademark of Sony Computer

Entertainment Inc.

WARNING

3GB

ABOUT DIVX VIDEO:

DivX® is a digital video format

created by DivX, Inc. This is an

official DivX Certified device

that plays DivX video. Visit

www.divx.com for more

information and software tools

to convert your files into DivX

video.

ABOUT DIVX VIDEO-ON-

DEMAND:

This DivX Certified® device

must be registered in order to

play DivX Video-on-Demand

(VOD) content. To generate

the registration code, locate the

DivX VOD section in the

device setup menu. Go to

www.divx.com/vod with this

code to complete the

registration process and learn

more about DivX VOD.

DivX® is a registered

trademark of DivX, Inc., and is

used under license.

“S-AIR” and its logo are

trademarks of Sony

Corporation.

(DAV-DZ810 only)

MPEG Layer-3 audio coding

technology and patents

licensed from Fraunhofer IIS

and Thomson.

iPod is a trademark of Apple

Inc., registered in the U.S. and

other countries.

(Australian models only)

“Made for iPod” means that an

electronic accessory has been

designed to connect

specifically to iPod and has

been certified by the developer

to meet Apple performance

standards.

(Australian models only)

Apple is not responsible for the

operation of this device or its

compliance with safety and

regulatory standards.

(Australian models only)

About MPEG-4 Visual

THIS PRODUCT IS

LICENSED UNDER THE

MPEG-4 VISUAL PATENT

PORTFOLIO LICENSE FOR

THE PERSONAL AND NON-

COMMERCIAL USE OF A

CONSUMER FOR

DECODING VIDEO IN

COMPLIANCE WITH THE

MPEG-4 VISUAL

STANDARD (“MPEG-4

VIDEO”) THAT WAS

ENCODED BY A

CONSUMER ENGAGED IN

A PERSONAL AND NON-

COMMERCIAL ACTIVITY

AND/OR WAS OBTAINED

FROM A VIDEO PROVIDER

LICENSED BY MPEG LA TO

PROVIDE MPEG-4 VIDEO.

NO LICENSE IS GRANTED

OR SHALL BE IMPLIED

FOR ANY OTHER USE.

ADDITIONAL

INFORMATION

INCLUDING THAT

RELATING TO

PROMOTIONAL,

INTERNAL AND

COMMERCIAL USES AND

LICENSING MAY BE

OBTAINED FROM MPEG

LA, LLC. SEE HTTP://

WWW.MPEGLA.COM

About These

Operating

Instructions

• The instructions in these

Operating Instructions

describe the controls on the

remote. You can also use the

controls on the unit if they

have the same or similar

names as those on the remote.

• The Control Menu items may

vary depending on the area.

• “DVD” may be used as a

general term for a DVD

VIDEO, DVD+RW/

DVD+R, and DVD-RW/

DVD-R.

• Measurements are expressed

in feet (ft) for North

American models.

• The default setting is

underlined.

• The system is compatible

with the S-AIR function,

which allows transmission of

sound between S-AIR

products wirelessly (DAV-

DZ810 only). For details of

S-AIR products, see “Using

an S-AIR Product” (page 60).

• Notes or instructions for the

S-AIR function in these

Operating Instructions refer

only to DAV-DZ810, and

notes or instructions for the

surround amplifier or S-AIR

receiver in these Operating

Instructions refer only to

when the surround amplifier

or S-AIR receiver is used.

4GB

Table of Contents

Precautions..............................................2

About These Operating Instructions .......3

Playable Discs/Files on a USB

Device...............................................5

Package Contents .................................. 10

Index to Parts and Control .................... 12

Guide to the Control Menu ...................18

Getting Started

Step 1: Installing the System.......22

Step 2: Connecting the System...29

Step 3: Setting up the System .....34

Playback

Playing a Disc .......................................38

Playing Files on a Disc/USB

Device............................................. 38

Other Playback Operations ................... 41

Selecting the Playback Mode................ 44

Enjoying Karaoke .................................47

Displaying the Information of a Disc/

USB Device ....................................50

Enjoying the Audio/Video of the

Connected Component ................... 51

Tuner

Presetting Radio Stations ......................53

Listening to the Radio...........................53

Sound Effect

Enjoying Surround Sound.....................55

Selecting the Sound Effect....................57

Convenient Functions

Using the Control for HDMI Function for

“BRAVIA” Sync ............................58

Using an S-AIR Product .......................60

Transferring Songs onto a USB

Device............................................. 63

Using the sleep timer ............................66

Adjusting the Delay Between the Picture

and Sound .......................................67

Enjoying Multiplex Broadcast

Sound ..............................................67

Changing the Input Level of the Sound

from Connected Components .........67

Settings

Changing the Brightness of the Front

Panel Display.................................. 69

Setting the Demonstration Mode to

On/Off ............................................ 69

Reperforming the Quick Setup............. 69

Set the System to Standby Mode

Automatically................................. 69

Performing Further Settings ................. 70

Additional Information

Precautions ........................................... 78

Troubleshooting.................................... 80

Specifications ....................................... 86

Index ..................................................... 91

5GB

Playable Discs/Files on a USB Device

Type Disc logo Characteristics Icon

DVD VIDEO • DVD VIDEO

• DVD-R/DVD-RW in DVD VIDEO

format or video mode

• DVD+R/DVD+RW in DVD VIDEO

format

VR (Video

Recording) mode

• DVD-R/DVD-RW in VR (Video

Recording) mode (except for DVD-R

DL)

VIDEO CD • VIDEO CD (Ver. 1.1 and 2.0 discs)

• Super VCD

• CD-R/CD-RW/CD-ROM in video CD

format or Super VCD format

Super Audio CD • Super Audio CD

CD • Audio CD

• CD-R/CD-RW in audio CD format

DATA CD – • CD-R/CD-RW/CD-ROM in DATA CD

format that contains the following kinds

of files and conforms to ISO 96601)

Level 1/Level 2, or Joliet (extended

format).

–MP3

files2)3)

– JPEG image files4)

– DivX/MPEG4 video files

DATA DVD – • DVD-ROM/DVD-R/DVD-RW/

DVD+R/DVD+RW in DATA DVD

format that contains the following kinds

of files and conforms to UDF (Universal

Disk Format).

–MP3

files2)3)

– JPEG image files4)

– DivX/MPEG4 video files

6GB

1)A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for

Standardization).

2)MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG for compressed audio data. MP3 files

must be in MPEG1 Audio Layer 3 format.

3)Files with copyright protection (Digital Rights Management) cannot be played by the system.

4)JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image

standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association

(JEITA).)

Notes on discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard.

DualDiscs and some music discs encoded with copyright protection technologies do not conform to the

Compact Disc (CD) standard, therefore, these discs may not be compatible with this product.

The system cannot play the following discs:

• CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 5

• CD-ROM recorded in PHOTO CD format

• Data part of CD-Extra

• CD Graphics disc

• DVD Audio

• DATA CD/DATA DVD that does not contain MP3 files, JPEG image files, DivX video files, or

MPEG4 video files

• DATA CD/DATA DVD that is created in Packet Write format

•DVD-RAM

•Blu-ray Disc

Also, the system cannot play the following discs:

• A DVD VIDEO with a different region code (page 7)

• A disc that has a non-standard shape (e.g., card, heart)

• A disc with paper or stickers on it

• A disc that has the adhesive of cellophane tape or a sticker stuck on it

In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot be played on this system

due to the recording quality or physical condition of the disc, or the characteristics of the recording

device and authoring software.

The disc will not play if it has not been correctly finalized. For more information, refer to the operating

instructions for the recording device.

USB device – • USB device that contains the following

kinds of files.

– MP3 files2)3) or WMA/AAC files3)

– JPEG image files4)

– DivX/MPEG4 video files

Example of discs that the system cannot play

Notes about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW

Type Disc logo Characteristics Icon

7GB

Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have

been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA

DVDs created in Packet Write format cannot be played.

• This system can play a Multi Session CD when an MP3 file is contained in the first session. Any

subsequent MP3 files recorded in later sessions can also be played.

• This system can play a Multi Session CD when a JPEG image file is contained in the first session.

Any subsequent JPEG image files recorded in later sessions can also be played.

• If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first

session, only the first session will be played.

Your system has a region code printed on the rear of the unit and will only play a DVD labeled with

the same region code.

A DVD VIDEO labeled will also play on this system.

If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will

appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even

though playing the DVD VIDEO is prohibited by area restrictions.

Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers.

Since this system will play a DVD or VIDEO CD according to the disc contents the software producers

designed, some playback features may not be available. Be sure to read the operating instructions of

the DVD or VIDEO CD.

• The system can recognize up to 200 folders, including albums (folders) that do not contain audio files,

JPEG image files, or video files. When more than 200 folders are on the DATA CD/DATA DVD/

USB device or more than 150 files are in a folder, folders/files that are recognized by the system differ

depending on the folder configuration.

• The system can play the following files.

* USB device only.

Notes about Multi Session CD

Region code

Notes about playback operations of a DVD or VIDEO CD

Notes about playable files

File Extension of the file

MP3 file “.mp3”

WMA file* “.wma”

AAC file* “.m4a”

JPEG image file “.jpg” or “.jpeg”

DivX video file “.avi” or “.divx”

MPEG4 video file “.mp4” or “.m4v”

ALL

8GB

The system will attempt to play any data with the extensions above, even if it is not in MP3/WMA/

AAC/JPEG/DivX/MPEG4 format. Playing this data may generate a loud noise which could damage

your speaker system.

• The following can increase the time it takes to start playback:

– when a DATA CD/DATA DVD/USB device is recorded with a complicated tree structure.

– when the audio files, JPEG image files, or video files in another folder have just been played.

• Some files on DATA CDs/DATA DVDs/USB devices cannot be played by the system depending on

the file format.

• The system can play to a depth of 8 folders only.

• The system may not be able to play an audio file, JPEG image file, or video file depending on the file

type.

• Files recorded by a device such as a computer may not be played in the order in which they were

recorded.

• Folders that have no audio files, JPEG image files, or video files are skipped.

• Compatibility with all MP3/WMA/AAC encoding/writing software, recording devices, and

recording media cannot be guaranteed.

• Compatibility with all MPEG4 video encoding/writing software, recording devices, and recording

media cannot be guaranteed.

• The playback order may not be applicable depending on the software used for creating the audio file,

JPEG image file, or video file, or if there are more than 200 folders or 150 files in each folder.

About DivX video files

•DivX

® is a video file compression technology, developed by DivX, Inc. This product is an official

DivX® Certified product.

• You can play a DATA CD/DATA DVD/USB device that contains DivX® video files.

Note

• The system may not play a DivX video file when the file has been combined from two or more DivX video files.

• The system cannot play a DivX video file larger than 720 (width) × 576 (height) or 4GB.

• Depending on the DivX video file, sound may skip or not match the pictures on the TV screen.

• The system cannot play some DivX video files that are longer than 3 hours.

• Depending on the DivX video file, the picture may pause or be unclear, in which case it is recommended that you

create the file at a lower bit rate. If the sound is noisy, MP3 is the recommended audio format.

• Because of the compression technology used for DivX video files, it may take some time after you press N for

the picture to appear.

• This system supports Mass Storage Class (MSC) devices.

• This system is not guaranteed to operate with all USB devices or memories.

• Although there are variety of complex functions for USB devices, the playable contents of USB

devices connected to the system are music, photo, and video contents only. For details, refer to the

operating instructions of the USB device.

• When a USB device is inserted, the system reads all the files on the USB device. If there are many

folders or files on the USB device, it may take a long time to finish reading the USB device.

• Do not connect the system and the USB device through a USB hub.

• With some connected USB devices, there may be a delay before an operation is performed by this

system.

Notes about USB devices

9GB

• The playback order for the system may differ from the playback order of the connected USB device.

• Always turn off the system before removing the USB device. Removing the USB device while the

system is on may corrupt the data on the USB device.

• Before using a USB device, make sure that no virus-ridden files are on the USB device.

10GB

Package Contents

Main unit

Speaker packages

• DAV-DZ310 • DAV-DZ510 • DAV-DZ610

• DAV-DZ810 • Speaker cords (1 set)

For DAV-DZ310/DAV-

DZ510/DAV-DZ610

(red/white/green/gray/blue)

For DAV-DZ810 (green/

gray/blue)

• Foot pads (1 set)

• Wall mounting parts

For DAV-DZ510

• Speaker assembly parts

For DAV-DZ310

• Speaker assembly parts for the tall round pole-type speakers

For DAV-DZ610/DAV-DZ810

• Speaker assembly parts for the tall square-type speakers

For DAV-DZ810

(4) (4) (4)

(2) (2)

(2) (2) (8)

(2) (6)

11GB

Accessories

• Remote commander

(remote) (1)

• R6 (size AA) batteries (2) • Calibration mic (1)

• FM wire antenna (aerial) (1) • Video cord (1) • HDMI cable (1)

(Singapore, Indonesian,

Malaysian, Filipino, Latin

American, and Mexican

models only)

• Speaker-bottom covers (2)

(DAV-DZ810 only)

• Operating Instructions

• Quick Setup Guide

• Speaker Installation Guide

(DAV-DZ310/DAV-

DZ610/DAV-DZ810 only)

or

12GB

Index to Parts and Control

For more information, refer to the pages indicated in parentheses.

ADisc tray

BFront panel display (page 13)

C (remote sensor)

Receives the remote signal. Point the

remote toward here when using the remote.

DMASTER VOLUME control

Adjusts the system’s volume.

EREC TO USB (page 63)

Transfers tracks/MP3 files/radio programs

onto a USB device.

Lights up during transfer of tracks/MP3

files/radio programs.

F (USB) port (pages 32, 38)

Used for connecting a USB device or iPod*.

* Australian models only.

GAUDIO IN jack (page 32)

Used for connecting other components,

such as a portable audio source.

HMIC/A.CAL MIC jack (pages 34, 47)

Used for connecting a microphone or the

calibration mic.

IFUNCTION

Selects the playback source.

JPlay operation buttons

Z (open/close)

Opens or closes the disc tray.

N (play)

Starts or re-starts playback.

x (stop)

Stops playback and remembers the stop

point (resume point).

K"/1 (on/standby)

Turns on the unit, or sets it to standby mode.

Front panel

13GB

AKaraoke indicator

Lights up when the karaoke mode is on.

BSLEEP indicator

Flashes when the sleep timer is set.

CSystem status display

DTUNED indicator (Radio only)

Lights up when a station is received.

EST indicator (Radio only)

Lights up when stereo sound is received.

FS-AIR indicator (only when the wireless

transmitter (not supplied) is inserted

into the unit) (DAV-DZ810 only)

Lights up during wireless transmission.

Flashes when “S-AIR STBY” is set to

“STBY ON” and the system is in standby

mode while wireless transmission between

the unit and S-AIR receiver is not activated.

GSurround format indicator

HHDMI indicator

Lights up when a signal is established

between a TV and the unit via HDMI.

INIGHT indicator

Lights up when the night mode is on.

JNTSC indicator

Lights up when the color system is set to

NTSC. (Asian, Australian, Middle Eastern,

and South African models only)

KPlaying status indicator

LSA-CD indicator

Lights up when a Super Audio CD/CD is

loaded.

Front panel display

14GB

ASPEAKERS jacks (page 29)

BHDMI OUT jack (page 30)

CTV (DIGITAL IN OPTICAL) jack (DAV-

DZ510/DAV-DZ610/DAV-DZ810 only)

(page 30)

DEZW-T100 slot (DAV-DZ810 only)

(page 60)

EANTENNA (COAXIAL 75Ω FM) jack

(page 33)

FTV (AUDIO IN R/L) jacks (page 30)

GVIDEO OUT jack (page 30)

HCOMPONENT VIDEO OUT jacks

(page 30)

*CAUTION

(DAV-DZ810 only)

Please do not remove the screws unless you are

installing the EZW-T100.

Rear panel

CENTER

SUR R

SUBWOOFER

FRONT L

SUR L

FRONT R

SPEAKERS

SPEAKERS

COAXIAL 75

FM

ANTENNA

DIGITAL

IN

OPTICAL

TV

OUT

ARC

AUDIO IN

P

B

/C

B

P

R

/C

R

YLR

VIDEO

OUT

TV

COMPONENT VIDEO OUT

EZW-T100

Screws*

15GB

Number 5, VOLUME +, and H buttons have a

tactile dot. Use the tactile dot as a reference

when operating the remote.

About the operation of the

supplied remote

You can operate this system and a Sony TV with

the supplied remote.

xSystem operation

Press buttons marked with .

xSony TV operation

Press buttons marked with while

pressing the TV 7 button.

THEATRE 1 and TV "/1 1 buttons are

operated directly without pressing the TV 7

button.

Note

• Depending on your TV, you may not be able to

control your TV or to use some of the buttons.

ATHEATRE (page 58)

Switches to the optimum video mode for

watching movies automatically.

ONE-TOUCH PLAY (page 58)

Activates One-Touch Play.

TV "/1 (on/standby)

Turns on your TV or sets it to standby

mode.

"/1 (on/standby) (page 34)

Turns on the system or sets it to standby

mode.

BSLEEP (page 66)

Sets the sleep timer.

ECHO (page 47)

Adjusts the level of the echo effect.

MIC VOL +/– (page 47)

Adjusts the microphone volume.

KEYCON #/2 (page 48)

Changes the key of a song.

FUNCTION (pages 38, 51, 53)

Selects the playback source.

KARAOKE PON (page 48)

Turns Karaoke Pon mode on/off.

CAUDIO (page 42)

Selects the audio format/track.

SUBTITLE (page 42)

Selects the subtitle language when

multilingual subtitles are recorded on a

DVD VIDEO.

ANGLE (page 42)

Switches to other viewing angles when

multi-angles are recorded on a DVD

VIDEO.

DISPLAY (page 50)

Changes the information in the front panel

display.

INPUT

Switches your TV’s input source.

D.TUNING (page 53)

Selects the radio frequencies.

MEMORY SELECT (pages 38, 63)

Selects the USB device’s memory number

for playback or transfer.

Remote control

THEATRE

TV

ONE-TOUCH

PLAY

REPLAY ADVANCE

PRESET

TV

SLEEP

MIC VOL

KEYCON

FUNCTION

ECHO

AUDIO

INPUT

ENTER

MENU

TOOLS

CLEAR

D.TUNING

MEMORY

SELECT

DISPLAY

NIGHT

SOUND

MODE

DYNAMIC

BASS


NAVI

SYSTEM

MENU

DVD

TOP MENU

DVD

MENU

MUTING

VOLUME

DISPLAY

RETURN

ANGLE

SUBTITLE

BRAVIA Sync

KARAOKE PON

PRESET

PROG PROG

SLOW SLOW

TUNING TUNING

STEP

1

2

3

4

5

6

8

9

7

16GB

DSOUND MODE (page 57)

Selects the sound mode.

DYNAMIC BASS (page 57)

Reinforces bass frequencies.

NIGHT (page 57)

Activates the night mode function.

PICTURE NAVI (page 39)

Displays the image browser for JPEG file

selection.

SYSTEM MENU (pages 53, 55, 60, 66,

69)

Enters the system menu.

ENTER

Enters the selected item.

EMUTING

Turns off the sound temporarily.

VOLUME +/– (page 38)

Adjusts the volume.

FPlayback operation buttons

See “Other Playback Operations”

(page 41).

./> (previous/next)

/ STEP

REPLAY/ADVANCE

m/M (fast reverse/fast forward)

/ SLOW

H (play)

X (pause)

x (stop)

Radio operation buttons

See “Listening to the Radio” (page 53).

PRESET +/–

TUNING +/–

PROG +/–

Select the TV channel.

GTV

Changes to the TV operation mode for the

remote.

HDVD TOP MENU (page 43)

Opens or closes the DVD’s Top Menu.

DVD MENU (page 43)

Opens or closes the DVD’s menu.

C/X/x/c

Moves the highlight to a displayed item.

(ENTER)

Enters the selected item.

O RETURN (page 39)

Returns to the previous display.

DISPLAY (pages 18, 34, 38, 41, 44,

47, 58, 63, 70)

Displays the playback information on the

TV screen.

MENU

Displays the menu of your TV.

TOOLS

Displays the operation menu for the current

display.

INumber buttons (pages 41, 53)

Enters the title/chapter numbers, radio

frequencies, etc.

CLEAR (pages 41, 44, 66)

Clears the entry field.

-

Selects a channel number greater than 10.

17GB

To insert the batteries

Insert two R6 (size AA) batteries (supplied) by

matching the 3 and # ends on the batteries to

the markings inside the compartment.

Note

• Do not leave the remote in an extremely hot or humid

place.

• Do not use a new battery with an old one.

• Do not drop any foreign object into the remote casing,

particularly when replacing the batteries.

• If you do not intend to use the remote for an extended

period of time, remove the batteries to avoid possible

damage from battery leakage and corrosion.

18GB

Guide to the Control Menu

You can use the Control Menu to select a function and to view related information.

Press DISPLAY while using the “DVD/CD” or “USB” function.

Each time you press DISPLAY, the Control Menu changes:

1 t 2 t 3 t 1 t ...

1 Control Menu 1

2 Control Menu 2 (appears when available)

3 Control Menu off

DISPLAY

19GB

Example: Control Menu 1 when playing a DVD VIDEO.

List of Control Menu items

The Control Menu 1 and 2 will show different items depending on the source. For details, see the pages

in parentheses in the chart below.

Control Menu

Item Item Name, Function, Relevant Source

[TITLE] (page 41)/[SCENE] (page 41)/[TRACK] (page 41)

You can select the title, scene, or track to be played.

[CHAPTER] (page 41)/[INDEX] (page 41)

You can select the chapter or index to be played.

[INDEX] (page 41)

You can display the index and select the index to be played.

[TRACK] (page 41)

You can select the track to be played.

[ORIGINAL/PLAY LIST] (page 43)

You can select the type of titles (DVD-RW/DVD-R) to be played, the [ORIGINAL] one, or

an edited [PLAY LIST].

[TIME] (page 42)

You can check the elapsed time and the remaining playback time.

You can play from a desired point by inputting the time code (DVD VIDEO/DVD-VR only).

[MULTI/2CH] (page 44)

You can select the playback area on a Super Audio CD when available.

[SUPER AUDIO CD/CD LAYER] (page 44)

You can select the playback layer on a Super Audio CD when available.

98( 99)

OFF

DVD VIDEO

REPEAT

Quit:

ENTER DISPLAY

T 0: 04: 17

13( 99)

DISC

TITLE

CHAPTER

OFF

Currently playing title number

Playing time

Total number of chapters

Options

Current setting

Total number of titles

Playback status

(N Playback,

X Pause,

x Stop, etc.)

Function name of selected

Control Menu item

Operation message

Selected item

Control Menu items

Type of source being

played

Currently playing chapter number

20GB

1)These items are not displayed when playing a DATA CD/DATA DVD/USB device with video files.

2)USB device only.

3)DATA CD/DATA DVD only.

[PROGRAM] (page 44)

You can select the track to play in the order you want.

[SHUFFLE] (page 45)

You can play the tracks/files in random order.

[REPEAT] (page 46)

You can play the entire disc/USB device (all titles/all tracks/all folders/all files) repeatedly or

one title/chapter/track/folder/file repeatedly.

[A/V SYNC] (page 67)

You can adjust the delay between the picture and sound.

[DISC MENU] (page 43)

You can display the DVD’s menu.

[BROWSING] (page 39)

You can display the list of folders/JPEG image files.

[SETUP] (page 70)

[CUSTOM]

In addition to the Quick Setup setting, you can adjust various other settings.

[QUICK] (page 34)

You can make basic adjustments. Use the Quick Setup to select the desired language of the

on-screen display, the aspect ratio of your TV, and start the Auto Calibration.

[FOLDER] (page 41)

You can select the folder to be played.

[FILE] (page 41)

You can select the JPEG image file or video file to be played.

1) [DATE] (page 51)

You can display the date the picture was taken by a digital camera.

1) [INTERVAL] (page 46)

You can select the duration for which the slides are displayed on the TV screen.

1) [EFFECT] (page 46)

You can select the effects to be used for changing slides during a slide show.

[MEDIA] (page 40)

You can select the playback priority of different types of media (MP3/AAC2)/WMA2) file,

JPEG image file, video file, or both MP3 and JPEG image files3)) to be played on a DATA

CD/DATA DVD/USB device.

[USB TRANSFER] (page 63)

You can transfer tracks on an audio CD or MP3 files on a DATA CD/DATA DVD onto a USB

device.

21GB

List of Control Menu Items for karaoke

Tip

• The Control Menu icon indicator lights up in yellow t when you select any item except [OFF]

([PROGRAM], [SHUFFLE], [REPEAT], [A/V SYNC], [KARAOKE MODE], and [VOCAL SELECT] only). The

[ORIGINAL/PLAY LIST] indicator lights up in yellow when you select [PLAY LIST] (default setting). The

[MULTI/2CH] indicator lights up in yellow when you select the multi-channel playback area on a Super Audio CD.

Item Item Name, Function, Relevant Source

[KARAOKE MODE] (page 47)

Set karaoke mode to on/off.

[VOCAL SELECT] (page 49)

Selects different kind of vocals recorded in the disc.

22GB

Getting Started

Step 1: Installing the System

Install the system by referring to the illustration below.

To attach the foot pads to the subwoofer

Note

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,

oiled, polished, etc.) floor, as staining or discoloration may result.

(DAV-DZ310/DAV-DZ610/DAV-DZ810 only)

For assembling the speakers refer to “Speaker Installation Guide” (supplement).

Getting Started

How to position the system

Assembling the speakers

AB

DE

F

C

G

A Front speaker (L (left))

B Front speaker (R (right))

C Center speaker

D Surround speaker (L (left))

E Surround speaker (R (right))

F Subwoofer

G Unit

,

Remove the foot pads from

the protective cover.

23GB

Getting Started

Caution

• Contact a screw shop or installer for information regarding the wall material or screws to be used.

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach

the screws securely to a beam. Install the speakers on a vertical and flat wall where reinforcement is applied.

• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or

improper screw installation, natural calamity, etc.

Before installing the tall speaker on a wall

(DAV-DZ810 only)

You cannot install the tall square-type speaker with the lower part attached. Be sure to remove the

lower part of the tall square-type speaker before installing the tall square-type speaker on a wall.

1Pull out the speaker cord from the slot of the rear of the speaker.

2Disconnect the speaker cords from the speaker.

When installing the speakers on a wall

,

Rear of the speaker

Speaker cord

Rear of the speaker

24GB

Getting Started

3Remove the screw (pre-installed) at the rear of the speaker.

4Lift the upper part of the speaker.

5Pull out the speaker cord from the bottom of the lower part of the speaker.

The removed speaker cord is used when installing the speaker on a wall.

Rear of the speaker

Screw

Upper part

Lower part

Rear of the speaker

,

Upper part of

the speaker

Lower part of the speaker

,

Speaker cord

,

Speaker cord

25GB

Getting Started

6Remove the protection paper from the speaker-bottom cover, then attach the speaker-

bottom cover to the bottom of the upper part of the speaker.

Note

• When removing the protection paper, pull it off via the section exposed by the notch in the speaker-bottom cover.

To hang the speaker on a wall

For DAV-DZ510, you can select the speaker hanging method.

• To hang the speakers directly on a wall in an upright position: see the following Steps.

• To hang the front and surround speakers on a wall at a desired angle by using the supplied wall

mounting parts: see “To install the front and surround speakers on a wall using the wall mounting

parts” (page 26).

1Connect the speaker cord with the color tube to 3, and the speaker cord without the

color tube to #.

2Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

3Fasten the screws to the wall, then hang the speaker on the wall.

,,

Bottom of the upper part of

the speaker

Speaker-bottom cover

Protection paper

Color tube

Front left speaker (L): White

Front right speaker (R): Red

Center speaker: Green

Surround left speaker (L): Blue

Surround right speaker (R): Gray

30 mm (1 3/16 inches)

4 mm (3/16 inch)

Hole on the back of

the speaker

5 mm

(7/32 inch)

10 mm

(13/32 inch)

8 to 10 mm

(

11

/

32

to

13

/

32

inch

)

Depth of fastened screw

26GB

Getting Started

To install the front and surround speakers on a wall using the wall

mounting parts

(DAV-DZ510 only)

1Pass the speaker cord through the mounting plate, then attach the mounting plate to the

wall using commercially available screws.

Use the speaker cords as follows:

• Front left speaker (L): White

• Front right speaker (R): Red

• Surround left speaker (L): Blue

• Surround right speaker (R): Gray

145 mm

(5 3/4 inches)

For the center speaker

101.6 mm

(4

inches

)

For the tall round pole-type speakers

(DAV-DZ610/DAV-DZ810 only)

For the small speakers (DAV-DZ310/ DAV-

DZ510/DAV-DZ610 only)

210 mm

(8 3/8

inches

)

For the tall square-type speakers (DAV-

DZ810 only)

Mounting plate

Speaker cord

Speaker cord

slit

Rear of the mounting

plate

Screws (not supplied)

27GB

Getting Started

2Remove the cover from the mounting bracket, pass the speaker cord through the hole

on the rear side of the mounting bracket and out from the front side of the bracket, then

connect the speaker cord to the speaker.

3Tightly secure the speaker to the mounting bracket with the screw (supplied).

4Adjust the length of the speaker cord as you bring the shaft knob together with the

mounting plate, then insert the knob firmly until it stops.

Mounting bracket

Color tube

Front left speaker (L): White

Front right speaker (R): Red

Surround left speaker (L): Blue

Surround right speaker (R): Gray

,

Rear of the speaker

,,

Screw (supplied)

Speaker cord

,

28GB

Getting Started

5After deciding the angle, secure a screw on the lower side (1), then secure a screw on

the upper side (2).

Note

• Make sure that the wall is sufficiently thick before installing.

• Do not loosen the screws at the mounting plate or screw to secure the speaker to the mounting bracket during the

assembly process. If you do, the speaker may drop and cause an injury.

29GB

Getting Started

Step 2: Connecting the System

1Insert the connectors of the speaker cords to match the color of the SPEAKERS jacks

of the unit until they click.

2Connect the speaker cord with the color tube to 3, and the speaker cord without the

color tube to #.

The subwoofer speaker cord is fixed to the subwoofer.

Note

• Do not catch the speaker cord insulation (rubber covering) in the speaker terminals.

Connecting the speakers

CENTER

SUBWOOFER

FRONT L

FRONT R

SPEAKERS

SUR R SUR L

SPEAKERS

Green

(Center speaker)

Purple

(Subwoofer)

White

(Front left speaker (L))

Red

(Front right speaker (R))

Gray

(Surround right speaker (R))

Blue

(Surround left speaker (L))

Color tube

(–)

(+)

Rear of the speaker

Connector

30GB

Getting Started

1 Connecting the video to your TV

Depending on the jacks on your TV, select one of the connection methods.

xMethod 1: Video cord (supplied) connection

This is the basic connection.

xMethod 2: HDMI cable* connection

Picture quality will be improved compared to Method 1.

If your TV is compatible with the Audio Return Channel function, this connection also sends a digital

audio signal from the TV. You do not need to make a separate audio connection for listening to TV

sound. For details of the Audio Return Channel function, see “Receiving the digital audio signal of your

TV” (page 59).

xMethod 3: Component video cable connection (not supplied)

Picture quality will be improved compared to Method 1.

* The HDMI cable is supplied with Singapore, Indonesian, Malaysian, Filipino, Latin American, and Mexican

models only.

Connecting your TV/set-top box

When connecting to a TV only

1 Video 2 Audio 1 Video 2 Audio

When connecting to a TV and set-top box

Video

VIDEO IN

COMPONENT VIDEO IN

P

B

/C

B

P

R

/C

R

Y

HDMI IN

P

B

/C

B

P

R

/C

R

Y

VIDEO

OUT

COMPONENT VIDEO OUT

OUT

ARC

Method 2*

Method 3

(not supplied)

Method 1

(supplied)

31GB

Getting Started

2 Connecting the audio from your TV/set-top box

To listen to TV or set-top box sound via the system, select one of the connection methods.

xMethod 1: Audio cord (not supplied) connection

This is the basic connection and sends an analog audio signal.

xMethod 2: Digital optical cord (not supplied) connection (DAV-DZ510/DAV-DZ610/DAV-

DZ810 only)

Sound quality will be improved compared to Method 1.

Note

• The system can accept both digital and analog signals. Digital signals have priority over analog signals. If the digital

signal ceases, the analog signal will be processed after a few seconds.

Tip

• You can connect another component, such as a VCR, digital satellite receiver, or PlayStation, to the TV jacks

instead of your TV.

DIGITAL OUT

OPTICAL

AUDIO OUT

RL

DIGITAL

IN

OPTICAL

TV

AUDIO IN LR

TV

Method 2

(not supplied)

Method 1

(not supplied)

32GB

Getting Started

To change the color system (PAL or NTSC) (Asian, Australian, Middle

Eastern, and South African models only)

Depending on your TV, you may be required to select either PAL or NTSC for the color system.

The initial setting for Australian, Middle Eastern, and South African models is PAL.

The initial setting for Asian models is NTSC.

1Turn off the system by pressing "/1.

2Turn on the system by pressing "/1 on the unit while pressing FUNCTION on the unit.

Each time you perform this operation, the color system toggles between PAL and NTSC.

“NTSC” lights up in the front panel display when the color system is set to NTSC.

You can enjoy connected components via the system’s speakers.

Connecting the other components

Connected component Required cord for connection

Portable audio source (not supplied) A Stereo mini-plug cord (not supplied)

USB device (not supplied) B USB connector (not supplied)

A

B

To a portable audio source.

33GB

Getting Started

Note

• After connecting the FM wire antenna (aerial), extend and keep it as horizontal as possible.

1Connect the AC power cord (mains lead).

The demonstration appears in the front panel display.

2Press "/1 to turn the system on, then press "/1 again to turn off the demonstration.

Connecting the antenna (aerial)

Connecting the AC power cord (mains lead)

COAXIAL 75

FM

ANTENNA

or

FM wire antenna (aerial)

(supplied)

Wall outlet (mains): The shape of

the wall outlet (mains) differs

depending on the area.

"/1

34GB

Getting Started

Step 3: Setting up the

System

Displayed items vary depending on the area.

1Turn on your TV.

2Switch the input selector on your TV so

that the signal from the system

appears on the TV screen.

3Press "/1 to turn the system on.

4Press without inserting a disc or

connecting a USB device.

Note

• If this message does not appear, press

FUNCTION repeatedly to select “DVD/CD.” If

this message still does not appear, recall the

Quick Setup display (page 69).

5Press X/x to select a language, then

press .

6Press X/x to select the setting that

matches your TV type, then press .

• [16:9]: This aspect ratio is for a wide-

screen TV or a 4:3 standard TV with a

wide-screen mode (page 71)

• [4:3 LETTER BOX] or [4:3 PAN SCAN]:

This aspect ratio is for a 4:3 standard TV

(page 71)

7Press X/x to select the Control for

HDMI setting, then press .

• [ON]: The Control for HDMI function is

set to on.

• [OFF]: The Control for HDMI function is

set to off.

Performing the Quick Setup

"/1

DISPLAY

C/X/x/c,

Home Theatre System

Press to run QUICK SETUP.

Press to erase this message.

ENTER

CLEAR

LANGUAGE SETUP

MENU:

OSD:

AUDIO:

SUBTITLE:

ENGLISH

ENGLISH

FRENCH

SPANISH

PORTUGUESE

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

:

TV TYPE:

4:3 OUTPUT:

COLOR SYSTEM

(VIDEO CD)

:

16:9

AUTO

PAUSE MODE:

16:9

4:3 LETTER BOX

4:3 PAN SCAN

HDMI SETUP

HDMI RESOLUTION:

AUDIO RETURN CHANNEL:

VOLUME LIMIT:

AUTO

(1920x1080p)

OFF

SD

YCBCR/RGB(HDMI):

JPEG RESOLUTION:

AUDIO(HDMI):

CONTROL FOR HDMI: ON

YCBCR

ON

OFF

35GB

Getting Started

8Press C/c to select the speaker

formation image as the speakers are

actually positioned, then press .

• [STANDARD]: Select this when you

install all the speakers normally.

• [NO CENTER]: Select this when you

install the front and surround speakers

only.

• [NO SURROUND]: Select this when you

install the center and front speakers only.

• [FRONT ONLY]: Select this when you

install the front speakers only.

• [ALL FRONT]: Select this when you

install all the speakers in front of the

listening position.

• [ALL FRONT - NO CENTER]: Select

this when you install the front and

surround speakers in front of the listening

position.

9Connect the calibration mic (supplied)

to the A.CAL MIC jack on the front

panel.

Set up the calibration mic at ear level using

a tripod, etc. (not supplied).

The front of each speaker should face the

calibration mic, and there should be no

obstruction between the speakers and the

calibration mic.

10Press C/c to select [YES], then press

.

Be quiet during the measurement.

Note

• Loud test sounds are output when [AUTO

CALIBRATION] starts. You cannot turn the

volume down. Give consideration to children

and neighbors.

• The environment of the room in which the

system is installed may affect measurements.

When the measurements differ considerably

from the status of the speaker installation,

perform the speaker settings manually by

following “Settings for the speakers” (page 76).

SPEAKER FORMATION

STANDARD

Calibration mic

36GB

Getting Started

11 Unplug the calibration mic, press C/c

to select [YES], then press .

To quit the Quick Setup

Press DISPLAY in any Step.

Depending on the connection of your TV

(page 30), select the type of video output of the

system.

To select the type of video signal

output from the HDMI OUT jack

When you connect the unit and your TV with an

HDMI cable, select the type of video signals

output from the HDMI OUT jack.

1Press FUNCTION repeatedly to select

“DVD/CD.”

2Press DISPLAY while the system is

in stop mode.

3Press X/x to select [SETUP],

then press .

4Press X/x to select [CUSTOM], then

press .

5Press X/x to select [HDMI SETUP], then

press .

6Press X/x to select [HDMI

RESOLUTION], then press .

7Press X/x to select the desired setting,

then press .

• [AUTO (1920

× 1080p)]: The system

outputs the optimal video signal for the

connected TV.

• [1920 × 1080i]: The system outputs 1920

× 1080i* video signals.

• [1280 × 720p]: The system outputs 1280

× 720p* video signals.

• [720 × 480p]**: The system outputs 720

× 480p* video signals.

* i: interlace, p: progressive

** Depending on the area, [720 × 480/576p] may

appear and the system may output 720 × 576p

video signals.

Setting the type of video

output to match your TV

CUSTOM

CUSTOM

QUICK

CUSTOM

HDMI SETUP

VOLUME LIMIT: OFF

AUDIO RETURN CHANNEL: AUTO

YCBCR

OFF

SD

YCBCR/RGB(HDMI):

JPEG RESOLUTION:

AUDIO(HDMI):

CONTROL FOR HDMI: ON

HDMI RESOLUTION: AUTO

(1920x1080p)

HDMI SETUP

VOLUME LIMIT: OFF

AUDIO RETURN CHANNEL: AUTO

YCBCR

OFF

SD

YCBCR/RGB(HDMI):

JPEG RESOLUTION:

AUDIO(HDMI):

CONTROL FOR HDMI: ON

HDMI RESOLUTION: AUTO

(1920x1080p)

HDMI SETUP

VOLUME LIMIT: LEVEL2

AUDIO RETURN CHANNEL: AUTO

YCBCR

OFF

SD

YCBCR/RGB(HDMI):

JPEG RESOLUTION:

AUDIO(HDMI):

CONTROL FOR HDMI: OFF

HDMI RESOLUTION: AUTO

(1920x1080p)

1280x720p

1920x1080i

720x480p

AUTO

(1920x1080p)

37GB

Getting Started

To select the type of video signal

output from the COMPONENT

VIDEO OUT jacks

When you connect the unit and your TV with a

component video cable, select the type of video

signals output from the COMPONENT VIDEO

OUT jacks.

1Press FUNCTION repeatedly to select

“DVD/CD.”

2Press DISPLAY while the system is

in stop mode.

3Press X/x to select [SETUP],

then press .

4Press X/x to select [CUSTOM], then

press .

5Press X/x to select [VIDEO SETUP],

then press .

6Press X/x to select [PROGRESSIVE

(COMPONENT OUT)], then press .

7Press X/x to select the desired setting,

then press .

[OFF]: The system does not output

progressive signals. Select this setting

when:

– your TV does not accept progressive

signals, or,

– your TV is connected via jacks other than

the COMPONENT VIDEO OUT jacks.

[ON]: The system outputs progressive

signals. Select this setting when:

– your TV accepts progressive signals,

and,

– your TV is connected via the

COMPONENT VIDEO OUT jacks.

When you select [ON], the confirmation

display appears. Follow the Steps below.

8Press C/c to select [START], then

press .

The system outputs a progressive signal for

about 5 seconds. Check that the screen is

displayed correctly.

9Press C/c to select [YES], then press

.

The system outputs a progressive signal.

When you select [NO], the system does not

output a progressive signal.

CUSTOM

CUSTOM

QUICK

CUSTOM

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

:

TV TYPE:

4:3 OUTPUT:

16:9

OFF

FULL

AUTO

AUTO

COLOR SYSTEM

(VIDEO CD)

:

PAUSE MODE:

VIDEO SETUP

TV TYPE:

4:3 OUTPUT:

16:9

FULL

AUTO

AUTO

COLOR SYSTEM

(VIDEO CD)

:

PAUSE MODE:

PROGRESSIVE

(COMPONENT OUT)

:OFF

VIDEO SETUP

TV TYPE:

4:3 OUTPUT:

16:9

FULL

AUTO

AUTO

COLOR SYSTEM

(VIDEO CD)

:

PAUSE MODE:

PROGRESSIVE

(COMPONENT OUT)

:OFF

ON

OFF

38GB

Playing a Disc

1Press FUNCTION repeatedly to select

“DVD/CD.”

The selected item appears in the front panel

display.

2Press Z to open the disc tray.

3Place a disc on the tray, then press Z.

4Press N to start playback.

5Press VOLUME +/– to adjust the

volume.

Playing Files on a Disc/

USB Device

1Press FUNCTION repeatedly to select

the source you want to play.

The selected item appears in the front panel

display.

• “DVD/CD”: For a disc.

• “USB”: For a USB device.

Playback

Z

FUNCTION

H

VOLUME +/–

With the label side up.

Z

FUNCTION

x

H

VOLUME +/–

C/X/x/c,

DISPLAY

O

RETURN

DVD MENU

"/1

Playback

39GB

2Load the source.

xFor a disc

Place a disc on the tray by pressing Z to

open/close the disc tray.

xFor a USB device

Connect a USB device to the (USB)

port.

Note

• It may take about 10 seconds before

“READING” appears in the front panel display

depending on the type of USB device.

[FOLDER LIST] appears on the TV screen.

If [FOLDER LIST] does not appear, press

DVD MENU.

3Press X/x to select a folder.

4Press N to start playback.

xFor video or audio files

The system starts playback of files in the

selected folder.

xFor JPEG image files

The system starts a slide show of files in the

selected folder.

5Press VOLUME +/– to adjust the

volume.

To select the playback source of

the USB device

You can select the memory number for playback

depending on the USB device.

Press MEMORY SELECT.

Note

• When the memory cannot be selected, [Operation not

possible.] appears on the TV screen.

• The memory number changes depending on the USB

device.

To remove the USB device

1Press x to stop playback.

2Press [/1 to turn off the system.

3Remove the USB device.

1Select a folder by following Steps in

“Playing Files on a Disc/USB Device”

(page 38).

2Press to display the file list.

3Select a file.

To return to the folder list, press O

RETURN.

xFor video or audio files

Press X/x to select a file.

USB device

FOLDER LIST

02 1st Album (1986)

03 In the Middle of Nowhere (1986)

04 Ready for Romance (1986)

05 In the Garden of Venus (1987)

06 Romantic Warriors (1987)

07 Back for Good (1988)

08 Alone (1999)

01 Let's Talk About Love (1985)

Playing a specific file

Home Theatre System

USB Memory 2 selected.

Selected memory number

TRACK LIST

03 In the Middle of Nowher...

02_Riding_On_A_White_Swan

03_Give_Me_Peace_On_Earth

04_Sweet_Little_Shella

05_Ten_Thousand_Lonely_Drums

06_Lonely_Tears_In_Chinatown

07_In_Shaire

01_Geronimo_s_Cadillac

40GB

xFor JPEG files

Press C/X/x/c to select an image.

4Start playback.

xFor video or audio files

Press N to start playback from the selected

file.

xFor JPEG image files

Press N to start a slide show beginning

with the selected file. Press to display

only the selected file.

To display the thumbnail list of

JPEG image files

Press PICTURE NAVI.

To turn on/off the list of folders/

files

Press DVD MENU.

To display the list of folders/files

using the Control Menu

1Press DISPLAY.

2Press X/x to select

[BROWSING], then press .

3Press X/x to select the desired list,

then press .

• [FOLDER LIST]: A list of folders

appears. To display a list of files, press X/

x to select a folder, then press .

• [PICTURE LIST] (JPEG image files

only): A thumbnail list of the JPEG image

files in the folder appears.

You can select the file type that is played with

priority when mixed media (audio files, JPEG

image files, or video files) are on the disc/USB

device.

1Press DISPLAY.

2Press X/x to select [MEDIA],

then press .

3Press X/x to select a setting, then

press .

• [MUSIC/PHOTO] (DATA CD/DATA

DVD only): You can play both JPEG

image files and MP3 files in the same

folder as a slide show.

• [MUSIC]: Audio file playback has

priority.

• [VIDEO]: Video file playback has

priority.

• [PHOTO]: JPEG image file playback has

priority. You can play JPEG image files as

a slide show.

The default setting differs depending on the

source.

For details of the playback priority of file

types under the [MEDIA] setting, see

“Playback Priority of File Types”

(page 89).

1234

5678

13 14 15 16

9101112

When different file types are

on a disc/USB device

Playback

41GB

Other Playback

Operations

Depending on the type of disc/file, the function

may not work.

Tip

• When playing files, you can select the next folder by

continuing to press > (c for JPEG image files)

after the last file on the current folder, but you cannot

return to the previous folder by pressing .(C for

JPEG image files). To return to the previous folder,

select the folder from the folder list.

• You cannot rotate the JPEG image file when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD ] or [(1920 × 1080i) HD] (page 72).

To select the title/chapter/track/

scene/index/folder/file number for

playback

1Press DISPLAY.

Playback operation buttons on

the remote

To Press

Stop x

Pause X

Return to normal

playback or resume

playback after

pause

N

Cancel the resume

point

x twice.

Skip the current

chapter, track, file,

or scene

. or >.

•.: go to the beginning.

• Press . twice in a second to

go to the previous item.

•>: go to the next item.

Skip the current

JPEG image file

C or c during playback.

•C: go to the previous file.

•c: go to the next item.

Locate a point

quickly

/m or M/ while

playing a disc.

•/m: fast reverse scan.

•M/ : fast forward scan.

Each time you press /m or

M/ during scan, the scan

speed changes.

Watch frame by

frame

X, then press /m or M/

.

•/m: slow-motion play

(reverse).

•M/ : slow-motion play

(forward).

Each time you press /m or

M/ during slow-motion

play, the playback speed

changes.

Play one frame at a

time (Freeze

Frame)

X, then press STEP or

STEP.

• STEP: go to the preceding

frame.

• STEP: go to the next

frame.

Replay the previous

scene or briefly fast

forward the current

scene

or during playback.

• : 10 seconds before.

• : 30 seconds ahead.

Go to the previous

or next page when a

list of folders/files

has multiple pages

or .

Rotate a JPEG

image file

X/x while viewing a JPEG

image file.

Press CLEAR to return to

normal view.

Playing a specific title/

chapter/track/scene, etc.

To Press

42GB

2Press X/x to select the search method,

then press .

• [TITLE/SCENE/TRACK]

• [CHAPTER/INDEX]

• [TRACK]

• [INDEX]

• [FOLDER]

• [FILE]

Example: [CHAPTER]

[** (**)] is selected (** refers to a number).

The number in parentheses indicates the

total number of titles, chapters, tracks,

indexes, scenes, folders, or files.

Note

• If [MEDIA] is set to [MUSIC/PHOTO] and

[FILE] does not appear, press

DISPLAY again.

3Press X/x or the number buttons to

select the desired number of the title,

chapter, track, scene, etc., then press

.

If you make a mistake, press CLEAR to

cancel the number.

To select a scene using the time

code

1Press DISPLAY.

2Press X/x to select [TIME], then

press .

3Input the time code using the number

buttons, then press .

For example, to find a scene at 2 hours, 10

minutes, and 20 seconds after the

beginning: press 2, 1, 0, 2, 0 ([2:10:20]).

Note

• You cannot search for a scene on a DVD+RW using

the time code.

Press ANGLE during playback to select the

desired angle.

Press SUBTITLE during playback to select

the desired subtitle language.

Note

• You can select the subtitles if the DivX video file has

an “.avi” or “.divx” extension and contains subtitle

information within the same file.

Press AUDIO repeatedly during playback to

select the sound.

xDVD VIDEO

You can toggle audio format or language when

the source contains multiple audio formats or

multilingual audio.

When 4 digits are displayed, they indicate a

language code. See “Language Code List”

(page 90) to confirm which language the code

represents.

When the same language is displayed two or

more times, the DVD VIDEO is recorded in

multiple audio formats.

DVD VIDEO

13( 99)

98( 99)

T 0: 03: 17

Selected row

DVD VIDEO

13( 99)

98( 99)

T 0: 03: 17

Changing angles

Displaying subtitles

Changing the audio

Playback

43GB

Example:

Dolby Digital 5.1 channel

xDVD-VR

You can toggle audio tracks when a disc

contains multiple audio tracks.

xVIDEO CD/CD/DATA CD (MP3 file)/DATA

DVD (MP3 file)/USB device (audio file)

You can change the sound track.

• [STEREO]: The stereo sound.

• [1/L]: The sound of the left channel

(monaural).

• [2/R]: The sound of the right channel

(monaural).

xDATA CD (DivX video file)/DATA DVD

(DivX video file)/USB device (DivX video

file)

You can toggle audio tracks when a video file

contains multiple audio tracks.

xSuper VCD

You can change the sound track.

• [1:STEREO]: The stereo sound of audio track

1.

• [1:1/L]: The sound of the left channel of audio

track 1 (monaural).

• [1:2/R]: The sound of the right channel of

audio track 1 (monaural).

• [2:STEREO]: The stereo sound of audio track

2.

• [2:1/L]: The sound of the left channel of audio

track 2 (monaural).

• [2:2/R]: The sound of the right channel of

audio track 2 (monaural).

When you play a DVD which contains several

titles, you can select the title you want using

DVD TOP MENU.

When you play a DVD that allows you to select

items such as the language for the subtitles and

the language for the sound, select these items

using DVD MENU.

1Press DVD TOP MENU or DVD MENU.

2Press C/X/x/c or the number buttons to

select the item you want to play or

change, then press .

To display the DVD’s menu on the

Control Menu

1Press DISPLAY.

2Press X/x to select [DISC

MENU], then press .

3Press X/x to select [MENU] or [TOP

MENU], then press .

This function is only available for DVD-VRs

with a playlist created.

1Press DISPLAY while the system is

in stop mode.

2Press X/x to select [ORIGINAL/

PLAY LIST], then press .

3Press X/x to select a setting, then

press .

• [PLAY LIST]: You can play the titles in

the order of the existing playlist.

• [ORIGINAL]: You can play the titles as

they were originally recorded.

1: ENGLISH

DOLBY DIGITAL 3 / 2 .1

LFE

CL R

LS RS

Surround (L/R)

Front (L/R) +

Center

LFE (Low

Frequency Effect)

Currently playing program format

Using the DVD’s menu

Selecting an original title or

edited title on a DVD-VR

44GB

Some Super Audio CDs consist of a 2 channel

playback area and a multi-channel playback

area. You can select the playback area you want

to listen to.

1Press DISPLAY while the system is

in stop mode.

2Press X/x to select [MULTI/

2CH], then press .

3Press X/x to select the setting, then

press .

• [MULTI]: You can play the multi-channel

playback area.

• [2CH]: You can play the 2 channel

playback area.

Some Super Audio CDs consist of a Super

Audio CD layer and a CD layer. You can change

the playback layer you want to listen to.

1Press DISPLAY while the system is

in stop mode.

2Press X/x to select [SUPER

AUDIO CD/CD LAYER], then press .

xWhen the current layer is the CD

layer

[SUPER AUDIO CD] appears.

xWhen the current layer is the Super

Audio CD layer

[CD] appears.

3Press to change the layer.

• [SUPER AUDIO CD]: You can play the

Super Audio CD layer.

When the system is playing a Super Audio

CD layer, “SA-CD” lights up in the front

panel display.

• [CD]: You can play the CD layer.

When the system is playing a CD layer,

“CD” lights up in the front panel display.

Note

• Super Audio CD audio signals are not output from the

HDMI OUT jack.

Selecting the Playback

Mode

You can play the contents of a disc in the order

you want by arranging the order of the tracks on

the disc to create your own program. You can

program up to 99 tracks.

1Press DISPLAY.

2Press X/x to select [PROGRAM],

then press .

3Press X/x to select [SET t], then

press .

Selecting a playback area for a

Super Audio CD

Changing a playback layer for

a hybrid Super Audio CD

Playing in programmed order

(Program Play)

PROGRAM 0: 00:00

T

1. TRACK – – – –

01

02

03

04

05

06

– –

– –

– –

– –

– –

– –

ALL CLEAR

2. TRACK

3. TRACK

7. TRACK

6. TRACK

5. TRACK

4. TRACK

Tracks recorded on a disc

Total time of the programmed tracks

Playback

45GB

4Press c.

The cursor moves to the track row [T] (in

this case, [01]).

5Select the track you want to program.

Ex. To set track 2 as the first

programmed track

Press X/x to select [02] under [T], then

press .

6To program other tracks, repeat Steps

4 to 5.

7Press N to start Program Play.

To return to normal playback

Press CLEAR when the display for the program

setting is not displayed on the TV screen, or

select [OFF] in Step 3. To play the same

program again, select [ON] in Step 3 and press

.

To change or cancel a program

1Follow Steps 1 to 3 of “Playing in

programmed order.”

2Press X/x to select the program

number of the track you want to

change or cancel.

If you want to delete the track from the

program, press CLEAR.

3Follow Step 5 of “Playing in

programmed order” for new

programming.

To cancel a program, select [--] under [T],

then press .

To cancel all of the tracks in the

programmed order

1Follow Steps 1 to 3 of “Playing in

programmed order.”

2Press X and select [ALL CLEAR], then

press .

Note

• The same song may be played repeatedly when you

are playing MP3 files.

1Press DISPLAY during playback.

2Press X/x to select [SHUFFLE],

then press .

3Press X/x to select the item to be

shuffled.

xVIDEO CD/Super Audio CD/CD

•[OFF]: Off.

• [TRACK]: You can shuffle tracks on the

disc.

xDuring Program Play

•[OFF]: Off.

• [ON]: You can shuffle tracks selected in

Program Play.

xDATA CD (audio files only)/DATA

DVD (audio files only)/USB device

(audio files only)

•[OFF]: Off.

• [ON (MUSIC)]: You can shuffle audio

files in the folder on the current disc/USB

device. When no folder is selected, the

audio files in the first folder are shuffled.

4Press to start Shuffle Play.

PROGRAM 0: 00:00

T

2. TRACK

1. TRACK – – – –

01

02

03

04

05

06

– –

– –

– –

– –

– –

– –

ALL CLEAR

3. TRACK

7. TRACK

6. TRACK

5. TRACK

4. TRACK

PROGRAM 0: 03:51

T

1. TRACK 02 – –

01

02

03

04

05

06

– –

– –

– –

– –

– –

– –

ALL CLEAR

2. TRACK

3. TRACK

7. TRACK

6. TRACK

5. TRACK

4. TRACK

Selected track

Total time of the programmed tracks

Track number [T]

Playing in random order

(Shuffle Play)

46GB

To return to normal playback

Press CLEAR, or select [OFF] in Step 3.

Note

• You cannot use Shuffle Play with a VIDEO CD or

Super VCD with PBC playback.

1Press DISPLAY during playback.

2Press X/x to select [REPEAT],

then press .

3Press X/x to select the item to be

repeated, then press .

xDVD VIDEO/DVD-VR

•[OFF]: Off.

• [DISC]: You can repeat all of the titles on

the disc.

• [TITLE]: You can repeat the current title

on a disc.

• [CHAPTER]: You can repeat the current

chapter on a disc.

xVIDEO CD/Super Audio CD/CD

•[OFF]: Off.

• [DISC]: You can repeat all of the tracks

on the disc.

• [TRACK]: You can repeat the current

track.

xDATA CD/DATA DVD/USB device

•[OFF]: Off.

• [DISC] (DATA CD/DATA DVD only):

You can repeat all of the folders on the

disc.

• [MEMORY] (USB device only): You can

repeat all of the folders on the USB

device.

• [FOLDER]: You can repeat the current

folder.

• [TRACK] (audio files only): You can

repeat the current file.

• [FILE] (video files only): You can repeat

the current file.

4Press N to start Repeat Play.

To return to normal playback

Press CLEAR, or select [OFF] in Step 3.

Note

• You cannot use Repeat Play with a VIDEO CD or

Super VCD with PBC playback.

1Press DISPLAY repeatedly until

[EFFECT] appears on the

control menu.

2Press X/x to select [EFFECT],

then press .

3Press X/x to select a setting, then

press .

• [MODE 1]: The JPEG image file sweeps

in from the top to the bottom of the TV

screen.

• [MODE 2]: The JPEG image file stretches

out from the left to the right of the TV

screen.

• [MODE 3]: The JPEG image file stretches

out from the center of the TV screen.

• [MODE 4]: The JPEG image files

randomly cycle through the effects.

• [MODE 5]: The next JPEG image file

slides over the previous image.

• [OFF]: Off.

Note

• The [EFFECT] setting is not effective when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD ] or [(1920 × 1080i) HD] (page 72).

• The [EFFECT] setting cannot be selected when you

are playing a disc that does not contain JPEG image

files or a USB device, or when you set [MEDIA] to a

setting that cannot play JPEG image files.

1Press DISPLAY repeatedly until

[INTERVAL] appears on the

control menu.

Playing repeatedly

(Repeat Play)

Selecting an effect for the

slide show

Selecting the slide show

duration

Playback

47GB

2Press X/x to select [INTERVAL],

then press .

3Press X/x to select a setting, then

press .

• [NORMAL]: You can set to the standard

duration.

• [FAST]: You can set the duration shorter

than [NORMAL].

• [SLOW 1]: You can set the duration

longer than [NORMAL].

• [SLOW 2]: You can set the duration

longer than [SLOW 1].

Note

• Some JPEG image files may take longer to display

than the option you selected, especially progressive

JPEG image files or JPEG image files of 3,000,000

pixels or more.

• The [INTERVAL] setting cannot be selected when

you are playing a disc that does not contain JPEG

image files or a USB device, or when you set

[MEDIA] to a setting that cannot play JPEG image

files.

1Prepare a folder on a disc which

contains both MP3 files and JPEG

image files.

The MP3 files and JPEG image files must

not be in separate folders. For details of

making the disc, refer to the instructions of

your PC, software, etc.

2Press DISPLAY.

3Press X/x to select [MEDIA],

then press .

4When [MUSIC/PHOTO] is selected, go

to Step 5. When other than [MUSIC/

PHOTO] is selected, press X/x to select

[MUSIC/PHOTO], then press .

5If the folder list does not appear, press

DVD MENU.

You can turn the folder list on/off by

pressing DVD MENU repeatedly.

6Press X/x to select the desired folder

and press N.

Note

• If you play a large MP3 file and JPEG image file at

the same time, the sound may skip. Sony

recommends that you set the MP3 bit rate to 128 kbps

or lower when creating the file. If the sound still

skips, reduce the size of the JPEG image file.

Enjoying Karaoke

Note

• You cannot use the karaoke function with the S-AIR

receiver. When using the karaoke function, turn the

S-AIR receiver off. (DAV-DZ810 only)

1Plug a microphone into the MIC jack.

The system enters karaoke mode, and

“ ” lights up in the front panel display.

2Start audio playback following the

Steps in “Playing a Disc” (page 38) or

“Playing Files on a Disc/USB Device”

(page 38).

3Sing along to the audio.

Press MIC VOL +/– to adjust the

microphone volume.

To set the system to karaoke

mode without the microphone

connected

1Press DISPLAY.

Playing a slide show with

sound

MIC /A.CAL MIC AUDIO IN

48GB

Note

• The Control Menu will not appear if no disc/

USB device is inserted into the unit.

2Press X/x repeatedly to select

[KARAOKE MODE], then press .

3Press X/x to select [ON], then press

.

To cancel karaoke mode

Disconnect the microphone, or set [KARAOKE

MODE] to [OFF].

Note

• Before connecting, press MIC VOL – to set the

microphone volume to minimum.

• If you play the Super Audio CD layer of a Super

Audio CD (page 44), karaoke mode will be set to off

automatically. In this case, the beginning of the sound

may be cut off. To avoid the sound cutting, play the

Super Audio CD after you set [KARAOKE MODE]

to [OFF].

• Microphone sound is not output when:

– the microphone is not connected to the unit

properly.

– the microphone volume is set to minimum.

– you use a microphone other than the monaural

dynamic type.

• When you set the system to karaoke mode while

playing a VIDEO CD/CD/MP3 file, the sound track

(page 42) is set to [1/L] automatically.

• Karaoke mode cannot be set while playing the iPod

(Australian models only).

Tip

• The karaoke play is performed with the audio channel

you selected using AUDIO (page 42).

To add the echo effect

Press ECHO repeatedly.

Each time you press ECHO, the echo level

changes as follows:

To cancel the echo effect, select “ECHO OFF.”

Note

• If howling occurs:

– move the microphone away from the speakers.

– lower the microphone volume or echo level.

– lower the overall volume.

You can change the key to suit your vocal range,

except when the system is in stop mode.

Press KEYCON #/2 to suit your vocal range

in karaoke mode.

You can adjust the key lower or higher in

13 steps (26 – #6).

Note

• Depending on the source, you may not be able to

change the key.

• The key may return to the original key automatically

if you operate the system or the status of the system is

changed.

You can enjoy karaoke with a stereo-recorded

source, even if it is a non-karaoke source, by

reducing the sound of the vocals.

Press KARAOKE PON in karaoke mode.

To cancel Karaoke Pon mode

Press KARAOKE PON again.

Note

• This function may not work well depending on the

source.

• Karaoke Pon mode may be canceled automatically if

you operate the system.

“ECHO OFF” t “ECHO 1”

Rr

“ECHO 3” T “ECHO 2”

Changing the key of a song

(Key Control)

Reducing the vocal sound of a

non-karaoke source (Karaoke

Pon)

Playback

49GB

When playing a karaoke DVD recorded in

Dolby Digital format in karaoke mode, you can

turn on or off the guide vocal recorded in the

karaoke track.

When playing a VIDEO CD/CD in karaoke

mode, you can listen to the vocals.

You can also change the guide vocal channel to

select different kinds of vocals.

1Press DISPLAY in karaoke mode.

2Press X/x repeatedly to select

[VOCAL SELECT], then press .

3Press X/x repeatedly to select the

desired vocal channel.

xDVD VIDEO

•[OFF]: The guide vocal is canceled.

• [1+2]: Guide vocal 1+2 is output.

• [1]: Guide vocal 1 is output.

• [2]: Guide vocal 2 is output.

xVIDEO CD/CD

•[OFF]: The guide vocal is canceled.

• [L+R]: Same sound is output from both

speakers.

• [STEREO]: The standard stereo sound is

output.

xSuper VCD

•[OFF]: The guide vocal is canceled.

• [1:L+R]: Same sound of the audio track 1

is output from both speakers.

• [1:STEREO]: The stereo sound of the

audio track 1 is output.

• [2:L+R]: Same sound of the audio track 2

is output from both speakers.

• [2:STEREO]: The stereo sound of the

audio track 2 is output.

4Press .

Note

• Depending on the disc, you may not be able to change

the guide vocal channel.

• The channel may return to the default setting if you

operate the system.

On karaoke DVDs recorded in Dolby Digital

format, guide melody and guide vocal tracks are

recorded in addition to the accompaniment. You

can select an accompaniment, guide melody, or

guide vocal track when the system is in karaoke

mode.

You can check the audio information by

pressing AUDIO (page 42). When playing a

Karaoke DVD, “ ” appears as the current

audio format.

Example:

Selecting the vocals (Vocal

Select)

About karaoke DVDs recorded

in Dolby Digital format

Guide melody

Accompaniment Accompaniment

Guide vocal 1 Guide vocal 2

You can select any of these. These are output

from the respective speakers.

Front

(L)

Front

(R)

Center

Surround

(L)

Surround

(R)

1: ENGLISH

DOLBY DIGITAL 3 / 2

2/0: Recorded only with

accompaniment.

3/0: Recorded with guide melody.

3/1: Recorded with guide melody and

one guide vocal.

3/2: Recorded with guide melody and

two guide vocals.

50GB

Displaying the

Information of a Disc/

USB Device

Press DISPLAY repeatedly during

playback.

Information on the TV screen

1[T **:**:**/C **:**:**/D **:**:**]

Playing time of the current title, track/

chapter/disc

[T-**:**:**/C-**:**:**/D-**:**:**]

Remaining time of the current title, track/

chapter/disc

[**:**:**]

Playing time of the current scene/video file

2Bit rate

Appears when playing an audio file.

3File type

Appears when playing an audio/video file.

4Folder/file name

Appears when playing an audio file/JPEG

image file/video file.

If an MP3 file has an ID3 tag, the system

will display an album name/title name from

the ID3 tag information.

The system can support ID3 ver 1.0/1.1/2.2/

2.3.

ID3 ver 2.2/2.3 tag information display has

priority when both ID3 ver 1.0/1.1 and ver

2.2/2.3 tags are used for a single MP3 file.

5Text information

The DVD/Super Audio CD/CD text

appears only when text is recorded on the

disc. You cannot change the text. If the disc

does not contain text, “NO TEXT” appears.

Note

• Depending on the source being played, the system

can only display a limited number of characters. Also,

depending on the source, not all text characters will

be displayed.

Information in the front panel

display

Each time you press DISPLAY during playback,

the following information appears.

Some displayed items may disappear after a few

seconds.

xDVD VIDEO/DVD-VR

1 Playing time of the current title

2 Remaining time of the current title

3 Playing time of the current chapter

4 Remaining time of the current chapter

5 Disc name

6 Title and chapter

xVIDEO CD (with PBC functions)/Super

VCD (with PBC functions)

1 Playing time of the current item

2 Disc name

3 Scene number

xVIDEO CD (without PBC functions)/

Super Audio CD/CD

1 Playing time of the current track

2 Remaining time of the current track

3 Playing time of the disc

4 Remaining time of the disc

5 Track name

6 Track and index*

* VIDEO CD/Super Audio CD only.

xSuper VCD (without PBC functions)

1 Playing time of the current track

2 Track text

3 Track and index number

Viewing playback information

Dvorak/Tchaikovsky/NedPho/Kreizberg

Adagio - Allegro molto

192k MP3T 0: 13

1

4, 5

23

Playback

51GB

xDATA CD/DATA DVD/USB device (audio

file)

1 Playing time and current track number

2 Track (file) name*

* If an MP3 file has an ID3 tag, the system will

display a title name from the ID3 tag information.

The system can support ID3 ver 1.0/1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display has priority

when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are

used for a single MP3 file.

xDATA CD (video file)/DATA DVD (video

file)/USB device (video file)

1 Playing time of the current file

2 Current file name

3 Current album and file number

Note

• The system can only display the first level of the

DVD/CD text, such as the disc name or title.

• The disc name or track name may not be displayed

depending on the text.

• Playing time of MP3 files and video files may not be

displayed correctly.

You can check the date information during

playback when the Exif* tag is recorded in the

JPEG image file.

Press DISPLAY repeatedly until

[DATE] appears on the control menu.

* “Exchangeable Image File Format” is a digital

camera image format defined by the Japan

Electronics and Information Technology Industries

Association (JEITA).

Enjoying the Audio/Video

of the Connected

Component

1Press FUNCTION repeatedly to select

the desired function.

The selected item appears in the front panel

display.

Viewing the date information

of a JPEG image file

DATA CD

10( 15)

5( 8)

18/9/2002

Date information

Function Source

“DVD/CD” Disc that is played by the

system

“TUNER FM” FM radio

“USB”

USB device or iPod* that is

connected to the (USB)

port

“TV” TV or set-top box

“AUDIO IN” Portable audio source that

is connected to the AUDIO

IN jack on the front panel

FUNCTION

52GB

2Prepare the source.

• “DVD/CD”: Insert the disc into the unit

(page 38).

• “TUNER FM”: Select the radio program

(page 53).

• “USB”: Connect the USB device directly

(page 38), or iPod* via a USB cable

(page 52).

• “TV”: Select the channel on the TV or set-

top box.

• “AUDIO IN”: Connect the portable audio

source via an audio cord (stereo mini-plug

cord) (page 32).

3Operate the connected component.

To enjoy a set-top box, select the input of

the set-top box via the TV to which it is

connected.

* Australian models only.

iPod models that can be operated

via USB

You can operate an iPod using the buttons on the

remote by connecting the iPod via the (USB)

port to the system.

The battery of the iPod is charged via the

system.

The iPod models that can be operated via USB

are as follows. Update your iPod with the latest

software before using it with the system.

Remote buttons for operating an iPod connected

to the system are as follows:

Note

• The iPod is charged when connected to the system

while the system is turned on.

• You cannot transfer songs onto the iPod.

• Sony cannot accept responsibility in the event that

data recorded to iPod is lost or damaged when using

an iPod connected to this unit.

• This product has been designed specifically to work

with iPod and has been certified to meet Apple

performance standards.

Press Operation

N, XSame operation as the N/X button

of the iPod.

xPause.

/m or

M/

Fast reverse or forward.

. or >Same operation as the . or >

buttons of the iPod.

DISPLAY,

O RETURN,

C

Same operation as the MENU button

of the iPod.

X/xSame operation as the Click Wheel

of the iPod.

, cSame operation as the Center button

of the iPod.

Tuner

53GB

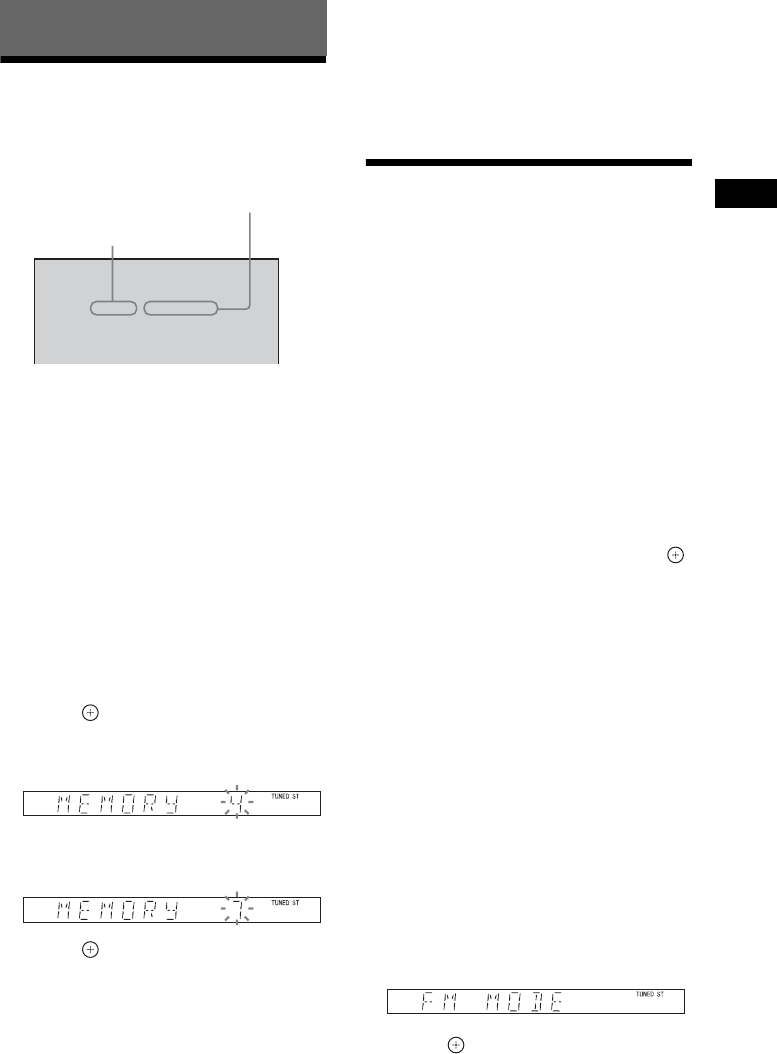

Presetting Radio

Stations

You can preset 20 FM stations.

1Press FUNCTION repeatedly to select

“TUNER FM.”

The selected item appears in the front panel

display.

2Press and hold TUNING +/– until the

auto scanning starts.

Scanning stops when the system tunes in a

station. “TUNED” appears in the front

panel display. When a stereo program is

received, “ST” also appears in the front

panel display.

3Press SYSTEM MENU.

4Press X/x to select “MEMORY.”

5Press or c.

A preset number appears in the front panel

display.

6Press X/x to select the preset number

you want.

7Press .

“COMPLETE” appears in the front panel

display, and the station is stored.

8Repeat Steps 2 to 7 to store other

stations.

9Press SYSTEM MENU.

To change the preset number

Select the desired preset number by pressing

PRESET +/– (page 53), then perform the

procedure from Step 3.

Listening to the Radio

Preset radio stations in the system’s memory

first (see “Presetting Radio Stations” (page 53)).

1Press FUNCTION repeatedly to select

“TUNER FM.”

The selected item appears in the front panel

display.

2Press PRESET +/– repeatedly to select

the preset station.

3Adjust the volume by pressing

VOLUME +/–.

To listen to radio stations when

you know the frequencies

Press D.TUNING in Step 2, press the number

buttons to select the frequencies, then press .

To listen to non-preset radio

stations

Use manual or automatic tuning in Step 2.

For manual tuning, press TUNING +/–

repeatedly.

For automatic tuning, press and hold TUNING

+/–. The automatic tuning stops automatically

when the system receives the radio station. To

stop the automatic tuning manually, press

TUNING +/– or x.

If an FM program is noisy

If an FM program is noisy, you can select

monaural reception. There will be no stereo

effect, but reception will improve.

1Press SYSTEM MENU.

2Press X/x to select “FM MODE.”

3Press or c.

Tuner

FM 10 : 88.00 MHz

FM

Current band and preset number

Current station

54GB

4Press X/x to select “MONO.”

•“STEREO”: Stereo reception.

• “MONO”: Monaural reception.

5Press .

6Press SYSTEM MENU.

Sound Effect

55GB

Enjoying Surround Sound

You can enjoy surround sound simply by selecting one of the system’s pre-programmed surround

settings.

1Press SYSTEM MENU.

2Press X/x to select “SUR.SETTING,” then press or c.

The selected item appears in the front panel display.

3Press X/x to select “PRO LOGIC,” then press .

4Press SYSTEM MENU.

Note

• When TV program sound is monaural, sound is output only from the center speaker.

1Press SYSTEM MENU.

2Press X/x to select “SUR.SETTING,” then press or c.

The selected item appears in the front panel display.

3Press X/x to select the surround setting you want, then press .

See the table below for surround setting descriptions.

4Press SYSTEM MENU.

About speaker output

The table below describes the options when you connect all the speakers to the unit and you set

[SPEAKER FORMATION] to [STANDARD] (page 73).

Sound Effect

Enjoying TV sound with the 5.1 channel surround sound effect

Selecting surround settings based on your listening preference

Sound from Surround setting Effect

“A.F.D. MULTI”

(AUTO FORMAT

DIRECT MULTI)

• 2 channel source: The system outputs 2 channel sound from

the front and surround speakers by assigning the 2 channel

sound to the surround left and right channels.

• Multi-channel source: The system outputs sound from the

speakers depending on the number of channels of the

source.

56GB

Note

• You cannot select the surround settings while the system is loading a disc.

• Depending on the input stream, the surround settings may not be effective.

“PRO LOGIC”

“PLII MOVIE”

“PLII MUSIC”

• 2 channel source: The system simulates surround sound

from 2 channel sources and outputs sound from all the

speakers.

– “PRO LOGIC” performs Dolby Pro Logic decoding.

– “PLII MOVIE” performs Dolby Pro Logic II movie

mode decoding.

– “PLII MUSIC” performs Dolby Pro Logic II music mode

decoding.

• Multi-channel source: The system outputs sound from the

speakers depending on the number of channels of the

source.

“2CH STEREO” The system outputs the sound from the front speakers and

subwoofer regardless of sound format or number of channels.

Multi-channel surround formats are downmixed to 2

channels.

Depending on the source. “A.F.D. STD”

(AUTO FORMAT

DIRECT STANDARD)

The system discriminates the sound format of the source and

presents sound as it was recorded/encoded.

Sound from Surround setting Effect

Sound Effect

57GB

Selecting the Sound

Effect

Press SOUND MODE repeatedly during

playback until the desired mode appears in

the front panel display.

•“AUTO”: The system automatically selects

“MOVIE” or “MUSIC” to produce the sound

effect depending on the source. “AUTO”

appears in the front panel display.

• “MOVIE”: The system provides the sound for

movies. “MOVIE” appears in the front panel

display.

• “MUSIC”: The system provides the sound for

music. “MUSIC” appears in the front panel

display.

Note

• When you play a Super Audio CD, this function does

not work.

You can enhance compressed sound such as an

MP3 file.

This effect is activated automatically when all

the following conditions are satisfied:

– The function is set to “AUDIO IN” or “USB.”

– “SUR.SETTING” is set to “A.F.D. STD” or

“A.F.D. MULTI” (page 55).

To turn off the sound effect

Select other than “A.F.D. STD” or “A.F.D.

MULTI” for “SUR.SETTING” (page 55).

Press DYNAMIC BASS.

“D. BASS ON” appears in the front panel

display.

To turn off the sound effect

Press DYNAMIC BASS again.

You can enjoy sound effects or dialogue, as you

would in a movie theater, even at low volume. It

is useful for watching movies at night.

Press NIGHT.

“NIGHT” lights up in the front panel display.

Note

• This effect does not work for a Super Audio CD.

When you load a Super Audio CD while this function

is activated, the sound effect turns off automatically.

To turn off the sound effect

Press NIGHT again.

Selecting the effect to suit the

source

Enhancing compressed sound

Reinforcing bass frequencies

Enjoying the sound at low

volume

58GB

Using the Control for

HDMI Function for

“BRAVIA” Sync

This function is available on TVs with the

“BRAVIA” Sync function.

By connecting Sony components that are

compatible with the Control for HDMI function

with an HDMI cable, operation is simplified as

below:

– System Power Off (page 58)

– One-Touch Play (page 59)

– Theatre Mode (page 59)

– System Audio Control (page 59)

– Volume Limit (page 59)

– Audio Return Channel (page 59)

– Remote Easy Control (page 59)

– Language Follow (page 60)

Control for HDMI is a mutual control function

standard used by CEC (Consumer Electronics

Control) for HDMI (High-Definition

Multimedia Interface).

Note

• Depending on the connected component, the Control

for HDMI function may not work. Refer to the

operating instructions of the component.

(Control for HDMI - Easy Setting)

If your TV is compatible with the Control for

HDMI - Easy Setting function, you can set the

system’s [CONTROL FOR HDMI] function

automatically by setting your TV. For details,

refer to the operating instructions of your TV.

If your TV is not compatible with the Control for

HDMI - Easy Setting function, set the Control

for HDMI function of the system and TV

manually.

1Make sure that the system and your TV

are connected with an HDMI cable.

2Turn on your TV and press [/1 to turn

on the system.

3Switch the input selector on your TV so

that the signal from the system through

the HDMI input appears on the TV

screen.

4Set the Control for HDMI function of

your TV.

For details of the setting of your TV, refer

to the operating instructions of your TV.

5On the system, press FUNCTION

repeatedly to select “DVD/CD.”

The selected item appears in the front panel

display.

6Press DISPLAY while the system is

in stop mode.

7Press X/x to select [SETUP],

then press .

8Press X/x to select [CUSTOM], then

press .

9Press X/x to select [HDMI SETUP], then

press .

10 Press X/x to select [CONTROL FOR

HDMI], then press .

11 Press X/x to select [ON], then press

.

(System Power Off)

When you turn your TV off by using the

POWER button on your TV’s remote or TV [/1

on the system’s remote, the system turns off

automatically.

Note

• This function depends on the settings of your TV. For

details, refer to the operating instructions of your TV.

• Depending on the status of the system (ex. while

playing a CD), the system may not turn off

automatically.

Convenient Functions

Preparing the Control for HDMI

function

Turning the system off in sync

with your TV

Convenient Functions

59GB

(One-Touch Play)

Press ONE-TOUCH PLAY

Your TV turns on, your TV’s function is set to

the HDMI input to which the system is

connected, and the system starts playing a disc

automatically.

The System Audio Control function is also

activated automatically.

(Theatre Mode)

If your TV is compatible with the Theatre Mode,

you can enjoy optimal image and sound quality

suited for movies, and the System Audio Control

function is activated automatically.

Press THEATRE.

(System Audio Control)

To use this function, connect the system and

your TV with an audio cord and an HDMI cable

(page 30).

Press [/1 to turn on the system while your

TV is turned on.

The System Audio Control function is activated.

TV sound is output from the system speakers,

and the volume of your TV’s speakers is

minimized automatically.

Note

• While your TV is in PAP (picture and picture) mode,

the System Audio Control function will not work.

When your TV exits PAP mode, the output method of

your TV returns to the one before PAP mode.

• Depending on the TV, when you adjust the system’s

volume, the volume level appears on the TV screen.

In this case, the volume levels that appear on the TV

screen and the front panel display of the system may

differ.

Tip

• You can also operate the System Audio Control

function via the TV menu.

• You can operate the volume and mute control of the

system via the TV remote.

(Volume Limit)

When the System Audio Control function is

activated and TV sound is output from the

system’s speakers, the volume level is limited to

the level that is set in [VOLUME LIMIT]. For

details, see [VOLUME LIMIT] (page 73).

(Audio Return Channel)

The system can receive the digital audio signal

of your TV via an HDMI cable when your TV is

compatible with the Audio Return Channel

function. You can enjoy TV sound via the

system by using just one HDMI cable. For

details, see [AUDIO RETURN CHANNEL]

(page 73).

(Remote Easy Control)

You can control the basic functions of the

system via the TV remote when the system’s

video output is displayed on the TV screen. For

details, refer to the operating instructions of the

TV.

Watching a DVD by a single

button press

Using the Theatre Mode

Enjoying TV sound from the

speakers by this system

Limiting the volume level of TV

sound from the system’s

speakers

Receiving the digital audio

signal of your TV

Operating the system via the

TV remote

60GB

(Language Follow)

When you change the language for the on-screen

display of your TV, the system’s on-screen

display language is also changed.

Note

• When the system’s on-screen display is displayed,

this function does not work.

Using an S-AIR Product

(DAV-DZ810 only)

When you purchase the S-AIR product, you

need to perform the following settings to

activate wireless transmission.

About S-AIR products

There are two types of S-AIR products.

• S-AIR main unit (this unit): This is for

transmitting sound. You can use up to three

S-AIR main units. (The number of usable

S-AIR main units depends on the use

environment.)

• S-AIR sub unit: This is for receiving sound.

–Surround amplifier (optional): You

can enjoy surround speaker sound

wirelessly.

–S-AIR receiver (optional): You can

enjoy system sound in another room.

To make use of the S-AIR function, you need to

insert the wireless transmitter into the unit and

the wireless transceiver into the S-AIR sub unit.

Note

• When you insert the wireless transmitter/transceiver,

make sure that the AC power cord (mains lead) is not

connected to a wall outlet (mains).

• Do not touch the terminals of the wireless transmitter/

transceiver.

To insert the wireless transmitter

into the unit

1Remove the screws directly below the

mark.

Changing the language for the

system’s on-screen display in

sync with your TV

Inserting the wireless

transmitter/transceiver

S-AIR sub unit

(surround amplifier)

S-AIR main unit

S-AIR sub unit

(S-AIR receiver)

Room A

Room B

EZW-T100

EZW-T100

Rear of the unit

Convenient Functions

61GB

Note

• Remove the screws that are indicated in the

illustration. Do not remove other screws.

2Insert the wireless transmitter.

Note

• Insert the wireless transmitter with the S-AIR

logo facing up.

• Insert the wireless transmitter so that the V

marks are aligned.

• Do not insert anything other than the wireless

transmitter into the EZW-T100 slot.

3Make sure to use the same screws to

secure the wireless transmitter.

To insert the wireless

transceiver into the S-AIR sub

unit

For details on installing the wireless transceiver

into the S-AIR sub unit, such as a surround

amplifier or S-AIR receiver, see the operating

instructions of the S-AIR sub unit.

Tip

• When you change the S-AIR configuration, Sony

recommends that you perform [AUTO

CALIBRATION] (page 74).

Simply by matching the ID of the main unit and

the S-AIR sub unit, you can activate wireless

transmission.

To set the ID of the unit

1Press SYSTEM MENU.

2Press X/x to select “S-AIR ID,” then

press or c.

The selected item appears in the front panel

display.

3Press X/x to select the desired ID, then

press .

You can select any ID (A, B, or C).

4Press SYSTEM MENU.

5Set the S-AIR sub unit to the same ID.

Wireless transmission is activated as

follows (example):

Tip

• To confirm the current ID, perform Steps 1 to 3

above. When you pair the unit with an S-AIR sub unit

(page 62), “(PAIRING)” appears beside ID in the

front panel display.

EZW-T100

EZW-T100

Rear of the unit

EZW-T100

EZW-T100

Rear of the unit

Setting the S-AIR ID to activate

wireless transmission

For the surround amplifier

For the S-AIR receiver

ID A

ID A ID A

62GB

To set the ID of the surround

amplifier

Refer to the operating instructions of the

surround amplifier.

To set the ID of the S-AIR

receiver

Refer to the operating instructions of the S-AIR

receiver.

You can receive the system’s sound by the

S-AIR receiver while the main unit is in standby

mode by setting “S-AIR STBY” to “STBY ON.”

1Press SYSTEM MENU.

2Press X/x to select “S-AIR STBY,” then

press or c.

The selected item appears in the front panel

display.

3Press X/x to select the desired setting,

then press .

• “STBY ON”: You can receive the

system’s sound by the S-AIR receiver

while the unit is in standby mode or turned

on.

• “STBY OFF”: You cannot receive the

system’s sound by the S-AIR receiver

while the unit is in standby mode.

4Press SYSTEM MENU.

Note

• When you turn the system off while “S-AIR STBY”

is set to “STBY ON,” “S-AIR” flashes (when

wireless transmission between the unit and S-AIR

receiver is not activated), or lights up (when wireless

transmission between the unit and S-AIR receiver is

activated) in the front panel display.

When using S-AIR products, neighbors may

also receive your system’s sound if IDs are the

same, or you may receive sound from neighbors.

To prevent this, you can identify the unit with a

specific S-AIR sub unit by performing the

pairing operation.

When you perform pairing, wireless

transmission is activated between the paired

main unit and S-AIR sub unit only.

1Place the S-AIR sub unit that you want

to pair near the unit.

2Match the IDs of the unit and the S-AIR

sub unit.

• To set the ID of the unit, see “To set the ID

of the unit” (page 61).

• To set the ID of the surround amplifier,

refer to the operating instructions of the

surround amplifier.

• To set the ID of the S-AIR receiver, refer

to the operating instructions of the S-AIR

receiver.

3Press SYSTEM MENU.

4Press X/x to select “PAIRING,” then

press or c.

The selected item appears in the front panel

display.

5After “START” appears in the front

panel display, press .

The unit starts pairing and “SEARCH”

flashes in the front panel display.

To cancel pairing, press SYSTEM MENU.

6Start pairing of the S-AIR sub unit.

xFor the surround amplifier

Press "/1 on the surround amplifier to turn

on the surround amplifier and press

PAIRING on the rear panel of the surround

amplifier. (To press PAIRING, a slim

Enjoying sound by the S-AIR

receiver while the main unit is

in standby mode

For the S-AIR receiver

Identifying the unit with a

specific S-AIR sub unit

(Pairing operation)

For the surround amplifier

For the S-AIR receiver

Convenient Functions

63GB

instrument, such as a paper clip, can be

used.)

The PAIRING indicator of the surround

amplifier flashes when pairing starts.

When wireless transmission is activated,

the PAIRING indicator of the surround

amplifier turns on and “PAIRING” and

“COMPLETE” appear alternately in the

front panel display.

xFor the S-AIR receiver

Refer to the operating instructions of the

S-AIR receiver.

When wireless transmission is activated,

“PAIRING” and “COMPLETE” appear

alternately in the front panel display.

Note

• Perform pairing within several minutes of Step

5. If you do not do so, “PAIRING” and

“INCOMPLETE” appear alternately in the front

panel display. To continue pairing, press and

start again from Step 5. To cancel pairing, press

SYSTEM MENU.

7Press SYSTEM MENU.

To cancel pairing

Change the ID of the main and sub unit

(page 61).

If you use multiple wireless systems, such as

wireless LAN or Bluetooth, the transmission of

S-AIR signals or other wireless signals may be

unstable. In this case, the transmission may be

improved by changing the following “RF

CHANGE” setting.

1Press SYSTEM MENU.

2Press X/x to select “RF CHANGE,”

then press or c.

The selected item appears in the front panel

display.

3Press X/x to select the desired setting,

then press .

• “AUTO”: Normally select this. The

system changes “RF CHANGE” to “ON”

or “OFF” automatically.

• “ON”: The system transmits sound by

searching for the better channel for

transmitting.

• “OFF”: The system transmits sound by

fixing the channel for transmitting.

4Press SYSTEM MENU.

5When you set “RF CHANGE” to “OFF,”

select the ID so that wireless

transmission is most stable (page 61).

Note

• In most cases, you will not need to change this

setting.

– If “RF CHANGE” is set to “OFF,” transmission

between the unit and S-AIR sub unit can be

performed using one of the following channels.

– S-AIR ID A: equivalent channel for IEEE

802.11b/g channel 1

– S-AIR ID B: equivalent channel for IEEE

802.11b/g channel 6

– S-AIR ID C: equivalent channel for IEEE

802.11b/g channel 11

• The transmission may be improved by changing the

transmission channel (frequency) of the other

wireless system(s). For details, refer to the operating

instructions of the other wireless system(s).

Transferring Songs onto

a USB Device

You can transfer songs on an audio CD or radio

programs onto a USB device by encoding to

MP3 format. You can also transfer MP3 files on

a DATA CD/DATA DVD onto a USB device.

For connecting the USB device, see “Playing

Files on a Disc/USB Device” (page 38).

The transferred music is limited to private use

only. Use of the music beyond this limit requires

permission of the copyright holders.

If wireless transmission is

unstable

For the surround amplifier

For the S-AIR receiver

64GB

Notes on USB transferring

• Do not connect the unit and the USB device

through a USB hub.

• Make sure there is enough space in the USB

device for transferring.

• Do not remove the USB device during

transferring.

• When you are transferring tracks from an

audio CD, the tracks are recorded as 128 kbps

MP3 files.

• When you are transferring MP3 files from a

DATA CD/DATA DVD, the MP3 files are

transferred with the same bit rate as the

original MP3 files.

• When you are transferring a radio program, the

audio is recorded as a 128 kbps MP3 file.

• CD text information is not transferred in the

created MP3 files.

• If you stop a transfer from an audio CD

halfway, the MP3 file that was being created is

deleted.

• Transferring stops automatically if:

– the USB device runs out of space during

transfer.

– the number of folders on the USB device

reaches the limit for the number that the

system can recognize.

• You can store up to 150 files in a folder.

• You can store up to 199 folders in a single

USB device.

• If a folder or file that you are trying to transfer

already exists on the USB device with the

same name, a sequential number is added after

the name without overwriting the original

folder or file.

To select the transfer destination

of the USB device

You can select the memory number for transfer

depending on the USB device.

Press MEMORY SELECT.

Note

• When the memory cannot be selected, [Operation not

possible.] appears on the TV screen.

• The memory number changes depending on the USB

device.

• Select a transfer destination before transfer.

Folder and file generation rules

When transferring onto a USB device, a

“MUSIC” folder is created directly below the

“ROOT”. Folders and files are generated within

this “MUSIC” folder as follows according to the

transferring method and source.

• When transferring multiple tracks on an audio

CD or multiple MP3 files on a DATA CD/

DATA DVD

• When transferring a single track on an audio

CD or a single MP3 file on a DATA CD/

DATA DVD

• When transferring a radio program

1)Up to 64 characters of the name are assigned

(including the extension).

2)Folders are assigned in numeric order thereafter.

3)Files are assigned in numeric order thereafter.

Source Folder name File name

MP3 Same as the transferring source1)

Audio CD “FLDR001”2) “TRACK001”3)

Source Folder name File name

MP3 “REC1-MP3”4) Same as the

transferring

source1)

Audio CD “REC1-CD”4) “TRACK001”3)

Folder name File name

“FM001”4) “TRACK001”3)

Home Theatre System

USB Memory 2 selected.

Selected memory number

Convenient Functions

65GB

4)A new file is transferred in the “REC1-MP3” or

“REC1-CD” folder each time single-track

transferring is performed.

1Load an audio CD/DATA CD/DATA

DVD.

2Press DISPLAY while the system is

in stop mode.

3Press X/x to select [USB

TRANSFER], then press .

xFor an audio CD

Press and skip to Step 5.

xFor a DATA CD/DATA DVD

Follow the next Step.

4Press X/x to select [TRACK] or

[FOLDER], then press .

• [TRACK]: The folder list appears. Press

X/x to select the desired folder, then press

.

• [FOLDER]: The folders recorded on the

DATA CD/DATA DVD appear. You can

transfer all MP3 files in the folder.

5Press C/X/x/c to select [x ALL] (for an

audio CD) or [ ALL] (for a DATA CD/

DATA DVD), then press .

To deselect all tracks, select [s ALL], then

press .

6Press C/X/x/c to select [START], then

press .

To cancel transferring, press x.

To select individual tracks/MP3

files/folders

Press X/x to highlight the track/MP3 file/folder,

then press to add a check in Step 5.

To cancel the selection, highlight the track/MP3

file/folder, then press to remove the check.

xFor an audio CD

xFor a DATA CD/DATA DVD

You can transfer tracks/MP3 files simply onto a

USB device by using REC TO USB.

1Load an audio CD/DATA CD/DATA

DVD.

2Press x.

To transfer all tracks, skip to Step 4.

To transfer a single track, follow the next

Step.

3Select the desired track/MP3 file, then

press N.

4Press REC TO USB on the unit.

REC TO USB lights up and “READING”

appears in the front panel display. Then,

“PUSH PLAY” and the remaining space of

the USB device appear alternately in the

front panel display.

Transferring tracks on an

audio CD or MP3 files on a

DATA CD/DATA DVD onto a USB

device

Transferring by single button

press

USB TRANSFER

TRACK 01

1START

ALL

TRACK 02

TRACK 03

2

TRACK 04

3

TRACK 05

TRACK 06

TRACK 07

TRACK 08

ALL

Remaining space of the USB device

Tracks to be transferred.

USB TRANSFER

START

ALL

01_Back_Seat_O...

02_One_Nights_...

03_Are_You_Ma...

04_I_Can_Lose_...

05_Soul_Survivo...

06_Strangers_B...

07_Stay_maxi_ve...

ALL

2002_Remixes

Remaining space of the USB device

MP3 files/folders to be transferred.

66GB

5Press N to start transferring.

When transferring is completed,

“COMPLETE” appears in the front panel

display and playback of the disc and USB

device stops automatically.

To cancel transferring, press x.

You can transfer a radio program you are

listening to onto a USB device.

1Press FUNCTION repeatedly to select

“TUNER FM.”

The selected item appears in the front panel

display.

2Select the radio station by pressing

PRESET +/– or TUNING +/–.

3Press REC TO USB on the unit.

REC TO USB lights up and “READING”

appears in the front panel display. Then,

“PUSH PLAY” and the remaining space of

the USB device appear alternately in the

front panel display.

4Press N to start transferring.

5Press x to stop transferring.

To create a new MP3 file while

transferring

Press REC TO USB while transferring.

“NEW TRACK” appears in the display and

transferring continues in a new MP3 file right

after you press REC TO USB.

If you press REC TO USB again within a few

seconds, a new MP3 file cannot be created.

Note

• When a new MP3 file is created, transferring is

temporarily disabled.

Tip

• A new MP3 file is created automatically after

approximately 1 hour of transferring.

You can erase audio files (“.mp3,” “.wma,” or

“.m4a”) on the USB device.

1Press FUNCTION repeatedly to select

“USB.”

The selected item appears in the front panel

display.

2Press X/x to select a folder.

3Select the audio file(s).

xTo erase all audio files in a folder

Press CLEAR.

xTo erase an audio file

Press and press X/x to select the desired

audio file, then press CLEAR.

4Press C/c to select [YES], then press

.

To cancel, select [NO], then press .

Note

• Do not remove the USB device while erasing.

• If the folder to be erased contains non-audio format

files or sub folders, these are erased from the list on

the TV screen, but are not erased from the USB

device.

Using the sleep timer

You can set the system to turn off at a preset

time, so you can fall asleep listening to music.

Press SLEEP.

Each time you press SLEEP, the minutes display

(the remaining time) changes by 10 minutes.

When you set the sleep timer, “SLEEP” flashes

in the front panel display.

To check the remaining time

Press SLEEP once.

To change the remaining time

Press SLEEP repeatedly to select the desired

time.

Transferring a radio program

Erasing audio files on a USB

device

Convenient Functions

67GB

To cancel the sleep timer

Press SLEEP repeatedly until “SLEEP OFF”

appears in the front panel display.

To set the sleep timer using the

system menu

1Press SYSTEM MENU.

2Press X/x to select “SLEEP,” then

press or c.

The selected item appears in the front panel

display.

3Press X/x to select a setting, then

press .

The minutes display (the remaining time)

changes by 10 minutes.

4Press SYSTEM MENU.

Adjusting the Delay

Between the Picture and

Sound

[A/V SYNC]

When the sound does not match the pictures on

the TV screen, you can adjust the delay between

the picture and sound.

1Press DISPLAY.

2Press X/x to select [A/V SYNC],

then press .

3Press X/x to select a setting, then

press .

•[OFF]: Off.

• [ON]: You can adjust the delay between

the picture and sound.

Note

• Depending on the input stream, [A/V SYNC] may not

be effective.

Enjoying Multiplex

Broadcast Sound

(DUAL MONO)

You can enjoy multiplex broadcast sound when

the system receives or plays a Dolby Digital

multiplex broadcast signal.

Note

• To receive a Dolby Digital signal, you need to

connect a TV or other component to the unit with a

digital optical cord* (page 30). If your TV is

compatible with the Audio Return Channel function

(page 59), you can receive a Dolby Digital signal via

an HDMI cable.

* DAV-DZ510/DAV-DZ610/DAV-DZ810 only.

Press AUDIO repeatedly to select the audio

signal.

The selected item appears in the front panel

display.

•“MAIN”

: Sound of the main language will be

output.

• “SUB”: Sound of the sub language will be

output.

• “MAIN+SUB”: Mixed sound of both the main

and sub languages will be output.

Changing the Input Level

of the Sound from

Connected Components

The sound distortion of the connected

component may be improved by reducing the

input level.

1Press FUNCTION repeatedly to select

“TV” or “AUDIO IN.”

The selected item appears in the front panel

display.

2Press SYSTEM MENU.

3Press X/x to select “ATTENUATE,”

then press or c.

68GB

4Press X/x to select a setting, then

press .

• “ATT ON”: You can attenuate the input

level.

• “ATT OFF”: Normal input level.

This setting is made separately for each

function.

5Press SYSTEM MENU.

Settings

69GB

Changing the Brightness

of the Front Panel

Display

1Press SYSTEM MENU.

2Press X/x to select “DIMMER,” then

press or c.

The selected item appears in the front panel

display.

3Press X/x to select the brightness of

the front panel display, then press .

• “DIMMER OFF”: The front panel display

is bright.

• “DIMMER ON”: The front panel display

is dim.

4Press SYSTEM MENU.

Setting the

Demonstration Mode to

On/Off

You can turn on/off the demonstration in the

front panel display while the system is in

standby mode.

1Press SYSTEM MENU.

2Press X/x to select “DEMO,” then

press or c.

The selected item appears in the front panel

display.

3Press X/x to select a setting, then

press .

• “DEMO OFF”: Off.

• “DEMO ON”: On.

4Press SYSTEM MENU.

Reperforming the Quick

Setup

1Press FUNCTION repeatedly to select

“DVD/CD.”

The selected item appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

3Press X/x to select [SETUP],

then press .

4Press X/x to select [QUICK], then press

.

Perform the Quick Setup following the

procedure of “Performing the Quick Setup”

(page 34).

Set the System to

Standby Mode

Automatically

The system enters standby mode automatically

when you do not operate the system for about 30

minutes and the system is not outputting sound

for about 30 minutes. “AUTO STBY” begins to

flash in the front panel display about 2 minutes

before the system enters standby mode.

You can turn the auto standby function on/off.

1Press SYSTEM MENU.

2Press X/x to select “AUTO STBY,” then

press or c.

The selected item appears in the front panel

display.

3Press X/x to select the setting, then

press .

• “ON”: On.

• “OFF”: Off.

4Press SYSTEM MENU.

Settings

70GB

Performing Further

Settings

You can make various adjustments to items such

as picture and sound.

Displayed items vary depending on the area.

Note

• Playback settings stored in the disc take priority over

the Setup Display settings and not all the functions

described may work.

1Press FUNCTION repeatedly to select

“DVD/CD.”

The selected item appears in the front panel

display.

2Press DISPLAY while the system is

in stop mode.

3Press X/x to select [SETUP],

then press .

4Press X/x to select [CUSTOM], then

press .

5Press X/x to select the setup item, then

press .

• [LANGUAGE SETUP] (page 70)

• [VIDEO SETUP] (page 71)

• [HDMI SETUP] (page 72)

• [AUDIO SETUP] (page 73)

• [SYSTEM SETUP] (page 75)

• [SPEAKER SETUP] (page 76)

Example: [VIDEO SETUP]

6Press X/x to select an item, then press

.

The options for the selected item appear.

Example: [TV TYPE]

7Press X/x to select a setting, then

press .

The setting is selected and setup is

complete.

Example: [4:3 LETTER BOX]

To reset all of the [SETUP]

settings

To reset all of the [SETUP] settings, see

[RESET] (page 76).

Set various languages for the on-screen display

or sound track.

x[OSD] (On-Screen Display)

You can switch the display language on the TV

screen.

x[MENU]

You can switch the language for the disc’s

menu.

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

:

TV TYPE:

4:3 OUTPUT:

COLOR SYSTEM

(VIDEO CD)

:

16:9

OFF

FULL

AUTO

PAUSE MODE: AUTO

Selected item

Setup items

Setting the display or sound

track language

[LANGUAGE SETUP]

AUTO

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

:

TV TYPE:

4:3 OUTPUT:

COLOR SYSTEM

(VIDEO CD)

:

PAUSE MODE:

16:9

OFF

FULL

AUTO

16:9

4:3 LETTER BOX

4:3 PAN SCAN

Options

VIDEO SETUP

PROGRESSIVE

(COMPONENT OUT)

:

TV TYPE:

4:3 OUTPUT:

COLOR SYSTEM

(VIDEO CD)

:

4:3 LETTER BOX

OFF

FULL

AUTO

PAUSE MODE: AUTO

Selected setting

Settings

71GB

x[AUDIO]

You can switch the language of the sound track.

When you select [ORIGINAL], the language

given priority on the disc is selected.

x[SUBTITLE]

You can switch the language of the subtitles

recorded on the DVD VIDEO.

When you select [AUDIO FOLLOW], the

language for the subtitles changes according to

the language you selected for the sound track.

Note

• When you select a language in [MENU], [AUDIO],

or [SUBTITLE] that is not recorded on the DVD

VIDEO, one of the recorded languages will be

automatically selected (depending on the disc, the

language may not be selected automatically).

Tip

• If you select [OTHERS t] in [MENU], [AUDIO],

and [SUBTITLE], select and enter a language code

from “Language Code List” (page 90) using the

number buttons.

Select settings according to your TV.

x[TV TYPE]

You can select the aspect ratio of the connected

TV.

[16:9]: Select this when you connect a wide-

screen TV or a TV with a wide-screen mode.

[4:3 LETTER BOX]: Select this when you

connect a 4:3 standard TV. The system displays

a wide picture with bands on the upper and

lower portions of the TV screen.

[4:3 PAN SCAN]: Select this when you connect

a 4:3 standard TV. The system automatically

displays a wide picture on the entire screen and

cuts off the portions that do not fit.

x[PROGRESSIVE (COMPONENT OUT)]

You can set the progressive signal that is output

from the COMPONENT VIDEO OUT jacks to

on/off. For details, see “To select the type of

video signal output from the COMPONENT

VIDEO OUT jacks” (page 37).

[OFF]: The system outputs interlace signals.

[ON]: The system outputs progressive signals.

When you select [ON], follow the Steps below.

1Select [ON], then press .

2Press C/c to select [START], then

press .

The system outputs a progressive signal for

about 5 seconds. Check that the screen is

displayed correctly.

3 Press C/c to select [YES], then press

.

The system outputs a progressive signal. If

you select [NO], the system will not output

a progressive signal.

Note

• [PROGRESSIVE (COMPONENT OUT)] is

effective only when you connect the unit and TV with

a component video cable (page 30).

x[4:3 OUTPUT]

When you use a 16:9 aspect ratio TV, you can

adjust the aspect ratio to watch 4:3 aspect ratio

signals. If you can change the aspect ratio on

your TV, change the setting on your TV, not the

system.

[FULL]: Select this when you can change the

aspect ratio on your TV.

[NORMAL]: Select this when you cannot

change the aspect ratio on your TV. A 16:9

aspect ratio signal with black bands on left and

right sides of the image appears.

Settings for the display

[VIDEO SETUP]

72GB

Note

• [4:3 OUTPUT] is effective only when you set [TV

TYPE] in [VIDEO SETUP] to [16:9].

x[COLOR SYSTEM (VIDEO CD)]

(Asian, Australian, Middle Eastern, and

South African models only)

You can select the color system when you play a

VIDEO CD.

[AUTO]: The system outputs the disc’s video

signal, either PAL or NTSC. If your TV uses a

DUAL system, select [AUTO].

[PAL]: The system changes the video signal of

an NTSC disc and outputs it in the PAL system.

[NTSC]: The system changes the video signal of

a PAL disc and outputs it in the NTSC system.

Note

• You cannot change the color system of the disc itself.

• You can change the color system of this system

according to the connected TV (page 30).

x[BLACK LEVEL]

(North American, Mexican, Latin American,

and taiwan models only)

You can select the black level (setup level) for

the video signals output from the jacks other

than COMPONENT VIDEO OUT/HDMI OUT.

[ON]: The standard level.

[OFF]: You can lower the standard black level.

Use this when the picture becomes too white.

x[BLACK LEVEL (COMPONENT OUT)]

(North American, Mexican, Latin American,

and taiwan models only)

You can select the black level (setup level) for

the video signals output from the

COMPONENT VIDEO OUT jacks.

You cannot select this and the setting is not

effective when the system outputs a progressive

signal.

[OFF]: You can set the black level of the output

signal to the standard level.

[ON]: You can raise the standard black level.

Use this when the picture becomes too black.

x[PAUSE MODE]

(DVD VIDEO/DVD-R/DVD-RW only)

You can select the picture in pause mode.

[AUTO]: The picture, including subjects that

move dynamically, is output with no jitter. This

setting is for normal usage.

[FRAME]: The picture, including subjects that

do not move dynamically, is output in high

resolution.

x[HDMI RESOLUTION]

You can select the type of video signal that is

output from the HDMI OUT jack.

[AUTO (1920

× 1080p)]: The system outputs

the optimal video signal for the connected TV.

[1920

× 1080i]: The system outputs 1920 ×

1080i* video signals.

[1280 × 720p]: The system outputs 1280 ×

720p* video signals.

[720 × 480p]**: The system outputs 720 ×

480p* video signals.

* i: interlace, p: progressive

** Depending on the area, [720 × 480/576p] may

appear.

x[CONTROL FOR HDMI]

This function is available when you connect the

system and TV that is compatible with the

Control for HDMI function with an HDMI

cable.

[ON]: On. You can operate mutually between

components that are connected with an HDMI

cable.

[OFF]: Off.

16:9 aspect ratio TV

Settings for HDMI

[HDMI SETUP]

Settings

73GB

x[VOLUME LIMIT]

When the System Audio Control (page 59) is

activated, loud sound may be output depending

on the volume level of the system. You can

prevent this by limiting the maximum level of

the volume when the System Audio Control

function activates.

[OFF]: Off.

[LEVEL3]: Maximum volume level is set to 10.

[LEVEL2]: Maximum volume level is set to 15.

[LEVEL1]: Maximum volume level is set to 20.

Note

• This function is available only when [CONTROL

FOR HDMI] is set to [ON].

x[AUDIO RETURN CHANNEL]

This function is available when you connect the

system and TV that is compatible with the Audio

Return Channel function.

[AUTO]: The system can receive the digital

audio signal of your TV via an HDMI cable

automatically.

[Off]: Off.

Note

• This function is available only when [CONTROL

FOR HDMI] is set to [ON].

x[YCBCR/RGB (HDMI)]

You can select the type of HDMI signal output

from the HDMI OUT jack.

[YCBCR]: The system outputs YCBCR signals.

[RGB]: The system outputs RGB signals.

x[AUDIO (HDMI)]

You can select the audio output status from the

HDMI OUT jack.

[OFF]: The system does not output sound from

the HDMI OUT jack.

[ON]: The system outputs audio signals by

converting Dolby Digital, DTS, or 96 kHz/24-

bit PCM signals to 48 kHz/16-bit PCM.

Note

• When you set the function to other than “DVD/CD”

or “USB,” the system does not output the sound from

the HDMI OUT jack even if you set [AUDIO

(HDMI)] to [ON].

x[JPEG RESOLUTION]

You can select the resolution of JPEG image

files output from the HDMI OUT jack.

[SD ]: The system outputs standard

resolution with a black frame.

[HD ]: The system outputs HD resolution

with a black frame.

[HD]: The system outputs the HD resolution

without a black frame.

[(1920 × 1080i) HD ]: The system outputs

full size HD resolution with a black frame.

[(1920 × 1080i) HD]: The system outputs full

size HD resolution without a black frame.

Note

• [JPEG RESOLUTION] is effective only when you

set [TV TYPE] in [VIDEO SETUP] to [16:9], and

you set [HDMI RESOLUTION] in [HDMI SETUP]

to other than [720 × 480p] or [720 × 480/576p].

• You can select [(1920 × 1080i) HD ] or [(1920 ×

1080i) HD] only when you set [HDMI

RESOLUTION] in [HDMI SETUP] to [1920 ×

1080i].

• The HDMI signal will stop momentarily when:

– the system is loading or unloading a DATA CD or

DATA DVD.

– you connect or remove a USB device.

x[SPEAKER FORMATION]

Depending on the shape of the room, you may

not be able to install some speakers. For better

surround sound, Sony recommends that first you

decide the position of the speakers.

1Press C/c to select a setting, then

press .

• [STANDARD]: Select this when you

install all the speakers normally.

• [NO CENTER]: Select this when you

install the front and surround speakers

only.

Settings for the audio

[AUDIO SETUP]

74GB

• [NO SURROUND]: Select this when you

install the center and front speakers only.

• [FRONT ONLY]: Select this when you

install the front speakers only.

• [ALL FRONT]: Select this when you

install all the speakers in front of the

listening position.

• [ALL FRONT - NO CENTER]: Select

this when you install the front and

surround speakers in front of the listening

position.

2Press C/c to select [YES] or [NO], then

press .

• [YES]: Continue with [AUTO

CALIBRATION]. Follow the Steps of

[AUTO CALIBRATION] below.

• [NO]: Exit [SPEAKER FORMATION].

x[AUTO CALIBRATION]

D. C. A. C. (Digital Cinema Auto Calibration)

can set the appropriate surround sound

automatically.

1Connect the calibration mic (supplied)

to the A.CAL MIC jack on the front

panel.

Set up the calibration mic at ear level using

a tripod, etc. (not supplied).

The front of each speaker should face the

calibration mic, and there should be no

obstruction between the speakers and the

calibration mic.

2Press C/c to select [YES], then press

.

[AUTO CALIBRATION] starts.

Be quiet during the measurement.

Note

• The environment of the room in which the

system is installed may affect measurements.

When the measurements differ considerably

from the status of the speaker installation,

perform the speaker settings manually by

following “Settings for the speakers” (page 76).

3Press C/c to select [YES] or [NO], then

press .

4Disconnect the calibration mic when

the measurement completes correctly.

Note

• The system outputs a loud test sound when [AUTO

CALIBRATION] starts. You cannot turn the volume

down. Give consideration to children and neighbors.

• The measurement for [SUBWOOFER] is always

[YES] and [SPEAKER SETUP] returns to the default

setting when you perform [AUTO CALIBRATION].

Calibration mic

Settings

75GB

x[AUDIO DRC]

You can compress the dynamic range of the

sound track. [AUDIO DRC] is useful for

watching movies at low volume late at night.

[OFF]: No compression of dynamic range.

[STANDARD]: The system reproduces the

sound track with the kind of dynamic range that

the recording engineer intended.

[MAX]: The system compresses dynamic range

fully.

Note

• [AUDIO DRC] works only for Dolby Digital.

x[TRACK SELECTION]

You can give the sound track which contains the

highest number of channels priority when

multiple audio formats (PCM, DTS, Dolby

Digital, or MPEG audio) are recorded.

[OFF]: Off.

[AUTO]: The system selects the sound track

automatically according to the priority.

Note

• When you set the item to [AUTO], the language may

change. The [TRACK SELECTION] setting has

higher priority than the [AUDIO] settings in

[LANGUAGE SETUP] (page 70). (Depending on

the disc, this function may not work.)

x[SCREEN SAVER]

You can reduce the

damage to the display device

(ghosting). Press any button (e.g.,

N

) to cancel

the screen saver.

[ON]: The screen saver image appears if you do

not operate the system for about 15 minutes.

[OFF]: Off.

x[BACKGROUND]

You can select the background color or picture

on the TV screen.

[JACKET PICTURE]: The jacket picture (still

picture) appears, but only when the jacket

picture is already recorded on the disc (CD-

EXTRA, etc.). If the disc does not contain a

jacket picture, a preset picture stored in the

system appears.

[GRAPHICS]: A preset picture stored in the

system appears.

[BLUE]: The background is blue.

[BLACK]: The background is black.

x[PARENTAL CONTROL]

The [PARENTAL CONTROL] function allows

you to restrict playback of DVDs that have

ratings. Scenes may be blocked or replaced with

different scenes.

1Enter or re-enter your 4-digit password

using the number buttons, then press

.

2Press X/x to select [STANDARD], then

press .

3Press X/x to select a geographic area

as the playback limitation level, then

press .

When you select [OTHERS t], select and

enter a standard code from “Parental

Control Area Code List” (page 90) using

the number buttons.

4Press X/x to select [LEVEL], then press

.

5Press X/x to select the desired level,

then press .

The lower the value, the stricter the

limitation.

To turn off the [PARENTAL CONTROL]

function

Set [LEVEL] to [OFF] in Step 5.

To play a disc for which [PARENTAL

CONTROL] is set

When you load the disc and press N, the

display for entering your password appears.

Enter your 4-digit password using the number

buttons, then press .

Tip

• If you forget your password, enter “199703” using

the number buttons, then press . The display will

ask you to enter a new 4-digit password. After you

Other Settings

[SYSTEM SETUP]

76GB

enter a new 4-digit password, replace the disc in the

unit and press N. When the display for entering your

password appears, enter your new password.

Changing the password

1Enter your 4-digit password using the

number buttons, then press .

2Press X/x to select [CHANGE

PASSWORD t], then press .

3Enter a new 4-digit password using the

number buttons, then press .

If you make a mistake entering your

password, press C before you press ,

then input the correct number.

4To confirm your password, re-enter it

using the number buttons, then press

.

x[DivX (R) VOD]

You can display the registration or deactivation

code for this system, or deactivate this system

after activation.

To display the registration code

Press X/x to select [Registration Code c], then

press .

To deactivate the system

Press C/c to select [YES] or [NO], then press

.

• [YES]: The system is deactivated and the

deactivation code is displayed.

• [NO]: The system returns to the previous

display.

To display the deactivation code again

after deactivation

Press X/x to select [Deactivation Code c], then

press .

For more information, go to

http://www.divx.com on the Internet.

x[MULTI-DISC RESUME]

This system recalls the point where you stopped

the disc the last time it was played and resumes

playback from that point the next time you insert

the same disc.

[ON]: The system stores the resume points in

memory for up to 10 discs.

[OFF]: The system does not store the resume

points in memory. Playback restarts at the

resume point only for the current disc in the unit.

Note

• When the resume playback memory is full, the

resume playback point for the earliest disc is deleted.

x[RESET]

You can return the [SETUP] settings other than

[PARENTAL CONTROL] to the default

settings.

Press C/c to select [YES], then press .

You can also quit the process and return to the

Control Menu by selecting [NO] here.

Do not press [/1 while resetting the system as

it takes a few seconds to complete.

Note

• The [MEDIA], [INTERVAL], [EFFECT], and

[MULTI/2CH] settings also return to the default

settings.

You can adjust the speaker settings manually

without performing the Quick Setup.

Select the speakers you will use, set the speaker

distance from your listening position, and then

adjust the sound level for each speaker. You can

adjust the sound level by using the [TEST

TONE] function.

x[CONNECTION]

[FRONT]

[YES]

[CENTER]

[YES]: Normally select this.

[NONE]: Select this if no center speaker is used.

[SURROUND]

[YES]: Normally select this.

[NONE]: Select this if no surround speakers are

used.

Settings for the speakers

[SPEAKER SETUP]

Settings

77GB

[SUBWOOFER]

[YES]

Note

• When you change the [CONNECTION] setting, the

[STANDARD] of [SPEAKER FORMATION]

setting remains the same, but the other settings of

[SPEAKER FORMATION] return to

[STANDARD].

x[DISTANCE (FRONT)]

Set the distance of the front and center speakers

from the listening position.

For the best possible surround sound, place all

speakers at the same distance from the listening

position. The distance can be between 1.0 to 7.0

meters1) (3 to 23 ft) for the front speakers, and

0.0 to 7.0 meters2) (0 to 23 ft) for the center

speaker.

If you cannot place the center speaker at the

same distance, you can move the center speaker

up to 1.6 meters closer to the listening position.

[L/R] 3.0 m/10 ft: Set the front speaker distance.

[CENTER] 3.0 m/10 ft: Set the center speaker

distance.

1)0.9 to 6.9 meters for North American models.

2)0.0 to 6.9 meters for North American models.

x[DISTANCE (SURROUND)]

Set the distance for the surround speakers from

the listening position.

For the best possible surround sound, place all

speakers at the same distance from the listening

position. The distance can be between 1.0 to 7.0

meters* (0 to 23 ft).

If you cannot place surround speakers at the

same distance, you can move the surround

speakers up to 5.0 meters (16 ft) closer to the

listening position.

[L/R] 3.0 m/10 ft: Set the surround speaker

distance.

* 0.0 to 6.9 meters for North American models.

Note

• Depending on the input stream, the [DISTANCE]

setting may not be effective.

x[LEVEL (FRONT)]

You can adjust the sound level of the front

speakers, center speaker, and subwoofer. You

can set the parameters from –6.0 dB to 0 dB for

[L/R], and from –6.0 dB to +6.0 dB for

[CENTER] and [SUBWOOFER]. Be sure to set

[TEST TONE] to [ON] for easy adjustment.

[L/R] 0.0 dB: Set the front speaker level.

[CENTER] 0.0 dB: Set the center speaker level.

[SUBWOOFER] +2.0 dB: Set the subwoofer

level.

x[LEVEL (SURROUND)]

You can adjust the sound level of the surround

speakers. You can set the parameter from –6.0

dB to +6.0 dB. Set [TEST TONE] to [ON] for

easy adjustment.

[L/R] 0.0 dB: Set the surround speaker level.

x[TEST TONE]

You can adjust the sound level of the speakers

by using the [TEST TONE] function.

[OFF]: The test tone is not emitted from the

speakers.

[ON]: The test tone is emitted from each speaker

in sequence while adjusting the level.

Adjust the sound level as follows.

1Set the [TEST TONE] to [ON].

2Press C/X/x/c repeatedly to select the

desired speaker and the level, then

press .

3Repeat Step 2.

4Press C/X/x/c to set [TEST TONE] to

[OFF] after adjusting the speaker level.

78GB

Precautions

On power sources

• Unplug the unit from the wall outlet (mains) if you do

not intend to use it for an extended period of time. To

disconnect the cord, pull it out by the plug, never by

the cord.

On placement

• Place the system in a location with adequate

ventilation to prevent heat build-up in the system.

• At high volume, over long periods of time, the cabinet

becomes hot to the touch. This is not a malfunction.

However, touching the cabinet should be avoided. Do

not place the system in a confined space where

ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything

on the system. The system is equipped with a high

power amplifier. If the ventilation slots are blocked,

the system can overheat and malfunction.

• Do not place the system on surfaces (rugs, blankets,

etc.) or near materials (curtains, draperies) that may

block the ventilation slots.

• Do not install the system near heat sources such as

radiators, or air ducts, or in a place subject to direct

sunlight, excessive dust, mechanical vibration, or

shock.

• Do not install the system in an inclined position. It is

designed to be operated in a horizontal position only.

• Keep the system and discs away from components

with strong magnets, such as microwave ovens, or

large loudspeakers.

• Do not place heavy objects on the system.

On operation

• If the system is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture

may condense on the lenses inside the unit. Should

this occur, the system may not operate properly. In

this case, remove the disc and leave the system turned

on for about half an hour until the moisture

evaporates.

• If anything falls into the cabinet, unplug the unit and

have it checked by qualified personnel before

operating it any further.

On adjusting volume

• Do not turn up the volume while listening to a section

with very low level inputs or no audio signals. If you

do, the speakers may be damaged when a peak level

section is suddenly played.

On cleaning

• Clean the cabinet, panel, and controls with a soft cloth

slightly moistened with a mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any questions or problems concerning

your system, please consult your nearest Sony dealer.

On cleaning discs, disc/lens

cleaners

• Do not use cleaning discs or disc/lens cleaners

(including wet or spray types). These may cause

the apparatus to malfunction.

On your TV’s color

• If the speakers should cause your TV screen to have

color irregularity, turn off the TV then turn it on after

15 to 30 minutes. If color irregularity should persist,

place the speakers further away from your TV set.

On moving the system

• Before moving the system, make sure that there is no

disc inserted, and remove the AC power cord (mains

lead) from the wall outlet (mains).

Additional Information

IMPORTANT NOTICE

Caution: This system is capable of holding a still

video image or on-screen display image on your

television screen indefinitely. If you leave the still

video image or on-screen display image displayed

on your TV for an extended period of time you risk

permanent damage to your television screen.

Projection televisions are especially susceptible to

this.

Additional Information

79GB

On handling discs

• To keep the disc clean, handle the disc by its

edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or

heat sources such as hot air ducts, or leave it in

a car parked in direct sunlight as the

temperature may rise considerably inside the

car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning

cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner,

commercially available cleaners, or anti-static

spray intended for vinyl LPs.

This system can only play a standard circular

disc. Using neither standard nor circular discs

(e.g., card, heart, or star shape) may cause a

malfunction.

Do not use a disc that has a commercially

available accessory attached, such as a label or

ring.

Notes about the Discs

80GB

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting

guide to help remedy the problem before requesting repairs. Should any problem persist, consult your

nearest Sony dealer.

Note that if service personnel changes some parts during repair, these parts may be retained.

When you install the S-AIR sub unit (not supplied), in the event of a problem with the S-AIR function,

have a Sony dealer check the entire system together (main unit and S-AIR sub unit). (DAV-DZ810

only)

General


Symptom Problems and solutions

The power is not turned on. • Check that the AC power cord (mains lead) is connected securely.

The remote does not function. • The distance between the remote and the unit is too far.

• The batteries in the remote are weak.

The system does not work

normally.

• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then

reconnect after several minutes.

• Perform the following procedure. (Note that the system parameters, such as

preset stations, return to the default settings.)

1Press "/1 to turn on the system.

2Press N, FUNCTION, and "/1 on the unit at the same time. “COLD

RESET” appears in the front panel display.

After performing [AUTO

CALIBRATION], [NONE]

appears in the [Measurement

Complete.] display.

• Check the speaker connection (page 29).

• Do not install the speaker in another room.

Symptom Problems and solutions

There is no picture. • The video input on your TV is not set so that you can view pictures from the

system.

• Check the output method on your system.

There is no picture when you

make an HDMI cable

connection.

• The unit is connected to an input device that is not HDCP (High-bandwidth

Digital Content Protection) compliant (“HDMI” on the front panel does not

light up).

• If the HDMI OUT jack is used for video output, change the type of video signal

output from the HDMI OUT jack (page 72).

Connect your TV and the unit using a video jack other than HDMI OUT, and

switch your TV’s input to the connected video input so that you can see the on-

screen displays. Change the type of video signal output from the HDMI OUT

jack, and switch your TV’s input back to HDMI. If the picture still does not

appear, repeat the Steps and try other options.

Additional Information

81GB

Sound

There is no picture when you

make a component video cable

connection.

• You have set progressive format but your TV cannot accept the signal in

progressive format. In this case, return the setting to interlace format (the

default setting) (pages 36, 71).

• You have set [PROGRESSIVE (COMPONENT OUT)] in [VIDEO SETUP] to

[ON] (page 71) even though your TV cannot accept the progressive signal. In

this case, disconnect the HDMI cable from the unit and then set to [OFF].

• Even if your TV is compatible with progressive format (525p/625p) signals, the

image may be affected when you set progressive format. In this case, return the

setting to interlace format (the default setting) (pages 36, 71).

Picture noise appears. • If the picture output from your system goes through your VCR to get to your

TV, the copy-protection signal applied to some DVD programs could affect

picture quality. Connect the unit directly to your TV.

An image is not displayed on the

entire TV screen.

• Check the setting of [TV TYPE] in [VIDEO SETUP] (page 71).

• The aspect ratio on the disc is fixed.

Color irregularity occurs on the

TV screen.

The system’s speakers contain magnet parts, so magnetic distortion may occur.

When color irregularity occurs on the TV screen, check the following items.

• Install the speakers at least 0.3 meters (1.0 ft) from your TV set.

• If the color irregularity persists, turn off your TV set once, then turn it on after

15 to 30 minutes.

• Make sure that no magnetic object (magnetic latch on a TV stand, health care

device, toy, etc.) is placed near the speakers.

• Reposition the speakers farther away from your TV set.

Playback picture becomes

distorted.

•Set [YC

BCR] in [YCBCR/RGB (HDMI)] to [RGB] (page 73).

Symptom Problems and solutions

There is no sound. • The speaker cord is not connected securely.

• Check the speaker settings (page 76).

There is no sound when the

component (digital satellite

receiver, PlayStation 3, etc.) is

connected directly to your TV

via HDMI.

• Check the following status.

– Connect an audio cable from the AUDIO OUT (audio out) jack of your TV

to the system (page 30) and select the “TV” function.

– Disable your TV’s speakers.

There is no sound from the

DIGITAL IN OPTICAL jack

(DAV-DZ510/DAV-DZ610/

DAV-DZ810 only).

• The sampling frequency of the input stream is more than 48 kHz.

There is no digital sound from

the HDMI OUT jack when using

the Audio Return Channel

function.

• Set [AUDIO RETURN CHANNEL] in [HDMI SETUP] to [AUTO] (page 73).

• Set [CONTROL FOR HDMI] in [HDMI SETUP] to [ON] (page 72).

• Make sure that your TV is compatible with the Audio Return Channel function.

• Make sure that an HDMI cable is connected to a jack on your TV that is

compatible with the Audio Return Channel function.

• The sampling frequency of the input stream is more than 48 kHz.

The system does not output

sound correctly when connected

to a set-top box.

• Set [AUDIO RETURN CHANNEL] in [HDMI SETUP] to [OFF] (page 73).

Severe hum or noise is heard. • Move your TV away from the audio components.

• Clean the disc.

Symptom Problems and solutions

82GB

Disc playback

The sound loses stereo effect

when you play a VIDEO CD, a

CD, or an audio file.

• Select stereo sound by pressing AUDIO (page 42).

There is no sound or the volume

level is very low from a certain

speaker or all the speakers.

• Check the surround setting (page 55).

• Check the speaker connections and settings (pages 29, 76).

• Depending on the DVD, the output signal may not be the entire 5.1 channel.

• A 2 channel source is being played.

• Check the wireless setting (page 60).

The sound comes from the center

speaker only.

• Depending on the disc, the sound may come from the center speaker only.

There is no system sound from

your TV.

• Set [AUDIO (HDMI)] in [HDMI SETUP] to [ON] (page 73).

• The HDMI OUT jack does not output Super Audio CD sound.

• Perform the following procedure.

1Turn the system off and on again.

2Turn the connected component off and on again.

3Disconnect and then connect the HDMI cable again.

The sound of files played from a

DATA CD/DATA DVD/USB

device is distorted.

• The bit rate used when encoding the audio files was low. Transfer audio files

encoded with higher bit rates onto the DATA CD/DATA DVD/USB device.

There is noise or the sound skips

while playing a USB device.

• Copy the files to your computer, format the USB device in FAT12, FAT16, or

FAT32 format, and transfer the files to the USB device again.

Symptom Problems and solutions

A disc does not play. • The region code on the DVD does not match the system.

• Moisture has condensed inside the unit and may cause damage to the lenses.

Remove the disc and leave the unit turned on for about half an hour.

The language for the sound track

or subtitle cannot be changed.

• Set the language via the disc’s menu.

A disc does not start playing

from the beginning.

• While in stop mode, press x on the unit or the remote and then start playback

(page 41).

A DATA CD/DATA DVD

cannot be played.

• The DATA CD is not recorded in ISO 9660 Level 1/Level 2, or Joliet.

• The DATA DVD is not recorded in UDF (Universal Disk Format).

A file cannot be played. • The extension of the file name or file format is not correct. See “Playable Discs/

Files on a USB Device” (page 5).

• Check the [MEDIA] setting (page 40).

• The system can play to a depth of 8 folders only.

• Check that the number of folders is 200 or less.

• Check that the number of audio files/JPEG image files in the folder is 150 or

less.

A JPEG image file cannot be

viewed.

• The JPEG image file is larger than 3,072 (width) × 2,048 (height) pixels in

normal format, or more than 2,000,000 pixels in progressive format which is

mainly used on Internet Web sites.

A video file cannot be played. • The video file is larger than 720 (width) × 576 (height).

The titles of folders/files/file

names are not displayed

correctly.

• The system can only display numbers and letters of the alphabet. Other

characters are displayed as [_].

Symptom Problems and solutions

Additional Information

83GB

USB playback

File names are not displayed

properly.

• The character codes that can be displayed by this system are numbers and letters

of the alphabet only. Other characters are not displayed correctly.

Symptom Problems and solutions

A USB device does not start

playing from the beginning.

• While in stop mode, press x on the unit or the remote and then start playback

(page 41).

A USB device cannot be played. • USB devices formatted with file systems other than FAT12, FAT16, or FAT32

are unsupported.*

* This system supports FAT12, FAT16, and FAT32, but some USB devices

may not support all of these. For details, refer to the operating instructions of

the USB device or contact the manufacturer.

• If you use a partitioned USB device, only audio files on the first partition can

be played.

A file cannot be played. • The extension of the file name or file format is not correct. See “Playable Discs/

Files on a USB Device” (page 5).

• Check the [MEDIA] setting (page 40).

• The system can play to a depth of 8 folders only.

• Check that the number of folders is 200 or less.

• Check that the number of audio files/JPEG image files in the folder is 150 or

less.

• Files that are encrypted or protected by passwords, etc. cannot be played.

A JPEG image file cannot be

viewed.

• The JPEG image file is larger than 3,072 (width) × 2,048 (height) pixels in

normal format, or more than 2,000,000 pixels in progressive format which is

mainly used on Internet Web sites.

A video file cannot be played. • The video file is larger than 720 (width) × 576 (height).

A WMA file cannot be played. • A WMA file that is in WMA DRM, WMA Lossless, or WMA PRO format

cannot be played.

An AAC file cannot be played. • An AAC file that is in AAC DRM or AAC Lossless format cannot be played.

The titles of folders/files/file

names are not displayed

correctly.

• The system can only display numbers and letters of the alphabet. Other

characters are displayed as [_].

File names are not displayed

properly.

• The character codes that can be displayed by this system are numbers and letters

of the alphabet only. Other characters are not displayed correctly.

It takes time until playback

starts.

• After the system reads all files on the USB device, playback may take more

time than usual if:

– there are many folders or files on the USB device.

– the folder or file organization structure is very complex.

– the memory capacity is very large.

– the file size is extremely large.

– the internal memory is fragmented.

• The system is playing an audio file in AAC format.

A USB device which has been

used on another device does not

work.

• It may be recorded in an unsupported format. If so, first take the precaution of

backing up important files on the USB device by copying them to your

computer hard disk. Next, format the USB device in FAT12, FAT16, or FAT32

format, and transfer the files to the USB device again.

Symptom Problems and solutions

84GB

Audio track/file transfer

Tuner

S-AIR

(DAV-DZ810 only)

Symptom Problems and solutions

You cannot start transferring

onto a USB device.

• The following problems may have occurred.

– The USB device is full.

– The number of audio files and folders on the USB device has reached the

upper limit.

– The USB device is write-protected.

Transferring stops before it is

finished.

• The communication speed of the USB device is extremely slow. Connect a

USB device that this system can play.

• If the transferring and erasing operations are repeated multiple times, the file

structure within the USB device becomes complex. Follow the procedure in the

operating instructions of the USB device to format the USB device. If the

problem persists, contact your nearest Sony dealer.

• The USB device is full.

• The number of audio files and folders on the USB device has reached the upper

limit.

Transferring to a USB device

results in an error.

• The USB device was disconnected or the power was turned off during erasing.

Delete the partially-erased file. If this does not fix the problem, the USB device

may be broken. Follow the procedure in the operating instructions of the USB

device to format the USB device. If the problem persists, contact your nearest

Sony dealer.

• Check if the USB device is write-protected.

Audio files or folders on the

USB device cannot be erased.

Symptom Problems and solutions

Radio stations cannot be tuned

in.

• Check that the antenna (aerial) is connected securely. Adjust the antenna

(aerial) or connect an external antenna (aerial) if necessary.

• The signal strength of the stations is too weak (when tuning in with automatic

tuning). Use direct tuning.

FM reception is poor. • Use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM

antenna (aerial).

Symptom Problems and solutions

There is no sound or noise is

heard from the S-AIR sub unit,

or sound skips.

• If you use another S-AIR main unit, place it more than 8 m (about 25 feet) away

from the other S-AIR main unit you are using.

• Place the S-AIR main unit and S-AIR sub unit closer together.

• Avoid use of equipment that generates electromagnetic energy, such as a

microwave oven.

• Place the S-AIR main unit and S-AIR sub unit away from other wireless

devices.

• See “If wireless transmission is unstable” (page 63).

• Change the S-AIR ID settings of the S-AIR main unit and S-AIR sub unit.

• Turn off the system and S-AIR sub unit, then turn them on.

The S-AIR function on the

system menu cannot be operated.

• Check that the wireless transceiver is inserted into the unit correctly (page 60).

Additional Information

85GB

Control for HDMI

Karaoke

Messages

Symptom Problems and solutions

The Control for HDMI function

does not work.

• Set [CONTROL FOR HDMI] in [HDMI SETUP] to [ON] (page 72).

• Make sure that the connected component is compatible with the [CONTROL

FOR HDMI] function.

• Check the connected component’s setting for the Control for HDMI function.

Refer to the operating instructions of the component.

• If you change the HDMI connection, connect and disconnect the AC power

cord (mains lead), or have a power failure, set [CONTROL FOR HDMI] in

[HDMI SETUP] to [OFF], then set to [ON] (page 72).

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”

(page 58).

No sound is output from the

system and TV while using the

System Audio Control function.

• Make sure that the connected TV is compatible with the System Audio Control

function.

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”

(page 58).

Symptom Problems and solutions

Microphone sound is not output. • Set the karaoke mode to on (page 47).

• Connect the microphone to the unit properly.

• Connect a monaural dynamic microphone.

Symptom Problems and solutions

“PROTECTOR” and “PUSH

POWER” appear alternately.

•Press "/1 to turn off the system, and check the following items after

“STANDBY” disappears.

– Are the + and – speaker cords short-circuited?

– Is anything blocking the ventilation holes of the system?

– After checking the above items and fixing any problems, turn on the system.

If the cause of the problem cannot be found even after checking all the above

items, consult your nearest Sony dealer.

“OVERLOAD,” “REMOVE

USB,” then “PUSH POWER”

appear.

• A problem has been detected with the level of electrical current from the

(USB) port. Turn off the system and remove the USB device from the

(USB) port. Make sure there is no problem with the USB device. If this display

pattern persists, contact your nearest Sony dealer.

“LOCKED” appears and a disc

cannot be ejected.

• Contact your Sony dealer or local authorized Sony service facility.

“DATA ERROR” appears. • The file you want to play is broken.

• The file format does not match the extension of the file name. See “Playable

Discs/Files on a USB Device” (page 5).

• The JPEG image file format does not conform to DCF.

“READING” is displayed for a

long time while playing.

• The reading process can take a long time if:

– there are many folders or files on the USB device.

– the folder or file organization structure is very complex.

– the memory capacity is very large.

– the internal memory is fragmented.

86GB

(When letters/numbers appear in the

display)

When the self-diagnosis function is activated to

prevent the system from malfunctioning, a 5-

character service number (e.g., C 13 50) with a

combination of a letter and 4 digits appears on

the TV screen or front panel display. In this case,

check the following table.

When the version number

appears on the TV screen

When you turn on the system, the version

number [VER.X.XX] (X is a number) may

appear on the TV screen. Although this is not a

malfunction and for Sony service use only,

normal system operation will not be possible.

Turn off the system, and then turn on the system

again to operate.

Specifications

Amplifier Section

DAV-DZ310

POWER OUTPUT (rated):

Front L + Front R 108 W + 108 W (at 3 ohms,

1 kHz, 1% THD)

POWER OUTPUT (reference):

Front L/Front R/Center/

Surround L/Surround R:

142 watts (per channel at 3

ohms, 1 kHz)

Subwoofer: 140 watts (at 3

ohms, 80 Hz)

DAV-DZ510/DAV-DZ610/DAV-DZ810

POWER OUTPUT (rated):

Front L + Front R 108 W + 108 W (at 3 ohms,

1 kHz, 1% THD)

POWER OUTPUT (reference):

Front L/Front R/Center/

Surround L/Surround R:

167 watts (per channel at 3

ohms, 1 kHz)

Subwoofer: 165 watts (at 3

ohms, 80 Hz)

Inputs (Analog)

TV (AUDIO IN) Sensitivity: 450/250 mV

AUDIO IN Sensitivity: 250/125 mV

MIC Sensitivity: 1 mV

Inputs (Digital)

DAV-DZ310:

TV (Audio Return Channel)

Input Stream: Dolby

Digital 5.1ch/DTS 5.1ch/

Linear PCM 2ch

(Sampling Frequency: less

than 48 kHz)

DAV-DZ510/DAV-DZ610/DAV-DZ810:

TV (Audio Return Channel/OPTICAL IN)

Input Stream: Dolby

Digital 5.1ch/DTS 5.1ch/

Linear PCM 2ch

(Sampling Frequency: less

than 48 kHz)

Super Audio CD/DVD System

Laser Diode Properties Emission Duration:

Continuous

Laser Output: Less than

44.6 μW

* This output is the value measurement at a distance

of 200 mm from the objective lens surface on the

Optical Pick-up Block with 7 mm aperture.

Self-diagnosis Function

First 3

characters of

the service

number

Cause and/or corrective action

C 13 The disc is dirty.

,Clean the disc with a soft cloth

(page 79).

E XX

(XX is a

number)

To prevent a malfunction, the

system has performed the self-

diagnosis function.

,Contact your nearest Sony

dealer or local authorized Sony

service facility and give the 5-

character service number.

Example: E 61 10

C:13:50

VER.X.XX

Additional Information

87GB

Signal format system

Mexican and Latin American models:

NTSC

Other models: NTSC/PAL

USB Section

(USB) port:

Maximum current: 500 mA

Tuner Section

System PLL quartz-locked digital

synthesizer

Tuning range

North American models: 87.5 MHz - 108.0 MHz

(100 kHz step)

Other models: 87.5 MHz - 108.0 MHz (50

kHz step)

Antenna (aerial) FM wire antenna (aerial)

Antenna (aerial) terminals 75 ohms, unbalanced

Intermediate frequency 10.7 MHz

Video Section

Outputs VIDEO: 1 Vp-p 75 ohms

COMPONENT:

Y: 1 Vp-p 75 ohms

PB/CB, PR/CR: 0.7 Vp-p

75 ohms

HDMI OUT: Type A (19

pin)

Speakers

Front

DAV-DZ310 (SS-TS102)

Speaker system Full range Bass reflex

Speaker unit 65 mm cone type

Rated impedance 3 ohms

Dimensions (approx.) 103 mm × 194 mm × 100

mm (speaker only: 103

mm × 164 mm × 85 mm)

(w/h/d)

Mass (approx.) 0.6 kg

DAV-DZ510 (SS-TS106)

Speaker system Full range Bass reflex

Speaker unit 65 mm cone type

Rated impedance 3 ohms

Dimensions (approx.) 103 mm × 225 mm × 82

mm (w/h/d)

Mass (approx.) 0.6 kg

DAV-DZ610 (SS-TS103)

Speaker system Full range Bass reflex

Speaker unit 65 mm cone type

Rated impedance 3 ohms

Dimensions (approx.) 235 mm × 1,000 / 970 /

940 / 910 mm × 235 mm

(speaker only: 103 mm ×

545 mm × 77 mm) (w/h/d)

Mass (approx.) 2.2 kg

DAV-DZ810 (SS-TS104)

Speaker system Full range Bass reflex

Speaker unit 65 mm cone type

Rated impedance 3 ohms

Dimensions (approx.) 255 mm × 1,185 mm × 255

mm (speaker only: 113

mm × 645 mm × 77 mm)

(w/h/d)

Mass (approx.) 3.1 kg

Center (SS-CT101)

Speaker system Full range Bass reflex,

Magnetically Shielded

Speaker unit 65 mm cone type

Rated impedance 3 ohms

Dimensions (approx.) 265 mm × 94 mm × 70 mm

(w/h/d)

Mass (approx.) 0.6 kg

Surround

DAV-DZ310/DAV-DZ610 (SS-TS102)

Speaker system Full range Bass reflex

Speaker unit 65 mm cone type

Rated impedance 3 ohms

Dimensions (approx.) 103 mm × 164 mm × 85

mm (w/h/d)

Mass (approx.) 0.5 kg

DAV-DZ510 (SS-TS106)

Speaker system Full range Bass reflex

Speaker unit 65 mm cone type

Rated impedance 3 ohms

Dimensions (approx.) 103 mm × 225 mm × 82

mm (w/h/d)

Mass (approx.) 0.6 kg

DAV-DZ810 (SS-TS103)

Speaker system Full range Bass reflex

Speaker unit 65 mm cone type

Rated impedance 3 ohms

Dimensions (approx.) 235 mm × 1,000 / 970 /

940 / 910 mm × 235 mm

(speaker only: 103 mm ×

545 mm × 77 mm) (w/h/d)

Mass (approx.) 2.2 kg

Subwoofer (SS-WS102)

Speaker system Subwoofer Bass reflex

Speaker unit 180 mm cone type

Rated impedance 3 ohms

Dimensions (approx.) 225 mm × 395 mm × 315

mm (w/h/d)

Mass (approx.) 6.5 kg

88GB

General

Power requirements

North American and Mexican models:

120 V AC, 60 Hz

Taiwan models: 120 V AC, 50/60 Hz

Argentine models: 220 V - 240 V AC,

50/60 Hz

Latin American models: 110 V - 240 V AC,

50/60 Hz

Other models: 220 V - 240 V AC,

50/60 Hz

Power consumption

DAV-DZ310/DAV-DZ510/DAV-DZ610

On: 170 W

Standby: Taiwan models:

0.2 W*, Other models:

0.25 W*

DAV-DZ810 On: 175 W

Standby: 0.25 W*

* Valid when the system is in the following status:

– “DEMO” is set to “OFF.”

– [CONTROL FOR HDMI] is set to [OFF].

– “S-AIR STBY” is set to “STBY OFF.” (DAV-

DZ810 only)

Dimensions (approx.) 430 mm × 66 mm × 385

mm (w/h/d) incl.

projecting parts

Mass (approx.) 4.4 kg

Supported file format

MP3 (MPEG 1 Audio Layer-3)

File Extension: mp3

Bitrate: 32 kbps - 320 kbps

Sampling frequencies: 32/44.1/48 kHz

WMA (USB device only)

File Extension: wma

Bitrate: 48 kbps - 192 kbps

Sampling frequencies: 44.1 kHz

AAC (USB device only)

File Extension: m4a

Bitrate: 48 kbps - 320 kbps

Sampling frequencies: 44.1 kHz

DivX

File Extension: avi/divx

Video codec: DivX video

Bitrate: 10.08 Mbps (MAX)

Frame rate: 30 fps

Resolution: 720 × 576

Audio codec: MP3

MPEG4

File format: MP4 File Format

File Extension: mp4/m4v

Video codec: MPEG4 Simple Profile

(AVC is not compatible.)

Bitrate: 4 Mbps

Frame rate: 30 fps

Resolution: 720 × 576

Audio codec: AAC-LC (HE-AAC is not

compatible.)

DRM: Not compatible

Design and specifications are subject to change

without notice.

• Standby power consumption

Taiwan models: 0.2 W

Other models: 0.25 W

• Halogenated flame retardants are not used in the

certain printed wiring boards.

• Over 85% power efficiency of amplifier block is

achieved with the full digital amplifier, S-Master.

Additional Information

89GB

The table below describes the playback priority of file types under the [MEDIA] setting.

* When using a disc, you can play MP3 files only.

Playback Priority of File Types

File type on a disc or USB

device

[MEDIA] setting

[VIDEO] [MUSIC/

PHOTO]

[PHOTO] [MUSIC]

Disc USB device Disc Disc/USB

device

Disc/USB

device

Video files only Video files Video files Video files Video files Video files

JPEG image files only JPEG image

files

JPEG image

files

JPEG image

files

JPEG image

files

JPEG image

files

Audio files only MP3 files Audio files MP3 files Audio files* Audio files*

Video files and JPEG image

files

Video files Video files JPEG image

files

JPEG image

files

Video files

Video files and audio files Video files Video files MP3 files Audio files* Audio files*

Audio files and JPEG image

files

MP3 files and

JPEG image

files with slide

show

Audio files MP3 files and

JPEG image

files with slide

show

JPEG image

files

Audio files*

Video files, audio files, and

JPEG image files

Video files Video files MP3 files and

JPEG image

files with slide

show

JPEG image

files

Audio files*

90GB

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Language Code List

Code Language Code Language Code Language Code Language

1027 Afar

1028 Abkhazian

1032 Afrikaans

1039 Amharic

1044 Arabic

1045 Assamese

1051 Aymara

1052 Azerbaijani

1053 Bashkir

1057 Byelorussian

1059 Bulgarian

1060 Bihari

1061 Bislama

1066 Bengali;

Bangla

1067 Tibetan

1070 Breton

1079 Catalan

1093 Corsican

1097 Czech

1103 Welsh

1105 Danish

1109 German

1130 Bhutani

1142 Greek

1144 English

1145 Esperanto

1149 Spanish

1150 Estonian

1151 Basque

1157 Persian

1165 Finnish

1166 Fiji

1171 Faroese

1174 French

1181 Frisian

1183 Irish

1186 Scots Gaelic

1194 Galician

1196 Guarani

1203 Gujarati

1209 Hausa

1217 Hindi

1226 Croatian

1229 Hungarian

1233 Armenian

1235 Interlingua

1239 Interlingue

1245 Inupiak

1248 Indonesian

1253 Icelandic

1254 Italian

1257 Hebrew

1261 Japanese

1269 Yiddish

1283 Javanese

1287 Georgian

1297 Kazakh

1298 Greenlandic

1299 Cambodian

1300 Kannada

1301 Korean

1305 Kashmiri

1307 Kurdish

1311 Kirghiz

1313 Latin

1326 Lingala

1327 Laothian

1332 Lithuanian

1334 Latvian;

Lettish

1345 Malagasy

1347 Maori

1349 Macedonian

1350 Malayalam

1352 Mongolian

1353 Moldavian

1356 Marathi

1357 Malay

1358 Maltese

1363 Burmese

1365 Nauru

1369 Nepali

1376 Dutch

1379 Norwegian

1393 Occitan

1403 (Afan)Oromo

1408 Oriya

1417 Punjabi

1428 Polish

1435 Pashto;

Pushto

1436 Portuguese

1463 Quechua

1481 Rhaeto-

Romance

1482 Kirundi

1483 Romanian

1489 Russian

1491 Kinyarwanda

1495 Sanskrit

1498 Sindhi

1501 Sangho

1502 Serbo-

Croatian

1503 Singhalese

1505 Slovak

1506 Slovenian

1507 Samoan

1508 Shona

1509 Somali

1511 Albanian

1512 Serbian

1513 Siswati

1514 Sesotho

1515 Sundanese

1516 Swedish

1517 Swahili

1521 Tamil

1525 Telugu

1527 Tajik

1528 Thai

1529 Tigrinya

1531 Turkmen

1532 Tagalog

1534 Setswana

1535 Tonga

1538 Turkish

1539 Tsonga

1540 Tatar

1543 Twi

1557 Ukrainian

1564 Urdu

1572 Uzbek

1581 Vietnamese

1587 Volapük

1613 Wolof

1632 Xhosa

1665 Yoruba

1684 Chinese

1697 Zulu

1703 Not specified

Parental Control Area Code List

Code Area Code Area Code Area Code Area

2044 Argentina

2047 Australia

2046 Austria

2057 Belgium

2070 Brazil

2079 Canada

2090 Chile

2092 China

2115 Denmark

2165 Finland

2174 France

2109 Germany

2248 India

2238 Indonesia

2254 Italy

2276 Japan

2304 Korea

2363 Malaysia

2362 Mexico

2376 Netherlands

2390 New Zealand

2379 Norway

2427 Pakistan

2424 Philippines

2436 Portugal

2489 Russia

2501 Singapore

2149 Spain

2499 Sweden

2086 Switzerland

2528 Thailand

2184 United

Kingdom

91GB

Index

Numerics

4:3 OUTPUT 71

A

A/V SYNC 67

ANGLE 42

ATT EN UAT E 6 7

AUDIO 71

AUDIO (HDMI) 73

AUDIO DRC 75

AUDIO RETURN CHANNEL

73

AUDIO SETUP 73

AUTO CALIBRATION 74

AUTO STBY 69

B

BACKGROUND 75

BLACK LEVEL 72

BLACK LEVEL

(COMPONENT OUT) 72

C

COLOR SYSTEM (VIDEO

CD) 72

CONTROL FOR HDMI 72

Control for HDMI 58

Control Menu 18

CUSTOM 70

D

D. C. A. C. (Digital Cinema

Auto Calibration) 74

DEMO 69

DIMMER 69

DivX® 8, 76

DUAL MONO 67

DVD’s menu 43

DYNAMIC BASS 57

E

EFFECT 46

F

FM MODE 53

Front panel 12

Front panel display 13

H

HDMI

YCBCR/RGB (HDMI) 73

HDMI RESOLUTION 72

HDMI SETUP 72

I

INTERVAL 47

iPod 51

J

JPEG RESOLUTION 73

K

Karaoke 47

ECHO 48

Karaoke Pon 48

Key Control 48

Vocal Select 49

L

Language Code List 90

LANGUAGE SETUP 70

M

MEDIA 40, 47

MENU 70

Multi Session CD 7

MULTI-DISC RESUME 76

Multiplex broadcast sound 67

N

NIGHT 57

O

OSD 70

P

PAIRING 62

PARENTAL CONTROL 75

PAUSE MODE 72

Playable discs 5

Program Play 44

PROGRESSIVE

(COMPONENT OUT) 71

Q

Quick Setup 34

R

Rear panel 14

Region code 7

Repeat Play 46

RESET 76

RF CHANGE 63

S

S-AIR ID 61

S-AIR receiver 60

S-AIR STBY 62

SCREEN SAVER 75

SETUP 70

Shuffle Play 45

SLEEP 66, 67

SPEAKER FORMATION 73

SPEAKER SETUP 76

CONNECTION 76

DISTANCE 77

LEVEL 77

SUBTITLE 42, 71

Super Audio CD 44

Surround amplifier 60

SYSTEM MENU 53, 55, 61,

62, 63, 67, 69

SYSTEM SETUP 75

T

TEST TONE 77

TIME 42

TRACK SELECTION 75

TV TYPE 71

V

VIDEO SETUP 71

VOLUME LIMIT 73

(1)

Sony Corporation Printed in China
