MDS-JE440

SPECIFICATIONS

SERVICE MANUAL

MINIDISC DECK

Model Name Using Similar Mechanism NEW

MD Mechanism Type MDM-7A

Optical Pick-up Type KMS-260B/J1N

US Model

Canadian Model

AEP Model

UK Model

E Model

Australian Model

US and foreign patents licensed form Dolby Laboratories

Licensing Corporation.

Inputs

Outputs

System MiniDisc digital audio system

Disc MiniDisc

Laser Semiconductor laser (λ = 780 nm)

Emission duration: continuous

Laser output MAX 44.6 µW1)

1) This output is the value

measured at a distance of

200 mm from the objective lens

surface on the Optical Pick-up

Block with 7 mm aperture.

Laser diode Material: GaAlAs

Revolutions (CLV) 400 rpm to 900 rpm

Error correction ACIRC (Advanced Cross Interleave

Reed Solomon Code)

Sampling frequency 44.1 kHz

Coding ATRAC (Adaptive TRansform

Acoustic Coding)/ATRAC 3

Modulation system EFM (Eight-to-Fourteen

Modulation)

Number of channels 2 stereo channels

Frequency response 5 to 20,000 Hz ±0.3 dB

Signal-to-noiseratio Over 96 dB during play

Wow and flutter Below measurable limit

ANALOG IN Jack type: phono

Impedance: 47 kΩ

Rated input: 500 mVrms

Minimum input: 125 mVrms

DIGITAL IN Connector type: square optical

Impedance: 660 nm (optical wave

length)

ANALOG OUT Jack type: phono

Rated output: 2 Vrms (at 50

kΩ)

Load impedance: over 10 kΩ

DIGITAL OUT Connector type: square optical

Rated output: –18 dBm

Load impedance: 660 nm (optical

wave length)

— Continued on next page —

2

SELF-DIAGNOSIS FUNCTION

The self-diagnosis function consists of error codes for customers which are displayed automatically when errors occur, and error codes which

show the error history in the test mode during servicing. For details on how to view error codes for the customer, refer to the following box

in the instruction manual. For details on how to check error codes during servicing, refer to the following “Procedure for using the Self-

Diagnosis Function (Error History Display Mode)”.

Procedure for using the Self-Diagnosis Function (Error History Display Mode).

Note: Perform the self-diagnosis function in the “error history display mode” in the test mode. The following describes the least required

procedure. Be careful not to enter other modes by mistake. If you set other modes accidentally, press the MENU/NO button to exit

the mode.

Self-diagnosis function

The deck’s self-diagnosis function automatically checks

the condition of the MD deck when an error occurs, then

issues a three- or five-digit code and an error message on

the display. If the code and message alternate, find them in

the following table and perform the indicated

countermeasure. Should the problem persist, consult your

nearest Sony dealer.

Three- or five-

digit code/

Message Cause/Remedy

C11/Protected

The inserted MD is record-protected.

,Take out the MD and close the record-

protect slot (page 14).

C12/Cannot Copy

You tried to record a CD with a format

that the external device connected to the

deck does not support, such as CD-ROM

or video CD.

,Remove the disc and insert a music

CD.

C13/REC Error

The recording was not made properly.

,Set the deck in a stable surface, and

repeat the recording procedure.

The inserted MD is dirty (with smudges,

fingerprints, etc.), scratched, or

substandard in quality.

,Replace the disc and repeat the

recording procedure.

C13/Read Error

The deck could not read the TOC on the

MD properly.

,Take out the MD and insert it again.

C14/Toc Error

The deck could not read the TOC on the

MD properly.

,Insert another disc.

,If possible, erase all the tracks on the

MD (page 32).

C41/Cannot Copy

The sound source is a copy of

commercially available music software, or

you tried to record a CD-R (Recordable

CD).

,The Serial Copy Management System

prevents making a digital copy

(page 52). You cannot record a CD-R.

C71/Din Unlock

The sporadic appearance of this message

is caused by the digital signal being

recorded. This will not affect the

recording.

While recording from a digital component

connected through the DIGITAL IN

connector, the digital connecting cable

was unplugged or the digital component

turned off.

,Connect the cable or turn the digital

component back on.

E0001/

MEMORY NG

There is an error in the internal data that

the deck needs in order to operate.

,Consult your nearest Sony dealer.

E0101/

LASER NG

There is a problem with the optical

pickup.

,The optical pick-up may have failed.

Consult your nearest Sony dealer.

Three- or five-

digit code/

Message Cause/Remedy

General

Power requirements

Supplied accessories

• Audio connecting cords (2)

• Optical cable (1)

• Remote commander (remote) (1)

• R6 (size-AA) batteries (2)

US and foreign patents licensed from Dolby Laboratories.

Design and specifications are subject to change without

notice.

Where purchased Power requirements

US, Canadian 120 V AC, 60 Hz

AEP, UK, CIS 220 – 230 V AC, 50/60 Hz

Singapore, Malaysia 110 – 120 or 220 – 240 V AC

selectable, 50/60 Hz

Power consumption 15 W

Dimensions (approx.) 430 × 95 × 285 mm (17 × 3

3

/

4

×

11

1

/

4

in.) (w/h/d) incl. projecting

parts and controls

Mass (approx.) 3.0 kg (6 lbs 10 oz)

Australian 240 V AC, 50/60 Hz

Hong Kong 220 – 240 V AC, 50/60 Hz

3

1. While pressing the AMS knob and x button, connect the power plug to the outlet, and release the AMS knob and x button.

When the test mode is set, “[Check]” will be displayed.

2. Rotate the AMS knob and when “[Service]” is displayed, press the YES button.

3. Rotate the AMS knob and display “Err Display”.

4. Pressing the YES button sets the error history mode and displays “op rec tm”.

5. Select the contents to be displayed or executed using the AMS knob.

6. Pressing the AMS knob will display or execute the contents selected.

7. Pressing the AMS knob another time returns to step 4.

8. Pressing the MENU/NO button displays “Err Display” and exits the error history mode.

9. To exit the test mode, press the REPEAT button. The unit sets into the STANDBY state, the disc is ejected, and the test mode ends.

ITEMS OF ERROR HISTORY MODE ITEMS AND CONTENTS

Selecting the Test Mode

Display

op rec tm

op play tm

spdl rp tm

retry err

total err

err history

retry adrs

er refresh

op change

spdl change

History

Displays the total recording time.

When the total recording time is more than 1 minute, displays the hour and minute

When less than 1 minute, displays “Under 1 min”

The display time is the time the laser is set to high power, which is about 1/4 of the actual recording time.

Displays the total playback time.

When the total playback time is more than 1 minute, displays the hour and minute

When less than 1 minute, displays “Under 1 min”

Displays the total rotating time of the spindle motor.

When the total rotating time is more than 1 minute, displays the hour and minute

When less than 1 minute, displays “Under 1 min”

Displays the total number of retry errors during recording and playback

Displays “r xx p yy”. xx is the number of errors during recording. yy is the number of errors during playback.

This is displayed in hexadecimal from 00 to FF.

Displays the total number of errors

Displays “total xx”. This is displayed in hexadecimal from 00 to FF.

Displays the past ten errors.

Displays “0x ErrCd@@”.

X is the history number. The younger the number, the more recent is the history (00 is the latest). @@ is the error

code.

Select the error history number using the AMS knob.

Displays the past five retry addresses.

Displays “xx ADRS yyyy”, xx is the history number, yyyy is the cluster with the retry error.

Select the error history number using the AMS knob.

Mode for erasing the error and retry address histories

Procedure

1. Press the AMS knob when displayed as “er refresh”.

2. Press the YES button when the display changes to “er refresh?”.

When “complete!” is displayed, it means erasure has completed.

Be sure to check the following after executing this mode.

*Data has been erased.

*Perform recording and playback, and check that the mechanism is normal.

Mode for erasing the total time of op rec tm, op play tm.

These histories are based on the time of replacement of the optical pickup. If the optical pick-up has been replaced,

perform this procedure and erase the history.

Procedure

1. Press the AMS knob when displayed as “op change”.

2. Press the YES button when the display changes to “op change?”.

When “Complete!” is displayed, it means erasure has completed.

Mode for erasing the total spdl rp tm time

These histories are based on the time of replacement of the spindle motor. If the spindle motor has been replaced,

perform this procedure and erase the history.

Procedure

1. Press the AMS knob when displayed as “spdl change”

2. Press the YES button when the display changes to “spdl change?”

When “Complete!” is displayed, it means erasure has completed.

4

Description

TABLE OF CONTENTS

1. SERVICING NOTES ............................................. 5

2. GENERAL ........................................................................ 11

3. DISASSEMBLY

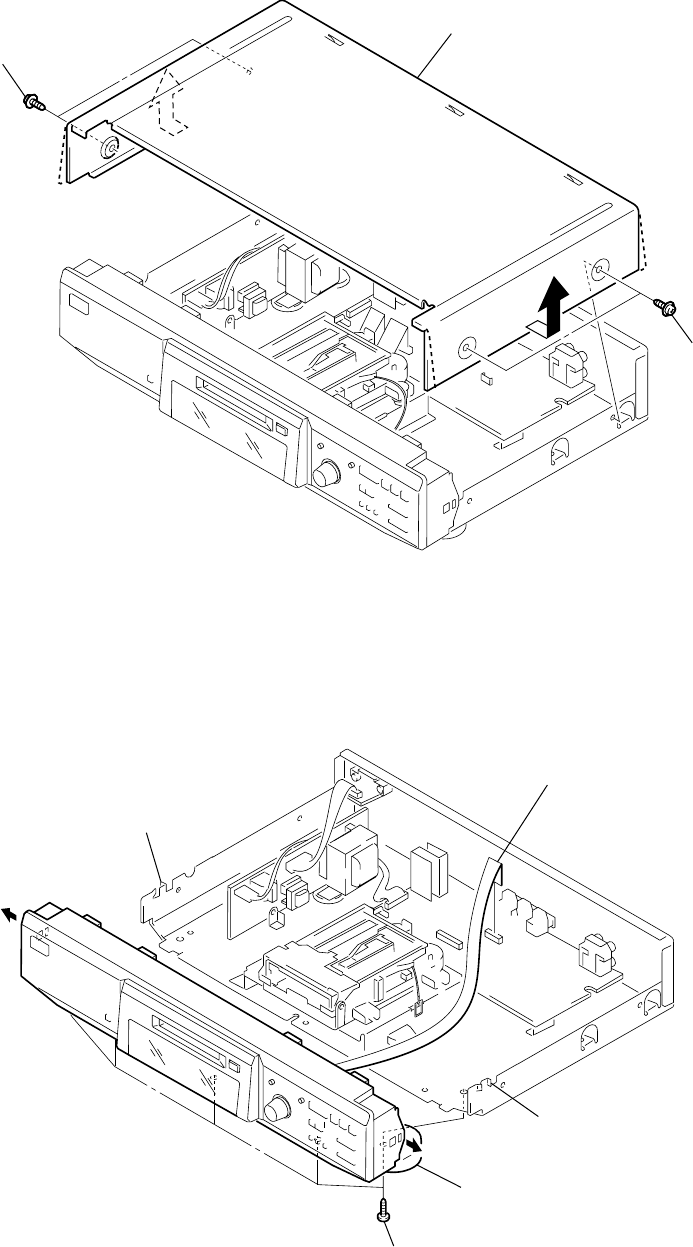

3-1. Upper Case (408226) .......................................................... 12

3-2. Front Panel Section ............................................................. 12

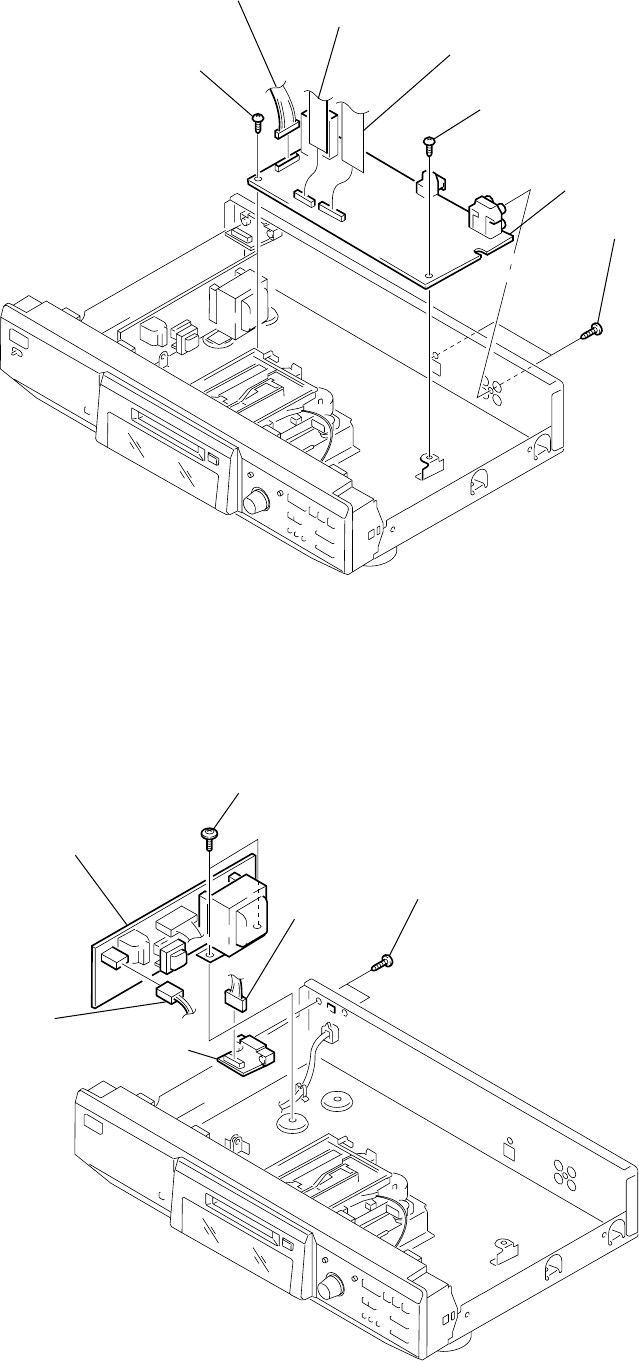

3-3. Main Board ......................................................................... 13

3-4. PT Board, VOL-SEL Board ................................................ 13

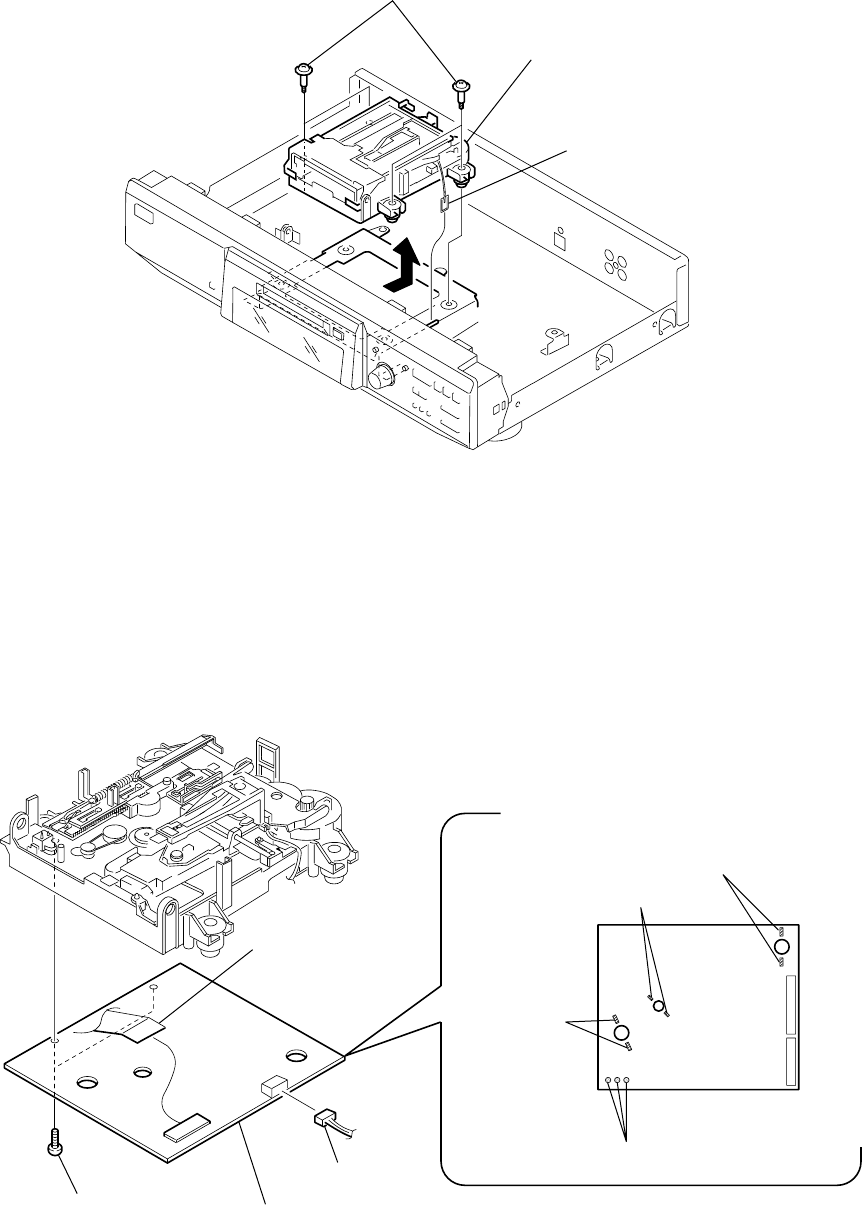

3-5. Mechanism Deck Section (MDM-7A) ................................ 14

3-6. BD Board ............................................................................ 14

4. TEST MODE ..................................................................... 15

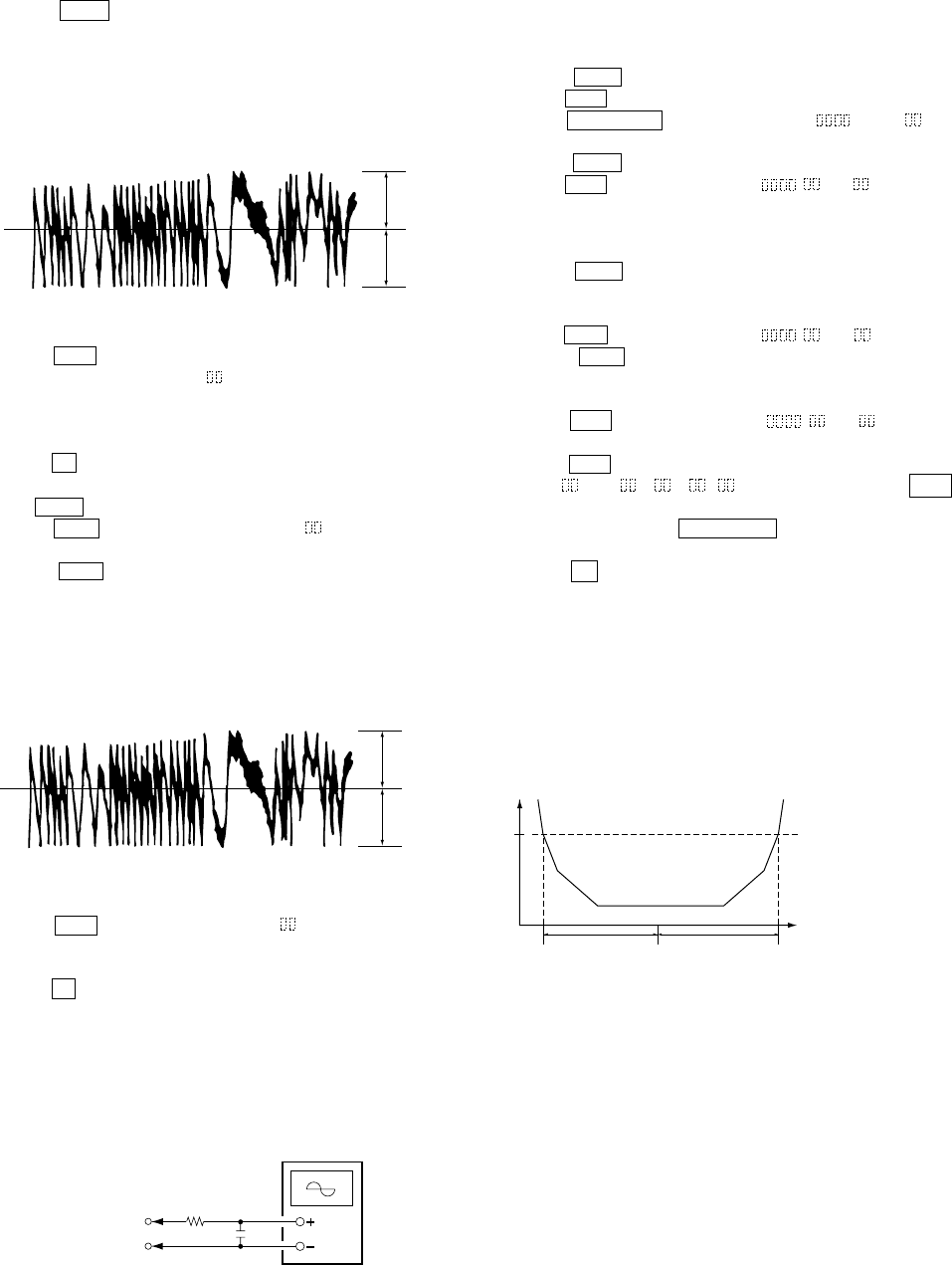

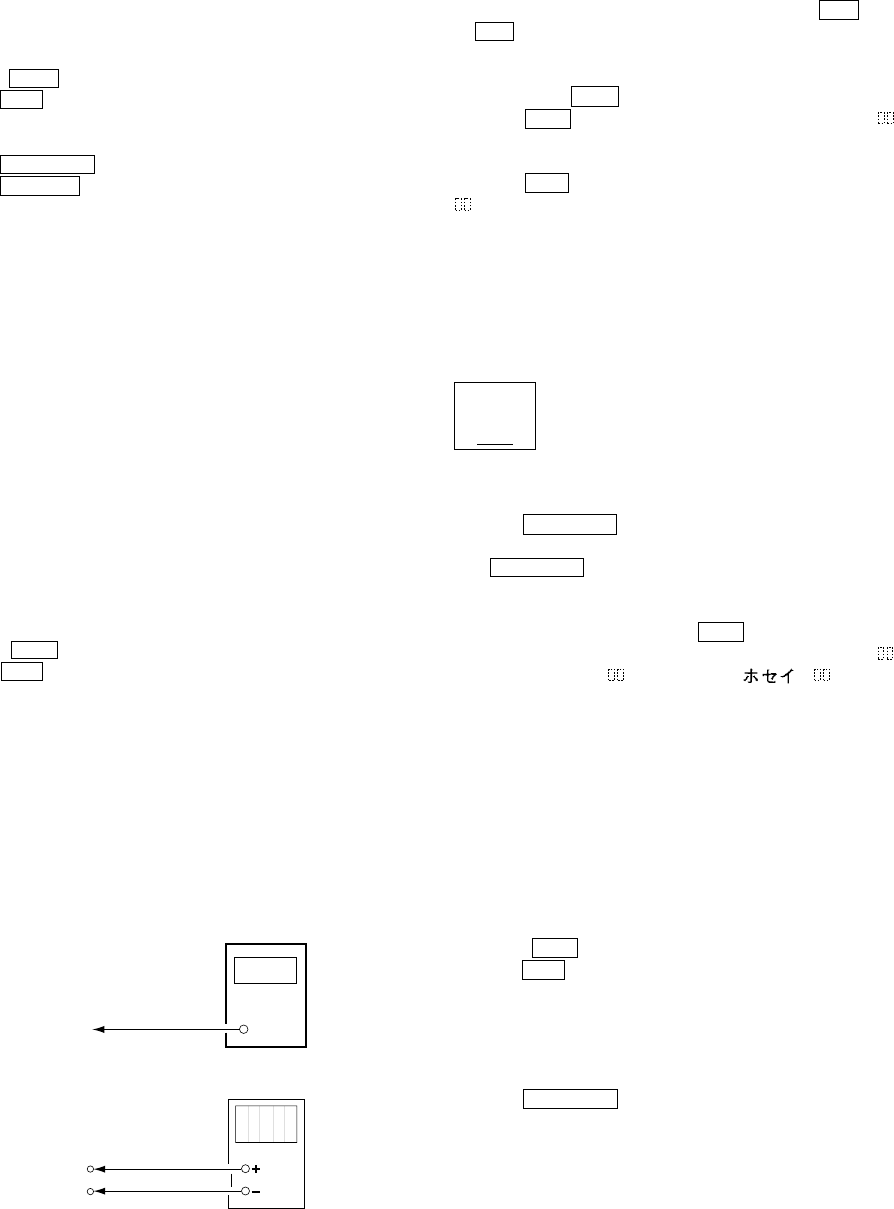

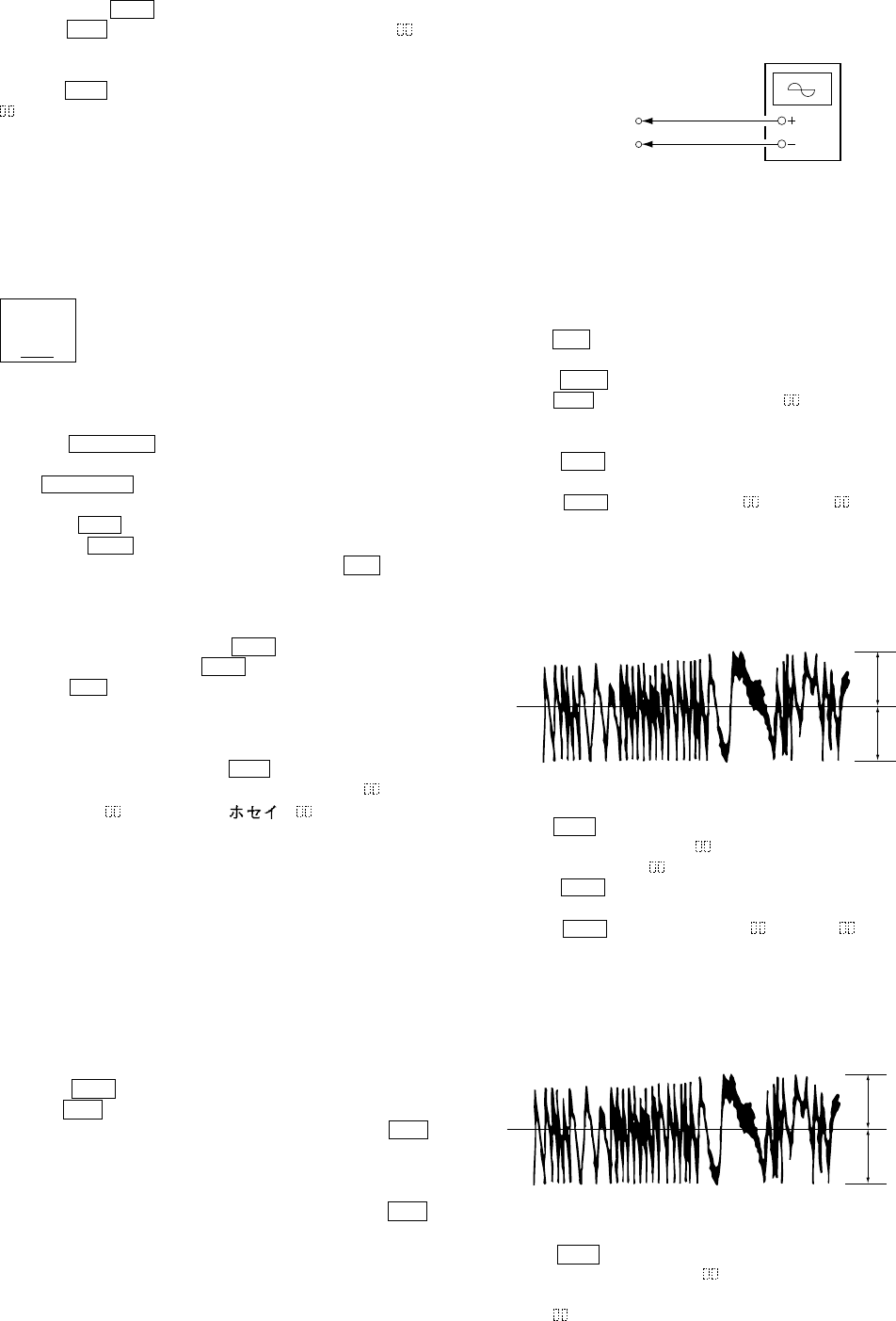

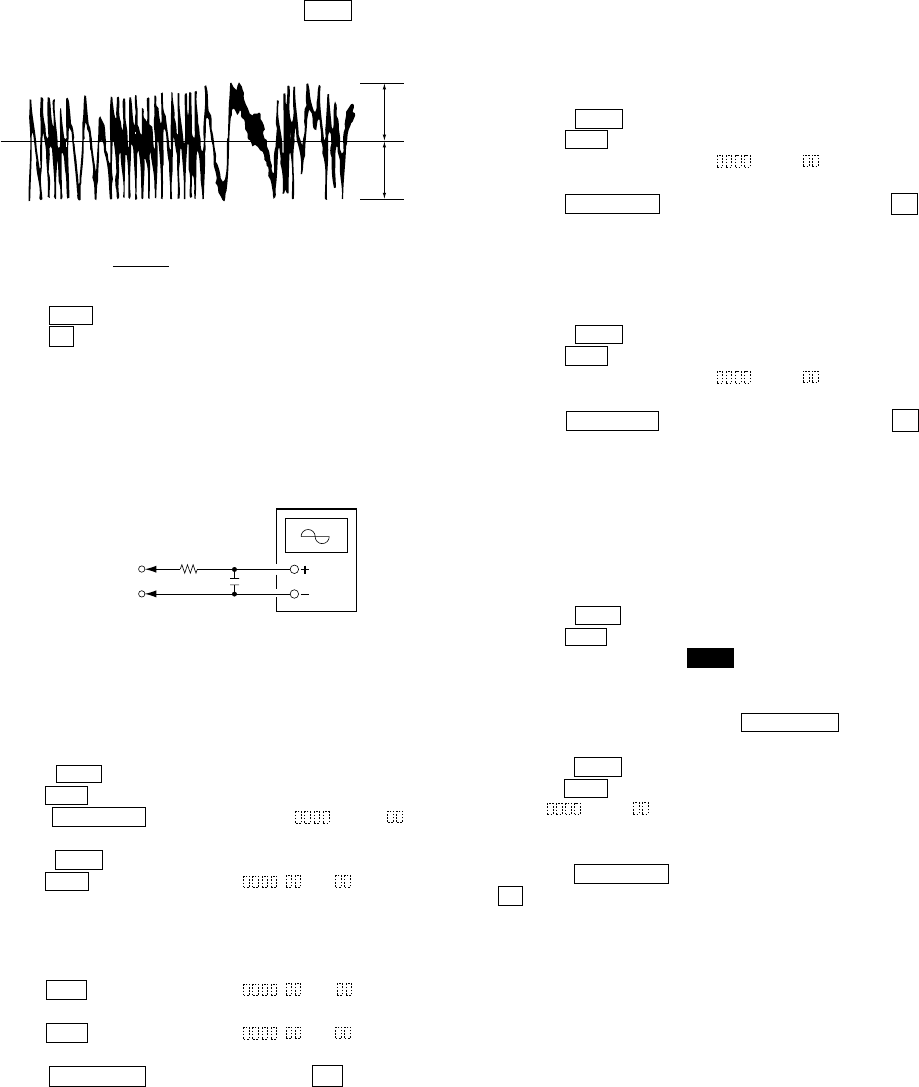

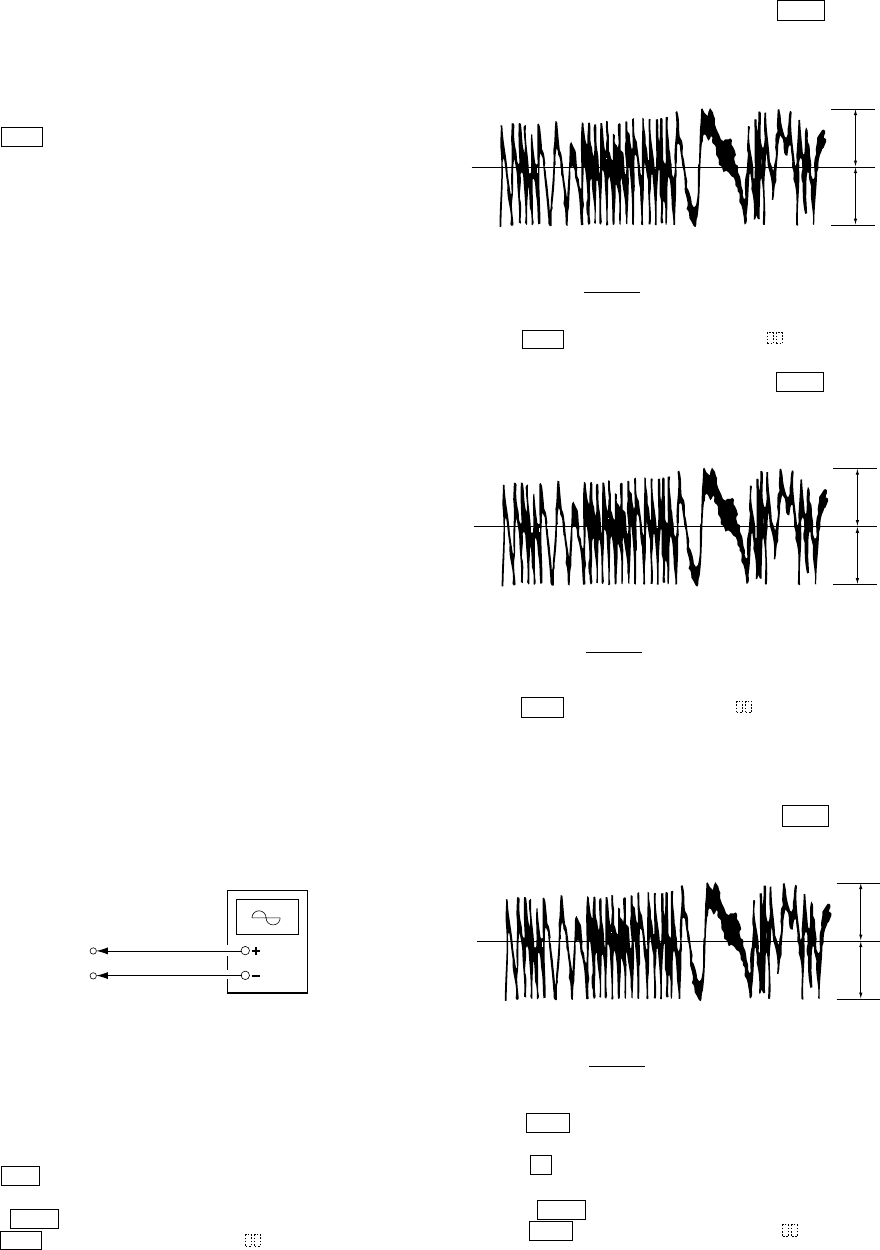

5. ELECTRICAL ADJUSTMENTS ............................... 20

6. DIAGRAMS

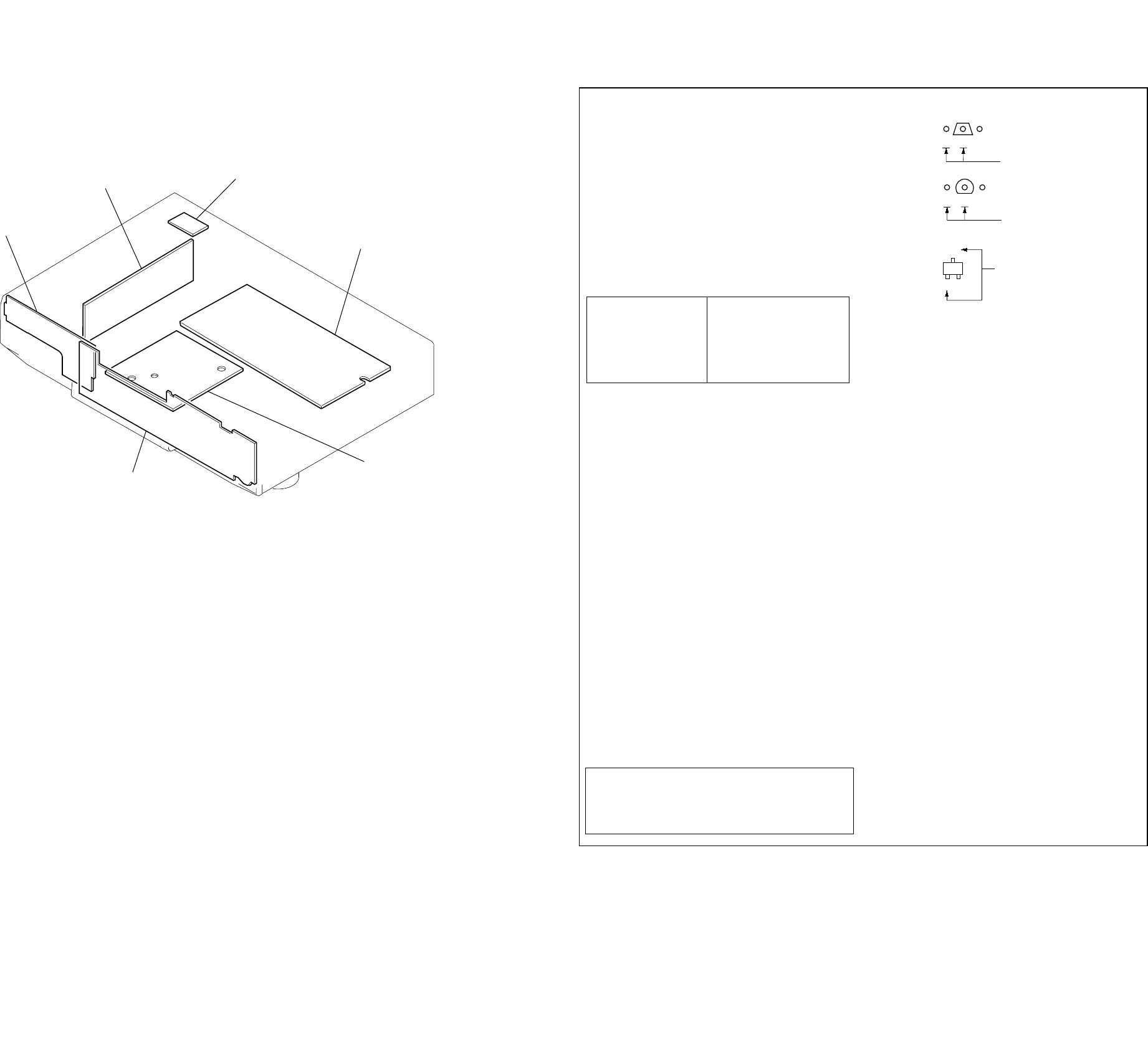

6-1. Circuit Boards Location ...................................................... 31

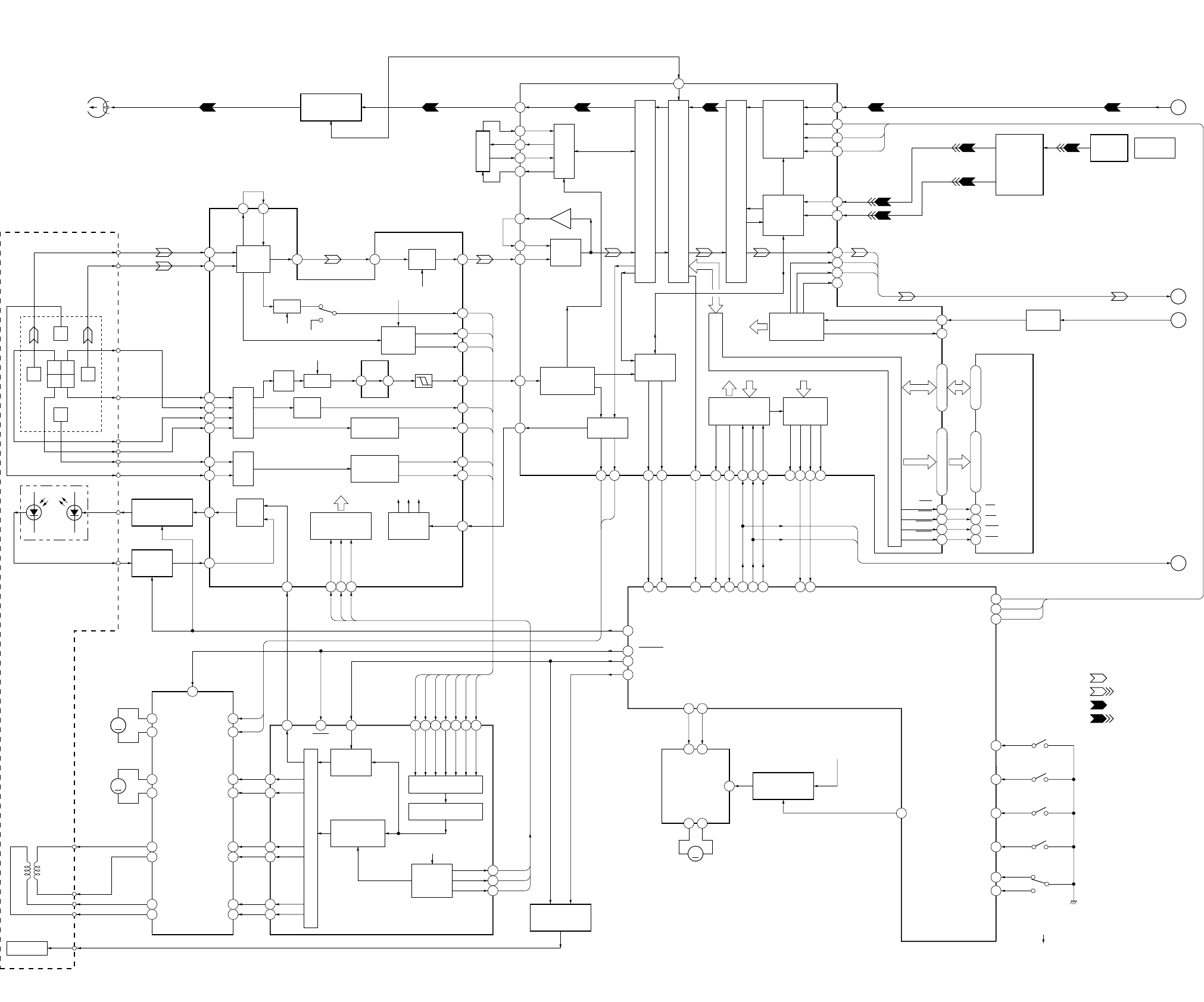

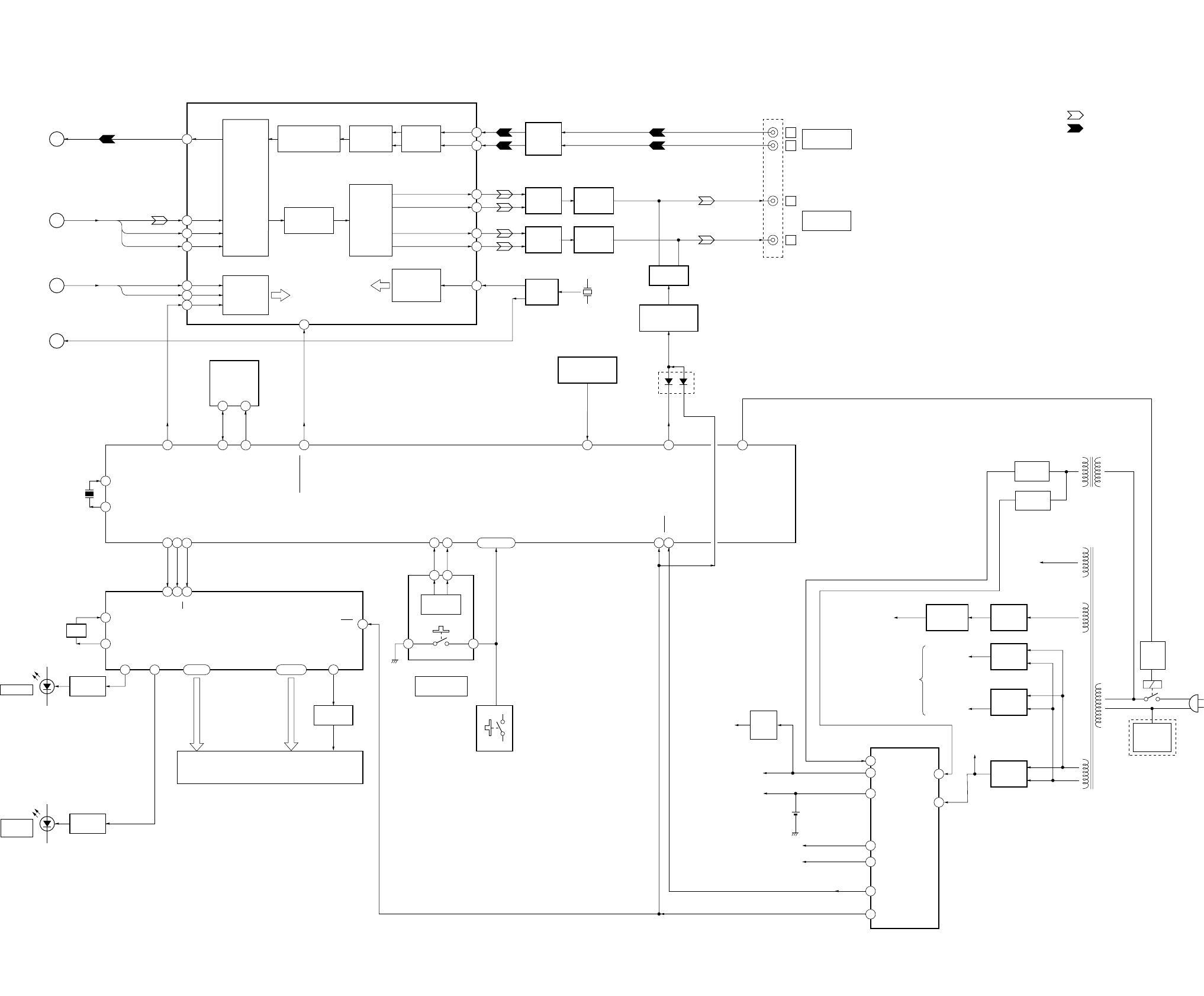

6-2. Block Diagrams

•BD Section ....................................................................... 32

•Main Section .................................................................... 33

6-3. Printed Wiring Board – BD Section –................................. 35

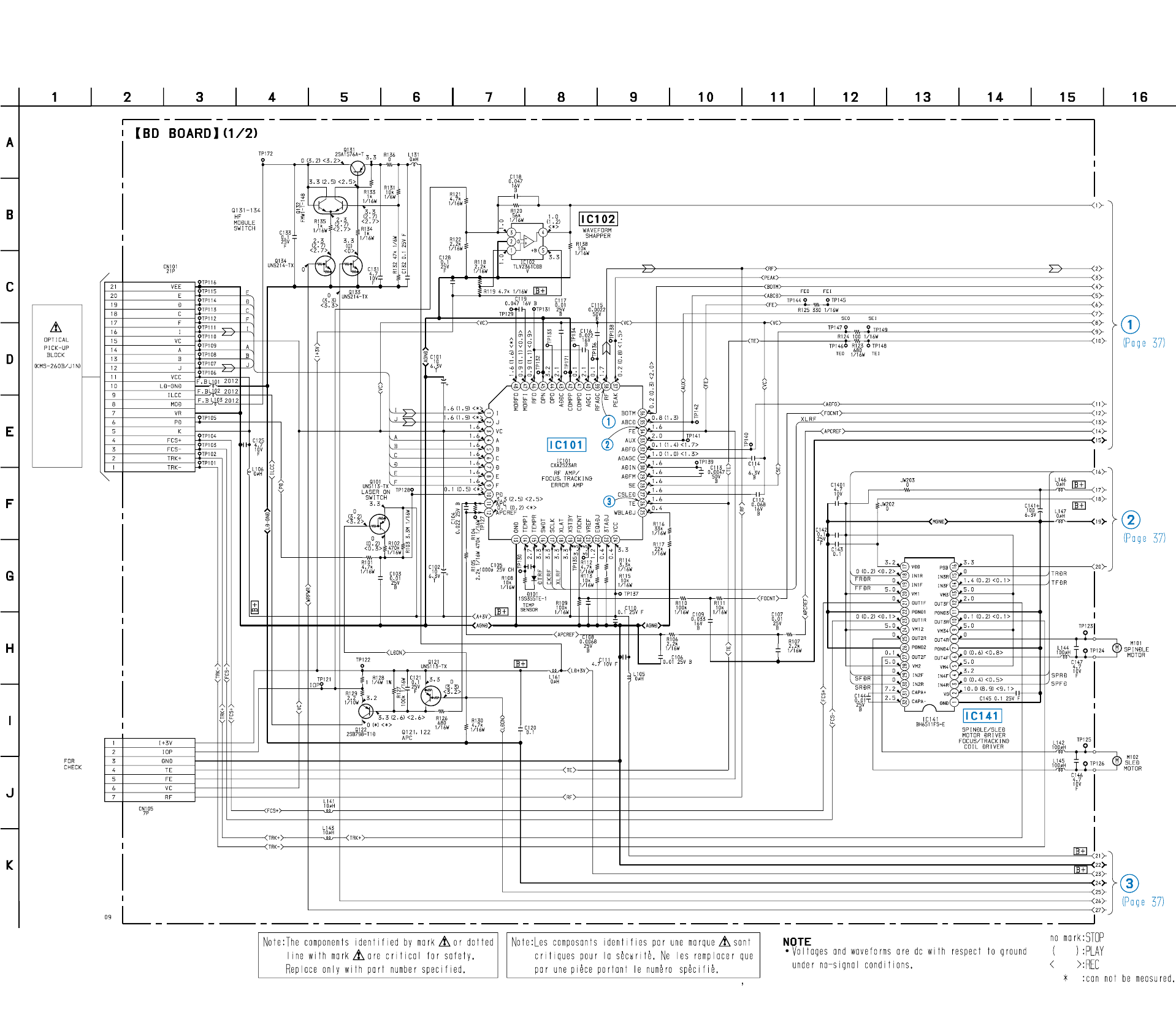

6-4. Schematic Diagram – BD Section (1/2) –........................... 36

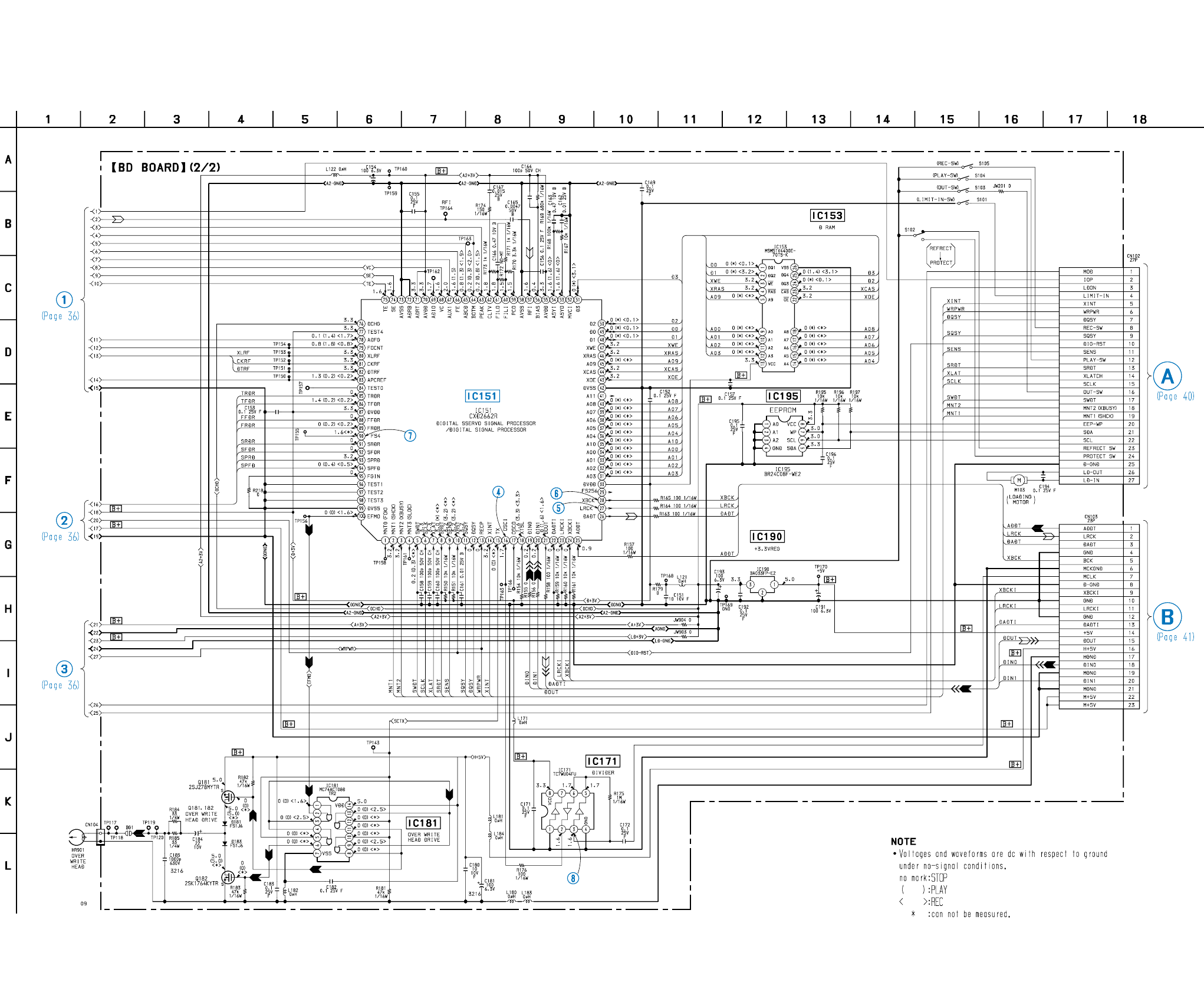

6-5. Schematic Diagram – BD Section (2/2) –........................... 37

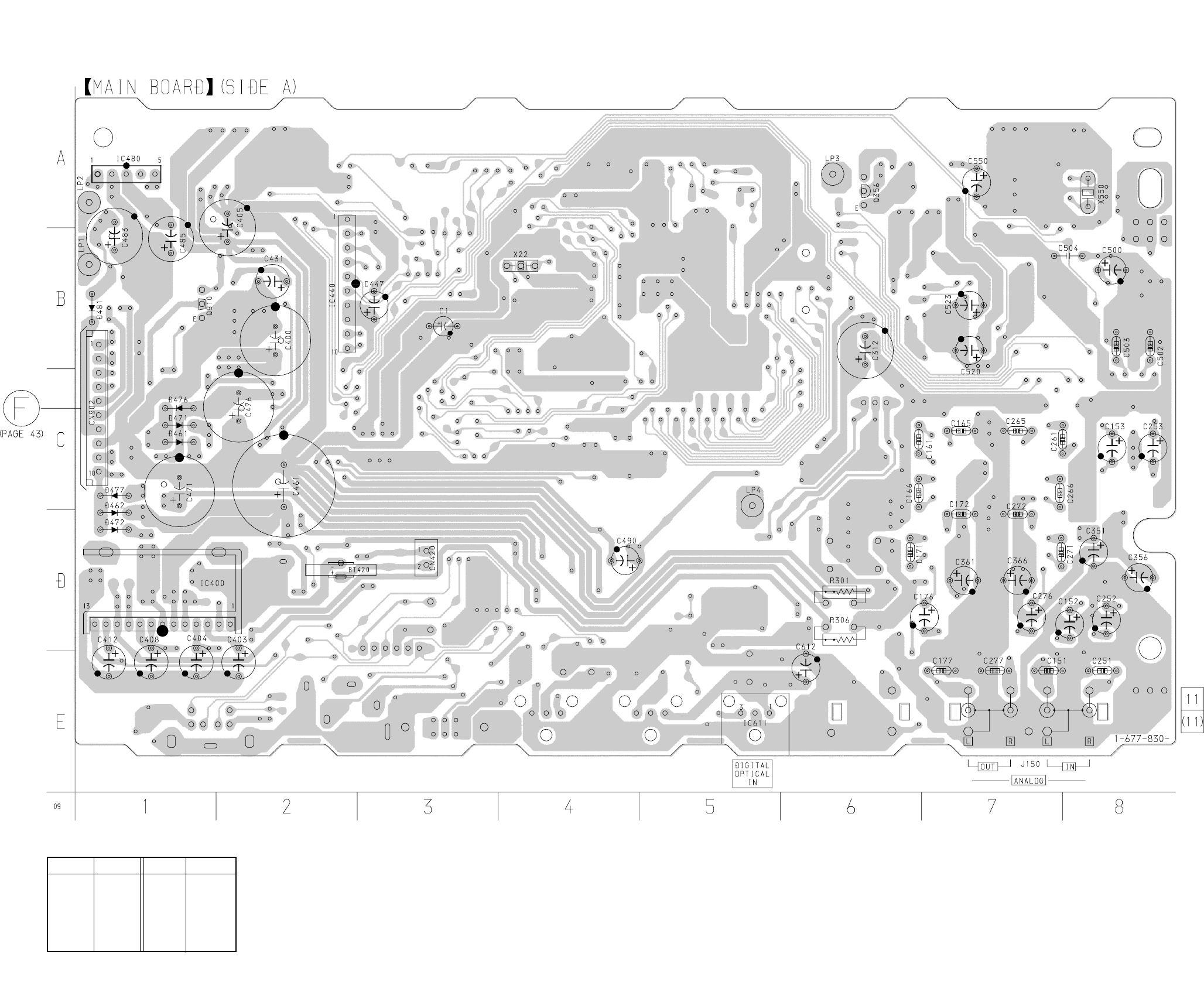

6-6. Printed Wiring Board – Main Section (Side A) –............... 38

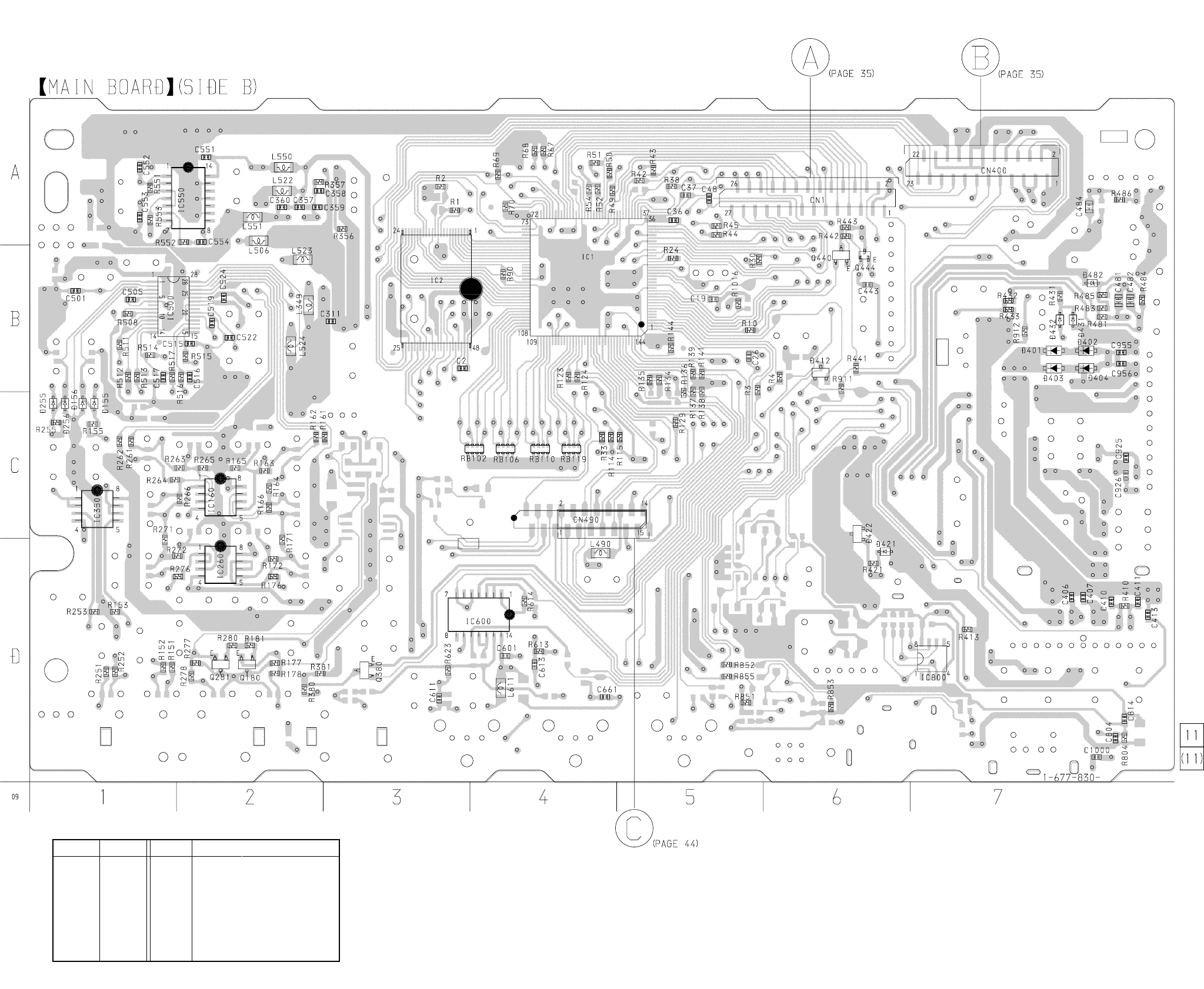

6-7. Printed Wiring Board – Main Section (Side B) –............... 39

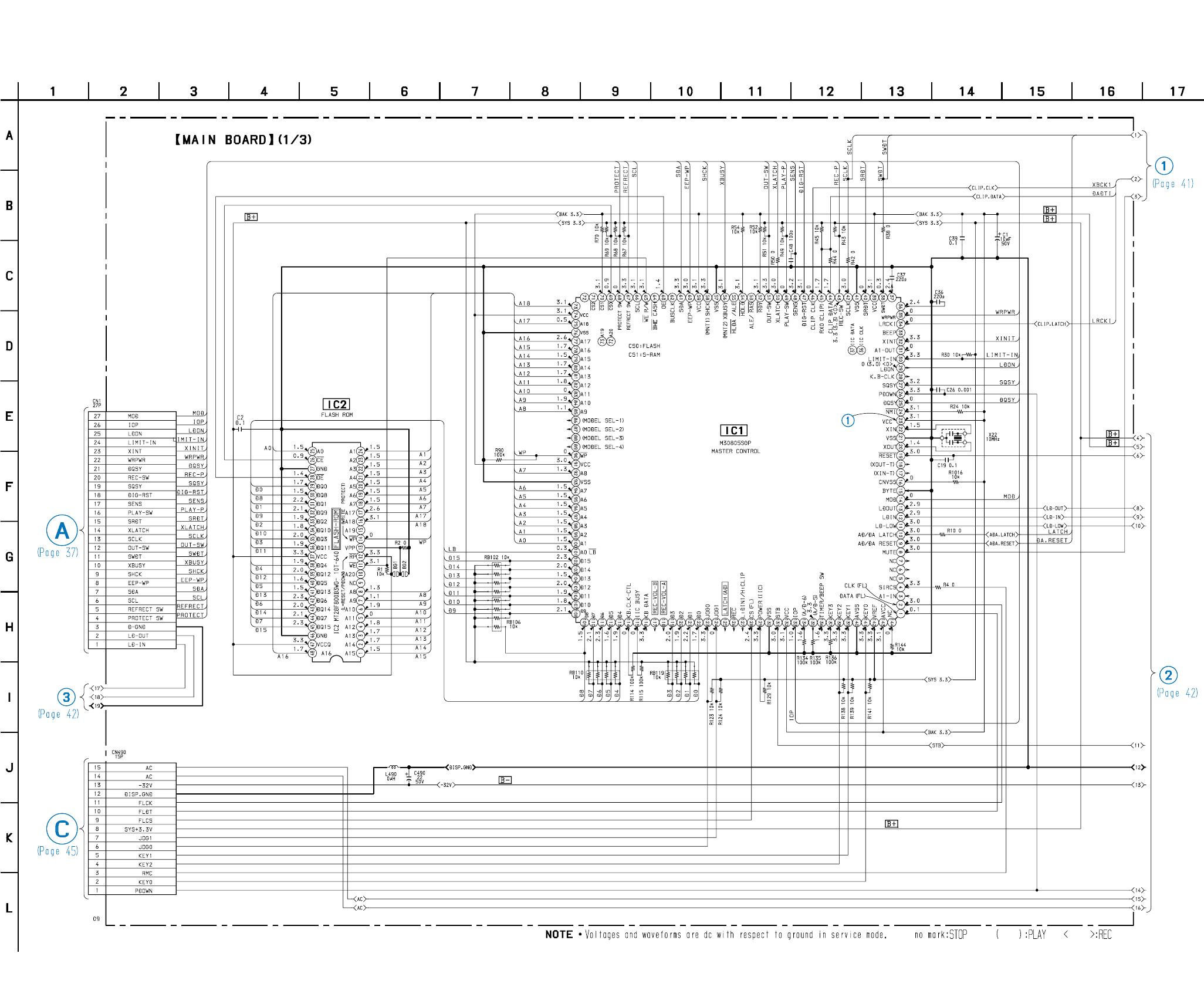

6-8. Schematic Diagram – Main Section (1/3) –........................ 40

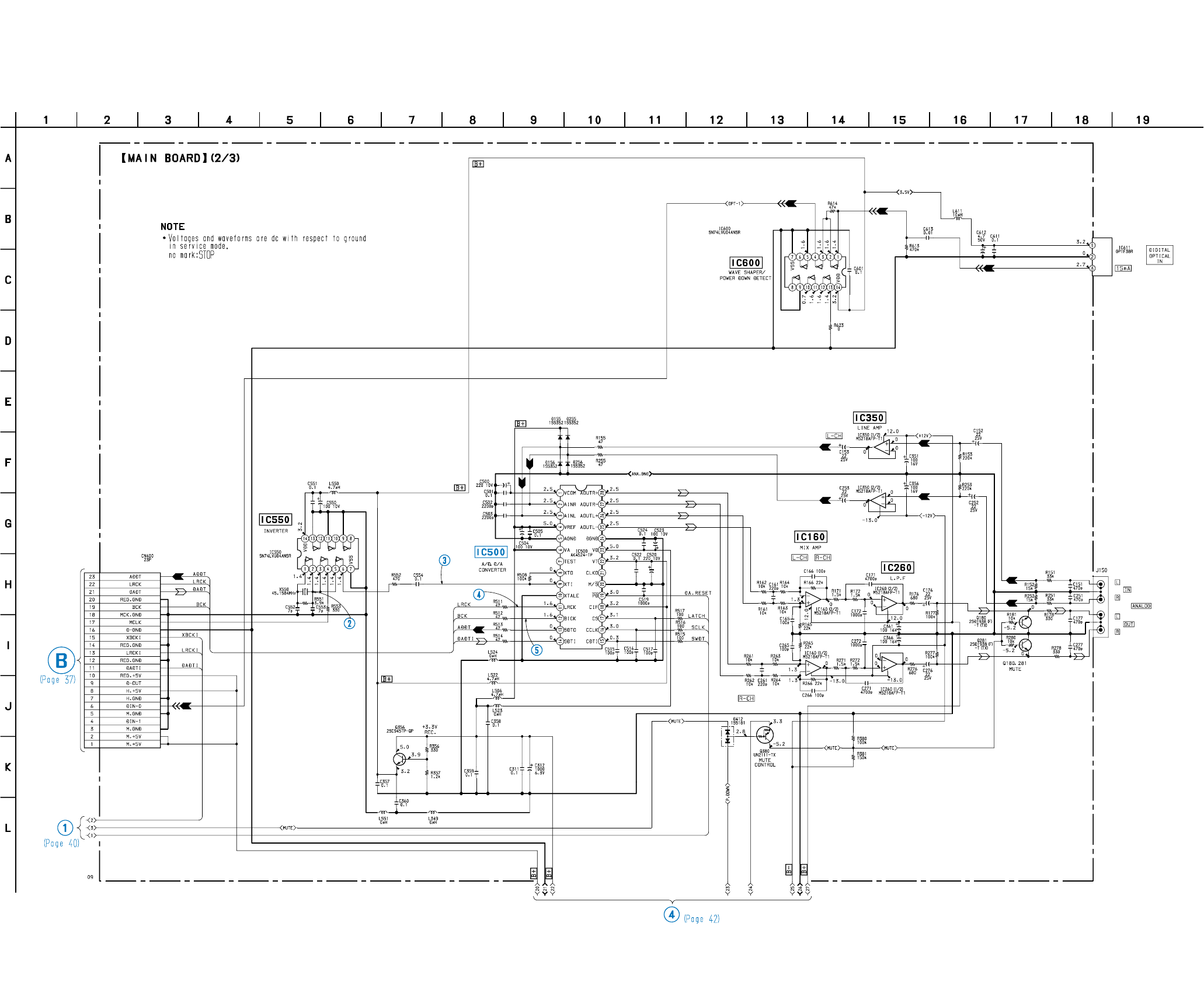

6-9. Schematic Diagram – Main Section (2/3) –........................ 41

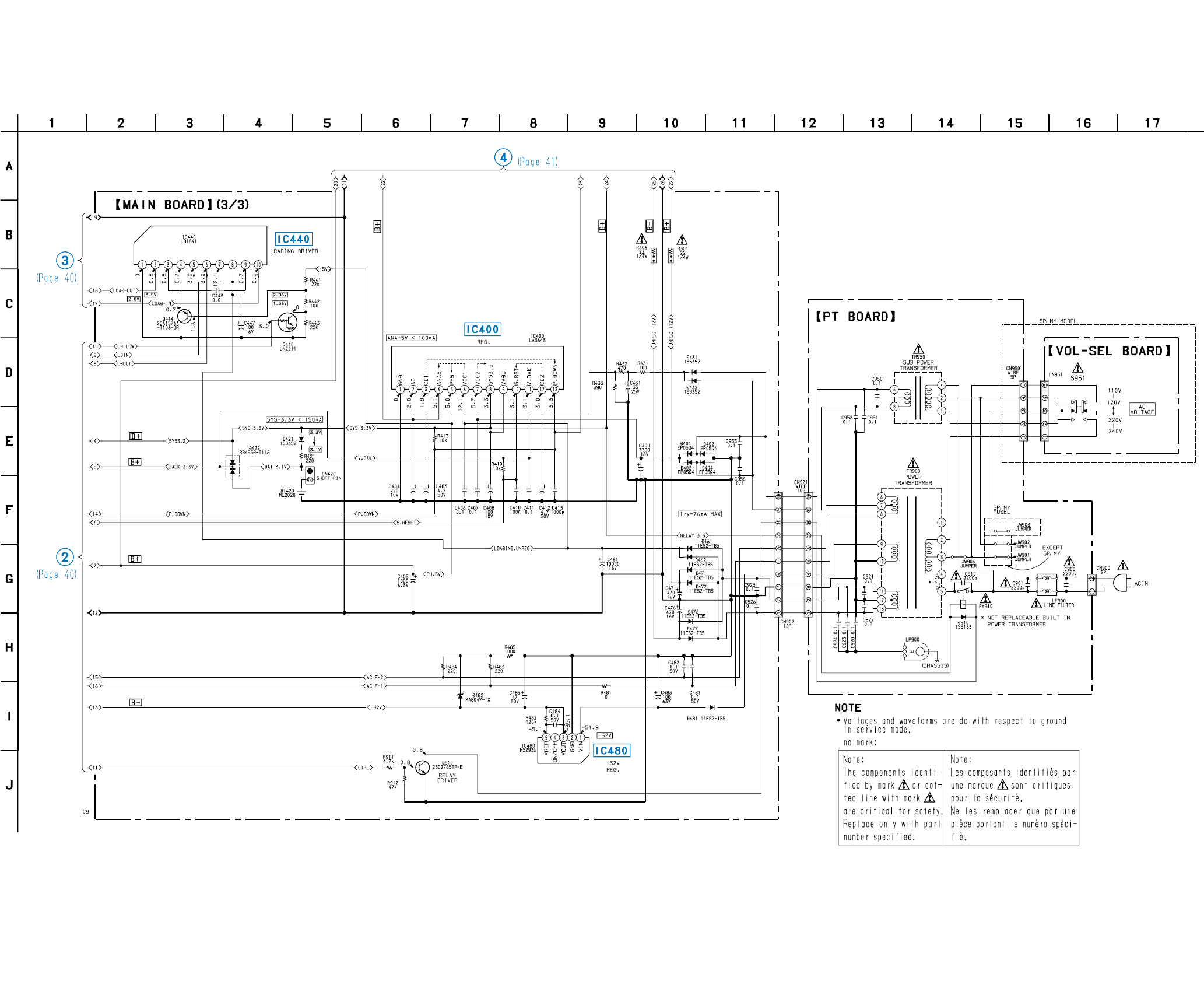

6-10. Schematic Diagram – Main Section (1/3) –..................... 42

6-11. Printed Wiring Board – Power Section –......................... 43

6-12. Printed Wiring Board – Display Section –....................... 44

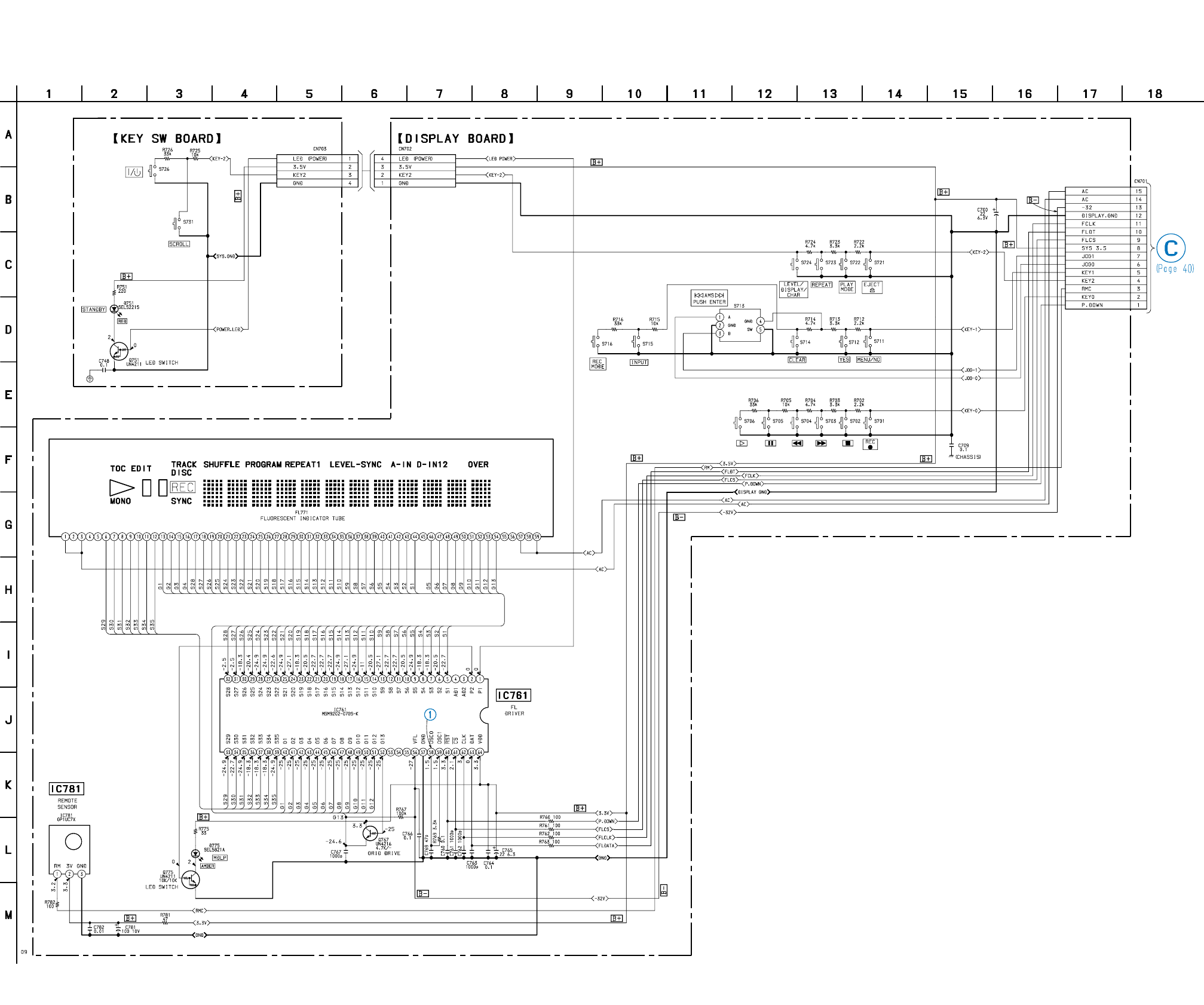

6-13. Schematic Diagram – Display Section –.......................... 45

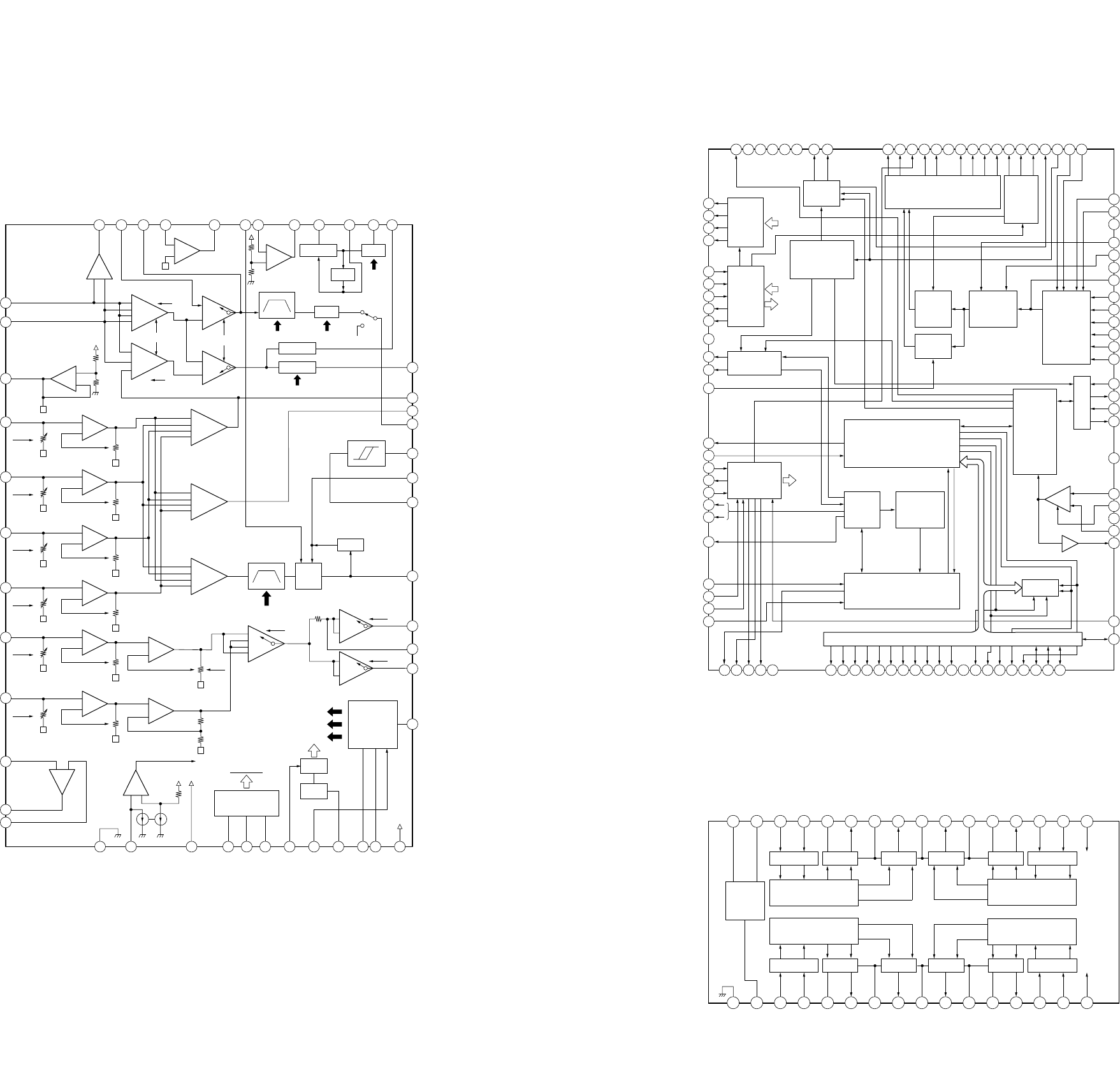

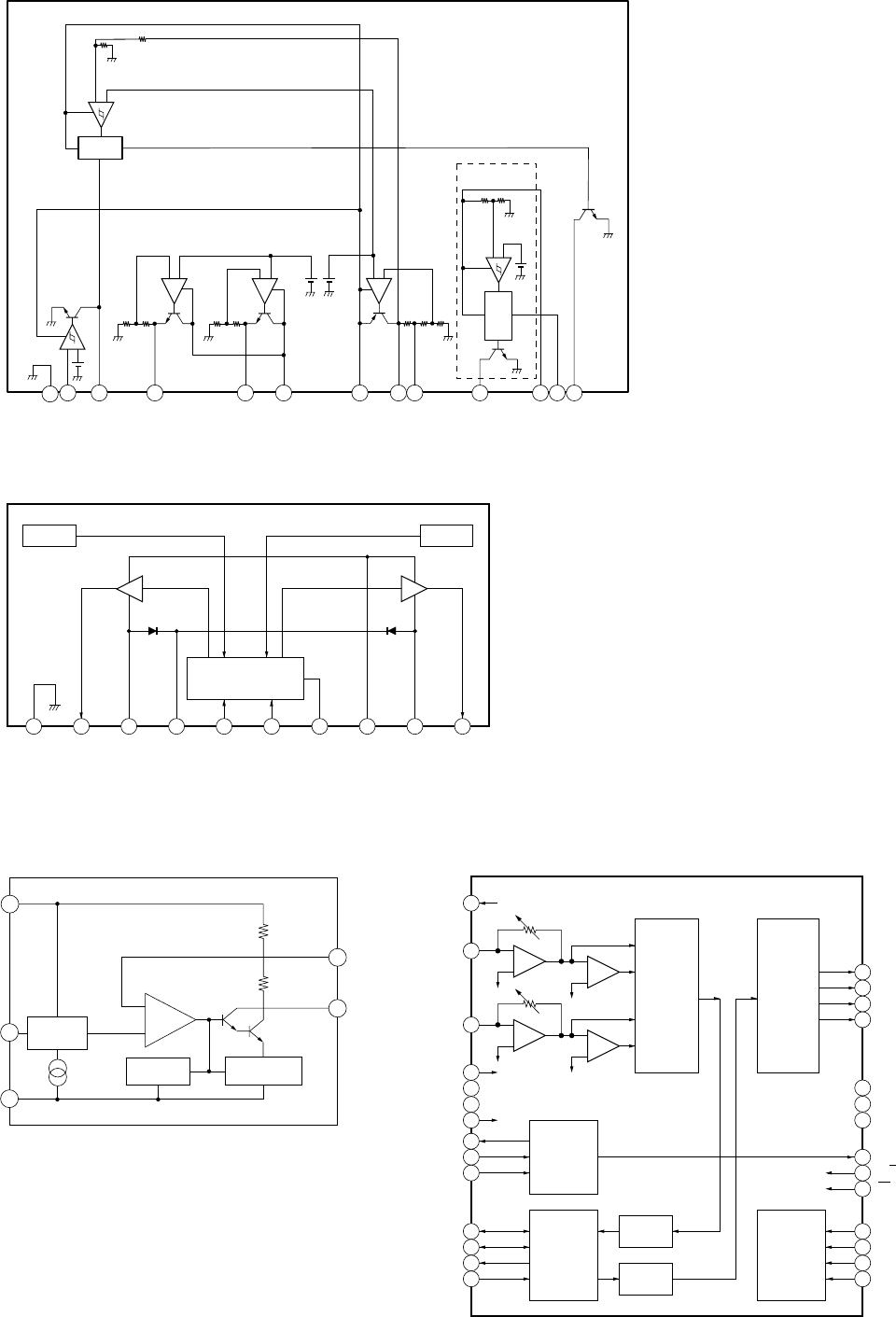

6-14. IC Block Diagrams ........................................................... 46

6-15. IC Pin Functions ............................................................... 48

7. EXPLODED VIEWS

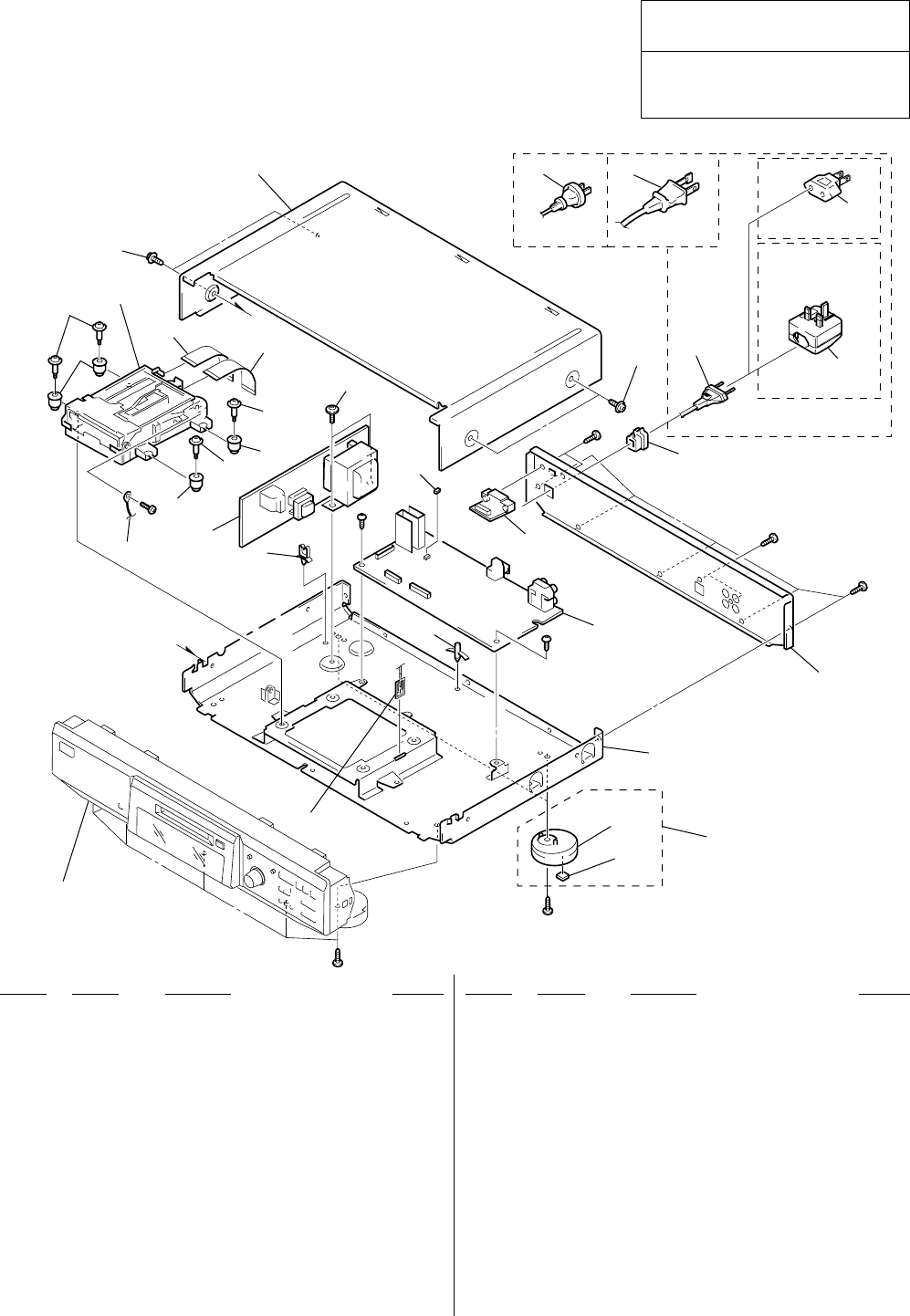

7-1. Chassis Section ................................................................... 54

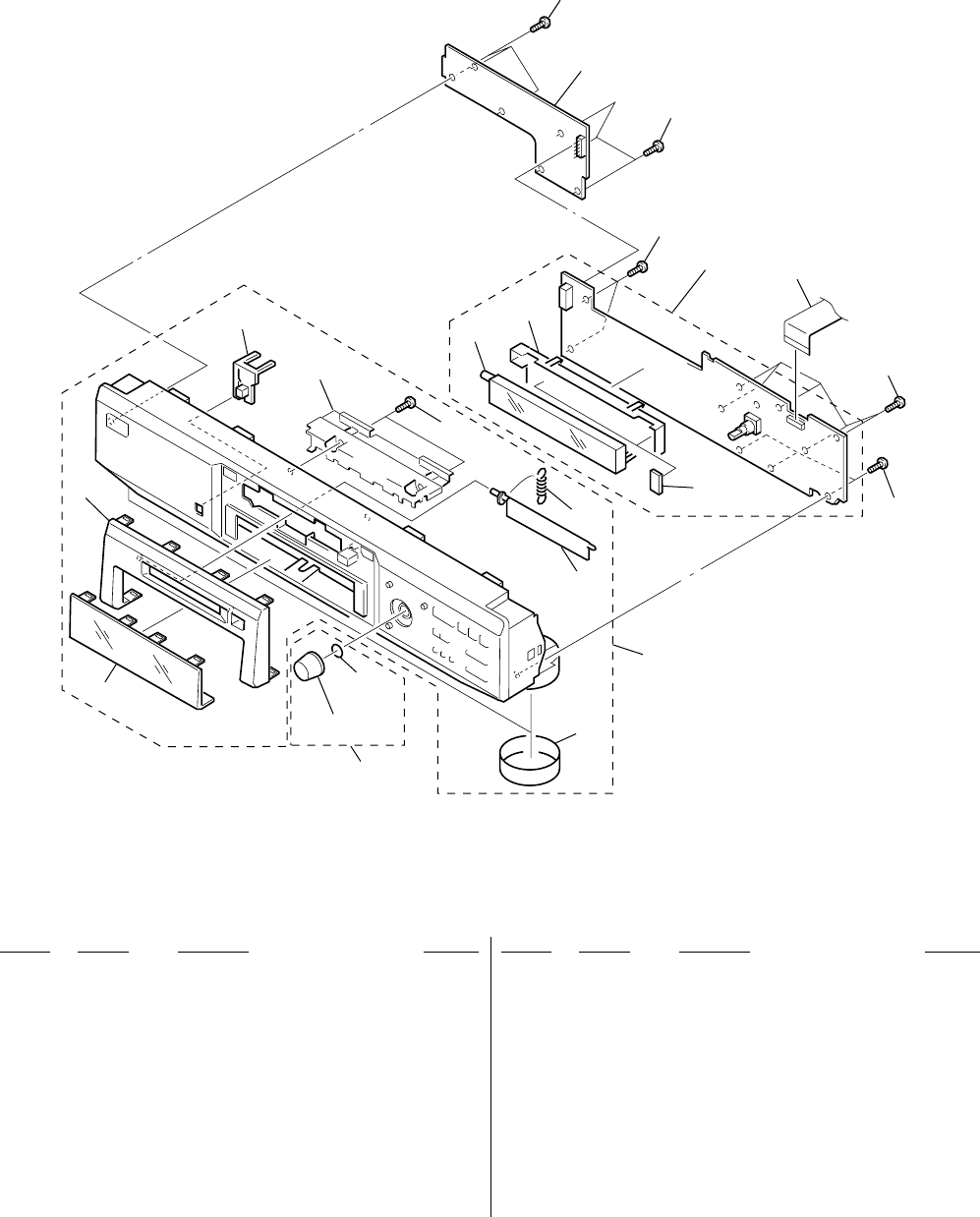

7-2. Front Panel Section ............................................................. 55

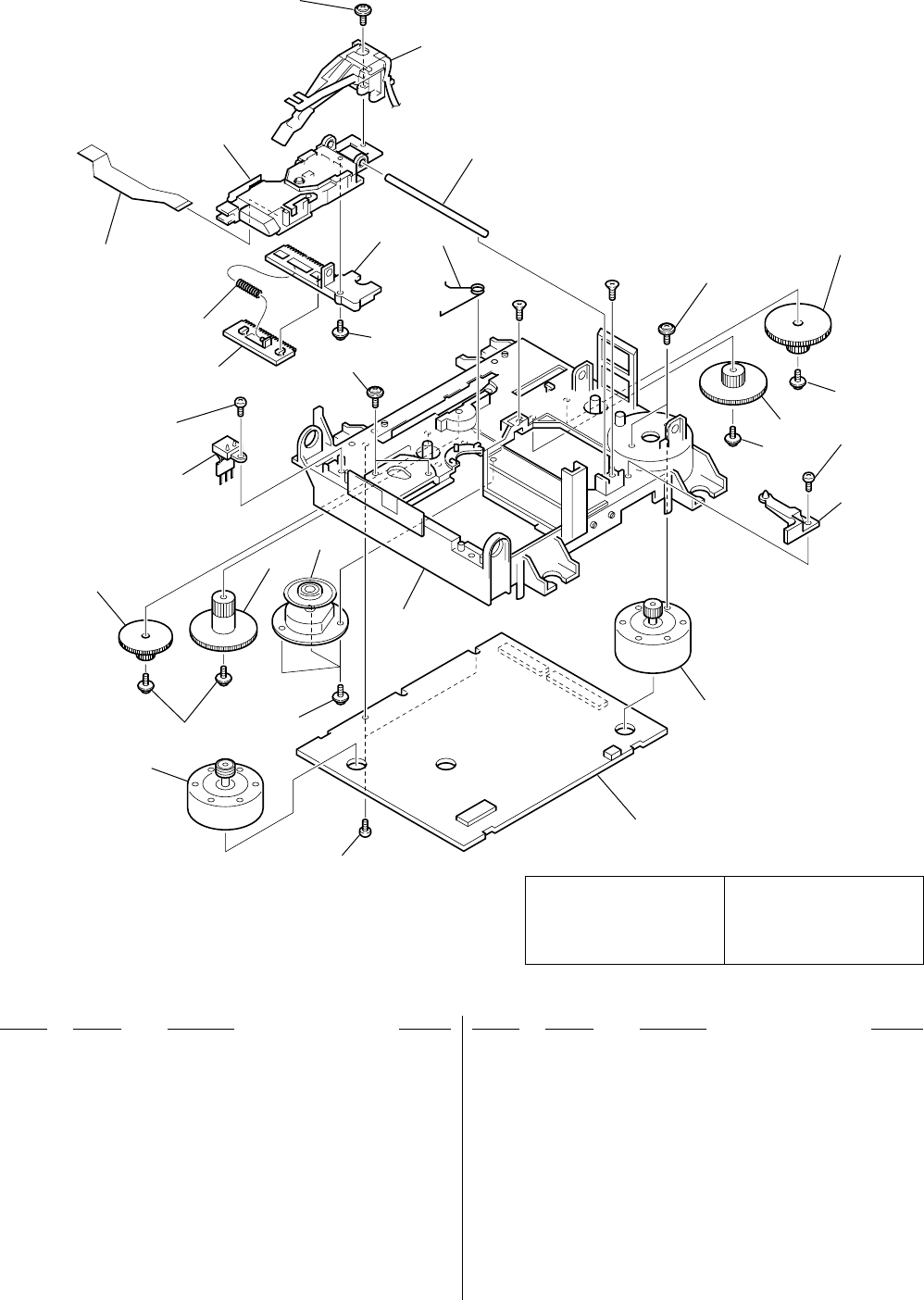

7-3. Mechanism Section-1 (MDM-7A) ...................................... 56

7-4. Mechanism Section-2 (MDM-7A) ...................................... 57

8. ELECTRICAL PARTS LIST ........................................ 58

Table of Error Codes

Error Code

10

12

20

21

22

23

24

30

31

40

41

42

43

50

51

Could not load

Loading switches combined incorrectly

Timed out without reading the top of PTOC

Could read top of PTOC, but detected error

Timed out without accessing UTOC

Timed out without reading UTOC

Error in UTOC

Could not start playback

Error in sector

Retry cause generated during normal recording

Retried in DRAM overflow

Retry occurred during TOC writing

Retry aborted during S.F editing

Other than access processing, and could not read address.

Focus NG occurred and overran.

MODEL IDENTIFICATION

— BACK PANEL —

Part No.

• Abbreviation

CND : Canadian model

SP : Singapore model

MY : Malaysia model

HK : Hong Kong model

AUS : Australian model

MODEL

AEP, UK, CIS models

US model

CND model

SP, MY models

HK model

AUS model

PARTS No.

4-228-639-0s

4-228-639-1s

4-228-639-2s

4-228-639-3s

4-228-639-4s

4-228-639-5s

5

SECTION 1

SERVICE NOTES

This appliance is classified as a

CLASS 1 LASER product. The

CLASS 1 LASER PRODUCT

MARKING is located on the

rear exterior.

Laser component in this product is capable

of emitting radiation exceeding the limit for

Class 1.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous radia-

tion exposure.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270˚C

during repairing.

• Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering

or unsoldering.

NOTES ON HANDLING THE OPTICAL PICK-UP

BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic

break-down because of the potential difference generated by the

charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic break-down and also

use the procedure in the printed matter which is included in the

repair parts.

The flexible board is easily damaged and should be handled with

care.

NOTES ON LASER DIODE EMISSION CHECK

Never look into the laser diode emission from right above when

checking it for adjustment. It is feared that you will lose your sight.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH

MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS

LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!

LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES

DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT

CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE

REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY

DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU

DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

This caution

label is located

inside the unit.

SAFETY CHECK-OUT

(US model only)

After correcting the original service problem, perform the fol-

lowing safety checks before releasing the set to the customer:

Check the antenna terminals, metal trim, “metallized” knobs, screws,

and all other exposed metal parts for AC leakage. Check leakage as

described below.

LEAKAGE

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microampers). Leak-

age current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA

WT-540A. Follow the manufacturers’ instructions to use these

instruments.

2. A battery-operated AC milliammeter. The Data Precision 245

digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM

or battery-operated AC voltmeter. The “limit” indication is 0.75

V, so analog meters must have an accurate low-voltage scale.

The Simpson 250 and Sanwa SH-63Trd are examples of a pas-

sive VOM that is suitable. Nearly all battery operated digital

multimeters that have a 2V AC range are suitable. (See Fig. A)

Fig. A. Using an AC voltmeter to check AC leakage.

0.15µF

To Exposed Metal

Parts on Set

1.5kΩ

AC

voltmeter

(0.75V)

Earth Ground

6

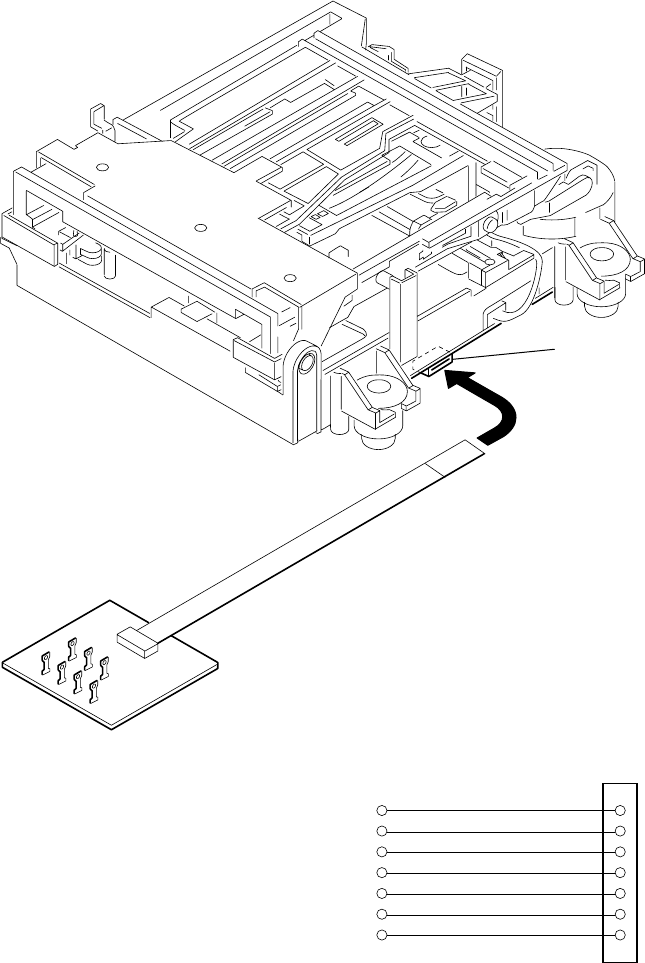

JIG FOR CHECKING BD BOARD WAVEFORM

The special jig (J-2501-196-A) is useful for checking the waveform of the BD board. The names of terminals and the checking items to be

performed are shown as follows.

GND : Ground

I+3V : For measuring IOP (Check the deterioration of the optical pick-up laser)

IOP : For measuring IOP (Check the deterioration of the optical pick-up laser)

TE : TRK error signal (Traverse adjustment)

VC : Reference level for checking the signal

RF : RF signal (Check jitter)

FE : Focus error signal

I+3V

Iop

GND

TE

FE

VC

RF

I+3V

IOP

GND

TE

FE

VC

RF

1

7

for

MDM-7A

I+3V

CN105

IOP

TE

VC

GND

FE RF

7

Iop DATA RECORDING AND DISPLAY WHEN OPTICAL PICK-UP AND NON-VOLATILE MEMORY (IC195 OF

BD BOARD) ARE REPLACED

The Iop value labeled on the optical pick-up can be recorded in the non-volatile memory. By recording the value, it will eliminate the need to

look at the value on the label of the optical pick-up. When replacing the optical pick-up or non-volatile memory (IC195 of BD board), record

the Iop value on the optical pick-up according to the following procedure.

Record Precedure:

1. While pressing the l AMS L knob and x button, connect the power plug to the outlet, and release the l AMS L knob and

x button.

2. Rotate the l AMS L knob to display “[Service]”, and press the YES button.

3. Rotate the l AMS L knob to display “Iop Write” (C05), and press the YES button.

4. The display becomes “Ref=@@@.@” (@ is an arbitrary number) and the numbers which can be changed will blink.

5. Input the Iop value written on the optical pick-up.

To select the number : Rotate the l AMS L knob.

To select the digit : Press the l AMS L knob.

6. When the YES button is pressed, the display becomes “Measu=@@@.@” (@ is an arbitrary number).

7. As the adjustment results are recorded for the 6 value. Leave it as it is and press the YES button.

8. “Complete!” will be displayed momentarily. The value will be recorded in the non-volatile memory and the display will become “Iop

Write”.

9. Press the REPEAT button to complete.

Display Precedure:

1. While pressing the l AMS L knob and x button, connect the power plug to the outlet, and release the l AMS L knob and

x button.

2. Rotate the l AMS L knob to display “[Service]”, and press the YES button.

3. Rotate the l AMS L knob to display “Iop Read” (C26).

4. “@@.@/##.#” is displayed and the recorded contents are displayed.

@@.@ : indicates the Iop value labeled on the optical pick-up.

##.# : indicates the Iop value after adjustment

5. To end, press the l AMS L button or MENU/NO button to display “Iop Read”. Then press the REPEAT button.

8

CHECKS PRIOR TO PARTS REPLACEMENT AND ADJUSTMENTS

Before performing repairs, perform the following checks to determine the faulty locations up to a certain extent.

Details of the procedures are described in “5 Electrical Adjustments”.

• 5-6-2. Laser power check (see page 23)

• 5-6-3. Iop Compare (see page 23)

• 5-6-4. Auto Check (see page 24)

Note:

The criteria for determination above is intended merely to determine if satisfactory or not, and does not serve as the specified value for

adjustments.

When performing adjustments, use the specified values for adjustments.

FORCED RESET

The system microprocessor can be reset in the following procedure.

Use these procedure when the unit cannot be operated normally due to the overrunning of the microprocessor, etc.

Procedure :

Remove the short-pin attached to CN420, and then attach it again.

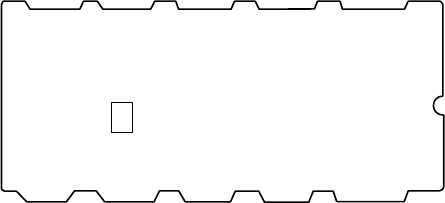

[MAIN BOARD] (Component Side)

CN420

9

Fig. 2 Reading the Test Mode Display

(During playback)

@@####**$$

Fluorescent display tube display

@@ : Parts No. (name of area named on TOC)

## : Cluster

** : Sector

$$ : Track mode (Track information such as copyright infor-

mation of each part)

RETRY CAUSE DISPLAY MODE

• In this test mode, the causes for retry of the unit during recording can be displayed on the fluorescent indicator tube. During playback, the

“track mode” for obtaining track information will be set.

This is useful for locating the faulty part of the unit.

• The following will be displayed :

During recording and stop : Retry cause, number of retries, and number of retry errors.

During playback : Information such as type of disc played, part played, copyright.

These are displayed in hexadecimal.

Procedure:

1. Procedure 1: Press the x button continuously for about 10 seconds.

Procedure 2: Press the LEVEL/DISPLAY/CHAR button while pressing the x button and MENU/NO button.

2. When the mode is set, “RTs 00c 00e 000” is displayed.

3. Press the z REC button to start recording. Then press the X button and start recording.

4. To check the “track mode”, press the H button to start play.

5. To exit the test mode, press the @/1 button, and turn OFF the power. When “TOC” disappears, disconnect the power plug from the outlet.

If the test mode cannot be exited, refer to “Forced Reset” on page 8.

Fig. 1 Reading the Test Mode Display

(During recording and stop)

RTs@@c##c***

Fluorescent display tube display

} Address (Physical address on disc)

Hexadecimal

Bit

Binary

Higher Bits Lower Bits

84218421

b7 b6 b5 b4 b3 b2 b1 b0

00000001

00000010

00000100

00001000

00010000

00100000

01000000

10000000

When track jump (shock) is detected

When ADER was counted more than five times continu-

ously

When ADIP address is not continuous

When DIN unlock is detected

When not in focus

When ABCD signal level exceeds the specified range

When CLV is unlocked

When access operation is not performed normally

Hexa-

decimal

shock

ader5

Discontinuous address

DIN unlock

FCS incorrect

IVR rec error

CLV unlock

Access fault

Cause of Retry Occurring conditions

01

02

04

08

10

20

40

80

@@ : Cause of retry

## : Number of retries

*** : Number of retry errors

Reading the Display:

Convert the hexadecimal display into binary display. If more than two causes, they will be added.

Example

When 42 is displayed:

Higher bit : 4 = 0100 t b6

Lower bit : 2 = 0010 t b1

In this case, the retry cause is combined of “CLV unlock” and “ader5”.

When A2 is displayed:

Higher bit : A = 1010 t b7+b5

Lower bit : 2 = 0010 t b2

The retry cause in this case is combined of “access fault”, “IVR rec error”, and “ader5”.

Reading the Retry Cause Display

10

Hexadecimal

Bit

Binary

Higher Bits Lower Bits

84218421

b7 b6 b5 b4 b3 b2 b1 b0

00000001

00000010

00000100

00001000

00010000

00100000

01000000

10000000

Hexa-

decimal

Details

01

02

04

08

10

20

40

80

Emphasis OFF

Monaural

This is 2-bit display. Normally 01.

01:Normal audio. Others:Invalid

Audio (Normal)

Original

Copyright

Write prohibited

When 0 When 1

Emphasis ON

Stereo

Invalid

Digital copy

No copyright

Write allowed

Reading the Display:

Convert the hexadecimal display into binary display. If more than two causes, they will be added.

Example When 84 is displayed:

Higher bit : 8 = 1000 t b7

Lower bit : 4 = 0100 t b2

In this case, as b2 and b7 are 1 and others are 0, it can be determined that the retry cause is combined of “emphasis OFF”, “monaural”,

“original”, “copyright exists”, and “write allowed”.

Example When 07 is displayed:

Higher bit : 0 = 1000 t All 0

Lower bit : 7 = 0111 t b0+b1+b2

In this case, as b0, b1, and b2 are 1 and others are 0, it can be determined that the retry cause is combined of “emphasis ON”, “stereo”,

“original”, “copyright exists”, and “write prohibited”.

Hexadecimal

t

Binary Conversion Table

Hexadecimal Binary Hexadecimal Binary

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111

Reading the Track Mode Display

11

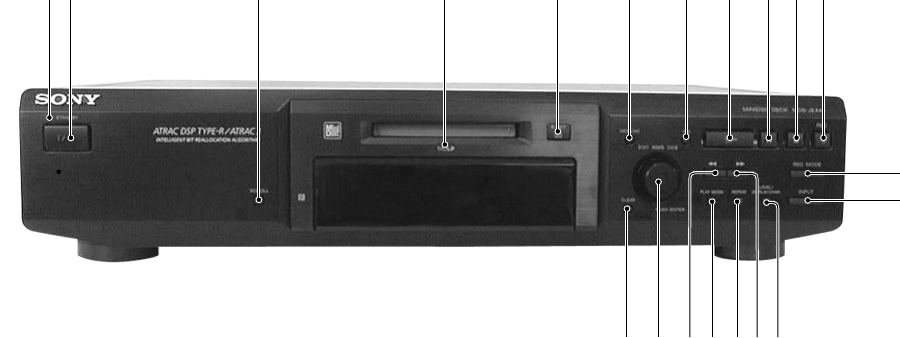

SECTION 2

GENERAL

1STANDBY indicator

2@/1 (power) button

3SCROLL button

4MDLP indicator

5A EJECT button

6MENU/NO button

7YES button

8H button

9S button

q; s button

qa z REC button

qs REC MODE button

qd INPUT button

qf LEVEL/DISPLAY/CHAR button

qg J button

qh REPEAT button

qj PLAY MODE button

qk j button

ql l AMS L /PUSH ENTER button

w; CLEAR button

12 3 4 5 6 7 8 9 0 qa

q

l

w

;

q

f

q

g

q

h

q

j

qs

qd

q

k

12

SECTION 3

DISASSEMBLY

3-1. UPPER CASE (408226)

3-2. FRONT PANEL SECTION

Note : Follow the disassembly procedure in the numerical order given.

1two screws

(CASE 3 TP2)

2 case (408226)

1two screws

(CASE 3 TP2

)

1wire (flat type) (17core

)

(CN490)

2five screws

(BVTP3 × 8)

3claw

4front panel section

3claw

13

3-3. MAIN BOARD

3-4. PT BOARD, VOL-SEL BOARD

4 two screws

(BVTP3 × 8)

6screw

(BVTP3 × 8)

5screw

(BVTP3 × 8)

3connector

(CN902) 2wire (flat type) (23core)

(CN400) 1wire (flat type) (27core)

(CN1)

7MAIN board

1connector

(CN900)

2connector

(CN951)

3two screws

(PTTWH (M3))

5two screws (BVTP3 × 8)

4PT board

6VOL-SEL board

(MY, SP model)

(MY, SP model)

14

3-5. MECHANISM DECK SECTION (MDM-7A)

3-6. BD BOARD

2four step screws

(BVTTWH M3)

1harness

4mechanism deck

3

M102

M101

M103

S102

2Remove the solder

(Two portion)

2Remove the solder

(Two portion)

2Remove the solder

(Two portion)

2Remove the solder

(Three portion)

1connector

(CN104)

5connector

(CN101)

3two screws

(BTP 2 × 6) 4BD board

15

Function name

MENU/NO button

YES button

AMS Left or Right

knob Push

Function

Cancel or move to top hierarchy

Set

Select

Set submenu

SECTION 4

TEST MODE

4-1. PRECAUTIONS FOR USE OF TEST MODE

• As loading related operations will be performed regardless of the test mode operations being performed, be sure to check that the disc

is stopped before setting and removing it.

Even if the A EJECT button is pressed while the disc is rotating during continuous playback, continuous recording, etc., the disc will

not stop rotating.

Therefore, it will be ejected while rotating.

Be sure to press the A EJECT button after pressing the MENU/NO button and the rotation of disc is stopped.

4-1-1. Recording laser emission mode and operating buttons

• Continuous recording mode (CREC 1MODE)

• Laser power check mode (LDPWR CHECK)

• Laser power adjustment mode (LDPWR ADJUS)

• Iop check (Iop Compare)

• Iop value nonvolatile writing (Iop NV Save)

• Traverse (MO) check (EF MO CHECK)

• Traverse (MO) adjustment (EF MO ADJUS)

• When pressing the z REC button.

4-2. SETTING THE TEST MODE

The following are two methods of entering the test mode.

Procedure 1: While pressing the AMS knob and x button, connect the power plug to an outlet, and release the AMS knob and x button.

When the test mode is set, “[Check]” will be displayed. Rotating the AMS knob switches between the following three groups;

··· y Check y Service y Develop y ···.

Procedure 2: While pressing the AMS knob, connect the power plug to the outlet and release the AMS knob.

When the test mode is set, “TEMP CHECK” will be displayed. By setting the test mode using this method, only the “Check”

group of method 1 can be executed.

NOTE: Do not use the test mode in the [Develop] group.

If used, the unit may not operate normally.

If the [Develop] group is set accidentally, press the MENU/NO button immediately to exit the [Develop] group.

4-3. EXITING THE TEST MODE

Press the REPEAT button. The disc is ejected when loaded, and “Standby” display blinks, and the STANDBY state is set.

4-4. BASIC OPERATIONS OF THE TEST MODE

All operations are performed using the AMS knob, YES button, and MENU/NO button.

The functions of these buttons are as follows.

16

Display

AUTO CHECK

Err Display

TEMP ADJUS

LDPWR ADJUS

Iop Write

Iop NV Save

EF MO ADJUS

EF CD ADJUS

FBIAS ADJUS

AG Set (MO)

AG Set (CD)

TEMP CHECK

LDPWR CHECK

EF MO CHECK

EF CD CHECK

FBIAS CHECK

ScurveCHECK

VERIFYMODE

DETRK CHECK

0920 CHECK

Iop Read

Iop Compare

ADJ CLEAR

INFORMATION

CPLAY1MODE

CREC 1MODE

Details

Automatic self-diagnosis

Error history display, clear

Temperature compensation offset adjustment

Laser power adjustment

Iop data writing

Writes current Iop value in read nonvolatile memory using microprocessor

Traverse (MO) adjustment

Traverse (CD) adjustment

Focus bias adjustment

Focus, tracking gain adjustment (MO)

Focus, tracking gain adjustment (CD)

Temperature compensation offset check

Laser power check

Traverse (MO) check

Traverse (CD) check

Focus bias check

S-curve check

Nonvolatile memory check

Detrack check

Most circumference check

Iop data display

Comparison with initial Iop value written in nonvolatile memory

Initialization of nonvolatile memory for adjustment values

Display of microprocessor version, etc.

Continuous playback mode

Continuous recording mode

4-5. SELECTING THE TEST MODE

There are 25 types of test modes as shown below. The groups can be switched by rotating the AMS knob. After selecting the group to be

used, press the YES button. After setting a certain group, rotating the AMS knob switches between these modes.

Refer to “Group” in the table for details selected.

All adjustments and checks during servicing can be performed in the test mode in the Service group.

• For details of each adjustment mode, refer to “5. Electrical Adjustments”.

For details of “Err Display”, refer to “Self-Diagnosis Function” on page 2.

• If a different mode has been selected by mistake, press the MENU/NO button to exit that mode.

• Modes with (X) in the Mark column are not used for servicing and therefore are not described in detail. If these modes are set acciden-

tally, press the MENU/NO button to exit the mode immediately.

No.

C01

C02

C03

C04

C05

C06

C07

C08

C09

C10

C11

C12

C13

C14

C15

C16

C17

C18

C19

C25

C26

C27

C28

C31

C34

C35

Mark Group

Check Service

NOTE: Do not use the test mode in the [Develop] group.

If used, the unit may not operate normally.

If the [Develop] group is set accidentally, press the MENU/NO button immediately to exit the [Develop] group.

17

4-5-1. Operating the Continuous Playback Mode

1. Entering the continuous playback mode

1Set the disc in the unit. (Whichever recordable discs or discs for playback only are available.)

2Rotate the AMS knob and display “CPLAY1 MODE”(C34).

3Press the YES button to change the display to “CPLAY1 MID”.

4When access completes, the display changes to “C = AD = ”.

Note : The numbers “ ” displayed show you error rates and ADER.

2. Changing the parts to be played back

1Press the YES button during continuous playback to change the display as below.

When pressed another time, the parts to be played back can be moved.

2When access completes, the display changes to “C = AD = ”.

Note : The numbers “ ” displayed show you error rates and ADER.

3. Ending the continuous playback mode

1Press the MENU/NO button. The display will change to “CPLAY1 MODE”(C34).

2Press the AEJECT button to remove the disc.

Note : The playback start addresses for IN, MID, and OUT are as follows.

IN 40h cluster

MID 300h cluster

OUT 700h cluster

4-5-2. Operating the Continuous Recording Mode (Use only when performing self-recording/palyback check.)

1. Entering the continuous recording mode

1Set a recordable disc in the unit.

2Rotate the AMS knob and display “CREC1 MODE” (C35).

3Press the YES button to change the display to “CREC1 MID”.

4When access completes, the display changes to “CREC1 ( )” and REC lights up.

Note : The numbers “ ” displayed shows you the recording position addresses.

2. Changing the parts to be recorded

1When the YES button is pressed during continuous recording, the display changes as below.

When pressed another time, the parts to be recorded can be changed. REC goes off.

2When access completes, the display changes to “CREC1 ( )” and REC lights up.

Note : The numbers “ ” displayed shows you the recording position addresses.

3. Ending the continuous recording mode

1Press the MENU/NO button. The display changes to “CREC1 MODE” (C35) and REC goes off.

2Press the A button to remove the disc.

Note 1 : The recording start addresses for IN, MID, and OUT are as follows.

IN 40h cluster

MID 300h cluster

OUT 700h cluster

Note 2 : The MENU/NO button can be used to stop recording anytime.

Note 3 : Do not perform continuous recording for long periods of time above 5 minutes.

Note 4 : During continuous recording, be careful not to apply vibration.

“CPLAY1 MID” t “CPLAY1 OUT” t “CPLAY1 IN”

“CREC1 MID” t “CREC1 OUT” t “CREC1 IN”

18

Function

G

x

M

m

REC MODE

PLAY MODE

LEVEL/DISPLAY/CHAR

A

REPEAT

Contents

Sets continuous playback when pressed in the STOP state. When pressed during continuous

playback, the tracking servo turns ON/OFF.

Stops continuous playback and continuous recording.

The sled moves to the outer circumference only when this is pressed.

The sled moves to the inner circumference only when this is pressed.

Switches between the pit and groove modes when pressed.

Switches the spindle servo mode (CLV S y CLV A).

Switches the displayed contents each time the button is pressed.

Ejects the disc.

Exits the test mode.

4-6. FUNCTIONS OF OTHER BUTTONS

4-7. TEST MODE DISPLAYS

Each time the LEVEL/DISPLAY/CHAR button is pressed, the display changes in the following order.

When CPLAY and CREC are started, the display will forcibly be switched to the error rate display as the initial mode.

1. Mode display

Displays “TEMP ADJUST”, “CPLAY1MODE”, etc.

2. Error rate display

Displays the error rate in the following way.

C1 = AD =

C1 = Indicates the C1 error.

AD = Indicates ADER.

3. Address display

The address is displayed as follows. (MO:recordable disc, CD:playback only disc)

If the LEVEL/DISPLAY/CHAR button is pressed after pressing the

PROGRAM button, the display switches from groove to pit or vice versa.

h = s = (MO pit and CD)

h = a = (MO groove)

h = Indicates the header address.

s = Indicates the SUBQ address.

a = Indicates the ADIP address.

Note: “–” is displayed when the address cannnot be read.

Mode display

Error rate display

Address display

Auto gain display (Not used in servicing)

Detrack check display (Not used in servicing)

IVR display (Not used in servicing)

C1 error and Jitter display

(Not used in servicing)

AD error and Jitter display

(Not used in servicing)

19

Servo OFF

Tracking servo ON

Recording mode OFF

CLV normal mode

Tracking offset cancel OFF

Groove

Low reflection

CLV A

CLV UNLOCK

Contents

When Lit When Off

Display

Servo ON

Tracking servo OFF

Recording mode ON

CLV low speed mode

ABCD adjustment completed

Tracking offset cancel ON

Tracking auto gain OK

Focus auto gain OK

Pit

High reflection

CLV S

CLV LOCK

4-8. MEANINGS OF OTHER DISPLAYS

G

X

REC

SYNC

L.SYNC

OVER

B/1

A-/REP

TRACK/(LP) 4/Calendar frame

DISC/LP2

SLEEP/SHUF

MONO

4-9. AUTOMATIC SELF-DIAGNOSIS FUNCTION

This test mode performs CREC and CPLAY automatically for mainly checking the characteristics of the optical pick-up.

To perform this test mode, the laser power must first be checked.

Perform AUTO CHECK after the laser power check and Iop check.

Procedure

1. Press the YES button. If “LDPWR ” is displayed, it means that the laser power check has not been performed. In this case,

perform the laser power check and Iop compare, and then repeat from step 1.

2. If a disc is in the mechanical deck, it will be ejected forcibly.

“DISC IN” will be displayed in this case. Load a test disc (MDW-74/GA-1) which can be recorded.

3. If a disk is loaded at step 2, the check will start automatically.

4. When “XX CHECK” is displayed, the item corresponding to XX will be performed.

When “06 CHECK” completes, the disc loaded at step 2 will be ejected. “DISC IN” will be displayed. Load the check disc (MD) TDYS-1.

5. When the disc is loaded in step 4, the check will automatically be resumed from “07 CHECK”.

6. After completing to test item 12, check OK or NG will be displayed. If all items are OK, “CHECK ALL OK” will be displayed. If any item

is NG, it will be displayed as “NG:xxxx”.

When “CHECK ALL OK” is displayed, it means that the optical pick-up is normal. Check the operations of the other spindle motor, thread

motor, etc.

When displayed as “NG:xxxx”, it means that the optical pick-up is faulty. In this case, replace the optical pick-up.

4-10. INFORMATION

Display the software version.

Procedure

1. If displayed as “INFORMATION”, press the YES button.

2. The software version will be displayed.

3. Press the MENW/NO button to end this mode.

4-11. WHEN MEMORY NG IS DISPLAYED

If the nonvolatile memory data is abnormal, “E001”/”MEMORY NG” will be displayed so that the MD deck does not continue operations.

In this case, set the test mode promptly and perform the following procedure.

Procedure

1. Set the test mode. (Refer to 4-2.)

2. Normally a message for selecting the test mode will be displayed. However if the nonvolatile memory is abnormal, the following will be

displayed. “INIT EEP?”

3. Press the STOP button and EJECT button together.

4. Rotate the AMS knob and select MDM-7A.

5. Press the AMS knob. If the nonvolatile memory is successfully overwritten, the normal test mode will be set and a message to select the

test mode will be displayed.

20

SECTION 5

ELECTRICAL ADJUSTMENTS

5-1. PARTS REPLACEMENT AND ADJUSTMENT

If malfunctions caused by Optical pick-up such as sound skipping are suspected, follow the following check.

Check before replacement

Other faults are suspected.

Check the threading mechanism, etc.

Start

NG

NG

NG

OK

OK

OK

Laser Power Check

5-6-2.

(See page 23)

5-6-3.

(See page 23)

5-6-4.

(See page 24)

Iop Compare

Auto Check Replace Optical pick-up or MDM-7A

21

5-6-4. Auto Check

(See page 24)

Start

YES

NO

NO

NO

NO

NO

NO

NO

NO

YES

YES

YES

YES

YES

YES

YES

Replace IC195

Replace OP or IO195

Replace IC101, IC195, or D101

5-11. Iop NV SAVE (See page 27)

Replace OP, IC190, or IC195

Replace OP, IC102, IC190,

or IC195

Replace OP, IC101, IC151,

or IC195

Replace OP

Replace the spindle motor

End adjustments

After turning off and then on the power,

initialize the EEPROM

For details, refer to 4-11. WHEN MEMORY NG IS

DISPLAYED (See page 19)

• Abbreviation

OP: Optical pick-up

5-7. INITIAL SETTING OF ADJUSTMENT VALUE

(See page 26)

5-9. TEMPERATURE COMPENSATION OFFSET

ADJUSTMENT (See page 26)

5-10. LASER POWER ADJUSTMENT (See page 26)

5-12. TRAVERSE ADJUSTMENT (See page 27)

5-13. FOCUS BIAS ADJUSTMENT (See page 28)

5-16. AUTO GAIN CONTROL OUTPUT LEVEL

ADJUSTMENT (See page 29)

OP change in Err Display mode

Iop write

Spdl change in Err Display mode

Adjustment flow

22

5-7. Initial setting of adjustment values

5-8. Recording of Iop information

5-9. TEMP ADJUST

5-10. Laser power adjustment

5-11. Iop NV Save

5-12. Traverse adjustment

5-13. Focus bias adjustment

5-16. Auto gain adjustment

5-6-4. AUTO CHECK

5-2. PRECAUTIONS FOR CHECKING LASER DIODE

EMISSION

To check the emission of the laser diode during adjustments, never

view directly from the top as this may lose your eye-sight.

5-3. PRECAUTIONS FOR USE OF OPTICAL PICK-

UP (KMS-260B)

As the laser diode in the optical pick-up is easily damaged by static

electricity, solder the laser tap of the flexible board when using it.

Before disconnecting the connector, desolder first. Before connect-

ing the connector, be careful not to remove the solder. Also take

adequate measures to prevent damage by static electricity. Handle

the flexible board with care as it breaks easily.

Optical pick-up flexible board

5-4. PRECAUTIONS FOR ADJUSTMENTS

1) When replacing the following parts, perform the adjustments

and checks with in the order shown in the following table.

2) Set the test mode when performing adjustments.

After completing the adjustments, exit the test mode.

Perform the adjustments and checks in “group S” of the test mode.

3) Perform the adjustments to be needed in the order shown.

4) Use the following tools and measuring devices.

• Check Disc (MD) TDYS-1

(Parts No. 4-963-646-01)

• Test Disk (MDW-74/GA-1) (Parts No. 4-229-747-01)

• Laser power meter LPM-8001 (Parts No. J-2501-046-A)

or

MD Laser power meter 8010S (Parts No. J-2501-145-A)

• Oscilloscope (Measure after performing CAL of prove.)

• Digital voltmeter

• Thermometer

• Jig for checking BD board waveform

(Parts No. : J-2501-196-A)

Optical

Pick-up IC101 IC102 IC151 IC190 IC195 D101

pick-up flexible board

laser tap

5) When observing several signals on the oscilloscope, etc.,

make sure that VC and ground do not connect inside the oscillo-

scope.

(VC and ground will become short-circuited.)

6) Using the above jig enables the waveform to be checked without

the need to solder.

(Refer to Servicing Note on page 6.)

7) As the disc used will affect the adjustment results, make sure

that no dusts nor fingerprints are attached to it.

Parts to be replaced

Adjustment

23

5-6. CHECKS PRIOR TO REPAIRS

These checks are performed before replacing parts according to

“approximate specifications” to determine the faulty locations. For

details, refer to “Checks Prior to Parts Replacement and Adjust-

ments” (See page 8).

5-6-1. Temperature Compensation Offset Check

When performing adjustments, set the internal temperature and room

temperature to 22 to 28ºC.

Checks cannot be performed properly if performed after some time

from power ON due to the rise in the temperature of the IC and

diode, etc. So, perform the checks again after waiting some time.

Checking Procedure:

1. Rotate the AMS knob to display “TEMP CHECK”.

2. Press the YES button.

3. “T=@@(##) [OK]” should be displayed. If “T=@@ (##) [NG]”

is displayed, it means that the results are bad.

(@@ indicates the current value set, and ## indicates the value

written in the non-volatile memory.)

5-6-2. Laser Power Check

Before checking, check the Iop value of the optical pick-up.

(Refer to 5-8. Recording and Displaying Iop Information.)

Connection :

KMS260B

20101

H0576

Iop = 57.6 mA in this case

Iop (mA) = Digital voltmeter reading (mV)/1 (

Ω

)

Checking Procedure:

1. Set the laser power meter on the objective lens of the optical

pick-up. (When it cannot be set properly, press the m button

or M button to move the optical pick-up.)

Connect the digital volt meter to CN105 pin 1 (I+3V) and

CN105 pin 2 (IOP).

2. Then, rotate the AMS knob and display “LDPWR CHECK”.

3. Press the YES button once and display “LD 0.9 mW $ ”.

Check that the reading of the laser power meter become 0.84 to

0.92 mW.

4. Press the YES button once more and display “ LD 7.0 mW $

”. Check that the reading the laser power meter and digital

volt meter satisfy the specified value.

Specified Value :

Laser power meter reading : 7.0 ± 0.2 mW

Digital voltmeter reading : Optical pick-up displayed value ± 10%

(Optical pick-up label)

5. Press the MENU/NO button and display “LDPWR CHECK”

and stop the laser emission.

(The MENU/NO button is effective at all times to stop the laser

emission.)

(For details of the method for checking

this value, refer to “5-8. Recording and

Displaying Iop Information”.)

Note 1: After step 4, each time the YES button is pressed, the

display will be switched between “LD 0.7 mW $ ”,

“LD 6.2 mW $ ”, and “LD Wp $ ”. Nothing

needs to be performed here.

Laser power

meter

Optical pick-up

objective lens

Digital volt mete

r

BD board

CN105 pin 1 (I+3V)

CN105 pin 2 (IOP)

R

5-5. USING THE CONTINUOUSLY RECORDED DISC

* This disc is used in focus bias adjustment and error rate check.

The following describes how to create a continuous recording

disc.

1. Insert a disc (blank disc) commercially available.

2. Rotate the AMS knob and display “CREC1 MODE”.

3. Press the YES button again to display “CREC1 MID”.

Display “CREC (0300)” and start to recording.

4. Complete recording within 5 minutes.

5. Press the MENU/NO button and stop recording .

6. Press the AEJECT button and remove the disc.

The above has been how to create a continuous recorded data for

the focus bias adjustment and error rate check.

Note :

• Be careful not to apply vibration during continuous recording.

5-6-3. Iop Compare

The current Iop value at laser power 7 mw output and reference Iop

value (set at shipment) written in the nonvolatile memory are

compared, and the rate of increase/decrease will be displayed in

percentage.

Note: Perform this function with the optical pick-up set at room

temperature.

Procedure

1. Rotate the AMS knob to display “Iop Compare”.

2. Press the YES button and start measurements.

3. When measurements complete, the display changes to

“±xx%yy”.

xx is the percentage of increase/decrease, and OK or NG is

displayed at yy to indicate whether the percentage of increase/

decrease is within the allowable range.

4. Press the MENU/NO button to end.

24

9. Press the YES button display “EFB = MO-P”.

Then, the optical pick-up moves to the pit area automatically

and servo is imposed.

10. Observe the waveform of the oscilloscope, and check that the

specified value is satisfied. Do not rotate the AMS knob.

(Traverse Waveform)

Checking Procedure:

1. Connect an oscilloscope to CN105 pin 4 (TE) and CN105 pin

6 (VC) of the BD board.

2. Load a test disc (MDW-74/GA-1). (Refer to Note 1.)

3. Press the M button and move the optical pick-up outside the

pit.

4. Rotate the AMS knob and display “EF MO CHECK”.

5. Press the YES button and display “EFB = MO-R”.

(Laser power READ power/Focus servo ON/tracking servo OFF/

spindle (S) servo ON)

V : 0.5 V/div

H : 10 ms/div

Input : DC mod

e

Oscilloscope

BD board

CN105 pin 4 (TE)

CN105 pin 6 (VC)

VC

A

B

Specified value : Below 10% offset value

Offset value (%) = X 100

IA – BI

2 (A + B)

VC

A

B

Specified value : Below 10% offset value

Offset value (%) = X 100

IA – BI

2 (A + B)

5-6-4. Auto Check

This test mode performs C-REC and C-PLAY automatically for

mainly checking the characteristics of the optical pick-up. To

perform this test mode, the laser power must first be checked.

Perform Auto Check after the laser power check and Iop compare.

Procedure

1. Press the YES button. If “LDPWR minicheck” is displayed, it

means that the laser power check has not been performed. In

this case, perform the laser power check and Iop compare, and

then repeat from step 1.

2. If a disc is in the mechanical deck, it will be ejected forcibly.

“DISC IN” will be displayed in this case. Load a test disc (MDW-

74/GA-1) which can be recorded.

3. If a disk is loaded at step 2, the check will start automatically.

4. When “XX CHECK” is displayed, the item corresponding to

XX will be performed.

When “06 CHECK” completes, the disc loaded at step 2 will be

ejected. “DISC IN” will be displayed. Load the check disc (MD)

TDYS-1.

5. When the disc is loaded, the check will automatically be resumed

from “07 CHECK”.

6. After completing to test item 12, check OK or NG will be

displayed. If all items are OK, “CHECK ALL OK” will be

displayed. If any item is NG, it will be displayed as “NG:xxxx”.

When “CHECK ALL OK” is displayed, it means that the optical

pick-up is normal. Check the operations of the other spindle motor,

thread motor, etc.

When displayed as “NG:xxxx”, it means that the optical pick-up is

faulty. In this case, replace the optical pick-up.

5-6-5. Other Checks

All the following checks are performed by the Auto Check mode.

They therefore need not be performed in normal operation.

1. Load a continuously recorded test disc (MDW-74/GA-1).

(Refer to “5-5. Using the Continuously Recorded Disc”.)

5-6-6. Traverse Check

Connection :

VC

A

B

Specified value : Below 10% offset value

Offset value (%) = X 100

IA – BI

2 (A + B)

7. Press the YES button and display “EFB = MO-W”.

8. Observe the waveform of the oscilloscope, and check that the

specified value is satisfied. Do not rotate the AMS knob.

(Write power traverse checking)

(Traverse Waveform)

6. Observe the waveform of the oscilloscope, and check that the

specified value is satisfied. Do not rotate the AMS knob.

(Read power traverse checking)

(Traverse Waveform)

11. Press the YES button display “EF MO CHECK”

The disc stops rotating automatically.

12. Press the A button and remove the disc.

13. Load the check disc (MD) TDYS-1.

14. Roteto the AMS knob and display “EF CD CHECK” (C04).

15. Press the YES button and display “EFB = CD”. Servo is

imposed automatically.

25

5-6-8. C PLAY Check

MO Error Rate Check

Checking Procedure :

1. Load a continuously recorded test disc (MDW-74/GA-1).

(Refer to “5-5. Using the Continuously Recorded Disc”.)

2. Rotate the AMS knob and display “CPLAY1 MODE”.

3. Press the YES button and display “CPLAY1 MID”.

4. The display changes to “C1 = AD = ”.

5. If the C1 error rate is below 20, check that ADER is 00.

6. Press the MENU/NO button, stop playback, press the A but-

ton, and test disc.

CD Error Rate Check

Checking Procedure :

1. Load a check disc (MD) TDYS-1.

2. Rotate the AMS knob and display “CPLAY1 MODE”.

3. Press the YES button twice and display “CPLAY1 MID”.

4. The display changes to “C1 = AD = ”.

5. Check that the C1 error rate is below 20.

6. Press the MENU/NO button, stop playback, press the A but-

ton, and the test disc.

5-6-9. Self-Recording/playback Check

Prepare a continuous recording disc using the unit to be repaired

and check the error rate.

Checking Procedure :

1. Insert a recordable test disc (MDW-74/GA-1) into the unit.

2. Rotate the AMS knob to display “CREC1 MODE”.

3. Press the YES button to display the “CREC1 MID”.

4. When recording starts, “ REC ” is displayed, this becomes

“CREC (@@@@)” (@@@@ is the address), and recording

starts.

5. About 1 minute later, press the MENU/NO button to stop

continuous recording.

6. Rotate the AMS knob to display “C PLAY1 MODE”.

7. Press the YES button to display “C PLAY1 MID”.

8. “C1 = AD = ” will be displayed.

9. Check that the C1 error becomes below 20 and the AD error

below 2.

10. Press the MENU/NO button to stop playback, and press the

A button and remove the disc.

330 kΩ

Oscilloscop

e

10pF

BD board

CN105 pin 4 (TE)

CN105 pin 6 (VC)

5-6-7. Focus Bias Check

Change the focus bias and check the focus tolerance amount.

Checking Procedure :

1. Load a continuously recorded test disc (MDW-74/GA-1).

(Refer to “5-5. Using the Continuously Recorded Disc”.)

2. Rotate the AMS knob and display “CPLAY1 MODE”.

3. Press the YES button and display “CPLAY1 MID”.

4. Press the MENU/NO button when “C = AD = ” is

displayed.

5. Rotate the AMS knob and display “FBIAS CHECK”.

6. Press the YES button and display “ / c = ”.

The first four digits indicate the C1 error rate, the two digits

after [/] indicate ADER, and the 2 digits after [c =] indicate the

focus bias value.

Check that the C1 error is below 20 and ADER is below 2.

7. Press the YES button and display “ / b = ”.

Check that the C1 error is below 100 and ADER is below 2.

8. Press the YES button and display “ / a = ”.

Check that the C1 error is below 100 and ADER is below 2.

9. Press the MENU/NO button, next press the A button, and

remove the test disc.

16. Observe the waveform of the oscilloscope, and check that the

specified value is satisfied. Do not rotate the AMS knob.

(Traverse Waveform)

17. Press the YES button and display “EF CD CHECK”.

18. Press the A button and remove the check disc (MD) TDYS-1.

Note 1 : MO reading data will be erased during if a recorded disc is

used in this adjustment.

Note 2 : If the traverse waveform is not clear, connect the oscillo-

scope as shown in the following figure so that it can be

seen more clearly.

VC

A

B

Specified value : Below 10% offset value

Offset value (%) = X 100

IA – BI

2 (A + B)

26

5-7. INITIAL SETTING OF ADJUSTMENT VALUE

Note:

Mode which sets the adjustment results recorded in the non-vola-

tile memory to the initial setting value. However the results of the

temperature compensation offset adjustment will not change to the

initial setting value.

If initial setting is performed, perform all adjustments again ex-

cluding the temperature compensation offset adjustment.

For details of the initial setting, refer to “5-4. Precautions on Ad-

justments” and execute the initial setting before the adjustment as

required.

Setting Procedure :

1. Rotate the AMS knob to display “ADJ CLEAR”.

2. Press the YES button. “Complete!” will be displayed momen-

tarily and initial setting will be executed, after which “ADJ

CLEAR” will be displayed.

5-8. RECORDING AND DISPLAYING THE Iop

INFORMATION

The IOP data can be recorded in the non-volatile memory. The Iop

value on the label of the optical pick-up and the Iop value after the

adjustment will be recorded. Recording these data eliminates the

need to read the label on the optical pick-up.

Recording Procedure :

1. While pressing the AMS knob and x button, connect the

power plug to the outlet, and release the AMS knob and x

button.

2. Rotate the AMS knob to display “[Service]”, and press the

YES button.

3. Rotate the AMS knob to display “Iop.Write”, and press the

YES button.

4. The display becomes Ref=@@@.@ (@ is an arbitrary number)

and the numbers which can be changed will blink.

5. Input the Iop value written on the optical pick-up.

To select the number : Rotate the AMS knob.

To select the digit : Press the AMS knob

6. When the YES button is pressed, the display becomes

“Measu=@@@.@” (@ is an arbitrary number).

7. As the adjustment results are recorded for the 6 value. Leave it

as it is and press the YES button.

8. “Complete!” will be displayed momentarily. The value will be

recorded in the non-volatile memory and the display will be-

come “Iop Write”.

Display Procedure :

1. Rotate the AMS knob to display “Iop.Read”.

2. “@@.@/##.#” is displayed and the recorded contents are dis-

played.

@@.@ indicates the Iop value labeled on the pick-up.

##.# indicates the Iop value after adjustment

3. To end, press the AMS button or MENU/NO button to display

“Iop Read”.

5-9. TEMPERATURE COMPENSATION OFFSET

ADJUTMENT

Save the temperature data at that time in the non-volatile memory

as 25 ˚C reference data.

Note :

1. Usually, do not perform this adjustment.

2. Perform this adjustment in an ambient temperature of 22 ˚C to

28 ˚C. Perform it immediately after the power is turned on when

the internal temperature of the unit is the same as the ambient

temperature of 22 ˚C to 28 ˚C.

3. When D101 has been replaced, perform this adjustment after

the temperature of this part has become the ambient tempera-

ture.

Adjusting Procedure :

1. Rotate the AMS knob and display “TEMP ADJUST”.

2. Press the YES button and select the “TEMP ADJUST” mode.

3. “TEMP = [OK]” and the current temperature data will be

displayed.

4. To save the data, press the YES button.

When not saving the data, press the MENU/NO button.

5. When the YES button is pressed, “TEMP = SAVE” will be

displayed and turned back to “TEMP ADJUST” display then.

When the MENU/NO button is pressed, “TEMP ADJUST”

will be displayed immediatelly.

Specified Value :

The “TEMP = ” should be within “E0 - EF”, “F0 - FF”, “00 -

0F”, “10 - 1F” and “20 - 2F”.

5-10. LASER POWER ADJUSTMENT

Check the Iop value of the optical pick-up before adjustments.

(Refer to 5-8. Recording and Displaying Iop Information.)

Connection :

Adjusting Procedure :

1. Set the laser power meter on the objective lens of the optical

pick-up. (When it cannot be set properly, press the m button

or M button to move the optical pick-up.)

Connect the digital volt meter to CN105 pin 1 (I+3V) and

CN105 pin 2 (IOP).

2. Rotate the AMS knob and display “LDPWR ADJUST”.

(Laser power : For adjustment)

3. Press the YES button once and display “LD 0.9 mW $ ”.

4. Rotate the AMS knob so that the reading of the laser power

meter becomes 0.85 to 0.91 mW. Press the YES button after

setting the range knob of the laser power meter, and save the

adjustment results. (“LD SAVE $ ” will be displayed for a

moment.)

5. Then “LD 7.0 mW $ ” will be displayed.

6. Rotate the AMS knob so that the reading of the laser power

meter becomes 6.9 to 7.1 mW, press the YES button and save

it.

Note : Do not perform the emission with 7.0 mW more than 15

seconds continuously.

Laser power

meter

Optical pick-up

objective lens

Digital volt mete

r

BD board

CN105 pin 1 (I+3V)

CN105 pin 2 (IOP)

27

KMS260B

20101

H0576

Iop = 57.6 mA in this case

Iop (mA) = Digital voltmeter reading (mV)/1 (

Ω

)

7. Then, rotate the AMS knob and display “LDPWR CHECK”.

8. Press the YES button once and display “LD 0.9 mW $ ”.

Check that the reading of the laser power meter become 0.85 to

0.91 mW.

9. Press the YES button once more and display “LD 7.0 mW $

”. Check that the reading the laser power meter and digital

volt meter satisfy the specified value.

Note down the digital voltmeter reading value.

Specified Value :

Laser power meter reading : 7.0 ± 0.2 mW

Digital voltmeter reading : Optical pick-up displayed value ± 10%

(Optical pick-up label)

10. Press the MENU/NO button and display “LDPWR CHECK”

and stop the laser emission.

(The MENU/NO button is effective at all times to stop the

laser emission.)

11. Rotate the AMS knob to display “Iop.Write”.

12. Press the YES button. When the display becomes

Ref=@@@.@ (@ is an arbitrary number), press the YES button

to display “Measu=@@@.@” (@ is an arbitrary number).

13. The numbers which can be changed will blink. Input the Iop

value noted down at step 9.

To select the number : Rotate the AMS knob.

To select the digit : Press the AMS knob

14. When the YES button is pressed, “Complete!” will be displayed

momentarily. The value will be recorded in the non-volatile

memory and the display will become “Iop Write”.

Note 1: After step 4, each time the YES button is pressed, the

display will be switched between “LD 0.7 mW $ ”, “LD

6.2 mW $ ”, and “LD Wp $ ”. Nothing needs

to be performed here.

(For details of the method for checking

this value, refer to “5-8. Recording and

Displaying IOP Information”.)

5-12. TRAVERSE ADJUSTMENT

Connection :

Adjusting Procedure :

1. Connect an oscilloscope to CN105 pin 4 (TE) and CN105 pin

6 (VC) of the BD board.

2. Load a test disc (MDW-74/GA-1). (Refer to Note 1.)

3. Press the M button and move the optical pick-up outside the

pit.

4. Rotate the AMS knob and display “EF MO ADJUST”.

5. Press the YES button and display “EFB = MO-R”.

(Laser power READ power/Focus servo ON/tracking servo OFF/

spindle (S) servo ON)

6. Rotate the AMS knob so that the waveform of the oscilloscope

becomes the specified value.

(When the AMS knob is rotated, the of “EFB= ” changes

and the waveform changes.) In this adjustment, waveform var-

ies at intervals of approx. 2%. Adjust the waveform so that the

specified value is satisfied as much as possible.

(Read power traverse adjustment)

(Traverse Waveform)

7. Press the YES button and save the result of adjustment to the

non-volatile memory (“EFB = SAVE” will be displayed for a

moment. Then “EFB = MO-W” will be displayed).

8. Rotate the AMS knob so that the waveform of the oscilloscope

becomes the specified value.

(When the AMS knob is rotated, the of “EFB- MO-W”

changes and the waveform changes.) In this adjustment, wave-

form varies at intervals of approx. 2%. Adjust the waveform so

that the specified value is satisfied as much as possible.

(Write power traverse adjustment)

(Traverse Waveform)

9. Press the YES button, and save the adjustment results in the

non-volatile memory. (“EFB = SAVE” will be displayed for

a moment.)

10. “EFB = MO-P”. will be displayed.

The optical pick-up moves to the pit area automatically and servo

is imposed.

V : 0.5 V/div

H : 10 ms/div

Input : DC mod

e

Oscilloscope

BD board

CN105 pin 4 (TE)

CN105 pin 6 (VC)

VC

A

B

Specification A = B

VC

A

B

Specification A = B

R

5-11. Iop NV SAVE

Write the reference values in the nonvolatile memory to perform

“Iop compare”. As this involves rewriting the reference values, do

not perform this procedure except when adjusting the laser power

during replacement of the OP and when replacing the IC102.

Otherwise the OP check may deteriorate.

Note: Perform this function with the optical pick-up set at room

temperature.

Procedure

1. Rotate the AMS knob to display “Iop NV Save” (C06).

2. Press the YES button and display “Iop [stop]”.

3. After the display changes to “Iop =xxsave?”, press the YES

button.

4. After “Complete!” is displayed momentarily, the display changes

to “Iop 7.0 mW”.

5. After the display changes to “Iop=yysave?”, press the YES

button.

6. When “Complete!” is displayed, it means that Iop NV saving

has been completed.

28

11. Rotate the AMS knob until the waveform of the oscilloscope

moves closer to the specified value.

In this adjustment, waveform varies at intervals of approx. 2%.

Adjust the waveform so that the specified value is satisfied as

much as possible.

(Traverse Waveform)

12. Press the YES button, and save the adjustment results in the

non-volatile memory. (“EFB = SAVE” will be displayed for

a moment.)

Next “EF MO ADJUS” is displayed. The disc stops rotating

automatically.

13. Press the A button and remove the disc.

14. Load the check disc (MD) TDYS-1.

15. Roteto AMS knob and display “EF CD ADJUS”.

16. Press the YES button and display “EFB = CD”. Servo is

imposed automatically.

17. Rotate the AMS knob so that the waveform of the oscilloscope

moves closer to the specified value.

In this adjustment, waveform varies at intervals of approx. 2%.

Adjust the waveform so that the specified value is satisfied as

much as possible.

(Traverse Waveform)

18. Press the YES button, display “EFB = SAVE” for a mo-

ment and save the adjustment results in the non-volatile memory.

Next “EF CD ADJUST” will be displayed.

19. Press the A button and remove the check disc (MD) TDYS-1.

Note 1 : MO reading data will be erased during if a recorded disc is

used in this adjustment.

Note 2 : If the traverse waveform is not clear, connect the oscillo-

scope as shown in the following figure so that it can be

seen more clearly.

5-13. FOCUS BIAS ADJUSTMENT

Adjusting Procedure :

1. Load a test disk (MDW-74/GA-1).

2. Rotate the AMS knob and display “CPLAY1 MODE”.

3. Press the YES button and display “CPLAY1 MID”.

4. Press the MENU/NO button when “C1 = AD = ” is

displayed.

5. Rotate the AMS knob and display “FBIAS ADJUST”.

6. Press the YES button and display “ / a = ”.

The first four digits indicate the C1 error rate, the two digits

after [/] indicate ADER, and the 2 digits after [a =] indicate the

focus bias value.

7. Rotate the AMS knob in the clockwise direction and find the

focus bias value at which the C1 error rate becomes 220 (Refer

to Note 2).

8. Press the YES button and display “ / b = ”.

9. Rotate the AMS knob in the counterclockwise direction and

find the focus bias value at which the C1 error rate becomes

220.

10. Press the YES button and display “ / c = ”.

11. Check that the C1 error rate is below 20 and ADER is 00. Then

press the YES button.

12. If the “( ” in “ - - ( ” is above 20, press the YES

button.

If below 20, press the MENU/NO button and repeat the

adjustment from step 2.

13. Press the A button to remove the test disc.

Note 1 : The relation between the C1 error and focus bias is as

shown in the following figure. Find points a and b in the

following figure using the above adjustment. The focal

point position C is automatically calculated from points a

and b.

Note 2 : As the C1 error rate changes, perform the adjustment us-

ing the average vale.

VC

A

B

Specification A = B

VC

A

B

Specification A = B

330 kΩ

Oscilloscop

e

10pF

BD board

CN105 pin 4 (TE)

CN105 pin 6 (VC)

C1 error

220

bc a Focus bias value

(F. BIAS)

29

5-14. ERROR RATE CHECK

5-14-1. CD Error Rate Check

Checking Procedure :

1. Load a check disc (MD) TDYS-1.

2. Rotate the AMS knob and display “CPLAY1 MODE”.

3. Press the YES button twice and display “CPLAY1 MID”.

4. The display changes to “C1 = AD = ”.

5. Check that the C1 error rate is below 20.

6. Press the MENU/NO button, stop playback, press the A but-

ton, and remove the test disc.

5-14-2. MO Error Rate Check

Checking Procedure :

1. Load a continuously recorded test disc (MDW-74/GA-1).

(Refer to “5-5. Using the Continuously Recorded Disc”.)

2. Rotate the AMS knob and display “CPLAY1 MODE”.

3. Press the YES button and display “CPLAY1 MID”.

4. The display changes to “C1 = AD = ”.

5. If the C1 error rate is below 20, check that ADER is 00.

6. Press the MENU/NO button, stop playback, press the A but-

ton, and remove the test disc.

5-15. FOCUS BIAS CHECK

Change the focus bias and check the focus tolerance amount.

Checking Procedure :

1. Load a continuously recorded test disc (MDW-74/GA-1).

(Refer to “5-5. Using the Continuously Recorded Disc”.)

2. Rotate the AMS knob and display “CPLAY1 MODE”.

3. Press the YES button twice and display “CPLAY1 MID”.

4. Press the MENU/NO button when “C1 = AD = ” is

displayed.

5. Rotate the AMS knob and display “FBIAS CHECK”.

6. Press the YES button and display “ / c = ”.

The first four digits indicate the C1 error rate, the two digits

after [/] indicate ADR, and the 2 digits after [c =] indicate the

focus bias value.

Check that the C1 error is below 20 and ADER is below 2.

7. Press the YES button and display “ / b = ”.

Check that the C1 error is below 100 and ADER is below 2.

8. Press the YES button and display “ / a = ”.

Check that the C1 error is below 100 and ADER is below 2

9. Press the MENU/NO button, next press the A button, and

remove the continuously recorded disc.

Note 1 : If the C1 error and ADER are above other than the speci-

fied value at points a (step 8. in the above) or b (step 7. in

the above), the focus bias adjustment may not have been

carried out properly. Adjust perform the beginning again.

5-16. AUTO GAIN CONTROL OUTPUT LEVEL

ADJUSTMENT

Be sure to perform this adjustment when the Optical pick-up is re-

placed.

If the adjustment results becomes “Adjust NG!”, the Optical pick-

up may be faulty or the servo system circuits may be abnormal.

5-16-1. CD Auto Gain Control Output Level Adjustment

Adjusting Procedure :

1. Insert the check disc (MD) TDYS-1.

2. Rotate the AMS knob to display “AG Set (CD)”.

3. When the YES button is pressed, the adjustment will be

performed automatically.

“Complete!!” will then be displayed momentarily when the value

is recorded in the non-volatile memory, after which the display

changes to “AG Set (CD)”.

4. Press the A button to remove the disc.

5-16-2. MO Auto Gain Control Output Level Adjustment

Adjusting Procedure :

1. Insert the reference disc (MDW-74/GA-1) for recording.

2. Rotate the AMS knob to display “AG Set (MO)”.

3. When the YES button is pressed, the adjustment will be

performed automatically.

“Complete!!” will then be displayed momentarily when the value

is recorded in the non-volatile memory, after which the display

changes to “AG Set (MO)”.

4. Press the A button to remove the disc.

30

NOTE:It is useful to use the jig. for checking the waveform. (Refer

to Servicing Note on page 6.)

[BD BOARD] (SIDE B)

D101

IC151

23 1 27 1

1

7

IC101

CN101

CN103 CN102

IC195

IC190

CN105

IC102

*

NOTE

5-17. ADJUSTING POINTS AND CONNECTING POINTS

[BD BOARD] (SIDE A)

31

31

SECTION 6

DIAGRAMS

6-1. CIRCUIT BOARDS LOCATION THIS NOTE IS COMMON FOR PRINTED WIRING

BOARDS AND SCHEMATIC DIAGRAMS.

(In addition to this, the necessary note is printed

in each block.)

For schematic diagrams.

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in Ω and 1/4 W or less unless otherwise

specified.

•f: internal component.

•2: nonflammable resistor.

•1: fusible resistor.

•C: panel designation.

For printed wiring boards.

Note:

•X: parts extracted from the component side.

•Y: parts extracted from the conductor side.

•a: Through hole.

•b: Pattern from the side which enables seeing.

(The other layers' patterns are not indicated.)

•U: B+ Line.

•V: B– Line.

•H: adjustment for repair.

• Voltages and waveforms are dc with respect to ground

under no-signal (detuned) conditions.

• Voltages are taken with a VOM (Input impedance 10 MΩ).

Voltage variations may be noted due to normal produc-

tion tolerances.

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal produc-

tion tolerances.

• Circled numbers refer to waveforms.

• Signal path.

E: PB

j: REC

p: PB (DIGITAL OUT)

l: REC (DIGITAL IN)

• Abbreviation

CND : Canadian model

SP : Singapore model

MY : Malaysia model

HK : Hong Kong model

AUS : Australian model

Caution:

Pattern face side: Parts on the pattern face side seen from the

(Side B) pattern face are indicated.

Parts face side: Parts on the parts face side seen from the

(Side A) parts face are indicated.

• Indication of transistor

C

B

These are omitted.

E

Q

B

These are omitted.

CE

B

These are omitted.

CE

BD board

DISPLAY board

KEY-SW board

PT board VOL-SEL board

MAIN board

(SP, MY model)

Note:

The components identi-

fied by mark 0 or dotted

line with mark 0 are criti-

cal for safety.

Replace only with part

number specified.

Note:

Les composants identifiés par

une marque 0 sont critiques

pour la sécurité.

Ne les remplacer que par une

piéce portant le numéro

spécifié.

MDS-JE440

32

32

6-2. BLOCK DIAGRAMS – BD SECTION –

F

C B

DA

E

I J

J

I

B

A

C

D

E

F

DETECTOR

J

I

A

B

C

D

E

F

LDPD

LASER DIODE

ILCC

PD

OPTICAL PICK-UP

(KMS-260B/J1N)

AUTOMATIC

POWER CONTROL

Q121, 122

APC

PD

APCREF

AT

AMP B.P.F.

WBL

ADFM ADIN ADFG

ABCD

AMP

ABCD

FE

TE

SE

F0CNT

WBL

3T

EQ

COMMAND

SWDT

SCLK

XLAT

RFO RF AGC

& EQ

AGCI

EQ

RF

RF AMP,

FOCUS/TRACKING ERROR AMP

IC101

TEMP

MORFO

MORFI

3T

WBL

AUX

PEAK

BOTM

FOCUS/TRACKING COIL DRIVE,

SPINDLE/SLED MOTOR DRIVE

IC141

OUT4F

OUT4R

M101

(SPINDLE)

OUT2F

OUT2R

M102

(SLED)

OUT1F

OUT1R

OUT3F

OUT3R

FCS+

FCS–

TRK+

TRK–

2-AXIS

DEVICE

(TRACKING)

(FOCUS)

IN4R

IN4F

IN2F

IN2R

IN1F

IN1R

IN3F

IN3R

MOD

SPFD

SPRD

APCREF

SFDR

SRDR

FFDR

FRDR

TFDR

TRDR

PSB

PWM GENERATOR

FROM CPU

INTERFACE

DIGITAL SERVO

SIGNAL PROCESSOR

IC151 (2/2)

RECP

AUX1

ABCD

FE

TE

SE

PEAK

BOTM

XLRF

CKRF

DTRF

XLAT

SCLK

SWDT

FILI

PCO

CLTV

FILO

EFMO ADDT

DATAI

DIVIDER

IC171

IC151 (1/2)

TX

ASYO

ASYI

RFI

SCTX

HR901

OVER WRITE HEAD

ADFG

F0CNT

SPFD

SPRD

SAMPLING

RATE

CONVERTER

DIGITAL

AUDIO

INTERFACE

DIN0

DIGITAL SIGNAL PROCESSOR,

EFM/ACIRC ENCODER/DECODER,

SHOCK PROOF MEMORY CONTROLLER,

ATRAC ENCODER/DECODER

IC151 (1/2)

INTERNAL BUS

DADT

XBCK

LRCK

FS256

OSCI

OSCO

DQSY

SQSY

XINT

SENS

SRDT

SWDT

SCLK

XLAT

MNT0

MNT1

MNT2

MNT3

SHOCK

XBUSY

SWDT

SCLK

SWDT

SCLK

XLATCH

MNT1 (SHOCK)

MNT2 (XBUSY)

DIG-RST

SQSY

DQSY

LDON

WR-PWR

MOD

XINT

SENS

SRDT

LDIN

LDOUT

09

IN1

IN2

OUT1

OUT2

VZ

LOADING

MOTOR DRIVE

IC440

M103

(LOADING)

DQ1 – DQ4

A0 – A9

D0 – D3A00 – A09

XOE

XWE

XRAS

XCAS

OE

WE

RAS

CAS

D-RAM

IC153

DIN1

SYSTEM CONTROLLER

IC1 (1/2)

HF MODULE

ADDT

DADT, BCK, LRCK

(Page 33)

1024FS

(Page 33)

(Page 33)

SWDT, SCLK

(Page 33)

LRCK

REFLECT

PROTECT

LD-LOW

UNREG

+5V

11

LIMIT-IN

OUT-SW

S101

(LIMIT IN)

PLAY-SW

• SIGNAL PATH

: PLAY (ANALOG OUT)

: PLAY (DIGITAL OUT)

: REC (ANALOG IN)

: REC (DIGITAL IN)

S103

(OUT SW)

S104

(PLAY SW)

REC-P S105

(REC POSITION)

XBCKI

LRCKI

S102

(REFLECT/PROTECT DETECT)

HIGH REFELECT RATE/

WRITE PROTECT

LOW REFELECT RATE/

UN-PROTECT

OVER WRITE

HEAD DRIVE

IC181, Q181, 182

WAVE

SHAPER

IC600 (1/2)

OPTICAL

RECEIVER

IC611

DIGITAL IN

OPT

11

9

8

4

1

2

48 47

46 40

33

38

37

36

32

35

34

26

28

181716

20

12

3029

5

6

7

10

LASER ON

SWITCH

Q101

LD/PD

AMP

I-V

AMP

I-V

AMP

FOCUS

ERROR AMP

TRACKING

ERROR AMP

RF AMP

B.P.F.

PEAK &

BOTTOM

6

8

92

91

88

89

86

85

81

80

83 13 67 65 66 75 74 63 64

82

27

25

21

23

12

10

14

15

19

18

29

30

3

4

16

MM

M

AUTOMATIC

POWER

CONTROL

DIGITAL SERVO

SIGNAL

PROCESS

ANALOG MUX

A/D CONVERTER

SERIAL/PARALLEL

CONVERTER,

DECODER

AUTO

SEQUENCER

V-I

CONVERTER

HF MODULE

SWITCH

IC102, Q131 – 134

100

60

59

62

61

53

54

57

78

79

94 93

10

12 11 14 9 8 5 6 7 1 2 3 4

43

47

16

29

27

28

26

20

19

23

24

22

25

17

46

44

22

3

4

23

15

ADIP

DEMODULATOR/

DECODER

SPINDLE

SERVO

COMPA-

RATOR

PLL

FILTER

SUBCODE

PROCESSOR

EFM/ACIRC

ENCODER/DECODER

SHOCK PROOF

MEMORY CONTROLLER

ATRAC

ENCODER/DECODER

CPU

INTERFACE

MONITOR

CONTROL

25

29

47

35

14

27 32 48 40 42 50 58 5638

XRST

CLOCK

GENERATOR

49, 48, 50, 51

1, 2, 24, 25

34 – 31, 36 – 40, 45

5, 9 – 12, 14 – 18

C

D

B

A

12 13

5 6

4

2 10

30

51

49

43

67

68

34

CLIP DATA 44

CLIP CLK 46

M

REFERENCE

VOLTAGE SWITCH

Q440, 444

LRCK1

DATA1

XBCK1

LRCK1

DATA1

XBCK1

MDS-JE440

33

33

– MAIN SECTION –

09

X550

45.1584MHz

LED DRIVE

Q751

ROTARY

ENCODER

FL DRIVE

Q767

D751

STANDBY

A/D, D/A CONVERTER

IC500

SDTO

ADDT

DADT, BCK,

LRCK SDTI

(Page 32)

A

B

LINE AMP

IC350

MUTING

Q180, 280

MUTING

CONTROL SWITCH

Q380

REMOTE CONTROL

RECEIVER

IC781

OSC

J150

D412

LINE (ANALOG)

IN

LINE (ANALOG)

OUT

R

L

R

L

AD/DA LATCHDAT

P1

P2

G13

MUTE

AD/DA RESET

CLK

CS

AC IN

AC

(TO FL771)

TR900

POWER

TRANSFORMER

UNREG +12V

LOADING MOTOR

DRIVER (IC440) B+

BACK UP +3.3V

BT420

LITHIUM

BATTERY

RECT

D481

UNREG +12V

KB DATA

KB CLK

CLK-CTL

VCC2

AUDIO

CIRCUIT

UNREG –12V

RECT

D461, 462

RECT

D476 – 477

RECT

D471, 472

40 – 51

5 – 39

141, 139–138

KEY0 – KEY2

G1-G12S1 – S35

S1 – S35

G13

G01 – G12

FLUORESCENT INDICATOR TUBE

FL771

FL/LED DRIVER

IC761

HIGH-PASS FILTER,

DIGITAL

ATTENUATOR

DIGITAL

ATTENUATOR,

SOFT MUTE

A/D

CONVERTER

BLOCK

SUB-

TRACKTION

D/A

CONVERTER

BLOCK

AUDIO

INTERFACE

CONTROLLER

CLOCK

GENERATOR,

CLOCK DIVIDER

CONTROL

REGISTER

INTERFACE

BICK

LRCK

+5V

A/D, D/A CONVERTER (IC500) B+

SYS +3.3V

DADT

BCK

LRCK

AINL

AINR

XTI

DATA(FL)

CLK(FL)

CS(FL)

JOG0

GND SW

JOG1

P DOWN

l AMS L

PUSH ENTER

S713

S701 – 706, 711, 712,

S714-716, 721 – 724,

S726,731

A

B

SWDT

SCLK

CDTI

CCLK

CS

PD

SIRCS

OSCI

C769, R769

OSCO

MIX AMP

IC601 (1/2)

MIX AMP

IC601 (2/2)

OSC

IC550

LOW-PASS

FILTER

IC260 (1/2)

LOW-PASS

FILTER

IC260 (2/2)

(Page 32)

D

(Page 32)

C

(Page 32)

SWDT, SCLK

1024FS

ANA5

SYS3.3

V.BAK

AC

PH5

S.RST

• SIGNAL PATH

: PLAY (ANALOG OUT)

: REC (ANALOG IN)

RST

SDA

SCL

EEPROM

IC195

XIN

SDA

SCL

XOUT

X22

10MHz SYSTEM CONTROLLER

IC1 (2/2)

REGULATOR

IC400

RESET

13

14

12

11

15

16

17

19

3

2

AOUTL+

AOUTL–

26

25

AOUTR+

AOUTR–

28

27

9

910

5 6

66

61

22

26

6162

60

52

1

LED DRIVE

Q755

D775

MD

LONG

2

58

59

63

8

STB

131

4

45

124123

1 3

1 2 128 26 19

2

11

8

4

5

10

13

VCC1

7

6

P.DOWN

–32V

REGULATOR

IC480

–32V

(FL DRIVER (IC761) B–)

+3.3V

REG

IC190

D+3V

+5V

KEYBOARD

HEAD

MOTOR

RECT

D431,432

RECT

D401-404

TR950

POWER

TRANSFORMER

RELAY

DRIVE

Q910

VOLTAGE

SELECTOR

S951

SP,MY ONLY

34

34

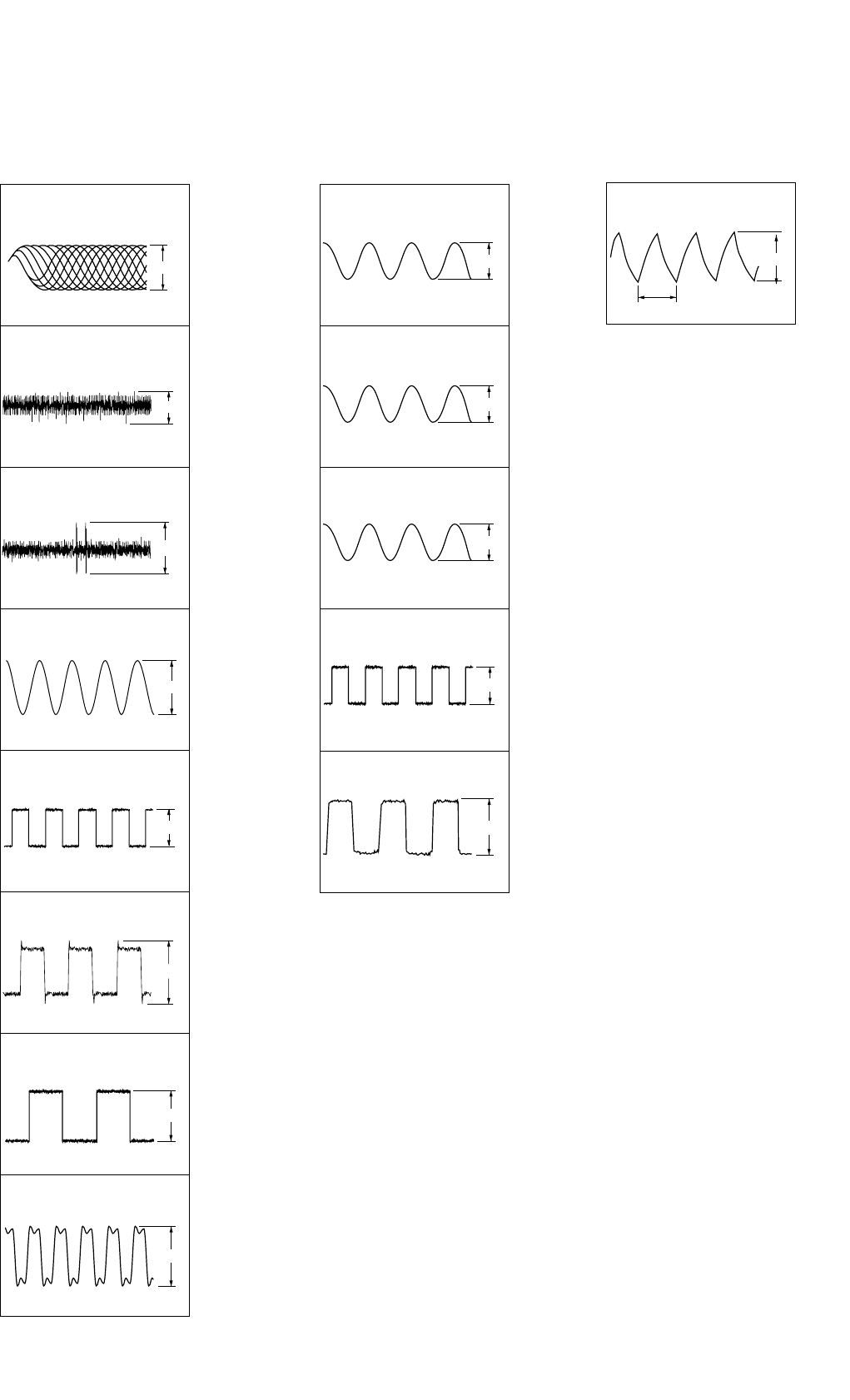

• WAVEFORMS

– MAIN Board – – DISPLAY Board –

– BD Board –

1 IC101 ek (RF)

2 IC101 ef (FE)

(Play mode)

3 IC101 wh (TE)

(Play mode)

4 IC151 qh (OSCI)

5 IC151 wj (LRCK)

6 IC151 wk (XBCK)

7 IC151 o; (FS4)

8 IC171 3

1.3Vp-p

0.2Vp-p

1.6Vp-p

3.1Vp-p

45.158 MHz

3.2Vp-p

44.1 kHz

3.8Vp-p

2.8224 MHz

1.0Vp-p

45.158MHz

3.2Vp-p

176.4kHz

1

IC1 ws (XIN)

2

IC550 2, 3, 5

3

IC500 9 (XTI)

4

IC500 qa (LRCK)

5

IC500 qs (BICK)

2.3Vp-p

10 MHz

2.6Vp-p

45.158 MHz

1.1Vp-p

45.158 MHz

3.2Vp-p

44.1 kHz

3.2Vp-p

2.8224 MHz

1 IC760 yg (OSCI)

1.6Vp-p

480 ns

MDS-JE440

35

35

6-3. PRINTED WIRING BOARD – BD SECTION –

Ref. No. Location

D101 A-1

Q101 B-1

Q131 C-1

Q132 B-1

Q133 B-1

Q134 C-1

• Semiconductor

Location Ref. No. Location

D181 D-3

D183 D-3

IC101 A-3

IC102 B-3

IC141 C-1

IC151 C-2

IC153 C-3

IC171 D-2

• Semiconductor

Location

Ref. No. Location

IC181 D-3

IC190 D-1

IC195 D-2

Q121 B-3

Q122 B-3

Q181 D-3

Q182 D-3

MDS-JE440

36

36

6-4. SCHEMATIC DIAGRAM – BD SECTION (1/2) – • See page 34 for Waveforms. • See page 46 for IC Block Diagrams. • See page 48 for IC Pin Functions. • See page 35 for Printed Wiring Board.

PIN

FUNCTION

MDS-JE440

37

37

6-5. SCHEMATIC DIAGRAM – BD SECTION (2/2) – • See page 34 for Waveforms. • See page 46 for IC Block Diagrams. • See page 49 for IC Pin Functions. • See page 35 for Printed Wiring Board.

PIN

FUNCTION

MDS-JE440

38

38

6-6. PRINTED WIRING BOARD – MAIN SECTION (SIDE A) –

Ref. No. Location

D461 C-1

D462 C-1

D471 C-1

D472 D-1

D476 C-1

D477 C-1

D481 B-1

• Semiconductor

Location

Ref. No. Location

IC400 D-1

IC440 B-2

IC480 A-1

IC611 E-5

Q356 A-6

Q910 B-1

MDS-JE440

39

39

6-7. PRINTED WIRING BOARD – MAIN SECTION (SIDE B) –

Ref. No. Location

D155 C-1

D156 C-1

D255 C-1

D256 C-1

D401 B-7

D402 B-7

D403 B-7

D404 B-7

D412 B-6

• Semiconductor

Location

Ref. No. Location

D421 C-6

D422 C-6

D431 B-7

D432 B-7

D482 B-7

IC1 B-4

IC2 B-3

IC160 C-2

IC260 D-2

Ref. No. Location

IC350 C-1

IC500 B-2

IC550 A-2

IC600 D-4

Q180 D-2

Q281 D-2

Q380 D-3

Q440 B-6

Q444 B-6

MDS-JE440

40

40

6-8. SCHEMATIC DIAGRAM – MAIN SECTION (1/3) – • See page 34 for Waveforms. • See page 52 for IC Pin Functions.

PIN

FUNCTION

MDS-JE440

41

41

6-9. SCHEMATIC DIAGRAM – MAIN SECTION (2/3) – • See page 34 for Waveforms. • See page 47 for IC Block Diagrams.

MDS-JE440

42

42

6-10. SCHEMATIC DIAGRAM – MAIN SECTION (3/3) – • See page 47 for IC Block Diagrams.

MDS-JE440

43

43

6-11. PRINTED WIRING BOARD – POWER SECTION –

MDS-JE440

44

44

6-12. PRINTED WIRING BOARD – DISPLAY SECTION –

MDS-JE440

45

45

6-13. SCHEMATIC DIAGRAM – DISPLAY SECTION – • See page 34 for Waveforms.

46

46

6-14. IC BLOCK DIAGRAMS

IC101 CXA2523AR (BD BOARD)

–1

–2

+

–

IVR BB

+

–

IVR AA

+

–

IVR CC

+

–

IVR DD

+

–

IVR +

–

EE EE'

EFB TESW

PTGR

48

MORFO

47

MORFI

46

RFO

45

OPN

44

OPO

43

ADDC

42

COMPP

41

COMPO

40

AGCI

39

RF AGC

38

RF

37

PEAK

36 BOTM

35 ABCD

34 FE

33 AUX

32 ADFG

31 ADAGC

30 ADIN

29 ADFM

28 SE

27 CSLED

26 TE

25 WBLADJ

24

VCC

23

3TADJ

22

EQADJ

21

VREF

20

F0CNT

19

XSTBY

18

XLAT

17

SCLK

16

SWDT

15

TEMPR

14

TEMPI

13

GND

12APCREF

11APC

10PD

9F

8E

7D

6C

5B

4A

3VC

VI CONV

BGR

VREF

SCRI - PARA

DECODE

+–

–

+

AUXSW

COMMAND

+

–

IVR

GSW

+

–

FF

FBAL

FF'

TG

SEA

–

+

–

+

–1

–2

TG

TEA

WBL

3T

EQ

–

–

+

+

+

+

–

–

–

–

–

–

DET

ADIP

AGC

WBL

BPF22

BPFC

ABCDA

FEA

WBL

ATA

–

+

CVB

+

–

RFA1

–

–

–

–

1

2

–

–

–

1

2

GRVA

OFST

RFA2

GRV

HLPT

PTGR

–2

–1

–1

–2

BOTTOM

PEAK

RF AGC EQ

EQ

DET

P-P

WBL

3T WBL TEMP

PBH

–

+

USROP

+

–USRC

3T

BPF3T

PEAK3T

1I

2J

RFA3

PBSW

AUX

SW

IV

ESW

EBAL

100

99 98 97 96 95 94 93

EFMO

DVSS

TEST3

TEST2

TEST1

TEST0

SPFD

SPRD

92

SFDR

91

SRDR

90

FS4

89

FRDR

88

FFDR

87

DVDD

86

TFDR

85

TRDR

84

LDDR

83

APCREF

82

DTRF

81

CKRF

80

XLRF

79

F0CNT

78

ADFG

77

APC

76

DCHG

75 TE

74 SE

73 AVSS

72 ADRB

71 ADRT

70 AVDD

69 ADIO

62 CLTV

61 FILO

60 FILI

59 PCO

57 RFI

58 AVSS

56 BIAS

55 AVDD

54 ASYI

53 ASYO

52 MVCI

51 D3

68 VC

67 AUX1

66 FE

65 ABCD

64 BOTM

63 PEAK

50

D2

49

D0

48

D1

47

XWE

46

XRAS

45

A09

44

XCAS

43

XOE

42

DVSS

41

A11

40

A08

39

A07

38

A06

37

A05

36

A04

35

A10

34

A00

33

A01

32

A02

31

A03

30

DVDD

28

XBCK

29

FS256

26

DADT

27

LRCK

24

XBCKI

25

ADDT

23

LRCKI

22

DATAI

21

DOUT

20

DIN1

19

DIN0

18

XTSL

17

OSCO

16

OSCI

15

TX

14

XINT

13

RECP

12

DQSY

11

SQSY

10

XRST

9

SENS

8

SRDT

7

XLAT

6

SCLK

5

SWDT

4

MNT3

3

MNT2

2

MNT1

1

MNT0

PWM

GENERATOR

AUTO

SEQUENCER

SERVO

DSP

CPU I/F

MONITOR

CONTROL

SPINDLE

SERVO

EACH

BLOCK

EACH

BLOCK

DIGITAL

AUDIO

I/F

SAMPLING

RATE

CONVERTER

CLOCK

GENERATOR

SUBCODE

PROCESSOR

EACH

BLOCK

A/D

CONVERTER

ANALOG

MUX

EFM/ACIRC

ENCODER/

DECODER

APC

PLL

SHOCK RESISTANT

MEMORY CONTROLLER

ATRAC/ATRAC3

ENCODER/DECODER

DRAM

ADIP

DEMODULATOR/

DECODER

COMP

ADDRESS/DATA BUS A00 - A11, D0 - D3

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

12345678910 11 12 13 14 15 16

GND

VG

IN4R

IN4F

VM4

OUT4F

PGND4

OUT4R

VM34

OUT3R

PGND3

OUT3F

VM3

IN3F

IN3R

PSB

CAPA–

CAPA+

IN2R

IN2F

VM2

OUT2F

PGND2

OUT2R

VM12

OUT1R

PGND1

OUT1F

VM1

IN1F

IN1R

VDD

CHARGE

PUMP.

OSC

INTERFACE AMP

INTERFACE AMP

AMP INTERFACE

PREDRIVEPREDRIVE

PREDRIVEPREDRIVE

AMP

INTERFACE

AMPAMPAMP

VDD

PSB

AMP

IC151 CXD2662R (BD BOARD)

IC141 BH6511FS (BD BOARD)

47

IC400 LA5643 (MAIN BOARD)

12

1110 13

123 48

76

59

-

+

-

+

DELAY

RESET CIRCUIT

-

+

-

+

-

+

VREF1

VREF3

VREF2

DELAY

-

+

12 3 45 6 7 8 9 10

GND

MOTOR

DRIVE

NOISE

FILTER

CLAMP

FWD.IN

REV.IN

VCC 1

VCC 2

NOISE

FILTER

MOTOR

DRIVE

MOTOR

DRIVE

MOTOR

DRIVE

T.S.D O.C.P

FWD/REV/STOP

CONTROL LOGIC

2

5

5k

+

–

27k

OVERCURRENT

LIMITTER

OVERHEAT

PROTECTION

REFERENCE

VOLTAGE

GND

ON/OFF

IN

REFERENCE

VOLTAGE

OUT

3

4

1

VCOM

AINR

AINL

2

1

3

VREF 4

TEST 7

XTAI 9

XTALE 10

XTAO 8

SDTI 14

LRCK 11

BICK 12

SDTO 13

AGND 5

VA 6

A/D

CONVERTER

BLOCK

D/A

CONVERTER

BLOCK

CLOCK

GENERATOR

& DIVIDER

AUDIO

INTERFACE

CONTROLLER

CDTI

15

CIF

18

CLKO

21

AOUTL+

26

AOUTL–

25

DGND

24

VD

23

VT

22

AOUTR+

28

AOUTR–

27

PD

19

M/S

20

CS

17

CCLK

16

CONTROL

REGISTER

INTERFACE

H.P.F.

D-ATT

D-ATT,

S-MUTE

IC440 LB1641 (MAIN BOARD)

IC480 M5293L (MAIN BOARD) IC500 AK4524-TP (MAIN BOARD)

48

6-15. IC PIN FUNCTIONS

• IC101 CXA2523AR RF Amplifier (BD BOARD)

Pin No. Pin Name I/O Function

I

J

VC

A to F

PD

APC

APCREF

GND

TEMPI

TEMPR

SWDT

SCLK

XLAT

XSTBY

F0CNT

VREF

EQADJ

3TADJ

Vcc

WBLADJ

TE

CSLED

SE

ADFM

ADIN

ADAGC

ADFG

AUX

FE

ABCD

BOTM

PEAK

RF

RFAGC

AGCI

COMPO

COMPP

ADDC

OPO

OPN

RFO

MORFI

MORFO

I

I

O

I

I

O

I

—

I

O

I

I

I

I

I

O

I/O

I/O

—

I/O

O

—

O

O

I

—

O

O

O

O

O

O

O

—

I

O

I

I/O

O

I

O

I

O

I-V converted RF signal I input

I-V converted RF signal J input

Middle point voltage (+1.5V) generation output

Signal input from the optical pick-up detector

Light amount monitor input

Laser APC output

Reference voltage input for setting laser power

Ground

Temperature sensor connection

Reference voltage output for the temperature sensor

Serial data input from the CXD2662R

Serial clock input from the CXD2662R

Latch signal input from the CXD2662R “L”: Latch

Stand by signal input “L”: Stand by

Center frequency control voltage input of BPF22, BPF3T, EQ from the CXD2662R

Reference voltage output (Not used)

Center frequency setting pin for the internal circuit EQ

Center frequency setting pin for the internal circuit BPF3T

+3V power supply

Center frequency setting pin for the internal circuit BPF22

Tracking error signal output to the CXD2662R

External capacitor connection pin for the sled error signal LPF

Sled error signal output to the CXD2662R

FM signal output of ADIP

ADIP signal comparator input ADFM is connected with AC coupling

External capacitor connection pin for AGC of ADIP

ADIP duplex signal output to the CXD2662R

I3 signal/temperature signal output to the CXD2662R

(Switching with a serial command)

Focus error signal output to the CXD2662R

Light amount signal output to the CXD2662R

RF/ABCD bottom hold signal output to the CXD2662R

RF/ABCD peak hold signal output to the CXD2662R

RF equalizer output to the CXD2662R

External capacitor connection pin for the RF AGC circuit

Input to the RF AGC circuit The RF amplifier output is input with AC coupling

User comparator output (Not used)

User comparator input (Fixed at “L”)

External capacitor pin for cutting the low band of the ADIP amplifier

User operation amplifier output (Not used)

User operation amplifier inversion input (Fixed at “L”)

RF amplifier output

Groove RF signal is input with AC coupling

Groove RF signal output

1

2

3

4 to 9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

• Abbreviation

APC: Auto Power Control

AGC: Auto Gain Control

49

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31 to 34

35

36 to 40

41

42

43

44

45

46

47

• IC151 CXD2662R Digital Signal Processor, Digital Servo Signal Processor (BD BOARD)

Function

Pin No. Pin Name I/O

MNT0 (FOK)

MNT1 (SHCK)

MNT2 (XBUSY)

MNT3 (SLOC)

SWDT

SCLK

XLAT

SRDT

SENS

XRST

SQSY

DQSY

RECP

XINT

TX

OSCI

OSCO

XTSL

DIN0

DIN1

DOUT

DADTI

LRCKI

XBCKI

ADDT

DADT

LRCK

XBCK

FS256

DVDD

A03 to A00

A10

A04 to A08

A11

DVSS

XOE

XCAS

A09

XRAS

XWE

O

O

O

O

I

I (S)

I (S)

O (3)

O (3)

I (S)

O

O

I

O

I

I

O

I

I

I

O

I

I

I

I

O

O

O

O

—

O

O

O

O

—

O

O

O

O

O

FOK signal output to the system control (monitor output)

“H” is output when focus is on

Track jump detection signal output to the system control (monitor output)

Monitor 2 output to the system control (monitor output)

Monitor 3 output to the system control (monitor output)

Writing data signal input from the system control

Serial clock signal input from the system control

Serial latch signal input from the system control

Reading data signal output to the system control

Internal status (SENSE) output to the system control

Reset signal input from the system control “L”: Reset

Subcode Q sync (SCOR) output to the system control

“L” is output every 13.3 msec. Almost all, “H” is output

Digital In U-bit CD format or MD format subcode Q sync (SCOR) output to the system

control

Laser power switching input from the system control “H”: Recording, “L”: Playback

Interrupt status output to the system control

Recording data output enable input from the system control

System clock input (512Fs=22.5792 MHz)

System clock output (512Fs=22.5792 MHz) (Not used)

System clock frequency setting “L”: 45.1584 MHz, “H”: 22.5792 MHz (Fixed at “H”)

Digital audio input (Optical input)

Digital audio input (Optical input)

Digital audio output (Optical output)

Serial data input

LR clock input “H” : Lch, “L” : R ch

Serial data clock input

Data input from the A/D converter

Data output to the D/A converter

LR clock output for the A/D and D/A converter (44.1 kHz)

Bit clock output to the A/D and D/A converter (2.8224 MHz)

11.2896 MHz clock output (Not used)

+3V power supply (Digital)

DRAM address output

DRAM address output (Not used)

DRAM address output

DRAM address output (Not used)

Ground (Digital)

Output enable output for DRAM

CAS signal output for DRAM

Address output for DRAM

RAS signal output for DRAM

Write enable signal output for DRAM

* I (S) stands for Schmidt input, I (A) for analog input, O (3) for 3-state output, and O (A) for analog output in the column I/O

50

Function

Pin No. Pin Name I/O

48

49

50, 51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

D1

D0

D2, D3

MVCI

ASYO

ASYI

AVDD

BIAS

RFI

AVSS

PCO

FILI

FILO

CLTV

PEAK

BOTM

ABCD

FE

AUX1

VC

ADIO

AVDD

ADRT

ADRB

AVSS

SE

TE

DCHG

APC

ADFG

F0CNT

XLRF

CKRF

DTRF

APCREF

TEST0

TRDR

Data input/output for DRAM

Clock input from an external VCO (Fixed at “L”)

Playback EFM duplex signal output

Playback EFM comparator slice level input

+3V power supply (Analog)

Playback EFM comparator bias current input

Playback EFM RF signal input

Ground (Analog)

Phase comparison output for the recording/playback EFM master PLL

Filter input for the recording/playback EFM master PLL

Filter output for the recording/playback EFM master PLL

Internal VCO control voltage input for the recording/playback EFM master PLL

Light amount signal peak hold input from the CXA2523AR

Light amount signal bottom hold input from the CXA2523AR

Light amount signal input from the CXA2523AR

Focus error signal input from the CXA2523AR

Auxiliary A/D input

Middle point voltage (+1.5V) input from the CXA2523AR

Monitor output of the A/D converter input signal (Not used)

+3V power supply (Analog)

A/D converter operational range upper limit voltage input (Fixed at “H”)

A/D converter operational range lower limit voltage input (Fixed at “L”)

Ground (Analog)

Sled error signal input from the CXA2523AR

Tracking error signal input from the CXA2523AR

Connected to +3V power supply

Error signal input for the laser digital APC (Fixed at “L”)

ADIP duplex FM signal input from the CXA2523AR (22.05 ± 1 kHz)

Filter f0 control output to the CXA2523AR

Control latch output to the CXA2523AR

Control clock output to the CXA2523AR

Control data output to the CXA2523AR

Reference PWM output for the laser APC

PWM output for the laser digital APC (Not used)

Tracking servo drive PWM output (–)

I/O

I/O

I/O

I (S)

O

I (A)

—

I (A)

I (A)

—

O (3)

I (A)

O (A)

I (A)

I (A)

I (A)

I (A)

I (A)

I (A)

I (A)

O (A)

—

I (A)

I (A)

—

I (A)

I (A)

I (A)

I (A)

I (S)

O

O

O

O

O

O

O

• Abbreviation

EFM: Eight to Fourteen Modulation

PLL : Phase Locked Loop

VCO: Voltage Controlled Oscillator

51

Function

Pin No. Pin Name I/O

86

87

88

89

90

91

92

93

94

95

96 to 98

99

100

TFDR

DVDD

FFDR

FRDR

FS4

SRDR

SFDR

SPRD

SPFD

FGIN

TEST1 to TEST3

DVSS

EFMO

O

—

O

O

O

O

O

O

O

I (S)

I

—

O

Tracking servo drive PWM output (+)

+3V power supply (Digital)

Focus servo drive PWM output (+)

Focus servo drive PWM output (–)

176.4 kHz clock signal output (X’tal) (Not used)

Sled servo drive PWM output (–)

Sled servo drive PWM output (+)

Spindle servo drive PWM output (–)

Spindle servo drive PWM output (+)

Test input (Fixed at “L”)

Ground (Digital)

EFM output when recording

• Abbreviation

EFM: Eight to Fourteen Modulation

52

1 DATA(FL) O Serial data signal output to the display driver.

2 CLK(FL) O Serial clock signal output to the display driver. L: Active

3 A1-IN I A1 Control input. (Fixed at L)

4 SIRCS I Remote control input.

5 to 7 NC — Not used.

8 MUTE O Line out muting output. L: Mute

9 AD/DA RESET O Reset signal output to the AK4524. L: Active

10 AD/DA LATCH O Latch signal output to the AK4524. L: Active

11 LD-LOW O Loading motor voltage control output L: High voltage H: Low voltage

12 LDIN I Loading motor control input. H: IN

13 LDOUT O Loading motor control output. H: OUT

14 MOD O Laser modulation switching signal output. L: OFF H: ON

15 BYTE I Data bus changed input. (Connected to ground.)

16 CNVSS — Ground.

17 XIN-T O Not used .

18 XOUT-T O Not used .

19 RESET I System rest input. L : ON

20 XOUT O Main clock output. (10MHz)

21 VSS — Ground.

22 XIN I Main clock input. (10MHz)

23 VCC — Power supply. (+3.3V)

24 NMI I Fixed at H. (Pull-up)

25 DQSY I Digital in sync input. (Record system)

26 P.DOWN I Power down detection input. L: Power down

27 SQSY I ADIP (MO) sync or subcode Q (PIT) sync input from CXD2662R.(Playback system)

28 K.B-CLK I Keyboard clock input.

29 LDON O Laser ON/OFF control output. H: Laser ON

30 LIMIT-IN I Detection input from the limit switch. L: Sled limit-In H: Sled limit-Out

31 A1 OUT O A1 Control output.

32 XINIT I Interrupt status input from CXD2662R.

33 BEEP O Beep output.

34 LRCKI I LR clock input.

35 WR PWR O Write power ON/OFF output. L: OFF H: ON

36 IIC CLK I/O IIC serial clock input/output.

37 IIC DATA I/O IIC serial data input/output.

38 SWDT O Writing data signal output to the serial bus.

39 VCC — Power supply. (+3.3V)

40 SRDT I Reading data signal input from the serial bus.

41 VSS — Ground.

42 SCLK O Clock signal output to the serial bus.

43 REC-SW I Detection signal input from the recording position detection switch. L: REC

44 CLIP DATA O CLIP serial data output.

45 RX0(CLIP) I CLIP serial data input.

46 CLIP CLK O CLIP serial clock output.

47 DIG-RST O Digital rest signal output to the CXD2662R and motor driver. L: Reset

48 SENS I Internal status (SENSE) input from the CXD2662R.

49 PLAY-SW I Detection signal input from the playback position detection switch. L: PLAY

50 XLATCH O Latch signal output to the serial bus.

51 OUT-SW I Detection signal input from the loading out detection switch.

52 RDY I Fixed at H. (Pull-up)

53 ALE/RAS O Microprocessor mode output. (Not used.)

54 HOLD I Fixed at H. (Pull-up)

FunctionPin NamePin No. I/O

• IC1 M30805SGP SYSTEM CONTROL (MAIN BOARD)

53

55 HLDA/ALE O Microprocessor mode output. (Not used.)

56 MNT2 (XBUSY) I In the state of executive command from the CXD2662R

57 VSS — Ground.

58 (MNT1) SHCK I Track jump signal input from the CXD2662R

59 VCC — Power supply. (+3.3V)

60 EEP-WP O EEP-ROM write protect signal output. L: write possibility

61 SDA I/O Data signal input/output pin with the EEP-ROM.

62 BUS CLK O Not used.

63 OE O Read signal output.

64 BHE CASH O Not used.

65 WE R/W O Write signal output.

66 SCL O Clock signal output to the EEP-ROM.

67 REFLECT-SW I Disk reflection rate detection input from the reflect detection switch. H: Disk with low reflection rate

68 PROTECT-SW I Recording-protection claw detection input from the protection detection switch. H: Protect

69 CS0 O Chip select signal output to the Flash ROM.

70 CS1 O Not used.

71 CS2 O Not used.

72 A20 O Not used.

73 A19 O Address bus signal output to Flash ROM.

74 VCC — Power supply. (+3.3V)

75 A18 O Address bus signal output to Flash ROM.

76 VSS — Ground

77 to 85 A17 to A9 O Address bus signal output to Flash ROM.

86 to 89 MODEL SEL 1 to 4 O Not used.

90 WP O Write protect signal to the Flash ROM.

91 VCC — Power supply. (+3.3V)

92 A8 O Address bus signal output to Flash ROM.

93 VCC — Power supply. (+3.3V)

94 to 101 A7 to A0 LB O Address bus signal output to Flash ROM.

102 to 113 D15 to D4 I/O Data bus signal input/output to the Flash ROM.

114 K.B-CLK-CTRL O Keyboard clock ON/OFF signal output. L: OFF H: ON

115 IIC BUSY O IIC cable connect check. L: Active

116 K.B-DATA O Keyboard data output.

117, 118 REC-VOL B, A O Not used.

119 to 122 D3 to D0 I/O Data bus signal input/output to the Flash ROM.

123, 124 JOG1, JOG0 I Jog dial pulse input from the rotary encoder.

125 LATCH(DA) O Not used.

126 REC O Mute signal output when Beep Rec.

127 NC O Not used.

128 CS(FL) O Chip select signal output to the display driver.

129 POWER(IIC) O Media commucator start-up check.

130 VSS — Ground.

131 STB O Strobe signal output to the power supply circuit. H: Power supply ON: L: standby

132 VCC — Power supply. (+3.3V)

133 IOP I Optical Pick-up voltage (current) detect signal input.

134 (A/D-6) I Model discrimination.

135 (A/D-5) I Model discrimination.

136 TIMER/BEEP SW I Timer mode select signal input.

137 to 139 KEY 3 to KEY 1 I Key input pin (A/D input)

140 AVSS — Ground. (Analog)

141 KEY0 I A/D reference voltage.

142 VREF — Power supply. (+3.3V)

143 AVCC — Power supply. (+3.3V)

144 NC I Not used.

FunctionPin NamePin No. I/O

54

7-1. CHASSIS SECTION

1 X-4947-208-1 FOOT ASSY (F50150S)

2 4-977-358-11 CUSHION

3 A-4725-161-A MAIN BOARD, COMPLETE (US,CND)

3 A-4725-165-A MAIN BOARD, COMPLETE

(AEP,UK,CIS,HK,AUS)

3 A-4725-169-A MAIN BOARD, COMPLETE (SP,MY)

*4 3-644-407-00 CLIP, AC WIRE E

5 1-677-826-11 PT BOARD

6 4-228-689-11 INSULATOR

7 4-228-643-11 SCREW (+BVTTWH M3), STEP

8 1-792-812-11 WIRE (FLAT TYPE) (27 CORE)

9 1-792-811-11 WIRE (FLAT TYPE) (23 CORE)

10 4-221-887-11 SCREW, +PTTWH (M3) (S) TITE

11 4-210-291-01 SCREW (CASE 3 TP2)

12 4-983-661-01 UPPER CASE (408226)

013 1-696-846-21 CORD, POWER (AUS)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

013 1-775-787-41 CORD, POWER (AEP,UK,CIS,SP,MY,HK)

013 1-783-531-31 CORD, POWER (US,CND)

*14 3-703-244-00 BUSHING (2104), CORD

15 4-228-639-01 PANEL, BACK (AEP,UK,CIS)

15 4-228-639-11 PANEL, BACK (US)

15 4-228-639-21 PANEL, BACK (CND)

15 4-228-639-31 PANEL, BACK (SP,MY)

15 4-228-639-41 PANEL, BACK (HK)

15 4-228-639-51 PANEL, BACK (AUS)

16 1-677-829-11 VOL-SEL BOARD (SP,MY)

017 1-569-008-21 ADAPTOR, CONVERSION (SP,MY)

017 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK)

18 1-569-972-21 SOCKET, SHORT 2P

19 9-910-999-31 RIVET (DIA. 3), NYLON

SECTION 7

EXPLODED VIEWS

NOTE:

• -XX, -X mean standardized parts, so they may

have some differences from the original one.

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering these

items.

• The mechanical parts with no reference number

in the exploded views are not supplied.

• Hardware (# mark) list and accessories and

packing materials are given in the last of this

parts list.

• Abbreviation

CND : Canadian model

SP : Singapore model

MY : Malaysia model

HK : Hong Kong model

AUS : Australian model

The components identified by mark 0 or

dotted line with mark 0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque

0 sont critiques pour la sécurité.

Ne les remplacer que par une pièce portant

le numéro spécifié.

11

12

11

98

10

3

16

18

19

4

5

6

6

6

7

7

7

1

2

14

15

MDM-7A

A

A

not

supplied

not supplied

not supplied

not supplied

Front panel section

#1

#1

#1

#2

#1

#1

#1

#1

(SP, MY)

(SP, MY)

13

13

US, CNDAUS

13

SP,MY

17

17

UK, HK

AEP, UK, HK, CIS, SP, MY

55

7-2. FRONT PANEL SECTION

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

51 X-4952-921-1 PANEL ASSY, FRONT

(AEP,UK,CIS,SP,MY,HK,AUS)

51 X-4952-922-1 PANEL ASSY, FRONT (US,CND)

52 A-4672-932-A KNOB (AMS) ASSY

53 3-354-981-11 SPRING (SUS), RING

54 4-228-622-01 WINDOW (FL)

55 4-228-629-01 LID (MD)

56 4-228-630-01 SPRING (LID), TENSION COIL

57 4-951-620-01 SCREW (2.6X8), +BVTP

58 4-228-625-01 BUTTON (SUB-A)

59 4-977-593-11 RING(DIA. 50), ORNAMENTAL

(AEP,UK,CIS,SP,MY,HK,AUS)

60 4-212-590-22 HOLDER (FL)

*61 4-949-935-21 CUSHION (FL)

62 1-677-825-11 KEY-SW BOARD

63 1-792-813-11 WIRE (FLAT TYPE) (15 CORE)

64 A-4725-163-A DISPLAY BOARD, COMPLETE (US,CND)

64 A-4725-167-A DISPLAY BOARD, COMPLETE

(AEP,UK,CIS,HK,AUS)

64 A-4725-171-A DISPLAY BOARD, COMPLETE (SP,MY)

65 X-4952-926-1 ESCUTCHEON (MD) ASSY

FL771 1-517-986-11 INDICATOR TUBE, FLUORESCENT

54

65

55

52

51

57

58

59

53

56

62

63

64

57

57

57

57

60

61

57

FL771

not supplied

not supplied

56

7-3. MECHANISM SECTION-1

(MDM-7A)

204

205

206

202

201

207

205

202

211

212

210

209

214

213

215

216

218

203

217

208

220

219

not supplied

not

supplied

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

*201 4-996-267-01 BASE (BU-D)

202 4-908-618-21 SCREW (+BTP) (2X6)

203 4-227-007-01 GEAR (SB)

204 4-227-025-01 BELT (LOADING)

205 3-372-761-01 SCREW (M1.7), TAPPING

206 4-227-002-01 GEAR, PULLEY

207 4-226-999-01 LEVER (HEAD)

208 X-4952-665-1 SPRING (SHT) ASSY, LEAF

209 4-228-923-01 LOCK (HOLDER)

210 4-229-533-01 SPRING (STOPPER), TORSION

211 4-227-012-01 SPRING (HOLDER), TENSION

212 4-227-019-01 PLATE (HOLDER), RETAINER

213 4-227-013-01 SPRING (EJ), TENSION

214 4-226-995-01 SLIDER (EJ)

215 4-226-996-01 LIMITTER (EJ)

216 4-226-997-01 SLIDER

217 4-226-998-01 LEVER (CHG)

218 4-227-006-01 GEAR (SA)

219 A-4672-973-D HOLDER ASSY

220 4-226-994-01 GUIDE (L)

57

7-4. MECHANISM SECTION-2

(MDM-7A)

The components identified by

mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number

specified.

Les composants identifiés par

une marque 0 sont critiques

pour la sécurité.

Ne les remplacer que par une

pièce portant le numéro spécifié.

259

258

257

255

254

256

260

259

262

252

253

268

267

253

252

251

263

252

253

262

HR901

S102

M101

M103

M102

#3

#3

253

261

264 265

266

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

251 A-4725-054-A BD BOARD,COMPLETE

252 4-908-618-21 SCREW (+BTP) (2X6)

253 3-372-761-01 SCREW (M1.7), TAPPING

254 4-226-993-01 RACK

255 4-227-014-01 SPRING (RACK), COMPRESSION

256 4-226-992-01 BASE, SL

257 1-678-514-11 FLEXIBLE BOARD

0258 A-4672-541-A OPTICAL PICK-UP KMS-260B/J1N

259 4-988-560-01 SCREW (+P 1.7X6)

260 4-996-265-01 SHAFT, MAIN

261 4-226-989-01 CHASSIS

262 4-211-036-01 SCREW (1.7X2.5), +PWH

263 4-226-990-01 BASE (BU-A)

264 4-227-023-01 SPRING (SPINDLE), TORSION

265 4-227-004-01 GEAR (LC)

266 4-227-005-01 GEAR (LD)

267 4-227-009-01 GEAR (SD)

268 4-227-008-01 GEAR (SC)

HR901 1-500-670-11 HEAD, OVER LIGHT

M101 A-4672-898-A MOTOR ASSY, SPINDLE

M102 A-4672-900-A MOTOR ASSY, SLED

M103 A-4672-975-A MOTOR ASSY, LOADING

S102 1-771-957-11 SWITCH, PUSH (2 KEY) (REFLECT/PROTECT SW)

58

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

SECTION 8

ELECTRICAL PARTS LIST

A-4725-054-A BD BOARD, COMPLETE

*******************

< CAPACITOR >

C101 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V

C102 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V

C103 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C104 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

C105 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V

C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C107 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C108 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V

C109 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V

C110 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C111 1-117-720-11 CERAMIC CHIP 4.7uF 10V

C112 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V

C113 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C114 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V

C115 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C116 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

C117 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C118 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C119 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C120 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C121 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C125 1-117-720-11 CERAMIC CHIP 4.7uF 10V

C128 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C131 1-117-720-11 CERAMIC CHIP 4.7uF 10V

C132 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C133 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C141 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C142 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C143 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C145 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C146 1-117-720-11 CERAMIC CHIP 4.7uF 10V

C147 1-117-720-11 CERAMIC CHIP 4.7uF 10V

C151 1-117-370-11 CERAMIC CHIP 10uF 10V

C152 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C153 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C154 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C155 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C156 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C157 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C158 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C159 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C160 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C163 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V

C164 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C165 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C166 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V

C167 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V

C169 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C171 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C172 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C180 1-117-370-11 CERAMIC CHIP 10uF 10V

C181 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C182 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C183 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C184 1-117-970-11 ELECT CHIP 22uF 20% 10V

C185 1-131-872-91 CERAMIC CHIP 1000PF 10% 630V

C191 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C192 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C193 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C194 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C195 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C196 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1401 1-117-720-11 CERAMIC CHIP 4.7uF 10V

< CONNECTOR >

CN101 1-766-833-21 CONNECTOR, FFC/FPC (ZIF) 21P

CN102 1-784-835-21 CONNECTOR, FFC (LIF(NON-ZIF)) 27P

CN103 1-784-834-21 CONNECTOR, FFC (LIF(NON-ZIF)) 23P

*CN104 1-580-055-21 PIN, CONNECTOR (SMD) 2P

CN105 1-784-859-21 CONNECTOR, FFC (LIF(NON-ZIF)) 7P

< DIODE >

D101 8-719-988-61 DIODE 1SS355TE-17

D181 8-719-080-81 DIODE FS1J6

D183 8-719-080-81 DIODE FS1J6

< IC >

IC101 8-752-080-95 IC CXA2523AR

IC102 8-759-473-51 IC TLV2361CDBV

IC141 8-759-430-25 IC BH6511FS

IC151 8-752-404-64 IC CXD2662R

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

NOTE:

• Due to standardization, replacements in the

parts list may be different from the parts

specified in the diagrams or the components

used on the set.

• -XX, -X mean standardized parts, so they

may have some difference from the original

one.

• Items marked “*” are not stocked since they

are seldom required for routine service.

Some delay should be anticipated when

ordering these items.

• CAPACITORS:

uF: µF

• RESISTORS

All resistors are in ohms.

METAL: metal-film resistor

METAL OXIDE: Metal Oxide-film resistor

F: nonflammable

• COILS

uH: µH

• SEMICONDUCTORS

In each case, u: µ, for example:

uA...: µA... , uPA... , µPA... ,

uPB... , µPB... , uPC... , µPC... ,

uPD..., µPD...

• Abbreviation

CND : Canadian model

SP : Singapore model

MY : Malaysia model

HK : Hong Kong model

AUS : Australian model

When indicating parts by reference number,

please include the board name.

The components identified by mark 0 or

dotted line with mark 0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque

0 sont critiques pour la sécurité.

Ne les remplacer que par une pièce portant

le numéro spécifié.

BD

59

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

IC153 8-759-671-27 IC MSM51V4400E-70TS-K

IC171 8-759-096-87 IC TC7WU04FU(TE12R)

IC181 8-759-481-17 IC MC74ACT08DTR2

IC190 8-759-460-72 IC BA033FP-E2

IC195 8-759-640-41 IC BR24C08F-E2

< JUMPER RESISTOR >

JW201 1-216-295-91 SHORT 0

JW202 1-216-295-91 SHORT 0

JW203 1-216-295-91 SHORT 0

JW903 1-216-295-91 SHORT 0

JW904 1-216-295-91 SHORT 0

< COIL >

L101 1-500-245-11 INDUCTOR CHIP 0uH

L102 1-500-245-11 INDUCTOR CHIP 0uH

L103 1-500-245-11 INDUCTOR CHIP 0uH

L105 1-414-235-22 INDUCTOR CHIP 0uH

L106 1-500-245-11 INDUCTOR CHIP 0uH

L121 1-500-245-11 INDUCTOR CHIP 0uH

L122 1-500-245-11 INDUCTOR CHIP 0uH

L131 1-500-245-11 INDUCTOR CHIP 0uH

L141 1-412-029-11 INDUCTOR CHIP 10uH

L142 1-412-032-11 INDUCTOR CHIP 100uH

L143 1-412-029-11 INDUCTOR CHIP 10uH

L144 1-412-032-11 INDUCTOR CHIP 100uH

L145 1-412-032-11 INDUCTOR CHIP 100uH

L146 1-469-855-21 INDUCTOR 0uH

L147 1-469-855-21 INDUCTOR 0uH

L161 1-500-245-11 INDUCTOR CHIP 0uH

L171 1-500-245-11 INDUCTOR CHIP 0uH

L180 1-469-855-21 INDUCTOR 0uH

L181 1-469-855-21 INDUCTOR 0uH

L182 1-500-245-11 INDUCTOR CHIP 0uH

L183 1-216-296-91 SHORT 0

L184 1-216-296-91 SHORT 0

< TRANSISTOR >

Q101 8-729-403-35 TRANSISTOR UN5113-TX

Q121 8-729-403-35 TRANSISTOR UN5113-TX

Q122 8-729-101-07 TRANSISTOR 2SB798-T1DK

Q131 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR

Q132 8-729-903-10 TRANSISTOR FMW1-T-148

Q133 8-729-402-93 TRANSISTOR UN5214-TX

Q134 8-729-402-93 TRANSISTOR UN5214-TX

Q181 8-729-018-75 TRANSISTOR 2SJ278MYTR

Q182 8-729-017-65 TRANSISTOR 2SK1764KYTR

< RESISTOR >

R101 1-216-829-11 METAL CHIP 4.7K 5% 1/16W

R102 1-216-853-11 METAL CHIP 470K 5% 1/16W

R103 1-216-863-11 RES-CHIP 3.3M 5% 1/16W

R104 1-216-853-11 METAL CHIP 470K 5% 1/16W

R105 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R106 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R107 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R108 1-216-833-91 RES-CHIP 10K 5% 1/16W

R109 1-216-845-11 METAL CHIP 100K 5% 1/16W

R110 1-216-845-11 METAL CHIP 100K 5% 1/16W

R111 1-216-833-91 RES-CHIP 10K 5% 1/16W

R112 1-216-829-11 METAL CHIP 4.7K 5% 1/16W

R113 1-216-833-91 RES-CHIP 10K 5% 1/16W

R114 1-216-827-11 METAL CHIP 3.3K 5% 1/16W

R115 1-216-833-91 RES-CHIP 10K 5% 1/16W

R116 1-216-839-11 METAL CHIP 33K 5% 1/16W

R117 1-216-837-11 METAL CHIP 22K 5% 1/16W

R118 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W

R119 1-218-863-11 METAL CHIP 4.7K 0.5% 1/16W

R120 1-218-889-11 METAL CHIP 56K 0.5% 1/16W

R121 1-218-863-11 METAL CHIP 4.7K 0.5% 1/16W

R122 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W

R123 1-216-819-11 METAL CHIP 680 5% 1/16W

R124 1-216-809-11 METAL CHIP 100 5% 1/16W

R125 1-216-815-11 METAL CHIP 330 5% 1/16W

R126 1-216-819-11 METAL CHIP 680 5% 1/16W

R127 1-216-845-11 METAL CHIP 100K 5% 1/16W

R128 1-219-724-11 METAL CHIP 1 1% 1/4W

R129 1-216-298-00 METAL CHIP 2.2 5% 1/10W

R130 1-216-829-11 METAL CHIP 4.7K 5% 1/16W

R131 1-216-833-91 RES-CHIP 10K 5% 1/16W

R132 1-216-841-11 METAL CHIP 47K 5% 1/16W

R133 1-216-821-11 METAL CHIP 1K 5% 1/16W

R134 1-216-821-11 METAL CHIP 1K 5% 1/16W

R135 1-216-821-11 METAL CHIP 1K 5% 1/16W

R136 1-216-295-91 SHORT 0

R138 1-216-833-91 RES-CHIP 10K 5% 1/16W

R150 1-216-833-91 RES-CHIP 10K 5% 1/16W

R151 1-216-833-91 RES-CHIP 10K 5% 1/16W

R154 1-216-833-91 RES-CHIP 10K 5% 1/16W

R155 1-216-864-11 METAL CHIP 0 5% 1/16W

R156 1-216-864-11 METAL CHIP 0 5% 1/16W

R157 1-216-809-11 METAL CHIP 100 5% 1/16W

R158 1-216-809-11 METAL CHIP 100 5% 1/16W

R159 1-216-833-91 RES-CHIP 10K 5% 1/16W

R160 1-216-833-91 RES-CHIP 10K 5% 1/16W

R161 1-216-833-91 RES-CHIP 10K 5% 1/16W

R163 1-216-809-11 METAL CHIP 100 5% 1/16W

R164 1-216-809-11 METAL CHIP 100 5% 1/16W

R165 1-216-809-11 METAL CHIP 100 5% 1/16W

R167 1-216-833-91 RES-CHIP 10K 5% 1/16W

R168 1-216-845-11 METAL CHIP 100K 5% 1/16W

R169 1-216-855-11 METAL CHIP 680K 5% 1/16W

R170 1-216-827-11 METAL CHIP 3.3K 5% 1/16W

R171 1-216-821-11 METAL CHIP 1K 5% 1/16W

R173 1-216-821-11 METAL CHIP 1K 5% 1/16W

R174 1-216-811-11 METAL CHIP 150 5% 1/16W

R175 1-216-857-11 METAL CHIP 1M 5% 1/16W

R176 1-216-809-11 METAL CHIP 100 5% 1/16W

R179 1-216-295-91 SHORT 0

R181 1-216-841-11 METAL CHIP 47K 5% 1/16W

R182 1-216-841-11 METAL CHIP 47K 5% 1/16W

R183 1-216-841-11 METAL CHIP 47K 5% 1/16W

R184 1-220-942-11 METAL CHIP 3.3 1% 1/4W

R185 1-220-942-11 METAL CHIP 3.3 1% 1/4W

R195 1-216-833-91 RES-CHIP 10K 5% 1/16W

R196 1-216-833-91 RES-CHIP 10K 5% 1/16W

R197 1-216-833-91 RES-CHIP 10K 5% 1/16W

R218 1-216-864-11 METAL CHIP 0 5% 1/16W

BD

60

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

< SWITCH >

S101 1-762-596-21 SWITCH, PUSH (1 KEY) (LIMIT SW)

S103 1-771-956-21 SWITCH, PUSH (1 KEY) (OUT SW)

S104 1-771-955-21 SWITCH, PUSH (1 KEY) (PLAY SW)

S105 1-771-955-21 SWITCH, PUSH (1 KEY) (REC SW)

**************************************************************

A-4725-163-A DISPLAY BOARD, COMPLETE (US,CND)

************************

A-4725-167-A DISPLAY BOARD, COMPLETE

(AEP,UK,CIS,HK,AUS)

************************

A-4725-171-A DISPLAY BOARD, COMPLETE (SP,MY)

************************

4-212-590-22 HOLDER (FL)

*4-949-935-21 CUSHION (FL)

< CAPACITOR >

C700 1-126-153-11 ELECT 22uF 20% 6.3V

C709 1-164-159-11 CERAMIC 0.1uF 50V

C760 1-164-159-11 CERAMIC 0.1uF 50V

C761 1-162-294-31 CERAMIC 0.001uF 10% 50V

C762 1-162-294-31 CERAMIC 0.001uF 10% 50V

C763 1-162-294-31 CERAMIC 0.001uF 10% 50V

C764 1-164-159-11 CERAMIC 0.1uF 50V

C765 1-126-153-11 ELECT 22uF 20% 6.3V

C766 1-164-159-11 CERAMIC 0.1uF 50V

C767 1-162-294-31 CERAMIC 0.001uF 10% 50V

C769 1-162-215-31 CERAMIC 47PF 5% 50V

C781 1-124-584-00 ELECT 100uF 20% 10V

C782 1-162-306-11 CERAMIC 0.01uF 20% 16V

< CONNECTOR >

CN701 1-779-552-21 CONNECTOR, FFC (LIF(NON-ZIF)) 15P

CN702 1-778-980-11 HOUSING, CONNECTOR 4P

< LED >

D775 8-719-046-39 LED SEL5821A-TP15 (MDLP)

< FLUORESCENT INDICATOR TUBE >

FL771 1-517-986-11 INDICATOR TUBE, FLUORESCENT

< IC >

IC761 8-759-659-03 IC MSM9202-07GS-K

IC781 8-749-013-92 IC GP1UC7X (REMOTE SENSOR)

< TRANSISTOR >

Q767 8-729-900-74 TRANSISTOR UN4216-TA

Q775 8-729-900-80 TRANSISTOR UN4211-TA

< RESISTOR >

R702 1-249-421-11 CARBON 2.2K 5% 1/4W F

R703 1-247-843-11 CARBON 3.3K 5% 1/4W

R704 1-249-425-11 CARBON 4.7K 5% 1/4W F

R705 1-249-429-11 CARBON 10K 5% 1/4W

R706 1-249-435-11 CARBON 33K 5% 1/4W

R712 1-249-421-11 CARBON 2.2K 5% 1/4W F

R713 1-247-843-11 CARBON 3.3K 5% 1/4W

R714 1-249-425-11 CARBON 4.7K 5% 1/4W F

R715 1-249-429-11 CARBON 10K 5% 1/4W

R716 1-249-435-11 CARBON 33K 5% 1/4W

R722 1-249-421-11 CARBON 2.2K 5% 1/4W F

R723 1-247-843-11 CARBON 3.3K 5% 1/4W

R724 1-249-425-11 CARBON 4.7K 5% 1/4W F

R760 1-247-807-31 CARBON 100 5% 1/4W

R761 1-247-807-31 CARBON 100 5% 1/4W

R762 1-247-807-31 CARBON 100 5% 1/4W

R763 1-247-807-31 CARBON 100 5% 1/4W

R767 1-249-441-11 CARBON 100K 5% 1/4W

R769 1-247-843-11 CARBON 3.3K 5% 1/4W

R775 1-249-399-11 CARBON 33 5% 1/4W F

R781 1-249-401-11 CARBON 47 5% 1/4W F

R782 1-247-807-31 CARBON 100 5% 1/4W

< SWITCH >

S701 1-762-875-21 SWITCH, KEYBOARD (REC z)

S702 1-762-875-21 SWITCH, KEYBOARD (x)

S703 1-762-875-21 SWITCH, KEYBOARD (M)

S704 1-762-875-21 SWITCH, KEYBOARD (m)

S705 1-762-875-21 SWITCH, KEYBOARD (X)

S706 1-762-875-21 SWITCH, KEYBOARD (H)

S711 1-762-875-21 SWITCH, KEYBOARD (MENU/NO)

S712 1-762-875-21 SWITCH, KEYBOARD (YES)

S713 1-475-235-21 ENCODER, ROTARY (l AMS L)

S714 1-762-875-21 SWITCH, KEYBOARD (CLEAR)

S715 1-762-875-21 SWITCH, KEYBOARD (INPUT)

S716 1-762-875-21 SWITCH, KEYBOARD (REC MODE)

S721 1-762-875-21 SWITCH, KEYBOARD (EJECT A)

S722 1-762-875-21 SWITCH, KEYBOARD (PLAY MODE)

S723 1-762-875-21 SWITCH, KEYBOARD (REPEAT)

S724 1-762-875-21 SWITCH, KEYBOARD (LEVEL/DISPLAY/CHAR)

**************************************************************

1-677-825-11 KEY-SW BOARD

*************

< CAPACITOR >

C748 1-164-159-11 CERAMIC 0.1uF 50V

< CONNECTOR >

CN703 1-778-979-11 CONNECTOR, BOARD TO BOARD 4P

< LED >

D751 8-719-046-44 LED SEL5221S-TP15 (STANDBY)

< TRANSISTOR >

Q751 8-729-900-80 TRANSISTOR UN4211-TA

< RESISTOR >

R725 1-249-429-11 CARBON 10K 5% 1/4W

R726 1-249-435-11 CARBON 33K 5% 1/4W

R751 1-249-409-11 CARBON 220 5% 1/4W F

< SWITCH >

S726 1-762-875-21 SWITCH, KEYBOARD (@/1)

S731 1-762-875-21 SWITCH, KEYBOARD (SCROLL)

**************************************************************

BD DISPLAY KEY-SW

61

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

MAIN

A-4725-161-A MAIN BOARD, COMPLETE (US,CND)

*********************

A-4725-165-A MAIN BOARD, COMPLETE

(AEP,UK,CIS,HK,AUS)

*********************

A-4725-169-A MAIN BOARD, COMPLETE (SP,MY)

*********************

7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S

< BATTERY >

BT420 1-756-121-11 BATTERY, LITHIUM SECONDARY

< CAPACITOR >

C1 1-126-964-11 ELECT 10uF 20% 50V

C2 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C19 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C26 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C36 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C37 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C39 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C48 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C151 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C152 1-128-551-11 ELECT 22uF 20% 25V

C153 1-128-551-11 ELECT 22uF 20% 25V

C161 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C165 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C166 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C171 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C172 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C176 1-128-551-11 ELECT 22uF 20% 25V

C177 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C251 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C252 1-128-551-11 ELECT 22uF 20% 25V

C253 1-128-551-11 ELECT 22uF 20% 25V

C261 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C265 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C266 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C271 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C272 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C276 1-128-551-11 ELECT 22uF 20% 25V

C277 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C311 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C312 1-126-916-11 ELECT 1000uF 20% 6.3V

C351 1-126-933-11 ELECT 100uF 20% 16V

C356 1-126-933-11 ELECT 100uF 20% 16V

C357 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C358 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C359 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C360 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C361 1-126-933-11 ELECT 100uF 20% 16V

C366 1-126-933-11 ELECT 100uF 20% 16V

C400 1-126-936-11 ELECT 3300uF 20% 16V

C403 1-126-963-11 ELECT 4.7uF 20% 50V

C404 1-126-934-11 ELECT 220uF 20% 10V

C405 1-126-916-11 ELECT 1000uF 20% 6.3V

C406 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C407 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C408 1-104-665-11 ELECT 100uF 20% 10V

C410 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C411 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C412 1-126-963-11 ELECT 4.7uF 20% 50V

C413 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C431 1-104-663-11 ELECT 33uF 20% 25V

C443 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C447 1-126-933-11 ELECT 100uF 20% 16V

C461 1-126-939-11 ELECT 10000uF 20% 16V

C471 1-126-935-11 ELECT 470uF 20% 16V

C476 1-126-935-11 ELECT 470uF 20% 16V

C481 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C482 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C483 1-128-576-11 ELECT 100uF 20% 63V

C484 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C485 1-126-967-11 ELECT 47uF 20% 50V

C490 1-126-965-11 ELECT 22uF 20% 50V

C500 1-126-934-11 ELECT 220uF 20% 10V

C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C502 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C503 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C504 1-104-665-11 ELECT 100uF 20% 10V

C505 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C515 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C516 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C517 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C519 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C520 1-126-934-11 ELECT 220uF 20% 10V

C522 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C523 1-104-665-11 ELECT 100uF 20% 10V

C524 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C550 1-104-665-11 ELECT 100uF 20% 10V

C551 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C552 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V

C553 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V

C554 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C601 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C611 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C612 1-126-963-11 ELECT 4.7uF 20% 50V

C613 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C925 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C926 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C955 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C956 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CN1 1-784-384-11 CONNECTOR, FFC/FPC 27P

CN400 1-793-991-11 CONNECTOR, FFC/FPC 23P

CN420 1-568-683-11 PIN, CONNECTOR (PC BAORD) 2P

CN490 1-794-480-21 CONNECTOR, FFC 15P

*CN902 1-764-333-11 PLUG, CONNECTOR 10P

< DIODE >

D155 8-719-016-74 DIODE 1SS352-TPH3

D156 8-719-016-74 DIODE 1SS352-TPH3

D255 8-719-016-74 DIODE 1SS352-TPH3

D256 8-719-016-74 DIODE 1SS352-TPH3

D412 8-719-820-05 DIODE 1SS181-TE85L

D421 8-719-016-74 DIODE 1SS352-TPH3

D422 8-719-074-34 DIODE RB495D-T146

D431 8-719-016-74 DIODE 1SS352-TPH3

62

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

D432 8-719-016-74 DIODE 1SS352-TPH3

D461 8-719-200-82 DIODE 11ES2-TB5

D462 8-719-200-82 DIODE 11ES2-TB5

D471 8-719-200-82 DIODE 11ES2-TB5

D472 8-719-200-82 DIODE 11ES2-TB5

D476 8-719-200-82 DIODE 11ES2-TB5

D477 8-719-200-82 DIODE 11ES2-TB5

D481 8-719-200-82 DIODE 11ES2-TB5

D482 8-719-422-23 DIODE MA8047-TX

< IC >

IC1 8-759-677-81 IC M30805SGP

IC2 8-759-685-93 IC MT28F800B3WG-10T-640

IC160 8-759-636-55 IC M5218AFP-T1

IC260 8-759-636-55 IC M5218AFP-T1

IC350 8-759-636-55 IC M5218AFP-T1

IC400 8-759-678-77 IC LA5643

IC440 8-759-822-09 IC LB1641

IC480 8-759-633-42 IC M5293L

IC500 8-759-579-68 IC AK4524-TP

IC550 8-759-548-87 IC SN74LVU04ANSR

IC600 8-759-548-87 IC SN74LVU04ANSR

IC611 8-749-012-70 IC GP1F38R (DIGITAL OPTICAL IN)

< JACK >

J150 1-784-429-11 JACK, PIN 4P (ANALOG IN/OUT)

< COIL >

L349 1-216-296-91 SHORT 0

L490 1-216-296-91 SHORT 0

L506 1-414-265-21 INDUCTOR 4.7uH

L522 1-414-265-21 INDUCTOR 4.7uH

L523 1-216-296-91 SHORT 0

L524 1-216-296-91 SHORT 0

L550 1-414-265-21 INDUCTOR 4.7uH

L551 1-216-296-91 SHORT 0

L611 1-414-267-11 INDUCTOR 10uH

< TRANSISTOR >

Q180 8-729-046-97 TRANSISTOR 2SD1938(F)-T(TX).SO

Q281 8-729-046-97 TRANSISTOR 2SD1938(F)-T(TX).SO

Q356 8-729-194-57 TRANSISTOR 2SC945TP-QP

Q380 8-729-424-08 TRANSISTOR UN2111-TX

Q440 8-729-421-22 TRANSISTOR UN2211-TX

Q444 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR

Q910 8-729-119-78 TRANSISTOR 2SC2785TP-E

< RESISTOR >

R1 1-216-833-91 RES-CHIP 10K 5% 1/16W

R2 1-216-864-11 METAL CHIP 0 5% 1/16W

R3 1-216-809-11 METAL CHIP 100 5% 1/16W

R4 1-216-864-11 METAL CHIP 0 5% 1/16W

R10 1-216-864-11 METAL CHIP 0 5% 1/16W

R24 1-216-833-91 RES-CHIP 10K 5% 1/16W

R30 1-216-833-91 RES-CHIP 10K 5% 1/16W

R33 1-216-864-11 METAL CHIP 0 5% 1/16W

R38 1-216-864-11 METAL CHIP 0 5% 1/16W

R42 1-216-864-11 METAL CHIP 0 5% 1/16W

R43 1-216-833-91 RES-CHIP 10K 5% 1/16W

R44 1-216-864-11 METAL CHIP 0 5% 1/16W

R45 1-216-833-91 RES-CHIP 10K 5% 1/16W

R49 1-216-833-91 RES-CHIP 10K 5% 1/16W

R50 1-216-864-11 METAL CHIP 0 5% 1/16W

R51 1-216-833-91 RES-CHIP 10K 5% 1/16W

R52 1-216-833-91 RES-CHIP 10K 5% 1/16W

R54 1-216-833-91 RES-CHIP 10K 5% 1/16W

R67 1-216-833-91 RES-CHIP 10K 5% 1/16W

R68 1-216-833-91 RES-CHIP 10K 5% 1/16W

R69 1-216-833-91 RES-CHIP 10K 5% 1/16W

R70 1-216-833-91 RES-CHIP 10K 5% 1/16W

R90 1-216-845-11 METAL CHIP 100K 5% 1/16W

R114 1-216-845-11 METAL CHIP 100K 5% 1/16W

R115 1-216-833-91 RES-CHIP 10K 5% 1/16W

R123 1-216-833-91 RES-CHIP 10K 5% 1/16W

R124 1-216-833-91 RES-CHIP 10K 5% 1/16W

R129 1-216-833-91 RES-CHIP 10K 5% 1/16W

R134 1-216-845-11 METAL CHIP 100K 5% 1/16W

R135 1-216-845-11 METAL CHIP 100K 5% 1/16W

R136 1-216-845-11 METAL CHIP 100K 5% 1/16W

R137 1-216-833-91 RES-CHIP 10K 5% 1/16W

R138 1-216-833-91 RES-CHIP 10K 5% 1/16W

R139 1-216-833-91 RES-CHIP 10K 5% 1/16W

R141 1-216-833-91 RES-CHIP 10K 5% 1/16W

R144 1-216-833-91 RES-CHIP 10K 5% 1/16W

R151 1-216-839-11 METAL CHIP 33K 5% 1/16W

R152 1-216-835-11 METAL CHIP 15K 5% 1/16W

R153 1-216-849-11 METAL CHIP 220K 5% 1/16W

R155 1-216-805-11 METAL CHIP 47 5% 1/16W

R161 1-216-833-91 RES-CHIP 10K 5% 1/16W

R162 1-216-833-91 RES-CHIP 10K 5% 1/16W

R163 1-216-833-91 RES-CHIP 10K 5% 1/16W

R164 1-216-833-91 RES-CHIP 10K 5% 1/16W

R165 1-216-837-11 METAL CHIP 22K 5% 1/16W

R166 1-216-837-11 METAL CHIP 22K 5% 1/16W

R171 1-216-823-11 METAL CHIP 1.5K 5% 1/16W

R172 1-216-823-11 METAL CHIP 1.5K 5% 1/16W

R176 1-216-819-11 METAL CHIP 680 5% 1/16W

R177 1-216-845-11 METAL CHIP 100K 5% 1/16W

R178 1-216-815-11 METAL CHIP 330 5% 1/16W

R181 1-216-833-91 RES-CHIP 10K 5% 1/16W

R251 1-216-839-11 METAL CHIP 33K 5% 1/16W

R252 1-216-835-11 METAL CHIP 15K 5% 1/16W

R253 1-216-849-11 METAL CHIP 220K 5% 1/16W

R255 1-216-805-11 METAL CHIP 47 5% 1/16W

R261 1-216-833-91 RES-CHIP 10K 5% 1/16W

R262 1-216-833-91 RES-CHIP 10K 5% 1/16W

R263 1-216-833-91 RES-CHIP 10K 5% 1/16W

R264 1-216-833-91 RES-CHIP 10K 5% 1/16W

R265 1-216-837-11 METAL CHIP 22K 5% 1/16W

R266 1-216-837-11 METAL CHIP 22K 5% 1/16W

R271 1-216-823-11 METAL CHIP 1.5K 5% 1/16W

R272 1-216-823-11 METAL CHIP 1.5K 5% 1/16W

R276 1-216-819-11 METAL CHIP 680 5% 1/16W

R277 1-216-845-11 METAL CHIP 100K 5% 1/16W

R278 1-216-815-11 METAL CHIP 330 5% 1/16W

R280 1-216-833-91 RES-CHIP 10K 5% 1/16W

MAIN

63

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

0R301 1-219-786-11 FUSIBLE 22 5% 1/4W

0R306 1-219-786-11 FUSIBLE 22 5% 1/4W

R356 1-216-815-11 METAL CHIP 330 5% 1/16W

R357 1-216-822-11 METAL CHIP 1.2K 5% 1/16W

R380 1-216-845-11 METAL CHIP 100K 5% 1/16W

R381 1-216-847-11 METAL CHIP 150K 5% 1/16W

R410 1-216-845-11 METAL CHIP 100K 5% 1/16W

R413 1-216-833-91 RES-CHIP 10K 5% 1/16W

R421 1-216-813-11 METAL CHIP 220 5% 1/16W

R431 1-216-809-11 METAL CHIP 100 5% 1/16W

R432 1-216-817-11 METAL CHIP 470 5% 1/16W

R433 1-216-816-11 METAL CHIP 390 5% 1/16W

R441 1-216-837-11 METAL CHIP 22K 5% 1/16W

R442 1-216-833-91 RES-CHIP 10K 5% 1/16W

R443 1-216-837-91 METAL CHIP 22K 5% 1/16W

R481 1-216-864-11 METAL CHIP 0 5% 1/16W

R482 1-216-846-11 METAL CHIP 120K 5% 1/16W

R483 1-216-813-11 METAL CHIP 220 5% 1/16W

R484 1-216-813-11 METAL CHIP 220 5% 1/16W

R485 1-216-845-11 METAL CHIP 100K 5% 1/16W

R508 1-216-845-11 METAL CHIP 100K 5% 1/16W

R511 1-216-805-11 METAL CHIP 47 5% 1/16W

R512 1-216-805-11 METAL CHIP 47 5% 1/16W

R513 1-216-805-11 METAL CHIP 47 5% 1/16W

R514 1-216-805-11 METAL CHIP 47 5% 1/16W

R515 1-216-809-11 METAL CHIP 100 5% 1/16W

R516 1-216-809-11 METAL CHIP 100 5% 1/16W

R517 1-216-809-11 METAL CHIP 100 5% 1/16W

R551 1-216-828-11 METAL CHIP 3.9K 5% 1/16W

R552 1-216-817-11 METAL CHIP 470 5% 1/16W

R553 1-216-815-11 METAL CHIP 330 5% 1/16W

R613 1-216-853-11 METAL CHIP 470K 5% 1/16W

R614 1-216-841-11 METAL CHIP 47K 5% 1/16W

R623 1-216-864-11 METAL CHIP 0 5% 1/16W

R911 1-216-829-11 METAL CHIP 4.7K 5% 1/16W

R912 1-216-841-11 METAL CHIP 47K 5% 1/16W

R1016 1-216-864-11 METAL CHIP 0 5% 1/16W

< COMPOSITION CIRCUIT BLOCK >

RB102 1-236-908-11 NETWORK RESISTOR (CHIP) 10K

RB106 1-236-908-11 NETWORK RESISTOR (CHIP) 10K

RB110 1-236-908-11 NETWORK RESISTOR (CHIP) 10K

RB119 1-236-908-11 NETWORK RESISTOR (CHIP) 10K

< VIBRATOR >

X22 1-781-174-21 VIBRATOR, CERAMIC (10MHz)

X550 1-781-998-11 VIBRATOR, CRYSTAL (45.1584MHz)

**************************************************************

1-677-826-11 PT BOARD

*********

< CAPACITOR >

0C900 1-113-920-11 CERAMIC 0.0022uF 20% 250V

0C901 1-113-920-11 CERAMIC 0.0022uF 20% 250V

0C910 1-113-920-11 CERAMIC 0.0022uF 20% 250V

C920 1-164-159-11 CERAMIC 0.1uF 50V

C921 1-164-159-11 CERAMIC 0.1uF 50V

C922 1-164-159-11 CERAMIC 0.1uF 50V

C923 1-164-159-11 CERAMIC 0.1uF 50V

C924 1-164-159-11 CERAMIC 0.1uF 50V

C950 1-164-159-11 CERAMIC 0.1uF 50V

C951 1-164-159-11 CERAMIC 0.1uF 50V

C952 1-164-159-11 CERAMIC 0.1uF 50V

< CONNECTOR >

*CN900 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P

< DIODE >

D910 8-719-911-19 DIODE 1SS133T-72

< LINE FILTER >

0LF900 1-419-625-11 FILTER, LINE

< RELAY >

0RY910 1-755-356-11 RELAY

< POWER TRANSFORMER >

0TR900 1-435-543-11 TRANSFORMER, POWER (US,CND)

0TR900 1-435-544-11 TRANSFORMER, POWER (AEP,UK,CIS,HK,AUS)

0TR900 1-435-545-11 TRANSFORMER, POWER (SP,MY)

0TR950 1-435-548-11 TRANSFORMER, POWER (AEP,UK,CIS,HK,AUS)

0TR950 1-435-549-11 TRANSFORMER, POWER (SP,MY)

0TR950 1-435-547-11 TRANSFORMER, POWER (US,CND)

**************************************************************

1-677-829-11 VOL-SEL BOARD (SP,MY)

**************

< CONNECTOR >

*CN951 1-573-565-11 PIN, CONNECTOR 5P (SP,MY)

< SWITCH >

0S951 1-771-474-11 SWITCH, POWER (VOLTAGE SELECTOR)

(SP,MY)

**************************************************************

The components identified by

mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number

specified.

Les composants identifiés par

une marque 0 sont critiques

pour la sécurité.

Ne les remplacer que par une

pièce portant le numéro spécifié.

MAIN PT VOL-SEL

64

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

MISCELLANEOUS

***************

8 1-792-812-11 WIRE (FLAT TYPE) (27 CORE)

9 1-792-811-11 WIRE (FLAT TYPE) (23 CORE)

013 1-696-846-21 CORD, POWER (AUS)

013 1-775-787-41 CORD, POWER (AEP,UK,CIS,SP,MY,HK)

013 1-783-531-31 CORD, POWER (US,CND)

017 1-569-008-21 ADAPTOR, CONVERSION (SP,MY)

017 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK)

18 1-569-972-21 SOCKET, SHORT 2P

63 1-792-813-11 WIRE (FLAT TYPE) (15 CORE)

257 1-678-514-11 FLEXIBLE BOARD

0258 A-4672-541-A OPTICAL PICK-UP KMS-260B/J1N

FL771 1-517-986-11 INDICATOR TUBE, FLUORESCENT

HR901 1-500-670-11 HEAD, OVER LIGHT

M101 A-4672-898-A MOTOR ASSY, SPINDLE

M102 A-4672-900-A MOTOR ASSY, SLED

M103 A-4672-975-A MOTOR ASSY, LOADING

S102 1-771-957-11 SWITCH, PUSH (2 KEY)

(REFLECT/PROTECT SW)

**************************************************************

ACCESSORIES & PACKING MATERIALS

********************************

1-476-057-11 REMOTE COMMANDER (RM-D47M)

1-574-264-11 CORD, OPTICAL PLUG (AUDIO 60cm)

1-776-263-51 CORD, CONNECTION (AUDIO 100cm)

4-229-412-11 MANUAL, INSTRUCTION (SPANISH) (AEP)

4-229-412-21 MANUAL, INSTRUCTION

(SWEDISH,DANISH,FINNISH) (AEP)

4-229-412-31 MANUAL, INSTRUCTION (ITALIAN) (AEP)

4-229-412-41 MANUAL, INSTRUCTION (PORTUGUESE) (AEP)

4-229-587-11 MANUAL, INSTRUCTION (ENGLISH)

(US,CND,UK,CIS,SP,MY,AUS,HK)

4-229-587-21 MANUAL, INSTRUCTION

(FRENCH,GERMAN,DUTCH) (CND,AEP,SP,MY)

4-229-587-31 MANUAL, INSTRUCTION (CHINESE) (SP,MY)

4-229-587-41 MANUAL, INSTRUCTION

(POLISH, RUSSIAN) (CIS)

4-981-643-11 COVER, BATTERY (FOR RM-D47M)

**************************************************************

**************

HARDWARE LIST

**************

#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S

#2 7-685-850-04 SCREW +BVTT 2X3 (S)

#3 7-685-204-19 SCREW +KTP 2X6 TYPE2 NON-SLIT

The components identified by

mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number

specified.

Les composants identifiés par

une marque 0 sont critiques

pour la sécurité.

Ne les remplacer que par une

pièce portant le numéro spécifié.

MDS-JE440

Sony Corporation

Audio Entertainment Group

9-929-285-11 2000F0971-1

Printed in Japan ©2000.6

Published by HA Quality Assurance Dept.
