STR-DE245/DE345
AEP Model
UK Model
E Model
Australian Model
STR-DE245/DE345
US Model
Canadian Model
Chinese Model
PX Model
STR-DE345
SERVICE MANUAL
FM STEREO FM-AM RECEIVER
SPECIFICATIONS
Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY” the double-D symbol ; “AC-3” and “Pro Logic” are
trademarks of Dolby Laboratories Licensing Corporation.
Photo: STR-DE345
— Continued on next page —
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION
With 8-ohm load, both channels driven, from 20 –
20,000 Hz rated 100 watts per channel minimum
RMS power, with no more than 0.09% total
harmonic distortion from 250 milliwatts to rated
output.
Amplifier section
Rated Power Output at (8 Ω at 20 Hz – 20 kHz,
Stereo Mode THD 0.09 %)
100W + 100W
Reference Power Output (8Ω at 1 kHz, THD 0.7%)
Front: 100 W + 100 W
Center: 100 W
Rear: 100 W + 100 W
Frequency response TV/SAT, CD, MD/TAPE,
VIDEO, 5.1CH/DVD
10 – 50 kHz dB
Inputs
Sensitivity Impedance S/N
CD,
5.1CH/
DVD,
MD/TAPE, 150 mV 50 85 dB
TV/SAT, kilohms
VIDEO
Outputs MD/TAPE REC OUT:
Voltage: 150 mV,
Impedance: 10 kilohms
VIDEO AUDIO OUT:
Voltage: 150 mV,
Impedance: 10 kilohms
SUB WOOFER:
Voltage: 2 V
Impedance: 1 kilohms
PHONES: Accepts low
and high impedance
headphones
Muting Full mute
BASS BOOST +6 dB at 70 Hz
TONE ±6 dB at 100 Hz and
10 kHz
Tuner section
FM Stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna terminals 75 Ω, unbalanced
Intermediate frequency 10.7 MHz
Sensitivity Mono: 18.3 dBf, 4.5 µV
Stereo: 38.3 dBf, 45 µV
Usable sensitivity 11.2 dBf, 2 µV (IHF)
S/N Mono: 76 dB
Stereo: 70 dB
Harmonic Mono: 0.3 %
distortion at 1 kHz Stereo: 0.5 %
Separation 45 dB at 1 kHz
Frequency response 30 Hz –15 kHz dB
Selectivity 60 dB at 400 kHz
+0.5
–2.0
+0.5
–2.0
AM tuner section
Tuning range 10 kHz interval*
530 – 1,710 kHz
9 kHz interval
531 – 1,710 kHz
Antenna Loop antenna
Intermediate frequency 450 kHz
Usable sensitivity 50 dB/m (at 1,000 kHz
or 999 kHz)
S/N 54 dB (at 50 mV/m)
Harmonic distortion 0.5 % (50 mV/m, 400
Hz)
Selectivity At 10 kHz: 40 dB
At 9 kHz: 35 dB
* You can change the AM tuning interval between 9
kHz and 10 kHz. Turn off the receiver and press
the ?/1 (power) for more than 4 seconds until
“INITIAL” appears.
1) After turning in any AM station, turn off the
receiver.
2) Hold down PRESET TUNING + button and
press the ?/1 (power) button .
“9 k STEP” appears.
To change to 10 k Step, repeat step 1 and 2
until “10 k STEP” appears. Note that all preset
stations, index names and sound field are
cleared after you make the procedure above.
Ver 1.0 2000. 02
2
VIDEO section
Inputs VIDEO, TV/SAT, 5.1CH/DVD:
1 Vp-p 75 Ω
Outputs VIDEO, MONITOR:
1 Vp-p 75 Ω
General
System Tuner section: PLL
quartz-locked digital
synthesizer system
Preamplifier section:
Low-noise NF type
equalizer
Power amplifier section:
Pure-complementary
SEPP
Power requirements 120 V AC, 60 Hz
Power consumption 235 W
Dimensions 17 × 56/8 × 12 inches)
(430 × 145 × 304 mm)
Mass (Aporox.) 7.3 kg (16 lb 2 oz)
Supplid accessories FM wire antenna (1)
AM loop antenna (1)
Remote commander (remote) (1)
Size AA (R6) batteries (2)
Operating Instructions of the remote RM-PP404
Design and specifications are subject to change without notice.
MODEL IDENTIFICATION
— BACK PANEL —
Parts No.
MODEL PARTS No.
DE345: US model 4-226-462-0s
DE345: Canadian model 4-226-462-1s
DE345: Australian model 4-226-462-2s
DE345: Singapore, Malaysia model 4-226-462-3s
DE345: Chinese model 4-226-462-4s
DE345: E, Saudi Arabia, PX model 4-226-462-5s
DE345: AEP model 4-226-462-6s
DE345: Russian, East European model 4-226-462-7s
DE345: Mexican model 4-226-462-8s
DE345: Argentine model 4-226-462-9s
DE245: Australian model 4-226-468-2s
DE245: Singapore, Malaysia model 4-226-468-3s
DE245: E, Saudi Arabia model 4-226-468-4s
DE245: AEP, UK model 4-226-468-5s
DE245: Mexican, Russian,
East European model 4-226-468-6s
3
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
SAFETY CHECK-OUT
To Exposed Metal
Parts on Set
0.15
µ
F1.5 k
Ω
AC
Voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
TABLE OF CONTENTS
1. GENERAL ·········································································· 4
2. TEST MODE ······································································ 6
3. DIAGRAMS

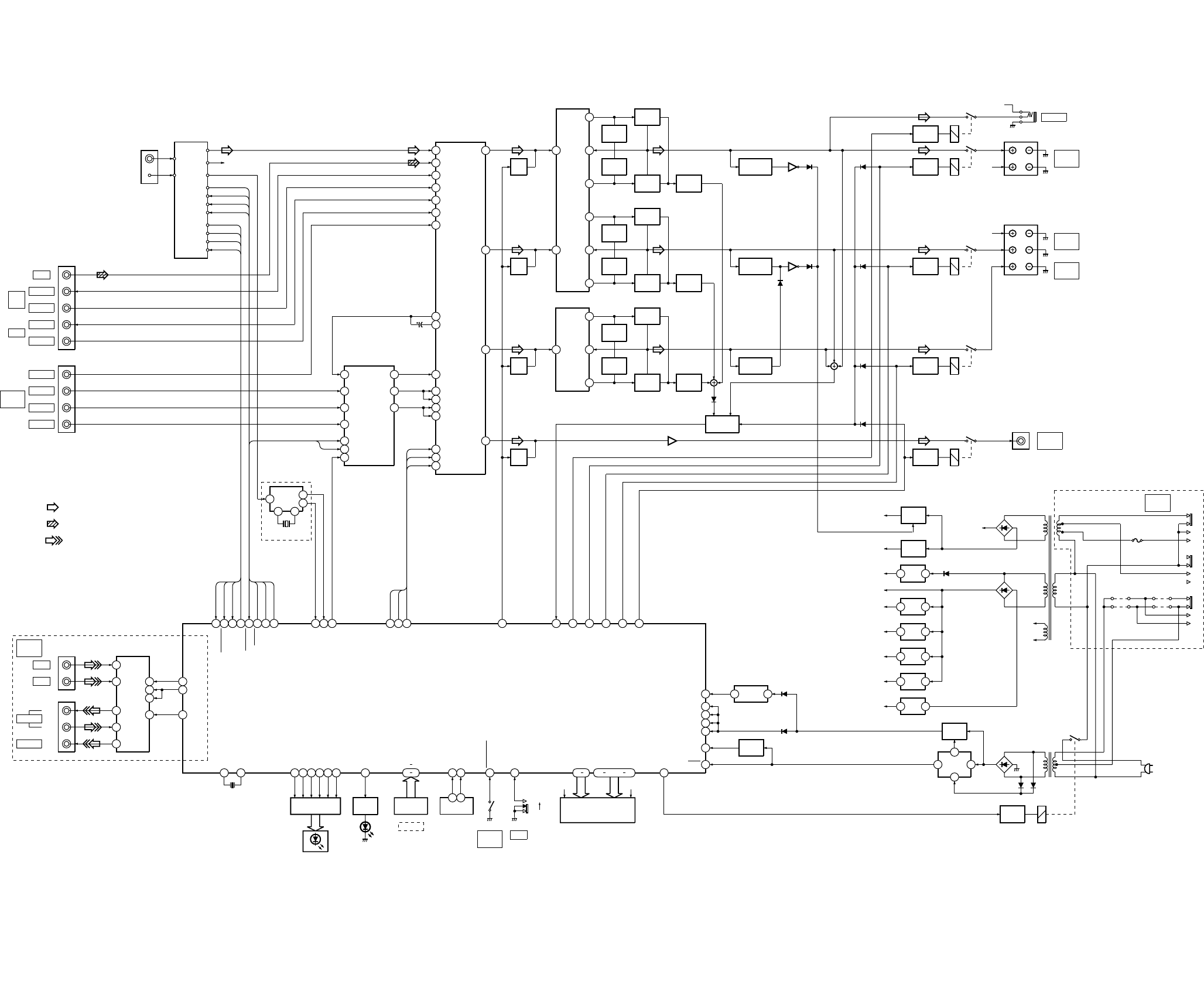

3-1. Block Diagram ······························································ 7

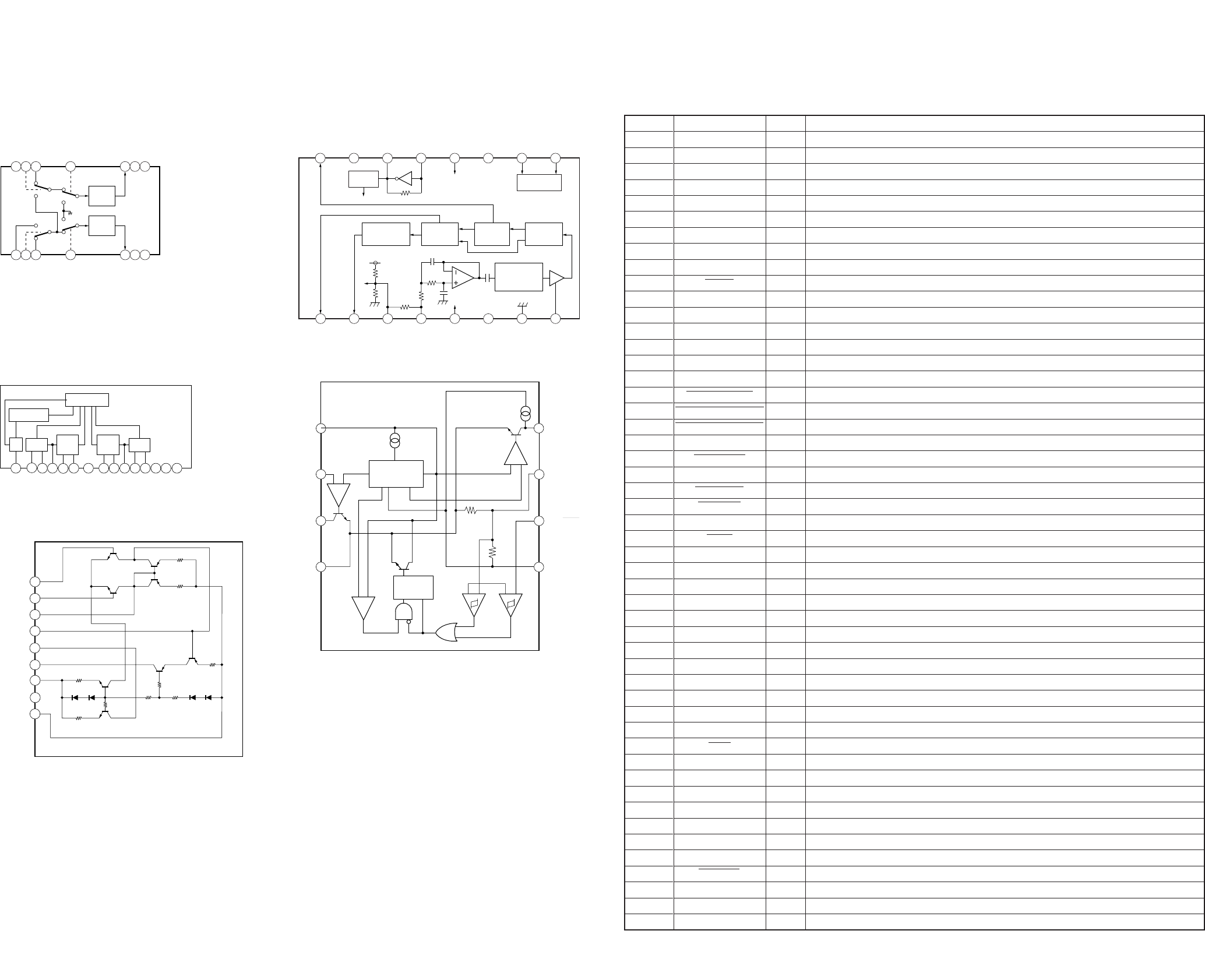

3-2. IC Block Diagrams ························································ 8
3-3. IC Pin Function Description ·········································· 8
3-4. Circuit Boards Location ················································ 9

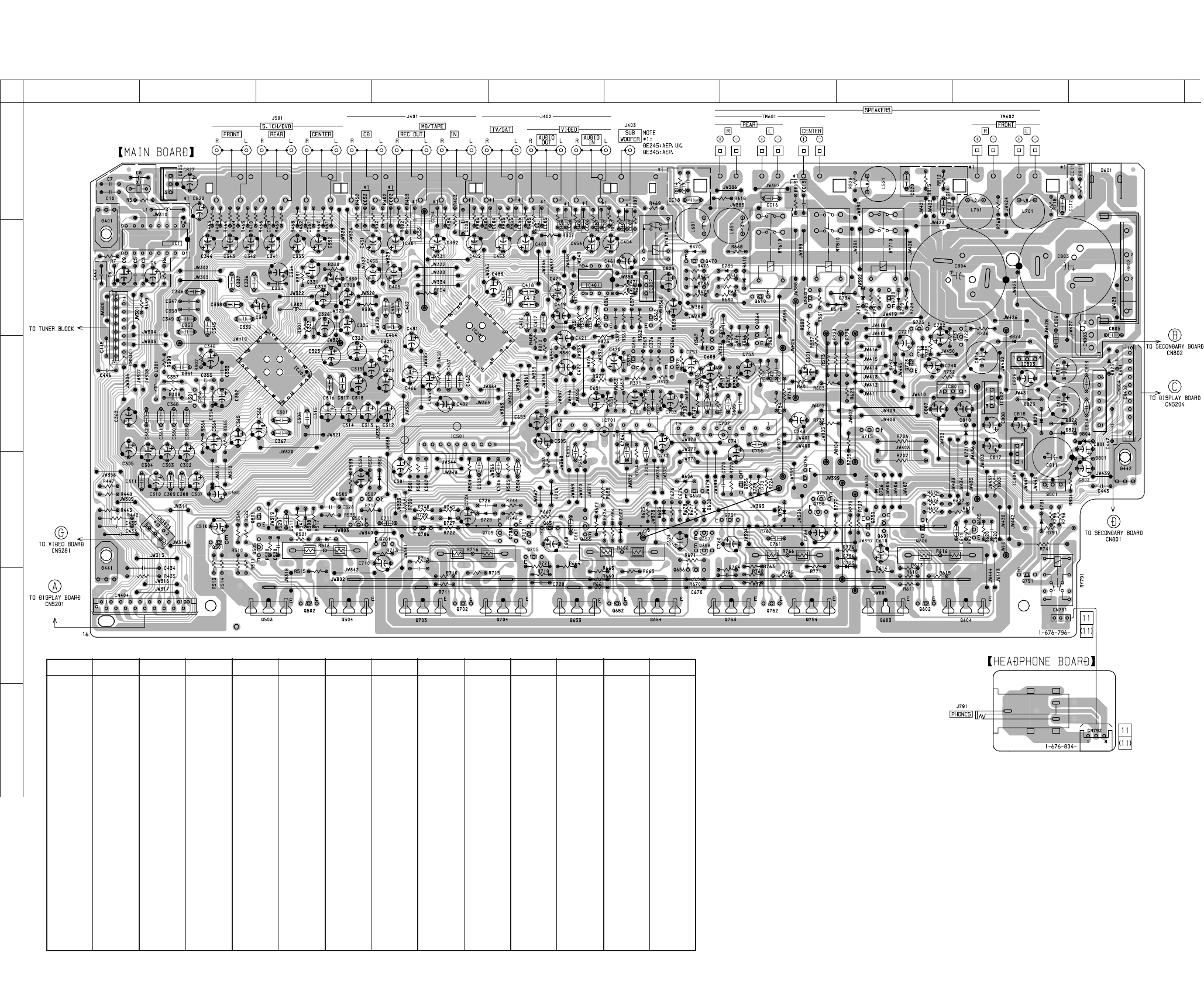

3-5. Printed Wiring Board Main Section ·························· 10

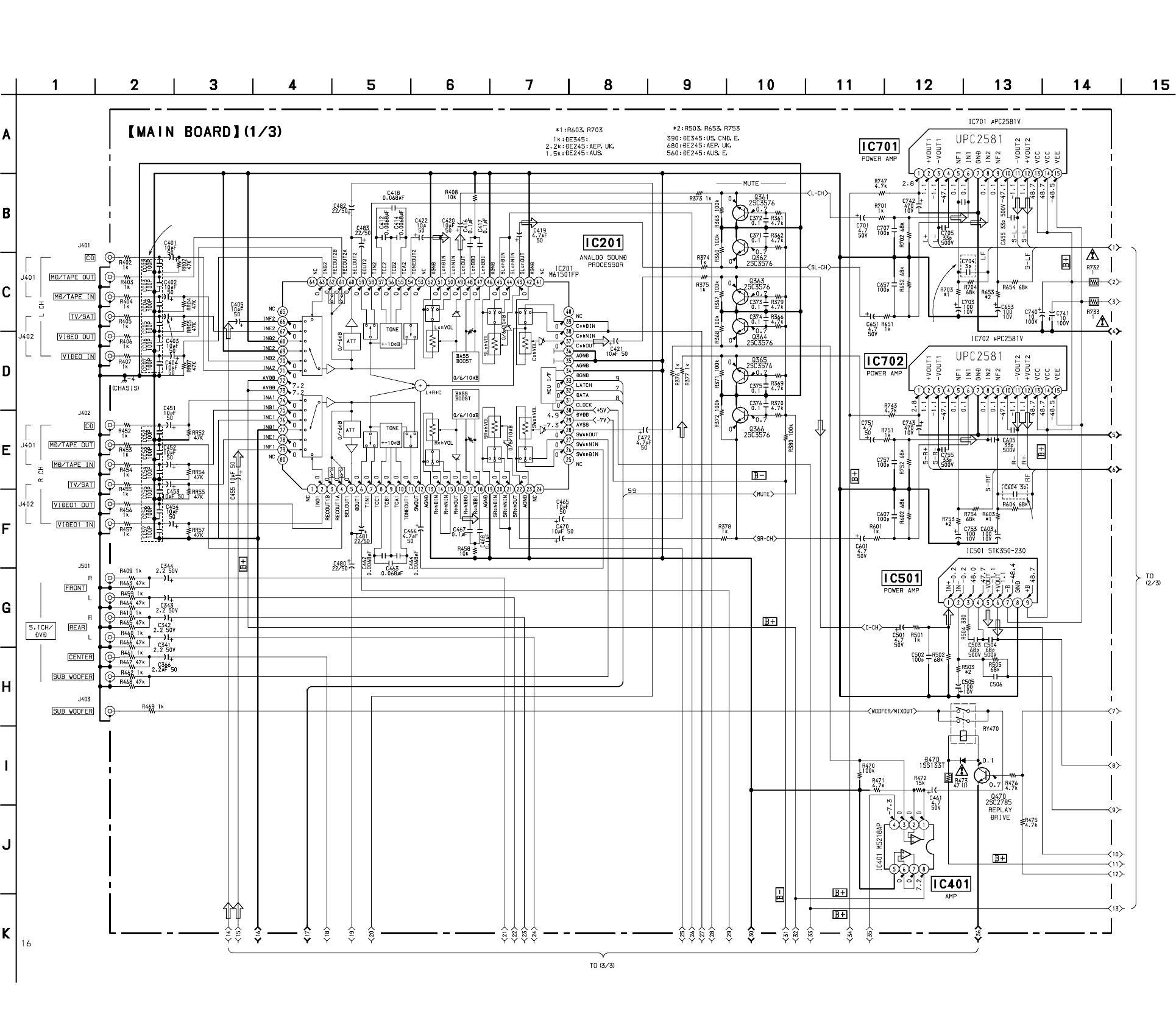

3-6. Schematic Diagram Main Section (1/3) ···················· 11
3-7. Schematic Diagram Main Section (2/3) ···················· 12

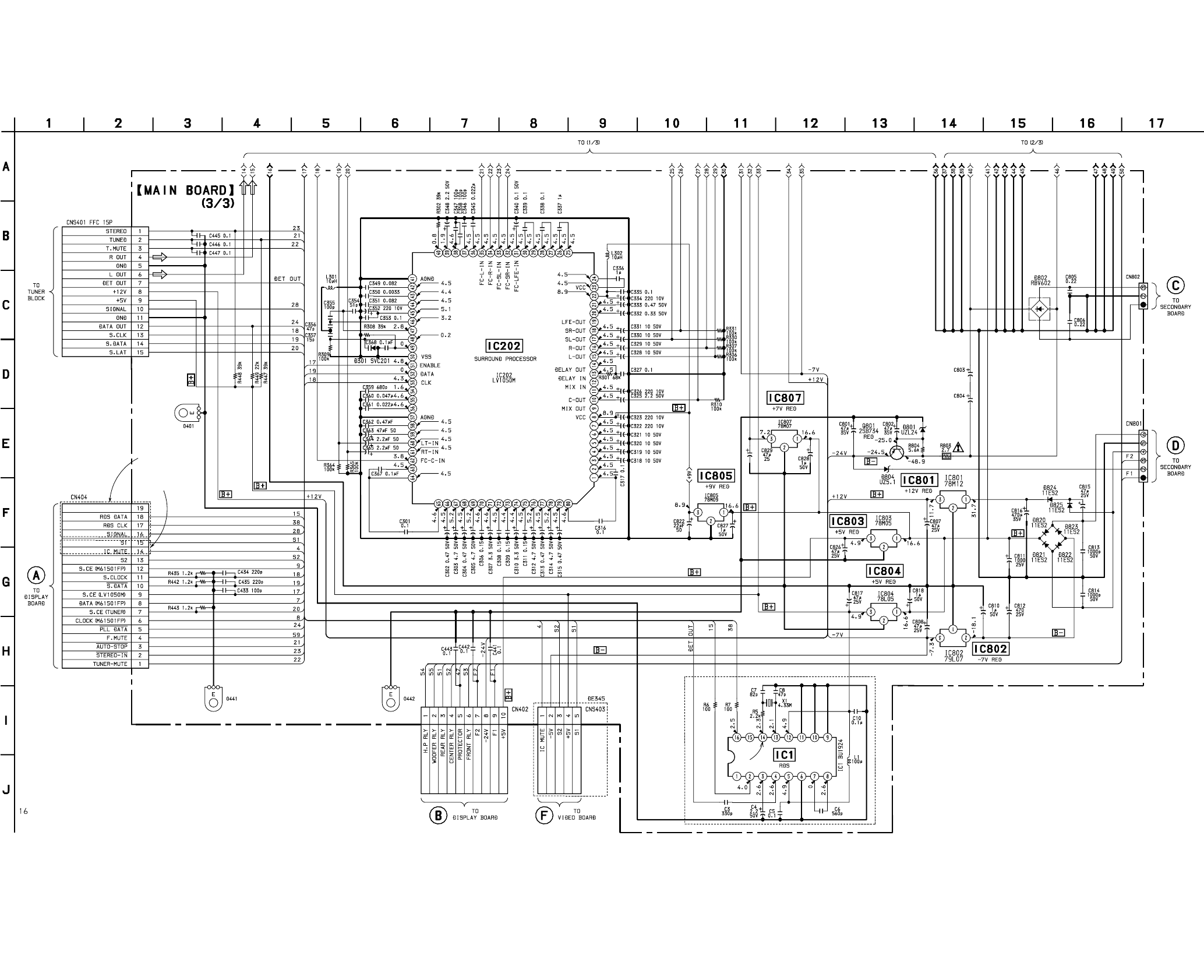

3-8. Schematic Diagram Main Section (3/3) ···················· 13

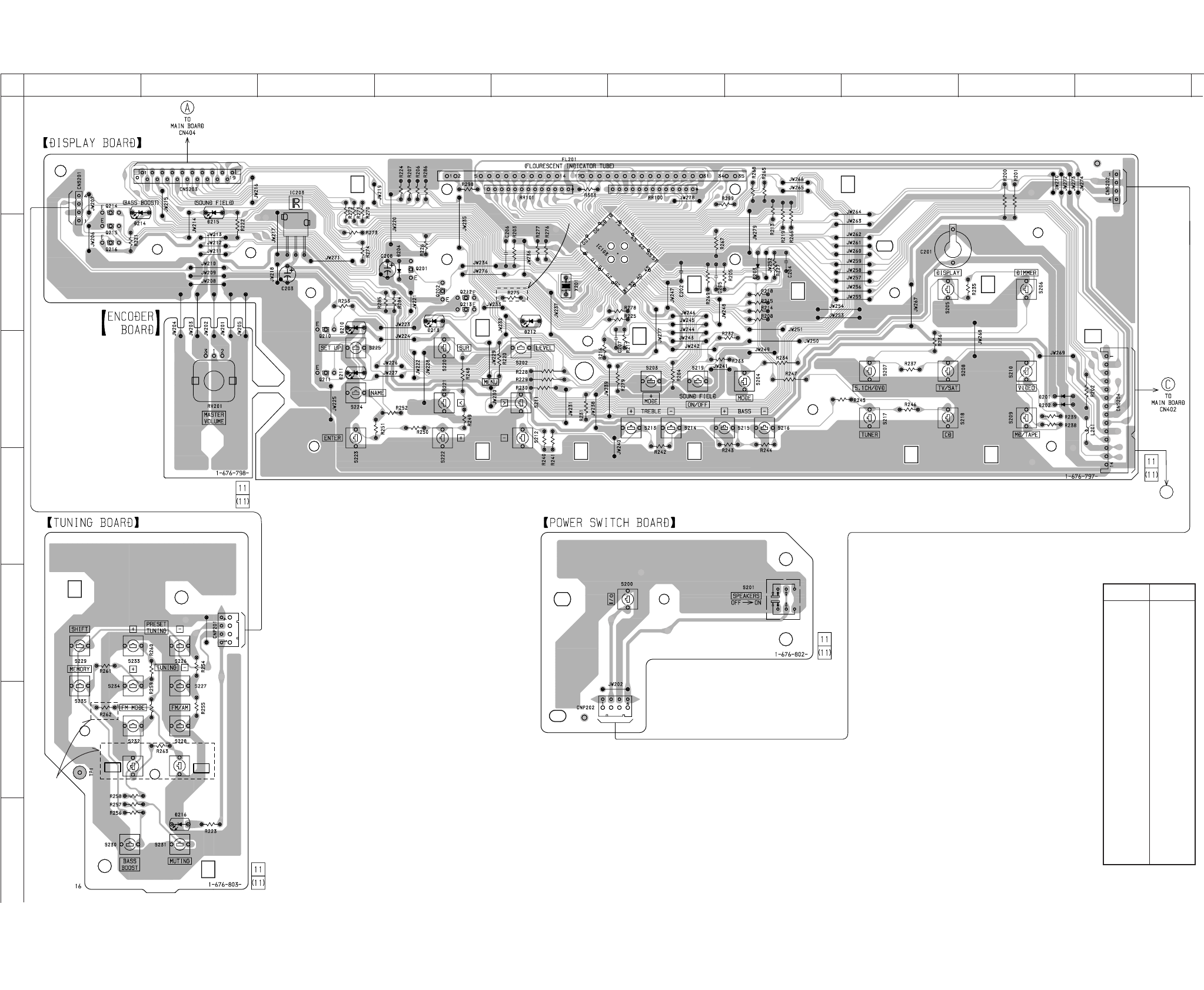

3-9. Printed Wiring Board Panel Section ·························· 14

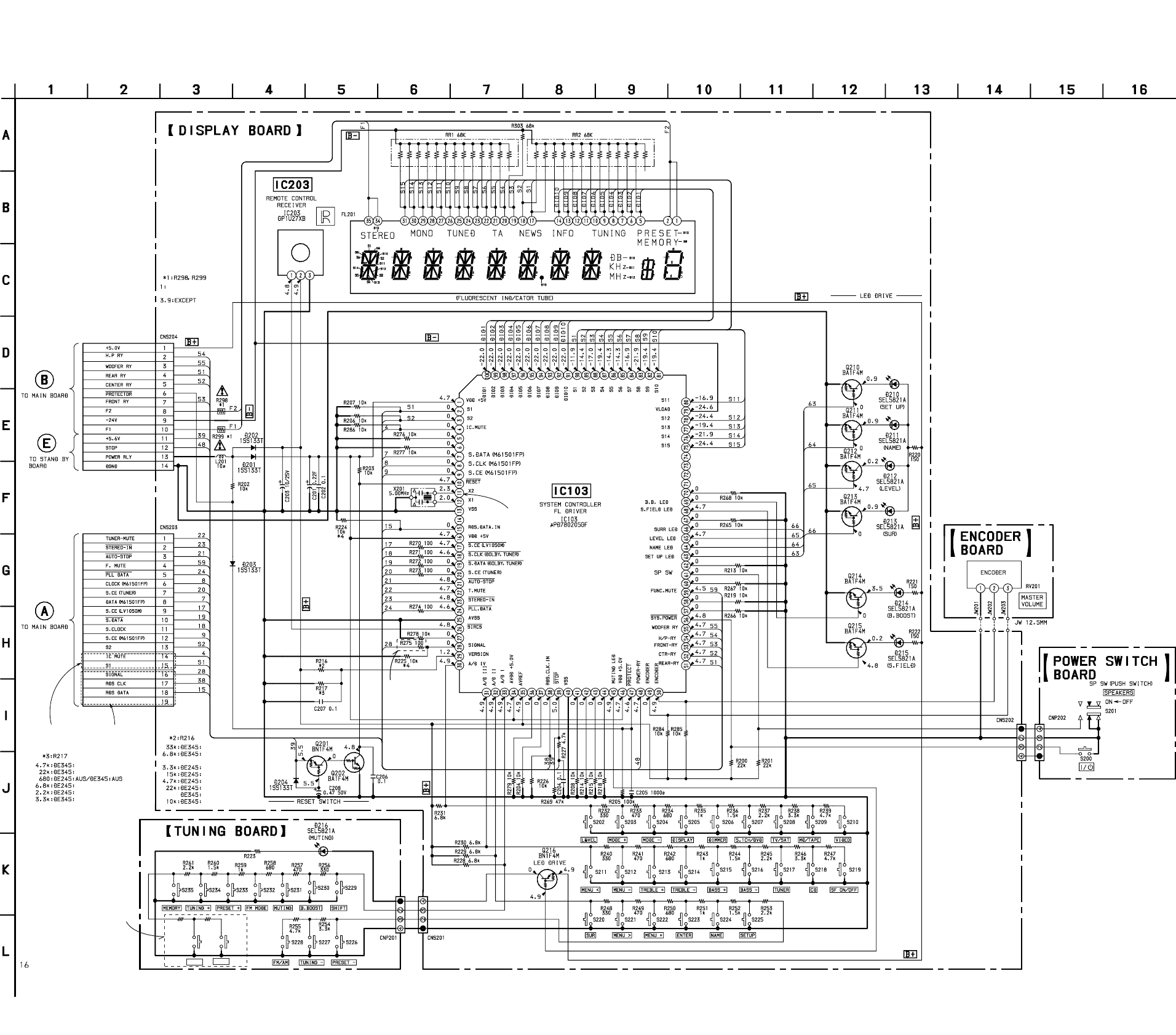

3-10.Schematic Diagram Panel Section ··························· 15

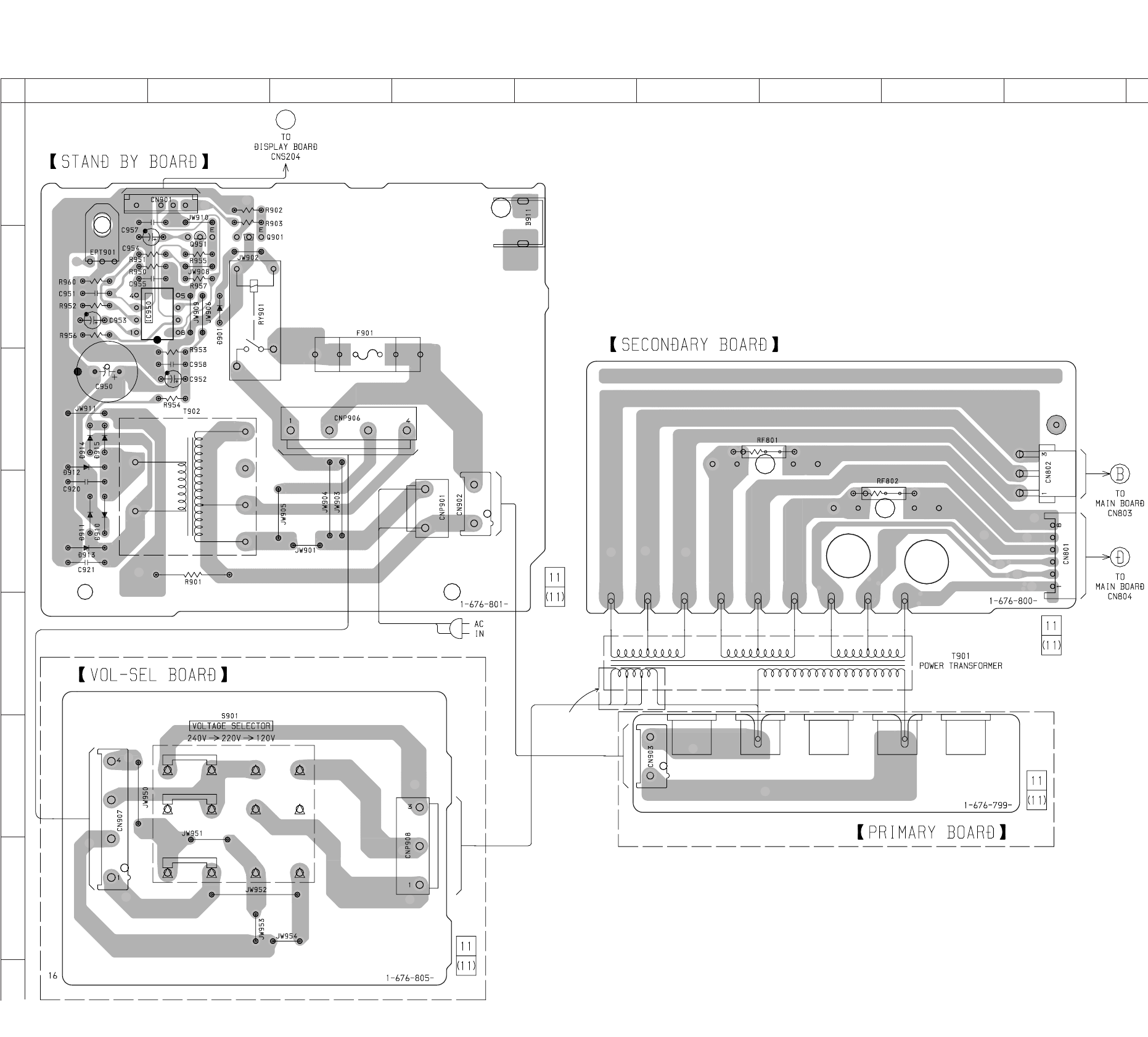

3-11.Printed Wiring Board Power Section ························ 16

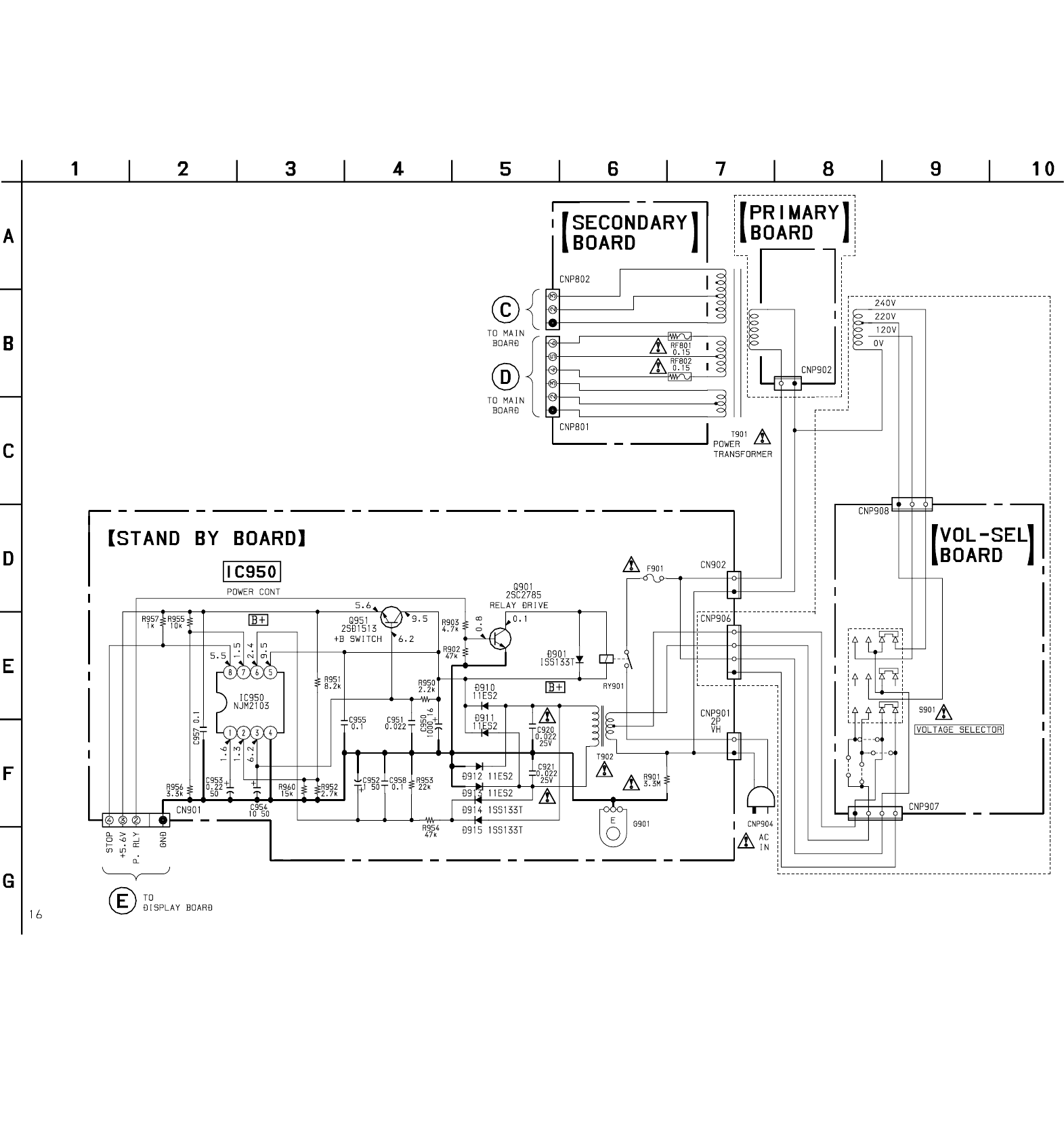

3-12.Schematic Diagram Power Section ·························· 17
3-13.Printed Wiring Board Video Section ························· 18
3-14.Schematic Diagram Video Section ··························· 18
4. EXPLODED VIEWS

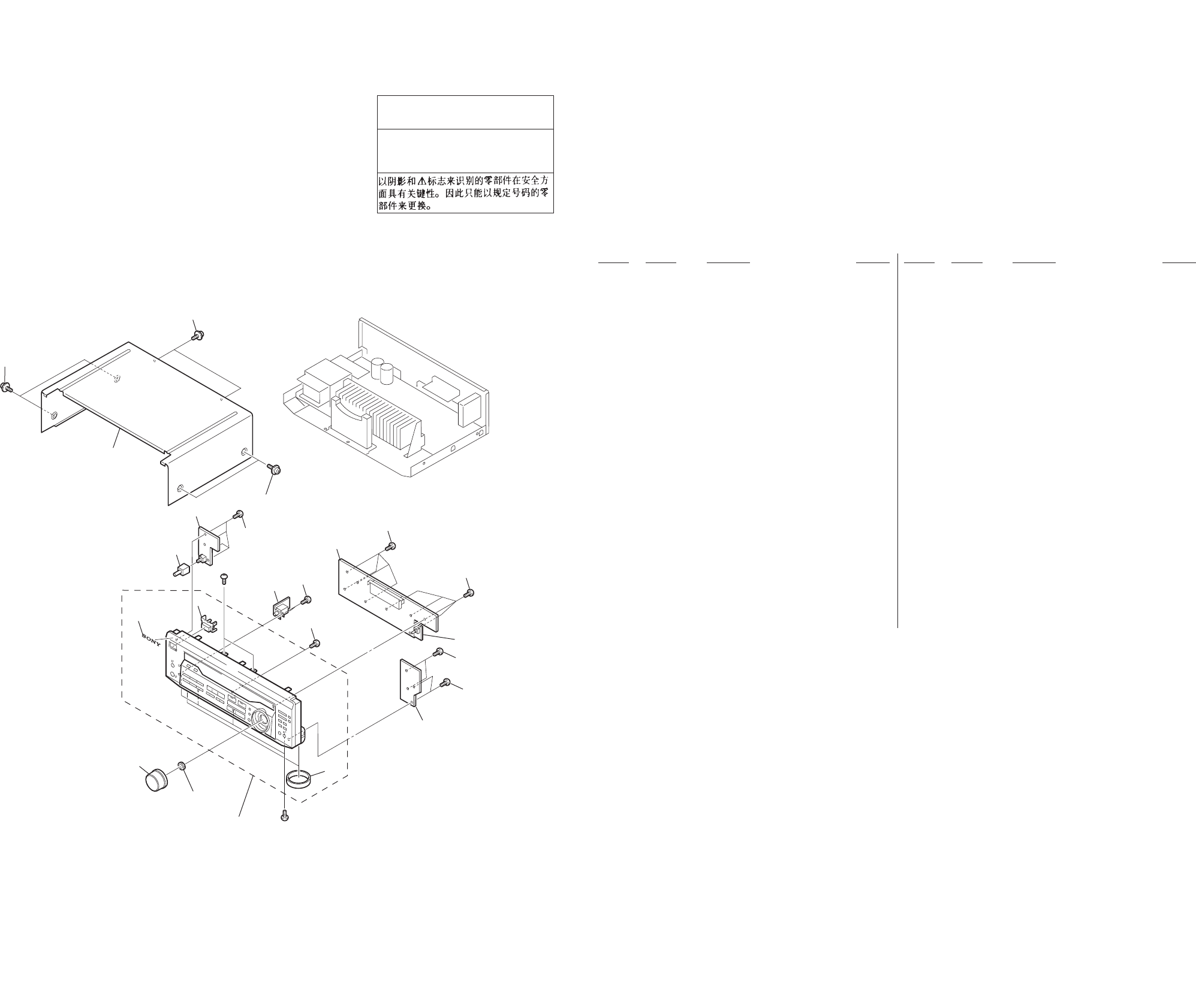

4-1. Front Panel Section ····················································· 19

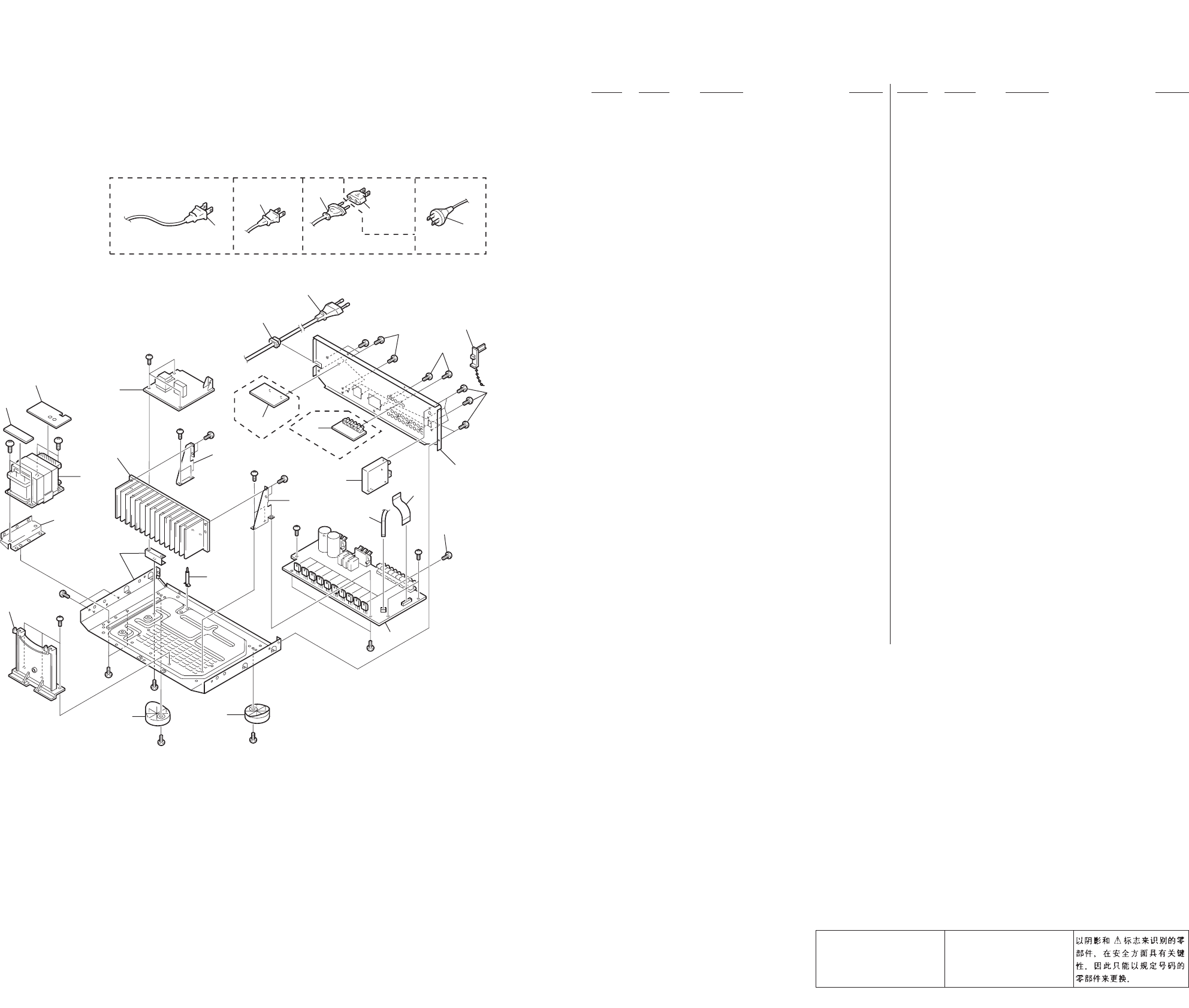

4-2. Chassis Section ···························································· 20
5. ELECTRICAL PARTS LIST ······································· 21
4
SECTION 1
GENERAL

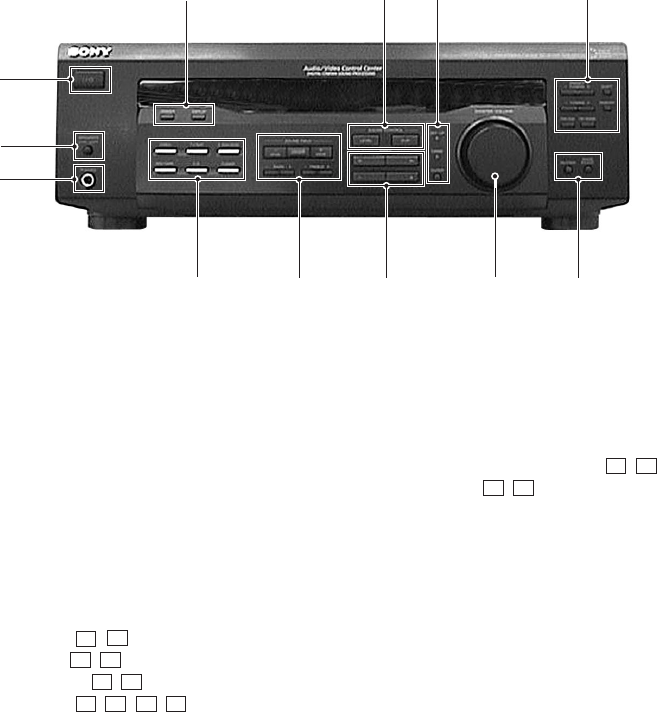

Front Panel
1
qs
45678
9
qa
2
3
0
1I/1 (POWER) button
2SPEAKERS ON/OFF SWITCH button
3PHONE jack
4VIDEO button
TV/SAT button
5.1CH/DVD button
MD/TAPE button
CD button
TUNER button
5SOUND FIELD ON/OFF,
MODE + , – buttons
BASS + , – buttons
TREBLE + , – buttons
6MENU < , > , + , – buttons
7MASTER VOLUME control
8MUTING button
BASS BOOST botton
9PRESET/PTY SELECT + , – buttons
TUNING + , – buttons
FM/AM button
FM MODE button
SHIFT button
MEMORY button
0SET UP button
NAME button
ENTER button
qa SOUND CONTROL LEVEL,SUR buttons
qs DIMMER button
DISPLAY button
5

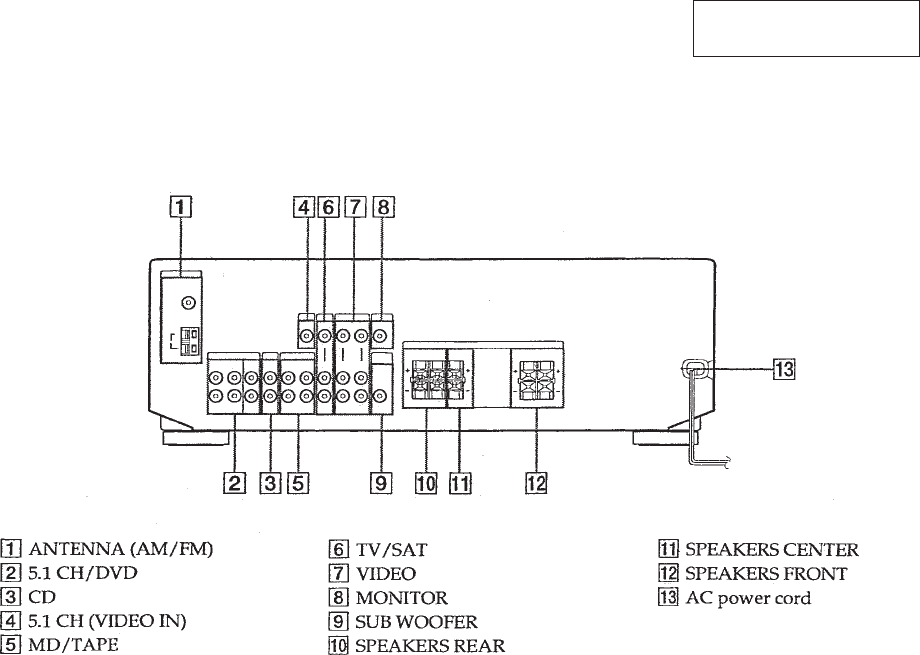

Rear Panel
This section is extracted
from instruction manual.
6
SECTION 2
TEST MODE
SOFTWARE VERSION DISPLAY MODE
* The software version is displayed.
* Procedure:
While depressing the TUNER and the VIDEO buttons
simultaneously, press the power [?/1] button to turn on the main
power. The model name, destination and the software version are
displayed.

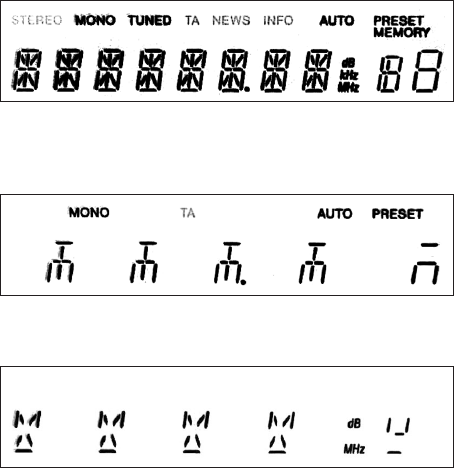

FLUORESCENT INDICATOR TUBE TEST MODE
* All fluorescent segments are tested. When this test is activated,
all segments turn on at the same time, then each segment turns on
one after another.
* Procedure:
While depressing the TV/SAT and the CD buttons simultaneously,
press the power [?/1] button to turn on the main power.
1. All segments turn on.
SET UP, SOUND FIELD, BASS BOOST and MUTING LED
turn on.
2. Press the VIDEO button, confirm display
BASS BOOST, MUTING, SET UP and NAME LED turn on.
3. Press the VIDEO button, confirm display
SOUND CONTROL LEVEL, SOUND CONTROL SUR and
SOUND FIELD LED turn on.
4. Press the VIDEO button, All segments turn off.
5. Every pressing of the VIDEO button turns on each segment one
after another in the following order.
(Not only the VIDEO button, but also the other buttons such as
TV/SAT, MD/TAPE, CD, TUNER can be used.)
FACTORY SET MODE
* All preset contents are reset to the default setting.
* Procedure:
While depressing the VIDEO and the CD buttons simultaneously,
press the power [?/1] button to turn on the main power. The
message FACTORY appears and the present contents are reset to
the default values.
ALL CLEAR MODE
* All preset contents are cleared when this mode is activated. Use
this mode before returning the product to clients upon completion
of repair.
* Procedure:
While depressing the TUNER and the MD/TAPE buttons
simultaneously, press the power [?/1] button to turn on the main
power. The message INITIAL appears and initialization is
performed.
SURROUND CLEAR MODE
* The preset sound field is cleared when this mode is activated.
Use this mode before returning the product to clients upon
completion of repair.
* Procedure:
While depressing the SOUND FIELD ON/OFF button, press the
power [?/1] button to turn on the main power. The message
SURR CLR appears and initialization is performed.
AM CHANNEL STEP 9 kHz/10 kHz
SELECTION MODE
* Either the 9 kHz step or 10 kHz step can be selected for the AM
channel step.
* Procedure:
Set the FUNCTION to AM. Turn off the main power.
While depressing the TUNING+ button or the PRESET+ button,
press the power [?/1] button to turn on the main power. Either
the message AM 9 k STEP or AM 10 k STEP appears. Select the
desired step.
* For US/Canadian/E model only
KEY CHECK MODE
* Button check
* Procedure:
While depressing the MD/TAPE and the CD buttons
simultaneously, press the power [?/1] button to turn on the main
power.
“RES 36 KEY” appears.
Every pressing of any button other than [?/1] and SPEAKERS
counts down the buttons. The buttons which are already counted
once are not counted again. When all buttons are pressed “RES
00 KEY” appears.
When MASTER VOLUME is rotated in clockwise direction,
“VOL MIN”, “VOL 1” to “VOL 30”, “VOL MAX” appear.
77
SECTION 3
DIAGRAMS
3-1. BLOCK DIAGRAM
TUNER UNIT
RESET
Q201,202
Q659
: VIDEO
• Signal Path
• RCH is omitted
: FM
: CD
FM
AM
R-CH
S DATA
PLL DATA
S CLK
S CE
SIGNAL
STEREO
AUTO STOP
T MUTE
S DATA
DATA OUT
S CLK
SLAT
SIGNAL
STEREO
TUNED
T MUTE
FM
AM DET OUT
R OUT
L OUT
MD/
TAPE
CD
OUTPUT
INPUT
OUTPUT
INPUT
VIDEO
5.1
CH/DVD
FRONT
REAR
CENTER
WOOFER
J501
J401
LT IN
61
FC L IN
34
FC SL IN
32
FC C IN
62
DATA
52
DOLBY
SURROUND PROCESSOR
IC202
16L OUT
CLK
53
ENABLE
51
2
18SL OUT
10C OUT
DATA
CLK
4
14
16
13
X1
4.33MHz
RDS
IC1
AEP,UK,Russian,
East European MODEL
AUDIO SELECT
IC201
IN F2
66
IN A2
71
REC OUT 2A
61
IN B2
70
IN G2
63
SW CH N IN
27
D OUT2
59
49
L OUT
REC OUT 2B
61
43SL OUT
37
C OUT
28
SW CH OUT
MUTE
Q361
SEL OUT2
60
T IN2
58
SL CH N IN
44
DATA
32
CLOCK
31
LATCH
33
SL CH D IN
45
C CH N IN
38
C CH D IN
39
DATA
CLOCK
S CE
MUTE
Q362
MUTE
Q363
MUTE
Q364
IN1
6
2
+V OUT1
POWER AMP
IC701
5
NF1
LIMITER
Q701
3
-V OUT1
LIMITER
Q702
BOOSTER
Q703
BOOSTER
Q704
CURRENT
DETECT
Q705,706
OVER LOAD
DETECT
Q708,709
IN2
8
12
+V OUT2
9NF2
LIMITER
Q651
11
-V OUT1
LIMITER
Q652
BOOSTER
Q653
BOOSTER
Q654
CURRENT
DETECT
Q655,656
IN+
1
6
+V OUT
POWER AMP
IC501
2
IN-
LIMITER
Q501
5-V OUT
LIMITER
Q502
BOOSTER
Q503
BOOSTER
Q504
CURRENT
DETECT
Q505,506
OVER LOAD
DETECT
Q507,509
OVER LOAD
DETECT
Q657,658
Q707 D706
D606
D506
D721
PROTECT
SWITCH
Q722,723,725
RELAY
DRIVE
Q791
RY791
RELAY
DRIVE
Q730
RY710
D731
RELAY
DRIVE
Q610
RY610
D735
RELAY
DRIVE
Q550
RY510
D734
IC401
31
RELAY
DRIVE
Q470
RY470
D736
L
R
SR
SL
C
R-CH
R-CH
R-CH
SPEAKERS
FRONT
PHONES
SPEAKERS
REAR
SPEAKERS
CENTER
TM601
TM602
SUB
WOOFER
J403
5.1CH
(VIDEO IN)
TV/LD
5.1 IN
J281
IN
OUT
OUT
J282
VIDEO1
MONITOR
DE345 MODEL
V3
12
V1
1
OUT
5
V2
3
M OUT
10
13S1
2S2
4S2
11
M
VIDEO SELECT
IC281
21
AUTO STOP
S1
2
S2
3
IC MUTE
4
22
T MUTE
23
STEREO IN
28
SIGNAL
24
PLL DATA
19
S DATA
18
S CLK
20
S CE
38
RDS CLK
15
RDS DATA
8
S CLK
9
S CE
17
S CE
7
S DATA
59
FUNC MUTE
47
PROTECT
AUTO STOP
T MUTE
STEREO
SIGNAL
PLL DATA
S DATA
S CLK
S CE
CLOCK
S CE
DATA
54
H/P RY
53
FRONT RY
51
REAR RY
52
CTR RY
55
WOOFER RY
100 9133 30
A/D1 A/D4
FUNCTION
KEY
S206-235
S236,237
CE MODEL ONLY
LED DRIVE
Q126
MUTING LED
45
S FIELD LED
68
B.B LED
69
SURR LED
66
LEVEL LED
65
NAME LED
64
SETUP LED
63
LED DRIVE
Q210-215
D216
MUTING
D210-215
SYSTEM CONTROL
IC103
RV201
ENCODER
2 3
ENCODER
50
ENCODER
49
SYS POWER
56
SP SW
61
SYSTEM
POWER
S200
SP
S201
ON
OFF
90 80 78 75
.
DIG1-10 S1-S15
FLUORESCENT
INDICATOR TUBE
F1 F2
FL201
10
RESET
39
STOP
26
SIRCS REMOTE
CONTROL
RECEIVER 2
1
IC203
POWER
CONTROL
IC950 5
8
3
6
+5.6V REG
Q951
D201
D202
D910-913
AC
IN
T972
RY901
D915D914
RELAY
DRIVE
Q470
D820-823
46
VDD
34
VDD
16
VDD
1VDD -7V
REG
3 2
+7V
REG
3 1
+5V
REG
3 1
+5V
REG
3 1
+9V
REG
3 1
DOLBY SURR
+9V
DISPLAY
+5V(A)
AUDIO
+7V
AUDIO
-7V
TUNER,RDS
AUDIO
+5V(B)
IC805
IC803
IC804
IC807
IC802
POWER RY
48
RELAY
+B
+12V
REG
3 1
POWER AMP
+12V
IC801
-24V REG
Q801
FL201
-24V
-B SW
Q715
POWER AMP
-B
D824
D802 T901
POWER AMP
+B
240V
220V
120V
0V
VOLTAGE
SELECTOR
E,Saudi Arabia,PX MODEL
S901
12 11
X1
X2
X201
5.00MHz
16
F1
F2
88
3-2. IC BLOCK DIAGRAMS
IC281 NJM2279 (VIDEO BOARD)
VIN3 V-
14
SW2
13
VIN1
12
MUTE1
11
VOUT1
10
NC
9
V+
8
1
SW1
2
AMP
VIN2
3
MUTE2
4
VOUT2
5
GND2
6
GND1
7
AMP
IC701, IC702 uPC2581V (MAIN BOARD)
PROTECTOR
DRIVE
123 4 56 7 8 9 10 11 12 13 14 15
PRE
DRIVE
PRE
DRIVE
BIAS CIRCUIT
REG
MUTE
+VOUT1
–VOUT1
COMP1
NF1
IN1
GND
IN2
NF2
COMP2
–VOUT2
+VOUT2
VCC1
VCC2
VEE
DRIVE
IC501 STK350-230 (MAIN BOARD)
1
2
3
4
5
6
7
8
9
TR3 R1
R2
TR4
TR6
TR7
R4
R9
TR5
TR1
TR2
R6
D4 D3
R7
R8
TR8
D1 D2 R5
R3
INPUT
NF
-VEOUT
+VEOUT
VSS
GND
VCC
SUB
IC1 BU1924 (MAIN BAORD)
12345678
910111213141516
QUAL
RDATA
VREF
VDD1
VSS1
MUX
VSS3
CMP
RCLK
XO
XI
(NC)
VDD2
VSS2
T1
T2
8TH SWITCHED
CAPACITOR
FILTER
PLL 57KHz
RDS/ARI
BIPHASE
DECODER
DEFFERENTIAL
DECODER
PLL
1187.5Hz
TEST
CLOCK
IC950 NJM2103 (POWER BOARD)
1
2
3
45
6
7
8
V+
VSB/SESIN
VSA
RESET
GND
OUTC
VSC
CR
VREF
+–
–+
–
+
–
+
Q
R S
3-3. IC PIN FUNCTION DESCRIPTION
IC103 µPD780205GF (DISPLAY BOARD)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
I/O
I
O
O
O
—
—
O
O
O
I
—
—
—
—
I
—
O
O
O
O
I
O
I
I
—
I
—
I
I
I
I
I
I
—
—
—
—
I
I
—
—
—
—
—
O
—
I
O
I
I
Description
Power supply to µ-com
Control Video IC switching
Control Video IC switching
Control mute of Video IC
Volume IC data
Volume IC clock
Volume IC enable
Read µ-com reset signal
For µ-com clock
Programming pow. supply
No use
Read decoded RDS data
Power supply to µ-com
Chip enable for ICs
Output clock signal
Output data signal
Chip enable for ICs
Tuner has tuned to a freq.
Mute tuner during scanning
Tuned freq. has stereo
Input tuner freq. data
Analog ground
Read remote comm. signal
Detect RDS signal level
Read version setting
Read key push signal
Read key push signal
Read key push signal
Read key push signal
Analog Power Supply
Analog reference ground
Read decoded RDS clock
Read signal when AC off
µ-com ground
Control mute LED
Power supply to µ-com
Detect Protector Status
Control Power relay
Read volume encoder changing
Read volume encoder changing
Pin Name
VDD +5V
S1
S2
IC.MUTE
P34
P33
S.DATA (M61501FP)
S.CLK (M61501FP)
S.CE (M61501FP)
RESET
X2
X1
VSS
—
RDS.DATA.IN
VDD +5V
S.CE (LV1050M)
S.CLK(DOLBY.TUNER)
S.DATA(DOLBY.TUNER)
S.CE (TUNER)
AUTO-STOP
T.MUTE
STEREO-IN
PLL.DATA
AVSS
SIRCS
P16
SIGNAL
VERSION
A/D IV
A/D III
A/D II
A/D I
AVDD +5.0V
AVREF
P03
P02
RDS.CLK.IN
STOP
VSS
P74
P73
P72
P71
MUTING LED
VDD +5.0V
PROTECT
POWER-RY
ENCODER
ENCODER
99
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
• % : indicates tolerance.
•f: internal component.
•2: nonflammable resistor.
•1: fusible resistor.
•C: panel designation.
•U: B+ Line.
•V: B– Line.
•H: adjustment for repair.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
No mark : FM
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
• Circled numbers refer to waveforms.
• Signal path.
F: FM
J: CD
g: VIDEO
I: PHONO
• Abbreviation
CND : Canadian model.
AUS : Australian model.
SP : Singapore model.
MY : Malaysia model.
AR : Argentine model.
CH : Chinese model.
MX : Mexican model.
CIS : Russian model.
EA : Saudi Arabia model.
EE : East European model.
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this necessary note is printed in each
block.)
Note:
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Note:
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
• Waveform
– MAIN SECTION –
– PANEL SECTION –
For printed wiring boards.
Note:
•X: parts extracted from the component side.
•a: Through hole.
•f: internal component.
•b: Pattern from the side which enables seeing.
C
B
These are omitted.
E
Q
B
These are omitted.
CE

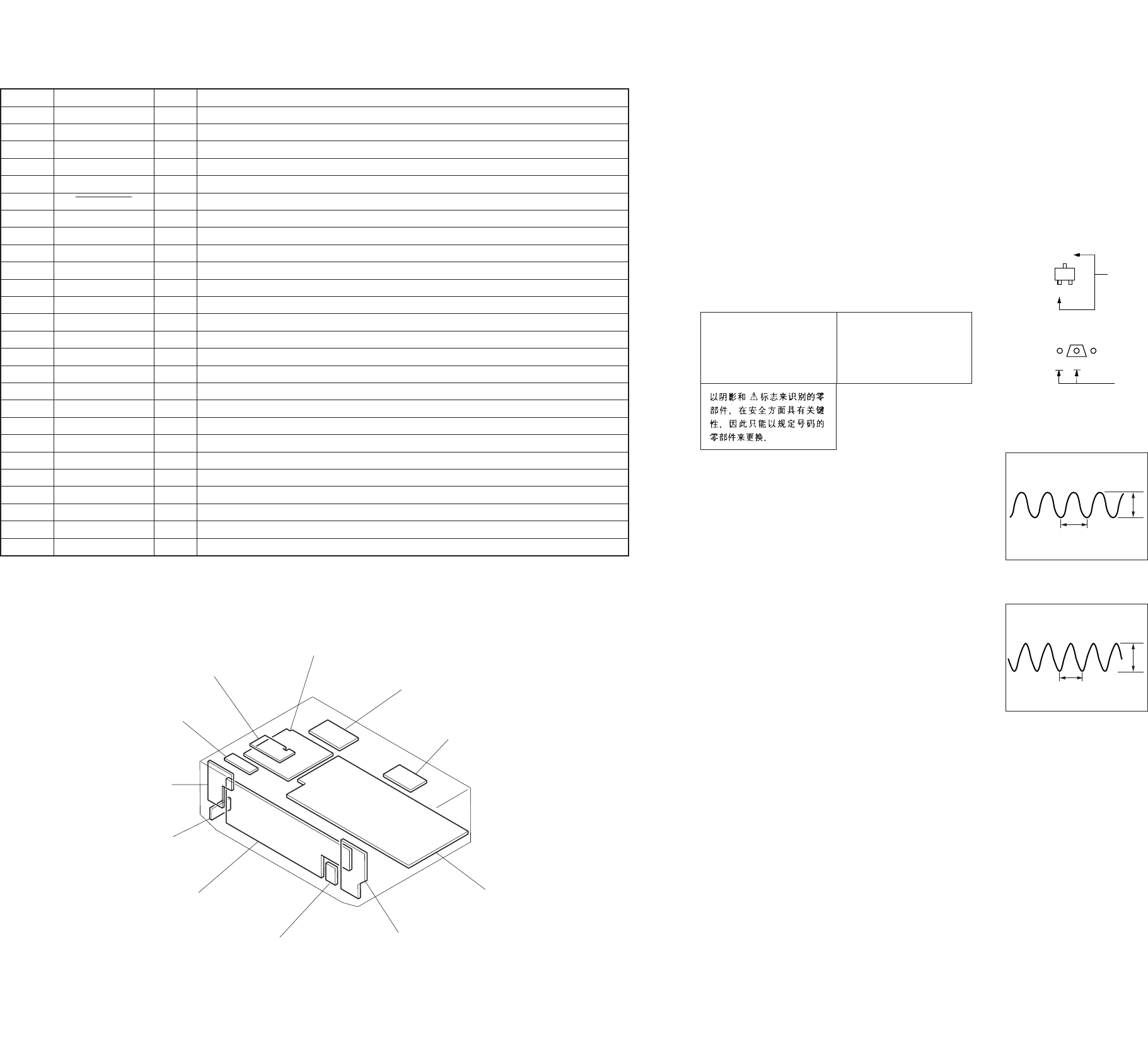

3-4. CIRCUIT BOARDS LOCATION
Pin No.
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71 – 74
75 – 78
79
80 – 84
85 – 90
91 – 100
Pin Name
REAR-RY
CTR-RY
FRONT-RY
H/P-RY
WOOFER RY
SYS.POWER
P115
P114
FUNC.MUTE
P112
SP SW
P110
SET UP LED
NAME LED
LEVEL LED
SURR LED
P103
S.FIELD LED
B.B. LED
P100
P97 – P94
S15 – S12
VLOAD
S11 – S7
S6 – S1
DIG10 – DIG1
Description
Control rear relay on/off
Control center relay
Control speaker relay
Control Headphone relay
Control Woofer relay
Detect power switch key
Control muting circuit
Read speaker switch comdition
Control Setup LED
Control Name LED
Control LEVEL LED
Control SURR LED
Control SF LED
Control Bass Boost LED
Output signal to FL tube
Negative power supply
Output signal to FL tube
Output signal to FL tube
I/O
O
O
O
O
O
I
—
—
O
—
I
—
O
O
O
O
—
O
O
—
—
O
I
—
O
O
STANDBY board
POWER SWITCH board
HEADPHONE board
DISPLAY board
ENCODER board TUNING board
MAIN boar
VIDEO board
SECONDARY board
PRIMARY board
VOL-SEL board
1
IC1 qf
2.2Vp-p
230ns
2
IC103 qa
5.0Vp-p
200ns
STR-DE245/DE345
1010
3-5. PRINTED WIRING BOARD MAIN SECTION • Refer to page 9 for Circuit Boards Location.
12
A
B
C
D
E
F
345678910
(Page 16)
(Page 14)
(Page 16)
(Page 18)
(Page 14)
CIS, EE
CIS, EE
C706
C606
C764
C714
Ref. No. LocationRef. No. Location
• Semiconductor Location
D470 B-6
D505 D-3
D506 D-4
D508 D-3
D510 B-8
D605 D-6
D606 C-6
D607 D-6
D608 D-6
D610 B-7
D627 D-9
D706 D-5
D710 B-8
D721 C-9
D722 B-8
D725 D-8
D726 D-8
D727 D-4
D728 D-4
D731 B-8
D732 B-8
D734 B-8
D735 B-7
D736 B-6
D757 D-7
D791 D-9
D801 C-10
D802 B-10
D804 C-10
D820 C-9
D821 C-10
D822 C-10
D823 C-9
D824 B-9
D825 B-10
IC1 B-2
IC201 B-4
IC202 C-3
IC401 B-5
IC501 C-4
IC701 C-6
IC702 C-7
IC801 C-8
IC802 C-9
IC803 C-9
IC804 C-9
IC805 A-2
IC807 B-6
Q361 B-5
Q362 B-6
Q363 B-6
Q364 B-7
Q365 C-6
Q366 C-6
Q470 B-6
Q501 D-2
Q502 E-3
Q503 E-3
Q504 E-3
Q505 D-2
Q506 D-2
Q507 D-3
Q509 D-3
Q550 B-7
Q601 D-8
Q602 E-8
Q603 E-8
Q604 E-9
Q605 D-9
Q606 D-8
Q610 B-7
Q651 D-5
Q652 E-6
Q653 E-5
Q654 E-6
Q655 D-5
Q656 D-6
Q657 D-6
Q658 D-6
Q659 D-6
Q701 D-4
Q702 E-4
Q703 E-4
Q704 E-5
Q705 D-5
Q706 D-4
Q707 D-5
Q708 D-5
Q709 D-5
Q715 C-8
Q722 B-9
Q723 C-8
Q725 B-8
Q730 B-8
Q751 D-7
Q752 E-7
Q753 E-7
Q754 E-7
Q755 D-7
Q756 D-7
Q757 D-7
Q758 D-7
Q759 D-8
Q791 D-9
Q801 D-9
IC3505 G-11
IC3506 I-10
IC3507 I-11
IC3508 H-10
IC3509 H-11
IC3510 J-10
IC3511 J-11
IC3512 J-10
IC3513 J-11
IC3514 I-11
IC3515 J-11
IC3516 I-12
IC3517 J-12
Q3301 G-3
Q3302 G-3
Q3303 G-4
Q3304 G-3
Q3305 G-3
Q3306 H-3
Q3307 G-6
Q3308 B-11
Q3309 H-5
Q3310 D-12
Q3311 H-5
Q3312 D-12
Q3313 H-5
Q3314 D-12
Q3315 G-5
Q3401 G-8
Q3402 H-8
Q3403 H-7
Q3404 H-7
Q3405 H-7
Q3406 G-6
Q3407 D-4
Q3501 H-12
Q3502 H-12
Q3503 H-12
Q3504 G-12
Q3505 G-12
Q3506 G-12
Q3511 G-11
Q3512 H-11
Q3513 G-11
Q3514 G-11
Q3515 I-11
Q3516 I-11
Q3517 H-11
Q3518 H-11
Q3519 J-11
Q3520 J-11
Q3521 J-11
Q3522 J-11
Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location
STR-DE245/DE345
1111
3-6. SCHEMATIC DIAGRAM MAIN SECTION (1/3) • Refer to page 8 for IC Block Diagrams.
CIS, EE
CIS, EE
E, EA, MX, SP, MY
EA, PX, AUS, MX, SP, MY, AR, CH
CIS, EE/DE345: AEP, CIS, EE
EA, MX, SP, MY
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
C706
330p
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
C606
330p
4p
DE245:
AEP, UK, CIS, EE
DE345:
AEP, CIS, EE
STR-DE245/DE345
1212
3-7. SCHEMATIC DIAGRAM MAIN SECTION (2/3)
CIS, EE
US, CND, E, EA,
AUS, MX, SP, MY, AR, CH
AEP, UK, CIS, EE
AUS, E, EA, MX,
SP, MY
AEP, UK, CIS, EE
AEP, CIS, EE
AEP, UK, CIS, EE
AEP, CIS, EE
*2
*2
*2
*2
39k
220
220
C714
0.01µ
220
C764
330µ
82k
CND, E, EA, PX
AEP, CIS, EE
2: R529, R674, R740, R777
22: DE245
24: DE345: CIS, EE
30: EXCEPT
CN792
STR-DE245/DE345
1313
3-8. SCHEMATIC DIAGRAM MAIN SECTION (3/3) • Refer to page 8 for IC Block Diagrams.
• Refer to page 9 for Waveforms.
(Page 17)
(Page 17)
(Page 18)
(Page 15)
(Page 15)
1
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
DE245: AEP, UK, CIS, EE
DE345
*1: C803, C804
10000/50V: DE245: E, EA/DE345: US, CND, E, EA
6800/50V: DE245: AEP, UK, CIS, EE, SP, MY, MX, AUS
8200/50V: DE345: AUS, SP, MY, MX, AR
*1
*1
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
STR-DE245/DE345
1414
12
A
B
C
D
E
F
G
345678910
(Page 10)
(Page 10)
TO
STAND BY BOARD
CN901
(Page 16)
E
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
DE245: AEP, UK,
CIS, EE
DE345: AEP, CIS, EE
S236 S237
PTY
EON
3-9. PRINTED WIRING BOARD PANEL SECTION • Refer to page 9 for Circuit Boards Location.
Ref. No. Location
D201 C-9
D202 C-9
D203 B-7
D204 B-4
D210 C-3
D211 C-3
D212 B-5
D213 B-4
D214 B-1
D215 B-2
IC103 B-6
IC203 B-3
Q201 B-4
Q202 B-4
Q210 C-3
Q211 C-3
Q212 B-4
Q213 B-4
Q214 B-1
Q215 B-1
Q216 B-1
• Semiconductor
Location
STR-DE245/DE345
1515
3-10. SCHEMATIC DIAGRAM PANEL SECTION • Refer to page 8 for IC Pin Function.
(Page 13)
(Page 17)
(Page 13)
2
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
DE245: AEP, UK, CIS, EE
DE345:
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
SP, MY, CH
AEP, CIS, EE
E, EA, MX, SP, MY
AEP, UK, CIS, EE
US, CND, E, EA, PX, MX, AR
AUS
E, EA, PX, MX, SP,
MR, AR, CH
SP, MY
AUS
E, EA, MX
AEP, UK, CIS, EE/
AEP, CIS, EE
US, CND
270
R262
3.3k
R263
4.7k
S236 S237
EON PTY
DE245: AEP, UK, CIS, EE
DE345: AEP, CIS, EE
DE245: AEP, UK, MX, CIS, EE
DE345: AEP, CIS, EE
STR-DE245/DE345
1616
3-11. PRINTED WIRING BOARD POWER SECTION • Refer to page 9 for Circuit Boards Location.
12
A
B
C
D
E
F
G
H
3456789
(Page 14)
E
(Page 10)
(Page 10)
DE245: E, EA/DE345: E, EA, PX
DE245: E, EA
DE345: E, EA, PX
EXCEPT DE245: E, EA/DE345: E, EA, PX
STR-DE245/DE345
1717
3-12. SCHEMATIC DIAGRAM POWER SECTION • Refer to page 8 for IC Block Diagrams.
(Page 13)
(Page 13)
(Page 15)
*1: F901
2A: E, EA
6.3A: US, CND
1.25A: EXCEPT
*1
EXCEPT
DE245: E, EA/DE345: E, EA, PX
DE245: E, EA/DE345: E, EA, PX
STR-DE245/DE345
1818
3-13. PRINTED WIRING BOARD VIDEO SECTION • Refer to page 9 for Circuit Boards Location. 3-14. SCHEMATIC DIAGRAM VIDEO SECTION
(Page 13)
12
A
B
C
34
(Page 10)
• Refer to page 8 for IC Block Diagrams.
1919
19
15
14
4
4
4
5
6
20
20
20
20
20
20
20
8
18
7
2
1
13
#1
#1
supplied
with RV201
3
SECTION 4
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
• Abbreviation
CND : Canadian model.
AUS : Australian model.
SP : Singapore model.
MY : Malaysia model.
AR : Argentine model.
CH : Chinese model.
MX : Mexican model.
CIS : Russian model.
EA : Saudi Arabian model.
EE : East European model.
4-1. FRONT PANEL SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-226-453-01 KNOB(VOL-E3) (DE245:AUS,SP,MY/
DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
1 4-226-453-31 KNOB(VOL-E3) (BLACK)
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
1 4-226-453-61 KNOB(VOL-E3) (DE245:E,EA,MX)
1 4-226-453-71 KNOB(VOL-E3) (SILVER)
(DE245:AEP,UK,CIS,EE)
2 X-4952-589-1 FRONT PANEL ASSY (DE345:US,CND)
2 X-4952-630-1 FRONT PANEL ASSY (BLACK)
(DE245:AEP,UK,CIS,EE)
2 X-4952-915-1 FRONT PANEL ASSY (SILVER)
(DE245:AEP,UK,CIS,EE)
2 X-4952-631-1 FRONT PANEL ASSY
(DE345:E,EA,PX,AUS,MX,SP,MY,AR)
2 X-4952-632-1 FRONT PANEL ASSY (DE345:CH)
2 X-4952-633-1 FRONT PANEL ASSY (DE345:AEP,CIS,EE)
2 X-4952-634-1 FRONT PANEL ASSY (DE245:AUS,SP,MY)
2 X-4952-932-1 FRONT PANEL ASSY (DE245:E,EA,MX)
3 1-676-798-11 ENCODER BOARD
4 4-210-291-01 SCREW (CASE 3 TP2)
5 4-218-845-01 UPPER CASE (DE245:AUS,E,EA,SP,MY/
DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
5 4-998-206-41 UPPER CASE (BLACK)
5 4-998-206-61 UPPER CASE (SILVER)
6 A-4428-267-A DISPLAY BOARD, COMPLETE (DE345:US)
6 A-4428-383-A DISPLAY BOARD, COMPLETE (DE345:CND)
6 A-4428-386-A DISPLAY BOARD, COMPLETE (DE345:AUS)
6 A-4428-390-A DISPLAY BOARD, COMPLETE
(DE345:SP,MY,CH)
6 A-4428-393-A DISPLAY BOARD, COMPLETE (DE345:E,EA,PX)
6 A-4428-397-A DISPLAY BOARD, COMPLETE (DE345:CND)
6 A-4428-400-A DISPLAY BOARD, COMPLETE (DE245:AUS)
6 A-4428-404-A DISPLAY BOARD, COMPLETE (DE245:SP,MY)
6 A-4428-406-A DISPLAY BOARD, COMPLETE (DE245:E,EA)
6 A-4428-409-A DISPLAY BOARD, COMPLETE
(DE245:AEP,UK,CIS,EE)
6 A-4428-413-A DISPLAY BOARD, COMPLETE
(DE345:AEP,CIS,EE)
6 A-4473-331-A DISPLAY BOARD, COMPLETE (DE345:MX)
6 A-4473-333-A DISPLAY BOARD, COMPLETE (DE345:AR)
6 A-4473-336-A DISPLAY BOARD, COMPLETE (DE245:MX)
7 1-676-803-11 TUNING BOARD
8 1-676-804-11 HEADPHONE BOARD
13 4-996-698-81 EMBLEM, SONY
14 4-996-683-61 BUTTON (POWER)
15 4-977-593-01 RING(DIA. 50), ORNAMENTAL
18 4-226-445-01 BUTTON (S) (DE245:AUS,SP,MY/
DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
18 4-226-445-31 BUTTON (S)
(DE245:AEP,UK,CIS,EE/DE345:AP,CIS,EE)
18 4-226-445-61 BUTTON (S) (DE245:E,EA,MX)
19 1-676-802-11 POWER SWITCH BOARD
20 4-951-620-01 SCREW (2.6X8), +BVTP
2020
4-2. CHASSIS SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
T901
54 55
63
64
66
67
67
67
67 67
68
65
56
57
62
61
58
59
60
51
52 52
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1 #1
#1
#1
#1
#3
#3
#2
#2
#2
not supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
US,CND,MX CH AEP,UK,E,
EA,CIS,EE,SP,PX AUS
E,EA,PX
E,PX
DE345
51 4-226-458-01 SUB-MOLD (E3)
52 X-4951-458-1 FOOT ASSY (DE245:AUS,E,EA,SP,MY/
DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
52 X-4952-804-1 FOOT ASSY
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
52 X-4952-941-1 FOOT ASSY (DE245:MX)
54 1-676-800-11 SECONDARY BOARD
55 A-4428-270-A STAND BY BOARD, COMPLETE
(DE345:US,CND,MX)
55 A-4428-279-A STAND BY BOARD, COMPLETE (DE245:MX)
55 A-4428-388-A STAND BY BOARD, COMPLETE (DE345:AUS)
55 A-4428-391-A STAND BY BOARD, COMPLETE
(DE345:SP,MY,AR)
55 A-4428-392-A STAND BY BOARD, COMPLETE (DE345:CH)
55 A-4428-395-A STAND BY BOARD, COMPLETE
(DE345:E,EA,PX,MY)
55 A-4428-402-A STAND BY BOARD, COMPLETE (DE245:AUS)
55 A-4428-405-A STAND BY BOARD, COMPLETE (DE245:SP,MY)
55 A-4428-407-A STAND BY BOARD, COMPLETE (DE245:E,EA)
55 A-4428-411-A STAND BY BOARD, COMPLETE
(DE245:AEP,UK,CIS,EE)
55 A-4428-416-A STAND BY BOARD, COMPLETE
(DE345:AEP,CIS,EE)
56 4-924-098-01 HOLDER, PC BOARD
57 A-4428-268-A MAIN BOARD, COMPLETE (DE345:US)
57 A-4428-387-A MAIN BOARD, COMPLETE
(DE345:AUS,SP,MY,CH)
57 A-4428-394-A MAIN BOARD, COMPLETE
(DE345:CND,E,EA,PX)
57 A-4428-398-A MAIN BOARD, COMPLETE (DE245:E,EA)
57 A-4428-401-A MAIN BOARD, COMPLETE (DE245:AUS,SP,MY)
57 A-4428-410-A MAIN BOARD, COMPLETE
(DE245:AEP,UK,CIS,EE)
57 A-4428-414-A MAIN BOARD, COMPLETE (DE345:AEP,CIS,EE)
57 A-4473-330-A MAIN BOARD, COMPLETE (DE345:MX)
57 A-4473-332-A MAIN BOARD, COMPLETE (DE345:AR)
57 A-4473-335-A MAIN BOARD, COMPLETE (DE245:MX)
58 1-773-001-11 WIRE(FLAT TYPE) (15 CORE)
59 1-769-850-11 WIRE(FLAT TYPE) (5 CORE)(DE345)
60 3-905-609-01 SCREW (TRANSISTOR)
61 1-693-407-41 TUNER
62 4-226-462-01 BACK PANEL (E3) (DE345:US)
62 4-226-462-11 BACK PANEL (E3) (DE345:CND)
62 4-226-462-21 BACK PANEL (E3) (DE345:AUS)
62 4-226-462-31 BACK PANEL (E3) (DE345:SP,MY)
62 4-226-462-41 BACK PANEL (E3) (DE345:CH)
62 4-226-462-51 BACK PANEL (E3) (DE345:E,EA,PX)
62 4-226-462-61 BACK PANEL (E3) (DE345:AEP)
62 4-226-462-71 BACK PANEL (E3) (DE345:CIS,EE)
62 4-226-468-21 BACK PANEL (E2) (DE245:AUS)
62 4-226-468-31 BACK PANEL (E2) (DE245:SP,MY)
62 4-226-468-41 BACK PANEL (E2) (DE245:E,EA)
62 4-226-468-51 BACK PANEL (E2) (DE245:AEP,UK)
62 4-226-468-61 BACK PANEL (E2) (DE245:MX,CIS,EE)
62 4-226-462-81 BACK PANEL (E3) (DE345:MX)
62 4-226-462-91 BACK PANEL (E3) (DE345:AR)
63 4-956-370-12 BAND, PLUG FIXED (DE245:AUS/DE345:AUS)
64 1-676-806-11 VIDEO BOARD (DE345)
65 1-676-805-11 VOL-SEL BOARD (DE245:E,EA/DE345:E,EA,PX)
66 3-703-244-00 BUSHING (FBS001), CORD
067 1-696-847-11 CORD, POWER (AUS)
067 1-777-071-21 CORD, POWER (AEP,UK,E,EA,CIS,EE,SP,MY,PX)
067 1-783-205-11 CORD, POWER (CH)
067 1-783-820-11 CORD, POWER (US,CND,MX)
68 1-569-008-21 ADAPTOR, CONVERSION 2P (E,EA,PX)
0T901 1-435-267-11 TRANSFORMER, POWER (DE245:AUS)
0T901 1-435-268-11 TRANSFORMER, POWER (DE245:SP,MY)
0T901 1-435-269-11 TRANSFORMER, POWER (DE245:E,EA)
0T901 1-435-270-11 TRANSFORMER, POWER
(DE245:AEP,UK,CIS,EE)
0T901 1-435-564-11 TRANSFORMER, POWER (DE245:MX)
0T901 1-435-271-11 TRANSFORMER, POWER (DE345:US)
0T901 1-435-272-11 TRANSFORMER, POWER (DE345:CND)
0T901 1-435-273-11 TRANSFORMER, POWER (DE345:AUS)
0T901 1-435-274-11 TRANSFORMER, POWER (DE345:SP,MY,AR,CH)
0T901 1-435-275-11 TRANSFORMER, POWER (DE345:E,EA,PX)
0T901 1-435-276-11 TRANSFORMER, POWER (DE345:AEP,CIS,EE)
0T901 1-435-565-11 TRANSFORMER, POWER (DE345:MX)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
21
SECTION 5
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• CAPACITORS:
uF: µF
• COILS
uH: µH
• Abbreviation
CND : Canadian model.
AUS : Australian model.
SP : Singapore model.
MY : Malaysia model.
AR : Argentine model.
CH : Chinese model.
MX : Mexican model.
CIS : Russian model.
EA : Saudi Arabia model.
EE : East European model.
When indicating parts by reference number,
please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
A-4428-267-A DISPLAY BOARD, COMPLETE (DE345:US)
***********************
A-4428-383-A DISPLAY BOARD, COMPLETE (DE345:CND)
***********************
A-4428-386-A DISPLAY BOARD, COMPLETE (DE345:AUS)
***********************
A-4428-390-A DISPLAY BOARD, COMPLETE
(DE345:SP,MY,CH)
***********************
A-4428-393-A DISPLAY BOARD, COMPLETE (DE345:E,EA,PX)
***********************
A-4428-397-A DISPLAY BOARD, COMPLETE (DE345:CND)
***********************
A-4428-400-A DISPLAY BOARD, COMPLETE (DE245:AUS)
***********************
A-4428-404-A DISPLAY BOARD, COMPLETE (DE245:SP,MY)
***********************
A-4428-406-A DISPLAY BOARD, COMPLETE (DE245:E,EA)
***********************
A-4428-409-A DISPLAY BOARD, COMPLETE
(DE245:AEP,UK,CIS,EE)
***********************
A-4428-413-A DISPLAY BOARD, COMPLETE
(DE345:AEP,CIS,EE)
***********************
A-4473-331-A DISPLAY BOARD, COMPLETE (DE345:MX)
***********************
A-4473-333-A DISPLAY BOARD, COMPLETE (DE345:AR)
***********************
A-4473-336-A DISPLAY BOARD, COMPLETE (DE245:MX)
***********************
*4-921-941-01 CUSHION (FL)
4-943-107-11 HOLDER(FL TUBE)
< CAPACITOR >
C201 1-104-905-11 CAPACITOR 0.22F 5.5V
C202 1-164-159-21 CERAMIC 0.1uF 50V
C203 1-126-096-11 ELECT 10uF 20% 35V
C204 1-164-159-21 CERAMIC 0.1uF 50V
C205 1-162-294-31 CERAMIC 0.001uF 10% 50V
C206 1-164-159-21 CERAMIC 0.1uF 50V
C207 1-164-159-21 CERAMIC 0.1uF 50V
C208 1-124-465-00 ELECT 0.47uF 20% 50V
< CONNECTOR >
CNS201 1-794-028-11 BOARD TO BOARD PIN 4P
CNS202 1-794-028-11 BOARD TO BOARD PIN 4P
CNS203 1-794-003-11 CONNECTOR 15P
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
CNS203 1-794-005-11 CONNECTOR 19P
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CNS203 1-794-002-11 CONNECTOR 13P (DE245:AUS,E,EA,MX,SP,MY)
CNS204 1-564-593-11 PLUG, CONNECTOR 14P
< DIODE >
D201 8-719-991-33 DIODE 1SS133T-77
D202 8-719-991-33 DIODE 1SS133T-77
D203 8-719-991-33 DIODE 1SS133T-77
D204 8-719-991-33 DIODE 1SS133T-77
D210 8-719-046-39 DIODE SEL5821A-TP15 (SET UP)
D211 8-719-046-39 DIODE SEL5821A-TP15 (NAME)
D212 8-719-046-39 DIODE SEL5821A-TP15 (LEVEL)
D213 8-719-046-39 DIODE SEL5821A-TP15 (SUR)
D214 8-719-313-50 DIODE SEL6810A-TH12 (B.BOOST)
D215 8-719-313-50 DIODE SEL6810A-TH12 (S.FIELD)
< FILTER >
FL201 1-517-662-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC103 8-759-656-87 IC uPD780206GF-060-3BA
IC203 8-759-332-18 IC GP1U27XB
< COIL >
L201 1-410-509-11 INDUCTOR 10uH
< TRANSISTOR >
Q201 8-729-900-63 TRANSISTOR BN1F4M-TP
Q202 8-729-900-36 TRANSISTOR BA1F4M-TP
Q210 8-729-900-36 TRANSISTOR BA1F4M-TP
Q211 8-729-900-36 TRANSISTOR BA1F4M-TP
Q212 8-729-900-36 TRANSISTOR BA1F4M-TP
Q213 8-729-900-36 TRANSISTOR BA1F4M-TP
Q214 8-729-900-36 TRANSISTOR BA1F4M-TP
Q215 8-729-900-36 TRANSISTOR BA1F4M-TP
Q216 8-729-900-63 TRANSISTOR BN1F4M-TP
DISPLAY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
22
< RESISTOR >
R200 1-249-433-11 CARBON 22K 5% 1/4W
R201 1-249-433-11 CARBON 22K 5% 1/4W
R202 1-249-429-11 CARBON 10K 5% 1/4W
R203 1-249-429-11 CARBON 10K 5% 1/4W
R204 1-249-429-11 CARBON 10K 5% 1/4W
R205 1-249-441-11 CARBON 100K 5% 1/4W
R206 1-249-429-11 CARBON 10K 5% 1/4W
R207 1-249-429-11 CARBON 10K 5% 1/4W
R208 1-249-429-11 CARBON 10K 5% 1/4W
R213 1-249-429-11 CARBON 10K 5% 1/4W
R214 1-249-429-11 CARBON 10K 5% 1/4W
R215 1-249-429-11 CARBON 10K 5% 1/4W
R216 1-249-435-11 CARBON 33K 5% 1/4W
(DE345:AUS)
R216 1-249-427-11 CARBON 6.8K 5% 1/4W F
(DE345:E,EA,PX,MX,SP,MY,AR,CH)
R216 1-247-843-11 CARBON 3.3K 5% 1/4W
(DE245:SP,MY)
R216 1-249-431-11 CARBON 15K 5% 1/4W
(DE245:AUS)
R216 1-249-425-11 CARBON 4.7K 5% 1/4W F
(DE245:E,EA,MX)
R216 1-247-863-91 CARBON 22K 5% 1/4W
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R216 1-249-429-11 CARBON 10K 5% 1/4W
(DE345:US,CND)
R217 1-249-425-11 CARBON 4.7K 5% 1/4W F
(DE345:SP,MY,CH)
R217 1-247-863-91 CARBON 22K 5% 1/4W
(DE345:AEP,CIS,EE)
R217 1-249-415-11 CARBON 680 5% 1/4W F
(DE245:AUS/DE345:AUS)
R217 1-249-427-11 CARBON 6.8K 5% 1/4W F
(DE245:E,EA,MX,SP,MY)
R217 1-249-421-11 CARBON 2.2K 5% 1/4W F
(DE245:AEP,UK,CIS,EE)
R217 1-247-843-11 CARBON 3.3K 5% 1/4W
(DE345:US,CND,E,EA,PX,MX,AR)
R218 1-249-429-11 CARBON 10K 5% 1/4W
R219 1-249-429-11 CARBON 10K 5% 1/4W
R220 1-249-407-11 CARBON 150 5% 1/4W F
R221 1-249-407-11 CARBON 150 5% 1/4W F
R222 1-249-407-11 CARBON 150 5% 1/4W F
R224 1-249-429-11 CARBON 10K 5% 1/4W
R225 1-249-429-11 CARBON 10K 5% 1/4W
R226 1-249-429-11 CARBON 10K 5% 1/4W
R227 1-249-425-11 CARBON 4.7K 5% 1/4W F
R228 1-249-427-11 CARBON 6.8K 5% 1/4W F
R229 1-249-427-11 CARBON 6.8K 5% 1/4W F
R230 1-249-427-11 CARBON 6.8K 5% 1/4W F
R231 1-249-427-11 CARBON 6.8K 5% 1/4W F
R232 1-249-411-11 CARBON 330 5% 1/4W
R233 1-249-413-11 CARBON 470 5% 1/4W F
R234 1-249-415-11 CARBON 680 5% 1/4W F
R235 1-249-417-11 CARBON 1K 5% 1/4W F
R236 1-249-419-11 CARBON 1.5K 5% 1/4W F
R237 1-249-421-11 CARBON 2.2K 5% 1/4W F
R238 1-247-843-11 CARBON 3.3K 5% 1/4W
R239 1-249-425-11 CARBON 4.7K 5% 1/4W F
R240 1-249-411-11 CARBON 330 5% 1/4W
R241 1-249-413-11 CARBON 470 5% 1/4W F
R242 1-249-415-11 CARBON 680 5% 1/4W F
R243 1-249-417-11 CARBON 1K 5% 1/4W F
R244 1-249-419-11 CARBON 1.5K 5% 1/4W F
R245 1-249-421-11 CARBON 2.2K 5% 1/4W F
R246 1-247-843-11 CARBON 3.3K 5% 1/4W
R247 1-249-425-11 CARBON 4.7K 5% 1/4W F
R248 1-249-411-11 CARBON 330 5% 1/4W
R249 1-249-413-11 CARBON 470 5% 1/4W F
R250 1-249-415-11 CARBON 680 5% 1/4W F
R251 1-249-417-11 CARBON 1K 5% 1/4W F
R252 1-249-419-11 CARBON 1.5K 5% 1/4W F
R253 1-249-421-11 CARBON 2.2K 5% 1/4W F
R265 1-249-429-11 CARBON 10K 5% 1/4W
R266 1-249-429-11 CARBON 10K 5% 1/4W
R267 1-249-429-11 CARBON 10K 5% 1/4W
R268 1-249-429-11 CARBON 10K 5% 1/4W
R269 1-249-437-11 CARBON 47K 5% 1/4W
R270 1-247-807-31 CARBON 100 5% 1/4W
R271 1-247-807-31 CARBON 100 5% 1/4W
R272 1-247-807-31 CARBON 100 5% 1/4W
R273 1-247-807-31 CARBON 100 5% 1/4W
R274 1-247-807-31 CARBON 100 5% 1/4W
R275 1-247-807-31 CARBON 100 5% 1/4W
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R276 1-249-429-11 CARBON 10K 5% 1/4W
R277 1-249-429-11 CARBON 10K 5% 1/4W
R278 1-249-429-11 CARBON 10K 5% 1/4W
R279 1-249-429-11 CARBON 10K 5% 1/4W
R284 1-249-429-11 CARBON 10K 5% 1/4W
R285 1-249-429-11 CARBON 10K 5% 1/4W
R286 1-249-429-11 CARBON 10K 5% 1/4W
0R298 1-249-388-61 CARBON 3.9 5% 1/4W
(DE245:E,AUS,SP/DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
0R298 1-249-381-11 CARBON 1 5% 1/4W F
(DE245:AEP,UK,MX,CIS,EE/DE345:AEP,CIS,EE)
0R299 1-249-388-61 CARBON 3.9 5% 1/4W
(DE245:E,AUS,SP/DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
0R299 1-249-381-11 CARBON 1 5% 1/4W F
(DE245:AEP,UK,MX,CIS,EE/DE345:AEP,CIS,EE)
R303 1-249-439-11 CARBON 68K 5% 1/4W
< SWITCH >
S202 1-771-410-21 SWITCH, TACTILE (LEVEL)
S203 1-771-410-21 SWITCH, TACTILE (MODE +)
S204 1-771-410-21 SWITCH, TACTILE (MODE -)
S205 1-771-410-21 SWITCH, TACTILE (DISPLAY)
S206 1-771-410-21 SWITCH, TACTILE (DIMMER)
S207 1-771-410-21 SWITCH, TACTILE (5.1CH/DVD)
S208 1-771-410-21 SWITCH, TACTILE (TV/SAT)
S209 1-771-410-21 SWITCH, TACTILE (MD/TAPE)
S210 1-771-410-21 SWITCH, TACTILE (VIDEO)
S211 1-771-410-21 SWITCH, TACTILE (MENU <)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
DISPLAY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
23
S212 1-771-410-21 SWITCH, TACTILE (MENU -)
S213 1-771-410-21 SWITCH, TACTILE (TREBLE +)
S214 1-771-410-21 SWITCH, TACTILE (TREBLE -)
S215 1-771-410-21 SWITCH, TACTILE (BASS +)
S216 1-771-410-21 SWITCH, TACTILE (BASS -)
S217 1-771-410-21 SWITCH, TACTILE (TUNER)
S218 1-771-410-21 SWITCH, TACTILE (CD)
S219 1-771-410-21 SWITCH, TACTILE (SF ON/OFF)
S220 1-771-410-21 SWITCH, TACTILE (SUR)
S221 1-771-410-21 SWITCH, TACTILE (MENU >)
S222 1-771-410-21 SWITCH, TACTILE (MENU +)
S223 1-771-410-21 SWITCH, TACTILE (ENTER)
S224 1-771-410-21 SWITCH, TACTILE (NAME)
S225 1-771-410-21 SWITCH, TACTILE (SET UP)
< VIBRATOR >
X201 1-579-233-11 VIBRATOR, CERAMIC 5MHz
**************************************************************
1-676-798-11 ENCODER BOARD
**************
< VARIABLE RESISTOR >
RV201 1-418-773-11 ENCODER
**************************************************************
1-676-804-11 HEADPHONE BOARD
*****************
< CONNECTOR >
*CN792 1-564-518-11 PLUG, CONNECTOR 3P
< JACK >
J791 1-750-733-11 JACK (LARGE TYPE)(PHONES)
**************************************************************
A-4428-268-A MAIN BOARD, COMPLETE (DE345:US)
*********************
A-4428-387-A MAIN BOARD, COMPLETE
(DE345:AUS,SP,MY,CH)
*********************
A-4428-394-A MAIN BOARD, COMPLETE
(DE345:CND,E,EA,PX)
*********************
A-4428-398-A MAIN BOARD, COMPLETE (DE245:E,EA)
*********************
A-4428-401-A MAIN BOARD, COMPLETE (DE245:AUS,SP,MY)
*********************
A-4428-410-A MAIN BOARD, COMPLETE
(DE245:AEP,UK,CIS,EE)
*********************
A-4428-414-A MAIN BOARD, COMPLETE (DE345:AEP,CIS,EE)
*********************
A-4473-330-A MAIN BOARD, COMPLETE (DE345:MX)
*********************
A-4473-332-A MAIN BOARD, COMPLETE (DE345:AR)
*********************
A-4473-335-A MAIN BOARD, COMPLETE (DE245:MX)
*********************
< CAPACITOR >
C3 1-162-288-31 CERAMIC 330PF 10% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CEIS,EE)
C4 1-126-961-11 ELECT 2.2uF 20.00% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C5 1-164-159-21 CERAMIC 0.1uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C6 1-162-291-31 CERAMIC 560PF 10.00% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C7 1-128-808-21 CERAMIC 82PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C10 1-164-159-21 CERAMIC 0.1uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C301 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C302 1-126-959-11 ELECT 0.47uF 20.00% 50V
C303 1-126-794-11 ELECT 4.7uF 20.00% 50V
C304 1-126-959-11 ELECT 0.47uF 20.00% 50V
C305 1-126-794-11 ELECT 4.7uF 20.00% 50V
C306 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C307 1-126-962-11 ELECT 3.3uF 20.00% 50V
C308 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C309 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C310 1-126-962-11 ELECT 3.3uF 20.00% 50V
C311 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C312 1-126-794-11 ELECT 4.7uF 20.00% 50V
C313 1-126-959-11 ELECT 0.47uF 20.00% 50V
C314 1-126-794-11 ELECT 4.7uF 20.00% 50V
C315 1-126-959-11 ELECT 0.47uF 20.00% 50V
C316 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C317 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C318 1-126-964-11 ELECT 10uF 20.00% 50V
C319 1-126-964-11 ELECT 10uF 20.00% 50V
C320 1-126-964-11 ELECT 10uF 20.00% 50V
C321 1-126-964-11 ELECT 10uF 20.00% 50V
C322 1-126-934-11 ELECT 220uF 20.00% 10V
C323 1-126-934-11 ELECT 220uF 20.00% 10V
C325 1-126-961-11 ELECT 2.2uF 20.00% 50V
C326 1-126-934-11 ELECT 220uF 20.00% 10V
C327 1-164-159-21 CERAMIC 0.1uF 50V
C328 1-126-964-11 ELECT 10uF 20.00% 50V
C329 1-126-964-11 ELECT 10uF 20.00% 50V
C330 1-126-964-11 ELECT 10uF 20.00% 50V
C331 1-126-964-11 ELECT 10uF 20.00% 50V
C332 1-124-252-00 ELECT 0.33uF 20% 50V
C333 1-126-959-11 ELECT 0.47uF 20.00% 50V
C334 1-126-934-11 ELECT 220uF 20.00% 10V
C335 1-164-159-21 CERAMIC 0.1uF 50V
C336 1-136-177-00 MYLAR 1uF 5.00% 50V
C337 1-136-177-00 MYLAR 1uF 5.00% 50V
C338 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C339 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C340 1-126-956-91 ELECT 0.1uF 20.00% 50V
C341 1-126-961-11 ELECT 2.2uF 20.00% 50V
C342 1-126-961-11 ELECT 2.2uF 20.00% 50V
C343 1-126-961-11 ELECT 2.2uF 20.00% 50V
C344 1-126-961-11 ELECT 2.2uF 20.00% 50V
C345 1-136-157-00 MYLAR 0.022uF 5.00% 50V
DISPLAY ENCODER HEADPHONE MAIN
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
24
C346 1-128-809-11 CERAMIC 100PF 5% 50V
C347 1-128-809-11 CERAMIC 100PF 5% 50V
C348 1-126-961-11 ELECT 2.2uF 20.00% 50V
C349 1-130-494-11 MYLAR 0.082uF 5% 50V
C350 1-137-367-11 MYLAR 0.0033uF 5.00% 50V
C351 1-130-494-11 MYLAR 0.082uF 5% 50V
C352 1-126-934-11 ELECT 220uF 20.00% 10V
C353 1-164-159-21 CERAMIC 0.1uF 50V
C354 1-135-518-11 CERAMIC 51PF 5% 50V
C355 1-128-809-11 CERAMIC 100PF 5% 50V
C356 1-128-805-21 CERAMIC 47PF 5% 50V
C357 1-162-203-31 CERAMIC 15PF 5.00% 50V
C358 1-128-809-11 CERAMIC 100PF 5% 50V
C359 1-136-357-11 MYLAR 680PF 5.00% 50V
C360 1-136-161-00 MYLAR 0.047uF 5.00% 50V
C361 1-136-157-00 MYLAR 0.022uF 5.00% 50V
C362 1-136-173-00 MYLAR 0.47uF 5.00% 50V
C363 1-126-967-11 ELECT 47uF 20.00% 50V
C364 1-126-961-11 ELECT 2.2uF 20.00% 50V
C365 1-126-961-11 ELECT 2.2uF 20.00% 50V
C366 1-126-961-11 ELECT 2.2uF 20.00% 50V
C367 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C368 1-164-159-21 CERAMIC 0.1uF 50V
C371 1-164-159-21 CERAMIC 0.1uF 50V
C372 1-164-159-21 CERAMIC 0.1uF 50V
C373 1-164-159-21 CERAMIC 0.1uF 50V
C374 1-164-159-21 CERAMIC 0.1uF 50V
C375 1-164-159-21 CERAMIC 0.1uF 50V
C376 1-164-159-21 CERAMIC 0.1uF 50V
C401 1-126-964-11 ELECT 10uF 20.00% 50V
C402 1-126-964-11 ELECT 10uF 20.00% 50V
C403 1-126-964-11 ELECT 10uF 20.00% 50V
C404 1-126-964-11 ELECT 10uF 20.00% 50V
C405 1-126-964-11 ELECT 10uF 20.00% 50V
C412 1-130-481-00 MYLAR 0.0068uF 5% 50V
C414 1-130-481-00 MYLAR 0.0068uF 5% 50V
C416 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C417 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C418 1-137-375-11 MYLAR 0.068uF 5.00% 50V
C419 1-126-794-11 ELECT 4.7uF 20.00% 50V
C420 1-126-964-11 ELECT 10uF 20.00% 50V
C421 1-126-964-11 ELECT 10uF 20.00% 50V
C422 1-126-964-11 ELECT 10uF 20.00% 50V
C433 1-128-809-11 CERAMIC 100PF 5% 50V
C434 1-128-813-11 CERAMIC 220PF 5% 50V
C435 1-128-813-11 CERAMIC 220PF 5% 50V
C441 1-164-159-21 CERAMIC 0.1uF 50V
C442 1-164-159-21 CERAMIC 0.1uF 50V
C443 1-164-159-21 CERAMIC 0.1uF 50V
C445 1-164-159-21 CERAMIC 0.1uF 50V
C446 1-164-159-21 CERAMIC 0.1uF 50V
C447 1-164-159-21 CERAMIC 0.1uF 50V
C451 1-126-964-11 ELECT 10uF 20.00% 50V
C452 1-126-964-11 ELECT 10uF 20.00% 50V
C453 1-126-964-11 ELECT 10uF 20.00% 50V
C454 1-126-964-11 ELECT 10uF 20.00% 50V
C455 1-126-964-11 ELECT 10uF 20.00% 50V
C461 1-126-794-11 ELECT 4.7uF 20.00% 50V
C462 1-130-481-00 MYLAR 0.0068uF 5% 50V
C463 1-137-375-11 MYLAR 0.068uF 5.00% 50V
C464 1-130-481-00 MYLAR 0.0068uF 5% 50V
C465 1-126-964-11 ELECT 10uF 20.00% 50V
C466 1-126-794-11 ELECT 4.7uF 20.00% 50V
C467 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C468 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C470 1-126-964-11 ELECT 10uF 20.00% 50V
C472 1-126-794-11 ELECT 4.7uF 20.00% 50V
C480 1-126-965-11 ELECT 22uF 20.00% 50V
C481 1-126-965-11 ELECT 22uF 20.00% 50V
C482 1-126-965-11 ELECT 22uF 20.00% 50V
C483 1-126-965-11 ELECT 22uF 20.00% 50V
C501 1-126-794-11 ELECT 4.7uF 20.00% 50V
C502 1-128-809-11 CERAMIC 100PF 5% 50V
C503 1-102-989-00 CERAMIC 68PF 5.00% 500V
C504 1-102-989-00 CERAMIC 68PF 5.00% 500V
C505 1-104-665-11 ELECT 100uF 20.00% 10V
C506 1-102-230-91 CERAMIC 4PF 10.00% 50V
C510 1-104-664-11 ELECT 47uF 20.00% 25V
C511 1-137-372-11 MYLAR 0.022uF 5.00% 50V
C520 1-128-813-11 CERAMIC 220PF 5% 50V
C524 1-126-964-11 ELECT 10uF 20.00% 50V
C526 1-127-876-21 CERAMIC 0.01uF 10% 50V
C601 1-126-794-11 ELECT 4.7uF 20.00% 50V
C603 1-104-665-11 ELECT 100uF 20.00% 10V
C604 1-102-936-00 CERAMIC 3.0PF +-0.25PF 50V
C605 1-102-233-00 CERAMIC 33PF 10.00% 500V
C606 1-128-815-21 CERAMIC 330PF 5% 50V
C607 1-128-809-11 CERAMIC 100PF 5% 50V
C610 1-104-664-11 ELECT 47uF 20.00% 25V
C611 1-137-372-11 MYLAR 0.022uF 5.00% 50V
C620 1-128-813-11 CERAMIC 220PF 5% 50V
C624 1-126-964-11 ELECT 10uF 20.00% 50V
C626 1-127-876-21 CERAMIC 0.01uF 10% 50V
C651 1-126-794-11 ELECT 4.7uF 20.00% 50V
C653 1-104-665-11 ELECT 100uF 20.00% 10V
C655 1-102-233-00 CERAMIC 33PF 10.00% 500V
C657 1-128-809-11 CERAMIC 100PF 5% 50V
C660 1-104-664-11 ELECT 47uF 20.00% 25V
C661 1-137-372-11 MYLAR 0.022uF 5.00% 50V
C670 1-128-813-11 CERAMIC 220PF 5% 50V
C701 1-126-794-11 ELECT 4.7uF 20.00% 50V
C703 1-104-665-11 ELECT 100uF 20.00% 10V
C704 1-102-936-00 CERAMIC 3.0PF +-0.25PF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C705 1-102-233-00 CERAMIC 33PF 10.00% 500V
C706 1-128-815-21 CERAMIC 330PF 5% 50V
C707 1-128-809-11 CERAMIC 100PF 5% 50V
C710 1-104-664-11 ELECT 47uF 20.00% 25V
C711 1-137-372-11 MYLAR 0.022uF 5.00% 50V
C714 1-127-876-21 CERAMIC 0.01uF 10% 50V
C720 1-128-813-11 CERAMIC 220PF 5% 50V
MAIN
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
25
C721 1-126-934-11 ELECT 220uF 20.00% 10V
C722 1-126-964-11 ELECT 10uF 20.00% 50V
C724 1-126-964-11 ELECT 10uF 20.00% 50V
C726 1-127-876-21 CERAMIC 0.01uF 10% 50V
C734 1-126-964-11 ELECT 10uF 20.00% 50V
C736 1-127-876-21 CERAMIC 0.01uF 10% 50V
C740 1-128-582-11 ELECT 10uF 20.00% 100V
C741 1-128-582-11 ELECT 10uF 20.00% 100V
C742 1-126-925-11 ELECT 470uF 20.00% 10V
C743 1-126-925-11 ELECT 470uF 20.00% 10V
C751 1-126-794-11 ELECT 4.7uF 20.00% 50V
C753 1-104-665-11 ELECT 100uF 20.00% 10V
C755 1-102-233-00 CERAMIC 33PF 10.00% 500V
C757 1-128-809-11 CERAMIC 100PF 5% 50V
C760 1-104-664-11 ELECT 47uF 20.00% 25V
C761 1-137-372-11 MYLAR 0.022uF 5.00% 50V
C764 1-128-815-21 CERAMIC 330PF 10% 50V
C770 1-128-813-11 CERAMIC 220PF 5% 50V
C801 1-126-947-11 ELECT 47uF 20.00% 35V
C802 1-126-947-11 ELECT 47uF 20.00% 35V
C803 1-128-591-11 ELECT 6800uF 20.00% 56V
(DE245:EXCEPT E,EA)
C803 1-125-897-11 ELECT 10000uF 20.00% 71V
(DE345:US,CND,E,EA)
C803 1-107-766-11 ELECT 8200uF 20.00% 71V
(DE345:AUS,SP,MY,MX,AR)
C803 1-117-203-11 ELECT 10000uF 20.00% 63V
(DE245:E,EA)
C804 1-128-591-11 ELECT 6800uF 20.00% 56V
(DE245:EXCEPT E,EA)
C804 1-125-897-11 ELECT 10000uF 20.00% 71V
(DE345:US,CND,E,EA)
C804 1-107-766-11 ELECT 8200uF 20.00% 71V
(DE345:AUS,SP,MY,MX,AR)
C804 1-117-203-11 ELECT 10000uF 20.00% 63V
(DE245:E,EA)
C805 1-130-781-00 MYLAR 0.22uF 5.00% 100V
C806 1-130-781-00 MYLAR 0.22uF 5.00% 100V
C807 1-104-664-11 ELECT 47uF 20.00% 25V
C808 1-104-664-11 ELECT 47uF 20.00% 25V
C810 1-126-960-11 ELECT 1uF 20.00% 50V
C811 1-126-942-61 ELECT 1000uF 20.00% 25V
C812 1-126-941-11 ELECT 470uF 20.00% 25V
C813 1-101-001-00 CERAMIC 0.001uF 50V
C814 1-101-001-00 CERAMIC 0.001uF 50V
C815 1-126-967-11 ELECT 47uF 20.00% 50V
C816 1-126-951-11 ELECT 470uF 20.00% 35V
C817 1-104-664-11 ELECT 47uF 20.00% 25V
C818 1-126-960-11 ELECT 1uF 20.00% 50V
C822 1-126-965-11 ELECT 22uF 20.00% 50V
C826 1-104-664-11 ELECT 47uF 20.00% 25V
C827 1-126-960-11 ELECT 1uF 20.00% 50V
C828 1-126-960-11 ELECT 1uF 20.00% 50V
C829 1-104-664-11 ELECT 47uF 20.00% 25V
CC02 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC03 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC04 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC05 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC06 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC07 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC12 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC14 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC16 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC18 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC20 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC52 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC53 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC54 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC55 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC56 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC57 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
< CONNECTOR >
CN402 1-691-772-11 PLUG (MICRO CONNECTOR) 10P
CN403 1-569-315-11 SOCKET, CONNECTOR 5P
(DE345:AEP,AUS,MX,SP,MY,AR,CIS,EE,CH)
CN404 1-794-003-11 CONNECTOR 15P
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
CN404 1-794-005-11 CONNECTOR 19P
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CN404 1-794-002-11 CONNECTOR 13P (DE245:AUS,E,EA,MX,SP,MY)
*CN791 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P
*CN801 1-564-521-11 PLUG, CONNECTOR 6P
*CN802 1-564-214-11 PIN, CONNECTOR (B3PS-VH) 3P
CNS401 1-569-321-11 SOCKET, CONNECTOR 15P
CNS403 1-569-315-11 SOCKET, CONNECTOR 5P (DE345)
< DIODE >
D301 8-719-070-77 DIODE SVC201SPA-M1-AC
D470 8-719-991-33 DIODE 1SS133T-77
D505 8-719-991-33 DIODE 1SS133T-77
D506 8-719-991-33 DIODE 1SS133T-77
D508 8-719-991-33 DIODE 1SS133T-77
D510 8-719-991-33 DIODE 1SS133T-77
D605 8-719-991-33 DIODE 1SS133T-77
D606 8-719-991-33 DIODE 1SS133T-77
D607 8-719-991-33 DIODE 1SS133T-77
D608 8-719-991-33 DIODE 1SS133T-77
D610 8-719-991-33 DIODE 1SS133T-77
D627 8-719-991-33 DIODE 1SS133T-77
D706 8-719-991-33 DIODE 1SS133T-77
D710 8-719-991-33 DIODE 1SS133T-77
D721 8-719-991-33 DIODE 1SS133T-77
D722 8-719-991-33 DIODE 1SS133T-77
D725 8-719-991-33 DIODE 1SS133T-77
D726 8-719-991-33 DIODE 1SS133T-77
D727 8-719-991-33 DIODE 1SS133T-77
D728 8-719-991-33 DIODE 1SS133T-77
MAIN
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
26
D731 8-719-991-33 DIODE 1SS133T-77
D732 8-719-991-33 DIODE 1SS133T-77
D734 8-719-991-33 DIODE 1SS133T-77
D735 8-719-991-33 DIODE 1SS133T-77
D736 8-719-991-33 DIODE 1SS133T-77
D757 8-719-991-33 DIODE 1SS133T-77
D791 8-719-991-33 DIODE 1SS133T-77
D801 8-719-934-13 DIODE HZS24-1LTD
D802 8-719-072-05 DIODE RBV-602LF-A
D804 8-719-109-85 DIODE MTZJ-T-77-5.1B
D820 8-719-200-82 DIODE 11ES2-NTA1B
D821 8-719-200-82 DIODE 11ES2-NTA1B
D822 8-719-200-82 DIODE 11ES2-NTA1B
D823 8-719-200-82 DIODE 11ES2-NTA1B
D824 8-719-200-82 DIODE 11ES2-NTA1B
D825 8-719-200-82 DIODE 11ES2-NTA1B
< EARTH >
*G401 1-537-738-21 TERMINAL, EARTH
*G441 1-537-738-21 TERMINAL, EARTH
*G442 1-537-738-21 TERMINAL, EARTH
< IC >
IC1 8-759-541-48 IC BU1924
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
IC201 8-759-655-38 IC M61501FP
IC202 8-759-655-37 IC LV1050M
IC401 8-759-636-74 IC M5218AP-22
IC501 8-749-011-16 IC STK350-230
IC701 8-759-326-52 IC uPC2581V
IC702 8-759-326-52 IC uPC2581V
IC801 8-759-376-91 IC uPC78M12AHF
IC802 8-759-604-95 IC M5F79M07L
IC803 8-759-039-69 IC uPC7805AHF
IC804 8-759-039-69 IC uPC7805AHF
IC805 8-759-701-59 IC M5F78M09L
IC807 8-759-605-00 IC M5F78M07L
< JACK >
J401 1-774-411-11 JACK, PIN 6P (MD/TAPE)
J402 1-770-015-11 JACK, PIN 6P (VIDEO)
J403 1-774-785-11 JACK, PIN 1P (SUB WOOFER)
J501 1-779-599-11 JACK, PIN 6P (5.1CH/DVD)
< COIL >
L1 1-410-521-11 INDUCTOR 100uH
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
L301 1-410-509-11 INDUCTOR 10uH
L302 1-410-509-11 INDUCTOR 10uH
L521 1-420-872-00 COIL, AIR-CORE
L601 1-420-872-00 COIL, AIR-CORE
L651 1-420-872-00 COIL, AIR-CORE
L701 1-420-872-00 COIL, AIR-CORE
L751 1-420-872-00 COIL, AIR-CORE
< TRANSISTOR >
Q361 8-729-823-22 TRANSISTOR 2SC3576-AC
Q362 8-729-823-22 TRANSISTOR 2SC3576-AC
Q363 8-729-823-22 TRANSISTOR 2SC3576-AC
Q364 8-729-823-22 TRANSISTOR 2SC3576-AC
Q365 8-729-823-22 TRANSISTOR 2SC3576-AC
Q366 8-729-823-22 TRANSISTOR 2SC3576-AC
Q470 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q501 8-729-119-76 TRANSISTOR 2SA1115TP-EF
Q502 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q503 8-749-010-25 IC MN2488-OPY-M
Q504 8-749-010-26 IC MP1620-OPY-M
Q505 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q506 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q507 8-729-900-63 TRANSISTOR BN1F4M-TP
Q509 8-729-281-53 TRANSISTOR 2SC1815GR-TPE2
Q550 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q601 8-729-119-76 TRANSISTOR 2SA1115TP-EF
Q602 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q603 8-749-010-25 IC MN2488-OPY-M
Q604 8-749-010-26 IC MP1620-OPY-M
Q605 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q606 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q610 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q651 8-729-119-76 TRANSISTOR 2SA1115TP-EF
Q652 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q653 8-749-010-25 IC MN2488-OPY-M
Q654 8-749-010-26 IC MP1620-OPY-M
Q655 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q656 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q657 8-729-900-63 TRANSISTOR BN1F4M-TP
Q658 8-729-281-53 TRANSISTOR 2SC1815GR-TPE2
Q659 8-729-900-63 TRANSISTOR BN1F4M-TP
Q701 8-729-119-76 TRANSISTOR 2SA1115TP-EF
Q702 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q703 8-749-010-25 IC MN2488-OPY-M
Q704 8-749-010-26 IC MP1620-OPY-M
Q705 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q706 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q707 8-729-900-63 TRANSISTOR BN1F4M-TP
Q708 8-729-900-63 TRANSISTOR BN1F4M-TP
Q709 8-729-281-53 TRANSISTOR 2SC1815GR-TPE2
Q715 8-729-281-53 TRANSISTOR 2SC1815GR-TPE2
Q722 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q723 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q725 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q730 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q751 8-729-119-76 TRANSISTOR 2SA1115TP-EF
Q752 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q753 8-749-010-25 IC MN2488-OPY-M
Q754 8-749-010-26 IC MP1620-OPY-M
Q755 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q756 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q757 8-729-900-63 TRANSISTOR BN1F4M-TP
Q758 8-729-281-53 TRANSISTOR 2SC1815GR-TPE2
Q759 8-729-900-63 TRANSISTOR BN1F4M-TP
MAIN
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
27
Q791 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q801 8-729-140-97 TRANSISTOR 2SB734-T-34
< RESISTOR >
R5 1-249-421-11 CARBON 2.2K 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R6 1-247-807-31 CARBON 100 5% 1/4W
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R7 1-247-807-31 CARBON 100 5% 1/4W
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R301 1-249-439-11 CARBON 68K 5% 1/4W
R302 1-249-436-11 CARBON 39K 5% 1/4W
R306 1-249-441-11 CARBON 100K 5% 1/4W
R307 1-249-441-11 CARBON 100K 5% 1/4W
R308 1-249-436-11 CARBON 39K 5% 1/4W
R309 1-249-441-11 CARBON 100K 5% 1/4W
R310 1-249-441-11 CARBON 100K 5% 1/4W
R330 1-249-441-11 CARBON 100K 5% 1/4W
R331 1-249-441-11 CARBON 100K 5% 1/4W
R360 1-249-441-11 CARBON 100K 5% 1/4W
R361 1-249-425-11 CARBON 4.7K 5% 1/4W F
R362 1-249-425-11 CARBON 4.7K 5% 1/4W F
R363 1-249-441-11 CARBON 100K 5% 1/4W
R364 1-249-441-11 CARBON 100K 5% 1/4W
R365 1-249-441-11 CARBON 100K 5% 1/4W
R366 1-249-425-11 CARBON 4.7K 5% 1/4W F
R367 1-249-441-11 CARBON 100K 5% 1/4W
R368 1-249-441-11 CARBON 100K 5% 1/4W
R369 1-249-425-11 CARBON 4.7K 5% 1/4W F
R370 1-249-425-11 CARBON 4.7K 5% 1/4W F
R371 1-249-441-11 CARBON 100K 5% 1/4W
R372 1-249-441-11 CARBON 100K 5% 1/4W
R373 1-249-417-11 CARBON 1K 5% 1/4W F
R374 1-249-417-11 CARBON 1K 5% 1/4W F
R375 1-249-417-11 CARBON 1K 5% 1/4W F
R376 1-249-417-11 CARBON 1K 5% 1/4W F
R377 1-249-417-11 CARBON 1K 5% 1/4W F
R378 1-249-417-11 CARBON 1K 5% 1/4W F
R379 1-249-425-11 CARBON 4.7K 5% 1/4W F
R380 1-249-441-11 CARBON 100K 5% 1/4W
R402 1-249-417-11 CARBON 1K 5% 1/4W F
R403 1-249-417-11 CARBON 1K 5% 1/4W F
R404 1-249-417-11 CARBON 1K 5% 1/4W F
R405 1-249-417-11 CARBON 1K 5% 1/4W F
R406 1-249-417-11 CARBON 1K 5% 1/4W F
R407 1-249-417-11 CARBON 1K 5% 1/4W F
R408 1-249-429-11 CARBON 10K 5% 1/4W
R409 1-249-417-11 CARBON 1K 5% 1/4W F
R410 1-249-417-11 CARBON 1K 5% 1/4W F
R435 1-249-418-11 CARBON 1.2K 5% 1/4W F
R442 1-249-418-11 CARBON 1.2K 5% 1/4W F
R443 1-249-418-11 CARBON 1.2K 5% 1/4W F
R447 1-249-436-11 CARBON 39K 5% 1/4W
R448 1-249-436-11 CARBON 39K 5% 1/4W
R449 1-247-863-91 CARBON 22K 5% 1/4W
R452 1-249-417-11 CARBON 1K 5% 1/4W F
R453 1-249-417-11 CARBON 1K 5% 1/4W F
R454 1-249-417-11 CARBON 1K 5% 1/4W F
R455 1-249-417-11 CARBON 1K 5% 1/4W F
R456 1-249-417-11 CARBON 1K 5% 1/4W F
R457 1-249-417-11 CARBON 1K 5% 1/4W F
R458 1-249-429-11 CARBON 10K 5% 1/4W
R459 1-249-417-11 CARBON 1K 5% 1/4W F
R460 1-249-417-11 CARBON 1K 5% 1/4W F
R461 1-249-417-11 CARBON 1K 5% 1/4W F
R462 1-249-417-11 CARBON 1K 5% 1/4W F
R463 1-249-437-11 CARBON 47K 5% 1/4W
R464 1-249-437-11 CARBON 47K 5% 1/4W
R465 1-249-437-11 CARBON 47K 5% 1/4W
R466 1-249-437-11 CARBON 47K 5% 1/4W
R467 1-249-437-11 CARBON 47K 5% 1/4W
R468 1-249-437-11 CARBON 47K 5% 1/4W
R469 1-249-417-11 CARBON 1K 5% 1/4W F
R470 1-249-441-11 CARBON 100K 5% 1/4W
R471 1-249-425-11 CARBON 4.7K 5% 1/4W F
R472 1-249-431-11 CARBON 15K 5% 1/4W
0R473 1-249-401-11 CARBON 47 5% 1/4W F
R475 1-249-425-11 CARBON 4.7K 5% 1/4W F
R476 1-249-425-11 CARBON 4.7K 5% 1/4W F
R501 1-249-417-11 CARBON 1K 5% 1/4W F
R502 1-249-439-11 CARBON 68K 5% 1/4W
R503 1-249-412-11 CARBON 390 5% 1/4W F
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R503 1-249-415-11 CARBON 680 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R503 1-249-414-11 CARBON 560 5% 1/4W F
(DE245:AUS,E,EA,MX,SP,MY)
R504 1-249-411-11 CARBON 330 5% 1/4W
R505 1-249-439-11 CARBON 68K 5% 1/4W
R507 1-247-863-91 CARBON 22K 5% 1/4W
R510 1-247-877-11 CARBON 82K 5% 1/4W F
R511 1-249-437-11 CARBON 47K 5% 1/4W
R513 1-249-414-11 CARBON 560 5% 1/4W F
0R514 1-249-408-11 CARBON 180 5% 1/4W F
0R515 1-249-408-11 CARBON 180 5% 1/4W F
0R516 1-234-182-11 ENCAPSULATED COMPONENT
0R517 1-249-393-11 CARBON 10 5% 1/4W F
R520 1-249-425-11 CARBON 4.7K 5% 1/4W F
R521 1-247-850-91 CARBON 6.2 5% 1/4W F
R522 1-249-419-11 CARBON 1.5K 5% 1/4W F
R528 1-249-389-11 CARBON 4.7 5% 1/4W F
R529 1-247-863-91 CARBON 22K 5% 1/4W
(DE245)
R529 1-247-864-91 CARBON 24K 5% 1/4W
(DE345:CIS,EE)
R529 1-247-866-91 CARBON 30K 5% 1/4W
(EXCEPT DE345:CIS,EE)
R530 1-249-425-11 CARBON 4.7K 5% 1/4W F
R531 1-249-425-11 CARBON 4.7K 5% 1/4W F
R535 1-249-431-11 CARBON 15K 5% 1/4W
R537 1-249-401-11 CARBON 47 5% 1/4W F
R539 1-249-421-11 CARBON 2.2K 5% 1/4W F
R540 1-247-881-00 CARBON 120K 5% 1/4W
R541 1-249-431-11 CARBON 15K 5% 1/4W
R573 1-249-437-11 CARBON 47K 5% 1/4W
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
MAIN
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
28
R601 1-249-417-11 CARBON 1K 5% 1/4W F
R602 1-249-439-11 CARBON 68K 5% 1/4W
R603 1-249-417-11 CARBON 1K 5% 1/4W F
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R603 1-249-421-11 CARBON 2.2K 5% 1/4W F
(DE245:AEP,UK,CIS,EE)
R603 1-249-419-11 CARBON 1.5K 5% 1/4W F
(DE245:US,CND,AUS,E,EA,MX,SP,MY/DE345:AEP,CIS,EE)
R604 1-249-439-11 CARBON 68K 5% 1/4W
R610 1-249-421-11 CARBON 2.2K 5% 1/4W F
R611 1-249-440-11 CARBON 82K 5% 1/4W
R613 1-249-414-11 CARBON 560 5% 1/4W F
0R614 1-249-408-11 CARBON 180 5% 1/4W F
0R615 1-249-408-11 CARBON 180 5% 1/4W F
0R616 1-234-182-11 ENCAPSULATED COMPONENT
R617 1-249-393-11 CARBON 10 5% 1/4W F
0R618 1-249-389-11 CARBON 4.7 5% 1/4W F
R620 1-249-425-11 CARBON 4.7K 5% 1/4W F
R621 1-247-850-11 CARBON 6.2K 5% 1/4W
R622 1-249-419-11 CARBON 1.5K 5% 1/4W F
R623 1-249-437-11 CARBON 47K 5% 1/4W
R625 1-247-881-00 CARBON 120K 5% 1/4W
R626 1-249-431-11 CARBON 15K 5% 1/4W
R630 1-249-425-11 CARBON 4.7K 5% 1/4W F
R631 1-249-425-11 CARBON 4.7K 5% 1/4W F
R638 1-247-881-00 CARBON 120K 5% 1/4W
0R648 1-249-401-11 CARBON 47 5% 1/4W F
R651 1-249-417-11 CARBON 1K 5% 1/4W F
R652 1-249-439-11 CARBON 68K 5% 1/4W
R653 1-249-412-11 CARBON 390 5% 1/4W F
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R653 1-249-415-11 CARBON 680 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R653 1-249-414-11 CARBON 560 5% 1/4W F
(DE245:AUS,E,EA,MX,SP,MY)
R654 1-249-439-11 CARBON 68K 5% 1/4W
R660 1-249-421-11 CARBON 2.2K 5% 1/4W F
R661 1-249-440-11 CARBON 82K 5% 1/4W
R663 1-249-414-11 CARBON 560 5% 1/4W F
0R664 1-249-408-11 CARBON 180 5% 1/4W F
0R665 1-249-408-11 CARBON 180 5% 1/4W F
0R666 1-234-182-11 ENCAPSULATED COMPONENT
0R667 1-249-393-11 CARBON 10 5% 1/4W F
0R668 1-249-389-11 CARBON 4.7 5% 1/4W F
R670 1-249-425-11 CARBON 4.7K 5% 1/4W F
R671 1-247-850-11 CARBON 6.2K 5% 1/4W
R672 1-249-419-11 CARBON 1.5K 5% 1/4W F
R674 1-247-863-91 CARBON 22K 5% 1/4W
(DE245)
R674 1-247-864-91 CARBON 24K 5% 1/4W
(DE345:CIS,EE)
R674 1-247-866-91 CARBON 30K 5% 1/4W
(EXCEPT DE345:CIS,EE)
R675 1-249-421-11 CARBON 2.2K 5% 1/4W F
R676 1-249-431-11 CARBON 15K 5% 1/4W
R677 1-247-863-91 CARBON 22K 5% 1/4W
R678 1-247-863-91 CARBON 22K 5% 1/4W
R683 1-249-437-11 CARBON 47K 5% 1/4W
R684 1-249-431-11 CARBON 15K 5% 1/4W
R701 1-249-417-11 CARBON 1K 5% 1/4W F
R702 1-249-439-11 CARBON 68K 5% 1/4W
R703 1-249-414-11 CARBON 560 5% 1/4W F
(DE345:AEP,CIS,EE)
R703 1-249-417-11 CARBON 1K 5% 1/4W F
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R703 1-249-421-11 CARBON 2.2K 5% 1/4W F
(DE245:AEP,UK,CIS,EE)
R703 1-249-419-11 CARBON 1.5K 5% 1/4W F
(DE245:AUS,E,EA,MX,SP,MY)
R704 1-249-439-11 CARBON 68K 5% 1/4W
R705 1-247-863-91 CARBON 22K 5% 1/4W
R706 1-216-453-00 METAL OXIDE 270 5% 2W
R707 1-215-883-11 METAL OXIDE 33 5% 2W
(DE345:CND,E,EA,PX)
R707 1-215-885-00 METAL OXIDE 68 5% 2W
(DE345:AEP,CIS,EE)
R707 1-215-880-00 METAL OXIDE 10 5% 2W
(DE345:US)
R707 1-216-452-11 METAL OXIDE 180 5% 2W
(DE245:AEP,UK,AUS,E,EA,MX,CIS,EE,SP,MY/
DE345:AUS,MX,SP,MY,AR,CH)
R710 1-249-421-11 CARBON 2.2K 5% 1/4W F
R711 1-249-440-11 CARBON 82K 5% 1/4W
R713 1-249-414-11 CARBON 560 5% 1/4W F
0R714 1-249-409-11 CARBON 220 5% 1/4W F
0R715 1-249-409-11 CARBON 220 5% 1/4W F
0R716 1-234-182-11 ENCAPSULATED COMPONENT
0R717 1-249-393-11 CARBON 10 5% 1/4W F
0R718 1-249-389-11 CARBON 4.7 5% 1/4W F
R719 1-249-425-11 CARBON 4.7K 5% 1/4W F
R721 1-247-850-11 CARBON 6.2K 5% 1/4W
R722 1-249-419-11 CARBON 1.5K 5% 1/4W F
R723 1-249-437-11 CARBON 47K 5% 1/4W
R724 1-247-881-00 CARBON 120K 5% 1/4W
R727 1-247-863-91 CARBON 22K 5% 1/4W
0R728 1-249-401-11 CARBON 47 5% 1/4W F
R730 1-249-425-11 CARBON 4.7K 5% 1/4W F
R731 1-249-425-11 CARBON 4.7K 5% 1/4W F
0R732 1-249-381-11 CARBON 1 5% 1/4W F
0R733 1-249-381-11 CARBON 1 5% 1/4W F
R735 1-249-427-11 CARBON 6.8K 5% 1/4W F
R736 1-249-417-11 CARBON 1K 5% 1/4W F
R737 1-247-869-91 CARBON 39K 5% 1/4W F
R738 1-247-881-00 CARBON 120K 5% 1/4W
R739 1-249-431-11 CARBON 15K 5% 1/4W
R740 1-247-863-91 CARBON 22K 5% 1/4W
(DE245)
R740 1-247-864-91 CARBON 24K 5% 1/4W
(DE345:CIS,EE)
R740 1-247-866-91 CARBON 30K 5% 1/4W
(EXCEPT DE345:CIS,EE)
R741 1-216-455-11 METAL OXIDE 560 5% 2W
(DE345:AEP,CIS,EE)
R741 1-215-868-00 METAL OXIDE 680 5% 1W
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
MAIN
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
29
R741 1-216-454-11 METAL OXIDE 390 5% 2W
(DE245:AEP,UK,CIS,EE)
R741 1-215-867-00 METAL OXIDE 470 5% 1W
(DE245:AUS,E,EA,MX,SP,MY)
R743 1-249-425-11 CARBON 4.7K 5% 1/4W F
R744 1-249-431-11 CARBON 15K 5% 1/4W
R745 1-249-421-11 CARBON 2.2K 5% 1/4W F
R746 1-247-863-91 CARBON 22K 5% 1/4W
R747 1-249-425-11 CARBON 4.7K 5% 1/4W F
R751 1-249-417-11 CARBON 1K 5% 1/4W F
R752 1-249-439-11 CARBON 68K 5% 1/4W
R753 1-249-412-11 CARBON 390 5% 1/4W F
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R753 1-249-415-11 CARBON 680 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R753 1-249-414-11 CARBON 560 5% 1/4W F
(DE245:AUS,E,EA,MX,SP,MY)
R754 1-249-439-11 CARBON 68K 5% 1/4W
R760 1-249-421-11 CARBON 2.2K 5% 1/4W F
R761 1-249-440-11 CARBON 82K 5% 1/4W
R763 1-249-414-11 CARBON 560 5% 1/4W F
0R764 1-249-409-11 CARBON 220 5% 1/4W F
0R765 1-249-409-11 CARBON 220 5% 1/4W F
0R766 1-234-182-11 ENCAPSULATED COMPONENT
0R767 1-249-393-11 CARBON 10 5% 1/4W F
0R768 1-249-389-11 CARBON 4.7 5% 1/4W F
R770 1-249-425-11 CARBON 4.7K 5% 1/4W F
R771 1-247-850-11 CARBON 6.2K 5% 1/4W
R772 1-249-419-11 CARBON 1.5K 5% 1/4W F
R775 1-249-421-11 CARBON 2.2K 5% 1/4W F
R776 1-249-431-11 CARBON 15K 5% 1/4W
R777 1-247-864-91 CARBON 24K 5% 1/4W
(DE345:CIS,EE)
R777 1-247-866-91 CARBON 30K 5% 1/4W
(EXCEPT DE345:CIS,EE)
R778 1-249-431-11 CARBON 15K 5% 1/4W
R779 1-249-437-11 CARBON 47K 5% 1/4W
R791 1-216-455-11 METAL OXIDE 560 5% 2W
(DE345:AEP,CIS,EE)
R791 1-215-868-00 METAL OXIDE 680 5% 1W
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R791 1-216-454-11 METAL OXIDE 390 5% 2W
(DE245:AEP,UK,CIS,EE)
R791 1-215-867-00 METAL OXIDE 470 5% 1W
(DE245:AUS,E,EA,MX,SP,MY)
R793 1-249-425-11 CARBON 4.7K 5% 1/4W F
0R795 1-249-401-11 CARBON 47 5% 1/4W F
0R803 1-249-386-11 CARBON 2.7 5% 1/6W F
R804 1-249-426-11 CARBON 5.6K 5% 1/4W
RR02 1-249-437-11 CARBON 47K 5% 1/4W
RR04 1-249-437-11 CARBON 47K 5% 1/4W
RR05 1-249-437-11 CARBON 47K 5% 1/4W
RR07 1-249-437-11 CARBON 47K 5% 1/4W
0RR11 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
0RR12 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
0RR13 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
0RR14 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
0RR15 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
RR52 1-249-437-11 CARBON 47K 5% 1/4W
RR54 1-249-437-11 CARBON 47K 5% 1/4W
RR55 1-249-437-11 CARBON 47K 5% 1/4W
RR57 1-249-437-11 CARBON 47K 5% 1/4W
< RELAY >
RY470 1-755-267-11 RELAY
RY510 1-755-170-11 RELAY (12V)
RY610 1-755-170-11 RELAY (12V)
RY710 1-755-170-11 RELAY (12V)
RY791 1-515-614-11 RELAY
< TERMINAL >
TM601 1-537-510-11 TERMINAL BOARD (SPEAKER) (6P)
TM602 1-537-925-31 TERMINAL BOARD
< VIBRATOR >
X1 1-579-900-21 VIBRATOR, CRYSTAL 4.33MHz
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
**************************************************************
1-676-802-11 POWER SWITCH BOARD
********************
< CONNECTOR >
CNP202 1-573-105-11 CONNECTOR, PC BOARD 4P
< SWITCH >
S200 1-771-410-21 SWITCH, TACTILE (POWER)
S201 1-771-854-11 SWITCH, PUSH (1 KEY)(SPEAKER)
**************************************************************
PRIMARY BOARD
*************
(EXCEPT DE245:E,EA/DE345:E,EA,PX)
< CONNECTOR >
*CNP902 1-564-321-21 PIN, CONNECTOR 2P
**************************************************************
1-676-800-11 SECONDARY BOARD
*****************
< RF MODULATOR >
0RF801 1-243-833-81 FUSIBLE 0.15 5% 1/2W
0RF802 1-243-833-81 FUSIBLE 0.15 5% 1/2W
**************************************************************
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
MAIN POWER SWITCH PRIMARY SECONDARY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
30
A-4428-270-A STANDBY BOARD, COMPLETE
(DE345:US,CND,MX)
************************
A-4428-279-A STANDBY BOARD, COMPLETE (DE245:MX)
************************
A-4428-388-A STANDBY BOARD, COMPLETE (DE345:AUS)
************************
A-4428-391-A STANDBY BOARD, COMPLETE
(DE345:SP,MY,AR)
************************
A-4428-392-A STANDBY BOARD, COMPLETE (DE345:CH)
************************
A-4428-395-A STANDBY BOARD, COMPLETE (DE345:E,EA,PX)
************************
A-4428-402-A STANDBY BOARD, COMPLETE (DE245:AUS)
************************
A-4428-405-A STANDBY BOARD, COMPLETE (DE245:SP,MY)
************************
A-4428-407-A STANDBY BOARD, COMPLETE (DE245:E,EA)
************************
A-4428-411-A STANDBY BOARD, COMPLETE
(DE245:AEP,UK,CIS,EE)
************************
A-4428-416-A STANDBY BOARD, COMPLETE
(DE345:AEP,CIS,EE)
************************
1-533-293-31 FUSE HOLDER
< CAPACITOR >
0C920 1-161-494-00 CERAMIC 0.022uF 25V
0C921 1-161-494-00 CERAMIC 0.022uF 25V
C950 1-126-767-11 ELECT 1000uF 20.00% 16V
C951 1-161-494-00 CERAMIC 0.022uF 25V
C952 1-126-960-11 ELECT 1uF 20.00% 50V
C953 1-124-464-11 ELECT 0.22uF 20% 50V
C954 1-126-964-11 ELECT 10uF 20.00% 50V
C955 1-164-159-21 CERAMIC 0.1uF 50V
C957 1-164-159-21 CERAMIC 0.1uF 50V
C958 1-164-159-21 CERAMIC 0.1uF 50V
< CONNECTOR >
CN901 1-691-766-11 PLUG (MICRO CONNECTOR) 4P
CNP901 1-564-321-00 PIN, CONNECTOR 2P
CNP906 1-568-106-11 PIN, CONNECTOR 4P
(DE245:E,EA/DE345:E,EA,PX)
< DIODE >
D901 8-719-991-33 DIODE 1SS133T-77
D910 8-719-200-82 DIODE 11ES2-NTA1B
D911 8-719-200-82 DIODE 11ES2-NTA1B
D912 8-719-200-82 DIODE 11ES2-NTA1B
D913 8-719-200-82 DIODE 11ES2-NTA1B
D914 8-719-991-33 DIODE 1SS133T-77
D915 8-719-991-33 DIODE 1SS133T-77
< FUSE >
0F901 1-532-285-00 FUSE (1.25A) (AEP,UK,AUS,CIS,EE,SP,MY,CH)
0F901 1-532-388-51 FUSE (2A) (E,EA)
0F901 1-532-748-11 FUSE (6.3A) (US,CND)
< EARTH >
*G901 1-537-738-21 TERMINAL, EARTH
< IC >
IC950 8-759-333-83 IC NJM2103D
< TRANSISTOR >
Q901 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q951 8-729-045-21 TRANSISTOR 2SD1513TP-LK
< RESISTOR >
0R901 1-202-725-00 SOLID 3.3M 10% 1/2W
R902 1-249-437-11 CARBON 47K 5% 1/4W
R903 1-249-425-11 CARBON 4.7K 5% 1/4W F
R950 1-249-421-11 CARBON 2.2K 5% 1/4W F
R951 1-249-428-11 CARBON 8.2K 5% 1/4W F
R952 1-249-422-11 CARBON 2.7K 5% 1/4W F
R953 1-247-863-91 CARBON 22K 5% 1/4W
R954 1-249-437-11 CARBON 47K 5% 1/4W
R955 1-249-429-11 CARBON 10K 5% 1/4W
R956 1-247-843-11 CARBON 3.3K 5% 1/4W
R957 1-249-417-11 CARBON 1K 5% 1/4W F
R960 1-249-431-11 CARBON 15K 5% 1/4W
< RELAY >
RY901 1-755-276-11 RELAY, POWER
< TRANSFORMER >
0T902 1-435-281-11 TRANSFORMER, POWER
(DE245:MX/DE345:US,CND,MX)
0T902 1-435-282-11 TRANSFORMER, POWER
(DE245:AEP,UK,AUS,CIS,EE,SP,MY/DE345:AEP,AUS,SP,MY,AR,CIS,EE,CH)
0T902 1-435-283-11 TRANSFORMER, POWER
(DE245:E,EA/DE345:E,EA,PX)
**************************************************************
1-676-803-11 TUNING BOARD
*************
< CONNECTOR >
CNP201 1-573-105-11 CONNECTOR, PC BOARD 4P
< DIODE >
D216 8-719-046-39 DIODE SEL5821A-TP15 (MUTING)
< RESISTOR >
R223 1-247-817-91 CARBON 270 5% 1/4W F
R254 1-247-843-11 CARBON 3.3K 5% 1/4W
R255 1-249-425-11 CARBON 4.7K 5% 1/4W F
R256 1-249-411-11 CARBON 330 5% 1/4W
R257 1-249-413-11 CARBON 470 5% 1/4W F
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
STANDBY TUNING
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
31
R258 1-249-415-11 CARBON 680 5% 1/4W F
R259 1-249-417-11 CARBON 1K 5% 1/4W F
R260 1-249-419-11 CARBON 1.5K 5% 1/4W F
R261 1-249-421-11 CARBON 2.2K 5% 1/4W F
R262 1-247-843-11 CARBON 3.3K 5% 1/4W
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R263 1-249-425-11 CARBON 4.7K 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
< SWITCH >
S226 1-771-410-21 SWITCH, TACTILE (PRESET -)
S227 1-771-410-21 SWITCH, TACTILE (TUNING -)
S228 1-771-410-21 SWITCH, TACTILE (FM/AM)
S229 1-771-410-21 SWITCH, TACTILE (SHIFT)
S230 1-771-410-21 SWITCH, TACTILE (B.BOOST)
S231 1-771-410-21 SWITCH, TACTILE (MUTING)
S232 1-771-410-21 SWITCH, TACTILE (FM MODE)
S233 1-771-410-21 SWITCH, TACTILE (PRESET +)
S234 1-771-410-21 SWITCH, TACTILE (TUNING +)
S235 1-771-410-21 SWITCH, TACTILE (MEMORY)
S236 1-771-410-21 SWITCH, TACTILE (EON)
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
S237 1-771-410-21 SWITCH, TACTILE (PTY)
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
**************************************************************
1-676-806-11 VIDEO BOARD (DE345)
******************
< CAPACITOR >
C291 1-126-960-11 ELECT 1uF 20.00% 50V
C292 1-126-960-11 ELECT 1uF 20.00% 50V
C293 1-126-960-11 ELECT 1uF 20.00% 50V
C294 1-162-215-31 CERAMIC 47PF 5% 50V
C295 1-162-215-31 CERAMIC 47PF 5% 50V
C296 1-164-159-21 CERAMIC 0.1uF 50V
C297 1-104-664-11 ELECT 47uF 20.00% 25V
C298 1-164-159-21 CERAMIC 0.1uF 50V
C299 1-126-924-11 ELECT 330uF 20.00% 10V
< CONNECTOR >
CNS281 1-569-315-11 SOCKET, CONNECTOR 5P
< IC >
IC281 8-759-333-84 IC NJM2279D
< JACK >
J281 1-695-317-11 JACK, PIN 2P (5.1CH/DVD)
J282 1-766-199-11 JACK, PIN 3P (VIDEO)
< RESISTOR >
R291 1-247-804-11 CARBON 75 5% 1/4W
R292 1-247-804-11 CARBON 75 5% 1/4W
R293 1-247-804-11 CARBON 75 5% 1/4W
R294 1-247-804-11 CARBON 75 5% 1/4W
R295 1-247-804-11 CARBON 75 5% 1/4W
0R296 1-249-402-11 CARBON 56 5% 1/4W F
0R297 1-249-402-11 CARBON 56 5% 1/4W F
**************************************************************
1-676-805-11 VOL-SEL BOARD (DE245:E,EA/DE345:E,EA,PX)
*************
1-533-293-31 FUSE HOLDER
< CONNECTOR >
*CNP908 1-564-687-11 PIN, CONNECTOR 3P
< SWITCH >
0S901 1-571-437-21 SWITCH, POWER VOLTAGE CHANGE(VOLTAGE)
**************************************************************
MISCELLANEOUS
**************
58 1-773-001-11 WIRE(FLAT TYPE) (15 CORE)
59 1-769-850-11 WIRE(FLAT TYPE) (5 CORE)(DE345)
61 1-693-407-41 TUNER
067 1-696-847-11 CORD, POWER (AUS)
067 1-777-071-21 CORD, POWER (AEP,UK,E,CIS,EE,SP,MY,PX)
067 1-783-205-11 CORD, POWER (CH)
067 1-783-820-11 CORD, POWER (US,CND,MX)
68 1-569-008-21 ADAPTOR, CONVERSION 2P (E,EA,PX)
0T901 1-435-267-11 TRANSFORMER, POWER (DE245:AUS)
0T901 1-435-268-11 TRANSFORMER, POWER (DE245:SP,MY)
0T901 1-435-269-11 TRANSFORMER, POWER (DE245:E,EA)
0T901 1-435-270-11 TRANSFORMER, POWER
(DE245:AEP,UK,CIS,EE)
0T901 1-435-564-11 TRANSFORMER, POWER (DE245:MX)
0T901 1-435-271-11 TRANSFORMER, POWER (DE345:US)
0T901 1-435-272-11 TRANSFORMER, POWER (DE345:CND)
0T901 1-435-273-11 TRANSFORMER, POWER (DE345:AUS)
0T901 1-435-274-11 TRANSFORMER, POWER (DE345:SP,MY,AR,CH)
0T901 1-435-275-11 TRANSFORMER, POWER (DE345:E,EA,PX)
0T901 1-435-276-11 TRANSFORMER, POWER (DE345:AEP,CIS,EE)
0T901 1-435-565-11 TRANSFORMER, POWER (DE345:MX)
**************************************************************
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
TUNING VIDEO VOL-SEL
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
32
ACCESSORIES & PACKING MATERIALS
********************************
1-418-833-11 REMOTE COMMANDER (DE245)
1-501-594-11 ANTENNA (FM)
1-501-721-11 ANTENNA (LOOP)
1-793-184-21 CONNECTOR (F TYPE ADAPTOR)
(DE245:E,EA,MX/DE345:US,CND,E,EA,PX,MX,AR)
4-227-866-11 MANUAL, INSTRUCTION (ENGLISH)
(DE345:US,CND,E,EA,PX,AUS,SP,MY,CH)
4-227-866-21 MANUAL, INSTRUCTION (FRENCH,SPANISH)
(DE345:CND,E,EA,PX,SP,MY)
4-227-866-31 MANUAL, INSTRUCTION (CHINESE)
(DE345:E,EA,PX,SP,MY,CH)
4-227-866-41 MANUAL, INSTRUCTION
(ENGLISH,POLISH,RUSSIAN)(DE345:CIS,EE)
4-227-866-51 MANUAL, INSTRUCTION (DANISH,FINNISH)
(DE345:AEP)
4-227-866-61 MANUAL, INSTRUCTION
(DUTCH,SWEDISH,GERMAN,ITALIAN,PORTUGUESE)(DE345:AEP)
4-227-866-71 MANUAL, INSTRUCTION
(ENGLISH,FRENCH,SPANISH)(DE345:AEP)
4-227-866-81 MANUAL, INSTRUCTION (ENGLISH,TURKISH)
(DE345:CIS,EE)
4-227-986-11 INSTRUCTION MANUAL (ENGLISH)
(DE345:US)
4-227-986-21 INSTRUCTION MANUAL
(ENGLISH,FRENCH,SPANISH,CHINESE)
(DE245:AUS,E,EA,MX,SP,MY/
DE345:CND,E,EA,MX,PX,AUS,SP,MY,AR)
4-227-986-31 INSTRUCTION MANUAL (CHINESE) (DE345:CH)
4-227-986-41 INSTRUCTION MANUAL
(ENGLISH,FRENCH,DUTCH,SWEDISH)
(DE245:AEP,UK/DE345:AEP)
4-227-986-51 INSTRUCTION MANUAL
(GERMAN,SPANISH,ITALIAN,PORTUGUESE)
(DE245:AEP,UK/DE345:AEP)
4-227-986-61 INSTRUCTION MANUAL
(ENGLISH,RUSSIAN,POLISH)
(DE245:CIS,EE/DE345:CIS,EE)
4-227-986-71 INSTRUCTION MANUAL (ENGLISH,TURKISH)
(DE245:CIS,EE/DE345:CIS,EE)
8-917-423-90 REMOTE COMMANDER RM-PP404 SET
(DE345)
4-228-696-01 REMOTE COVER (DE245)
4-978-977-01 REMOTE COVER (DE345)
**************************************************************
**************
HARDWARE LIST
**************
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
STR-DE245/DE345
Sony Corporation
Home Audio Division Company
9-929-082-11 2000B1685-1
Printed in Japan © 2000.2
Published by Quality Assurance Dept.

Navigation menu
