About This Manual
Description and location of parts

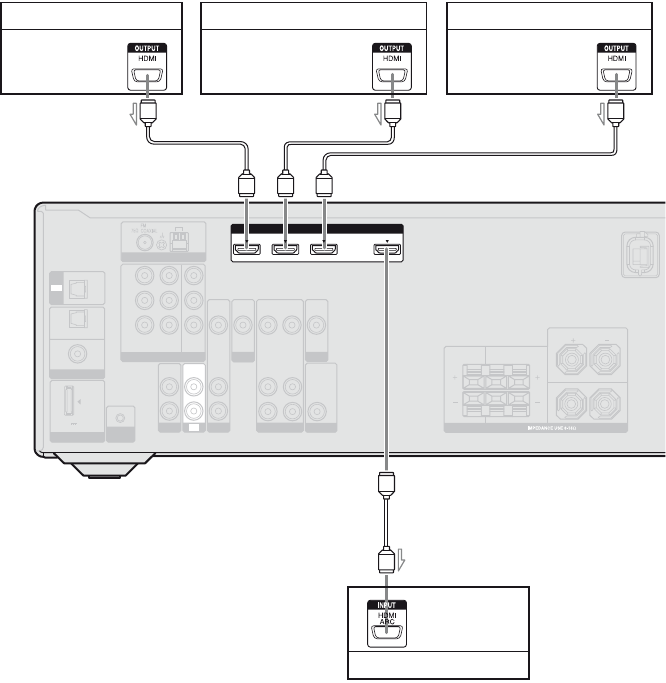

Connections
Preparing the Receiver
Basic Operations
Tuner Operations
Enjoying Surround Sound
“BRAVIA” Sync Features
Advanced Operations

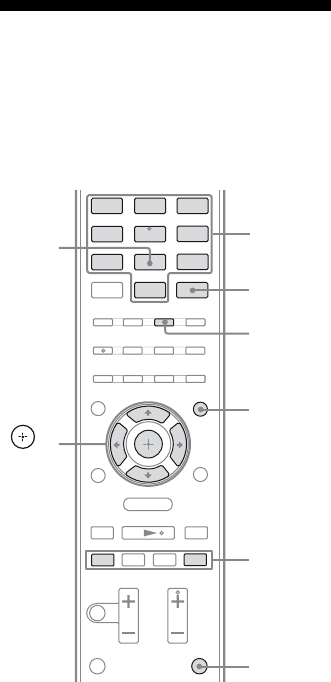

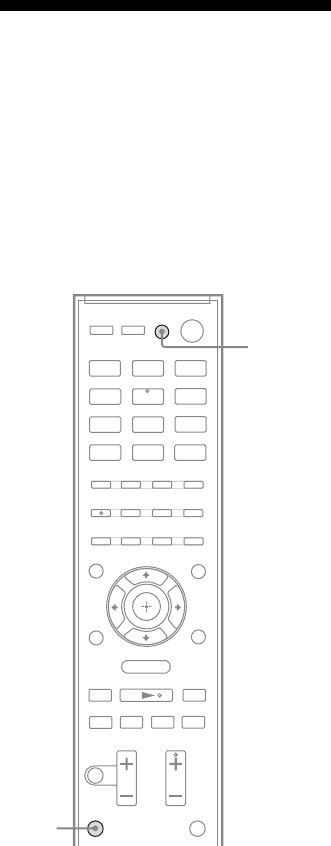

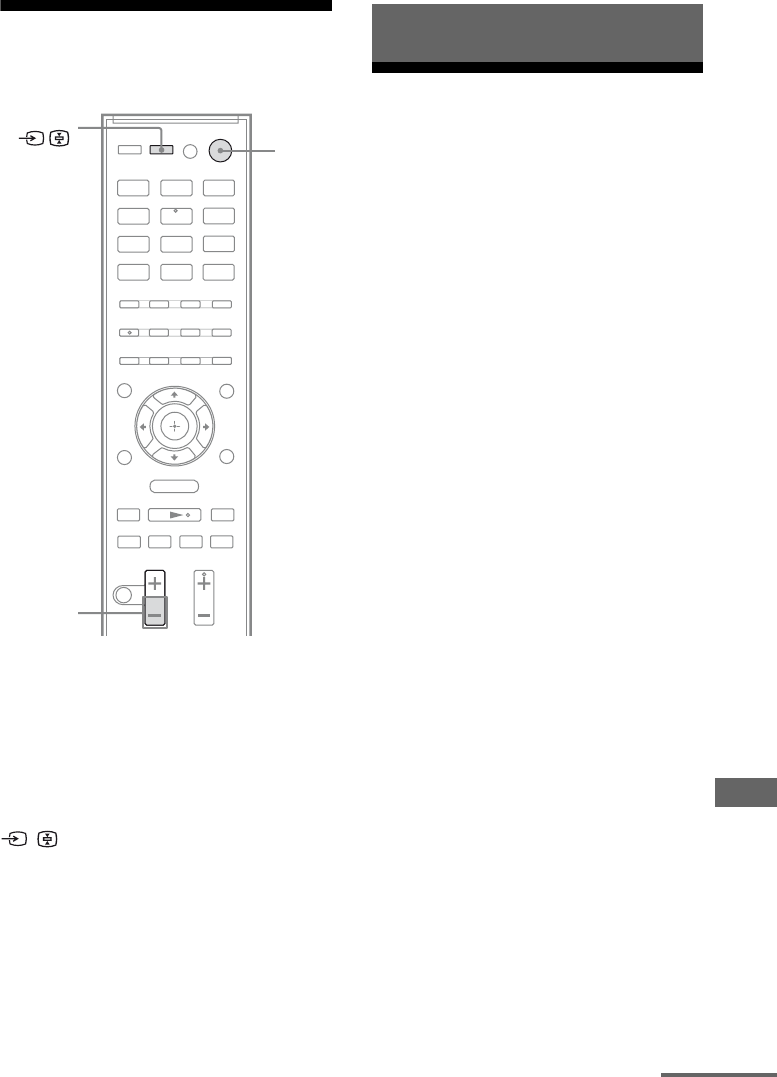

Using the Remote
- Changing the input button assignments
- Clearing all the contents of the remote’s memory
Additional Information

4-168-043-12(1)

Multi Channel AV

Receiver

Operating Instructions

STR-DH510

2GB

To reduce the risk of fire or electric

shock, do not expose this apparatus to

rain or moisture.

To reduce the risk of fire, do not cover the

ventilation opening of the apparatus with

newspapers, tablecloths, curtains, etc. Do not place

the naked flame sources such as lighted candles on

the apparatus.

Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

To reduce the risk of fire or electric shock, do not

expose this apparatus to dripping or splashing, and

do not place objects filled with liquids, such as

vases, on the apparatus.

As the main plug is used to disconnect the unit from

the mains, connect the unit to an easily accessible

AC outlet. Should you notice an abnormality in the

unit, disconnect the main plug from the AC outlet

immediately.

Do not expose batteries or apparatus with battery-

installed to excessive heat such as sunshine, fire or

the like.

The unit is not disconnected from the mains as long

as it is connected to the AC outlet, even if the unit

itself has been turned off.

Excessive sound pressure from earphones and

headphones can cause hearing loss.

This symbol is intended to alert

the user to the presence of the Hot

Surface that may be hot if it is

touched during the normal

operation.

For customers in the United

States

Owner’s Record

The model and serial numbers are located on the rear

of the unit. Record these numbers in the space

provided below. Refer to them whenever you call

upon your Sony dealer regarding this product.

Model No. Serial No.

This symbol is intended to alert the

user to the presence of uninsulated

“dangerous voltage” within the

product’s enclosure that may be of

sufficient magnitude to constitute a

risk of electric shock to persons.

This symbol is intended to alert the

user to the presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the

appliance.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

9) Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has

two blades with one wider than the other. A

grounding type plug has two blades and a third

grounding prong. The wide blade or the third

prong are provided for your safety. If the

provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

10)Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11)Only use attachments/accessories specified by

the manufacturer.

WARNING

3GB

12)Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13)Unplug this apparatus during lightning storms or

when unused for long periods of time.

14)Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

The following FCC statement

applies only to the version of

this model manufactured for

sale in the U.S.A. Other

versions may not comply with

FCC technical regulations.

NOTE:

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However,

there is no guarantee that interference will not occur

in a particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try

to correct the interference by one or more of the

following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment

and receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modifications

not expressly approved in this manual could void

your authority to operate this equipment.

To reduce the risk of electric shock, the speaker cord

should be connected to the apparatus and the

speakers in accordance with the following

instructions.

1) Disconnect the AC power cord from the MAINS.

2) Strip 10 to 15 mm of the wire insulation of the

speaker cord.

3) Connect the speaker cord to the apparatus and

the speakers carefully so as not to touch the core

of speaker cord by hand. Also disconnect the AC

power cord from the MAINS before

disconnecting the speaker cord from the

apparatus and the speakers.

For customers in Europe

Disposal of Old Electrical &

Electronic Equipment

(Applicable in the European

Union and other European

countries with separate

collection systems)

This symbol on the product or on its packaging

indicates that this product shall not be treated as

household waste. Instead it shall be handed over to

the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help

prevent potential negative consequences for the

environment and human health, which could

otherwise be caused by inappropriate waste

handling of this product. The recycling of materials

will help to conserve natural resources. For more

detailed information about recycling of this product,

please contact your local Civic Office, your

household waste disposal service or the shop where

you purchased the product.

continued

4GB

Disposal of waste batteries

(applicable in the European

Union and other European

countries with separate

collection systems)

This symbol on the battery or on the packaging

indicates that the battery provided with this product

shall not be treated as household waste.

On certain batteries this symbol might be used in

combination with a chemical symbol. The chemical

symbols for mercury (Hg) or lead (Pb) are added if

the battery contains more than 0.0005% mercury or

0.004% lead.

By ensuring these batteries are disposed of correctly,

you will help prevent potentially negative

consequences for the environment and human health

which could otherwise be caused by inappropriate

waste handling of the battery. The recycling of the

materials will help to conserve natural resources.

In case of products that for safety, performance or

data integrity reasons require a permanent

connection with an incorporated battery, this battery

should be replaced by qualified service staff only.

To ensure that the battery will be treated properly,

hand over the product at end-of-life to the applicable

collection point for the recycling of electrical and

electronic equipment.

For all other batteries, please view the section on

how to remove the battery from the product safely.

Hand the battery over to the applicable collection

point for the recycling of waste batteries.

For more detailed information about recycling of

this product or battery, please contact your local

Civic Office, your household waste disposal service

or the shop where you purchased the product.

Notice for customers: The following

information is only applicable to

equipment sold in countries applying

EU Directives.

The manufacturer of this product is Sony

Corporation, 1-7-1 Konan Minato-ku Tokyo,

108-0075 Japan. The Authorized Representative for

EMC and product safety is Sony Deutschland

GmbH, Hedelfinger Strasse 61, 70327 Stuttgart,

Germany. For any service or guarantee matters

please refer to the addresses given in separate

service or guarantee documents.

For customers in Australia

Disposal of Old Electrical &

Electronic Equipment

(Applicable in the European

Union and other European

countries with separate

collection systems)

5GB

About This Manual

• The instructions in this manual are for model

STR-DH510. Check your model number by

looking at the lower right corner of the front panel.

• In this manual, models of area code ECE is used

for illustration purposes unless stated otherwise.

Any difference in operation is clearly indicated in

the text, for example, “Models of area code ECE

only”.

• The instructions in this manual describe the

controls on the supplied remote. You can also use

the controls on the receiver if they have the same

or similar names as those on the remote.

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTS** Digital Surround

System.

* Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic, and the double-

D symbol are trademarks of Dolby Laboratories.

** Manufactured under license under U.S. Patent

#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,487,535 & other U.S. and worldwide patents

issued & pending. DTS and DTS Digital

Surround are registered trademarks and the DTS

logos and Symbol are trademarks of DTS, Inc.

This receiver incorporates High-Definition

Multimedia Interface (HDMITM) technology.

HDMI, the HDMI Logo, and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United

States and other countries.

“x.v.Colour (x.v.Color)” and “x.v.Colour

(x.v.Color)” logo are trademarks of Sony

Corporation.

“BRAVIA” is a trademark of Sony Corporation.

“PLAYSTATION” is a trademark of Sony

Computer Entertainment Inc.

About area codes

The area code of the receiver you purchased is

shown on the lower right portion of the rear panel

(see the illustration below).

Any differences in operation, according to the area

code, are clearly indicated in the text, for example,

“Models of area code AA only”.

SURROUNDCENTER

SPEAKERS

FRONT

4-XXX-XXX-XX (X) AA

Area code

On Copyrights

6GB

Table of Contents

About This Manual........................................5

Supplied accessories......................................7

Description and location of parts...................8

Connections

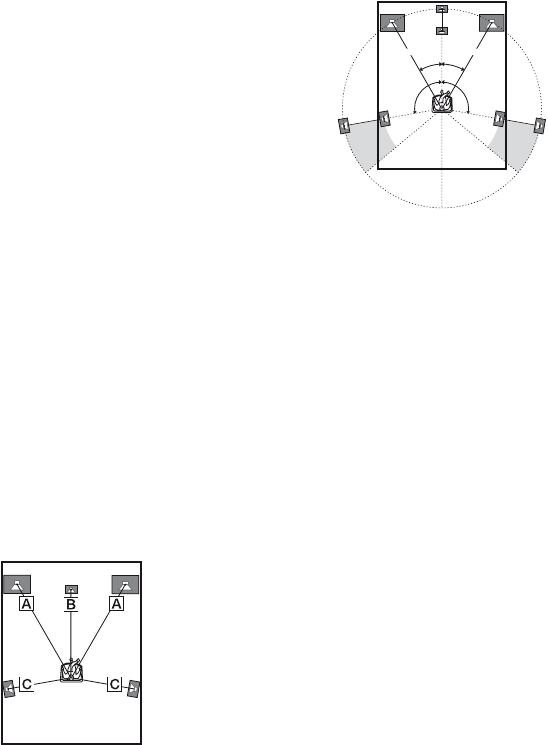

1: Installing the speakers .............................17

2: Connecting the speakers..........................19

3: Connecting the TV ..................................20

4a: Connecting the audio components.........22

4b: Connecting the video components ........23

5: Connecting the antennas (aerials)............29

6: Connecting the AC power cord

(mains lead) ............................................29

Preparing the Receiver

Initializing the receiver................................30

Calibrating the appropriate speaker

settings automatically

(AUTO CALIBRATION) .......................30

(Models of area code ECE, CEK, AU1

only)

Adjusting the speaker levels

(TEST TONE) ........................................34

Basic Operations

Playback ......................................................35

Viewing information on the display ............36

Using the Sleep Timer .................................37

Recording ....................................................37

Tuner Operations

Listening to FM/AM radio ..........................38

Presetting FM/AM radio stations ................40

Using the Radio Data System (RDS) ..........42

(Models of area code ECE, CEK, AU1

only)

Enjoying Surround Sound

Selecting the sound field............................. 42

Enjoying the surround effect at low

volume levels (NIGHT MODE) ............ 46

Resetting sound fields to the initial

settings ................................................... 46

“BRAVIA” Sync Features

What is “BRAVIA” Sync? .......................... 47

Preparing for the “BRAVIA” Sync............. 47

Playing back components with one-touch

operation (One-Touch Play)................... 48

Enjoying the TV sound from the speakers

connected to the receiver

(System Audio Control)......................... 49

Turning off the receiver with the TV

(System Power Off) ............................... 50

Enjoying movies with the optimum sound

field (Theater/Theatre Mode Sync)........ 51

Enjoying the TV sound via an HDMI

cable (Audio Return Channel) ............... 51

Advanced Operations

Switching between digital and analog

audio (INPUT MODE) .......................... 52

Enjoying the sound from other inputs......... 53

Enjoying sound/images from the

components connected to the DIGITAL

MEDIA PORT ....................................... 55

Using the setting menu ............................... 55

7GB

Using the Remote

Changing the input button assignments ...... 66

Clearing all the contents of the remote’s

memory .................................................. 67

Additional Information

Glossary ...................................................... 67

Precautions .................................................. 69

Troubleshooting .......................................... 70

Specifications .............................................. 75

Index............................................................ 77

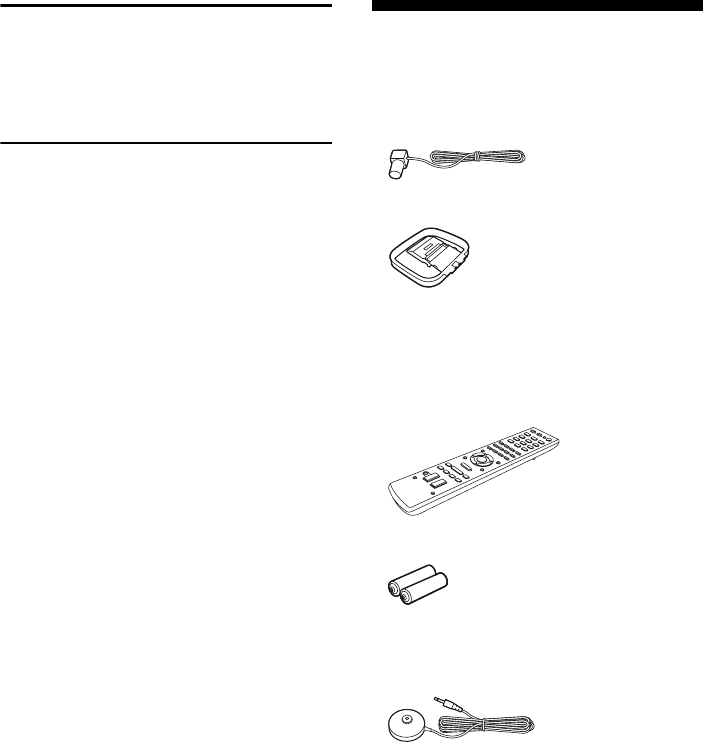

Supplied accessories

• Operating Instructions (this manual)

• Quick Setup Guide

• FM wire antenna (aerial) (1)

• AM loop antenna (aerial) (1)

• Remote commander (1)

– RM-AAU071 (Models of area code U2,

CA2 only)

– RM-AAU074 (Models of area code ECE,

CEK, AU1 only)

• R6 (size-AA) batteries (2)

• Optimizer microphone (ECM-AC2)

(Models of area code ECE, CEK, AU1 only)

(1)

8GB

Description and location of parts

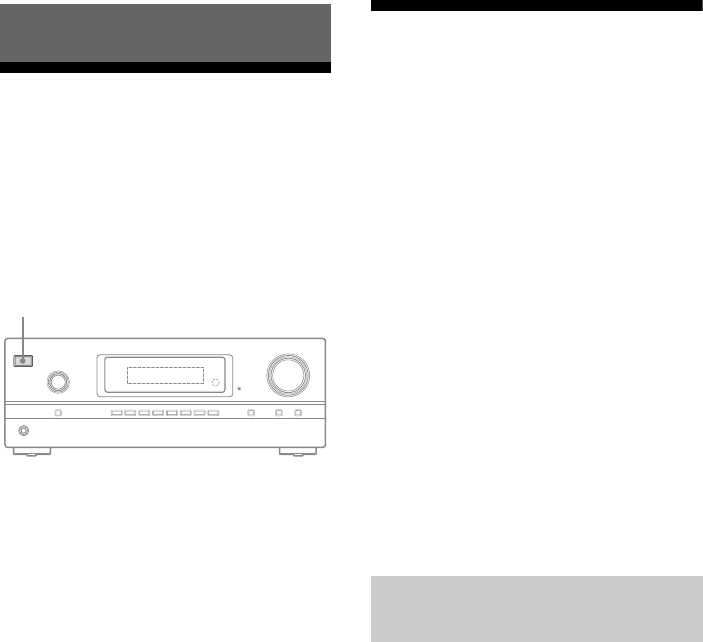

A?/1 (on/standby) (page 30, 39, 46, 67)

BINPUT SELECTOR (page 35)

CDisplay (page 9)

DRemote sensor

Receives signals from remote commander.

EMASTER VOLUME (page 34, 35)

FMUTING (page 35)

GDIMMER (page 65)

HDISPLAY (page 36)

I2CH/A.DIRECT, A.F.D., MOVIE, MUSIC

(page 42)

JTUNING MODE, TUNING +/–, MEMORY/

ENTER (page 38)

KINPUT MODE (page 52)

LPHONES jack (page 71)

Front panel

?/1

PHONES

INPUT MODE

INPUT SELECTOR

MASTER VOLUME

DISPLAY DIMMER

MUTING

TUNING MODE

MEMORY/

ENTER

2CH/

A.DIRECT A.F.D. MOVIE MUSIC

TUNING

qs 89q;qa 67

54312

9GB

Indicators on the display

LFE

SL S

PL II

HDMI DTS

SLEEP

D.RANGEST

RDS

COAX OPT LPCM

q; 9 8

1234 56

Indicator and explanation

APlayback channel indicators

The letters (L, C, R, etc.) indicate the channels

being played back. The boxes around the letters

vary to show how the receiver downmixes or

upmixes the source sound (based on the speaker

settings).

Subwoofer

Front Left

Front Right

Center (monaural)

Surround Left

Surround Right

Surround (monaural or the

surround components

obtained by Pro Logic

processing)

Example:

Speaker pattern: 3/0.1

Recording format: 3/2.1

Sound Field: A.F.D. AUTO

Lights up when the disc being played back

contains an LFE (Low Frequency Effect)

channel and the LFE channel signal is actually

being reproduced.

LFE

Indicator and explanation

CInput indicators

Light up to indicate the current input.

HDMI

Lights up when

– INPUT MODE is set to AUTO and the

receiver recognizes a component connected

via an HDMI IN jack (page 23, 52).

– TV input detected Audio Return Channel

(ARC) signals (page 51).

COAX

Lights up when input mode is set to “AUTO” or

“COAX” and the source signals is a digital

signal being input through the COAXIAL jack

(page 52).

OPT

Lights up when input mode is set to “AUTO” or

“OPT” and the source signals is a digital signal

being input through the OPTICAL jack (page

52).

DDTS

Lights up when the receiver is decoding DTS

signals.

Note

When playing a DTS format disc, be sure that

you have made digital connections and that

INPUT MODE is set to “AUTO” (page 52).

EDolby Pro Logic indicators

Lights up one of the respective indicators when

the receiver performs Dolby Pro Logic

processing. This matrix surround decoding

technology can enhance input signals.

PL II

Dolby Pro Logic

Dolby Pro Logic II

Note

These indicators do not light up when the center

speaker and surround speaker is not selected.

continued

10GB

Indicator and explanation

FSLEEP

Lights up when the sleep timer is activated (page

37, 65).

GD.RANGE

Lights up when dynamic range compression is

activated (page 59).

HTuning indicators

Lights up when the receiver tunes in radio

stations.

Stereo broadcast

RDS (Models of area code ECE, CEK,

AU1 only)

A station that provides RDS services is tuned in.

Preset station number

Note

The preset station number will change

according to the preset station you select.

For details on presetting radio stations, see page

40.

I D

Lights up when the receiver is decoding Dolby

Digital signals.

Note

When playing a Dolby Digital format disc, be

sure that you have made digital connections and

that INPUT MODE is not set to “ANALOG”

(page 52).

JLPCM

Lights up when Linear PCM signals are

detected.

11GB

Rear panel

OPTICAL

DIGITAL

(ASSIGNABLE)

COMPONENT VIDEO

DMPORT

AUTO CAL

MIC

SA-CD

OPTICAL

COAXIAL

SAT/

CATV

SAT/CATV IN

SAT

CATV

AUDIO

DVD IN MONITOR

OUT

DVD

DC5V

VIDEO

AUDIO

OUT

AUDIO

OUT

VIDEO

OUT

AUDIO

VIDEO

DVD

VIDEO

MONITOR

SUBWOOFER

VIDEO

OUT

SURROUNDCENTER

SPEAKERS

FRONT

DVD IN BD IN SAT/CATV IN TV OUT

ARC

HDMI

ANTENNA

0.7A MAX

6 5 1

132 1, 2

AAudio signal section

DIGITAL INPUT/OUTPUT jacks (page 20,

23, 26, 27)

HDMI IN/OUT

OPTICAL IN

COAXIAL IN

ANALOG INPUT/OUTPUT jacks (page 19,

20, 22, 27)

AUDIO

IN/OUT

AUDIO OUT

White (L)

Red (R)

Black

BVideo signal section*

The image quality depends on the connecting

jack.

DIGITAL INPUT/OUTPUT

jacks (page 20, 23)

HDMI IN/OUT

COMPONENT VIDEO

INPUT/OUTPUT jacks (page

20, 26, 27)

Y, PB/CB, PR/CR

IN/OUT

COMPOSITE VIDEO INPUT/

OUTPUT jacks (page 20, 26,

27, 28)

VIDEO IN/OUT

Green

(Y)

Blue

(PB/CB)

Red

(PR/CR)

Yellow

High

quality


continued

12GB

* You can watch the selected input image when you

connect the HDMI TV OUT or MONITOR OUT

jack to a TV (page 20, 23).

You can use the supplied remote to operate the

receiver and to control the Sony audio/video

components that the remote is assigned to

operate.

RM-AAU071 (Models of area

code U2, CA2 only)

RM-AAU074 (Models of area

code ECE, CEK, AU1 only)

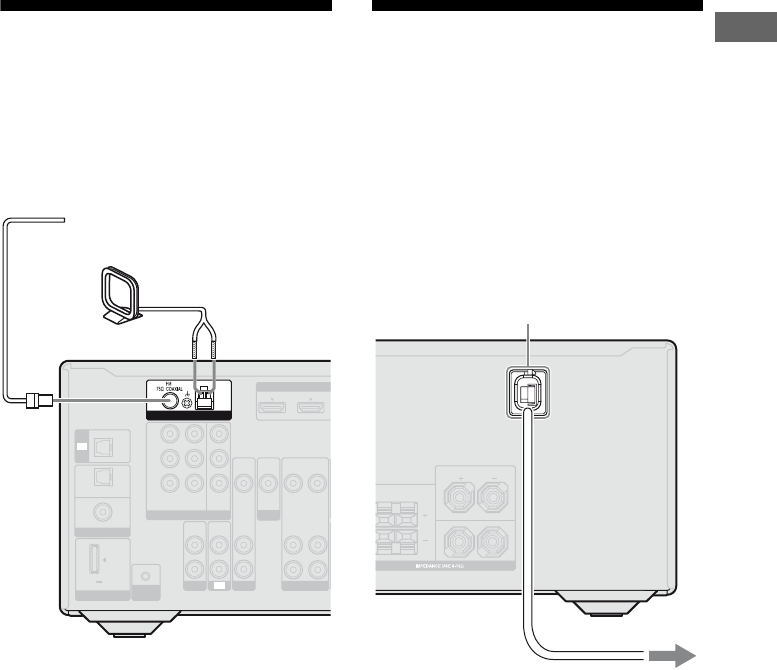

CANTENNA section (page 29)

FM ANTENNA jack

AM ANTENNA terminals

DSPEAKERS section (page 19)

EAUTO CAL MIC section (page 31)

(Models of area code ECE, CEK,

AU1 only)

AUTO CAL MIC jack

FDMPORT section (page 22)

DMPORT jack

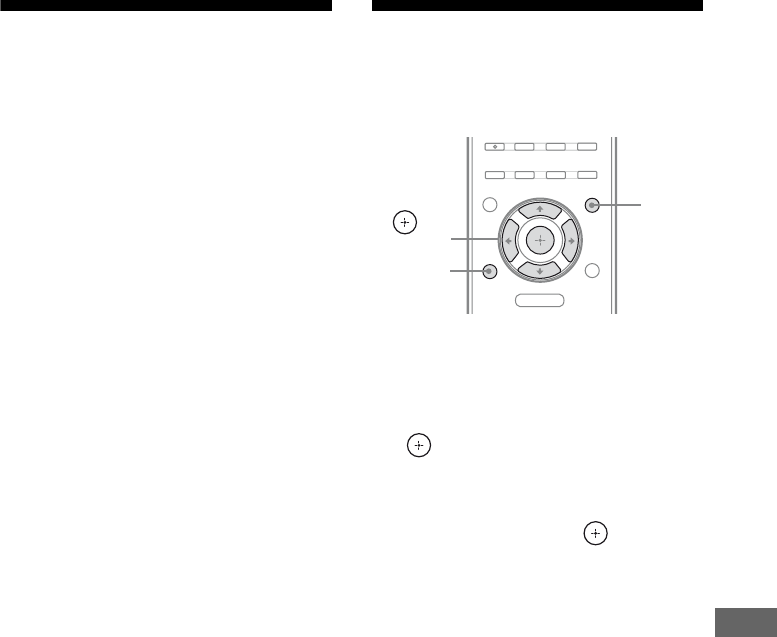

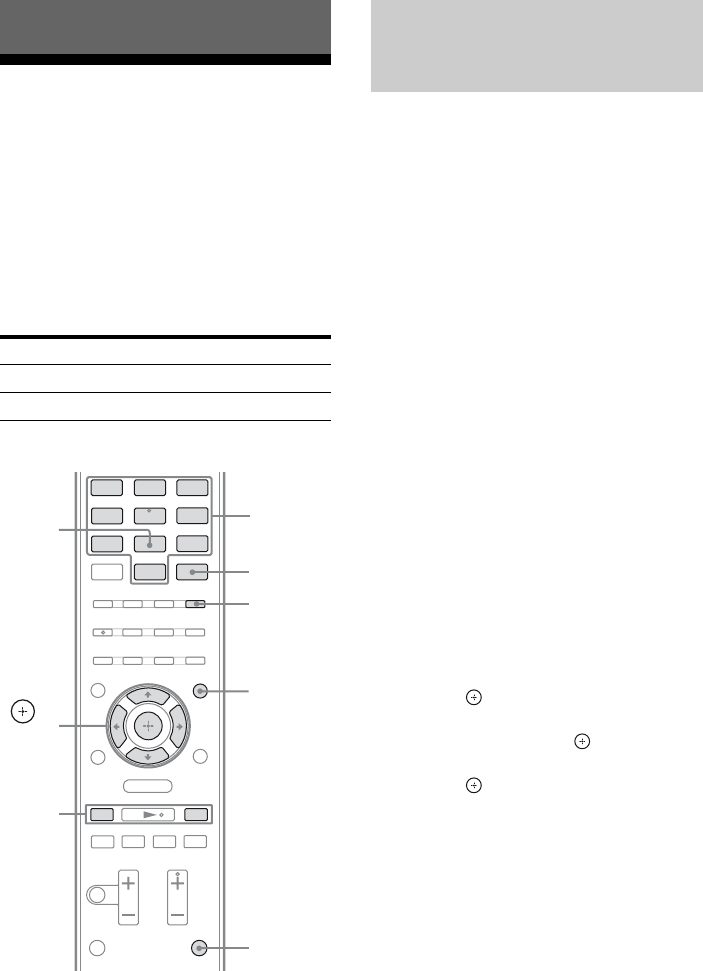

Remote commander

BD DVD SAT/

CATV

VIDEO SA-CD/

DMPORT TUNER

13GB

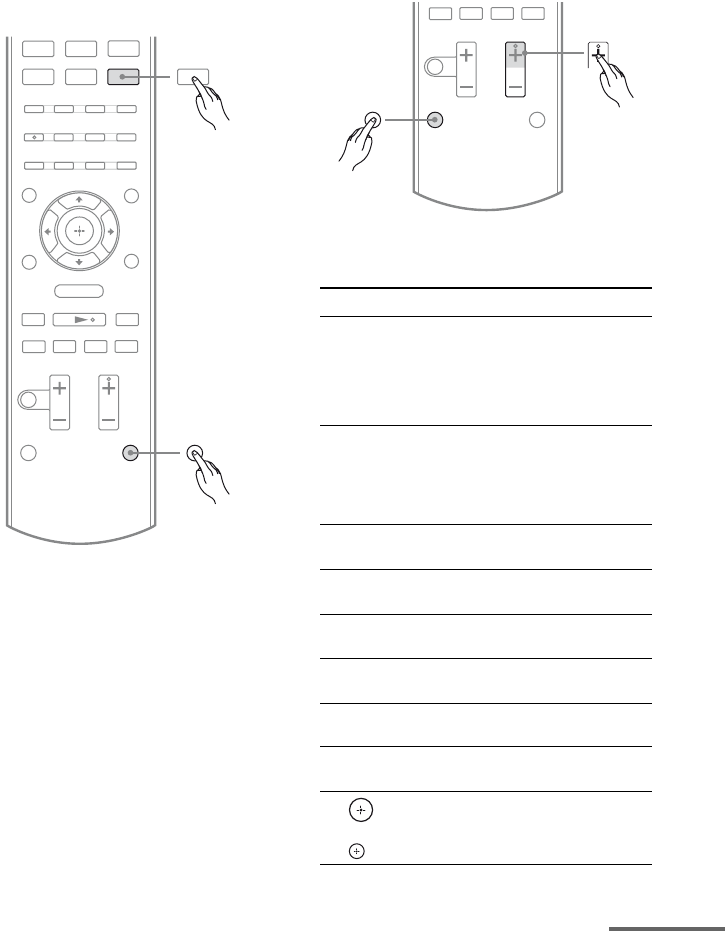

Using the SHIFT (Q) and TV

(R) button

SHIFT (Q) button

Press and hold SHIFT (Q), then press the

button with pink printing that you want to use.

Example: Press and hold SHIFT (Q), then

press ENTER (E).

TV (R) button

Press and hold TV (R), then press the button

with yellow printing to control the TV.

Example: Press and hold TV (R), then press

TV CH + (RM-AAU071 only) or PROG +

(RM-AAU074 only) (P).

To control the receiver

SHIFT

DMPORT TUNER

ENTER

Name and function

B?/1b) (on/standby)

Turns the receiver on or sets it to standby mode.

Saving the power in standby mode

When “CTRL.HDMI” is set to “CTRL OFF”

(page 58).

CInput buttons (VIDEOa))

Selects the component you want to use. When

you press any of the input buttons, the receiver

turns on. The buttons are initial assigned to

control Sony components.

DNumeric buttonsc) (number 5a))

Presets or tunes to preset stations.

EENTERc)

Enters the selection.

FMEMORY

Stores a station.

GD.TUNING

Enters direct tuning mode.

IDISPLAY

Views information on the display.

KAMP MENU

Displays the menu to operate the receiver.

Press V/v/B /b to select the settings, then press

to enter the selection.

TV CH/PROG

,V/v/B/b

continued

14GB

a)The following buttons have tactile dots:

– RM-AAU071: 5/VIDEO, AUDIO, N and

TV CH +/SOUND FIELD +

– RM-AAU074: 5/VIDEO, , N and

PROG +/SOUND FIELD +/c

Use the tactile dots as references when operating

the receiver.

b)If you press AV ?/1 (A) and ?/1 (B)

simultaneously, the receiver and connected

components will turn off (SYSTEM STANDBY).

c)Press and hold SHIFT (Q) then press this button.

d)Press AMP MENU (K) to activate this button.

To control a Sony TV

Press and hold TV (R) and then press the

yellow printing button to select the function

you want.

Name and function

NMENU/HOMEd)

Displays the menu to operate the receiver.

OTUNING +/–

Scans a station.

PRESET +/–

Selects preset stations.

PSOUND FIELD +a)/–

Selects a sound field (page 42).

SMUTING (RM-AAU071 only)

(RM-AAU074 only)

Turns off the sound temporarily.

Press MUTING/ again to restore the sound.

TMASTER VOL +/– (RM-AAU071 only)

+/– (RM-AAU074 only)

Adjust the volume level of all speakers at the

same time.

URETURN/EXIT O

Returns to the previous menu.

Name and function

ATV ?/1 (on/standby)

Turns on or off the TV.

DNumeric buttons (number 5a))

Selects the TV channels.

EENTER (RM-AAU071 only)

Enters the selections.

(Previous channel) (RM-AAU074

only)

Returns to the previous channel watched (for

more than five seconds).

IDISPLAY (RM-AAU071 only)

Displays the information of TV.

/ (Info/Text reveal) (RM-AAU074

only)

In digital mode: Displays brief details of the

program currently being watched.

In analog mode: Displays information such as

current channel number and screen format.

In text mode: Reveals hidden information (e.g.

answers to a quiz).

JColor buttons

Displays an operation guide on the TV screen

when the color buttons are available. Follow the

operation guide to perform a selected operation.

MTOOLS/OPTIONS

Displays the TV options.

NMENU/HOME

Displays the TV menus.

PTV CH +a)/– (RM-AAU071 only)

Selects the next (+) or previous (–) channel.

PROG +a)/–, ca)/C (RM-AAU074 only)

In TV mode: Selects the next (+) or previous

(–) channel.

In text mode: Selects the next (c) or previous

SMUTING (RM-AAU071 only)

(RM-AAU074 only)

Activates the TV’s muting function.

TTV VOL +/– (RM-AAU071 only)

(RM-AAU074 only)

Adjust the volume.

URETURN/EXIT O

Returns to the previous TV menu.

15GB

a)The following buttons have tactile dots:

– RM-AAU071: 5/VIDEO, AUDIO, N and

TV CH +/SOUND FIELD +

– RM-AAU074: 5/VIDEO, , N and

PROG +/SOUND FIELD +/c

Use the tactile dots as references when operating

the receiver.

Name and function

VGUIDE (RM-AAU071 only)

(RM-AAU074 only)

Displays the guide when you are watching

analog or digital channel.

WAUDIOa) (RM-AAU071 only)

a) (RM-AAU074 only)

Selects the desired audio signal.

YDIGITAL (RM-AAU074 only)

Changes to digital mode.

ANALOG (RM-AAU074 only)

Changes to analog mode.

Z/ (Text) (RM-AAU074 only)

Displays text.

wj THEATER (RM-AAU071 only)

THEATRE (RM-AAU074 only)

Sets the optimal picture settings automatically

for watching movies when you connect a Sony

TV that is compatible with the THEATER/

THEATRE button function (page 51).

wk INPUT (RM-AAU071 only)

Selects the input signal (TV or video).

/ (Input select/Text hold)

(RM-AAU074 only)

In TV mode: Selects the input signal (TV or

video).

In analog text mode: Holds the current page.

continued

16GB

To control other Sony components

a)The following buttons have tactile dots:

– RM-AAU071: 5/VIDEO, AUDIO, N and

TV CH +/SOUND FIELD +

– RM-AAU074: 5/VIDEO, , N and

PROG +/SOUND FIELD +/c

Use the tactile dots as references when operating

the receiver.

b)If you press AV ?/1 (A) and ?/1 (B)

simultaneously, the receiver and connected

components will turn off (SYSTEM STANDBY).

The function of the AV ?/1 (A) changes

automatically each time you press the input

buttons (C).

c)Press and hold SHIFT (Q) then press this button.

d)RM-AAU071 only.

e)RM-AAU074 only.

f) This button is also available for DIGITAL MEDIA

PORT adapter operation. For details on the

function of the button, refer to the operating

instructions supplied with the DIGITAL MEDIA

PORT adapter.

Notes

• Some functions explained in this section may not

work depending on the model.

• The above explanation is intended to serve as an

example only. Therefore, depending on the

component, the above operation may not be

possible or may operate differently than described.

Name Blu-ray disc,

DVD player

Satellite tuner,

Cable TV tuner

VCR CD player

AAV ?/1b) Power Power Power Power

DNumeric buttonsc)

(number 5a)) Track Channel Channel Track

EENTERc) Enter Enterd) Enter Enter

HANGLEd)

e) Select angle – – –

IDISPLAY Display Display Display Display

JColor buttons Menu, guide Menu, guidee) ––

LEnter Enter Enter –

V/v/B/bSelect Select Select –

MTOOLS/OPTIONS Options

Options

menud) ––

NMENU/HOME Menu Menu Menu –

Om/Mf) Search forward,

backward

– Fast forward,

rewind

Fast forward,

rewind

Na)f) Play – Play Play

./>f) Skip track – Skip track Skip track

Xf) Pause – Pause Pause

xf) Stop – Stop Stop

URETURN/EXIT OExit menu Exit menu,

Live TVd) ––

VGUIDEd)

e) Program

schedule

Display

guide menu

––

WAUDIOa)d)

e) Select audio – – –

XSUBTITLEd)

e) Select subtitle – – –

YTOP MENU On-screen guide – – –

POP UP/MENU Menu–––

ZCLEARc) Clear Clear – –

17GB

Connections

Inserting batteries into the

remote

Insert two R6 (size-AA) batteries in the

RM-AAU071 (Models of area code U2, CA2

only) or RM-AAU074 (Models of area code

ECE, CEK, AU1 only) Remote Commander.

Observe the correct polarity when installing

batteries.

Notes

• Do not leave the remote in an extremely hot or

humid place.

• Do not use a new battery with old ones.

• Do not mix manganese batteries and other kinds of

batteries.

• Do not expose the remote sensor to direct sunlight

or lighting apparatuses. Doing so may cause a

malfunction.

• If you do not intend to use the remote for an

extended period of time, remove the batteries to

avoid possible damage from battery leakage and

corrosion.

• When you replace the batteries, the remote buttons

may be reset to their initial settings. If this happens,

reassign the buttons again (page 66).

• When the remote no longer operates the receiver,

replace all the batteries with new ones.

1: Installing the speakers

This receiver allows you to use a 5.1 channel

system (5 speakers and one subwoofer).

To fully enjoy theater-like multi channel

surround sound requires five speakers (two

front speakers, a center speaker, and two

surround speakers) and a subwoofer (5.1

channel).

Example of a 5.1 channel

speaker system configuration

AFront speaker (Left)

BFront speaker (Right)

CCenter speaker

DSurround speaker (Left)

ESurround speaker (Right)

FSubwoofer

Connections

continued

18GB

Note

To enjoy better surround sound, the distance

between the center speaker and the listening position

B cannot be more than 1.5 meters (5 feet) closer

than the one between the listening position and the

front speaker A. Place the speakers so that the

difference in the length of B in the following

diagram is no more than 1.5 meters (5 feet) closer

than the length of A.

Example: Adjust the distance B to 4.5 meters

(15 feet) or more when the distance A is 6 meters

(20 feet).

Also, the distance between the surround speakers

and the listening position C cannot be more than

4.5 meters (15 feet) closer than the distance between

the listening position and the front speakers A.

Place the speakers so that the difference in the length

of C in the above diagram is no more than

4.5 meters (15 feet) closer than the length of A.

Example: Adjust the distance C to 1.5 meters

(5 feet) or more when the distance A is 6 meters

(20 feet).

This is important because incorrect speaker

placement is not conductive to the enjoyment of

surround sound. Please note that placing the

speakers closer than the required will cause a delay

in the output of the sound from that speaker. In other

words, the speaker will sound like it is farther away.

Adjusting these parameter while listening to the

sound often results in much better surround sound.

Tips

• The angle A should be the same.

• Since the subwoofer does not emit highly

directional signals, you can place it wherever you

want.

30˚30˚

100˚-120˚100˚-120˚

A A

19GB

Connections

2: Connecting the speakers

Before connecting the cords, be sure to disconnect the AC power cord (mains lead).

* When you connect a subwoofer with an auto

standby function, turn off the function when

watching movies. If the auto standby function is

set to on, it turns to standby mode automatically

based on the level of the input signal to a

subwoofer, then sound may not be output.

Notes

• Before connecting the AC power cord (mains

lead), make sure that metalic wires of the speaker

cords are not touching each other between the

SPEAKERS terminals.

• After you have install and connect your speaker, be

sure to select the speaker pattern from SPEAKER

menu (page 60).

ENT VIDEO

SA-CD

CD SAT

CATV

AUDIO

DVD IN MONITOR

OUT

VIDEO

AUDIO

OUT

VIDEO

OUT

AUDIO

VIDEO

DVD

VIDEO

MONITOR

VIDEO

OUT

SURROUND

DVD IN BD IN SAT/CATV IN TV OUT

ARC

HDMI

TENNA

AUDIO

OUT

SUBWOOFER

10 mm

(13/32 in.)

SPEAKERS

CENTER

FRONT

Left

Right

AMonaural audio cord (not supplied)

BSpeaker cord (not supplied)

LeftRight

Center speaker

Front speaker

Subwoofer*Surround speaker

20GB

3: Connecting the TV

Before connecting cords, be sure to disconnect the AC power cord (mains lead).

AAudio cord (not supplied)

BOptical digital cord (not supplied)

CComponent video cord (not supplied)

DVideo cord (not supplied)

EHDMI cable (not supplied)

We recommend that you use a Sony HDMI

cable.

Recommended connection

Alternative connection

a)To enjoy TV multi channel surround sound

broadcasting from the speakers connected to the

receiver, connect either B or E.

Be sure to turn off the TV’s volume or activate the

TV’s muting function.

b)If your TV is compatible with the Audio Return

Channel (ARC) function, the TV sound will output

from the speakers connected to the receiver via

HDMI TV OUT connection. In this case, set

“ARC” to “ARC ON” in HDMI menu (page 51).

DIGITAL

(ASSIGNABLE)

DMPORT

AUTO CAL

MIC

SA-CD

OPTICAL

COAXIAL

SAT/

CATV

SAT

CATV

AUDIO

DVD

DC5V

VIDEO

AUDIO

OUT

AUDIO

OUT

VIDEO

OUT

AUDIO

VIDEO

DVD

VIDEO

MONITOR

SUBWOOFER

VIDEO

OUT

SURROUNDCENTER

SPEAKERS

FRONT

DVD IN BD IN SAT/CATV IN

ARC

HDMI

ANTENNA

0.7A MAX

OPTICAL

COMPONENT VIDEO

SAT/CATV IN DVD IN MONITOR

OUT

TV OUT

Ba)

Audio/Video

signals

Video signals

Audio signals

21GB

Connections

Notes

• Be sure to turn on the receiver when the video and

audio signals of a playback component are being

output to a TV via the receiver. Unless the power is

turned on, neither video nor audio signals will be

transmitted.

• Connect image display components such as a TV

monitor or a projector to the HDMI TV OUT or

MONITOR OUT jack on the receiver. You may

not be able to record even if you connect recording

components.

• Depending on the status of the connection between

the TV and the antenna (aerial), the image on the

TV screen may be distorted. In this case, place the

antenna (aerial) farther away from the receiver.

• When connecting optical digital cords, insert the

plugs straight in until they click into place.

• Do not bend or tie optical digital cords.

Tip

All the digital audio jacks are compatible with

32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling

frequencies.

22GB

4a: Connecting the audio

components

The following illustration shows how to

connect a Super Audio CD player, CD player

and DIGITAL MEDIA PORT adapter. Before

connecting cords, be sure to disconnect the AC

power cord (mains lead).

Notes on connecting DIGITAL

MEDIA PORT adapter

• Do not connect an adapter other than the

DIGITAL MEDIA PORT adapter.

• Do not connect or disconnect the DIGITAL

MEDIA PORT adapter while the receiver is

turned on.

• When connecting the DIGITAL MEDIA

PORT adapter, be sure the connector is

inserted with the arrow mark facing towards

the arrow mark on the DMPORT jack.

• Be sure to make DMPORT connections

firmly, insert the connector straight in.

• As the connector of the DIGITAL MEDIA

PORT adapter is fragile, be sure to handle

with care when placing or moving the

receiver.

To detach the DIGITAL MEDIA

PORT adapter from DMPORT

jack

Press and hold both sides of the connector and

then pull out the connector.

DIGITAL

(ASSIGNABLE)

DMPORT

AUTO CAL

MIC

SA-CD

OPTICAL

COAXIAL

SAT/

CATV

SAT

CATV

AUDIO

DVD

DC5V

VIDEO

AUDIO

OUT

AUDIO

OUT

VIDEO

OUT

AUDIO

VIDEO

DVD

VIDEO

MONITOR

SUBWOOFER

DVD IN BD IN SAT/CATV IN

HDMI

ANTENNA

0.7A MAX

OPTICAL

COMPONENT VIDEO

SAT/CATV IN DVD IN MONITOR

OUT

AUDIO

VIDEO

OUT

Super Audio

CD player,

CD player

AAudio cord (not supplied)

BVideo cord (not supplied)

DIGITAL MEDIA

PORT adapter

DMPORT

DC5V 0.7A MAX

23GB

Connections

4b: Connecting the video components

Connect your video components according to

the table below.

* We recommend that you connect your video

components via HDMI connection if they have

HDMI jacks.

You can watch the selected input image when

you connect the HDMI TV OUT or

MONITOR OUT jack to a TV (page 20).

If you want to connect several

digital components, but cannot

find an unused input

See “Enjoying the sound from other inputs”

(page 53).

Notes

• Before connecting cords (mains lead), be sure to

disconnect the AC power cord.

• It is not necessary to connect all the cords. Connect

according to the availability of jacks on the

connected components.

• Be sure to turn on the receiver when the video and

audio signals of a playback component are being

output to a TV via the receiver. Unless the power is

turned on, neither video nor audio signals will be

transmitted.

• When connecting optical digital cords, insert the

plugs straight in until they click into place.

• Do not bend or tie optical digital cords.

Tip

All the digital audio jacks are compatible with

32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling

frequencies.

HDMI is the abbreviated name for High-

Definition Multimedia Interface. It is an

interface which transmits video and audio

signals in digital format.

HDMI features

• A digital audio signals transmitted by HDMI

can be output from the speakers connected to

the receiver. This signal supports Dolby

Digital, DTS, and Linear PCM.

• This receiver can receive multi channel

Linear PCM with a sampling frequency of

192 kHz or less with an HDMI connection.

• This receiver supports Deep Colour (Deep

Color) and x.v.Colour (x.v.Color).

• This receiver supports the Control for HDMI

function. For details, see ““BRAVIA” Sync

Features” (page 47).

Components to be connected

Component Page

Blu-ray disc player* 24

“PlayStation 3”* 24

DVD player* 24, 26

DVD recorder* 24, 26, 28

Satellite tuner*, Cable TV tuner* 24, 27

VCR 28

Connecting components with

HDMI jacks

continued

24GB

* See page 20 for the audio connection of the TV to

the receiver.

Notes

• The initial setting for the DVD input button is as

follows:

– RM-AAU071: DVD player

– RM-AAU074: DVD recorder

Be sure to change the initial setting of the DVD

input button on the remote so that you can use the

button to control your DVD player/recorder.

For details, see “Changing the input button

assignments” (page 66).

• You can also rename the DVD input so that it can

be displayed on the receiver’s display. For details,

see “Naming inputs” (page 36).

DIGITAL

(ASSIGNABLE)

DMPORT

AUTO CAL

MIC

SA-CD

OPTICAL

COAXIAL

SAT/

CATV

SAT

CATV

AUDIO

DVD

DC5V

VIDEO

AUDIO

OUT

AUDIO

OUT

VIDEO

OUT

AUDIO

VIDEO

DVD

VIDEO

MONITOR

SUBWOOFER

VIDEO

OUT

SURROUNDCENTER

SPEAKERS

FRONT

ANTENNA

0.7A MAX

OPTICAL

COMPONENT VIDEO

SAT/CATV IN DVD IN MONITOR

OUT

HDMI

DVD IN BD IN SAT/CATV IN

ARC

TV OUT

DVD player, DVD recorder Blu-ray disc player, “PlayStation 3” Satellite tuner, Cable TV tuner

Audio/video

signals

Audio/video

signals

Audio/video

signals

TV, etc.*

Audio/video

signals

AAA

AHDMI cable (not supplied)

We recommend that you use a Sony HDMI cable.

25GB

Connections

Notes on connecting cables

• Use a High Speed HDMI cable. If you use a

Standard HDMI cable, 1080p or Deep

Colour (Deep Color) images may not be

displayed properly.

• Sony recommends that you use an HDMI

authorized cable or Sony HDMI cable.

• We do not recommend using an HDMI-DVI

conversion cable. When you connect an

HDMI-DVI conversion cable to a DVI-D

component, the sound and/or the image may

not be output. Connect other audio cords or

digital connecting cords, then set

“A. ASSIGN” in AUDIO menu (page 63)

when the sound is not output correctly.

Notes on HDMI connections

• An audio signal input to the HDMI IN jack

is output from the SPEAKERS jacks and

HDMI TV OUT jack. It is not output from

any other audio jacks.

• Video signals input to the HDMI IN jack can

only be output from the HDMI TV OUT

jack. The video input signals cannot be

output from the VIDEO OUT jacks or

MONITOR OUT jacks.

• When you want to listen to the sound from

the TV speaker, set “AUDIO.OUT” to

“TV+AMP” in the HDMI menu (page 64). If

you cannot play back multi channel

software, set to “AMP”. However, the sound

will not output from the TV speaker.

• Be sure to turn on the receiver when video

and audio signals of a playback component

are being output to a TV through this

receiver. If you set “PASS.TRHU” to

“OFF”, video and audio signal will not be

transmitted when the power is set to off.

• DSD signals of Super Audio CD are not

input and output.

• The multi/stereo area audio signals of a

Super Audio CD are not output.

• Audio signals (sampling frequency, bit

length, etc.) transmitted from an HDMI jack

may be suppressed by the connected

component. Check the setup of the

connected component if the image is poor or

the sound does not come out of a component

connected via the HDMI cable.

• Sound may be interrupted when the

sampling frequency, the number of channels

or audio format of audio output signals from

the playback component is switched.

• When the connected component is not

compatible with copyright protection

technology (HDCP), the image and/or the

sound from the HDMI TV OUT jack may be

distorted or may not be output.

In this case, check the specification of the

connected component.

• The image resolution of player may need

certain settings be made before you can

enjoy multi channel Linear PCM. Refer to

the operating instructions of the player.

• Not every HDMI component supports all

functions that are defined by the specified

HDMI version. For example, components

that support HDMI, version 1.4, may not

support Audio Return Channel (ARC).

• Refer to the operating instructions of each

connected component for details.

26GB

The following illustration shows how to connect a DVD player or DVD recorder.

ACoaxial digital cord (not supplied)

BOptical digital cord (not supplied)

CComponent video cord (not supplied)

DVideo cord (not supplied)

Recommended connection

Alternative connection

* When you connect a component equipped with an

OPTICAL jack, set “A. ASSIGN” in the AUDIO

menu (page 63).

Notes

• The initial setting for the DVD input button is as

follows:

– RM-AAU071: DVD player

– RM-AAU074: DVD recorder

Be sure to change the initial setting of the DVD

input button on the remote so that you can use the

button to control your DVD player or DVD

recorder. For details, see “Changing the input

button assignments” (page 66).

• You can also rename the DVD input so that it can

be displayed on the receiver’s display. For details,

see “Naming inputs” (page 36).

• To input multi channel digital audio from the DVD

player or DVD recorder, set the digital audio output

setting on the DVD player or DVD recorder. Refer

to the operating instructions supplied with the

DVD player or DVD recorder.

Connecting a DVD player, DVD recorder

DIGITAL

(ASSIGNABLE)

DMPORT

AUTO CAL

MIC

SA-CD

OPTICAL

COAXIAL

SAT/

CATV

SAT

CATV

AUDIO

DC5V

VIDEO

AUDIO

OUT

AUDIO

OUT

VIDEO

OUT

AUDIO

VIDEO

DVD

VIDEO

MONITOR

SUBWOOFER

VIDEO

OUT

SURROUNDCENTER

SPEAKERS

FRONT

DVD IN BD IN SAT/CATV IN

ARC

HDMI

ANTENNA

0.7A MAX

OPTICAL

TV OUT

COMPONENT VIDEO

SAT/CATV IN DVD IN MONITOR

OUT

DVD

DVD player, DVD recorder

B*C

Audio signals Video signals

27GB

Connections

The following illustration shows how to connect a Satellite tuner or Cable TV tuner.

AAudio cord (not supplied)

BOptical digital cord (not supplied)

CComponent video cord (not supplied)

DVideo cord (not supplied)

Recommended connection

Alternative connection

Connecting a Satellite tuner, Cable TV tuner

DMPORT

AUTO CAL

MIC

SA-CD

CD SAT

CATV

AUDIO

DC5V

VIDEO

AUDIO

OUT

AUDIO

OUT

VIDEO

OUT

AUDIO

VIDEO

DVD

VIDEO

MONITOR

SUBWOOFER

VIDEO

OUT

SURROUNDCENTER

SPEAKERS

FRONT

DVD IN BD IN SAT/CATV IN

ARC

HDMI

ANTENNA

0.7A MAX

OPTICAL

COMPONENT VIDEO

SAT/CATV IN DVD IN MONITOR

OUT

DIGITAL

(ASSIGNABLE)

OPTICAL

COAXIAL

SAT/

CATV

DVD

TV OUT

Video signalsAudio signals

Satellite tuner, Cable TV tuner

28GB

The following illustration shows how to

connect a component which has analog jacks

such as a VCR, DVD recorder, etc.

Notes

• Be sure to change the initial setting of the VIDEO

input button on the remote so that you can use the

button to control your DVD recorder. For details,

see “Changing the input button assignments” (page

66).

• You can also rename the VIDEO input so that it

can be displayed on the receiver’s display. For

details, see “Naming inputs” (page 36).

Connecting components with

analog video and audio jack

DIGITAL

(ASSIGNABLE)

DMPORT

AUTO CAL

MIC

SA-CD

OPTICAL

COAXIAL

SAT/

CATV

SAT

CATV

AUDIO

DVD

DC5V

VIDEO

AUDIO

OUT

AUDIO

OUT

AUDIO

DVD

VIDEO

MONITOR

SUBWOOFER

VIDEO

OUT

SURROUNDCENTER

SPEAKERS

FRONT

DVD IN BD IN SAT/CATV IN

ARC

HDMI

ANTENNA

0.7A MAX

OPTICAL

COMPONENT VIDEO

SAT/CATV IN DVD IN MONITOR

OUT

TV OUT

VIDEO

OUT

VIDEO

VCR, DVD recorder

Audio signals

Video signals

AVideo cord (not supplied)

BAudio cord (not supplied)

29GB

Connections

5: Connecting the

antennas (aerials)

Connect the supplied AM loop antenna

(aerial) and FM wire antenna (aerial).

Before connecting antennas (aerials), be sure

to disconnect the AC power cord (mains lead).

Notes

• To prevent noise pickup, keep the AM loop

antenna (aerial) away from the receiver and other

components.

• Be sure to fully extend the FM wire antenna

(aerial).

• After connecting the FM wire antenna (aerial),

keep it as horizontal as possible.

6: Connecting the AC

power cord (mains lead)

Connect the AC power cord (mains lead) to a

wall outlet.

Notes

• Before connecting the AC power cord (mains

lead), make sure that metallic wires of the speaker

cords are not touching each other between the

SPEAKERS terminals.

• Connect the AC power cord (mains lead) firmly.

DIGITAL

(ASSIGNABLE)

DMPORT

AUTO CAL

MIC

SA-CD

OPTICAL

COAXIAL

SAT/

CATV

SAT

CATV

AUDIO

DVD

DC5V

VIDEO

AUDIO

OUT

VIDEO

OUT

AUDIO

VIDEO

DVD

VIDEO

DVD IN BD IN

ANTENNA

0.7A MAX

OPTICAL

COMPONENT VIDEO

SAT/CATV IN DVD IN MONITOR

OUT

FM wire antenna (aerial) (supplied)

AM loop antenna (aerial)

(supplied)

SURROUND

SPEAKERS

FRONT

AC power cord (mains lead)

To the wall outlet

30GB

Initializing the receiver

Before using the receiver for the first time,

initialize the receiver by performing the

following procedure. This procedure can also

be used to return settings you have made to

their initial settings.

Be sure to use the buttons on the receiver for

this operation.

1Press ?/1 to turn off the

receiver.

2Hold down ?/1 for 5 seconds.

After “CLEARING” appears on the

display for a while, “CLEARED”

appears.

All the settings you have changed or

adjusted are reset to the initial settings.

Calibrating the

appropriate speaker

settings automatically

(AUTO CALIBRATION)

(Models of area code ECE, CEK,

AU1 only)

This receiver is equipped with DCAC (Digital

Cinema Auto Calibration) Technology which

allows you to perform automatic calibration as

follows:

• Check the connection between each speaker

and the receiver.

• Adjust the speaker level.

• Measure the distance of each speaker from

your listening position.

The DCAC is designed to obtain proper sound

balance in your room. However, you can

adjust the speaker levels manually according

to your preference. For details, see “Adjusting

the speaker levels (TEST TONE)” (page 34).

Before you perform Auto Calibration, check

the following items:

• set up and connect the speakers (page 17,

19).

• connect only the supplied optimizer

microphone to the AUTO CAL MIC jack.

Do not connect other microphones to this

jack.

• turn off the muting function.

• disconnect the headphones.

• remove any obstacles in the path between

the optimizer microphone and the speakers

to avoid measurement errors.

• make sure the environment is quiet to avoid

the effect of noise and get a more accurate

measurement.

Preparing the Receiver

?/1

Before you perform Auto

Calibration

31GB

Preparing the Receiver

Note

During the calibration, the sound that comes out of

the speakers is very loud. The volume of the sound

cannot be adjusted. Pay attention to the presence of

children or to the effect on your neighborhood.

Tip

When you face the speaker towards the optimizer

microphone, you will get a more accurate

measurement.

1Connect the supplied optimizer

microphone to the AUTO CAL

MIC jack.

2Set up the optimizer

microphone.

Place the optimizer microphone at your

listening position. Use a stool or tripod so

that the optimizer microphone remains at

the same height as your ears.

1Press AMP MENU.

2Press V/v repeatedly to select

“A. CAL”, then press or b.

“START” appears on the display.

3Press .

Measurement starts in 5 seconds.

A countdown is displayed.

The measurement process will take

approximately a few minutes to complete.

Setting up the Auto Calibration

DIGITAL

(ASSIGNABLE)

DMPORT

SA-CD

OPTICAL

COAXIAL

SAT/

CATV

SAT

CATV

AUDIO

DVD

DC5V

VIDEO

AUDIO

OUT

AUDIO

OUT

VIDEO

OUT

AUDIO

VIDEO

DVD

VIDEO

MONITOR

SUBWOOFER

VIDEO

OUT

SURROUNDCENTER

SPEAKERS

FRONT

HDMI

ANTENNA

0.7A MAX

OPTICAL

COMPONENT VIDEO

SAT/CATV IN DVD IN MONITOR

OUT

TV OUT

AUTO CAL

MIC

AUTO CAL

MIC

Optimizer microphone

Performing Auto Calibration

BD DVD SAT/

CATV

VIDEO SA-CD/

DMPORT TUNER

Input

buttons

?/1

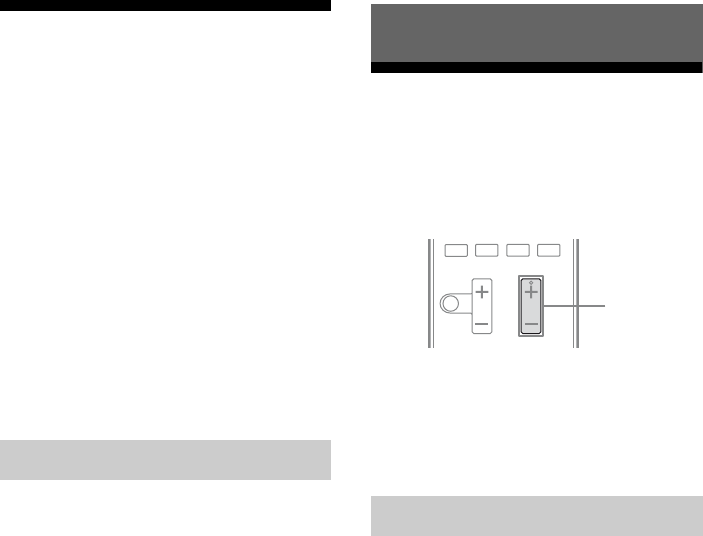

MASTER

VOL +/–/

2 +/–

AMP

V/v/B/b

MUTING/

continued

32GB

The table below shows the display when

measurement starts.

* The corresponding speaker indicator lights

up in the display during measurement.

When measurement ends, “COMPLETE”

appears on the display and the settings are

registered.

Tips

• Operations other than turning the receiver on or off

are deactivated during the measurement.

• The measurements may not be performed correctly

or Auto Calibration cannot be performed when

special speakers, such as dipole speakers are used.

To cancel Auto Calibration

The Auto Calibration function will be

canceled when you do the following during

the measurement process:

– Press ?/1

– Press MUTING (RM-AAU071 only) or

(RM-AAU074 only)

– Press the input buttons or turn INPUT

SELECTOR on the receiver.

– Change the volume level.

– Connect the headphones.

After you have finished

Disconnect the optimizer microphone from the

AUTO CAL MIC jack.

Notes

• Auto Calibration cannot detect the subwoofer.

Therefore, all subwoofer settings will be

maintained.

• If you have reposition your speaker, we

recommend that you perform Auto Calibration

again to enjoy the surround sound.

When error codes appear

When an error is detected during Auto

Calibration, an error code will appear on the

display cyclically after each measurement

process as follows:

Error code t blank display t (error code t

blank display)a) t PUSH t blank display

t ENTER

a)Appears when there are more than one error code.

To rectify the error

1Record down the error code.

2Press .

3Press ?/1 to turn off the receiver.

4Rectify the error.

For details, see “Error codes and remedies”

below.

5Turn on the receiver and perform Auto

Calibration again (page 31).

Measurement for Display

Environment noise

level

NOISE.CHK

Speaker connection MEASURE and SP

DET. appears

alternately*

Speaker level MEASURE and GAIN

appears alternately*

Speaker distance MEASURE and

DISTANCE appears

alternately*

Error and warning codes

33GB

Preparing the Receiver

Error codes and remedies

When warning codes appear

During Auto Calibration, the warning code

provides information on the measurement

result. The warning code will appear on the

display cyclically as follows:

Warning code t blank display t (warning

code t blank display)b) t PUSH t blank

display t ENTER

b)Appears when there are more than one warning

code.

You can choose to ignore the warning code as

the Auto Calibration function will

automatically adjust the settings. You can also

change the settings manually.

To change the settings

manually

1Record down the warning code.

2Press .

3Press ?/1 to turn off the receiver.

4Follow the solution provided in the

“Warning codes and solutions” below.

5Turn on the receiver and perform Auto

Calibration again (page 31).

Warning codes and solutions

c) For details, see “Note” and “Tip” on page 18.

Error

code

Cause and remedy

ERROR 10 The environment is too noisy. Make

sure the environment is quiet during

Auto Calibration.

ERROR 11 The speakers are placed too near the

optimizer microphone. Place your

speakers further away from the

optimizer microphone.

ERROR 12 None of the speakers are detected.

Make sure that the optimizer

microphone is connected properly and

perform Auto Calibration again.

ERROR 20 Front speakers are not detected or only

one front speaker is detected. Check

the front speakers connection.

ERROR 21 Only one surround speaker is

detected. Check the surround speakers

connection.

Warning

code

Explanation and solution

WARN. 40 The environment is noisy. Make sure

the environment is quiet during Auto

Calibration.

WARN. 60 The front speaker level is out of range.

Reposition your front speakers.c)

WARN. 62 The center speaker level is out of

range. Reposition your center

speaker.c)

WARN. 63 The surround left speaker level is out

of range. Reposition your surround left

speaker.c)

WARN. 64 The surround right speaker level is out

of range. Reposition your surround

right speaker.c)

WARN. 70 The front speaker distance is out of

range. Reposition your front

speakers.c)

WARN. 72 The center speaker distance is out of

range. Reposition your center

speaker.c)

WARN. 73 The surround left speaker distance is

out of range. Reposition your surround

left speaker.c)

WARN. 74 The surround right speaker distance is

out of range. Reposition your surround

right speaker.c)

34GB

Adjusting the speaker

levels

(TEST TONE)

You can adjust the speaker levels while

listening to the test tone from your listening

position.

1Press AMP MENU.

2Press V/v repeatedly to select

“LEVEL”, then press or b.

3Press V/v repeatedly to select

“T. TONE”, then press .

4Press V/v repeatedly to select

“AUTO xxx*”.

The test tone is output from each speaker

in sequence as follow:

Front left t Center t Front right t

Surround right t Surround left t

subwoofer

*xxx represent a speaker channel.

Note

Depending on the speaker pattern setting, test

tone may not be output from all speakers even

though you select “AUTO xxx”.

5Adjust the speaker levels using

the LEVEL menu so that the

level of the test tone sounds the

same from each speaker.

For details, see LEVEL menu (page 59).

Tips

• To adjust the level of all speakers at the same

time, press MASTER VOL +/–

(RM-AAU071 only) or 2 +/–

(RM-AAU074 only). You can also use

MASTER VOLUME on the receiver.

• The adjusted value are shown on the display

during adjustment.

6Repeat steps 1 to 4 to select

“OFF”.

You can also press any input buttons.

The test tone turns off.

When a test tone is not output

from the speakers

• The speaker cords may not be connected

securely.

• The speaker cords may have the short-circuit

problem.

When a test tone is output from

a different speaker than the

speaker indicator showed in the

display

The speaker pattern to the connected speaker

is not set up correctly. Make sure the speaker

connection and the speaker pattern match.

BD DVD SAT/

CATV

VIDEO SA-CD/

DMPORT TUNER

Input

buttons

MASTER

VOL +/–/

2 +/–

AMP

V/v/B/b

35GB

Basic Operations

Playback

1Turn on the connected

component.

2Turn on the receiver.

3Press one of the input buttons

to select the component you

want.

You can also use INPUT SELECTOR on

the receiver.

The selected input appears on the display.

4Play back the source.

5Press MASTER VOL +/–

(RM-AAU071 only) or 2 +/–

(RM-AAU074 only) to adjust the

volume.

You can also use MASTER VOLUME on

the receiver.

6Press SOUND FIELD +/– to

enjoy the surround sound.

You can also use 2CH/A.DIRECT,

A.F.D., MOVIE or MUSIC on the

receiver.

For details, see page 42.

To activate the muting function

Press MUTING (RM-AAU071 only) or

(RM-AAU074 only) on the remote.

The muting function will be canceled when

you do the following.

• Press MUTING (RM-AAU071 only) or

(RM-AAU074 only) again.

• Increase the volume.

• Turn off the receiver.

• Perform Auto Calibration

To avoid damaging your

speakers

Before you turn off the receiver, be sure to turn

down the volume level.

Basic Operations

BD DVD SAT/

CATV

VIDEO SA-CD/

DMPORT TUNER

Input

buttons

MASTER

VOL +/–/

2 +/–

AMP

V/v/B/b

MUTING/ SOUND

FIELD +/–

36GB

You can enter a name of up to 8 characters for

inputs (except TUNER) and display it on the

receiver’s display.

This is convenient for labeling the jacks with

the names of the connected components.

1Press one of the input buttons

to select the input you want to

create an index name for.

You can also use INPUT SELECTOR on

the receiver.

2Press AMP MENU.

3Press V/v repeatedly to select

“SYSTEM”, then press or b.

4Press V/v repeatedly to select

“NAME IN”, then press or b.

The cursor flashes and you can select a

character.

5Press V/v to select a character,

then press B/b to move the

cursor to the next position.

If you made a mistake

Press B/b until the character you want to

change flashes, then press V/v to select

the correct character.

Tips

• You can select the character type as follows

by pressing V/v.

Alphabet (upper case) t Numbers t

Symbols

• To enter a blank space, press b without

selecting a character.

6Press .

The name you entered is registered.

Viewing information on

the display

You can check the sound field, etc., by

changing the information on the display.

Press DISPLAY repeatedly.

Each time you press the button, the display

changes cyclically as follows:

All inputs except the FM and AM

band

Index name of the inputa) t Selected input

t Sound field currently applied t Volume

level t Stream info

FM and AM band

Program Service nameb) or preset station

namea) t Frequency t Program Type

indicationb) t Radio Text indicationb) t

Current Time indication (in 24-hour system

mode)b) t Sound field currently applied t

Volume level

a)Index name appears only when you have assigned

one to the input or preset station (page 36, 41).

Index name does not appear when only blank

spaces have been entered, or it is the same as the

input name.

b)During RDS reception only (Models of area code

ECE, CEK, AU1 only) (page 42).

Note

Character or marks may not be displayed for some

languages.

Naming inputs

DISPLAY

37GB

Basic Operations

Using the Sleep Timer

You can set the receiver to turn off

automatically at a specified time.

1Press AMP MENU.

2Press V/v repeatedly to select

“SYSTEM”, then press or b.

3Press V/v repeatedly to select

“SLEEP”, then press or b.

4Press V/v repeatedly to select

the preset time you want, then

press .

The display changes as follows:

OFF y 0-30-00 y 1-00-00 y

1-30-00 y 2-00-00

When sleep timer is being used, “SLEEP”

indicator lights up in the display.

Note

A count down is displayed 1 minute before the

receiver turns off.

Tip

To check the remaining time before the receiver

turns off, repeat step 1 to 3 above. The remaining

time appears on the display.

Recording

You can record from a video/audio component

using the receiver. Refer to the operating

instructions supplied with your recording

component.

1Press one of the input buttons

to select the playback

component.

You can also use INPUT SELECTOR on

the receiver.

2Prepare the playback

component for playing.

For example, insert the video tape you

want to copy into the VCR.

3Prepare the recording

component.

Insert a blank video tape, etc. into the

recording component (VIDEO) for

recording.

4Start recording on the

recording component, then

start playback on the playback

component.

Notes

• Some sources contain copy guards to prevent

recording. In this case, you may not be able to

record from the source.

• Only analog signals are output from the analog

output jack (for recording).

• HDMI sound cannot be recorded.

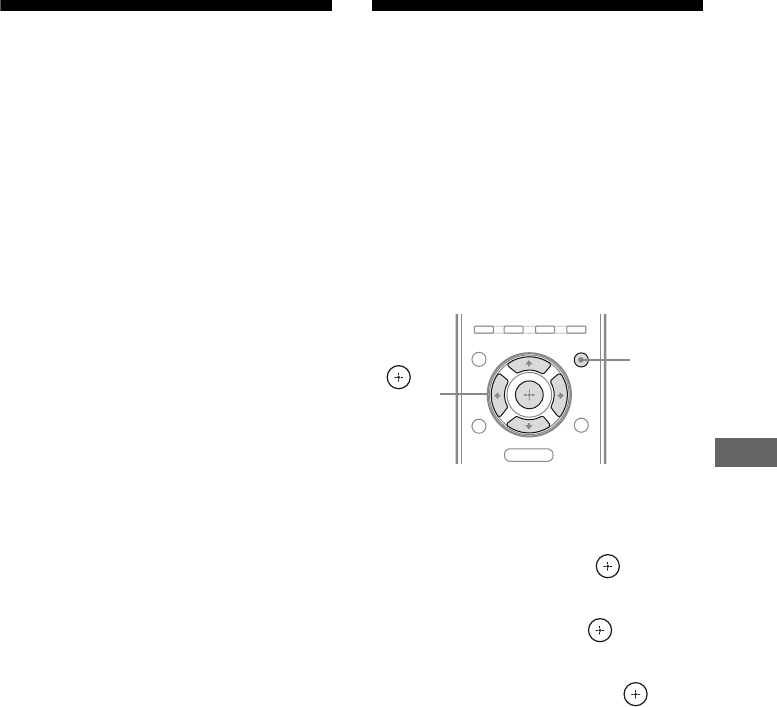

V/v/B/b

AMP

MENU Recording onto a recording

media

38GB

Listening to FM/AM radio

You can listen to FM and AM broadcasts

through the built-in tuner. Before operation,

make sure you have connected the FM and

AM antennas (aerials) to the receiver (page

29).

Tip

The tuning scale for direct tuning differs depending

on the area code as shown in the following table. For

details on area codes, see page 5.

* The AM tuning scale can be changed (page 39).

1Press TUNER repeatedly to

select the FM or AM band.

2Press TUNING + or TUNING –.

Press TUNING + to scan from low to

high; press TUNING – to scan from high

to low.

The receiver stops scanning whenever a

station is received.

Using the controls on the

receiver

1Turn INPUT SELECTOR to select the FM

or AM band.

2Press TUNING MODE repeatedly to select

“AUTO”.

3Press TUNING + or TUNING –.

In case of poor FM stereo

reception

If the FM stereo reception is poor and “ST”

flashes on the display, select monaural audio

so that the sound will be less distorted.

1Press AMP MENU.

2Press V/v repeatedly to select “TUNER”,

then press or b.

3Press V/v repeatedly to select

“FM MODE”, then press or b.

4Press V/v repeatedly to select “MONO”,

then press .

5To return to stereo mode, repeat steps 1 to 4

and select “STEREO” in step 4.

Tuner Operations

Area code FM AM

U2, CA2 100 kHz 10 kHz*

ECE, CEK, AU1 50 kHz 9 kHz

BD DVD SAT/

CATV

VIDEO SA-CD/

DMPORT TUNER

TUNING

+/–

Numeric

buttons

SHIFT

ENTER

D. TUNING

TUNER

V/v/B/b

AMP

Tuning into a station

automatically (Automatic

Tuning)

39GB

Tuner Operations

You can enter the frequency of a station

directly by using the numeric buttons.

1Press TUNER repeatedly to

select the FM or AM band.

You can also use INPUT SELECTOR on

the receiver.

2Press D.TUNING.

3Press and hold SHIFT, then

press the numeric buttons to

enter the frequency.

Example 1: FM 102.50 MHz

• Models of area code U2 and CA2:

Select 1 b 0 b 2 b 5

• Models of area code ECE, CEK and

AU1:

Select 1 b 0 b 2 b 5 b 0

Example 2: AM 1,350 kHz

Select 1 b 3 b 5 b 0

4Press and hold SHIFT, then

press ENTER.

You can also use MEMORY/ENTER on

the receiver.

Tip

If you have tuned in an AM station, adjust the

direction of the AM loop antenna for optimum

reception.

If you cannot tune in a station

Make sure you have entered the right

frequency. If not, repeat steps 2 to 4. If you

still cannot tune in a station, the frequency is

not used in your area.

(Models of area code U2, CA2 only)

You can change the AM tuning scale to either

9 kHz or 10 kHz using the buttons on the

receiver.

1Press ?/1 to turn off the

receiver.

2While holding down TUNING

MODE, press ?/1.

3Change the current AM tuning

scale to 9 kHz (or 10 kHz).

To reset the scale to 10 kHz (or 9 kHz),

repeat the procedure above.

Note

All preset stations will be erased when you change

the tuning scale.

Tuning into a station directly

(Direct Tuning)

Changing the AM tuning scale

?/1

TUNING MODE

40GB

Presetting FM/AM radio

stations

You can preset up to 30 FM stations and 30

AM stations. Then you can easily tune in the

stations you often listen to.

1Press TUNER repeatedly to

select the FM or AM band.

You can also use INPUT SELECTOR on

the receiver.

2Tune in the station that you

want to preset using Automatic

Tuning (page 38) or Direct

Tuning (page 39).

Switch the FM reception mode, if

necessary (page 38).

3Press MEMORY.

You can also use MEMORY/ENTER on

the receiver.

4Press and hold SHIFT, then

press the numeric buttons to

select a preset number.

You can also press PRESET + or

PRESET – to select a preset number.

5Press and hold SHIFT, then

press ENTER.

You can also use MEMORY/ENTER on

the receiver.

The station is stored as the selected preset

number.

6Repeat steps 1 to 5 to preset

another station.

BD DVD SAT/

CATV

VIDEO SA-CD/

DMPORT TUNER

PRESET

+/–

Numeric

buttons

SHIFT

ENTER

MEMORY

TUNER

AMP

V/v/B/b

41GB

Tuner Operations

1Press TUNER repeatedly to

select the FM or AM band.

2Press PRESET + or PRESET –

repeatedly to select the preset

station you want.

Each time you press the button, you can

select a preset station as follows:

You can also press and hold SHIFT and

then press the numeric buttons to select

the preset station you want. To enter the

selection, press and hold SHIFT then

press ENTER.

Using the controls on the

receiver

1Turn INPUT SELECTOR to select the FM

or AM band.

2Press TUNING MODE repeatedly to select

“PRESET”.

3Press TUNING + or TUNING – to select the

preset station you want.

1Press TUNER repeatedly to

select the FM or AM band.

You can also use INPUT SELECTOR on

the receiver.

2Tune in the preset station you

want to create an index name

for (page 41).

3Press AMP MENU.

4Press V/v repeatedly to select

“TUNER”, then press or b.

5Press V/v repeatedly to select

“NAME IN”, then press or b.

The cursor flashes and you can select a

character.

6Press V/v to select a character,

then press B/b to move the

cursor to the next position.

If you made a mistake

Press B/b until the character you want to

change flashes, then press V/v to select

the correct character.

Tips

• You can select the character type as follows

by pressing V/v.

Alphabet (upper case) t Numbers t

Symbols

• To enter a blank space, press b without

selecting a character.

7Press .

The name you entered is registered.

Note (Models of area code ECE, CEK,

AU1 only)

When you name an RDS station and tune in that

station, the Program Service name appears instead

of the name you entered. (You cannot change the

Program Service name. The name you entered will

be overwritten by the Program Service name.)

Tuning to preset stations

Naming preset stations

1 2 345 27...

30 29 28

42GB

Using the Radio Data

System (RDS)

(Models of area code ECE, CEK,

AU1 only)

This receiver allows you to use Radio Data

System (RDS), which enables radio stations to

send additional information along with the

regular program signal. This receiver offers

convenient RDS features, such as program

service name display.

Notes

• RDS is operable only for FM stations.

• Not all FM stations provide RDS service, nor do

they provide the same type of services. If you are

not familiar with the RDS services in your area,

check with your local radio stations for details.

Simply select a station on the FM

band using Direct Tuning (page 39),

Automatic Tuning (page 38), or

Preset Tuning (page 41).

When you tune in a station that provides RDS

services, “RDS” lights up and the program

service name appears on the display.

Note

RDS may not work properly if the station you tuned

to is not transmitting the RDS signal properly or if

the signal strength is weak.

Tip

When a program service name is displayed, you can

check the frequency by pressing DISPLAY

repeatedly (page 36).

Selecting the sound field

This receiver can create multi channel

surround sound. You can select one of the

optimized sound fields from the receiver’s

preprogrammed sound fields.

Press SOUND FIELD +/– repeatedly

to select the sound field you want.

You can also press 2CH/A.DIRECT, A.F.D.,

MOVIE or MUSIC on the receiver.

You can switch the output sound to 2 channel

sound regardless of the recording formats of

the software you are using, the playback

component connected, or the sound field

settings of the receiver.

x2CH ST. (2 Channel Stereo)

The receiver outputs the sound from the front

left/right speakers only. There is no sound

from the subwoofer.

Standard 2 channel stereo sources completely

bypass the sound field processing and multi

channel surround formats are downmixed to 2

channel except LFE signal.

Receiving RDS broadcasts

Enjoying Surround Sound

2 channel sound mode

SOUND

FIELD +/–

43GB

Enjoying Surround Sound

xA.DIRECT (Analog direct)

You can switch the audio of the selected input

to 2 channel analog input. This function

enables you to enjoy high quality analog

sources without any adjusment.

When using this function, only the volume and

front speaker level can be adjusted.

Notes

• When headphones are connected, “HP DIR”

appears on the display.

• You cannot select Analog Direct when you select

BD, DVD, and DMPORT as input.

The Auto Format Direct (A.F.D.) mode allows

you to listen to high fidelity sound and select

the decoding mode for listening to a 2 channel

stereo sound as multi channel.

xA.F.D. AUTO (A.F.D. Auto)

Presets the sound as it was recorded/encoded

without adding any surround effects.

xMULTI ST. (Multi Stereo)

Outputs 2 channel left/right signals from all

speakers.

However, sound may not be output from

certain speakers depending on the speaker

settings.

You can take advantage of surround sound

simply by selecting one of the receiver’s

preprogrammed sound fields. They bring the

exciting and powerful sound of movie theaters

into your home.

xC.ST.EX A (Cinema Studio EX

DCS )

Reproduces the sound characteristics of the

Sony Pictures Entertainment “Cary Grant

Theater” cinema production studio. This is a

standard mode, great for watching almost any

type of movie.

xC.ST.EX B (Cinema Studio EX

DCS )

Reproduces the sound characteristics of the

Sony Pictures Entertainment “Kim Novak

Theater” cinema production studio. This mode

is ideal for watching science-fiction or action

movies with lots of sound effects.

xC.ST.EX C (Cinema Studio EX

DCS )

Reproduces the sound characteristics of the

Sony Pictures Entertainment scoring stage.

This mode is ideal for watching musicals or

films where orchestra music is featured in the

soundtrack.

xV. M. DIM (V. Multi Dimension

DCS )

Creates many virtual speakers from a single

pair of actual surround speakers.

xPLII MV (Pro Logic II Movie)

Performs Dolby Pro Logic II Movie mode

decoding. This setting is ideal for movies

encoded in Dolby Surround. In addition, this

mode can reproduce sound in 5.1 channel for

watching videos of overdubbed or old movies.

You can take advantage of surround sound

simply by selecting one of the receiver’s

preprogrammed sound fields. They bring the

exciting and powerful sound of concert halls

into your home.

xHALL (Hall)

Reproduces the acoustics of a classical concert

hall.

xJAZZ (Jazz Club)

Reproduces the acoustics of a jazz club.

xCONCERT (Concert)

Reproduces the acoustics of a 300-seat live

house.

Auto Format Direct (A.F.D.)

mode

Movie mode

Music mode

continued

44GB

xSTADIUM (Stadium)

Reproduces the feeling of a large open-air

stadium.

xSPORTS (Sports)

Reproduces the feeling of sports broadcasting.

xPORTABLE (Portable Audio

Enhancer)

Reproduces a clear enhanced sound image

from your portable audio device. This mode is

ideal for MP3 and other compressed music.

xPLII MS (Pro Logic II Music)

Perform Dolby Pro Logic II Music mode

decoding. This setting is ideal for normal

stereo sources such as CDs.

You can only select this sound field if the

headphones are connected to the receiver.

xHP 2CH (Headphones 2CH)

This mode is selected automatically if you use

headphones (except Analog Direct). Standard

2 channel stereo sources completely bypass

the sound field processing and multi channel

surround formats are downmixed to 2

channels except LFE signals.

xHP DIR (Headphones Direct)

Outputs the analog signals without processing

by the equalizer, sound field, etc.

If you connect a subwoofer

This receiver will generate a low frequency

signal for output to the subwoofer when there

is no LFE signal, which is a low-pass sound

effect output from a subwoofer to a 2 channel

signal.

Notes on sound fields

• Depends on the speaker pattern settings,

some sound fields may not be available.

• The effects provided by the virtual speakers

may cause increased noise in the playback

signal.

• When listening with sound fields that

employ the virtual speakers, you will not be

able to hear any sound coming directly from

the surround speakers.

• The sound fields for music and movie do not

work in the following cases.

– signals with a sampling frequency of more

than 48 kHz is input.

– Analog Direct is selected.

• When multi channel Linear PCM signals are

received via an HDMI IN jack, “A.F.D.

AUTO” will be selected automatically.

• When one of the sound fields for music is

selected, no sound is output from the

subwoofer if all the speakers are set to

“LARGE” on the SPEAKER menu.

However, the sound will be output from the

subwoofer if

– the digital input signal contains LFE

signals.

– the front and surround speakers are set to

“SMALL”.

– the sound field for movie is selected.

– the portable audio is selected.

Tips

• You can identify the encoding format of DVD

software, etc., by looking at the logo on the

package.

• Sound fields with DCS marks use DCS

technology. For details on Digital Cinema Sound

(DCS), see “Glossary” (page 67).

To turn off the surround effect

for movie/music

Press SOUND FIELD +/– repeatedly to select

“2CH ST.” or “A.F.D. AUTO”.

You can also press 2CH/A.DIRECT

repeatedly on the receiver to select “2CH ST.”

or press A.F.D. repeatedly on the receiver to

select “A.F.D. AUTO”.

When headphones are

connected

45GB

Enjoying Surround Sound

Digital audio formats that this receiver can decode depend on digital audio input jacks for the

connected component. This receiver supports the following audio formats.

a)Audio signals are output in another format if the playback component does not correspond to the format. For

details, refer to the operating instructions of the playback component.

b)The signal will be downmixed to 5.1 channel.

When connecting Blu-ray disc players and other next generation HD

players

Audio format Maximum number

of channels

Connection of the playback component and

the receiver

COAXIAL/OPTICAL HDMI

Dolby Digital 5.1 aa

DTS 5.1 aa

Multi channel Linear PCMa) 7.1b) ×a

46GB

Enjoying the surround

effect at low volume

levels

(NIGHT MODE)

This function allows you to retain a theater like

environment at low volume levels. This

function can be used with other sound fields.

When watching a movie late at night, you will

be able to hear the dialog clearly even at a low

volume level.

1Press AMP MENU.

2Press V/v repeatedly to select

“AUDIO”, then press or b.

3Press V/v repeatedly to select

“NIGHT M.”, then press or

4Press V/v repeatedly to select

“NIGHT. ON”, then press .

Note

This function does not work in the following cases:

–signals with a sampling frequency of more than

48 kHz are being received.

–Analog Direct is selected.

Tip

While the NIGHT MODE is turned on,

“D. RANGE” is automatically set to “COMP.

MAX”.

Resetting sound fields to

the initial settings

Be sure to use the buttons on the receiver for

this operation.

1Press ?/1 to turn off the

receiver.

2While holding down MUSIC,

press ?/1.

“S.F. CLEAR” appears on the display and

all sound fields are reset to their initial

setting.

V/v/B/b

AMP

?/1

MUSIC

47GB

“BRAVIA” Sync Features

What is “BRAVIA” Sync?

“BRAVIA” Sync is compatible with Sony TV,

Blu-ray Disc/DVD player, AV amplifier, etc.,

that is equipped with the Control for HDMI

function.

By connecting Sony components that are

compatible with the “BRAVIA” Sync with an

HDMI cable (not supplied), operation is

simplified as follows:

• One-Touch Play (page 48)

• System Audio Control (page 49)

• System Power Off (page 50)

• Theater/Theatre Mode Sync (page 51)

• Audio Return Channel (page 51)

Control for HDMI is a mutual control function

standard used by HDMI CEC (Consumer

Electronics Control) for HDMI (High-

Definition Multimedia Interface).

We recommend that you connect the receiver

to products featuring “BRAVIA” Sync.

Note

Depending on the connected component, the

Control for HDMI function may not work. Refer to

the operating instructions of the component.

Preparing for the

“BRAVIA” Sync

The receiver is compatible with the “Control

for HDMI-Easy Setting” function.

• If your TV is compatible with the “Control

for HDMI-Easy Setting” function, you can

set the receiver and playback components

Control for HDMI function automatically by

setting the TV (page 47).

• If your TV is not compatible with the

“Control for HDMI-Easy Setting” function,

set the Control for HDMI function of the

receiver, playback components and TV

individually (page 48).

If your TV is compatible with the

“Control for HDMI-Easy Setting”

function

The Control for HDMI function of the receiver

can be turned on simultaneously by turning on

the Control for HDMI function of the TV.

1Connect the receiver, TV and playback

components via HDMI connection

(page 23).

(The respective components must be

compatible with the Control for HDMI

function.)

2Turn on the receiver, TV and playback

components.

3Turn on the Control for HDMI function

of the TV.

The Control for HDMI function of the

receiver and all the connected components

are turned on simultaneously. When the

setup is completed, “COMPLETE” will

appear.

For details on setting the TV, refer to the

operating instructions supplied with the TV.

“BRAVIA” Sync Features

continued

48GB

If your TV is not compatible with

the “Control for HDMI-Easy

Setting” function

1Perform the steps given in “If your TV is

compatible with the “Control for HDMI-

Easy Setting” function” (page 47).

2Press AMP MENU.

3Press V/v repeatedly to select “HDMI”,

then press or b.

4Press V/v repeatedly to select

“CTRL.HDMI”, then press or b.

5Press V/v repeatedly to select “CTRL

ON”, then press .

Control for HDMI function is activated.

6Set the Control for HDMI function for

the connected component to on.

If the Control for HDMI function for the

connected component is already set to on,

you do not need to change the setting.

For details on setting the TV and connected

components, refer to the operating instructions

of the respective components.

Notes

• Before you do the “Control for HDMI-Easy

Setting” from the TV, be sure to turn on the TV,

connected components and receiver.

• If the playback components cannot function after

you have made the settings for “Control for HDMI-

Easy Setting”, check the Control for HDMI setting

on your TV.

• If the connected components do not support

“Control for HDMI-Easy Setting”, you need to set

the Control for HDMI function for the connected

components to on before you perform the “Control

for HDMI-Easy Setting” from the TV.

Playing back components

with one-touch operation

(One-Touch Play)

By a simple operation (one-touch),

components connected to the receiver with

HDMI connections start automatically.

You can enjoy the sound/image from

connected components.

When you set “PASS.THRU” to “AUTO” or

“ON”, sound and image can be output only

from the TV while the receiver remains in

standby mode.

When you start playback a connected

component, the receiver and TV operation are

simplified as follow:

Receiver and TV

Turns on (if in standby mode)

Switches to appropriate HDMI input

Notes

• Depending on the TV, the start of the content may

not be output.

• Depending on the settings, the receiver may not

turns on when “PASS.THRU” is set to “AUTO” or

“ON”.

Tip

You can also select a connected component, such as

DVD/Blu-ray disc player using the TV menu. The

receiver and TV will automatically switch to the

appropriate HDMI input.

V/v/B/b

AMP

49GB

“BRAVIA” Sync Features

Enjoying the TV sound

from the speakers

connected to the receiver

(System Audio Control)

You can enjoy the TV sound from the speakers

connected to the receiver by a simple

operation.

You can operate System Audio Control

function using the TV menu. For details, refer

to the operating instructions of the TV.

TV Receiver

You can also use the System Audio Control

function as follows.

• If you turn on the receiver while the TV is

turned on, the System Audio Control

function will automatically be set to on and

the TV sound will output from the speakers

connected to the receiver. However, if you

turn off the receiver, the sound will output

from the TV speakers.

• When you adjust the TV volume, the

receiver’s volume is adjusted

simultaneously.

Notes

• If System Audio Control does not function

according to your TV setting, refer to the operating

instructions of the TV.

• When “CTRL.HDMI” is set to “CTRL ON”, the

“AUDIO.OUT” settings in the HDMI menu will

set automatically depending on the System Audio

Control settings.

• When you connect a TV that does not have System

Audio Control function, the System Audio Control

function does not work.

• If the TV is turned on before turning on the

receiver, the TV sound will not be output for a

moment.

Sets System Audio

•

Turns on (if in

Control to on standby mode)

•

Switches to

appropriate

HDMI input

Minimizes TV Outputs TV

volume sound

50GB

Turning off the receiver

with the TV

(System Power Off)

When you turn the TV off by using the

POWER button on the TV’s remote, the

receiver and the connected components turn

off automatically.

You can also use the receiver’s remote to turn

off the TV.

Press and hold TV, then press TV

?/1.

The TV, receiver and the components

connected via HDMI are turned off.

Notes

• Set the TV Standby Synchro to on before using the

System Power Off function. For details, refer to the

operating instructions of the TV.

• Depending on the status, the connected

components may not be turned off. For details,

refer to the operating instructions of the connected

components.

BD DVD SAT/

CATV

VIDEO SA-CD/

DMPORT TUNER

TV ?/1

51GB

“BRAVIA” Sync Features

Enjoying movies with the

optimum sound field

(Theater/Theatre Mode Sync)

Press the THEATER or THEATRE

button on the remote of the

receiver, TV, or the Blu-ray disc

player, while pointing the remote

toward the TV.

The sound field switches to “C.ST.EX B”.

To return to the previous sound field, press the

THEATER or THEATRE button again.

Note

The sound field may not switch depending on the

TV.

Tip

The sound field may be changed back to the

previous one when you change the TV’s input.

Enjoying the TV sound via

an HDMI cable

(Audio Return Channel)

The Audio Return Channel (ARC) function

enables the TV outputs the audio signals to the

receiver via a HDMI cable connected to the

HDMI TV OUT jack.

You can enjoy the TV sound from the speakers

connected to the receiver without connecting

the TV OPTICAL IN or TV AUDIO IN jack.

1Press AMP MENU.

2Press V/v repeatedly to select

“HDMI”, then press or b.

3Press V/v repeatedly to select

“ARC”, then press or b.

4Press V/v repeatedly to select

“ARC ON”, then press .

Notes

• This function does not work when you set

“CTRL.HDMI” to “CTRL OFF” in the HDMI

menu.

• This function is only available when

– your TV is compatible with Audio Return

Channel (ARC) function.

– INPUT MODE is set to “AUTO”.

V/v/B/b

AMP

52GB

Switching between

digital and analog audio

(INPUT MODE)

When you connect components to both digital

and analog input jacks on the receiver, you can

fix the audio input mode to either of them, or

switch from one to the other, depending on the

type of material you intend to watch.

1Turn INPUT SELECTOR on the

receiver to select the input.

You can also use the input buttons on the

remote.

2Press INPUT MODE repeatedly

on the receiver to select the

audio input mode.

The selected audio input mode appears on

the display.

Audio input modes

xAUTO

Gives priority to digital audio signals when

there are both digital and analog connections.

If there are more than one digital connection,

HDMI audio signals have priority over

COAXIAL and OPTICAL audio signals. If

there are no digital audio signals, analog audio

signals are selected.

xCOAX

Specifies the digital audio signals input to the

DIGITAL COAXIAL jack.

xOPT

Specifies the digital audio signals input to the

DIGITAL OPTICAL jack.

xANALOG

Specifies the analog audio signals input to the

AUDIO IN (L/R) jacks.

Notes

• Some audio input modes may not be set up

depending on the input.

• When the Analog Direct function is selected, audio

input is set to “ANALOG” automatically and you

cannot select other modes.

Advanced Operations

53GB

Advanced Operations

Enjoying the sound from

other inputs

You can reassign audio signals to another

input when they are not currently being used.

For example, when you want to output the

sound source for the DVD player using

OPTICAL IN jack on the receiver:

1Press AMP MENU.

2Press V/v repeatedly to select

“AUDIO”, then press or b.

3Press V/v repeatedly to select

“A. ASSIGN”, then press or

4Press V/v repeatedly to select

the input name you want to

assign (for example, “DVD”),

then press or b to enter

your selection.

5Press V/v repeatedly to select

the input jack you want to

assign to the input which you

selected in step 4.

To return to the previous display

Press B.

?/1

DVD player

Receiver

Assign to DVD input jack

– using “A. ASSIGN” in

AUDIO menu

Connect to

OPTICAL

SAT/CATV IN

jack (audio

signal)

continued

54GB

Assigning input jacks

* Initial setting

Notes

• When you assign the digital audio input, the

INPUT MODE setting may change automatically

(page 52).

• You cannot reassign more than one digital audio

input to the same input.

Assignable audio input

jacks

Input name

VIDEO BD DVD SAT SA-CD

Audio DVD COAX aaa*aa

SAT OPT aaaa*a

ANALOG a*– – aa*

NONE – a*– – –

55GB

Advanced Operations

Enjoying sound/images

from the components

connected to the DIGITAL

MEDIA PORT

The DIGITAL MEDIA PORT (DMPORT)

allows you to enjoy sound/images from a

portable audio source or computer by

connecting a DIGITAL MEDIA PORT

adapter.

The DIGITAL MEDIA PORT adapters are

available for purchase depending on the area.

For details on connecting the DIGITAL

MEDIA PORT adapter, see “4a: Connecting

the audio components” (page 22).

Notes

• Depending on the DIGITAL MEDIA PORT

adapter, video output may not be possible.

• Depending on the type of DIGITAL MEDIA

PORT adapter, you can operate the connected

component by using the remote. For details on the

remote button operation, see page 16.

1Press DMPORT.

You can also use the INPUT SELECTOR

on the receiver to select “DMPORT”.

2Start playback of the connected

component.

The sound is played back on the receiver

and the image appears on the TV.

For details, refer to the operating

instructions supplied with the DIGITAL

MEDIA PORT adapter.

Tip

When listening to MP3 or other compressed music

using a portable audio source, you can enhance the

sound. Press SOUND FIELD +/– (or press MUSIC

on the receiver) repeatedly to select “PORTABLE”

(page 43).

Using the setting menu

By using the amplifier menus, you can make

various adjustments to customize the receiver.

1Press AMP MENU.

2Press V/v repeatedly to select

the menu you want, then press

or b

3Press V/v repeatedly to select

the parameter you want to

adjust, then press or b

4Press V/v repeatedly to select

the setting you want.

The setting is entered automatically.

To return to the previous

display

Press B or RETURN/EXIT O.

To exit the menu

Press AMP MENU.

Note

Some parameters and settings may appear dimmed

on the display. This means that they are either

unavailable or fixed and unchangeable.

AMP

RETURN/

EXIT O

V/v/B/b

56GB

The following options are available in each menu. For details, see the page in the parentheses.

Overview of the menus

[Display]

Parameters

[Display]

Settings Initial

setting

AUTO CALa)

[A. CAL]

(page 59)

Starts Auto Calibration

[START]

LEVEL

[LEVEL]

(page 59)

Test tonec)

[T. TONE]

OFF, AUTO xxxb) OFF

Front left speaker level

[FL LVL]

FL –10.0 dB to FL +10.0 dB

(0.5 dB per step)

FL 0 dB

Front right speaker level

[FR LVL]

FR –10.0 dB to FR +10.0 dB

(0.5 dB per step)

FR 0 dB

Center speaker levelc)

[CNT LVL]

CNT –20.0 dB to CNT +10.0 dB

(0.5 dB per step)

CNT 0 dB

Surround left speaker levelc)

[SL LVL]

SL –20.0 dB to SL +10.0 dB

(0.5 dB per step)

SL 0 dB

Surround right speaker levelc)

[SR LVL]

SR –20.0 dB to SR +10.0 dB

(0.5 dB per step)

SR 0 dB

Subwoofer levelc)

[SW LVL]

SW –20.0 dB to SW +10.0 dB

(0.5 dB per step)

SW 0 dB

Dynamic range compressor

[D. RANGE]

COMP. MAX, COMP. STD,

COMP. OFF

SPEAKER

[SPKR]

(page 60)

Speaker pattern

[PATTERN]

For details, see page 60 3/2.1

Front speakers sizec)

[FRT SIZE]

LARGE, SMALL LARGE

Center speaker sizec)

[CNT SIZE]

LARGE, SMALL LARGE

Surround speakers sizec)

[SUR SIZE]

LARGE, SMALL LARGE

Front left speaker distancec)

[FL DIST.]

FL 1.0 m to FL 7.0 m

(FL 3 ft to FL 22 ft)

(0.1 m (1 ft) step)

FL 3.0 m

(FL 9 ft)

Front right speaker distancec)

[FR DIST.]

FR 1.0 m to FR 7.0 m

(FR 3 ft to FR 22 ft)

(0.1 m (1 ft) step)

FR 3.0 m

(FR 9 ft)

Center speaker distancec)

[CNT DIST.]

CNT 1.0 m to CNT 7.0 m

(CNT 3 ft to CNT 22 ft)

(0.1 m (1 ft) step)

CNT 3.0 m

(CNT 9 ft)

Surround left speaker distancec)

[SL DIST.]

SL 1.0 m to SL 7.0 m

(SL 3 ft to SL 22 ft)

(0.1 m (1 ft) step)

SL 3.0 m

(SL 9 ft)

57GB

Advanced Operations

Surround right speaker distancec)

[SR DIST.]

SR 1.0 m to SR 7.0 m

(SR 3 ft to SR 22 ft)

(0.1 m (1 ft) step)

SR 3.0 m

(SR 9 ft)

Subwoofer distancec)

[SW DIST.]

SW 1.0 m to SW 7.0 m

(SW 3 ft to SW 22 ft)

(0.1 m (1 ft) step)

SW 3.0 m

(SW 9 ft)

Distance unit

[DIST.UNIT]

METER, FEET METERf)

Front speaker crossover

frequencyd)

[FRT CRS.]

CRS. 40 Hz to CRS. 200 Hz

(10 Hz step)

CRS. 120 Hz

Center speaker crossover

frequencyd)

[CNT CRS.]

CRS. 40 Hz to CRS. 200 Hz

(10 Hz step)

CRS. 120 Hz

Surround speaker crossover

frequencyd)

[SUR CRS.]

CRS. 40 Hz to CRS. 200 Hz

(10 Hz step)

CRS. 120 Hz

SURROUND

[SURR]

(page 62)

Sound field selection

[S.F. SELCT]

For details, see “Enjoying Surround

Sound” (page 42).

A.F.D. AUTO

Effect level

[EFFECT]

EFCT. MAX, EFCT. STD,

EFCT. MIN

EFCT. STD

[EQ]

(page 62)

Front speakers bass level

[BASS]

BASS –10 dB to BASS +10 dB

(1 dB per step)

BASS 0 dB

Front speakers treble level

[TREBLE]

TRE –10 dB to TRE +10 dB

(1 dB per step)

TRE 0 dB

TUNER

[TUNER]

(page 63)

FM station receiving mode

[FM MODE]

STEREO, MONO STEREO

Naming preset stations

[NAME IN]

For details, see “Naming preset

stations” (page 41).

AUDIO

[AUDIO]

(page 63)

Synchronizes audio with video

output

[A/V SYNC]

SYNC ON, SYNC OFF SYNC OFF

Digital broadcast language

selection

[DUAL]

MAIN/SUB, MAIN, SUB MAIN

Digital audio input decoding

prioritye)

[DEC. PRIO]

DEC. AUTO, DEC. PCM DEC. AUTO

Digital audio input assignment

[A. ASSIGN]

For details, see “Enjoying the sound

from other inputs” (page 53).

Night mode

[NIGHT M.]

NIGHT.OFF, NIGHT. ON NIGHT.OFF

[Display]

Parameters

[Display]

Settings Initial

setting

continued

58GB

a)Models of area code ECE, CEK, AU1 only.

b)xxx represent a speaker channel (FL, FR, CNT, SL, SR, SW).

c)Depends on the speaker pattern setting, some parameters may not be available.

d)You cannot select this setting if your speaker is set to “LARGE”.

e)This parameter is only available when HDMI input signals is detected.

f) “FEET” for models of area code U2, CA2.

[Display]

Parameters

[Display]

Settings Initial

setting

HDMI

[HDMI]

(page 64)

Control for HDMI

[CTRL.HDMI]

CTRL ON, CTRL OFF CTRL ON

HDMI pass through

[PASS.THRU]

ON, AUTO, OFF OFF

Setting HDMI audio input

[AUDIO.OUT]

AMP, TV+AMP AMP

Subwoofer level for HDMIe)

[SW LEVEL]

SW AUTO, SW +10 dB, SW 0 dB SW AUTO

Subwoofer Low Pass Filter

for HDMIe)

[SW L.P.F.]

L.P.F. ON, L.P.F. OFF L.P.F. ON

Audio Return Channel

[ARC]

ARC ON, ARC OFF ARC ON

SYSTEM

[SYSTEM]

(page 65)

Brightness of the display

[DIMMER]

DIM MAX, DIM MID, DIM OFF DIM OFF

Sleep timer mode

[SLEEP]

OFF, 0-30-00, 1-00-00, 1-30-00,

2-00-00

OFF

Auto standby mode

[AUTO.STBY]

STBY ON, STBY OFF STBY ON

Naming inputs

[NAME IN]

For details, see “Naming inputs”

(page 36).

59GB

Advanced Operations

(Models of area code ECE, CEK,

AU1 only)

You can perform automatic calibration to get

proper sound balance in your room.

For details, see “Calibrating the appropriate

speaker settings automatically (AUTO

CALIBRATION)” (page 30).

You can adjust the level of each speaker.

These settings are applied to all sound fields.

xT. TONE

Lets you adjust the speaker levels while

listening to the test tone from your listening

position.

•OFF

The test tone is turned off.

• AUTO xxx*

The test tone is output from each speaker in

sequence.

*xxx represent a speaker channel.

Adjusting the speaker level

You can adjust each speaker’s level using the

following parameters.

For front left/right speakers, you can adjust the

level from –10.0 dB to +10.0 dB in 0.5 dB

steps. For other speakers, you can adjust the

level from –20.0 dB to +10.0 dB in 0.5 dB

steps.

xFL LVL

xFR LVL

xCNT LVL

xSL LVL

xSR LVL

xSW LVL

Note

Depends on the speaker pattern setting, some

parameters may not be available.

xD. RANGE

Lets you compress the dynamic range of the

soundtrack. This may be useful when you want

to watch movies at low volumes late at night.

Dynamic range compression is possible with

Dolby Digital sources only.

•COMP. MAX

The dynamic range is compressed

dramatically.

•COMP. STD

The dynamic range is compressed as

intended by the recording engineer.

• COMP. OFF

The dynamic range is not compressed.

Tip

Dynamic range compressor lets you compress the

dynamic range of the soundtrack based on the

dynamic range information included in the Dolby

Digital signal.

“COMP. STD” is the standard setting, but it only

enacts light compression. Therefore, we recommend

using the “COMP. MAX” setting. This greatly

compresses the dynamic range and lets you view

movies late at night at low volumes. Unlike analog

limiters, the levels are predetermined and provide a

very natural compression.

AUTO CAL menu

LEVEL menu

60GB

You can set the size and distance of the speakers connected to this receiver.

xPATTERN

Lets you set the number of speakers connected to this receiver. It should be synchronize with the

speakers settings.

For example:

SPEAKER menu

Speaker

pattern

Front left/right Center Surround

left/right

Subwoofer

3/2.1 aaaa

3/2 aaa –

2/2.1 a–aa

2/2 a–a–

3/0.1 aa –a

3/0 aa ––

2/0.1 a––a

2/0 a–––

3/2 1.

2 front +

center

2 surround subwoofer

61GB

Advanced Operations

xFRT SIZE

• LARGE

If you connect large speakers that will

effectively reproduce bass frequencies,

select “LARGE”. Normally, select

“LARGE”. However, if you have selected a

speaker pattern without subwoofer, the front

speakers are automatically set to “LARGE”.

•SMALL

If the sound is distorted, or you feel a lack of

surround effects when using multi channel

surround sound, select “SMALL” to activate

the bass redirection circuitry and output the

front channel bass frequencies from the

subwoofer. When the front speakers are set

to “SMALL”, the center and surround

speakers are also automatically set to

“SMALL”.

xCNT SIZE

• LARGE

If you connect a large speaker that will

effectively reproduce bass frequencies,

select “LARGE”. Normally, select

“LARGE”. However, if the front speakers

are set to “SMALL”, you cannot set the

center speaker to “LARGE”.

•SMALL

If the sound is distorted, or you feel a lack of

surround effects when using multi channel

surround sound, select “SMALL” to activate

the bass redirection circuitry and output the

center channel bass frequencies from the

front speakers (if set to “LARGE”) or

subwoofer.

xSUR SIZE

• LARGE

If you connect large speakers that will

effectively reproduce bass frequencies,

select “LARGE”. Normally, select

“LARGE”. However, if the front speakers

are set to “SMALL”, you cannot set the

surround speakers to “LARGE”.

•SMALL

If the sound is distorted, or you feel a lack of

surround effects when using multi channel

surround sound, select “SMALL” to activate

the bass redirection circuitry and output the

surround channel bass frequencies from the

subwoofer or other speaker that is set to

“LARGE”.

Tip

The “LARGE” and “SMALL” settings for each

speaker determine whether the internal sound

processor will cut the bass signal from that channel.

When the bass is cut from a channel, the bass

redirection circuitry sends the corresponding bass

frequencies to the subwoofer or other “LARGE”

speakers.

However, since bass sounds have a certain amount of

directionality, it is best not to cut them, if possible.

Therefore, even when using small speakers, you can

set them to “LARGE” if you want to output the bass

frequencies from that speaker. On the other hand, if

you are using a large speaker, but prefer not to have

bass frequencies output from that speaker, set it to

“SMALL”.

If the overall sound level is lower than you prefer, set

all speakers to “LARGE”. If there is not enough

bass, you can use the equalizer to boost the bass

levels. For details, see page 57.

xFL DIST.

xFR DIST.

Lets you set the distance from your listening

position to the front speakers.

If both front speakers are not placed an equal

distance from your listening position, set the

distance to the closest speaker.

xCNT DIST.

Lets you set the distance from your listening

position to the center speaker.

continued

62GB

xSL DIST.

xSR DIST.

Lets you set the distance from your listening

position to the surround speakers.

xSW DIST.

Lets you set the distance from your listening

position to the subwoofer.

Notes

• Depends on the speaker pattern setting, some

parameters may not be available.

• This function does not work in the following cases.

– Signals with a sampling frequency of more than 48

kHz are being received.

– the multi channel Linear PCM signals are received

via an HDMI IN jack.

– Analog Direct is selected.

xDIST.UNIT

Lets you select the unit of measure for setting

distances.

• METER

The distance is displayed in meters.

•FEET

The distance is displayed in feet.

xFRT CRS.

Lets you set the bass crossover frequency of

the front speakers that have been set to

“SMALL” in the SPEAKER menu.

xCNT CRS.

Lets you set the bass crossover frequency of

the center speaker that have been set to

“SMALL” in the SPEAKER menu.

xSUR CRS.

Lets you set the bass crossover frequency of

the surround speakers that have been set to

“SMALL” in the SPEAKER menu.

You can select the sound field you want for

your listening pleasure.

xS.F. SELCT

Lets you select the sound field you want. For

details, see “Enjoying Surround Sound” (page

42).

Note

The receiver lets you apply the last selected sound

field to an input whenever it is selected (Sound Field

Link). For example, if you select “HALL” for the

DVD input, then change to a different input and then

return to DVD, “HALL” will automatically be

applied again.

xEFFECT

Lets you adjust the “presence” of the surround

effect for the Cinema Studio EX A/B/C sound

fields.

You can adjust the tonal quality (bass/treble

level) of the front speakers.

xBASS

xTREBLE

Note

This function does not work in the following cases:

– signals with a sampling frequency of more than

48kHz are being received.

– the multi channel Linear PCM signals are received

via an HDMI IN jack.

– Analog Direct is selected.

SURROUND menu

EQ menu

63GB

Advanced Operations

You can set the FM station receiving mode and

name the preset stations.

xFM MODE

•STEREO

This receiver will decode the signal as stereo

signal when the radio station is broadcast in

stereo.

• MONO

This receiver will decode the signal as mono

signal regardless of the broadcast signal.

xNAME IN

Lets you set the name of preset stations. For

details, see “Naming preset stations” (page

41).

You can make settings for the audio to suit

your preference.

xA/V SYNC

Lets you delay the output of audio to minimize

the time gap between audio output and visual

display.

• SYNC ON (Delay time: 60 ms)

The audio output is delayed so that the time

gap between the audio output and visual

display is minimized.

• SYNC OFF (Delay time: 0 ms)

The audio output is not delayed.

Notes

• This parameter is useful when you use a large LCD

or plasma monitor or a projector.

• This parameter is valid only when you use a sound

field selected with the 2CH or A.F.D. buttons.

• This function does not work in the following cases:

– signals with a sampling frequency of more than

48 kHz is input.

– the multi channel Linear PCM signals are received

via an HDMI IN jack.

– Analog Direct function is selected (page 42).

xDUAL

Lets you select the language you want to listen

to during digital broadcast. This feature only

functions for Dolby Digital sources.

• MAIN/SUB

Sound of the main language will be output

through the front left speaker and sound of

the sub language will be output through the

front right speaker simultaneously.

•MAIN

Sound of the main language will be output.

•SUB

Sound of the sub language will be output.

xDEC. PRIO

Lets you specify the input mode for the digital

signal input to the DIGITAL IN jacks or

HDMI IN jacks.

• DEC. AUTO

Automatically switches the input mode

between DTS, Dolby Digital, or PCM.

•DEC. PCM

When signals from the DIGITAL IN jack are

selected, PCM signals are given priority (to

prevent interruption when playback starts).

However, when other signals are input, there

may be no sound, depending on the format.

In this case, set this item to “DEC. AUTO”.

When signals from the HDMI IN jack are

selected, only PCM signals are output from

the connected player. When signals in any

other format are received, set this item to

“DEC. AUTO”.

Notes

• Even when “DEC. PRIO” is set to “DEC.

PCM”, the sound may be interrupted at the very

beginning of the first track depending on the CD

being played back.

• When playback DTS CD, set “DEC. PRIO” to

“DEC. AUTO”.

xA. ASSIGN

Lets you assign the digital audio input to other

input source. For details, see “Enjoying the

sound from other inputs” (page 53).

TUNER menu

AUDIO menu

continued

64GB

xNIGHT M.

Lets you to retain a theater-like environment at

low volume levels. For details, see “Enjoying

the surround effect at low volume levels

(NIGHT MODE)” (page 46).

• NIGHT.OFF

• NIGHT. ON

You can make various adjustments for HDMI

settings.

xCTRL.HDMI

Lets you turn the Control for HDMI function

on or off. For details, see ““BRAVIA” Sync

Features” (page 47).

xPASS.THRU

Lets you output the HDMI signals to the TV

even when the receiver is in standby mode.

•ON

When the receiver is in the standby mode,

the receiver continuously outputs HDMI

signals from the receiver’s HDMI TV OUT

jack.

• AUTO

When the TV is turned on while the receiver

is in the standby mode, the receiver outputs

HDMI signals from the receiver’s HDMI TV

OUT jack. Sony recommends this setting if

you use a TV that is compatible with

“BRAVIA” Sync. This setting saves power

in the standby mode compared with the

“ON” setting.

•OFF

The receiver does not output HDMI signals

when in the standby mode. Turn on the

receiver to enjoy the connected component’s

source on the TV. This setting saves power in

the standby mode compared with the “ON”

setting.

Notes

• This parameter is not available when

“CTRL.HDMI” is set to “CTRL OFF”.

• When “AUTO” is selected, it may take a little more

time for the image and sound to be output to the TV

than when “ON” is selected.

• When the receiver is in standby mode, “HDMI”

indicator will lights up if “PASS.THRU” is set to

“AUTO” or “ON”. However, when

“PASS.THRU” is set to “AUTO”, this indicator

will lights off if no signals are detected.

xAUDIO.OUT

Lets you set the HDMI audio output from the

playback component connected to the receiver

via an HDMI connection.

•AMP

The HDMI audio signals from the playback

component are only output to the speakers

connected to the receiver. Multi channel

sound can be played back as it is.

Note

Audio signals are not output from the TV’s

speakers when “AUDIO.OUT” is set to “AMP”.

• TV+AMP

The sound is output from TV’s speaker and

the speakers connected to the receiver.

Notes

• The sound quality of the playback component

depends on the TV’s sound quality, such as the

number of channels, and the sampling frequency,

etc. When the TV has stereo speakers, the sound

output from the receiver is also stereo as that of

the TV, even if you play back multi channel

software.

• When you connect the receiver to an image

display component (projector, etc.), sound may

not be output from the receiver. In this case,

select “AMP”.

HDMI menu

65GB

Advanced Operations

xSW LEVEL

Lets you set the level of the subwoofer to 0 dB

or +10 dB when multi channel Linear PCM

signals are input via an HDMI connection. You

can set the level for each HDMI input

independently.

• SW AUTO

Automatically sets the level to 0 dB or

+10 dB depending on the frequency.

• SW +10 dB

• SW 0 dB

Note

This parameter is only available when HDMI input

signals are detected.

xSW L.P.F.

Lets you set the low pass filter of the

subwoofer when multi channel Linear PCM

signals are input via an HDMI connection. Set

the “SW L.P.F.” if your connected

subwoofer’s crossover frequency do not have

low pass filter.

• L.P.F. ON

The low pass filter of the subwoofer’s cut off

frequency is set to 120 Hz.

• L.P.F. OFF

The low pass filter of the subwoofer is

turned off.

Note

This parameter is only available when HDMI input

signals are detected.

xARC

Lets you enjoy the TV sound from the

speakers connected to the receiver via an

HDMI cable. For details, see “Enjoying the

TV sound via an HDMI cable” (page 51).

• ARC ON

Audio signal is input to the HDMI TV OUT

jack.

• ARC OFF

Audio signal is output through the TV

OPTICAL IN jack or TV AUDIO IN jack.

Note

This parameter is not available when

“CTRL.HDMI” is set to “CTRL OFF”.

You can customize the settings of the receiver.

xDIMMER

Lets you adjust the brightness of the display in

3 levels.

xSLEEP

Lets you set the Sleep Timer on the receiver to

turn off automatically at the specific time. For

details, see “Using the Sleep Timer” (page 37).

xAUTO.STBY

Lets you set the receiver switch to standby

mode automatically after 30 minutes when

you do not operate the receiver or when there

is no signals input to the receiver.

• STBY ON

Switches to standby mode after

approximately 30 minutes.

• STBY OFF

Does not switch to standby mode.

Notes

• This function does not work when TUNER input is

selected.

• If you use the auto standby mode and the Sleep

Timer at the same time, the Sleep Timer has

priority.

xNAME IN

Lets you set the name of inputs. For details,

see “Naming inputs” (page 36).

SYSTEM menu

66GB

Changing the input button

assignments

You can change the initial settings of the input

buttons to suit the components in your system.

For example, if you connect a Blu-ray disc

player to the DVD jack on the receiver, you

can set the DVD button on this remote to

control the Blu-ray disc player.

Note

You cannot change the remote assignments for

DMPORT, TUNER and TV input buttons.

1While holding down the input

button of which you want to

change the assignment, hold

down AV ?/1.

Example: While holding down DVD,

hold down AV ?/1.

2With the AV ?/1 button held,

release the input button you

selected in step 1.

Example: With the AV ?/1 button held,

release DVD.

3Referring to the following table,

press the corresponding

button for the category you

want, then release AV ?/1.

Example: Press 1, then release AV ?/1.

Now you can use the DVD button to

control the Blu-ray disc player.

Categories and the

corresponding buttons for BD,

DVD, SAT/CATV, VIDEO and

SA-CD/CD

a)For details on the BD1 or BD3 setting, refer to the

operating instructions supplied with the Blu-ray

disc player or Blu-ray disc recorder.

b)Sony DVD recorders are operated with a DVD1 or

DVD3 setting. For details, refer to the operating

instructions supplied with the DVD recorders.

c)Sony VCRs are operated with a VTR 2 or VTR 3

setting which corresponds to 8 mm and VHS

respectively.

d)RM-AAU071 only.

e)RM-AAU074 only.

Using the Remote

BD DVD SAT/

CATV

VIDEO SA-CD/

DMPORT TUNER

Assignable

Input

buttons

Numeric

buttons

AV ?/1

Categories Press

Blu-ray disc player

(command mode BD1)a)

Blu-ray disc recorder

(command mode BD3)a)

DVD player

(command mode DVD1)

DVD recorder

(command mode DVD3)b)

VCR (command mode VTR3)c) 5

CD player 6

DSS (Digital Satellite Receiver)d)/

Euro Digital Satellite Receivere)

67GB

Additional Information

Clearing all the contents

of the remote’s memory

RM-AAU071 only

While holding down MASTER VOL –, press

?/1 and INPUT.

RM-AAU074 only

While holding down 2 –, press ?/1 and

The remote is reset to its initial settings.

Glossary

xCinema Studio EX

A surround sound mode that can be regarded

as the compilation of Digital Cinema Sound

technology, delivers the sound of a dubbing

theater using three technologies: “Virtual

Multi Dimensions,” “Screen Depth Matching,”

and “Cinema Studio Reverberation.”

“Virtual Multi Dimensions,” the virtual

speaker technology, creates a virtual multi-

surround environment with actual speakers up

to 7.1 channels, and brings the surround sound

experience of a theater with the latest facilities

into your home.

“Screen Depth Matching” reproduces treble

attenuation, fullness, and depth of sound

usually created in a theater using sound

emission from behind the screen. This is then

added to the front and center channels.

“Cinema Studio Reverberation” reproduces

the sound characteristics of state-of-the-art

dubbing theaters and recording studios,

including Sony Pictures Entertainment’s

dubbing studios. There are three modes,

A/B/C, available according to the studio type.

xComponent video

A format for transmitting video signal

information consisting of three separate

signals: luminance Y, chrominance Pb, and

chrominance Pr. High quality pictures, such as

DVD video or HDTV pictures, are transmitted

more faithfully. The three jacks are color -

coded green, blue and red.

xComposite video

A standard format for transmitting video

signal information. The luminance signal Y

and chrominance signal C are combined and

transmitted together.

BD DVD SAT/

CATV

VIDEO SA-CD/

DMPORT TUNER

MASTER

VOL –/

2 –

INPUT/

?/1

Additional Information

continued

68GB

xDeep Colour (Deep Color)

Video signals for which the color depth of

signals passing through an HDMI jack have

been raised.

The number of colors that could be expressed

by 1 pixel was 24 bits (16,777,216 colors) with

the current HDMI jack. However, the number

of colors which can be expressed by 1 pixel

will be 36 bits, etc., when the receiver

corresponds to Deep Colour (Deep Color).

Since the gradation of the depth of a color can

be expressed more finely with more bits,

continuous color changes can be more

smoothly expressed.

xDigital Cinema Sound (DCS)

A unique sound reproduction technology for

home theater developed by Sony, in

cooperation with Sony Pictures Entertainment,

for enjoying the exciting and powerful sound

of movie theaters at home. With this “Digital

Cinema Sound” developed by integrating a

DSP (Digital Signal Processor) and measured

data, the ideal sound field intended by

filmmakers can be experienced at home.

xDolby Digital

Digital audio encoding/decoding technology

developed by Dolby Laboratories, Inc. It

consists of front (left/right), center, surround

(left/right) and subwoofer channels. It is a

designated audio standard for DVD video and

also known as 5.1 channel surround. Since

surround information is recorded and

reproduced in stereo, more realistic sound with

fuller presence is delivered than with Dolby

surround.

xDolby Pro Logic II

This technology converts 2 channel stereo

recorded audio into 5.1 channel for playback.

There is a MOVIE mode for movies and

MUSIC mode for stereo sources such as

music. Old movies encoded in the traditional

stereo format can be enhanced with 5.1

channel surround sound.

xDolby Surround (Dolby Pro

Logic)

Audio processing technology developed by

Dolby Laboratories, Inc. Center and mono

surround information is matrixed into two

stereo channels. When reproduced, audio is

decoded and output in 4 channel surround

sound. This is the most common audio

processing method for DVD video.

xDTS Digital Surround

Digital audio encoding/decoding technology

for theaters developed by DTS, Inc. It

compresses audio less than Dolby Digital,

delivering a higher quality sound

reproduction.

xHDMI (High-Definition

Multimedia Interface)

HDMI (High-Definition Multimedia

Interface) is an interface that supports both

video and audio on a single digital connection,

allowing you to enjoy high quality digital

picture and sound. The HDMI specification

supports HDCP (High-bandwidth Digital

Contents Protection), a copy protection

technology that incorporates coding

technology for digital video signals.

xL.F.E. (Low Frequency Effects)

Sound effects of low frequencies which are

output from a subwoofer in Dolby Digital or

DTS, etc. By adding a deep bass with a

frequency between 20 to 120 Hz, audio

becomes more powerful.

xPCM (Pulse Code Modulation)

A method of converting analog audio to digital

audio for easy enjoyment of digital sound.

69GB

Additional Information

xSampling frequency

To convert analog audio to digital, analog data

should be quantified. This process is called

sampling, and the number of times per second

the analog data is quantified is called the

sampling frequency. A standard music CD

stores data quantified at 44,100 times per

second, which is expressed as a sampling

frequency of 44.1 kHz. Generally speaking, a

higher sampling frequency means better sound

quality.

xx.v.Colour (x.v.Color)

x.v.Colour (x.v.Color) is a more familiar term

for the xvYCC standard proposed by Sony,

and is a trademark of Sony. xvYCC is an

international standard for color space in video.

This standard can express a wider colour range

than the currently used broadcast standard.

Precautions

On safety

Should any solid object or liquid fall into the

cabinet, unplug the receiver and have it

checked by qualified personnel before

operating it any further.

On power sources

• Before operating the receiver, check that the

operating voltage is identical with your local

power supply.

The operating voltage is indicated on the

nameplate on the back of the receiver.

• The unit is not disconnected from the AC

power source (mains) as long as it is

connected to the wall outlet, even if the unit

itself has been turned off.

• If you are not going to use the receiver for a

long time, be sure to disconnect the receiver

from the wall outlet. To disconnect the AC

power cord (mains lead), grasp the plug

itself; never pull the cord.

• The AC power cord (mains lead) must be

changed only at a qualified service shop.

• (Models of area code U2, CA2 only)

One blade of the plug is wider than the other

for the purpose of safety and will fit into the

wall outlet only one way. If you are unable to

insert the plug fully into the outlet, contact

your dealer.

On heat buildup

Although the receiver heats up during

operation, this is not a malfunction. If you

continuously use this receiver at a large

volume, the cabinet temperature of the top,

side and bottom rises considerably. To avoid

burning yourself, do not touch the cabinet.

continued

70GB

On placement

• Place the receiver in a location with adequate

ventilation to prevent heat buildup and

prolong the life of the receiver.

• Do not place the receiver near heat sources,

or in a place subject to direct sunlight,

excessive dust, or mechanical shock.

• Do not place anything on top of the cabinet

that might block the ventilation holes and

cause malfunctions.

• Do not place the receiver near equipment

such as a TV, VCR, or tape deck. (If the

receiver is being used in combination with a

TV, VCR, or tape deck, and is placed too

close to that equipment, noise may result,

and picture quality may suffer. This is

especially likely when using an indoor

antenna (aerial). Therefore, we recommend

using an outdoor antenna (aerial).)

• Use caution when placing the receiver on

surfaces that have been specially treated

(with wax, oil, polish, etc.) as staining or

discoloration of the surface may result.

On operation

Before connecting other components, be sure

to turn off and unplug the receiver.

On cleaning

Clean the cabinet, panel, and controls with a

soft cloth slightly moistened with a mild

detergent solution. Do not use any type of

abrasive pad, scouring powder, or solvent,

such as alcohol or benzine.

If you have any questions or problems

concerning your receiver, please consult your

nearest Sony dealer.

Troubleshooting

If you experience any of the following

difficulties while using the receiver, use this

troubleshooting guide to help you remedy the

problem. Should any problem persist, consult

your nearest Sony dealer.

There is no sound, no matter which

component is selected, or only a very

low-level sound is heard.

• Check that the speakers and components

are connected correctly and securely.

• Check that all speaker cords are connected

correctly.

• Check that both the receiver and all

components are turned on.

• Check that MASTER VOLUME is not set

to “VOL MIN”.

• Check that headphones are not connected.

• Press MUTING (RM-AAU071 only) or

(RM-AAU074 only) on the remote to

cancel the muting function.

• Check that you have selected the correct

component with the input buttons.

• The protective device on the receiver has

been activated. Turn off the receiver,

eliminate the short-circuit problem, and

turn on the power again.

There is no sound from a specific

component.

• Check that the component is connected

correctly to the audio input jacks for that

component.

• Check that the cord(s) used for the

connection is (are) fully inserted into the

jacks on both the receiver and the

component.

Audio

71GB

Additional Information

There is no sound from one of the front

speakers.

• Connect a pair of headphones to the

PHONES jack to verify that sound is

output from the headphones. If only one

channel is output from the headphones, the

component may not be connected to the

receiver correctly. Check that all the cords

are fully inserted into the jacks on both the

receiver and the component. If both

channels are output from the headphones,

the front speaker may not be connected to

the receiver correctly. Check the

connection of the front speaker which is

not outputting any sound.

• Make sure you have connected to both the

L and R jacks of an analog component, and

not only to either the L or R jack. Use an

audio cord (not supplied).

There is no sound from analog 2

channel sources.

• Check that the INPUT MODE is not set to

“AUTO” (page 52) and the DIGITAL

connection is not made for the selected

input.

• Check that the INPUT MODE is not set to

“AUTO” (page 52) and the “A. ASSIGN”

function is not used to reassign the audio

input of another source to the selected

input (page 53).

• Check that the INPUT MODE is not set to

“COAX” or “OPT”.

There is no sound from digital sources

(from COAXIAL or OPTICAL input jack).

• Check that the INPUT MODE is not set to

“ANALOG” (page 52).

• Check that the Analog Direct is not being

used.

• Check that the “A. ASSIGN” function is

not used to reassign the audio input of

another source to the selected input (page

53).

• Set “ARC” to “ARC OFF” when no sound

is output from TV OPTICAL IN jack

during TV input (page 58).

The source sound input to the HDMI

jack is not output from the receiver or

the TV speaker.

• Check the HDMI connection (page 23).

• You cannot listen to the Super Audio CD

by connecting HDMI.

• Depending on the playback component,

you may need to set up the component.

Refer to the operating instructions

supplied with each component.

• Be sure to use a High Speed HDMI cable

when you view images or listen to sound

during Deep Colour (Deep color)

transmission.

The left and right sounds are

unbalanced or reversed.

• Check that the speakers and components

are connected correctly and securely.

• Adjust the level parameters using the

LEVEL menu (page 56).

“- - - - - -” appears on the display.

• Check that your component is connected

to the COAXIAL or OPTICAL jack. If no

signal is input through the COAXIAL or

OPTICAL jack, “- - - - - -” appears on the

display and this is not a malfunction.

There is severe hum or noise.

• Check that the speakers and components

are connected securely.

• Check that the connecting cords are away

from a transformer or motor, and at least

3 meters (10 feet) away from a TV set or

fluorescent light.

• Move your audio components away from

the TV.

• The plugs and jacks are dirty. Wipe them

with a cloth slightly moistened with

alcohol.

continued

72GB

There is no sound, or only a very low-

level sound is heard from the center/

surround.

• Select a CINEMA STUDIO EX mode

(page 43).

• Check that the speaker settings are

appropriate using the AUTO CAL menu

or “PATTERN” in the SPEAKER menu.

Then check that sound is output from each

speaker correctly, using “T. TONE” in the

LEVEL menu.

• Adjust the speaker level (page 34).

There is no sound from the subwoofer.

• Check that the subwoofer is connected

correctly and securely.

• Make sure you have turned on your

subwoofer.

• Depending on the selected sound field, no

sound output from the subwoofer.

• Check “PATTERN” in the SPEAKER

menu (page 60).

The surround effect cannot be

obtained.

• Make sure you have selected the sound

field for movie or music mode (page 43).

• Sound fields do not function for signals

with a sampling frequency of more than

48 kHz.

Dolby Digital or DTS multi channel

sound is not reproduced.

• Check that the DVD, etc. you are playing

is recorded in Dolby Digital or DTS

format.

• When connecting the DVD player, etc., to

the digital input jacks of this receiver,

check the audio setting (the settings for the

audio output) of the connected component.

For example, when connecting the

“PlayStation 3”, set the BD/DVD audio

output format to “Bitstream” on the

“PlayStation 3”.

• Set “AUDIO.OUT” to “AMP” in the

HDMI menu.

Recording cannot be carried out.

• Check that the components are connected

correctly.

• Select the source component using the

input buttons.

There is no sound from the component

connected to the DIGITAL MEDIA

PORT adapter.

• Adjust the volume of this receiver.

• The DIGITAL MEDIA PORT adapter

and/or component is not connected

correctly. Turn off the receiver, then

reconnect the DIGITAL MEDIA PORT

adapter and/or component.

• Check the DIGITAL MEDIA PORT

adapter and/or component device to make

sure it supports this receiver.

There is no picture or an unclear

picture appears on the TV screen or

monitor.

• Select the appropriate input using the input

buttons.

• Set your TV to the appropriate input mode.

• Move your audio components away from

the TV.

• Depending on the DIGITAL MEDIA

PORT adapter, video output may not be

possible.

The source image input to the VIDEO IN

or COMPONENT VIDEO IN jacks is not

output from the TV.

• Check that your component is connected

to the MONITOR OUT jack (page 20).

• Make sure “CTRL.HDMI” is set to

“CTRL OFF” in HDMI menu (page 58).

The source image input to the HDMI

jack is not output from the TV.

• Check the HDMI connection (page 23).

• Depending on the playback component,

you may need to set up the component.

Refer to the operating instructions

supplied with each component.

• Be sure to use a High Speed HDMI cable

when you view images or listen to sound

during Deep Colour (Deep color)

transmission.

Video

73GB

Additional Information

Recording cannot be carried out.

• Check that the components are connected

correctly.

• Select the source component using the

input buttons (page 35).

The FM reception is poor.

• Use a 75-ohm coaxial cable (not supplied)

to connect the receiver to an outdoor FM

antenna (aerial) as shown below. If you

connect the receiver to an outdoor antenna

(aerial), ground it against lightning. To

prevent a gas explosion, do not connect the

ground (earth) wire to a gas pipe.

Radio stations cannot be tuned in.

• Check that the antennas (aerials) are

connected securely. Adjust the antennas

(aerials) and connect an external antenna

(aerial), if necessary.

• The signal strength of the stations is too

weak (when tuning in with automatic

tuning). Use direct tuning.

• Make sure you set the tuning interval

correctly (when tuning in AM stations

with direct tuning).

• No stations have been preset or the preset

stations have been cleared (when tuning

by scanning preset stations). Preset the

stations (page 40).

• Press DISPLAY repeatedly so that the

frequency appears on the display.

RDS does not work.*

• Make sure that you are tuned to an FM

RDS station.

• Select a stronger FM station.

The RDS information that you want

does not appear.*

• Contact the radio station and find out

whether they actually provide the service

in question. If so, the service may be

temporarily out of order.

* Models of area code ECE, CEK, AU1 only.

The Control for HDMI function does not

work.

• Check the HDMI connection (page 23).

• Make sure “CTRL.HDMI” is set to

“CTRL ON” in the HDMI menu (page

58).

• Make sure the connected component is

compatible with the Control for HDMI

function.

• Check the Control for HDMI settings on

the connected component. Refer to the

operating instructions of the connected

component.

• Repeat the procedures of “Preparing for

the “BRAVIA” Sync” if you change the

HDMI connection, connect/disconnect the

AC power cord (mains lead), or when

there is a power failure (page 47).

Tuner

ANTENNA

Receiver

To ground

Ground (earth)

wire (not supplied)

Outdoor FM antenna (aerial)

Control for HDMI

continued

74GB

No sound is output from the receiver

and TV speaker while using the System

Audio Control function.

• Make sure the TV is compatible with the

System Audio Control function.

• If the TV does not have System Audio

Control function, set the “AUDIO.OUT”

settings in HDMI menu to

– “TV+AMP” if you want to listen to the

sound from the TV speaker and receiver.

– “AMP” if you want to listen to the sound

from the receiver.

• When you connect the receiver to a video

component (projector, etc.), sound may

not be output from the receiver. In this

case, select “AMP”.

• If you cannot listen to the sound of a

component connected to the receiver

– Select appropriate input (BD, DVD,

SAT/CATV) when you want to watch a

program on a component connected via

HDMI connection to the receiver.

– Change the TV channel when you want

to watch a TV broadcast.

– Select the component or input you want

to watch when you watch a program on

the component connected to the TV.

Refer to the operating instructions of the

TV on this operation.

When the receiver is in standby mode,

there is no image or sound on the TV.

• When the receiver is in standby mode,

image and sound are output from the

HDMI component selected the last time

you turned off the receiver. If you are

enjoying other component, play the

component and perform the One-Touch

Play operation, or turn on the receiver to

select the HDMI component you want to

enjoy.

• Make sure “PASS.THRU” is set to “ON”

in the HDMI menu if you connect

components not compatible with the

“BRAVIA” Sync to the receiver (page 64).

The remote does not function.

• Point the remote at the remote sensor on

the receiver.

• Remove any obstacles in the path between

the remote and the receiver.

• Replace all the batteries in the remote with

new ones, if they are weak.

• Make sure you select the correct input on

the remote.

The receiver is turned off

automatically.

• The “AUTO.STBY” function is working

(page 58).

If there is a malfunction, the display shows a

message. You can check the condition of the

system by the message. See the following table

to solve the problem. If any problem persists,

consult your nearest Sony dealer.

If an error message appears while you perform

Auto Calibration, see “When error codes

appear” (page 32) to solve the problem.

PROTECTOR

Irregular current is output to the speakers, or

the upper panel of the receiver is covered

with something. The receiver will

automatically turn off after a few seconds.

Check the speaker connection and turn on

the power again.

Remote commander

Others

Error messages

75GB

Additional Information

Clearing the receiver’s memory may remedy

the problem (page 30). However, note that all

memorized settings will be reset to their initial

settings and you will have to readjust all

settings on the receiver.

Consult your nearest Sony dealer. Note that if

service personnel changes some parts during

repair, these parts may be retained.

Specifications

AUDIO POWER

SPECIFICATIONS

POWER OUTPUT AND TOTAL

HARMONIC DISTORTION:

(Models of area code U2 only)

With 8 ohm loads, both channels driven, from

20 – 20,000 Hz; rated 90 watts per channel

minimum RMS power, with no more than

0.09% total harmonic distortion from 250

milliwatts to rated output.

Amplifier section

Models of area code U21)

Minimum RMS Output Power

(8 ohms, 20 Hz – 20 kHz, THD 0.09%)

90 W + 90 W

Stereo Mode Output Power

(8 ohms, 1 kHz, THD 1%)

100 W + 100 W

Surround Mode Output Power2)

(8 ohms, 1 kHz, THD 10%)

130 W per channel

Models of area code CA2, ECE, CEK, AU11)

Minimum RMS Output Power

(8 ohms, 20 Hz – 20 kHz, THD 0.09%)

85 W + 85 W

Stereo Mode Output Power

(8 ohms, 1 kHz, THD 1%)

100 W + 100 W

Surround Mode Output Power2)

(8 ohms, 1 kHz, THD 10%)

130 W per channel

1)Measured under the following conditions:

2)Reference power output for front, center and

surround speakers. Depending on the sound field

settings and the source, there may be no sound

output.

If you are unable to remedy the

problem using the

troubleshooting guide

If the problem persist

Reference sections for clearing

the receiver’s memory

To clear See

All memorized settings page 30

Customized sound fields page 46

Area code Power requirements

U2, CA2 120 V AC, 60 Hz

ECE, CEK, AU1 230 V AC, 50 Hz

continued

76GB

Frequency response

Analog 10 Hz – 70 kHz,

+0.5/–2 dB (with sound

field and equalizer

bypassed)

Input

Analog Sensitivity: 500 mV/

50 kohms

S/N3): 96 dB

(A, 500 mV4))

Digital (Coaxial) Impedance: 75 ohms

S/N: 100 dB

(A, 20 kHz LPF)

Digital (Optical) S/N: 100 dB

(A, 20 kHz LPF)

Output (analog)

AUDIO OUT Voltage: 500 mV/

10 kohms

SUBWOOFER Voltage: 2 V/1 kohm

Equalizer

Gain levels ±6 dB, 1 dB step

3)INPUT SHORT (with sound field and equalizer

bypassed).

4)Weighted network, input level.

FM tuner section

Tuning range 87.5 MHz – 108.0 MHz

Antenna (aerial) FM wire antenna (aerial)

Antenna (aerial) terminals

75 ohms, unbalanced

Intermediate frequency

10.7 MHz

AM tuner section

Tuning range

Antenna (aerial) Loop antenna (aerial)

Intermediate frequency

450 kHz

Video section

Inputs/Outputs

Video: 1 Vp-p, 75 ohms

COMPONENT VIDEO:

Y: 1 Vp-p, 75 ohms

PB/CB: 0.7 Vp-p, 75 ohms

PR/CR: 0.7 Vp-p, 75 ohms

80 MHz HD Pass Through

General

Power requirements

Power output (DIGITAL MEDIA PORT)

DC OUT: 5V, 0.7A MAX

Power consumption

Dimensions (width/height/depth) (Approx.)

430 mm × 157.5 mm ×

322 mm (17 in × 6 1/4 in ×

12 3/4 in) including

projecting parts and

controls

Mass (Approx.) 7.4 kg (16 lb 6 oz)

Design and specifications are subject to

change without notice.

Area code Tuning scale

10 kHz step 9 kHz step

U2, CA2 530 kHz –

1,710 kHz

531 kHz –

1,710 kHz

ECE, CEK, AU1 – 531 kHz –

1,602 kHz

Area code Power requirements

U2, CA2 120 V AC, 60 Hz

ECE, CEK 230 V AC, 50/60 Hz

AU1 230 V AC, 50 Hz

Area code Power consumption

U2, CA2, ECE, CEK,

AU1

230 W

For details on the area code of the

component you are using, see page 5.

• Standby power consumption: 0.3 W

• Halogenated flame retardants are not used

in the certain printed wiring boards.

77GB

Additional Information

Index

Numerics

2 channel 42

5.1 channel 17

A.F.D. mode 43

Analog Direct 43

Audio Return Channel

(ARC) 51, 58

AUTO CALIBRATION 30

Blu-ray disc player

connecting 24

Cable TV tuner

connecting 24, 27

CD Player

connecting 22

Clear

memory 30

remote 67

DIGITAL MEDIA PORT

connecting 22

enjoying 55

Dolby Digital 68

DTS 68

DVD player

connecting 24, 26

DVD recorder

connecting 24, 26

Error messages 74

HDMI

connecting 23

HDMI pass Through 64

Initial setup 30

INPUT MODE 52

AUDIO 63

AUTO CAL 59

EQ 62

HDMI 64

LEVEL 59

SPEAKER 60

SURROUND 62

SYSTEM 65

TUNER 63

Movie mode 43

Music mode 43

Muting 35

Naming 36, 41

NIGHT MODE 46

One-Touch Play 48

“PlayStation 3”

connecting 24

RDS 42

Recording

onto a recording media

Remote commander 12

Satellite tuner

connecting 24, 27

Sleep Timer 37

Sound fields

resetting 46

selecting 42

Speaker pattern 56, 60

Speakers

connecting 19

installing 17

Super Audio CD Player

connecting 22

System Audio Control 49

System Power Off 50

Test Tone 34, 59

Theater/Theatre Mode Sync

Tuner

connecting 29

Tuning

automatically 38

directly 39

to preset stations 41

connecting 20

VCR

connecting 28

Sony Corporation Printed in Malaysia

(1)
