SERVICE MANUAL
.............. .........
MODEL DEST. MODEL DEST.
VPL-HS1 WORLD
VPL-HS1FP WORLD
RM-PJHS1 WORLD
SU-HS1 WORLD
IFU-HS1 WORLD
LCD VIDEO PROJECTOR
! WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
! WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
! AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
WARNING!!
AN INSULATED TRANSFORMER SHOULD BE USED DURING
ANY SERVICE TO AVOID POSSIBLE SHOCK HAZARD, BE-
CAUSE OF LIVE CHASSIS.
THE CHASSIS OF THIS RECEIVER IS DIRECTLY CONNECTED
TO THE AC POWER LINE.
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY A !!
!!
! MARK ON THE SCHEMATIC
DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE
CRITICAL TO SAFE OPERATION. REPLACE THESE COMPO-
NENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
ATTENTION!!
AFIN D’ÉVITER TOUT RISQUE D’ÉLECTROCUTION
PROVENANT D’UN CHÂSSIS SOUS TENSION, UN
TRANSFORMATEUR D’ISOLEMENT DOIT ETRE UTILISÉ LORS
DE TOUT DÉPANNAGE.
LE CHÂSSIS DE CE RÉCEPTEUR EST DIRECTEMENT
RACCORDÉ Á L’ALIMENTATION SECTEUR.
ATTENTION AUX COMPOSANTS RELATIFS Á LA
SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MAPQUE !!
!!
! SUR
LES SCHÉMAS DE PRINCIPE, LES VUES EXPLOSÉES ET LES
LISTES DE PIECES SONT D’UNE IMPORTANCE CRITIQUE
POUR LA SÉCURITÉ DU FONCTIONNEMENT. NE LES
REMPLACER QUE PAR DES COMPOSANTS SONY DONT LE
NUMÉRO DE PIÈCE EST INDIQUÉ DANS LE PRÉSENT MANUEL
OU DANS DES SUPPLÉMENTS PUBLIÉS PAR SONY.
NL
For the customers in the Netherlands
Voor de klanten in Nederland
•Gooi de batterij niet weg, maar lever hem
in als KCA.
1
VPL-HS1
Table of Contents
1. Operating Instructions
1-1. VPL-HS1 ..................................................................................................... 1-1
1-2. SU-HS1 .....................................................................................................1-25
1-3. IFU-HS1 ....................................................................................................1-27
2. Service Informations
2-1. Board Layout...............................................................................................2-1
2-2. Disassembly and Extension Boards ............................................................2-2
2-2-1. Hood Block Assy Removal ........................................................2-2
2-2-2. H Board Removal ....................................................................... 2-2
2-2-3. C Board Removal .......................................................................2-3
2-2-4. MS Board Removal ....................................................................2-3
2-2-5. BB and NF Boards Removal ......................................................2-4
2-2-6. BC Board Removal .................................................................... 2-4
2-2-7. Optics block assy Removal ........................................................ 2-5
2-2-8. Q Board Removal ....................................................................... 2-5
2-2-9. BA Board Removal ....................................................................2-6
2-2-10. NR Board Removal .................................................................... 2-6
2-2-11. F Board Removal .......................................................................2-7
2-2-12. Hi-voltage block and G Board Removal .................................... 2-7
2-2-13. Projection Lens Removal ...........................................................2-8
2-2-14. Prism Block Assy and In-polarizer Removal ............................. 2-8
2-2-15. Extension Boards and Extension Cables .................................... 2-9
2-2-16. Extension Boards and Extension Cables Connection ..............2-10
(1)BC Board .............................................................................2-10
(2)BB and MS Boards .............................................................. 2-10
(3)C Board................................................................................2-11
(4)BA Board ............................................................................. 2-11
(5)Q Board ...............................................................................2-12
2-3. Power cord ................................................................................................ 2-12
3. Electrical Adjustments
3-1. Preparations ................................................................................................. 3-1
3-1-1. Equipment Required...................................................................3-1
3-1-2. Optical Unit Adjustment ............................................................ 3-1
3-1-3. Factory Mode Setting .................................................................3-1
3-2. V-COM Adjustment .................................................................................... 3-1
3-3. Adjustment Item Initialize Data .................................................................. 3-2
3-4. Service Knowhow .......................................................................................3-6
2VPL-HS1
4. Semiconductors
IC ................................................................................................................. 4-1
Transistor.....................................................................................................4-3
Diode ...........................................................................................................4-4
5. Spare Parts
5-1. Notes on Repair Parts ..................................................................................5-1
5-2. Exploded Views ..........................................................................................5-2
5-2-1. Cover .......................................................................................... 5-2
5-2-2. Chassis 1..................................................................................... 5-3
5-2-3. Chassis 2..................................................................................... 5-4
5-2-4. Stand........................................................................................... 5-5
5-2-5. Optics 1 ......................................................................................5-6
5-2-6. Optics 2 ......................................................................................5-7
5-2-7. Stand(SU-HS1) .......................................................................... 5-8
5-3. Electrical Parts List ..................................................................................... 5-9
5-4. Packing Materials ......................................................................................5-31
5-5. IFU-HS1 .................................................................................................... 5-31
5-6. SU-HS1 .....................................................................................................5-31
6. Block Diagrams
Q Block .......................................................................................................6-1
BA Block.....................................................................................................6-2
BB Block ..................................................................................................... 6-3
BC and H Blocks.........................................................................................6-4
G Block .......................................................................................................6-5
MS Block ....................................................................................................6-6
C Block........................................................................................................6-7
3-4-1. After Replacing the Prism Block ...............................................3-6
3-4-2. After Replacing the Board ......................................................... 3-6
3-5. White Balance Adjustment on Servicing ....................................................3-7
3-5-1. Signal Level Adjustment ............................................................3-7
3-5-2. White Balance Adjustment ........................................................ 3-7
3-6. Memory .......................................................................................................3-9
3
VPL-HS1
7. Diagrams
7-1. Frame Schematic Diagram .......................................................................... 7-1
7-2. Schematic Diagrams and Printed Wiring Boards........................................7-3
Schematic Diagrams
BA .........................................................................................................7-5
BB .........................................................................................................7-9
BC .......................................................................................................7-14
C .......................................................................................................7-17
F .......................................................................................................7-24
G .......................................................................................................7-26
H .......................................................................................................7-28
Q .......................................................................................................7-31
NF .......................................................................................................7-35
NR .......................................................................................................7-35
MS .......................................................................................................7-37
Printed Wiring Boards
BA .........................................................................................................7-4
BB .........................................................................................................7-8
BC .......................................................................................................7-13
C .......................................................................................................7-15
F .......................................................................................................7-24
G .......................................................................................................7-25
H .......................................................................................................7-28
Q .......................................................................................................7-29
NF .......................................................................................................7-35
NR .......................................................................................................7-35
MS .......................................................................................................7-36
1-1
VPL-HS1
Section 1
Operating Instructions Reprinted from the
operating instructions

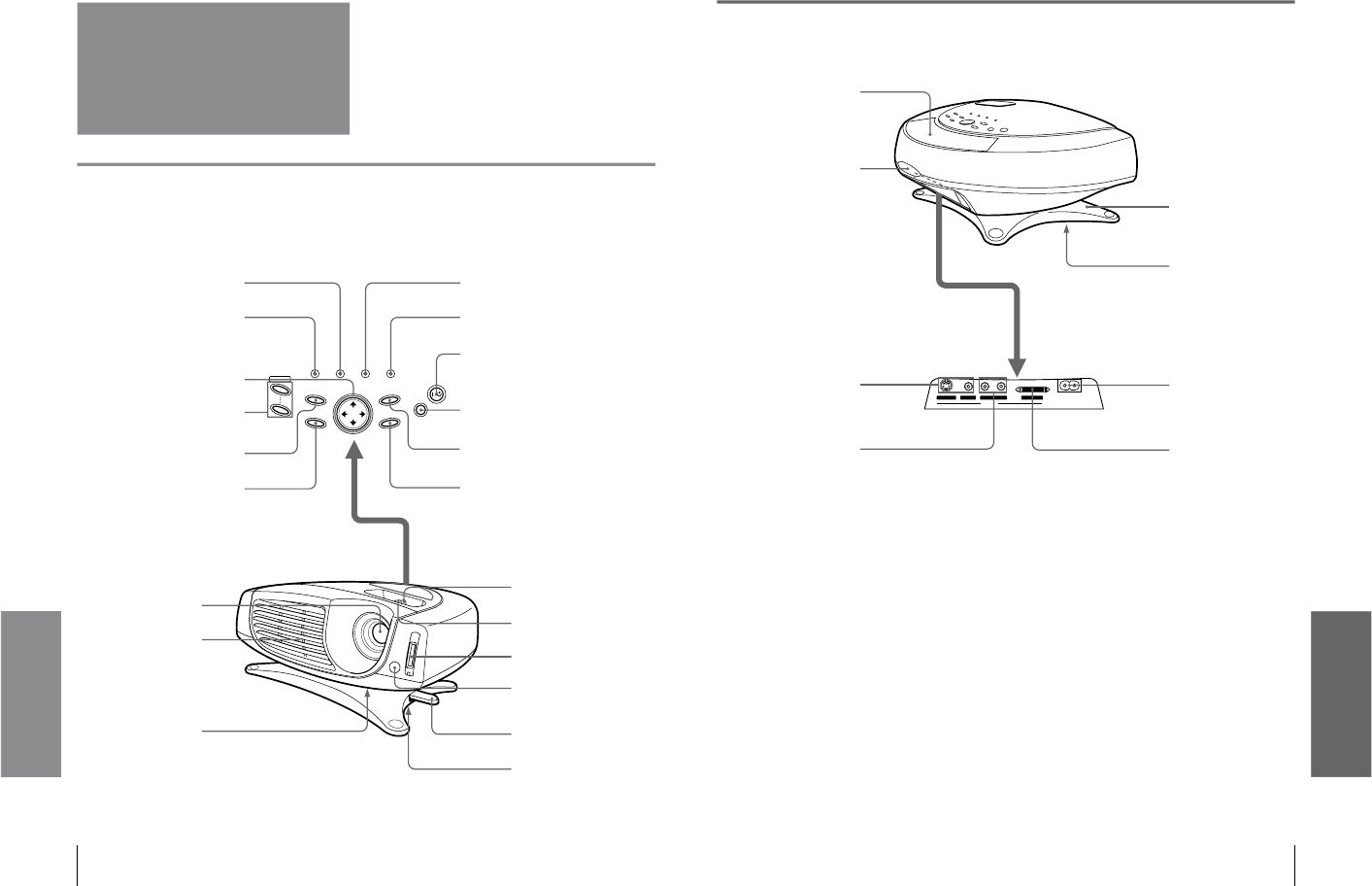

1-1. VPL-HS1
Operating Instructions
___________________________________
GB
Mode d’emploi _________________________________________
FR
Manual de instrucciones __________________________________
ES
4-085-330-11 (1)
LCD Video Projector
© 2001 Sony Corporation
VPL-HS1
1-2 VPL-HS1
GB
2
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.
For the customers in the USA
If you have any questions about this product, you may
contact:
Sony Electronics Inc.
Attn: Business Information Center (BIC)
12451 Gateway Boulevard
Ft. Myers, Florida 33913
Telephone No.: 800-686-7669
The number below is for FCC related matters only.
Declaration of Conformity
Trade Name: SONY
Model No.: VPL-HS1
Responsible Party: Sony Electronics Inc.
Address: 680 Kinderkamack Road, Oradell
NJ 07649 U.S.A.
Telephone No.: 201-930-6972
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
For the customers in Canada
This Class B digital apparatus complies with Canadian
ICES-003.
Voor de klanten in Nederland
WARNING
This symbol is intended to alert the user to
the presence of uninsulated "dangerous
voltage" within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in
the literature accompanying the
appliance.
Bij dit product zijn batterijen geleverd.
Wanneer deze leeg zijn, moet u ze niet
weggooien maar inleveren als KCA.
The socket-outlet should be installed near the
equipment and be easily accessible.
3GB
Table of Contents
Precautions ...............................................4
Connections and Preparations
Unpacking .................................................5
Step 1: Installing the Projector ..................5
Before Setting Up the Projector ..................... 6
Installing the Projector and a Screen .............. 7
Step 2: Connecting the Projector ..............8
Connecting with video equipment .................8
Connecting Using the Optional Signal Interface
Cables ........................................................ 8
Connecting Using the Optional Interface Unit 9
Step 3: Adjusting the Picture Size and
Position .....................................................9
Step 4: Selecting the Menu Language ....12
Projecting
Projecting the Picture on the Screen ...... 14
Selecting the Picture Viewing Mode ....... 16
Using the Menus
Operation through the Menus .................17
Menu Configurations ...............................18
Menu Items ................................................... 19
About the Preset Memory No. ..................... 21
Adjusting Picture Quality of a Signal from the
Computer ................................................. 21
Using a “Memory Stick”
About a “Memory Stick” ..........................22
Preparing for Viewing the Still Picture Stored
in a “Memory Stick” .................................23
Inserting a “Memory Stick” ..........................23
Using the MS (“Memory Stick”) Home .......24
Viewing Still Images in Sequence
— Slide Show ..........................................24
Displaying Index Pictures on the
Full Screen ..............................................26
Displaying the Index Menu ...........................27
Displaying a Full-Screen Picture .............27
Rotating a Still Picture .............................28
Protecting an Important Still Picture ........29
Projecting a Selected Picture When the
Power Is Turned On — Startup ...............30
Registering a Still Picture as the Startup
Picture ......................................................30
Setting the Startup Picture ............................31
Deleting a Still Picture .............................32
Initializing a “Memory Stick” ....................33
Others
Troubleshooting .......................................34
Replacing the Lamp ................................38
Replacing the Air Filter ............................39
Specifications ..........................................40
Location of Controls ................................44
Front ..............................................................44
Rear ...............................................................45
Remote control ..............................................46
Index .......................................................47
1-3
VPL-HS1
5 GB
Unpacking / Step 1: Installing the Projector
Connections and
Preparations
Connections and Preparations
This section describes how to install the projector and
screen, how to connect the equipment from which
you want to project the picture, etc.

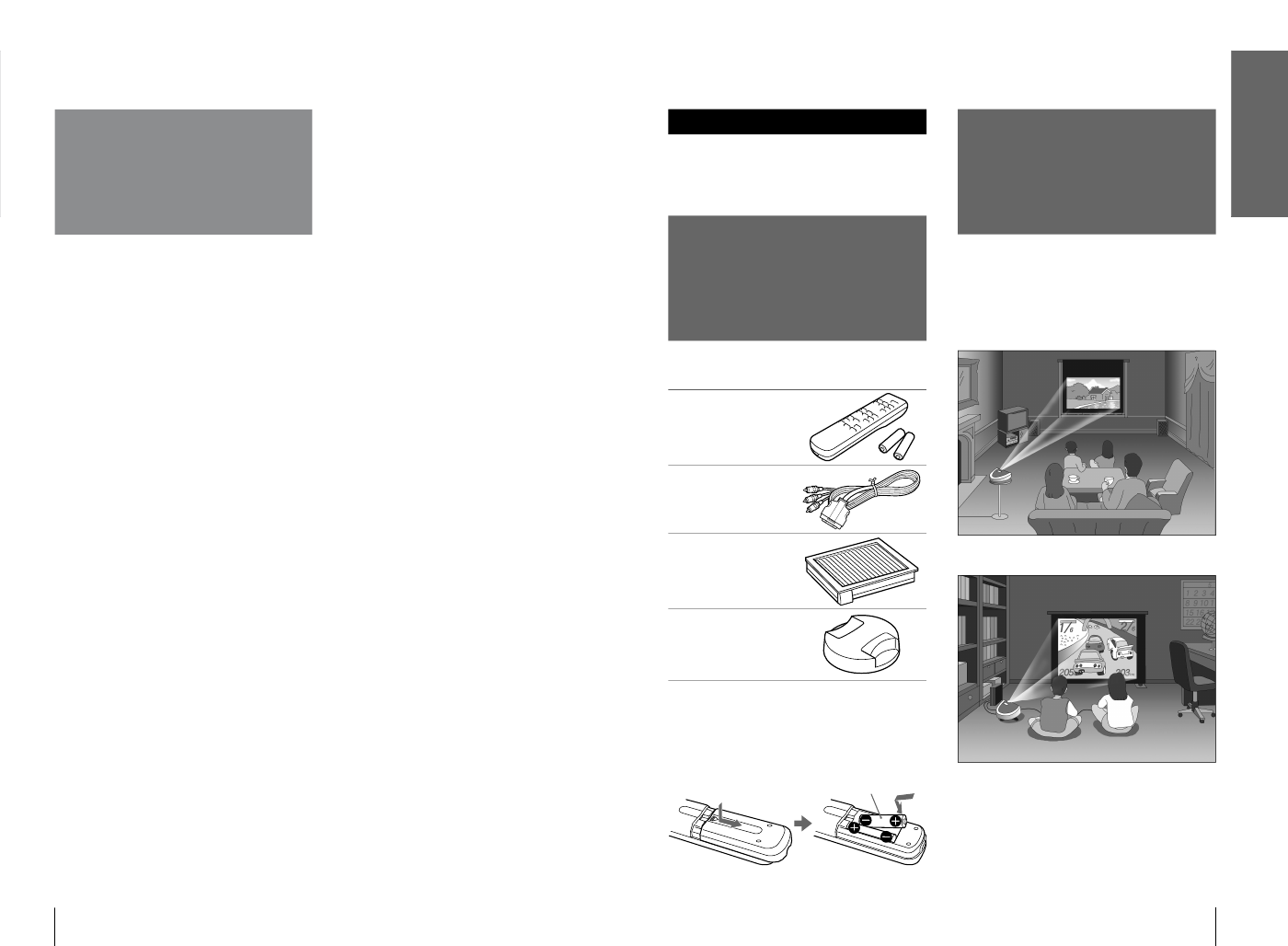

Unpacking
Check the carton to make sure it contains the
following items:
Remote control (1),
Size AA (R6)
batteries (2)
Signal interface
cable (1)
Air filter (for
replacement) (1)
Lens cap (1)
AC power cord (1)
Operating Instructions (1)
Inserting the batteries into the remote
control
Step 1: Installing
the Projector
You can obtain good picture quality even when you
project the picture from the side of the screen (“SIDE
SHOT”) (1 page 7). You can enjoy home
entertainment with this projector in various situations.
Enjoying home theater
Enjoying video games on a large screen
Insert the batteries E side first
as shown in the illustration.
1-4 VPL-HS1
GB 6Step 1: Installing the Projector
Connections and
Preparations
Watching sports, etc. with your company
Viewing images, recorded by a digital
camera and stored in the “Memory Stick,” on
a large screen.
Before Setting Up the
Projector
Do not place the projector in the following situations,
which may cause malfunction or damage to the
projector.
Poorly ventilated
Highly heated and humid
Very dusty and extremely smoky
Do not use the projector under the following
conditions.
Tilting the unit out of the range of the
adjuster setting
Blocking the ventilation holes
Placing the projector without the adjuster
Ventilation
holes
(exhaust) Ventilation
holes
(intake)
7
GB
Step 1: Installing the Projector
Connections and
Preparations
Installing the Projector and a
Screen

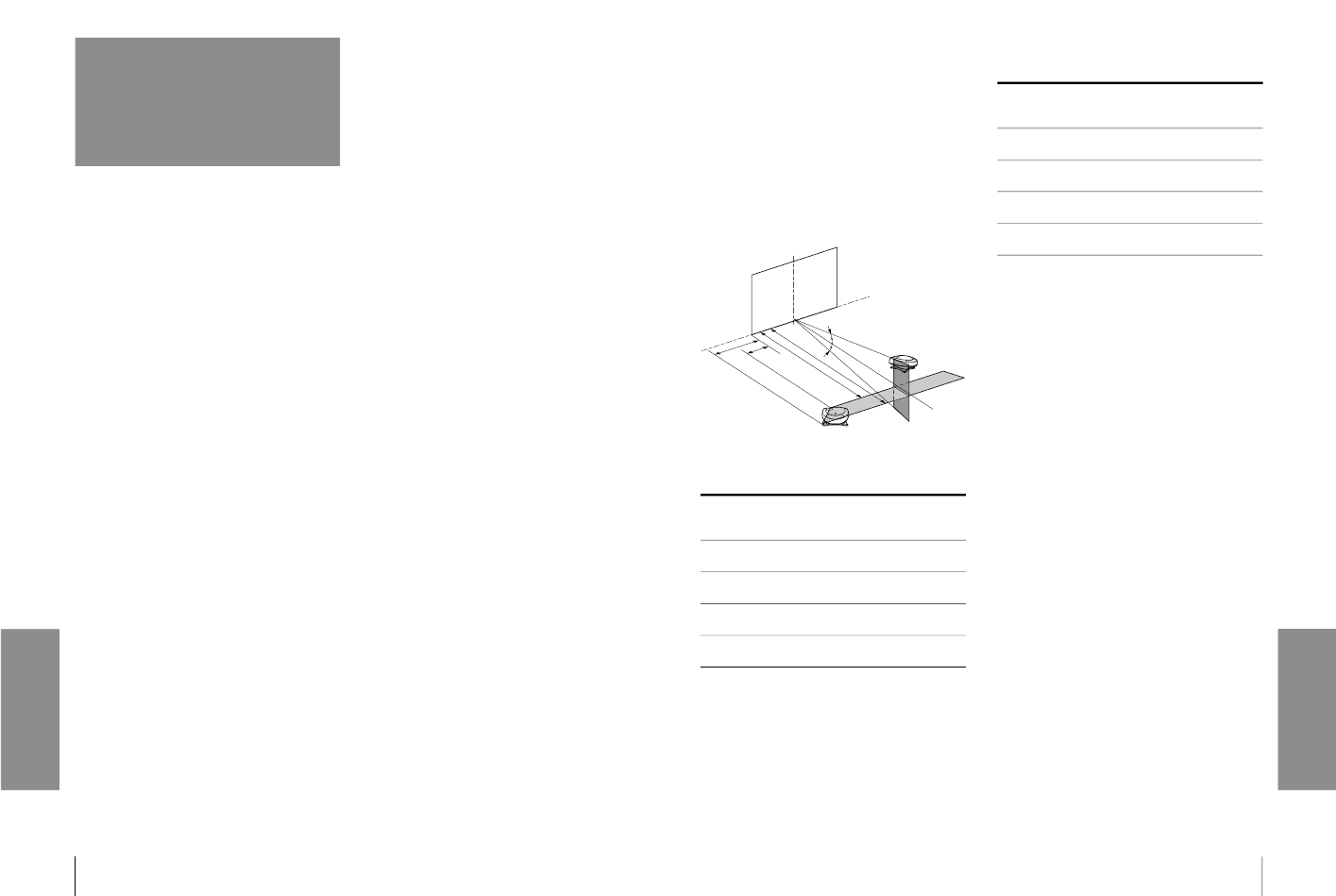

The installation distance between the projector and
screen varies depending on the size of the screen.
1
Determine the installation
position of the projector and
screen.
When projecting from the side (SIDE
SHOT)
Position the projector with the lens end come
within the area in the illustration, by using
the values a, b, c and d in the table below as a
guide. Align the bottom of the adjuster of the
projector with the bottom end of the screen.
When projecting from the center
You can change the projection angle using the
adjuster.
Position the projector with the lens end come
within the area in the illustration, by using
the values c and d in the table below as a guide.
a: Maximum horizontal distance between the
right/left end of the screen and the center of
the projector’s lens when the projector is
placed on the side (for “SIDE SHOT”)
b: Horizontal distance between the right/left
end of the screen and the center of the lens
when the projector is placed on the side (for
“SIDE SHOT”)
c: Maximum projection distance between the
screen and the center of the projector’s lens
when you use the horizontal distance a, or
when you place the projector with the center
of the screen and the center of the lens
aligned.
d: Minimum projection distance between the
screen and the center of the lens when you
use the horizontal distance b, or when you
place the projector with the center of the
screen and the center of the lens aligned.
Unit: m (feet)
When you project a 720p format signal,
computer’s signal, etc.
The table shows the distances when projecting the
conventional video signals. Distances used for
projecting a 720p format signal, computer’s signal
and data stored in the “Memory Stick” are shown on
page 41.
2
Project an image on the screen
and adjust the picture so that it
fits the screen.
To project an image, connect video equipment to
the projector. (1 page 8)
Screen
Projector
abc
d10°
10°
Screen
size
(inches)
40 60 80 100 120 150
a0.6
(2.0) 0.9
(3.0) 1.2
(3.9) 1.5
(4.9) 1.8
(5.9) 2.3
(7.5)
b0.4
(1.3) 0.6
(2.0) 0.8
(2.6) 1.0
(3.3) 1.2
(3.9) 1.6
(5.2)
c1.7
(5.6) 2.7
(8.9) 3.6
(11.8) 4.5
(14.8) 5.4
(17.7) 6.8
(22.3)
d1.6
(5.2) 2.5
(8.2) 3.3
(10.8) 4.2
(13.8) 5.0
(16.4) 6.3
(20.7)
1-5
VPL-HS1
GB 8Step 2: Connecting the Projector
Connections and
Preparations
Step 2:
Connecting the
Projector
When making connections, be sure to do the
following:
•Turn off all equipment before making any
connections.
•Use the proper cables for each connection.
•Insert the cable plugs properly; plugs that are not
fully inserted often generate noise. When pulling
out a cable, be sure to pull it out from the plug, not
the cable itself.
•When you connect your projector to PJ MULTI
INPUT, select the input signal with the INPUT-A
setting in the SET SETTING menu. (1 page
20)

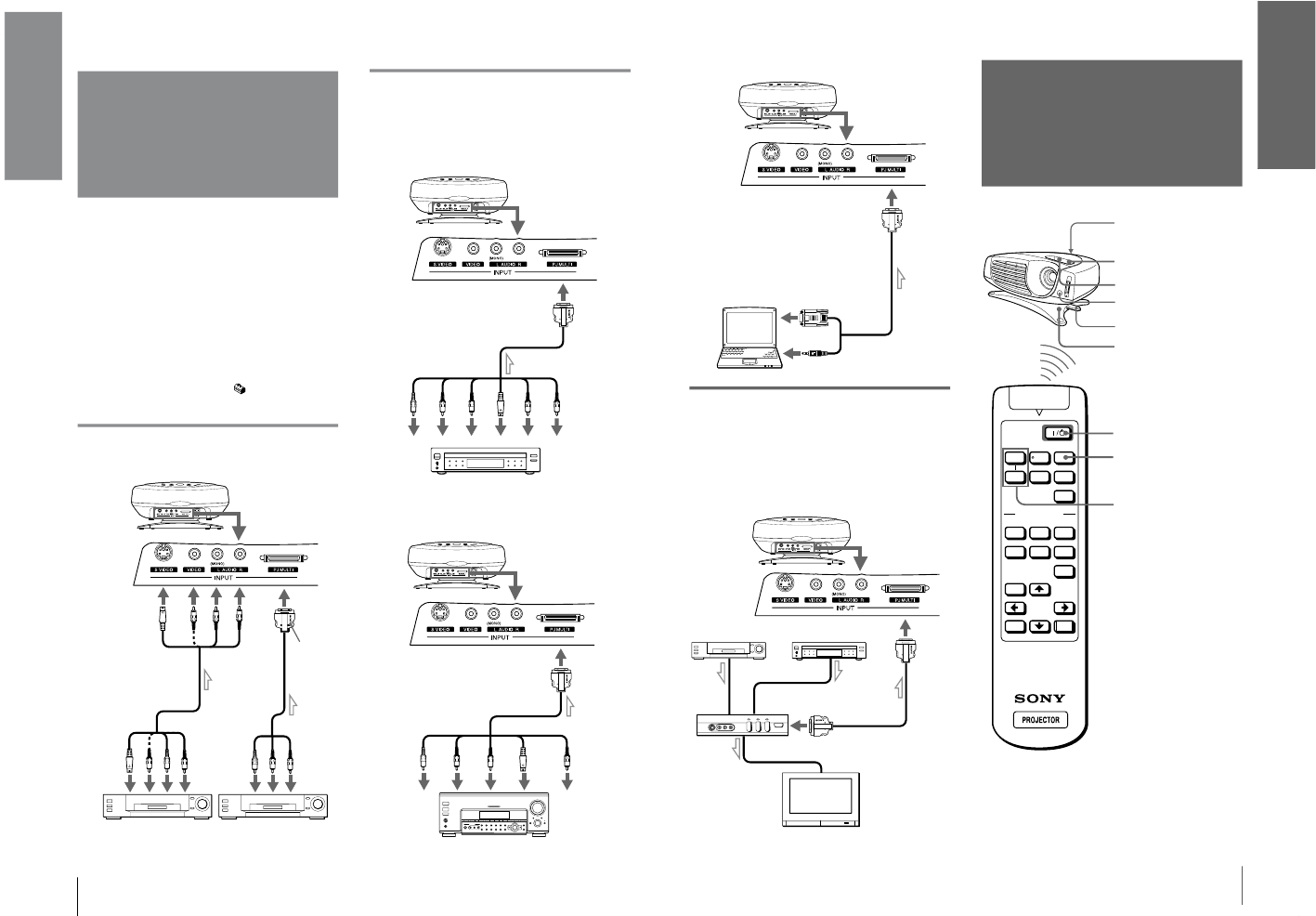

Connecting with video
equipment
Connecting Using the Optional
Signal Interface Cables

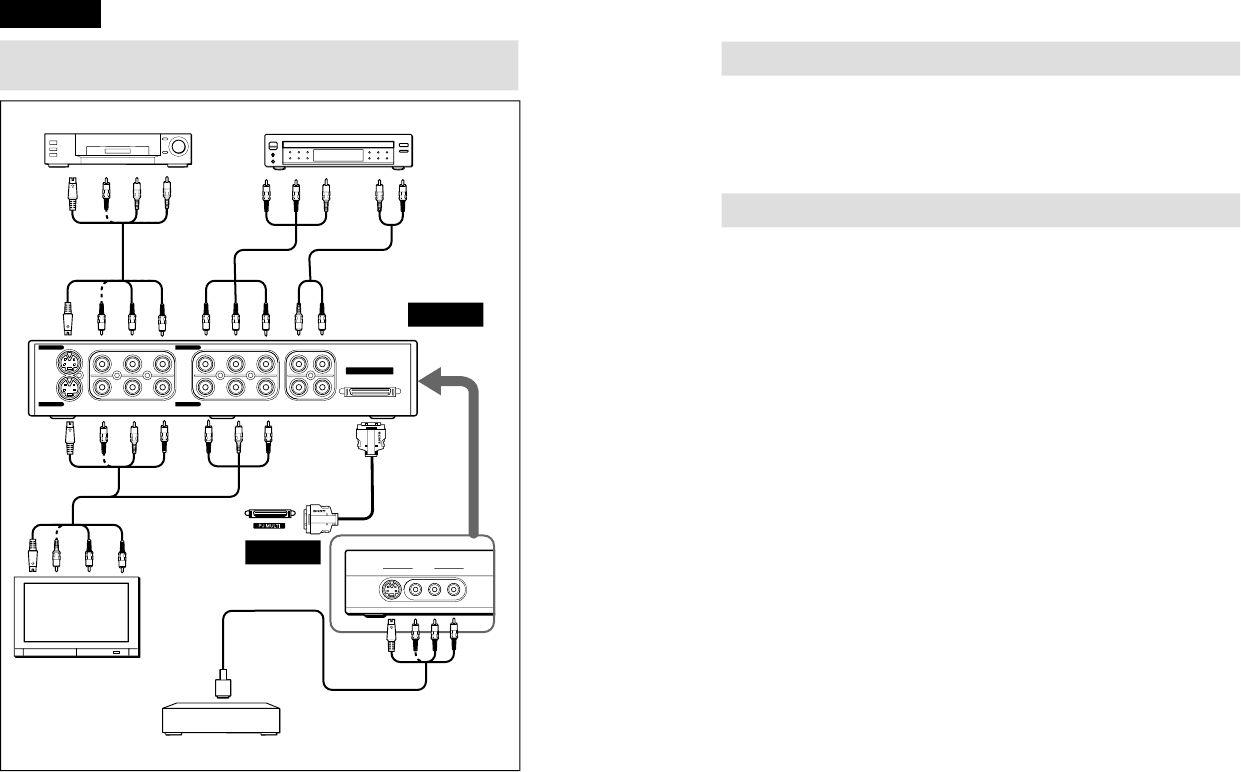

To connect with a DVD player with
component video connectors/digital
BS tuner
To connect with an AV amplifier
Rear of the projector
S video or video/
audio cable
(not supplied)
to S
video or
video/
audio
output
Signal
interface
cable
(supplied)
to video/
audio
output
Video equipment Video equipment
with
SONY
logo
upside
Signal interface cable SIC-HS20
(not supplied)
DVD player with component video
connectors, digital BS tuner, etc.
to audio
output
Rear of the projector
to RGB/component
output
YC
B
(P
B
)C
R
(P
R
)S
Video Audio
R
Audio L
Signal interface cable SIC-HS40
(not supplied)
Rear of the projector
to component
video output
AV amplifier
YC
B
(P
B
)C
R
(P
R
)Video
S
Video
to video output
9 GB
Step 3: Adjusting the Picture Size and Position
Connections and
Preparations
To connect with a computer
Connecting Using the Optional
Interface Unit
Using the optional interface unit allows you to
connect various video equipment, and to select the
output to the projector or TV from the connected
equipment simply by switching the select switch on
the interface unit.
Step 3: Adjusting
the Picture Size
and Position
Signal interface cable
SIC-HS30 (not supplied)
to monitor output
to audio output
Computer
Rear of the projector
to PJ multi
output
Rear of the projector
PJ multi cable
(supplied with
the IFU-HS1)
Interface unit
IFU-HS1
VCR, etc. DVD player, etc.
TV
VOLUME
MS SLIDE
DYNAMIC STANDARD LIVING
USER 1
MENU
ENTER
RESET
USER 2 USER 3
OFF
APA
INPUT
VIDEO MEMORY
+
–
SIDE
SHOT
+
–
Rear remote
control detector
Front remote control
detector
2
4
6
5,8
6
7
Adjuster stopper
1-6 VPL-HS1
GB 10 Step 3: Adjusting the Picture Size and Position
Connections and
Preparations
1
Plug the AC power cord into a
wall outlet.
The ON/STANDBY indicator lights in red and
the projector goes into standby mode.
2
Press the @/1 (on/standby)
switch to turn on the projector.
The ON/STANDBY indicator lights in green.
3
Turn on the equipment
connected to the projector.
Refer to the operating instructions of the
connected equipment.
4
Press INPUT to project the
picture on the screen.
Each time you press the button, the input
indication changes. (1 page 15)
5
Adjust the focus roughly using
the focus lever.
6
Adjust the size and position of
the picture to fit the screen
using the zoom lever and
adjuster.
Move the zoom lever to adjust the picture size.
Use the adjuster to adjust the picture position.
Hold down and slide the adjuster stopper to the
right, move the projector, then replace the
stopper.
You can move the projector vertically and
horizontally within the following ranges:
ON/
STANDBY
Lights in red.
ON/
STANDBY
Lights in green.
INPUT
VIDEO 1
Focus lever
Zoom lever
Adjuster stopper
Up to 20° each for horizontal angle
Up to 10° each for
vertical angle Up to 2° each for
tilting angle
11 GB
Step 3: Adjusting the Picture Size and Position
Connections and
Preparations
7
Adjust to correct the
trapezoidal distortion.
When projecting from the side
Corrects the horizontal distortion.
Press SIDE SHOT + or – so that the top edge of
the picture becomes parallel to the bottom edge.
If the left side is longer than the right side, press
SIDE SHOT –.
Use SIDE SHOT + if the right side is longer.
To fine-adjust the distortion, press M or m.
When projecting from the center
Corrects the vertical distortion.
Use the menu. Select V (vertical) with the
KEYSTONE DIR setting in the INSTALL
SETTING menu. Next, adjust with the
DIGIT KEYSTONE setting so that the left side
of the picture becomes parallel to the right side.
(1 page 20)
If the top edge of the picture is longer than the
bottom edge, set to a plus value.
If the bottom edge is longer than the top edge,
set to a minus value.
8
Adjust the focus again using
the focus lever.
When projecting from
the center
When projecting from
the side
Screen
If you position the projector
below the bottom of the
screen, adjust so that the
bottom edge of the picture
fits the bottom edge of the
screen. For the projector
positioned above the
bottom of the screen,
adjust so that the top edge
of the picture fits the top
edge of the screen.
If you position the
projector on the left side
of the screen, adjust so
that the left side of the
picture fits the left side
of the screen. For the
projector positioned on
the right side, adjust so
that the right side of the
picture fits the right side
of the screen.
Screen
1-7
VPL-HS1
GB 12 Step 4: Selecting the Menu Language
Connections and
Preparations
Step 4:
Selecting the
Menu Language
You can select one of nine languages for displaying
the menu and other on-screen displays. The factory
default setting is English.
1
Plug the AC power cord into a
wall outlet.
The ON/STANDBY indicator lights in red and
the projector goes into standby mode.
2
Press the @/1 (on/standby)
switch to turn on the projector.
The ON/STANDBY indicator lights in green.
3
Press MENU.
The menu appears.
The menu presently selected is shown as a
yellow button.
4
Press M or m to select the SET
SETTING menu, and press
, or ENTER.
The selected menu appears.
SIDE
SHOT VOLUME
MS SLIDE
DYNAMIC STANDARD LIVING
USER 1
MENU
ENTER
RESET
USER 2 USER 3
OFF
APA
INPUT
VIDEO MEMORY
+
–
+
–
3
2
4,5,6
PICTURE CTRL
CONTRAST:
BRIGHT:
COLOR:
HUE:
SHARP:
D.PICTURE:
COLOR TEMP:
COLOR SYS:
VOLUME:
VIDEO 1
80
50
50
50
50
OFF
HIGH
AUTO
30
MENU
ENTER
SET SETTING
STATU S :
INPUT-A:
LANGUAGE
:
POWER SAVING
:
VIDEO 1
ON
COMPONENT
ENGLISH
OFF
or
13
GB
Step 4: Selecting the Menu Language
Connections and
Preparations
5
Press M or m to select
LANGUAGE, and press , or
ENTER.
6
Press M or m to select a
language, and press < or
ENTER.
The menu changes to the selected language.
To clear the menu
Press MENU.
ENTER
SET SETTING
STATU S :
INPUT-A:
LANGUAGE
:
POWER SAVING
:
VIDEO 1
ON
COMPONENT
ENGLISH
OFF
or
ENTER
or
1-8 VPL-HS1
GB 14 Projecting the Picture on the Screen
Projecting
Projecting
This section describes how to operate the projector to
view the picture from the equipment connected to the
projector. It also describes how to adjust the quality of
the picture to suit your taste.
Projecting the
Picture on the
Screen
1
Plug the AC power cord into a
wall outlet.
The ON/STANDBY indicator lights in red and
the projector goes into standby mode.
2
Press the @/1 (on/standby)
switch to turn on the projector.
The ON/STANDBY indicator lights in green.
3
Turn on the equipment
connected to the projector.
Refer to the operating instructions of the
connected equipment.
4
Press INPUT repeatedly to
select the input you want to
project on the screen.
Display the indication of the input you want.
Example:To view the picture from the video
equipment connected to the VIDEO
INPUT jack.
VOLUME
MS SLIDE
DYNAMIC STANDARD LIVING
USER 1
MENU
ENTER
RESET
USER 2 USER 3
OFF
APA
INPUT
VIDEO MEMORY
+
–
SIDE
SHOT
+
–
4
2
7
ON/
STANDBY
Lights in red.
ON/
STANDBY
Lights in green.
INPUT
VIDEO 1
15 GB
Projecting the Picture on the Screen
Projecting
*Set the INPUT-A setting in the SET SETTING menu
according to the input signal. (1 page 20)
5
Move the zoom lever to adjust
the size of the picture.
6
Move the focus lever to adjust
the focus.
Adjust to obtain sharp focus.
7
Press VOLUME + or – to adjust
the volume.
To turn off the power
1 Press the @/1 (on/standby) switch.
A message “Power OFF?” appears on the screen.
2 Press the @/1 switch again.
The ON/STANDBY indicator flashes in green and
the fan continues to run to reduce the internal heat.
Also, the ON/STANDBY indicator flashes quickly
during which you will not be able to light up the
ON/STANDBY indicator with the @/1 switch.
3 Unplug the AC power cord from the wall
outlet after the fan stops running and the
ON/STANDBY indicator lights in red.
You can turn off the projector by holding the @/1 (on/
standby) switch for about one second, instead of
performing the above steps.
To view the picture
from Press
INPUT to
display
Sound is
heard from the
equipment
connected to
Video equipment
connected to VIDEO
INPUT on the projector
VIDEO 1 AUDIO INPUT
Video equipment
connected to S VIDEO
INPUT on the projector
S-VIDEO 1 AUDIO INPUT
RGB/component
equipment connected to
PJ MULTI INPUT via
the optional signal
interface cable or the
interface unit
INPUT A
*
PJ MULTI
INPUT
Video equipment
connected to PJ MULTI
INPUT via the optional
signal interface cable or
the interface unit
VIDEO 2 PJ MULTI
INPUT
Video equipment
equipped with S VIDEO
connected to PJ MULTI
INPUT via the optional
signal interface cable or
the interface unit
S-VIDEO 2 PJ MULTI
INPUT
“Memory Stick”
inserted into the
“Memory Stick” slot
MS AUDIO INPUT
Zoom lever
Focus lever
VOLUME
+
–
1-9
VPL-HS1
GB 16 Selecting the Picture Viewing Mode
Projecting
Selecting the
Picture Viewing
Mode
You can select the picture viewing mode that best
suits the type of program or room condition.
Press one of the VIDEO MEMORY
buttons (DYNAMIC, STANDARD,
LIVING and USER 1, 2 and 3).
DYNAMIC
Select for enhanced picture contrast and sharpness.
STANDARD
Recommended for normal viewing condition in your
home.
Also select to reduce roughness when viewing the
picture with DYNAMIC.
LIVING
Select for soft, film-like picture.
USER 1, 2 and 3
You can adjust the quality of the picture to suit your
taste and store the settings into the selected memory
of the projector. Press one of the USER 1, 2 and 3
buttons, then adjust the picture by using the menus.
The settings are stored, and you can view the picture
with the adjusted picture quality by pressing the
button. (1 page 20)
OFF
Select for the setting stored in each input that can be
selected with the INPUT button, or each input signal.
Tip
You can select the picture viewing mode using the VIDEO
MEMORY button on the projector. Each press of the button
selects the above item.
SIDE
SHOT VOLUME
MS SLIDE
DYNAMIC STANDARD LIVING
USER 1
MENU
ENTER
RESET
USER 2 USER 3
OFF
APA
INPUT
VIDEO MEMORY
+
–
+
–
VIDEO MEMORY buttons
DYNAMIC
STANDARD
LIVING
USER 1, 2 and 3
OFF
17 GB
Operation through the Menus
Using the Menus
Using the Menus
This section describes how to make various
adjustments and settings using the menus.
Operation through
the Menus
1
Press MENU.
The menu appears.
The menu presently selected is shown as a
yellow button.
2
Press M or m to select a menu,
and press , or ENTER.
The selected menu appears.
3
Select an item you want to
adjust.
Use M or m to select an item, and press , or
ENTER.
VOLUME
MS SLIDE
DYNAMIC STANDARD LIVING
USER 1
MENU
ENTER
RESET
USER 2 USER 3
OFF
APA
INPUT
VIDEO MEMORY
+
–
SIDE
SHOT
+
–
1
RESET button
2,3,4
PICTURE CTRL
CONTRAST:
BRIGHT:
COLOR:
HUE:
SHARP:
D.PICTURE:
COLOR TEMP:
COLOR SYS:
VOLUME:
VIDEO 1
80
50
50
50
50
OFF
HIGH
AUTO
30
MENU
SET SETTING
STATUS:
INPUT-A:
LANGUAGE
:
POWER SAVING
:
VIDEO 1
ON
COMPONENT
ENGLISH
OFF
ENTER
Settings
Items
Menus
or
ENTER
SET SETTING
STATUS:
INPUT-A:
LANGUAGE
:
POWER SAVING
:
VIDEO 1
ON
COMPONENT
ENGLISH
OFF
or
1-10 VPL-HS1
19 GB
Menu Configurations
Using the Menus
Menu Items
Adjustable items are limited according to the input signals. Items that cannot be adjusted are not displayed in the
menu. (1 page 42)
Menu Item Description
CTRL CONTRAST The higher the setting, the greater the contrast. The lower the setting, the lower
the cotrast.
BRIGHT (brightness) The higher the setting, the brighter the picture. The lower the setting, the darker
the picture.
COLOR The higher the setting, the greater the intensity. The lower the setting, the lower
the intensity.
HUE The higher the setting, the more greenish the picture becomes. The lower the
setting, the more purplish the picture becomes.
SHARP (sharpness) The higher the setting, the sharper the picture. The lower the setting, the softer
the picture.
RGB ENHANCER Adjusts the picture sharpness when computer signals are input.
D. (Dynamic)
PICTURE ON: Emphasizes the black color.
OFF: Reproduces the dark portions of the picture accurately, in accordance
with the source signal.
GAMMA MODE GRAPHICS: Reproduces the photos in natural tones.
TEXT: Contrasts black and white. Suitable for images that contain lots of text.
COLOR TEMP HIGH: Gives the white colors a blue tint.
MIDDLE: Gives the white colors a neutral tint.
LOW: Gives the white colors a red tint.
COLOR SYS (System) Select the color system of the input signal.
AUTO: NTSC
3.58
, PAL, SECAM and NTSC
4..43
(switched automatically).
Normally, set to this position.
PAL-M/N: PAL-M/PAL-N and NTSC
3.58
(switched automatically).
When the PAL-M, PAL-N or NTSC
3.58
signal is input with COLOR SYS
set to AUTO, set to this position if the picture is distorted or colorless.
VOLUME Adjusts the volume. It can be adjusted for each of the inputs selected with the
INPUT button.
INPUT
SETTING
DOT PHASE When a signal from a computer is input, adjusts the picture for clearer picture
after the picture is adjusted by pressing the APA button.
SIZE H When a signal from a computer is input, adjusts the horizontal size of the
picture. The higher the setting, the wider the picture. The lower the setting, the
narrower the picture.
SHIFT As the setting for H (horizontal) increases, the picture moves to the right, and as
the setting decreases, the picture moves to the left. Use < or , to adjust the
horizontal position.
As the setting for V (vertical) increases, the picture moves up, and as the setting
decreases, the picture moves down. Use M or m to adjust the vertical position.
SCAN CONV (Scan
converter) ON: Displays a computer signal according to the screen size. The picture will
be slightly softer.
OFF: Displays a computer signal as it is input. The picture will be clear but the
picture size will be smaller.
Note
When SVGA or XGA signal is input, this item will not be displayed.
ASPECT 4:3: Select when the 4:3 aspect ratio picture is input.
16:9: Select when the 16:9 aspect ratio picture (sqeezed) is input from
equipment such as a DVD player.
GB 18 Menu Configurations
Using the Menus
4
Make the setting or adjustment
on an item.
When changing the adjustment level
To increase the value, press M or ,.
To decrease the value, press m or <.
Press ENTER to restore the original screen.
When changing the setting
Press M or m to change the setting.
Press < or ENTER to restore the original
screen.
To clear the menu
Press MENU.
To reset items that have been
adjusted
Select the item you want to reset, then press RESET.
“Complete!” appears on the screen and the setting is
reset to its factory preset value.
Items that can be reset are:
•CONTRAST, BRIGHT, COLOR, HUE, SHARP
and RGB ENHANCER in the PICTURE CTRL
menu
•DOT PHASE, SIZE H and SHIFT in the INPUT
SETTING menu
•DIGIT KEYSTONE in the INSTALL SETTING
menu
Menu
Configurations

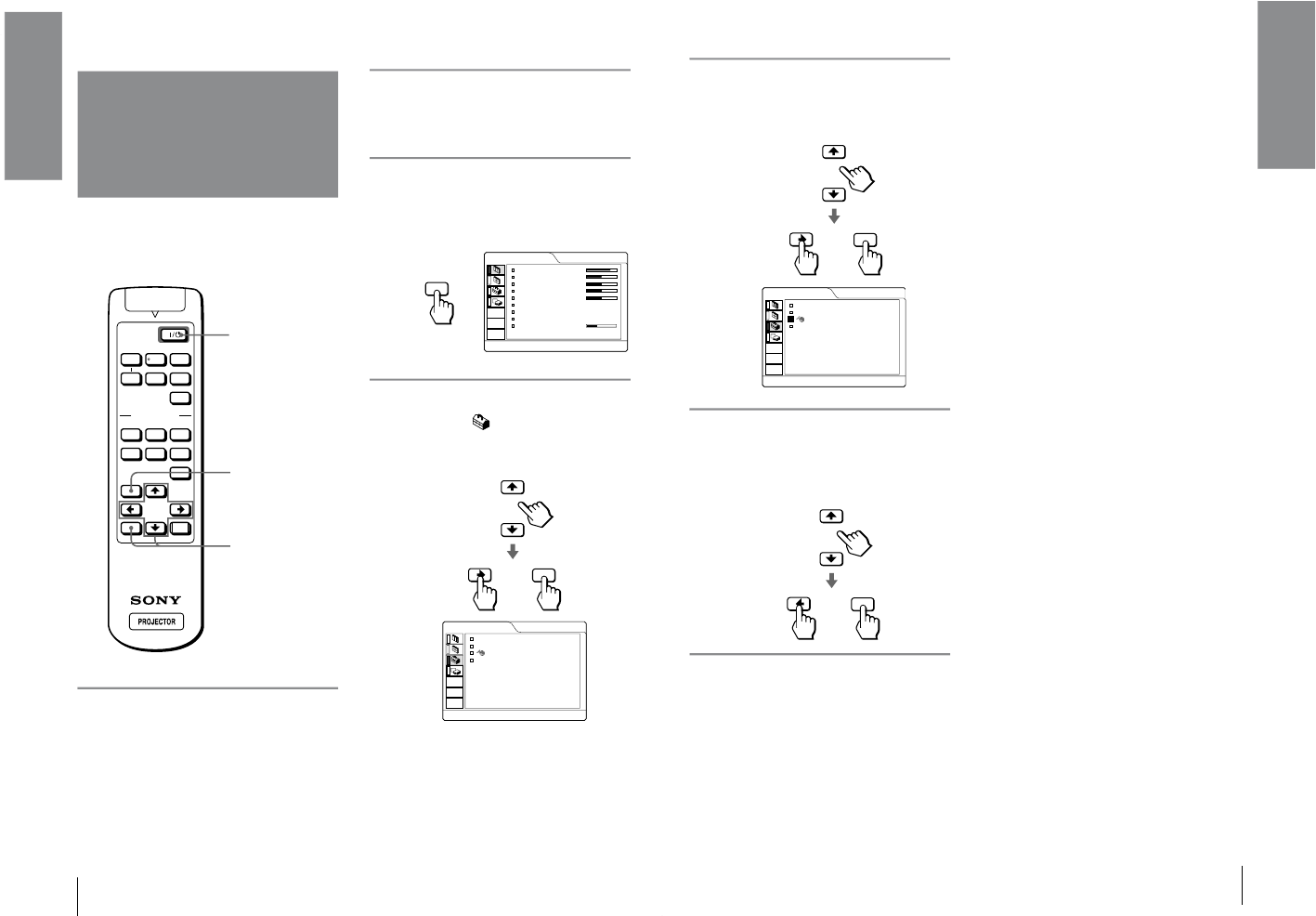

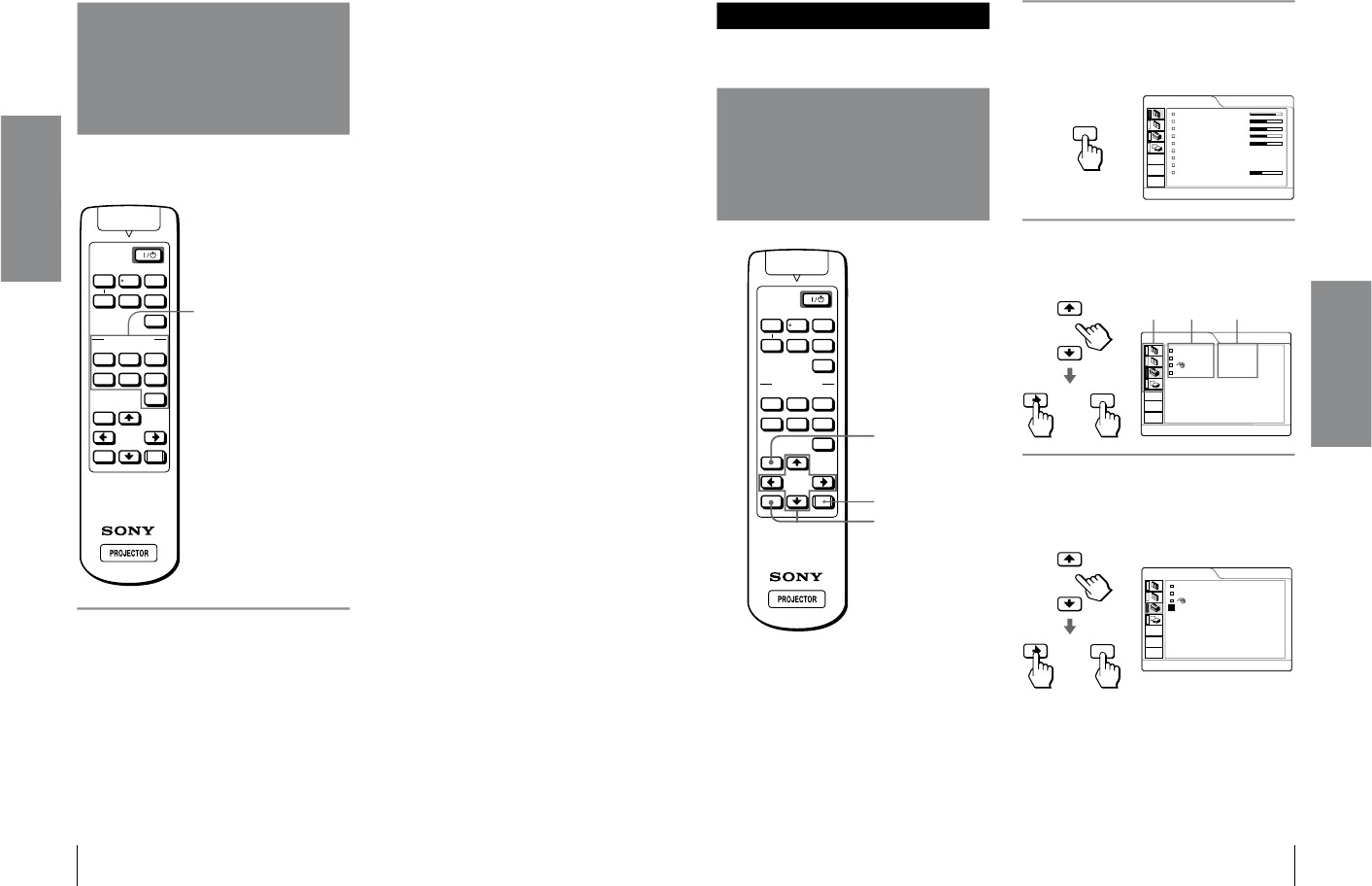

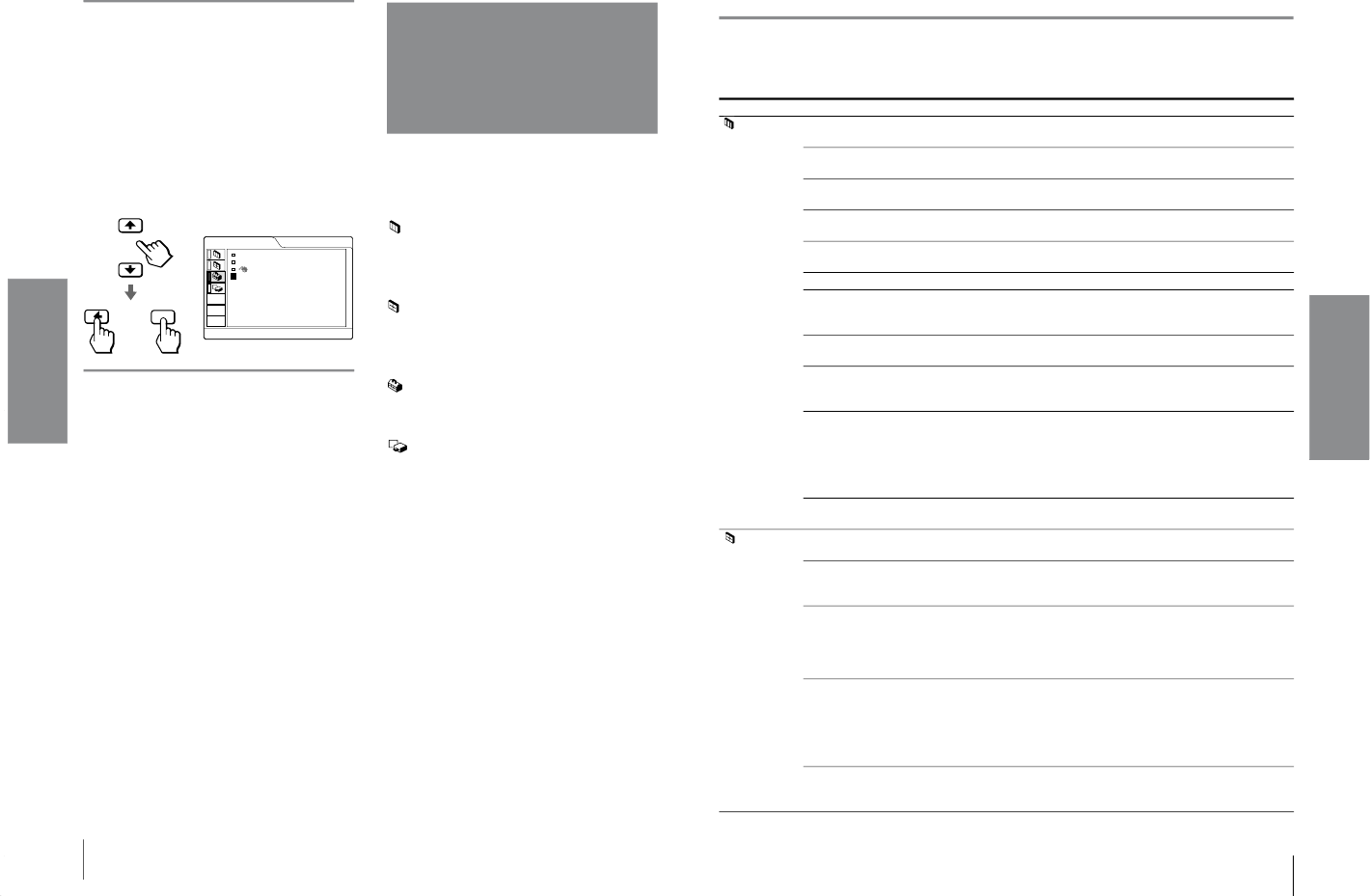

The projector is equipped with four menu pages. The
items that can be adjusted in each menu are described
on pages 19 and 20.

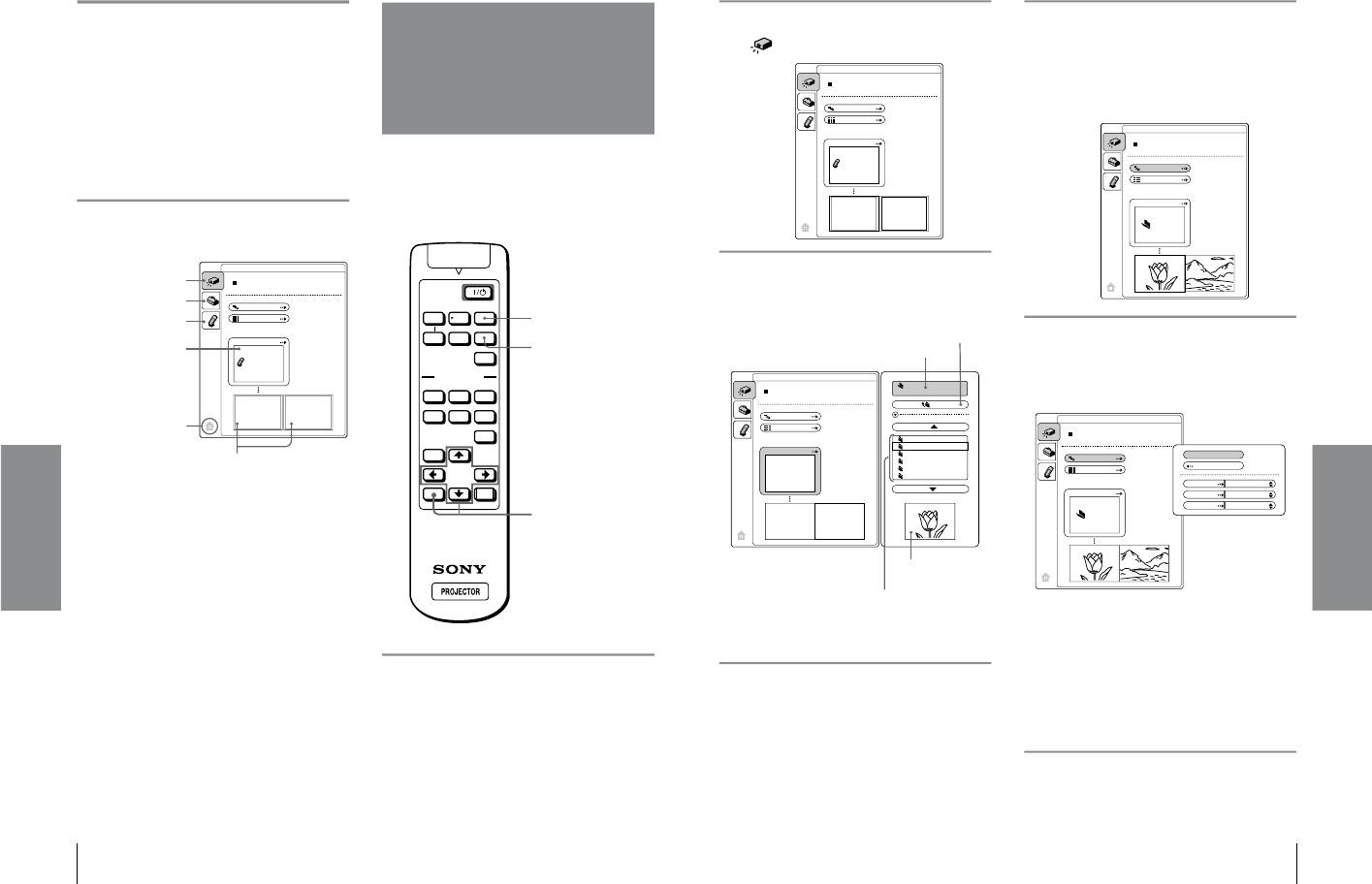

PICTURE CTRL menu
The PICTURE CTRL menu is used for adjusting the
picture. You can also adjust the volume with this
menu.
INPUT SETTING menu
The INPUT SETTING menu is used to adjust the
input signal. You can adjust the size and position, etc.
of the picture.
SET SETTING menu
The SET SETTING menu is used for changing the
settings of the projector.
INSTALL SETTING menu
The INSTALL SETTING menu is used for correcting
distortion. You can change the display position,
intensity of the background picture, etc., of the menu
screen.
ENTER
SET SETTING
STATU S :
INPUT-A:
LANGUAGE
:
POWER SAVING
:
VIDEO 1
ON
COMPONENT
ENGLISH
ON
or
1-11
VPL-HS1
GB
20
Menu Configurations
Using the Menus
INPUT
SETTING
(continued)
VIDEO MEMORY You can select picture viewing mode that best suits the type of picture or the
environment.
OFF: Select for the setting stored in each input channel or input signal.
DYNAMIC: Select for enhanced picture contrast and sharpness.
STANDARD: Recommended for normal viewing condition. Also select to
reduce roughness when viewing the picture with DYNAMIC.
LIVING: Select for soft, film-like picture.
USER 1, 2 and 3: You can adjust the quality of the picture to suit your taste and
store the settings. Once the settings are stored, you can view the picture with
the adjusted picture quality by pressing the button.
To store the settings
1Select USER 1, USER 2 or USER 3.
2Adjust the items you want in the menus.
Items that can be stored are:
CONTRAST, BRIGHT, COLOR, HUE, SHARP, RGB ENHANCER,
D.PICTURE, COLOR TEMP, COLOR SYS, SCAN CONV, ASPECT.
Tip
You can also adjust the picture quality in DYNAMIC, STANDARD or
LIVING mode. To reset to the factory setting, press RESET.
SET
SETTING STATUS Set to OFF to turn off the on-screen displays except for the menus, message
when turning off the power, and warning messages.
To display all of the on-screen display again, set to ON.
INPUT-A Selects the signal input from the PJ MULTI connector.
COMPUTER: Inputs the signal from a computer.
COMPONENT: Inputs the component or progressive component signal from a
DVD player, digital BS tuner, etc.
VIDEO GBR: Inputs the signal from a TV game, DVD player or HDTV
broadcast.
LANGUAGE Selects the language used in the menu and on-screen displays. Available
languages are: English, French, German, Italian, Spanish, Japanese, Chinese,
Portuguese and Korean.
POWER SAVING When set to ON, the POWER SAVING indicator lights. The projector goes into
power saving mode if no signal is input for 10 minutes, and the lamp goes out
and the cooling fan keeps running. In power saving mode, no button functions
for the first 60 seconds. It is cancelled when a signal is input or any button is
pressed. If you do not set the projector to power saving mode, select OFF.
INSTALL
SETTING KEYSTONE MEM
(memory) ON: DIGIT KEYSTONE setting is stored.
The data is retrieved when the projector power is turned on. The setting will
remain the same every time.
OFF: DIGIT KEYSTONE is reset to “0” when the power is turned on next
time.
DIGIT KEYSTONE Corrects the trapezoidal distortion caused by the projection angle. Use this item
after selecting the type of distortion, H (horizontal) or V (vertical), with
KEYSTONE DIR.
KEYSTONE DIR When the picture is a vertical trapezoid ( ), select V. Next, correct the
distortion with DIGIT KEYSTONE. When the picture is a holizontal trapezoid
( ), select H, then correct the distortion with DIGIT KEYSTONE.
MENU POSITION Selects the display position from TOP LEFT, BOTTOM LEFT, CENTER, TOP
RIGHT and BOTTOM RIGHT.
MENU COLOR Selects the tone of the menu display from STANDARD, WARM, COOL,
GREEN or GRAY.
MENU
BACKGROUND Selects the intensity of the background picture of the menu display from DARK,
STANDARD or LIGHT.
LAMP TIMER Indicates how long the lamp has been turned on.
Menu Item Description
21 GB
Menu Configurations
Using the Menus
About the Preset Memory No.
This projector has 32 types of preset data for input
signals (the preset memory). When the preset signal is
input, the projector automatically detects the signal
type and recalls the data for the signal from the preset
memory to adjust it to an optimum picture. The
memory number and signal type of that signal are
displayed in the INPUT SETTING menu.
You can also adjust the preset data through the INPUT
SETTING menu.
This projector also has 20 types of user memories for
INPUT-A into which you can save the setting of the
adjusted data for an unpreset input signal.
When an unpreset signal is input for the first time, a
memory number is displayed as 0. When you adjust
the data of the signal in the INPUT SETTING menu,
it will be registered to the projector. If more than 20
user memories are registered, the newest memory
always overwrites the oldest one.
See the chart on page 43 to find if the signal is
registered to the preset memory.
Since the data is recalled from the preset memory
about the following signals, you can use these preset
data by adjusting SIZE H. Make fine adjustment by
adjusting SHIFT.
Note
When the aspect ratio of input signal is other than 4:3, a part of the
screen is displayed in black.
Adjusting Picture Quality of a
Signal from the Computer
You can automatically adjust to obtain the clearest
picture when projecting a signal from the computer.
1 Project a still picture from the computer.
2 Press the APA button.
When the picture is adjusted properly, “complete”
appears on the screen.
Notes
•Press the APA button when the full image is displayed on the
screen. If there are black edges around the image, the APA
function will not function properly and the image may extend
beyond the screen.
•If you switch the input signal or re-connect a computer, press
the APA button again to get the suitable picture.
•To restore the original screen, press the APA button again
during the adjustment.
•The picture may not be adjusted properly depending on the
kinds of input signals.
•Adjust the items in the INPUT SETTING menu when you
adjust the picture manually. (1 page 19)
Signal Memory
No. SIZE
Super Mac-2 23 1312
SGI-1 23 1320
Macintosh 19”25 1328
INPUT SETTING
DOT PHASE:
SIZE H:
SHIFT:
SCAN CONV:
INPUT-A
15
800
H: 200 V: 30
ON
No. 13
640 480
Memory No.
Signal type
1-12 VPL-HS1

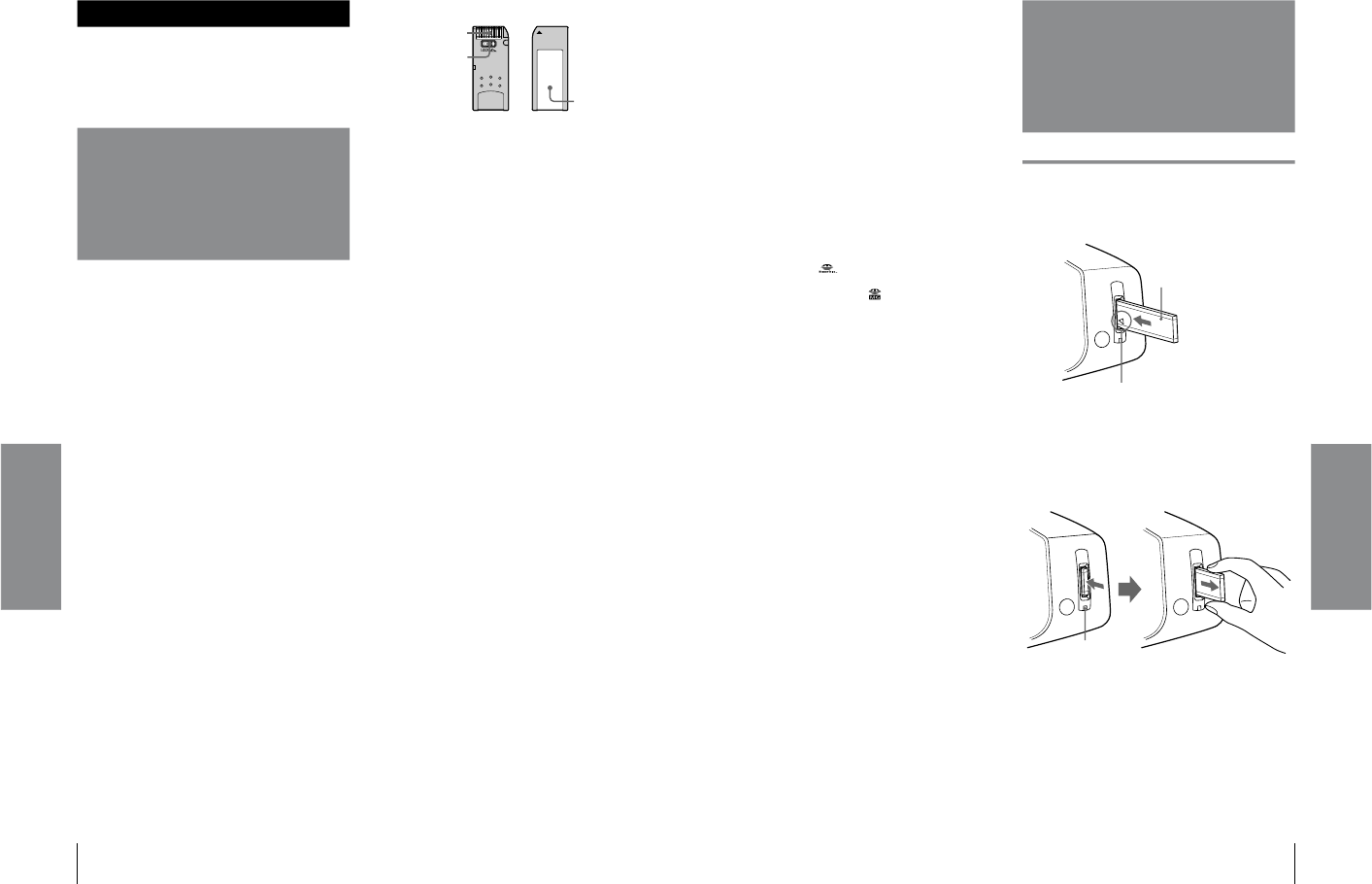

GB 22 About a “Memory Stick”
Using a “Memory
Stick”
Using a “Memory Stick”
This section describes how to view the still images
that are recorded by a digital camera and stored in a
“Memory Stick.” You can make a slide show using
the images, display an index screen of the images, etc.
About a “Memory
Stick”
On “Memory Stick”s
“Memory Stick” is a new compact, portable and
versatile IC recording medium with a data capacity
that exceeds a floppy disk. “Memory Stick” is
specially designed for exchanging and sharing digital
data among “Memory Stick” compatible products.
Because it is removable, “Memory Stick” can also be
used for external data storage.
Types of “Memory Stick”s
There are two types of “Memory Stick”s: MagicGate
“Memory Stick”s that are equipped with the
MagicGate copyright protection technology and
general “Memory Stick”s. You can use both types of
“Memory Stick” with your projector. However,
because your projector does not support the
MagicGate standards, data recorded in the “Memory
Stick” is not subject to MagicGate copyright
protection.
On MagicGate
MagicGate is copyright protection technology that
uses encryption technology.
Format that can be displayed with this
projector
Image data recorded with a digital camera and
recorded on a Memory Stick in the following format:
Images (DCF-compatible) compressed in the JPEG
(Joint Photographic Experts Group) format
(extension: .jpg)
Before using a “Memory Stick”
•You cannot rotate or erase still images when the
write-protect tab on the “Memory Stick” is set to
LOCK.
•We recommend backing up important data.
•Image data may be damaged in the following cases:
– If you remove the “Memory Stick,” turn the power
off, or detach the battery for replacement when the
access lamp is flashing.
– If you use a “Memory Stick” near static electricity
or magnetic fields.
Notes
•Prevent metallic objects or your finger from coming into
contact with the metal parts of the connecting section.
•Do not attach any other material than the supplied label onto the
label space.
•Attach the label to the prescribed labeling position. Make sure
the label is attached to the labeling position properly.
•Do not bend, drop or apply strong shock to a “Memory Stick.”
•Do not disassemble or modify a “Memory Stick.”
•Do not let the “Memory Stick” get wet.
•Do not use or keep a “Memory Stick” in locations that are:
– Extremely hot such as in a car parked in the sun or under the
scorching sun.
– Under direct sunlight.
– Very humid or subject to corrosive gases.
•When you carry or store a “Memory Stick,” put it in its case.
About formatting “Memory Stick”s
When “Memory Stick”s are shipped from the factory,
they are already formatted to a special standard
format. When you format “Memory Stick”s, we
recommend formatting them on this unit.
Caution when formatting “Memory Stick”s
on a personal computer
Pay attention to the following points when formatting
“Memory Stick”s on the personal computer, for
example, that you are using.
Operation of “Memory Stick”s formatted on the
personal computer is not guaranteed on this unit. To
use a “Memory Stick” that has been formatted on the
personal computer, the “Memory Stick” must be
reformatted on this unit. Note that in this case all data
stored on the “Memory Stick” will be lost.
Terminal
Write-protect
tab
Labeling
position
23 GB
Preparing for Viewing the Still Picture Stored in a “Memory Stick”
Using a “Memory
Stick”
Access Lamp
If the access lamp is turned on or is flashing, data is
being read from or written to the “Memory Stick.” Do
not shake the projector or subject it to shock. Do not
turn off the power of the projector or remove the
“Memory Stick.” This may damage the data.
Notes
•To prevent data loss, make backup of data
frequently. In no event will Sony be liable for any
loss of data.
•Unauthorized recording may be contrary to the
provisions of copyright law.
•The “Memory Stick” application software may be
modified or changed by Sony without prior notice.
.....................................................................................
•“Memory Stick” and are trademarks of Sony
Corporation.
•“MagicGate Memory Stick” and are trademarks of Sony
Corporation.
Preparing for Viewing
the Still Picture Stored
in a “Memory Stick”
Inserting a “Memory Stick”
Insert the “Memory Stick” into the “Memory Stick”
slot on the front of the projector.
To remove the “Memory Stick”
When the access lamp is turned off, press the
“Memory Stick” and remove your hand. As the lock
is released, remove the “Memory Stick.”
“Memory Stick”
Insert the “Memory Stick” in the
direction of the arrow until it clicks.
Access lamp
1-13
VPL-HS1
GB 24 Viewing Still Images in Sequence — Slide Show
Using a “Memory
Stick”
Using the MS (“Memory
Stick”) Home
The initial display on the screen is MS Home when
you select MS with the INPUT button. The MS home
display is used for executing an event (e.g., slide show
with JPEG Viewer), setting the Startup and
initializing a “Memory Stick.” The guide for the
button operation is displayed at the bottom of the MS
home display. The selected item is displayed in
yellow.
Press INPUT to select MS.
MS home appears.
* Multiple still pictures are included in the contents. The
contents may include individual still pictures and other
contents. You must select contents when you are viewing a still
picture stored in a “Memory Stick.”
** Several small pictures included in the contents can be
displayed at one time. They are called thumbnails.
Viewing Still Images
in Sequence —
Slide Show
You can run a slide show by using still pictures (DCF-
compatible) of the JPEG format recorded by a digital
camera. You can advance a slide automatically or
manually.
1
Select MS by pressing the
INPUT button to display the
MS home. (1 left column)
EVENT
JPEG Viewer
Slide Show
Index
Select Contents
EVENT
SETTING
“MEMORY STICK”
MS home mark
The name of the
selected contents*
will be displayed.
First two thumbnails** that are
included in the selected contents
will appear.
VOLUME
MS SLIDE
DYNAMIC STANDARD LIVING
USER 1
MENU
ENTER
RESET
USER 2 USER 3
OFF
APA
INPUT
VIDEO MEMORY
+
–
SIDE
SHOT
+
–
MS SLIDE button
1
2-9
25
GB
Viewing Still Images in Sequence — Slide Show
Using a “Memory
Stick”
2
Press M or m to select EVENT
, and press ENTER.
3
Press M or m to select “Select
Contents,” and press ENTER.
The sub menu for selecting the contents appears.
Note
The contents are sorted numerically and alphabetically up
to 256 contents. The later contents will not be sorted.
4
Press M or m to select the
contents you want to use for
your slide show, and press
ENTER.
When you want to select contents other than
those displayed on the menu, select v or V, then
press ENTER.
5
Press ENTER.
The selected contents name and the first two
thumbnails are displayed.
When you want to view all of the pictures in the
selected contents, select “Index” and press
ENTER.
6
Press M or m to select “Slide
Show,” and press ENTER.
The sub menu for setting the following items
appears.
Effect: set the effect when the slide is
displayed.
Advan. Slids : set to advance a next slide
automatically (“Auto”) or manually
(“Manual”).
Interval: set the period for which one slide is
displayed. When “Advan. Slids” is set to
“Manual,” this item does not work. The time
is about right.
7
Press M or m to select the item,
and press ENTER.
EVENT
JPEG Viewer
Slide Show
Index
Select Contents
0100MSDCF
0101MSDCF
0102MSDCF
0103MSDCF
0104MSDCF
0105MSDCF
DCIM
EVENT
Slide Show
Index
Select Contents
JPEG Viewer
Currently selected contents
to upper stage
Pictures or contents included
in the current contents
When the JPEG
pictures are saved
in the current
contents, one of
them is displayed
.
DCIM
EVENT
Slide Show
Index
Select Contents
JPEG Viewer
DCIM
EVENT
Slide Show
Index
Select Contents
JPEG Viewer
Execute
Return
Effect
Advan.Slds.
Interval
Off
Auto
1 sec
1-14 VPL-HS1
GB 26 Displaying Index Pictures on the Full Screen
Using a “Memory
Stick”
8
Press M or m to set the
selected item, and press
ENTER.
9
After setting all the items,
press M or m to select
“Execute” and press ENTER.
When you set “Advan. Slids” to “Auto,” the slide
show starts automatically.
When you set to “Manual,” use the < or m
button to advance a next slide. To return to the
previous slide, use the , or M button.
To end the slide show
Press MS SLIDE or ENTER.
To return to the MS home before executing
the slide show
Select “Return” in step 9 above.
Executing the Slide Show Promptly
As the settings are stored even if you change the input
after performing steps 1 to 8, press MS SLIDE just as
you start the slide show. The input is changed to MS
and the slide show starts promptly.

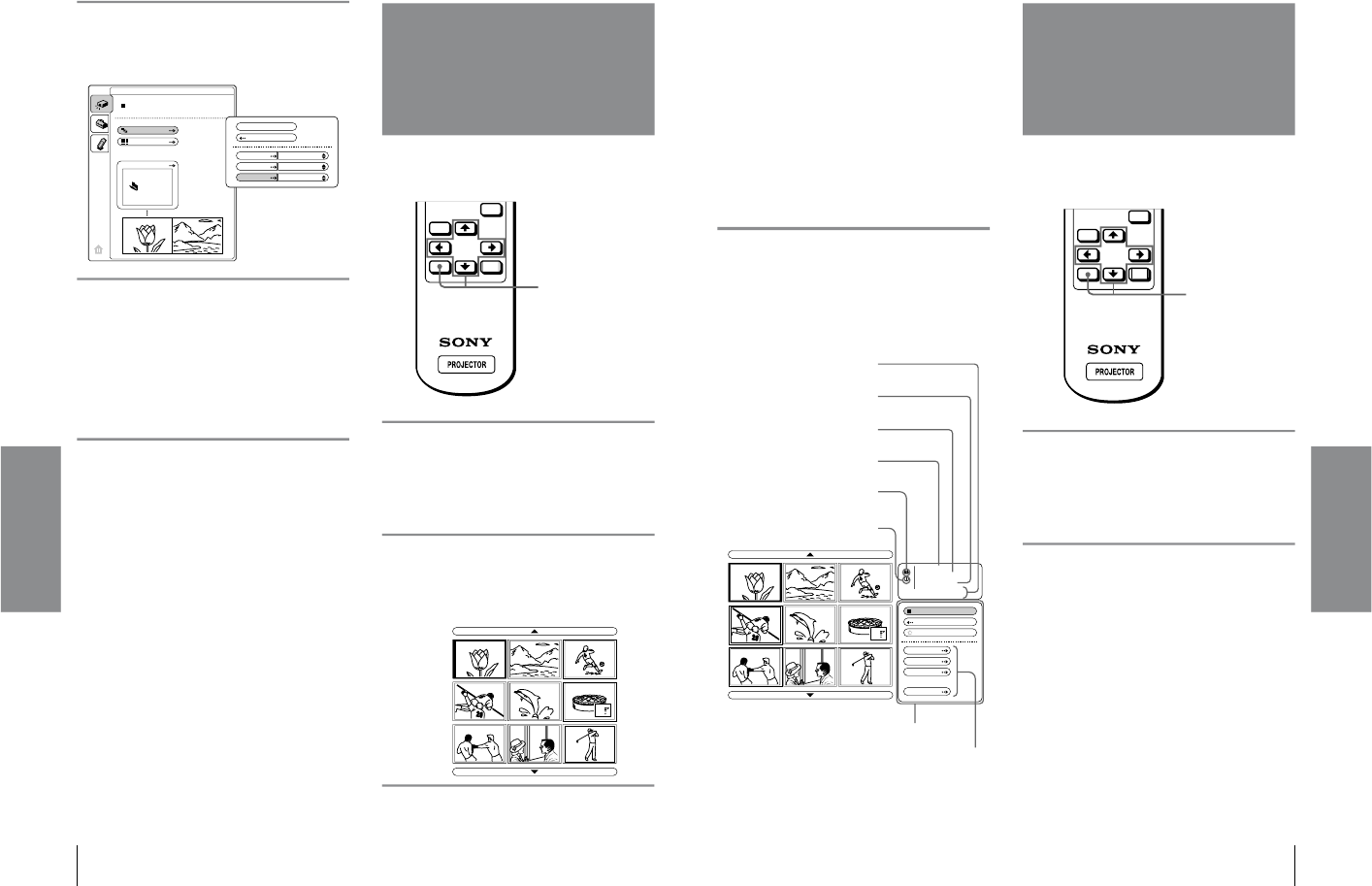

Displaying Index
Pictures on the
Full Screen
You can display 9 index pictures (thumbnail pictures)
contained in the selected contents at one time.
1
Perform steps 1 through 5 in
“Viewing Still Images in
Sequence — Slide Show.” (1
page 24)
2
Press M or m to select “Index,”
and press ENTER.
The index screen appears, and 9 index pictures
of the selected contents are displayed.
DCIM
EVENT
Slide Show
Index
Select Contents
JPEG Viewer
Execute
Return
Effect
Advan.Slds.
Interval
Off
Auto
5 sec
MENU
ENTER
RESET
2
Reciipe
flou r - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butter - - - 1
27 GB
Displaying a Full-Screen Picture
Using a “Memory
Stick”
When more than 9 pictures are
contained in the contents
You can display the pictures other than the displyed
ones by pressing v (previous 9 pictures) or V (next 9
pictures) and ENTER.
To start a slide show with the index
screen
Press M, m, < or , to select a picture from which
a slide show starts, then press MS SLIDE.
Note
The index pictures are sorted numerically and alphabetically up to
256 pictures. The later pictures will not be sorted.
Displaying the Index Menu
Press M, m, < or m to select a picture, and press
ENTER.
The index menu for the selected picture is displayed.
With this menu you can make various settings for
each picture. (1 pages 27 to 32)
To return to the MS home
Select “Return” and press ENTER.
Displaying a Full-
Screen Picture
You can project one of the index pictures on the full
screen.
1
Perform steps 1 through 5 in
“Viewing Still Images in
Sequence — Slide Show.” (1
page 24)
2
Press M or m to select “Index,”
and press ENTER.
The index pictures of the selected contents are
displayed.
Full Screen
No.: 5/32
Size: 1024x768
File: SPORTS
Date:7/29/2001
14:22
Close
Return
Protect
Rotate
Startup
Delete
Reciipe
flou r - - - - 2
suga r - - - 1/2
salt - - - - - 1/2
butt er - - - 1
Indicates when a picture is
registered as the startup
picture (1 page 30)
Indicates when the protect
function (1 page 29) is set
to a picture.
Sequential number/total
number of pictures in the
contents
Resolution
Name given to each picture
(displayed alphabet and
numbers only)
Setting items
Index menu
Date when the picture is
recorded
MENU
ENTER
RESET
2-4
1-15
VPL-HS1

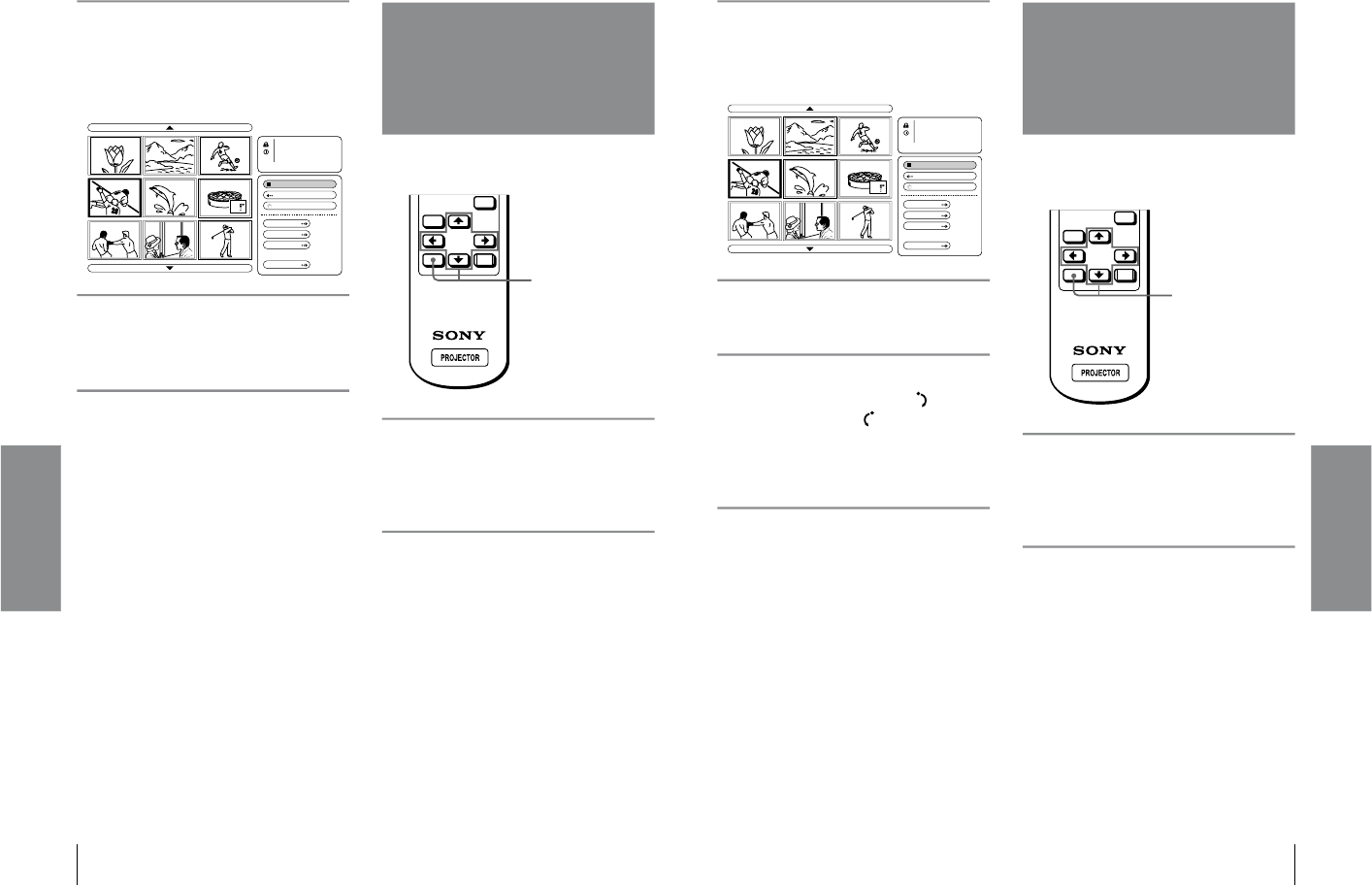

GB 28 Rotating a Still Picture
Using a “Memory
Stick”
3
Press M, m, < or , to select
the picture you want to display
on the full screen, and press
ENTER.
The Index menu appears.
4
Press M or m to select “Full
Screen,” and press ENTER.
The selected picture is projected to fit the
screen.
To display a previous or next slide
To display the next slide, press , or m. To return to
the previous slide, press < or M.
To return to the Index screen
Press MS SLIDE or ENTER.
Rotating a Still
You can rotate a still picture in 90° steps.
1
Perform steps 1 through 5 in
“Viewing Still Images in
Sequence — Slide Show.” (1
page 24)
2
Press M or m to select “Index,”
and press ENTER.
The index pictures of the selected contents are
displayed.
Full Screen
No.: 5/32
Size: 1024x768
File: SPORTS
Date:7/29/2001
14:22
Close
Return
Protect
Rotate
Startup
Delete
Reciipe
flou r - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butt er - - - 1
MENU
ENTER
RESET
2-5
29 GB
Protecting an Important Still Picture
Using a “Memory
Stick”
3
Press M, m, < or , to select
the picture you want to rotate,
and press ENTER.
The Index menu appears.
4
Press M or m to select
“Rotate,” and press ENTER.
5
Press M or m to select the
direction of rotation,
(clockwise) or
(counterclockwise), and press
ENTER.
The picture rotates 90° every pressing of the
ENTER button.
Notes
•You cannot rotate a picture which is protected. ( right
column)
To rotate it, release the protection on that picture.
•When the write-protect tab on the “Memory Stick” is set to
LOCK, you cannot rotate the pictures stored in that “Memory
Stick.”
Protecting an
Important Still
You can protect a still picture to prevent it from
accidental erasure.
1
Perform steps 1 through 5 in
“Viewing Still Images in
Sequence — Slide Show.” (1
page 24)
2
Press M or m to select “Index,”
and press ENTER.
The index pictures of the selected contents are
displayed.
Full Screen
No.: 5/32
Size: 1024x768
File: SPORTS
Date:7/29/2001
14:22
Close
Return
Protect
Rotate
Startup
Delete
Reciipe
flou r - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butter - - - 1
MENU
ENTER
RESET
2-5
1-16 VPL-HS1

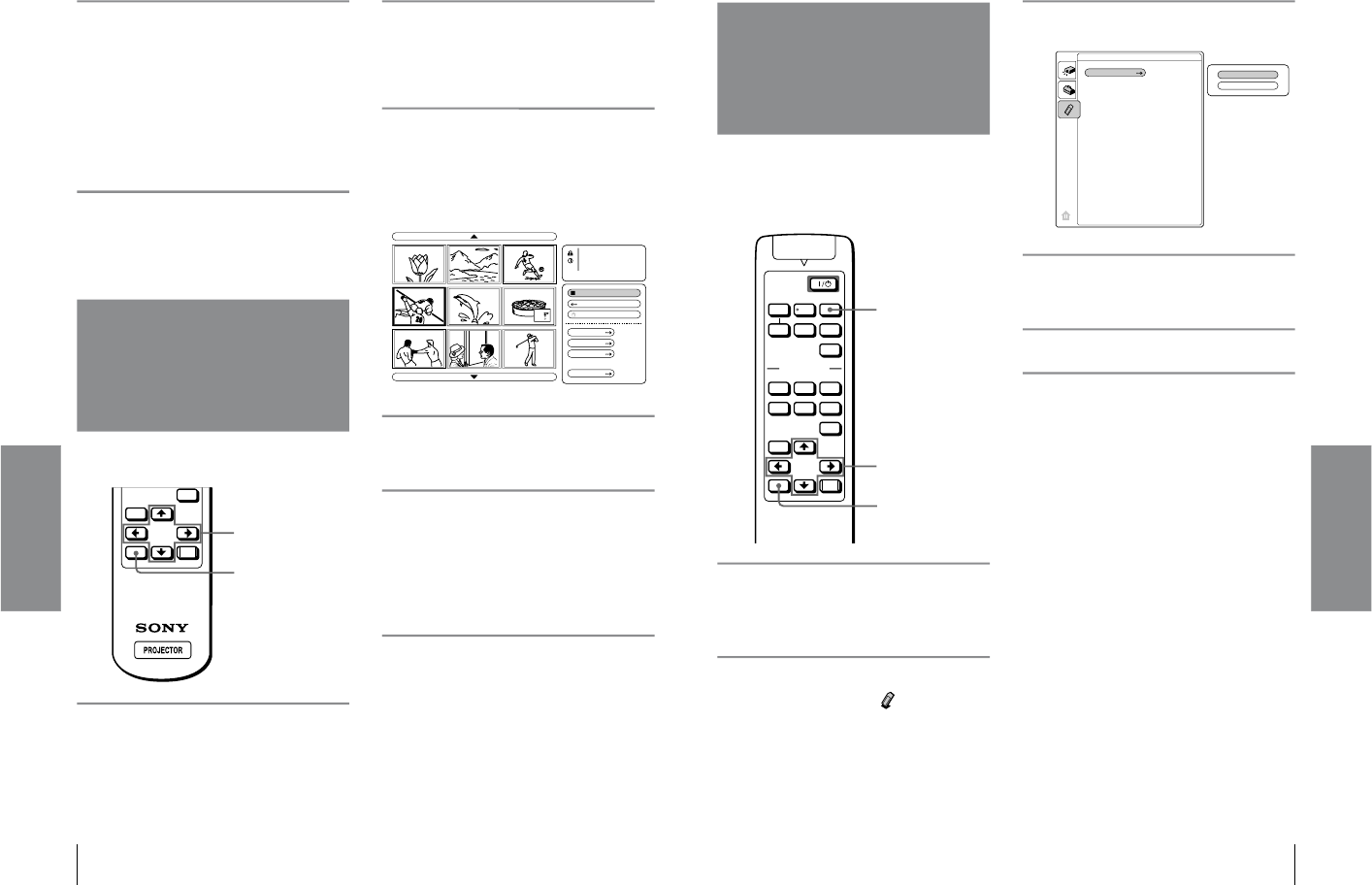

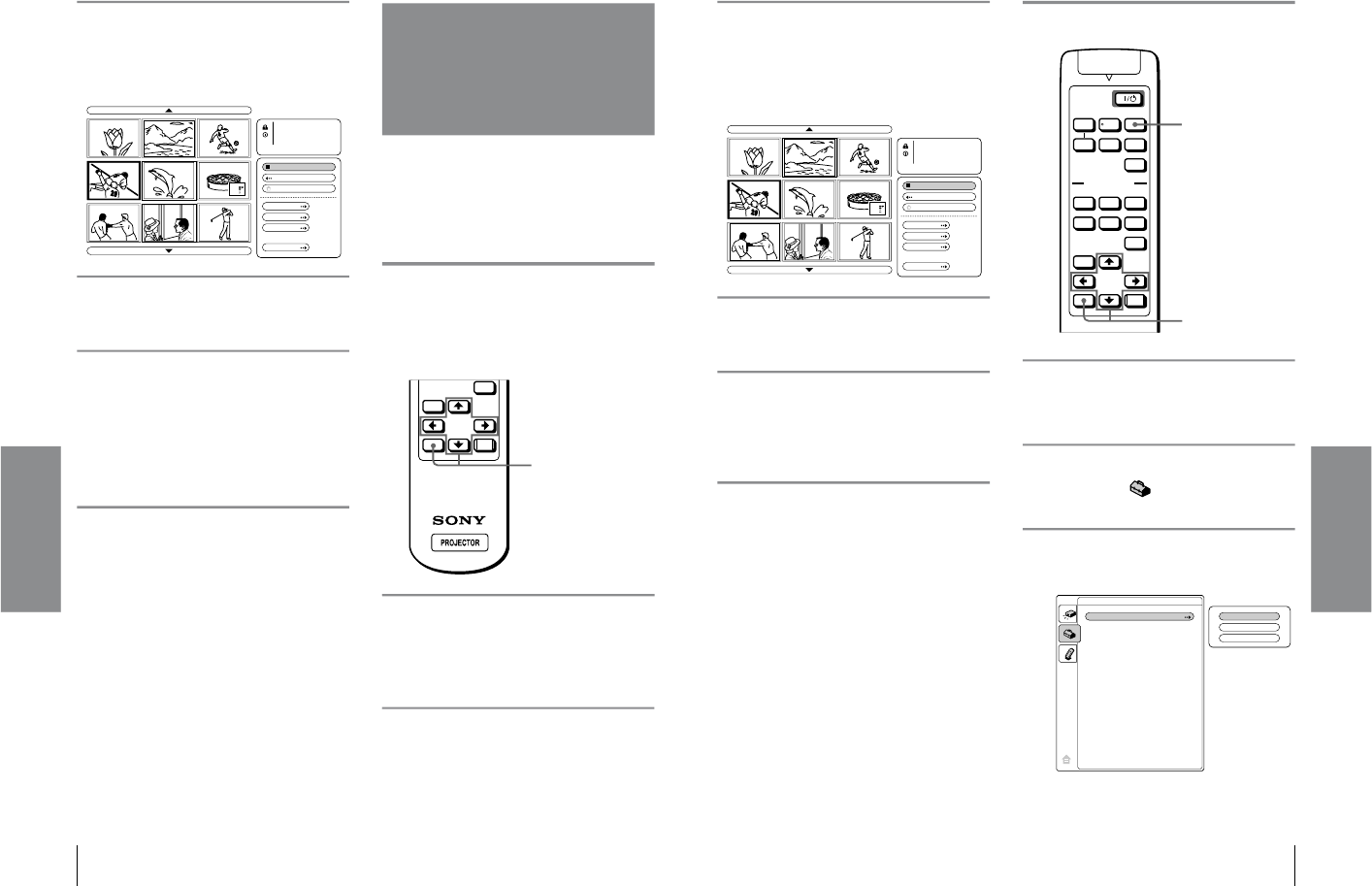

GB 30 Projecting a Selected Picture When the Power Is Turned On — Startup
Using a “Memory
Stick”
3
Press M, m, < or , to select
the picture you want to
protect, and press ENTER.
The Index menu appears.
4
Press M or m to select
“Protect,” and press ENTER.
5
Press M or m to select “On” or
“All on,” and press ENTER.
On: A picture selected on the Index screen is
protected.
All on: All the pictures in the selected contents
are protected.
The protect mark appears in the Index menu for
the protected picture.
To release protection
Select “Off” or “All off” in step 5.
Selecting “Off” releases the protection for the
selected picture. Selecting “All off” releases the
protection for all the pictures in the selected contents.
Projecting a Selected
Picture When the Power
Is Turned On — Startup
When the projector is turned on, the specific still
picture stored in the projector is projected
automatically for about one minute, even if no signal
is input. You can change this still picture to the one
you prefer.
Registering a Still Picture as
the Startup Picture
When you want to use a picture stored in your
“Memory Stick” as the startup picture, register the
picture in the “Memory Stick.”
1
Perform steps 1 through 5 in
“Viewing Still Images in
Sequence — Slide Show.” (1
page 24)
2
Press M or m to select “Index,”
and press ENTER.
The index pictures of the selected contents are
displayed.
Full Screen
No.: 5/32
Size: 1024x768
File: SPORTS
Date:7/29/2001
14:22
Close
Return
Protect
Rotate
Startup
Delete
Reciipe
flou r - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butt er - - - 1
MENU
ENTER
RESET
2-5
31 GB
Projecting a Selected Picture When the Power Is Turned On — Startup
Using a “Memory
Stick”
3
Press M, m, < or , to select
the picture you want to use as
the startup picture, and press
ENTER.
The Index menu appears.
4
Press M or m to select “Str.
up,” and press ENTER.
5
Press M or m to select “Entry,”
and press ENTER.
The startup mark is displayed in the Index menu.
You can register one picture used for the startup
picture, per one “Memory Stick.”
Setting the Startup Picture
1
Select MS by pressing the
INPUT button to display MS
home. (1 page 24)
2
Press M or m to select
SETTING , and press
ENTER.
3
Press M or m to select
“Startup,” and press ENTER.
Full Screen
No.: 5/32
Size: 1024x768
File: SPORTS
Date:7/29/2001
14:22
Close
Return
Protect
Rotate
Startup
Delete
Reciipe
flour - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butt er - - - 1
VOLUME
MS SLIDE
DYNAMIC STANDARD LIVING
USER 1
MENU
ENTER
RESET
USER 2 USER 3
OFF
APA
INPUT
VIDEO MEMORY
+
–
SIDE
SHOT
+
–
2-4
1
Original
Custom
Off
SETTING
Startup: Original
1-17
VPL-HS1
GB 32 Deleting a Still Picture
Using a “Memory
Stick”
4
Press M or m to select the item
used for startup picture, and
press ENTER.
Original: Select to use the original picture
stored in the projector. This is the factory
setting.
Custom: Select to use the picture registered in
the index screen and stored in the “Memory
Stick.” (1 page 30)
Off: Select when you do not set the startup.
Notes
•When you want to clear the startup screen while displaying it,
press M/m/</,, or ENTER.
•When you are using the registered picture, insert the “Memory
Stick” where the registered picture is saved into the projector,
then turn on the power.
Deleting a Still
You can delete unnecessary picture from the
“Memory Stick.”
1
Perform steps 1 through 5 in
“Viewing Still Images in
Sequence — Slide Show.” (1
page 24)
2
Press M or m to select “Index,”
and press ENTER.
The index pictures of the selected contents are
displayed.
3
Press M, m, < or , to select
the picture you want to delete
from the “Memory Stick,” and
press ENTER.
The Index menu appears.
4
Press M or m to select
“Delete,” and press ENTER.
5
Press M or m to select the item
you want, then press M to
delete the picture(s).
Sel. Img.: delete the selected picture
All Img.: delete all pictures of the selected
contents
Close: when you do not delete the picture
Notes
•You cannot delete the picture which is protected. (1 page 29)
To delete it, release the protection on that picture.
•When the write-protect tab on the “Memory Stick” is set to
LOCK, you cannot delete the pictures from that “Memory
Stick.”
MENU
ENTER
RESET
2-5
2-4
Full Screen
No.: 5/32
Size: 1024x768
File: SPORTS
Date:7/29/2001
14:22
Close
Return
Protect
Rotate
Startup
Delete
Reciipe
flou r - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butt er - - - 1
33 GB
Initializing a “Memory Stick”
Using a “Memory
Stick”
Initializing a
“Memory Stick”
When a “Memory Stick” cannot be used, initialize it
by the projector.
All the data stored in a “Memory Stick” is cleared
when the “Memory Stick” is initialized.
1
Select MS by pressing the
INPUT button to display the
MS home. (1 page 24)
2
Press M or m to select
MEMORY STICK , and press
ENTER.
3
Press ENTER again.
4
Press M or m to select
“Execute,” and press ENTER.
5
Press M to start initializing.
To return to the MS home before
initializing the “Memory Stick”
Select “Return,” and press ENTER in step 4.
Notes
•When the “Memory Stick” is initialized, the protected picture
is also cleared.
•When the “Memory Stick” with the write-protect tab set to
LOCK is initialized, the message “MEMORY STICK locked”
is displayed.
•While initializing the “Memory Stick,” you cannot use the
buttons for operation in MS home.
VOLUME
MS SLIDE
DYNAMIC STANDARD LIVING
USER 1
MENU
ENTER
RESET
USER 2 USER 3
OFF
APA
INPUT
VIDEO MEMORY
+
–
SIDE
SHOT
+
–
2,4,5
2-4
1
Execute
Return
MEMORY STICK
Format
1-18 VPL-HS1
GB 34 Troubleshooting
Others
Others
This section describes how to solve the problems, how to
replace a lamp and air filter, etc.
Troubleshooting
Symptom Cause and Remedy
The power is not turned on. •The power has been turned off and on with the @/ 1 (on/standby) switch at a
short interval.
cWait for about one minute before turning on the power (1 page 15).
•The lamp cover is detached.
cClose the lamp cover securely (1 page 38).
•The air filter cover is detached.
cClose the air filter cover securely (1 page 39).
No picture. •Cable is disconnected or the connections are wrong.
cCheck that the proper connections have been made (1 pages 8 and 9).
•Input selection is incorrect.
cSelect the input source correctly using the INPUT button (1 page 15).
•The computer signal is not set to output to an external monitor.
cSet the computer signal to output to an external monitor.
•The computer signal is set to output to both the LCD of the computer and
external monitor.
cSet the computer signal to output only to the external monitor.
The picture from the PJ MULTI
connector is colored strange. •Setting for INPUT-A in the SET SETTING menu is incorrect.
cSelect COMPUTER, COMPONENT or VIDEO GBR for INPUT-A in the
SET SETTING menu according to the input signal (1 page 20).
Color balance is incorrect. •Picture has not been adjusted properly.
cAdjust the picture in the PICTURE CTRL menu (1 page 19).
•Projector is set to wrong color system.
cSet COLOR SYS in the PICTURE CTRL menu to match the color
system being input (1 page 19).
The picture is too dark. •Contrast or brightness has not been adjusted properly.
cAdjust the contrast or brightness in the PICTURE CTRL menu properly
(1 page 19).
The picture is not clear.•Picture is out of focus.
cAdjust the focus with the focus lever (1 page 15).
•The lens cap is attached to the lens.
cRemove the lens cap.
•Condensation has occurred on the lens.
cLeave the projector for about two hours with the power on.
35
GB
Troubleshooting
Others
The picture flickers. •DOT PHASE in the INPUT SETTING menu has not been adjusted
properly.
cAdjust DOT PHASE in the INPUT SETTING menu properly (1 page
19).
On-screen display does not appear. •STATUS in the SET SETTING menu is set to OFF.
cSet STATUS in the SET SETTING menu to ON (1 page 20).
No sound. •Cable is disconnected or the connections are wrong.
cCheck that the proper connections have been made (1 pages 8 and 9).
•VOLUME setting is not correct.
cAdjust VOLUME in the PICTURE CTRL menu, or press VOLUME + on
the remote control.
When sound is input through the
AUDIO connector, sound comes
through one channel only.
•Monaural sound is being input through the AUDIO connector.
cInput stereo sound.
The remote control does not work. •Batteries cound be weak.
cReplace the batteries (1 page 5).
•The polarity is not correct.
cInsert the batteries with correct polarities (1 page 5).
The “Memory Stick” cannot be inserted
into the “Memory Stick” slot. •The “Memory Stick” is not facing in the correct direction.
cInsert the “Memory Stick” with the arrow mark pointing toward the “Memory
Stick” slot of the projector.
A still picture in the “Memory Stick”
cannot be rotated or deleted. •The write-protect tab on the “Memory Stick” has been set to LOCK.
cCancel the lock (1 page 22).
•The picture is protected.
cRelease the protect in the Index screen (1 page 29).
The “Memory Stick” cannot be
formatted. •The write-protect tab on the “Memory Stick” has been set to LOCK.
cCancel the lock (1 page 22).
•The “Memory Stick” is broken.
cUse another “Memory Stick”.
When the slide show is made, the MS
flashes. •Pictures with different resolutions are used for the slide show.
cSet STATUS of the SET SETTING menu to OFF (1 page 20).
When the slide show is made, a black
picture appears. •When pictures with different resolutions are used, a black picture appears.
cSet the resolution of the pictures to the same setting.
The thumbnails are not displayed. •The pictures are the JPEG format but not DCF-compatible.
cUse the DCF-compatible pictures.
Symptom Cause and Remedy
1-19
VPL-HS1
GB 36 Troubleshooting
Others
Indicators
The LAMP/COVER or TEMP/FAN indicator on the control panel lights up or flashes if there is any trouble with
your projector.
Warning Messages
Use the list below to check the meaning of the messages displayed on the screen.
Indicator Meaning and Remedy
LAMP/COVER flashes. •The lamp cover or the air filter cover is detached.
cAttach the cover securely (1 pages 38 and 39).
LAMP/COVER lights
up. •The lamp has reached the end of its life.
cReplace the lamp (1 page 38).
•The lamp becomes a high temperature.
cWait for one minute to cool down the lamp and turn on the power again (1 page 15).
TEMP/FAN flashes. •The fan is broken.
cConsult with qualified Sony personnel.
TEMP/FAN lights up. •The internal temperature is unusually high.
cCheck to see if nothing is blocking the ventilation holes.
LAMP/COVER and
TEMP/FAN light up. •The electrical system breaks down.
cConsult with qualified Sony personnel.
Message Meaning and Remedy
High temp.!
Lamp off in 1 min. •Internal temperature is too high.
cTurn off the power.
cCheck to see if nothing is blocking the ventilation holes.
Frequency is out of
range! •This input signal cannot be projected as the frequency is out of the acceptable range of the
projector.
cInput a signal that is within the range of the frequency.
•The resolution setting of the output signal of a computer is too high.
cSet the setting of output to SVGA.
Please check INPUT-A
setting. •You have input RGB signal from the computer when INPUT-A in the SET SETTING
menu is set to COMPONENT or VIDEO GBR.
cSet INPUT-A correctly (1 page 20).
Please replace the
LAMP. •It is time to replace the lamp.
cReplace the lamp (1 page 38).
Please replace the filter. •It is time to replace the air filter.
cReplace the air filter (1 page 39).
LAMP/
COVER TEMP/
FAN POWER
SAVING ON/
STANDBY
LAMP/COVER Indicator
TEMP/FAN Indicator
37 GB
Troubleshooting
Others
Caution Messages
Use the list below to check the meaning of the messages displayed on the screen.
Caution displays while you are using the “Memory Stick”
When the following display appears on the screen, you cannot use this “Memory Stick.” Use another one.
Message Meaning and Remedy
NO INPUT •No input signal
cCheck connections (1 page 8).
Not applicable! •You have pressed the wrong button.
cPress the appropriate button.
File error •In the sub menu for selecting the contents when using a “Memory Stick,” the presently
selected contents name consists of more than 66 characters (“/” included).
cReenter the name with less than 66 characters.
No MEMORY STICK •The “Memory Stick” is not correctly inserted.
cCheck the “Memory Stick” and insert it correctly.
•The image data is the JPEG format but not DCF-compatible.
Resolution of the image data is out of the acceptable range of the projector.
(The projector accepts images with resolution of 5120 ◊ 4096 dots.)
There is the thumbnail but it is not DCF-compatible.
There is no selected image data.
There is the image data but no thumbnail.
There is the image data but the thumbnail is broken.
The image data is broken.
1-20 VPL-HS1

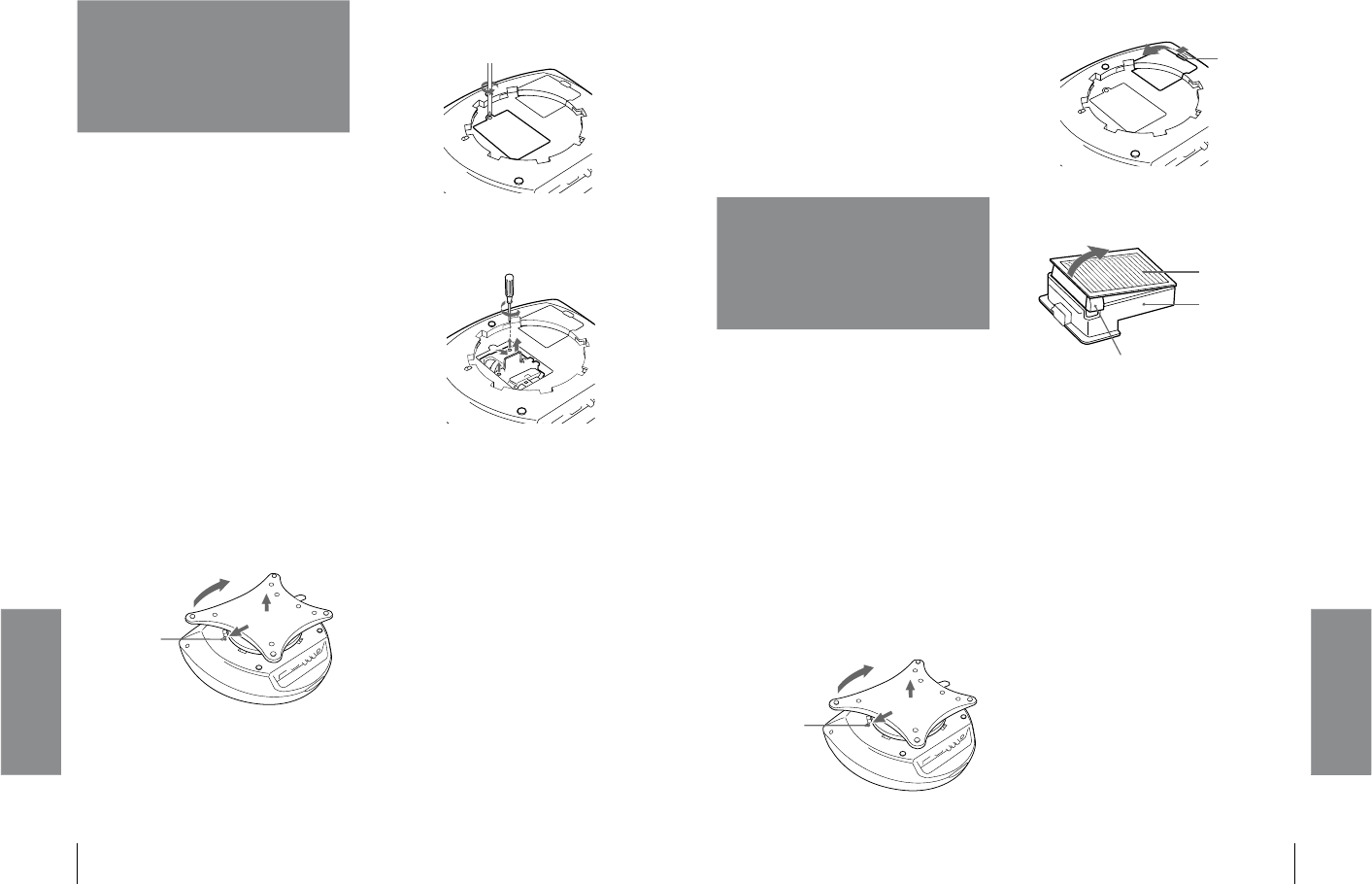

GB 38 Replacing the Lamp
Others
Replacing the
Lamp
The lamp used for the light source has a certain life.
When the lamp dims, the color balance of the picture
becomes strange, or “Please replace the LAMP.”
appears on the screen, the lamp is exhausted. Replace
the lamp with a new one (not supplied).
Use LMP-H120 Projector Lamp as the replacement lamp.
When replacing the lamp after using the
projector
Turn off the projector, then unplug the power cord.
Wait for at least an hour for the lamp to cool.
Caution
The lamp becomes a high temperature after turning off the
projector with the @/1 (on/standby) switch. If you touch the lamp,
you may scald your finger. When you replace the lamp, wait for
at least an hour for the lamp to cool.
1 Place a protective sheet (cloth) beneath
the projector. Turn the projector over so
you can see its underside.
Note
Be sure that the projector is stable after turning it over.
2 Slide the release lever on the adjuster
outward and turn the adjuster clockwise to
remove the adjuster.
3 Open the lamp cover by loosening a screw
with the Philips screwdriver.
4 Loosen the two screws on the lamp unit
with the Philips screwdriver. Pull out the
lamp unit by the handle.
5 With the lamp surface facing toward the
rear of the projector, insert the new lamp
all the way in until it is securely in place.
Tighten the two screws. Fold up the
handle.
Notes
•Be careful not to touch the glass surface of the lamp.
•The power will not turn on if the lamp is not secured
properly.
6 Close the lamp cover and tighten the
screws.
7 Attach the adjuster.
8 Turn the projector back over.
9 Connect the power cord and turn the
projector to standby mode.
10 Press the following buttons on the control
panel in the following order for less than
five seconds each: RESET, <, ,, ENTER.
1
2
3
Release lever
1
3
1
2
39
GB
Replacing the Air Filter
Others
Notes
•Do not put your hands into the lamp replacement spot, or not
fall any liquid or object into it to avoid electrical shock or fire.
•Be sure to use the LMP-H120 Projector Lamp for replacement.
If you use lamps other than LMP-H120, the projector may
cause a malfunction.
•Be sure to turn off the projector and unplug the power cord
before replacing the lamp.
Disposal of used projector lamp
As the materials used in this lamp are similar to those
of a fluorescent lamp, you should dispose of a used
projector lamp in the same way as a fluorescent lamp.
Replacing the Air
Filter
The air filter should be replaced periodically. When
“Please replace the filter.” appears on the screen,
replace the air filter immediately.
Notes
•Replacing the air filter is very important to maintain the high
efficiency of the projector and to prevent a malfunction. When
the replacement message appears on the screen, replace the air
filter without delay.
•When removing the air filter from the projector, be careful that
no dust or object gets into the inside of the projector.
1 Place a protective sheet (cloth) beneath
the projector. Turn the projector over so
you can see its underside.
Note
Be sure that the projector is stable after turning it over.
2 Slide the release lever on the adjuster
outward and turn the adjuster clockwise to
remove the adjuster.
3 Push the knob on the filter cover to
remove the filter cover.
4 Remove the filter holder.
5 Remove the air filter from the filter holder
by holding the tab on the air filter.
6 Insert the new air filter into the filter holder
with the white surface up, then replace it in
the projector.
7 Replace the filter cover.
8 Attach the adjuster.
2
1
3
Release lever
Knob
Air filter
Filter holder
Tab
1-21
VPL-HS1
GB
40
Specifications
Others
Specifications
System
Projection system3 LCD panels, 1 lens, projection
system
LCD panel 0.7-inch TFT LCD panel,
1,440,000 pixels (480,000
pixels
×
3)
Lens 1.3 times zoom lens (manual)
Lamp 120 W UHP type
Projection picture size
Range: 40 to 150 inches (measured
diagonally)
Color system NTSC
3.58
/PAL/SECAM/NTSC
4.43
/
PAL-M/PAL-N system,
switched automatically/
manually
Acceptable video signals
15k, DTV (480i/480p/1080i/720p)
Acceptable computer signals
fH: 19 to 72 kHz
fV: 48 to 92 Hz
Speaker Stereo speakers system, 33 mm
(1
5
/
16
inches) diameter,
max. 2 W
×
2
Input/Output
Video input VIDEO: phono type
Composite video: 1 Vp-p
±
2 dB
sync negative (75 ohms
terminated)
S VIDEO: Y/C mini DIN 4-pin
type (male)
Y (luminance): 1 Vp-p
±
2 dB
sync negative (75 ohms
terminated)
C (chrominance): burst 0.286
Vp-p
±
2 dB (NTSC)
(75 ohms terminated),
burst 0.3 Vp-p
±
2 dB (PAL)
(75 ohms terminated)
AUDIO Stereo minijack
500 mVrms, impedance more
than 47 kilohms
PJ MULTI 32-pin multi connector
Analog RGB/component:
R/C
R
(P
R
): 0.7 Vp-p ±2 dB
(75 ohms terminated)
G: 0.7 Vp-p ±2 dB
(75 ohms terminated)
G with sync/Y: 1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
B/C
B
(P
B
): 0.7 Vp-p ±2 dB
(75 ohms terminated)
SYNC/HD: Composite sync
input: 1-5 Vp-p high impedance,
positive/ negative
Horizontal sync input: 1-5 Vp-p
high impedance, positive/
negative
VD: Vertical sync input: 1-5
Vp-p high impedance, positive/
negative
“Memory Stick” slot 1
General
Dimensions 340
×
154
×
300 mm
(13
1
/
2
×
6
1
/
8
×
11
7
/
8
inches)
(w/h/d)
Mass Approx. 3.9 kg (8 lb 10 oz)
Power requirements
AC 100 to 240 V, 1.9-0.8 A,
50/60 Hz
Power consumption
Max. 190 W
(Standby mode: 5 W)
Supplied accessories
Remote control RM-PJHS1 (1)
Size AA (R6) batteries (2)
Signal interface cable SIC-HS10
(5 m) (1)
AC power cord (1)
Air filter (for replacement) (1)
Lens cap (1)
Operating Instructions (1)
Design and specifications are subject to change
without notice.
41
GB
Specifications
Others
Optional accesories
Signal interface unit IFU-HS1
Projector stand SU-HS1
Signal interface cable
SIC-HS10 (5 m)
SIC-HS20 (5 m)
SIC-HS30 (5 m)
SIC-HS40 (5 m)
Projector Lamp LMP-H120 (for replacement)
Air filter PK-HS1FL (for replacement)
Projection Distances for a 720p
format signal, computer’s signal, etc.
When projecting a 720p format signal
Unit: m (feet)
When projecting a computer’s signal or data
stored in a “Memory Stick”
Unit: m (feet)
Screen
size
(inches)
40 60 80 100 120 150
a0.3
(1.0) 0.5
(1.6) 0.7
(2.3) 0.9
(3.0) 1.1
(3.6) 1.3
(4.3)
b0.1
(0.3) 0.2
(0.7) 0.3
(1.0) 0.4
(1.3) 0.5
(1.6) 0.6
(2.0)
c2.0
(6.6) 3.0
(9.8) 4.0
(13.1) 5.1
(16.7) 6.1
(20.0) 7.6
(24.9)
d1.8
(5.9) 2.7
(8.9) 3.6
(11.8) 4.5
(14.8) 5.4
(17.7) 6.8
(22.3)
Screen
Projector
abc
d10°
10°
Screen
size
(inches)
40 60 80 100 120 150
a0.1
(0.3) 0.1
(0.3) 0.2
(0.7) 0.3
(1.0) 0.4
(1.3) 0.4
(1.3)
b0
(0) 0
(0) 0
(0) 0
(0) 0
(0) 0
(0)
c1.8
(5.9) 2.8
(9.2) 3.7
(12.1) 4.7
(15.4) 5.6
(18.4) 7.0
(23.0)
d1.6
(5.2) 2.5
(8.2) 3.3
(10.8) 4.2
(13.8) 5.0
(16.4) 6.3
(20.7)
1-22 VPL-HS1
GB
42
Specifications
Others
Input signals and adjustable/setting items
Some of the items in the menus cannot be adjusted depending on the input signal.
PICTURE CTRL menu
z
: Adjustable/can be set
–
: Not adjustable/cannot be set
INPUT SETTING menu
z
: Adjustable/can be set
–
: Not adjustable/cannot be set
Item
Input signal
Video or S video (Y/
C) Component Video GBR Computer/MS
CONTRAST zzzz
BRIGHT zzzz
COLOR z
(except for B & W)
zz–
HUE z
(NTSC
3.58/4.43
only,
except for B & W)
zz–
SHARP zzz–
RGB ENHANCER –––
D. PICTURE zz
(15k RGB only)
z
(15k RGB only) –
GAMMA MODE ––z
(15k RGB only)
z
COLOR TEMP zzzz
COLOR SYS z–––
VOLUME zzzz
Item
Input signal
Video or S
video (Y/C) Component Video GBR Computer MS
DOT PHASE ––
(except for HDTV) –
(except for HDTV)
z–
SIZE H ––
(except for HDTV) –
(except for HDTV)
z–
SHIFT zz z z–
SCAN CONV –– – z
(lower than VGA) –
ASPECT zz
(except for preset
memory numbers 5,
45, 47, 48 and 50 of
HDTV)
z
(except for preset
memory numbers 5,
45, 47, 48 and 50 of
HDTV)
––
VIDEO MEMORY zz z z–
43 GB
Specifications
Others
Preset Signals
Notes
•Whan a signal other than the preset signals shown above is input, the picture may not appear properly.
•The signal from the Memory Stick is displayed as No. 53 to 60.
Warning on power connection
Use a proper power cord for your local power supply.
Memory No. Preset signal fH (kHz) fV (Hz) Sync SIZE
1 Video 60 Hz 15.734 59.940 –– ––
2 Video 50 Hz 15.625 50.000 –– ––
3 15k RGB/Component 60 Hz 15.734 59.940 SonG/Y or Composite Sync ––
4 15k RGB/Component 50 Hz 15.625 50.000 SonG/Y or Composite sync/
Composite video ––
5 1080/60i, 1035/60i (DTV) 33.750 60.000 SonG/Y 1800
6640
× 350 VGA mode 1 31.469 70.086 H-pos, V-neg 800
7 VGA VESA 85Hz 37.861 85.080 H-pos, V-neg 832
8640
× 400 PC-9801 Normal 24.823 56.416 H-neg, V-neg 848
9 VGA mode 2 31.469 70.086 H-neg, V-pos 800
10 VGA VESA 85Hz 37.861 85.080 H-neg, V-pos 832
11 640 480 VGA mode 3 31.469 59.940 H-neg, V-neg 800
12 Macintosh 13”35.000 66.667 H-neg, V-neg 864
13 VGA VESA 72Hz 37.861 72.809 H-neg, V-neg 832
14 VGA VESA 75Hz 37.500 75.000 H-neg, V-neg 840
15 VGA VESA 85Hz 43.269 85.008 H-neg, V-neg 832
16 800 × 600 SVGA VESA 56Hz 35.156 56.250 H-pos, V-pos 1024
17 SVGA VESA 60Hz 37.879 60.317 H-pos, V-pos 1056
18 SVGA VESA 72Hz 48.077 72.188 H-pos, V-pos 1040
19 SVGA VESA 75Hz 46.875 75.000 H-pos, V-pos 1056
20 SVGA VESA 85Hz 53.674 85.061 H-pos, V-pos 1048
21 832 ×624 Macintosh 16”49.724 74.550 H-neg, V-neg 1152
22 1024 × 768 XGA VESA 43Hz 35.522 43.479 H-pos, V-pos 1264
23 XGA VESA 60Hz 48.363 60.004 H-neg, V-neg 1344
24 XGA VESA 70Hz 56.476 70.069 H-neg, V-neg 1328
25 XGA VESA 75Hz 60.023 75.029 H-pos, V-pos 1312
26 XGA VESA 85Hz 68.677 84.997 H-pos, V-pos 1376
43 480/60p (Progressive component) 31.470 60.000
SonG/Y
––
44 525/50p (Progressive component) 31.250 50.000 ––
45 1080/50i (DTV) 28.130 50.000 2000
47 720/60p (DTV) 45.000 60.000 2150
48 720/50p (DTV) 37.500 50.000 2342
50 540/60p 33.750 60.000 1796
The United
States, Canada Continental
Europe UK Australlia Japan
Plug type YP-11 YP-21 SP-61 B8 YP-13
Female end YC-13L YC-13L YC-13L C7-2 YC-13L
Cord type SPT-2 H03VVH2-F H03VVH2-F H03VVH2-F VCTFK
Rated Voltage & Current 10A/125V 2.5A/250V 2.5A/250V 2.5A/250V 7A/125V
Safety approval UL/CSA VDE BS SAA DENANHO
1-23
VPL-HS1
45 GB
Location of Controls
Others
Rear
S VIDEO VIDEO L AUDIO R PJ MULTI
(MONO)
INPUT ~ AC IN
Rear remote control
detector
S VIDEO INPUT connector
(mini DIN 4-pin)/VIDEO
INPUT jack (phono type)
(1 page 8)
Speaker
Adjuster
(1 page 10)
Lamp cover (bottom)
(1 page 38)
~ AC IN socket
PJ MULTI INPUT
connector (32-pin multi)
(1 page 8)
AUDIO L/R jacks (phono
type) (1 page 8)
GB 44 Location of Controls
Others
Location of
Controls
Front
You can use the buttons on the control panel with the same names as those on the remote control to operate the
projector.
INPUT
RESET
ENTER
MENU
LAMP/
COVER TEMP/
FAN POWER
SAVING ON/
STANDBY
VIDEO
MEMORY
SIDE SHOT
+
–
TEMP/FAN indicator
(1 page 36)
LAMP/COVER indicator
(1 page 36)
ENTER button
Lens
Ventilation holes
(exhaust) (1 page 6)
Ventilation holes
(intake) (1 page 6)
POWER SAVING indicator
(1 page 20)
ON/STANDBY indicator
(1 page 14)
VIDEO MEMORY button
@/1 (on/standby) switch
INPUT button
Zoom lever
(1 pages 10 and 15)
Focus lever
(1 page 15)
“Memory Stick” slot
(1 page 23)
Adjuster stopper
(1 page 10)
Air filter cover (bottom)
(1 page 39)
Front remote control
detector
M/m/</, buttons
RESET button
MENU button
SIDE SHOT +/– buttons
1-24 VPL-HS1
GB 46 Location of Controls
Others

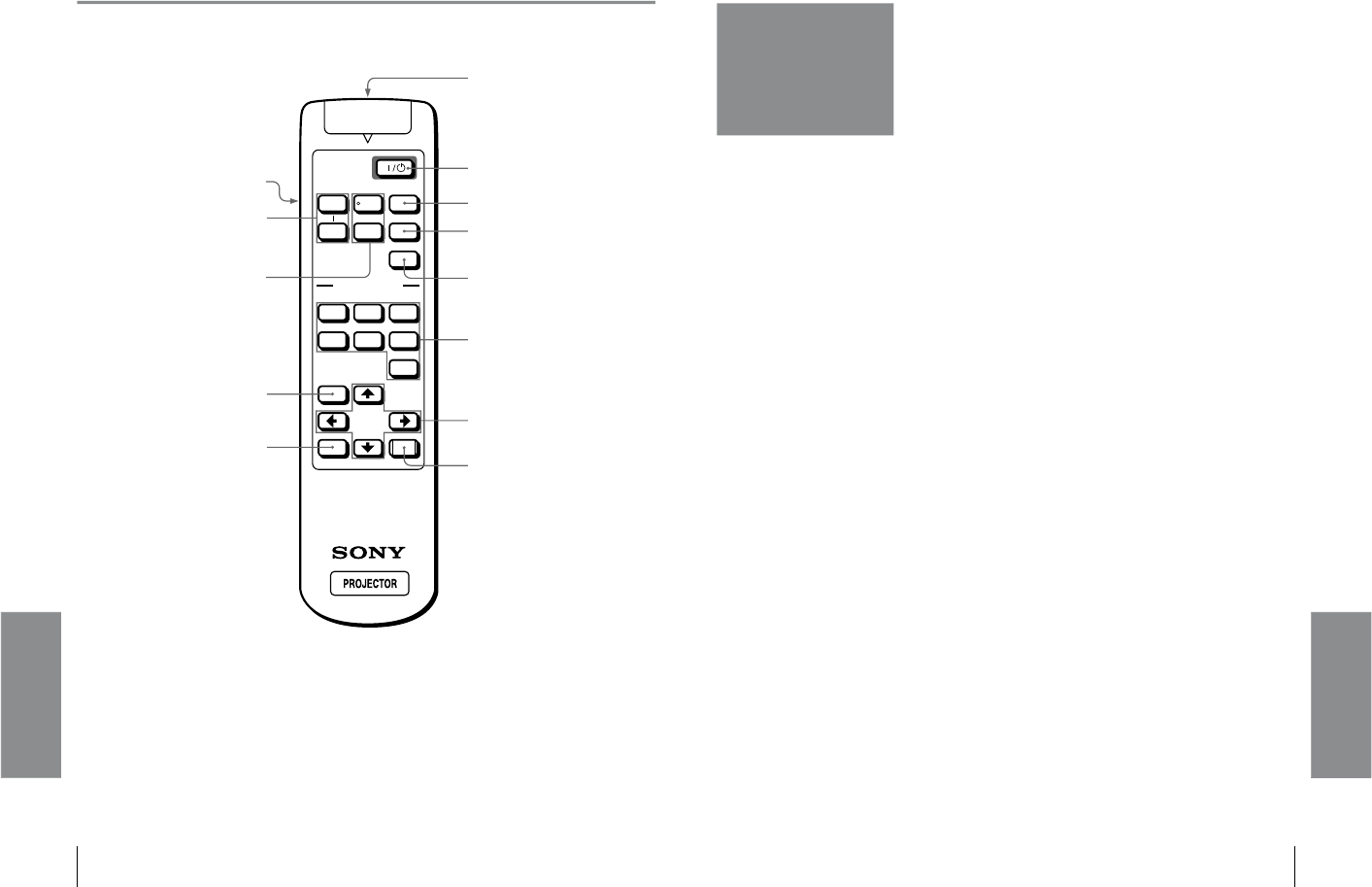

Remote control
SIDE
SHOT VOLUME
MS SLIDE
DYNAMIC STANDARD LIVING
USER 1
MENU
ENTER
RESET
USER 2 USER 3
OFF
APA
INPUT
VIDEO MEMORY
+
–
+
–
LIGHT button
Illuminates the buttons on the
remote control.
SIDE SHOT +/– buttons
(1 page 11)
VOLUME +/– buttons
(1 page 15)
ENTER button (1 page 17)
Infrared transmitter
MS SLIDE button (1 page 26)
APA button (1 page 21)
VIDEO MEMORY buttons
(1 page 16)
DYNAMIC/STANDARD/LIVING
USER 1, 2, 3/OFF
@/1 (on/standby) switch
(1 page 14)
INPUT button (1 page 14)
M/m/</, buttons
(1 page 17)
RESET button (1 page 18)
MENU button (1 page 17)
47 GB
Index
Others
Index
A
Adjuster ............................................. 10
Adjusting
focus....................................... 10, 15
picture size and position.............. 9
the picture ............................. 19, 21
trapezoidal distortion ................ 11
volume ......................................... 15
zoom ...................................... 10, 15
Air filter............................................. 39
ASPECT............................................ 19
B
BRIGHT............................................ 19
C
COLOR.............................................. 19
COLOR SYS.................................... 19
COLOR TEMP................................. 19
Connections
AV amplifier.................................. 8
computer ........................................ 9
digital BS tuner............................. 8
DVD player.................................... 8
using the optional interface unit. 9
using the optional signal interface
cables............................................ 8
video equipment ........................... 8
CONTRAST..................................... 19
D
D. PICTURE..................................... 19
DIGIT KEYSTONE........................ 20
DOT PHASE .................................... 19
G
GAMMA MODE............................. 19
H
HUE.................................................... 19
I
Indicator
LAMP/COVER .......................... 36
TEMP/FAN................................. 36
INPUT SETTING menu ........... 18, 19
INPUT-A............................................ 20
INSTALL SETTING menu...... 18, 20
Installing the Projector and a
Screen ................................................ 7
K
KEYSTONE DIR............................. 20
KEYSTONE MEM.......................... 20
L
Lamp replacement............................ 38
LAMP TIMER.................................. 20
LANGUAGE..................................... 20
Location of controls
front.............................................. 44
rear................................................ 45
remote control............................. 46
M
“Memory Stick”
delete a still picture.................... 32
full-screen picture...................... 27
index pictures.............................. 26
initializing ................................... 33
inserting....................................... 23
MS home ..................................... 24
protection..................................... 29
rotate ............................................ 28
slide show.................................... 24
startup........................................... 30
Menu
clearing the menu display......... 18
operation...................................... 17
reset .............................................. 18
MENU BACKGROUND................ 20
MENU COLOR................................ 20
MENU POSITION .......................... 20
Message
caution.......................................... 37
caution display
(“Memory Stick”).................... 37
warning ........................................ 36
O
Optional accesories .......................... 41
P
PICTURE CTRL menu ............ 18, 19
POWER SAVING............................. 20
Preset memory ........................... 21, 43
Projection........................................... 14
R
Remote control
inserting the batteries................... 5
location of controls .................... 46
Remote control detector
front ................................................ 9
rear.................................................. 9
RGB ENHANCER........................... 19
S
SCAN CONV.................................... 19
Screen size........................................... 7
Selecting the menu language.......... 12
SET SETTING menu................ 18, 20
SHARP............................................... 19
SHIFT................................................. 19
SIZE H................................................ 19
Specifications.................................... 40
STATUS ............................................. 20
Supplied accessories .......................... 5
T
Troubleshooting................................ 34
V
Ventilation holes
exhaust ........................................... 6
intake .............................................. 6
VIDEO MEMORY.................... 16, 20
DYNAMIC ........................... 16, 20
LIVING................................. 16, 20
STANDARD ........................ 16, 20
USER 1, 2 and 3.................. 16, 20
VOLUME .......................................... 19
1-25
VPL-HS1
1-2. SU-HS1
4-085-351-01 (1)
2001 Sony Corporation
Mounting Instructions
page 4
Instructions de montage
page 5
Montageanleitung
Seite 6
Instrucciones de montaje
página 7
Istruzioni per il montaggio
pagina 8
SU-HS1
Projector Stand
1-26 VPL-HS1

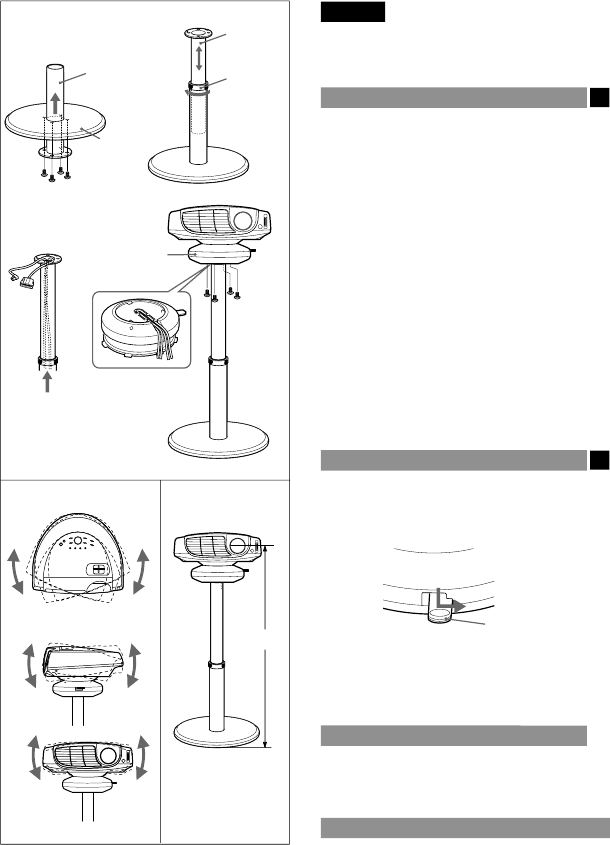

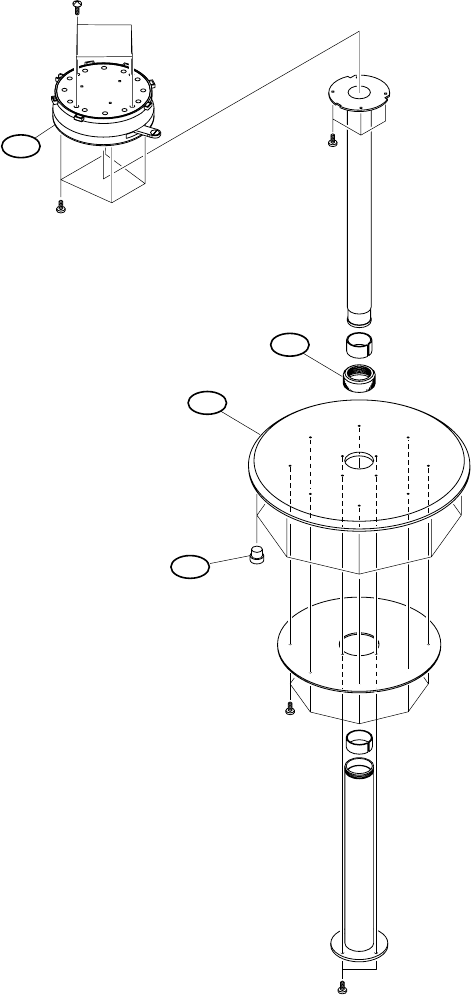

4
1
Pedestal
2
34
Adjuster
A
B
C
A
B
Lower
support
Upper
support
Stopper
C
55 - 80 cm
English
The SU-HS1 is a Projector Stand for the LCD Video
Projector only. Assemble the Projector Stand and
adjust it as follows:
Assembling the Projector Stand
A
Before assembling
Remove the adjuster mounted on the LCD Video
Projector. To remove it, refer to the Video Projector
Operating Instructions.
1
Pass a lower support part through the hole of a
pedestal, then fix it with the supplied 4 long
screws.
2
Mount a upper support part and stopper to the
lower support part and adjust it height, then fix it.
3
Pass a AC power cord and PJ Multi cable through
the supports.
Pull out the cables from the top of the upper
support for 20 to 30 cm so that they reach to the
projector.
4
Store the cables into the groove at the back of the
adjuster, and fix the adjuster to the support with
the four short screws.
5
Connect the cables passed through the supports to
the projector.
Adjusting the adjuster
B
Using the adjuster of the projector stand, you can
adjust the projecting picture position.
Hold down and slide the adjuster stopper to the right,
move the projector, then replace the stopper.
You can move the projector vertically and
horizontally within the following ranges:
A Up to 20° each for horizontal angle
B Up to 10° each for vertical angle
C Up to 2° each for tilting angle
Adjusting the height of the supports C
You can adjust the height of the supports within the
following range:
55 to 80 cm (Distance between the center of the lens
and the floor)
Specifications
Dimensions: 420 × 420 × 750mm (W × D × H)
Mass: Approx. 5.5 kg (13 lb)
Adjuster stopper
1-27
VPL-HS1
1-3. IFU-HS1
4-085-602-02 (1)
Signal Interface Unit
IFU-HS1
2001 Sony Corporation
Printed in China
Operating instructions
Mode d’emploi
Bedienungsanleitung
Instrucciones de uso
Istruzioni per l’uso
1-28 VPL-HS1
S VIDEO VIDEO
(MONO)
L
–
AUDIO
–
R
VIDEO IN 1
S VIDEO VIDEO
(MONO)
L
–
AUDIO
–
R
TV OUT 1
Y
(MONO)
L
–
AUDIO
–
R
VIDEO IN 2
Y
P
B
/C
B
P
B
/C
B
P
R
/C
R
P
R
/C
R
(MONO)
L
–
AUDIO
–
R
TV OUT 1
PROJECTOR OUT
PJ MULTI
S VIDEO VIDEO
VIDEO IN 3
(MONO)
L–AUDIO –R
English
Connection (Connecting with a TV Game or VCR
Equipment or 15k RGB/Component Equipment)
Video equipment DVD player
Rear side
to S video
or video
output/
audio (L/R)
output
to RGB or
component
output/
audio (L/R)
output
VIDEO
IN 2
VIDEO
IN 1
TV
OUT 1 TV
OUT 2
PROJECTOR
OUT
PJ Multi cable
(supplied)
(10m)
to S video
or video
output
connector to Audio
(L/R)
output
connector
S video or audio/video
cable VMC-810S etc.
(not supplied)
Front side
TV
TV game
LCD Video
Projector
How to Use
INPUT: Press INPUT select switch to select a equipment
connected to the Signal Interface Unit.
OUTPUT: Select TV/PROJECTOR select switch to suite your
preference.
Specifications
Dimensions: 230 × 90 × 50 mm (without the cable) (W × D × H)
Mass: Approx. 850 g (1 lb 12 oz)
Supplied Accessory
Multi cable 10 m (length)
2-1
VPL-HS1
Section 2
Service Informations

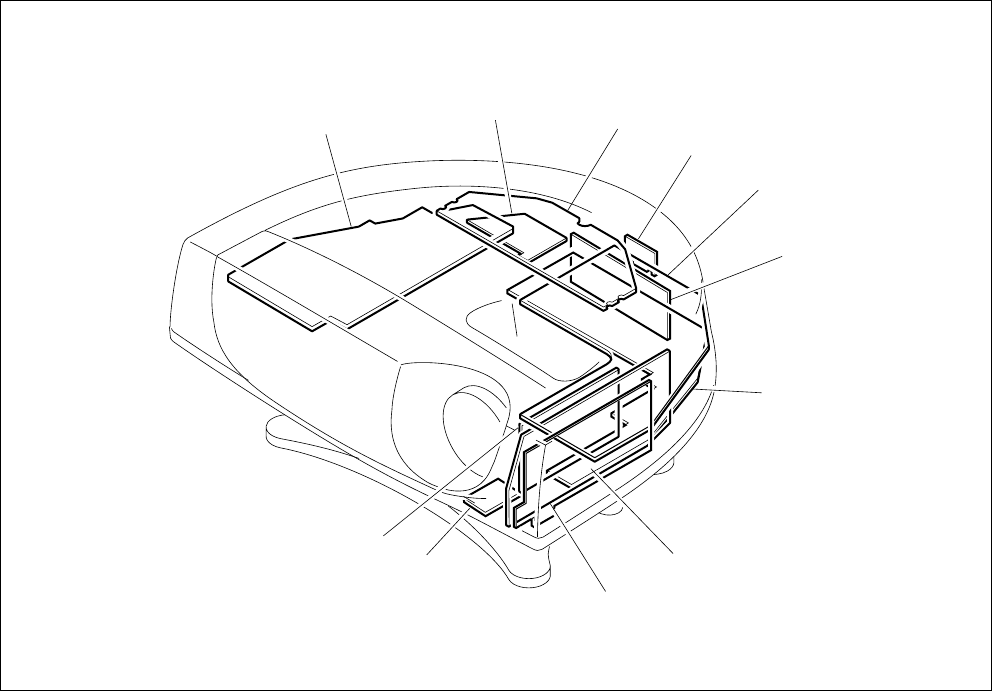

2-1. Board Layout
C
BA
Q
MS
BB
BC
NF
NR
H
F
G
2-2 VPL-HS1
2-2. Disassembly and Extension Boards

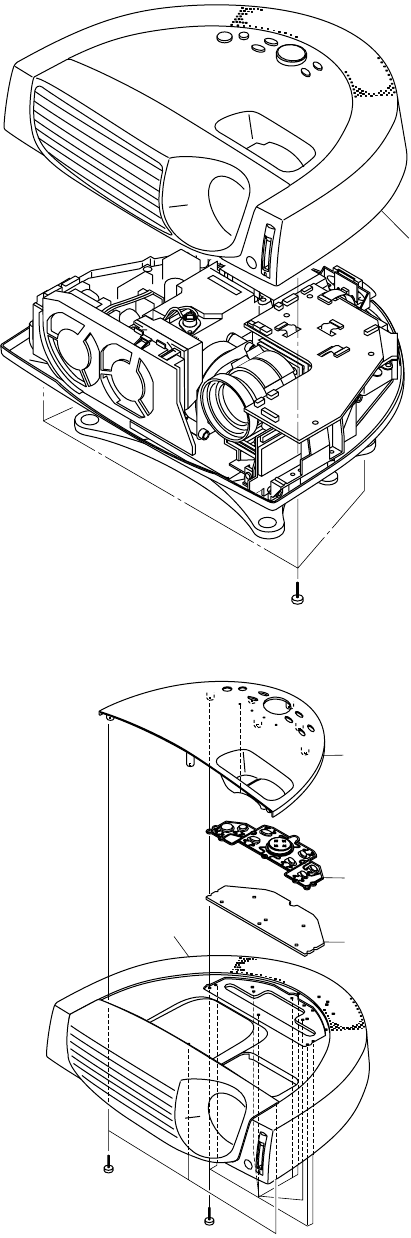

2-2-1. Hood Block Assy Removal
1 Four screws
(+B3 x 8)
2 Hood block assy
2-2-2. H Board Removal
1 Three screws
(+PTPW3 x 8)
3 Top cover
5 Button assy
4 H board
Hood assy
2 Nine screws
(+B3 x 8)
2-3
VPL-HS1

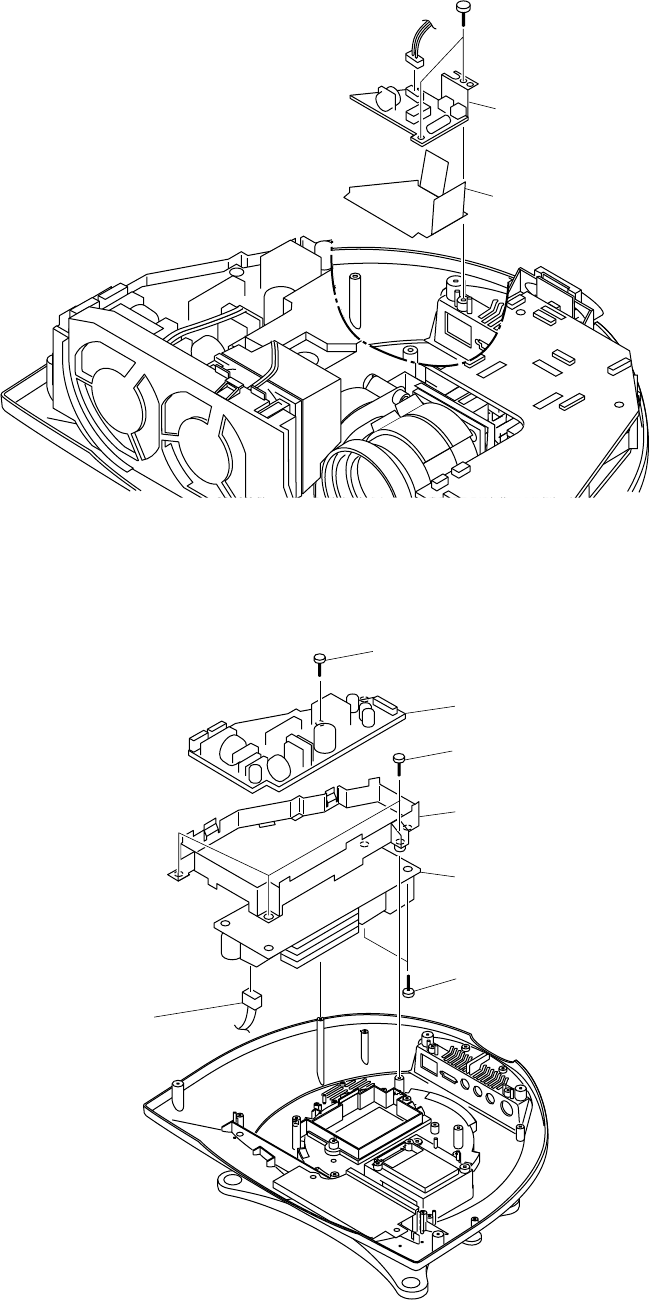

2-2-3. C Board Removal
2-2-4. MS Board Removal
4 MS board
1 Screw (+B3 x 6)
3 Two screws
(+B3 x 6)
2 Holder (MSC)
CN804
1 Three screws
(+B3 x 6)
CN102
CN101
CN104
CN106
CN702
CN111
CN502
CN602
CN107
CN105
2 C board
2-4 VPL-HS1
2-2-6. BC Board Removal
2-2-5. BB and NF Boards Removal
1 Screw
(+B3 x 6)
2 BB board
3 NF board
1 Screw (+PSW3 x 8)
2 BC board
Q board
CN801
CN702
2-5
VPL-HS1
2-2-7. Optics block assy Removal
*Remove the C board. (Refer to Sec.2-2-3.)
*Remove the MS board. (Refer to Sec.2-2-4.)
*Remove the BB and NF boards. (Refer to Sec.2-2-5.)
2-2-8. Q Board Removal
*Remove the Optics block assy. (Refer to Sec.2-2-7.)
5 Four screws
(+PSWH4 x 10)
3 Two screws
(+PTPWH3 x 10)
7 Sheet (L1)
1 Two screw (+BVTP3 x 6)
4 Connector (2P)
2 Thermostat
Spacer (B)
6 Optics block assy
4 Three screws
(+B3 x 6)
3 Special head two screws
(M1.6 x 5)
5 Q board
CN503
CN704
CN703
CN501
1 Four Screw (+B3 x 6)
2 DC fan
2-6 VPL-HS1

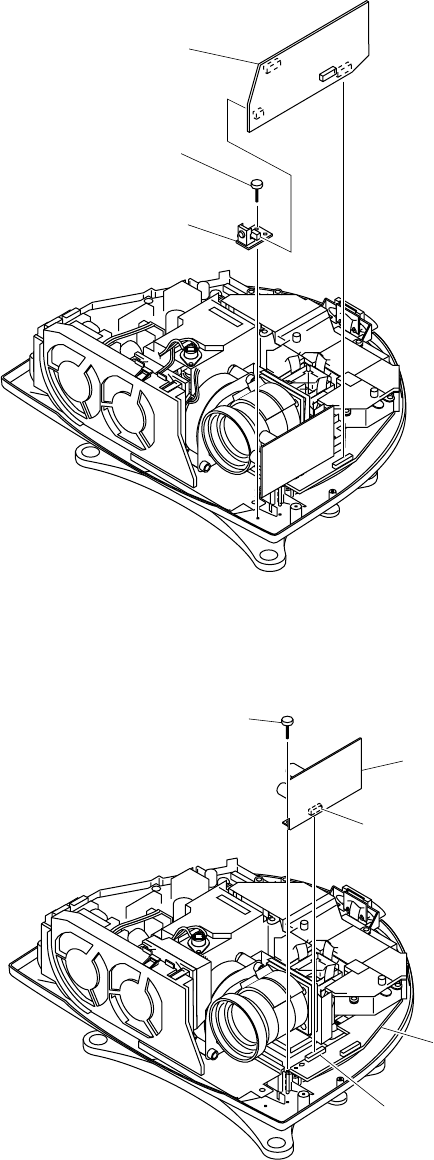

2-2-10. NR Board Removal
2-2-9. BA Board Removal
1 Screw
(+PSW3 x 8)
4 BA board 2 Holder (BA)
3 Screw
(+B3 x 6)
1 Screws (+B3 x 6)
3 NR board
CN901
Sheet (ER)
2 RM Window(ER) assy
2-7
VPL-HS1
2-2-11. F Board Removal
2 F Board
3 Sheet (F1)
1 Two screws
(+PSW3 x 6)
CN1102
2-2-12. Hi-voltage block and G Board Removal
6 G mount
2 Holder (G)
4 Hi-voltage block
1 Three screws (+B3 x 6)
5 Screw (+PSW3 x 8)
3 Two screws (+B3 x 6)
CN1
2-8 VPL-HS1
2-2-14. Prism Block Assy and In-polarizer Removal
*Remove the Projection Lens. (Refer to Sec.2-2-13.)
2-2-13. Projection Lens Removal
*Remove the Optics block assy. (Refer to Sec.2-2-7.)
1 Three screws
(+PSW3 x 8)
2 Lens
1 Three screws
(+PSW4 x 12) 6 Two screws (+B2 x 4)
3 Two screws
(+B2 x 4)
2 Prism Block assy
n
Use extremo care not to touch the glass section of prism,
LCD, and conductive section of the flexible cable in particular.
9 Two screws (+B2 x 4)
Flexible cable
Hold With fingers
!- In-polarizer panel
(B) assy
8 In-polarizer panel
(G) assy
5 In-polarizer panel
(G) assy
4 In-polarizer holder
7 In-polarizer holder
0In-polarizer holder
2-9
VPL-HS1

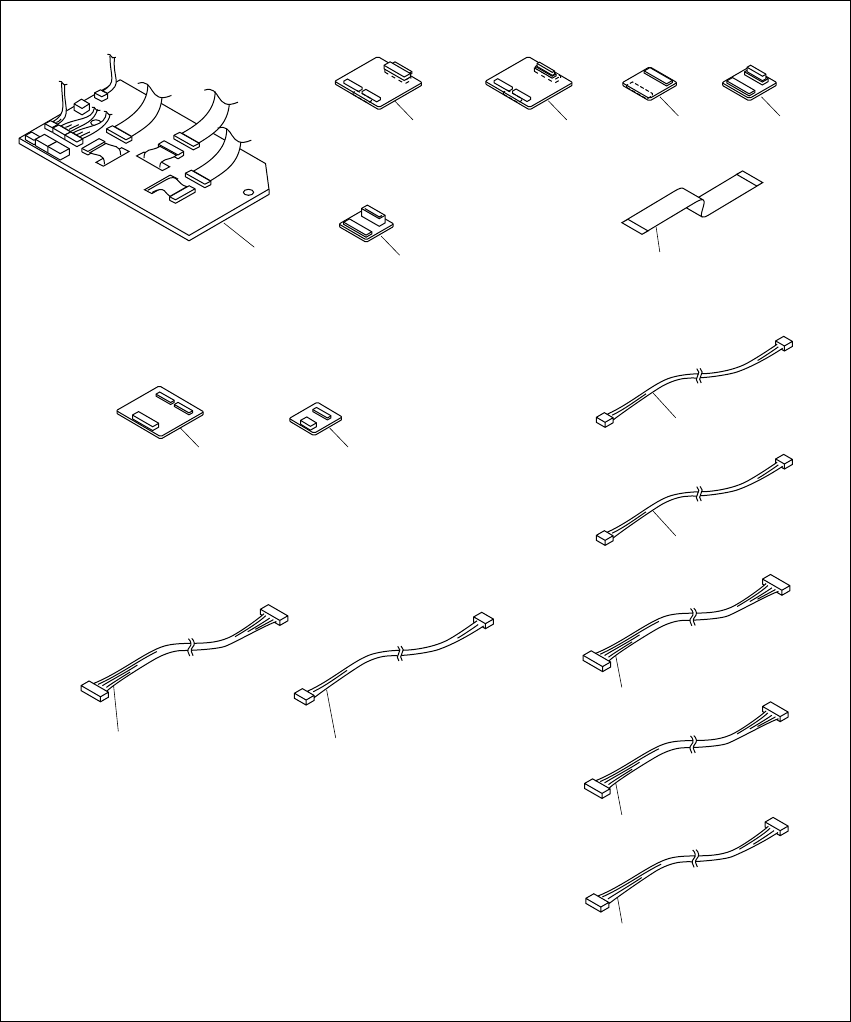

2-2-15. Extension Boards and Extension Cables
X3 board
X7 board
Main PW VISCA
X5 board
(Two boards)
X6 board
X4 board
X8 board
X2 board
70pin 70pin 50pin 50pin
50pin
X1 board
X KIT ASSY(A-1502-036-A)
Cable (12P)
C-X7
Cable (12P)
x
1
(G-Q)
Cable (10P)
x
1
(G-C)
Power
Power
Power
Fan
Fan
Cable (7P)
x
1
(G-C)
Cable (5P)
C-X8
Cable (3P)Small
x
3
(X1-C)
Flexible cable (24P)(Seven pieces)
(X2-X3
x
3)
(C-X1
x
3)
(BA-C
x
1)
(30cm)
Cable (3P)Large
x
1
(X1-C)
2-10 VPL-HS1

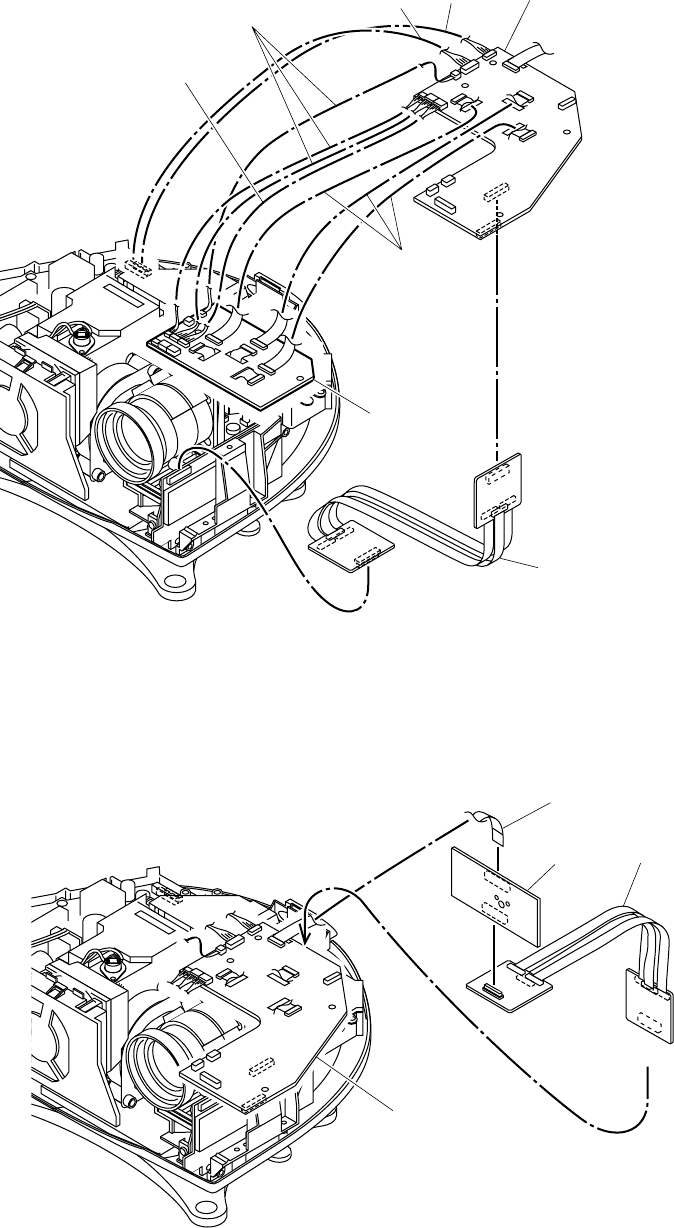

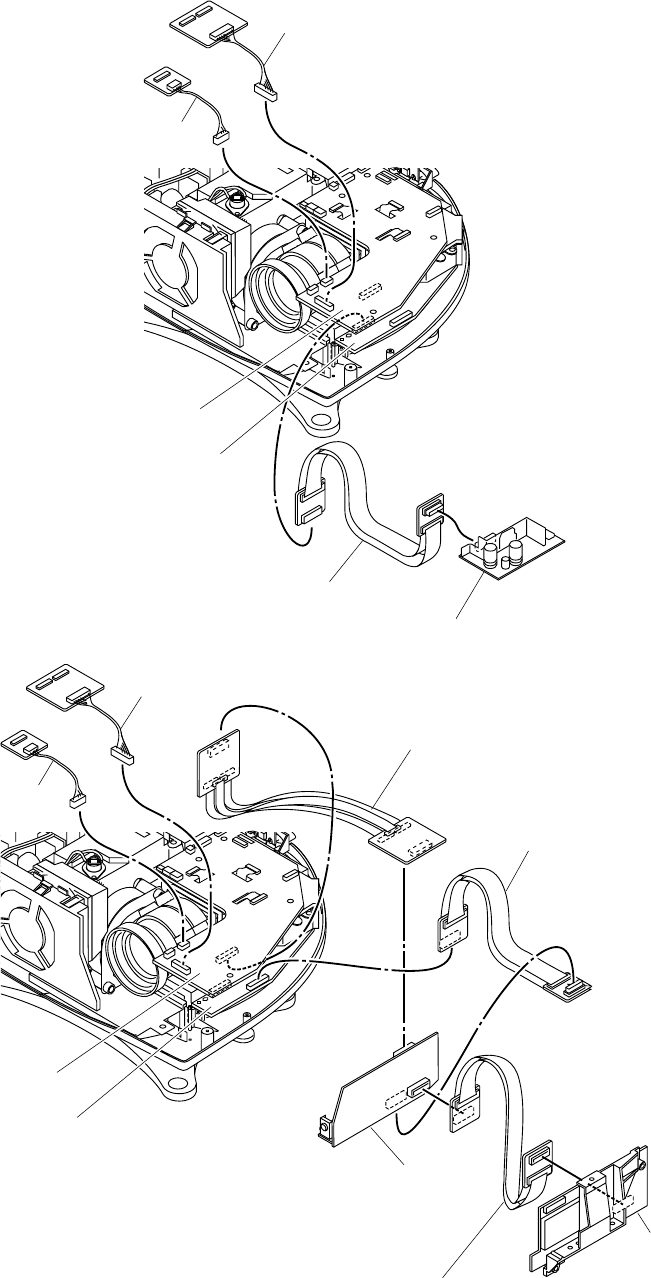

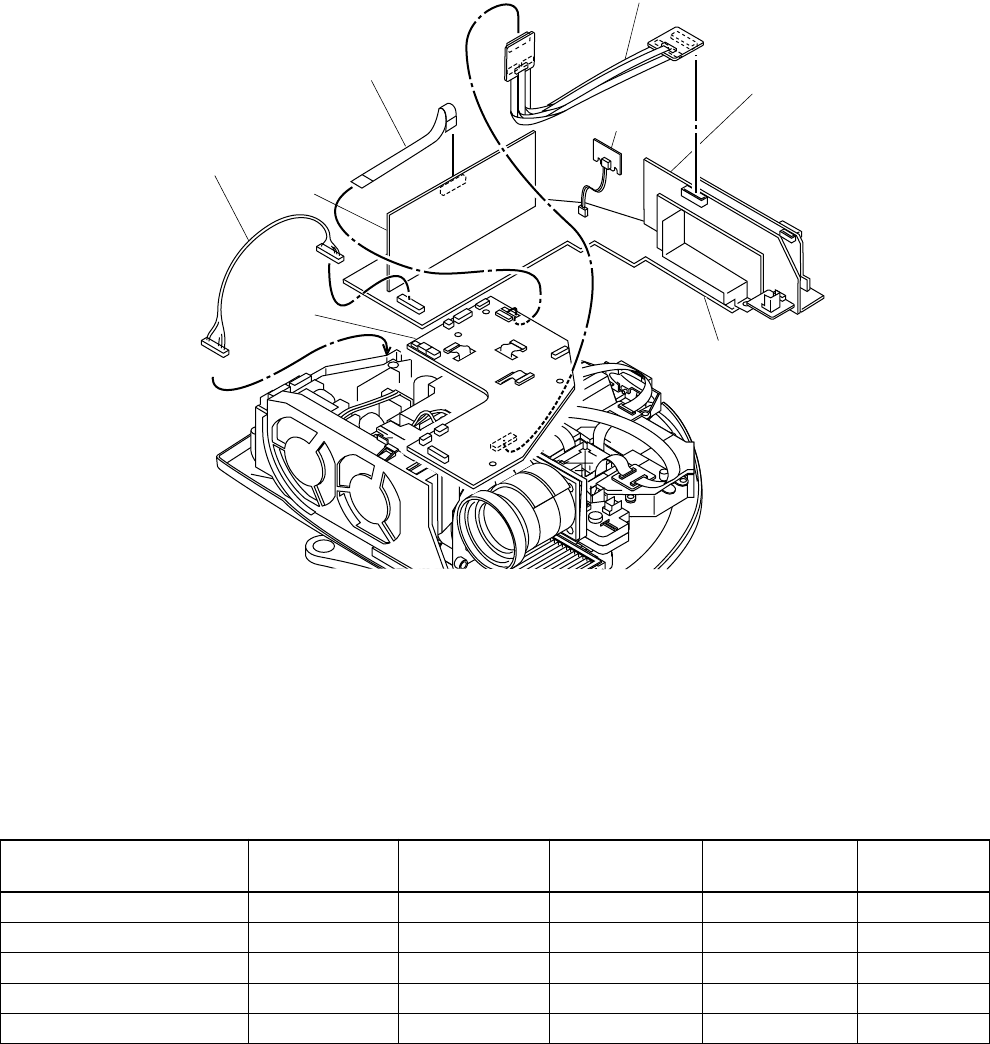

2-2-16. Extension Boards and Extension Cables Connecti
(1) BC Board
(2) BB and MS Boards
Cable (Q-BC)
24Pin
BC Board
Q Board
X4
X7
X8
X5
12Pin
5Pin
C Board
Cable (BB-MS)
24Pin
MS Board
BB Board
Q Board
X5
X6
Cable (Q-BB)
24Pin
X4
X3
X2
X5
X7
X8 Cable (C-BB)
24Pin x 3
12Pin
5Pin
C Board
2-11
VPL-HS1
(3) C Board
(4) BA Board
BA Board
to Q Board
X2
X3
C Board
Cable (BA-Q)
24Pin
Cable (C-BA)
24Pin
to G Board
X2
X1 Board
X3
C Board
Cable (C-BB)
24Pin
3Pin
(Large Connector)
3Pin
(Small Connector)
24Pin
Flexible Cable
7Pin
10Pin
2-12 VPL-HS1
(5) Q Board
2-3. Power Cord
Use a proper power cord for your local power supply.
The United Continental UK Australia Japan
States, Canada Europe
Plug type YP-11 YP-21 SP-61 B8 YP-13
Female end YC-13L YC-13L YC-13L C7-2 YC-13L
Cord type SPT-2 H03VVH2-F H03VVH2-F H03VVH2-F VCTFK
Rated Voltage & Current 10 A/125 V 2.5 A/250 V 2.5 A/250 V 2.5 A/250 V 7 A/125 V
Safety approval UL/CSA VDE BS SAA DENNANHO
Cable (C-BB)
24Pin x 3
X3
X2
Cable (C-BA)
24Pin
12Pin
BB Board
NR Board
C Board
to G Board Q Board
BA Board
1)Use the correct Plug for your country.
3-1
VPL-HS1
Section 3
Electrical Adjustments
3-1. Preparations
3-1-1. Equipment Required
.Oscilloscope
Tektronix 2465 or equivalent
(bandwidth: 350 MHz or more)
.NTSC, PAL, SECAM component signal generator
Tektronix TG2000 + AVG1 (optional module) + AWVG1
(optional module) or equivalent
.VG (Programmable video signal generator)
VG814 or equivalent
.Digital voltmeter
Advantest TR6845 or equivalent
.Luminance meter
.Chrominance difference gauge
n
Perform the following adjustments at least 5 minutes after
turning on the power.
3-1-2. Optical Unit Adjustment
Drive the cooling fan and turn on the lamp.
1) Mirror Adjustment
Set the screen size to 80-inch at the wide-end.
1. Set the unit in green-only.
2. Adjust the blanking sections at the top, bottom, left,
and right for minimum by moving the adjusting plate
of the G dichromatics mirror.
3. Tighten the adjusting plate fixing screws.
4. Set the unit in cyan.
5. Adjust the blanking sections at the top, bottom, left,
and right for minimum by moving the adjusting plate
of the RB mirror, and then maximize the intensity of
the blue.
6. Tighten the adjusting plate fixing screws.
7. Set the unit in all white.
8.
Adjust the blanking sections at the top, bottom, left, and
right for minimum by moving the adjusting plate of the
RB mirror, and then maximize the intensity of the red.
9. Tighten the adjusting plate fixing screws.
10. Secure the six adjusting plate fixing screws using a
torque screwdriver.
Tightening torque: 8 kgf/cm
11. Make sure that the deviation of the lighting range is
within the specific range.
3-1-3. Factory Mode Setting
1. Make sure that the MENU is indicated.
2. Exit the menu.
3. Press the keys in the following order:
“ENTER” → “ENTER” → “LEFT” → “ENTER”
4. The message “Do you wish to enter into the
FACTORY MODE? Yes:↑ No:↓ ” will be displayed.
5. Select “Yes:↑”.
n
.When leaving the FACTORY MODE, perform item 3.
“Do you wish to return to the USER MODE? Yes:↑ No:↓
” will be displayed. Select “Yes:↑”.
.Cannot enter FACTORY MODE by MS channel.
3-2. V-COM Adjustment
1. Input the green-only 30 IRE all white signal to
INPUT-A.
2. Set the CONTRAST to 80, BRIGHT to 50 and
COLOR TEMP to MID.
3. Set the screen to G VCOM adjustment of “Device
Adjust.”
Adjust the G VCOM so that the vertical line on the
screen is minimum.
4. Input the red-only and blue-only 30 IRE all white
signal respectively and adjust R VCOM and B VCOM
respectively so that the vertical line becomes
minimum.
5. Save the value adjusted.
3-2 VPL-HS1
3-3. Adjustment Item Initialize Data
*:“DOT PHASE, SIZE H, SHIFT H/V, SCAN CONV, ASPECT and BLANKING” in the “INPUT SETTING” menu
have an initial value respectively in accordance with the input signal (PRESET MEMORY No.).
Note : There are nonadjustable items in accordance with the input signal.
MenuTitle ItemName SET
MEMORY CH MEMORY CH MEMORY STATUS
MEMORY
VIDEO 1 S Video 1 INPUT-A VIDEO 2 S Video 2 MS
PICTURE CTRL CONTRAST 80 80 80 80 80 80
BRIGHT 50 50 50 50 50 50
COLOR 50 50 - 50 50 -
HUE 50 50 - 50 50 -
SHARP 50 50 - 50 50 -
RGB ENHANCER - - 30 - - 30
D.PICTURE OFF OFF OFF OFF OFF -
GAMMA MODE - - GRAPHICS - - GRAPHICS
COLOR TEMP HIGH HIGH HIGH HIGH HIGH HIGH
COLOR SYS AUTO AUTO - AUTO AUTO -
VOLUE 30 30 30 30 30 30
INPUT SETTING DOT PHASE
SIZE H
SHIFT
SCAN CONV
ASPECT
BLANKING
VIDEO MEMORY
SET SETTING STATUS ON
INPUT-A COMPONENT
LANGUAGE ENGLISH
POWER SAVING OFF
INSTALL SETTING KEYSTONE MEM. ON
DIGIT KEYSTONE 0
KEY DIRECTION V
MENU POSITION CENTER
MENU COLOR STANDARD
MENU BACKGROUND STANDARD
LAMP TIMER
INFORMATION fH
fV
ROM Ver
OPERATION TIMER
PREVIOUS LAMP TIMER
W/B ADJUST GAIN R
G
B
BIAS R
G
B
15 (*)
*
*
ON (*)
4:3 (*)
0 (*)
OFF
INDICATION ONLY
INDICATION ONLY
INDICATION ONLY
INDICATION ONLY
INDICATION ONLY
INDICATION ONLY
3-3
VPL-HS1
MemoryName
W/B MEMORY VIDEO MEMORY
VIDEO-
HIGH VIDEO-LOW VIDEO-
MIDDLE RGB-HIGH RGB-LOW RGB-
MIDDLE DYNAMIC STANDARD LIVING USER 1 USER 2 USER 3
90 80 70 80 80 80
30 50 50 50 50 50
70 60 50 50 50 50
50 50 50 50 50 50
60 60 50 50 50 50
000000
OFF OFF OFF OFF OFF OFF
GRAPHICS GRAPHICS GRAPHICS GRAPHICS GRAPHICS GRAPHICS
MIDDLE HIGH LOW HIGH HIGH HIGH
AUTO AUTO AUTO AUTO AUTO AUTO
ON ON ON ON ON ON
4:3 4:3 4:3 4:3 4:3 4:3
000000
200 200 200 180 180 180
158 158 200 140 140 180
200 158 200 180 140 180
80 80 80 180 80 80
80 80 80 140 80 80
80 80 80 140 80 80
Remarks
3-4 VPL-HS1
Note : There are nonadjustable items in accordance with the input signal.
* : Depends on the color system and the input terminal.
DeviceName ItemName MemoryName Remarks
SET MEMORY CHROMA MEMORY INSTALL MEMORY
NT3.58/NT4,43
/BW60 Pal/Pal-M/N/
Secam/BW50 15kRGB Component
(15k)
Two times speed
Component
HDTV(YPbPr) HDTV(GBR)
Include
two times speed
Top/bottom
Inversion Top/bottom
Not Inversion
RGB MTRX/ CONTRAST 16
R DRIVE 9 9 9 9 9 9 9 Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
G DRIVE 999 999 9
B DRIVE 999 999 9
SUB BRT 54
YUV CON 5 5 4 4 4 4 4
YUV COL 8 8 7 7 7 7 7
SUB HUE 7 9 8 8 8 8 8
CTI LVL 2 2 1 1 1 1 1
R-Y/R 12 11 11 13 13 12 12
R-Y/B 12 13 15 15 15 15 15
G-Y/R 7 5 6 8 8 7 6
G-Y/B 5 5 5 5 5 6 5
SUB SHP 1 1 3 3 3 3 3
SHPF0 1 1 1 1 1 1 1
PRE OVER 0 0 0 0 0 0 0
DMIC PIC 3
LTI LVL 111 1
00 0
D.COM/ VENH 5
CHROMA/ SHP GAIN 888 888 8
SHP EQ 000 000 0
SHP F0 2 2 2 2 2 2 2
Y-OUT LVL 51
C-OUT LVL 46
Y-DL
*
S B-Y ADJ 7
S R-Y ADJ 7
S-INHBT 0
S-ID 0
S GP 0
S V-ID 0
BELL F0 0
HPF 0
P.DRV/ OFFSET R(E) 168 168
OFFSET (GE) 168 168
OFFSET B(E) 168 168
VCOM R 50 50
VCOM G 55 55
VCOM B 65 65
SIG CEN 148
CALIB 138
INV CONT 1
SID LVL 95
PRG LVL 215
SH/ SH1 7
SH2 R 227
SH2(G) 229
SH2 B 227
VAMP/ CONT(E) 160
SUB CON R(E) 128 128
SUB CON G(E) 128 128
SUB CON B(E) 128 128
BRT(E) 195
INSTALLATION 0
Fixed Value
Fixed Value
Fixed Value
3-5
VPL-HS1
Note : There are nonadjustable items in accordance with the input signal.
DeviceName ItemName MemoryName Remarks
SET MEMORY CHROMA MEMORY INSTALL MEMORY
NT358/NT443
/BW60 Pal/Pal-M/N/
Secam/BW50 15kRGB Top/bottom
Inversion Top/bottom
Not Inversion
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
Fixed Value
3D GAMMA/ SUB CONT 0
SUB BRT 0
R OSD LVL 31
G OSD LVL 31
B OSD LVL 31
THROUGH 0
SW 1
APC THRES 25
APC LIMIT 32
OTHER/ H START 104
V START 22
H POSITION 23
TEMP LAMP Adjustment is
impossible
Adjustment is
impossible
Adjustment is
impossible
Adjustment is
impossible
Adjustment is
impossible
Adjustment is
impossible
TEMP PANEL
LAMP FAN 1
PANEL FAN 1
LAMP FAN 2
PANEL FAN 2
SYNCHRONOUS 1
GAMMA Factory default
setting value
Component
(15k) Two times speed
Component HDTV(YPbPr) HDTV(GBR)
Include
two times speed
3-6 VPL-HS1
3-4. Service Knowhow
3-4-1. After Replacing the Prism Block
1. Perform Section “3-2. V-COM Adjustment.”
2. Perform the Gamma data writing of the Prism Block.
3. Perform Section “3-5. White Balance Adjustment on
Servicing.”
3-4-2. After Replacing the Board
.Refer to the cross table shown on right.
.There are no need to perform the adjustment when the board
other than the Q board or C board had been replaced.
1) When Replacing the Q Board
When the data before replacement can be read properly
1. Make a note of the data before replacement. After
replacement, write the data into the new board with
service mode.
2. If the white balance is extremely deteriorated, perform
the white balance adjustment (Refer to Section 3-5.).
When the data before replacement cannot be read
1. Perform Section “3-2. V-COM Adjustment.”
2. Perform Section “3-5. White Balance Adjustment on
Servicing.”
2) When Replacing the C Board
1. Before replacement, unsolder the IC305 from the
replaced C board and then mount it to the new board.
2. Perform Section “3-2. V-COM Adjustment.”
3. If the white balance is extremely deteriorated, perform
the white balance adjustment (Refer to Section 3-5.).
3) When Replacing the Other Board
There are no need to perform the adjustment.
Cross Table of Board Replacement
Board Name
Device Name Item Name BA C
P.DRV VCOM (R) *O
VCOM (G) *O
VCOM (B) *O
VAMP CONT (E) *O
SUB CON R (E) *O
SUB CON B (E) *O
W/B ADJUST
INPUT-A HIGH GAIN R *O
GAIN G *O
GAIN B *O
BIAS R *O
BIAS G *O
BIAS B *O
INPUT-A LOW GAIN R *O
GAIN G *O
GAIN B *O
BIAS R *O
BIAS G *O
BIAS B *O
INPUT-A HIGH GAIN R *O
GAIN G *O
GAIN B *O
BIAS R *O
BIAS G *O
BIAS B *O
INPUT-A MID GAIN R *O
GAIN G *O
GAIN B *O
BIAS R *O
BIAS G *O
BIAS B *O
VIDEO MID GAIN R *O
GAIN G *O
GAIN B *O
BIAS R *O
BIAS G *O
BIAS B *O
VIDEO LOW GAIN R *O
GAIN G *O
GAIN B *O
BIAS R *O
BIAS G *O
BIAS B *O
*: When down the data before replacement, and then
write in the data after the board replacement.
O: Need adjustment
Value : See description.
3-7
VPL-HS1
3-5. White Balance Adjustment on
Servicing
3-5-1. Signal Level Adjustment
1. Input the 80 IRE FLAT FIELD signal to INPUT-A.
(COMPONENT)
2. Warm up the unit at least 10 minutes.
3. Enter the Factory Mode (Please refer to 3-1-3)
Press the keys in the following order.
“ENTER”→“ENTER”→“
N
”→“ENTER”
The message “Do you wish to enter into the
FACTORY MODE? Yes:↑ No:↓ ” will be
displayed.
Select “Yes:↑”.
n
. When leaving the FACTORY MODE, perform
item 3.
“Do you wish to return to the USER MODE?
Yes:
↑
No:
↓
” will be displayed. Select
“Yes:↑”.
. Cannot enter FACTORY MODE by MS
channel.
4. Set the COLOR TEMP to MID mode.
5. Set the INPUT signal to the 80 IRE FLAT FIELD
GREEN-only mode.
6. Change the CONTRAST: MAX to BRIGHT: MAX.
7. Measure the brightness (Ygmax).
8. Change CONTRAST: 80 to BRIGHT: 50.
9. Enter the P. DRV on the MENU screen by the DEV.
ADJ.
10. Adjust the brightness to (0.65 × Ygmax) by the
VAMP/CONT (E) of P DRV.
11. Change the INPUT signal to 80 IRE FLAT FIELD
white signal.
12. Change the CONTRAST: MAX to BRIGHT: MAX.
13. Measure the chromaticity (xmax, ymax)
14. Change CONTRAST: 80 to BRIGHT: 50.
15. Adjust the chromaticity to (xmax ± 0.002, ymax ±
0.004) by the VAMP/SUB CON R(E) or SUB CON
B (E) of P. DRV.
3-5-2. White Balance Adjustment
nput the 10 STEP signal to INPUT-A, and observe the
chromaticity of each luminance.
When varying the chromaticity of each luminance, perform
the following adjustments.
1) MID Mode of INPUT-A
1. Input the 100 IRE FLAT FIELD signal to INPUT-A
2. Measure the chromaticity (x, y)
3. Input the 80 IRE FLAT FIELD signal to INPUT-A.
4. Adjust the chromaticity (x, y) to the values measured in
step 2, by the GAIN R and B of W/B MID mode.
5. Set the INPUT signal to the 30 IRE.
6. Adjust the chromaticity (x, y) to the values measured in
step 2, by the BIAS R and B.
7. Repeat above steps 3. to 6. until the chromaticity
become the following values.
x ± 0.002, y ± 0.004 (The x and y are the values
measured in step 2.)
2) HIGH Mode of INPUT-A
1. Input the 80 IRE FLAT FIELD signal to INPUT-A.
2. Set the GAIN G to MID mode value at “_32” with the
HIGH mode of the W/B. And set the GAIN R to MID
mode value at “_23”.
3. Set the GAIN R and B that are equal to MID mode
values. (Set the GAIN R and B to the same as MID
mode values.)
4. Set the BIAS R, G and B that are equal to MID mode
values. (Set the BIAS R, G and B to the same as MID
mode values.)
5. Measure the chromaticity (x, y)
6. Input the 30 IRE signal to INPUT-A.
7. Adjust the chromaticity (x, y) to the values measured in
step 2, by the BIAS R and B of W/B HIGH mode.
8. Input the 80 IRE signal to INPUT-A.
9. Adjust the chromaticity (x, y) to the values measured in
step 2, by the GAIN R and B.
10. Repeat above steps 6. to 9. until the chromaticity
become the following values.
x ± 0.002, y ± 0.004 (The x and y are the values
measured in step 5.)
3-8 VPL-HS1
3) LOW Mode of INPUT-A
1. Input the 80 IRE FLAT FIELD signal to INPUT-A.
2. Set the GAIN G to MID mode value at “_35” with the
LOW mode of the W/B.
Set the GAIN B that is equal to MID mode value at
“_30”. (Set the GAIN B to the same as MID mode
value “_30”.)
3. Set the GAIN R that is equal to MID mode value. (Set
the GAIN R to the same as MID mode value.)
4. Set the BIAS R, G and B that are equal to MID mode
value. (Set the BIAS R, G and B to the same as MID
mode value).
5. Measure the chromaticity (x, y).
6. Input the 30 IRE signal to INPUT-A.
7 Adjust the chromaticity (x, y) to the values measured
in step 2, by the BIAS R and B of W/B HIGH mode.
8. Input the 80 IRE signal to INPUT-A.
9. Adjust the chromaticity (x, y) to the values measured
in step 2, by the GAIN R and B.
10. Repeat above steps 6. to 9. until the chromaticity
become the following values.
x ± 0.002, y ± 0.004 (The x and y are the values
measured in step 5.)
4) MID/HIGH/LOW Mode of VIDEO
1. Input the VIDEO signal of NTSC or PAL.
2. Set the BIAS R, G and B and GAIN R, G and B of
MID, HIGH and LOW mode of W/B that are equal to
the values of corresponding items in INPUT-A.
(Altogether 18 items)
3. Set the GAIN G only of MID mode value at “_16” in
INPUT-A.
3-9
VPL-HS1
Gamma memory is actualized through Gamma mode
functions’offsetting the output values to the Contrast and
Brightness devices.
When the power plug is connected to the power line
(Standby status), all data inside the internal ROM are
written into the NVM (Nonvolatile Memory). When the
power is turned to on, required data for the current picture,
such as status memory data, etc., are selected, and they are
written into the internal RAM.
When adjustment is carried out, adjustment data are
written into the NVM automatically (items on the user
mode) or by the trigger of memory operation (items on the
service mode and factory mode), then stored them.
Adjustable items (W/B and Device Adjust) of the service
mode and special service mode are memorized into the
NVM by the memory operation. At the same time, the
factory preset (adjusted) data are all eliminated from the
memory.
3-6. Memory
Memory structure consists of the following five memory
blocks.
1. Set memory
2. Status memory
3. Channel memory
4. Chroma memory
5. W/B memory
CPU internal ROM : 256 kbyte Flash Memory
CPU internal ROM : 16 kbyte
External NVM memory : 8 kbyte EEPROM
No.01
No.02
No.03
No.04
No.05
INPUT-A Preset
No.50
No.53
No.54
No.55
Status
Memory
INPUT-MS Preset
No.60
No.01
No.02
No.03
No.04
No.05
INPUT
-A Preset
No.50
No.53
No.54
No.55
INPUT
-MS
Preset
No.60
No.71
Status
Memory
INPUT
-A
User
No.90
Video 1
S Video 1
Input-A
Video 2
S Video 2
Channel
Memory
Input-MS
Video 1
S Video 1
Input-A
Video 2
S Video 2
Channel
Memory
Input-MS
NT3 58/443/BW60
PAL/PAL-M/N/
SECAM /BW50
15k RGB
Component (15k)
Tw o ti mes speed
Component
Chroma
Memory
HDTV (YpbPr)
HDTV (GBR)
NT 358/443/BW 60
PAL/PAL-M/N/
SECAM /BW50
15k RGB
Component(15k )
Two ti mes speed
Component
Chroma
Memory
HDTV YpbPr
HDTV(GBR)
HIGH
LOW
Comput er
MIDDLE
HIGH
LOW
W/B
Memory Others
MIDDLE
HIGH
LOW
Comput er
MIDDLE
HIGH
LOW
W/B
Memory Others
MIDDLE
DYNAMIC
STANDARD
LIVING
USER1
USER2
VIDE O
Memory
USER3
DYNAMIC
STANDARD
LIVING
USER1
USER2
VIDE O
Memory
USER3
Set Memory
CPU ROM
Set Memor
y
Exte rnal N VM
Set Memor
y
Status Memor
y
Chroma Memor
y
CPU RAM
InitializeActiv e memory copy
Memor
y
LOW
W/B
Memory
HIGH
MIDDLE
Channel Memor
y
Video Memory
(Include teo times speed) (Include teo times speed)
3-10 VPL-HS1
4-1
VPL-HS1

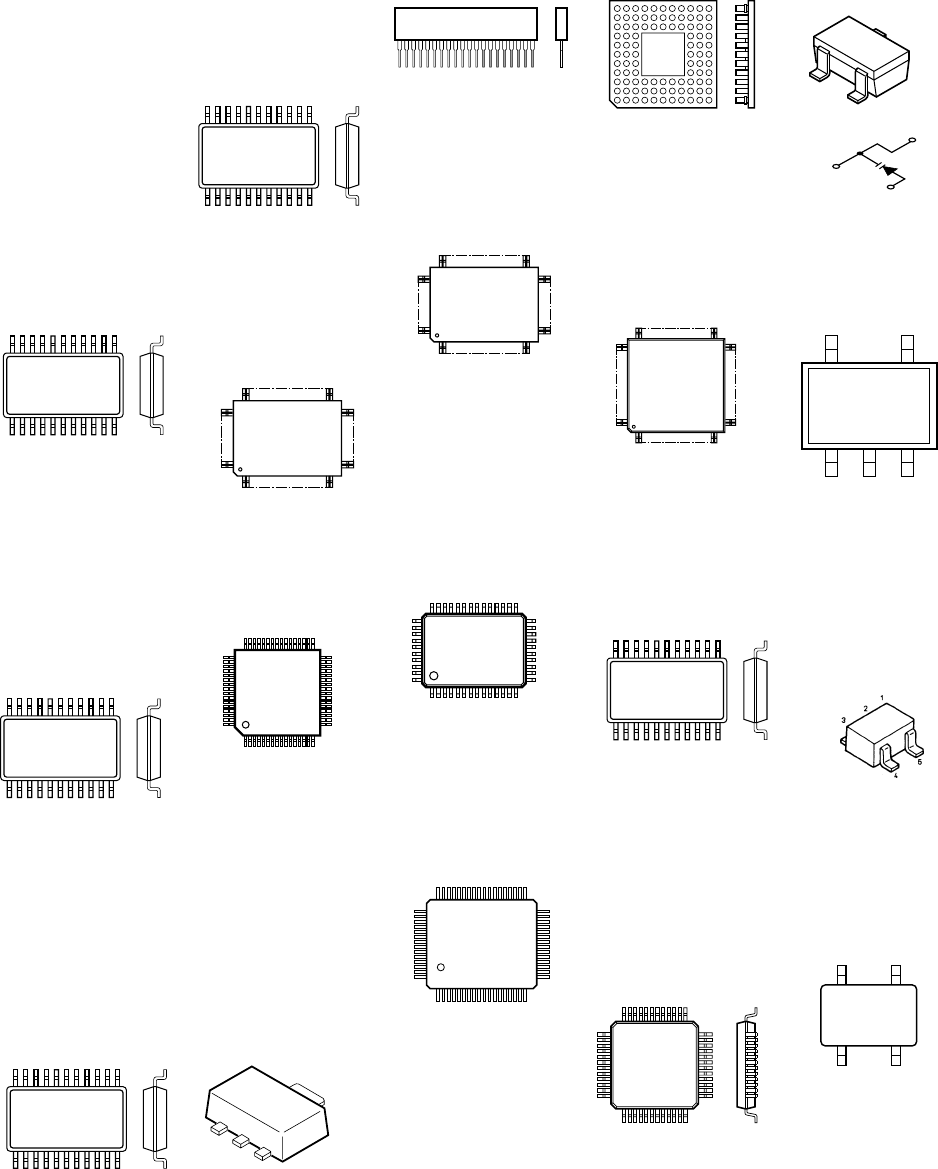

24LC21AT/SN
BA10393F
BA10393F-E2
IRMF-A0T-QTP
LT1767EMS8-TR
M24C64
M24C64-WMN6T(A)
MM1096AFF
NJM2533M(TE2)
TA75W393FU-TE12R
TC7W00FU(TE12R)
TC7W14FU(TE12R)
TC7W240FU
TC7W240FU(TE12R)
TC7WH74FK
TC7WH74FK(TE85R)
TC7WH74FU(TE12R)
TL431BCDR2
74VHC221AMYCX
CXA1875AM
CXA1875AM-T4
TC4053BF(EL)
TC74HC148AF(EL)
LT1399CGN-TR
MM1231XFBE
Section 4
Semiconductors
IC
74VHC08MTCX
74VHC14MTCX
74VHC125MTCX
BA10339FV
BA10339FV-E2
TC74LCX125FT
TC74LCX125FT(EL)
74VHC240MTCX
74VHC541MTCX
74VHCT541MTCX
CXA1846BN-T4
MK1714-01
MK1714-01RT
M52347FP-TE
AD9884AKS-100
ADV7123KST140
23
1
BA033F-E2
BA033FP-E2
BA05FP-E2
BA09F-E2
BA12FP-E2
BA15FP-
E2E2LP2985IM5X-3.3
BA12FP-E2
MARKING SIDE VIEW
1
CXA2101AQ
CXA2101AQ-TL
124
25
40
80
61
4164
TOP VIEW
CXA2123AQ
CXA2123AQ-T6
141
15
24
2538
39
48
TOP VIEW
191
20
32
3351
52
64
TOP VIEW
CXA3512R-T6
CXD9607GB
HD64F2633
HD64F2633TE
130
31
60
120
91
6190
TOP VIEW
HM62V16256CLT5SLZ
LM4041DIM3-1.2
LM4041DIM3-1.2(T&R)
1
3
2
1
2
3
LM7131BCM5X
123
45
LMC7101BIM5X
TC7S08FU
TC7S08FU(TE85R)
TC7SET08FU(TE85R)
ISPLSI2032VE-110
ISPLSI2032VE-110LT44/1714A
MB86189
MB86189PFV-G-BND-ER
138
39
64
128
103
65102
TOP VIEW
16
17
32
64
49
3348
1
TOP VIEW
1
A
BOTTOM VIEW
144PIN PGA
1TOP VIEW
44PIN SOP
1TOP VIEW
20PIN SOP
1
TOP VIEW
48PIN QFP
1TOP VIEW
8PIN SOP
1TOP VIEW
16PIN SOP
1TOP VIEW
14PIN SOP
NC7SZ04P5
LP2985IM5X-3.3
TC75S56F(TE85R)
TC7S04FU(TE85R)
TC7S14FU(TE85R)
1
TOP VIEW
5PIN CHIP
4-2 VPL-HS1
IC
M52758FP
M62392FP
M52749FP
M52749FP-TP
MBM29LV800TA-90PFTN
MCZ3001D
MSM514265C-60JSDR1
MD2305F
MT48LC8M16A2TG75
MT48LC8M16A2TG-75TR
MZ1540
MARKING SIDE VIEW
1
PW365-10U
164
192 129
65
128
256
193
TOP VIEW
PQ2TZ15U
5
1
PQ20VZ1U
1: DC IN
2:ON/OFF CTL
3: DC OUT
4:DC OUT ADJ
5:GND
13
254
PC123F2
PC123FY2
1
2
3
4
RS-140-T
S-80828ANNP
S-80828ANNP-EDR-T2
S-80842ANNP
S-80842ANNP-ED6
S-80842ANNP-ED6-T2
1
2
3
4
SST39VF800A-70
SST39VF800A-70-1719A-T
TK11900MTL
1
TOP VIEW
1TOP VIEW
42PIN SOP
1TOP VIEW
36PIN SOP
1TOP VIEW
24PIN SOP
1TOP VIEW
18PIN DIP
BOTTOM VIEW
1
A
280PIN PGA
TOP VIEW
1
48PIN
1TOP VIEW
54PIN TSOP
MARKING SIDE VIEW
124
25 48
4972
7396
TDA2009A
MC14162FT
BOTTOM VIEW
1
A
48PIN PGA
1TOP VIEW
40PIN SOP
1
TOP VIEW
4PIN CHIP
UPD64082GF-3BA
C147
TOP VIEW 30
1
31
50
5180
81
100
INDEX
1
11
4-3
VPL-HS1
Transistor
2SA1037AK
2SA1037AK-T146-QR
2SA1162
2SA1162-G
2SA1162-YG-TE85L
2SA1462-T1Y33Y34
2SA1611
2SA1611-M5M6
2SA1611T1-M5M6
2SC2712
2SC2712-YG-TE85L
2SC3326N
2SC3326N-TE85L-AB
DTA144EKA
DTA144EKA-T106
DTC114EK
DTC144EKA-T146
DTC144EUA
DTC144EUA-T10
2SJ530S-TL
D
D
G
S
HN1B01FU-T
HN1B01FU-TE85R
HN1C01FU-TE85R
XP4501-TXE
5
6
4
1
3
2
321
456
4-4 VPL-HS1

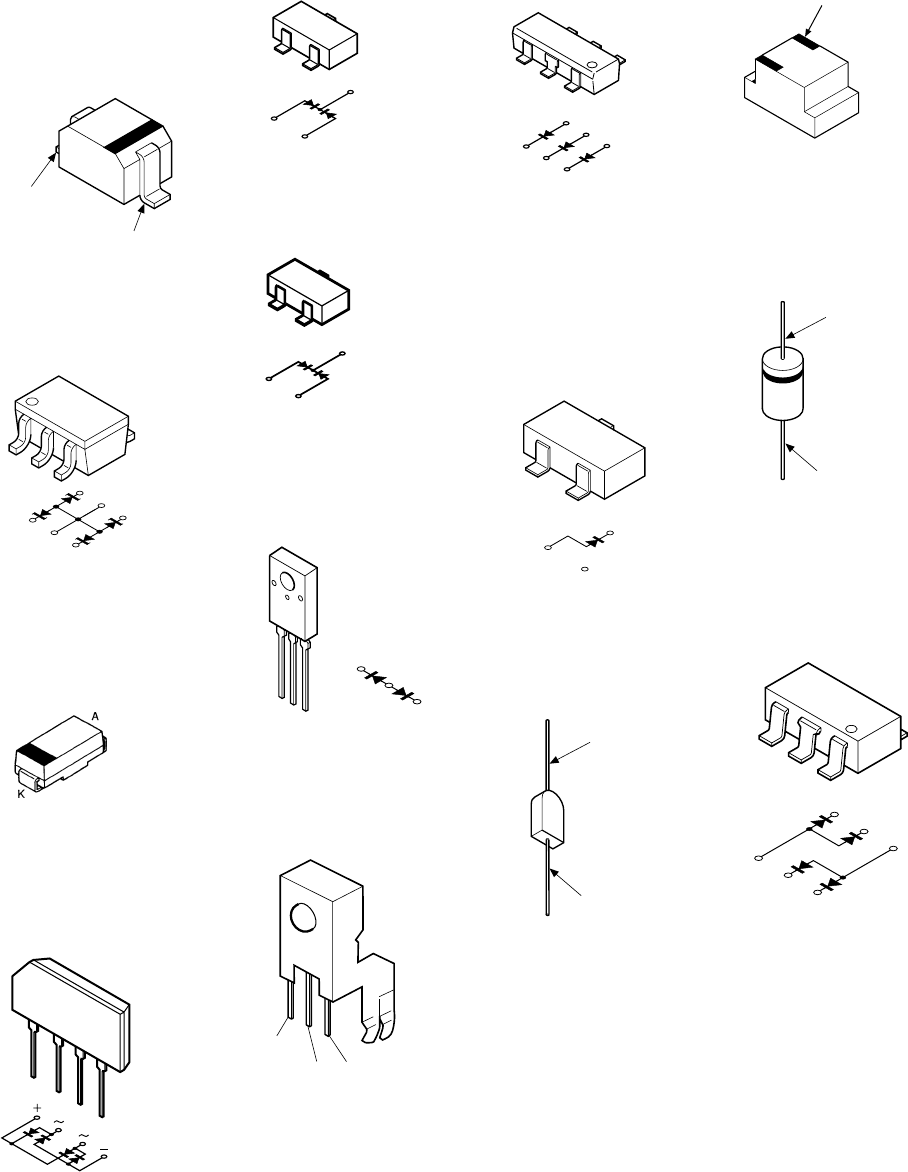

Diode
DAP202K-T-146
1
2
3
1
2
3
DF10SC4M
DF10SC6M
123
123
(~) (_)(~)
1SS355
1SS355TE-17
D2FS4-T
MA111-(K8).S0
MA111-TX
RD9.1SB2
RD9.1SB2-T1
UDZ-TE-17-3.9B
CATHODE
ANODE
GP1U28Y
VOLT
VCC GND
RM11C-V1
RM11C(RECTI)
CATHODE
ANODE
SEC1901C
SEC2422C
CATHODE MARK
1
2
56
3
4
56
1
2
3
4
HN1D03FU-TE85
HN1D03FU-TE85L
HN1D03FU-TE85R
D1FS4A-TA
RD16M-T1B2
RD18M-T1B1
RD33M-B
RD33M-T1B
RD6.8M
RD6.8M-B1
RD6.8M-T1B1
1
2
3
1
2
3
D6SB80
+_
~~
5
1
2
3
4
6
5
1
2
3
4
6
UMZ6.8M
UMZ6.8M-T106
1
2
3
1
2
3
DAN202K
DAN202K-T-146
MA157-TX
3
1
6
4
2
5
3
2
1
65
4
BZA456A
UF4005PKG23
CATHODE
ANODE
5-1
VPL-HS1
5-1. Notes on Repair Parts
1. Safety Related Components Warning
w
Components marked ! are critical to safe operation.
Therefore, specified parts should be used in the case of
replacement.
[WARNHINWEIS][WARNHINWEIS]
[WARNHINWEIS][WARNHINWEIS]
[WARNHINWEIS]
Les composants identifiés par la marque ! sont
critiques pour la sécurité.
Ne les remplacer que par une pièce portant le numéro
spécifié.
2. Standardization of Parts
Some repair parts supplied by Sony differ from those
used for the unit. These are because of parts common-
ality and improvement.
Parts List has the present standardized repair parts.
3. Stock of Parts
Parts marked with “o” at SP (Supply Code) column of
the Spare Parts list may not be stocked. Therefore, the
delivery date will be delayed.
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
4. Units for Capacitors, Inductors and Resistors
The following units are assumed in Schematic Dia-
grams, Electrical Parts List and Exploded Views
unless otherwise specified.
Capacitors : µF
Inductors : µH
Resistors : Z
Section 5
Spare Parts
5-2 VPL-HS1

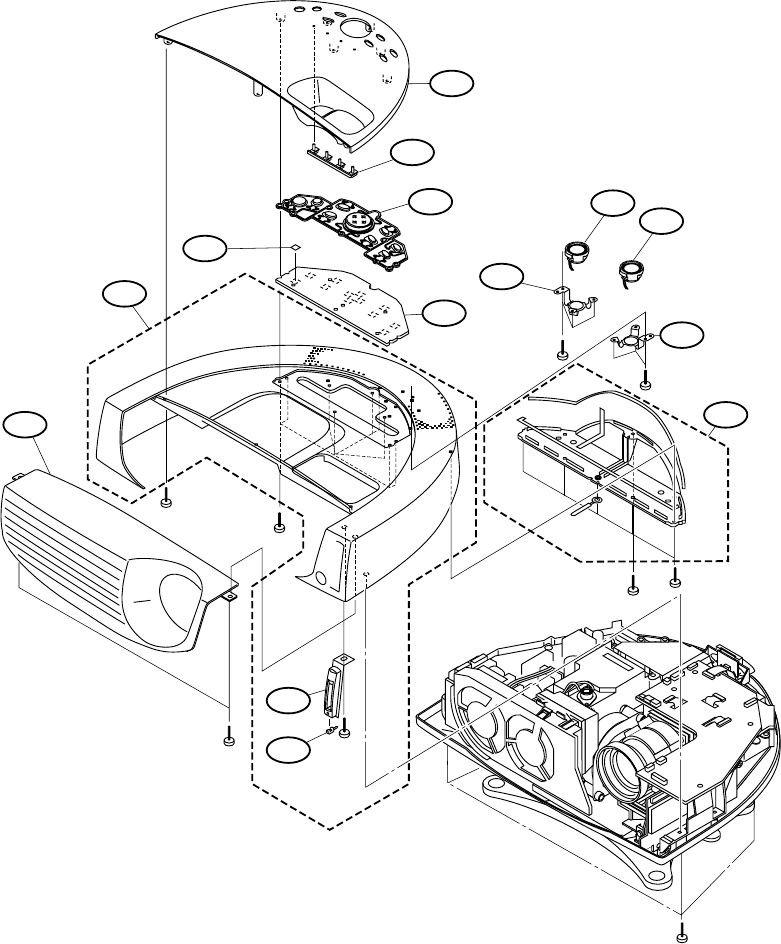

Cover
5-2. Exploded Views
5-2-1. Cover
No. Part No. SP Description
1 4-085-079-01 s SLOT, MS
2 4-085-042-01 s GUIDE (MS), LED
3 4-085-033-01 s COVER, FRONT
4 X-4039-440-1 s HOOD ASSY
5 A-1375-226-A o MOUNTED CIRCUIT BOARD, H
6 4-085-036-01 s GUIDE, LED
7 4-085-032-01 s COVER, TOP
8 X-4039-442-1 s BUTTON ASSY
9 X-4039-453-1 o SPRING ASSY, SPEAKER
10 A-1501-949-A s SPEAKER (L) ASSY
No. Part No. SP Description
11 A-1501-985-A s SPEAKER (R) ASSY
12 X-4039-444-1 o BOX ASSY, SPEAKER
14 4-085-610-01 s CUSHION (H)
Screws
7-682-547-04 s SCREW +B3X6
7-682-547-09 s SCREW +B3X6
7-682-548-04 s SCREW +B3X8
3-703-136-11 s SCREW +PWHTP3X12
9
9
8
14
6
4
3
7
5
1
2
12
10
11
+B3 x 8 +B3 x 6
+B3 x 8
+B3 x 8
+PWHTP3 x 12
+PWHTP3 x 12
+PWHTP3 x 12
+PWHTP3 x 12
+B3 x 8
5-3
VPL-HS1

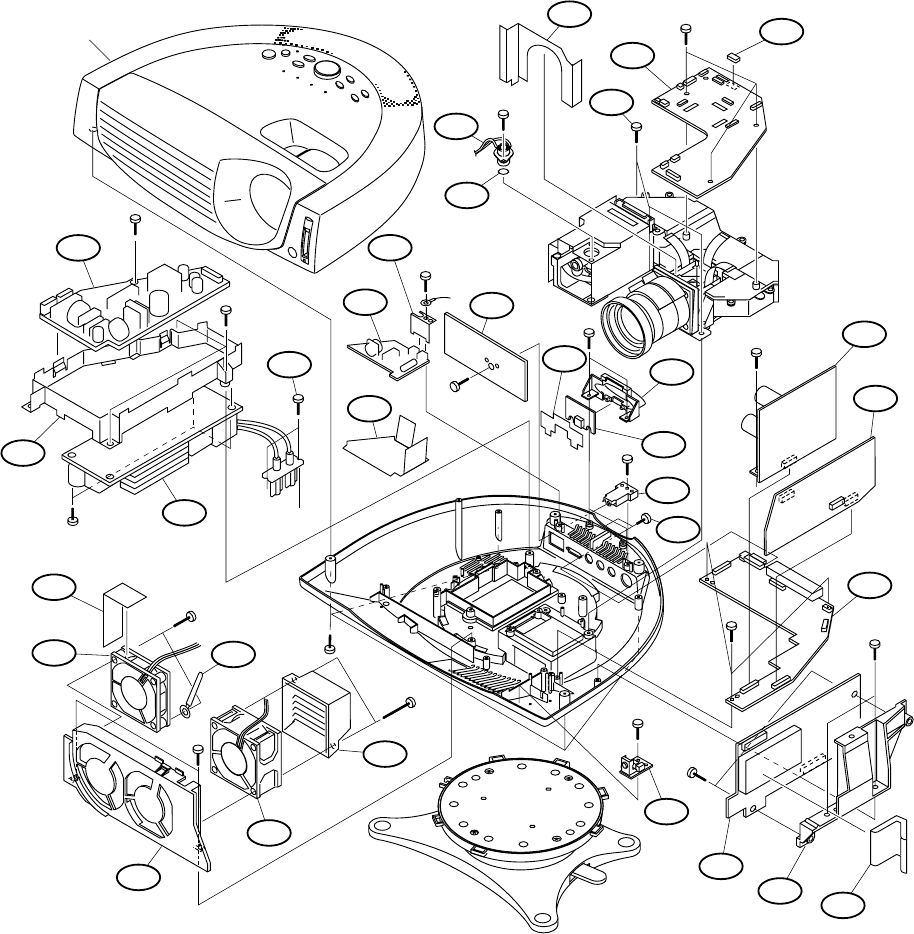

Chassis 1
5-2-2. Chassis 1
No. Part No. SP Description
51 4-085-084-01 o HOLDER, FAN
52 1-763-759-11 s FAN, DC
53 4-085-050-01 o LOUVER, LAMP
55 3-701-822-00 s HOLDER, WIRE
56 4-085-073-01 o SHEET (G2)
57 1-468-625-11 s POWER BLOCK
58 4-085-051-01 o HOLDER (G)
59 4-084-345-01 s +)P TAPPING SCREW B-O (W)
60 A-1316-582-A o MOUNTED CIRCUIT BOARD, G
61 4-085-053-01 o SHEET (F1)
62 A-1245-606-A o MOUNTED CIRCUIT BOARD, F
63 4-085-052-01 o HOLDER (AC)
64 A-1136-230-A o MOUNTED CIRCUIT BOARD, BA
65 4-085-509-01 s SPACER (B)
66 1-576-576-11 s THERMOSTAT
67 4-085-072-01 o SHEET (U1)
68 A-1335-148-A o MOUNTED CIRCUIT BOARD, C
69 4-085-538-01 s GASKET (C1)
70 4-083-075-01 s SCREW, MACHINE, (+) PM4X10
No. Part No. SP Description
71 A-1136-232-A o MOUNTED CIRCUIT BOARD, BC
72 X-4039-438-1 s WINDOW (ER) ASSY, RM
73 4-085-074-01 o SHEET (ER)
74 A-1136-231-A o MOUNTED CIRCUIT BOARD, BB
75 A-1391-155-A o MOUNTED CIRCUIT BOARD, NR
76 4-085-071-01 o HOLDER (BA)
77 4-085-075-01 s SCREW M1.6X5, SPECIAL HEAD
78 A-1275-212-A o MOUNTED CIRCUIT BOARD, Q
79 4-085-054-01 o HOLDER (MSC)
80 A-1306-610-A o MOUNTED CIRCUIT BOARD, MS
81 A-1391-165-A o MOUNTED CIRCUIT BOARD, NF
82 4-085-744-01 o GASKET (MS)
Screws
7-682-547-04 s SCREW +B3X6
7-682-948-09 s CREW +PSW 3X8
7-682-953-09 s SCREW +PSW 3X20
7-682-954-09 s SCREW +PSW 3X25
7-682-957-09 s SCREW +PSW 3X40
7-685-645-79 s SCREW +BVTP3X6
+B3 x 6
+B3 x 6
+B3 x 6
+B3 x 8
+PSW3 x 8
+B3 x 6
+B3 x 6
+B3 x 6
+PSW
3 x 40
+B3 x 6
+B3 x 6
+B3 x 6
+PSW3 x 8
+PSW3 x 8
+BVTP3 x 6
+PSW3 x 20
+PSW3 x 8
+B3 x 6
HOOD BLOCK ASSY
SPACER (B)
69
51
53
56
54
52
55
57
58
60
61
59
62
63
64
68
70
67
65
66
71
72
73
75
76
77
74
78
80
81
79 82
5-4 VPL-HS1
Chassis 2
5-2-3. Chassis 2
No. Part No. SP Description
101 X-4039-445-1 s COVER ASSY, LAMP
102 4-066-202-01 s SCREW, M3
103 3-715-526-01 o WASHER (M3) (PLA)
104 X-4039-439-1 s BASE ASSY
105 3-701-822-01 s HOLDER,WIRE
106 1-763-757-11 s FAN, BLOWER
107 4-085-063-01 o DUCT (U), HS
108 4-085-064-01 o DUCT (B), HS
No. Part No. SP Description
109 4-085-082-01 o HOLDER (S), FAN
110 4-085-083-01 o PACKING (FHS)
111 X-4039-443-1 s COVER ASSY, FILTER
Screws
7-682-547-04 s SCREW +B3X6
7-682-954-09 s SCREW +PSW 3X25
+PSW3 x 25
+B3 x 6
+B3 x 6
111
109
108
104
101
102
103
107
106
105
110
BASE ASSY
5-5
VPL-HS1

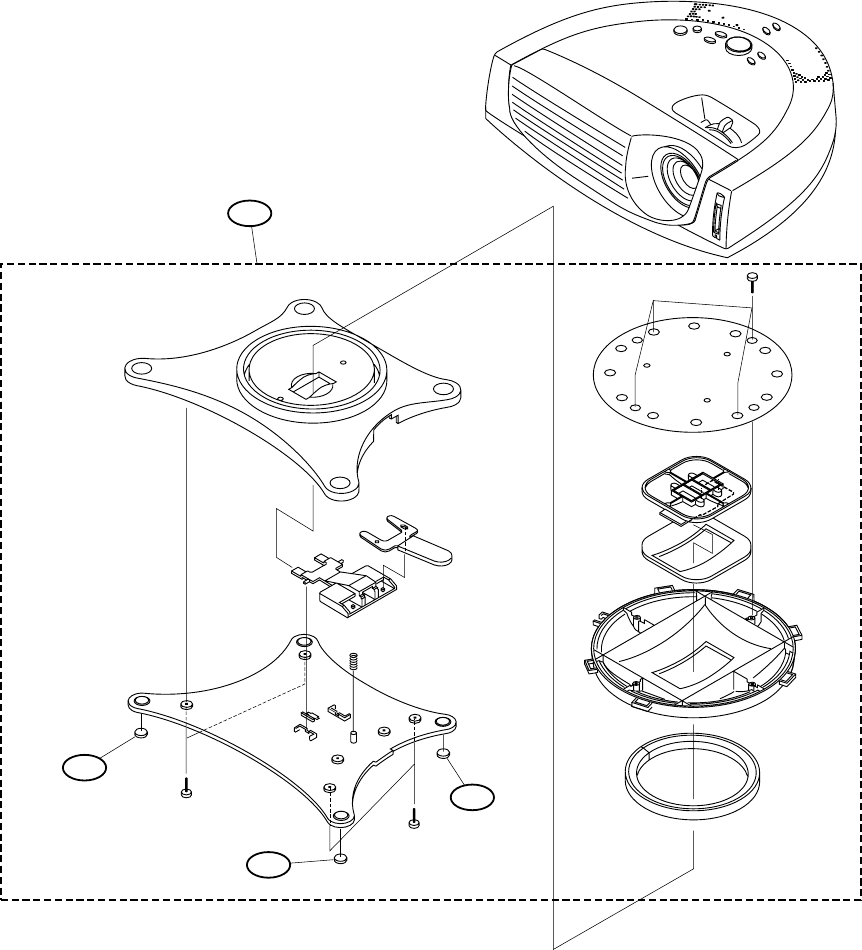

Stand
5-2-4. Stand
No. Part No. SP Description
151 X-4039-448-1 s STAND ASSY
152 4-085-329-01 s FOOT, STAND
Screws
7-682-548-04 s SCREW +B3X8
7-682-948-09 s SCREW +BVTP 3X8
BVTP3 x 8
+B3 x 6
+B3 x 6
152
152
152
151
BVTP3 x 8
+B3 x 6
+B3 x 6
5-6 VPL-HS1

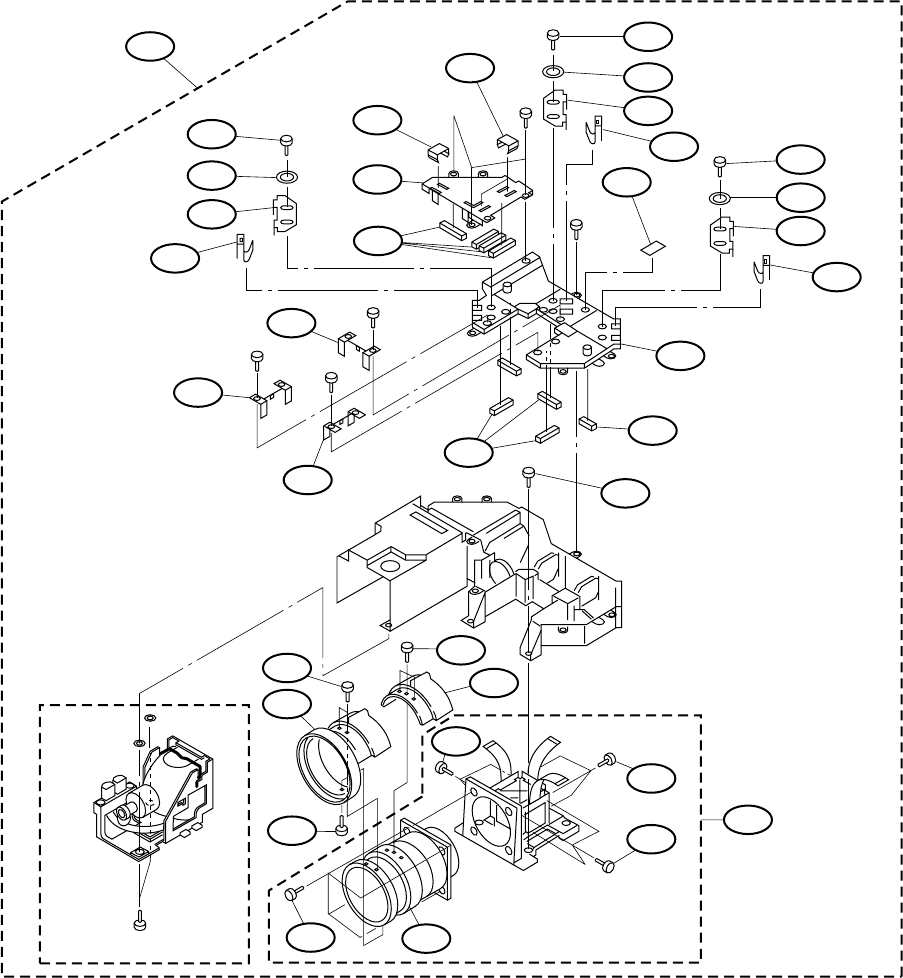

Optics 1
5-2-5. Optics 1
202
203
204
206
206
207
206
205
208
205
205
209
209
211
212
209
210
222
223
321
211
212
213
204
220
218
219
213
204
217
216
215
214
204
201
213
+B2 x 4
+B2 x 4
+B2 x 4
+B3 x 6
+B3 x 6
No. Part No. SP Description
201 A-1485-363-A s OPTICS BLOCK ASSY
202 A-1485-364-A s PRISM BLOCK ASSY
203 A-1502-015-A s PROJECTION LENS
204 4-074-474-01 s +BSW M3X8
205 4-074-473-01 s +K M1.7X6
206 4-887-321-01 s SCREW(B1.7X4)(G),TAPPING (ST)
207 4-085-337-01 o RING, F
208 4-085-338-01 o RING, Z
209 4-082-784-01 o HOLDER, IN-POLARIZER
210 4-082-764-01 o STOPPER, CH CONDENCER
211 4-074-405-01 o FASTENER (RB)
212 4-082-749-01 o ADJUSTER, RB-MIRROR
213 4-066-174-01 s STOPPER (OPT), ROTATION
214 4-082-763-01 o STOPPER, P/S
215 4-082-824-01 o COVER (B), UNIT
No. Part No. SP Description
216 4-082-744-01 o SPRING (FY-PS)
217 4-082-754-01 o SPRING (UV-FY)
218 4-074-425-01 s TAPE (A), SEAL (NYLON)
219 4-082-750-01 o ADJUSTMENT, G-MIRROR
220 4-082-748-01 o FASTENER (G)
221 4-082-826-01 o COVER (F), UNIT
222 4-082-765-01 o STOPPER, RELAY LENS-2
223 4-082-759-01 s SCREW, MACHINE, (+)P M4X12
224 4-074-426-01 o CUSHION (FLY EYE)
225 4-082-758-01 s FLAT HEAD SCREWS WASHER M3X6
226 4-084-369-01 s (+) SPECIAL MACHINE SCREW (SW)
Screws
7-621-772-10 s SCREW +B2X4
7-682-547-04 s SCREW +B3X6
7-685-903-31 s SCREW,+PWHTP 3X10
5-7
VPL-HS1
259
256
273
274
272
255
254
258
266
257
258
253
251
252
266
268
269
270
267
271
267
265
258
263
262
264
261
258
260
+B3 x 6

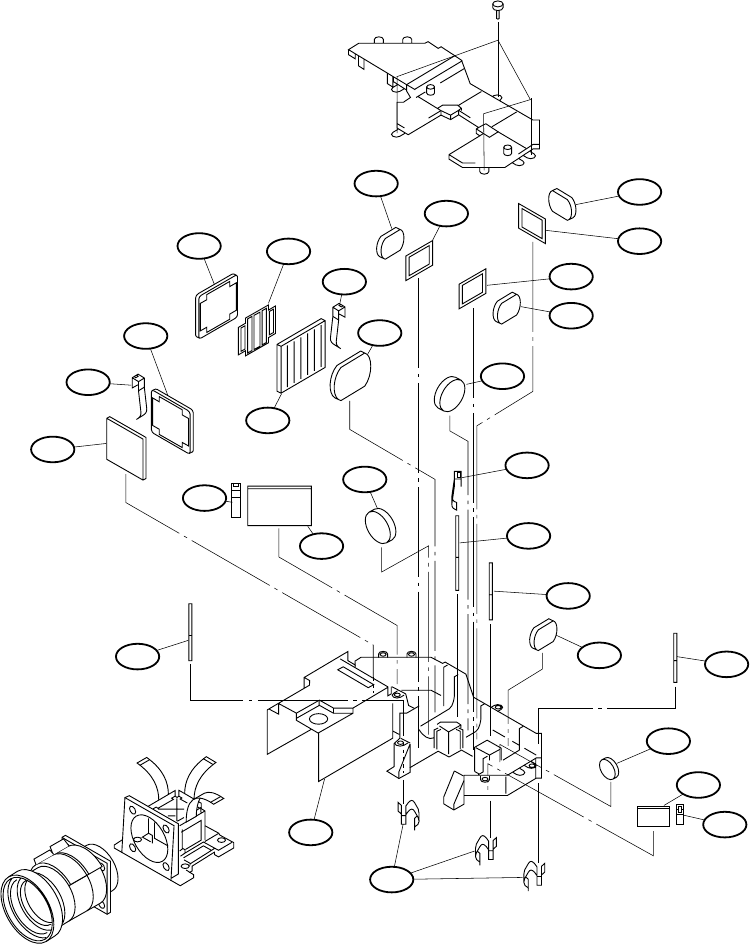

Optics 2
5-2-6. Optics 2
No. Part No. SP Description
251 4-082-825-01 o BASE, UNIT
252 4-066-172-01 s FASTENER (OPT), MIRROR
253 4-082-773-01 o MIRROR, B-CHANNEL
254 4-082-771-01 o DICHROICMIRROR, B-REFRECT
255 4-082-772-01 o DICHROICMIRROR, G-REFRECT
256 4-082-775-01 o MIRROR, R-CHANNEL-2
257 4-082-768-01 o MIRROR, WIDE BAND
258 4-082-745-01 o SPRING (FY)
259 4-082-746-01 o SPRING (R)
260 4-082-783-01 o FILTER, UV-CUT
261 4-082-792-01 o FLY EYE, LENSE-1
262 4-082-793-01 o FLY EYE, LENSE-2
263 4-082-747-01 o SLIT, P/S
264 A-1501-924-A s PS ASSY
265 4-082-778-11 o LENS, MAIN CONDENSER
No. Part No. SP Description
266 4-082-779-11 o LENS, MAIN-2
267 4-082-766-11 o LENS, GB-CH CONDENSER
268 4-082-767-11 o LENS, R-CH CONDENSER
269 A-1501-911-A s IN POLARIZOR (R) ASSY
270 A-1501-912-A s IN-POLARIZER (G) ASSY
271 A-1502-017-A s IN-POLARIZER (B) ASSY
272 4-082-776-11 o LENS, RELAY-1
273 4-082-777-11 o LENS, RELAY-2
274 4-082-774-01 o MIRROR, R-CHANNEL-1
Screws
7-682-547-04 s SCREW +B3X6
5-8 VPL-HS1
STAND
5-2-7. Stand (SU-HS1)
No. Part No. SP Description
301 X-4039-498-1 s STAND ASSY
302 4-085-350-01 s NUT ADJUSTOR
303 4-085-355-01 s BASES
304 4-085-663-01 O FOOT, RUBBER
Screws
7-682-547-09 s SCREW +B 3X6
7-682-548-04 s SCREW +BVTP 3X8 TYPE2
7-682-962-01 s SCREW +PSW 4X10
7-682-965-01 s SCREW +PSW 4X16
+PSW4 x 16
+PSW4 x 10
+PSW4 x 10
+BVTP3 x 8
+B3 x 6
301
302
303
304
5-9
VPL-HS1
5-3. Electrical Parts List
--------
BA BOARD
--------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1136-230-A s MOUNTEC C.BOARD,BA COMPL
C101 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C102 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C103 1-164-227-11 s CAPACITOR,CERAMIC 0.022MF/25V
C105 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C106 1-107-682-11 s CAPACITOR,CHIP 1MF/16V (3216)
C107 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C108 1-126-601-11 s CAPACITOR,ELECT 2.2MF/50V
C110 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C111 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C112 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C113 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C114 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C115 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C116 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C117 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C118 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C119 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C120 1-162-915-11 s CAPACITOR,CERAMIC 10PF/50V CH
C121 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C122 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C123 1-125-898-11 s CAPACITOR, CERAMIC 0.22MF 50V
C124 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C125 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C126 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C127 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C128 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C129 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C130 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C131 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C132 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C133 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C137 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C138 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C139 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C140 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C141 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C142 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C143 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C144 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C145 1-128-398-11 s CAP, ELECT 220MF/16V (CHIP)
C201 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C202 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C203 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C204 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C205 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C206 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C207 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C208 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C209 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C210 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C211 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C212 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C214 1-128-390-11 s CAPACITOR ELECT 220MF/6.3V
C215 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C216 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C217 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C218 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
(BA BOARD)
Ref. No.
or Q’ty Part No. SP Description
C219 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C220 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH
C221 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH
C222 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH
C223 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH
C224 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C225 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C226 1-126-204-11 s CAPACITOR, ELECT 47MF/16V(CHIP
C228 1-162-919-11 s CAPACITOR,CERAMIC 22PF/50V CH
C229 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH
C230 1-162-919-11 s CAPACITOR,CERAMIC 22PF/50V CH
C231 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C232 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C301 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C303 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C304 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C305 1-164-392-11 s CAPACITOR CERAMIC 390PF/50V CH
C306 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C307 1-162-966-11 s CAPACITOR,CERAMIC 2200PF/50V B
C308 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C309 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C310 1-162-916-11 s CAPACITOR,CERAMIC 12PF/50V CH
C311 1-162-916-11 s CAPACITOR,CERAMIC 12PF/50V CH
C312 1-162-916-11 s CAPACITOR,CERAMIC 12PF/50V CH
C313 1-162-916-11 s CAPACITOR,CERAMIC 12PF/50V CH
C314 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C315 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C317 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C318 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C319 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C321 1-109-982-11 s CAPACITOR,CHIP CERAMIC 1MF/10V
C322 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C323 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
C325 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C326 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C327 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C328 1-162-966-11 s CAPACITOR,CERAMIC 2200PF/50V B
C329 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C330 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C331 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C332 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C333 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C334 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C335 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C336 1-128-391-11 s CAPACITOR,ELECT 330MF/6.3V
C337 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C338 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C339 1-128-013-11 s CAPACITOR ERECT 1MF/50V
C340 1-162-920-11 s CAPACITOR,CERAMIC 27PF/50V CH
C341 1-162-917-11 s CAPACITOR,CERAMIC 15PF/50V CH
C342 1-162-917-11 s CAPACITOR,CERAMIC 15PF/50V CH
C344 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C346 1-164-315-11 s CAPACITOR,CERAMIC 470PF/50V CH
C347 1-128-013-11 s CAPACITOR ERECT 1MF/50V
C348 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C349 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C353 1-162-917-11 s CAPACITOR,CERAMIC 15PF/50V CH
C354 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C355 1-164-505-11 s CAPACITOR,CHIP CERAMIC 2.2MF
5-10 VPL-HS1
(BA BOARD)
Ref. No.
or Q’ty Part No. SP Description
C356 1-162-917-11 s CAPACITOR,CERAMIC 15PF/50V CH
C359 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C360 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C361 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
CN101 1-770-449-21 o CONNECTOR, BOARD TO BOARD 70P
CN201 1-779-730-11 s CONNECTOR, FFC/FPC (ZIF) 24P
FB101 1-414-234-11 s INDUCTOR,FERRITE BEAD
FB301 1-543-775-11 s BEAD, FERRITE
FB302 1-543-775-11 s BEAD, FERRITE
FB303 1-543-775-11 s BEAD, FERRITE
FB304 1-414-753-91 s INDUCTOR 4.7UH
FB305 1-414-234-11 s INDUCTOR,FERRITE BEAD
FB306 1-414-234-11 s INDUCTOR,FERRITE BEAD
FB307 1-414-234-11 s INDUCTOR,FERRITE BEAD
FL101 1-233-736-21 s FILTER, EMI
FL102 1-233-736-21 s FILTER, EMI
FL201 1-233-736-21 s FILTER, EMI
FL202 1-233-736-21 s FILTER, EMI
FL203 1-233-736-21 s FILTER, EMI
FL204 1-233-736-21 s FILTER, EMI
FL301 1-239-848-11 s FILTER, LOW PASS
FL302 1-239-848-11 s FILTER, LOW PASS
FL303 1-239-848-11 s FILTER, LOW PASS
IC101 8-759-524-85 s IC TC7W240FU(TE12R)
IC102 8-752-094-47 s IC CXA2123AQ-T6
IC103 8-759-353-02 s IC NJM2533M (TE2)
IC104 8-759-082-55 s IC TC7W00FU
IC105 8-759-353-02 s IC NJM2533M (TE2)
IC201 8-752-072-81 s IC CXA1875AM
IC202 8-759-436-89 s IC MC141627FT
IC301 8-759-652-56 s IC BA033F-E2
IC302 8-759-533-85 s IC L88M05T-FA-TL
IC304 8-759-568-27 s IC MSM514265C-60JSDR1
IC305 8-759-594-44 s IC UPD64082GF-3BA
L102 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L103 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L201 1-410-389-31 s INDUCTOR,CHIP 47UH (3225)
L202 1-410-383-31 s INDUCTOR,CHIP 15UH (3225)
L203 1-410-383-31 s INDUCTOR,CHIP 15UH (3225)
L204 1-410-389-31 s INDUCTOR,CHIP 47UH (3225)
L205 1-410-389-31 s INDUCTOR,CHIP 47UH (3225)
L206 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L301 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L302 1-410-200-31 s CHIP INDUCTOR
L304 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L305 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L307 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
Q101 8-729-216-22 s TRANSISTOR 2SA1162-G
Q102 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q103 8-729-216-22 s TRANSISTOR 2SA1162-G
Q104 8-729-216-22 s TRANSISTOR 2SA1162-G
Q105 8-729-216-22 s TRANSISTOR 2SA1162-G
Q106 8-729-216-22 s TRANSISTOR 2SA1162-G
Q201 1-801-806-11 s TRANSISTOR DTC144EKA
Q202 8-729-216-22 s TRANSISTOR 2SA1162-G
Q203 8-729-216-22 s TRANSISTOR 2SA1162-G
Q204 8-729-216-22 s TRANSISTOR 2SA1162-G
(BA BOARD)
Ref. No.
or Q’ty Part No. SP Description
Q205 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q206 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q207 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q208 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q209 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q210 8-729-216-22 s TRANSISTOR 2SA1162-G
Q211 8-729-216-22 s TRANSISTOR 2SA1162-G
Q212 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q213 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q214 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q301 8-729-216-22 s TRANSISTOR 2SA1162-G
Q302 8-729-216-22 s TRANSISTOR 2SA1162-G
Q303 8-729-216-22 s TRANSISTOR 2SA1162-G
Q304 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q305 8-729-216-22 s TRANSISTOR 2SA1162-G
Q306 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q307 8-729-216-22 s TRANSISTOR 2SA1162-G
Q308 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q309 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q310 8-729-216-22 s TRANSISTOR 2SA1162-G
Q311 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q312 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q313 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q314 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q315 8-729-230-49 s TRANSISTOR 2SC2712-YG
R101 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R102 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R103 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R104 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R105 1-218-719-11 s RESISTOR,METAL 13K 1/16
R106 1-216-835-11 s RESISTOR,CHIP 15K 1/16W
R107 1-216-864-11 s CONDUCTOR, CHIP (1608)
R108 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R109 1-216-864-11 s CONDUCTOR, CHIP (1608)
R110 1-218-726-11 s RESISTOR CHIP 27K 1/16W (1608)
R111 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R112 1-216-828-11 s RESISTOR, CHIP 3.9K 1/16W 1608
R113 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R114 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R115 1-216-855-11 s RESISTOR, CHIP 680K 1/16W 1608
R116 1-218-692-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R117 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R118 1-216-855-11 s RESISTOR, CHIP 680K 1/16W 1608
R119 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R120 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R121 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R122 1-218-713-11 s RESISTOR,METAL 7.5K 1/16W
R123 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R124 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R125 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R126 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R127 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R128 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R130 1-218-692-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R133 1-218-692-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R136 1-218-692-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R138 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R139 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R140 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
5-11
VPL-HS1
(BA BOARD)
Ref. No.
or Q’ty Part No. SP Description
R141 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R142 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R143 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R144 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R145 1-218-694-11 s RESISTOR,CHIP 1.2K1/16W(1608)
R146 1-218-694-11 s RESISTOR,CHIP 1.2K1/16W(1608)
R147 1-218-694-11 s RESISTOR,CHIP 1.2K1/16W(1608)
R201 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R202 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R203 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R204 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R205 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R206 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R207 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R210 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R211 1-218-661-11 s RESISTOR,CHIP 51 1/16W (1608)
R212 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R213 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R214 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R215 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R216 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R217 1-218-731-11 s RESISTOR,METAL 43K 1/16
R218 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R219 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R220 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R221 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R222 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R223 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R224 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R225 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R226 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R227 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R228 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R229 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R231 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608
R232 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R233 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R234 1-216-822-11 s RESISTOR, CHIP 1.2K 1/16W 1608
R235 1-216-827-11 s RESISTOR, CHIP 3.3K 1/16W 1608
R236 1-218-685-11 s RESISTOR,CHIP 510 1/16W
R237 1-216-827-11 s RESISTOR, CHIP 3.3K 1/16W 1608
R238 1-218-685-11 s RESISTOR,CHIP 510 1/16W
R239 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608
R241 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608
R242 1-218-723-11 s RESISTOR,CHIP 20K 1/16W(1608)
R243 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608
R244 1-218-723-11 s RESISTOR,CHIP 20K 1/16W(1608)
R245 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R246 1-218-692-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R247 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608
R248 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608
R249 1-218-660-91 s RESISTOR,CHIP 47 1/16W (1608)
R250 1-218-690-11 s RESISTOR,CHIP 820 1/16W (1608)
R251 1-218-684-11 s RESISTOR,CHIP 470 1/16W (1608)
R252 1-218-690-11 s RESISTOR,CHIP 820 1/16W (1608)
R253 1-218-676-11 s RESISTOR,CHIP 220 1/16W(1608)
R254 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R255 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R256 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
(BA BOARD)
Ref. No.
or Q’ty Part No. SP Description
R257 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R258 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R259 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R301 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R306 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R307 1-216-823-11 s RESISTOR, CHIP 1.5K 1/16W
R308 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R309 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R310 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R311 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R312 1-216-864-11 s CONDUCTOR, CHIP (1608)
R313 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R314 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R315 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R316 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R317 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R318 1-218-664-11 s RESISTOR,CHIP 68 1/16W (1608)
R319 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R320 1-216-864-11 s CONDUCTOR, CHIP (1608)
R321 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R322 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R323 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R324 1-218-686-11 s RESISTOR CHIP 560 1/16W (1608)
R325 1-218-686-11 s RESISTOR CHIP 560 1/16W (1608)
R326 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R327 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R328 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R329 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R330 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R331 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R332 1-216-849-11 s RESISTOR,CHIP 220K 1/16W 1608
R333 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R335 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608
R336 1-218-710-11 s RESISTOR,CHIP 5.6K 1/16W(1608)
R337 1-218-710-11 s RESISTOR,CHIP 5.6K 1/16W(1608)
R338 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R339 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R340 1-218-696-11 s RESISTOR,CHIP 1.5K 1/16W(1608)
R341 1-216-820-11 s RESISTOR, CHIP 820 1/16W 1608
R342 1-218-686-11 s RESISTOR CHIP 560 1/16W (1608)
R343 1-218-682-11 s RESISTOR,CHIP 390 1/16W (1608)
R344 1-218-692-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R346 1-218-674-11 s RESISTOR CHIP 180 1/16W (1608)
R347 1-216-864-11 s CONDUCTOR, CHIP (1608)
R348 1-218-710-11 s RESISTOR,CHIP 5.6K 1/16W(1608)
R349 1-218-700-11 s RESISTOR,CHIP 2.2K 1/16W(1608)
R350 1-216-820-11 s RESISTOR, CHIP 820 1/16W 1608
R351 1-218-700-11 s RESISTOR,CHIP 2.2K 1/16W(1608)
R352 1-216-820-11 s RESISTOR, CHIP 820 1/16W 1608
R353 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R354 1-216-834-11 s RESISTOR,CHIP 12K 1/16W 1608
R355 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R356 1-216-834-11 s RESISTOR,CHIP 12K 1/16W 1608
R357 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R358 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R359 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R360 1-218-686-11 s RESISTOR CHIP 560 1/16W (1608)
R361 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R362 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
5-12 VPL-HS1
(BA BOARD)
Ref. No.
or Q’ty Part No. SP Description
R363 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R364 1-216-864-11 s CONDUCTOR, CHIP (1608)
TP101 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP102 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP103 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP104 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP105 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP106 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP107 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP108 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP109 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP110 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP111 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP301 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP302 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
X101 1-781-914-21 s VIBRATOR, CRYSTAL
X301 1-760-273-11 s VIBRATOR, CRYSTAL
--------

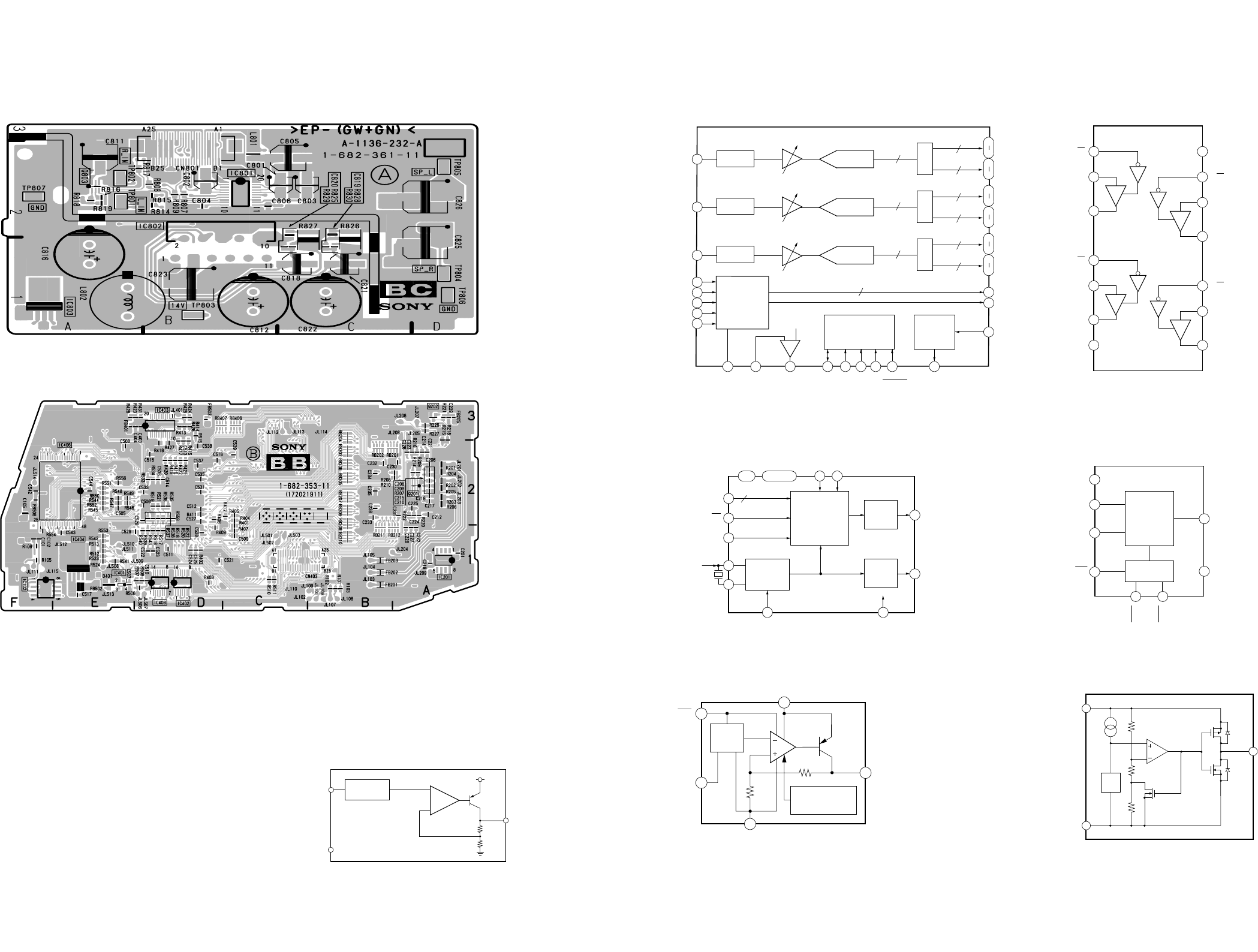

BB BOARD
--------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1136-231-A s MOUNTED CIRCUIT BOARD, BB
C101 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C102 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
C103 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C104 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
C105 1-109-982-11 s CAPACITOR,CHIP CERAMIC 1MF/10V
C106 1-128-994-11 s CAP, ELECT 47MF/10V
C201 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C202 1-124-778-00 s CAPACITOR,ELECT 22MF/6.3V
C203 1-165-176-11 s CAPACITOR,CERAMIC 47000PF/16V
C204 1-164-505-11 s CAPACITOR,CHIP CERAMIC 2.2MF
C205 1-165-176-11 s CAPACITOR,CERAMIC 47000PF/16V
C206 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C207 1-165-176-11 s CAPACITOR,CERAMIC 47000PF/16V
C208 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C209 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C210 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C211 1-165-176-11 s CAPACITOR,CERAMIC 47000PF/16V
C212 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C213 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C214 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C215 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C216 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C217 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C218 1-127-692-11 s CAP, CHIP CERAMIC 10MF B 3216
C219 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C220 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C221 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C222 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C223 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C224 1-164-173-11 s CAPACITOR,CERAMIC 3900PF/50V B
C225 1-137-652-91 s CAPACITOR,CERAMIC 39000PF /16V
C226 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C227 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C228 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C229 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C230 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C231 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C232 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C233 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C234 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C235 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C236 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C237 1-164-505-11 s CAPACITOR,CHIP CERAMIC 2.2MF
C401 1-162-916-11 s CAPACITOR,CERAMIC 12PF/50V CH
C402 1-162-916-11 s CAPACITOR,CERAMIC 12PF/50V CH
C403 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C404 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C501 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C503 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C504 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C505 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C506 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C508 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C509 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C510 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C511 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C512 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
5-13
VPL-HS1
(BB BOARD)
Ref. No.
or Q’ty Part No. SP Description
C513 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C514 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C515 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C516 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C517 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C518 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C519 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C520 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C521 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C522 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C523 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C524 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C525 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C526 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C527 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C528 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C529 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C530 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C531 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C533 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C535 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C536 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C537 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C538 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C539 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C540 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C541 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C542 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C543 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C544 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C545 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
CN101 1-793-797-21 o CONNECTOR, BOARD TO BOARD
CN102 1-770-449-21 o CONNECTOR, BOARD TO BOARD 70P
CN103 1-568-323-51 s CONNECTOR, BOARD TO BOARD 4P
CN401 1-770-620-21 s PIN, CONNECTOR 3P
CN403 1-815-354-11 o CONNECTOR, BOARD TO BOARD 50P
D401 8-719-914-43 s DIODE DAN202K
FB101 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB102 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB201 1-414-748-11 s INDUCTOR, MICRO (CHIP TYPE)
FB202 1-414-748-11 s INDUCTOR, MICRO (CHIP TYPE)
FB203 1-414-748-11 s INDUCTOR, MICRO (CHIP TYPE)
FB204 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB205 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB206 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB401 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB501 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB502 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB503 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB504 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB505 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB506 1-414-921-11 s INDUCTOR, FERRITE BEAD
IC102 8-759-681-47 s IC IRMF-A0T-QTP
IC201 8-759-652-56 s IC BA033F-E2
IC202 8-759-659-65 s IC LP2985IM5X-3.3
IC203 8-759-670-41 s IC AD9884AKS-100
IC204 8-759-472-14 s IC 74VHC125MTCX
(BB BOARD)
Ref. No.
or Q’ty Part No. SP Description
IC401 8-759-544-01 s IC S-80828ANNP-EDR-T2
IC402 8-759-472-00 s IC 74VHC14MTCX
IC403 8-759-683-96 s IC MK1714-01RT
IC404 8-759-582-37 s IC PQ2TZ15U
IC405 6-701-045-01 s IC PW365-10U
IC406 6-800-755-02 s IC MBM29LV800TA-90PFTN-SX1719
IC408 8-759-471-96 s IC 74VHC08MTCX
L201 1-412-057-11 s INDUCTOR (SMALL TYPE) 6.8UH
Q201 8-729-427-72 s TRANSISTOR XP4501-TXE
Q202 8-729-907-00 s TRANSISTOR DTC114EU
R101 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R102 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R103 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R104 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R105 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R106 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R107 1-216-830-11 s RESISTOR,CHIP 5.6K 1/16W 1608
R108 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R109 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R110 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R111 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R201 1-216-631-11 s RESISTOR,CHIP 150 1/10W (2012)
R202 1-216-631-11 s RESISTOR,CHIP 150 1/10W (2012)
R203 1-216-631-11 s RESISTOR,CHIP 150 1/10W (2012)
R204 1-216-631-11 s RESISTOR,CHIP 150 1/10W (2012)
R205 1-216-631-11 s RESISTOR,CHIP 150 1/10W (2012)
R206 1-216-631-11 s RESISTOR,CHIP 150 1/10W (2012)
R207 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R208 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R209 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R211 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R212 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R213 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R214 1-216-851-11 s RESISTOR,CHIP 330K 1/16W 1608
R215 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R216 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R218 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R219 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R220 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R221 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R222 1-218-704-11 s RESISTOR,CHIP 3.3K 1/16W(1608)
R223 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R224 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R225 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R226 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R227 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R401 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R402 1-216-864-11 s CONDUCTOR, CHIP (1608)
R403 1-216-864-11 s CONDUCTOR, CHIP (1608)
R404 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R405 1-216-864-11 s CONDUCTOR, CHIP (1608)
R406 1-216-864-11 s CONDUCTOR, CHIP (1608)
R408 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R409 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R410 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R411 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R413 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
5-14 VPL-HS1
(BB BOARD)
Ref. No.
or Q’ty Part No. SP Description
R414 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R415 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R416 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R417 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R418 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R419 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R420 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R423 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R424 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R425 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R430 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R501 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R502 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R503 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R504 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R505 1-216-832-11 s RESISTOR,CHIP 8.2K 1/16W 1608
R506 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R508 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R510 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R511 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R512 1-216-827-11 s RESISTOR, CHIP 3.3K 1/16W 1608
R513 1-216-827-11 s RESISTOR, CHIP 3.3K 1/16W 1608
R514 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R515 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R523 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R524 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R532 1-216-864-11 s CONDUCTOR, CHIP (1608)
R533 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R535 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R538 1-216-864-11 s CONDUCTOR, CHIP (1608)
R539 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R541 1-216-864-11 s CONDUCTOR, CHIP (1608)
R542 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R544 1-216-864-11 s CONDUCTOR, CHIP (1608)
R545 1-216-864-11 s CONDUCTOR, CHIP (1608)
R546 1-216-864-11 s CONDUCTOR, CHIP (1608)
R547 1-216-864-11 s CONDUCTOR, CHIP (1608)
R550 1-216-864-11 s CONDUCTOR, CHIP (1608)
R551 1-216-864-11 s CONDUCTOR, CHIP (1608)
R552 1-216-864-11 s CONDUCTOR, CHIP (1608)
R553 1-216-864-11 s CONDUCTOR, CHIP (1608)
R554 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R556 1-216-864-11 s CONDUCTOR, CHIP (1608)
R557 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
RB201 1-233-575-11 s RES, CHIP NETWORK 22
RB202 1-233-575-11 s RES, CHIP NETWORK 22
RB203 1-233-575-11 s RES, CHIP NETWORK 22
RB204 1-233-575-11 s RES, CHIP NETWORK 22
RB205 1-233-575-11 s RES, CHIP NETWORK 22
RB206 1-233-575-11 s RES, CHIP NETWORK 22
RB207 1-233-575-11 s RES, CHIP NETWORK 22
RB208 1-233-575-11 s RES, CHIP NETWORK 22
RB209 1-233-575-11 s RES, CHIP NETWORK 22
RB210 1-233-575-11 s RES, CHIP NETWORK 22
RB211 1-233-575-11 s RES, CHIP NETWORK 22
RB212 1-233-575-11 s RES, CHIP NETWORK 22
RB402 1-233-574-11 s RESISTOR,CHIP NETWORK 10
RB403 1-233-574-11 s RESISTOR,CHIP NETWORK 10
RB404 1-233-574-11 s RESISTOR,CHIP NETWORK 10
(BB BOARD)
Ref. No.
or Q’ty Part No. SP Description
RB405 1-233-574-11 s RESISTOR,CHIP NETWORK 10
RB406 1-233-574-11 s RESISTOR,CHIP NETWORK 10
RB407 1-233-574-11 s RESISTOR,CHIP NETWORK 10
TP101 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP102 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP112 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP201 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP202 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP203 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP204 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP205 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP206 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP207 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP401 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
X201 1-767-908-11 s VIBRATOR, CRYSTAL 13.08384MHZ
X501 1-795-282-21 s OSCILLATOR, CRYSTAL
5-15
VPL-HS1
--------
BC BOARD
--------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1136-232-A s MOUNTED CIRCUIT BOARD, BC
1pc 7-682-648-09 s SCREW +PS 3X8(EP-FE/ZNBK/CM2)
C801 1-124-779-00 s CAPACITOR,ELECT 10MF/16V
C802 1-124-779-00 s CAPACITOR,ELECT 10MF/16V
C803 1-124-779-00 s CAPACITOR,ELECT 10MF/16V
C804 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C805 1-126-204-11 s CAPACITOR, ELECT 47MF/16V(CHIP
C806 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C807 1-125-889-11 s CAPACITOR, C.CERAMIC 2.2MF
C808 1-125-889-11 s CAPACITOR, C.CERAMIC 2.2MF
C809 1-164-677-11 s CAPACITOR,CERAMIC 0.033MF/16V
C810 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C811 1-126-397-11 s CAPACITOR ELECT 33MF/25V(CHIP)
C812 1-111-066-11 s CAPACITOR,ELECT 820MF/25V 105
C813 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C814 1-164-227-11 s CAPACITOR,CERAMIC 0.022MF/25V
C815 1-164-227-11 s CAPACITOR,CERAMIC 0.022MF/25V
C816 1-111-066-11 s CAPACITOR,ELECT 820MF/25V 105
C818 1-126-200-11 s CAPACITOR,ELECT 10MF/35V
C819 1-115-340-11 s CAPACITOR CERAMIC 0.22MF/25V B
C820 1-115-340-11 s CAPACITOR CERAMIC 0.22MF/25V B
C821 1-126-200-11 s CAPACITOR,ELECT 10MF/35V
C822 1-111-066-11 s CAPACITOR,ELECT 820MF/25V 105
C823 1-128-401-11 s CAPACITOR,ELECT100MF/25V(CHIP)
C825 1-128-399-11 s CAPACITOR ELECT 330MF/16V(CHIP
C826 1-128-399-11 s CAPACITOR ELECT 330MF/16V(CHIP
CN801 1-793-797-21 o CONNECTOR, BOARD TO BOARD
IC801 8-752-091-06 s IC CXA1846BN-T4
IC802 8-759-980-43 s IC TDA2009A
IC803 8-759-388-31 s IC PQ20VZ1U
L801 1-412-028-11 s INDUCTOR,CHIP 4.7UH (3225)
L802 1-406-980-51 s COIL, CHOKE 330UH
Q803 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
R807 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R808 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R809 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R810 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R811 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R812 1-216-834-11 s RESISTOR,CHIP 12K 1/16W 1608
R813 1-216-834-11 s RESISTOR,CHIP 12K 1/16W 1608
R814 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R815 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R816 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R817 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R818 1-216-823-11 s RESISTOR, CHIP 1.5K 1/16W
R819 1-216-827-11 s RESISTOR, CHIP 3.3K 1/16W 1608
R820 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R821 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R822 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608)
R823 1-218-717-11 s RESISTOR,CHIP 11K 1/16W (1608)
R824 1-218-685-11 s RESISTOR,CHIP 510 1/16W
R825 1-216-800-11 s RESISTOR,CHIP 18 1/16W 1608
R826 1-218-231-11 s RESISTOR, CHIP 1 1/2W (4532)
R827 1-218-231-11 s RESISTOR, CHIP 1 1/2W (4532)
R828 1-216-800-11 s RESISTOR,CHIP 18 1/16W 1608
R829 1-216-822-11 s RESISTOR, CHIP 1.2K 1/16W 1608
(BC BOARD)
Ref. No.
or Q’ty Part No. SP Description
R830 1-216-822-11 s RESISTOR, CHIP 1.2K 1/16W 1608
TP801 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP802 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP803 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP804 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP805 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP806 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP807 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
5-16 VPL-HS1
-------

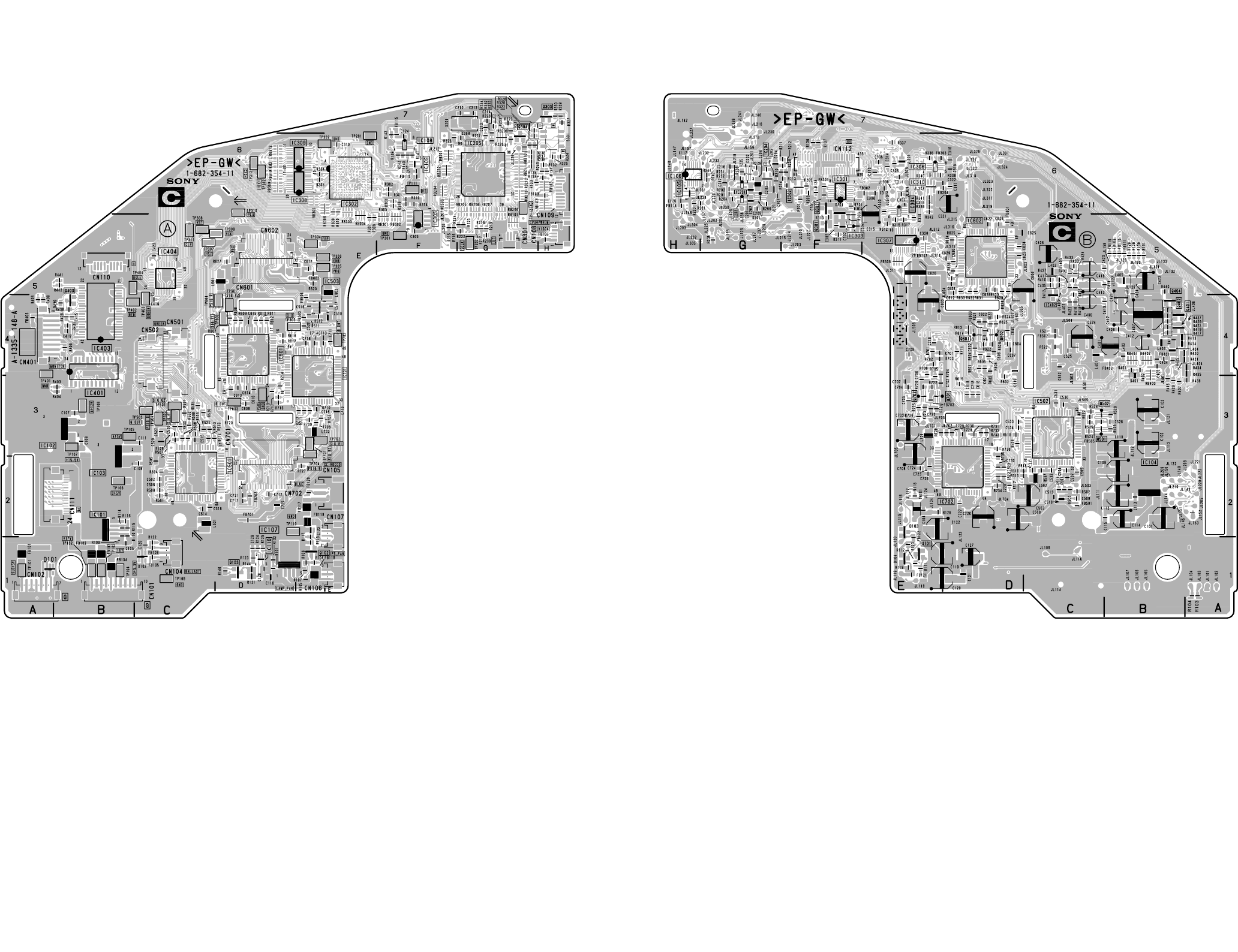

C BOARD
-------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1335-148-A s MOUNTED CIRCUIT BOARD, C
C102 1-128-992-11 s CAPACITOR ELECT 47MF 25V
C103 1-126-204-11 s CAPACITOR, ELECT 47MF/16V(CHIP
C104 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C105 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C106 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C107 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C108 1-128-995-11 s CAPACITOR ELECT 100MF / 10 V
C109 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C110 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C111 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C112 1-128-995-11 s CAPACITOR ELECT 100MF / 10 V
C113 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C114 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C115 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C116 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C117 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C118 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C119 1-126-397-11 s CAPACITOR ELECT 33MF/25V(CHIP)
C120 1-126-397-11 s CAPACITOR ELECT 33MF/25V(CHIP)
C121 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C122 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C123 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C124 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C125 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C127 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C128 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C129 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C201 1-109-982-11 s CAPACITOR,CHIP CERAMIC 1MF/10V
C202 1-109-982-11 s CAPACITOR,CHIP CERAMIC 1MF/10V
C203 1-125-889-11 s CAPACITOR, C.CERAMIC 2.2MF
C204 1-109-982-11 s CAPACITOR,CHIP CERAMIC 1MF/10V
C205 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C206 1-115-566-11 s CAPACITOR,CERAMIC 4.7MF B/6.3V
C207 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C208 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C209 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C210 1-162-915-11 s CAPACITOR,CERAMIC 10PF/50V CH
C211 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C212 1-162-915-11 s CAPACITOR,CERAMIC 10PF/50V CH
C213 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C214 1-164-315-11 s CAPACITOR,CERAMIC 470PF/50V CH
C215 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C216 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C217 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C301 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C302 1-109-982-11 s CAPACITOR,CHIP CERAMIC 1MF/10V
C303 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C305 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C306 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C307 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C308 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C309 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C310 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C311 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C312 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C313 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C314 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
(C BOARD)
Ref. No.
or Q’ty Part No. SP Description
C315 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C316 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C317 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C318 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C319 1-162-910-11 s CAPACITOR,CERAMIC 5PF/50V 1608
C320 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C321 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C322 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C401 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C402 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C403 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C404 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C405 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C406 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C407 1-135-347-11 s CAP, SOLID ELECT 82MF
C408 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C409 1-126-602-11 s CAPACITOR,ELECT 3.3MF/50V(CHIP
C410 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C411 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C412 1-124-779-00 s CAPACITOR,ELECT 10MF/16V
C413 1-126-602-11 s CAPACITOR,ELECT 3.3MF/50V(CHIP
C414 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C415 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C416 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C417 1-124-779-00 s CAPACITOR,ELECT 10MF/16V
C418 1-126-602-11 s CAPACITOR,ELECT 3.3MF/50V(CHIP
C419 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C420 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C421 1-124-779-00 s CAPACITOR,ELECT 10MF/16V
C422 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C423 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C424 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C501 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C502 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C503 1-128-992-11 s CAPACITOR ELECT 47MF 25V
C504 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C505 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C506 1-162-925-11 s CAPACITOR,CERAMIC 68PF/50V CH
C507 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C508 1-128-992-11 s CAPACITOR ELECT 47MF 25V
C510 1-127-760-11 s CAPACITOR,CERAMIC 4.7MF/6.3V
C511 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C512 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C513 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C514 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C515 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C516 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C517 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C518 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C519 1-115-340-11 s CAPACITOR CERAMIC 0.22MF/25V B
C521 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C522 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C523 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C524 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C525 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C526 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C601 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C602 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C603 1-128-992-11 s CAPACITOR ELECT 47MF 25V
5-17
VPL-HS1
(C BOARD)
Ref. No.
or Q’ty Part No. SP Description
C604 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C605 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C606 1-162-925-11 s CAPACITOR,CERAMIC 68PF/50V CH
C607 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C608 1-128-992-11 s CAPACITOR ELECT 47MF 25V
C610 1-127-760-11 s CAPACITOR,CERAMIC 4.7MF/6.3V
C611 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C612 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C613 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C614 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C615 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C616 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C617 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C618 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C619 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C620 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C621 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C622 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C701 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C702 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C703 1-128-992-11 s CAPACITOR ELECT 47MF 25V
C704 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C705 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C706 1-162-925-11 s CAPACITOR,CERAMIC 68PF/50V CH
C707 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C708 1-128-992-11 s CAPACITOR ELECT 47MF 25V
C710 1-127-760-11 s CAPACITOR,CERAMIC 4.7MF/6.3V
C711 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C712 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C713 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C714 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C715 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C716 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C717 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C718 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C719 1-115-467-11 s CAPACITOR CERAMIC 0.22MF/10V B
C720 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C721 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C722 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
CN101 1-695-223-21 o PIN,CONNECTOR (SMD) 10P
CN102 1-580-756-21 o PIN, CONNECTOR 7P
CN104 1-580-056-21 o PIN,CONNECTOR 3P
CN105 1-774-730-21 s PIN, CONNECTOR (PC BOARD) 3P
CN106 1-580-056-21 o PIN,CONNECTOR 3P
CN107 1-580-056-21 o PIN,CONNECTOR 3P
CN108 1-770-622-21 s PIN, CONNECTOR 5P
CN109 1-778-965-21 s PIN, CONNECTOR (PC BOARD) 12P
CN110 1-770-629-21 s PIN, CONNECTOR 12P
CN111 1-779-730-11 s CONNECTOR, FFC/FPC (ZIF) 24P
CN112 1-770-454-21 o CONNECTOR, BOARD TO BOARD 70P
CN301 1-779-884-11 s PLUG, CONNECTOR 4P
CN502 1-779-730-11 s CONNECTOR, FFC/FPC (ZIF) 24P
CN602 1-779-730-11 s CONNECTOR, FFC/FPC (ZIF) 24P
CN702 1-779-730-11 s CONNECTOR, FFC/FPC (ZIF) 24P
D101 8-719-073-11 s DIODE BZA456A
D102 8-719-073-11 s DIODE BZA456A
D103 8-719-914-43 s DIODE DAN202K
D104 8-719-914-43 s DIODE DAN202K
D201 8-719-024-77 s DIODE HN1D03FU-TE85L
(C BOARD)
Ref. No.
or Q’ty Part No. SP Description
D202 8-719-024-77 s DIODE HN1D03FU-TE85L
D301 8-719-914-43 s DIODE DAN202K
D401 8-719-988-61 s DIODE 1SS355TE-17
FB101 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB102 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB103 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB104 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB105 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB106 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB107 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB108 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB109 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB110 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB111 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB113 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB114 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB115 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB116 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB117 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB118 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB119 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB120 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB121 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB122 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB301 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB302 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB303 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB304 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB401 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB402 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB403 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB501 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB502 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB503 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB505 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB601 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB602 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB603 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB701 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB702 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB703 1-414-921-11 s INDUCTOR, FERRITE BEAD
IC101 8-759-388-31 s IC PQ20VZ1U
IC102 8-759-460-81 s IC BA12FP-E2
IC103 8-759-533-85 s IC L88M05T-FA-TL
IC104 8-759-533-85 s IC L88M05T-FA-TL
IC105 8-759-660-98 s IC NC7SZ02P5
IC106 8-759-472-14 s IC 74VHC125MTCX
IC107 8-759-388-31 s IC PQ20VZ1U
IC108 8-759-447-77 s IC TC7WH74FU (TE12R)
IC109 8-759-485-79 s IC TC7SET08FU (TE85L)
IC110 8-759-485-79 s IC TC7SET08FU (TE85L)
IC201 8-759-582-91 s IC S-80842ANNP-ED6-T2
IC202 8-759-575-16 s IC LMC7101BIM5X
IC203 8-759-544-01 s IC S-80828ANNP-EDR-T2
IC204 8-759-659-65 s IC LP2985IM5X-3.3
IC205 8-759-648-10 s IC HD64F2633TE
IC301 8-759-472-14 s IC 74VHC125MTCX
IC302 8-759-824-29 s IC CXD9607GB
5-18 VPL-HS1
(C BOARD)
Ref. No.
or Q’ty Part No. SP Description
IC303 8-759-544-01 s IC S-80828ANNP-EDR-T2
IC304 8-759-447-77 s IC TC7WH74FU (TE12R)
IC305 8-759-684-72 s IC M24C64-WMN6T(A)
IC306 8-759-082-57 s IC TC7W04FU
IC307 8-759-683-83 s IC 74VHCT541AMTCX
IC308 8-759-683-83 s IC 74VHCT541AMTCX
IC309 8-759-683-83 s IC 74VHCT541AMTCX
IC310 8-759-449-58 s IC LM7131BCM5X
IC401 8-759-542-46 s IC M62392FP
IC402 8-759-571-03 s IC LM4041DIM3-1.2(T&R)
IC403 8-759-584-86 s IC M52749FP-TP
IC404 8-759-645-13 s IC ADV7123KST140
IC501 8-752-093-18 s IC CXA3512R-T6
IC503 8-759-252-41 s IC TK11900MTL
IC601 8-752-093-18 s IC CXA3512R-T6
IC701 8-752-093-18 s IC CXA3512R-T6
L301 1-469-525-91 s INDUCTOR 10UH (NLFV25)
L401 1-469-525-91 s INDUCTOR 10UH (NLFV25)
L402 1-469-525-91 s INDUCTOR 10UH (NLFV25)
L403 1-469-525-91 s INDUCTOR 10UH (NLFV25)
L404 1-469-525-91 s INDUCTOR 10UH (NLFV25)
L405 1-469-525-91 s INDUCTOR 10UH (NLFV25)
L501 1-410-369-11 s INDUCTOR,CHIP 1UH (3225)
L502 1-410-369-11 s INDUCTOR,CHIP 1UH (3225)
L601 1-410-369-11 s INDUCTOR,CHIP 1UH (3225)
L602 1-410-369-11 s INDUCTOR,CHIP 1UH (3225)
L701 1-410-369-11 s INDUCTOR,CHIP 1UH (3225)
L702 1-410-369-11 s INDUCTOR,CHIP 1UH (3225)
Q101 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q102 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q103 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q301 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q302 8-729-026-49 s TRANSISTOR 2SA1037AK-T146-R
Q303 8-729-202-38 s TRANSISTOR 2SC3326N-A
Q304 8-729-202-38 s TRANSISTOR 2SC3326N-A
Q401 8-729-112-65 s TRANSISTOR 2SA1462
Q402 8-729-112-65 s TRANSISTOR 2SA1462
Q403 8-729-112-65 s TRANSISTOR 2SA1462
Q404 8-729-112-65 s TRANSISTOR 2SA1462
Q501 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
Q502 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
Q601 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
Q602 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
Q701 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
Q702 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
R101 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608)
R102 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608)
R103 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R104 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R105 1-218-724-11 s RESISTOR,CHIP 22K 1/16W(1608)
R106 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R107 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R108 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608)
R109 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R110 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R111 1-216-844-11 s RESISTOR,CHIP 82K 1/16W 1608
R112 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
(C BOARD)
Ref. No.
or Q’ty Part No. SP Description
R113 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R114 1-218-723-11 s RESISTOR,CHIP 20K 1/16W(1608)
R115 1-218-714-11 s RESISTOR,CHIP 8.2K 1/16W(1608)
R116 1-218-685-11 s RESISTOR,CHIP 510 1/16W
R117 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R118 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608
R119 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608
R120 1-216-837-11 s RESISTOR,CHIP 22K 1/16W 1608
R121 1-216-041-00 s RESISTOR, CHIP 470 1/10W(2012)
R122 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R123 1-218-692-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R125 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R126 1-218-692-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R127 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R128 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R129 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R130 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R131 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R132 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R133 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R134 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R135 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R136 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R137 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R138 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R140 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R142 1-216-864-11 s CONDUCTOR, CHIP (1608)
R143 1-216-864-11 s CONDUCTOR, CHIP (1608)
R144 1-216-041-00 s RESISTOR, CHIP 470 1/10W(2012)
R146 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R201 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R202 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R203 1-218-734-11 s RESISTOR,CHIP 56K 1/16W(1608)
R204 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R205 1-218-726-11 s RESISTOR CHIP 27K 1/16W (1608)
R206 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R207 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R208 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R210 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R212 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R214 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R215 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R216 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R217 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R218 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R219 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R220 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R221 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R222 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R223 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R224 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R225 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R226 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R227 1-216-797-11 s RESISTOR,CHIP 10 1/16W 1608
R228 1-218-703-11 s RESISTOR,CHIP 3.0K 1/16(1608)
R229 1-218-675-11 s RESISTOR,CHIP 200 1/16W (1608)
R230 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R231 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R232 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
5-19
VPL-HS1
(C BOARD)
Ref. No.
or Q’ty Part No. SP Description
R233 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R234 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R236 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R237 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R238 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R239 1-216-826-11 s RESISTOR,CHIP 2.7K 1/16W(1608)
R240 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R241 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R242 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R301 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R302 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R303 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R304 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R305 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R306 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R307 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R308 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R309 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R310 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R311 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R312 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R313 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R314 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R315 1-216-864-11 s CONDUCTOR, CHIP (1608)
R316 1-216-864-11 s CONDUCTOR, CHIP (1608)
R318 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R319 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R320 1-216-864-11 s CONDUCTOR, CHIP (1608)
R321 1-216-864-11 s CONDUCTOR, CHIP (1608)
R322 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R323 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R324 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R325 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R326 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R327 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R328 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R329 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R330 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R331 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R332 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R333 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R334 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R335 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R337 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R338 1-216-864-11 s CONDUCTOR, CHIP (1608)
R339 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R340 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R341 1-216-814-11 s RESISTOR,CHIP 270 1/16W 1608
R342 1-216-864-11 s CONDUCTOR, CHIP (1608)
R401 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608)
R402 1-218-710-11 s RESISTOR,CHIP 5.6K 1/16W(1608)
R403 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R404 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R405 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R406 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R407 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R408 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R409 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R410 1-216-827-11 s RESISTOR, CHIP 3.3K 1/16W 1608
(C BOARD)
Ref. No.
or Q’ty Part No. SP Description
R411 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R412 1-218-688-11 s RESISTOR,CHIP 680 1/16W(1608)
R413 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R414 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R415 1-216-808-11 s RESISTOR,CHIP 82 1/16W 1608
R416 1-218-665-11 s RESISTOR,CHIP 75 1/16W (1608)
R417 1-216-819-11 s RESISTOR,CHIP 680 1/16W 1608
R418 1-216-797-11 s RESISTOR,CHIP 10 1/16W 1608
R419 1-216-816-11 s RESISTOR, CHIP 390 1/16W 1608
R420 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R421 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R423 1-216-819-11 s RESISTOR,CHIP 680 1/16W 1608
R424 1-216-797-11 s RESISTOR,CHIP 10 1/16W 1608
R425 1-218-665-11 s RESISTOR,CHIP 75 1/16W (1608)
R426 1-216-808-11 s RESISTOR,CHIP 82 1/16W 1608
R428 1-216-853-11 s RESISTOR,CHIP 470K 1/16W(1608)
R429 1-216-816-11 s RESISTOR, CHIP 390 1/16W 1608
R430 1-216-797-11 s RESISTOR,CHIP 10 1/16W 1608
R431 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R433 1-218-665-11 s RESISTOR,CHIP 75 1/16W (1608)
R434 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R435 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R436 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R437 1-216-819-11 s RESISTOR,CHIP 680 1/16W 1608
R438 1-216-808-11 s RESISTOR,CHIP 82 1/16W 1608
R439 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R440 1-216-816-11 s RESISTOR, CHIP 390 1/16W 1608
R441 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R442 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R502 1-218-699-11 s RESISTOR,CHIP 2.0K 1/16W(1608)
R503 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R504 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R505 1-218-699-11 s RESISTOR,CHIP 2.0K 1/16W(1608)
R506 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R507 1-216-864-11 s CONDUCTOR, CHIP (1608)
R508 1-216-864-11 s CONDUCTOR, CHIP (1608)
R509 1-216-864-11 s CONDUCTOR, CHIP (1608)
R510 1-216-864-11 s CONDUCTOR, CHIP (1608)
R511 1-218-720-11 s RESISTOR,CHIP 15K 1/16W(1608)
R512 1-218-744-11 s RESISTOR,CHIP 150K 1/16W
R513 1-216-864-11 s CONDUCTOR, CHIP (1608)
R514 1-216-864-11 s CONDUCTOR, CHIP (1608)
R516 1-216-864-11 s CONDUCTOR, CHIP (1608)
R518 1-216-864-11 s CONDUCTOR, CHIP (1608)
R519 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R522 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R523 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R524 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R525 1-216-789-11 s RESISTOR,CHIP 2.2 1/16W(1608)
R526 1-216-864-11 s CONDUCTOR, CHIP (1608)
R527 1-216-789-11 s RESISTOR,CHIP 2.2 1/16W(1608)
R528 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R602 1-218-699-11 s RESISTOR,CHIP 2.0K 1/16W(1608)
R603 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R604 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R605 1-218-699-11 s RESISTOR,CHIP 2.0K 1/16W(1608)
R606 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R607 1-216-864-11 s CONDUCTOR, CHIP (1608)
R608 1-216-864-11 s CONDUCTOR, CHIP (1608)
5-20 VPL-HS1
(C BOARD)
Ref. No.
or Q’ty Part No. SP Description
R609 1-216-864-11 s CONDUCTOR, CHIP (1608)
R610 1-216-864-11 s CONDUCTOR, CHIP (1608)
R611 1-216-864-11 s CONDUCTOR, CHIP (1608)
R612 1-216-864-11 s CONDUCTOR, CHIP (1608)
R614 1-216-864-11 s CONDUCTOR, CHIP (1608)
R616 1-216-864-11 s CONDUCTOR, CHIP (1608)
R617 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R620 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R621 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R622 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R623 1-216-789-11 s RESISTOR,CHIP 2.2 1/16W(1608)
R624 1-216-864-11 s CONDUCTOR, CHIP (1608)
R625 1-216-789-11 s RESISTOR,CHIP 2.2 1/16W(1608)
R626 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R702 1-218-699-11 s RESISTOR,CHIP 2.0K 1/16W(1608)
R703 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R704 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R705 1-218-699-11 s RESISTOR,CHIP 2.0K 1/16W(1608)
R706 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R707 1-216-864-11 s CONDUCTOR, CHIP (1608)
R708 1-216-864-11 s CONDUCTOR, CHIP (1608)
R709 1-216-864-11 s CONDUCTOR, CHIP (1608)
R710 1-216-864-11 s CONDUCTOR, CHIP (1608)
R711 1-216-864-11 s CONDUCTOR, CHIP (1608)
R712 1-216-864-11 s CONDUCTOR, CHIP (1608)
R714 1-216-864-11 s CONDUCTOR, CHIP (1608)
R716 1-216-864-11 s CONDUCTOR, CHIP (1608)
R717 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R720 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R721 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R722 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R723 1-216-789-11 s RESISTOR,CHIP 2.2 1/16W(1608)
R724 1-216-864-11 s CONDUCTOR, CHIP (1608)
R725 1-216-789-11 s RESISTOR,CHIP 2.2 1/16W(1608)
R726 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
RB101 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB102 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB103 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB201 1-233-412-11 s RESISTOR,CHIP NETWORK 1K
RB202 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB203 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB204 1-236-908-11 s RESISTOR,NETWORK 10K (3216)
RB205 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB206 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB207 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB208 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB209 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB210 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB211 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB212 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB213 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB301 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB302 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB303 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB304 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB305 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB306 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB307 1-233-575-11 s RES, CHIP NETWORK 22
RB309 1-233-388-11 s FILTER, BAND PASS
(C BOARD)
Ref. No.
or Q’ty Part No. SP Description
RB310 1-233-388-11 s FILTER, BAND PASS
RB311 1-233-575-11 s RES, CHIP NETWORK 22
RB312 1-233-575-11 s RES, CHIP NETWORK 22
RB402 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB403 1-233-576-11 s RESISTOR,CHIP NETWORK 100
S301 1-771-337-21 s SWITCH, SLIDE
TH101 1-808-656-11 s THERMISTOR
TP101 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP102 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP103 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP104 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP105 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP106 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP107 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP108 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP109 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP110 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP111 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP112 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP201 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP202 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP301 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP302 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP303 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP304 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP305 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP306 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP307 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP308 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP309 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP310 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP311 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP312 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP313 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP401 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP402 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP403 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP404 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP502 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP503 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP504 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP505 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP602 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP603 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP604 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP702 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP703 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP704 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
X201 1-781-659-11 s VIBRATOR, CRYSTAL
5-21
VPL-HS1
-------

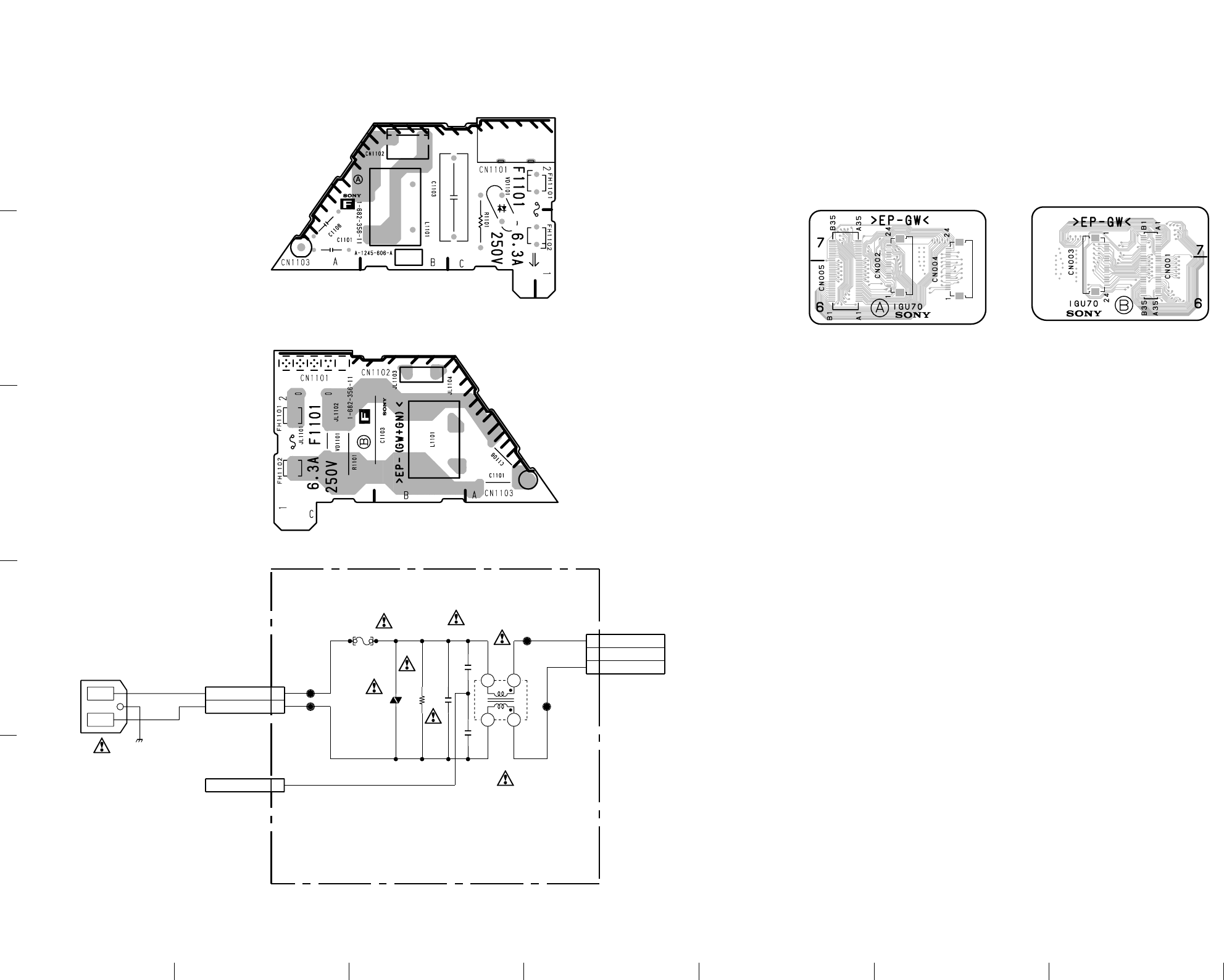

F BOARD
-------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1245-606-A s MOUNTED CIRCUIT BOARD, F
C1101
!
1-113-900-11 s CAPACITOR,CERAMIC 470PF/250V
C1103
!
1-115-166-11 s CAPACITOR,FILM 0.22MF/250VAC
C1106
!
1-113-900-11 s CAPACITOR,CERAMIC 470PF/250V
CN1101 1-793-305-11 s INLET, AC (AC-M11PB52)
CN1102 1-691-960-11 o PIN,CONNECTOR (PC BOARD) 3P
F1101
!
1-576-233-11 s FUSE (H.B.C.) 6.3A/250V
FH1101 1-533-223-11 s CLIP,FUSE
FH1102 1-533-223-11 s CLIP,FUSE
L1101
!
1-424-968-11 s COIL, LINE FILTER
R1101
!
1-202-847-00 s RESISTOR,SOLID 560K 1/2W
VD1101
!
1-801-268-11 s VARISTOR (TNR14V471K660)
-------

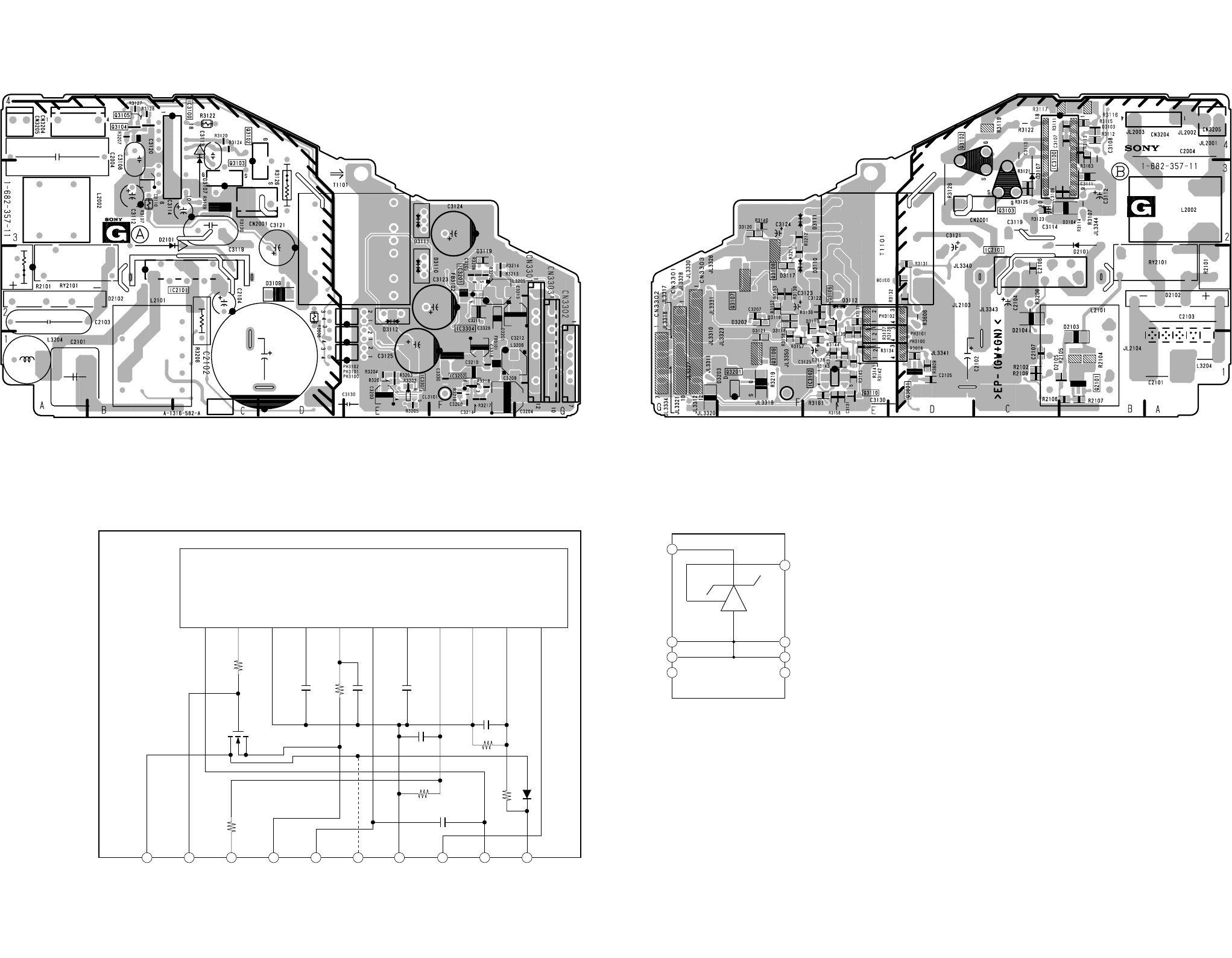

G BOARD
-------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1316-582-A s MOUNTED CIRCUIT BOARD, G
1pc 7-682-949-01 s SCREW +PSW 3X10
C2004
!
1-104-708-11 s CAP, FILM 0.47MF/250VAC
C2101 1-117-227-11 s CAPACITOR,PE FILM 1.0MF/450V
C2102 1-117-751-11 s CAPACITOR, ELECT 220MF/450V
C2103
!
1-137-477-11 s CAPCITOR,FILM 0.47MF/400V
C2104 1-107-909-11 s CAPACITOR,ELECT 47MF/50V
C2105 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C2106 1-115-340-11 s CAPACITOR CERAMIC 0.22MF/25V B
C2107 1-163-251-11 s CAPACITOR CERAMIC 100PF/50V
C3107 1-163-021-91 s CAPACITOR, CERAMIC 0.01MF/50V
C3108 1-136-479-11 s CAPACITOR FILM 0.001MF/100V PP
C3109 1-163-021-91 s CAPACITOR, CERAMIC 0.01MF/50V
C3110 1-124-779-00 s CAPACITOR,ELECT 10MF/16V
C3111 1-109-994-11 s CAPACITOR,CHIP CERAMIC 2.2MF B
C3112 1-126-967-11 s CAPACITOR,ELECT 47MF/50V
C3113 1-130-495-00 s CAPACITOR FILM 0.1MF/50V PETP
C3114 1-128-551-11 s CAPACITOR ERECT 22MF/63V
C3119 1-137-725-21 s CAP METALIZED PP FILM 8200PF
C3120 1-115-566-11 s CAPACITOR,CERAMIC 4.7MF B/6.3V
C3121 1-107-911-11 s CAPACITOR,ELECT 220MF/50V
C3122 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C3123 1-115-789-11 s CAPACITOR ELECT 1000MF/25V 105
C3124 1-115-789-11 s CAPACITOR ELECT 1000MF/25V 105
C3125 1-128-946-11 s CAP, ELECT 2200MF / 10V
C3126 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C3128 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C3130 1-113-900-11 s CAPACITOR,CERAMIC 470PF/250V
C3131 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C3203 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C3204 1-131-999-11 s CAPACITOR,SOLID ELECT 150MF
C3205 1-163-263-11 s CAPACITOR CERAMIC 330PF/50V
C3206 1-163-259-91 s CAPACITOR,CHIP CERAMIC 220PF
C3207 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C3209 1-109-982-11 s CAPACITOR,CHIP CERAMIC 1MF/10V
C3210 1-117-808-91 s CAPACITOR,CERAMIC 10MF/10V(B)
C3211 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C3212 1-135-346-11 s CAP, SOLID ELECT 39MF 16V
C3213 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C3214 1-163-251-11 s CAPACITOR CERAMIC 100PF/50V
C3318 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C3328 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C3330 1-107-823-11 s CAPACITOR,CERAMIC 0.47MF/16V
CN2001 1-691-960-11 o PIN,CONNECTOR (PC BOARD) 3P
CN3204 1-580-689-11 o PIN,CONNECTOR (PC BOARD)
CN3205 1-764-101-11 s PIN, CONNECTOR (PC BOARD) 2P
CN3301 1-564-515-11 o PLUG,CONNECTOR (12P)
CN3302 1-564-510-11 o PLUG,CONNECTOR (7P)
CN3303 1-764-333-11 o PIN, CONNECTOR (10P)(V TYPE)
D2101 8-719-304-63 s DIODE RM11C (RECTI)
D2102
!
8-719-066-75 s DIODE D6SB80
D2103
!
8-719-055-30 s DIODE D1FS4A-TA
D2104 8-719-055-30 s DIODE D1FS4A-TA
D2105 8-719-106-98 s DIODE RD16M-B2
D3103 8-719-107-13 s DIODE RD18M-B1
D3104 8-719-055-30 s DIODE D1FS4A-TA
D3107 8-719-979-64 s DIODE UF4005PKG23
5-22 VPL-HS1
(G BOARD)
Ref. No.
or Q’ty Part No. SP Description
D3108 8-719-118-12 s DIODE RD33M-B
D3109 8-719-057-85 s DIODE D2FS4-TA
D3110 8-719-510-09 s DIODE D10SC6M (RECTI)
D3111 8-719-510-09 s DIODE D10SC6M (RECTI)
D3112 8-719-510-12 s DIODE D10SC4M
D3113 8-719-106-16 s DIODE RD6.8M-B1
D3116 8-719-073-01 s DIODE MA111-(K8).S0
D3117 8-719-073-01 s DIODE MA111-(K8).S0
D3118 8-719-073-01 s DIODE MA111-(K8).S0
D3119 8-719-073-01 s DIODE MA111-(K8).S0
D3120 8-719-073-01 s DIODE MA111-(K8).S0
D3121 8-719-073-01 s DIODE MA111-(K8).S0
D3201 8-719-078-04 s DIODE EC31QS03L-TE12L
D3202 8-719-058-24 s DIODE RB501V-40TE17
D3203 8-719-078-04 s DIODE EC31QS03L-TE12L
FB3101 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB3102 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
IC2101 8-749-015-27 s IC MZ1540
IC3100 8-759-670-30 s IC MCZ3001D
IC3102 8-759-388-23 s IC TL431BCDR2
IC3201 6-701-013-01 s IC LT1767EMS8#TR
IC3202 8-759-713-98 s IC LTC1772CS6
IC3304 8-759-533-85 s IC L88M05T-FA-TL
IC3307 8-759-066-55 s IC TA75W393FU
L2002
!
1-424-822-11 s COIL, LINE FILTER
L2101 1-424-820-11 s COIL, CHOKE
L3204 1-406-977-21 s COIL, CHOKE 100UH
L3205 1-424-674-11 s COIL, CHOKE 22UH
L3206 1-424-673-11 s COIL, CHOKE 4.7UH
PH3100 8-749-010-64 s PHOTO COUPLER PC123F2
PH3101 8-749-010-64 s PHOTO COUPLER PC123F2
PH3102 8-749-010-64 s PHOTO COUPLER PC123F2
Q2101 8-729-101-07 s TRANSISTOR 2SB798
Q3102 8-729-052-29 s TRANSISTOR 2SK2876-01MR-F122
Q3103 8-729-052-29 s TRANSISTOR 2SK2876-01MR-F122
Q3104 8-729-216-22 s TRANSISTOR 2SA1162-G
Q3105 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q3106 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q3107 8-729-048-69 s TRANSISTOR 2SJ530S-TL
Q3108 8-729-048-69 s TRANSISTOR 2SJ530S-TL
Q3109 8-729-048-69 s TRANSISTOR 2SJ530S-TL
Q3110 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q3201 8-729-034-98 s TRANSISTOR SI9434DY-T1
Q3601 8-729-101-07 s TRANSISTOR 2SB798
R2101
!
1-211-748-11 s RES, CEMENT-COATED (FUSE) 5.6
R2102 1-216-065-91 s RESISTOR,CHIP 4.7K 1/10W(2012)
R2104 1-220-269-11 s RESISTOR, CHIP 330 1/2W (4532)
R2105 1-220-269-11 s RESISTOR, CHIP 330 1/2W (4532)
R2106 1-216-063-91 s RESISTOR,CHIP 3.9K 1/10W(2125)
R2107 1-216-065-91 s RESISTOR,CHIP 4.7K 1/10W(2012)
R2109 1-216-065-91 s RESISTOR,CHIP 4.7K 1/10W(2012)
R3107 1-249-389-11 s RES,CARBON 4.7 1/4W
R3111 1-216-681-11 s RESISTOR,CHIP 18K 1/10W (2012)
R3112 1-216-647-11 s RESISTOR,CHIP 680 1/10W (2012)
R3113 1-216-677-11 s RESISTOR,CHIP 12K 1/10W(2012)
R3114 1-216-627-11 s RESISTOR,CHIP 100 1/10W (2012)
R3115 1-216-681-11 s RESISTOR,CHIP 18K 1/10W (2012)
(G BOARD)
Ref. No.
or Q’ty Part No. SP Description
R3116 1-220-338-11 s RESISTOR,CHIP 330K 1/2W (4532)
R3117 1-220-338-11 s RESISTOR,CHIP 330K 1/2W (4532)
R3119 1-220-338-11 s RESISTOR,CHIP 330K 1/2W (4532)
R3120 1-216-001-00 s RESISTOR, CHIP 10 1/10W(2012)
R3121 1-216-001-00 s RESISTOR, CHIP 10 1/10W(2012)
R3122 1-249-417-11 s RESISTOR,CARBON 1K 1/4W(SMALL)
R3123 1-216-035-00 s RESISTOR, CHIP 270 1/10W(2012)
R3124 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3125 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3126 1-202-933-61 s RESISTOR, FUSE 0.1 1/2W
R3127 1-216-089-91 s RESISTOR, CHIP 47K 1/10W(2012)
R3128 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3129 1-220-993-91 s RESISTOR,CHIP 0.68 5025
R3130 1-220-993-91 s RESISTOR,CHIP 0.68 5025
R3131 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3132 1-216-097-00 s RESISTOR CHIP 100K 1/10W(2012)
R3133 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3134 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R3135 1-216-047-91 s RESISTOR, CHIP 820 1/10W(2125)
R3136 1-216-081-00 s RESISTOR,CHIP 22K 1/10W(2012)
R3137 1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R3138 1-216-041-00 s RESISTOR, CHIP 470 1/10W(2012)
R3139 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3140 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3141 1-216-663-11 s RESISTOR,CHIP 3.3K 1/10W(2012)
R3142 1-216-665-11 s RESISTOR,CHIP 3.9K 1/10W(2012)
R3143 1-216-661-11 s RESISTOR,CHIP 2.7K 1/10W(2012)
R3144 1-216-659-11 s RESISTOR,CHIP 2.2K 1/10W(2012)
R3145 1-216-691-11 s RESISTOR,CHIP 47K 1/10W(2012)
R3152 1-216-095-00 s RESISTOR, CHIP 82K 1/10W(2012)
R3153 1-216-089-91 s RESISTOR, CHIP 47K 1/10W(2012)
R3156 1-216-061-00 s RESISTOR CHIP 3.3K 1/10W(2012)
R3157 1-216-089-91 s RESISTOR, CHIP 47K 1/10W(2012)
R3158 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3161 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3201 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3202 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R3203 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3204 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3205 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3206 1-217-156-00 s RESISTOR METAL 0.22/5W
R3207 1-216-049-11 s RESISTOR, CHIP 1K 1/10W(2012)
R3209 1-216-675-11 s RESISTOR,CHIP 10K 1/10W(2012)
R3210 1-216-295-91 s CONDUCTOR, CHIP (2012)
R3211 1-216-095-00 s RESISTOR, CHIP 82K 1/10W(2012)
R3212 1-216-089-91 s RESISTOR, CHIP 47K 1/10W(2012)
R3213 1-216-698-11 s RESISTOR,CHIP 91K 1/10W(2012)
R3214 1-216-691-11 s RESISTOR,CHIP 47K 1/10W(2012)
R3216 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
R3217 1-216-679-11 s RESISTOR,CHIP 15K 1/10W (2012)
R3218 1-216-691-11 s RESISTOR,CHIP 47K 1/10W(2012)
R3219 1-240-182-11 s RESISTOR,SQURE TYPE 47M
R3606 1-249-389-11 s RES,CARBON 4.7 1/4W
R3608 1-216-057-00 s RESISTOR CHIP 2.2K 1/10W(2012)
R3609 1-216-073-00 s RESISTOR,CHIP 10K 1/10W(2012)
RY2101 1-755-275-11 s RELAY, AC POWER (12V)
T1101 1-437-537-11 s TRANSFORMER, CONVERTER
5-23
VPL-HS1
-------

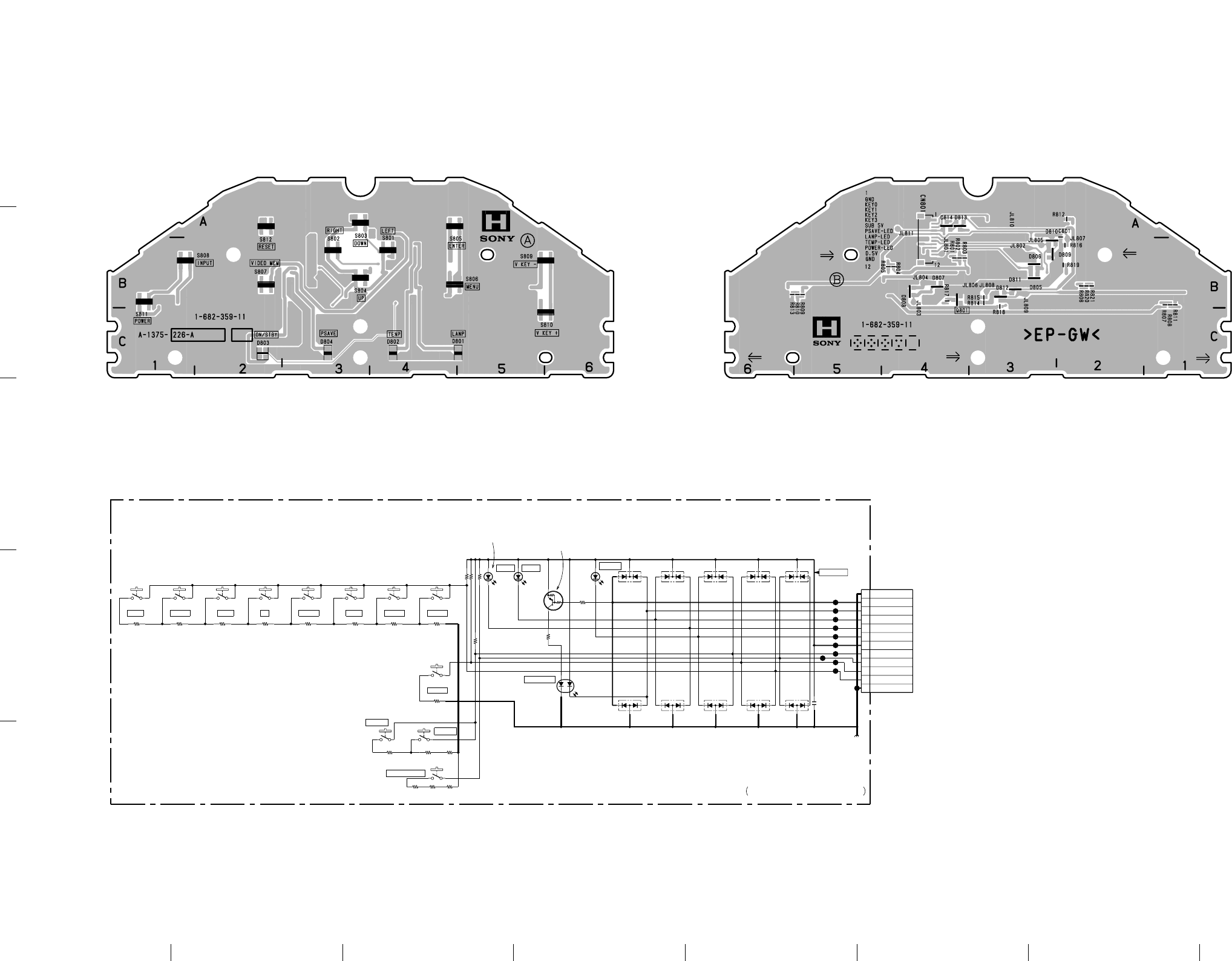

H BOARD
-------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1375-226-A s MOUNTED CIRCUIT BOARD, H
C801 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
CN801 1-770-629-21 s PIN, CONNECTOR 12P
D801 8-719-045-61 s DIODE SEC1901C
D802 8-719-045-61 s DIODE SEC1901C
D803 8-719-045-51 s DIODE SEC2422C
D804 8-719-045-53 s DIODE SEC1801C
D805 8-719-914-43 s DIODE DAN202K
D806 8-719-914-44 s DIODE DAP202K (DUAL)
D807 8-719-914-43 s DIODE DAN202K
D808 8-719-914-44 s DIODE DAP202K (DUAL)
D809 8-719-914-43 s DIODE DAN202K
D810 8-719-914-44 s DIODE DAP202K (DUAL)
D811 8-719-914-43 s DIODE DAN202K
D812 8-719-914-44 s DIODE DAP202K (DUAL)
D813 8-719-914-43 s DIODE DAN202K
D814 8-719-914-44 s DIODE DAP202K (DUAL)
Q801 8-729-027-38 s TRANSISTOR DTA144EKA-T146
R801 1-216-838-11 s RESISTOR CHIP 27K 1/16W(1608)
R802 1-216-834-11 s RESISTOR,CHIP 12K 1/16W 1608
R803 1-216-831-11 s RESISTOR,CHIP 6.8K 1/16W(1608)
R804 1-216-828-11 s RESISTOR, CHIP 3.9K 1/16W 1608
R805 1-216-826-11 s RESISTOR,CHIP 2.7K 1/16W(1608)
R806 1-216-838-11 s RESISTOR CHIP 27K 1/16W(1608)
R807 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R808 1-216-823-11 s RESISTOR, CHIP 1.5K 1/16W
R809 1-216-834-11 s RESISTOR,CHIP 12K 1/16W 1608
R810 1-216-835-11 s RESISTOR,CHIP 15K 1/16W
R811 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R812 1-216-824-11 s RESISTOR, CHIP 1.8K 1/16W 1608
R813 1-216-828-11 s RESISTOR, CHIP 3.9K 1/16W 1608
R814 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R815 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R816 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R817 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R818 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R819 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R820 1-216-838-11 s RESISTOR CHIP 27K 1/16W(1608)
R821 1-216-828-11 s RESISTOR, CHIP 3.9K 1/16W 1608
S801 1-771-105-11 s SWITCH, TACTILE
S802 1-771-105-11 s SWITCH, TACTILE
S803 1-771-105-11 s SWITCH, TACTILE
S804 1-771-105-11 s SWITCH, TACTILE
S805 1-771-105-11 s SWITCH, TACTILE
S806 1-771-105-11 s SWITCH, TACTILE
S807 1-771-105-11 s SWITCH, TACTILE
S808 1-771-105-11 s SWITCH, TACTILE
S809 1-771-105-11 s SWITCH, TACTILE
S810 1-771-105-11 s SWITCH, TACTILE
S811 1-771-105-11 s SWITCH, TACTILE
S812 1-771-105-11 s SWITCH, TACTILE
--------
MS BOARD
--------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1306-610-A s MOUNTED CIRCUIT BOARD, MS
C801 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C802 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C803 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C804 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C805 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C806 1-110-501-11 s CAPACITOR CERAMIC 0.33MF/16V
C807 1-119-667-11 s CAPACITOR CERAMIC 22MF/10V(F)
C808 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C809 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C810 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C811 1-119-667-11 s CAPACITOR CERAMIC 22MF/10V(F)
C812 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C813 1-162-916-11 s CAPACITOR,CERAMIC 12PF/50V CH
C814 1-162-916-11 s CAPACITOR,CERAMIC 12PF/50V CH
C815 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C816 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C817 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
C818 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
C823 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C824 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C825 1-127-715-11 s CAPACITOR,CERAMIC 0.22MF B1608
C826 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C827 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C828 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C829 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C830 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C831 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C832 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C833 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C834 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C835 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C836 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C837 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C838 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C839 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C840 1-119-667-11 s CAPACITOR CERAMIC 22MF/10V(F)
C841 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C842 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C843 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C844 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C845 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C846 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C847 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C849 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C850 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C851 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C852 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C853 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C860 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C861 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C862 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C863 1-119-667-11 s CAPACITOR CERAMIC 22MF/10V(F)
C864 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
CN801 1-815-368-12 l CONNECTOR, CARD (MEMORY STICK)
CN802 1-793-141-11 o PIN, CONNECTOR (PC BOARD)
CN803 1-770-625-21 s PIN, CONNECTOR 8P
CN804 1-815-353-21 o CONNECTOR, BORD TO BOARD 50P
5-24 VPL-HS1
(MS BOARD)
Ref. No.
or Q’ty Part No. SP Description
D801 8-719-078-89 s DIODE CL-190B1-X-T
D805 8-719-081-42 s DIODE UMZ6.8N-T106
D806 8-719-081-42 s DIODE UMZ6.8N-T106
D807 8-719-081-42 s DIODE UMZ6.8N-T106
D808 8-719-083-58 s DIODE UDZSTE-173.9B
FB801 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB802 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB803 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB804 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB805 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB806 1-500-451-11 s MICRO INDUCTOR (CHIP) 41P750S
FB807 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB808 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB809 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB810 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB811 1-414-921-11 s INDUCTOR, FERRITE BEAD
IC801 6-700-921-01 s IC MD2305F
IC802 6-800-884-12 IC SST39VF800A70-1719A-T
IC803 6-701-043-11 s IC HM62V16256CLTT-5SLZ
IC804 8-759-460-72 s IC BA033FP
IC805 8-759-584-32 s IC MB86189PFV-G-BND-ER
IC806 8-759-661-55 s IC ST24FC21M6TR
IC807 8-759-331-27 s IC MM1096AFF
IC808 8-759-831-91 s IC MT48LC8M16A2TG-75TR
IC810 6-800-258-02 o IC ISPLSI2032VE-110LT44/1714A
IC815 8-759-698-31 s IC TC7WH74FK(TE85R)
IC816 6-700-379-01 s IC TC74HC148AF(EL)
IC817 8-759-831-69 s IC BA10339FV-E2
IC818 8-759-510-73 s IC BA10393F-E2
Q801 8-729-029-14 s TRANSISTOR DTC144EUA-T106
Q802 8-729-140-63 s TRANSISTOR 2SA1611-M5M6
Q803 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
Q804 8-729-140-63 s TRANSISTOR 2SA1611-M5M6
Q805 8-729-427-72 s TRANSISTOR XP4501-TXE
R801 1-216-864-11 s CONDUCTOR, CHIP (1608)
R802 1-216-864-11 s CONDUCTOR, CHIP (1608)
R803 1-216-864-11 s CONDUCTOR, CHIP (1608)
R804 1-216-864-11 s CONDUCTOR, CHIP (1608)
R805 1-216-864-11 s CONDUCTOR, CHIP (1608)
R806 1-216-864-11 s CONDUCTOR, CHIP (1608)
R807 1-216-864-11 s CONDUCTOR, CHIP (1608)
R808 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R809 1-216-857-11 s RESISTOR,CHIP 1M 1/16W(1608)
R810 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R811 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R812 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R813 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R814 1-216-864-11 s CONDUCTOR, CHIP (1608)
R815 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R816 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R817 1-216-864-11 s CONDUCTOR, CHIP (1608)
R818 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R819 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R820 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R821 1-216-864-11 s CONDUCTOR, CHIP (1608)
R822 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R823 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R825 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
(MS BOARD)
Ref. No.
or Q’ty Part No. SP Description
R826 1-216-864-11 s CONDUCTOR, CHIP (1608)
R827 1-216-864-11 s CONDUCTOR, CHIP (1608)
R828 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R829 1-216-864-11 s CONDUCTOR, CHIP (1608)
R830 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R831 1-216-864-11 s CONDUCTOR, CHIP (1608)
R834 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R835 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R836 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R840 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R841 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R843 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R844 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R845 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R846 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R847 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R848 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R849 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R850 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R851 1-216-864-11 s CONDUCTOR, CHIP (1608)
R852 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R853 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R854 1-216-864-11 s CONDUCTOR, CHIP (1608)
R855 1-216-864-11 s CONDUCTOR, CHIP (1608)
R856 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R857 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R858 1-216-864-11 s CONDUCTOR, CHIP (1608)
R859 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R860 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R861 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R862 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R863 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R864 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R865 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R866 1-216-864-11 s CONDUCTOR, CHIP (1608)
R867 1-216-807-11 s RESISTOR, CHIP 68 1/16W 1608
R869 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R870 1-216-864-11 s CONDUCTOR, CHIP (1608)
R871 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R872 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R873 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R874 1-216-864-11 s CONDUCTOR, CHIP (1608)
R876 1-216-864-11 s CONDUCTOR, CHIP (1608)
R877 1-216-864-11 s CONDUCTOR, CHIP (1608)
R878 1-216-828-11 s RESISTOR, CHIP 3.9K 1/16W 1608
R879 1-216-831-11 s RESISTOR,CHIP 6.8K 1/16W(1608)
R880 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R881 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R882 1-216-828-11 s RESISTOR, CHIP 3.9K 1/16W 1608
R883 1-216-831-11 s RESISTOR,CHIP 6.8K 1/16W(1608)
R884 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R885 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R887 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R889 1-216-864-11 s CONDUCTOR, CHIP (1608)
R890 1-216-864-11 s CONDUCTOR, CHIP (1608)
R892 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R893 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R895 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R896 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
5-25
VPL-HS1
(MS BOARD)
Ref. No.
or Q’ty Part No. SP Description
R897 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R899 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R900 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R902 1-216-864-11 s CONDUCTOR, CHIP (1608)
R903 1-216-831-11 s RESISTOR,CHIP 6.8K 1/16W(1608)
R904 1-216-828-11 s RESISTOR, CHIP 3.9K 1/16W 1608
R905 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R906 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R907 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R908 1-216-801-11 s RESISTOR,CHIP 22 1/16W (1608)
R909 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R910 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R913 1-216-811-11 s RESISTOR, CHIP 150 1/16W(1608)
R914 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R915 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R916 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R917 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R918 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R919 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R920 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R921 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R922 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R923 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R926 1-218-704-11 s RESISTOR,CHIP 3.3K 1/16W(1608)
R927 1-218-700-11 s RESISTOR,CHIP 2.2K 1/16W(1608)
R928 1-218-696-11 s RESISTOR,CHIP 1.5K 1/16W(1608)
R929 1-218-703-11 s RESISTOR,CHIP 3.0K 1/16(1608)
R930 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R931 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R932 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R933 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R934 1-218-720-11 s RESISTOR,CHIP 15K 1/16W(1608)
R935 1-218-712-11 s RESISTOR,METAL 6.8K 1/16W
R936 1-218-710-11 s RESISTOR,CHIP 5.6K 1/16W(1608)
R937 1-218-704-11 s RESISTOR,CHIP 3.3K 1/16W(1608)
R938 1-218-704-11 s RESISTOR,CHIP 3.3K 1/16W(1608)
R939 1-218-710-11 s RESISTOR,CHIP 5.6K 1/16W(1608)
R940 1-218-710-11 s RESISTOR,CHIP 5.6K 1/16W(1608)
R941 1-218-712-11 s RESISTOR,METAL 6.8K 1/16W
R942 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R943 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R945 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R946 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
RB801 1-233-810-21 s RES, NETWORK 100K (3216)
RB802 1-233-810-21 s RES, NETWORK 100K (3216)
RB803 1-233-810-21 s RES, NETWORK 100K (3216)
RB804 1-233-810-21 s RES, NETWORK 100K (3216)
RB805 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB806 1-236-908-11 s RESISTOR,NETWORK 10K (3216)
RB807 1-233-574-11 s RESISTOR,CHIP NETWORK 10
RB808 1-233-574-11 s RESISTOR,CHIP NETWORK 10
RB809 1-233-574-11 s RESISTOR,CHIP NETWORK 10
RB810 1-233-574-11 s RESISTOR,CHIP NETWORK 10
RB811 1-233-576-11 s RESISTOR,CHIP NETWORK 100
TP801 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
X801 1-795-098-11 s VIBRATOR, CRYSTAL
X804 1-781-976-11 s OSCILLATOR, CRYSTAL
--------
NF BOARD
--------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1391-156-A s MOUNTED CIRCUIT BOARD, NF
C101 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
CN101 1-568-346-21 s CONNECTOR, BOARD TO BOARD 4P
IC101 8-719-066-43 s DIODE GP1U28Y
R101 1-216-025-00 s RESISTOR,CHIP 100 1/10W(2012)
5-26 VPL-HS1
-------
Q BOARD
-------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1275-212-A s MOUNTED CIRCUIT BOARD, Q
C401 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C402 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C403 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C404 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C405 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C406 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C407 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C408 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C409 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C410 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C411 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C412 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C413 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C414 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C415 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C416 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C417 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C418 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C419 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C420 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C421 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C423 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C424 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C425 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C426 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C427 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C428 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C429 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C430 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C431 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C435 1-109-982-11 s CAPACITOR,CHIP CERAMIC 1MF/10V
C436 1-115-566-11 s CAPACITOR,CERAMIC 4.7MF B/6.3V
C437 1-115-566-11 s CAPACITOR,CERAMIC 4.7MF B/6.3V
C438 1-110-563-11 s CAPACITOR CERAMIC 0.068MF/16V
C439 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C440 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C441 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C442 1-164-230-11 s CAPACITOR,CERAMIC 220PF/50V
C443 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
C444 1-126-205-11 s CAPACITOR,ELECT 47M/6.3
C445 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C446 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
C447 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B
C448 1-115-156-11 s CAPACITOR,CERAMIC 1MF/10V(1608
C449 1-115-156-11 s CAPACITOR,CERAMIC 1MF/10V(1608
C450 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
C451 1-115-156-11 s CAPACITOR,CERAMIC 1MF/10V(1608
C503 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C505 1-165-112-11 s CAPACITOR,CERAMIC 0.33MF/16V F
C506 1-164-506-11 s CAPACITOR,CERAMIC 4.7MF/16V
C507 1-128-992-11 s CAPACITOR ELECT 47MF 25V
C508 1-164-506-11 s CAPACITOR,CERAMIC 4.7MF/16V
C509 1-162-924-11 s CAPACITOR,CERAMIC 56PF/50V CH
C510 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C511 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C512 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C513 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
--------
NR BOARD
--------
Ref. No.
or Q’ty Part No. SP Description
1pc A-1391-155-A s MOUNTED CIRCUIT BOARD, NR
C901 1-117-370-11 s CAPASITER CERAMIC 10MF (3216)
C902 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
CN901 1-580-057-11 o PIN,CONNECTOR 4P
IC901 8-749-012-17 s IC RS-140-T
R901 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R902 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R903 1-218-702-11 s RESISTOR CHIP 2.7K 1/16W(1608)
TH901 1-808-656-11 s THERMISTOR
5-27
VPL-HS1
(Q BOARD)
Ref. No.
or Q’ty Part No. SP Description
C514 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C515 1-115-156-11 s CAPACITOR,CERAMIC 1MF/10V(1608
C517 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C518 1-117-681-11 s CAPACITOR, ELECT 100MF/16V
C519 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C520 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C523 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C524 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C534 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C535 1-109-982-11 s CAPACITOR,CHIP CERAMIC 1MF/10V
C536 1-126-400-11 s CAPACITOR ELECT 22MF/35V(CHIP)
C539 1-115-566-11 s CAPACITOR,CERAMIC 4.7MF B/6.3V
C540 1-115-566-11 s CAPACITOR,CERAMIC 4.7MF B/6.3V
C541 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C542 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C543 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C544 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C545 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B
C602 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C603 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C604 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C605 1-126-204-11 s CAPACITOR, ELECT 47MF/16V(CHIP
C606 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C607 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C608 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C609 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C610 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C611 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C612 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C613 1-126-204-11 s CAPACITOR, ELECT 47MF/16V(CHIP
C614 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C615 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C616 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C617 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C618 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C619 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C620 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C621 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C622 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C623 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C624 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C625 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C626 1-162-959-11 s CAPACITOR,CERAMIC 330PF/50V SL
C627 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH
C628 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C629 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C630 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C631 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C632 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C633 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C634 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C635 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C636 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C637 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C638 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C639 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C640 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C641 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C642 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
(Q BOARD)
Ref. No.
or Q’ty Part No. SP Description
C643 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C644 1-128-010-11 s CAPACITOR,ERECT 0.22MF/50V
C645 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C646 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C647 1-128-013-11 s CAPACITOR ERECT 1MF/50V
C648 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C649 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C650 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C651 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C652 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C653 1-126-204-11 s CAPACITOR, ELECT 47MF/16V(CHIP
C654 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C655 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C656 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C657 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C658 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C659 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C660 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C661 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C662 1-164-156-11 s CAPACITOR,CERAMIC 0.1MF/25V F
C663 1-126-204-11 s CAPACITOR, ELECT 47MF/16V(CHIP
C666 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C667 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C668 1-107-823-11 s CAPACITOR,CERAMIC 0.47MF/16V
C669 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C670 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C671 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C674 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C675 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C701 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C702 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C703 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C704 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP)
C705 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C706 1-164-004-11 s CAPACITOR,CERAMIC 0.1MF/25V
C707 1-162-917-11 s CAPACITOR,CERAMIC 15PF/50V CH
C708 1-162-917-11 s CAPACITOR,CERAMIC 15PF/50V CH
CN401 1-815-914-11 s CONNECTOR, SQUARE TYPE (32P)
CN502 1-793-798-21 o CONNECTOR, BOARD TO BOARD
CN503 1-573-290-21 s PIN,CONNECTOR (4P)(SMD)(1.5MM)
CN601 1-770-454-21 o CONNECTOR, BOARD TO BOARD 70P
CN702 1-793-798-21 o CONNECTOR, BOARD TO BOARD
CN703 1-695-320-21 o PIN, CONNECTOR(1.5MM)SMD 2P
CN704 1-691-550-11 s PIN,CONNECTOR (3P)(SMD)(1.5MM)
D401 8-719-073-11 s DIODE BZA456A
D402 8-719-158-35 s DIODE RD9.1SB (ZENER)
D403 8-719-158-35 s DIODE RD9.1SB (ZENER)
D404 8-719-158-35 s DIODE RD9.1SB (ZENER)
D405 8-719-158-35 s DIODE RD9.1SB (ZENER)
D406 8-719-158-35 s DIODE RD9.1SB (ZENER)
D407 8-719-158-35 s DIODE RD9.1SB (ZENER)
D408 8-719-800-76 s DIODE 1SS226
D409 8-719-800-76 s DIODE 1SS226
D410 8-719-800-76 s DIODE 1SS226
D501 8-719-073-01 s DIODE MA111-(K8).S0
D502 8-719-800-76 s DIODE 1SS226
D506 8-719-024-77 s DIODE HN1D03FU-TE85L
D507 8-719-988-61 s DIODE 1SS355TE-17
5-28 VPL-HS1
(Q BOARD)
Ref. No.
or Q’ty Part No. SP Description
D508 8-719-988-61 s DIODE 1SS355TE-17
D601 8-719-988-61 s DIODE 1SS355TE-17
D701 8-719-158-37 s DIODE RD9.1SB2
D702 8-719-158-37 s DIODE RD9.1SB2
D703 8-719-158-37 s DIODE RD9.1SB2
D704 8-719-158-37 s DIODE RD9.1SB2
FB401 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB501 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB502 1-414-921-11 s INDUCTOR, FERRITE BEAD
FB503 1-414-921-11 s INDUCTOR, FERRITE BEAD
IC401 8-759-661-55 s IC ST24FC21M6TR
IC402 8-759-492-19 s IC MM1231XFBE
IC403 8-759-541-25 s IC M52758FP
IC404 6-701-056-11 s IC LT1399CGNTR
IC405 8-759-646-02 s IC M52347FP-TE
IC406 8-752-072-81 s IC CXA1875AM
IC407 8-759-472-37 s IC 74VHC240MTCX
IC408 8-759-472-35 s IC 74VHC221AMTCX
IC409 8-759-082-55 s IC TC7W00FU
IC501 8-759-460-82 s IC BA15FP-E2
IC502 8-759-533-85 s IC L88M05T-FA-TL
IC503 8-759-460-81 s IC BA12FP-E2
IC504 8-759-066-55 s IC TA75W393FU
IC505 8-759-652-56 s IC BA033F-E2
IC506 8-759-457-53 s IC GS1881-CTA
IC507 8-759-460-79 s IC BA09FP-E2
IC508 8-759-082-61 s IC TC4W53FU
IC509 8-759-066-55 s IC TA75W393FU
IC512 8-759-684-72 s IC M24C64-WMN6T(A)
IC601 8-759-058-58 s IC TC7S04FU-TE85R
IC602 8-759-494-88 s IC TC75S56F(TE85R)
IC603 8-759-082-61 s IC TC4W53FU
IC604 8-752-086-33 s IC CXA2101AQ-TL
IC605 8-759-472-35 s IC 74VHC221AMTCX
IC606 8-759-344-12 s IC GS4981CTA
IC607 8-759-082-61 s IC TC4W53FU
IC608 8-759-257-96 s IC TC7S14FU (TE85R)
IC609 8-759-277-63 s IC TC7W14FU (TE12R)
IC701 8-759-300-71 s IC HD14053BFP
J401 1-770-053-11 s TERMINAL BLOCK, S (FRONT)
L401 1-412-363-11 s FERRITE, EMI (SMD)
L402 1-412-363-11 s FERRITE, EMI (SMD)
L403 1-412-363-11 s FERRITE, EMI (SMD)
L404 1-412-363-11 s FERRITE, EMI (SMD)
L405 1-412-363-11 s FERRITE, EMI (SMD)
L406 1-412-363-11 s FERRITE, EMI (SMD)
L407 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L408 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L409 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L410 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L411 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L501 1-409-529-41 s COIL, CHOKE 10UH
L502 1-409-529-41 s COIL, CHOKE 10UH
L503 1-409-529-41 s COIL, CHOKE 10UH
L504 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L505 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L601 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
(Q BOARD)
Ref. No.
or Q’ty Part No. SP Description
L602 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L603 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L604 1-412-058-11 s INDUCTOR,SMALL TYPE 10UH
L701 1-412-363-11 s FERRITE, EMI (SMD)
L702 1-412-363-11 s FERRITE, EMI (SMD)
L703 1-412-363-11 s FERRITE, EMI (SMD)
L704 1-412-363-11 s FERRITE, EMI (SMD)
L705 1-414-753-91 s INDUCTOR 4.7UH
Q401 8-729-140-63 s TRANSISTOR 2SA1611-M5M6
Q402 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q403 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q404 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q501 1-801-806-11 s TRANSISTOR DTC144EKA
Q502 8-729-216-22 s TRANSISTOR 2SA1162-G
Q505 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q510 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
Q511 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
Q512 8-729-013-28 s TRANSISTOR HN1B01FU-TE85R
Q513 1-801-806-11 s TRANSISTOR DTC144EKA
Q601 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q602 8-729-230-49 s TRANSISTOR 2SC2712-YG
Q603 8-729-216-22 s TRANSISTOR 2SA1162-G
Q604 8-729-427-72 s TRANSISTOR XP4501-TXE
Q605 8-729-427-72 s TRANSISTOR XP4501-TXE
Q606 8-729-427-72 s TRANSISTOR XP4501-TXE
Q607 1-801-806-11 s TRANSISTOR DTC144EKA
Q701 1-801-806-11 s TRANSISTOR DTC144EKA
R403 1-216-624-11 s RESISTOR,CHIP 75 1/10W(2012)
R404 1-216-624-11 s RESISTOR,CHIP 75 1/10W(2012)
R405 1-216-803-11 s RESISTOR,CHIP 33 1/16W (1608)
R406 1-216-624-11 s RESISTOR,CHIP 75 1/10W(2012)
R407 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R408 1-216-818-11 s RESISTOR, CHIP 560 1/16W 1608
R409 1-216-625-11 s RESISTOR,CHIP 82 1/10W
R410 1-216-625-11 s RESISTOR,CHIP 82 1/10W
R411 1-216-625-11 s RESISTOR,CHIP 82 1/10W
R412 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R413 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R414 1-216-624-11 s RESISTOR,CHIP 75 1/10W(2012)
R415 1-216-624-11 s RESISTOR,CHIP 75 1/10W(2012)
R416 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608
R417 1-216-624-11 s RESISTOR,CHIP 75 1/10W(2012)
R418 1-216-835-11 s RESISTOR,CHIP 15K 1/16W
R419 1-216-835-11 s RESISTOR,CHIP 15K 1/16W
R423 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R424 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R425 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R426 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R427 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R428 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R429 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R430 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R431 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R432 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R433 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R434 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R435 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R436 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
5-29
VPL-HS1
(Q BOARD)
Ref. No.
or Q’ty Part No. SP Description
R437 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R438 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R439 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R440 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R441 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R442 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R443 1-218-688-11 s RESISTOR,CHIP 680 1/16W(1608)
R444 1-218-688-11 s RESISTOR,CHIP 680 1/16W(1608)
R445 1-218-688-11 s RESISTOR,CHIP 680 1/16W(1608)
R447 1-216-813-11 s RESISTOR, CHIP 220 1/16W 1608
R448 1-216-864-11 s CONDUCTOR, CHIP (1608)
R449 1-216-864-11 s CONDUCTOR, CHIP (1608)
R450 1-216-864-11 s CONDUCTOR, CHIP (1608)
R458 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R459 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R460 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R461 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R462 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R463 1-216-842-11 s RESISTOR,CHIP 56K 1/16W(1608)
R464 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R465 1-216-815-11 s RESISTOR,CHIP 330 1/16W 1608
R466 1-216-624-11 s RESISTOR,CHIP 75 1/10W(2012)
R467 1-216-624-11 s RESISTOR,CHIP 75 1/10W(2012)
R468 1-216-624-11 s RESISTOR,CHIP 75 1/10W(2012)
R470 1-216-864-11 s CONDUCTOR, CHIP (1608)
R471 1-218-731-11 s RESISTOR,METAL 43K 1/16
R472 1-218-707-11 s RESISTOR,CHIP 4.3K 1/16W(1608)
R473 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R474 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R475 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R476 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R477 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R478 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R480 1-218-684-11 s RESISTOR,CHIP 470 1/16W (1608)
R481 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R482 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R483 1-218-670-11 s RESISTOR,CHIP 120 1/16W (1608)
R484 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R485 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R486 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R487 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R488 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R489 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R490 1-218-704-11 s RESISTOR,CHIP 3.3K 1/16W(1608)
R491 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R492 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R493 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R494 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R496 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R497 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R498 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R499 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R502 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R503 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R504 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R505 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R506 1-216-844-11 s RESISTOR,CHIP 82K 1/16W 1608
R507 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R508 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
(Q BOARD)
Ref. No.
or Q’ty Part No. SP Description
R509 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R510 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R511 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R512 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R513 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R515 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R517 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R518 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R519 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R520 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R521 1-218-767-11 s RESISTOR,CHIP 430K 1/10W(2012)
R522 1-216-839-11 s RESISTOR,CHIP 33K 1/16W 1608
R524 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R528 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R529 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R530 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R532 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R541 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R542 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R544 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R545 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R546 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R547 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R549 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R550 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R551 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R552 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R553 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R554 1-216-821-11 s RESISTOR,CHIP 1.0K 1/16W(1608)
R555 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R556 1-216-844-11 s RESISTOR,CHIP 82K 1/16W 1608
R601 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R602 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R603 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R605 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R606 1-218-708-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R607 1-218-700-11 s RESISTOR,CHIP 2.2K 1/16W(1608)
R608 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R609 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R610 1-216-816-11 s RESISTOR, CHIP 390 1/16W 1608
R611 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R612 1-216-816-11 s RESISTOR, CHIP 390 1/16W 1608
R613 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R614 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R615 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R616 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R617 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R618 1-216-797-11 s RESISTOR,CHIP 10 1/16W 1608
R619 1-216-797-11 s RESISTOR,CHIP 10 1/16W 1608
R620 1-218-724-11 s RESISTOR,CHIP 22K 1/16W(1608)
R621 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R622 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R623 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R624 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R625 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R626 1-218-706-11 s RESISTOR,CHIP 3.9K 1/16W(1608)
R627 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R628 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R629 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
5-30 VPL-HS1
(Q BOARD)
Ref. No.
or Q’ty Part No. SP Description
R630 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R631 1-218-690-11 s RESISTOR,CHIP 820 1/16W (1608)
R632 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R633 1-216-820-11 s RESISTOR, CHIP 820 1/16W 1608
R634 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R635 1-216-863-11 s RESISTOR,CHIP 3.3M 1/16W 1608
R636 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R637 1-216-838-11 s RESISTOR CHIP 27K 1/16W(1608)
R638 1-218-750-11 s RESISTOR,CHIP 270K 1/16W(1608)
R640 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R641 1-216-829-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R644 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R645 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R646 1-218-732-11 s RESISTOR,CHIP 47K 1/16W(1608)
R648 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R649 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R650 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R651 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R652 1-216-825-11 s RESISTOR,CHIP 2.2K 1/16W 1608
R653 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R654 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R655 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R656 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R657 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R658 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R662 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R663 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R667 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R668 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R670 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R671 1-216-817-11 s RESISTOR,CHIP 470 1/16W 1608
R672 1-216-833-11 s RESISTOR,CHIP 10K 1/16W (1608)
R674 1-218-708-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R682 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R683 1-216-805-11 s RESISTOR,CHIP 47 1/16W 1608
R685 1-218-710-11 s RESISTOR,CHIP 5.6K 1/16W(1608)
R686 1-218-708-11 s RESISTOR,CHIP 4.7K 1/16W(1608)
R687 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608)
R688 1-218-704-11 s RESISTOR,CHIP 3.3K 1/16W(1608)
R701 1-216-853-11 s RESISTOR,CHIP 470K 1/16W(1608)
R702 1-216-853-11 s RESISTOR,CHIP 470K 1/16W(1608)
R703 1-216-853-11 s RESISTOR,CHIP 470K 1/16W(1608)
R704 1-216-853-11 s RESISTOR,CHIP 470K 1/16W(1608)
R705 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R706 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R707 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R708 1-216-809-11 s RESISTOR,CHIP 100 1/16W 1608
R709 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R710 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R711 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R712 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R713 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R714 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R715 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R716 1-216-845-11 s RESISTOR,CHIP 100K 1/16W(1608)
R717 1-216-841-11 s RESISTOR, CHIP 47K 1/16W 1608
R718 1-216-864-11 s CONDUCTOR, CHIP (1608)
R719 1-216-864-11 s CONDUCTOR, CHIP (1608)
(Q BOARD)
Ref. No.
or Q’ty Part No. SP Description
S601 1-762-984-11 s SWITCH, PUSH
S602 1-762-984-11 s SWITCH, PUSH
TH401 1-809-020-11 s THERMISTOR
TP404 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP505 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP506 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP507 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP508 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP509 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP510 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP606 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP607 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP701 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP702 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
TP703 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
5-31
VPL-HS1
---------------------------------------
PAKING MATERIALS & SUPPLYED ACCESSORTES
---------------------------------------
Ref. No.
or Q’ty Part No. SP Description
1pc 1-476-957-11 s REMOTE COMMANDER(RM-PJHS1)
1pc 9-885-014-94 s BATTRY COVER(FOR RM-PJHS1)
1pc 1-500-386-21 s FILTER, CLAMP (FERRITE CORE)
1pc 1-751-271-12 s CORD, CONNECTION(VPL-HS1FP ONLY)
1pc 4-083-098-01 s INSTRUCTION
1pc 4-085-330-01 o OPERATING INSTRUCTION
(JAPANESE, SIMPLIFIED CHINESE)
1pc 4-085-330-11 o OPERATING INSTRUCTION
(ENGLISH, FRENCH, SPANISH)
1pc 4-085-330-21 o OPERATING INSTRUCTION
(GERMAN, ITALIAN)
1pc X-4039-446-1 s CAP ASSY, LENS
1pc
!
CORD, POWER
(See Sec.2-3.Power Cord)
5-5. IFU-HS1
1pc 1-786-281-11 s SWITCH BLOCK
1pc 1-823-499-11 s CORD WITH CONNECTOR(AV MULTI)
1pc 4-085-602-02 o MANUAL, INSTRUCTION
(JAPANESE, SIMPLIFIED CHINESE,
ENGLISH, FRENCH, SPANISH, GERMAN, ITALIAN)
5-6. SU-HS1
1pc 4-085-351-01 o MANUAL, INSTRUCTION
(JAPANESE, SIMPLIFIED CHINESE,
ENGLISH, FRENCH, SPANISH, GERMAN, ITALIAN)
5-4. Paking Materials
5-32 VPL-HS1
6-1
VPL-HS1 6-1
QQ
Q B0ARD
Section 6
Block Diagrams
5
9
13
B
G
R
CN401
DDC SDA
DDC SCL
28
20
DDC RETURN 24
V16
12H
C-VIDEO
C
Y
27
23
19
4
8
AU-R
AU-L
DDC
IC401
SDA
SCL
6
58
7
DDC
RESET
Q401 5V-4
BUFFER
Q504
PEAK HOLD
Q506,507
5 7
1
7
2
3
1
6
5
3
Q508,509
PEAK HOLD
Q505
BUFFER
IC508
SYNC SW
Q504
BUFFER CVIN
IC506
SYNC SEP
CSOUT
2
6
7
1
1
5
IC510(1/2) IC511(1/2)
IC511(2/2)IC510(2/2)
43
21
J401 Y
C
C-V
VL
VR
V
L
R
P PROT
AB/CD
A26
B9
SCP A21
B23SCL 100K
B13
A13
15KVS
15KHS
CN601(1/2)
V.R-Y
V.R-Y
V.B-Y
A15
B15
A17
B19
A19
B17
V.Y
V.Y
V.B-Y
SDA 100K A23
R-Y
B-Y
Y
15KHS
15KVS
SDA100K1
SCL100K1
A1015K/OTHER
B26LAMP COV
A27FILT COV
B30EXT TEMP
F-SDA A29
F-SCL B29
F-RESET A30
LAMP COV
S601
S602
FILT COV
TH601
EXT TEMP
8
5
6
SCL
SDA
IC512
EEPROM 5V-4
Q510
RESET
Q607
SCP.SW
IC607
6
51
7
IC602
HS.GEN
IC603
CLAMP
3 4
7
1
6
5
37
3567
68
B-Y1
R-Y1
IC604
RGB INTERFACE
69
Y1
65
VS1
2
VS2
HS2
1
HS1
66
39
BOUT
ROUT
GOUT
R-Y
B-Y
Y
15KVS
15KHS
5
Y2
11
Y3
PR3
9
R-Y2
3
PB3
10
B-Y2
4
BUFFER
Q402-404
8
VS3
7
HS3
SDA
56
SCL
55
SCP IN
31
HSOUT
VSOUT
28
29
Q604-606
BUFFER
42
BUFFER
IC601
IC609(1/3)
17
IC608
42
53
IC609(2/3) Q603
BUFFER
SYNC SYNC
SEP.
IC606
2
5
7
IC609(3/3)
62
1B
2A
9
2
2Q
1Q
2Q
5
13
12
CLAMP P.
+
HS
Q501
5
6
7
1
2
3
1
3
2
1
8
7
4
3
17V
6V
6V
AUDIO+B
AUDIO+B
G
R
B
16
B
G
13
R
11
B
7
VIDEO SW
IC403
R
G
5
235
30
27
IN1
IN2
OUT
SW
19
OUT
10
12
15
IN
2
5
7
IC404
RGB AMP
B9
B8
B6
B5
B3
B2
B
B
G
G
R
R
CN502
7
2
1IC409
DAC
IC406
SDA
SCL
DAC0
DAC4
DAC3
SW0
SW1
SW3
14
15
SDA100K1
SCL100K1
2
1
10
7
3
4
H
VQ406
17
18
19
13
14
15
6
8
VD+OUT
HD+OUT
HD-OUT
CLP
H.POL
V.POL
COMP/HIN
VIN
IC405
SYNC SEP
GIN
4
IC408
P.WIDTH.ADJ
131
1Q1A
IC407
INV SW
13
4
12
18
3
7
16
9
8
11
17
2
15
6
5
14
OUT
IN2
IN1
6
5
316
11
2A
1A
IC402
VIDEO SW
8
3A
1
1B
14
2B
3B
9
3
1
2
OUT
IN2
IN1 14
45
12
X0
Z0
IC701
AUDIO SW
3
Z1
13
X1
Z
X
123
Q701
SW
C-V
C
Y
VL
VR
B13
A13
B11
A11
B15
VD
VD
HD
CLP
CLP
HD
A15
CN601(2/2)
C-V
C-V
C IN
C IN
Y IN
Y IN
A6
B6
A2
B2
A4
B4
B3
A3
B1
A1
AU-R
AU-R
AU-L
AU-L
CN702
INPUT TERMINAL
RGB INTERFACE
Q
A
TO BB BOARD
CN101
CN501
CN101
TO BA BOARD
B
C
TO BC BOARD
CN801
CN3301
TO G BOARD
D
IC509
COMP
COMP
IC504
P.WIDTH.ADJ
IC605
Q601,602
B
TO BA BOARD
CN101
PJ
NULTI
INPUT
S VIDEO
VIDEO
L(MONO)
R
AUDIO
6-2 VPL-HS1
6-2
BABA
BA Block
V.Y
V.B-Y
V.R-Y
V.Y
V.R-Y
V.B-Y
B19
A19
B17
CN101
A15
A17
B15
Y IN
C-V
Y IN
C IN
C IN
A4
B4
A6
B2
A2
C-V
B6
15K VS
RGB SYNC
SCP
15K HS
B13
A21
A11
A13
AB/CD
15K/OTHER
A10
B9
SCL100K
SDA100K
A23
B23
Y16
3Y2
A1 2
G1
A2 5
G7
BUFFER
IC101
SCL100K
SDA100K
Q101
BUFFER
BUFFER
Q102,103
4
VS
9
HS
10
SCP
19
Y1
41
CVBS/Y3
46
FSC OUT
1
CVBS/Y1
44
CVBS/Y2
43
C2 YOUT
21
CBOUT
22
CROUT
23
COMB Y
5
COMB C/FORCEDS
7
CVBS OUT
3
X101
38
SCL
13
SDA
14
IC102
COLOR DECORDER
SCL100K
SDA100K
Q106
BUFFER
BUFFER
Q105
BUFFER
Q104
AMP
Q315
B.P.F
FL303
BUFFER
Q310
BUFFER
Q307
Q202,205-207,214
AMP
6V
20
6
1
VCC
VCC
VCC
UCAS
LCAS
28
29
WE
OE
13
27
RAS
14
IC302
5V REG
VCC OUT
IC304
4M DRAM
76
CS1
88
AY1
10
MCAS
11
MWE
12
MOE
98
MRAS
2
9
13
28
99
AY0
84
AC0
83
FSC0
47
FSCI
50
XI
30
XO
31
SCL
59
SDA
60
IC305
3D COMB FILTER
15
VIN
14
RBT
45
FSC
YOUT
6
COUT
8
N/M
46
PAL/NTSC
47
D7
33
C3
29
C7
25
VEH1
C2
C6
26
D6
30
34 VEH2
C1
C5
27
D5
31
35 VEH3
Q303
BUFFER
FL302
B.P.F
Q308,311,313
BUFFER
BUFFER
Q302
Q301
BUFFER
SCL100K
SDA100K
X301
20MHz
Q203,208,210,212
BUFFER
3LINE COMB
IC202
7
2
1
3
Y SW
IC103
C SW
3
1
IC105
2
7
3
56
7
21
IC104
NAND
B.P.F
FL301
(CHROMA DECORDER,3D COMB FILTER,3LINE COMB)BA
NT/PL
N/M
CN601
TO Q BOARD
B
X4000
16.2MHz
A0
A8
IO15
IO01
16
19
26
22
2
5
7
10
39
36
31
34
MA0
MA8
MIO15
MIO0
AUCS
SDAT
AUCLK
AUDIO MUTE
P PROT
LAMP COV
FILT COV
F-SDA
F-SCL
F-RESET
EXT TEMP
A24
B24
A25
B25
A26
B26
A27
A29
B29
A30
B30
19
20
5
6
7
8
12
13
14
15
16
17
18
SCL100K
SDA100K
EXT TEMP
F-RESET
F-SCL
F-SDA
FILT COV
LAMP
P PROT
AUDIO MUTE
AUCLK
SDAT
AUCS
CN201
SDA100K
SCL100K
TO C BOARD
CN111
INOUT
3.3V REG
IC301
D3.3V
64
Q304-306
BUFFER
BUFFER
Q309,312,314
BUFFER
Q204,209,211,213
IC201
DAC
SDA
VEH3
VEH1
SW2
SW1
14
15
7
6
5
VEH2
SCL
SW0
SW3 SCL100K
SDA100K
1
2
10
9
VEH1
VEH2
VEH3
PL/NT
AB/CD
PL/NT Q201
INV
H
6-3
VPL-HS1 6-3
BB Block
BBBB
G
R
G
R
B6
B5
CN101
B2
B3
B
B
B8
B9
BIN
GIN
22
RIN
IC203
AD CONVERTER
VD
VD
A13
B13
112
105
DRA7
DRA0
DRB0
DRB7
95
102
DGA0
DGA7
85
92
DGB0
DGB7
75
82
DBA0
DBA7
65
72
DBB0
DBB7
55
62
SCL
SDA
CKINV
COAST
DATACK
HSOUT
SOGOUT
CLAMP
HSYNC
B11HD
A11HD
A15CLP
CLAMP
Q201 14
15
7
SOGIN
28
DBE7
DBE0
DGE7
DGE0
DRE7
DREO
VB/UV/V7
VB/UV/V0
VG/Y/U0
VG/Y/U7
SCAN CONVERTER
IC405
216
208
GRE7
GRE0
GRO0
GRO7
GGE0
GGE7
GGO0
GGO7
GBE0
GBE7
GBO0
GBO7
214
221
223
207
200
192
190
197
128
135
181
184
189
133
103
120
119
118
104
117
111
112
52
77
51
102
109
78
110
26
48
24
75
23
74
99
49
100
PORT AO
PORT A1
GHSFOUT
GCOAST
GCLK
GFBK
GSOG
53
54
166
142
158
136
151
29
30
27
41
115
117
118
144
GHS
159
GVS
A19
A0
219,220,
223,242,
235,249,
275,276,
202,243,
209-217
301,204
169-172
163,164,
153-156
145,146,
139,140,
130,131,
D0
D15D15
D0
A1
A17
FLASH ROM
IC406
48
1
15
25
8
29
36
38
45
11
WE
28
OE
185
ROMWE
186
ROMOE
OE
41
WE
17
42
1
5
44
IC407
IM SRAM
A15
A1
UB
40
ROMOE
ROMWE
177
178
BHEN
201
21
18
23
27
38
35
29
32
I/01
I/016
16
10
7
13
92
13
64
12
39
66
40
38
93
16
68
41
67
14
15
94
273
274
231
237
248
240
351
324
245
300
297
350
270
272
349
322
295
323
319
317
292
GRAPHIC PORT
GENERAL I/O
MCKEXT
315
X501
130MHz
RESET
105
A10
B10
VUY0
A14
B14
CN403(1/2)
B12
A12
VY0
B13
B11
B9
A13
VY7
A11
A9
B8
A8
B7
VUY7
A7
B28
GE7
B27
B26
B25
B24
B20
RE7
B18
B23
A20
A18
RE0
B19
A19
CN102
A17
B17
GE0
B21
B22
A22
A21
A25
A26
BE0
A23
A27
A24
BE7
A28
PW RESET
A2
PIC MUTE
A3
PW.OSB EN
B3
INTERLACE
B2
RXD PW
A1
TXD PW
B1
HSI
A34
VSI
A35
SIRCS
A4
3
1
TXD
RXD
CN401
B21
B5
A5
B4
A4
B25
SIRCS
VHS
VHS
VVS
VVS
PIC MUTE MS
CN403(2/2)
POWER ON
IC401
RESET
PORTA6
2
IC408 5
1
2
6
IC402
INVERTER
13
1
12
2
SYNC SW
IC204,Q202
29
PORTA5
PORTB6
5
RXD
79
TXD
80
IRIN1
IRIN2
2SIRCS-NF
CN103
IROUT
IC102
SIRCS IF
2
CN101
OUT
IC101
IR RECEIVER
NF
NR
IR RX
IC901
OUT
CN901
2
CN101
SIRCS-NR B20
3
2
5
40
TO MS BOARD
CN804
CN112
TO C BOARD
BB A/D CONVERTER,
SCAN CONVERTER
E
F
E
TO MS BOARD
CN804
A
CN502
TO Q BOARD
6-4 VPL-HS1
6-4
BC, HBC, H
BC AND H Blocks
SP-R
SR-L
4
1
3
2
AU R
C
B15
B14
A15
A1
B3
CN801
B22
A14
B23
A23
A22
B19
A19
B18
A18
AU-MUTE
SP R
OUT1
15
OUT2
16
M.SW
Q803
7
IN2 5
INV1 2
OUT2
10
OUT2
OUT1
6
15
VOLUME CONTROL
IC801
AUCS
SDAT
SP L
AUCLK
AU L
G
G
BC(AUDIO AMP,AUDIO CONTROL)
CM702
TO Q BOARD
B
L
SPEAKER
STEREO AMP
IC802
OUT1
8
CN802
INV2
IN1
INP1
INP2
CE
DATA
CLK
SP R
SP R
SP R
SP L
SP L
SP L
6
5
4
1
1
2
7
8
9
7
11
8
9
D 5V
P.SAVE LED
TEMP LED
LAMP LED
5
10
2
3
4
KEY3
KEY0
KEY1
KEY2
POWER LED
CN801
D802
D801
D804
D803
SUB5V
S807
S812
S808,S811
S801-806
Q801
SW
(KEY,LED)H
G
R
CN110
TO C BOARD
G
S809-810
6-5
VPL-HS1 6-5
GG
G Block
CN2001
3
1
DC(-)
DC(+)
5
3
6
1 SUB 6V
3 AUDIO+B
4
7
8
1 +17V
11
5
6
7
1
3
D 3.3V
CN3302
FB
3
VSW
VIN
2
+B
10
POWER ON SW
Q3201
VINFB
POWER ON SW
Q3107
POWER ON SW
Q3108
POWER ON SW
Q3109
DC-DC CONVERTER
IC3201
RECT
D3111
D3110
RECT
D3112
RECT
14
13
12
11
10
9
8
7
1
3
5
T1101
RECT
D3109
SWITCHING
Q3102
SWITCHING
Q3103
DH
18
VG(H)
16
VS
15
VG(L)
DCP
9
7
5
61
2
3
IC3307
DELAY
K
A
A
REF
A
A
8
7
6
1
2
3
SHUNT REG
IC3102
FEED BACK
PH3101
4
3
1
2
POWER ON
PH3100
1
2
4
3
POWER PROT
PH3102
1
2
4
3
Q3106
PROT
SW
Q3110
AUDIO+B
+6V
+6V
SUB+5V
D 3.3V
D 3.3V
+6V
+17V
6
D3113
PROT
VSENSE
F/B
IC3100
CONVERTER CONTROL
LATCH
Q3104,3105
L SENSE
LATHODE
5
10
AC SENSE
3
9
VCC
IC2101
PFC CONTROL
RECT
D2102
Q2101
RALAY ON
SW
Q3601
1
AC(N)
AC(L)
4
CN3204
L2002
RY2101
L2101 RECTIFIER
D2101
1
2
AC
INLET
(DC-DC CONVERTER,FAN DRIVE,EMI FILTER)G
CN102
TO C BOARD
TO BALLAST
TH(A)
TH(B) 2
1
TO
BIMETAL
AC(N)
AC(L)
1
2
AC(N)
AC(L)
1
3
CN1102CN1101 F1101 L1101
F(LINE FILTER)
6
35
I0
IC3304
5V REG
IC3202
DC-DC CONV.
CN3301
CN3303
FAN CONT1
FAN+B
P CONT
TO Q BOARD
CN501
C BOARD
CN101
I
D
6-6 VPL-HS1
6-6
MSMS
MS Block
TXD MS
MENU STATUS
USB MS+
KEYO
A23
B22
CN804(1/2)
A25
A21
MS RESET
PIC MUTE MS
B24
B25
TDO
EXTSW
11
15
CS
RAS
CAS
WE
UDQM
LDQM
CKE
9TCK
7TMS
3TRST
COMP
IC817,818 FD0
FD15
IC801 JPEG ENG
RAS
CAS
WE
DQMU
DQML
CKE
SDCLK
110
105
100
96
109
114
10437
19
18
17
16
39
15
3
2
CN801
8
9
BS
4
6
B14
VY0
A14
B13
A13
B12
B10
VUY0
B8
A12
A10
A8
VUY7
B9
A9
CN804(2/2)
A7
B7
VY7
A11
B11
B5
A5
A2
B2
VHS
A3
B3
CN403
TO BB BOARD
MS
JPEG ENGINE,MS I/F
SIRCS
B21
USB MS-
B23
BRD STATUS
A22
A24
RXD MS
TO BB BOARD
CN403
4
5
8
9
10
11
6
7
6
5
2
3
1.15V
1.63V
1.8V
2V
2.74V
3.1V
IC816
ENCODER
IN7
IN6
IN5
IN4
IN3
IN2
IN1
IN0
4
3
2
1
13
12
11
10
2
14
13
1
7
1
A0
A1
A2
1.5-8
10-13
15-18
20-22
39-42
34-37
29-32
23-27
FA19
FA0
44-46
AD0
191
AD1
192
AD2
193
112
P25
107
SDA
116
SCL
IC806
Q805
MUTE
SCL
SDA
IK
EEPROM 6
5
11,13
8,10
5,7
2,4
IC808 128M DSRAM
DQ7
DQ0
DQ8
DQ15
42,44
45,47
48,50
51,53
A0
A13
20-26
29-35
38
CLK
99
CS
124,125
119,120
MA13
MA0
88,92
78,83
73,74
66,70
UD7
UD0
LD0
LD7
67,69
72,77
81,86
91,94
LD0-7
UD0-7
MA0-13
54
MCLKI
55
MCKLO
X801
12.2727MHz
TDI 5
68
56
57
76
80
TCK
TMS
TDI
TRST
TDO
CN802
6MHz
X803
UCLKO
UCLKI
P40
87
260
257
259
256
93
252
90
P34
TXD/SO
D-
RXD
D+
P35
INT3
MENU STATUS
SIRCS
BRD STATUS
USB MS+
TXD
USB MS-
RXD
PIC MUTE MS
85
P42
RSTN
RCT
IC807 WDT
6
8
3
Q803
276
277
B2
47
50
51
275
FWE
F0E
CE1
P47
FRD
FWR
CCS
HCLK
IC805 MS I/F
28
44-48
40,41
7-10
1-5
48
16-25
1-9
29-36
38-45
13-16
7-10
1-4
18-27
42-44
IC802
8M FLASH ROM SRAM
IC803
P43
63
RESET
12 CE WE OE OEWECS
29-32
35-38
A1
A2
A3
38
37
36
FA1
FA2
FA3
X804
20MHz
SCKI
13
XWRH/XBE0
XRD/RDWRX
XCS
XWRL/XBE1
X/NT
XRS
XDRQ/XRDY
SDIR
35
32
33
34
11
12
14
29
MS-INT
MS-RST
SDIR
MS-RDY
MS-INS
LED
Q804
DRIVE
3.3V
D801
228
225
223
221
Y7
Y0
220
C0
C7
210,212
214
218
Ucc
DIO
INS
SCLK
Vcc
MS
CONNECTOR
VHS
VPEN
VPEN
VCLK
VCLK
P00
24
Q801,802
SCK0
17
PI0
20
SDI0
16
BS
15
+3.3V
12
VHS
Y7
27
IC810 PLD
TC K/Y2
1
25
4
5
23
29
VBLK
I/0 14
I/0 31
P_VCLK
RESET/Y1
VCLK
VPEN
33
MSCLK
11
IC815
1/2
5
7
1
VBLK
209
P36
97
PCLK0
207
MRESET
61
MS RESET
VTRIGER
TDO
TDI
BSCAN
TMS
6
5
TCK
7
CN803
1
3
TMS/NC
30
BSCAN
7
TDI/IN0
8
TD0/IN1
18
2
Y7
FA 0-19
FD 0-15
26 11 28 617 41
MS-RDY
SDIR
MS-RST
MS-INT
59
65
64
250
P45
E CNT
P44
INT1
INT0
249
MS-INS
9
7
6
129,131
133,134
136-140
143
232
E
E
6-7
VPL-HS1 6-7
C Block
CC
HST
14
COM
PCG
24
22
VST
ENB
HCK2
HCK1
21
20
19 VCK
18
15
RGT
SIG1
13
9
6
5
4
SIG6
SIG2
SIG5
SIG3
SIG4
PSIG1
3
2
CN602
DWN
7
RGT
HST
HCK1R
HCK2R
ENB
VCK
VST
PCG
DWN
BUFFER
Q601,602
32
SH OUT1
SH OUT2
30
SH OUT3
28
SH OUT4
21
SH OUT5
19
SH OUT6
17
SID_0
37
VCOM OUT
33
VIDEO_I
47
CAL_R
49
VIDEO_R
46
VCOM OFF
34
DLYCTR
58
MCLK
54
SIGCNT
35
DIRCTR
14
STATUS
10
PRG
2
POSCTR1
5
POSCTR2
6
ENB
11
DCFBSW
16
FRP
36
SID_IN
39
LCD DRIVER
IC601
RGT
PRG
POS-CON1
POS-CON2
ENB
PRGPOL
FRP
SID
LCD DRIVER
34
DCFBSW
FRP
SID
SID_IN
39
36
FRP
STATUS
POS-CON2
ENB
PRGPOL
PRG
POS-CON1
6
POSCTR2
16
11
ENB
POSCTR1
5
2
PRG
RGTX
MCLK
SIGCNT
DIRCTR
10
14
35
DLYCTR
VCOM OFF
54
58
VIDEO_I
VIDEO_R
CAL_R
46
49
47
21
21
VCOM OUT
33
DWN
22
24
Q501,502
SID_0
SH OUT6
SH OUT5
SH OUT4
37
17
19
14
VCK
PCG
VST
19
20
HCK1G
ENB
18
15
BUFFER HCK2G
HST
RGTX
9
13
7
6
5
PCG
COM
DWN
HCK1
VST
VCK
HCK2
ENB
HST
RGT
SIG2
SIG6
SIG1
SH OUT3
SH OUT2
SH OUT1
IC501
28
30
32
2
4
3
1
CN502
SIG4
SIG5
SIG3
PSIG
LCD DRIVER
34
DCFBSW
FRP
SID
SID_IN
39
36
FRP
STATUS
POS-CON2
ENB
PRGPOL
PRG
POS-CON1
6
POSCTR2
16
11
ENB
POSCTR1
5
2
PRG
RGT
MCLK
SIGCNT
DIRCTR
10
14
35
DLYCTR
VCOM OFF
58
VIDEO_I
VIDEO_R
CAL_R
46
49
47
21
21
VCOM OUT
33
DWN
22
24
Q701,702
SID_0
SH OUT6
SH OUT5
SH OUT4
37
17
19
14
VCK
PCG
VST
19
20
HCK2B
ENB
18
15
BUFFER HCK1B
HST
RGT
9
13
7
6
5
PCG
COM
DWN
HCK1
VST
VCK
HCK2
ENB
HST
RGT
SIG2
SIG6
SIG1
SH OUT3
SH OUT2
SH OUT1
IC701
28
30
32
2
4
3
1
CN702
SIG4
SIG5
SIG3
PSIG
14
17
18
19
16
15
4
5
6
9
1/2
CLR
Q403
BUFFER
BUFFER
R OUT
G OUT
B OUT
Q401,402,404
33
38
41
34
29
28
AO6
AO3
AO5
AO2
AO4
AO1
AO7
AO8
AO9
AO12
SH OUT1
SH OUT1
SH OUT1
SH OUT1
SH OUT1
SH OUT1
R_IN
2
G_IN
6
B_IN
11
SCL
22
SDA
23
CLP
21
SCL_100K
SDA_100K
CLAMP&AMP
SCL_100K
SDA_100K
3
2
SCL
SDA
DAC
BUFFER
IC109
IC108
1,2145
TO H BOARD
10
9
POWER_LED
TEMP_LED CN801
5
7
8
4
3
2
KEY3
PSAVE_LED
LAMP_LED
KEY2
KEY1
KEY0
TO BA BOARD
12
13
11
LAMP_COVER
FILT_COVER
POWER_PROT
CN201
8
9
10
7
6
5
SDAT
AU_CLK
AUDIO_MUTE
AUDIO_CS
SCL_100K
SDA_100K
20
17
18
19
EXT_TEMP
SDA_400K
ROM_RESET
SCL_400K
TO G BOARD
CN3302
6
5
3
POWER_CONT
FAN_CONT1
FAN+B
CN110
CN111
CN102
SDA_100K
SCL_100K
SCL4
SDA4
FAN REG
IC107
34
1
SW
Q101,102
SCIROCCO
FAN_PROT
FAN+B1
2
1
CN105
FAN50
FAN_PROT
FAN+B2
2
1
CN106
FAN60
FAN_PROT
FAN+B2
2
1
CN107
D103,104
1
3
CN104
SC
FLAG
BALLAST
CN108
TXD
RXD
3
2
VISCA
6
4
8
FWR
RES
MD2
10
11
7
9
3
2
P-RX
P-EXTSW
MD1
P-TX
RXD
TXD
CPU&PWROM
CN109
IOR
34
IOG
32
IOB
28
R0
R9
48
39
G0
G9
10
1
B0
B9
23
14
D/A CONVERTER
CLOCK
24
IC310
Y1
18 FRP2
A1
58
LCDFRP
PRG
LCDPRG
10 3
A2
17
Y2
PRGPOL
INVCNT
95 4
A3
16
Y3
ENB
AGCSHP
25
A4
15
Y4
HCK2R
HCK1B
HCK1G
HCK1R
HCK2B
HCK2G
13
14
Y6
Y5
A6
7
6
A5
PCG
VCK
VST
HST
8
LCDPCG
LCDVCK
100
LCDVST
LCDHST
7
97
RGTX
RGT
DWN
51
LCDCLP
LCDRGTX
96
LCDRGT
LCDDWN
50
57
128
A8
9
A7
11
Y8
Y7
BUFFER
BUFFER
BUFFER
IC309
IC308
IC307
LCDHCK1
98
LCDHCK2
55
POS-CON2
POS-CON1
SID
CNT2A
CNT1A
6
5
52
SID
LCDCLR
3
IC306(1/3)
53
17
IC306(2/3)
21,22
24,26
72,110
68-70
111
64-67
106,107
17-20
59,
61-63
102,103
11,13
15,16
IC202
31
P-EXTSW
KEY0_MS
P-TX
P-RX
RXD4
60
KEY1
KEY2
KEY3
TXD4
61
AN0/P40
AN1/P41
93
AN2/P42
94
AN3/P43
95
AN4/P44
96
PE1
97
TXD3
35
SCK3
117
MUTE
115
PD4
114
PD6
48
AN9/P91
20
DA1/AN7/P47
102
PD1
100
DA0/AN6/P46
45
PE5
99
P10
39
P11
26
P12
27
P13
28
RES
29
WDTOVF
71
67
PE4
38
MD1
119
PD6
50
PA0
21
MD2
120
FWE
74
TXD2(FWR)
22
RXD2(FWR)
23
AUDIO_MUTE
AU_CLK
SDAT
MC_SW
AUDIO_CS
POWER_PROT
FILT_COVER
EXT_TEMP
FAN_CONT1
POWER CONT
PSAVE_LED
LAMP_LED
TEMP_LED
POWER_LED
Q202
RESET
Q103
FAIL SAFE
IC110
BUFFER
LAMP_COVER
DISCHARGE
D201
RESET
IC203
IC201
RESET
1
1
2
2
5V-1
3.3V-1
ROUT7
ROUT0
GOUT7
GOUT0
BOUT7
BOUT0
73
72
128
46
127
90
126
91
RIN0
RIN7
116
GOSD0
77
GOSD1
31
GOSD2
ROSD0
ROSD2
30
ROSD1
76
115
GIN7
GIN0
89
41
44
86
85
BIN0
123
83
120
BIN7
39
BOSD1
BOSD2
29
114
75
BOSD0
74
OSDYM
TXD4
61
63
PG1
OSDYS
65
28
PG3
81
35
RSCL
33
RSDA
32
48
RESET
CLK1
125
HSDA
119
80
HSCL
3D GAMMA & TG
IC302
IC404
IC403
IC401
PC1
2
3
PC2
1
PC0
12
PB0
40
PE6
10
ZOOM
52
TXD0
53
RXD0
9
PC6
101
AN8/P90
75
XTAL
77
EXTAL
BUS SW
Q303
BUS SW
Q304
MAIN_STATUS
BRO_STATUS
TXD_MS
RXD_MS
MS_RESET
X201
12.288MHz
TH101
MAIN CPU
IC205
SIRCS
NW
Q
5
SDA
5
SCL
6
2
D
1
8
IC304
RESET
IC305
EEPROM
Q301,302
+3.3V-2
IC105,106
RESET
IC303
+3.3V-2
SCL4
SDA4
S301
B20
A20
B19
A19
B17
B18
A18
A17
B27
B28
A21
B22
B25
B26
B24
B23
B21
GE6
BE0
GE7
GE1
GE5
GE4
GE2
GE3
GE0
RE7
RE4
RE5
RE6
RE1
RE3
RE2
RE0
BE1
BE6
A27
BE7
PW_OSDEN B3
A28
A22
BE4
BE5
A26
A25
BE3
BE2
A23
A24
CN112
31
32
5 6
1
4
A32
HSOX
VSOX
CN102
TO BB BOARD
A33
PIC_MUTE
PW_RESET
INTERLACE B2
A3
A2
DCLK
A30
MS_RESET
RXD_MS
MS_SW
KEYO_MS
A8
B7
A7
B6
MENU_STATUS
SIRCS
TXD_MS
BRD_STATUS B5
A6
A5
A4
A9SDA_400K
SCL_400K B9
RXD_PW
TXD_PW
A1
B1
DCLK
B30
KEYO_MS
MS_SW
MS_RESET
RXD_MS
TXD_MS
BRD_STATUS
MENU_STATUS
SIRCS
RESET
W SCL 2
W SDA 3
HSO
VSO
OSD_EN
CN301
LUT
4
5
3
2
A4
A3
A2
A1
Y4
Y3
Y2
Y1
16
15
17
18
2
5
7
6
3
4
A6 Y6
A4
A5
A1
A2
A3
Y4
Y5
Y1
Y2
Y3
18
15
13
14
17
16
SW
DVIDER
D/A CONVERTER
3D GAMMA&TG,LCD DRIVER
C
F
TO
LDC PANEL
(R)
(G)
LDC PANEL
TO
TO
LDC PANEL
(B)
G
H
I
6-8 VPL-HS1
6-8
7-1
VPL-HS1 7-1
2
3
4
5
1
A BCDEFGH
Frame(1/2)Frame(1/2)
7-1. Frame Schematic Diagram
F
LAMP BALLAST
LCD(G) LCD(R) LCD(B)
FAN1 FAN2 FAN3
H
BIMETAL
NF
MS
C
G(1/2)
BB(1/2)
1
2
1
2
31
2
3
4
1
2
3
1
2
3
4
5
6
7
8
9
10
1
2
3
1
2
3
4
5
6
7
8
9
10
1
2
3
4
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
1
2
3
1
2
3
1
2
3
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1
2
3
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
1
2
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
A35
B35
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
A35
B35
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
CN1101
CN1102
CN3204
CN2001 CN3303
CN3205 CN3302
CN502 CN602 CN702
CN104 CN102 CN101 CN111
CN112
CN102
CN301
CN109
CN108
CN110
CN107 CN105
CN106
CN801
CN101
CN403 CN401
CN103
CN804
CN801
CN802
CN803
CN501 CN601 CN701
2P
AC INLET 3P
4P
3P 10P
2P 7P
24P
FPC
:SMD
24P
FPC
:SMD
24P
FPC
:SMD
3P
WHT-L
:SMD
7P
WHT
:SMD
10P
WHT
:SMD
24P
FPC
:SMD
70P
WHT
:SMD
70P
WHT
:SMD
4P
WHT
:SMD
12P
WHT
:SMD
5P
WHT
:SMD
12P
WHT
:SMD
3P
BLUE-L
:SMD
3P
WHT-L
:SMD
3P
RED-L
:SMD
12P
:SMD
3P
WHT
:SMD
50P 3P
:SMD
3P
:SMD
50P
:SMD
WHT
MS CONNECTOR
15P
:SMD
WHT
8P
:SMD
WHT
###
AC(L)
N.C.
AC(N)
AC(L)
AC(N)
TH(A)
TH(B)
N.C
N.C
DC(+)
DC(-)
NC
SUB 5V
GND
FAN+B
GND
PCONT
GND
17V
GND
6V
GND
GND
GND
GND
FAN CONT1
D3.3V
D3.3V
D3.3V
GREEN
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
RGT
MODE3
MODE2
MODE1
HST
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
HCK1
HCK2
RED
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
RGT
MODE3
MODE2
MODE1
HST
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
HCK1
HCK2
BLUE
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
RGT
MODE3
MODE2
MODE1
HST
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
HCK1
HCK2
SCI
GND
FLAG
GND
SUB+5V
GND
FAN+B
GND
POWER_CONT
FAN_CONT1
+17V
GND
GND
+6V
GND
D+3.3V
D+3.3V
D+3.3V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
SDA_100K
SCL_100K
SDAT
AU_CLK
AUDIO_MUTE
POWER_PROT
LAMP_COVER
FILT_COVER
SDA_400K
SCL_400K
EXT_TEMP
AUDIO_CS
ROM_RESET
NC
NC
NC
GND
GND
GND
HSOX
GND
GND
VSOX
GND
GND
DCLK
DCLK
GND
GND
GND
GND
RE7
RE6
RE5
RE4
RE3
RE2
RE1
RE0
BE0
GE0
BE1
GE1
BE2
GE2
BE3
GE3
BE4
GE4
BE5
GE5
BE6
GE6
BE7
GE7
PW_RESET
INTERLACE
PIC_MUTE
PW_OSDEN
SIRCS
GND
MENU_STATUS
BRD_STATUS
TXD_MS
RXD_MS
MS_RESET
MS_SW
GND
SDA_400K
SCL_400K
SUB+5V
GND
D+3.3V
D+3.3V
D+3.3V
D+3.3V
D+3.3V
KEY0
D+3.3V
D+3.3V
GND
HSI
VSI
SUB+5V
TXD_PW
RXD_PW
TXD PW
RXD PW
PW RESET
INTERLACE
SIRCS
GND
PW-OSD EN
MENU STATUS
BRD STATUS
TXD MS
RXD MS
MS RESET
GND
GND
D+3.3V
KEY 0
MS SW
SDA 400K
SCL 400K
SUB 5V
D+3.3V
D+3.3V
D+3.3V
D+3.3V
D+3.3V
D+3.3V
GND
GND
GND
GND
RE0
RE1
RE2
RE3
RE4
RE5
RE6
RE7
BE0
GE0
BE1
GE1
BE2
GE2
BE3
GE3
BE4
GE4
BE5
GE5
BE6
GE6
BE7
GE7
GND
GND
DCLK
DCLK
GND
GND
HSOX
GND
VSOX
GND
HSI
GND
VSI
GND
PIC MUTE
SUB 5V
W SCL
W SDA
GND
+5V
GND
TXD
RXD
VIN
FWR
MD1
MD2
RES
P-TX
P-RX
P-EXTSW
GND
CPU&PWROM
VISCA
RXD
TXD
GND
SUB+5V
EXT_SW
GND
POWER LED
TEMP LED
LAMP LED
PSAVE LED
D+5V
SUB+5V
GND
KEY3
KEY0
KEY1
KEY2
TO FAN60
FAN+B2
FAN_PROT
GND
TO SCIROCCO
FAN+B1
FAN_PROT
GND
TO FAN50
FAN+B2
FAN_PROT
GND
GND
GND
D.5V
PSAVE-LED
POWER-LED
TEMP-LED
LANP-LED
SUB 5V
KEY3
KEY2
KEY1
KEY0
SUB+5V
GND
SIRCS-NF
GND
GND
VCLK
VCLK
VPEN
VPEN
VVS
VVS
VHS
VHS
GND
GND
GND
GND
GND
GND
SIRCS
MS RESET
MENU STATUS
USB MS+
TXD MS
USB MS-
RXD MS
VUY7
VUV6
VUY5
VUV4
VUY3
VUV2
VUY1
VUV0
VY7
VY6
VY5
VY4
VY3
VY2
VY1
VY0
KEY 0
BRD STATUS
MS SW
SUB5V
SUB5V
SUB5V
SUB5V
GND
SUB5V
SUB5V
PIC MUTE MS
RXD
GND
TXD
SUB+5V
SIRCS-NF
GND
GND
GND
VCLK
VCLK
VPEN
VPEN
VVS
VVS
VHS
VHS
GND
GND
GND
GND
GND
GND
GND
GND
SIRCS
MS RESET
MENU STATUS
USB MS+
TXD MS
USB MS-
RXD MS
VUY7
VUV6
VUY5
VUV4
VUY3
VUV2
VUY1
VUV0
VY7
VY6
VY5
VY4
VY3
VY2
VY1
VY0
MS+5V
MS+5V
MS+5V
MS+5V
KYE0
BRD STATUS
SUB 5V
SUB 5V
PIC MUTE MS
VSS
BS
VCC
DIO
#
INS
#
SCLK
VCC
VSS
SIG1
GND
GND
TDI
GND
TMS
GND
TCK
GND
SIG3
SIG2
GND
TRST
TDO
EXTSW
TCK
GND
TMS
PLUG
TDI
VCC
BSCAN
TDO
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
ENB
GREEN
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
ENB
RED
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
ENB
BLUE
A
TO G(2/2)
TO BB(2/2)
B-SS1719<...>-KESSENZU-P1
AC(L)
AC(N)
#50P
WHT
#
Section 7
Diagrams
7-2 VPL-HS1
7-2
2
3
4
5
ABCDEFGH
1
Frame(2/2)Frame(2/2)
BA
BC
NR
Q
SP(R)
SP(L)
G(2/2)
BB(2/2)
1
2
3
4
5
6
7
8
9
10
11
12
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
A35
B35
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1
2
3
4
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1
2
3
1
2
3
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
A35
B35
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
CN3301
CN101
CN201 CN101
CN702
CN701
CN801
CN503
CN901
CN502
CN601 CN501
CN401
12P
50P
WHT
24P
FPC
:SMD
70P
50P
WHT
:SMD
4P
WHT
:SMD
50P
WHT
:SMD
3P
WHT
3P
WHT
:SMD
50P
70P 12P
WHT
32P
RECTANGULAR
17V
GND
AUDIO+B
AUDIO+B
GND
GND
6V
6V
GND
GND
SUB 5V
GND
GND
GND
GND
R
GND
R
GND
GND
GND
G
GND
GND
GND
B
GND
GND
GND
GND
GND
GND
SIRCS-NR
A5V
A5V
A5V
A5V
A5V
GND
GND
GND
GND
GND
G
GND
B
GND
GND
HD
HD
GND
GND
VD
VD
CLP
CLP
GND
GND
GND
GND
R
R
GND
GND
G
G
GND
GND
B
B
GND
GND
HD
HD
GND
GND
VD
VD
GND
GND
CLP
CLP
GND
GND
GND
GND
SIRCS-NR
GND
A5V
A5V
A5V
A5V
A5V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
N.C
N.C
N.C
N.C
GND
GND
GND
GND
GND
GND
GND
GND
GND
CIN
YIN
CIN
YIN
C-V
C-V
GND
RGB SYNC
15KVS
GND
GND
V.R-Y
V.R-Y
GND
GND
V.B-Y
V.B-Y
GND
GND
V.Y
V.Y
GND
GND
SCP
GND
GND
GND
GND
GND
SDA100K
SCL100K
AUCS
SDAT
AUCLK
AUDIO MUTE
P PROT
LAMP COV
FILT COV
F-SDA
F-SCL
F-RESET
A5V
GND
6V
6V
GND
GND
A5V
GND
A9V
A9V
15KHS
EXT TEMP
N.C
N.C
N.C
15K/OTHER
/CDAB
N.C
N.C
N.C
17V
GND
AUDIO+B
AUDIO+B
GND
GND
6V
6V
GND
GND
GND
SUB 5V
AUCS
SDAT
GND
GND
GND
GND
AUCLK
AUDIO MUTE
LAMP COV
FILT COV
F-SDA
F-SCL
F-RESET
N.C
N.C
N.C
GND
GND
GND
GND
P PROT
EXT TEMP
SDA100K
SCL100K
GND
GND
GND
GND
GND
GND
GND
GND
GND
CIN
YIN
CIN
YIN
C-V
C-V
GND
RGB SYNC
15KVS
GND
GND
V.R-Y
V.R-Y
GND
GND
V.B-Y
V.B-Y
GND
GND
V.Y
V.Y
GND
GND
SCP
GND
GND
GND
GND
GND
SDA100K
SCL100K
AUCS
SDAT
AUCLK
AUDIO MUTE
P PROT
LAMP COV
FILT COV
F-SDA
F-SCL
F-RESET
A5V
GND
6V
6V
GND
GND
A5V
GND
A9V
A9V
15KHS
N.C
N.C
N.C
15K/OTHER
AB/CD
EXT TEMP
N.C
N.C
N.C
AU_L
AU_L
GND
GND
AU_R
AU_R
GND
GND
GND
GND
A+12V
A+12V
GND
GND
AUDIO+B
AUDIO+B
AUDIO+B
AUDIO+B
GND
GND
GND
GND
NC
NC
NC
NC
AU_MUTE
AUCS
SDAT
AUCLK
GND
GND
GND
GND
SP_R
SP_R
SP_R
SP_R
GND
GND
GND
GND
SP_L
SP_L
SP_L
SP_L
GND
GND
GND
GND
SP_R
GND
SP_L
GND
AU_L
AU_L
GND
GND
AU_R
AU_R
GND
GND
GND
GND
A+12V
A+12V
GND
GND
AUDIO+B
AUDIO+B
AUDIO+B
AUDIO+B
GND
GND
GND
GND
NC
NC
NC
NC
AU_MUTE
AUCS
SDAT
AUCLK
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
SP_R
SP_R
SP_R
SP_R
SP_L
SP_L
SP_L
SP_L
NC
NC
DDC SCL
AU-L
GND
R
NC
H
AU-R
GND
G
NC
NC
V
DDC SDA
B
NC
NC
C-Video
NC
Y
GND
NC
DDC-Return
C
GND
NC
GND
GND
GND
GND
NC
SUB+5
SIRCS-NR
GND
SUB+5V
GND
SIRCS-NR
A
TO G(1/2)
TO BB(1/2)
B-SS1719<...>-KESSENZU-P2
7-3
VPL-HS1 7-3
[Measuring conditions, voltage and waveform]
..
..
.A voltage value is the reference value between the measurement
point and the earth, when the RGB color bar signal is received
from the color bar generator (digital multi-meter used: 10 M ohms/
V DC).
..
..
.Unit of voltage is V (volt).
..
..
.: B+line
..
..
.: B– line
..
..
.Voltage variations may occur due to normal production tolerances.
..
..
.: Measurement disabled.
..
..
.Circled numbers indicate the reference waveform.
..
..
.: Signal path.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Note:
..
..
.Parts marked “ * ” differ according to the model/destination. Refer
to the mount table for each function.
..
..
.The parts marked “ # ” on schematic diagrams are not mounted.
..
..
.All capacitors are in µF unless otherwise noted. pF: µµF 50WV or
less are not indicated except for electrolytics.
..
..
.All electrolytics are in 50 V unless otherwise specified.
..
..
.: fusible resistor
..
..
.: nonflammable resistor
..
..
. ∆: internal component
..
..
.: panel designation and adjustment for repair
..
..
.Caution when replacing chip parts
New parts must be attached after removal of the chip.
Be careful not to heat the minus side of a tantalum capacitor, be-
cause it is easily damaged by the heat.
Reference information
RESISTOR RN : METAL FILM
RC : SOLID
FPRD : NONFLAMMABLE CARBON
FUSE : NONFLAMMABLE FUSIBLE
RS : NONFLAMMABLE METAL OXIDE
RB : NONFLAMMABLE CEMENT
RW : NONFLAMMABLE WIREWOUND
: ADJUSTMENT RESISTOR
COIL LF-8L : MICRO INDUCTOR
CAPACITOR TA : TANTALUM
PS : STYROL
PP : POLYPROPYLENE
PT : MYLAR
MPS : METALIZED POLYESTER
MPP : METALIZED POLYPROPYLENE
ALB : BIPOLAR
ALT : HIGH TEMPERATURE
ALR : HIGH RIPPLE
The components identified marked ! are
critical for safety.
Replace only with the part number specified.
7-2. Schematic Diagrams and
Printed Wiring Boards
7-4 VPL-HS1
7-4
BABA
BA -A SIDE-
SUFFIX: -11
BA -B SIDE-
SUFFIX: -11
—-
BA
—-
1-682-352-11
IC101 *C-2
IC102 C-1
IC103 C-2
IC104 *C-3
IC105 *C-2
IC201 *A-1
IC202 B-1
IC301 *B-5
IC302 *C-5
IC304 C-5
IC305 B-5
Q101 *C-2
Q102 *C-2
Q103 *C-2
Q104 B-2
Q105 C-2
Q106 C-2
Q201 *B-1
Q202 *A-2
Q203 B-2
Q204 *B-2
Q202 *A-2
Q205 *A-2
Q206 *A-2
Q207 B-3
Q208 B-2
Q209 *B-2
Q210 B-2
Q211 *B-2
Q212 B-2
Q213 *B-2
Q214 B-3
Q301 B-5
Q302 B-4
Q303 B-4
Q304 *B-4
Q305 *C-4
Q306 *C-4
Q307 *B-4
Q308 *B-4
Q309 *A-4
Q310 *B-4
Q311 *B-4
Q312 *B-4
Q313 *B-3
Q314 *A-4
Q315 *B-4
TP101 C-3
TP102 C-2
TP103 C-2
TP104 C-2
TP105 C-3
TP106 C-4
TP107 C-2
TP108 C-3
TP109 C-3
TP110 C-4
TP111 B-2
TP301 C-3
TP302 B-3
*:B Side mount
CN101
CN201
C101
C108
C111
C113
C114
C118
C120
C121
C124
C137
C138
C139
C140
C145
C202
C204
C206
C207
C209
C210
C211
C212
C214
C218
C220
C222
C225
C226
C227
C228
C229
C230
C231
C301
C304
C305
C306
C307
C308
C309
C318
C321
C322
C323
C325
C327
C329
C330
C331
C332
C333
C334
C335
C336
C338
C339
C340
C341
C342
C344
C347
C348
C349
C350
C351
C352
C354
C360
C361
FB101
FB302
FB303
FB305
FL301
FL302
FL303
IC102
IC103
IC202
IC304
IC305
L202
L204
L205
L302
L305
Q104
Q105
Q106
Q203 Q207
Q208
Q210
Q212
Q214
Q301
Q302
Q303
R105R106
R122
R123
R124
R130 R133 R136 R138
R139
R142
R145
R146 R147
R208R209
R210
R211
R212
R217
R221
R225
R227
R230
R232
R233
R235
R236
R241R242
R245
R246
R247
R249
R250
R253R254
R255
R257
R258
R301
R307
R309
R310
R311
R312
R313
R314
R315
R316
R317
R318
R322
R323
R324
R325 R364
TP101
TP102
TP103
TP104
TP105
TP106
TP107
TP108
TP109
TP110
TP111
TP301
TP302
X101
X301
C102
C103
C104
C105
C106 C107
C110
C112
C115
C116
C117
C119
C122
C123
C125
C126
C127
C128
C129
C130
C131
C132
C133
C141
C142
C143
C144
C201
C203
C205
C208
C215
C216
C217
C219
C221
C223
C224
C232
C303
C310
C311
C312
C313
C314 C315
C317
C319
C324
C326
C328
C337
C346
C353
C355
C356
C359
FB301
FB304
FB306
FB307
FL101
FL102
FL201
FL202
FL203
FL204
IC101
IC104
IC105
IC201
IC301
IC302
JL101
JL102
JL103
JL104
JL105
JL106
JL107
JL108 JL109
JL110
JL111
JL112
JL113 JL114
JL115
JL116JL117 JL118
JL119
JL120
JL121
JL122
JL123
JL124
JL201
JL202
JL203
JL205
JL206
JL207
JL208
JL209
JL210
JL211
JL212
JL213
JL214
JL215
JL216 JL217
JL218
JL219
JL220
JL301
JL302
JL303
JL304
JL305
JL306
L102
L103
L201
L203
L206
L301
L304
L307
Q101 Q102
Q103
Q201
Q202
Q204
Q205
Q206
Q209
Q211
Q213
Q304
Q305
Q306
Q307
Q308
Q309
Q310
Q311
Q312
Q313
Q314
Q315
R101
R102
R103
R104
R107
R108
R109
R110
R111
R112
R113
R114
R115
R116
R117
R118 R119
R120
R121
R125R126
R127
R128
R140
R141
R143
R144
R201
R202
R203
R204
R205
R206
R207
R213
R214
R215
R216
R218
R219
R220
R222
R223
R224
R226
R228
R229
R231
R234
R237
R238
R239
R240
R243 R244
R248
R251
R252
R256
R259
R306
R308
R319
R320
R321
R326R327
R328
R329
R330
R331
R332
R333
R334
R335
R336
R337
R338
R339
R340
R341
R342R343
R344
R345
R346
R347
R348
R349
R350 R351
R352
R353R354
R355R356
R357
R358
R359
R360
R361
R362
R363
MC141627FT (IC202)
1
PORTPORT
IBIPAS
CLKBUF
CLOCK
GEN
Adaptive
Vertical
Enhancer
memory
mode
MODECLKBUF
CONTROL
LOGIC
CONTROL
LOGIC
CLAMF
DAC
DAC
ADC
Vertical-Dot
PRCESSING
APCF-II
PRCESSING
1H/2H
1H/2H
24
23
22
21
20
19
18
17
16
15
14
13
37
38
39
40
41
42
43
44
45
46
47
48
36 35 34 33 32 31 30 29 28 27 26 25
123456789101112
Noise Level 1(D4)
Noise Level 2(D5)
Noise Level 3(D6)
Noise Level 4(D7)
White Level 1(C0)
White Level 2(C1)
White Level 3(C2)
White Level 4(C3)
Black Level 1(C4)
Black Level 2(C5)
Black Level 3(C6)
Black Level 4(C7)
PCO
OVcc
Bias
FILIN
DAGnd
YOUT
DAVcc
COUT
DAREF
1BIAS
ADGnd
ADVcc
TE1
TE0
MODE1
MODE0
ADCLK
DGnd
NC
CLC
CLOUT
VIN
RBT
RTP
NC(D3)
NC(D2)
NC(D1)
NC(D0)
Bypass
VH
DGnd
DVcc
Fsc
PAL N/M
PAL/NTSC
Comb/BPF
NJM2533M (IC103,IC105
36
2
5
8
1
4
7
BIAS
IN1
SW
IN2
NC
GND
OUT
VCC
NC
30K30K
SW
6dB
BA033F-E2 (IC301)
Vcc
(IN)
OUT
GND
+
—
Reference
Voltege
CXA1875AM (IC201)
LATCH
DAC
AMP
LATCH
DAC
AMP
LATCH
DAC
AMP
LATCH
DAC
AMP
LATCH
DAC
AMP
+
–
VCC
REG
I2C DECODER
LEVEL
CONVERTER
LEVEL
CONVERTER
LEVEL
CONVERTER
LATCH
POWER
ON
RESET
OPEN COLLECTOR
3 6
25 81 4 7
SW1
SW0
DAC4
DAC3
DAC2
DAC1
DAC0
GND
14 11
15 12 916 13 10
VCC
SCL
SDA
SAD2
SAD1
SAD0
SW3
SW2
7-5
VPL-HS1 7-5
2
3
4
5
1
A BCDEFGH
• Refer to page 7-4 for Printed Wiring Board
• Refer to page 7-4 for IC Block Diagrams
BA (1/3)BA (1/3)
BA(1/3)
2.4
2.4
1.8
1.8
1.6
2.3
+9V
+5V
+5V
+5V
12345678910 11 12 13 14
15
16
17
18
19
20
21
22
23
24
2526272829303132333435363738
39
40
41
42
43
44
45
46
47
48
EMI
EMI
EMI
1 2 3 4
5678
1 2 3 4
5678
1234
5 6 7 8
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
A35
B35
R101
R102
R103
R104
R108
C106
R110
R111
FL101
FL102
R112
FL103
R115
R116
C117
R117
C120
X101
R118
FB101
IC102
R119
C121
R120
R121
R122
R123
R124
R125
C130
R126
R127
R128
R130
R133
R136
IC103
C137
R138
R139
C138
IC105
R143
R144
L102
JL101
JL102
JL103
JL104
JL105
JL106
JL107
JL108
JL109
JL110
JL111
JL112
JL113
JL114
JL115
JL116
JL117
JL118
JL119
JL120
Q101
Q102
C123
C108
R107
R109
C113
C114
C118
C140
JL121
Q104
Q105
Q106
R140
R141
R142
TP101
TP102
TP103
TP104
TP105 TP106
TP107
TP108
TP109
TP110
TP111
JL123
JL124
JL122
C102
C104
C112
C119
C122
C127
C128
C129
C131
C132
C133
C141
C142
C143
CN101
C103
C105
C107
C110
C115
C116
C124
C125
C126
C139
C144
IC101
Q103
IC104(1/2)
IC104(2/2)
EMI
EMI
EMI
10
16V
:AL-CP
NJM2533M
Y SW
NJM2533M
C SW
10µH
:CHIP
1 16V B:CHIP
4.7
16V
B:CHIP
4.7 16V B:CHIP
10
16V
:AL-CP
10
16V
:AL-CP
1k
1/16W
:RN-CP
27k
1/16W
:RN-CP
100
1/16W
:CHIP
100
1/16W
:CHIP
680k
1/16W
:CHIP
100
1/16W
:CHIP
680k
1/16W
:CHIP
7.5k
1/16W
:RN-CP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
47
1/16W
:CHIP 47
1/16W
:CHIP
100
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
16.2MHz
2.2k
1/16W
:CHIP
BK2125HM601
1k
1/16W
:CHIP
1k
1/16W
:CHIP
10p
CH:CHIP
3.9k 1/16W :CHIP
CXA2123AQ-T6
COLOR DECODER
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
2SA1162
BUFF
2SC2712
BUFF
0.22 B:CHIP
2.2
:AL-CP
0
1/16W
:CHIP
0 1/16W :CHIP
100
16V
:AL-CP
100
16V
:AL-CP
100
16V
:AL-CP
100
16V
:AL-CP
#
2SA1162
BUFF
2SA1162
BUFF
2SA1162
BUFF
2.2k
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2k
1/16W
:CHIP
#
#
#
0.47
10V
B:CHIP
#
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP 0.1
16V
B:CHIP
70P
0.022 25V B:CHIP
0.01 25V B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
TC7W240FU
BUFF
2SA1162
BUFF
TC7W00FU
NAND
TC7W00FU
NAND
NTSC/OTHER
C-NT
Y-NT
C-PAL
Y-PAL
FSC
SCL
SDA
NTPL
N/M
Y/CV-PAL
Y/CV-NT
CONT
6V
15K/OTHER
A5V
A5V
A5V
A9V
A9V
AB/CD
5
6
3
1
2
7
8
4
F-SDA
F-RESET
F-SCL
V.Y
V.B-Y
V.R-Y
V.R-Y
V.B-Y
V.Y
SDA100K
AUCS
SDAT
AUCLK
AUDIO MUTE
P PROT
LAMP COV
FILT COV
F-SDA
F-SCL
F-RESET
SCL100K
EXT TEMP
C3
APC-Fil
CVBS/Y3
C2
CVBS/Y2
COMB SYS
AFC.Fi
C1
CVBS/Y1
SYNC IN
CVBS OUT(2VPpp)
VS
COMB Y
COMB C/FORCED S
D-GND
HS
SCP
Y FOR SYNC
SYNC-Vcc
SYNC-GND
Cr1
Cb1
Y1
Y OUT
Cb out
Cr out
YS1
B1
G1
R1
Y/C GND
Cr2
Cb2
Y2
Y/C Vcc
B2
G2
BPH-Fil
Xtal
D-VDD
SCL
SDA
YS3
APL FIL
R2
YS/YM
COMB C
COMB Y
CR
CB
Y
FSC OUT
ADD(8EH)
A1
GND
GVCC
A2
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
CIN
YIN
CIN
YIN
C-V
C-V
GND
RGB SYNC
15KVS
GND
GND
V.R-Y
V.R-Y
GND
GND
V.B-Y
V.B-Y
GND
GND
V.Y
V.Y
GND
GND
SCP
GND
H
V
RGBSYNC
SDA SCL
G
Y2 Y1
GND
GND
GND
GND
SDA100K
SCL100K
AUCS
SDAT
AUCLK
AUDIO MUTE
P PROT
LAMP COV
FILT COV
F-SDA
F-SCL
F-RESET
A5V
GND
6V
6V
GND
GND
A5V
GND
A9V
A9V
15KHS
N.C
N.C
N.C
15K/OTHER
AB/CD
EXT TEMP
N.C
N.C
N.C
3LINE COMB,COLOR DECODER
3D COMB FILTER,
B-SS1719<...>-BA.-P1
FROM 2/3
FROM 2/3
FROM 3/3
TO 3/3
TO Q(3/4)BOARD CN601
TO 2/3 TO 2/3
TO 3/3
TO 2/3
TO 2/3
0.5Vp-p(H)
TP108(CR)
0.5Vp-p(H)
TP109(CB)
0.6Vp-p(H)
TP110(Y)
0.9Vp-p(H)
TP107(COMB C)
0.8Vp-p(H)
TP104(COMB Y)
TP103(V)
5.0Vp-p(H)
TP102(H)
5.0Vp-p(H)
7-6 VPL-HS1
7-6
2
3
4
5
ABCDEFGH
1
BA (2/3)BA (2/3)
BA(2/3)
+9V
+9V
+9V
+5V
+5V
4.6
4.O
3.3
2.6
3.0
3.68.4
4.1
3.5
1.5
0.9
1.5
0.9
8.4
4.1
3.5
3.6
3.0
EMI
EMI
EMI
12345678
910 11 12 13 14 15 16
EMI
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1 2 3 4 5 6 7 8 9 10 11 12
13
14
15
16
17
18
19
20
21
22
23
24
252627282930313233343536
37
38
39
40
41
42
43
44
45
46
47
48
R201
Q201
L201
R202
R203
R204
R205
FL201
FL202
FL203
R206
R207
C203
IC201
R208
R209
R210
C206 R211
R212
IC202
R213
R214
R215
R216
R217
R218
R219
R220
R221
R222
R223
R224
R225
R226
R227
R228
R229
R230
FL204
R231
R232
R233
C218
R234
R235
R236
C220
R237
R238
C221
L202
L203
R239 R240
C222
C223
C225
C226
R241
R242
R243
R244
R245 R246
R247
R248
L204
C228
L205
C229
R249
R250
R251
R252
R253
C230
R254
R255
R256
R257
R258
R259
C231
L206
JL201
JL202
JL203
C207
C214
C204
R105
R106
C101
CN201
JL207
JL206
JL205
C202
C205
C208 C209 C210 C211
C212
C213
C215
C216
C217
C227
C232
C201
C219
C224
Q202
Q205
Q206
Q207
Q214
Q203
Q208
Q210
Q212
Q204
Q209
Q211
Q213
15µH
:CHIP
10
16V
:AL-CP
15µH
:CHIP
47µH
:CHIP
10
16V
:AL-CP
47µH
:CHIP
47µH
:CHIP
47
16V
:AL-CP
47
6.3V
:AL-CP
EMI
EMI
EMI
10µH
:CHIP
MC141627FT
3LINE COMB
510
1/16W
:RN-CP
22k
1/16W
:CHIP
20k
1/16W
:RN-CP
510
1/16W
:RN-CP
22k
1/16W
:CHIP
43k
1/16W
:RN-CP
20k
1/16W
:RN-CP
51
1/16W
:RN-CP
1.2k
1/16W
:CHIP
100
1/16W
:CHIP
220
1/16W
:CHIP
220
1/16W
:CHIP
220
1/16W
:CHIP
#
1/16W
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
#
#
#
3.3k
1/16W
:CHIP
270
1/16W
:CHIP
47
1/16W
:CHIP
100
1/16W
:CHIP
820
1/16W
:CHIP
2.2k
1/16W
:CHIP
100
1/16W
:CHIP
3.3k
1/16W
:CHIP
270
1/16W
:CHIP
470
1/16W
:CHIP100
1/16W
:CHIP
10k
1/16W
:CHIP
820
1/16W
:CHIP
2.2k
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
56p
CH:CHIP
27p
CH:CHIP
56p
CH:CHIP
27p
CH:CHIP
56p
CH:CHIP
22p
CH:CHIP 22p
CH:CHIP
100
16V
:AL-CP
CXA1875AM
DAC
100
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
0.1
16V
B:CHIP
100
1/16W
:CHIP
DTC144EKA
INV
10k
1/16W
:CHIP
EMI
#
#
#
47
6.3V
:AL-CP
100
16V
:AL-CP
47
6.3V
:AL-CP
13k
1/16W
:RN-CP
15k
1/16W
:CHIP
100
16V
:AL-CP
24P
FPC
:SMD
#
#
#
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
#
0.1
16V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
2SA1162
SHIFT
2SC2712
CV-CLAMP
2SC2712
CV-BUFF 2SC2712
BUFF
2SC2712
BUFF
2SA1162
Y-BUFF 2SC2712
Y-AMP
2SA1162
Y-AMP
2SC2712
Y-BUFF
2SA1162
Y-BUFF
2SC2712
C-AMP
2SA1162
C-AMP
2SC2712
C-BUFF
PL/NT
N/M
NTPL
C-PAL
Y-PAL
FSC
N/M
A9V
NTPL
Y/CV-PAL
SCL
SDA
15K/OTHER
A5V
A5V
AB/CD
CONT
VEH3
VEH2
VEH1
VEH1
VEH2
VEH3
AUCS
SDAT
AUCLK
AUDIO MUTE
P PROT
LAMP COV
FILT COV
F-SDA
F-SCL
F-RESET
EXT TEMP
SDA100K
SCL100K
PCO
BIAS
FILIN
C OUT
Y OUT
DA VCC
DA GND
O VCC
DA REF
I BIAS
AD GND
AD VCC
RTP
RBT
VIN
CLC
NC
D GND
AD CLK
C7
C6
C5
C4
C3
C2
C1
C0
D7
D6
D5
D4
D3
D2
D1
D0
BYPASS
VH
D GND
D VCC
FSC
N/M
PAL/NTSC
COMB/BPF
CLOUT
MODE0
MODE1
TE0
TE1
VCC
SCL
SDA
SDA2
SDA1
SDA0
SW3
SW2
SW1
SW0
DAC4
DAC3
GND
VEH1
VEH2
VEH3
AUCS
SDAT
GND
GND
GND
GND
AUCLK
AUDIO MUTE
LAMP COV
FILT COV
F-SDA
F-SCL
F-RESET
N.C
N.C
N.C
GND
GND
GND
GND
P PROT
EXT TEMP
SDA100K
SCL100K
3LINE COMB,COLOR DECODER
3D COMB FILTER,
B-SS1719<...>-BA.-P2
FROM 1/3
FROM 1/3
TO 1/3
TO 1/3
FROM 1/3
TO C(1/7)BOARD CN111
FROM 1/3
FROM 1/3
TO 1/3
T0 1/3
•Refer to page 7-4 for Printed Wiring Board
•Refer to page 7-4 for IC Block Diagrams
7-7
VPL-HS1 7-7
2
3
4
5
1
A BCDEFGH
BA (3/3)BA (3/3)
BA(3/3)
2.3
1.7
2.3
1.6
2.4
1.8
+9V
-9V
+9V
+3.3V
+3.3V
+5V
+3.3V
123456789101112131415161718192021222324252627282930
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
2122232425262728293031323334353637383940
OUTVCC
GND
1234
5 6 7 8
1 2 3
46
1 2 3
46
123
4 6
C301
IC302
C305
L301
L302
C306
C307
R307
C309
C310
C311
C312
C313
R309
X301
FB301 FB302
C321
R313
FB303
R314
R315
C323
R318 R319
IC305
FB304
FB305
C328
L304
C338
C339
R321
R327
C344
R328
R329
R330
L305
R331
R332
R333
C346
C347
R334
C349
R335
R342
R343
R348
C356
R360
L307
R362
R363
C360
FB306
FB307
R326
C340
C350
C351
C352
C354
IC301
Q304
Q305
Q306
R322
R323
R338
R339
R341
R345
R350
R352
R353
R354
R355
R356
R357
R358
R359
R361
R306
R308 R310 R311
R316
R317
R320
R347
C355
R349
C342
C353
R324
R325
R336
R337
R340
R344
R351
R346
R113
R114 C111
R301
TP301
TP302
FL301
FL302
FL303
JL301
JL302
JL303
JL304
R312
C303
C304
C308
C314
C315
C317
C318
C319
C324
C325
C326
C327
C335
C337
C348
C359
C322
R364 C336
C332
C341
IC304
Q307
Q310
Q315
Q303
Q308 Q311 Q313
Q309
Q302
Q312
Q314
Q301
C331
C333
C361
C334
C330
C329
100
16V
:AL-CP
10
16V
:AL-CP
10µH
:CHIP
10µH
:CHIP
100
16V
:AL-CP
10µH
:CHIP
10µH
:CHIP
BK2125HM601
BK2125HM601
4.7µH
:CHIP
4.7UH
:CHIP
BLM32A06 BLM32A06 BLM32A06
BK2125HM601
100
16V
:AL-CP
68
1/16W
:RN-CP
560
1/16W
:RN-CP
560
1/16W
:RN-CP
220k
1/16W
:CHIP
1
10V
B:CHIP
47
1/16W
:CHIP
4.7k
1/16W
:CHIP
100
1/16W
:CHIP
470
1/16W
:CHIP
2.2k
1/16W
:CHIP #
1/16W
100
1/16W
:CHIP
1.5k
1/16W
:CHIP
470
1/16W
:CHIP
10k
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
20MHz
µPD64082GF
3D COMB FILTER
100
16V
:AL-CP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
100p
CH:CHIP
470p
CH:CHIP
12p
CH:CHIP
12p
CH:CHIP
12p
CH:CHIP
12p
CH:CHIP
390p
CH:CHIP
0.0022
B:CHIP
0.0022
B:CHIP
BA05FP
5V REG
100
16V
:AL-CP
220
1/16W
:CHIP
5.6k
1/16W
:RN-CP
1
:AL-CP
1
:AL-CP
15p
CH:CHIP
47k
1/16W
:CHIP
390
1/16W
:RN-CP
100
16V
:AL-CP
470
1/16W
:CHIP
27p
CH:CHIP
#
#
#
10
16V
:AL-CP
BA033F-E2
3.3V REG
2SC2712
BUFF
2SA1162
BUFF
2SC2712
BUFF
1k
1/16W
:CHIP
1k
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2k
1/16W
:CHIP
820
1/16W
:CHIP
#
820
1/16W
:CHIP
820
1/16W
:CHIP
33k
1/16W
:CHIP
12k
1/16W
:CHIP
33k
1/16W
:CHIP
12k
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
1.8k
1/16W
:CHIP
1.8k
1/16W
:CHIP
1.8k
1/16W
:CHIP
1.8k
1/16W
:CHIP
1.8k
1/16W
:CHIP
1.8k
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
2.2
16V
F:CHIP
2.2k
1/16W
:RN-CP
15p
CH:CHIP
15p
CH:CHIP
560
1/16W
:RN-CP
560
1/16W
:RN-CP
5.6k
1/16W
:RN-CP
5.6k
1/16W
:RN-CP
1.5k
1/16W
:RN-CP
1k
1/16W
:RN-CP
2.2k
1/16W
:RN-CP
180
1/16W
:RN-CP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
10
16V
:AL-CP
1k
1/16W
:CHIP
#
#
#
#
0
1/16W
:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
#
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP 0.1
16V
B:CHIP
0.1
16V
B:CHIP
0
1/16W
:CHIP
330
6.3V
:AL-CP
0.1 16V B:CHIP
15p
CH:CHIP
MSM514265C
4M DRAM
2SA1162
CV-BUFF
2SA1162
CV-BUFF
2SC2712
CV-BUFF
2SA1162
BUFF
2SC2712
BUFF 2SC2712
AMP 2SC2712
Y-BUFF
2SC2712
BUFF
2SA1162
BUFF
2SC2712
AMP
2SC2712
C-BUFF
2SA1162
BUFF
0.1 16V B:CHIP
0.1 16V B:CHIP
47 6.3V :AL-CP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
D5V
D3.3V
SDA
SCL
Y-NT
C-NT
Y/CV-NT
6V
A5V
A9V
IO0
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO0
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
IO9
IO10
IO11
IO12
IO13
IO14
IO15
IO9
IO10
IO11
IO12
IO13
IO14
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA4
MA5
MA6
MA8
MA0
MA1
MA2
MA3
IO8
IO15
MA7
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
MCAS
MWE
MOE
MIO15
MIO14
MIO13
MIO12
MIO11
MIO10
MIO9
MIO8
MIO7
MIO6
MIO5
MIO4
MIO3
MIO2
MIO1
MIO0
DGND
XI
XO
DVDD
HWCK
HRCK
HRST
DGND
DVDD
AVDD
FSCO
AGND
AGND
FSC1
CPLL
RPLL
CKMD
DGND
CLK8
RSTB
SLA0
SCL
SDA
ST0
ST1
ALTF
CSI
TEST
LINE
KIL
DGND
AVDD
CBPC
ACO
AYO
CBPY
AGND
AGND
AYI
VCL
VRBY
VRTY
AVDD
AVDD
VRTC
VRBC
ACI
AGND
MRAS
DVDD
VCC
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
NC
NC
*WE
*RAS
NC
A0
A1
A2
A3
VCC GND
A4
A6
A7
A8
*OE
*UCAS
*LCAS
NC
IO9
IO10
IO11
GND
IO13
IO14
IO15
IO16
GND
DGND
A5
VCC
IO12
MA8
AVDD
NSTD
DVDD
DYCO0
DYCO1
DYCO2
DYCO3
DYCO4
DYCO5
DYCO6
DYCO7
DYCO8
DYCO9
HO3
HO2
HO1
HO0
HI3
HI2
HI1
HI0
GND
C-NT
GND
FROMFROM
FROM 1/3
TO 1/3
FROM 1/3
3D COMB FILTER,
3LINE COMB,COLOR DECODER
B-SS1719<...>-BA.-P3
•Refer to page 7-4 for Printed Wiring Board
•Refer to page 7-4 for IC Block Diagrams
7-8 VPL-HS1
7-8
BBBB
BB -A SIDE-
SUFFIX: -11
CN801
C801
C802
C803
C804
C805
C806
C811
C812
C816
C818
C819
C820
C821
C822
C823
C825
C826
IC801
IC802
IC803
L801
L802
Q803
R807
R808
R809
R814
R815
R816
R817
R818
R819
R825
R826
R827
R828
R829
R830
TP801 TP802
TP803
TP804 TP805
TP806
TP807
BB -B SIDE-
SUFFIX: -11
CN403
C101
C102
C105
C201
C206
C208
C209
C210
C212
C214
C215
C216
C217
C219 C221
C222 C223
C224
C225
C226
C227
C228
C229
C230
C231
C232
C233
C234C235C236
C403
C404
C505 C506
C507
C508
C509
C510
C511
C512
C513
C514
C515 C516
C517
C521
C522
C523
C524
C525
C526
C527
C528
C529
C531C533
C535
C536
C537
C538
C539
C542
C543
C544
D401 FB201
FB202
FB203
FB205
FB401
FB502
FB503
FB506
IC102
IC201
IC401 IC402
IC403
IC404
IC406
IC408
JL101JL102
JL103
JL104
JL105
JL106JL107JL108
JL109JL110
JL111
JL112JL113 JL114
JL115
JL201
JL202
JL203
JL204
JL205JL206
JL207JL208
JL209
JL401
JL501
JL502
JL503
JL506JL507
JL508
JL509
JL510
JL511
JL512
JL513
JL514 Q201
Q202
RB201RB202
RB203 RB204RB205 RB206RB207RB208RB209RB210
RB211 RB212
RB406RB407
R101
R102
R103
R105
R106
R201
R202
R203
R204
R205
R206
R207
R208
R209
R210
R214
R215
R216
R218
R220
R221
R222
R226
R227
R401
R402
R403
R404
R405
R406
R407
R409
R411
R412
R413
R414
R415
R416
R417
R418
R419
R420
R421
R422
R423
R424
R425R426
R427
R428
R431
R506
R507
R508
R510
R511
R512
R513
R515
R516
R517 R518 R519
R520 R521
R522
R523
R524
R533
R534
R535
R536
R537
R538
R539
R540
R541
R542
R543
R544
R545 R546R547
R548 R549
R550
R551
R552
R553
R554
R556
R559
—-
BB
—-
1-682-353-11
D401 *E-1
IC102 *F-1
IC201 A-1
IC202 A-1
IC203 A-2
IC204 A-3
IC401 *E-1
IC402 *D-1
IC403 *D-3
IC404 E-1
IC405 E-2
IC406 *E-2
IC408 *D-1
Q201 *A-2
Q202 *A-3
TP101 B-3
TP102 B-3
TP112 C-1
TP201 B-1
TP202 B-1
TP203 B-1
TP204 A-3
TP205 A-3
TP206 B-1
TP207 B-1
TP401 D-3
TP403 C-3
*:B Side mount
AD9884AKS-100 (IC203)
7
R IN
R
OUTA
R
OUTB
8
G
OUTB
B
OUTB
DATACK
HSOUT
REFIN
REFOUTSDA SCL A0 A1
PWRON
FILT SOGIN SOGOUT
G
OUTA
B
OUTA
A/D
105
112
95
102
15 A/D
92
85
82
75
22
40
41
28
27
44
126
A/D
72
65
63
55
115
127
G IN
B IN
HSYNC
COAST
CLAMP
CKINV
REF
CONTROL
CLOCK
GENERATOR
CLAMP
CLAMP
CLAMP
8
8
8
8
8
8
8
8
2
0.15V
125
32313029
118
1445
CKEXT
117
MK1714-01(IC403)
1
2
3,4 7,8,13,17
5
6 9
18
19
20
12
10
OUTPUT
BUFFER
OUTPUT
BUFFER
PLL CLOCK
MULTIPLIER AND
SPREAD
SPECTRUM
CIRCUITRY
CRYSTAL
OSCILLATOR
11
5
CLOCK OUT
REF
OE (BOTH OUTPUTS)XSEL
X1
X2
VDD GND
S4
S3 S2
PD
LOW EMI
ENABLE
INPUT CRYSTAL
OR CLOCK
BA033F (IC201)
Vcc
(IN)
OUT
GND
+
—
Reference
Voltege
LP29851M5X-3.3 (IC202)
1
2
4
3
5
V
IN
OVER CURRENT/
OVER TEMP
PROTECTION
V
REF 1.23V
V
OUT
ON/OFF
S-80828ANNP (IC401)
VOO 2
VSS 4
OUT
1
VREF
IRMF-AOT-QTP (IC102)
1
2
5
3
4
7 6
8
VDD
U1
IRIN1
IROUT
IRIN2
IREN1
IREN2
RES VSS
MODE SELECT
INPUT
74VHC125MTCX (IC204)
1
2
3
1A
1Y
1 OE
4
5
6
2A
2Y
2 OE
7
GND
10
9
8
3A
3Y
3 OE
13
12
11
4A
4Y
4 OE
14 VCC
7-9
VPL-HS1 7-9
2
3
4
5
1
A BCDEFGH
BB (1/4)BB (1/4)
•Refer to page 7-8 for Printed Wiring Board
•Refer to page 7-8 for IC Block Diagrams
BB(1/4)
+5V
B
R
G
R/G/B
VCC
OUT
GND
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
A35
B35
1234
5 6 7 8
1
2
3
R104
R105
R106
R107
R108
R109
R110
R111
C101
C103
C105
IC102
CN101
R101
R102
R103
C102
C104
JL101
JL102
C106
JL111
JL115
JL103
JL104
JL105
JL106
JL107
JL108
JL109
JL110
JL112
JL113
JL114
TP101
TP102
CN103
CN102
IC101
47k
1/16W
:CHIP
1
10V
B:CHIP
47k
1/16W
:CHIP
0.1
16V
B:CHIP 0.1
16V
B:CHIP
100
1/16W
:CHIP
100 1/16W :CHIP
100
1/16W
:CHIP
IRMF-AOT-QTP
SIRCS IF
5.6k
1/16W
:CHIP
100 1/16W :CHIP
100 1/16W :CHIP
50P
WHT
22
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100p
CH:CHIP
100p
CH:CHIP
#
#
47
10V
#
#
#
#
#
#
#
#
#
#
#
#
#
3P
:SMD
70P
WHT
:SMD
#
3.3V-2
HSI
VSI
EVEN
PW
MS CONT
R
G
B
CLP
VS
HS
5V
5V-4
5V-4
DCLK
DHS
DVS
DRE0
DRE1
DRE2
DRE3
DRE4
DRE5
DRE6
DRE7
DBE0
DBE1
DBE2
DBE3
DBE4
DBE5
DBE6
DBE7
DGE0
DGE1
DGE2
DGE3
DGE4
DGE5
DGE6
DGE7
PW-OSD EN
PIC MUTE
INTERLACE
PW RESET
MS SW
KEY 0
MS RESET
RXD MS
TXD MS
BRD STATUS
MENU STATUS
SIRCS
RXD PW
TXD PW
VDD
IRIN1
IRIN2
VSS
IROUT
RES
IREN1
IREN2
TXD PW
RXD PW
PW RESET
INTERLACE
SIRCS
GND
PW-OSD EN
MENU STATUS
BRD STATUS
TXD MS
RXD MS
MS RESET
GND
GND
D+3.3V
KEY 0
MS SW
SDA 400K
SCL 400K
SUB 5V
D+3.3V
D+3.3V
D+3.3V
D+3.3V
D+3.3V
D+3.3V
GND
GND
GND
GND
RE0
RE1
RE2
RE3
RE4
RE5
RE6
RE7
BE0
GE0
BE1
GE1
BE2
GE2
BE3
GE3
BE4
GE4
BE5
GE5
BE6
GE6
BE7
GE7
GND
GND
DCLK
DCLK
GND
GND
HSOX
GND
VSOX
GND
HSI
GND
VSI
GND
-1
PIC MUTE
GND
GND
GND
R
GND
R
GND
GND
GND
G
GND
GND
GND
B
GND
GND
GND
GND
GND
GND
SIRCS-NR
A5V
A5V
A5V
A5V
A5V
GND
GND
GND
GND
GND
G
GND
B
GND
GND
HD
HD
GND
GND
VD
VD
CLP
CLP
GND
GND
SUB 5V
SUB+5V
SIRCS-NF
GND
DHS
DVS
CN112
SCAN CONVERTER,AD CONVERTER,
SIRCS INTERFACE
B-SS1719<...>-BB.-P1
TO Q(2/4)BOARD CN502
TO 2/4
FROM 4/4
TO 4/4
FROM 3/4
FROM 2/4
TO NF BOARD
CN101
TO C(1/7)BOARD
3.3Vp-p(H)
TP101(DHS)
3.3Vp-p(H)
TP102(DVS)
7-10 VPL-HS1
7-10
2
3
4
5
ABCDEFGH
1
BB (2/4)BB (2/4)
•Refer to page 7-8 for Printed Wiring Board
•Refer to page 7-8 for IC Block Diagrams
BB(2/4)
SCAN CONVERTER,AD CONVERTER,
SIRCS INTERFACE
B-SS1719<...>-BB.-P2
+3.3V
+5V
+3.3V
+3.3V
R/G/B
B
R
G
R
R
G
B
123456789101112131415161718192021222324252627282930
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
3132
121
122
123
124
125
126
127
128
333435363738
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99
100 101 102
123
4 5
1234567
8 9 10 11 12 13 14
1234
5678
Q202
L201
R201
R202
R203
R204
R205
R206
R207
R208
R209
R210
R211
R212
R213
R214
R217
R218
R219
R220
R221
R222
R223
R224
R225
R226
R227
C203
C204
C205
C206
C207
C208
C209
C210
C211
C212
C213
C214
C215
C216
C217
C219
C221
C222
C223 C226
C227 C228
C229
C230
C231
C232
C233
C234
C235
C236
C237
IC202
FB206
C220
TP201
TP202
TP203
TP204
TP205
R216
C201
C218
JL201
JL202
JL203
JL204
JL205
JL206
JL207
JL208
JL209
TP206 TP207
R215
FB201
FB202
FB203
C202
C224
C225
RB201 RB202
RB203
RB204
RB205
RB206
RB207
RB208
RB209
RB210
RB211RB212
FB204
FB205
IC201
Q201
IC203
IC204
0.1
16V
B:CHIP
0.047
16V
B:CHIP
0.01
25V
B:CHIP
0.1
16V
B:CHIP
0.047
16V
B:CHIP
0.1
16V
B:CHIP
0.047
16V
B:CHIP
0.1
16V
B:CHIP
10k
1/16W
:CHIP
0.01
25V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
BK1608TS601
2.2
16V
F:CHIP
100
1/16W
:CHIP
#
330k
1/16W
:CHIP
100k 1/16W :CHIP
LP2985IM5X-3.3
3.3V REG
0.1
16V
B:CHIP
100
1/16W
:CHIP
2.2k
1/16W
:CHIP
DTC114EUA-T106
SYNC SW
6.8µH
0.01
25V
B:CHIP
0.1
16V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
3.3k
1/16W
:RN-CP
0.1
16V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.1
16V
B:CHIP
0.01
25V
B:CHIP
0.1
16V
B:CHIP
0.01
25V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
22 1/16W :CHIP
22
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
22
1/16W
:CHIP
47
1/16W
:CHIP
#
0.047
16V
B:CHIP
2.2
16V
F:CHIP
0.01
25V
B:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
0.1 16V B:CHIP
150
:RN-CP
150
:RN-CP
150
:RN-CP
150
:RN-CP
150
:RN-CP
150
:RN-CP
47
6.3V
:AL-CP
10k
1/16W
:CHIP
0.47
10V
B:CHIP
10
6.3V
B:CHIP
#
#
#
#
#
#
#
#
#
100
1/16W
:CHIP
BLM11B750S
BLM11B750S
BLM11B750S
22
6.3V
3900p
B:CHIP
39000p
16V
B:CHIP
22*4 22*4
22*4
22*4
22*4
22*4
22*4
22*4
22*4
22*4
22*422*4
BK1608TS601
BK1608TS601
BA033F
3.3V REG
HN1C01FU-TE85R
CLAMP
AD9884AKS-100
AD CONVERTER
74VHC125MTCX
BUFF
VS
HS
SDA PW
SCL PW
VSI
HSI
3.3V-2
3.3V-2
ABUS
CLP
VBUS
R
G
B
MS/CE
5V
5V
ARO0
ARO1
ARO2
ARO3
ARO4
ARO5
ARO6
ARO7
AGE0
AGE1
AGE2
AGE3
AGE4
AGE5
AGE6
AGE7
AGO0
AGO1
AGO2
AGO3
AGO4
AGO5
AGO6
AGO7
ABE0
ABE1
ABE2
ABE3
ABE4
ABE5
ABE6
ABE7
ABO0
ABO1
ABO2
ABO3
ABO4
ABO5
ABO6
ABO7
HS
HSOUT
ARE0
ARE1
ARE2
ARE3
ARE4
ARE5
ARE6
ARE7
HS
VS
VVS
VHS
ADCLK
GHSFOUT
GREF
GCOAST
GSOG
GBLKSPL
NC
NC
NC
NC
VD
GND
GND
VD
GND
VD
VD
GND
GND
VD
GND
VD
VD
GND
GND
VD
GND
VD
GND
CKINV
CLAMP
SDA
SCL
A0
A1
PVD
PVD
GND
NC
NC
VDD
GND
DBB0
DBB1
DBB2
DBB3
DBB4
DBB5
DBB6
DBB7
VDD
GND
GND
GND
PVD
GND
PVD
GND
NC
FILT
CKEXT
PVD
GND
COAST
HSYNC
GND
DRB0
DRB1
DRB2
DRB3
DRB4
DRB5
DRB6
DRB7
VDD
GND
DGA0
DGA1
DGA2
DGA3
DGA4
DGA5
DGA6
DGA7
VDD
GND
DGB0
DGB1
DGB2
DGB3
DGB4
DGB5
DGB6
DGB7
VDD
GND
DBA0
DBA1
DBA2
DBA3
DBA4
DBA5
DBA6
DBA7
VD
REFIN
REFOUT
PWRDNB
VD
GND
GND
GND
VDD
GND
HSOUT
DATACK
VDD
GND
DRA0
DRA1
DRA2
DRA3
DRA4
DRA5
DRA6
DRA7
VDD
GND
R IN
G IN
B IN
DATACK/
SOGOUT
SOGIN
VIN
GND
ON/OFF
VOUT
BYPASS
1A
1Y
2A
2Y
GND
VCC
4A
4Y
3A
3Y
1
3
4OE
OE
OE
2OE
VS
HS
R IN
G IN
B IN
-1
-1
SDA SCL
TO 1/4
FROM 4/4
FROM 4/4
FROM 1/4
FROM 1/4
TO 4/4
FROM 1/4
TO 3/4
AD9884AKS-100AD9884AKS-140AD9884AKS-140
3.3Vp-p(H)
TP204(HS)
3.3Vp-p(V)
TP205(VS)
TP201(R IN)
0.58Vp-p(H)
TP202(G IN)
0.58Vp-p(H)
TP203(B IN)
0.6p-p(H)
7-11
VPL-HS1 7-11
2
3
4
5
1
A BCDEFGH
BB (3/4)BB (3/4)
BB(3/4)
+3.3V
R/G/B
R/G/B
12345678910
11 12 13 14 15 16 17 18 19 20
R402
R413
R414
R415
R416
R417
R418 R419 R420
R421
R422
R423
R424
R425
C401
C402
C403
C404
RB402
RB403
RB404
FB401
IC405(1/6)
IC405(2/6)
IC405(6/6)
R404
R403
R405
R406
R428
R426
R427
R412
R408
R409
R410
R411
R407
R401
JL401
RB405
RB406
RB407
IC403
X201
RB401
10k
1/16W
:CHIP
12p
CH:CHIP
12p
CH:CHIP
0.1
16V
B:CHIP
0.01
25V
B:CHIP
BK1608TS601
1k
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
22
1/16W
:CHIP
1k
1/16W
:CHIP
47
1/16W
:CHIP
10*4
:CHIP
10*4
:CHIP
10*4
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
47
1/16W
:CHIP
#
#
PW365
SCAN CONV
PW365
SCAN CONV
PW365
SCAN CONV
10k
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
#
#
#
#
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
#
100
1/16W
:CHIP
#
10*4
:CHIP
10*4
:CHIP
10*4
:CHIP
MK1714-01
SPECTRUM SPREAD
10*4
:CHIP
3.3V-2
EVEN
VBUS
ABUS
3.3V-3
MS CONT
PIC MUTE MS
5V-4
341 287
289
263
343
264
290
231
240
239
248
238
237
274
273
245
272
300
297
270
324
351
350
323
349
295
322
319
318
292
317
339
260
286
312
338
311
337
310
336
283
257
309
282
256
334
333
307
332
306
254
305
279
330
303
158
152
159
144
151
160
157
208
214
213
215
216
223
222
221
133
128
135
181
182
183
184
189
51
26
102
109
77
52
78
110
190
191
192
197
198
199
200
207
117
103
104
118
111
112
119
120
99
48
74
23
49
100
75
24
136
167
143
141
142
166
168
42
44
21
47
22
73
9
36
10
89
63
37
11
90
64
38
12
39
13
92
66
40
14
93
67
41
15
94
68
16
VCLK
VPEN
VVS
VHS
VY0
VY1
VY2
VY3
VY4
VY5
VY6
VY7
VUV0
VUV1
VUV2
VUV3
VUV4
VUV5
VUV6
VUV7
DRE1
DRE2
DRE3
DRE4
DRE5
DRE6
DRE7
DBE1
DBE2
DBE3
DBE4
DBE5
DBE6
DBE7
DBE0
DGE0
DGE1
DGE2
DGE3
DGE4
DGE5
DGE6
DGE7
DRE0
DHS
DVS
DCLK
GSOG
ADCLK
HS
VS
GCOAST
GBLKSPL
GREF
HSOUT
ARE0
ARE1
ARE2
ARE3
ARE4
ARE5
ARE6
ARE7
AGE0
AGE1
AGE2
AGE3
AGE4
AGE5
AGE6
AGE7
ABE0
ABE1
ABE2
ABE3
ABE4
ABE5
ABE6
ABE7
ARO0
ARO1
ARO2
ARO3
ARO4
ARO5
ARO6
ARO7
AGO0
AGO1
AGO2
AGO3
AGO4
AGO5
AGO6
AGO7
ABO0
ABO1
ABO2
ABO3
ABO4
ABO5
ABO6
ABO7
GHSFOUT
VHS
VVS
VPEN
VCLK
MS RESET
RXD MS
TXD MS
BRD STATUS
SIRCS
MENU STATUS
VY0
VY1
VY2
VY3
VY4
VY5
VY6
VY7
VUV0
VUV1
VUV2
VUV3
VUV4
VUV5
VUV6
VUV7
KEY 0
MS SW
VCLK
VVS
VHS
VFIELD
VB/UV/V0
VB/UV/V1
VB/UV/V2
VB/UV/V3
VB/UV/V4
VB/UV/V5
VB/UV/V6
VB/UV/V7
VG/Y /U0
VG/Y /U1
VG/Y /U2
VG/Y /U3
VG/Y /U4
VG/Y /U5
VG/Y /U6
VG/Y /U7
VR/ /Y0
VR/ /Y1
VR/ /Y2
VR/ /Y3
VR/ /Y4
VR/ /Y5
VR/ /Y6
VR/ /Y7
GENERAL I/O PORT B
X2
X1
VDD
VDD
S4
S3
GND
GND
S2
CLK
REF
OE
GND
S0
NC
S1
GND
LEE
XSEL
PD
GHS
GCLK
GVS
GREF>
GBLKSPL>
GCOAST>
GRE0
GRE1
GRE2
GRE3
GRE4
GRE5
GRE6
GRE7
GGE0
GGE1
GGE2
GGE3
GGE4
GGE5
GGE6
GGE7
GBE0
GBE1
GBE2
GBE3
GBE4
GBE5
GBE6
GBE7
GRO0
GRO1
GRO2
GRO3
GRO4
GRO5
GRO6
GRO7
GGO0
GGO1
GGO2
GGO3
GGO4
GGO5
GGO6
GGO7
GBO0
GBO1
GBO2
GBO3
GBO4
GBO5
GBO6
GBO7
GRAPHIC PORT
GPEN
GSOG
GFIELD
PLLCLK
GFBK>
GCLKOUT>
GHSFOUT>
GADCCLK>
DISPLAY PORT
DRE0
DRE1
DRE2
DRE3
DRE4
DRE5
DRE6
DRE7
DGE3
DGE4
DGE0
DGE1
DGE2
DGE5
DGE6
DGE7
DBE0
DBE1
DBE2
DBE3
DBE4
DBE5
DBE6
DBE7
DRO0
DRO1
DRO2
DRO3
DRO5
DRO4
DRO6
DRO7
DGO1
DGO2
DGO3
DGO4
DGO5
DGO7
DGO6
DBO1
DBO0
DBO2
DBO4
DBO3
DBO5
DBO6
DBO7
DGO0
> DCKEXT DCLK >
DHS >
DVS >
DENR >
DENB >
DENG >
VPEN
VLAV
TO 1/4
FROM 2/4
TO 2/4
GND
GND
VCLK
VCLK
VPEN
VPEN
VVS
VVS
VHS
VHS
GND
GND
GND
GND
GND
GND
SIRCS
MS RESET
MENU STATUS
USB MS+
TXD MS
USB MS-
RXD MS
VUY7
VUV6
VUY5
VUV4
VUY3
VUV2
VUY1
VUV0
VY7
VY6
VY5
VY4
VY3
VY2
VY1
VY0
KEY 0
BRD STATUS
MS SW
SUB5V
SUB5V
SUB5V
SUB5V
GND
SUB5V
SUB5V
PIC MUTE MS
TO 1/4
TO 4/4
CN804
TO MS(3/3)BOARD
SCAN CONVERTER,AD CONVERTER,
SIRCS INTERFACE
B-SS1719<...>-BB.-P3
CN403
5OP
WHT
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
A19
B18
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
•Refer to page 7-8 for Printed Wiring Board
•Refer to page 7-8 for IC Block Diagrams
7-12 VPL-HS1
7-12
2
3
4
5
ABCDEFGH
1
BB (4/4)BB (4/4)
BB(4/4)
+2.5V
+3.3V
12345678910111213141516171819202122
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44
1 2
34
1234567
8 9 10 11 12 13 14
G
IO
ON/OFF ADJ
1234567
8 9 10 11 12 13 14
1
2
3
VDD
OUTGND
OE/ST
123456789101112131415161718192021222324
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
TP403
TP112
C501
C502
C503
C504
C505
C506
C507
C508
C509
C510
C511
C512
C513
C514
C515
C516
C517
C518
C519
C520
C521
C522
C523
C524
C525
C526
C527
C528
C529
C530
C531
C533
C535
C536
C537
C538
C539 C540
C541
C542
C543
C544
R504
R505 R506
R508
R512 R513
R515
R539
R540
R542
R543
R548
R549
R553
R554
FB503
FB505
FB506
IC401
D401
IC404
IC405(3/6)
IC405(4/6)
IC405(5/6)
FB501
FB502
FB504
R501
R502
R503
R514
R523
R524
R507
R541
R544
R545
R546
R547
R550
R551
R552
R556
R510
R511
C545
JL501
JL502
JL503
JL506
JL507
JL508
JL509
JL510
JL511
JL512
JL513
JL514
R557
R558
R522
R559
R534
R536
R537
R538
R533
R535
X501
R516
R517
R518
R519
R520
R521
IC402
CN401
IC408
C532 C534
IC407
IC406
X502
0.1
16V
B:CHIP
BK1608TS601
2.2k
1/16W
:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
BK1608TS601
BK1608TS601
#
0.1
16V
B:CHIP
S-80828ANNP
RESET
1
10V
B:CHIP
100
1/16W
:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
10k
1/16W
:CHIP
33k
1/16W
:CHIP
DAN202K
PROTECT
100
1/16W
:CHIP
47
1/16W
:CHIP
3.3k
1/16W
:CHIP
3.3k
1/16W
:CHIP
47
6.3V
:AL-CP
47
6.3V
:AL-CP
47
6.3V
:AL-CP
47
6.3V
:AL-CP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
10k
1/16W
:CHIP
#
#
4.7k
1/16W
:CHIP
4.7k
1/16W
:CHIP
#
#
47
6.3V
:AL-CP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
PQ2TZ15U
2.5V REG
PW365
SCAN CONV
PW365
SCAN CONV
PW365
SCAN CONV
BLM41P750S
BLM41P750S
BLM41P750S
100
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
22
1/16W
:CHIP
22 1/16W :CHIP
#
0
1/16W
:CHIP
0 1/16W :CHIP
0 1/16W :CHIP
0 1/16W :CHIP
0 1/16W :CHIP
0 1/16W :CHIP
0 1/16W :CHIP
0 1/16W :CHIP
0
1/16W
:CHIP
100 1/16W :CHIP
100 1/16W :CHIP
0.1
16V
B:CHIP
#
#
#
#
#
#
#
#
#
#
#
#
100
1/16W
:CHIP
10k
1/16W
:CHIP #
0
:CHIP
#
#
#
0
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
2770Y
130MHz
#
#
#
#
#
#
74VHC14MTCX
INV
3P
:SMD
74VHC08MTCX
AND GATE
12p
CH:CHIP
12p
CH:CHIP
IS61LV6416-15T
1M SRAM
MBM29LV800TA
90PFTN
FLASH ROM
RESET
PIC MUTE
3.3V-2
3.3V-2
3.3V-2
3.3V-2
SDA PW
SCL PW
PW
3.3V-2
2.5V
MS/CE
PIC MUTE MS
3.3V-2
3.3V-2
3.3V-2
3.3V-3
3.3V-3
3.3V-3
3.3V-3
3.3V-3
20
25
56
59
62
69
70
71
72
96
97
123
126
147
150
176
203
206
230
234
267
278
281
284
291
293
294
299
321
340
344
345
352
55
65
76
127
137
161
174
179
218
232
246
250
269
277
280
285
288
298
308
313
316
1
17
18
19
45
46
50
82
85
88
91
95
98
101
124
125
134
138
148
149
162
165
173
175
180
204
205
224
225
229
236
241
247
252
255
258
259
261
262
265
266
268
271
296
314
320
325
326
329
331
335
342
346
347
348
114
43
105
226
115
315
253
8
108
35
304
328
227
228
132
81
202
209
210
217
211
212
219
220
233
242
235
249
243
275
301
276
244
251
327
302
131
130
140
139
145
146
153
154
155
156
163
164
169
170
171
172
196
195
186
185
201
178
177
187
188
193
194
122
121
129
113
13
5
24
53
54
27
28
83
29
2
3
57
84
30
4
58
31
5
32
116
107
106
79
80
6
86
60
33
7
34
87
61
A17
A1A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A18
A1
A2
A3
A4
A5
A6
A7
A8
A9 A10
A11
A12
A13
A14
A15
A16
A17
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D8
D9
D10
D11
D12
D13
D14
D15
A0
ROMOEN
RAMOEN
BHENN
ROMWEN
RAMWEN
D0
D1
D2
D3
D4
D5
D6
D7
A19
INTERLACE
PW-OSD EN
PIC MUTE
PW RESET
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
ROMOEN
ROMWEN
RAMOEN
RAMWEN
TXD PW
RXD PW
BHENN
A0
A1
A2
A3
A4
CS
I/O1
I/O2
I/03
I/O4
VCC
VSS
I/O5
I/O6
I/O7
I/O8
WE
A5
A6
A7
A8
NC
A15
A14
A13
OE
UB
LB
I/O16
I/O15
I/O14
I/O13
VSS
VCC
I/O12
I/O11
I/O10
I/O9
NC
A12
A11
A10
A9
NC
A15
A14
A13
A12
A11
A10
A9
A8
NC
NC
RP#
NC
A17
A7
A6
A5
A4
A3
A2
A1
A16
BYTE#
VSS
DQ15/A-1
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
VCC
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
OE#
VSS
CE#
AQ
WE#
RY/BY
NC
NC
D3.3V
D3.3V
NC
VSS OUT
VDD
GND
D3.3V
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
VDD2.5
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
VDD3.3
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
NMI
RD
WR
BHEN
ROMOE
ROMWE
RAMWE
RAMOE
CS0
CS1
EXTINT0
EXTINT1
EXTINT2
CS2
CS3
NC
NC
CPUEN
CPUTMS
RESET
CLKIN
UCSRC
MCKEXT
MODE1
MODE2
MODE0
CPUTCLK
CPUTDI
CPUTDO
XTALIN
XTALOUT
D+2.5V
IRRCVR1
IRRCVR0
>RXD
<TXD
PORTA0
PORTA1
PORTA2
PORTA3
PORTA4
PORTA5
PORTA6
PORTA7
PORTB0
PORTB1
PORTB2
PORTB3
PORTB4
PORTB5
PORTB7
PORTB6
WDTEN
PORTC0
PORTC1
PORTC2
PORTC3
PORTC5
PORTC6
PORTC7
PORTC4
RXD
GND
TXD
SCAN CONVERTER,AD CONVERTER
SIRCS INTERFACE
B-SS1719<...>-BB.-P4
TO 2/4
TO 2/4
TO 1/4
FROM 1/4
•Refer to page 7-8 for Printed Wiring Board
•Refer to page 7-8 for IC Block Diagrams
7-13
VPL-HS1 7-13
BCBC
BC -A SIDE-
SUFFIX: -11
BC -B SIDE-
SUFFIX: -11
—-
BC
—-
1-682-361-11
IC801 B-1
IC802 B-2
IC803 A-2
Q803 A-2
TP801 A-2
TP802 A-2
TP803 B-1
TP804 D-1
TP805 D-2
TP806 D-1
TP807 A-2
CN801
C801
C802
C803
C804
C805
C806
C811
C812
C816
C818
C819
C820
C821
C822
C823
C825
C826
IC801
IC802
IC803
L801
L802
Q803
R807
R808
R809
R814
R815
R816
R817
R818
R819
R825
R826
R827
R828
R829
R830
TP801 TP802
TP803
TP804 TP805
TP806
TP807
C807
C808
C809
C810
C813
C814
C815
JL801 JL802
JL803
JL804
JL805
JL806
JL807
JL808
JL809
JL810
JL811
JL812
JL813
JL814
JL815
JL816
JL817
JL818 JL819
JL820
R810
R811
R812
R813
R820
R821
R822
R823
R824
CXA1846BN/T4 (IC801)
12345 6 7
+
–
+
–
INN2
VCT2
INAO2
VRIN2
INP2 INP1
INN1
VCT1
INAO1
VRIN1
OUT1
N.C.
GND
VCT
Vcc
CE
DATA
CLK
INIT
OUT2
8910
11
12
13
14151617181920
8dB STEP
VOLUME
VCT
BUFFER
1dB STEP
VOLUME
SHIFT
REGISTOR
LATCH LATCH
CONTROL
8dB STEP
VOLUME
1dB STEP
VOLUME
ZC
DET
7-14 VPL-HS1
7-14
2
3
4
5
ABCDEFGH
1
BC
1.2
1.2
16.5
4.7 1.3
14.0
0.8
8.1
0.8
6.9
6.9
+12V
+14V
+14V
+15V
AUDIO R
AUDIO L
AUDIO R
AUDIO L
AUDIO R
AUDIO L
AUDIO L
AUDIO R
AUDIO R AUDIO L
AUDIO R
AUDIO L
AUDIO L
AUDIO R
1234567891011
1
2
3
4
G
IO
ON/OFF ADJ
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1 2 3 4 5 6 7 8 9 10
11121314151617181920
Q803
R807 R808 R809
R810
R811
C803
C804
C806
C809
C810
L801
R812
R813
R816 R817
R818
R819
R820
R821 R824
R823
R822
C813
IC803
C808
C807
TP801
TP802
TP803
TP804
TP805
C801
C802
C811
C814
C815
C819
C820
C821
C823
IC802
JL801
JL802
JL803
JL804
JL805
JL806
JL807
JL808
JL809
JL810
JL811
JL812
JL813
JL814
JL815
JL816
R826
R827
C818
C805
TP807
TP806
IC801
L802
C816 C822
CN802
R814
R815
R825
R828
R829
R830
C825
C826
CN801
JL817
JL818
JL819
JL820
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
HNIB01FU-TE85R
MUTE SW
100
1/16W
:CHIP
100
1/16W
:CHIP
0.1
16V
B:CHIP
100
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10
16V
:AL-CP
4.7µH
:CHIP
1.5k
1/16W
:CHIP
100k
1/16W
:CHIP
3.3k
1/16W
:CHIP
10k
1/16W
:CHIP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
10k
1/16W
:CHIP
4.7k
1/16W
:CHIP
510
1/16W
:RN-CP
11k
1/16W
:RN-CP
10k
1/16W
:RN-CP
PQ20VZ1U
14V REG
0.1
25V
F:CHIP
2.2
10V
B:CHIP
2.2
10V
B:CHIP
10
16V
:AL-CP
10
16V
:AL-CP
10
35V
:AL-CP
0.022
25V
B:CHIP
0.022
25V
B:CHIP
0.22
25V
B:CHIP
0.22
25V
B:CHIP
10
35V
:AL-CP
100 25V :AL-CP
TDA2009A
STEREO AMP
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
1
1/2W
:CHIP
1
1/2W
:CHIP
10
35V
:AL-CP
47
16V
:AL-CP
CXA1846BN-T4
VOLUME CONT
4.7µH
820
25V
:HT
820
25V
:HT
4P
WHT
:PH
1.8k
1/16W
:CHIP
1.8k
1/16W
:CHIP
18
1/16W
:CHIP
18
1/16W
:CHIP
1.2k
1/16W
:CHIP
1.2k
1/16W
:CHIP
330
25V
:AL-CP
330
25V
:AL-CP
50P
WHT
:SMD
#
#
#
#
12V-3
12V-3
15V
15V
13
5
24
13
5
24
AU_L
AU_L
GND
GND
AU_R
AU_R
GND
GND
GND
GND
A+12V
A+12V
GND
GND
AUDIO+B
AUDIO+B
AUDIO+B
AUDIO+B
GND
GND
GND
GND
NC
NC
NC
NC
AU_MUTE
AUCS
SDAT
AUCLK
IN1
INV_IN1
SVRR
INV_IN2
IN2
GND
NC
OUT2
VS
OUT1
NC
SP_R
GND
SP_L
GND
INP2
INN2
VCT2
INAO2
VRIN2
OUT2
CE
DATA
CLK
INIT
INP1
INN1
VCT1
INAO1
VRIN1
OUT1
NC
GND
VCT
VCC
SP_L
SP_R
14V
L_IN
R_IN
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
SP_R
SP_R
SP_R
SP_R
SP_L
SP_L
SP_L
SP_L
TO LAUDSPEAKER
TO Q(4/4)BOARD
CN702
(AUDIO AMP,AUDIO CONTROL)
B-SS1719<...>-BC.
BCBC
• Refer to page 7-13 for Printed Wiring Board
• Refer to page 7-13 for IC Block Diagram
7-15
VPL-HS1 7-15
CN101CN102
CN104
CN105
CN106 CN107
CN108 CN109
CN110
CN111
CN301
CN401
CN501
CN502
CN601
CN602
CN701
CN702
C105
C106
C107
C109
C111
C118
C123
C124
C125
C126
C128
C129
C208
C210 C212
C213
C214
C215
C305
C310
C415
C416
C419
C422
C502
C506
C514
C515
C516
C517
C518
C519
C520
C527
C528
C529
C609
C611
C613 C614
C615
C616
C617
C710 C711
C712
C713C714
C715
C716
C717
C721
C725
D101
D102
FB101
FB102
FB103
FB104
FB105
FB106
FB107
FB108
FB113
FB115
FB117
FB118
FB119
FB120
FB403
FB503 FB504
FB602
FB701
FB702
IC101
IC102
IC103
IC107
IC108
IC109
IC110
IC205
IC302
IC305
IC308 IC309
IC401
IC403
IC404
IC501
IC503
IC601
IC701
JL206
JL207
JL212 JL226
L501
L601
L602
L702
Q102
Q103
Q303
Q304
Q403
RB101
RB102 RB103
RB201
RB202
RB203 RB204
RB205 RB206 RB207 RB208
RB209
RB210RB211RB212
RB213
RB301 RB302
RB303 RB304
RB305
RB306
RB309 RB310 RB311 RB312
R101R102
R105
R106
R107
R108
R109
R110
R113
R114
R115
R116
R117
R121
R122
R123 R124
R125
R127
R132
R133
R134
R135
R139
R140
R141
R142
R143
R144
R146
R215
R216
R217
R218
R219
R222
R223
R224 R225
R226
R227
R228
R230
R233
R234
R236
R237
R239
R240
R301
R302
R305
R306
R307
R308
R309
R310
R314R318
R319
R322
R323
R324R325
R326
R327
R328
R329
R330
R331
R332
R333
R334
R335
R403
R404
R406
R408
R409
R428
R431
R436
R439
R441
R442
R501
R504 R505
R506
R507
R508
R509
R510
R511
R512
R513
R514
R529
R530 R531
R532
R533
R534 R535
R536
R607
R608
R609
R610
R611
R612
R616
R617
R620
R627
R707
R708
R709
R710
R711
R712
R713
R714
R716
R717
R720
R727
S301
TP101
TP102
TP103
TP104
TP105
TP106
TP107
TP108
TP109
TP110
TP111
TP112
TP201
TP202
TP301
TP302
TP303
TP304
TP305
TP306
TP307
TP308 TP309
TP310
TP311
TP312
TP313
TP401
TP402
TP403
TP404
TP501
TP502
TP503
TP504
TP505
TP601
TP602
TP603
TP604
TP701
TP702
TP703
TP704
X201
CC
C -A SIDE-
SUFFIX: -11 C -B SIDE-
SUFFIX: -11
—
C
—
1-682-354-11
D101 A-1
D102 C-1
D103 *E-2
D104 *E-1
D201 *G-6
D202 *G-6
D301 *F-6
D401 *B-4
IC101 B-2
IC102 C-1
IC103 B-2
IC205 G-6
IC301 *G-6
IC302 E-6
IC303 *F-5
IC304 *E-6
IC305 F-5
IC306 *E-6
IC307 *E-5
IC308 E-6
IC309 *E-6
IC310 *E-6
IC401 B-4
IC402 *C-5
IC403 B-4
IC404 C-5
IC501 C-3
IC503 E-4
IC601 D-4
IC701 E-3
Q101 *E-1
Q102 E-1
Q103 D-1
Q301 *G-5
Q302 *G-6
Q303 H-7
Q304 G-6
Q401 *B-7
Q402 *B-7
Q403 B-4
Q404 B-4
Q501 *C-3
Q502 *C-3
Q601 *D-4
Q602 *D-4
Q701 *E-3
Q702 *E-3
TP101 A-1
TP102 B-1
TP103 B-1
TP104 B-1
TP105 B-3
TP106 B-2
TP107 B-3
TP108 B-3
TP109 C-1
TP110 D-2
TP111 F-6
TP112 G-6
TP201 E-6
TP202 G-5
TP301 F-5
TP302 E-6
TP303 D-4
TP304 E-5
TP305 E-5
TP306 E-5
TP307 C-5
TP308 C-5
TP309 C-5
TP310 D-6
TP311 C-5
TP312 D-6
TP313 D-6
TP401 A-4
TP402 B-4
TP403 C-4
TP404 B-5
TP501 C-3
TP502 C-3
TP503 C-3
TP504 C-3
TP505 D-3
TP601 D-4
TP602 D-4
TP603 D-3
TP604 D-4
TP701 E-3
TP702 E-3
TP703 E-4
TP704 E-3
*:B Side mount
CN112
C101
C102 C103
C104
C108
C110
C112
C113
C114
C115
C116
C117
C119
C120
C121
C122
C127
C201C202
C203
C204
C205
C206
C207
C209
C211
C216
C217
C301
C302
C303
C304
C306
C307
C308
C309
C311
C312
C313
C314
C315
C316C317 C318
C319
C320
C321
C322
C401
C402
C403
C404
C405
C406
C407
C408
C409
C410
C411
C412
C413
C414
C417
C418
C420
C421
C423
C424
C501
C503
C504
C505
C507
C508
C509
C510 C511 C512
C513
C521
C522 C523
C524
C525
C526
C530
C531
C532
C533
C534
C601
C602
C603
C604
C605
C606
C607
C608
C610
C612
C618
C619
C620
C621
C622
C623 C624
C625
C626C627
C628
C629
C630
C701
C702
C703
C704
C705
C706
C707
C708
C709
C718
C719
C720
C722
C723
C724C726
C727
C728
C729 C730
D103D104
D201
D202
D301
D401
FB109
FB110
FB111
FB114
FB116
FB121
FB122
FB301
FB302
FB303
FB304
FB401
FB402
FB501
FB502
FB505
FB601
FB603
FB703
IC104
IC105
IC106
IC201
IC202
IC203
IC204
IC301
IC303
IC304
IC306
IC307
IC310
IC402
IC502
IC602
IC702
JL101
JL102
JL103
JL104
JL105JL106JL107
JL109
JL110
JL111
JL112
JL113
JL114
JL115 JL116
JL117
JL118
JL119 JL120
JL121
JL122
JL123
JL124
JL125
JL126
JL127
JL128
JL129
JL130 JL131 JL132
JL133
JL134
JL136
JL137
JL142
JL143JL144
JL145
JL146
JL147
JL148
JL149
JL150
JL151
JL152
JL153
JL156
JL157
JL159
JL201
JL202
JL203
JL204
JL205
JL208
JL209
JL210
JL211
JL213
JL214
JL215
JL216
JL217 JL218
JL219
JL220
JL221
JL222
JL225
JL227
JL228
JL229
JL230
JL231 JL232
JL233
JL236
JL237
JL238
JL239
JL240
JL241
JL301
JL302
JL303
JL304
JL305
JL306
JL307
JL308
JL309
JL310
JL311
JL312
JL313
JL314
JL315
JL316
JL317
JL318
JL319
JL320
JL321
JL322
JL323
JL324
JL325
JL326
JL327
JL401
JL402
JL403
JL404
JL405
JL406
JL501
JL502
JL503
JL504
JL505
JL506
JL601
JL602
JL603
JL604
JL605
JL701
JL702
JL703
JL704
JL705 L301
L401
L402
L403
L404
L405
L502
L701
Q101
Q301 Q302
Q401
Q402
Q404
Q501 Q502
Q601 Q602
Q701Q702
RB307
RB308
RB401 RB402
RB403
R103
R104
R111
R112 R118
R119
R120
R126
R128
R129
R130
R131
R136
R137
R138
R201
R202 R203
R204
R205
R206
R207
R208
R209
R210
R211
R212
R213
R214
R220
R221
R229
R231
R232
R235
R238
R241
R242
R303
R304
R311
R312
R313 R315
R316
R317
R320
R321
R336
R337
R338
R339
R340
R341
R342
R401 R402
R405
R407
R410
R411
R412
R413
R414
R415
R416
R417
R418
R419
R420
R421
R422
R423
R424
R425
R426
R427
R429
R430
R432
R433
R434
R435
R437
R438
R440
R502
R503
R515
R516
R517
R518
R519
R522
R523
R524
R525
R526
R527
R528
R537
R538
R601
R602
R603
R604
R605
R606
R613
R614
R615
R621
R622
R623
R624
R625
R626
R628
R629
R630
R631
R632
R633
R634
R635
R636
R701
R702
R703
R704
R705
R706
R715
R721
R722
R723
R724 R725
R726
R728
R729
R730
R731
R732
R733
R734
R735
R736
TH101
7-16 VPL-HS1
7-16
CC
M52749FP (IC403)
2
4
CLAMP SUB
CONTRAST MAIN
CONTRAST OSD MIX AMP
CLAMP
F/B
RETRACE
BLANKING 41
303442
6
9
5
3
CLAMP SUB
CONTRAST MAIN
CONTRAST OSD MIX AMP
CLAMP
F/B
RETRACE
BLANKING 38
11
13
10
8
17
16
21 25 26 27 28 29 32 36 3914 1
12
20
7
CLAMP SUB
CONTRAST MAIN
CONTRAST OSD MIX
DAC BUS
I/F
AMP
CLAMP
F/B
OSD
LEVEL
4bit
Main
CONTRAST
8bit
B SUB CONT 8bit
G SUB CONT 8bit
R SUB CONT 8bit
RETRACE
BLANKING 33
35
31
24
22
23
19
Sync On
Green
Sep
OSD BLK IN
INPUT (R)
VCC1 (R)
OSD IN (R)
GND1 (R)
INPUT (G)
INPUT (SOG)
VCC1 (G)
OSD IN (G)
GND1 (G)
INPUT (B)
VCC1 (B)
OSD IN (B)
GND
GND1 (B)
ABL IN VCC=5V
SOG Sep OUT
Clamp Pulse IN
VCC2
OUTPUT (R)
GND2
OUTPUT (G)
GND
Contrast ref.
Main Brightness
OUTPUT (B)
GND
Contrast cont.
Retrace BLK IN
D/A OUT1
D/A OUT2
D/A OUT3
D/A OUT4
D/A OUT5
GND (5V)
SDA
SCL
S-80828ANNP (IC303)
V
OO
2
V
SS
4
OUT
1
V
REF
LP2985IM5X-3.3 (IC204)
1
2
4
3
5
VIN
OVER CURRENT/
OVER TEMP
PROTECTION
V
REF 1.23V
VOUT
ON/OFF
BA05FP-E2 (IC103,104)
3
2
1REFFERENCE
VOLTAGE
VCC
GND
OUT
ADV7123KST140 (IC404)
DAC
DATA
REGISTER
DAC
DATA
REGISTER
DAC
DATA
REGISTER
POWER-DOWN
MODE
VOLTAGE
REFERENCE
CIRCUIT
34
33
32
31
28
27
36
11
12
1
10
14
23
38
24
13
3725 35
IOR
IOR
IOG
IOG
IOB
IOB
VNEF
COMPRSETGND
VAA
BLANK
SYNC
R9 - R0
G9 - G0
B9 - B0
10
10
10
10
10
10
PSAVE
CLOCK
BLANK AND
SYNC LOGIC
39
48
TC7WH74FU(TE12R) (IC108)
1 2 3 4
8 7 6 5
CLR
PR
VCC
Q
CK
D
Q
GND
DQ
SRQ
C
CXA3512R-T6 (IC501,601,701)
S/H S/H S/H
VCOM
OFFSET CANCEL
BUFFER
S/H S/H S/H
OFFSET CANCEL
BUFFER
S/H S/H S/H
OFFSET CANCEL
BUFFER
S/H S/H S/H
OFFSET CANCEL
BUFFER
S/H S/H S/H
OFFSET CANCEL
BUFFER
S/H S/H S/H
OFFSET CANCEL
BUFFER
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
3435363738394041424344454647
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
CAL_R
CAL_O
CAL_I
V
DD
DGND
MCLK
MCLKX
GND
GND
DLYCTR
CLKOUT
CLKOUTX
NC
CLKIN
CLKINX
F/H_CNT
PRGPOL
PRG
NC
NC
POSCTR1
POSCTR2
NC
GND
GND
STATUS
ENB
D1OR2
DIRCTR
NC
NC
DCFBSW
NC
VIDEO_I
VIDEO_R
VIDEO_O
SH_IN
NC
V
CC
GND
GND
SID_IN
SID_R
SID_O
FRP
SIGCNT
VCOMOFF
VCOMOUT
SHOUT1
NC
SHOUT2
NC
SHOUT3
NC
PV
CC
GND
GND
PGND
NC
SHOUT4
NC
SHOUT5
NC
SHOUT6
D
CLOCK
DELAY
S/H
pulses
TIMING
GENERA-
TOR
offset
cancel
mode
timing
SID
INVERT
AMP
CALIBRA-
TION
AMP
7-17
VPL-HS1 7-17
2
3
4
5
1
ABCDEFGH
C (1/7)C (1/7)
C(1/7)
3.3
3.3
1.5
1.6
1.6
1.6
2.4
0
3.2
4.9
5.0
4.8
0
3.5
0
0
0.7
1.3
13.0
5.5
13.7
5.0
6.1
5.06.1
4.5
16.2
1.2
15.6 12.1
+17V
FAN+B1
FAN+B2
+3.3V
+6V
R/G/B
1
2
3
4
5
123
4 5
G
IO
ON/OFF ADJ
1234
5 6 7 8
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
G
IO
ADJ
ON/OFF
1
2
3
4
5
6
7
8
9
10
1
2
3
1
2
3
1
2
3
1 2 3
45
1 2 3 4 5 6 7
891011121314
1
2
3
IO
G
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
A35
B35
123
4 5
IO
G
1
2
3
4
5
6
7
IO
G
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
TH101
C103
C101
C102
C108 C109 C110 C111
D101
IC103
JL111
C104
C105
C106
C107
C112 C113 C114 C115
RB101
RB102
RB103
C119C118
IC101
IC102
IC105
IC107
IC108
IC109
IC110
R128
C116 C117
C120 C121
C122 C123
C124
C125
C126
C127
C128
C129
CN106
JL101
JL102
JL103
JL104
JL105
JL106
JL107
JL109
JL110
JL112
JL113
JL114
JL121
JL122
JL123
JL124
D102
D103
D104
TP101
TP102
TP103
TP104
TP105
TP106
TP107 TP108
TP109 TP110
TP111
TP112
JL125
JL126
CN108
CN110
JL134
JL136
JL137
JL142
R101
R102
R103
R104
R105
R106
R109
R110
R111
R112
R113
R114
R115
R116
R117
R118
R119
R120
R122
R123
R124 R125
R126
R127
R129
R130
R131
R132
R133
R134
R135
R136
R137
R138
R139
R140
R141
R142
R143
FB101
FB102
FB103
FB104
FB105
FB106
FB107
FB108
FB109
FB110
FB111
FB112
FB113
FB114
FB115
R108
IC106
JL115
JL116
JL117
JL118
JL119
JL120
CN107
JL130
JL131
JL132
JL133
JL129
JL128
JL127
IC104
JL143
JL144
JL145
CN101
CN102
R107
CN104
CN111
JL146
JL147
JL148
JL149
JL150
JL151
JL152
JL153
JL156
JL157
CN109
R121
R144
FB116
JL159
CN112
CN105
Q102
Q101
Q103
R146
0.01
25V
B:CHIP
0.01
25V
B:CHIP
1k
1/16W
:CHIP
#
5P
WHT
:SMD
BK1608TS601
0.1
16V
B:CHIP
10k
1/16W
:CHIP
4.7k
1/16W
:CHIP
510
1/16W
:RN-CP
8.2k
1/16W
:RN-CP
20k
1/16W
:RN-CP
PQ20VZ1U
15.5V REG
100*4
:CHIP
47
6.3V
:AL-CP
47
6.3V
:AL-CP
BK1608TS601
BK1608TS601
BK1608TS601
TC7WH74FU(TE12R)
DIVIDE 1/2
BK1608TS601
0.1
16V
B:CHIP
BLM41P750S
BLM41P750S
BLM41P750S
100
1/16W
:CHIP
10K
LAMP
1k
1/16W
:RN-CP
#
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
BZA456A
PROTECT
BZA456A
PROTECT
BA12FP-E2
12V REG
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
#
10k
1/16W
:CHIP
47
1/16W
:CHIP
#
TC7SET08FU(TE85)
BUFF
TC7SET08FU(TE85)
AND
0
1/16W
:CHIP
0
1/16W
:CHIP
47
6.3V
:AL-CP
0.1
25V
F:CHIP
0.1
16V
B:CHIP
100*4
:CHIP
100*4
:CHIP
0.1
16V
B:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
330 1/16W :CHIP
330 1/16W :CHIP
330 1/16W :CHIP
330 1/16W :CHIP
BK1608TS601
100
1/16W
:CHIP
100
10V
:AL-CP
BA05FP-E2
5V REG
47
16V
:AL-CP
47
25V
:AL-CP
##
#
#
#
#
#
#
#
#
100
10V
:AL-CP
#
#
#
#
#
#
#
#
12P
WHT
:SMD
#
#
#
#
#
PQ20VZ1U
FAN REG
DAN202K
OR
DAN202K
OR
33
25V
:AL-CP
33
25V
:AL-CP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
10k
1/16W
:RN-CP
10k
1/16W
:RN-CP
22k
1/16W
:RN-CP
3.9k
1/16W
:RN-CP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
12k
1/16W
:CHIP
47k
1/16W
:CHIP
22k
1/16W
:CHIP
22k
1/16W
:CHIP
22k
1/16W
:CHIP
#
100
1/16W
:CHIP
100
1/16W
:CHIP
100
16V
:AL-CP
3P
RED-L
:SMD
0.1
16V
B:CHIP
10k
1/16W
:CHIP
NC7SZ04P5
INV
0.1
16V
B:CHIP
BLM41P750S
100 1/16W :CHIP
100 1/16W :CHIP
100
1/16W
:CHIP
BK1608TS601
BK1608TS601
BK1608TS601
BK1608TS601
BLM41P750S
10k
1/16W
:RN-CP
74VHC125MTCX
3STATE BUF
#
#
#
#
#
#
3P
BLUE-L
:SMD
#
#
#
#
#
#
#
BA05FP-E2
5V REG
#
#
#
10P
WHT
:SMD
7P
WHT
:SMD
3.9k
1/16W
:RN-CP
3P
WHT-L
:SMD
24P
FPC
:SMD
#
#
#
#
#
#
#
#
#
#
12P
WHT
:SMD
470
1/10W
:CHIP
470
1/10W
:CHIP
BK1608TS601#
70P
WHT
:SMD
3P
WHT-L
:SMD
2SC2712-YG
SW
2SC2712-YG
SW
2SC2712-YG
FAIL SAFE SW
10k
1/16W
:CHIP
5V 5V-2
12V-3
5V
3.3V-2
5V
TGCLK
DACLK
VSO
HSO
5V
5V-2
MCLK B
MCLK R
MCLK G
15.5V
5V-3
GAMMA E
3.3V-2
5V
CLR
3.3V-2
5V
5V
5V-2
CPU
HSI
VSI
3.3V-2
SDA4
SCL4
PW
MS
I2C
5V-2
13
5
24
13
5
24
12
34
78
56
13
5
24
RE1
RE3
RE5
BE0
GE0
BE1
GE1
BE2
GE2
BE3
GE3
BE4
GE4
BE5
GE5
BE6
GE6
BE7
GE7
RE7
RE6
RE4
RE2
RE0
TEMP_LED
LAMP_LED
PSAVE_LED
POWER_LED
LAMP_ON
LAMP_PROT
TXD
RXD
RES
FWR
MD1
MD2
RXD
TXD
LAMP_TEMP
FAN_PROT
FAN_CONT2
FAN_CONT1
POWER_CONT
INTERLACE
PW_OSDEN
MENU_STATUS
BRD_STATUS
TXD_MS
RXD_MS
MS_RESET
PIC_MUTE
PW_RESET
SIRCS
AUDIO_CS
SDAT
AU_CLK
AUDIO_MUTE
POWER_PROT
LAMP_COVER
FILT_COVER
ROM_RESET
EXT_TEMP
SDA_400K
SCL_400K
SCL_100K
SDA_100K
KEY0_MS
MS_SW
KEY3
TXD_PW
RXD_PW
LAMP_COVER
KEY0
KEY1
KEY2
TO BALLAST
GND
-1
-1
VISCA
+15.5V
-1
A+12V
D+3.3V
SUB+5V
-1
A+5V
RXD
TXD
GND
GND
GND
GND
HSOX
GND
GND
VSOX
GND
GND
CK
D
GND
VCC
Q
Q
PR
CLR
DCLK
DCLK
SUB+5V
GND
GND
GND
GND
RE7
RE6
RE5
RE4
RE3
RE2
RE1
RE0
BE0
GE0
BE1
GE1
BE2
GE2
BE3
GE3
BE4
GE4
BE5
GE5
BE6
GE6
BE7
GE7
+6V
SCI
GND
FLAG
GND
+17V
GND
TXD
RXD
VIN
FWR
MD1
MD2
RES
-1
EXT_SW
HD
VD
P-TX
P-RX
P-EXTSW
GND
PW_RESET
INTERLACE
PIC_MUTE
PW_OSDEN
SIRCS
GND
MENU_STATUS
BRD_STATUS
TXD_MS
RXD_MS
MS_RESET
MS_SW
GND
SDA_400K
SCL_400K
SUB+5V
GND
D+3.3V
D+3.3V
D+3.3V
D+3.3V
D+3.3V
KEY0
-1
+17V
GND
GND
+6V
GND
D+3.3V
D+3.3V
D+3.3V
GND
GND
GND
SUB+5V
GND
GND
POWER LED
TEMP LED
LAMP LED
PSAVE LED
D+5V
SUB+5V
GND
-1
FAN+B
GND
POWER_CONT
TO FAN50
TO FAN60
FAN_CONT1
D+3.3V
D+3.3V
GND
HSI
VSI
TO SCIROCCO
FAN+B1
FAN_PROT
GND
FAN+B2
FAN_PROT
GND
FAN+B2
FAN_PROT
GND
GND
GND
GND
GND
GND
GND
GND
GND
SDA_100K
SCL_100K
SDAT
AU_CLK
AUDIO_MUTE
POWER_PROT
LAMP_COVER
FILT_COVER
SDA_400K
SCL_400K
EXT_TEMP
AUDIO_CS
ROM_RESET
KEY3
A0 B0 Y0 B1 Y1A1 GND
VCC A2 B2 Y2 A3 B3 Y3
SUB+5V
CPU&PWROM
D+5V
NC
NC
NC
TXD_PW
RXD_PW
KEY0
KEY1
KEY2
FROM 2/7
FROM 3/7
TO 3/7
TO 5/7,
6/7,7/7
TO 3/7
TO 2/7
TO 2/7,3/7
TO 3/7
FROM 3/7
TO 3/7,4/7
TO H BOARD
CN801
TO BA(2/3)BOARD CN201
FROM 2/7
MAIN CPU,EEPROM,DAC,D/A CONVERTER,
LCD DRIVE,3D GAMMA&TG
B-SS1719<...>-C..-P1
TO G(2/2)BOARD
CN3303
TO G(2/2)BOARD
CN3302
TO BB(1/4)BOARD
CN102
•Refer to page 7-15 for Printed Wiring Board
•Refer to page 7-16 for IC Block Diagrams
7-18 VPL-HS1
7-18
2
3
4
5
ABCDEFGH
1
C (2/7)C (2/7)
C(2/7)
+5V
+3.3V
+3.3V
+5.0V
+5.0V
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
616263646566676869707172737475767778798081828384858687888990
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
12
3 4
12
3 4
123
4 5
123
4 5
R202
C201 C202
X201
TP201
IC201 IC203
IC204
IC205
R201
R209
R210
R211
R212
R214
R215
R216
R217
R218
R219
R220
R221
R222
R223 R224
R225
C203
C204
C205
C207
C208
C209
C211
C213
C215
C216
RB201
RB202
RB203
RB204
RB205
R208
R203
C217
R204
R205
R206
R207
R226
R227
R228
R229
R231
R232
R233
R234
R235
R236
R237
R238
R240
R241
R242
RB206
RB207 RB208
RB209
RB210
RB211
RB212
RB213
R213
D201
D202
C206
JL201
JL205
JL206
JL207
JL208
JL209
JL210
JL211
JL212
JL213
JL214
JL215
JL216
JL217
JL218
JL219
JL220
JL221
JL222
JL225
JL226
JL227
JL228
JL229
JL230
JL231
JL232
JL233
IC202
JL236 JL237
JL238
JL239
JL204
JL202
JL203
JL240
JL241
C210 C212
C214
R230
R239
XTAL12.288MHz
S-80828ANNP
RESET
S-80842ANNP
RESET
200
1/16W
:RN-CP
3k
1/16W
:RN-CP
10k
1/16W
:CHIP
47k
1/16W
:CHIP
10k
1/16W
:CHIP
33k
1/16W
:CHIP
33k
1/16W
:CHIP
#
10k
1/16W
:CHIP
1k
1/16W
:CHIP
10k
1/16W
:CHIP 100 1/16W :CHIP
100 1/16W :CHIP
2.2k 1/16W :CHIP
2.2k 1/16W :CHIP
#
10k 1/16W :CHIP
10k 1/16W :CHIP
10k 1/16W :CHIP
10k
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2k
1/16W
:CHIP
LP2985IM5X-3.3
3.3V REG
10k
1/16W
:CHIP
10k
1/16W
:CHIP
0.1
16V
B:CHIP
0.01
25V
B:CHIP
1
10V
B:CHIP
1
10V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
10
1/16W
:CHIP
1
10V
B:CHIP
2.2
10V
B:CHIP
100*4
:CHIP
100*4
:CHIP
100*4
:CHIP
100*4
:CHIP
100*4
:CHIP
100*4
:CHIP
100*4
:CHIP
100*4
:CHIP
10k*4
:CHIP
100*4
:CHIP
1k*4
:CHIP
0.01
25V
B:CHIP
HD64F2633
MAIN CPU
#
10k
1/16W
:CHIP
#
10k
1/16W
:CHIP
2.2k 1/16W :CHIP
2.2k 1/16W :CHIP
10k 1/16W :CHIP
10k 1/16W :CHIP
10k 1/16W :CHIP
10k 1/16W :CHIP
10k 1/16W :CHIP
100*4
:CHIP
27k
1/16W
:RN-CP
100
1/16W
:CHIP
56k
1/16W
:RN-CP
0.1
16V
B:CHIP
100*4
:CHIP
10k 1/16W :CHIP
HN1D03FU-TE85R
DISCHARGE
HN1D03FU-TE85R
RESET
4.7
10V
B:CHIP
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
LMC7101BI
AMP
##
#
#
#
#
#
#
#
10p
50V
CH:CHIP
10p
50V
CH:CHIP
470p
50V
CH:CHIP
100
1/16W
:CHIP
2.7k 1/16W :CHIP
-1
-1 3.3V
3.3V
CPU
VSI
HSI
5V
5V
5V-2
PW
5V-2
I2C
OSD_EN
VSO
MS
RESET
INTERLACE
SDAT
KEY0
KEY1
TXD
RXD
MD1
MD2
SCL_400K
SDA_400K
SCL_100K
SDA_100K
RES
KEY0
LAMP_COVER
FILT_COVER
POWER_PROT
FAN_PROT
AUDIO_MUTE
AU_CLK
EXT_TEMP
LAMP_TEMP
FAN_CONT2
FAN_CONT1
AUDIO_CS
LAMP_ON
TXD_PW
RXD_PW
PIC_MUTE
PW_OSDEN
LAMP_PROT
PSAVE_LED
LAMP_LED
TEMP_LED
POWER_LED
PW_RESET
MENU_STATUS
RXD_MS
TXD_MS
FWR
POWER_CONT
KEY0_MS
MS_SW
SIRCS
MS_RESET
BRD_STATUS
ROM_RESET
KEY3
KEY2
PC0
PC1
PC2
VSS
VCC
PC6
VSS
PB0
PVCC1
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PA0
VSS
P10
P11
P12
P13
IRQ0
TCLKC
P16
TIOCB2
PE0
PE1
PE2
PE3
PE4
PE5
PE6
PE7
VSS
PD0
PVCC1
PD1
PD2
PD3
PD4
PD5
PD6
PD7
TXD0
RXD0
PVCC2
SDA1
VSS
SCL1
SDA0
SCL0
RXD4
TXD4
PG0
PG1
PG2
PG3
PG4
PLLVCC
PLLCAP
PLLVSS
NMI
FWE
XTAL
VCC
EXTAL
VSS
OSC1
OSC2
PVCC1
PF7/ ?
VSS
PF6
PF5
PF4
PF3
PF2
PF1
PF0
AVCC
VREF
AN0/P40
AN1/P41
AN2/P42
AN3/P43
AN4/P44
AN5/P45
DA0/AN6/P46
DA1/AN7/P47
AN8/P90
ANP/P91
AN10/P92
AN11/P93
AN12/P94
AN13/P95
AN14/P96
AN15/P97
AVSS
P71
P72
P73
SCK3
RXD3
TXD3
MD0
MD1
MD2
OUT
VDD
VSS
NC
OUT
VDD
VSS
NC
RES
WDTOVF
TXD2(FWR)
RXD2(FWR)
STBY
GND
3.3V-15V-1
-1
-1
ZOOM
SCL
SDA-OUT
SDA-IN
SCLK
VIN
GND
ON/OFF
VOUT
BYPASS
MUTE
P70F/M
MAIN CPU,EEPROM,DAC,D/A CONVERTER,LCD DRIVE
3D GAMMA&TG
B-SS1719<...>-C..-P2
FROM 1/7
TO 1/7,3/7
TO 3/7
TO 1/7TO 1/7TO 1/7
TO 3/7
•Refer to page 7-15 for Printed Wiring Board
•Refer to page 7-16 for IC Block Diagrams
7-19
VPL-HS1 7-19
2
3
4
5
1
ABCDEFGH
C (3/7)C (3/7)
C(3/7)
2.4
1.6
1.6
1.6
0.2
0
3.0
2.5
0.3
0
4.5
2.4
2.4
2.4
2.4
2.4
1.6
1.6
0.1
4.9
2.5
0
0
5.0
0
0.3
0
3.2
1.6
0.2
0
3.2
0
0.2
4.9
5.04.9
4.9
5.04.9
3.2
3.2
3.2
0.6
0.1
2.6
3.3
3.3
0
2.8
4.9
3.2
2.8
0
3.2
0.4
0
+5.0V
+3.3V
+3.3V
2.4
R/G/B
R/G/B
1234567
8 9 10 11 12 13 14
123
4 5
1
2
3
4
1 2
34
1234
5678
1234
5 6 7 8
12345678910
11 12 13 14 15 16 17 18 19 20
12345678910
11 12 13 14 15 16 17 18 19 20
12345678910
11 12 13 14 15 16 17 18 19 20
1 2 3 4
5678
C318
L301
S301
TP307
TP308
TP309
TP310
TP311
TP301
TP302
TP303
TP304
TP305
TP306
TP312
TP313
C301
C302 C303 C304
C305
C306
C307
C308
C309
C310
C311
C312
C313
C314
C315
C316
C317
C319
C320
C321
C322
Q301
Q302
Q303
Q304
FB301
FB302
FB303
FB304
JL301
JL302
JL303
JL304
JL305
JL306
JL307
JL308
JL309
JL310
JL311
JL312
JL313
JL314
JL315
JL316
JL317
JL318
JL319
JL320
JL321
JL322
JL323
JL324
RB309
RB310
RB312
RB311
RB307
IC303
IC304
IC305
IC310
R301 R302
R303
R304
R305
R306
R307
R308
R309
R310
R311
R312
R313
R314
R318
R319
R321
R322
R323
R324
R325
R326
R327
R328
R329
R330
R331
R332
R333
R334
R335
R337
R338
R339
R340
R341 R342
IC301
IC306
RB301
RB302
RB303
RB304
RB305
RB306
D301
IC302(1/4)
IC302(2/4)
IC302(3/4)
IC302(4/4)
R315
R317
R316
R320
R336
RB308
JL325
JL326
JL327
CN301
IC307
IC308
IC309
0.1
16V
B:CHIP
1
10V
B:CHIP
0.1
16V
B:CHIP
#
0.01
25V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
BK1608TS601
BK1608TS601
BK1608TS601
S-80828ANNP
RESET
M24C64
EEPROM
2SC2712-YG
RES SW
2SA1037AK
RES SW
33k
1/16W
:CHIP
10k
1/16W
:CHIP
47k
1/16W
:CHIP
1k
1/16W
:CHIP 10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
4.7k
1/16W
:CHIP
4.7k
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2k
1/16W
:CHIP 47
1/16W
:CHIP
47
1/16W
:CHIP
470
1/16W
:CHIP
47
1/16W
:CHIP
0
1/16W
:CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
47 6.3V :AL-CP
0.1 16V B:CHIP
47 6.3V :AL-CP
LM7131BCM5X
AMP
5p
50V
CH:CHIP
270
1/16W
:CHIP
BK1608TS601
0.1
16V
B:CHIP
0
1/16W
:CHIP
10µH
:CHIP
100k 1/16W :CHIP
100k 1/16W :CHIP
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
47
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
#
2SC3326N
BUS SW
2SC3326N
BUS SW
TC7WH74FU(TE12R)
RESET
68*4
:CHIP
68*4
:CHIP
22*4
:CHIP
22*4
:CHIP
22*4
:CHIP
0
1/16W
:CHIP
10k
1/16W
:CHIP
74VHC125MTCX
3STATE BUFF
TC7W04FU
INV
47*4
:CHIP
47*4
:CHIP
47*4
:CHIP
47*4
:CHIP
47*4
:CHIP
47*4
:CHIP
DAN202K
DISCHARGE
CXD9607GB
3D GAMMA & TG
CXD9607GB
3D GAMMA & TG
CXD9607GB
3D GAMMA & TG
CXD9607GB
3D GAMMA & TG
0
1/16W
:CHIP
#
0
1/16W
:CHIP
0
1/16W
:CHIP
#
##
#
#
4P
WHT
:SMD
TC74VHCT541AFT
BUFF
TC74VHCT541AFT
BUFF
TC74VHCT541AFT
BUFF
CLP
TG
TP
HSO
VSO
DA DAT
5V-2
I2C
5V-2
3.3V-2
3.3V-2
3.3V-2
GAMMA E
3.3V-2
TGCLK
3.3V-2
MHD
MVD
CLR
SDA4
SCL4
OSD_EN
RESET
3.3V-2
93
92
128
91
46
127
90
126
89
44
88
43
87
42
86
41
123
122
85
121
84
39
120
83
31
77
116
30
76
115
29
75
114
113
28
74
21
68
22
69
110
70
111
24
72
26
17
64
18
65
106
19
66
107
20
67
11
59
13
61
102
15
62
103
16
63
52
5
53
6
54
97
98
55
7
99
8
56
100
9
57
10
58
3
50
51
2
101
105
95
96
125
48
81
35
119
80
78
79
34
117
118
124
140
137
27
73
33
32
37
132
133
129
141
144
94
14
23
38
47
130
135
139
142
108
112
143
136
4
1
12
25
36
49
60
71
82
40
45
104
109
131
134
138
78
56
34
12
78
56
34
12
78
56
34
12
78
56
34
12
78
56
34
12
78
56
34
12 R9
R8
R7
R6
R5
R4
R3
R2
R1
R0
G9
G8
G7
G6
G5
G4
G3
G2
G1
G0
B9
B8
B7
B6
B5
B4
B3
B2
B1
B0
FRP
PRG
PRGPOL
HCK1R
HCK1G
HCK1B
HCK2R
HCK2G
HCK2B
HST
VST
VCK
LCDHCK1
LCDHCK2
LCDVST
LCDVCK
LCDPCG
LCDPRG
LCDFRP
LCDRGT
LCDRGTX
LCDENB
INVCNT
LCDFRP
LCDPRG
INVCNT
LCDHCK1
LCDHCK2
LCDHST
LCDVST
LCDVCK
LCDPCG
POS-CON1
POS-CON2
PCG
DWN
RGT
RGTX
LCDENB
ENB
LCDRGT
LCDRGTX
RE7
RE6
RE5
RE4
RE3
RE2
RE1
RE0
GE7
GE6
GE5
GE4
GE3
GE2
GE1
GE0
BE7
BE6
BE5
BE4
BE3
BE2
BE1
BE0
RE1
RE0
GE1
GE0
BE1
BE0
LCDCLP
LCDCLP
LCDHST
SCL_400K
SDA_400K
GE7
RE7
SID
RIN7
RIN6
RIN5
RIN4
RIN3
RIN2
RIN1
RIN0
GIN7
GIN6
GIN5
GIN4
GIN3
GIN2
GIN1
GIN0
BIN7
BIN6
BIN5
BIN4
BIN3
BIN2
BIN1
BIN0
ROSD2
ROSD1
ROSD0
GOSD2
GOSD1
GOSD0
BOSD2
BOSD1
BOSD0
OSDI
OSDYS
OSDYM
ROUT9
ROUT8
ROUT7
ROUT6
ROUT5
ROUT4
ROUT3
ROUT2
ROUT1
ROUT0
GOUT9
GOUT8
GOUT7
GOUT6
GOUT5
GOUT4
GOUT3
GOUT2
GOUT1
GOUT0
BOUT9
BOUT7
BOUT6
BOUT5
BOUT4
BOUT3
BOUT2
BOUT1
BOUT0
BOUT8
CLKI
RESET
HSYNCI
VSYNCI
SCK
SIN
SOT
SCAN_AMC
SCAN_SMC
BUNRI
CS
IFHIZ
HSYNCO
VSYNCO
RSCL
RSDA
DEBUG
TEST
TEB
MODE
TMC1
TMC2
SID
CNT1A
CNT1B
CNT2A
CNT2B
LCDHST
LCDHCK1
LCDHCK2
LCDVST
LCDVST1
LCDVCK
LCDVCKX
LCDPCG
LCDBLK
LCDDWN
LCDPRG
LCDFRP
LCDCLR
LCDRGT
LCDRGTX
LCDENB
LCDENB1
LCDENB2
INVCNT
AGCSHP
AVDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
NC
GND
GND
NC
AGND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
HSDA
HSCL
G1
A1
A2
A3
A4
A5
A6
A7
A8
VCC
G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8GND
G1
A1
A2
A3
A4
A5
A6
A7
A8
GND
GND
G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
G1
A1
A2
A3
A4
A5
A6
A7
A8
GND
VCC
G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
W SCL
W SDA
GND
E0
E1
E2
E3
VCC
SCL
SDA
WC
+5V
NC
VSS OUT
VDD
NW
HCK1
HCK2
ENB
PRG
FRP
HST
VST
VCK
PCG
CLP
GND
GND
SID
A0
B0
Y0
A1
B1
Y1
GND
VCC
A3
B3
Y3
A2
B2
Y2
LUT
CK
D
GND
VCC
Q
Q
PR
CLR
TO 5/7,6/7,7/7
TO 5/7,6/7,7/7
TO 4/7
FROM 1/7
FROM 2/7
MAIN CPU,EEPROM,DAC,D/A CONVERTER,
LCD DRIVE,3D GAMMA&TG
B-SS1719<...>-C..-P3
TO 4/7
TO 1/7
FROM 2/7
TO 1/7
FROM 2/7
FROM 2/7
TO 4/7
•Refer to page 7-15 for Printed Wiring Board
•Refer to page 7-16 for IC Block Diagrams
7-20 VPL-HS1
7-20
2
3
4
5
ABCDEFGH
1
C (4/7)C (4/7)
•Refer to page 7-15 for Printed Wiring Board
•Refer to page 7-16 for IC Block Diagrams
C(4/7)
2.5
1.7
2.5
2.5
1.7
1.7
3.0
2.5
4.3
4.3
4.3
4.8
4.8
3.3
3.3
1.3
3.3
1.6
1.9
4.7
4.6
4.4
3.6
4.7
0
4.2
3.1
4.8
4.80.3
2.8
2.8
2.8
1.2 +5.0V
+5.0V
+12V
B
B
R
G
R
G
B
R
G
R/G/B
123456789101112
13
14
15
16
17
18
19
20
21
22
23
24
25 26 27 28 29 30 31 32 33 34 35 36
37
38
39
40
41
42
43
44
45
46
47
48
1
2
3
123456789101112131415161718192021
22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 1 2 3 4 5 6 7 810911 12
131415161718192021222324
1
2
3
4
5
6
7
8
9
TP401
TP402
TP403
TP404
IC401
IC402
IC403
IC404
RB402
RB403
R401
R402
R403
R404
R405
R406
R407
R408
R409
R410
R411
R412
R413 R414
R415
R416
R418
R420 R421
R424 R425
R426
R428
R430
R431
R433 R434 R435
R436 R438
R439
R441
R442
C401C402
C403
C404
C405
C406
C407
C408
C409
C410
C411
C412
C413
C414
C415
C416
C417
C418
C419
C420 C421
C422
C423
C424
FB401 FB402
FB403
L401
L402
L403
L404
L405
JL401
JL402
JL403
JL404
JL405
JL406
CN401
D401
RB401
R422
R427
R432
R417
R423
R437
R419
R429
R440
Q401
Q402
Q404
Q403
ADV7123KST140
D/A CONVERTER
3.3k
1/16W
:CHIP
LM4041DIM3-1.2
SHUNT REG
680
1/16W
:RN-CP
M52749FP
CLAMP&AMP
47
6.3V
:AL-CP
3.3
50V
:AL-CP
3.3
50V
:AL-CP
3.3
50V
:AL-CP
82
16V
:OS
75
1/16W
:RN-CP
75
1/16W
:RN-CP
75
1/16W
:RN-CP
82
1/16W
:CHIP
82
1/16W
:CHIP
82
1/16W
:CHIP
470k
1/16W
:CHIP
100
1/16W
:CHIP
47k
1/16W
:CHIP
M62392FP
DAC
5.6k 1/16W :RN-CP
10k
1/16W
:RN-CP
47
6.3V
:AL-CP
100*4
:CHIP
100*4
:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
0.01
25V
B:CHIP
100 1/16W :CHIP
100 1/16W :CHIP
10µH
:CHIP
10µH
:CHIP
0.01
25V
B:CHIP
10µH
:CHIP
0.22
10V
B:CHIP
2.2k
1/10W
:CHIP
2.2k
1/10W
:CHIP
2.2k
1/10W
:CHIP
2.2k
1/10W
:CHIP
2.2k
1/10W
:CHIP
2.2k
1/10W
:CHIP
0.22
10V
B:CHIP
10k 1/16W :CHIP
10
16V
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
100
1/16W
:CHIP
100 1/16W :CHIP
100 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47
6.3V
:AL-CP
10µH
:CHIP
10µH
:CHIP
BK1608TS601 BK1608TS601
BK1608TS601
10
1/16W
:CHIP
10
1/16W
:CHIP
10
1/16W
:CHIP
0.1
25V
F:CHIP
#
#
#
#
#
#
#
1SS355
PROTECT
#
#
#
#
680
1/16W
:CHIP
680
1/16W
:CHIP
680
1/16W
:CHIP
390
1/16W
:CHIP
390
1/16W
:CHIP
390
1/16W
:CHIP
2SA1462-T
BUFF
2SA1462-T
BUFF
2SA1462-T
BUFF
2SA1462-T
BUFF
5V-3
5V-3
R OUT
G OUT
B OUT
CLP
5V-2
DA DAT
DACLK
DAC
12V-3
I2C
15.5V
5V
MHD
MVD
56
34
12
78
12
78
56
34
CAL
G2
G3
G4
G5
G6
G7
G8
G9
B2
B3
B4
B5
B6
B7
B8
B9
R2
R3
R4
R5
R6
R7
R8
R9
B0
B1
G1
G0
R0
R1
VIDEO RR
VIDEO RG
VIDEO RB
VCOM R
VCOM G
VCOM B
CAL
SCEN
DLYCNT B
DLYCNT G
DLYCNT R
SDA_100K
SCL_100K
SCL_100K
SDA_100K
G0
G1
G2
G3
G4
G5
G6
G7
G8
G9
R9
R8
R7
R6
R5
R4
R3
R2
R1
R0
RSET
VREF
COMP
VAA
VAA
GND
GND
VAA
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
CLOCK
PSAVE
BLANK
SYNC
OSDBLK
VCC1
OSDR
GND1
SOG IN
VCC1
OSD G
GND1
VCC1
OSD B
GND1
NC
GND1
ABL IN
NC
VCC 5V
SOG OUT
CLP
VCC2
NC
GND2
NC
GND2
CONT REF
MBRT
GND2
CONT DAC
BLK
D/A 1
GND
SDA
SCL
D/A 2
D/A 3
D/A 5
D/A 4
B_IN
B_OUT
BLUE
GREEN
RED
R
SCL
SDA
AO7
AO8
AO9
AO10
AO11
AO12
VREFL
VREFU1
GNDVREFU2
AO1
AO2
AO3
AO4
AO5
AO6
VCC
VDD
CS2
CS1
CS0
GND
R_IN
G_IN
R_OUT
G_OUT
IOR
IOR
IOG
IOG
IOB
IOB
R
GND
G
GND
B
GND
SUB5V
HD
VD
-1
MONITOR
TO 6/7
TO 5/7
TO 7/7
FROM 3/7
FROM 2/7TO 5/7,6/7,7/7
FROM 3/7
FROM 1/7
FROM 3/7
MAIN CPU,EEPROM,DAC,D/A CONVERTER,
LCD DRIVE,3D GAMMA&TG
B-SS1719<...>-C..-P4
TP402(RED)
1.1Vp-p(H) 1.1Vp-p(H)
TP403(GREEN)
1.1Vp-p(H)
TP404(BLUE)
7-21
VPL-HS1 7-21
2
3
4
5
1
ABCDEFGH
C (5/7)C (5/7)
•Refer to page 7-15 for Printed Wiring Board
•Refer to page 7-16 for IC Block Diagrams
C(5/7)
6.9 7.4
8.1
7.5
7.5
13.7
1.2
1.2
+15.5V
+15.5V
+5V
2.5
3.3
7.5
7.5
2.5
3.3
7.5
2.5
7.5
1.9
6.9
7.5
7.5
7.5
7.6
7.5
7.6
0
5.0
0
4.6
5.0
1.3
3.2
0.3
3.4
3.4
3.4
3.4
4.3
1.4
2.4
7.4
7.4
3.0
G
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
123
4 5 6
CN501
CN502
R501
R502
R503
R504R505
R506
R507
R508
R509
R510
R513
R514
R515 R516
R517 R518 R519
R522
R523
R524
R525
R526
R527
R528
R529
R530
R531
R532
R533
R534
R535
R536
R537
R538
C501 C502
C503
C504
C505
C507
C508
C509
C510
C511
C512
C513
C514
C515
C518
C520
C521
C522 C523
C524
C525
C526
C527
C528
C529
C530
C531
C532
C533 C534
FB501
FB502
FB505
Q501
Q502
TP501 TP502
TP503
TP504
TP505
JL501
JL502
JL503
JL504
JL505
L501
L502
IC501
IC502
IC503
C516
R511
R512
FB503 FB504
C517
C519
C506
JL506
CXA3512R-T6
LCD DRIVER
#
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
HNIB01FU-TE85R
BUFF
HNIB01FU-TE85R
BUFF
0
1/16W
:CHIP
100
1/16W
:CHIP
2.2
1/16W
:CHIP
#
#
10k
1/16W
:CHIP
0.1
16V
B:CHIP
100
1/16W
:CHIP
0.1
25V
F:CHIP
0.1
16V
B:CHIP
1µH
:CHIP
1µH
:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
BK1608TS601
BK1608TS601
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
47
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2
1/16W
:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
100
16V
:AL-CP
0.1
25V
F:CHIP
BK1608TS601
#
0.22
10V
B:CHIP
0.22
10V
B:CHIP
#0.1
16V
B:CHIP
3.9k
1/16W
:RN-CP
2k
1/16W
:RN-CP
2k
1/16W
:RN-CP
3.9k
1/16W
:RN-CP
4.7
6.3V
B:CHIP
#
#
0.22
10V
B:CHIP
#
#
#
#
#
##
24P
FPC
:SMD
#
#
0
1/16W
:CHIP
#
#
#
#
#
#
#
#
#
47
25V
:AL-CP
47
25V
:AL-CP
#
#
#
#
#
#
0
1/16W
:CHIP
TK11900MTL
13.5V REG
0.01
25V
B:CHIP
15k
1/16W
:RN-CP
150k
1/16W
:RN-CP
BK1608TS601 #
0.1
25V
F:CHIP
0.22
25V
B:CHIP
68p
50V
CH:CHIP
#
5V-2
TP
5V-2
DAC
HVDD
G OUT
MCLK G
TG
15.5V
15.5V
15.5V
VID2
VCOM G
SCENSCEN
DLYCNT G
DLYCNT G
FRP
ENB
PRG
FRP
ENB
PRG
VID11
VID9
VID7
VID5
VID3
VID1
HST
HCK1G
HCK2G
VCK
VST
PCG
VID1
VID11
VID3
VID9
VID5
VID7
RGTX
DWN
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
RGTX
HST
HCK1G
HCK2G
VCK
VST
DWN
PCG
SID
VIDEO RG
CAL
POS-CON2
POS-CON1 POS-CON1
POS-CON2
VID8
VID10
VID12
VID4
VID6
VID2
RGTXRGTX
PRGPOLPRGPOL
ENB
ENB
RGTX
PRGPOL
PRG
NC
NC
POSCTR1
POSCTR2
NC
GND
GND
STATUS
ENB
NC
DIRCTR
NC
DCFBSW VCOMOUT
VCOMOFF
SIGCNT
FRP
SID_O
SID_R
SID_IN
GND
GND
VCC
NC
SH_IN
VIDEO_O
VIDEO_R
VIDEO_I
NC
SHOUT6
NC
SHOUT5
NC
SHOUT4
NC
PGND
GND
GND
PVCC
NC
SHOUT3
NC
SHOUT2
NC
SHOUT1
CAL_R
CAL_O
CAL_I
VDD
DGND
MCLK
MCLKX
GND
GND
DLYCTR
CLKOUT
CLKOUTX
NC
CLKIN
CLKINX
F/H_CNT
PRGPOL
PRG
NC
NC
POSCTR1
POSCTR2
NC
GND
GND
STATUS
ENB
NC
DIRCTR
NC
DCFBSW VCOMOUT
VCOMOFF
SIGCNT
FRP
SID_O
SID_R
SID_IN
GND
GND
VCC
NC
SH_IN
VIDEO_O
VIDEO_R
VIDEO_I
NC
SHOUT6
NC
SHOUT5
NC
SHOUT4
NC
PGND
GND
GND
PVCC
NC
SHOUT3
NC
SHOUT2
NC
SHOUT1
CAL_R
CAL_O
CAL_I
VDD
DGND
MCLK
MCLKX
GND
GND
DLYCTR
CLKOUT
CLKOUTX
NC
CLKIN
CLKINX
F/H_CNT
BP
SD
FB
VIN
GND
VO
GREEN
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
RGT
MODE3
MODE2
MODE1
HST
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
D1OR2D1OR2
PSIG G
SIG G1
SIG G2
GND
G OUT
ENB
GREEN
HCK1
HCK2
FROM 3/7
TO LCD DANEL(G)
FROM 4/7
FROM 1/7
FROM 4/7
FROM 3/7
MAIN CPU,EEPROM,DAC,D/A CONVERTER,
LCD DRIVE,3D GAMMA&TG
B-SS1719<J..>-C..-P5
TO 6/7,7/7
TP503(G OUT)
1.1Vp-p(H)
8.8Vp-p(H)
TP504(PSIG-G)
8.5Vp-p(H)
TP502(PSIG-G1)
7-22 VPL-HS1
7-22
2
3
4
5
ABCDEFGH
1
C (6/7)C (6/7)
•Refer to page 7-15 for Printed Wiring Board
•Refer to page 7-16 for IC Block Diagrams
C(6/7)
+15.5V
7.5
8.0
7.4
6.9
7.5
7.4
7.5
7.5
7.5
7.6
7.5
7.6
0
5.0
0
4.6
5.0
1.3
3.2
0.3
3.4
3.4
3.4
3.4
4.3
1.4
2.4
7.4
3.0
2.5
3.3
7.5
7.5
2.5
3.3
7.5
2.5
7.5
1.9
6.9
R
12345678910 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
12345678910 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
JL601
JL602
JL603
JL604
JL605
R601
R602
R603
R604R605
R606
R607
R608
R609
R610
R611
R612
R613 R614
R615 R616 R617
R620
R621
R622
R623
R624
R625
R626
R627
R628
R629
R630
R631
R632
R633
R634
R635
R636
C601 C602
C603
C604
C605
C606
C607
C608
C609
C610
C611
C612
C613
C614
C615
C616
C617
C618 C619
C620
C621
C622
C623
C624
C625
C626
C627
C628
C629 C630
FB601
FB602
FB603
Q601
Q602
IC601
IC602
TP601 TP602
TP603
TP604
CN601
CN602
L601
L602
CXA3512R-T6
LCD DRIVER
#
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
HNIB01FU-TE85R
BUFF
HNIB01FU-TE85R
BUFF
0
1/16W
:CHIP
100
1/16W
:CHIP
2.2
1/16W
:CHIP
#
#
10k
1/16W
:CHIP
0.1
16V
B:CHIP
100
1/16W
:CHIP
0.1
25V
F:CHIP
0.1
16V
B:CHIP
1µH
:CHIP
1µH
:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
BK1608TS601
BK1608TS601
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
47
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2
1/16W
:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
100
16V
:AL-CP
0.1
25V
F:CHIP
BK1608TS601
0.22
10V
B:CHIP
0.22
10V
B:CHIP
#
2k
1/16W
:RN-CP
3.9k
1/16W
:RN-CP
2k
1/16W
:RN-CP
0.1
16V
B:CHIP
3.9k
1/16W
:RN-CP
68p
50V
CH:CHIP
#
#
4.7
6.3V
B:CHIP
0.22
10V
B:CHIP
#
#
#
#
#
##
24P
FPC
:SMD
#
#
0
1/16W
:CHIP
#
#
#
#
#
#
#
#
#
47
25V
:AL-CP
47
25V
:AL-CP
#
#
#
#
#
#
0
1/16W
:CHIP
5V-2
TP
5V-2
DAC
R OUT
MCLK R
TG
15.5V
15.5V
HVDD
15.5V
VCOM R
SCENSCEN
DLYCNT R
DLYCNT R
FRP
ENB
PRG
FRP
ENB
PRG
VID11
VID9
VID7
VID5
VID3
VID1
HST
HCK2R
HCK1R
VCK
VST
PCG
VID1
VID11
VID3
VID9
VID5
VID7
RGT
DWN
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
RGT
HST
HCK2R
HCK1R
VCK
VST
DWN
PCG
SID
VIDEO RR
CAL
POS-CON1
POS-CON2POS-CON2
POS-CON1
VID4
VID6
VID8
VID10
VID12
VID2
RGTRGT
PRGPOLPRGPOL
ENB
ENB
RGT
PRGPOL
PRG
NC
NC
POSCTR1
POSCTR2
NC
GND
GND
STATUS
ENB
NC
D10R2
DIRCTR
NC
DCFBSW VCOMOUT
VCOMOFF
SIGCNT
FRP
SID_O
SID_R
SID_IN
GND
GND
VCC
NC
SH_IN
VIDEO_O
VIDEO_R
VIDEO_I
NC
SHOUT6
NC
SHOUT5
NC
SHOUT4
NC
PGND
GND
GND
PVCC
NC
SHOUT3
NC
SHOUT2
NC
SHOUT1
CAL_R
CAL_O
CAL_I
VDD
DGND
MCLK
MCLKX
GND
GND
DLYCTR
CLKOUT
CLKOUTX
NC
CLKIN
CLKINX
F/H_CNT
PRGPOL
PRG
NC
NC
POSCTR1
POSCTR2
NC
GND
GND
STATUS
ENB
NC
D10R2
DIRCTR
NC
DCFBSW VCOMOUT
VCOMOFF
SIGCNT
FRP
SID_O
SID_R
SID_IN
GND
GND
VCC
NC
SH_IN
VIDEO_O
VIDEO_R
VIDEO_I
NC
SHOUT6
NC
SHOUT5
NC
SHOUT4
NC
PGND
GND
GND
PVCC
NC
SHOUT3
NC
SHOUT2
NC
SHOUT1
CAL_R
CAL_O
CAL_I
VDD
DGND
MCLK
MCLKX
GND
GND
DLYCTR
CLKOUT
CLKOUTX
NC
CLKIN
CLKINX
F/H_CNT
RED
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
RGT
MODE3
MODE2
MODE1
HST
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
SIG R2 SIG R1
PSIG R
R OUT
ENB
RED
HCK1
HCK2
FROM 4/7
FROM 1/7
FROM 4/7
FROM 3/7
FROM 5/7
FROM 3/7
MAIN CPU,EEPROM,DAC,D/A CONVERTER,
LCD DRIVE,3D GAMMA&TG
B-SS1719<...>-C..-P6
TO LCD PANEL(R)
8.8Vp-p(H)
TP604(PSIG-R)
TP603(R OUT)
1.1Vp-p(H)
8.8Vp-p(H)
TP602(PSIG-R1)
7-23
VPL-HS1 7-23
2
3
4
5
1
ABCDEFGH
C (7/7)C (7/7)
•Refer to page 7-15 for Printed Wiring Board
•Refer to page 7-16 for IC Block Diagrams
C(7/7)
7.5
8.0
7.4
6.9
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.6
7.6
0
5.0
0
4.6
5.0
1.3
3.2
0.3
3.4
3.4
4.3
3.4
3.4
3.1
7.4
7.4
2.4
1.4
2.5
3.3
7.5
2.5
3.3
7.5
2.5
1.9
6.9
+15.5V
B
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
CN701
CN702
C701 C702
C703
C704
C705
C706
C707
C708
C709
C710
C711
C712
C713
C714
C715
C716
C717
C718 C719 C720
C721
C722
C723
C724
C725
C726
C727
C728
C729 C730
R701
R702
R703
R704R705
R706
R707
R708
R709
R710
R711
R712
R713
R714
R715 R716 R717
R720
R721
R722
R723
R724
R725
R726
R727
R728
R729
R730
R731
R732
R733
R734
R735
R736
FB701
FB702
FB703
Q701
Q702
IC701
IC702
JL701
JL702
JL703
JL704
JL705
TP701 TP702
TP703
TP704
L701
L702
CXA3512R-T6
LCD DRIVER
#
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
HNIB01FU-TE85R
BUFF
HNIB01FU-TE85R
BUFF
0
1/16W
:CHIP
100
1/16W
:CHIP
2.2
1/16W
:CHIP
#
#
10k
1/16W
:CHIP
0.1
16V
B:CHIP
100
1/16W
:CHIP
0.1
25V
F:CHIP
0.1
16V
B:CHIP
1µH
:CHIP
1µH
:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
BK1608TS601
BK1608TS601
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
47
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2k
1/16W
:CHIP
2.2
1/16W
:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
100
16V
:AL-CP
0.1
25V
F:CHIP
BK1608TS601
0.01
25V
B:CHIP
0.22
10V
B:CHIP
0.22
10V
B:CHIP
#
2k
1/16W
:RN-CP
3.9k
1/16W
:RN-CP
2k
1/16W
:RN-CP
3.9k
1/16W
:RN-CP
68p
50V
CH:CHIP
#
#
4.7
6.3V
B:CHIP
0.22
10V
B:CHIP
#
#
#
#
#
##
24P
FPC
:SMD
#
#
0
1/16W
:CHIP
#
#
#
#
#
#
#
#
#
47
25V
:AL-CP
47
25V
:AL-CP
#
#
#
#
#
#
0
1/16W
:CHIP
5V-2
TP
5V-2
DAC
B OUT
MCLK B
TG
15.5V
15.5V
HVDD
15.5V
VCOM B
SCENSCEN
DLYCNT B
DLYCNT B
FRP
ENB
PRG
FRP
ENB
PRG
VID11
VID9
VID7
VID5
VID3
VID1
HST
HCK2B
HCK1B
VCK
VST
PCG
VID1
VID11
VID3
VID9
VID5
VID7
RGT
DWN
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
RGT
HST
HCK2B
HCK1B
VCK
VST
DWN
PCG
SID
VIDEO RB
CAL
POS-CON1
POS-CON2
POS-CON1
POS-CON2
VID4
VID6
VID8
VID10
VID12
VID2
RGT
RGT
PRGPOLPRGPOL
ENB
ENB
RGT
PRGPOL
PRG
NC
NC
POSCTR1
POSCTR2
NC
GND
GND
STATUS
ENB
NC
DIRCTR
NC
DCFBSW VCOMOUT
VCOMOFF
SIGCNT
FRP
SID_O
SID_R
SID_IN
GND
GND
VCC
NC
SH_IN
VIDEO_O
VIDEO_R
VIDEO_I
NC
SHOUT6
NC
SHOUT5
NC
SHOUT4
NC
PGND
GND
GND
PVCC
NC
SHOUT3
NC
SHOUT2
NC
SHOUT1
CAL_R
CAL_O
CAL_I
VDD
DGND
MCLK
MCLKX
GND
GND
DLYCTR
CLKOUT
CLKOUTX
NC
CLKIN
CLKINX
F/H_CNT
PRGPOL
PRG
NC
NC
POSCTR1
POSCTR2
NC
GND
GND
STATUS
ENB
NC
DIRCTR
NC
DCFBSW VCOMOUT
VCOMOFF
SIGCNT
FRP
SID_O
SID_R
SID_IN
GND
GND
VCC
NC
SH_IN
VIDEO_O
VIDEO_R
VIDEO_I
NC
SHOUT6
NC
SHOUT5
NC
SHOUT4
NC
PGND
GND
GND
PVCC
NC
SHOUT3
NC
SHOUT2
NC
SHOUT1
CAL_R
CAL_O
CAL_I
VDD
DGND
MCLK
MCLKX
GND
GND
DLYCTR
CLKOUT
CLKOUTX
NC
CLKIN
CLKINX
F/H_CNT
BLUE
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
RGT
MODE3
MODE2
MODE1
HST
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
D1OR2D1OR2
PSIG B
SIG B2 SIG B1
B OUT
ENB
BLUE
HCK1
HCK2
FROM 4/7
FROM 1/7
FROM 4/7
FROM 3/7
FROM 3/7
FROM 5/7
TO LCD PANEL(B)
MAIN CPU,EEPROM,DAC,D/A CONVERTER,
LCD DRIVE,3D GAMMA&TG
B-SS1719<...>-C..-P7
TP703(B OUT)
1.1Vp-p(H)
8.8Vp-p(H)
TP704(PSIG-B)
8.5Vp-p(H)
TP702(PSIG-B1)
7-24 VPL-HS1
7-24
2
3
4
5
ABCDEFGH
1
F, GUF, GU
F -A SIDE-
SUFFIX: -11
GU -A SIDE-
SUFFIX: -11 GU -B SIDE-
SUFFIX: -11
F -B SIDE-
SUFFIX: -11
VD1101
R1101
L1101
F1101FH1102 FH1101
C1106
C1103
C1101
CN1103
CN1102
CN1101
JL1101
JL1102
JL1103 JL1104
CN002
CN004
CN005
CN001
CN003
F
1
1
2
3
1
2
1
23
4
R1101
FH1101 FH1102
CN1101
VD1101
F1101
CN1103
JL1101
JL1102
JL1103
JL1104
C1101
C1106
CN1102
C1103
L1101
560k
1/2W
:RC
2P
AC INLET
6.3A
#
#
#
#
#
470p
250V
B:CHIP
470p
250V
B:CHIP
3P
0.22
AC(L)
GND
N.C.
AC(N)
(LINE FILTER)
B-SS1719<...>-F..
TO G(1/2)BOARD
CN3204AC(L)
AC(N)
AC SOCKET
50/60Hz
100-120V/220-240V
250V
7-25
VPL-HS1 7-25
GG
G -A SIDE-
SUFFIX: -11 G -B SIDE-
SUFFIX: -11
T1101
R3606
R3218
R3217
R3216
R3214
R3213
R3210
R3209
R3207
R3206
R3205
R3204 R3203
R3202
R3201
R3130
R3129
R3128
R3127
R3126
R3124
R3122
R3120
R3107
R2101
RY2101
Q3105
Q3104
Q3103
Q3102
PH3102PH3101PH3100
L3206
L3205
L3204
L2101
L2002
IC3307
IC3304
IC3202
IC3201
IC3100
IC2101
FB3102
FB3101 D3201
D3119
D3112
D3111D3110
D3109
D3107
D2102
D2101
C3330
C3328
C3318
C3214
C3213
C3212
C3211
C3210
C3209
C3206
C3205
C3204
C3203
C3130
C3125
C3124
C3123
C3121
C3120
C3119
C3114
C3113
C3112
C3110
C3108
C2104
C2103
C2102
C2101
C2004
CN3303
CN3302
CN3301
CN3205 CN3204
CN2001
CL3101
C2105
C2106
C2107
C3107
C3109
C3111
C3122
C3126
C3128
C3131
C3207
D2103
D2104
D2105
D3103
D3104
D3108
D3113
D3116
D3117
D3118
D3120
D3121
D3202
D3203
IC3102
JL2001
JL2002
JL2003
JL2103
JL2104
JL3310
JL3311
JL3312
JL3317
JL3318
JL3319
JL3320
JL3321
JL3322
JL3323
JL3326
JL3328
JL3330
JL3331
JL3334
JL3340
JL3341
JL3343
JL3344
JL3350
Q2101
Q3106
Q3107
Q3108
Q3109
Q3110
Q3201
Q3601 R2102
R2104
R2105
R2106 R2107
R2109
R3111
R3112
R3113
R3114
R3115
R3116R3117
R3119
R3121
R3123
R3125
R3131
R3132
R3133
R3134
R3135
R3136
R3137
R3138
R3139
R3140
R3141
R3142
R3143
R3144
R3145
R3152 R3153
R3156
R3157
R3158
R3161
R3163
R3211 R3212
R3219
R3608
R3609
TL431BCDR2 (IC3102)
3 6
2
5
8
1
4
7
K
A
A
NC
REF
A
A
NC
MZ1540 (IC2101)
10987654321
1110987654321
CathodeComparator
Output
VccGNDDrainDrain Gate Input
Voltage
Sensing
Source Zero
Current
Sensing
—
G
—
1-687-357-11
D2101 B-2
D2102 A-2
D2103 *B-1
D2104 *C-2
D2105 *B-1
D3103 *B-4
D3104 *B-3
D3107 C-3
D3108 *D-2
D3109 D-2
D3110 E-2
D3111 E-3
D3112 E-2
D3113 *E-2
D3116 *F-2
D3117 *F-2
D3118 F-2
D3119 F-2
D3120 *F-3
D3121 *F-1
D3201 F-2
D3202 *F-2
D3203 *G-1
IC2101 C-2
IC3100 C-4
IC3102 *E-1
IC3201 F-2
IC3202 F-1
IC3304 F-1
IC3307 E-1
Q2101 *B-1
Q3102 D-2
Q3103 C-3
Q3104 B-4
Q3105 B-4
Q3106 *E-2
Q3107 *F-2
Q3108 *F-2
Q3109 *F-1
Q3110 *E-1
Q3201 *F-1
Q3601 *D-1
*:B Side mount
7-26 VPL-HS1
7-26
2
3
4
5
ABCDEFGH
1
G(1/2)
21.3
20.6
21.2
20.6
21.2
21.2
-96.7
90.6
0.1
2.3
2.3
21.2
369.6
1 3 4 8 9 102 5 7
1
2
3
1
2
3
4
1
23
4
1
2
1
2
4
56
7
8
9
10
C2101
IC2101
C2104
C2107
C2106
RY2101
R2106
R3606
R2104 R2105
C2103
R3609
R3608
L3204
C2004
C2102
R2102
R2107
R2109
C2105
JL2001
JL2002
JL2003
JL2103
JL2104
L2101
CN2001
CN3204
CN3205
R2101L2002
R3206
D2105
D2101
D2104
D2102
Q2101
D2103
Q3601
1
450V
MZ1540
47
:HT
100p
CH:CHIP
0.22
25V
B:CHIP
3.9k
:CHIP 4.7
1/4W
:FPRD
330
1/2W
:CHIP
330
1/2W
:CHIP
0.47
400V
:MPS
10k
:CHIP
2.2k
:CHIP
100µH
0.47
275V
220
450V
4.7k
:CHIP
4.7k
:CHIP
4.7k
:CHIP
0.1
B:CHIP
#
#
#
#
#
3P
4P
2P
5.6
5W
:RF
0.22
5W
:RB
RD16M-T1B2
BIAS
RM11C-V1
RECT
D1FS4A-TA
CLAMP
D6SB80
RECT
2SA1213-Y-TE12L
RELAY DRIVE
D1FS4A-TA
PROT
2SA1213-Y-TE12L
SW
DC(+)
DC(-)
VCC
POWER ON
12
34
DRAIN
GATE
AC SENSE
SOURCE
L SENSE
GND
COMP
VCC
CATHODE
DC(+)
DC(-) TO BALLAST
AC(L)
AC(N)
NC
TH(A)
TH(B)
N.C
N.C
TO 2/2
FROM 2/2
POWER SUPPLY,DC-DC CONVERTER,
FAN DRIVE
B-SS1719<...>-G..-P1
BIMETAL
TO
CN1102
TO F BOARD
G(1/2)G(1/2)
• Refer to page 7-25 for Printed Wiring Board
• Refer to page 7-25 for IC Block Diagrams
7-27
VPL-HS1 7-27
2
3
4
5
1
A BCDEFGH
G(2/2)G(2/2)
G(2/2)
0.7
0
4.7
0
0
4.9
2.5
3.7
0.1
5.5
6.2
5.5
21.4
4.6
3.6
1.3
1.1
0
0.2
6.1
0.9
10.2
16.3 16.2
16.5
10.4
16.5
27.3
16.1
13.8
0.8
1.2
1.0
0.8
3.1
6.1
6.1
3.3
5.06.2
10.3
4.6 4.6
325.8
320.0
289.5
368.9
289.5 369.4
320.0
0
21.6
4.5
0
2.5
2.3
1.8
6.3
+17V
+6V
SUB+5V
AUDIO+B
6.2
S
S
S S
1234
5678
1234
5 6 7 8
1
S
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
1
3
5
6
14
13
12
11
10
9
8
7
1234
5 6 7 8
1234
5 6 7 8
S1S2S3G
D1 D2 D3 D4
123456789
10 11 12 13 14 15 16 17 18
1
2
4
3
1
2
4
3
1
2
4
3
IO
G
1
2
3
4
5
6
7
123
4 5 6
C3113
C3108
R3107
C3121
R3132
C3120
C3126
R3122
R3119R3117R3116
IC3102
C3107
C3328
C3330
C3203
R3120
R3121
R3124
R3125
R3111
R3112
R3126
R3130
R3123
PH3100
PH3101
R3138
R3137
R3144
R3142
R3143
R3141
R3153R3152
R3157
R3161
R3134
R3158
R3139
D3118
D3116
R3115
R3128R3127 PH3102
R3131
R3136
R3135
R3133
R3156
D3119
D3121
R3129
R3205
R3202
R3201
R3203
R3204
IC3304
D3117
D3120
R3207
CN3104
R3140
C3318
C3131
CN3301
CN3302
CN3303
R3211
R3212
C3122
C3206
C3207
C3209
JL3340
JL3341 JL3343 JL3344
L3206
R3210
R3216
R3219
R3217
R3218
C3204
C3211
L3205
D3201
D3203
FB3101
JL3326
JL3331 JL3330
JL3310
JL3319 JL3318
JL3317
JL3321 JL3328
JL3312
JL3334
JL3323
JL3322
JL3311
JL3320
R3213
R3209
C3213
C3212
FB3102
D3202
R3214
R3145
C3214
T1101
C3114
C3130
C3210
C3119
C3205
C3128
C3123
C3124
C3125
D3103
IC3100
Q3102
Q3103
D3107
Q3104
Q3105
D3108
D3104
D3109
D3112
D3111
D3110
Q3108
Q3107
Q3109
IC3307
Q3110
IC3202
Q3201
D3113
Q3106
IC3201
C3110
C3111
C3112
C3109
R3114
R3113
R3163
0.1
:PT
0.001
:PP
4.7
1/4W
:FPRD
220
:HT
100k
:CHIP
4.7
10V
B:CHIP
0.1
B:CHIP
1k
1/4W
:FPRD
330k
1/2W
:CHIP
330k
1/2W
:CHIP
330k
1/2W
:CHIP
TL431BCDR2
SHUNT REG
0.01
B:CHIP
47
6.3V
:AL-CP
0.47
16V
B:CHIP
47
6.3V
:AL-CP
10
:CHIP
10
:CHIP
10k
:CHIP
10k
:CHIP
18k
:RN-CP
680
:RN-CP
0.1
1/2W
:RF
0.68
1/2W
:CHIP
270
:CHIP
PC123FY2
PC123FY2
470
:CHIP
3.3k
:CHIP
2.2k
:RN-CP
3.9k
:RN-CP
2.7k
:RN-CP
3.3k
:RN-CP
47k
:CHIP
82k
:CHIP
47k
:CHIP
10k
:CHIP
1k
:CHIP
10k
:CHIP
10k
:CHIP
MA111-TX
MA111-TX
18k
:RN-CP
10k
:CHIP
47k
:CHIP
PC123FY2
10k
:CHIP
22k
:CHIP
820
:CHIP
10k
:CHIP
3.3k
:CHIP
MA111-TX
MA111-TX
0.68
1/2W
:CHIP
10k
:CHIP
2.2k
:CHIP
10k
:CHIP
10k
:CHIP
10k
:CHIP
BA05FP-E2
5V REG
MA111-TX
MA111-TX
1k
:CHIP
#
10k
0.1
25V
B:CHIP
0.1
25V
B:CHIP
12P
7P
10P
82k
47k
0.1
25V
B:CHIP
220p
CH:CHIP
0.1
25V
B:CHIP
1
10V
B:CHIP
#
###
4.7µH
0
:CHIP
10k
:CHIP
0.047
:CHIP
15k
:RN-CP
47k
:RN-CP
150
6.3V
10
25V
B:CHIP
22µH
EC31QS03L
EC31QS03L
#
##
#
##
#
##
#
#
#
#
#
#
91k
:RN-CP
10k
:RN-CP
0.1
25V
B:CHIP
39
16V
:AL
RB501V-40TE-17
47k :RN-CP
47k
:RN-CP
100p
CH:CHIP
:PIT
22
25V
470p
250V
B:CHIP
10
10V
B:CHIP
8200p
800V
:PP
330p
CH:CHIP
0.1
B:CHIP
1000
25V
:HT
1000
25V
:HT
2200
10V
:HT
RD18M-T1B1
PROT
MCZ3001D
CONV CONT
2SK2876-01MR
CONVERTER
2SK2876-01MR
CONVERTER
UF4005PKG23
RECT
2SA1162-YG-TE85L
LATCH
2SC2712-YG-TE85L
LATCH
RD33M-T1B
OVP
D1FS4A-TA
CLAMP
D2FS4-TA
VCC RECT
D10SC4M
+6V RECT
D10SC6M
+17V RECT
D10SC6M
+17V RECT
2SJ530S-TL
SW
2SJ530S-TL
SW
2SJ530S-TL
SW
TA75W393FU
DELAY
2SC2712
SW
LTC1772
DC-DC CON
SI9434DY
SW
RD6.8M-T1B1
OVP
2SC2712
PROT
LT1767EMS8
DC-DC CON
10 16V AL-CP
2.2 10V B:CHIP
47
0.01 B:CHIP
100 :RN-CP
12k
#
POWER_CONT
SUB+5V
D+3.3V
DC(-)
DC(+)
VCC
POWER ON
VSENSE VD
F/B
CT
RT
GND
TIMER
SS
OCP
VC1
NC
VG(H)
VS
VB
NC
VG(L)
P.GND
VC2
REFK
A
A
A
A
SUB +5V
GND
VCC
GND
17V
GND
AUDIO+B
AUDIO+B
GND
GND
6V
6V
GND
GND
SUB 5V
GND
SUB 5V
GND
FAN+B
GND
PCONT
GND
17V
GND
6V
GND
GND
GND
GND
PGATE
VIN
SENSE
GND
VFB
ITH/RUN
FAN CONT1
D3.3V
D3.3V
D3.3V
BOOST
VIN
VSW
GND
SYNC
VC
FB
SHDN
POWER SUPPLY,DC-DC CONVERTER,
FAN DRIVE
B-SS1719<...>-G..-P2
FROM 1/2
TO 1/2
CN501
TO Q(2/4)BOARD
TO C(1/7)BOARD
CN102
TO C(1/7)BOARD
CN101
•Refer to page 7-25 for Printed Wiring Board
•Refer to page 7-25 for IC Block Diagrams
7-28 VPL-HS1
7-28
2
3
4
5
ABCDEFGH
1
HH
H -A SIDE-
SUFFIX: -11 H -B SIDE-
SUFFIX: -11
D801
D802
D803
D804
S801S802
S803
S804
S805
S806S807
S808 S809
S810
S811
S812
CN801
C801
D805
D806
D807
D808
D809
D810
D811
D812
D813 D814
JL801
JL802
JL803
JL804
JL805
JL806
JL807
JL808
JL809
JL810
JL811
Q801 R801
R802
R803
R804
R805
R806
R807
R808
R809
R810
R811
R812
R813
R814
R815
R816
R817
R818
R819
R820
R821
H
SUB+5V
1
2
3
4
5
6
7
8
9
10
11
12
JL802
JL803
JL804
JL805
JL806
JL807
JL808
JL809
JL810
CN801
D801
D802
D803
D804 D805
D806
D807
D808
D809
D810
D811
D812
Q801
S801 S802 S803 S804 S805 S806 S808
S810
S811
S812
JL801
C801
R801 R802 R803 R804 R805 R807 R808 R811
R812
R814
R815
R816
R817
R818
S809
S807
JL811
D813
D814
R806
R809 R810
R813
R819
R820
R821
#
#
#
#
#
#
#
#
#
12P
:SMD
SEC1901C
LAMP-LED
SEC1901C
TEMP-LED
SEC2422C
POWER/STBY
SEC1801C
POWER-SAVE DAN202K
PROTECT
DAP202K
PROTECT
DAN202K
PROTECT
DAP202K
PROTECT
DAN202K
PROTECT
DAP202K
PROTECT
DAN202K
PROTECT
DAP202K
PROTECT
DTA144EKA
SW
#
0.1
16V
B:CHIP
27k
1/16W
:CHIP
12k
1/16W
:CHIP
6.8k
1/16W
:CHIP
3.9k
1/16W
:CHIP
2.7k
1/16W
:CHIP
2.2k
1/16W
:CHIP
1.5k
1/16W
:CHIP
1.8k
1/16W
:CHIP
1.8k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
330
1/16W
:CHIP
1k
1/16W
:CHIP
#
DAN202K
PROTECT
DAP202K
PROTECT
27k
1/16W
:CHIP
12k
1/16W
:CHIP
15k 1/16W :CHIP
3.9k
1/16W
:CHIP
10k
1/16W
:CHIP
27k 1/16W :CHIP
3.9k
1/16W
:CHIP
GND01
RESET
GND
GND
PSAVE-LED
POWER-LED
TEMP-LED
LANP-LED
LEFT RIGHT DOWN UP ENTER MENU INPUT POWER
SUB 5V
KEY3
PSAVE
LAMP TEMP
ON/STBY
KEY2
KEY1
KEY0
VKEY-
VKEY+
VIDEO MEM
KEY,LED DRIVE
B-SS1719<...>-H
TO C(1/7)BOARD
CN110
D+5V
-
H
-
1-682-359-11
D801 C-5
D802 C-4
D803 C-2
D804 C-3
D805 B-3
D806 B-3
D807 B-4
D808 B-4
D809 B-3
D810 A-3
D811 B-3
D812 B-3
D813 A-4
D814 A-4
Q801 B-4
7-29
VPL-HS1 7-29
CN401
CN501
CN502
CN503
CN601
CN702
CN703
CN704
C401
C402 C403
C404
C406
C408
C410C411 C413
C414
C415
C416
C421
C422
C423
C424
C425
C426
C427
C438
C439
C440
C442
C444
C447
C448
C451
C507
C510
C514
C515
C517
C518
C519
C520
C523
C524
C534
C536
C537
C538
C539
C540
C541
C542
C543
C544
C603
C605
C606 C610
C611
C612
C613
C631
C644
C647
C649
C653
C656
C663
C669
C670
C671
C674
C675
C701
C702
C703
C704
C705
C706
D402 D403
D404
D405
D406D407
D506
D507D508
FB501
FB502
FB503
IC401
IC404
IC406
IC407
IC408
IC501
IC502
IC503
IC506
IC507
IC508
IC512
IC603
IC604
IC701
J401
L401 L402 L403
L407
L408
L409
L501 L502
L503
L504
L505
L601
L602
L603
L604
L701
L702
L705
Q510
Q511 Q512
Q604Q605Q606
R405
R407
R408
R426
R427
R430
R431
R432
R433
R434
R435
R436
R437
R438
R439
R440
R441
R442
R453
R461
R469 R470
R472
R496
R498
R499
R521
R541
R542
R544
R545
R546
R547
R548
R549
R550
R551
R552
R553
R554
R609
R620
R627
R628
R645
R648
R653
R654
R655
R682
R688
S601
S602
TP404
TP505 TP506 TP507
TP508
TP509 TP510
TP606
TP607
TP701
TP702
TP703
Q -A SIDE-
SUFFIX: -11
QQ
C405C407C409
C412
C417
C418
C419
C420
C428
C429
C430
C431
C435
C436
C437
C441
C443
C445
C446
C449C450
C502
C503
C504
C505
C506
C508
C509
C511
C512
C513
C516
C535
C545
C602
C604
C607
C608
C609
C614
C615
C616
C617
C618
C619
C620
C621
C622 C623
C624
C625
C626
C627
C628
C629
C630
C632
C633C634 C635
C636
C637
C638C639
C640
C641
C642
C643 C645
C646C648C650
C651
C652
C654
C655
C657
C658
C659
C660
C661
C662
C664
C665
C666 C667
C668
C707
C708
D401
D408
D409
D410
D501
D502
D503
D601
D701
D702
D703
D704
FB401
IC402
IC403
IC405
IC409
IC504
IC505
IC509
IC601 IC602
IC605
IC606
IC607
IC608
IC609
JL401
JL402
JL403
JL404
JL405
JL406
JL407
JL408
JL409
JL410
JL411
JL412
JL413
JL414
JL415
JL416
JL417
JL418
JL419
JL420
JL421
JL422
JL423
JL424 JL425
JL426
JL427
JL428
JL432
JL433
JL434
JL435
JL501 JL502
JL503
JL504JL505
JL506
JL507
JL508
JL509
JL510
JL511
JL512
JL513
JL514
JL515
JL516
JL517JL518
JL519
JL520 JL521 JL522
JL523
JL524
JL525
JL526
JL601
JL602
JL603
JL604
JL605
JL606
JL607
JL608 JL609
JL610
JL611
JL612
JL613
JL614
JL615
JL616
JL617
JL618
JL619
JL620
JL621
JL622
JL623
JL624
JL625
JL626
JL627
JL701
JL702
JL703 JL706
JL707 JL708
JL709
JL710
JL711
JL712
JL713
JL714
JL715
JL716
JL717
JL718
JL719
L404
L405
L406
L410
L411
L703
L704
Q401
Q402Q403Q404
Q501
Q502
Q505
Q513
Q601
Q602
Q603 Q607
Q701
R403
R404
R406
R409
R410
R411
R412
R413
R414
R415
R416
R417
R418
R419 R423
R424
R425
R428
R429
R443
R444
R445
R447
R448
R449
R450
R454
R455
R458
R459
R460
R462
R463
R464
R465
R466
R467
R468
R471
R473
R474
R475
R476
R477
R478
R479
R480
R481
R482
R483
R484
R485
R486
R487
R488
R489
R490
R491
R492
R493
R494
R495
R497
R501
R502 R503
R504
R505
R506
R507
R508
R509R510
R511R512
R513
R515
R517
R518
R519
R520
R522
R524
R528
R529
R530 R532
R555
R556
R601
R602
R603
R605
R606
R607R608
R610
R611
R612
R613
R614
R615
R616
R617
R618
R619
R621
R622
R623
R624
R625
R626
R629
R630
R631
R632
R633
R634
R635
R636
R637
R638
R640
R641
R644
R646
R647
R649
R650
R651
R652
R656
R657
R658
R662
R663
R667
R668
R670
R671
R672
R674
R683
R685 R686
R687
R701
R702
R703
R704
R705
R706
R707
R708
R709
R710
R711
R712
R713
R714
R715
R716
R717
R718
R719
TH401
Q -B SIDE-
SUFFIX: -11
—
Q
—
1-682-355-12
D401 *A-6
D402 A-4
D403 A-5
D404 A-4
D405 A-2
D406 A-1
D407 A-1
D408 B-5
D409 F-7
D410 F-7
D501 B-1
D506 C-5
D507 B-5
D508 B-5
D601 C-3
D701 F-8
D702 G-8
D703 F-8
D704 G-8
IC401 A-5
IC402 A-4
IC403 A-5
IC404 C-6
IC405 B-6
IC406 D-7
IC407 B-6
IC408 C-7
IC409 B-4
IC501 B-2
IC502 B-1
IC503 B-2
IC504 B-1
IC504 B-1
IC506 C-5
IC507 B-2
IC508 C-4
IC509 B-1
IC512 A-2
IC601 B-2
IC602 B-2
IC603 B-2
IC604 B-3
IC605 B-2
IC606 C-2
IC607 C-3
IC608 B-3
IC609 C-2
IC701 G-8
Q401 A-5
Q402 B-6
Q403 B-5
Q404 B-5
Q501 B-1
Q502 B-5
Q505 B-5
Q510 A-2
Q511 B-5
Q512 B-5
Q513 C-4
Q601 B-2
Q602 B-2
Q603 C-2
Q604 B-4
Q605 B-4
Q606 B-4
Q607 C-4
Q701 G-8
TP404 C-7
TP505 E-7
TP506 E-7
TP507 F-7
TP508 E-7
TP509 E-7
TP510 F-7
TP607 C-3
TP701 H-7
TP702 G-7
TP703 H-8
*:B Side mount
7-30 VPL-HS1
7-30
TC4053BF (IC701)
12345678
9
15 10
11
12
13
14
16
V
DD
B. COM
A. COM
A1
A0
A
B
C
B1
B0
C1
C. COM
C0
INH
V
EE
V
SS
24LC21AT/SN (IC401)
5
7
6
8
4
123
I/O
CONTROL
LOGIC
MEMORY
CONTROL
LOGIC XDEC EEPROM
ARRAY
PAGE LATCHES
H/V
GENERATOR
SENSE AMP
R/W CONTROL
YDEC
SDA
VCLK
SCL
VCC
VSS
NC NC NC
M52758FP (IC403)
28
29
30313233 27 26 25 24 23 22 21 20 19343536
17
16151413121110 18
Vcc
ROUT
GND
N.C.
N.C.
Vcc
GOUT
GND
Vcc
BOUT
GND
GOUT
Vcc
N.C.
HOUT
VOUT
GND
SW
Vin2
Hin2
Bin2
GND
N.C.
Gin2
GND
Ain2
GND
Vin1
Hin1
Bin1
Vcc
Gin1
N.C.
Vcc
Ain1
Vcc
1 2 3 4 5 6 7 8 9
M52347FP (IC405)
36
OUTPUT(B)
35
VCC2(B)
OSD ADJUST
34
HOLD(N)
33
SUB
BRIGHTMESST
(B)
32
GND2(B)
31
OUTPUT(G)
30
VCC2(G)
29
HOLD(G)
28
SUB
BRIGHTNESS
(G)
27
GND2(G)
26
OUTPUT(R)
25
VCC2(R)
24
HOLD(R)
23
SUB
BRIGHTNEDD
(R)
22
GND2(R)
21
NC
20
MAIN
BRIGHTNESS
19
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
H.STATE
VCC1(B)
INPUT(B)
SUB
BRIGHTNESS
(B)
OSD IN(B)
GND2(B)
VCC1(G)
INPUT(G)
SUB
CONTRAST
(B)
OSD IN(G)
GND2(G)
VCC1(R)
INPUT(R)
SUB
CONTRAST
(R)
OSDIN(R)
GND2(R)
MAIN
CONTRAST
CP IN
18
B
OSD MIX B
BRIGHTNESS G
OSD MIX G
BRIGHTNESS R
OSD MIX R
BRIGHTNESS
B
AMP B
BLANKING G
AMP G
BLANKING R
AMP R
BLANKING
B
CLAMP B
CONTRAST G
CLAMP G
CONTRAST R
CLAMP R
CONTRAST
B
HOLD B
HOLD B
HOLD
CXA1875AX (IC406)
LATCH
DAC
AMP
LATCH
DAC
AMP
LATCH
DAC
AMP
LATCH
DAC
AMP
LATCH
DAC
AMP
+
–
VCC
REG
I2C DECODER
LEVEL
CONVERTER
LEVEL
CONVERTER
LEVEL
CONVERTER
LATCH
POWER
ON
RESET
OPEN COLLECTOR
3 6
25 81 4 7
SW1
SW0
DAC4
DAC3
DAC2
DAC1
DAC0
GND
14 11
15 12 916 13 10
VCC
SCL
SDA
SAD2
SAD1
SAD0
SW3
SW2
74VHC221AMTCX (IC408)
15
16
12345678
9
10
11
12
13
14
Q
Q
CLK Q
QCLK
Vcc 1Rext/
Cext 1
Cext 1Q 2Q 2
CLR 2B 2A
1A 1
CLR 1Q 2
Cext 2Rext/
Cext
1B 2Q GND
74VHC240MTCX (IC407)
20 19 18 17 16 15 14 13 12 11
12345678910
Vcc
1Y1
2A4
1Y2
2A3
1Y3
2A3
1Y4
2A4
1A1
2Y4
1A2
2Y3
1A3
2Y2
1A4
2Y1
GND
1G
2G
QQ
7-31
VPL-HS1 7-31
2
3
4
5
1
ABCDEFGH
Q(1/4)
0
4.5
4.5
4.8
4.8
4.1
4.9
0.1
0.1
0.4
4.6
4.6
A+5V
A+5V
B
B
B
B
B
R
G
R
G
R
G
R
G
R
G
12345678910
11 12 13 14 15 16 17 18 19 20
12345678910
11 12 13 14 15 16 17 18 19 20
12345678
910 11 12 13 14 15 16
1234
5 6 7 8
123456789101112131415161718
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
1 2 3 4 5 6 7 8
910111213141516
12
34
V
L
R
12345678
910 11 12 13 14 15 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
12345678
910 11 12 13 14 15 16
L401
L402
L403
R403
R404
R405
R406
C401
L404
L405
L406
R410
R411
R412
R413
R414
R415
R416
R417
C405
C407
C409
C412
R418
R419
R423
D408
D409
D410
FB401
R424
R425
R426
R427
R428
R429
R430
C417
C418
C419
R435
R436
R439
C420
IC403
C423
C424
C425
C426
C428
C429
R443
C430
R444
C431
R445
R447
R448
R449
R450
R451
R452
R456
R457
C436
R458
R459
R460
C437
TP404
R461
R462
R463
R464
C438
C439
R465
IC405
C441
R471
R472
C442
C443
R473
R474
C444
C445
R475
R476
R477
TH401
R479
R481
R482
R483
R484
R485
IC406
R486
C447
IC407
IC408
R487
R488 R489
Q406
R490
C450
R491
R492
R493
R494
R495
R496
C435
D402
D403
D404
D405
D406
D407
R409
R467
C402
C403
C422
C440
JL401
JL402
JL403
JL404
JL405
JL406
JL407
JL408
JL409
JL410
JL411
JL412
JL413
JL414
JL415
JL416
JL417
JL418
JL419
JL420
JL421
JL422
JL423
JL424
JL425
JL426
JL427
JL428
R466
R468
C446
R480
L407
L408
L409
R407
R408
R469
R470
J401
JL432
C404
C406
C408
R431
R432
R433
R434
R437
R438
R440
R441
R442
R478
C414
C415
C416
R497
R498
C421
C427
L410
L411
C410
C411
C413
Q402
Q403
Q404
JL433
JL434
JL435
C448
C449
C451
R453
R454
R455
CN401
IC402
D401
IC401 Q401
IC409(1/2)
IC409(2/2)
IC404
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
47
6.3V
:AL-CP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
10
16V
:AL-CP
0.1
16V
B:CHIP
MA157-TX
PROTECT
MA157-TX
PROTECT
MA157-TX
PROTECT
CXA1875AX
DAC
74VHC221AMTCX
MONO MULTI
74VHC240MTCX
INV SW
M52347FP
SYNC SEP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
10k
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
3.3k
1/16W
:RN-CP
2.2k
1/16W
:RN-CP
100
1/16W
:CHIP
56k
1/16W
:CHIP
#
4.3k
1/16W
:RN-CP
4.7k
1/16W
:CHIP 10k
1/16W
:CHIP
47
1/16W
:CHIP
120
1/16W
:RN-CP
10k
1/16W
:CHIP
1.2k
1/16W
:RN-CP
330
1/16W
:RN-CP
43k
1/16W
:RN-CP
100
1/16W
:CHIP
47
1/16W
:CHIP
1.2k
1/16W
:RN-CP
330
1/16W
:RN-CP
100
1/16W
:CHIP
47
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
DTC144EKA
INV
100
1/16W
:CHIP
#
10
6.3V
B:CHIP
10
6.3V
B:CHIP
100p
CH:CHIP
0.001
B:CHIP
0.068
16V
B:CHIP
100p
CH:CHIP
33
1/16W
:CHIP
220p
CH:CHIP
1
16V
B:CHIP
10k
1/16W
47
1/16W
:CHIP
15k
1/16W
:CHIP
15k
1/16W
:CHIP
0.1
16V
B:CHIP
47 1/16W :CHIP
47
1/16W
:CHIP
47k
1/16W
:CHIP
100k
1/16W
:CHIP
220 1/16W :CHIP
BK1608TS601
M52758FP
VIDEO SW
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
680
1/16W
:RN-CP
680
1/16W
:RN-CP
680
1/16W
:RN-CP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
75
:RN-CP
75
:RN-CP
75
:RN-CP
BLm21B03
BLm21B03
BLm21B03
10
16V
:AL-CP
75
:RN-CP
75
:RN-CP
75
:RN-CP
BLm21B03
BLm21B03
BLm21B03
0.1
16V
B:CHIP
0.1
16V
B:CHIP
82
:RN-CP
82
:RN-CP
100
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
0
1/16W
:CHIP
330
1/16W
:CHIP
330
1/16W
:CHIP
330
1/16W
:CHIP
330
1/16W
:CHIP
330
1/16W
:CHIP
0.1
16V
B:CHIP
330 1/16W :CHIP
220
1/16W
:CHIP
2.2
10V
B:CHIP
RD9.1SB-T1
PROTECT
RD9.1SB-T1
PROTECT
RD9.1SB-T1
PROTECT
RD9.1SB-T1
PROTECT
RD9.1SB-T1
PROTECT
RD9.1SB-T1
PROTECT
82
:RN-CP
75
:RN-CP
10
16V
:AL-CP
10
16V
:AL-CP
#
100
16V
:AL-CP
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
75
:RN-CP
75
:RN-CP
100p
CH:CHIP
470
1/16W
:RN-CP
10µH
:CHIP
10µH
:CHIP
10µH
:CHIP
1k
1/16W
:CHIP
560
1/16W
:CHIP
#
0
1/16W
:CHIP
#
47
6.3V
:AL-CP
47
6.3V
:AL-CP
47
6.3V
:AL-CP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
100
1/16W
:CHIP
10
16V
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
100
1/16W
:CHIP
100
1/16W
:CHIP
100
16V
:AL-CP
100
16V
:AL-CP
10µH
:CHIP
10µH
:CHIP
10
16V
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
2SC2712
BUFF
2SC2712
BUFF
2SC2712
BUFF
#
#
#
1
10V
F:CHIP
1
10V
F:CHIP
1
10V
F:CHIP
#
#
#
32P
RECTANGULAR
MM1231XFBE
VIDEO SW
BZA456A
PROTECT
24LC21AT/SN
DDC 2SA1611-T1-M5M6
POWER SW
TC7W00FU(TE12R)
NAND
TC7W00FU(TE12R)
NAND
LT1399CS
RGB AMP
H POL
V POL
PC-RGB/OTHER
PC RGB/OTHER
PC_SYNC/OTHER
AC/BD
J/M
VIDEO
AV
AH
RGBSYNC
RE V
RE H
V CLP
CLP
15KRGB/OTHER
B/B-Y
R/R-Y
G/Y
V-H
V-V
SCL100K1
SDA100K1
A5V
A9V
A5V
A3.3V
A5V
Y
C
C-V
VL
VR
MR
ML
R
G
B
HD
VD
A5V
5V-4
A9V
A9V
A3.3V
J/M
AB/CD
1
2
7
8
4
5
6
3
1
2
7
8
4
5
6
3
SDA100K1
SCL100K1
C-V C Y
V-R
V-G
V-B
GND
V DET
V.POL
H.POL
VCC
G IN
V IN
CLP
CLP SW
HD+OUT
CLP T
H.STATE
V.STATE
V T
GATE SW
HD-OUT
VD+OUT
V S OUT
V S IN
COMP/H
IN
COMP/H
DET
1G
1A1
2Y4
1A2
2Y3
1A3
2Y2
1A4
2Y1
GND
VCC
2G
1Y1
2A4
1Y2
2A3
1Y3
2A2
1Y4
2A1
1A
1B
1CLR
1Q
Q
2CLR
2B
2A
VCC
1R/C
1C
1Q
2
GND
2R/C
2C
2Q
SW1
SW0
DAC4
DAC3
DAC2
DAC1
DAC0
GND
VCC
SCL
SDA
SW3
SW2
SAD2
SAD1
SAD0
GND
NC1
NC2
NC3
GND
VCC
VCLK
SCL
SDA
VCC1(G)
N.C.
IN1(G)
IN1(H)
IN1(V)
GND
GND
IN2(G)
N.C.
GND
IN2(H)
IN2(V)
GND
N.C.
N.C.
VCC2(G)
OUT(G)
GND
GND
OUT(SONG)
VCC
N.C.
OUT(H)
OUT(V)
GND
SW
VCC1(R)
IN1(R)
VCC1(B)
IN1(B)
VCC2(R)
OUT(R)
OUT(B)
VCC2(B)
IN2(R)
IN2(B)
CY
NC
NC
DDC SCL
-IN R
+IN R
GND
-IN G
+IN G
+GND
+IN B
-IN B
R
G
B
EN
EN
EN
OUT R
V+
OUT G
OUT B
V-
IN1B
SW1
OUT1
GND
OUT2
OUT3
SW3
IN3A
IN1A
GND
IN2B
VCC
SW2
IN2A
GND
IN3B
AU-L
GND
R
NC
H
AU-R
GND
G
NC
NC
V
DDC SDA
B
NC
NC
C-Video
NC
Y
GND
NC
DDC-Return
C
GND
NC
GND
GND
GND
GND
NC
FROMFROMFROM
FROM 3/4
TO 2/4
TO 3/4
TO 2/4
FROM 3/4
TO 2/4
TO 3/4
TO 4/4
FROM 3/4
TO 3/4
TO 4/4
TO 4/4
TO 2/4
TO 3/4
FROM 2/4
TO 2/4
SYNC SEPARATOR,EEPROM,AUDIO SW
INPUT TERMINAL,VIDEO SW,RGB INTERFACE,
B-SS1719<...>-Q..-P1
FROM 3/4
VIDEO
L
R
AUDIO
INPUT
PJ
MULTI
S VIDEO
(MONO)
Q (1/4)Q (1/4)
•Refer to page 7-29 for Printed Wiring Board
•Refer to page 7-30 for IC Block Diagrams
7-32 VPL-HS1
7-32
2
3
4
5
ABCDEFGH
1
Q(2/4)
4.3
0.6
3.7
3.5
3.6
3.4
3.74.3
17.0 14.9 11.9 11.9 9.0
6.1 5.0
SUB+5V
AUDIO+B
A+9V
A+5V
+5V
B
R
G
1 2 3 4
5678
1
2
3
OUTVCC
GND
OUTVCC
GND
OUTVCC
GND
OUTVCC
GND
1234
5 6 7 8
1234
5 6 7 8
1234
5 6 7 8
1234
5 6 7 8
1234
5 6 7 8
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1 2 3 4
5678
1
2
3
4
5
6
7
8
9
10
11
12
C501
R501
C502
D502
D503
IC501
IC502
C506
R504
R506
R508
C508
C509
R512
IC503
Q502
R514
C512
R515
C513
R517
IC506
IC507
C517
R521
C519
C520
R523
R524
C521
C522 R525
R526
C523
R527
L504
D504
Q504
R528
R529
C524
R530
R531
D505
Q505
Q506
Q507
R532
C525
Q508
Q509
C526
R539
C527
C528
R540
IC510(1/2)
IC510(2/2)
C529
C530
C531
C532 C533
R541
IC511
Q510
L505
C534
R542
IC512
C535
R544
R545
R546
R547
C503
C510
C511 C514 C518
CN501
CN502
IC505
JL501
JL502
JL503
JL504
JL505
JL506
JL507
JL509
JL510
JL511
JL512
JL513
L501
L502
L503
R502
R503
R505 R507
R509 R510
R511
R513
R518
R519
R520
R522
CN503
TP505
TP506
TP507
TP508
TP509
TP510
JL514
JL515
JL516
JL517
JL518
JL519
JL520
JL521
JL522
JL523
JL524
JL525
C536
C537
C538
R548
JL508
JL526
C507
C504
C505
C515
C516
R533
R534
R535
R536
R537
R538
D501
Q501
IC504
IC509
IC508
10
16V
:AL-CP
10
16V
:AL-CP
1
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
22
16V
:AL-CP
10
16V
:AL-CP
22
16V
:AL-CP
1
:AL-CP
22
16V
:AL-CP
DAN202K
PROTECT
DAN202K
PROTECT
TL082CPS
BUFF
TL082CPS
BUFF
SN75157
COMP
10µH
:CHIP
10µH
:CHIP
2SC2712
PEAK HOLD
2SC2712
BUFF
2SA1162
PEAK HOLD
2SC2712
PEAK HOLD
2SC2712
BUFF
2SA1162
PEAK HOLD
MA157-TX
PROTECT
RD9.1SB2
PROTECT
GS1881-CTA
SYNC SEP
2SA1162
BUFF
47k
1/16W
:CHIP
10k
1/16W
:CHIP
47
1/16W
:CHIP
100
1/16W
:CHIP
82k
1/16W
:CHIP
10k
1/16W
:CHIP 470
1/16W
:CHIP 47k
1/16W
:CHIP
82k
1/16W
:CHIP
100
1/16W
:CHIP
47
1/16W
:CHIP
22k
1/16W
:CHIP
47
1/16W
:CHIP
100
1/16W
:CHIP
22k
1/16W
:CHIP 1k
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
430k
:RN-CP
0.1
25V
F:CHIP
0.1
16V
B:CHIP
0.1
25V
F:CHIP 0.1
25V
F:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
56p
CH:CHIP
0.1
16V
B:CHIP
22
16V
:ALB-CP
10k
1/16W
:CHIP
4.7
16V
F:CHIP
4.7
16V
F:CHIP
BA12FP
12V REG
BA09FP
9V REG
BA15FP
15V REG
BA05FP
5V REG
M24C64WMN6T
EEPROM
1
10V
B:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
47k
1/16W
:CHIP
1k
1/16W
:CHIP
HN1B01FU-TE85R
RES.SW
100
16V
:AL-CP
10
10V
F:CHIP
0.1
25V
B:CHIP
100
16V
:AL-CP
0.1
25V
B:CHIP
100
16V
:AL-CP
100
16V
:AL-CP
12P
WHT
50P
BA033F-E2
3.3V REG
#
#
#
#
#
#
#
#
#
#
#
#
10µH
10µH
10µH
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
100k
1/16W
:CHIP
33k
1/16W
:CHIP
10k
1/16W
:CHIP
1k
1/16W
:CHIP
100k
1/16W
:CHIP
33k
1/16W
:CHIP
100k
1/16W
:CHIP
33k
1/16W
:CHIP
3P
WHT
#
#
#
#
#
#
#
#
#
#
#
#
22
35V
:AL-CP
#
#
#
#
#
47
25V
:AL-CP
0.33
16V
F:CHIP
0.33
16V
F:CHIP
1
10V
F:CHIP
0.33
16V
F:CHIP
82k
1/16W
:CHIP
100k
1/16W
:CHIP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
120k
1/16W
:CHIP
MA111-TX
DISCHARGE
DTC144EKA
INV
TA75W393FU
COMP
TA75W393FU
COMP
TC4W53FU
SYNC SW
POWER_PROT
RE H
RE V
MTX H
MTX V
AH
AV
15KRGB/OTHER
A9V
A5V
A5V
R
G
B
HD
VD
CLP
A5V
5V-4
5V-4
F
A9V
A5V
6V
POWER_PROT
A3.3V
5V-4
AUDIO +B
12V
5
67
8
4
3
2
1
F-RESET
F-SDA
F-SCL
VCC
IN1-
IN1+
OUT1
IN2+
IN2-
OUT2
GND
CS OUT
CV IN
VS OUT
GND
VCC
ODD/
EVEN
RESET
BACK PCH
GND
GND
R
R
GND
GND
G
G
GND
GND
B
B
GND
GND
HD
HD
GND
GND
VD
VD
GND
GND
CLP
CLP
GND
GND
GND
GND
SIRCS-NR
GND
A5V
A5V
A5V
A5V
A5V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
SUB+5
SIRCS-NR
GND
17V
GND
AUDIO+B
AUDIO+B
GND
GND
6V
6V
GND
GND
GND
SUB 5V
SCL
SDA
E0
E1
E2
GND
VCC
WC
GND
VCC GND
VCC
R
G
B
HD
VD
CLP
N.C
N.C
N.C
N.C
TO BB(1/4)BOARD
CN101
CN901
TO NR BOARD
TO 3/4
TO 3/4
FROM 1/4
FROM 1/4
TO 3/4
TO 3/4
TO 4/4
INPUT TERMINAL,VIDEO SW,RGB INTERFACE,
SYNC SEPARATOR,EEPROM,AUDIO SW
B-SS1719<...>-Q..-P2
CN3301
TO G(2/2)BOARD
TP507(B)
0.6Vp-p(H)
3.7Vp-p(H)
TP510(CLP
3.2Vp-p(V)
TP509(VD)
3.3Vp-p(H)
TP508(HD)
0.6Vp-p(H)
TP505(R)
0.6Vp-p(H)
TP506(G)
Q (2/4)Q (2/4)
•Refer to page 7-29 for Printed Wiring Board
•Refer to page 7-30 for IC Block Diagrams
7-33
VPL-HS1 7-33
2
3
4
5
1
A BCDEFGH
Q(3/4)
2.1
2.8
2.8
2.8
2.1
2.1
3.3
3.3
3.3
2.1
2.1
2.1
0
0.7
0
4.6
2.7
0
3.3
3.3
3.3
3.0
0
4.7
4.8
4.2
2.1
2.1
2.1
3.1
3.4
3.2
3.3
0
4.5
3.1
3.1
3.1
3.1
2.5
2.2
2.2
2.2
4.6
4.6
4.6
7.0
7.0
2.6
2.6
2.6
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.0
2.5
2.5
2.5
2.5
2.5
3.1
1.0
1.0
0.1
1.0
4.1
A+5V
A+5V
A+9V
12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
414243444546474849505152535455565758596061626364
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
1 2 3 4
5678
12345678
910 11 12 13 14 15 16
1234
5 6 7 8
1 2 3 4
5678
1 2 3
45
1234
5 6 7 8
123
45
123
4 5
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
A35
B35
R601
R602
R603
S601
S602
C601
R604
TH601
R605
R606
C602 R607
R608
R609
R610
R611
R612
R613
R614
R615
R616
C603
L601
C604
R617
C605
L602
C606
R618
R619
C607
C608
C609
R620
C610
C611
C612
C613 C614
R621
R622
R623
C615
IC604
C616
C617
C618
C619
C620
C621
C622
C623
C624
C625
C627
R625
C628
R627
C629
R628
C630
C631
C632
C633
C634
Q601
R629
C635
C636
R630
C637
C638
C639
C640
C641
C642
C643
C644
R631
C645
C646
IC606
R632
C647
Q602
C648
R633
R634
C649
C650
C651
C652
C653
C654
R635
R636
R637
C656
R639
C657
R640
R641
R642
L603
R643
R645
R646
R647
C659
C660
C661
R648
C662
TP606
C663
R649
R650
C664
R651
C665
L604
R652
TP607
R656
R657
C666
R662
C668
R667
R668
R669
R670
D601
R672
R674
Q607
C674
C658
JL601
JL602
JL603
JL604
JL605
JL606
JL607
JL608
JL609
JL610
JL611
JL612
JL613
JL614
JL615
JL616
JL617
JL618
C667
R638
JL619
JL620
JL621
JL622
JL623
JL624
JL625
Q603
R682
C669
C670
C671
IC602
IC601
IC603
IC607
IC608
IC609
R671 R663 R658
IC605
JL626
JL627
CN601
C626
R624
R626
Q606
Q605 Q604
R644
C655
R653
R654
R655
1 :AL-CP
CXA2101AQ
RGB INTERFACE
47
16V
:AL-CP
47
16V
:AL-CP
47 16V :AL-CP
0.22 :AL-CP
10 16V :AL-CP
10 16V :AL-CP
10 16V :AL-CP
GS4981
SYNC SEP.
10µH
:CHIP
47
16V
:AL-CP
10µH
:CHIP
10µH
:CHIP
10µH
:CHIP
DTC144EKA
INV
2SC2712
CLAMP P.ADD
2SC2712
HS ADD
1SS355
SPEED UP
0.1
16V
B:CHIP
27k 1/16W :CHIP
47k 1/16W :CHIP
47 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
3.3M 1/16W :CHIP
390
1/16W
:CHIP 10 1/16W :CHIP
390
1/16W
:CHIP
10 1/16W :CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP 22k 1/16W :RN-CP
47
1/16W
:CHIP
47
1/16W
:CHIP
47k
1/16W
:RN-CP
4.7k
1/16W
:RN-CP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
4.7k
1/16W
:RN-CP
47
1/16W
:CHIP
4.7k
1/16W
:RN-CP
47
1/16W
:CHIP
47
1/16W
:CHIP
100
1/16W
:CHIP
47
1/16W
:CHIP
4.7k
1/16W
:CHIP
47
1/16W
:CHIP
2.2k
1/16W
:CHIP
47
1/16W
:CHIP
470
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
47
1/16W
:CHIP
10k
1/16W
:CHIP
100
1/16W
:CHIP 47
1/16W
:CHIP
470
1/16W
:CHIP
820
1/16W
:RN-CP
470
1/16W
:CHIP
0.47
16V
B:CHIP
0.1
25V
F:CHIP
0.1 25V F:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.1
25V
F:CHIP
0.1
16V
B:CHIP
0.47 10V B:CHIP 0.1
25V
F:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.1
25V
F:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.1
25V
F:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.47 10V B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
#
0.1
16V
B:CHIP
0.1
16V
B:CHIP
#
0.1
16V
B:CHIP
0.1
16V
B:CHIP
100p
CH:CHIP
10
1/16W
:CHIP
10
1/16W
:CHIP
10
1/16W
:CHIP
100
1/16W
:CHIP
#
47
1/16W
:CHUP
10K
EXT TEMP
0.01
25V
B:CHIP
2.7k
1/16W
:RN-CP
0.1
16V
B:CHIP
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
0.001
25V
CH:CHIP
270k
1/16W
:RN-CP
#
#
#
#
#
#
#
2SA1162
SYNC BUFF
100
1/16W
:CHIP
22 16V :AL-CP
22 16V :AL-CP
22 16V :AL-CP
TC75S56F
HS.GEN.
TC7S04FU
CLAMP BUFF.
TC4W53FU
CLAMP SW
TC4W53FU
SCP.SW
TC7S14FU
VS.INV
TC7W14FU
INV.
1k
1/16W
:CHIP
1k
1/16W
:CHIP
1k
1/16W
:CHIP
74VHC221AMTCX
P.WIDTH.ADJ
#
#
70P
330p
CH:CHIP
3.9k
1/16W
:RN-CP
3.9k
1/16W
:RN-CP
2SA1162
BUFF
2SA1162
BUFF 2SA1162
BUFF
47 1/16W :CHIP
0.01 25V B:CHIP
47 1/16W :CHIP
47 1/16W :CHIP
47 1/16W :CHIP
R/R-Y
G/Y
B/B-Y
MTX H
MTX V
V-V
V-H
V CLP
VIDEO
SDA100K1
SCL100K1
RGBSYNC
A9V
A9V A9V
A5V
A5V
C
Y
C-V
A5V
6V
A9V
5V-4
F
POWER_PROT
AUCS
SDAT
AUCLK
AU_MUTE
AB/CD
V-G
15KVS
15KHS
V.R-Y
V.B-Y
V.Y
15KVS
15KHS
V.R-Y
V.B-Y
V.Y
F-RESET
F-SCL
F-SDA
V-B
V-R
HS2
VS2
R-Y2
B-Y2
Y2
HS3
VS3
PR3
PB3
Y3
HS4
VS4
R4
G4
B4
2HS5
2VS5
2R-Y5
2B-Y5
2Y5
HS1
R-Y1
B-Y1
Y1
VCC MAT
GND MAT
V PH
H PH
SDA
SCL
R OUT
G OUT
B OUT
SCP IN
VBLK IN
HP IN
VS OUT
HS OUT
SELV OUT
SELH OUT
SELCR OUT
SELCB OUT
SELY OUT
SELY IN
SELCB IN
VCC SIG
IREF YC
GND SIG
BS/H
GS/H
RS/H
GND OUT
VCC OUT
IREF SYNC
YG IN
YG OUT
EY IN
ECB IN
ECR IN
YCBCR SW
VM/SHP/COFF
VM OUT
CLP C
DPIC MUTE
DPIC C
ADDRESS
LB2 IN
LG2 IN
LR2 IN
YS/YM2
LB1 IN
LG1 IN
LR1 IN
YS/YM1
ABL IN
ABL FIL
PABL FIL
IK IN
SELCR IN
VS1
SCL100K SDA100K
GND
SCP IN
GND
GND
GND
GND
GND
GND
GND
GND
GND
CIN
YIN
CIN
YIN
C-V
C-V
GND
RGB SYNC
15KVS
GND
GND
V.R-Y
V.R-Y
GND
GND
V.B-Y
V.B-Y
GND
GND
V.Y
V.Y
GND
GND
SCP
GND
GND
GND
GND
GND
SDA100K
SCL100K
AUCS
SDAT
AUCLK
AUDIO MUTE
P PROT
LAMP COV
FILT COV
F-SDA
F-SCL
F-RESET
A5V
GND
6V
6V
GND
GND
A5V
GND
A9V
A9V
15KHS
EXT TEMP
LAMP COV
FILT COV
N.C
N.C
N.C
15K/OTHER
/CDAB
N.C
N.C
N.C
1A
1B
1CLR
1Q
Q
2CLR
2B
2A
VCC
1R/C
1C
1Q
2
GND
2R/C
2C
2Q
TO 1/4
TO BA(1/3)BOARD
CN101
FROM 1/4
FROM 1/4
FROM 2/4
TO 1/4
FROM 1/4
TO 4/4
FROM 2/4
FROM 2/4
FROM 1/4
TO 1/4
INPUT TERMINAL,VIDEO SW,RGB INTERFACE,
SYNC SEPARATOR,EEPROM,AUDIO SW
B-SS1719<...>-Q..-P3
TO 1/4
Q (2/4)Q (2/4)
•Refer to page 7-29 for Printed Wiring Board
•Refer to page 7-30 for IC Block Diagrams
7-34 VPL-HS1
7-34
2
3
4
5
ABCDEFGH
1
Q(4/4)
5.2
4.4
5.2
0
5.2
4.3
5.2
A+9V
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1
2
3
4
12345678
910 11 12 13 14 15 16
R703
R701
D703
D701
L704
L703
R715R713
R716
R714
R705
R706
R711
R709
R707
R708 R712
R710
R717
C706
R702
D702
R704
D704
R719
R718
C705
JL706
JL707
JL708
JL709
JL701
JL703
JL702
JL710
JL711
JL712
JL713
CN702
Q701
L705
L701
L702
IC701
TP701
TP702
TP703
C701
C702
C703
C704
CN701
JL714
JL715
JL716
JL717
470k
1/16W
:CHIP
470k
1/16W
:CHIP
RD9.1SB2-T1
PROTECT
RD9.1SB2-T1
PROTECT
BLm21B03
BLm21B03
100k
1/16W
:CHIP
100k
1/16W
:CHIP
100k
1/16W
:CHIP
100k
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100k
1/16W
:CHIP
100k
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100k
1/16W
:CHIP
100k
1/16W
:CHIP
47k
1/16W
:CHIP
0.1
25V
B:CHIP
470k
1/16W
:CHIP
RD9.1SB2-T1
PROTECT
470k
1/16W
:CHIP
RD9.1SB2-T1
PROTECT
0
1/16W
:CHIP
0
1/16W
:CHIP
22
16V
:AL-CP
#
#
#
#
#
#
#
#
#
#
#
50P
WHT
:SMD
DTC144EKA-T146
SW
4.7µH
BLm21B03
BLm21B03
TC4053BF
AUDIO SW
10
16V
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
4P
WHT
:SMD
#
#
#
#
A
VL
VR
ML
MR
AU_MUTE
AUCS
SDAT
AUCLK
9V
AUDIO +B
12V
J/M
AU_L
AU_L
GND
GND
AU_R
AU_R
GND
GND
GND
GND
A+12V
A+12V
GND
GND
AUDIO+B
AUDIO+B
AUDIO+B
AUDIO+B
GND
GND
GND
GND
NC
NC
NC
NC
AU_MUTE
AUCS
SDAT
AUCLK
GND
GND
GND
GND
SP_R
SP_R
SP_R
SP_R
GND
GND
GND
GND
SP_L
SP_L
SP_L
SP_L
GND
GND
GND
GND
Y1
Y0
Z1
Z
Z0
INH
VEE
VSS
VDD
Y
X
X1
X0
A
B
C
GND
TO SPEAKER
SP_R
GND
SP_L
GND
INPUT TERMINAL,VIDEO SW,RGB INTERFACE,
SYNC SEPARATOR,EEPROM,AUDIO SW
TO BC BOARD
CN801
FROM 3/4
FROM 2/4
FROM 1/4
FROM 1/4
B-SS1719<...>-Q..-P4
Q (4/4)Q (4/4)
•Refer to page 7-29 for Printed Wiring Board
•Refer to page 7-30 for IC Block Diagrams
7-35
VPL-HS1 7-35
2
3
4
5
1
A BCDEFGH
NF, NRNF, NR
NR -A SIDE-
SUFFIX: -11 NR -B SIDE-
SUFFIX: -11
IC901
CN901
C901
C902
R901
R902
R903
TH901
NR
1
2
3
VCC
OUT
GND1
GND2
CN901
IC901
R901
R902
C901
3P
WHT
:SMD
RS-140-T
IR RX
47
1/16W
:CHIP
100
1/16W
:CHIP
10
10V
F:CHIP
SUB+5V
GND
SIRCS-NR
(SIRCS)
CN503
TO Q(2/4)BOARD
B-SS1719<...>-NR.
NF -A SIDE-
SUFFIX: -11 NF -B SIDE-
SUFFIX: -11
NF
1
2
3
VCC
OUT
GND
IC101
R101
CN101
C101
GPIU28Y
IR RECEIVER
100
:CHIP
3P
WHT
:SMD
0.1
25V
B:CHIP
SUB+5V
GND
SIRCS-NF
B-SS1713<...>-NF.
CN103
TO BB(1/4)BOARD
(REMOCON RECEIVER)
CN101
IC101
C101
R101
7-36 VPL-HS1
7-36
MS -A SIDE-
SUFFIX: -11
MS -B SIDE-
SUFFIX: -11
MSMS
CN801
CN802
C801
C806
C813
C814
C818
C819
C820
C824
C825
C842
C843
C844
C845
C851
C852
C859
C860
C863
D801
D802
D803
D805
D806
FB806
FB808
FB810
FB811
IC801
IC803
IC804
IC815
IC816
IC817
IC818
Q803
RB807 RB808
RB809RB810
R838
R839
R844
R845
R847
R848
R849
R852
R853
R855
R857 R858
R860
R869
R870
R871
R873
R877
R880
R881
R885
R886
R887
R888
R889
R890R891
R892
R893
R894
R898
R900
R903
R904
R905
R906
R910
R916
R917
R918
R920
R925
R926
R929
R930
R931
R934
R936
R942
R943
R945
R946
TP801
X801
X803
CN803
CN804
C802
C803
C804
C805
C807
C808
C809
C810
C811
C812
C815
C816
C817
C821
C822
C823
C826
C827
C828
C829
C830
C831
C832
C833
C834
C835
C836
C837
C838 C839
C840
C841
C846 C847
C849
C850
C853
C858
C861
C862
C864
D804D807
D808
FB801
FB802
FB803
FB804
FB805
FB807
FB809
IC802
IC805
IC806 IC807
IC808
IC810
JL801
JL802
JL803
JL804
JL805
JL806
JL807
JL808
JL809
JL810
JL811
JL812 JL813
JL814
JL815
JL816 JL818
JL820
JL821
JL822
JL823
JL824
JL825
JL826
JL827
JL828
JL829
JL830
JL831
JL832
JL833
JL834
JL835
JL836
JL837
JL838
JL839 JL840
JL841
JL842
JL843
JL844
JL845
JL846
JL847
JL848
JL849
JL850
JL851
JL853
JL854
JL855
JL856
JL857
JL858
JL859
JL860
JL861
JL862 JL863 JL864
JL870
Q801
Q802
Q804
Q805
RB801
RB802
RB803
RB804
RB805
RB806
RB811
R801
R802
R803
R804
R805
R806
R807
R808
R809
R810 R811 R812
R813
R814
R815
R816
R817
R818
R819
R820
R821
R822
R823
R824
R825
R826
R827
R828
R829
R830R831
R832
R833 R834
R835
R836
R837
R840
R841
R842 R843
R846
R850
R851
R854
R856
R859
R861
R862
R863
R864
R865
R866
R867
R868
R872
R874 R875
R876
R878
R879 R882R883
R884
R895
R896
R897
R899
R901
R902
R907
R908
R909
R911
R912
R913
R914
R915
R919
R921
R922
R923
R924
R927
R928
R932
R933
R935 R937
R938
R939
R940
R941
R944
X804
—-
MS
—-
1-682-358-11
D801 A-4
D805 A-1
D806 A-2
D807 *A-1
D808 *B-3
IC801 B-2
IC802 *C-1
IC803 C-1
IC804 A-3
IC805 *B-3
IC806 *A-2
IC807 *A-3
IC808 *B-3
IC810 B-4
IC815 A-2
IC816 A-4
IC817 A-4
IC818 A-4
Q801 *B-3
Q802 *A-3
Q803 A-3
Q804 *A-4
Q805 *A-2
TP801 B-1
*:B Side mount
TC7WH74FK (IC815)
1 2 3 4
8 7 6 5
CLR
PR
VCC
Q
CK
D
Q
GND
DQ
SRQ
C
7-37
VPL-HS1 7-37
2
3
4
5
1
ABCDEFGH
MS (1/3)MS (1/3)
MS(1/3)
2.6 3.3
2.7
2.7
0
0.1
0
0
0.3
1.0
1.7
1.3
1.4
1.4
1.5
1.8
1.6
3.3
0.6
1.7
2.0
2.2
1.71.8
2.9
1.6
1.0
1.4
3.2
1.5
1.4
1.4
1.8
1.7
1.4
1.1
1.7
3.2
1.9
1.7
1.6
1.6
1.6
4.9 3.3
+3.3V
+3.3V
+3.3V
12345678910111213141516171819202122
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44
1
2
3
4
5
6
7
8
9
10
IO
G
123456789101112131415161718192021222324
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
1 2 3 4 5 6 7 8 9 10 11 12
13
14
15
16
17
18
19
20
21
22
23
24
252627282930313233343536
37
38
39
40
41
42
43
44
45
46
47
48
CONT VDD
OUT
C806
JL803
IC804
C808
JL804
R807
R806
R805
R804
R803
R802
R801
JL802
JL801
TP801
R890
R888
R891
R889
C801
IC802
R814
C802
C803
RB804
RB803
RB802
RB801
R817
C804
C805
R821
FB801
R911
JL805
C861
Q804
JL806
D801
R913
FB807
C809
X804
C862
R826
R824
FB802
R825
R829
R827
R831
Q801
R832
R833
C853
Q802
C810
C812
IC801(1/6)
C807
C811
R808
R810
R811
R812
R813
R815 R816
R818
R819
R820
R822
R823
R828
R830
R834
R835
R884
R892
R893
R912
R914
R915
CN801
IC805
IC803
D808
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0 :CHIP
0 :CHIP
0 :CHIP
0 :CHIP
0 :CHIP
0 :CHIP
0 :CHIP
0 :CHIP
0 :CHIP
0
:CHIP
0 :CHIP
0 :CHIP
0
:CHIP
#
#
#
100k*4
:CHIP
100k*4
:CHIP
100k*4
:CHIP
100k*4
:CHIP
BK1608TS601
BK1608TS601
BA033FP-E2
3.3V REG
0.1
16V
B:CHIP
0.33
16V
B:CHIP
0.1
16V
B:CHIP
BK1608TS601
0.1
16V
B:CHIP
0
:CHIP
#
DSO751SV 20MHz XTAL
#
#
:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
#
0
:CHIP
0
:CHIP
LED
ORANGE
:SMD
#
2SA1611-T1-M5M6
LED DRIVER
2SA1611-T1-M5M6
SW
DTC144EUA-T106
SW
0.1
16V
B:CHIP
0.1
16V
B:CHIP
#
#
##
#
#
SST39VF800A-70
8M
FLASH ROM
MD2305F
JPEG ENG
22
10V
F:CHIP
22
10V
F:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
100k
1/16W
:CHIP
100k
1/16W
:CHIP
100k
1/16W
:CHIP
100k
1/16W
:CHIP
100k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
100 1/16W :CHIP
100k
1/16W
:CHIP
1k
1/16W
:CHIP
2.2k
1/16W
:CHIP
100
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
120
1/16W
:CHIP
10k
1/16W
:CHIP
100
1/16W
:CHIP
MS CONNECTOR
MB86189
MS I/F
HM62V16256
SRAM
UDZ-TE-17-3.9B
PROTECT
F-RST
SDIR
S-CS
MS_INT
MS_RST
MS_INS
3.3V
3.3V
3.3V
5V
P_VCLK
3.3V
F-BSY
MS_RDY
MSCLK
3.3V 5V
23
24
25
26
27
29
30
31
32
34
35
36
37
39
40
41
42
44
45
46
1
5
6
7
8
10
11
12
13
15
16
17
18
20
21
22
51
50
47
264
265
262
277
278
275
276
272
274
273
271
270
269
267
266
279
280
23
24
25
26
27
29
30
31
32
34
35
36
37
39
40
41
42
44
45
46
1
5
6
7
8
10
11
12
13
15
16
17
18
20
21
22
51
50
47
264
265
262
277
278
275
276
272
274
273
271
270
269
267
266
279
280
FA0
FA1
FA2
FA3
FA4
FA5
FA6
FA7
FA8
FA9
FA10
FA11
FA12
FA13
FA14
FA15
FA16
FA17
FA18
FD0
FD1
FD2
FD3
FD4
FD5
FD6
FD7
FD8
FD9
FD10
FD11
FD12
FD13
FD14
FD15
FA19
FA8
FA9
FA10
FA11
FA12
FA13
FA14
FA15
FA1
FA2
FA3
FA4
FA5
FA6
FA7
FA17
FA18
FD0
FD8
FD1
FD9
FD2
FD10
FD3
FD11
FD4
FD12
FD5
FD13
FD6
FD14
FD7
FD15
FA19
FD0
FD1
FD2
FD3
FD4
FD5
FD6
FD7
FD15
FD14
FD13
FD12
FD11
FD10
FD9
FD8
FA0
FD0
FD1
FD2
FD3
FD4
FD5
FD6
FD7
FD8
FD9
FD10
FD11
FD12
FD13
FD14
FD15
FA0
FA1
FA2
FA3
FA4
FA5
FA6
FA7
FA8
FA9 FA10
FA11
FA12
FA14
FA13
FA15
FA16
FA17
FA16
FD8
FD7
FD6
FD5
FD4
FD3
FD2
FD1
FD0
FD13
FD12
FD11
FD10
FD9
FD15
FD14
FA3
FA2
FA1
FA0
FA1
FA2
FA3
FA4
FA5
FA6
FA7
FA8
FA9
FA10
FA11
FA12
FA13
FA14
FA15
FA16
FA17
FA18
FA19
FD0
FD1
FD2
FD3
FD4
FD5
FD6
FD7
FD8
FD9
FD10
FD11
FD12
FD13
FD15
FD14
CD1
CD2
CE2
RDY/BSY
WP
BVD1
BVD2
A15
A14
A13
A12
A11
A10
A9
A8
A19
NC
/WE
/RESET
NC/VPP
NC
RDY/BUSY
A18
A17
A7
A6
A5
A4
A3
A2
A1
A16
GND
I/O15/A-1
I/O7
I/O14
I/O6
I/O13
I/O5
I/O12
I/O4
VCC
I/O11
I/O10
I/O2
I/O9
I/O3
/BYTE
I/O1
I/O8
I/O0
GND
A0
A0
A1
A2
A3
A4
I/O2
I/O3
I/O4
VCC
GND
I/O5
I/O6
I/O7
I/O8
A5
A6
A7
A8
A9
/WE
/CS
I/O1
A17
A16
A15
/OE
/UB
/LB
GND
VCC
I/O9
A14
A13
A12
A11
A10
/CCS
/FWR
/FRD
/REG
/CE1
/FWE
/FOE
/IOWR
/IORD
/RESET
/WAIT
/VS1
I/O16
I/O15
I/O14
I/O13
I/O12
I/O11
I/O10
/CE
/OE
D8
D7
D6
D5
D4
VSS
D3
D2
D1
D0
XRS
SCKI
SDIR
BS
SDIO
SCKO
VSS
PI0
PI1
PI2
PI3
PO0
A3
XCS
VSS
XDRQ/XRDY
PO3
PO2
PO1
A2
A1
SEL
D14
VSS
VD0
D13
D12
D11
D10
D9
VSS
BS
VCC
DIO
#
INS
#
SCLK
VCC
VSS
/INPACT
D15
XINT
VDD
HCKI
XDAK/XAS
XRD/RDWRX
XWRH/XBE0
XWRL/XBE1
GND
GND
CS2
JPEG ENG,
B-SS1714<...>-MS.-P1
FROM 2/3
TO 2/3
TO 2/3
TO 2/3
TO 2/3
FROM 3/3
TO 2/3
MS I/F
•Refer to page 7-35 for Printed Wiring Board
•Refer to page 7-35 for IC Block Diagram
7-38 VPL-HS1
7-38
2
3
4
5
ABCDEFGH
1
MS (2/3)MS (2/3)
MS(2/3)
3.3
3.2
3.2
3.3
3.3
0
3.3
3.3
3.3
3.3
3.2
0
3.3
3.3
2.7
3.3
3.1
3.3
+3.3V
+5V
3.3
1.4
0
0.3
1.6
+3.3V
+3.3V
+3.3V
123456789101112131415161718192021222324252627
28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54
1234
5 6 7 8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
12345678
910 11 12 13 14 15 16
1234
5 6 7 8
1234
5 6 7 8
1234567
8 9 10 11 12 13 14
R837
R902
X803
X801
JL848
JL847
JL834
JL833
JL832
JL831
JL830
JL829
JL828
JL863
JL827
JL826
JL825
JL824
JL813
JL812
JL811
JL810
JL809
JL808
JL807
C822
C821
JL850
JL849
JL836
JL835
Q805
RB805
JL864
RB806
JL841
JL840
JL839
JL838
JL837
JL842
JL845
JL843
R851
JL844
JL846
C824
C825
IC807
JL814
R855
R854
R877
R876
JL815
JL851
C817 C818
R894
C827
C864
C826
C839
C838
C837
C836
FB803
C835
C834
C833
C832
C831
C830
C829
C828
FB809
Q803
C852
C841 C842 C843
IC808
C844 C845
FB804
C846 C847
C851
IC806
R858
FB810
C823
R848
R849
R924 R925 R944
R868
IC801(3/6)
IC801(4/6)
IC801(5/6)
IC801(6/6)
C840
C863
C815
C816
C813
C814
C819
C820
C858
C859
CN802
R809
R838
R839
R840
R841
R842
R843
R844
R845
R846
R847
R850
R853
R864
R878
R880
R882
R883
R903 R904
R905
R907
R910
R916
R917
R918
R919
R920
R921
R922
R923
R928
R929
R930 R931 R932 R933
R934
R935
R936
R937
R938
R939
R940
R941
R942
R943
IC816
IC817
IC818
R879 R856 R857
R886
R836
R906 R852
R881
R926
R927
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
10k*4
:CHIP
BK1608TS601
BK1608TS601
0.1
16V
B:CHIP
MM1096AFF
WDT
0 :CHIP
0 :CHIP
0 :CHIP
0.1
16V
B:CHIP
0.1
16V
B:CHIP
100*4
:CHIP
0.1 16V B:CHIP
0.1 16V B:CHIP
0.22
16V
B:CHIP
0
:CHIP
0
:CHIP
0 :CHIP
0
:CHIP
6.00MHz
BK1608TS601
0.1
16V
B:CHIP
BK1608TS601
33k
1/16W
:CHIP
33k
1/16W
:CHIP
0 :CHIP
0.1
16V
B:CHIP
100p
CH:CHIP
100p
CH:CHIP
100p
CH:CHIP
###
HN1B01FU-T
BUFF
24LC21AT/SN
1K
EEPROM
HN1C01FU-TE85R
OPEN CORECTOR
#
MT48LC8M16A2TG75
128M
SDRAM
#
2.2 6.3V B:CHIP
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
##
12.2727MHz
#
MD2305F
JPEG ENG
MD2305F
JPEG ENG
MD2305F
JPEG ENG
MD2305F
JPEG ENG
22
10V
F:CHIP
22
10V
F:CHIP
1000p 25V CH:CHIP
1000p 25V CH:CHIP
12p CH:CHIP
12p CH:CHIP
10p CH:CHIP
10p CH:CHIP
220p B:CHIP
220p B:CHIP
15P
:SMD
WHT
1M
1/16W
:CHIP
22 1/16W :CHIP
22 1/16W :CHIP
100 1/16W :CHIP
100 1/16W :CHIP
1.5k
1/16W
:CHIP
10k 1/16W :CHIP
100
1/16W
:CHIP 100
1/16W
:CHIP
4.7k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
4.7k
1/16W
:CHIP
10k
1/16W
:CHIP
3.9k 1/16W :CHIP
4.7k
1/16W
:CHIP
3.9k
1/16W
:CHIP
6.8k
1/16W
:CHIP
6.8k
1/16W
:CHIP
3.9k
1/16W
:CHIP
10k
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
47k
1/16W
:CHIP
47k
1/16W
:CHIP
100 1/16W :CHIP
100 1/16W :CHIP
47k
1/16W
:CHIP
1.5k
1/16W
:RN-CP
3k
1/16W
:RN-CP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
15k
1/16W
:RN-CP
6.8k
1/16W
:RN-CP
5.6k
1/16W
:RN-CP
3.3k
1/16W
:RN-CP
3.3k
1/16W
:RN-CP 5.6k
1/16W
:RN-CP
5.6k
1/16W
:RN-CP
6.8k
1/16W
:RN-CP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
TC74HC148AF(EL)
ENCODER
BA10339FV
COMPARATOR
BA10393F
COMPARATOR
6.8k
1/16W
:CHIP
100k
1/16W
:CHIP
100
1/16W
:CHIP
560 1/16W :CHIP
100 1/16W :CHIP
100
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
3.3k
1/16W
:RN-CP
2.2k
1/16W
:RN-CP
3.3V
3.3V
MS_INS
MS_INT
SIRCS
F-RST
PXOE
MS_INS
F-BSY
SDIR
S-CS
MS_RST
USB MS+
USB MS-
MS RESET
3.3V
3.3V
MENU STATUS
3.3V-2
MS_RDY
MRESET
VTRIGER
BRD STATUS
3.3V
SCL
SDA
SCL
SDA
KEY0
A0
A1
A2
5V-2
A0
A1
A2
RXD
TXD
PIC MUTE MS
3.3V
14
28
38
48
58
79
89
103
113
123
149
219
229
243
253
268
185
195
199
205
9
19
33
43
53
71
84
98
108
118
132
206
224
238
248
263
150
186
196
200
191
192
193
194
187
188
189
190
249
250
251
252
254
59
60
181
182
183
184
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
170
171
172
173
174
175
176
177
178
179
180
169
168
167
144
142
141
135
127
128
145
146
130
126
121
116
107
112
117
122
111
106
101
95
87
93
97
102
90
62
85
63
64
65
75
82
256
257
255
260
259
261
258
54
55
49
147
148
3
4
2
61
52
68
76
57
56
80
94
91
86
81
77
72
69
67
66
70
73
74
78
83
88
92
110
105
100
96
109
114
104
99
115
120
125
119
131
124
129
133
136
137
140
143
139
138
134
5
6
3
4
1
2
7
878
12
34
56
14
28
38
48
58
79
89
103
113
123
149
219
229
243
253
268
185
195
199
205
9
19
33
43
53
71
84
98
108
118
132
206
224
238
248
263
150
186
196
200
191
192
193
194
187
188
189
190
249
250
251
252
254
59
60
181
182
183
184
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
170
171
172
173
174
175
176
177
178
179
180
169
168
167
144
142
141
135
127
128
145
146
130
126
121
116
107
112
117
122
111
106
101
95
87
93
97
102
90
62
85
63
64
65
75
82
256
257
255
260
259
261
258
54
55
49
147
148
3
4
2
61
52
68
76
57
56
80
94
91
86
81
77
72
69
67
66
70
73
74
78
83
88
92
110
105
100
96
109
114
104
99
115
120
125
119
131
124
129
133
136
137
140
143
139
138
134
5
6
3
4
1
2
7
878
12
34
56
PXOE
DQML
WE
CAS
RAS
CS
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
MA10
MA11
MA12
MA13
LD0
LD1
LD2
LD3
LD4
LD5
LD6
LD7
RAS
CAS
WE
DQML
MA13
MA12
MA10
MA0
MA1
MA2
MA3 MA4
MA5
MA6
MA7
MA8
MA9
MA11
CS
UD0
UD1
UD2
UD3
UD4
UD5
UD6
UD7
LD6
LD5
LD4
LD3
LD2
LD1
LD0
LD7
UD0
UD1
UD2
UD3
UD4
UD5
UD6
UD7
LD7
LD6
LD5
LD4
LD3
LD2
LD1
LD0
UD7
UD6
UD5
UD4
UD3
UD2
UD1
UD0
CKE
SDCLK
MA14
MA13
MA12
MA11
MA10
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
VCC
VCCQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VCCQ
DQ5
DQ6
VSSQ
DQ7
VCC
LDQM
A13
A12
A10
A0
A1
A2
A3
VCC
VSS
DQ15
VSSQ
DQ14
DQ13
VCCQ
DQ12
DQ11
VSSQ
DQ10
DQ9
VCCQ
DQ8
VSS
NC
UDQM
CLK
CKE
NC
A11
A9
A8
A7
A6
A5
A4
VSS
/WE
/CAS
/RAS
/CS
/CS
/RAS
/CAS
/WE
/DQMU
/DQML
DQ0
VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9
VDD10
VDD11
VDD12
VDD13
VDD14
VDD15
VDD16
AVDD1
AVDD2
AVDD3
AVDD4
GND1
GND2
GND3
GND4
GND5
GND6
GND7
GND8
GND9
GND10
GND11
GND12
GND13
GND14
GND15
GND16
AGND1
AGND2
AGND3
AGND4
AD0
AD1
AD2
AD3
DA0
DA1
DA2
DA3
INT0
INT1
INT2
INT3
INT4
ECNT
COM0
COM1
COM2
COM3
SEG0
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21
SEG22
SEG23
SEG24
SEG25
SEG26
VLC1
VLC2
VLC3
/WKP
P10
P11
P12
P13
P14
P15
P16
P17
P20
P21
P22
P23
P24
P25
P26
P27
P30
P31
P32
P33
P34
P35
P36
P37
P40
P41
P42
P43
P44
P45
P46
P47
D+
D-
USBP
TXD/SO
RXD
SCK
MCLKI
MCLKO
LFT
RTCLKO
/SCS
UCLKI
UCLKO
TEST
TRST
TCK
TMS
TDI
TDO
SIG1
GND
GND
TDI
GND
TMS
GND
TCK
GND
SIG3
SIG2
GND
LFTU
TRST
TDO
RTCLKI
/MRESET
NC1
NC2
NC3
GND
VCC
VCLK
SCL
SDA
GND
TC
NC
CLK
RSTN
VS
RCT
VCC
DATA0
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7
CS0
CS1
CS2
CLK
EXTSW
IN4
EI
A2
A1
GND
VCC
EO
GS
IN3
IN2
IN1
IN0
A0
IN5
IN6
IN7
GND
+IN2
-IN2
+IN1
-IN1
VCC
OUT1
OUT2
-IN3
+IN3
-IN4
+IN4
OUT4
OUT3
+IN1
-IN1
OUT1
GND +IN2
-IN2
OUT2
VCC
JPEG ENG,
MS I/F
B-SS1714<...>-MS.-P2
FROM 1/3
FROM 3/3
FROM 1/3
TO 3/3
FROM 3/3
TO 1/3
FROM 3/3
TO 3/3
FROM 3/3
FROM 3/3
TO 3/3
TO 1/3
•Refer to page 7-35 for Printed Wiring Board
•Refer to page 7-35 for IC Block Diagram
7-39
VPL-HS1 7-39
2
3
4
5
1
A BCDEFGH
MS (3/3)MS (3/3)
MS(3/3)
0.3
0
3.3
2.9
2.9
1.6
2.9
3.2
2.9
2.9
2.9 3.3
3.2
0.1
1.8
1.8
+3.3V
1
2
3
4
5
6
7
8
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1234567891011
12
13
14
15
16
17
18
19
20
21
22
23 24 25 26 27 28 29 30 31 32 33
34
35
36
37
38
39
40
41
42
43
44
1234
5 6 7 8
JL816
RB810
RB809
RB808
RB807
D802 D803 D804
CN803
R901
C849
FB805
IC810
JL820
JL818
C860
FB808
R875
JL823
R874
R866
R898
C850
JL821
JL822
JL862
JL861
JL860
JL859
JL858
JL857
JL856
JL855
JL854
JL853
FB811
FB806
IC815
RB811
IC801(2/6)
CN804
R859R860
R861
R865
R867
R869
R871
R873
R895
R896
R897
R899
R900
R908
R909
R945
R946
D805 D806 D807
R862
R863
10*4
:CHIP
10*4
:CHIP
10*4
:CHIP
10*4
:CHIP
BLM41P750S
8P
:SMD
WHT
0.1
16V
B:CHIP
0.1
16V
B:CHIP
BK1608TS601
0.1
16V
B:CHIP
BK1608TS601
#
BK1608TS601
#
###
0
:CHIP
#
0
:CHIP
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
#
ISPLSI2032VE-110
PLD
SX1714A
TC7WH74FK
D-FF
100*4
:CHIP
MD2305F
JPEG ENG 50P
:SMD
WHT
10k
1/16W
:CHIP
10k
1/16W
:CHIP
22
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
100 1/16W :CHIP
100 1/16W :CHIP
22
1/16W
:CHIP
22
1/16W
:CHIP
100
1/16W
:CHIP
100
1/16W
:CHIP
10k
1/16W
:CHIP
10k
1/16W
:CHIP
22
1/16W
:CHIP
100
1/16W
:CHIP
10k
1/16W
:CHIP
100
1/16W
:CHIP
UMZ6.8N
PROTECT
UMZ6.8N
PROTECT
UMZ6.8N
PROTECT
100 1/16W :CHIP
100 1/16W :CHIP
PXOE
5V
KEY0
SIRCS
USB MS+
USB MS-
MS RESET
YUV
YUV
RXD
TXD
3.3V
MENU STATUS
VCLK
P_VCLK
MRESET
3.3V
MRESET
VCLK
MSCLK
BRD STATUS
VTRIGER
5V-2
3.3V
PIC MUTE MS
221
222
223
225
226
227
228
232
210
212
214
215
216
217
218
220
209
213
208
211
207
198
197
204
203
202
201
230
231
245
244
242
241
240
236
234
233
235
237
246
247
239
221
222
223
225
226
227
228
232
210
212
214
215
216
217
218
220
209
213
208
211
207
198
197
204
203
202
201
230
231
245
244
242
241
240
236
234
233
235
237
246
247
239
78
56
34
12
VPEN
VY0
VY1
VY2
VY3
VY4
VY5
VY6
VY7
VUV0
VUV1
VUV2
VUV3
VUV4
VUV5
VUV6
VUV7
VY7
VY6
VY5
VY4
VY3
VY2
VY1
VY0
VUV7
VUV6
VUV5
VUV3
VUV2
VUV1
VUV0
VUV4
VPEN
Y7
Y6
Y5
Y4
Y3
Y2
Y1
Y0
C7
C6
C5
C4
C3
C2
C1
C0
VBLK
HBLK
FLD
IREFC
CVBS
IREFL
R
G
B
PD9
PD8
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
VD
HD
FL2
FL1
PXCLK
PXOE
PCLKO
TCK
GND
TMS
PLUG
TDI
VCC
BSCAN
TDO
GND
GND
VCLK
VCLK
VPEN
VPEN
VVS
VVS
VHS
VHS
GND
GND
GND
GND
GND
GND
GND
GND
SIRCS
MS RESET
MENU STATUS
USB MS+
TXD MS
USB MS-
RXD MS
VUY7
VUV6
VUY5
VUV4
VUY3
VUV2
VUY1
VUV0
VY7
VY6
VY5
VY4
VY3
VY2
VY1
VY0
MS+5V
MS+5V
MS+5V
MS+5V
KYE0
TDI/IN 0
I/O 0
I/O 1
BSCAN
I/O 4
I/O 5
I/O 6
I/O 7
GND
TDO/IN 1
I/O 8
I/O 9
I/O 11
I/O 17
I/O 16
TMS/NC
RESET
TCK/Y2
I/O 15
I/O 14
I/O 13
I/O 27
I/O 26
I/O 24
GOE 0
GND
I/O 23
I/O 22
I/O 21
I/O 20
/Y1
VCC
VCC
I/O 30
I/O 31
PRST
P_VCLK
VPEN
VVS
HBLK
VBLK
VCLK
CK
D
GND
VCC
Q
PR
Q
VHS
MSCLK
CLR
BRD STATUS
Y7
SUB 5V
SUB 5V
PIC MUTE MS
JPEG ENG,
MS I/F
B-SS1714<...>-MS.-P3
TO 2/3
FROM 2/3
TO 1/3
FROM 2/3
FROM 2/3
CN403
TO BB(3/4)BOARD
TO 1/3
TO 2/3
•Refer to page 7-35 for Printed Wiring Board
•Refer to page 7-35 for IC Block Diagram
SAFETY CHECK-OUT
After correcting the original service problem,
perform the following safety checks before
releasing the set to the customer :
Check the metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC
leakage. Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to
any exposed metal part having a return to
chassis, must not exceed 0.5 mA. Leakage
current can be measured by any one of three
methods.
1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The
Data Precision 245 digital multimeter is
suitable for this job.
3. Measuring the voltage drop across a resistor
by means of a VOM or battery-operated AC
voltmeter. The “limit” indication is 0.75 V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM
that is suitable. Nearly all battery operated
digital multimeters that have a 2 V AC range
are suitable. (See Fig. A)
To Exposed Metal
Parts on Set
Fig A. Using an AC voltmeter to check AC leakage.
AC
voltmeter
(0.75V)
Earth Ground
0.15 µF 1.5 k
Z
Sony Corporation
B&P Company9-870-308-01
English
01HZ08-1
©2001.8

Navigation menu
