Connecting Additional Equipment
4-075-509-22
KV-13FM12
KV-13FM13
KV-13FM14
KV-20FS12
© 2001 by Sony Corporation
Trinitron Color TV
®
Operating Instructions
User Guide
Connecting Additional Equipment
WARNING
To reduce the risk of fire or electric shock, do not expose the TV to rain or moisture.
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the
appliance.
Note to the CATV Installer
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building as close to the
point of cable entry as practical.
SAFETY PRECAUTIONS
Operate the TV only on 120 V AC.
One blade of the power plug is wider than the other for safety purposes and will fit
into the power outlet only one way. If you are unable to insert the plug fully into the
outlet, contact your dealer.
If any liquid or solid object falls into the TV, unplug it and have it checked by qualified
personnel before operating it further.
CAUTION
When using TV games, computers, and similar products with your TV, keep the brightness
and contrast functions at low settings. If a fixed (non-moving) pattern is left on the screen
for long periods of time at a high brightness or contrast setting, the image can be
permanently imprinted onto the screen. Continuously watching the same channel can cause
the imprint of station logos onto the TV screen. These types of imprints are not covered by
your warranty because they are the results of misuse.
To reduce the risk of electric shock, do not use this polarized plug with an
extension cord, receptacle, or other outlet unless the blades can be fully
inserted to prevent blade exposure.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
ATTENTION
CAUTION
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
User Guide
NOTIFICATION
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference with radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antennas.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Protecting the TV
To prevent internal heat build-up, do not block the ventilation openings.
Do not install the TV in a hot or humid place, or in a place subject to excessive dust or
mechanical vibration.
Note on Caption Vision
This television receiver provides display of television closed captioning in accordance with
§ 15.119 of the FCC rules.
Use of this television for other than private viewing of programs broadcast on UHF or VHF
or transmitted by cable companies for the use of the general public may require
authorization from the broadcaster-cable company and/or program owner.
Owner’s Record
The model and serial numbers are located on the front cover of this manual and the rear of
your TV.
Trademarks and Copyrights
ENERGY STAR® is a registered mark.
You are cautioned that any changes or modifications not expressly approved in this
manual could void your authority to operate this equipment.
As an ENERGY STAR® Partner, Sony has determined that this product or product
model meets the ENERGY STAR® guidelines for energy efficiency.
Connecting Additional Equipment
Important Safeguards
For your protection, please read these instructions completely, and keep this manual for
future reference. Carefully observe and comply with all warnings, cautions and instructions
placed on the set, or described in the operating instructions or service manual.
WARNING
To guard against injury, the following basic safety precautions should be observed in the
installation, use, and servicing of the set.
Use

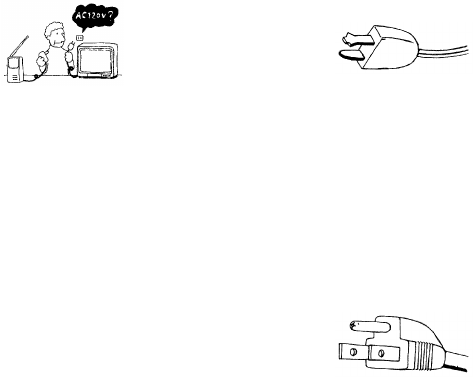

Power Sources
This set should be operated only from the
type of power source indicated on the
serial/model plate. If you are not sure of
the type of electrical power supplied to
your home, consult your dealer or local
power company. For those sets designed to
operate from battery power, refer to the
operating instructions.
Grounding or Polarization
This set is equipped with a polarized AC
power cord plug (a plug having one blade
wider than the other), or with a three-wire
grounding type plug (a plug having a third
pin for grounding).
Follow the instructions below:
For the set with a polarized AC power
cord plug
This plug will fit into the power outlet only
one way. This is a safety feature. If you are
unable to insert the plug fully into the
outlet, try reversing the plug. If the plug
should still fail to fit, contact your
electrician to have a suitable outlet
installed. Do not defeat the safety purpose
of the polarized plug by forcing it in.
Alternate Warning
For the set with a three-wire
grounding type AC plug
This plug will only fit into a grounding-
type power outlet. This is a safety feature.
If you are unable to insert the plug into the
outlet, contact your electrician to have a
suitable outlet installed. Do not defeat the
safety purpose of the grounding plug.
User Guide
Overloading
Do not overload wall outlets, extension
cords or convenience receptacles beyond
their capacity, since this can result in fire or
electric shock. Always turn the set off
when it is not to be used. When the set is
left unattended and unused for long
periods of time, unplug it from the wall
outlet as a precaution against the
possibility of an internal malfunction that
could create a fire hazard.
Do not disconnect the antenna or the
power cord during a heavy storm.
Lightning may strike while you are
holding the cable or cord, causing serious
injury. Turn off your TV and wait for the
weather to improve.
Object and Liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts
that could result in a fire or electric shock.
Never spill liquid of any kind on the set.
Attachments
Do not use attachments not recommended
by the manufacturer, as they may cause
hazards.
Do not place any objects, especially heavy
objects, on top of the set. The object may
fall from the set, causing injury.
Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning
the exterior of the set.
If a snapping or popping sound from a TV
set is continuous or frequent while the TV
is operating, unplug the TV and consult
your dealer or service technician. It is
normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
Installation
Always use two or more people to lift or
move the set. The set is heavy and the
bottom surface is flat. Serious injury can
result from trying to move the set by
yourself alone, or from unsteady handling.
Install the set on a stable, level surface.
Water and Moisture
Do not use power-line operated sets near
water — for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming pool,
etc.
Connecting Additional Equipment
Accessories
Do not place the set on an unstable cart,
stand, tripod, bracket, table, or shelf. The
set may fall, causing serious injury to a
child or an adult, and serious damage to
the set. Use only a cart or stand
recommended by the manufacturer for the
specific model of TV any mounting of the
product should follow the manufacturer’s
instructions, and should use a mounting
accessory recommended by the
manufacturer. An appliance and cart
combination should be moved with care.
Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart
combination to overturn.
Disconnect all cables and cords from the
set before attempting to move the set.
Do not allow children or pets to climb up
onto, or push against, the set. The set may
fall, causing serious injury.
Ventilation
The slots and openings in the cabinet and
in the back or bottom are provided for
necessary ventilation. To ensure reliable
operation of the set, and to protect it from
overheating, these slots and openings must
never be blocked or covered.
•Never cover the slots and openings
with a cloth or other materials.
•Never block the slots and openings
by placing the set on a bed, sofa, rug
or other similar surface.
•Never place the set in a confined
space, such as a bookcase, or built-in
cabinet, unless proper ventilation is
provided.
•Do not place the set near or over a
radiator or heat register, or where it
is exposed to direct sunlight.
Power-Cord Protection
Do not allow anything to rest on or roll
over the power cord, and do not place the
set where the power cord is subject to wear
or abuse.
User Guide
Grounding or Polarization
This set may be equipped with a polarized alternating current line plug (a plug having one
blade wider than other). This plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact you electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An outdoor antenna
system should not be located in the vicinity of overhead power lines or other electric light or
power circuits, or where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD
BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection against voltage
surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in USA
and Section 54 of the Canadian Electrical Code in Canada provides information with respect
to proper grounding of the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
Antenna Grounding According to the NEC
Refer to section 54-300 of Canadian Electrical Code for Antenna Grounding.
Lightning
For added protection for this television receiver during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the receiver due to lightning and
power-line surges.
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
NEC - NATIONAL ELECTRIC CODE
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ARTICLE 250, PART H)
Connecting Additional Equipment
Service
Damage Requiring Service
Unplug the set from the wall outlet and
refer servicing to qualified service
personnel under the following conditions:
•When the power cord or plug is
damaged or frayed.
•If liquid has been spilled into the
set.
•If the set has been exposed to rain or
water.
•If the set has been subject to
excessive shock by being dropped,
or the cabinet has been damaged.
•If the set does not operate normally
when following the operating
instructions. Adjust only those
controls that are specified in the
operating instructions. Improper
adjustment of other controls may
result in damage and will often
require extensive work by a
qualified technician to restore the set
to normal operation.
•When the set exhibits a distinct
change in performance — this
indicates a need for service.
Servicing
Do not attempt to service the set yourself
since opening the cabinet may expose you
to dangerous voltage or other hazards.
Refer all servicing to qualified service
personnel.
Replacement Parts
When replacement parts are required, be
sure the service technician certifies in
writing that he has used replacement parts
specified by the manufacturer that have the
same characteristics as the original parts.
Unauthorized substitutions may result in
fire, electric shock, or other hazards.
Safety Check
Upon completion of any service or repairs
to the set, ask the service technician to
perform routine safety checks (as specified
by the manufacturer) to determine that the
set is in safe operating condition, and to so
certify. When the set reaches the end of its
useful life, improper disposal could result
in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
User Guide
Introduction
Trinitron Color TV Features............................ 1
Batteries for the Remote Control.......................2
About this Manual ..............................................2
Connecting Your TV
Basic Connections................................................ 3
Connecting Additional Equipment..................4
Using the Remote Control and Basic Functions
Using the Remote Control................................ 13
Setting Up the TV Automatically....................14
Quick Start to the Menus..................................15
Using the Menus
Using the Video Menu ...............................18
Using the Audio Menu ..............................19
Using the Channel Setup Menu................20
Parental Control.................................................22
Using the Parental Control Menu ............25
Using the Timer Menu............................... 28
Using the Setup Menu................................29
Options Menu....................................................30
Other Information
Troubleshooting ................................................ 31
Specifications......................................................33
Index..........................................................................35
®
Contents
User Guide
Connecting Additional Equipment
1
Introduction
Congratulations on your purchase of the Sony Trinitron Color TV.
Before you begin using this manual, please check the model number
located on the rear of your TV or on the front cover of this manual.
Trinitron Color TV Features
Some of the features you will enjoy include:
FLAT CRT — New technologically advanced screen for optimal
picture quality.
Parental Control — A tool for parents to help monitor what their
children watch on TV by establishing rating limits.
Favorite Channel — Instant access to your favorite channels with the
touch of a button.
Energy Star® — A recognized symbol of energy efficiency.
Direct MTS — Allows direct access to changing your Multi-Channel
TV Sound: Stereo, Mono, or Auto-SAP (Second Audio Program),
with the touch of a button (KV-20FS12 only).
Trilingual Menus — Choose between English, French, or Spanish
menus.
Front Panel Controls — Allows access to the on-screen menus
without the use of a remote control.
Front A/V inputs — A quick connection for video games, camcorders,
stereo/mono equipment, or headphones.
In this manual, references to the KV-13FM12 include the KV-13FM12,
KV-13FM13, and the KV-13FM14 models.
®
®
2
Operating Instructions
Batteries for the Remote Control
Insert two AA (R6) batteries (supplied) into the remote control using the
following illustration as a guide.
About this Manual
This manual provides instructions to help you enjoy your new TV. It
shows you how to connect to an antenna or cable, cable box, VCR, DVD,
satellite receiver, stereo system, or camcorder. Once you’re connected,
follow the instructions and use the remote control to access the on-screen
menus.
Under normal conditions, batteries will last up to six months. If the remote
control does not operate properly, the batteries might be worn out.
If you will not be using the remote control for an extended period of time,
remove the batteries to avoid possible damage from battery leakage.
The TV front and rear panels illustrated in this manual are for KV-20FS12. The
front and rear panels on your TV may not look exactly like those illustrated.
Connecting Your TV
3
Connecting Your TV
Read this section before setting up your TV for the first time. This section
covers basic connections in addition to any optional equipment you may
be connecting.
Basic Connections
TV with indoor or outdoor antenna, or CATV cable
Depending on the cable available in your home, choose one of the
connections below:
If you are connecting to an indoor or outdoor antenna, you may need to
adjust the orientation of the antenna for best reception.
4
Operating Instructions
Connecting Additional Equipment
TV and VCR
1Connect the coaxial cable from your TV antenna or cable service to
the IN jack on your VCR.
2Connect a coaxial cable (not supplied) from the OUT jack on your
VCR to the VHF/UHF jack on the TV.
Optional connection
If your VCR is equipped with video outputs, you can get better picture
quality by connecting Audio/Video cables (not supplied) from AUDIO
and VIDEO OUT on your VCR to AUDIO/VIDEO IN on your TV.
To watch video programs from your VCR, tune your TV to channel 3 or 4 (as
set on the rear of your VCR).
You can use the button to switch between the VHF/UHF and VIDEO
inputs.
Optional connection
From
VCR
2
Rear of TV
cable/
Coaxial
Cable
1
antenna
Video (yellow)
Audio L (white)
Audio R (red)
Connecting Your TV
5
TV and Cable Box
1Connect the coaxial cable from your cable service to the IN jack on
your cable box.
2Connect a coaxial cable (not supplied) from the OUT jack on your
cable box to the VHF/UHF jack on the TV.
To view channels from your cable box, tune your TV to channel 3 or 4 (as set
on the rear panel of your cable box) and use the cable box’s remote control to
change channels.
If you will be controlling all channel selection through your cable box, you
should consider using the Channel Fix feature by setting your TV to channnel
3 or 4, (see page 20).
1From
cable
2Coaxial
Cable
Cable Box
Rear of TV
Coaxial
Cable
6
Operating Instructions
TV, VCR, and Cable Box
1Connect the coaxial cable from your cable service to the IN jack on
your cable box.
2Connect a coaxial cable (not supplied) from the OUT jack on your
cable box to the IN jack on your VCR.
3Connect a coaxial cable (not supplied) from the OUT jack on your
VCR to the VHF/UHF jack on the TV.
Optional connection
If your VCR is equipped with video outputs, you can get better picture
quality by connecting Audio/Video cables (not supplied) from AUDIO
and VIDEO OUT on your VCR to AUDIO/VIDEO IN on your TV.
If you will be controlling all channel selection through your cable box, you
should consider using the Channel Fix feature by setting your TV to channel 3
or 4, (see page 20).
You can use the button to switch between the VHF/UHF and VIDEO
inputs.
3
From cable
Optional connection
Cable box
1
VCR
2
Rear of TV
Video (yellow)
Audio L (white)
Audio R (red)
Connecting Your TV
7
TV and Satellite Receiver
1Connect the cable from your satellite antenna to SATELLITE IN on
your satellite receiver.
2Connect the coaxial cable from your cable service or antenna to
the VHF/UHF jack on your TV.
3Using Audio/Video cables (not supplied), connect AUDIO and
VIDEO OUT on your satellite receiver to AUDIO and VIDEO IN on
your TV.
You can use the button to switch between the VHF/UHF and VIDEO
inputs.
Satellite receiver
Satellite
antenna
cable
1
2
3
From
cable/
antenna
Rear of TV
Video (yellow)
Audio L (white)
Audio R (red)
8
Operating Instructions
TV, Satellite Receiver, and VCR
1Connect the cable from your satellite antenna to SATELLITE IN on
the satellite receiver.
2Connect the coaxial cable from your cable service or antenna to the
IN jack on your VCR.
3Using a coaxial cable (not supplied), connect the OUT jack on your
VCR to the VHF/UHF jack on your TV.
4Using Audio/Video cables (not supplied), connect AUDIO and
VIDEO OUT on your satellite receiver to AUDIO and VIDEO IN on
your VCR.
5Using Audio/Video cables (not supplied), connect AUDIO and
VIDEO OUT on your VCR to AUDIO and VIDEO IN on your TV.
To view from the satellite receiver or VCR, select the video input to which
your satellite receiver or VCR is connected by pressing on the remote
control.
Satellite receiver
4
5
2
3
1Rear of TV
VCR
Satellite
antenna
From
antenna
cable/
cable
Video (yellow)
Audio L (white)
Audio R (red)
Connecting Your TV
9
Connecting a Camcorder
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO
OUT on your camcorder to AUDIO and VIDEO IN on your TV.
Connecting a DVD Player
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO
OUT on your DVD player to AUDIO and VIDEO IN on your TV.
Front A/V Panel
F
F
A/V output
Audio R (red)
Audio L (white)
Video (yellow)
Rear of TV
Rear of DVD player
Video (yellow)
Audio R (red)
Audio L (white)
10
Operating Instructions
Connecting Headphones
Connect the headphones to the jack on the front of your TV.
Front A/V Panel
12
Operating Instructions
Using the Remote Control and
Basic Functions
This section shows you how to use the more advanced buttons on the
remote control and how to use the on-screen menus.
The remote control shown (RM-Y173) is for KV-20FS12. For KV-13FM12
models, your remote control does not have the MTS button.
MUTING POWER
SLEEP
DISPLAYMTS/SAP
VOL CH
JUMP
TV/VIDEO
1 2 3
4 5 6
7 8 9
ENTER
MENU
0
TV
RM-Y173
RESET
1
2
3
4
5
6
7
8
9
0
qz
qs
qd
Using the Remote Control and Basic Functions
13
Using the Remote Control
Button Description
1 MUTING Instantly turns off the sound. Press again or press
to restore sound.
2 SLEEP Turns the TV off automatically in approximately
15, 30, 45, 60, or 90 minutes. Cancel by pressing
until SLEEP OFF appears.
3 MTS/SAP Cycles through the Multi-channel TV Sound
(MTS) options: Stereo, Mono, and Auto-SAP
(Second Audio Programming).
4 JUMP Alternates between the last two channels selected
with the buttons.
5 VOL (volume) Press when you want to adjust the volume.
6 RESET Press to return to factory settings while in an on-
screen menu.
7 Moves the cursor in the on-screen menus. Press
the arrow buttons to move the cursor, press the
center button to select or access an option.
8 POWER Press when you want to turn the TV on and off.
9 TV/VIDEO Cycles through available video inputs.
0 DISPLAY Press to display the current time, (if set) and
channel number. Press again to turn DISPLAY off.
qa and ENTER Change channels directly, and enter numerical
values in on-screen displays.
qs CH (channel) Press when you want to change channels.
qd MENU Displays the on-screen menu. Press again to exit
the menu at any time.
If you lose your remote control, see page 32.
0 9
0 9
14
Operating Instructions
Setting Up the TV Automatically
After you have finished connecting your TV, you can perform Auto
Program to set up your channels.
1Press to turn on the TV. The Initial Setup screen appears.
2Press on the remote control or in the TV front panel to perform
Auto Program or press to exit.
To perform Auto Program again
1Press .
2Press g to highlight Setup ( ).
3Press f to highlight Options. Press to select.
4Press to select Cable.
5Press F or to select ON or OFF according to how you connected
your TV. Press .
6Press f to highlight Auto Program. Press to search for channels.
The Initial Setup screen appears each time you turn on the TV until you
perform Auto Program.
After performing Auto Program, press to exit.
Auto Program
Exit [CH+]
[CH-]
First please connect
cable/antenna
CH
CH
MENU
F
MENU
Using the Remote Control and Basic Functions
15
Quick Start to the Menus
The following settings are available in your on-screen menus:
Menu Allows you to
Make adjustments to your picture
settings.
Change your Multi-channel TV
Sound settings.
Customize your channel settings.
Set rating limits on your TV based on
a program’s rating or content.
The menus shown in this manual are for KV-20FS12. Your menus may not
look like those illustrated.
Video
Move
Brightness
Color
Hue
Sharpness
Select End
VM: Low
MENU
MTS: Stereo
Audio
Move Select End
MENU
Favorite Channel
Channel Fix: OFF
Channel Skip/Add
Channel Label
Channel Setup
Move Select End
MENU
Password:
Parental Control
Move Select End
MENU
16
Operating Instructions
Menu Allows you to
Set the clock on your TV and program
scheduled viewing using Timer 1 and
Timer 2.
Program your channels, label video
inputs, select menu languages, or run
a demo of the menus.
The Options menu offers other setup
options.
Timer 1: Set
Timer 2: Set
Current Time
Daylight Saving: NO
:AM
Timer
Move Select End
MENU
Caption Vision: OFF
Demo
Video Label
Language: English
Options
Setup
Move Select End
MENU
Tilt Correction: 0
Cable: ON
Auto Program
Options
Move Select End
MENU
Using the Menus
17
Using the Menus
This section shows the options available for setting up and adjusting
your TV.
To access a menu
1Press to display the on-screen menu.
2Use the G or g buttons to highlight the desired menu, then press .
3Use the F or buttons to highlight the desired option, then press
.
4Press to complete the adjustment.
5Press to exit the menu.
MENU
F
MENU
18
Operating Instructions
Using the Video Menu
Item Press G to Press g to
Picture Decrease picture contrast Increase picture contrast
Brightness Darken the picture Brighten the picture
Color Decrease color saturation Increase color saturation
Hue Increase the red tones Increase the green tones
Sharpness Soften the picture Sharpen the picture
VM
Velocity
Modulation
Sharpens picture definition to give objects a sharp, clean
edge. Use the F or buttons to select from one of the
following options: OFF, High, Low (KV-20FS12 only).
To access the Video menu, refer to the following steps:
Video
Move
Brightness
Color
Hue
Sharpness
Select End
VM: Low
MENU
MENU
MENU
To Display To Highlight To Select
F
Using the Menus
19
Using the Audio Menu (KV-20FS12 only)
MTS
Multi-Channel
Sound
Press F or f to select one of the following options:
Stereo: Select when viewing a broadcast in stereo.
Mono: Select to reduce noise in areas of poor reception.
Auto-SAP: Select to have the TV automatically to a Second
Audio Program (SAP) when a signal is received.
If your TV is set to Auto-SAP, some programs may be muted or distorted. If
your TV does not output sound, change your Audio setting to Stereo or
Mono.
Press for direct MTS settings (Stereo, Mono, Auto-SAP).
To access the Audio menu, refer to the following steps:
MENU
MENU
MTS: Stereo
Audio
Move Select End
MENU
To Display To Highlight To Select
20
Operating Instructions
Using the Channel Setup Menu
Favorite
Channel
Quick access
to favorite
channels
With the Favorite Channel menu open:
1Press to select.
2Use the F or f buttons to select Auto or Manual (selecting
Auto will display in gray the last five channels accessed by
the buttons).
3When in Manual, press G then f to select the position (1-5)
where you want to set a favorite channel. Then press .
4Using the F or f buttons, select the desired channel.
5Press then , the TV will change to the channel
entered.
Channel Fix 2-6: Select when you want to control all channel selection
through a cable box or VCR. Select the appropriate channel
(usually 3 or 4) and use the cable box’s or VCR’s remote
control for channel selection.
Video: Select from available video inputs when you have
connected video equipment (e.g. satellite receiver) and you
want your TV fixed to it.
OFF: Channel Fix is not set.
To access the Channel Setup menu, refer to the following steps:
Favorite Channel
Channel Fix: OFF
Channel Skip/Add
Channel Label
Channel Setup
Move Select End
MENU
MENU
MENU
To Display To Highlight To Select
0 9
MENU
To use Favorite Channel: Exit all menus and press . Press F or f to move
the cursor to the desired channel number and press .
Using the Menus
21
Channel
Skip/Add Use this feature after you run Auto Program to skip unwanted
channels or add new ones.
1Use the buttons or the [CH +/–] buttons to select
the channel, then press .
2Press to Skip or Add (only one option will be
available).
Channel
Label
Label up to 40
channels with their
call letters
With the Channel Label window open:
1
Press
, then press
F
or
f
until you reach the desired
channel number.
2
Press
to activate the channel.
3
Press
F
or
f
to display the first call letter or number of the
caption and press
to select it. When finished,
press
to
activate.
0 9
Favorite Channel,Channel Skip/Add, and Channel Label cannot be used when
Channel Fix is set.
22
Operating Instructions
Parental Control
The Parental Control feature is designed to help parents monitor what
their children watch on television. This section shows you the different
rating systems available and how to set your TV’s rating limit.
Overview of the Ratings
Once you have become familiar with these rating systems, you should be
ready to set your TV’s rating limit.
TV Ratings
The TV ratings are divided into two groups: age-based and
content-based.
The content ratings will increase depending on the level of the age-based
rating. For example, a program with a TV-PG V (Violence) rating may contain
moderate violence, while a TV-14 V (Violence) rating may contain intense
violence.
TV-G:
TV-PG
TV-14:
TV-MA
TV-Y:
TV-Y7:
:
:
TV Ratings
D
D
FV
L
L
L
S
S
S
V
V
V
Press to block
Move Select End
MENU
Age
Content
Age Defined as
TV-Y All children
TV-Y7 Directed to older children
TV-G General audience
TV-PG Parental Guidance
suggested
TV-14 Parents Strongly
cautioned
TV-MA Mature Audience only
Contents Defined as
FV Fantasy Violence
DSuggestive
dialogue
LStrong language
SSexual situations
VViolence
Using the Menus
23
Movie Ratings
(U.S. models only)
This system defines the rating levels of movies shown in theaters and on
prime cable channels.
Unrated
(U.S. models only)
You have the option of blocking TV programs or movies that are not
rated.
If you choose to block unrated TV programs, please be aware that the
following programs may be blocked: emergency broadcasts, political
programs, sports, news, public service announcements, religious programs,
and weather.
R:
NC-17:
X:
PG-13:
G:
PG:
Movie Rating
Press to block
Move Select End
MENU
Rating Defined as
GGeneral audience
PG Parental Guidance
suggested
PG-13 Parents strongly
cautioned
RRestricted
NC-17 No one 17 and under
admitted
XAdult audience only
View All Allows all unrated
programs
Block All Blocks all unrated
programming
Block TV Blocks all unrated TV
Programs
Block Movies
Blocks all unrated
movies
Movie Ratings
TV Ratings
Unrated: View All
Select Category
Custom Ratings
Move Select End
MENU
24
Operating Instructions
English Ratings
(Canadian models only)
These ratings are for Canadian programs that are broadcast in English.
French Ratings
(Canadian models only)
These ratings are for Canadian programs that are broadcast in French.
U.S.A. Ratings
(Canadian models only)
For programs from the United States. Please see “TV Ratings” on
page page 22.
Rating Defined as
CChildren
C8+ Children 8 years and
older
GGeneral programming
PG Parental Guidance
14+ Viewers 14 and older
18+ Adult programming
G:
PG:
14+
18+
Press to block
C:
C8+
:
:
:
English Ratings
Move Select End
MENU
Rating Defined as
GGeneral
8 ans+ Not recommended for
younger children
13
ans+ Not recommended for
children under age 13
16
ans+ Not recommended for
ages under 16
18
ans+ This program is restricted
to adults
8
13
16
18
ans+:
ans+:
ans+:
ans+:
Press to block
G:
French Ratings
Move Select End
MENU
Using the Menus
25
Using the Parental Control Menu
In the Parental Control menu, you will be asked to set a 4-digit
password for any further access into Parental Control.
1
Press
, then use the buttons to enter a 4-digit password.
2Confirm your password by entering it again.
Once your password is set correctly, the next Parental Control menu
appears.
Keep this manual in a safe place. If you forget your password, see page 32.
To access the Parental Control menu, refer to the following steps:
Use [0-9] buttons to
enter new four-digit
Password
Parental Control
Password:
Move Select End
MENU
MENU
MENU
To Display To Highlight To Select
0 9
26
Operating Instructions
Setting the rating
You can change the Rating by selecting one of the Lock options.
1Move the cursor to Lock and press .
If you are not familiar with the Parental Guidelines rating system, use
one of the following preselected categories to simplify the rating
selections, Child, Youth, Young Adult.
2Use the F or f buttons to select the desired rating and press .
Using the Custom menu
Before setting Custom ratings, see page page 22-24, “Overview of the
Ratings,” for a description of the available rating systems.
Follow the instructions on the screen to make your custom settings. See
page 23 for U.S. models and page 24 for Canadian models for more
information.
Rating TV will allow a maximum rating of:
Child TV-Y, TV-G, G (U.S. models only), G (Canadian models
only)
Youth TV-PG, PG (U.S. models only), PG (Canadian models only)
Young Adult TV-14, PG-13 (U.S. models only), 14+ (Canadian models
only)
Custom Select to set more restrictive ratings, (see next section)
OFF No rating limit
Once you have blocked a rating or content, all higher ratings or content will
be automatically blocked.
Parental Control
Lock: OFF
Change Password
Move Select End
MENU
Using the Menus
27
Changing your Password
1Use the F or f buttons to move the cursor to Change Password and
press .
2Follow steps 1 and 2 for “Using the Parental Control menu” on
page 25.
Information for Parents
To view a program that exceeds the TV rating
Press , then use the buttons to enter your password.
Entering your password to view a blocked program will temporarily turn Lock
to OFF. To reactivate your Lock settings, turn the TV off then back on. The TV
will return to the settings that you have selected.
0 9
28
Operating Instructions
Using the Timer Menu
Current Time 1 Press F or f to select the current time, then press .
(If you are in Daylight Saving time, be sure to set the
Daylight Saving mode in “YES”)
2Press F or f to enter the correct time, then press .
3Press to exit the menu.
Timer 1 and
Timer 2
Scheduled
viewing
With the menu open, set cursor on Timer 1 or Timer 2:
1Press F or f to select Timer 1 or Timer 2, then press .
2Press F or f to enter your time and channel of
preference, then press .
3Press to exit the menu.
Daylight
Saving YES: Select in spring to compensate for Daylight Saving.
NO: Select in fall at the end of Daylight Saving.
MENU
MENU
To access the Timer menu, refer to the following steps:
Timer 1: Set
Timer 2: Set
Current Time
Daylight Saving: NO
:AM
Timer
Move Select End
MENU
To Display To Highlight To Select
MENU
MENU
You must set the Current Time before you can use Timer 1 and Timer 2.
You can set the Timer to ON, OFF, or Set. Once the timer is set, you can turn it
on or off without having to go through the settings.
When you perform Auto Program, all Timer 1 and Timer 2 settings will be
cleared.
Any loss of power will cause Current Time, Timer 1 and Timer 2 settings to be
cleared.
Using the Menus
29
Using the Setup Menu
Caption
Vision
Closed-
Captioning
Allows you to select from three closed caption modes (for
programs that are broadcast with closed caption).
Press F or f to select one of the following options:
CC1, 2, 3, 4: Displays printed dialogue and sound effects of a
program.
TXT1, 2, 3, 4: Displays network/station information.
XDS (Extended Data Services): Displays information about
the network and current program, if available.
OFF: Caption vision is not activated.
Video Label
Label connected
equipment
With the Video Label window open:
1Press F or f to access the input you want to label and
press .
2Press F or f to choose a label and press .
Language Display all menus in your language of choice.
Use the F or f buttons to select desired language and
press .
Demo Press to run a demonstration of the on-screen menus.
MENU
MENU
To access the Setup menu, refer to the following steps:
Caption Vision: OFF
Demo
Video Label
Language: English
Options
Setup
Move Select End
MENU
To Display To Highlight To Select
30
Operating Instructions
Options Menu
Cable ON: Select if you are receiving cable channels with a CATV
cable.
OFF: Select if you are using a TV antenna.
Auto Program Perform Auto Program whenever setting up your TV.
It will cycle through all available channels and program
receivable channels.
Tilt Correction Press F or f to correct any tilt of the picture from –5 to +5,
then press to activate.
MENU
MENU
To Display To Highlight To Select
To access the Options menu, first open the Setup menu, then refer to the
following steps:
Tilt Correction: 0
Cable: ON
Auto Program
Options
Move Select End
MENU
After changing your cable settings, you will need to perform Auto Program.
Other Information
31
Other Information
Troubleshooting
If you are having a problem with your TV, try the suggestions below. If
the problem persists, contact your nearest Sony dealer.
No picture, no
sound Make sure the power cord is plugged in.
If a red light is flashing on the front of your TV for
more than a few minutes, disconnect and reconnect
the power cord to restore the TV. If the problem
continues, call your local service center.
Check the TV/VIDEO settings: when watching TV, set
to TV; when watching video equipment, set to VIDEO
(page 13).
Make sure the batteries have been inserted correctly
into the remote control (page 2).
Try another channel, it could be station trouble.
Poor or no
picture, good
sound
Adjust Picture in the Video menu (page 18).
Adjust Brightness in the Video menu (page18).
Check the antenna and/or cable connections (page 3).
Good picture,
no sound Press so that MUTING disappears from the
screen (page 13).
Check your Audio settings. Your TV may be set to
Auto-SAP (page19).
No color Adjust Color in the Video menu (page 18).
Only snow
appears on the
screen
Check the Cable setting in the Options menu under
Setup (page 30).
Check the antenna and/or cable connections (page 3).
Make sure the channel selected is currently
broadcasting.
Dotted lines or
stripes Adjust the antenna.
Move the TV away from other electronic equipment.
Some electronic equipment can create electrical noise,
which can interfere with TV reception.
Double images
or ghosts Check your outdoor antenna or call your cable service.
32
Operating Instructions
If, after reading these Operating Instructions, you have additional questions related to the use of your
Sony television, please call our Direct Response Center at 1-800-222-SONY (7669) (U.S. residents
only) or (416) 499-SONY (7669) (Canadian residents only).
Cannot receive
higher number
channels (UHF)
when using an
antenna
Make sure Cable is set to OFF in the Options menu
under Setup (page 30).
Perform Auto Program to add channels that are not
presently in the memory (page 14).
Cable stations
don’t seem to
work
Make sure Cable is set to ON in the Options menu
under Setup (page 30).
Perform Auto Program to add channels that are not
presently in the memory (page 14).
Remote control
does not
operate
Batteries could be weak. Replace them (page 2).
Move the TV 3-4 or more feet away from fluorescent
lights.
The TV needs
to be cleaned Clean the TV with a soft dry cloth. Never use strong
solvents such as thinner or benzine, which might
damage the finish of the cabinet.
Lost password
for Parental
Control
In the password screen, enter the following master
password: 4357. After using the master password, you
must create a new password, it cannot be used to
unlock currently blocked channels.
You lost your
remote control You can use the front Audio/Video panel controls to
access the menu. Press to open the menu. Use the
and buttons on the front Audio/Video panel
instead of the F and buttons on the remote control.
Use the button on the front Audio/Video panel
instead of the G, g, and buttons on the remote
control. Press again when the setting or
adjustment is complete. Contact your nearest Sony
dealer to order a replacement.
MENU
F
MENU
Other Information
33
Specifications
For all models (except as noted)
Design and specifications are subject to change without notice.
Television system American TV standard/NTSC
Channel coverage VHF: 2-13/UHF: 14-69/CATV: 1-125
Antenna 75-ohm external antenna terminal for VHF/UHF
Picture tube FD Trinitron® tube
Power requirements 120V, 60 Hz
Supplied Accessories Size AA (R6) batteries (2)
Remote Control RM-Y172 (1) (KV-13FM12,
KV-13FM13, KV-13FM14)
RM-Y173 (1) (KV-20FS12)
Optional Accessories Connecting cables VMC-810S/820S, VMC-720M,
YC-YC-15V/30V, RK74A
EAC-66 U/V mixer
KV-13FM12, KV-13FM13, KV-13FM14
Screen size Visible screen size: 13 inches (341 mm) measured
diagonally
Actual screen size: 14 inches (356.6 mm)
measured diagonally
Inputs/outputs 2 video, 2 audio
1 headphone jack
Speaker output 3 W x 1
Power Consumption 80 W in use
1 W in standby
Dimensions (W/H/D) 450 x 338 x 438 mm (17 3/4 x 13 3/8 x 17 1/4 in.)
Mass 12 kg (26 lbs. 7 oz.)
KV-20FS12
Screen size Visible screen size: 20 inches (507 mm) measured
diagonally
Actual screen size: 21 inches (533.4 mm)
measured diagonally
Inputs/outputs 2 video, 2 audio
1 headphone jack
Speaker output 3 W x 2
Power Consumption 115 W in use
1 W in standby
Dimensions (W/H/D) 512 x 475 x 493 mm (20 1/4 x 18 3/4 x 19 1/2 in.)
Mass 24 kg (52 lbs. 15oz.)
Index
35
Index
AAudio menu 19
Auto Program 14, 30
Auto-SAP 19
BBattery Installation 2
Brightness 18
CCable 30
Caption Vision 29
Channel Fix 20
Channel Label 21
Channel Setup menu 20
Channel Skip/Add 21
Color 18
Connections
Cable and antenna 3
Connecting a Camcorder 9
Connecting a DVD player 9
Connecting Headphones 10
TV and Cable Box 5
TV and VCR 4
TV and Satellite Receiver 7
TV, Satellite Receiver, and
VCR 8
TV, VCR, and Cable box 6
Current Time 28
DDaylight Saving 28
Demo 29
DISPLAY 13
FFavorite Channel 20
HHue 18
LLanguage 29
MMenus
Audio 19
Channel Setup 20
Parental Control 25
Setup 29
Timer 28
Video 18
MTS
Auto-SAP 19
Stereo 19
Mono 19
OOptions (Setup) 30
PParental Control Menu 25
Picture 18
RRemote Control 13
SSetup menu 29
Sharpness 18
SLEEP 13
Specifications 33
TTimer menu 28
Timer 1 and Timer 2 28
Troubleshooting 31
TV Features 1
Tilt Correction 30
VVideo menu 18
Video Label 29
VM 18
User Guide
Sony Corporation Printed in U.S.A.

Navigation menu
