TRINITRON® COLOR TELEVISION

SERVICE MANUAL

BA-4D

CHASSIS

MODEL NAME REMOTE COMMANDER DESTINATION CHASSIS NO.

9-965-857-01

KV-27S42

RM-Y165 US SCC-S27H-A

KV-27S42

RM-Y165 CND SCC-S28F-A

KV-27S46

RM-Y167 US SCC-S27K-A

KV-27S66

RM-Y167 US SCC-S27L-A

KV-27S66

RM-Y167 CND SCC-S28G-A

KV-29AL42

RM-Y165 E SCC-S25U-A

KV-29AL42C

RM-Y165 E SCC-S25Y-A

KV-29AL66

RM-Y167 E SCC-S25T-A

KV-29AL66C

RM-Y167 E SCC-S25V-A

KV-29SL42

RM-Y165 E SCC-S25W-A

KV-29SL42C

RM-Y165 E SCC-S25S-A

KV-29SL46

RM-Y167 E SCC-S25X-A

KV-29XL42M

RM-Y165 MX SCC-S26C-A

KV-29SL43

RM-Y165 E SCC-S55C-A

KV-29SL43C

RM-Y165 E SCC-S55D-A

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:

ORIGINAL MANUAL ISSUE DATE: 4/1999

ALL REVISIONS AND UPDATES TO THE ORIGINAL MANUAL ARE APPENDED TO THE END OF THE PDF FILE.

REVISION DATE REVISION TYPE SUBJECT

6/1999 CORRECTION-1 CRT PART NUMBER CORRECTION FOR KV-27S66

9/1999 CORRECTION-2 DY PART NUMBER CORRECTION

5/2001 SUPPLEMENT-1 NEW MODEL ADDED: KV-29SL43

8/2001 SUPPLEMENT-2 NEW MODEL ADDED: KV-29SL43C

8/2001 CORRECTION-3 Q550 PART NUMBER CORRECTION-PAGE 55

SERVICE MANUAL

BA-4D

CHASSIS

MODEL COMMANDER DEST CHASSIS NO.

KV-27S42

RM-Y165 US SCC-S27H-A

KV-27S42

RM-Y165 CND SCC-S28F-A

KV-27S46

RM-Y167 US SCC-S27K-A

KV-27S66

RM-Y167 US SCC-S27L-A

KV-27S66

RM-Y167 CND SCC-S28G-A

KV-29AL42

RM-Y165 E SCC-S25U-A

KV-29AL42C

RM-Y165 E SCC-S25Y-A

KV-29AL66

RM-Y167 E SCC-S25T-A

KV-29AL66C

RM-Y167 E SCC-S25V-A

KV-29SL42

RM-Y165 E SCC-S25W-A

KV-29SL42C

RM-Y165 E SCC-S25S-A

KV-29SL46

RM-Y167 E SCC-S25X-A

KV-29XL42M

RM-Y165 MX SCC-S26C-A

TRINITRON® COLOR TV

RM-Y167KV-29AL66

MICROFILM

— 2 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

KV-29SL46

KV-27S46 KV-29AL42 KV-29AL66C KV-29XL42M

KV-27S42 KV-27S66 KV-29AL42C KV-29AL66 KV-29SL42

KV-29SL42C

120-220V 120-220V 120-220V

Power Requirements 120V,60Hz 120V,60Hz 50/60Hz 50/60Hz 50/60Hz

Number of input/outputs

Video1) 12 231, 2(KV-29SL46)

S Video2) 11 111

Audio3) 12 231, 2(KV-29SL46)

Audio Out4) 11 111

Monitor Out -- -1-

Speaker Output(W) 5WX2 5WX2 10WX2 10WX2 5WX2

Power Consumption(W) 150W (KV-27S66)

In Use (Max) 140W 140W (KV-27S46) 170W 180W 140W

In Standby 2W 2W 3W 3W 3W

Dimensions(W/H/D)

(mm) 660.4X598 660.4X598 767.4X579.7 767.4X579.7 660.4X598

X505.5mm X505.5mm X547.7mm X547.7mm X505.5mm

(in.) 26x239/16x20in 26x239/16x20in 301/4X227/8x215/8in 301/4X227/8x215/8in 26x239/16x20in

Mass (Kg) 39kg 39kg 42kg 42kg 39kg

(lbs) 86lbs 86lbs 93lbs 93lbs 86lbs

SPECIFICATIONS

Television system

American TV standard/NTSC

Channel coverage

VHF:2-13 / UHF:14-69 / CATV:1-125

Picture tube

Trinitron® tube

Visible screen size

27-inch picture measured diagonally

29-inch picture measured diagonally

Antenna

75 ohm external antenna terminal for VHF/UHF

Supplied accessories

Remote Commander with 2 size AA (R6) batteries

RM-Y167 (KV-29AL66/29AL66C/29SL46/27S46/27S66)

RM-Y165 (KV-29AL42/29AL42C/27S42/29XL42M/29SL42/29SL42C)

Optional accessories

Connecting

Cables: VMC-810S/820S, VMC-720M.

YC-15V/20V, RK-74A

TV Stand: SU-27A4

U/V Mixer: EAC-66

Design and specifications are subject to change without notice.

1) 1 Vp-p 75 ohms unbalanced, sync negative

2) Y: 1 Vp-p 75 ohms unbalanced, sync negative

C: 0.286 Vp-p (Burst signal), 75 ohms

3) 500 mVrms (100% modulation), Impedance: 47 kilohms

4) More than 408 mVrms at the maximum volume setting (variable)

More than 408 mVrms (fix); Impedance: 5 kilohms

( ) SRS (SOUND RETRIEVAL SYSTEM)

The ( ) SRS (SOUND RETRIEVAL SYSTEM) is manufac-

tured by Sony Corporation under license from SRS Labs,

Inc. It is covered by U.S. Patent No. 4,748,669. Other U.S.

and foreign patents pending.

The word ‘SRS’ and the SRS symbol ( ) are registered

trademarks of SRS Labs, Inc.

BBE and BBE symbol are trademarks of BBE Sound, Inc.

and are licensed by BBE Sound, Inc. under U.S. Patent

No. 4,638,258 and 4,482,866.

— 3 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Section Title Page

Warnings and Cautions ..................................................................................................................................... 4

Self-Diagnostic Function ................................................................................................................................... 4

Safety Check-Out Instructions ........................................................................................................................... 7

1. GENERAL ............................................................................................................................................................ 8

2. DISASSEMBLY

2-1. Rear Cover Removal (KV-27S46/27S66) .............................................................................................................. 11

2-2. Rear Cover Removal (KV-29SL42/29C/29SL46/29XL42M) .................................................................................. 11

2-3. Rear Cover Removal (KV-29AL42/42C/29AL66/66C) .......................................................................................... 11

2-4. Control Switch Removal (KV-29AL42/42C/29AL66/66C) .................................................................................... 11

2-5. Chassis Assembly Removal (KV-27S46/27S66/29SL42/29C/29SL46/29XL42M) ............................................. 12

2-6. Chassis Assembly Removal (KV-29AL42/42C/29Al66/66C).............................................................................. 12

2-7. Service Position ..................................................................................................................................... 12

2-8. Picture Tube Removal ........................................................................................................................... 13

3. SET-UP ADJUSTMENTS

3-1. Beam Landing ....................................................................................................................................... 14

3-2. Convergence.......................................................................................................................................... 15

3-3. Focus ..................................................................................................................................................... 16

3-4. Screen (G2) ............................................................................................................................................ 16

3-5. Method of Setting the Service Adjustment Mode ...................................................................................16

3-6. White Balance Adjustments .................................................................................................................. 16

4. SAFETY RELATED ADJUSTMENTS

4-1. R582 and R584 Confirmation Method (HV Hold-Down Confirmation and Readjustments) .......... 17

4-2. B+ Voltage Confirmation and Adjustment ............................................................................................. 17

5. CIRCUIT ADJUSTMENTS

5-1. Setting the Service Adjustment Mode .................................................................................................... 19

5-2. Memory Write Confirmation Method ..................................................................................................... 19

5-3. Adjust Buttons and Indicators ............................................................................................................... 19

5-4. A Board Adjustments ............................................................................................................................. 21

6. DIAGRAMS

6-1. Block Diagram ....................................................................................................................................... 23

6-2. Circuit Board Location ........................................................................................................................... 26

6-3. Printed Wiring Boards and Schematic Diagrams................................................................................. 26

• A Board .............................................................................................................................................. 27

• P Board .............................................................................................................................................. 35

• K Board .............................................................................................................................................. 37

• HT Board............................................................................................................................................ 37

• C Board .............................................................................................................................................. 39

• CV Board............................................................................................................................................ 40

• E Board .............................................................................................................................................. 42

• HV Board............................................................................................................................................ 43

6-4. Semiconductors .................................................................................................................................... 45

7. EXPLODED VIEW

7-1. Chassis (KV-27S66).............................................................................................................................. 46

7-2. Chassis (KV-27S42/27S46/27SL42/42C/29SL46/29XL42M) .............................................................. 47

7-3. Chassis (KV-29AL42/29AL42C)............................................................................................................ 48

7-4. Chassis (KV-29AL66/66C) .................................................................................................................... 49

8. ELECTRICAL PARTS LIST ................................................................................................................................................... 50

TABLE OF CONTENTS

— 4 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

WARNINGS AND CAUTIONS

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE

ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR CARBON

PAINTED ON THE CRT, AFTER REMOVING THE ANODE.

WARNING!!

AN ISOLATION TRANSFORMER SHOULD BE USED DURING ANY

SERVICE TO AVOID POSSIBLE SHOCK HAZARD, BECAUSE OF

LIVE CHASSIS. THE CHASSIS OF THIS RECEIVER IS DIRECTLY

CONNECTED TO THE AC POWER LINE.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK ON THE

SCHEMATIC DIAGRAMS, EXPLODED VIEWS, AND IN THE PARTS

LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE

CRITICAL FOR SAFE OPERATION ARE IDENTIFIED IN THIS MANUAL.

FOLLOW THESE PROCEDURES WHENEVER CRITICAL

COMPONENTS ARE REPLACED OR IMPROPER OPERATION IS

SUSPECTED.

ATTENTION

ATTENTION!!

APRES AVOIR DECONNECTE LE CAP DE L'ANODE, COURT-CIRCUITER

L'ANODE DU TUBE CATHODIQUE ET CELUI DE L'ANODE DU CAP AU CHASSIS

METALLIQUE DE L'APPAREIL, OU AU COUCHE DE CARBONE PEINTE SUR LE

TUBE CATHODIQUE OU AU BLINDAGE DU TUBE CATHODIQUE.

ATTENTION!!

AFIN D'EVITER TOUT RESQUE D'ELECTROCUTION PROVENANT D'UN

CHÁSSIS SOUS TENSION, UN TRANSFORMATEUR D'ISOLEMENT DOIT ETRE

UTILISÉ LORS DE TOUT DÉPANNAGE. LE CHÁSSIS DE CE RÉCEPTEUR EST

DIRECTEMENT RACCORDÉ À L'ALIMENTATION SECTEUR.

ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET PAR UNE MARQUE

SUR LES SCHEMAS DE PRINCIPE, LES VUES EXPLOSEES ET LES LISTES

DE PIECES SONT D'UNEIMPORTANCE CRITIQUE POUR LA SECURITE DU

FONCTIONNEMENT. NE LES REMPLACER QUE PAR DES COMPOSANTS SONY

DONT LE NUMERO DE PIECE EST INDIQUE DANS LE PRESENT MANUEL OU

DANS DES SUPPLEMENTS PUBLIES PAR SONY. LES REGLAGES DE CIRCUIT

DONT L'IMPORTANCE EST CRITIQUE POUR LA SECURITE DU

FONCTIONNEMENT SONT IDENTIFIES DANS LE PRESENT MANUEL. SUIVRE

CES PROCEDURES LORS DE CHAQUE REMPLACEMENT DE COMPOSANTS

CRITIQUES, OU LORSQU'UN MAUVAIS FONTIONNEMENT SUSPECTE.

SELF-DIAGNOSTIC FUNCTION

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER LED will automatically begin to flash.

The number of times the LED flashes translates to a probable source of the problem. A definition of the STANDBY/TIMER LED flash

indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot be reproduced, the Remote

Commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these problems occur.

Diagnostic Test Indicators

When an error occurs, the STANDBY/TIMER LED will flash a set number of times to indicate the possible cause of the problem. If there is

more than one error, the LED will identify the first of the problem areas.

Results for all of the following diagnostic items are displayed on screen. No error has occurred if the screen displays a “0”.

Diagnostic Item No. of times Display/ Probable Cause Detected

Description STANDBY/TIMER Diagnostic result Location Symptoms

lamp flashes

* Power does not turn on Does not light * Power cord is not plugged in. * Power does not come on.

* Fuse is burned out (F5050) (E Board) * No power is suppled to the TV.

* AC power supply is faulty.

* +B overcurrent (OCP) 2 times 2:0 or 2:1 * H.OUT (Q502) is shorted. (A board) * Power does not come on.

* IC1751 is shorted. (C board) * Load on power line is shorted.

* IC1701 is shorted. (CV board)

* Vertical deflection 4 times 4:0 or 4:1 * +13V is not supplied. (A board) * Has entered standby state after

stopped* horizontal raster.

* IC 541 is faulty (A board) * Vertical deflection pulse is stopped.

* Power line is shorted or power supply

is stopped.

* White balance failure 5 times 5:0 or 5:1 * Video OUT (Q306 to 308) is faulty.(A bd) * No raster is generated.

(not balanced) * IC301 is faulty. (A board) * CRT cathode current detection

* G2 is improperly adjusted**. reference pulse output is small.

* If a +B overcurrent is detected, stoppage of the vertical deflection is detected simulatneously. The symptom that is diagnosed first by the

microcontroller is displayed on the screen.

** Refer to Screen (G2) Adjustment in Section 3-4 of this manual.

— 5 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

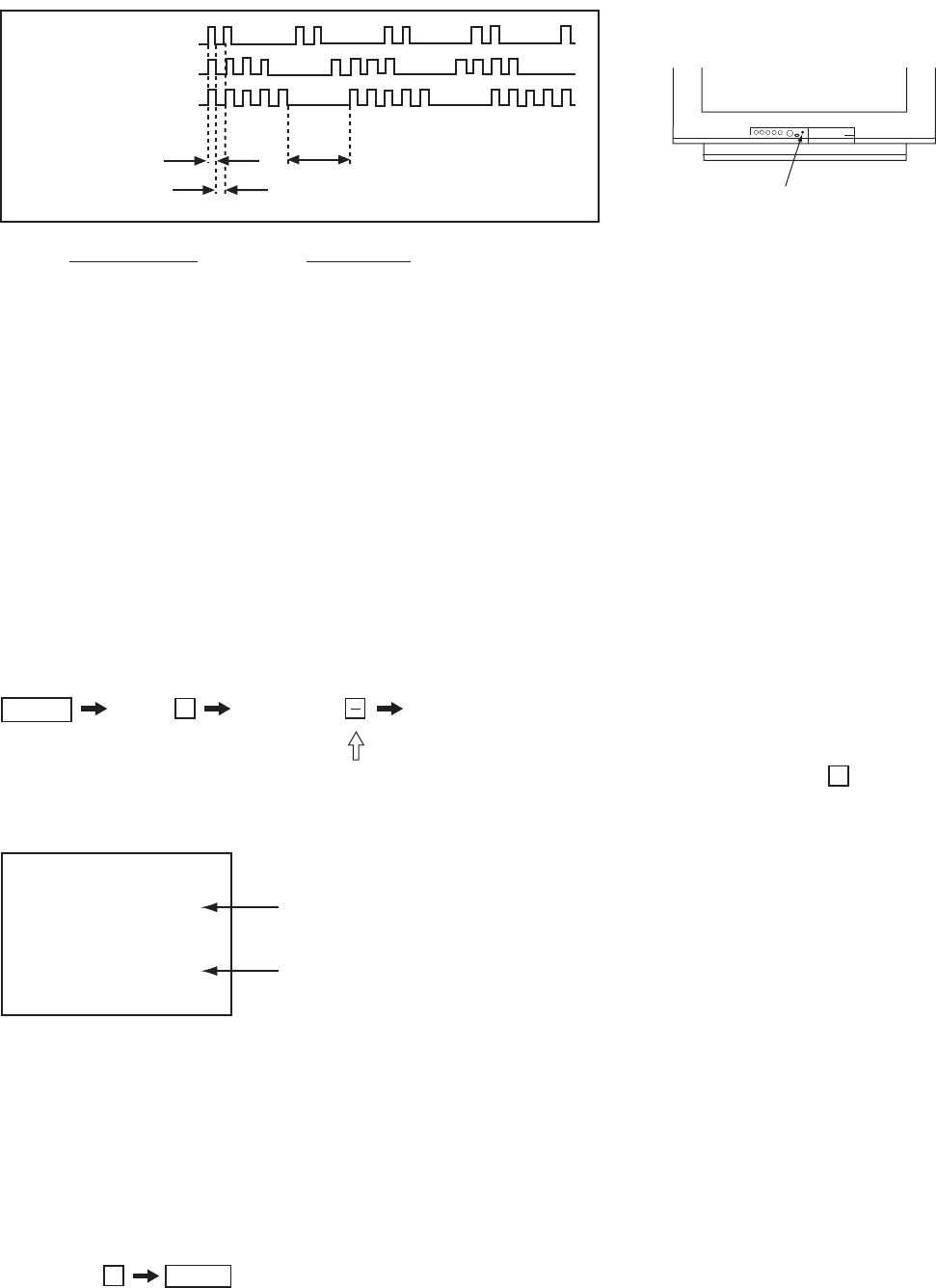

Display of Standby/Timer LED Flash Count

LED ON 0.3 sec.

LED OFF 0.3 sec. LED OFF

3 sec.

2 times

4 times

5 times

Diagnostic Item Flash Count*

+B overcurrent 2 times

Vertical deflection stopped 4 times

White balance failure 5 times

*One flash count is not used for self-diagnostic.

Stopping the Standby/Timer LED Flash

Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/TIMER LAMP from

flashing.

Self-Diagnostic Screen Display

For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it is

possible to bring up past occurrences of failure on the screen for confirmation.

To Bring Up Screen Test

In standby mode, press buttons on the Remote Commander sequentially, in rapid succession, as shown below:

Display Channel 5Sound volume

Note that this differs from entering the service mode (sound volume ).

Power ON

Self Diagnostic Screen Display

SELF DIAGNOSTIC

101:

N/A

Numeral “0” means that no fault was detected.

Numeral “1” means a fault was detected one time only.

Handling of Self-diagnostic Screen Display

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen during

repairs. When you have completed the repairs, clear the result display to “0”.

Unless the result display is cleared to “0”, the self-diagnostic function will not be able to detect subsequent faults after completion

of the repairs.

Clearing the Result Display

To clear the result display to “0”, press buttons on the Remote Commander sequentially when the diagnostic screen is displayed,

as shown below:

ENTERChannel 8

Quitting the Self-Diagnostic Screen

To quit the entire self-diagnostic screen, turn off the power switch on the Remote Commander or the main unit.

STANDBY/TIMER LED

— 6 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

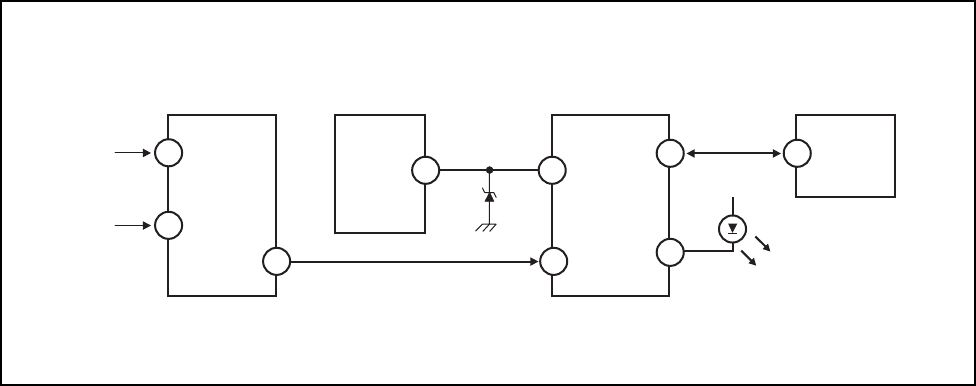

Self-diagnostic Circuit

IC301

Y/CHROMA JUNGLE IC541

V. OUT IC001

SYSTEM IC003

MEMORY

IK IN

FROM

CRT 21

HP/PROTECT

SDA

FROM

IC521

PIN 7 18

35 IO-SDATO-LED

REF 3I-PROT

IO-BDAT

36 B-DAT

18 DISPLAY

+B overcurrent (OCP) Occurs when an overcurrent on the +B (115V) line is detected by pin 18 of IC301. If the voltage

of pin 18 of IC 301 is less than 1V when V.SYNC is more than seven verticals in a period, the

unit will automatically turn off.

Vertical deflection stopped Occurs when an absence of the vertical deflection pulse is detected by pin 17 of IC001. Power

supply will shut down when waveform interval exceeds 2 seconds.

White balance failure If the RGB levels* do not balance within 2 seconds after the power is turned on, this error will

be detected by IC301. TV will stay on, but there will be no picture.

*(Refers to the RGB levels of the AKB detection Ref pulse that detects 1K.)

— 7 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

After correcting the original service problem, perform the

following safety checks before releasing the set to the

customer:

1. Check the area of your repair for unsoldered or

poorly soldered connections. Check the entire board

surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires

are “pinched” or touching high-wattage resistors.

3. Check that all control knobs, shields, covers, ground

straps, and mounting hardware have been replaced.

Be absolutely certain that you have replaced all the

insulators.

4. Look for unauthorized replacement parts, particularly

transistors, that were installed during a previous

repair. Point them out to the customer and

recommend their replacement.

5. Look for parts which, though functioning, show

obvious signs of deterioration. Point them out to the

customer and recommend their replacement.

6. Check the line cords for cracks and abrasion.

Recommend the replacement of any such line cord

to the customer.

7. Check the B+ and HV to see if they are specified

values. Make sure your instruments are accurate;

be suspicious of your HV meter if sets always have

low HV.

8. Check the antenna terminals, metal trim, “metallized”

knobs, screws, and all other exposed metal parts for

AC leakage. Check leakage as described below.

SAFETY CHECK-OUT

Leakage Test

The AC leakage from any exposed metal part to earth

ground and from all exposed metal parts to any exposed

metal part having a return to chassis, must not exceed

0.5 mA (500 microampere). Leakage current can be

measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson

229 or RCA WT-540A. Follow the manufacturers'

instructions to use these instructions.

2. A battery-operated AC milliammeter. The Data

Precision 245 digital multimeter is suitable for this

job.

3. Measuring the voltage drop across a resistor by

means of a VOM or battery-operated AC voltmeter.

The “limit” indication is 0.75 V, so analog meters

must have an accurate low voltage scale. The

Simpson’s 250 and Sanwa SH-63Trd are examples

of passive VOMs that are suitable. Nearly all battery-

operated digital multimeters that have a 2 VAC

range are suitable (see Figure A).

How to Find a Good Earth Ground

A cold-water pipe is guaranteed earth ground; the cover-

plate retaining screw on most AC outlet boxes is also at

earth ground. If the retaining screw is to be used as your

earth ground, verify that it is at ground by measuring the

resistance between it and a cold-water pipe with an

ohmmeter. The reading should be zero ohms. If a cold-

water pipe is not accessible, connect a 60- to 100-watt

trouble light (not a neon lamp) between the hot side of the

receptacle and the retaining screw. Try both slots, if

necessary, to locate the hot side on the line; the lamp

should light at normal brilliance if the screw is at ground

potential (see Figure B).

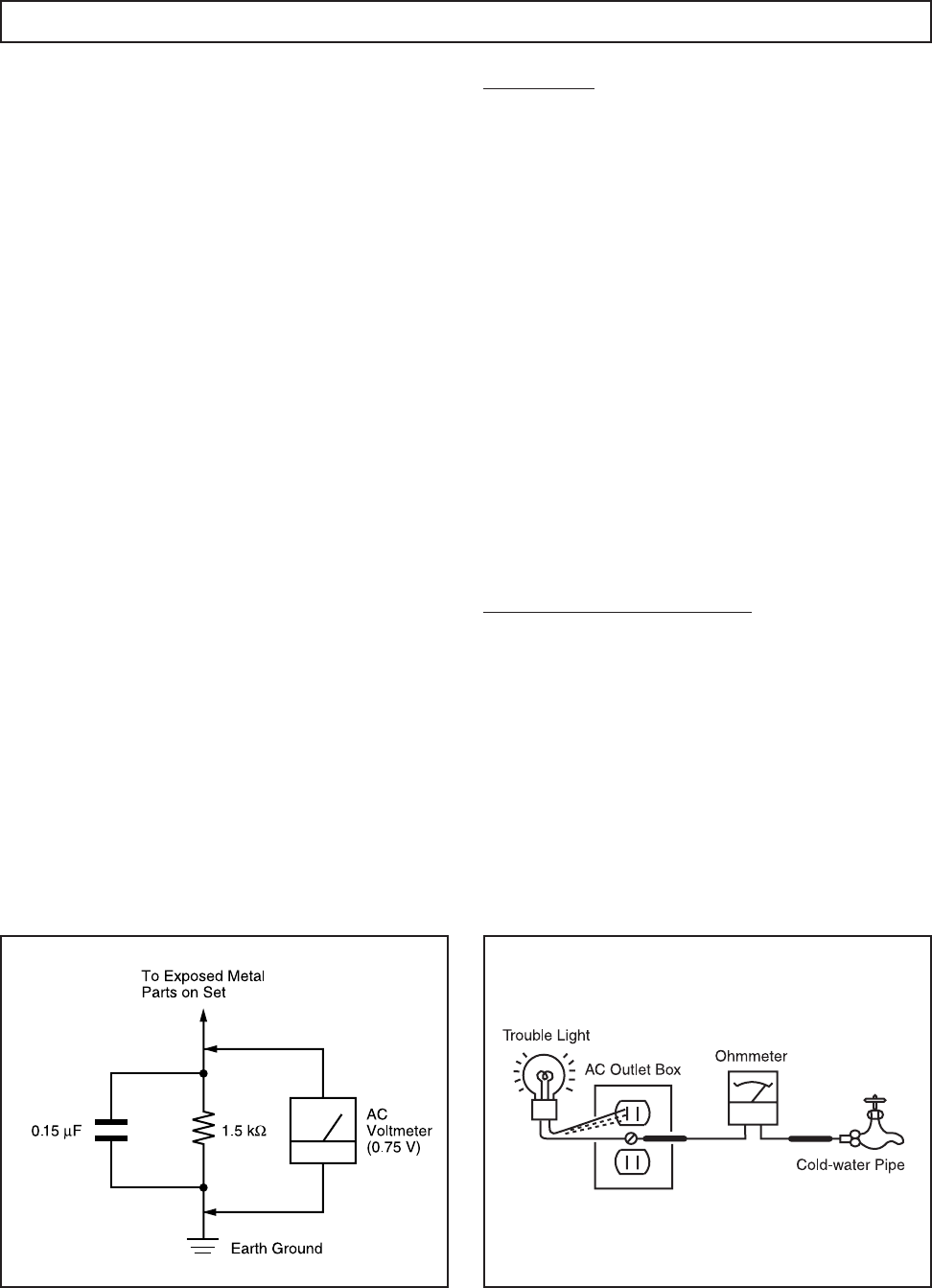

Figure B. Checking for earth ground.Figure A. Using an AC voltmeter to check AC leakage.

— 8 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

The following are partial abstracts from the Operating Instruction

Manual. The page numbers shown reflect those of the Operating

Instruction Manual.

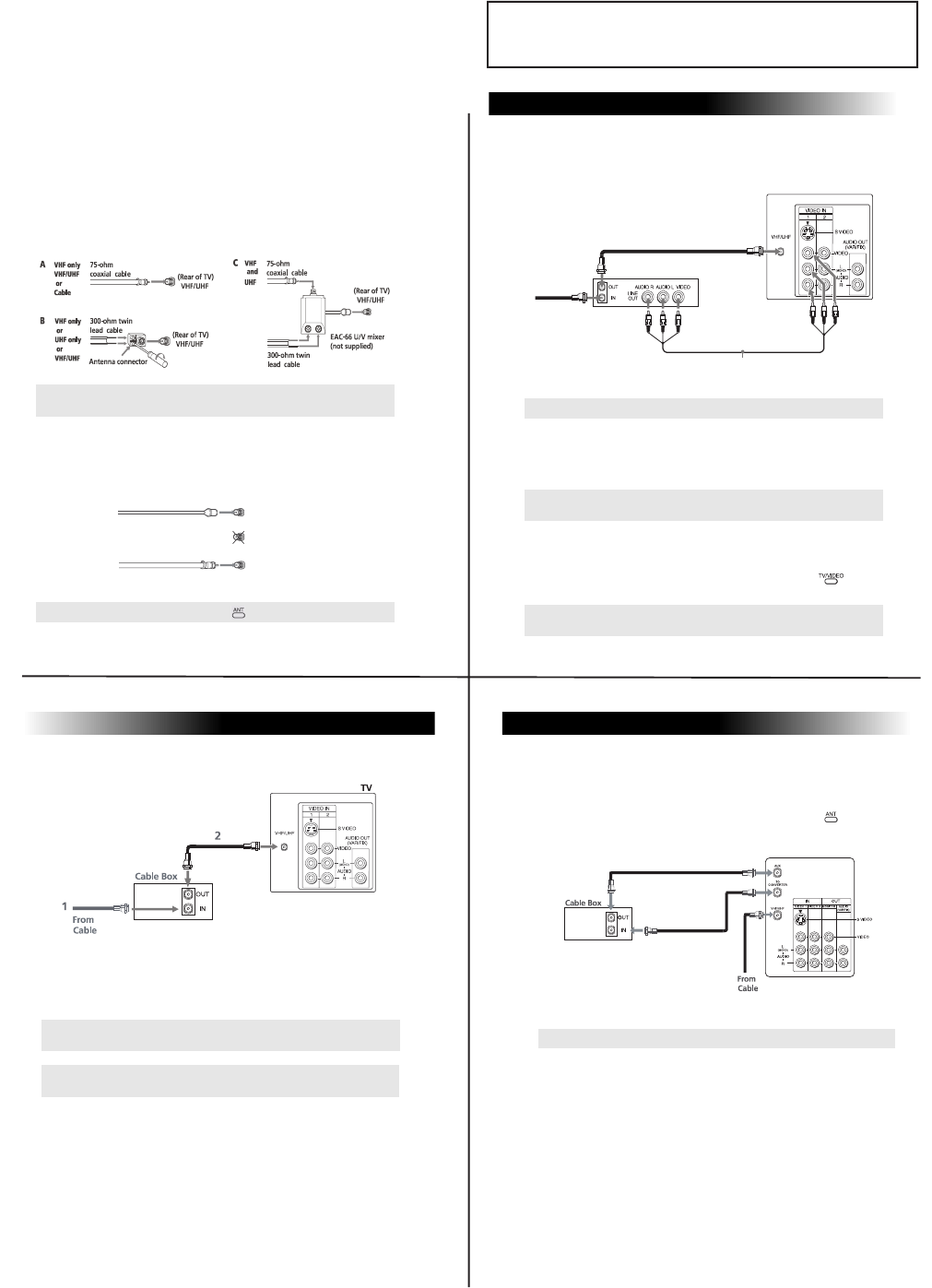

SECTION 1

GENERAL

Connecting Your TV

This section covers basic connections in addition to any optional

equipment you may be connecting.

Basic Connections

TV with indoor or outdoor antenna, or CATV cable

Depending on the cable available in your home, choose one of the

connections below:

Cable and antenna

KV-27S66, 27V66 only

If your cable provider does not feature local channels, you may find this

set up convenient.

✍If you are connecting to an indoor or outdoor antenna, it will be necessary to

adjust the orientation of the antenna for best reception.

✍Select CABLE or ANT mode by pressing on the remote control.

CATV cable

(No connection “TO

CONVERTER” in this case)

Antenna cable VHF/UHF

TO CONVERTER

AUX

(Rear of TV)

User Guide

Connecting Additional Equipment

TV and VCR

Connect the coaxial cable from your TV antenna or cable TV to the IN

jack on your VCR.

Connect a coaxial cable (not supplied) from the OUT jack on your

VCR to the VHF/UHF IN jack on the TV.

(Optional connection)

If your VCR is equipped with video inputs, for better picture quality

you should connect A/V cables to AUDIO and VIDEO OUT on your

VCR to AUDIO/VIDEO IN on your TV. You can use the button

to switch between the TV and VCR inputs.

VCR must be connected and turned on to operate PIP. (KV-27S46 only)

✍

To watch video programs from your VCR, tune your TV to channel 3 or 4 (as

set on the rear of your VCR).

✍

For optimum picture quality, use S VIDEO instead of the yellow A/V cable.

S VIDEO does not provide sound, the audio cables must still be connected.

(Optional connection)

From

Cable/

VCR

antenna

Connecting Your TV

TV and Cable Box

Connect the coaxial cable from the wall to the IN jack on your cable

box.

Connect a coaxial cable (not supplied) from the OUT jack on your

cable box to the VHF/UHF IN jack on the TV.

✍

To view channels from your cable box, tune your TV to channel 3 or 4 (as set

on the rear panel of your cable box).

✍

If you will be controlling all channel selection through your cable box, you

should consider using the CHANNEL FIX feature on page 24.

User Guide

TV, Cable box and Cable

KV-27S66, 27V66 only

For this set up, you can switch between scrambled channels (through

your cable box), and normal (CATV) channels by pressing on your

remote control.

✍

When using PIP, the AUX input cannot be viewed in the window picture.

(Rear panel KV-27V66 only)

5 6

3 4

— 9 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Connecting Your TV

TV, VCR, and Cable box

1Connect the coaxial cable from the wall to the IN jack on your cable

box.

2Connect a coaxial cable (not supplied) from the OUT jack on your

cable box to the IN jack on your VCR.

3Connect a coaxial cable (not supplied) from the OUT jack on your

VCR to the VHF/UHF IN jack on the TV.

(Optional connection)

4If your VCR is equipped with video inputs, for better picture quality

you should connect A/V cables to AUDIO and VIDEO OUT on your

VCR to AUDIO/VIDEO IN on your TV. You can use the button

to switch between the TV and VCR inputs.

✍If you will be controlling all channel selection through your cable box, you

should consider using the CHANNEL FIX feature on page 24.

✍For optimum picture quality, use S VIDEO instead of the yellow A/V cable.

S VIDEO does not provide sound, the audio cables must still be connected.

Cable

4(Optional connection)

Cable box

VCR

User Guide

TV and Digital Satellite Receiver

1Connect the cable from your satellite antenna to SATELLITE IN on

the satellite receiver.

2Attach the coaxial connector from your cable or antenna to

VHF/UHF IN on your TV.

3Using A/V connectors, connect AUDIO and VIDEO OUT on your

satellite receiver to AUDIO and VIDEO IN on your TV. You can use

the button to switch between the satellite receiver and the TV.

✍For optimum picture quality, use S VIDEO instead of the yellow A/V cable.

S VIDEO does not provide sound, your audio connectors must still be

connected.

Satellite receiver

Satellite

antenna

cable

From

cable/

antenna

Connecting Your TV

TV, Digital Satellite Receiver and VCR

1Connect the cable from your satellite antenna to SATELLITE IN on

the satellite receiver.

2Attach the coaxial connector from your cable or antenna to

VHF/UHF IN on your VCR.

3Using a coaxial cable, connect VHF/UHF OUT on your VCR to

VHF/UHF IN on your TV.

4Using A/V connectors, connect AUDIO and VIDEO OUT on your

satellite receiver to AUDIO and VIDEO IN on your VCR.

5Using A/V connectors, connect AUDIO and VIDEO OUT on your

VCR to AUDIO and VIDEO IN on your TV.

✍To view from the satellite or VCR, select the video input to which your

satellite receiver or VCR is connected by pressing on the remote

control.

Satellite receiver

1Cable

VCR

Satellite

antenna

User Guide

Connecting a Camcorder

Using A/V cables, connect AUDIO and VIDEO OUT on your camcorder

to AUDIO and VIDEO IN on your TV.

Connecting a DVD Player

Using A/V connectors, connect LINE OUT on your DVD to VIDEO IN

on your TV.

✍Connection can also be made to the rear A/V panel of your TV.

✍For optimum picture quality, use S VIDEO instead of the yellow A/V cable.

S VIDEO does not provide sound, your audio connectors must still be

connected.

(Front A/V Panel KV-27V42, 27V66 only)

A/V output

A/V outputs

(Rear of TV)

(Rear of DVD player)

— 10 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Connecting Your TV

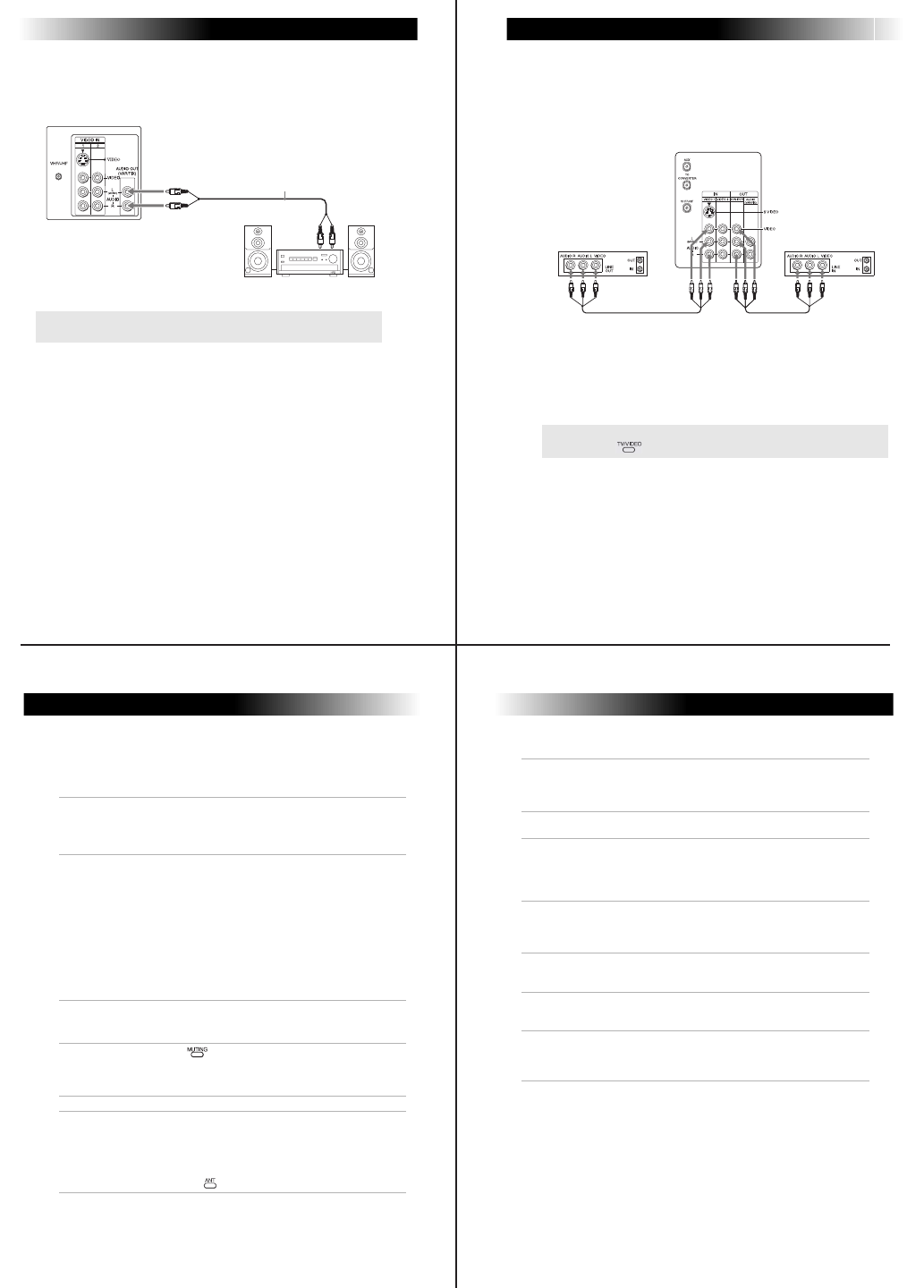

Connecting an audio system

Using audio connectors, connect AUDIO OUT on your TV to one of the

unused line inputs (e.g. TV, AUX, TAPE 2) on your stereo.

✍Set your stereo to the chosen line input. (See page 20 for additional audio

setup instructions.)

AUDIO-L

AUDIO-R

Line

input

User Guide

Connecting two VCRs for Tape Editing

KV-27V42, 27V66 only

MONITOR OUT gives you the ability to use a second VCR to record a

program being played by the primary VCR to perform tape editing.

1Connect the VCR intended for playback using the setup instructions

on page 4 of this manual.

2Using A/V connectors, connect AUDIO and VIDEO IN on your VCR

intended for recording to MONITOR AUDIO and VIDEO OUT on

your TV.

✍To perform tape editing; set the TV to the video input intended for playback

by pressing on the remote control.

(Rear panel KV-27V66 only)

VCR (for playback) VCR (for recording)

User Guide

Troubleshooting

If you are having a problem with your TV, try the suggestions below. If

the problem persists, contact your nearest Sony dealer.

Cannot operate

single tuner

PIP (KV-27S46)

❏Make sure the VCR is connected correctly (see page 4).

❏Check to see if the VCR is on.

❏Make sure your remote control is programmed to

operate your VCR (see page 31).

No picture, no

sound

❏Make sure the power cord is plugged in.

❏If a red light is flashing on the front of your TV for

more than a few minutes, call your local service center.

❏Check the TV/VIDEO settings: when watching TV, set

to TV; when watching video equipment, set to VIDEO

(page 19).

❏Make sure the batteries have been inserted correctly

into the remote control.

❏Check your PARENTAL CONTROL settings (pages

28-29).

❏Try another channel, it could be station trouble.

Poor or no

picture, good

sound

❏Adjust PICTURE in the VIDEO menu (page 19).

❏Adjust BRIGHTNESS in the VIDEO menu (page 19).

❏Check the antenna and/or cable connections (page 3).

Good picture,

no sound

❏Press so that MUTING disappears from the

screen (page 13).

❏Check your AUDIO settings. Your TV may be set to

SAP (page 21).

No color ❏Adjust COLOR in the VIDEO menu (page 19).

Only snow

appears on the

screen

❏Check the CABLE setting in the CHANNEL SET UP

menu (page 24).

❏Check the antenna and/or cable connections (page 3).

❏Make sure the channel selected is currently

broadcasting.

❏Press the button on the remote control.

Other Information

If, after reading these operating instructions, you have additional questions related to the use of your

Sony television, please call our Direct Response Center at 1-800-222-SONY (7669) (U.S. residents

only) or (416) 499-SONY (7669) (Canadian residents only).

Dotted lines or

stripes

❏Adjust the antenna.

❏Move the TV away from other electronic equipment.

Some electronic equipment can create electrical noise,

which can interfere with TV reception.

Double images

or ghosts

❏Check your outdoor antenna or call your cable service.

Cannot receive

higher number

channels (UHF)

when using an

antenna

❏Make sure CABLE is set to OFF in the CHANNEL SET

UP menu (page 24).

❏Use AUTO PROGRAM to add channels that are not

presently in the memory (page 24).

Cable stations

don’t seem to

work

❏Make sure CABLE is set to ON in the CHANNEL SET

UP menu (page 24).

❏Use AUTO PROGRAM to add channels that are not

presently in the memory (page 24).

Remote

Control does

not operate

❏Batteries could be weak. Replace them (page 2).

❏Move the TV 3-4 feet away from fluorescent lights.

The TV needs

to be cleaned

❏Clean the TV with a soft dry cloth. Never use strong

solvents such as thinner or benzine, which might

damage the finish of the cabinet.

Lost password

for PARENTAL

CONTROL

❏In the password screen, enter the following master

password: 4357. After using the master password, you

must create a new password, it cannot be used to

unlock currently blocked channels.

— 11 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/29AL66C/

29SL42/29SL42C/29SL46/29XL42M

SECTION 2

DISASSEMBLY

2-1. REAR COVER REMOVAL

(KV-27S46/27S66)

Rear Cover

Seven screws

(BVTP 4X16)

Two screws

(BVTP 3X10)

Nine Screws

(BVTP 3x12)

Rear Cover

Two Screws

(BVTP 3x10)

Control Switch

Four Claws

2-2. REAR COVER REMOVAL

(KV-29SL42/29SL42C/29SL46/29XL42M)

2-3. REAR COVER REMOVAL

(KV-29AL42/29AL42C/29AL66/29AL66C)

2-4.CONTROL SWITCH REMOVAL

(KV-29AL42/29AL42C/29AL66/29AL66C)

— 12 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

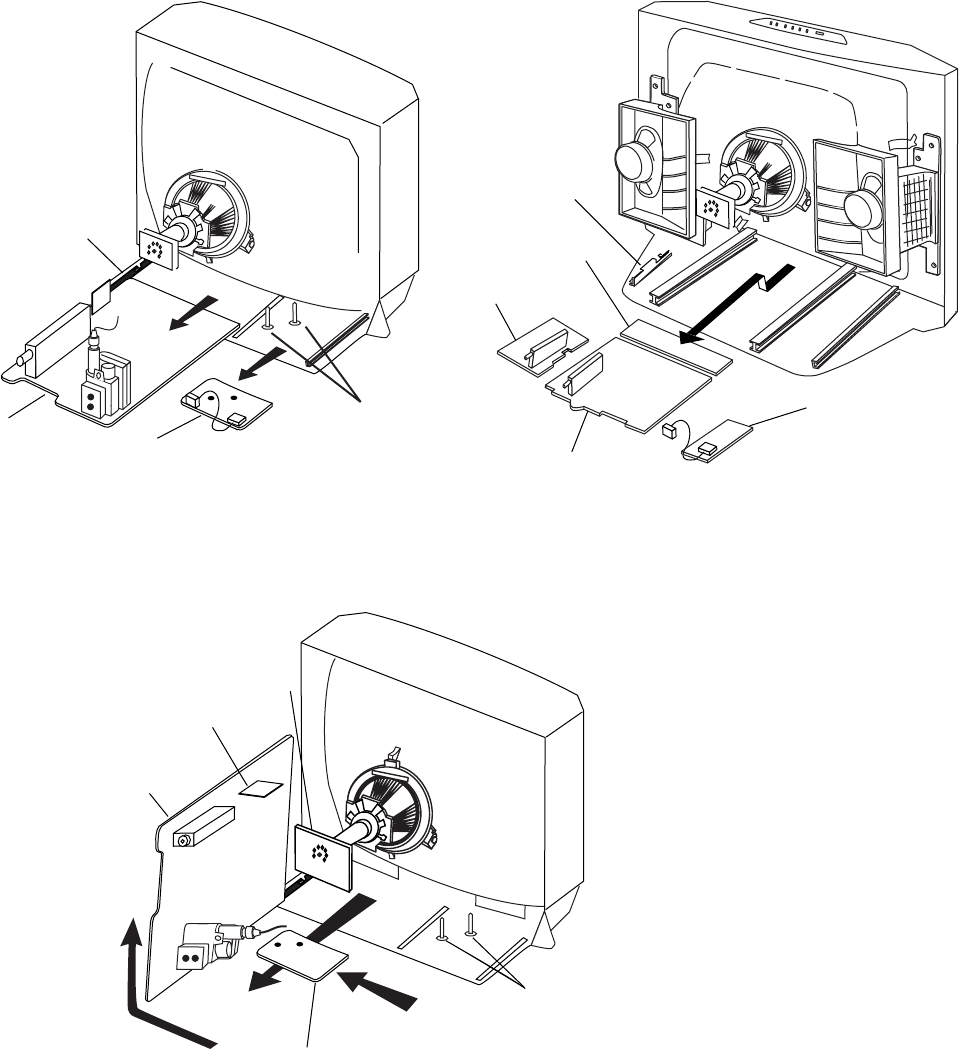

2-5. CHASSIS ASSEMBLY REMOVAL

(KV-27S46/27S66/29SL42/29SL42C/29SL46/29XL42M)

2-7. SERVICE POSITION

A Board E Board

Board claw

2 clips

(KV-27S42/27S46/27S66 only)

2 clips

A Board

E Board

P Board

C Board

A Board

E Board

K Board

HV Board

Board Claw

2-6. CHASSIS ASSEMBLY REMOVAL

(KV-29AL42/29AL42C/29AL66/29AL66C)

(KV-27S42/27S46/27S66 only)

— 13 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/29AL66C/

29SL42/29SL42C/29SL46/29XL42M

2-8. PICTURE TUBE REMOVAL

WARNING:

BEFORE REMOVING

THE ANODE CAP

High voltage remains in the CRT even

after the power is disconnected. To

avoid electric shock, discharge CRT

before attempting to remove the anode

cap. Short between anode and CRT

coated earth ground strap.

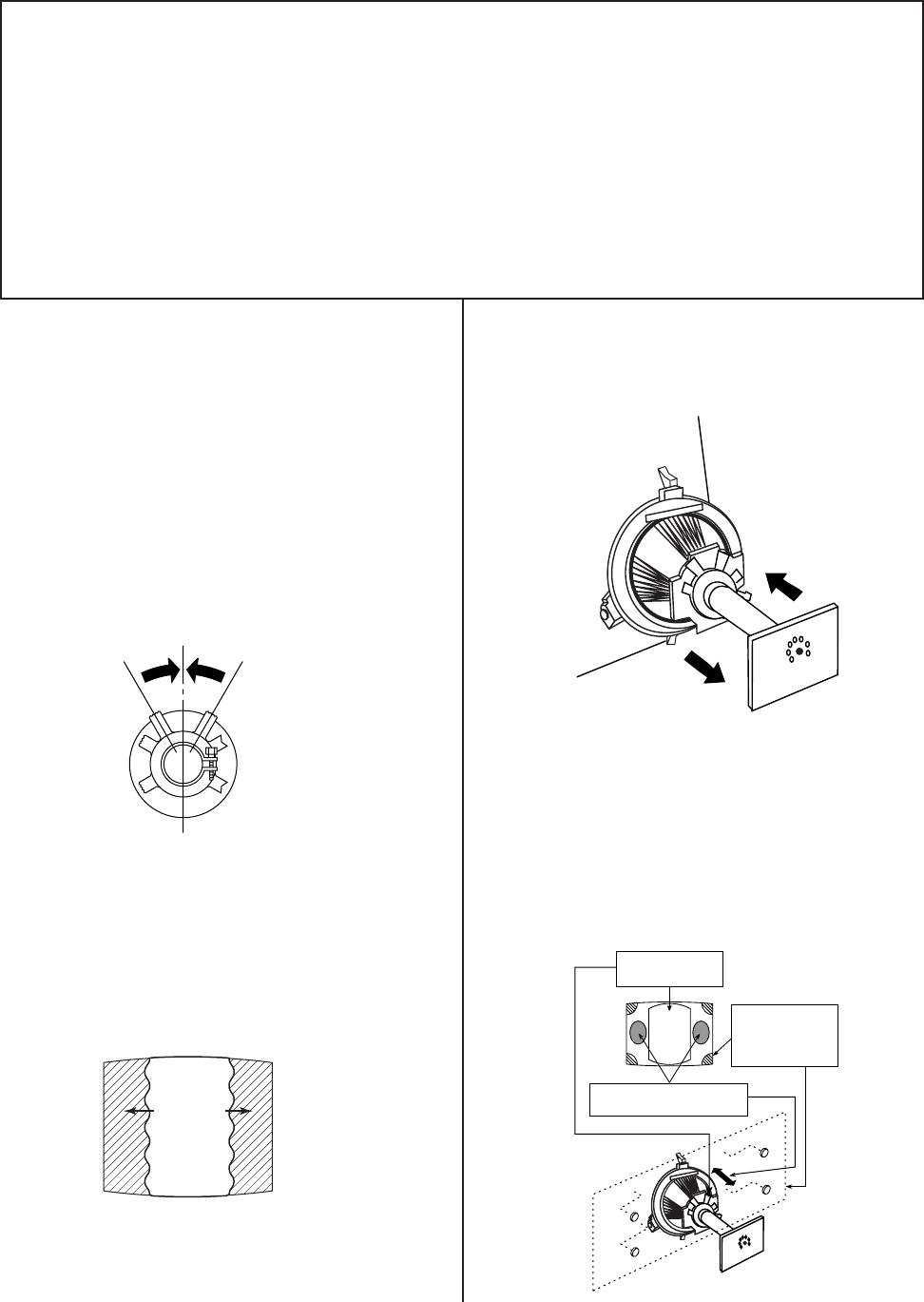

REMOVAL PROCEDURES

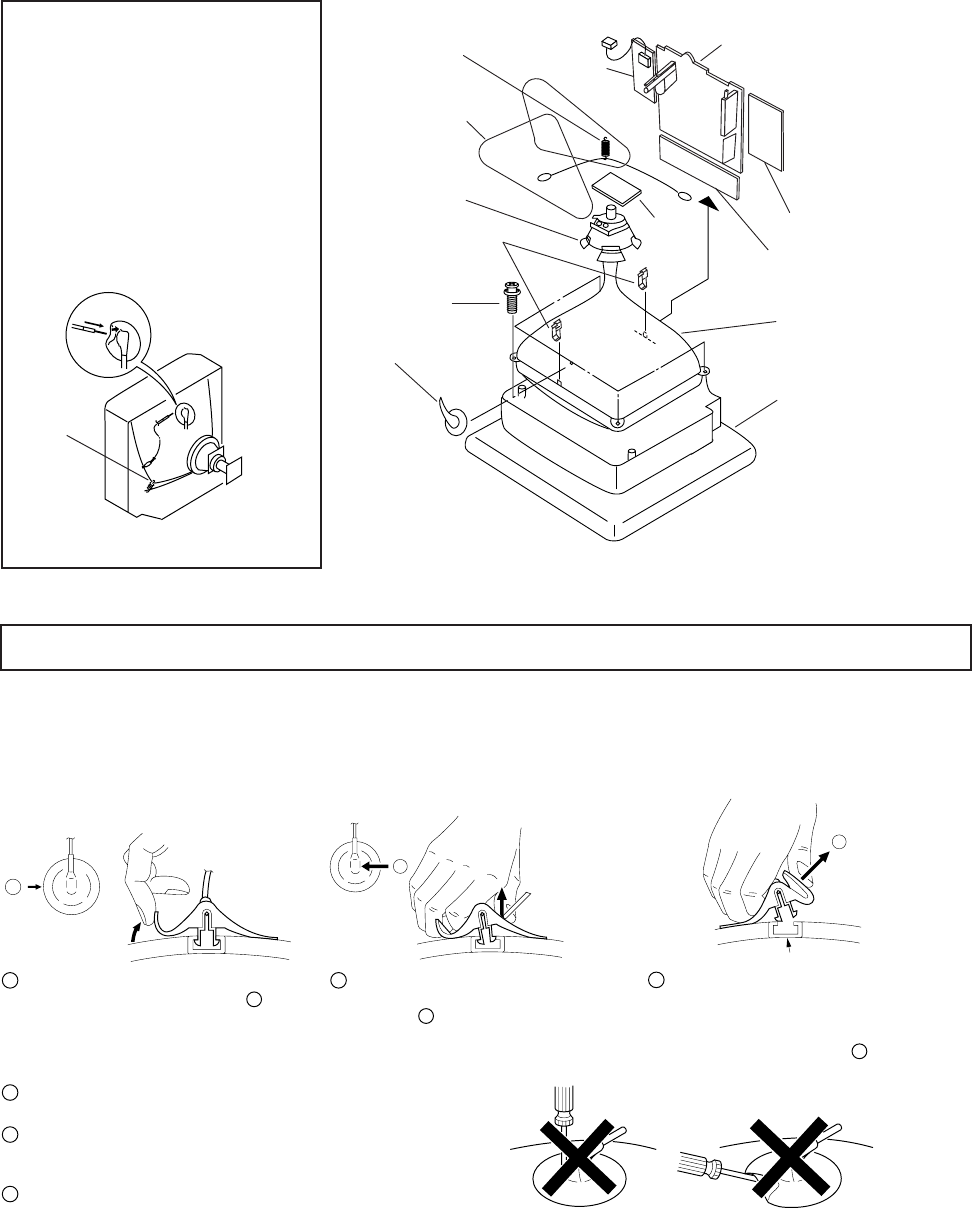

HOW TO HANDLE AN ANODE CAP

WARNING: High voltage remains in the CRT even after the power is disconnected. To avoid electrical shock, discharge the CRT before

attempting to remove the anode cap. Short between anode and coated earth ground strap of CRT.

NOTE: After removing the anode, short circuit the anode of the picture tube and the anode cap to either the metal chassis, CRT shield,

or carbon painted on the CRT.

Do not use sharp objects which may cause damage to the

surface of the anode cap.

Do not force turn the foot of the rubber cover. This may cause

the shatter-hook terminal to protrude and damage the rubber.

To avoid damaging the anode cap, do not squeeze the rubber

covering too hard. A material fitting called a shatter-hook terminal

is built into the rubber.

Use your thumb to pull the rubber

cap firmly in the direction indicated

by arrow

When one side of the rubber cap

separates from the anode button,

the anode cap can be removed by

turning the rubber cap and pulling

it in the direction of arrow

Turn up one side of the rubber cap in

the direction indicated by arrow

Anode Button

ANODE CAP REMOVAL

Tension Spring

Two DGC holders (M)

Four Screws

(Tapping screw 7)

Anode Cap

A board

Cushion

E board

Picture tube

C / CV

board HV board

K board

Degaussing Coil

Deflection Yoke

(KV-29AL66/29AL66C/

27S66/29AL42/

29AL42C)

(KV-29AL66/29AL66C/

29AL42/29AL42C)

(KV-29AL66/29AL66C/

29AL42/29AL42C)

Coated Earth

Ground Strap

— 14 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M SECTION 3

SET-UP ADJUSTMENTS

3-1. BEAM LANDING

Before beginning adjustment procedure:

1. Degauss the entire screen.

2. Feed in the white pattern signal.

Adjustment Procedure

1. Input a raster signal with the pattern generator.

2. Loosen the deflection yoke mounting screw and set the

purity control to the center as shown below.

3. Turn the raster signal of the pattern generator to green.

4. Move the deflection yoke backward and adjust the purity

control so that green is in the center and red and blue are

at the sides evenly.

5. Move the deflection yoke forward and adjust so that the

entire screen becomes green.

6. Switch over the raster signal to red and blue and confirm

the condition.

7. When the position of the deflection yoke is determined,

tighten it with the deflection yoke mounting screw.

8. If landing at the corner is not right, adjust by using the

disk magnets.

Purity control

corrects this area

Disk magnets

or rotatable disk

magnets correct

these areas (a-d)

Deflection yoke positioning

corrects these areas

The following adjustments should be made when

a complete realignment is required or when a new

picture tube is installed.

These adjustments should be performed with rated

power supply voltage unless otherwise noted.

Set the controls as follows unless otherwise noted.

VIDEO MODE: STANDARD

PICTURE control: ................ Normal

BRIGHTNESS control......... Normal

Perform the adjustments in order as follows:

1. Beam Landing

2. Convergence

3. Focus

4. Screen (G2)

5. White Balance

Note: Test equipment required:

• Color bar pattern generator

• Degausser

• DC power supply

• Digital multimeter

Purity Control

Blue Red

Green

— 15 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

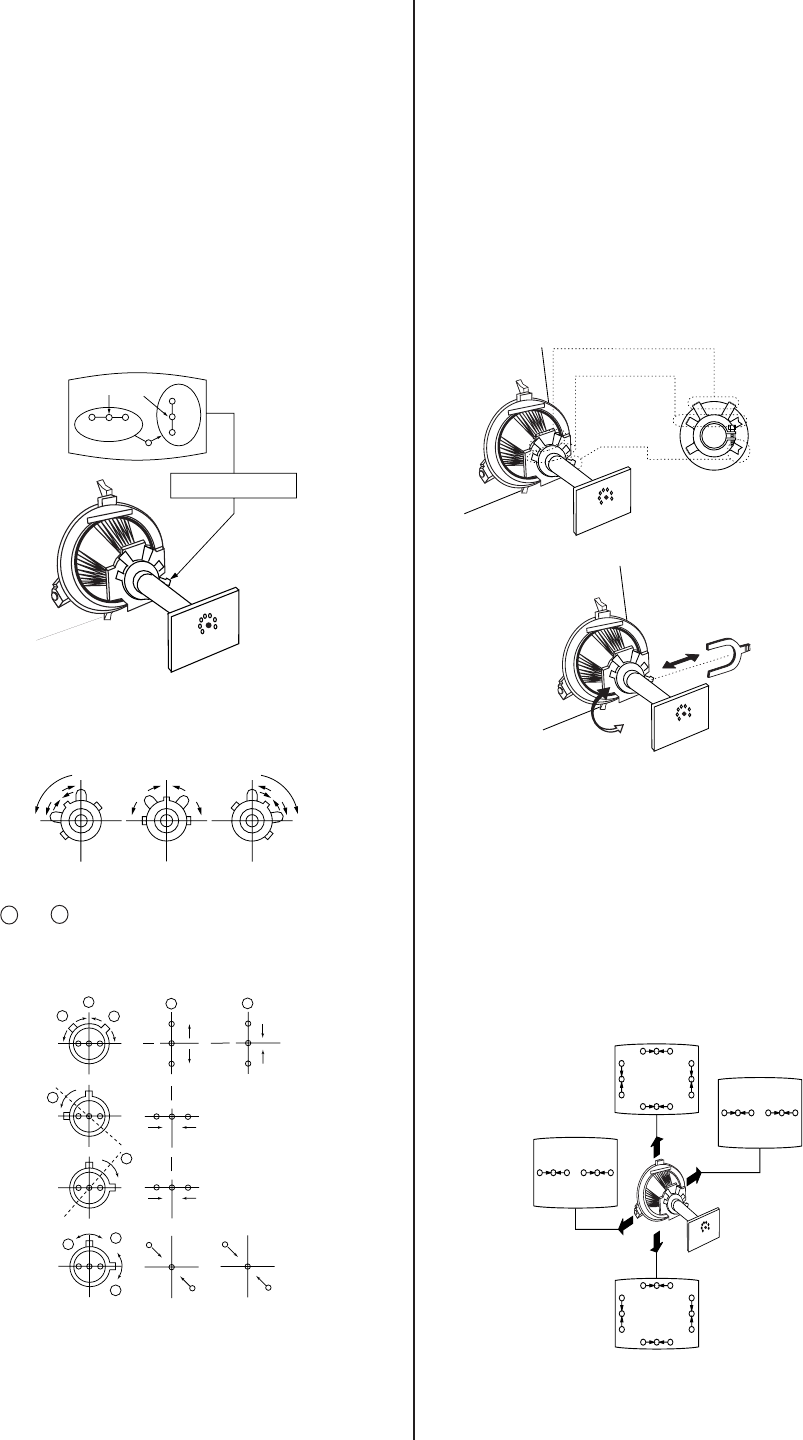

Horizontal Static Convergence

If the blue dot does not converge with the red and green dots,

perform the following:

1. Move BMC magnet (a) to correct insufficient H. Static

convergence.

2. Rotate BMC magnet (b) to correct insufficient V. Static

convergence.

3. After adjusting the BMC magnet, repeat Beam Landing

Adjustment.

PURITY

V. S TAT

BMC MAGNET

BMC magnet

Dynamic Convergence Adjustment

Before performing this adjustment, perform Horizontal

and Vertical Static Convergence Adjustment.

1. Slightly loosen deflection yoke screw.

2. Remove deflection yoke spacers.

3. Move the deflection yoke for best convergence,

as shown below:

RGB BGR

RGB

BGR

BGR RGB

4. Tighten the deflection yoke screw.

5. Install the deflection yoke spacers.

3-2. CONVERGENCE

Before starting convergence adjustments:

1. Perform FOCUS, V.LIN AND V.SIZE adjustments.

2. Set BRIGHTNESS control to minimum.

3. Feed in dot pattern.

Vertical Static Convergence

1. Adjust V.STAT magnet to converge red, green and blue

dots in the center of the screen. (Vertical movement)

Center dot

R G B

V.STAT magnet

2. Tilt the V.STAT magnet and adjust static convergence to

open or close the V.STAT magnet.

When the V.STAT magnet is moved in the direction of

arrows a and b , red, green, and blue dots move as shown

below:

bbB

aBGR

RGB

(1)

(3)

(2)

— 16 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

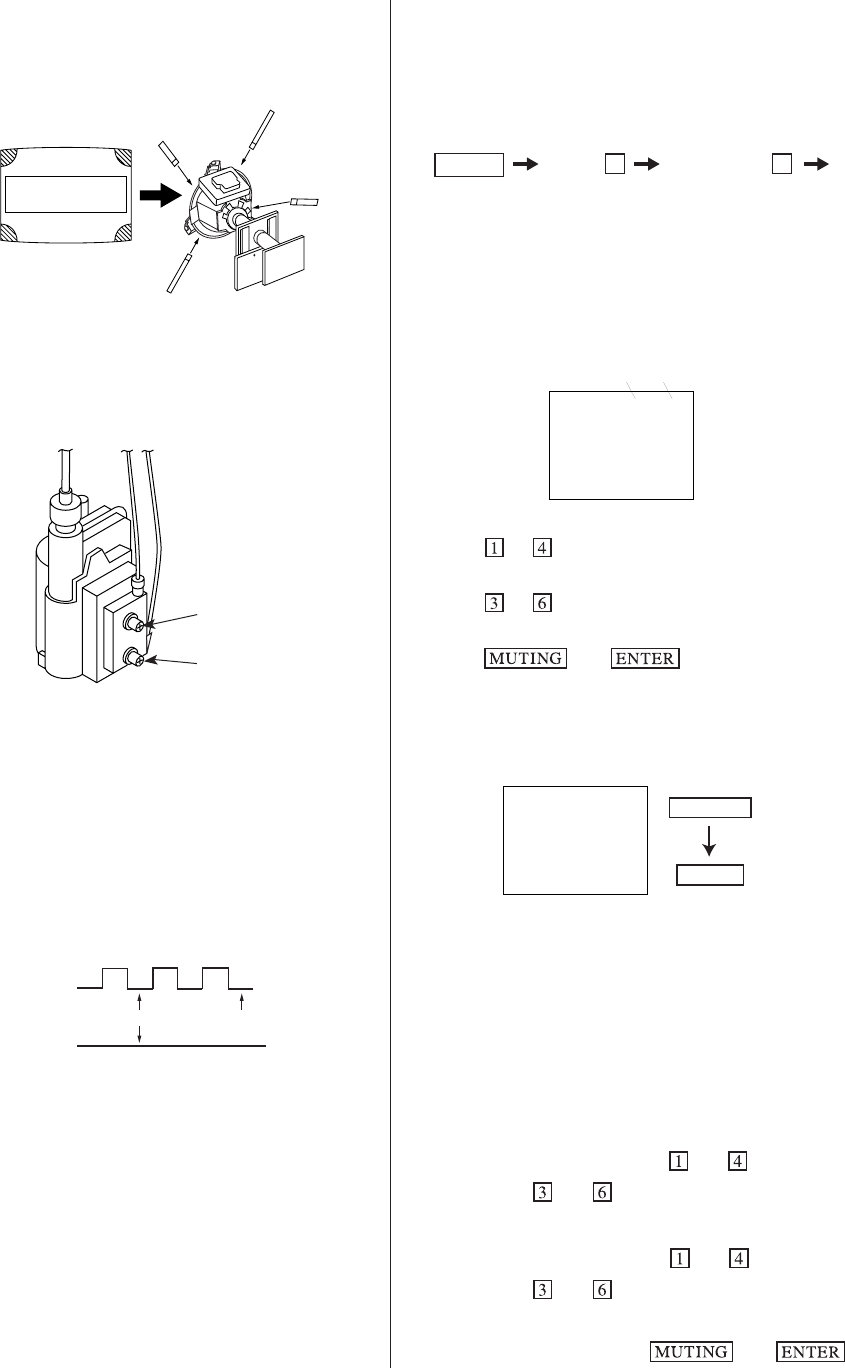

Screen-Corner Convergence

1. Affix a permalloy assembly corresponding to the

misconverged areas.

a-d: screen-corner

misconvergence c

3-3. FOCUS

1. Adjust FOCUS control for best picture.

FOCUS

SCREEN

(FV)

(G2)

3-4. SCREEN (G2)

1. Input a dots pattern.

2. Set the PICTURE and BRIGHTNESS controls at minimum

and COLOR control at normal.

3. Adjust SBRT, GCUT, BCUT in service mode with an

oscilloscope as shown below so that voltages on the red,

green, and blue cathodes are 170 VDC.

Pedestal

170 VDC

Ground

4. Observe the screen and adjust SCREEN (G2) VR in FBT

to obtain the faintly visible background of dot signal.

3-5. METHOD OF SETTING THE SERVICE

ADJUSTMENT MODE

Service Mode Procedure

1. Standby mode (power off).

Display Channel 5Sound volume Power

on the Remote Commander (press each button within a

second).

Service Adjustment Mode In

1. The CRT displays the item being adjusted.

SERVICE HSIZ 0

Disp.

(Item) Item

Data

2. Press or on the Remote Commander to select the

item.

3. Press or on the Remote Commander to change the

data.

4. Press then to save into the memory.

Service Adjustment Mode Memory

Turn set off then on to exit service adjustment mode.

SERVICE WRITE Green

Red

MUTING

ENTER

3-6. WHITE BALANCE ADJUSTMENTS

1. Input an entire white signal with burst.

2. Set to Service Adjustment Mode.

3. Set DCOL to “0”.

4. Set the PICTURE and BRIGHTNESS to minimum.

5. Adjust with SBRT if necessary.

6. Select GCUT and BCUT with and .

7. Adjust with and for the best white balance.

8. Set PICTURE and BRIGHTNESS to maximum.

9. Select GDRV and BDRV with and .

10.Adjust with and for the best white balance.

11. Reset DCOL to “1”.

12.To write into memory, press then .

— 17 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

SECTION 4

SAFETY RELATED ADJUSTMENTS

4-1. R584 CONFIRMATION METHOD

(HV HOLD-DOWN CONFIRMATION)

AND READJUSTMENTS

The following adjustments should always be performed when

replacing the following components which are marked with

on the schematic diagram:

DY, C508, C505, C507, C509, C511, C515, C520, C573,

C574, C575, D572, D573, D574, IC301, IC521, IC602, L591,

L501, R582, R583, R585, R578, R586, R625, R626, T504

Preparation Before Confirmation

1. Using a Variac, apply AC input voltage: 120 ± 2 VAC

(or 120-220 ± 2 VAC for KV-29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M only.)

2. Turn the POWER switch ON.

3. Input a white signal and set the PICTURE and

BRIGHTNESS controls to maximum.

4. Confirm that the voltage between C574 (+) or TP503

and ground is more than 105 VDC.

Hold-down Operation Confirmation

1. Connect the current meter between Pin 11 of the FBT

(T505) and the PWB land where Pin 11 would normally

attach. (See Figure 1 on the next page.)

2. Input a dot signal and set PICTURE and BRIGHTNESS

to minimum: IABL = 100 + 100/-95 µA.

3. Confirm the voltage of A Board TP-600 is 135 ± 3 VDC.

4. Connect the digital voltmeter and the DC power supply

via diode 1SS119 to C574 (+) and ground. (See Figure 1 on

the next page.)

5. Increase the DC power voltage gradually until the picture

blanks out.

6. Turn DC power source off immediately.

7. Read the digital voltmeter indication

(Standard: less than or equal to 141.3 VDC).

8. Input a white signal and set PICTURE and BRIGHTNESS

to maximum.

9. Repeat steps 4 to 7.

Hold-down Readjustment

If the setting indicated in step 2 of Hold-down Operation

Confirmation cannot be met, readjustment should be performed

by altering the resistance value of R584, components marked

with .

IABL

ABL

T504

FBT

range

ammeter

3.0 mA DC

4-2. B+ VOLTAGE CONFIRMATION AND

ADJUSTMENT

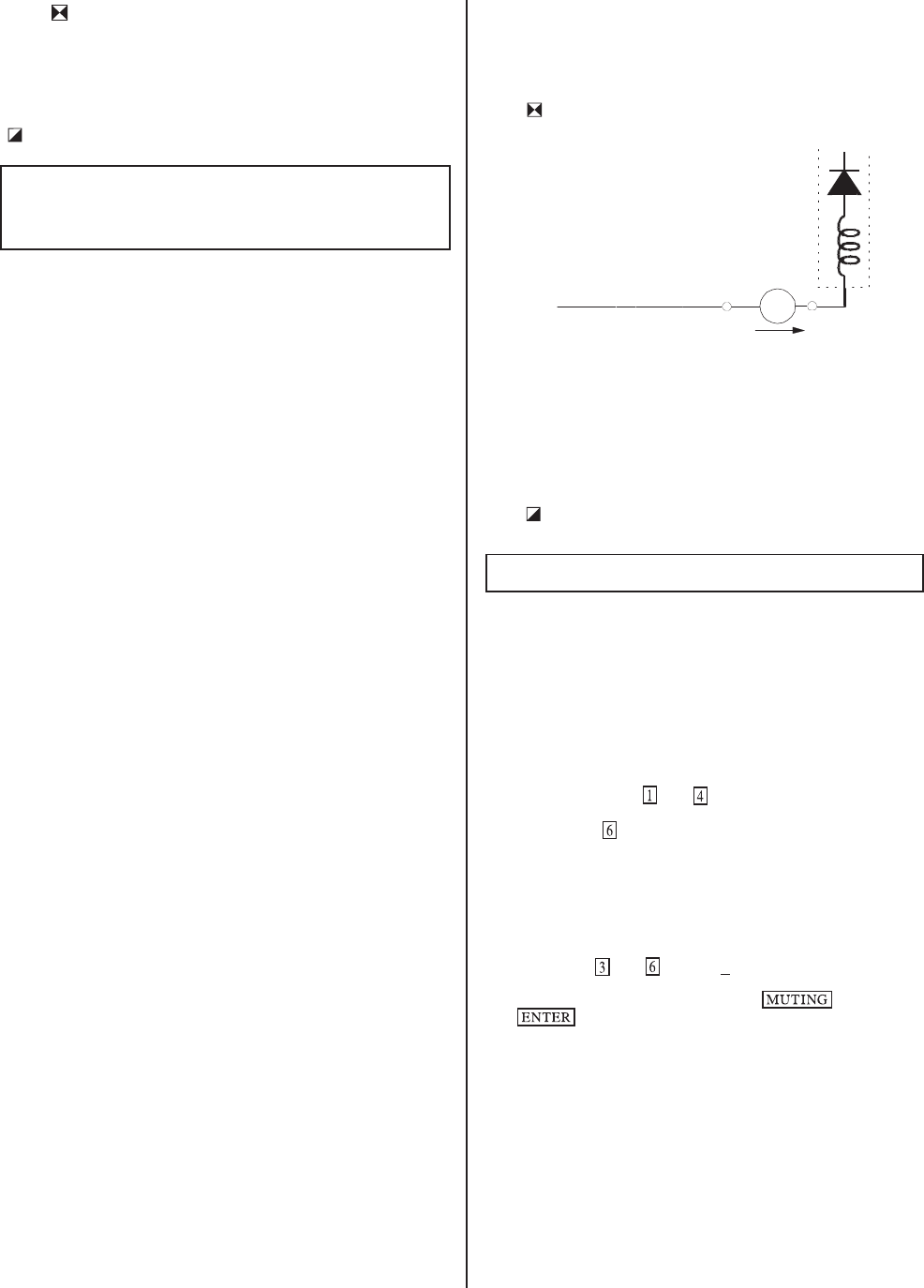

Note: The following adjustments should always be performed

when replacing the following components, which are marked

with on the schematic diagram on schematic diagram.

IC601, IC602

1. Using a Variac, apply AC input voltage: 130 ± 2 VAC

(or 120-220 ± 2 for KV-29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M only.)

2. Input a dot signal.

3. Set the PICTURE and BRIGHTNESS controls to minimum.

4. Set to service adjustment mode.

5. Select PADJ with and .

6. Adjust with to the 0 level.

7. Confirm that the voltage of A Board TP-600 is less than

138 VDC.

8. If step 7 is not satisfied, replace the components listed

above, then repeat the above steps.

9. Adjust with and for: 135+ 3 VDC

10. Write into the memory by pressing then

— 18 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

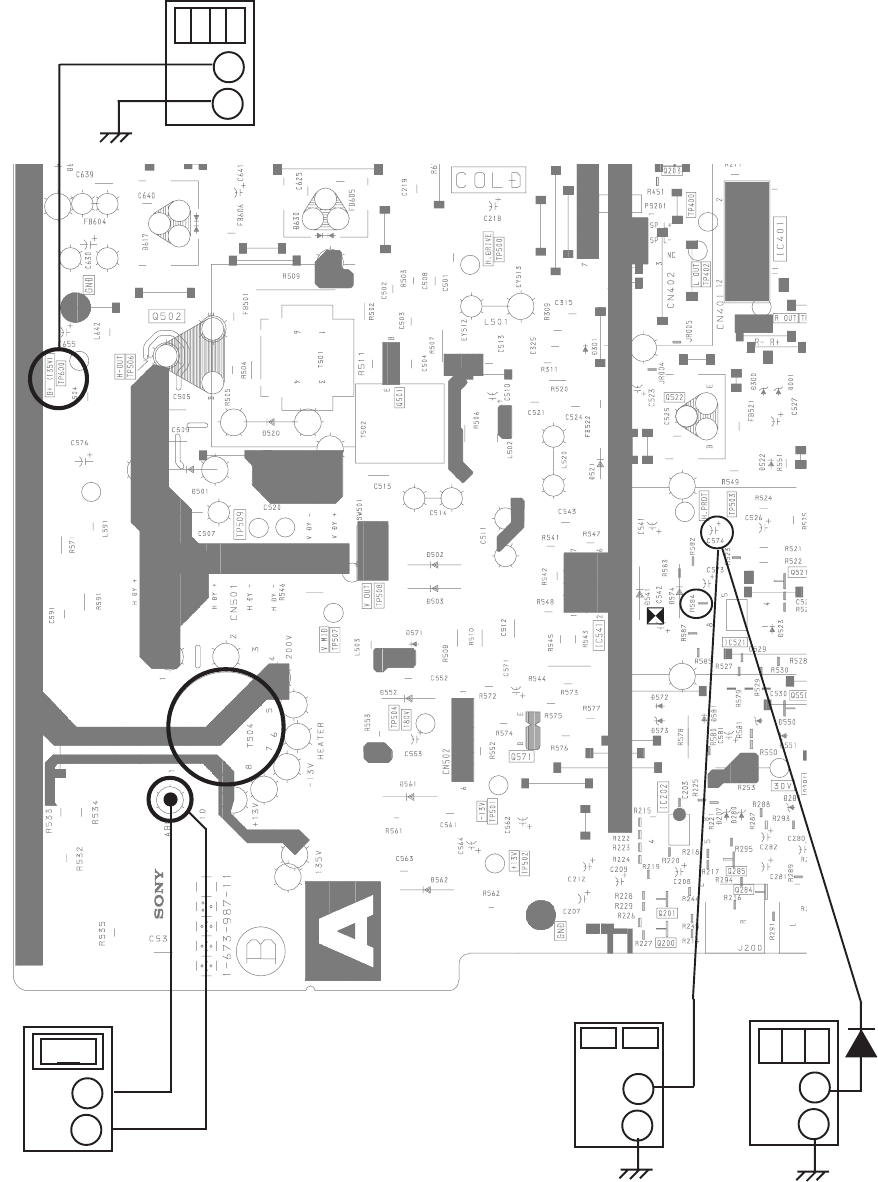

TP600

Ammeter

3mA DC Range

T505

FBT

ABL11

C574

–

Figure 1

Digltal

Multimeter

–

R584

–

Power

Supply

1SS119

Digital

Multimeter

–

— 19 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

5-1. Setting the Service Adjustment Mode

1. Standby mode (power off).

Display Channel 5Sound volume Power ON

on the Remote Commander (press each button within a

second).

Service Adjustment Mode On

1. The CRT displays the item being adjusted.

SERVICE HSIZ 0

Disp.

(Item) Item

Data

2. Press or on the Remote Commander to select an

item.

3. Press or on the Remote Commander to change the data.

4. Press then to save into the memory.

Service Adjustment Mode Memory

SERVICE WRITE Green

Red

MUTING

ENTER

1. Press then on the Remote Commander to

initialize.

SERVICE RESET

2. Turn set off then on to exit service adjustment mode.

SECTION 5

CIRCUIT ADJUSTMENTS

Carry out step 1 when adjusting

IDs 0–4 and when replacing

and adjusting IC003.

5-2. Memory Write Confirmation Method

1. After adjustment, remove the power plug from the AC

outlet, then plug it in again.

2. Turn the power switch ON and set to service mode.

3. Call the adjusted items again to confirm they were adjusted.

5-3. Adjust Buttons and Indicators

Use the Remote Commander (RM-Y168) to perform the circuit adjustments in this section.

NOTE: Test Equipment Required:

• Pattern generator

• Frequency counter

• Digital multimeter

• Audio oscillator

— 20 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Service Data

Item Name Name Range

1 HSIZ A_HSIZE 0-63 31 42

2 HPOS A_HPOS 0-63 31 22

3 VBOW A_AFCB 0-15 7 6

4 VANG A_AFCB 0-15 7 6

5TRAP A_TRAP 0-15 7 7

6 PAMP A_PAMP 0-63 31 16

7 CPIN A_CPIN 0-63 31 34

8 VSIZ A_VSIZ 0-63 31 33

9 VPOS A_VPOS 0-63 31 38

10 VLIN A_SCOR 0-15 7 6

11 SCOR A_SCOR 0-15 7 7

12 VZOM A_SCROLL 0-1 0 0

13 EHT A_TRAP 0-15 7 4

14 ASP A_ASPECT 0-63 63 48

15 SCRL A_SCROLL 0-63 31 31

16 HBLK A_ASPECT 0-1 0 1

17 LBLK A_HBLK 0-15 7 15

18 RBLK A_HBLK 0-15 7 3

19 VUSN A_ASPECT 0-1 0 0

20 HDW A_PON 0-1 0 0

21 EWDC A_HSIZE 0-1 0 0

22 LVLN A_VLIN 0-15 0 0

23 UVLN A_VLIN 0-15 0 0

24 RDRV A_RDRIVE 0-63 31 14

25 GDRV A_GDRIVE 0-63 31 10

26 BDRV A_BDRIVE 0-63 31 8

27 RCUT A_RCUT 0-15 7 8

28 GCUT A_GCUT 0-15 7 4

29 BCUT A_GCUT 0-15 7 5

30 DCOL A_GDRIVE 0-1 0 1

31 SHUE A1_SUBHUE 0-31 14 9

32 SCOL A1_SUBCOL 0-31 14 23

33 SBRT A1_SUBBRT 0-31 14 10

34 RON A_VIDSEL 0-1 0 1

35 GON A_VIDSEL 0-1 0 1

36 BON A_VIDSEL 0-1 0 1

37 AXPL A_PON 0-1 0 0

38 AXNT A_SHPF0 0-1 0 0

39 CBPF A_XTAL 0-1 0 1

40 CTRP A_XTAL 0-1 0 1

41 COFF A_COFF 0-1 0 0

42 KOFF A_COFF 0-1 0 0

43 SSHP A1_SUBSHP 0-15 8 6

44 SHPF A_SHPF0 0-1 0 / 0 *2 1

45 PREL A_DCTRAN 0-1 0 1

46 Y-DC A_DCTRAN 0-1 0 1

47 GAMM A_BDRIVE 0-3 0 0

48 ABLM A_RDRIVE 0-1 1 1

49 VTH A_RDRIVE 0-1 0 1

50 YDEL A_HOSC 0-15 7 7

51 NCOL A_PIC 0-1 0 1

52 FSC A_PIC 0-1 0 1

53 K-ID A_KID 0-1 0 0

54 HOSC A_HOSC 0-15 7 7

55 VSS A_FFREQ 0-1 0 0

56 HSS A_FFREQ 0-1 0 0

57 HMSK A_VSIZ 0-1 0 1

58 VTMS A_TVOFF 0-3 0 0

59 CDMD A_FFREQ 0-3 0 / 1 *2 0

60 AFC A_VPOS 0-3 0 / 0 *2 0

61 FIFR A_FFREQ 0-3 0 3

Initial Value Average Data

SERVICE ID0 25

Notes:

Item numbers 1-122 show the sequence of adjustments that may be selected while in service mode.

Data Range indicates the range of possible settings for each adjustment mode.

Initial Data indicates the standard settings for each adjustment mode.

Adjustment Items

*2: TV/VIDEO

Service Data

Name Name Ran

62 SBAS 0-15 7 8

63 STRE 0-15 7 9

64 SBAL A1_SUBBAL 0-31 14 13

65 DISP A_OSDPOS 0-127 0 11

66 PADJ A_PADJ 0-63 3 51

67 HCHM A6_HCHM 0-255 69 69

68 HCLM A6_HCLM 0-255 16 16

69 HCHS 0-255 69 69

70 HCLS 0-255 16 16

71 PFRN 0-1 0 0

72 PRVS 0-1 0 0

73 PCON 0-127 32 70

74 PUCO 0-127 75 63

75 PVCO 0-127 40 63

76 PHUE 0-31 15 15

77 PKIL 0-1 0 0

78 PSEP 0-3 2 2

79 PDCO 0-3 0 0

80 PEXP 0-3 2 2

81 PBGS 0-63 14 14

82 PYDL 0-15 3 7

83 PBRT 0-31 0 25

84 PVPE 0-16 0 0

85 PUPE 0-16 0 0

86 PACS 0-1 0 1

87 PSDL 0-3 0 0

88 PMVP 0-3 0 0

89 PCGA 0-1 0 1

90 PBIT 0-1 0 0

91 PAFC 0-1 0 0

92 PACC 0-63 21 20

93 PBUR 0-1 0 0

94 PEVE 0-1 0 0

95 PINW 0-1 0 0

96 PINR 0-1 0 0

97 PREF 0-1 0 0

98 PARE 0-1 1 1

99 PAVE 0-1 0 0

100 PFRA 0-15 0 0

101 PPAL 0-255 0 0

102 PHPO 0-31 31 2

103 PVPO 0-31 21 22

104 PHTI 0-15 10 10

105 PHAJ 0-15 2 2

106 PBGY 0-15 0 0

107 PCRO 0-1 0 0

108 PPAR 0-63 2 2

109 PHPF 0-1 0 1

110 PVCH 0-1 0 0

111 PVON 0-1 0 1

112 PVLN 0-31 17 17

113 PVSB 0-255 64 64

114 PVLV 0-255 130 130

115 ID0 A_NVMID0 0-255 23 See ID map

116 ID1 A_NVMID1 0-255 3 See ID map

117 ID2 A_NVMID2 0-255 11 See ID map

118 ID3 A_NVMID3 0-255 1 See ID map

119 ID4 A_NVMID4 0-255 23 See ID map

120 ID5 A_NVMID5 0-255 0 See ID map

121 ID6 A6_NVMID6 0-255 0 See ID map

122 ID7 A6_NVMID7 0-255 64 See ID map

Initial Value Average Data

— 21 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

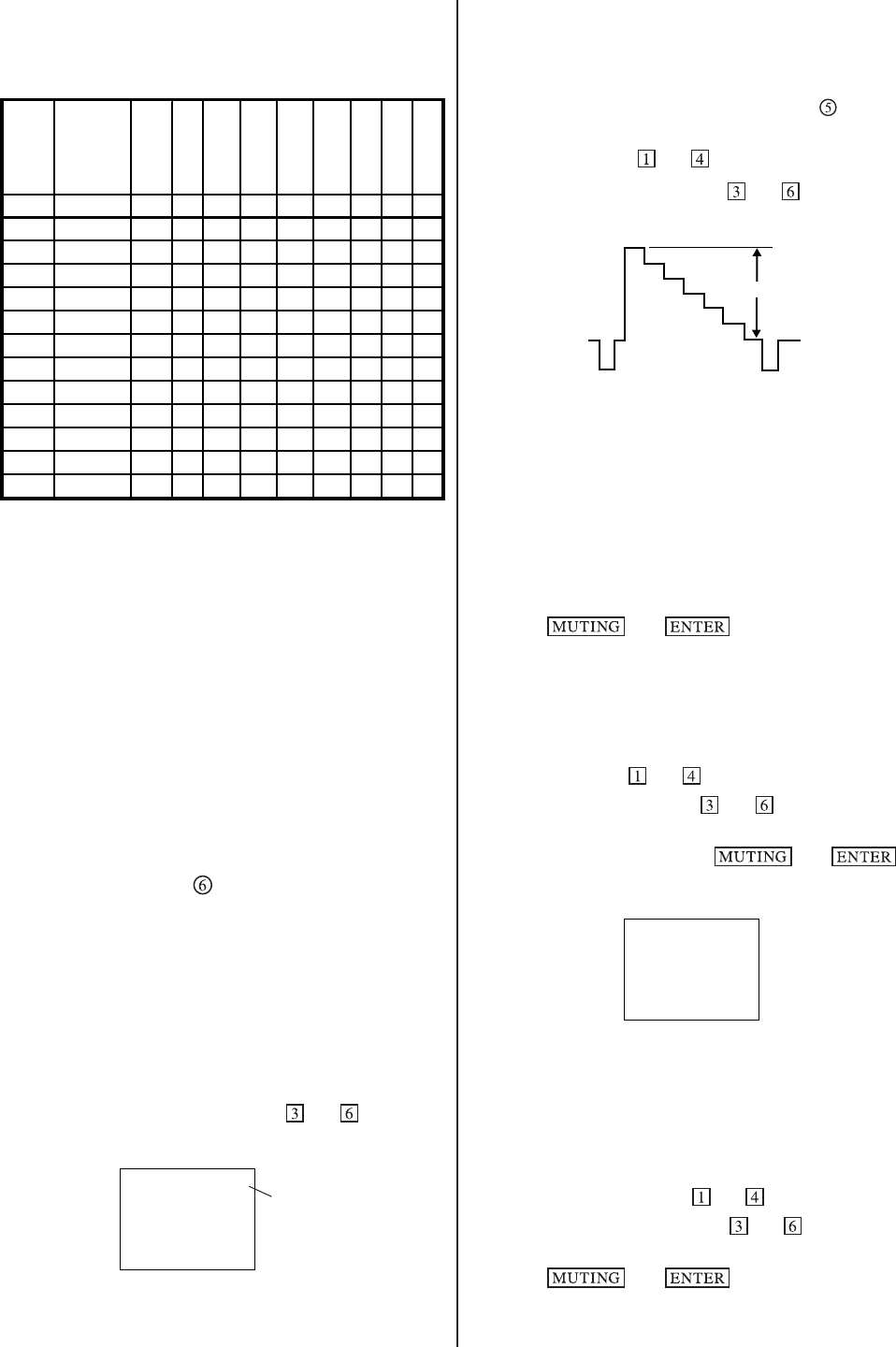

5-4. A BOARD ADJUSTMENTS

H. Frequency (Free Run) Check

1. Input a TV mode (RF) with no signal.

2. Connect a frequency counter to base of Q501

(TP-500 H. DRIVE).

3. Check H. Frequency for 15735 ± 200 Hz.

V. Frequency (Free Run) Check

1. Select video 1 with no signal input.

2. Set the conditions for a standard setting.

3. Connect the frequency counter on the A board to TP-508

(V OUT) or CN 501 pin (V DY+) and ground.

4. Check that V. Frequency shows 60 ± 4 Hz.

Sub Contrast Adjustment (RDRV)

1. Input a color-bar signal and set the level to 75%.

2. In Standard mode, set PICTURE to maximum, COLOR to

minimum, and BRIGHTNESS to center.

3. Activate the Service Adjustment Mode.

4. Set both GON and BON items. Using and ;

set each to the following values. Leave RON set to 1.

SERVICE RON 1 1: ON

0: OFF

R ON: ON (1)

G ON: OFF (0)

B ON: OFF (0)

5. Select the item DCOL item and set it to 0.

6. Connect an oscilloscope probe to CN301 pin (RED

OUT).

7. Select RDRV with and .

8. Adjust the value of RDRV with and for

1.75 ± 0.05 Vp-p.

Black

White

1.75 ± 0.05 Vp-p

9. Reset the item DCOL to 1.

10. Reset GON and BON values to 1.

R ON: ON (1)

G ON: ON (1)

B ON: ON (1)

11. Reset Picture, Color, and Bright to normal values:

PICTURE: MAX

COLOR: CENTER

BRIGHT: CENTER

12. Press then to save into the memory.

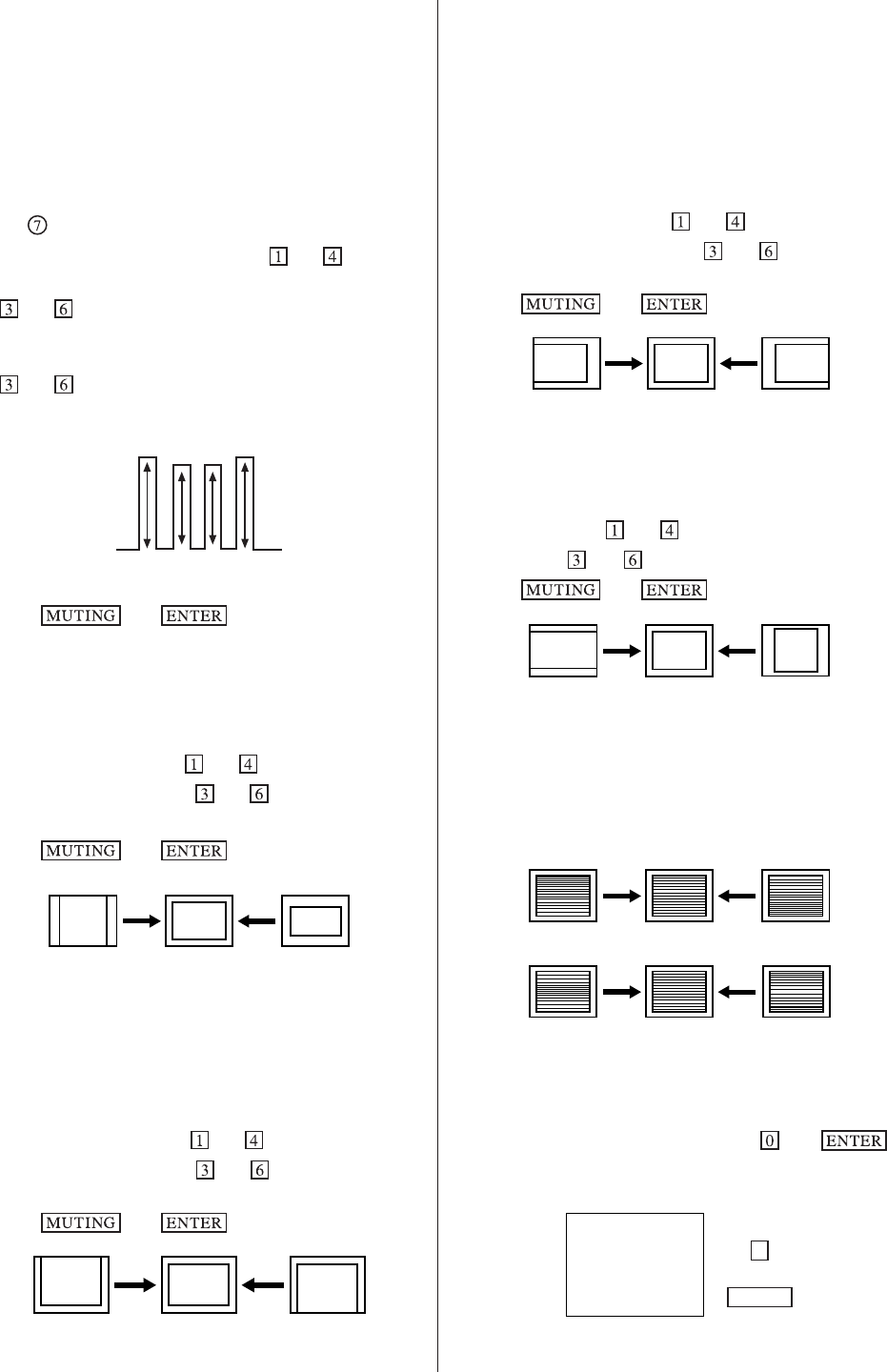

Display Position Adjustment (DISP)

1. Input a color-bar signal.

2. Set to Service Adjustment Mode.

3. Select DISP with and .

4. Adjust values of DISP with and to adjust characters

to the center.

5. Write to memory by pressing then .

6. Check to see if the text is displayed on the screen.

SERVICE DISP 15

Sub Bright Adjustment (SBRT)

1. Input a crosshatch signal.

2. Activate the Service Adjustment Mode.

3. Set the PICTURE and BRIGHTNESS to minimum.

4. Select the SBRT item with and .

5. Adjust the values of SBRT with and to obtain a

faintly visible crosshatch.

6. Press then to save into the memory.

KV-

Destination

ID-0

ID-1

ID-2

ID-3

ID-4

ID-5

ID-6

ID-7

1 27S42 US 25 145 15 235 11 3 0 64

2 27S42 CND 89 145 15 135 11 3 0 64

3 27S46 US 25 155 15 235 11 3 1 64

4 27S66 US 25 155 79 235 11 3 7 64

5 27S66 CND 89 155 79 155 11 3 7 64

6 29AL42 E 17 147 173 203 123 3 0 64

7 29AL42C E 17 147 173 203 123 3 0 64

8 29AL66 E 17 151 237 203 123 3 7 64

9 29AL66C E 17 151 237 203 123 3 7 64

10 29SL42 E 17 145 143 203 123 3 0 64

11 29SL42C E 17 145 143 203 123 3 0 64

12 29SL46 E 17 155 143 203 123 3 1 64

13 29XL42M MX 17 145 143 203 123 3 0 64

Feature ID Map

— 22 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Sub Hue, Sub Color Adjustment (SHUE, SCOL)

1. Input a color-bar signal.

2. Activate the Service Adjustment Mode.

3. Select the DCOL item and set the value to 0.

4. Connect an oscilloscope probe to CN301

Pin (BLUE OUT).

5. Select the SHUE and SCOL item with and .

6. While showing the SHUE item, adjust the waveform with

and until the second and third bars show the same

level (V2 = V3 ± 0.15 Vp-p).

7. While showing the SCOL item, adjust the waveform with

and until the first and fourth bars show the same

level (V1 = V4 ± 0.15 Vp-p).

V1 V2 V3 V4

8. Select the DCOL item and reset to 1.

9. Press then to save into the memory.

V. Size Adjustment (VSIZ)

1. Input a crosshatch signal.

2. Activate the Service Adjustment Mode.

3. Select the VSIZ item with and .

4. Adjust value of VPOS with and for the best vertical

center.

5. Press then to save into the memory.

V. Center Adjustment (VPOS)

Perform this adjustment after performing H. Frequency

(Free Run) check.

1. Input a crosshatch signal.

2. Activate the Service Adjustment Mode.

3. Select the VPOS item with and .

4. Adjust value of VPOS with and for the best vertical

center.

5. Press then to save into the memory.

H. Center Adjustment (HPOS)

Perform this adjustment after performing H. Frequency

(Free Run) check.

1. Input a crosshatch signal.

2. Activate the Service Adjustment Mode.

3. Select the HPOS item with and .

4. Adjust the value of HPOS with and for the best

horizontal center.

5. Press then to save into the memory.

H.Size Adjustment (HSIZ)

1. Input a cross hatch signal.

2. Activate the Service Adjustment Mode.

3. Select HSIZ with and .

4. Adjust with and for the best Horizontal size.

5. Press then to save into the memory.

V. Linearity (VLIN), V Correction (VSCO)

1. Input a crosshatch signal.

2. V. Correction is automatically adjusted from the circuit and

should satisfy the conditions below:

V LINEARITY (VLIN)

V CORRECTION (VSCO)

Service Adjustment Mode Memory

1. Change the value of the DCOL item to 1.

2. After completing all adjustments, press then .

Read From Memory

SERVICE READ Green

Red

ENTER

— 24 — — 25 — — 26 —— 23 —

SECTION 6

DIAGRAMS

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/29AL66C/

29SL42/29SL42C/29SL46/29XL42M

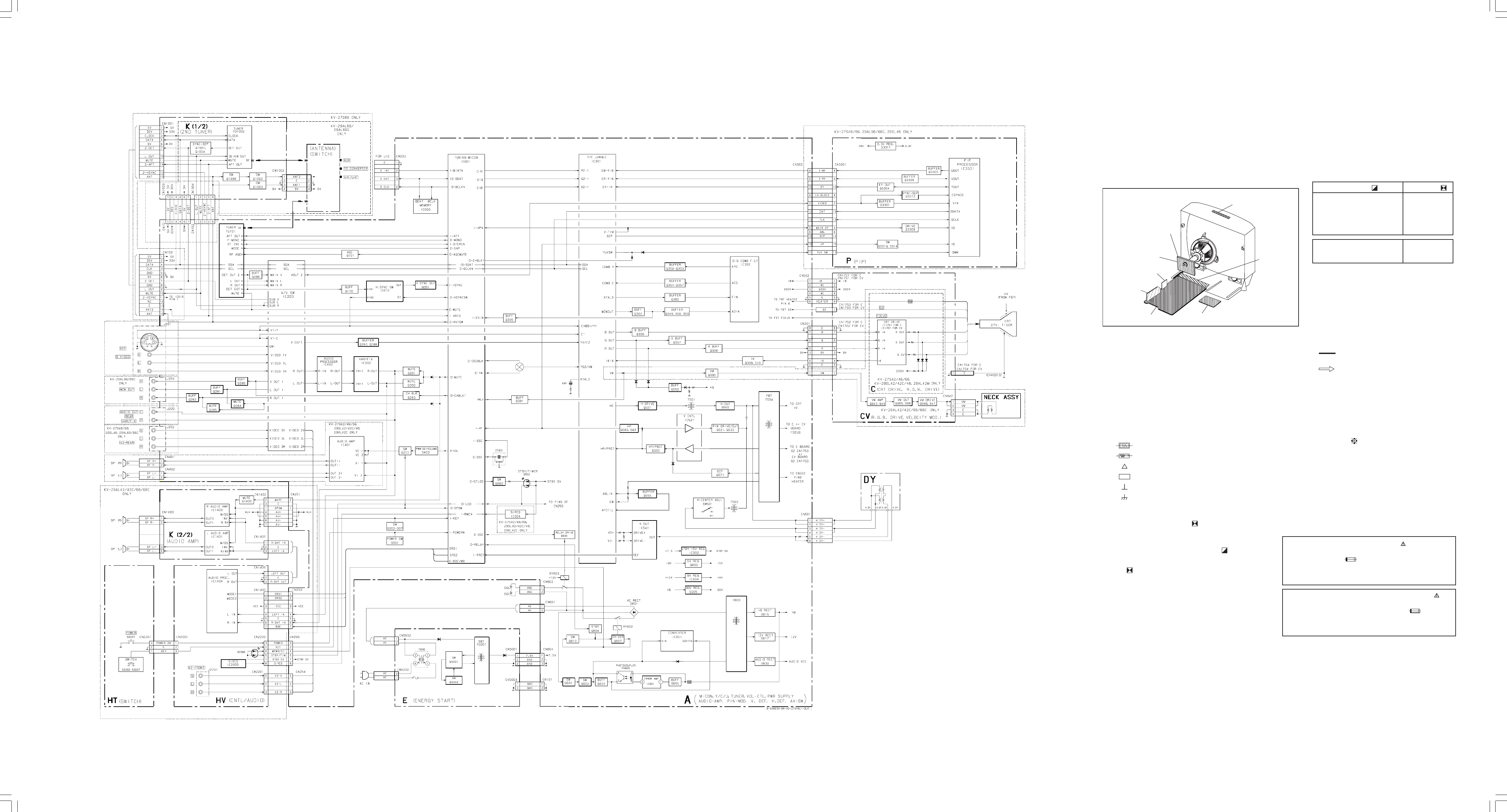

6.1 BLOCK DIAGRAM

6-3. PRINTED WIRING BOARDS AND

SCHEMATIC DIAGRAMS

• All capacitors are in µF unless otherwise noted.

pF: µµF 50 WV or less are not indicated except for electrolytic

and tantalums.

• All electrolytics are 50V unless otherwise specified.

• Indication of resistance, which does not have one for

rating electrical power, is as follows:

Pitch: 5mm

Rating electrical power 1/4W (CHIP: 1/10W)

• All resistors are in ohms.

KΩ = 1000Ω MΩ = 1000KΩ

•: nonflammable resistor

•: fusible resistor

•: internal component

•: panel designation and adjustment for repair

•: earth-ground

•: earth-chassis

• All variable and adjustable resistors have characteristic

curve B, unless otherwise noted.

• The components identified by in this manual have been

carefully factory-selected for each set in order to satisfy

regulations regarding X-ray radiation. Should replacement

be required, replace only with the value originally used.

• When replacing components identified by , make the

necessary adjustments indicated. If results do not meet

the specified value, change the component identified

by and repeat the adjustment until the specified value

is achieved (refer to Safety Related Adjustments on

page 17).

• When replacing parts shown in the table below, be sure to

perform the related adjustments.

• All voltages are in Volts

• Voltage is DC with respect to ground unless otherwise

noted.

• Readings are taken with a 10MW digital multimeter.

• Readings are taken with a color-bar signal input.

• Voltage variations may be noted due to normal

production tolerance.

• Circled numbers are waveform references.

• * : cannot be measured

•: B + Line

•----- :B − Line

•: Signal path

Reference Information

RESISTOR : RN METAL FILM

: RC SOLID

: FPRD NON FLAMMABLE CARBON

: FUSE NON FLAMMABLE FUSIBLE

: RW NON FLAMMABLE WIREWOUND

: RS NON FLAMMABLE METAL OXIDE

: RB NON FLAMMABLE CEMENT

:ADJUSTMENT RESISTOR

COIL : LF-8L MICRO INDUCTOR

CAPACITOR : TA TANTALUM

: PS STYROL

: PP POLYPROPYLENE

: PT MYLAR

: MPS METALIZED POLYESTER

: MPP METALIZED POLYPROPYLENE

: ALB BIPOLAR

: ALT HIGH TEMPERATURE

: ALR HIGH RIPPLE

The components identified by shading and mark

are critical for safety. Replace only with the part number

specified. The symbol (displayed on component side of

the circuit board) indicates fast operating fuse. Replace only

with fuse of the same rating as marked.

Les composants identifiés per un tramé et une marque

sont critiques pour la sécurité. Ne les remplacer que par une

piéce portant le numéro spécifié. Le symbole indique

une fusible a action rapide. Doit etre remplacee par une fusible

de meme yaleur, comme marque.

Note:

(KV-27S66/29AL42/

42C/29AL66/66C)

(KV-27S66/29AL42/

42C/29AL66/66C)

A board E board

P board

C board

K board

CV board

(KV-27S42/27S46/27S66/

29SL42/29SL42C/29SL42M)

(KV-29AL42/42C/

29AL66/66C)

HV board

HT board

(KV-29AL42/42C/

29AL66/66C)

(KV-29AL42/42C/

29AL66/66C)

6-2. CIRCUIT BOARD LOCATION

Part Replaced ( ) Adjustment ( )

HV HOLD-DOWN

(R584)

B+ VOLTAGE

CONFIRMATION

IC601, IC602

DY, C508, C505, C507, C509, C511,

C515, C520, C573, C574, C575,

D572, D573, D574, IC301, IC521,

IC602, L591, L501, R582, R583,

R585, R578, R586, R625, R626,

T504

857 1 A Block Diagram.p65 3/29/99, 11:32 AM1

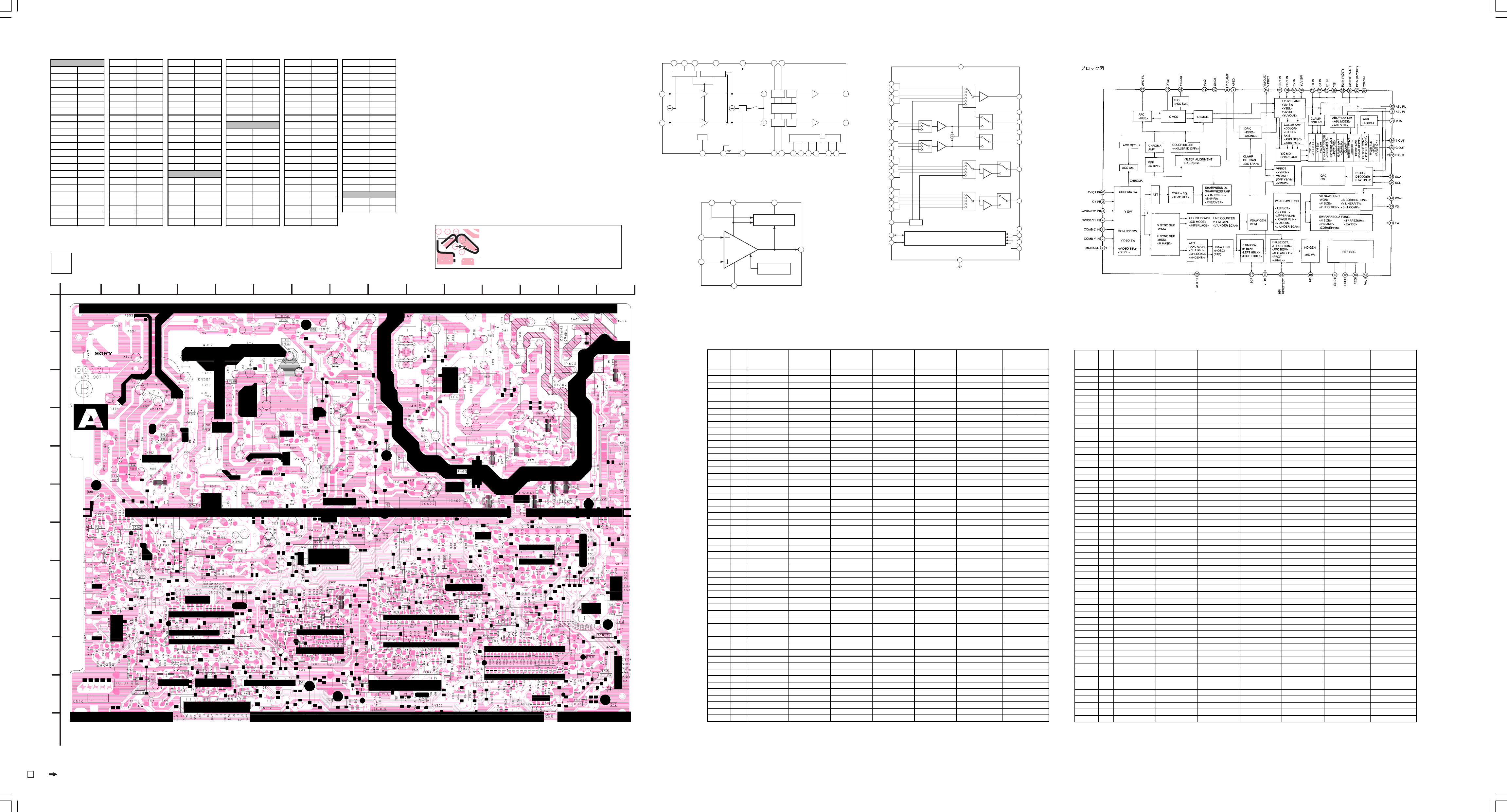

A BOARD LOCATION LIST

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/29AL66C/

29SL42/29SL42C/29SL46/29XL42M

16 17 13 10 21

18 15

AGC DET 1 AGC DET 2

TONE VCA

PS BASS VOL

TRE BAL

DAC BUS DEC

Vcc/2

19 20

Vcc CH-L CL-L

L-IN

R-IN

VRS GND

7658

BASS TRE BAL VOL

12 11

SDA SCL

LOUT

ROUT

HPO HPI DET1 DET2

CH-R CL-R

A BOARD: IC402 CXA2021S

2 3

SUPPLY

VOLTAGE

OUTPUT

STAGE

SUPPLY FLYBACK

GENERATOR

FLYBACK

GENERATOR

POWER

AMPLIFIER

THERMAL

PROTECTION

OUTPUT

INVERTING

INPUT

NON-INVERTING

INPUT

GND

A BOARD: IC541 TDA8172

A BOARD (*) MARK VARIANT LIST

[TUNING CONTROL, Y/C/J, DEFLECTION, TUNER/IF, AUDIO, MTS]

123456

7 8 9 10 11 12 13 14 15

UO C6 3

6dB

-6dB

BIAS

LOGIC

–6dB

-6dB

Vcc

MTV-V

V1-V

V2-V

V3-V

V1-Y

V2-Y

V1-C

V2-C

MTV-L

V1-L

V2-L

V3-L

MTV-R

V1-R

V2-R

V3-R

BIAS

SCL

SDA

GND

V OUT

Y IN

Y OUT

C IN

C OUT

L OUT

R OUT

ADDRESS

MUTE

A BOARD: IC203 MM1311AD

— 27 — — 28 — — 29 — — 30 —

D306 I-11 D605 A-12 IC301 I-10 Q285 G-2 Q361 I-6

D001 H-6 D388 H-10 D606 C-13 IC302 J-7 Q286 J-3 Q390 H-10

D002 I-14 D403 H-12 D607 D-13 IC401 G-8 Q287 J-4 Q391 H-10

D003 K-14 D501 B-5 D608 A-10 IC402 G-13 Q288 J-4 Q501 D-6

D004 J-11 D502 E-4 D609 A-10 IC521 G-4 Q300 H-10 Q502 B-6

D005 K-14 D503 E-4 D610 C-11 IC541 F-4 Q302 J-9 Q521 H-4

D201 I-2 D520 C-6 D611 D-11 IC601 C-10 Q305 H-9 Q522 G-6

D202 I-2 D521 F-5 D612 D-14 IC602 F-10 Q306 I-11 Q550 H-3

D204 I-2 D522 G-6 D613 D-10 IC604 F-10 Q307 I-11 Q555 G-9

D205 K-3 D523 H-4 D614 D-10 Q308 I-11 Q571 E-3

D207 G-2 D541 F-4 D615 A-8 Q001 I-12 Q309 I-11 Q601 D-13

D208 G-8 D550 H-3 D617 B-8 Q080 I-15 Q310 I-11 Q602 E-12

D250 I-2 D551 H-3 D620 F-13 Q082 I-12 Q349 H-6 Q603 E-13

D251 I-2 D552 D-3 D630 C-8 Q083 I-12 Q350 H-8 Q604 F-13

D252 I-2 D561 D-3 D640 B-15 Q101 K-4 Q351 I-7 Q605 F-12

D253 J-2 D562 E-2 D650 D-10 Q170 K-5 Q352 I-7 Q607 F-13

D254 J-2 D571 D-4 Q200 G-1 Q353 H-8 Q610 F-13

D255 J-2 D572 G-3 IC001 J-13 Q201 G-1 Q354 I-7 Q630 B-15

D280 J-2 D573 G-3 IC002 J-14 Q203 G-8 Q355 I-6 Q650 H-8

D281 H-2 D574 G-4 IC003 K-14 Q280 H-3 Q356 H-6

D302 G-10 D581 G-3 IC004 H-15 Q281 H-3 Q357 H-6 X001 J-13

D303 J-12 D602 C-14 IC010 K-9 Q282 H-3 Q358 H-9 X301 J-9

D304 J-10 D603 D-13 IC202 G-2 Q283 H-2 Q359 H-9

D305 I-11 D604 D-13 IC203 I-4 Q284 G-2 Q360 J-8

CRYSTAL

DIODE

TRANSISTOR

NOTE:

Portions of the circuit marked as shown are high

voltage areas. Use care to prevent electric shocks

during inspection or repair.

A BOARD: IC301 CXA2133S

Aboard

Schematic Diagrams

KV-29XL42M

KV-29SL42C KV-29AL42 KV-29AL66

REF NO. LOC. KV-27S42 KV-29SL42 KV-27S46 KV-29SL46 KV-27S66 KV-29AL42C KV-29AL66C

C216 C17 0.47MF 0.47MF 0.47MF 0.47MF 0.47MF # #

C217 C17 0.47MF 0.47MF 0.47MF 0.47MF 0.47MF # #

C250B7####1 # 1

C251B7####1 # 1

C252B6####0.47MF#0.47MF

C280A7##### #470 25V

C281A8##### #0.47MF

C282B8##### #0.47MF

C370 F13 # # 0.01MF 0.01MF 0.01MF # 0.01MF

C371 F13 # # 0.01MF 0.01MF 0.01MF # 0.01MF

C372 F13 # # 0.01MF 0.01MF 0.01MF # 0.01MF

C380 F13 0.01MF 0.01MF # # # 0.01MF #

C381 F13 0.01MF 0.01MF # # # 0.01MF #

C382 F13 0.01MF 0.01MF # # # 0.01MF #

C418 F9 10MF 10MF 10MF 10MF 10MF # #

C613 M3 680MF 250V 560MF 400V 680MF 250V 560MF 400V 680MF 250V 560MF 400V 560 400V

C615 M6 0.0022MF 0.0047MF 0.0022MF 0.0047MF 0.0022MF 0.0047MF 0.0047MF

C616 L4 # 0.022 400V # 0.022 400V # 0.022 400V 0.022 400V

C617 L4 # 220p # 220p # 220p 220p

C627E2####0.1MF#0.1MF

C699 M6 # 0.0047MF # 0.0047MF # 0.0047MF 0.0047MF

CN150B1####15P# #

CN151E1##### # 8P

CN152F13##### # 6P

CN251A16#####7P7P

CN253A15#####7P7P

CN301H205P5P5P5P5P 8P 8P

CN302 E20 # # 15P 15P 15P # 15P

D002 J2 LNK0120022G LNK0120022G LNK0120022G LNK0120022G LNK0120022G # #

D208 D17 MTZJ-T-77-10B MTZJ-T-77-10B MTZJ-T-77-10B MTZJ-T-77-10B MTZJ-T-77-10B MTZJ-T-77-2.2A MTZJ-T-77-2.2A

D280B8##### #MTZJ-T-77-3.3

D281B8##### #MTZJ-T-77-3.3

D403 E9 1SS133T-77 1SS133T-77 1SS133T-77 1SS133T-77 1SS133T-77 # #

D609 L4 # RU-1P # RU-1P # RU-1P RU-1P

IC004 J1 IC SBX1981-51 IC SBX1981-51 IC SBX1981-51 IC SBX1981-51 IC SBX1981-51 # #

IC203 C6 MM1311AD MM1311AD MM1313AD MM1313AD MM1313AD MM1311AD MM1313AD

IC401 B18 TDA7057AQ TDA7057AQ TDA7057AQ TDA7057AQ TDA7057AQ # #

IC601 L5 IC SRTF6626 IC SRTF6656 IC SRTF6626 IC SRTF6656 IC SRTF6626 IC SRTF6656 IC SRTF6656

J202A11# # 3P3P3P # 3P

J204A9##### # 3P

PS201 F7 2A/90V 2A/90V 2A/90V 2A/90V 2A/90V # #

Q080A7##### #2SD601A

Q280B7##### #2SB709A

Q281B7##### #2SB709A

Q282B7##### #2SB709A

Q283B8##### #2SD601A

Q284B9##### #2SD601A

Q285J14##### #2SD601A

Q390K14#####2SD601A2SD601A

Q391B17#####2SD601A2SD601A

R020 J5 6.8K 6.8K 6.8K 6.8K 6.8K # #

R021 J6 680 680 680 680 680 # #

R022 J5 820 820 820 820 820 # #

R023 J5 2.2K 2.2K 2.2K 2.2K 2.2K # #

KV-29XL42M

KV-29SL42C KV-29AL42 KV-29AL66

REF NO. LOC. KV-27S42 KV-29SL42 KV-29SL46 KV-27S46 KV-27S66 KV-29AL42C KV-29AL66C

R065J200000 # #

R080F8##### # 22K

R082F8##### # 10K

R083I3##### # 470

R084G8##### # 10K

R090 J4 10K 10K 10K 10K 10K # #

R211 D17 100 1/6W 100 1/6W 100 1/6W 100 1/6W 100 1/6W # #

R212 D18 4.7 1/4W 4.7 1/4W 4.7 1/4W 4.7 1/4W 4.7 1/4W # #

R231 C17 2.2K 2.2K 2.2K 2.2K 2.2K # #

R232 C16 10K 10K 10K 10K 10K # #

R233 C16 10K 10K 10K 10K 10K # #

R236 C17 2.2K 2.2K 2.2K 2.2K 2.2K # #

R255E6#####75 75

R278C7####0 # 0

R280A6##### # 100

R281B6##### # 100

R282B6##### # 100

R283E7##000 # 0

R284A6##### # 220

R285A6##### #4.7K

R286B6##### #4.7K

R287B7##### #4.7K

R288B7##### #4.7K

R289B8##### # 68

R290B8##### #470K

R291B9##### #470K

R292B9##### #470K

R293B7##### #6.8K

R294B8##### #6.8K

R295B9##### #6.8K

R390J14#####1K1K

R391J14#####10K10K

R392K14#####1K1K

R394G4#####220220

R395J14#####1K1K

R400 E8 22K 22K 22K 22K 22K # #

R407D700### 0 #

R432 F9 8.2K 8.2K 8.2K 8.2K 8.2K # #

R450D16##### 0 0

R451D16##### 0 0

R633 M3 390K 270K 390K 270K 390K 270K 270K

R637 L3 # 100K # 100K # 100K 100K

R638 M3 JW(5MM) 270K JW(5MM) 270K JW(5MM) 270K 270K

R656 M6 33 56 33 56 33 56 56

S001 J6 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 # #

S002 J5 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 # #

S003 J5 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 # #

S004 J5 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 # #

S005 J6 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 # #

S006 J4 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 # #

S007 J4 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 1-692-431-21 # #

T603 E6 1-433-806-11 1-433-807-11 1-433-806-11 1-433-807-11 1-433-806-11 1-433-807-11 1-433-807-11

THP601 M9 # 1-803-540-11 # 1-803-540-11 # 1-803-540-11 1-803-540-11

THP602 M9 1-809-539-11 # 1-809-539-11 # 1-809-539-11 # #

#: NOT MOUNTED

857 2 A IC block and PWB.p65 3/26/99, 3:16 PM1

8 4.2 18 3.5 23 5.1 6 10.2

pin volt pin volt 9 5.1 19 3.1 24 0.0 7 0.1

1 0.6 1 7.1 10 4.2 20 2.5 25 1.1 8 13.8

2 4.8 2 GND 11 NC 21 1.6 26 0.0

3 0.0 3 5.4 12 GND 22 1.8 27 2.5 pin volt

4 0.0 4 GND 13 4.9 23 1.8 28 5.1 1 1.6

5 4.8 5 GND 14 4.3 24 1.8 29 2.3 2 13.8

6 0.0 6 4.9 15 4.3 25 NC 30 2.3 3 -13.4

7 0.0 7 GND 16 4.3 26 NC 4 -15.3

80.2 84.9 17GND 27NC pinvolt 50.0

9 0.0 18 GND 28 NC 1 0.7 6 14.6

10 NC pin volt 19 4.9 29 0.0 2 NC 7 1.6

11 NC 1 GND 20 4.9 30 4.6 3 2.3

12 3.3 2 GND 21 GND 31 4.6 4 14.3 pin volt

13 0.0 3 GND 22 NC 32 4.6 5 2.3 1 1.8

14 4.9 4 GND 23 5.0 33 8.9 6 GND 2 0.2

15 0.0 5 4.9 24 NC 34 4.9 7 0.3 3 151.7

16 0.0 6 4.9 25 4.2 35 4.9 8 6.9 4 17.3

17 -0.3 7 GND 26 4.2 36 0.0 9 GND 5 GND

18 4.9 8 4.9 27 5.0 37 4.4 10 6.9

19 4.9 28 NC 38 5.2 11 6.9 pin volt

20 1.8 pin volt 29 NC 39 5.2 12 GND 1 135

21 0.0 1 2.9 30 GND 40 GND 13 6.9 2 121

22 2.2 2 4.9 31 NC 41 NC 3 GND

23 GND 3 GND 32 4.2 42 8.9 pin volt

24 2.3 33 4.2 43 5.2 1 4.4 pin volt

25 2.3 pin volt 34 5.0 44 9.0 2 GND IN 11.7

26 GND 1 0.0 35 0.0 45 4.9 3 4.4 OUT 9.0

27 4.9 2 0.5 36 4.3 46 4.7 4 4.4 GND GND

28 0.0 3 0.0 37 NC 47 1.9 5 4.4

29 0.0 4 GND 38 9.0 48 NC 6 4.4

30 4.9 5 NC 39 NC 7 4.4

31 4.9 6 9.0 40 4.2 1 5.1 8 4.4

32 2.8 7 0.0 41 5.1 2 0.0 9 4.4

33 4.9 8 GND 42 4.2 3 0.0 10 1.5

34 2.5 4 NC 11 4.9

35 NC pin volt pin volt 5 1.2 12 4.9

36 4.9 1 7.6 1 3.4 6 0.0 13 5.6

37 4.9 2 7.6 2 5.1 7 5.1 14 4.4

38 4.9 3 7.6 3 4.3 8 1.1 15 4.4

39 4.9 4 GND 4 5.1 9 5.1 16 4.4

40 0.5 5 7.6 5 4.8 10 0.7 17 4.4

41 0.0 6 7.6 6 4.4 11 0.0 18 4.4

42 0.0 7 7.6 7 2.2 12 2.0 19 4.4

43 4.9 8 15.3 8 4.9 13 2.8 20 4.4

44 0.1 9 5.1 14 1.0 21 9.0

45 NC pin volt 10 GND 15 2.2 22 4.4

46 4.9 1 4.9 11 4.3 16 0.0

47 0.0 2 4.2 12 2.4 17 0.0 pin volt

48 0.0 3 4.9 13 3.5 18 0 1 0.1

49 0.0 4 4.2 14 3.5 19 0 2 3.8

50 0.0 5 4.9 15 5.7 20 NC 3 2.5

51 0.0 6 6.1 16 7.6 21 0 4 GND

52 0.0 7 4.9 17 0.7 22 5.1 5 9.1

IC604

IC401

IC001 IC002

IC003

IC004

IC402

IC541

IC601

IC602

IC521

IC010

IC202

IC203

IC301

IC302

— 31 — — 32 — — 33 — — 34 —

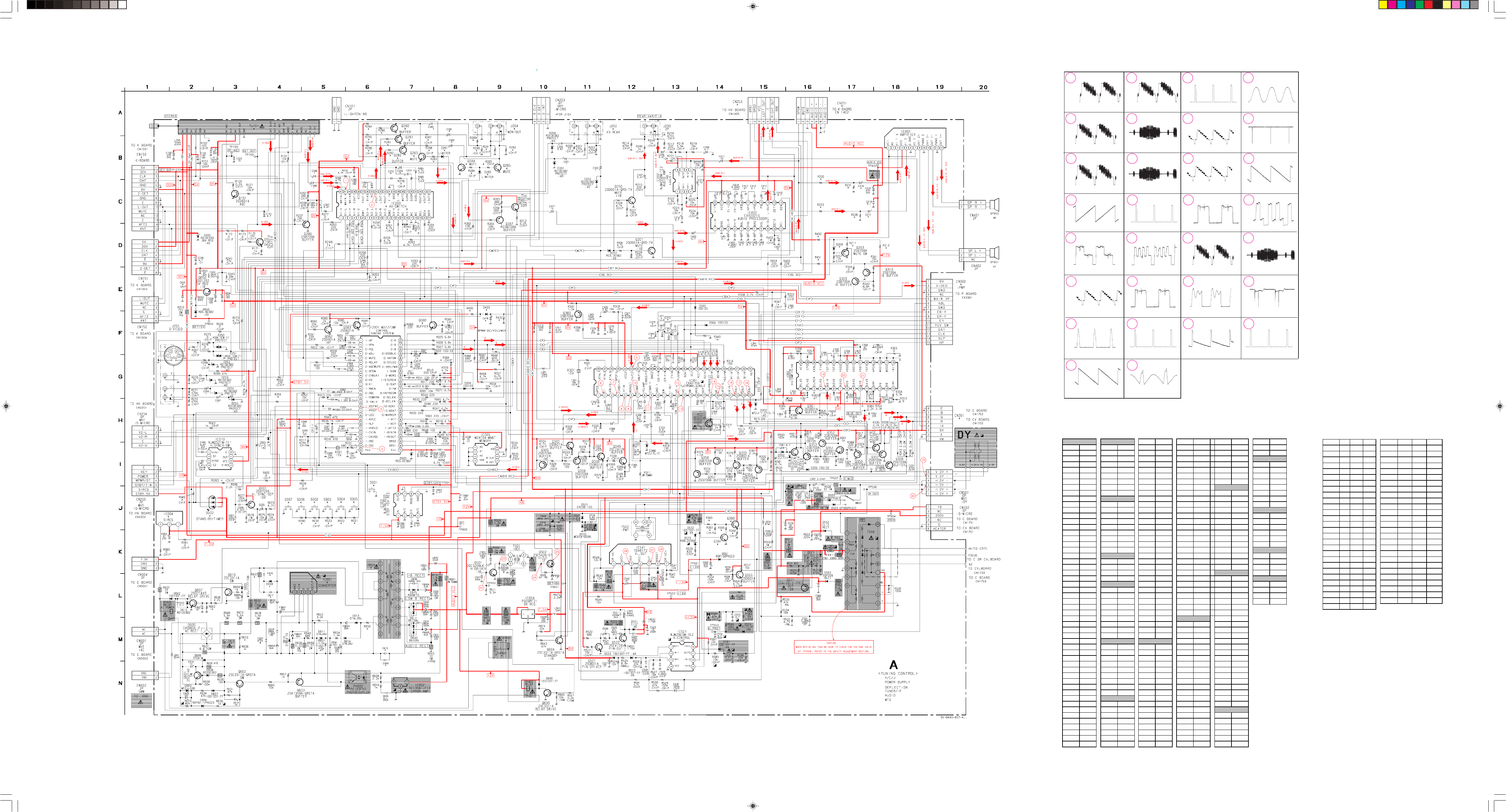

A BOARD SCHEMATIC DIAGRAM

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

A BOARD IC VOLTAGE LIST

A BOARD WAVEFORMS

A BOARD IC VOLTAGE LIST

All voltages are in V All voltages are in V

1234

5678

1.0 Vp-p (H) 2.0 Vp-p (H) 4.7 Vp-p (H) 3.6 Vp-p (8MHz)

2.0 Vp-p (H) 0.9 Vp-p (H) 1.7 Vp-p (H) 1.4 Vp-p (V)

1.0 Vp-p (H) 0.7 Vp-p (H) 0.9 Vp-p (H) 4.0 Vp-p (V)

13 14 15 16

17 18 19 20

910 11 12

21 22 23 24

25 26 27 28

1.4 Vp-p (V) 5.5 Vp-p (H) 5.3 Vp-p (H) 3.8 Vp-p (H)

3.1 Vp-p (H) 3.1 Vp-p (H) 1.3 Vp-p (H) 0.7 Vp-p (H)

1.2 Vp-p (H) 2.5 Vp-p (H) 182.8 Vp-p (H) 23.4 Vp-p (H)

1.08 KVp-p (H) 30.4 Vp-p (H) 54.3 Vp-p (V) 31.1 Vp-p (V)

2.4 Vp-p (V) 112.5 Vp-p (H)

29 30

BC E B C E

Q001 4.3 4.8 4.9 Q351 1.4 8.3 0.8

Q080 0.0 3.9 GND Q352 8.3 1.2 8.9

Q082 0.2 4.6 GND Q353 1.2 GND 1.8

Q083 0.0 0.6 GND Q354 1.1 GND 1.7

Q101 0.0 4.6 GND Q355 1.7 8.2 1.1

Q170 4.4 9.0 0.0 Q356 8.2 1.5 8.8

Q200 0.0 0.0 GND Q357 1.5 GND 2.2

Q201 0.6 0.0 GND Q358 5.9 9.0 5.2

Q203 2.4 GND 0.7 Q359 3.8 GND 4.4

Q280 5.2 GND 5.9 Q360 4.7 GND 5.3

Q281 4.1 GND 4.7 Q361 1.3 5.1 1.2

Q282 4.1 GND 4.7 Q390 5.0 9.0 4.4

Q283 0.0 5.9 GND Q391 0.0 5.0 GND

Q284 0.6 0.0 GND Q501 -0.1 97.3 GND

Q285 0.6 0.0 GND Q521 0.1 4.2 GND

Q286 4.4 GND 4.9 Q522 0.4 11.2 GND

Q287 5.0 GND 5.7 Q550 0.7 0.1 GND

Q288 7.3 9.0 6.7 Q555 2.1 4.0 1.5

Q300 0.2 3.5 GND Q571 134.0 0.8 134.6

Q302 4.4 9.0 3.8 Q601 -0.1 0.2 0.0

Q305 3.8 GND 4.4 Q602 0.0 17.0 0.0

Q306 1.7 GND 2.4 Q603 17.0 2.9 17.3

Q307 1.8 GND 2.4 Q604 0.1 3.9 GND

Q308 1.8 GND 2.4 Q607 0.7 0.1 GND

Q309 3.6 1.6 3.8 Q610 0.0 0.7 GND

Q310 3.6 GND 3.8 Q630 0.0 135.0 GND

Q349 5.2 9.0 4.6 Q650 5.7 9.0 5.1

Q350 0.7 GND 1.4

857 3 A Board Schem.p65 3/26/99, 2:30 PM1

— 35 — — 36— — 37 — — 38—

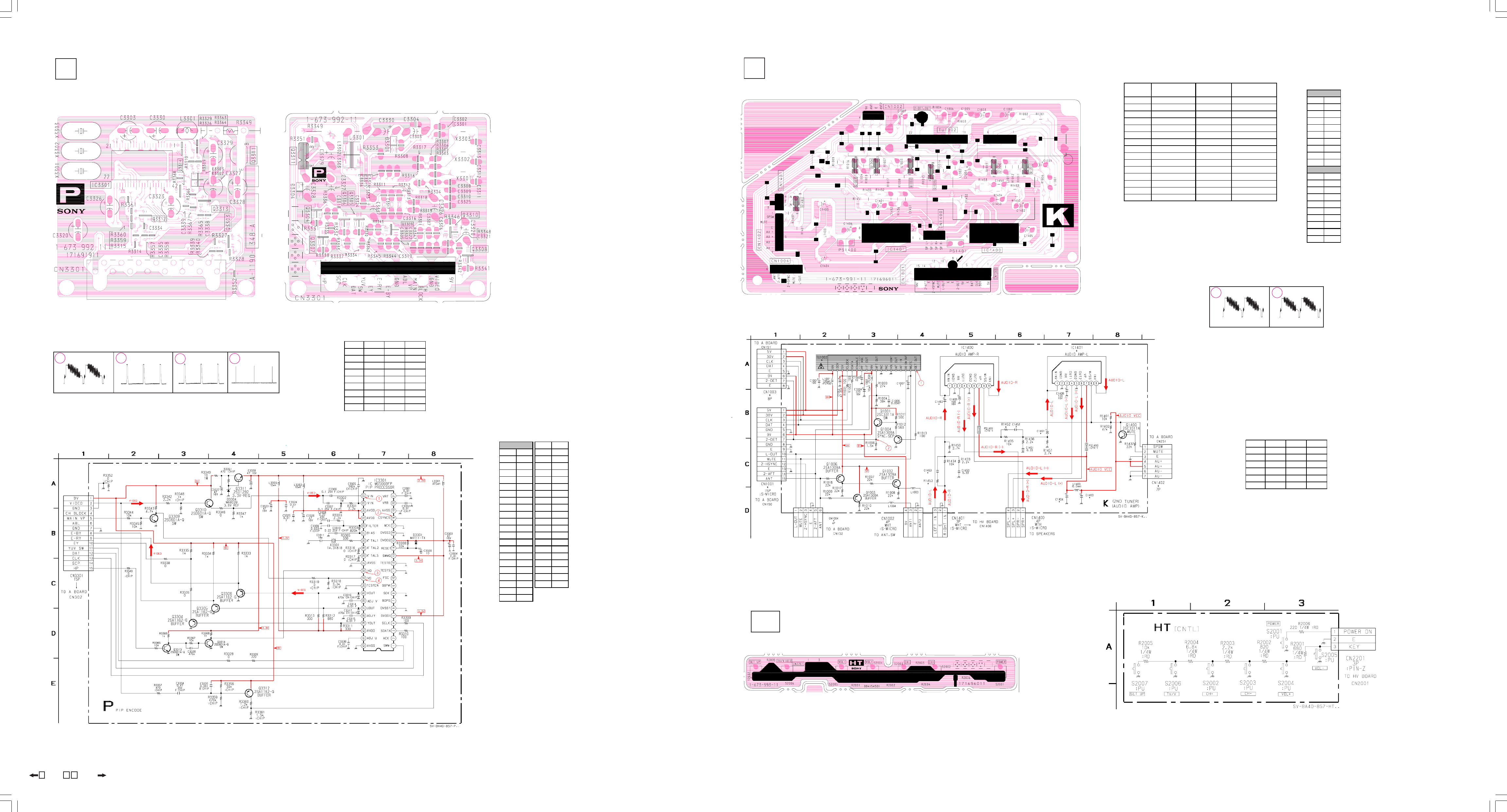

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

[P in P]

CONDUCTOR SIDECOMPONENT SIDE

(KV-27S46/29AL42/29AL42C/29AL66/29AL66C ONLY)

P BOARD WAVEFORMS

[SECOND TUNER, AUDIO AMP]

(KV-27S66/29AL42/29AL42C/29AL66/29AL66C ONLY)

K BOARD (*) MARK VARIANT LIST

P BOARD SCHEMATIC DIAGRAM

K BOARD WAVEFORMS

P BOARD IC VOLTAGE LIST

IC3301 22 0.8

pin volt 23 0.7

1 0.0 24 3.3

2 0.0 25 3.3

3 4.9 26 1.5

4 4.9 27 1.5

5 3.3 28 2.0

6NC290.4

7 0.0 30 0.5

8 0.0 31 GND

9NC320.6

10 NC 33 0.0

11 0.0 34 GND

12 0.0 35 3.0

13 3.3 36 1.2

14 3.3 37 2.9

15 3.3 38 1.3

16 0.0 39 2.3

17 0.0 40 3.3

18 0.4 41 1.2

19 GND 42 GND

20 0.5

21 1.5

All voltages are in V

P BOARD TRANSISTOR

VOLTAGE LIST

BCE

Q3304 2.3 GND 2.9

Q3305 3.0 GND 3.7

Q3306 3.0 GND 3.7

Q3309 0.7 0.0 GND

Q3310 0.3 8.9 1.8

Q3311 3.9 7.4 3.3

Q3312 8.2 0.1 8.9

Q3313 0.2 3.3 GND

Q3314 3.1 0.6 GND

All voltages are in V

K BOARD IC

VOLTAGE LIST

pin volt

10.0

2GND

30.0

40.0

5GND

60.0

716.9

80.0

90.0

pin volt

10.0

2GND

30.0

40.0

5GND

60.0

716.9

80.0

90.0

IC1400

IC1401

All voltages are in V

KV29AL42 KV-29AL66

REF. NO. KV-27S66 KV-29AL42C KV-29AL66C

C1401 # 0.47MF 0.22MF

C1402 # 0.47MF 0.22MF

C1403 # 2200MF 2200MF

C1404 # 2200MF 2200MF

C1452 # 0.0033MF 0.0033MF

C1453 # 0.0033MF 0.0033MF

CN1001 15P # #

CN1003 # 8P 8P

CN1004 # # 6P

CN1402 # 7P 7P

IC1400 # TDA1519 TDA1519

IC1401 # TDA1519 TDA1519

R1452 # 10K 8.2K

R1453 # 10K 8.2K

TU1002 FSS BTF-FA401 # FSS BTF-FA401

#: NOT MOUNTED

HT [CNTL]

(KV-29AL42/29AL42C/29AL66/29AL66C ONLY)

HT BOARD SCHEMATIC DIAGRAM

0.7 Vp-p (H) 4.3 Vp-p (H)

1.6 Vp-p (H)

8.9 Vp-p (V)

2.2 Vp-p (H) 1.3 Vp-p (H)

K BOARD SCHEMATIC DIAGRAM

Aboard boards

K P

BCE

Q1001 7.0 8.9 6.4

Q1002 5.1 0.0 5.1

Q1003 4.4 5.0 5.1

Q1004 4.5 GND 5.2

Q1006 4.5 5.1 5.1

Q1400 0.7 0.0 GND

K BOARD TRANSISTOR

VOLTAGE LIST

All voltages are in V

857 4 P and K boards.p65 3/29/99, 4:21 PM1

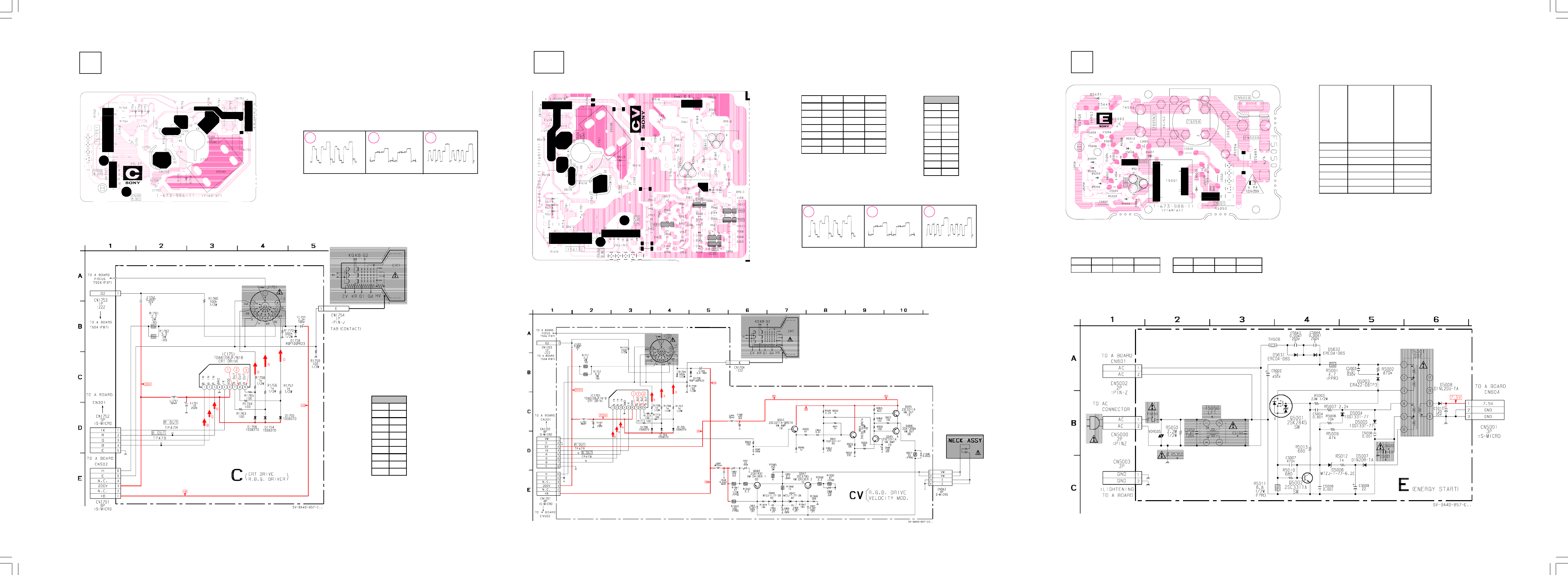

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/29AL66C/

29SL42/29SL42C/29SL46/29XL42M

[RGB DRIVE, CRT DRIVE]

C BOARD WAVEFORMS

CV BOARD SCHEMATIC DIAGRAM

C BOARD SCHEMATIC DIAGRAM

E[ENERGY START]

(KV-27S42/27S46/27S66/29SL42/29SL42C/29XL42M ONLY)

E BOARD SCHEMATIC DIAGRAM

(KV-29AL42/29AL42C/29AL66/29AL66C ONLY)

CV [RGB DRIVE, VELOCITY MOD.]

BCE

Q943 4.5 8.9 3.7

Q944 2.1 8.9 1.5

Q945 2.1 6.0 1.5

Q946 133.2 67.1 134.7

Q947 0.9 67.1 0.3

Q965 6.5 8.9 6.2

Q966 6.0 0.0 6.2

CV BOARD TRANSISTOR

VOLTAGE LIST

All voltages are in V

CV BOARD IC

VOLTAGE LIST

pin volt

12.3

22.3

32.3

4GND

52.3

6198.1

7137.3

8138.6

9140.8

IC1751

C BOARD IC

VOLTAGE LIST

All voltages are in V

E BOARD TRANSISTOR VOLTAGE LIST

BC E

Q5002 0.4 1.5 0.0 GS D

Q5001 1.5 0.1 157.6

All voltages are in V

CV BOARD WAVEFORMS

pin volt

12.3

22.3

32.3

4GND

53.7

6203.6

7129.0

8126.0

9127.0

IC1701

All voltages are in V

— 40 — — 41 — — 42 —— 39 —

168.2 Vp-p (H) 140.6 Vp-p (H) 146.5 Vp-p (H)

179.7 Vp-p (H) 156.3 Vp-p (H) 167.2 Vp-p (H)

E BOARD (*) MARK VARIANT LIST

KV-29AL66

KV-29AL66C

KV-29AL42

KV-29AL42C

KV-29SL42

KV-27S42 KV-29SL42C

KV-27S46 KV-29XL42M

REF. NO. KV-27S66 KV-29SL46

C5020 0.0022MF 0.0047MF

C5021 # 0.0047MF

C5150 0.47MF #

F5050 6.3A/125V 6.3A/250V

R5350 4.7M 8.2M

T5050 1-431-838-11 1-426-717-11

VDR505 1-803-585-11 1-803-587-11

#: NOT MOUNTED

857 5 C E HV boards.p65 3/26/99, 3:45 PM1

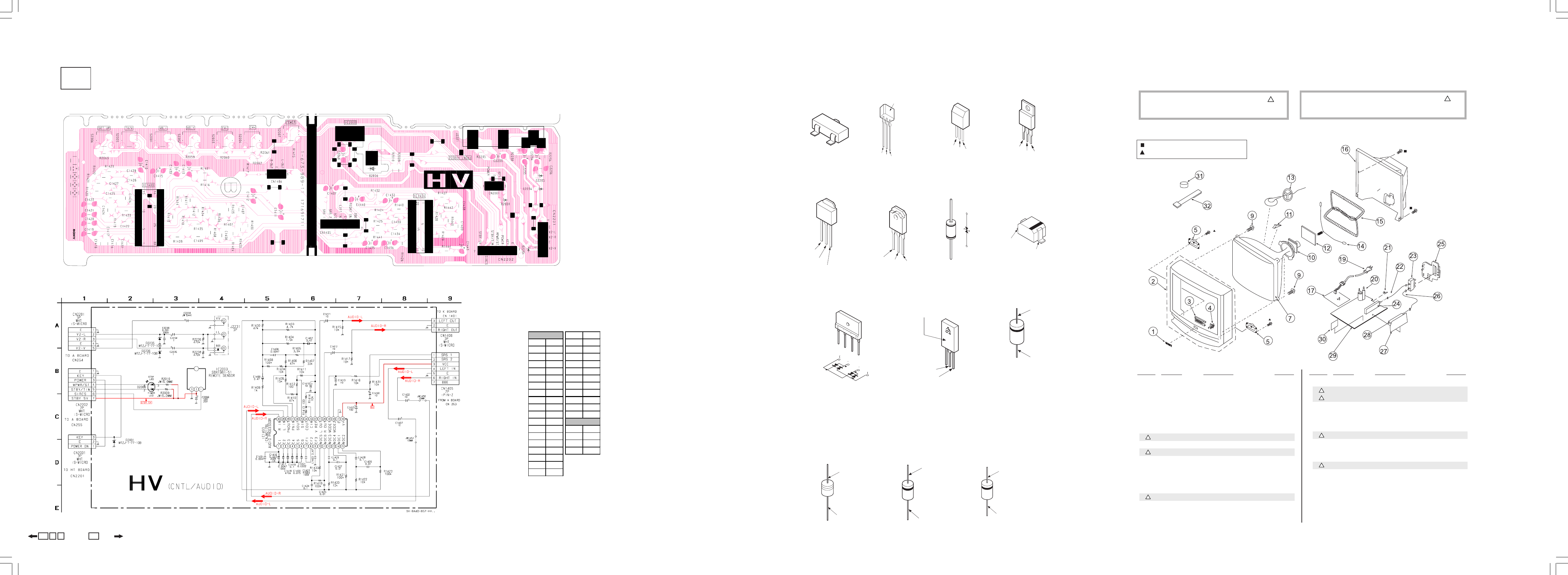

(KV-29AL42/29AL42C/29AL66/29AL66C ONLY)

19 0.0

pin volt 20 4.5

1 4.5 21 4.5

2 4.5 22 4.5

3 4.5 23 4.5

4 4.5 24 4.5

5 4.5 25 4.5

6 4.5 26 4.5

7 4.5 27 4.5

8 4.5 28 4.5

9 4.5 29 4.5

10 4.5 30 4.5

11 4.5

12 4.4 pin volt

13 4.4 1 3.9

14 4.4 2 5.0

15 4.5 3 GND

16 8.9

17 GND

18 0.0

IC1403

IC2003

C BOARD IC

VOLTAGE LIST

All voltages are in V

D1N20R

MTZJ-33

RD8.23SB2

MTZJ-5.1C

RD5.6ESB2

RD10ESB2

MTZJ-30D

RD3.3ESB2

2SA1162-G

2SD601A-Q

U05G

MTZJ-T-77-2.2A

ERA22-08

LNK0120022G

1SS133T-77

ERC06-15S

MDV04-600

RU-1P

2SA1175-HFE

2SC2785-HFE

2SA933AS-QT

2SC3209LK

2SD1312-K 2SC4159-E

RD9.1EW MA111-TX

D1NL20-U

EGP20G

EL1Z

1SS83

RGP02-17EL

GP08D

2SK2845-LB102 2SC5426-01

LETTER SIDE

ECB

BCE

CATHODE

ANODE

CATHODE

ANODE

CATHODE

ANODE

CATHODE

ANODE

BCE

2SD2144S

D4SB60L-F D5LC20U

MARKING SIDE VIEW

CATHODE

ANODE

RU4AM-T3

CATHODE

ANODE

6.4 SEMICONDUCTORS SECTION 6

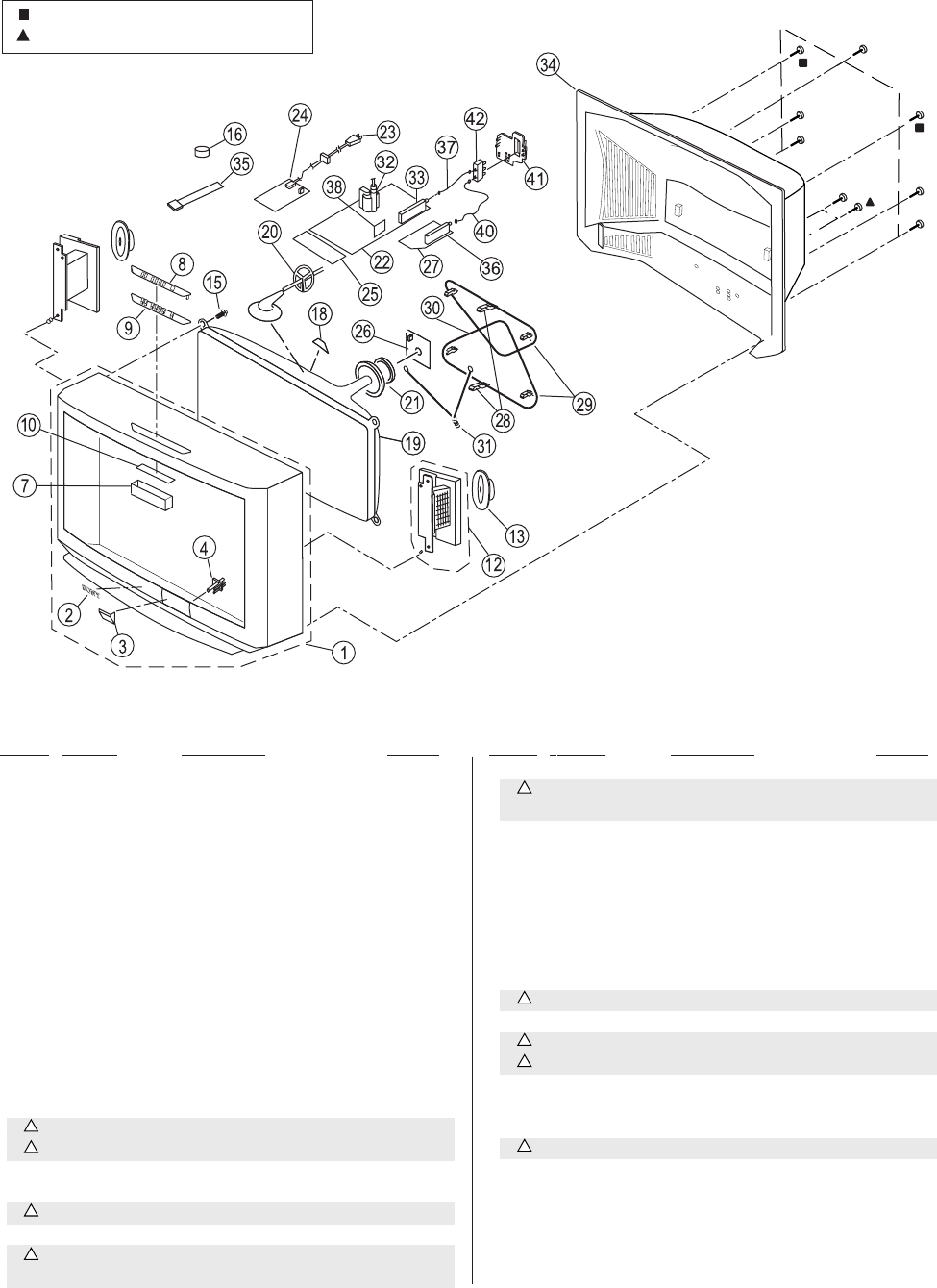

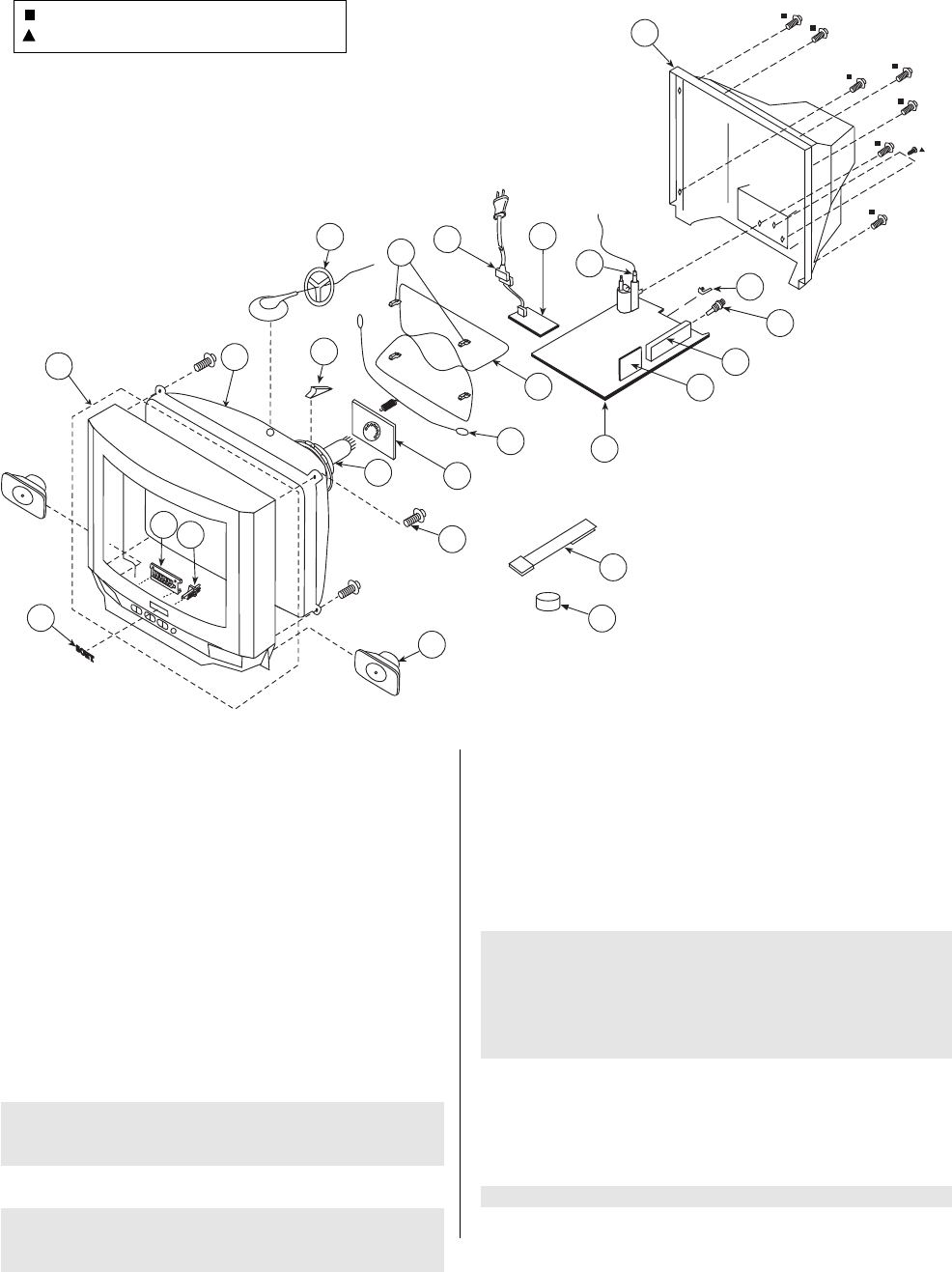

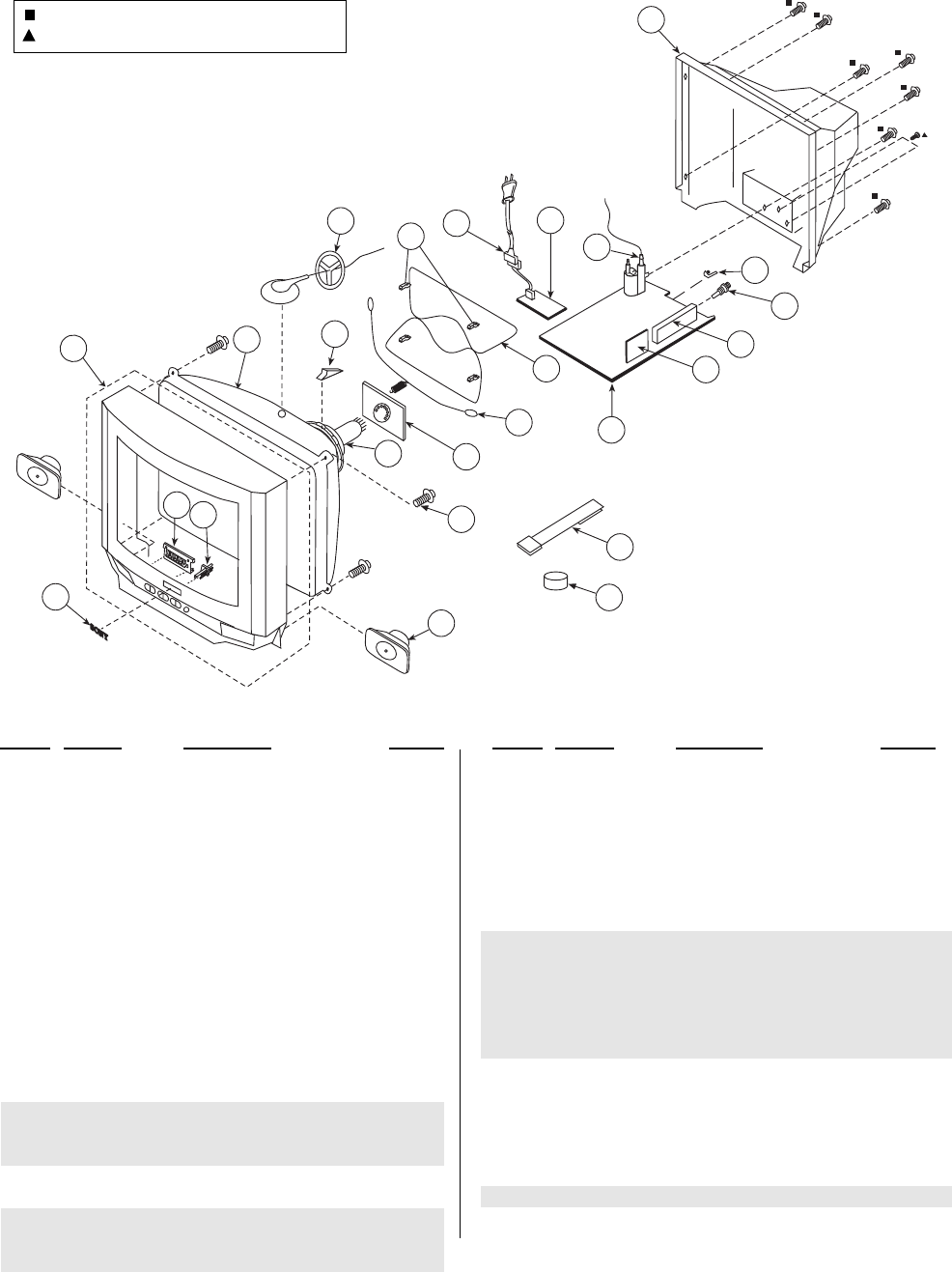

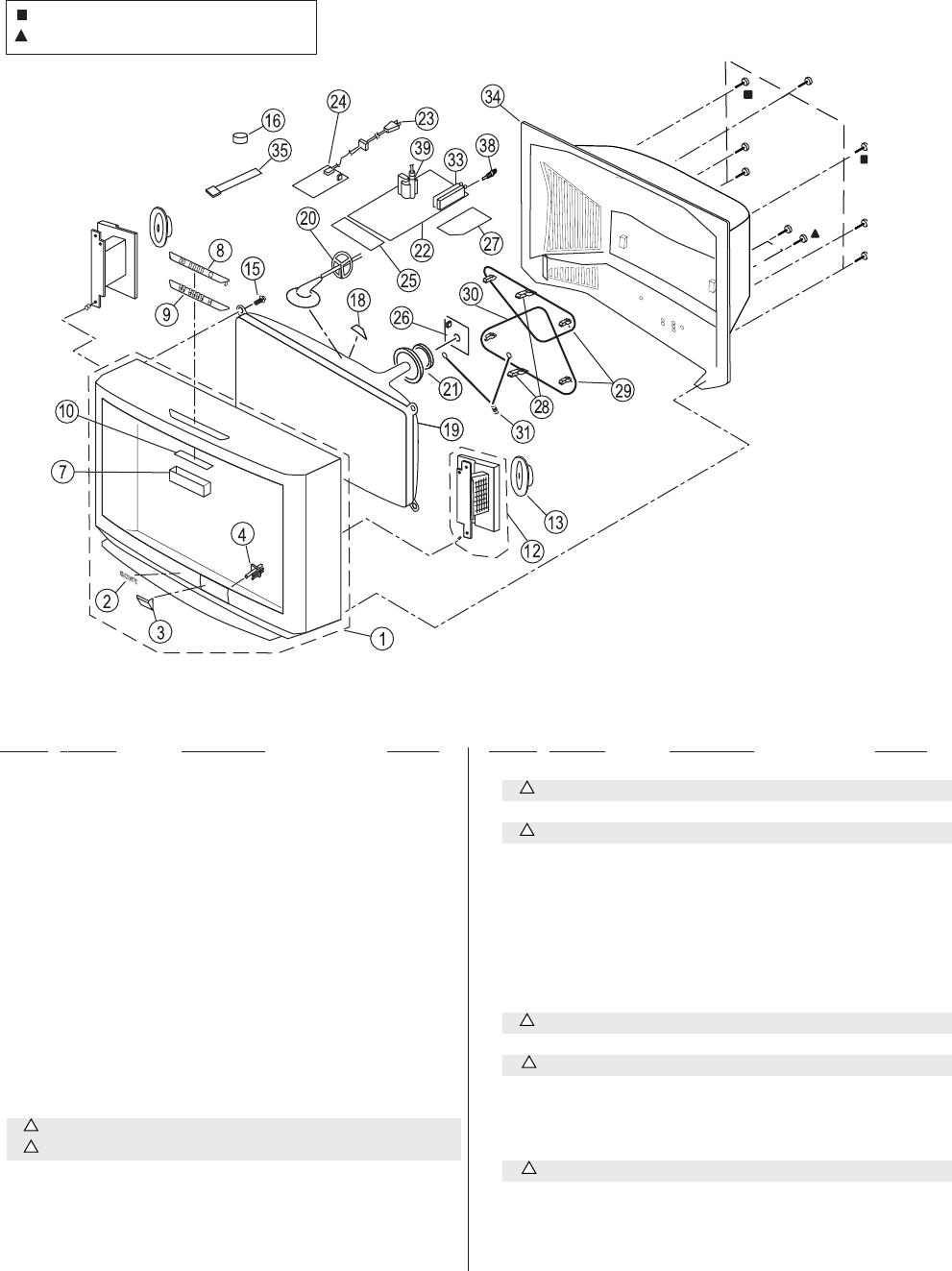

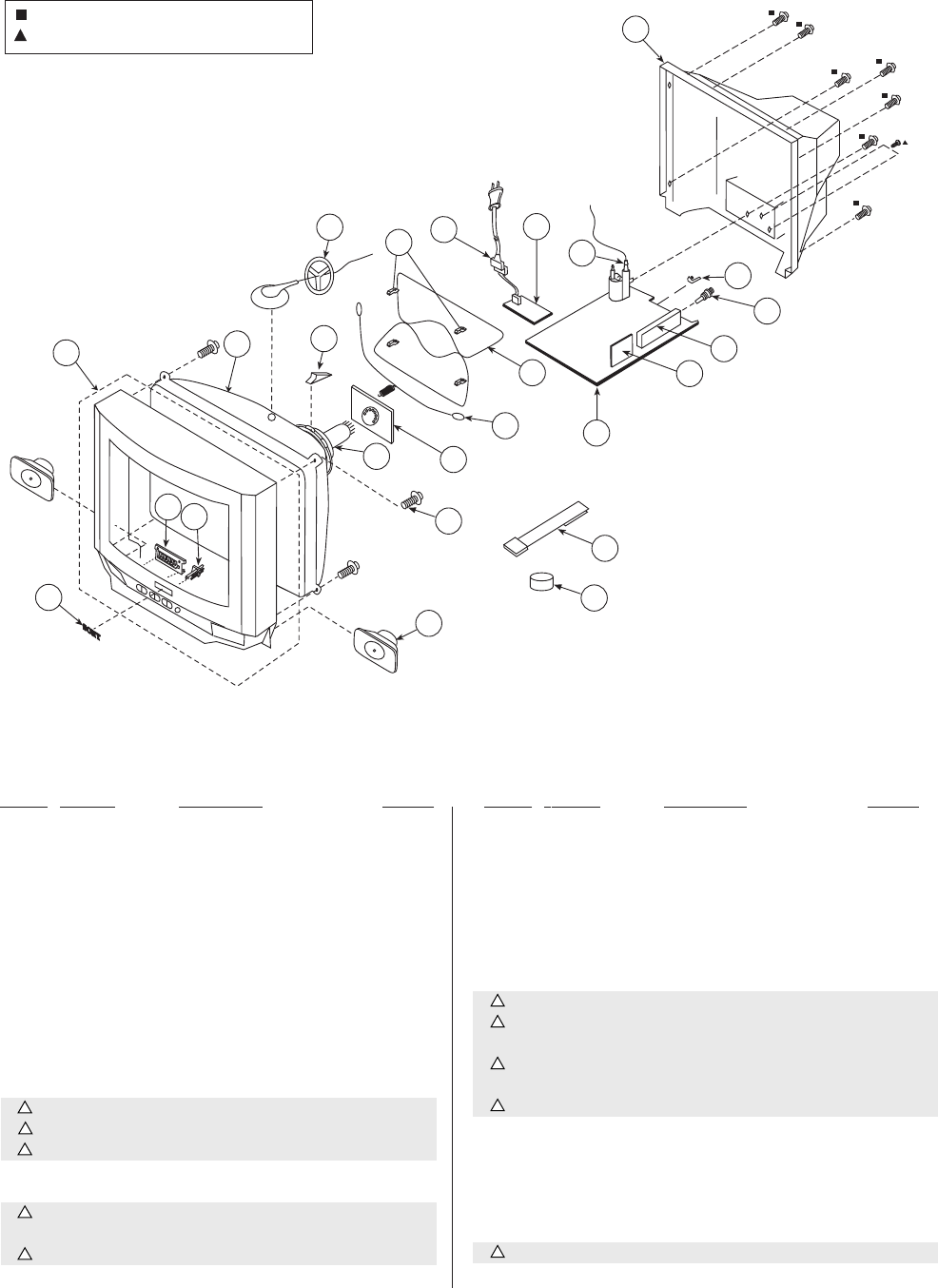

EXPLODED VIEWS

• Items with no part number and no descrip-

tion are not stocked because they are seldom

required for routine service.

• The component parts of an assembly are

indicated by the reference numbers in the

remarks column.

• Items marked " * " are not stocked since

they are seldom required for routine service.

Some delay should be anticipated when

ordering these items.

Note:

The components identified by shading and mark

are

critical for safety. Replace only with part number

specified.

Note:

Les composants identifies per un trame et une marque

sont critiques pour la securite. Ne les remplacer que par une

piece portant le numero specifie.

7-1. CHASSIS (KV-27S66)

1 4-046-160-11 EMBLEM (NO.9), SONY

2 X-4035-817-1 BEZNET ASSY 3,4

3 4-063-573-01 MULTI BUTTON

4 4-063-570-01 GUIDE, LED

5 1-504-531-11 SPEAKER (13.1X6.2CM)

8-733-874-05 CRT 29NX

9 4-041-268-01 SCREW (7), TAPPING

8-451-846-21 DYY29NXA-V2

11 4-053-005-01 SPACER, DY

12 * A-1331-920-A C MOUNTED PC BOARD

13 3-704-372-31 HOLDER, HV CABLE

14 4-036-329-01 SPRING (B), TENSION

1-416-588-1 COIL, DEMAGNETIC

16 4-063-572-21 COVER, REAR

17 * A-1343-654-A E (VAR) MOUNTED PC BOARD

1-790-130-21 CORD, AC

1-453-268-21 FBT ASSY, NX-4005//X4J4

21 4-064-646-01 CHASSIS, CLIP

22 1-557-056-31 CABLE, P-P

23 8-598-414-00 ANTENNA SWITCH

8-598-431-00 TUNER, FSS BTF-WA411

25 4-064-176-01 BRACKET ANTENNA

26 1-783-800-11 CABLE, PIN

27 * A-1380-611-A K (VAR) MOUNTED PC BOARD

8-598-430-00 TUNER, FSS BTF-FA401

29 * A-1298-902-A A COMPLETE PC BOARD

30 * A-1195-154-A P COMPLETE PC BOARD

31 1-452-032-00 MAGNET, DISC

32 4-062-047-01 PIECE A(110), CONV CORRECT

REF NO. PART NO. DESCRIPTION REMARK

7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S

7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

— 44 — — 45 — — 46 —— 43 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/29AL66C/

29SL42/29SL42C/29SL46/29XL42M

HV BOARD SCHEMATIC DIAGRAM

REF NO. PART NO. DESCRIPTION REMARK

[CNTL/AUDIO]

boards

CV C E HV board

Schematic Diagrams

857 5 C E HV boards.p65 3/26/99, 3:46 PM2

— 47 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

210

1 4-046-160-11 EMBLEM (NO.9), SONY

2 X-4035-816-1 BEZNET ASSY (KV-27S46/29SL46) 3-4

2 X-4035-818-1 BEZNET ASSY (KV-29XL42M) 3-4

2 X-4035-815-1 BEZNET ASSY (KV-27S42/29SL42/42C) 3-4

3 4-063-573-01 MULTI BUTTON

4 4-063-570-01 GUIDE, LED

6 1-504-531011 SPEAKER (13.1 x 6.2CM)

7 4-041-268-01 SCREW (7), TAPPING

8 * A-1331-920-A C MOUNTED PC BOARD

9 3-704-372-31 HOLDER, HV CABLE

10 4-053-005-01 SPACER, DY

8-733-873-05 CRT 29NX (EXCEPT KV-29SL42C)

8-733-874-05 CRT 29NX (KV-29SL42C only)

8-451-846-21 DYY29NXA-V2

16 4-036-329-01 SPRING (B), TENSION

1-416-952-11 COIL, DEGAUSSING

(KV-29SL42/29XL42M/29SL42C/29SL46)

1-416-588-11 COIL, DEMAGNETIC (KV-27S42/27S46)

18 * A-1343-656-A E (VAR) MOUNTED PC BOARD

(KV-29SL42/29XL42M/29SL46)

18 * A-1343-654-A E (VAR) MOUNTED PC BOARD

(KV-27S42/27S46)

19 * A-1298-900-A A COMPLETE PC BOARD (KV-27S46)

19 * A-1298-904-A A COMPLETE PC BOARD

(KV-29XL42M/29SL42/29SL42C)

19 * A-1298-911-A A COMPLETE PC BOARD (KV-29SL46)

19 * A-1298-840-A A COMPLETE PC BOARD (KV-27S42)

1-790-130-21 CORD, AC (KV-27S42/27S46)

1-751-057-11 CORD, POWER (WITH CONNECTOR) 10A/125V

(KV-29SL42/29XL42M/29SL46)

1-769-796-31 CORD, POWER (WITH CONNECTOR) 10A/125V

(KV-29SL42C)

1-453-268-21 FBT ASSY NX-4005//X4J4

22 1-766-374-11 PLUG, F-PIN

23 * A-1195-154-A P COMPLETE PC BOARD (KV-27S46/29SL46)

24 4-063-572-02 COVER, REAR

25 4-064-646-01 CHASSIS, CLIP

27 4-040-388-01 HOLDER (S), DGC (EXCEPT KV-29SL46)

8-598-431-00 TUNER, FSS BTF-WA411

29 4-062-047-01 PIECE A(110), CONV CORRECT

30 1-452-032-00 MAGNET,DISC

7-2. CHASSIS (KV-27S46/27S42/29SL42/29SL42C/29SL46/29XL42M)

REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK

7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S

7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

— 48 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

8-451-486-11 DY Y29NXA-V

22 * A-1298-903-A A COMPLETE PC BOARD (KV-29AL42/42C)

1-751-057-11 CORD, POWER (WITH CONNECTOR) 10A/125V

24 * A-1343-656-A E (VAR) MOUNTED PC BOARD

25 * A-1372-617-A HV (VAR) MOUNTED PC BOARD

26 * A-1331-921-A CV MOUNTED PC BOARD

27 * A-1380-612-A K (VAR) MOUNTED PC BOARD

28 4-040-387-01 HOLDER (M), DGC

29 4-040-388-01 HOLDER (S), DGC

1-416-952-11 COIL, DEGAUSSING

31 4-036-329-01 SPRING (B), TENSION

8-598-431-00 TUNER, FSS BTF-A411

34 4-064-762-11 COVER, REAR

35 4-062-047-01 PIECE A (110), CONV CORRECT

38 1-766-374-11 PLUG, F-PIN

1-453-268-21 TRANSFORMER, FBT ASSY NX-4005//X4J4

7-3. CHASSIS (KV-29AL42/29AL42C)

1 X-4035-965-1 BEZNET ASSY 2-4

2 4-046-160-01 EMBLEM (NO.9), SONY

3 4-064-768-01 DOOR

4 4-064-767-01 GUIDE, LED

7 4-064-764-01 BRACKET, TOP CONTROL

8 4-064-763-01 PANEL, TOP CONTROL

9 4-064-765-01 BUTTON, TOP CONTROL

10 * 1-1372-616-A HT MOUNTED PC BOARD

12 X-4035-964-1 BAFFLE ASSY, SPEAKER

13 1-505-993-11 SPEAKER (8X13CM)

15 4-041-268-01 SCREW (7), TAPPING

16 1-452-032-00 MAGNET,DISC

18 4-053-005-01 SPACER, DY

8-733-873-05 CRT 29NX (KV-29AL42)

8-733-874-05 CRT 29NX (KV-29AL42C)

20 3-704-372-31 HOLDER, HV CABLE

REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK

7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S

7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

— 49 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

7-4. CHASSIS (KV-29AL66/29AL66C)

1 X-4036-607-1 BEZNET ASSY 2-4

2 4-046-160-01 EMBLEM (NO.9), SONY

3 4-064-768-01 DOOR

4 4-064-767-01 GUIDE, LED

7 4-064-764-01 BRACKET, TOP CONTROL

8 4-064-763-01 PANEL, TOP CONTROL

9 4-064-765-01 BUTTON, TOP CONTROL

10 * 1-1372-616-A HT MOUNTED PC BOARD

12 X-4035-964-1 BAFFLE ASSY, SPEAKER

13 1-505-993-11 SPEAKER (8X13CM)

15 4-041-268-01 SCREW (7), TAPPING

16 1-452-032-00 MAGNET,DISC

18 4-053-005-01 SPACER, DY

8-733-874-05 CRT 29NX (KV-29AL66C)

8-733-873-05 CRT 29NX (KV-29AL66)

20 3-704-372-31 HOLDER, HV CABLE

8-451-486-11 DY Y29NXA-V

22 * A-1298-842-A A COMPLETE PC BOARD

1-751-057-11 CORD, POWER (WITH CONNECTOR)

10A/125V (KV-29AL66)

1-769-796-31 CORD, POWER (WITH CONNECTOR)

10A/125V (KV-29AL66C)

24 * A-1343-656-A E (VAR) MOUNTED PC BOARD

25 A-1372-617-A HV (VAR) MOUNTED PC BOARD

26 * A-1331-921-A CV MOUNTED PC BOARD

27 * A-1380-608-A K (VAR) MOUNTED PC BOARD

28 4-040-387-01 HOLDER (M), DGC

29 4-040-388-01 HOLDER (S), DGC

1-416-952-11 COIL, DEGAUSSING

31 4-036-329-01 SPRING (B), TENSION

1-453-268-21 TRANSFORMER, FBT ASSY NX-4005//X4J4

8-598-431-00 TUNER, FSS BTF-A411

34 4-064-762-11 COVER, REAR

35 4-062-047-01 PIECE A (110), CONV CORRECT

8-598-430-00 TUNER, BTF-FA401

37 1-557-056-31 CABLE, P-P

38 * A-1195-154-A P COMPLETE PC BOARD

40 1-783-800-11 CABLE, PIN

41 4-064-176-11 BRACKET, ANTENNA

42 8-598-414-00 ANTENNA SWITCH AS-2F

REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK

7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S

7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

— 50 —

PARTS LISTING TABLE OF CONTENTS

Page

A BOARD COMMON PARTS LIST: Parts common to all models listed in this manual...................................................... 51

A BOARD VARIANT PARTS LIST: Parts that belong only to the model specified............................................................. 60

Refer to the designated variant parts list when seeking a part indicated by an asterisk (*) on the A board schematic

or by the word "variant" on the common parts list.

Model Page

KV-27S42................................................. 60

KV-29SL42/29SL42C/29XL42M............... 61

KV-27S46 ................................................ 62

KV-29SL46 .............................................. 63

KV-27S66 ................................................ 64

KV-29AL42/29AL42C............................... 65

KV-29AL66/29AL66C .............................. 66

C BOARD COMPLETE PARTS LIST (KV-27S42, 27S46, 27S66, 29SL42, 29SL42C, 29SL46, 29XL42M, only) ............... 67

CV BOARD COMPLETE PARTS LIST (KV-29AL42, 29AL42C, 29AL66, 29AL66C, only)................................................... 67

E BOARD COMPLETE PARTS LIST (All Models)................................................................................................................ 68

HT BOARD COMPLETE PARTS LIST (KV-29AL42, 29AL42C, 29AL66, 29AL66C, only) ..................................................69

HV BOARD COMPLETE PARTS LIST (KV-29AL42, 29AL42C, 29AL66, 29AL66C only) ................................................... 70

K BOARD COMPLETE PARTS LIST (KV-27S66, 29AL42, 29AL42C, 29AL66, 29AL66C only) ........................................ 70

P BOARD COMPLETE PARTS LIST (KV-27S46, 27S66, 29AL66, 29AL66C, 29SL46 only) ............................................. 72

ACCESSORIES AND PACKAGING ..................................................................................................................................... 73

SECTION 8

ELECTRICAL PARTS LIST

• Items marked with a asterisk " * " are not

stocked since they are seldom required for

routine service. Some delay should be

anticipated when ordering these items.

• All variable and adjustable resistors

have characteristic curve B, unless

otherwise noted.

RESISTORS

• All resistors are in ohms

• F : nonflammable

When indicating parts by reference

number, please include the board name.

The components identified by in this

manual have been carefully factory-

selected for each set in order to satisfy

regulations regarding X-ray radiation.

Should replacement be required, replace

only with the value originally used.

Note:

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

COMMON PARTS LISTING

— 51 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

* A-1298-840-A A BOARD, COMPLETE (KV-27S42)

* A-1298-842-A A BOARD, COMPLETE (KV-29AL66/29AL66C)

* A-1298-900-A A BOARD, COMPLETE (KV-27S46)

* A-1298-902-A A BOARD, COMPLETE (KV-27S66)

* A-1298-903-A A BOARD, COMPLETE (KV-29AL42/29AL42C)

* A-1298-904-A A BOARD, COMPLETE (KV-29SL42/29SL42C/29XL42M/)

* A-1298-911-A A BOARD, COMPLETE (KV-29SL46)

4-382-854-11 SCREW (M3X10), P, SW (+)

CAPACITOR

C001 1-163-259-91 CERAMIC 220pF 5% 50V

C004 1-104-664-11 ELECT 47µF 20% 25V

C005 1-126-960-11 ELECT 1µF 20% 50V

C006 1-163-035-00 CERAMIC 0.047µF 50V

C007 1-163-259-91 CERAMIC 220pF 5% 50V

C008 1-163-009-11 CERAMIC 0.001µF 10% 50V

C010 1-163-009-11 CERAMIC 0.001µF 10% 50V

C011 1-163-009-11 CERAMIC 0.001µF 10% 50V

C012 1-163-009-11 CERAMIC 0.001µF 10% 50V

C014 1-164-004-11 CERAMIC 0.1µF 10% 25V

C017 1-126-960-11 ELECT 1µF 20% 50V

C019 1-163-135-00 CERAMIC 560pF 5% 50V

C020 1-130-495-00 FILM 0.1µF 5% 50V

C021 1-163-259-91 CERAMIC 220pF 5% 50V

C028 1-163-005-11 CERAMIC 470pF 10% 50V

C030 1-163-259-91 CERAMIC 220pF 5% 50V

C034 1-163-037-11 CERAMIC 0.022µF 10% 50V

C037 1-164-161-11 CERAMIC 0.0022µF 10% 50V

C038 1-126-941-11 ELECT 470µF 20% 25V

C039 1-126-964-11 ELECT 10µF 20% 50V

C046 1-104-664-11 ELECT 47µF 20% 25V

C047 1-163-259-91 CERAMIC 220pF 5% 50V

C048 1-163-009-11 CERAMIC 0.001µF 10% 50V

C055 1-163-251-11 CERAMIC 100pF 5% 50V

C060 1-163-005-11 CERAMIC 470pF 10% 50V

C062 1-164-161-11 CERAMIC 0.0022µF 10% 50V

C065 1-163-009-11 CERAMIC 0.001µF 10% 50V

C070 1-163-259-91 CERAMIC 220pF 5% 50V

C080 1-164-005-11 CERAMIC 0.47µF 25V

C081 1-164-005-11 CERAMIC 0.47µF 25V

C091 1-163-231-11 CERAMIC 15pF 5% 50V

C092 1-163-231-11 CERAMIC 15pF 5% 50V

C101 1-126-963-11 ELECT 4.7µF 20% 50V

C102 1-126-933-11 ELECT 100µF 20% 16V

C150 1-126-941-11 ELECT 470µF 20% 25V

C151 1-104-664-11 ELECT 47µF 20% 25V

C200 1-126-959-11 ELECT 0.47µF 20% 50V

C201 1-126-960-11 ELECT 1µF 20% 50V

C202 1-126-960-11 ELECT 1µF 20% 50V

C207 1-126-959-11 ELECT 0.47µF 20% 50V

C208 1-126-959-11 ELECT 0.47µF 20% 50V

C209 1-126-963-11 ELECT 4.7µF 20% 50V

C211 1-126-964-11 ELECT 10µF 20% 50V

C212 1-126-963-11 ELECT 4.7µF 20% 50V

C213 1-126-964-11 ELECT 10µF 20% 50V

C216 VARIANT (SEE VARIANT PARTS LIST)

C217 VARIANT (SEE VARIANT PARTS LIST)

C218 1-126-941-11 ELECT 470µF 20% 25V

C219 1-130-495-00 FILM 0.1µF 5% 50V

C222 1-126-964-11 ELECT 10µF 20% 50V

C226 1-126-963-11 ELECT 4.7µF 20% 50V

C243 1-163-017-00 CERAMIC 0.0047µF 10% 50V

C250 VARIANT (SEE VARIANT PARTS LIST)

C251 VARIANT (SEE VARIANT PARTS LIST)

C252 VARIANT (SEE VARIANT PARTS LIST)

C255 1-104-760-11 CERAMIC 0.047µF 10% 50V

C256 1-126-960-11 ELECT 1µF 20% 50V

C257 1-126-960-11 ELECT 1µF 20% 50V

C258 1-126-959-11 ELECT 0.47µF 20% 50V

C259 1-163-021-91 CERAMIC 0.01µF 10% 50V

C280 VARIANT (SEE VARIANT PARTS LIST)

C281 VARIANT (SEE VARIANT PARTS LIST)

C282 VARIANT (SEE VARIANT PARTS LIST)

C284 1-104-664-11 ELECT 47µF 20% 25V

C285 1-126-933-11 ELECT 100µF 20% 16V

C286 1-163-251-11 CERAMIC 100pF 5% 50V

ACOMMON PARTS LISTING

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

— 52 —

C287 1-126-959-11 ELECT 0.47µF 20% 50V

C288 1-126-960-11 ELECT 1µF 20% 50V

C289 1-126-960-11 ELECT 1µF 20% 50V

C290 1-164-005-11 CERAMIC 0.47µF 25V

C301 1-163-233-11 CERAMIC 18pF 5% 50V

C303 1-126-963-11 ELECT 4.7µF 20% 50V

C304 1-163-038-91 CERAMIC 0.1µF 25V

C305 1-164-004-11 CERAMIC 0.1µF 10% 25V

C306 1-164-004-11 CERAMIC 0.1µF 10% 25V

C307 1-126-964-11 ELECT 10µF 20% 50V

C308 1-126-964-11 ELECT 10µF 20% 50V

C309 1-163-021-91 CERAMIC 0.01µF 10% 50V

C310 1-126-960-11 ELECT 1µF 20% 50V

C311 1-163-021-91 CERAMIC 0.01µF 10% 50V

C312 1-126-942-61 ELECT 1000µF 20% 25V

C313 1-163-021-91 CERAMIC 0.01µF 10% 50V

C314 1-163-003-11 CERAMIC 330pF 10% 50V

C316 1-163-021-91 CERAMIC 0.01µF 10% 50V

C317 1-163-021-91 CERAMIC 0.01µF 10% 50V

C318 1-163-021-91 CERAMIC 0.01µF 10% 50V

C319 1-126-963-11 ELECT 4.7µF 20% 50V

C320 1-126-959-11 ELECT 0.47µF 20% 50V

C321 1-163-133-00 CERAMIC 470pF 5% 50V

C323 1-163-121-00 CERAMIC 150pF 5% 50V

C324 1-163-251-11 CERAMIC 100pF 5% 50V

C331 1-163-005-11 CERAMIC 470pF 10% 50V

C332 1-163-009-11 CERAMIC 0.001µF 10% 50V

C350 1-163-021-91 CERAMIC 0.01µF 10% 50V

C351 1-126-964-11 ELECT 10µF 20% 50V

C352 1-163-021-91 CERAMIC 0.01µF 10% 50V

C353 1-163-038-91 CERAMIC 0.1µF 25V

C354 1-163-038-91 CERAMIC 0.1µF 25V

C355 1-164-222-11 CERAMIC 0.22µF 25V

C356 1-163-038-91 CERAMIC 0.1µF 25V

C357 1-163-021-91 CERAMIC 0.01µF 10% 50V

C358 1-104-664-11 ELECT 47µF 20% 25V

C359 1-163-021-91 CERAMIC 0.01µF 10% 50V

C360 1-163-021-91 CERAMIC 0.01µF 10% 50V

C361 1-163-037-11 CERAMIC 0.022µF 10% 50V

C362 1-126-964-11 ELECT 10µF 20% 50V

C363 1-126-960-11 ELECT 1µF 20% 50V

C370 VARIANT (SEE VARIANT PARTS LIST)

C371 VARIANT (SEE VARIANT PARTS LIST)

C372 VARIANT (SEE VARIANT PARTS LIST)

C373 1-163-038-91 CERAMIC 0.1µF 25V

C374 1-126-935-11 ELECT 470µF 20% 16V

C375 1-163-038-91 CERAMIC 0.1µF 25V

C376 1-104-664-11 ELECT 47µF 20% 25V

C377 1-126-964-11 ELECT 10µF 20% 50V

C380 VARIANT (SEE VARIANT PARTS LIST)

C381 VARIANT (SEE VARIANT PARTS LIST)

C382 VARIANT (SEE VARIANT PARTS LIST)

C390 1-126-959-11 ELECT 0.47µF 20% 50V

C399 1-126-964-11 ELECT 10µF 20% 50V

C400 1-126-963-11 ELECT 4.7µF 20% 50V

C401 1-126-956-91 ELECT 0.1µF 20% 50V

C402 1-163-017-00 CERAMIC 0.0047µF 10% 50V

C403 1-126-963-11 ELECT 4.7µF 20% 50V

C404 1-126-963-11 ELECT 4.7µF 20% 50V

C405 1-126-963-11 ELECT 4.7µF 20% 50V

C406 1-126-963-11 ELECT 4.7µF 20% 50V

C407 1-126-964-11 ELECT 10µF 20% 50V

C410 1-126-963-11 ELECT 4.7µF 20% 50V

C411 1-126-956-91 ELECT 0.1µF 20% 50V

C412 1-130-495-00 FILM 0.1µF 5% 50V

C413 1-126-967-11 ELECT 47µF 20% 50V

C414 1-163-017-00 CERAMIC 0.0047µF 10% 50V

C415 1-126-956-91 ELECT 0.1µF 20% 50V

C416 1-126-963-11 ELECT 4.7µF 20% 50V

C418 VARIANT (SEE VARIANT PARTS LIST)

C501 1-102-112-00 CERAMIC 330pF 10% 50V

C502 1-106-383-00 MYLAR 0.047µF 10% 200V

C503 1-102-212-00 CERAMIC 820pF 10% 500V

C504 1-102-002-00 CERAMIC 680pF 10% 500V

C505

1-162-134-11 CERAMIC 470pF 10% 2KV

C507

1-119-969-11 MYLAR 14000pF 3% 1.5KV

C508

1-107-364-11 MYLAR 0.01µF 10% 200V

C509

1-162-116-00 CERAMIC 680pF 10% 2KV

C510 1-107-649-11 ELECT 2.2µF 20% 250V

C511

1-117-673-11 FILM 1.5µF 5% 250V

C512 1-106-395-00 MYLAR 0.15µF 10% 200V

C513 1-106-343-00 MYLAR 0.001µF 10% 100V

C514 1-117-891-11 FILM 0.62µF 5% 250V

C515

1-162-116-00 CERAMIC 680pF 10% 2KV

C520

1-129-722-00 FILM 0.047µF 5% 630V

C521 1-164-646-11 CERAMIC 2200pF 10% 500V

C523 1-107-652-11 ELECT 10µF 20% 250V

C524 1-102-244-00 CERAMIC 220pF 10% 500V

C525 1-162-815-11 CERAMIC 47pF 5% 500V

C526 1-126-960-11 ELECT 1µF 20% 50V

C527 1-126-965-11 ELECT 22µF 20% 50V

C528 1-164-690-91 CERAMIC 0.0022µF 5% 50V

C529 1-164-161-11 CERAMIC 0.0022µF 10% 50V

C530 1-163-009-11 CERAMIC 0.001µF 10% 50V

C531 1-106-387-00 MYLAR 0.068µF 10% 200V

C541 1-126-969-11 ELECT 220µF 20% 50V

C542 1-126-967-11 ELECT 47µF 20% 50V

C543 1-137-194-81 FILM 0.47µF 5% 50V

C553 1-107-662-11 ELECT 22µF 20% 250V

C555 1-164-161-11 CERAMIC 0.0022µF 10% 50V

C562 1-126-941-11 ELECT 470µF 20% 25V

C564 1-126-941-11 ELECT 470µF 20% 25V

C571

1-126-964-11 ELECT 10µF 20% 50V

C573 1-126-963-11 ELECT 4.7µF 20% 50V

C574 1-107-635-11 ELECT 4.7µF 20% 160V

C575

1-163-021-91 CERAMIC 0.01µF 10% 50V

C576 1-123-024-21 ELECT 33µF 160V

C581 1-126-963-11 ELECT 4.7µF 20% 50V

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified. COMMON PARTS LISTING A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

— 53—

C591 1-106-355-12 MYLAR 0.0033µF 10% 200V

C601 1-130-495-00 MYLAR 0.1µF 5% 50V

C602 1-126-967-11 ELECT 47µF 20% 50V

C609 1-126-968-11 ELECT 100µF 20% 50V

C610 1-126-964-11 ELECT 10µF 20% 50V

C613 VARIANT (SEE VARIANT PARTS LIST)

C614 1-126-964-11 ELECT 10µF 20% 50V

C615 VARIANT (SEE VARIANT PARTS LIST)

C616 VARIANT (SEE VARIANT PARTS LIST)

C617 VARIANT (SEE VARIANT PARTS LIST)

C618 1-125-893-11 FILM 680pF 3% 1.5KV

C620 1-164-081-11 CERAMIC 470pF 10% 50V

C621 1-136-356-11 FILM 470pF 5% 50V

C625 1-164-625-11 CERAMIC 680pF 10% 500V

C626 1-126-933-11 ELECT 100µF 20% 16V

C627 VARIANT (SEE VARIANT PARTS LIST)

C629 1-104-665-11 ELECT 100µF 20% 25V

C630 1-124-347-00 ELECT 100µF 20% 160V

C631 1-126-944-11 ELECT 3300µF 20% 25V

C633 1-104-341-11 FILM 0.1µF 10% 250V

C634 1-130-471-00 MYLAR 0.001µF 5% 50V

C638 1-104-665-11 ELECT 100µF 20% 25V

C639 1-125-772-91 CERAMIC 1500pF 10% 2KV

C640 1-164-625-11 CERAMIC 680pF 10% 500V

C641 1-126-943-11 ELECT 2200µF 20% 25V

C653 1-104-664-11 ELECT 47µF 20% 25V

C654 1-126-933-11 ELECT 100µF 20% 16V

C655 1-107-636-11 ELECT 10µF 20% 160V

C690 1-126-959-11 ELECT 0.47µF 20% 50V

C691 1-126-941-11 ELECT 470µF 20% 25V

C692 1-104-664-11 ELECT 47µF 20% 25V

C693 1-137-194-81 FILM 0.47µF 5% 50V

C699 VARIANT (SEE VARIANT PARTS LIST)

CONNECTOR

CN101 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P

CN150 VARIANT (SEE VARIANT PARTS LIST)

CN151 VARIANT (SEE VARIANT PARTS LIST)

CN152 VARIANT (SEE VARIANT PARTS LIST)

CN203 1-560-124-00 PLUG, CONNECTOR (2.5MM) 4P

CN251 VARIANT (SEE VARIANT PARTS LIST)

CN253 VARIANT (SEE VARIANT PARTS LIST)

CN254 1-564-508-11 PLUG, CONNECTOR 5P

CN255 1-564-510-11 PLUG, CONNECTOR 7P

CN301 VARIANT (SEE VARIANT PARTS LIST)

CN302 VARIANT (SEE VARIANT PARTS LIST)

CN401 1-564-505-11 PLUG, CONNECTOR 2P

CN402 1-564-505-11 PLUG, CONNECTOR 2P

CN501 1-580-798-11 CONNECTOR PIN (DY) 6P

CN502 1-564-509-11 PLUG, CONNECTOR 6P

CN601 1-580-843-11 PIN, CONNECTOR (POWER) 2P

CN602 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P

CN604 1-564-506-11 PLUG, CONNECTOR 3P

DIODE

D001 8-719-921-44 DIODE MTZJ-5.1C

D002 VARIANT (SEE VARIANT PARTS LIST)

D003 8-719-991-33 DIODE 1SS133T-77

D004 8-719-991-33 DIODE 1SS133T-77

D005 8-719-109-89 DIODE RD5.6ESB2

D201 8-719-110-17 DIODE RD10ESB2

D202 8-719-110-17 DIODE RD10ESB2

D204 8-719-110-17 DIODE RD10ESB2

D205 8-719-982-22 DIODE MTZJ-30D

D207 8-719-109-66 DIODE RD3.3ESB2

D208 VARIANT (SEE VARIANT PARTS LIST)

D250 8-719-108-12 DIODE RD9.1EW

D251 8-719-108-12 DIODE RD9.1EW

D252 8-719-110-17 DIODE RD10ESB2

D253 8-719-110-17 DIODE RD10ESB2

D254 8-719-110-17 DIODE RD10ESB2

D255 8-719-110-17 DIODE RD10ESB2

D280 VARIANT (SEE VARIANT PARTS LIST)

D281 VARIANT (SEE VARIANT PARTS LIST)

D302 8-719-921-44 DIODE MTZJ-5.1C

D303 8-719-991-33 DIODE 1SS133T-77

D304 8-719-991-33 DIODE 1SS133T-77

D305 8-719-991-33 DIODE 1SS133T-77

D306 8-719-991-33 DIODE 1SS133T-77

D388 8-719-921-44 DIODE MTZJ-5.1C

D403 VARIANT (SEE VARIANT PARTS LIST)

D501 8-719-945-80 DIODE ERC06-15S

D502 8-719-908-03 DIODE GP08D

D503 8-719-908-03 DIODE GP08D

D520 8-719-067-63 DIODE MDV04-600RL

D521 8-719-302-43 DIODE EL1Z

D522 8-719-991-33 DIODE 1SS133T-77

D523 8-719-991-33 DIODE 1SS133T-77

D541 8-719-908-03 DIODE GP08D

D550 8-719-110-08 DIODE RD8.2ESB2

D551 8-719-991-33 DIODE 1SS133T-77

D552 8-719-302-43 DIODE EL1Z

D561 8-719-979-85 DIODE EGP20G

D562 8-719-979-85 DIODE EGP20G

D571

8-719-991-33 DIODE 1SS133T-77

D572 8-719-991-33 DIODE 1SS133T-77

D573 8-719-110-08 DIODE RD8.2ESB2

D574 8-719-302-43 DIODE EL1Z

D581

8-719-991-33 DIODE 1SS133T-77

D602 8-719-991-33 DIODE 1SS133T-77

D603 8-719-982-26 DIODE MTZJ-33B

D604 8-719-028-72 DIODE RGP02-17EL-6433

D605 8-719-510-53 DIODE D4SB60L

D606 8-719-108-18 THYRISTOR 5P6M

D607 8-719-991-33 DIODE 1SS133T-77

D608 8-719-110-53 DIODE RD20ESB2

D609 VARIANT (SEE VARIANT PARTS LIST)

ACOMMON PARTS LISTING

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

— 54 —

D610 8-719-510-02 DIODE D1NS4

D611 8-719-063-70 DIODE D1NL20U

D612 8-719-110-17 DIODE RD10ESB2

D613 8-719-063-70 DIODE D1NL20U

D614 8-719-063-70 DIODE D1NL20U

D615 8-719-312-10 DIODE RU4AM-T3

D617 8-719-510-37 DIODE D5LC20U

D620 8-719-110-17 DIODE RD10ESB2

D630 8-719-510-37 DIODE D5LC20U

D640 8-719-991-33 DIODE 1SS133T-77

D650 8-719-109-89 DIODE RD5.6ESB2

FERRITE BEAD

FB350 1-216-295-91 SHORT

FB501 1-410-396-41 FERRITE 0.45µH

FB521 1-410-397-21 FERRITE 1.1µH

FB522 1-410-397-21 FERRITE 1.1µH

FB600 1-412-911-11 FERRITE

FB601 1-412-911-11 FERRITE

FB602 1-412-911-11 FERRITE

FB603 1-412-911-11 FERRITE

FB604 1-412-911-11 FERRITE

FB605 1-412-911-11 FERRITE

FB606 1-412-911-11 FERRITE

FB609 1-412-911-11 FERRITE

IC001 8-759-562-90 IC M37273µF-251SP

IC002 8-759-575-47 IC NJM78LR05BM-TE2

IC003 8-759-527-75 IC M24C04-MN6T

IC004 VARIANT (SEE VARIANT PARTS LIST)

IC010 8-759-450-93 IC NJM2521M-TE1

IC202 8-759-100-96 IC UPC4558G2

IC203 VARIANT (SEE VARIANT PARTS LIST)

IC301 8-752-090-39 IC CXA2133S

IC302 8-752-385-80 IC CXD2073S

IC401 VARIANT (SEE VARIANT PARTS LIST)

IC402 8-752-072-39 IC CXA2021S

IC521 8-759-700-07 IC NJM2903M

IC541 8-759-980-58 IC TDA8172

IC601 VARIANT (SEE VARIANT PARTS LIST)

IC602

8-749-920-61 IC SE-135N

IC604 8-759-198-03 IC PQ09RF21

JACK

J200 1-774-750-21 JACK BLOCK, PIN 2P

J201 1-774-751-11 TERMINAL BLOCK, S

J202 VARIANT (SEE VARIANT PARTS LIST)

J204 VARIANT (SEE VARIANT PARTS LIST)

CHIP CONDUCTOR

JR003 1-216-295-91 SHORT

COIL

L001 1-414-267-11 INDUCTOR 10µH

L002 1-414-273-11 INDUCTOR 100µH

L003 1-414-273-11 INDUCTOR 100µH

L101 1-414-267-11 INDUCTOR 10µH

L150 1-414-273-11 INDUCTOR 100µH

L151 1-414-267-11 INDUCTOR 10µH

L301 1-414-271-11 INDUCTOR 47µH

L302 1-414-267-11 INDUCTOR 10µH

L350 1-414-267-11 INDUCTOR 10µH

L351 1-414-271-11 INDUCTOR 47µH

L501

1-411-976-11 COIL, HORIZONTAL LINEARITY

L502 1-412-552-11 INDUCTOR 2.2mH

L503 1-406-677-11 INDUCTOR 10mH

L504 1-412-533-21 INDUCTOR 47µH

L520 1-409-955-11 INDUCTOR 8mH

L591

1-412-528-61 INDUCTOR 18µH

L601 1-412-529-11 INDUCTOR 22µH

L642 1-412-529-11 INDUCTOR 22µH

L643 1-412-525-31 INDUCTOR 10µH

PHOTO COUPLER

PH600

8-749-010-64 PHOTO COUPLER PC123F2

IC LINK

PS201 VARIANT (SEE VARIANT PARTS LIST)

TRANSISTOR

Q001 8-729-216-22 TRANSISTOR 2SA1162-G

Q080 VARIANT (SEE VARIANT PARTS LIST)

Q082 8-729-422-27 TRANSISTOR 2SD601A-Q

Q083 8-729-422-27 TRANSISTOR 2SD601A-Q

Q101 8-729-422-27 TRANSISTOR 2SD601A-Q

Q170 8-729-422-27 TRANSISTOR 2SD601A-Q

Q200 8-729-422-27 TRANSISTOR 2SD601A-Q

Q201 8-729-422-27 TRANSISTOR 2SD601A-Q

Q203 8-729-216-22 TRANSISTOR 2SA1162-G

Q280 VARIANT (SEE VARIANT PARTS LIST)

Q281 VARIANT (SEE VARIANT PARTS LIST)

Q282 VARIANT (SEE VARIANT PARTS LIST)

Q283 VARIANT (SEE VARIANT PARTS LIST)

Q284 VARIANT (SEE VARIANT PARTS LIST)

Q285 VARIANT (SEE VARIANT PARTS LIST)

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified. COMMON PARTS LISTING A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

— 55—

Q286 8-729-216-22 TRANSISTOR 2SA1162-G

Q287 8-729-216-22 TRANSISTOR 2SA1162-G

Q288 8-729-422-27 TRANSISTOR 2SD601A-Q

Q300

8-729-422-27 TRANSISTOR 2SD601A-Q

Q302 8-729-422-27 TRANSISTOR 2SD601A-Q

Q305 8-729-216-22 TRANSISTOR 2SA1162-G

Q306 8-729-216-22 TRANSISTOR 2SA1162-G

Q307 8-729-216-22 TRANSISTOR 2SA1162-G

Q308 8-729-216-22 TRANSISTOR 2SA1162-G

Q309 8-729-216-22 TRANSISTOR 2SA1162-G

Q310 8-729-216-22 TRANSISTOR 2SA1162-G

Q349 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q350 8-729-216-22 TRANSISTOR 2SA1162-G

Q351 8-729-422-27 TRANSISTOR 2SD601A-Q

Q352 8-729-216-22 TRANSISTOR 2SA1162-G

Q353 8-729-216-22 TRANSISTOR 2SA1162-G

Q354 8-729-216-22 TRANSISTOR 2SA1162-G

Q355 8-729-422-27 TRANSISTOR 2SD601A-Q

Q356 8-729-216-22 TRANSISTOR 2SA1162-G

Q357 8-729-216-22 TRANSISTOR 2SA1162-G

Q358 8-729-422-27 TRANSISTOR 2SD601A-Q

Q359 8-729-216-22 TRANSISTOR 2SA1162-G

Q360 8-729-216-22 TRANSISTOR 2SA1162-G

Q361 8-729-422-27 TRANSISTOR 2SD601A-Q

Q390 VARIANT (SEE VARIANT PARTS LIST)

Q391 VARIANT (SEE VARIANT PARTS LIST)

Q501 8-729-140-50 TRANSISTOR 2SC3209LK

Q502 8-729-043-43 TRANSISTOR 2SC5426-01

Q521 8-729-422-27 TRANSISTOR 2SD601A-Q

Q522 8-729-809-29 TRANSISTOR 2SC4159-E

Q550 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q555 8-729-422-27 TRANSISTOR 2SD601A-Q

Q571

8-729-200-17 TRANSISTOR 2SA1091-O

Q601 8-729-922-37 TRANSISTOR 2SD2144S-UVW

Q602 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q603 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q604 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q607 8-729-922-37 TRANSISTOR 2SD2144S-UVW

Q610 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q630 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q650 8-729-111-55 TRANSISTOR 2SD1312-K

RESISTOR

R001 1-216-033-00 RES, CHIP 220 5% 1/10W

R002 1-216-073-00 RES, CHIP 10K 5% 1/10W

R003 1-216-033-00 RES, CHIP 220 5% 1/10W

R004 1-216-073-00 RES, CHIP 10K 5% 1/10W

R005 1-216-295-91 SHORT

R006 1-216-295-91 SHORT

R007 1-216-025-91 RES, CHIP 100 5% 1/10W

R008 1-216-033-00 RES, CHIP 220 5% 1/10W

R010 1-216-033-00 RES, CHIP 220 5% 1/10W

R011 1-216-033-00 RES, CHIP 220 5% 1/10W

R013 1-216-081-00 RES, CHIP 22K 5% 1/10W

R016 1-216-041-00 RES, CHIP 470 5% 1/10W

R017 1-216-113-00 RES, CHIP 470K 5% 1/10W

R018 1-216-049-91 RES, CHIP 1K 5% 1/10W

R019 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R020 VARIANT (SEE VARIANT PARTS LIST)

R021 VARIANT (SEE VARIANT PARTS LIST)

R022 VARIANT (SEE VARIANT PARTS LIST)

R023 VARIANT (SEE VARIANT PARTS LIST)

R025 1-249-426-11 CARBON 5.6K 5% 1/4W

R026 1-249-426-11 CARBON 5.6K 5% 1/4W

R027 1-249-426-11 CARBON 5.6K 5% 1/4W

R028 1-216-049-91 RES, CHIP 1K 5% 1/10W

R031 1-216-045-00 RES, CHIP 680 5% 1/10W

R032 1-247-815-91 CARBON 220 5% 1/4W

R033 1-247-815-91 CARBON 220 5% 1/4W

R034 1-216-033-00 RES, CHIP 220 5% 1/10W

R035 1-216-033-00 RES, CHIP 220 5% 1/10W

R038 1-216-049-91 RES, CHIP 1K 5% 1/10W

R039 1-216-295-91 SHORT

R040 1-249-413-11 CARBON 470 5% 1/4W

R041 1-216-033-00 RES, CHIP 220 5% 1/10W

R043 1-216-049-91 RES, CHIP 1K 5% 1/10W

R044 1-247-815-91 CARBON 220 5% 1/4W

R045 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R046 1-247-815-91 CARBON 220 5% 1/4W

R047 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R048 1-216-025-91 RES, CHIP 100 5% 1/10W

R049 1-216-089-91 RES, CHIP 47K 5% 1/10W

R050 1-216-073-00 RES, CHIP 10K 5% 1/10W

R051 1-216-033-00 RES, CHIP 220 5% 1/10W

R052 1-216-033-00 RES, CHIP 220 5% 1/10W

R054 1-216-073-00 RES, CHIP 10K 5% 1/10W

R056 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R057 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R058 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R060 1-216-295-91 SHORT

R061 1-216-295-91 SHORT

R065 VARIANT (SEE VARIANT PARTS LIST)

R066 1-216-033-00 RES, CHIP 220 5% 1/10W

R069 1-247-815-91 CARBON 220 5% 1/4W

R070 1-249-425-11 CARBON 4.7K 5% 1/4W

R071 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R073 1-249-425-11 CARBON 4.7K 5% 1/4W

R074 1-216-073-00 RES, CHIP 10K 5% 1/10W

R075 1-216-073-00 RES, CHIP 10K 5% 1/10W

R076 1-216-121-91 RES, CHIP 1M 5% 1/10W

R077 1-216-097-91 RES, CHIP 100K 5% 1/10W

R080 VARIANT (SEE VARIANT PARTS LIST)

R082 VARIANT (SEE VARIANT PARTS LIST)

R083 VARIANT (SEE VARIANT PARTS LIST)

R084 VARIANT (SEE VARIANT PARTS LIST)

R085 1-216-049-91 RES, CHIP 1K 5% 1/10W

R086 1-216-045-00 RES, CHIP 680 5% 1/10W

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

COMMON PARTS LISTING

— 56 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

R087 1-216-045-00 RES, CHIP 680 5% 1/10W

R088 1-216-045-00 RES, CHIP 680 5% 1/10W

R090 VARIANT (SEE VARIANT PARTS LIST)

R091 1-216-073-00 RES, CHIP 10K 5% 1/10W

R092 1-216-073-00 RES, CHIP 10K 5% 1/10W

R095 1-216-073-00 RES, CHIP 10K 5% 1/10W

R096 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R097 1-216-049-91 RES, CHIP 1K 5% 1/10W

R101 1-216-073-00 RES, CHIP 10K 5% 1/10W

R120 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R121 1-216-073-00 RES, CHIP 10K 5% 1/10W

R150 1-216-025-91 RES, CHIP 100 5% 1/10W

R151 1-216-025-91 RES, CHIP 100 5% 1/10W

R170 1-216-025-91 RES, CHIP 100 5% 1/10W

R171 1-216-049-91 RES, CHIP 1K 5% 1/10W

R172 1-216-295-91 SHORT

R173 1-216-295-91 SHORT

R200 1-216-022-00 RES, CHIP 75 5% 1/10W

R201 1-216-113-00 RES, CHIP 470K 5% 1/10W

R202 1-216-113-00 RES, CHIP 470K 5% 1/10W

R203 1-216-025-91 RES, CHIP 100 5% 1/10W

R204 1-216-043-91 RES, CHIP 560 5% 1/10W

R205 1-216-043-91 RES, CHIP 560 5% 1/10W

R207 1-216-025-91 RES, CHIP 100 5% 1/10W

R211 VARIANT (SEE VARIANT PARTS LIST)

R212 VARIANT (SEE VARIANT PARTS LIST)

R213 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R214 1-216-113-00 RES, CHIP 470K 5% 1/10W

R215 1-216-033-00 RES, CHIP 220 5% 1/10W

R216 1-216-113-00 RES, CHIP 470K 5% 1/10W

R217 1-216-033-00 RES, CHIP 220 5% 1/10W

R218 1-216-067-00 RES, CHIP 5.6K 5% 1/10W

R219 1-216-073-00 RES, CHIP 10K 5% 1/10W

R220 1-216-073-00 RES, CHIP 10K 5% 1/10W

R221 1-216-073-00 RES, CHIP 10K 5% 1/10W

R222 1-216-067-00 RES, CHIP 5.6K 5% 1/10W

R223 1-216-073-00 RES, CHIP 10K 5% 1/10W

R224 1-216-073-00 RES, CHIP 10K 5% 1/10W

R225 1-216-073-00 RES, CHIP 10K 5% 1/10W

R226 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R227 1-216-097-91 RES, CHIP 100K 5% 1/10W

R228 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R229 1-216-097-91 RES, CHIP 100K 5% 1/10W

R231 VARIANT (SEE VARIANT PARTS LIST)

R232 VARIANT (SEE VARIANT PARTS LIST)

R233 VARIANT (SEE VARIANT PARTS LIST)

R236 VARIANT (SEE VARIANT PARTS LIST)

R241 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R242 1-216-083-00 RES, CHIP 27K 5% 1/10W

R243 1-216-689-11 RES, CHIP 39K 5% 1/10W

R244 1-216-049-91 RES, CHIP 1K 5% 1/10W

R245 1-216-049-91 RES, CHIP 1K 5% 1/10W

R248 1-216-049-91 RES, CHIP 1K 5% 1/10W

R250 1-216-033-00 RES, CHIP 220 5% 1/10W

R252 1-216-033-00 RES, CHIP 220 5% 1/10W

R253 1-215-899-11 METAL 15K 5% 2W

R254 1-216-033-00 RES, CHIP 220 5% 1/10W

R255 VARIANT (SEE VARIANT PARTS LIST)

R256 1-216-033-00 RES, CHIP 220 5% 1/10W

R257 1-216-073-00 RES, CHIP 10K 5% 1/10W

R258 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R259 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R260 1-216-025-91 RES, CHIP 100 5% 1/10W

R261 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R262 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R263 1-216-033-00 RES, CHIP 220 5% 1/10W

R264 1-216-033-00 RES, CHIP 220 5% 1/10W

R265 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R266 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R267 1-216-022-00 RES, CHIP 75 5% 1/10W

R269 1-216-049-91 RES, CHIP 1K 5% 1/10W

R270 1-216-022-00 RES, CHIP 75 5% 1/10W

R271 1-216-113-00 RES, CHIP 470K 5% 1/10W

R272 1-216-113-00 RES, CHIP 470K 5% 1/10W

R273 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R274 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R275 1-216-295-91 SHORT

R276 1-216-295-91 SHORT

R277 1-216-295-91 SHORT

R278 VARIANT (SEE VARIANT PARTS LIST)

R279 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R280 VARIANT (SEE VARIANT PARTS LIST)

R281 VARIANT (SEE VARIANT PARTS LIST)

R282 VARIANT (SEE VARIANT PARTS LIST)

R283 VARIANT (SEE VARIANT PARTS LIST)

R284 VARIANT (SEE VARIANT PARTS LIST)

R285 VARIANT (SEE VARIANT PARTS LIST)

R286 VARIANT (SEE VARIANT PARTS LIST)

R287 VARIANT (SEE VARIANT PARTS LIST)

R288 VARIANT (SEE VARIANT PARTS LIST)

R289 VARIANT (SEE VARIANT PARTS LIST)

R290 VARIANT (SEE VARIANT PARTS LIST)

R291 VARIANT (SEE VARIANT PARTS LIST)

R292 VARIANT (SEE VARIANT PARTS LIST)

R293 VARIANT (SEE VARIANT PARTS LIST)

R294 VARIANT (SEE VARIANT PARTS LIST)

R295 VARIANT (SEE VARIANT PARTS LIST)

R296 1-249-437-11 CARBON 47K 5% 1/4W

R297 1-216-043-91 RES, CHIP 560 5% 1/10W

R298 1-216-041-00 RES, CHIP 470 5% 1/10W

R299 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R301 1-216-295-91 SHORT

R304 1-216-073-00 RES, CHIP 10K 5% 1/10W

R305 1-216-033-00 RES, CHIP 220 5% 1/10W

R306 1-208-806-11 RES, CHIP 10K 0.50% 1/10W

R307 1-216-071-00 RES, CHIP 8.2K 5% 1/10W

R308 1-216-025-91 RES, CHIP 100 5% 1/10W

R310 1-216-049-91 RES, CHIP 1K 5% 1/10W

R312 1-216-033-00 RES, CHIP 220 5% 1/10W

R313 1-216-033-00 RES, CHIP 220 5% 1/10W

— 57 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

COMMON PARTS LISTING

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

R314 1-216-033-00 RES, CHIP 220 5% 1/10W

R315 1-216-033-00 RES, CHIP 220 5% 1/10W

R316 1-247-807-31 CARBON 100 5% 1/4W

R317 1-216-025-91 RES, CHIP 100 5% 1/10W

R318 1-216-025-91 RES, CHIP 100 5% 1/10W

R319 1-216-073-00 RES, CHIP 10K 5% 1/10W

R320 1-216-025-91 RES, CHIP 100 5% 1/10W

R321 1-216-025-91 RES, CHIP 100 5% 1/10W

R322 1-216-025-91 RES, CHIP 100 5% 1/10W

R323 1-216-037-00 RES, CHIP 330 5% 1/10W

R324 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R325 1-216-022-00 RES, CHIP 75 5% 1/10W

R326 1-216-033-00 RES, CHIP 220 5% 1/10W

R328 1-216-025-91 RES, CHIP 100 5% 1/10W

R329 1-216-025-91 RES, CHIP 100 5% 1/10W

R330 1-216-025-91 RES, CHIP 100 5% 1/10W

R331 1-216-025-91 RES, CHIP 100 5% 1/10W

R333 1-216-049-91 RES, CHIP 1K 5% 1/10W

R334 1-216-025-91 RES, CHIP 100 5% 1/10W

R335 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R336 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R337 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R339 1-216-295-91 SHORT

R340 1-249-417-11 CARBON 1K 5% 1/4W

R341 1-216-073-00 RES, CHIP 10K 5% 1/10W

R342 1-216-069-00 RES, CHIP 6.8K 5% 1/10W

R343 1-216-129-00 RES, CHIP 2.2M 5% 1/10W

R344 1-216-295-91 SHORT

R345 1-216-129-00 RES, CHIP 2.2M 5% 1/10W

R346 1-216-129-00 RES, CHIP 2.2M 5% 1/10W

R347 1-216-049-91 RES, CHIP 1K 5% 1/10W

R348 1-216-043-91 RES, CHIP 560 5% 1/10W

R349 1-216-069-00 RES, CHIP 6.8K 5% 1/10W

R350 1-208-766-11 RES, CHIP 220 0.50% 1/10W

R351 1-208-766-11 RES, CHIP 220 0.50% 1/10W

R352 1-208-794-11 RES, CHIP 3.3K 0.50% 1/10W

R353 1-216-295-91 SHORT

R354 1-208-794-11 RES, CHIP 3.3K 0.50% 1/10W

R355 1-216-295-91 SHORT

R356 1-216-059-00 RES, CHIP 2.7K 5% 1/10W

R357 1-216-091-00 RES, CHIP 56K 5% 1/10W

R358 1-216-043-91 RES, CHIP 560 5% 1/10W

R359 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R360 1-216-049-91 RES, CHIP 1K 5% 1/10W

R361 1-216-049-91 RES, CHIP 1K 5% 1/10W

R362 1-216-043-91 RES, CHIP 560 5% 1/10W

R363 1-216-037-00 RES, CHIP 330 5% 1/10W

R364 1-216-025-91 RES, CHIP 100 5% 1/10W

R365 1-216-025-91 RES, CHIP 100 5% 1/10W

R366 1-216-053-00 RES, CHIP 1.5K 5% 1/10W

R367 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R368 1-216-033-00 RES, CHIP 220 5% 1/10W

R369 1-216-041-00 RES, CHIP 470 5% 1/10W

R370 1-216-033-00 RES, CHIP 220 5% 1/10W

R372 1-216-035-00 RES, CHIP 270 5% 1/10W

R373 1-216-025-91 RES, CHIP 100 5% 1/10W

R374 1-216-025-91 RES, CHIP 100 5% 1/10W

R375 1-216-053-00 RES, CHIP 1.5K 5% 1/10W

R376 1-216-049-91 RES, CHIP 1K 5% 1/10W

R377 1-216-049-91 RES, CHIP 1K 5% 1/10W

R378 1-216-033-00 RES, CHIP 220 5% 1/10W

R379 1-216-049-91 RES, CHIP 1K 5% 1/10W

R380 1-208-790-11 RES, CHIP 2.2K 0.50% 1/10W

R381 1-216-053-00 RES, CHIP 1.5K 5% 1/10W

R383 1-216-017-91 RES, CHIP 47 5% 1/10W

R384 1-216-097-91 RES, CHIP 100K 5% 1/10W

R385 1-216-073-00 RES, CHIP 10K 5% 1/10W

R386 1-216-061-00 RES, CHIP 3.3K 5% 1/10W

R387 1-216-067-00 RES, CHIP 5.6K 5% 1/10W

R390 VARIANT (SEE VARIANT PARTS LIST)

R391 VARIANT (SEE VARIANT PARTS LIST)

R392 VARIANT (SEE VARIANT PARTS LIST)

R394 VARIANT (SEE VARIANT PARTS LIST)

R395 VARIANT (SEE VARIANT PARTS LIST)

R399 1-216-295-91 SHORT

R400 VARIANT (SEE VARIANT PARTS LIST)

R402 1-216-121-91 RES, CHIP 1M 5% 1/10W

R403 1-216-033-00 RES, CHIP 220 5% 1/10W

R404 1-216-033-00 RES, CHIP 220 5% 1/10W

R407 VARIANT (SEE VARIANT PARTS LIST)

R432 VARIANT (SEE VARIANT PARTS LIST)

R450 VARIANT (SEE VARIANT PARTS LIST)

R451 VARIANT (SEE VARIANT PARTS LIST)

R502

1-215-892-11 METAL 1K 5% 2W

R503

1-249-426-11 CARBON 5.6K 5% 1/4W

R504

1-216-349-00 METAL 1 5% 1W

R505 1-249-401-11 CARBON 47 5% 1/4W

R506 1-215-860-11 METAL 33 5% 1W

R507

1-260-097-11 CARBON 680 5% 1/2W

R508

1-216-449-11 METAL 56 5% 2W

R509

1-216-481-11 METAL 1.2K 5% 3W

R510

1-216-449-11 METAL 56 5% 2W

R511 1-247-843-11 CARBON 3.3K 5% 1/4W

R520

1-215-861-00 METAL 47 5% 1W

R521 1-249-411-11 CARBON 330 5% 1/4W

R522 1-249-415-11 CARBON 680 5% 1/4W

R523 1-216-073-00 RES, CHIP 10K 5% 1/10W

R524 1-249-429-11 CARBON 10K 5% 1/4W

R525 1-249-427-11 CARBON 6.8K 5% 1/4W

R526 1-216-081-00 RES, CHIP 22K 5% 1/10W

R527 1-216-079-00 RES, CHIP 18K 5% 1/10W

R528 1-216-057-00 RES, CHIP 2.2K 5% 1/10W

R529 1-216-101-00 RES, CHIP 150K 5% 1/10W

R530 1-216-089-91 RES, CHIP 47K 5% 1/10W

R532 1-215-437-00 METAL 4.7K 1% 1/4W

R533 1-215-461-00 METAL 47K 1% 1/4W

R534 1-215-451-00 METAL 18K 1% 1/4W

R535 1-249-441-11 CARBON 100K 5% 1/4W

R541 1-249-430-11 CARBON 12K 5% 1/4W

ACOMMON PARTS LISTING

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

— 58 —

R542 1-249-429-11 CARBON 10K 5% 1/4W

R543 1-249-429-11 CARBON 10K 5% 1/4W

R544

1-216-351-00 METAL 1.5 5% 1W

R546

1-215-890-11 METAL 470 5% 2W

R547

1-249-385-11 CARBON 2.2 5% 1/4W

R548 1-249-430-11 CARBON 12K 5% 1/4W

R549 1-249-429-11 CARBON 10K 5% 1/4W

R550 1-216-061-00 RES, CHIP 3.3K 5% 1/10W

R551 1-249-413-11 CARBON 470 5% 1/4W

R552 1-247-887-00 CARBON 220K 5% 1/4W

R553

1-260-312-11 CARBON 47 5% 1/2W

R554 1-216-101-00 RES, CHIP 150K 5% 1/10W

R555 1-216-093-91 RES, CHIP 68K 5% 1/10W

R556 1-216-081-00 RES, CHIP 22K 5% 1/10W

R557 1-249-431-11 CARBON 15K 5% 1/4W

R558 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R559 1-216-121-91 RES, CHIP 1M 5% 1/10W

R561

1-249-377-11 CARBON 0.47 5% 1/4W

R562

1-260-288-11 CARBON 0.47 5% 1/2W

R571

1-216-365-00 METAL 0.47 5% 2W

R572

1-249-429-11 CARBON 10K 5% 1/4W

R573

1-247-895-91 CARBON 470K 5% 1/4W

R574

1-249-416-11 CARBON 820 5% 1/4W

R575

1-247-895-91 CARBON 470K 5% 1/4W

R576

1-249-441-11 CARBON 100K 5% 1/4W

R578

1-215-902-11 METAL 47K 5% 1W

R579 1-208-777-11 RES, CHIP 620 0.50% 1/10W

R580 1-215-469-00 METAL 100K 1% 1/4W

R581 1-216-065-91 RES, CHIP 4.7K 5% 1/10W

R582

1-208-806-11 RES, CHIP 10K 0.50% 1/10W

R583

1-208-830-11 RES, CHIP 100K 0.50% 1/10W

R584

1-208-822-11 RES, CHIP 47K 0.50% 1/10W

R585 1-216-073-00 RES, CHIP 10K 5% 1/10W

R586

1-216-073-00 RES, CHIP 10K 5% 1/10W

R587 1-216-073-00 RES, CHIP 10K 5% 1/10W

R591

1-215-882-00 METAL 22 5% 2W

R607 1-215-859-00 METAL 22 5% 1W

R625 1-249-440-11 CARBON 82K 5% 1/4W

R626 1-249-417-11 CARBON 1K 5% 1/4W

R627 1-240-251-11 CMT,MELF 6.8 5% 10W

R628 1-249-441-11 CARBON 100K 5% 1/4W

R629 1-260-324-11 CARBON 470 5% 1/2W

R630 1-249-429-11 CARBON 10K 5% 1/4W

R631 1-249-437-11 CARBON 47K 5% 1/4W

R632

1-202-933-61 FUSIBLE 0.1 10% 1/2W

R633 VARIANT (SEE VARIANT PARTS LIST)

R634 1-249-437-11 CARBON 47K 5% 1/4W

R636 1-249-421-11 CARBON 2.2K 5% 1/4W

R637 VARIANT (SEE VARIANT PARTS LIST)

R638 VARIANT (SEE VARIANT PARTS LIST)

R639 1-216-361-21 METAL 0.22 5% 2W

R640 1-249-415-11 CARBON 680 5% 1/4W

R641

1-216-387-11 METAL 0.68 5% 3W

R642 1-249-437-11 CARBON 47K 5% 1/4W

R643 1-215-857-11 METAL 10 5% 1W

R645 1-249-429-11 CARBON 10K 5% 1/4W

R646 1-216-485-11 METAL 5.6K 5% 3W

R647 1-249-421-11 CARBON 2.2K 5% 1/4W

R649 1-249-417-11 CARBON 1K 5% 1/4W

R650 1-249-415-11 CARBON 680 5% 1/4W

R651 1-249-419-11 CARBON 1.5K 5% 1/4W

R652 1-247-843-11 CARBON 3.3K 5% 1/4W

R653

1-215-898-11 METAL 10K 5% 2W

R654 1-249-419-11 CARBON 1.5K 5% 1/4W

R656 VARIANT (SEE VARIANT PARTS LIST)

R657 1-249-417-11 CARBON 1K 5% 1/4W

R658 1-249-421-11 CARBON 2.2K 5% 1/4W

R659 1-216-362-11 METAL 0.27 5% 2W

R660 1-249-429-11 CARBON 10K 5% 1/4W

R662 1-1249-417-11 CARBON 1K 5% 1/4W

R664 1-249-417-11 CARBON 1K 5% 1/4W

R665 1-249-429-11 CARBON 10K 5% 1/4W

R672 1-216-485-11 METAL 5.6K 5% 3W

R673 1-249-421-11 CARBON 2.2K 5% 1/4W

R674 1-247-863-91 CARBON 22K 5% 1/4W

R675

1-216-387-11 METAL 0.68 5% 3W

R676 1-216-485-11 METAL 5.6K 5% 3W

RELAY

RY602

1-755-266-11 RELAY, AC POWER

RY603

1-755-018-11 RELAY

SWITCH

S001 VARIANT (SEE VARIANT PARTS LIST)

S002 VARIANT (SEE VARIANT PARTS LIST)

S003 VARIANT (SEE VARIANT PARTS LIST)

S004 VARIANT (SEE VARIANT PARTS LIST)

S005 VARIANT (SEE VARIANT PARTS LIST)

S006 VARIANT (SEE VARIANT PARTS LIST)

S007 VARIANT (SEE VARIANT PARTS LIST)

SWITCH

SW501 1-572-707-11 SWITCH, LEVER

TRANSFORMER

T501 1-437-210-11 TRANSFORMER, HORIZONTAL DRIVE

T502 1-431-731-11 TRANSFORMER, MODULATION

T504

1-453-268-21 TRANSFORMER, FBT ASSY, NX-4005//X4J4

T603 VARIANT (SEE VARIANT PARTS LIST)

The components identified by in this manual have been

carefully factory-selected for each set in order to satisfy

regulations regarding X-ray radiation. Should replacement

be required, replace only with the value originally used.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified. COMMON PARTS LISTING A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

— 59—

THERMISTOR

THP601 VARIANT (SEE VARIANT PARTS LIST)

THP602 VARIANT (SEE VARIANT PARTS LIST)

TUNER

TU101 8-598-431-00 TUNER, FSS BTF-WA411

CRYSTAL

X001 1-767-487-11 VIBRATOR, CRYSTAL

X301 1-567-505-11 OSCILLATOR CRYSTAL

— 60 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

The parts on this page belong to the following model(s) only:

ABOARD VARIANT PARTS LIST The components identified

by shading and mark

are

critical for safety. Replace

only with part number

specified.

Les composants identifies

per un trame et une marque

sont critiques pour la

securite. Ne les remplacer

que par une piece portant

le numero specifie.

KV-27S42

CAPACITOR

C216 1-126-959-11 ELECT 0.47µF 50V 20%

C217 1-126-959-11 ELECT 0.47µF 50V 20%

C380 1-163-021-91 CERAMIC 0.01µF 50V 10%

C381 1-163-021-91 CERAMIC 0.01µF 50V 10%

C382 1-163-021-91 CERAMIC 0.01µF 50V 10%

C418 1-126-964-11 ELECT 10µF 50V 20%

C613

1-128-717-11 ELECT 680µF 250V 20%

C615 1-113-920-11 CERAMIC 0.0022µF 250V 20%

CONNECTOR

CN301 1-564-508-11 PLUG, CONNECTOR 5P

DIODE

D002 8-719-070-80 DIODE LNK0120022G

D208 8-719-110-17 DIODE RD10ESB2

D403 8-719-991-33 DIODE 1SS133T-77

IC004 8-742-014-11 HYB IC SBX1981-51

IC203 8-759-366-77 IC MM1311AD

IC401 8-759-490-17 IC TDA7057AQ/N2

IC601

8-749-015-61 IC STR-F6626

IC LINK

PS201

1-532-984-11 LINK, IC 2A/90V

RESISTOR

R020 1-216-069-00 RES,CHIP 6.8K 1/10W 5%

R021 1-249-415-11 CARBON 680 1/4W 5%

R022 1-249-416-11 CARBON 820 1/4W 5%

R023 1-216-057-00 RES,CHIP 2.2K 1/10W 5%

R065 1-216-295-91 SHORT

R090 1-249-429-11 CARBON 10K 1/4W 5%

R211 1-247-807-31 CARBON 100 1/4W 5%

R212 1-216-065-91 RES,CHIP 4.7K 1/10W 5%

R231 1-249-421-11 CARBON 2.2K 1/4W 5%

R232 1-249-429-11 CARBON 10K 1/4W 5%

R233 1-249-429-11 CARBON 10K 1/4W 5%

R236 1-249-421-11 CARBON 2.2K 1/4W 5%

R400 1-216-081-00 RES,CHIP 22K 1/10W 5%

R407 1-216-295-91 SHORT

R432 1-249-428-11 CARBON 8.2K 1/4W 5%

R633 1-215-483-00 METAL 390K 1/4W 1%

R656 1-249-399-11 CARBON 33 1/4W 5%

SWITCH

S001 1-692-431-21 SWITCH, TACTILE

S002 1-692-431-21 SWITCH, TACTILE

S003 1-692-431-21 SWITCH, TACTILE

S004 1-692-431-21 SWITCH, TACTILE

S005 1-692-431-21 SWITCH, TACTILE

S006 1-692-431-21 SWITCH, TACTILE

S007 1-692-431-21 SWITCH, TACTILE

TRANSFORMER

T603

1-433-806-11 TRANSFORMER, REGULATOR

THERMISTOR

THP602

1-809-539-11 THERMISTOR, POSITIVE

A BOARD VARIANT LIST: KV-27S42

— 61 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

The parts on this page belong to the following model(s) only:

BOARD VARIANT PARTS LIST

The components identified

by shading and mark

are

critical for safety. Replace

only with part number

specified.

Les composants identifies

per un trame et une marque

sont critiques pour la

securite. Ne les remplacer

que par une piece portant

le numero specifie.

A BOARD VARIANT LIST: KV-29SL42/29SL42C/29XL42M

KV-29SL42/29SL42C/29XL42M

CAPACITOR

C216 1-126-959-11 ELECT 0.47µF 20% 50V

C217 1-126-959-11 ELECT 0.47µF 20% 50V

C380 1-163-021-91 CERAMIC 0.01µF 10% 50V

C381 1-163-021-91 CERAMIC 0.01µF 10% 50V

C382 1-163-021-91 CERAMIC 0.01µF 10% 50V

C418 1-126-964-11 ELECT 10µF 20% 50V

C613

1-128-718-11 ELECT 560µF 20% 400V

C615 1-113-924-11 CERAMIC 0.0047µF 20% 250V

C616 1-130-202-00 FILM 0.022µF 10% 400V

C617 1-107-824-11 CERAMIC 220pF 5% 1KV

C699 1-113-924-11 CERAMIC 0.0047µF 20% 250V

CONNECTOR

CN301 1-564-508-11 PLUG, CONNECTOR 5P

DIODE

D002 8-719-070-80 DIODE LNK0120022G

D208 8-719-110-17 DIODE RD10ESB2

D403 8-719-991-33 DIODE 1SS133T-77

D609 8-719-311-31 DIODE RU-1P

IC004 8-742-014-11 HYB IC SBX1981-51

IC203 8-759-366-77 IC MM1311AD

IC401 8-759-490-17 IC TDA7057AQ/N2

IC601

8-749-014-48 IC STR-F6656

IC LINK

PS201

1-532-984-11 LINK, IC 2A/90V

RESISTOR

R020 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R021 1-249-415-11 CARBON 680 5% 1/4W

R022 1-249-416-11 CARBON 820 5% 1/4W

R023 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R065 1-216-295-91 SHORT

R090 1-249-429-11 CARBON 10K 5% 1/4W

R211 1-247-807-31 CARBON 100 5% 1/4W

R212 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R231 1-249-421-11 CARBON 2.2K 5% 1/4W

R232 1-249-429-11 CARBON 10K 5% 1/4W

R233 1-249-429-11 CARBON 10K 5% 1/4W

R236 1-249-421-11 CARBON 2.2K 5% 1/4W

R400 1-216-081-00 RES,CHIP 22K 5% 1/10W

R407 1-216-295-91 SHORT

R432 1-249-428-11 CARBON 8.2K 5% 1/4W

R633 1-215-479-00 METAL 270K 1% 1/4W

R637 1-215-929-11 METAL 100K 5% 3W

R638 1-215-479-00 METAL 270K 1% 1/4W

R656 1-249-402-11 CARBON 56 5% 1/4W

SWITCH

S001 1-692-431-21 SWITCH, TACTILE

S002 1-692-431-21 SWITCH, TACTILE

S003 1-692-431-21 SWITCH, TACTILE

S004 1-692-431-21 SWITCH, TACTILE

S005 1-692-431-21 SWITCH, TACTILE

S006 1-692-431-21 SWITCH, TACTILE

S007 1-692-431-21 SWITCH, TACTILE

TRANSFORMER

T603

1-433-807-11 TRANSFORMER, REGULATOR

THERMISTOR

THP601

1-803-540-11 THERMISTOR

— 62 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

The parts on this page belong to the following model(s) only:

ABOARD VARIANT PARTS LIST The components identified

by shading and mark

are

critical for safety. Replace

only with part number

specified.

Les composants identifies

per un trame et une marque

sont critiques pour la

securite. Ne les remplacer

que par une piece portant

le numero specifie.

CAPACITOR

C216 1-126-959-11 ELECT 0.47µF 20% 50V

C217 1-126-959-11 ELECT 0.47µF 20% 50V

C370 1-163-021-91 CERAMIC 0.01µF 10% 50V

C371 1-163-021-91 CERAMIC 0.01µF 10% 50V

C372 1-163-021-91 CERAMIC 0.01µF 10% 50V

C418 1-126-964-11 ELECT 10µF 20% 50V

C613

1-128-717-11 ELECT 680µF 20% 250V

C615 1-113-920-11 CERAMIC 0.0022µF 20% 250V

CONNECTOR

CN301 1-564-508-11 PLUG, CONNECTOR 5P

CN302 1-691-616-11 CONNECTOR, BOARD TO BOARD

DIODE

D002 8-719-070-80 DIODE LNK0120022G

D208 8-719-110-17 DIODE RD10ESB2

D403 8-719-991-33 DIODE 1SS133T-77

IC004 8-742-014-11 HYB IC SBX1981-51

IC203 8-759-534-81 IC MM1313AD/

IC401 8-759-490-17 IC TDA7057AQ/N2

IC601

8-749-015-61 IC STR-F6626

JACK

J202 1-774-749-11 JACK BLOCK, PIN

IC LINK

PS201

1-532-984-11 LINK, IC 2A/90V

RESISTOR

R020 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R021 1-249-415-11 CARBON 680 5% 1/4W

R022 1-249-416-11 CARBON 820 5% 1/4W

R023 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R065 1-216-295-91 SHORT

R090 1-249-429-11 CARBON 10K 5% 1/4W

R211 1-247-807-31 CARBON 100 5% 1/4W

R212 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R231 1-249-421-11 CARBON 2.2K 5% 1/4W

R232 1-249-429-11 CARBON 10K 5% 1/4W

KV-27S46

A BOARD VARIANT LIST: KV-27S46 R233 1-249-429-11 CARBON 10K 5% 1/4W

R236 1-249-421-11 CARBON 2.2K 5% 1/4W

R283 1-216-295-91 SHORT

R400 1-216-081-00 RES,CHIP 22K 5% 1/10W

R432 1-249-428-11 CARBON 8.2K 5% 1/4W

R633 1-215-483-00 METAL 390K 1% 1/4W

R656 1-249-399-11 CARBON 33 5% 1/4W

SWITCH

S001 1-692-431-21 SWITCH, TACTILE

S002 1-692-431-21 SWITCH, TACTILE

S003 1-692-431-21 SWITCH, TACTILE

S004 1-692-431-21 SWITCH, TACTILE

S005 1-692-431-21 SWITCH, TACTILE

S006 1-692-431-21 SWITCH, TACTILE

S007 1-692-431-21 SWITCH, TACTILE

TRANSFORMER

T603

1-433-806-11 TRANSFORMER, REGULATOR

THERMISTOR

THP602

1-809-539-11 THERMISTOR, POSITIVE

— 63 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

The parts on this page belong to the following model(s) only:

BOARD VARIANT PARTS LIST

The components identified

by shading and mark

are

critical for safety. Replace

only with part number

specified.

Les composants identifies

per un trame et une marque

sont critiques pour la

securite. Ne les remplacer

que par une piece portant

le numero specifie.

A BOARD VARIANT LIST: KV-29SL46

KV-29SL46

CAPACITOR

C216 1-126-959-11 ELECT 0.47µF 20% 50V

C217 1-126-959-11 ELECT 0.47µF 20% 50V

C370 1-163-021-91 CERAMIC 0.01µF 10% 50V

C371 1-163-021-91 CERAMIC 0.01µF 10% 50V

C372 1-163-021-91 CERAMIC 0.01µF 10% 50V

C418 1-126-964-11 ELECT 10µF 20% 50V

C613

1-128-718-11 ELECT 560µF 20% 400V

C615 1-113-924-11 CERAMIC 0.0047µF 20% 250V

C616 1-130-202-00 FILM 0.022µF 10% 400V

C617 1-107-824-11 CERAMIC 220pF 5% 1KV

C699 1-113-924-11 CERAMIC 0.0047µF 20% 250V

CONNECTOR

CN301 1-564-508-11 PLUG, CONNECTOR 5P

DIODE

D002 8-719-070-80 DIODE LNK0120022G

D208 8-719-110-17 DIODE RD10ESB2

D403 8-719-991-33 DIODE 1SS133T-77

D609 8-719-311-31 DIODE RU-1P

IC004 8-742-014-11 HYB IC SBX1981-51

IC203 8-759-534-81 IC MM1313AD/

IC401 8-759-490-17 IC TDA7057AQ/N2

IC601

8-749-014-48 IC STR-F6656

JACK

J202 1-774-749-11 JACK BLOCK, PIN

IC LINK

PS201

1-532-984-11 LINK, IC 2A/90V

RESISTOR

R020 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R021 1-249-415-11 CARBON 680 5% 1/4W

R022 1-249-416-11 CARBON 820 5% 1/4W

R023 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R065 1-216-295-91 SHORT

R090 1-249-429-11 CARBON 10K 5% 1/4W

R211 1-247-807-31 CARBON 100 5% 1/4W

R212 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R231 1-249-421-11 CARBON 2.2K 5% 1/4W

R232 1-249-429-11 CARBON 10K 5% 1/4W

R233 1-249-429-11 CARBON 10K 5% 1/4W

R236 1-249-421-11 CARBON 2.2K 5% 1/4W

R283 1-216-295-91 SHORT

R400 1-216-081-00 RES,CHIP 22K 5% 1/10W

R432 1-249-428-11 CARBON 8.2K 5% 1/4W

R633 1-215-479-00 METAL 270K 1% 1/4W

R637 1-215-929-11 METAL 100K 5% 3W

R638 1-215-479-00 METAL 270K 1% 1/4W

R656 1-249-402-11 CARBON 56 5% 1/4W

SWITCH

S001 1-692-431-21 SWITCH, TACTILE

S002 1-692-431-21 SWITCH, TACTILE

S003 1-692-431-21 SWITCH, TACTILE

S004 1-692-431-21 SWITCH, TACTILE

S005 1-692-431-21 SWITCH, TACTILE

S006 1-692-431-21 SWITCH, TACTILE

S007 1-692-431-21 SWITCH, TACTILE

TRANSFORMER

T603

1-433-807-11 TRANSFORMER, REGULATOR

THERMISTOR

THP601

1-803-540-11 THERMISTOR

— 64 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

The parts on this page belong to the following model(s) only:

ABOARD VARIANT PARTS LIST The components identified

by shading and mark

are

critical for safety. Replace

only with part number

specified.

Les composants identifies

per un trame et une marque

sont critiques pour la

securite. Ne les remplacer

que par une piece portant

le numero specifie.

A BOARD VARIANT LIST: KV-27S66

KV-27S66

CAPACITOR

C216 1-126-959-11 ELECT 0.47µF 20% 50V

C217 1-126-959-11 ELECT 0.47µF 20% 50V

C250 1-126-960-11 ELECT 1µF 20% 50V

C251 1-126-960-11 ELECT 1µF 20% 50V

C252 1-126-959-11 ELECT 0.47µF 20% 50V

C370 1-163-021-91 CERAMIC 0.01µF 10% 50V

C371 1-163-021-91 CERAMIC 0.01µF 10% 50V

C372 1-163-021-91 CERAMIC 0.01µF 10% 50V

C418 1-126-964-11 ELECT 10µF 20% 50V

C613

1-128-717-11 ELECT 680µF 20% 250V

C615 1-113-920-11 CERAMIC 0.0022µF 20% 250V

C627 1-164-004-11 CERAMIC 10%µF 10% 25V

CONNECTOR

CN150 1-691-616-21 CONNECTOR, BOARD TO BOARD15P

CN301 1-564-508-11 PLUG, CONNECTOR 5P

CN302 1-691-616-11 CONNECTOR, BOARD TO BOARD

DIODE

D002 8-719-070-80 DIODE LNK0120022G

D208 8-719-110-17 DIODE RD10ESB2

D403 8-719-991-33 DIODE 1SS133T-77

IC004 8-742-014-11 HYB IC SBX1981-51

IC203 8-759-534-81 IC MM1313AD/

IC401 8-759-490-17 IC TDA7057AQ/N2

IC601

8-749-015-61 IC STR-F6626

JACK

J202 1-774-749-11 JACK BLOCK, PIN

IC LINK

PS201

1-532-984-11 LINK, IC 2A/90V

RESISTOR

R020 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R021 1-249-415-11 CARBON 680 5% 1/4W

R022 1-249-416-11 CARBON 820 5% 1/4W

R023 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R065 1-216-295-91 SHORT

R090 1-249-429-11 CARBON 10K 5% 1/4W

R211 1-247-807-31 CARBON 100 5% 1/4W

R212 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R231 1-249-421-11 CARBON 2.2K 5% 1/4W

R232 1-249-429-11 CARBON 10K 5% 1/4W

R233 1-249-429-11 CARBON 10K 5% 1/4W

R236 1-249-421-11 CARBON 2.2K 5% 1/4W

R278 1-216-295-91 SHORT

R283 1-216-295-91 SHORT

R400 1-216-081-00 RES,CHIP 22K 5% 1/10W

R432 1-249-428-11 CARBON 8.2K 5% 1/4W

R633 1-215-483-00 METAL 390K 1% 1/4W

R656 1-249-399-11 CARBON 33 5% 1/4W

SWITCH

S001 1-692-431-21 SWITCH, TACTILE

S002 1-692-431-21 SWITCH, TACTILE

S003 1-692-431-21 SWITCH, TACTILE

S004 1-692-431-21 SWITCH, TACTILE

S005 1-692-431-21 SWITCH, TACTILE

S006 1-692-431-21 SWITCH, TACTILE

S007 1-692-431-21 SWITCH, TACTILE

TRANSFORMER

T603

1-433-806-11 TRANSFORMER, REGULATOR

THERMISTOR

THP602

1-809-539-11 THERMISTOR, POSITIVE

— 65 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

The parts on this page belong to the following model(s) only:

BOARD VARIANT PARTS LIST

The components identified

by shading and mark

are

critical for safety. Replace

only with part number

specified.

Les composants identifies

per un trame et une marque

sont critiques pour la

securite. Ne les remplacer

que par une piece portant

le numero specifie.

KV-29AL42/29AL42C

A BOARD VARIANT LIST: KV-29AL42/29AL42C

CAPACITOR

C380 1-163-021-91 CERAMIC 0.01µF 10% 50V

C381 1-163-021-91 CERAMIC 0.01µF 10% 50V

C382 1-163-021-91 CERAMIC 0.01µF 10% 50V

C613

1-128-718-11 ELECT 560µF 20% 400V

C615 1-113-924-11 CERAMIC 0.0047µF 20% 250V

C616 1-130-202-00 FILM 0.022µF 10% 400V

C617 1-107-824-11 CERAMIC 220pF 5% 1KV

C699 1-113-924-11 CERAMIC 0.0047µF 20% 250V

CONNECTOR

CN251 1-564-510-11 PLUG, CONNECTOR 7P

CN253 1-564-510-11 PLUG, CONNECTOR 7P

CN301 1-564-511-11 PLUG, CONNECTOR 8P

DIODE

D208 8-719-982-96 DIODE MTZJ-T-77-2.2A

D609 8-719-311-31 DIODE RU-1P

IC203 8-759-366-77 IC MM1311AD

IC601

8-749-014-48 IC STR-F6656

TRANSISTOR

Q390 8-729-422-27 TRANSISTOR 2SD601A-Q

Q391 8-729-422-27 TRANSISTOR 2SD601A-Q

RESISTOR

R255 1-216-022-00 RES,CHIP 75 5% 1/10W

R390 1-249-417-11 CARBON 1K 5% 1/4W

R391

1-216-073-00 RES,CHIP 10K 5% 1/10W

R392 1-216-049-91 RES,CHIP 1K 5% 1/10W

R394 1-216-033-00 RES,CHIP 220 5% 1/10W

R395 1-216-049-91 RES,CHIP 1K 5% 1/10W

R407 1-216-295-91 SHORT

R450 1-216-295-91 SHORT

R451 1-216-295-91 SHORT

R633 1-215-479-00 METAL 270K 1% 1/4W

R637 1-215-929-11 METAL 100K 5% 3W

R638 1-215-479-00 METAL 270K 1% 1/4W

R656 1-249-402-11 CARBON 56 5% 1/4W

TRANSFORMER

T603

1-433-807-11 TRANSFORMER, REGULATOR

THERMISTOR

THP601

1-803-540-11 THERMISTOR

— 66 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

The parts on this page belong to the following model(s) only:

ABOARD VARIANT PARTS LIST The components identified

by shading and mark

are

critical for safety. Replace

only with part number

specified.

Les composants identifies

per un trame et une marque

sont critiques pour la

securite. Ne les remplacer

que par une piece portant

le numero specifie.

A BOARD VARIANT LIST: KV-29AL66/29AL66C

KV-29AL66/29AL66C

CAPACITOR

C250 1-126-960-11 ELECT 1µF 20% 50V

C251 1-126-960-11 ELECT 1µF 20% 50V

C252 1-126-959-11 ELECT 0.47µF 20% 50V

C280 1-126-935-11 ELECT 470µF 20% 16V

C281 1-126-959-11 ELECT 0.47µF 20% 50V

C282 1-126-959-11 ELECT 0.47µF 20% 50V

C370 1-163-021-91 CERAMIC 0.01µF 10% 50V

C371 1-163-021-91 CERAMIC 0.01µF 10% 50V

C372 1-163-021-91 CERAMIC 0.01µF 10% 50V

C613

1-128-718-11 ELECT 560µF 20% 400V

C615 1-113-924-11 CERAMIC 0.0047µF 20% 250V

C616 1-130-202-00 FILM 0.022µF 10% 400V

C617 1-107-824-11 CERAMIC 220pF 5% 1KV

C627 1-164-004-11 CERAMIC 0.1µF 10% 25V

C699 1-113-924-11 CERAMIC 0.0047µF 20% 250V

CONNECTOR

CN151 1-564-511-11 PLUG, CONNECTOR 8P

CN152 1-564-509-11 PLUG, CONNECTOR 6P

CN251 1-564-510-11 PLUG, CONNECTOR 7P

CN253 1-564-510-11 PLUG, CONNECTOR 7P

CN301 1-564-511-11 PLUG, CONNECTOR 8P

CN302 1-691-616-11 CONNECTOR, BOARD TO BOARD

DIODE

D208 8-719-982-96 DIODE MTZJ-T-77-2.2A

D280 8-719-981-99 DIODE MTZJ-3.3

D281 8-719-981-99 DIODE MTZJ-3.3

D609 8-719-311-31 DIODE RU-1P

IC203 8-759-534-81 IC MM1313AD/

IC601

8-749-014-48 IC STR-F6656

JACK

J202 1-774-749-11 JACK BLOCK, PIN

J204 1-774-749-11 JACK BLOCK, PIN

TRANSISTOR

Q080 8-729-422-27 TRANSISTOR 2SD601A-Q

Q280 8-729-216-22 TRANSISTOR 2SA1162-G

Q281 8-729-216-22 TRANSISTOR 2SA1162-G

Q282 8-729-216-22 TRANSISTOR 2SA1162-G

Q283 8-729-422-27 TRANSISTOR 2SD601A-Q

Q284 8-729-422-27 TRANSISTOR 2SD601A-Q

Q285 8-729-422-27 TRANSISTOR 2SD601A-Q

Q390 8-729-422-27 TRANSISTOR 2SD601A-Q

Q391 8-729-422-27 TRANSISTOR 2SD601A-Q

RESISTOR

R080 1-247-863-91 CARBON 22K 5% 1/4W

R082 1-216-073-00 RES,CHIP 10K 5% 1/10W

R083 1-216-041-00 RES,CHIP 470 5% 1/10W

R084 1-249-429-11 CARBON 10K 5% 1/4W

R255 1-216-022-00 RES,CHIP 75 5% 1/10W

R278 1-216-295-91 SHORT

R280 1-247-807-31 CARBON 100 5% 1/4W

R281 1-247-807-31 CARBON 100 5% 1/4W

R282 1-247-807-31 CARBON 100 5% 1/4W

R283 1-216-295-91 SHORT

R284 1-260-091-11 CARBON 220 5% 1/2W

R285 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R286 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R287 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R288 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R289 1-216-021-00 RES,CHIP 68 5% 1/10W

R290 1-216-113-00 RES,CHIP 470K 5% 1/10W

R291 1-216-113-00 RES,CHIP 470K 5% 1/10W

R292 1-216-113-00 RES,CHIP 470K 5% 1/10W

R293 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R294 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R295 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R390 1-249-417-11 CARBON 1K 5% 1/4W

R391

1-216-073-00 RES,CHIP 10K 5% 1/10W

R392 1-216-049-91 RES,CHIP 1K 5% 1/10W

R394 1-216-033-00 RES,CHIP 220 5% 1/10W

R395 1-216-049-91 RES,CHIP 1K 5% 1/10W

R450 1-216-295-91 SHORT

R451 1-216-295-91 SHORT

R633 1-215-479-00 METAL 270K 1% 1/4W

R637 1-215-929-11 METAL 100K 5% 3W

R638 1-215-479-00 METAL 270K 1% 1/4W

R656 1-249-402-11 CARBON 56 5% 1/4W

TRANSFORMER

T603

1-433-807-11 TRANSFORMER, REGULATOR

THERMISTOR

THP601

1-803-540-11 THERMISTOR

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

— 67 —

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

* A-1331-920-A C BOARD, COMPLETE

(KV-27S42/27S46/27S66/29SL42/29SL42C/29SL46/29XL42M only)

4-382-854-11 SCREW (M3X10), P, SW (+)

CAPACITOR

C1751 1-107-652-11 ELECT 10µF 20% 250V

C1752 1-162-114-00 CERAMIC 0.0047µF 2KV

C1755 1-107-667-11 ELECT 2.2µF 20% 160V

CONNECTOR

CN1751* 1-564-509-11 PLUG, CONNECTOR 6P

CN1752* 1-564-508-11 PLUG, CONNECTOR 5P

CN1754 1-695-915-11 TAB (CONTACT)

DIODE

D1754 8-719-901-83 DIODE 1SS83

D1755 8-719-901-83 DIODE 1SS83

D1756 8-719-901-83 DIODE 1SS83

D1758 8-719-302-43 DIODE EL1Z

IC1751 8-759-562-43 IC TDA6108JF/N1B

JACK

J1751

1-251-688-11 SOCKET, CRT

COIL

L1751 1-408-613-31 INDUCTOR 68µH

RESISTOR

R1756 1-260-099-11 CARBON 1K 5% 1/2W

R1757 1-260-099-11 CARBON 1K 5% 1/2W

R1758 1-260-099-11 CARBON 1K 5% 1/2W

R1759 1-260-087-11 CARBON 100 5% 1/2W

R1760 1-260-123-11 CARBON 100K 5% 1/2W

R1761 1-216-373-11 METAL OXIDE 2.2 5% 2W F

R1762 1-216-375-00 METAL OXIDE 3.3 5% 2W F

R1763 1-247-807-31 CARBON 100 5% 1/4W

R1764 1-247-807-31 CARBON 100 5% 1/4W

R1765 1-247-807-31 CARBON 100 5% 1/4W

R1770 1-260-132-11 CARBON 560K 5% 1/2W

* A-1331-921-A CV BOARD, COMPLETE

(KV-29AL42/29AL42C/29AL66/29AL66C only)

4-382-854-11 SCREW (M3X10), P, SW (+)

CAPACITOR

C944 1-102-129-00 CERAMIC 0.01µF 10% 50V

C945 1-102-110-00 CERAMIC 220pF 10% 50V

C946 1-104-665-11 ELECT 100µF 20% 25V

C949 1-161-830-00 CERAMIC 0.0047µF 500V

C950 1-126-941-11 ELECT 470µF 20% 25V

C951 1-107-645-11 ELECT 22µF 20% 160V

C952 1-104-999-11 MYLAR 0.1µF 10% 200V

C953 1-106-383-00 MYLAR 0.047µF 10% 200V

C954 1-130-471-00 FILM 0.001µF 5% 50V

C955 1-107-667-11 ELECT 2.2µF 20% 160V

C956 1-130-471-00 FILM 0.001µF 5% 50V

C957 1-106-383-00 MYLAR 0.047µF 10% 200V

C958 1-126-941-11 ELECT 470µF 20% 25V

C1701 1-107-652-11 ELECT 10µF 20% 250V

C1702 1-162-114-00 CERAMIC 0.0047µF 2KV

C1705 1-107-667-11 ELECT 2.2µF 20% 160V

C1941 1-126-941-11 ELECT 470µF 20% 25V

C1948 1-102-121-00 CERAMIC 0.0022µF 10% 50V

CONNECTOR

CN942 * 1-564-507-11 PLUG, CONNECTOR 4P

CN1701* 1-564-509-11 PLUG, CONNECTOR 6P

CN1702* 1-564-511-11 PLUG, CONNECTOR 8P

CN1704 1-695-915-11 TAB (CONTACT)

DIODE

D941 8-719-991-33 DIODE 1SS133T-77

D946 8-719-110-88 DIODE RD39ESB2

D947 8-719-110-88 DIODE RD39ESB2

D1704 8-719-901-83 DIODE 1SS83

D1705 8-719-901-83 DIODE 1SS83

D1706 8-719-901-83 DIODE 1SS83

D1708 8-719-302-43 DIODE EL1Z

IC1701 8-759-562-43 IC TDA6108JF/N1B

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

— 68 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

JACK

J1701

1-251-688-11 SOCKET, CRT

COIL

L1701 1-408-613-31 INDUCTOR 68µH

TRANSISTOR

Q943 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q944 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q945 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q946 8-729-017-05 TRANSISTOR 2SA1837

Q947 8-729-017-06 TRANSISTOR 2SC4793

Q965 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q966 8-729-119-76 TRANSISTOR 2SA1175-HFE

RESISTOR

R943 1-247-807-31 CARBON 100 5% 1/4W

R948 1-249-417-11 CARBON 1K 5% 1/4W

R949 1-249-421-11 CARBON 2.2K 5% 1/4W

R950 1-249-417-11 CARBON 1K 5% 1/4W

R951 1-249-417-11 CARBON 1K 5% 1/4W

R952 1-249-413-11 CARBON 470 5% 1/4W

R953 1-249-403-11 CARBON 68 5% 1/4W

R954 1-247-815-91 CARBON 220 5% 1/4W

R955 1-249-416-11 CARBON 820 5% 1/4W

R956 1-247-807-31 CARBON 100 5% 1/4W

R957 1-249-429-11 CARBON 10K 5% 1/4W

R958 1-247-807-31 CARBON 100 5% 1/4W

R959 1-249-403-11 CARBON 68 5% 1/4W

R977 1-249-397-11 CARBON 22 5% 1/4W F

R979 1-249-401-11 CARBON 47 5% 1/4W

R1706 1-260-099-11 CARBON 1K 5% 1/2W

R1707 1-260-099-11 CARBON 1K 5% 1/2W

R1708 1-260-099-11 CARBON 1K 5% 1/2W

R1709 1-260-087-11 CARBON 100 5% 1/2W

R1710 1-260-123-11 CARBON 100K 5% 1/2W

R1711 1-216-373-11 METAL OXIDE 2.2 5% 2W F

R1712 1-216-375-00 METAL OXIDE 3.3 5% 2W F

R1713 1-247-807-31 CARBON 100 5% 1/4W

R1714 1-247-807-31 CARBON 100 5% 1/4W

R1715 1-247-807-31 CARBON 100 5% 1/4W

R1720 1-260-132-11 CARBON 560K 5% 1/2W

R1941 1-260-312-11 CARBON 47 5% 1/2W

R1942 1-249-387-11 CARBON 3.3 5% 1/4W F

R1943 1-249-414-11 CARBON 560 5% 1/4W F

R1944 1-249-432-11 CARBON 18K 5% 1/4W

R1945 1-215-912-11 METAL OXIDE 150 5% 3W F

R1946 1-249-417-11 CARBON 1K 5% 1/4W F

R1947 1-249-432-11 CARBON 18K 5% 1/4W

R1948 1-249-414-11 CARBON 560 5% 1/4W

R1949 1-249-387-11 CARBON 3.3 5% 1/4W F

R1950 1-249-401-11 CARBON 47 5% 1/4W F

*A-1343-654-A E BOARD, COMPLETE

(KV-27S42, 27S46, 27S66 only)

* A-1343-656-A E BOARD, COMPLETE

(KV-29AL42, 29AL42C, 29AL66, 29AL66C, 29SL42, 29SL42C, 29SL46, 29XL42M, only)

1-533-223-11 HOLDER, FUSE

* 4-374-846-01 COVER, CAPACITOR, CAP TYPE

CAPACITOR

C5002 1-107-679-91 ELECT 10µF 20% 450V

C5003 1-136-601-11 FILM 0.01µF 10% 630V

C5004 1-130-471-00 MYLAR 0.001µF 5% 50V

C5006 1-130-471-00 MYLAR 0.001µF 5% 50V

C5007 1-130-467-00 MYLAR 470pF 5% 50V

C5008 1-130-471-00 MYLAR 0.001µF 5% 50V

C5009 1-126-965-11 ELECT 22µF 20% 50V

C5010 1-115-804-91 ELECT 120µF 20% 35V

C5020

1-113-920-11 CERAMIC 0.0022µF 20% 125V

(KV-27S42/27S46/27S66 only)

C5020

1-113-924-11 CERAMIC 0.0047µF 20% 250V

(KV-29AL66/29AL66C/29AL42/29AL42C/29SL42/29SL42C/29XL42M/29SL46 only)

C5021

1-113-924-11 CERAMIC 0.0047µF 20% 250V

(KV-29AL66/29AL66C/29AL42/29AL42C/29SL42/29SL42C/29XL42M/29SL46 only)

C5050

1-136-311-11 FILM 0.47µF 20% 125V

C5150

1-136-311-11 FILM 0.47µF 20% 125V

(KV-27S42/27S46/27S66 only)

C5643 1-113-924-11 CERAMIC 0.0047µF 20% 250V

C5644 1-113-924-11 CERAMIC 0.0047µF 20% 250V

CONNECTOR

CN5000* 1-580-843-11 PIN, CONNECTOR (POWER) 2P

CN5001* 1-564-506-11 PLUG, CONNECTOR 3P

CN5002* 1-580-843-11 PIN, CONNECTOR (POWER) 2P

CN5003* 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P

DIODE

D5003 8-719-948-45 DIODE ERA22-08

D5004 8-719-991-33 DIODE 1SS133T-77

D5005 8-719-991-33 DIODE 1SS133T-77

D5006 8-719-109-93 DIODE RD6.2ESB2

D5007 8-719-510-48 DIODE D1N20R

D5008 8-719-063-70 DIODE D1NL20U

D5631 8-719-911-55 DIODE U05G

D5632 8-719-911-55 DIODE U05G

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

— 69 —

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

FUSE

F5050

1-576-193-11 FUSE 6.3A/125V (KV-27S42/27S46/27S66 only)

F5050

1-532-506-51 FUSE 6.3A/250V

(KV-29AL66/29AL66C/29AL42/29AL42C/29SL42/29SL42C/29XL42M/29SL46 only)

TRANSISTOR

Q5001 8-729-044-30 TRANSISTOR 2SK2845-LB102

Q5002 8-729-119-78 TRANSISTOR 2SC2785-HFE

RESISTOR

R5001 1-249-389-11 CARBON 4.7 5% 1/4W F

R5002 1-215-485-00 METAL 470K 1% 1/4W

R5003 1-240-205-91 CARBON 22M 5% 1/2W

R5007 1-249-421-11 CARBON 2.2K 5% 1/4W

R5008 1-249-429-11 CARBON 10K 5% 1/4W

R5009 1-249-437-11 CARBON 47K 5% 1/4W

R5010 1-249-415-11 CARBON 680 5% 1/4W

R5011 1-260-302-51 CARBON 6.8 5% 1/2W

R5012 1-249-417-11 CARBON 1K 5% 1/4W

R5013 1-249-415-11 CARBON 680 5% 1/4W

R5050 1-219-512-11 CARBON 2.2M 5% 1/2W

R5350

1-219-513-11 CARBON 4.7M 5% 1/2W

(KV-27S42/27S46/27S66 only)

R5350

1-247-289-00 CARBON 8.2M 5% 1W

(KV-29AL66/29AL66C/29AL42/29AL42C/29SL42/29SL42C/29XL42M/29SL46 only)

TRANSFORMER

T5001

1-431-852-11 TRANSFORMER, CONVERTER (SRT)

T5050

1-431-838-11 TRANSFORMER, LINE FILTER

(KV-27S42/27S46/27S66 only)

T5050

1-426-717-11 TRANSFORMER, LINE FILTER

(KV-29AL66/29AL66C/29AL42/29AL42C/29SL42/29SL42C/29XL42M/29SL46 only)

THERMISTOR

TH506 1-803-586-11 THERMISTOR

VARISTOR

VDR505 1-803-585-11 VARISTOR (KV-27S42/27S46/27S66 only)

VDR505 1-803-587-11 VARISTOR

(KV-29AL66/29AL66C/29AL42/29AL42C/29SL42/29SL42C/29XL42M/29SL46 only)

* A-1372-616-A HT BOARD, COMPLETE

(KV-29AL42/29AL42C/29AL66/29AL66C only)

CONNECTOR

CN2201* 1-564-518-11 PLUG, CONNECTOR 3P

RESISTOR

R2001 1-249-415-11 CARBON 680 5% 1/4W

R2002 1-249-416-11 CARBON 820 5% 1/4W

R2003 1-249-421-11 CARBON 2.2K 5% 1/4W

R2004 1-249-427-11 CARBON 6.8K 5% 1/4W

R2005 1-249-429-11 CARBON 10K 5% 1/4W

R2006 1-247-815-91 CARBON 220 5% 1/4W

SWITCH

S2001 1-572-198-11 SWITCH, KEYBOARD

S2002 1-572-198-11 SWITCH, KEYBOARD

S2003 1-572-198-11 SWITCH, KEYBOARD

S2004 1-572-198-11 SWITCH, KEYBOARD

S2005 1-572-198-11 SWITCH, KEYBOARD

S2006 1-572-198-11 SWITCH, KEYBOARD

S2007 1-572-198-11 SWITCH, KEYBOARD

EHT

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

— 70 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

* A-1372-617-A HV BOARD, COMPLETE

(KV-29AL42/29AL42C/29AL66/29AL66C only)

CAPACITOR

C1407 1-137-194-91 FILM 0.47µF 5% 50V

C1408 1-136-287-11 FILM 0.0047µF 5% 50V

C1409 1-137-194-81 FILM 0.47µF 5% 50V

C1410 1-126-964-11 ELECT 10µF 20% 50V

C1411 1-126-964-11 ELECT 10µF 20% 50V

C1412 1-126-964-11 ELECT 10µF 20% 50V

C1413 1-126-964-11 ELECT 10µF 20% 50V

C1415 1-126-968-11 ELECT 100µF 20% 50V

C1416 1-106-375-12 MYLAR 0.022µF 20% 200V

C1417 1-137-414-11 FILM 0.0047µF 10% 100V

C1418 1-102-114-00 CERAMIC 470pF 10% 50V

C1419 1-130-495-00 FILM 0.1µF 5% 50V

C1420 1-137-371-11 FILM 0.015µF 5% 50V

C1421 1-102-121-00 CERAMIC 0.0022µF 10% 50V

C1422 1-137-414-11 FILM 0.0047µF 10% 100V

C1423 1-137-194-91 FILM 0.47µF 5% 50V

C1424 1-130-495-00 FILM 0.1µF 5% 50V

C1425 1-137-370-11 FILM 0.01µF 5% 50V

C1426 1-130-495-00 FILM 0.1µF 5% 50V

C1427 1-137-370-11 FILM 0.01µF 5% 50V

C1428 1-130-495-00 FILM 0.1µF 5% 50V

C1429 1-137-370-11 FILM 0.01µF 5% 50V

C1430 1-126-964-11 ELECT 10µF 20% 50V

C1431 1-136-287-11 FILM 0.0047µF 5% 50V

C1432 1-126-964-11 ELECT 10µF 20% 50V

C1437 1-126-964-11 ELECT 10µF 20% 50V

C2068 1-104-665-11 ELECT 100µF 20% 25V

C2234 1-126-960-11 ELECT 1µF 20% 50V

C2235 1-126-960-11 ELECT 1µF 20% 50V

C2236 1-106-343-00 MYLAR 0.001µF 10% 200V

CONNECTOR

CN1405*1-564-510-11 PLUG, CONNECTOR 7P

CN1406*1-564-506-11 PLUG, CONNECTOR 3P

CN2001*1-564-506-11 PLUG, CONNECTOR 3P

CN2201*1-564-508-11 PLUG, CONNECTOR 5P

CN2202*1-564-510-11 PLUG, CONNECTOR 7P

DIODE

D2001 8-719-110-17 DIODE RD10ESB2

D2006 1-810-039-21 LED UNIT

D2235 8-719-110-17 DIODE RD10ESB2

D2236 8-719-110-17 DIODE RD10ESB2

IC1403 8-759-496-03 IC NJM2178L

IC2003 8-742-014-11 HYB IC SBX1981-51

JACK

J2231 1-691-110-11 JACK, PIN 3P

RESISTOR

R1403 1-215-437-00 METAL 4.7K 1% 1/4W

R1404 1-249-419-11 CARBON 1.5K 5% 1/4W

R1405 1-249-424-11 CARBON 3.9K 5% 1/4W

R1406 1-249-437-11 CARBON 47K 5% 1/4W

R1407 1-249-435-11 CARBON 33K 5% 1/4W

R1408 1-215-469-00 METAL 100K 1% 1/4W

R1409 1-249-417-11 CARBON 1K 5% 1/4W

R1410 1-215-461-00 METAL 47K 1% 1/4W

R1411 1-249-429-11 CARBON 10K 5% 1/4W

R1412 1-247-807-31 CARBON 100 5% 1/4W

R1413 1-247-807-31 CARBON 100 5% 1/4W

R1414 1-249-429-11 CARBON 10K 5% 1/4W

R1415 1-249-429-11 CARBON 10K 5% 1/4W

R1416 1-249-429-11 CARBON 10K 5% 1/4W

R1417 1-249-429-11 CARBON 10K 5% 1/4W

R1419 1-249-441-11 CARBON 100K 5% 1/4W

R1420 1-249-429-11 CARBON 10K 5% 1/4W

R1421 1-249-441-11 CARBON 100K 5% 1/4W

R1422 1-249-429-11 CARBON 10K 5% 1/4W

R1423 1-249-441-11 CARBON 100K 5% 1/4W

R1430 1-215-461-00 METAL 47K 1% 1/4W

R1431 1-249-429-11 CARBON 10K 5% 1/4W

R1433 1-249-429-11 CARBON 10K 5% 1/4W

R1434 1-215-445-00 METAL 10K 1% 1/4W

R1435 1-249-431-11 CARBON 15K 5% 1/4W

R2236 1-247-895-91 CARBON 470K 5% 1/4W

R2238 1-247-895-91 CARBON 470K 5% 1/4W

* A-1380-608-A K BOARD, COMPLETE

(KV-27S66/29AL42/29AL42C/29AL66/29AL66C only)

* A-1380-611-A K BOARD, COMPLETE

(KV-27S66 only)

* A-1380-612-A K BOARD, COMPLETE

(KV-29AL42/29AL42C only)

4-382-854-11 SCREW (M3X10), P, SW (+)

HV K

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

— 71 —

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

CAPACITOR

C1001 1-126-968-11 ELECT 100µF 20% 50V

C1002 1-104-664-11 ELECT 47µF 20% 25V

C1003 1-126-964-11 ELECT 10µF 20% 50V

C1004 1-126-934-11 ELECT 220µF 20% 16V

C1006 1-137-368-11 FILM 0.0047µF 5% 50V

C1007 1-126-960-11 ELECT 1µF 20% 50V

C1401 1-126-957-11 ELECT 0.22µF 20% 50V

(KV-29AL66/29AL66C only)

C1401 1-126-959-11 ELECT 0.47µF 20% 50V

(KV-29AL42/29AL42C only)

C1402 1-126-957-11 ELECT 0.22µF 20% 50V

(KV-29AL66/29AL66C only)

C1402 1-126-959-11 ELECT 0.47µF 20% 50V

(KV-29AL42/29AL42C only)

C1403 1-126-943-11 ELECT 2200µF 20% 25V

(KV-29AL42/29AL42C/29AL66/29AL66C only)

C1404 1-126-943-11 ELECT 2200µF 20% 25V

(KV-29AL42/29AL42C/29AL66/29AL66C only)

C1405 1-126-382-11 ELECT 100µF 20% 16V

C1406 1-126-382-11 ELECT 100µF 20% 16V

C1450 1-136-171-00 FILM 0.33µF 5% 50V

C1451 1-136-171-00 FILM 0.33µF 5% 50V

C1452 1-137-367-11 FILM 0.0033µF 5% 50V

(KV-29AL42/29AL42C/29AL66/29AL66C only)

C1453 1-137-367-11 FILM 0.0033µF 5% 50V

(KV-29AL42/29AL42C/29AL66/29AL66C only)

CONNECTOR

CN1001*1-691-632-21 CONNECTOR, BOARD TO BOARD 15P

(KV-27S66 only)

CN1002*1-564-507-11 PLUG, CONNECTOR 4P

CN1003*1-564-511-11 PLUG, CONNECTOR 8P

(KV-29AL42/29AL42C/29AL66/29AL66C only)

CN1004*1-564-509-11 PLUG, CONNECTOR 6P

(KV-29AL66/29AL66C only)

CN1400*1-564-507-11 PLUG, CONNECTOR 4P

CN1401*1-564-506-11 PLUG, CONNECTOR 3P

CN1402*1-564-510-11 PLUG, CONNECTOR 7P

(KV-29AL42/29AL42C/29AL66/29AL66C only)

IC1400 8-759-498-09 IC TDA1519AQU

(KV-29AL42/29AL42C/29AL66/29AL66C only)

IC1401 8-759-498-09 IC TDA1519AQU

(KV-29AL42/29AL42C/29AL66/29AL66C only)

COIL

L1001 1-408-421-00 INDUCTOR 100µH

L1002 1-410-470-11 INDUCTOR 10µH

IC LINK

PS1400 1-532-984-11 LINK, IC 2A/90V

PS1401 1-532-984-11 LINK, IC 2A/90V

TRANSISTOR

Q1001 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q1002 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q1003 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q1004 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q1006 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q1400 8-729-119-78 TRANSISTOR 2SC2785-HFE

RESISTOR

R1001 1-247-807-31 CARBON 100 5% 1/4W

R1002 1-247-807-31 CARBON 100 5% 1/4W

R1003 1-249-434-11 CARBON 27K 5% 1/4W

R1004 1-249-436-11 CARBON 39K 5% 1/4W

R1006 1-249-419-11 CARBON 1.5K 5% 1/4W

R1007 1-247-863-91 CARBON 22K 5% 1/4W

R1008 1-247-863-91 CARBON 22K 5% 1/4W

R1009 1-247-863-91 CARBON 22K 5% 1/4W

R1010 1-247-863-91 CARBON 22K 5% 1/4W

R1011 1-249-414-11 CARBON 560 5% 1/4W

R1012 1-249-414-11 CARBON 560 5% 1/4W

R1013 1-247-807-31 CARBON 100 5% 1/4W

R1016 1-247-863-91 CARBON 22K 5% 1/4W

R1017 1-247-863-91 CARBON 22K 5% 1/4W

R1401 1-249-429-11 CARBON 10K 5% 1/4W

R1402 1-249-437-11 CARBON 47K 5% 1/4W

R1433 1-249-421-11 CARBON 2.2K 5% 1/4W

R1434 1-249-429-11 CARBON 10K 5% 1/4W

R1435 1-249-429-11 CARBON 10K 5% 1/4W

R1436 1-249-421-11 CARBON 2.2K 5% 1/4W

R1437 1-247-863-91 CARBON 22K 5% 1/4W

R1450 1-249-422-11 CARBON 2.7K 5% 1/4W

R1451 1-249-422-11 CARBON 2.7K 5% 1/4W

R1452 1-249-428-11 CARBON 8.2K 5% 1/4W

(KV-29AL66/29AL66C only)

R1452 1-249-429-11 CARBON 10K 5% 1/4W

(KV-29AL42/29AL42C only)

R1453 1-249-428-11 CARBON 8.2K 5% 1/4W

(KV-29AL66/29AL66C only)

R1453 1-249-429-11 CARBON 10K 5% 1/4W

(KV-29AL42/29AL42C only)

TUNER

TU1002

8-598-430-00 TUNER, FSS BTF-FA401

(KV-27S66/29AL66/29AL66C only)

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

— 72 —

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifies per un trame

et une marque

sont critiques pour la

securite. Ne les remplacer que par une

piece portant le numero specifie.

The components identified by

shading and mark

are critical

for safety. Replace only with

part number specified.

TRANSISTOR

Q3304 8-729-216-22 TRANSISTOR 2SA1162-G

Q3305 8-729-216-22 TRANSISTOR 2SA1162-G

Q3306 8-729-216-22 TRANSISTOR 2SA1162-G

Q3309 8-729-422-27 TRANSISTOR 2SD601A-Q

Q3310 8-729-422-27 TRANSISTOR 2SD601A-Q

Q3311 8-729-111-55 TRANSISTOR 2SD1312-K

Q3312 8-729-216-22 TRANSISTOR 2SA1162-G

Q3313 8-729-422-27 TRANSISTOR 2SD601A-Q

Q3314 8-729-422-27 TRANSISTOR 2SD601A-Q

RESISTOR

R3301 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R3302 1-216-121-91 RES,CHIP 1M 5% 1/10W

R3303 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R3304 1-216-119-00 RES,CHIP 820K 5% 1/10W

R3305 1-216-037-00 RES,CHIP 330 5% 1/10W

R3308 1-216-085-00 RES,CHIP 33K 5% 1/10W

R3309 1-216-025-91 RES,CHIP 100 5% 1/10W

R3310 1-216-025-91 RES,CHIP 100 5% 1/10W

R3311 1-216-037-00 RES,CHIP 330 5% 1/10W

R3312 1-216-045-00 RES,CHIP 680 5% 1/10W

R3313 1-216-037-00 RES,CHIP 330 5% 1/10W

R3316 1-216-295-91 SHORT

R3317 1-216-295-91 SHORT

R3318 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R3319 1-216-295-91 SHORT

R3328 1-216-295-91 SHORT

R3329 1-216-033-00 RES,CHIP 220 5% 1/10W

R3333 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3334 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3335 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3336 1-216-295-91 SHORT

R3338 1-216-295-91 SHORT

R3340 1-216-295-91 SHORT

R3342 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R3343 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R3344 1-216-073-00 RES,CHIP 10K 5% 1/10W

R3345 1-216-073-00 RES,CHIP 10K 5% 1/10W

R3346 1-216-295-91 SHORT

R3347 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3348 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3349 1-215-857-11 METAL OXIDE 10 5% 1W F

R3351 1-216-041-00 RES,CHIP 470 5% 1/10W

R3352 1-216-295-91 SHORT

R3357 1-216-041-00 RES,CHIP 470 5% 1/10W

R3358 1-216-689-11 RES,CHIP 39K 5% 1/10W

R3359 1-216-113-00 RES,CHIP 470K 5% 1/10W

R3360 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R3361 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R3365 1-216-073-00 RES,CHIP 10K 5% 1/10W

R3366 1-216-049-91 RES,CHIP 1K 5% 1/10W

* A-1195-154-A P BOARD, COMPLETE

(KV-29AL66/29AL66C/27S46/27S66/29SL46 only)

CAPACITOR

C3301 1-163-031-11 CERAMIC CHIP 0.01µF 50V

C3302 1-163-031-11 CERAMIC CHIP 0.01µF 50V

C3303 1-104-664-11 ELECT 47µF 20% 16V

C3304 1-163-031-11 CERAMIC CHIP 0.01µF 50V

C3305 1-163-135-00 CERAMIC CHIP 560pF 5% 50V

C3306 1-163-038-91 CERAMIC CHIP 0.1µF 25V

C3307 1-163-038-91 CERAMIC CHIP 0.1µF 25V

C3308 1-164-222-11 CERAMIC CHIP 0.22µF 25V

C3309 1-163-034-00 CERAMIC CHIP 0.033µF 50V

C3310 1-164-222-11 CERAMIC CHIP 0.22µF 25V

C3311 1-163-233-11 CERAMIC CHIP 18pF 5% 50V

C3314 1-163-031-11 CERAMIC CHIP 0.01µF 50V

C3315 1-163-031-11 CERAMIC CHIP 0.01µF 50V

C3316 1-163-133-00 CERAMIC CHIP 470pF 5% 50V

C3317 1-163-133-00 CERAMIC CHIP 470pF 5% 50V

C3323 1-104-664-11 ELECT 47µF 20% 16V

C3324 1-163-031-11 CERAMIC CHIP 0.01µF 50V

C3325 1-163-031-11 CERAMIC CHIP 0.01µF 50V

C3326 1-104-664-11 ELECT 47µF 20% 16V

C3327 1-104-664-11 ELECT 47µF 20% 16V

C3328 1-104-664-11 ELECT 47µF 20% 16V

C3330 1-126-964-11 ELECT 10µF 20% 50V

C3334 1-164-005-11 CERAMIC CHIP 0.47µF 25V

C3335 1-163-009-11 CERAMIC CHIP 0.001µF 10% 50V

C3336 1-163-031-11 CERAMIC CHIP 0.01µF 50V

C3339 1-163-005-11 CERAMIC CHIP 470pF 10% 50V

CONNECTOR

CN3301* 1-691-632-21 CONNECTOR, BOARD TO BOARD 15P

DIODE

D3301 8-719-404-50 DIODE MA111-TX

D3304 8-719-422-12 DIODE MA8039

IC3301 8-759-575-99 IC M65669FP

COIL

L3301 1-410-682-31 INDUCTOR 470µH

L3302 1-414-267-11 INDUCTOR 10µH

L3303 1-414-267-11 INDUCTOR 10µH

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

— 73 —

R3367 1-216-073-00 RES,CHIP 10K 5% 1/10W

R3368 1-216-049-91 RES,CHIP 1K 5% 1/10W

CRYSTAL

X3301 1-781-377-11 OSCILLATOR, CRYSTAL

ACCESSORIES AND PACKING MATERIAL

3-866-074-21 MANUAL, INSTRUCTION

(KV-27S42/27S46/27S66 only)

3-866-074-31 MANUAL, INSTRUCTION

(KV-27S42 (CND)/27S66 (CND) only)

3-866-074-41 MANUAL, INSTRUCTION

(KV-29SL42/29XL42M/29SL42C/29SL46/29AL42/29AL42C/29AL66/

29AL66C only)

* 4-041-255-01 PROTECTION BAG (all models)

* 4-064-062-11 CARTON, INDIVIDUAL

(KV-29SL42/29XL42M/29SL42C/29SL46 only)

* 4-064-065-01 CARTON, INDIVIDUAL

(KV-27S42/27S46/27S66 only)

* 4-064-241-11 CARTON, INDIVIDUAL

(KV-29AL42/29AL42C/29AL66/29AL66C only)

* 4-064-029-01 CUSHION ASSY, UPPER

(KV-29AL42/29AL42C/29AL66/29AL66C only)

* 4-064-069-01 CUSHION ASSY, UPPER

(KV-27S42/29SL42/29XL42M/29SL42C/27S46/29SL46/27S66 only)

* 4-064-032-01 CUSHION ASSY, LOWER

(KV-29AL42/29AL42C/29AL66/29AL66C only)

* 4-064-071-01 CUSHION ASSY, LOWER

(KV-27S42/29SL42/29XL42M/29SL42C/27S46/29SL46/27S66 only)

REMOTE COMMANDER

1-475-801-11 REMOTE COMMANDER (RM-Y165)

(KV-29SL42/29XL42M/29SL42C/29AL42/29AL42C only)

1-475-801-21 REMOTE COMMANDER (RM-Y165)

(KV-27S42 only)

1-475-802-11 REMOTE COMMANDER (RM-Y167)

(KV-29SL46/29AL66/29AL66C only)

1-475-802-21 REMOTE COMMANDER (RM-Y167)

(KV-27S46/27S66 only)

4-978-977-01 BATTERY COVER

(for remote RM-Y165/RM-Y167)

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

NOTES:

— 74 —

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

— 75 —

9-965-857-01

SONY CORPORATION

Sony Technology Center

Product Quality Division

Service Promotion Dept.

English

99DJ74405-1

Printed in U.S.A.

SERVICE MANUAL

BA-4D

CHASSIS

MODEL COMMANDER DEST CHASSIS NO.

KV-27S42

RM-Y165 US SCC-S27H-A

KV-27S42

RM-Y165 CND SCC-S28F-A

KV-27S46

RM-Y167 US SCC-S27K-A

KV-27S66

RM-Y167 US SCC-S27L-A

KV-27S66

RM-Y167 CND SCC-S28G-A

KV-29AL42

RM-Y165 E SCC-S25U-A

KV-29AL42C

RM-Y165 E SCC-S25Y-A

KV-29AL66

RM-Y167 E SCC-S25T-A

KV-29AL66C

RM-Y167 E SCC-S25V-A

KV-29SL42

RM-Y165 E SCC-S25W-A

KV-29SL42C

RM-Y165 E SCC-S25S-A

KV-29SL46

RM-Y167 E SCC-S25X-A

KV-29XL42M

RM-Y165 MX SCC-S26C-A

TRINITRON® COLOR TV

MICROFILM

CORRECTION-1

SUBJECT: Incorrect Part Number for CRT (KV-2766 only)

Correct the service manual as shown.

File this correction with the service manual.

English

99DJ74414-1

Printed in U.S.A.

9-978-857-91

SONY CORPORATION

Sony Technology Center

Product Quality Division

Service Promotion Department

7 8-733-874-05 CRT 29NX

Section 7-1: Chassis (KV-27S66) page 46

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M

Incorrect Correct

7 8-733-873-05 CRT 29NX

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

: Corrected item

☛

MODEL COMMANDER DEST CHASSIS NO.

KV-27S42

RM-Y165 US SCC-S27H-A

KV-27S42

RM-Y165 CND SCC-S28F-A

KV-27S46

RM-Y167 US SCC-S27K-A

KV-27S66

RM-Y167 US SCC-S27L-A

KV-27S66

RM-Y167 CND SCC-S28G-A

KV-29AL42

RM-Y165 E SCC-S25U-A

KV-29AL42C

RM-Y165 E SCC-S25Y-A

KV-29AL66

RM-Y167 E SCC-S25T-A

KV-29AL66C

RM-Y167 E SCC-S25V-A

KV-29SL42

RM-Y165 E SCC-S25W-A

KV-29SL42C

RM-Y165 E SCC-S25S-A

KV-29SL46

RM-Y167 E SCC-S25X-A

KV-29XL42M

RM-Y165 MX SCC-S26C-A

Sony Corporation

Sony Technology Center

Product Quality Division

Service Promotion Department

9-965-857-92

English

99IJ74340-01

Printed in USA

1999.9

TRINITRON® COLOR TV

CORRECTION-2

Correct the service manual as shown.

File this Correction with the service manual.

SUBJECT: DY P/N Correction

☛

: Corrected Items

Section 7: Exploded Views(Page 46 and 47)

INCORRECT CORRECT

Ref. No. Part No. Description Ref. No. Part No. Description

10 8-451-846-21 DYY29VXA-V2 10 8-451-486-21 DYY29NXA-V2

15 8-451-846-21 DYY29VXA-V2 15 8-451-486-21 DYY29NXA-V2

☛

SERVICE MANUAL

BA-4D

CHASSIS

SERVICE MANUAL

BA-4D

CHASSIS

MODEL COMMANDER DEST CHASSIS NO.

KV-27S42 RM-Y165 US SCC-S27H-A

KV-27S42 RM-Y165 CND SCC-S28F-A

KV-27S46 RM-Y167 US SCC-S27K-A

KV-27S66 RM-Y167 US SCC-S27L-A

KV-27S66 RM-Y167 CND SCC-S28G-A

KV-29AL42 RM-Y165 E SCC-S25U-A

KV-29AL42C RM-Y165 E SCC-S25Y-A

KV-29AL66 RM-Y167 E SCC-S25T-A

KV-29AL66C RM-Y167 E SCC-S25V-A

KV-29SL42 RM-Y165 E SCC-S25W-A

KV-29SL42C RM-Y165 E SCC-S25S-A

KV-29SL46 RM-Y167 E SCC-S25X-A

KV-29XL42M RM-Y165 MX SCC-S26C-A

KV-29SL43 RM-Y165 E SCC-S55C-A

TRINITRON® COLOR TV

9-965-857-81

Sony Corporation

Sony Technology Center

Technical Services

Service Promotion Department

English

2001EJ74405-1

Printed in U.S.A.

SUPPLEMENT-1

Subject: New model added. New parts added

to Exploded View.

Correct the service manual as shown below.

File this correction with the service manual.

: Modified Item

Section 7: Exploded View (Page 47)

7-2. Chassis (KV-27S46/27S42/29SL42/29SL42C/29SL46/29XL42M)

18 * A-1343-654-A E (VAR) MOUNTED PC BOARD

(KV-27S42/27S46)

19 * A-1298-900-A A COMPLETE PC BOARD (KV-27S46)

19 * A-1298-904-A A COMPLETE PC BOARD

(KV-29XL42M/29SL42/29SL42C)

19 * A-1298-911-A A COMPLETE PC BOARD (KV-29SL46)

19 * A-1298-840-A A COMPLETE PC BOARD (KV-27S42)

20 1-790-130-21 CORD, AC (KV-27S42/27S46)

20 1-751-057-11 CORD, POWER (WITH CONNECTOR) 10A/125V

(KV-29SL42/29XL42M/29SL46)

20 1-769-796-31 CORD, POWER (WITH CONNECTOR) 10A/125V

(KV-29SL42C)

21 1-453-268-21 FBT ASSY NX-4005//X4J4

22 1-766-374-11 PLUG, F-PIN

23 * A-1195-154-A P COMPLETE PC BOARD (KV-27S46/29SL46)

24 4-063-572-02 COVER, REAR

25 4-064-646-01 CHASSIS, CLIP

27 4-040-388-01 HOLDER (S), DGC (EXCEPT KV-29SL46)

28 8-598-431-00 TUNER, FSS BTF-WA411

29 4-062-047-01 PIECE A(110), CONV CORRECT

30 1-452-032-00 MAGNET,DISC

REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M/29SL43

1 4-046-160-11 EMBLEM (NO.9), SONY

2 X-4035-816-1 BEZNET ASSY (KV-27S46/29SL46) 3-4

2 X-4035-818-1 BEZNET ASSY (KV-29XL42M) 3-4

2 X-4035-815-1 BEZNET ASSY (KV-27S42/29SL42/42C) 3-4

2 X-4039-334-1 BEZNET ASSY (KV-29SL43) 3-4

3 4-063-573-01 MULTI BUTTON(KV-27S42/27S46/29SL42/

29SL42C/29SL46/29XL42M)

3 4-063-573-11 MULTI BUTTON (KV-29SL43)

4 4-063-570-01 GUIDE, LED

6 1-504-531011 SPEAKER (13.1 x 6.2CM)

7 4-041-268-01 SCREW (7), TAPPING

8 * A-1331-920-A C MOUNTED PC BOARD

9 3-704-372-31 HOLDER, HV CABLE

10 4-053-005-01 SPACER, DY

11 8-733-873-05 CRT 29NX (EXCEPT KV-29SL42C)

11 8-733-874-05 CRT 29NX (KV-29SL42C only)

15 8-451-846-21 DYY29NXA-V2

16 4-036-329-01 SPRING (B), TENSION

17 1-416-952-11 COIL, DEGAUSSING

(KV-29SL42/29XL42M/29SL42C/29SL46)

17 1-416-588-11 COIL, DEMAGNETIC (KV-27S42/27S46)

18 * A-1343-656-A E (VAR) MOUNTED PC BOARD

(KV-29SL42/29XL42M/29SL46)

☛

7-2. CHASSIS (KV-27S46/27S42/29SL42/29SL42C/29SL46/29XL42M/29SL43)

☛

7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S

7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3



9-965-857-82

Sony Corporation

Sony Technology Center

Technical Services

Service Promotion Department

English

2001HJ74405-1

Printed in U.S.A.

TRINITRON® COLOR TV

SUPPLEMENT-2

Subject: New model added. New parts added

to Exploded View.

Correct the service manual as shown below.

File this correction with the service manual.

: Modified Item

Section 7: Exploded View (Page 47)

7-2. Chassis (KV-27S46/27S42/29SL42/29SL42C/29SL46/29XL42M/29SL43/29SL43C)

SERVICE MANUAL

BA-4D

CHASSIS

Self Diagnosis

Supported model

KV-27S42 RM-Y165 US SCC-S27H-A

KV-27S42 RM-Y165 CND SCC-S28F-A

KV-27S46 RM-Y167 US SCC-S27K-A

KV-27S66 RM-Y167 US SCC-S27L-A

KV-27S66 RM-Y167 CND SCC-S28G-A

KV-29AL42 RM-Y165 E SCC-S25U-A

KV-29AL42C RM-Y165 E SCC-S25Y-A

KV-29AL66 RM-Y167 E SCC-S25T-A

KV-29AL66C RM-Y167 E SCC-S25V-A

KV-29SL42 RM-Y165 E SCC-S25W-A

KV-29SL42C RM-Y165 E SCC-S25S-A

KV-29SL46 RM-Y167 E SCC-S25X-A

KV-29XL42M RM-Y165 MX SCC-S26C-A

KV-29SL43 RM-Y165 E SCC-S55C-A

KV-29SL43C RM-Y165 E SCC-S55D-A

☛

18 * A-1343-654-A E (VAR) MOUNTED PC BOARD

(KV-27S42/27S46)

19 * A-1298-900-A A COMPLETE PC BOARD (KV-27S46)

19 * A-1298-904-A A COMPLETE PC BOARD

(KV-29XL42M/29SL42/29SL42C)

19 * A-1298-911-A A COMPLETE PC BOARD (KV-29SL46)

19 * A-1298-840-A A COMPLETE PC BOARD (KV-27S42)

20 1-790-130-21 CORD, AC (KV-27S42/27S46)

20 1-751-057-11 CORD, POWER (WITH CONNECTOR) 10A/125V

(KV-29SL42/29XL42M/29SL46)

20 1-769-796-31 CORD, POWER (WITH CONNECTOR) 10A/125V

(KV-29SL42C)

21 1-453-268-21 FBT ASSY NX-4005//X4J4

22 1-766-374-11 PLUG, F-PIN

23 * A-1195-154-A P COMPLETE PC BOARD (KV-27S46/29SL46)

24 4-063-572-02 COVER, REAR

25 4-064-646-01 CHASSIS, CLIP

27 4-040-388-01 HOLDER (S), DGC (EXCEPT KV-29SL46)

28 8-598-431-00 TUNER, FSS BTF-WA411

29 4-062-047-01 PIECE A(110), CONV CORRECT

30 1-452-032-00 MAGNET,DISC

REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK

KV-27S42/27S46/27S66/29AL42/29AL42C/29AL66/

29AL66C/29SL42/29SL42C/29SL46/29XL42M/29SL43/29SL43C

1 4-046-160-11 EMBLEM (NO.9), SONY

2 X-4035-816-1 BEZNET ASSY (KV-27S46/29SL46) 3-4

2 X-4035-818-1 BEZNET ASSY (KV-29XL42M) 3-4

2 X-4035-815-1 BEZNET ASSY (KV-27S42/29SL42/42C) 3-4

2 X-4039-334-1 BEZNET ASSY (KV-29SL43/29SL43C) 3-4

3 4-063-573-01 MULTI BUTTON(KV-27S42/27S46/29SL42/

29SL42C/29SL46/29XL42M)

3 4-063-573-11 MULTI BUTTON (KV-29SL43/29SL43C)

4 4-063-570-01 GUIDE, LED

6 1-504-531011 SPEAKER (13.1 x 6.2CM)

7 4-041-268-01 SCREW (7), TAPPING

8 * A-1331-920-A C MOUNTED PC BOARD

9 3-704-372-31 HOLDER, HV CABLE

10 4-053-005-01 SPACER, DY

11 8-733-873-05 CRT 29NX (EXCEPT KV-29SL42C)

11 8-733-874-05 CRT 29NX (KV-29SL42C only)

15 8-451-846-21 DYY29NXA-V2

16 4-036-329-01 SPRING (B), TENSION

17 1-416-952-11 COIL, DEGAUSSING

(KV-29SL42/29XL42M/29SL42C/29SL46)

17 1-416-588-11 COIL, DEMAGNETIC (KV-27S42/27S46)

18 * A-1343-656-A E (VAR) MOUNTED PC BOARD

(KV-29SL42/29XL42M/29SL46)

☛

7-2. CHASSIS (KV-27S46/27S42/29SL42/29SL42C/29SL46/29XL42M/29SL43/29SL43C)

☛

——

7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S

7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

TRINITRON® COLOR TV

CORRECTION - 3

Subject: Q550 P/N Correction

Correct the service manual as shown below.

File this correction with the service manual.

: Modified Item

Section 8: Electrical Parts List (Page 55)

SERVICE MANUAL

BA-4D

CHASSIS

KV-27S42 RM-Y165 US SCC-S27H-A

KV-27S42 RM-Y165 CND SCC-S28F-A

KV-27S46 RM-Y167 US SCC-S27K-A

KV-27S66 RM-Y167 US SCC-S27L-A

KV-27S66 RM-Y167 CND SCC-S28G-A

KV-29AL42 RM-Y165 E SCC-S25U-A

KV-29AL42C RM-Y165 E SCC-S25Y-A

KV-29AL66 RM-Y167 E SCC-S25T-A

KV-29AL66C RM-Y167 E SCC-S25V-A

KV-29SL42 RM-Y165 E SCC-S25W-A

KV-29SL42C RM-Y165 E SCC-S25S-A

KV-29SL46 RM-Y167 E SCC-S25X-A

KV-29XL42M RM-Y165 MX SCC-S26C-A

KV-29SL43 RM-Y165 E SCC-S55C-A

KV-29SL43C RM-Y165 E SCC-S55D-A

9-965-857-93

Sony Corporation

Sony Technology Center

Technical Services

Service Promotion Department

English

2001HJ74405-1

Printed in U.S.A.

☛

REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK

Q550 8-729-119-78 TRANSISTOR 2SC2785-HFE Q550 8-729-422-27 TRANSISTOR 2SD601A-Q

INCORRECT CORRECT

☛

Self Diagnosis

Supported model

Sony Trinitron Kv 27S42 Users Manual 857 Cover.p65

KV-27S42 to the manual b582e1a1-40e9-4b6d-9d3f-53bff5b9283e

Navigation menu

Versions of this User Manual:

Views

Navigation
