KV-PF21M70

RM-952 Hong Kong SCC-U17H-A

KV-TF21M61

RM-952 Singapore SCC-U29A-A

KV-TF21M90

RM-952 Hong Kong SCC-U17G-A

KV-TF21P11

RM-952 OCE SCC-U24C-A

MODEL COMMANDER DEST. CHASSIS NO.

CHASSIS

TRINITRON

®

COLOR TV

SERVICE MANUAL BG-3S

Self Diagnosis

Supported model

(KV-TF21M61)

(KV-TF21M90)

(KV-TF21P11)

(KV-PF21M70)

MODEL COMMANDER DEST. CHASSIS NO.

– 2 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

SPECIFICATIONS

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND

THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR

CARBON PAINTED ON THE CRT, AFTER REMOVING THE

ANODE.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK ! ON THE

SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS

LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE

CRITICAL TO SAFE OPERATION ARE IDENTIFIED IN THIS

MANUAL. FOLLOW THESE PROCEDURES WHENEVER CRITICAL

COMPONENTS ARE REPLACED OR IMPROPER OPERATION IS

SUSPECTED.

Note

Power requirements 110-240 V AC, 50/60 Hz KV-TF21M61

110-220V AC, 50/60Hz KV-PF21M70

220-240V AC, 50/60Hz KV-TF21M90/TF21P11

Power consumption (W) Indicated on the rear of the TV

Television system B/G, I, D/K, M Except KV-TF21P11

B/G KV-TF21P11

Color system PAL, PAL60, SECAM, NTSC4.43, NTSC3.58 Except KV-TF21P11

PAL, PAL60, NTSC4.43, NTSC3.58 (AV IN) KV-TF21P11

Stereo/Bilingual system NICAM Stereo/Bilingual B/G, I; A2 Stereo/Bilingual (German) B/G KV-TF21M61/TF21M90 only

Teletext language English, Arabic, French KV-TF21M61/TF21P11 only

Channel coverage

B/G VHF : E2 to E12/ UHF : E21 to E69/ CATV :

S01 to S03, S1 to S41

VHF : 0 to 12, 5A, 9A

UHF : 28 to 69

CATV : S01 to S03, S1 to S41 Australia only

VHF : 1 to 11

UHF : 21 to 69

CATV : S01 to S03, S1 to S41 New Zealand only

IUHF : B21 to B68/ CATV : S01 to S03, S1 to S41

D/K VHF : C1 to C12, R1 to R12/ UHF : C13 to C57, R21 to R60

CATV: Z1 to Z39, S01 to S03, S1 to S41

MVHF : A2 to A13/ UHF : A14 to A79/

CATV : A-8 to A-2, A to W+4, W+6 to W+84

˘˘

˘˘

˘(Antenna) 75-ohm external terinal

Audio output 3W + 3W KV-TF21M61/TF21M90

3W KV-PF21M70/TF21P11

Number of terminal

(Video) Input : 3 Output : 1 Phono jacks; 1 Vp-p, 75 ohms Except KV-TF21P11

Input : 2 Output : 1 Phono jacks; 1 Vp-p, 75 ohms KV-TF21P11

(Audio) Input : 3 Output : 1 Phono jacks; 500 mVrms Except KV-TF21P11

Input : 2 Output : 1 Phono jacks; 500 mVrms KV-TF21P11

(Earphone) Output : 1 Minijack KV-PF21M70/TF21P11

2(Headphone) Output : 1 Minijack KV-TF21M61/TF21M90

Picture tube 21 inch

Tube size (cm) 54 Measured diagonally

Screen size (cm) 51 Measured diagonally

Dimension (w/h/d, mm) 490 x 458 x 487

Mass (kg) 28

Design and specifications are subject to change without notice.

Ø

– 3 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

TABLE OF CONTENTS

Section Title Page

SELF DIAGNOSIS FUNCTION................................ 3

1. GENERAL .......................................................... 8

2. DISASSEMBLY

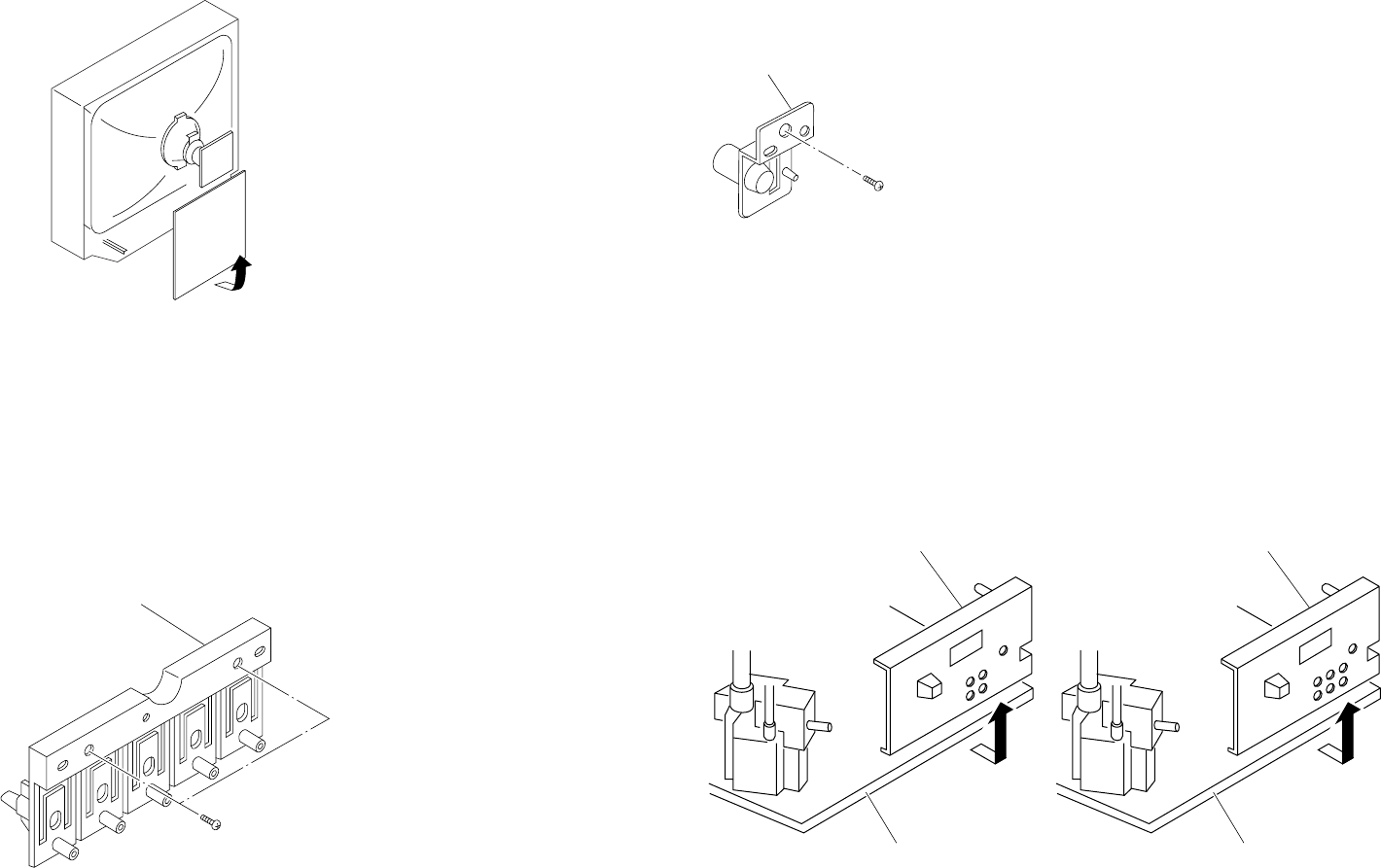

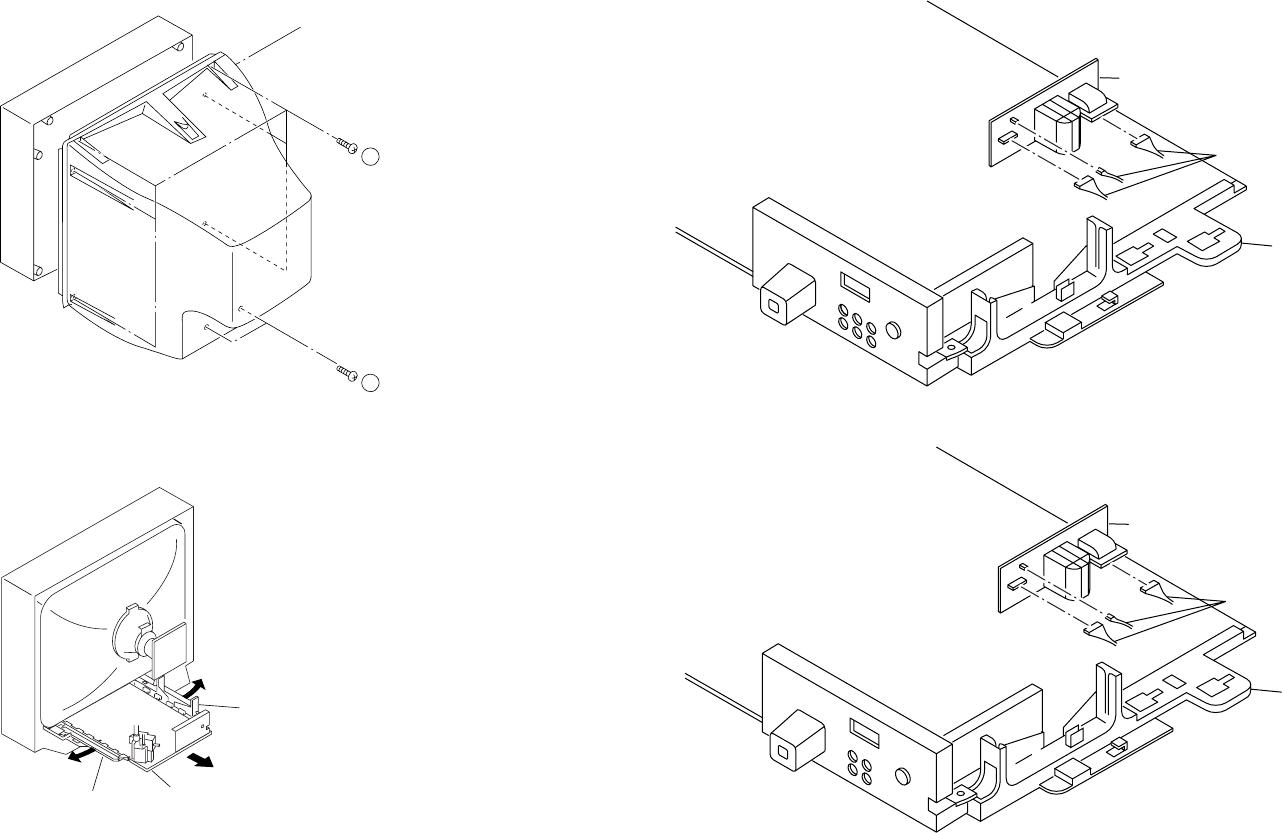

2-1. Rear Cover Removal ................................................ 32

2-2. Chassis Assy Removal ............................................. 32

2-3. F Bracket Removal .................................................. 32

2-4. Service Position ....................................................... 33

2-5. Replacement of Parts ............................................... 33

2-5-1. Replacement of Control Button ....................... 33

2-5-2. Replacement of Bar Control............................. 33

2-6. Terminal Bracket Removal ...................................... 33

2-7. Degauss Coil Removal............................................. 34

2-8. Picture Tube Removal .............................................. 34

3. SET-UP ADJUSTMENTS

3-1. Beam Landing .......................................................... 36

3-2. Convergence ............................................................. 37

3-3. Focus Adjustment .................................................... 39

3-4. G2 (Screen) and White Balance Adjustments......... 39

4. CIRCUIT ADJUSTMENTS

4-1. Adjustments with Commander ................................ 40

4-2. Adjustment Method ................................................. 41

4-3. Picture Quality Adjustments .................................... 46

4-4. A Board Adjustment After IC003 (Memory)

Replacement............................................................. 46

4-5. Picture Distortion Adjustment ................................. 47

Section Title Page

5. DIAGRAMS

5-1 Block Diagram ......................................................... 59

5-2 Frame Schematic Diagram ...................................... 62

5-3 Circuit Boards Location .......................................... 64

5-4 Schematic Diagrams and Printed Wiring Boards ... 65

(1) Schematic Diagram of A(1/2) Board....................... 67

(2) Scheamtic Diagram of A(2/2) Board....................... 71

(3) Schematic Diagrams of C3 and C5 Boards............. 79

(4) Schematic Diagram of V1 Board ............................ 85

(5) Schematic Diagram of F Board ............................... 87

5-5 Semicondutors ......................................................... 90

6. EXPLODED VIEWS

6-1. Chassis (KV-PF21M70)........................................... 93

6-2 Chassis (KV-TF21M61/TF21M90/TF21P11)......... 95

7. ELECTRICAL PARTS LIST................................... 97

– 4 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER lamp will automatically

begin to flash.

The number of times the lamp flashes translates to a probable source of the problem. A definition of the STANDBY/TIMER

lamp flash indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot

be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past

problems and how often these problems occur.

1. DIAGNOSTIC TEST INDICATORS

When an errors occurs, the STANDBY/TIMER lamp will flash a set number of times to indicate the possible cause of the

problem. If there is more than one error, the lamp will identify the first of the problem areas.

Result for all of the following diagnostic items are displayed on screen. No error has occured if the screen displays a “0”.

Diagnostic

Item

Description

• Power does not

turn on

• +B overcurrent

(OCP) or

overvoltage

(OVP)

• Vertical deflection

stopped

• Horizontal

deflection

overdrive

• White balance

failure (no

PICTURE)

• Micro reset

No. of times

STANDBY/TIMER

lamp flashes

Does not light

2 times

5 times

—

Self-diagnostic

display/Diagnostic

result

—

002:000 or

002:001~255

003:001~255

004:001~255

at the same time

005:000 or

005:001~225

101:00 or

101:001~225

Probable

Cause

Location

• Power cord is not plugged

in.

• Fuse is burned out F4601

(F Board)

• H.OUT Q511 is shorted.

(A board)

• IC1800 is shorted. (C5 board

(except PF21M70)/

(C3 Board (KV-PF21M70)).

• -13V is not supplied.

(A board)

• IC 503 faulty (A board)

• IC 301 faulty (A board)

• G2 is improperly adjusted.

(Note 2)

• CRT problem.

• Video OUT IC701 is faulty.

(C5 board)

• IC301 is faulty. (A board)

• No connection A board to

C5/C3 boards.

• Discharge CRT

(C5/C3 Boards)

• Static discharge

• External noise

Detected

Symptoms

• Power does not come on.

• No power is supplied to the

TV.

• AC power supply is faulty.

• Power does not come on.

• Load on power line is

shorted.

• Has entered standby state

after horizontal raster.

• Vertical deflection pulse is

stopped.

• Power line is shorted or

power supply is stopped.

• No raster is generated.

• CRT cathode current

detection reference pulse

output is small.

• Power is shut down shortly,

after this return back to

normal.

• Detect Micro latch up.

Note 1: If a + B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously.

The symptom that is diagnosed first by the microcontroller is displayed on the screen.

Note 2: Refer to screen (G2) Adjustment in section 3-4 of this manual.

SELF DIAGNOSTIC FUNCTION

– 5 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

2. DISPLAY OF STANDBY/TIMER LIGHT FLASH COUNT

Diagnostic Item Flash Count*

+B overcurrent/overvoltage 2 times

Vertical deflection stopped

White balance failure 5 times

* One flash count is not used for self-diagnostic.

3. STOPPING THE STANDBY/TIMER FLASH

Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/TIMER lamp

from flashing.

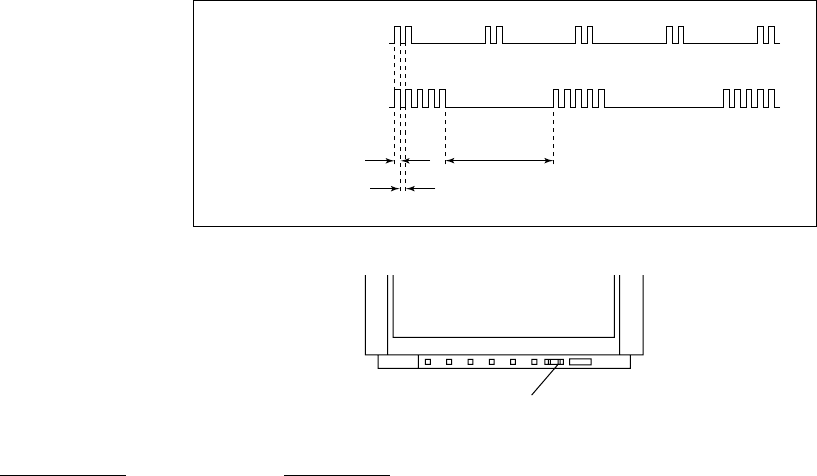

Lamp ON 0.3 sec. Lamp OFF 3 sec.

Lamp OFF 0.3 sec.

2 times

5 times

STANDBY/SLEEP lamp

– 6 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

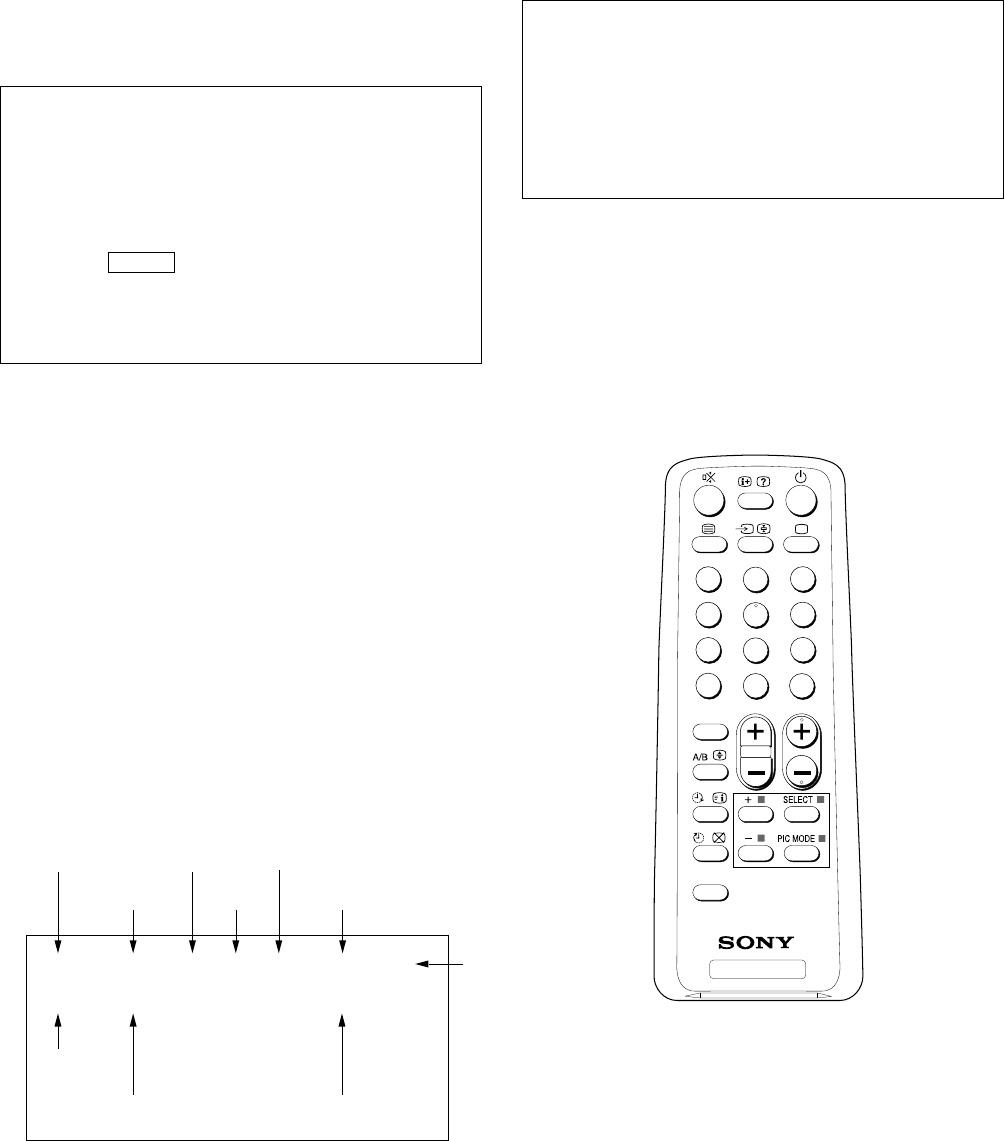

4. SELF-DIAGNOSTIC SCREEN DISPLAY

For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it

is possible to bring up past occurances of failure for confirmation on the screen:

[To Bring Up Screen Test]

In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:

[Screendisplay] /channel [5] /Sound volume [-] /Power ON

˘

Note that this differs from entering the service mode (mode volume [+]).

Self-Diagnosis screen display

002 : 000

003 : 000

004 : 000

005 : 001

101 : 000

SELF DIAGNOSTIC

5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen

during repairs. When you have completed the repairs, clear the result display to “0”.

Unless the result display is cleared to “0”, the self-diagnostic function will not be able to detect subsequent faults after

completion of the repairs.

[Clearing the result display]

To clear the result display to “0”, press buttons on the remote commander sequentially as shown below when the diagnostic

screen is being displayed.

Channel [8] /0

[Quitting Self-diagnostic screen]

To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.

Numeral "0" means that no fault has been detected.

Numeral "1" means a fault has been detected.

– 7 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

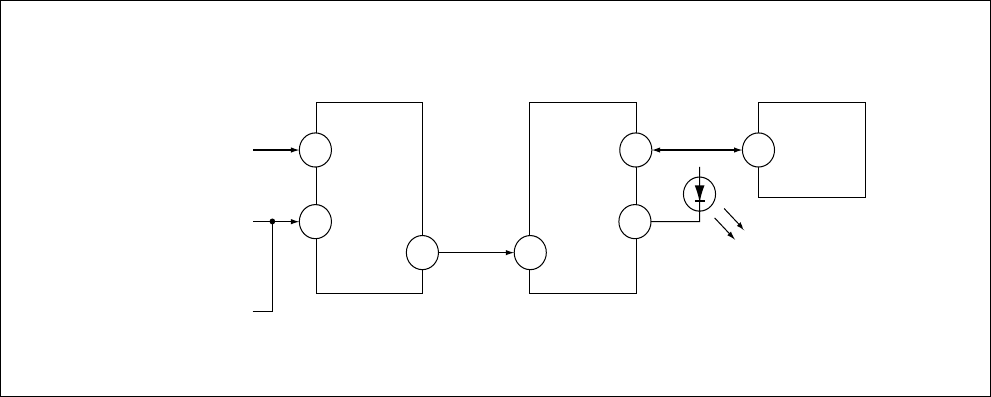

6. SELF-DIAGNOSTIC CIRCUIT

[+BovercurrentªOCPº] Occurs when an overcurrent on the +B(135) line is detected by Q604. If Q604 go to ON

and the voltage to pin 18 of IC301 should go down when V.SYNC is more than seven

verticals in a period, the unit will automatically turn off.

[Verticaldeflectionstopped] Occurs when an absence of the vertical deflection pulse is detected by Q509 and IC001

shut down the power supply.

[Verticaldeflectionovercurrent] Occurs when an overcurrent on V drive line is detected by Q507. Power supply will be

shut down when detect this by IC001.

[Whitebalancefailure] If the RGB levels* do not balance or become low level within 5 seconds, this error will be

detected by IC301. TV will stay on, but there will be no picture.

* (Refers to the RGB levels of the AKB detection Ref pulse that detects IK.)

IC301

Y/CHROMA JUNGLE

FROM

CRT

FROM

[+B] Q604 C5/C3

[V] Q509/507

IC001

SYSTEM IC003

MEMORY

B-DAT

IO-SDAT

IK-IN

MP/

PROTECT

IO-8DAT

O-LED

SDA

54521

18 51

4635

– 8 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

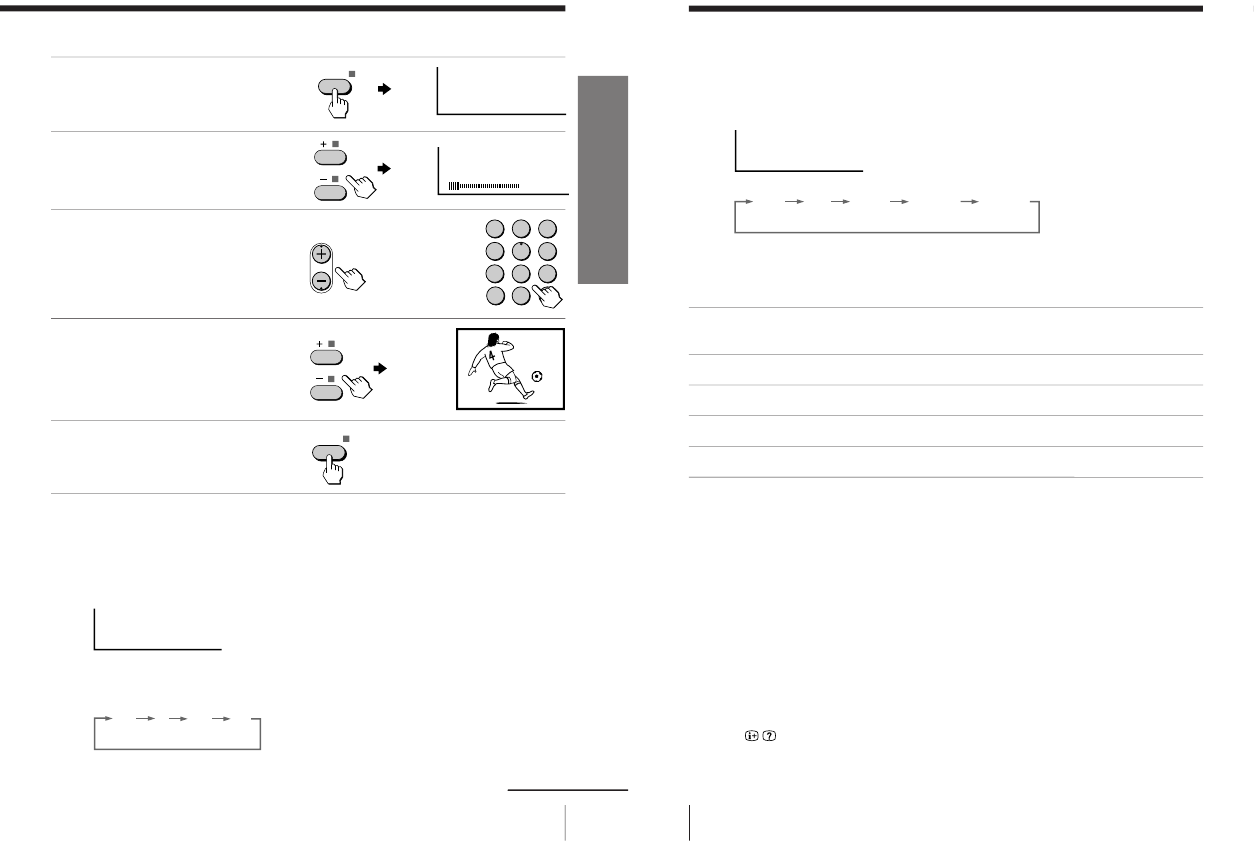

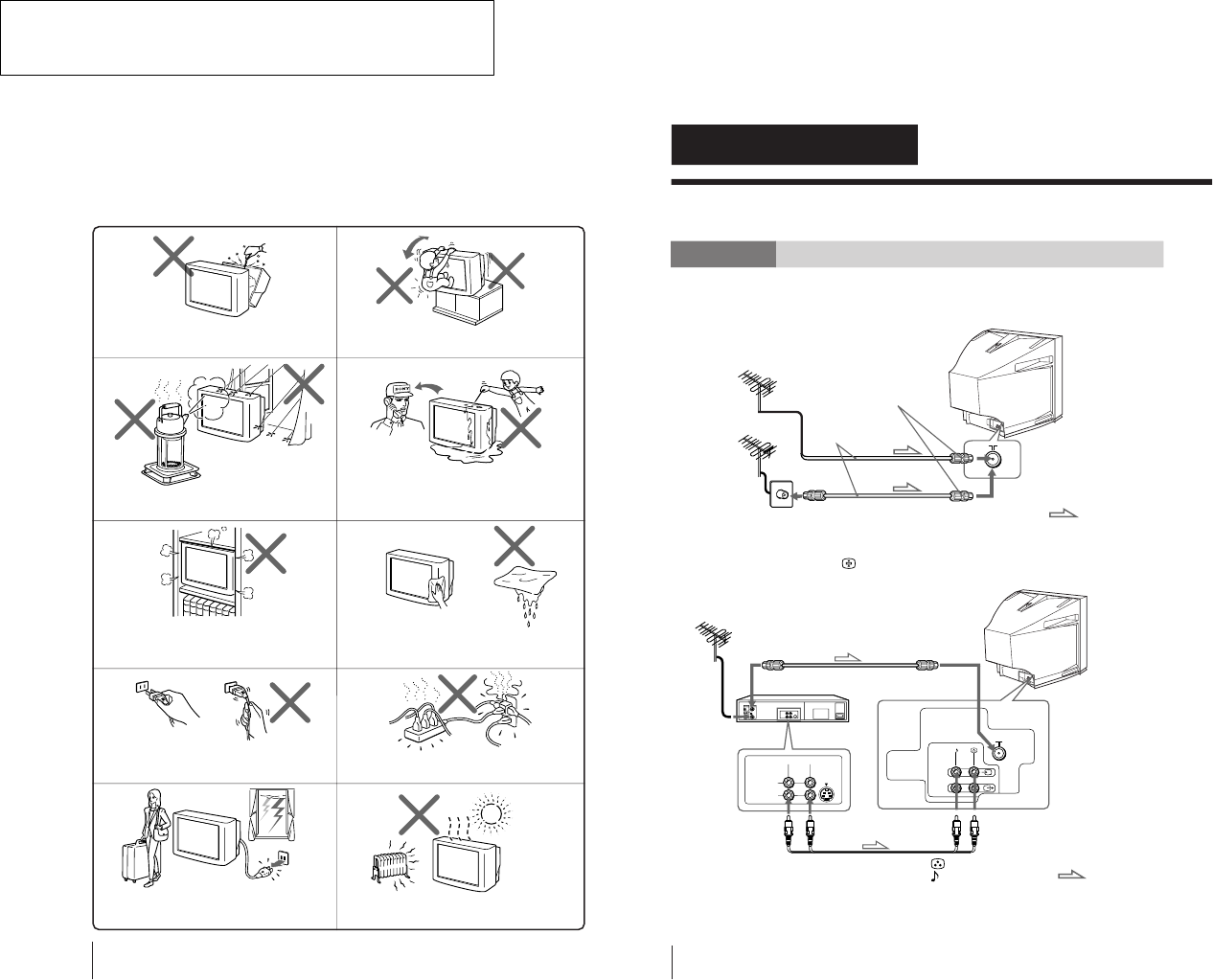

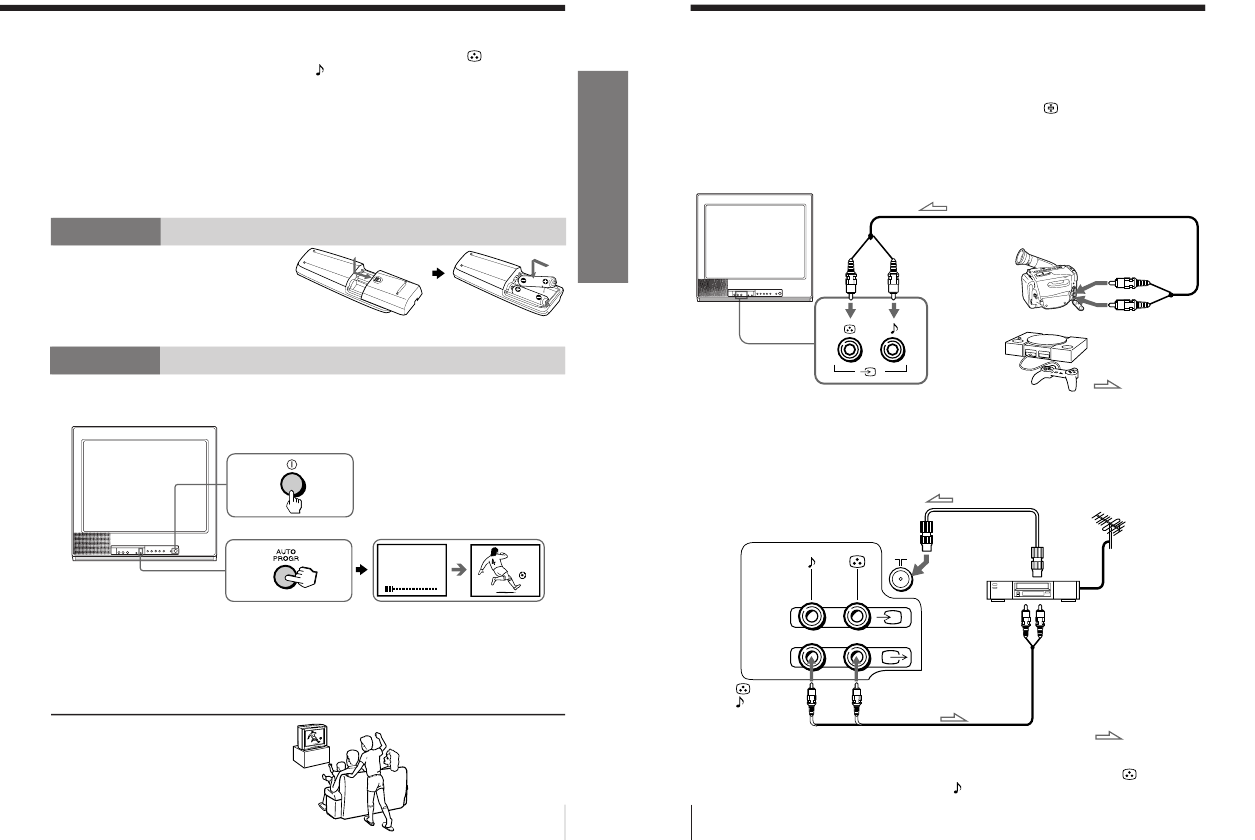

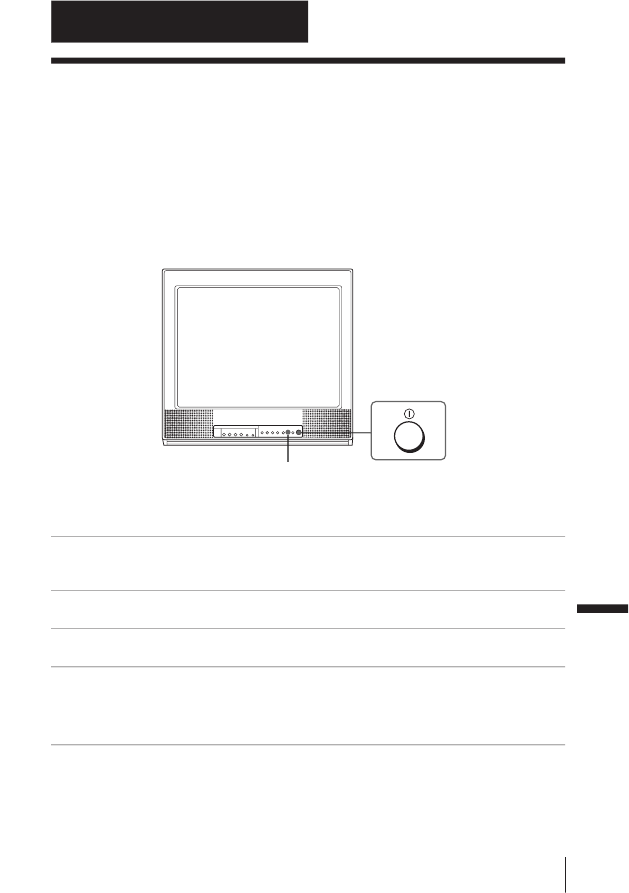

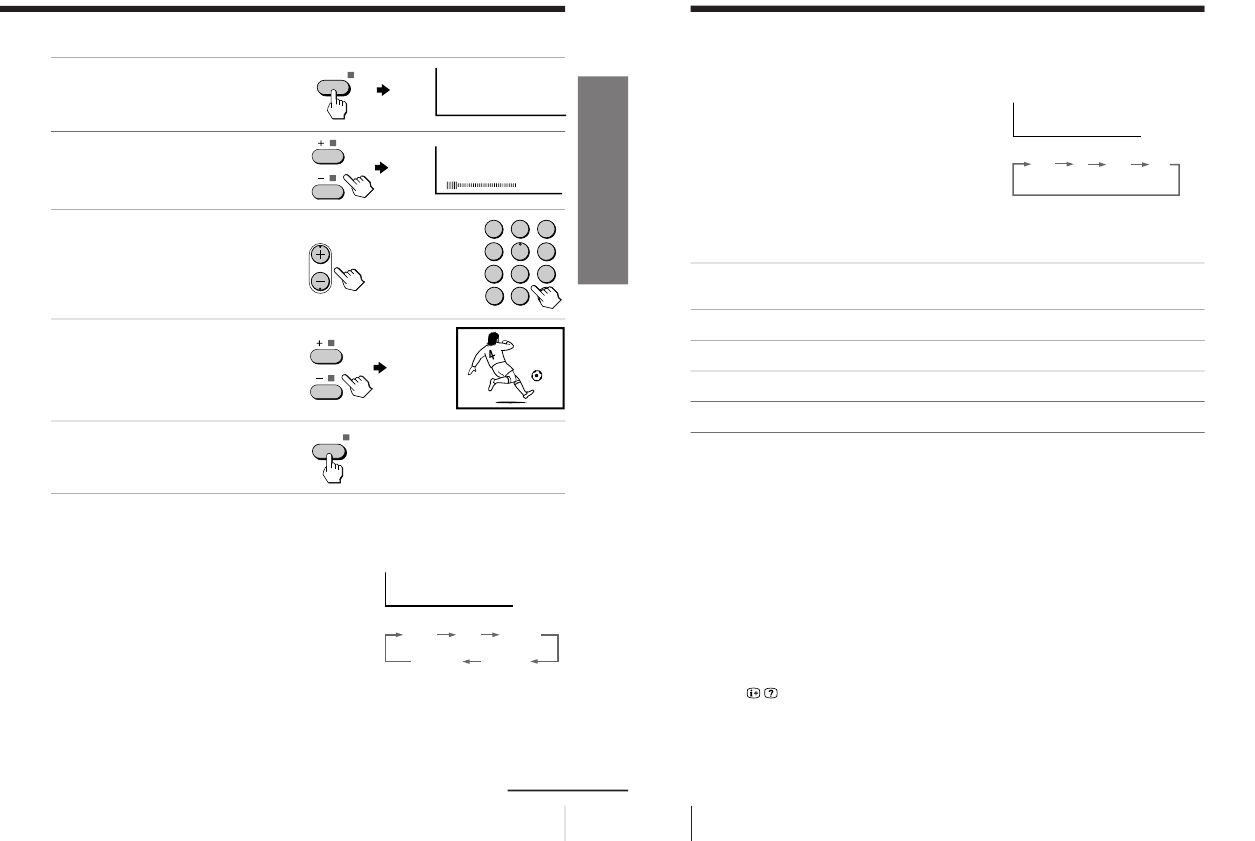

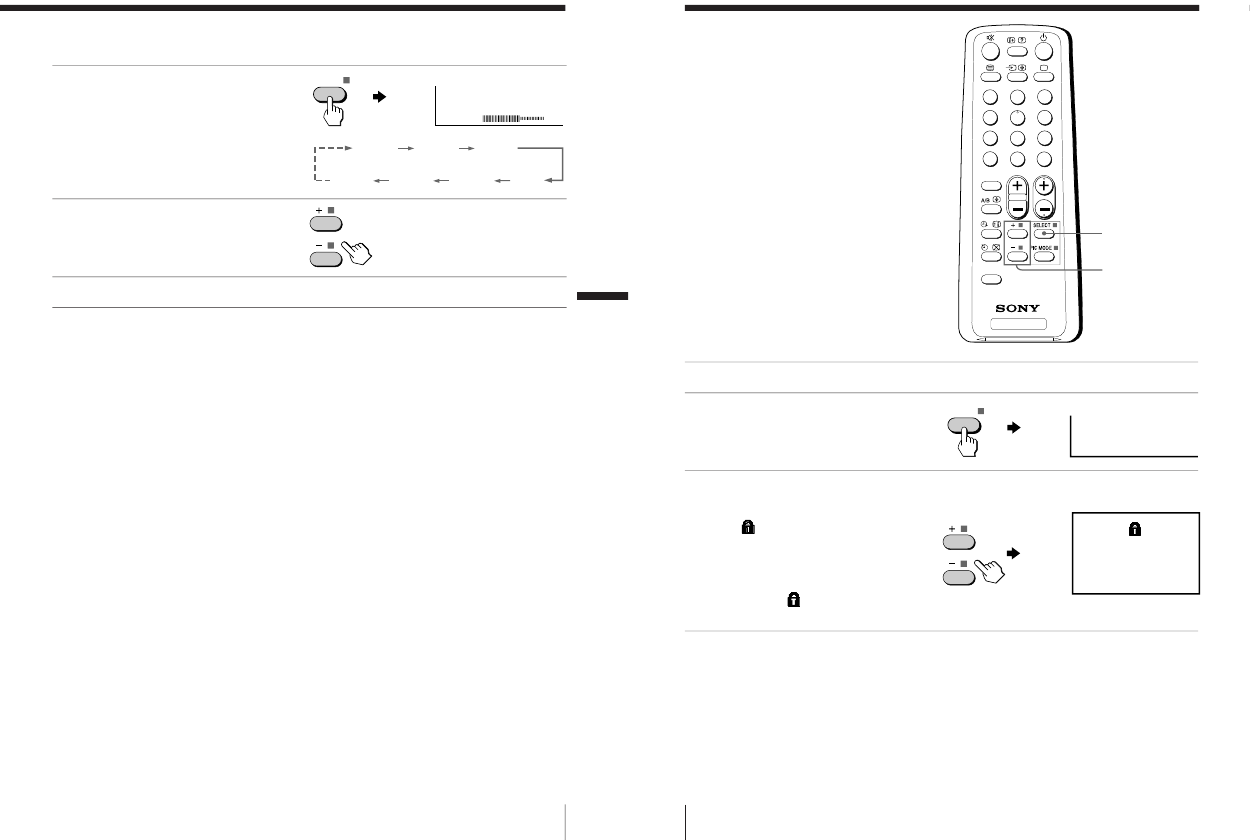

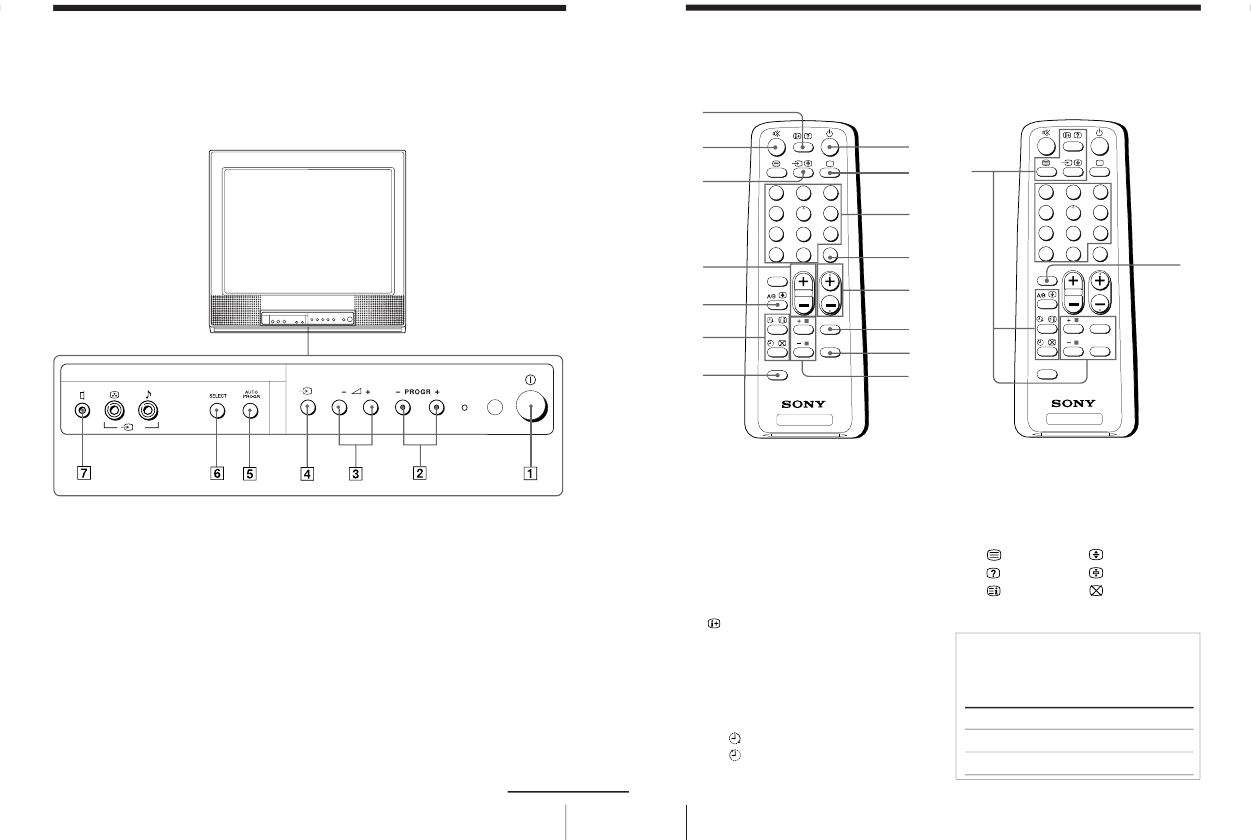

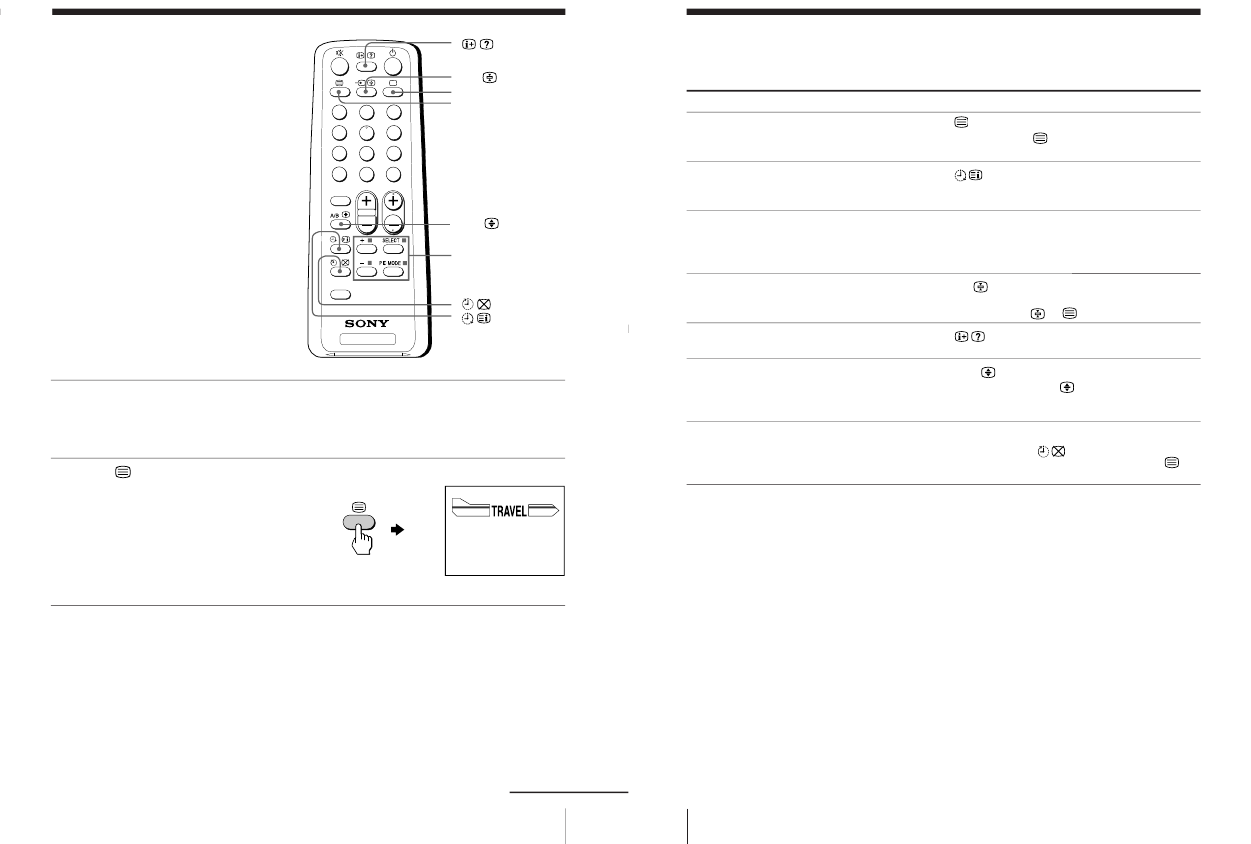

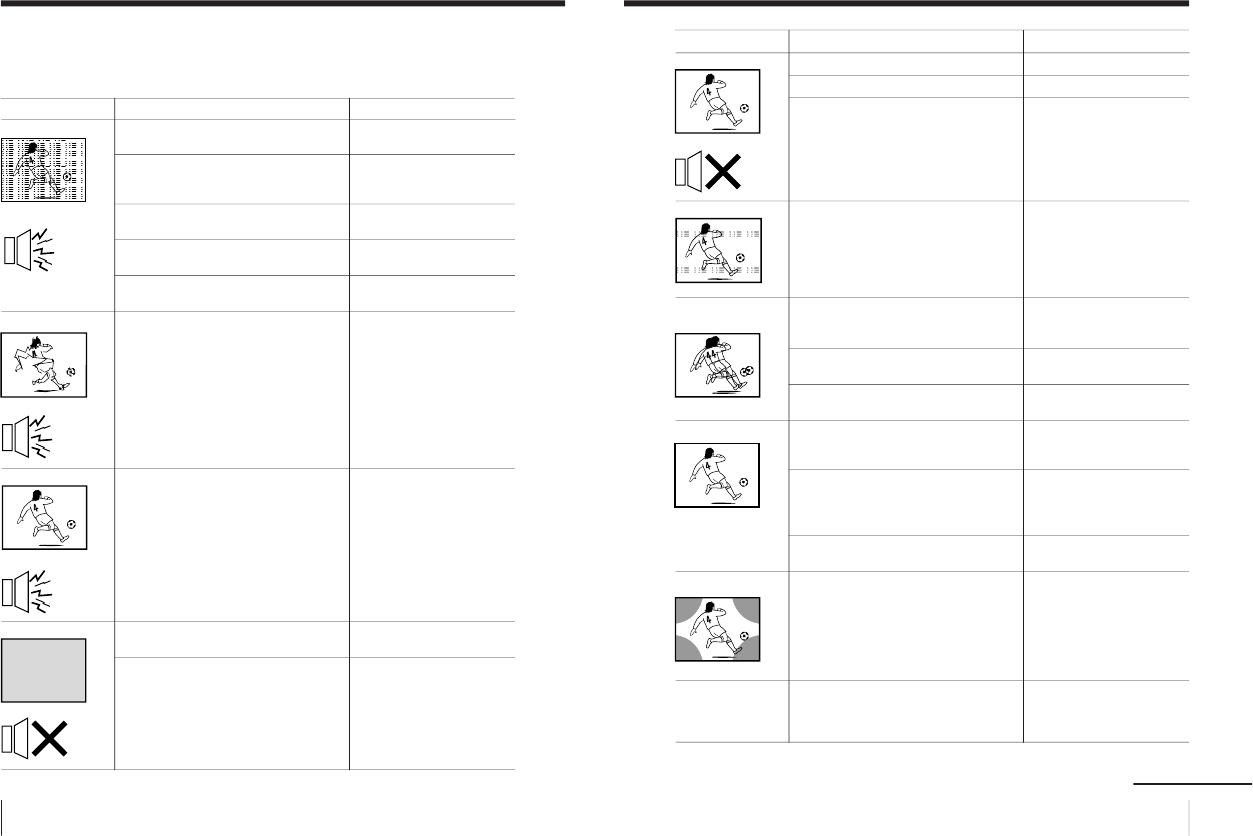

SECTION 1

GENERAL

(KV-PF21M70)

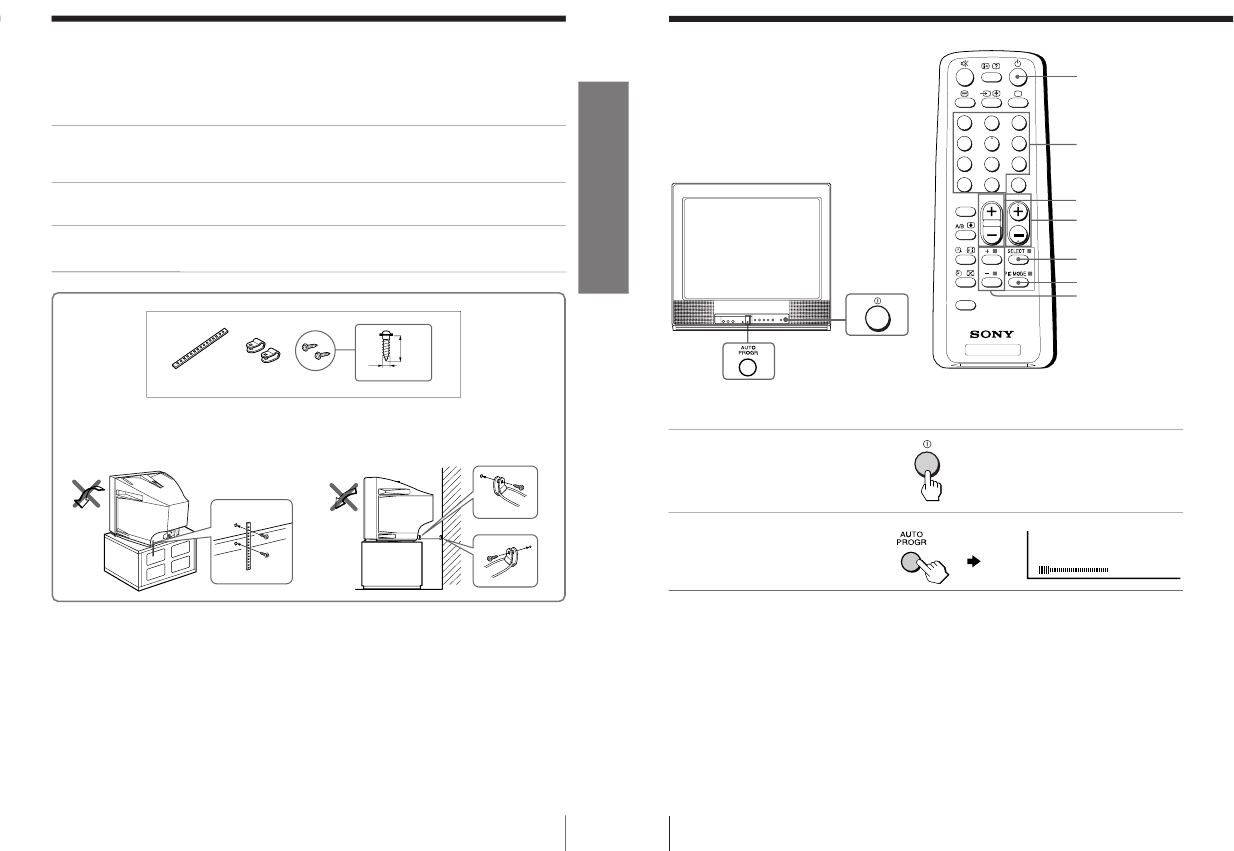

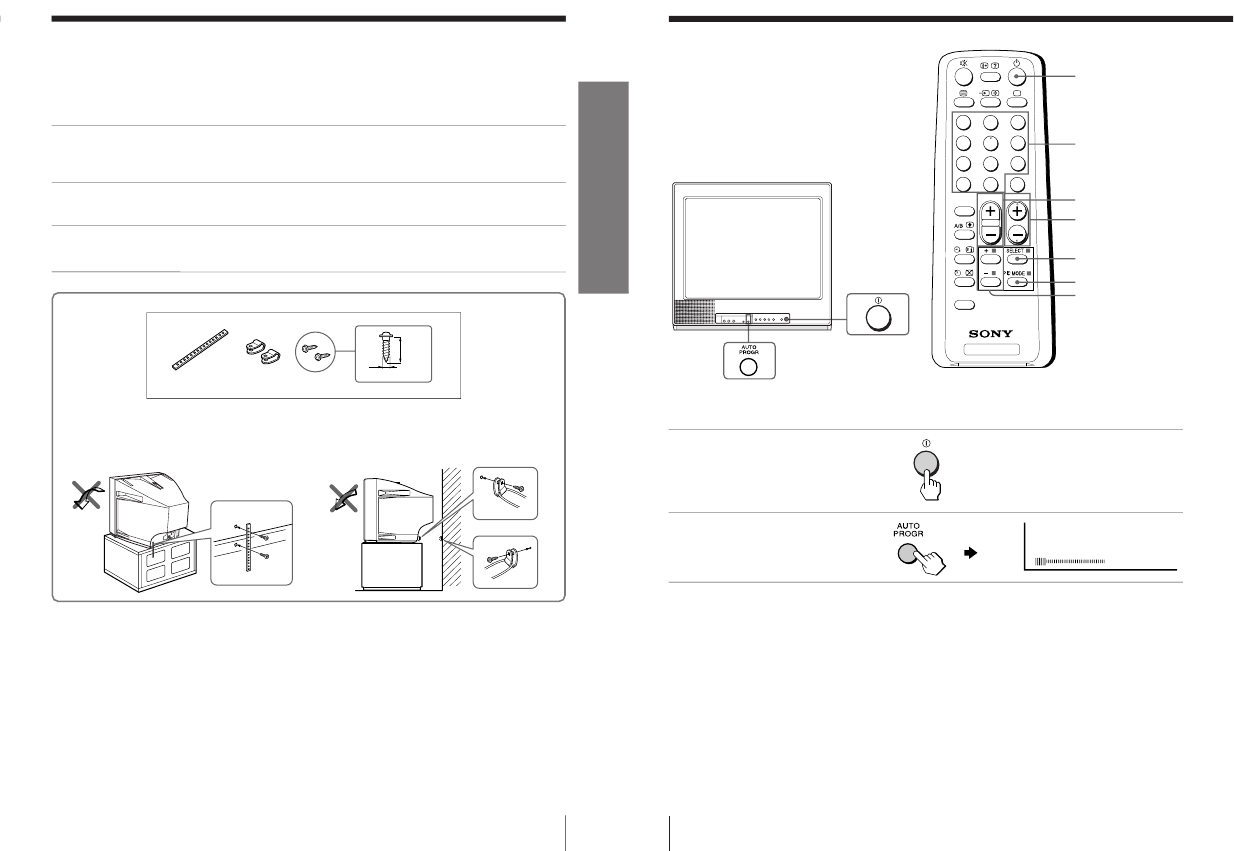

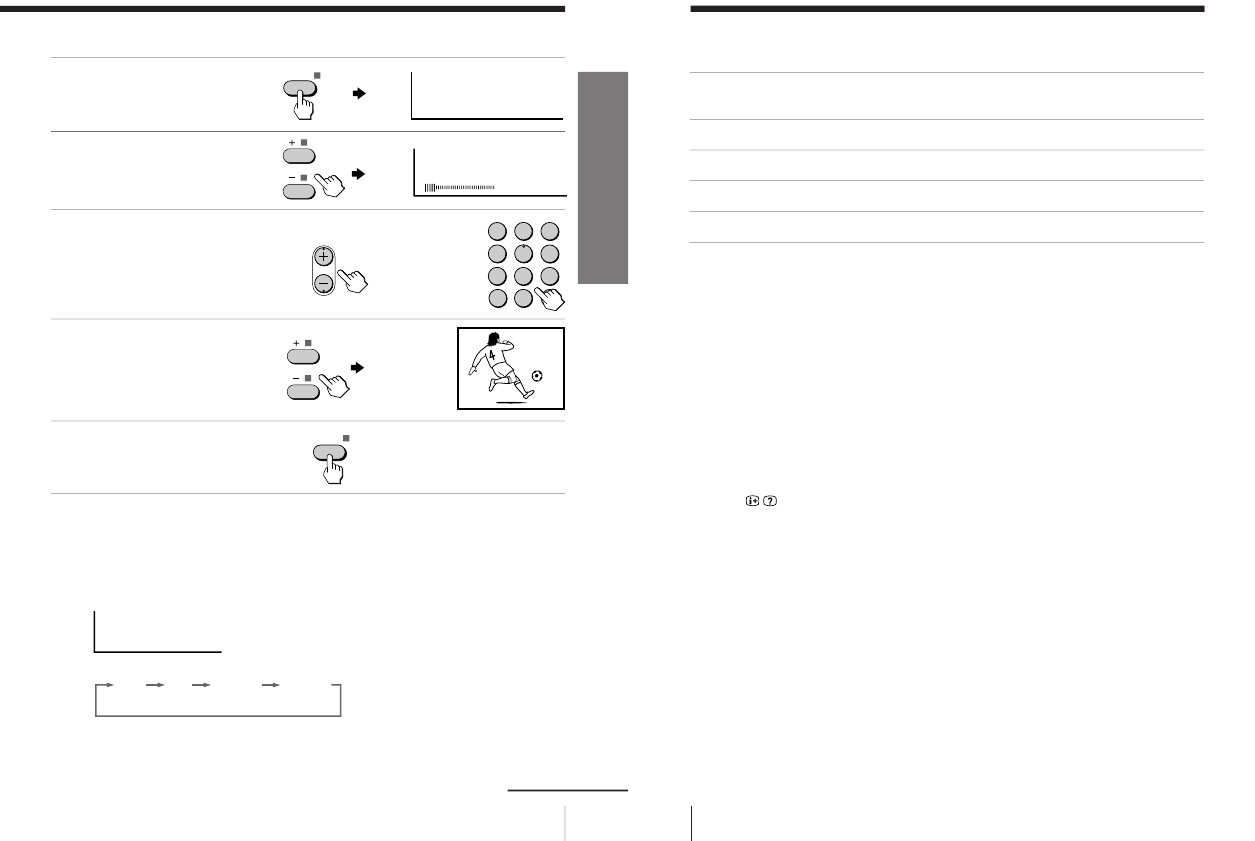

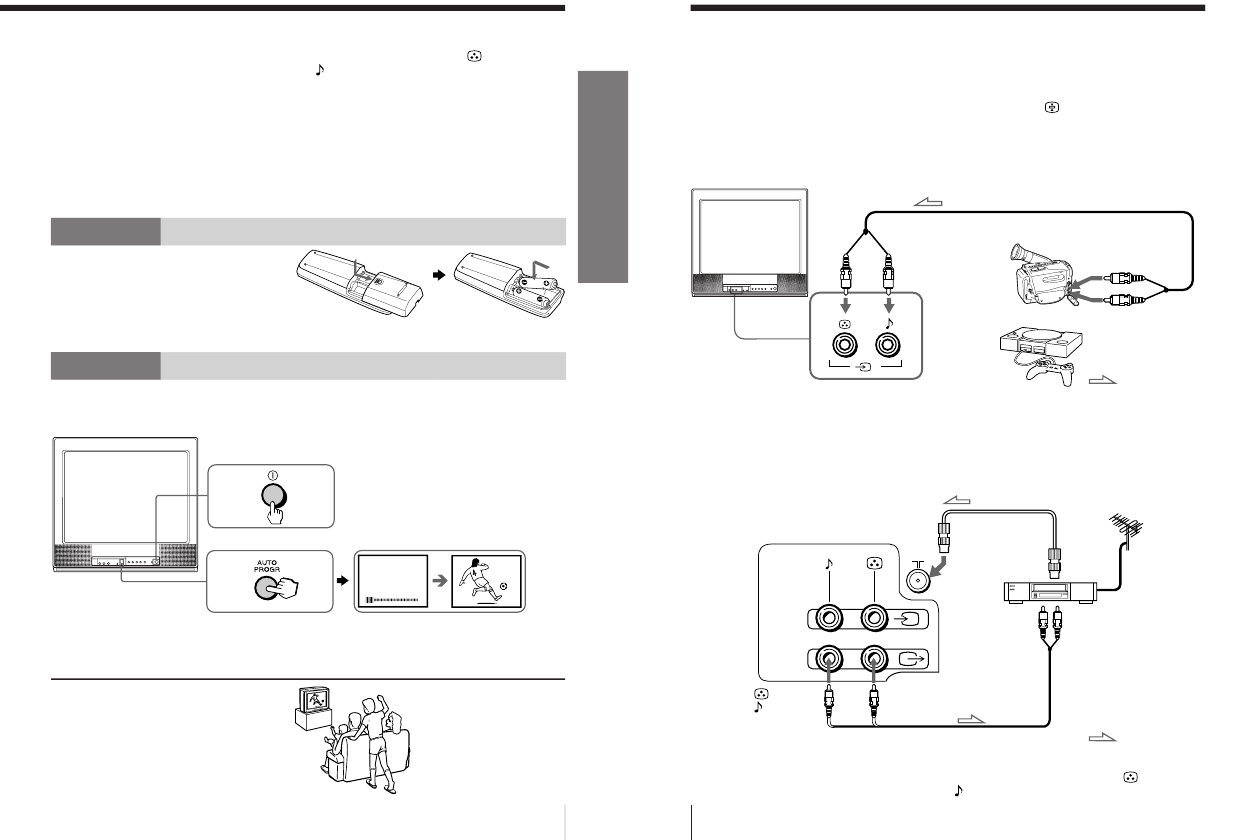

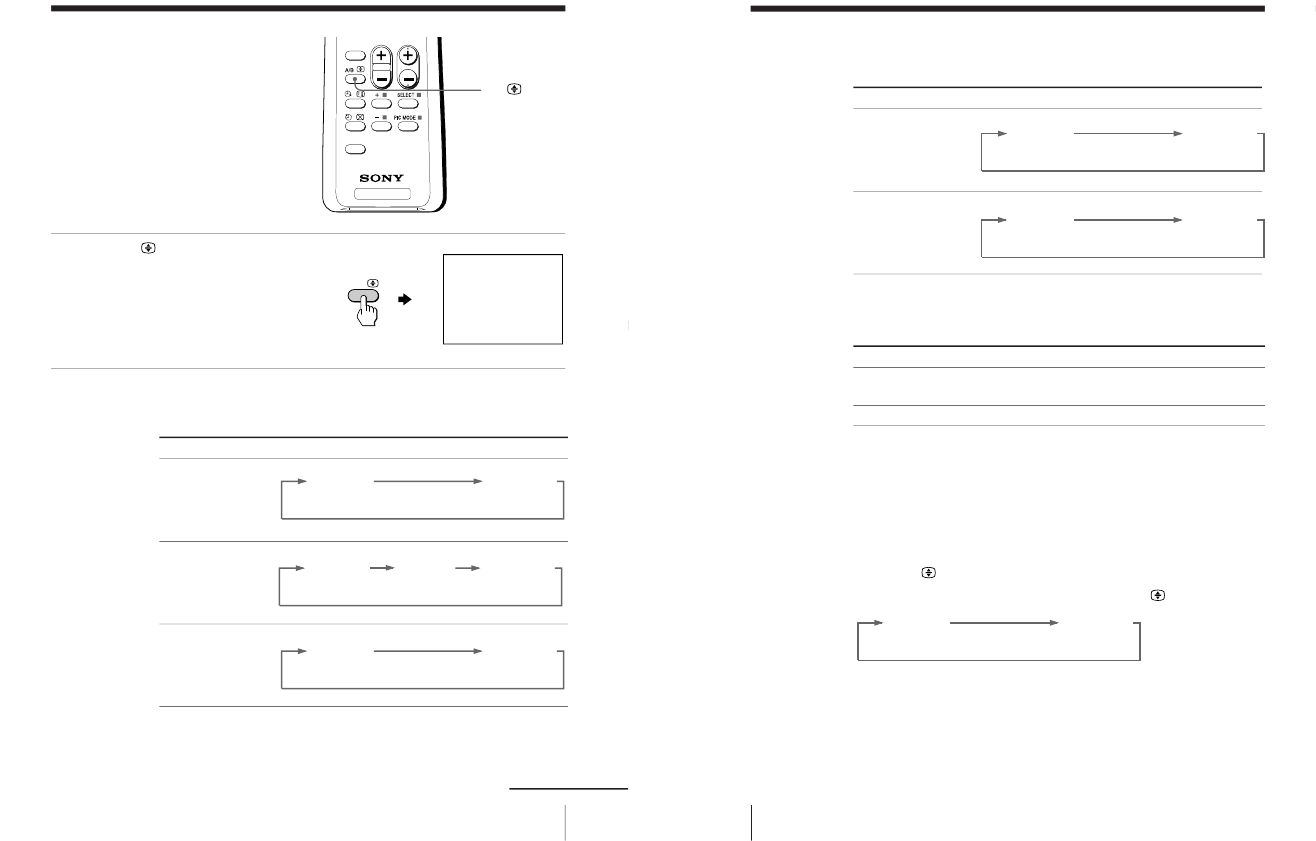

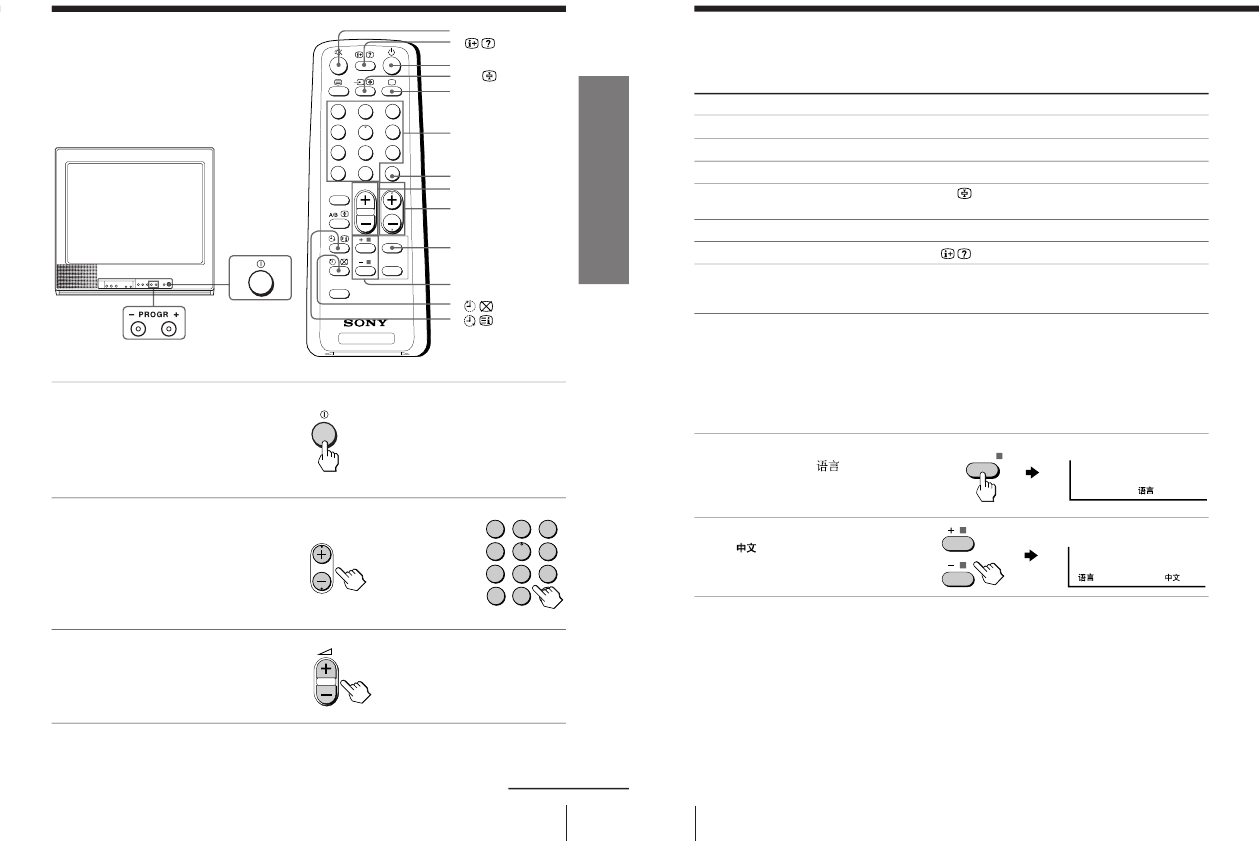

The operating instructions mentioned here are partial abstracts

from the Operating Instruction Manual. The page numbers of

the Operating Instruction Manual remain as in the manual.

2

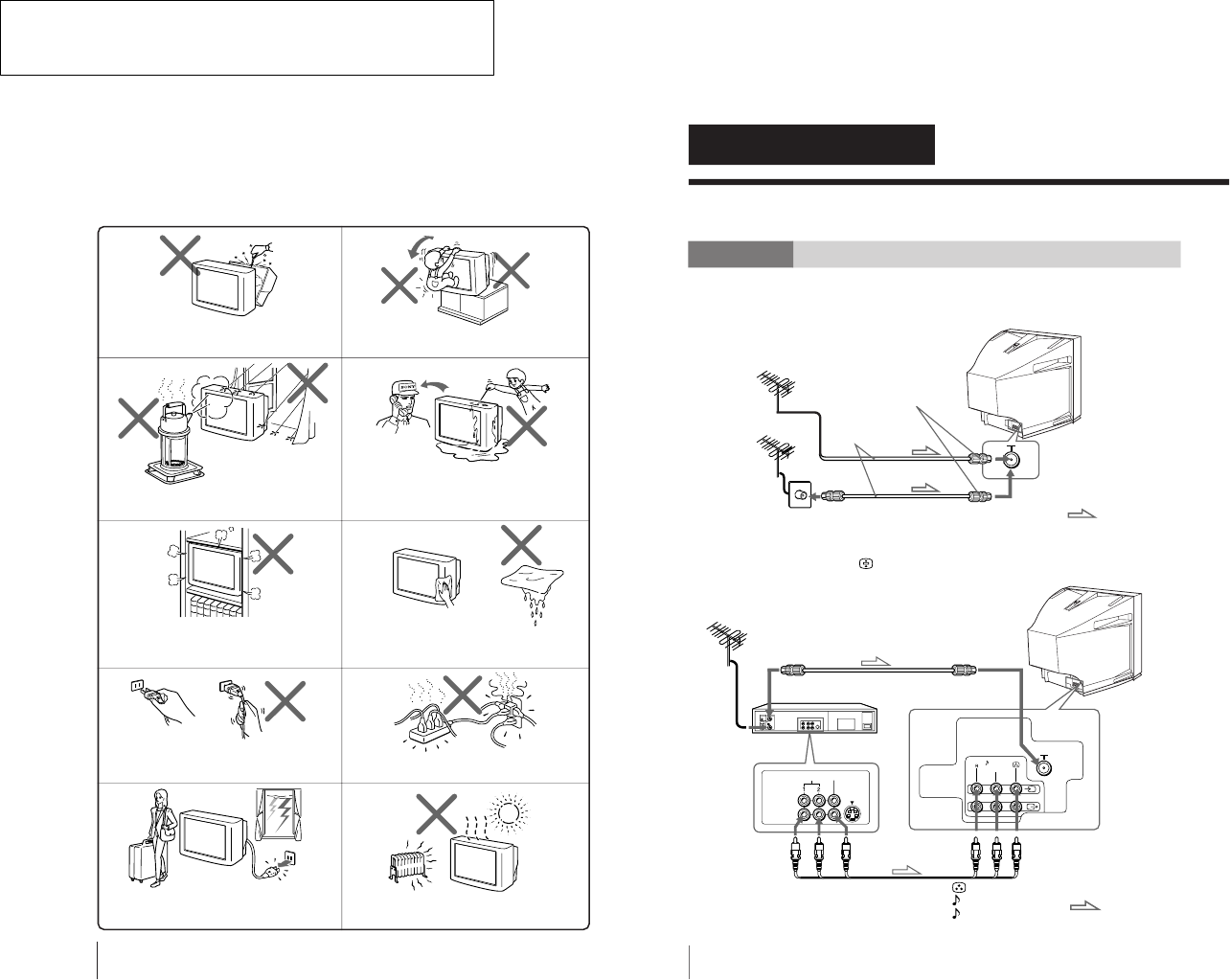

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC. (For Hong Kong only: 220 – 240 V AC.)

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Do not pull the power cord to disconnect the TV.

Pull it out by the plug.

Disconnect the power cord during lightning

storms or if you are not going to use the TV for

several days.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

4

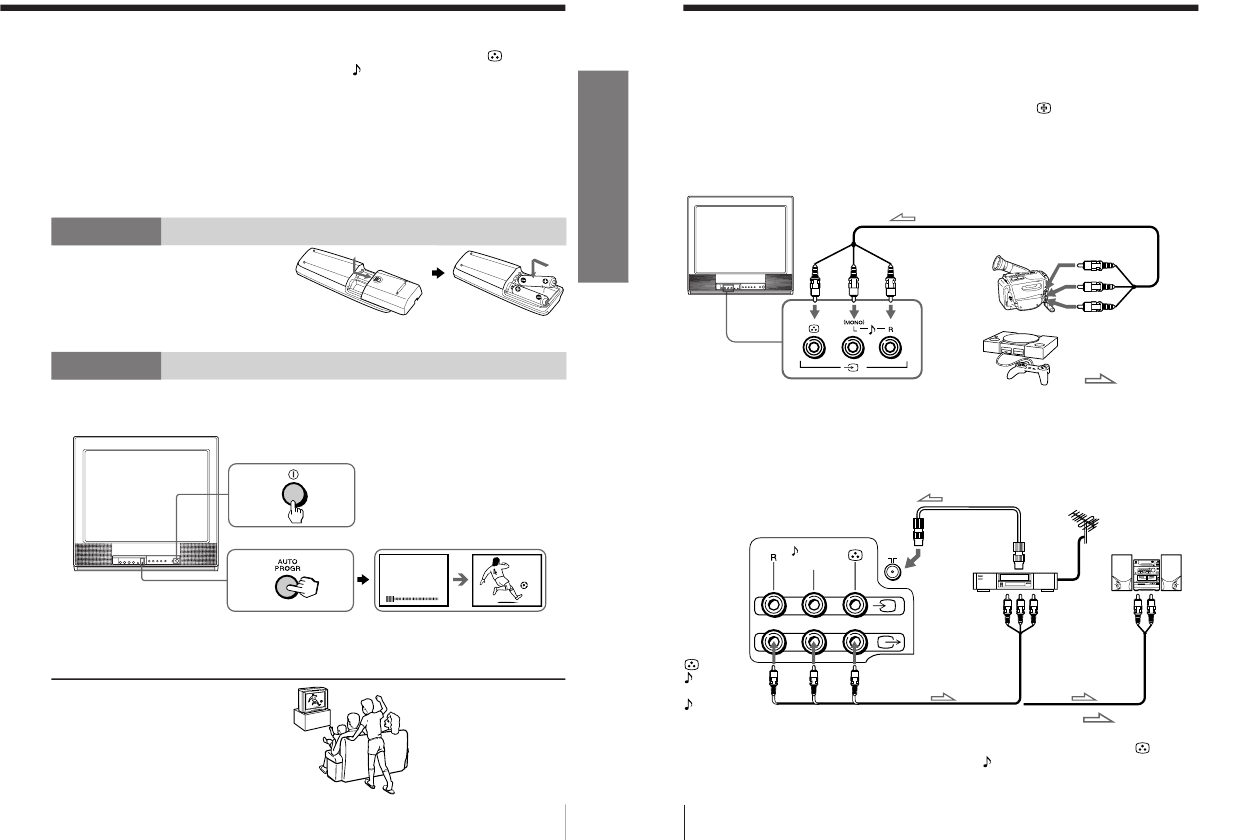

Using Your New TV

Getting Started

Step 1

Connect the antenna

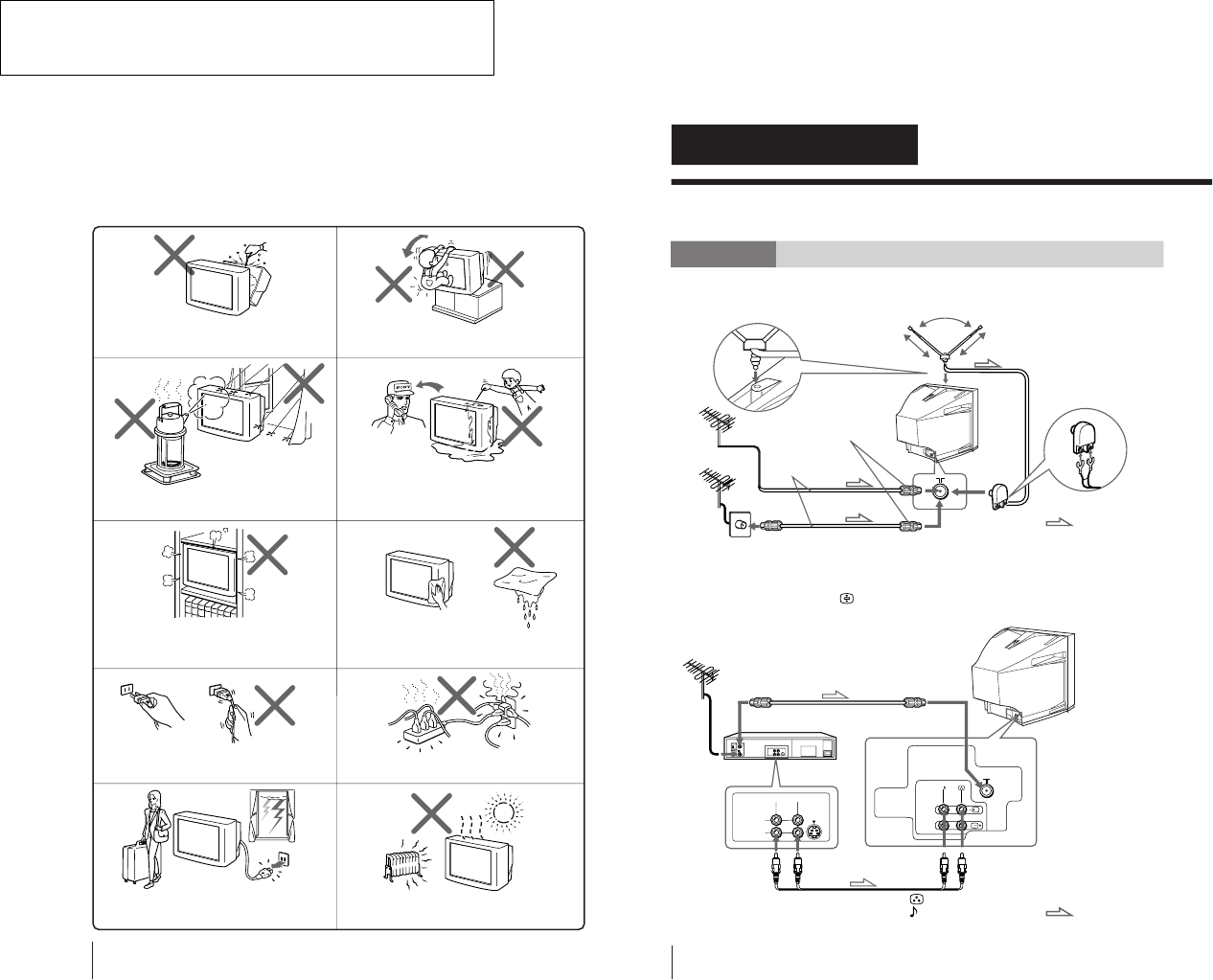

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

(black)

Antenna cable (not supplied)

To … 1

(video input)

Audio/Video cable

(not supplied) : Signal flow

To antenna

output

Antenna cable

(not supplied)

Rear of TV

Connecting a VCR

To watch the video, press … (see page 12).

Note

• You are advised to use an outdoor antenna for better reception.

or

: Signal flow

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

1

Rear of TV

Rod antenna and cable

(supplied)

or

To ˘

(antenna)

– 9 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

5

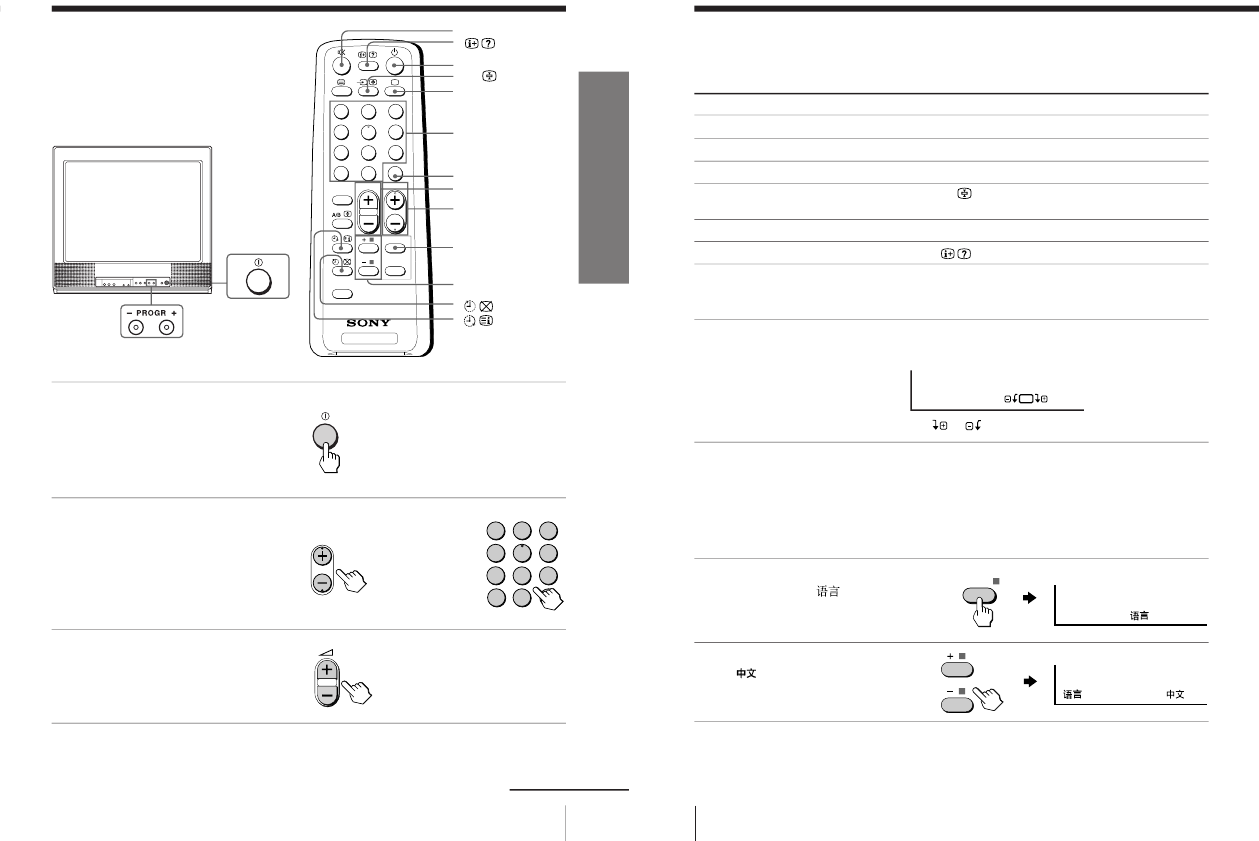

Using Your New TV

Using Your New TV

Preset the channels automatically

Tips

• If you want to stop automatic channel presetting, press SELECT twice.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 9).

Note

• During automatic channel presetting, your TV screen will indicate “B/G”,

“I”, “D/K” or “M” for the TV system.

Now You Are Ready. . .

To watch your TV, see page 11.

Notes

• If you connect a stereo VCR, connect the yellow plug to (the yellow

jack) and the white plug to (the black jack).

• If you connect a VCR to the ˘ (antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• When no signal is input to the connected video equipment, the TV screen

becomes blue.

Step 2

Note

• Do not use old batteries nor use different types of batteries together.

Step 3

CAUTION

Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

Insert the batteries

into the remote

Front of TV

1

1

1

2

VHF LOW B/G

6

Using Your New TV

Connecting optional components

You can connect optional video components, such as a VCR, multi disc player,

camcorder or video game.

To watch the picture of the connected equipment, press … (see page 12).

Connecting a camcorder/video game equipment

using the … (video input) jacks

Note

• You can also connect video equipment to the … 1 (video input) jacks at

the rear of your TV.

Connecting video equipment using the Ú

(monitor output) jacks

Note

• When connecting a stereo VCR, connect the yellow plug to (the yellow

jack) and the white plug to (the black jack).

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

(yellow)

(black)

Rear of TV

To

antenna

outputVCR

: Signal flow

To

…

2

(video input)

To Ú

(monitor

output)

or

Audio/Video cable (not supplied)

Antenna cable (not supplied)

2

1

Audio/Video cable (not supplied) : Signal flow

To video

and audio

inputs

– 10 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

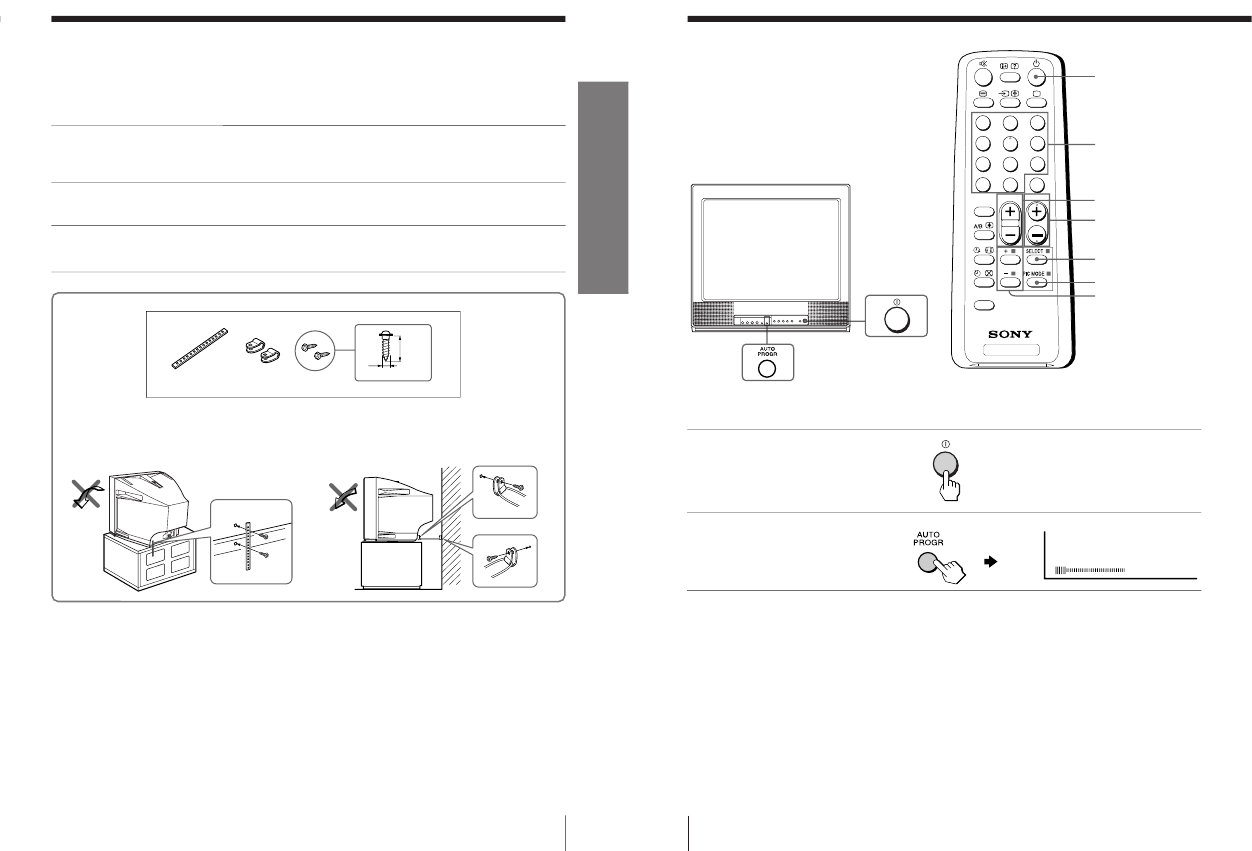

8

Using Your New TV

Presetting

channels

You can preset up to 100 TV channels in

numerical sequence from program

number 1 using the remote and the

buttons on your TV as well.

Presetting channels automatically

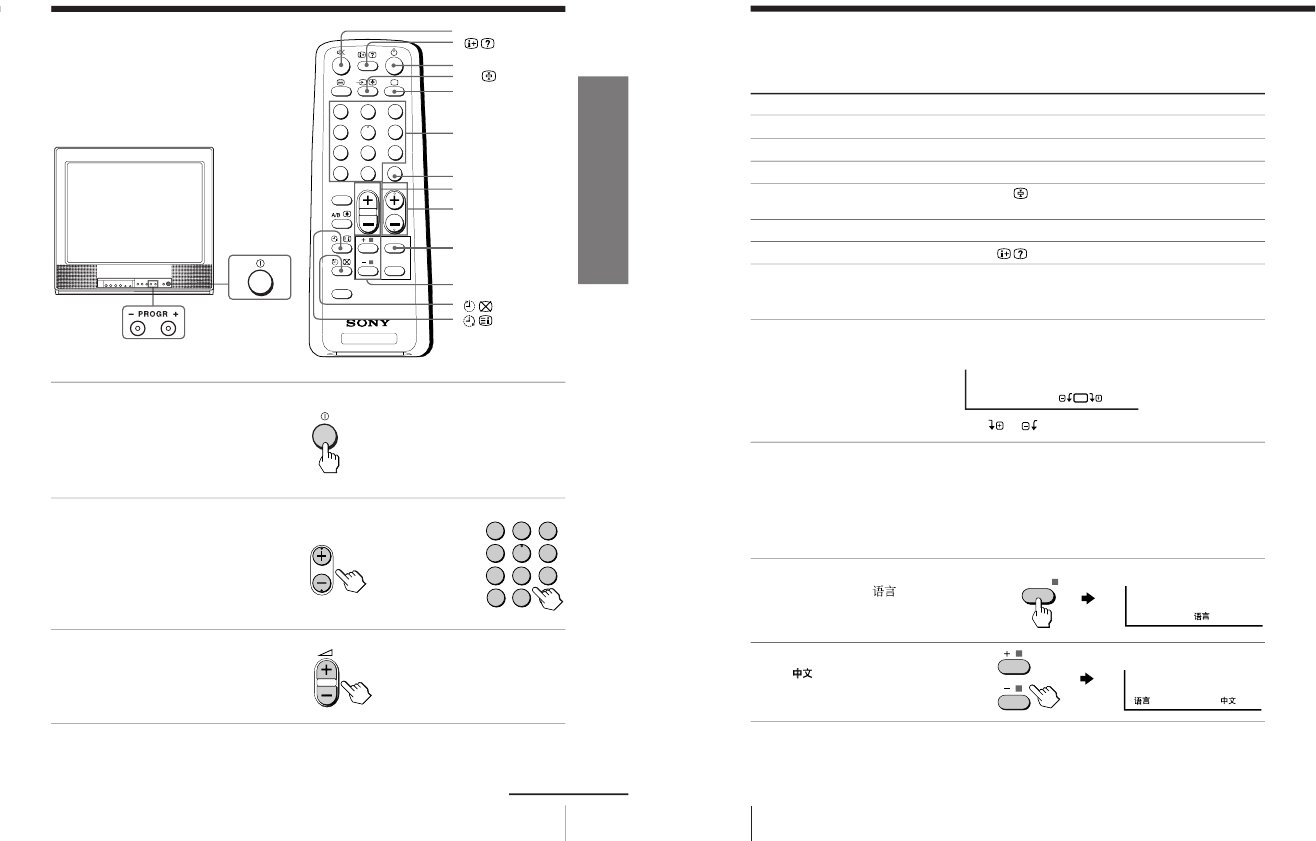

1

Press U to turn on the TV.

2

Press AUTO PROGR.

Note

• During automatic channel presetting, your TV screen will indicate “B/G”,

“I”, “D/K” or “M” for the TV system.

To preset channels automatically from a specified program number

(1) Press SELECT until “AUTO PROGRAM” appears.

(2) Press + or –.

The on-screen display will start flashing.

(3) Press PROGR +/– or the number buttons until the desired program number

appears.

(4) Press + or –.

u

Number buttons

SELECT

. +/–

PROGR +/–

+ or –

PIC MODE

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGRÁ

VHF LOW B/G

7

Using Your New TV

Using Your New TV

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

A

With the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

or

B

Put the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

20

mm

AB

3.8mm

or

– 11 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

9

Using Your New TV

Using Your New TV

Presetting channels manually

1

Press SELECT until

“MANUAL PROGRAM”

appears.

2

Press + or –.

3

Press PROGR +/– or the

number buttons until the

desired program number

appears.

4

Press + or – until the

desired channel picture

appears.

5

Press SELECT.

To change the color system setting

If the color is abnormal when receiving programs through the

˘

(antenna) terminal

or the

…

(video input) jack

(1) Press SELECT until “COL SYS” appears.

(2) Press + or – to select the appropriate color

system until the color is optimal.

Tip

• Normally set “COL SYS” to “AUTO”.

Note

• The color system “SECAM” is not available.

The color system “NTSC3.58” is available.

continued

MANUAL PROGRAM

SELECT

VHF LOW B/G

or

123

456

78

0

-/--

9

PROGR

1

SELECT

COL SYS: AUTO

AUTO PAL SECAM

NTSC 3.58

NTSC 4.43

10

Using Your New TV

To change the TV system setting

If the picture or sound is abnormal when receiving programs through the

˘

(antenna)

terminal

(1) Press SELECT until “TV SYS” appears.

(2) Press + or – to select the appropriate

TV system until the picture or sound

quality is optimal.

Skipping program numbers

1

Press PROGR +/– or the number buttons until the unused or unwanted

program number appears.

2

Press SELECT until “MANUAL PROGRAM” appears.

3

Press + or –.

4

Press PIC MODE.

5

Press SELECT.

To preset the skipped program number again

Preset the channel automatically or manually.

Tip

• You can also use SELECT and

¸

+/– on the TV to preset channels and

skip program numbers.

To use the fine tuning (FINE) function

The fine tuning (FINE) function may help to reduce the following problems: double

images and lines moving across the TV screen.

You can use the fine tuning function as below:

(1) Select the program number you want to adjust.

(2) Press SELECT until “MANUAL PROGRAM” appears on the screen.

(3) Press + or – on the remote control once.

(4) Press to display “FINE” on the screen.

(5) Press + or – continuously until the above problems are minimized.

The + or – icon on the screen flashes while tuning.

(6) Press SELECT to return to normal screen.

Presetting channels (continued)

TV SYS: B/G

B/G ID/K M

– 12 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

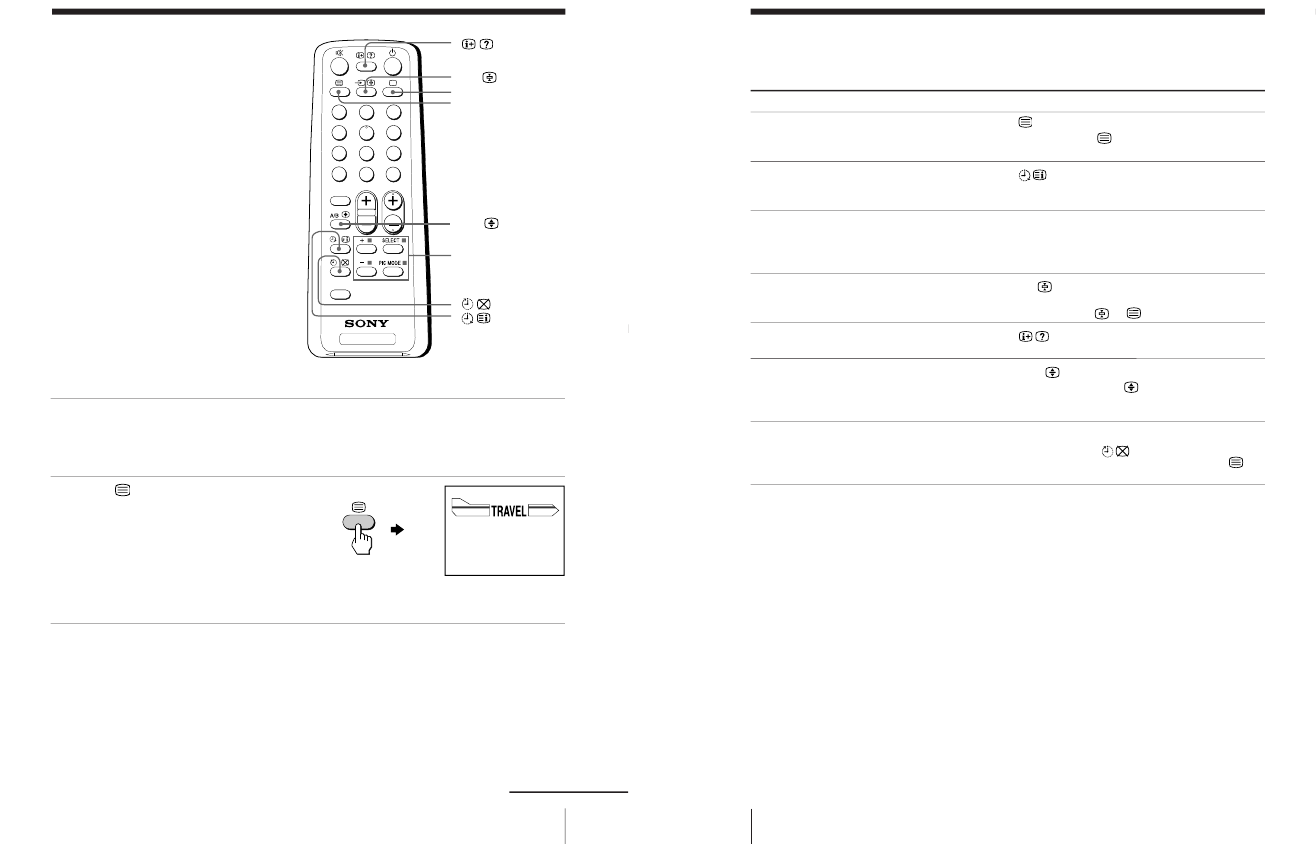

12

Using Your New TV

To

Turn off temporarily

Turn off completely

Mute the sound

Watch the video input

(VCR, camcorder, etc.)

Jump back to the previous channel

Display the on-screen information*

Adjust the volume of each TV

program automatically

Do this

Press u. The u indicator on the TV lights up red.

Press U on the TV.

Press ¤.

Press … to select “VIDEO 1” or “VIDEO 2”.

To return to the TV program, press ;.

Press JUMP.

Press .

Press SELECT repeatedly until “INTELLIGENT VOL”

appears, then press + or – to select “ON”.

To cancel, select “OFF”.

* The picture, sound, and either the program number or video mode are

displayed. The on-screen display for the picture and sound information

disappears after about 3 seconds.

Changing the on-screen display language

1

Press SELECT until

“LANGUAGE / :

ENGLISH”appears on the

screen.

2

Press + or – to select

“ “.

Tip

• You can also use SELECT and . +/– on the TV to select the on-screen

display language.

Additional tasks

Watching the TV (continued)

SELECT

LANGUAGE / : ENGLISH

/ LANGUAGE

:

11

Using Your New TV

Using Your New TV

Watching the TV

This section explains functions used

while watching the TV. Most operations

can be done using the remote.

1

Press U to turn on the TV.

When the TV is in the

standby mode (the u

indicator on the TV is lit

red), press u on the remote

or PROGR +/– on the TV.

2

Press PROGR +/– or the

number buttons to select

the TV program.

For double digit numbers,

press ÷, then the number

(e.g., for 25, press ÷, then

2 and 5).

3

Press

. +/– to adjust the

volume.

¤

u

…

;

Number buttons

SELECT

. +/–

PROGR +/–

+ or –

JUMP

or

continued

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

SELECT

p

PIC MODE

p

Á

123

456

78

0

-/--

9

PROGR

– 13 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

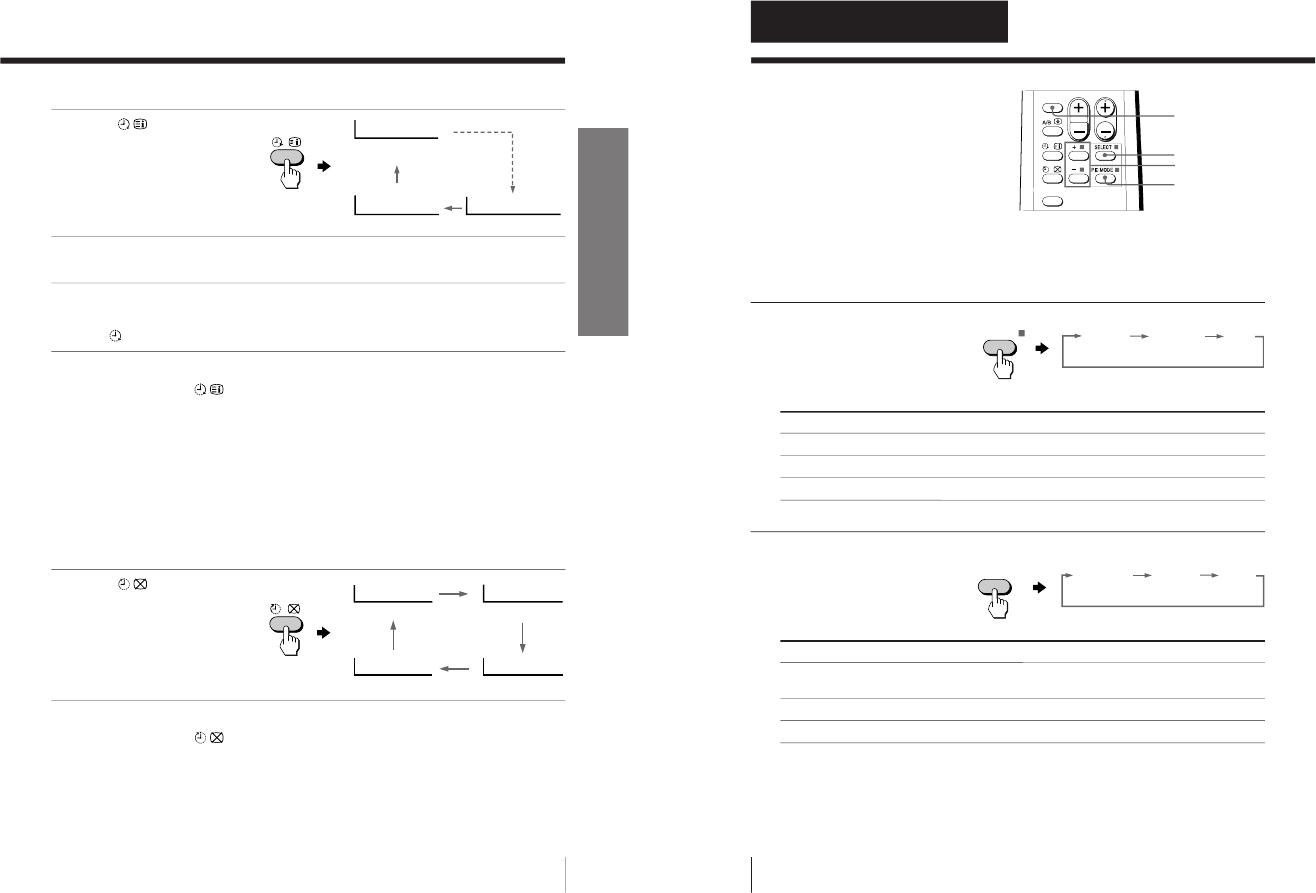

13

Using Your New TV

Using Your New TV

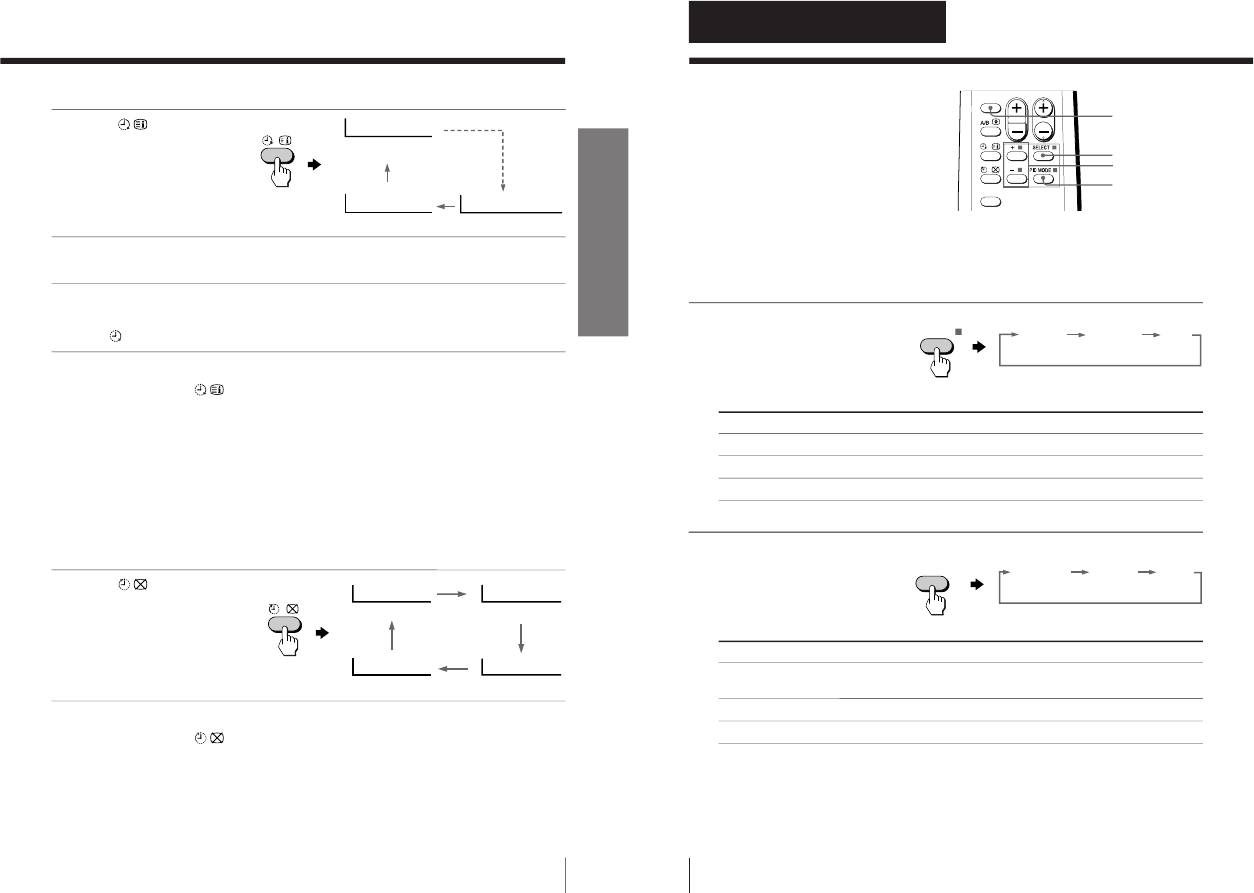

Setting the Wake Up timer

1

Press until the

desired period of time

appears.

2

Select the TV program or video mode you want to display when you wake

up.

3

Press u or set the Sleep timer if you want the TV to turn off automatically.

The indicator on the TV lights up orange.

To cancel the Wake Up timer

Press until “WAKE UP TIMER: OFF” appears or turn off the

TV’s main power.

Notes

• The Wake Up timer starts immediately after the on-screen display

disappears.

• If no buttons or controls are pressed for more than two hours after the

TV is turned on using the Wake Up timer, the TV automatically goes into

the standby mode. To continue watching the TV, press any button or

control on the TV or the remote.

Setting the Sleep timer

Press until the

desired period of time

appears.

To cancel the Sleep timer

Press until “SLEEP TIMER: OFF” appears or turn the TV off.

WAKE UP TIMER:10M

WAKE UP TIMER:OFF WAKE UP TIMER:12H00M

After 10 minutes

No Wake Up timer After 12 hours

SLEEP TIMER:30M SLEEP TIMER:60M

SLEEP TIMER:OFF SLEEP TIMER:90M

After 30 minutes

No Sleep Timer

After 60 minutes

After 90 minutes

14

Advanced Operations

Advanced Operations

SOUND MODE

Customizing the

picture and sound

You can customize the picture and

sound by selecting the picture and

sound modes or by adjusting its

settings.

You can change the sound effect by

selecting the surround mode.

Selecting the picture and sound modes

To select the picture mode

Press PIC MODE

repeatedly until you get

the desired picture mode.

Select To

DYNAMIC receive high contrast pictures.

STANDARD receive normal contrast pictures.

SOFT receive mild pictures.

To select the sound mode

Press SOUND MODE

repeatedly until you get

the desired sound mode.

Select To

DYNAMIC listen to dynamic and clear sound that emphasizes the low and

high sound.

DRAMA listen to sound that emphasizes vocals and background music.

SOFT receive soft sound.

PIC MODE

SELECT

+ or –

SOUND

MODE

FAVORITE

PROGRÁ

STANDARDDYNAMIC SOFT

PIC MODE

≥DYNAMIC ≥DRAMA ≥SOFT

SOUND

MODE

– 14 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

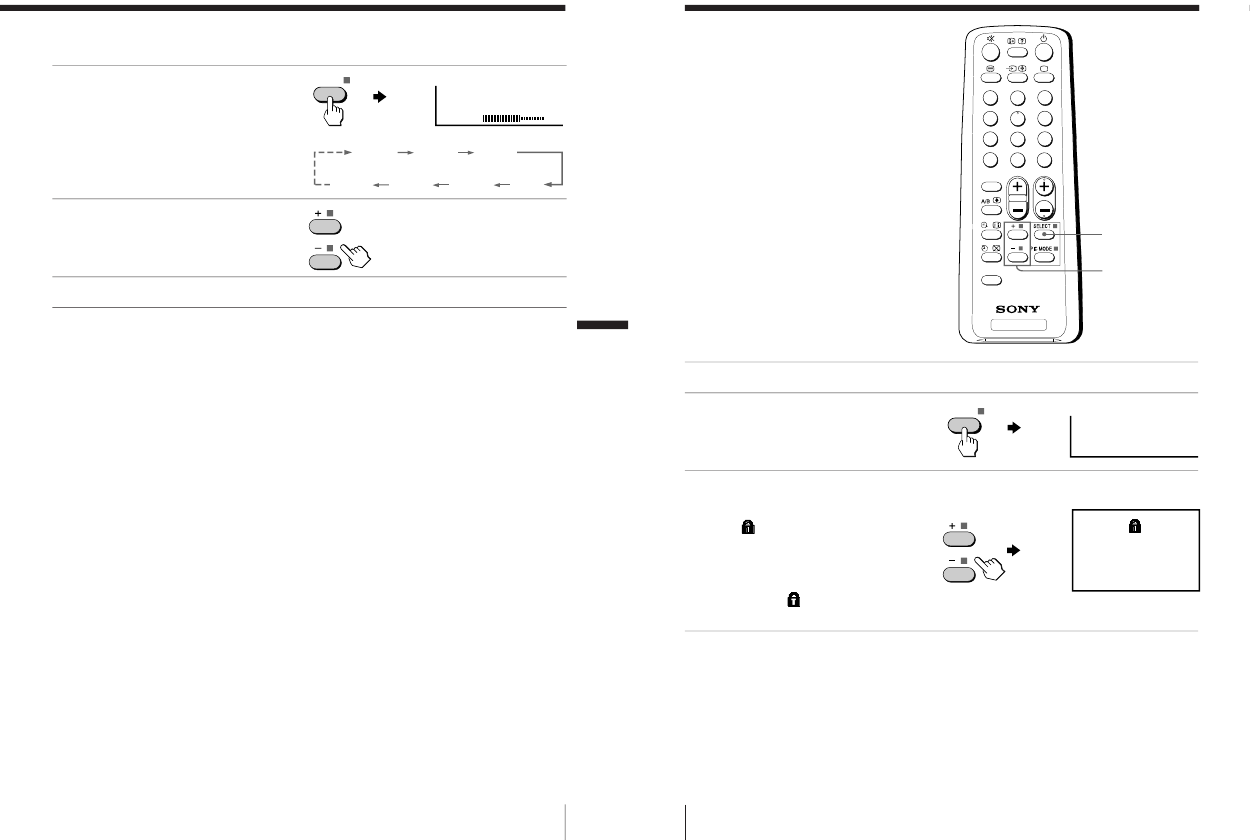

16

Advanced Operations

Blocking the

channels

(CHILD LOCK)

You can prevent a child from watching

certain programs by using the buttons

on the remote control.

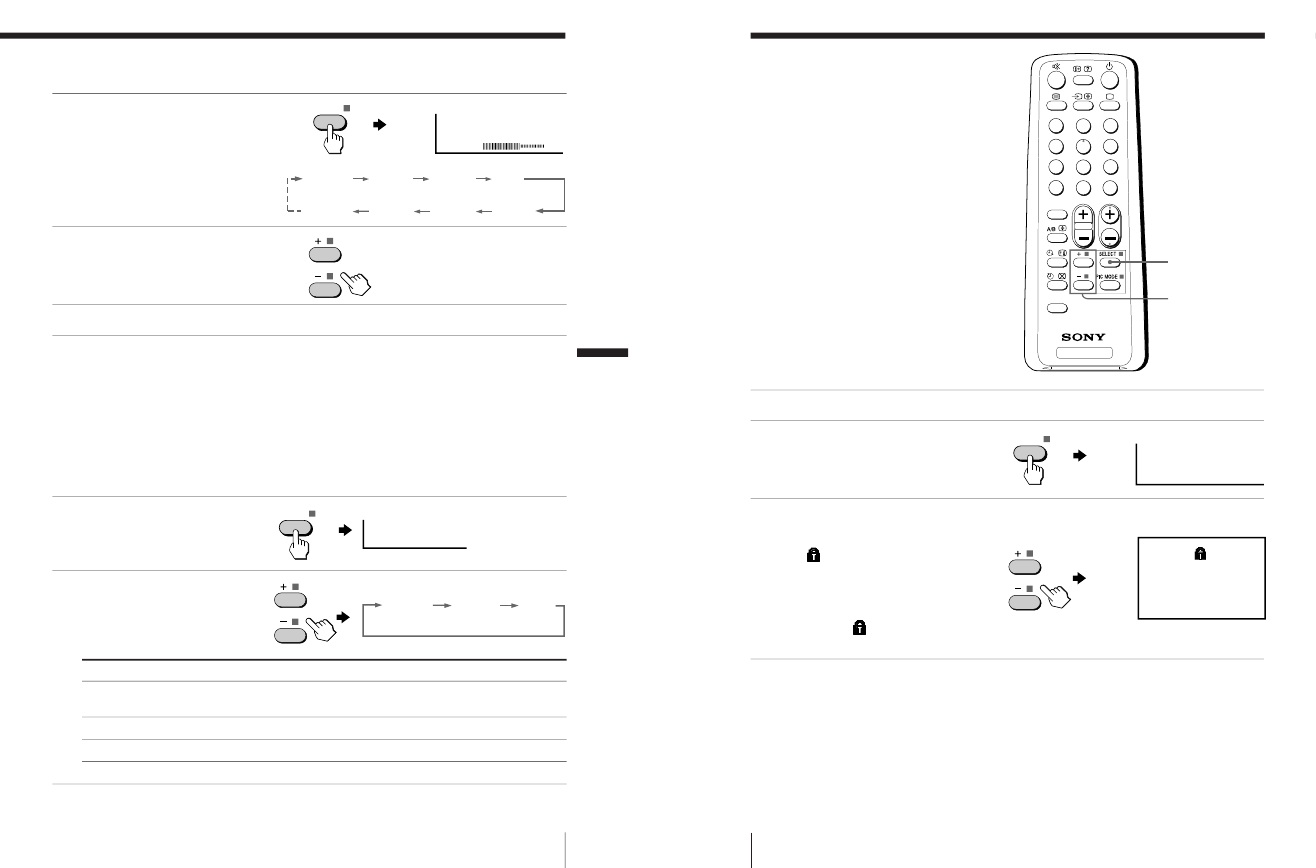

1

Select the TV program you want to lock.

2

Press SELECT until “CHILD

LOCK” appears on the

screen.

3

Press + or – to select

“ON”.

The symbol appears on

the screen.

To unlock the channel,

press + or – to select

“OFF”. The symbol

disappears from the screen.

Note

• If you preset a locked channel, that particular channel will be unlocked

automatically.

SELECT

+ or –

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGRÁ

CHILD LOCK: OFF

SELECT

CHILD LOCK: ON

1

15

Advanced Operations

Advanced Operations

Adjusting the picture and sound settings

1

Press SELECT until the

desired setting appears.

Each time you press

SELECT, the setting

item will change as follows:

2

Press + or – to adjust the

item.

3

To adjust other items, repeat steps 1 to 2.

* “HUE” can be adjusted for the NTSC system only.

Notes

• When you select a picture or sound mode, the adjusted settings will be

reset according to the selected mode.

• You can also use SELECT and

¸

+/– on the TV to adjust the picture and

sound settings.

SELECT

PICTURE 60

PICTURE COLOR BRIGHT

HUE*

TREBLE BASS SHARP

– 15 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

17

Additional Information

Additional Information

Self-diagnosis

function

Your TV is equipped with a self-diagnosis function. If there is a

problem with your TV, the u indicator flashes red. The number of

times the u indicator flashes indicates the possible causes.

1

Check that the u indicator flashes red a number of times between 3-second

intervals.

2

Count the number of times the u indicator flashes.

3

Press U (main power) to turn off your TV.

4

Inform your nearest Sony service center about the number of times the

u indicator flashes.

Be sure to note the model name and serial number located on the rear of

your TV.

Front of TV

Additional Information

u indicator

18

Additional Information

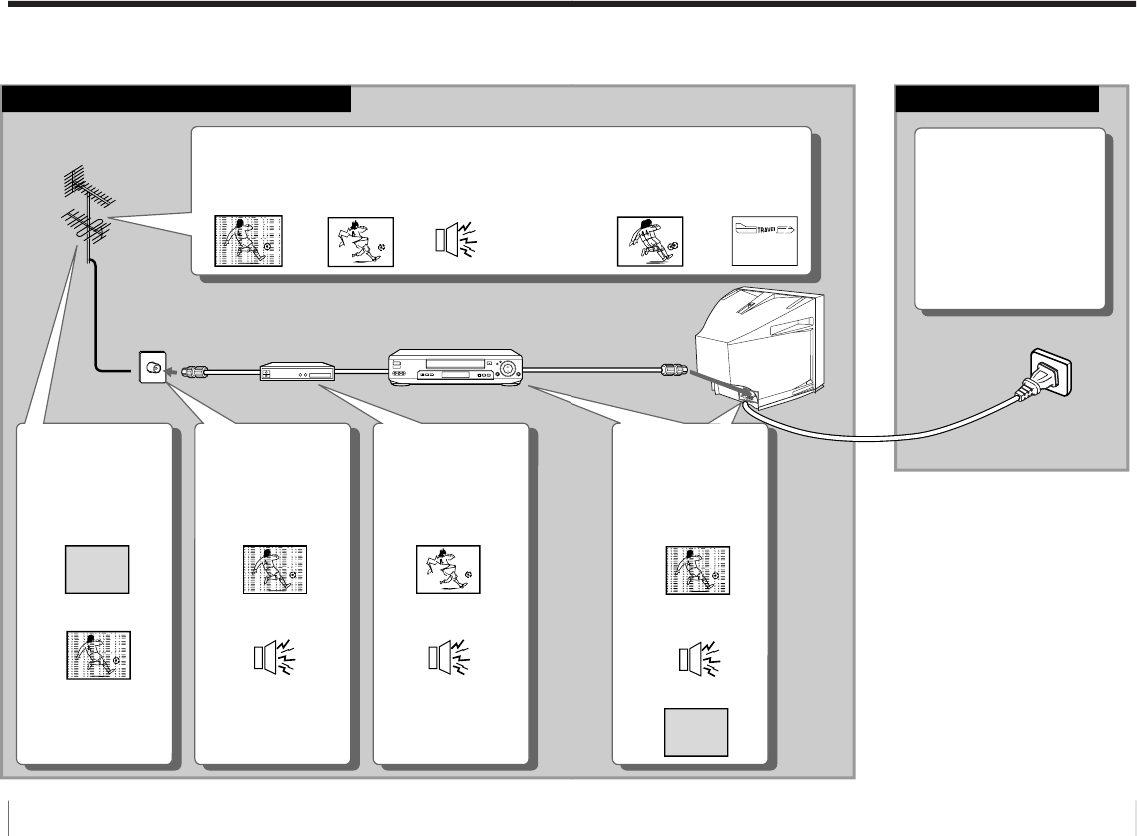

Snowy picture

Noisy sound

Distorted picture

Noisy sound

Good picture

Noisy sound

No picture

No sound

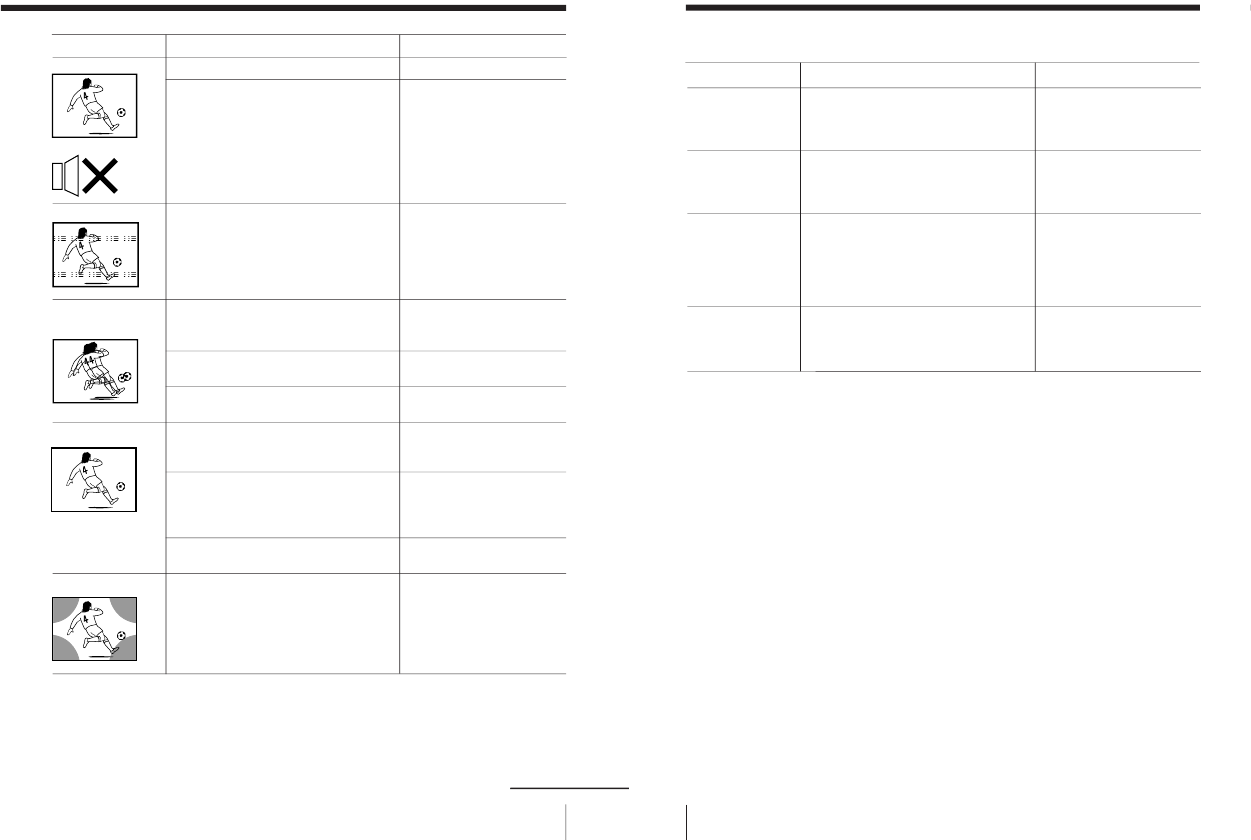

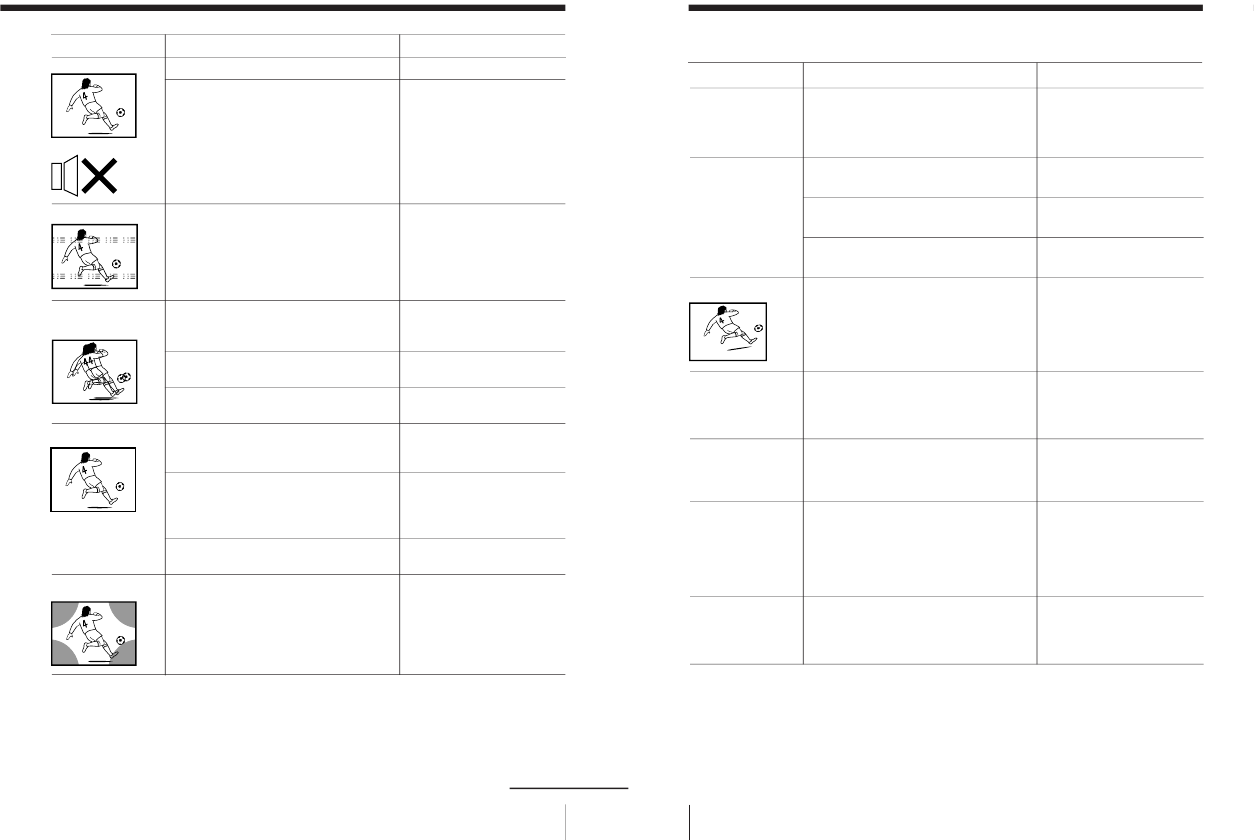

Troubleshooting

If you find any problem while viewing your TV, please check the following guide. If

any problem persists, contact your Sony dealer .

Possible causeSymptom Solutions

•

Check the antenna cable and connection

on the TV, VCR and on the wall. (page 4)

• Press SELECT until “MANUAL

PROGRAM” appears on the screen then

preset the channel again. (page 9)

• Check the antenna type (VHF/UHF).

Contact a Sony dealer for advice.

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Try using a booster.

• Turn off or disconnect the booster if it is

in use.

• If the sound of all the channels are

noisy, check the TV system (TV SYS)

setting (page 10), then press AUTO

PROGR to preset the channels again

(page 8).

• If the sound of some channels are noisy,

select the channel, then select the

appropriate TV system (TV SYS).

(page 10)

• Check the power cord, antenna and the

VCR connections.

• Press u (power).

• Press U (main power) on the TV to turn

off the TV for about five seconds, then

turn it on again.

• Connection is loose or the

cable is damaged.

• Channel presetting is

inappropriate or

incomplete.

• The antenna type is

inappropriate.

• The antenna direction is

inappropriate.

• Signal transmission is low.

• Broadcast signals are too

strong.

• The TV system setting or

channel presetting is

inappropriate or

incomplete.

• The power cord, antenna

or VCR is not connected.

• The TV is not turned on.

– 16 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

19

Additional Information

Possible causeSymptom Solutions

continued

Good picture

No sound

Dotted lines or stripes

Double images or

“ghosts”

N

o

color

Abnormal color patches

• Press ¸ + to increase the volume level.

• Press ¤ to cancel the muting.

• Do not use a hair dryer or other

equipment near the TV.

• Adjust the antenna direction for

minimum interference. Contact a Sony

dealer for advice.

• Use a highly directional antenna.

• Use the fine tuning (FINE) function.

(page 10)

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Turn off or disconnect the booster if it is

in use.

• Press SELECT until “COLOR” appears

on the screen, then press + or – to adjust

the color level. (page 15)

•

Press SELECT until “COL SYS ” appears

on the screen, then check the color

system setting (usually set this to

“AUTO”). (page 9).

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Keep external speakers or other

electrical equipment away from the TV.

Do not move the TV while the TV is

turned on. Press U (main power) on

the TV to turn off the TV for about five

minutes, then turn it on again.

•

The volume level is too low.

• The sound is muted.

• There is local interference

from cars, neon signs, hair

dryers, power generators,

etc.

• Broadcast signals are

reflected by nearby

mountains or buildings.

• The antenna direction is

inappropriate.

• Use of a booster is

inappropriate.

• The color level setting is

too low.

• The color system setting is

inappropriate.

• The antenna direction is

inappropriate.

• The magnetic disturbance

from external speakers or

other equipment, or the

direction of the earth’s

magnetic field may affect

the TV.

20

Additional Information

Lines moving across the

TV screen.

The

u

indicator on your

TV flashes red a number

of times between

3-second intervals.

TV cabinet creaks.

A “boom” sound is heard

when the TV is turned on.

Troubleshooting (continued)

Possible causeSymptom Solutions

• Use the fine tuning (FINE) function.

(page 10)

• Contact your nearest Sony service

center. (page 17)

—

—

• There is interference from

external sources, e.g.,

heavy machineries, nearby

broadcast station.

• Your TV may need service.

• Changes in room

temperature sometimes

make the TV cabinet

expand or contract,

making a noise. This does

not indicate a malfunction.

• The TV’s demagnetizing

function is working. This

does not indicate a

malfunction.

– 17 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

21

Additional Information

Identifying parts and controls

Refer to the pages indicated in parentheses ( ) for details.

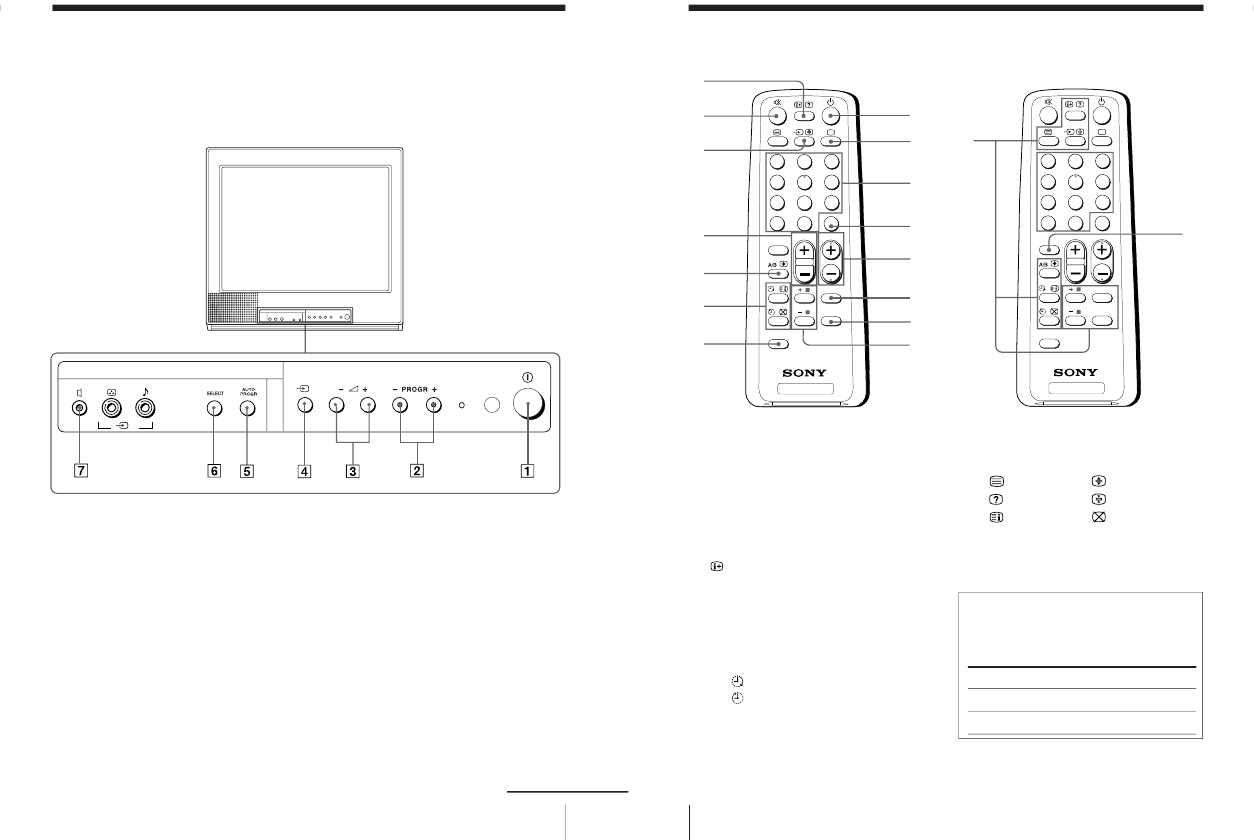

Front panel

1

U

(main power) button (5)

2PROGR +/– (program) buttons (11)

3

¸

+/– (volume) buttons (11)

4

…

(TV/video) button (12)

5AUTO PROGR (program) button (5)

6SELECT button (9)

7

A

(earphone) jack

continued

2

22

Additional Information

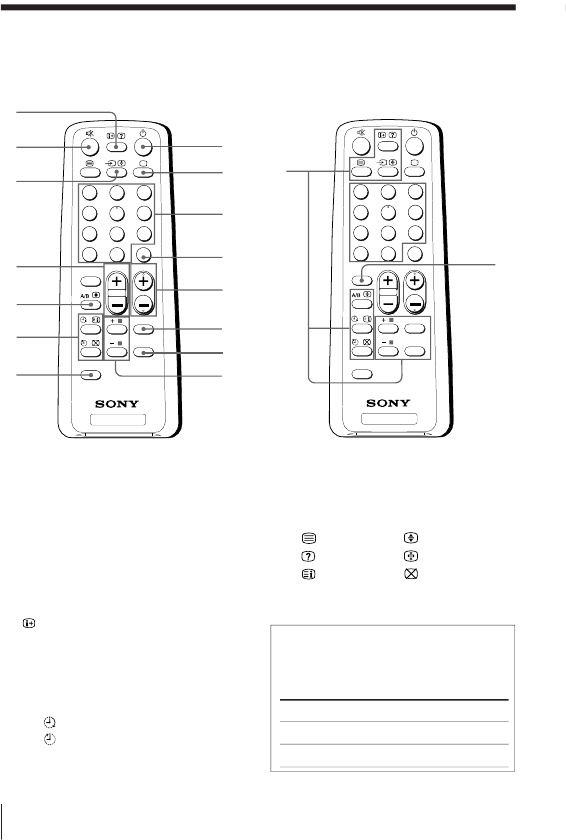

Remote Control

9

!º

!¡

!™

!£

!¢

!∞

!§

Button function

For general TV operations

For Teletext operations

1u (power) button (11)

2; (TV) button (12)

3Number buttons (11)

4JUMP button (12)

5PROGR +/– buttons (11)

6 SELECT button (9)

7 PIC MODE button (14)

8 + or – buttons (9)

9(display) button (12)

!º ¤ (muting) button (12)

!¡ … (video) button (12)

!™ . +/– (volume) buttons (11)

!£ A/B button

(not used for this model)

!¢ Timer setting buttons (13)

(wake up timer)

(sleep timer)

!∞ FAVORITE button

(not used for this model)

!§ SOUND MODE button (14)

!¶ Teletext operation buttons

(not used for this model)

(text) (enlarge)

(reveal) (hold)

(index) (text clear)

p

(FASTEXT: red, green, yellow, blue)

Names/symbols of buttons on the

remote are indicated in different

colors to represent the available

functions.

Label color

White

Green

1

2

3

4

5

6

7

8

!¶

Identifying parts and controls (continued)

TV

123

46

789

÷ 0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

SELECT

p

PIC MODE

p

Á

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

SELECT

p

PIC MODE

p

Á

– 18 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

2

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 110 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Do not pull the power cord to disconnect the TV.

Pull it out by the plug.

Disconnect the power cord during lightning

storms or if you are not going to use the TV for

several days.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

4

Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

-L (MONO) (white)

-R (red)

Antenna cable (not supplied)

To … 1

(video input)

Audio/Video cable

(not supplied) : Signal flow

Antenna cable

(not supplied)

Rear of TV

Rear of TV

Connecting a VCR

To watch the video, press … (see page 12).

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

L(MONO)

1

or

To ˘

(antenna)

: Signal flow

To antenna

output

SECTION 1-2

GENERAL

(KV-TF21M61/TF21M90)

The operating instructions mentioned here are partial abstracts

from the Operating Instruction Manual. The page numbers of

the Operating Instruction Manual remain as in the manual.

– 19 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

5

Using Your New TV

Using Your New TV

Preset the channels automatically

Tips

• If you want to stop automatic channel presetting, press SELECT twice.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 9).

Now You Are Ready. . .

To watch your TV, see page 11.

Notes

• If you connect a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the ˘ (antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• When no signal is input to the connected video equipment, the TV screen

becomes blue.

Step 2

Note

• Do not use old batteries nor use different types of batteries together.

Step 3

CAUTION

Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

Insert the batteries

into the remote

1

1

1

2

VHF LOW AUTO

Front of TV

6

Using Your New TV

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game or stereo system.

To watch the picture of the connected equipment, press … (see page 12).

Connecting a camcorder/video game equipment

using the … (video input) jacks

Note

• You can also connect video equipment to the … 1 (video input) jacks at

the rear of your TV.

Connecting audio/video equipment using the Ú

(monitor output) jacks

Note

• When connecting a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

L(MONO)

1

2

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV

To

antenna

output

To video and

audio inputs

or

Audio system

To

audio

inputs

VCR

:Signal flow

:Signal flow

To

…

2

(video input)

To Ú

(monitor

output)

or

Audio/Video cable (not supplied)

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

or

– 20 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

7

Using Your New TV

Using Your New TV

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

A

With the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

or

B

Put the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

20

mm

AB

3.8mm

or

8

Using Your New TV

Presetting

channels

You can preset up to 100 TV channels in

numerical sequence from program

number 1 using the remote and the

buttons on your TV as well.

Presetting channels automatically

1

Press U to turn on the TV.

2

Press AUTO PROGR.

To preset channels automatically from a specified program number

(1) Press SELECT until “AUTO PROGRAM” appears.

(2) Press + or –.

The on-screen display will start flashing.

(3) Press PROGR +/– or the number buttons until the desired program number

appears.

(4) Press + or –.

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

Á

u

Number buttons

SELECT

. +/–

PROGR +/–

+ or –

PIC MODE

VHF LOW AUTO

– 21 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

9

Using Your New TV

Using Your New TV

or

123

456

78

0

-/--

9

PROGR

Presetting channels manually

1

Press SELECT until

“MANUAL PROGRAM”

appears.

2

Press + or –.

3

Press PROGR +/– or the

number buttons until the

desired program number

appears.

4

Press + or – until the

desired channel picture

appears.

5

Press SELECT.

To change the TV system setting

If the picture or sound is abnormal when receiving programs through the

˘

(antenna)

terminal

(1) Press SELECT until “TV SYS” appears.

(2) Press + or – to select the appropriate TV system until the picture or sound quality

is optimal.

B/G ID/K M

TV SYS: B/G

MANUAL PROGRAM

SELECT

VHF LOW B/G

1

SELECT

continued

10

Using Your New TV

To change the color system setting

If the color is abnormal when receiving programs through the

˘

(antenna) terminal

or the

…

(video input) jack

(1) Press SELECT until “COL SYS” appears.

(2) Press + or – to select the appropriate color system until the color is optimal.

Tip

• Normally set “COL SYS” to “AUTO”.

Skipping program numbers

1

Press PROGR +/– or the number buttons until the unused or unwanted

program number appears.

2

Press SELECT until “MANUAL PROGRAM” appears.

3

Press + or –.

4

Press PIC MODE.

5

Press SELECT.

To preset the skipped program number again

Preset the channel automatically or manually.

Tip

• You can also use SELECT and

¸

+/– on the TV to preset channels and

skip program numbers.

To use the fine tuning (FINE) function

The fine tuning (FINE) function may help to reduce the following problems:

incomplete Teletext display, double images and lines moving across the TV screen.

You can use the fine tuning function as below:

(1) Select the program number you want to adjust.

(2) Press SELECT until “MANUAL PROGRAM” appears on the screen.

(3) Press + or – on the remote control once.

(4) Press to display “FINE” on the screen.

(5) Press + or – continuously until the above problems are minimized.

The + or – icon on the screen flashes while tuning.

(6) Press SELECT to return to normal screen.

AUTO PAL SECAM NTSC 3.58 NTSC 4.43

COL SYS: AUTO

Presetting channels (continued)

– 22 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

11

Using Your New TV

Using Your New TV

Watching the TV

This section explains functions used

while watching the TV. Most operations

can be done using the remote.

1

Press U to turn on the TV.

When the TV is in the

standby mode (the u

indicator on the TV is lit

red), press u on the remote

or PROGR +/– on the TV.

2

Press PROGR +/– or the

number buttons to select

the TV program.

For double digit numbers,

press ÷, then the number

(e.g., for 25, press ÷, then

2 and 5).

3

Press

. +/– to adjust the

volume.

¤

u

…

;

Number buttons

SELECT

. +/–

PROGR +/–

+ or –

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

SELECT

p

PIC MODE

p

Á

JUMP

123

456

78

0

-/--

9

PROGR

or

continued

12

Using Your New TV

To

Turn off temporarily

Turn off completely

Mute the sound

Watch the video input

(VCR, camcorder, etc.)

Jump back to the previous channel

Display the on-screen information*

Adjust the volume of each TV

program automatically

Adjust the picture position when it

is not aligned to the TV screen

Do this

Press u. The u indicator on the TV lights up red.

Press U on the TV.

Press ¤.

Press … to select “VIDEO 1” or “VIDEO 2”.

To return to the TV program, press ;.

Press JUMP.

Press .

Press SELECT repeatedly until “INTELLIGENT VOL”

appears, then press + or – to select “ON”.

To cancel, select “OFF”.

Press SELECT repeatedly until “PIC ROTATION”

appears, then press + or – to adjust the alignment of the

picture position.

The or icon on the screen flashes while adjusting.

* The picture, sound, and either the program number or video mode are

displayed. The on-screen display for the picture and sound information

disappears after about 3 seconds.

Changing the on-screen display language

1

Press SELECT until

“LANGUAGE / :

ENGLISH”appears on the

screen.

2

Press + or – to select

“ “.

Tip

• You can also use SELECT and . +/– on the TV to select the on-screen

display language.

Additional tasks

PIC ROTATION

SELECT

LANGUAGE / : ENGLISH

/ LANGUAGE :

Watching the TV (continued)

– 23 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

13

Using Your New TV

Using Your New TV

Setting the Wake Up timer

1

Press until the

desired period of time

appears.

2

Select the TV program or video mode you want to display when you wake

up.

3

Press u or set the Sleep timer if you want the TV to turn off automatically.

The indicator on the TV lights up orange.

To cancel the Wake Up timer

Press until “WAKE UP TIMER: OFF” appears or turn off the

TV’s main power.

Notes

• The Wake Up timer starts immediately after the on-screen display

disappears.

• If no buttons or controls are pressed for more than two hours after the

TV is turned on using the Wake Up timer, the TV automatically goes into

the standby mode. To continue watching the TV, press any button or

control on the TV or the remote.

Setting the Sleep timer

Press until the

desired period of time

appears.

To cancel the Sleep timer

Press until “SLEEP TIMER: OFF” appears or turn the TV off.

WAKE UP TIMER:10M

WAKE UP TIMER:OFF WAKE UP TIMER:12H00M

After 10 minutes

No Wake Up timer After 12 hours

SLEEP TIMER:30M SLEEP TIMER:60M

SLEEP TIMER:OFF SLEEP TIMER:90M

After 30 minutes

No Sleep Timer

After 60 minutes

After 90 minutes

14

Advanced Operations

Advanced Operations

SOUND MODE

Customizing the

picture and sound

You can customize the picture and

sound by selecting the picture and

sound modes or by adjusting its

settings.

You can change the sound effect by

selecting the surround mode.

Selecting the picture and sound modes

To select the picture mode

Press PIC MODE

repeatedly until you get

the desired picture mode.

Select To

DYNAMIC receive high contrast pictures.

STANDARD receive normal contrast pictures.

SOFT receive mild pictures.

To select the sound mode

Press SOUND MODE

repeatedly until you get

the desired sound mode.

Select To

DYNAMIC listen to dynamic and clear sound that emphasizes the low and

high sound.

DRAMA listen to sound that emphasizes vocals and background music.

SOFT receive soft sound.

PIC MODE

SELECT

+ or –

≥

DYNAMIC

≥

DRAMA

≥

SOFT

SOUND

MODE

STANDARDDYNAMIC SOFT

PIC MODE

SOUND

MODE

FAVORITE

PROGRÁ

– 24 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

15

Advanced Operations

Advanced Operations

Adjusting the picture and sound settings

1

Press SELECT until the

desired setting appears.

Each time you press

SELECT, the setting

item will change as follows:

2

Press + or – to adjust the

item.

3

To adjust other items, repeat steps 1 to 2.

* “HUE” can be adjusted for the NTSC system only.

Notes

• When you select a picture or sound mode, the adjusted settings will be

reset according to the selected mode.

• You can also use SELECT and

¸

+/– on the TV to adjust the picture and

sound settings.

Selecting the surround mode

1

Press SELECT repeatedly

until “SURROUND”

appears.

2

Press + or – to select the

desired surround sound.

Select To

MOVIE listen to sound that spreads out over a large area, giving the feeling

of being at a movie theatre.

MUSIC listen to the sound that gives the feeling of being at a live concert.

OFF turn off the surround sound.

SELECT

PICTURE 60

PICTURE COLOR BRIGHT HUE*

BALANCE TREBLE BASS SHARP

SURROUND: MOVIE

SELECT

MUSICMOVIE OFF

16

Advanced Operations

Blocking the

channels

(CHILD LOCK)

You can prevent a child from watching

certain programs by using the buttons

on the remote control.

1

Select the TV program you want to lock.

2

Press SELECT until “CHILD

LOCK” appears on the

screen.

3

Press + or – to select

“ON”.

The symbol appears on

the screen.

To unlock the channel,

press + or – to select

“OFF”. The symbol

disappears from the screen.

Note

• If you preset a locked channel, that particular channel will be unlocked

automatically.

CHILD LOCK: ON

1

CHILD LOCK: OFF

SELECT

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGRÁ

SELECT

+ or –

– 25 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

17

Advanced Operations

Advanced Operations

TV

SOUND

MODE

FAVORITE

PROGRÁ

Broadcasting On-screen display (Selected sound)

NICAM stereo

NICAM bilingual

NICAM monaural

Selecting a stereo

or bilingual

program

You can enjoy stereo sound or bilingual

programs of NICAM and A2 (German)

stereo systems.

Press A/B repeatedly

until you receive the

sound you want.

The on-screen display changes

to show the selected sound

and the  indicator on the TV

lights up red.

When receiving a NICAM program

NICAM MONO

(Stereo sound) (Regular sound)

NICAM

MAIN MONO

(Main sound) (Regular sound)

NICAM

SUB

(Sub sound)

NICAM

MAIN MONO

(Main sound) (Regular sound)

continued

A/B

A/B

STEREO

18

Advanced Operations

When receiving an A2 (German) program

Receiving area for NICAM and A2 (German) programs

Notes

• If the signal is very weak, the sound becomes monaural automatically.

• If the stereo sound is noisy when receiving a NICAM program, select

“MONO”. The sound becomes monaural, but the noise is reduced.

(KV-TF21M90 only)

If the sound is distorted or noisy when receiving a monaural

program through the ˘ (antenna) terminal

Press A/B repeatedly until “MONO” appears on the screen.

To cancel the monaural sound setting, press A/B again until

“AUTO” appears on the screen.

Notes

• The “MONO” or “AUTO” setting is memorized for each program

position.

• You cannot receive stereo broadcast signal when the TV is in the “MONO”

setting. Normally set the TV to “AUTO.”

Broadcasting On-screen display (Selected sound)

A2 (German) stereo

A2 (German) bilingual

System

NICAM

A2 (German)

Receiving area

Hong Kong, Singapore, New Zealand, Malaysia,

Thailand, etc.

Australia, Malaysia, Thailand, etc.

STEREO

MONO

(Stereo sound)

(Regular sound)

Selecting a stereo or bilingual program (continued)

MAIN SUB

(Main sound) (Sub sound)

MONO AUTO

– 26 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

19

Advanced Operations

Advanced Operations

Viewing Teletext

(KV-TF21M61 only)

TV stations broadcast an information

service called Teletext via some TV

channels. Teletext allows you to receive

various information, such as shares

market or news.

Displaying Teletext

1

Select a TV channel that

carries the Teletext

broadcast you want to

watch.

2

Press to display the

text.

A Teletext page (normally

the index page) is

displayed. If there is no

Teletext broadcast, “100” is

displayed at the top left

corner of the screen.

To turn off Teletext

Press ;.

;

A/B

FASTEXT

…

V

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

Á

continued

P166 SECTEXT 166 FR1 MAR 03:59:09

Fom Singapore

To PARIS

To OSAKA

To ROMA

To SYDNEY

Day Dep/Arr Flight Alrcraft

1.6 220/0588 SQ28 747

2 2130/1225 PA115 L15

3 2115/1330 SQ26 747

2.7 2130/0745 SQ24

747

4 2300/0915 AZ487 747

2.5 1000/1715 SQ6 747

4.6 0930/2015 CX522 L10

1 2210/0610 SQ21A 747

2 2100/0835 SQ21A 747

20

Advanced Operations

Additional Teletext tasks

To

display a Teletext page on the TV


check the contents of a Teletext service

select a Teletext page

hold a Teletext page

(stop the page from scrolling)

reveal concealed information

(e.g., an answer to a quiz)

enlarge the Teletext display

wait for a Teletext page while watching

a TV program

* You can also select a Teletext page of any page number that appears in the

colored column at the bottom of the screen using the corresponding color-

coded button on the remote.

Using FASTEXT

This feature allows you to quickly access a Teletext page that uses

FASTEXT. When a FASTEXT program is broadcasted, the colored

menus appear at the bottom of the screen. The colors of the menus

correspond to the red, green, yellow, and blue color-coded buttons

on the remote.

To access a FASTEXT menu

Press the color-coded button on the remote corresponding to the

menu you want. The menu page appears on the screen after several

seconds.

Do this

Press .

Each time you press , the screen changes as

follows: Teletext n Teletext and TV n TV.

Press

.

An overview of the Teletext contents and page

numbers appear on the screen.

Press the number buttons to enter the three-digit

page number of the desired Teletext page.* If you

make a mistake, reenter the correct page number. To

access the next or previous page, press PROGR␣ +/–.

Press …

to display the symbol “j” at the top

left corner of the screen. To resume normal Teletext

operation, press …

or .

Press

.

To conceal the information, press the button again.

Press A/B .

Each time you press A/B , the Teletext display

changes as follows: Enlarge upper half n Enlarge

lower half n Normal size.

1 Enter the Teletext page number that you want to

refer to, then press

.

2 When the page number is displayed, press to

show the text.

Viewing Teletext (continued)

– 27 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

21

Additional Information

Additional Information

Self-diagnosis

function

Your TV is equipped with a self-diagnosis function. If there is a

problem with your TV, the u indicator flashes red. The number of

times the u indicator flashes indicates the possible causes.

1

Check that the u indicator flashes red a number of times between 3-second

intervals.

2

Count the number of times the u indicator flashes.

3

Press U (main power) to turn off your TV.

4

Inform your nearest Sony service center about the number of times the

u indicator flashes.

Be sure to note the model name and serial number located on the rear of

your TV.

Front of TV

Additional Information

u indicator

– 28 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

22

Additional Information

Co

• Snowy • Distorted • Noisy/

picture picture distorted

sound

Wall antenna

terminal

UHF

VHF

Booster VCR

Check the antenna direction.

Incorrect antenna direction may cause:

Check the antenna

type.

Wrong type of antenna

may cause:

• No picture

• Snowy picture

Check connection

on the wall

antenna terminal.

Loose connection may

cause:

•

Snowy picture

• Distorted sound

Check if you need

booster to increase

signal level.

Too strong signal level

may cause:

•

Distorted picture

• Noisy sound

Troubleshooting Shortcuts

For better viewing, please check the following connections.

Antenna connection

23

Additional Information

P166 SECTEXT 166 FR1 MAR 03:59:09

Fom Singapore

To PARIS

To OSAKA

To ROMA

To SYDNEY

Day Dep/Arr Flight Alrcraft

1.6 220/0588 SQ28 747

2 2130/1225 PA115 L15

3 2115/1330 SQ26 747

2.7 2130/0745 SQ24

747

4 2300/0915 AZ487 747

2.5 1000/1715 SQ6 747

4.6 0930/2015 CX522 L10

1 2210/0610 SQ21A 747

2 2100/0835 SQ21A 747

onnection

to TV

Check connection

on the VCR and on

the TV.

Loose connection may

cause:

• Snowy picture

• Distorted sound

• No picture

AC Connection

Check connection on

the AC socket.

Loose connection may cause:

• no power

• no picture with no sound

*

• Double image • Missing

picture Teletext

characters

For more information, please see

“Troubleshooting” on page 24, 25 and

26. Or consult your dealer for

guidance.

* KV-TF21M61 only

– 29 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

24

Additional Information

Snowy picture

Noisy sound

Distorted picture

Noisy sound

Good picture

Noisy sound

No picture

No sound

Troubleshooting

If you find any problem while viewing your TV, please check the following guide. If

any problem persists, contact your Sony dealer .

Possible causeSymptom Solutions

•

Check the antenna cable and connection

on the TV, VCR and on the wall. (page 4)

• Press SELECT until “MANUAL

PROGRAM” appears on the screen then

preset the channel again. (page 9)

• Check the antenna type (VHF/UHF).

Contact a Sony dealer for advice.

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Try using a booster.

• Turn off or disconnect the booster if it is

in use.

• If the sound of all the channels are

noisy, check the TV system (TV SYS)

setting (page 9), then press AUTO

PROGR to preset the channels again

(page 8).

• If the sound of some channels are noisy,

select the channel, then select the

appropriate TV system (TV SYS).

(page 9)

• Check the power cord, antenna and the

VCR connections.

• Press u (power).

• Press U (main power) on the TV to turn

off the TV for about five seconds, then

turn it on again.

• Connection is loose or the

cable is damaged.

• Channel presetting is

inappropriate or

incomplete.

• The antenna type is

inappropriate.

• The antenna direction is

inappropriate.

• Signal transmission is low.

• Broadcast signals are too

strong.

• The TV system setting or

channel presetting is

inappropriate or

incomplete.

• The power cord, antenna

or VCR is not connected.

• The TV is not turned on.

25

Additional Information

Possible causeSymptom Solutions

continued

Good picture

No sound

Dotted lines or stripes

Double images or

“ghosts”

N

o

color

Abnormal color patches

TV cannot receive stereo

broadcast signal

• Press ¸ + to increase the volume level.

• Press ¤ to cancel the muting.

• Press A/B H until a better sound is

heard.

• Do not use a hair dryer or other

equipment near the TV.

• Adjust the antenna direction for

minimum interference. Contact a Sony

dealer for advice.

• Use a highly directional antenna.

• Use the fine tuning (FINE) function.

(page 10)

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Turn off or disconnect the booster if it is

in use.

• Press SELECT until “COLOR” appears

on the screen, then press + or – to adjust

the color level. (page 15)

•

Press SELECT until “COL SYS ” appears

on the screen, then check the color

system setting (usually set this to

“AUTO”). (page 10).

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Keep external speakers or other

electrical equipment away from the TV.

Do not move the TV while the TV is

turned on. Press U (main power) on

the TV to turn off the TV for about five

minutes, then turn it on again.

• Press A/B H until “AUTO” appears

on the screen.

•

The volume level is too low.

• The sound is muted.

• Broadcast signal has a

transmission problem.

• There is local interference

from cars, neon signs, hair

dryers, power generators,

etc.

• Broadcast signals are

reflected by nearby

mountains or buildings.

• The antenna direction is

inappropriate.

• Use of a booster is

inappropriate.

• The color level setting is

too low.

• The color system setting is

inappropriate.

• The antenna direction is

inappropriate.

• The magnetic disturbance

from external speakers or

other equipment, or the

direction of the earth’s

magnetic field may affect

the TV.

• The stereo reception

setting is inappropriate.

– 30 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

27

Additional Information

Identifying parts and controls

Refer to the pages indicated in parentheses ( ) for details.

Front panel

1

U

(main power) button (5)

2PROGR +/– (program) buttons (11)

3

¸

+/– (volume) buttons (11)

4

…

(TV/video) button (12)

5AUTO PROGR (program) button (5)

6SELECT button (9)

7

2

(headphone) jack

continued

2

26

Additional Information

Stereo broadcast sound

switches on and off or is

distorted.

or

The sound switches

between monaural and

stereo frequently.

“100” appears on the top

of the screen and there is

no Teletext display.

(KV-TF21M61 only)

Teletext display is

incomplete

(snowy picture or double

images).

(KV-TF21M61 only)

Picture slant

Lines moving across the

TV screen.

The

u

indicator on your

TV flashes red a number

of times between

3-second intervals.

TV cabinet creaks.

A “boom” sound is heard

when the TV is turned on.

Troubleshooting (continued)

Possible causeSymptom Solutions

• Check the antenna cable and connection

on the TV, VCR and on the wall. (page 4)

• Adjust the antenna direction. Contact a

Sony dealer for advice.

•

Press A/B until a better sound is heard.

––

• Check the antenna cable and connection

on the TV, VCR, and at the wall. (page 4)

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Try using a booster.

•

Use the fine tuning (FINE) function. (page 10)

• Press SELECT until “PIC ROTATION”

appears on the screen, then press + or –

to align the picture to the TV screen.

(page 12)

• Use the fine tuning (FINE) function.

(page 10)

• Contact your nearest Sony service

center. (page 21)

—

—

• Connection is loose or the

cable is damaged.

• The antenna direction is

inappropriate.

• Broadcast signal has a

transmission problem.

• The channel carries no

Teletext broadcast.

• Connection is loose or the

cable is damaged.

• The antenna direction is

inappropriate.

• Signal transmission is too

low.

• The terrestrial magnetism

affects your TV set.

• There is interference from

external sources, e.g.,

heavy machineries, nearby

broadcast station.

• Your TV may need service.

• Changes in room

temperature sometimes

make the TV cabinet

expand or contract,

making a noise. This does

not indicate a malfunction.

• The TV’s demagnetizing

function is working. This

does not indicate a

malfunction.

– 31 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

28

Additional Information

Remote Control

9

!º

!¡

!™

!£

!¢

!∞

!§

TV

123

46

789

÷ 0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

SELECT

p

PIC MODE

p

Á

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

SELECT

p

PIC MODE

p

Á

Button function

For general TV operations

For Teletext operations

1u (power) button (11)

2; (TV) button (12)

3Number buttons (11)

4JUMP button (12)

5PROGR +/– buttons (11)

6 SELECT button (9)

7 PIC MODE button (14)

8 + or – buttons (9)

9(display) button (12)

!º ¤ (muting) button (12)

!¡ … (video) button (12)

!™ . +/– (volume) buttons (11)

!£ A/B button (17)

!¢ Timer setting buttons (13)

(wake up timer)

(sleep timer)

!∞ FAVORITE button

(not used for these models)

!§ SOUND MODE button (14)

!¶ Teletext operation buttons (19,20)

(KV-TF21M61 only)

(text) (enlarge)

(reveal) (hold)

(index) (text clear)

p

(FASTEXT: red, green, yellow, blue)

Names/symbols of buttons on the

remote are indicated in different

colors to represent the available

functions.

Label color

White

Green

1

2

3

4

5

6

7

8

!¶

Identifying parts and controls (continued)

– 32 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

SECTION 1-3

GENERAL-

(KV-TF21P11)

The operating instructions mentioned here are partial abstracts

from the Operating Instruction Manual. The page numbers of

the Operating Instruction Manual remain as in the manual.

2

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 220 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Do not pull the power cord to disconnect the TV.

Pull it out by the plug.

Disconnect the power cord during lightning

storms or if you are not going to use the TV for

several days.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

4

Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

(black)

Antenna cable (not supplied)

To … 1

(video input)

Audio/Video cable

(not supplied) : Signal flow

Antenna cable

(not supplied)

Rear of TV

Rear of TV

Connecting a VCR

To watch the video, press … (see page 12).

or

: Signal flow

To antenna

output

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

1

To ˘

(antenna)

– 33 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

5

Using Your New TV

Using Your New TV

Preset the channels automatically

Tips

• If you want to stop automatic channel presetting, press SELECT twice.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 9).

Now You Are Ready. . .

To watch your TV, see page 11.

Notes

• If you connect a stereo VCR, connect the yellow plug to (the yellow

jack) and the white plug to (the black jack).

• If you connect a VCR to the ˘ (antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• When no signal is input to the connected video equipment, the TV screen

becomes blue.

Step 2

Note

• Do not use old batteries nor use different types of batteries together.

Step 3

CAUTION

Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

Insert the batteries

into the remote

Front of TV

1

1

1

2

VHF LOW B/G

6

Using Your New TV

Connecting optional components

You can connect optional video components, such as a VCR, multi disc player,

camcorder or video game.

To watch the picture of the connected equipment, press … (see page 12).

Connecting a camcorder/video game equipment

using the … (video input) jacks

Note

• You can also connect video equipment to the … 1 (video input) jacks at

the rear of your TV.

Connecting video equipment using the Ú

(monitor output) jacks

Note

• When connecting a stereo VCR, connect the yellow plug to (the yellow

jack) and the white plug to (the black jack).

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

(yellow)

(black)

Rear of TV

To

antenna

output

To video and

audio inputs

VCR

: Signal flow

: Signal flow

To

…

2

(video input)

To Ú

(monitor

output)

or

Audio/Video cable (not supplied)

Antenna cable (not supplied)

1

2

– 34 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

8

Using Your New TV

Presetting

channels

You can preset up to 100 TV channels in

numerical sequence from program

number 1 using the remote and the

buttons on your TV as well.

Presetting channels automatically

1

Press U to turn on the TV.

2

Press AUTO PROGR.

To preset channels automatically from a specified program number

(1) Press SELECT until “AUTO PROGRAM” appears.

(2) Press + or –.

The on-screen display will start flashing.

(3) Press PROGR +/– or the number buttons until the desired program number

appears.

(4) Press + or –.

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

Á

u

Number buttons

SELECT

. +/–

PROGR +/–

+ or –

PIC MODE

VHF LOW B/G

7

Using Your New TV

Using Your New TV

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

A

With the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

or

B

Put the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

AB

or

3.8mm

20

mm

– 35 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

9

Using Your New TV

Using Your New TV

or

Presetting channels manually

1

Press SELECT until

“MANUAL PROGRAM”

appears.

2

Press + or –.

3

Press PROGR +/– or the

number buttons until the

desired program number

appears.

4

Press + or – until the

desired channel picture

appears.

5

Press SELECT.

To change the color system setting

If the color is abnormal when receiving programs through the

˘

(antenna) terminal

or the

…

(video input) jack

(1) Press SELECT until “COL SYS” appears.

(2) Press + or – to select the appropriate color system until the color is optimal.

Tip

• Normally set “COL SYS” to “AUTO”.

continued

MANUAL PROGRAM

VHF LOW B/G

SELECT

123

456

78

0

-/--

9

PROGR

1

SELECT

COL SYS: AUTO

AUTO PAL NTSC 3.58 NTSC 4.43

10

Using Your New TV

Skipping program numbers

1

Press PROGR +/– or the number buttons until the unused or unwanted

program number appears.

2

Press SELECT until “MANUAL PROGRAM” appears.

3

Press + or –.

4

Press PIC MODE.

5

Press SELECT.

To preset the skipped program number again

Preset the channel automatically or manually.

Tip

• You can also use SELECT and

¸

+/– on the TV to preset channels and

skip program numbers.

To use the fine tuning (FINE) function

The fine tuning (FINE) function may help to reduce the following problems:

incomplete Teletext display, double images and lines moving across the TV screen.

You can use the fine tuning function as below:

(1) Select the program number you want to adjust.

(2) Press SELECT until “MANUAL PROGRAM” appears on the screen.

(3) Press + or – on the remote control once.

(4) Press to display “FINE” on the screen.

(5) Press + or – continuously until the above problems are minimized.

The + or – icon on the screen flashes while tuning.

(6) Press SELECT to return to normal screen.

Presetting channels (continued)

– 36 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

12

Using Your New TV

To

Turn off temporarily

Turn off completely

Mute the sound

Watch the video input

(VCR, camcorder, etc.)

Jump back to the previous channel

Display the on-screen information*

Adjust the volume of each TV

program automatically

Adjust the picture position when it

is not aligned to the TV screen

Do this

Press u. The u indicator on the TV lights up red.

Press U on the TV.

Press ¤.

Press … to select “VIDEO 1” or “VIDEO 2”.

To return to the TV program, press ;.

Press JUMP.

Press .

Press SELECT repeatedly until “INTELLIGENT VOL”

appears, then press + or – to select “ON”.

To cancel, select “OFF”.

Press SELECT repeatedly until “PIC ROTATION”

appears, then press + or – to adjust the alignment of the

picture position.

The or icon on the screen flashes while adjusting.

* The picture, sound, and either the program number or video mode are

displayed. The on-screen display for the picture and sound information

disappears after about 3 seconds.

Changing the on-screen display language

1

Press SELECT until

“LANGUAGE / :

ENGLISH”appears on the

screen.

2

Press + or – to select

“ “.

Tip

• You can also use SELECT and . +/– on the TV to select the on-screen

display language.

Additional tasks

Watching the TV (continued)

PIC ROTATION

LANGUAGE / : ENGLISH

SELECT

/ LANGUAGE

:

11

Using Your New TV

Using Your New TV

Watching the TV

This section explains functions used

while watching the TV. Most operations

can be done using the remote.

1

Press U to turn on the TV.

When the TV is in the

standby mode (the u

indicator on the TV is lit

red), press u on the remote

or PROGR +/– on the TV.

2

Press PROGR +/– or the

number buttons to select

the TV program.

For double digit numbers,

press ÷, then the number

(e.g., for 25, press ÷, then

2 and 5).

3

Press

. +/– to adjust the

volume.

¤

u

…

;

Number buttons

SELECT

. +/–

PROGR +/–

+ or –

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

SELECT

p

PIC MODE

p

Á

JUMP

123

456

78

0

-/--

9

PROGR

or

continued

– 37 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

13

Using Your New TV

Using Your New TV

Setting the Wake Up timer

1

Press until the

desired period of time

appears.

2

Select the TV program or video mode you want to display when you wake

up.

3

Press u or set the Sleep timer if you want the TV to turn off automatically.

The indicator on the TV lights up orange.

To cancel the Wake Up timer

Press until “WAKE UP TIMER: OFF” appears or turn off the

TV’s main power.

Notes

• The Wake Up timer starts immediately after the on-screen display

disappears.

• If no buttons or controls are pressed for more than two hours after the

TV is turned on using the Wake Up timer, the TV automatically goes into

the standby mode. To continue watching the TV, press any button or

control on the TV or the remote.

Setting the Sleep timer

Press until the

desired period of time

appears.

To cancel the Sleep timer

Press until “SLEEP TIMER: OFF” appears or turn the TV off.

WAKE UP TIMER:10M

WAKE UP TIMER:OFF WAKE UP TIMER:12H00M

After 10 minutes

No Wake Up timer After 12 hours

SLEEP TIMER:30M SLEEP TIMER:60M

SLEEP TIMER:OFF SLEEP TIMER:90M

After 30 minutes

No Sleep Timer

After 60 minutes

After 90 minutes

14

Advanced Operations

Advanced Operations

SOUND MODE

Customizing the

picture and sound

You can customize the picture and

sound by selecting the picture and

sound modes or by adjusting its

settings.

You can change the sound effect by

selecting the surround mode.

Selecting the picture and sound modes

To select the picture mode

Press PIC MODE

repeatedly until you get

the desired picture mode.

Select To

DYNAMIC receive high contrast pictures.

STANDARD receive normal contrast pictures.

SOFT receive mild pictures.

To select the sound mode

Press SOUND MODE

repeatedly until you get

the desired sound mode.

Select To

DYNAMIC listen to dynamic and clear sound that emphasizes the low and

high sound.

DRAMA listen to sound that emphasizes vocals and background music.

SOFT receive soft sound.

PIC MODE

SELECT

+ or –

≥DYNAMIC ≥DRAMA ≥SOFT

SOUND

MODE

STANDARDDYNAMIC SOFT

PIC MODE

SOUND

MODE

FAVORITE

PROGRÁ

– 38 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

16

Advanced Operations

Blocking the

channels

(CHILD LOCK)

You can prevent a child from watching

certain programs by using the buttons

on the remote control.

1

Select the TV program you want to lock.

2

Press SELECT until “CHILD

LOCK” appears on the

screen.

3

Press + or – to select

“ON”.

The symbol appears on

the screen.

To unlock the channel,

press + or – to select

“OFF”. The symbol

disappears from the screen.

Note

• If you preset a locked channel, that particular channel will be unlocked

automatically.

CHILD LOCK: ON

1

CHILD LOCK: OFF

SELECT

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGRÁ

SELECT

+ or –

15

Advanced Operations

Advanced Operations

Adjusting the picture and sound settings

1

Press SELECT until the

desired setting appears.

Each time you press

SELECT, the setting

item will change as follows:

2

Press + or – to adjust the

item.

3

To adjust other items, repeat steps 1 to 2.

* “HUE” can be adjusted for the NTSC system only.

Notes

• When you select a picture or sound mode, the adjusted settings will be

reset according to the selected mode.

• You can also use SELECT and

¸

+/– on the TV to adjust the picture and

sound settings.

SELECT

PICTURE 60

PICTURE COLOR BRIGHT

HUE*

TREBLE BASS SHARP

– 39 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

17

Advanced Operations

Advanced Operations

Viewing Teletext

TV stations broadcast an information

service called Teletext via some TV

channels. Teletext allows you to receive

various information, such as shares

market or news.

Displaying Teletext

1

Select a TV channel that

carries the Teletext

broadcast you want to

watch.

2

Press to display the

text.

A Teletext page (normally

the index page) is

displayed. If there is no

Teletext broadcast, “100” is

displayed at the top left

corner of the screen.

To turn off Teletext

Press ;.

;

A/B

FASTEXT

…

V

continued

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGRÁ

P166 SECTEXT 166 FR1 MAR 03:59:09

Fom Singapore

To PARIS

To OSAKA

To ROMA

To SYDNEY

Day Dep/Arr Flight Alrcraft

1.6 220/0588 SQ28 747

2 2130/1225 PA115 L15

3 2115/1330 SQ26 747

2.7 2130/0745 SQ24

747

4 2300/0915 AZ487 747

2.5 1000/1715 SQ6 747

4.6 0930/2015 CX522 L10

1 2210/0610 SQ21A 747

2 2100/0835 SQ21A 747

18

Advanced Operations

Additional Teletext tasks

To

display a Teletext page on the TV


check the contents of a Teletext service

select a Teletext page

hold a Teletext page

(stop the page from scrolling)

reveal concealed information

(e.g., an answer to a quiz)

enlarge the Teletext display

wait for a Teletext page while watching

a TV program

* You can also select a Teletext page of any page number that appears in the

colored column at the bottom of the screen using the corresponding color-

coded button on the remote.

Using FASTEXT

This feature allows you to quickly access a Teletext page that uses

FASTEXT. When a FASTEXT program is broadcasted, the colored

menus appear at the bottom of the screen. The colors of the menus

correspond to the red, green, yellow, and blue color-coded buttons

on the remote.

To access a FASTEXT menu

Press the color-coded button on the remote corresponding to the

menu you want. The menu page appears on the screen after several

seconds.

Do this

Press .

Each time you press , the screen changes as

follows: Teletext n Teletext and TV n TV.

Press

.

An overview of the Teletext contents and page

numbers appear on the screen.

Press the number buttons to enter the three-digit

page number of the desired Teletext page.* If you

make a mistake, reenter the correct page number. To

access the next or previous page, press PROGR␣ +/–.

Press …

to display the symbol “j” at the top

left corner of the screen. To resume normal Teletext

operation, press …

or .

Press

.

To conceal the information, press the button again.

Press A/B .

Each time you press A/B , the Teletext display

changes as follows: Enlarge upper half n Enlarge

lower half n Normal size.

1 Enter the Teletext page number that you want to

refer to, then press

.

2 When the page number is displayed, press to

show the text.

Viewing Teletext (continued)

– 40 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

19

Additional Information

Additional Information

Self-diagnosis

function

Your TV is equipped with a self-diagnosis function. If there is a

problem with your TV, the u indicator flashes red. The number of

times the u indicator flashes indicates the possible causes.

1

Check that the u indicator flashes red a number of times between 3-second

intervals.

2

Count the number of times the u indicator flashes.

3

Press U (main power) to turn off your TV.

4

Inform your nearest Sony service center about the number of times the

u indicator flashes.

Be sure to note the model name and serial number located on the rear of

your TV.

Front of TV

Additional Information

u indicator

20

Additional Information

Snowy picture

Noisy sound

Distorted picture

Noisy sound

Good picture

Noisy sound

No picture

No sound

Troubleshooting

If you find any problem while viewing your TV, please check the following guide. If

any problem persists, contact your Sony dealer .

Possible causeSymptom Solutions

•

Check the antenna cable and connection

on the TV, VCR and on the wall. (page 4)

• Press SELECT until “MANUAL

PROGRAM” appears on the screen then

preset the channel again. (page 9)

• Check the antenna type (VHF/UHF).

Contact a Sony dealer for advice.

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Try using a booster.

• Turn off or disconnect the booster if it is

in use.

• If the sound of all the channels are

noisy, press AUTO PROGR to preset the

channels again (page 8).

• Check the power cord, antenna and the

VCR connections.

• Press u (power).

• Press U (main power) on the TV to turn

off the TV for about five seconds, then

turn it on again.

• Connection is loose or the

cable is damaged.

• Channel presetting is

inappropriate or

incomplete.

• The antenna type is

inappropriate.

• The antenna direction is

inappropriate.

• Signal transmission is low.

• Broadcast signals are too

strong.

• The channel presetting is

inappropriate or

incomplete.

• The power cord, antenna

or VCR is not connected.

• The TV is not turned on.

– 41 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

21

Additional Information

Possible causeSymptom Solutions

continued

Good picture

No sound

Dotted lines or stripes

Double images or

“ghosts”

N

o

color

Abnormal color patches

• Press ¸ + to increase the volume level.

• Press ¤ to cancel the muting.

• Do not use a hair dryer or other

equipment near the TV.

• Adjust the antenna direction for

minimum interference. Contact a Sony

dealer for advice.

• Use a highly directional antenna.

• Use the fine tuning (FINE) function.

(page 10)

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Turn off or disconnect the booster if it is

in use.

• Press SELECT until “COLOR” appears

on the screen, then press + or – to adjust

the color level. (page 15)

•

Press SELECT until “COL SYS ” appears

on the screen, then check the color

system setting (usually set this to

“AUTO”). (page 10).

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Keep external speakers or other

electrical equipment away from the TV.

Do not move the TV while the TV is

turned on. Press U (main power) on

the TV to turn off the TV for about five

minutes, then turn it on again.

•

The volume level is too low.

• The sound is muted.

• There is local interference

from cars, neon signs, hair

dryers, power generators,

etc.

• Broadcast signals are

reflected by nearby

mountains or buildings.

• The antenna direction is

inappropriate.

• Use of a booster is

inappropriate.

• The color level setting is

too low.

• The color system setting is

inappropriate.

• The antenna direction is

inapproriate.

• The magnetic disturbance

from external speakers or

other equipment, or the

direction of the earth’s

magnetic field may affect

the TV.

22

Additional Information

“100” appears on the top

of the screen and there is

no Teletext display.

Teletext display is

incomplete

(snowy picture or double

images).

Picture slant

Lines moving across the

TV screen.

The

u

indicator on your

TV flashes red a number

of times between

3-second intervals.

TV cabinet creaks.

A “boom” sound is heard

when the TV is turned on.

Troubleshooting (continued)

Possible causeSymptom Solutions

––

• Check the antenna cable and connection

on the TV, VCR, and at the wall. (page 4)

• Adjust the antenna direction. Contact a

Sony dealer for advice.

• Try using a booster.

•

Use the fine tuning (FINE) function. (page 10)

• Press SELECT until “PIC ROTATION”

appears on the screen, then press + or –

to align the picture to the TV screen.

(page 12)

• Use the fine tuning (FINE) function.

(page 10)

• Contact your nearest Sony service

center. (page 19)

—

—

• The channel carries no

Teletext broadcast.

• Connection is loose or the

cable is damaged.

• The antenna direction is

inappropriate.

• Signal transmission is too

low.

• The terrestrial magnetism

affects your TV set.

• There is interference from

external sources, e.g.,

heavy machineries, nearby

broadcast station.

• Your TV may need service.

• Changes in room

temperature sometimes

make the TV cabinet

expand or contract,

making a noise. This does

not indicate a malfunction.

• The TV’s demagnetizing

function is working. This

does not indicate a

malfunction.

– 42 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

23

Additional Information

Identifying parts and controls

Refer to the pages indicated in parentheses ( ) for details.

Front panel

1

U

(main power) button (5)

2PROGR +/– (program) buttons (11)

3

¸

+/– (volume) buttons (11)

4

…

(TV/video) button (12)

5AUTO PROGR (program) button (5)

6SELECT button (9)

7 (earphone) jack

continued

2

Ø

24

Additional Information

Remote Control

9

!º

!¡

!™

!£

!¢

!∞

!§

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

SELECT

p

PIC MODE

p

Á

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGR

SELECT

p

PIC MODE

p

Á

Button function

For general TV operations

For Teletext operations

1u (power) button (11)

2; (TV) button (12)

3Number buttons (11)

4JUMP button (12)

5PROGR +/– buttons (11)

6 SELECT button (9)

7 PIC MODE button (14)

8 + or – buttons (9)

9(display) button (12)

!º ¤ (muting) button (12)

!¡ … (video) button (12)

!™ . +/– (volume) buttons (11)

!£ A/B button

(not used for this model)

!¢ Timer setting buttons (13)

(wake up timer)

(sleep timer)

!∞ FAVORITE button

(not used for this model)

!§ SOUND MODE button (14)

!¶ Teletext operation buttons (19, 20)

(text) (enlarge)

(reveal) (hold)

(index) (text clear)

p

(FASTEXT: red, green, yellow, blue)

Names/symbols of buttons on the

remote are indicated in different

colors to represent the available

functions.

Label color

White

Green

1

2

3

4

5

6

7

8

!¶

Identifying parts and controls (continued)

– 43 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

SECTION 2

DISASSEMBLY

2-2. CHASSIS ASSY REMOVAL

1 Chassis assy

Lever

Lever

2-1. REAR COVER REMOVAL

Six screws

(BVTP 4×16)

Rear cover

1

2Two screws

(BVTP 4×16)

2-3. F BRACKET REMOVAL (KV-TF21M61/TF21M90)

1 Three connectors

2 F board

Lever

1 Three connectors

2 F board

Lever

(KV-PF21M70/TF21P11)

– 44 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

2-6. TERMINAL BRACKET REMOVAL

A board

Terminal board bracket

2-5. REPLACEMENT OF PARTS

For replacement of the Multi Button and Bar Optical ,unscrew to exchange with the

new parts, and fix them with screws (+BVTP) respectively.

2-5-1. REPLACEMENT OF MULTI BUTTON

Multi button

Two screws

(BVTP 3×12)

2-5-2. REPLACEMENT OF BAR OPTICAL

Bar Optical

One screw

(BVTP 3×12)

A board

Terminal board bracket

(KV-PF21M70/TF21P11) (KV-TF21M61/TF21M90)

2-4. SERVICE POSITION

(Note: Remove F Bracket first.)

– 45 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

2-8. PICTURE TUBE REMOVAL

NOTE : The picture tube for OCE model is upside down, and the positon for the

anode cap and tension springs are changed accordingly.

2 A board

4 C5 board

(except KV-PF21M70)

C3 board

(KV-PF21M70)

5 Deflection yoke

Cushion

6 Four screws

(Tapping screws)

1 Anode cap

3 F board

2-7. DEGAUSS COIL REMOVAL

1 Demagnetization coil

2 Tension spring

Picture tube

– 46 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

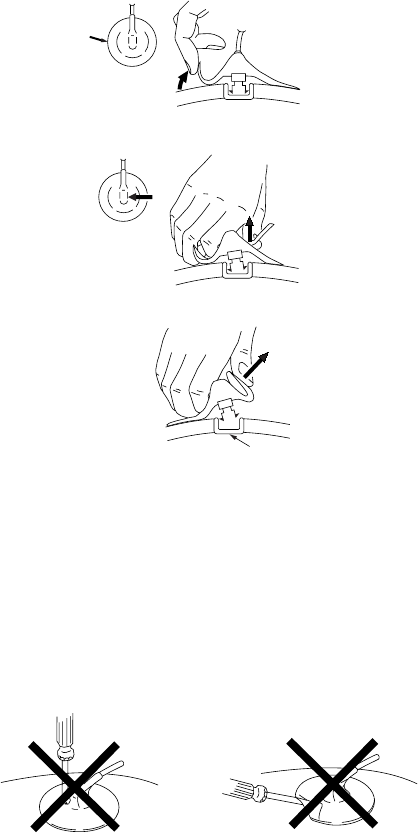

•REMOVAL OF ANODE-CAP

NOTE : After removing the anode, short circuit the anode of the picture tube and

the anode cap to the metal chassis, CRT shield or carbon paint on the

CRT.

•REMOVING PROCEDURES

1Do not damage the surface of anode-caps with sharp shaped objects.

2Do not press the rubber too hard so as not to damage the inside of anode-cap.

A metal fitting called the shatter-hook terminal is built into the rubber.

3Do not turn the foot of rubber over too hard.

The shatter-hook terminal will stick out or damage the rubber.

•HOW TO HANDLE AN ANODE-CAP

3When one side of the rubber cap is separated from the anode button, the anode-cap

can be removed by turning up the rubber cap and pulling it up in the direction of the

arrow c.

2Using a thumb pull up the rubber cap firmly in the direction indicated by the arrow b.

1Turn up one side of the rubber cap in the direction indicated by the arrow a.

a

a

b

b

c

Anode button

– 47 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

•The following adjustments should be made when a complete

realignment is required or a new picture tube is installed.

•These adjustments should be performed with rated power

supply voltage unless otherwise noted.

Controls and switches should be set as follows unless otherwise noted:

PICTURE control........................................................... normal

BRIGHTNESS control................................................... normal

Perform the adjustments in the following order :

1. Beam Landing

2. Convergence

3. Focus

4. White Balance

Note : Test Equipment Required.

1. Color-bar/Pattern Generator

2. Degausser

3. Oscilloscope

SECTION 3

SET-UP ADJUSTMENTS

................................................................................................................................................................................................................................

Fig. 3-3

}normal

Purity control

Fig. 3-1

Red

Blue

Green

Preparation :

•In order to reduce the influence of geomagnetism on the set's

picture tube, face it east or west.

•Switch on the set's power and degauss with the degausser.

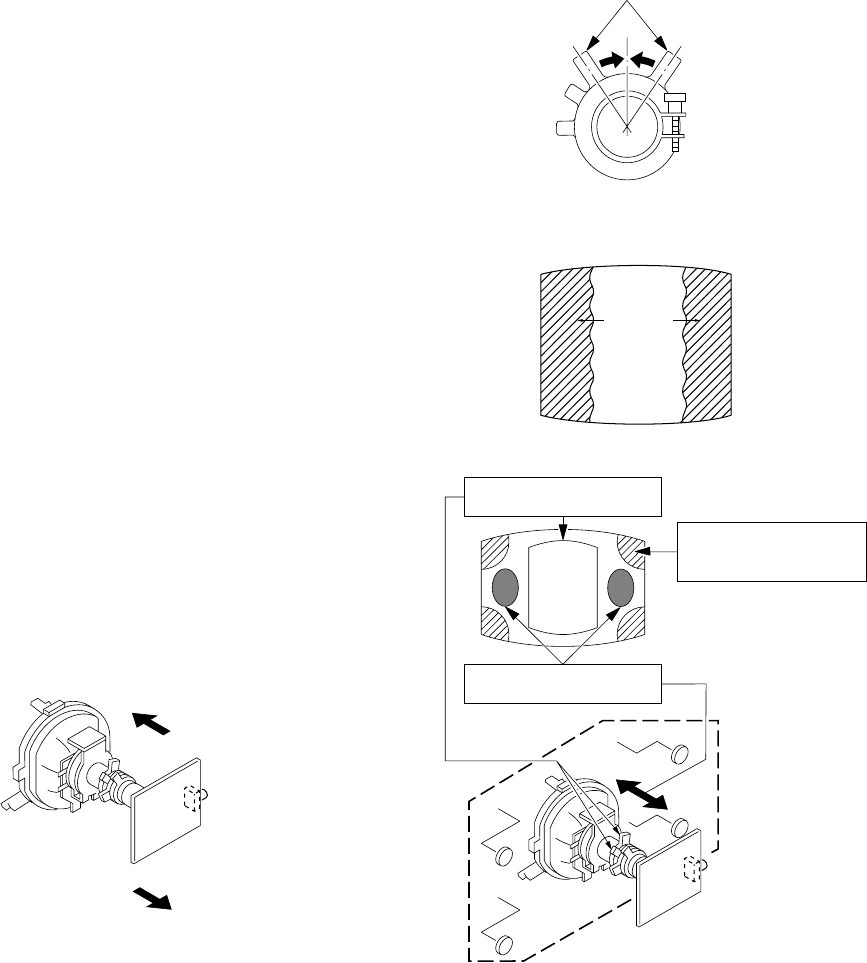

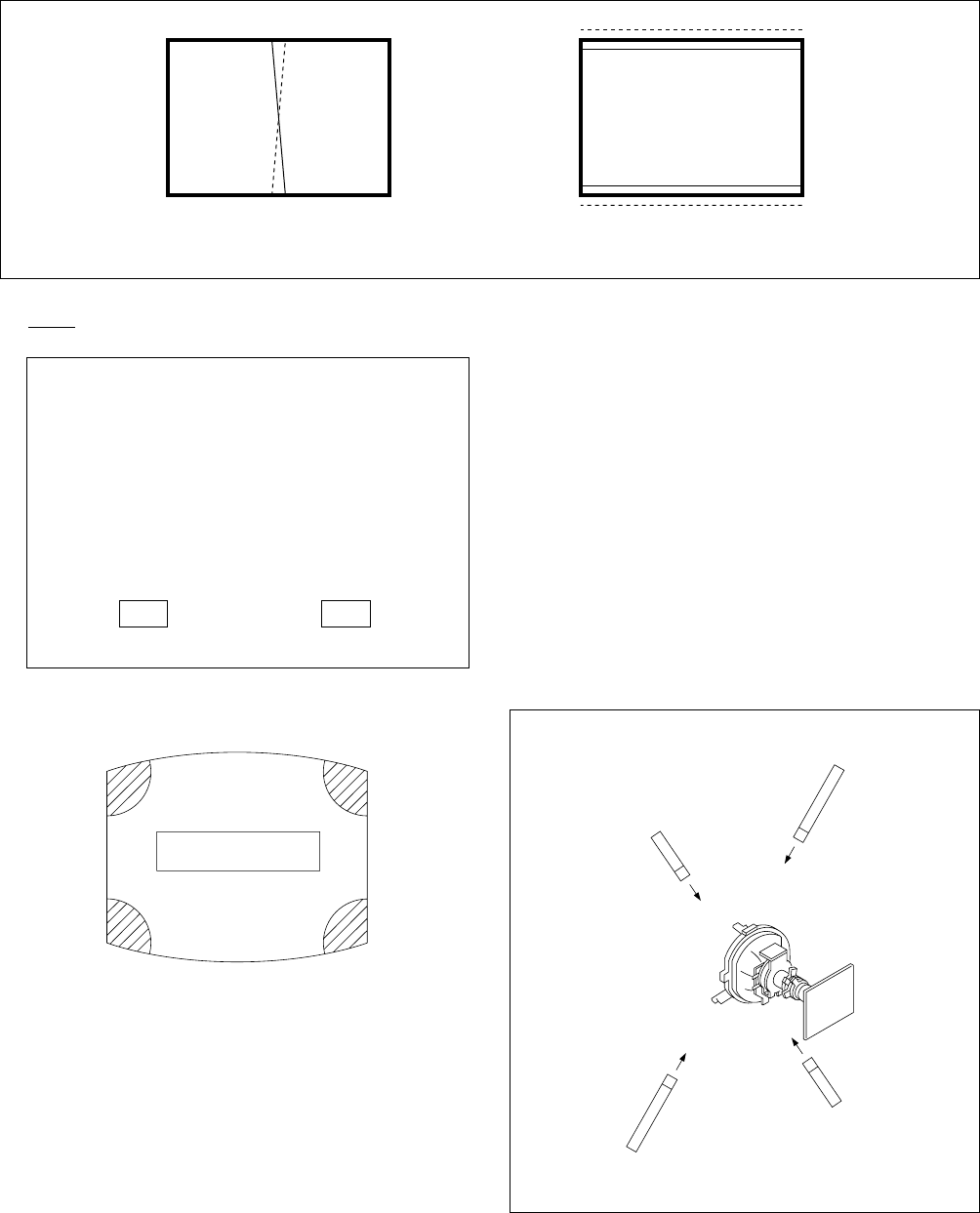

3-1. BEAM LANDING

1. Input a white signal with the pattern generator.

Contrast

Brightness

2. Set the pattern generator raster signal to a green raster.

3. Move the deflection yoke to the rear and adjust with the purity

control so that the green is at the center and the blue and the red

take up equally sized areas on each side.

(See Figures 3-1 through 3-3.)

4. Move the deflection yoke forward and adjust so that the entire

screen is green. (See Figure 3-1.)

5. Switch the raster signal to blue, then to red and verify the

condition.

6. When the position of the deflection yoke has been decided,

fasten the deflection yoke with the screws and DY spacers.

7. If the beam does not land correctly in all the corners, use a

magnet to adjust it.

(See Figure 3-4.)

Fig. 3-2

Fig. 3-4

Deflection yoke positioning

corrects these areas.

Purity control corrects

this area.

Disk magnets or rotatable

disk magnets correct

these areas (a-d).

b

c

a

d

ba

cd

– 48 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

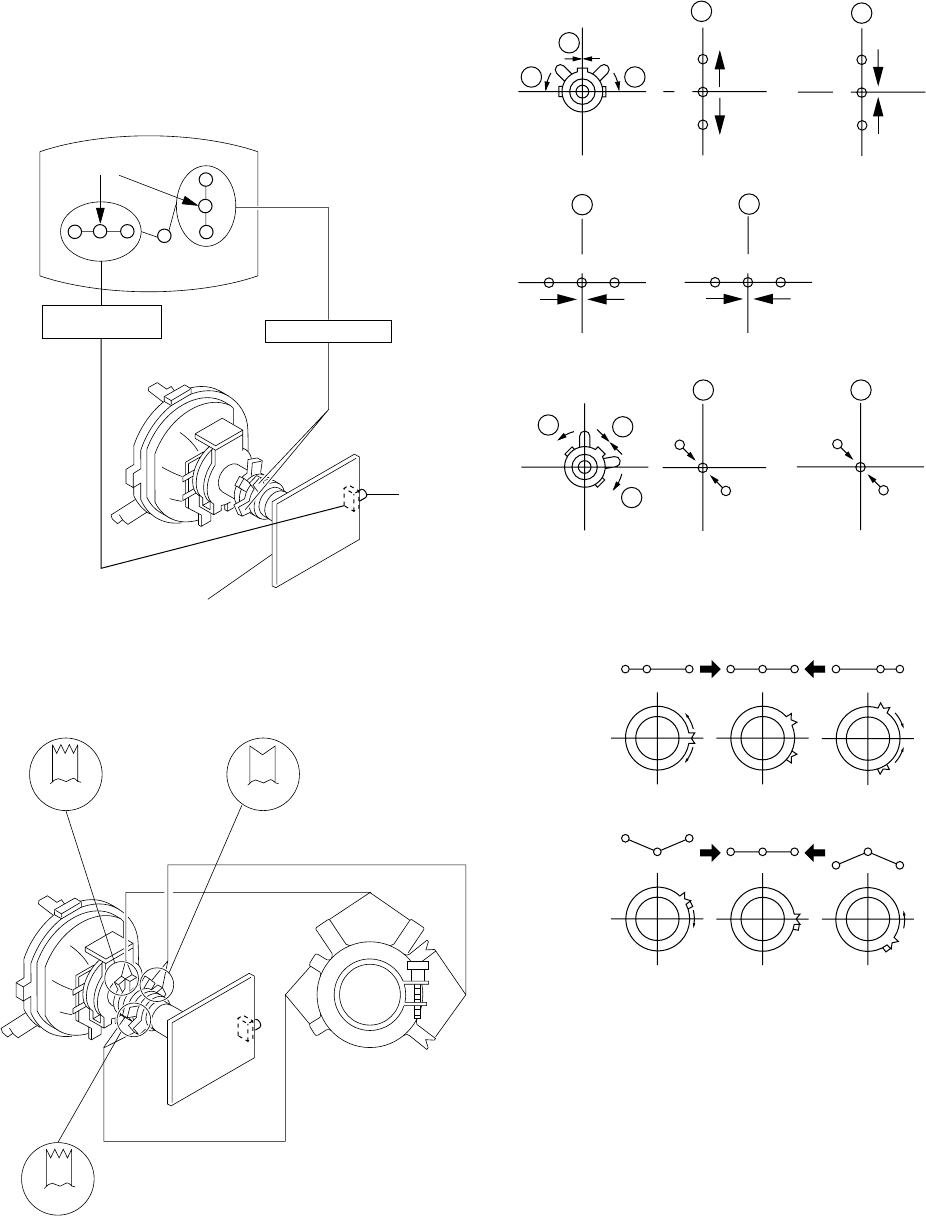

3-2. CONVERGENCE

Preparation :

•Before starting this adjustment, adjust the focus, horizontal size

and vertical size.

•Minimize the brightness setting.

•Provide dot pattern.

(1) Horizontal and Vertical Static Convergence

(Moving vertically), adjust the V.STAT magnet so that the red, green

and blue dots are on top of each other at the center of the screen.

R G B

G

R

B

Center dot

C5 board

RV 702

V.STAT Magnet

H. STAT VR

4BMC (Hexapole) Magnet.

If the red, green and blue dots are not balanced or aligned, then

use the BMC magnet to adjust in the manner described below.

1V. STAT

2H. STAT VR

BMC (Hexapole)

V.STAT

Purity

V.STAT

BMCPurity

RG B R G B R GB

RB

RG

GGB RB

R

R

R

R

G

G

G

G

B

B

B

B

a

a

a

b

b

b b

R

R

GG

B

B

a

a

b

b

b

3

– 49 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

(3) Screen-corner Convergence

ba

cd

a-d : screen-corner

misconvergence

a

d

c

b

a to d : Permalloy assembly

Fix a Permalloy assy

corresponding to the

misconverged areas

(2) Dynamic Convergence Adjustment

Preparation:

•Before starting this adjustment, adjust the horizontal static

convergence and the vertical static convergence

RB

TLVYCH

B

R

on DY

YCH TLV

– 50 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

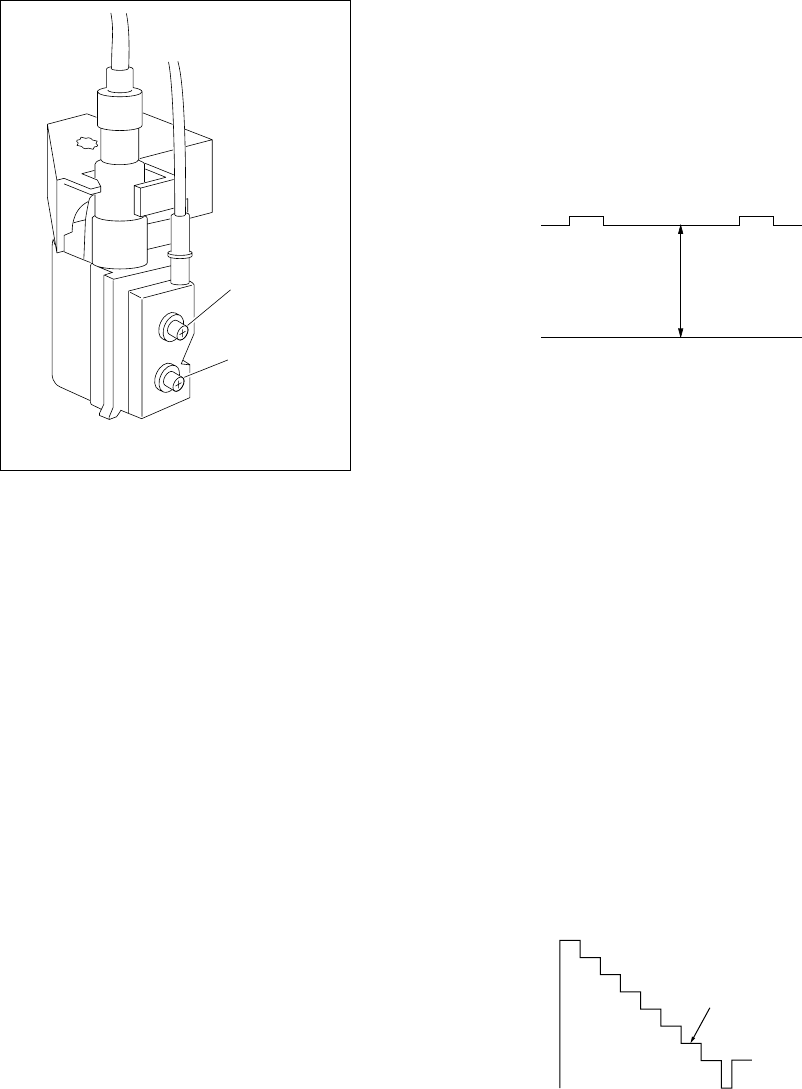

3-3. FOCUS ADJUSTMENT

Adjust FOCUS control on the flyback transformer for the best

focus.

FLYBACK TRANSFORMER (T503)

2. WHITE BALANCE ADJUSTMENT

1) Set to Service Mode (Refer Section 4-1: ADJUSTMENTS

WITH COMMANDER).

2) Input white raster signal.

3) Set the PICTURE to minimum.

4) Select GCT (WHB 4) and BCT (WHB 5) with [1] and [4], and

adjust the level with [3] and [6] for the best white balance.

5) Set the PICTURE to maximum.

6) Select GDR (WHB 1) and BDR (WHB 2) with [1] and [4], and

adjust the level with [3] and [6] for the best white balance.

7) Write into the memory by pressing [MUTING] then [0].

3. SUB BRIGHT ADJUSTMENT

1) Set to service mode.

2) Input a staircase signal of black to white from the pattern

generator.

3) BRIGHTNESS ....50%.

PICTURE ............MINIMUM

4) Select SBR (WHB7) with [1] and [4], and adjust SBR (WHB7)

level with [3] and [6] so that the second stripe from the right is

dimly lit.

3-4. G2 (SCREEN) AND WHITE BALANCE

ADJUSTMENTS

1. G2 (SCREEN) ADJUSTMENT

1) Set the PICTURE to normal.

2) Put to VIDEO input mode without signals.

3) Connect R, G and B of the C5 board cathode to the oscillo-

scope.

4) Adjust BRIGHTNESS to obtain the cathode voltage to the value

below.

5) Adjust G2 (Screen) on FBT until picture shows the point

before cut-off.

White

second from the right

Black

0 V

175 V ±2(VDC)

FOCUS

SCREEN

– 51 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

SECTION 4

CIRCUIT ADJUSTMENTS

With the unit on standby

↓

[DISPLAY]

↓

5

↓

VOL (+)

↓

[POWER]

This operation sequence puts the unit into service mode.

4-1. ADJUSTMENTS WITH COMMANDER

Service adjustments are made with the RM-952 that comes with

this unit.

a. ENTERING SERVICE MODE

1, 4Select the adjustment item.

↓

3, 6Raise/lower the data value.

↓

[MUTING] Writes.

↓

-Executes the writing.

7, -All the data becomes the values in memory.

8, -All user control goes to the standard state.

5, -Service data initialization (Be sure not to use

usually.)

2, -Write 50Hz adjustment data to 60Hz, or vice

versa.

PAL, SECAM : 50

NTSC : 60

00 HPS 1C SERVICE

Data Mode

Item Name

Item No

Software version

Suffix No

(OEM Code)

Total Power-On time (hours)

p

Marking of virgin NVM

GEO

1.0C 59 7F 000A0623S

Device Name

50

TV

123

46

789

÷0

5

JUMP

SOUND

MODE

FAVORITE

PROGRÁ

RM-952

b. METHOD OF CANCELLATION FROM SERVICE

MODE

Set the standby condition (Press [POWER] button on the commander),

then press [POWER] button again, hereupon it becomes TV mode.

c. METHOD OF WRITE INTO MEMORY

1) Set to Service Mode.

2) Press [1] (UP) and [4] (DOWN), select an item of adjustment.

3) Press [MUTING] button and it will indicate WRITE on the screen.

4) Press [0] button to write into memory.

d. MEMORY WRITE CONFIRMATION METHOD

1) After adjustment, pull out the plug from AC outlet, and then

plug into AC outlet again.

2) Turn the power switch ON and set to Service Mode.

3) Call the adjusted items again to confirm adjustments were made.

The screen display is :

– 52 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

4-2. ADJUSTMENT METHOD

Item Number 00 of device GEO

This explanation uses H-Position as an example.

1. Select “GEO 00 HPS” with the 1 and 4 buttons.

2. Raise/lower the data with the 3 and 6 buttons.

3. Select the optimum state. (The standard is 1F for PAL reception.)

4. Write with the [MUTING] button. (The display changes to

WRITE.)

5. Execute the writing with the - button. (The WRITE

display will be changed to red color while excuting, and back

to SERVICE.)

Use the same method for all Items. Use 1 and 4 to select the

adjustment item, use 3 and 6 to adjust, write with [MUTING],

then execute the write with -.

Note : 1. In [WRITE], the data for all items are written into memory

together.

2. For adjustment items that have different standard data

between 50Hz or 60Hz, be sure to use the respective

input signal after adjustment.

1F SERVICE 50HPS

Adjusted with [3]

and [6] buttons.

GREEN

Written with [MUTING]

Write executed with [0]

GEO 00

7F 0 000A59623S 1.0C

1F SERVICE 50HPS RED

The WRITE display

then the display

returns to a green

SERVICE.

GEO 00

7F 0 000A59623S 1.0C

1F WRITE 50HPS GREEN

GEO 00

7F 0 000A59623S 1.0C

– 53 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

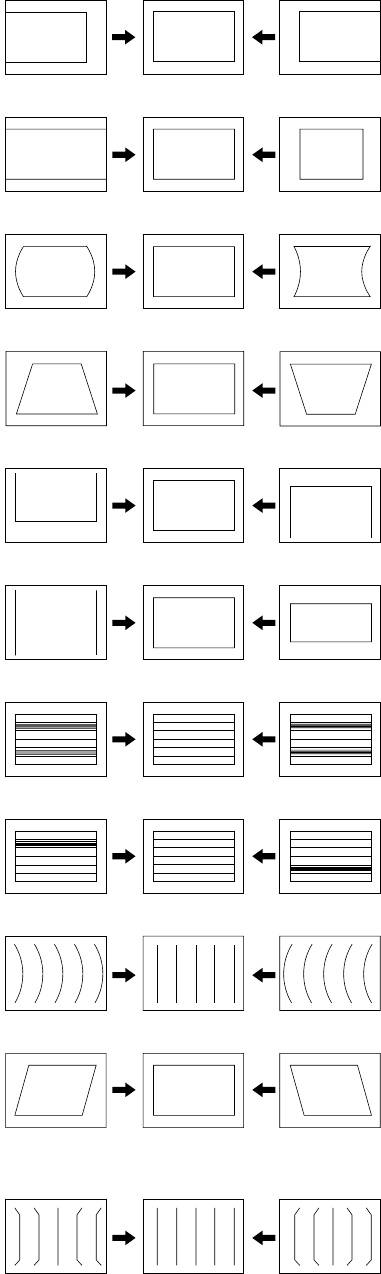

Adjustment Item Table

Device Functionality Note Data Range Function Note for Register Slava RAM Address

Name No Name Different Data No. (bit) Address (bit)

GEO 0 HPS 7 3F H Position 50/60HZ 12 (7-2) CXA2130S(88H) 82 (7-2)

1 HSZ 1F 3F H Size 50/60HZ 11 (7-2) 81 (7-2)

2 PAP 1F 3F Pin Amp 50/60HZ 13 (7-2) 83 (7-2)

3 TLT 7 0F Trapezium 50/60HZ 15 (7-4) 85 (7-4)

4 VPS 1F 3F V Position 50/60HZ 0F (7-2) 7F (7-2)

5 VSZ 1F 3F V Size 50/60HZ 0E (7-2) 7E (7-2)

6 SCO 7 0F S Correction 50/60HZ 10 (7-4) 80 (7-4)

7 VLN 7 0F V Linearity 50/60HZ 10 (3-0) 80 (3-0)

8 BOW 7 0F AFC Bow 50/60HZ 16 (7-4) 86 (7-4)

9 AGL 7 0F AFC-Angle 50/60HZ 16 (3-0) 86 (3-0)

10 UPN 1F 3F Upper Pin 50/60HZ 14 (7-2) 84 (7-2)

11 LPN 1F 3F Lower Pin 50/60HZ 18 (7-2) 88 (7-2)

12 HBL 0 1 H Blanking on/off 18 (1) 67 (1)

13 LBL 7 0F Left H Blanking 50/60HZ 17 (7-4) 87 (7-4)

14 RBL 7 0F Right H Blanking 50/60HZ 17 (3-0) 87 (3-0)

WHB 0 RDR 2A 3F R Drive DYNAMIC/others 09 (7-2) CXA2130S(88H) 8F (7-2)

1 GDR 2A 3F G Drive DYNAMIC/others 0A (7-2) 90 (7-2)

2 BDR 2A 3F B Drive DYNAMIC/others 0B (7-2) 91 (7-2)

3 RCT 7 0F R Cutoff SECAM/others 07 (3-0) 93 (3-0)

4 GCT 7 0F G Cutoff SECAM/others 08 (7-4) 94 (7-4)

5 BCT 7 0F B Cutoff SECAM/others 08 (3-0) 94 (3-0)

6 BMN 15 1F Brightness Minimum Data 97

7 SBR 28 3F Sub Brightness Control 98

SAJ 0 PMX 33 3F Picture Maximum Data CXA2130S(88H) 96

1 SHU 8 0F Sub Hue Control TV/Video 99

2 SSH 3 0F Sub Sharpness Control 03/08 TV/Video 9A

3 SCL 1F 3F Sub Color Control NTSC/others 9B

VP 0 EHT 4 0F EHT Comp 50/60HZ 15 (3-0) CXA2130S(88H) 85 (3-0)

1 GMA 2 03 Gamma Correction Refer NVM Map A4 0B (1-0) 1A3 (1-0)

2 YDL 6 0F Y Delay PAL/SECAM/NTSC 0C (3-0) 8C (3-0)

3 SST 1 03 SECAM ID Start Position 1B (1-0) 6A (1-0)

4 SSP 1 03 SECAM ID Stop Position 1B (3-2) 6A (3-2)

5 SLV 2 03 SECAM ID Level 1C (1-0) 6B (1-0)

6 SBF 22 3F SECAM BELL fO 1C (7-2) 6B (7-2)

7 DYC 0 1 Dynamic Color on/off 0A (1) 59 (1)

8 ABL 1 1 ABL Mode Switching

STANDARD Always 0

09 (1) 58 (1)

9 VTH 1 1 ABL Detection Vth Switching 09 (0) 58 (0)

10 SFO 1 1 FO Switching for Sharpness NTSC/others 05 (1) 198 (1)

11 DCX 1 1 DC Trans. Ratio Switching 06 (1) 55 (1)

12 SHT 1 1 Pre-/Overshoot ratio Switch NTSC/others 06 (0) 199 (0)

– 54 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

Adjustment Item Table

Device Functionality Note Data Range Function Note for Register Slava RAM Address

Name No Name Different Data No. (bit) Address (bit)

VP 13 HDW 0 1 H Drive Pulse Width Switch 00 (6) 4F (6)

14 AFC 1 03 AFC Gain Control TV/Video/Text 0F (1-0) 8D (1-0)

15 HOS 7 0F H Oscillation 0C (7-4) 5B (7-4)

16 HSS 0 1 Slice Level of H Sync Sep. 0D (1) 5C (1)

17 VSS 0 1 Slice Level of V Sync Sep. 0D (0) 5C (0)

18 HMS 0 1 Macro Vision C/m off/on 50/60Hz 0E (0) 7E (0)

19 YUV 0 1 YUV Switch Control 01 (0) 50 (0)

20 CDV 2 3 CD mode for Video Video only 0D (5-4) 1A1 (5-4)

21 RON 1 1 R ON not memorized 01 (3) 50 (3)

22 GON 1 1 G ON not memorized 01 (2) 50 (2)

23 BON 1 1 B ON not memorized 01 (1) 50 (1)

24 PON 1 1 P ON not memorized 00 (7) 4F (7)

25 BLK 0 1 BLK Off 12 (0) 61 (0)

26 VMC 0 1 VM Off 13 (0) 62 (0)

AP 0 INF 0 3F Input Attenuation When surround off 00 (5-0) TDA7429 19F (5-0)

1 INS 0 3F Input Attenuation When surround on 1A0 (5-0)

2 PH1 0 3 Phase 1 Register Selection 02 76 (1-0)

3 PH2 0 3 Phase 2 Register Selection 76 (3-2)

4 PH3 0 3 Phase 3 Register Selection 76 (5-4)

5 PH4 0 3 Phase 4 Register Selection 76 (7-6)

6 BCS 2 3 Bass Center Shift #4 (3-0) 1A8 (1-0)

7 TCS 2 3 Treble Center Shift #5 (3-0) 1A9 (1-0)

8 TRF 2 3 RF Treble Offset #5 (3-0) 1A9 (5-4)

MSP 0 WST 15 FF W/G Stereo Threshold MSP3415D 157 (7-0)

1 WBT EC FF W/G Bilingual Threshold (84H) 158 (7-0)

2 WLL 5 FF W/G Monaural Threshold 159 (7-0)

3 WAC 0 0F W/G Agreement Count 15A (3-0)

4 WDL 30 FF W/G Search Delay 15B (7-0)

5 NDL 20 FF NICAM Search Delay 15C (7-0)

6 SDL 10 FF Stereo status Read Delay 15D (7-0)

7 AGC 0 1 AGC Switch Auto/Constant BB (7) 108 (7)

8 REL 0D 3F AGC Gain at Constant Mode BB (6-1) 108 (6-1)

9 CRM 0 1 Carrier muting on/off BB (9) 107 (1)

10 ACO 1 1 Audio Clock out on/off 83 (5) 10C (5)

11 FP 1B 7F FM Prescale for non-M system 0E (7-0) 16C (6-0)

12 FPM 32 7F FM Prescale for M system 0E (7-0) 16D (6-0)

13 FH 36 7F FM Prescale for HDEV 0E (7-0) 16E (6-0)

14 FHM 65 7F FM Prescale for HDEV and M 0E (7-0) 16F (6-0)

15 WGP 2A 7F W/G Prescale 0E (7-0) 170 (6-0)

16 NIP 6D 7F NICAM Prescale 10 (7-0) 138 (6-0)

17 ERR 50 FF Auto FM switch Threshold 21 (10-3) 166 (7-0)

18 VOL 6D FF Loud Speaker gain 7000h to 7ffoh 0000 (15-4) 1A7 (7-0)

– 55 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

Adjustment Item Table

Device Functionality Note Data Range Function Note for Register Slava RAM Address

Name No Name Different Data No. (bit) Address (bit)

TXT 0 TXH 1 3 Teletext Horizontal Position (58H) 18D (1-0)

1 TXV 0 3 Teletext Vertical Position 18D (6-4)

OPM 0 OSH 0A 3F OSD H Position Option-Misc AC (7-2)

1 COM 0 03 Comb Selection A5 (7-6)

2 APC 1 1 APC Switch A4 (5)

3 TSY 0 03 TV Sys at Auto TV Sys A4 (4-3)

4 MUT 0 1 No Signal Mute A4 (0)

5 AFM 1 1 Auto FM switch A4 (1)

6 RFB 0 3 C-BPF Control A5 (5-4)

7 TV0 0 7 Tilt to V-Angle offset A5 (2-0)

8 DBL 0 1 Disable Blueback Function A4 (2)

OPB 0 OP1 0 FF Optional Bits 1 (see below) Option-Bits 45

1 OP2 0 FF Optional Bits 2 (see below) 46

2 OP3 0 FF Optional Bits 3 (see below) 47

NOTE

• shaded items are fixed data.

•Standard data listed on the Adjustment Item Table are reference values, therefore it may be different for each model and for each mode.

•Note for Different Data Those are the standard data values written on the microprocessor. Therefore, the data values of the modes and stored respectively in the

memory.

In case of a device replacement, adjustment by rewriting the data value is necessary for some items.

– 56 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

AV Input

Item

KV-PF21M70

KV-TF21M61

KV-PF21M90

KV-PF21P11

M

1

1

1

0

D/K

1

1

1

0

I

1

1

1

0

B/G

1

1

1

1

2nd. Lang

1

1

1

1

SECAM

1

1

1

0

XTAL 3.58

1

1

1

1

XTAL 4.43

1

1

1

1

ITEM INFORMATION.

No. OPB0 OP1

No. OPB1 OP2

No. OPB2 OP3

1

1

1

1

1

1

1

1

DVD Input

0

0

0

0

Dis Fav.

0

0

0

0

Thai Bil

0

0

0

0

HDEV

0

1

1

0

NICAM

0

1

1

0

TOP

0

0

0

0

Color SW

0

0

0

0

11 KEY

0

0

0

0

AV Mono

0

0

0

0

US ST

0

0

0

0

Auto TV sys

0

0

0

0

Auto PIC

0

0

0

0

2199 Curve

0

0

0

0

Pic Rot

0

1

1

0

Item

KV-PF21M70

KV-TF21M61

KV-PF21M90

KV-PF21P11

Item

KV-PF21M70

KV-TF21M61

KV-PF21M90

KV-PF21P11

– 57 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

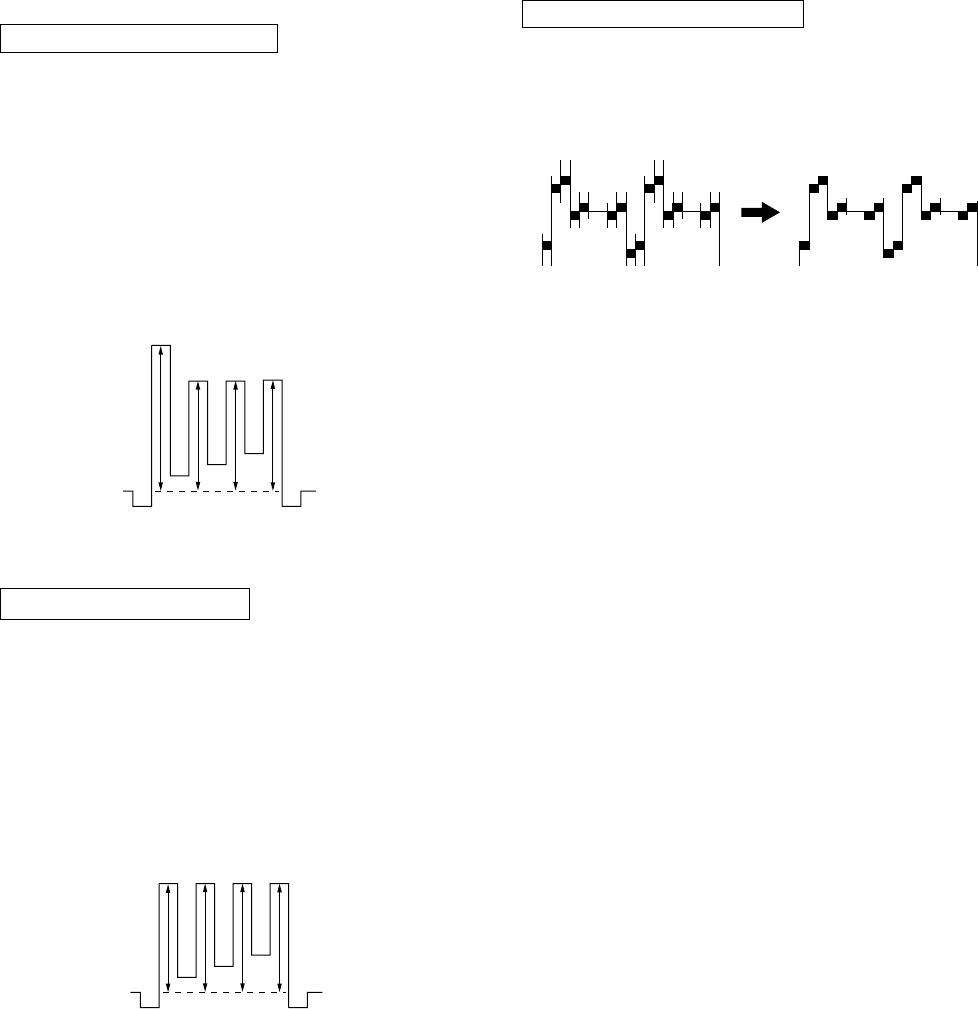

SUB HUE ADJUSTMENT

1. Select Video 1.

2. Input a NTSC color-bar, video into Video 1.

3. Set the following condition:

PICTURE 100%, BRIGHTNESS 50%, COLOR 50%

4. Connect an oscilloscope to pin 1 (B OUT) of CN305, A board.

5. Select SAJ 1 ‘SHU’ with 1 and 4 of the commander by set-

ting to Service Mode and adjust to VB1=VB2=VB3=VB4 with

3 and 6.

4-3. PICTURE QUALITY ADJUSTMENTS

SUB COLOR ADJUSTMENT

1. Input a PAL color-bar.

2. Set to the following condition:

PICTURE 100%, BRIGHTNESS 50%, COLOR 50%

3. Connect an oscilloscope to pin 1 (B OUT) of CN305, A board.

4. Set to Service Mode and select SAJ 3 ‘SCL’ with 1 and 4 of

the commander then adjust to VB2=VB3=VB4 with 3 and

6.

5. Press [MUTING] → - of the commander to write the data.

6. Adjust SAJ 3 ‘SCL’ as step 2 to 5 when receiving NTSC color-

bar.

VB1 VB2 VB3 VB4

VB2 = VB3 = VB4

6. Press [MUTING] → - of the commander to write the data.

VB1 VB2 VB3 VB4

VB1 = VB2 = VB3 = VB4

BELL FILTER ADJUSTMENT

1. Input SECAM color-bar signal.

2. Connect the dual-trace oscilloscope to the pin 9 (R-Y) of

CN303 (not mounted).

3. Adjust SERVICE MODE, ITEMS ‘SBF’ as shown below.

4-4. A BOARD ADJUSTMENT AFTER IC003

(MEMORY) REPLACEMENT

When replacing IC003 (MEMONY), be sure to change IC001

(µ-COM) to the following new IC at the same time.

IC001 (µ-CON) : CXP86449-623S

1. Enter to Service Mode.

2. Press commander buttons 5 and - (Data Initialize), and 2

and - (Data Copy) to initialize the data.

3. Call each item number and check if the respective screen shows

the normal picture.

In cases where items are not well adjusted, rectify the items

with fine adjustment.

Write the data per each item number ([MUTING] +-).

4. Select item numbers “OPB0” (OP1), “OPB1” (OP2) and

“OPB2” (OP3) and respectively set the bit per model with

command buttons 3 and 6.

5. Press commander buttons 8 and - (Test Normal) to return

to the data that was set on the shipment from the factory.

(This will also cancel Service Mode.)

– 58 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

4-5. PICTURE DISTORTION ADJUSTMENT

Item Number 00 – 0B

GEO 0 HSH (H POSITION)

GEO 1 HSZ (H SIZE)

GEO 2 PAP (PIN AMP)

GEO 5 VSZ (V SIZE)

GEO 7 VLN (V LINEARITY)

GEO 4 VSH (V POSITION)

GEO 6 SCR (VERTICAL S-Correction)

GEO 8 VBOW (AFC.BOW)

GEO 9 AGL (AFC.ANGLE)

GEO 3 TILT (TRAPEZIUM)

GEO 0A UCP (UPPER CORNER PIN)

GEO 0B LCP (LOWER CORNER PIN)

SECTION 5

DIAGRAM

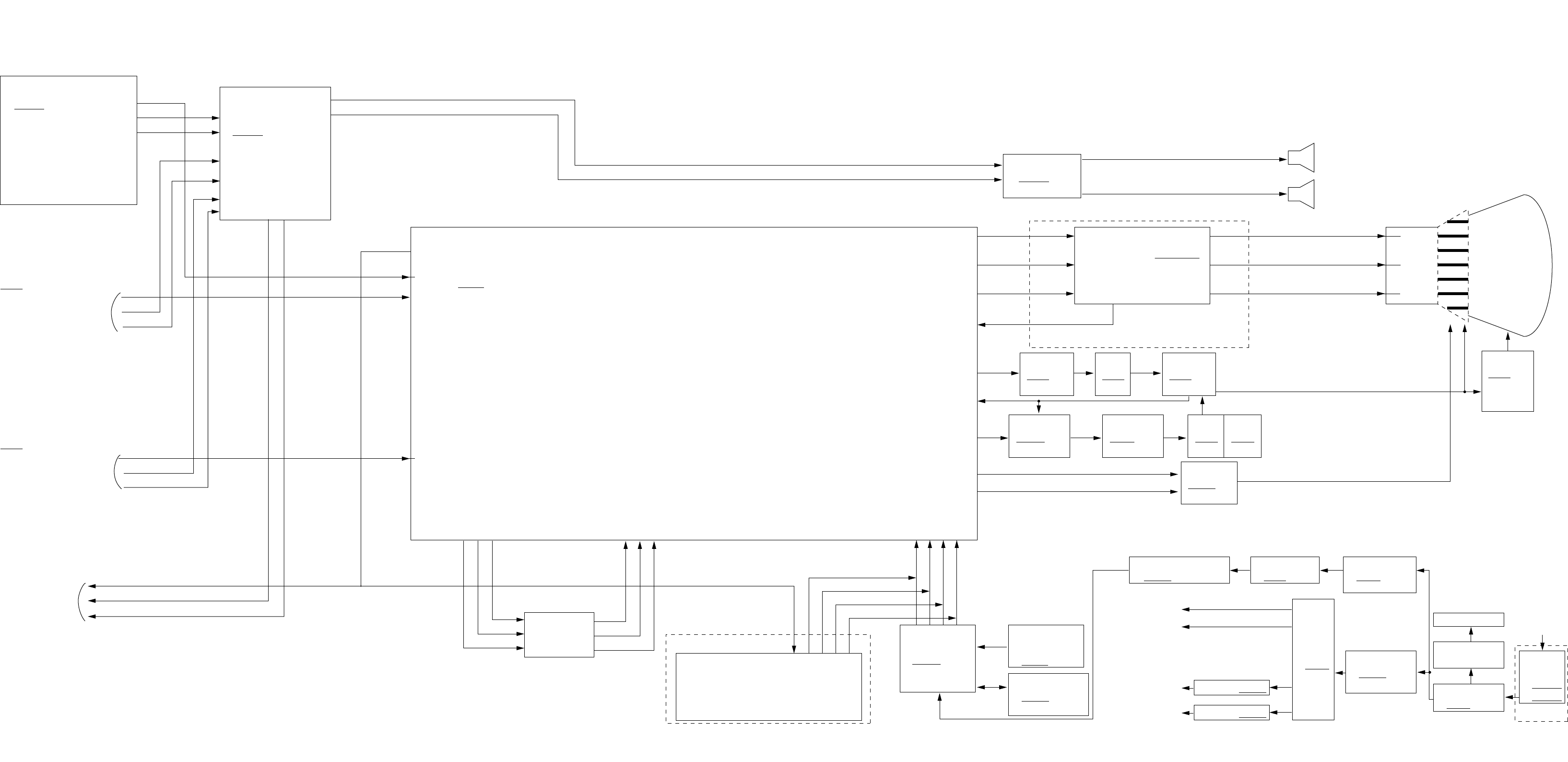

5-1. BLOCK DIAGRAM

– 60 – – 61 –– 59 –

YC JUNGLE

IC301

CXA2130S

<slave:88H>

MONITOR

OUT

TV V in

TV L in

TV R in

Mon out

TV V in

V1 V in

43

6

12

V1 V in

V1 L in

*V1 R in

*V2 R in

V2 V in V2 V in 4

V2 L in

V out 2

L out 2

R out 2

JACK BLOCK

VIDEO IN 1

(KV-PF21M70/TF21P11)

AUDIO

PROSESSOR

IC203

TDA7429S

<slave: 80H>

AUDIO OUT

IC201

TA8248K

RED OUT

GREEN OUT

BLUE OUT

STV5112

Q704-712

C5

(Except KV-PF21M70)

/C3

(KV-PF21M70)

SP ASSY

(KV-TF21M61/TF21M90 only)

R out

CRT SOCKET

G out CRT

A51LPT70X

DY

Y21RSA-S

B out

R out

V out

U out

Y out

V in

U in

Y in

G out

B out

22

23

24

21

19

18

11

13

14

IK in

H. DRIVE

H. PULSE

E/W

VD+

VD-

H-OUT

Q511

2SD2578

V-OUT

IC503

TDA8172

HDT

T501

H-DRIVE

Q506

2SD774-34

PIN-CONT

IC502

NJM2903M

PIN-OUT

Q505

IRF614

PMC

L509 HLC

L510

FBT

T503

NX-1748

+B

Audio Front Vcc

+9V 11V

7V

+5V

5V REG & RESET

IC002 MM1319AF

9V REC IC603

5V REC IC604

STB TRANS

T604

SRT

T603

Additional

Color Matrix SYSTEM

Ucom

IC001

CXP86449

RECEIVER

SBX1981-51

IC901

SIRCS

R G B BLK

I2L

MEMORY

IC003

ST24C08FB6

32 31 30 37 39 40 28 29 30 31

F

STB SW TR

Q605

2SK2845

POWER IC

IC601

STR-F6654 LINE FILTER

T601

LINE

FILTER

T4601

T4602

THP

THP600

AC CORD

DGC

MAIN. TUVIF

TU101

BTF-WG441(I)

(KV-TF21M61/TF21M90)

BTF-LG433(I)

(KV-PF21M70 )

<slave: C0H>

BTF-LG411

(KV-TF21P11)

J401

(KV-TF21M61/TF21M90)

*6P

VIDEO IN 2

(FRONT)

(KV-PF21M70/TF21P11)

J902

(KV-TF21M61/TF21M90)

*3P

TEXT DECODER

with Ucom

IC801

SAA5261

<slave: 58H>

(KV-TF21M61/TF21P11 only)

V1

R G B BLK

4P

2P

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952 KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952 KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

– 65 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

5-4. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS

Note:

•All capacitors are in µF unless otherwise noted.

•All electrolytic capacitors are rated at 50V unless otherwise noted.

•All resistors are in ohms.

kΩ = 1000Ω, MΩ = 1000kΩ

•Indication of resistance which does not have rating electrical

power is as follows.

Pitch: 5 mm

Rating electrical power 1/4W (CHIP: 1/10W)

•: nonflammable resistor.

•¢: internal component.

•: panel designation or adjustment for repair.

•All variable and adjustable resistors have characteristic curve B

unless otherwise noted.

•Readings are taken with a color-bar signal input.

no mark : PAL

( ) : SECAM

[ ] : NTSC 3.58

« » : NTSC 4.43

•Readings are taken with a 10 MΩ digital multimeter.

•Voltage are dc with respect to ground unless other-

wise noted.

•Voltage variations may be noted due to normal pro-

duction tolerances.

•All voltages are in V.

•:Cannot be measured.

•Circled numbers are waveform references.

•:B + bus.

•:B – bus.

•:signal path.

Reference information

RESISTOR : RN METAL FILM

: RC SOLID

: FPRD NONFLAMMABLE CARBON

: FUSE NONFLAMMABLE FUSIBLE

: RS NONFLAMMABLE METAL OXIDE

: RB NONFLAMMABLE CEMENT

: RW NONFLAMMABLE WIREWOUND

: *ADJUSTMENT RESISTOR

COIL : LF-8L MICRO INDUCTOR

CAPACITOR : TA TANTALUM

: PS STYROL

: PP POLYPROPYLENE

: PT MYLAR

: MPS METALIZED POLYESTER

: MPP METALIZED POLYPROPYLENE

: ALB BIPOLAR

: ALT HIGH TEMPERATURE

: ALR HIGH RIPPLE

Note: The component identified by shading and

mark !!

!!

!

are critical for safety. Replace only

with part number specified.

*

– 66 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

5

8

2

6

2

2

3

8

8

8

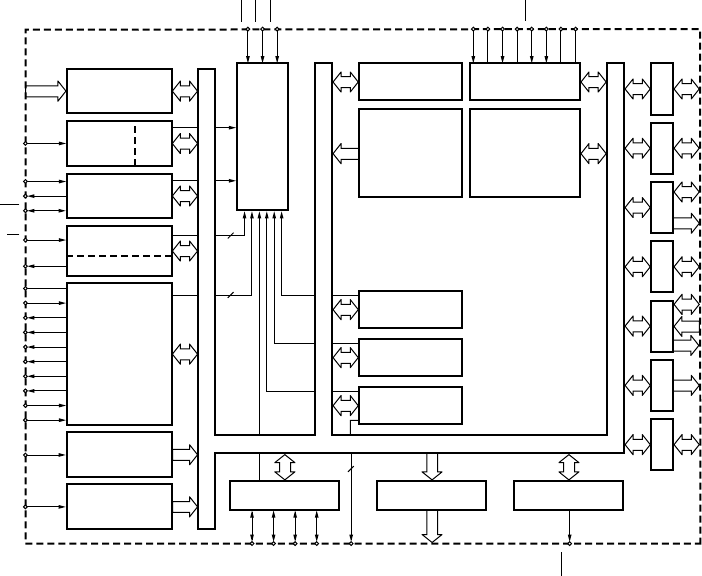

INT0

INT1

INT2

TEX

TX

EXTAL

XTAL

RST

MP

V

DD

V

SS

RMC

AN0~AN5 6 PA0~PA7

PORT APORT BPORT CPORT DPORT EPORT FPORT G

PB0~PB7

PC0~PC5

PC6~PC7

PD0~PD7

PE0~PE1

PE2~PE3

PE4~PE6

PF0~PF7

PG3~PG6*, PG7

S1

SO

SCK

SDA0

SDA1

SCL0

SCL1

PWM

ADJ

PWM0~PWM7

(PWM0~PWM5)

I

2

C BUS

INTERFACE UNIT 8-BIT PWM 8CH

(6CH) 14BIT PWM 1CH

ON SCREEN

DISPLAY

8-BIT TIMER/

COUNTER 0

SERIAL INTERFACE

UNIT

REMOCON FIFO

A/D CONVERTER

6CH

SPC700 CPU CORE

ROM

12K/16K/24K/32K

40K/48K/60K BYTES

PRESCALER/

TIME-BASE TIMER

WATCHDOG TMER

32kHZ

TIMER/COUNTER

RAM

352/704/1536 BYTES

CLOCK GENERATOR

/SYSTEM CONTROL

INTERRUPT CONTROLLER

8-BIT TIMER 1

HSYNC COUNTER 1

HSYNC COUNTER 0

8 (6)

EC

XLC

EXLC

R

G

B

I

YS

YM

HSYNC

VSYNC

HS0

HS1

TO

2

2

2

A BOARD IC001 CXP86449-623S

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

– 90 – – 91 – – 92 –

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952 KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

TRANSISTOR

UN2111

UN2211

UN2213

DTC114EK

UN2216

2SA1162-G

2SC1623-L5L6

2SC2712-YG

2SD2114K

2SC2785-HFE

2SA1091-O

2SD2394-EF

2SD2144S-UVW

E

B

C

ECB

LETTER SIDE

ECB

ECB

2SC2611

2SC4927-01

2SD774-34

RF614

2SK2845-LB102

BCE

D1 G1 S1 NC S2 G2 D2

E

LETTER SIDE

CB

5-5. SEMICONDUCTORS

ON3171-R

D1NS4

D1N20R

RD20ES-B2

RD30ESB2

RD6.8ES-B1

RD9.1ES-L2

1SS119-25

5P6M

DA204K

FMU-G26S

DIODE

AK04V0

AU-01Z-V1

EL1Z

GP08D

RD33EB3T

RGP02-17EL-6433

D4SB60L

ERC04-06SE

ERC06-15S

RN4Z

31DQ06-FC5

ERA22-08

ERD29-08J

MA111-TX

1SS355TE-17

DTZ-TT11-15B

RD10S-B

RD5.1SB-T2

RD9.1S-B

UDZS-TE17-6.8B

2

1

3

4

1

43

CATHODE

ANODE

CATHODE

ANODE GATE

3

1

2

1

3

2

1

12

2

3

3

CATHODE

ANODE

CATHODE

ANODE

CATHODE

ANODE

IC

CXA2130S (64PIN)

CXP86469-615S (64PIN)

SAA5261 (52PIN)

ST24C08FB6 (8PIN)

TDA7429S (42PIN)

MM1319AFBE (7PIN)

NJM2903M (8PIN)

NJM78M09FA

TA7805S

SBX1981-51

SE-135N

1TOP VIEW

Dual In-line Package

Pin 6

~

98

TDA8172

STR-F6654

RU-1P

S-80743AL-A7-S

TA8248K

CATHODE

ANODE

RD3.3M-B2

RD5.6M-B2

DAP202K

3

1

2

1

3

2

3

1

2

1

3

2

SPB-26MVWF

LED

CATHODE

ANODE

(GRN) ANODE

(GRN)

ECB

GS

D

E

BC

Single In -line Package

Pin 6

~

98

1TOP VIEW

Zig-zag In -line Package

Pin 6

~

99

MARKING SIDE VIEW

1

39

40

26

52

14

27

113

MARKING SIDE

VIEW

1

3

2

1

n

LA6510

10

1

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952 KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

SECTION 6

EXPLODED VIEWS

NOTE:

•Items with no part number and no

description are not stocked because they

are seldom required for routine service.

•The construction parts of an assembled

part are indicated with a collation number

in the remark column.

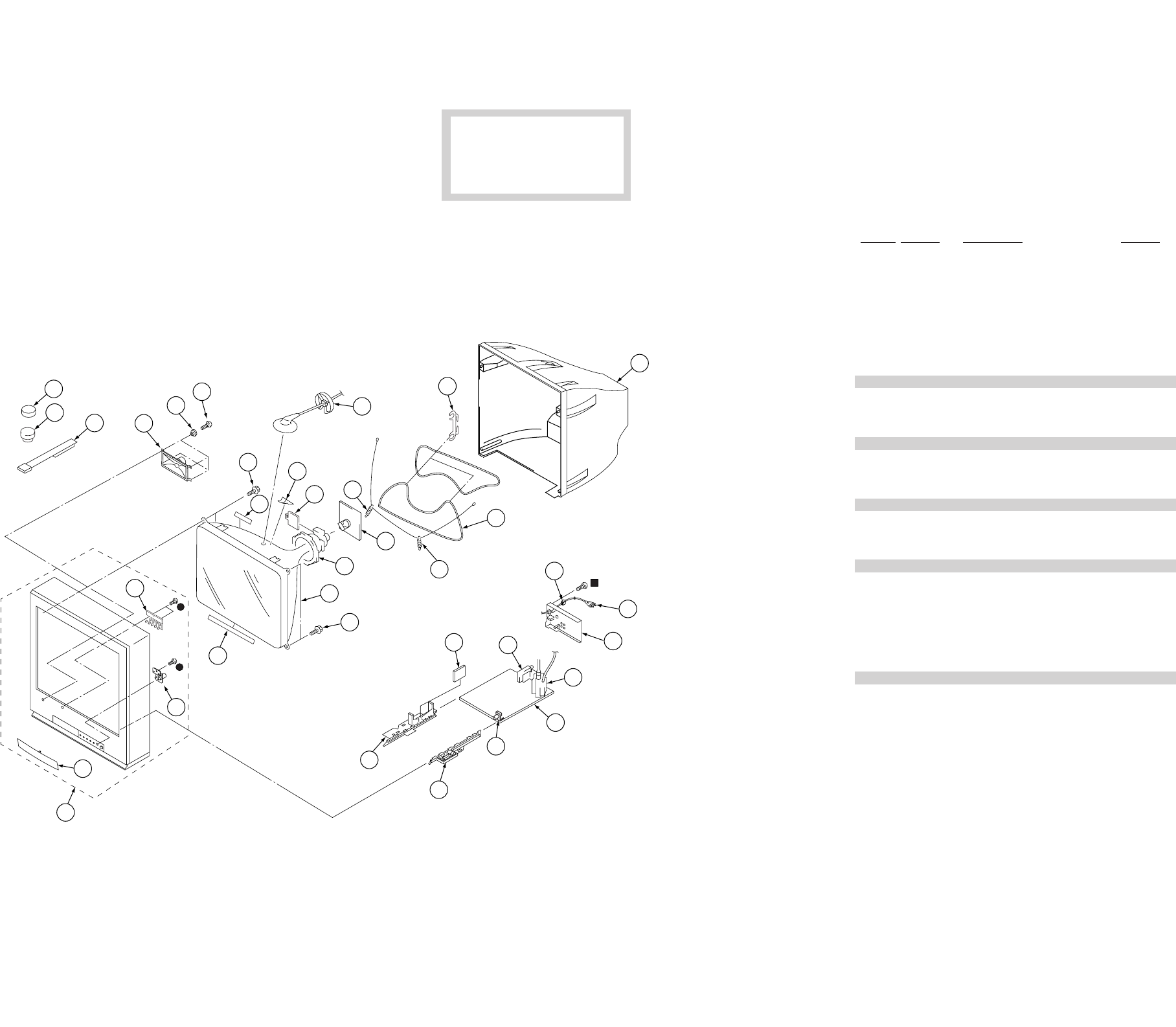

6-1. CHASSIS (KV-PF21M70)

[: BVTP 3 × 12 7-685-648-79

L: BVTP 4 × 16 7-685-663-71

The components identified by

shading and mark ! are critical

for safety.

Replace only with part number

specified.

•Items marked " * " are not stocked since

they are seldom required for routine

service. Some delay should be

anticipated when ordering these items.

– 93 – – 94 –

REF. NO. PART NO. DESCRIPTION REMARK

(KV-PF21M70)

1 X-4036-748-1 BEZNET ASSY 3, 28, 33

2 4-070-291-01 BUTTON, POWER

3 4-070-290-01 BUTTON, MULTI

4 1-505-740-11 SPEAKER (5X9CM)

5 4-054-981-01 SCREW, STEP TAPPING

6 4-365-808-01 SCREW (5), TAPPING

7 4-046-600-11 SPACER, DY

8 * 3-704-372-11 HOLDER, HV CABLE

9!8-738-809-05 PICTURE TUBE (A51LPT70X)

10 8-451-505-11 DEFLECTION YOKE (Y21RSA-S)

11 * A-1331-884-A C3 BOARD, MOUNTED

12 4-369-318-61 SPRING, TENSION

13 !1-416-946-11 COIL, DEMAGNETIC

14 * 4-067-189-01 PWB(L), GUIDE

15 * 4-067-187-01 PWB(R), GUIDE

16 8-598-449-01 TUNER, FSS BTF-LG433

17 !1-453-293-11 TRANSFORMER ASSY, FLYBACK (NX-1748//M3A4)

18 * A-1298-955-A A BOARD, COMPLETE

19 4-057-714-01 PIECE ASSY, TLH CORRECTION

20 4-022-115-00 HOLDER, AC CORD

21 !1-769-609-21 CORD, POWER (WITH CONNECTOR)

22 1-452-032-00 MAGNET,DISC

23 4-051-736-21 PIECE A(90), CONV. CORRECT

24 4-067-167-21 BRACKET,TERMINAL

25 1-452-094-00 CIRCULAR DISC MAGNET B

26 4-069-651-01 BLOTTING SHEET

27 * A-1241-355-A F BOARD, MOUNTED

28 X-4036-750-1 DOOR ASSY, CONTROL

29 !4-070-300-01 COVER, REAR

30 4-064-883-11 HOLDER, DGC

31 * 4-379-189-12 CUSHION, SPEAKER

32 4-069-652-01 CUSHION (HS BAND)

33 * 4-070-292-01 BAR, OPTICAL

4

31

22

25 23

6

5

32

7

19 12

8

30

29

13

12

11

10

9

6

26

1

28 14

15

2

18

27 16

20

21

24

17

3

33

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952 KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

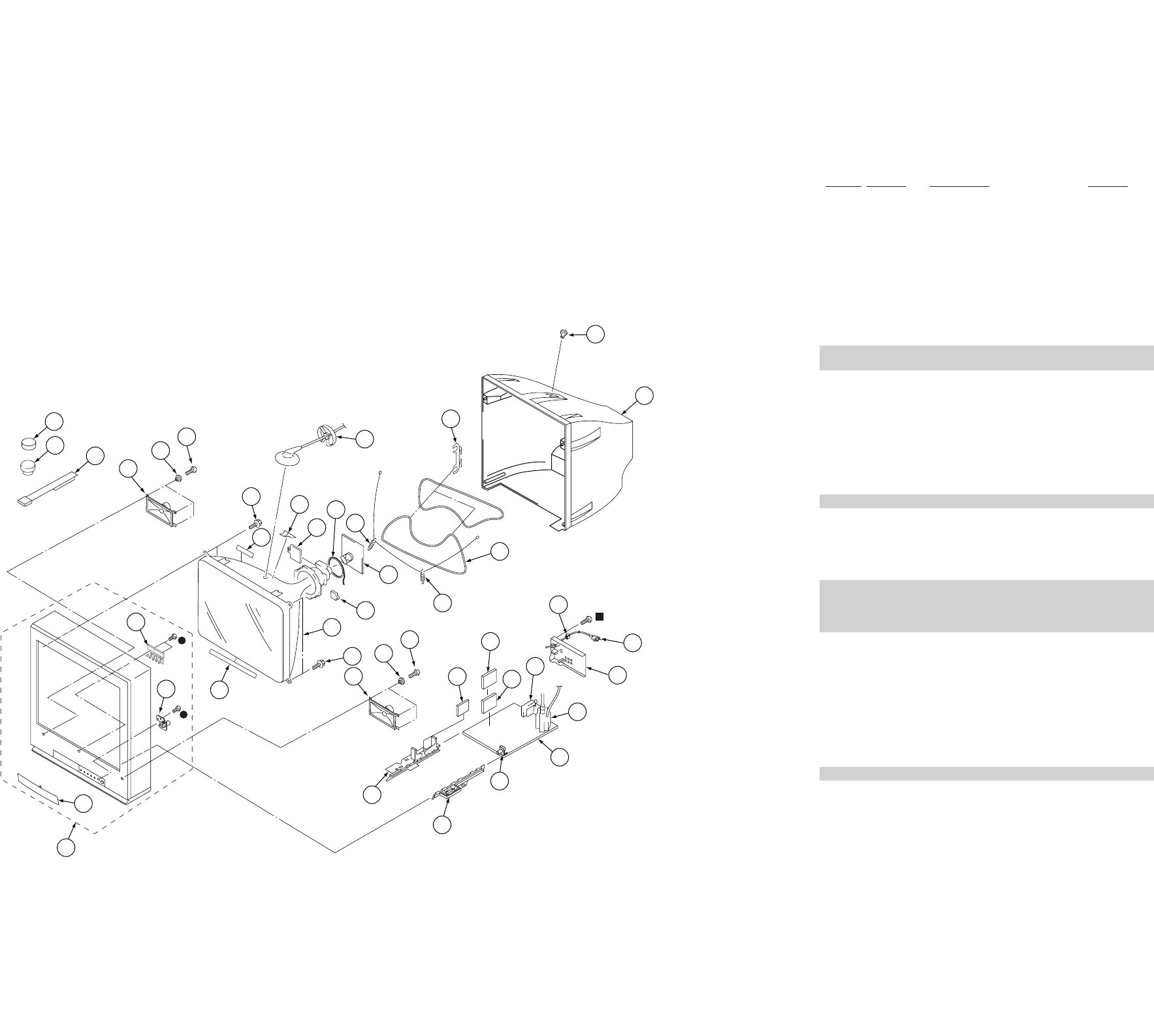

6-2. CHASSIS (KV-TF21M61/TF21M90/TF21P11)

[: BVTP 3 × 12 7-685-648-79

L: BVTP 4 × 16 7-685-663-71

NOTE: The picture tube for OCE model is upside down, and the

position anode cap and tension springs are changed accordingly.

– 95 – – 96 –

REF. NO. PART NO. DESCRIPTION REMARK

(KV-TF21M61/TF21M90/TF21P11)

1 X-4036-744-1 BEZNET ASSY (KV-TF21M61) 3, 28, 37

X-4036-745-1 BEZNET ASSY (KV-TF21M90) 3, 28, 37

X-4036-744-2 BEZNET ASSY (KV-TF21P11) 3, 28, 37

2 4-070-291-01 BUTTON, POWER

3 4-070-290-01 BUTTON, MULTI

4 1-505-740-11 SPEAKER (5X9CM)

5 4-054-981-01 SCREW, STEP TAPPING

6 4-365-808-01 SCREW (5), TAPPING

7 4-046-600-11 SPACER, DY

8 * 3-704-372-11 HOLDER, HV CABLE

9!8-738-809-05 PICTURE TUBE (A51LPT70X) (KV-TF21M90)

!8-738-812-05 PICTURE TUBE (A51LPT70X) (EXCEPT KV-TF21M90)

10 8-451-505-11 DEFLECTION YOKE (Y21RSA-S)

11 * A-1331-941-A C5 BOARD, MOUNTED

12 4-369-318-61 SPRING, TENSION

13 1-416-946-11 COIL, DEMAGNETIC

14 * 4-067-189-01 PWB(L), GUIDE

15 * 4-067-187-01 PWB(R), GUIDE

16 8-598-451-00 TUNER, FSS-BTF-WG441 (EXCEPT KV-TF21P11)

8-598-447-00 TUNER, FSS-BTF-LG411 (KV-TF21P11)

17 !1-453-293-11 TRANSFORMER ASSY, FLYBACK (NX-1748//M3A4)

18 * A-1298-942-A A BOARD, COMPLETE (KV-TF21M61)

* A-1298-951-A A BOARD, COMPLETE (KV-TF21M90)

* A-1298-968-A A BOARD, COMPLETE (KV-TF21P11)

19 4-057-714-01 PIECE ASSY, TLH CORRECTION

20 4-022-115-00 HOLDER, AC CORD

21 !1-574-062-11 CORD, POWER (WITH CONNECTOR) 2.5A/250V

(KV-TF21M61)

!1-769-609-21 CORD, POWER (WITH CONNECTOR) (KV-TF21M90)

!1-574-358-11 CORD, POWER (WITH CONNECTOR) (KV-TF21P11)

22 1-452-032-00 MAGNET,DISC

23 4-051-736-21 PIECE A(90), CONV. CORRECT

24 4-067-167-01 BRACKET,TERMINAL

25 1-452-094-00 CIRCULAR DISC MAGNET B (EXCEPT KV-TF21P11)

1-452-014-11 CIRCULAR DISC MAGNET B (KV-TF21P11)

26 4-069-651-01 BLOTTING SHEET

27 * A-1241-355-A F BOARD, MOUNTED

28 X-4036-760-1 DOOR ASSY, CONTROL (KV-TF21M61)

X-4036-761-1 DOOR ASSY, CONTROL (KV-TF21M90)

X-4036-760-2 DOOR ASSY, CONTROL (KV-TF21P11)

29 !4-070-300-01 COVER, REAR

30 4-064-883-11 HOLDER, DGC

31 * 4-379-189-12 CUSHION, SPEAKER

32 4-069-652-01 CUSHION (HS BAND)

33 * A-1347-155-A V1 BOARD, COMPLETE (KV-TF21M61/TF21P11 ONLY)

34 * 4-068-953-01 BRACKET, V1 (KV-TF21M61/TF21P11 ONLY)

35 1-452-728-61 COIL, NA ROTATION (RT-154)

36 4-034-272-11 PLATE, CORRECTION, TLV (KV-TF21P11 ONLY)

37 * 4-070-292-01 BAR, OPTICAL

38 4-038-462-01 CAP, ANTENNA

22

25 23

6

32

7

19 12

8

30

29

38

13

12

11

36

35

9

6

26

1

28 14

15

2

18

27 34 16

20

33 21

24

17

3

4

31 5

4

31 5

33

– 97 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

* A-1298-955-A A BOARD,COMPLETE (KV-PF21M70)

********************

* 4-055-304-01 HOLDER, LED

* 4-067-182-02 HOLDER, FBT

4-382-854-11 SCREW (M3X10), P, SW (+)

4-382-854-21 SCREW (M3X14), P, SW (+)

7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3

<CAPACITOR>

C003 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C004 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

C005 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

C006 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C007 1-126-933-11 ELECT 100MF 20% 16V

C008 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C010 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C012 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C013 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C014 1-126-967-11 ELECT 47MF 20% 50V

C015 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C016 1-163-113-00 CERAMIC CHIP 68PF 5% 50V

C017 1-163-113-00 CERAMIC CHIP 68PF 5% 50V

C019 1-104-665-11 ELECT 100MF 20% 25V

C022 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C023 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C024 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C026 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C027 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C028 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C030 1-126-965-11 ELECT 22MF 20% 50V

C031 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C032 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C034 1-163-031-11 CERAMIC CHIP 0.01MF 50V

C041 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C042 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C043 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C044 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C047 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C048 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C050 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C051 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C053 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C054 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C055 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C103 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C104 1-126-933-11 ELECT 100MF 20% 16V

REF.NO. PART NO. DESCRIPTION REMARKREF.NO. PART NO. DESCRIPTION REMARK

C107 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C108 1-126-933-11 ELECT 100MF 20% 16V

C109 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C110 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C111 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C112 1-126-933-11 ELECT 100MF 20% 16V

C113 1-126-967-11 ELECT 47MF 20% 50V

C114 1-126-967-11 ELECT 47MF 20% 50V

C202 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C204 1-136-153-00 FILM 0.01MF 5% 50V

C209 1-104-664-11 ELECT 47MF 20% 16V

C210 1-126-933-11 ELECT 100MF 20% 16V

C211 1-126-941-11 ELECT 470MF 20% 25V

C212 1-126-933-11 ELECT 100MF 20% 16V

C215 1-126-942-61 ELECT 1000MF 20% 25V

C216 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C218 1-136-167-00 FILM 0.15MF 5% 50V

C220 1-126-942-61 ELECT 1000MF 20% 25V

C221 1-126-964-11 ELECT 10MF 20% 50V

C223 1-126-965-11 ELECT 22MF 20% 50V

C224 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C226 1-109-982-11 CERAMIC CHIP 1MF 10% 10V

C227 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C228 1-163-024-00 CERAMIC CHIP 0.018MF 10% 50V

C229 1-163-018-00 CERAMIC CHIP 0.0056MF 10% 50V

C230 1-163-024-00 CERAMIC CHIP 0.018MF 10% 50V

C231 1-163-018-00 CERAMIC CHIP 0.0056MF 10% 50V

C232 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C233 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C234 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C235 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C236 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C238 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C240 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C241 1-164-346-11 CERAMIC CHIP 1MF 16V

C242 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C243 1-216-295-91 SHORT 0

C244 1-164-700-11 CERAMIC CHIP 0.68MF 16V

C245 1-164-346-11 CERAMIC CHIP 1MF 16V

C246 1-163-018-00 CERAMIC CHIP 0.0056MF 10% 50V

C248 1-163-010-11 CERAMIC CHIP 0.0012MF 10% 50V

C249 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C251 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C252 1-164-346-11 CERAMIC CHIP 1MF 16V

C253 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C254 1-126-965-11 ELECT 22MF 20% 50V

C255 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C256 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

SECTION 7

ELECTRICAL PARTS LIST

NOTE:

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

When indicating parts by reference

number, please include the board name.

•All resistors are in ohms

•F : nonflammable

CAPACITORS

•MF : µF, PF : µµF

COILS

• MMH : mH, UH : µH

•Items marked " ∗ " are not stocked since they

are seldom required for routine service.

Some delay should be anticipated when or-

dering these items.

•All variable and adjustable resistors have

characteristic curve B, unless otherwise

noted.

A

(KV-PF21M70)

– 98 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

C259 1-126-933-11 ELECT 100MF 20% 16V

C265 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C301 1-126-935-11 ELECT 470MF 20% 16V

C302 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C303 1-126-964-11 ELECT 10MF 20% 50V

C304 1-126-967-11 ELECT 47MF 20% 50V

C305 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C306 1-163-233-11 CERAMIC CHIP 18PF 5% 50V

C307 1-163-233-11 CERAMIC CHIP 18PF 5% 50V

C308 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C309 1-126-957-11 ELECT 0.22MF 20% 50V

C310 1-126-963-11 ELECT 4.7MF 20% 50V

C311 1-126-964-11 ELECT 10MF 20% 50V

C312 1-164-346-11 CERAMIC CHIP 1MF 16V

C313 1-164-346-11 CERAMIC CHIP 1MF 16V

C315 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C316 1-126-967-11 ELECT 47MF 20% 50V

C317 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C318 1-163-031-11 CERAMIC CHIP 0.01MF 50V

C319 1-163-031-11 CERAMIC CHIP 0.01MF 50V

C320 1-163-031-11 CERAMIC CHIP 0.01MF 50V

C322 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C324 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C325 1-126-960-11 ELECT 1MF 20% 50V

C327 1-126-965-11 ELECT 22MF 20% 50V

C328 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C330 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C331 1-247-807-31 CARBON 100 5% 1/4W

C332 1-126-963-11 ELECT 4.7MF 20% 50V

C335 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C336 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C337 1-126-961-11 ELECT 2.2MF 20% 50V

C338 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C341 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C342 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C402 1-164-346-11 CERAMIC CHIP 1MF 16V

C404 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C405 1-126-935-11 ELECT 470MF 20% 16V

C407 1-164-346-11 CERAMIC CHIP 1MF 16V

C408 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C409 1-126-963-11 ELECT 4.7MF 20% 50V

C502 1-163-145-00 CERAMIC CHIP 0.0015MF 5% 50V

C506 1-107-638-11 ELECT 33MF 20% 160V

C507 1-161-830-00 CERAMIC 0.0047MF 500V

C510 1-102-112-00 CERAMIC 330PF 10% 50V

C512 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V

C513 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

C514 1-106-383-00 MYLAR 0.047MF 10% 200V

C517 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V

C518 1-104-665-11 ELECT 100MF 20% 10V

C519 1-102-212-00 CERAMIC 820PF 10% 500V

C521 1-126-934-11 ELECT 220MF 20% 16V

C522 1-126-933-11 ELECT 100MF 20% 16V

C523 1-102-002-00 CERAMIC 680PF 10% 500V

C524 1-126-967-11 ELECT 47MF 20% 50V

C526 1-130-495-00 MYLAR 0.1MF 5% 50V

C527 1-102-820-00 CERAMIC 330PF 5% 50V

C528 1-162-134-11 CERAMIC 470PF 10% 2KV

C530 1-137-372-11 FILM 0.022MF 5% 50V

C531 1-126-961-11 ELECT 2.2MF 20% 50V

C532 1-126-941-11 ELECT 470MF 20% 25V

C533 1-126-941-11 ELECT 470MF 20% 25V

C536 1-136-165-00 FILM 0.1MF 5% 50V

C537 1-126-969-11 ELECT 220MF 20% 50V

C538 1-136-076-00 FILM 0.0085MF 3% 2KV

C539 1-129-746-91 FILM 0.039MF 5% 400V

C540 1-136-171-00 FILM 0.33MF 5% 50V

C546 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C549 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C550 1-106-220-00 MYLAR 0.1MF 10% 100V

C551 1-126-960-11 ELECT 1MF 20% 50V

C552 1-162-116-00 CERAMIC 680PF 10% 2KV

C553 1-162-116-00 CERAMIC 680PF 10% 2KV

C554 1-137-417-11 MYLAR 0.0047MF 10% 200V

C556 1-126-941-11 ELECT 470MF 20% 25V

C557 1-126-941-11 ELECT 470MF 20% 25V

C558 1-123-024-21 ELECT 33MF 160V

C560 1-102-228-00 CERAMIC 470PF 10% 500V

C561 1-136-557-11 FILM 0.0033MF 5% 630V

C562 1-102-228-00 CERAMIC 470PF 10% 500V

C564 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C565 1-107-655-11 ELECT 47MF 20% 250V

C566 1-102-244-00 CERAMIC 220PF 10% 500V

C567 1-115-521-11 FILM 0.82MF 5% 250V

C568 1-102-228-00 CERAMIC 470PF 10% 500V

C570 1-115-520-11 FILM 0.68MF 5% 250V

C573 1-106-379-12 MYLAR 0.033MF 10% 200V

C574 1-107-636-11 ELECT 10MF 20% 160V

C576 1-130-495-00 MYLAR 0.1MF 5% 50V

C577 1-106-395-00 MYLAR 0.15MF 10% 200V

C582 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C600 !1-104-705-51 FILM 0.1MF 20% 250V

C604 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C605 !1-127-942-51 CERAMIC 330PF 10% 250V

C606 !1-127-942-51 CERAMIC 330PF 10% 250V

C607 1-161-830-00 CERAMIC 0.0047MF 99% 500V

C608 1-161-830-00 CERAMIC 0.0047MF 99% 500V

C609 1-126-968-11 ELECT 100MF 20% 50V

C610 1-126-964-11 ELECT 10MF 20% 50V

C611 1-161-830-00 CERAMIC 0.0047MF 99% 500V

C612 1-161-830-00 CERAMIC 0.0047MF 99% 500V

C613 1-117-752-11 ELECT(BLOCK) 330MF 20% 450V

C614 1-126-964-11 ELECT 10MF 20% 50V

C616 1-130-202-00 FILM 0.022MF 10% 400V

C617 1-107-792-11 CERAMIC 100PF 5% 1KV

C618 1-125-893-11 FILM 680PF 3% 1.5KV

C619 !1-119-886-51 CERAMIC 470PF 10% 250V

C620 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C621 1-102-114-00 CERAMIC 470PF 10% 50V

C622 1-102-074-00 CERAMIC 0.001MF 10% 50V

C623 1-104-665-11 ELECT 100MF 20% 25V

C624 1-104-331-11 CERAMIC 0.0022MF 10% 1KV

C627 1-102-002-00 CERAMIC 680PF 10% 500V

C628 1-126-942-61 ELECT 1000MF 20% 25V

C629 1-126-964-11 ELECT 10MF 20% 50V

A (KV-PF21M70)

– 99 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

C630 1-123-024-21 ELECT 33MF 160V

C633 1-104-999-11 MYLAR 0.1MF 10% 200V

C634 1-126-933-11 ELECT 100MF 20% 16V

C635 1-104-665-11 ELECT 100MF 20% 10V

C636 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V

C639 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C640 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C641 1-102-002-00 CERAMIC 680PF 10% 500V

C642 1-126-943-11 ELECT 2200MF 20% 25V

C643 1-104-665-11 ELECT 100MF 20% 10V

C644 1-104-331-11 CERAMIC 0.0022MF 10% 1KV

C645 1-137-605-11 FILM 0.01MF 10% 250V

C646 1-107-679-91 ELECT 10MF 20% 450V

C647 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V

C649 1-126-940-11 ELECT 330MF 20% 25V

C650 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V

C651 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C652 1-126-965-11 ELECT 22MF 20% 50V

C653 1-104-664-11 ELECT 47MF 20% 25V

C657 1-101-821-00 CERAMIC 0.0022MF 500V

C658 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C901 1-136-153-00 FILM 0.01MF 5% 50V

C905 1-126-963-11 ELECT 4.7MF 20% 50V

C906 1-164-346-11 CERAMIC CHIP 1MF 16V

C907 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C910 1-126-967-11 ELECT 47MF 20% 50V

C911 1-126-967-11 ELECT 47MF 20% 50V

C912 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C913 1-126-933-11 ELECT 100MF 20% 16V

C914 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

<CONNECTOR>

CN104 1-695-915-11 TAB (CONTACT)

CN202 * 1-785-608-11 PIN, CONNECTOR 4P

CN203 * 1-564-506-11 PLUG, CONNECTOR 3P

CN204 * 1-564-506-11 PLUG, CONNECTOR 3P

CN305 * 1-564-509-11 PLUG, CONNECTOR 6P

CN505 1-508-765-00 PIN, CONNECTOR (5MM PITCH) 3P

CN506 4-352-844-01 PIN, LEAD, COATING

CN601 * 1-580-843-11 PIN, CONNECTOR (POWER)

CN602 * 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P

CN604 * 1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P

CN609 * 1-508-784-21 PIN, CONNECTOR (5MM PITCH) 1P

CN901 * 1-564-506-11 PLUG, CONNECTOR 3P

<DIODE>

D001 8-719-988-61 DIODE 1SS355TE-17

D005 8-719-988-61 DIODE 1SS355TE-17

D006 8-719-988-61 DIODE 1SS355TE-17

D203 8-719-914-42 DIODE DA204K

D300 1-216-295-91 SHORT 0

D301 8-719-988-61 DIODE 1SS355TE-17

D306 8-719-988-61 DIODE 1SS355TE-17

D307 8-719-988-61 DIODE 1SS355TE-17

D308 8-719-988-61 DIODE 1SS355TE-17

D309 8-719-069-54 DIODE UDZS-TE17-5.1B

D311 8-719-988-61 DIODE 1SS355TE-17

D312 8-719-988-61 DIODE 1SS355TE-17

D313 8-719-988-61 DIODE 1SS355TE-17

D314 8-719-988-61 DIODE 1SS355TE-17

D315 8-719-988-61 DIODE 1SS355TE-17

D316 8-719-069-57 DIODE UDZS-TE17-6.8B

D402 8-719-069-60 DIODE UDZS-TE17-9.1B

D403 8-719-069-60 DIODE UDZS-TE17-9.1B

D405 8-719-069-60 DIODE UDZS-TE17-9.1B

D406 8-719-069-60 DIODE UDZS-TE17-9.1B

D504 8-719-302-43 DIODE EL1Z

D505 8-719-988-61 DIODE 1SS355TE-17

D506 8-719-911-19 DIODE 1SS119-25

D507 8-719-988-61 DIODE 1SS355TE-17

D508 8-719-988-61 DIODE 1SS355TE-17

D509 1-216-073-00 RES,CHIP 10K 5% 1/10W

D510 8-719-988-61 DIODE 1SS355TE-17

D511 8-719-988-61 DIODE 1SS355TE-17

D512 8-719-988-61 DIODE 1SS355TE-17

D513 8-719-908-03 DIODE GP08D

D517 8-719-945-80 DIODE ERC06-15S

D518 8-719-900-26 DIODE ERD29-08J

D521 8-719-302-43 DIODE EL1Z

D522 8-719-302-43 DIODE EL1Z

D523 8-719-302-43 DIODE EL1Z

D527 8-719-908-03 DIODE GP08D

D528 8-719-908-03 DIODE GP08D

D531 8-719-988-61 DIODE 1SS355TE-17

D532 8-719-988-61 DIODE 1SS355TE-17

D602 8-719-911-19 DIODE 1SS119-25

D603 8-719-150-92 DIODE RD33EB3T

D604 8-719-028-72 DIODE RGP02-17EL-6433

D605 8-719-510-53 DIODE D4SB60L

D606 8-719-108-18 THYRISTOR 5P6M

D607 8-719-404-50 DIODE MA111-TX

D608 8-719-110-53 DIODE RD20ESB2

D609 8-719-311-31 DIODE RU-1P

D610 8-719-043-76 DIODE AK04V0

D611 8-719-046-74 DIODE AU-01Z-V1

D613 8-719-046-74 DIODE AU-01Z-V1

D614 8-719-046-74 DIODE AU-01Z-V1

D618 8-719-067-18 DIODE RN4Z

D620 8-719-110-72 DIODE RD30ESB2

D622 8-719-071-39 DIODE FMU-G26S

D623 8-719-978-65 DIODE DTZ-TT11-15B

D624 8-719-404-50 DIODE MA111-TX

D625 8-719-977-28 DIODE DTZ10B

D627 8-719-073-84 DIODE 31DQ06-FC5

D628 8-719-911-19 DIODE 1SS119-25

D631 8-719-068-00 DIODE ERC04-06SE

D632 8-719-068-00 DIODE ERC04-06SE

D633 8-719-948-45 DIODE ERA22-08

D634 8-719-404-50 DIODE MA111-TX

D635 8-719-404-50 DIODE MA111-TX

D636 8-719-510-02 DIODE D1NS4

D637 8-719-109-96 DIODE RD6.8ESB1

D638 8-719-510-48 DIODE D1N20R

A (KV-PF21M70)

– 100 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

D901 8-719-069-60 DIODE UDZS-TE17-9.1B

D902 8-719-069-60 DIODE UDZS-TE17-9.1B

D904 8-719-069-60 DIODE UDZS-TE17-9.1B

D905 8-719-069-60 DIODE UDZS-TE17-9.1B

D906 8-719-045-19 DIODE SPB-26MVWF

<CONNECTOR>

DY1 * 1-580-798-11 CONNECTOR PIN (DY) 6P

<FERRITE BEAD>

FB103 1-410-397-21 FERRITE 1.1UH

FB501 1-410-397-21 FERRITE 1.1UH

FB502 1-410-397-21 FERRITE 1.1UH

FB600 1-410-397-21 FERRITE 1.1UH

FB601 1-410-397-21 FERRITE 1.1UH

FB602 1-410-397-21 FERRITE 1.1UH

FB603 1-410-397-21 FERRITE 1.1UH

FB604 1-410-397-21 FERRITE 1.1UH

FB607 1-410-397-21 FERRITE 1.1UH

FB608 1-412-911-31 FERRITE 0UH

FB611 1-410-397-21 FERRITE 1.1UH

FB613 1-410-397-21 FERRITE 1.1UH

FB615 1-410-397-21 FERRITE 1.1UH

<IC>

IC001 8-752-906-21 IC CXP86449-623S

IC002 8-759-371-21 IC MM1319AFBE

IC003 8-759-370-34 IC ST24C08FB6

IC201 8-759-339-60 IC TA8248K

IC203 8-759-553-40 IC TDA7429S

IC301 8-752-088-39 IC CXA2130S

IC502 8-759-700-07 IC NJM2903M

IC503 8-759-980-58 IC TDA8172

IC601 8-749-013-75 IC STR-F6654

IC602 8-749-920-61 IC SE-135N

IC603 8-759-701-59 IC NJM78M09FA

IC604 8-759-231-53 IC TA7805S

IC901 8-742-014-11 HYB IC SBX1981-51

<JACK>

J401 1-779-849-11 JACK BLOCK, PIN 4P

J901 1-770-785-11 JACK

J902 1-779-205-11 JACK, PIN 2P

<CHIP CONDUCTOR>

JR002 1-216-295-91 SHORT 0

JR003 1-216-295-91 SHORT 0

JR004 1-216-295-91 SHORT 0

JR005 1-216-295-91 SHORT 0

JR006 1-216-295-91 SHORT 0

JR007 1-216-295-91 SHORT 0

JR008 1-216-295-91 SHORT 0

JR009 1-216-295-91 SHORT 0

JR010 1-216-295-91 SHORT 0

JR011 1-216-295-91 SHORT 0

JR012 1-216-295-91 SHORT 0

JR013 1-216-295-91 SHORT 0

JR014 1-216-295-91 SHORT 0

JR015 1-216-295-91 SHORT 0

JR016 1-216-295-91 SHORT 0

JR018 1-216-295-91 SHORT 0

JR019 1-216-295-91 SHORT 0

JR102 1-216-295-91 SHORT 0

JR109 1-216-295-91 SHORT 0

JR202 1-216-295-91 SHORT 0

JR301 1-216-295-91 SHORT 0

JR303 1-216-295-91 SHORT 0

JR404 1-216-295-91 SHORT 0

JR405 1-216-295-91 SHORT 0

JR500 1-216-295-91 SHORT 0

JR501 1-216-295-91 SHORT 0

JR600 1-216-295-91 SHORT 0

<COIL>

L002 1-414-856-11 INDUCTOR 10UH

L003 1-414-180-11 INDUCTOR 3.3UH

L005 1-414-233-22 INDUCTOR CHIP 0UH

L101 1-414-856-11 INDUCTOR 10UH

L102 1-414-856-11 INDUCTOR 10UH

L103 1-414-856-11 INDUCTOR 10UH

L104 1-414-856-11 INDUCTOR 10UH

L105 1-414-856-11 INDUCTOR 10UH

L204 1-414-856-11 INDUCTOR 10UH

L301 1-414-189-31 INDUCTOR 100UH

L302 1-414-185-41 INDUCTOR 22UH

L501 1-412-525-31 INDUCTOR 10UH

L502 1-422-613-11 COIL, AIR CORE

L503 1-412-525-31 INDUCTOR 10UH

L504 1-412-525-31 INDUCTOR 10UH

L505 1-412-525-31 INDUCTOR 10UH

L506 1-412-525-31 INDUCTOR 10UH

L507 1-459-111-00 INDUCTOR 10MMH

L508 1-412-525-31 INDUCTOR 10UH

L509 1-459-390-00 INDUCTOR 390UH

L510 1-416-972-11 COIL, HORIZONTAL LINEARITY

L512 1-412-549-31 INDUCTOR 1MMH

L513 1-412-549-31 INDUCTOR 1MMH

L515 1-459-104-00 COIL, WITH CORE

L518 1-408-611-31 INDUCTOR 47UH

L601 1-412-527-11 INDUCTOR 15UH

L901 1-408-603-31 INDUCTOR 10UH

L905 1-414-856-11 INDUCTOR 10UH

<PHOTO COUPLER>

PH600 !8-749-924-35 PHOTO COUPLER ON3171-R

A (KV-PF21M70)

– 101 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

<IC LINK>

PS200 1-532-675-21 LINK, IC 1.5A/150V

<TRANSISTOR>

Q002 8-729-230-49 TRANSISTOR 2SC2712-YG

Q003 8-729-424-08 TRANSISTOR UN2111

Q004 8-729-421-22 TRANSISTOR UN2211

Q101 8-729-230-49 TRANSISTOR 2SC2712-YG

Q201 8-729-424-67 TRANSISTOR UN2216

Q203 8-729-421-19 TRANSISTOR UN2213

Q204 8-729-216-22 TRANSISTOR 2SA1162-G

Q205 8-729-421-19 TRANSISTOR UN2213

Q206 8-729-421-19 TRANSISTOR UN2213

Q207 8-729-421-19 TRANSISTOR UN2213

Q301 8-729-216-22 TRANSISTOR 2SA1162-G

Q302 8-729-230-49 TRANSISTOR 2SC2712-YG

Q303 8-729-216-22 TRANSISTOR 2SA1162-G

Q305 8-729-216-22 TRANSISTOR 2SA1162-G

Q306 8-729-216-22 TRANSISTOR 2SA1162-G

Q307 8-729-230-49 TRANSISTOR 2SC2712-YG

Q308 8-729-216-22 TRANSISTOR 2SA1162-G

Q312 8-729-216-22 TRANSISTOR 2SA1162-G

Q313 8-729-230-49 TRANSISTOR 2SC2712-YG

Q315 8-729-421-19 TRANSISTOR UN2213

Q401 8-729-424-67 TRANSISTOR UN2216

Q404 8-729-216-22 TRANSISTOR 2SA1162-G

Q503 8-729-230-49 TRANSISTOR 2SC2712-YG

Q505 8-729-931-45 TRANSISTOR IRF614

Q506 8-729-140-96 TRANSISTOR 2SD774-34

Q507 8-729-216-22 TRANSISTOR 2SA1162-G

Q509 8-729-230-49 TRANSISTOR 2SC2712-YG

Q511 8-729-048-07 TRANSISTOR 2SD2578-CA

Q601 8-729-023-22 TRANSISTOR 2SD2114K

Q602 8-729-230-49 TRANSISTOR 2SC2712-YG

Q603 8-729-424-08 TRANSISTOR UN2111

Q604 8-729-200-17 TRANSISTOR 2SA1091-O

Q605 8-729-044-30 TRANSISTOR 2SK2845-LB102

Q606 8-729-230-49 TRANSISTOR 2SC2712-YG

Q607 8-729-922-37 TRANSISTOR 2SD2144S-UVW

Q608 8-729-230-49 TRANSISTOR 2SC2712-YG

Q901 8-729-421-19 TRANSISTOR UN2213

Q902 8-729-421-19 TRANSISTOR UN2213

<RESISTOR>

R001 1-414-233-22 INDUCTOR CHIP 0UH

R002 1-216-025-91 RES,CHIP 100 5% 1/10W

R003 1-216-295-91 SHORT 0

R004 1-216-025-91 RES,CHIP 100 5% 1/10W

R005 1-216-025-91 RES,CHIP 100 5% 1/10W

R007 1-216-295-91 SHORT 0

R008 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R010 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R011 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R012 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R013 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R014 1-216-025-91 RES,CHIP 100 5% 1/10W

R015 1-216-025-91 RES,CHIP 100 5% 1/10W

R016 1-216-025-91 RES,CHIP 100 5% 1/10W

R017 1-216-049-91 RES,CHIP 1K 5% 1/10W

R018 1-216-033-00 RES,CHIP 220 5% 1/10W

R019 1-216-073-00 RES,CHIP 10K 5% 1/10W

R021 1-216-073-00 RES,CHIP 10K 5% 1/10W

R022 1-216-033-00 RES,CHIP 220 5% 1/10W

R024 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R025 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R026 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R027 1-216-073-00 RES,CHIP 10K 5% 1/10W

R029 1-216-049-91 RES,CHIP 1K 5% 1/10W

R031 1-216-049-91 RES,CHIP 1K 5% 1/10W

R035 1-216-025-91 RES,CHIP 100 5% 1/10W

R036 1-216-025-91 RES,CHIP 100 5% 1/10W

R037 1-216-025-91 RES,CHIP 100 5% 1/10W

R040 1-216-025-91 RES,CHIP 100 5% 1/10W

R041 1-216-025-91 RES,CHIP 100 5% 1/10W

R042 1-216-295-91 SHORT 0

R043 1-216-049-91 RES,CHIP 1K 5% 1/10W

R044 1-216-025-91 RES,CHIP 100 5% 1/10W

R045 1-414-233-22 INDUCTOR CHIP 0UH

R046 1-216-049-91 RES,CHIP 1K 5% 1/10W

R047 1-414-233-22 INDUCTOR CHIP 0UH

R048 1-216-073-00 RES,CHIP 10K 5% 1/10W

R050 1-216-073-00 RES,CHIP 10K 5% 1/10W

R053 1-216-049-91 RES,CHIP 1K 5% 1/10W

R055 1-216-073-00 RES,CHIP 10K 5% 1/10W

R056 1-216-073-00 RES,CHIP 10K 5% 1/10W

R061 1-216-033-00 RES,CHIP 220 5% 1/10W

R062 1-216-041-00 RES,CHIP 470 5% 1/10W

R063 1-216-037-00 RES,CHIP 330 5% 1/10W

R064 1-216-037-00 RES,CHIP 330 5% 1/10W

R065 1-216-037-00 RES,CHIP 330 5% 1/10W

R066 1-216-049-91 RES,CHIP 1K 5% 1/10W

R105 1-216-295-91 SHORT 0

R109 1-216-041-00 RES,CHIP 470 5% 1/10W

R111 1-216-025-91 RES,CHIP 100 5% 1/10W

R112 1-216-025-91 RES,CHIP 100 5% 1/10W

R113 1-216-047-91 RES,CHIP 820 5% 1/10W

R202 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R203 1-216-077-00 RES,CHIP 15K 5% 1/10W

R204 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R208 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R210 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

R211 1-216-043-91 RES,CHIP 560 5% 1/10W

R212 1-216-033-00 RES,CHIP 220 5% 1/10W

R213 1-216-073-00 RES,CHIP 10K 5% 1/10W

R214 1-216-073-00 RES,CHIP 10K 5% 1/10W

R215 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R216 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R217 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R218 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R219 1-216-025-91 RES,CHIP 100 5% 1/10W

R220 1-216-025-91 RES,CHIP 100 5% 1/10W

A (KV-PF21M70)

– 102 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

R367 1-216-073-00 RES,CHIP 10K 5% 1/10W

R370 1-216-033-00 RES,CHIP 220 5% 1/10W

R376 1-216-081-00 RES,CHIP 22K 5% 1/10W

R377 1-216-121-91 RES,CHIP 1M 5% 1/10W

R378 1-216-031-00 RES,CHIP 180 5% 1/10W

R404 1-216-073-00 RES,CHIP 10K 5% 1/10W

R405 1-216-049-91 RES,CHIP 1K 5% 1/10W

R406 1-216-073-00 RES,CHIP 10K 5% 1/10W

R408 1-216-049-91 RES,CHIP 1K 5% 1/10W

R411 1-216-113-00 RES,CHIP 470K 5% 1/10W

R412 1-216-041-00 RES,CHIP 470 5% 1/10W

R413 1-216-021-00 RES,CHIP 68 5% 1/10W

R414 1-216-113-00 RES,CHIP 470K 5% 1/10W

R417 1-216-077-00 RES,CHIP 15K 5% 1/10W

R418 1-216-113-00 RES,CHIP 470K 5% 1/10W

R419 1-216-022-00 RES,CHIP 75 5% 1/10W

R426 1-216-033-00 RES,CHIP 220 5% 1/10W

R505 1-216-099-00 RES,CHIP 120K 5% 1/10W

R506 1-216-085-00 RES,CHIP 33K 5% 1/10W

R507 1-249-389-11 CARBON 4.7 5% 1/4W F

R508 1-215-910-00 METAL OXIDE 68 5% 3W F

R509 1-215-911-11 METAL OXIDE 100 5% 3W F

R510 1-215-885-00 METAL OXIDE 68 5% 2W F

R511 1-215-911-11 METAL OXIDE 100 5% 3W F

R516 1-216-081-00 RES,CHIP 22K 5% 1/10W

R518 1-247-807-31 CARBON 100 5% 1/4W

R520 1-215-445-00 METAL 10K 1% 1/4W

R522 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R523 1-249-411-11 CARBON 330 5% 1/4W

R525 1-216-699-11 METAL CHIP 100K 0.50% 1/10W

R526 1-208-798-11 RES,CHIP 4.7K 0.50% 1/10W

R527 1-216-001-00 RES,CHIP 10 5% 1/10W

R528 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R529 1-216-635-11 METAL CHIP 220 0.50% 1/10W

R531 1-247-843-11 CARBON 3.3K 5% 1/4W

R533 1-249-417-11 CARBON 1K 5% 1/4W

R534 1-216-361-00 METAL OXIDE 0.22 5% 2W F

R535 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R536 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R537 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R540 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R541 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R542 1-216-295-91 SHORT 0

R543 1-249-426-11 CARBON 5.6K 5% 1/4W F

R545 1-216-077-00 RES,CHIP 15K 5% 1/10W

R546 1-216-077-00 RES,CHIP 15K 5% 1/10W

R547 1-216-085-00 RES,CHIP 33K 5% 1/10W

R549 1-215-451-00 METAL 18K 1% 1/4W

R550 1-216-097-91 RES,CHIP 100K 5% 1/10W

R551 1-249-421-11 CARBON 2.2K 5% 1/4W

R552 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R553 1-215-457-00 METAL 33K 1% 1/4W

R554 1-215-457-00 METAL 33K 1% 1/4W

R556 1-215-437-00 METAL 4.7K 1% 1/4W

R558 1-249-421-11 CARBON 2.2K 5% 1/4W

R559 1-249-429-11 CARBON 10K 5% 1/4W

R560 1-216-073-00 RES,CHIP 10K 5% 1/10W

R221 1-216-295-91 SHORT 0

R225 1-216-033-00 RES,CHIP 220 5% 1/10W

R226 1-216-033-00 RES,CHIP 220 5% 1/10W

R227 1-216-033-00 RES,CHIP 220 5% 1/10W

R229 1-216-073-00 RES,CHIP 10K 5% 1/10W

R230 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R231 1-216-295-91 SHORT 0

R234 1-249-389-11 CARBON 4.7 5% 1/4W

R235 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R236 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R237 1-216-308-00 RES,CHIP 4.7 5% 1/10W

R301 1-216-073-00 RES,CHIP 10K 5% 1/10W

R302 1-216-295-91 SHORT 0

R303 1-216-049-91 RES,CHIP 1K 5% 1/10W

R304 1-216-073-00 RES,CHIP 10K 5% 1/10W

R305 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R306 1-216-073-00 RES,CHIP 10K 5% 1/10W

R307 1-216-295-91 SHORT 0

R308 1-216-025-91 RES,CHIP 100 5% 1/10W

R309 1-216-025-91 RES,CHIP 100 5% 1/10W

R310 1-216-025-91 RES,CHIP 100 5% 1/10W

R311 1-216-017-91 RES,CHIP 47 5% 1/10W

R312 1-216-041-00 RES,CHIP 470 5% 1/10W

R313 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R314 1-216-045-00 RES,CHIP 680 5% 1/10W

R316 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R317 1-216-077-00 RES,CHIP 15K 5% 1/10W

R318 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R319 1-216-025-91 RES,CHIP 100 5% 1/10W

R320 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R321 1-216-073-00 RES,CHIP 10K 5% 1/10W

R322 1-216-033-00 RES,CHIP 220 5% 1/10W

R326 1-216-295-91 SHORT 0

R331 1-216-295-91 SHORT 0

R332 1-216-033-00 RES,CHIP 220 5% 1/10W

R333 1-216-073-00 RES,CHIP 10K 5% 1/10W

R334 1-216-129-00 RES,CHIP 2.2M 5% 1/10W

R335 1-216-045-00 RES,CHIP 680 5% 1/10W

R338 1-216-033-00 RES,CHIP 220 5% 1/10W

R340 1-216-025-91 RES,CHIP 100 5% 1/10W

R345 1-216-081-00 RES,CHIP 22K 5% 1/10W

R348 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R349 1-216-073-00 RES,CHIP 10K 5% 1/10W

R350 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R351 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R354 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R355 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R356 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R357 1-216-079-00 RES,CHIP 18K 5% 1/10W

R358 1-216-049-91 RES,CHIP 1K 5% 1/10W

R359 1-216-033-00 RES,CHIP 220 5% 1/10W

R360 1-216-033-00 RES,CHIP 220 5% 1/10W

R361 1-216-073-00 RES,CHIP 10K 5% 1/10W

R362 1-216-075-00 RES,CHIP 12K 5% 1/10W

R363 1-216-079-00 RES,CHIP 18K 5% 1/10W

R364 1-216-295-91 SHORT 0

R365 1-216-033-00 RES,CHIP 220 5% 1/10W

R366 1-216-073-00 RES,CHIP 10K 5% 1/10W

A (KV-PF21M70)

– 103 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

R562 1-249-401-11 CARBON 47 5% 1/4W

R565 1-216-073-00 RES,CHIP 10K 5% 1/10W

R567 1-216-105-91 RES,CHIP 220K 5% 1/10W

R568 1-249-383-11 CARBON 1.5 5% 1/4W F

R570 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R571 1-215-437-00 METAL 4.7K 1% 1/4W

R573 1-216-089-91 RES,CHIP 47K 5% 1/10W

R577 1-215-913-11 METAL OXIDE 220 5% 3W F

R578 1-216-369-00 METAL OXIDE 1 5% 2W F

R579 1-216-097-91 RES,CHIP 100K 5% 1/10W

R580 1-216-699-11 METAL CHIP 100K 0.50% 1/10W

R581 1-208-798-11 RES,CHIP 4.7K 0.50% 1/10W

R585 1-249-391-11 CARBON 6.8 5% 1/4W F

R588 1-215-888-00 METAL OXIDE 220 5% 2W F

R589 1-215-888-00 METAL OXIDE 220 5% 2W F

R590 1-215-465-00 METAL 68K 1% 1/4W

R591 1-260-288-11 CARBON 0.47 5% 1/2W F

R593 1-260-288-11 CARBON 0.47 5% 1/2W F

R594 1-260-288-11 CARBON 0.47 5% 1/2W F

R596 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R597 1-247-750-11 CARBON 680 5% 1/2W F

R598 1-249-438-11 CARBON 56K 5% 1/4W

R599 1-249-389-11 CARBON 4.7 5% 1/4W

R600 1-249-438-11 CARBON 56K 5% 1/4W

R601 1-249-418-11 CARBON 1.2K 5% 1/4W F

R602 1-249-389-11 CARBON 4.7 5% 1/4W F

R603 1-215-485-00 METAL 470K 1% 1/4W

R604 1-216-097-91 RES,CHIP 100K 5% 1/10W

R607 1-249-425-11 CARBON 4.7K 5% 1/4W

R608 1-240-205-91 CARBON 22M 5% 1/2W

R609 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R610 1-216-073-00 RES,CHIP 10K 5% 1/10W

R611 1-216-089-91 RES,CHIP 47K 5% 1/10W

R612 1-216-045-00 RES,CHIP 680 5% 1/10W

R614 1-216-041-00 RES,CHIP 470 5% 1/10W

R615 1-216-350-11 METAL OXIDE 1.2 5% 1W F

R616 1-260-302-51 CARBON 6.8 5% 1/2W F

R617 1-247-791-91 CARBON 22 5% 1/4W

R619 1-260-128-11 CARBON 270K 5% 1/2W

R620 1-215-915-11 METAL OXIDE 470 5% 3W F

R622 1-215-908-00 METAL OXIDE 33 5% 3W F

R623 1-216-095-00 RES,CHIP 82K 5% 1/10W

R624 1-216-089-91 RES,CHIP 47K 5% 1/10W

R626 1-216-049-91 RES,CHIP 1K 5% 1/10W

R627 1-240-251-11 CMT,MELF 6.8 5% 10W

R629 1-247-747-11 CARBON 470 5% 1/2W F

R630 1-249-429-11 CARBON 10K 5% 1/4W F

R631 1-216-089-91 RES,CHIP 47K 5% 1/10W

R632 1-202-933-61 FUSIBLE 0.1 10% 1/2W F

R634 !1-218-265-91 METAL 8.2M 5% 1W

R635 1-216-492-11 METAL OXIDE 82K 5% 3W F

R636 1-215-924-00 METAL OXIDE 15K 5% 3W F

R637 1-216-492-11 METAL OXIDE 82K 5% 3W F

R639 1-216-363-00 METAL OXIDE 0.33 5% 2W F

R640 1-249-415-11 CARBON 680 5% 1/4W

R641 1-216-362-11 METAL OXIDE 0.27 5% 2W F

R642 1-249-419-11 CARBON 1.5K 5% 1/4W

R643 1-247-843-11 CARBON 3.3K 5% 1/4W

R644 1-249-419-11 CARBON 1.5K 5% 1/4W

R646 1-215-924-00 METAL OXIDE 15K 5% 3W F

R647 1-249-401-11 CARBON 47 5% 1/4W

R648 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R649 1-249-417-11 CARBON 1K 5% 1/4W

R650 1-215-882-00 METAL OXIDE 22 5% 2W F

R652 1-215-900-11 METAL OXIDE 22K 5% 2W F

R653 1-215-873-00 METAL OXIDE 4.7K 5% 1W F

R657 1-260-127-11 CARBON 220K 5% 1/2W

R659 1-216-049-91 RES,CHIP 1K 5% 1/10W

R660 1-216-073-00 RES,CHIP 10K 5% 1/10W

R661 1-215-873-00 METAL OXIDE 4.7K 5% 1W F

R680 1-216-308-00 RES,CHIP 4.7 5% 1/10W

R901 1-249-411-11 CARBON 330 5% 1/4W

R903 1-216-022-00 RES,CHIP 75 5% 1/10W

R904 1-216-033-00 RES,CHIP 220 5% 1/10W

R905 1-216-113-00 RES,CHIP 470K 5% 1/10W

R906 1-216-077-00 RES,CHIP 15K 5% 1/10W

R909 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R910 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R911 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R912 1-216-041-00 RES,CHIP 470 5% 1/10W

R913 1-216-049-91 RES,CHIP 1K 5% 1/10W

R914 1-216-055-00 RES,CHIP 1.8K 5% 1/10W

R915 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R916 1-216-017-91 RES,CHIP 47 5% 1/10W

R917 1-216-041-00 RES,CHIP 470 5% 1/10W

R918 1-216-041-00 RES,CHIP 470 5% 1/10W

<RELAY>

RY601 !1-755-266-11 RELAY, AC POWER

<SWITCH>

S502 1-572-707-11 SWITCH, LEVER

S600 !1-571-433-21 SWITCH, PUSH (AC POWER)

S901 1-692-431-21 SWITCH, TACTILE

S902 1-692-431-21 SWITCH, TACTILE

S903 1-692-431-21 SWITCH, TACTILE

S904 1-692-431-21 SWITCH, TACTILE

S905 1-692-431-21 SWITCH, TACTILE

S906 1-692-431-21 SWITCH, TACTILE

S907 1-692-431-21 SWITCH, TACTILE

<TRANSFORMER>

T501 1-437-195-11 TRANSFORMER, HORIZONTAL DRIVE

T503 !1-453-293-11 TRANSFORMER ASSY, FLYBACK (NX-1748//

M3A4)

T601 1-424-682-11 TRANSFORMER, LINE FILTER

T603 !1-433-512-31 TRANSFORMER, CONVERTER (SRT)

T604 !1-431-852-11 TRANSFORMER, CONVERTER (SRT)

<THERMISTOR>

THP600 1-810-961-11 THERMISTOR, POSITIVE

A (KV-PF21M70)

– 104 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

<TUNER>

TU101 8-598-449-01 TUNER, FSS BTF-LG433

<CRYSTAL>

X001 1-579-125-11 VIBRATOR, CERAMIC

X301 1-781-134-21 VIBRATOR, CRYSTAL

X302 1-781-132-21 VIBRATOR, CRYSTAL

****************************************************************************

* A-1298-968-A A BOARD, COMPLETE (KV-TF21P11)

*********************

* A-1298-942-A A BOARD, COMPLETE (KV-TF21M61)

*********************

* A-1298-951-A A BOARD, COMPLETE (KV-TF21M90)

*********************

* 4-055-304-01 HOLDER, LED

* 4-067-182-02 HOLDER, FBT

4-382-854-11 SCREW (M3X10), P, SW (+)

4-382-854-21 SCREW (M3X14), P, SW (+)

7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3

<CAPACITOR>

C004 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

C005 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

C006 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C007 1-126-933-11 ELECT 100MF 20% 16V

C008 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C010 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C012 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C013 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C014 1-126-967-11 ELECT 47MF 20% 50V

C015 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C016 1-163-113-00 CERAMIC CHIP 68PF 5% 50V

C017 1-163-113-00 CERAMIC CHIP 68PF 5% 50V

C019 1-104-665-11 ELECT 100MF 20% 25V

C022 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C023 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C024 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C026 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C027 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C028 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C030 1-126-965-11 ELECT 22MF 20% 50V

C031 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C032 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C034 1-163-031-11 CERAMIC CHIP 0.01MF 50V

C041 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C042 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C043 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C044 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C047 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C048 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C050 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C051 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C053 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C054 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C055 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C103 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C104 1-126-933-11 ELECT 100MF 20% 16V

C107 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C108 1-126-933-11 ELECT 100MF 20% 16V

C109 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C110 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C111 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C112 1-126-933-11 ELECT 100MF 20% 16V

C113 1-126-967-11 ELECT 47MF 20% 50V

C114 1-126-967-11 ELECT 47MF 20% 50V

C202 1-163-016-00 CERAMIC CHIP 0.0039MF 10% 50V

C203 1-163-016-00 CERAMIC CHIP 0.0039MF 10% 50V

C204 1-136-155-00 FILM 0.015MF 5% 50V

C207 1-136-155-00 FILM 0.015MF 5% 50V

C208 1-104-664-11 ELECT 47MF 20% 16V

C209 1-104-664-11 ELECT 47MF 20% 16V

C210 1-126-933-11 ELECT 100MF 20% 16V

C211 1-126-941-11 ELECT 470MF 20% 25V

C212 1-126-933-11 ELECT 100MF 20% 16V

C213 1-126-933-11 ELECT 100MF 20% 16V

C214 1-126-942-61 ELECT 1000MF 20% 25V

C215 1-126-942-61 ELECT 1000MF 20% 25V

C216 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C217 1-126-964-11 ELECT 10MF 20% 50V

C218 1-136-167-00 FILM 0.15MF 5% 50V

C219 1-136-167-00 FILM 0.15MF 5% 50V

C220 1-126-942-61 ELECT 1000MF 20% 25V

C221 1-126-964-11 ELECT 10MF 20% 50V

C223 1-126-965-11 ELECT 22MF 20% 50V

C224 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C225 1-109-982-11 CERAMIC CHIP 1MF 10% 10V (KV-

TF21M61/TF21M90 ONLY)

C226 1-109-982-11 CERAMIC CHIP 1MF 10% 10V

C227 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C228 1-163-024-00 CERAMIC CHIP 0.018MF 10% 50V

C229 1-163-018-00 CERAMIC CHIP 0.0056MF 10% 50V

C230 1-163-024-00 CERAMIC CHIP 0.018MF 10% 50V

C231 1-163-018-00 CERAMIC CHIP 0.0056MF 10% 50V

C232 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C233 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C234 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C235 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C236 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C238 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C240 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C241 1-164-346-11 CERAMIC CHIP 1MF 16V

C242 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C243 1-216-295-91 SHORT 0

C244 1-164-700-11 CERAMIC CHIP 0.68MF 16V

C245 1-164-346-11 CERAMIC CHIP 1MF 16V

C246 1-163-018-00 CERAMIC CHIP 0.0056MF 10% 50V

C247 1-164-346-11 CERAMIC CHIP 1MF 16V (KV-

TF21M61/TF21M90 ONLY)

A (Except KV-PF21M70)

A (KV-PF21M70)

– 105 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

C248 1-163-010-11 CERAMIC CHIP 0.0012MF 10% 50V

C249 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C250 1-216-295-91 SHORT 0 (KV-TF21M61/TF21M90

ONLY)

C251 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C252 1-164-346-11 CERAMIC CHIP 1MF 16V

C253 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C254 1-126-965-11 ELECT 22MF 20% 50V

C255 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V

C256 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C259 1-126-933-11 ELECT 100MF 20% 16V

C264 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C265 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C301 1-126-935-11 ELECT 470MF 20% 16V

C302 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C303 1-126-964-11 ELECT 10MF 20% 50V

C304 1-126-967-11 ELECT 47MF 20% 50V

C305 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C306 1-163-233-11 CERAMIC CHIP 18PF 5% 50V

C307 1-163-233-11 CERAMIC CHIP 18PF 5% 50V

C308 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C309 1-126-957-11 ELECT 0.22MF 20% 50V

C310 1-126-963-11 ELECT 4.7MF 20% 50V

C311 1-126-964-11 ELECT 10MF 20% 50V

C312 1-164-346-11 CERAMIC CHIP 1MF 16V

C313 1-164-346-11 CERAMIC CHIP 1MF 16V

C315 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C316 1-126-967-11 ELECT 47MF 20% 50V

C317 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C318 1-163-031-11 CERAMIC CHIP 0.01MF 50V

C319 1-163-031-11 CERAMIC CHIP 0.01MF 50V

C320 1-163-031-11 CERAMIC CHIP 0.01MF 50V

C322 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C324 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C325 1-126-960-11 ELECT 1MF 20% 50V

C327 1-126-965-11 ELECT 22MF 20% 50V

C328 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C330 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C331 1-247-807-31 CARBON 100 5% 1/4W

C332 1-126-963-11 ELECT 4.7MF 20% 50V

C335 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C336 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C337 1-126-961-11 ELECT 2.2MF 20% 50V

C338 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C341 1-115-340-11 CERAMIC CHIP 0.22MF 10% 25V

C342 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C401 1-164-346-11 CERAMIC CHIP 1MF 16V (KV-

TF21M61/TF21M90 ONLY)

C402 1-164-346-11 CERAMIC CHIP 1MF 16V

C403 1-163-005-11 CERAMIC CHIP 470PF 10% 50V (KV-

TF21M61/TF21M90 ONLY)

C404 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C405 1-126-935-11 ELECT 470MF 20% 16V

C406 1-164-346-11 CERAMIC CHIP 1MF 16V (KV-

TF21M61/TF21M90 ONLY)

C407 1-164-346-11 CERAMIC CHIP 1MF 16V

C408 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C409 1-126-963-11 ELECT 4.7MF 20% 50V

C415 1-163-133-00 CERAMIC CHIP 470PF 5% 50V (KV-

TF21M61/TF21M90 ONLY)

C502 1-163-145-00 CERAMIC CHIP 0.0015MF 5% 50V

C506 1-107-638-11 ELECT 33MF 20% 160V

C507 1-161-830-00 CERAMIC 0.0047MF 500V

C510 1-102-112-00 CERAMIC 330PF 10% 50V

C512 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V

C513 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

C514 1-106-383-00 MYLAR 0.047MF 10% 200V

C517 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V

C518 1-104-665-11 ELECT 100MF 20% 10V

C519 1-102-212-00 CERAMIC 820PF 10% 500V

C521 1-126-934-11 ELECT 220MF 20% 16V

C522 1-126-933-11 ELECT 100MF 20% 16V

C523 1-102-002-00 CERAMIC 680PF 10% 500V

C524 1-126-967-11 ELECT 47MF 20% 50V

C526 1-130-495-00 MYLAR 0.1MF 5% 50V

C527 1-102-820-00 CERAMIC 330PF 5% 50V

C528 1-162-134-11 CERAMIC 470PF 10% 2KV

C530 1-137-372-11 FILM 0.022MF 5% 50V

C531 1-126-961-11 ELECT 2.2MF 20% 50V

C532 1-126-941-11 ELECT 470MF 20% 25V

C533 1-126-941-11 ELECT 470MF 20% 25V

C536 1-136-165-00 FILM 0.1MF 5% 50V

C537 1-126-969-11 ELECT 220MF 20% 50V

C538 1-136-076-00 FILM 0.0085MF 3% 2KV

C539 1-129-746-91 FILM 0.039MF 5% 400V

C540 1-136-171-00 FILM 0.33MF 5% 50V

C546 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C549 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C550 1-106-220-00 MYLAR 0.1MF 10% 100V

C551 1-126-960-11 ELECT 1MF 20% 50V

C552 1-162-116-00 CERAMIC 680PF 10% 2KV

C553 1-162-116-00 CERAMIC 680PF 10% 2KV

C554 1-137-417-11 MYLAR 0.0047MF 10% 200V

C556 1-126-941-11 ELECT 470MF 20% 25V

C557 1-126-941-11 ELECT 470MF 20% 25V

C558 1-123-024-21 ELECT 33MF 160V

C560 1-102-228-00 CERAMIC 470PF 10% 500V

C561 1-136-557-11 FILM 0.0033MF 5% 630V

C562 1-102-228-00 CERAMIC 470PF 10% 500V

C564 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C565 1-107-655-11 ELECT 47MF 20% 250V

C566 1-102-244-00 CERAMIC 220PF 10% 500V

C567 1-115-521-11 FILM 0.82MF 5% 250V

C568 1-102-228-00 CERAMIC 470PF 10% 500V

C570 1-115-520-11 FILM 0.68MF 5% 250V

C573 1-106-379-12 MYLAR 0.033MF 10% 200V

C574 1-107-636-11 ELECT 10MF 20% 160V

C576 1-130-495-00 MYLAR 0.1MF 5% 50V

C577 1-106-395-00 MYLAR 0.15MF 10% 200V

C582 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C600 !1-104-705-51 FILM 0.1MF 20% 250V

C602 !1-104-705-51 FILM 0.1MF 20% 250V

(KV-TF21P11 ONLY)

C604 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

A (Except KV-PF21M70)

– 106 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

C605 !1-127-942-51 CERAMIC 330PF 10% 250V

C606 !1-127-942-51 CERAMIC 330PF 10% 250V

C607 1-161-830-00 CERAMIC 0.0047MF 99% 500V

C608 1-161-830-00 CERAMIC 0.0047MF 99% 500V

C609 1-126-968-11 ELECT 100MF 20% 50V

C610 1-126-964-11 ELECT 10MF 20% 50V

C611 1-161-830-00 CERAMIC 0.0047MF 99% 500V

C612 1-161-830-00 CERAMIC 0.0047MF 99% 500V

C613 1-117-752-11 ELECT(BLOCK) 330MF 20% 450V

C614 1-126-964-11 ELECT 10MF 20% 50V

C616 1-130-202-00 FILM 0.022MF 10% 400V

C617 1-107-792-11 CERAMIC 100PF 5% 1KV

C618 1-125-893-11 FILM 680PF 3% 1.5KV

C619 !1-119-886-51 CERAMIC 470PF 10% 250V

C620 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C621 1-102-114-00 CERAMIC 470PF 10% 50V

C622 1-102-074-00 CERAMIC 0.001MF 10% 50V

C623 1-104-665-11 ELECT 100MF 20% 25V

C624 1-104-331-11 CERAMIC 0.0022MF 10% 1KV

C627 1-102-002-00 CERAMIC 680PF 10% 500V

C628 1-126-942-61 ELECT 1000MF 20% 25V

C629 1-126-964-11 ELECT 10MF 20% 50V

C630 1-123-024-21 ELECT 33MF 160V

C633 1-104-999-11 MYLAR 0.1MF 10% 200V

C634 1-126-933-11 ELECT 100MF 20% 16V

C635 1-104-665-11 ELECT 100MF 20% 10V

C636 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V

C639 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C640 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C641 1-102-002-00 CERAMIC 680PF 10% 500V

C642 1-126-943-11 ELECT 2200MF 20% 25V

C643 1-104-665-11 ELECT 100MF 20% 10V

C644 1-104-331-11 CERAMIC 0.0022MF 10% 1KV

C645 1-137-605-11 FILM 0.01MF 10% 250V

C646 1-107-679-91 ELECT 10MF 20% 450V

C647 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V

C649 1-126-940-11 ELECT 330MF 20% 25V

C650 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V

C651 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C652 1-126-965-11 ELECT 22MF 20% 50V

C653 1-104-664-11 ELECT 47MF 20% 25V

C657 1-101-821-00 CERAMIC 0.0022MF 500V

C658 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C901 1-136-153-00 FILM 0.01MF 5% 50V

C902 1-136-153-00 FILM 0.01MF 5% 50V

C905 1-126-963-11 ELECT 4.7MF 20% 50V

C906 1-164-346-11 CERAMIC CHIP 1MF 16V

C907 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C908 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

(KV-TF21M61/TF21M90 ONLY)

C909 1-164-346-11 CERAMIC CHIP 1MF 16V

(KV-TF21M61/TF21M90 ONLY)

C910 1-126-967-11 ELECT 47MF 20% 50V

C911 1-126-967-11 ELECT 47MF 20% 50V

C912 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C913 1-126-933-11 ELECT 100MF 20% 16V

C914 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

<CONNECTOR>

CN104 1-695-915-11 TAB (CONTACT)

CN202 * 1-785-608-11 PIN, CONNECTOR 4P

CN203 * 1-564-506-11 PLUG, CONNECTOR 3P

CN204 * 1-564-506-11 PLUG, CONNECTOR 3P

CN301 * 1-774-813-11 CONNECTOR, BOARD TO BOARD 7P

(KV-TF21M61/TF21P11 ONLY)

CN305 * 1-564-509-11 PLUG, CONNECTOR 6P

CN307 * 1-774-813-11 CONNECTOR, BOARD TO BOARD 7P

(KV-TF21M61/TF21P11 ONLY)

CN505 1-508-765-00 PIN, CONNECTOR (5MM PITCH) 3P

CN506 4-352-844-01 PIN, LEAD, COATING

CN507 * 1-564-507-11 PLUG, CONNECTOR 4P

CN601 * 1-580-843-11 PIN, CONNECTOR (POWER)

CN602 * 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P

CN604 * 1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P

CN609 * 1-508-784-21 PIN, CONNECTOR (5MM PITCH) 1P

CN901 * 1-564-507-11 PLUG, CONNECTOR 4P

<DIODE>

D001 8-719-988-61 DIODE 1SS355TE-17

D005 8-719-988-61 DIODE 1SS355TE-17

D006 8-719-988-61 DIODE 1SS355TE-17

D100 8-719-404-50 DIODE MA111-TX (KV-TF21M61/TF21M90 ONLY)

D203 8-719-914-42 DIODE DA204K

D300 1-216-295-91 SHORT 0

D301 8-719-988-61 DIODE 1SS355TE-17

D306 8-719-988-61 DIODE 1SS355TE-17

D307 8-719-988-61 DIODE 1SS355TE-17

D308 8-719-988-61 DIODE 1SS355TE-17

D309 8-719-159-10 DIODE RD5.1SB-T2

D311 8-719-988-61 DIODE 1SS355TE-17

D312 8-719-988-61 DIODE 1SS355TE-17

D313 8-719-988-61 DIODE 1SS355TE-17

D314 8-719-988-61 DIODE 1SS355TE-17

D315 8-719-988-61 DIODE 1SS355TE-17

D316 8-719-069-57 DIODE UDZS-TE17-6.8B

D401 8-719-158-35 DIODE RD9.1SB (KV-TF21M61/TF21M90 ONLY)

D402 8-719-158-35 DIODE RD9.1SB

D403 8-719-158-35 DIODE RD9.1SB

D404 8-719-158-35 DIODE RD9.1SB (KV-TF21M61/TF21M90 ONLY)

D405 8-719-158-35 DIODE RD9.1SB

D406 8-719-158-35 DIODE RD9.1SB

D504 8-719-302-43 DIODE EL1Z

D505 8-719-988-61 DIODE 1SS355TE-17

D506 8-719-911-19 DIODE 1SS119-25

D507 8-719-988-61 DIODE 1SS355TE-17

D508 8-719-988-61 DIODE 1SS355TE-17

D509 1-216-073-00 RES,CHIP 10K 5% 1/10W

D510 8-719-988-61 DIODE 1SS355TE-17

D511 8-719-988-61 DIODE 1SS355TE-17

D512 8-719-988-61 DIODE 1SS355TE-17

D513 8-719-908-03 DIODE GP08D

D517 8-719-945-80 DIODE ERC06-15S

D518 8-719-900-26 DIODE ERD29-08J

A (Except KV-PF21M70)

– 107 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

D521 8-719-302-43 DIODE EL1Z

D522 8-719-302-43 DIODE EL1Z

D523 8-719-302-43 DIODE EL1Z

D527 8-719-908-03 DIODE GP08D

D528 8-719-908-03 DIODE GP08D

D531 8-719-988-61 DIODE 1SS355TE-17

D532 8-719-988-61 DIODE 1SS355TE-17

D602 8-719-911-19 DIODE 1SS119-25

D603 8-719-150-92 DIODE RD33EB3T

D604 8-719-028-72 DIODE RGP02-17EL-6433

D605 8-719-510-53 DIODE D4SB60L

D606 8-719-108-18 THYRISTOR 5P6M

D607 8-719-404-50 DIODE MA111-TX

D608 8-719-110-53 DIODE RD20ESB2

D609 8-719-311-31 DIODE RU-1P

D610 8-719-043-76 DIODE AK04V0

D611 8-719-046-74 DIODE AU-01Z-V1

D613 8-719-046-74 DIODE AU-01Z-V1

D614 8-719-046-74 DIODE AU-01Z-V1

D618 8-719-067-18 DIODE RN4Z

D620 8-719-110-72 DIODE RD30ESB2

D622 8-719-071-39 DIODE FMU-G26S

D623 8-719-978-65 DIODE DTZ-TT11-15B

D624 8-719-404-50 DIODE MA111-TX

D625 8-719-158-39 DIODE RD10SB

D627 8-719-073-84 DIODE 31DQ06-FC5

D628 8-719-911-19 DIODE 1SS119-25

D631 8-719-068-00 DIODE ERC04-06SE

D632 8-719-068-00 DIODE ERC04-06SE

D633 8-719-948-45 DIODE ERA22-08

D634 8-719-404-50 DIODE MA111-TX

D635 8-719-404-50 DIODE MA111-TX

D636 8-719-510-02 DIODE D1NS4

D637 8-719-109-96 DIODE RD6.8ESB1

D638 8-719-510-48 DIODE D1N20R

D901 8-719-158-35 DIODE RD9.1SB

D902 8-719-158-35 DIODE RD9.1SB

D903 8-719-158-35 DIODE RD9.1SB (KV-TF21M61/TF21M90 ONLY)

D904 8-719-158-35 DIODE RD9.1SB

D905 8-719-158-35 DIODE RD9.1SB

D906 8-719-045-19 DIODE SPB-26MVWF

<CONNECTOR>

DY1 * 1-580-798-11 CONNECTOR PIN (DY) 6P

<FERRITE BEAD>

FB103 1-410-397-21 FERRITE 1.1UH

FB501 1-410-397-21 FERRITE 1.1UH

FB502 1-410-397-21 FERRITE 1.1UH

FB600 1-410-397-21 FERRITE 1.1UH

FB601 1-410-397-21 FERRITE 1.1UH

FB602 1-410-397-21 FERRITE 1.1UH

FB603 1-410-397-21 FERRITE 1.1UH

FB604 1-410-397-21 FERRITE 1.1UH

FB607 1-410-397-21 FERRITE 1.1UH

FB608 1-412-911-31 FERRITE 0UH

FB611 1-410-397-21 FERRITE 1.1UH

FB613 1-410-397-21 FERRITE 1.1UH

FB615 1-410-397-21 FERRITE 1.1UH

<IC>

IC001 8-752-906-21 IC CXP86449-623S

IC002 8-759-371-21 IC MM1319AFBE

IC003 8-759-370-34 IC ST24C08FB6

IC100 8-759-042-02 IC S-80743AL-A7-S (KV-TF21M61/TF21M90 ONLY)

IC201 8-759-339-60 IC TA8248K

IC203 8-759-553-40 IC TDA7429S

IC301 8-752-088-39 IC CXA2130S

IC502 8-759-700-07 IC NJM2903M

IC503 8-759-980-58 IC TDA8172

IC601 8-749-013-75 IC STR-F6654

IC602 8-749-920-61 IC SE-135N

IC603 8-759-701-59 IC NJM78M09FA

IC604 8-759-231-53 IC TA7805S

IC901 8-742-014-11 HYB IC SBX1981-51

<JACK>

J401 1-779-850-11 JACK BLOCK, PIN 6P (KV-TF21M61/TF21M90)

J401 1-779-849-11 JACK BLOCK, PIN 4P (KV-TF21P11)

J901 1-770-786-11 JACK

J902 1-770-329-11 JACK, PIN 3P (KV-TF21M61/TF21M90)

J902 1-779-205-11 JACK, PIN 2P (KV-PF21P11)

<CHIP CONDUCTOR>

JR002 1-216-295-91 SHORT 0

JR003 1-216-295-91 SHORT 0

JR004 1-216-295-91 SHORT 0

JR005 1-216-295-91 SHORT 0

JR006 1-216-295-91 SHORT 0

JR007 1-216-295-91 SHORT 0

JR008 1-216-295-91 SHORT 0

JR009 1-216-295-91 SHORT 0

JR010 1-216-295-91 SHORT 0

JR011 1-216-295-91 SHORT 0

JR012 1-216-295-91 SHORT 0

JR013 1-216-295-91 SHORT 0

JR014 1-216-295-91 SHORT 0

JR015 1-216-295-91 SHORT 0

JR016 1-216-295-91 SHORT 0

JR018 1-216-295-91 SHORT 0

JR019 1-216-295-91 SHORT 0

JR102 1-216-295-91 SHORT 0

JR107 1-216-295-91 SHORT 0

(KV-TF21M61/TF21M90 ONLY)

JR109 1-216-295-91 SHORT 0 (KV-TF21P11 ONLY)

JR202 1-216-295-91 SHORT 0

JR301 1-216-295-91 SHORT 0

JR303 1-216-295-91 SHORT 0

JR401 1-216-295-91 SHORT 0

(KV-TF21M61/TF21M90 ONLY)

JR403 1-216-295-91 SHORT 0

(KV-TF21M61/TF21M90 ONLY)

A (Except KV-PF21M70)

– 108 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

JR404 1-216-295-91 SHORT 0

JR405 1-216-295-91 SHORT 0

JR500 1-216-295-91 SHORT 0

JR501 1-216-295-91 SHORT 0

JR600 1-216-295-91 SHORT 0

<COIL>

L002 1-414-856-11 INDUCTOR 10UH

L003 1-414-180-11 INDUCTOR 3.3UH

L005 1-414-233-22 INDUCTOR CHIP 0UH

L101 1-414-856-11 INDUCTOR 10UH

L102 1-414-856-11 INDUCTOR 10UH

L103 1-414-856-11 INDUCTOR 10UH

L104 1-414-856-11 INDUCTOR 10UH

L105 1-414-856-11 INDUCTOR 10UH

L204 1-414-856-11 INDUCTOR 10UH

L301 1-414-189-31 INDUCTOR 100UH

L302 1-414-185-41 INDUCTOR 22UH

L501 1-412-525-31 INDUCTOR 10UH

L502 1-422-613-11 COIL, AIR CORE

L503 1-412-525-31 INDUCTOR 10UH

L504 1-412-525-31 INDUCTOR 10UH

L505 1-412-525-31 INDUCTOR 10UH

L506 1-412-525-31 INDUCTOR 10UH

L507 1-459-111-00 INDUCTOR 10MMH

L508 1-412-525-31 INDUCTOR 10UH

L509 1-459-390-00 INDUCTOR 390UH

L510 1-416-972-11 COIL, HORIZONTAL LINEARITY

L512 1-412-549-31 INDUCTOR 1MMH

L513 1-412-549-31 INDUCTOR 1MMH

L515 1-459-104-00 COIL, WITH CORE

L518 1-408-611-31 INDUCTOR 47UH

L601 1-412-527-11 INDUCTOR 15UH

L901 1-408-603-31 INDUCTOR 10UH

L902 1-408-603-31 INDUCTOR 10UH

L905 1-414-856-11 INDUCTOR 10UH

<PHOTO COUPLER>

PH600 !8-749-924-35 PHOTO COUPLER ON3171-R

<IC LINK>

PS200 1-532-675-21 LINK, IC 1.5A/150V

<TRANSISTOR>

Q002 8-729-230-49 TRANSISTOR 2SC2712-YG

Q003 8-729-424-08 TRANSISTOR UN2111

Q004 8-729-421-22 TRANSISTOR UN2211

Q101 8-729-230-49 TRANSISTOR 2SC2712-YG

Q201 8-729-424-67 TRANSISTOR UN2216

Q202 8-729-424-67 TRANSISTOR UN2216

Q203 8-729-421-19 TRANSISTOR UN2213

Q204 8-729-216-22 TRANSISTOR 2SA1162-G

Q205 8-729-421-19 TRANSISTOR UN2213

Q206 8-729-421-19 TRANSISTOR UN2213

Q207 8-729-421-19 TRANSISTOR UN2213

Q301 8-729-216-22 TRANSISTOR 2SA1162-G

Q302 8-729-230-49 TRANSISTOR 2SC2712-YG

Q303 8-729-216-22 TRANSISTOR 2SA1162-G

Q305 8-729-216-22 TRANSISTOR 2SA1162-G

Q306 8-729-216-22 TRANSISTOR 2SA1162-G

Q307 8-729-230-49 TRANSISTOR 2SC2712-YG

Q308 8-729-216-22 TRANSISTOR 2SA1162-G

Q312 8-729-216-22 TRANSISTOR 2SA1162-G

Q313 8-729-230-49 TRANSISTOR 2SC2712-YG

Q315 8-729-421-19 TRANSISTOR UN2213

Q401 8-729-424-67 TRANSISTOR UN2216

Q402 8-729-424-67 TRANSISTOR UN2216

(KV-TF21M61/TF21M90 ONLY)

Q403 8-729-216-22 TRANSISTOR 2SA1162-G

(KV-TF21M61/TF21M90 ONLY)

Q404 8-729-216-22 TRANSISTOR 2SA1162-G

Q503 8-729-230-49 TRANSISTOR 2SC2712-YG

Q505 8-729-931-45 TRANSISTOR IRF614

Q506 8-729-140-96 TRANSISTOR 2SD774-34

Q507 8-729-216-22 TRANSISTOR 2SA1162-G

Q509 8-729-230-49 TRANSISTOR 2SC2712-YG

Q511 8-729-048-07 TRANSISTOR 2SD2578-CA

Q601 8-729-023-22 TRANSISTOR 2SD2114K

Q602 8-729-230-49 TRANSISTOR 2SC2712-YG

Q603 8-729-424-08 TRANSISTOR UN2111

Q604 8-729-200-17 TRANSISTOR 2SA1091-O

Q605 8-729-044-30 TRANSISTOR 2SK2845-LB102

Q606 8-729-230-49 TRANSISTOR 2SC2712-YG

Q607 8-729-922-37 TRANSISTOR 2SD2144S-UVW

Q608 8-729-230-49 TRANSISTOR 2SC2712-YG

Q901 8-729-421-19 TRANSISTOR UN2213

Q902 8-729-421-19 TRANSISTOR UN2213

<RESISTOR>

R001 1-414-233-22 INDUCTOR CHIP 0UH

R002 1-216-025-91 RES,CHIP 100 5% 1/10W

R003 1-216-073-00 RES,CHIP 10K 5% 1/10W

R004 1-216-025-91 RES,CHIP 100 5% 1/10W

R005 1-216-025-91 RES,CHIP 100 5% 1/10W

R007 1-216-295-91 SHORT 0

R008 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R010 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R011 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R012 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R013 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R014 1-216-025-91 RES,CHIP 100 5% 1/10W

R015 1-216-025-91 RES,CHIP 100 5% 1/10W

R016 1-216-025-91 RES,CHIP 100 5% 1/10W

R017 1-216-049-91 RES,CHIP 1K 5% 1/10W

R018 1-216-033-00 RES,CHIP 220 5% 1/10W

R019 1-216-073-00 RES,CHIP 10K 5% 1/10W

R021 1-216-073-00 RES,CHIP 10K 5% 1/10W

R022 1-216-033-00 RES,CHIP 220 5% 1/10W

R024 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R025 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R026 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

A (Except KV-PF21M70)

– 109 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

R027 1-216-073-00 RES,CHIP 10K 5% 1/10W

R028 1-216-073-00 RES,CHIP 10K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R029 1-216-049-91 RES,CHIP 1K 5% 1/10W

R031 1-216-049-91 RES,CHIP 1K 5% 1/10W

R035 1-216-025-91 RES,CHIP 100 5% 1/10W

R036 1-216-025-91 RES,CHIP 100 5% 1/10W

R037 1-216-025-91 RES,CHIP 100 5% 1/10W

R040 1-216-025-91 RES,CHIP 100 5% 1/10W

R041 1-216-025-91 RES,CHIP 100 5% 1/10W

R042 1-216-295-91 SHORT 0

R043 1-216-049-91 RES,CHIP 1K 5% 1/10W

R044 1-216-025-91 RES,CHIP 100 5% 1/10W

R045 1-414-233-22 INDUCTOR CHIP 0UH

R046 1-216-049-91 RES,CHIP 1K 5% 1/10W

R047 1-414-233-22 INDUCTOR CHIP 0UH

R048 1-216-073-00 RES,CHIP 10K 5% 1/10W

R050 1-216-073-00 RES,CHIP 10K 5% 1/10W

R053 1-216-049-91 RES,CHIP 1K 5% 1/10W

R055 1-216-073-00 RES,CHIP 10K 5% 1/10W

R056 1-216-073-00 RES,CHIP 10K 5% 1/10W

R061 1-216-033-00 RES,CHIP 220 5% 1/10W

R062 1-216-041-00 RES,CHIP 470 5% 1/10W

R063 1-216-037-00 RES,CHIP 330 5% 1/10W

R064 1-216-037-00 RES,CHIP 330 5% 1/10W

R065 1-216-037-00 RES,CHIP 330 5% 1/10W

R066 1-216-049-91 RES,CHIP 1K 5% 1/10W

R101 1-216-025-91 RES,CHIP 100 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R102 1-216-025-91 RES,CHIP 100 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R105 1-216-295-91 SHORT 0

R109 1-216-041-00 RES,CHIP 470 5% 1/10W

R111 1-216-025-91 RES,CHIP 100 5% 1/10W

R112 1-216-025-91 RES,CHIP 100 5% 1/10W

R113 1-216-047-91 RES,CHIP 820 5% 1/10W

R202 1-216-077-00 RES,CHIP 15K 5% 1/10W

R203 1-216-073-00 RES,CHIP 10K 5% 1/10W

R204 1-216-077-00 RES,CHIP 15K 5% 1/10W

R205 1-216-077-00 RES,CHIP 15K 5% 1/10W

R206 1-216-073-00 RES,CHIP 10K 5% 1/10W

R207 1-216-077-00 RES,CHIP 15K 5% 1/10W

R208 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R209 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R211 1-216-033-00 RES,CHIP 220 5% 1/10W

R212 1-216-033-00 RES,CHIP 220 5% 1/10W

R213 1-216-073-00 RES,CHIP 10K 5% 1/10W

R214 1-216-073-00 RES,CHIP 10K 5% 1/10W

R215 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R216 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R217 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R218 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R219 1-216-025-91 RES,CHIP 100 5% 1/10W

R220 1-216-025-91 RES,CHIP 100 5% 1/10W

R221 1-216-295-91 SHORT 0

R222 1-216-295-91 SHORT 0

(KV-TF21M61/TF21M90 ONLY)

R225 1-216-033-00 RES,CHIP 220 5% 1/10W

R226 1-216-033-00 RES,CHIP 220 5% 1/10W

R227 1-216-033-00 RES,CHIP 220 5% 1/10W

R228 1-249-389-11 CARBON 4.7 5% 1/4W

(KV-TF21M61/TF21M90 ONLY)

R229 1-216-073-00 RES,CHIP 10K 5% 1/10W

R230 1-216-073-00 RES,CHIP 10K 5% 1/10W

R231 1-216-295-91 SHORT 0

R234 1-249-389-11 CARBON 4.7 5% 1/4W

R235 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R236 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R237 1-216-308-00 RES,CHIP 4.7 5% 1/10W

R301 1-216-073-00 RES,CHIP 10K 5% 1/10W

R302 1-216-295-91 SHORT 0

R303 1-216-049-91 RES,CHIP 1K 5% 1/10W

R304 1-216-073-00 RES,CHIP 10K 5% 1/10W

R305 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R306 1-216-073-00 RES,CHIP 10K 5% 1/10W

R307 1-216-295-91 SHORT 0

R308 1-216-025-91 RES,CHIP 100 5% 1/10W

R309 1-216-025-91 RES,CHIP 100 5% 1/10W

R310 1-216-025-91 RES,CHIP 100 5% 1/10W

R311 1-216-017-91 RES,CHIP 47 5% 1/10W

R312 1-216-041-00 RES,CHIP 470 5% 1/10W

R313 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R314 1-216-045-00 RES,CHIP 680 5% 1/10W

R316 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R317 1-216-077-00 RES,CHIP 15K 5% 1/10W

R318 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R319 1-216-025-91 RES,CHIP 100 5% 1/10W

R320 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R321 1-216-073-00 RES,CHIP 10K 5% 1/10W

R322 1-216-033-00 RES,CHIP 220 5% 1/10W

R326 1-216-295-91 SHORT 0

R331 1-216-295-91 SHORT 0

R332 1-216-033-00 RES,CHIP 220 5% 1/10W

R333 1-216-073-00 RES,CHIP 10K 5% 1/10W

R334 1-216-129-00 RES,CHIP 2.2M 5% 1/10W

R335 1-216-045-00 RES,CHIP 680 5% 1/10W

R338 1-216-033-00 RES,CHIP 220 5% 1/10W

R340 1-216-025-91 RES,CHIP 100 5% 1/10W

R345 1-216-081-00 RES,CHIP 22K 5% 1/10W

R348 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R349 1-216-073-00 RES,CHIP 10K 5% 1/10W

R350 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R351 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R354 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R355 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R356 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R357 1-216-079-00 RES,CHIP 18K 5% 1/10W

R358 1-216-049-91 RES,CHIP 1K 5% 1/10W

R359 1-216-033-00 RES,CHIP 220 5% 1/10W

R360 1-216-033-00 RES,CHIP 220 5% 1/10W

R361 1-216-073-00 RES,CHIP 10K 5% 1/10W

R362 1-216-075-00 RES,CHIP 12K 5% 1/10W

R363 1-216-079-00 RES,CHIP 18K 5% 1/10W

A (Except KV-PF21M70)

– 110 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

R364 1-216-295-91 SHORT 0

R365 1-216-033-00 RES,CHIP 220 5% 1/10W

R366 1-216-073-00 RES,CHIP 10K 5% 1/10W

R367 1-216-073-00 RES,CHIP 10K 5% 1/10W

R370 1-216-033-00 RES,CHIP 220 5% 1/10W

R375 1-216-025-91 RES,CHIP 100 5% 1/10W

(KV-TF21M61/TF21P11 ONLY)

R376 1-216-081-00 RES,CHIP 22K 5% 1/10W

R377 1-216-121-91 RES,CHIP 1M 5% 1/10W

R378 1-216-031-00 RES,CHIP 180 5% 1/10W

R401 1-216-049-91 RES,CHIP 1K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R402 1-216-073-00 RES,CHIP 10K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R403 1-216-073-00 RES,CHIP 10K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R404 1-216-073-00 RES,CHIP 10K 5% 1/10W

R405 1-216-049-91 RES,CHIP 1K 5% 1/10W

R406 1-216-073-00 RES,CHIP 10K 5% 1/10W

R407 1-216-049-91 RES,CHIP 1K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R408 1-216-049-91 RES,CHIP 1K 5% 1/10W

R409 1-216-041-00 RES,CHIP 470 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R410 1-216-113-00 RES,CHIP 470K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R411 1-216-113-00 RES,CHIP 470K 5% 1/10W

R412 1-216-041-00 RES,CHIP 470 5% 1/10W

R413 1-216-021-00 RES,CHIP 68 5% 1/10W

R414 1-216-113-00 RES,CHIP 470K 5% 1/10W

R415 1-216-113-00 RES,CHIP 470K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R416 1-216-077-00 RES,CHIP 15K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R417 1-216-077-00 RES,CHIP 15K 5% 1/10W

R418 1-216-113-00 RES,CHIP 470K 5% 1/10W

R419 1-216-022-00 RES,CHIP 75 5% 1/10W

R426 1-216-033-00 RES,CHIP 220 5% 1/10W

R505 1-216-099-00 RES,CHIP 120K 5% 1/10W

R506 1-216-085-00 RES,CHIP 33K 5% 1/10W

R507 1-249-389-11 CARBON 4.7 5% 1/4W F

R508 1-215-910-00 METAL OXIDE 68 5% 3W F

R509 1-215-911-11 METAL OXIDE 100 5% 3W F

R510 1-215-885-00 METAL OXIDE 68 5% 2W F

R511 1-215-911-11 METAL OXIDE 100 5% 3W F

R516 1-216-081-00 RES,CHIP 22K 5% 1/10W

R518 1-247-807-31 CARBON 100 5% 1/4W

R520 1-215-445-00 METAL 10K 1% 1/4W

R522 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R523 1-249-411-11 CARBON 330 5% 1/4W

R525 1-216-699-11 METAL CHIP 100K 0.50% 1/10W

R526 1-208-798-11 RES,CHIP 4.7K 0.50% 1/10W

R527 1-216-001-00 RES,CHIP 10 5% 1/10W

R528 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R529 1-216-635-11 METAL CHIP 220 0.50% 1/10W

R531 1-247-843-11 CARBON 3.3K 5% 1/4W

R533 1-249-417-11 CARBON 1K 5% 1/4W

R534 1-216-361-00 METAL OXIDE 0.22 5% 2W F

R535 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R536 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R537 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R540 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R541 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R542 1-216-295-91 SHORT 0

R543 1-249-426-11 CARBON 5.6K 5% 1/4W F

R545 1-216-077-00 RES,CHIP 15K 5% 1/10W

R546 1-216-077-00 RES,CHIP 15K 5% 1/10W

R547 1-216-085-00 RES,CHIP 33K 5% 1/10W

R549 1-215-451-00 METAL 18K 1% 1/4W

R550 1-216-097-91 RES,CHIP 100K 5% 1/10W

R551 1-249-421-11 CARBON 2.2K 5% 1/4W

R552 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R553 1-215-457-00 METAL 33K 1% 1/4W

R554 1-215-457-00 METAL 33K 1% 1/4W

R556 1-215-437-00 METAL 4.7K 1% 1/4W

R558 1-249-421-11 CARBON 2.2K 5% 1/4W

R559 1-249-429-11 CARBON 10K 5% 1/4W

R560 1-216-073-00 RES,CHIP 10K 5% 1/10W

R562 1-249-401-11 CARBON 47 5% 1/4W

R565 1-216-073-00 RES,CHIP 10K 5% 1/10W

R567 1-216-105-91 RES,CHIP 220K 5% 1/10W

R568 1-249-383-11 CARBON 1.5 5% 1/4W F

R570 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R571 1-215-437-00 METAL 4.7K 1% 1/4W

R573 1-216-089-91 RES,CHIP 47K 5% 1/10W

R577 1-215-913-11 METAL OXIDE 220 5% 3W F

R578 1-216-369-00 METAL OXIDE 1 5% 2W F

R579 1-216-097-91 RES,CHIP 100K 5% 1/10W

R580 1-216-699-11 METAL CHIP 100K 0.50% 1/10W

R581 1-208-798-11 RES,CHIP 4.7K 0.50% 1/10W

R585 1-249-391-11 CARBON 6.8 5% 1/4W F

R588 1-215-888-00 METAL OXIDE 220 5% 2W F

R589 1-215-888-00 METAL OXIDE 220 5% 2W F

R590 1-215-465-00 METAL 68K 1% 1/4W

R591 1-260-288-11 CARBON 0.47 5% 1/2W F

R593 1-260-288-11 CARBON 0.47 5% 1/2W F

R594 1-260-288-11 CARBON 0.47 5% 1/2W F

R596 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R597 1-247-750-11 CARBON 680 5% 1/2W F

R598 1-249-438-11 CARBON 56K 5% 1/4W

R599 1-249-389-11 CARBON 4.7 5% 1/4W

R600 1-249-438-11 CARBON 56K 5% 1/4W

R601 1-249-418-11 CARBON 1.2K 5% 1/4W F

R602 1-249-389-11 CARBON 4.7 5% 1/4W F

R603 1-215-485-00 METAL 470K 1% 1/4W

R604 1-216-097-91 RES,CHIP 100K 5% 1/10W

R607 1-249-425-11 CARBON 4.7K 5% 1/4W

R608 1-240-205-91 CARBON 22M 5% 1/2W

R609 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R610 1-216-073-00 RES,CHIP 10K 5% 1/10W

R611 1-216-089-91 RES,CHIP 47K 5% 1/10W

R612 1-216-045-00 RES,CHIP 680 5% 1/10W

R614 1-216-041-00 RES,CHIP 470 5% 1/10W

R615 1-216-350-11 METAL OXIDE 1.2 5% 1W F

R616 1-260-302-51 CARBON 6.8 5% 1/2W F

R617 1-247-791-91 CARBON 22 5% 1/4W

A (Except KV-PF21M70)

– 111 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

R619 1-260-128-11 CARBON 270K 5% 1/2W

R620 1-215-915-11 METAL OXIDE 470 5% 3W F

R622 1-216-400-11 METAL OXIDE 8.2 5% 3W F

R623 1-216-095-00 RES,CHIP 82K 5% 1/10W

R624 1-216-089-91 RES,CHIP 47K 5% 1/10W

R626 1-216-049-91 RES,CHIP 1K 5% 1/10W

R627 1-240-251-11 CMT,MELF 6.8 5% 10W

R629 1-247-747-11 CARBON 470 5% 1/2W F

R630 1-249-429-11 CARBON 10K 5% 1/4W F

R631 1-216-089-91 RES,CHIP 47K 5% 1/10W

R632 1-202-933-61 FUSIBLE 0.1 10% 1/2W F

R634 !1-218-265-91 METAL 8.2M 5% 1W

R635 1-216-492-11 METAL OXIDE 82K 5% 3W F

R636 1-215-924-00 METAL OXIDE 15K 5% 3W F

R637 1-216-492-11 METAL OXIDE 82K 5% 3W F

R639 1-216-363-00 METAL OXIDE 0.33 5% 2W F

R640 1-249-415-11 CARBON 680 5% 1/4W

R641 1-216-362-11 METAL OXIDE 0.27 5% 2W F

R642 1-249-419-11 CARBON 1.5K 5% 1/4W

R643 1-247-843-11 CARBON 3.3K 5% 1/4W

R644 1-249-419-11 CARBON 1.5K 5% 1/4W

R646 1-215-924-00 METAL OXIDE 15K 5% 3W F

R647 1-249-401-11 CARBON 47 5% 1/4W

R648 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R649 1-249-417-11 CARBON 1K 5% 1/4W

R650 1-215-882-00 METAL OXIDE 22 5% 2W F

R652 1-215-900-11 METAL OXIDE 22K 5% 2W F

R653 1-215-873-00 METAL OXIDE 4.7K 5% 1W F

R657 1-260-127-11 CARBON 220K 5% 1/2W

R659 1-216-049-91 RES,CHIP 1K 5% 1/10W

R660 1-216-073-00 RES,CHIP 10K 5% 1/10W

R661 1-215-873-00 METAL OXIDE 4.7K 5% 1W F

R680 1-216-308-00 RES,CHIP 4.7 5% 1/10W

R901 1-249-411-11 CARBON 330 5% 1/4W

R902 1-249-411-11 CARBON 330 5% 1/4W

(KV-TF21M61/TF21M90 ONLY)

R903 1-216-022-00 RES,CHIP 75 5% 1/10W

R904 1-216-033-00 RES,CHIP 220 5% 1/10W

R905 1-216-113-00 RES,CHIP 470K 5% 1/10W

R906 1-216-077-00 RES,CHIP 15K 5% 1/10W

R907 1-216-113-00 RES,CHIP 470K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R908 1-216-077-00 RES,CHIP 15K 5% 1/10W

(KV-TF21M61/TF21M90 ONLY)

R909 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R910 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R911 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R912 1-216-041-00 RES,CHIP 470 5% 1/10W

R913 1-216-049-91 RES,CHIP 1K 5% 1/10W

R914 1-216-055-00 RES,CHIP 1.8K 5% 1/10W

R915 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R916 1-216-017-91 RES,CHIP 47 5% 1/10W

R917 1-216-041-00 RES,CHIP 470 5% 1/10W

R918 1-216-041-00 RES,CHIP 470 5% 1/10W

<RELAY>

RY601 !1-755-266-11 RELAY, AC POWER

<SWITCH>

S502 1-572-707-11 SWITCH, LEVER

S600 !1-571-433-21 SWITCH, PUSH (AC POWER)

S901 1-692-431-21 SWITCH, TACTILE

S902 1-692-431-21 SWITCH, TACTILE

S903 1-692-431-21 SWITCH, TACTILE

S904 1-692-431-21 SWITCH, TACTILE

S905 1-692-431-21 SWITCH, TACTILE

S906 1-692-431-21 SWITCH, TACTILE

S907 1-692-431-21 SWITCH, TACTILE

<TRANSFORMER>

T501 1-437-195-11 TRANSFORMER, HORIZONTAL DRIVE

T503 !1-453-293-11 TRANSFORMER ASSY, FLYBACK

(NX-1748//M3A4)

T601 1-424-682-11 TRANSFORMER, LINE FILTER

T603 !1-433-512-31 TRANSFORMER, CONVERTER (SRT)

T604 !1-431-852-11 TRANSFORMER, CONVERTER (SRT)

<THERMISTOR>

THP600 1-810-961-11 THERMISTOR, POSITIVE

<TUNER>

TU101 8-598-451-00 TUNER, FSS BTF-WG441 (KV-TF21M61/TF21M90)

TU101 8-598-447-00 TUNER, FSS BTF-LG411 (KV-TF21P110

<CRYSTAL>

X001 1-579-125-11 VIBRATOR, CERAMIC

X301 1-781-134-21 VIBRATOR, CRYSTAL

X302 1-781-132-21 VIBRATOR, CRYSTAL

****************************************************************************

A (Except KV-PF21M70)

– 112 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

* A-1331-884-A C3 BOARD, MOUNTED (KV-PF21M70)

*********************

7-682-948-01 SCREW +PSW 3X8

<CAPACITOR>

C701 1-115-350-51 CERAMIC 0.0047MF 2KV

C702 1-102-074-00 CERAMIC 0.001MF 10% 50V

C703 1-107-651-11 ELECT 4.7MF 20% 250V

C704 1-130-202-00 FILM 0.022MF 5% 400V

C706 1-104-664-11 ELECT 47MF 20% 16V

C708 1-102-114-00 CERAMIC 470PF 10% 50V

C709 1-102-114-00 CERAMIC 470PF 10% 50V

C710 1-102-114-00 CERAMIC 470PF 10% 50V

C712 1-102-116-00 CERAMIC 680PF 10% 50V

C713 1-102-116-00 CERAMIC 680PF 10% 50V

C714 1-102-116-00 CERAMIC 680PF 10% 50V

C716 1-126-933-11 ELECT 100MF 20% 16V

C717 1-101-880-00 CERAMIC 47PF 5% 50V

C736 1-102-114-00 CERAMIC 470PF 10% 50V

C737 1-102-114-00 CERAMIC 470PF 10% 50V

C746 1-102-114-00 CERAMIC 470PF 10% 50V

<CONNECTOR>

CN701 1-508-765-00 PIN, CONNECTOR (5MM PITCH) 3P

CN702 1-695-915-11 TAB (CONTACT)

CN703 * 1-564-509-11 PLUG, CONNECTOR 6P

CN704 1-695-915-11 TAB (CONTACT)

<DIODE>

D701 8-719-911-19 DIODE 1SS119-25

D702 8-719-911-19 DIODE 1SS119-25

D703 8-719-911-19 DIODE 1SS119-25

D707 8-719-911-19 DIODE 1SS119-25

D708 8-719-911-19 DIODE 1SS119-25

D709 8-719-911-19 DIODE 1SS119-25

D710 8-719-911-19 DIODE 1SS119-25

D711 8-719-911-19 DIODE 1SS119-25

D712 8-719-911-19 DIODE 1SS119-25

D713 8-719-911-19 DIODE 1SS119-25

D714 8-719-911-19 DIODE 1SS119-25

D715 8-719-911-19 DIODE 1SS119-25

D716 8-719-911-19 DIODE 1SS119-25

D717 8-719-121-26 DIODE RD9.1ESL2

<JACK>

J701 !1-540-071-22 SOCKET, CRT

<COIL>

L701 1-410-667-31 INDUCTOR 22UH

L710 1-408-609-41 INDUCTOR 33UH

L711 1-408-609-41 INDUCTOR 33UH

L712 1-408-609-41 INDUCTOR 33UH

<TRANSISTOR>

Q704 8-729-326-11 TRANSISTOR 2SC2611

Q705 8-729-326-11 TRANSISTOR 2SC2611

Q706 8-729-326-11 TRANSISTOR 2SC2611

Q707 8-729-200-17 TRANSISTOR 2SA1091-O

Q708 8-729-200-17 TRANSISTOR 2SA1091-O

Q709 8-729-200-17 TRANSISTOR 2SA1091-O

Q710 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q711 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q712 8-729-119-78 TRANSISTOR 2SC2785-HFE

<RESISTOR>

R703 1-249-496-11 CARBON 100K 5% 1/2W

R705 1-216-380-11 METAL OXIDE 8.2 5% 2W F

R706 1-215-417-00 METAL 680 1% 1/4W

R707 1-215-413-00 METAL 470 1% 1/4W

R708 1-216-379-11 METAL OXIDE 6.8 5% 2W F

R710 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R711 1-247-752-11 CARBON 1K 5% 1/2W

R712 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R713 1-247-752-11 CARBON 1K 5% 1/2W

R714 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R715 1-247-752-11 CARBON 1K 5% 1/2W

R719 1-215-480-00 METAL 300K 1% 1/4W

R720 1-249-923-11 CARBON 1K 5% 1/4W F

R721 1-215-489-00 METAL 680K 1% 1/4W

R722 1-249-923-11 CARBON 1K 5% 1/4W F

R723 1-215-479-00 METAL 270K 1% 1/4W

R724 1-249-923-11 CARBON 1K 5% 1/4W F

R725 1-249-421-11 CARBON 2.2K 5% 1/4W

R726 1-249-421-11 CARBON 2.2K 5% 1/4W

R727 1-249-421-11 CARBON 2.2K 5% 1/4W

R728 1-249-407-11 CARBON 150 5% 1/4W

R729 1-249-407-11 CARBON 150 5% 1/4W

R730 1-249-407-11 CARBON 150 5% 1/4W

R731 1-249-399-11 CARBON 33 5% 1/4W

R732 1-249-399-11 CARBON 33 5% 1/4W

R733 1-249-399-11 CARBON 33 5% 1/4W

R734 1-247-739-11 CARBON 100 5% 1/2W

R738 1-247-807-31 CARBON 100 5% 1/4W

R739 1-247-807-31 CARBON 100 5% 1/4W

R740 1-247-807-31 CARBON 100 5% 1/4W

R755 1-249-418-11 CARBON 1.2K 5% 1/4W

R756 1-249-418-11 CARBON 1.2K 5% 1/4W

R757 1-249-418-11 CARBON 1.2K 5% 1/4W

<VARIABLE RESISTOR>

RV702 1-241-656-21 RES, ADJ, METAL FILM 110M

****************************************************************************

C3 (KV-PF21M70)

– 113 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

* A-1331-941-A C5 BOARD, MOUNTED (EXCEPT KV-PF21M70)

*********************

7-682-948-01 SCREW +PSW 3X8

<CAPACITOR>

C701 1-115-350-51 CERAMIC 0.0047MF 2KV

C702 1-102-074-00 CERAMIC 0.001MF 10% 50V

C703 1-107-651-11 ELECT 4.7MF 20% 250V

C704 1-130-202-00 FILM 0.022MF 5% 400V

C706 1-104-664-11 ELECT 47MF 20% 16V

C708 1-102-114-00 CERAMIC 470PF 10% 50V

C709 1-102-114-00 CERAMIC 470PF 10% 50V

C710 1-102-114-00 CERAMIC 470PF 10% 50V

C712 1-102-116-00 CERAMIC 680PF 10% 50V

C713 1-102-116-00 CERAMIC 680PF 10% 50V

C714 1-102-116-00 CERAMIC 680PF 10% 50V

C716 1-126-933-11 ELECT 100MF 20% 16V

C717 1-101-880-00 CERAMIC 47PF 5% 50V

C736 1-102-114-00 CERAMIC 470PF 10% 50V

C737 1-102-114-00 CERAMIC 470PF 10% 50V

C746 1-102-114-00 CERAMIC 470PF 10% 50V

C1803 1-126-964-11 ELECT 10MF 20% 50V

C1804 1-126-964-11 ELECT 10MF 20% 50V

C1809 1-126-942-61 ELECT 1000MF 20% 25V

<CONNECTOR>

CN701 1-508-765-00 PIN, CONNECTOR (5MM PITCH) 3P

CN702 1-695-915-11 TAB (CONTACT)

CN703 * 1-564-509-11 PLUG, CONNECTOR 6P

CN704 1-695-915-11 TAB (CONTACT)

CN1801* 1-564-507-11 PLUG, CONNECTOR 4P

CN1802* 1-564-506-11 PLUG, CONNECTOR 3P

<DIODE>

D701 8-719-911-19 DIODE 1SS119-25

D702 8-719-911-19 DIODE 1SS119-25

D703 8-719-911-19 DIODE 1SS119-25

D707 8-719-911-19 DIODE 1SS119-25

D708 8-719-911-19 DIODE 1SS119-25

D709 8-719-911-19 DIODE 1SS119-25

D710 8-719-911-19 DIODE 1SS119-25

D711 8-719-911-19 DIODE 1SS119-25

D712 8-719-911-19 DIODE 1SS119-25

D713 8-719-911-19 DIODE 1SS119-25

D714 8-719-911-19 DIODE 1SS119-25

D715 8-719-911-19 DIODE 1SS119-25

D716 8-719-911-19 DIODE 1SS119-25

D717 8-719-121-26 DIODE RD9.1ESL2

D1803 8-719-911-19 DIODE 1SS119-25

D1804 8-719-911-19 DIODE 1SS119-25

D1808 8-719-908-03 DIODE GP08D

<IC>

IC1800 8-759-822-38 IC LA6510

<JACK>

J701 !1-540-071-22 SOCKET, CRT

<COIL>

L701 1-410-667-31 INDUCTOR 22UH

L710 1-408-609-41 INDUCTOR 33UH

L711 1-408-609-41 INDUCTOR 33UH

L712 1-408-609-41 INDUCTOR 33UH

<TRANSISTOR>

Q704 8-729-326-11 TRANSISTOR 2SC2611

Q705 8-729-326-11 TRANSISTOR 2SC2611

Q706 8-729-326-11 TRANSISTOR 2SC2611

Q707 8-729-200-17 TRANSISTOR 2SA1091-O

Q708 8-729-200-17 TRANSISTOR 2SA1091-O

Q709 8-729-200-17 TRANSISTOR 2SA1091-O

Q710 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q711 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q712 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q1802 8-729-119-78 TRANSISTOR 2SC2785-HFE

<RESISTOR>

R703 1-249-496-11 CARBON 100K 5% 1/2W

R705 1-216-380-11 METAL OXIDE 8.2 5% 2W F

R706 1-215-417-00 METAL 680 1% 1/4W

R707 1-215-413-00 METAL 470 1% 1/4W

R708 1-216-379-11 METAL OXIDE 6.8 5% 2W F

R710 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R711 1-247-752-11 CARBON 1K 5% 1/2W

R712 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R713 1-247-752-11 CARBON 1K 5% 1/2W

R714 1-215-922-11 METAL OXIDE 6.8K 5% 3W F

R715 1-247-752-11 CARBON 1K 5% 1/2W

R719 1-215-480-00 METAL 300K 1% 1/4W

R720 1-249-923-11 CARBON 1K 5% 1/4W F

R721 1-215-489-00 METAL 680K 1% 1/4W

R722 1-249-923-11 CARBON 1K 5% 1/4W F

R723 1-215-479-00 METAL 270K 1% 1/4W

R724 1-249-923-11 CARBON 1K 5% 1/4W F

R725 1-249-421-11 CARBON 2.2K 5% 1/4W

R726 1-249-421-11 CARBON 2.2K 5% 1/4W

R727 1-249-421-11 CARBON 2.2K 5% 1/4W

R728 1-249-407-11 CARBON 150 5% 1/4W

R729 1-249-407-11 CARBON 150 5% 1/4W

R730 1-249-407-11 CARBON 150 5% 1/4W

R731 1-249-399-11 CARBON 33 5% 1/4W

R732 1-249-399-11 CARBON 33 5% 1/4W

R733 1-249-399-11 CARBON 33 5% 1/4W

R734 1-247-739-11 CARBON 100 5% 1/2W

R738 1-247-807-31 CARBON 100 5% 1/4W

C5 (Except KV-PF21M70)

– 114 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

R739 1-247-807-31 CARBON 100 5% 1/4W

R740 1-247-807-31 CARBON 100 5% 1/4W

R755 1-249-418-11 CARBON 1.2K 5% 1/4W

R756 1-249-418-11 CARBON 1.2K 5% 1/4W

R757 1-249-418-11 CARBON 1.2K 5% 1/4W

R1802 1-249-387-11 CARBON 3.3 5% 1/4W F

R1803 1-249-387-11 CARBON 3.3 5% 1/4W F

R1805 1-249-429-11 CARBON 10K 5% 1/4W

R1806 1-249-425-11 CARBON 4.7K 5% 1/4W

R1808 1-249-425-11 CARBON 4.7K 5% 1/4W

R1809 1-249-435-11 CARBON 33K 5% 1/4W

R1810 1-249-435-11 CARBON 33K 5% 1/4W

R1811 1-249-440-11 CARBON 82K 5% 1/4W

R1812 1-249-435-11 CARBON 33K 5% 1/4W

R1821 1-249-440-11 CARBON 82K 5% 1/4W

R1822 1-249-435-11 CARBON 33K 5% 1/4W

R1823 1-249-426-11 CARBON 5.6K 5% 1/4W

R1824 1-249-435-11 CARBON 33K 5% 1/4W

<VARIABLE RESISTOR>

RV702 1-241-656-21 RES, ADJ, METAL FILM 110M

****************************************************************************

* A-1241-355-A F BOARD, MOUNTED

********************

1-533-223-11 CLIP, FUSE

* 4-374-846-01 COVER, CAPACITOR, CAP TYPE

<CAPACITOR>

C654 !1-117-703-51 CERAMIC 0.0047MF 99% 250V

C4602 !1-104-708-51 FILM 0.47MF 20% 250V

<CONNECTOR>

CN4601* 1-580-843-11 PIN, CONNECTOR (POWER)

CN4602* 1-580-843-11 PIN, CONNECTOR (POWER)

CN4603 1-695-915-11 TAB (CONTACT)

<FUSE>

F4601 !1-532-237-11 FUSE, TIME-LAG (BET) 3.15A/250V

<RESISTOR>

R4601 !1-202-719-91 SOLID 1M 10% 1/2W

<TRANSFORMER>

T4601 1-424-682-11 TRANSFORMER, LINE FILTER

T4602 1-424-682-11 TRANSFORMER, LINE FILTER

<VARISTOR>

VDR461 1-801-073-31 VARISTOR TNR14V471K660

****************************************************************************

* A-1347-155-A V1 BOARD, COMPLETE

**********************

(KV-TF21M61/TF21P11 ONLY)

<CAPACITOR>

C801 1-104-664-11 ELECT 47MF 20% 16V

C805 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C806 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C815 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C816 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C817 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C818 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C820 1-163-239-11 CERAMIC CHIP 33PF 5% 50V

C821 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C822 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C823 1-126-933-11 ELECT 100MF 20% 16V

C826 1-126-963-11 ELECT 4.7MF 20% 50V

C829 1-163-113-00 CERAMIC CHIP 68PF 5% 50V

C830 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C831 1-126-933-11 ELECT 100MF 20% 16V

C832 1-126-964-11 ELECT 10MF 20% 50V

C835 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C837 1-126-933-11 ELECT 100MF 20% 16V

<CONNECTOR>

CN801 * 1-774-812-11 CONNECTOR, BOARD TO BOARD 7P

CN803 * 1-774-812-11 CONNECTOR, BOARD TO BOARD 7P

<DIODE>

D802 8-719-914-44 DIODE DAP202K

D803 8-719-105-46 DIODE RD3.3M-B2

D804 8-719-105-91 DIODE RD5.6M-B2

D806 8-719-988-61 DIODE 1SS355TE-17

D807 8-719-988-61 DIODE 1SS355TE-17

<FERRITE BEAD>

FB801 1-410-397-21 FERRITE 1.1UH

FB802 1-410-397-21 FERRITE 1.1UH

FB803 1-410-397-21 FERRITE 1.1UH

FB804 1-410-682-31 INDUCTOR 470UH

FB805 1-410-397-21 FERRITE 1.1UH

<IC>

IC801 8-759-476-87 IC SAA5261

FC5 (Except KV-PF21M70) V1 ()

KV-TF21M61/

TF21P11 only

– 115 –

REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

REF. NO. PART NO. DESCRIPTION REMARK

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

<CHIP CONDUCTOR>

JR801 1-216-295-91 SHORT 0

JR802 1-216-295-91 SHORT 0

JR804 1-216-295-91 SHORT 0

JR805 1-216-295-91 SHORT 0

JR806 1-216-295-91 SHORT 0

JR807 1-216-295-91 SHORT 0

JR808 1-216-295-91 SHORT 0

<TRANSISTOR>

Q801 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q803 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q805 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q806 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q807 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q808 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q810 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q811 8-729-019-01 TRANSISTOR 2SD2394-EF

Q812 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q813 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q814 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q817 8-729-900-53 TRANSISTOR DTC114EK

Q818 8-729-120-28 TRANSISTOR 2SC1623-L5L6

<RESISTOR>

R800 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R801 1-216-295-91 SHORT 0

R802 1-216-025-91 RES,CHIP 100 5% 1/10W

R803 1-216-295-91 SHORT 0

R804 1-216-295-91 SHORT 0

R805 1-216-295-91 SHORT 0

R807 1-216-295-91 SHORT 0

R813 1-216-295-91 SHORT 0

R820 1-216-073-00 RES,CHIP 10K 5% 1/10W

R821 1-216-083-00 RES,CHIP 27K 5% 1/10W

R822 1-216-025-91 RES,CHIP 100 5% 1/10W

R824 1-216-295-91 SHORT 0

R825 1-216-295-91 SHORT 0

R827 1-216-295-91 SHORT 0

R828 1-216-025-91 RES,CHIP 100 5% 1/10W

R829 1-216-025-91 RES,CHIP 100 5% 1/10W

R830 1-216-295-91 SHORT 0

R831 1-216-295-91 SHORT 0

R832 1-216-659-11 METAL CHIP 2.2K 0.50% 1/10W

R835 1-216-295-91 SHORT 0

R839 1-216-655-11 METAL CHIP 1.5K 0.50% 1/10W

R841 1-216-025-91 RES,CHIP 100 5% 1/10W

R842 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R843 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R844 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R845 1-216-049-91 RES,CHIP 1K 5% 1/10W

R846 1-216-049-91 RES,CHIP 1K 5% 1/10W

R847 1-216-049-91 RES,CHIP 1K 5% 1/10W

R848 1-216-049-91 RES,CHIP 1K 5% 1/10W

R849 1-216-049-91 RES,CHIP 1K 5% 1/10W

R850 1-216-105-91 RES,CHIP 220K 5% 1/10W

R851 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R853 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R857 1-216-081-00 RES,CHIP 22K 5% 1/10W

R858 1-216-067-00 RES,CHIP 5.6K 5% 1/10W

R861 1-216-049-91 RES,CHIP 1K 5% 1/10W

R862 1-260-095-11 CARBON 470 5% 1/2W

R863 1-216-049-91 RES,CHIP 1K 5% 1/10W

R864 1-216-041-00 RES,CHIP 470 5% 1/10W

R866 1-215-880-00 METAL OXIDE 10 5% 2W F

R871 1-216-037-00 RES,CHIP 330 5% 1/10W

R879 1-216-073-00 RES,CHIP 10K 5% 1/10W

R880 1-216-041-00 RES,CHIP 470 5% 1/10W

R882 1-216-049-91 RES,CHIP 1K 5% 1/10W

R884 1-216-025-91 RES,CHIP 100 5% 1/10W

R888 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R889 1-216-073-00 RES,CHIP 10K 5% 1/10W

R890 1-216-081-00 RES,CHIP 22K 5% 1/10W

R894 1-216-073-00 RES,CHIP 10K 5% 1/10W

R895 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R896 1-216-073-00 RES,CHIP 10K 5% 1/10W

R897 1-216-073-00 RES,CHIP 10K 5% 1/10W

R898 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

<CRYSTAL>

X801 1-578-774-11 VIBRATOR, CRYSTAL

****************************************************************************

MISCELLANEOUS

*****************

!1-416-946-11 COIL, DEMAGNETIC

1-417-151-21 MATCHING TRANSFORMER, ANTENNA

(KV-PF21M70 ONLY)

1-452-014-11 CIRCULAR DISC MAGNET B (KV-TF21P11)

1-452-032-00 MAGNET,DISC

1-452-094-00 CIRCULAR DISC MAGNET B

(EXCEPT KV-TF21P11)

1-452-728-61 COIL, NA ROTATION (RT-154)

(KV-TF21M61/TF21M90 ONLY)

1-501-372-81 ANTENNA, TELESCOPIC (KV-PF21M70 ONLY)

1-505-740-11 SPEAKER (5X9CM)

!1-574-062-11 CORD, POWER (WITH CONNECTOR) 2.5A/250V

(KV-TF21M61)

!1-574-358-11 CORD, POWER (WITH CONNECTOR)

(KV-TF21P11)

!1-769-609-21 CORD, POWER (WITH CONNECTOR)

(KV-PF21M70/TF21M90)

8-451-505-11 DEFLECTION YOKE (Y21RSA-S)

!8-738-809-05 PICTURE TUBE (A51LPT70X)

(KV-PF21M70/TF21M90)

!8-738-812-05 PICTURE TUBE (A51LPT70X)

(KV-TF21M61/TF21P11)

****************************************************************************

V1 ()

KV-TF21M61/

TF21P11 only

– 116 –

REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK

The components identified by shading

and mark ! are critical for safety.

Replace only with part number specified.

KV-PF21M70/TF21M61/TF21M90/TF21P11

RM-952

ACCESSORIES AND PACKING MATERIALS

***************************************

1-417-151-21 MATCHING TRANSFORMER, ANTENNA

(KV-PF21M70 ONLY)

1-501-372-81 ANTENNA, TELESCOPIC (KV-PF21M70 ONLY)

3-701-910-00 SCREW, SPECIAL (DIA. 3.8X20)

3-867-184-11 MANUAL, INSTRUCTION (KV-PF21M70)

3-866-883-11 MANUAL, INSTRUCTION (KV-TF21M61)

3-866-883-21 MANUAL, INSTRUCTION (KV-TF21M90)

3-866-883-31 MANUAL, INSTRUCTION (KV-TF21P11)

* 4-070-297-01 CUSHION(UPPER)(ASSY)

* 4-070-298-01 CUSHION(LOWER)(ASSY)

* 4-070-299-01 INDIVIDUAL CARTON

4-392-003-11 BAND, HOLD

4-392-004-11 CLIP

* 4-392-859-01 BAG, PROTECTION

****************************************************************************

REMOTE COMMANDER

**********************

1-418-163-11 REMOTE COMMANDER (RM-952)

9-939-697-01 BATTERY COVER, REMOTE COMMANDER

9-965-745-01

Sony Corporation

SONY TV Industries (M) Sdn. Bhd.

TV Business of General Area

English

99DM70227-1

Printed in Malaysia

 1999. 5
