LCD
Digital Color TV
Setup Guide (Operating Instructions)
Setting up your TV
To watch TV
Additional Information
XBR-60LX900 / 52LX900 / 46LX900 / 40LX900
Sony Customer Support
U.S.A.: www.sony.com/tvsupport
Canada: www.sony.ca/support
United States Canada
1.800.222.SONY 1.877.899.SONY
Please Do Not Return
the Product to the Store
2
CAUTION
To prevent electric shock and blade exposure,
do not use this polarized AC plug with an
extension cord, receptacle or other outlet
unless the blades can be fully inserted.
•Some people may experience
discomfort (such as eye strain,
fatigue, or nausea) while watching
3D video images or playing 3D
video games. Sony recommends that
all viewers take regular breaks while
watching 3D video images or
playing 3D video games. The length
and frequency of necessary breaks
will vary from person to person. You
must decide what works best. If you
experience any discomfort, you
should stop watching the 3D video
images or playing 3D video games
until the discomfort ends; consult a
doctor if you believe necessary. You
should also review (i) the instruction
manual of any other device or media
used with this television and (ii) our
website (www.sony.com/tvsupport)
for the latest information. The vision
of young children (especially those
under six years old) is still under
development. Consult your doctor
(such as a pediatrician or eye doctor)
before allowing young children to
watch 3D video images or play 3D
video games. Adults should
supervise young children to ensure
they follow the recommendations
listed above.
•When using the simulated 3D
function, please note that the
displayed image is modified from
the original due to the conversion
done by this television.
•Operate the TV only on 110-240 V
AC (U.S.A./Canada 120 V AC)
•Avoid operating the TV at
temperatures below 41°F (5°C).
Licensing Information
Macintosh is a trademark of Apple Inc.,
registered in the U.S. and other countries.
HDMI, the HDMI Logo, and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing
LLC in the United States and other countries.
Fergason Patent Properties, LLC:
U.S. Patent No. 5,717,422
U.S. Patent No. 6,816,141
Manufactured under license from Dolby
Laboratories. Dolby and the double-D
symbol are trademarks of Dolby
Laboratories.
In the United States, TV Guide and TV Guide
On Screen are registered trademarks of TV
Guide Entertainment Group, Inc. and/or its
subsidiaries or affiliates, and are used under a
license by Gemstar-TV Guide International,
Inc. and/or its subsidiaries. In Canada, TV
Guide is a registered mark of Transcontinental
Inc., and is used under a license by Gemstar-TV
Guide International, Inc. and/or its subsidiaries.
The TV Guide On Screen system is
manufactured under license from Gemstar-TV
Guide International, Inc. and/or its subsidiaries.
The TV Guide On Screen system is protected
by one or more of the following United States
patents 6,498,895; 6,850,693; 6,396,546;
5,940,073; 6,239,794 to Gemstar-TV Guide
International, Inc. and/or its subsidiaries.
Gemstar-TV Guide International, Inc. and/or
its related affiliates are not in any way liable
for the accuracy or availability of the program
schedule information or other data in the TV
Guide On Screen system and cannot
guarantee service availability in your area. In
no event shall Gemstar-TV Guide
International, Inc. and/or its related affiliates
be liable for any damages in connection with
the accuracy or availability of the program
schedule information or other data in the TV
Guide On Screen system.
Blu-ray Disc is a trademark.
“BRAVIA” and , S-Force,
Motionflow, BRAVIA Sync, and are
trademarks or registered marks of Sony
Corporation.
“XMB
™
”and “xross media bar” are
trademarks of Sony Corporation and Sony
Computer Entertainment Inc.
“PlayStation” is a registered trademark and
“PS3” is a trademark of Sony Computer
Entertainment Inc.
DLNA
®
, the DLNA Logo and DLNA
CERTIFIED
®
are trademarks, service marks,
or certification marks of the Digital Living
Network Alliance.
“FACE DETECTION” logo is trademark of
Sony Corporation.
Your BRAVIA TV is
ENERGY STAR
®
qualified
in the “Home” mode.
It meets strict energy
efficiency guidelines set by
the U.S. Environmental
Protection Agency and
Department of Energy. ENERGY STAR is a
joint program of these government agencies,
designed to promote energy efficient products
and practices.
Changes to certain features, settings, and
functionalities of this TV (i.e. TV Guide,
Picture/Sound, Light Sensor, Power Savings)
can increase or change the power
consumption.
Depending upon such changed settings, the
power consumption may exceed the limits
required for the ENERGY STAR
qualification in the “Home” mode.
~
•The illustrations of the remote
control used in this manual are of the
RM-YD036 unless otherwise stated.
Owner’s Record
The information label are located on the
rear of the TV. They can be found by
removing the bottom cover. Record
model name and serial numbers on the
information label in the spaces provided
below. Refer to them whenever you call
upon your Sony dealer regarding this
TV.
Model Name
Serial No.
3
Table of Contents
Checking the accessories..............................................................................................................4
Inserting batteries into the remote control .....................................................................................4
Setting up your TV

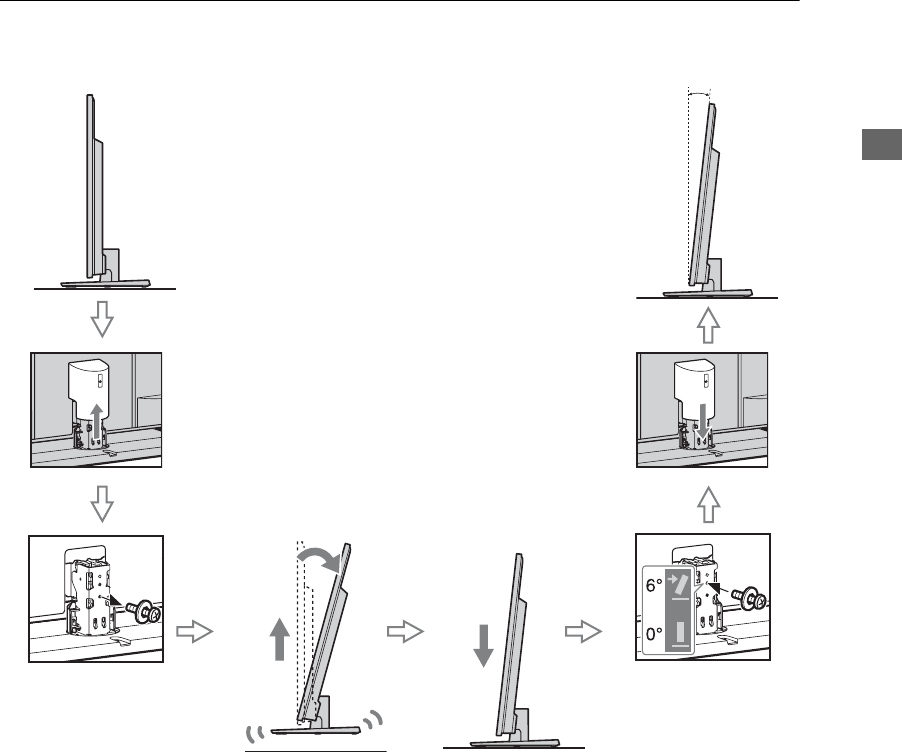

Attaching the Table-Top Stand......................................................................................................6
Connecting the TV.........................................................................................................................8
Securing the TV...........................................................................................................................12
Organizing the AC power cord ....................................................................................................13
Running initial setup ....................................................................................................................14
Detaching the Table-Top Stand from the TV...............................................................................14
Using a Wall-Mount Bracket ........................................................................................................15
Installing the TV Against a Wall or Enclosed Area ......................................................................15
To watch TV

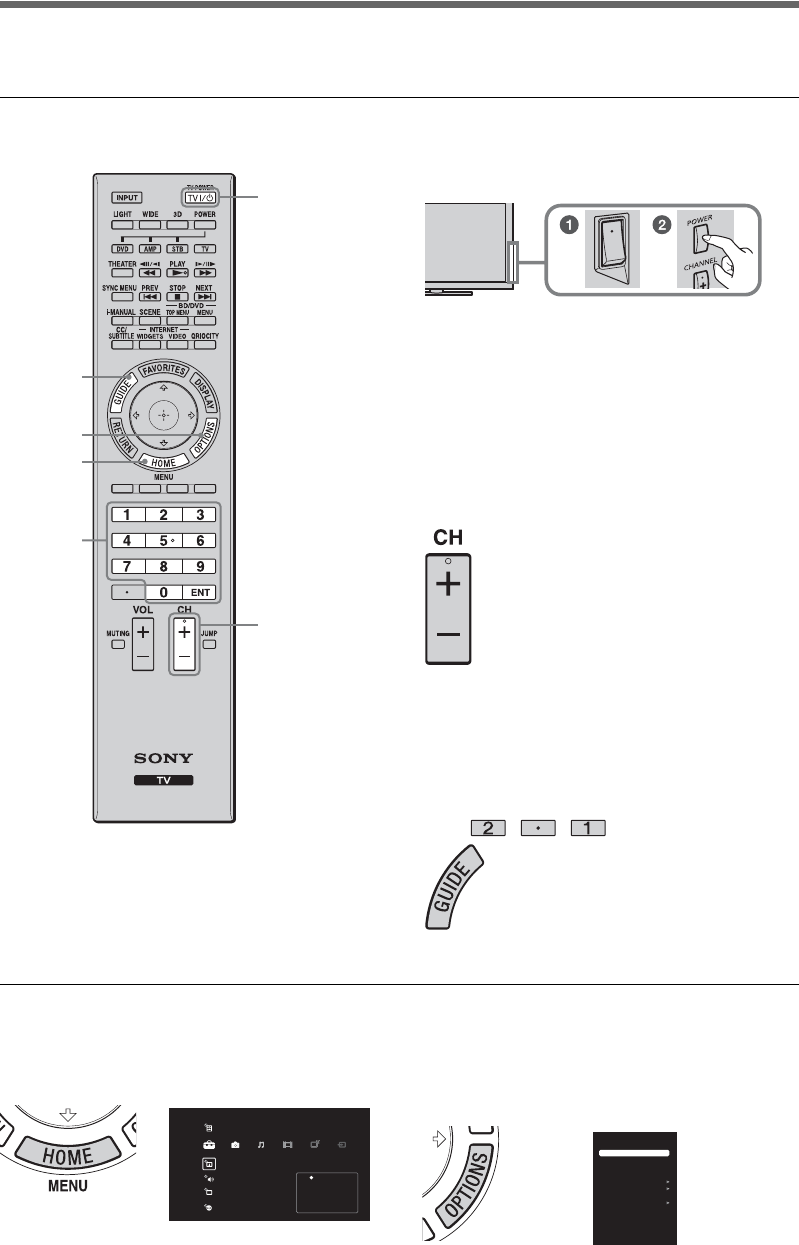

To watch programs......................................................................................................................16
To use the TV features................................................................................................................16

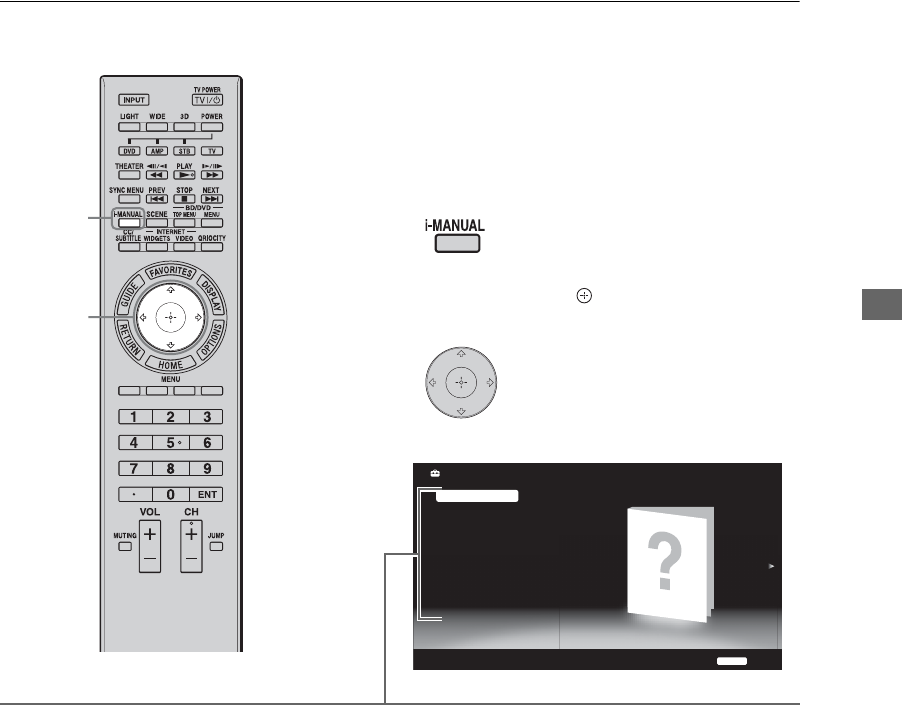

To use i-Manual...........................................................................................................................17
To use 3D Glasses ......................................................................................................................18
Additional Information
Troubleshooting...........................................................................................................................20
Specifications ..............................................................................................................................22
The BRAVIA
®
Full HDTV Experience
Thank you for choosing Sony! Your new BRAVIA
®
TV
opens the door to the “Full HDTV Experience.” This
document will help you get the most out of your TV.
Please take a moment to register your TV at:
U.S.A.: http://productregistration.sony.com
Canada: http://www.SonyStyle.ca/registration
Four Steps to a Full HD Experience
Set, Source, Sound, and Setup.
1Set
Now that you have made the best selection in LCD TV
technology, be sure to remove all accessory contents
from the packaging before setting up your TV.
2Source
To experience the stunning detail of your BRAVIA TV,
you need access to HD programming.
• Upgrade your signal or content source to high-definition
(HD) by contacting your HD service provider.
• Receive over-the-air HD broadcasts with an HD-
quality antenna connected directly to the back of
your TV.
Visit www.antennaweb.org for more
information on antenna selection and setup.
• Discover the wealth of entertainment now available
on super-high resolution Blu-ray Disc™ player and
other Sony HD equipment.
3Sound
Complete the high-definition experience with a
BRAVIA Sync™ surround sound system or A/V
receiver from Sony.
4Setup

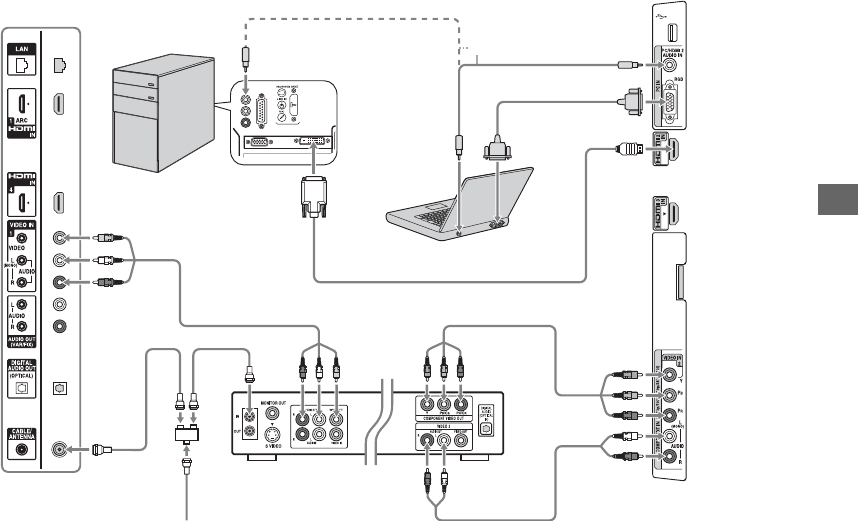

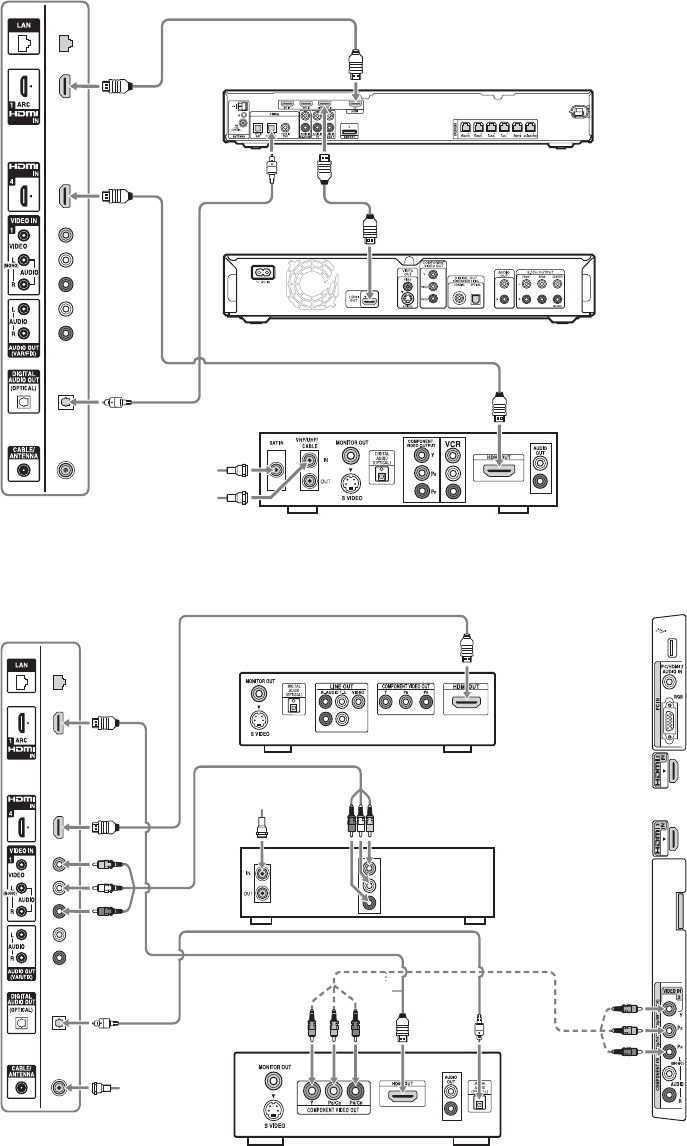

Install your TV and connect your sources. See page 8
for sample connection diagrams. To help assure the
highest quality for your HD experience, use Sony
HDMI (High-Definition Multimedia Interface) cables.
To learn more about HDTV, visit:
U.S.A.: http://www.sony.com/HDTV
Canada: http://www.SonyStyle.ca/hd
This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.
•
Operating instructions are built into your
BRAVIA
TV. Refer to “To use i-Manual” for operation (page 17).
•Retain this manual for future reference.
4
Checking the accessories
AC power cord (1)
Remote control (1)*1
Size AAA batteries (2)
Table-Top Stand (1)*2
(except XBR-60LX900)
Fixing screws for Table-Top Stand
(M5 × 16) (4) (except XBR-60LX900)
Assembling screws for Table-Top Stand
(M5 × 16) (4)
(XBR-40LX900 only)
Bottom cover (1)*3
Stand rear cover (1)*4
Black spacers (4)*5
(XBR-52/46/40LX900 only)
Silver spacers (4)*5
(XBR-60LX900 only)
Screws (M6 × 20) (4)*5
(XBR-60LX900 only)

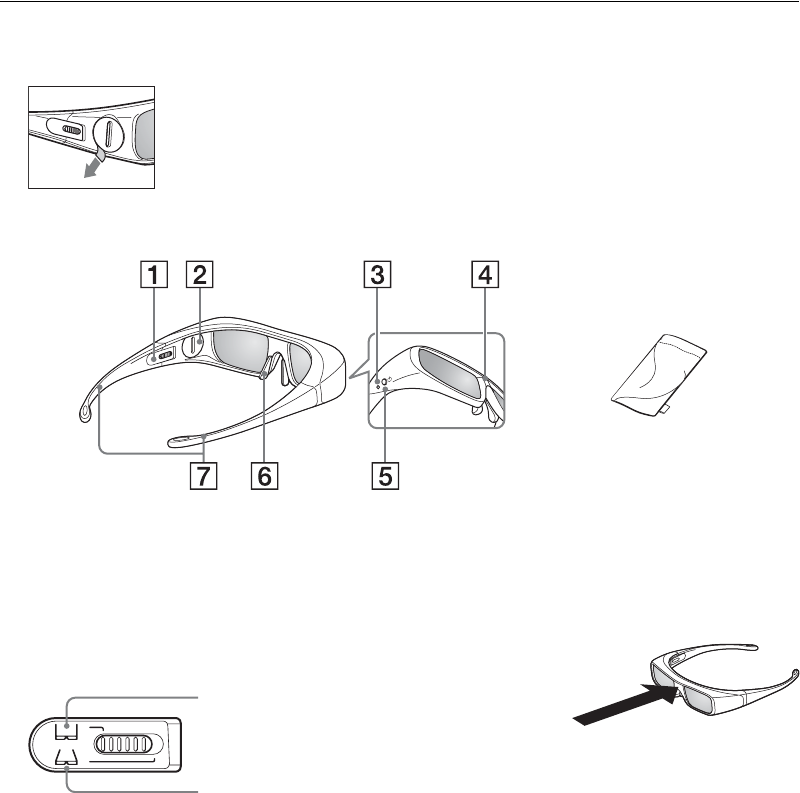

3D Glasses (battery included) (2)
Pouch for 3D Glasses (2)
*1 Please refer to the model name printed on the
remote control.
*2 XBR-40LX900 requires assembling.
Refer to other leaflet to assemble the Table-Top
Stand.
*3 For XBR-60LX900, the bottom cover is factory-
attached to the TV.
*4 For XBR-60LX900, the stand rear cover is
factory-attached to the Table-Top Stand.
*5 These screws and spacers are required when
installing an optional Wall-Mount Bracket. You
must use these screws instead of the ones
provided with the bracket for safety reasons. Be
sure to keep them in a safe place until you are
ready to use the Wall-Mount Bracket. See page
23 for the recommended Wall-Mount Bracket for
your TV.
Inserting batteries into the
remote control
1Remove the protection sheet.
2Push and slide the cover upward.
Guidelines for Remote Control
• Point your remote control directly at the IR
sensor located on your TV.
• Make sure that no objects are blocking the
path between the remote control and the IR
sensor on your TV.
• Fluorescent lamps can interfere with your
remote control; try turning off the fluorescent
lamps.
• If you are having problems with the remote
control, reinsert or replace your batteries and
make sure that they are correctly inserted.
5

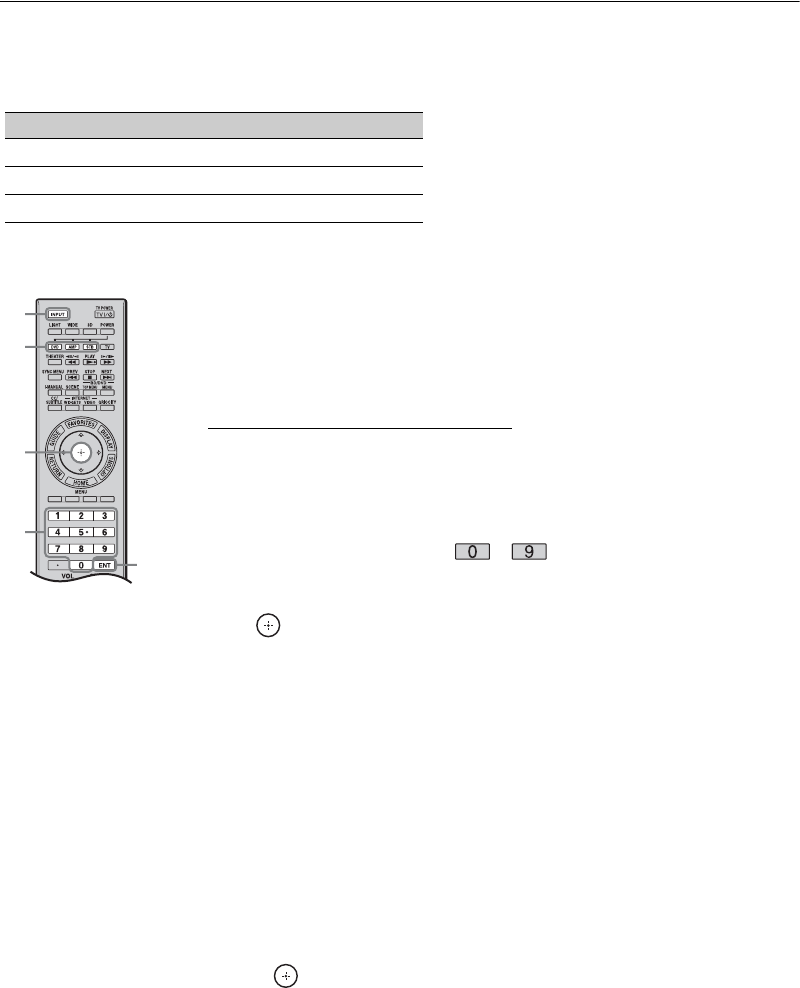

Programming the Remote Control
Your remote control can be programmed to use other equipment and is pre-programmed to operate
the following Sony equipment.
Programming Other Equipment
Confirm the Programming
If you can turn your equipment on and off using the green POWER button, the programming is
complete. If not, try the next code listed.
~
• In some cases, you may not be able to program your remote control. If this is the case, use your equipment’s
own remote control.
• Any of the function buttons (DVD, AMP, STB) can be programmed to operate other equipment regardless of
the labeling. For example, if programmed with the correct code, a Blu-ray Disc player can be operated with
the DVD button. This is useful if your equipment does not match any of the labeled buttons.
To reset the remote control to the factory default:
Press SCENE, TV POWER, and simultaneously. The four function buttons (DVD, AMP, STB,
and TV) blink when successfully reset.
Follow the steps below to program your TV remote control.
1Look for the code in the Manufacturer’s Code List (refer to i-Manual) that
corresponds to the equipment you would like to operate with the Sony
remote control. If more than one code is provided, try programming the
first code listed. If your equipment’s code is not listed, visit
http://esupport.sony.com/remotecodes for a more comprehensive list.
2Press and hold a DVD, AMP or STB function button simultaneously with
INPUT button and release.
When in the programming mode, the function button (DVD, AMP, STB)
blinks for approximately 30 seconds until a code is entered.
3Enter the five digit code using - while the function buttons
(DVD, AMP, STB) are lit. If the code is not entered within 30 seconds,
you must repeat step 2.
4Press or ENT to confirm the code. If successfully programmed, the
function button (DVD, AMP, STB) will blink twice, if not, it blinks five
times.
Function Button Sony Equipment Code Number
DVD DVD Player 31033
AMP Receiver 52172
STB Digital Satellite 01639
3
2
2
4
4
6
Setting up your TV

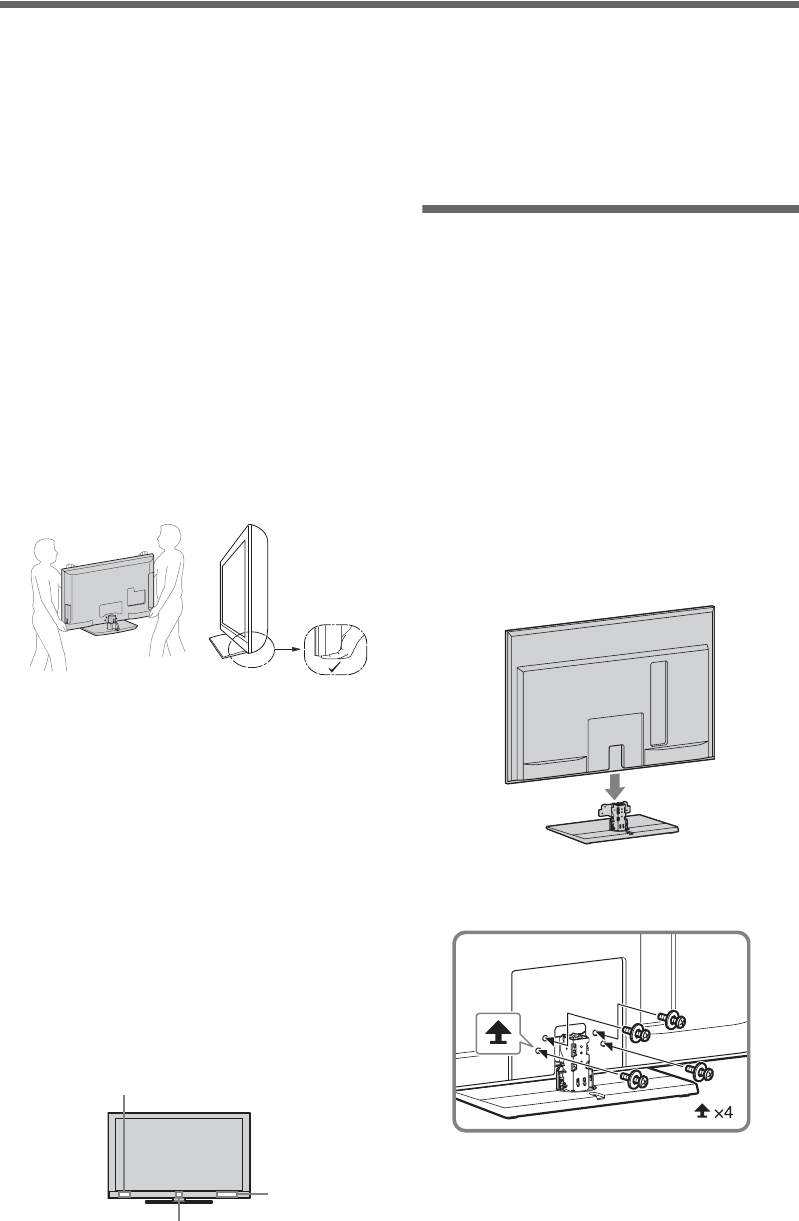

Some TV models are packaged with a detached
Table-Top Stand so you can mount your TV to
a wall right away. If you are not mounting the
TV to a wall, you will need to attach the Table-
Top Stand. You will need a Phillips
screwdriver and the supplied screws to
complete the task. Look for the supplied Table-
Top Stand instruction leaflet.
Be sure to consider the following while setting
up your TV:
• Disconnect all cables when carrying the TV.
• Carry the TV with the adequate number of
people; larger size TVs require two or more
people.
• Correct hand placement while carrying the
TV is very important for safety and to avoid
damage.
• Ensure your TV has adequate ventilation,
see page 15.
• For best picture quality, do not expose the
screen to direct illumination or sunlight.
• Avoid installing the TV in a room with
reflective wall and floor materials.
• Avoid moving the TV from a cold area to a
warm area. Sudden room temperature
changes may cause moisture condensation.
This may cause the TV to show poor picture
and/or poor color. Should this occur, allow
moisture to evaporate completely before
powering the TV on.
• Ensure that there are no objects in front of
the TV.
• Do not expose the Intelligent Presence
Sensor to direct sunlight or other strong
light, as malfunction may occur.
Attaching the Table-Top
Stand (except XBR-60LX900)
Refer to the supplied Table-Top Stand
instruction leaflet for proper attachment for
some TV models.
1Gently slide the TV unit onto the
Table-Top Stand and align the screw
holes.
~
•Do not put stress on the LCD panel or the frame
around the screen.
•Be careful to not pinch your hands or the AC
power cord when you install the TV unit to the
Table-Top Stand.
2Use the supplied screws to attach the
TV unit to the Table-Top Stand.
~
•If you use an electric screwdriver, set the
tightening torque at approximately 1.5 N·m
{15 kgf·cm}.
Intelligent Presence Sensor
3D Sync
Transmitter
IR Sensor
7
Setting up your TV
3After all the screws have been
tightened, cover the Table-Top Stand
with the supplied stand rear cover.
Adjusting the viewing angle
This TV can be adjusted within the angles shown below (except XBR-60LX900).
~
•Reverse the steps when readjusting the angle back to 0 degrees.
14
23
Remove screw as
shown.
6°
0°
Install screw into the
top screw hole of the
Table-Top Stand.
Slide in.
Lift up and tilt.
8
Connecting the TV

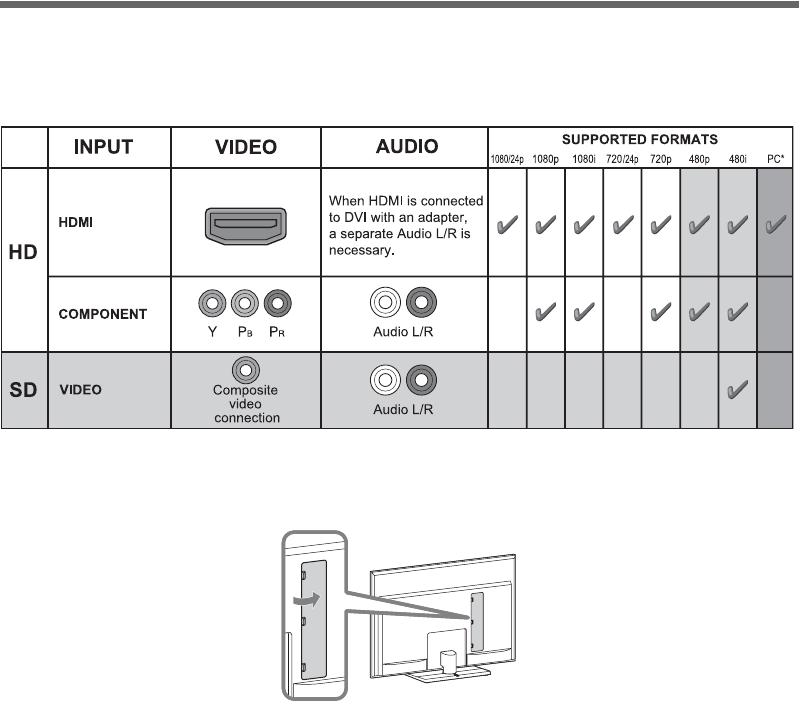

The following chart shows the high-definition (HD) and standard-definition (SD) video formats
supported by your BRAVIA TV inputs.
* For supported PC formats refer to the i-Manual.
Detaching the terminal cover
~
•After connecting cables, re-attach the terminal cover to the TV.
9
Setting up your TV

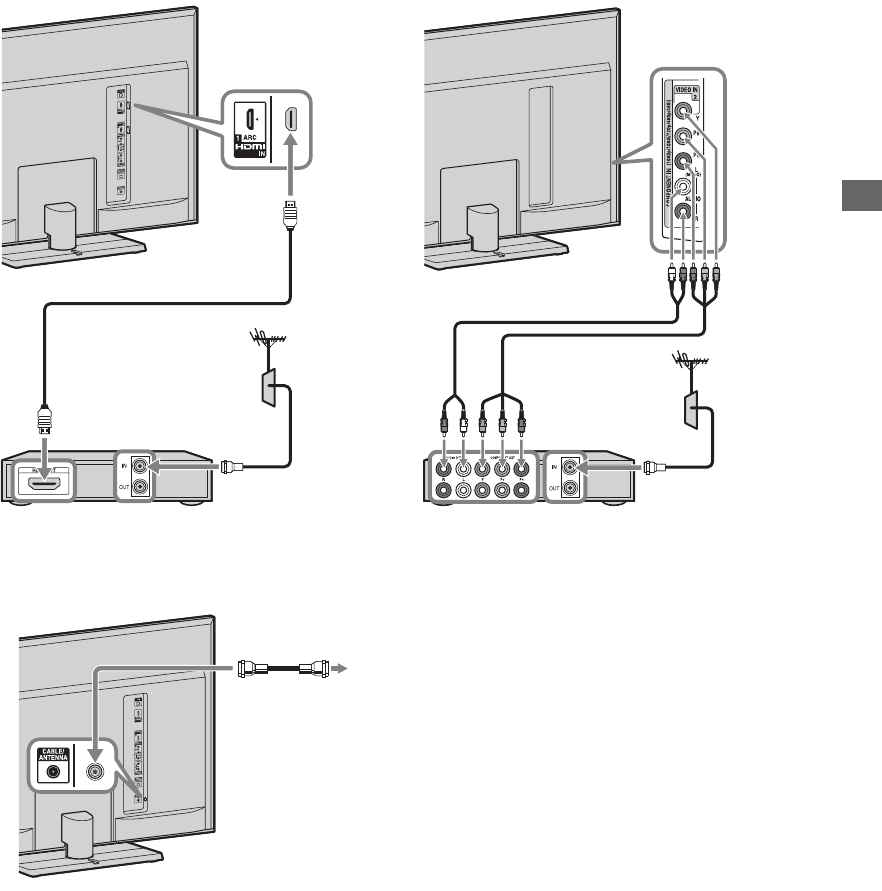

Shown with a Set Top Box with HDMI
connection
Shown with a Set Top Box with
COMPONENT connection
Cable System or VHF/UHF Antenna System
Set Top Box Set Top Box
Cable
or
Antenna
(Continued)
10
Shown with HD BRAVIA® Sync™ Basic Connection
Shown with HD Basic Connection with Home Theater System
*Rear of TV
*Blu-ray Disc
HD Cable Box or
HD Satellite Receiver
*A/V Receiver
* Signifies a BRAVIA Sync capable device.
SAT
(Dish)
Cable/
Antenna
Rear of TV
Cable/
Antenna
or
Blu-ray Disc/DVD
SD Cable Box or
SD Satellite Receiver
Cable/SAT (Dish)
Home Theater System
Side Panel
11
Setting up your TV
Shown with PC Connection with SD VCR/DVD
Rear of TV
Side Panel
PC
DVD
VCR
Splitter
Cable/Antenna
VCR/DVD Combo
Notebook PC
or
12
Securing the TV
Sony strongly recommends
taking measures to prevent the
TV from toppling over.
Unsecured TVs may topple and
result in property damage,
serious bodily injury or even
death.
Preventing the TV from
Toppling
• Secure the TV to a wall and/or stand.
• Do not allow children to play or climb on
furniture and TV sets.
• Avoid placing or hanging items on the TV.
• Never install the TV on:
–slippery, unstable and/or uneven surfaces.
–furniture that can easily be used as steps,
such as a chest of drawers.
• Install the TV where it cannot be pulled,
pushed, or knocked over.
• Route all AC power cords and connecting
cables so that they are not accessible to
curious children.
Recommended Measures to
Secure the TV
Consider the following measures when
securing your TV to a Stand (not supplied).

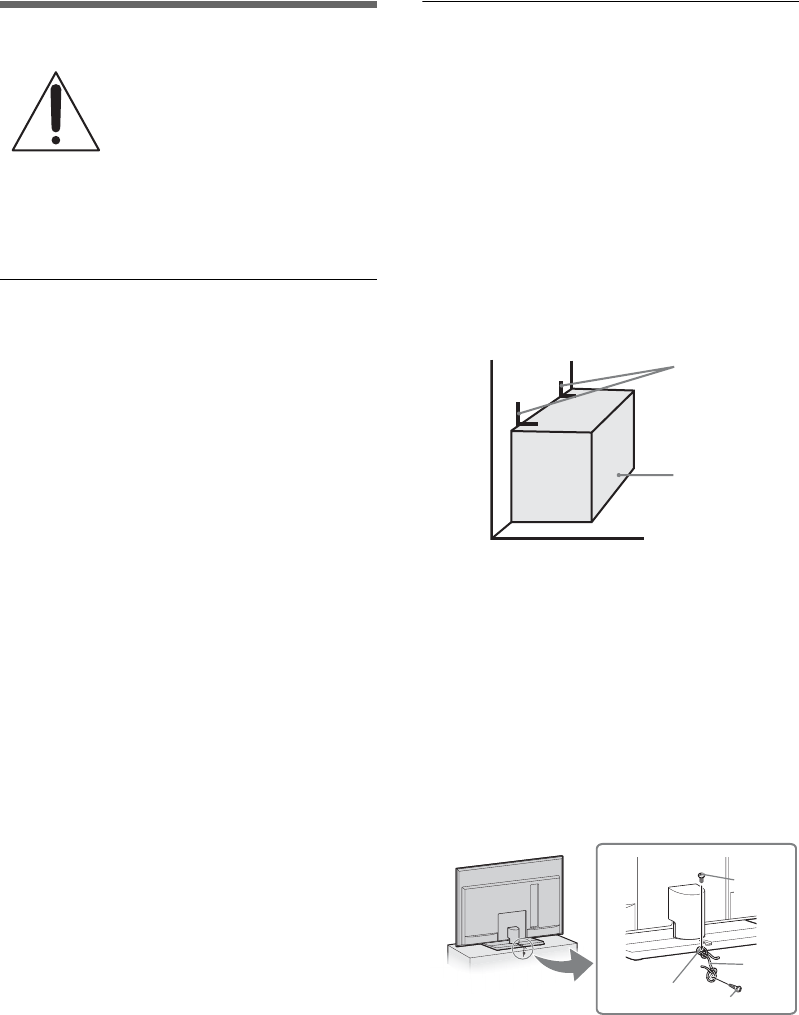

1Secure the Stand for the TV.
Make sure the Stand can adequately support
the weight of the TV. Use two angle braces
(not supplied) to secure the stand. For each
angle brace use the appropriate hardware to:
• Attach one side of the angle brace to the
wall stud.
• Attach the other side to the Stand.
2Secure the TV to the Stand.
Use the optional hardware listed below (not
supplied):
• M4 × 16 machine screw (screwed into the
TV’s Table-Top Stand)
• A screw or similar (attach it to the Stand)
• Rope or chain (strong enough to support the
weight of the TV). Make sure that there is
no excess slack in the rope or chain.
An alternative way to secure the TV is with an
optional Sony Support Belt Kit.
~
Contact Sony Customer Support to obtain the
optional Support Belt Kit by providing your TV
model name.
•For United States call: 1-800-488-7669 or visit:
www.sony.com/accessories
•For Canada call: 1-877-899-7669
Stand
Angle brace
(not supplied)
M4 × 16
machine screw
(not supplied)
Screw (not supplied)
Screw hole on the
Table-Top Stand
Rope or chain
(not supplied)
13
Setting up your TV
3Anchor the TV to the Wall.
Anchor the TV to the wall by using bolts, wall
anchor and chain (or rope).
~
•Your TV is shipped with screws attached to the
rear of the TV. (They are fastened in the screw
holes for wall mounting.) Be sure to remove the
upper two screws prior to anchoring the TV on a
wall.
•Securing the TV to the stand without securing the
TV and the stand to the wall provides minimum
protection against the TV toppling over. For
further protection, be sure to follow the three
measures recommended.

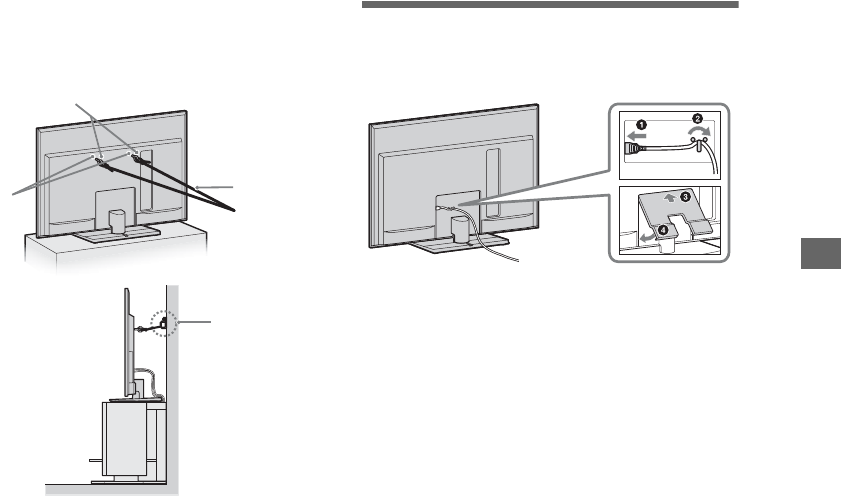

Organizing the AC power
cord
~
•After the AC power cord is installed as illustrated,
attach the bottom cover.
Anchor bolts (not supplied)
Wall-
mount
holes
Rope or
chain
(not
supplied)
Wall-anchor
(not
supplied)
14

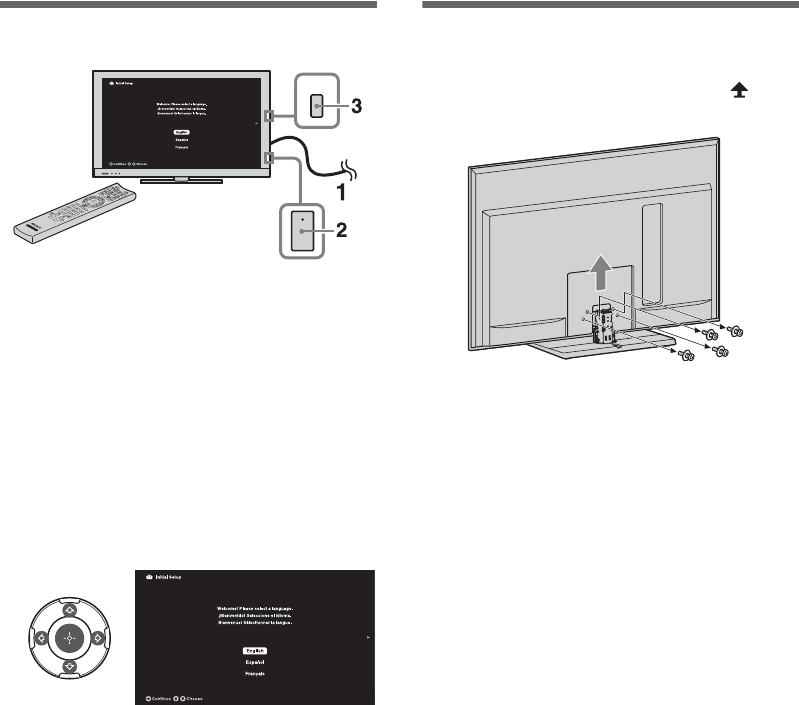

Running initial setup
1Complete your cable connections
before proceeding with the Initial
Setup.
Connect the TV to your nearest power
outlet.
2Check the ENERGY SAVING
SWITCH setting is on (z).
3Press POWER on the TV.
When you switch the TV on for the first
time, the Language menu appears on
the screen.
4Follow the instructions on the screen.
~
•The ENERGY SAVING SWITCH must be on
(z) to set the clock and obtain program
information for the TV Guide.
•Home mode sets the TV to settings optimized for
home viewing (this setting is ENERGY STAR
compliant).
5Select Continue to scan for available
channels and enable the TV Guide On
Screen® feature. If you receive
channels from a cable box or satellite
receiver and do not wish to use the
TV’s built-in tuner, select Skip.
Selecting Skip will disable the TV
Guide On Screen feature, which is
only available when the TV’s tuner is
used.
~
•If you skip the channel scan while in the setup
menus, TV Guide will be disabled.
Detaching the Table-Top
Stand from the TV
Remove only the screws marked with on
the TV.
~
•Remove the stand rear cover and bottom cover
prior to detaching the Table-Top Stand.
•Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
•When installing the TV on a wall, remove the four
screws from the rear of the TV. (They are fastened
in the screw holes for wall mounting.) Be sure to
store the removed screws in a safe place, keeping
them away from children.
•When attaching the Table-Top Stand again, be
sure to fasten the four screws (previously
removed) to the original holes on the rear of the
TV.
POWER
15
Setting up your TV
Using a Wall-Mount Bracket
Your TV can be mounted on a wall using a
Wall-Mount Bracket (not supplied) out of the
box as packaged. If the Table-Top Stand is
attached to the TV, the TV may require
detaching the Table-Top Stand; see “Detaching
the Table-Top Stand from the TV” (page 14).
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
For product protection and safety reasons,
Sony strongly recommends that you use the
Wall-Mount Bracket designed for your TV
and the installation should be performed by
a Sony dealer or licensed contractor.
• Follow the instruction guide provided with
the Wall-Mount Bracket for your model.
Sufficient expertise is required in installing
this TV, especially to determine the
strength of the wall for withstanding the
TV’s weight.
• Be sure to use the screws supplied with the
Wall-mount bracket when attaching the
mounting hooks to the TV set.
The supplied screws are designed so that
they are 8 mm to 12 mm in length when
measured from the attaching surface of the
mounting hook.
The diameter and length of the screws differ
depending on the Wall-mount bracket
model. Use of screws other than those
supplied may result in internal damage to
the TV set or cause it to fall, etc.
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small children.
~
•Read the supplied Safety Booklet for additional
safety information.
Installing the TV Against a
Wall or Enclosed Area

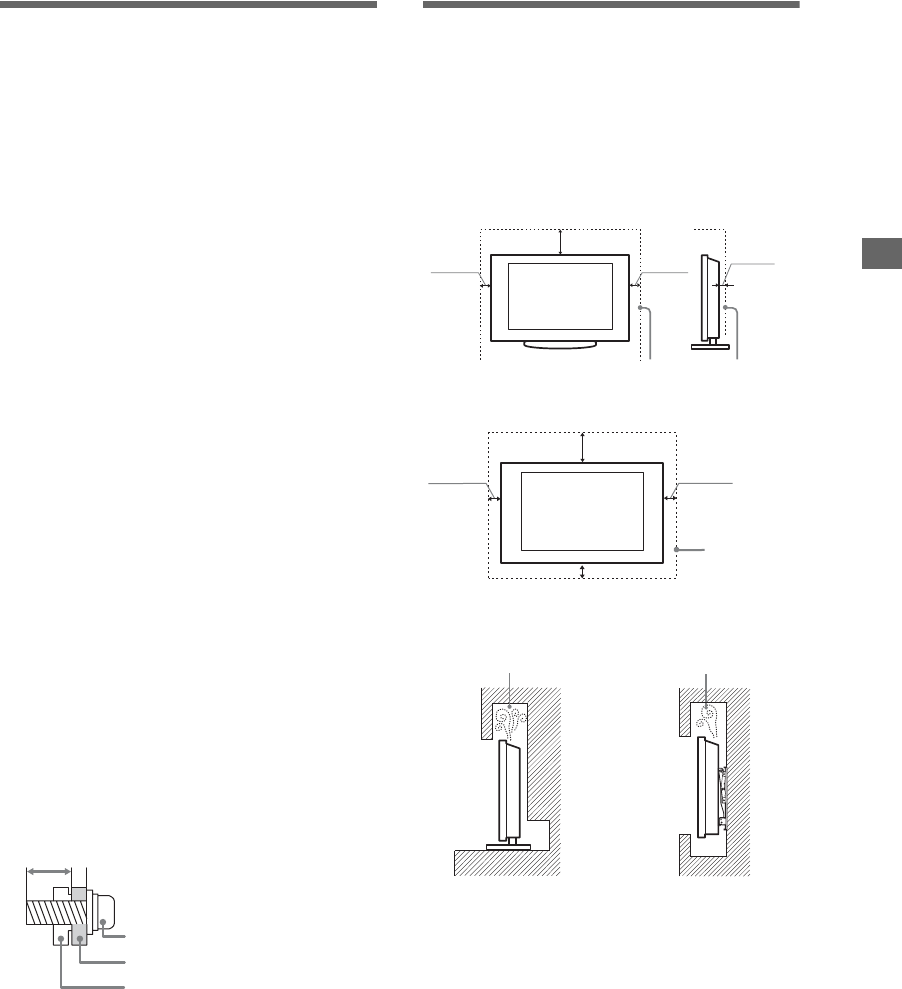

Make sure that your TV has adequate
ventilation. Allow enough space around the TV
as shown below. Avoid operating the TV at
temperatures below 41 °F (5 °C).
~
•Inadequate ventilation can lead to overheating of
the TV and may cause damage to your TV or
cause a fire.
8-12 mm
Screw
(supplied with the
Wall-mount bracket)
Mounting Hook
Hook attachment on rear of TV
set
(30 cm)
11 7/8 inches
(6 cm)
inches
4 inches
(10 cm)
4 inches
(10 cm)
23/8
Leave at least this much space around the set.
Installed with stand
inches
11 7/8
4 inches
(10 cm)
4 inches
(10 cm)
4 inches (10 cm)
(30 cm)
Installed on the wall
Leave at
least this
much space
around the
set.
Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
Wall Wall
16
To watch TV
To watch programs
To use the TV features
Press HOME to display TV Home Menu/
XMB™ to access TV Settings and other
media and network related content.
Press OPTIONS to display a list of convenient
functions and menu shortcuts. The Options
menu items vary based on current input and/or
content.
1Turn on the TV.
1Check the ENERGY SAVING
SWITCH setting is on (z).
2Press POWER on the TV or TV
POWER on the remote control to turn
on the TV. (You may use the TVI/1
button located on the front or back of
the remote control.)
2Select a TV channel.
To use the Guide
Press GUIDE to display the TV Guide On
Screen to view scheduled programs or to
select a program to watch. Press again to exit
the Guide. Use with 0-9 and ENT to select
digital channels. For example, to enter 2.1,
press , , , and ENT.
GUIDE
OPTIONS
HOME
0-9
ENT
2
1-2
Settings
Picture & Display
Adjust the picture and screen settings
Press for:
Picture Adjustments
Ambient Sensor
Screen
Pro Picture Setup
Picture Adjustments
Sound Adjustments
3D Menu
Add to Favorites
Motionow
Presence Sensor
Scene Select
Speakers
17
To watch TV
To use i-Manual
xWelcome to i-Manual
x“BRAVIA” TV Features
xWatching TV
Introduces convenient features such as TV
Guide, Favorites, etc.
xUsing the Home Menu
You can find how to customize your TV
settings, etc.
xFun Features with Connected
Equipment
Introduces how to connect and enjoy optional
equipment.
xParts Description
xTroubleshooting
You can find solutions for your problems.
xIndex
~
•Images and illustrations may differ from what you see on your TV.
Your BRAVIA TV comes with an on-screen
manual. To learn more about your TVs features
you can access your i-Manual with the touch of a
button.
1Press i-MANUAL.
2Press F/f/G/g/ to navigate and
select items.
1
2
Welcome to i-Manual
"BRAVIA" TV Features
Watching TV
Using the Home Menu
Fun Features with Connected Equipment
Parts Description
Troubleshooting
Index
i-Manual
RETURN Back
(Continued)
18
To use 3D Glasses
Before use: Remove the battery’s insulating sheet before using the 3D Glasses for the first time.
Parts and components
1Slide switch
Set the switch for a comfortable fit. Set
both the switches on either side for a
comfortable fit. Close the temple frames
slightly inwards to set the switch.
2Battery cover
Detach the cover when replacing the
battery.
3LED indicator
Flashes one time every 3 seconds: Power
on
Flashes three times every 3 seconds: Low
battery. Battery capacity is almost running
out.
Flashes three times: Power off
4IR sensor
Receive signals from the 3D Sync
Transmitter.
IR’s entry angle differs according to
distance or usage environment.
~
•Please keep this face clean.
5Power button
Power on: Press once
Power off: Hold power button down for 2
seconds
* Auto power off: More than 5 minutes without
IR signal
6Nose pad
Adjust the nose pad for a comfortable fit.
7Temple frames
You can bend (adjust) the temple frames
for a comfortable fit.
Pouch (2)
3D Glasses (2)
Increases the width
of the glasses
Decreases the width
of the glasses
This part receives IR
(infrared rays) from
the Transmitter.
19
To watch TV
Replacing the battery
If the LED indicates low battery power, replace the battery. Use a CR2032 battery.
~
•When opening or closing the battery cover, make sure the coin, etc., is properly inserted in the groove of the
battery cover.
Precautions for use
• The 3D Glasses are operated by receiving infrared rays from the Transmitter.
Mis-operation may occur if:
–The 3D Glasses do not face the 3D Sync Transmitter
–If there are objects blocking the path between the 3D Glasses and the 3D Sync Transmitter
–If there are other infrared communication devices or lighting equipment, residential heating
equipment, IR transceiver, etc. nearby
• Watch the TV using the 3D Glasses, facing squarely towards the TV.
• 3D effect is inadequate and screen color will be shifted with lying down position or leaning your
head.
• To preserve our environment dispose of used batteries according to your local laws or
regulations.
Safety precautions
• You should only use the 3D Glasses for watching 3D video images on a compatible Sony
television.
• Do not drop or modify these 3D Glasses.
• If these glasses are broken, keep broken pieces away from your mouth or eyes.
• Keep children away when replacing the battery or opening the battery cover. If a child swallows
the battery or battery cover, consult a doctor immediately.
• Do not dispose of the batteries used in 3D Glasses in a fire.
• When replacing the battery, insert it using the correct +/– orientation.
• Use only the specified battery for the 3D Glasses: Lithium/manganese Battery, CR2032.
• Not for use by children without proper adult supervision.
• Be careful not to pinch your fingers in hinges of the 3D Glasses when bending the temple frames.

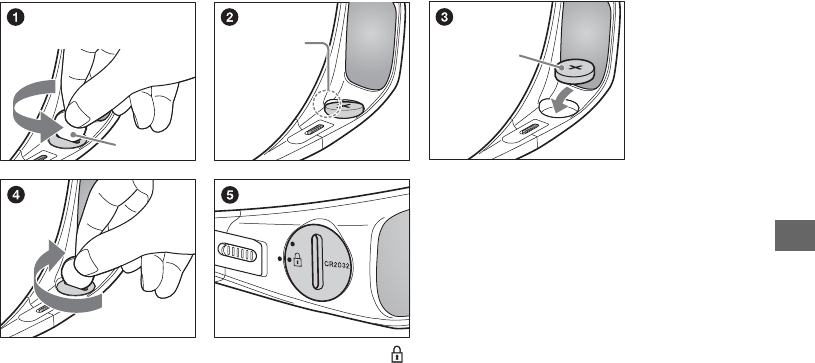

Open the battery cover.
Push here
and remove
the battery at
an angle.
Battery
(CR2032)
Coin, etc.
* Align the • mark and the • ( ) mark.
20
Troubleshooting
The TV will indicate any problems with the STANDBY indicator flashing in red.
When the STANDBY indicator is flashing
The self-diagnosis function is activated.
1Count how many times the STANDBY indicator flashes between each three second
break.
For example, the indicator may flash three times, go off for three seconds, then flash again three
times.
2Press POWER on the TV to turn it off, disconnect the AC power cord, and contact
Sony Customer Support (information provided on the front cover) with how many times
the indicator flashes.
When the STANDBY indicator is not flashing
1Check the items in the tables below. (Also refer to “Troubleshooting” in the i-Manual.)
2If the problem persists, contact Sony Customer Support (information provided on the
front cover).
Condition Explanation/Solution
There is no picture (screen
is dark) and no sound.
•Check the antenna/cable connection.
•Connect the TV to the AC power, and press POWER on the TV.
•If the STANDBY indicator lights up in red, press TV POWER
on the remote control.
Tiny black dots and/or
bright dots appear on the
screen.
•The screen is composed of pixels. Tiny black dots and/or bright
dots (pixels) on the screen do not indicate a malfunction.
General
The TV’s power cannot be
turned on.
•Check to see the (z) mark on the ENERGY SAVING SWITCH
is pressed.
The TV turns off
automatically (the TV
enters standby mode).
•Check if the Sleep Timer, Timer, or Idle TV Standby is
activated.
•The Auto Shut-off function may be set to On. If Auto
Shut-off is activated and TV receives no signal, the TV will
automatically enter standby mode in 15 minutes. Check Auto
Shut-off is activated under Eco feature of this TV.
•Check if Presence Sensor in Eco is activated.
The remote does not
function.
•Replace the batteries.
•Your TV may be in SYNC mode. Press SYNC MENU, select TV
Control and then select Home (Menu) or Options to control
the TV.
The TV and its surrounding
become warm.
•When the TV is used for an extended period of time, the TV and
its surround may become warm to touch. This is not malfunction
of the TV.
The Parental Lock
password has been
forgotten.
•Enter 4357 for the PIN code. (PIN code 4357 is always accepted.)
Additional Information
21
Additional Information
How to Care for Your BRAVIA
Safety is very important, please read and follow the safety documentation (Safety Booklet)
separately provided.

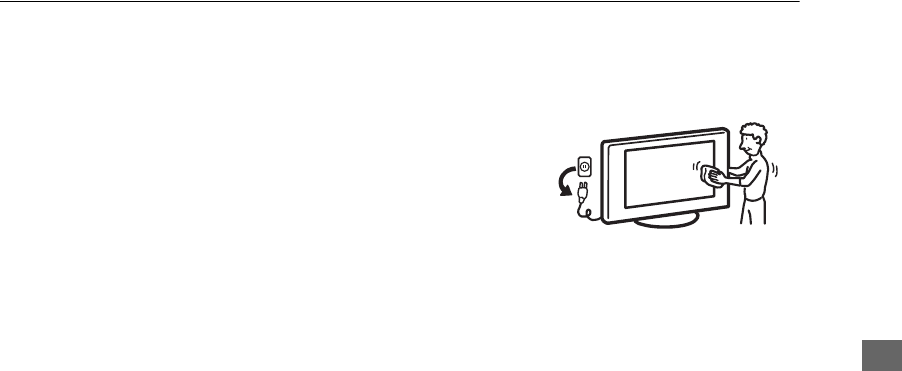

Unplug the TV and other connected equipment from the wall
outlet before you begin cleaning your TV.
• Wipe the LCD screen gently with a soft cloth.
• Stubborn stains may be removed with a cloth slightly moistened with a
solution of mild soap and warm water.
• If using a chemically pretreated cloth, please follow the instruction
provided on the package.
• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.
• Do not plug in the TV into the wall outlet until the moisture from cleaning has evaporated.
The TV should also be placed on a stable surface to prevent it from toppling over (see page 12). If
you have young children or pets at home, check regularly to insure the TV is securely fastened.
22
Specifications
*1 For LAN connections, use a Category 7 10BASE-T/100BASE-TX cable (not supplied).
*2 Download Acquisition Mode (DAM) is used for software updates and/or collecting data for TV Guide On Screen.
• Optional accessories availability depends on its stock.
• Design and specifications are subject to change without notice.
Model name XBR- 60LX900 52LX900 46LX900 40LX900
System
Television system NTSC: American TV standard
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Panel system LCD (Liquid Crystal Display) Panel
Speaker output 10 W + 10 W
Input/Output jacks
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO IN 1/2 VIDEO / AUDIO
COMPONENT IN YPBPR (Component Video) / Signal format: 480i, 480p, 720p, 1080i, 1080p
AUDIO
HDMI IN 1/2/3/4 HDMI: Video: 480i, 480p, 720p, 720/24p, 1080i, 1080p, 1080/24p
HDMI: Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital
AUDIO (HDMI IN 2)
AUDIO OUT 500 mVrms (typical)
DIGITAL AUDIO OUT (OPTICAL) PCM/Dolby Digital optical signal
PC IN D-sub 15-pin, analog RGB
PC/HDMI 2 AUDIO IN Stereo mini jack
LAN
10BASE-T/100BASE-TX connector (Connection speed may differ depending on the network
environment. 10BASE-T/100BASE-TX communication rate and communication quality are not
guaranteed for this TV.)*
1
USB/DLNA Refer to the i-Manual for supported format.
Power and others
Power requirement 110-240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz)
Power consumption 228 W 185 W 173 W 145 W
in use
in DAM*225 W 20 W
(You may hear a clicking noise during the download but this is normal.)
in standby Less than 0.12 W with 120 V AC and less than 0.2 W with 240 V AC
Screen size
(inches measured diagonally) 60 inches 52 inches 46 inches 40 inches
Display resolution 1,920 dots (horizontal) × 1,080 lines (vertical)
Speaker
Full range with speaker (mm)
box (2) (inches)
34 × 100
1 3/8 × 4
Dimensions with stand (mm)
(inches)
1,440 × 938 × 380
56 3/4 × 37 × 15
1,261 × 838 × 400
46 3/4 × 33 × 15 3/4
1,127 × 761 × 320
44 3/8 × 30 × 12 5/8
994 × 686 × 290
39 1/4 × 27 1/8 × 11 1/2
without stand (mm)
(inches)
1,440 × 906 × 64
56 3/4 × 35 3/4 × 2 5/8
1,261 × 804 × 64
46 3/4 × 31 3/4 × 2 5/8
1,127 × 727 × 64
44 3/8 × 28 5/8 × 2 5/8
994 × 652 × 64
39 1/4 × 25 3/4 × 2 5/8
wall-mount hole pattern (mm)
400 × 300 300 × 300
wall-mount screw size (mm)
M6 (length: refer to diagram on page 15.)
Mass with stand (kg)/(lb.) 49.8 / 109.7 36.2 / 79.8 28.4 / 62.6 23.7 / 52.3
without stand (kg)/(lb.) 42.8 / 94.3 30.2 / 66.6 24.6 / 54.2 20.3 / 44.8
Supplied accessories See “Checking the accessories” (page 4).
Optional accessories Connecting cables / Support Belt Kit / Wall-Mount Bracket / Wall-Hanging Bracket / 3D Glasses
(TDG-BR100 / BR50)
3D Glasses TDG-BR100
Weight 2.7 oz. (77 g (including battery))
Battery type CR2032/3V
Battery life Up to 100 hours of battery life
The battery life will vary based on usage patterns, environmental condition (temperature) and the
battery brand(s).
Dimensions (Approx.) (w × h × d) 7
1
/
8
× 1
5
/
8
× 7
1
/
4
inches (179 × 40 × 183 mm)
23
Additional Information
For customers in Canada
This Class B digital apparatus complies with Canadian
ICES-003.
FCC Related Information
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one
or more of the following measures:
❑Reorient or relocate the receiving antenna.
❑Increase the separation between the equipment and
receiver.
❑Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
❑Consult the dealer or an experienced radio/TV
technician for help.
Safety and Regulatory
To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to
licensing.
Only use Wireless LAN indoors when using it with IEEE
802.11a/n (5 GHz).
High power radars are allocated as primary users (meaning
they have priority) of 5250-5350 MHz and
5650-5850 MHz and these radars could cause interference
and/or damage to this device.
This device uses 5 GHz band for wireless LAN
communication and the maximum gain of the antenna in
this device is 6 dBi.
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum
distance 20 cm between the radiator and your body
(excluding extremities: hands, wrists and feet).
This device and its antenna(s) must not be co-located or
operating with any other antenna or transmitter except
Grant condition.
Note
This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television
programming via subscription service to a cable service
provider. Availability of digital cable television
programming in your area depends on the type of
programming and signal provided by your cable service
provider.
Compatible Optional Accessories
Information
Use the following Sony optional accessories with
your TV model.
Use with other optional accessories may cause instability
and could result in property damages or injury.
* For instructions on using the Wall-Mount bracket with
your TV please go to http://esupport.sony.com for your TV
model and download “Additional Information for Using
Sony Wall-Mount Bracket”.
To Customers
Sufficient expertise is required for TV installations. Be
sure to subcontract the installation to a Sony dealer or
licensed contractor and pay adequate attention to safety
during the installation.
Declaration of Conformity
Trade Name: SONY
Model: XBR-60LX900/XBR-52LX900/XBR-46LX900/
XBR-40LX900
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Sony Model No.
XBR-
60LX900 52LX900 46LX900 40LX900
Sony Wall-
Hanging Bracket
Model No.
SU-WH500
Sony Wall-Mount
Bracket Model No. SU-WL500 SU-WL700
© 2010 Sony Corporation Printed in U.S.A.
For Your Convenience
Online
Registration:
Be sure to register your TV.
United States
Canada
http://productregistration.sony.com
http://www.SonyStyle.ca/registration
Software
Updates:
Your TV is capable of receiving software updates. For the
latest information about software updates for your TV, visit:
United States
Canada
http://www.sony.com/tvsupport
http://www.sony.ca/support
NOTE: If your TV is connected to the Internet, you can check
for software updates by selecting Settings, Product
Support and then Automatic Software Update.

Navigation menu
