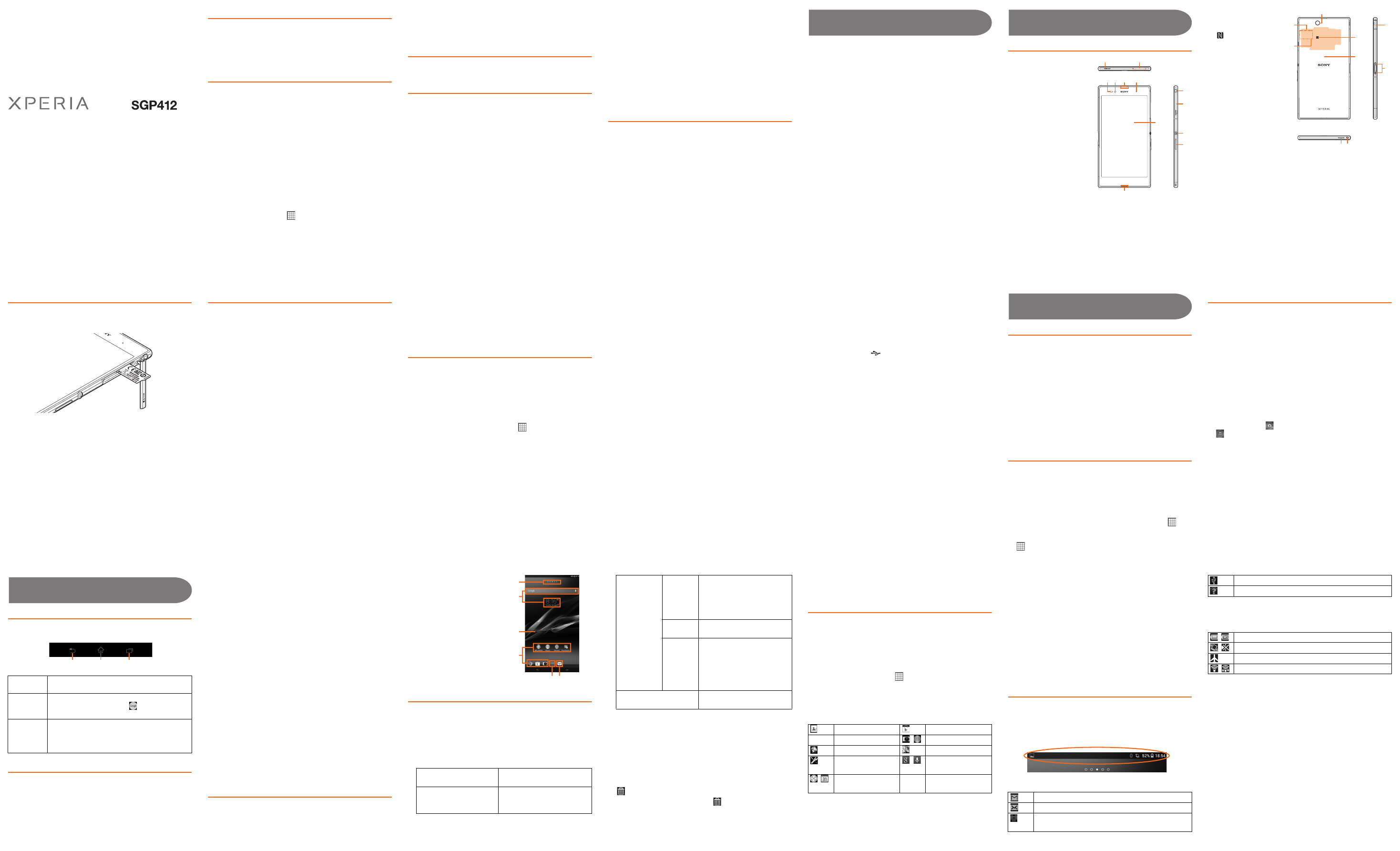

Users Manual
Basic Manual
Togari_Windy/Start guide
Preface
Thank you for buying "XperiaTM ●" (simply called the
"product" from here on).
Before using the product, read "Basic Manual" (this manual)
and "取扱説明書詳細版 (Full Instruction Manual)" (Japanese)
to ensure safe use and handling.
About Operating Instructions
■Basic Manual (this manual)
Handles only basic operations for main features.
For detailed descriptions on various functions, refer to the
"Instruction Manual" (Japanese) application installed on the
product.
･Company names and product names referred to in this
manual are trademarks or registered trademarks of
respective companies. The TM, ® marks may be omitted in
this manual.
■"Instruction Manual" (Japanese) application
This product allows you to use the "Instruction Manual"
(Japanese) application on the product to confirm detailed
operational procedures.
Certain functions can be directly activated from the
application screens on which their operations are described.
From the Home screen, [ ]X[Instruction Manual]
(Japanese)
･When you activate for the first time, follow the onscreen
instructions to download and install application.
■For Those Requiring an English Instruction Manual
You can download the English version of the Basic Manual
from the website (available from approximately one month
after the product is released).
Safety Precautions
Before you start using the product, make sure to read the
"Cautions on using XperiaTM ●" to ensure correct use.
When using the product
･Communication is not possible even inside the service area in
places where the signal does not reach (e.g. tunnels and
basements). Also, communication is sometimes not possible in
poor reception areas. Communication is sometimes interrupted
if you move into a poor reception areas during communications.
･Take care not to inconvenience people around you when
you use the product in a public place.
･When the product is used by a child, parents or guardians
should thoroughly read the "Basic Manual" "Cautions on
using XperiaTM ●" and "Specific Absorption Rate (SAR) of
cell phones" and teach the child how to use it.
･Before you start using the product overseas, check the
relevant laws and regulations of the country/region you visit.
■Use of the product is not allowed in the
following places!
･Do not use the product while driving a car or riding a
motorbike or bicycle. Failure to do so might cause a traffic
accident. Use of the product while driving a car or
motorbike is prohibited by law. Use of the product while
riding a bicycle may be punishable by some regulations.
･Do not use this product while you are aboard an airplane.
Use of electric devices transmitting radio waves in airplane
is prohibited by law. Some airline companies, however,
allow their passengers to use tablet devices. For details,
contact the airline company you use.
Regarding notations used in this document
･In this manual, keys are represented by simplified
illustrations such as x, y, r.
･Operations of tapping menu items/icons/buttons on the
screen etc. are indicated as [(name of the item etc.)].
･Screen illustrations shown in this manual may look different
from the actual screens. In some cases, minor details or a
part of a screen may be omitted.
･In this manual, "microSDTM memory card", "microSDHCTM
memory card" and "microSDXCTM memory card" are
abbreviated as "microSD memory card" or "microSD".
Do you have everything?
Before your start using the product, make sure that you have
all the following packaged with the product.
Getting Ready
Names and functions of parts
aSecond microphone:
Reduces noise to make
easy to listen.
bBluetooth®/Wi-Fi®/GPS
antenna part*1
cProximity sensor:
Switches touch panel on
and off to prevent from
erroneous operation
during a call/Auto-control
for display brightness
dFront camera
eEarpiece
fNotification LED
gDisplay (Touch panel)
hMicrophone
iHeadset connection
terminal
jmicroSD memory card insertion slot
kPower key/Screen lock key:P
lVolume key/Zoom key
mCamera
nNFC antenna*1
oNameplate*2
pmark
qBack cover*3
rmicroUSB connection
terminal
sDesktop Holder
contact terminal
tSpeaker
uStrap hole
*1 The antenna is built in.
Covering around the antenna by the hand may affect the quality
of communication.
*2 Do not remove the nameplate with stickers of IMEI information
printed.
*3 Back cover is not removable. Removing so forcibly might cause
loss of data or a fault. Also, battery is built into the main unit and
not removable by customers.
･XperiaTM ●
(with battery cover)*1
*1 Including warranty ･
取扱説明書
(Instruction Manual) (Japanese)
･
Xperia
TM
●のご利用にあたっての注意事項
(Cautions on using Xperia
TM
●
) (Japanese)
･
携帯電話機の比吸収率などについて
(Radio Frequency (RF) exposure and
Specific Absorption Rate (SAR)) (Japanese)
･設定ガイド (Setting Guide) (Japanese)
The following items are not included in
the package.
･microSD memory card
･AC adapter
･Earphones
･microUSB cable
❖Information
･Purchase a specified charger (sold separately).
･Illustrations used in this manual are just images for
explanations. They may be different from actual ones.
g
k
i
l
c
a b
d f
e
h
j
m
r
p
s
o
q
tu
n
CE mark and FCC ID
1
Open the microSD memory card slot cover, and insert a
fingernail into the hook at the edge of the label tray, then pull
it out straight.
Attaching/Removing microSD memory card
Before attaching/removing the microSD memory card, make
sure to turn off the product. Do not attach the AC adapter.
■Attaching microSD memory card
1Confirm the orientation of the microSD memory card
and insert it in the direction of the arrow
Insert the SD memory card with contact side down.
❖Information
･Insert a microSD memory card in the appropriate direction.
Inserting a microSD memory card forcefully into the slot
could result in failure to remove the microSD memory card
or damage.
■Removing microSD memory card
1While pressing the microSD memory card with tip of
your finger, slide it out
2Attach the battery pack and the battery cover, and
press each tab to close firmly
Charging
When you purchase your product, the battery pack is not fully
charged. Make sure to charge the battery pack before use.
❖Information
･When the charging starts, notification LED turns in red/orange/
green according to the battery level. Green LED indicates that
the battery charge reaches 90 percent or more. To check the
battery level, see the status bar in the top of the Home screen.
Alternatively, from the Home screen, [ ]X[Settings]X[About
phone]X[Status] and see "Battery level". When the battery
charge reaches 100 percent, "100%" is shown on the status bar,
"Battery level" and the unlock screen.
･When the battery level becomes 14 percent or less, a pop-
up window "Connect charger" appears. Tap "Battery info" to
check battery usage.
･When you start charging the battery with the product
powered off, the power turns on even though operation is
not available. Do not charge the battery in a place where the
use is prohibited such as in airplane or hospital.
･It may take longer to complete for charging with a PC or
while using the camera function.
■Charging with the AC adapter
Charging with AC adapter (sold separately) is explained.
1Open the microUSB connection terminal cover of the
product and insert the microUSB plug of AC adapter
(sold separately), with the printed side (▲) facing up,
straight into the microUSB connection terminal of the
product
2Insert the power plug of AC adapter (sold separately)
into an outlet
Notification LED lights on the product.
3When charging is complete, remove the microUSB plug of
AC adapter (sold separately) from the product and close
the microUSB connection terminal cover firmly
4Remove AC adapter (sold separately) from the outlet
■Charging with a PC
The followings describe charging procedure by connecting
the product to chargeable USB port on a PC using the
microUSB cable of Sony Mobile AC adapter 05 (sold
separately).
1Open the microUSB connection terminal cover and
insert the microUSB plug of the microUSB cable, with
the printed side ( ) facing up, straight into the
microUSB connection terminal of the product
2Insert the USB plug of the microUSB cable into the USB
port of a PC
Notification LED lights on the product.
When a confirmation screen for installation of PC
Companion software appears on the product, tap "Skip".
When a screen for new hardware detection etc. appears on
the PC, select "Cancel".
3When charging is complete, remove the microUSB plug
of the microUSB cable from the product and close the
microUSB connection terminal cover firmly
4Remove the USB plug of the microUSB cable from the
USB port of the PC
❖Information
･Installation of MTP driver to a PC is required to charge the
product with a Microsoft Windows XP PC, since "USB
connection mode" is set to "Media transfer mode (MTP)" by
default. Install Windows Media Player 10 or later to install
MTP driver.
Turning on (Initial settings)
Turning the power on
1P (over 1 sec)
The product vibrates and after a while the unlock screen
appears.
2Swipe the screen up or down
■Turning the power off
1P (over 1 sec)
2[Power off]X[OK]
❖Information
･Press P for over 1 second and long-touch "Power Off" →
[OK] to restart product.
Initial settings
When you turn on the product for the first time, swipe (flick)
the screen up or down to unlock screen lock and follow the
onscreen instructions to set language, functions, service, etc.
For details, refer to "Setting Guide".
❖Information
･Setup items can be set or changed later as required. To
change the language later, from the Home screen, [ ]
X[Settings]X[言語と入力 (Language & input)]X[地域／言
語 (Language)]. To make settings, from the Home screen,
[]X[Settings]X[Setup guide].
Screen Lock
When the screen lock is set, the backlight turns off to avoid
the keys and touch panel from false operations.
･When the specified time elapses, the product's screen
backlight turns off automatically and screen lock is
activated.
1While the screen is displayed, P
■Unlocking screen
The unlock screen appears when turning the power on or the
backlight on by pressing P.
1Swipe (flick) the screen up or down on the unlock
screen
❖Information
･By default, drag " " left to activate the camera, and drag
" " right to activate WALKMAN.
Basic Operation
Key icons
The followings are the main functions of x, y, r
keys located at the bottom of the screen.
Using the touch panel
The display on the product is a touch panel operated by
touching it with your finger.
■Tap/Double-tap
Tap: Gently touch a screen and then immediately release your
finger. Double tap: Tap the same position twice.
■Long-touch
Keep touching an item with your finger.
■Slide
While your finger is gently touching the screen, trace it to the
desired direction to move over.
■Flick (swipe)
Operate the screen by quickly moving (flicking) your finger
up, down, right, or left.
■Pinch
Touch the screen with two fingers and widen (pinch-out) or
narrow (pinch-in) the fingers' distance.
■Drag
Keep touching an item or icon, trace it to the desired direction
to move.
Home screen
Home screen consists of multiple screens. Slide/flick left or
right to switch them. The center screen is the default screen to
operate. Tap y to return to the Home screen any time.
aHome screen position
Indicates which screen of the
five Home screens you are in.
bWidgets
cWallpapers
dShortcuts
eApplication key
Adding to Home screen/Editing Home screen
You can change wallpaper or theme of the Home screen and
add/delete/move shortcuts of applications, widgets, folders,
etc. on the Home screen.
･You can add wallpapers by downloading from websites.
1Long-touch an area of the Home screen where no icons
are displayed
Alternatively, pinch-in on the Home screen.
■Adding a folder
1From the Home screen, long-touch an icon
2Drag the icon onto another icon
3Enter a folder nameu[Done]
■Deleting shortcuts/widgets/folders
1From the Home screen, long-touch an icon or a folder
you want to delete
appears at the bottom of the screen.
2Drag the icon or the folder to " "
To delete the folder, tap "Delete" after Step 2. Shortcuts etc.
in the folder are also deleted.
❖Information
･Long-touch a shortcut, widget, or folder icon to move.
Using the Applications screen
You can call up functions from the Applications screen.
Application icons installed to the product are also displayed.
･When you tap application icons to use respective functions,
you may incur communication charges depending on the
function.
■Starting an application
1From the Home screen, [ ]
The Applications screen appears. Slide or flick left or right
to switch the Applications screen.
2Tap an application to use
■Main applications
■Downloading applications
You can download applications such as convenient tools and
games from the Google Play and install them to use on the product.
･To use Google Play, you need to set a Google account. For
details, refer to "Setting Guide".
■Deleting (uninstalling) applications
Before deleting installed applications, back up contents
related to the application that you want to save including data
saved in the application.
❖Information
･Some applications may not be deleted.
Knowing the status of the product
■Status bar
The status bar is located at the top of the product screen. On
the left of the status bar, notification icons appear to inform
new mails, operations in progress, etc., and on the right,
status icons appear to indicate the status of the product.
■Examples of notification icon
*1 Appears when switched to another screen such as the Home
screen.
■Main status icons
■Notification panel
If any notification icons are displayed, slide down the status
bar to open the Notification panel. You can check details of
notification icons or start corresponding applications.
❖Information
･To delete a notification, tap "Clear" or flick the notification left
or right to delete from the list.
･
Some notifications may not be deleted depending on the content.
･When you set screen lock to "Swipe", slide the status bar
downward to check the Notification panel without unlocking
the screen.
■Notification LED
Notification LED informs charging prompt, battery level while
charging, new mails, etc. by turning on or flashing.
x
Back
Return to the previous screen. Close a dialog
box, menu, or the Notifications panel.
y
Home
Display the Home screen.
Long-touch and drag it to " " to activate
"Google" application.
r
Recently
used
applications
You can display recently used applications on a
list and activate or delete them from the list.
Also, you can use and set small apps.
xx y r
2 WIDGETS Add a widget on the Home
screen.
APPS Add a shortcut of an
application, a setting screen,
etc. on the Home screen.
a
b
c
d
d
e
WALLPAPERS Album Select an image from albums
to set as a wallpaper.
･To set image range, drag or
pinch to adjust cropping
area and tap "Crop".
Live
Wallpapers
Select a content from albums
to set as a wallpaper.
(XperiaTM's
Wallpaper)
Select an image to set as a
wallpaper.
･Images displayed to the
right of "Albums"/"Live
Wallpapers" are "XperiaTM's
Wallpaper".
THEMES Set the Home screen image or
the unlock screen image.
Contacts Play Store
E-mail / Camera, Album
Browser Maps
Settings / Google, Voice
Search
/ Alarm & clock,
Calendar
Instruction Manual
New Gmail message
New PC mail message
Green Heat energy saving icon (Remove the AC
adapter from the power outlet)
USB connecting
Wi-Fi®open network available
/ Battery level (100%, Charging)
/ Silent mode (Vibration, Mute)
Airplane mode is activated.
/Wi-Fi
®connected, Wi-Fi®communicated
bcdef
ijklmgh
pqrstno
a
SGP412_StartGuide_E.fm Page 1 Tuesday, October 15, 2013 3:32 PM
Togari_Windy/Start guide
*1 Notification LED flashes when unlock screen is displayed,
backlight turned off and screen lock is disabled.
❖Information
･When the remaining battery is not sufficient for turning the
product ON, pressing P makes LED flash red three times.
･When you start charging with the product powered off, the
notification LED turns in red. When the status of battery
appears on the display, however, the notification LED lights
in color for indicating the battery level.
･While using the "Album" application or "WALKMAN"
application, the notification LED turns on according to the
contents.
■Setting the Silent Mode
Set the ringtone volume to 0. Note that setting the product to
Silent mode does not mute sounds for shutter, playback of
video or music, alarm, etc. And adjusting the volume of
"Ringtone & notifications" in Sound settings or pressing upper
part of m cancels Silent mode.
1P (over 1 sec)
2[]/[]
Tap " " to set mute (ringtone volume 0) and tap " " to
set vibrator.
❖Information
･Slide the status bar downward and tap " " to set vibrator
or tap " " to set mute (ringtone volume 0).
■Setting Airplane mode
When airplane mode is set, all wireless functions (Wi-Fi®
function, Bluetooth® function, NFC R/W P2P function) are
turned off.
1P (over 1 sec) u[Airplane mode]
❖Information
･Slide the status bar downward and tap "Airplane" to switch
the airplane mode on or off.
Entering characters
Use software keyboard to enter characters.
The software keyboard appears when you tap the entry field
for registering a contact, composing a mail, etc.
■Switching keyboards
To input Japanese, use "XperiaTM Japanese keyboard"
switching five input types of "Phonepad", "QWERTY
keyboard", "Japanese syllabary", "Kana handwriting", "Kanji
handwriting".
1Tap a character input box
Phonepad is set for portrait screen and QWERTY keyboard
is for landscape screen by default.
2Long-touch " "
Tap " " for Kanji handwriting.
3[ ]/[ ]/[ ]/[ ]/[ ]
The keyboard switches to Phonepad/QWERTY keyboard/
Japanese syllabary/Kana handwriting/Kanji handwriting.
❖Information
･Word suggestions or direct conversion candidates for the
entered characters appear. Tap a word to enter.
･Tap " " to delete the character before the cursor.
･Long-touch " " to enter symbols (single byte/double
byte), facemarks from the displayed list. Tap " " for Kanji
handwriting.
･On the Phonepad, you can enter characters by flicking a
key up/down/left/right besides repeatedly tapping the key
(toggle input).
･Tap " " at the bottom left of the screen to hide the software
keyboard.
Support
Troubleshooting
Before you assume that the product is malfunctioning, check
the following:
Updating Software
You can update the product to the most recent software for
optimal performance and to get the latest enhancements.
･You are recommended to back up your data before
updating software.
･For details, visit http://www.sonymobile.co.jp/support/ or
refer to the "Instruction Manual" (Japanese) application or
"取扱説明書詳細版 (Full instruction manual)" (Japanese)
available on homepage.
■Downloading and updating software
Update files can be downloaded from the Internet web site via
wireless communication into the product directly.
･To download software updates only via Wi-Fi®, from the
Home screen, [ ]X[ツール (Tool)]X[Update
Center]X[]X[Settings]X[Preferred data traffic] and
select "Via Wi-Fi only". If you set to "Via mobile network/Wi-Fi"
for updating, note that when Wi-Fi® communication
becomes unstable, packet communication takes the place
automatically, which may apply communication fees.
1From the Home screen, [ ]X[ツール (Tool)]X[Update
Center]
2[System]X[]
■Connecting to a PC for updating software
You can update software using PC Companion to be installed
from the product.
･Install PC Companion to your PC beforehand.
Main specifications
❖Information
･The continuous stand-by time, continuous 1Seg viewing
time and continuous tethering time may drop to less than
half depending on the battery charging status, usage
environment such as temperature, reception condition at the
location where the product is used, and the function
settings.
Status Description
Red The battery is charging when the remaining
battery level is 14% or lower.
Orange The battery is charging when the remaining
battery level is 15% - 89%.
Green The battery is charging when the remaining
battery level is 90% or higher.
Flashing
red
The remaining battery level is 14% or lower.
Flashing
white
Indicates New Gmail message, new PC mail
message.*1
Symptom What you should check
Power is not turned
on even though P
is pressed.
Is the battery pack charged?
Is P pressed for over 1 second?
The power goes off. Is the battery running out?
The power turns off
while activation
screen is displayed.
Is the battery running out?
Cannot charge the
battery pack
(Notification LED
does not light, the
battery icon does
not change into
charging).
Is the specified charging equipment
(sold separately) attached properly?
Charging is not
complete.
Is the temperature of the product
raised or very low?
Cannot operate
touch panel as
intended.
Are you operating with gloved hands?
Are you operating with a fingernail or
foreign object on the screen?
Cannot operate key/
touch panel.
Is the power turned on?
Is "Screen lock" set?
Turn off the power and then turn it on
again.
Screen response is
slow when you tap
on the screen/press
the keys.
When a large amount of data is saved
in the product or transferring large-
size data between the product and
microSD memory card, the screen
response may be delayed.
A message such as
charge the battery
appears.
The battery is almost dead.
Battery usage time
is short.
Is the battery pack fully charged?
Charge until the notification LED turns
green.
Is the battery pack end-of-life?
The display
backlight turns off
in a short while.
Is set "Sleep" period too short?
Display is dark. Is "Brightness" set to dark?
Is the proximity sensor covered by
sticker?
Cannot recognize a
microSD memory
card.
Is the microSD memory card inserted
properly?
Is the microSD memory card unmounted?
Symptom What you should check
Display Approx. 5.0 inches
TFT 16,777,216 colors
1,080 x 1,920 dots
Weight Approx. 145 g (with battery pack)
Dimension (W x H x T) Approx. 71 mm x 135 mm x
10.5 mm
Continuous
stand-by
time
In Japan Approx. 440 hours (LTE)
Approx. 480 hours (3G)
Overseas
(GSM)
Approx. 520 hours
Charging time Using AC Adapter (sold
separately): Approx.
140 min.
Continuous 1Seg
viewing time
Approx. 280 min.
Continuous tethering
time
Approx. 300 min. (LTE on WAN)
Approx. 460 min. (3G on WAN)
wxyzAuv
SGP412_StartGuide_E.fm Page 2 Tuesday, October 15, 2013 3:32 PM
