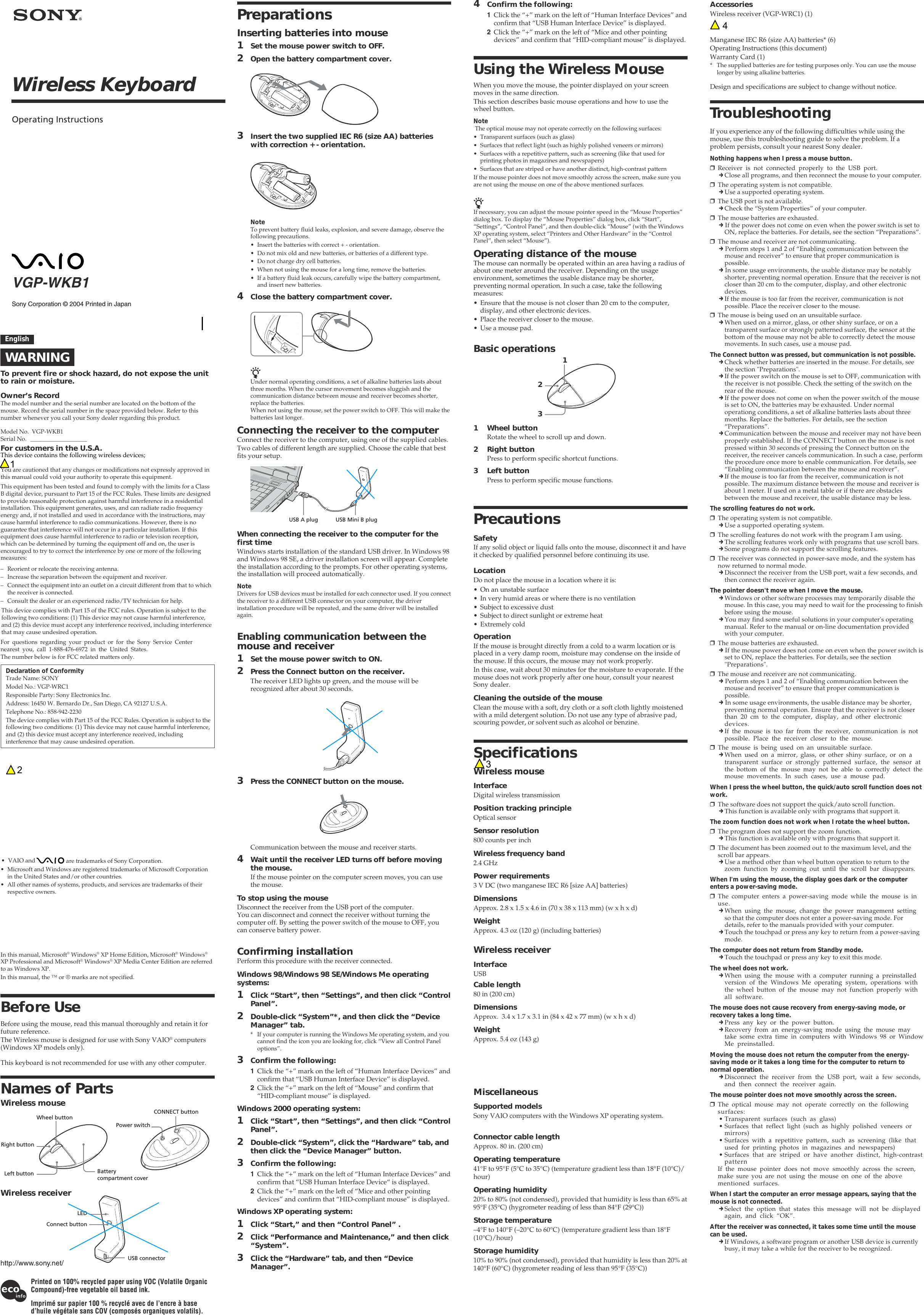

Sony Corporation © 2004 Printed in JapanVGP-WKB1Wireless KeyboardOperating InstructionsEnglishWARNINGTo prevent fire or shock hazard, do not expose the unitto rain or moisture.Owner’s RecordThe model number and the serial number are located on the bottom of themouse. Record the serial number in the space provided below. Refer to thisnumber whenever you call your Sony dealer regarding this product.Model No. VGP-WKB1Serial No. ___________________For customers in the U.S.A.You are cautioned that any changes or modifications not expressly approved inthis manual could void your authority to operate this equipment.This device contains the following wireless devices; This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses, and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.For questions regarding your product or for the Sony Service Centernearest you, call 1-888-476-6972 in the United States.The number below is for FCC related matters only.Declaration of ConformityTrade Name: SONYModel No.: VGP-WRC1Responsible Party: Sony Electronics Inc.Address: 16450 W. Bernardo Dr., San Diego, CA 92127 U.S.A.Telephone No.: 858-942-2230The device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, includinginterference that may cause undesired operation.This device complies with Part 15 of the FCC rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interferencethat may cause undesired operation.• VAIO and are trademarks of Sony Corporation.• Microsoft and Windows are registered trademarks of Microsoft Corporationin the United States and/or other countries.• All other names of systems, products, and services are trademarks of theirrespective owners. In this manual, Microsoft® Windows® XP Home Edition, Microsoft® Windows®XP Professional and Microsoft® Windows® XP Media Center Edition are referredto as Windows XP.In this manual, the ™ or ® marks are not specified.Before UseBefore using the mouse, read this manual thoroughly and retain it forfuture reference.The Wireless mouse is designed for use with Sony VAIO® computers(Windows XP models only).This keyboard is not recommended for use with any other computer.Names of PartsWireless mouseWireless receiver4Confirm the following:1Click the “+” mark on the left of “Human Interface Devices” andconfirm that “USB Human Interface Device” is displayed.2Click the “+” mark on the left of “Mice and other pointingdevices” and confirm that “HID-compliant mouse” is displayed.Using the Wireless MouseWhen you move the mouse, the pointer displayed on your screenmoves in the same direction.This section describes basic mouse operations and how to use thewheel button.Note The optical mouse may not operate correctly on the following surfaces:• Transparent surfaces (such as glass)• Surfaces that reflect light (such as highly polished veneers or mirrors)• Surfaces with a repetitive pattern, such as screening (like that used forprinting photos in magazines and newspapers)• Surfaces that are striped or have another distinct, high-contrast patternIf the mouse pointer does not move smoothly across the screen, make sure youare not using the mouse on one of the above mentioned surfaces.zIf necessary, you can adjust the mouse pointer speed in the “Mouse Properties”dialog box. To display the “Mouse Properties” dialog box, click “Start”,“Settings”, “Control Panel”, and then double-click “Mouse” (with the WindowsXP operating system, select “Printers and Other Hardware” in the “ControlPanel”, then select “Mouse”).Operating distance of the mouseThe mouse can normally be operated within an area having a radius ofabout one meter around the receiver. Depending on the usageenvironment, sometimes the usable distance may be shorter,preventing normal operation. In such a case, take the followingmeasures:• Ensure that the mouse is not closer than 20 cm to the computer,display, and other electronic devices.• Place the receiver closer to the mouse.• Use a mouse pad.Basic operations1 Wheel buttonRotate the wheel to scroll up and down.2 Right buttonPress to perform specific shortcut functions.3 Left buttonPress to perform specific mouse functions.PrecautionsSafetyIf any solid object or liquid falls onto the mouse, disconnect it and haveit checked by qualified personnel before continuing its use.LocationDo not place the mouse in a location where it is:• On an unstable surface• In very humid areas or where there is no ventilation• Subject to excessive dust• Subject to direct sunlight or extreme heat• Extremely coldOperationIf the mouse is brought directly from a cold to a warm location or isplaced in a very damp room, moisture may condense on the inside ofthe mouse. If this occurs, the mouse may not work properly.In this case, wait about 30 minutes for the moisture to evaporate. If themouse does not work properly after one hour, consult your nearestSony dealer.Cleaning the outside of the mouseClean the mouse with a soft, dry cloth or a soft cloth lightly moistenedwith a mild detergent solution. Do not use any type of abrasive pad,scouring powder, or solvent such as alcohol or benzine.SpecificationsWireless mouseInterfaceDigital wireless transmissionPosition tracking principleOptical sensorSensor resolution800 counts per inchWireless frequency band2.4 GHzPower requirements3 V DC (two manganese IEC R6 [size AA] batteries)DimensionsApprox. 2.8 x 1.5 x 4.6 in (70 x 38 x 113 mm) (w x h x d)WeightApprox. 4.3 oz (120 g) (including batteries)Wireless receiverInterfaceUSBCable length80 in (200 cm)DimensionsApprox. 3.4 x 1.7 x 3.1 in (84 x 42 x 77 mm) (w x h x d)WeightApprox. 5.4 oz (143 g) MiscellaneousSupported modelsSony VAIO computers with the Windows XP operating system.Connector cable lengthApprox. 80 in. (200 cm)Operating temperature41°F to 95°F (5°C to 35°C) (temperature gradient less than 18°F (10°C)/hour)Operating humidity20% to 80% (not condensed), provided that humidity is less than 65% at95°F (35°C) (hygrometer reading of less than 84°F (29°C))Storage temperature–4°F to 140°F (–20°C to 60°C) (temperature gradient less than 18°F(10°C)/hour)Storage humidity10% to 90% (not condensed), provided that humidity is less than 20% at140°F (60°C) (hygrometer reading of less than 95°F (35°C))Printed on 100% recycled paper using VOC (Volatile OrganicCompound)-free vegetable oil based ink.Imprimé sur papier 100 % recyclé avec de l’encre à based’huile végétale sans COV (composés organiques volatils).AccessoriesWireless receiver (VGP-WRC1) (1)Manganese IEC R6 (size AA) batteries* (6)Operating Instructions (this document)Warranty Card (1)* The supplied batteries are for testing purposes only. You can use the mouselonger by using alkaline batteries.Design and specifications are subject to change without notice.PreparationsInserting batteries into mouse1Set the mouse power switch to OFF.2Open the battery compartment cover.3Insert the two supplied IEC R6 (size AA) batterieswith correction + - orientation.NoteTo prevent battery fluid leaks, explosion, and severe damage, observe thefollowing precautions.• Insert the batteries with correct + - orientation.• Do not mix old and new batteries, or batteries of a different type.• Do not charge dry cell batteries.• When not using the mouse for a long time, remove the batteries.• If a battery fluid leak occurs, carefully wipe the battery compartment,and insert new batteries.4Close the battery compartment cover.zUnder normal operating conditions, a set of alkaline batteries lasts aboutthree months. When the cursor movement becomes sluggish and thecommunication distance between mouse and receiver becomes shorter,replace the batteries.When not using the mouse, set the power switch to OFF. This will make thebatteries last longer.Connecting the receiver to the computerConnect the receiver to the computer, using one of the supplied cables.Two cables of different length are supplied. Choose the cable that bestfits your setup.When connecting the receiver to the computer for thefirst timeWindows starts installation of the standard USB driver. In Windows 98and Windows 98 SE, a driver installation screen will appear. Completethe installation according to the prompts. For other operating systems,the installation will proceed automatically.NoteDrivers for USB devices must be installed for each connector used. If you connectthe receiver to a different USB connector on your computer, the driverinstallation procedure will be repeated, and the same driver will be installedagain.Enabling communication between themouse and receiver1Set the mouse power switch to ON.2Press the Connect button on the receiver.The receiver LED lights up green, and the mouse will berecognized after about 30 seconds.3Press the CONNECT button on the mouse.Communication between the mouse and receiver starts.4Wait until the receiver LED turns off before movingthe mouse.If the mouse pointer on the computer screen moves, you can usethe mouse.To stop using the mouseDisconnect the receiver from the USB port of the computer.You can disconnect and connect the receiver without turning thecomputer off. By setting the power switch of the mouse to OFF, youcan conserve battery power.Confirming installationPerform this procedure with the receiver connected.Windows 98/Windows 98 SE/Windows Me operatingsystems:1Click “Start”, then “Settings”, and then click “ControlPanel”.2Double-click “System”*, and then click the “DeviceManager” tab.* If your computer is running the Windows Me operating system, and youcannot find the icon you are looking for, click “View all Control Paneloptions”.3Confirm the following:1Click the “+” mark on the left of “Human Interface Devices” andconfirm that “USB Human Interface Device” is displayed.2Click the “+” mark on the left of “Mouse” and confirm that“HID-compliant mouse” is displayed.Windows 2000 operating system:1Click “Start”, then “Settings”, and then click “ControlPanel”.2Double-click “System”, click the “Hardware” tab, andthen click the “Device Manager” button.3Confirm the following:1Click the “+” mark on the left of “Human Interface Devices” andconfirm that “USB Human Interface Device“ is displayed.2Click the “+” mark on the left of “Mice and other pointingdevices” and confirm that “HID-compliant mouse” is displayed.Windows XP operating system:1Click “Start,” and then “Control Panel” .2Click “Performance and Maintenance,” and then click“System”.3Click the “Hardware” tab, and then “DeviceManager”.USB A plug USB Mini B plug123Wheel buttonRight buttonLeft button Batterycompartment coverCONNECT buttonPower switchLEDConnect buttonUSB connectorTroubleshootingIf you experience any of the following difficulties while using themouse, use this troubleshooting guide to solve the problem. If aproblem persists, consult your nearest Sony dealer.Nothing happens when I press a mouse button.❒Receiver is not connected properly to the USB port.cClose all programs, and then reconnect the mouse to your computer.❒The operating system is not compatible.cUse a supported operating system.❒The USB port is not available.cCheck the “System Properties” of your computer.❒The mouse batteries are exhausted.c If the power does not come on even when the power switch is set toON, replace the batteries. For details, see the section “Preparations”.❒The mouse and receiver are not communicating.c Perform steps 1 and 2 of “Enabling communication between themouse and receiver” to ensure that proper communication ispossible.c In some usage environments, the usable distance may be notablyshorter, preventing normal operation. Ensure that the receiver is notcloser than 20 cm to the computer, display, and other electronicdevices.cIf the mouse is too far from the receiver, communication is notpossible. Place the receiver closer to the mouse.❒The mouse is being used on an unsuitable surface.cWhen used on a mirror, glass, or other shiny surface, or on atransparent surface or strongly patterned surface, the sensor at thebottom of the mouse may not be able to correctly detect the mousemovements. In such cases, use a mouse pad.The Connect button was pressed, but communication is not possible.cCheck whether batteries are inserted in the mouse. For details, seethe section "Preparations".cIf the power switch on the mouse is set to OFF, communication withthe receiver is not possible. Check the setting of the switch on therear of the mouse.cIf the power does not come on when the power switch of the mouseis set to ON, the batteries may be exhausted. Under normaloperationg conditions, a set of alkaline batteries lasts about threemonths. Replace the batteries. For details, see the section“Preparations”.cCommunication between the mouse and receiver may not have beenproperly established. If the CONNECT button on the mouse is notpressed within 30 seconds of pressing the Connect button on thereceiver, the receiver cancels communication. In such a case, performthe procedure once more to enable communication. For details, see“Enabling communication between the mouse and receiver”.cIf the mouse is too far from the receiver, communication is notpossible. The maximum distance between the mouse and receiver isabout 1 meter. If used on a metal table or if there are obstaclesbetween the mouse and receiver, the usable distance may be less.The scrolling features do not work.❒The operating system is not compatible.cUse a supported operating system.❒The scrolling features do not work with the program I am using.cThe scrolling features work only with programs that use scroll bars.cSome programs do not support the scrolling features.❒The receiver was connected in power-save mode, and the system hasnow returned to normal mode.cDisconnect the receiver from the USB port, wait a few seconds, andthen connect the receiver again.The pointer doesn't move when I move the mouse.cWindows or other software processes may temporarily disable themouse. In this case, you may need to wait for the processing to finishbefore using the mouse.cYou may find some useful solutions in your computer's operatingmanual. Refer to the manual or on-line documentation providedwith your computer.❒The mouse batteries are exhausted.c If the mouse power does not come on even when the power switch isset to ON, replace the batteries. For details, see the section"Preparations".❒The mouse and receiver are not communicating.c Perform steps 1 and 2 of “Enabling communication between themouse and receiver” to ensure that proper communication ispossible.c In some usage environments, the usable distance may be shorter,preventing normal operation. Ensure that the receiver is not closerthan 20 cm to the computer, display, and other electronicdevices.cIf the mouse is too far from the receiver, communication is notpossible. Place the receiver closer to the mouse.❒The mouse is being used on an unsuitable surface.cWhen used on a mirror, glass, or other shiny surface, or on atransparent surface or strongly patterned surface, the sensor atthe bottom of the mouse may not be able to correctly detect themouse movements. In such cases, use a mouse pad.When I press the wheel button, the quick/auto scroll function does notwork.❒The software does not support the quick/auto scroll function.cThis function is available only with programs that support it.The zoom function does not work when I rotate the wheel button.❒The program does not support the zoom function.cThis function is available only with programs that support it.❒The document has been zoomed out to the maximum level, and thescroll bar appears.cUse a method other than wheel button operation to return to thezoom function by zooming out until the scroll bar disappears.When I'm using the mouse, the display goes dark or the computerenters a power-saving mode.❒The computer enters a power-saving mode while the mouse is inuse.cWhen using the mouse, change the power management settingso that the computer does not enter a power-saving mode. Fordetails, refer to the manuals provided with your computer.cTouch the touchpad or press any key to return from a power-savingmode.The computer does not return from Standby mode.cTouch the touchpad or press any key to exit this mode.The wheel does not work.cWhen using the mouse with a computer running a preinstalledversion of the Windows Me operating system, operations withthe wheel button of the mouse may not function properly withall software.The mouse does not cause recovery from energy-saving mode, orrecovery takes a long time.cPress any key or the power button.cRecovery from an energy-saving mode using the mouse maytake some extra time in computers with Windows 98 or WindowMe preinstalled.Moving the mouse does not return the computer from the energy-saving mode or it takes a long time for the computer to return tonormal operation.cDisconnect the receiver from the USB port, wait a few seconds,and then connect the receiver again.The mouse pointer does not move smoothly across the screen.❒The optical mouse may not operate correctly on the followingsurfaces:• Transparent surfaces (such as glass)• Surfaces that reflect light (such as highly polished veneers ormirrors)• Surfaces with a repetitive pattern, such as screening (like thatused for printing photos in magazines and newspapers)• Surfaces that are striped or have another distinct, high-contrastpatternIf the mouse pointer does not move smoothly across the screen,make sure you are not using the mouse on one of the abovementioned surfaces.When I start the computer an error message appears, saying that themouse is not connected.cSelect the option that states this message will not be displayedagain, and click “OK”.After the receiver was connected, it takes some time until the mousecan be used.cIf Windows, a software program or another USB device is currentlybusy, it may take a while for the receiver to be recognized.1234

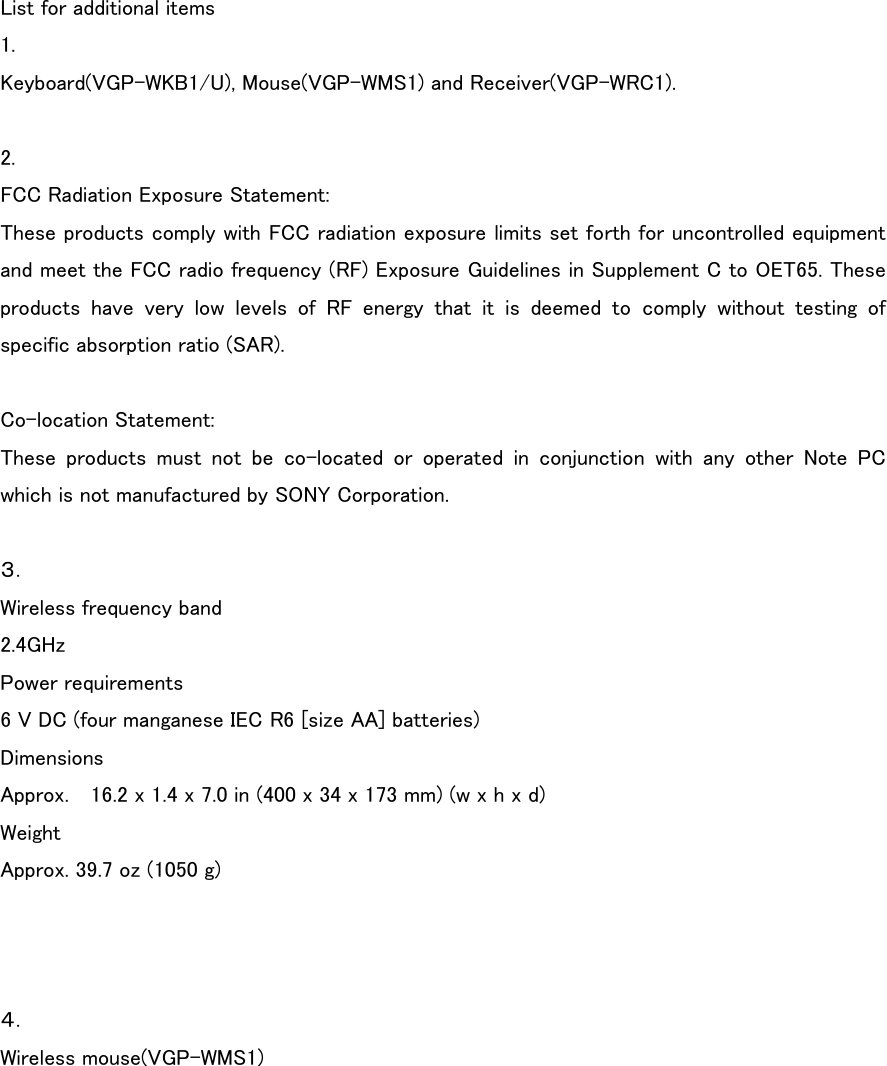

List for additional items 1. Keyboard(VGP-WKB1/U), Mouse(VGP-WMS1) and Receiver(VGP-WRC1). 2. FCC Radiation Exposure Statement: These products comply with FCC radiation exposure limits set forth for uncontrolled equipment and meet the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. These products have very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). Co-location Statement: These products must not be co-located or operated in conjunction with any other Note PC which is not manufactured by SONY Corporation. ３． Wireless frequency band 2.4GHz Power requirements 6 V DC (four manganese IEC R6 [size AA] batteries) Dimensions Approx. 16.2 x 1.4 x 7.0 in (400 x 34 x 173 mm) (w x h x d) Weight Approx. 39.7 oz (1050 g) ４． Wireless mouse(VGP-WMS1)
