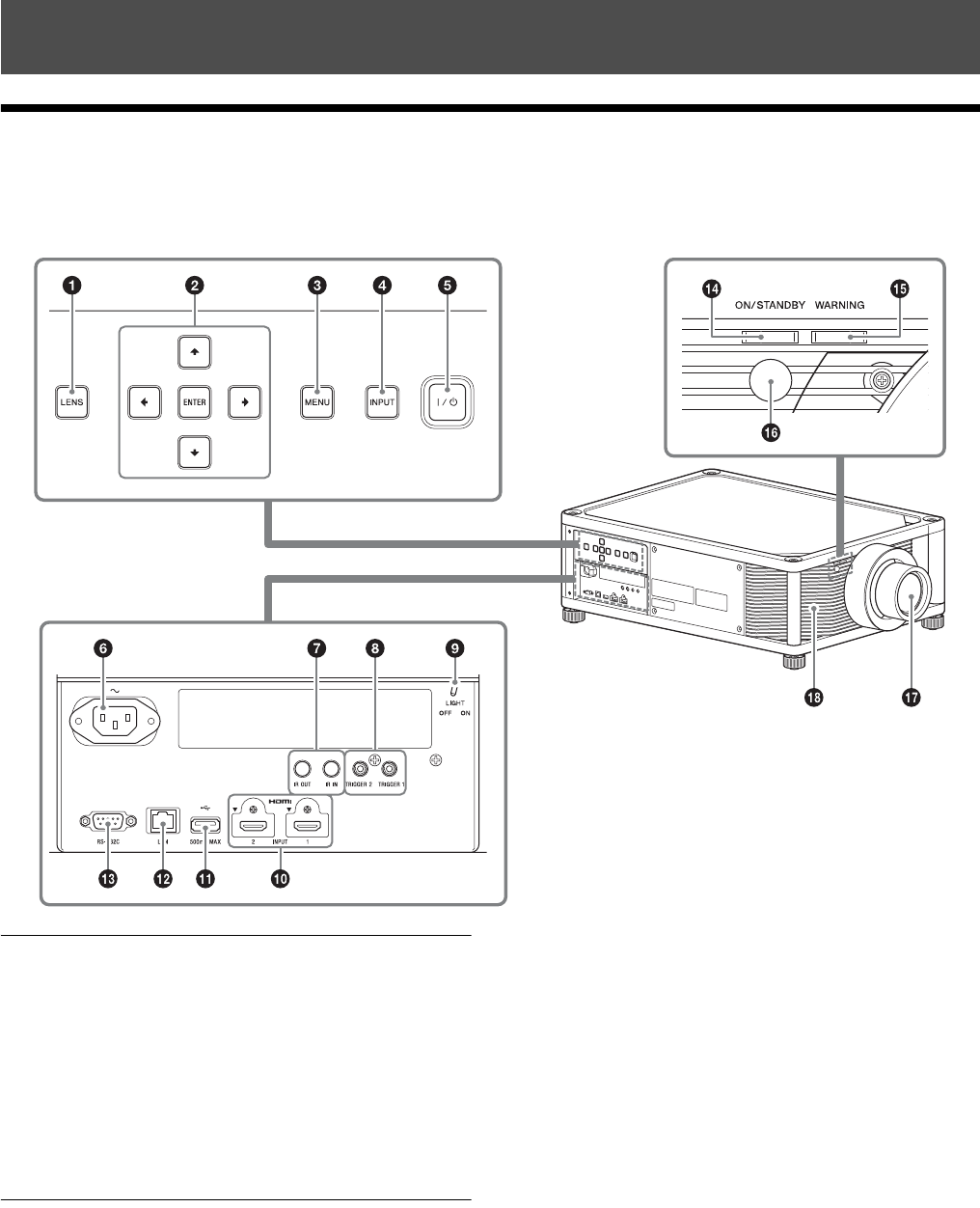

Front/Right Side

The buttons on the control panel function the same as those on the remote control.

Control panel

aLENS button (page 6)

bM/m/</, (arrow)/ENTER button (page 17)

cMENU button (page 17)

dINPUT button (page 12)

e[/1 (On/Standby) button (page 7)

Connectors

f- AC IN socket (page 7)

gIR IN/IR OUT connector

IR IN: Inputs the signals to control the projector.

When connecting to the IR IN connector, the remote

control detector does not work with the remote

control.

IR OUT: Outputs the control signals received at the

projector to the connected devices. When operating

the projector with the remote control, the connected

devices can also be operated.

hTRIGGER 1/TRIGGER 2 connector (page 31)

iConnector light switch

Turns on/off the connector lights.

jHDMI 1/HDMI 2 connector (page 10)

kUSB connector (page 41)

lLAN connector (page 35)

Location of Controls

Connectors

Control panel

mREMOTE connector

Connects to a computer, etc. for remote control.

Indicators and remote control detector

nON/STANDBY indicator (page 39)

oWARNING indicator (page 39)

pRemote control detector (page 6)

Others

qLens

rVentilation holes (intake)

If you look through the projection lens while the unit is

projecting, the light may damage your eyes. Take special

caution when using the unit around children.

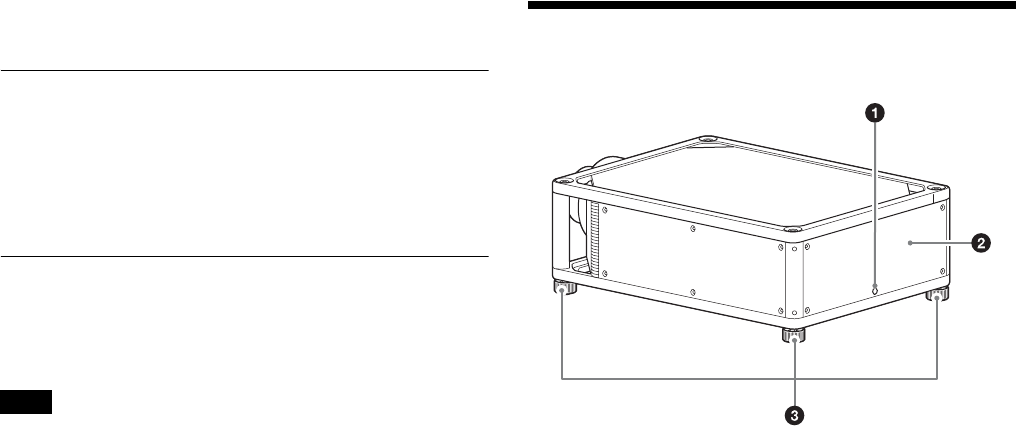

Rear/Bottom

aRemote control detector (page 6)

bVentilation holes (exhaust)

cFeet (adjustable) (page 9)

Note

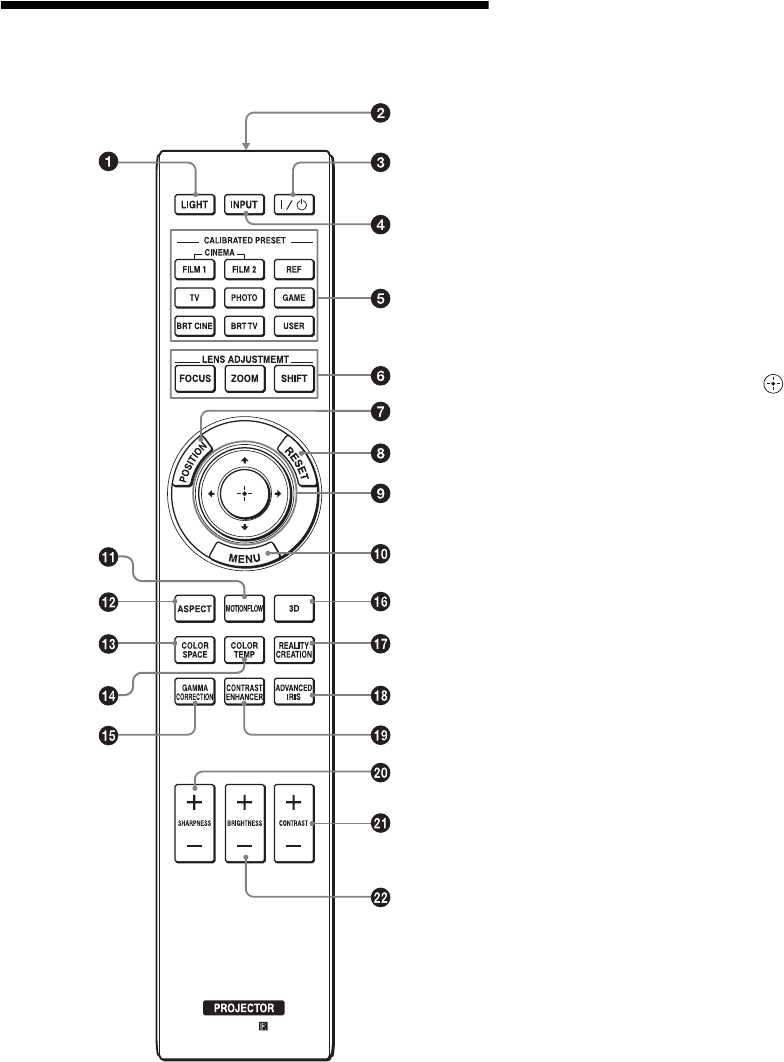

Remote Control

aLIGHT button

Illuminates the buttons on the remote control.

bInfrared transmitter

c?/1 (On/Standby) button (page 7)

dINPUT button (page 12)

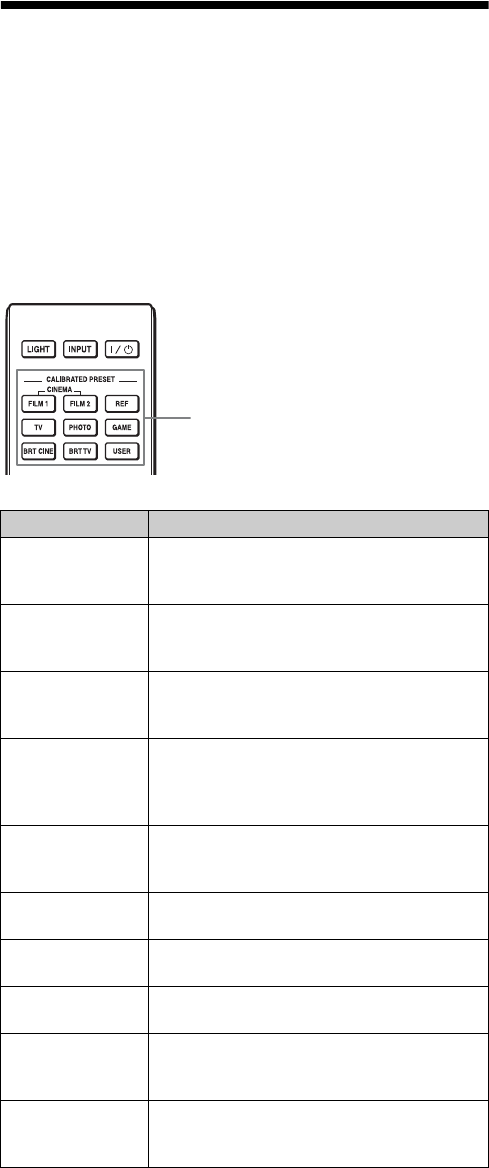

eCALIBRATED PRESET buttons (page 16)

fLENS ADJUSTMENT buttons (page 7)

gPOSITION button (page 13)

hRESET button (page 18)

iM/m/</, (arrow)/ (enter) buttons

(page 17)

jMENU button (page 17)

kMOTIONFLOW button (page 20)

lASPECT button (page 14)

mCOLOR SPACE button (page 22)

nCOLOR TEMP button (page 20)

oGAMMA CORRECTION button (page 21)

p3D button (page 12)

qREALITY CREATION button (page 19)

rADVANCED IRIS button

This function is not provided in this projector.

sCONTRAST ENHANCER button (page 20)

tSHARPNESS button (page 20)

uCONTRAST button (page 20)

vBRIGHTNESS button (page 20)

This section describes how to install the unit and screen, how to connect the equipment from which you want to project

the picture, etc.

Installing the Unit

The installation distance between the unit and a screen

varies depending on the size of the screen or whether or not

you use the lens shift features. Install this unit so that it fits

the size of your screen. For details on the distance between

the unit and the screen (the projection distance) and the

size of projected video, see “Projection Distance and Lens

Shift Range” (page 47).

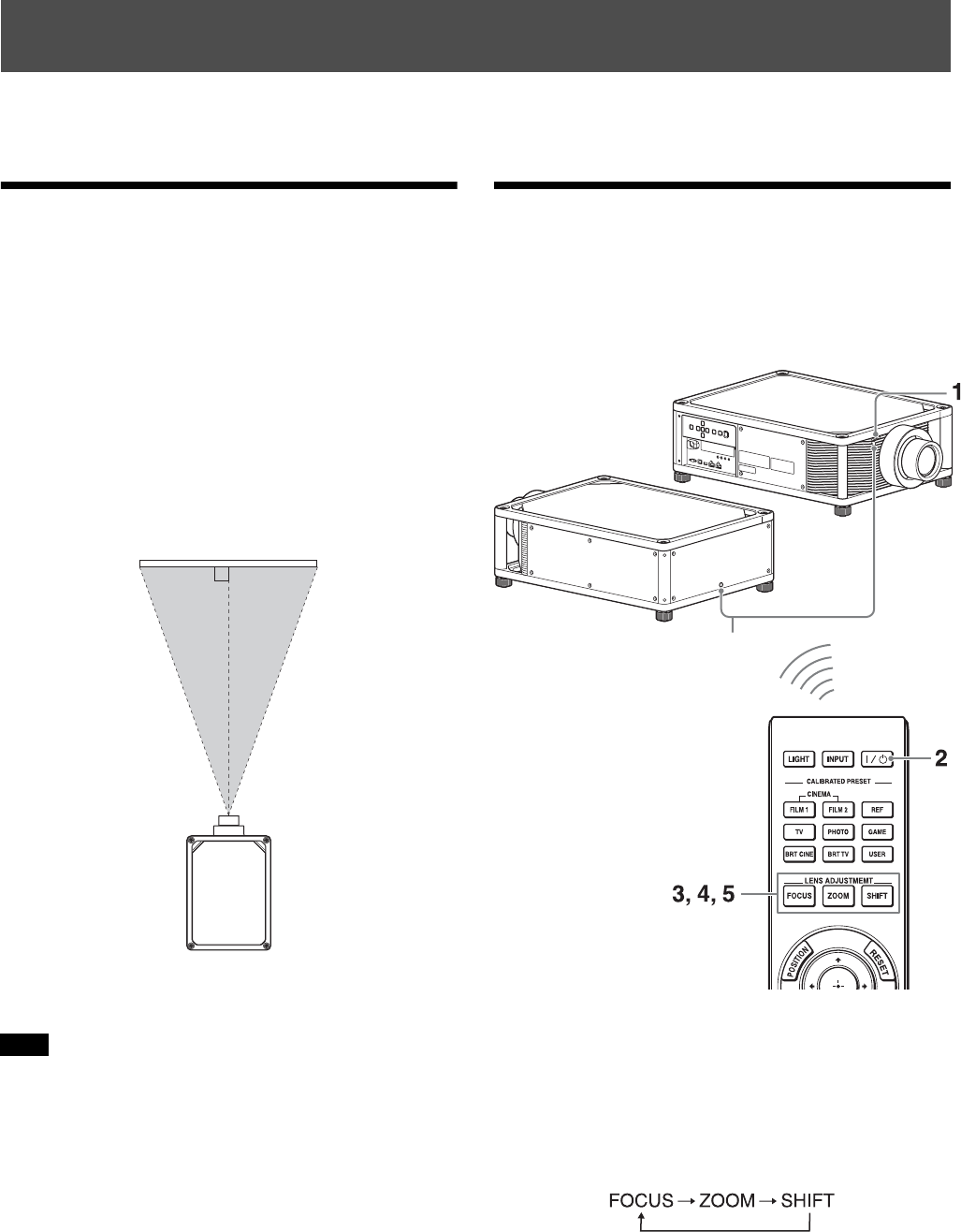

1Position the unit so that the lens is parallel to the

screen.

Top view

2Project an image on the screen and adjust the picture

so that it fits the screen (page 6).

When using a screen with an uneven surface, stripes pattern may

rarely appear on the screen depending on the distance between the

screen and the unit or the zooming magnifications. This is not a

malfunction of the unit.

Adjusting the Picture

Position

Project an image on the screen and then adjust the picture

position.

Tips

•The ?/1 (On/Standby), INPUT, MENU, and M/m/</,/

ENTER buttons on the side panel of the unit function the same as

those on the remote control. The LENS button functions in the

same way as the LENS ADJUSTMENT (FOCUS, ZOOM,

SHIFT) buttons of the remote control.

• When adjusting the lens, each time you press the LENS button on

the unit, the lens adjustment function switches between “Lens

Focus,” “Lens Zoom” and “Lens Shift.”

Connections and Preparations

Note

Screen

Remote control detector

Depending on the installation location of the unit, you may not be

able to control it with the remote control. In this case, point the

remote control at the remote control detector of the unit or the screen.

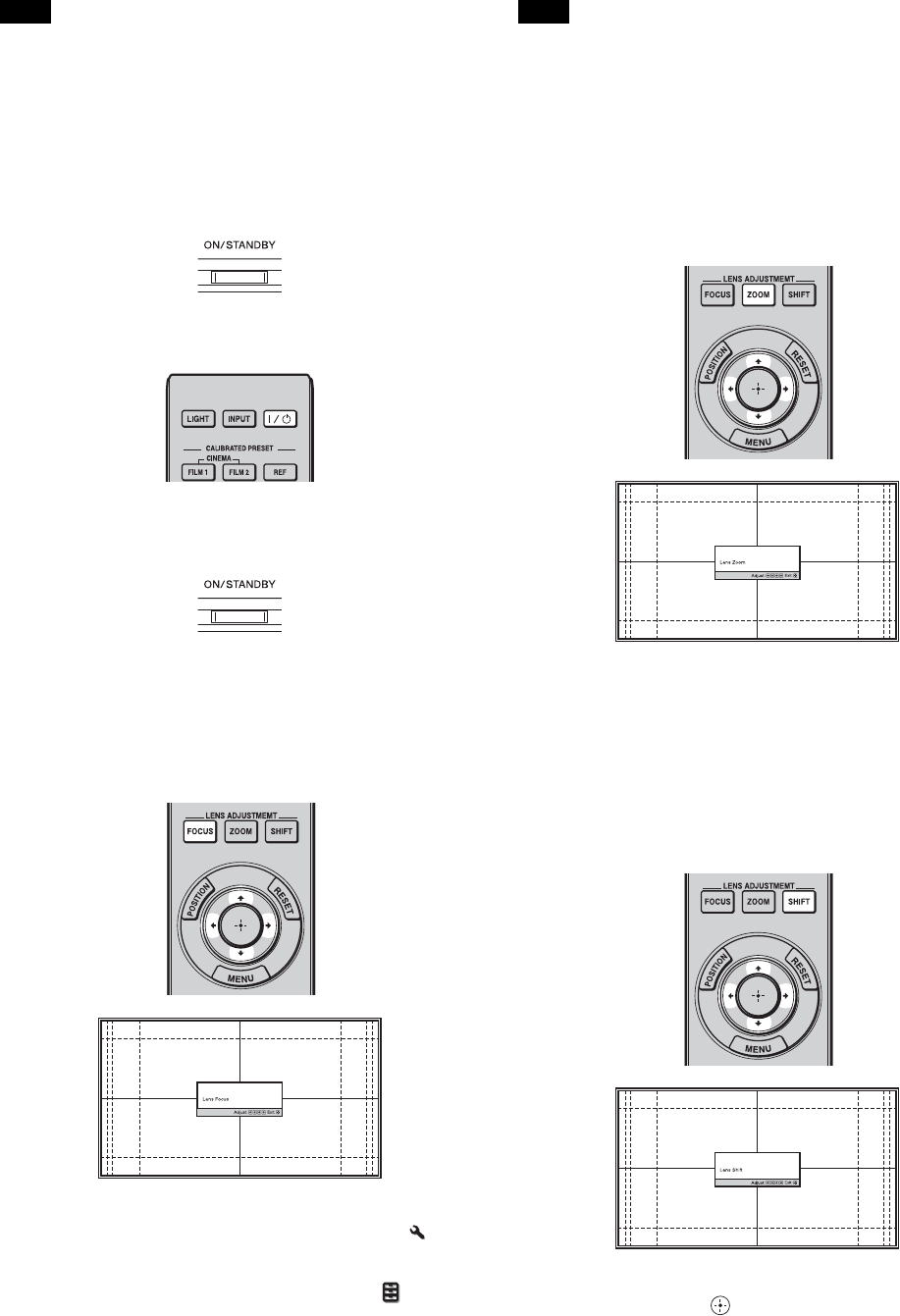

1After connecting the AC power cord to the unit, plug

the AC power cord into a wall outlet.

The ON/STANDBY indicator lights in red and the

unit goes into standby mode.

2Press the ?/1 (On/Standby) button to turn on the unit.

The ON/STANDBY indicator flashes in green, and

then lights in green.

3Adjust the focus.

Press the LENS ADJUSTMENT (FOCUS) button to

display the Lens Focus adjustment window (test

pattern). Then adjust the focus of the picture by

pressing the M/m/</, buttons.

Tips

• When “Lens Control” is set to “Off” on the Installation menu,

you cannot adjust the focus, the picture size or the proper position

by pressing the FOCUS, ZOOM or SHIFT buttons (page 31).

• When “Test Pattern” is set to “Off” on the Function menu, the

test pattern is not displayed (page 29).

Adjust the lens by using buttons on the remote control or the control

panel of the unit. Never make adjustments by directly turning the

lens with your hands, which may cause damage or malfunction to the

unit.

4Adjust the picture size.

Press the LENS ADJUSTMENT (ZOOM) button to

display the Lens Zoom adjustment window (test

pattern). Then adjust the size of the picture by

pressing the M/m/</, buttons.

To make the picture larger, press M/,.

To make the picture smaller, press m/<.

5Adjust the picture position.

Press the LENS ADJUSTMENT (SHIFT) button to

display the Lens Shift adjustment window (test

pattern). Then adjust to the proper position of the

picture by pressing the M/m/</, buttons.

Tips

• Whenever you press the button, the test pattern disappears.

Note

Lights in red.

Flashes in green for

tens of seconds and

then lights in green.

Note

• Press the RESET button on the remote control while the Lens Shift

adjustment window is displayed, the horizontal position returns to

the center of the lens (factory default position). The zoom and

focus are not changed.

When adjusting the picture position, do not touch the lens unit,

otherwise your fingers may be pinched by the moving parts.

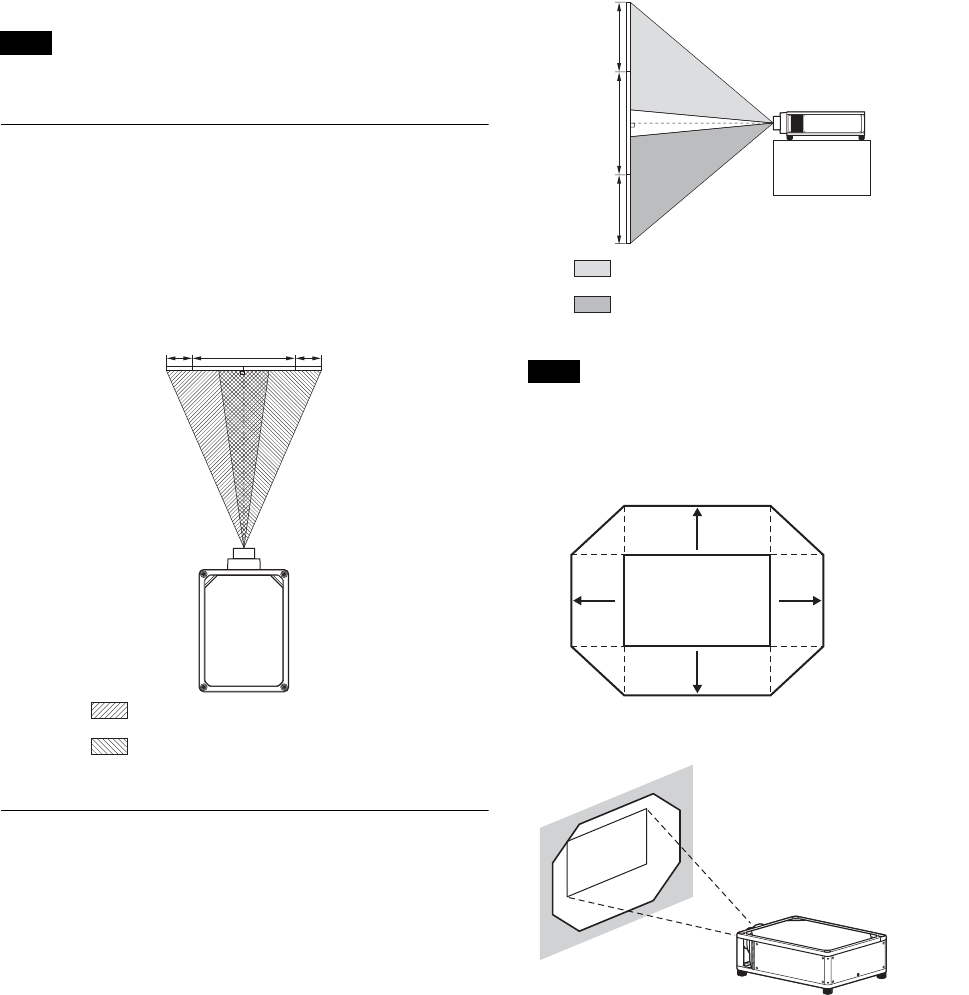

To adjust the horizontal position

Press </,.

The picture projected on the screen moves right or left by

a maximum of 31% of the screen width from the center of

the lens.

Top view

To adjust the vertical position

Press M/m.

The picture projected on the screen moves up or down by

a maximum of 80% of the screen height from the center of

the lens.

Side view

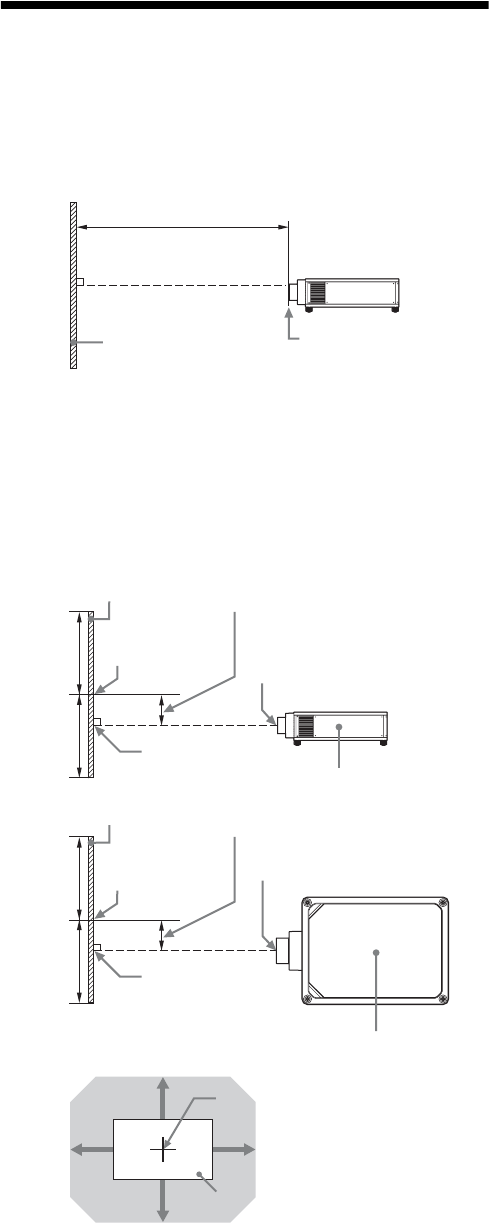

The range to move the picture projected on the screen can be

adjusted only within the octagon area illustrated below. For details,

see “Projection Distance and Lens Shift Range” (page 47).

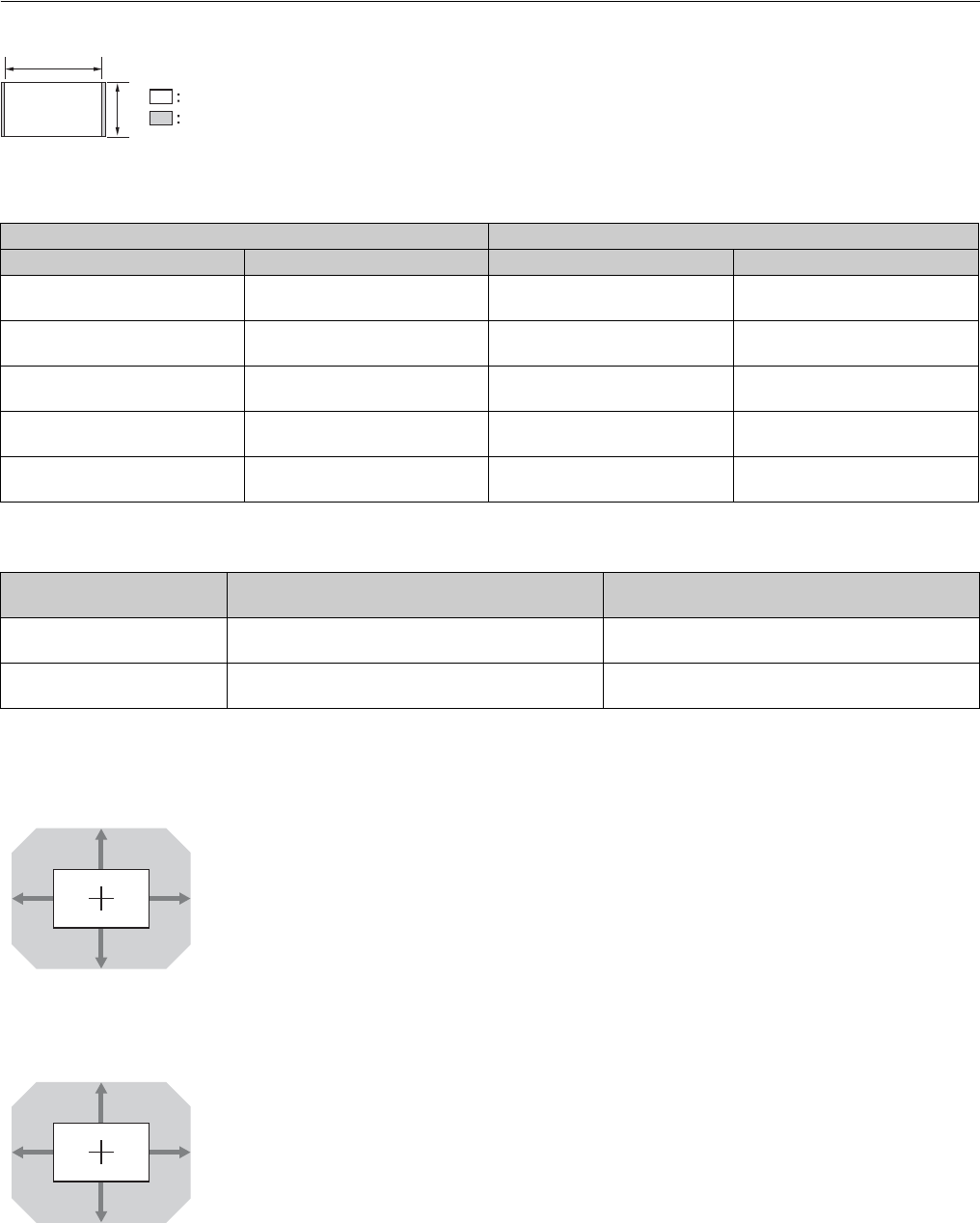

Range of movement of the projected picture

Note

31% 31%1 screen width

: Picture position when moving the

picture to the left at maximum

: Picture position when moving the

picture to the right at maximum

Note

80%

1 screen

height

: Picture position when moving the

picture upward at maximum

: Picture position when moving the

picture downward at maximum

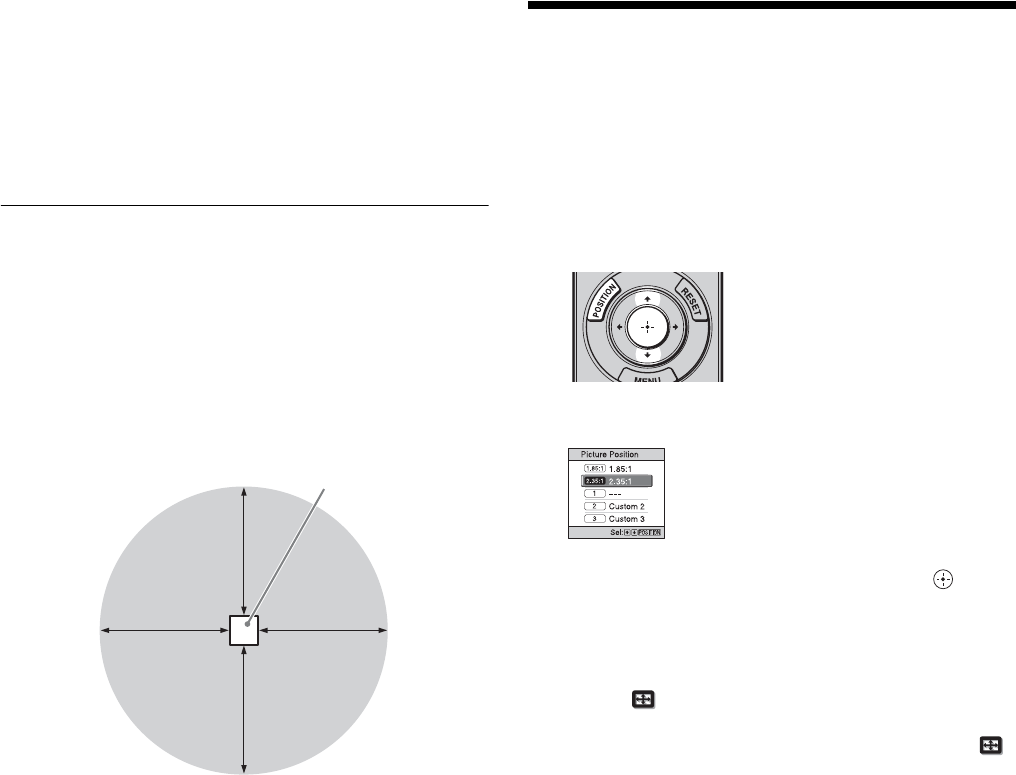

0.8V

0.31H

H: Width of the projected picture

V: Height of the projected picture

0.31H

0.8V

Projected Picture

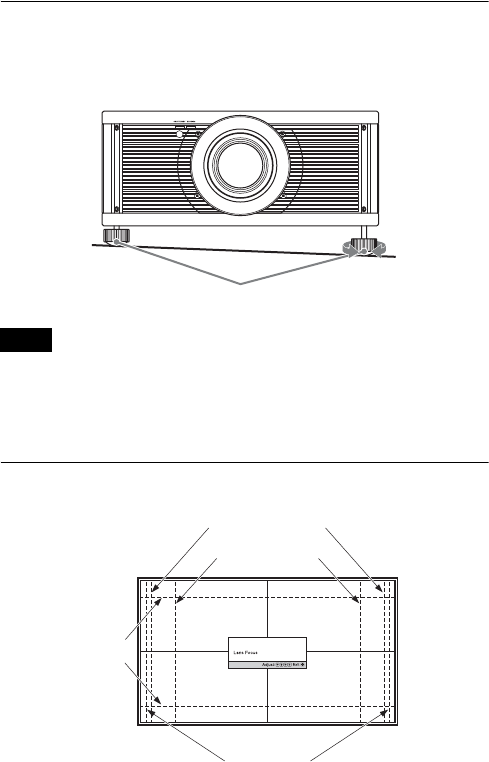

To adjust the tilt of the installation surface

If the unit is installed on an uneven surface, use the feet

(adjustable) to keep the unit level.

• If the unit is tilted up or down, the projected image may be

trapezoidal.

• Be careful not to catch your finger when turning the feet

(adjustable).

Lens adjustment window (test pattern)

Notes

Feet (adjustable)

Tu r n t o

adjust.

1.78:1 (16:9)

2.35:1

1.85:1

1.33:1 (4:3)

The dashed lines show the screen sizes of each

aspect ratio.

Connecting to Video Equipment or a Computer

You can enjoy high picture quality by connecting a DVD player/recorder, Blu-ray Disc player/recorder, or PlayStation®

equipped with HDMI output to the HDMI input of the unit.

When making connections, be sure to do the following:

• Turn off all equipment before making any connections.

• Use the proper cables for each connection.

• Insert the cable plugs properly; poor connection at the plugs may cause a malfunction or poor picture quality. When

pulling out a cable, be sure to pull it out from the plug, not the cable itself.

• Refer to the operating instructions of the connected equipment.

• Use a High Speed or Premium High Speed HDMI cable. With a standard HDMI cable, images of 1080p, DeepColor, 3D video and 4K video

may not be displayed properly.

• When you want to display a picture in a more detailed HDMI format, use the “Premium High Speed” type.

• When connecting an HDMI cable to the unit, make sure the V mark on the upper part of the HDMI input of the unit and the v mark on the

connector of the cable are faced at each other.

• If the picture from equipment connected to the unit with an HDMI cable is not correct, check the settings of the connected equipment.

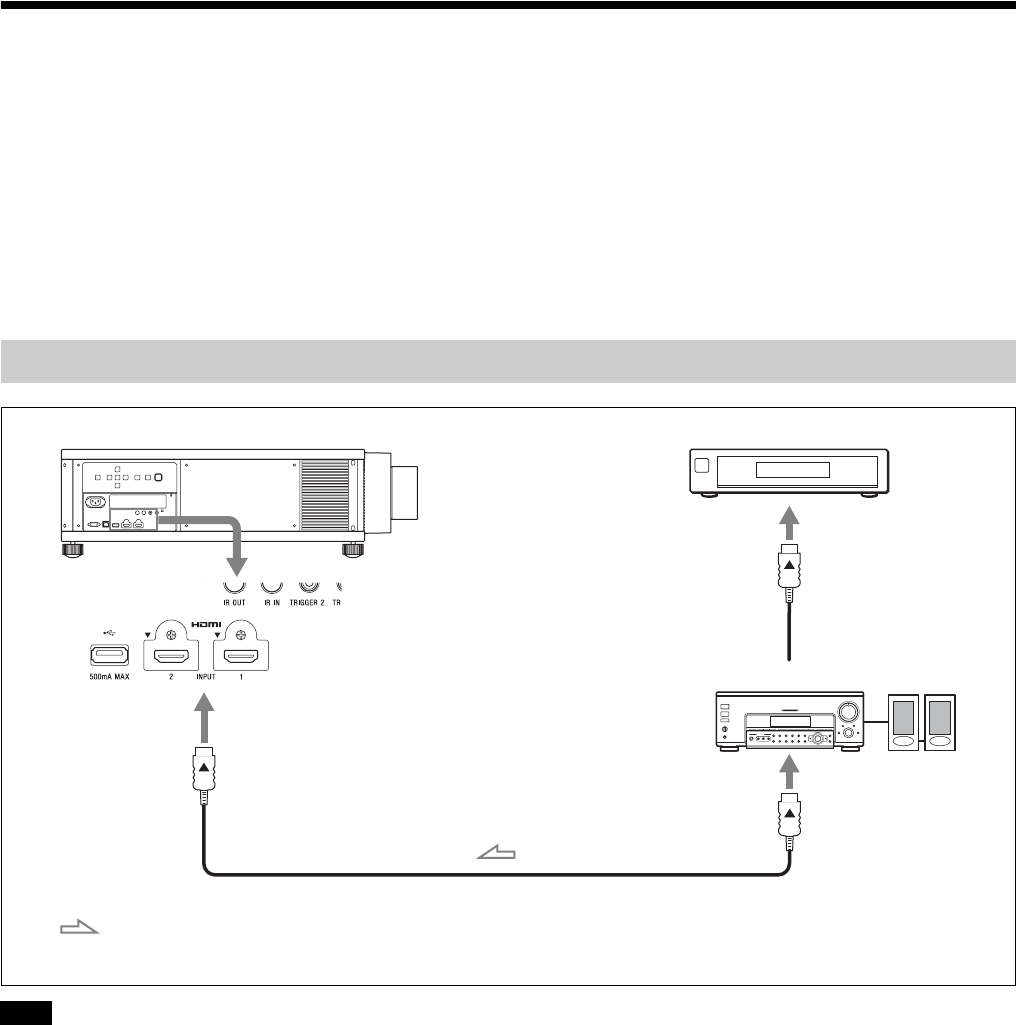

Connecting to a VCR

Notes

Right side of the unit Equipment with HDMI output connectors

Speakers

to HDMI output

HDMI cable (not supplied)

: Video signal flow Use a High Speed or Premium High Speed HDMI cable on which the

cable type logo is specified.

AV amplifier

• Use a High Speed or Premium High Speed HDMI cable. With a standard HDMI cable, images of 1080p, DeepColor, 3D video and 4K video

may not be displayed properly.

• When you want to display a picture in a more detailed HDMI format, use the “Premium High Speed” type.

• When connecting an HDMI cable to the unit, make sure the V mark on the upper part of the HDMI input of the unit and the v mark on the

connector of the cable are faced at each other.

• If the picture from equipment connected to the unit with an HDMI cable is not correct, check the settings of the connected equipment.

• If you set your computer, such as a notebook type, to output the signal to both computer’s display and this equipment, the picture of the

equipment may not appear properly. Set your computer to output the signal to only the external monitor. For details, refer to the computer’s

operating instructions supplied with your computer. For settings of the computer, consult with the manufacturer of the computer.

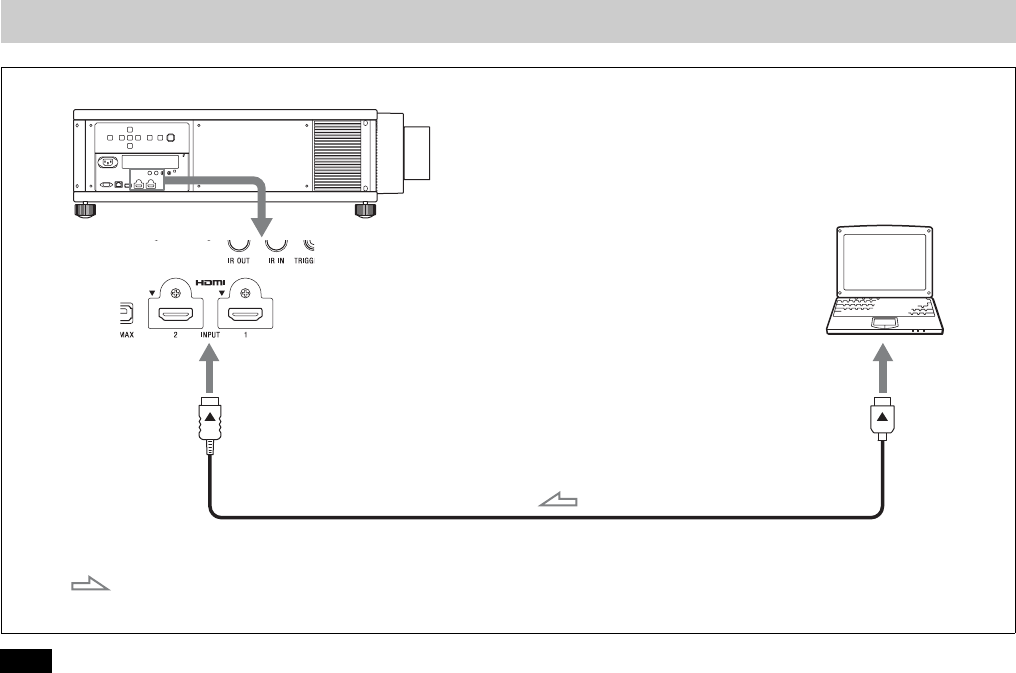

Connecting to a Computer

Notes

Right side of the unit

to monitor output

HDMI cable (not supplied)

: Video signal flow Use a High Speed or Premium High Speed HDMI cable on which the

cable type logo is specified.

Computer

This section describes how to operate the unit to view a picture from the equipment connected to the unit. It also describes

how to switch the screen size according to the picture.

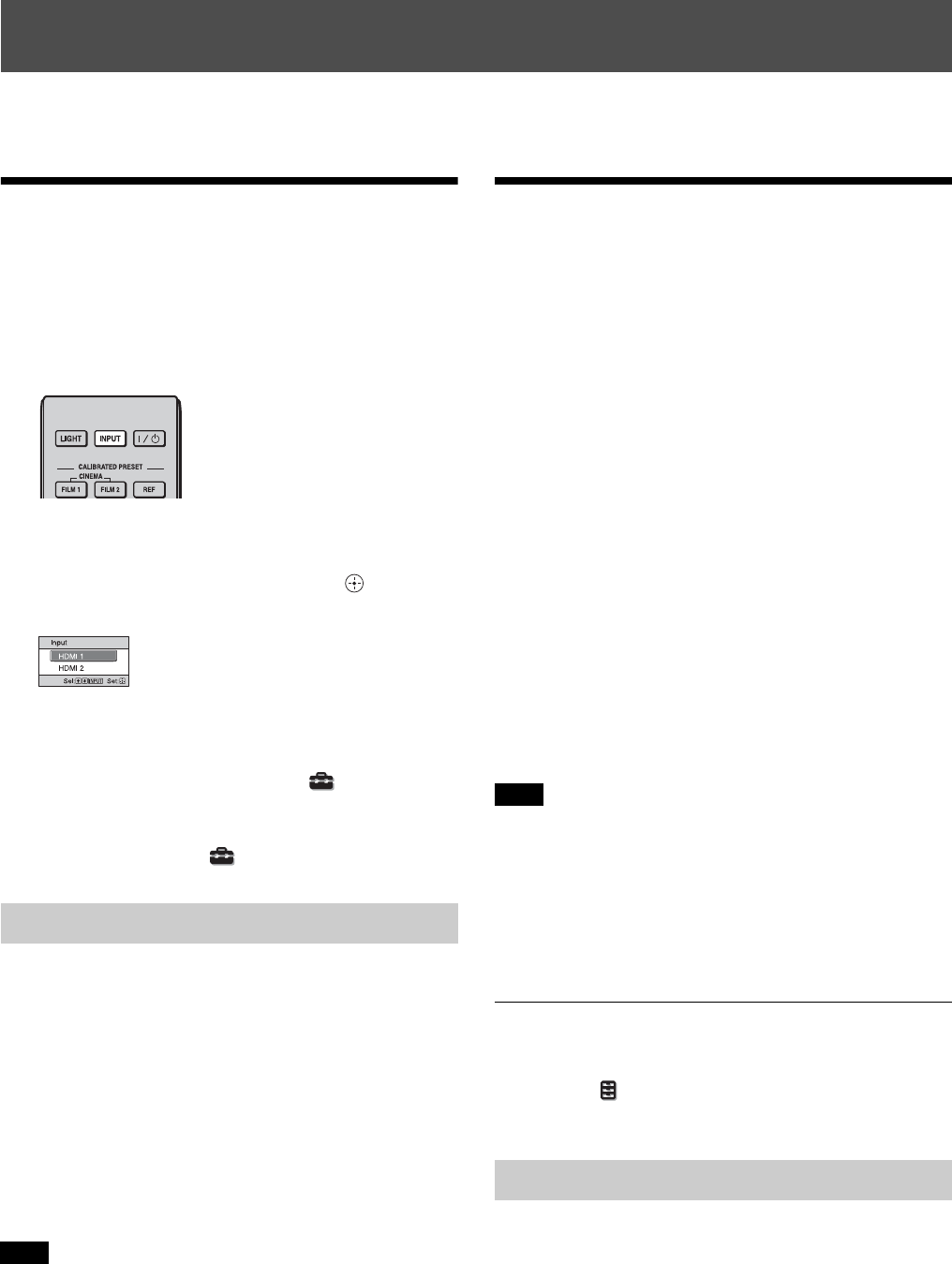

Projecting the Picture

1Turn on both the unit and the equipment connected to

the unit.

2Press INPUT to display the input palette on the

projection surface.

3Select the equipment from which you want to display

images.

Press INPUT repeatedly or press M/m/ (enter) to

select the equipment from which to project.

Tips

• When “Status” is set to “Off” on the Setup menu, the input

palette does not appear. Press the INPUT button to switch between

input terminals sequentially.

• You can change the language for the menu and on-screen displays

in “Language” on the Setup menu (page 26).

1Press the ?/1 (On/Standby) button.

The message “POWER OFF?” appears.

2Press the ?/1 (On/Standby) button again before the

message disappears.

The ON/STANDBY indicator flashes in green and the

fan continues to run to reduce the internal heat.

The fan stops and the ON/STANDBY indicator

changes from flashing green to remaining red.

You can disconnect the AC power cord.

Never disconnect the AC power cord while the unit is turned on.

You can turn off the unit by holding the ?/1 (On/Standby) button for

about 1 second, instead of performing the above steps.

Watching 3D Video

Images

You can enjoy powerful 3D video images, such as from 3D

games and 3D Blu-ray Discs, using the optional Active 3D

Glasses (TDG-BT500A).

1Turn on the HDMI equipment for 3D compatibility

connected to the unit, then play the 3D content.

For details on how to play 3D content, refer to the

operating instructions for the connected equipment.

2Turn on the unit and project the 3D video image.

For details on how to project the image, see

“Projecting the Picture” (page 12).

3Turn on the 3D glasses, and then put them on so that

they fit comfortably.

For details on how to use the 3D glasses, see “Using

the 3D Glasses” (page 12).

Tip

The factory default setting for “2D-3D Display Sel.” is “Auto” to

allow projecting 3D video images automatically when the unit

detects 3D signals.

• It may not be possible to display 3D video image, depending on

the type of signal. Set the “2D-3D Display Sel.” to “3D,” and “3D

Format” to “Side-by-Side” or “Over-Under” to suit the format of

the 3D content you want to watch (page 28).

• Use the 3D glasses within the communication range (page 13).

• There are differences in perception of 3D video images among

individuals.

• When the temperature of the usage environment is low, the 3D

effect may be diminished.

Adjusting/Setting the 3D functions

You can adjust/set the 3D functions by pressing the 3D

button on the remote control or with the “3D Settings” of

the Function menu. For details, see “3D Settings”

(page 28).

1Turn on the 3D glasses, and register them on the unit.

For details on how to register the 3D glasses, refer to

the operating instructions supplied with the 3D

glasses.

Projecting

Turning Off the Power

Note

Example: To view the picture from the video equipment

connected to the HDMI 1 connector of this unit.

Notes

Using the 3D Glasses

2Put on the 3D glasses.

Precautions for use

Misoperation may occur if:

• The viewing position is too far from the projector

• There are other communication devices, such as a

wireless LAN (IEEE802.11 b/g/n) or a microwave with

a bandwidth of 2.4 GHz, near the unit

3D glasses communication range

The following figure indicates the communication range of

the 3D glasses. If you try to watch 3D video images from

a distance greater than the communication range or install

the unit outside the communication range, the 3D glasses

may not be able to display the images properly. Also, the

distance varies depending on the environment of the room

and installation environment of the unit.

Top or side view

Using the Picture

Position

You can store up to five combinations of lens settings

(focus, picture size, picture position), aspect ratio, and

blanking. These settings can be recalled.

1Press POSITION.

The Picture Position selecting palette is displayed.

2Press POSITION repeatedly, or press M/m/ to

select the position.

The settings of the position selected is recalled.

Store or delete lens settings (focus, picture size,

picture position) in the “Picture Position” of the

Screen menu (page 24).

Adjust the aspect ratio or blanking in the “Aspect”

(page 25) or “Blanking” (page 25) of the Screen

menu.

The position where the lens settings are not stored is

displayed as “---.”

Projector

10 m 10 m

10 m

Image of the lens moving

In the example below, the images with aspect ratio of

1.78:1 (16:9) and 2.35:1 are projected on a 2.35:1 screen.

• After you have selected and confirmed the lens position, the lens

starts to move. Do not touch, or place anything near, the lens,

otherwise it may cause injury or a malfunction.

• If you press any button on the remote control or the unit while the

lens is moving, the lens stops. In this case, select the lens position

again or adjust the lens manually.

• The Picture Position function is not guaranteed to reproduce the

lens settings precisely.

• When you use the subtended screen angle of two or more aspects

using lens zoom, install the unit within the specified parameters

referring to “Projection distance” (page 48). With some setting

positions, the range of lens shift may be restricted, even though the

unit is installed within the specified parameters.

Selecting the Aspect

Ratio According to the

Video Signal

You can select an aspect ratio best suited for the video

signal received.

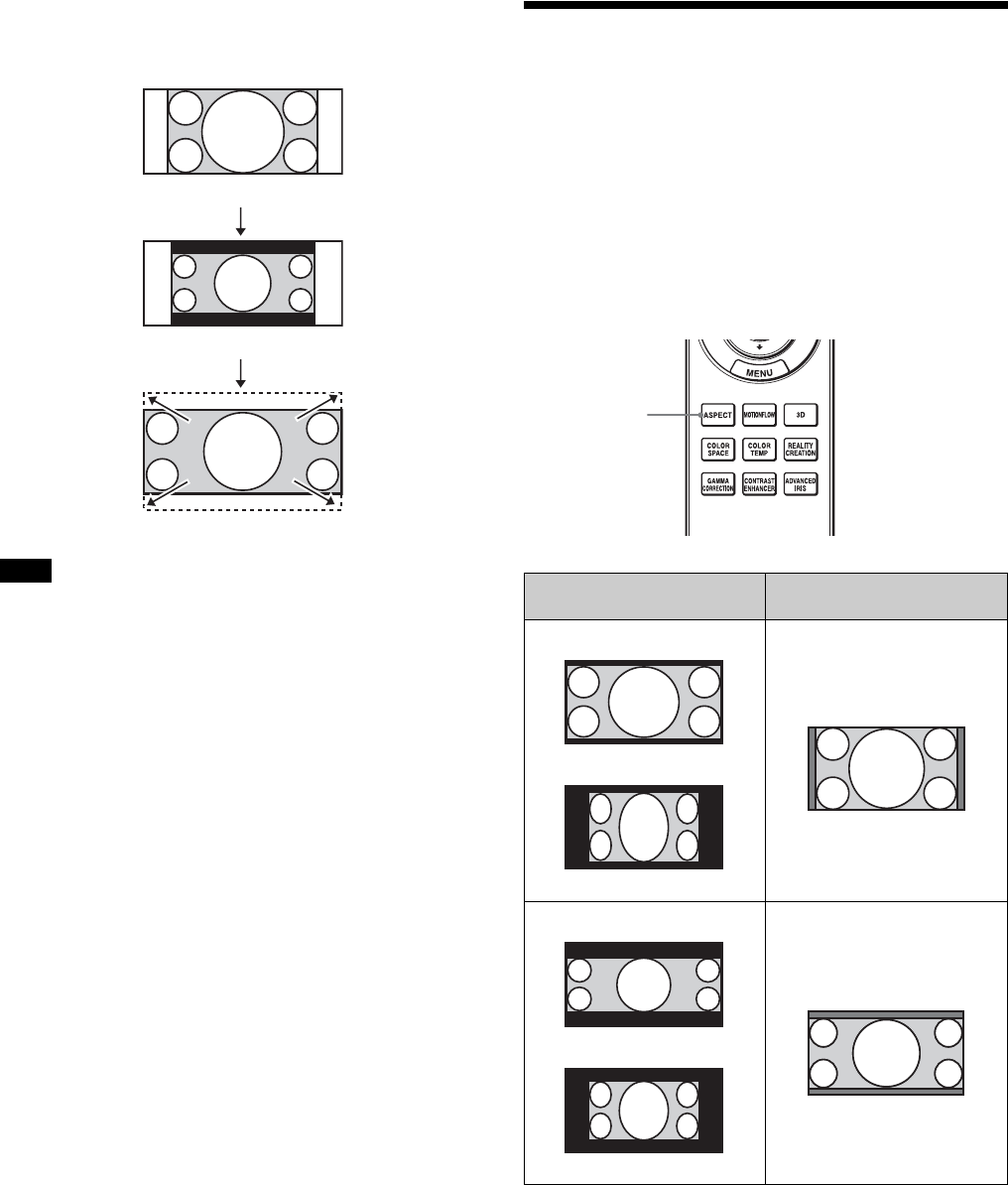

Press ASPECT.

Each time you press the button, you can select the “Aspect”

setting.You can also select it using the menu (page 25).

Notes

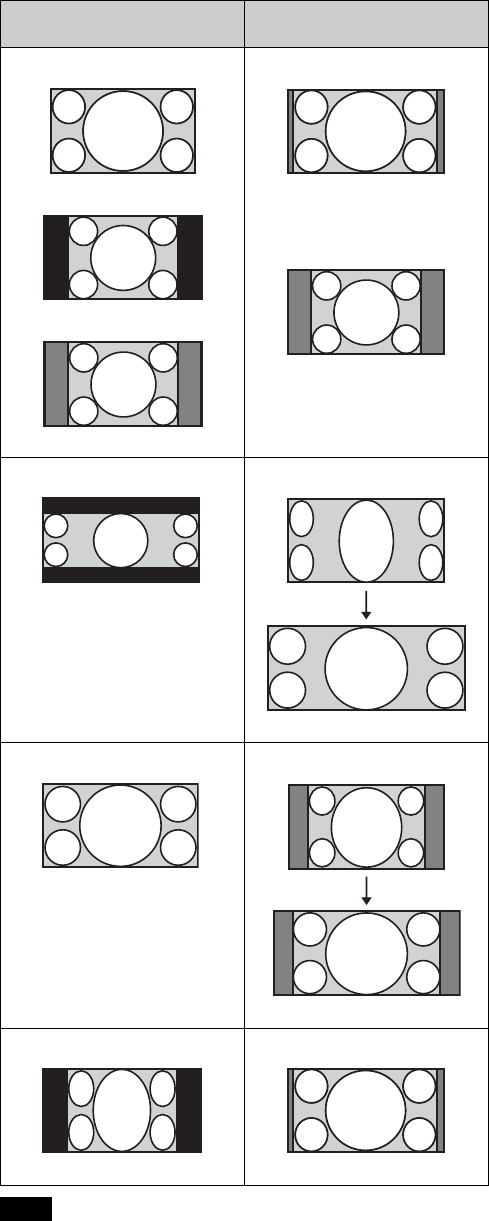

When a 1.78:1 (16:9) image is input

When a 2.35:1 image is input

Press the POSITION button.

The 2.35:1 image expands to fill the screen.

Original image (for 16:9

display)

Recommended setting and

resultant images

ASPECT

button

1.85:1

Squeezed 1.85:1

1.85:1 Zoom

2.35:1

Squeezed 2.35:1

2.35:1 Zoom

Selectable aspect modes vary depending on the input signal

(page 45).

Notes on switching the “Aspect” setting

• Select the aspect mode taking into account that changing

the aspect ratio of the original picture will provide a

different look from that of the original image.

• Note that if the unit is used for profit or for public

viewing, modifying the original picture by switching the

aspect may constitute an infringement of the rights of

authors or producers, which are legally protected.

Note

Original image (for 16:9

display)

Recommended setting and

resultant images

1.78:1 (16:9)

1.33:1 (4:3)

1.33:1 (4:3) with side panels

Normal

2.35:1

V Stretch

When using an anamorphic lens

16:9

Squeeze

When using an anamorphic lens

Squeezed

Stretch

Selecting the Picture

Viewing Mode

You can select the picture viewing mode that best suits the

type of video source or room conditions.

You can save and use different preset modes for 2D/3D

respectively.

Press one of the CALIBRATED PRESET buttons.

*1: The CINEMA DIGITAL mode is not available on the remote

control.

*2: The USER1 mode is selected by pressing the USER button. The

USER2 mode and USER3 mode are not available on the remote

control.

Setting items Description

CINEMA FILM 1 Picture quality suited to reproducing the

highly dynamic and clear images typical of

master positive film.

CINEMA FILM 2 Picture quality suited to reproducing the rich

tone and color typical of a movie theater,

based on the Cinema Film 1.

CINEMA

DIGITAL *1Picture quality suited to reproducing digital

cinema-like images resembling DCI

specifications (page 41).

REF A picture quality setup suitable for when you

want to reproduce faithfully the original

image quality, or for enjoying image quality,

without any adjustment.

TV Picture quality suited for watching TV

programs, sports, concerts, and other video

images.

PHOTO Ideal for projecting still images taken with a

digital camera.

GAME Picture quality suited to gaming, with well-

modulated colors and fast response.

BRT CINE Picture quality suited for watching movies in

a bright environment.

BRT TV Picture quality suited for watching TV

programs, sports, concerts, and other video

images in a bright environment.

USER1, USER2,

USER3 *2Adjusts the picture quality to suit your taste

then saves the setting. The factory default

setting is the same as “REF.”

CALIBRATED PRESET buttons

This section describes how to make various adjustments and settings using the menus.

The menu displays used for the explanation may be different from the actual menu display.

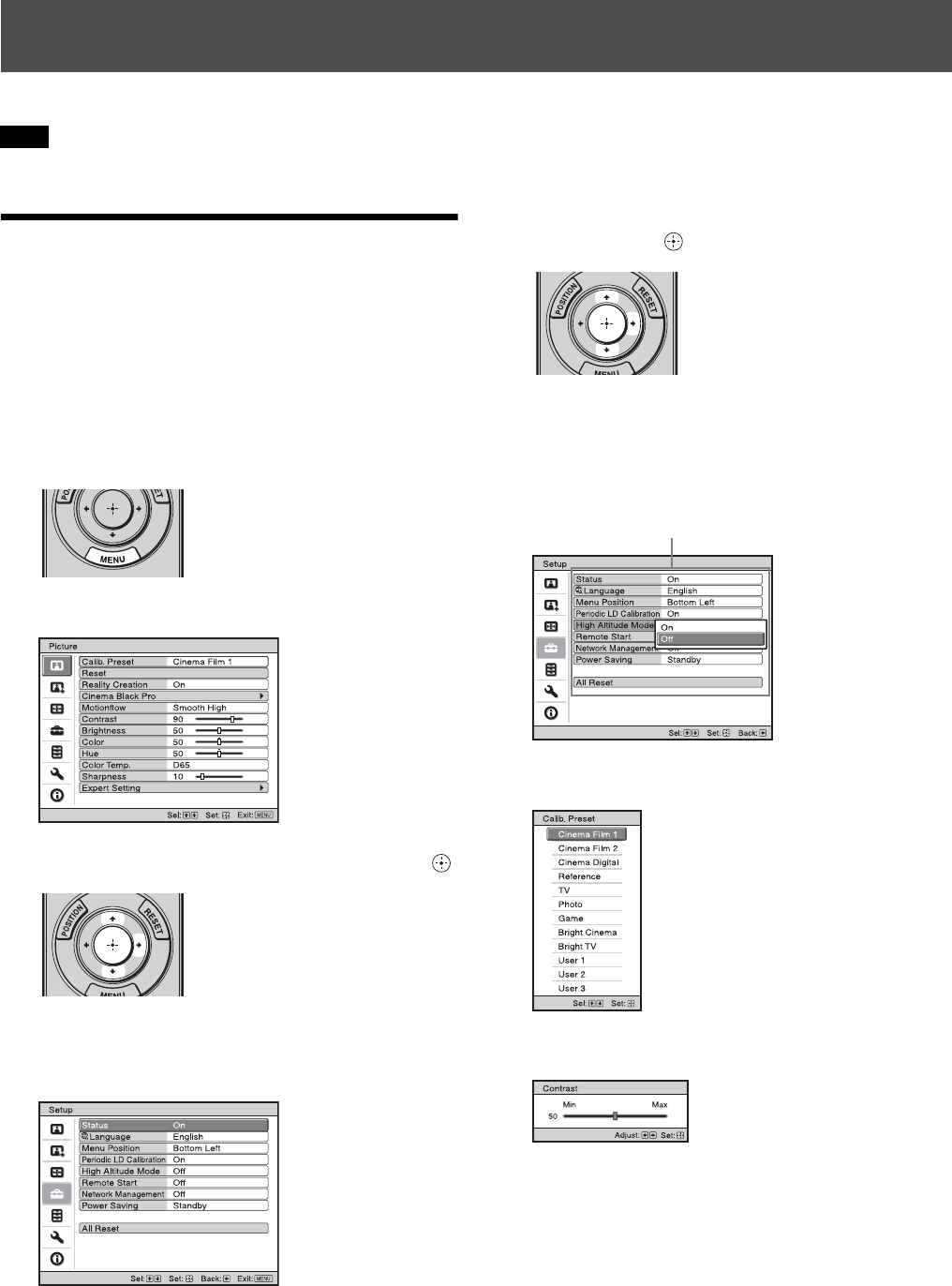

Operation through the

Menus

The unit is equipped with an on-screen menu for making

various adjustments and settings. If you select an item

name followed by an arrow (B), the next menu window

with setting items appears.

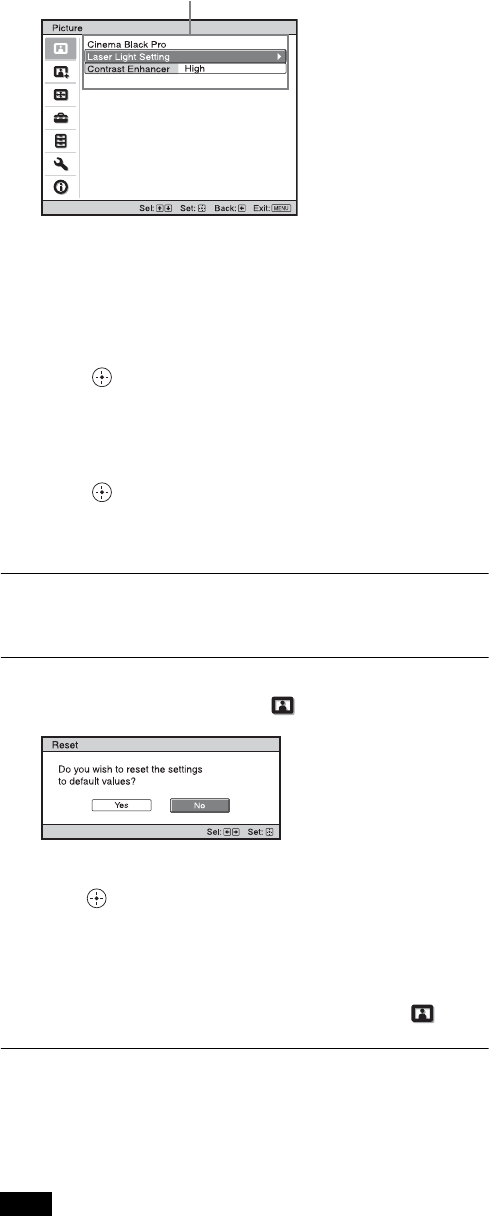

1Press MENU.

The menu window appears.

2Press M/m to select a menu item, and press , or .

The items that can be set or adjusted with the selected

menu appear. The item presently selected is shown in

white.

3Press M/m to select an item you want to set or adjust

and press , or .

The setting items are displayed in a pop-up menu, in

a setting menu, in an adjustment menu or in the next

menu window.

Pop-up menu

Setting menu

Adjustment menu

Using the Menus

Note

Setting items

Next menu window

4Make the setting or adjustment of an item.

When changing the adjustment level

To increase the value, press M/,.

To decrease the value, press m/<.

Press to store the setting and restore the original

menu screen.

When changing the setting

Press M/m to change the setting.

Press to restore the original screen.

You can restore the original screen using <

depending on the selected item.

To clear the menu

Press MENU.

To reset the picture that has been adjusted

Select “Reset” from the Picture menu.

When the screen display appears, select “Yes” using <

and press .

All of the following settings are reset to its factory preset

value:

“Reality Creation,” “Cinema Black Pro,” “Motionflow,”

“Contrast,” “Brightness,” “Color,” “Hue,” “Color Temp.,”

“Sharpness,” and “Expert Setting” on the Picture menu

To reset the items that have been adjusted

Select an item in the menu screen, and display the pop-up

menu, the setting menu, or the adjustment menu.

Press RESET on the remote control to reset only the

selected settings to its factory preset value.

The RESET button on the remote control is available only when the

adjustment menu or the setting menu is selected.

Note

Setting items

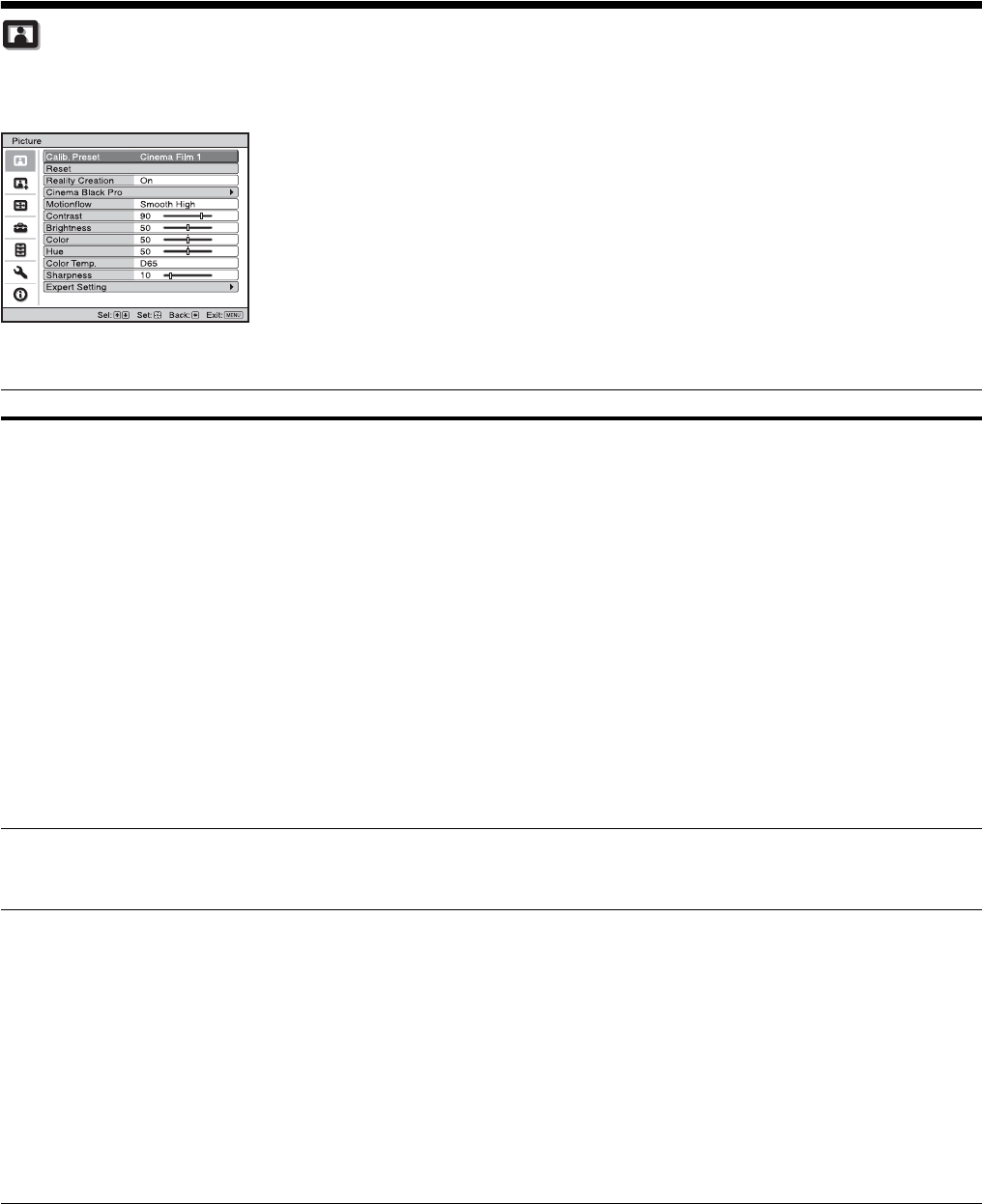

Picture Menu

The Picture menu is used for adjusting the picture.

Item names in brackets represent those printed on the remote control.

Setting items Description

Calib. Preset [CALIBRATED

PRESET]

You can select the picture viewing mode that best suits the type of video source or the environment.

You can save and use different preset modes for 2D/3D respectively.

Cinema Film 1: Picture quality suited to reproducing the highly dynamic and clear images typical of

master positive film.

Cinema Film 2: Picture quality suited to reproducing the rich tone and color typical of a movie theater,

based on the Cinema Film 1.

Cinema Digital: Picture quality suited to reproducing digital cinema-like images resembling DCI

specifications (page 41).

Reference: A picture quality setup suitable for when you want to reproduce faithfully the original image

quality, or for enjoying image quality, without any adjustment.

TV: Picture quality suited for watching TV programs, sports, concerts, and other video images.

Photo: Ideal for projecting still images taken with a digital camera.

Game: Picture quality suited to gaming, with well-modulated colors and fast response.

Bright Cinema: Picture quality suited for watching movies in a bright environment.

Bright TV: Picture quality suited for watching TV programs, sports, concerts, and other video images in

a bright environment.

User 1, User 2, User 3: You can adjust the picture quality to suit your taste, and save the setting. The

factory default setting is the same as “Reference.”

Tip

Any adjustments to picture quality settings are saved for each input.

Reset Resets all currently selected Calib. Preset mode settings to their default values (page 18).

Tip

Reset does not affect settings saved for the Custom 1 to 5 items of “Color Temp.”

Reality Creation [REALITY

CREATION]

Adjusts the detail and noise processing of images. (Super-resolution function)

On: Adjusts the settings of “Reality Creation.”

Database: Select “Normal” or “Mastered in 4K.”

“Mastered in 4K” provides image quality suitable for Blu-ray Disc™ “Mastered in 4K” releasing

from Sony Pictures Home Entertainment.

Resolution: When you increase the setting value, the texture and detail of the picture become sharper.

Noise Filtering: When you increase the setting value, the noise (picture roughness) becomes less

prominent.

Test: On/Off: Changes “On” and “Off” at a certain frequency to check the effect of “Reality

Creation.”

Tip

The display position of status during the test works together with the “Menu Position” setting

(page 26).

Off: The “Reality Creation” function is not applied.

Cinema Black Pro

Laser Light Setting Dynamic Control: Adjusts the range of movement of the laser light control.

Full: Automatically optimizes the laser light control and signal processing according to the brightness

level of the input source. This results in a bright and high contrast image.

Limited: Suppresses the movement and brightness of the laser light control, making the picture

quality suitable for viewing in a dark room.

Off: The “Dynamic Control” function is not applied.

Output: The higher the setting, the brighter the picture. The lower the setting, the darker the picture.

Tip

Adjust “Output” according to the brightness of the picture.

Contrast Enhancer

[CONTRAST ENHANCER]

Corrects the level of bright and dark parts automatically to optimize contrast according to a scene.

Increases image sharpness and makes image dynamic.

High/Middle/Low: You can adjust the contrast enhancer.

Off: The contrast enhancer function is not applied.

Motionflow [MOTIONFLOW] Impulse: Reproduces original picture quality. Provides cinema-like picture, which may flicker.

Combination: Reduces motion blur while maintaining brightness for high-speed picture content.

Smooth High: Provides smoother picture movement; especially effective for film-based content.

Smooth Low: Provides smoother picture movement for standard use.

True Cinema: Images, such as a movie created in 24 frames per second, are reproduced at the original

framerate.

Off: The “Motionflow” function is not applied.

Tips

• Select “Off” if the selected “Smooth High,” “Smooth Low,” “Impulse,” “Combination,” or “True

Cinema” results in a distorted picture.

• When selecting “Impulse,” the picture becomes dark. Also, it may flicker.

• Depending on the picture content, you may not see the effect visually even if you have changed the

settings.

• Only “Off” or “Impulse” is available when a signal with a resolution of 4096 × 2160 is input.

Contrast

[CONTRAST]

Adjusts the contrast.

Higher values increase the sharpness in images, while lower values decrease the sharpness.

When the HDR signal is input with “HDR10,” “HLG,” or “Auto” set for “HDR,” “Contrast(HDR)”

appears instead of “Contrast.”

Brightness

[BRIGHTNESS]

Adjusts the brightness of the picture.

The higher the setting, the brighter the picture. The lower the setting, the darker the picture.

Color Adjusts the color density.

The higher the setting, the greater the intensity. The lower the setting, the lower the intensity.

Hue Adjusts the color tone.

The higher the setting, the more greenish the picture becomes. The lower the setting, the more reddish

the picture becomes.

Color Temp.

[COLOR TEMP]

Adjusts the color temperature.

D93: Equivalent to 9,300 K color temperature normally used in TVs. Gives white colors a blue tint.

D75: Equivalent to 7,500 K color temperature used as an ancillary standard illuminant. Gives a neutral

tint between “D93” and “D65.”

D65: Equivalent to 6,500 K color temperature used as a standard illuminant. Gives white colors a red

tint.

DCI: DCI specification (page 41) color temperature.

D55: Equivalent to 5,500 K color temperature used as an ancillary standard illuminant. Gives white

colors an even redder tint.

Custom 1 to 5: Enables you to adjust, set, and store your favorite color temperature.

The factory default settings are as follows.

Custom 1: Same as the “D93” color temperature setting.

Custom 2: Same as the “D75” color temperature setting.

Custom 3: Same as the “D65” color temperature setting.

Custom 4: Same as the “DCI” color temperature setting.

Custom 5: Setting that prioritizes brightness.

Tip

You can adjust each item to a color temperature according to your preference.

Sharpness

[SHARPNESS]

Sharpens the outline of the picture, or reduces the noise.

The higher the setting, the sharper the picture. The lower the setting, the softer the picture, thus reducing

the noise.

Setting items Description

Expert Setting

NR (Noise Reduction) Reduces the roughness or noise of the picture.

Auto: Detects the noise level to reduce the roughness or noise of the picture automatically.

High/Middle/Low: Select a setting according to the roughness or noise of the input signal source.

Off: The NR (noise reduction) function is not applied.

Tip

The noise level may not be detected accurately with “Auto” depending on the input signal source. If the

picture is unacceptable with “Auto,” select a setting from among “High,” “Middle,” “Low” or “Off.”

MPEG NR (MPEG Noise

Reduction)

Reduces block noise and mosquito noise, particularly in digital signals.

Auto: Detects the noise level to reduce the block noise and mosquito noise of the picture automatically.

High/Middle/Low: Select a setting according to the block noise and mosquito noise of the input signal

source.

Off: The MPEG NR (MPEG noise reduction) function is not applied.

Tip

The noise level may not be detected accurately with “Auto” depending on the input signal source. If the

picture is unacceptable with “Auto,” select a setting from among “High,” “Middle,” “Low” or “Off.”

Smooth Gradation Smooths the gradation of the flat parts of images.

High/Middle/Low: You can adjust the smooth gradation effect.

Off: The smooth gradation function is not applied.

Tip

This item is not available for 3D signals.

Film Mode According to the film source you have selected, make a setting for playback.

Auto: Suitable for reproducing the original picture movement. Normally, set this to “Auto.”

Off: Plays back the picture in progressive format without detecting video signals automatically.

Tip

This item is compatible with a 1080i signal only.

Gamma Correction

[GAMMA CORRECTION]

Adjusts the response characteristics of the tone of the picture.

Select a favorite tone from 10 options.

1.8: Bright Produces a brighter picture overall.

2.0

2.1

2.2

2.4

2.6: Dark Produces a darker picture overall.

Gamma 7: Simulates the gamma curve of film.

Gamma 8: Increases the sharpness in images. Select this when you watch in a bright environment.

Gamma 9: Produces a brighter picture than Gamma 8.

Gamma 10: Increases the sharpness in images. Select this when you watch TV programs, etc., in a

bright environment.

Off: The “Gamma Correction” function is not applied.

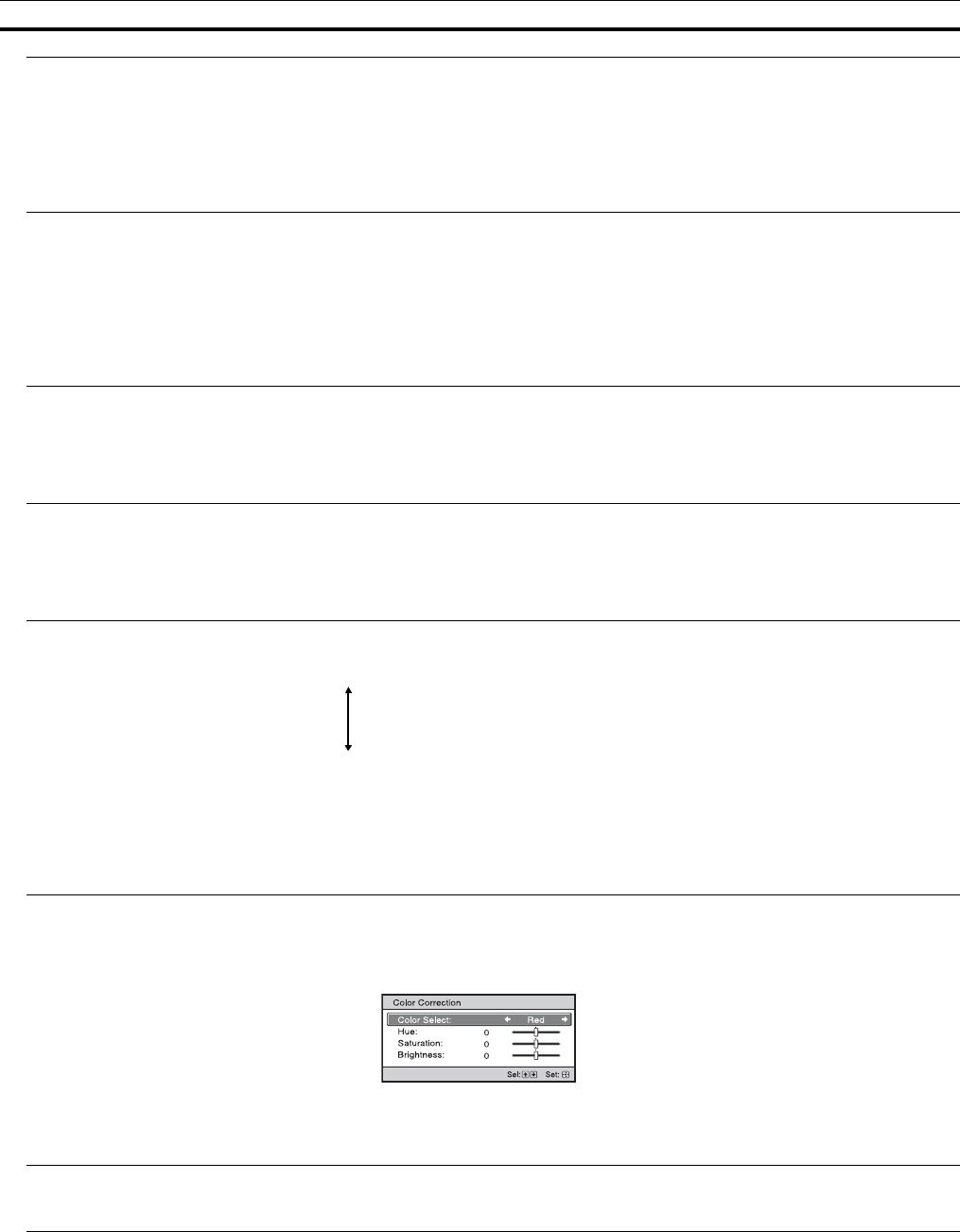

Color Correction On: Adjusts Hue, Saturation and Brightness of the selected colors.

Repeat steps 1 and 2 described below to specify the target color.

1Press M/m to select “Color Select,” then press </, to select the color you want to adjust among

“Red,” “Yellow,” “Green,” “Cyan,” “Blue,” and “Magenta.”

2Press M/m to select “Hue,” “Saturation” or “Brightness,” then adjust them to suit your taste using </

, while watching the projected picture.

Off: The “Color Correction” effect is not applied.

Clear White Emphasizes vivid whites.

High/Low: You can adjust the “Clear White” effect.

Off: The “Clear White” effect is not applied.

Setting items Description

x.v.Color Set this item when connecting the unit with equipment that supports x.v.Color and playing back an

x.v.Color video signal.

On: You can play back an x.v.Color video signal.

Off: The “x.v.Color” function is not applied.

For details on x.v.Color, see “About x.v.Color” (page 41).

Tip

Setting x.v.Color to “On” disables gamma adjustment.

HDR Sets how to play back HDR content.

Auto: Distinguishes HDR content automatically and applies the optimal picture quality. When an input

signal supports BT.2020, then “BT.2020” or “Color Space 2” is selectable for “Color Space”. When a

signal other than BT.2020 is input, then any mode other than “BT.2020” and “Color Space 2” is

selectable. (“BT.2020” and “Color Space 2” are not available in this case.)

HDR10: Set when playing back HDR10-compatible content.

HLG: Set when playing back HLG-compatible content.

Off: Set when playing back content other than HDR content.

All of the modes of “Color Space” are selectable when “HDR10,” “HLG,” or “Off” is selected.

If the setting is not correct for the input content, the bright and dark areas of the video may appear too

bright or too dark.

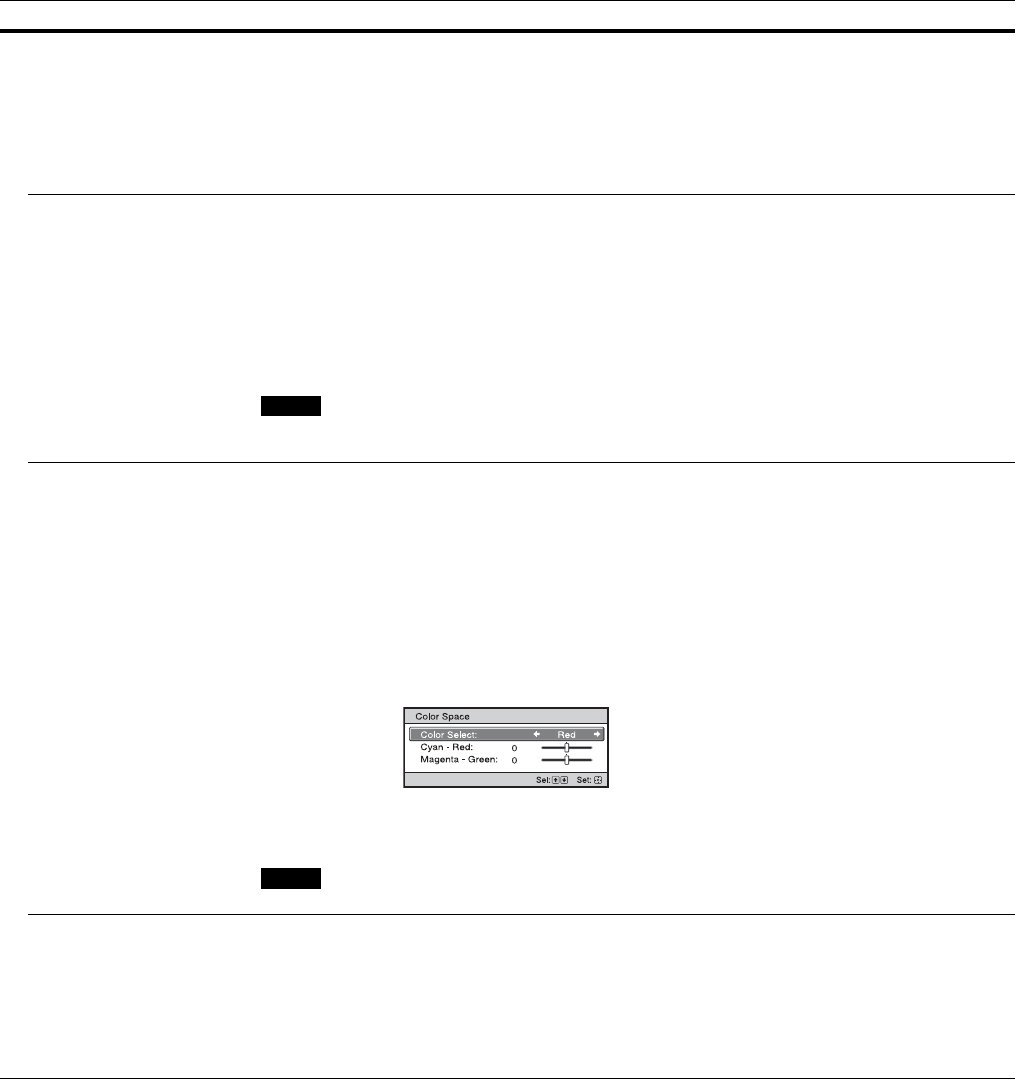

Color Space

[COLOR SPACE]

Converts the color space.

BT.709: An ITU-R BT.709 color space. The color space is equivalent to sRGB.

BT.2020: An approximated ITU-R BT.2020 color space which has a wider range of color reproduction

than BT.709. Use this setting when playing back HDR content.

DCI: A color space based on the DCI specification (page 41).

Adobe RGB: An approximated Adobe RGB color space, which has a wider range of color reproduction

than sRGB, and suited for displaying an image recorded in Adobe RGB specification.

Color Space 1: The color space suited for video images.

Color Space 2: A color space suited for watching HDR content in a bright space.

Color Space 3: A color space suited for watching movies or video images in a bright space.

Custom 1, Custom 2: You can adjust the color space setting.

Tip

You can adjust each item to a color space according to your preference.

When “HDR” is set to “Auto,” the selectable mode changes according to the signal type (page 22).

Input Lag Reduction Reduces the delay of the display for a video.

On: Shortens the time to display the input video image; effective for increasing the performance of the

display reaction speed when using an external controller, etc.

Off: Turns the Input Lag Reduction function off.

Tip

When “Input Lag Reduction” is set to “On,” the following items cannot be set:

“Combination,” “Smooth High,” “Smooth Low,” and “True Cinema” of “Motionflow”

Setting items Description

Note

Advanced Picture Menu

You can adjust the gaps in color that have occurred after a long period of use.

• Auto Calibration results in relatively coarse calibration. The color settings are not guaranteed to be the same as the factory default values.

• The colors are projected automatically while performing “Pre Check” or “Adjust.” A similar phenomenon may occur infrequently while the

power is off to adjust the unit. Both cases are not a malfunction.

• Do not turn off the power or operate the remote control or control panel during “Pre Check” or “Adjust,” as the process may be canceled.

Tips

• dE is an indicator of changing color. The smaller the value of dE, the fewer the changes caused by the color.

• Perform the calibration after the power has been on for more than 30 minutes.

• It takes a few minutes for “Pre Check” or “Adjust” to complete.

• When “Pre Check” or “Adjust” starts, the screen position may shift as the lens returns to its factory default position. After completion, the

screen returns to its previous position automatically.

• If the environment, such as the brightness of the room, changes while performing “Pre Check” or “Adjust”, measurement may be affected.

• If the “Pre Check” or “Adjust” function fails, try it again.

Setting items Description

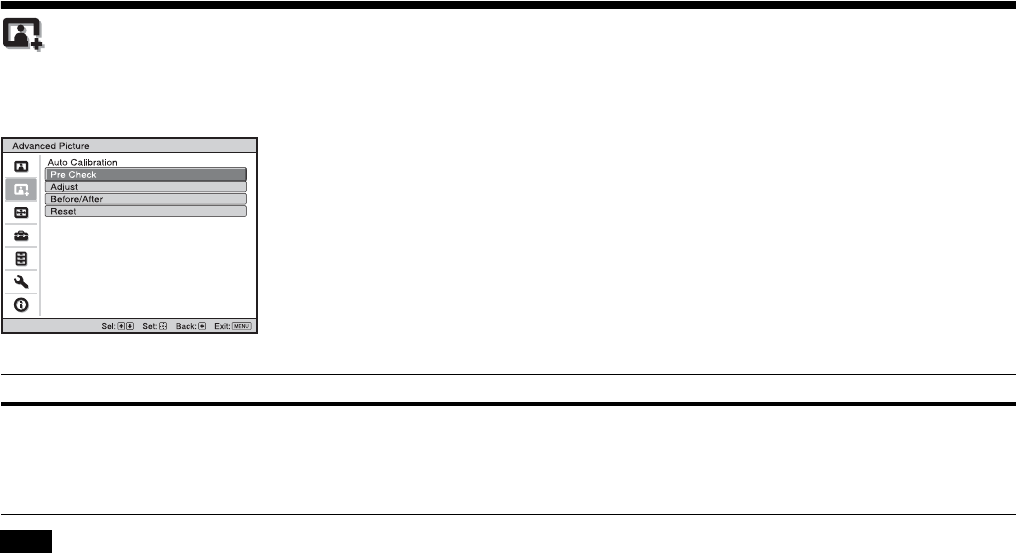

Auto Calibration Pre Check: Checks the color difference against the factory default settings, before calibration starts.

Adjust: Performs Auto Calibration.

Before/After: Toggles the factory default settings and the setting after the calibration at a certain

frequency. You can check the effect of the calibration by monitoring the actual image.

Reset: Resets the calibration results, and returns to the factory default settings.

Notes

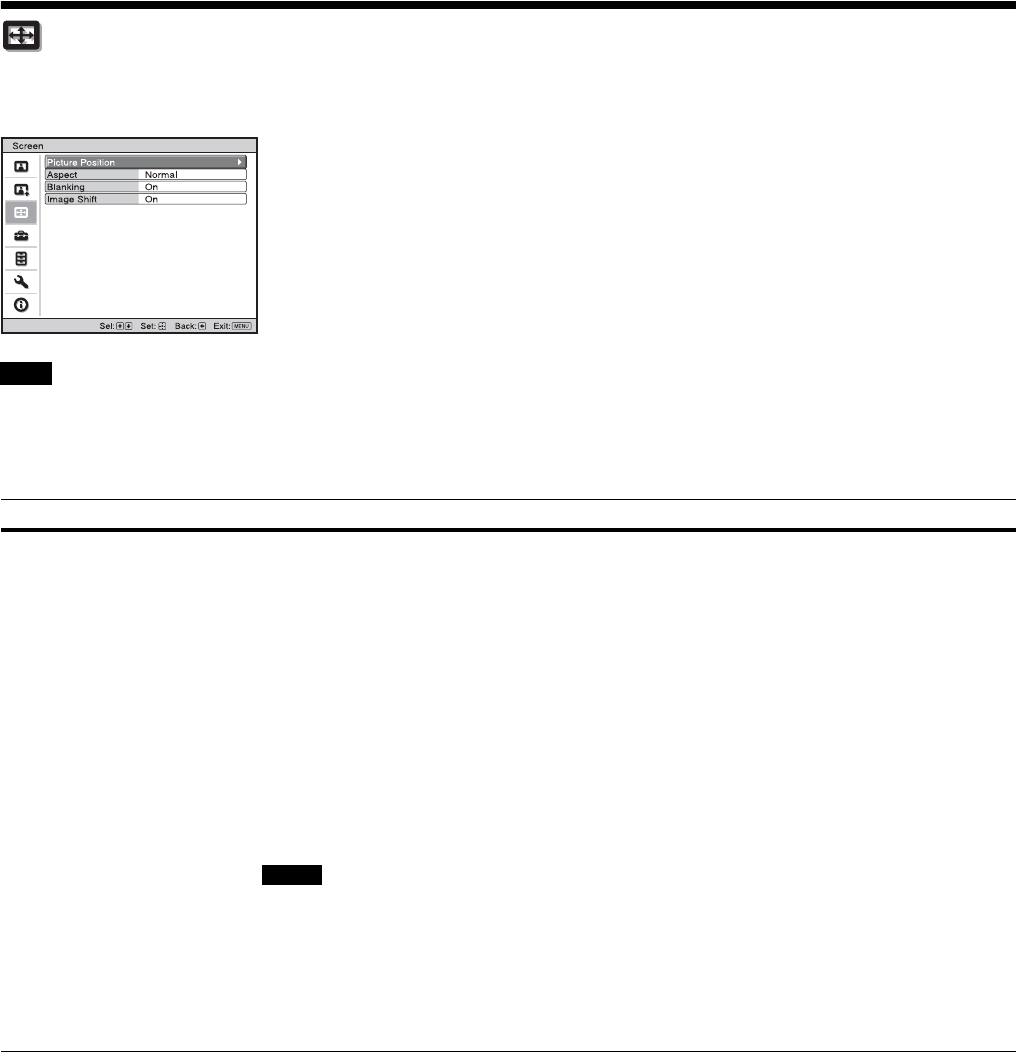

Screen Menu

You can set the picture size, aspect mode, etc.

These items may not be available, depending on the type of input signal. For details, see “Input Signals and Adjustment/Setting Items”

(page 44).

Item names in brackets represent those printed on the remote control.

Note

Setting items Description

Picture Position

[POSITION]

You can store up to five combinations of lens settings, aspect ratio, and blanking.

After setting the lens (focus, picture size, picture position), select from “1.85:1,” “2.35:1,” “Custom 1,”

“Custom 2,” or “Custom 3” depending on the subtended screen angle, and after confirming, continue by

selecting “Save,” “Delete,” or “Select.”

Save: Stores the current lens settings (focus, picture size, picture position) in the selected position. If a

setting is already stored in that position, it is overwritten.

Delete: Deletes the stored setting. After the setting is deleted, “1.85:1,” “2.35:1,” “Custom 1,” “Custom

2,” or “Custom 3” in the display change to “---.”

Select: Recalls the settings of the selected position.

Tips

• The optimal aspect ratio is preset for each picture position. The aspect ratio can be changed and saved

for each picture position.

• When saving the Picture Position, temporarily move the picture from the saving point down 5 cm or

more, then move the picture up again and save. This improves the precision of the Picture Position

when calling it.

• After you have selected and confirmed the lens position, the lens starts to move. Do not touch the lens

and the area around the lens, otherwise it may cause injury or a malfunction.

• If you press any button on the remote control or the unit while the lens is moving, the lens stops. In

this case, select the lens position again or adjust the lens manually.

• When you use a 2.35:1 or a 16:9 subtended angle with the Picture Position function, make sure that

the installation position is suitable (page 13).

• The Picture Position function is not guaranteed to reproduce the lens settings precisely.

• “Picture Position” cannot be set when “Lens Control” is set to “Off.”

Notes

Aspect

[ASPECT]

You can set the aspect ratio of the picture to be displayed for the current input signal (page 14).

1.85:1 Zoom: A 1.85:1 aspect ratio picture is displayed in its original aspect ratio, enlarged so that black

bands do not appear at the top and bottom of the projection surface.

2.35:1 Zoom: A 2.35:1 aspect ratio picture is displayed in its original aspect ratio, enlarged so that black

bands at the top and bottom of the projection surface are as small as possible. When you select “2.35:1

Zoom” from “Trigger Select 1/2” on the Installation menu, a 12 V signal is output from the

TRIGGER 1 or TRIGGER 2 connector (page 31).

Normal: Input video is displayed in its original aspect ratio, enlarged to fill the projection surface. This

mode is suitable for viewing 1.78:1 (16:9) and 1.33:1 (4:3) video.

V Stretch: This is the most suitable mode for using a 2.35:1 screen to view 2.35:1 video with a

commercially available anamorphic lens.

When you select “V Stretch” from “Trigger Select 1/2” on the Installation menu, a 12 V signal is

output from the TRIGGER 1 or TRIGGER 2 connector (page 31).

Squeeze: With this setting, 1.78:1 (16:9) and 1.33:1 (4:3) video will be displayed in their correct aspect

ratios when you use a commercially available anamorphic lens.

Stretch: Displays video that has been squeezed to 1.33:1 (4:3) as 1.78:1 (16:9) aspect ratio.

Tips

• When you select “V Stretch” or “Squeeze,” select the anamorphic lens type from “Anamorphic Lens”

in the Installation menu.

• Selectable aspect modes vary depending on the input signal (page 45).

• Aspect setting is stored for each of the five Picture Positions. Adjust the aspect after selecting the

Picture Position. Final adjusted values are stored automatically.

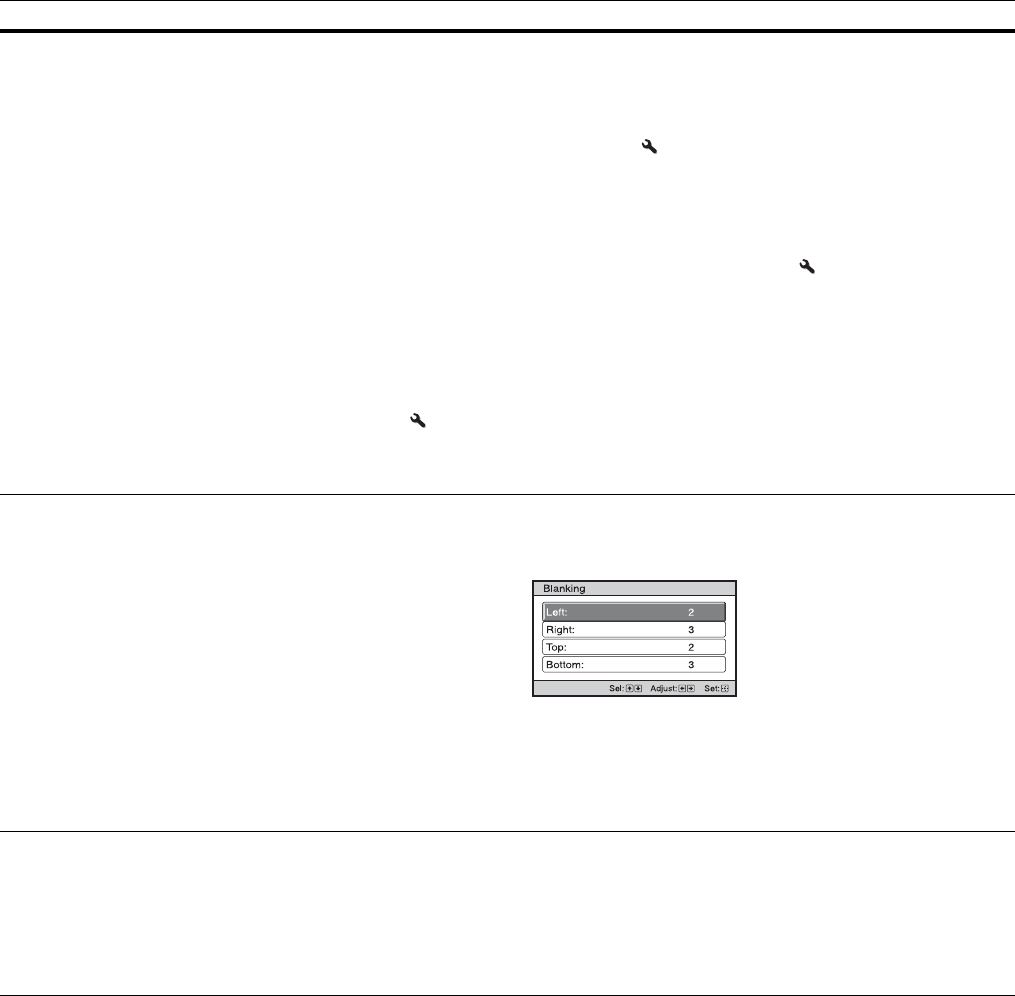

Blanking This feature allows you to adjust the displayable region within the four directions of the screen.

On: Select the edge to adjust by highlighting Left, Right, Top, or Bottom using the M/m buttons.

Adjust the amount of blanking using the </, buttons.

Off: Turns off the Blanking function.

Tips

• Depending on the aspect ratio setting, right/left blanking may not be available.

• Blanking setting is stored for each of the five Picture Positions. Adjust the blanking after selecting the

Picture Position. Final adjusted values are stored automatically.

Image Shift On: You can adjust the image position.

H: The image moves to the right as the value increases, and moves to the left as decreases.

V: The image moves up as the value increases, and moves down as decreases.

Off: You can turn off the image shift function.

Tip

When displaying one image with two projectors installed side-by-side, position both images to align

their adjoining edges.

Setting items Description

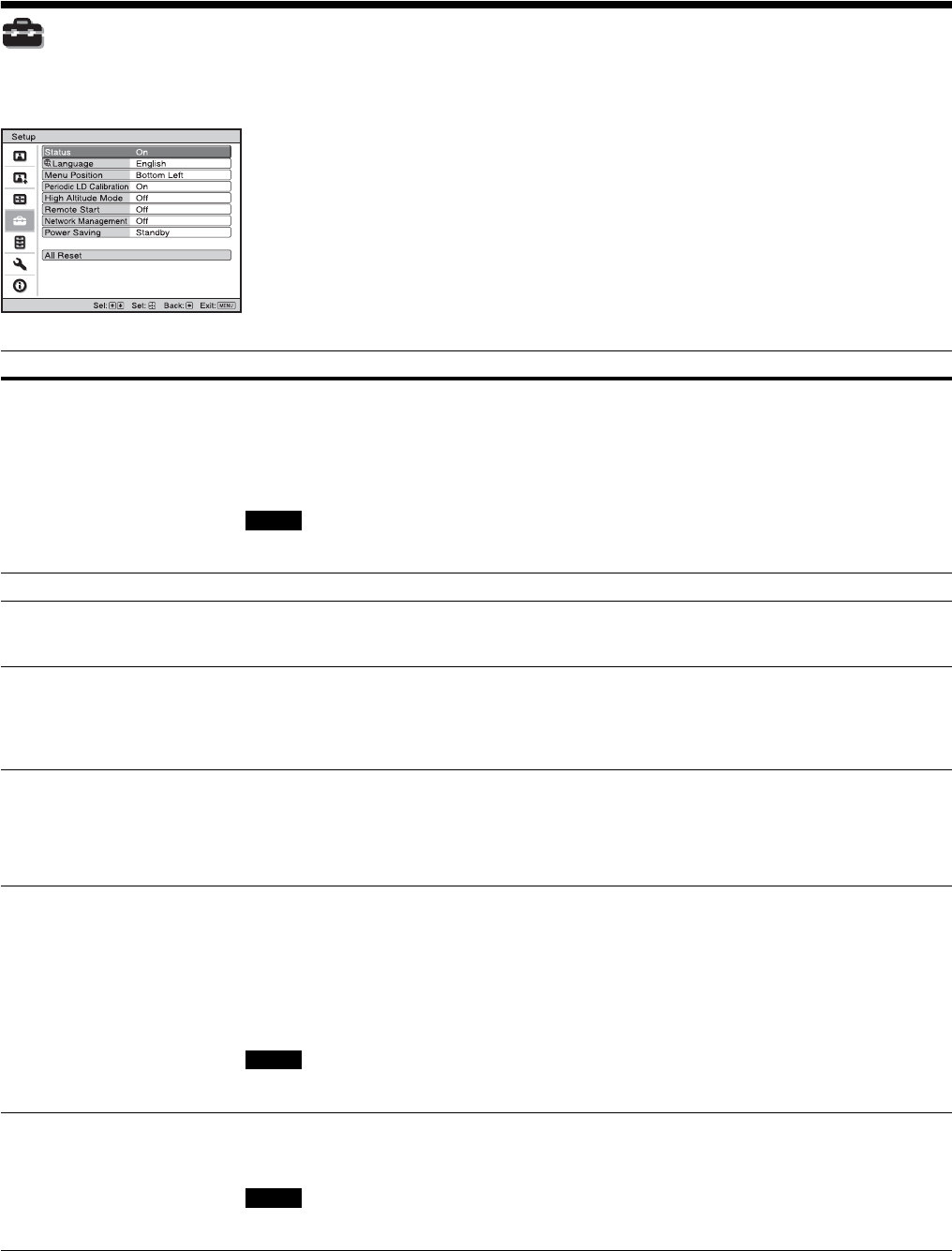

Setup Menu

The Setup menu is used to change the factory preset settings, etc.

Setting items Description

Status Sets whether or not on-screen messages or menus, etc. are displayed.

On: Displays on-screen messages and menus.

Off: Turns off the on-screen displays, other than certain menus, a message when turning off the power,

and warning messages.

All Off: Turns off the on-screen displays, other than certain menus, and a message when turning off the

power.

• When “All Off” is selected, warning message for high temperature is not displayed.

• Note that Sony is not liable for failure of the unit or any accident caused by selecting “All Off.”

Language Selects the language used in the menu and on-screen displays.

Menu Position You can change the position to display the menu on the projection surface.

Bottom Left: Displays the menu on the bottom left area of the projection surface.

Center: Displays the menu on the center of the projection surface.

Periodic LD Calibration Performs the calibration automatically after a certain period of use. At that time, the calibration starts

when the ?/1 button of the unit or the 1 button of the remote controller is pressed, and after the

calibration finishes the power turns off.

On: Performs the calibration automatically.

Off: Does not perform the calibration automatically.

High Altitude Mode Sets the unit to operate at the prevailing atmospheric pressure.

On: Use this setting when using the unit at an altitude of 1,500 m (approx. 4,900 ft) or higher.

Off: Use this setting when using the unit at normal altitudes.

Tip

When this item is set to “On,” the fan noise becomes slightly louder since the fan speed increases.

Remote Start Sets the Remote Start settings.

On: You can turn on the power from a PC or a terminal which is connected to a network.

Off: Turns off the Remote Start function.

Tips

• To use the function, the unit should be connected to the network in advance (page 32).

• To turn on the power with the Remote Start function, a special command should be sent from a PC or

a terminal. For details, consult with qualified Sony personnel.

When the Remote Start is set to “On,” the standby power requirement will increase. When Network

Management is set to “On,” Remote Start is fixed at “On” and is not displayed in the menu.

Network Management On: Set when connected to the network and continuously communicating with the projector control

equipment.

Off: Turns off the Network Management function.

When Network Management is set to “On,” the network function is continuously enabled. Set Network

Management to “Off” for normal use. If you set to “On,” the power consumption increases.

Notes

Note

Power Saving Sets the Power Saving mode.

Standby: If no signal is input for 10 minutes, power is turned off automatically and the projector goes

into standby mode.

Off: Disables the Power Saving function.

All Reset All settings by the main unit and adjusted data by the connected devices are initialized to their factory

preset values.

Setting items Description

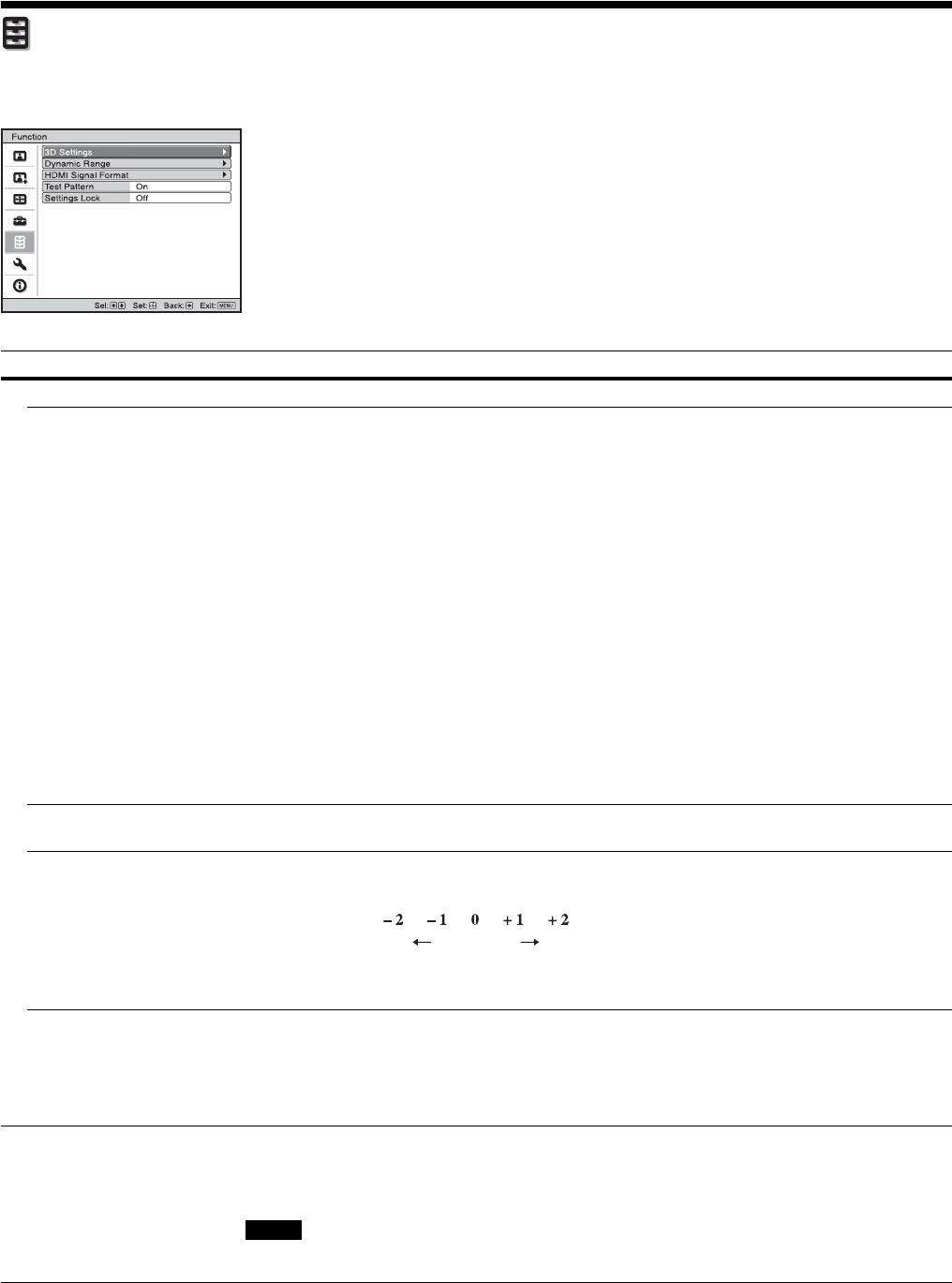

Function Menu

The Function menu is used for changing the settings of the various functions of the unit.

Setting items Description

3D Settings You can change the settings of the 3D function.

2D-3D Display Sel. For Switching the video images to “2D” or “3D.”

Auto: Displays 3D video images when HDMI signals with 3D information* are input. Displays 2D

video images when other signals are input.

3D: Displays 3D video images according to the 3D system selected in “3D Format.” However, when

HDMI signals with 3D information are input to the unit, displays 3D video images according to the 3D

system of those HDMI signals.

3D Format: Set the 3D system when the input HDMI signals do not include 3D information.

Simulated 3D: Converts 2D video images to 3D video images. The setting can be made only for input

the HD signals.

The simulated 3D feature may have limited effect, depending on the video source.

There are differences in perception of 3D video images among individuals.

Side-by-Side: Select this to display 3D images as two similar images, side-by-side.

Over-Under: Select this to display 3D images as two similar images, one above the other.

Tips

• “2D-3D Display Sel.” cannot be set to “3D” for some video sources. For available 3D signals, see

“Compatible 3D Signals” (page 44).

• The simulated 3D feature may have limited effect, depending on the projection image size (100 to 120

inches recommended) and the video source.

• The menu display has a ghost while a 3D video image is displayed and is best viewed with the 3D

glasses.

3D Brightness For adjusting the brightness of the picture when watching 3D video images.

You can select the brightness from “High” or “Standard.”

3D Depth Adjust For adjusting the depth of the 3D video images on the projection surface. The setting can be made only

when a 3D Format other than “Simulated 3D” is selected.

We recommend that “3D Depth Adjust” be set to “0.” The 3D video images may be difficult to perceive,

depending on the setting of “3D Depth Adjust.”

Simulated 3D Effect For adjusting the 3D effect when 2D content is converted to 3D video images. You can select the effect

from among “High,” “Middle,” and “Low.”

Tip

There are differences in perception of 3D video images converted by the simulated 3D function among

individuals.

Dynamic Range Sets the video input level for HDMI 1 and HDMI 2 connectors.

Auto: Sets the video input level automatically.

Limited: The video input level is set for signals that are equivalent to 16-235.

Full: The video input level is set for signals that are equivalent to 0-255.

If the video output setting of the connected HDMI device is not set correctly, light and dark parts of the

video may appear too light or too dark.

Depth

NormalFront Depth

Note

HDMI Signal Format Switches the video signal formats for 4K.

Standard Format: Displays a picture in the standard HDMI format. Normally use this setting.

Enhanced Format: Displays a picture in a more detailed HDMI format. Use this setting only when the

corresponding devices are used.

Tips

• A picture or sound may not be output normally when “Enhanced Format” is selected. In this case, set

to “Standard Format.”

• Set “Enhanced Format” only when the corresponding devices are used.

• It may take time to display a picture after switching the video signal formats.

Test Pattern Displays a test pattern according to the setting.

On: A test pattern appears on the screen to be used when adjusting the lens with “Lens Focus,” “Lens Zoom,”

and “Lens Shift.”

Off: A test pattern does not appear.

Tip

While the test pattern is displayed, it is only displayed in green to allow you to adjust the focus easily.

Settings Lock Locks menu item settings to prevent operational error (page 30).

Off: Cancels the Settings Lock.

Level A: Group 1 items (below) are not displayed on the menu, and are not available.

Level B: Group 1 and Group 2 items (below) are not displayed on the menus, and are not available.

Setting items Description

Group 1 Group 2

Items Locked by Settings Lock

Picture menu

Reset

Reality Creation

Laser Light Setting

Contrast Enhancer

Motionflow

Contrast

Brightness

Color

Hue

Color Temp.

Sharpness

MPEG NR

Smooth Gradation

Film Mode

Gamma Correction

Color Correction

Clear White

x.v.Color

HDR

Color Space

Input Lag Reduction

Advanced Picture menu

Auto Calibration

Setup menu

Periodic LD Calibration

Setup menu

Status

Language

Menu Position

High Altitude Mode

Remote Start

Network Management

Power Saving

Function menu

Dynamic Range

Test Pattern

Installation menu

Image Flip

Lens Control

Anamorphic Lens

Trigger Select

IR Receiver

Panel Alignment

Network Setting

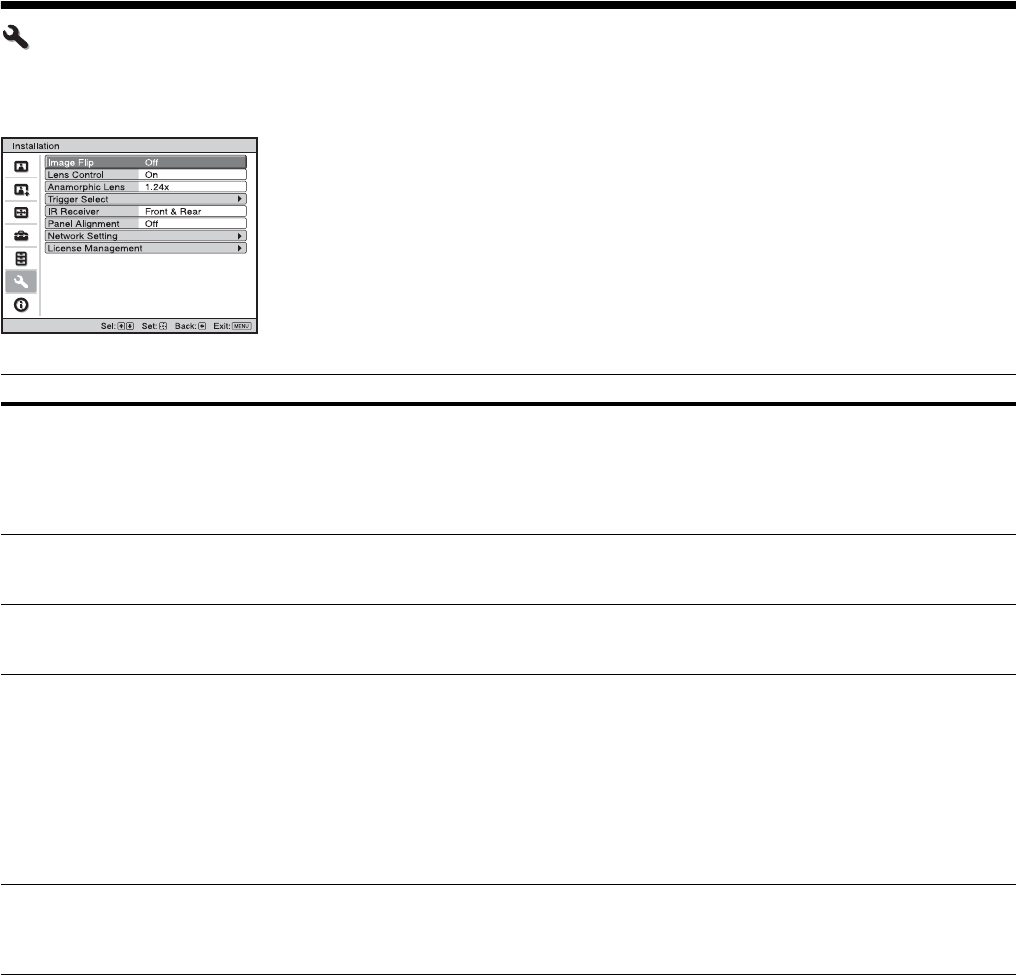

Installation Menu

The Installation menu is used for changing the installation settings.

Setting items Description

Image Flip Flips the picture on the screen horizontally and/or vertically.

HV: Flips the picture horizontally and vertically.

H: Flips the picture horizontally.

V: Flips the picture vertically.

Off: The picture does not flip.

Use this item for installation for the rear projection or ceiling installation.

Lens Control Avoids any operation of the lens such as “Lens Focus,” “Lens Zoom,” and “Lens Shift,” by mistake.

On: Enables adjustment of the lens.

Off: Prevents any adjustment of the lens.

Anamorphic Lens Select a setting to match the anamorphic lens conversion ratio.

1.24x: Select this when you use an anamorphic lens with a horizontal rate of 1.24×.

1.32x: Select this when you use an anamorphic lens with a horizontal rate of 1.32×.

Trigger Select Switches the output function of the TRIGGER 1/TRIGGER 2 connector.

Off: Turns off the TRIGGER connector function.

Power: Outputs 12 V signals from the TRIGGER 1/TRIGGER 2 connectors when the unit is on. The

TRIGGER 1/TRIGGER 2 connectors do not output any signals when the unit is in standby.

V Stretch: Works with the “Aspect” setting’s “V Stretch” (page 25) and outputs a 12 V signal from the

TRIGGER 1 or TRIGGER 2 connector.

2.35:1 Zoom: Works with the “Aspect” setting’s “2.35:1 Zoom” (page 25) and outputs a 12 V signal

from the TRIGGER 1 or TRIGGER 2 connector.

3D: Outputs a 12 V signal from the TRIGGER 1 or TRIGGER 2 connector when the 3D signal is input

or when working with “2D-3D Display Sel.” of “3D” “3D Settings” (page 28).

IR Receiver Selects the remote control detectors (IR Receiver) on the front and rear of the unit.

Front & Rear: Activates both the front and rear detectors.

Front: Activates the front detector only.

Rear: Activates the rear detector only.

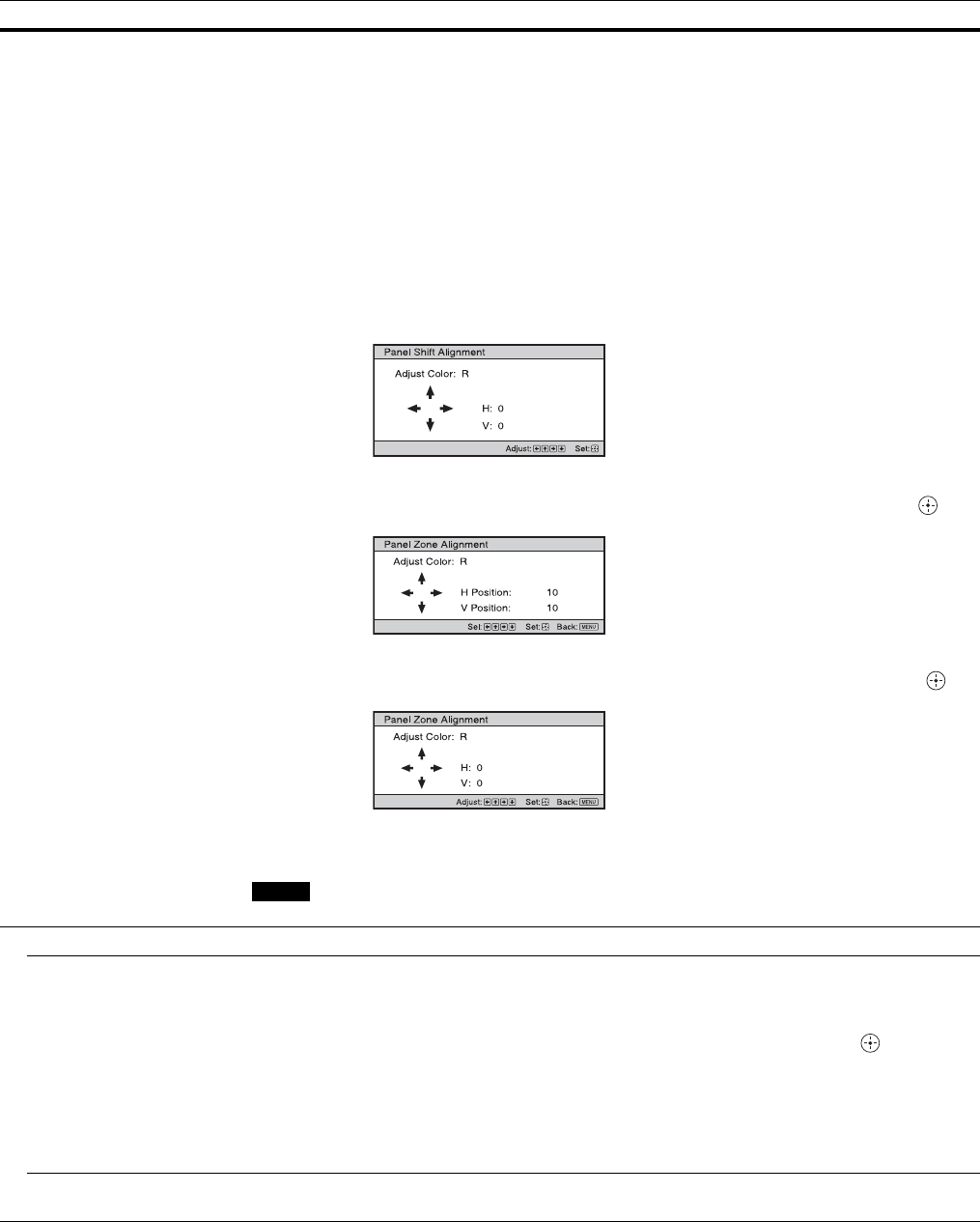

Panel Alignment This feature allows you to adjust the gaps in the color of characters or the picture on the projection

surface.

On: Adjusts the gaps in the colors selecting “Adjust Item” or “Adjust Color.”

Adjust Item: Selects how to make adjustments from below.

Shift: Shifts the whole picture and makes adjustments.

Zone: Selects the desired range and makes adjustments.

Adjust Color: Assigns the desired color to adjust the gaps in color. Select “R” (Red) or “B” (Blue) to

make adjustments based on “G” (Green).

Pattern Color: Select “R/G” (Red and Green) or “R/G/B” (White, all colors) when “Adjust Color” is

“R” (Red). Select “B/G” (Blue and Green) or “R/G/B” (White, all colors) when the “Adjust Color” is

“B” (Blue).

Adjust: The shift adjustment and zone adjustment of the color selected in “Adjust Color” can be made

with the </,, M/m buttons.

When “Shift” is selected: Assign the settings of the horizontal direction (H) with the </, buttons

and the vertical direction (V) with the M/m buttons on the shift adjustment screen.

When “Zone” is selected: Select the position to adjust with the </, buttons for the horizontal

position (H Position) and the M/m buttons for the vertical position (V Position), then press .

Set the amount to adjust with the </, buttons for the horizontal direction (H) and with the M/m

buttons for the vertical direction (V). You can select the position to adjust again by pressing .

Reset: Returns to the factory settings.

Off: The optimized data has been preset.

Depending on the adjustments made above, colors may become uneven or the resolution may change.

Network Setting Perform internet protocol settings.

IPv4 Setting IP Address Setup: Selects the IP address setting method.

Auto(DHCP): The IP address is assigned automatically from the DHCP server such as a router.

Manual: Specifies the IP address manually.

When “Manual” is selected for “IP Address Setup,” select the item with the </, buttons and input the

value with the M/m buttons. When all items are entered, select “Apply,” and then press the button. The

entered settings will be registered.

IP Address: Sets the unit’s IP address.

Subnet Mask: Sets the unit’s subnet mask.

Default Gateway: Sets the unit’s default gateway.

MAC Address: Displays the unit’s MAC address. This cannot be changed.

Apply: Enables the IP address that is set manually.

IPv6 Information Displays the IPv6 information.

When you set the IPv6 IP address, set it on a Web browser (page 35).

Setting items Description

Note

License Management Manages the activation (validation) status of the license.

Activate Licenses: Activates (validates) the available license.

Unique Device ID: Displays the ID number of the unit.

Tip

For details on features activated by “Activate Licenses,” refer to the following web site:

https://www.ecspert.sony.biz/

Supported Web browsers are as follows:

Windows OS: Internet Explorer 10/11, Microsoft Edge (Windows 10), Google Chrome

Mac OS: Safari

Setting items Description

Note

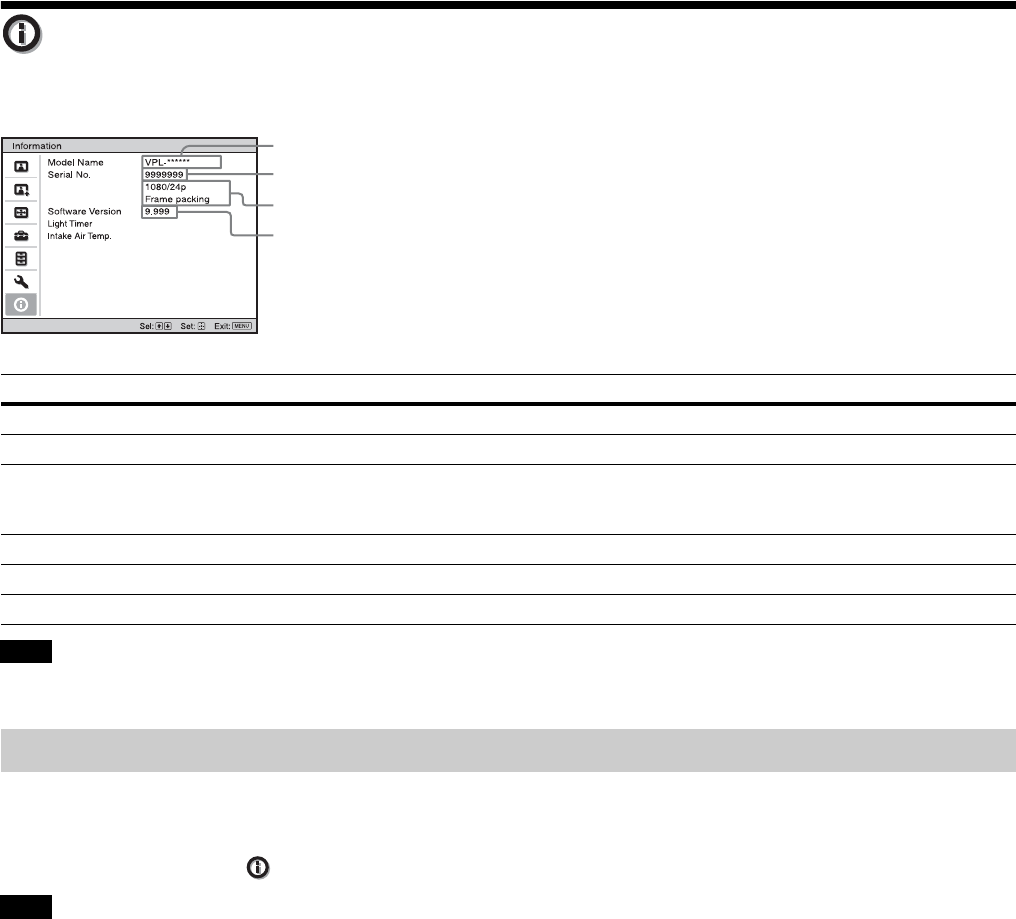

Information Menu

The Information menu displays the model name, serial number, input signal type, and software version.

You cannot adjust or change the displays listed above.

This unit has default image data to adjust preset data for input signals appropriately according to the signals shown in

“Preset Signals” (page 43) (the preset memory). When the preset signal is input, the unit automatically detects the signal

type and recalls the data for the signal from the preset memory to adjust it to an optimum picture. The signal type is

displayed in the Information menu.

Depending on the computer input signal, parts of projection image may be hidden or displayed incorrectly.

Items Description

Model Name Displays the model name

Serial No. Displays the serial number.

Signal type Displays the resolution of the video which you are watching. When input signals with 3D information

are input, the type of input signals and the 3D format are displayed. When the input signal is compatible

with HDR, “HDR(HDR10)” or “HDR(HLG)” is displayed according to the input signal.

Software Version Displays the software version.

Light Timer Displays how long the light has been turned on (total usage).

Intake Air Temp. Displays the intake air temperature.

Note

About the Preset Memory

Note

Model name

Serial No.

Software version

Signal type

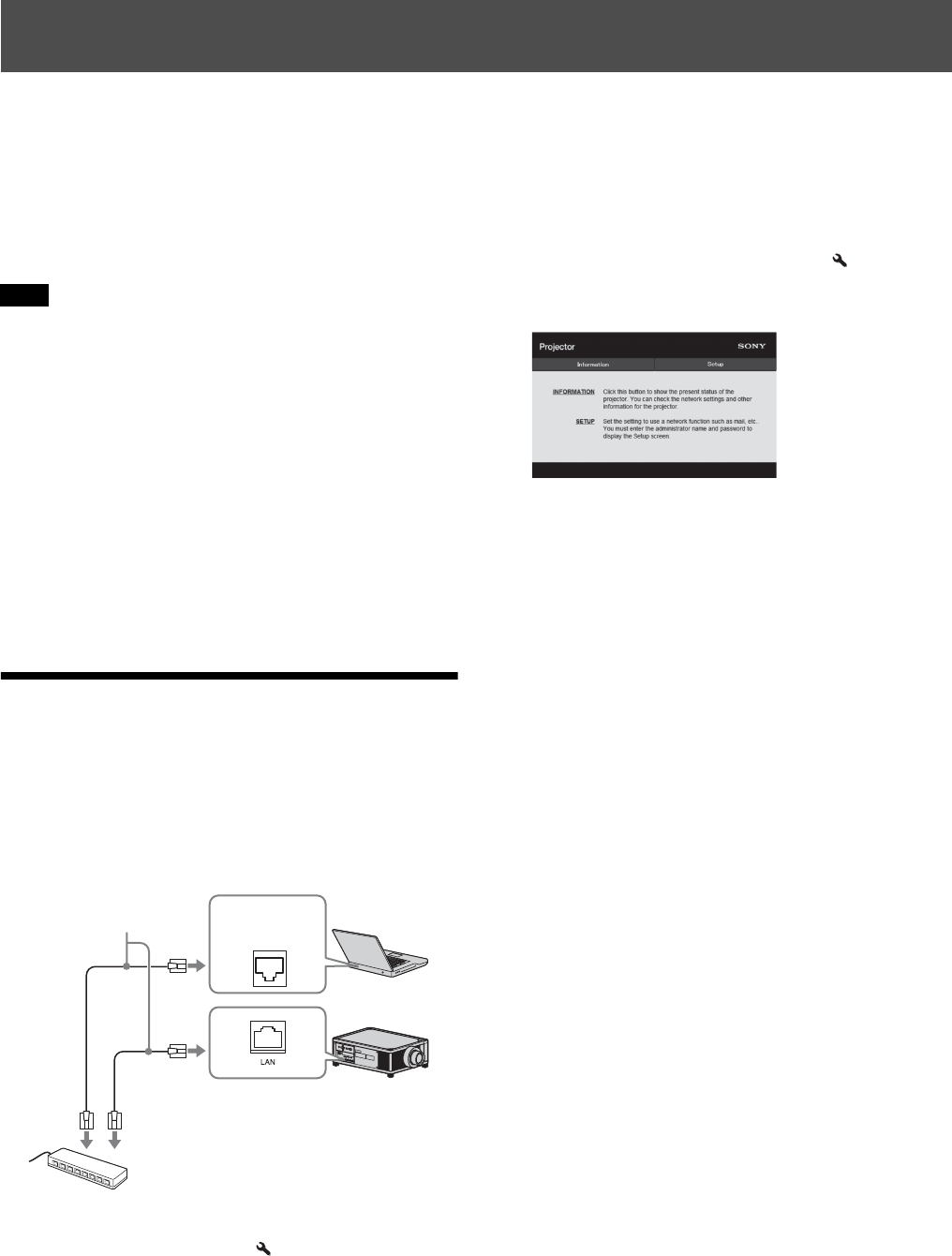

Connection to the network allows you to operate the

following features:

• Checking the current status of the unit via a Web

browser.

• Making the network settings for the unit.

• Network monitoring and controlling with control

protocol (SDAP [Advertisement], SDCP [PJ Talk],

DDDP [AMX], Crestron RoomView, Control4).

• When connecting this projector with the network, consult with the

network administrator. The network must be secured.

• When using this projector connected with the network, access the

Control window via a Web browser and change the access

limitation of the factory preset values (page 36). It is

recommended to change the password regularly.

• When the setting on the Web browser is completed, close the Web

browser to log out.

• The menu displays used for the explanation below may be

different depending on the model you are using.

• Supported Web browsers are Internet Explorer 8/9/10/11.

• The menu displays only English.

• If the browser of your computer is set to [Use a proxy server] when

you have access to the unit from your computer, click the check

mark to set accessing without using a proxy server.

• AMX DDDP is not compatible with IPv6.

• These network functions are available when the unit is turned on.

Displaying the Control

Window of the Unit with a

Web Browser

1Connect the LAN cable.

2Set the network settings for the unit using “Network

Setting” on the Installation menu (page 32).

3Start a Web browser on the computer, enter the

following in the address field, then press the Enter key

on your computer.

http://xxx.xxx.xxx.xxx

(xxx.xxx.xxx.xxx: IP address for the unit)

When connecting by the IPv6 address

http://[xxxx:xxxx:- xxxx]

You can confirm the IP address of the unit under

“Network Setting” on the Installation menu.

The following window appears in the Web browser:

Once you make the network settings, you can open the

Control window only by performing step 3 of this

procedure.

Using Network Features

Notes

LAN

Connector

LAN cable

(straight type)

(not supplied)

Hub, router, etc.

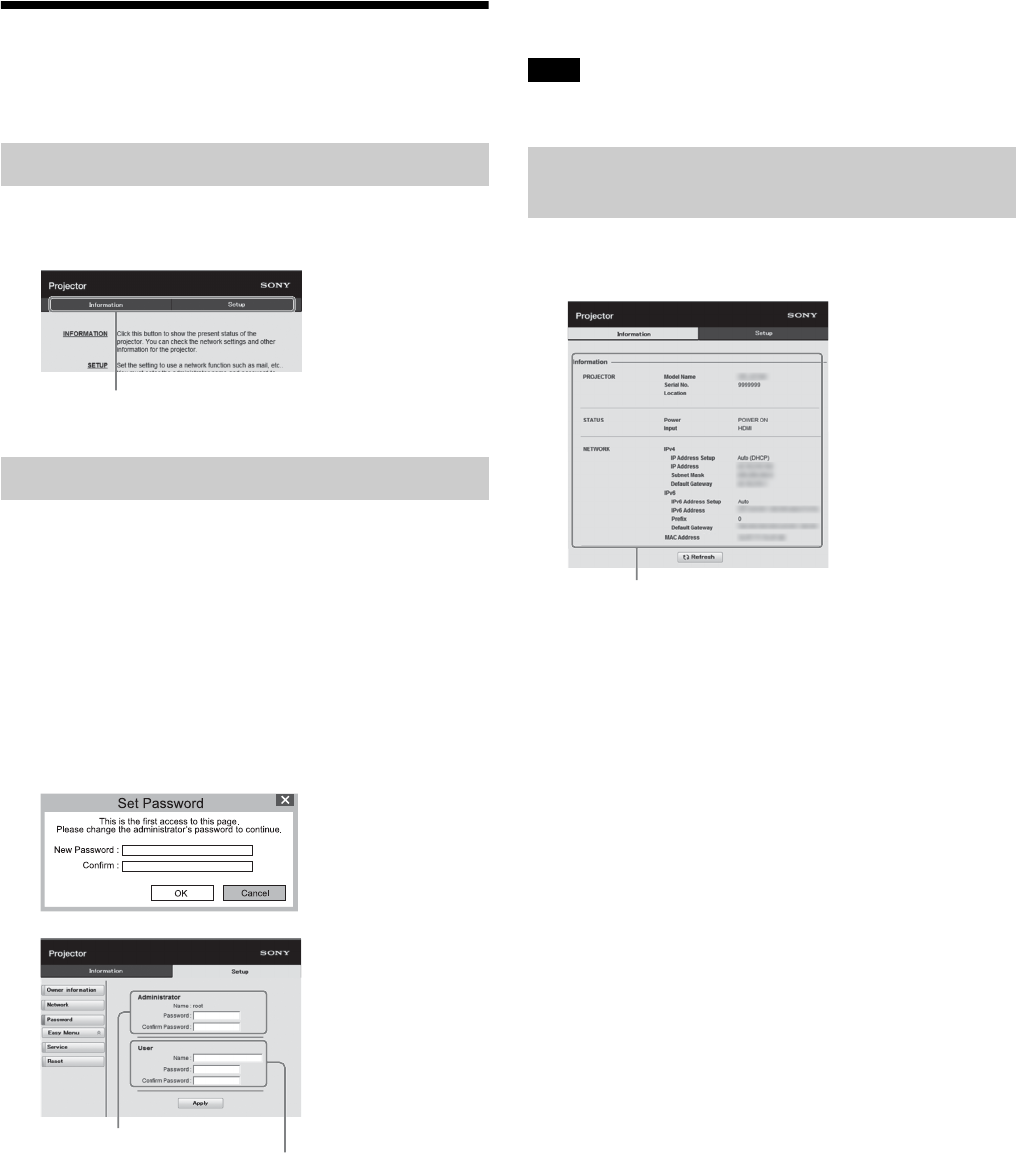

Operating the Control

Window

Click one of the Page Switching buttons to display the

desired setting page.

You can limit a user for accessing any particular page.

Administrator: Allowed access to all pages

User: Allowed access to all pages except the Setup

page

When you access the Setup page for the first time, input

“root” as the user name and “Projector” as the password in

the authentication dialog.

When you log in for the first time, the window that prompts

you to change the password is displayed. Follow the

instructions on the screen to change the password.

The name of the administrator is preset to “root.”

The password can be changed in the Password page in the

Setup page.

When you change the password, input a new password

after deleting the password (*****) that was set.

The password of the administrator and user should be 8 to

16 characters that includes both alphabet and numeric

characters. Alphabet is case-sensitive.

The default password “Projector” cannot be set as a new

password.

If you forget your password, consult with qualified Sony personnel.

You can confirm the current settings for the unit on the

Information page.

Switching the Page

Setting the Access Limitation

Page Switching buttons

Entry area for [Administrator]

Entry area for [User]

Note

Confirming the Information

Regarding the Unit

Information area

Troubleshooting

If the unit appears to be operating erratically, try to diagnose and correct the problem using the following instructions. If

the problem persists, consult with qualified Sony personnel.

Power


On-screen display

Error Handling

Symptom Cause and Remedy Page

The power is not turned on. Check the indicators. 39

After the AC power cord is connected, it may take about 10 seconds until the unit is ready

to be turned on. Wait a while then turn on the unit.

–

The power is suddenly turned off. Check that “Power Saving” in the Setup menu is set to “Standby.” 27

Set “Power Saving” to “Off.” 27

Symptom Cause and Remedy Page

No picture. Check that the connecting cable is connected to the external equipment properly. 10

Select the input source correctly using the INPUT button. 12

Check that the computer signal is set for output to an external monitor.

If a notebook computer and the signal is output to its display and an external monitor, the

external monitor’s image may not be displayed correctly. Set your computer to output the

signal to only an external monitor.

–

The picture has ghosts. Video images are displayed in 3D. Watch the 3D video images using the 3D glasses, and

set “2D-3D Display Sel.” to “3D.”

12, 28

Bright or dark area of the video

appears too bright or too dark.

This symptom may occur when a signal level other than those of HDMI standard is input.

Switch the output level of the connected equipment, or switch the Dynamic Range on the

Function menu of the unit.

The picture is too dark. Adjust “Contrast” or “Brightness” on the Picture menu properly. 20

The picture is not clear. Adjust the focus. 7

Condensation has accumulated on the lens. Leave the unit for about two hours with the

power on.

–

The color of characters or the picture

is not appropriate.

Select the desired color registration in “Panel Alignment” on the Installation menu. 32

Image is left on the projection image.

(Image retention)

When high contrast non-moving images are displayed for a long period of time, there may

be some image retention on the projection image. This is only a temporary condition.

Turning off the power for a while will eliminate the retained image.

–

Symptom Cause and Remedy Page

On-screen display does not appear. Set “Status” on the Setup menu to “On.” 26

Check if the ON/STANDBY indicator should light in green. When the ON/STANDBY

indicator blinks in green, the unit is starting up. Wait until it stops blinking and remains lit

in green.

Remote control

3D video images

Others

Symptom Cause and Remedy Page

The remote control does not work. Batteries could be weak. Replace them with new batteries. –

Insert the batteries with the correct polarities. –

If there is a light source near the remote control detector, the unit may work improperly or

inadvertently.

–

Confirm the position of the remote control detector on the unit. 4

Set “IR Receiver” to “Front & Rear” on the Installation menu. 31

Make sure that the cable is not connected to the IR IN connector. 3

Symptom Cause and Remedy Page

The video image does not seem like

3D video images.

Check if the 3D glasses are turned on. 12

Make sure that the battery in the 3D glasses is sufficiently charged. –

Set “2D-3D Display Sel.” to “Auto” or “3D.” 28

Check if the input signals are compatible 3D signals. 44

The 3D signals may not be input depending on the specifications of the connected AV

selector/AV amplifier/external equipment. If the 3D signal is not input, confirm the

specifications and/or settings of the AV selector/AV amplifier/external equipment.

–

When the viewing position is too far from the unit, the 3D glasses may not be able to

display the images properly.

The projection image size is not appropriate. Set the zooming magnification to low or

watch the image from farther away from the projection surface.

For details, see “Precautions for use” of “Using the 3D Glasses.” 13

Symptom Cause and Remedy Page

The fan is noisy. Check the setting of “High Altitude Mode” on the Setup menu. 26

Make sure that the room temperature is not too high. –

Check the installation requirements of the unit.

Fan speed increases to maintain the product reliability of the projector’s components in a

room where the temperature is higher than normal. The fan noise becomes slightly louder

in these rooms. The approximate normal temperature for the unit is 25°C (77°F).

–

The lens shift cannot be adjusted. The lens shift cannot be adjusted over the range of movement. Adjust the lens shift within

the range of movement.

8, 47

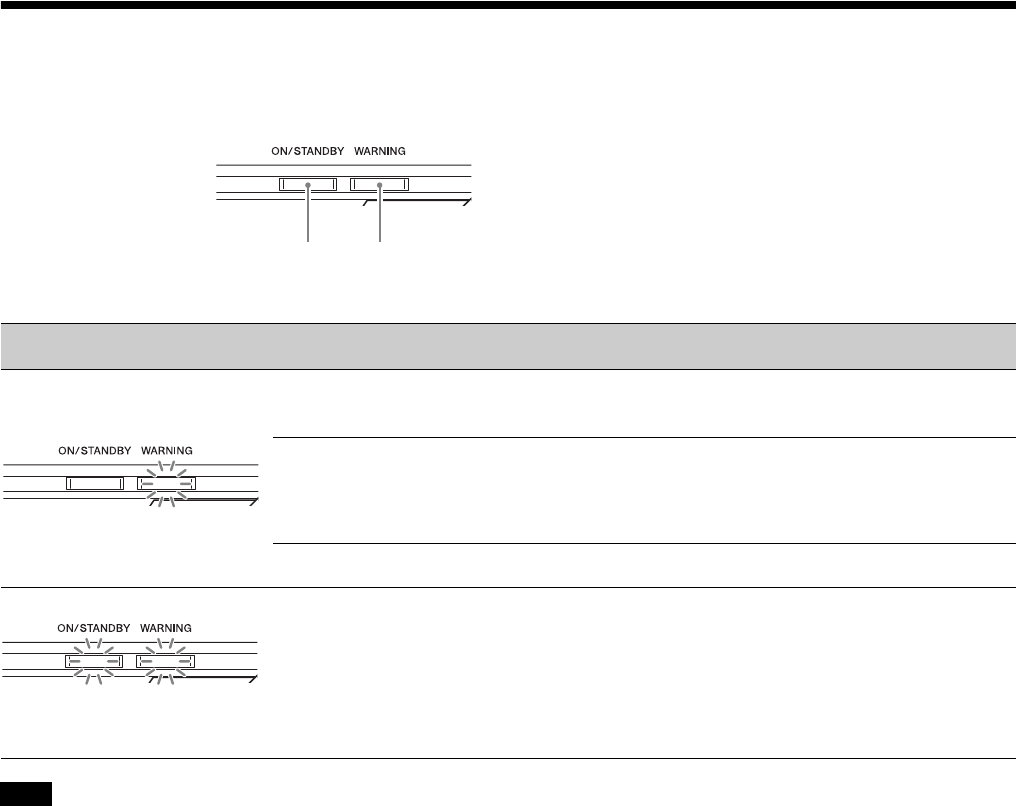

About Indicators

The ON/STANDBY or WARNING indicator lights up or flashes if there is any trouble with your projector.

If the indicator starts flashing in a way of other than the above, and the symptom persists even after carrying out the above methods, consult

with qualified Sony personnel.

Flashing/Lighting indicators The number of

flashes

Cause and Remedy

Three times The unit does not light properly due to an abnormality of the light source and light

source power. Turn off, then turn on the power after a while.

If the symptom persists, consult qualified Sony personnel.

Six times The unit detects a drop impact.

If there is abnormality on the unit, consult with qualified Sony personnel.

If there are no abnormalities on the unit, disconnect the AC power cord and check

that the ON/STANDBY indicator turns off, then connect the AC power cord and

turn the unit on.

Eight times The lens is not securely attached.

Twice The internal temperature is unusually high. Check to ensure that nothing is blocking

the ventilation holes and the unit is not being used at high altitudes.

Note

ON/STANDBY

indicator

WARNING

indicator

(Flashes in red)(Lights in red)

(Flashes in red) (Flashes in red)

Both indicators flash

Message Lists

Warning messages

Caution messages

Symptom Cause and Remedy Page

High temp.! Light off in 1 min. Turn off the power. –

Check to ensure that nothing is blocking the ventilation holes. 4

Frequency is out of range! Frequency is out of range. Input a signal that is within the acceptable frequency range of

the unit.

Projector temperature is high. High

Altitude Mode should be “On” if

Projector is being used at high

altitude.

Check to ensure that nothing is blocking the ventilation holes. 4

When using the unit at high altitude, set “High Altitude Mode” to “On.”

When temperature inside the unit remains high, “High Altitude Mode” is switched to “On”

in 1 minute, then the fan speed increases.

Power Saving Mode is set. Projector

will automatically enter Standby

Mode in 1 minute.

“Power Saving” is set to “Standby.”

If no signal is input, the power turns off after 1 minute, and the projector goes into standby

mode.

Symptom Cause and Remedy Page

No signal is input in the selected input. Check connections. 10

Not applicable! Press the appropriate button.

The operation to be activated by the button is currently prohibited.

–

Settings Lock enabled. “Settings Lock” is set to “Level A” or “Level B.” 29

Note

Updating the Software

You can download files to update the software of the unit.

Copy the downloaded files to your USB memory, insert the

USB memory to the USB terminal of the unit, then

perform the update.

To use the features updated, insert a USB memory device

into a PC connected to the internet.

Download the update files from the following Sony

website:

http://www.pro.sony.eu/

The website also explains how to install the update.

Some USB memories may not be supported for use. For

details, refer to the website above.

About HDR (high dynamic

range)

HDR is a video expression which improves the ability to

express dark places and bright places compared to

previous video expressions.

About DCI specification

DCI is a specification for Digital cinema projection

systems, established by the industry standards body DCI

(Digital Cinema Initiatives), an affiliation of six major

Hollywood studios.

About x.v.Color

• “x.v.Color” is a promotion name given to the products

that have the capability to realize a wide color space

based on the xvYCC specifications and is a trademark of

Sony Corporation.

• xvYCC is an international standard of the technical

specifications of the extended-gamut color space for

video signals. The color gamut of xvYCC is wider than

the one of sRGB that is used with the current television

system.

About the Simulated 3D

Feature

• Use the simulated 3D function taking into account that

the picture will provide a different look from the original

images, because this function converts the video images.

• Note that if the unit is used for profit or for public

viewing, displaying 2D video images as 3D video

images by converting to the simulated 3D may constitute

an infringement of the rights of authors or producers,

which are legally protected.

NOTICES AND LICENSES

FOR SOFTWARE USED IN

THIS PRODUCT

Refer to “Software License Information” supplied

separately.

Others

Note

Trademark Information

• “PlayStation” is a registered trademark of Sony

Computer Entertainment Inc.

• This unit incorporates High-Definition Multimedia

Interface (HDMI®) technology.

The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI Logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.

• “Blu-ray” and “Blu-ray Disc” are trademarks of

Blu-ray Disc Association.

.....................................................................................

This projector supports DeepColor, x.v.Color,

LipSync, computer input signal, 3D signal, 4K signal

(60P 4:4:4) and HDR of HDMI standards. It also

supports HDCP.

Specifications

* The 3D Glasses communicate with the projector via Bluetooth technology to display 3D signals.

• The values for mass and dimensions are approximate.

• Not all optional accessories are available in all countries and area. Please check with your local Sony Authorized Dealer.

• Information on accessories in this manual is current as of October 2016.

Design and specifications of this unit and its optional accessories are subject to change without notice.

Item Description

Display System Projection system

Display device Size of effective

display area

SXRD 0.74-inch (18.8 mm) × 3

Number of pixels 4096 × 2160 × 3 pixels

Projection lens Motorized Lens (VPLL-Z7013)

Throw Ratio 1.27:1 to 2.73:1

F2.9 to F3.9

Shift: ±80% (V), ±31% (H)

Projection image size 60-inch to 300-inch (1,524 mm to 7,620 mm)

Light source Laser diode

Accepted digital signals See “Preset Signals” (page 43).

Inputs/Outputs HDMI connectors

(HDCP 2.2)

× 2

REMOTE connector RS-232C, D-sub 9-pin

LAN connector RJ45, 10BASE-T/100BASE-TX

USB connector Type A, DC 5 V, Max. 500 mA

IR connectors IN: 1, OUT:1, mini jack

TRIGGER

connectors

× 2, mini jack, DC 12 V, Max. 100 mA

Outside dimensions (w/h/d) 550 mm × 228 mm × 750 mm (21 21/32 inches × 8 31/32 inches × 29 17/32 inches)

Mass Approx. 43 kg (95 lb) (including the lens)

Power requirements AC 220 V to 240 V, 6 A, 50/60 Hz (for Europe and China)

AC 100 V to 240 V, 12 A to 6 A, 50/60 Hz (for countries other than Europe and China)

Power consumption 1.2 kw (max.)

Standby mode power

consumption

0.5 W

Operating temperature (Operating humidity) 5°C to 40°C (41°F to 104°F) (20% to 80% (no condensation))

Storage temperature (Storage humidity) –10°C to +60°C (14°F to 140°F) (20% to 80% (no condensation))

Supplied accessories See “Checking the Supplied Accessories” on the Quick Reference Manual.

Optional accessories Active 3D Glasses: TDG-BT500A*

Projection Lens VPLL-Z7008: Motorized, Throw ratio: 0.80:1 to 1.02:1, Shift: ±50% (V),

±18% (H), F2.9, Projected image size: 60“ to 1000” (1,524 mm to 25,400 mm), Maximum

external dimensions: 134 mm × 134 mm × 309 mm (5 9/32 inches × 5 9/32 inches × 12 5/32

inches) (W × H × D), Mass: 3.7 kg (8.2 lb)

Notes

The following table shows the signals and video formats which you can project using this unit.

When a signal other than the preset signals shown below is input, the picture may not be displayed properly.

Preset Signals

Preset

memory

no.

Preset signal (resolution) fH (kHz) fV (Hz) Sync

5 480/60p 480/60p (Progressive NTSC) (720 × 480p) 31.470 60.000 –

6 576/50p 576/50p (Progressive PAL) (720 × 576p) 31.250 50.000 –

7 1080/60i 1035/60i (1920 × 1035i)

1080/60i (1920 × 1080i)

33.750 60.000 –

8 1080/50i 1080/50i (1920 × 1080i) 28.130 50.000 –

10 720/60p 720/60p (1280 × 720p) 45.000 60.000 –

11 720/50p 720/50p (1280 × 720p) 37.500 50.000 –

12 1080/60p 1080/60p (1920 × 1080p) 67.500 60.000 –

13 1080/50p 1080/50p (1920 × 1080p) 56.260 50.000 –

14 1080/24p 1080/24p (1920 × 1080p) 26.973 23.976 –

18 720/60p (Frame packing) 720/60p (1280 × 720/60p) 90.000 60.000 –

19 720/50p (Frame packing) 720/50p (1280 × 720/50p) 75.000 50.000 –

20 1080/24p (Frame packing) 1080/24p (1920 × 1080/24p) 53.946 23.976 –

26 640 × 480 VGA 31.469 59.940 H-Neg, V-Neg

32 800 × 600 SVGA 37.879 60.317 H-Pos, V-Pos

37 1024 × 768 XGA 48.363 60.004 H-Neg, V-Neg

45 1280 × 960 QVGA 60.000 60.000 H-Pos, V-Pos

47 1280 × 1024 SXGA 63.974 60.013 H-Pos, V-Pos

55 1280 × 768 WXGA 47.776 59.870 H-Neg, V-Pos

71 1080/60i (Frame packing) 1080/60i (1920 × 1080/60i) 67.500 60.000 –

72 1080/50i (Frame packing) 1080/50i (1920 × 1080/50i) 56.250 50.000 –

74 3840 × 2160/60p 3840 × 2160/60p (3840 × 2160) 133.293 59.988 –

75 3840 × 2160/50p 3840 × 2160/50p (3840 × 2160) 112.500 50.000 –

76 4096 × 2160/60p 4096 × 2160/60p (4096 × 2160) 133.264 59.975 –

77 4096 × 2160/50p 4096 × 2160/50p (4096 × 2160) 112.500 50.000 –

78 4096 × 2160/30p 4096 × 2160/30p (4096 × 2160) 67.500 30.000 –

79 4096 × 2160/25p 4096 × 2160/25p (4096 × 2160) 56.250 25.000 –

93 3840 × 2160/24p 3840 × 2160/24p (3840 × 2160) 53.946 23.976 –

94 3840 × 2160/25p 3840 × 2160/25p (3840 × 2160) 56.250 25.000 –

95 3840 × 2160/30p 3840 × 2160/30p (3840 × 2160) 67.433 29.970 –

The items in the menus available to adjust differ depending on the input signal. The following tables indicate them. The

items that cannot be adjusted/set are not displayed in the menu.

Screen menu

z: Can be adjusted/set

–: Cannot be adjusted/set

This unit accepts the following types of 3D signals.

96 4096 × 2160/24p 4096 × 2160/24p (4096 × 2160) 54.000 24.000 –

Input Signals and Adjustment/Setting Items

Item Preset memory number

5 to 8, 10 to 14, 18 to 20, 71, 72, 74 to 79, 93 to 96 26, 32, 37, 45, 47, 55

Aspect z–

Compatible 3D Signals

Resolution 3D signal format

720/60p, 720/50p Side-by-Side format

Over-Under format

Frame packing

1080/60i, 1080/50i Side-by-Side format

Frame packing

1080/24P Side-by-Side format

Over-Under format

Frame packing

1080/60p, 1080/50p Side-by-Side format

Over-Under format

Preset

memory

no.

Preset signal (resolution) fH (kHz) fV (Hz) Sync

Selectable items vary depending on the type of input signal or 3D format.

For details, see the tables below. Items that cannot be selected are not displayed in the menu.

*: Not displayed in the menu as fixed at Normal.

Each adjustable/setting item is individually stored according to the storage conditions in the following table. For further

details, see the tables below.

Aspect Mode

Acceptable signals 4096 × 2160 3840 × 2160 1920 × 1080 1280 × 720 720 × 480

720 × 576 Others

Preset memory number

(page 43) 76 to 79, 96 74, 75, 93 to 95 7, 8, 12 to 14 10, 11 5, 6 26, 32, 37, 45,

47, 55

1.85:1 Zoom – zzzz–

2.35:1 Zoom – zzzz–

Normal zzzzz

V Stretch zzzzz–

Squeeze zzzzz–

Stretch – – – – z–

Acceptable signals 1920 × 1080, 1280 × 720

3D format Side-by-Side Over-Under Frame packing Simulated 3D

Preset memory number

(page 43) 7, 8, 10 to 14 10 to 14 18 to 20, 71, 72 7, 8, 10 to 14

1.85:1 Zoom zzzz

2.35:1 Zoom zzzz

Normal zzzz

V Stretch zzzz

Squeeze zzzz

Stretch ––––

Storage Conditions of Adjustment/Setting Items

Picture menu

Screen menu

Item Storage conditions

Calib. Preset For each input connector and preset signal

Reset For each input connector and Calib. Preset

Reality Creation

Laser Light Setting

Contrast Enhancer

Motionflow

Contrast

Brightness

Color

Hue

Color Temp.

D93 - D55, Custom

Gain R For each Color Temp.

Gain G

Gain B

Bias R

Bias G

Bias B

Sharpness For each input connector and Calib. Preset

MPEG NR

Smooth Gradation

Film Mode

Gamma Correction

Color Correction

Clear White

x.v.Color

HDR

Color Space

BT.709 - Custom

Red For each Color Space

Green

Blue

Cyan - Red

Magenta - Green

Input Lag Reduction For each input connector and Calib. Preset

Item Storage conditions

Aspect For each Picture Position

Blanking

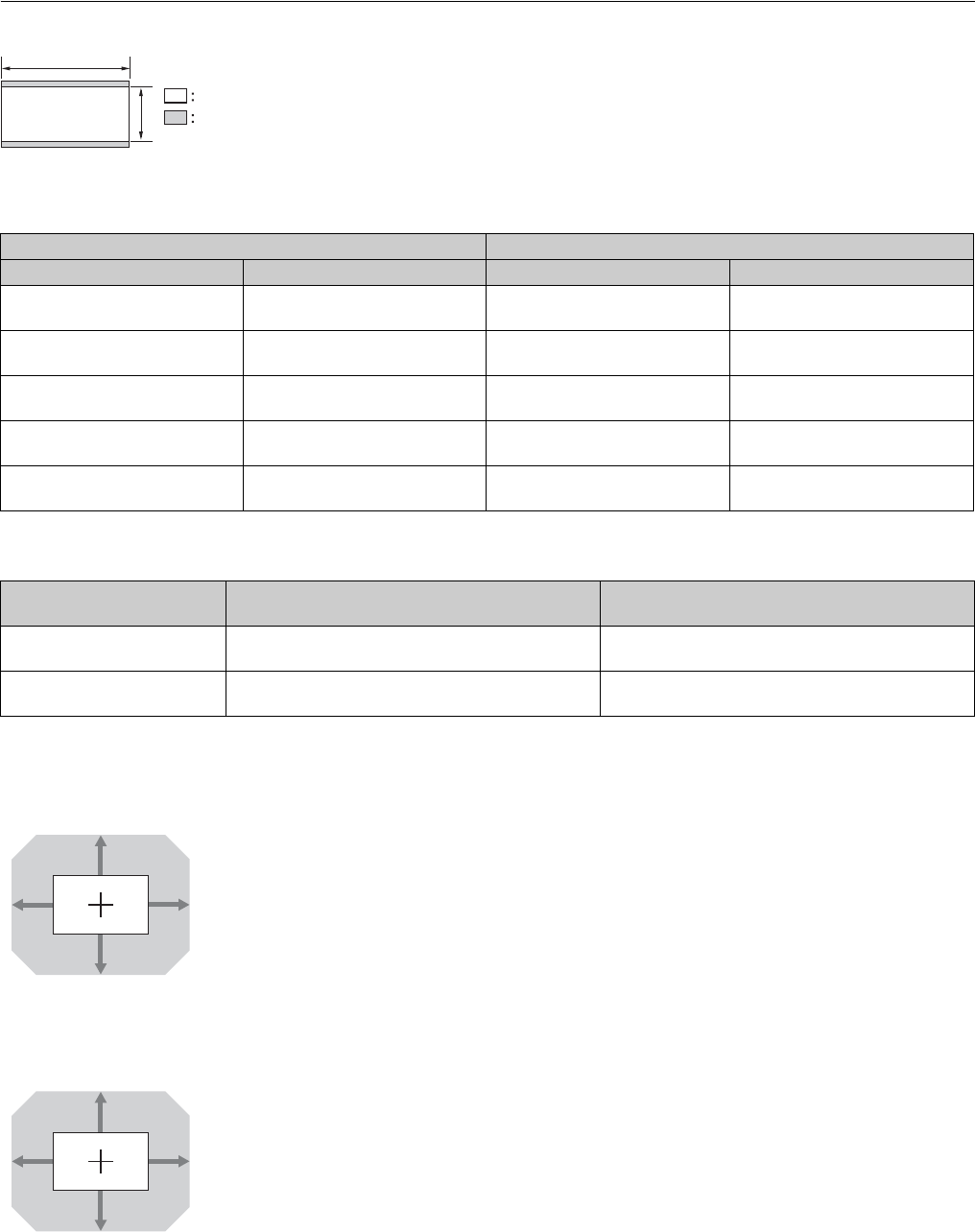

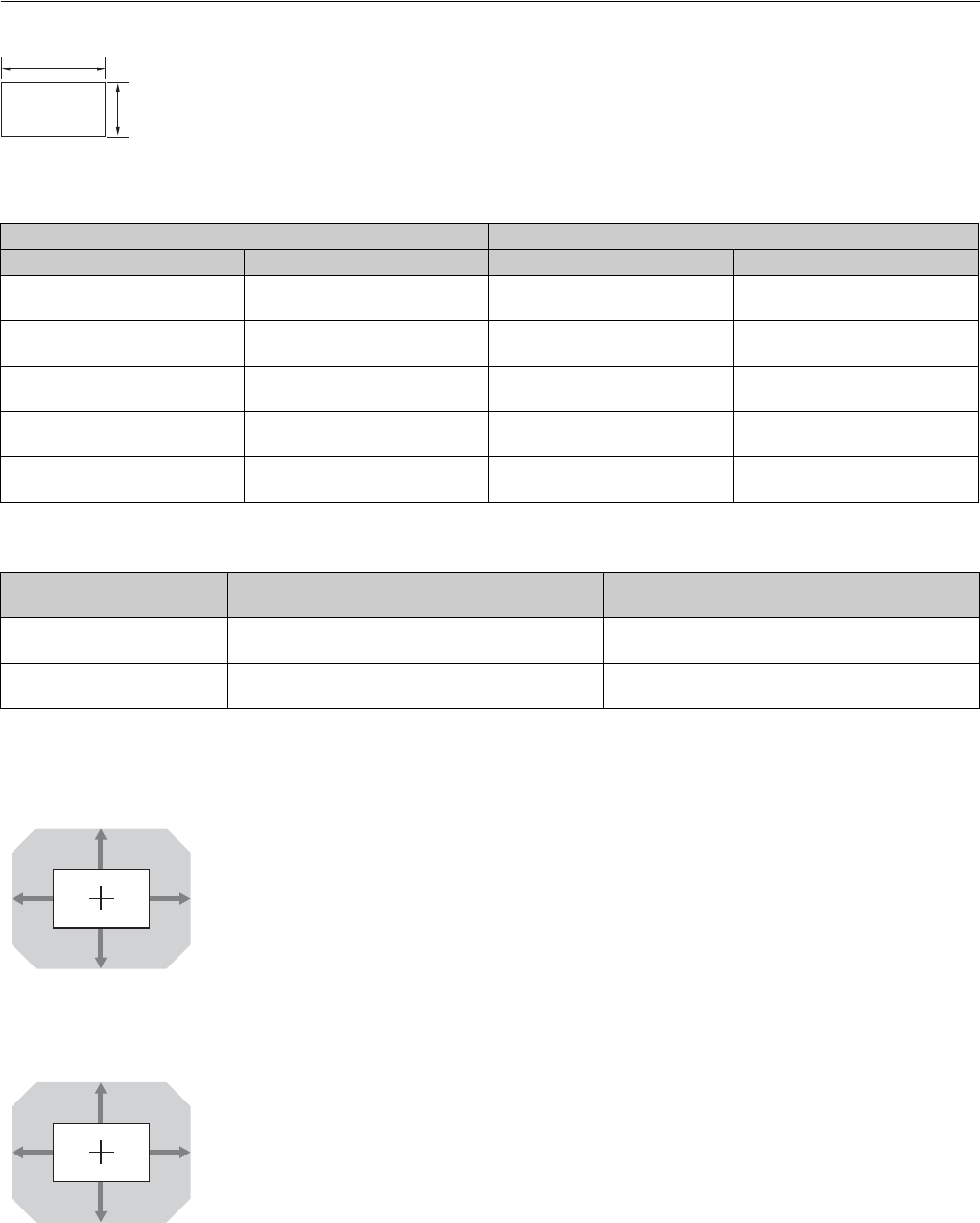

Projection Distance and

Lens Shift Range

The projection distance refers to the distance between the

front of the lens and the projected surface.

The lens shift range represents the distance in percent (%)

by which the lens can be shifted from the center of the

projected image. The lens shift range is regarded as 0%

when the point A in the illustration (point where a line

drawn from the center of the lens and the projected image

cross at right angles) is aligned with the center of the

projected image and full width or full height of the

projected image is regarded as 100%.

VS +:Vertical lens shift range (up) [%]

VS –:Vertical lens shift range (down) [%]

HS +:Horizontal lens shift range (right) [%]

HS –:Horizontal lens shift range (left) [%]

Projection distance L

Projected image Front of the lens

Lens shift range

Projected image

Center of the lens

50%

Center of the

projected image

Side of the unit

Lens shift range

ecte

mage

Center of the lens

50%

Center of the

projected image

Top of the unit

Center of the lens

Projected image

VS +

VS –

HS – HS +

Shaded region: Lens shift range

When projecting in 1.90:1 (Native Full Display 17:9) format

Projection distance

Unit: m (inches)

Projection distance formula

D: Projected image size (Diagonal) Unit: m (inches)

Lens shift range

VPLL-Z7008 (optional lens)

VPLL-Z7013 (standard lens)

Projection image size Projection distance L

Diagonal Width × Height VPLL-Z7008 VPLL-Z7013

80" (2.03 m) 1.80 × 0.95

(71 × 37)

1.43 – 1.82

(56 – 71)

2.23 – 4.90

(88 – 192)

100" (2.54 m) 2.25 × 1.18

(88 × 47)

1.80 – 2.29

(71 – 90)

2.81 – 6.14

(111 – 241)

120" (3.05 m) 2.70 × 1.42

(106 × 56)

2.17 – 2.76

(86 – 108)

3.39 – 7.38

(134 – 290)

150" (3.81 m) 3.37 × 1.78

(133 × 70)

2.74 – 3.47

(108 – 136)

4.25 – 9.25

(168 – 364)

200" (5.08 m) 4.49 × 2.37

(177 × 93)

3.67 – 4.65

(145 – 183)

5.70 – 12.36

(225 – 486)

Lens Projection distance L

(minimal length)

Projection distance L

(maximal length)

VPLL-Z7008 (optional lens) L = 0.018689 × D – 0.0733

(L = 0.735786 × D – 2.8875)

L = 0.023617 × D – 0.0664

(L = 0.929788 × D – 2.6152)

VPLL-Z7013 (standard lens) L = 0.028860 × D – 0.0800

(L = 1.136218 × D – 3.1491)

L = 0.062212 × D – 0.0756

(L = 2.449310 × D – 2.9775)

1.90

50%

18% 18% VS + = VS – = 50 – 2.778 × (HS + or HS –) [%]

HS + = HS – = 18 – 0.360 × (VS + or VS –) [%]

80%

31% 31% VS + = VS – = 80 – 2.581 × (HS + or HS –) [%]

HS + = HS – = 31 – 0.388 × (VS + or VS –) [%]

When projecting in 1.78:1 (16:9) format

Projection distance

Unit: m (inches)

Projection distance formula

D: Projected image size (Diagonal) Unit: m (inches)

Lens shift range

VPLL-Z7008 (optional lens)

VPLL-Z7013 (standard lens)

1.78

1Video display area

Projection area

Projection image size Projection distance L

Diagonal Width × Height VPLL-Z7008 VPLL-Z7013

80" (2.03 m) 1.77 × 1.00

(70 × 39)

1.50 – 1.91

(59 – 75)

2.35 – 5.15

(93 – 202)

100" (2.54 m) 2.21 × 1.25

(87 × 49)

1.90 – 2.41

(75 – 95)

2.96 – 6.46

(117 – 254)

120" (3.05 m) 2.66 × 1.49

(105 × 59)

2.29 – 2.91

(90 – 114)

3.56 – 7.77

(141 – 305)

150" (3.81 m) 3.32 × 1.87

(131 × 74)

2.88 – 3.65

(114 – 143)

4.47 – 9.73

(176 – 383)

200" (5.08 m) 4.43 × 2.49

(174 × 98)

3.86 – 4.89

(152 – 192)

5.99 – 13.00

(236 – 511)

Lens Projection distance L

(minimal length)

Projection distance L

(maximal length)

VPLL-Z7008 (optional lens) L = 0.019643 × D – 0.0733

(L = 0.773332 × D – 2.8875)

L = 0.024822 × D – 0.0664

(L = 0.977234 × D – 2.6152)

VPLL-Z7013 (standard lens) L = 0.030333 × D – 0.0800

(L = 1.194198 × D – 3.1491)

L = 0.065387 × D – 0.0756

(L = 2.574296 × D – 2.9775)

50%

19% 19% VS + = VS – = 50 – 2.632 × (HS + or HS –) [%]

HS + = HS – = 19 – 0.380 × (VS + or VS –) [%]

80%

33% 33% VS + = VS – = 80 – 2.424 × (HS + or HS –) [%]

HS + = HS – = 33 – 0.413 × (VS + or VS –) [%]

When projecting in 2.35:1 format

Projection distance

Unit: m (inches)

Projection distance formula

D: Projected image size (Diagonal) Unit: m (inches)

Lens shift range

VPLL-Z7008 (optional lens)

VPLL-Z7013 (standard lens)

Projection image size Projection distance L

Diagonal Width × Height VPLL-Z7008 VPLL-Z7013

80" (2.03 m) 1.87 × 0.80

(74 × 31)

1.49 – 1.89

(59 – 74)

2.33 – 5.10

(92 – 200)

100" (2.54 m) 2.34 × 0.99

(92 × 39)

1.88 – 2.39

(74 – 94)

2.93 – 6.39

(116 – 251)

120" (3.05 m) 2.80 × 1.19

(110 × 47)

2.26 – 2.88

(89 – 113)

3.53 – 7.69

(139 – 302)

150" (3.81 m) 3.51 × 1.49

(138 × 59)

2.85 – 3.61

(112 – 142)

4.43 – 9.63

(175 – 379)

200" (5.08 m) 4.67 × 1.99

(184 × 78)

3.82 – 4.84

(151 – 190)

5.93 – 12.86

(234 – 506)

Lens Projection distance L

(minimal length)

Projection distance L

(maximal length)

VPLL-Z7008 (optional lens) L = 0.019441 × D – 0.0733

(L = 0.765407 × D – 2.8875)

L = 0.024567 × D – 0.0664

(L = 0.967219 × D – 2.6152)

VPLL-Z7013 (standard lens) L = 0.030024 × D – 0.0800

(L = 1.182064 × D – 3.1491)

L = 0.064723 × D – 0.0756

(L = 2.548138 × D – 2.9775)

2.35

Video display area

Projection area

62%

18% 18% VS + = VS – = 62 – 3.444 × (HS + or HS –) [%]

HS + = HS – = 18 – 0.290 × (VS + or VS –) [%]

100%

31% 31% VS + = VS – = 100 – 3.226 × (HS + or HS –) [%]

HS + = HS – = 31 – 0.310 × (VS + or VS –) [%]

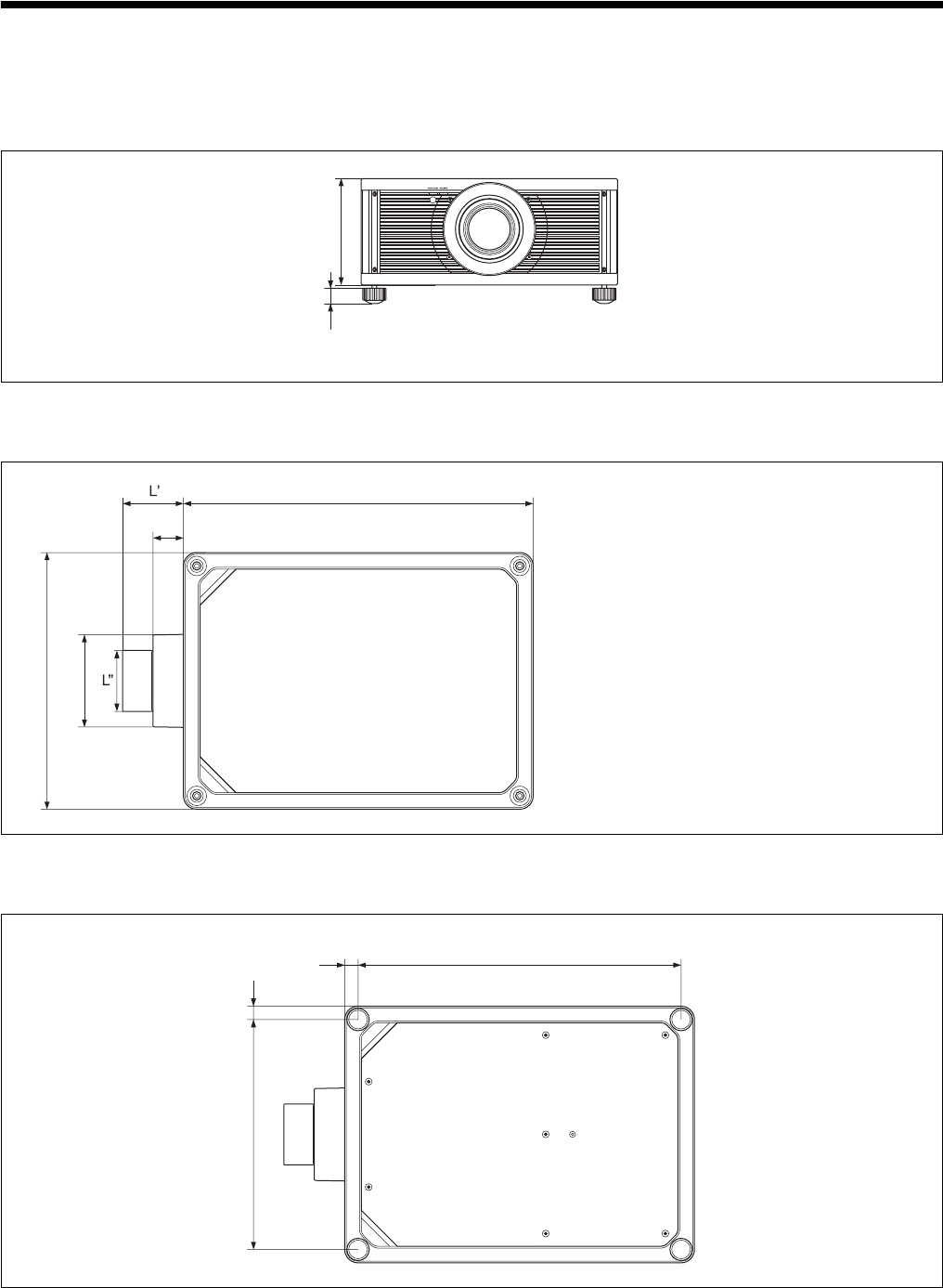

Dimensions

Front

Unit: mm (inches)

Top

Unit: mm (inches)

Bottom

Unit: mm (inches)

228 (8 31/32)

32 (1 1/4)

750 (29 17/32)

550 (21 21/32)

65 (2 9/16)

197 (7 3/4)

L’: The distance between the front of the lens (center) and

the front of the cabinet

VPLL-Z7008 (optional lens): 159.0 mm (6 1/4 inches) (Tele)

to 185.2 mm (7 9/32 inches) (Wide)

VPLL-Z7013 (standard lens): 130.2 mm (5 1/8 inches)

L’’: 131 (5 5/32) (VPLL-Z7013 (standard lens))

134 (5 9/32) (VPLL-Z7008 (optional lens))

692.7 (27 9/32)28.6 (1 1/8)

492.7 (19 13/32) 28.6 (1 1/8)

Index

Numerics

3D glasses

3D glasses communication range ...... 13

Using the 3D glasses ......................... 12

3D Settings

2D-3D Display Sel. (Select) .............. 28

3D Brightness .................................... 28

3D Depth Adjust ................................ 28

3D Format .......................................... 28

Simulated 3D Effect .......................... 28

3D video ................................................ 12

All Reset ................................................ 27

Anamorphic Lens .................................. 31

Aspect

1.85:1 Zoom ................................ 14, 25

2.35:1 Zoom ................................ 14, 25

Normal ......................................... 15, 25

Squeeze ........................................ 15, 25

Stretch .......................................... 15, 25

V Stretch ...................................... 15, 25

Auto Calibration .................................... 23

Blanking ................................................ 25

Brightness .............................................. 20

Calib. Preset

Bright Cinema ................................... 19

Bright TV ........................................... 19

Cinema Digital ................................... 19

Cinema Film 1 ................................... 19

Cinema Film 2 ................................... 19

Game .................................................. 19

Photo .................................................. 19

Reference ........................................... 19

TV ...................................................... 19

User .................................................... 19

Cinema Black Pro .................................. 20

Clear White ............................................ 21

Color ...................................................... 20

Color Correction .................................... 21

Color Space ........................................... 22

Color Temp. (Temperature) ................... 20

Compatible 3D signals .......................... 44

Connecting to Video equipment or a

computer ........................................ 10

Connectors ............................................... 3

Contrast ................................................. 20

Contrast Enhancer ................................. 20

Control panel ........................................... 3

DCI specification ................................... 41

Dimensions ............................................ 51

Dynamic Range ..................................... 28

Expert Setting ........................................ 21

Film Mode ..............................................21

Front/Right side ........................................3

Gamma Correction .................................21

HDMI Signal Format .............................29

HDR .......................................................22

High Altitude Mode ...............................26

Hue .........................................................20

Image Flip ..............................................31

Image Shift .............................................25

Input Lag Reduction ...............................22

Input signals and adjustable/setting items

........................................................44

Intake Air Temp. ....................................34

IR Receiver .............................................31

LAN connector .......................................35

Language ................................................26

Laser Light Setting .................................20

Lens adjustment window ..........................9

Lens Control ...........................................31

License Management .............................33

Light Timer ............................................34

Location of controls

Front .....................................................3

Rear/Bottom .........................................4

Advanced Picture ...............................23

Function ..............................................28

Information .........................................34

Installation ..........................................31

Operation ............................................17

Picture .................................................19

Screen .................................................24

Setup ...................................................26

Menu Position ........................................26

Messages

Caution ...............................................40

Warning ..............................................40

Motionflow .............................................20

MPEG NR (MPEG Noise Reduction) ....21

Network Features ...................................35

Network Management ............................26

Network Setting .....................................32

NR (Noise Reduction) ............................21

Panel Alignment .....................................32

Periodic LD Calibration .........................26

Picture Position

Picture Position ..................................24

Using the Picture Position ..................13

Picture position adjustment ......................6

Picture Viewing Mode ............................16

Power Saving .........................................27

Preset memory .......................................34

Preset mode

BRT CINE ..........................................16

BRT TV ..............................................16

CINEMA DIGITAL ...........................16

CINEMA FILM 1 ..............................16

CINEMA FILM 2 ..............................16

GAME ................................................16

PHOTO ...............................................16

REF ....................................................16

TV ......................................................16

USER .................................................16

Preset signals ..........................................43

Projecting the Picture .............................12

Projection distance .....................48, 49, 50

Projection distance and lens shift range

........................................................47

Reality Creation .....................................19

Remote control

Location of buttons ..............................5

Remote control detector ...........................4

Remote Start ...........................................26

Reset .......................................................19

Resetting the items .................................18

Settings Lock .........................................29

Sharpness ...............................................20

Signal type .............................................34

Simulated 3D feature .............................41

Smooth Gradation ..................................21

Software Version ....................................34

Specifications .........................................42

Status ......................................................26

Test Pattern .............................................29

Trigger Select .........................................31

Troubleshooting .....................................37

Turning off .............................................12

Turning on ................................................7

Updating the software ............................41

WARNING indicator .............................39

x.v.Color ...........................................22, 41

Sony Corporation

Sony VPL VW5000ES User Manual Operating Instructions 4584922041

Manual Manual_4584922041 Sony VPL-VW5000ES User Manual | Manual Device

here Manual_4584922041 Sony- 5 of 215 - Deai Manual Database

Navigation menu

Versions of this User Manual:

Views

Navigation
